Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive

with this product. Please refer to the back page of this manual to

IKELITE

SLR-DC Housing

Instruction Manual

6812.81 for the Nikon D810

Table of Contents

Specifications ..............................................................P. 3

Package Contents ........................................................P. 4

Preparation ..................................................................P. 4

Attach External “Tray with Handles” to Housing ............P. 4

Parts of the Housing - Front/Side View ..........................P. 5

Parts of the Housing - Back View ..................................P. 6

Initial Camera Setup........................................................P. 7

Opening the Housing ......................................................P. 7

Housing Conversion Circuitry..........................................P. 8

Setting the Conversion Circuitry Strobe ID Switch..........P. 8

Using the Conversion Circuitry........................................P. 9

Flash Mode and Compensation Dial ..............................P. 9

Using Non-Ikelite or Ikelite Non-DS Strobes ..................P. 9

DS50 and DS125 Strobe Compatibility ..........................P. 10

Attaching the Flash Connection for External Strobes ....P. 10

Attach Camera to Housing Tray......................................P. 11

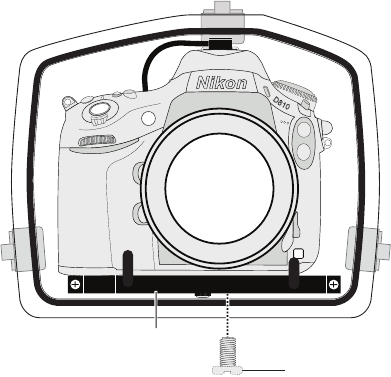

Installing Camera in Housing ..........................................P. 11

Closing the Housing ........................................................P. 12

Final Check ....................................................................P. 12

Attaching a Sync Cord to the Housing ............................P. 13

Turn Camera On..............................................................P. 13

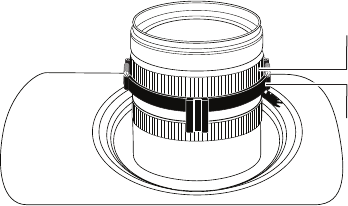

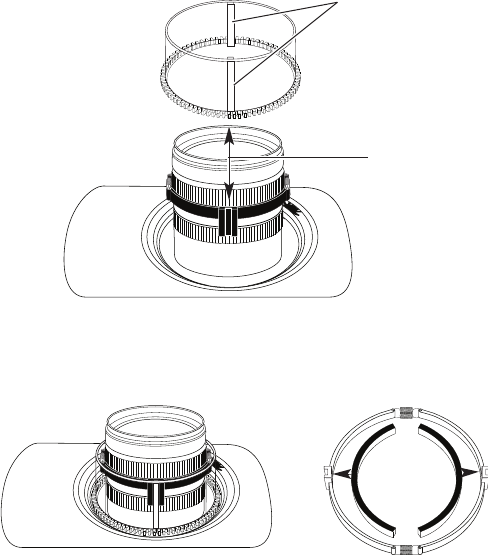

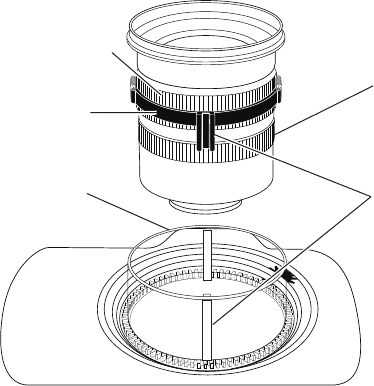

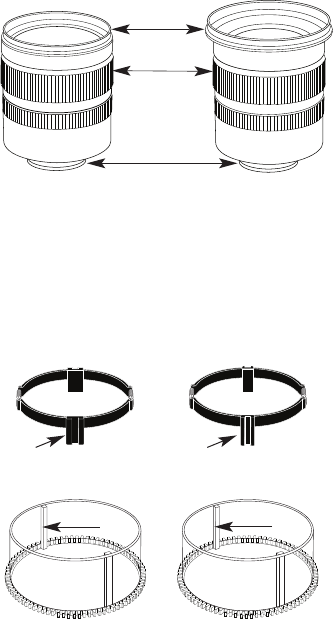

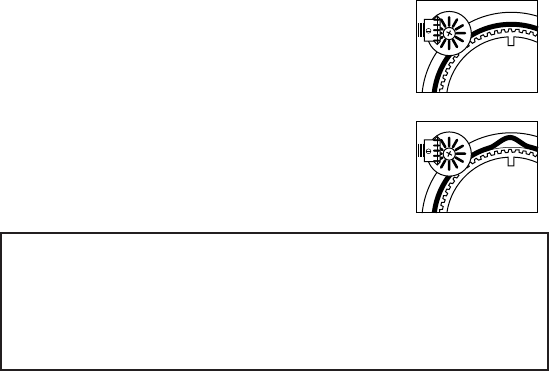

Zoom Clamp & Gear Sleeve Installation ........................P. 14

Manual Focusing ............................................................P. 18

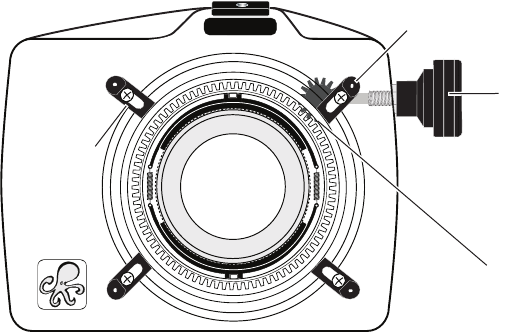

Installing the Port ............................................................P. 19

Lens Ports ......................................................................P. 20

Attaching an Ikelite Strobe Arm to the Housing Handle..P. 21

Table of Contents - continued

Usage ............................................................................P. 22

Pre-Dive Your System ....................................................P. 22

Lubricants ........................................................................P. 22

Troubleshooting ........................................................P. 23

Recommended Accessories ....................................P. 25

Accessory Mounting Points ............................................P. 25

EV-Controller Use............................................................P. 25

Maintenance..................................................................P. 26

Storing the Housing ........................................................P. 29

Spare Parts ..................................................................P. 29

Photo Tips ....................................................................P. 29

Customer Support........................................................P. 30

Limited Warranty ........................................................P. 31

Returning Products for Service ................................P. 31

Product Registration ..................................................Back Cover

Specifications

- Controls ............All important camera functions are accessible.

Controls are not provided for Flash Compensation (provided in the

conversion circuitry only), Diopter Adjustment Control, Eyepiece Shutter

Lever, Focus Selector Lock.

- Width ................10 in (250 mm) including controls

- Height ..............6.9 in (175 mm) including controls

- Depth ................6.5 in (165 mm) including controls

- Weight ..............5.4 lb (2.4 kg) without tray & handles

- Buoyancy ..........Slightly negative in freshwater

- Depth Rating ....200 ft (60 m)

- Tray Mounting ..12-24 thread with 3 in spacing (76 mm)

- SLR-DC Housing

- Bag containing tray

installation hardware,

maintenance kit, and extra

control end tips.

- Aluminum Tray & Dual Handles

Package Contents

- Silicone Lubricant

- 5509.27 Standard Zoom Clamp &

Sleeve Set

- 5509.28 Large Diameter Zoom

Clamp & Sleeve Set

This product has been water pressure tested at the factory and is depth

rated to 200 ft. (60 m). Thoroughly inspect and immerse the empty

housing completely in water before installing a camera. If any fogging

occurs or droplets of water enter the housing, do not install a camera.

Clean the housing main o-ring and retest to make sure that it is

watertight. Refer to the Troubleshooting section, page 23.

We suggest that you read this instruction booklet thoroughly before use

to have a full understanding of where each camera control is located,

and what function each control provides. Please read your camera

manual thoroughly to have a full understanding of each camera function.

If you are new to underwater photography, be sure to read the Photo

Tips section.

Due to the power required to operate the camera and LCD screen, start

each dive with a fully charged camera battery.

Preparation

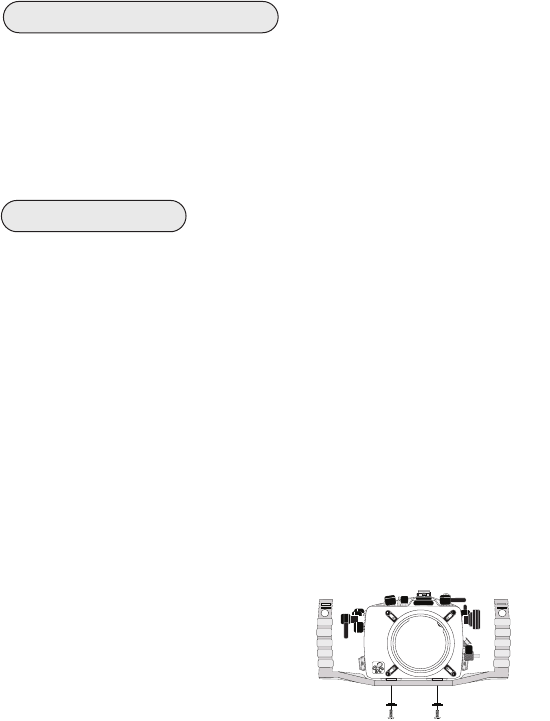

Attach External “Tray with Handles” to Housing

Use hardware and instructions

located in the clear Ikelite bag to

attach the “Tray with Handles” to

your Ikelite housing.

IKELITE

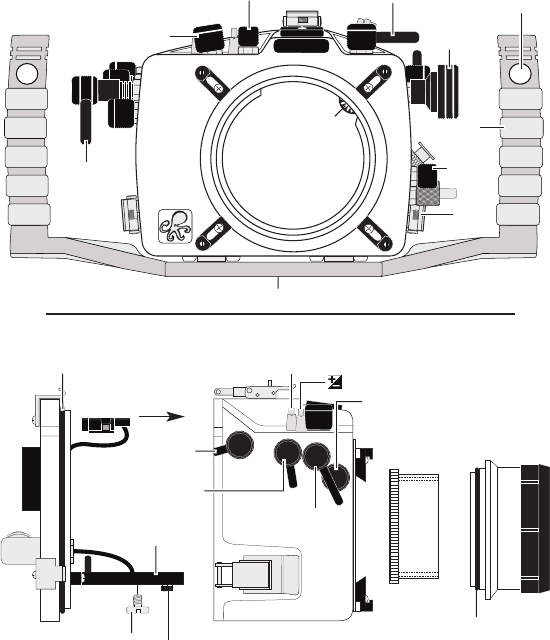

Parts of the Housing - Front View

Quick Release

Strobe Arm Mount

Handle

Port

Opening

Gear Sleeve

Drive Gear

Shutter

Release

Power Switch

Lid

Snap

Aluminum Tray

Fn Function / Pv Button

Lens

Release

Zoom

Camera Mounting Bolt

Side View

Tray Adjustment Screw (factory set)

Bracket

Gear

Sleeve

Optional

Port

Port O-ring

Camera Tray

Movie-record

AE- /AF-L

Lock

Sub-command

Dial

Lid

Snap

Shutter-release

Main Housing O-ring

Hotshoe (slide on

camera mount)

Mode Button

7 8

19 20 21

TTL

-1

-2

-3

MAN

24 25

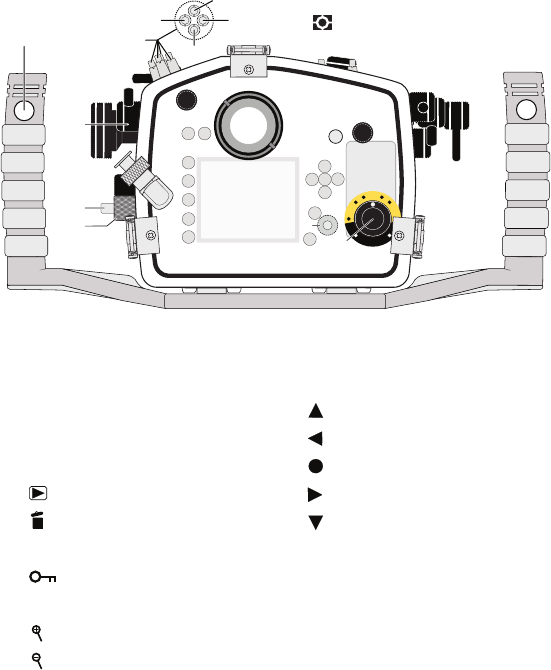

Back View

1. Quick Release Button

2. Top Push Button Cluster

3. Release Mode Dial Lock Release

4. AF-mode Button

5. Focus-mode selector

6. Release Mode Dial

7. Playback Button

8. Delete/format button

9. MENU Button

10. / ?Button

11. External Strobe Connector & Cap

12. Playback/Zoom in

13. Playback/Zoom out

14. OK Button

15. Super-eye Optical Viewfinder

16. AF-ON Button

17. Main command dial

18. Move Cursor Up

19. Cancel and return to previous

20. Select highlighted item

21. Display sub-menu

22. Move Cursor Down

23. i Button

24. Live View Selector

25. Live View Button

26. (info) Button

27. Flash Mode & Compensation Dial

ISO

METERING

QUAL

Opening the Housing

Lid Snaps have a Lock. To open, push Lid Snap

Lock forward and lift as shown. Keep pressure

on the Lid Snap so it does not fly open quickly.

Lid Snaps have a lot of spring tension once they

go over center, so have a firm grip on the Lid

Snap. Lid Snaps may be opened one at a time.

Lift

Push Forward Lid Snap

Lock

Initial Camera Setup (before placing camera in housing)

- Insert a fully charged battery.

- Insert a high capacity SD or Compact Flash memory card.

- Set the Shooting Mode to “A” Aperture or “M” manual for shutter speeds

faster than 1/60th second.

- Set Time Zone and Date.

- Set ISO sensitivity to “200” and Meter to “Center-weighted.”

- In “M” Manual, set shutter speed to 1/60th second or 1/125th second for

fast moving subjects. Maximum shutter speed of 1/250th second

recommended to allow full power flashes from strobes.

- Set aperture to F8 for general photography or F22 for close-ups.

- Set Image Quality to “JPEG fine.”

- Set Active D-Lighting, HDR, Auto Distortion, and Long Exposure to “Off.”

- Set Multiple exposure and Interval timer shooting to “Off.”

- Set Focus mode to “AF-S.”

- Set White Balance to “Auto1.” Use Preset Manual for best results and

reset for each working depth.

- In Custom Shooting menu bank A, set AF-assist illuminator to “Off.”

- Make sure Red-Eye Reduction is “Off.”

* These initial camera settings are a good starting point for shooting most

underwater photos. Adjustments may be needed based on the shooting

environment and lighting conditions . Camera functions not mentioned

should be set to the shooters preference.

On the housing back is a switch

for setting the DS Strobe ID. Set

the switch to the Model of DS

Strobe being used.

When using dual strobes of

different models such as a

DS51 and a DS161, set the ID

switch to DS51 or the smaller

strobe.

DS DS

125

160

161

ikelite

Set DS Substrobes

to TTL Mode

200

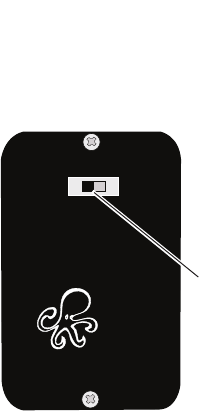

Setting the Conversion Circuitry Strobe ID Switch

Strobe ID

Switch

Housing Conversion Circuitry

This housing contains Ikelite designed and patented Conversion

Circuitry. Once attached, turn the strobe on first before turning on the

camera.

When used with Ikelite DS Strobes the Conversion Circuitry provides

real Nikon iTTL flash exposure with over and underexposure

compensation from +1 1/3 to - 1 1/3 f-stops in 1/3 stop increments.

The Conversion Circuitry also offers Manual exposure control with 3 1/2

f-stops of underexposure control in 1/2 stop increments.

The Conversion Circuitry is powered by the Ikelite DS Strobe when

connected to the housing with the 4103.51 single or 4103.52 dual sync

cord. When using two strobes with the dual sync cord, the primary

strobe connected to the cord without the red band, must be turned on to

power the Conversion Circuitry. Always keep both strobes connected to

your dual sync cord underwater. Do not exchange your secondary

strobe for a dust cap which may not be waterproof.

Using the Conversion Circuitry (Set DS Strobe to TTL mode)

-Mode and Compensation Dial (see illustration below)

Note that the TTL compensation values are located in the yellow band.

Manual compensation values are located in the black band. Rotate the

Dial to switch between TTL and Manual Modes.

-TTL Mode compensation values are indicated in the yellow band. Place

the Setting Indicator to TTL for NO Compensation. Rotate the Dial either

direction to select +/- compensation. Place the Setting Indicator to the

desired compensation value. Note that in TTL, compensation values are

in 1/3 f-stops.

-Manual Mode compensation values are indicated in the black band.

Rotate the Dial to place the Setting Indicator to the desired compensation

value. Note that in Manual Mode, compensation values are in 1/2 f-stops

from (F) full power to -3 f-stops.

Set DS Strobe to TTL mode. This will allow the strobe power to be

varied in manual mode.

Setting Indicator

DIAL

TTL Flash Scale (yellow = 1/3 stops)

Manual Flash Scale (black = 1/2 stops)

Flash Mode and Compensation Dial

Using Non-Ikelite or Ikelite Non-DS Strobes (Strobe 50,

100A, 200, 400) with this Housing

The Conversion Circuitry is automatically disabled when used with a

Non-Ikelite or Non-DS Strobe. These Strobes can be used in their manual

mode utilizing any power settings provided on the Strobe.

DS50 and DS125 Strobe Compatibility

- Older DS50 Strobes with Serial Number below 63,850 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS50 Strobes with Serial Number between 63,850 and 69,999

require upgrade of electronics to operate. Strobe must be returned to

Ikelite for evaluation to provide an estimate of upgrade cost.

- Older DS125 Strobes with Serial Number below 2,500 can NOT be

updated to operate correctly with the latest TTL conversion circuitry.

Older DS125 Strobes with Serial Number between 2,500 and 4,999

require upgrade of electronics to operate. Strobe must be returned to

Ikelite for evaluation to provide an estimate of upgrade cost.

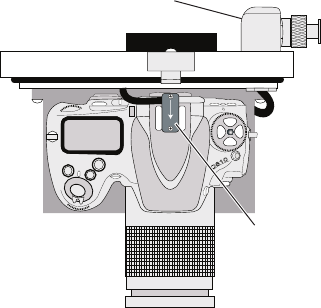

Attaching the Flash Connection for External Strobes

When using an external

strobe, connect the

housing hotshoe connector.

Slide the connector into the

hotshoe mount on the

camera from the back of

the camera as shown.

Slide the connector forward

until it stops. Due to limited

clearance between the

camera hotshoe mount and

the housing back, the

hotshoe connector should

be attached before the

camera is secured with the

mounting bolt. NOTE: The camera’s built-in flash is not accessible in the

housing.

Front

External Strobe Connector

and Waterproof Cap

Housing Back

Hotshoe

Connector

Installing Camera in Housing

Before installing the camera, pull out on the controls in the front section of

the housing. This will allow the camera to slide in easier. Once the camera

is installed and the lid snaps have been closed, return the controls to their

operating position.

Attaching Camera to Housing Tray

Remove the back from the housing. The mounting tray for the camera is

secured to the housing back. Position the camera and lens on the

camera tray, and then secure it with the mounting bolt which threads into

the camera’s tripod socket.

Use a flathead screwdriver (recommended) or coin to tighten the

mounting bolt so the camera bottom is flush against the tray.

Nikon

Mounting Bolt

Camera Tray

o-ring

housing back

housing

o-ring

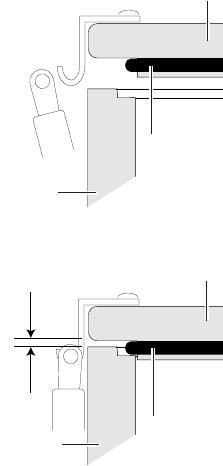

Final Check

Once the housing is closed, check the o-ring seal. Check the gap

between the housing back and the housing. It should be even all the

way around the housing.

Look through the clear plastic back at the o-ring. You should see a

darkened area where the o-ring is compressed against the housing

back. If you do not see an even black compression seal all the way

around the back, open the lid snaps, reseat the housing back and close

the lid snaps. Visually check the seal again.

Closing the Housing

1. Place housing face down in your lap.

2. Check to see that there is an o-ring on

the housing back that is clean and in its

proper location.

3. Guide the back onto the housing. The

o-ring should touch the housing all the

way around. There should

be an even gap all the way around

between the housing and the housing

back.

4. Lift the lid snaps so they are extended

and place the lid snap into the

corresponding hook on the housing

back.

5. To close the housing, push down on the

lid snaps until they snap into place. Lid

snaps on opposite sides of

the housing should be closed

at the same time. Be sure they

are down far enough to engage

the lid-snap lock.

even gap

all 4 sides

The Housing Bulkhead is designed to accept only an Ikelite 5-pin TTL

Sync Cord.

1. Lightly lubricate the Sync Cord O-ring. Use ONLY Ikelite lubricant

(supplied with housing).

2. Remove Bulkhead Cap from Housing Bulkhead.

3. Line up the Sync Cord Pins with the corresponding Bulkhead

receptacles. Gently insert Sync Cord into Bulkhead. DO NOT force this

installation. If the Sync Cord does not seat properly inside the Bulkhead,

the pins and receptacles are improperly aligned (repeat Step 3).

4. Tighten the Knurled Nut snugly using your Index finer and thumb. DO

NOT use pliers or other tools to tighten the Knurled Nut.

Always remove the

Sync Cord from your

Housing when not in use,

and replace the Bulkhead Cap.

Turn Camera On

Turn the camera on and operate each of the housing controls to get a

feel for using the camera in the housing. Take a few test shots on land

before entering the water.

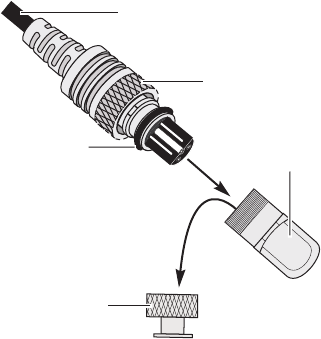

Attaching a Sync Cord to the Housing

Bulkhead Cap

Sync Cord

O-ring Housing

Bulkhead

Ikelite TTL

Sync Cord

Knurled Nut

Caution:

Do not remove the

waterproof Bulkhead

Cap unless an external

sync cord is going to

be plugged in. Do not

remove Bulkhead Cap

or Sync Cord

underwater.

Preparing to Install Zoom Clamp & Gear Sleeve

Determine the type

of lens being used

on the camera.

Type 1 Lenses have

a lens opening that

is NOT larger in

diameter than the

zoom ring. (Fig. 1).

Type 2 Lenses have a lens

opening that IS larger in diameter than the zoom ring. (Fig. 2).

Zoom Clamps & Gear Sleeves Included with Housing

There are 2 different

Zoom Clamps and

Gear Sleeves

provided with the

housing. Start with

the suggested Zoom

Clamp and Gear

Sleeve depending

on the Type of

lens being used.

See (Fig. A or B)

lens

opening

zoom

ring

bayonet

mount

Type 1 lens Type 2 lens

(Figure 1) (Figure 2)

Normally used with

Type 1 lens (Fig.1)

#9059.8 small diameter clamp:

For use with #0073 sleeve

#0073 sleeve: Use with

small diameter zoom clamp

#9059.8

Figure A

Normally used with

Type 2 lens (Fig.2)

#5509.28 Package

#9059.9 large diameter clamp:

For use with #0073.1 sleeve

#0073.1 sleeve: Use with

large diameter zoom clamp

#9059.9

Figure B

thick ribs thin ribs

wide

grooved

extension

tabs

narrow

grooved

extension

tabs

Installing the Zoom Clamp & Gear Sleeve on the Type 1 Lenses

The Zoom Clamp has springs so it can be expanded to fit over the

Zoom Ring of the lens - figure C, page 15.

Install the Zoom Clamp with the extension tabs toward the rear element

of the lens. After installing the Zoom Clamp and Gear Sleeve - figures D

& E, page 16, install the Lens Port and rotate the Zoom Ring on the

lens. If the Zoom Ring and Gear Sleeve do not mesh properly, install the

rubber strips (supplied) to the inside diameter of the Zoom Clamp as

shown in figure F, page 16.

Two thicknesses of rubber strips are provided. Start by installing the

thinnest rubber strips. If the Zoom Clamp still is not tight enough and

meshes improperly with the Gear Sleeve, use the thicker rubber strips.

Reinstall the Zoom Clamp, Sleeve. Mesh Gear Sleeve teeth with Black

Housing Drive Gear, figure G, page 18, and then install the Lens Port.

After installing the port, pages 19 & 20, rotate the housing Zoom Control

Knob to see that the Gear Sleeve is properly rotating the lens Zoom Ring.

Figure C

Type 1 lens mounted to camera

Zoom Clamp

Lens Zoom Ring

Figure D

Figure E

Align Ribs with

Zoom Clamp

grooved tabs

apply

rubber strips

to inside of

clamp

Figure F

Type 1 Lenses - continued

Gear Sleeve Ribs

TOP OF HOUSING

Installing the Zoom Clamp & Gear Sleeve on Type 2 Lenses

Due to the larger diameter lens opening on Type 2 lenses, the Zoom

Clamp and Gear Sleeve need to be installed from the rear (bayonet end)

of the lens. Use the housing Lens Release Control and remove the

camera lens from the camera body, after the camera and lens have

been installed in the housing.

Place the Gear Sleeve in the housing opening as shown.

Install the black Zoom Clamp on the Lens Zoom Ring and lower the lens

into the housing opening. Make sure the Zoom Clamp grooved tabs

align with the Gear Sleeve ribs. If necessary, install rubber strips to

expand the Zoom Clamp so it meshes properly with the Gear Sleeve.

Bayonet lens into camera body and align Gear Sleeve teeth with Black

Housing Gear Teeth.

Zoom Clamp

Type 2 lens

Lens Zoom Ring

Align

Zoom Clamp

grooved

tabs with

Gear Sleeve

Ribs

Gear Sleeve

Lens Manual

Focus Ring

Manual Focusing

Ikelite DSLR housings are designed for auto-focus DSLR cameras and

lenses. Manual focusing is not recommended. In some cases, if you

desire to manually focus a lens, the zoom clamp must be moved onto

the lens Manual Focus Ring and you must use the housing Zoom

Control K nob to manually focus. This will result in loss of zoom

capability.

Installing Zoom Clamp/Sleeve on Type 2 Lenses - continued

Before installing the lens port and checking operation, make sure the

teeth on the Gear Sleeve mesh with the teeth on the housing Drive Gear,

shown below. When the port is installed, pages 19 & 20, it will lock the

Gear Sleeve in place. After installing the port, rotate the housing Zoom

Control Knob to see that the Gear Sleeve is properly rotating the Lens

Zoom ring.

IKELITE

Mesh

Gear Sleeve

teeth with

Black

Housing

Drive Gear

Figure G

Port Lock

Release

Button

Port Lock

Zoom

Control

Knob

Installing the Port

There are four port locks on the

front of the housing, see figure

G, page 18. Each port lock has

a Release Button. Lift the

release button and slide each

Port Lock away from the port

opening. In the unlocked

position, the Release Button will

remain in the up position as

shown.

To prepare the port for

installation, remove the port o-ring and lightly lubricate it. The port seal

is a side-to-side seal and requires the o-ring to be lightly lubricated for

easy installation. Put a small amount of lubricant on your fingers and pull

the o-ring through your fingers to lightly lubricate it. Do not stretch the

o-ring. Check that the lip of the port where the o-ring fits and the sealing

surface on the housing are clean. Place the port, with o-ring, into the

housing port opening. Press down on the port firmly and evenly until you

feel the port slide into place. Continue to push down on the port and

push each port lock forward until the lock fully engages. It may help to

slightly rotate the port as you push in on the port lock. Visually inspect

each port lock and confirm that the Port Lock Release Button is seated

flush against the Port Lock Body. Do not rely on an audible "click" to

indicate that the lock is engaged.

Check around the perimeter of the port seal to see that the o-ring is

properly sealed and not extruded, figure 2, page 20.

It is NOT necessary to tighten housing port locks after installing a port.

Port locks are factory adjusted. Slight port movement is normal after port

locks have been closed and port has been secured to the housing.

Port Lock

Release

Button

Lift Release

Button to

Unlock

Pull Back to

Disengage

Port

Locked Position

Installing the Port - continued

To Remove Port

To remove the port, lift up on each Release Button and slide the port

lock away from the port.

Port Seal Inside View

If the port is installed before the camera is

inserted into the housing, look from the

inside of the housing at the port seal.

Check to see that the o-ring is properly

seated as shown in figure 1 and not

extruded as shown in figure 2.

Fig. 1

Fig. 2

Caution:

After installing the lens and port, turn the Zoom Control knob on the

housing. If the Zoom Control is difficult to turn, the gear sleeve may be

warped. If necessary, reduce or omit any rubber installed on the Zoom

Clamp, figure F, page 16. If the Zoom Clamp is still warped, use of the

5509.28 package may be required, see page 14.

Lens Ports

A lens port must be secured to the housing before entering the water.

Ikelite DSLR housings DO NOT come with a lens port. You must select

the correct port for each lens you will be using underwater. To assure

water-tightness, submerge the housing with port attached into a bathtub

or shallow water without the camera installed. This will confirm correct

installation of the port to the housing. For complete lens port information

and compatibility with your Ikelite system, go to www.ikelite.com.

Attaching an Ikelite Strobe Arm to the Housing Handle

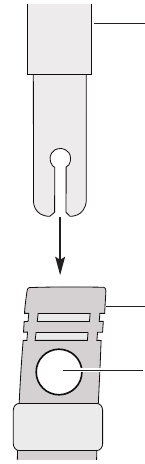

To attach an Ikelite Arm to your Housing Handle, depress the

spring-loaded Handle Push Button until it stops. Gently slide the

pronged end of the Ikelite Arm into the hole in the top of the Handle as

shown.

When the Ikelite Arm is properly seated, the Handle Push Button will

return to it’s starting position.

Ikelite Arm

Handle Push

Button

Housing Handle

Pre-Dive Your System

It is recommended that you take the complete system into a swimming

pool before use in open water. This will give you a chance to become

familiar with the handling and operation of your housing and strobe(s).

As soon as you enter the water, take a moment and check the housing

to see that it is properly sealed. Next, check to see if there are any

bubbles on the face of the port. If there are, take your fingers and

remove them. If there are bubbles on the lens port they can produce soft

focus spots in your photographs.

If a pool is not available, you can check the system for watertightness

without the camera installed, in a bathtub.

Lubricants

- Ikelite provides silicone lubricant with the housing. We recommend that

you use only Ikelite lubricant. Other brands may cause the o-ring to

swell and not seal properly.

- Use only enough Ikelite lubricant to lightly cover control shafts and

o-rings. Wipe off any excess lubricant with a clean cloth. Lubricant is not

a sealant and is used to reduce friction. Excessive lubricant can collect

sand and dirt which may interfere with proper sealing.

Note: Lubricant is not needed on the main housing o-ring to maintain a

housing seal, however, lightly lubricating this o-ring can extend it’s life

and aid in seeing a good housing seal. Too much lube can attract debris

increasing the potential for a leak.

CAUTION: Never use spray lubricants as the propellant ingredient

can cause the plastic housing to crack. Use ONLY Ikelite lubricant.

Usage

Troubleshooting

Push buttons or

controls are sticky

and hard to operate

- Remove the camera and rinse the closed housing

in fresh water. Vigorously press each push button

in and out several times to release any trapped

saltwater or debris.

- Press a sticky push button all the way in and

place a small amount of lube on the small end of

the push button shaft at it’s base. Release and

operate the push button several times to distribute

the lube.

- If a control is sticky, grab the control knob, pull it

out, and then push back in. If still sticky, see the

Control Maintenance section - pages 26 & 27.

- Return housing to Ikelite for routine maintenance.

Problem Solution

Image is over- or

under-exposed

- Check that the strobe(s) are firing when taking

a picture.

- When using an external strobe, make sure it is

turned on, set properly, and it’s battery is charged.

- Check any corded connection points.

- Adjust camera shutter speed, aperture, or

exposure compensation.

- Move closer to or further away from the subject.

Water enters the

housing

- Remove, clean and properly lubricate the main

housing and port o-rings.

- Look for hairs, dirt, or foreign debris crossing the

o-ring seal.

- Reassemble the housing without a camera

installed and pressure test or take diving.

- Return housing to Ikelite for routine maintenance.

Camera does not

take a picture or

focus properly

- Install a fully charged battery.

- A housing control is engaging a camera function

and will not allow the shutter to fire.

- There is not enough available light for the camera

to properly focus. Add a focusing light or strobe

with a built-in focusing light to your system.

- Select a center focus point in your camera menu.

- Add a +4 diopter (close-up filter) to the lens.

Problem Solution

Fogging occurs on

the Lens Port

- Humid air is trapped inside the housing.

The camera produces heat and may condense

any trapped moisture forming fog on the lens port.

Close the housing in an air-conditioned room or

vehicle, or in front of an air-conditioner.

- The housing should not be in direct sunlight for an

extended period of time.

- Purchase desiccant packs from a local camera

store and place one or two packs in your housing

before each day of diving.

- If moisture or water droplets are present around

the controls or sealing areas, return the housing to

Ikelite for evaluation.

- Clean the main housing o-ring, port o-ring, and

sealing surfaces of the housing.

- Make sure the camera is mounted properly on the

camera tray and housing controls are out of the

way .

Housing is hard to

Pictures are too blue

or too green

- Use custom (manual) white balance if available.

- Add an external strobe.

- Move in closer to your subject.

A full range of accessories are available to support your housing. Please

visit www.ikelite.com to see the most current information about recom-

mended accessories for your housing.

EV-Controller Use

TTL flash control is not available when using an EV-Controller, and

therefore an EV-Controller is not recommended for use with this

housing.

Note: The EV-Controller cannot be used as a slave. If hardwired to the

housing, set the EV-Controller to Non pre-flash.

The EV-Controller used with Ikelite DS strobes has two user settings.

One setting is for strobe selection, the other is for pre-flash “P” or

non pre-flash “ P .” Most cameras use a pre-flash. This means the

EV-Controller should be set to the pre-flash “P” position when used with

this camera as a slave. If a manual mode is used that does not emit a

pre-flash, set the EV-controller to the non pre-flash “ P ” position.

Recommended Accessories

Accessory Mounting Points

The top of the SLR-DC housing features a 1/4-20 threaded mounting

point for the attachment of a focus light, video light or other lightweight

accessories. DO NOT attach heavy items to this mount and always use

the correct length screw to attach a component.

The bottom of the SLR-DC housing tray also features five

1/4-20 threaded mounting points for attachment of a tripod or other

accessories.

Control Maintenance

Ikelite controls are designed to provide years of reliable service with

minimal maintenance.

- Push button controls require no maintenance other than rinsing in fresh

water after saltwater use. If a push button control becomes difficult to

push or if it sticks when depressed, soak the housing in luke warm fresh

water. After a few minutes, operate the push button. If this does not

correct the problem, return the housing to Ikelite for maintenance.

- Some of the controls have long shafts. These controls can be pulled out,

exposing the shaft, diagram B, page 27.

To lubricate the control, gently pull on the knob until the stainless steel

shaft is exposed. Lightly lubricate the shaft, then move the shaft in and

out several times. This will lubricate the x-ring in the Ikelite control gland.

This should be done before using the housing after a prolonged storage

period, or once a week when the housing is in constant use.

- Some of the controls have a short shaft and cannot be pulled out

exposing the shaft for lubrication. In the unlikely event one of these

controls sticks or becomes difficult to operate you can remove the

control from the housing and lubricate it, or return the housing to Ikelite

for maintenance. To remove the control, diagram A, page 27, loosen the

set screw in the knob (allen wrench required); remove the knob. If there

is salt or dirt build-up on the exposed control shaft, clean the shaft.

Open the housing and gently slide the control shaft out of the control

gland. Clean and lightly lubricate the shaft, including the end of the

shaft. Slide the shaft back into the control gland and gently slide it back

and forth a few times without fully removing the shaft from the gland.

Replace the knob noting the flat area on the shaft. The set screw in the

knob should tighten down against the flat area on the control, so the

knob does not turn on the shaft.

Maintenance

Housing

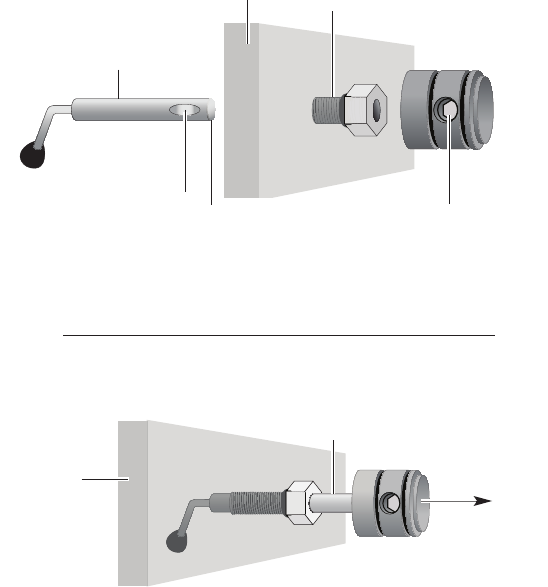

Lubricate shaft

Pull out knob to

expose shaft

Diagram B

Loosen set screw

(allen wrench required)

Tighten set screw down

against this flat area

when replacing the knob.

Housing Gland

Control Shaft

Lubricate end of shaft

before reinserting into

gland

Diagram A

Control Maintenance - continued

Housing Maintenance

Your Ikelite Housing should be given the same care and attention as

your other photographic equipment. In addition to normal maintenance,

we recommend your housing be returned to Ikelite (every 2-3 years or

50 dives), to be checked and pressure tested.

-Do Not leave the camera and housing in direct sunlight for prolonged

periods. Heat may damage the camera.

-Do Not ship the camera in the housing.

- Before using the housing, always check the tightness of the set screw

in each control knob.

Check each control gland penetrating the housing to make sure they

are tight. There is a slight chance that either could vibrate loose during

travel.

- Keep the back and port o-ring clean and lightly lubricated. To lubricate,

remove the o-ring from the back. Put a small amount of lkelite lubricant

on your fingers. Pull the o-ring through your fingers to apply a light

coating of lubricant. Only apply enough lubricant to make the o-ring feel

slick. Do Not stretch the o-ring. This light coating of lubricant will help

to keep the o-ring from drying out and will help to show a dark sealing

line when the housing back is properly sealed.

- Keep the area where the o-ring fits and the sealing surface clean.

- Rinse the housing exterior thoroughly in freshwater after each saltwater

use. Depress push buttons several times during rinse. Dry with a soft

cloth. Dry port to eliminate water spotting.

After several uses in saltwater, soak the housing in a mild soap solution,

rinse, and dry.

- Although not recommended, if it is necessary to remove a housing push

button, Do Not re-use the E-clip. Contact Ikelite for replacement E-clips

(part #0319.12).

CAUTION: Never use spray lubricants as the propellant ingredient can

cause the plastic housing to crack. Use only Ikelite lubricant.

0132.61 Spare Main Housing O-ring

0105 Spare Port-to-Housing O-ring

5020 Silicone Lubricant in 4 1cc Tubes

5512.69 O-ring Kit with Main O-ring, Port O-ring, & 1cc Lubricant

0333.6 Tray Mounting Screw 12-24 x 1/2 in. Stainless

0212.12 1/4 in. Shoulder Washer for 12-24 Screw

9104.5 Waterproof Bulkhead Cap

0200.91 Body Cap

Photo Tips

- The number one rule in underwater photography is to eliminate as much

water between the camera and subject as possible. Get as close as you

can to the subject, then use the zoom. If you are using flash for still

photos, subjects beyond 6 feet (1.8 m) will not have much color

regardless of strobe power.

- Photograph in clear water; do not stir up the sand or silty bottom. If

backscatter becomes a problem in the environment you are

photographing, an external flash will help eliminate much of the

backscatter.

Spare Parts

Storing the Housing

When the housing is going to be stored for a prolonged period it should

be soaked in a non-abrasive mild soap solution such as dish soap,

rinsed, and then thoroughly dried. Remove the back and port from the

housing. Remove the back and port o-rings, lightly lubricate them, and

then place them in a plastic ziploc or resealable plastic bag. Place the

plastic bag inside the housing for storage. Operate the push buttons

periodically.

- Many digital cameras have a slight lag time between when you press

the shutter release button and the camera actually takes the picture.

Hold the housing steady a second or two after pressing the shutter

release button.

- Do not shoot down on subjects as they will quite often blend into the

background and be difficult to see in the photograph. Shoot subjects

straight on or shoot up at a slight angle using the blue water as a

contrasting background.

- When using daylight or flash, if your camera consistently over or

underexposes the image, you may want to adjust your camera’s

exposure compensation settings.

- If you error in exposure, it is better to have the image slightly

underexposed rather than overexposed. An overexposed image is

missing color information which cannot be adjusted in a photo

processing program. A slightly underexposed image has color

information that can be adjusted.

- It is important to respect all living creatures underwater, including

people, marine life, and coral. While we encourage people to get close

to their subjects when taking a photograph, they should not touch, lie on,

or in any way disturb the things they find underwater.

Customer Support

Please read the troubleshooting section of this instruction manual before

contacting Ikelite Technical Support.

Photo Tips - continued

Ikelite Underwater Systems

Service Department

50 West 33rd St.

Indianapolis, IN 46208 USA

Email: ikelite@ikelite.com

Phone: 317-923-4523

Returning Products for Service (outside the United States)

For the separate international customs documentation form that you

complete to accompany the shipment, please state or designate that the

enclosed products were originally manufactured in the USA and are

being returned to the manufacturer for repair service. Value of the

equipment listed for customs purposes should be zero.

Ikelite is most interested in performing any service to ensure that all

products perform as intended. Evidence of purchase date must be

provided to obtain warranty service.

No prior authorization is required. You may return directly to us or

through your dealer. Please include a brief description of the problem,

any relevant email correspondence, and/or instructions on what you

want us to do. Always include name, shipping address, email address,

and phone number inside of the package. Send postage paid to:

Ikelite Underwater Systems

Attention: Service Department

50 West 33 Street

Indianapolis, IN 46208 USA

No reimbursements for postage paid will be issued.

You may also want to insure the package.

Returning Products For Service

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Limited Warranty

6812.81_Nikon_D810_01-0814

Ikelite Underwater Systems

50 West 33rd Street

Indianapolis, IN 46208 USA

www.ikelite.com

Product Registration

Please go to www.ikelite.com to register your Ikelite housing within 15

days of purchase.

Ikelite Product Instruction Manual 6812.81 Nikon D810 Instructions

Navigation menu

Versions of this User Manual:

Views

Navigation
