Section 3:
Friction Belt Drives
SECTION : 3
Fenner friction belt drives have set the standard for
over 150 years and will continue to do so with the
recent addition to the range with the Fenner Ultra
PLUS 150 high strength wedge belt.
FRICTION BELT DRIVES
Friction Belt Drives: Design Data Required
Type of prime mover, or driving machine
Electric motor starting arrangement
Rotational speed of prime mover
Power rating of prime mover
Type of driven machine
Rotational speed of driven machine
Power absorbed by driven machine
Hours/day duty & start/stop frequency
Both driven & driver machine shaft diameters
Centre distance & space restraints: > fixed centres?
> adjustment?
Any environmental issues:
> ambient temperature
> water, oil mist, solvents etc.
Visit www.fptgroup.com
for the Drive Design Assistant
State-of-the-art design and manufacture
reflected in optimised power ratings, for compact
size, economy efficiency and extended life
PB (Precision Built) construction allows 'one-shot
tensioning' for fit and forget applications.
Fullest range of international standard belt
lengths and pulleys available.
All belts have superior anti-static, heat and oil
resistant properties
Friction Belt Drives Page
Classic PB V Belts 35
Ultra PLUS & Ultra PLUS 150 Wedge Belts 36
CRE PLUS & Quattro PLUS PB Wedge Belts 37
Wedge Belt Drive Selection 38
Centre Distances Wedge Belt Drives 40
Power Ratings Ultra PLUS 150 wedge Belts 52
Power Ratings Quattro PLUS wedge Belts 54
Power Ratings CRE Wedge Belts 56
Power Ratings, SPZ, SPB, SPA, SPC 58
Additional Power Ratings 60

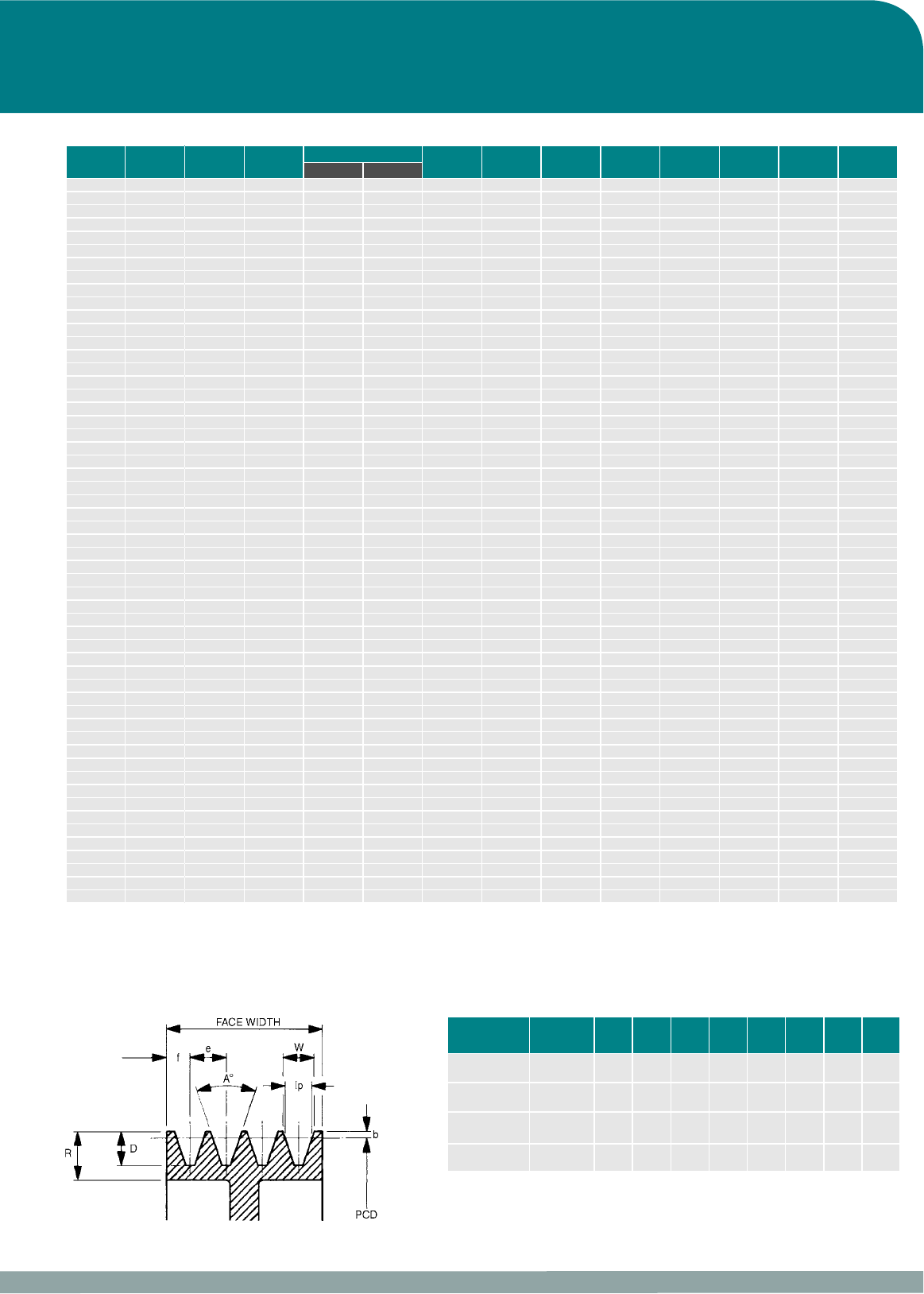

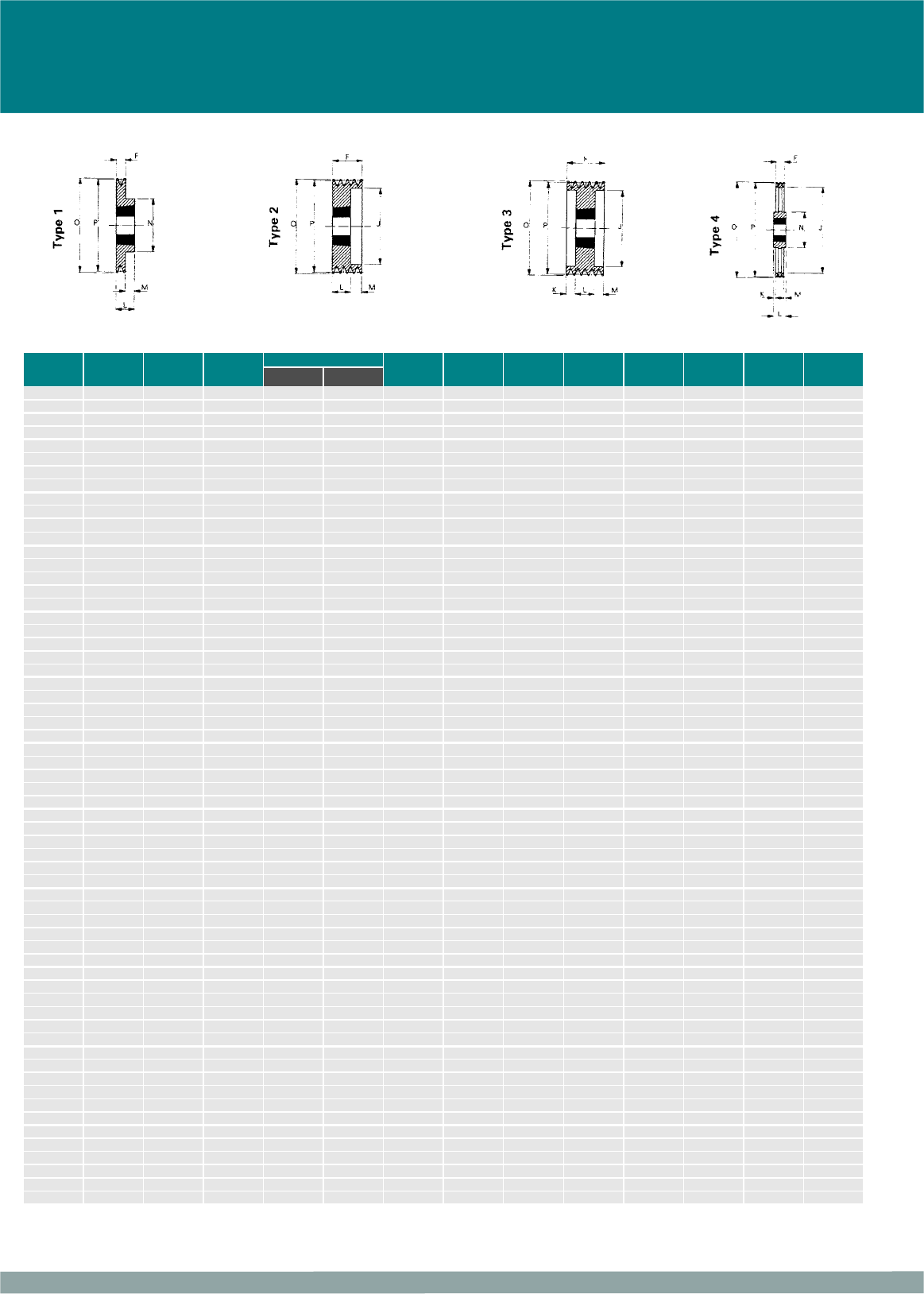

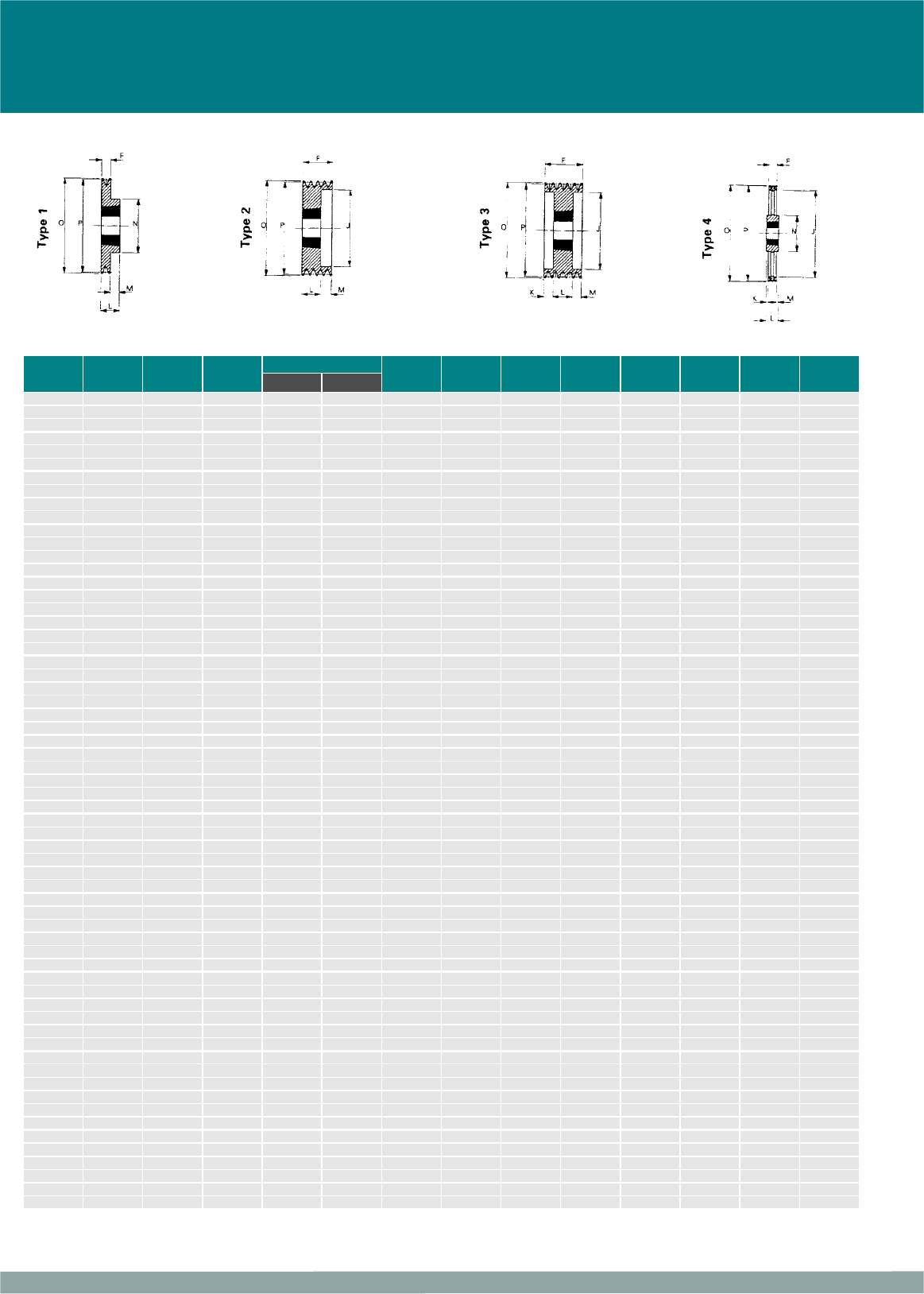

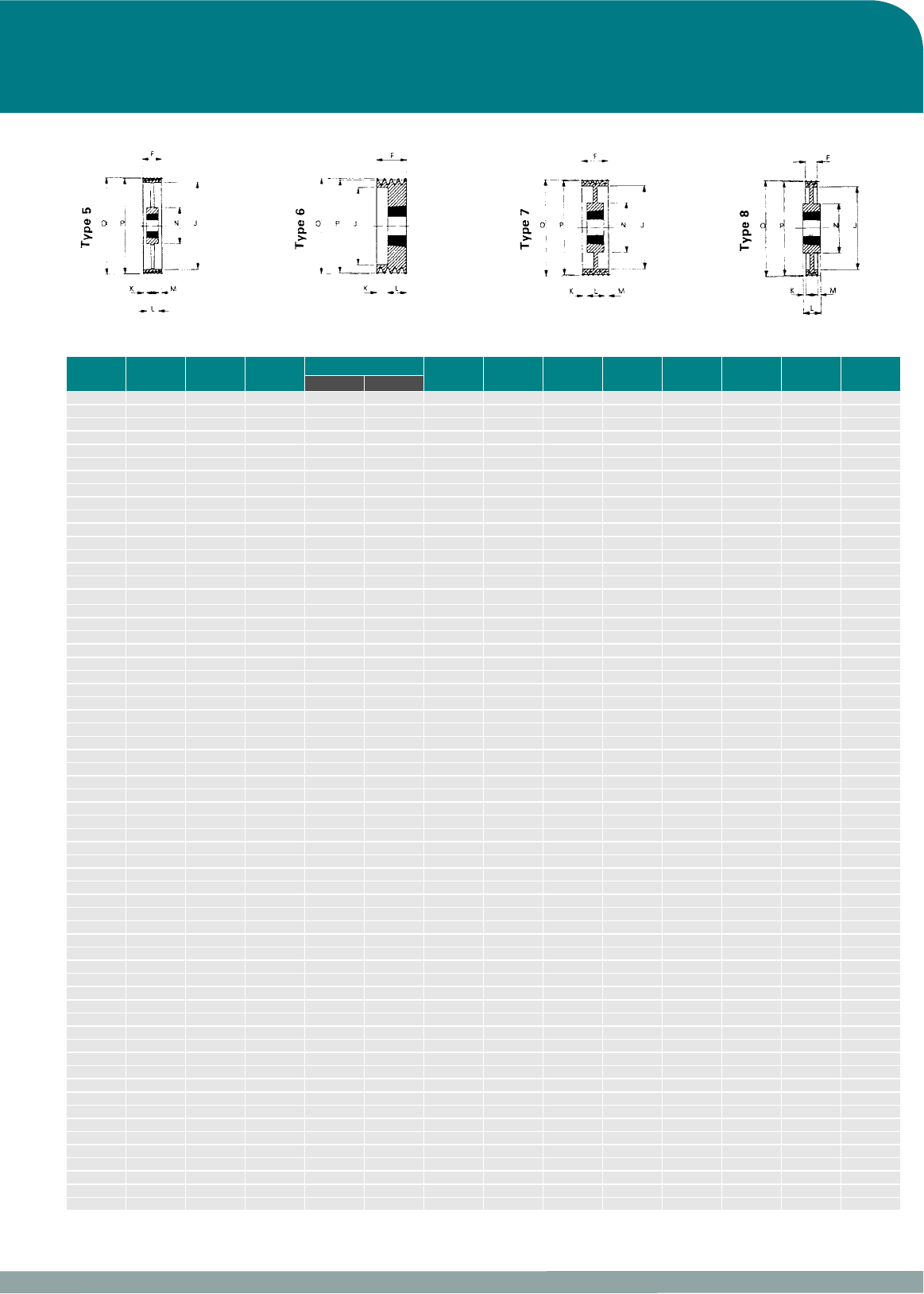

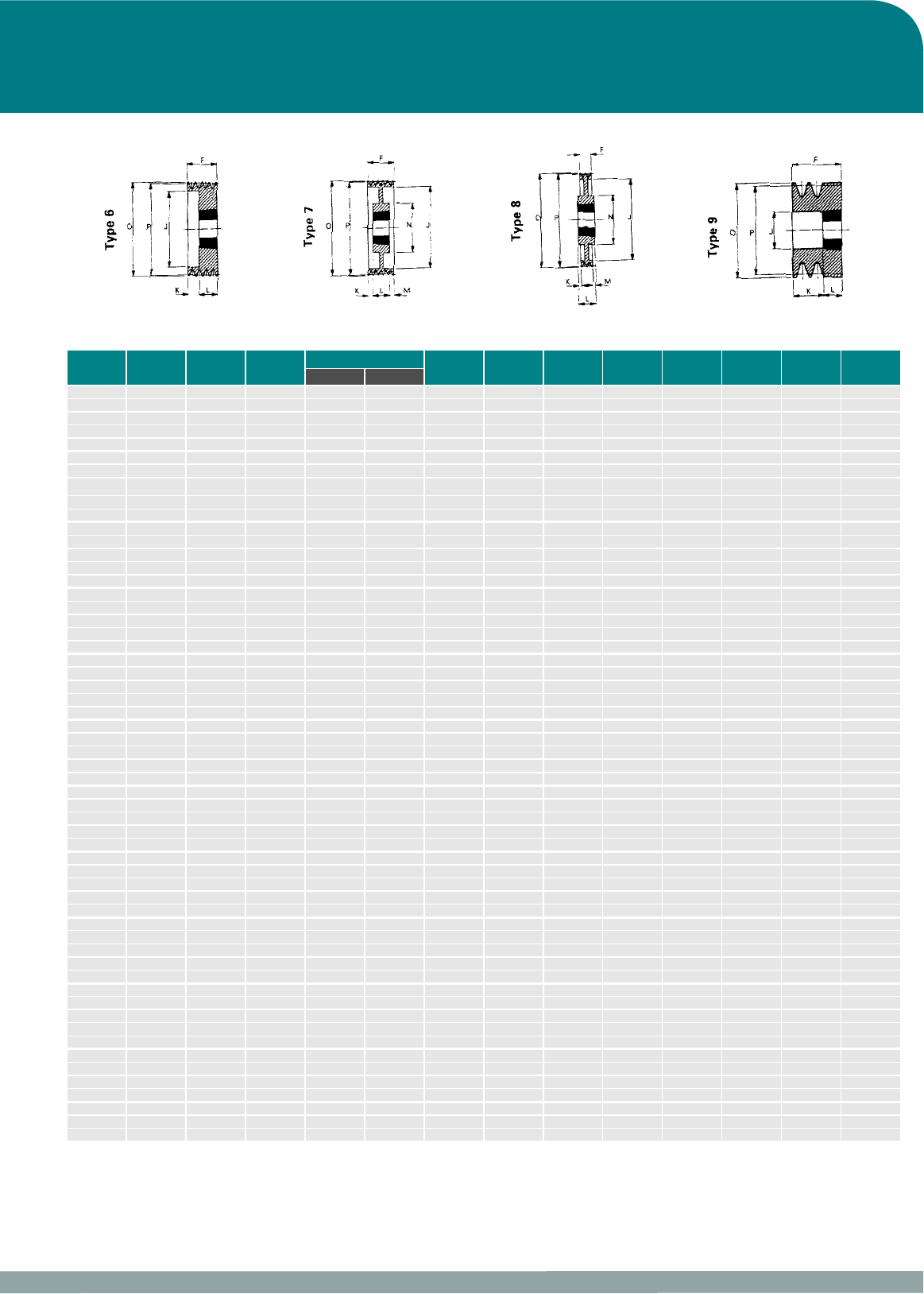

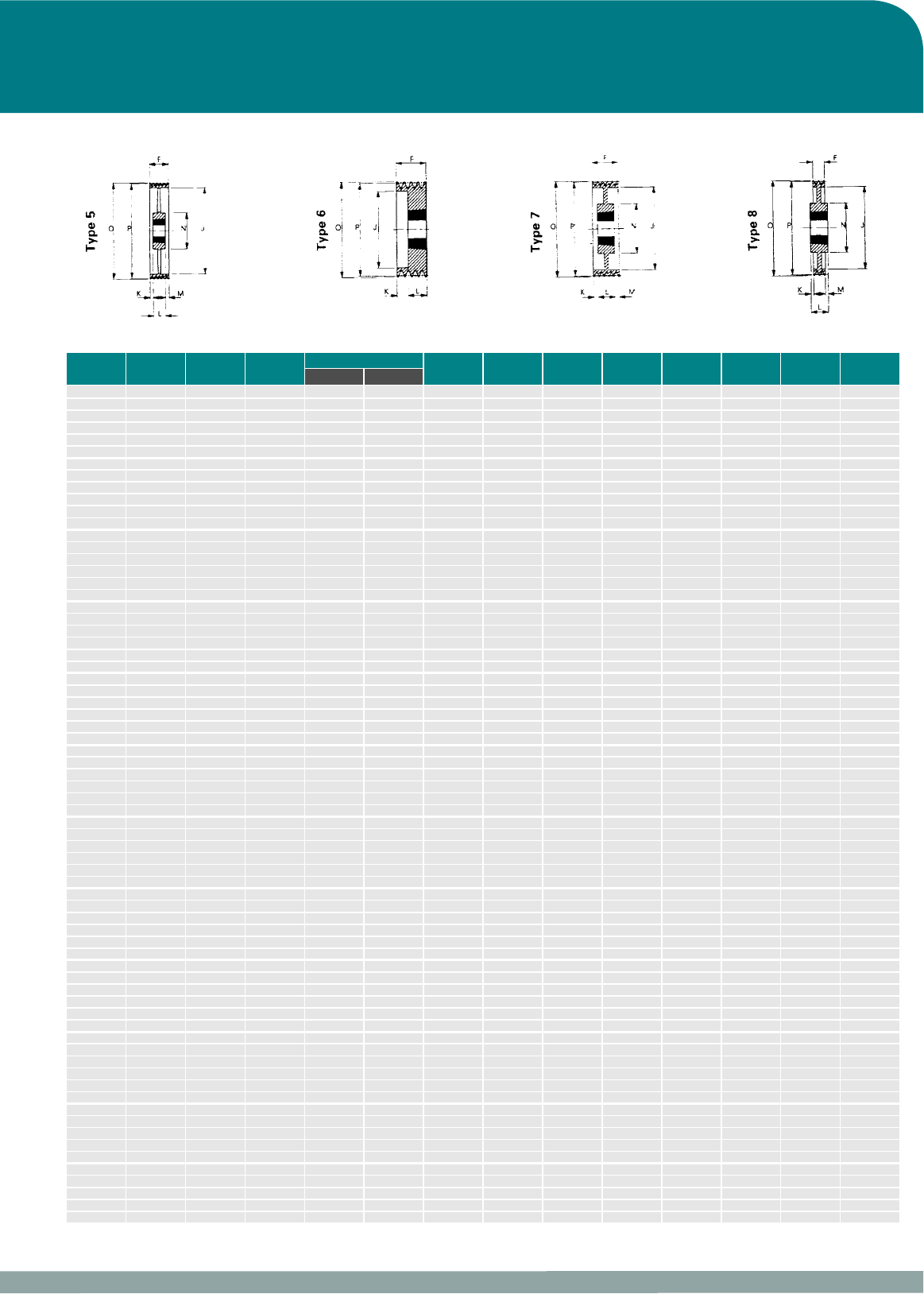

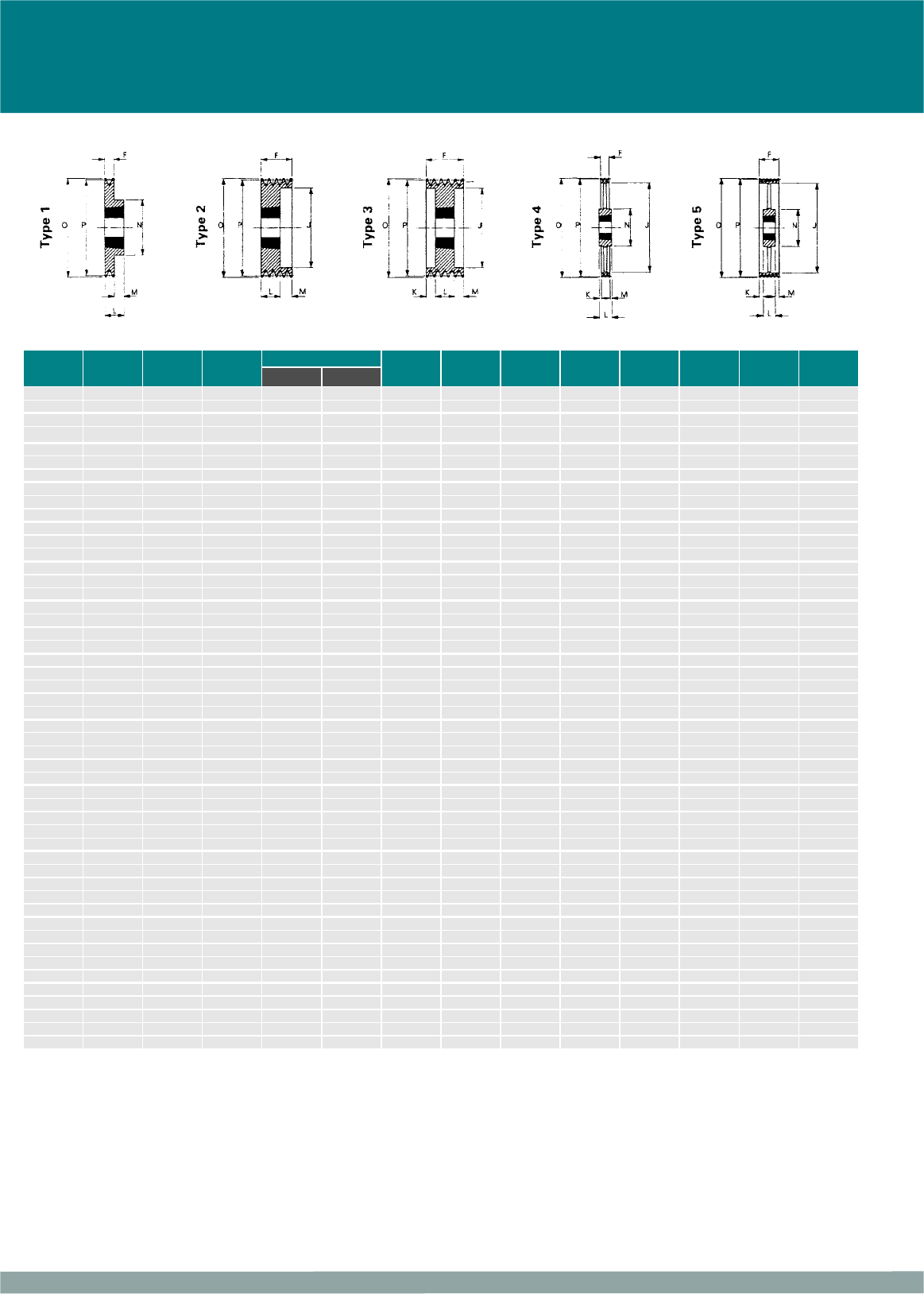

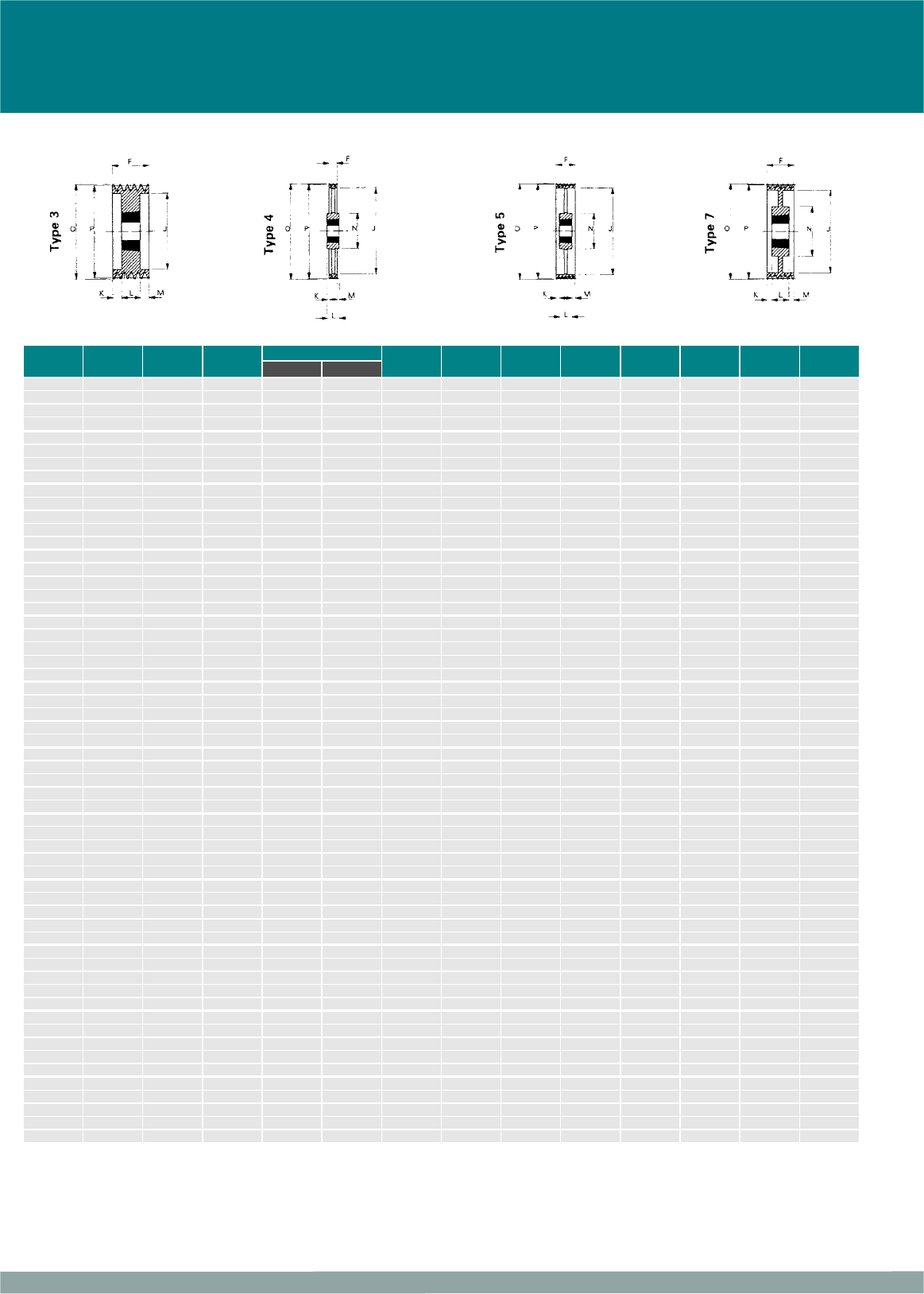

Taper Lock Pulleys 62

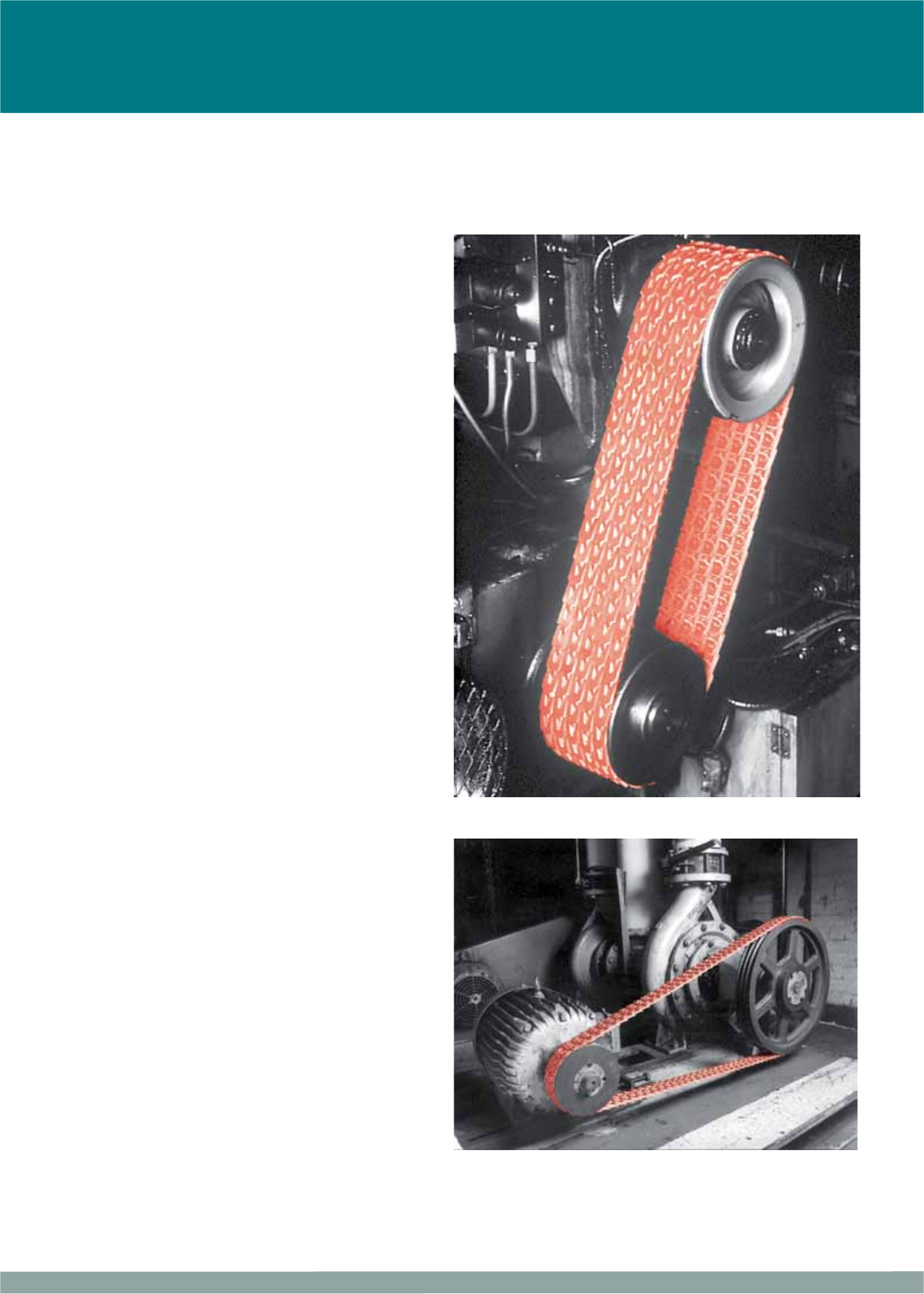

PowerTwist® PLUS 72

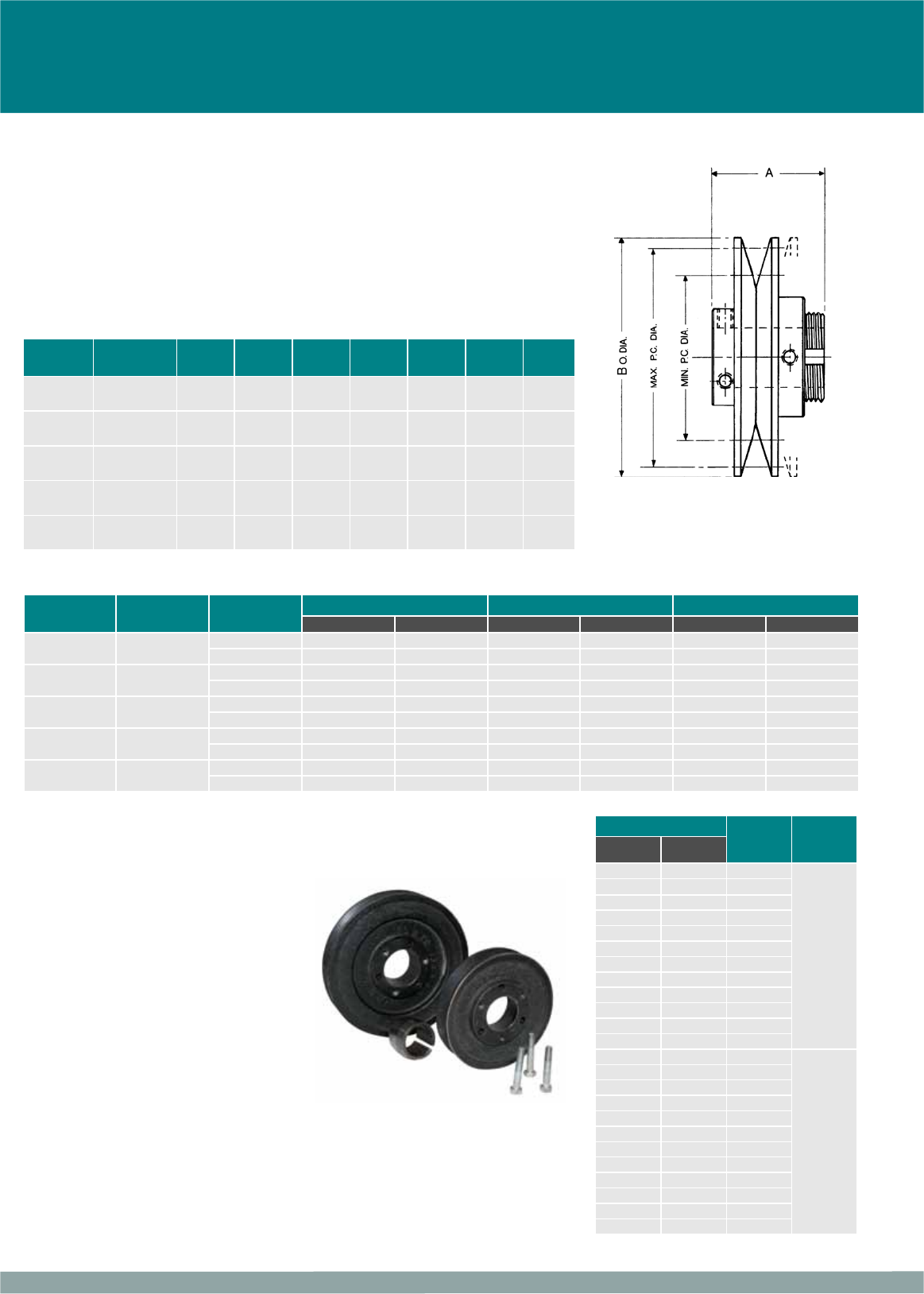

Adjustable Pitch Pulleys & Bi-Loc Pulleys 74

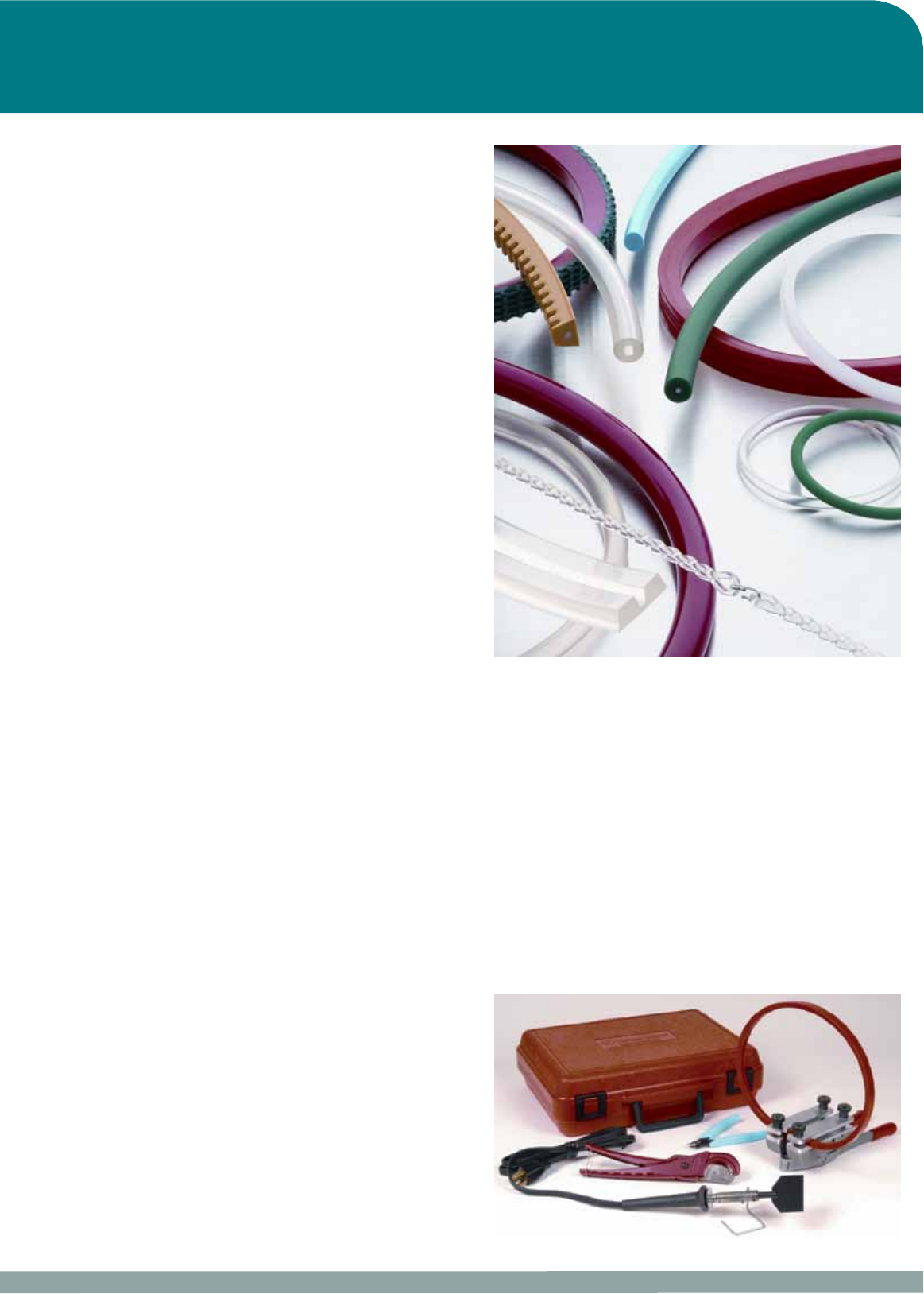

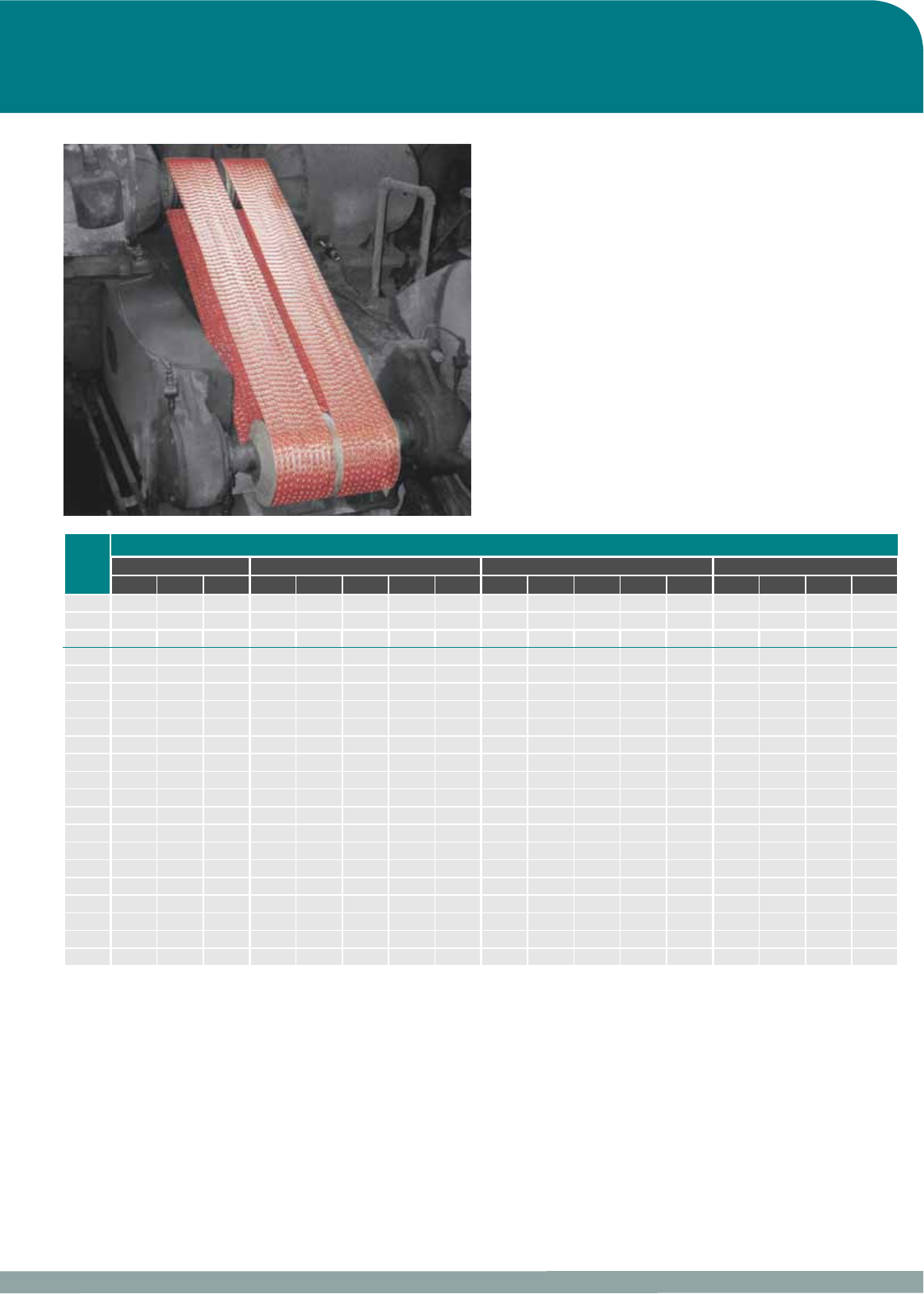

Urethane Belting 75
Wedge & V-Belt Tensioning Instructions 76
Installation & Operation, Wedge & V-Belts 77

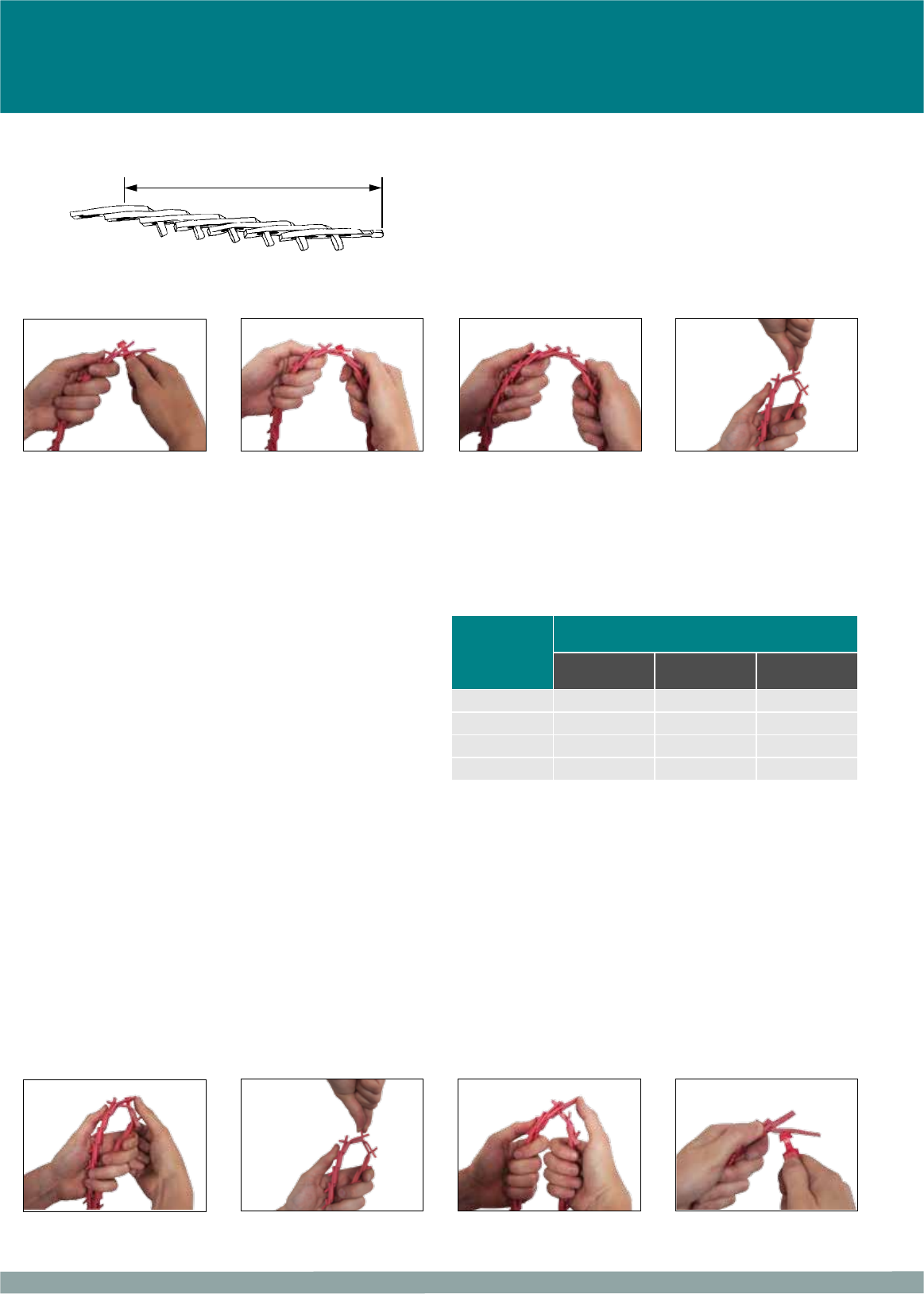

PowerTwist PLUS Installation & Tensioning 78

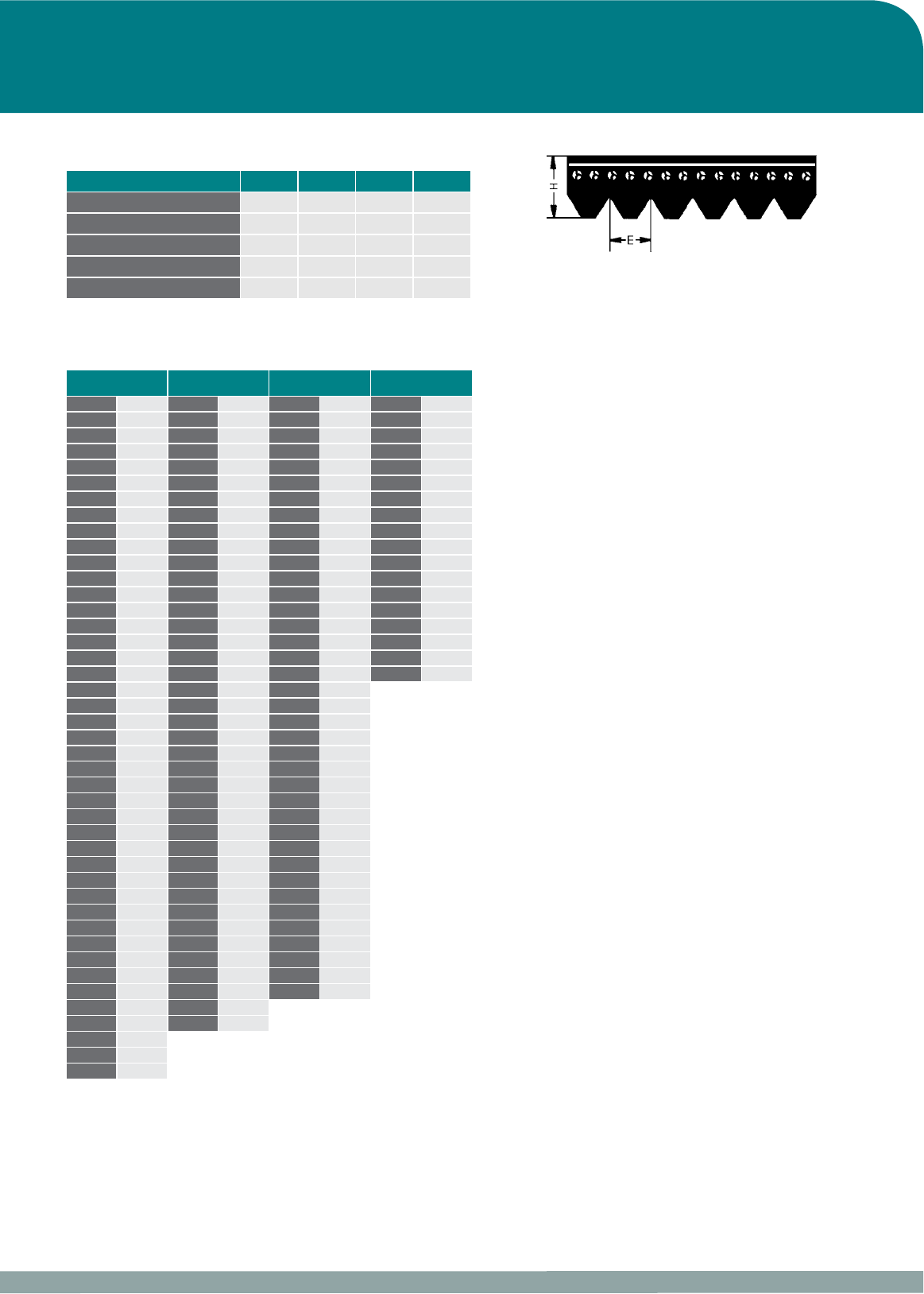

PolyDrive PLUS Belts 79
Accessories 85
34
State of the art, high efficiency drive belt engineering
Fenner is a registered trade mark of J. H. Fenner & Co.
Fenner® Ultra Plus 150
The new generation of heavy duty drive belt
for the harshest of environments...
THE MARK OF ENGINEERING EXCELLENCE
Fenner’s Ultra Plus 150 drive belts
are specifically designed for applications
where rugged durability is paramount,
combining the highest level of performance
with the longest service life possible. Energy Efficient
www.fptgroup.com
Unsurpassed strength
Fibre reinforced polychloroprene
rubber supports the cords and
ensures unsurpassed rigidity
when installed.
50% more power
High Tensile Aramid Cords transmit
50% more power than standard
wrapped wedge belts.
96% energy efficiency
A-symmetrical weave outer jacket
produces belt length stability
second to none, guaranteeing
unbeatable efficiency.
Ideal for heavy duty applications :
> Waste compactors
> Shredders
> Crushers
> Heavy duty conveyors
> Bucket elevators
> Woodworking machinery
> Quarry plant
> Saw mills
> Calendars
> Compressors
FEN01/12 : DRIVE DESIGN & MAINTENANCE MANUAL 35

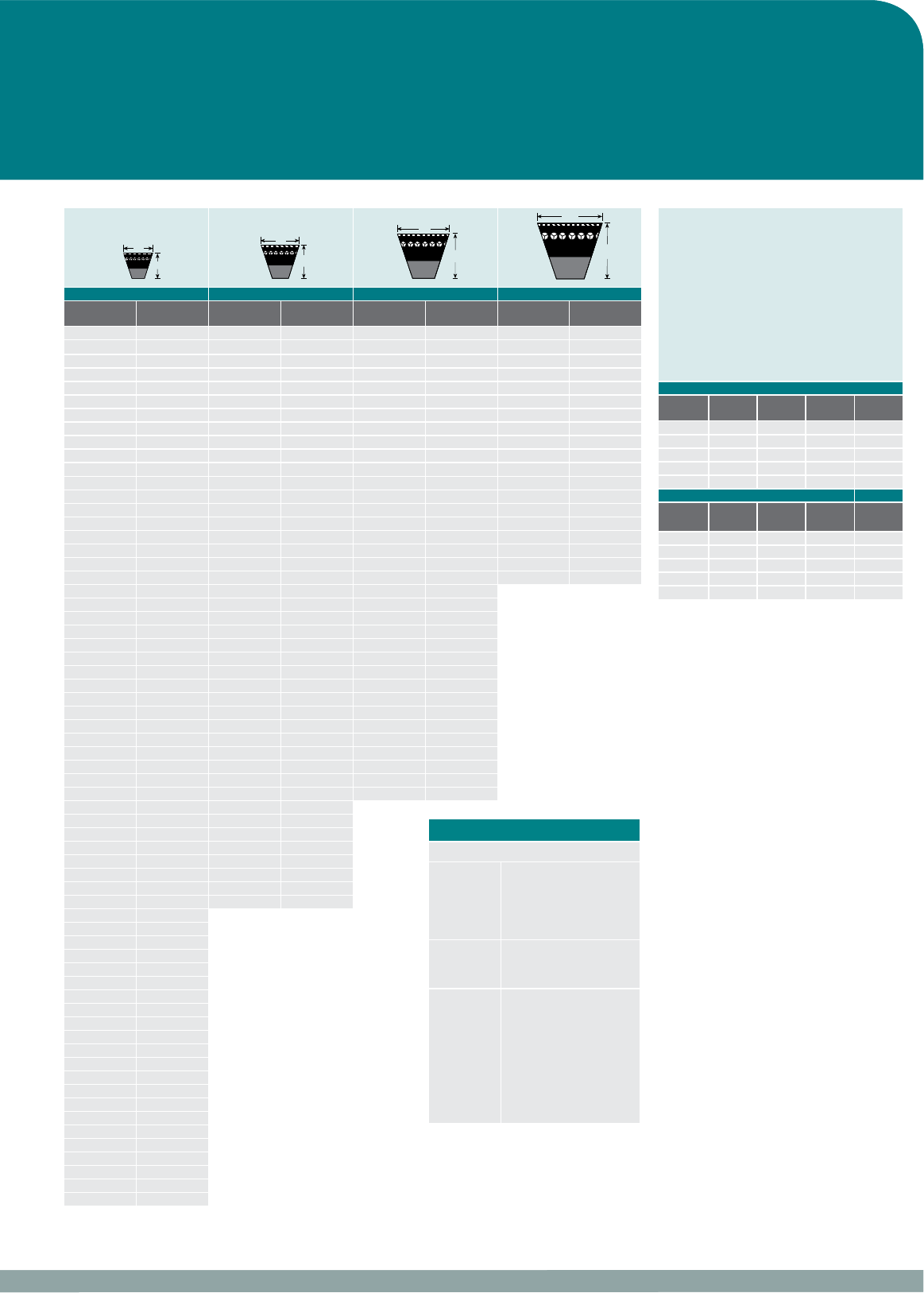

DATA FOR ALL VEE BELTS
Metric belt designation denotes
pitch length in mm
Z: Li = Lp - 26 mm
A: Li = Lp - 34 mm
B: Li = Lp - 45 mm
C: Li = Lp - 58 mm
D: Li = Lp - 85 mm
Li: = inside length
Lp: = pitch length
* These lengths may not be available from stock.
Consult your local Authorised Distributor for
non-listed belt lengths.
Section dimensions in millimetres. Metric designations show pitch length in millimetres.
Imperial designations show inside length (Li) inches.
State of the art, high efficiency drive belt engineering
Fenner is a registered trade mark of J. H. Fenner & Co.
Fenner® Ultra Plus 150
The new generation of heavy duty drive belt
for the harshest of environments...
THE MARK OF ENGINEERING EXCELLENCE
Fenner’s Ultra Plus 150 drive belts
are specifically designed for applications
where rugged durability is paramount,
combining the highest level of performance
with the longest service life possible. Energy Efficient
www.fptgroup.com
Unsurpassed strength
Fibre reinforced polychloroprene
rubber supports the cords and
ensures unsurpassed rigidity
when installed.
50% more power
High Tensile Aramid Cords transmit
50% more power than standard
wrapped wedge belts.
96% energy efficiency
A-symmetrical weave outer jacket
produces belt length stability
second to none, guaranteeing
unbeatable efficiency.
Ideal for heavy duty applications :
> Waste compactors
> Shredders
> Crushers
> Heavy duty conveyors
> Bucket elevators
> Woodworking machinery
> Quarry plant
> Saw mills
> Calendars
> Compressors

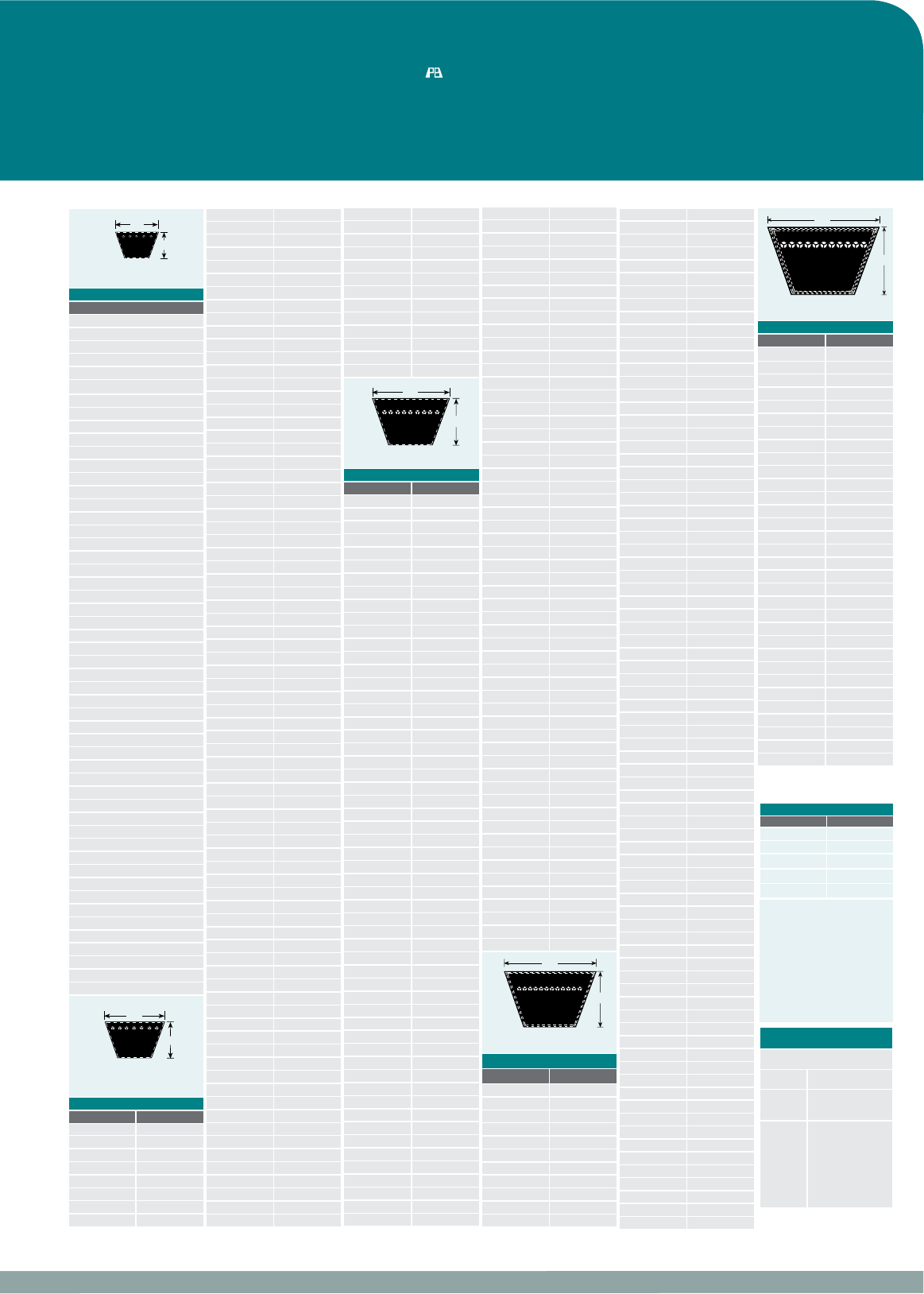

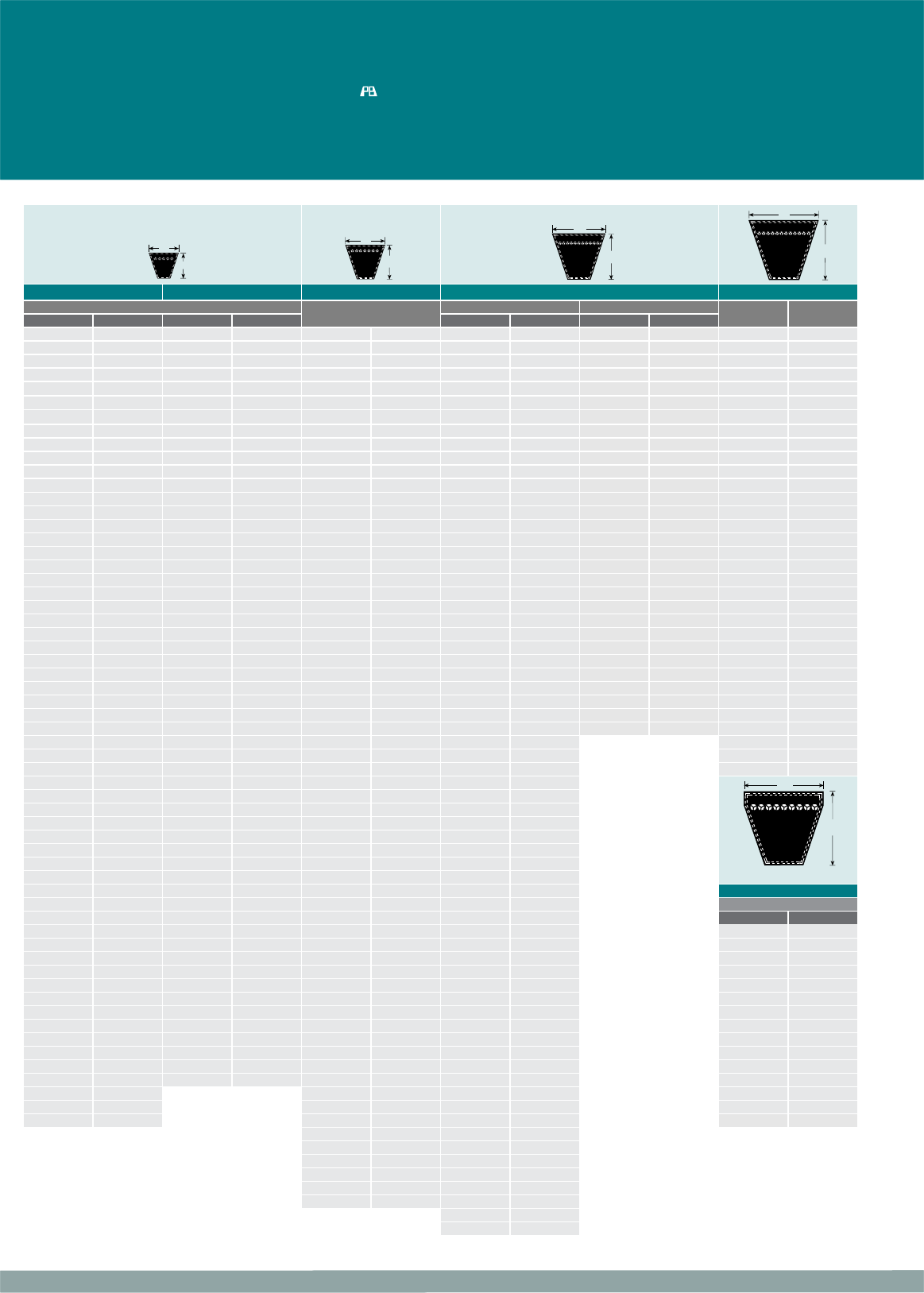

Fenner
Classic PB V-Belts
Fenner Classic V-Belts have specially treated
jackets to give superior anti-static, heat and oil-
resistant properties.
All Fenner Classic V-Belts are static conductive to ISO
1813 and conform to the anti-static specifications of
the American Petroleum Institute (API).
ISO 4184 – DIN 2215 – BS 3790 - RMA IP20
SECTION : 3FRICTION BELT DRIVES
Belt Designation
Metric
Z370
Z395
Z410
Z420
Z445
Z470
Z480
Z495
Z510
Z520
Z530
Z545
Z560
Z570
Z600
Z610
Z620
Z630
Z650
Z660
Z700
Z725
Z750
Z780
Z800
Z820
Z840
Z850
Z860
Z875
Z890
Z900
Z920
Z930
Z940
Z950
Z965
Z980
Z990
Z1015
Z1035
Z1055
Z1080
Z1105
Z1130
Z1155
Z1205
Z1270
Z1330
Z1380
Z1420
Z1750
Belt Designation
Metric Imperial
A540 A20
A570 A21
A590 A22
A620 A23
A640 A24
A670 A25
A700 A26
A720 A27
A740 A28
A770 A29
A790 A30
A820 A31
A850 A32
A870 A33
A890 A34
A920 A35
A930 —
A950 A36
A970 A37
A990 A38
A1020 A39
A1050 A40
A1070 A41
A1100 A42
A1130 A43
A1150 A44
A1180 A45
A1200 A46
A1230 A47
A1250 A48
A1280 A49
A1300 A50
A1330 A51
A1360 A52
A1380 A53
A1410 A54
A1430 A55
A1460 A56
A1480 A57
A1510 A58
A1530 A59
A1550 A60
A1580 A61
A1610 A62
A1640 A63
A1660 A64
A1690 A65
A1710 A66
A1740 A67
A1760 A68
A1790 A69
A1810 A70
A1840 A71
A1860 A72
A1890 A73
A1920 A74
A1940 A75
A1960 A76
A1990 A77
A2020 A78
A2050 A79
A2070 A80
A2090 A81
A2120 A82
A2140 A83
A2170 A84
A2200 A85
A2220 A86
A2240 A87
A2270 A88
A2300 A89
A2320 A90
A2350 A91
A2370 A92
A2400 A93
A2420 A94
A2450 A95
A2480 A96
A2500 A97
A2570 A100
A2630 A102
A2650 A103
A2680 A104
A2700 A105
A2750 A107
A2780 A108
A2830 A110
A2880 A112
A2910 A113
A2960 A115
A2980 A116
A3080 A120
A3190 A124
A3290 A128
A3440 A134
A3490 A136
A3540 A138
A3690 A144
A3950 A154
Belt Designation
Metric Imperial
B700 B26
B750 B28
B800 B30
B830 B31
B860 B32
B880 B33
B910 B34
B930 B35
B960 B36
B980 B37
B1000 B38
B1030 B39
B1060 B40
B1080 B41
B1100 B42
B1130 B43
B1160 B44
B1180 B45
B1210 B46
B1240 B47
B1260 B48
B1290 B49
B1310 B50
B1340 B51
B1370 B52
B1390 B53
B1410 B54
B1440 B55
B1460 B56
B1490 B57
B1510 B58
B1540 B59
B1560 B60
B1590 B61
B1620 B62
B1640 B63
B1670 B64
B1690 B65
B1720 B66
B1740 B67
B1760 B68
B1800 B69
B1820 B70
B1850 B71
B1870 B72
B1900 B73
B1920 B74
B1950 B75
B1970 B76
B2000 B77
B2020 B78
B2050 B79
B2070 B80
B2100 B81
B2130 B82
B2150 B83
B2180 B84
B2200 B85
B2230 B86
B2250 B87
B2280 B88
B2300 B89
B2330 B90
B2350 B91
B2380 B92
B2400 B93
B2420 B94
B2450 B95
B2480 B96
B2500 B97
B2530 B98
B2580 B100
B2630 B102
B2660 B103
B2680 B104
B2700 B105
B2740 B106
B2790 B108
B2840 B110
B2870 B111
B2890 B112
B2940 B114
B2990 B116
B3040 B118
B3090 B120
B3140 B122
B3200 B124
B3240 B126
B3290 B128
B3350 B130
B3400 B132
B3450 B134
B3500 B136
B3550 B138
B3600 B140
B3700 B144
B3800 B148
B3850 B150
B3870 B151
B3900 B152
B3950 B154
B4060 B158
B4160 B162
B4310 B168
B4430 B173
B4610 B180
B4740 B185
B5000 B195
B5220 B204
B5370 B210
B5580 B218
B5630 B220
B6070 B238
Belt Designation
Metric Imperial
C1300 C49
C1350 C51
C1450 C55
C1480 C56
C1530 C58
C1560 C59
C1580 C60
C1650 C63
C1700 C65
C1760 C67
C1780 C68
C1830 C70
C1860 C71
C1880 C72
C1950 C75
C2010 C77
C2040 C78
C2090 C80
C2110 C81
C2160 C83
C2190 C84
C2200 C85
C2270 C87
C2340 C90
C2420 C93
C2440 C94
C2490 C96
C2520 C97
C2550 C98
C2600 C100
C2650 C102
C2700 C104
C2720 C105
C2800 C108
C2850 C110
C2880 C111
C2900 C112
C2950 C114
C3000 C116
C3080 C119
C3100 C120
C3210 C124
C3310 C128
C3360 C130
C3460 C134
C3520 C136
C3560 C138
C3610 C140
C3660 C142
C3710 C144
C3760 C146
C3870 C150
C3920 C152
C3970 C154
C4060 C158
C4170 C162
C4220 C164
C4320 C168
C4450 C173
C4500 C175
C4600 C179
C4630 C180
C4750 C185
C4780 C186
C4880 C190
C5010 C195
C5140 C200
C5240 C204
C5380 C210
C5640 C220
C5720 C223
C5850 C228
C6100 C238
C6150 C240
C6360 C248
C6610 C258
C6660 C260
C6860 C268
C6910 C270
C7120 C278*
C7600 C297*
C7620 C298*
C8030 C314*
C8390 C328*
C9100 C356*
C9150 C358*
C9760 C382*
C10670 C418*
C10700 C419*
C11330 C444*
Belt Designation
Metric Imperial
D2740 D105
D3130 D120
D3330 D128
D3730 D144
D4080 D158
D4190 D162
D4470 D173
D4620 D179
D4650 D180
D5030 D195
D5260 D204
D5400 D210
D5790 D225
D5870 D228
D6100 D237
D6120 D238
D6170 D240
D6840 D266
D6890 D268
D6940 D270
D7620 D297
D7650 D298
D7700 D300*
D8050 D314*
D8410 D328*
D9140 D357*
D9170 D358*
D9830 D384*
D9980 D390*
D10700 D418*
D12200 D478*
D13700 D538*
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
Mass Per Unit Length kg/m
Belt Section Standard Belt
Z0.055
A0.094
B0.163
C0.284
D0.560
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
Z
A
B
D
CPRODUCT CODES
8 digit for standard vee-belts
Digits 1-3 Constant 240
Digit 4 Section letter
Z, A, B, C, D (8V)
Digits 5
to 8:
0 then first three of
4-figure lengths or,
first 4 of 5-figure
lengths
For example:
C10700 is coded
240C1070
WORKING TEMPERATURES
Fenner V-belts perform satisfactorily within
the ambient temperature range –40 to 70°C.
35
36
Fenner Ultra PLUS & Ultra PLUS 150 PB
Wedge Belts
In addition to their precision-built qualities, Fenner®
Ultra PLUS wedge belts have superior anti-static
and oil-resistant properties. All Fenner® Ultra PLUS and
Ultra PLUS 150 wedge belts are static conductive to
the ISO 1813 standard and conform to the anti-static
Belt Designation Belt Designation Belt Designation Belt Designation Belt Designation
SPZ SPA SPB USPB SPC USPC
Metric Imperial 3V Metric Imperial 3V Metric Imperial 5V Metric Imperial 5V
487 - 1400 - 732 1750 1250 - 1600 630 2000 2650
512 - 1412 - 757 1757 1260 5V500 1800 710 2120 2800
562 - 1420 560 782 1782 1320 - 1900 - 2240 3000
587 - 1437 - 800 1800 1340 530 2000 - 2360 3150
612 - 1462 - 807 1807 1400 - 2120 - 2500 3350
630 3V250 1470 580 825 1832 1410 560 2240 - 2650 3550
637 - 1487 - 832 1850 1500 - 2360 - 2800 3750
662 - 1500 - 850 1857 1550 - 2500 - 3000 4000
670 - 1512 -857 1882 1600 630 2650 - 3150 4250
687 - 1520 600 875 1900 1670 - 2800 - 3350 4500
710 280 1537 - 882 1907 1700 - 3000 1180 3550 4750
722 - 1560 617 900 1932 1750 - 3150 - 3750 5000
737 - 1587 - 907 1950 1800 710 3350 - 4000 5300
750 - 1600 630 925 1957 1850 - 3550 - 4250 5600
760 300 1612 - 932 1982 1900 - 3750 1500 4500 6000
772 - 1637 - 950 2000 1950 - 4000 - 4750 6300
787 - 1650 650 957 2032 1980 - 4060 1600 5000 6700
800 315 1662 - 975 2057 2000 - 4250 - 5300 7100
812 - 1687 - 982 2060 2020 800 4310 1700 5600 7500
825 - 1700 670 1000 2082 2060 - 4500 - 6000 8000
837 - 1737 - 1007 2120 2120 - 4750 - 6300 8500
850 - 1762 - 1030 2132 2150 850 5000 - 6700 9000
862 - 1787 - 1060 2180 2240 - 5300 - 7100 9500
875 - 1800 710 1082 2207 2280 900 5600 - 7500
887 - 1812 - 1090 2232 2360 - 6000 2360 8000
900 355 1837 - 1107 2240 2410 950 6300 - 8500
912 - 1850 730 1120 2282 2450 - 6700 - 9000
925 - 1862 - 1132 2300 2500 - 7100 2800 9500
940 370 1887 - 1150 2307 2530 1000 7500 - 10000
950 - 1900 750 1157 2332 2580 - 8800 - 10600
962 - 1937 - 1180 2360 2650 - 11200
987 - 1987 800 1207 2382 2680 1060 11800
1000 -2000 - 1220 2430 2720 -12500
1010 400 2030 - 1232 2482 2800 -
1024 - 2037 - 1250 2500 2840 1120
1037 - 2120 - 1257 2532 2900 -
1047 - 2137 - 1272 2580 3000 1180
1060 - 2160 850 1280 2607 3150 -
1080 425 2187 - 1307 2632 3170 1250
1087 - 2240 - 1320 2650 3250 1320
1112 - 2262 - 1332 2682 3350 -
1120 - 2280 900 1357 2720 3450 1400 Belt Designation
1140 450 2287 - 1360 2732 3550 - 8V
1162 - 2360 - 1382 2782 3750 1500 Metric Imperial 8V
1180 - 2410 950 1400 2800 3800 - 2540 1000
1187 - 2500 - 1407 2832 3870 - 2840 1120
1200 475 2540 1000 1432 2847 4000 - 3180 1250
1212 - 2650 - 1450 2882 4060 1600 3550 1400
1237 - 2690 1060 1457 2900 4250 - 3810 1500
1250 -2800 - 1482 2932 4310 1700 4060 1600
1262 - 2840 1120 1500 2982 4500 - 4570 1800
1270 500 3000 1180 1507 3000 4560 1800 5080 2000
1287 - 3150 - 1532 3032 4750 - 5690 2240
1312 - 3170 1250 1550 3082 4820 1900 6350 2500
1320 - 3350 - 1557 3150 5000 - 7100 2800
1340 530 3550 1400 1582 3182 5070 2000 8000 3150
1347 - 1600 3282 5300 - 9000 3550
1362 - 1607 3350 5380 2120 10160 4000
1387 - 1632 3382 5600 - 11430 4500
1650 3550 5680 2240
1657 3750 6000 2360
1682 4000 6300 -
1700 4250 6340 2500
1707 4500 6700 -
1732 7100 2800
7500 -
9000 3150
specifications of the American Petroleum Institute (API)
for similar belts. They will not readily self-ignite under
severe slip/stall conditions, subject to maximum surface
temperature limitations.
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ 8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
Section dimensions in millimetres. Italic type denotes not held in stock at all
locations. Bold type denotes standrad sizes in ISO 4184.
Metric designations show pitch length in mm. Imperial designations show
‘effective’ length in 1/10 inches
Note: The ISO 4184 standard now refers to ‘datum’ lengths, which are
essentially the same as ‘pitch’ lengths.
FRICTION BELT DRIVESSECTION : 3
ISO 4184 – DIN 7753 – BS 3790 - RMA IP22
36
FEN01/12 : DRIVE DESIGN & MAINTENANCE MANUAL 37
Fenner CRE PLUS®, Quattro PLUS® CRE
Wedge Belts
Fenner® cogged raw edge wedge belts are precision built
for excellent length matching. They are manufactured
from high quality polymer and textile materials for superior
heat and oil resistance. All Fenner® CRE PLUS and Quattro
PLUS cogged raw edge wedge belts are static conductive
Belt Designation Belt Designation Belt Designation Belt Designation
XPZ QXPZ XPA QXPA XPB QXPB XPC QXPC
630 630 800 800 1250 1250 2000 2000
670 670 850 850 1260 2120 2120
710 710 900 900 1320 1320 2240 2240
750 750 925 1340 2360 2360
760 950 950 1400 1400 2500 2500
800 800 1000 1000 1410 2650 2650
850 850 1030 1500 1500 2800 2800
900 900 1060 1060 1600 1600 3000 3000
937 1090 1700 1700 3150 3150
940 1120 1120 1800 1800 3350 3350
950 950 1180 1180 1900 1900 3550 3550
1000 1000 1207 2000 2000 3750 3750
1010 1250 1250 2020 4000 4000
1060 1060 1280 2120 2120 4060 4060
1077 1320 1320 2150 4250 4250
1080 1382 2240 2240 4310 4310
1120 1120 1400 1400 2280 4500 4500
1137 1450 1450 2360 2360 4750 4750
1140 1500 1500 2410 5000 5000
1150 1532 2500 2500
1180 1180 1550 1550 2530
1200 1600 1600 2650 2650
1220 1650 1650 2680
1250 1250 1700 1700 2800 2800
1270 1750 1750 2840
1287 1800 1800 3000 3000
1320 1320 1850 1850 3150 3150
1337 1900 1900 3350 3350
1340 1950 1950 3550 3550
1360 2000 2000 3750
1400 1400 2060 2060 4000
1420 2120 2120 4060
1450 2240 2240 4250
1462 2360 2360 4310
1470 2430 4500
1500 1500 2500 2500
1520 2650 2650
1537 2800 2800
1550 3000 3000
1560 3150 3150
1587 3350
1600 1600 3550 3550
1650 4000
1700 1700
1800 1800
1850
1900 1900
2000 2000
2040
2120 2120
2160
2240 2240
2280
2360
2410
2500 2500
2540
2650
2690
2800 2800
2840
3000
3150 3150
3350
3550 3550
to the ISO 1813 standard and conform to the anti-static
specifications of the American Petroleum Institute (API)
for similar belts. They will not ignite under severe slip/
stall conditions, subject to maximum surface temperature
limitations.
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
8
13
A/13 Z/10
10
6
B/17
11
17
C/22
22
14
D/32
20
32
SPC
22
18
SPB
13
16
13
10
SP A
8
10
SPZ
8V
23
25
QXPB
13
16
13
10
QXPA
8
10
QXPZ QXPC
18
22
WORKING TEMPERATURES
Fenner Ultra PLUS and CRE PLUS wedge belts perform
satisfactorily within the temperature range -40 to +70°C
Quattro PLUS temperature range -40 to +80°C
Ultra PLUS 150 temperature range -40° to +80°C
Metric designations are ‘pitch’ lengths in mm.
Imperial belt designation denotes approximate
‘effective’ length in tenths of an inch in accordance
with RMA standards.
Note: The ISO 4184 standard now refers to ‘datum’
lengths, which are essentially the same as ‘pitch’
lengths.
For similar cross sections, other designations include
SPZ, Alpha, 3V & 9N
SPB, Beta, 5V & 15N
8V, Delta, & 25N
SPZ, SPA, SPB & SPC belt designations shown in
heavier type identify standard sizes in ISO 4184. Belt
lengths in italic type are available but not ex stock in
all locations.
Consult your Authorised Distributor for non-listed
belt lengths.
DATA FOR ALL WEDGE BELTS
Metric belt designation denotes pitch length in mm.
SPZ: Lo = Lp + 13mm
SPA: Lo = Lp + 18mm
SPB: Lo = Lp + 22mm
SPC: Lo = Lp + 30mm
Lp = Pitch length
Lo = Outside length
PITCH LENGTH Lp = Li + mm (Inside length)
Belt
Section
Wrapped
Belt
CRE Belt Quattro
PLUS
Ultra
PLUS 150
SPZ 37 38 30 -
SPA 45 44 40 -
SPB 60 58 60 60
SPC 90 -80 90
8V 120 ---
MASS PER UNIT LENGTH kg/m
Belt
Section
Wrapped
Belt
CRE Belt Quattro
PLUS
Ultra
PLUS 150
SPZ 0.07 0.06 0.07 -
SPA 0.12 0.11 0.12 -
SPB 0.19 0.18 0.19 0.23
SPC 0.32 -0.36 0.38
8V 0.54 ---
FEN01/10 : DRIVE DESIGN & MAINTENANCE MANUAL
ISO 4184 – DIN 7753 – BS 3790
SECTION : 3FRICTION BELT DRIVES
PRODUCT CODES
8 digit for standard vee-belts
Digits 1-3
Product Group 260 Ultra PLUS
267 CRE PLUS
268 Ultra PLUS 150
269 Quattro PLUS
Digit 4
Section Letter (USP, SP, XP, QXP) Z, A, B, C,
D (8V)
Digits 5 to 8:
Length 0 then first three of 4-figure
lengths or, first 4 of 5-figure
lengths
For example:
Ultra PLUS SPB2800 is coded
260B0280
Quattro PLUS QXPZ 1250 is coded
269Z0125
37
38
Speed of
faster shaft
rev/min
*Minimum Pulley Diameter (mm)
Design Power (kW)
up
to 1 3.0 4.0 5.0 7.5 10 15 20 25 30 40 50 60 75 90 110 130 150 200 250
500 56 90 100 112 125 140 180 200 212 236 250 280 280 315 375 400 450 475 500 560
600 56 85 90 100 112 125 140 180 200 212 224 250 265 280 300 335 375 400 475 500
720 56 80 85 90 100 106 132 150 160 170 200 236 250 265 280 300 335 375 450 500
960 56 75 80 85 95 100 112 132 150 180 180 200 224 250 280 280 300 335 400 450
1200 56 71 80 80 95 95 106 118 132 150 160 180 200 236 236 250 265 300 335 355
1440 56 63 75 80 85 85 100 112 125 140 160 170 190 212 236 236 250 280 315 335
1800 56 63 71 75 80 85 95 106 112 125 150 160 170 190 212 224 236 265 300 335
2880 56 60 67 67 80 80 85 90 100 112 125 140 160 170 180 212 224 236 – –
SELECTION
(a) Service Factor
Calculate Speed Ratio by dividing the rev/min of the faster shaft by the rev/min of the
slower shaft.
(b) Service Factor
From Table 3 (page 39), select the Service Factor which is applicable to the drive. If the
drive is speed increasing, an additional factor may be required – refer to top of Table 3.
(c) Design Power
Multiply the normal running power or prime mover power by the Service Factor. This
gives the Design Power which is used as the basis for selecting the drive.
(d) Belt Section & Type
Refer to Table 2 (opposite) and trace to the right along the horizontal axis to the rev/min
of the faster shaft. Trace upwards along the vertical axis to the Design Power. Choose
the belt section and type represented by the area in which the point of intersection falls.
(e) Minimum Pulley Diameter
Refer to Table 1 (below) and select the minimum recommended pulley, using the Design
Power from step (c) and the faster shaft speed. This is a guide to the minimum pulley
pitch diameter capable of transmitting the design power at the given speed,without
generating excessive bearing loads.
(f) Pulley Pitch Diameters
Refer to the drive selection tables on pages 40 to 51 and for the belt section chosen
read down the speed ratio column to the value nearest the calculated speed ratio. Use
the Minimum Pulley Diameter from step (e) as a guide to the small pulley selection.
(g) Belt Length, Centre Distance and Correction Factor
The drive tables list ISO belt lengths.
Along the same line as the chosen Speed Ratio read across the table to find a suitable
Centre Distance. The required Belt Length is given at the head of the column.
Note the Correction Factor by following the colour band in which the chosen centre
distance falls, to the top of the table.
If the Centre Distance is not specified consider a drive with a centre distance
approximately equal to the sum of the pulley pitch diameters.
When non-standard pulleys or belts are used the Centre Distance and Belt Length can
be calculated using the formulae given on page iii of the technical information section.
Interpolate from the tables for the Correction Factor.
(h) Basic Power per Belt
Refer to the power rating tables (pages 52 to 61) for the section and type of wedge belt
chosen. In the left-hand column locate rev/min of the faster shaft, i.e. the one with the
small pulley. Read across to the column headed by the pitch diameter of the small pulley
and note the rated power.
For CRE Plus belts refer to page 56 for power ratings.
Note that Fenner pulleys are designed for belt speeds up to 40 m/s. If using non-Fenner
pulleys seek manufacturer's approval at high speeds.
N.B. The powers listed in the columns headed by the motor speeds in the Drive Tables
(pages 40 to 51) give the power per belt including Speed Ratio Increment, step (j), for
Ultra PLUS wedge belts. These powers require correcting for belt length and arc of
contact correction factor (g) and should be used in conjunction with the appropriate
Service Factor.
(j) Speed Ratio Power Increment
From the power rating tables (pages 52 to 59) note the additional power per belt for the Speed
Ratio being used.
This value is the same for all types of belt of a given section.
(k) Corrected Power per Belt
Add the Speed Ratio Power increment (j) to the Basic Power per Belt (h) and multiply by the
Correction Factor from step (g).
(l) Number of Belts required
Divide the Design Power from step (c) by the Corrected Power per Belt (k). The result gives the
number of belts required. If the answer contains a fraction use the next whole number.
(m) Bore sizes
Check that the pulleys will fit shafts by referring to the pulley dimension tables (pages 62 to 69).
* This table is intended as a guide to selection only. Bearing loads should be carefully considered when using small pulleys on electric motors. This is particularly
important when using the small pulleys allowable with CRE PLUS or Quattro PLUS belts.

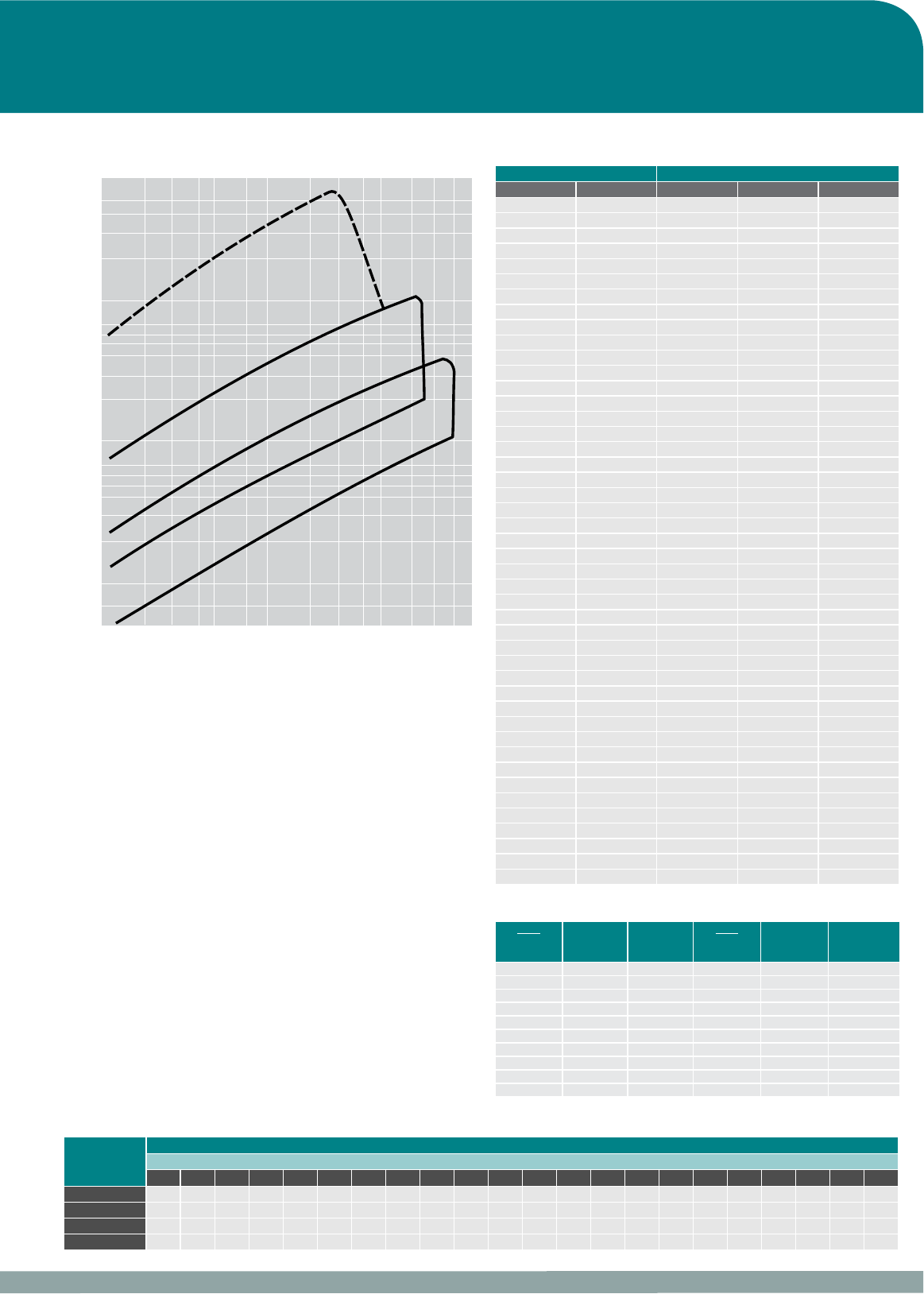

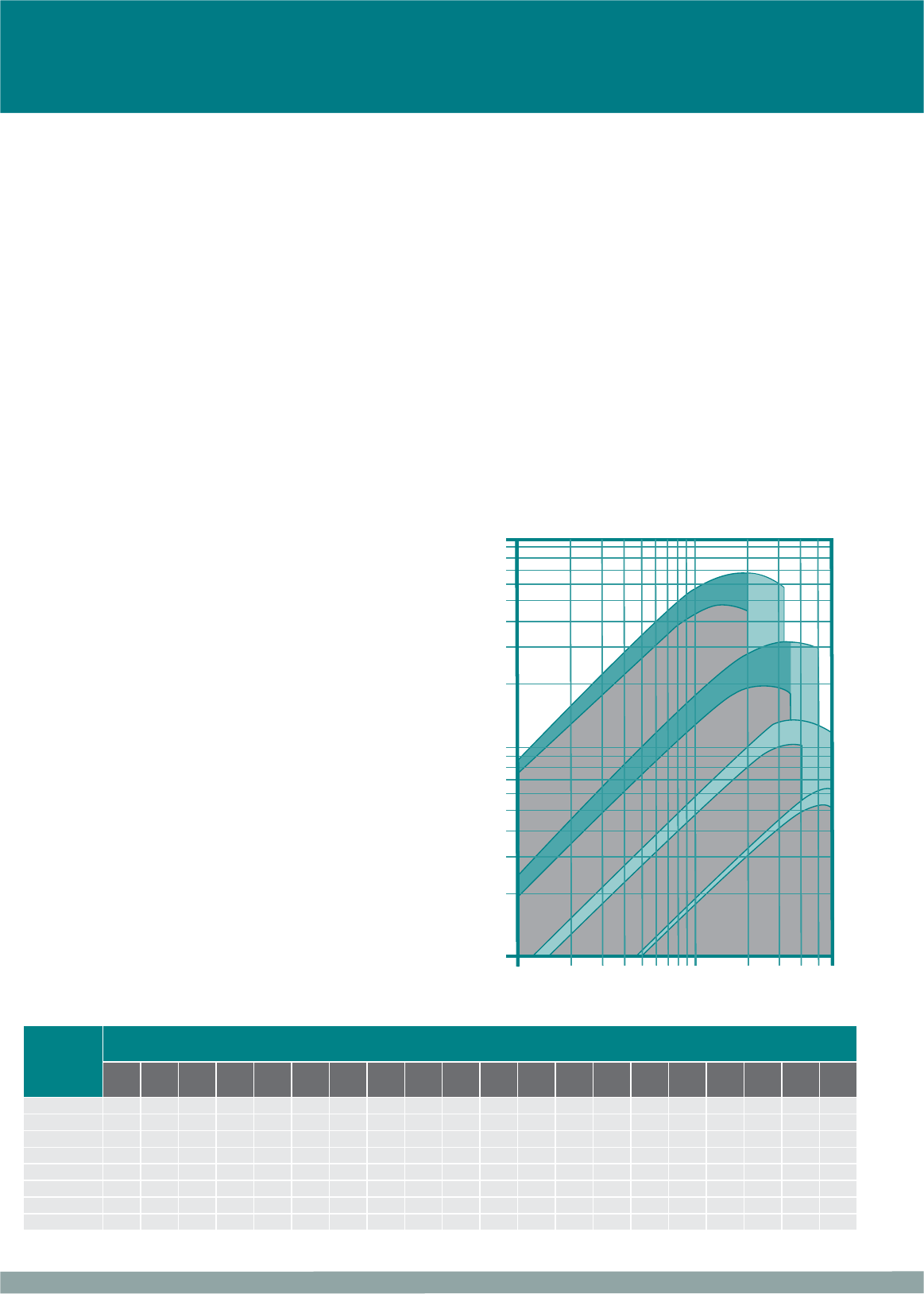

TABLE 2
TABLE 1
Wedge Belt Drive Selection
FRICTION BELT DRIVESSECTION : 3
1000
10
1
2
3
4
5
6
8
200
300
400
500
600
800
100
20
30
40
50
60
80
100 1,000
200
300
400
500
600
800
2,000
3,000
4,000
5,000
6,000
QXPC & USPC
SPC
QXPC
only
QXPB & USPB
SPB
QXPB
only
QXPA
SPA
QXPZ
SPZ
REV/MIN OF FASTER SHAFT
DESIGN POWER kW
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 39
EXAMPLE
Design a wedge belt drive from a 50 kW 6 cylinder diesel engine which runs at
1050 rev/min to a reciprocating compressor running at 660 rev/min. The centre
distance is to be approximately 1600 mm and the duty is 24 hours/day. The engine
shaft is 70 mm diameter and the compressor shaft 80 mm diameter.
(a) Speed Ratio
Speed ratio = 1050 = 1.59:1
660
(b) Service Factor
From Table 3 the service factor is 1.4.
(c) Design Power
= 50 x 1.4 = 70 kW
(d) Belt Section
By referring to Table 2 (opposite) the intersection of design power and the speed of
the faster shaft indicates SPB or QXPB section.
(e) Minimum Pulley
From Table 1 (page 38) the minimum recommended pulley is approximately 250 mm.
(f) Pulley Pitch Diameters
By referring to the centre distance tables relating to SPB section belts on page 47
the selection is a driving pulley of 315 mm pitch diameter and a driven pulley of
500 mm pitch diameter.
(g) Belt Length, Centre Distance and Correction Factor
Reading across the table, the nearest centre distance to the 1600 mm required
is 1607 mm. The belt length at the head of the column is 4500. By following the
colour shading to the top of the table, a correction factor of 1.05 is noted.
(h) Basic Power per Belt
From the power rating table (pages 52 & 61) by interpolation the rated power/belt
for a 315 mm pitch diameter pulley at 1050 rev/min is 18.94kW for Ultra PLUS SPB
(22.37 for Quattro PLUS QXPB)
(j) Speed Ratio Power Increment
The power increment (by interpolation) for a speed ratio of 1.59 at 1050 rev/min is
0.77 kW. (pages 58)
(k) Corrected Power per Belt
= (18.94 + 0.77) x 1.05
= 20.7 kW per belt. (24.3 for QXPB)
(l) Number of Belts required
= 70 = 3.38 i.e use 4 SPB Ultra PLUS wedge belts.
20.7
or
= 70 = 2.88 i.e use 3 QXPB Quattro PLUS belts.
24.3
(m) Bore Sizes
From pulley dimension tables, a 315mm x 4 SPB has a bush size 3525 with 100 mm
max. bore (315 mm x 3 SPB has a bush size 3020 with 75 mm max. bore).
Either will fit the 70 mm dia. engine shaft.
500 mm x 3 or 4 SPB pulleys, both of which have a bush size 3525, will fit the 80
mm dia. compressor shaft.
DRIVE SPECIFICATION
Ultra PLUS SPB Quattro PLUS QXPB
Engine pulley 315 x 4SPB 315 x 3 SPB
Taper Lock bush 3525/70 mm 3020/70mm
Compressor pulley 500 x 4SPB 500 x 3SPB
Taper Lock bush 3525/80 mm 3525/80mm
4 x SPB 4500 wedge belts give 1607 mm centres.
3 x QXPB 4500 wedge belts give 1607 mm centres.
TABLE 3: SERVICE FACTORS
SECTION : 3CHAIN DRIVES
Wedge Belt Drive Selection
SPEED INCREASE RATIO Types of Prime Mover
'Soft' Starts 'Heavy' Series
For speed increasing drives of:
Speed ratio 1.00 – 1.24 multiply service factor by 1.00
Speed ratio 1.25 – 1.74 multiply service factor by 1.05
Speed ratio 1.75 – 2.49 multiply service factor by 1.11
Speed ratio 2.50 – 3.49 multiply service factor by 1.18
Speed ratio 3.50 and over multiply service factor by 1.25
Electric motors:
AC - Star Delta start
DC - Shunt wound
Internal combustion engines with 4 or more
cylinders
Prime movers fitted with centrifugal clutches, dry
or fluid couplings or electronic soft start devices
Electric motors:
AC - Direct-on-line start
DC - Series and component wound
Internal combustion engines with less than 4
cylinders
Prime movers not fitted with soft start devices
TYPES OF DRIVEN MACHINE Hours per day
10 and under Over 10 to 16 Over 16 10 and under Over 10 to 16 Over 16
Class 1
Light Duty
Agitators (uniform density), blowers, exhausters and
fans up to 7.5kW, centrifugal compressors and pumps.
Belt conveyors (uniformly loaded).
1.0 1.1 1.2 1.1 1.2 1.3
Class 2
Medium Duty
Agitators and mixers (variable density), blowers,
exhausters an fans (over 7.5kW). Rotary compressors
and pumps (other than centrifugal). Belt conveyors
(not uniformly loaded), generators and excitors,
laundry machinery, lineshafts, machine tools, printing
machinery, sawmill and woodworking machinery,
screens (rotary)
1.1 1.2 1.3 1.2 1.3 1.4
Class 3
Heavy Duty
Brick machinery, bucket elevators, compressors and
pumps (reciprocating), conveyors (heavy duty). Hoists,
mills (hammer), pulverisers, punches, presses, shears,
quarry plant, rubber machinery, screens (vibrating),
textile machinery.
1.2 1.3 1.4 1.4 1.5 1.6
Class 4
Extra Heavy Duty Crushers (gyratory-jaw roll), mills (ball-rod-tube) 1.3 1.4 1.5 1.5 1.6 1.8
40
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPZ
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 630 710 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550
1.00 56 56 0.93 1.56 227 267 312 362 412 472 ––––––––––1.00
1.00 60 60 1.11 1.90 221 261 306 356 406 466 ––––––––––1.00
1.00 63 63 1.06 1.77 216 256 301 351 401 461 526 601 701 801 901 1021 1151 1301 1476 1676 1.00
1.00 67 67 1.24 2.11 210 250 295 345 395 455 520 595 695 795 895 1015 1145 1295 1470 1670 1.00
1.00 71 71 1.42 2.44 203 243 288 338 388 448 513 588 688 788 888 1008 1138 1288 1463 1663 1.00
1.00 75 75 1.60 2.77 197 237 282 332 382 442 507 582 682 782 882 1002 1132 1282 1457 1657 1.00
1.00 80 80 1.82 3.18 189 229 274 324 374 434 499 574 674 774 874 994 1124 1274 1449 1649 1.00
1.00 85 85 2.04 3.58 181 221 266 316 366 426 491 566 666 766 866 986 1116 1266 1441 1641 1.00
1.00 90 90 2.26 3.98 174 214 259 309 359 419 484 559 659 759 859 979 1109 1259 1434 1634 1.00
1.00 95 95 2.48 4.38 166 206 251 301 351 411 476 551 651 751 851 971 1101 1251 1426 1626 1.00
1.00 100 100 2.70 4.77 158 198 243 293 343 403 458 543 643 743 843 963 1093 1243 1418 1618 1.00
1.00 112 112 3.22 5.69 139 179 224 274 324 384 449 524 624 724 824 944 1074 1224 1399 1599 1.00
1.00 125 125 3.77 6.65 –159 204 254 304 364 429 504 604 704 804 924 1054 1204 1379 1579 1.00
1.00 140 140 4.40 7.72 – – 180 230 280 340 405 480 580 680 780 900 1030 1180 1355 1555 1.00
1.05 60 63 1.14 1.94 218 258 303 353 403 463 –––––– ––––1.05
1.05 95 100 2.50 4.42 162 202 247 297 347 407 472 547 647 747 847 967 1097 1247 1422 1622 1.05
1.06 90 95 2.31 4.09 170 210 255 305 355 415 480 555 655 755 855 975 1105 1255 1430 1630 1.06
1.06 71 75 1.47 2.54 200 240 285 335 385 445 510 585 685 785 885 1005 1135 1285 1460 1660 1.06
1.06 85 90 2.09 3.69 178 218 263 313 363 423 488 563 663 763 863 983 1113 1263 1438 1638 1.06
1.06 67 71 1.29 2.21 207 247 292 342 392 452 517 592 692 792 892 1012 1142 1292 1467 1667 1.06
1.06 80 85 1.87 3.28 185 225 270 320 370 430 495 570 670 770 870 990 1120 1270 1445 1645 1.06
1.06 63 67 1.11 1.88 213 253 298 348 398 458 523 598 698 798 898 1018 1148 1298 1473 1673 1.06
1.07 75 80 1.65 2.87 193 233 278 328 378 438 503 578 678 778 878 998 1128 1278 1453 1653 1.07
1.07 56 60 0.98 1.67 224 264 309 359 409 469 ––––––––––1.07
1.11 90 100 2.31 4.09 166 206 251 301 351 411 476 551 651 751 851 971 1101 1251 1426 1626 1.11
1.12 112 125 3.31 5.87 –169 214 264 314 374 439 514 614 714 814 934 1064 1214 1389 1589 1.12
1.12 60 67 1.20 2.09 215 255 300 350 400 460 ––––––––––1.12
1.12 85 95 2.13 3.77 174 214 259 309 359 419 484 559 659 759 859 979 1109 1259 1434 1634 1.12
1.12 67 75 1.33 2.29 203 243 288 338 388 448 513 588 688 788 888 1008 1138 1288 1463 1663 1.12
1.12 100 112 2.79 4.95 148 188 233 283 333 393 458 533 633 733 833 953 1083 1233 1408 1608 1.12
1.12 125 140 3.86 6.84 – – 192 242 292 352 417 492 592 692 792 912 1042 1192 1367 1567 1.12
1.13 56 63 1.02 1.74 222 262 307 357 407 467 ––––––––––1.13
1.13 80 90 1.91 3.36 181 221 266 316 366 426 491 566 666 766 866 986 1116 1266 1441 1641 1.13
1.13 71 80 1.51 2.62 196 236 281 331 381 441 506 581 681 781 881 1001 1131 1281 1456 1656 1.13
1.13 63 71 1.15 1.95 210 250 295 345 395 455 520 595 695 795 895 1015 1145 1295 1470 1670 1.13
1.13 75 85 1.69 2.95 189 229 274 324 374 434 499 574 674 774 874 994 1124 1274 1449 1649 1.13
1.14 140 160 4.49 7.91 –––214 264 324 389 464 564 664 764 884 1014 1164 1339 1539 1.14
1.18 85 100 2.13 3.77 170 210 255 305 355 415 480 555 655 755 855 975 1105 1255 1430 1630 1.18
1.18 95 112 2.57 4.56 152 192 237 287 337 397 462 537 637 737 837 957 1087 1237 1412 1612 1.18
1.18 60 71 1.24 2.15 212 252 297 347 397 457 ––––––––––1.18
1.19 80 95 1.95 3.43 177 217 262 312 362 422 487 563 663 763 863 983 1113 1263 1438 1638 1.19
1.19 63 75 1.18 2.02 207 247 292 342 392 452 517 592 692 792 892 1012 1142 1292 1467 1667 1.19
1.19 67 80 1.37 2.36 199 239 284 334 384 444 510 585 685 785 885 1005 1135 1285 1460 1660 1.19
1.20 56 67 1.06 1.81 218 258 303 353 403 463 ––––––––––1.20
1.20 71 85 1.54 2.69 192 232 277 327 377 437 502 577 677 777 877 997 1127 1277 1452 1652 1.20
1.20 75 90 1.72 3.02 185 225 270 320 370 430 495 570 670 770 870 990 1120 1270 1445 1645 1.20
1.24 90 112 2.39 4.23 156 196 241 291 341 401 466 541 641 741 841 961 1091 1241 1416 1616 1.24
1.25 60 75 1.24 2.15 209 249 294 344 394 454 ––––––––––1.25
1.25 80 100 1.95 3.43 173 213 258 308 358 419 484 559 659 759 859 979 1109 1259 1434 1634 1.25
1.25 100 125 2.82 5.02 138 178 223 273 323 383 448 523 623 723 823 943 1073 1223 1398 1598 1.25
1.25 112 140 3.34 5.94 –156 202 252 302 362 427 502 602 702 802 922 1052 1202 1377 1577 1.25
1.27 75 95 1.75 3.07 181 221 266 316 366 426 491 566 666 766 866 986 1116 1266 1441 1641 1.27
1.27 71 90 1.57 2.74 188 228 273 323 373 433 498 573 673 773 873 994 1124 1274 1449 1649 1.27
1.27 56 71 1.08 1.86 215 255 300 350 400 460 ––––––––––1.27
1.27 67 85 1.39 2.41 195 235 280 330 381 441 506 581 681 781 881 1001 1131 1281 1456 1656 1.27
1.27 63 80 1.21 2.07 203 243 288 338 388 448 513 588 688 788 888 1008 1138 1288 1463 1663 1.27
1.28 125 160 3.92 6.96 – – 175 225 276 336 401 476 576 676 776 896 1026 1176 1351 1551 1.28
1.29 140 180 4.55 8.03 –––198 248 308 373 448 548 648 748 868 998 1148 1324 1524 1.29
1.32 95 125 2.63 4.68 141 182 227 277 327 387 452 527 627 727 827 947 1077 1227 1402 1602 1.32
1.32 85 112 2.19 3.89 160 200 245 295 345 405 470 545 645 745 845 965 1095 1245 1420 1620 1.32
1.33 60 80 1.26 2.21 205 245 290 340 390 450 ––––––––––1.33
1.33 75 100 1.75 3.07 177 217 262 312 362 422 487 562 662 762 862 982 1112 1262 1438 1638 1.33
1.34 71 95 1.57 2.74 184 224 269 319 369 429 494 569 670 770 870 990 1120 1270 1445 1645 1.34
1.34 56 75 1.08 1.86 212 252 297 347 397 457 ––––––––––1.34
1.34 67 90 1.39 2.41 191 231 276 326 377 437 502 577 677 777 877 997 1127 1277 1452 1652 1.34
1.35 63 85 1.21 2.07 198 239 284 334 384 444 509 584 684 784 884 1004 1134 1284 1459 1659 1.35
1.39 90 125 2.44 4.34 145 185 230 281 331 391 456 531 631 731 831 951 1081 1231 1406 1606 1.39
1.40 80 112 2.00 3.53 163 204 249 299 349 409 474 549 649 749 849 969 1099 1249 1424 1624 1.40
1.40 100 140 2.88 5.12 –165 211 261 311 371 436 511 611 711 811 931 1061 1211 1386 1586 1.40
1.41 71 100 1.60 2.80 180 220 265 315 365 425 490 566 666 766 866 986 1116 1266 1441 1641 1.41
1.42 60 85 1.29 2.26 201 241 286 336 386 446 ––––––––––1.42
1.42 67 95 1.42 2.46 187 227 272 322 373 433 498 573 673 773 873 993 1123 1273 1448 1648 1.42
1.43 56 80 1.11 1.92 208 248 293 343 393 453 ––––––––––1.43
1.43 63 90 1.24 2.13 194 234 280 330 380 440 505 580 680 780 880 1000 1130 1280 1455 1655 1.43
1.43 112 160 3.39 6.04 – – 185 235 285 346 411 486 586 686 786 906 1036 1186 1361 1561 1.43
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPZ & QXPZ ONLY
Centre Distance SPZ, XPZ &QXPZ Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 41
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPZ
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 630 710 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550
1.43 140 200 4.57 8.08 ––––231 291 357 432 532 632 732 852 983 1133 1308 1508 1.43
1.44 125 180 3.95 7.01 –––209 259 319 384 460 560 660 760 880 1010 1160 1335 1535 1.44
1.47 85 125 2.22 3.94 149 189 234 284 334 395 460 535 635 735 835 955 1085 1235 1410 1610 1.47
1.47 95 140 2.66 4.73 –169 214 264 315 375 440 515 615 715 815 935 1065 1215 1390 1590 1.47
1.49 67 100 1.42 2.46 183 223 268 318 368 429 494 569 669 769 869 969 1119 1269 1444 1644 1.49
1.49 75 112 1.78 3.13 167 207 252 303 353 413 478 553 653 753 853 973 1103 1253 1428 1628 1.49
1.50 60 90 1.29 2.26 197 237 282 332 382 442 ––––––––––1.50
1.51 63 95 1.24 2.13 190 230 275 326 376 436 501 576 676 776 876 996 1126 1276 1451 1651 1.51
1.52 56 85 1.11 1.92 204 244 289 339 389 449 ––––––––––1.52
1.56 90 140 2.44 4.34 –173 218 268 318 379 444 519 619 719 819 939 1069 1219 1394 1594 1.56
1.56 80 125 2.00 3.53 152 193 238 288 338 398 463 539 639 739 839 959 1089 1239 1414 1614 1.56
1.58 71 112 1.62 2.84 170 210 255 306 356 416 481 556 656 756 856 976 1106 1256 1431 1631 1.58
1.58 60 95 1.31 2.30 192 233 278 328 378 438 ––––––––––1.58
1.59 63 100 1.26 2.17 186 226 271 321 372 432 497 572 672 772 872 992 1122 1272 1447 1647 1.59
1.60 100 160 2.90 5.17 – – 193 244 294 355 420 495 595 695 795 915 1045 1195 1370 1571 1.60
1.60 125 200 3.97 7.05 –––191 242 302 368 443 543 644 744 864 994 1144 1319 1519 1.60
1.61 56 90 1.13 1.96 200 240 285 335 385 445 ––––––––––1.61
1.61 112 180 3.42 6.09 – – 167 218 269 329 394 469 570 670 770 890 1020 1170 1345 1545 1.61
1.65 85 140 2.24 3.98 135 176 222 272 322 382 447 523 623 723 823 943 1073 1223 1398 1598 1.65
1.67 60 100 1.31 2.30 188 228 274 324 374 434 ––––––––––1.67
1.67 75 125 1.80 3.17 156 196 242 292 342 402 467 542 642 742 843 963 1093 1243 1418 1618 1.67
1.67 67 112 1.44 2.51 173 213 258 309 359 419 484 559 659 759 859 979 1109 1259 1434 1634 1.67
1.68 95 160 2.68 4.78 –151 197 248 298 358 423 499 599 699 799 919 1049 1199 1374 1574 1.68
1.70 56 95 1.13 1.96 195 236 281 331 381 441 ––––––––––1.70
1.75 80 140 2.02 3.58 139 180 225 276 326 386 451 526 626 727 827 947 1077 1227 1402 1602 1.75
1.76 71 125 1.62 2.84 159 199 245 295 345 405 470 545 645 746 846 966 1096 1246 1421 1621 1.76
1.78 63 112 1.26 2.17 176 216 261 312 362 422 487 562 662 762 862 982 1112 1262 1437 1637 1.78
1.78 90 160 2.46 4.38 –155 201 251 302 362 427 502 603 703 803 923 1053 1203 1378 1578 1.78
1.79 56 100 1.13 1.96 191 231 277 327 377 437 ––––––––––1.79
1.79 112 200 3.42 6.09 –––200 251 312 377 453 563 653 754 874 1004 1154 1329 1529 1.79
1.79 140 250 4.60 8.12 –––––248 314 390 491 591 692 812 942 1092 1268 1468 1.79
1.80 100 180 2.90 5.17 – – 176 227 277 338 403 478 579 679 779 899 1029 1179 1354 1555 1.80
1.87 67 125 1.44 2.51 162 202 248 298 348 408 473 548 649 749 849 969 1099 1249 1424 1624 1.87
1.87 60 112 1.31 2.30 178 218 264 314 364 424 ––––––––––1.87
1.87 75 140 1.80 3.17 142 183 229 279 330 390 455 530 630 730 831 951 1081 1231 1406 1606 1.87
1.88 85 160 2.24 3.98 –158 204 255 305 366 431 506 606 707 807 927 1057 1207 1382 1582 1.88
1.89 95 180 2.68 4.78 – – 179 230 281 341 407 482 582 683 783 903 1033 1183 1358 1558 1.89
1.97 71 140 1.64 2.88 145 186 232 282 332 393 458 533 633 733 834 954 1084 1234 1409 1609 1.97
1.98 63 125 1.28 2.21 164 205 250 301 351 411 476 551 652 752 852 972 1102 1252 1427 1627 1.98
2.00 56 112 1.15 2.00 181 221 267 317 367 427 ––––––––––2.00
2.00 80 160 2.04 3.61 –162 208 258 309 369 435 510 610 710 811 931 1061 1211 1386 1586 2.00
2.00 90 180 2.48 4.42 – – 182 234 284 345 410 486 586 686 787 907 1037 1187 1362 1562 2.00
2.00 100 200 2.92 5.20 –––208 260 320 386 462 562 662 763 883 1013 1163 1338 1539 2.00
2.00 125 250 3.99 7.09 –––––258 324 401 502 602 703 823 953 1104 1279 1479 2.00
2.08 60 125 1.33 2.34 167 207 253 303 353 413 ––––––––––2.08
2.09 67 140 1.46 2.54 148 189 235 285 335 396 461 536 636 737 837 957 1087 1237 1412 1612 2.09
2.11 95 200 2.70 4.81 –––212 263 324 390 465 566 666 767 887 1017 1167 1342 1542 2.11
2.12 85 180 2.26 4.02 – – 186 237 288 349 414 490 590 690 790 911 1041 1191 1366 1566 2.12
2.13 75 160 1.82 3.21 –165 211 262 313 373 438 514 614 714 814 934 1065 1215 1390 1590 2.13
2.22 63 140 1.28 2.21 151 192 237 288 338 399 464 539 639 740 840 960 1090 1240 1415 1615 2.22
2.22 90 200 2.48 4.42 –––215 267 328 393 469 570 670 770 891 1021 1171 1346 1546 2.22
2.23 56 125 1.15 2.00 169 210 256 306 356 416 ––––––––––2.23
2.23 112 250 3.43 6.12 ––––204 267 334 410 511 612 712 833 963 1114 1289 1489 2.23
2.25 80 180 2.04 3.61 – – 189 241 292 352 418 493 594 694 794 914 1045 1195 1370 1570 2.25
2.25 140 315 4.61 8.16 ––––––252 331 434 535 637 758 888 1039 1214 1415 2.25
2.25 71 160 1.64 2.88 –168 214 265 315 376 441 517 617 717 817 938 1068 1218 1393 1593 2.25
2.33 60 140 1.33 2.34 153 194 240 290 341 401 ––––––––––2.33
2.35 85 200 2.26 4.02 – – 166 219 270 331 397 473 573 674 774 894 1025 1175 1350 1550 2.35
2.39 67 160 1.46 2.54 –170 217 268 318 379 444 520 620 720 820 941 1071 1221 1396 1596 2.39
2.40 75 180 1.82 3.21 – – 193 244 295 356 421 497 597 698 798 918 1048 1199 1374 1574 2.40
2.50 56 140 1.15 2.00 155 197 242 293 343 404 ––––––––––2.50
2.50 80 200 2.04 3.61 – – 169 222 274 335 401 476 577 677 778 898 1028 1179 1354 1554 2.50
2.50 100 250 2.92 5.20 ––––212 275 342 418 520 621 721 842 972 1123 1298 1498 2.50
2.52 125 315 3.99 7.09 ––––––262 341 444 546 647 769 899 1050 1226 1426 2.52
2.54 71 180 1.64 2.88 –148 195 247 298 359 424 500 600 701 801 921 1051 1202 1377 1577 2.54
2.54 63 160 1.28 2.21 –173 219 271 321 382 447 523 623 723 823 944 1074 1224 1399 1599 2.54
2.63 95 250 2.70 4.81 ––––215 278 345 422 523 624 725 845 976 1126 1302 1502 2.63
2.67 60 160 1.33 2.34 133 175 222 273 323 384 ––––––––––2.67
2.67 75 200 1.82 3.21 – – 173 225 277 338 404 480 581 681 782 902 1032 1182 1358 1558 2.67
2.69 67 180 1.46 2.54 –150 198 250 301 362 427 503 603 704 804 924 1054 1205 1380 1580 2.69
2.78 90 250 2.48 4.42 ––––218 282 349 425 527 628 729 849 980 1130 1306 1506 2.78
2.81 112 315 3.43 6.12 ––––––271 350 453 555 657 778 909 1060 1235 1436 2.81
2.82 71 200 1.64 2.88 – – 175 228 280 341 407 483 584 684 785 905 1035 1185 1361 1561 2.82
2.86 56 160 1.15 2.00 135 178 224 275 326 387 ––––––––––2.86
2.86 63 180 1.28 2.21 –153 201 252 304 364 430 506 606 707 807 927 1058 1208 1383 1583 2.86
BELT LENGTH SPZ & QXPZ ONLY
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPZ, XPZ & QXPZ Wedge Belt Drives
42
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
Combined Arc and Belt Length
Correction Factor 0.75 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPZ
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 630 710 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550
2.86 140 400 4.61 8.16 ––––––––352 457 561 684 816 967 1143 1345 2.86
2.94 85 250 2.26 4.02 ––––222 285 352 429 530 632 732 853 983 1134 1309 1510 2.94
2.99 67 200 1.46 2.54 – – 178 231 282 344 410 486 587 687 787 908 1038 1188 1364 1564 2.99
3.00 60 180 1.33 2.34 –155 203 254 306 367 –––––––... –... – – 3.00
3.13 80 250 2.04 3.61 ––––225 288 356 432 534 635 736 857 987 1138 1313 1513 3.13
3.15 100 315 2.92 5.20 ––––––278 358 462 564 665 787 918 1069 1244 1445 3.15
3.17 63 200 1.28 2.21 – – 180 233 285 347 413 489 589 690 790 911 1041 1191 1367 1567 3.17
3.20 125 400 3.99 7.09 ––––––––362 467 571 694 826 978 1154 1356 3.20
3.21 56 180 1.15 2.00 –157 205 257 308 369 –––––––... –... – – 3.21
3.32 95 315 2.70 4.81 ––––––281 361 465 567 669 790 921 1072 1248 1449 3.32
3.33 60 200 1.33 2.34 – – 182 235 287 349 –––––––... –... – – 3.33
3.33 75 250 1.82 3.21 ––––228 292 359 436 538 639 740 860 991 1141 1317 1517 3.33
3.50 90 315 2.49 4.44 ––––––285 365 468 571 673 794 925 1076 1252 1453 3.50
3.52 71 250 1.65 2.90 ––––231 294 362 439 540 642 742 863 994 1144 1320 1520 3.52
3.57 56 200 1.16 2.02 – – 185 238 290 352 –––––––... –... – – 3.57
3.57 112 400 3.45 6.15 ––––––––370 476 580 703 835 987 1164 1365 3.57
3.71 85 315 2.27 4.04 ––––––288 368 472 574 676 798 929 1080 1256 1456 3.71
3.73 67 250 1.47 2.57 ––––233 297 365 442 543 645 745 866 997 1147 1323 1523 3.73
3.94 80 315 2.05 3.64 –––––218 291 371 475 578 680 801 932 1083 1259 1460 3.94
3.97 63 250 1.29 2.23 –––180 236 300 367 444 546 647 748 869 1000 1150 1326 1526 3.97
4.00 100 400 2.93 5.23 ––––––––377 484 588 711 844 996 1173 1374 4.00
4.17 60 250 1.34 2.36 –––182 238 302 –––––––... –... – – 4.17
4.20 75 315 1.83 3.23 –––––221 294 374 479 581 683 805 936 1087 1263 1464 4.20
4.21 95 400 2.71 4.84 –––––––268 381 487 592 715 848 1000 1176 1378 4.21
4.44 71 315 1.65 2.90 –––––224 297 377 481 584 686 808 939 1090 1266 1467 4.44
4.44 90 400 2.49 4.44 –––––––271 384 491 595 718 851 1003 1180 1381 4.44
4.46 56 250 1.16 2.02 –––184 240 304 –––––––... –... – – 4.46
4.70 67 315 1.47 2.57 –––––226 299 380 484 587 689 810 942 1093 1269 1470 4.70
4.71 85 400 2.27 4.04 –––––––274 387 494 598 722 855 1007 1184 1385 4.71
5.00 63 315 1.29 2.23 –––––228 302 382 487 590 692 813 945 1096 1272 1473 5.00
5.00 80 400 2.05 3.64 –––––––277 390 497 602 725 858 1010 1187 1389 5.00
5.33 75 400 1.83 3.23 –––––––280 393 501 605 729 862 1014 1191 1392 5.33
5.63 71 400 1.65 2.90 –––––––282 396 503 608 732 864 1017 1194 1395 5.63
5.97 67 400 1.47 2.57 –––––––284 398 506 611 734 867 1020 1197 1398 5.97
Centre Distance SPZ, XPZ & QXPZ Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
BELT LENGTH SPZ & QXPZ ONLY
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 43
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10
Speed
Ratio
Pitch Diameter of
Pulleys
Power per SPA
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550 4000 4500
1.00 80 80 2.04 3.29 274 324 374 434 499 574 674 –––––––––1.00
1.00 85 85 2.43 4.00 266 316 366 426 491 566 666 –––––––––1.00
1.00 90 90 2.29 3.65 259 309 359 419 484 559 659 759 859 979 1109 1259 1434 1634 1859 2109 1.00
1.00 95 95 2.68 4.35 251 301 351 411 476 551 651 751 851 971 1101 1251 1426 1626 1851 2101 1.00
1.00 100 100 3.06 5.04 243 293 343 403 468 543 643 743 843 963 1093 1243 1418 1618 1843 2093 1.00
1.00 106 106 3.52 5.85 233 283 333 393 458 533 633 733 833 953 1083 1233 1408 1608 1833 2083 1.00
1.00 112 112 3.98 6.66 224 274 324 384 449 524 624 724 824 944 1074 1224 1399 1599 1824 2074 1.00
1.00 118 118 4.43 7.45 215 265 315 375 440 515 615 715 815 935 1065 1215 1390 1590 1815 2065 1.00
1.00 125 125 4.95 8.36 204 254 304 364 429 504 604 704 804 924 1054 1204 1379 1579 1804 2054 1.00
1.00 132 132 5.47 9.26 193 243 293 353 418 493 593 693 793 913 1043 1193 1368 1568 1793 2043 1.00
1.00 140 140 6.06 10.25 180 230 280 340 405 480 580 680 780 900 1030 1180 1355 1555 1780 2030 1.00
1.00 150 150 6.79 11.47 –214 264 324 389 464 564 664 764 884 1014 1164 1339 1539 1764 2014 1.00
1.00 160 160 7.51 12.65 –199 249 309 374 449 549 649 749 869 999 1149 1324 1524 1749 1999 1.00
1.00 180 180 8.93 14.89 – – 217 277 342 417 517 617 717 837 967 1117 1292 1492 1717 1967 1.00
1.00 200 200 10.31 16.95 –––246 311 386 486 586 686 806 936 1086 1261 1461 1686 1936 1.00
1.05 95 100 2.73 4.45 247 297 347 407 472 547 647 747 847 967 1097 1247 1422 1622 1847 2097 1.05
1.05 112 118 4.03 6.76 219 269 319 379 444 519 619 719 819 939 1069 1219 1394 1594 1819 2069 1.05
1.06 90 95 2.43 3.92 255 305 355 415 480 555 655 755 855 975 1105 1255 1430 1630 1855 2105 1.06
1.06 125 132 5.09 8.63 198 248 298 358 423 498 598 698 798 918 1048 1198 1373 1573 1798 2048 1.06
1.06 106 112 3.66 6.13 229 279 329 389 454 529 629 729 829 949 1079 1229 1404 1604 1829 2079 1.06
1.06 85 90 2.57 4.27 263 313 363 423 488 563 663 –––––––––1.06
1.06 118 125 4.56 7.72 209 259 309 369 434 509 609 709 809 929 1059 1209 1384 1584 1809 2059 1.06
1.06 100 106 3.20 5.31 238 288 338 398 463 538 638 738 838 958 1088 1238 1413 1613 1838 2088 1.06
1.06 132 140 5.60 9.53 186 236 286 346 411 486 586 686 786 906 1036 1186 1361 1561 1786 2036 1.06
1.06 80 85 2.18 3.56 270 320 370 430 495 570 670 –––––––––1.06
1.07 150 160 6.92 11.74 –206 256 316 381 456 557 657 757 877 1007 1157 1332 1532 1757 2007 1.07
1.07 140 150 6.19 10.53 172 222 272 332 397 472 572 672 772 882 1022 1172 1347 1547 1772 2022 1.07
1.11 90 100 2.43 3.92 251 301 351 411 476 551 651 751 851 971 1101 1251 1426 1626 1851 2101 1.11
1.11 180 200 9.06 15.17 –––261 326 401 501 601 701 821 951 1102 1277 1477 1702 1952 1.11
1.11 106 118 3.66 6.13 224 274 324 384 449 524 624 724 824 944 1074 1224 1399 1599 1824 2074 1.11
1.12 95 106 2.92 4.82 242 292 342 402 467 542 642 742 842 962 1092 1242 1417 1617 1842 2092 1.12
1.12 112 125 4.21 7.13 214 264 314 374 439 514 614 714 814 934 1064 1214 1389 1589 1814 2064 1.12
1.12 85 95 2.67 4.47 259 309 359 419 484 559 659 –––––––––1.12
1.12 118 132 4.66 7.93 204 254 304 364 429 504 604 704 804 924 1054 1204 1379 1579 1804 2054 1.12
1.12 100 112 3.30 5.51 233 283 333 393 458 533 633 733 833 953 1083 1233 1408 1608 1833 2083 1.12
1.12 125 140 5.19 8.84 192 242 292 352 417 492 592 692 792 912 1042 1192 1367 1567 1792 2042 1.12
1.12 200 224 10.55 17.42 ––––292 367 467 567 667 787 917 1067 1242 1442 1667 1917 1.12
1.13 80 90 2.28 3.76 266 316 366 426 491 566 666 –––––––––1.13
1.13 160 180 7.74 13.12 – – 233 293 358 433 533 633 733 853 983 1133 1308 1508 1733 1983 1.13
1.14 132 150 5.71 9.73 178 228 278 338 403 478 578 678 778 898 1028 1178 1353 1553 1778 2028 1.14
1.14 140 160 6.29 10.73 -214 264 324 389 464 564 664 764 884 1014 1164 1339 1359 1764 2014 1.14
1.18 85 100 2.67 4.47 255 305 355 415 480 555 655 –––––––––1.18
1.18 90 106 2.53 4.12 246 296 346 406 471 546 646 746 846 966 1096 1246 1421 1621 1846 2096 1.18
1.18 112 132 4.21 7.13 208 258 308 368 433 508 608 708 808 928 1058 1208 1383 1583 1808 2058 1.18
1.18 95 112 2.92 4.82 237 287 337 397 462 537 637 737 837 957 1087 1237 1412 1612 1837 2087 1.18
1.18 106 125 3.76 6.33 218 268 318 378 443 518 618 719 819 939 1069 1219 1394 1594 1819 2069 1.18
1.18 100 118 3.39 5.68 229 279 329 389 454 529 629 729 829 949 1079 1229 1404 1604 1829 2079 1.18
1.19 118 140 4.75 8.10 197 247 297 357 422 497 597 697 797 917 1047 1197 1372 1572 1797 2047 1.19
1.19 80 95 2.37 3.93 262 312 362 422 487 563 663 –––––––––1.19
1.20 125 150 5.27 9.01 184 234 284 344 409 484 584 684 784 904 1034 1184 1359 1559 1784 2034 1.20
1.20 150 180 7.11 12.12 –190 240 300 366 441 541 641 741 861 991 1141 1316 1516 1741 1991 1.20
1.21 132 160 5.79 9.90 170 220 270 330 395 470 570 671 771 891 1021 1171 1346 1546 1771 2021 1.20
1.24 95 118 3.00 4.99 232 282 333 393 458 533 633 733 833 953 1083 1233 1408 1608 1833 2083 1.24
1.24 90 112 2.62 4.29 241 291 341 401 466 541 641 741 841 961 1091 1241 1416 1616 1841 2091 1.24
1.24 180 224 9.25 15.53 –––242 307 382 482 582 682 802 932 1082 1258 1458 1683 1933 1.24
1.25 106 132 3.84 6.50 213 263 313 373 438 513 613 713 813 933 1063 1213 1388 1588 1813 2063 1.25
1.25 85 106 2.76 4.65 250 300 350 410 475 550 650 –––––––––1.25
1.25 80 100 2.37 3.93 258 308 358 419 484 559 659 –––––––––1.25
1.25 100 125 3.39 5.69 223 273 323 383 448 523 623 723 823 943 1073 1223 1398 1598 1823 2073 1.25
1.25 112 140 4.30 7.30 202 252 302 362 427 502 602 702 802 922 1052 1202 1377 1577 1802 2052 1.25
1.25 160 200 7.83 13.29 – – 216 277 342 417 517 617 717 837 967 1117 1292 1492 1717 1967 1.25
1.25 200 250 10.63 17.60 ––––270 346 446 546 646 766 896 1046 1221 1421 1646 1896 1.25
1.27 118 150 4.82 8.23 189 239 289 349 414 489 589 689 789 909 1039 1189 1364 1564 1789 2039 1.27
1.28 125 160 5.34 9.14 175 225 276 336 401 476 576 676 776 896 1026 1176 1351 1551 1776 2026 1.28
1.29 140 180 6.45 11.04 –198 248 308 373 448 548 648 748 868 998 1148 1324 1524 1749 1999 1.29
1.31 90 118 2.68 4.43 236 286 336 396 461 536 636 737 837 957 1087 1237 1412 1612 1837 2087 1.31
1.32 95 125 3.07 5.13 227 277 327 387 452 527 627 727 827 947 1077 1227 1402 1602 1827 2077 1.32
1.32 85 112 2.82 4.78 245 295 345 405 470 545 645 –––––––––1.32
1.32 100 132 3.45 5.82 217 267 317 377 442 518 618 718 818 938 1068 1218 1393 1593 1818 2068 1.32
1.32 106 140 3.91 6.63 206 256 306 366 431 507 607 707 807 927 1057 1207 1382 1582 1807 2057 1.32
1.32 80 106 2.43 4.07 254 304 354 414 479 554 654 –––––––––1.32
1.33 150 200 7.18 12.25 – – 224 284 349 424 525 625 725 845 975 1125 1300 1500 1725 1975 1.33
1.34 112 150 4.37 7.44 193 243 294 354 419 494 594 694 794 914 1044 1194 1369 1569 1794 2044 1.34
1.36 118 160 4.82 8.23 180 231 281 341 406 481 581 681 781 901 1031 1181 1356 1557 1782 2032 1.36
1.36 132 180 5.86 10.04 –204 254 314 379 454 554 655 755 875 1005 1155 1330 1530 1755 2005 1.36
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPA, XPA & QXPA Wedge Belt Drives
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPA, QXPA ONLY SPA ONLY
44
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10
Speed
Ratio
Pitch Diameter of
Pulleys
Power per SPA
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550 4000 4500
1.39 85 118 2.89 4.92 240 290 340 400 465 540 640 –––––––––1.39
1.39 90 125 2.75 4.56 230 281 331 391 456 531 631 731 831 951 1081 1231 1406 1606 1831 2081 1.39
1.39 180 250 9.38 15.80 ––––285 361 461 561 661 781 912 1062 1237 1437 1662 1912 1.39
1.39 95 132 3.14 5.26 221 271 321 381 446 521 621 721 822 942 1072 1222 1397 1597 1822 2072 1.39
1.40 80 112 2.50 4.20 249 299 349 409 474 549 649 –––––––––1.40
1.40 100 140 3.52 5.95 211 261 311 371 436 511 611 711 811 931 1061 1211 1386 1586 1811 2061 1.40
1.40 160 224 7.96 13.56 –––256 322 397 497 598 698 818 948 1098 1273 1473 1698 1948 1.40
1.40 200 280 10.77 17.87 –––––321 421 521 622 742 872 1022 1197 1397 1623 1873 1.40
1.42 106 150 3.98 6.77 198 248 298 358 423 498 599 699 799 919 1049 1199 1374 1574 1799 2049 1.42
1.43 112 160 4.43 7.57 185 235 285 346 411 486 586 686 786 906 1036 1186 1361 1561 1786 2036 1.43
1.43 140 200 6.51 11.17 – – 231 291 357 432 532 632 732 852 983 1133 1308 1508 1733 1983 1.43
1.44 125 180 5.41 9.28 –209 259 319 384 460 560 660 760 880 1010 1160 1335 1535 1760 2010 1.44
1.47 90 132 2.75 4.56 225 275 325 385 450 525 625 725 825 945 1075 1225 1400 1601 1826 2076 1.47
1.47 85 125 2.89 4.92 234 284 334 395 460 535 635 –––––––––1.47
1.47 95 140 3.14 5.26 214 264 315 375 440 515 615 715 815 935 1065 1215 1390 1590 1815 2065 1.47
1.47 80 118 2.50 4.20 244 294 344 404 469 544 644 –––––––––1.47
1.49 150 224 7.24 12.39 ---264 329 405 505 605 705 825 956 1106 1281 1481 1706 1956 1.49
1.50 100 150 3.52 5.95 202 252 303 363 428 503 603 703 803 923 1053 1203 1378 1578 1803 2053 1.50
1.51 106 160 3.98 6.77 189 240 290 350 415 490 590 691 791 911 1041 1191 1366 1566 1791 2041 1.51
1.52 132 200 5.93 10.17 –186 237 297 363 438 538 638 738 859 989 1139 1314 1514 1739 1989 1.52
1.53 118 180 4.88 8.37 –214 264 324 390 465 565 665 765 885 1015 1166 1341 1541 1766 2016 1.53
1.55 85 132 2.89 4.92 228 279 329 389 454 529 629 –––––––––1.55
1.56 90 140 2.75 4.56 218 268 318 379 444 519 619 719 819 939 1069 1219 1394 1594 1819 2069 1.56
1.56 180 280 9.38 15.80 ––––259 335 436 536 637 757 887 1038 1213 1413 1638 1888 1.56
1.56 80 125 2.50 4.20 238 288 338 398 463 539 639 –––––––––1.56
1.56 160 250 7.96 13.56 –––234 300 375 476 576 676 797 927 1077 1252 1452 1677 1927 1.56
1.57 200 315 10.78 17.89 –––––290 391 492 593 713 844 994 1169 1369 1594 1845 1.57
1.58 95 150 3.19 5.38 206 256 306 367 432 507 607 707 807 927 1057 1207 1382 1582 1807 2057 1.58
1.60 100 160 3.58 6.07 193 244 294 355 420 495 595 695 795 915 1045 1195 1370 1571 1796 2046 1.60
1.60 125 200 5.46 9.39 –191 242 302 368 443 543 644 744 864 994 1144 1319 1519 1744 1994 1.60
1.60 140 224 6.57 11.28 – – 210 271 336 412 512 613 713 833 963 1113 1288 1489 1714 1964 1.60
1.61 112 180 4.49 7.69 167 218 269 329 394 469 570 670 770 890 1020 1170 1345 1545 1770 2020 1.61
1.65 85 140 2.95 5.03 222 272 322 382 447 523 623 –––––––––1.65
1.65 80 132 2.56 4.32 232 282 332 393 458 533 633 –––––––––1.65
1.67 90 150 2.81 4.68 209 260 310 370 435 511 611 711 811 931 1061 1211 1386 1586 1811 2061 1.67
1.67 150 250 7.30 12.50 –––241 307 383 483 584 684 804 935 1085 1260 1460 1685 1935 1.67
1.68 95 160 3.19 5.38 197 248 298 358 423 499 599 699 799 919 1049 1199 1374 1574 1799 2049 1.68
1.69 118 200 4.94 8.48 –196 247 308 373 448 549 649 749 869 999 1150 1325 1525 1750 2000 1.69
1.70 132 224 5.98 10.28 – – 215 277 342 418 518 619 719 839 969 1119 1295 1495 1720 1970 1.70
1.70 106 180 4.04 6.88 171 222 273 333 399 474 574 674 774 895 1025 1175 1350 1550 1775 2025 1.70
1.75 80 140 2.56 4.32 225 276 326 386 451 526 626 –––––––––1.75
1.75 160 280 8.02 13.68 ––––273 349 450 551 652 772 902 1053 1228 1428 1653 1903 1.75
1.75 180 315 9.44 15.91 –––––304 406 507 607 728 859 1009 1184 1385 1610 1860 1.75
1.76 85 150 2.95 5.03 213 263 314 374 439 514 615 –––––––––1.76
1.78 90 160 2.81 4.68 201 251 302 362 427 502 603 703 803 923 1053 1203 1378 1578 1803 2053 1.78
1.79 112 200 4.49 7.69 –200 251 312 377 453 553 653 754 874 1004 1154 1329 1529 1754 2004 1.79
1.79 140 250 6.57 11.28 –––248 314 390 491 591 692 812 942 1092 1268 1468 1693 1943 1.79
1.79 125 224 5.46 9.39 – – 220 282 347 423 524 624 724 844 975 1125 1300 1500 1725 1975 1.79
1.80 100 180 3.58 6.07 176 227 277 338 403 478 579 679 779 899 1029 1179 1354 1555 1780 2030 1.80
1.87 150 280 7.30 12.50 ––––280 356 458 558 659 780 910 1060 1236 1436 1661 1911 1.87
1.88 80 150 2.56 4.32 217 267 317 378 443 518 618 –––––––––1.88
1.88 85 160 2.95 5.03 204 255 305 366 431 506 606 –––––––––1.88
1.89 106 200 4.04 6.88 –204 255 316 382 457 558 658 758 878 1009 1159 1334 1534 1759 2009 1.89
1.89 132 250 5.98 10.28 –––253 320 396 496 597 697 818 948 1098 1274 1474 1699 1949 1.89
1.89 95 180 3.19 5.38 179 230 281 341 407 482 582 683 783 903 1033 1183 1358 1558 1784 2034 1.89
1.90 118 224 4.94 8.48 – – 225 286 352 428 529 629 729 850 980 1130 1305 1505 1731 1981 1.90
1.97 160 315 8.07 13.77 –––––317 420 521 622 743 873 1024 1199 1400 1625 1875 1.97
2.00 80 160 2.60 4.41 208 258 309 369 435 510 610 –––––––––2.00
2.00 90 180 2.85 4.77 182 234 284 345 410 486 586 686 787 907 1037 1187 1362 1562 1787 2037 2.00
2.00 100 200 3.62 6.16 –208 260 320 386 462 562 662 763 883 1013 1163 1338 1539 1764 2014 2.00
2.00 112 224 4.54 7.78 – – 229 291 357 432 533 634 734 854 985 1135 1310 1510 1735 1985 2.00
2.00 125 250 5.51 9.48 –––258 324 401 502 602 703 823 953 1104 1279 1479 1704 1954 2.00
2.00 140 280 6.62 11.38 ––––287 363 465 566 666 787 917 1068 1243 1443 1669 1919 2.00
2.00 200 400 10.87 18.07 –––––––417 519 641 772 923 1099 1300 1525 1776 2.00
2.10 150 315 7.35 12.59 –––––324 427 528 629 750 881 1031 1207 1407 1633 1883 2.10
2.11 95 200 3.24 5.47 –212 263 324 390 465 566 666 767 887 1017 1167 1342 1542 1768 2018 2.11
2.11 106 224 4.08 6.97 – – 233 295 361 437 538 638 738 859 989 1139 1314 1515 1740 1990 2.11
2.12 85 180 2.99 5.12 186 237 288 349 414 490 590 –––––––––2.12
2.12 118 250 4.99 8.57 –––263 329 406 507 607 708 828 959 1109 1284 1485 1710 1960 2.12
2.12 132 280 6.03 10.38 ––––292 369 471 572 672 793 923 1074 1249 1450 1675 1925 2.12
2.22 90 200 2.85 4.77 –215 267 328 393 469 570 670 770 891 1021 1171 1346 1546 1771 2021 2.22
2.22 180 400 9.49 16.01 ––––––326 430 533 655 787 938 1114 1315 1541 1791 2.22
2.23 112 250 4.54 7.78 – – 204 267 334 410 511 612 712 833 963 1114 1289 1489 1714 1964 2.23
2.24 100 224 3.62 6.16 –185 237 299 365 441 542 643 743 863 994 1144 1319 1519 1744 1995 2.24
2.24 125 280 5.51 9.48 –––229 297 374 476 577 677 798 929 1079 1255 1455 1680 1930 2.24
Centre Distance SPA, XPA & QXPA Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPA & QXPA ONLY SPA ONLY
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 45
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPA
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
2880
rev/min 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550 4000 4500
2.25 80 180 2.60 4.41 189 241 292 352 418 493 594 –––––––––2.25
2.25 140 315 6.62 11.38 ––––252 331 434 535 637 758 888 1039 1214 1415 1640 1891 2.25
2.35 85 200 2.99 5.12 166 219 270 331 397 473 573 –––––––––2.35
2.36 95 224 3.24 5.47 –188 241 303 369 445 546 646 747 867 997 1148 1323 1523 1748 1998 2.36
2.36 106 250 4.08 6.97 – – 208 271 338 414 515 616 717 837 968 1118 1293 1494 1719 1969 2.36
2.37 118 280 4.99 8.57 –––233 302 379 481 582 683 803 934 1084 1260 1460 1685 1936 2.37
2.39 132 315 6.03 10.38 ––––258 336 439 541 642 763 894 1045 1220 1421 1646 1897 2.39
2.49 90 224 2.85 4.77 –192 244 306 372 448 549 650 750 871 1001 1151 1327 1527 1752 2002 2.49
2.50 80 200 2.60 4.41 169 222 274 335 401 476 577 –––––––––2.50
2.50 100 250 3.62 6.16 – – 212 275 342 418 520 621 721 842 972 1123 1298 1498 1723 1974 2.50
2.50 112 280 4.54 7.78 –––237 306 383 485 586 687 808 938 1089 1264 1465 1690 1940 2.50
2.50 160 400 8.07 13.77 ––––––339 444 547 669 801 953 1129 1330 1556 1806 2.50
2.50 200 500 10.87 18.07 ––––––––424 550 684 837 1014 1216 1442 1694 2.50
2.52 125 315 5.51 9.48 ––––262 341 444 546 647 769 899 1050 1226 1426 1652 1902 2.52
2.63 95 250 3.24 5.47 – – 215 278 345 422 523 624 725 845 976 1126 1302 1502 1727 1978 2.63
2.64 85 224 2.99 5.12 –195 248 310 376 452 553 –––––––––2.64
2.64 106 280 4.08 6.97 –––241 310 387 489 590 691 812 943 1093 1269 1469 1695 1945 2.64
2.67 150 400 7.35 12.59 ––––––345 451 554 676 808 960 1136 1337 1563 1814 2.67
2.67 118 315 4.99 8.57 ––––267 346 449 551 652 774 905 1055 1231 1432 1657 1907 2.67
2.78 90 250 2.85 4.77 – – 218 282 349 425 527 628 729 849 980 1130 1306 1506 1731 1981 2.78
2.78 180 500 9.49 16.01 ––––––––437 563 698 851 1028 1231 1457 1708 2.78
2.80 80 224 2.60 4.41 –198 251 313 379 456 557 –––––––––2.80
2.80 100 280 3.62 6.16 –––245 314 391 493 595 696 817 947 1098 1273 1474 1699 1949 2.80
2.81 112 315 4.54 7.78 ––––271 350 453 555 657 778 909 1060 1235 1436 1662 1912 2.81
2.86 140 400 6.62 11.38 ––––––352 457 561 684 816 967 1143 1345 1571 1821 2.86
2.94 85 250 2.99 5.12 – – 222 285 352 429 530 –––––––––2.94
2.95 95 280 3.24 5.47 –––248 317 395 497 598 699 820 951 1102 1277 1478 1703 1953 2.95
2.97 106 315 4.08 6.97 ––––274 354 457 560 661 782 913 1064 1240 1441 1666 1916 2.97
3.03 132 400 6.03 10.38 ––––––357 463 566 689 821 973 1149 1351 1576 1827 3.03
3.11 90 280 2.85 4.77 –––251 320 398 500 602 703 824 955 1105 1281 1481 1707 1957 3.11
3.13 80 250 2.60 4.41 – – 225 288 356 432 534 –––––––––3.13
3.13 160 500 8.07 13.77 ––––––––449 577 711 865 1043 1245 1472 1723 3.13
3.15 100 315 3.62 6.16 ––––278 358 462 564 665 787 918 1069 1244 1445 1671 1921 3.15
3.15 200 630 10.87 18.07 ––––––––––557 716 897 1102 1331 1584 3.15
3.20 125 400 5.51 9.48 ––––––362 467 571 694 826 978 1154 1356 1582 1833 3.20
3.29 85 280 2.99 5.12 –––255 324 401 504 –––––––––3.29
3.32 95 315 3.24 5.47 ––––281 361 465 567 669 790 921 1072 1248 1449 1674 1925 3.32
3.33 150 500 7.35 12.59 –––––––345 456 583 718 872 1050 1252 1479 1731 3.33
3.39 118 400 5.02 8.64 ––––––366 472 576 699 831 983 1160 1361 1587 1838 3.39
3.50 80 280 2.64 4.47 –––258 327 405 507 –––––––––3.50
3.50 90 315 2.89 4.84 ––––285 365 468 571 673 794 925 1076 1252 1453 1678 1929 3.50
3.50 180 630 9.52 16.07 ––––––––––569 729 911 1116 1345 1598 3.50
3.57 112 400 4.57 7.85 ––––––370 476 580 703 835 987 1164 1365 1591 1842 3.57
3.57 140 500 6.65 11.44 –––––––351 462 590 725 879 1057 1259 1486 1738 3.57
3.71 85 315 3.03 5.19 ––––288 368 472 –––––––––3.71
3.77 106 400 4.11 7.04 ––––––374 480 584 707 840 992 1168 1370 1596 1847 3.77
3.79 132 500 6.06 10.44 –––––––356 467 595 730 884 1063 1265 1492 1744 3.79
3.94 80 315 2.64 4.47 –––218 291 371 475 –––––––––3.94
3.94 160 630 8.10 13.84 –––––––––436 582 742 925 1130 1359 1612 3.94
4.00 100 400 3.66 6.22 ––––––377 484 588 711 844 996 1173 1374 1600 1851 4.00
4.00 125 500 5.54 9.55 –––––––360 472 600 735 889 1068 1270 1497 1749 4.00
4.20 150 630 7.38 12.66 –––––––––442 588 749 931 1137 1366 1620 4.20
4.21 95 400 3.27 5.53 –––––268 381 487 592 715 848 1000 1176 1378 1604 1855 4.21
4.24 118 500 5.02 8.64 –––––––365 476 604 740 894 1073 1275 1502 1754 4.24
4.44 90 400 2.89 4.84 –––––271 384 491 595 718 851 1003 1180 1381 1608 1859 4.44
4.46 112 500 4.57 7.85 –––––––368 480 608 744 898 1077 1280 1507 1759 4.46
4.50 140 630 6.65 11.44 –––––––––448 595 756 938 1144 1373 1627 4.50
4.71 85 400 3.03 5.19 –––––274 387 –––––––––4.71
4.72 106 500 4.11 7.04 –––––––372 484 612 748 903 1081 1284 1511 1763 4.72
4.77 132 630 6.06 10.44 –––––––––453 600 761 944 1150 1379 1633 4.77
5.00 80 400 2.64 4.47 –––––277 390 –––––––––5.00
5.00 100 500 3.66 6.22 –––––––375 488 616 752 907 1085 1288 1516 1767 5.00
5.04 125 630 5.54 9.55 –––––––––457 604 765 948 1154 1384 1638 5.04
5.26 95 500 3.27 5.53 –––––––379 491 620 756 910 1089 1292 1519 1771 5.26
5.34 118 630 5.02 8.64 –––––––––462 609 770 953 1159 1389 1643 5.34
5.56 90 500 2.89 4.84 –––––––382 494 623 759 914 1092 1295 1523 1775 5.56
5.63 112 630 4.57 7.85 –––––––––465 612 774 957 1163 1393 1647 5.63
5.71 140 800 6.65 11.44 –––––––––––565 766 981 1217 1475 5.71
5.94 106 630 4.11 7.04 –––––––––469 616 778 961 1168 1397 1651 5.94
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPA, XPA & QXPA Wedge Belt Drives
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
SPA & QXPA ONLY
46
Combined Arc and Belt Length
Correction Factor 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPB
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 1250 1400 1800 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000
1.00 112 112 4.81 3.52 449 524 724 824 ––––––––––––1.00
1.00 118 118 5.56 4.04 440 515 715 815 ––––––––––––1.00
1.00 125 125 6.43 4.64 429 504 704 804 ––––––––––––1.00
1.00 132 132 7.29 5.24 418 493 693 793 ––––––––––––1.00
1.00 140 140 6.88 5.00 405 480 680 780 900 1030 1180 1355 1555 1780 2030 2280 2580 2930 3330 3780 1.00
1.00 150 150 7.95 5.75 389 464 664 764 885 1014 1164 1339 1539 1764 2014 2264 2564 2914 3314 3764 1.00
1.00 160 160 9.00 6.50 374 449 649 749 869 999 1149 1324 1524 1749 1999 2249 2549 2889 3299 3749 1.00
1.00 170 170 10.05 7.24 358 433 633 733 853 983 1133 1308 1508 1733 1983 2233 2533 2883 3283 3733 1.00
1.00 180 180 11.08 7.98 342 417 617 717 837 967 1117 1292 1492 1717 1967 2217 2517 2867 3267 3717 1.00
1.00 190 190 12.10 8.71 327 402 602 702 822 952 1102 1277 1477 1702 1952 2202 2502 2852 3252 3702 1.00
1.00 200 200 13.11 9.43 311 386 586 686 806 936 1086 1261 1461 1686 1936 2186 2486 2836 3236 3686 1.00
1.00 212 212 14.30 10.29 292 367 567 667 787 917 1067 1242 1442 1667 1917 2167 2467 2817 3217 3667 1.00
1.00 224 224 15.47 11.15 273 348 548 648 768 898 1048 1223 1423 1648 1898 2148 2448 2798 3198 3648 1.00
1.00 236 236 16.63 11.99 –329 529 629 749 879 1029 1204 1404 1629 1879 2129 2429 2779 3179 3629 1.00
1.00 250 250 17.96 12.97 –307 507 607 728 857 1007 1182 1382 1607 1857 2107 2407 2757 3157 3607 1.00
1.00 280 280 20.70 15.03 – – 460 560 680 810 960 1135 1335 1560 1810 2060 2360 2710 3110 3560 1.00
1.00 315 315 23.75 17.37 – – 405 505 625 755 905 1080 1280 1505 1755 2005 2305 2655 3055 3505 1.00
1.05 190 200 12.20 8.78 319 394 594 694 814 944 1094 1269 1469 1694 1944 2194 2494 2844 3244 3694 1.05
1.05 112 118 4.91 3.59 444 519 719 819 ––––––––––––1.05
1.05 224 236 15.57 11.22 264 339 539 639 759 889 1039 1214 1414 1639 1889 2139 2439 2789 3189 3639 1.05
1.06 180 190 11.36 8.16 334 409 609 709 829 959 1109 1284 1484 1709 1959 2209 2509 2859 3259 3709 1.06
1.06 125 132 6.71 4.83 423 498 698 798 ––––––––––––1.06
1.06 212 224 14.58 10.48 283 358 558 658 778 908 1058 1233 1433 1658 1908 2158 2458 2808 3208 3658 1.06
1.06 170 180 10.33 7.43 350 425 625 725 845 975 1125 1300 1500 1725 1975 2225 2525 2875 3275 3725 1.06
1.06 118 125 5.84 4.23 434 509 709 809 ––––––––––––1.06
1.06 236 250 16.91 12.18 –318 518 618 738 868 1018 1193 1393 1618 1868 2118 2418 2768 3168 3618 1.06
1.06 200 212 13.39 9.62 301 376 576 676 797 926 1076 1251 1451 1676 1926 2176 2476 2826 3226 3676 1.06
1.06 132 140 7.57 5.43 411 486 686 786 ––––––––––––1.06
1.06 160 170 9.28 6.69 366 441 641 741 861 991 1141 1316 1516 1741 1991 2241 2541 2891 3291 3741 1.06
1.07 150 160 8.23 5.94 381 456 657 757 877 1007 1157 1332 1532 1757 2007 2257 2557 2907 3307 3757 1.07
1.07 140 150 7.16 5.19 397 472 672 772 892 1022 1172 1347 1547 1772 2022 2272 2572 2922 3322 3772 1.07
1.11 180 200 11.36 8.17 326 401 601 701 822 951 1102 1277 1477 1702 1952 2202 2502 2852 2352 3702 1.11
1.11 212 236 14.58 10.48 273 348 548 648 768 898 1048 1223 1423 1648 1898 2148 2448 2798 3198 3648 1.11
1.12 190 212 12.59 9.03 309 384 584 684 804 934 1084 1259 1459 1684 1934 2184 2484 2834 3234 3684 1.12
1.12 112 125 5.30 3.85 439 514 714 814 – – ––––––––––1.12
1.12 224 250 15.97 11.47 –327 528 628 748 878 1028 1203 1403 1628 1878 2128 2428 2778 3178 3628 1.12
1.12 170 190 10.54 7.57 342 417 617 717 837 967 1117 1292 1492 1717 1967 2217 2517 2867 3267 3717 1.12
1.12 118 132 6.05 4.37 429 504 704 804 ––––––––––––1.12
1.12 125 140 6.92 4.97 417 492 692 792 ––––––––––––1.12
1.12 200 224 13.60 9.76 292 367 567 667 787 917 1067 1242 1442 1667 1917 2167 2467 2817 3217 3667 1.12
1.12 250 280 18.45 13.30 – – 484 584 704 834 984 1159 1359 1584 1834 2084 2384 2734 3134 3584 1.12
1.13 160 180 9.49 6.83 358 433 633 733 853 983 1133 1308 1508 1733 1983 2233 2533 2883 3283 3733 1.13
1.13 280 315 21.20 15.36 – – 432 532 653 782 933 1108 1308 1533 1783 2033 2333 2683 3083 3533 1.13
1.13 315 355 24.24 17.70 – – 373 473 594 724 874 1049 1249 1474 1724 1974 2274 2624 3024 3474 1.13
1.13 150 170 8.44 6.08 374 449 649 749 869 999 1149 1324 1524 1749 1999 2249 2549 2899 3299 3749 1.13
1.14 132 150 7.78 5.57 403 478 678 778 ––––––––––––1.14
1.14 140 160 7.37 5.33 389 464 664 764 884 1014 1164 1339 1539 1764 2014 2264 2564 2914 3314 3764 1.14
1.18 170 200 10.54 7.57 334 409 609 709 829 1959 1109 1284 1484 1709 1959 2209 2509 2859 3259 3709 1.18
1.18 180 212 11.57 8.30 317 392 592 692 812 1942 1092 1267 1467 1692 1942 2192 2492 2842 3242 3692 1.18
1.18 112 132 5.30 3.85 433 508 708 808 ––––––––––––1.18
1.18 190 224 12.59 9.03 299 374 575 675 795 925 1075 1250 1450 1675 1925 2175 2475 2825 3225 3675 1.18
1.18 212 250 14.79 10.62 261 337 537 637 759 887 1037 1212 1412 1637 1887 2137 2437 2787 3187 3637 1.18
1.18 200 236 13.78 9.88 282 357 557 657 778 907 1057 1232 1432 1657 1907 2157 2457 2808 3208 3658 1.18
1.19 118 140 6.23 4.49 422 497 697 797 ––––––––––––1.19
1.19 236 280 17.30 12.44 –294 494 594 715 844 994 1170 1370 1595 1845 2095 2395 2745 3145 3595 1.19
1.19 160 190 9.67 6.95 350 425 625 725 845 975 1125 1300 1500 1725 1975 2225 2525 2875 3275 3725 1.19
1.20 125 150 7.09 5.09 409 484 684 784 ––––––––––––1.20
1.20 150 180 8.61 6.20 366 441 641 741 861 991 1141 1316 1516 1741 1991 2241 2541 2891 3291 3741 1.20
1.21 132 160 7.96 5.69 395 470 671 771 ––––––––––––1.21
1.21 140 170 7.55 5.45 381 456 656 756 877 1006 1156 1331 1531 1756 2006 2256 2556 2906 3306 3756 1.21
1.24 190 236 12.77 9.15 290 365 565 665 785 915 1065 1240 1440 1665 1915 2165 2465 2815 3215 3665 1.24
1.24 180 224 11.75 8.42 307 382 582 682 803 932 1082 1258 1458 1683 1933 2183 2483 2833 3233 3683 1.24
1.25 170 212 10.72 7.69 324 399 600 700 820 950 1100 1275 1475 1700 1950 2200 2500 2850 3250 3700 1.25
1.25 112 140 5.48 3.97 427 502 702 802 ––––––––––––1.25
1.25 160 200 9.67 6.95 342 417 617 717 837 967 1117 1292 1492 1717 1967 2217 2517 2867 3267 3717 1.25
1.25 200 250 13.78 9.88 270 346 546 646 766 896 1046 1221 1421 1646 1896 2146 2446 2796 3196 3646 1.25
1.25 224 280 16.14 11.59 –303 503 604 724 854 1004 1179 1379 1604 1854 2104 2404 2754 3154 3604 1.25
1.26 250 315 18.62 13.41 – – 455 555 676 806 956 1131 1331 1556 1806 2056 2356 2706 3106 3556 1.26
1.27 150 190 8.76 6.29 357 433 633 733 853 983 1133 1308 1508 1733 1983 2233 2533 2883 3283 3733 1.27
1.27 280 355 21.51 15.57 – – 400 500 620 750 900 1076 1276 1501 1751 2001 2301 2651 3051 3501 1.27
1.27 315 400 24.56 17.91 –––436 557 687 837 1013 1213 1438 1688 1938 2238 2588 2988 3438 1.27
1.27 118 150 6.37 4.58 414 489 689 789 ––––––––––––1.27
1.28 125 160 7.24 5.18 401 476 676 776 ––––––––––––1.28
1.29 140 180 7.69 5.54 373 448 648 748 869 998 1148 1324 1524 1749 1999 2249 2549 2899 3299 3749 1.29
1.29 132 170 8.10 5.78 387 462 663 763 ––––––––––––1.29
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPB & QXPB &
USPB ONLY USPB & SPB ONLY
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 47
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Dimater
of Pulleys
Power per
SPB Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 1250 1400 1800 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000
1.31 180 236 11.89 8.52 297 372 573 673 797 923 1073 1248 1448 1673 1923 2173 2473 2823 3223 3673 1.31
1.32 190 250 12.91 9.25 278 353 554 654 774 904 1054 1229 1429 1654 1904 2154 2454 2804 3204 3654 1.32
1.32 170 224 10.86 7.78 314 390 590 690 810 940 1090 1265 1465 1690 1940 2190 2490 2840 3240 3690 1.32
1.32 212 280 15.11 10.83 –312 512 613 733 863 1013 1188 1388 1613 1863 2113 2413 2763 3163 3613 1.32
1.32 160 212 9.81 7.04 332 407 607 707 828 957 1108 1283 1483 1708 1958 2208 2508 2858 3258 3708 1.32
1.33 150 200 8.76 6.29 349 424 625 725 844 975 1125 1300 1500 1725 1975 2225 2525 2875 3275 3725 1.33
1.33 236 315 17.44 12.53 – – 466 566 686 816 966 1142 1342 1567 1817 2067 2367 2717 3117 3567 1.33
1.34 112 150 5.62 4.06 419 494 694 794 ––––––––––––1.34
1.36 118 160 6.37 4.58 406 481 681 781 ––––––––––––1.36
1.36 140 190 7.69 5.54 365 440 640 740 861 991 1141 1316 1516 1741 1991 2241 2541 2891 3291 3741 1.36
1.36 125 170 7.24 5.18 393 468 668 768 ––––––––––––1.36
1.36 132 180 8.10 5.78 379 454 655 755 ––––––––––––1.36
1.39 170 236 11.00 7.87 304 380 580 680 801 931 1081 1256 1456 1681 1931 2181 2481 2831 3231 3681 1.39
1.39 180 250 12.03 8.61 285 361 561 661 782 912 1062 1237 1437 1662 1912 2162 2462 2812 3212 3662 1.39
1.40 160 224 9.95 7.13 322 397 598 698 818 948 1098 1273 1473 1698 1948 2198 2498 2848 3248 3698 1.40
1.40 200 280 14.06 10.06 –321 521 622 742 872 1022 1197 1397 1623 1873 2123 2423 2773 3173 3623 1.40
1.41 224 315 16.42 11.78 – – 474 575 695 825 976 1151 1351 1576 1826 2076 2376 2726 3126 3576 1.41
1.41 150 212 8.90 6.39 339 415 615 715 835 965 1115 1290 1490 1715 1965 2215 2515 2866 3266 3716 1.41
1.42 250 355 18.90 13.60 – – 422 522 643 773 923 1099 1299 1524 1774 2024 2324 2674 3074 3524 1.42
1.43 112 160 5.76 4.15 411 486 686 786 ––––––––––––1.43
1.43 140 200 7.83 5.63 357 432 632 732 853 983 1133 1308 1508 1733 1983 2233 2533 2883 3283 3733 1.43
1.43 280 400 21.65 15.67 – – 361 462 583 713 864 1039 1239 1465 1715 1965 2265 2615 3015 3465 1.43
1.44 132 190 8.24 5.88 371 446 646 747 ––––––––––––1.44
1.44 125 180 7.38 5.28 384 460 660 760 ––––––––––––1.44
1.44 118 170 6.51 4.67 398 473 673 773 ––––––––––––1.44
1.47 170 250 11.00 7.87 292 368 569 669 789 919 1069 1244 1445 1670 1920 2170 2470 2820 3220 3670 1.47
1.47 190 280 13.05 9.34 –328 529 629 750 880 1030 1205 1405 1630 1880 2130 2430 2780 3181 3631 1.47
1.47 160 236 9.95 7.13 312 387 588 688 808 938 1088 1263 1463 1689 1939 2189 2489 2839 3229 3689 1.47
1.49 212 315 15.25 10.93 – – 483 584 704 835 985 1160 1360 1585 1835 2085 2386 2736 3136 3586 1.49
1.49 150 224 8.90 6.39 329 405 605 705 826 956 1106 1281 1481 1706 1956 2206 2506 2856 3256 3706 1.49
1.50 236 355 17.58 12.63 – – 432 533 653 784 934 1109 1309 1535 1785 2035 2335 2685 3085 3535 1.50
1.51 140 212 7.83 5.63 347 422 622 723 843 973 1123 1298 1498 1723 1973 2223 2523 2873 3273 3723 1.51
1.52 132 200 8.24 5.88 363 438 638 738 ––––––––––––1.52
1.52 112 170 5.76 4.15 402 478 678 778 ––––––––––––1.52
1.52 125 190 7.38 5.28 376 451 651 752 ––– –––––––––1.52
1.53 118 180 6.51 4.67 390 465 665 765 ––––––––––––1.53
1.56 180 280 12.03 8.61 259 335 536 637 757 887 1038 1213 1413 1638 1888 2138 2438 2788 3188 3638 1.56
1.56 160 250 9.95 7.13 300 375 576 676 797 927 1077 1252 1452 1677 1927 2178 2478 2828 3228 3678 1.56
1.57 150 236 8.89 6.37 319 394 595 696 816 946 1096 1271 1471 1696 1946 2196 2496 2847 3247 3697 1.57
1.57 200 315 14.05 10.05 –290 492 593 713 844 994 1169 1369 1594 1845 2095 2395 2745 3145 3595 1.57
1.58 224 355 16.54 11.86 – – 440 541 662 793 943 1118 1319 1544 1794 2044 2344 2694 3095 3545 1.58
1.59 315 500 24.81 18.09 ––––471 603 754 930 1131 1357 1607 1858 2158 2508 2908 3359 1.59
1.60 125 200 7.49 5.35 368 443 644 744 ––––––––––––1.60
1.60 140 224 7.95 5.71 336 412 613 713 833 963 1113 1288 1489 1714 1964 2214 2514 2864 3264 3714 1.60
1.60 250 400 19.02 13.68 – – 382 484 605 736 886 1062 1262 1488 1738 1988 2288 2368 3039 3489 1.60
1.61 132 212 8.36 5.95 353 428 629 729 ––––––––––––1.61
1.61 112 180 5.88 4.23 394 469 670 770 ––––––––––––1.61
1.61 118 190 6.63 4.75 381 457 657 757 ––––––––––––1.61
1.65 170 280 11.11 7.95 266 342 544 644 765 895 1045 1220 1421 1646 1896 2146 2446 2796 3196 3646 1.65
1.66 190 315 13.17 9.42 –297 499 600 721 851 1001 1177 1377 1602 1852 2102 2403 2753 3153 3603 1.66
1.67 150 250 9.01 6.46 307 383 584 684 804 935 1085 1260 1460 1685 1935 2185 2485 2835 3235 3686 1.67
1.67 212 355 15.37 11.00 – – 449 550 671 801 952 1127 1328 1553 1803 2053 2354 2704 3104 3554 1.67
1.69 140 236 7.95 5.71 326 402 603 703 823 953 1104 1279 1479 1704 1954 2204 2504 2854 3254 3704 1.69
1.69 118 200 6.63 4.75 373 448 649 749 ––––––––––––1.69
1.69 236 400 17.70 12.71 – – 392 494 615 746 897 1072 1273 1498 1749 1999 2299 2649 3049 3500 1.69
1.70 125 212 7.49 5.35 358 433 634 734 ––––––––––––1.70
1.70 112 190 5.88 4.23 386 461 662 762 ––––––––––––1.70
1.70 132 224 8.36 5.95 342 418 619 719 ––––––––––––1.70
1.75 160 280 10.07 7.21 273 349 551 652 772 902 1053 1228 1428 1653 1903 2154 2454 2804 3204 3654 1.75
1.75 180 315 12.15 8.69 –304 507 607 728 859 1009 1184 1385 1610 1860 2110 2410 2760 3161 3611 1.75
1.77 200 355 14.17 10.14 – – 458 559 680 810 961 1136 1337 1562 1812 2063 2363 2713 3113 3563 1.77
1.79 112 200 5.88 4.23 377 453 653 754 ––––––––––––1.79
1.79 140 250 7.95 5.71 314 390 591 692 812 942 1092 1268 1468 1693 1943 2193 2493 2843 3243 3693 1.79
1.79 224 400 16.54 11.86 – – 400 502 624 755 906 1081 1282 1507 1758 2008 2308 2658 3059 3509 1.79
1.79 280 500 21.77 15.74 ––––495 628 780 956 1157 1383 1634 1884 2185 2535 2935 3386 1.79
1.79 132 236 8.36 5.95 332 408 609 709 ––––––––––––1.79
1.79 125 224 7.49 5.35 347 423 624 724 ––––––––––––1.79
1.80 118 212 6.63 4.75 363 438 639 739 ––––––––––––1.80
1.85 170 315 11.11 7.95 –311 514 615 735 866 1016 1192 1392 1617 1868 2118 2418 2768 3168 3618 1.85
1.87 150 280 9.01 6.46 280 356 558 659 780 910 1060 1236 1436 1661 1911 2161 2461 2812 3212 3662 1.87
1.87 190 355 13.17 9.42 – – 465 566 687 818 968 1144 1344 1570 1820 2070 2371 2721 3121 3571 1.87
1.89 212 400 15.37 11.00 – – 409 511 633 764 915 1090 1291 1516 1767 2017 2317 2668 3068 3518 1.89
1.89 125 236 7.49 5.35 337 413 614 714 ––––––––––––1.89
1.89 112 212 5.88 4.23 367 443 644 744 ––––––––––––1.89
1.89 132 250 8.36 5.95 320 396 597 697 ––––––––––––1.89
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPB & QXPB &
USPB ONLY USPB & SPB ONLY
48
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPB
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 1250 1400 1800 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000
1.90 118 224 6.63 4.75 352 428 629 729 ––––––––––––1.90
1.97 160 315 10.17 7.28 –317 521 622 743 873 1024 1199 1400 1625 1875 2126 2426 2776 3176 3626 1.97
1.97 180 355 12.24 8.75 – – 472 573 695 825 976 1151 1352 1577 1828 2078 2378 2728 3129 3579 1.97
2.00 112 224 5.97 4.30 357 432 634 734 ––––––––––––2.00
2.00 118 236 6.72 4.81 342 418 619 720 ––––––––––––2.00
2.00 125 250 7.59 5.42 324 401 602 703 ––––––––––––2.00
2.00 140 280 8.04 5.78 287 363 566 666 787 917 1068 1243 1443 1669 1919 2169 2469 2819 3219 3669 2.00
2.00 200 400 14.27 10.21 – – 417 519 641 772 923 1099 1300 1525 1776 2026 2327 2677 3077 3527 2.00
2.00 250 500 19.12 13.75 – – – – 516 649 801 978 1179 1405 1656 1907 2207 2558 2958 3409 2.00
2.00 315 630 24.91 18.15 – – – – – – 638 818 1021 1248 1500 1751 2052 2403 2803 3254 2.00
2.09 170 355 11.21 8.02 – – 479 580 702 833 983 1159 1360 1585 1835 2086 2386 2736 3136 3586 2.09
2.10 150 315 9.11 6.53 –324 528 629 750 881 1031 1207 1407 1633 1883 2133 2433 2784 3184 3634 2.10
2.11 190 400 13.26 9.48 – – 424 526 648 780 931 1107 1307 1533 1784 2034 2334 2685 3085 3535 2.11
2.11 112 236 5.97 4.30 346 422 624 724 ––––––––––––2.11
2.12 118 250 6.72 4.81 429 406 607 708 ––––––––––––2.12
2.12 236 500 17.79 12.77 –––400 526 659 811 988 1190 1416 1667 1917 2218 2569 2969 3419 2.12
2.12 132 280 8.45 6.02 292 369 572 672 ––––––––––––2.12
2.22 160 355 10.17 7.28 –278 486 587 709 840 991 1166 1367 1593 1843 2093 2394 2744 3144 3594 2.22
2.22 180 400 12.24 8.75 – – 430 533 655 787 938 1114 1315 1541 1791 2042 2342 2692 3093 3543 2.22
2.23 112 250 5.97 4.30 334 410 612 712 ––––––––––––2.23
2.23 224 500 16.64 11.92 –––408 534 667 820 997 1198 1425 1676 1926 2227 2578 2978 3429 2.23
2.24 125 280 7.59 5.42 297 374 577 677 ––––––––––––2.24
2.25 140 315 8.04 5.78 252 331 535 637 758 888 1039 1214 1415 1640 1891 2141 2441 2791 3191 3642 2.25
2.25 280 630 21.87 15.81 – – – – 364 505 662 842 1046 1273 1525 1777 2078 2429 2830 3281 2.25
2.35 170 400 11.21 8.02 – – 437 540 663 794 945 1121 1322 1548 1799 2049 2350 2700 3100 3550 2.35
2.36 212 500 15.46 11.07 –––416 542 675 828 1005 1207 1434 1685 1935 2236 2587 2987 3438 2.36
2.37 150 355 9.11 6.53 –285 493 595 733 847 998 1174 1375 1600 1851 2101 2401 2751 3152 3602 2.37
2.37 118 280 6.72 4.81 302 379 582 683 ––––––––––––2.37
2.39 132 315 8.45 6.02 258 336 541 642 ––––––––––––2.39
2.50 112 280 5.97 4.30 306 383 586 687 ––––––––––––2.50
2.50 160 400 10.17 7.28 – – 444 547 670 801 953 1129 1330 1556 1806 2057 2357 2708 3108 3558 2.50
2.50 200 500 14.27 10.21 –––424 550 684 837 1014 1216 1442 1694 1944 2245 2596 2996 3447 2.50
2.52 125 315 7.59 5.42 262 341 546 647 ––––––––––––2.52
2.52 250 630 19.12 13.75 – – – – 382 524 682 863 1067 1295 1547 1799 2100 2451 2853 3303 2.52
2.54 140 355 8.04 5.78 –291 500 602 723 854 1005 1181 1382 1608 1858 2108 2409 2759 3159 3610 2.54
2.54 315 800 24.81 18.15 – – – – – – – 654 865 1097 1353 1606 1909 2261 2663 3115 2.54
2.63 190 500 13.26 9.48 –––430 557 691 844 1021 1223 1450 1701 1952 2253 2603 3004 3455 2.63
2.67 150 400 9.11 6.53 – – 451 554 677 808 960 1136 1337 1563 1814 2064 2365 2715 3116 3566 2.67
2.67 118 315 6.72 4.81 267 346 551 652 ––––––––––––2.67
2.67 236 630 17.79 12.77 – – – – 390 533 692 873 1077 1305 1557 1809 2111 2462 2863 3314 2.67
2.69 132 355 8.45 6.02 –297 505 607 ––––––––––––2.69
2.78 180 500 12.24 8.75 –––437 563 698 851 1028 1231 1457 1708 1959 2260 2611 3012 3462 2.78
2.81 112 315 5.97 4.30 271 350 555 657 ––––––––––––2.81
2.81 224 630 16.64 11.92 – – – – 398 541 700 881 1085 1314 1566 1818 2120 2471 2872 3323 2.81
2.84 125 355 7.59 5.42 –301 510 612 ––––––––––––2.84
2.86 140 400 8.04 5.78 – – 457 561 684 816 967 1143 1345 1571 1821 2072 2372 2723 3123 3574 2.86
2.86 280 800 21.87 15.81 – – – – – – – 677 889 1122 1377 1631 1934 2287 2689 3141 2.86
2.94 170 500 11.21 8.02 –––443 570 704 858 1036 1238 1464 1716 1967 2268 2619 3019 3470 2.94
2.97 212 630 15.46 11.07 – – – – 405 549 708 889 1094 1322 1575 1827 2128 2480 2881 3332 2.97
3.01 118 355 6.72 4.81 –306 515 617 ––––––––––––3.01
3.03 132 400 8.45 6.02 – – 463 566 ––––––––––––3.03
3.13 160 500 10.17 7.28 –––449 577 711 865 1043 1245 1472 1723 1974 2275 2626 3027 3477 3.13
3.15 200 630 14.27 10.21 – – – – 412 557 716 897 1102 1331 1584 1836 2137 2489 2890 3341 3.15
3.17 112 355 5.97 4.30 –309 519 621 ––––––––––––3.17
3.17 315 1000 24.91 18.15 – – – – – – – – – 902 1167 1426 1733 2089 2494 2947 3.17
3.20 125 400 7.59 5.42 – – 467 571 ––––––––––––3.20
3.20 250 800 19.12 13.75 – – – – – – – 696 909 1142 1398 1652 1956 2309 2711 3163 3.20
3.32 190 630 13.26 9.48 – – – – 418 563 722 904 1109 1338 1591 1843 2145 2496 2898 3349 3.32
3.33 150 500 9.11 6.53 – – 345 456 584 718 872 1050 1252 1479 1731 1982 2283 2634 3034 3485 3.33
3.39 118 400 6.79 4.86 – – 472 576 ––––––––––––3.39
3.39 236 800 17.86 12.82 – – – – – – – 705 918 1152 1408 1662 1966 2319 2722 3174 3.39
3.50 180 630 12.31 8.80 – – – – 425 569 729 911 1116 1345 1598 1850 2152 2504 2905 3356 3.50
3.57 112 400 6.04 4.34 – – 476 580 ––––––––––––3.57
3.57 140 500 8.11 5.82 – – 351 462 590 725 879 1057 1259 1486 1738 1989 2290 2641 3042 3493 3.57
3.57 224 800 16.71 11.97 – – – – – – – 713 926 1160 1416 1671 1975 2328 2731 3183 3.57
3.57 280 1000 21.94 15.85 – – – – – – – – 673 925 1190 1450 1758 2114 2519 2973 3.57
3.71 170 630 11.28 8.06 – – – – 431 576 736 918 1123 1352 1605 1857 2159 2511 2913 3364 3.71
3.77 212 800 15.53 11.11 – – – – – – – 720 934 1168 1425 1679 1983 2337 2739 3192 3.77
3.79 132 500 8.52 6.06 – – 356 467 ––––––––––––3.79
3.94 160 630 10.23 7.32 – – – – 437 582 742 925 1130 1359 1612 1865 2167 2519 2920 3371 3.94
4.00 125 500 7.66 5.46 – – 360 472 ––––––––––––4.00
4.00 200 800 14.34 10.25 – – – – – – 530 728 942 1176 1433 1688 1992 2345 2748 3201 4.00
4.00 250 1000 19.19 13.79 – – – – – – – – 692 944 1210 1470 1779 2135 2541 2995 4.00
4.20 150 630 9.18 6.57 – – – – 443 588 749 931 1137 1366 1620 1872 2174 2526 2928 3379 4.20
4.21 190 800 13.33 9.53 – – – – – – 536 734 948 1183 1440 1695 1999 2353 2756 3208 4.21
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
Pitch diameters in italic type indicates drives where the use of CRE PLUS or Quattro PLUS belts are recommended.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor. All dimensions in millimetres.
BELT LENGTH SPB & QXPB &
USPB ONLY USPB & SPB ONLY
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 49
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPB
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 1250 1400 1800 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000
4.24 236 1000 17.86 12.82 –––––––– 700 953 1219 1480 1788 2145 2551 3005 4.24
4.44 180 800 12.31 8.80 ––––––542 740 955 1190 1447 1702 2006 2360 2763 3215 4.44
4.46 224 1000 16.71 11.97 –––––––– 707 960 1227 1488 1797 2154 2559 3014 4.46
4.50 140 630 8.11 5.82 ––––449 595 756 938 1144 1373 1627 1879 2181 2533 2935 3386 4.50
4.71 170 800 11.28 8.06 ––––––548 747 962 1197 1454 1709 2014 2367 2770 3223 4.71
4.72 212 1000 15.53 11.11 –––––––– 714 968 1235 1496 1805 2162 2568 3022 4.72
5.00 160 800 10.23 7.32 ––––––554 753 968 1203 1461 1716 2021 2374 2778 3230 5.00
5.00 200 1000 14.34 10.25 –––––––– 722 976 1243 1504 1813 2171 2576 3031 5.00
5.26 190 1000 13.33 9.53 –––––––– 728 982 1250 1511 1820 2178 2584 3038 5.26
5.33 150 800 9.18 6.57 –––––––759 975 1210 1468 1723 2028 2382 2785 3238 5.33
5.56 180 1000 12.31 8.80 –––––––– 734 988 1256 1518 1827 2185 2591 3046 5.56
5.71 140 800 8.11 5.82 –––––––766 981 1217 1475 1730 2035 2389 2792 3245 5.71
5.88 170 1000 11.28 8.06 –––––––– 740 994 1263 1525 1834 2192 2598 3053 5.88
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor.
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPB, XPB & QXPB, USPB Wedge Belt Drives
BELT LENGTH SPB & QXPB &
USPB ONLY SPB ONLY
50
All dimensions in millimetres.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor.
Drive combinations are available using 200mm & 212mm pitch diameter pulleys and Quattro Plus belts - consult your local Authorised Distributor.
Combined Arc and Belt Length
Correction Factor 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch
Diameter of
Pulleys
Power per SPC
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000 9000 10000 11200 12500
1.00 224 224 16.59 12.68 648 768 898 1048 1223 1423 1648 1898 2148 2448 2798 3198 3648 4148 4648 5248 5898 1.00
1.00 250 250 21.50 16.30 608 728 858 1008 1183 1383 1608 1858 2108 2408 2758 3158 3608 4108 4608 5208 5858 1.00
1.00 300 300 30.43 23.05 529 649 779 929 1104 1304 1529 1779 2029 2329 2679 3079 3529 4029 4529 5129 5779 1.00
1.00 335 335 36.23 27.61 474 594 724 874 1049 1249 1474 1724 1974 2274 2624 3024 3474 3974 4474 5074 5724 1.00
1.00 400 400 45.91 35.71 –492 622 772 947 1147 1372 1622 1872 2172 2522 2922 3377 3877 4372 4972 5622 1.00
1.00 450 450 52.32 41.58 – – 544 694 869 1069 1294 1544 1794 2094 2444 2844 3294 3621 4121 4721 5544 1.00
1.00 500 500 57.73 47.12 –––615 790 990 1215 1465 1715 2015 2365 2765 3215 3715 4215 4815 5465 1.00
1.00 560 560 –11 53.29 –––––896 1121 1371 1621 1921 2271 2671 3121 3621 4121 4721 5371 1.00
1.05 300 315 30.74 23.26 517 637 767 917 1092 1292 1517 1767 2017 2317 2667 3067 3517 4017 4517 5117 5767 1.05
1.05 224 236 16.90 12.89 639 759 889 1039 1214 1414 1639 1889 2139 2439 2789 3189 3639 4139 4639 5239 5889 1.05
1.06 355 375 40.24 30.74 –547 677 827 1002 1202 1427 1677 1927 2227 2577 2977 3427 3927 4427 5027 5677 1.06
1.06 425 450 50.14 39.27 – – 563 713 888 1088 1313 1563 1813 2113 2463 2863 3313 3813 4313 4913 5563 1.06
1.06 236 250 19.75 14.94 618 738 868 1018 1193 1393 1618 1868 2118 2418 2768 3168 3618 4118 4618 5218 5868 1.06
1.06 500 530 58.60 47.70 –––591 766 966 1191 1441 1691 1991 2341 2741 3191 3691 4191 4791 5441 1.06
1.07 375 400 43.25 33.24 –511 642 792 967 1167 1392 1642 1892 2192 2542 2942 3392 3892 4392 4992 5642 1.07
1.07 280 300 27.81 20.96 545 665 795 945 1120 1320 1545 1795 2045 2345 2695 3095 3545 4045 4545 5145 5795 1.07
1.11 450 500 53.19 42.16 –––654 829 1029 1254 1504 1754 2054 2404 2804 3254 3754 4254 4854 5504 1.11
1.12 425 475 50.78 39.70 – – 543 693 868 1068 1293 1543 1793 2093 2443 2843 3293 3793 4293 4893 5543 1.12
1.12 335 375 37.74 28.62 442 562 692 842 1017 1217 1443 1693 1943 2243 2593 2993 3443 3943 4443 5043 5693 1.12
1.12 250 280 23.01 17.31 584 704 834 984 1159 1359 1584 1834 2084 2384 2734 3134 3584 4084 4584 5184 5834 1.12
1.12 500 560 60.11 48.13 ––––742 942 1168 1418 1668 1968 2318 2718 3168 3668 4168 4768 5418 1.12
1.13 560 630 –11 54.30 –––––840 1065 1315 1565 1866 2216 2616 3066 3566 4066 4666 5316 1.13
1.13 355 400 40.88 31.17 –527 657 807 982 1182 1407 1657 1907 2207 2557 2957 3407 3907 4407 5007 5657 1.13
1.13 265 300 25.76 19.36 556 676 806 956 1131 1331 1556 1806 2056 2356 2706 3106 3556 4056 4556 5156 5806 1.13
1.18 475 560 56.72 45.40 –––586 761 962 1187 1437 1687 1987 2337 2737 3187 3687 4187 4787 5437 1.18
1.18 224 265 18.10 13.69 616 736 866 1016 1191 1391 1616 1866 2116 2416 2766 3166 3616 4116 4616 5216 5866 1.18
1.18 300 355 31.94 24.09 485 605 735 885 1060 1261 1486 1736 1986 2286 2636 3036 3486 3986 4486 5086 5736 1.18
1.19 400 475 47.97 37.08 – – 562 712 887 1087 1313 1563 1813 2113 2463 2863 3313 3813 4313 4913 5563 1.19
1.19 265 315 26.31 19.72 544 664 794 944 1119 1319 1544 1795 2045 2345 2695 3095 3545 4045 4545 5144 5795 1.19
1.19 315 375 35.02 26.39 457 578 708 858 1033 1233 1458 1708 1958 2258 2608 3008 3458 3958 4458 5058 5708 1.19
1.20 355 425 41.43 31.53 –506 637 787 962 1162 1387 1637 1887 2187 2537 2937 3388 3888 4388 4988 5638 1.20
1.20 250 300 23.56 17.67 568 688 818 968 1143 1343 1568 1818 2068 2368 2718 3118 3568 4068 4568 5168 5818 1.20
1.24 450 560 54.38 42.95 –––605 780 981 1206 1456 1706 2006 2357 2757 3207 3707 4207 4807 5457 1.24
1.25 224 280 18.65 14.05 604 724 854 1004 1179 1379 1604 1854 2104 2404 2754 3154 3604 4104 4604 5204 5854 1.25
1.25 300 375 32.49 24.42 469 589 719 869 1044 1245 1470 1720 1970 2270 2620 3020 3470 3970 4470 5070 5720 1.25
1.25 400 500 47.97 37.08 – –541 692 867 1067 1293 1543 1793 2093 2443 2843 3293 3793 4293 4893 5543 1.25
1.26 250 315 23.56 17.67 566 676 806 956 1131 1331 1556 1806 2056 2356 2706 3106 3556 4056 4556 5156 5806 1.26
1.26 500 630 60.66 48.49 ––––685 886 1111 1361 1612 1912 2262 2662 3112 3612 4112 4713 5363 1.26
1.27 315 400 35.46 26.69 437 557 687 838 1013 1213 1438 1688 1938 2238 2588 2988 3438 3938 4439 5039 5689 1.27
1.27 236 300 21.38 16.03 578 699 829 979 1154 1354 1579 1829 2079 2379 2729 3129 3579 4079 4579 5179 5829 1.27
1.32 425 560 51.77 40.36 –––623 799 999 1225 1475 1725 2026 2376 2776 3226 3726 4226 4826 5476 1.32
1.33 300 400 39.93 24.72 448 568 699 849 1024 1224 1450 1700 1950 2250 2600 3000 3450 3950 4450 5050 5700 1.33
1.33 375 500 44.88 34.33 – – 560 710 896 1086 1312 1562 1812 2112 2462 2862 3313 3813 4313 4913 5563 1.33
1.33 236 315 21.38 16.03 566 686 817 967 1142 1342 1567 1817 2067 2367 2717 3117 3567 4067 4567 5167 5817 1.33
1.34 355 475 38.73 31.83 – – 595 746 921 1122 1347 1597 1847 2148 2498 2898 3348 3848 4348 4948 5598 1.34
1.34 250 335 24.00 17.97 539 659 790 940 1115 1315 1540 1790 2040 2340 2690 3090 3541 4041 4541 5141 5791 1.34
1.35 315 425 35.46 26.69 –536 667 817 993 1193 1418 1668 1918 2218 2569 2969 3419 3919 4419 5019 5669 1.35
1.40 400 560 48.84 37.66 –––641 817 1018 1244 1494 1745 2045 2395 2795 3245 3746 4246 4846 5496 1.40
1.40 450 630 55.16 43.53 ––––722 923 1149 1399 1650 1950 2300 2701 3151 3651 4151 4751 5401 1.40
1.41 224 315 19.52 14.63 575 695 826 976 1151 1351 1576 1826 2076 2376 2727 3127 3577 4077 4577 5177 5827 1.41
1.41 355 500 42.30 32.11 – – 574 725 901 1101 1327 1577 1827 2128 2478 2878 3328 3828 4328 4928 5578 1.41
1.42 335 475 39.16 29.56 –479 610 761 937 1137 1362 1613 1863 2163 2513 2913 3363 3864 4364 4964 5614 1.42
1.42 250 355 24.43 18.25 522 643 773 924 1099 1299 1524 1744 2024 2324 2675 3075 3525 4025 4525 5125 5775 1.42
1.43 315 450 35.89 26.97 –515 646 797 972 1173 1398 1648 1898 2198 2549 2949 3399 3899 4399 4999 5649 1.43
1.43 560 800 –11 55.24 –––––– 925 1176 1427 1728 2079 2479 2930 3430 3931 4531 5181 1.43
1.48 425 630 52.20 40.64 ––––740 941 1167 1418 1669 1969 2320 2720 3170 3670 4171 4771 5421 1.48
1.49 335 500 39.16 29.56 – – 589 740 916 1116 1342 1592 1843 2143 2493 2893 3344 3844 4344 4944 5594 1.49
1.49 375 560 45.31 34.61 –––660 836 1037 1263 1513 1764 2064 2414 2815 3265 3765 4265 4865 5515 1.49
1.50 250 375 24.43 18.25 506 626 757 907 1083 1283 1508 1758 2008 2309 2659 3059 3509 4009 4509 5109 5759 1.50
1.50 300 450 33.36 25.00 –526 657 808 983 1184 1409 1660 1910 2210 2560 2960 3410 3911 4411 5011 5611 1.50
1.51 315 475 35.89 29.56 –493 625 776 951 1152 1378 1628 1878 2178 2529 2929 3379 3879 4379 4979 5629 1.51
1.51 530 800 63.46 52.22 –––––– 946 1198 1450 1751 2102 2502 2953 3453 3954 4554 5204 1.51
1.52 280 425 29.87 22.33 441 562 693 843 1019 1219 1445 1695 1945 2245 2596 2996 3446 3946 4446 5046 5696 1.52
1.58 400 630 49.21 37.91 –––580 758 960 1186 1437 1688 1988 2339 2739 3189 3690 4190 4790 5440 1.58
1.59 315 500 36.26 27.22 –471 603 755 931 1131 1357 1608 1858 2158 2509 2909 3359 3859 4358 4959 5609 1.59
1.59 236 375 22.18 16.56 516 637 767 918 1093 1293 1519 1769 2019 2319 2669 3079 3520 4020 4520 5120 5770 1.59
1.60 250 400 24.80 18.50 484 605 736 887 1062 1263 1488 1738 1988 2289 2639 3039 3489 3989 4489 5089 5739 1.60
1.60 500 800 61.90 49.32 –––––739 968 1220 1472 1773 2124 2525 2976 3476 3977 4577 5227 1.60
1.61 280 450 30.24 22.58 –540 672 823 998 1199 1424 1675 1925 2225 2576 2976 3426 3926 4426 5026 5676 1.61
1.67 335 560 39.53 29.81 – – 536 688 865 1066 1293 1543 1794 2094 2445 2845 3296 3796 4296 4896 5546 1.67
1.67 224 375 19.89 14.88 524 645 776 927 1102 1303 1528 1778 2028 2329 2679 3079 3529 4029 4529 5129 5779 1.67
1.68 375 630 45.68 34.86 –––597 776 978 1204 1455 1706 2007 2358 2758 3209 3709 4209 4809 5460 1.68
Centre Distance SPC, XPC & QXPC, USPC Wedge Belt Drives
FRICTION BELT DRIVESSECTION : 3
BELT LENGTH USPC & SPC ONLY
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 51
Combined Arc and Belt Length
Correction Factor 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
Speed
Ratio
Pitch Diameter
of Pulleys
Power per SPC
Belt (kW) Speed
Ratio
Driver Driven 1440
rev/min
960
rev/min 2000 2240 2500 2800 3150 3550 4000 4500 5000 5600 6300 7100 8000 9000 10000 11200 12500
1.68 315 530 36.26 27.22 – – 577 729 905 1106 1332 1583 1834 2134 2484 2885 3335 3835 4335 4936 5586 1.68
1.69 236 400 22.18 16.56 494 615 746 897 1073 1273 1498 1749 1999 2299 2649 3050 3500 4000 4500 5100 5750 1.69
1.70 280 475 30.24 22.58 –518 650 801 977 1178 1404 1654 1905 2205 2555 2956 3406 3906 4406 5006 5656 1.70
1.70 250 425 24.80 18.50 462 584 715 866 1041 1242 1468 1718 1968 2268 2619 3019 3469 3969 4469 5069 5716 1.70
1.77 300 530 33.73 25.25 – – 587 740 916 1118 1344 1594 1845 2145 2496 2896 3346 3847 4347 4947 5597 1.77
1.77 355 630 42.67 33.36 – – – 611 790 992 1219 1470 1721 2022 2373 2773 3224 3724 4225 4825 5475 1.77
1.78 315 560 36.26 27.22 – – 549 702 880 1081 1307 1558 1809 2110 2460 2861 3311 3811 4311 4912 5562 1.78
1.78 450 800 55.62 43.78 – – – – – 774 1003 1257 1509 1810 2162 2563 3014 3514 4015 4615 5266 1.78
1.79 280 500 30.24 22.58 –495 628 780 956 1157 1383 1634 1884 2185 2535 2936 3386 3886 4386 4986 5637 1.79
1.79 560 1000 –11 55.49 –––––––1001 1256 1560 1913 2315 2767 3268 3769 4370 5021 1.79
1.80 250 450 24.80 18.50 439 562 693 845 1021 1221 1447 1698 1948 2248 2599 2999 3449 3949 4449 5050 5700 1.80
1.80 236 426 22.18 16.56 472 594 725 876 1052 1253 1478 1729 1979 2279 2629 3030 3480 3980 4480 5080 5730 1.80
1.87 300 560 33.73 25.25 – – 560 713 890 1092 1318 1570 1820 2121 2471 2872 3322 3823 4323 4923 5573 1.87
1.88 335 630 39.53 29.81 – – – 625 804 1007 1234 1485 1736 2037 2388 2789 3239 3740 4240 4840 5490 1.88
1.88 425 800 52.57 40.89 – – – – – 791 1021 1275 1527 1829 2180 2582 3033 3533 4034 4035 5285 1.88
1.89 280 530 30.24 22.58 –467 601 754 931 1132 1358 1609 1860 2161 2511 2911 3362 3862 4362 4963 5613 1.89
1.90 250 475 24.80 8.50 –539 671 823 1000 1201 1426 1677 1928 2228 2578 2979 3429 3929 4429 5030 5680 1.90
1.91 236 450 22.18 16.56 449 571 703 855 1031 1232 1458 1708 1959 2259 2609 3010 3460 3960 4460 5060 5710 1.91
2.00 265 530 27.75 20.75 –478 612 764 942 1143 1370 1621 1891 2172 2523 2923 3373 3874 4374 4974 5624 2.00
2.00 315 630 36.49 27.42 – – – 639 818 1021 1248 1500 1751 2052 2403 2804 3254 3755 4255 4856 5506 2.00
2.00 500 1000 62.10 49.52 –––––––1043 1298 1603 1957 2359 2811 3313 3814 4415 5066 2.00
2.01 236 475 22.38 18.76 425 549 681 833 1010 1211 1437 1688 1938 2239 2589 2989 3440 3940 4440 5040 5691 2.01
2.10 300 630 33.93 25.45 – – – 649 829 1032 1259 1511 1762 2063 2414 2815 3266 3766 4267 4867 5517 2.10
2.11 475 1000 58.71 46.79 –––––––1060 1316 1621 1975 2378 2830 3332 3833 4434 5085 2.11
2.11 265 560 27.75 20.75 – – 584 738 915 1118 1344 1596 1846 2147 2498 2899 3349 3850 4350 4950 5600 2.11
2.12 250 530 25.00 18.70 –488 622 775 952 1154 1381 1632 1882 2183 2534 2934 3385 3885 4385 4986 5636 2.12
2.12 224 475 20.09 15.08 433 557 690 842 1019 1220 1446 1697 1947 2248 2598 2999 3449 3949 4450 5050 5700 2.12
2.13 375 800 45.88 35.06 – – – – – 825 1056 1310 1563 1866 2217 2619 3070 3571 4072 4673 5323 2.13
2.22 450 1000 55.82 43.98 – – – – – – 815 1077 1333 1639 1993 2396 2848 3350 3852 4453 5104 2.22
2.23 224 500 20.09 15.08 –534 667 820 997 1199 1425 1676 1927 2227 2578 2978 3429 3929 4430 5030 5680 2.23
2.23 560 1250 –11 55.69 ––––––––1021 1335 1694 2101 2556 3060 3562 4165 4817 2.23
2.24 250 560 25.00 18.70 – – 594 748 926 1129 1355 1607 1858 2159 2509 2910 3361 3861 4361 4962 5612 2.24
2.25 280 630 30.44 22.78 – – – 663 842 1046 1274 1526 1777 2078 2429 2830 3281 3782 4282 4883 5533 2.25
2.25 355 800 42.87 32.56 – – – – – 839 1070 1325 1578 1880 2232 2634 3085 3586 4087 4688 5339 2.25
2.35 425 1000 52.77 41.09 – – – – – – 832 1094 1351 1656 2011 2414 2867 3369 3871 4472 5123 2.35
2.36 530 1250 64.03 52.67 ––––––––1040 1355 1715 2122 2578 3082 3585 4187 4839 2.36
2.37 236 560 22.38 18.76 –467 603 758 936 1139 1366 1617 1868 2169 2520 2921 3371 3872 4372 4973 5623 2.37
2.38 265 630 27.75 20.75 – – 515 673 853 1057 1284 1537 1788 2089 2441 2842 3292 3793 4294 4894 5544 2.38
2.39 335 800 39.73 30.01 – – – – 642 852 1084 1339 1592 1895 2247 2649 3100 3602 4102 4703 5354 2.39
2.50 224 560 20.09 15.08 –475 611 766 945 1147 1374 1626 1877 2178 2529 2930 3380 3881 4381 4982 5632 2.50
2.50 500 1250 62.10 49.52 ––––––––1060 1375 1736 2143 2599 3104 3607 4210 4862 2.50
2.52 250 630 25.00 18.70 – – 525 683 863 1067 1295 1548 1799 2101 2452 2853 3304 3804 4305 4906 5556 2.52
2.54 315 800 36.49 27.42 – – – – 655 866 1098 1353 1606 1909 2262 2664 3115 3617 4118 4718 5369 2.54
2.63 475 1250 58.71 46.79 ––––––––1076 1392 1753 2161 2617 3122 3625 4228 4880 2.63
2.67 375 1000 45.88 35.06 – – – – – – 864 1127 1385 1692 2047 2451 2904 3406 3908 4510 5161 2.67
2.67 236 630 22.38 18.76 – – 534 692 873 1077 1305 1558 1809 2111 2462 2863 3314 3815 4316 4916 5567 2.67
2.78 450 1250 55.82 43.98 ––––––––1092 1409 1770 2179 2635 3140 3644 4247 4899 2.78
2.81 224 630 20.09 15.08 – – 542 700 881 1086 1314 1566 1818 2120 2471 2872 3323 3824 4325 4925 5576 2.81
2.82 355 1000 42.87 32.56 – – – – – – 877 1141 1399 1706 2061 2465 2919 3421 3923 4525 5176 2.82
2.86 280 800 30.44 22.78 – – – – 677 889 1122 1378 1631 1935 2287 2690 3141 3643 4144 4745 5396 2.86
2.94 425 1250 52.77 41.09 – – ––––––1108 1425 1788 2196 2653 3158 3662 4265 4918 2.94
2.99 335 1000 39.73 30.01 – – – – – – 890 1154 1413 1720 2075 2480 2933 3436 3938 4540 5191 2.99
3.02 265 800 27.75 20.75 – – – – 687 899 1132 1388 1642 1946 2298 2701 3153 3654 4155 4756 5407 3.02
3.13 400 1250 49.41 38.11 ––––––––1124 1442 1805 2214 2671 3176 3680 4284 4936 3.13
3.17 315 1000 36.49 27.42 – – – – – – 903 1167 1427 1734 2090 2494 2948 3451 3953 4555 5206 3.17
3.20 250 800 25.00 18.70 – – – – 696 909 1143 1399 1653 1956 2309 2712 3164 3665 4167 4768 5419 3.20
3.33 300 1000 33.93 25.45 – – – – – – 912 1177 1437 1744 2100 2505 2959 3462 3964 4566 5218 3.33
3.39 236 800 22.69 16.90 – – – – 705 918 1152 1409 1663 1967 2320 2722 3174 3676 4177 4778 5429 3.39
3.52 355 1250 43.18 32.70 ––––––– 876 1153 1472 1836 2245 2703 3209 3713 4317 4970 3.52
3.57 224 800 20.40 15.22 – – – 516 713 926 1160 1417 1671 1975 2328 2731 3183 3685 4186 4787 5439 3.57
3.73 335 1250 40.04 30.15 ––––––– 888 1166 1485 1849 2259 2717 3223 3728 4332 4985 3.73
3.77 265 1000 28.06 20.89 – – – – – – 935 1201 1461 1769 2125 2530 2984 3488 3990 4592 5244 3.77
3.97 315 1250 36.77 27.56 ––––––– 900 1179 1499 1863 2273 2731 3238 3742 4346 5000 3.97
4.00 250 1000 25.31 18.84 – – – – – – 944 1211 1471 1779 2136 2541 2995 3499 4001 4603 5255 4.00
4.17 300 1250 34.24 25.59 ––––––– 909 1188 1508 1873 2284 2742 3249 3753 4357 5011 4.17
4.24 236 1000 22.69 16.90 – – – – – – 953 1220 1480 1789 2146 2551 3005 3509 4012 4612 5266 4.24
4.46 280 1250 30.75 22.92 ––––––– 921 1201 1522 1887 2298 2756 3263 3768 4372 5026 4.46
4.72 265 1250 28.06 20.89 ––––––– 930 1211 1532 1897 2308 2767 3274 3776 4383 5037 4.72
5.00 250 1250 25.31 18.84 ––––––– 939 1220 1541 1907 2319 2777 3284 3790 4394 5048 5.00
5.30 236 1250 22.69 16.90 ––––––– 948 1229 1551 1916 2328 2787 3294 3800 4404 5058 5.30
5.58 224 1250 20.40 15.20 ––––––– 955 1236 1558 1925 2337 2796 3303 3808 4413 5067 5.58
SECTION : 3FRICTION BELT DRIVES
Centre Distance SPC, XPC & QXPC, USPC Wedge Belt Drives
BELT LENGTH USPC & SPC ONLY
All dimensions in millimetres.
The above drives are based on the ISO belt length designations, other belt lengths and pulley combinations are available - consult your local Authorised Distributor.
Drive combinations are available using 200mm & 212mm pitch diameter pulleys and Quattro Plus belts - consult your local Authorised Distributor.
52
Power Ratings - USPB Ultra PLUS 150 Wedge Belts
FRICTION BELT DRIVESSECTION : 3
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.01 0.02 0.04 0.04 0.06 0.07 0.07 0.08 0.08
200 0.00 0.01 0.04 0.07 0.09 0.11 0.13 0.15 0.16 0.17
300 0.00 0.02 0.06 0.10 0.14 0.17 0.20 0.22 0.24 0.25
400 0.00 0.03 0.07 0.13 0.19 0.22 0.26 0.29 0.32 0.34
500 0.00 0.04 0.09 0.17 0.23 0.28 0.33 0.37 0.40 0.43
600 0.00 0.04 0.12 0.20 0.28 0.34 0.40 0.45 0.48 0.51
700 0.00 0.05 0.13 0.24 0.33 0.39 0.46 0.52 0.57 0.59
720 0.00 0.05 0.14 0.25 0.33 0.41 0.48 0.54 0.59 0.62
800 0.00 0.06 0.16 0.28 0.37 0.45 0.53 0.60 0.65 0.69
900 0.00 0.07 0.18 0.31 0.42 0.51 0.60 0.66 0.72 0.77
960 0.00 0.07 0.19 0.32 0.44 0.54 0.62 0.70 0.77 0.81
1000 0.00 0.07 0.19 0.34 0.46 0.56 0.66 0.74 0.81 0.86
1100 0.00 0.08 0.22 0.37 0.51 0.62 0.72 0.81 0.89 0.94
1200 0.00 0.09 0.23 0.41 0.56 0.68 0.79 0.89 0.97 1.03
1300 0.00 0.09 0.25 0.44 0.60 0.73 0.86 0.96 1.05 1.11
1400 0.00 0.10 0.28 0.48 0.65 0.79 0.93 1.04 1.13 1.20
1440 0.00 0.10 0.28 0.48 0.66 0.79 0.94 1.06 1.15 1.21
1500 0.00 0.10 0.29 0.51 0.69 0.84 0.99 1.11 1.21 1.28
1600 0.00 0.11 0.31 0.54 0.75 0.90 1.05 1.19 1.29 1.37
1700 0.00 0.12 0.34 0.58 0.79 0.95 1.12 1.26 1.37 1.45
1800 0.00 0.13 0.35 0.61 0.84 1.01 1.19 1.34 1.45 1.54
1900 0.00 0.13 0.37 0.65 0.88 1.07 1.25 1.41 1.54 1.63
2000 0.00 0.14 0.39 0.68 0.93 1.13 1.32 1.48 1.62 1.71
2100 0.00 0.15 0.41 0.72 0.98 1.18 1.39 1.56 1.69 1.79
2200 0.00 0.16 0.43 0.75 1.02 1.24 1.45 1.63 1.78 1.88
2300 0.00 0.16 0.45 0.78 1.07 1.29 1.51 1.71 1.86 1.97
2400 0.00 0.17 0.47 0.82 1.11 1.35 1.58 1.78 1.94 2.05
2500 0.00 0.18 0.49 0.85 1.16 1.41 1.65 1.86 2.02 2.14
2600 0.00 0.19 0.51 0.89 1.21 1.46 1.72 1.92 2.10 2.22
2700 0.00 0.19 0.53 0.92 1.25 1.52 1.78 1.99 2.18 2.31
2800 0.00 0.20 0.54 0.95 1.29 1.57 1.84 2.07 2.26 2.39
2880 0.00 0.20 0.56 0.97 1.32 1.60 1.88 2.11 2.31 2.44
2900 0.00 0.21 0.57 0.99 1.34 1.63 1.91 2.15 2.34 2.48
3000 0.00 0.22 0.59 1.02 1.39 1.69 1.98 2.23 2.42 2.57
Additional Power Ratings - USPB
Rev/min of
faster shaft
Rated Power (kW) per belt for small pulley pitch dia (mm) Belt Speed
(m/s)
140 160 180 200 224 250 280 315 355 400
50 0.66 0.83 0.99 1.15 1.35 1.55 1.79 2.06 2.38 2.72
100 1.23 1.54 1.86 2.17 2.53 2.93 3.38 3.91 4.51 5.17
200 2.26 2.87 3.46 4.05 4.75 5.51 6.37 7.37 8.50 9.77
350 3.68 4.69 5.69 6.69 7.86 9.13 10.58 12.24 14.13 16.22
500 5.01 6.41 7.80 9.17 10.80 12.55 14.55 16.84 19.43 22.28
700 6.66 8.56 10.45 12.31 14.51 16.87 19.54 22.61 26.03 29.79
800 7.44 9.59 11.72 13.81 16.29 18.93 21.92 25.33 29.14 33.28
950 8.58 11.09 13.55 15.98 18.85 21.90 25.33 29.23 33.53 38.17
1200 10.37 13.44 16.45 19.40 22.87 26.52 30.60 35.16 40.11 45.30
1450 12.03 15.63 19.14 22.56 26.55 30.70 35.28 40.31 45.62 50.96
1600 12.97 16.86 20.65 24.33 28.58 32.99 37.79 42.99 48.35 53.57
1800 14.14 18.41 22.54 26.51 31.08 35.75 40.75 46.03 51.26 56.01
2000 15.24 19.85 24.28 28.51 33.32 38.16 43.24 48.42 53.25 57.16
2500 17.59 22.91 27.91 32.56 37.64 42.48 47.12 51.12
2850 18.89 24.57 29.79 34.52 39.47 43.87 47.58
3500 20.47 26.45 31.63 35.93 39.80
4000 20.86 26.70 31.38 34.77
5000 19.14 23.58
Power Ratings - USPB Ultra PLUS 150 Wedge Belts
40
30
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 53
SECTION : 3FRICTION BELT DRIVES
Power Ratings - USPC Ultra PLUS 150 Wedge Belts
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.02 0.06 0.11 0.14 0.17 0.20 0.23 0.25 0.26
200 0.00 0.04 0.12 0.21 0.29 0.35 0.41 0.46 0.50 0.53
300 0.00 0.07 0.18 0.32 0.43 0.52 0.61 0.69 0.75 0.79
400 0.00 0.09 0.24 0.42 0.57 0.70 0.81 0.92 1.00 1.06
500 0.00 0.11 0.30 0.53 0.72 0.87 1.02 1.15 1.25 1.32
600 0.00 0.13 0.36 0.63 0.86 1.04 1.22 1.37 1.50 1.59
700 0.00 0.15 0.42 0.74 1.00 1.22 1.43 1.60 1.75 1.85
720 0.00 0.16 0.43 0.76 1.03 1.25 1.46 1.65 1.80 1.90
800 0.00 0.17 0.48 0.84 1.15 1.39 1.63 1.83 2.00 2.11
900 0.00 0.20 0.54 0.95 1.29 1.56 1.85 2.06 2.25 2.38
960 0.00 0.21 0.58 1.01 1.37 1.67 1.95 2.20 2.40 2.54
1000 0.00 0.22 0.60 1.05 1.43 1.74 2.04 2.29 2.50 2.64
1110 0.00 0.24 0.66 1.16 1.57 1.91 2.24 2.52 2.75 2.91
1200 0.00 0.26 0.72 1.26 1.72 2.09 2.44 2.75 3.00 3.17
1300 0.00 0.28 0.78 1.37 1.86 2.26 2.65 2.98 3.25 3.44
1400 0.00 0.31 0.84 1.47 2.00 2.43 2.85 3.21 3.50 3.70
1440 0.00 0.31 0.87 1.51 2.06 2.50 2.93 3.30 3.60 3.81
1500 0.00 0.33 0.90 1.58 2.15 2.61 3.05 3.44 3.75 3.96
1600 0.00 0.35 0.96 1.68 2.29 2.78 3.26 3.67 4.00 4.23
1700 0.00 0.37 1.02 1.79 2.43 2.96 3.46 3.90 4.25 4.49
1800 0.00 0.39 1.08 1.89 2.58 3.13 3.66 4.12 4.50 4.76
1900 0.00 0.42 1.14 2.00 2.72 3.30 3.87 4.35 4.75 5.02
2000 0.00 0.44 1.20 2.10 2.86 3.48 4.07 4.58 5.00 5.29
2100 0.00 0.46 1.26 2.21 3.00 3.65 4.27 4.81 5.25 5.55
2200 0.00 0.48 1.32 2.31 3.15 3.83 4.48 5.04 5.50 5.82
2300 0.00 0.51 1.38 2.42 3.29 4.00 4.68 5.27 5.75 6.08
2400 0.00 0.53 1.44 2.52 3.43 4.18 4.88 5.50 6.00 6.35
2500 0.00 0.55 1.50 2.63 3.58 4.35 5.09 5.73 6.25 6.61
2600 0.00 0.57 1.56 2.73 3.72 4.52 5.29 5.95 6.50 6.88
2700 0.00 0.59 1.62 2.84 3.86 4.70 5.49 6.18 6.75 7.14
2800 0.00 0.62 1.68 2.94 4.00 4.87 5.70 6.41 7.00 7.41
2880 0.00 0.64 1.74 3.05 4.15 5.05 5.90 6.64 7.25 7.67
3000 0.00 0.66 1.80 3.15 4.29 5.22 6.11 6.87 7.50 7.94
3100 0.00 0.68 1.86 3.26 4.43 5.39 6.31 7.10 7.75 8.20
3200 0.00 0.70 1.92 3.36 4.58 5.57 6.51 7.33 8.00 8.46
3300 0.00 0.73 1.98 3.47 4.72 5.74 6.72 7.56 8.25 8.73
3400 0.00 0.75 2.04 3.57 4.86 5.92 6.92 7.79 8.50 8.99
3500 0.00 0.77 2.10 3.68 5.01 6.09 7.12 8.02 8.75 9.26
3600 0.00 0.79 2.16 3.78 5.15 6.26 7.33 8.24 9.00 9.52
Additional Power Ratings - USPC
Power Ratings - USPC Ultra PLUS 150 Wedge Belts
Rev/min of
faster shaft
Rated Power (kW) per belt for small pulley pitch dia (mm) Belt Speed
(m/s)
224 250 280 315 355 400 450 500 560 630
50 1.96 2.35 2.78 3.29 3.86 4.50 5.21 5.91 6.75 7.72
100 3.65 4.38 5.22 6.19 7.28 8.51 9.86 11.20 12.80 14.64
200 6.74 8.14 9.73 11.58 13.67 16.00 18.57 21.11 24.12 27.61
350 10.99 13.33 16.01 19.09 22.58 26.46 30.71 34.90 39.86 45.54
500 14.94 18.17 21.86 26.11 30.90 36.20 41.98 47.64 54.27 61.78
700 19.82 24.18 29.14 34.82 41.17 48.14 55.66 62.92 71.27 80.50
800 22.12 27.01 32.56 38.89 45.95 53.65 61.88 69.76 78.71 88.41
950 25.39 31.04 37.41 44.65 52.65 61.27 70.36 78.90 88.35 98.19
1200 30.37 37.15 44.73 53.22 62.43 72.10 81.94 90.74 99.77 108.02
1300 32.20 39.38 47.37 56.26 65.81 75.71 85.58 94.13 102.50 109.38
1450 34.74 42.47 51.00 60.37 70.27 80.27 89.84 97.62 104.37
1600 37.05 45.25 54.21 63.91 73.93 83.72 92.55 99.03
1700 38.46 46.93 56.10 65.93 75.90 85.35 93.44 98.71
1800 39.74 48.44 57.78 67.66 77.47 86.43 93.53
2000 41.96 50.99 60.49 70.21 79.32 86.77
2500 45.18 54.25 62.99 70.61
2850 45.23 53.54 60.61
3500 39.74
40
30
54
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
112 118 125 132 140 150 160 170 180 190 200 212 224 236 250 265 280 300 315
100 0.57 0.63 0.70 0.77 0.85 0.95 1.05 1.16 1.26 1.36 1.46 1.58 1.69 1.81 1.95 2.10 2.25 2.44 2.59
500 2.35 2.64 2.96 3.29 3.66 4.13 4.59 5.05 5.51 5.96 6.42 6.96 7.50 8.04 8.67 9.33 10.00 10.88 11.54
720 3.23 3.63 4.09 4.55 5.07 5.72 6.37 7.02 7.66 8.30 8.94 9.70 10.45 11.20 12.08 13.01 13.93 15.15 16.06
960 4.14 4.66 5.26 5.86 6.54 7.39 8.23 9.07 9.91 10.74 11.56 12.55 13.53 14.50 15.62 16.81 18.00 19.56 20.72
1000 4.28 4.82 5.45 6.07 6.78 7.66 8.54 9.41 10.27 11.13 11.99 13.01 14.02 15.03 16.19 17.43 18.65 20.27 21.46
1100 4.64 5.23 5.91 6.59 7.37 8.33 9.28 10.23 11.18 12.11 13.04 14.15 15.25 16.34 17.60 18.94 20.26 22.00 23.29
1200 5.00 5.63 6.37 7.11 7.95 8.99 10.02 11.04 12.06 13.07 14.07 15.27 16.45 17.62 18.98 20.41 21.83 23.69 25.06
1300 5.34 6.03 6.82 7.61 8.51 9.63 10.74 11.84 12.93 14.01 15.09 16.36 17.63 18.88 20.32 21.85 23.35 25.33 26.78
1400 5.68 6.41 7.27 8.11 9.07 10.26 11.45 12.62 13.78 14.93 16.08 17.43 18.78 20.10 21.63 23.24 24.83 26.91 28.43
1440 5.82 6.57 7.44 8.31 9.29 10.52 11.73 12.93 14.12 15.30 16.47 17.86 19.23 20.58 22.15 23.79 25.41 27.52 29.07
1500 6.01 6.79 7.70 8.60 9.62 10.89 12.14 13.39 14.62 15.84 17.05 18.48 19.90 21.30 22.91 24.60 26.26 28.43 30.02
1600 6.34 7.17 8.13 9.08 10.16 11.50 12.82 14.14 15.44 16.72 18.00 19.50 20.99 22.46 24.14 25.91 27.64 29.89 31.54
1700 6.66 7.53 8.54 9.55 10.69 12.10 13.49 14.87 16.24 17.59 18.92 20.50 22.06 23.59 25.34 27.18 28.97 31.30 32.99
1800 6.97 7.89 8.96 10.01 11.21 12.69 14.15 15.60 17.02 18.43 19.83 21.47 23.09 24.68 26.50 28.40 30.25 32.63 34.36
1900 7.28 8.24 9.36 10.46 11.72 13.26 14.79 16.30 17.79 19.26 20.71 22.42 24.10 25.74 27.61 29.57 31.47 33.90 35.66
2000 7.58 8.59 9.75 10.91 12.21 13.83 15.42 16.99 18.54 20.06 21.57 23.33 25.07 26.76 28.69 30.69 32.63 35.10 36.88
2100 7.88 8.93 10.14 11.34 12.70 14.38 16.03 17.66 19.27 20.85 22.40 24.22 26.01 27.75 29.72 31.76 33.73 36.23 38.01
2200 8.17 9.26 10.52 11.77 13.18 14.92 16.63 18.32 19.98 21.61 23.21 25.08 26.91 28.69 30.70 32.78 34.77 37.28 39.06
2300 8.45 9.58 10.89 12.18 13.65 15.45 17.22 18.96 20.67 22.35 23.99 25.91 27.78 29.60 31.64 33.74 35.75 38.26 40.02
2400 8.72 9.90 11.25 12.59 14.10 15.96 17.79 19.58 21.34 23.06 24.74 26.71 28.61 30.46 32.53 34.65 36.65 39.15 40.88
2500 8.99 10.21 11.61 12.99 14.55 16.47 18.35 20.19 21.99 23.75 25.47 27.47 29.41 31.28 33.37 35.49 37.49 39.95 41.64
2600 9.26 10.51 11.95 13.38 14.98 16.95 18.89 20.77 22.62 24.42 26.17 28.21 30.17 32.05 34.15 36.27 38.26 40.67 42.31
2700 9.51 10.80 12.29 13.75 15.41 17.43 19.41 21.34 23.22 25.06 26.84 28.90 30.89 32.78 34.88 36.99 38.95 41.30 42.87
2800 9.76 11.09 12.62 14.12 15.82 17.89 19.92 21.89 23.81 25.67 27.48 29.57 31.56 33.46 35.56 37.64 39.56 41.84 43.32
2880 9.96 11.31 12.87 14.41 16.14 18.25 20.31 22.31 24.26 26.14 27.97 30.07 32.07 33.97 36.06 38.12 39.99 42.19 43.60
2900 10.00 11.37 12.94 14.48 16.22 18.34 20.41 22.42 24.37 26.26 28.09 30.19 32.20 34.10 36.18 38.23 40.10 42.27 43.66
3000 10.24 11.64 13.25 14.83 16.60 18.77 20.88 22.92 24.91 26.82 28.67 30.78 32.79 34.68 36.73 38.75 40.55 42.61 43.89
3200 10.69 12.15 13.84 15.49 17.34 19.59 21.77 23.88 25.91 27.86 29.72 31.85 33.84 35.69 37.67 39.56 41.20 42.98
3400 11.11 12.64 14.39 16.11 18.02 20.35 22.59 24.74 26.81 28.77 30.64 32.75 34.70 36.48 38.34 40.07 41.49
3600 11.50 13.09 14.91 16.68 18.66 21.04 23.33 25.52 27.60 29.57 31.42 33.48 35.36 37.04 38.75 40.25
3800 11.86 13.50 15.38 17.21 19.23 21.67 23.99 26.20 28.28 30.23 32.05 34.04 35.81 37.36 38.87
3900 12.03 13.70 15.60 17.45 19.50 21.96 24.29 26.50 28.58 30.51 32.30 34.25 35.96 37.43
4000 12.19 13.88 15.81 17.68 19.75 22.23 24.57 26.78 28.84 30.76 32.52 34.41 36.05
4200 12.48 14.22 16.20 18.11 20.21 22.71 25.06 27.26 29.29 31.14 32.82 34.58
4400 12.74 14.52 16.54 18.48 20.60 23.12 25.46 27.62 29.60 31.38 32.95
4600 12.97 14.78 16.83 18.79 20.93 23.45 25.76 27.88 29.78 31.46
4800 13.16 15.00 17.07 19.05 21.20 23.69 25.97 28.02 29.83
5000 13.31 15.18 17.27 19.25 21.39 23.86 26.08
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
56 60 63 67 71 75 80 85 90 95 100 106 112 118 125 132 140 150
100 0.11 0.12 0.13 0.15 0.16 0.18 0.20 0.22 0.23 0.25 0.27 0.29 0.32 0.34 0.36 0.39 0.42 0.46
500 0.42 0.49 0.55 0.62 0.68 0.75 0.84 0.92 1.01 1.09 1.18 1.28 1.38 1.47 1.59 1.71 1.84 2.00
720 0.58 0.68 0.75 0.85 0.94 1.04 1.16 1.28 1.40 1.51 1.63 1.77 1.91 2.05 2.21 2.38 2.56 2.79
960 0.73 0.86 0.96 1.08 1.21 1.34 1.49 1.65 1.80 1.96 2.11 2.29 2.48 2.66 2.87 3.08 3.32 3.61
1000 0.76 0.89 0.99 1.12 1.25 1.38 1.55 1.71 1.87 2.03 2.19 2.38 2.57 2.76 2.98 3.19 3.44 3.75
1100 0.82 0.97 1.08 1.22 1.36 1.50 1.68 1.86 2.03 2.21 2.38 2.59 2.80 3.00 3.24 3.48 3.75 4.08
1200 0.88 1.04 1.16 1.31 1.47 1.62 1.82 2.01 2.20 2.39 2.57 2.80 3.02 3.24 3.50 3.76 4.05 4.41
1300 0.94 1.11 1.24 1.41 1.57 1.74 1.95 2.15 2.36 2.56 2.76 3.00 3.25 3.48 3.76 4.04 4.35 4.74
1400 1.00 1.18 1.32 1.50 1.68 1.86 2.08 2.30 2.52 2.73 2.95 3.21 3.47 3.72 4.02 4.31 4.65 5.06
1440 1.03 1.21 1.35 1.54 1.72 1.90 2.13 2.35 2.58 2.80 3.02 3.29 3.55 3.82 4.12 4.42 4.77 5.19
1500 1.06 1.25 1.40 1.59 1.78 1.97 2.20 2.44 2.67 2.90 3.13 3.41 3.68 3.96 4.27 4.58 4.94 5.38
1600 1.12 1.32 1.48 1.68 1.88 2.08 2.33 2.58 2.83 3.07 3.32 3.61 3.90 4.19 4.52 4.85 5.23 5.70
1700 1.17 1.39 1.55 1.77 1.98 2.19 2.46 2.72 2.98 3.24 3.50 3.81 4.11 4.42 4.77 5.12 5.51 6.01
1800 1.23 1.46 1.63 1.85 2.08 2.30 2.58 2.86 3.13 3.40 3.68 4.00 4.32 4.64 5.01 5.38 5.80 6.31
1900 1.28 1.52 1.70 1.94 2.18 2.41 2.70 2.99 3.28 3.57 3.85 4.19 4.53 4.87 5.25 5.64 6.07 6.61
2000 1.34 1.59 1.78 2.03 2.27 2.52 2.82 3.13 3.43 3.73 4.03 4.38 4.74 5.09 5.49 5.89 6.35 6.91
2100 1.39 1.65 1.85 2.11 2.37 2.63 2.94 3.26 3.58 3.89 4.20 4.57 4.94 5.31 5.73 6.15 6.62 7.21
2200 1.44 1.72 1.92 2.19 2.46 2.73 3.06 3.39 3.72 4.05 4.37 4.76 5.14 5.52 5.96 6.40 6.89 7.50
2300 1.49 1.78 1.99 2.28 2.56 2.84 3.18 3.53 3.87 4.21 4.54 4.94 5.34 5.74 6.19 6.64 7.15 7.78
2400 1.55 1.84 2.06 2.36 2.65 2.94 3.30 3.66 4.01 4.36 4.71 5.13 5.54 5.95 6.42 6.89 7.42 8.07
2500 1.60 1.90 2.13 2.44 2.74 3.04 3.41 3.78 4.15 4.52 4.88 5.31 5.73 6.16 6.65 7.13 7.67 8.34
2600 1.65 1.96 2.20 2.52 2.83 3.14 3.53 3.91 4.29 4.67 5.04 5.49 5.93 6.36 6.87 7.37 7.93 8.62
2700 1.69 2.02 2.27 2.60 2.92 3.24 3.64 4.04 4.43 4.82 5.20 5.66 6.12 6.57 7.09 7.60 8.18 8.89
2800 1.74 2.08 2.34 2.67 3.01 3.34 3.75 4.16 4.57 4.97 5.37 5.84 6.31 6.77 7.30 7.83 8.42 9.15
2880 1.78 2.13 2.39 2.74 3.08 3.42 3.84 4.26 4.67 5.09 5.49 5.98 6.46 6.93 7.48 8.01 8.62 9.36
2900 1.79 2.14 2.40 2.75 3.10 3.44 3.86 4.28 4.70 5.11 5.52 6.01 6.49 6.97 7.52 8.06 8.67 9.41
3000 1.84 2.20 2.47 2.83 3.18 3.54 3.97 4.41 4.84 5.26 5.68 6.18 6.68 7.17 7.73 8.28 8.91 9.67
3200 1.93 2.31 2.60 2.98 3.35 3.73 4.19 4.65 5.10 5.55 5.99 6.52 7.04 7.55 8.14 8.72 9.37 10.17
3400 2.02 2.42 2.73 3.13 3.52 3.91 4.40 4.88 5.36 5.83 6.29 6.85 7.39 7.93 8.54 9.15 9.83 10.65
3600 2.11 2.53 2.85 3.27 3.69 4.10 4.61 5.11 5.61 6.10 6.59 7.17 7.73 8.29 8.93 9.56 10.26 11.11
3800 2.19 2.64 2.97 3.41 3.85 4.28 4.81 5.34 5.86 6.37 6.88 7.48 8.07 8.65 9.31 9.96 10.68 11.55
4000 2.28 2.74 3.09 3.55 4.00 4.45 5.01 5.56 6.10 6.63 7.16 7.78 8.39 8.99 9.67 10.34 11.08 11.97
4200 2.36 2.84 3.20 3.68 4.16 4.62 5.20 5.77 6.33 6.89 7.43 8.07 8.70 9.32 10.02 10.71 11.46 12.37
4300 2.40 2.89 3.26 3.75 4.23 4.71 5.30 5.88 6.45 7.01 7.56 8.22 8.86 9.48 10.19 10.88 11.65 12.56
4400 2.44 2.94 3.32 3.81 4.31 4.79 5.39 5.98 6.56 7.13 7.70 8.36 9.01 9.64 10.36 11.06 11.83 12.75
4500 2.47 2.99 3.37 3.88 4.38 4.87 5.48 6.08 6.67 7.25 7.83 8.50 9.15 9.79 10.52 11.23 12.00 12.93
4600 2.51 3.04 3.43 3.94 4.45 4.95 5.57 6.18 6.78 7.37 7.95 8.63 9.30 9.95 10.68 11.39 12.17 13.10
4800 2.59 3.13 3.53 4.07 4.59 5.11 5.75 6.38 7.00 7.61 8.20 8.90 9.58 10.24 10.99 11.71 12.50 13.43
5000 2.66 3.22 3.64 4.19 4.73 5.27 5.93 6.57 7.21 7.83 8.44 9.16 9.85 10.52 11.28 12.01 12.80 13.74
5200 2.73 3.31 3.74 4.31 4.87 5.42 6.10 6.76 7.41 8.05 8.67 9.40 10.11 10.79 11.56 12.29 13.09 14.01
5400 2.80 3.40 3.84 4.42 5.00 5.57 6.26 6.94 7.61 8.26 8.90 9.64 10.35 11.05 11.82 12.56 13.35 14.27
5600 2.86 3.48 3.93 4.54 5.13 5.71 6.42 7.12 7.80 8.46 9.11 9.86 10.59 11.29 12.07 12.80 13.59 14.49
5800 2.93 3.56 4.03 4.64 5.25 5.85 6.58 7.29 7.98 8.66 9.32 10.08 10.81 11.51 12.29 13.03 13.81 14.69
6000 2.99 3.64 4.12 4.75 5.37 5.98 6.72 7.45 8.16 8.85 9.51 10.28 11.02 11.73 12.51 13.23 14.00 14.86
Power Ratings - QXPZ, QXPB Quattro PLUS Wedge Belts
FRICTION BELT DRIVESSECTION : 3
40
30
Power Ratings - QXPZ Quattro PLUS Wedge Belts
Power Ratings - QXPB Quattro PLUS Wedge Belts
40
30
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 55
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
200 212 224 236 250 265 280 300 315 335 355 375 400 425 450 475 500 530 560
100 2.09 2.31 2.53 2.75 3.01 3.28 3.55 3.92 4.19 4.55 4.90 5.26 5.71 6.15 6.59 7.03 7.47 8.00 8.52
200 3.90 4.33 4.75 5.17 5.67 6.19 6.71 7.41 7.93 8.62 9.31 9.99 10.85 11.70 12.54 13.38 14.22 15.23 16.23
500 8.81 9.81 10.81 11.80 12.96 14.19 15.42 17.05 18.26 19.87 21.47 23.06 25.04 27.00 28.95 30.88 32.80 35.08 37.34
720 12.10 13.50 14.90 16.29 17.90 19.61 21.32 23.57 25.25 27.48 29.68 31.86 34.56 37.23 39.87 42.48 45.05 48.09 51.08
800 13.25 14.79 16.33 17.85 19.62 21.50 23.37 25.85 27.68 30.11 32.52 34.90 37.84 40.74 43.60 46.42 49.20 52.47 55.67
900 14.65 16.36 18.07 19.76 21.72 23.81 25.88 28.61 30.64 33.32 35.96 38.58 41.80 44.96 48.08 51.13 54.13 57.65 61.07
960 15.47 17.28 19.09 20.88 22.96 25.16 27.35 30.23 32.37 35.19 37.97 40.71 44.09 47.40 50.65 53.83 56.95 60.59 64.12
1000 16.01 17.89 19.76 21.62 23.77 26.05 28.31 31.29 33.50 36.41 39.28 42.11 45.58 48.99 52.32 55.58 58.76 62.48 66.07
1100 17.33 19.38 21.41 23.42 25.75 28.22 30.66 33.88 36.26 39.39 42.46 45.49 49.19 52.81 56.33 59.75 63.08 66.93 70.63
1200 18.62 20.83 23.01 25.18 27.68 30.32 32.94 36.38 38.92 42.25 45.51 48.71 52.61 56.40 60.08 63.63 67.05 70.99 74.73
1300 19.87 22.23 24.56 26.87 29.54 32.36 35.14 38.78 41.47 44.98 48.41 51.76 55.83 59.76 63.55 67.19 70.66 74.62 78.33
1400 21.08 23.59 26.07 28.52 31.34 34.32 37.25 41.09 43.91 47.58 51.16 54.64 58.85 62.88 66.74 70.41 73.89 77.79 81.39
1440 21.56 24.12 26.66 29.16 32.04 35.08 38.08 41.98 44.85 48.58 52.22 55.74 59.99 64.05 67.93 71.60 75.06 78.92 82.46
1500 22.26 24.91 27.52 30.11 33.08 36.21 39.28 43.29 46.23 50.05 53.75 57.33 61.64 65.73 69.62 73.27 76.69 80.48 83.88
1600 23.39 26.18 28.93 31.64 34.75 38.02 41.22 45.39 48.43 52.37 56.17 59.83 64.19 68.31 72.17 75.76 79.07 82.64 85.77
1700 24.49 27.40 30.28 33.10 36.34 39.74 43.07 47.37 50.50 54.54 58.41 62.12 66.50 70.60 74.38 77.85 80.98 84.27 87.02
1800 25.54 28.58 31.57 34.51 37.87 41.39 44.82 49.24 52.44 56.55 60.47 64.20 68.56 72.58 76.23 79.52 82.40 85.31 87.59
1900 26.55 29.71 32.81 35.85 39.33 42.95 46.46 50.98 54.24 58.40 62.34 66.05 70.34 74.24 77.71 80.74 83.31 85.75
2000 27.52 30.79 34.00 37.13 40.70 44.41 48.01 52.60 55.90 60.08 64.00 67.66 71.84 75.56 78.79 81.50 83.68
2100 28.44 31.82 35.12 38.34 42.00 45.79 49.44 54.09 57.41 61.58 65.46 69.03 73.05 76.53 79.45 81.78
2200 29.32 32.79 36.18 39.48 43.21 47.07 50.77 55.44 58.76 62.89 66.69 70.15 73.94 77.13 79.68
2300 30.15 33.71 37.18 40.54 44.34 48.24 51.97 56.66 59.94 64.01 67.70 70.99 74.52 77.35
2400 30.94 34.58 38.11 41.53 45.38 49.32 53.06 57.72 60.96 64.93 68.47 71.56 74.76
2500 31.67 35.38 38.98 42.44 46.33 50.28 54.02 58.63 61.81 65.64 69.00 71.84
2600 32.35 36.13 39.77 43.28 47.18 51.14 54.85 59.39 62.47 66.14 69.26
2700 32.98 36.81 40.50 44.03 47.94 51.88 55.54 59.98 62.95 66.41 69.27
2800 33.56 37.43 41.15 44.69 48.60 52.50 56.10 60.40 63.23 66.45
2880 33.98 37.88 41.61 45.16 49.05 52.91 56.45 60.62 63.32
2900 34.08 37.99 41.72 45.27 49.15 53.00 56.52 60.65
3000 34.54 38.48 42.22 45.75 49.60 53.38 56.79 60.72
3200 35.29 39.25 42.97 46.44 50.17 53.74
3400 35.80 39.73 43.38 46.74
3600 36.04 39.91
3800 36.02
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
80 85 90 95 100 106 112 118 125 132 140 150 160 170 180 190 200 224
100 0.24 0.27 0.30 0.34 0.37 0.41 0.44 0.48 0.53 0.57 0.62 0.68 0.75 0.81 0.87 0.93 0.99 1.14
500 0.98 1.13 1.27 1.42 1.56 1.74 1.91 2.09 2.29 2.49 2.71 3.00 3.28 3.56 3.84 4.12 4.40 5.06
720 1.34 1.55 1.75 1.96 2.16 2.41 2.65 2.89 3.18 3.46 3.78 4.18 4.57 4.97 5.36 5.75 6.14 7.07
960 1.71 1.98 2.25 2.52 2.78 3.10 3.42 3.74 4.11 4.48 4.89 5.41 5.93 6.44 6.95 7.46 7.97 9.17
1000 1.77 2.05 2.33 2.61 2.89 3.22 3.55 3.88 4.26 4.64 5.08 5.62 6.15 6.68 7.21 7.74 8.26 9.51
1100 1.91 2.22 2.53 2.83 3.14 3.50 3.86 4.22 4.64 5.05 5.53 6.12 6.70 7.28 7.86 8.43 9.00 10.35
1200 2.06 2.39 2.72 3.05 3.38 3.78 4.17 4.56 5.01 5.46 5.97 6.61 7.24 7.87 8.49 9.11 9.72 11.18
1300 2.20 2.56 2.91 3.27 3.62 4.05 4.47 4.89 5.38 5.86 6.41 7.09 7.77 8.44 9.11 9.77 10.43 11.99
1400 2.34 2.72 3.10 3.48 3.86 4.32 4.77 5.22 5.74 6.25 6.84 7.57 8.29 9.01 9.72 10.43 11.13 12.79
1440 2.39 2.79 3.18 3.57 3.96 4.42 4.89 5.35 5.88 6.41 7.01 7.76 8.50 9.24 9.97 10.69 11.41 13.10
1500 2.47 2.88 3.29 3.70 4.10 4.58 5.06 5.54 6.09 6.64 7.27 8.04 8.81 9.57 10.33 11.08 11.82 13.57
1600 2.61 3.04 3.47 3.90 4.33 4.84 5.35 5.86 6.44 7.03 7.69 8.51 9.32 10.12 10.92 11.71 12.49 14.33
1700 2.74 3.20 3.65 4.11 4.56 5.10 5.64 6.17 6.79 7.41 8.10 8.97 9.82 10.67 11.51 12.33 13.15 15.08
1800 2.87 3.35 3.83 4.31 4.79 5.36 5.92 6.48 7.13 7.78 8.51 9.42 10.32 11.20 12.08 12.94 13.80 15.81
1900 2.99 3.50 4.01 4.51 5.01 5.61 6.20 6.79 7.47 8.15 8.91 9.86 10.80 11.73 12.64 13.54 14.44 16.52
2000 3.12 3.65 4.18 4.71 5.23 5.86 6.48 7.09 7.80 8.51 9.31 10.30 11.28 12.24 13.19 14.13 15.06 17.22
2100 3.24 3.80 4.35 4.90 5.45 6.10 6.75 7.39 8.13 8.87 9.70 10.73 11.75 12.75 13.74 14.71 15.67 17.90
2200 3.36 3.94 4.52 5.09 5.66 6.34 7.02 7.68 8.46 9.22 10.09 11.16 12.21 13.25 14.27 15.27 16.26 18.56
2300 3.48 4.09 4.69 5.28 5.87 6.58 7.28 7.97 8.77 9.57 10.47 11.57 12.66 13.73 14.79 15.82 16.84 19.19
2400 3.60 4.23 4.85 5.47 6.08 6.81 7.54 8.26 9.09 9.91 10.84 11.98 13.11 14.21 15.30 16.36 17.40 19.81
2500 3.72 4.37 5.01 5.65 6.29 7.05 7.80 8.54 9.40 10.25 11.20 12.38 13.54 14.68 15.79 16.88 17.95 20.41
2600 3.83 4.50 5.17 5.83 6.49 7.27 8.05 8.82 9.70 10.58 11.56 12.78 13.97 15.14 16.28 17.39 18.48 20.99
2700 3.94 4.64 5.33 6.01 6.69 7.50 8.30 9.09 10.00 10.90 11.92 13.16 14.39 15.58 16.75 17.89 19.00 21.54
2800 4.05 4.77 5.48 6.19 6.89 7.72 8.54 9.36 10.30 11.22 12.26 13.54 14.80 16.02 17.21 18.37 19.50 22.07
2880 4.14 4.87 5.60 6.32 7.04 7.89 8.73 9.57 10.53 11.47 12.54 13.84 15.12 16.36 17.57 18.75 19.89 22.48
2900 4.16 4.90 5.63 6.36 7.08 7.94 8.78 9.62 10.58 11.54 12.60 13.91 15.19 16.44 17.66 18.84 19.98 22.58
3000 4.26 5.03 5.78 6.53 7.27 8.15 9.02 9.88 10.87 11.84 12.94 14.28 15.58 16.86 18.09 19.29 20.45 23.06
3200 4.47 5.27 6.07 6.86 7.64 8.57 9.48 10.38 11.42 12.44 13.58 14.98 16.33 17.65 18.92 20.14 21.32 23.96
3400 4.67 5.51 6.35 7.18 8.00 8.97 9.93 10.87 11.95 13.01 14.20 15.64 17.04 18.39 19.69 20.93 22.12 24.75
3600 4.86 5.75 6.62 7.49 8.34 9.36 10.35 11.34 12.46 13.56 14.78 16.27 17.71 19.08 20.40 21.65 22.85 25.43
3800 5.04 5.97 6.88 7.79 8.68 9.73 10.76 11.78 12.94 14.08 15.34 16.86 18.33 19.72 21.05 22.30 23.48 25.99
4000 5.22 6.18 7.13 8.07 9.00 10.09 11.16 12.21 13.40 14.57 15.86 17.42 18.90 20.31 21.63 22.88 24.04 26.44
4200 5.38 6.38 7.37 8.34 9.30 10.43 11.53 12.61 13.84 15.03 16.35 17.93 19.42 20.83 22.15 23.37 24.50 26.76
4400 5.54 6.58 7.60 8.60 9.59 10.75 11.89 12.99 14.25 15.47 16.81 18.40 19.90 21.30 22.60 23.79 24.86 26.95
4600 5.69 6.76 7.82 8.85 9.87 11.06 12.22 13.35 14.63 15.87 17.22 18.83 20.32 21.71 22.97 24.12 25.13 27.00
4800 5.83 6.94 8.02 9.08 10.13 11.35 12.54 13.69 14.99 16.24 17.61 19.21 20.69 22.05 23.27 24.36 25.30
5000 5.96 7.10 8.21 9.31 10.37 11.62 12.83 14.00 15.32 16.58 17.95 19.54 21.00 22.32 23.49 24.51 25.36
5200 6.09 7.25 8.40 9.51 10.60 11.87 13.10 14.29 15.62 16.89 18.25 19.83 21.26 22.53 23.63 24.56
5400 6.20 7.40 8.57 9.71 10.82 12.11 13.35 14.55 15.89 17.16 18.51 20.07 21.45 22.67 23.69
5600 6.31 7.53 8.72 9.88 11.01 12.32 13.58 14.79 16.13 17.39 18.73 20.25 21.59 22.73
5800 6.40 7.65 8.87 10.05 11.19 12.52 13.79 15.00 16.34 17.59 18.91 20.39 21.66
6000 6.49 7.76 9.00 10.19 11.35 12.69 13.97 15.18 16.51 17.75 19.04 20.46
Only Fenner pulleys should be used for belt speeds between 30 and 40 m/s. For belt speeds greather than 40 m/sec consult your authorised distributor.
Use the additional power per belt for speed ratio from pages 58 & 59
SECTION : 3FRICTION BELT DRIVES
Power Ratings - QXPA, QXPC Quattro PLUS Wedge Belts
40
30
Power Ratings - QXPA Quattro PLUS Wedge Belts
Power Ratings - QXPC Quattro PLUS Wedge Belts
40
30
56
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
56 60 63 67 71 75 80 85 90 95 100 106 112 118 125 132 140 150
100 0.10 0.11 0.13 0.14 0.16 0.17 0.19 0.21 0.23 0.25 0.27 0.29 0.31 0.33 0.36 0.38 0.41 0.45
500 0.38 0.45 0.50 0.57 0.64 0.71 0.79 0.88 0.96 1.04 1.12 1.22 1.32 1.42 1.53 1.65 1.78 1.94
720 0.51 0.61 0.68 0.78 0.87 0.97 1.09 1.20 1.32 1.44 1.55 1.69 1.83 1.97 2.12 2.28 2.46 2.69
960 0.65 0.77 0.87 0.99 1.12 1.24 1.39 1.54 1.70 1.85 2.00 2.18 2.36 2.53 2.74 2.95 3.18 3.47
1000 0.67 0.80 0.90 1.03 1.15 1.28 1.44 1.60 1.76 1.91 2.07 2.26 2.44 2.63 2.84 3.05 3.30 3.60
1100 0.72 0.86 0.97 1.11 1.25 1.39 1.56 1.74 1.91 2.08 2.25 2.45 2.66 2.86 3.09 3.32 3.58 3.91
1200 0.77 0.92 1.04 1.19 1.34 1.50 1.68 1.87 2.06 2.24 2.43 2.65 2.86 3.08 3.33 3.58 3.87 4.22
1300 0.82 0.99 1.11 1.27 1.44 1.60 1.80 2.00 2.20 2.40 2.60 2.84 3.07 3.30 3.57 3.84 4.15 4.52
1400 0.87 1.04 1.18 1.35 1.53 1.70 1.92 2.13 2.35 2.56 2.77 3.02 3.27 3.52 3.81 4.10 4.42 4.82
1440 0.89 1.07 1.20 1.39 1.56 1.74 1.97 2.19 2.41 2.62 2.84 3.10 3.35 3.61 3.91 4.20 4.53 4.94
1500 0.91 1.10 1.24 1.43 1.62 1.80 2.03 2.26 2.49 2.72 2.94 3.21 3.47 3.74 4.05 4.35 4.69 5.12
1600 0.96 1.16 1.31 1.51 1.71 1.90 2.15 2.39 2.63 2.87 3.11 3.39 3.67 3.95 4.28 4.60 4.96 5.41
1700 1.00 1.22 1.38 1.58 1.79 2.00 2.26 2.51 2.77 3.02 3.27 3.57 3.87 4.16 4.50 4.84 5.22 5.70
1800 1.05 1.27 1.44 1.66 1.88 2.10 2.37 2.64 2.90 3.17 3.43 3.75 4.06 4.37 4.73 5.08 5.48 5.98
1900 1.09 1.33 1.50 1.73 1.96 2.19 2.48 2.76 3.04 3.32 3.59 3.92 4.25 4.57 4.95 5.32 5.74 6.25
2000 1.13 1.38 1.56 1.81 2.05 2.29 2.58 2.88 3.17 3.46 3.75 4.10 4.44 4.77 5.16 5.55 5.99 6.53
2100 1.18 1.43 1.62 1.88 2.13 2.38 2.69 3.00 3.30 3.61 3.91 4.27 4.62 4.97 5.38 5.78 6.23 6.79
2200 1.22 1.48 1.68 1.95 2.21 2.47 2.79 3.11 3.43 3.75 4.06 4.43 4.80 5.17 5.59 6.01 6.48 7.05
2300 1.26 1.53 1.74 2.02 2.29 2.56 2.90 3.23 3.56 3.89 4.21 4.60 4.98 5.36 5.80 6.23 6.71 7.31
2400 1.29 1.58 1.80 2.08 2.37 2.65 3.00 3.34 3.69 4.03 4.36 4.76 5.16 5.55 6.00 6.45 6.95 7.56
2500 1.33 1.63 1.86 2.15 2.44 2.74 3.10 3.46 3.81 4.16 4.51 4.92 5.33 5.74 6.20 6.66 7.18 7.81
2600 1.37 1.68 1.91 2.22 2.52 2.82 3.20 3.57 3.93 4.30 4.66 5.08 5.50 5.92 6.40 6.87 7.40 8.05
2700 1.41 1.73 1.97 2.28 2.60 2.91 3.29 3.68 4.05 4.43 4.80 5.24 5.67 6.10 6.59 7.08 7.62 8.29
2800 1.44 1.77 2.02 2.35 2.67 2.99 3.39 3.78 4.17 4.56 4.94 5.39 5.84 6.28 6.79 7.28 7.84 8.52
2880 1.47 1.81 2.06 2.40 2.73 3.06 3.47 3.87 4.27 4.66 5.05 5.51 5.97 6.42 6.94 7.44 8.01 8.70
2900 1.48 1.82 2.07 2.41 2.74 3.07 3.48 3.89 4.29 4.69 5.08 5.54 6.00 6.45 6.97 7.48 8.05 8.75
3000 1.51 1.86 2.13 2.47 2.82 3.16 3.58 3.99 4.41 4.81 5.22 5.69 6.16 6.63 7.16 7.68 8.26 8.97
3200 1.58 1.95 2.23 2.59 2.96 3.32 3.76 4.20 4.63 5.06 5.48 5.98 6.48 6.96 7.51 8.06 8.66 9.39
3400 1.64 2.03 2.33 2.71 3.09 3.47 3.94 4.40 4.85 5.30 5.74 6.26 6.78 7.28 7.86 8.42 9.04 9.79
3600 1.70 2.12 2.42 2.83 3.23 3.62 4.11 4.59 5.07 5.53 5.99 6.54 7.07 7.59 8.18 8.76 9.40 10.17
3800 1.76 2.19 2.51 2.94 3.35 3.77 4.28 4.78 5.27 5.76 6.23 6.80 7.35 7.88 8.49 9.09 9.74 10.52
4000 1.82 2.27 2.60 3.04 3.48 3.91 4.44 4.96 5.47 5.97 6.47 7.05 7.61 8.16 8.79 9.39 10.06 10.85
4200 1.87 2.34 2.69 3.15 3.60 4.04 4.59 5.13 5.66 6.18 6.69 7.29 7.87 8.43 9.07 9.68 10.35 11.15
4400 1.92 2.41 2.77 3.24 3.71 4.17 4.74 5.30 5.84 6.38 6.90 7.51 8.11 8.68 9.33 9.95 10.63 11.42
4600 1.97 2.48 2.85 3.34 3.82 4.30 4.89 5.46 6.02 6.57 7.10 7.73 8.33 8.92 9.57 10.20 10.87 11.66
4800 2.02 2.54 2.92 3.43 3.93 4.42 5.02 5.61 6.19 6.75 7.30 7.93 8.55 9.14 9.80 10.43 11.10 11.87
5000 2.06 2.60 3.00 3.52 4.03 4.54 5.16 5.76 6.35 6.92 7.48 8.13 8.75 9.35 10.01 10.63 11.30 12.05
5200 2.10 2.66 3.06 3.60 4.13 4.65 5.28 5.90 6.50 7.09 7.65 8.31 8.94 9.53 10.20 10.81 11.47 12.20
5400 2.14 2.71 3.13 3.68 4.22 4.76 5.40 6.03 6.65 7.24 7.81 8.48 9.11 9.71 10.36 10.97 11.61 12.31
5600 2.17 2.76 3.19 3.76 4.31 4.86 5.52 6.16 6.78 7.38 7.96 8.63 9.26 9.86 10.51 11.11 11.73 12.40
5800 2.21 2.81 3.25 3.83 4.40 4.95 5.63 6.28 6.91 7.52 8.10 8.77 9.40 10.00 10.64 11.22 11.82 12.44
6000 2.24 2.85 3.30 3.90 4.48 5.04 5.73 6.39 7.03 7.64 8.23 8.90 9.53 10.11 10.74 11.31 11.87 12.45
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
112 118 125 132 140 150 160 170 180 190 200 212 224 236 250 285 290 300 315
100 0.51 0.57 0.64 0.71 0.79 0.89 0.99 1.09 1.18 1.28 1.38 1.49 1.61 1.72 1.85 1.99 2.14 2.32 2.46
500 1.97 2.24 2.55 2.86 3.21 3.65 4.08 4.51 4.94 5.37 5.80 6.31 6.81 7.32 7.90 8.52 9.14 9.96 10.57
720 2.64 3.01 3.45 3.88 4.37 4.98 5.58 6.19 6.78 7.38 7.97 8.67 9.37 10.07 10.88 11.73 12.58 13.71 14.54
800 2.87 3.28 3.76 4.23 4.77 5.44 6.11 6.77 7.42 8.08 8.73 9.50 10.27 11.03 11.91 12.85 13.78 15.01 15.92
900 3.14 3.60 4.13 4.66 5.26 6.00 6.74 7.48 8.21 8.93 9.65 10.51 11.36 12.20 13.18 14.21 15.23 16.58 17.58
960 3.30 3.79 4.35 4.91 5.55 6.34 7.12 7.90 8.67 9.43 10.19 11.10 12.00 12.89 13.92 15.01 16.09 17.50 18.55
1000 3.41 3.91 5.08 5.74 6.55 7.37 8.17 8.97 9.76 10.55 11.49 12.42 13.34 14.40 15.53 16.64 18.11 19.19
1100 3.67 4.21 4.85 5.48 6.20 7.09 7.97 8.85 9.71 10.58 11.43 12.44 13.45 14.45 15.59 16.81 18.00 19.58 20.73
1200 3.91 4.51 5.19 5.87 6.65 7.61 8.56 9.50 10.44 11.37 12.28 13.37 14.45 15.52 16.75 18.04 19.32 20.99 22.22
1300 4.15 4.79 5.53 6.26 7.09 8.12 9.14 10.15 11.14 12.13 13.11 14.28 15.42 16.56 17.86 19.23 20.58 22.34 23.63
1400 4.38 5.06 5.85 6.63 7.52 8.61 9.70 10.77 11.83 12.88 13.92 15.15 16.37 17.56 18.94 20.38 21.80 23.64 24.98
1440 4.47 5.17 5.98 6.78 7.68 8.81 9.92 11.01 12.10 13.18 14.24 15.49 16.73 17.95 19.35 20.83 22.27 24.14 25.50
1500 4.61 5.33 6.16 6.99 7.93 9.09 10.24 11.38 12.50 13.61 14.70 16.00 17.28 18.53 19.97 21.48 22.96 24.87 26.26
1600 4.82 5.59 6.47 7.34 8.34 9.56 10.77 11.97 13.15 14.31 15.46 16.82 18.16 19.47 20.97 22.53 24.06 26.03 27.46
1700 5.03 5.84 6.76 7.69 8.73 10.02 11.29 12.54 13.78 15.00 16.20 17.61 19.00 20.36 21.92 23.54 25.11 27.13 28.58
1800 5.23 6.08 7.05 8.02 9.11 10.46 11.79 13.10 14.39 15.66 16.90 18.38 19.82 21.22 22.83 24.49 26.10 28.16 29.63
1900 5.43 6.31 7.33 8.34 9.48 10.89 12.27 13.63 14.97 16.29 17.59 19.11 20.59 22.04 23.69 25.39 27.03 29.11 30.59
2000 5.61 6.53 7.60 8.65 9.84 11.30 12.74 14.15 15.54 16.91 18.24 19.81 21.34 22.82 24.50 26.23 27.89 29.98 31.46
2100 5.79 6.75 7.86 8.95 10.18 11.70 13.19 14.66 16.09 17.50 18.87 20.48 22.05 23.56 25.27 27.02 28.69 30.78 32.24
2200 5.96 6.96 8.11 9.24 10.52 12.09 13.63 15.14 16.62 18.06 19.47 21.12 22.72 24.26 25.99 27.75 29.42 31.49 32.93
2300 6.13 7.16 8.35 9.52 10.84 12.46 14.05 15.60 17.12 18.60 20.04 21.72 23.35 24.91 26.65 28.42 30.08 32.12 33.52
2400 6.28 7.35 8.58 9.79 11.15 12.82 14.45 16.05 17.60 19.12 20.59 22.30 23.94 25.51 27.26 29.02 30.67 32.66 34.00
2500 6.43 7.53 8.80 10.05 11.45 13.17 14.84 16.47 18.06 19.60 21.10 22.83 24.49 26.07 27.82 29.56 31.18 33.11 34.38
2600 6.58 7.71 9.01 10.29 11.73 13.49 15.21 16.88 18.50 20.06 21.58 23.33 25.00 26.58 28.32 30.04 31.61 33.46 34.65
2700 6.71 7.88 9.21 10.53 12.01 13.81 15.56 17.26 18.91 20.50 22.03 23.79 25.46 27.04 28.76 30.44 31.96 33.71 34.81
2800 6.84 8.03 9.41 10.76 12.27 14.11 15.89 17.62 19.29 20.90 22.45 24.21 25.88 27.45 29.13 30.77 32.23 33.86 34.85
2880 6.93 8.15 9.55 10.93 12.47 14.34 16.15 17.90 19.58 21.20 22.76 24.52 26.18 27.73 29.39 30.99 32.38 33.91 34.80
2900 6.96 8.18 9.59 10.97 12.51 14.39 16.21 17.96 19.65 21.28 22.83 24.60 26.26 27.80 29.45 31.03 32.41 33.91 34.77
3000 7.07 8.32 9.76 11.17 12.75 14.66 16.50 18.28 19.99 21.62 23.18 24.94 26.58 28.10 29.70 31.22 32.50 33.85 34.57
3200 7.27 8.58 10.08 11.54 13.17 15.14 17.04 18.85 20.58 22.22 23.77 25.50 27.09 28.53 30.01 31.35 32.41 33.39 33.78
3400 7.43 8.79 10.35 11.86 13.54 15.56 17.49 19.32 21.06 22.69 24.21 25.88 27.39 28.72 29.89 31.15 31.94 32.46 32.44
3600 7.56 8.97 10.57 12.13 13.85 15.90 17.85 19.69 21.42 23.02 24.49 26.09 27.48 28.66 29.77 30.60 31.05 31.04 30.53
3800 7.66 9.11 10.76 12.35 14.09 16.18 18.13 19.96 21.66 23.21 24.61 26.09 27.34 28.34 29.19 29.69 29.74 29.09 28.01
4000 7.73 9.21 10.89 12.51 14.28 16.37 18.32 20.12 21.77 23.25 24.56 25.90 26.97 27.75 28.29 28.39 27.98 26.58 24.86
4200 7.75 9.27 10.98 12.61 14.40 16.49 18.41 20.17 21.75 23.14 24.34 25.50 26.35 26.87 27.05 26.69 25.75 23.50 21.05
4400 7.74 9.28 11.01 12.66 14.45 16.52 18.41 20.10 21.59 22.87 23.92 24.87 25.47 25.69 25.45 24.58 23.02 19.82 16.53
4600 7.69 9.25 11.00 12.65 14.43 16.47 18.30 19.91 21.29 22.43 23.31 24.02 24.32 24.20 23.49 22.02 19.77 15.50 11.29
4800 7.60 9.18 10.93 12.57 14.33 16.32 18.08 19.59 20.84 21.82 22.50 22.93 22.89 22.38 21.14 19.00 15.99 10.53 5.28
5000 7.47 9.05 10.80 12.44 14.16 16.09 17.76 19.14 20.24 21.02 21.48 21.59 21.17 20.22 18.39 15.51 11.65 4.87 -1.52
Power Ratings - CRE PLUS Cogged Raw Edge Wedge Belts
FRICTION BELT DRIVESSECTION : 3
Power Ratings - XPB CRE Wedge Belts
Power Ratings - XPZ CRE Wedge Belts
40
30
40
30
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 57
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
80 85 90 95 100 106 112 118 125 132 140 150 160 170 180 190 200 212 224
100 0.22 0.25 0.28 0.32 0.35 0.39 0.43 0.47 0.52 0.57 0.62 0.69 0.75 0.82 0.88 0.95 1.01 1.09 1.17
500 0.81 0.96 1.11 1.27 1.42 1.60 1.78 1.96 2.17 2.38 2.62 2.91 3.21 3.50 3.79 4.08 4.37 4.71 5.05
720 1.07 1.29 1.50 1.72 1.93 2.18 2.44 2.69 2.98 3.27 3.61 4.02 4.43 4.83 5.24 5.64 6.04 6.52 6.99
960 1.33 1.61 1.89 2.17 2.45 2.78 3.11 3.44 3.82 4.20 4.63 5.16 5.69 6.22 6.74 7.26 7.78 8.39 9.00
1000 1.37 1.67 1.96 2.25 2.53 2.88 3.22 3.56 3.96 4.35 4.79 5.35 5.90 6.44 6.98 7.52 8.05 8.69 9.32
1100 1.47 1.79 2.11 2.43 2.74 3.11 3.49 3.86 4.29 4.72 5.20 5.80 6.40 6.99 7.58 8.16 8.74 9.43 10.11
1200 1.57 1.92 2.26 2.60 2.94 3.35 3.75 4.15 4.61 5.08 5.60 6.25 6.90 7.53 8.17 8.79 9.42 10.15 10.88
1300 1.66 2.04 2.40 2.77 3.14 3.57 4.01 4.44 4.93 5.43 5.99 6.69 7.38 8.06 8.74 9.41 10.07 10.86 11.63
1400 1.75 2.15 2.55 2.94 3.33 3.79 4.26 4.72 5.25 5.78 6.38 7.12 7.85 8.58 9.30 10.01 10.71 11.54 12.36
1440 1.79 2.20 2.60 3.00 3.40 3.88 4.35 4.83 5.37 5.91 6.53 7.29 8.04 8.78 9.52 10.24 10.96 11.81 12.65
1500 1.84 2.26 2.68 3.10 3.52 4.01 4.50 4.99 5.56 6.12 6.75 7.54 8.32 9.08 9.84 10.59 11.33 12.21 13.07
1600 1.92 2.37 2.82 3.26 3.70 4.22 4.74 5.26 5.86 6.45 7.12 7.95 8.77 9.58 10.38 11.16 11.94 12.86 13.76
1700 2.01 2.48 2.95 3.41 3.88 4.43 4.98 5.52 6.15 6.77 7.48 8.35 9.21 10.06 10.89 11.72 12.53 13.48 14.42
1800 2.08 2.58 3.07 3.57 4.05 4.63 5.21 5.78 6.44 7.09 7.83 8.74 9.64 10.53 11.40 12.26 13.10 14.09 15.06
1900 2.16 2.68 3.20 3.71 4.22 4.83 5.43 6.03 6.72 7.40 8.18 9.13 10.06 10.98 11.89 12.78 13.65 14.68 15.68
2000 2.23 2.78 3.32 3.86 4.39 5.02 5.65 6.28 7.00 7.71 8.51 9.50 10.47 11.43 12.37 13.29 14.19 15.24 16.27
2100 2.30 2.87 3.44 4.00 4.55 5.21 5.87 6.52 7.27 8.01 8.84 9.87 10.87 11.86 12.83 13.77 14.70 15.78 16.83
2200 2.37 2.96 3.55 4.13 4.71 5.40 6.08 6.75 7.53 8.30 9.16 10.22 11.26 12.28 13.27 14.25 15.19 16.30 17.37
2300 2.44 3.05 3.66 4.27 4.87 5.58 6.28 6.98 7.79 8.58 9.47 10.57 11.64 12.68 13.70 14.70 15.67 16.79 17.88
2400 2.50 3.14 3.77 4.40 5.02 5.76 6.48 7.21 8.04 8.85 9.77 10.90 12.00 13.07 14.12 15.14 16.12 17.26 18.36
2500 2.56 3.22 3.87 4.52 5.16 5.93 6.68 7.42 8.28 9.12 10.07 11.22 12.35 13.45 14.52 15.55 16.55 17.71 18.81
2600 2.61 3.30 3.97 4.64 5.31 6.09 6.87 7.63 8.52 9.38 10.35 11.54 12.69 13.81 14.90 15.95 16.96 18.12 19.23
2700 2.67 3.37 4.07 4.76 5.45 6.25 7.05 7.84 8.75 9.63 10.63 11.84 13.02 14.16 15.26 16.33 17.35 18.52 19.62
2800 2.72 3.45 4.17 4.88 5.58 6.41 7.23 8.04 8.97 9.88 10.90 12.13 13.33 14.49 15.61 16.68 17.71 18.88 19.98
2880 2.76 3.50 4.24 4.97 5.68 6.53 7.37 8.20 9.14 10.07 11.10 12.36 13.58 14.75 15.87 16.95 17.98 19.15 20.24
3000 2.82 3.59 4.35 5.10 5.84 6.71 7.57 8.42 9.39 10.34 11.40 12.69 13.92 15.11 16.25 17.33 18.36 19.52 20.59
3200 2.90 3.71 4.51 5.30 6.08 6.99 7.89 8.78 9.79 10.77 11.87 13.19 14.45 15.66 16.81 17.89 18.91 20.04 21.07
3400 2.98 3.83 4.66 5.49 6.30 7.25 8.19 9.11 10.15 11.17 12.29 13.64 14.93 16.15 17.29 18.36 19.35 20.43 21.39
3600 3.05 3.93 4.80 5.66 6.50 7.49 8.46 9.41 10.49 11.53 12.68 14.05 15.34 16.56 17.69 18.73 19.68 20.69 21.56
3800 3.10 4.02 4.93 5.82 6.69 7.71 8.71 9.69 10.79 11.85 13.02 14.40 15.69 16.89 18.00 19.00 19.89 20.81 21.57
4000 3.14 4.10 5.04 5.96 6.86 7.91 8.94 9.93 11.05 12.13 13.31 14.70 15.98 17.15 18.21 19.16 19.98 20.79 21.40
4200 3.18 4.16 5.13 6.08 7.00 8.09 9.13 10.15 11.29 12.38 13.56 14.93 16.19 17.33 18.34 19.21 19.93 20.61 21.06
4400 3.20 4.22 5.21 6.18 7.13 8.24 9.30 10.33 11.48 12.58 13.76 15.11 16.34 17.42 18.36 19.14 19.75 20.27 20.52
4600 3.21 4.25 5.28 6.27 7.24 8.36 9.45 10.49 11.64 12.74 13.90 15.23 16.41 17.42 18.27 18.95 19.43 19.76 19.80
4800 3.21 4.28 5.32 6.34 7.33 8.47 9.56 10.61 11.76 12.85 13.99 15.28 16.40 17.34 18.08 18.63 18.97 19.08 18.86
5000 3.19 4.29 5.36 6.39 7.39 8.54 9.65 10.69 11.84 12.91 14.03 15.27 16.31 17.15 17.78 18.18 18.35 18.22 17.72
5200 3.16 4.28 5.37 6.42 7.43 8.60 9.70 10.75 11.88 12.93 14.01 15.19 16.14 16.87 17.36 17.60 17.57 17.17 16.35
5400 3.12 4.27 5.37 6.43 7.45 8.62 9.72 10.76 11.88 12.90 13.94 15.03 15.88 16.49 16.82 16.87 16.63 15.93 14.76
5600 3.07 4.23 5.35 6.42 7.45 8.62 9.72 10.74 11.83 12.82 13.80 14.80 15.54 15.99 16.15 16.00 15.52 14.48 12.93
5800 3.01 4.18 5.31 6.39 7.42 8.59 9.67 10.68 11.74 12.68 13.60 14.50 15.10 15.39 15.36 14.98 14.23 12.83 10.85
6000 2.93 4.12 5.25 6.34 7.37 8.52 9.60 10.58 11.60 12.49 13.34 14.12 14.57 14.68 14.43 13.80 12.76 10.96 8.52
Only Fenner pulleys should be used for belt speeds between 30 and 40 m/s. For belt speeds greather than 40 m/sec consult your authorised distributor.
Use the additional power per belt for speed ratio from pages 58 & 59
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
200 212 224 236 250 265 280 300 315 335 355 375 400 425 450 475 500 530 560
100 1.75 1.97 2.20 2.43 2.69 2.98 3.26 3.63 3.91 4.28 4.65 5.02 5.47 5.93 6.38 6.83 7.28 7.82 8.36
500 6.71 7.73 8.74 9.75 10.92 12.16 13.40 15.04 16.27 17.89 19.49 21.09 23.07 25.03 26.98 28.90 30.81 33.07 35.31
720 8.95 10.36 11.77 13.16 14.78 16.50 18.21 20.46 22.14 24.35 26.54 28.71 31.38 34.02 36.61 39.16 41.68 44.64 47.53
800 9.70 11.25 12.79 14.32 16.10 17.98 19.85 22.31 24.14 26.55 28.93 31.28 34.18 37.02 39.82 42.56 45.25 48.40 51.48
900 10.60 12.32 14.02 15.72 17.68 19.76 21.81 24.52 26.53 29.18 31.78 34.35 37.49 40.58 43.59 46.53 49.40 52.75 55.99
960 11.11 12.93 14.73 16.52 18.59 20.78 22.95 25.80 27.91 30.69 33.42 36.10 39.38 42.59 45.72 48.76 51.72 55.16 58.46
1000 11.45 13.33 15.20 17.05 19.19 21.45 23.69 26.63 28.81 31.67 34.47 37.23 40.60 43.88 47.08 50.18 53.19 56.67 60.00
1100 12.25 14.29 16.31 18.31 20.62 23.06 25.47 28.63 30.96 34.02 37.01 39.93 43.49 46.94 50.27 53.49 56.58 60.12 63.47
1200 13.01 15.20 17.37 19.51 21.98 24.59 27.16 30.52 32.99 36.22 39.37 42.43 46.14 49.72 53.15 56.43 59.55 63.08 66.37
1300 13.72 16.06 18.37 20.65 23.27 26.03 28.75 32.29 34.89 38.26 41.55 44.72 48.55 52.21 55.68 58.97 62.07 65.51 68.65
1400 14.39 16.87 19.31 21.72 24.48 27.39 30.23 33.94 36.64 40.15 43.54 46.80 50.70 54.39 57.86 61.10 64.10 67.37
1440 14.64 17.17 19.67 22.12 24.94 27.90 30.80 34.56 37.30 40.85 44.28 47.57 51.48 55.17 58.63 61.83 64.77 67.95
1500 15.01 17.62 20.19 22.71 25.61 28.64 31.61 35.46 38.25 41.86 45.33 48.65 52.58 56.25 59.66 62.79 65.62
1600 15.58 18.31 21.00 23.64 26.65 29.81 32.88 36.84 39.71 43.40 46.91 50.25 54.16 57.77 61.05 64.01
1700 16.10 18.95 21.75 24.49 27.61 30.87 34.03 38.09 41.02 44.75 48.28 51.60 55.44 58.92 62.03
1800 16.57 19.53 22.43 25.26 28.48 31.83 35.07 39.20 42.16 45.90 49.42 52.68 56.40 59.70
1900 16.99 20.05 23.04 25.96 29.26 32.68 35.97 40.15 43.12 46.86 50.32 53.49 57.03
2000 17.35 20.51 23.58 26.57 29.94 33.42 36.75 40.95 43.91 47.60 50.96 54.00
2100 17.66 20.90 24.05 27.10 30.53 34.05 37.40 41.59 44.51 48.11 51.35
2200 17.92 21.23 24.44 27.54 31.01 34.55 37.90 42.06 44.92 48.40
2300 18.11 21.49 24.75 27.89 31.39 34.93 38.26 42.35 45.13
2400 18.25 21.68 24.98 28.15 31.65 35.19 38.47 42.46 45.13
2500 18.32 21.80 25.13 28.31 31.81 35.31 38.53 42.38
2600 18.33 21.84 25.19 28.37 31.85 35.29 38.43
2700 18.28 21.81 25.16 28.33 31.76 35.13 38.16
2800 18.16 21.70 25.05 28.18 31.56 34.82
2880 18.01 21.56 24.88 27.98 31.30 34.47
2900 17.97 21.51 24.83 27.92 31.22
3000 17.71 21.24 24.53 27.56 30.76
SECTION : 3FRICTION BELT DRIVES
Power Ratings - CRE PLUS Cogged Raw Edge Wedge Belts
Power Ratings - XPA CRE Wedge Belts
Power Ratings - XPC CRE Wedge Belts
40
30
40
30
58
Rev/min
of faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
140 150 160 170 180 190 200 212 224 236 250 280 315
100 0.74 0.82 0.93 1.02 1.12 1.20 1.30 1.42 1.53 1.63 1.77 2.04 2.36
200 1.36 1.51 1.73 1.89 2.08 2.24 2.44 2.65 2.86 3.08 3.32 3.84 4.44
300 1.91 2.14 2.44 2.67 2.96 3.18 3.47 3.80 4.08 4.42 4.73 5.48 6.34
400 2.44 2.74 3.12 3.43 3.79 4.10 4.45 4.87 5.24 5.65 6.09 7.05 8.16
500 3.02 3.39 3.86 4.24 4.70 5.06 5.52 6.09 6.51 7.11 7.56 8.76 10.15
600 3.51 3.98 4.51 4.97 5.49 5.96 6.47 7.09 7.62 8.22 8.79 10.19 11.78
700 4.01 4.56 5.16 5.69 6.29 6.86 7.41 8.09 8.74 9.32 10.16 11.77 13.62
720 4.11 4.67 5.28 5.84 6.45 7.02 7.59 8.30 8.96 9.57 10.41 12.06 13.95
800 4.48 5.12 5.78 6.44 7.06 7.67 8.32 9.13 9.81 10.56 11.40 13.20 15.26
900 4.91 5.55 6.34 7.00 7.75 8.45 9.14 9.96 10.78 11.57 12.52 14.49 16.73
960 5.17 5.80 6.68 7.33 8.17 8.91 9.63 10.45 11.36 12.18 13.19 15.26 17.61
1000 5.35 6.03 6.92 7.63 8.46 9.22 9.97 10.83 11.76 12.62 13.66 15.79 18.20
1100 5.80 6.61 7.51 8.37 9.18 10.00 10.83 11.79 12.77 13.71 14.82 17.11 19.69
1200 6.25 7.18 8.10 9.11 9.91 10.77 11.69 12.75 13.78 14.80 15.98 18.43 21.18
1300 6.65 7.66 8.62 9.65 10.56 11.53 12.45 13.56 14.66 15.72 16.98 19.56 22.42
1400 7.05 8.13 9.15 10.19 11.21 12.29 13.21 14.37 15.55 16.65 17.99 20.69 23.66
1450 7.25 8.37 9.41 10.46 11.53 12.67 13.59 14.78 15.99 17.11 18.50 21.26 24.29
1500 7.43 8.58 9.66 10.76 11.83 12.95 13.95 15.18 16.40 17.56 18.95 21.76 24.82
1600 7.81 9.01 10.16 11.36 12.44 13.50 14.65 15.99 17.22 18.46 19.87 22.77 25.90
1700 8.16 9.42 10.62 11.86 13.01 14.15 15.31 16.69 17.97 19.25 20.70 23.66 26.82
1800 8.52 9.82 11.09 12.35 13.58 14.79 15.97 17.39 18.72 20.03 21.53 24.55 27.73
1900 8.85 10.21 11.52 12.84 14.10 15.37 16.57 18.01 19.40 20.73 22.26 25.30 28.45
2000 9.18 10.60 11.96 13.33 14.62 15.94 17.17 18.63 20.07 21.43 22.99 26.05 29.17
2200 9.75 11.24 12.70 14.14 15.50 16.87 18.15 19.61 21.11 22.45 24.03 26.98 29.82
2400 10.31 11.89 13.43 14.95 16.38 17.80 19.13 20.60 22.16 23.48 25.07 27.92 30.47
2500 10.60 12.21 13.80 15.35 16.81 18.26 19.62 21.09 22.68 23.99 25.59 28.38 30.80
2600 10.82 12.48 14.09 15.63 17.14 18.57 19.95 21.42 22.99 24.34 25.83 28.46
2700 11.05 12.75 14.37 15.92 17.46 18.87 20.29 21.74 23.31 24.70 26.07 28.54
2800 11.27 13.02 14.66 16.20 17.79 19.18 20.63 22.07 23.62 25.05 26.31 28.62
2850 11.38 13.15 14.80 16.34 17.95 19.33 20.79 22.23 23.78 25.23 26.43 28.66
Rev/min
of faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
63 67 71 75 80 85 90 95 100 112 125 140
100 0.13 0.14 0.15 0.16 0.19 0.21 0.23 0.25 0.27 0.31 0.36 0.41
500 0.46 0.53 0.60 0.68 0.75 0.84 0.91 1.00 1.07 1.26 1.47 1.71
720 0.62 0.71 0.80 0.90 1.00 1.14 1.22 1.37 1.44 1.71 1.99 2.31
800 0.69 0.79 0.89 1.00 1.12 1.26 1.38 1.53 1.63 1.92 2.24 2.60
960 0.79 0.91 1.03 1.16 1.30 1.47 1.60 1.77 1.89 2.24 2.61 3.03
1100 0.89 1.02 1.16 1.29 1.47 1.65 1.81 1.99 2.14 2.53 2.96 3.44
1200 0.96 1.10 1.26 1.39 1.59 1.77 1.95 2.15 2.32 2.74 3.20 3.72
1300 0.99 1.15 1.31 1.48 1.68 1.88 2.09 2.30 2.50 2.96 3.50 4.05
1400 1.07 1.23 1.42 1.60 1.80 2.01 2.23 2.47 2.65 3.14 3.68 4.27
1450 1.12 1.27 1.47 1.66 1.86 2.08 2.30 2.55 2.73 3.23 3.77 4.38
1500 1.15 1.31 1.51 1.70 1.92 2.15 2.36 2.63 2.80 3.33 3.88 4.51
1600 1.21 1.38 1.59 1.79 2.03 2.29 2.50 2.79 2.96 3.52 4.10 4.77
1700 1.27 1.46 1.67 1.88 2.13 2.39 2.63 2.91 3.12 3.70 4.32 5.02
1800 1.32 1.53 1.75 1.96 2.23 2.49 2.76 3.03 3.27 3.88 4.53 5.26
1900 1.38 1.59 1.83 2.04 2.33 2.62 2.88 3.19 3.42 4.06 4.74 5.50
2000 1.44 1.64 1.91 2.12 2.43 2.74 3.01 3.34 3.57 4.24 4.94 5.74
2200 1.54 1.76 2.06 2.28 2.63 2.97 3.25 3.60 3.86 4.57 5.33 6.18
2400 1.65 1.89 2.20 2.45 2.82 3.20 3.49 3.85 4.14 4.91 5.72 6.62
2500 1.70 1.95 2.28 2.53 2.91 3.31 3.60 3.98 4.28 5.08 5.91 6.84
2600 1.75 2.01 2.34 2.62 3.00 3.39 3.72 4.10 4.41 5.23 6.09 7.04
2700 1.80 2.07 2.41 2.71 3.09 3.47 3.83 4.21 4.55 5.38 6.26 7.24
2800 1.85 2.13 2.48 2.80 3.18 3.55 3.94 4.33 4.68 5.54 6.44 7.43
2850 1.87 2.16 2.51 2.85 3.22 3.59 3.99 4.39 4.74 5.62 6.53 7.53
2900 1.89 2.19 2.55 2.88 3.26 3.63 4.04 4.44 4.80 5.69 6.61 7.62
3000 1.94 2.24 2.61 2.94 3.35 3.72 4.14 4.55 4.92 5.82 6.76 7.79
3200 2.03 2.34 2.73 3.06 3.51 3.89 4.35 4.76 5.16 6.10 7.07 8.12
3400 2.11 2.44 2.86 3.18 3.67 4.06 4.55 4.97 5.40 6.37 7.38 8.46
3500 2.16 2.49 2.92 3.24 3.75 4.14 4.65 5.07 5.52 6.51 7.53 8.63
3600 2.20 2.53 2.97 3.32 3.83 4.24 4.74 5.18 5.62 6.63 7.66 8.76
3800 2.27 2.62 3.08 3.47 3.97 4.45 4.92 5.39 5.83 6.86 7.91 9.02
4000 2.35 2.70 3.20 3.63 4.11 4.65 5.10 5.61 6.03 7.10 8.17 9.28
4200 2.41 2.79 3.29 3.73 4.23 4.78 5.24 5.77 6.20 7.27 8.34 9.43
4400 2.48 2.88 3.38 3.83 4.35 4.91 5.38 5.93 6.36 7.44 8.51 9.58
4600 2.54 2.97 3.47 3.92 4.47 5.04 5.53 6.10 6.52 7.61 8.68 9.73
4800 2.60 3.06 3.56 4.02 4.59 5.17 5.67 6.26 6.68 7.79 8.85 9.88
5000 2.67 3.15 3.65 4.12 4.71 5.30 5.82 6.42 6.84 7.96 9.02 10.03
5200 2.71 3.19 3.72 4.19 4.79 5.41 5.91 6.54 6.94 8.04 9.06
5400 2.75 3.22 3.78 4.27 4.87 5.51 6.00 6.66 7.03 8.12 9.11
5600 2.79 3.26 3.84 4.34 4.96 5.62 6.09 6.78 7.12 8.20 9.15
5800 2.83 3.29 3.91 4.42 5.04 5.72 6.19 6.90 7.22 8.28 9.20
6000 2.88 3.33 3.97 4.49 5.12 5.83 6.28 7.02 7.31 8.36 9.24
Power Ratings - SPZ & SPB Wedge Belts
FRICTION BELT DRIVESSECTION : 3
Power Ratings - SPZ Wedge Belts
Power Ratings - SPB Wedge Belts
20
10
30
40
20
10
30
40
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 59
Only Fenner pulleys should be used for belt speeds between 30 and 40 m/s. For belt speeds greather than 40 m/sec consult your authorised distributor.
Use the additional power per belt for speed ratio from pages 60 & 61
Rev/
min of
faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
224 236 250 265 280 300 315 335 355 375 400 425 450 475 500 530 560
100 2.20 2.31 2.64 2.87 3.14 3.47 3.73 4.04 4.39 4.69 5.13 5.53 5.94 6.43 6.75 7.42 7.71
200 4.06 4.39 4.90 5.36 5.86 6.48 6.98 7.57 8.24 8.82 9.64 10.37 11.18 11.93 12.71 13.79 14.53
300 5.71 6.21 6.92 7.58 8.30 9.19 9.89 10.75 11.70 12.51 13.70 14.74 15.88 16.92 18.04 19.39 20.59
400 7.35 8.02 8.93 9.79 10.74 11.91 12.81 13.92 15.16 16.21 17.75 19.10 20.59 21.91 23.37 24.98 26.64
500 9.00 9.84 10.95 12.01 13.17 14.62 15.73 17.10 18.62 19.90 21.81 23.47 25.29 26.90 28.70 30.58 32.69
600 10.47 11.47 12.76 14.00 15.36 16.50 18.35 19.92 21.71 22.72 25.40 27.32 29.41 31.26 33.30 35.44 37.81
700 11.94 13.09 14.57 15.99 17.55 18.37 20.98 22.74 24.80 25.53 29.00 31.16 33.53 35.61 37.90 40.30 42.94
720 12.22 13.39 14.91 16.37 17.97 19.04 21.47 23.28 25.38 26.35 29.67 31.87 34.28 36.39 38.73 41.16 43.83
800 13.32 14.60 16.27 17.87 19.61 21.71 23.43 25.45 27.68 29.64 32.32 34.69 37.28 39.53 42.02 44.58 47.42
900 14.56 15.95 17.79 19.52 21.44 23.72 25.60 27.77 30.20 32.28 35.19 37.70 40.47 42.81 45.46 48.21 51.04
960 15.29 16.76 18.70 20.51 22.54 24.93 26.90 29.16 31.71 33.87 36.91 39.51 42.39 44.78 47.53 50.38 53.22
1000 15.80 17.32 19.31 21.18 23.27 25.74 27.76 30.08 32.70 34.90 38.00 40.63 43.55 45.96 48.72 51.49 54.37
1100 17.05 18.70 20.85 22.87 25.11 27.75 29.91 32.39 35.15 37.47 40.72 43.42 46.46 48.89 51.69 54.27 57.24
1200 18.30 20.09 22.38 24.55 26.95 29.76 32.06 34.69 37.61 40.04 43.44 46.22 49.36 51.83 54.66 57.05 60.10
1300 19.40 21.29 23.72 26.00 28.54 31.47 33.89 36.61 39.64 42.11 45.61 48.43 51.55 53.84 56.71 58.85 61.75
1400 20.42 22.42 24.97 27.35 29.99 33.06 35.54 38.32 41.44 43.92 47.44 50.08 53.26 55.28 58.11 60.48 62.50
1450 20.93 22.99 25.59 28.03 30.72 33.85 36.37 39.17 42.33 44.83 48.36 50.91 54.12 56.00 58.81 61.29 62.88
1500 21.39 23.48 26.15 28.63 31.37 34.53 37.08 39.90 43.07 45.53 49.05 51.51 54.66 56.47 59.09
1600 22.32 24.46 27.26 29.82 32.66 35.89 38.50 41.35 44.54 46.93 50.43 52.71 55.75 57.42 59.65
1700 23.17 25.37 28.27 30.89 33.80 37.05 39.72 42.52 45.72 48.00 51.42 53.99 56.29
1800 23.94 26.20 29.18 31.84 34.81 38.06 40.76 43.41 46.67 48.79 52.06
1900 24.61 26.91 29.95 32.63 35.63 38.85 41.53 44.03 47.23 50.14 52.17
2000 25.27 27.62 30.72 33.41 36.44 39.63 42.29 44.65 47.78 51.49 52.27
Rev/min
of faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Dia (mm) Belt
Speed
m/s
90 95 100 106 112 118 125 132 140 150 160 180 200
100 0.27 0.30 0.33 0.37 0.41 0.44 0.48 0.53 0.57 0.66 0.69 0.80 0.92
200 0.50 0.54 0.61 0.68 0.75 0.82 0.90 1.00 1.07 1.23 1.29 1.51 1.73
300 0.69 0.76 0.86 0.94 1.06 1.15 1.27 1.41 1.52 1.73 1.84 2.16 2.48
400 0.87 0.95 1.08 1.19 1.34 1.47 1.62 1.80 1.93 2.20 2.35 2.76 3.16
500 1.08 1.20 1.35 1.47 1.68 1.82 2.02 2.22 2.42 2.72 2.94 3.46 3.97
600 1.26 1.36 1.58 1.72 1.96 2.13 2.36 2.59 2.83 3.19 3.45 4.05 4.65
720 1.43 1.57 1.80 2.00 2.24 2.48 2.71 3.04 3.25 3.70 3.96 4.66 5.35
800 1.60 1.68 2.02 2.21 2.51 2.74 3.05 3.33 3.65 4.14 4.45 5.24 6.02
900 1.76 1.87 2.22 2.44 2.77 3.02 3.36 3.67 4.04 4.56 4.92 5.79 6.65
960 1.84 2.09 2.33 2.61 2.91 3.17 3.53 3.85 4.24 4.72 5.17 6.09 7.00
1100 2.05 2.31 2.61 2.92 3.26 3.53 3.96 4.30 4.76 5.33 5.81 6.84 7.85
1200 2.22 2.43 2.83 3.11 3.54 3.85 4.31 4.70 5.18 5.80 6.32 7.44 8.54
1300 2.36 2.60 3.01 3.33 3.78 4.11 4.60 5.02 5.53 6.19 6.75 7.94 9.11
1400 2.50 2.78 3.19 3.55 4.01 4.37 4.89 5.34 5.88 6.58 7.18 8.44 9.68
1450 2.58 2.85 3.29 3.70 4.14 4.44 5.04 5.44 6.07 6.87 7.41 8.72 9.99
1500 2.65 2.92 3.38 3.80 4.25 4.57 5.18 5.60 6.24 7.05 7.61 8.95 10.26
1600 2.78 3.12 3.56 3.98 4.48 4.89 5.47 5.97 6.58 7.35 8.03 9.44 10.81
1700 2.91 3.27 3.73 4.17 4.70 5.10 5.73 6.28 6.90 7.76 8.42 9.89 11.32
1800 3.04 3.33 3.91 4.38 4.93 5.38 6.01 6.57 7.24 8.14 8.83 10.37 11.85
1900 3.16 3.48 4.06 4.56 5.13 5.60 6.26 6.83 7.53 8.46 9.18 10.77 12.29
2000 3.29 3.71 4.24 4.74 5.35 5.73 6.53 7.19 7.86 9.00 9.58 11.24 12.82
2200 3.51 3.97 4.53 5.07 5.72 6.13 6.99 7.67 8.41 9.56 10.22 11.95 13.58
2400 3.72 4.23 4.82 5.41 6.10 6.54 7.44 8.16 8.95 10.13 10.86 12.66 14.34
2500 3.86 4.41 5.00 5.61 6.33 6.90 7.73 8.40 9.29 10.40 11.28 13.15 14.90
2600 3.95 4.53 5.12 5.75 6.48 7.07 7.92 8.60 9.51 10.67 11.53 13.41 15.15
2800 4.13 4.76 5.36 6.02 6.80 7.41 8.30 9.00 9.95 11.20 12.02 13.92 15.64
2850 4.21 4.81 5.47 6.16 6.94 7.45 8.47 9.25 10.17 11.40 12.29 14.26 16.04
2900 4.25 4.85 5.52 6.22 7.00 7.53 8.55 9.33 10.26 11.50 12.39 14.34 15.34
3000 4.32 4.94 5.63 6.33 7.14 7.68 8.71 9.49 10.43 11.69 12.57 14.52 13.95
3200 4.48 5.11 5.83 6.56 7.40 7.98 9.02 9.82 10.79 12.08 12.94 14.86 11.16
3400 4.63 5.28 6.04 6.79 7.67 8.28 9.34 10.14 11.14 12.47 13.32 15.20 8.37
3500 4.76 5.57 6.22 6.97 7.90 8.60 9.62 10.40 11.49 13.05 13.74 15.71 17.37
3600 4.90 5.73 6.39 7.17 8.12 8.85 9.90 10.70 11.82 13.42 14.14 16.16 17.86
3800 4.99 5.76 6.53 7.32 8.30 9.02 10.09 10.91 12.01 13.53 14.28 16.20
4000 5.09 5.80 6.67 7.48 8.47 9.19 10.29 11.12 12.21 13.64 14.43 16.24

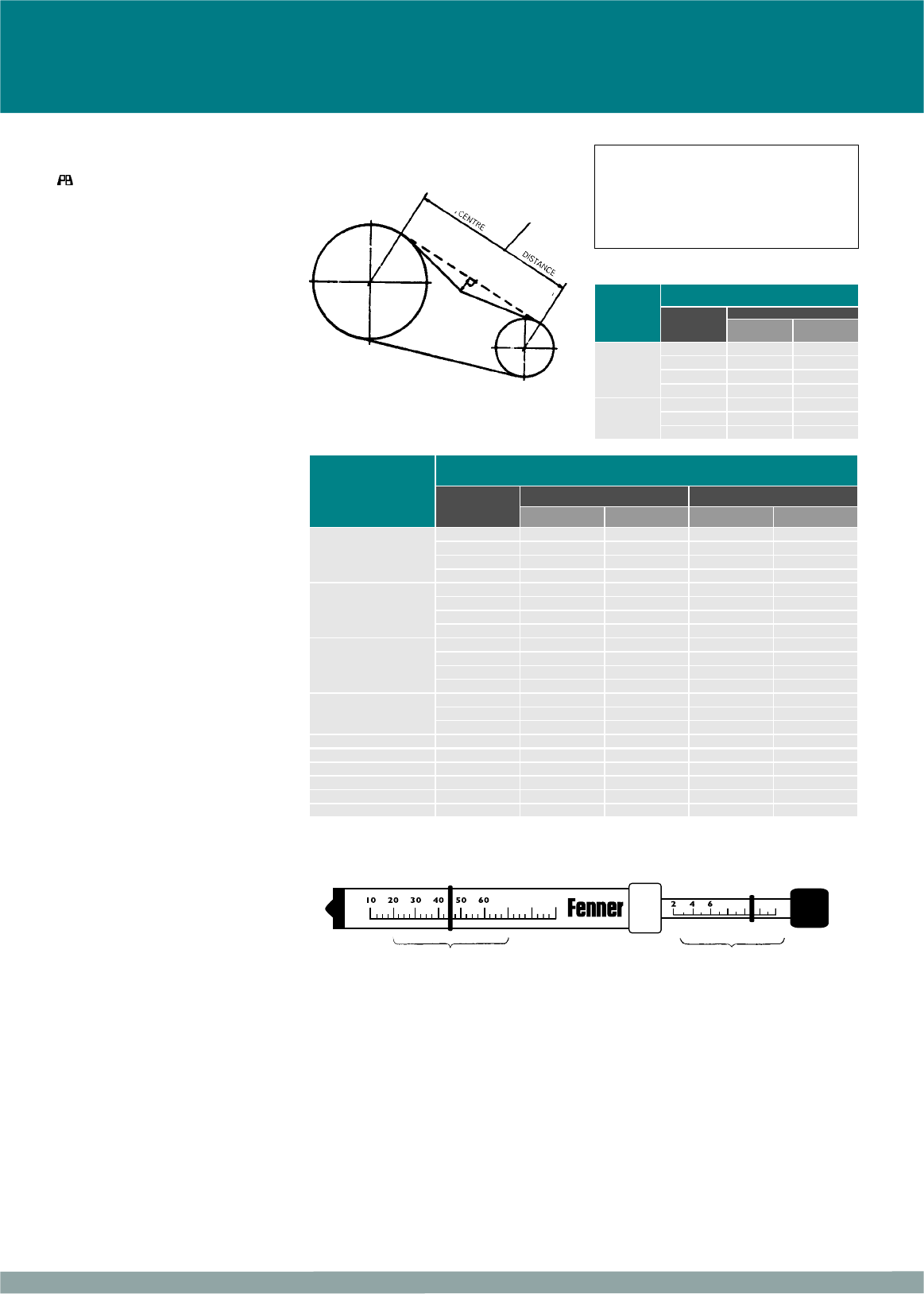

The high performance and efficiency of Fenner
Precision Built belts requires correct tension. We
recommend using the Fenner Belt Tension Indicator.
Fenner Belt Tension Indicator
70 80 90 810 12 14
70 80 90 810 12 14
Deflection in mm
(larger marker ring)
Setting force in kgf
(smaller marker ring)
SECTION : 3FRICTION BELT DRIVES
Power Ratings - SPA & SPC Wedge Belts
Power Ratings - SPA Wedge Belts
Power Ratings - SPC Wedge Belts
20
10
30
40
20
10
30
40
60
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.01 0.02 0.04 0.04 0.06 0.07 0.07 0.08 0.08
200 0.00 0.01 0.04 0.07 0.09 0.11 0.13 0.15 0.16 0.17
300 0.00 0.02 0.06 0.10 0.14 0.17 0.20 0.22 0.24 0.25
400 0.00 0.03 0.07 0.13 0.19 0.22 0.26 0.29 0.32 0.34
500 0.00 0.04 0.09 0.17 0.23 0.28 0.33 0.37 0.40 0.43
600 0.00 0.04 0.12 0.20 0.28 0.34 0.40 0.45 0.48 0.51
700 0.00 0.05 0.13 0.24 0.33 0.39 0.46 0.52 0.57 0.59
720 0.00 0.05 0.14 0.25 0.33 0.41 0.48 0.54 0.59 0.62
800 0.00 0.06 0.16 0.28 0.37 0.45 0.53 0.60 0.65 0.69
900 0.00 0.07 0.18 0.31 0.42 0.51 0.60 0.66 0.72 0.77
960 0.00 0.07 0.19 0.32 0.44 0.54 0.62 0.70 0.77 0.81
1000 0.00 0.07 0.19 0.34 0.46 0.56 0.66 0.74 0.81 0.86
1100 0.00 0.08 0.22 0.37 0.51 0.62 0.72 0.81 0.89 0.94
1200 0.00 0.09 0.23 0.41 0.56 0.68 0.79 0.89 0.97 1.03
1300 0.00 0.09 0.25 0.44 0.60 0.73 0.86 0.96 1.05 1.11
1400 0.00 0.10 0.28 0.48 0.65 0.79 0.93 1.04 1.13 1.20
1440 0.00 0.10 0.28 0.48 0.66 0.79 0.94 1.06 1.15 1.21
1500 0.00 0.10 0.29 0.51 0.69 0.84 0.99 1.11 1.21 1.28
1600 0.00 0.11 0.31 0.54 0.75 0.90 1.05 1.19 1.29 1.37
1700 0.00 0.12 0.34 0.58 0.79 0.95 1.12 1.26 1.37 1.45
1800 0.00 0.13 0.35 0.61 0.84 1.01 1.19 1.34 1.45 1.54
1900 0.00 0.13 0.37 0.65 0.88 1.07 1.25 1.41 1.54 1.63
2000 0.00 0.14 0.39 0.68 0.93 1.13 1.32 1.48 1.62 1.71
2100 0.00 0.15 0.41 0.72 0.98 1.18 1.39 1.56 1.69 1.79
2200 0.00 0.16 0.43 0.75 1.02 1.24 1.45 1.63 1.78 1.88
2300 0.00 0.16 0.45 0.78 1.07 1.29 1.51 1.71 1.86 1.97
2400 0.00 0.17 0.47 0.82 1.11 1.35 1.58 1.78 1.94 2.05
2500 0.00 0.18 0.49 0.85 1.16 1.41 1.65 1.86 2.02 2.14
2600 0.00 0.19 0.51 0.89 1.21 1.46 1.72 1.92 2.10 2.22
2700 0.00 0.19 0.53 0.92 1.25 1.52 1.78 1.99 2.18 2.31
2800 0.00 0.20 0.54 0.95 1.29 1.57 1.84 2.07 2.26 2.39
2880 0.00 0.20 0.56 0.97 1.32 1.60 1.88 2.11 2.31 2.44
2900 0.00 0.21 0.57 0.99 1.34 1.63 1.91 2.15 2.34 2.48
3000 0.00 0.22 0.59 1.02 1.39 1.69 1.98 2.23 2.42 2.57
Only Fenner brand pulleys should be used where belt speed falls between 30 and 40 m/s.
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.00 0.00 0.01 0.01 0.01 0.01 0.01 0.02 0.02
500 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.08
720 0.00 0.01 0.03 0.05 0.06 0.08 0.09 0.10 0.11 0.12
800 0.00 0.01 0.03 0.05 0.07 0.08 0.10 0.11 0.12 0.13
900 0.00 0.01 0.03 0.06 0.08 0.10 0.11 0.13 0.14 0.14
960 0.00 0.01 0.04 0.06 0.08 0.10 0.12 0.13 0.15 0.15
1000 0.00 0.01 0.04 0.06 0.09 0.11 0.12 0.14 0.15 0.16
1100 0.00 0.01 0.04 0.07 0.10 0.12 0.14 0.15 0.17 0.18
1200 0.00 0.02 0.04 0.08 0.10 0.13 0.15 0.17 0.18 0.19
1300 0.00 0.02 0.05 0.08 0.11 0.14 0.16 0.18 0.20 0.21
1400 0.00 0.02 0.05 0.09 0.12 0.15 0.17 0.20 0.21 0.23
1440 0.00 0.02 0.05 0.09 0.13 0.15 0.18 0.20 0.22 0.23
1500 0.00 0.02 0.05 0.10 0.13 0.16 0.19 0.21 0.23 0.24
1600 0.00 0.02 0.06 0.10 0.14 0.17 0.20 0.22 0.24 0.26
1700 0.00 0.02 0.06 0.11 0.15 0.18 0.21 0.24 0.26 0.27
1800 0.00 0.02 0.07 0.12 0.16 0.19 0.22 0.25 0.27 0.29
1900 0.00 0.03 0.07 0.12 0.17 0.20 0.24 0.26 0.29 0.31
2000 0.00 0.03 0.07 0.13 0.17 0.21 0.25 0.28 0.30 0.32
2100 0.00 0.03 0.08 0.13 0.18 0.22 0.26 0.29 0.32 0.34
2200 0.00 0.03 0.08 0.14 0.19 0.23 0.27 0.31 0.33 0.35
2300 0.00 0.03 0.08 0.15 0.20 0.24 0.29 0.32 0.35 0.37
2400 0.00 0.03 0.09 0.15 0.21 0.25 0.30 0.33 0.36 0.39
2500 0.00 0.03 0.09 0.16 0.22 0.26 0.31 0.35 0.38 0.40
2600 0.00 0.04 0.10 0.17 0.23 0.28 0.32 0.36 0.40 0.42
2700 0.00 0.04 0.10 0.17 0.24 0.29 0.33 0.38 0.41 0.43
2800 0.00 0.04 0.10 0.18 0.24 0.30 0.35 0.39 0.43 0.45
2880 0.00 0.04 0.11 0.18 0.25 0.30 0.36 0.40 0.44 0.45
2900 0.00 0.04 0.11 0.19 0.25 0.31 0.36 0.40 0.44 0.47
3000 0.00 0.04 0.11 0.19 0.26 0.32 0.37 0.42 0.46 0.48
3100 0.00 0.04 0.11 0.20 0.27 0.33 0.38 0.43 0.47 0.50
3200 0.00 0.04 0.12 0.21 0.28 0.34 0.40 0.45 0.49 0.51
3300 0.00 0.04 0.12 0.21 0.29 0.35 0.41 0.46 0.50 0.53
3400 0.00 0.05 0.13 0.22 0.30 0.36 0.42 0.47 0.52 0.55
3500 0.00 0.05 0.13 0.22 0.31 0.37 0.43 0.49 0.53 0.56
3600 0.00 0.05 0.13 0.23 0.31 0.38 0.45 0.50 0.55 0.58
3700 0.00 0.05 0.14 0.24 0.32 0.39 0.46 0.52 0.56 0.60
3800 0.00 0.05 0.14 0.24 0.33 0.40 0.47 0.53 0.58 0.61
3900 0.00 0.05 0.14 0.25 0.34 0.41 0.48 0.54 0.59 0.63
4000 0.00 0.05 0.15 0.26 0.35 0.42 0.50 0.56 0.61 0.64
4200 0.00 0.06 0.15 0.27 0.37 0.44 0.52 0.59 0.64 0.68
4400 0.00 0.06 0.16 0.28 0.38 0.47 0.55 0.61 0.67 0.71
4600 0.00 0.06 0.17 0.30 0.40 0.49 0.57 0.64 0.70 0.74
4800 0.00 0.06 0.18 0.31 0.42 0.51 0.60 0.67 0.73 0.77
5000 0.00 0.07 0.18 0.32 0.44 0.53 0.62 0.70 0.76 0.80
5200 0.00 0.07 0.19 0.33 0.45 0.55 0.64 0.73 0.79 0.84
5400 0.00 0.07 0.20 0.35 0.47 0.57 0.67 0.75 0.82 0.87
5600 0.00 0.08 0.21 0.36 0.49 0.59 0.69 0.78 0.85 0.90
5800 0.00 0.08 0.21 0.37 0.51 0.61 0.72 0.81 0.88 0.93
6000 0.00 0.08 0.22 0.39 0.52 0.63 0.74 0.84 0.91 0.97
Additional Power Ratings for Speed Ratio
FRICTION BELT DRIVESSECTION : 3
Additional Power Ratings - SPZ, XPZ & QXPZ
Additional Power Ratings - SPB, XPB, QXPB & USPB
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 61
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.02 0.06 0.11 0.14 0.17 0.20 0.23 0.25 0.26
200 0.00 0.04 0.12 0.21 0.29 0.35 0.41 0.46 0.50 0.53
300 0.00 0.07 0.18 0.32 0.43 0.52 0.61 0.69 0.75 0.79
400 0.00 0.09 0.24 0.42 0.57 0.70 0.81 0.92 1.00 1.06
500 0.00 0.11 0.30 0.53 0.72 0.87 1.02 1.15 1.25 1.32
600 0.00 0.13 0.36 0.63 0.86 1.04 1.22 1.37 1.50 1.59
700 0.00 0.15 0.42 0.74 1.00 1.22 1.43 1.60 1.75 1.85
720 0.00 0.16 0.43 0.76 1.03 1.25 1.46 1.65 1.80 1.90
800 0.00 0.17 0.48 0.84 1.15 1.39 1.63 1.83 2.00 2.11
900 0.00 0.20 0.54 0.95 1.29 1.56 1.85 2.06 2.25 2.38
960 0.00 0.21 0.58 1.01 1.37 1.67 1.95 2.20 2.40 2.54
1000 0.00 0.22 0.60 1.05 1.43 1.74 2.04 2.29 2.50 2.64
1110 0.00 0.24 0.66 1.16 1.57 1.91 2.24 2.52 2.75 2.91
1200 0.00 0.26 0.72 1.26 1.72 2.09 2.44 2.75 3.00 3.17
1300 0.00 0.28 0.78 1.37 1.86 2.26 2.65 2.98 3.25 3.44
1400 0.00 0.31 0.84 1.47 2.00 2.43 2.85 3.21 3.50 3.70
1440 0.00 0.31 0.87 1.51 2.06 2.50 2.93 3.30 3.60 3.81
1500 0.00 0.33 0.90 1.58 2.15 2.61 3.05 3.44 3.75 3.96
1600 0.00 0.35 0.96 1.68 2.29 2.78 3.26 3.67 4.00 4.23
1700 0.00 0.37 1.02 1.79 2.43 2.96 3.46 3.90 4.25 4.49
1800 0.00 0.39 1.08 1.89 2.58 3.13 3.66 4.12 4.50 4.76
1900 0.00 0.42 1.14 2.00 2.72 3.30 3.87 4.35 4.75 5.02
2000 0.00 0.44 1.20 2.10 2.86 3.48 4.07 4.58 5.00 5.29
2100 0.00 0.46 1.26 2.21 3.00 3.65 4.27 4.81 5.25 5.55
2200 0.00 0.48 1.32 2.31 3.15 3.83 4.48 5.04 5.50 5.82
2300 0.00 0.51 1.38 2.42 3.29 4.00 4.68 5.27 5.75 6.08
2400 0.00 0.53 1.44 2.52 3.43 4.18 4.88 5.50 6.00 6.35
2500 0.00 0.55 1.50 2.63 3.58 4.35 5.09 5.73 6.25 6.61
2600 0.00 0.57 1.56 2.73 3.72 4.52 5.29 5.95 6.50 6.88
2700 0.00 0.59 1.62 2.84 3.86 4.70 5.49 6.18 6.75 7.14
2800 0.00 0.62 1.68 2.94 4.00 4.87 5.70 6.41 7.00 7.41
2880 0.00 0.64 1.74 3.05 4.15 5.05 5.90 6.64 7.25 7.67
3000 0.00 0.66 1.80 3.15 4.29 5.22 6.11 6.87 7.50 7.94
3100 0.00 0.68 1.86 3.26 4.43 5.39 6.31 7.10 7.75 8.20
3200 0.00 0.70 1.92 3.36 4.58 5.57 6.51 7.33 8.00 8.46
3300 0.00 0.73 1.98 3.47 4.72 5.74 6.72 7.56 8.25 8.73
3400 0.00 0.75 2.04 3.57 4.86 5.92 6.92 7.79 8.50 8.99
3500 0.00 0.77 2.10 3.68 5.01 6.09 7.12 8.02 8.75 9.26
3600 0.00 0.79 2.16 3.78 5.15 6.26 7.33 8.24 9.00 9.52
Rev/min of
faster shaft
Additional Power (kW) per belt for speed ratio
1.00 to 1.01 1.02 to 1.05 1.06 to 1.11 1.12 to 1.18 1.19 to 1.26 1.27 to 1.38 1.30 to 1.57 1.58 to 1.94 1.95 to 3.38 3.39 and over
100 0.00 0.00 0.01 0.02 0.02 0.03 0.03 0.04 0.04 0.04
200 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.08
300 0.00 0.01 0.03 0.05 0.07 0.08 0.10 0.11 0.12 0.12
400 0.00 0.01 0.04 0.07 0.09 0.11 0.13 0.14 0.16 0.16
500 0.00 0.02 0.05 0.08 0.11 0.14 0.16 0.18 0.19 0.21
600 0.00 0.02 0.06 0.10 0.13 0.16 0.19 0.21 0.23 0.25
700 0.00 0.02 0.07 0.12 0.16 0.19 0.22 0.25 0.27 0.29
720 0.00 0.02 0.07 0.12 0.16 0.20 0.23 0.26 0.28 0.30
800 0.00 0.03 0.08 0.13 0.18 0.22 0.25 0.29 0.31 0.33
900 0.00 0.03 0.08 0.15 0.20 0.24 0.29 0.32 0.35 0.37
960 0.00 0.03 0.09 0.16 0.21 0.26 0.30 0.34 0.37 0.40
1000 0.00 0.03 0.09 0.16 0.22 0.27 0.32 0.36 0.39 0.41
1100 0.00 0.04 0.10 0.18 0.25 0.30 0.35 0.39 0.43 0.45
1200 0.00 0.04 0.11 0.20 0.27 0.33 0.38 0.43 0.47 0.49
1300 0.00 0.04 0.12 0.21 0.29 0.35 0.41 0.46 0.51 0.54
1400 0.00 0.05 0.13 0.23 0.31 0.38 0.44 0.50 0.54 0.58
1440 0.00 0.05 0.14 0.24 0.32 0.39 0.46 0.51 0.56 0.59
1500 0.00 0.05 0.14 0.25 0.34 0.41 0.48 0.54 0.58 0.62
1600 0.00 0.06 0.15 0.26 0.36 0.43 0.51 0.57 0.62 0.66
1700 0.00 0.06 0.16 0.28 0.38 0.46 0.54 0.61 0.66 0.70
1800 0.00 0.06 0.17 0.30 0.40 0.49 0.57 0.64 0.70 0.74
1900 0.00 0.07 0.18 0.31 0.43 0.51 0.60 0.68 0.74 0.78
2000 0.00 0.07 0.19 0.33 0.45 0.54 0.64 0.71 0.78 0.82
2100 0.00 0.07 0.20 0.35 0.47 0.57 0.67 0.75 0.82 0.87
2200 0.00 0.08 0.21 0.36 0.49 0.60 0.70 0.79 0.86 0.91
2300 0.00 0.08 0.22 0.38 0.51 0.62 0.73 0.82 0.90 0.95
2400 0.00 0.08 0.23 0.39 0.54 0.65 0.76 0.86 0.93 0.99
2500 0.00 0.09 0.24 0.41 0.56 0.68 0.79 0.89 0.97 1.03
2600 0.00 0.09 0.24 0.43 0.58 0.70 0.83 0.93 1.01 1.07
2700 0.00 0.09 0.25 0.44 0.60 0.73 0.86 0.96 1.05 1.11
2800 0.00 0.10 0.26 0.46 0.63 0.76 0.89 1.00 1.09 1.15
2880 0.00 0.10 0.27 0.47 0.64 0.78 0.91 1.03 1.12 1.19
2900 0.00 0.10 0.27 0.48 0.65 0.79 0.92 1.04 1.13 1.20
3000 0.00 0.10 0.28 0.49 0.67 0.81 0.95 1.07 1.17 1.24
3100 0.00 0.11 0.29 0.51 0.69 0.84 0.98 1.11 1.21 1.28
3200 0.00 0.11 0.30 0.53 0.72 0.87 1.02 1.14 1.25 1.32
3300 0.00 0.11 0.31 0.54 0.74 0.89 1.05 1.18 1.28 1.36
3400 0.00 0.12 0.32 0.56 0.76 0.92 1.08 1.21 1.32 1.40
3500 0.00 0.12 0.33 0.58 0.78 0.95 1.11 1.25 1.36 1.44
3600 0.00 0.12 0.34 0.59 0.81 0.98 1.14 1.29 1.40 1.48
3700 0.00 0.13 0.35 0.61 0.83 1.00 1.18 1.32 1.44 1.53
3800 0.00 0.13 0.36 0.62 0.85 1.03 1.21 1.36 1.48 1.57
3900 0.00 0.13 0.37 0.64 0.87 1.06 1.24 1.39 1.52 1.61
4000 0.00 0.14 0.38 0.66 0.89 1.08 1.27 1.43 1.56 1.65
SECTION : 3FRICTION BELT DRIVES
Additional Poewer Ratings for Speed Ratio
Additional Power Ratings - SPA, XPA & QXPA,
Additional Power Ratings - SPC, XPC, QXPC & USPC
Only Fenner brand pulleys should be used where belt speed falls between 30 and 40 m/s.
62
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley
Type F J K L M N Outside
Dia (O)
Metric Inch
031Z0041 56 11008 25 1 9 49 28 13 22 – – 60
031Z0042 56 21108 28 11
/8 949 35 27 22 – – 60
031Z0051 60 11008 25 1 9 22 – – 22 – – 64
031Z0052 60 21108 28 11
/8 928 36 27 22 – – 64
031Z0061 63 11108 28 11
/8 116 – – 22 656 67
031Z0062 63 21108 28 11
/8 228 40 –22 6 – 67
031Z0063 63 31108 28 11/8 240 40 –22 18 –67
031Z0071 67 11108 28 11
/8 116 – – 22 660 71
031Z0072 67 21108 28 11
/8 628 42 622 – – 71
031Z0073 67 31108 28 11/8 640 42 18 22 – – 71
031Z0081 71 11108 28 11
/8 116 – – 22 660 75
031Z0082 71 21108 28 11
/8 628 42 622 – – 75
031Z0083 71 31108 28 11/8 640 42 18 22 – – 75
031Z0091 75 11108 28 11
/8 116 – – 22 660 79
031Z0092 75 21210 32 11
/4 628 51 325 – – 79
031Z0093 75 31210 32 11/4 640 51 15 25 – – 79
031Z0101 80 11210 32 11
/4 116 – – 25 975 84
031Z0102 80 21210 32 11
/4 628 51 325 – – 84
031Z0103 80 31210 32 11/4 640 51 15 25 – – 84
031Z0104 80 41210 32 11/4 652 51 27 25 – – 84
031Z0111 85 11210 32 11
/4 116 – – 25 980 89
031Z0112 85 21610 42 15
/8 628 60 325 – – 89
031Z0113 85 31610 42 15/8 640 60 15 25 – – 89
031Z0114 85 41610 42 15/8 652 60 27 25 – – 89
031Z0115* 85 51610 42 15
/8 664 60 39 25 – – 89
031Z0121 90 11210 32 11
/4 116 – – 25 980 94
031Z0122 90 21610 42 15
/8 628 61 325 – – 94
031Z0123 90 31610 42 15/8 640 61 15 25 – – 94
031Z0124 90 41610 42 15/8 652 61 27 25 – – 94
031Z0125* 90 51610 42 15
/8 664 61 39 25 – – 94
031Z0131 95 11210 32 11
/4 116 – – 25 985 99
031Z0132 95 21610 42 15
/8 628 66 325 – – 99
031Z0133 95 31610 42 15/8 640 66 15 25 – – 99
031Z0134 95 41610 42 15/8 652 66 27 25 – – 99
031Z0135* 95 51610 42 15/8 664 66 39 25 – – 99
031Z0141 100 11210 32 11
/4 116 – – 25 985 104
031Z0142 100 21610 42 15
/8 628 71 325 – – 104
031Z0143 100 31610 42 15/8 640 71 15 25 – – 104
031Z0144 100 41610 42 15/8 652 71 27 25 – – 104
031Z0145* 100 52012 50 2 6 64 71 32 32 – – 104
031Z0151 106 11610 42 15
/8 116 – – 25 992 111
031Z0152 106 21610 42 15
/8 628 76 325 – – 111
031Z0153 106 31610 42 15/8 640 76 15 25 – – 111
031Z0154 106 41610 42 15/8 652 76 27 25 – – 111
031Z0155* 106 52012 50 2 6 64 76 32 32 – – 111
031Z0161 112 11610 42 15
/8 116 – – 25 992 116
031Z0162 112 21610 42 15
/8 628 83 325 – – 116
031Z0163 112 32012 50 2 6 40 83 832 – – 116
031Z0164 112 42012 50 2 6 52 83 20 32 – – 116
031Z0165* 112 52012 50 2 6 64 83 32 32 – – 116
Type 6NR pulleys are made to catalogue dimensions, but modern manufacturing techniques result in there being no recess behind the Taper Lock bush, the J dimension is then approximately equal to the
small diameter of the Taper Lock bush.
Dimensions in millimetres unless otherwise stated. *Non-preferred pulley sizes. Pitch diameters in italic type indicate pulleys to be used with Z V-belts, XPZ & QXPZ wedge belts only.
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
Taper Lock Pulleys for Z, SPZ, XPZ & QXPZ Belts
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 63
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley Type F J K L M N Outside
Dia (O)
Metric Inch
031Z0171 118 11610 42 15
/8 116 – – 25 9.0 92 123
031Z0172 118 21610 42 15
/8 628 90 3.0 25 – – 123
031Z0173 118 32012 50 2 6 40 90 8.0 32 – – 123
031Z0174 118 42012 50 2 6 52 90 20.0 32 – – 123
031Z0175* 118 52012 50 2 6 64 90 32.0 32 – – 123
031Z0181 125 11610 42 15
/8 116 – – 25 9.0 92 129
031Z0182 125 21610 42 15
/8 628 96 3.0 25 – – 129
031Z0183 125 32012 50 2 2 40 96 –32 8.0 –129
031Z0184 125 42012 50 2 2 52 96 –32 20.0 –129
031Z0185* 125 52012 50 2 6 64 96 32.0 32 – – 129
031Z0191 132 11610 42 15
/8 116 – – 25 9.0 92 137
031Z0192 132 21610 42 15
/8 628 103 3.0 25 – – 137
031Z0193 132 32012 50 2 2 40 103 –32 8.0 –137
031Z0194 132 42012 50 2 2 52 103 –32 20.0 –137
031Z0195* 132 52517 60 21/2 664 103 19.0 45 – – 137
031Z0201 140 11610 42 15
/8 116 – – 25 9.0 92 144
031Z0202 140 21610 42 15
/8 628 111 3.0 25 – – 144
031Z0203 140 32012 50 2 2 40 111 –32 8.0 –144
031Z0204 140 42012 50 2 2 52 111 –32 20.0 –144
031Z0205* 140 52517 60 21/2 264 111 –45 19.0 –144
031Z0221 160 11610 42 15
/8 116 – – 25 9.0 92 164
031Z0222 160 22012 50 2 1 28 – – 32 4.0 112 164
031Z0223 160 32012 50 2 2 40 131 –32 8.0 –164
031Z0224 160 42517 60 21
/2 252 131 –45 7.0 –164
031Z0225* 160 52517 60 21
/2 264 131 –45 19.0 –164
031Z0241 180 11610 42 15
/8 116 – – 25 9.0 92 184
031Z0242 180 22012 50 2 1 28 – – 32 4.0 112 184
031Z0243 180 32012 50 2 2 40 151 –32 8.0 –184
031Z0244 180 42517 60 21
/2 252 151 –45 7.0 –184
031Z0245* 180 52517 60 21/2 264 151 –45 19.0 –184
031Z0261 200 12012 50 2 8 16 171 –32 16.0 112 204
031Z0262 200 22012 50 2 8 28 171 –32 4.0 112 204
031Z0263 200 32012 50 2 7 40 171 4.0 32 4.0 112 204
031Z0264 200 42517 60 21
/2 752 171 3.5 45 3.5 124 204
031Z0265* 200 52517 60 21
/2 764 171 9.5 45 9.5 124 204
031Z0301 250 12012 50 2 4 16 221 8.0 32 8.0 112 254
031Z0302 250 22012 50 2 4 28 221 2.0 32 2.0 112 254
031Z0303 250 32012 50 2 5 40 221 4.0 32 4.0 112 254
031Z0304 250 42517 60 21
/2 552 221 3.5 45 3.5 124 254
031Z0305* 250 52517 60 21
/2 564 221 9.5 45 9.5 124 254
031Z0331 315 12012 50 2 4 16 286 8.0 32 8.0 112 319
031Z0332 315 22012 50 2 4 28 286 2.0 32 2.0 112 319
031Z0333 315 32517 60 21
/2 440 286 2.5 45 2.5 124 319
031Z0334 315 42517 60 21/2 552 286 3.5 45 3.5 124 319
031Z0335* 315 52517 60 21
/2 564 286 9.5 45 9.5 124 319
031Z0351 400 12012 50 2 4 16 371 8.0 32 8.0 112 404
031Z0352 400 22517 60 21
/2 428 371 8.5 45 8.5 124 404
031Z0353 400 32517 60 21/2 440 371 2.5 45 2.5 124 404
031Z0354 400 42517 60 21/2 552 371 3.5 45 3.5 124 404
031Z0355* 400 53020 75 3 5 64 371 6.5 51 6.5 146 404
031Z0372* 500 22517 60 21
/2 428 471 8.5 45 8.5 124 504
031Z0373* 500 32517 60 21
/2 540 471 2.5 45 2.5 124 504
031Z0374* 500 43020 75 3 5 52 471 0.5 51 0.5 146 504
031Z0375* 500 53020 75 3 4 64 471 6.0 76 6.0 146 504
031Z0393* 630 32517 60 21
/2 440 601 2.5 45 2.5 124 634
031Z0394* 630 43020 75 3 4 52 601 12.0 76 12.0 146 634
031Z0395* 630 53020 75 3 4 64 601 6.0 76 6.0 146 634
Dimensions in millimetres unless otherwise stated. * Non-preferred pulley sizes.
Intermediate diameters available on a non-stock basis, see page 70
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
SECTION : 3FRICTION BELT DRIVES
Taper Lock Pulleys for Z, SPZ, XPZ & QXPZ Belts
64
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley
Type F J K L M N Outside
Dia (O)
Metric Inch
031A0101 80 11210 32 11
/4 120 – – 25 5.0 75 86
031A0102 80 21210 32 11
/4 635 46 10.0 25 – – 86
031A0103 80 31210 32 11/4 650 46 25.0 25 – – 86
031A0111 85 11210 32 11
/4 120 – – 25 5.0 80 91
031A0112 85 21210 32 11
/4 635 46 10.0 25 – – 91
031A0113 85 31210 32 11/4 650 46 25.0 25 – – 91
031A0121 90 11210 32 11
/4 120 – – 25 5.0 80 96
031A0122 90 21610 42 15
/8 635 61 10.0 25 – – 96
031A0123 90 31610 42 15/8 650 61 25.0 25 – – 96
031A0124 90 41610 42 15/8 365 61 13.5 38 13.5 –96
031A0131 95 11210 32 11
/4 120 – – 25 5.0 85 101
031A0132 95 21610 42 15
/8 635 66 10.0 25 – – 101
031A0133 95 31610 42 15/8 650 66 25.0 25 – – 101
031A0134 95 41610 42 15/8 365 66 13.5 38 13.5 –101
031A0141 100 11610 42 15
/8 120 – – 25 5.0 85 106
031A0142 100 21610 42 15
/8 635 71 10.0 25 – – 106
031A0143 100 31610 42 15/8 250 71 –25 25.0 –106
031A0144 100 41610 42 15/8 265 71 –38 27.0 –106
031A0145 100 51610 42 15/8 280 71 –38 42.0 –106
031A0146* 100 61610 42 15/8 395 71 28.5 38 28.5 –106
031A0151 106 11610 42 15
/8 120 – – 25 5.0 92 112
031A0152 106 21610 42 15
/8 635 76 10.0 25 – – 112
031A0153 106 31610 42 15/8 250 76 –25 25.0 –112
031A0154 106 42012 50 2 6 65 76 33.0 32 – – 112
031A0155 106 52012 50 2 6 80 76 48.0 32 – – 112
031A0156* 106 62012 50 2 6 95 76 63.0 32 – – 112
031A0161 112 11610 42 15
/8 120 – – 25 5.0 92 118
031A0162 112 21610 42 15
/8 635 83 10.0 25 – – 118
031A0163 112 32012 50 2 6 50 83 18.0 32 – – 118
031A0164 112 42012 50 2 6 65 83 33.0 32 – – 118
031A0165 112 52012 50 2 6 80 83 48.0 32 – – 118
031A0166* 112 62012 50 2 6 95 83 63.0 32 – – 118
031A0171 118 11610 42 15
/8 120 – – 25 5.0 92 124
031A0172 118 21610 42 15
/8 635 90 10.0 25 – – 124
031A0173 118 32012 50 2 2 50 90 –32 18.0 –124
031A0174 118 42012 50 2 2 65 90 –32 33.0 –124
031A0175 118 52012 50 2 2 80 90 –32 48.0 –124
031A0176* 118 62012 50 2 6 95 90 63.0 32 – – 124
031A0181 125 11610 42 15
/8 120 – – 25 5.0 92 131
031A0182 125 21610 42 15
/8 635 96 10.0 25 – – 131
031A0183 125 32012 50 2 2 50 96 –32 18.0 –131
031A0184 125 42012 50 2 2 65 96 –32 33.0 –131
031A0185 125 52012 50 2 3 80 96 24.0 32 24.0 –131
031A0186* 125 62012 50 2 3 95 96 31.5 32 31.5 –131
031A0191 132 11610 42 15
/8 120 – – 25 5.0 92 138
031A0192 132 22012 50 2 6 35 103 3.0 32 – – 138
031A0193 132 32012 50 2 2 50 103 –32 18.0 –138
031A0194 132 42517 60 21
/2 265 103 –45 20.0 –138
031A0195 132 52517 60 21/2 380 103 17.5 45 17.5 –138
031A0196* 132 62517 60 21/2 395 103 25.0 45 25.0 –138
031A0201 140 11610 42 15
/8 120 – – 25 5.0 92 146
031A0202 140 22012 50 2 6 35 111 3.0 32 – – 146
031A0203 140 32517 60 21
/2 650 111 5.0 45 – – 146
031A0204 140 42517 60 21/2 265 111 –45 20.0 –146
031A0205 140 52517 60 21/2 380 111 17.5 45 17.5 –146
031A0206* 140 62517 60 21/2 395 111 25.0 45 25.0 –146
031A0211 150 11610 42 15
/8 120 – – 25 5.0 92 156
031A0212 150 22012 50 2 6 35 121 3.0 32 – – 156
031A0213 150 32517 60 21
/2 650 121 5.0 45 – – 156
031A0214 150 42517 60 21/2 265 121 – 45 20.0 –156
031A0215 150 52517 60 21/2 380 121 17.5 45 17.5 –156
031A0216* 150 62517 60 21/2 395 121 25.0 45 25.0 –156
Dimensions in millimetres unless otherwise stated. *Non-preferred pulley sizes. Pitch diameters in italic type indicate pulleys to be used A V-belts, XPA & QXPA wedge belts only.
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
Taper Lock Pulleys for A, SPA, XPA & QXPA Belts
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 65
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley Type F J K L M N Outside
Dia (O)
Metric Inch
031A0221 160 11610 42 15
/8 120 – – 25 5.0 92 166
031A0222 160 22012 50 2 7 35 125 1.5 32 1.5 108 166
031A0223 160 32517 60 21
/2 650 128 5.0 45 – – 166
031A0224 160 42517 60 21/2 265 128 – 45 20.0 – 166
031A0225 160 52517 60 21/2 380 128 17.5 45 17.5 – 166
031A0226* 160 62517 60 21/2 395 128 25.0 45 25.0 – 166
031A0241 180 11610 42 15
/8 120 – – 25 5.0 92 186
031A0242 180 22012 50 2 7 35 148 1.5 32 1.5 108 186
031A0243 180 32517 60 21
/2 650 148 5.0 45 – – 186
031A0244 180 42517 60 21/2 265 148 – 45 20.0 – 186
031A0245 180 53020 75 3 3 80 148 14.5 51 14.5 – 186
031A0246* 180 63020 75 3 3 95 148 22.0 51 22.0 – 186
031A0261 200 12012 50 2 8 20 162 – 32 12.0 108 206
031A0262 200 22517 60 21
/2 835 162 5.0 45 5.0 123 206
031A0263 200 32517 60 21/2 750 162 2.5 45 2.5 123 206
031A0264 200 43020 75 3 2 65 168 – 51 14.0 – 206
031A0265 200 53020 75 3 3 80 168 14.5 51 14.5 – 206
031A0266* 200 63020 75 3 3 95 168 22.0 51 22.0 – 206
031A0281 224 12012 50 2 8 20 189 –32 12.0 112 230
031A0282 224 22517 60 21
/2 835 189 –45 10.0 124 230
031A0283 224 32517 60 21/2 750 189 2.5 45 2.5 124 230
031A0284 224 43020 75 3 2 65 189 – 51 14.0 – 230
031A0285 224 53020 75 3 2 80 189 – 51 29.0 – 230
031A0286* 224 63020 75 3 3 95 189 22.0 51 22.0 – 230
031A0301 250 12012 50 2 8 20 215 6.0 32 6.0 112 256
031A0302 250 22517 60 21
/2 835 215 5.0 45 5.0 124 256
031A0303 250 32517 60 21/2 750 215 2.5 45 2.5 124 256
031A0304 250 43020 75 3 7 65 215 10.0 51 10.0 159 256
031A0305 250 53020 75 3 7 80 215 17.5 51 17.5 159 256
031A0306* 250 63020 75 3 7 95 215 22.0 51 22.0 159 256
031A0321 280 12012 50 2 8 20 245 –32 12.0 112 286
031A0322 280 22517 60 21
/2 835 245 –45 10.0 124 286
031A0323 280 32517 60 21/2 750 245 2.5 45 2.5 124 286
031A0324 280 43020 75 3 7 65 245 7.0 51 7.0 159 286
031A0325 280 53525 100 4 7 80 245 4.5 89 4.5 178 286
031A0326* 280 63525 100 4 7 95 245 15.0 65 15.0 178 286
031A0331 315 12012 50 2 4 20 280 –32 12.0 112 321
031A0332 315 22517 60 21
/2 435 280 –45 10.0 124 321
031A0333 315 33020 75 3 8 50 280 0.5 51 0.5 159 321
031A0334 315 43020 75 3 7 65 280 8.0 51 8.0 159 321
031A0335 315 53525 100 4 8 80 283 7.5 65 7.5 178 321
031A0336* 315 63525 100 4 7 95 280 15.0 65 15.0 178 321
031A0351 400 12012 50 2 4 20 365 -32 12.0 112 406
031A0352 400 22517 60 21
/2 435 365 -45 10.0 124 406
031A0353 400 33020 75 3 4 50 365 0.5 51 0.5 159 406
031A0354 400 43020 75 3 5 65 365 7.0 51 7.0 159 406
031A0355 400 53525 100 4 4 80 365 7.5 65 7.5 178 406
031A0356* 400 63525 100 4 5 95 368 15.0 65 15 178 406
031A0372 500 22517 60 21
/2 435 465 -45 10.0 124 506
031A0373 500 33020 75 3 4 50 465 0.5 51 0.5 159 506
031A0374 500 43020 75 3 5 65 465 7.0 51 7.0 159 506
031A0375 500 53525 100 4 4 80 465 7.5 65 7.5 178 506
031A0376* 500 63525 100 4 5 95 465 15.0 65 15.0 178 506
031A0392* 630 23020 75 3 4 35 595 –45 16.0 159 636
031A0393 630 33020 75 3 4 50 595 0.5 89 0.5 178 636
031A0394 630 43525 100 4 4 65 595 12.0 89 12.0 178 636
031A0395 630 53525 100 4 4 80 595 7.5 65 7.5 178 636
031A0396 630 64030 115 41
/2 495 595 9.5 76 9.5 216 636
031A0413* 800 33525 100 4 4 50 765 7.5 65 7.5 178 806
031A0414* 800 43525 100 4 4 65 765 0.0 65 0.0 178 806
031A0415* 800 54030 115 41
/2 480 765 2.0 76 2.0 216 806
031A0416* 800 64030 115 41/2 495 765 9.5 76 9.5 216 806
Dimensions in millimetres unless otherwise stated. * Non-preferred pulley sizes.
Intermediate diameters available on a non-stock basis, see page 70
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
SECTION : 3FRICTION BELT DRIVES
Taper Lock Pulleys for A, SPA, XPA & QXPA Belts
66
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley
Type F J K L M N Outside
Dia (O)
Metric Inch
031B0162 112 22012 50 2 2 44 72 25 19.0 – – 119
031B0163 112 32012 50 2 2 63 72 – 25 37.0 – 119
031B0172 118 22012 50 2 2 44 78 – 25 19.0 – 125
031B0173 118 32012 50 2 2 63 78 – 25 37.0 – 125
031B0182 125 22012 50 2 2 44 82 – 32 12.0 – 132
031B0183 125 32012 50 2 2 63 89 – 32 31.0 – 132
031B0184 125 42012 50 2 3 82 82 25.0 32 25.0 – 132
031B0185* 125 52012 50 2 6 101 87 69.0 32 – – 132
031B0192 132 22012 50 2 2 44 89 – 32 12.0 – 139
031B0193 132 32012 50 2 2 63 89 – 32 31.0 – 139
031B0194 132 42012 50 2 3 82 89 25.0 32 25.0 – 139
031B0195* 132 52517 60 21
/2 6101 94 56.0 45 – – 139
031B0202 140 22012 50 2 2 44 97 – 32 12.0 – 147
031B0203 140 32012 50 2 2 63 97 – 32 31.0 – 147
031B0204 140 42517 60 21
/2 382 100 18.5 45 18.5 – 147
031B0205 140 52517 60 21/2 3101 97 28.0 45 28.0 – 147
031B0206 140 62517 60 21/2 3120 100 37.5 45 37.5 – 147
031B0212 150 22012 50 2 2 44 107 – 32 12.0 – 157
031B0213 150 32517 60 21
/2 263 107 – 45 18.0 – 157
031B0214 150 42517 60 21/2 382 107 18.5 45 18.5 – 157
031B0215 150 52517 60 21/2 3101 107 28.0 45 28.0 – 157
031B0216 150 62517 60 21/2 3120 107 37.5 45 37.5 – 157
031B0222 160 22012 50 2 2 44 117 – 32 12.0 – 167
031B0223 160 32517 60 21
/2 263 117 – 45 18.0 – 167
031B0224 160 42517 60 21/2 382 117 18.5 45 18.5 – 167
031B0225 160 52517 60 21/2 3101 117 28.0 45 28.0 – 167
031B0226 160 63020 75 3 3 120 117 34.5 51 34.5 – 167
031B0232 170 22012 50 2 2 44 127 – 32 12.0 – 177
031B0233 170 32517 60 21
/2 263 127 – 45 18.0 – 177
031B0234 170 42517 60 21/2 382 127 18.5 45 18.5 – 177
031B0235 170 53020 75 3 3 101 127 25.0 51 25.0 – 177
031B0236 170 63020 75 3 3 120 127 34.5 51 34.5 – 177
031B0242 180 22517 60 21
/2 144 – – 45 1.0 117 187
031B0243 180 32517 60 21
/2 263 137 – 45 18.0 – 187
031B0244 180 42517 60 21/2 382 137 18.5 45 18.5 – 187
031B0245 180 53020 75 3 3 101 137 25.0 51 25.0 – 187
031B0246 180 63020 75 3 3 120 137 34.5 51 34.5 – 187
031B0248* 180 83020 75 3 3 158 137 53.5 51 53.5 – 187
031B0252 190 22517 60 21
/2 144 – – 45 1.0 117 197
031B0253 190 32517 60 21
/2 263 147 – 45 18.0 – 197
031B0254 190 42517 60 21/2 382 147 18.5 45 18.5 – 197
031B0255 190 53020 75 3 3 101 147 25.0 51 25.0 – 197
031B0256 190 63020 75 3 3 120 147 34.5 51 34.5 – 197
031B0258* 190 83020 75 3 3 158 147 53.5 51 53.5 – 197
031B0262 200 22517 60 21
/2 144 – – 45 1.0 117 207
031B0263 200 32517 60 21
/2 763 157 – 45 18.0 117 207
031B0264 200 43020 75 3 3 82 157 15.5 51 15.5 – 207
031B0265 200 53020 75 3 3 101 157 25.0 51 25.0 – 207
031B0266 200 63020 75 3 3 120 157 34.5 51 34.5 – 207
031B0268* 200 83525 100 4 3 158 157 46.5 65 46.5 – 207
031B0272 212 22517 60 21
/2 144 – – 45 1.0 117 219
031B0273 212 32517 60 21
/2 763 169 –45 18.0 117 219
031B0274 212 43020 75 3 3 82 169 15.5 51 15.5 – 219
031B0275 212 53020 75 3 3 101 169 25.0 51 25.0 – 219
031B0276 212 63525 100 4 3 120 169 28.0 65 28.0 – 219
031B0278* 212 83525 100 4 3 158 169 46.5 65 46.5 – 219
031B0282 224 22517 60 21
/2 844 181 1.0 45 -117 231
031B0283 224 32517 60 21
/2 763 181 –45 18.0 117 231
031B0284 224 43020 75 3 3 82 181 15.5 51 15.5 – 231
031B0285 224 53020 75 3 3 101 181 25.0 51 25.0 – 231
031B0286 224 63525 100 4 3 120 181 28.0 65 28.0 – 231
031B0288* 224 83525 100 4 3 158 181 46.5 65 46.5 – 231
Dimensions in millimetres unless otherwise stated. *Non-preferred pulley sizes. Pitch diameters in italic type indicate pulleys to be used with B V- belts, XPB & QXPB wedge belts only.
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
Taper Lock Pulleys for B, SPB, XPB, QXPB & USPB Belts
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 67
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Pulley Type F J K L M N Outside
Dia (O)
Metric Inch
031B0292 236 22517 60 21
/2 844 193 1.0 45 –117 243
031B0293 236 32517 60 21
/2 763 193 – 45 18.0 117 243
031B0294 236 43020 75 3 3 82 193 15.5 51 15.5 – 243
031B0295 236 53525 100 4 3 101 193 18.0 65 18.0 – 243
031B0296 236 63525 100 4 3 120 193 28.0 65 28.0 – 243
031B0298* 236 83525 100 4 3 158 193 46.5 65 46.5 – 243
031B0302 250 22517 60 21
/2 844 207 1.0 45 1.0 117 257
031B0303 250 33020 75 3 7 63 207 –51 12.0 144 257
031B0304 250 43020 75 3 7 82 207 15.5 51 15.5 144 257
031B0305 250 53525 100 4 3 101 207 18.0 65 18.0 – 257
031B0306 250 63525 100 4 3 120 207 28.0 65 28.0 – 257
031B0308* 250 83525 100 4 3 158 207 46.5 65 46.5 – 257
031B0322 280 22517 60 21
/2 844 237 1.0 45 –117 287
031B0323 280 33020 75 3 7 63 237 6.0 51 6.0 144 287
031B0324 280 43020 75 3 7 82 237 15.5 51 15.5 144 287
031B0325 280 53525 100 4 7 101 237 18.0 65 18.0 187 287
031B0326 280 63525 100 4 7 120 237 27.5 65 27.5 187 287
031B0328* 280 83525 100 4 7 158 237 46.5 65 46.5 187 287
031B0332 315 22517 60 21
/2 844 272 1.0 45 –117 322
031B0333 315 33020 75 3 7 63 272 6.0 51 6.0 144 322
031B0334 315 43525 100 4 7 82 272 3.5 65 3.5 187 322
031B0335 315 53525 100 4 7 101 272 18.0 65 18.0 187 322
031B0336 315 63525 100 4 7 120 272 27.5 65 27.5 187 322
031B0338* 315 83525 100 4 7 158 272 46.5 65 46.5 187 322
031B0342 355 23020 75 3 5 44 312 3.5 51 3.5 144 362
031B0343 355 33020 75 3 8 63 312 6.0 51 6.0 144 362
031B0344 355 43525 100 4882 312 3.5 89 3.5 187 362
031B0345 355 53525 100 4 5 101 312 18.0 65 18.0 187 362
031B0346 355 63525 100 4 5 120 312 27.5 65 27.5 187 362
031B0348* 355 83525 100 4 7 158 312 46.5 65 46.5 187 362
031B0352 400 23020 75 3 4 44 357 3.5 51 3.5 144 407
031B0353 400 33525 100 4 8 63 357 1.0 65 1.0 187 407
031B0354 400 43525 100 4 4 82 357 8.5 65 8.5 187 407
031B0355 400 53525 100 4 7 101 357 18.0 65 18.0 187 407
031B0356 400 63525 100 4 5 120 357 27.5 65 27.5 187 407
031B0358* 400 83525 100 4 5 158 357 46.5 65 46.5 200 407
014B0362 450 23020 75 3 4 44 407 3.5 51 3.5 144 457
014B0363 450 33525 100 4 4 63 407 1.0 65 1.0 187 457
014B0364 450 43525 100 4 4 82 407 8.5 65 8.5 187 457
014B0365 450 53525 100 4 5 101 407 18.0 65 18.0 187 457
014B0366 450 63525 100 4 5 120 407 27.5 65 27.5 216 457
014B0368* 450 83525 100 4 5 158 407 46.5 65 46.5 216 457
031B0372 500 23020 75 3 4 44 457 3.5 51 3.5 144 507
031B0373 500 33525 100 4 4 63 457 1.0 65 1.0 187 507
031B0374 500 43525 100 4 4 82 457 8.5 65 8.5 187 507
031B0375 500 53525 100 4 5 101 457 18.0 65 18.0 187 507
031B0376 500 63525 100 4 5 120 457 27.5 65 27.5 216 507
031B0378* 500 83525 100 4 5 158 457 46.5 65 46.5 216 507
014B0382 560 23020 75 3 4 44 517 4.0 76 4.0 144 567
014B0383 560 33525 100 4 4 63 517 1.0 65 1.0 187 567
014B0384 560 43525 100 4 4 82 517 8.5 65 8.5 187 567
014B0385 560 53525 100 4 4 101 517 18.0 65 18.0 216 567
014B0386 560 63525 100 4 5 120 517 27.5 65 27.5 187 567
014B0388* 560 84030 115 41
/2 5158 517 41.0 76 41.0 242 567
031B0392 630 23020 75 3 4 44 587 3.5 51 3.5 144 637
031B0393 630 33525 100 4 4 63 587 1.0 65 1.0 187 637
031B0394 630 43525 100 4 4 82 587 8.5 65 8.5 187 637
031B0395 630 53525 100 4 4 101 587 18.0 65 18.0 216 637
031B0396 630 63525 100 4 5 120 587 27.5 65 27.5 216 637
031B0398* 630 84030 115 41
/2 5158 587 41.0 76 41.0 242 637
031B0413 800 33525 100 4 4 63 754 1.0 65 1.0 187 807
031B0414 800 44030 115 41
/2 482 754 3.0 76 3.0 216 807
031B0415 800 54030 115 41/2 4101 754 12.5 76 12.5 216 807
031B0416 800 64535 125 5 5 120 754 15.5 89 15.5 242 807
031B0418* 800 84535 125 5 5 158 754 34.5 89 34.5 242 807
031B0433* 1000 34030 115 41
/2 463 954 6.5 76 6.5 216 1007
031B0434 1000 44030 115 41
/2 482 954 3.0 76 3.0 216 1007
031B0435 1000 54535 125 5 4 101 954 6.0 89 6.0 242 1007
031B0436 1000 64535 125 5 5 120 954 15.5 89 15.5 242 1007
031B0438* 1000 84535 125 5 5 158 954 34.5 89 34.5 242 1007
Dimensions in millimetres unless otherwise stated. * Non-preferred pulley sizes. Intermediate diameters available on a non-stock basis, see page 70.
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
SECTION : 3FRICTION BELT DRIVES
Taper Lock Pulleys for B, SPB, XPB, QXPB & USPB Belts
68
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Type F J K L M N Outside
Dia (O)
Metric Inch
031C0263 200 32517 60 21
/2 385 144 20.0 45 20.0 – 210
031C0264 200 43020 75 3 3 111 144 30.0 51 30.0 – 210
031C0265 200 53525 100 4 3 136 144 35.5 65 35.5 – 210
031C0266 200 63525 100 4 3 162 144 48.5 65 48.5 – 210
031C0273 212 33020 75 3 3 85 156 17.0 51 17.0 – 222
031C0274 212 43020 75 3 3 111 156 30.0 51 30.0 – 222
031C0275 212 53525 100 4 3 136 156 35.5 65 35.5 – 222
031C0276 212 63525 100 4 3 162 156 48.5 65 48.5 – 222
031C0283 224 33020 75 3 3 85 168 17.0 51 17.0 – 234
031C0284 224 43525 100 4 3 111 168 23.0 65 23.0 – 234
031C0285 224 53525 100 4 3 136 168 35.5 65 35.5 – 234
031C0286 224 63525 100 4 3 162 168 48.5 65 48.5 – 234
031C0288 224 83525 100 4 3 213 168 74.0 65 74.0 – 234
031C0293 236 33020 75 3 3 85 180 17.0 51 17.0 – 246
031C0294 236 43525 100 4 3 111 180 23.0 65 23.0 – 246
031C0295 236 53525 100 4 3 136 180 35.5 65 35.5 – 246
031C0296 236 63525 100 4 3 162 180 48.5 65 48.5 – 246
031C0298 236 83525 100 4 3 213 180 74.0 65 74.0 – 246
031C0303 250 33020 75 3 3 85 194 17.0 51 17.0 – 260
031C0304 250 43525 100 4 3 111 194 23.0 65 23.0 – 260
031C0305 250 53525 100 4 3 136 194 35.5 65 35.5 – 260
031C0306 250 63525 100 4 3 162 194 48.5 65 48.5 – 260
031C0308 250 83525 100 4 3 213 194 74.0 65 74.0 – 260
031C0313 265 33525 100 4 1 85 209 10.0 65 10.0 179 275
031C0314 265 43525 100 4 3 111 209 23.0 65 23.0 – 275
031C0315 265 53525 100 4 3 136 209 35.5 65 35.5 – 275
031C0316 265 63525 100 4 3 162 209 48.5 65 48.5 – 275
031C0318 265 83525 100 4 3 213 209 74.0 65 74.0 – 275
031C0323 280 33525 100 4 1 85 224 10.0 65 10.0 187 290
031C0324 280 43525 100 4 3 111 224 23.0 65 23.0 – 290
031C0325 280 53525 100 4 3 136 224 35.5 65 35.5 – 290
031C0326 280 63525 100 4 3 162 224 48.5 65 48.5 170 290
031C0328 280 83525 100 4 3 213 224 74.0 65 74.0 – 290
031C0473 300 33525 100 4 8 85 244 10.0 65 10.0 187 310
031C0474 300 43525 100 4 7 111 244 23.0 65 23.0 187 310
031C0475 300 53525 100 4 7 136 244 35.5 65 35.5 187 310
031C0476 300 63525 100 4 7 162 244 48.5 65 48.5 187 310
031C0478 300 83525 100 4 7 213 244 74.0 65 74.0 216 310
031C0333 315 33525 100 4 8 85 259 10.0 65 10.0 187 325
031C0334 315 43525 100 4 7 111 259 23.0 65 23.0 187 325
031C0335 315 53525 100 4 7 136 259 35.5 65 35.5 187 325
031C0336 315 63525 100 4 7 162 259 48.5 65 48.5 187 325
031C0338 315 83525 100 4 7 213 259 74.0 65 74.0 216 325
031C0483 335 33525 100 4 8 85 279 10.0 65 10.0 187 345
031C0484 335 43525 100 4 7 111 279 23.0 65 23.0 187 345
031C0485 335 53525 100 4 7 136 279 35.5 65 35.5 187 345
031C0486 335 63525 100 4 7 162 279 48.5 65 48.5 187 345
031C0488 335 83525 100 4 7 213 279 74.0 65 74.0 216 345
031C0343 355 33525 100 4 8 85 299 10.0 65 10.0 187 365
031C0344 355 43525 100 4 7 111 299 23.0 65 23.0 187 365
031C0345 355 53525 100 4 7 136 299 35.5 65 35.5 187 365
031C0346 355 63525 100 4 7 162 299 48.5 65 48.5 187 365
031C0348 355 83525 100 4 7 213 299 74.0 65 74.0 216 365
031C0493 375 33525 100 4 8 85 319 10.0 65 10.0 187 385
031C0494 375 43525 100 4 7 111 319 23.0 65 23.0 187 385
031C0495 375 53525 100 4 7 136 319 35.5 65 35.5 187 385
031C0496 375 63525 100 4 7 162 319 48.5 65 48.5 216 385
031C0498 375 84030 115 41
/2 7213 319 68.5 76 68.5 242 385
Dimensions in millimetres unless otherwise stated. * Non-preferred pulley sizes.
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication.
Non-functional dimensions may vary slightly.
These pulleys are designed to operate at rim speeds upto 40m/sec, for higher speeds contact your local authorised distributor.
Pitch diameters in italic type indicate pulleys to be used with C V belts, XPC & QXPC wedge belts only.
Taper Lock Pulleys for C, SPC, XPC, QXPC & USPC Belts
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 69
Catalogue
Code
Pitch
Dia (P)
No. of
Grooves
Bush
No.
Max. Bore Type F J K L M N Outside
Dia (O)
Metric Inch
031C0353 400 33525 100 4 4 85 344 10.0 65 10.0 187 410
031C0354 400 43525 100 4 5 111 344 23.0 65 23.0 187 410
031C0355 400 53525 100 4 5 136 344 35.5 65 35.5 187 410
031C0356 400 63525 100 4 7 162 344 48.5 65 48.5 216 410
031C0358 400 84030 115 41
/2 7213 344 68.5 76 68.5 242 410
031C0503 425 33525 100 4 4 85 369 10.0 65 10.0 187 435
031C0504 425 43525 100 4 5 111 369 23.0 65 23.0 187 435
031C0505 425 53525 100 4 5 136 369 35.5 65 35.5 216 435
031C0506 425 64535 125 5 7 162 369 36.5 89 36.5 242 435
031C0508 425 84535 125 5 7 213 369 62.0 89 62.0 267 435
031C0363 450 33525 100 4 4 85 394 10.0 65 10.0 187 460
031C0364 450 43525 100 4 5 111 394 23.0 65 23.0 187 460
031C0365 450 53525 100 4 5 136 394 35.5 65 35.5 216 460
031C0366 450 64535 125 5 7 162 394 36.5 89 36.5 242 460
031C0368 450 84535 125 5 7 213 394 62.0 89 62.0 267 460
031C0513 475 33525 100 4 4 85 419 10.0 65 10.0 187 485
031C0514 475 43525 100 4 5 111 419 23.0 65 23.0 187 485
031C0515 475 53525 100 4 5 136 419 35.5 65 35.5 216 485
031C0516 475 64535 125 5 7 162 419 36.5 89 36.5 242 485
031C0518 475 84535 125 5 7 213 419 62.0 89 62.0 267 485
031C0373 500 33525 100 4 4 85 444 10.0 65 10.0 187 510
031C0374 500 43525 100 4 5 111 444 23.0 65 23.0 187 510
031C0375 500 53525 100 4 5 136 444 35.5 65 35.5 216 510
031C0376 500 64535 125 5 5 162 444 36.5 89 36.5 242 510
031C0378 500 84535 125 5 7 213 444 62.0 89 62.0 267 510
031C0523 530 33525 100 4 4 85 474 10.0 65 10.0 187 540
031C0524 530 43525 100 4 5 111 474 23.0 65 23.0 187 540
031C0525 530 54535 125 5 5 136 474 23.5 89 23.5 216 540
031C0526 530 64535 125 5 5 162 474 36.5 89 36.5 242 540
031C0528 530 84535 125 5 7 213 474 62.0 89 62.0 267 540
031C0383 560 33525 100 4 4 85 504 10.0 65 10.0 216 570
031C0384 560 43525 100 4 5 111 504 23.0 65 23.0 216 570
031C0385 560 54535 125 5 5 136 504 23.5 89 23.5 242 570
031C0386 560 64535 125 5 5 162 504 36.5 89 36.5 267 570
031C0388 560 84535 125 5 5 213 504 62.0 89 62.0 267 570
031C0393 630 34030 115 41
/2 485 574 4.5 76 4.5 246 640
031C0394 630 44030 115 41
/2 4111 574 17.5 76 17.5 242 640
031C0395 630 54535 125 5 5 136 574 23.5 89 23.5 267 640
031C0396 630 64535 125 5 5 162 574 36.5 89 36.5 267 640
031C0398 630 84535 125 5 5 213 574 62.0 89 62.0 267 640
031C0413 800 34535 125 5 4 85 737 2.0 89 2.5 242 810
031C0414 800 45040 125 5 4 111 737 4.5 102 4.5 267 810
031C0415 800 55040 125 5 5 136 737 17.0 102 17.0 267 810
031C0416 800 65040 125 5 5 162 737 30.0 102 30.0 267 810
031C0418 800 85040 125 5 5 213 737 55.5 102 55.5 267 810
031C0433 1000 35040 125 5 4 85 937 8.5 102 8.5 267 1010
031C0434 1000 45040 125 5 4 111 937 4.5 102 4.5 267 1010
031C0435 1000 55040 125 5 5 136 937 17.0 102 17.0 267 1010
031C0436 1000 65040 125 5 5 162 937 30.0 102 30.0 267 1010
031C0438 1000 85040 125 5 5 213 937 55.5 102 55.5 267 1010
031C0443 1250 35040 125 5 4 85 1187 8.5 102 8.5 267 1260
031C0444 1250 45040 125 5 4 111 1187 4.5 102 4.5 267 1260
031C0445 1250 55040 125 5 5 136 1187 17.0 102 17.0 267 1260
031C0446 1250 65040 125 5 5 162 1187 30.0 102 30.0 267 1260
031C0448 1250 85040 125 5 5 213 1187 55.5 102 55.5 267 1260
Dimensions in millimetres unless otherwise stated.
Intermediate diameters available on a non-stock basis, see page 69
All envelope, prime functional and Taper Lock bush dimensions are correct at the time of publication. Non-functional dimensions may vary slightly.
Belt
Section
Pulley
PCD
A°
± 0.5 °
D
+0.03
-0.0
e*
± 0.15
f
± 0.3
b
± 0.13 lp WR
NOM
SPZ
Dual Groove
Up to 80
Over 80
34
38 11. 0 12 82.0 8.5 9.7
9.9 17.25
SPA
Dual Groove
Up to 118
Over 118
34
38 13.75 15 10 2.75 11 12.7
12.9 21.25
SPB
Dual Groove
Up to 190
Over 190
34
38 1 7. 5 19 12.5 3.5 14 16.1
16.4 27.25
SPC
Dual Groove
Up to 315
Over 315
34
38 23.8 25.5 17 4.8 19 21.9
22.3 37.25
Pulley Groove Dimensions
(pitch circle
diameter)
SECTION : 3FRICTION BELT DRIVES
Taper Lock Pulleys for C, SPC, XPC, QXPC & USPC Belts
*e dimension – the tolerance shown is between any two grooves.
70
Product Code Description Bush Size
031Z0064 SPZ 63 X 4 1108
031Z0074 SPZ 67 X 4 1108
031Z0084 SPZ 71 X 4 1108
031Z0094 SPZ 75 X 4 1210
031Z0126 SPZ 90 X 6 1610
031Z0136 SPZ 95 X 6 1610
031Z0146 SPZ 100 X 6 2012
031Z0156 SPZ 106 X 6 2012
031Z0166 SPZ 112 X 6 2012
031Z0176 SPZ 118 X 6 2517
031Z0186 SPZ 125 X 6 2517
031Z0196 SPZ 132 X 6 2517
031Z0206 SPZ 140 X 6 2517
031Z0211 SPZ 150 X 1 1610
031Z0212 SPZ 150 X 2 2012
031Z0213 SPZ 150 X 3 2012
031Z0214 SPZ 150 X 4 2517
031Z0215 SPZ 150 X 5 2517
031Z0216 SPZ 150 X 6 2517
031Z0226 SPZ 160 X 6 2517
031Z0231 SPZ 170 X 1 1610
031Z0232 SPZ 170 X 2 2012
031Z0233 SPZ 170 X 3 2012
031Z0234 SPZ 170 X 4 2517
031Z0235 SPZ 170 X 5 2517
031Z0236 SPZ 170 X 6 2517
031Z0246 SPZ 180 X 6 2517
031Z0251 SPZ 190 X 1 1610
031Z0252 SPZ 190 X 2 2012
031Z0253 SPZ 190 X 3 2012
031Z0254 SPZ 190 X 4 2012
031Z0255 SPZ 190 X 5 2517
031Z0256 SPZ 190 X 6 2517
031Z0266 SPZ 200 X 6 2517
031Z0281 SPZ 224 X 1 2012
031Z0282 SPZ 224 X 2 2012
031Z0283 SPZ 224 X 3 2012
031Z0284 SPZ 224 X 4 2517
031Z0285 SPZ 224 X 5 2517
031Z0286 SPZ 224 X 6 2517
031Z0306 SPZ 250 X 6 2517
031Z0321 SPZ 280 X 1 2012
031Z0322 SPZ 280 X 2 2012
031Z0323 SPZ 280 X 3 2517
031Z0324 SPZ 280 X 4 2517
031Z0325 SPZ 280 X 5 2517
031Z0326 SPZ 280 X 6 2517
031Z0336 SPZ 315 X 6 2517
031Z0341 SPZ 355 X 1 2012
031Z0342 SPZ 355 X 2 2012
031Z0343 SPZ 355 X 3 2517
031Z0344 SPZ 355 X 4 2517
031Z0345 SPZ 355 X 5 2517
031Z0346 SPZ 355 X 6 2517
031Z0356 SPZ 400 X 6 3020
031Z0361 SPZ 450 X 1 2517
031Z0362 SPZ 450 X 2 2517
031Z0363 SPZ 450 X 3 2517
031Z0364 SPZ 450 X 4 3020
031Z0365 SPZ 450 X 5 3020
031Z0366 SPZ 450 X 6 3020
031Z0371 SPZ 500 X 1 2517
031Z0376 SPZ 500 X 6 3020
031Z0392 SPZ 630 X 2 2517
031Z0396 SPZ 630 X 6 3525
Product Code Description Bush Size
031A0081 SPA 71 X 1 1108
031A0082 SPA 71 X 2 1108
031A0083 SPA 71 X 3 1108
031A0091 SPA 75 X 1 1108
031A0092 SPA 75 X 2 1108
031A0093 SPA 75 X 3 1108
031A0104 SPA 80 X 4 1210
031A0114 SPA 85 X 4 1210
031A0231 SPA 170 X 1 1610
031A0232 SPA 170 X 2 2012
031A0233 SPA 170 X 3 2517
031A0234 SPA 170 X 4 2517
031A0235 SPA 170 X 5 3020
031A0236 SPA 170 X 6 3020
031A0251 SPA 190 X 1 2012
031A0252 SPA 190 X 2 2012
031A0253 SPA 190 X 3 2517
031A0254 SPA 190 X 4 3020
031A0255 SPA 190 X 5 3020
031A0256 SPA 190 X 6 3020
031A0271 SPA 212 X 1 2012
031A0272 SPA 212 X 2 2517
031A0273 SPA 212 X 3 2517
031A0274 SPA 212 X 4 3020
031A0275 SPA 212 X 5 3020
031A0276 SPA 212 X 6 3020
031A0291 SPA 236 X 1 2012
031A0292 SPA 236 X 2 2517
031A0293 SPA 236 X 3 2517
031A0294 SPA 236 X 4 3020
031A0295 SPA 236 X 5 3020
031A0296 SPA 236 X 6 3020
031A0311 SPA 265 X 1 2012
031A0312 SPA 265 X 2 2517
031A0313 SPA 265 X 3 2517
031A0314 SPA 265 X 4 3020
031A0315 SPA 265 X 5 3020
031A0316 SPA 265 X 6 3020
031A0472 SPA 300 X 2 2517
031A0473 SPA 300 X 3 3020
031A0474 SPA 300 X 4 3020
031A0475 SPA 300 X 5 3525
031A0476 SPA 300 X 6 3525
031A0481 SPA 335 X 1 2012
031A0482 SPA 335 X 2 2517
031A0483 SPA 335 X 3 3020
031A0484 SPA 335 X 4 3020
031A0485 SPA 335 X 5 3525
031A0486 SPA 335 X 6 3525
031A0341 SPA 355 X 1 2012
031A0342 SPA 355 X 2 2517
031A0343 SPA 355 X 3 3020
031A0344 SPA 355 X 4 3020
031A0345 SPA 355 X 5 3525
031A0346 SPA 355 X 6 3525
031A0361 SPA 450 X 1 2012
031A0362 SPA 450 X 2 2517
031A0363 SPA 450 X 3 3020
031A0364 SPA 450 X 4 3020
031A0365 SPA 450 X 5 3525
031A0366 SPA 450 X 6 3525
031A0371 SPA 500 X 1 2517
031A0381 SPA 560 X 1 2517
031A0382 SPA 560 X 2 3020
031A0383 SPA 560 X 3 3020
031A0384 SPA 560 X 4 3525
031A0385 SPA 560 X 5 3525
031A0386 SPA 560 X 6 3525
031A0391 SPA 630 X 1 2517
031A0412 SPA 800 X 2 3525
031A1433 SPA 1000 X 3 3535
031A1434 SPA 1000 X 4 4040
031A1435 SPA 1000 X 5 4545
031A1436 SPA 1000 X 6 4545
Additional Taper Lock Pulley Sizes
FRICTION BELT DRIVESSECTION : 3
Additional SPZ Pulley Sizes Additional SPA Pulley Sizes
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 71
Product Code Description Bush Size
031B0141 SPB 100 X 1 1610
031B0142 SPB 100 X 2 1610
031B0143 SPB 100 X 3 1610
031B0144 SPB 100 X 4 1210
031B0151 SPB 106 X 1 1610
031B0152 SPB 106 X 2 1610
031B0153 SPB 106 X 3 1610
031B0154 SPB 106 X 4 1610
031B0161 SPB 112 X 1 1610
031B0164 SPB 112 X 4 1610
031B0171 SPB 118 X 1 1610
031B0174 SPB 118 X 4 1610
031B0181 SPB 125 X 1 1610
031B0186 SPB 125 X 6 2012
031B0191 SPB 132 X 1 1610
031B0196 SPB 132 X 6 2012
031B0201 SPB 140 X 1 1610
031B0211 SPB 150 X 1 1610
031B0221 SPB 160 X 1 1610
031B0228 SPB 160 X 8 3020
031B1228 SPB 160 X 8 3030
031B0231 SPB 170 X 1 1610
031B0238 SPB 170 X 8 3020
031B0241 SPB 180 X 1 1610
031B0251 SPB 190 X 1 2012
031B0261 SPB 200 X 1 2012
031B0271 SPB 212 X 1 2012
031B0281 SPB 224 X 1 2012
031B0291 SPB 236 X 1 2012
031B0301 SPB 250 X 1 2012
031B0312 SPB 265 X 2 2517
031B0313 SPB 265 X 3 3020
031B0314 SPB 265 X 4 3020
031B0315 SPB 265 X 5 3525
031B0316 SPB 265 X 6 3525
031B0318 SPB 265 X 8 3525
031B0321 SPB 280 X 1 2012
031B0331 SPB 315 X 1 2012
031B0403 SPB 710 X 3 3525
031B0404 SPB 710 X 4 3525
031B0405 SPB 710 X 5 4030
031B0406 SPB 710 X 6 4535
031B0408 SPB 710 X 8 4535
031B0412 SPB 800 X 2 3525
031B0423 SPB 900 X 3 3525
031B0424 SPB 900 X 4 4030
031B0425 SPB 900 X 5 4535
031B0426 SPB 900 X 6 4535
031B0428 SPB 900 X 8 4535
031B0443 SPB 1250 X 3 5040
031B0444 SPB 1250 X 4 5040
031B0445 SPB 1250 X 5 5040
031B0446 SPB 1250 X 6 5040
031B0448 SPB 1250 X 8 5040
031B0471 SPB 300 X 1 2012
031B0472 SPB 300 X 2 2517
031B0473 SPB 300 X 3 3020
031B0474 SPB 300 X 4 3525
031B0475 SPB 300 X 5 3525
031B0476 SPB 300 X 6 3252
031B0478 SPB 300 X 8 3525
031C1470 SPC 300 X 10 4040
031B0482 SPB 335 X 2 3020
031B0483 SPB 335 X 3 3020
031B0484 SPB 335 X 4 3525
031B0486 SPB 335 X 6 3525
031B0488 SPB 335 X 8 3525
Product Code Description Bush Size
031C0268 SPC 200 X 8 3525
031C0278 SPC 212 X 8 3525
031C1280 SPC 224 X 10 4040
031C0290 SPC 236 X 10 4040
031C1300 SPC 250 X 10 4040
031C1310 SPC 265 X 10 4040
031C1320 SPC 280 X 10 4040
031C1470 SPC 300 X 10 4040
031C1330 SPC 315 X 10 4545
031C1480 SPC 335 X 10 4545
031C1340 SPC 355 X 10 4545
031C1490 SPC 375 X 10 4545
031C1350 SPC 400 X 10 5050
031C1500 SPC 425 X 10 5050
031C1360 SPC 450 X 10 5050
031C1510 SPC 475 X 10 5050
031C1370 SPC 500 X 10 5050
031C1520 SPC 530 X 10 5050
031C1380 SPC 560 X 10 5050
031C1390 SPC 630 X 10 5050
031C1400 SPC 710 X 10 5050
031C0403 SPC 710 X 3 4030
031C0404 SPC 710 X 4 4535
031C0405 SPC 710 X 5 5040
031C0406 SPC 710 X 6 5040
031C0408 SPC 710 X 8 5040
031C1410 SPC 800 X 10 5050
031C0423 SPC 900 X 3 5040
031C0424 SPC 900 X 4 5040
031C0425 SPC 900 X 5 5040
031C0426 SPC 900 X 6 5040
031C0428 SPC 900 X 8 5040
031C0420 SPC 900 X 10 5040
031C1430 SPC 1000 X 10 5050
031C1440 SPC 1250 X 10 5050
SECTION : 3FRICTION BELT DRIVES
Additional Taper Lock Pulleys Sizes
Additional SPB Pulley Sizes
These additional sizes of Taper Lock® vee pulleys are readily available but are not
stocked at all distribution outlets.
Sizes in bold type use long series Taper Lock® bushes.
10 groove SPB pulleys with long series Taper Lock® bushes are also available in
diameters from 200mm to 1250mm.
Additional SPC Pulley Sizes
72
PowerTwist PLUS belting incorporates the most up-to-date materials available, giving it unique qualities of resistance to many of the adverse working
conditions that belts are subject to, and properties that were deficient in earlier designs of link belts. These link belts are complementary to the range of
Fenner wedge and Vee Belts and are extensively used in industrial, marine, agricultural and heating & ventilation applications.
Advantages of PowerTwist PLUS Link Belts
Adjustable to any length, adaptable to any drive
Fit the belts to the drive, not the drive to the belts.
Drive elements can be located most effectively and belts installed without
removing bearings.
No Slippage
Quick, easy length adjustment minimises belt creep to guarantee
full speed and full productivity of machines.
Minimum Inventory
Four boxes of link belting can replace hundreds of fixed length, endless V-Belts.
Boxes can be stored easily, providing simplified visual control of inventory.
Vibration
Fenner link belts are manufactured to extemely close tolerances.
The design of the belt significantly reduces transmissible vibrations
in some applications.
Long Lasting Construction
The extreme flexibility of these belts greatly reduces belt stress, heat build up and
fatigue. The construction of the belts is designed to dissipate heat.
Maximum Power Delivery
On multiple belt drives it is easy to maintain correct tension on all belts. Each belt
carries its required load, for maximum power delivery and longest life.
Temperature
Power Twist Plus will operate in temperatures from - 40 to 110OC.
Water, Chemical & Oil Resistance
This belt will not degrade if immersed in water or if in contact with oil, grease,
agricultural chemicals and common solvents.
Economical Lengths
PowerTwist belting is also available in economical lengths.
Boxed in 10 metre lengths, ideal for display or mobile maintenance engineers.
Special Types
Double V Section
For use on serpentine drives with both sides of the belt engaging in V pulley
grooves.
AA; BB & CC sections.
Ground Round
Designed specifically to replace round profile rubber or leather belts on "rope"
drives.
8mm, 9.5mm, 12.5mm, 14mm & 19mm diameters.
High grip, or PTFE top layer coatings available for conveying applications.
PowerTwist PLUS® Belting
FRICTION BELT DRIVESSECTION : 3
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 73
POWERTWIST PLUS POWER RATINGS
Rev/min
of faster
shaft
Rated Power (kW) Per Belt for Small Pulley Pitch Diameter (mm)
Z Section A Section B Section C Section
56 71 90 80 90 95 106 125 125 150 170 190 212 200 215 224 250
950 0.15 0.22 0.32 0.84 1.06 1.17 1.41 1.82 2.19 3.11 3.84 4.54 5.30 6.46 7.42 7.99 9.62
1450 0.21 0.32 0.45 1.15 1.46 1.63 1.97 2.55 2.94 4.24 5.25 6.23 7.26 8.41 9.72 10.48 12.61
2850 0.34 0.52 0.72 1.77 2.32 2.60 3.17 4.12 4.18 6.17 7.61
600 0.10 0.16 0.22 0.59 0.74 0.81 0.98 1.25 1.55 2.17 2.66 3.15 3.66 4.63 5.29 5.69 6.82
800 0.13 0.19 0.28 0.74 0.93 1.03 1.23 1.58 1.93 2.73 3.36 3.97 4.63 5.73 6.56 7.07 8.49
1000 0.16 0.24 0.34 0.87 1.10 1.22 1.47 1.90 2.27 3.24 3.99 4.73 5.52 6.69 7.69 8.28 9.97
1200 0.18 0.28 0.39 1.00 1.27 1.41 1.70 2.20 2.59 3.71 4.58 5.43 6.34 7.53 8.68 9.36 11.27
1400 0.20 0.31 0.44 1.12 1.42 1.58 1.92 2.48 2.87 4.15 5.12 6.07 7.08 8.25 9.52 10.28 12.37
1600 0.22 0.34 0.48 1.22 1.57 1.74 2.12 2.75 3.13 4.53 5.62 6.66 7.76 8.85 10.23 11.04 13.27
1800 0.25 0.38 0.53 1.33 1.71 1.90 2.31 3.01 3.36 4.89 6.07 7.18 8.34 9.32 10.78 11.63 13.95
2000 0.27 0.41 0.57 1.42 1.84 2.05 2.50 3.24 3.58 5.22 6.47 7.65 8.87 9.66 11.19 12.06
2200 0.28 0.44 0.61 1.51 1.97 2.19 2.67 3.47 3.76 5.50 6.82 8.05 9.30 9.87 11.42
2400 0.31 0.46 0.65 1.60 2.08 2.33 2.83 3.68 3.92 5.76 7.13 8.39
2600 0.32 0.49 0.69 1.68 2.19 2.45 2.99 3.89 4.06 5.97 7.37
2800 0.34 0.51 0.72 1.75 2.30 2.57 3.13 4.07 4.16 6.14 7.57
3000 0.35 0.54 0.74 1.82 2.39 2.68 3.27 4.25 4.24 6.27
3200 0.37 0.56 0.76 1.89 2.48 2.77 3.39 4.41 4.30
3400 0.37 0.57 0.78 1.94 2.56 2.87 3.51 4.55 4.33
3600 0.69 0.59 0.80 1.99 2.63 2.95 3.62 4.68 4.32
3800 0.40 0.60 0.81 2.04 2.70 3.03 3.71 4.79
4000 0.40 0.61 0.81 2.08 2.76 3.10 3.80
PowerTwist Plus link V-Belts are manufactured from an exclusive, high
strength urethane/polyester composite. This makes PowerTwist Plus an
incredibly strong, yet flexible belt that will take on the roughest of working
conditions.
PowerTwist Plus V-Belt's unique cross-lock design gives a raw edge cog
construction which provides excellent durability and performance, delivering
higher power ratings than almost any other link type V-Belts on the market.
When the tension is applied to the belt, the cross-link design locks tightly thus
producing the lowest stretch of any link V-Belt.
PowerTwist Plus V-Belts save time on installation because no special tools are
required, all that is needed is a quick twist both to couple or uncouple the belt
and this is easily achieved in seconds.
Available from stock in Z, A, B and C sections, for use in standard dual groove
pulleys. See pages 62-69.
Selection
To design a Fenner Power Twist Plus drive simply refer to the wedge belt selection procedure (pages 38-39) utilising the power ratings given above.
For applications that would benefit from the advantages of modern link belting, but require SP (wedge) type belt ratings, consult your local Authorised Distributor.
Installation
Please see page 78
SECTION : 3FRICTION BELT DRIVES
PowerTwist PLUS® Belting
74
Pitch Diameter Outside
Dia.
†
Bush
No
A/SPA
actual
B/SPB*
nominal
71 81 88
1
Bore range
10 - 28mm
75 85 92
80 90 97
85 95 102
90 100 107
95 105 112
100 110 117
106 116 123
112 122 129
118 128 135
125 135 142
132 142 149
140 150 157
2
Bore range
16 - 42mm
150 160 167
160 170 177
180 190 197
200 209 216
224 233 240
250 259 266
280 289 296
315 324 331
355 364 371
400 409 416
450 459 466
Catalogue
Code Pulley
Designation Belt
Section
960 rev/min 1440 rev/min 2880 rev/min
Max pcd Min pcd Max pcd Min pcd Max pcd Min pcd
048A0000 LP80/93A Z0.89 0.43 1.21 0.54 1.96 0.74
A1.11 0.41 1.49 0.50 2.20 0.55
048B0000 LP95/108A Z1.18 0.67 1.63 0.92 2.74 1.49
A1.60 0.73 2.19 0.89 3.38 1.07
048C0000 LP112/120A Z1.14 0.93 1.95 1.29 2.70 2.11
A1.98 1.11 2.74 1.49 4.28 2.20
048D0000 LP132/138A Z1.65 1.34 2.35 1.88 3.77 3.10
A2.51 1.60 3.50 2.19 5.56 3.38
048E0000 LP160/180B A3.20 2.40 4.50 3.40 7.10 5.30
B4.71 2.88 6.42 3.86 8.91 5.29
Catalogue
Code
Pulley
Designation
Belt
Section
Max
PCD
Min
PCD
A D Min
bore
Max
bore
048A0000 LP80/93A Z
A
78
85
54
60 35 93 10 24
048B0000 LP95/108A Z
A
92
100
68
71 35 108 10 28
048C0000 LP112/120A Z
A
104
112
80
85 35 120 12 28
048D0000 LP132/138A Z
A
122
130
100
100 38 138 16 42
048E0000 LP160/180B A
B
158
170
128
132 45 180 18 48
DIMENSIONS OF LP ADJUSTABLE PULLEYS
General
The LP adjustable pulley is used in conjunction with
standard Taper Lock dual groove pulleys, pages 62-69,
and Fenner Classic V-belts to allow small adjustments
to driven speed from fixed speed prime movers.
Construction
Made from grey cast iron, these pulleys have one
fixed flank, and an opposite flank which can be
adjusted by screw thread, with the drive stationary,
and then fixed in position.
Installation and Use
Pulleys are supplied pilot bored for reboring/
keywaying as appropriate.
Drive centre distance adjustment is used to
maintain correct belt tension if pulley diameter is
changed.
Note that the belt centre line shifts when diameter
changes. Driven pulley may need realignment.
Bores are to F7 limits, Dimensions in millimetres.
* Stock pulleys are minimum bore without shaft grub screw holes. They can be supplied bored to size with tapped holes on request.
For other than smooth load 10 hours per day applications, the above powers should be derated by 25%.
Bi-Loc Pulleys
The Fenner Bi-Loc system employs lightweight
cast iron pulleys with 'Quadruple Duty' Grooves
for A/SPA and B/SPB section belts. Twin-tapered
steel bushes with metric and Imperial bores
are used to mount single, double or different
diameter pulleys on one shaft. A shrunk-on fit
is achieved without keys or grub screws. Only a
spanner is needed for fitting and removal.
Mount single, double or different diameter
pulleys on one bush.
Use retainer and screws for single pulley
assembly.
Use bolts for double groove pulley assembly.
Adjustable Pitch Pulleys and Bi-Loc Pulleys
FRICTION BELT DRIVESSECTION : 3
* for actual B/SPB pitch diameter deduct 0.25mm
† for actual outside diameter deduct 0.32mm
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 75
Urethane Belting
Very high coefficient of friction.
Reinforced urethanes with high load carrying capacity.
High chemical resistance
Heat, moisture and ultra-violet light resistant.
Wide range of sections and material types available.
Useful for power transmission and conveyor applications.
Customised design available in-house
Most materials FDA/USDA approved
Joined by butt or overlap welding or special metal fasteners.
The Range
Round Section 2 - 20mm diameter
80, 85, 89, 90, 95 hardness grades
Plain and textured surfaces
'Quick Connect' hollow type
with metal fasteners
Twisted O Rings Many colours and clear
Other Sections Trapezoidal 3L,Z, A, B, C, D, E
sections
Hexagonal AA, BB sections
Crown top, ridge top, ribbed top,
ribbed back etc,
Many colours
Solid PU or textile reinforced
Applications
Conveying light or delicate products
Light power transmission
Can-cable for canning lines
Driving conveyor rolls
Conveying abrasive materials
Butt Welding Kits
Includes clamps, hot knife (240v - 110v available), flash cutter,
shears - in a handy carrying case
Overlap welding kit also available
NOTE: Quantity requirements can be supplied ready welded to size.
SECTION : 3FRICTION BELT DRIVES
Urethane Belting
76
"One-Shot" Tensioning
Fenner belts are Precision Built to ensure inherent
length stability and matching during storage and on the drive.
Over many years, the principle of "one-shot" tensioning has
been verified by successful drives the world over.
Install the belts to be a snug fit around the
pulleys.
Spin the pulleys 3-4 revolutions to bed belts into
the pulley grooves.
(Note: if done manually, beware of finger entrap-
ment between belts and pulleys)
Tension the belts to the 1.25x setting forces
from the table.
Run the drive under load for 15-20 minutes.
Stop the drive, check tension & reset to the basic
value (standard V and wedge belts) if necessary.
CRE PLUS & Quattro PLUS belts should be reset
to the 1.25x value.
With a drive that is properly designed for the application
there should be no need for further attention during the
life of the belts.
For short centre distance drives where the deflection of the
belt is too small to measure accurately it is recommended
that both deflection and setting force be doubled.
Method of belt tensioning using Fenner Belt
Tension Indicator
Calculate the deflection in mm on a basis of 16mm
per metre of centre distance. Centre distance (metres)
x 16 = deflection (mm).
Set the lower marker ring at the deflection distance
required in mm on the lower scale.
Set the upper marker ring against the bottom edge
of the top tube.
Place the belt tension indicator on top of the belt at
the centre of span, and apply a force at right angles
to the belt, deflecting it to the point where the lower
marker ring is level with the top of an adjacent belt.
Read off the setting force value indicated by the top
edge of the upper marker ring.
Compare this force to the kgf value shown in the
table.
If a Fenner Belt Tension Indicator is not available, a
spring balance and rule will suffice.
NOTES:
For single belt drives a straight edge should be placed
across the two pulleys to act as a datum for measuring the
amount of deflection.
If the measured force falls within the values given,
the drive should be satisfactory. A measured force
below the basic value indicates under-tensioning.
A new drive should be tensioned to the 1.25x value
to allow for the normal drop in tension during the
running-in period.
After the drive has been running for 15–20 minutes,
under load the tension should be checked and re-
adjusted, if necessary.
Troubleshooting
Small radial cracks on belt side and base
Generally caused by slippage due to insufficient belt
tension, but excessive heat and/or chemical fumes
can also cause the same problem.
Belt swelling or softening
Caused by excessive contamination by oil, certain cutting
fluids, water or rubber solvent.
Whip during running
Often caused by incorrect tensioning, particularly
on long centre drives. If a slightly higher (or lower)
tension does not cure the problem there may be
a critical vibration frequency in the system which
requires re-design or use of banded belts. Consult
your local Authorised Distributor Technical Services.
Pulleys
Pulley groove wear can cause rapid belt failure.
Check grooves for wear with a Fenner groove gauge.
BELT TENSION INDICATOR APPLIES
SETTING FORCE AT MID CENTRE DISTANCE
Belt
Section
Setting force to deflect belt
16 mm per metre of span
Small pulley
diameter (mm)
Basic setting forces 1.25 x setting forces
Newtons (N) kilograms (kgf) Newtons (N) kilograms (kgf)
SPZ
XPZ & QXPZ
56 to 71 16 1.6 20 2.0
75 to 90 18 1.8 22 2.2
95 to 125 20 2.0 25 2.5
over 125 22 2.2 28 2.8
SPA,
XPA & QXPA
80 to 100 22 2.2 28 2.8
106 to 140 30 3.0 38 3.9
150 to 200 36 3.7 45 4.6
over 200 40 4.0 50 5.1
SPB,
XPB& QXPB
112 to 160 40 4.0 50 5.1
170 to 224 50 5.1 62 6.3
236 to 355 62 6.3 77 7.9
over 355 65 6.6 81 8.3
SPC,
& QXPC
224 to 250 70 7.1 87 8.9
265 to 355 92 9.4 115 12.0
over 375 115 12.0 144 15.0
8V 335 & above 150 15.0 190 19.0
Z56 to 100 5 to 7.5 0.5 to 0.8
A (& HA banded) 80 to 140 10 to 15 1.0 to 1.5
B125 to 200 20 to 30 2.0 to 3.1
C200 to 400 40 to 60 4.1 to 6.1
D355 to 600 70 to 105 7.1 to 10.7
The setting forces below are designed to cover a
wide range of drives. A precise setting force for
individual applications can be calculated. Please
consult your local Authorised Distributor or use
the 'Fenner Select' design software at
www.fptgroup.com
70 80 90 810 12 14
70 80 90 810 12 14
Deflection in mm
(larger marker ring)
Setting force in kgf
(smaller marker ring)
Fenner Wedge and Vee-Belt Tensioning Instructions
FRICTION BELT DRIVESSECTION : 3
16mm deflection
per 1 metre of
centre distance
Belt
Section
Setting force to deflect belt
16 mm per metre of span
Small pulley
diameter (mm)
Basic setting forces
Newtons (N) kilograms
(kgf)
USPB
112 to 160 44 4.5
170 to 224 54 5.5
236 to 355 64 6.5
over 355 69 7.0
USPC
224 to 250 74 7.5
265 to 355 93 9.5
over 375 118 12.0
Setting Forces
Fenner Belt Tension Indicator
Setting Forces Ultra PLUS 150
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 77

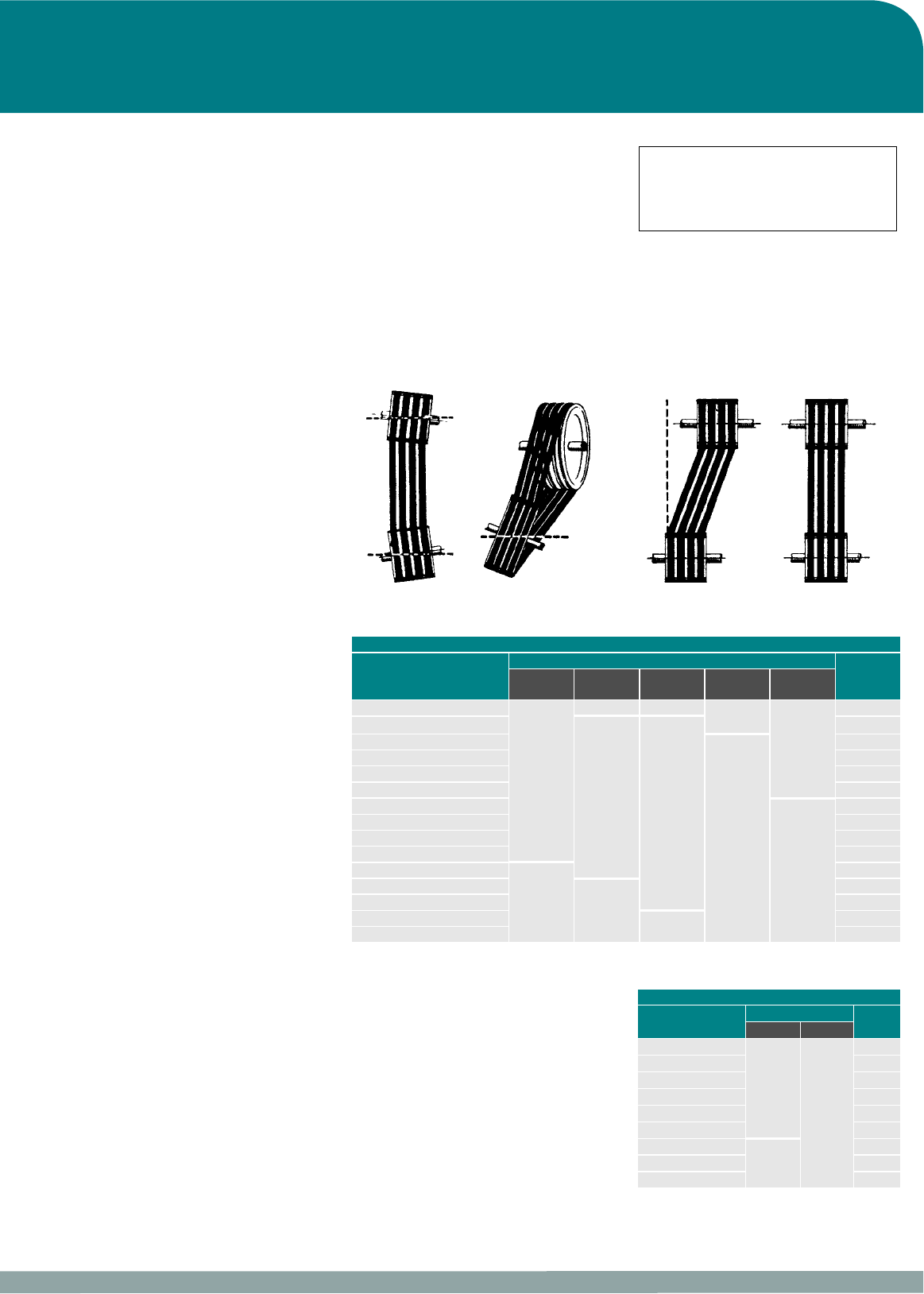

INSTALLATION AND TAKE-UP ALLOWANCE
Belt Pitch Length
(mm)
Installation Allowances Take-up
(mm)
SPZ
Z
SPA
A
SPB
B
SPC
C
8V
D
410 to 530
20
5
530 to 840
25
30
10
850 to 1160
50
15
1170 to 1500 20
1510 to 1830 25
1840 to 2170 30
2180 to 2830
65
40
2840 to 3500 50
3520 to 4160 60
4170 to 5140 70
5220 to 6150 85
6180 to 7500 105
7600 to 8500 125
8880 to 10170 145
10600 to 12500 175
within one third of the centre distance from the small
pulley.
The tensioning pulley must have at least the same
diameter as the small pulley of the drive.
Tensioning pulley movemement must allow for
passing the belts over the outside diameter
of one of the drive pulleys on installation, and
should also allow for belt stretch/bedding in.
The modern wedge belt drive is a highly
efficient power transmission medium, but
optimum performance will not be achieved
without correct tension and alignment.
1
Angular
misalignment
2
Composite
misalignment
4
Correct installation -both
shafts and pulleys are
parallel and in alignment.
3
Axial
misalignment
Taper Lock
All Fenner V and wedge belt pulleys use Taper
Lock shaft fixing.
Detailed instructions for fitting and dismounting
Taper Lock products are included with Taper Lock
bushes.
Although comparatively old in principle today's belt
drive is an extremely efficient method of transmitting
power between prime mover and machinery.
It owes its present high performance standards
to many years of research and development by
engineers and technologists, leading to significant
refinements in materials and processes.
To derive maximum benefit from such advances it is
important that the simple installation and operation
procedures set out here are closely followed. Making
these routines standard practice will ensure optimum
performance and long, trouble-free life from Fenner
belt drives.
Installation
PULLEYS
Before assembling the drive, check the pulley
grooves are free from scores or sharp edges, and
all dimensions conform to the relevant standard.
Drive installation is straightforward with Taper
Lock – but follow all steps on the installation
leaflet provided with every Taper Lock bush.
ALIGNMENT
Good alignment of pulleys is important to avoid
belt flank wear. The diagrams opposite show
some of the common alignment faults.
Pulley misalignment should not exceed 1/2°
angular and 10mm / metre drive centre distance,
axial.
A laser alignment device is available, which
facilitates quick, easy and accurate pulley
alignment - consult your local Authorised
Distributor.
BELT INSTALLATION
When the pulleys have been correctly positioned
on the shafts, the belts can be installed to complete
the drive.
The drive centre distance should be reduced
prior to the installation of the belts so that they
may be fitted without the use of force. Under
no circumstances must belts be prised into the
grooves. Belts and pulley grooves can easily be
damaged by using sharp tools to stretch the belts
over the pulley rim.
The installation allowance given in the table
opposite is the minimum recommended reduction
in centre distance for the various belt sections
and lengths to allow for correct fitting.
The take-up allowance given in the same table
should be added on to the calculated centre
distance to allow for belt stretch/bedding in.
GUARDS
Where guards are necessary it is desirable to use
mesh materials to permit adequate ventilation.
Guards should be generously sized to allow for
incidental belt flap.
TENSIONING PULLEYS
If tensioning (jockey) pulleys are to be used on wedge
belt drives, they must be grooved pulleys working on
the inside of the drive, preferably on the slack side.
The pulley should be positioned as close as possible
to the large pulley. Flat tensioning pulleys, bearing on
the outside of the drive are permissible only with V
and not with wedge belts. They should be positioned
SECTION : 3FRICTION BELT DRIVES
Installation and Operation of Wedge and Vee-Belt Drives
INSTALLATION AND TAKE-UP ALLOWANCE
Belt Pitch Length
(mm)
Take-up
(mm)
USPB USPC
2180 to 2830
30
50
20
2840 to 3500 25
3520 to 4160 30
4170 to 5140 35
5220 to 6150 45
6180 to 7500 55
7600 to 8500 65
8880 to 10170 75
10600 to 12500 90
Ultra PLUS 150
78
Belt
Section
Force required to deflect belt
16mm per metre of span
Small Pulley
Diameter (mm) Newton (N) Kilogram-
force (kgf)
Z56 to 90 10 to 15 1.0 to 1.5
A80 to 140 15 to 20 1.5 to 2.0
B125 to 200 25 to 35 2.6 to 3.6
C200 to 400 45 to 65 4.6 to 6.6
1. How to Measure
Correct way to measure:
PowerTwist Plus – end of tab to first empty holes (right to left, above)
2. Assembly - PowerTwist PLUS
Pitch Length
Determine the required pitch length of the belt. Measure PowerTwist Plus from the
second empty hole on the last link to the end tab. Subtract one link in every 24 for
Z, A, B sections, one link in every 20 for C section. For multiple belt drives, count
the number of links in the initial belt and make additional belts the same number
of links. Lay the original belt on a table and lay the additional belts side by side to
ensure the correct length and matched sets.
3. Installation
Make PowerTwist Plus belts to the correct pitch length and then install
them as you would an endless belt.
1. Move motor to reduce centre distance.
2. Place all belts in correct position.
Where it is necessary to thread belts through confined spaces, or around shafts
without moving bearings, it is possible to make the belts "in site". Some reduction
in pulley centre distance is still necessary for ease of assembly.
3. Move motor back into position, applying correct tension.
4. Secure motor tightly.
Method of Belt tensioning using Fenner Belt Tension indicator
1. Calculate the deflection distance in mm on a basis of 16mm per metre of span.
Centre Distance (m) x 16 = Deflection (mm)
2. Set the lower marker ring at the deflection distance required in mm on the lower scale.
3. Set the upper marker ring against the bottom edge of the top tube.
4. Place the belt tension indicator on top of the belt at the centre of span, and apply a
force at right angles to the belt deflecting it to the point where the lower marker ring
is level with the top of an adjacent belt*.
5. Read off the force value indicated by the top edge of the upper marker ring.
6. Compare this force to the kgf value shown in the table opposite.
7. If a Fenner Belt Tension Indicator is not available, a spring balance and rule will suffice.
CAUTION
When properly installed, initial tension may appear excessive.
Tension drops to normal when drive begins to run.
4. Retensioning
It is important to retension all drives after an initial run-in period. On fixed
centre drives, it may be necessary to remove a link from each belt for proper
retensioning.
Always work with the belt inside out, tabs
pointing outward Place end tab through two links at once. Flex belt further and insert second tab
through end link by twisting tab with
thumb.
Ensure tab returns to position across belt.
Reverse belt so tabs run inside.
5. Disassembly - PowerTwist PLUS
Turn belt inside out with tabs pointing
outwards. Bend back as far as possible;
hold with one hand. Twist one tab 90º
parallel with slot.
Pull end of link over tab. Rotate belt end with tab at 90º to line of
belt.
Pull belt end through two links.
PowerTwist PLUS Installation and Tensioning
FRICTION BELT DRIVESSECTION : 3
*NOTE: For single belt drives a straight edge should be placed across the two
pulleys to act as a datum for measuring the amount of deflection.
If the measured force falls within the values given, the drive should be satisfactory.
A measured force below the lower value indicates under-tensioning.
A new drive should be tensioned to the higher value to allow for the normal drop in
tension during the running-in period.
After the drive has been running for 30 minutes, the tension should be checked and
re-adjusted to the higher value, if necessary.
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 79
SECTION : 3FRICTION BELT DRIVES
PolyDrive PLUS Ribbed Belts
The geometry of each section complies with ISO 9982.
Ribbed belt codes
Digits Reference Code
1,2 & 3 Product group 215
4 Belt section
PJ,PK,PL,PM J,K,L,M
5,6,7,8 Belt effective 0200
length mm -9999
e.g. 723mm=0723
1295mm=1295
for M section over
10000 use 1st 4 digits
e.g. 12217mm
=1221
NOTE:
These 8 digit codes specify the section and effective length of a belt.
The number of ribs on any belt must be specified separately.
e.g. 16 PL 2235 = 215 L 2235, 16 ribs
Belt Dimensions & Physical Properties
Belt Section PJ PK PL PM
Rib pitch E (mm) 2.34 3.56 4.70 9.40
Belt thickness 3.50 5.00 7.00 12.00
Mass/unit length/rib (g/m/b) 8.20 19.50 32.00 110.00
Maximum belt* speed (m/sec) 60.00 55.00 40.00 35.00
Minimum pulley diameter (mm) 18.00 50.00 70.00 180.00
* Belt speeds above 40m/sec require special pulley materials – consult your local Authorised
Distributor
Standard Effective Lengths (mm & inches)
PJ PK PL PM
406 16.0 673 26.5 1075 42.5 2693 106.0
432 17.0 698 27.5 1270 50.0 2832 111.5
457 18.0 710 28.0 1333 52.5 2921 115.0
483 19.0 740 29.1 1371 54.0 3010 118.5
508 20.0 775 30.5 1397 55.0 3124 123.0
559 22.0 805 31.7 1422 56.0 3327 131.0
610 24.0 841 33.1 1562 61.5 3531 139.0
660 26.0 870 34.3 1613 63.5 3734 147.0
711 28.0 884 34.8 1664 65.5 4089 161.0
723 28.5 915 36.0 1715 67.5 4191 165.0
762 30.0 926 36.5 1764 69.5 4470 176.0
813 32.0 954 37.6 1803 71.0 4648 183.0
864 34.0 970 38.2 1841 72.5 5029 198.0
914 36.0 1015 40.0 1943 76.5 5410 213.0
960 38.0 1030 40.6 1981 78.0 6121 241.0
1016 40.0 1080 42.5 2020 79.5 6883 271.0
1092 43.0 1146 45.1 2070 81.5 7646 301.0
1105 43.5 1165 45.9 2096 82.5 8408 331.0
1123 44.0 1230 48.4 2134 84.0
1130 44.5 1295 51.0 2197 86.5
1150 45.0 1387 54.6 2235 88.0
1168 46.0 1425 56.1 2324 91.5
1200 47.0 1460 57.5 2362 93.0
1244 49.0 1530 60.2 2476 97.5
1270 50.0 1560 61.4 2515 99.0
1280 50.5 1658 65.3 2705 106.5
1321 52.0 1725 67.9 2743 108.0
1355 53.0 1760 69.3 2845 112.0
1397 55.0 1795 70.7 2895 114.0
1428 56.0 1863 73.3 2921 115.0
1473 58.0 1900 74.8 2997 116.0
1549 61.0 1980 78.0 3086 121.5
1600 63.0 2050 80.7 3124 123.0
1651 65.0 2145 84.4 3289 129.5
1663 65.5 2257 88.9 3327 131.0
1752 69.0 2330 91.7 3492 137.5
1854 73.0 2440 96.1 3696 145.5
1910 75.0 2523 99.3 4051 159.5
1956 77.0 2612 102.8
1965 77.5 2680 105.5
1992 78.5
2083 82.0
2210 87.0
Effective belt lengths are used with pulley effective diameters in all centre distance
calculations.
All the above belts can be supplied with rib numbers of at least 40.
Intermediate belt lengths are available - consult your local Authorised Distributor.
Belts may be designated by: number of ribs, section letters and effective length in mm
(e.g. 16 PL 2235)
80
Necessary drive data: Driving/driven shaft speeds (rev/min), absorbed drive power and/
or motor power (kW), type of prime mover (inc. electric motor starting arrangements)
and driven machine, machine shaft diameters (mm or ins.), required drive centre
distance (mm), any other dimensional constraints.
(a) Service Factor
Select the service factor applicable to the drive from table 1 below. For a speed increasing
drive multiply the basic service factor by the special factor in the top left box to achieve
the full service factor.
(b) Design Power
Multiply the normal running (absorbed) power of the drive, or if not known, the motor
power, by the service factor (a), to give the design power which is used as the basis for
drive selection. This power should be calculated in kW.
(c) Ribbed Belt Section
Refer to table 2, page 81 and find the point of intersection of the faster drive shaft speed
in rev/min, and the design power
(b). This point will indicate required belt section and approximate small pulley diameters/
rib numbers.
NOTE: PK section ribbed belts are normally used for automotive applications. For general
industrial applications PJ, PL or PM section belts should be selected.
(d) Speed Ratio
Divide rev/min of faster shaft by that of the slower shaft to give required speed ratio.
(e) Minimum Small Pulley Diameter
Refer to table 5, page 81 to find the minimum recommended small pulley diameter,
using design power (b) and the faster shaft speed.
(f) Pulley Effective* Diameters
Refer to table 6, page 82 to select pulley effective diameters giving close to the required
speed ratio (d), using (e) as a guide to small pulley diameter.
Calculate the exact speed ratio and check acceptability
* Note: All pulley designations show effective (outside) diameters. Exact speed ratios are
calculated using pitch diameters,– see under table 6, page 82.
(g) Belt Length and Centre Distance
Use the formulae below to establish which standard belt length (listed page 79)
gives closest to the required drive centre distance.
(h) Combined Correction Factor
Refer to tables 3 & 4, page 81 to find power correction factors for belt length
and for the arc of contact for the small pulley (the latter calculated using pulley
diameters D & d, and centre distance C - all in mm).
Multiply these two factors together to give the combined correction factor.
(j) Basic/Additional Power per Rib
The main power rating tables on pages 82 & 83 show basic power per belt rib, in
kW, at the intersection of faster shaft speed (LH column, in rev/min) with pulley
diameter (across top, in mm). Additional power per rib due to speed ratio is shown
in the smaller RH table. Values for shaft speeds not listed can be derived by
interpolation.
(k) Corrected Power per Rib
Add the speed ratio increment to the basic power per rib (j) and multiply the the
resultant kW value by the combined correction factor (h) to give the full power per rib.
(l) Number of Ribs Required
Divide design power (b) by the full power per rib (k) to give the number of belt ribs
required. Round up to an even number and check whether standard pulleys are available.
(m) Pulleys
When pulley specification is established, consult your local Authorised Distributor
to check availability of pulleys with Taper Lock bush shaft fixing, and associated
bore size capacity.
BELT LENGTH & CENTRE DISTANCE FORMULAE
To determine belt length (L mm) for a given centre distance
(C mm) using pulleys with small/large effective diameters d/D mm:
L = 2C + (D-d)2 + 1.57 (D+d)
4C
-select the standard belt length nearest to L as calculated.
To determine centre distance for given effective pulley diameters and actual belt length:
C = A + A2 –B
where: A = L – 0.3925 (D + d) and B = (D–d)2
4 8
PolyDrive PLUS Belt Selection
FRICTION BELT DRIVESSECTION : 3
SPEED INCREASE RATIO Types of Prime Mover
'Soft' Starts 'Heavy' Series
For speed increasing drives of:
Speed ratio 1.00 – 1.24 multiply service factor by 1.00
Speed ratio 1.25 – 1.74 multiply service factor by 1.05
Speed ratio 1.75 – 2.49 multiply service factor by 1.11
Speed ratio 2.50 – 3.49 multiply service factor by 1.18
Speed ratio 3.50 and over multiply service factor by 1.25
Electric motors:
AC - Star Delta start
DC - Shunt wound
Internal combustion engines with 4 or more
cylinders
Prime movers fitted with centrifugal clutches, dry
or fluid couplings or electronic soft start devices
Electric motors:
AC - Direct-on-line start
DC - Series and component wound
Internal combustion engines with less than 4
cylinders
Prime movers not fitted with soft start devices
TYPES OF DRIVEN MACHINE Hours per day
10 and under Over 10 to 16 Over 16 10 and under Over 10 to 16 Over 16
Class 1
Light Duty
Agitators (uniform density), blowers, exhausters and
fans up to 7.5kW, centrifugal compressors and pumps.
Belt conveyors (uniformly loaded).
1.0 1.1 1.2 1.1 1.2 1.3
Class 2
Medium Duty
Agitators and mixers (variable density), blowers,
exhausters an fans (over 7.5kW). Rotary compressors
and pumps (other than centrifugal). Belt conveyors
(not uniformly loaded), generators and excitors,
laundry machinery, lineshafts, machine tools, printing
machinery, sawmill and woodworking machinery,
screens (rotary)
1.1 1.2 1.3 1.2 1.3 1.4
Class 3
Heavy Duty
Brick machinery, bucket elevators, compressors and
pumps (reciprocating), conveyors (heavy duty). Hoists,
mills (hammer), pulverisers, punches, presses, shears,
quarry plant, rubber machinery, screens (vibrating),
textile machinery.
1.2 1.3 1.4 1.4 1.5 1.6
Class 4
Extra Heavy Duty Crushers (gyratory-jaw roll), mills (ball-rod-tube) 1.3 1.4 1.5 1.5 1.6 1.8
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 81
Speed
of motor
shaft
rev/min
Recommended Minimum Motor Pulley Diameter (mm)
Design Power (kW)
0.55 0.75 1.1 1.5 2.2 3.0 4.0 5.5 7.5 11.0 15.0 18.5 22.0 30.0 37.0 45.0 55.0 75.0 93.0 112 130 150
720 50 50 67 70 75 85 95 106 118 132 150 160 165 180 190 200 224 250 280 315 315 315
960 45 50 56 63 70 75 85 90 100 118 125 132 150 165 180 190 212 224 250 280 315 315
1440 40 45 50 63 67 71 80 85 90 100 118 125 132 150 165 170 190 200 224 250 280 280
2880 40 45 50 56 63 67 71 75 80 90 95 100 118 125 132 150 160 165 180 190 200 224
D – d
C
Arc of
contact
(degrees)
Correction
Factor
D – d
C
Arc of
contact
(degrees)
Factor
0.00 180 1.00 0.50 151 0.93
0.05 177 0.99 0.55 148 0.92
0.10 174 0.99 0.60 145 0.91
0.15 171 0.98 0.65 142 0.90
0.20 169 0.97 0.70 139 0.89
0.25 166 0.97 0.75 136 0.88
0.30 163 0.96 0.80 133 0.87
0.35 160 0.95 0.85 130 0.86
0.40 157 0.94 0.90 127 0.85
0.45 154 0.93 0.95 123 0.83
Pitch Length Cross Section
mm ins PJ PL PM
610 24.0 0.89 – –
660 26.0 0.90 – –
711 28.0 0.92 – –
762 30.0 0.93 – –
813 32.0 0.95 – –
864 34.0 0.97 – –
914 36.0 0.98 – –
965 38.0 0.99 – –
1016 40.0 1.00 – –
1092 43.0 1.01 – –
1168 46.0 1.02 – –
1270 50.0 1.05 0.89 –
1397 55.0 1.07 0.91 –
1550 61.0 1.09 – –
1562 61.5 –0.93 –
1664 65.0 –0.94 –
1752 69.0 1.12 – –
1765 69.5 –0.96 –
1842 72.5 –0.97 –
1956 77.0 1.15 – –
1981 78.0 –0.98 –
2134 84.0 –1.01 –
2286 90.0 – – 0.88
2324 91.5 –1.02 –
2388 94.0 – – 0.89
2515 99.0 –1.04 0.90
2693 106.0 –1.05 0.91
2921 115.0 –1.07 0.93
3124 123.0 –1.08 0.94
3327 131.0 –1.10 0.96
3696 145.5 –1.12 –
3734 147.0 – – 0.98
4089 161.0 –1.14 1.00
4191 165.0 –1.14 1.00
4470 176.0 –1.16 1.02
4648 183.0 – – 1.03
5029 198.0 –1.19 1.05
5385 212.0 –1.20 –
5410 213.0 – – 1.06
6121 241.0 – – 1.09
6883 271.0 – – 1.12
7646 301.0 – – 1.14
8408 331.0 – – 1.16
9169 361.0 – – 1.18
9931 391.0 – – 1.20
TABLE 2
SECTION : 3FRICTION BELT DRIVES
PolyDrive PLUS Belt Selection
300
250
200
150
100
70
60
50
40
30
20
10
7
6
5
4
3
2
1.0
0.7
0.5
200 300 400 500 600 800 1000 1500 2000 2500 3000 4000 5000 6000
400 mm x 16 M
180 mm x 16 L
160 mm x 16 J
75 mm x 8 L
71 mm x 8 J
Rev/min of FASTER SHAFT
Design Power – kW
M
L
J
TABLE 3 BELT LENGTH CORRECTION FACTOR
TABLE 4 ARC OF CONTACT CORRECTION FACTORS
TABLE 5
82
PolyDrive PLUS Power Ratings
FRICTION BELT DRIVESSECTION : 3
Drive (motor) pulley
eff. dia. mm 71 75 80 85 90 95 100 106 112 118 125 132 140 150 160 170 180
Driven pulley eff. dia
mm
71 1.00
75 1.05 1.00
80 1.12 1.06 1.00
85 1.19 1.13 1.06 1.00
90 1.26 1.19 1.12 1.06 1.00
95 1.32 1.25 1.18 1.11 1.05 1.00
100 1.39 1.32 1.24 1.17 1.11 1.05 1.00
106 1.47 1.39 1.31 1.24 1.17 1.11 1.06 1.00
112 1.55 1.47 1.38 1.31 1.24 1.17 1.12 1.05 1.00
118 1.63 1.55 1.46 1.37 1.30 1.23 1.17 1.11 1.05 1.00
125 1.72 1.64 1.54 1.45 1.37 1.30 1.24 1.17 1.11 1.06 1.00
132 1.82 1.73 1.62 1.53 1.45 1.38 1.31 1.24 1.17 1.12 1.05 1.00
140 1.93 1.83 1.72 1.62 1.53 1.46 1.39 1.31 1.24 1.18 1.12 1.06 1.00
150 2.06 1.96 1.84 1.73 1.64 1.56 1.48 1.40 1.33 1.26 1.19 1.13 1.07 1.00
160 2.19 2.08 1.96 1.85 1.75 1.66 1.58 1.49 1.42 1.35 1.27 1.21 1.14 1.07 1.00
170 2.33 2.21 2.08 1.96 1.86 1.76 1.68 1.58 1.50 1.43 1.35 1.28 1.21 1.13 1.06 1.00
180 2.46 2.34 2.20 2.07 1.96 1.86 1.77 1.68 1.59 1.51 1.43 1.35 1.28 1.20 1.12 1.06 1.00
190 2.60 2.46 2.32 2.19 2.07 1.96 1.87 1.77 1.68 1.59 1.51 1.43 1.35 1.26 1.18 1.12 1.05
200 2.73 2.59 2.44 2.30 2.18 2.07 1.97 1.86 1.76 1.67 1.58 1.50 1.42 1.33 1.24 1.17 1.11
212 2.89 2.75 2.58 2.44 2.30 2.19 2.08 1.97 1.87 1.77 1.68 1.59 1.50 1.40 1.32 1.24 1.17
224 3.05 2.90 2.72 2.57 2.43 2.31 2.20 2.08 1.97 1.87 1.77 1.68 1.59 1.48 1.39 1.31 1.24
236 3.21 3.05 2.87 2.71 2.56 2.43 2.31 2.19 2.07 1.97 1.86 1.77 1.67 1.56 1.46 1.38 1.31
250 3.40 3.23 3.04 2.86 2.71 2.57 2.45 2.32 2.19 2.09 1.97 1.87 1.77 1.65 1.55 1.46 1.38
280 3.81 3.61 3.40 3.20 3.03 2.88 2.74 2.59 2.45 2.33 2.21 2.09 1.98 1.85 1.73 1.63 1.54
315 4.28 4.06 3.81 3.60 3.41 3.23 3.08 2.91 2.76 2.62 2.48 2.35 2.22 2.07 1.95 1.84 1.74
355 4.81 4.57 4.29 4.05 3.83 3.64 3.46 3.27 3.10 2.95 2.79 2.65 2.50 2.34 2.19 2.07 1.95
400 5.42 5.14 4.83 4.56 4.32 4.10 3.90 3.68 3.49 3.32 3.14 2.98 2.81 2.63 2.47 2.33 2.20
450 6.09 5.78 5.43 5.12 4.85 4.60 4.38 4.14 3.93 3.73 3.53 3.35 3.16 2.95 2.77 2.61 2.47
500 6.26 6.41 6.03 5.69 5.39 5.11 4.86 4.60 4.36 4.14 3.92 3.72 3.51 3.28 3.08 2.90 2.74
630 8.50 8.07 7.59 7.16 6.78 6.43 6.12 5.79 5.48 5.21 4.93 4.68 4.41 4.13 3.87 3.65 3.45
800 10.79 10.24 9.62 9.08 8.59 8.16 7.76 7.34 6.96 6.61 6.25 5.93 5.60 5.23 4.91 4.63 4.38
The above chart gives approximate speed ratios between pulleys of the shown effective diameters. For exact drive ratio values. calculate the mathematical ratio between any 2 effective dias. (De) converted
to pitch dias. (Dp) as follows: J section Dp = De + 2 mm
L section Dp = De + 5mm
Additional power (kW) per rib due to speed ratio
1.00 1.05 1.20 1.50 3 and
above
0.00 0.00 0.00 0.00 0.00
0.00 0.00 0.00 0.00 0.00
0.00 0.00 0.01 0.01 0.01
0.00 0.01 0.01 0.01 0.01
0.00 0.00 0.00 0.00 0.01
0.00 0.00 0.00 0.01 0.01
0.00 0.00 0.01 0.01 0.02
0.00 0.00 0.01 0.02 0.02
0.00 0.00 0.01 0.02 0.03
0.00 0.01 0.02 0.04 0.05
0.00 0.01 0.02 0.05 0.06
0.00 0.01 0.03 0.05 0.06
0.00 0.01 0.04 0.06 0.07
0.00 0.02 0.05 0.08 0.09
0.00 0.02 0.05 0.08 0.10
PJ Ribbed Belt Ratings
TABLE 6 SPEED RATIO CHART
Basic power rating per rib (kW) for small pulley effectice diameter (mm) PJ Section
Rev/min
faster
Shaft
20 25 40 50 60 67 71 75 80 85 90 95 100 112 125 140 160 180 200 250
200 0.02 0.02 0.04 0.05 0.06 0.07 0.08 0.08 0.09 0.09 0.10 0.11 0.11 0.12 0.14 0.16 0.18 0.20 0.22 0.31
400 0.03 0.04 0.07 0.10 0.12 0.14 0.14 0.15 0.16 0.17 0.19 2.00 0.21 0.23 0.26 0.29 0.33 0.37 0.41 0.59
700 0.04 0.06 0.12 0.16 0.20 0.22 0.24 0.25 0.27 0.29 0.31 0.32 0.34 0.38 0.43 0.48 0.55 0.61 0.68 0.97
950 0.05 0.08 0.16 0.21 0.26 0.29 0.31 0.33 0.35 0.38 0.40 0.42 0.45 0.50 0.56 0.63 0.72 0.80 0.89 1.26
1200 0.07 0.10 0.19 0.26 0.32 0.36 0.38 0.41 0.43 0.46 0.49 0.52 0.55 0.62 0.69 0.77 0.88 0.99 1.09 1.54
1450 0.08 0.11 0.23 0.30 0.37 0.42 0.45 0.48 0.51 0.55 0.58 0.62 0.65 0.73 0.82 0.91 1.04 1.16 1.28 1.80
2000 0.10 0.15 0.30 0.40 0.49 0.56 0.60 0.63 0.68 0.73 0.77 0.82 0.86 0.97 1.08 1.20 1.36 1.52 1.67 2.31
2850 0.13 0.20 0.41 0.54 0.67 0.76 0.81 0.86 0.92 0.98 1.04 1.10 1.16 1.30 1.44 1.60 1.80 1.98 2.15 2.85
3500 0.15 0.23 0.48 0.64 0.80 0.90 0.96 1.02 1.09 1.17 1.24 1.30 1.37 1.53 1.69 1.86 2.07 2.25 2.41 3.03
5000 0.19 0.31 0.65 0.86 1.07 1.21 1.28 1.36 1.45 1.54 1.62 1.70 1.78 1.96 2.13 2.29 2.45 2.53 2.53
6000 0.21 0.35 0.75 1.00 1.23 1.38 1.47 1.55 1.65 1.74 1.83 1.91 1.99 2.16 2.30 2.41 2.46 2.38
7000 0.24 0.39 0.84 1.12 1.37 1.54 1.63 1.71 1.81 1.90 1.99 2.07 2.14 2.27 2.36 2.37 2.24
8000 0.26 0.43 0.93 1.23 1.50 1.67 1.76 1.84 1.94 2.02 2.10 2.16 2.21 2.29 2.28 2.15
9000 0.27 0.47 1.01 1.33 1.60 1.77 1.86 1.93 2.02 2.09 2.14 2.18 2.21 2.20
10000 0.29 0.50 1.08 1.41 1.69 1.85 1.92 1.99 2.05 2.10 2.13 2.13 2.12 1.98
Vmax
M/S 60
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 83
Additional power (kW) per rib due to speed ratio
1.00 1.05 1.20 1.50 3 and
above
0.00 0.01 0.02 0.02 0.03
0.00 0.01 0.03 0.05 0.06
0.00 0.02 0.06 0.10 0.12
0.00 0.03 0.09 0.14 0.17
0.00 0.04 0.13 0.19 0.24
0.00 0.07 0.22 0.33 0.42
0.00 0.10 0.30 0.45 0.56
0.00 0.12 0.34 0.57 0.71
0.00 0.16 0.46 0.69 0.86
0.00 0.17 0.50 0.76 0.95
0.00 0.19 0.57 0.77 1.07
0.00 0.21 0.63 0.95 1.19
0.00 0.23 0.68 1.05 1.30
0.00 0.25 0.75 1.14 1.44
0.00 0.30 0.89 1.36 1.69
0.00 0.34 1.00 1.52 1.89
0.00 0.38 1.12 1.71 2.13
0.00 0.42 1.25 1.90 2.37
Additional power (kW) per rib due to speed ratio
1.00 1.05 1.20 1.50 3 and
above
0.00 0.01 0.01 0.02 0.03
0.00 0.01 0.02 0.03 0.04
0.00 0.02 0.03 0.07 0.08
0.00 0.02 0.06 0.09 0.12
0.00 0.02 0.07 0.11 0.14
0.00 0.03 0.09 0.14 0.17
0.00 0.04 0.12 0.19 0.23
0.00 0.05 0.15 0.23 0.28
0.00 0.06 0.18 0.27 0.34
0.00 0.06 0.19 0.30 0.37
0.00 0.07 0.22 0.33 0.41
0.00 0.08 0.24 0.36 0.45
0.00 0.09 0.25 0.38 0.47
0.00 0.09 0.27 0.41 0.49
0.00 0.10 0.29 0.43 0.54
0.00 0.10 0.31 0.47 0.58
0.00 0.11 0.34 0.52 0.64
0.00 0.13 0.38 0.57 0.71
PL RIBBED BELT RATINGS
PM RIBBED BELT RATINGS
SECTION : 3FRICTION BELT DRIVES
PolyDrive PLUS Power Ratings
Basic power rating per rib (kW) for small pulley effectice diameter (mm) PL Section
Rev/min
faster
Shaft
75 80 90 100 106 112 118 125 132 140 150 160 170 180 200 212 224 236 250 250
200 0.15 0.17 0.21 0.25 0.29 0.31 0.34 0.36 0.39 0.42 0.46 0.49 0.53 0.56 0.64 0.68 0.78 0.82 0.87 0.59
400 0.26 0.30 0.37 0.44 0.53 0.57 0.61 0.66 0.71 0.76 0.83 0.90 0.97 1.04 1.17 1.25 1.45 1.53 1.62 0.97
700 0.40 0.46 0.58 0.70 0.84 0.91 0.98 1.06 1.15 1.24 1.35 1.46 1.58 1.69 1.91 2.04 2.38 2.51 2.66 1.26
950 0.50 0.58 0.74 0.90 1.09 1.18 1.27 1.38 1.48 1.60 1.75 1.90 2.04 2.19 2.47 2.64 3.10 3.26 3.45 1.54
1200 0.60 0.70 0.89 1.08 1.32 1.43 1.54 1.67 1.80 1.95 2.13 2.31 2.49 2.66 3.00 3.21 3.77 3.96 4.19 1.80
1450 0.68 0.80 1.03 1.26 1.53 1.67 1.80 1.95 2.10 2.27 2.49 2.69 2.90 3.10 3.50 3.73 4.39 4.61 4.86 2.31
2000 0.85 1.00 1.30 1.60 1.97 2.15 2.32 2.51 2.71 2.92 3.19 3.45 3.71 3.95 4.43 4.70 5.56 5.81 6.08 2.85
2400 0.95 1.13 1.48 1.82 2.26 2.46 2.65 2.87 3.09 3.34 3.63 3.92 4.20 4.46 4.96 5.24 6.22 6.46 6.72 3.03
2850 1.04 1.25 1.65 2.03 2.54 2.76 2.98 3.23 3.47 3.73 4.05 4.35 4.64 4.91 5.40 5.66 6.74 6.94 7.13
3200 1.11 1.33 1.76 2.18 2.74 2.97 3.20 3.46 3.71 3.99 4.31 4.62 4.90 5.16 5.60 5.82 6.95 7.09 7.19
3500 1.15 1.39 1.84 2.28 2.88 3.13 3.37 3.63 3.89 4.16 4.49 4.78 5.05 5.29 5.67 5.83 6.99 7.05
3800 1.18 1.43 1.91 2.37 3.01 3.26 3.50 3.77 4.03 4.30 4.61 4.89 5.13 5.34 5.63 5.72
4000 1.20 1.46 1.95 2.42 3.08 3.34 3.58 3.85 4.10 4.37 4.67 4.93 5.15 5.33 5.54
4300 1.22 1.49 2.00 2.48 3.18 3.43 3.67 3.94 4.18 4.43 4.71 4.94 5.11 5.23
4600 1.23 1.51 2.03 2.51 3.24 3.50 3.74 3.99 4.22 4.45 4.69 4.87 4.99 5.05
5000 1.23 1.51 2.05 2.53 3.30 3.54 3.77 4.00 4.21 4.40 4.57 4.68
5500 1.20 1.49 2.03 2.50 3.30 3.53 3.73 3.92 4.07 4.19 4.26
6000 1.13 1.43 1.96 2.41 3.23 3.42 3.58 3.72 3.80
Vmax
M/S 40
Basic power rating per rib (kW) for small pulley effectice diameter (mm) PM Section
Rev/min
faster Shaft 180 190 200 224 250 280 315 355 400 450 500 560 630 710 800 1000
50 0.35 0.38 0.41 0.60 0.69 0.79 0.91 1.05 1.20 1.37 1.53 1.90 2.15 2.43 2.75 3.44
100 0.63 0.68 0.74 1.08 1.25 1.45 1.68 1.93 2.22 2.53 2.84 3.53 4.00 4.53 5.11 6.40
200 1.12 1.22 1.32 1.96 2.28 2.65 3.07 3.55 4.08 4.67 5.25 6.53 7.39 8.37 9.45 11.78
300 1.57 1.71 1.86 2.76 3.22 3.75 4.36 5.05 5.82 6.66 7.48 9.30 10.52 11.89 13.40 16.59
400 1.98 2.17 2.36 3.51 4.11 4.80 5.59 6.47 7.45 8.52 9.57 11.88 13.42 15.13 16.97 20.77
700 3.10 3.41 3.72 5.57 6.55 7.65 8.91 10.31 11.84 13.47 15.04 18.49 20.62 22.82 24.99 28.47
950 3.92 4.32 4.72 7.09 8.33 9.73 11.31 13.03 14.87 16.78 18.53 22.45 24.51 26.34
1200 4.65 5.13 5.61 8.43 9.90 11.53 13.34 15.26 17.24 19.19 20.84 24.65
1450 5.28 5.84 6.39 9.59 11.24 13.03 14.96 16.93 18.85 20.54 21.74
1600 5.62 6.21 6.79 10.19 11.92 13.76 15.71 17.63 19.39 20.77
1800 6.01 6.65 7.27 10.88 12.67 14.53 16.42 18.17 19.57
2000 6.34 7.01 7.66 11.43 13.23 15.05 16.79 18.23
2200 6.60 7.29 7.95 11.82 13.59 15.29 16.77
2400 6.78 7.48 8.15 12.05 13.72 15.23
2850 6.89 7.57 8.20 11.90 13.14
3200 6.67 7.29 7.83 11.09
3600 6.04 6.53 6.91
4000 4.98
Vmax M/S 35
84
SECTION : 3FRICTION BELT DRIVES
PolyDrive PLUS Installation and Tensioning
Belt Length
(mm)
PJ PK PL PM
MTMTMTMT
> 750 -10 +10 -11 +13 ----
750 to 1200 -10 +15 -12 +16 -15 +20 - -
1200 to 2000 -15 +20 -16 +22 -20 +25 - -
2000 to 3500 -20 +30 -23 +32 -30 +35 -40 +50
3500 to 6000 -----40 +50 -50 +70
> 6000 -------100 +130
TAPER LOCK
Ribbed belt pulleys are available using Taper Lock shaft fixing.
For detailed instructions on the fitting and dismounting of Taper Lock products see Shaft Fixings page 128-129
The following recommendations for installing a ribbed belt drive will help ensure correct working conditions
and optimum service life.
RIBBED BELT PULLEY GROOVE DIMENSIONS
Pulleys are manufactured to ISO 9982 – Pulleys and V-Ribbed Belts for Industrial Applications
PULLEY SECTION PJ PK PL PM
α(o)40 ± 0.25 40 ± 0.25 40 ± 0.25 40 ± 0.25
P(mm) 2.34 ± 0.03 3.56 ± 0.05 4.70 ± 0.05 9.40 ± 0.08
Tolerance for ΣP± 0.3 ± 0.3 ± 0.3 ± 0.3
rt min. (mm) 0.20 0.25 0.40 0.75
rb max. (mm) 0.40 0.50 0.40 0.75
f min. (mm) 3.0 5.0 7.0 13.0
dB (mm) 1.5 ± 0.01 2.5 ± 0.01 3.5 ± 0.01 7.0 ± 001
2X (mm) 0.23 0.99 2.36 4.53
SHAFT ALIGNMENT
The maximum axial misalignment allowed is 3 mm per metre centre distance, to a maximum of 15 mm.
Make sure that angular misalignment is kept within 2o. With flat pulleys, acting as idlers for power take-off, do
not exceed 1o.
A laser alignment device is available, which facilitates quick, easy and accurate pulley alignment - consult
your local Authorised Distributor.
TENSIONING THE BELT
Ribbed belts must be tensioned correctly and with great care. Under or over-tensioning can cause functional
problems and lead to premature belt failure. We recommend the elongation method, which is simple and
requires no special equipment, in most cases.
(For narrow belts - less than 40 mm wide - it is possible to use the Fenner Belt Tension Indicator).
1. Fit the belt on the pulleys with no tension,
2. Draw two lines perpendicularly across the belt back approx 80% of the belt span apart (or one metre apart
for very long spans),
3. Increase the distance between the two lines by 0.5 to 0.75% i.e. by 5 to 7.5 mm for an initial spacing of
1000 mm.
4. Run the drive under load for about 10 minutes,
5. Check the tension of the belt (i.e. the spacing between the two lines) and readjust if necessary.
1000 mm
1007.5 mm
T
M
C after take -up
Calculated C
C for fitting
GENERAL
Pulleys should be mounted as close as possible to bearings, to reduce overhung load.
Pulley grooves should be in good condition, clean, and free from sharp edges.
Ensure that drive machinery is securely fastened after belt installation or adjustments.
Guards should be generously sized and well ventilated.
FEN01/14 : DRIVE DESIGN & MAINTENANCE MANUAL 85
The Fenner S.C.I.E.N.C.E. Explained
Did you know that 70% of friction drives are
incorrectly installed?
That figure is quite astounding particularly when you consider how
many applications are dependant on the efficiency and reliability
of friction belt drives.
But don't panic, with a just a few simple steps and the assistance of your
Local Authorised Fenner Distributor, we can ensure that your belt drives (and
chain drives) achieve their optimum efficiency, full operating life and provide
reliable performance.
With Fenner it's all about the S.C.I.E.N.C.E. - Select Correctly, Install
Effectively, Never Compromise Efficiency, if you adhere to these
simple rules you can be confident that your drive selection will perform.
Select Correctly
A correctly selected drive for your application will ensure the drive uses the
fewest number of belts or the absolute minimum of belt width, which in turn.
Reduces loading on the machines bearings increasing the life cycle of the
machine, reducing downtime and the risk of mechanical failure
Reduces the noise levels keeping noise pollution to a minimum at high
speeds
Reduces the amount of raw materials and resources used cutting down
on waste an subsequent pollution
Install Effectively
Correct installation - once you have carefully selected your belt drive
components - is paramount to the longevity and efficiency of your belt drive, by
following the correct installation procedures to the letter and by using the right
tools for the job, such as the Fenner laser alignment and tensioning devices,
we can;
Reduce the vibration to which the machine bearings are subjected,
prolonging machine life, minimising downtime and reducing the risk of
severe damage to the driven machine
Ensure the drive operates and delivers its maximum rated power at its
premium efficiency, reducing both waste and pollution
Supply a drive which gives the maximum drive life available on the
market using the minimum of resource to maintain
Never Compromise Efficiency
By including belt drives as an integral part of a planned maintenance schedule
you can:
Ensure the process up-time is at an absolute maximum giving the ultimate
production output maximising operational efficiency
Prolong the life of the drive and negate the need to waste costly
resources on breakdowns and drive problems
Extend drive, machine and bearing life to the maximum, using less raw
materials and guarantee sustainability.
Remember your drive stands or falls by the accuracy of its installation,
so take the time to get this right and you will reap the rewards. Use
the S.C.I.E.N.C.E
Pulley Groove Gauge
When installing new belts, the condition of the pulleys is often
overlooked. 50% of new belts are fitted to worn pulleys, which
can waste up to 10% of your energy input. The Fenner groove
gauge can quickly help you assess the health of your pulleys.
Request your free pulley
groove gauge from your
Authorised Distribitor.
Belt Tension Indicator
The Fenner Belt Tension Indicator is a simple tool that helps
ensure accurate belt tension - a correctly tensioned drive avoids
belt slippage which can reduce overall drive efficiency.
Belt Efficiency Kit
Get the most from your
wedge belt drives with the
Fenner Belt Efficiency Kit.
The kit contains all the tools
necessary to help achieve
optimum performance: Belt
Tension Indicator, Pulley
Groove Gauge and a simple
guide to efficient wedge belt
efficiency.
Fenner Drive Alignment Laser
The Fenner Drive Alignment Laser is the perfect tool for pulley
and sprocket alignment. Applied magnetically in just a few
seconds, the laser line projects onto targets allowing rapid
adjustment for perfect alignment.
Product Ref: 230A0000
Product Ref: 230L0000
Product Ref: 230K0000 Product Ref: 230K0000
SECTION : 3FRICTION BELT DRIVES
Accessories
86
SECTION : 3FRICTION BELT DRIVES

Navigation menu
