Manual For The 68247 Industrial Air Filter Regulator
User Manual: Manual for the 68247 Industrial Air Filter Regulator Industrial Air Filter Regulator
Open the PDF directly: View PDF
.
Page Count: 12
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2015 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 15f
Page 2 For technical questions, please call 1-888-866-5797. Item 68247
SAFETY OPERATION MAINTENANCEINSTALLATION
Table of Contents
Safety ......................................................... 2
Installation .................................................. 4
Specifications ............................................. 4
Operation .................................................... 8
Maintenance ............................................... 8
Parts List and Diagram .............................. 10
Warranty .................................................... 12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by the operator.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Keep children and bystanders away
from an operating regulator.
2. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating this
regulator. Do not use this regulator while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating a regulator
may result in serious personal injury.
Page 3For technical questions, please call 1-888-866-5797.Item 68247
SAFETYOPERATIONMAINTENANCE INSTALLATION
b. Use personal protective equipment.
Always wear ANSI-approved eye
protection during setup and use.
3. Regulator use and care
a. Store an idle regulator out of the
reach of children and do not allow
persons unfamiliar with the regulator
or these instructions to operate it.
b. Maintain the regulator. Keep the regulator
clean for better and safer performance.
Follow instructions for lubricating
and changing accessories. Keep dry,
clean and free from oil and grease.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may affect the
regulator’s operation. If damaged, have
the regulator repaired before use.
c. Use the regulator in accordance with these
instructions, taking into account the working
conditions and the work to be performed. Use
of the regulator for operations different from those
intended could result in a hazardous situation.
4. Service
a. Have your regulator serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the regulator is maintained.
Air Regulator Safety Warnings
1. Risk of bursting - do not adjust regulator higher
than marked maximum pressure of attachment.
2. Risk of injury - do not direct air
stream at people or animals.
3. Do not use to supply breathing air.
4. Keep regulator well-ventilated.
Do not cover regulator during use.
5. Drain Air Filter daily and after use.
Internal rust causes tank failure and explosion.
6. Do not remove the valve cover or
adjust internal components.
7. Do not use the air hose to move the regulator.
8. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
9. All air line components, including hoses, pipe,
connectors, filters, etc., must be rated for a minimum
working pressure of 160 PSI, or 150% of the
maximum system pressure, whichever is greater.
10. Industrial applications must follow OSHA guidelines.
11. Maintain labels and nameplates on the
regulator. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
12. This product is not a toy.
Keep it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
14. WARNING: The brass components of this product
contain lead, a chemical known to the State
of California to cause cancer and birth defects
or other reproductive harm. (California Health
& Safety Code § 25249.5, et seq.)
15. WARNING: This product contains di (2-ethylhexyl)
phthalate (DEHP), a chemical known to the State
of California to cause cancer and birth defects
or other reproductive harm. (California Health
& Safety Code § 25249.5, et seq.)
SAVE THESE INSTRUCTIONS.
Page 4 For technical questions, please call 1-888-866-5797. Item 68247
SAFETY OPERATION MAINTENANCEINSTALLATION
Specifications
Operating Pressure 0 -160 PSI
Air Inlet and Outlet Size
Inlet: 1/2” -14 NPT (female thread)
Outlet: 1/4”-18 NPT (male thread)
Features Replaceable air lter element
Filter 40 micron
Installation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Note: This air tool may be shipped with protective plugs covering the air ports. Remove these plugs before set up.
TO PREVENT SERIOUS INJURY FROM EXPLOSION:
Use only clean, dry, regulated, compressed air to power this tool.
Do not use oxygen, carbon dioxide, combustible gases,
or any other bottled gas as a power source for this tool.
Functions
Air Inlet Port
Regulator Handle
Regulator
Tank
Drain Plug
Air Valve
Gauge
Page 5For technical questions, please call 1-888-866-5797.Item 68247
SAFETYOPERATIONMAINTENANCE INSTALLATION
Installation

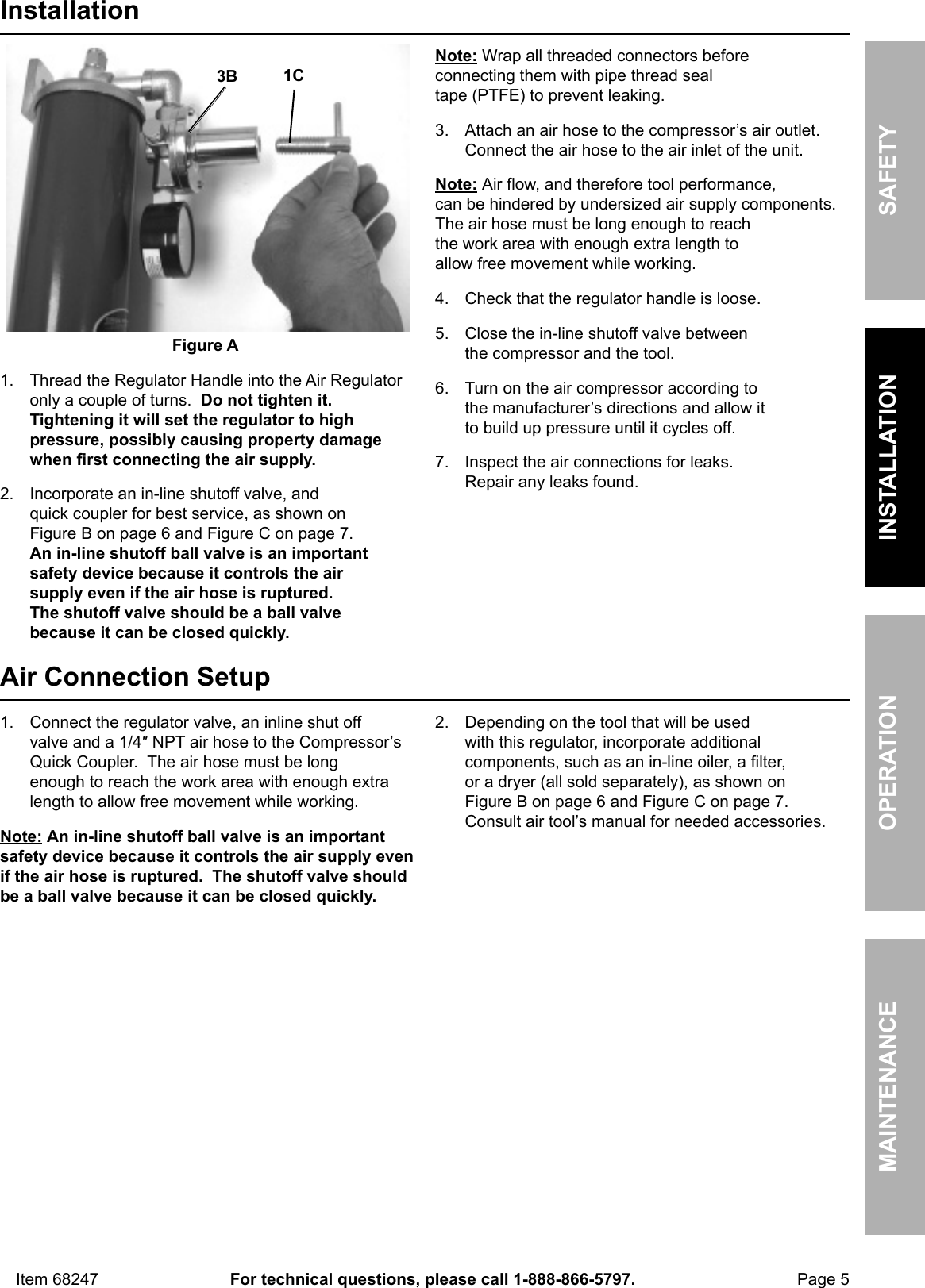

3B 1C
Figure A
1. Thread the Regulator Handle into the Air Regulator
only a couple of turns. Do not tighten it.
Tightening it will set the regulator to high
pressure, possibly causing property damage
when first connecting the air supply.
2. Incorporate an in-line shutoff valve, and
quick coupler for best service, as shown on
Figure B on page 6 and Figure C on page 7.
An in-line shutoff ball valve is an important
safety device because it controls the air
supply even if the air hose is ruptured.
The shutoff valve should be a ball valve
because it can be closed quickly.
Note: Wrap all threaded connectors before
connecting them with pipe thread seal
tape (PTFE) to prevent leaking.
3. Attach an air hose to the compressor’s air outlet.
Connect the air hose to the air inlet of the unit.
Note: Air flow, and therefore tool performance,
can be hindered by undersized air supply components.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
4. Check that the regulator handle is loose.
5. Close the in-line shutoff valve between
the compressor and the tool.
6. Turn on the air compressor according to
the manufacturer’s directions and allow it
to build up pressure until it cycles off.
7. Inspect the air connections for leaks.
Repair any leaks found.
Air Connection Setup
1. Connect the regulator valve, an inline shut off
valve and a 1/4″ NPT air hose to the Compressor’s
Quick Coupler. The air hose must be long
enough to reach the work area with enough extra
length to allow free movement while working.
Note: An in-line shutoff ball valve is an important
safety device because it controls the air supply even
if the air hose is ruptured. The shutoff valve should
be a ball valve because it can be closed quickly.
2. Depending on the tool that will be used
with this regulator, incorporate additional
components, such as an in-line oiler, a filter,
or a dryer (all sold separately), as shown on
Figure B on page 6 and Figure C on page 7.
Consult air tool’s manual for needed accessories.
Page 6 For technical questions, please call 1-888-866-5797. Item 68247
SAFETY OPERATION MAINTENANCEINSTALLATION
Figure B: Portable Air Supply Setup
G
A
E
E
H
F
B
Non-lubricated
Tools
Lubricated
Tools
A
B
C
C
DA
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool
D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
Page 7For technical questions, please call 1-888-866-5797.Item 68247
SAFETYOPERATIONMAINTENANCE INSTALLATION
Figure C: Stationary Air Supply Setup
N
L
L O
M
C
C
Non-lubricated Tools
Lubricated
Tools
H
I
I
J
JKH
F
G
E
Slope
F
F
B
B
A
A
CD
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance
D Isolation Hose For vibration reduction
EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
GBranch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool
Page 8 For technical questions, please call 1-888-866-5797. Item 68247
SAFETY OPERATION MAINTENANCEINSTALLATION

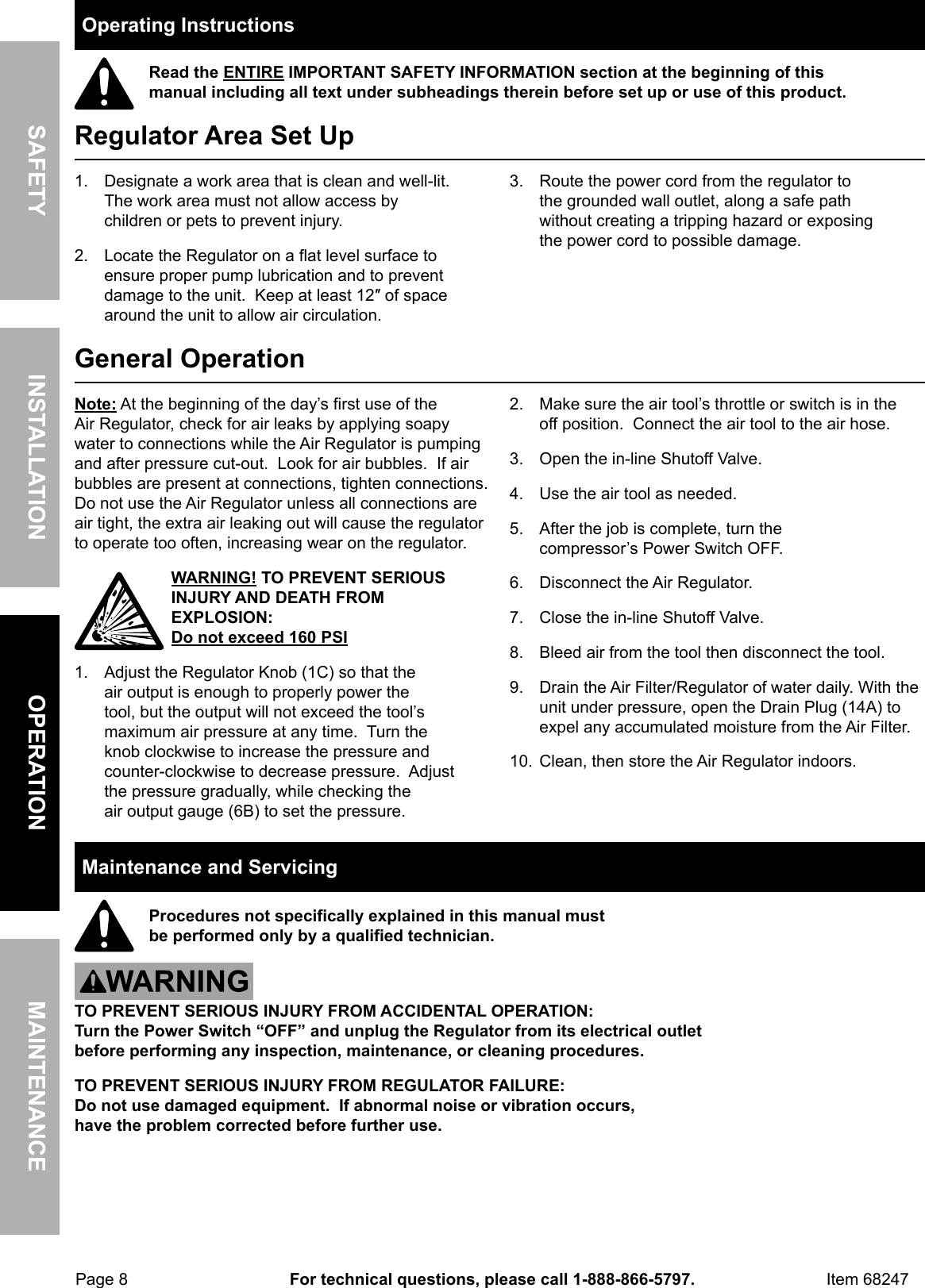

Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Regulator Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by
children or pets to prevent injury.
2. Locate the Regulator on a flat level surface to
ensure proper pump lubrication and to prevent
damage to the unit. Keep at least 12″ of space
around the unit to allow air circulation.
3. Route the power cord from the regulator to
the grounded wall outlet, along a safe path
without creating a tripping hazard or exposing
the power cord to possible damage.
General Operation
Note: At the beginning of the day’s first use of the
Air Regulator, check for air leaks by applying soapy
water to connections while the Air Regulator is pumping
and after pressure cut-out. Look for air bubbles. If air
bubbles are present at connections, tighten connections.
Do not use the Air Regulator unless all connections are
air tight, the extra air leaking out will cause the regulator
to operate too often, increasing wear on the regulator.
WARNING! TO PREVENT SERIOUS
INJURY AND DEATH FROM
EXPLOSION:
Do not exceed 160 PSI
1. Adjust the Regulator Knob (1C) so that the
air output is enough to properly power the
tool, but the output will not exceed the tool’s
maximum air pressure at any time. Turn the
knob clockwise to increase the pressure and
counter-clockwise to decrease pressure. Adjust
the pressure gradually, while checking the
air output gauge (6B) to set the pressure.
2. Make sure the air tool’s throttle or switch is in the
off position. Connect the air tool to the air hose.
3. Open the in-line Shutoff Valve.
4. Use the air tool as needed.
5. After the job is complete, turn the
compressor’s Power Switch OFF.
6. Disconnect the Air Regulator.
7. Close the in-line Shutoff Valve.
8. Bleed air from the tool then disconnect the tool.
9. Drain the Air Filter/Regulator of water daily. With the
unit under pressure, open the Drain Plug (14A) to
expel any accumulated moisture from the Air Filter.
10. Clean, then store the Air Regulator indoors.
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Regulator from its electrical outlet
before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM REGULATOR FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Page 9For technical questions, please call 1-888-866-5797.Item 68247
SAFETYOPERATIONMAINTENANCE INSTALLATION

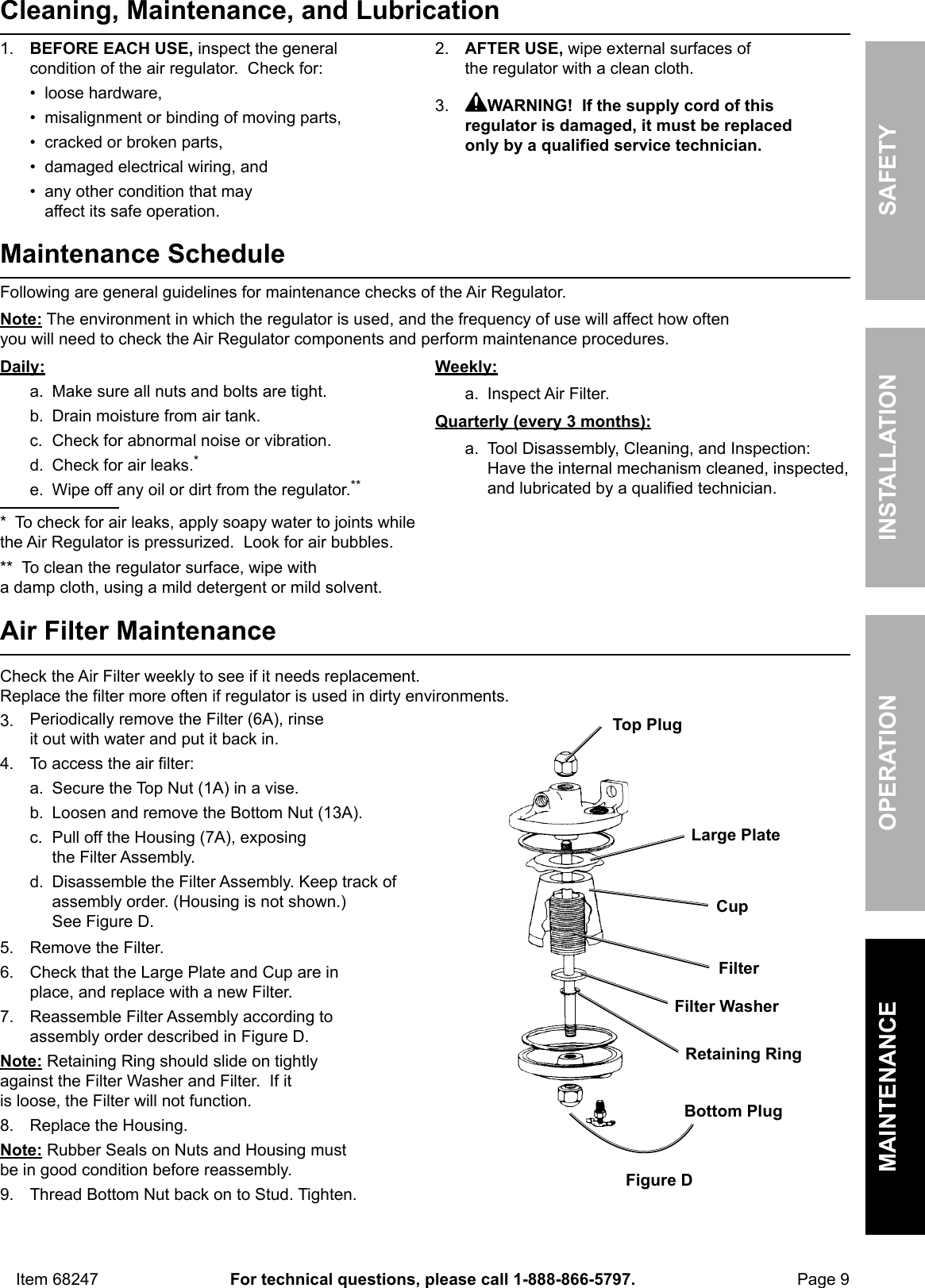

Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the air regulator. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of
the regulator with a clean cloth.
3. WARNING! If the supply cord of this
regulator is damaged, it must be replaced
only by a qualified service technician.
Maintenance Schedule
Following are general guidelines for maintenance checks of the Air Regulator.
Note: The environment in which the regulator is used, and the frequency of use will affect how often
you will need to check the Air Regulator components and perform maintenance procedures.
Daily:
a. Make sure all nuts and bolts are tight.
b. Drain moisture from air tank.
c. Check for abnormal noise or vibration.
d. Check for air leaks.*
e. Wipe off any oil or dirt from the regulator.**
* To check for air leaks, apply soapy water to joints while
the Air Regulator is pressurized. Look for air bubbles.
** To clean the regulator surface, wipe with
a damp cloth, using a mild detergent or mild solvent.
Weekly:
a. Inspect Air Filter.
Quarterly (every 3 months):
a. Tool Disassembly, Cleaning, and Inspection:
Have the internal mechanism cleaned, inspected,
and lubricated by a qualified technician.
Air Filter Maintenance
Check the Air Filter weekly to see if it needs replacement.
Replace the filter more often if regulator is used in dirty environments.
3. Periodically remove the Filter (6A), rinse
it out with water and put it back in.
4. To access the air filter:
a. Secure the Top Nut (1A) in a vise.
b. Loosen and remove the Bottom Nut (13A).
c. Pull off the Housing (7A), exposing
the Filter Assembly.
d. Disassemble the Filter Assembly. Keep track of
assembly order. (Housing is not shown.)
See Figure D.
5. Remove the Filter.
6. Check that the Large Plate and Cup are in
place, and replace with a new Filter.
7. Reassemble Filter Assembly according to
assembly order described in Figure D.
Note: Retaining Ring should slide on tightly
against the Filter Washer and Filter. If it
is loose, the Filter will not function.
8. Replace the Housing.
Note: Rubber Seals on Nuts and Housing must
be in good condition before reassembly.
9. Thread Bottom Nut back on to Stud. Tighten.
Top Plug
Bottom Plug
Large Plate
Cup
Filter
Filter Washer
Retaining Ring
Figure D
Page 10 For technical questions, please call 1-888-866-5797. Item 68247
SAFETY OPERATION MAINTENANCEINSTALLATION
Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List and Diagram A
Part Description
1A Top Nut
2A Filter Cap
3A Gasket
4A Large Plate
5A Cup
6A Filter
7A Housing
8A Filter Washer
9A Retaining Ring
10A Stud
11A Gasket
12A Filter Base
13A Bottom Nut
14A Drain Plug
1A
3A
4A
5A
6A
7A
8A
9A
10A
11A
12A
13A
14A
2A
Air inlet
port
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Page 11For technical questions, please call 1-888-866-5797.Item 68247
SAFETYOPERATIONMAINTENANCE INSTALLATION
Parts List and Diagram B
Part Description
1B Nipple
2B Elbow
3B Air Regulator
4B Plug
5B Air Valve
6B Gauge
1B
2B
5B
3B
4B
6B
Parts List and Diagram C
Part Description
1C Regulator Handle
2C Housing Cap
3C Spring Button
4C Spring
5C Spring Seat
6C O-Ring
7C Steel Plate
8C Brass Nut
9C O-Ring
10C Pin
11C Spring
12C Body
13C Screen
1C
2C
3C
4C
5C
6C
7C
8C
9C
10C
11C
12C
13C

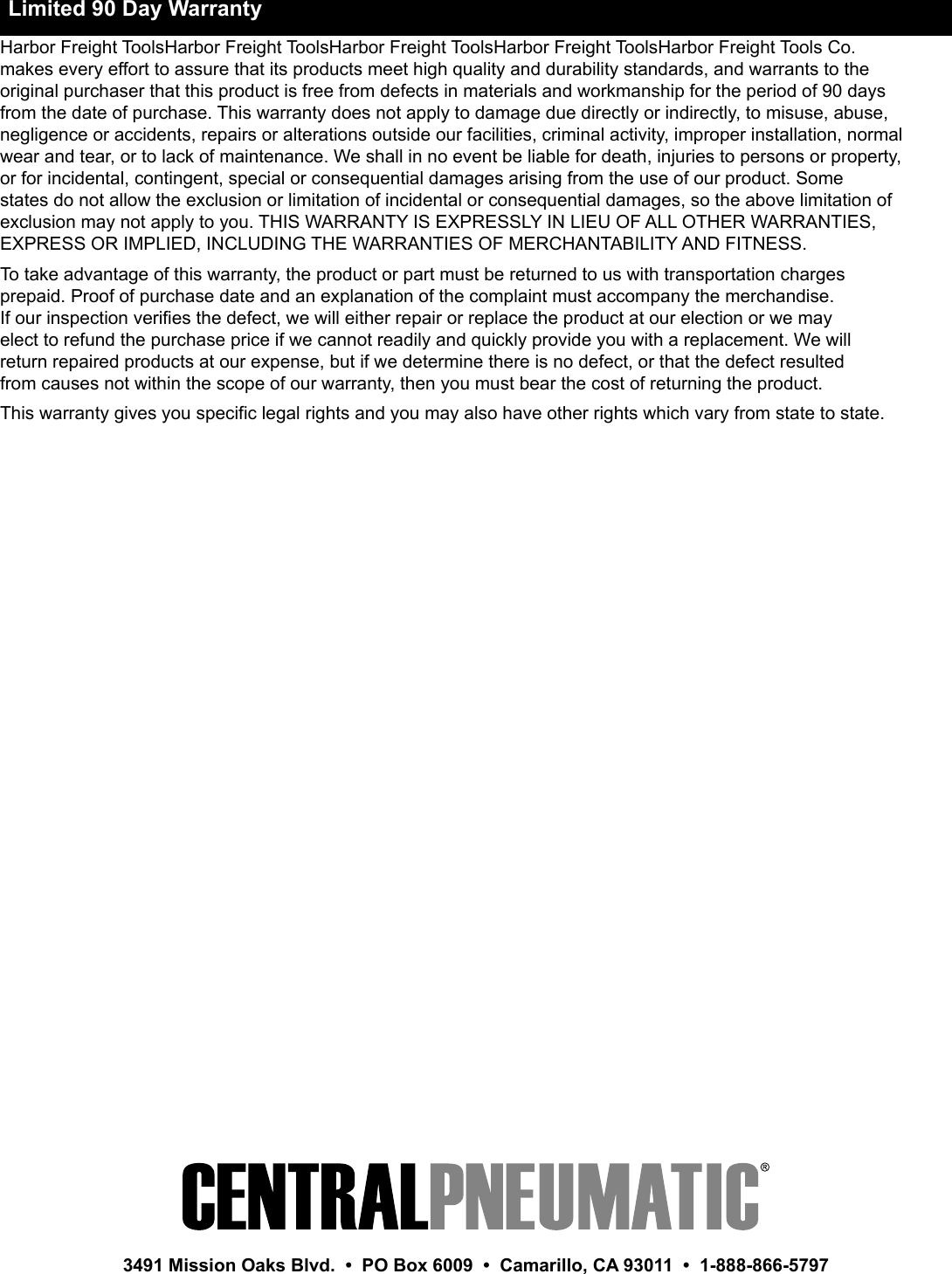

Limited 90 Day Warranty
Harbor Freight ToolsHarbor Freight ToolsHarbor Freight ToolsHarbor Freight ToolsHarbor Freight Tools Co.
makes every effort to assure that its products meet high quality and durability standards, and warrants to the
original purchaser that this product is free from defects in materials and workmanship for the period of 90 days
from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal
wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property,
or for incidental, contingent, special or consequential damages arising from the use of our product. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of
exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
