Owner’s Manual & Safety Instructions

Save This Manual%Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly a nd service may not be i ncluded.

I*,9%$."#%5,$*(",7%+*2&(*%'#"83%$."#%/(&9'4$1%

K,"7'(*%$&%9&%#&%4,8%(*#'7$%"8%#*("&'#%"8N'(H1%

F=!6%EO@F%D=>;=A1

I6!%PQ7

Page 2 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

E,+7*%&2%<&8$*8$#

Specifications ............................................. 2

Safety ......................................................... 3

Set Up......................................................... 7

Operation ................................................... 10

Maintenance .............................................. 13

Warranties ................................................. 20

Parts Lists and Diagrams .......................... 22

F/*4"2"4,$"&8#

Engine Type Vertical Single Cylinder 4 stroke OHV

EPA phase III and CARB compliant

Cooling System Forced air cooled

Fuel Type 87+ octane stabilizer treated

unleaded gasoline

Capacity 0.3 gallon (1.1 liter)

Engine Oil Type SAE 10W-30 above 32° F

5W30 at 32° F or below

Capacity 0.6 Quart

Run Time @ 50% Load

with full tank 40 minutes

Sound Level 104 dB

Bore x Stroke 70 mm x 45 mm

Displacement 173cc

Compression Ratio 8.5:1

Rotation viewed from PTO

(power takeoff - the output shaft) Counterclockwise

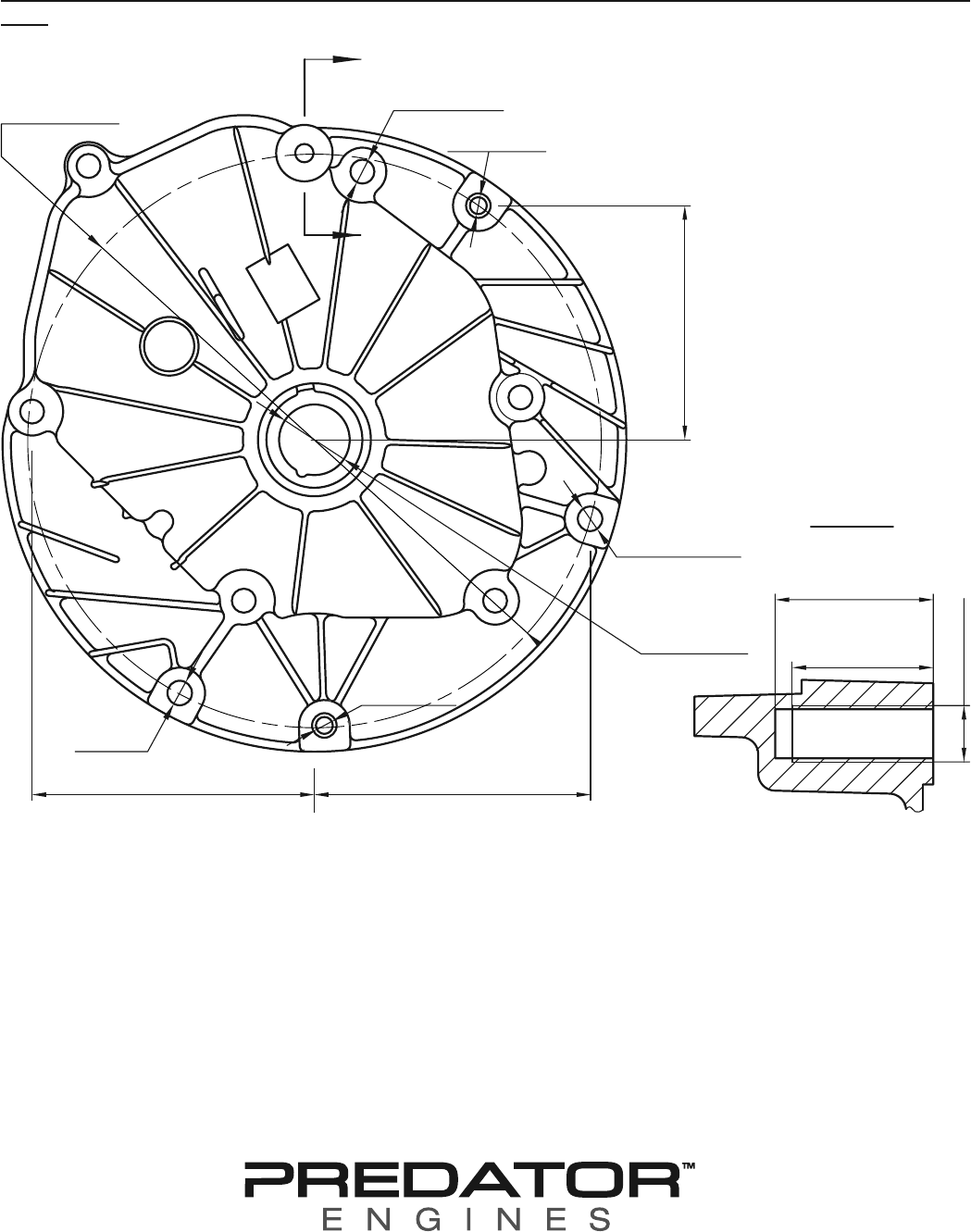

Mounting Base Pattern 8" (203mm); 3/8"-24 UNF tapped hole;

2 x 8.7mm through-hole

Shaft

Shaft dia. 7/8″ x 3.16″

Keyway 3/16″ (4.76 mm)

End Tapped 3/8″ - 24

Spark Plug Type

NGK® BP-6ES/BPR6ES

DENSO®: W16EPR-U/W16EP-U

CHAMPION®: RN9YC4

NHSP®: F7TC/F7RTC

TORCH®: F7TC/F7RTC

Gap 0.027" - 0.031"

Valve Clearance Intake 0.004" - 0.006"

Exhaust 0.006" - 0.008"

Speed Idle 1,800 ± 50 RPM

Page 3K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

Y=I>@>Z%FBD[CAF%=>L%L6K@>@E@C>F

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that

follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

F,2*$H%Y,(8"83#

FH5+&7%L*2"8"$"&8#

FH5+&7 X(&/*($H%&(%F$,$*5*8$

IXD Revolutions Per Minute

OX Horsepower

WARNING marking concerning

Risk of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

WARNING marking concerning

Risk of Hearing Loss.

Wear hearing protection.

FH5+&7 X(&/*($H%&(%F$,$*5*8$

WARNING marking concerning

Risk of Respiratory Injury.

Operate engine OUTSIDE and far away

from windows, doors, and vents.

WARNING marking concerning

Risk of Fire while handling fuel.

Do not smoke while handling fuel.

WARNING marking concerning

Risk of Fire.

Do not refuel while operating.

Keep ammable objects

away from engine.

% Y=I>@>Z\%I*,9%,77%"8#$('4$"&8#1

K,"7'(*%$&%2&77&)%,77%"8#$('4$"&8#%7"#$*9%+*7&)%5,H%(*#'7$%"8%2"(*J%#*("&'#%"8N'(H%,890&(%L6=EO1%

The warnings and precautions discussed in this manual cannot cover all possible conditions and

situations that may occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the operator.

F=!6%EO6F6%@>FEI;<E@C>F

F*$%'/%X(*4,'$"&8#

1. Gasoline fuel and fumes are flammable, and

potentially explosive. Use proper fuel storage

and handling procedures. Do not store fuel

or other flammable materials nearby.

2. Have multiple ABC class fire extinguishers nearby.

3. Operation of this equipment may create sparks

that can start fires around dry vegetation. A spark

arrestor may be required. The operator should

contact local fire agencies for laws or regulations

relating to fire prevention requirements.

4. Set up and use only on a flat, level,

well-ventilated surface.

5. Wear ANSI-approved safety goggles, heavy-duty

work gloves, and dust mask/respirator during set up.

6. Use only lubricants and fuel recommended

in the Specifications chart of this manual.

Page 4 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

C/*(,$"83%X(*4,'$"&8#

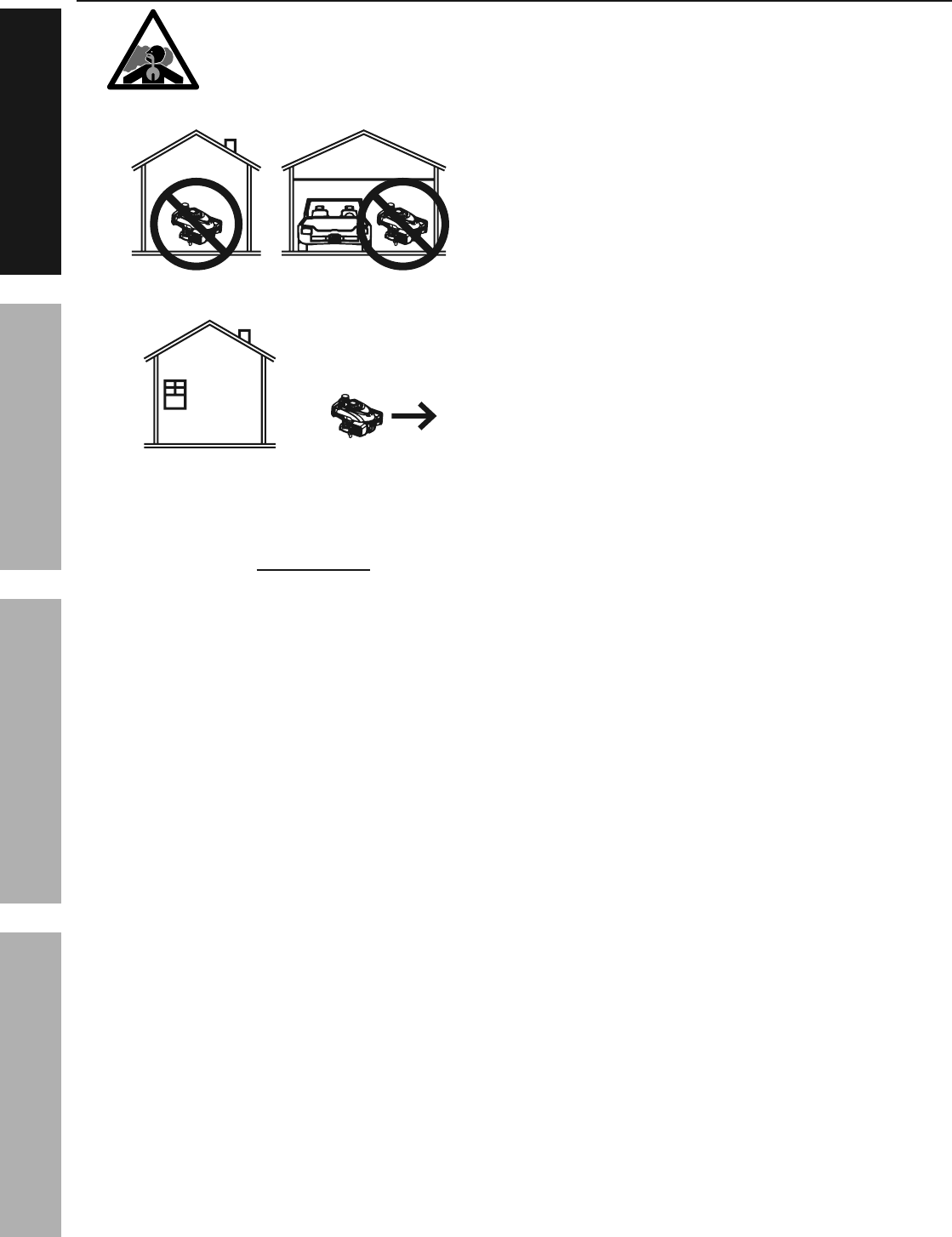

1. <=I[C>%DC>C]@L6%O=^=IL%

;#"83%,8%*83"8*%"89&&(#%%

<=>%?@AA%BC;%@>%D@>;E6F1%

Engine exhaust contains

carbon monoxide. This is a poison

you cannot see or smell.

NEVER use inside a home or garage, EVEN IF

doors and windows are open.

Only use OUTSIDE and far away from windows,

doors, and vents.

2. Keep children away from the equipment,

especially while it is operating.

3. Keep all spectators at least six feet

from the Engine during operation.

4. Fire Hazard! Do not fill gas tank while engine is

running. Do not operate if gasoline has been spilled.

Clean spilled gasoline before starting engine.

Do not operate near pilot light or open flame.

5. Do not touch engine during use.

Let engine cool down after use.

6. Never store fuel or other flammable

materials near the engine.

7. Only use a suitable means of transport and

lifting devices with sufficient weight bearing

capacity when transporting the Engine.

8. Secure the Engine on transport vehicles to

prevent the tool from rolling, slipping, and tilting.

9. Industrial applications must follow

OSHA requirements.

10. Do not leave the equipment unattended when it is

running. Turn off the equipment (and remove safety

keys, if available) before leaving the work area.

11. Engine can produce high noise levels.

Prolonged exposure to noise levels above 85

dBA is hazardous to hearing. Always wear

ear protection when operating or working

around the gas engine while it is operating.

12. Wear ANSI-approved safety glasses, hearing

protection, and NIOSH-approved dust mask/

respirator under a full face shield along

with steel-toed work boots during use.

13. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields

in close proximity to a heart pacemaker could

cause pacemaker interference or pacemaker

failure. Caution is necessary when near

the engine’s magneto or recoil starter.

14. Use only accessories that are recommended

by Harbor Freight Tools for your model.

Accessories that may be suitable for one

piece of equipment may become hazardous

when used on another piece of equipment.

15. Do not operate in explosive atmospheres,

such as in the presence of flammable

liquids, gases, or dust. Gasoline-powered

engines may ignite the dust or fumes.

16. Stay alert, watch what you are doing and

use common sense when operating this

piece of equipment. Do not use this piece

of equipment while tired or under the

influence of drugs, alcohol or medication.

17. Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the equipment in unexpected situations.

18. Use this equipment with both hands

only. Using equipment with only one hand

can easily result in loss of control.

19. Dress properly. Do not wear loose clothing or

jewelry. Keep hair, clothing and gloves away

from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

20. Parts, especially exhaust system components,

get very hot during use. Stay clear of hot parts.

21. Do not cover the engine or

equipment during operation.

22. Keep the equipment, engine, and

surrounding area clean at all times.

23. Do not smoke, or allow sparks, flames,

or other sources of ignition around the

equipment, especially when refuelling.

24. Use the equipment, accessories, etc., in

accordance with these instructions and in the

manner intended for the particular type of

equipment, taking into account the working

conditions and the work to be performed. Use of

the equipment for operations different from those

intended could result in a hazardous situation.

25. Do not operate the equipment with known

leaks in the engine’s fuel system.

Page 5K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

26. WARNING: This product contains or, when

used, produces a chemical known to the State

of California to cause cancer and birth defects

or other reproductive harm. (California Health

& Safety Code § 25249.5, et seq.)

27. When spills of fuel or oil occur, they must be

cleaned up immediately. Dispose of fluids and

cleaning materials as per any local, state, or

federal codes and regulations. Store oil rags in

a bottom-ventilated, covered, metal container.

28. Keep hands and feet away from moving

parts. Do not reach over or across

equipment while operating.

29. Before use, check for misalignment or binding of

moving parts, breakage of parts, and any other

condition that may affect the equipment’s operation.

@2%9,5,3*9J%.,M*%$.*%*R'"/5*8$%#*(M"4*9%

+*2&(*%'#"831 Many accidents are caused

by poorly maintained equipment.

30. Use the correct equipment for the application.

Do not modify the equipment and do not use the

equipment for a purpose for which it is not intended.

31. Follow equipment manufacturer’s

operation precautions.

F*(M"4*%X(*4,'$"&8#

1. [*2&(*%#*(M"4*J%5,"8$*8,84*J%&(%47*,8"83-

a. I*7*,#*%$.*%+(,_*%.,897*J%

#$&//"83%$.*%*83"8*1

b. =77&)%$.*%*83"8*%$&%4&5/7*$*7H%4&&71

c. E.*8J%(*5&M*%$.*%#/,(_%/7'3%

4,/%2(&5%$.*%#/,(_%/7'31

2. Keep all safety guards in place and in

proper working order. Safety guards include

muffler, air cleaner, mechanical guards,

and heat shields, among other guards.

3. L&%8&$%,7$*(%&(%,9N'#$%,8H%/,($%&2%$.*%

*R'"/5*8$%&(%"$#%*83"8*%$.,$%"#%#*,7*9%+H%$.*%

5,8'2,4$'(*(%&(%9"#$("+'$&(1%%C87H%,%R',7"2"*9%

#*(M"4*%$*4.8"4",8%5,H%,9N'#$%/,($#%$.,$%5,H%

"84(*,#*%&(%9*4(*,#*%3&M*(8*9%*83"8*%#/**91

4. Wear ANSI-approved safety goggles,

heavy-duty work gloves, and dust

mask/respirator during service.

5. Maintain labels and nameplates on the equipment.

These carry important information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

6. Have the equipment serviced by a qualified repair

person using only identical replacement parts.

This will ensure that the safety of the equipment

is maintained. Do not attempt any service or

maintenance procedures not explained in this

manual or any procedures that you are uncertain

about your ability to perform safely or correctly.

EO6%6>Z@>6%[I=?6%@F%KCI%6D6IZ6><B%

FO;ECKK`%LC%>CE%I6XA=<6%EO6%[I=?6%

FXI@>Z%Y@EO%=%Y6=?6I%FXI@>Z1

7. Store equipment out of the reach of children.

8. Follow scheduled engine and

equipment maintenance.

I*2'*7"83-

1. Do not refill the fuel tank while the

engine is running or hot.

2. Do not smoke, or allow sparks, flames,

or other sources of ignition around the

equipment, especially when refuelling.

3. Do not fill fuel tank to the top. Leave a little

room for the fuel to expand as needed.

4. Refuel in a well-ventilated area only.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

E&%/(*M*8$%K@I6J%9&%8&$%#$,($%$.*%*83"8*%

)."7*%$.*%#5*77%&2%2'*7%.,83#%"8%$.*%,"(1

%F=!6%EO6F6%@>FEI;<E@C>F1

Page 6 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

683"8*%<&5/&8*8$#

]]]]]]]]]]

F*(",7%%

>'5+*(%

A&4,$"&8%

aY("$*%&8%2(&8$%

4&M*(%&2%5,8',71b

F$,($*(%

O,897*

[(,_*%

=(5

E.(&$$7*

="(%

K"7$*(

X("5"83%

['7+

D'227*(

K'*7%<,/

L"/#$"4_

Page 7K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

F*$%;/

I*,9%$.*%6>E@I6%@DXCIE=>E%F=K6EB%@>KCID=E@C>%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%5,8',7%

"847'9"83%,77%$*G$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1

EC%XI6!6>E%F6I@C;F%@>c;IB-%

C/*(,$*%&87H%)"$.%/(&/*(%#/,(_%,((*#$&(%"8#$,77*91

C/*(,$"&8%&2%$."#%*R'"/5*8$%5,H%4(*,$*%#/,(_#%$.,$%4,8%#$,($%2"(*#%,(&'89%9(H%M*3*$,$"&81%%

=%#/,(_%,((*#$&(%5,H%+*%(*R'"(*91%%E.*%&/*(,$&(%#.&'79%4&8$,4$%7&4,7%2"(*%,3*84"*#%

2&(%7,)#%&(%(*3'7,$"&8#%(*7,$"83%$&%2"(*%/(*M*8$"&8%(*R'"(*5*8$#1

The emission control system for this Generator’s Engine is warranted for standards set by the U.S. Environmental

Protection Agency and by the California Air Resources Board (also known as CARB). For warranty information,

refer to the last pages of this manual.

Y=I>@>Z\%%LC%>CE%@>FE=AA%EO@F%6>Z@>6%C>%=%!6O@<A61%

>CE%KCI%O@ZOY=B%;F61%%KCAACY%=AA%=XXA@<=[A6%A=YF%KCI%@>FE=AA=E@C>%=>L%;F61

Page 8 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

O"3.%=7$"$'9*%C/*(,$"&8%=+&M*%deee%2**$

Y=I>@>Z\ EC%XI6!6>E%F6I@C;F%@>c;IB%KICD%K@I6-

Follow instructions in a well-ventilated area away from ignition sources.

If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke.

>CE@<6 Warranty void if necessary adjustments are not made for high altitude use.

At high altitudes, the engine’s carburetor, governor (if so equipped), and any other parts that control the fuel-air

ratio will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and to prevent damage

to the engine and any other devices used with this product. The fuel system on this engine may be influenced by

operation at higher altitudes. Proper operation can be ensured by installing an altitude kit at altitudes higher than

3000 ft. above sea level. At elevations above 8000 ft, the engine may experience decreased performance, even

with the proper main jet. Operating this engine without the proper altitude kit installed may increase the engine’s

emissions and decrease fuel economy and performance. The kit should be installed by a qualified mechanic.

1. Turn off the engine.

2. Close the fuel valve.

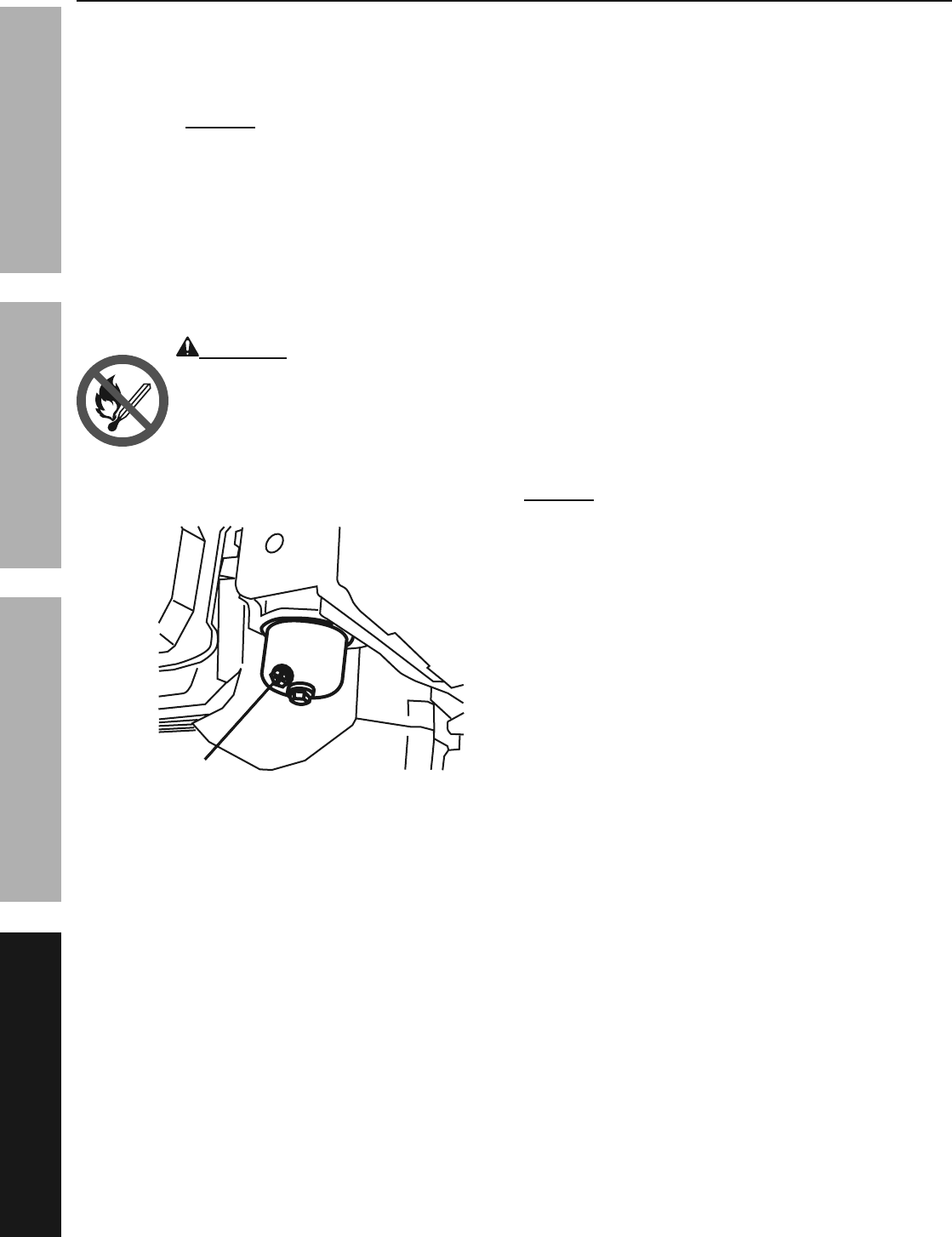

3. Place a bowl under the fuel cup to catch any spilled fuel.

<=;E@C>\ Carburetor bowl may have gas in it

which will leak upon removing the bolt.

4. Unthread the bolt holding the fuel cup.

5. Remove the bolt, Bolt Seal, fuel cup, Fuel Cup Seal and Main Jet from

the body of the carburetor assembly.

A carburetor screwdriver (not included) is needed

to remove and install the Main Jet.

>&$*- The mixing tube is held in place by the Main Jet and

might fall out when it is removed. If it falls out, replace it in

the same orientation before replacing the Main Jet.

6. Replace the Main Jet with the replacement Main Jet

needed for your altitude range (part 1a or 2a).

>&$*- The Fuel Cup Seal and Bolt Seal may be damaged during

removal and should be replaced with the new ones from the kit.

7. Replace the Fuel Cup Seal (4a), fuel cup,

Bolt Seal (3a), and bolt. Tighten in place.

>CE@<6- Do not cross thread bolt when tightening.

Finger tighten first and then use a wrench to make sure the bolt is properly threaded.

8. Wipe up any spilled fuel and allow excess to evaporate before starting engine.

To prevent FIRE, do not start the engine while the smell of fuel hangs in the air.

O"3.%=7$"$'9*%?"$%X,($#%A"#$%S%=

X,($ L*#4("/$"&8 f$H

1a Main Jet 3000-6000 ft. 1

2a Main Jet 6000-8000 ft. 1

3a Bolt Seal 1

4a Fuel Cup Seal 2

<,(+'(*$&(%

=##*5+7H

D,"8%c*$

K'*7%<'/%F*,7

D"G"83%E'+*

a5"3.$%(*5,"8%

"8#"9*%4,(+'(*$&(b

K'*7%<'/

[&7$%F*,7

[&7$

Page 9K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

@8#$,77,$"&8

1. @DXCIE=>E-%%If you have any doubts about your

ability to perform the following procedures, have a

qualified service technician perform the installation.

2. Install this engine on a lawn mower only.

Do not use to power a vehicle.

3. Mounting hole locations:

a. one 3/8 in. x 24 threaded; 1 in. deep

b. two Ø0.34 in. / 8.7mm unthreaded

(use 5/16 in. / 8mm diameter hardware)

4. Set the Engine upright on the mower,

and align at least three engine mounting

holes with mower mounting holes.

>CE6-%%Depending on the mower, it may be necessary

to drill mounting holes or make a mounting plate

to align with the engine mounting holes. Only a

qualified technician should attempt these solutions.

5. Use hardened, stainless steel Bolts, Lock Washers,

and Washers (not included) of appropriate length

and diameter to secure the Engine to the mower.

D,_*%#'(*%$.*%.,(9),(*%)"77%8&$%4&8$,4$%

5&M"83%/,($#%9'("83%&/*(,$"&81

6. Insert the mower’s brake cable sheath through the

hole in the Brake bracket. Secure the mower brake

cable to the brake arm. Adjust the brake cable

sheath to remove all slack and secure it in place

using the adjusting nuts on the cable sheath, as

shown in the illustration below.%

EO6%6>Z@>6%[I=?6%@F%KCI%6D6IZ6><B%

FO;ECKK`%LC%>CE%I6XA=<6%EO6%[I=?6%

FXI@>Z%Y@EO%=%Y6=?6I%FXI@>Z1%%

@2%&/*(,$"83%$.*%*83"8*%+(,_*%"#%$&&%

9"22"4'7$J%,%R',7"2"*9%$*4.8"4",8%5'#$%"8#$,77%

,%9"22*(*8$%+(,_*%.,897*%&8%$.*%5&)*(1

>&$*- The brake cable on some mowers may

need to be adjusted in a different manner. Install

according to mower manufacturer’s instructions.

[(,_*%

=(5

E.(&$$7*%

<&8$(&7

[(,_*%

<,+7*

[(,_*%

<,+7*%

[(,4_*$

E.(&$$7*%

<,+7*

[(,4_*$%

,89%

[&7$

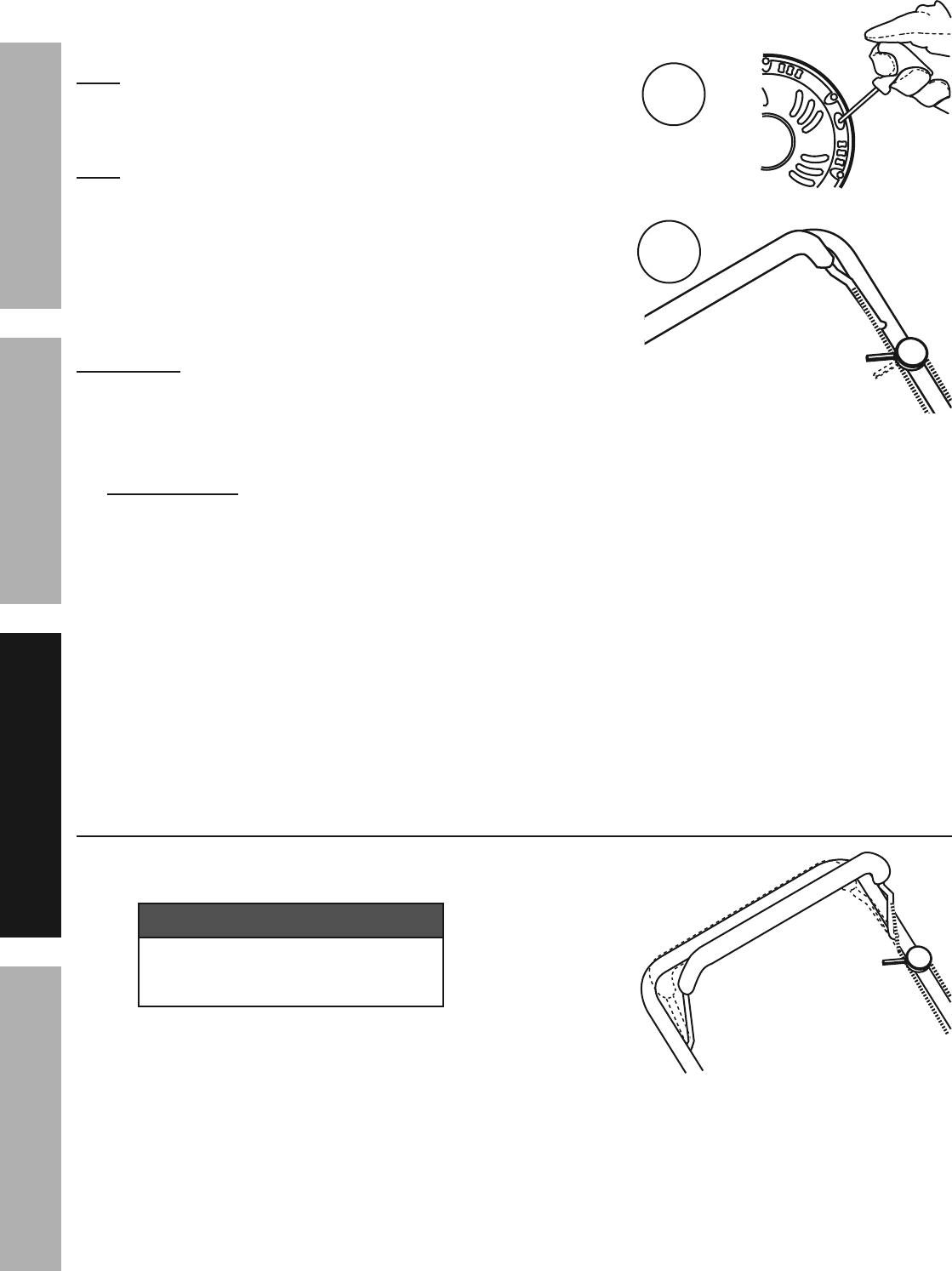

Attach the end of the mower’s Throttle Cable to

the Throttle Control. Use the Bracket and Bolt

to secure its sheath in place as shown above.

8. Refer to the mower’s service manual for instructions

on how to properly attach a belt drive pulley, chain

drive gear, etc. onto the output shaft of the Engine.

Page 10 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

C/*(,$"&8

% I*,9%$.*%6>E@I6%@DXCIE=>E%F=K6EB%@>KCID=E@C>%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%

5,8',7%"847'9"83%,77%$*G$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1

X(*SF$,($%<.*4_#

Inspect engine and equipment looking for damaged, loose, and missing parts before set up and starting. If any

problems are found, do not use equipment until fixed properly.

<.*4_"83%,89%K"77"83%683"8*%C"7

>CE@<6-%%B&'(%Y,((,8$H%"#%!C@L%"2%$.*%*83"8*g#%

4(,8_4,#*%"#%8&$%/(&/*(7H%2"77*9%)"$.%&"7%+*2&(*%

*,4.%'#*1%%[*2&(*%*,4.%'#*J%4.*4_%$.*%&"7%7*M*71

Engine%)"77%8&$%#$,($%)"$.%7&)%&(%8&%*83"8*%&"71

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

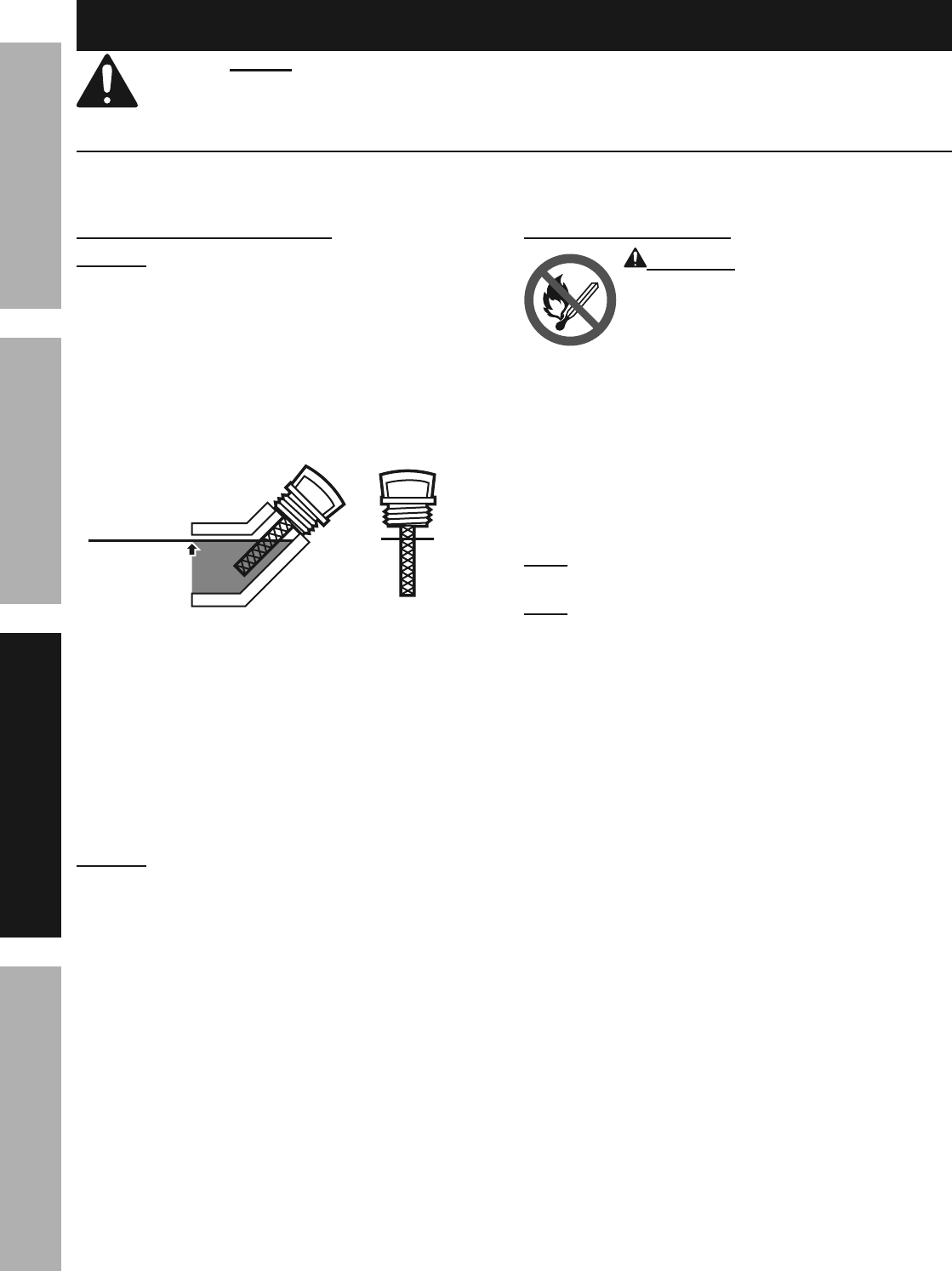

3. Clean the top of the Dipstick and the area around it.

Remove the Dipstick by turning it counterclockwise,

and wipe it off with a clean, lint free rag.

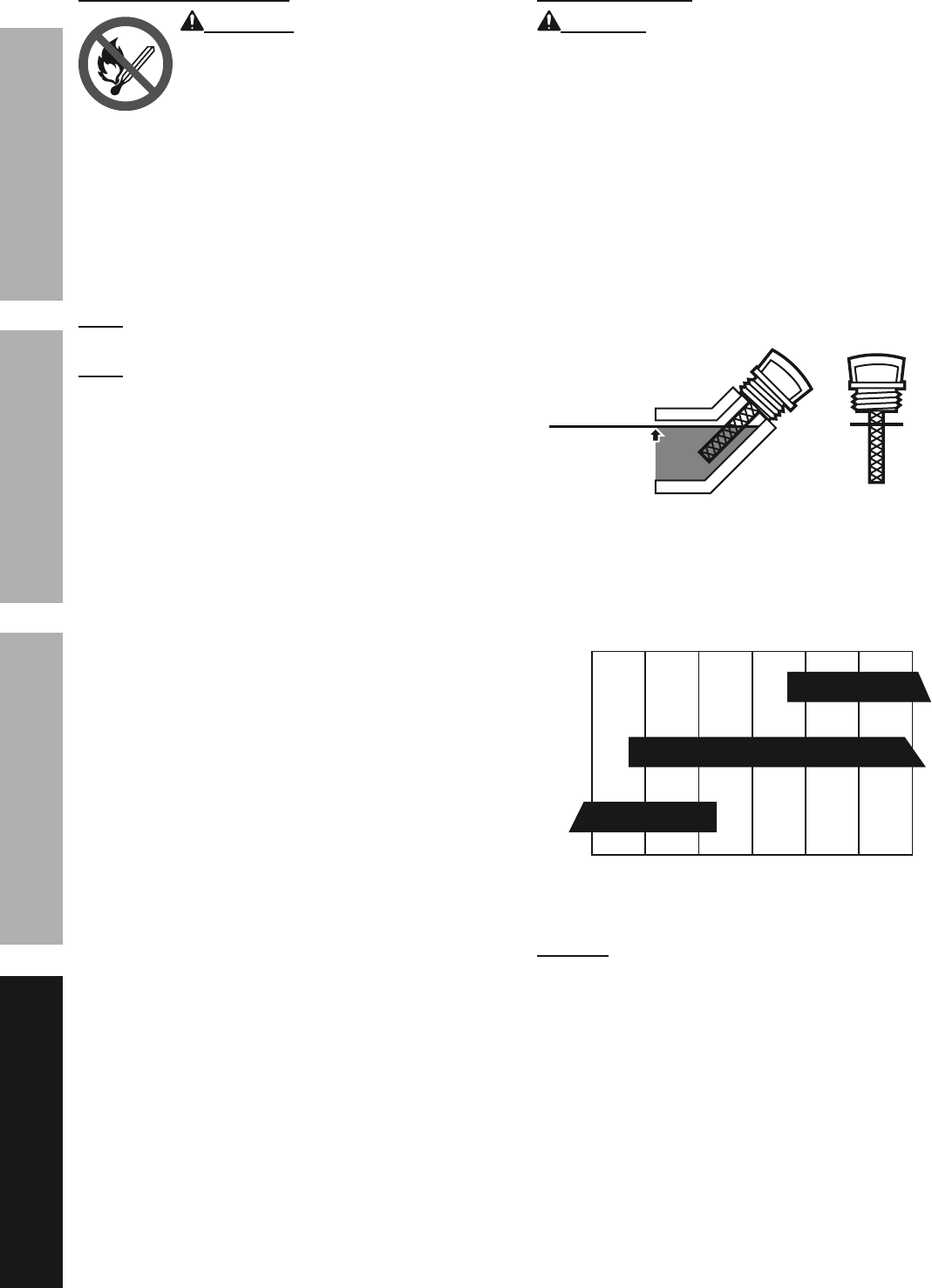

Full level

Reinsert the Dipstick without threading it in and

remove it to check the oil level. The oil level

should be up to the full level as shown above.

5. If the oil level is at or below the low mark add the

appropriate type of oil until the oil level is at the

proper level. SAE 10W-30 oil is recommended for

general use. (The SAE Viscosity Grade chart on

page 6 in the Maintenance section shows other

viscosities to use in different average temperatures.)

6. Thread the dipstick back in clockwise.

>CE@<6-%%L&%8&$%('8%$.*%*83"8*%)"$.%$&&%7"$$7*%&"71

Engine%)"77%#.'$%&22%"2%*83"8*%&"7%7*M*7%"#%$&&%7&)1

<.*4_"83%,89%K"77"83%K'*7

Y=I>@>Z\ TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the engine

is hot from use, shut the engine off and

wait for it to cool before adding fuel. Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

>&$*-%%L&%8&$%'#*%3,#&7"8*%4&8$,"8"83%5&(*%$.,8%

Peh%*$.,8&7%a6Peb1%%L&%8&$%'#*%6TU%*$.,8&71

>&$*-%%L&%8&$%'#*%3,#&7"8*%$.,$%.,#%+**8%#$&(*9%"8%,%

5*$,7%2'*7%4&8$,"8*(%&(%,%9"($H%2'*7%4&8$,"8*(1%%@$%4,8%

4,'#*%/,($"47*#%$&%*8$*(%$.*%4,(+'(*$&(J%*22*4$"83%

*83"8*%/*(2&(5,84*%,890&(%4,'#"83%9,5,3*1

4. Then replace the Fuel Cap.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine. To

prevent FIRE, do not start the engine while

the smell of fuel hangs in the air.

Page 11K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

F$,($"83%$.*%683"8*

[*2&(*%F$,($"83%$.*%683"8*-

a. K&77&)%$.*%F*$%;/%@8#$('4$"&8#%"8%$.*%*R'"/5*8$%

5,8',7%$&%/(*/,(*%$.*%*R'"/5*8$1

b. @8#/*4$%$.*%*R'"/5*8$%,89%*83"8*1

c. K"77%$.*%*83"8*%)"$.%$.*%/(&/*(%,5&'8$%,89%$H/*%&2%

+&$.%#$,+"7"i*(S$(*,$*9%'87*,9*9%3,#&7"8*%,89%&"71

d. I*,9%$.*%6R'"/5*8$%C/*(,$"&8%#*4$"&8%

"8%$.*%*R'"/5*8$%5,8',71

e. D&M*%$.*%5&)*(%$&%,%7&4,$"&8%$.,$%"#%27,$J%7*M*7J%,89%

2(**%2(&5%7&&#*%&+N*4$#%a#'4.%,#%(&4_#%&(%#$"4_#b1%%

E.*%5&)*(%5,H%+*%9"22"4'7$%$&%#$,($%&8%3(,##1

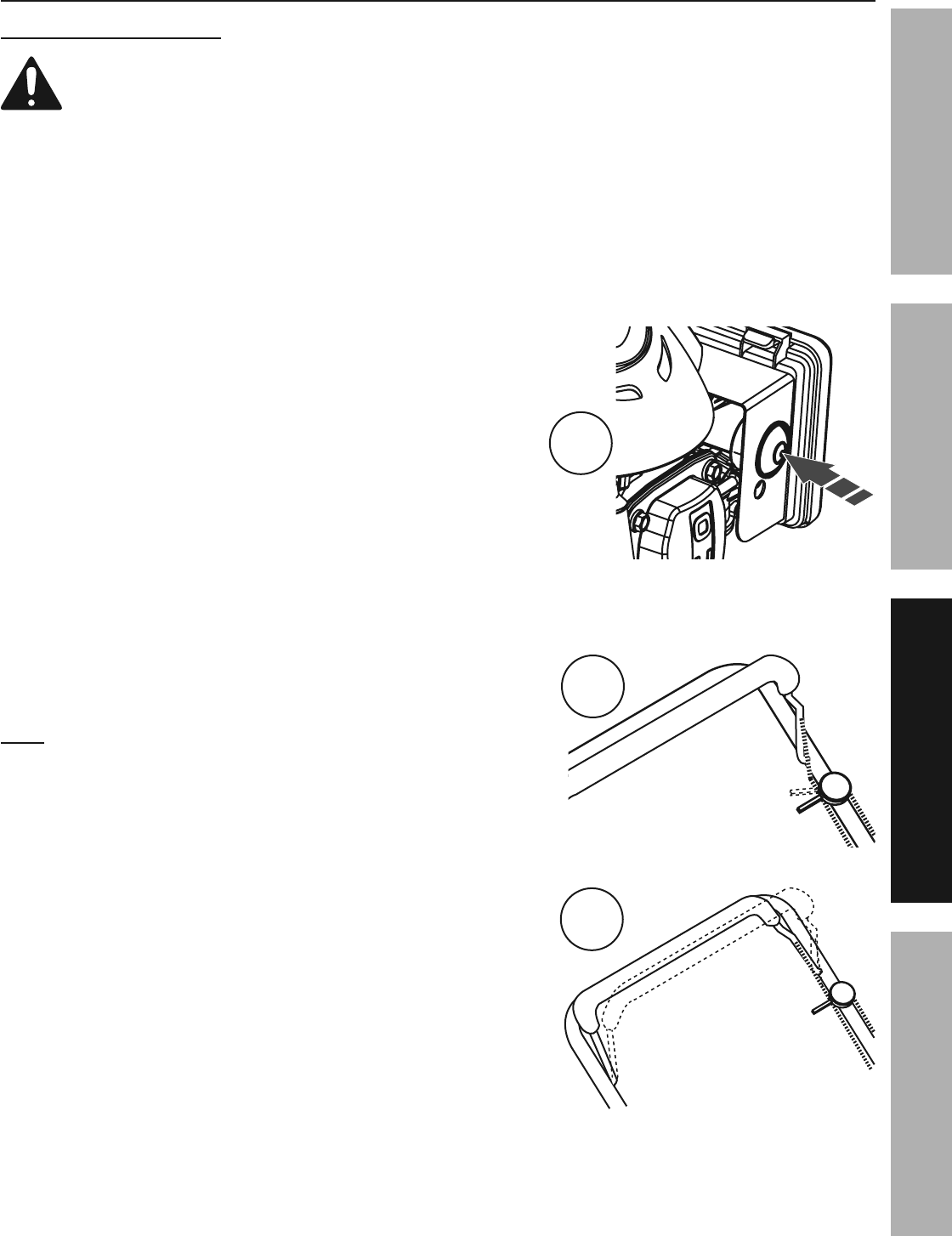

1. Press the Priming Bulb 2-3 times to prime the engine.

2. Adjust the Mower’s Throttle control to full throttle.

>&$*- Location, operation, and design of the Throttle

control will vary from manufacturer to manufacturer.

3. Hold the mower’s brake handle closed.

Page 12 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

4. Grip the Starter Handle of the Engine loosely and pull it

gently until resistance is felt. Allow Cable to retract fully

and then pull it quickly. Repeat until the engine starts.

>&$*- Do not let the Starter Handle snap back against the

engine. Hold it as it recoils so it doesn’t hit the engine.

>&$*- If engine does not start, check engine oil level.

Engine will not start with low or no engine oil.

5. Allow the Engine to run for several seconds.

Then, the Mower’s Throttle control can be

adjusted as desired for operation.

@DXCIE=>E- Allow the engine to run at

no load for a minute or two after each start-up

so that the engine can stabilize.

6. [(*,_S"8%X*("&9-

a. Breaking-in the engine will help to ensure proper equipment and engine operation.

b. The operational break-in period will last about 3 hours of use. During this period:

• Do not apply a heavy load to the equipment.

c. The maintenance break-in period will last about 20 hours of use. After this period:

• Change the engine oil.

Under normal operating conditions subsequent maintenance follows the

schedule explained in the MAINTENANCE AND SERVICING section.

F$&//"83%$.*%683"8*

To stop the engine, release the brake handle.

NOTICE

See Long-Term Storage chart

on page 16 for complete

storage instructions.

Page 13K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

D,"8$*8,84*

Y=I>@>Z

EC%XI6!6>E%F6I@C;F%@>c;IB%KICD%=<<@L6>E=A%FE=IE@>Z-%

I*7*,#*%$.*%+(,_*%.,897*J%),"$%2&(%$.*%*83"8*%$&%4&&7J%,89%9"#4&88*4$%$.*%#/,(_%/7'3%

4,/%+*2&(*%/*(2&(5"83%,8H%"8#/*4$"&8J%5,"8$*8,84*J%&(%47*,8"83%/(&4*9'(*#1

EC%XI6!6>E%F6I@C;F%@>c;IB%KICD%6f;@XD6>E%K=@A;I6-%

L&%8&$%'#*%9,5,3*9%*R'"/5*8$1%%@2%,+8&(5,7%8&"#*J%M"+(,$"&8J%&(%*G4*##%

#5&_"83%&44'(#J%.,M*%$.*%/(&+7*5%4&((*4$*9%+*2&(*%2'($.*(%'#*1

K&77&)%,77%#*(M"4*%"8#$('4$"&8#%"8%$."#%5,8',71%%E.*%*83"8*%5,H%2,"7%4("$"4,77H%"2%8&$%#*(M"4*9%/(&/*(7H1

D,8H%5,"8$*8,84*%/(&4*9'(*#J%"847'9"83%,8H%8&$%9*$,"7*9%"8%$."#%5,8',7J%)"77%8**9%$&%+*%

/*(2&(5*9%+H%,%R',7"2"*9%$*4.8"4",8%2&(%#,2*$H1%%@2%H&'%.,M*%,8H%9&'+$#%,+&'$%H&'(%,+"7"$H%$&%#,2*7H%

#*(M"4*%$.*%*R'"/5*8$%&(%*83"8*J%.,M*%,%R',7"2"*9%$*4.8"4",8%#*(M"4*%$.*%*R'"/5*8$%"8#$*,91

<7*,8"83J%D,"8$*8,84*J%,89%A'+("4,$"&8%F4.*9'7*

>&$*- This maintenance schedule is intended solely as a general guide. If performance decreases or if

equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment

will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.

>&$*- The following procedures are in addition to the regular checks and maintenance

explained as part of the regular operation of the engine and equipment.

X(&4*9'(* [*2&(*%

6,4.%;#*

D&8$.7H%&(%

*M*(H%je%

.(1%&2%'#*

6M*(H%d%5&1%&(%

Ue%.(1%&2%'#*

6M*(H%Q%5&1%&(%

Pee%.(1%&2%'#*%

B*,(7H%&(%%

*M*(H%dee%

.(1%&2%'#*

6M*(H%

j%B*,(#

Brush off outside of engine

Check engine oil level

Check air cleaner

Check deposit cup

Change engine oil

Clean/replace air cleaner *

Check and clean spark plug

1. Check/adjust idle speed

2. Check/adjust valve clearance

3. Clean fuel tank, strainer

and carburetor

4. Clean carbon build-up from

combustion chamber

** **

Replace fuel line if necessary **

*Service more frequently when used in dusty areas.

**These items should be serviced by a qualified technician.

Page 14 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

<.*4_"83%,89%K"77"83%K'*7

Y=I>@>Z\ EC%XI6!6>E%F6I@C;F%

@>c;IB%KICD%K@I6-

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the engine is

hot from use, shut the engine off and wait

for it to cool before adding fuel. Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

>&$*-%%L&%8&$%'#*%3,#&7"8*%4&8$,"8"83%5&(*%$.,8%

Peh%*$.,8&7%a6Peb1%%L&%8&$%'#*%6TU%*$.,8&71

>&$*-%%L&%8&$%'#*%3,#&7"8*%$.,$%.,#%+**8%#$&(*9%"8%,%

5*$,7%2'*7%4&8$,"8*(%&(%,%9"($H%2'*7%4&8$,"8*(1%%@$%4,8%

4,'#*%/,($"47*#%$&%*8$*(%$.*%4,(+'(*$&(J%*22*4$"83%

*83"8*%/*(2&(5,84*%,890&(%4,'#"83%9,5,3*1

4. Then replace the Fuel Cap.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine. To

prevent FIRE, do not start the engine while

the smell of fuel hangs in the air.

683"8*%C"7%<.,83*

<=;E@C>\ Oil is very hot during operation and can

cause burns. Wait for engine to cool before changing oil.

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

3. Place a drain pan (not included) underneath

the crankcase’s drain plug.

4. Remove the drain plug and, if possible,

tilt the crankcase slightly to help drain

the oil out. Recycle used oil.

5. Replace the drain plug and tighten it.

6. Clean the top of the Dipstick and the area around it.

Remove the Dipstick by turning it counterclockwise,

and wipe it off with a clean, lint free rag.

Full level

7. Add the appropriate type of oil until the oil level is at

the full level. SAE 10W-30 oil is recommended for

general use.

The SAE Viscosity Grade chart shows other

viscosities to use in different average temperatures.

PeYSde

UYSde

-20 0 20 40 60 80 100°F

F=6%!"#4&#"$H%Z(,9*#

=M*(,3*%&'$9&&(%$*5/*(,$'(*

8. Thread the dipstick back in clockwise.

>CE@<6-%%L&%8&$%('8%$.*%*83"8*%)"$.%$&&%7"$$7*%&"71

Engine%)"77%8&$%#$,($%)"$.%7&)%&(%8&%*83"8*%&"71

Page 15K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

="(%K"7$*(%67*5*8$%D,"8$*8,84*

1. Remove the air filter cover and the air filter elements

and check for dirt. Clean as described below.

2. <7*,8"83-

• For “paper” filter elements:

To prevent injury from dust and debris,

wear ANSI-approved safety goggles,

NIOSH-approved dust mask/respirator, and

heavy-duty work gloves. In a well-ventilated

area away from bystanders, use pressurized

air to blow dust out of the air filter.

• For foam filter elements:

Wash the element in warm water and

mild detergent several times. Rinse.

Squeeze out excess water and allow it to dry

completely. Soak the filter in lightweight oil

briefly, then squeeze out the excess oil.

3. Install the cleaned filter. Secure the

Air Cleaner Cover before use.

F/,(_%X7'3%D,"8$*8,84*

F/,(_%

X7'3%

<,/

Disconnect spark plug cap from end of plug.

Clean out debris from around spark plug.

2. Using a spark plug wrench, remove the spark plug.

3. Inspect the spark plug:

If the electrode is oily, clean it using a clean, dry rag.

If the electrode has deposits on it, polish it using

emery paper. If the white insulator is cracked or

chipped, the spark plug needs to be replaced.

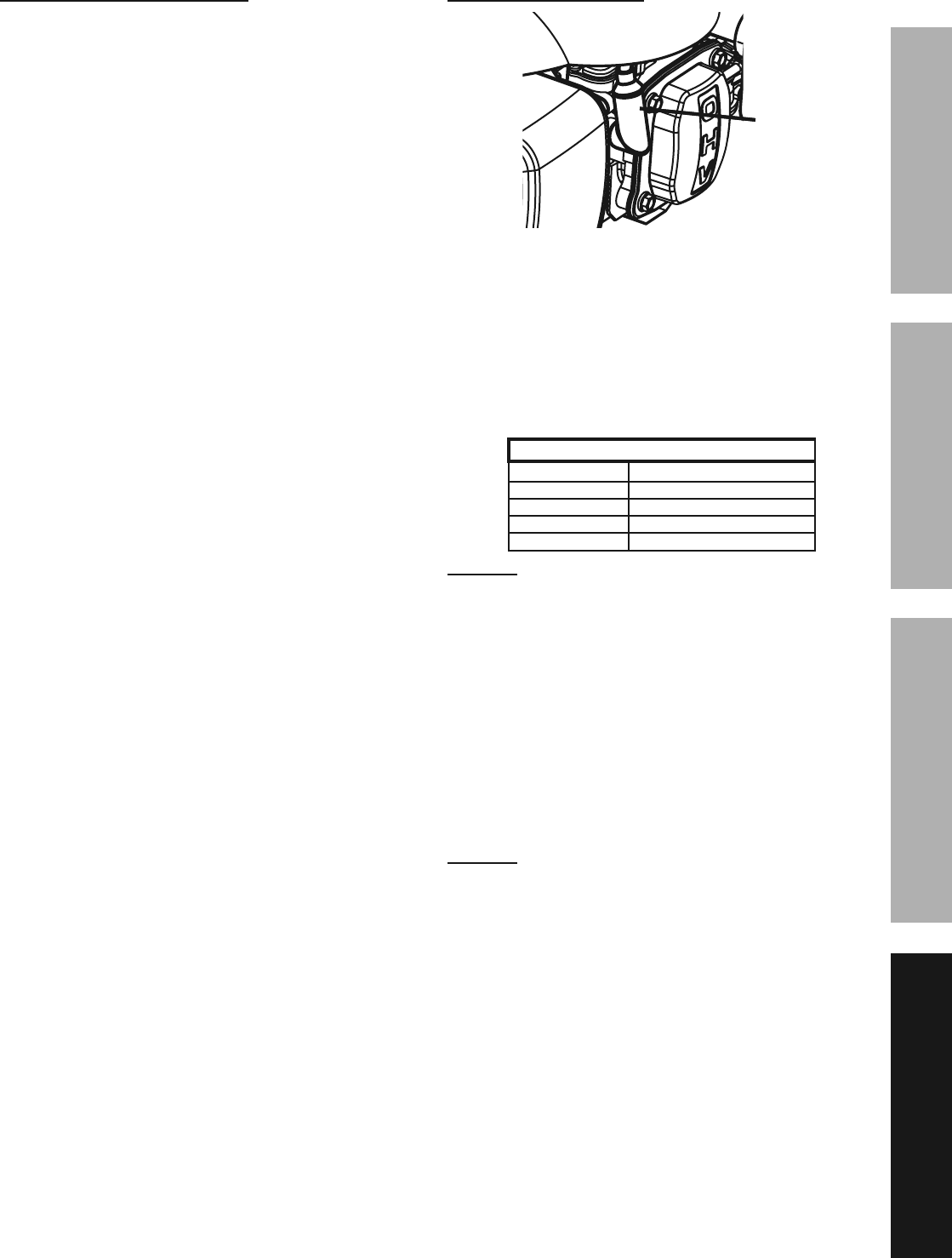

I*4&55*89*9%F/,(_%X7'3#

[(,89 X7'3

NGK®BP-6ES/BPR6ES

NHSP® / TORCH®F7TC/F7RTC

DENSO®W16EPR-U/W16EP-U

CHAMPION®RN9YC4

>CE@<6- Using an incorrect spark

plug may damage the engine.

4. When installing a new spark plug, adjust

the plug’s gap to the specification on the

Specifications chart. Do not pry against the

electrode, the spark plug can be damaged.

5. Install the new spark plug or the cleaned spark plug

into the engine.

Gasket-style: Finger-tighten until the gasket

contacts the cylinder head, then about 1/2-2/3 turn

more.

Non-gasket-style: Finger-tighten until the plug

contacts the head, then about 1/16 turn more.

>CE@<6- Tighten the spark plug properly.

If loose, the spark plug will cause the engine

to overheat. If overtightened, the threads

in the engine block will be damaged.

6. Apply dielectric spark plug boot protector

(not included) to the end of the spark

plug and reattach the wire securely.

Page 16 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

A&83SE*(5%F$&(,3*

When the equipment is to remain idle for longer than 20

days, prepare the Engine for storage as follows:

1. <A6=>@>Z:

Wait for Engine to cool, then clean Engine with

dry cloth. >CE@<6- L&%8&$%47*,8%'#"83%),$*(1

The water will gradually enter the Engine

and cause rust damage. Apply a thin coat

of rust preventive oil to all metal parts.

2. K;6A-

To protect the fuel tank during storage, fill the

tank with gasoline that has been treated with

a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use. Refer

to Checking and Filling Fuel on page 10.

Y=I>@>Z\ EC%XI6!6>E%F6I@C;F%

@>c;IB%KICD%K@I6-

Fill tank in a well-ventilated area away from

ignition sources. If the engine is hot from

use, shut the engine off and wait for it to

cool before adding fuel. Do not smoke.

a. Place a funnel leading to a proper gasoline

container below the carburetor.

L(,"8%X7'3

b. Remove the drain bolt from the bottom of the

carburetor bowl and allow the fuel to drain.

c. After all fuel has drained, reinstall the

drain bolt. Tighten securely.

3. A;[I@<=E@C>-

a. Change engine oil.

b. Clean out area around spark plug.

Remove spark plug and pour one tablespoon of

engine oil into cylinder through spark plug hole.

c. Replace spark plug, but leave

spark plug cap disconnected.

d. Pull Starter Handle to distribute oil in cylinder.

Stop after one or two revolutions when you

feel the piston start the compression stroke

(when you start to feel resistance).

4. FECI=Z6%=I6=-%

Cover and store in a dry, level, well-ventilated

area out of reach of children. Storage area should

also be away from ignition sources, such as

water heaters, clothes dryers, and furnaces.

>CE@<6- During extended storage periods the

Engine must be started every 3 months and allowed

to run for 15 – 20 minutes or the Warranty is VOID.

5. =KE6I%FECI=Z6-%

Before starting the Engine during or after

storage, keep in mind that untreated gasoline

will deteriorate quickly. Drain the fuel

tank and change to fresh fuel if untreated

gasoline has been sitting for a month, if

treated gasoline has been sitting beyond the

fuel stabilizer’s recommended time period,

or if the Engine does not start.

Page 17K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

E(&'+7*#.&&$"83

X(&+7*5 X&##"+7*%<,'#*# X(&+,+7*%F&7'$"&8#

Engine will not start FUEL RELATED:

1. No fuel in tank or fuel valve closed.

2. Choke not in START position, cold engine.

3. Gasoline with more than 10% ethanol used.

(E15, E20, E85, etc.)

4. Low quality or deteriorated, old gasoline.

5. Carburetor not primed.

6. Dirty fuel passageways.

7. Carburetor needle stuck.

Fuel can be smelled in the air.

8. Too much fuel in chamber. This can be caused

by the carburetor needle sticking.

9. Clogged Fuel Filter.

FUEL RELATED:

1. Fill fuel tank with fresh 87+ octane stabilizer-

treated unleaded gasoline and open fuel

valve.%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

2. Move Choke to START position.

3. Clean out ethanol rich gasoline from fuel

system. Replace components damaged by

ethanol. Use fresh 87+ octane stabilizer-

treated unleaded gasoline only. %%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

4. Use fresh 87+ octane stabilizer-treated

unleaded gasoline.%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

5. Pull on Starter Handle to prime.

6. Clean out passageways using fuel additive.

Heavy deposits may require further cleaning.

7. Z*8$7H tap side of carburetor oat

chamber with screwdriver handle.

8. Turn Choke to RUN position. Remove

spark plug and pull the start handle several

times to air out the chamber. Reinstall

spark plug and set Choke to START position.

9. Replace Fuel Filter.

IGNITION (SPARK) RELATED:

1. Spark plug cap not connected securely.

2. Spark plug electrode wet or dirty.

3. Incorrect spark plug gap.

4. Spark plug cap broken.

5. Incorrect spark timing or faulty ignition system.

IGNITION (SPARK) RELATED:

1. Connect spark plug cap properly.

2. Clean spark plug.

3. Correct spark plug gap.

4. Replace spark plug cap.

5. Have qualied technician diagnose/

repair ignition system.

COMPRESSION RELATED:

1. Cylinder not lubricated.

Problem after long storage periods.

2. Loose or broken spark plug.

(Hissing noise will occur

when trying to start.)

3. Loose cylinder head or damaged head gasket.

(Hissing noise will occur when trying to start.)

4. Engine valves or tappets mis-adjusted or stuck.

ENGINE OIL RELATED:

1. Low engine oil.

2. Engine mounted on slope,

triggering low oil shutdown.

COMPRESSION RELATED:

1. Pour tablespoon of oil into spark plug

hole. Crank engine a few times

and try to start again.

2. Tighten spark plug.

If that does not work, replace spark plug.

If problem persists, may have head

gasket problem, see #3.

3. Tighten head.

If that does not remedy problem,

replace head gasket.

4. Have qualied technician adjust/

repair valves and tappets.

ENGINE OIL RELATED:

1. Fill engine oil to proper level.

Check engine oil before EVERY use.

2. Operate engine on level surface.

Check engine oil level.

K&77&)%,77%#,2*$H%/(*4,'$"&8#%).*8*M*(%9",38&#"83%&(%#*(M"4"83%$.*%*R'"/5*8$%&(%*83"8*1

Page 18 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

X(&+7*5 X&##"+7*%<,'#*# X(&+,+7*%F&7'$"&8#

Engine misres 1. Spark plug cap loose.

2. Incorrect spark plug gap or

damaged spark plug.

3. Defective spark plug cap.

4. Old or low quality gasoline.

5. Incorrect compression.

1. Check cap and wire connections.

2. Re-gap or replace spark plug.

3. Replace spark plug cap.

4. Use only fresh 87+ octane stabilizer-treated

unleaded gasoline.%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

5. Diagnose and repair compression.

(Use 683"8*%)"77%8&$%#$,($-%

<CDXI6FF@C>%I6A=E6L section.)

Engine stops

suddenly

1. Fuel tank empty or full of impure or low quality

gasoline.

2. Low oil shutdown.

3. Defective fuel tank cap creating vacuum,

preventing proper fuel ow.

4. Faulty magneto.

5. Disconnected or improperly

connected spark plug cap.

1. Fill fuel tank with fresh 87+ octane stabilizer-

treated unleaded gasoline.%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

2. Fill engine oil to proper level.

Check engine oil before EVERY use.

3. Test/replace fuel tank cap.

4. Have qualied technician service magneto.

5. Secure spark plug cap.

Engine stops when

under heavy load

1. Dirty air lter

2. Engine running cold.

1. Clean element.

2. Allow engine to warm up prior

to operating equipment.

Engine knocks 1. Old or low quality gasoline.

2. Engine overloaded.

3. Incorrect spark timing, deposit buildup,

worn engine, or other mechanical problems.

1. Fill fuel tank with fresh 87+ octane stabilizer-

treated unleaded gasoline. %%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

2. Do not exceed equipment’s load rating.

3. Have qualied technician diagnose

and service engine.

Engine backres 1. Impure or low quality gasoline.

2. Engine too cold.

3. Intake valve stuck or overheated engine.

4. Incorrect timing.

1. Fill fuel tank with fresh 87+ octane stabilizer-

treated unleaded gasoline. %%

L&%8&$%'#*%3,#&7"8*%)"$.%5&(*%$.,8%

Peh%*$.,8&7%a6PUJ%6jeJ%6TUJ%*$41b1

2. Use cold weather fuel and oil additives

to prevent backring.

3. Have qualied technician diagnose

and service engine.

4. Check engine timing.

After sudden

impact, engine will

run, but equipment

will not operate

Shaft key or other shear pin

broken by impact to disconnect

engine and limit damage.

Have qualied technician check and replace

broken shaft key or other shear pins.

K&77&)%,77%#,2*$H%/(*4,'$"&8#%).*8*M*(%9",38&#"83%&(%#*(M"4"83%$.*%*R'"/5*8$%&(%*83"8*1

Page 19K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

Page 20 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

Y,((,8$"*#

A"5"$*9%We%L,H%Y,((,8$H%aI*$,"7b

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND

FITNESS, EXCEPT FOR THE EMISSIONS CONTROL SYSTEM WARRANTY BELOW.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.

Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection

verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase

price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our

expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our

warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

65"##"&8#%<&8$(&7%FH#$*5%Y,((,8$H

The California Air Resources Board and Harbor Freight Tools (HFT) are pleased to explain the emissions control

system warranty on your 2017 Small Off-Road Engine, in addition to the Retail Warranty above. In California, new

equipment that uses small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog

standards. HFT must warrant that the emissions control system on your engine will be free from defects in material and

workmanship for two (2) years, provided there has been no abuse, neglect, or improper maintenance of your engine.

Your emissions control system may include parts such as the carburetor or fuel-injection system, the ignition

system, catalytic converter, fuel tanks, fuel lines, fuel caps, valves, canisters, vapor hoses, clamps, connectors, and

other emissions-related assemblies.

Where a warrantable condition exists, HFT will repair or replace, at our option, your engine if at no cost to you,

including diagnosis, parts and labor.

D=>;K=<E;I6IgF%Y=II=>EB%<C!6I=Z6

This emissions control system is warranted for two years. If any emission-related part on your engine is defective,

the part will be repaired or replaced by HFT.

CY>6IgF%Y=II=>EB%I6FXC>F@[@A@E@6F

As the engine owner, you are responsible for the performance of the required maintenance listed in your

Owner’s Manual.

As the engine owner, you should however be aware that HFT may deny you warranty coverage if your engine or

a part has failed due to abuse (including failure to follow the fuel use instructions contained in this manual), neglect,

improper maintenance, or unapproved modifications.

You are responsible for contacting HFT as soon as the problem exists in order to obtain warranty repair or replacement,

by doing either of the following: (a) contact HFT product support at 1-888-866-5797 or predator@harborfreight.com;

or (b) bring the to your nearest Harbor Freight Tools retail store. The nearest Harbor Freight Tools retail store can

be found on the internet at http://www.harborfreight.com. The warranty repairs or replacement should be completed

in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage,

you should contact HFT product support at 1-888-866-5797 or predator@harborfreight.com.

Page 21K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

Z6>6I=A%6D@FF@C>F%Y=II=>EB%<C!6I=Z6

a) The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser. The warranty

period is two years.

b) HFT warrants to the initial owner and each subsequent owner that the engine is:

1. Designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources

Board; and

2. Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two

years.

c) The warranty on emissions-related parts is as follows:

1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions

provided, is warranted for the warranty period stated above. If any such part fails during the period of warranty

coverage, it will be repaired or replaced HFT. Any such part repaired or replaced under the warranty will be

warranted for the remaining warranty period.

2. Any warranted part that is scheduled only for regular inspection in the written instructions is warranted for

the warranty period stated above. A statement in the written instructions to the effect of “repair or replace as

necessary” does not reduce the period of warranty coverage. Any such part repaired or replaced under warranty

will be warranted for the remaining warranty period.

3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions will

be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails

prior to the first scheduled replacement, the part will be repaired or replaced by HFT. Any such part repaired or

replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement

point for the part.

4. Repair or replacement of any warranted part under the warranty will be performed at no charge to the owner

at a retail store or by HFT paying for shipping the product for repair.

5. Notwithstanding the provisions herein, warranty services or repairs will be provided at all retail stores or by

contacting HFT product support at 1-888-866-5797 or predator@harborfreight.com.

6. The owner will not be charged for diagnostic labor that leads to the determination that a warranted part is in

fact defective, provided that such diagnostic work is performed at a retail store.

7. HFT is liable for damages to other engine components proximately caused by a failure under warranty of any

warranted part.

8. Throughout the emissions warranty period stated above, HFT will maintain a supply of warranted parts sufficient

to meet the expected demand for such parts.

9. Any replacement part may be used in the performance of any warranty maintenance or repairs and will be

provided without charge to the owner. Such use will not reduce the warranty obligations of HFT.

10. Add-on or modified parts that are not approved by HFT may not be used. The use of any non-exempted add-

on or modified parts will be grounds for disallowing a warranty claim. HFT is not liable to warrant failures of

warranted parts caused by the use of a non-exempted add-on or modified part.

d) Emission Warranty Parts List.

1. Fuel Metering System

a. Carburetor and its internal parts (and/or pressure

regulator or fuel injection system).

b. Fuel tank.

c. Cold start enrichment system.

d. Air/fuel ratio feedback and control system.

2. Air Induction System

a. Controlled hot air intake system.

b. Intake manifold.

c. Air filter.

3. Ignition System

a. Spark plugs.

b. Magneto ignition system.

c. Spark advance/retard system.

4. Catalyst System (if so equipped)

a. Exhaust pipe stud/exhaust manifold.

b. Thermal reactor.

c. Catalytic converter (if so equipped).

5. Particulate Controls

a. Traps, filters, precipitators, and any other device

used to capture particulate emissions.

6. Miscellaneous Items Used in Above Systems

a. Vacuum, temperature and time sensitive valves

and switches.

b. Hoses, belts, connectors, and assemblies.

7. Evaporative Emission Control System

a. Fuel tank.

b. Fuel caps, valves, canisters, filters, vapor hoses,

clamps, connectors, belts, and assemblies.

HFT provides with each product written instructions for the maintenance and use of the product by the owner.

Page 22 K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1 Item 69731

F=K6EB CX6I=E@C> D=@>E6>=><6F6E;X

X,($#%A"#$#%,89%L",3(,5#

XA6=F6%I6=L%EO6%KCAACY@>Z%<=I6K;AAB

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

X,($#%A"#$

X,($ L*#4("/$"&8 f$H

1 Cover, Cylinder Head 1

2 Gasket, Cylinder Head 1

3 Head Sub., Cylinder 1

4 Gasket, Cylinder Head 1

5 Bolt 4

6 Plug, Spark 1

7 Bolt, Cylinder Head 4

8Bracket, Mufer Shield 1

9 Bolt 1

10 Stud 2

11 Pin 2

12 Crankcase Sub. 1

13 Shield, Crankcase Side 1

14 Dipstick Sub., Oil 1

15 Bolt 2

16 Bolt 1

17 Bracket, Fuel Tank Right 1

18 Seal, Oil 1

19 Bolt 1

20 Bolt 2

21 Plate, Breather Cover 1

22 Gasket, Breather 1

23 Breather 1

24 Screen, Breather 1

25 Shield, Crankcase Rear 1

26 Bearing 1

27 Bracket, Fuel Tank Left 1

28 Bolt 1

29 Arm, Governor 1

30 Washer 1

31 Seal, Oil 1

32 Pin 1

33 Gasket, Crankcase 1

34 Pin 2

35 Washer 1

36 Block, Returning Oil 1

X,($ L*#4("/$"&8 f$H

37 Bolt 1

38 Plate, Governor Spindle 1

39 Seal, Oil 1

40 Bolt 6

41 Gear Asm, Governor 1

42 Cover, Crankcase 1

43 Ring, Primary 1

44 Ring, Secondary 1

45 Ring Set, Oil 1

46 Piston 1

47 Clip, Piston Pin 2

48 Pin, Piston 1

49 Rod, Connecting 1

50 Crankshaft Asm. 1

51 Nut, Valve Lock 2

52 Nut, Valve Adjusting 2

53 Seat, Valve Spring 2

54 Rocker, Valve 2

55 Spring, Valve 2

56 Guide, Seal 1

57 Bolt, Valve Adjusting 2

58 Valve, Intake 1

59 Plate Sub., Lifter Stopper 1

60 Lifter, Valve 2

61 Tappet, Valve 2

62 Camshaft Asm. 1

63 Valve, Exhaust 1

64 Starter Asm, Recoil 1

65 Housing, Engine 1

66 Shroud 1

67 Nut 3

68 Stud 2

69 Stud 1

70 Gasket, Insulator Plate 1

71 Plate, Carb. Insulator 1

72 Gasket, Carburetor 2

X,($ L*#4("/$"&8 f$H

73 Gasket, Carb. Insulator 1

74 Carburetor Asm. 1

75 Gasket, Air Cleaner 1

76 Valve, Enrichment 1

77 Gasket, Air Cleaner 1

78 Tube, Breather 1

79 Nut 2

80 Case, Air Cleaner 1

81 Element, Air Cleaner 1

82 Cover, Air Cleaner Case 1

83 Cover, Mufer Outer 1

84 Mufer Asm. 1

85 Gasket, Exhaust Outlet 1

86 Nut 2

87 Strainer, Fuel 1

88 Clamp 1

89 Tube, Fuel 1

90 Clamp 1

91 Bolt 2

92 Tank Asm, Fuel 1

93 Nut, Flywheel 1

94 Flywheel Subassembly 1

95 Bolt 1

96 Coil, Ignition 1

97 Brake Asm. 1

98 Bolt 1

99 Bolt 1

100 Rod, Governor 1

101

Spring, Throttle Returning

102 Control Asm, Throttle 1

103 Bolt 1

104 Support Sub., Governor 1

105 Bolt, Governor Support 1

106 Nut 1

107 Spring, Governor 1

108 Clip 1

I*4&(9%X(&9'4$g#%F*(",7%>'5+*(%O*(*-%

>&$*- If product has no serial number, record month and year of purchase instead.

>&$*- Some parts are listed and shown for illustration purposes only,

and are not available individually as replacement parts.

Page 23K&(%$*4.8"4,7%R'*#$"&8#J%/7*,#*%4,77%PSTTTSTQQSUVWV1Item 69731

F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X

=##*5+7H%L",3(,5

53 55

70 71

72 73

74 76

103

107

102

100

101

105

106

108

7979

88 89 90

16 17

29 30

104

dkWP%D"##"&8%C,_#%[7M91%%l%%XC%[&G%QeeW%%l%%<,5,("77&J%<=%WdePP%%l%%PSTTTSTQQSUVWV

)))1.,(+&(2(*"3.$14&5

D&'8$"83%O&7*%L",3(,5

>&$*- Not to scale.

A-A

2:1

e1WT%"81%0%jU55

P1P%"81%0%jT55

d0T%"81%G%jk

Qmne1dU%"81%0%W55

ne1jk%"81%0%Q55

d1jV%"81%0%Td55

ne1dk%"81%0%T1V55

nP%"81%0%jU1k55

ne1jk%"81%%

0%Q55

ne1dk%"81%%

0%T1V55

d1TU%"81%0%WV1V55d1Wk%"81%0%Pee55

nT%"81%0%jed55

Manual For The 69731 173 Cc OHV Vertical Shaft Gas Engine Certified California

!! 69731 Harbor Freight Tools Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Preview ! 69731 Harbor Freight Tools Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
