13 For additional products and product information, please contact your local Blevins branch.
Furnace, Forced Draft Gas
56,000 to 90,000 Btu/h, Heating, A/C Relay (no coil cabinet)
Stock # Mfg. # Model # Burner Type Output Btu/h AFUE Wght. W x D x H
0233015 903230 M1MB-077AAW Hot Sur. Ign. 62,000 80.0 149 19-3/4" x 23-3/4" x 56"
0233016 903231 M1MB-090AAW Hot Sur. Ign. 72,000 80.0 151 19-3/4" x 23-3/4" x 56"
56,000 to 90,000 Btu/h With Coil Cabinet & A/C Ready up to 3 Tons
Stock # Mfg. # Model # Burner Type Output Btu/h AFUE Wght. W x D x H
0233005 903236 M1MB-056ABW Hot Sur. Ign. 46,000 80+ 167 19-3/4" x 23-3/4" x 76"
0233006 903237 M1MB-070ABW Hot Sur. Ign. 57,000 80+ 168 19-3/4" x 23-3/4" x 76"
0233007 903238 M1MB-077ABW Hot Sur. Ign. 62,000 80+ 171 19-3/4" x 23-3/4" x 76"
0233008 903239 M1MB-090ABW Hot Sur. Ign. 72,000 80+ 166 19-3/4" x 23-3/4" x 76"
56,000 to 90,000 Btu/h, A/C Ready up to 3 Tons (no coil cabinet)
Stock # Mfg. # Model # Burner Type Output Btu/h AFUE Wght. W x D x H
0233013 903228 M1MB-056AAW Hot Sur. Ign. 46,000 80+ 152 19-3/4" x 23-3/4" x 56"
0233014 903229 M1MB-070AAW Hot Sur. Ign. 57,000 80+ 153 19-3/4" x 23-3/4" x 56"
56,000 to 90,000 Btu/h With Coil Cabinet & A/C Ready up to 4 Tons
Stock # Mfg. # Model # Burner Type Output Btu/h AFUE Wght. W x D x H
0232985 903240 M1MC-056ABW Hot Sur. Ign. 46,000 80 171 19-3/4" x 23-3/4" x 76"
0232986 903241 M1MC-070ABW Hot Sur. Ign. 57,000 80 172 19-3/4" x 23-3/4" x 76"
0232987 903240 M1MC-077ABW Hot Sur. Ign. 62,000 80 171 19-3/4" x 23-3/4" x 76"
0232988 903243 M1MC-090ABW Hot Sur. Ign. 72,000 80 171 19-3/4" x 23-3/4" x 76"
M1M* Hot Surface Ignition
M1B* Gas Gun
The M1 Series furnace is designed for all sizes of manufactured and modular homes.
These units incorporate high efciency, reliability, and low maintenance. Units may be
installed free standing in a utility room or enclosed in an alcove or closet. M1 Series
furnaces are available in A/C adaptable or A/C ready, with or without coil cavity box,
multiple blower combinations for cooling requirements, and many burner options.
n Sealed Combustion System: Vents exhaust gas
directly outdoors and draws in 100% outside air
for the burner.
n Easy Open Pawl Latch: Secures the door rmly
for transit, yet allows easy removal for access.
n Choice of Air Conditioning Options: From 2 to 5
tons A/C ready.
n Large, Effective Air Filter: Room air is cleaner
with this permanent washable lter.
n High Efciency Drum Heat Exchanger: Delivers
optimum heat transfer with low air resistance.
n Appliance Quality Door: Protects against rust
and other corrosion. Baked enamel nish allows
for easy cleaning.
n Fully Insulated Cabinet: Insures minimized heat
loss and quiet operation.
n Reliable Burner: With uniform ame pattern
extends life of heat exchanger.
M1 Series Furnaces
14
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
Specications subject to change without notice. Colors are only approximations. See your sales rep for actual samples.

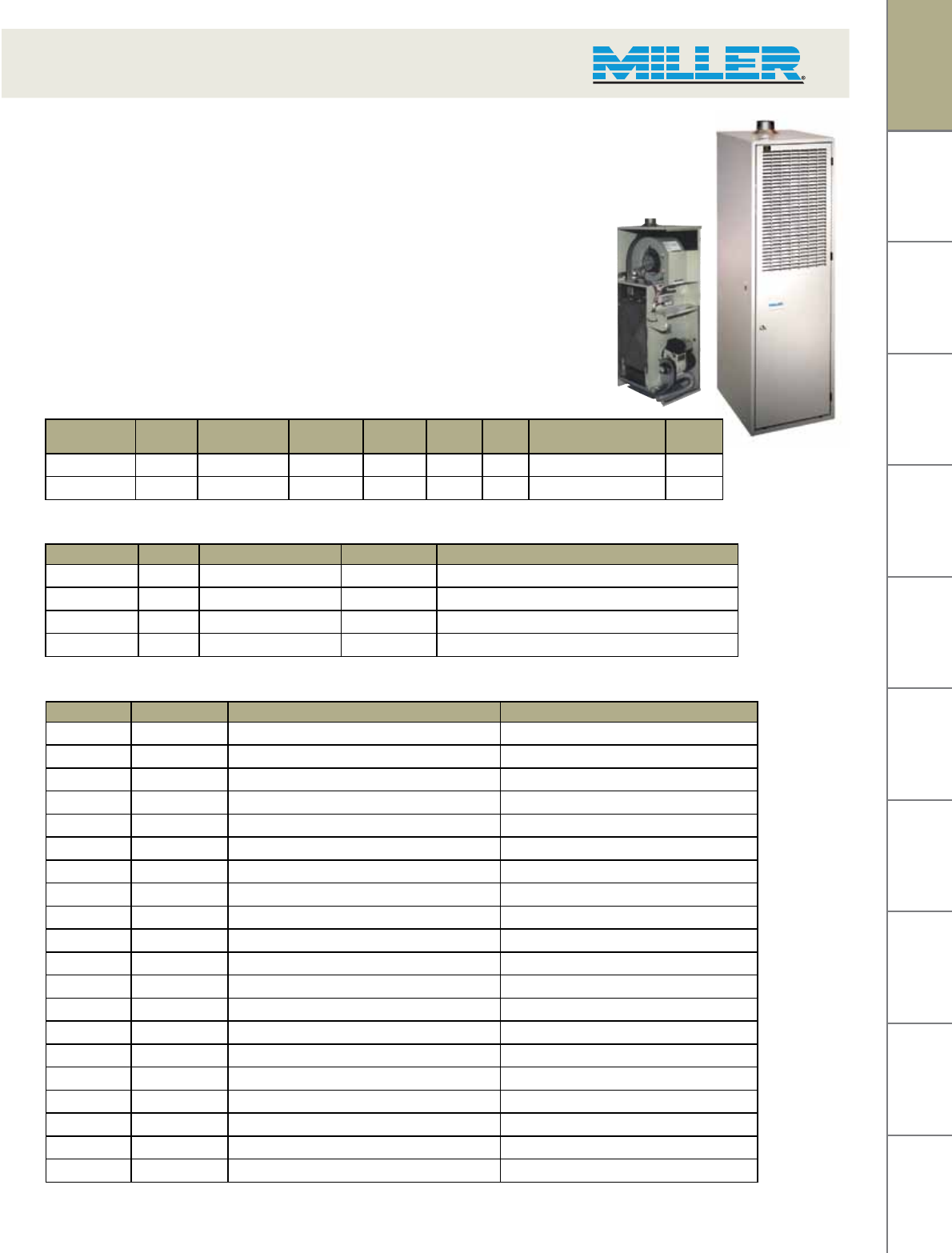

Furnace Direct Vent, Gas Gun 66,000 & 86,000 Btu/h, Heating, A/C Relay
Stock # Mfg. # Model # Burner Type Btu/h AFUE Wght. W x D x H
0233018 903270 M1BA-066AAW Pressure w/ Elect. Ignition 56,000 82.2 149 19-3/4" x 24" x 56"
0233019 903255 M1BB-086AAW* Pressure w/ Elect. Ignition 71,000 81.0 150 19-3/4" x 24" x 56"
* A/C ready up to three tons
Roof Jack Components - "Integrated" & Telescoping
Stock # Mfg. # Model # Type Flashing Dimensions Flue
Pipe Dia. Pitch For Use With:
0237948 903658 FAW1523-0A Flat 15" min. - 23" max. 5"
All Miller/
Intertherm
M1 Series
Furnaces
0237949 903659 FAW2135-0A Flat 21" min. - 35" max. 5"
0237951 903660 FAW2747-0A Flat 27" min. - 47" max. 5"
0230077 903662 SAW2135-2A Slope 21" min. - 35" max. 5" 2.5/12
0237956 903663 SAW2747-2A Slope 27" min. - 47" max. 5" 2.5/12
0237954 903664 SAW3563-4A Slope 35" min. - 63" max. 5" 2.5/12
0237955 903666A SAW5195-4A Slope 51" min. - 95" max. 5" 4.0/12
0237958 902521 Ceiling Ring
M1 Series
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
15 For additional products and product information, please contact your local Blevins branch.
M3RL Series
n 100% fired and tested — all units and each
component (both mechanical and electrical) are tested
on the manufacturing line
n Clean and quiet operation — due to the unique design
of in-shot burners, location of inducer and use of
insulation
n Fixed 30-second blower delay at burner start-up
assures a warm outlet air temperature at furnace start-
up. Adjustable blower off settings
n Fixed 30-second post purge increases life of heat
exchanger
n Dependable hot surface ignitor — Innovative
application of an appliance-type ignitor with a 20-year
history of reliability, assures no call-backs because of
handling.
n Tubular primary heat exchanger — Heavy aluminized
steel heat exchanger assures a long life.
n Stainless steel secondary heat exchanger assures a
long life.
n 90-second fixed cooling cycle blower-off delay (TDR)
increases cooling performance when matched with a
NORDYNE coil
n Sealed combustion approved for direct vent furnace,
category IV venting system — May be vertically
or horizontally vented using a two-pipe system for
maximum flexibility in installation.
n Multi-speed direct drive blower — Gives a wide range
of cooling capacities. 40VA transformer included.
n LP convertible — Simple burner orifice and gas valve
regulator change for ease of
convertibility.
n Diagnostic light flashes identify limit failure, pressure
switch failure and improper ground and polarization —
easy trouble-shooting.
n 3 amp fuse protection against high and low voltage
shorts; protects transformer and control board.
n Low voltage terminal board for easy field wiring.
High Efciency/Direct Vent
Condensing Downow Gas Furnace M3RL
Induced Draft — 90+ AFUE Input
60,000 & 80,000 Btuh (4 Ton A/C Ready)
The M3RL will t in the same footprint and uses the same plenum as the M1 furnaces.
The design of the M3RL allows for direct substitution in place of the M1 series furnaces.
Stock # Mfg. # Model # Shipping
Weight
0233036 903954 M3RL-060A-AW (Short) 150
0233037 903955 M3RL-080A-AW (Short) 155
0233038 903956 M3RL-060A-BW (Tall) 170
0233039 903957 M3RL-080A-BW (Tall) 175
16
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
Specications subject to change without notice. Colors are only approximations. See your sales rep for actual samples.

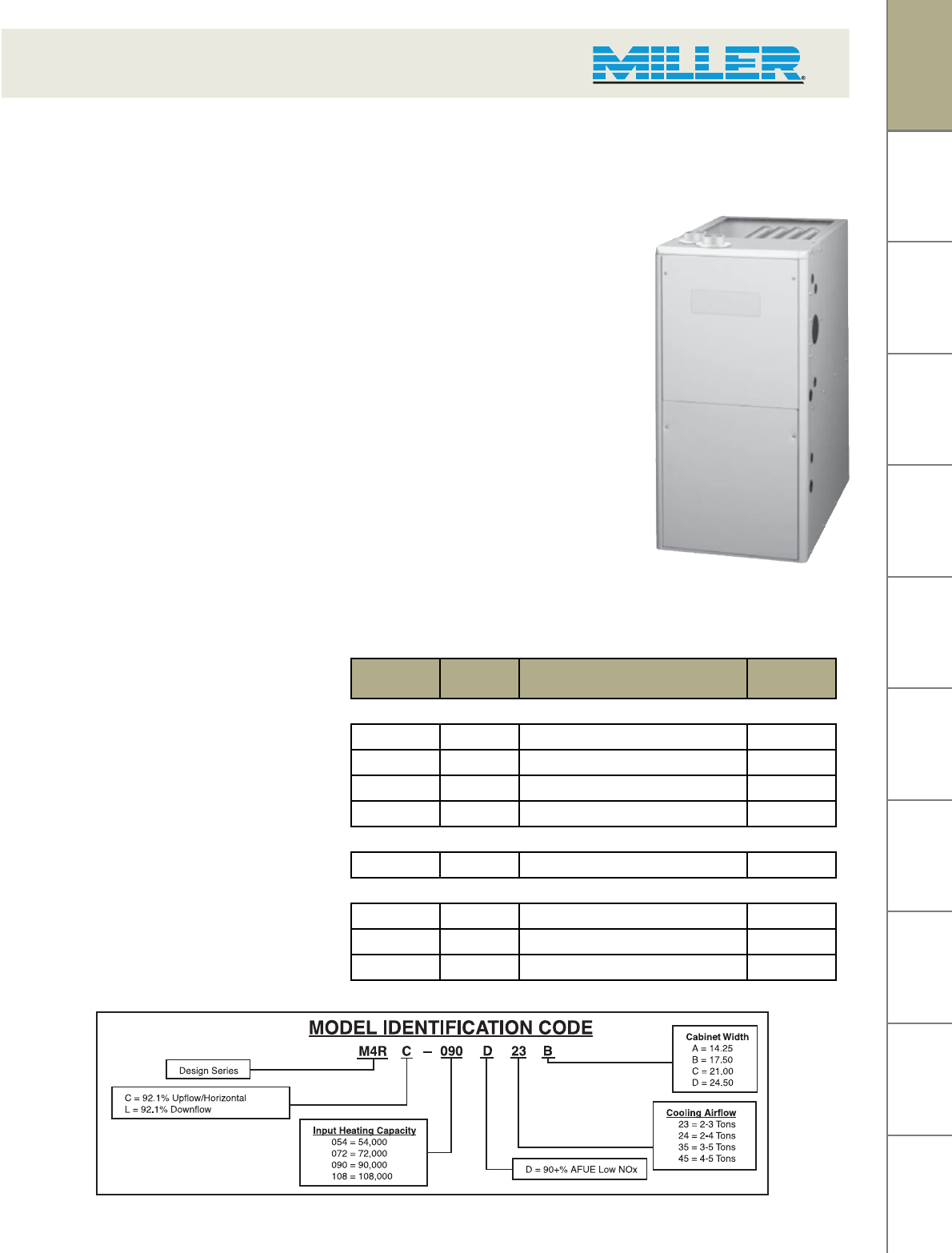

M4R (C and L Series)
n 100% fired and tested — all units and each component
(both mechanical and electrical) are tested on the
manufacturing line
n Best packaging in the industry — Unique corner post
design assures product will arrive to the homeowner
dent free.
n 30 second blower delay at start-up assures a warm duct
temperature at furnace start-up. Adjustable blower off
settings (60, 90, 120 and 180 seconds).
n 30 second post purge increases life of heat exchanger.
n Hot surface igniter — Innovative application of an
appliance type igniter with a 20 year history of reliability.
Utilizes proven Smartlite® technology.
n Color coded wire harness — Designed to fit the
components, all with quick-connect fittings for ease of
service and replacement.
n Flexible category IV venting system — May be vertically
or horizontally vented using either a one-pipe or two-
pipe system for maximum flexibility in installation.
n High Static Blowers — All models equipped with high
static blowers.
n Low Boy Height — Easy to apply in low ceiling
applications, works well with taller high SEER coils,
easier to handle and install.
n Tubular primary heat exchanger — Heavy gauge
aluminized steel heat exchanger and stainless steel
secondary heat exchanger assures a long life.
n 90 second fixed cooling cycle blower-off delay (TDR)
increases cooling performance when matched with a
NORDYNE coil.
n High efficiency blower kits maximize efficiencies. On
select units, a SEER improvement of up to 1 point is
realized.
n Multi-speed direct drive blower — Designed to give a
wide range of cooling capacities. Switches on PCB,
provide ultra easy motor speed selection.
n LP convertible — Simple burner orifice and
regulator spring change for ease of convertibility.
n Diagnostic lights for easy troubleshooting without
counting flashes — Dedicated light for flame signal
strength and 2 lights in combination to indicate
all other fault codes with easy to recognize states
without counting flashes.
n Incorporates integrated control board with
connections for electronic air cleaner and
humidifier.
n Two piece door design enhances furnace
appearance and uses captured screws to prevent
losing door screws.
n Seated vestibule reduces burner and inducer
sound levels.
High Efciency/Direct Vent or Non Direct Vent
Condensing Upow/Horizontal and Downow Gas Furnace M4R (C and L Series)
Induced Draft — 92.1 AFUE Input 54,000 - 108,000 Btuh
60,000 & 80,000 Btuh
Stock # Mfg. # Model # Shipping
Weight
90% + Upow Furnaces
0233141 904747 M4RC 054D-24B 120lbs
0233142 904748 M4RC 072D-35C 130lbs
0233143 904749 M4RC 090D-35C 135lbs
0233144 904750 M4RC 108D-45D 155lbs
90% + Downow Furnaces
0233145 904751 M4RL 090D-35C 135lbs
C6 Cased Coil Wrappers
0233146 904759 Wrapper, Cased Coil, C6 B
0233147 904761 Wrapper, Cased Coil, C6 C
0233148 904763 Wrapper, Cased Coil, C6 D
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
17 For additional products and product information, please contact your local Blevins branch.
M Series Accessories
Stock # Mfg. # Description
0103200 903773 Gas Blower, 2-3 Ton
0103201 903413 Gas Blower, 2-4 Ton
0103202 903890 Gas Blower, 2-5 Ton
0103205 903092A 2-Wire Relay Kit
0103206 902898A 4-7 Wire Relay Kit
0237941 911969A Coil Cabinet White
24"D x 19-3/4"W x 20"H
0238128 901996A Auto Damper
F/MGHA & M1 Series
0238124 901987A Duct Connector .88"
0238125 901990A Duct Connector 6.25"
0238126 901988A Duct Connector 2"
0237960 903656 Roof Cap
Stock # Mfg. # Description
0237966 901935 5" Interior Ext. 10" LG
0237968 901937 5" Exterior Ext. 16" LG
0238362 903894 3.5" x 12" Slant Deck Kit
0238350 903893 2.5" x 12" Slant Deck Kit
0230140 901986 Base Adpt. for MAC
0238127 901989A Duct Connector 4.25"
0237963 904106 Furn. Vent Transition Kit
0231137 903578 Concentric Flue Kit
0231130 904177 2" Concentric Vent Kit for M4
0231131 904176 3" Concentric Vent Kit for M4
0231132 904914 USLP Conversion Kit for M4
0231134 903578 Concentric Vent Term. Kit f/M4
n Sealed Combustion System: Vents exhaust gas directly
outdoors and draws in 100% outside air for the burner.
n Easy Open Pawl Latch: Secures the door firmly for
transit, yet allows easy removal for access.
n High Efficiency Drum Heat Exchanger: Delivers
optimum heat transfer with low air resistance.
n Fully Insulated Cabinet: Insures minimized heat loss
and quiet operation.
n Reliable Burner: With uniform flame pattern extends life
of heat exchanger.
The M5 Series furnace is designed for all sizes
of manufactured and modular homes. These
units incorporate high efciency, reliability, and
low maintenance. Units may be installed free
standing in a utility room or enclosed in an alcove
or closet. M5 Series furnaces are available in A/C
adaptable or A/C ready, with or without coil cavity
box, multiple blower combinations for cooling
requirements, and many burner options.
Stock # Mfg. # Output
MBtu/h Model # Ship Wt.
A Cabinet
Ship Wt.
B Cabinet
0233024 921212 56 M5SB-066-AAW 151 165
0233025 921209 73 M5SB-086-AAW 158 173
0233026 921211 56 M5SB-066-ABW 151 165
0233027 921208 73 M5SB-086-ABW 158 173
M5 Series
M5S* Oil Gun
83% Efcient
18
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
Specications subject to change without notice. Colors are only approximations. See your sales rep for actual samples.
Convertible Furnace Power Oil-Gas 65,000, 80,000 & 100,000 Btu/h
Vent Size: 4"
n Three-speed, custom t and painted blower conguration for
efcient, quiet operation at all ring rates
n Titanium kilned process technology used in heat exchanger steel for
extended life and durability
n Re-sized auxiliary limit switch for reliable cycling
n Beckett oil burners are standard equipment
n Classic 18" width dimension for those tight replacement jobs
n MA 100, MA 200, and CB 200 bases for versatility
CMF Series is a classic and time-honored design,
a versatile and reliable product incorporating a
multi-speed blower and multi-red burner. Classic
design coupled with new technology make the
CMF today's choice for a multi-application fossil
fuel heating appliance.
CMF Series
Heat Only Furnaces - Standard Flue
Stock# Mfg. # Model # Burner
Type
Btu/h
Input
Btu/h
Output
CFM
@ .3 W x D x H Weight
0238000 904515 CMF2 80PG Gas Gun 80,000 64,000 800 18" x 24-1/4" x 57" 183
0238001 904516 CMF2 80PO Oil Gun 80,000 64,000 800 18" x 24-1/4" x 57" 167
Conversion Kits
Stock # Mfg. # Model # Burner Type Kit Includes:
0238002 903099 CMF80 to 65 PG Gas Gun Labels, orices and air cone
0238003 903100 CMF80 to 65 PO Oil Gun Labels and nozzles
0238004 903101 CMF80 to 100 PG Gas Gun Labels and orices
0238005 903102 CMF80 to 100 PO Oil Gun Labels, nozzles and burner head
CMF Accessories
Stock # Mfg. # Description For Use With:
0238218 901696 CB-200-A Cottage Base All CMF Furnaces
0238355 903453 MA-200 Base Kit All CMF Furnaces
0238361 903451 MA-100 Universal Base Kit All CMF Furnaces
0238221 902095 Auto. Furnace Base Damper All CMF Furnaces
0238350 903893 RA-S2.5 Roof Jack Adaptor All CMF Furnaces
0238352 903895 RA-S4.0 Roof Jack Adaptor All CMF Furnaces
0238353 104060000 SRJ-1 Standard Roof Jack - 12" All CMF w/12" or less roof cavity
0238354 104060003 SRJ-2 Standard Roof Jack - 24" All CMF w/13" to 24" roof cavity
0238358 104060015 SRJ-3 Standard Roof Jack - 36" All CMF w/25" to 36" roof cavity
0238359 104060018 SRJ-4 Standard Roof Jack - 48" All CMF w/37" to 38" roof cavity
0238360 104060024 SRJ-5 Standard Roof Jack - 60" All CMF w/49" to 59" roof cavity
0238369 104360001 Roof Jack Extension 4" x 18" All CMF Furnaces
0238351 103947002 28" Vent Package All CMF w/7' ceiling height
0238356 103947004 34" Vent Package All CMF w/7'6" ceiling height
0238357 103947005 40" Vent Package All CMF w/8' ceiling height
0238367 901697 Offset Flue Pipe - 4" Diameter All CMF Furnaces
0238173 N/A Filter-Replacement 1/4"x 16-1/2"x 26-1/2" CMF and CMH Furnaces
0237801 100-401 Heating Only Thermostat All Miller Gas & Oil Furnaces
0238129 918082 Heating Only Thermostat All Furnaces
0238006 903866 Replacement Blower - 3 Speed All CMF Convertible Series
Coatings &
Caulks
Heating &
Cooling
Insulation &
Accessories
Safety &
Protection
Appliances
Venting &
Plumbing
Diagnostic
Tools
Siding
Putty/Foam
Tapes
Windows &
Doors
Index
19 For additional products and product information, please contact your local Blevins branch.

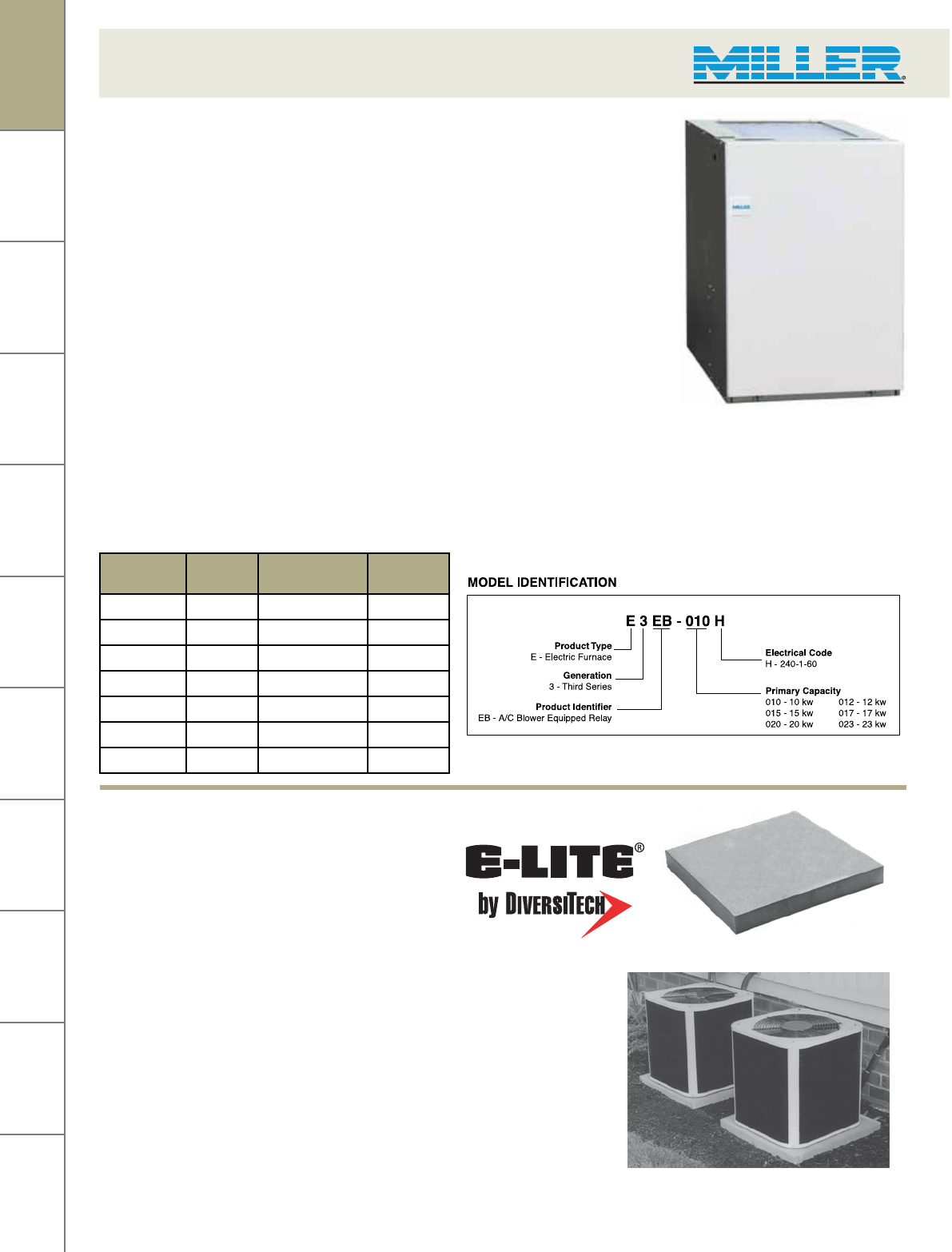

Stock # Mfg. # Model # Output
Heat Btuh
0238089 904129 E3EB-010H 35,000
0238090 904154 E2EB-015HBR 35,000
0238091 904130 E3EB-012H 41,000
0238092 904131 E3EB-015H 53,000
0238093 904132 E3EB-017H 57,000
0238094 904133 E3EB-020H 70,000
0238095 904134 E3EB-023H 75,000
E3EB-xxx-H Series
Downow, Upow Electric Furnaces
The E3 Series furnace is designed for all sizes of manufactured and modular
homes. These units incorporate reliability and low maintenance. Units may be
installed free standing in a utility room or enclosed in an alcove or closet. E3
Series furnaces are available A/C adaptable or A/C ready, with multiple blower
combinations for cooling requirements.
n Choice of Air Conditioning options From 2
to 5 tons A/C ready.
n Easy Open Door secures the door rmly
for transit, yet allows easy removal for
access.
n Effective Air Filter Universal disposable
lter is readily available and simple to
replace.
n Nichrome Heating Elements provide long
lasting, efcient heating.
n Appliance Quality Door protects against
rust and other corrosion. Baked enamel
nish allows for easy cleaning.
n Fully Insulated Cabinet insures minimized
heat loss and quiet operation.
n Safety and Dependability: Auto reset
controls protect unit's electrical circuitry
and help ensure trouble free performance.
Built in circuit breakers for extra safety.
n Adaptable: Unit can be adapted to provide
dependable heating in either downow or
upow mode.
n Versatile: Works with self-contained or split
system air conditioners or heat pumps.
n Dimensions: 20" wide, 29" high, 24.5" deep
UltraFlex E3EB
Top Grill & Frame
White; 20” x 27”
Mfg.# 902989
0238068
E-LITE® by DiversiTech
❂ Lightweight, yet rugged
❂ Drillable for securing unit
❂ Uniform ribbing transfers load evenly
❂ Unaffected by UV or weather
❂ Subtle texture resists unit slide
❂ High recycled
E Lite® is a plastic pad designed as
a mounting base for air conditioning
condensers. The rugged design
provides uniform and generous
ribbing for optimum, self-leveling
ground support without inserts.
E Lite® is injection molded from
polypropylene, resulting in a pad
that is lightweight, but not too light. A
subtle texture prevents unit slide and
presents a classic appearance, which
is enhanced by rounded edges and
a concrete gray color. Each pad is
molded with its size in raised letters.
0100505 24" x 24" x 2"
0100507 30" x 30" x 2"
0100512 30" x 30" x 3"
0100509 36" x 36" x 2"
0100510 36" x 48" x 2"
0100530 38" x 48" x 3"
0100531 45" x 58" x 3"
