DM74LS193 Synchronous 4-Bit Binary Counter with Dual Clock
DM74LS193
Synchronous 4-Bit Binary Counter with Dual Clock
General Description
The DM74LS193 circuit is a synchronous up/down 4-bit
binary counter. Synchronous operation is provided by hav-
ing all flip-flops clocked simultaneously, so that the outputs
change together when so instructed by the steering logic.
This mode of operation eliminates the output counting
spikes normally associated with asynchronous (ripple-
clock) counters.
The outputs of the four master-slave flip-flops are triggered
by a LOW-to-HIGH level transition of either count (clock)
input. The direction of counting is determined by which
count input is pulsed while the other count input is held
HIGH.
The counter is fully programmable; that is, each output may
be preset to either level by entering the desired data at the
inputs while the load input is LOW. The output will change
independently of the count pulses. This feature allows the
counters to be used as modulo-N dividers by simply modi-
fying the count length with the preset inputs.
A clear input has been provided which, when taken to a
high level, forces all outputs to the low level; independent
of the count and load inputs. The clear, count, and load
inputs are buffered to lower the drive requirements of clock
drivers, etc., required for long words.
These counters were designed to be cascaded without the
need for external circuitry. Both borrow and carry outputs
are available to cascade both the up and down counting
functions. The borrow output produces a pulse equal in
width to the count down input when the counter underflows.
Similarly, the carry output produces a pulse equal in width
to the count down input when an overflow condition exists.
The counters can then be easily cascaded by feeding the
borrow and carry outputs to the count down and count up
inputs respectively of the succeeding counter.
Features
■Fully independent clear input
■Synchronous operation
■Cascading circuitry provided internally
■Individual preset each flip-flop
Ordering Code:

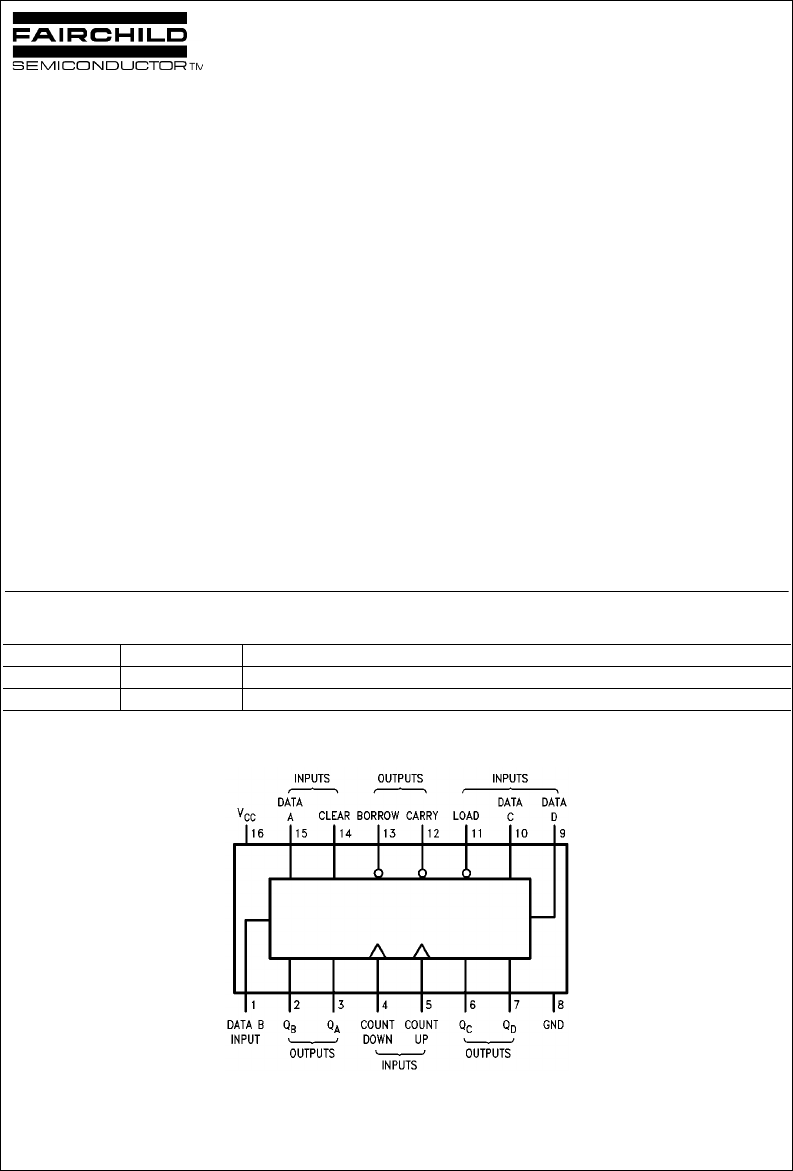

Connection Diagram
Order Number Package Number Package Description
DM74LS193M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body
DM74LS193N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
www.fairchildsemi.com 2
DM74LS193

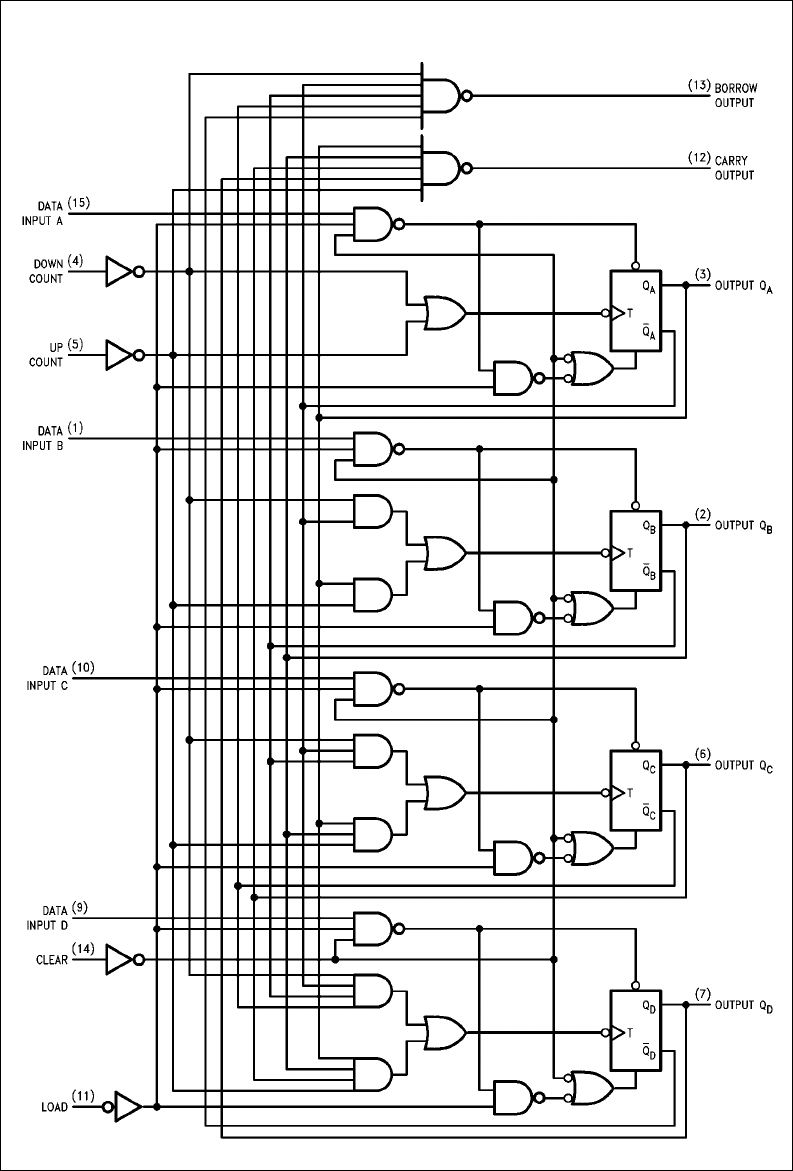

Logic Diagram
3 www.fairchildsemi.com
DM74LS193

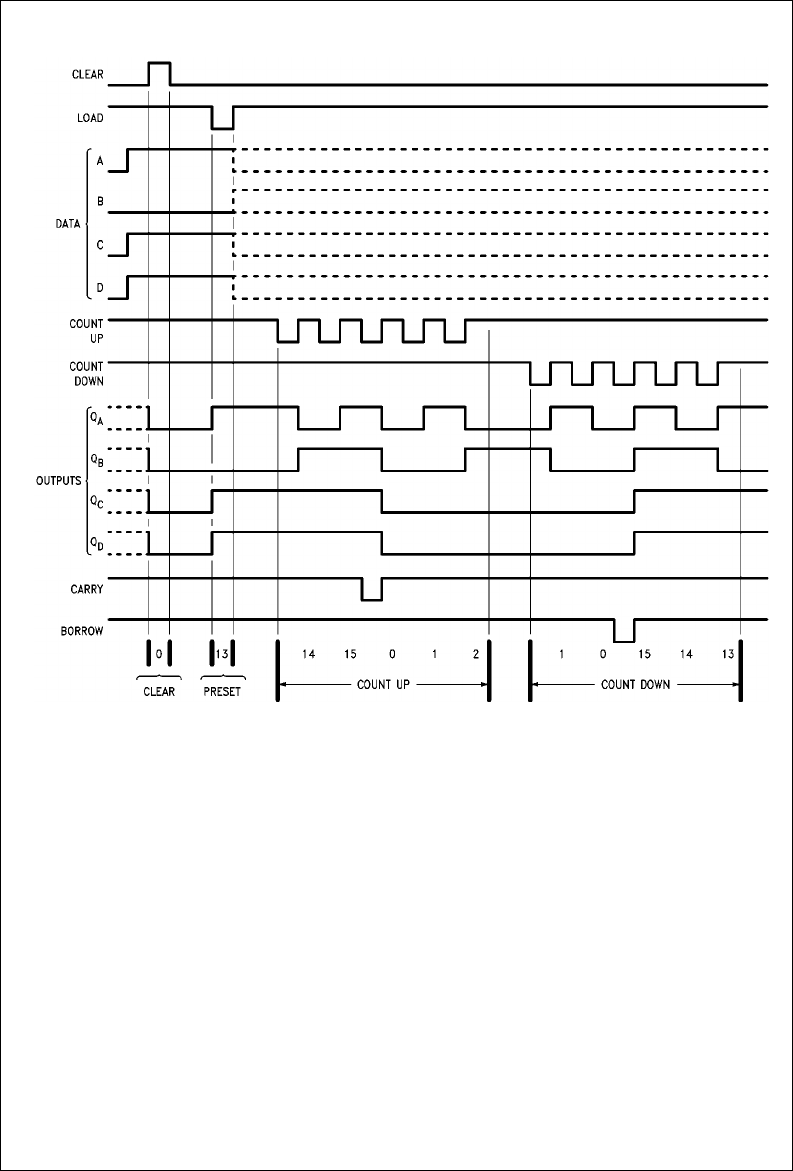

Timing Diagram
Note A: Clear overrides load, data, and count inputs
Note B: When counting up, count-down input must be HIGH; when counting down, count-up input must be HIGH.
www.fairchildsemi.com 4
DM74LS193
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Note 2: CL = 15 pF, RL = 2 kΩ, IA = 25°C and VCC = 5V.
Note 3: CL = 50 pF, RL = 2 kΩ, IA = 25°C and VCC = 5V.
Note 4: TA = 25°C and VCC = 5V.
DC Electrical Characteristics
Note 5: All typicals are at VCC = 5V, TA = 25°C.
Note 6: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 7: ICC is measured with all outputs open, CLEAR and LOAD inputs grounded, and all other inputs at 4.5V.
Operating Free Air Temperature Range −0°C to +70°C
Supply Voltage 7V
Input Voltage 7V
Storage Temperature Range −65°C to +125°C
Symbol Parameter Min Nom Max Units
VCC Supply Voltage 4.75 5 5.25 V
VIH HIGH Level Input Voltage 2 V
VIL LOW Level Input Voltage 0.8 V
IOH HIGH Level Output Current −0.4 mA
IOL LOW Level Output Current 8 mA
fCLK Clock Frequency (Note 2) 0 25 MHz
Clock Frequency (Note 3)
tWPulse Width of any Input (Note 4) 20 ns
tSU Data Setup Time (Note 4) 20 ns
tHData Hold Time (Note 4) 0 ns
tEN Enable Time to Clock (Note 4) 40 ns
TAFree Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min Typ Max Units
(Note 5)
VIInput Clamp Voltage VCC = Min, II = −18 mA −1.5 V
VOH HIGH Level Output VCC =Min, IOH =Max 2.5 3.4 V
Voltage VIL = Max, VIH = Min 2.7 3.4
VOL LOW Level Output VCC =Min, IOL =Max 0.25 0.4
Voltage VIL = Max, VIH = Min 0.35 0.5 V
IOL =4mA,V
CC =Min 0.25 0.4
IIInput Current @ Max Input Voltage VCC = Max, VI = 7V 0.1 mA
IIH HIGH Level Input Current VCC = Max, VI = 2.7V 20 µA
IIL LOW Level Input Current VCC = Max, VI = 0.4V −0.4 mA
IOS Short Circuit VCC = Max −20 −100 mA
Output Current (Note 6) −20 −100
ICC Supply Current VCC = Max (Note 7) 19 34 mA
5 www.fairchildsemi.com
DM74LS193
AC Electrical Characteristics
From (Input) RL = 2 kΩ
Symbol Parameter To (Output) CL = 15 pF CL = 50 pF Units
MinMaxMinMax
fMAX Maximum Clock Frequency 25 20 MHz
tPLH Propagation Delay Time Count Up 26 30 ns
LOW-to-HIGH Level Output to Carry
tPHL Propagation Delay Time Count Up 24 36 ns
HIGH-to-LOW Level Output to Carry
tPLH Propagation Delay Time Count Down 24 29 ns
LOW-to-HIGH Level Output to Borrow
tPHL Propagation Delay Time Count Down 24 32 ns
HIGH-to-LOW Level Output to Borrow
tPLH Propagation Delay Time Either Count 38 45 ns
LOW-to-HIGH Level Output to Any Q
tPHL Propagation Delay Time Either Count 47 54 ns
HIGH-to-LOW Level Output to Any Q
tPLH Propagation Delay Time Load to 40 41 ns
LOW-to-HIGH Level Output Any Q
tPHL Propagation Delay Time Load to 40 47 ns
HIGH-to-LOW Level Output Any Q
tPHL Propagation Delay Time Clear to 35 44 ns
HIGH-to-LOW Level Output Any Q
www.fairchildsemi.com 6
DM74LS193
Physical Dimensions inches (millimeters) unless otherwise noted

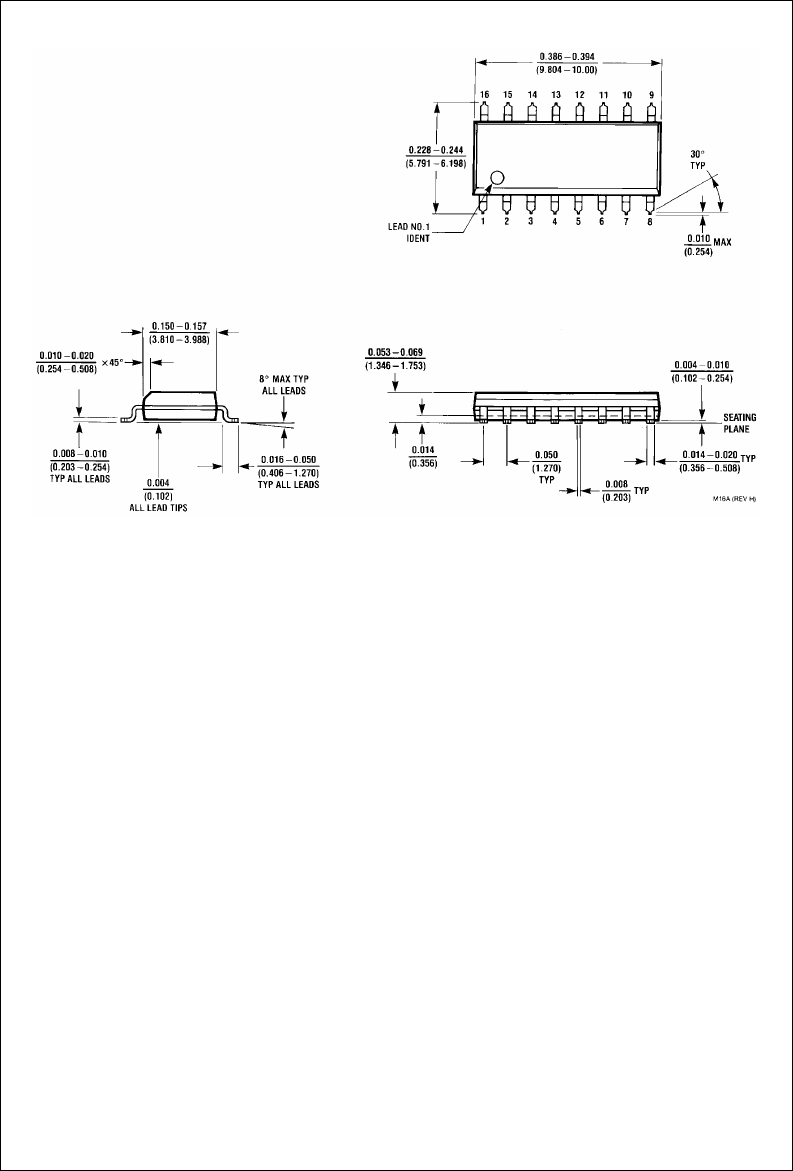

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0150” Narrow Body
Package Number M16A
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
7 www.fairchildsemi.com
DM74LS193 Synchronous 4-Bit Binary Counter with Dual Clock
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

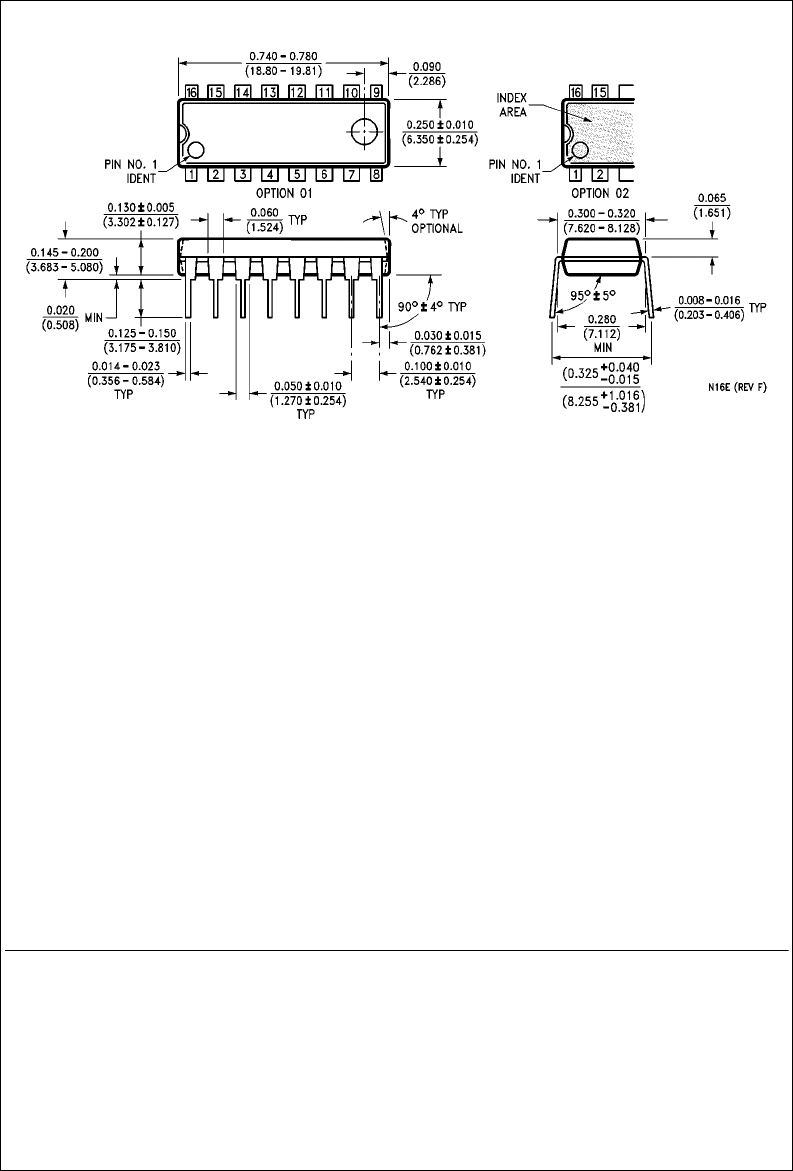

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
Package Number N16E
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
