User Manual: 247.88855

Open the PDF directly: View PDF PDF.
Page Count: 8

23

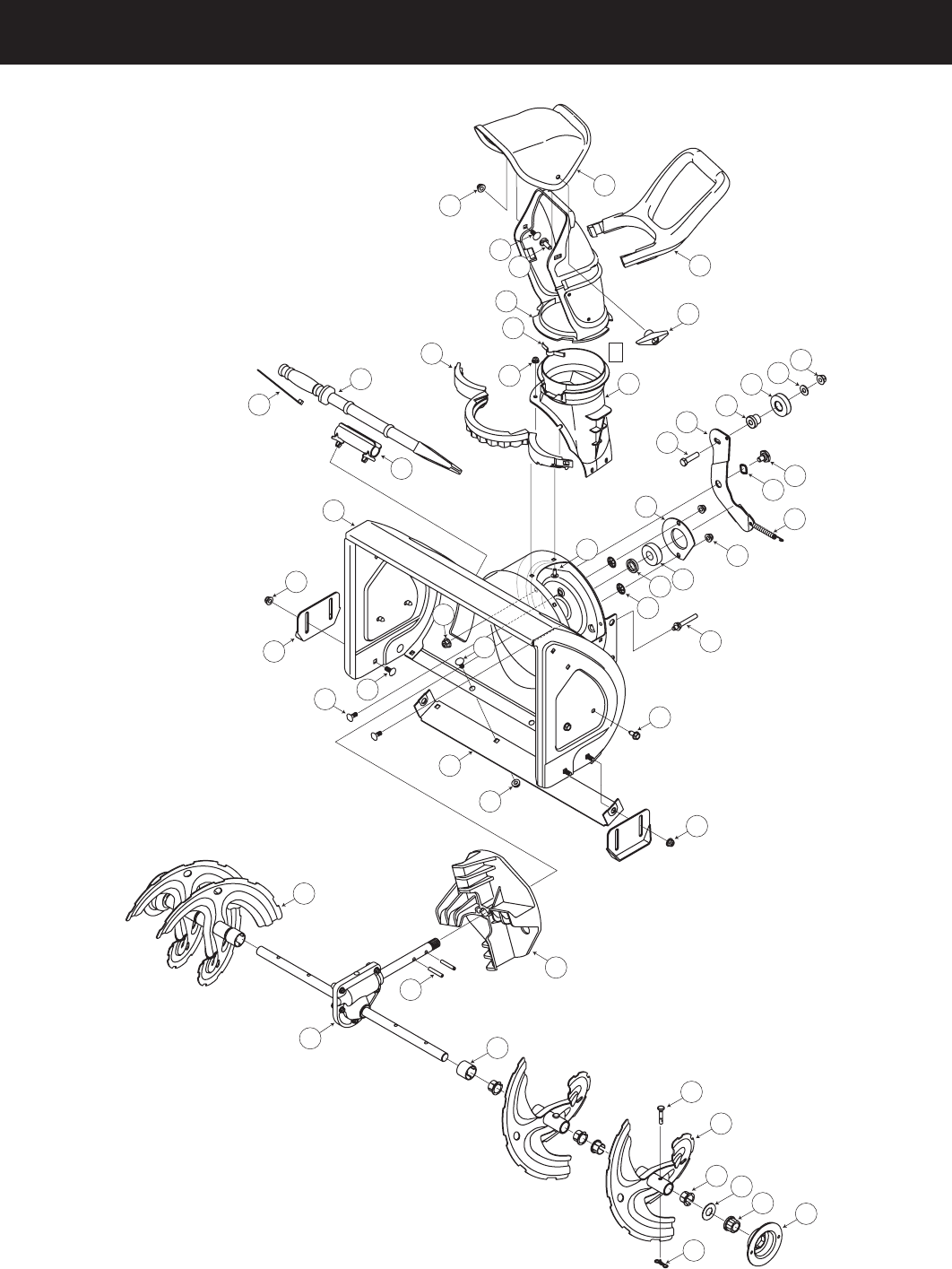

Parts List
20
9
18
34
32 821
22
33
28
20
47
30
31
24
25
27
10
38
3
21
15
12
13
16
46
3
20
45
23
35
5
17
11
1
14
20
4
26
19
44
29
41
43
36
42
39
40
37
46
7
6
3
2
Craftsman Snow Thrower Model 247.88755
24
Parts List
REF
NO.
PART NUMBER DESCRIPTION
1684-04037 Chute Assembly
2710-04071 Carriage Bolt 5/16-18 x 1.0”
3710-0451 Carriage Bolt 5/16-18
4710-0260A Carriage Bolt 5/16-18 x .62
5720-0284 Wing Knob 5/16-18
6 731-04388A Chute Handle
7731-04426A Upper Chute
8736-0267 Flat Washer .385 x .87 x .06
9731-04127 Lower Chute
10 731-04353 Chute Ring
11 731-2636A Chute Adapter 5” Dia.
12 73 2- 0 4111 Chute Adjustment Spring
13 712-04064 Flange Lock Nut 1/4-20
14 731-2643 Clean-out Tool
15 731-2635 Clean-out Tool Mount
16 725-0157 Cable Tie
17 710-0134 Carriage Screw 1/4-20 x 0.62”
18 710-0520 Hex Bolt 3/8-16 x 1.50”
19 710-04484 AB Screw 5/16-18 x .750
20 712-04063 Flange Lock Nut, 5/16-18
21 712-04065 Flange Lock Nut, 3/8-16
22 750-04852 Shoulder Spacer
23 715-04020 Spiral Pin
24 726-04012 Push On Nut
REF
NO.
PART NUMBER DESCRIPTION
25 731-04218B Impeller
26 73 2- 0 611 Extension Spring
27 736 -0174 Wave Washer
28 738-0281 Shoulder Screw 3/8-16
29 741-024 5 Hex Flange Bearing
30 741-03 09 Ball Bearing
31 750-04191 Spacer
32 741-0 919 Flat Idler
33 784-0434-0637 Auger Idler Bracket
34 790-00075 Bearing Housing
35 618-04292A Auger Gearbox Assembly
36 684-04113A-0637 Auger Assembly - LH
37 684-04114A-0637 Auger Assembly - RH
38 684-04166A-0721 Auger Housing, 22”
39 714-04040 Bow Tie Cotter Pin 72
40 731-04870 Spacer, 1.25 x.75 x 1.00
41 736-0351 Flat Washer
42 738-04124A Shear Pin,.25 x 1.50
43 741-0 493A Flange Bushing
44 790-00087A-0637 Hex Bearing Housing
45 790-00117-0637 Shave Plate 2.25 x 21.66 LG
46 784-5580-0721 Skid Shoe
47 710-04606 Belt Keeper
Craftsman Snow Thrower Model 247.88755
25
Parts List
Craftsman Snow Thrower Model 247.88755
2
4
55
56
1
13
3
9
8
7
10
12
11
38
20
22
23
39
42
50
48
46
47
45
44
43
49
40
14 43
26
29
16
28
3
30
53
31
41
37
17
19 21
27
15
18
36
51
35
32
16
25
24 18
33
52
34
6
554
26
Parts List
Ref. No. Part No. Description
1710-0449 Carriage Screw 5/16-18 x 2.25
2710-0605 Mach. Screw 1/4-20 x 1.825
3710-04484 Screw 5/16-18 x .75
4712-04064 Flange Lock Nut 1/4-20
5720-0284 Wing Knob 5/16-18
6 725-0157 Cable Tie
7746-04256 Drive Cable
8746-04236 Auger Cable
9747-1161A Auger Control
10 747-1214 Drive Control
11 749- 04147 Lower Handle
12 749-04459-0637 Upper Handle
13 790-00053 Handle Tab
14 618-04296A Transmission Assembly
15 710-0809 TT Screw 1/4-20 x 1.25
16 710 -1652 Screw 1/4-20 x .625
17 711-13 64 Clevis Pin
18 714 - 0115 Cotter Pin 1/8 x 1.0
19 714-04040 Bow Tie Cotter Pin 72
20 715-0249 Roll Pin
21 717-04066A Pinion 14T
22 717-04073A Gear 70T
23 732-0429A Extension Spring
24 736-0192 Flat Washer
25 738-04184A Shoulder Screw 1/4-20
26 738-0924A Shoulder Screw 1/4-28
27 741-024 5 Hex Flange Bearing
28 741-04108 Hex Flange Bearing
Ref. No. Part No. Description
29 756-0625 Cable Roller
30 784-0419C-0721 Drive Housing Frame
31 790-00223A-0637 Auger Cable Bracket
32 790-00224-0637 Auger Cable Adj. Bracket
33 634-04282A Wheel Assy Snow Hog Gray
34 710-0627 Lock Bolt 5/16-24 x .75
35 736-0242 Bell Washer .34 x .872 x .06
36 738-04321 Axle
37 710-0224 Hex Screw #10-16 x .500
38 710-0654A TT Sems Screw 3/8-16 x 1.0
39 710-0696 Hex Bolt 3/8-24 x .875
40 710 -1245B Lock Bolt 5/16-24 x .875
41 731-04162A Belt Cover
42 736-0247 Flat Washer .406 ID x 1.25 OD
43 736-0505 Flat Washer .34 ID x 1.50 OD
44 748- 04067A Pulley: Adapter .75 Dia.
45 750-1355 Spacer .876 x 1.25 x .19
46 750-1356 Spacer .876 x 1.25 x .86
47 754-04013 V-Belt 3/8 x 21.108 Lg.
48 754- 04014 V-Belt 3/8 x 26.680 Lg.
49 756-04024 Auger Pulley
50 756-0569 Pulley Half
51 729-04035 Amp Sealed Connector
52 731-05672A Spacer
53 736-0160 Flat Washer .53 x .93 x .05
54 736-0451 Saddle Washer
55 750-04913 Spacer
56 731-04216A Cable Clip
Craftsman Snow Thrower Model 247.88755
27
Parts List

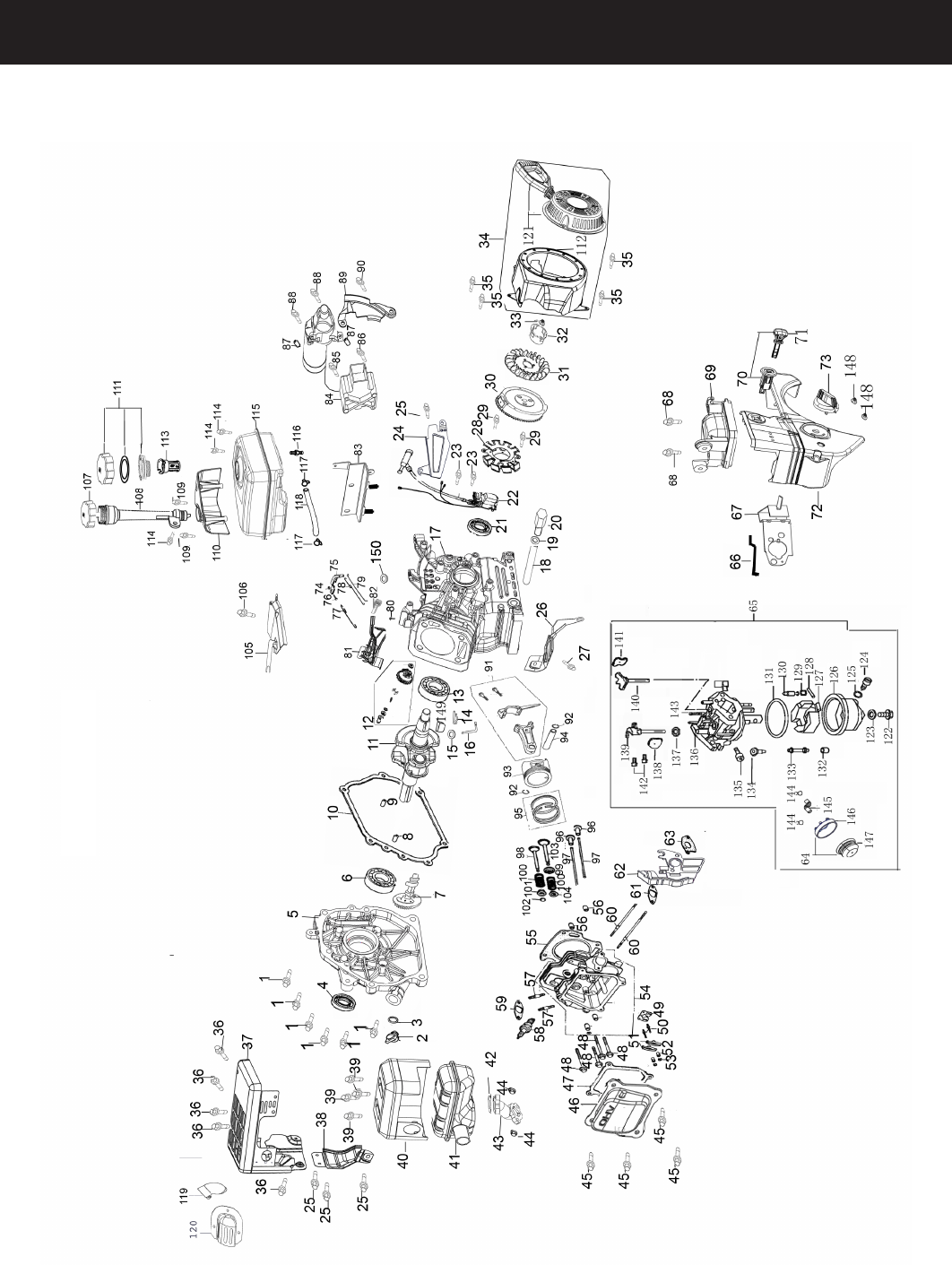

Craftsman Engine Model ZS365-SUA For Snow Thrower Model 247.88755
150
28
Parts List
Craftsman Engine Model ZS365-SUA For Snow Thrower Model 247.88755
Part No. Description Ref. No.
751-10645A Electric Starter 84
710-04934 Screw, M4 x 55 85
710-04935 Screw, M4 x 60 86
751-10646 Ignition Coil 22
710-04930 Bolt, M6 x 25 23
710-04928 Bolt, M6 x 12 25
751-10663A Fan Cover Complete 112
751-10658 Recoil Starter Assembly 121
710-04903 Fuel Drain Plug 122
710-04938 Fuel Drain Plug 124
710-04929 Bolt, M6 x 20 76
751-10654 Governor Spring 77
751-10664 Throttle Return Spring 78
751-10665 Governor Rod 79
710-04928 Bolt, Flange, M6 x 12 80
710-04929 Bolt, M6 x 20 90
710-04928 Bolt, M6 x 12 106
751-10655 Dipstick 107
751-10656 Dipstick Tube 108
710-04905 Bolt 109
751-10662 Cover - Engine/Dipstick 110
751-10652 Fuel Filter 113
710-04928 Bolt, Flange, M6 x 12 114
751-10653A Fuel Tank 115
712-04213 Nut 148
751-11012 Bolt, M6 x 16 35
710-04915 Bolt, M6 x 12 36
751-10642A Muffler Shroud 37
712-04214 Nut, M8 44
710-04928 Bolt, M6 x 12 45
710-04933 Bolt, M8 x 55 48
710-04910 Stud, M6 x 105 60
751-10666 Muffler Gasket 59
751-10292 Spark Plug 58
751-10657 Stud, M8 x 34 57
751-10639 Primer 64
Part No. Description Ref. No.
751-10974 Carburetor Assembly 65
751-1102 0 Carburetor Kit Major —
710-04931 Bolt, M6 x 28 68
751-10635 Air Filter Heating Pipe Cover 69
751-10637 Ignition Switch 70
751-10630 Ignition Key 71
712-04216 Nut, M6 74
751-10636 Choke Lever 73
751-10634 Engine Shroud 72
710-04927 Bolt, Flange, M5 x 8 39
751-10643 Muffler Shield 40
751-10640 Choke Push Rod 66
751-10651 Fuel Tank Nipple 116
751-10307 Flywheel Key 149
731-05696 Starter Handle N/A
952Z365-SUA Engine Complete N/A
710-04928 Bolt, M6 x 12 27
751-10719 Stator 28
712-04215 Nut, M14 33
751-10911 Starter Cup 32
751-10909 Cooling Fan 31
751-10805 Flywheel 30
710-04930 Bolt, M6 x 25 29
751-10757 Throttle Control Knob 82
751-10758 Throttle Control Assembly 81
751-11108 Governor Shield 105
715-04088 Dowel Pin 87
710-04928 Bolt, M6 x 12 88
751-11109 Blower Housing Shield 89
751-11110 Air Flow Shield 24
751-11111 Exhaust Pipe Shield 38
751-11112 Choke Control Bracket 67
751-11113 Air Shield 26
751-11114 Switch Mounting Housing Bracket 83
751-11012 Recoil Mounting Bolts 35
751-10768 Exhaust Deflector Shield 120
29
Parts List
Craftsman Engine Model ZS365-SUA For Snow Thrower Model 247.88755
Part No. Description Ref. No.
751-10723A Gasket Kit Complete
Oil Seal 4
Crankcase Cover Gasket 10
O-ring 15
Cylinder Head Gasket 55
Muffler Gasket 59
Head Cover Gasket 47
Carb Insulator Gasket 61
Carburetor Insulator 62
Carburetor Gasket 63
Paper Gasket 42
736-04440 Oil Drain Washer 19
751-10661A Gasket Kit External
Oil Drain Washer 19
Muffler Gasket 59
Carburetor Insulator Gasket 61
Carburetor Insulator 62
Carburetor Gasket 63
Head Cover Gasket 47
751-10722 Cylinder Head Assembly
Rocker Arm 51
Intake Valve 103
Exhaust Valve 98
Valve Spring 100
Valve Spring Retainers - Exhaust 101
751-1112 3 Pivot Adjusting Nut 52
751-11124 Rocker Arm Lock Nut 53
710-04902 Rocker Arm Studs 50
Push Rod Guide 49
Valve Cover Gasket 47
Carburetor Insulator Plate Gasket 61
Carburetor Insulator Plate 62
Muffler Gasket 59
Cylinder Head Gasket 170 55
Cylinder Head N/A
Exhaust Valve Adjuster 102
Valve Spring Retainer- Intake 104
Part No. Description Ref. No.
751-10724 Short Block
Crankcase Complete 17
Oil Pipe Reserve N/A
Crankcase Cover 5
Piston 93
Piston Ring Set - Complete 95
Piston Pin 94
Piston Pin Clip 92
Connecting Rod Assembly Complete 91
Valve Lifter (Tappet) 96
Camshaft Assembly 7
Carburetor Insulator plate gasket 61
Crankshaft Assembly 11
Carburetor Insulator Plate 62
Muffler Gasket 59
Governor Arm Shaft 16
Pin Lock 14
Governor Assembly 12
Case Cover Gasket 10
Cylinder Head Gasket 55
Valve Cover Gasket 47
710-04907 Oil Drain Bolt 20
Oil Drain Plug Washer 19
Dowel Pin 9
Dowel Pin 8
715-04090 Dowel Pin 56
Radial Ball Bearing 13
710-04932 Bolt 1
Oil Seal 4
Radial Ball Bearing 6
O-ring - Governor Arm 15
Oil Filler Plug 2
O-ring - Oil Filler Plug 3
Oil Drain Pipe 18
30
Parts List
Craftsman Engine Model ZS365-SUA For Snow Thrower Model 247.88755
Part No. Description Ref. No.
751-11100 Crankcase Kit
Governor Seal 150
Radial Ball Bearing 13
O-ring - Governor Arm 15
Crankcase Complete 17
Seal 21
751-10769 Exhaust Deflector Pipe 119
751-11054 Valve Cover 46
751-10641 Oil Drain Assembly
Oil Drain Pipe 18
Drain Bolt 2
751-10647 Valve Kit
Exhaust Valve 98
Intake Valve 103
751-10648 Push Rod Kit
Push Rod 97
751-10649 Fuel Cap Assembly
Fuel Cap Complete 111
Packing (Gasket) N/A
Clip (Gasket Retainer) N/A
751-10650 Fuel Line Kit
Fuel Line Clamp 117
Fuel Line 118
Part No. Description Ref. No.
751-10669 Oil Fill Plug Assembly
Oil Fill Plug 2
O-ring 3
751-10644 Muffler Assembly Complete
Muffler Assembly 41
Exhaust Pipe 43
751-11098 Crankcase Cover Kit
710-04932 Bolt 1
Oil Filler Plug 2
O-ring - Oil Filler Plug 3
Oil Seal 4
Crankcase Cover 5
Radial Ball Bearing 6
Crankcase Cover Gasket 10
751-11099 Crankshaft Kit
Oil Seal 4
Radial Ball Bearing 6
Crankshaft Assembly 11
Radial Ball Bearing 13
Seal 21
Flywheel Key 149
751-11063 Valve Cover Kit
Valve Cover 46
Valve Cover Gasket 47
