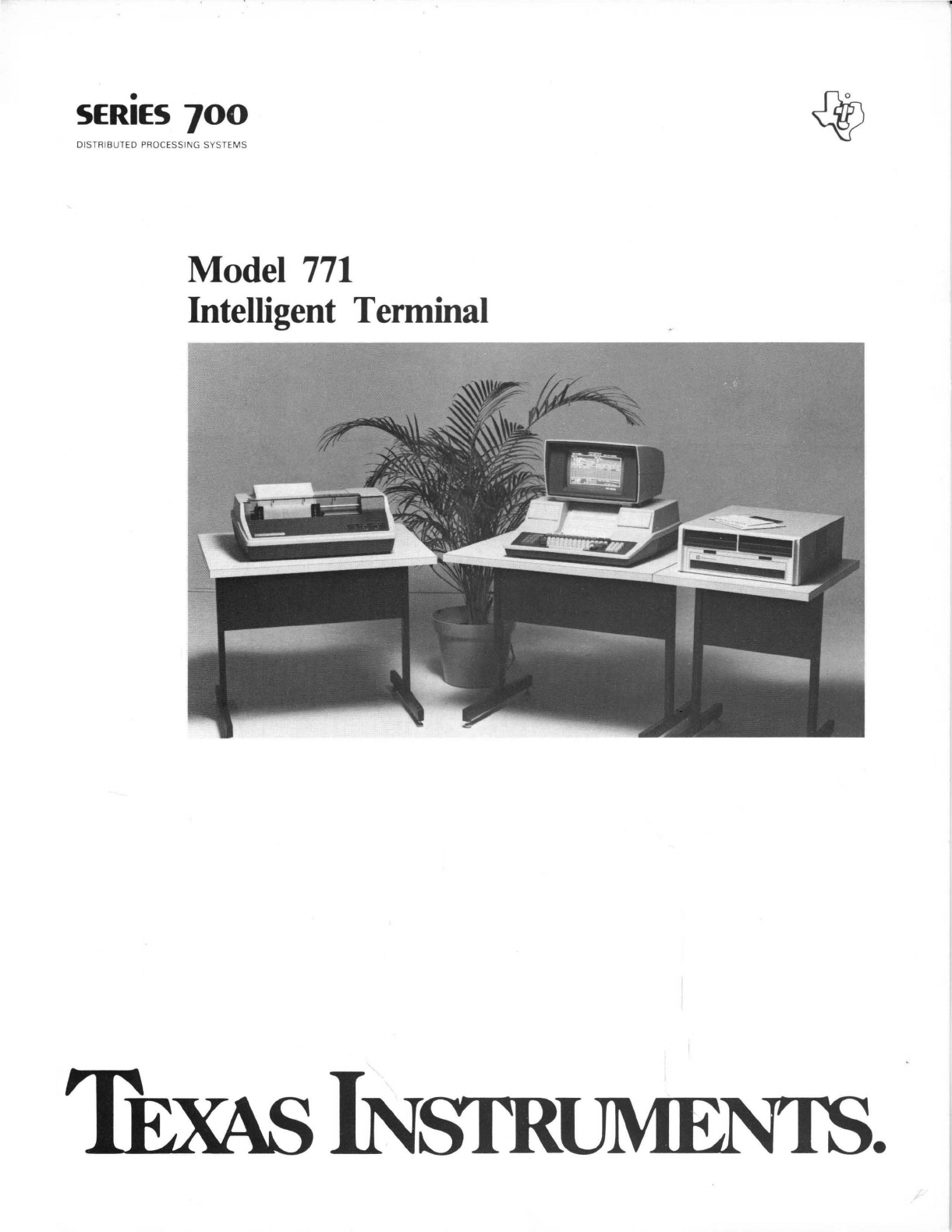

SERIES

700

DISTRIBUTED PROCESSING SYSTEMS

Model

771

Intelligent

Terminal

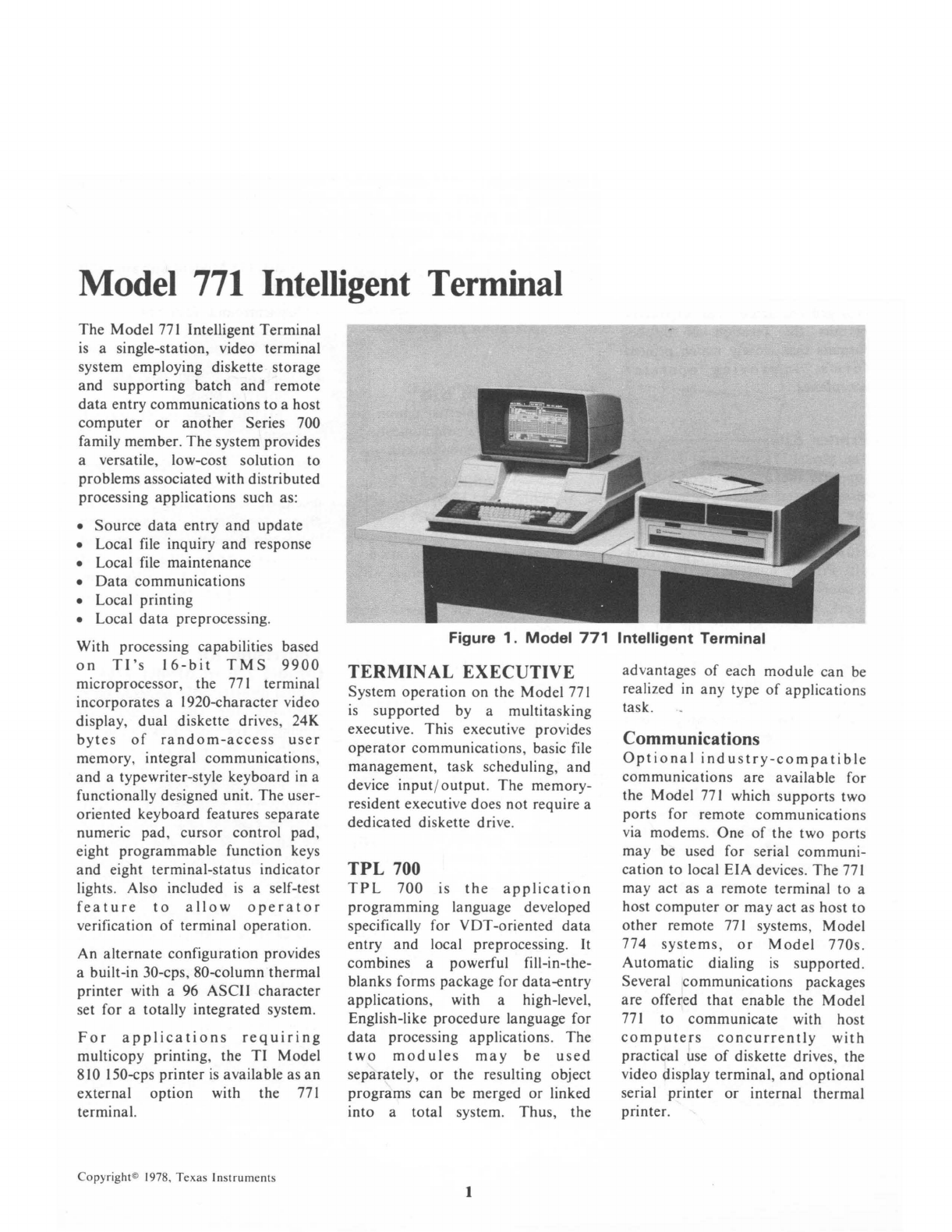

Model 771 Intelligent Terminal

The

Model

771

Intelligent Terminal

is

a single-station, video terminal

system employing diskette storage

and supporting batch and remote

data

entry communications to a host

computer

or

another

Series 700

family member.

The

system provides

a versatile, low-cost solution to

problems associated with distributed

processing applications such as:

• Source

data

entry

and

update

• Local file inquiry

and

response

• Local file maintenance

•

Data

communications

• Local printing

• Local

data

preprocessing.

With processing capabilities based

on

TI's

l6-bit

TMS

9900

microprocessor, the

771

terminal

incorporates a 1920-character video

display,

dual

diskette drives, 24K

bytes

of

random-access

user

memory, integral communications,

and

a typewriter-style keyboard in a

functionally designed unit. The user-

oriented keyboard features separate

numeric pad, cursor control pad,

eight programmable function keys

and eight terminal-status indicator

lights. Also included

is

a self-test

feature

to

allow

operator

verification

of

terminal operation.

An alternate configuration provides

a built-in 30-cps, 80-column thermal

printer with a

96

ASCII character

set for a totally integrated system.

For

applications

requiring

multicopy printing, the TI Model

810 l50-cps printer

is

available as an

external option with the

771

terminal.

Copyright©

1978

.

Texas

Instrument

s

Figure

1.

Model

771

Intelligent Terminal

TERMINAL

EXECUTIVE

System operation on the Model

771

is

supported by a multitasking

executive. This executive provides

operator

communications, basic file

management, task scheduling, and

device input/ output. The memory-

resident executive does not require a

dedicated diskette drive.

TPL 700

TPL

700

is

the

application

programming language developed

specifically for VDT-oriented

data

entry

and

local preprocessing.

It

combines a powerful fill-in-the-

blanks forms package for data-entry

applications, with a high-level,

English-like procedure language for

data

processing applications. The

two

mod

ules

may

be

used

separately,

or

the resulting object

programs can be merged

or

linked

into a total system. Thus, the

1

advantages

of

each module can be

realized in any type

of

applications

task.

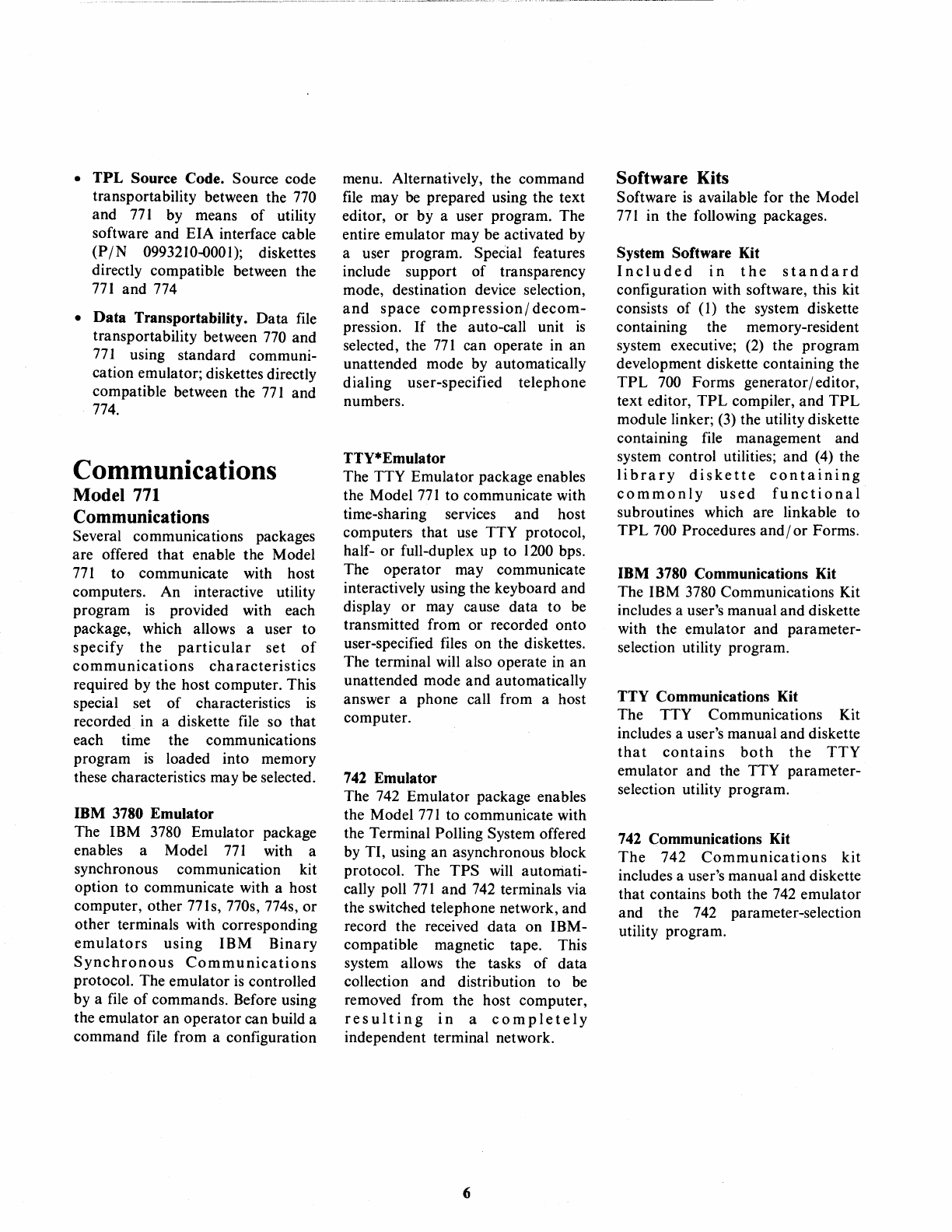

Communications

Optional

ind

ustry-compa

ti

ble

communications are available for

the Model

771

which supports two

ports for remote communications

via modems. One

of

the two ports

may be used for serial communi-

cation to local EIA devices. The

771

may act as a remote terminal to a

host

computer

or

may act as host to

other

remote

771

systems, Model

774

systems,

or

Model

770s.

Automatic dialing

is

supported.

Several communications packages

are offered

that

enable the Model

771

to communicate with host

computers

concurrently

with

practical use

of

diskette drives, the

video display terminal, and optional

serial printer or internal thermal

printer.

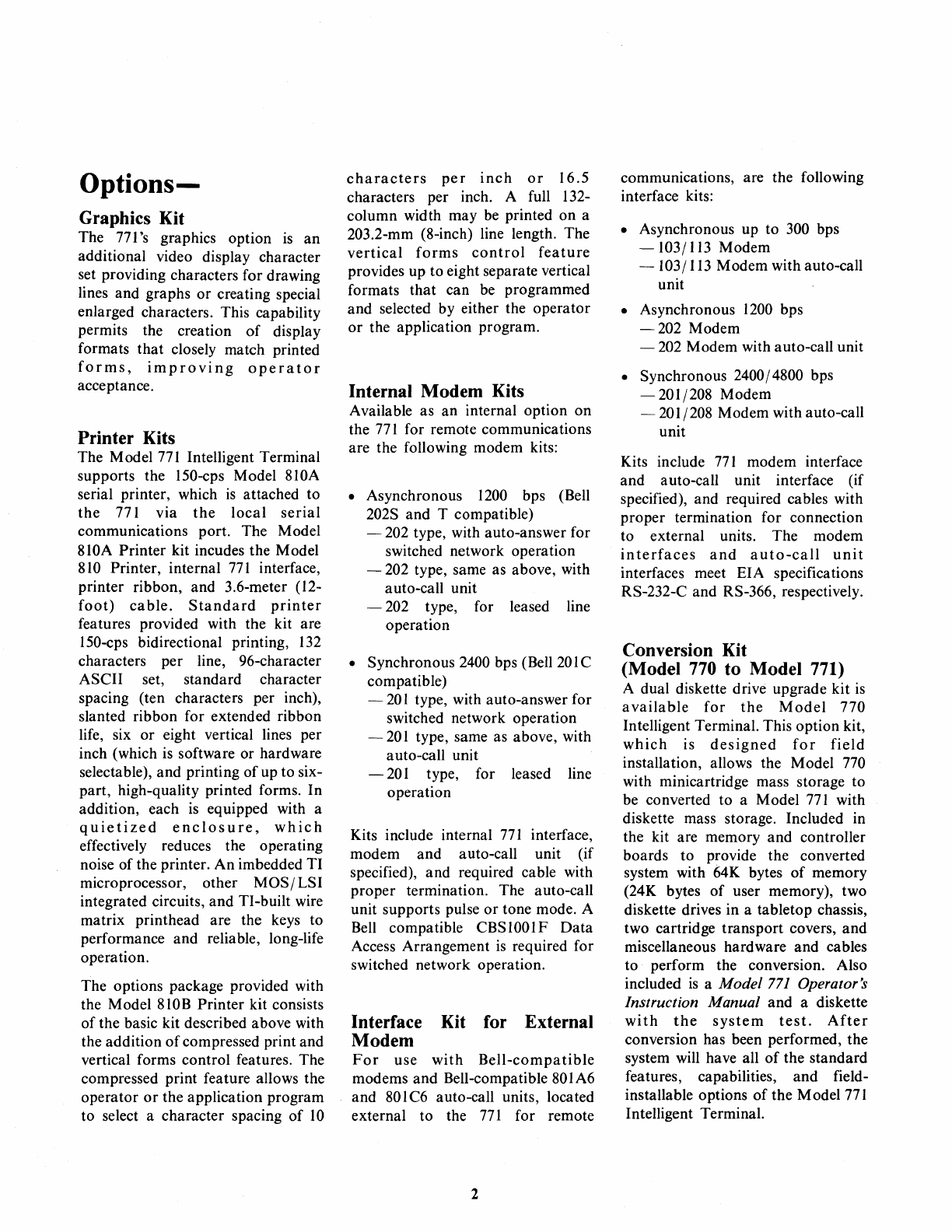

Options-

Graphics Kit

The

771

's

graphics option

is

an

additional video display character

set providing characters for drawing

lines and graphs

or

creating special

enlarged characters. This capability

permits the creation

of

display

formats that closely match printed

forms,

improving

operator

acceptance.

Printer Kits

The Model

771

Intelligent Terminal

supports the

ISO-cps

Model 810A

serial printer, which

is

attached to

the

771 via

the

local

serial

communications port. The Model

810A Printer kit incudes the Model

810

Printer, internal

771

interface,

printer ribbon, and 3.6-meter (12-

foot)

cable.

Standard

printer

features provided with the kit are

ISO-cps

bidirectional printing,

132

characters per line, 96-character

ASCII set, standard character

spacing (ten characters per inch),

slanted ribbon for extended ribbon

life, six or eight vertical lines per

inch (which

is

software or hardware

selectable), and printing

of

up to six-

part, high-quality printed forms. In

addition, each

is

equipped with a

quietized

enclosure,

which

effectively reduces the operating

noise of the printer. An imbedded TI

microprocessor, other

MOS/

LSI

integrated circuits, and TI-built wire

matrix printhead are the keys to

performance and reliable, long-life

operation.

The options package provided with

the Model 810B Printer kit consists

of

the basic kit described above with

the addition

of

compressed print and

vertical forms control features. The

compressed print feature allows the

operator

or

the application program

to select a character spacing

of

10

characters

per

inch

or

16.5

characters per inch. A full 132-

column width may be printed on a

203.2-mm (8-inch) line length. The

vertical

forms

control

feature

provides up to eight separate vertical

formats that can be programmed

and selected by either the operator

or

the application program.

Internal Modem Kits

Available as an internal option

on

the

771

for remote communications

are the following modem kits:

• Asynchronous

1200

bps (Bell

202S and T compatible)

-202 type, with auto-answer for

switched network operation

-202 type, same as above, with

auto-call unit

-

202

type, for leased line

operation

• Synchronous 2400 bps (Be1l201C

compatible)

-

20

I type, with auto-answer for

switched network operation

-

201

type, same as above, with

auto-call unit

-

20

I type, for leased line

operation

Kits include internal

771

interface,

modem and auto-call unit (if

specified), and required cable with

proper termination. The auto-call

unit supports pulse

or

tone mode. A

Bell compatible CBSIOOIF

Data

Access Arrangement

is

required for

switched network operation.

Interface Kit for External

Modem

For

use

with

Bell-compatible

modems

and

Bell-compatible

80

I

A6

and

80

I

C6

auto-call units, located

external to the

771

for remote

2

communications, are the following

interface kits:

• Asynchronous up to 300 bps

-103/113

Modem

-103jl13 Modem with auto-call

unit

• Asynchronous

1200

bps

-202

Modem

-

202

Modem with auto-call unit

• Synchronous 2400/4800 bps

-201/208 Modem

-201/208 Modem with auto-call

unit

Kits include

771

modem interface

and auto-call unit interface (if

specified), and required cables with

proper termination for connection

to external units. The modem

in

terfaces

and

auto-call

unit

interfaces meet EIA specifications

RS-232-C and RS-366, respectively.

Conversion Kit

(Model 770 to Model 771)

A dual diskette drive upgrade kit

is

available

for

the

Model

770

Intelligent Terminal. This option kit,

which

is

designed

for

field

installation, allows the Model

770

with minicartridge mass storage to

be converted to a Model

771

with

diskette mass storage. Included in

the kit are memory and controller

boards to provide the converted

system with 64K bytes

of

memory

(24K bytes

of

user memory), two

diskette drives in a tabletop chassis,

two cartridge transport covers,

and

miscellaneous hardware and cables

to perform the conversion. Also

included

is

a Model 771 Operator's

Instruction Manual and a diskette

with

the

system

test.

After

conversion has been performed, the

system will have all

of

the standard

features, capabilities,

and

field-

installable options

of

the Model

771

Intelligent Terminal.

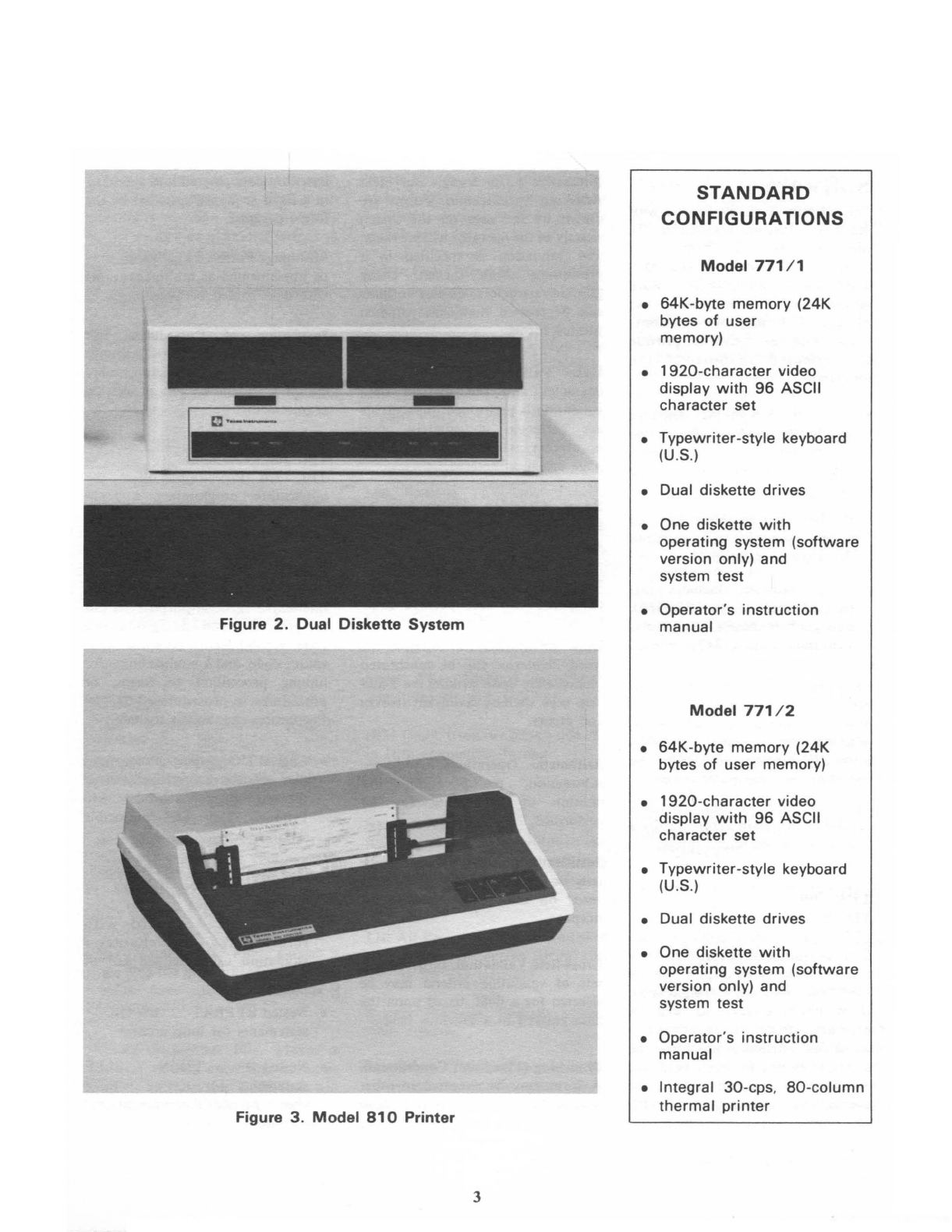

Figure 2. Dual Diskette System

Figure 3. Model

810

Printer

3

STANDARD

CONFIGURATIONS

Model

771/1

•

64K-byte

memory

(24K

bytes

of

user

memory)

•

1920-character

video

display

with

96

ASCII

character

set

•

Typewriter-style

keyboard

(U

.S.)

• Dual diskette drives

• One diskette

with

operating system

(software

version only) and

system

test

• Operator's

instruction

manual

Model

77112

•

64K-byte

memory

(24K

bytes

of

user

memory)

•

1920-character

video

display

with

96

ASCII

character

set

•

Typewriter-style

keyboard

(U.S.)

• Dual diskette drives

• One diskette

with

operating system

(software

version only) and

system

test

•

Operator's

instruction

manual

• Integral 30-cps, aO-column

thermal

printer

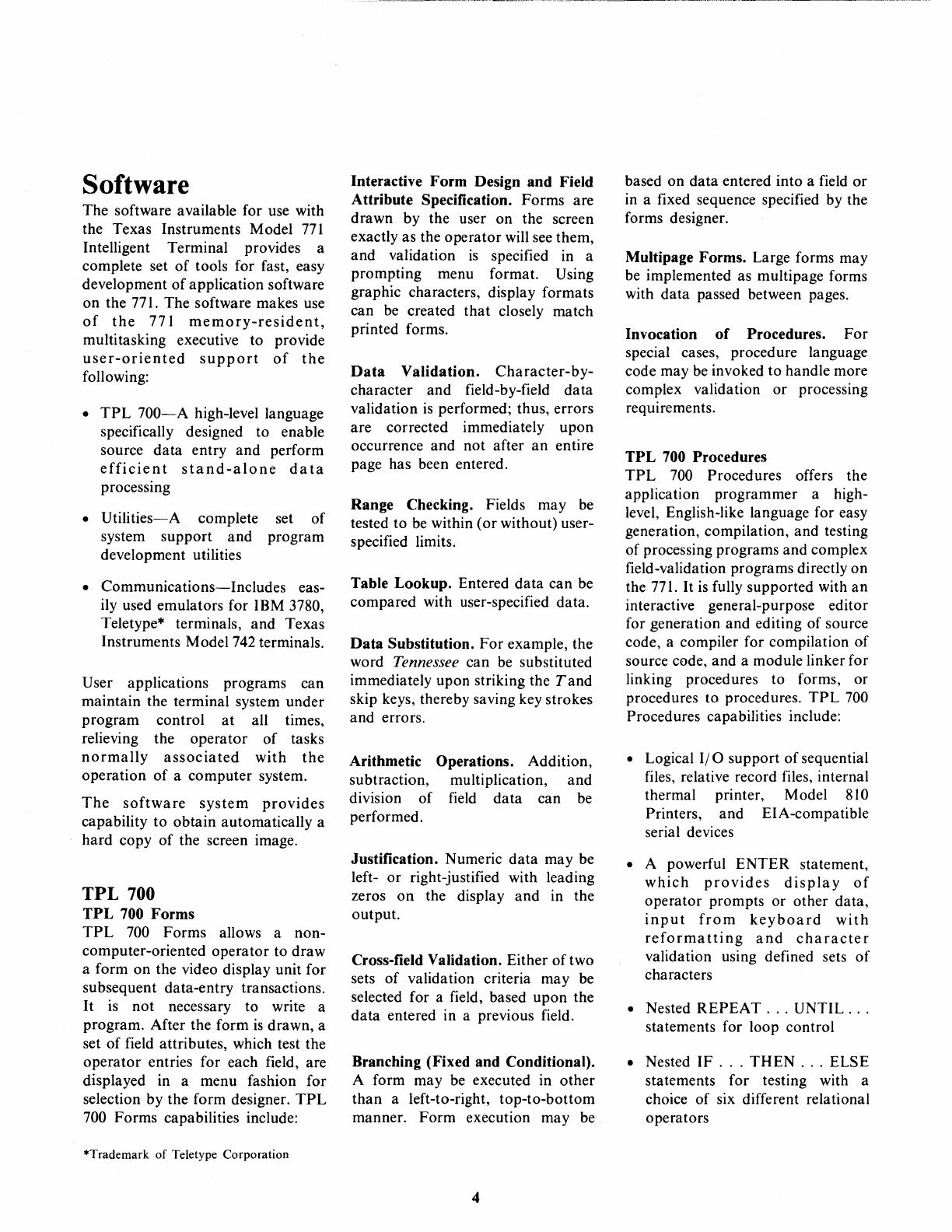

Software

The software available for use with

the Texas Instruments Model

771

Intelligent Terminal provides a

complete set

of

tools for fast, easy

development

of

application software

on the 771. The software makes use

of

the

771

memory-resident,

multitasking executive to provide

user-oriented

support

of

the

following:

•

TPL

700-A

high-level language

specifically designed to enable

source

data

entry

and

perform

efficient

stand-alone

data

processing

•

Utilities-A

complete set

of

system support

and

program

development utilities

•

Communications-Includes

eas-

ily used emulators for IBM 3780,

Teletype* terminals, and Texas

Instruments Model 742 terminals.

User applications programs can

maintain the terminal system under

program control

at

all times,

relieving the

operator

of

tasks

normally

associated

with

the

operation

of

a computer system.

The

software

system

provides

capability

to

obtain

automatically a

hard

copy

of

the screen image.

TPL

700

TPL

700

Forms

TPL

700

Forms

allows a non-

computer-oriented

operator

to draw

a form

on

the video display unit for

subsequent data-entry transactions.

It

is

not

necessary to write a

program. After the form

is

drawn, a

set

of

field attributes, which test the

operator

entries for each field, are

displayed in a menu fashion for

selection by the form designer.

TPL

700 Forms capabilities include:

*Trademark

of

Teletype Corporation

Interactive

Form

Design

and

Field

Attribute Specification. Forms are

drawn

by the user

on

the screen

exactly

as

the operator will see them,

and validation

is

specified in a

prompting menu format. Using

graphic characters, display formats

can be created

that

closely match

printed forms.

Data

Validation.

Character-by-

character and field-by-field

data

validation

is

performed; thus, errors

are corrected immediately

upon

occurrence and not after

an

entire

page has been entered.

Range Checking. Fields may be

tested to

be

within

(or

without) user-

specified limits.

Table

Lookup.

Entered

data

can be

compared with user-specified data.

Data

Substitution.

For

example, the

word Tennessee can be substituted

immediately upon striking the T and

skip keys, thereby saving key strokes

and errors.

Arithmetic Operations. Addition,

subtraction, multiplication,

and

division

of

field

data

can be

performed.

Justification. Numeric

data

may be

left-

or

right-justified with leading

zeros

on

the display and in the

output.

Cross-field Validation. Either

of

two

sets

of

validation criteria may be

selected for a field, based

upon

the

data

entered in a previous field.

Branching (Fixed and Conditional).

A form may be executed in

other

than

a left-to-right,

top-to-bottom

manner.

Form

execution may be

4

._----------_._-

......

-

..........

_

....

_

..

..

based

on

data

entered into a field

or

in a fixed sequence specified by the

forms designer.

Multipage Forms. Large forms may

be implemented as multipage forms

with

data

passed between pages.

Invocation

of

Procedures.

For

special cases, procedure language

code may be invoked to handle more

complex validation

or

processing

requirements.

TPL

700 Procedures

TPL

700 Procedures offers the

application programmer a high-

level, English-like language for easy

generation, compilation, and testing

of

processing programs and complex

field-validation programs directly on

the 771.

It

is

fully supported with

an

interactive general-purpose editor

for generation and editing

of

source

code, a compiler for compilation

of

source code, and a module linker for

linking procedures to forms, or

procedures to procedures.

TPL

700

Procedures capabilities include:

• Logical 110 support

of

sequential

files, relative record files, internal

thermal printer, Model 810

Printers, and EIA-compatible

serial devices

• A powerful

ENTER

statement,

which

provides

display

of

operator prompts

or

other

data,

input

from

keyboard

with

reformatting

and

character

validation using defined sets

of

characters

• Nested

REPEAT

...

UNTIL

...

statements for loop control

• Nested

IF

...

THEN

...

ELSE

statements for testing with a

choice

of

six different relational

operators

•

Data

transfers with reformatting,

including character strings to

binary numbers, binary numbers

to strings,

or

character strings to

character strings

• Single

and

triple precision integer

arithmetic

• Generation

of

source using the

interactive

771

text editor utility,

which provides scrolling, insert

and delete

of

character

or

line,

tabbing, and full cursor control

• The

TPL

700 compiler generates

complete source listing with

syntax-error reporting

• Record level locking to allow

mUltiple programs to share

common files

• Chaining by programs to other

forms or procedures in a fixed

or

operator-selected sequence.

Utilities

The following general purpose

utilities are provided to assist

programmers in maintaining files on

diskette. Utilities are selected from

menus and are menu-driven.

Backup and Initialize. Initializes a

diskette, deletes all files on

an

initialized diskette, copies and or

verifies individual files

or

groups

of

files from one diskette to another.

Copy / Concatenate Files. Copies a

specified file to

another

file

or

copies

up to three specified files into a

single file.

Create Sequential File. Makes a

volume catalog entry

and

allocates

diskette storage for a file

that

will

accommodate blank -compressed,

variable-length, sequential records.

Create Relative Record File. Creates

a random-access file in a given

volume

using

record

length

specified.

Delete File. Deletes the specified file

from the volume and updates the

volume catalog.

Modify File Name. Changes the

name

of

a file in volume catalog

to

a

new name.

Modify File Protection. Changes the

type

of

protection, such as "delete"

or

"write", for a special file.

List Catalog. Displays diskette

volume

catalog

giving

ID,

description,

amount

of

diskette

remaining, and file information

(name, type,

and

amount

of

diskette

storage used).

Modify Volume Name. Changes the

name

of

a specified volume.

Show File. Displays a selected

sequential file with scrolling.

IBM Copy. Used to create a diskette

in IBM-compatible format.

System Control

System

control

provides

the

operator

with information necessary

to determine the operating status of

the

771

system.

List All Programs. Provides a list of

the

currently

active

programs

serving the

771

terminal.

System Start-up. Reloads system

from diskette.

List Status. Provides the operating

status

of

the configuration along

with

accumulated

keystroke

statistics.

5

Compatibility

The Model

771

Intelligent Terminal

is

a member

of

the Series 700

Distributed Processing Systems

family, which includes the Model

770 Intelligent Terminal, the Model

771

Intelligent Terminal, and the

Model 774 Intelligent Terminal

System. The 770

is

a single-station

terminal employing minicartridge

tape storage; the

771

is

a single-

station

terminal

with

diskette

storage; and the 774

is

a multistation

intelligent terminal system offering

diskette

and/

or

hard disk storage.

Users

of

Series 700 systems may

easily and efficiently move from one

member

of

the family group to

another

because of the functional

and

operational

compatibility

between systems. Compatibility

offers: file structure which

is

addressed by all systems; identical

keyboard layout; the same menu

approach to program development;

and familial sharing

of

TPL

700, the

programming language used by all

systems. Only a minimum

of

time

and

effort

is

necessary

when

changing from one Series 700 system

to

another

or when mixing models

to fulfill varying needs

at

different

locations. The family gives a user a

direct

path

to total systems growth,

growth with minimum effort in the

areas that count:

• Operator. Same keyboard layout

on all three systems which allows

operators the flexibility

to

move

from one system to

another

with a

minimum

of

cross-training

•

Programmer.

Common

TPL700

programming language

on

all

three systems for easy operation

and consistency. Instruction sets

are

virtually

identical

with

enhancements for diskette

or

hard

disk

systems

to

take

full

advantage

of

these media

•

TPL

Source Code. Source code

transportability between the

770

and

771

by means

of

utility

software and EIA interface cable

(P/N

0993210-0001); diskettes

directly compatible between the

771

and 774

•

Data

Transportability.

Data

file

transportability between 770 and

771

using standard communi-

cation emulator; diskettes directly

compatible between the

771

and

774.

Communications

Model

771

Communications

Several communications packages

are offered

that

enable the Model

771

to communicate with host

computers. An interactive utility

program

is

provided with each

package, which allows a user to

specify

the

particular

set

of

communications

characteristics

required by the host computer. This

special set

of

characteristics

is

recorded in a diskette file so that

each time the communications

program

is

loaded into memory

these characteristics may be selected.

IBM 3780 Emulator

The IBM 3780 Emulator package

enables a Model

771

with a

synchronous communication kit

option to communicate with a host

computer, other 771s, 770s, 774s,

or

other terminals with corresponding

emulators

using

IBM

Binary

Synchronous

Communications

protocol. The emulator

is

controlled

by a file

of

commands. Before using

the emulator

an

operator can build a

command file from a configuration

menu. Alternatively, the command

file may be prepared using the text

editor,

or

by a user program. The

entire emulator may be activated by

a user program. Special features

include support

of

transparency

mode, destination device selection,

and

space

compression/

decom-

pression.

If

the auto-call unit

is

selected, the

771

can operate in

an

unattended mode by automatically

dialing user-specified

telephone

numbers.

TTY*Emulator

The TTY Emulator package enables

the Model

771

to communicate with

time-sharing services and host

computers

that

use TTY protocol,

half-

or

full-duplex up to

1200

bps.

The operator may communicate

interactively using the keyboard and

display

or

may cause data

to

be

transmitted from

or

recorded onto

user-specified files on the diskettes.

The terminal will also operate in

an

unattended mode and automatically

answer a phone call from a host

computer.

742 Emulator

The 742 Emulator package enables

the Model

771

to communicate with

the Terminal Polling System offered

by TI, using

an

asynchronous block

protocol. The

TPS

will automati-

cally poll

771

and

742 terminals via

the switched telephone network, and

record the received

data

on IBM-

compatible magnetic tape. This

system allows the tasks

of

data

collection and distribution to be

removed from the host computer,

resulting

in

a

completely

independent terminal network.

Software Kits

Software

is

available for the Model

771

in the following packages.

System Software Kit

Included

in

the

standard

configuration with software, this kit

consists

of

(1) the system diskette

contammg the memory-resident

system executive; (2) the program

development diskette containing the

TPL

700 Forms generator/editor,

text editor,

TPL

compiler, and

TPL

module linker; (3) the utility diskette

containing file management and

system control utilities; and (4) the

library

diskette

containing

commonly

used

functional

subroutines which are linkable to

TPL

700 Procedures

and/

or

Forms.

IBM 3780 Communications Kit

The IBM 3780 Communications Kit

includes a user's manual and diskette

with the emulator and parameter-

selection utility program.

TTY Communications Kit

The TTY Communications Kit

includes a user's manual and diskette

that

contains

both

the

TTY

emulator and the TTY parameter-

selection utility program.

742 Communications Kit

The

742

Communications

kit

includes a user's manual and diskette

that contains both the 742 emulator

and the 742 parameter-selection

utility program.

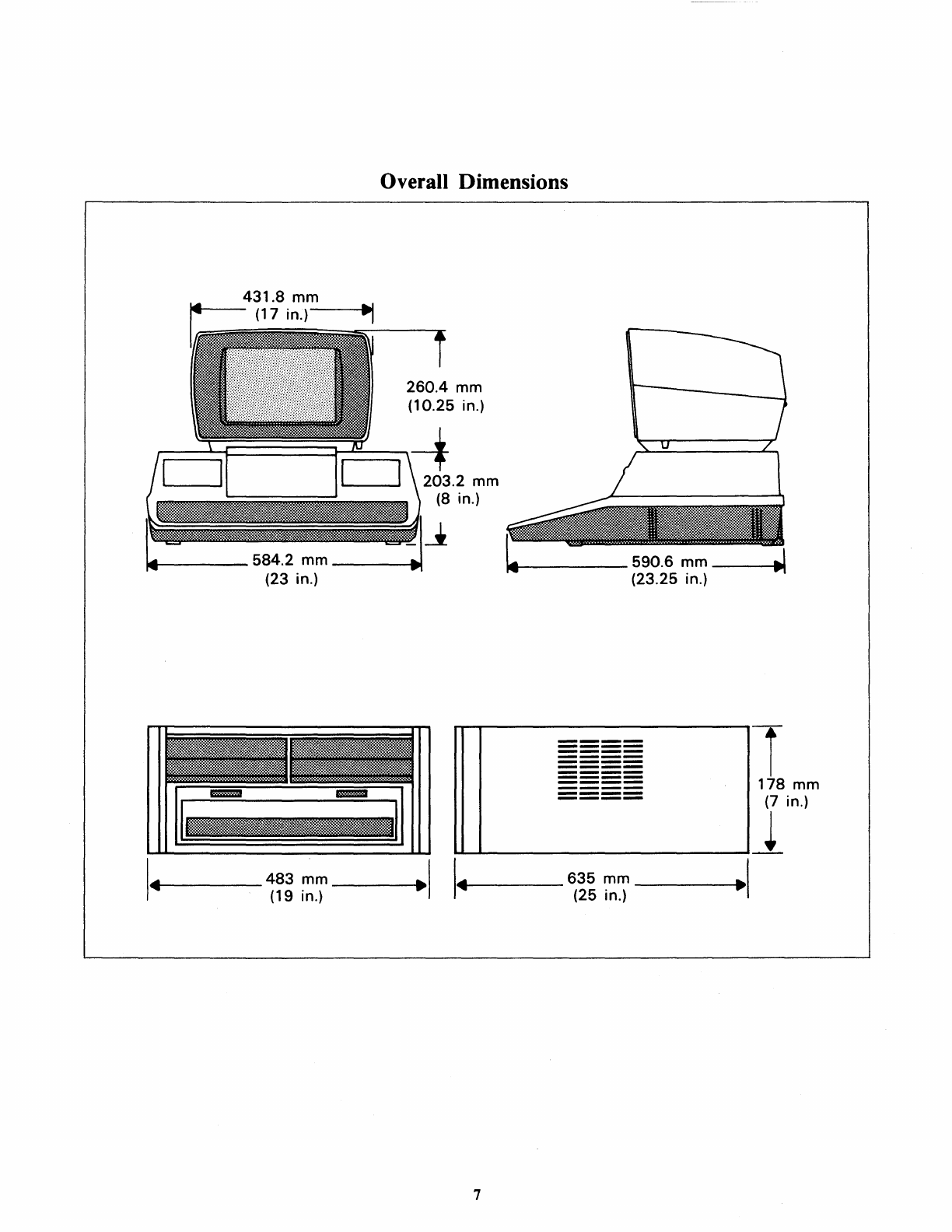

Overall Dimensions

___

---

584.2

mm

___

_

(23 in.)

i

178

mm

----

----

----

----

----

----

----

----

----

----

----

----

(7 in.)

l

1

___

----483

mm

______

1 1

635

mm

______

1

4 (19 in.) •

-4----

(25 in.) •

7

Model

771

Intelligent Terminal Configurator

771/1

64K-byte

Memory

Video Display

Unit

Diskette Drives (2)

Keyboard

Diskette

with

Operating

System (software version only)

and system test

Operator's Instruction

Manual

OR

771/2

Identical to Model 1

with

the

addition of:

Internal Thermal Printer

Printing paper (one

30-m,

100-

ft. roll)

OPTIONS

VIDEO

DISPLAY

• Graphics Kit

AUXILIARY

1/0

PORT OPTIONS

Select

Only

One

• Interface kit

for

external asynchronous EIA

devices

• Interface kit

for

external synchronous EIA

devices

• Interface kit

for

external

103/113

modem

• Interface kit

for

external

202

modem

• Interface kit for external

201/208

modem

• External

810A

printer

w/interface

• External

8108

printer

w/options

and

interface

Printer

kit

includes 3.6 m (12 ft.) cable.

All

interface kits

will

operate at speeds up to

9600

bps and include

the

appropriate cable (1.8

m;

6 ft.)

8

PRIMARY

1/0

PORT OPTIONS

Select

Only

One

103/113-compatible

Communications

Kits

for

asynchronous

speeds

up

to

300

bps

• Interface kit

for

external

103/113

modem

• Interface kit

for

external

103/113

modem

and external 801 auto-call

unit

202-compatible

Communications

Kits

for

asynchronous

speeds

up

to

1200

bps

• Interface kit

for

external

202

modem

• Interface kit for external

202

modem and

external 801 auto-call

unit

• Internal

202

modem kit

w/auto-answer-for

0.0.0.

network

• Internal

202

modem kit

w/auto-answer

and

internal 801 auto-call

unit-for

0.0.0.

network

• Internal

202

modem

kit

for leased line

201/208

Compatible

Communications

Kits

for

synchronous

speeds

up

to

4800

bps

• Interface kit

for

external

201/208

modem

• Interface kit for external

201/208

modem

and external 801 auto-call

unit

• Internal 201 modem

kit

w/auto-answer-for

0.0.0.

network

• Internal 201 modem kit

w/auto-answer

and

internal 801 auto-call

unit-for

0.0.0.

network

• Internal 201 modem

kit

for leased line

All modem kits include appropriate interface kit.

All

kits include appropriate cable(s) 1.8 m (6 ft.) long.

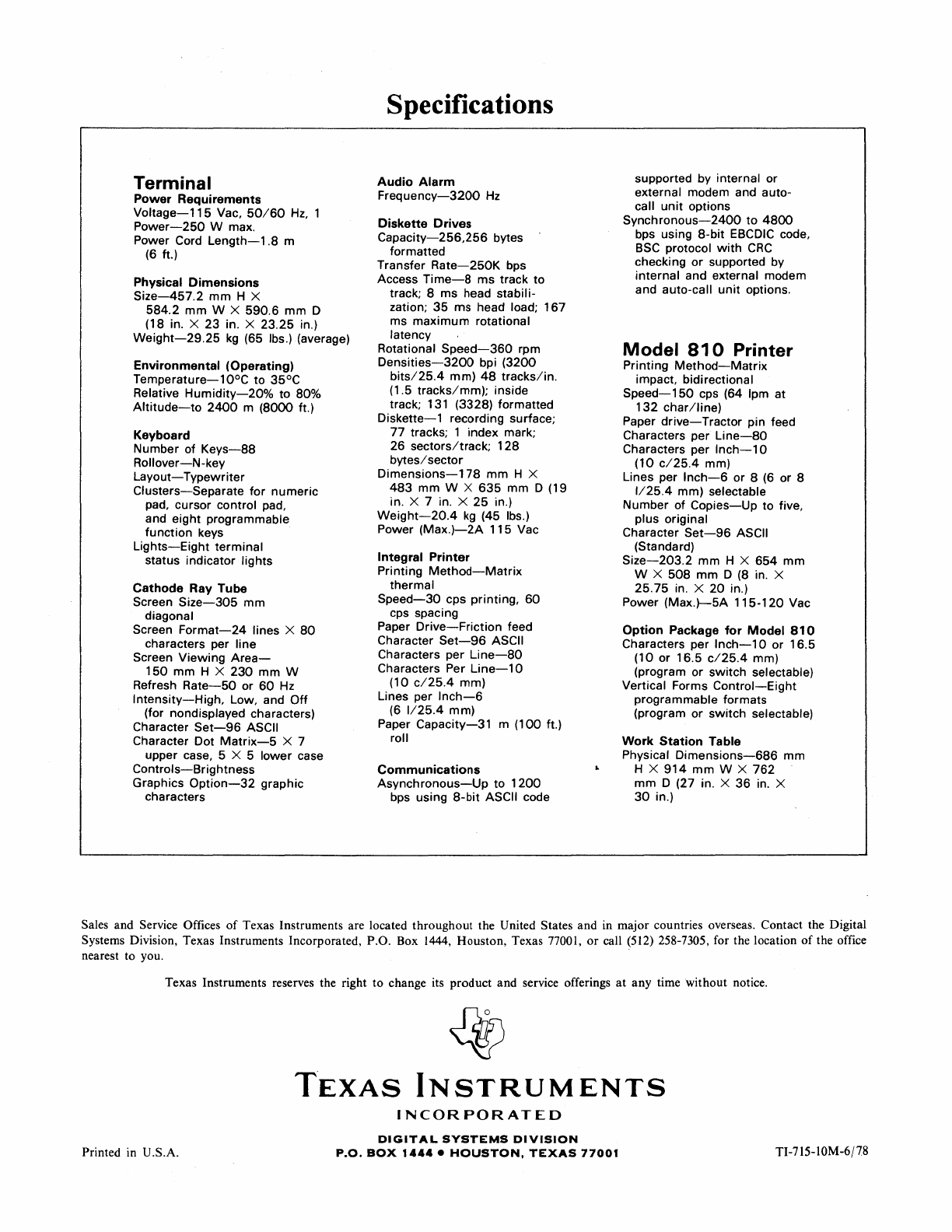

Terminal

Power

Requirements

Voltage-115

Vac,

50/60

Hz,

1

Power-250

W max.

Power Cord

Length-l.8

m

(6 ft.)

Physical

Dimensions

Size-457.2

mm

H X

584.2

mm

W X

590.6

mm

0

(18 in. X

23

in. X

23.25

in.)

Weight-29.25

kg

(65 Ibs.) (average)

Environmental

(Operating)

Temperature-10°C

to

35°C

Relative

Humidity-20%

to 80%

Altitude-to

2400

m

(8000

ft.)

Keyboard

Number

of

Keys-88

Rollover-N-key

Layout-Typewriter

Clusters-Separate

for

numeric

pad,

cursor

control pad,

and

eight

programmable

function

keys

Lights-Eight

terminal

status

indicator

lights

Cathode

Ray

Tube

Screen

Size-305

mm

diagonal

Screen

Format-24

lines X

80

characters per line

Screen

Viewing

Area-

150

mm

H X

230

mm

W

Refresh

Rate-50

or

60

Hz

Intensity-High,

Low, and

Off

(for nondisplayed characters)

Character

Set-96

ASCII

Character Dot

Matrix-5

X 7

upper case, 5 X 5

lower

case

Controls-Brightness

Graphics

Option-32

graphic

characters

Specifications

Audio

Alarm

Frequency-3200

Hz

Diskette

Drives

Capacity-256,256

bytes

formatted

Transfer

Rate-250K

bps

Access

Time-8

ms

track

to

track; 8

ms

head

stabili-

zation;

35

ms head load;

167

ms

maximum

rotational

latency

Rotational

Speed-360

rpm

Densities-3200

bpi

(3200

bits/25.4

mm)

48

tracks/in.

(1.5

tracks/mm);

inside

track; 131 (3328) formatted

Diskette-l

recording surface;

77

tracks; 1 index mark;

26

sectors/track;

128

bytes/sector

Dimensions-178

mm

H X

483

mm

W X

635

mm

0 (19

in. X 7 in. X

25

in.)

Weight-20.4

kg

(45 Ibs.)

Power

(Max.)-2A

115

Vac

Integral

Printer

Printing

Method-Matrix

thermal

Speed-30

cps

printing,

60

cps spacing

Paper

Drive-Friction

feed

Character

Set-96

ASCII

Characters

per

Line-80

Characters Per

Line-l0

(10

c/25.4

mm)

Lines per

Inch-6

(6

1/25.4

mm)

Paper

Capacity-31

m

(100

ft.)

roll

Communications

Asynchronous-Up

to

1200

bps using

8-bit

ASCII code

supported by internal or

external modem and auto-

call

unit

options

Synch

ronous-2400

to

4800

bps using

8-bit

EBCDIC code,

BSC protocol

with

CRC

checking

or

supported by

internal

and external modem

and auto-call

unit

options.

Model

810

Printer

Printing

Method-Matrix

impact, bidirectional

Speed-150

cps (64 Ipm at

132

char/line)

Paper

drive-Tractor

pin feed

Characters per

Line-80

Characters per

Inch-10

(10

c/25.4

mm)

Lines per

Inch-6

or

8 (6 or 8

1/25.4

mm)

selectable

Number

of

Copies-Up

to

five,

plus

original

Character

Set-96

ASCII

(Standard)

Size-203.2

mm

H X

654

mm

W X

508

mm

0 (8 in. X

25.75

in. X

20

in.)

Power

(Max.)-5A

115-120

Vac

Option

Package

for

Model

810

Characters per

Inch-10

or

16.5

(10

or

16.5

c/25.4

mm)

(program

or

switch

selectable)

Vertical Forms

Control-Eight

programmable

formats

(program

or

switch

selectable)

Work

Station

Table

Physical

Dimensions-686

mm

H X

914

mm

W X

762

mm

0 (27 in. X

36

in. X

30

in.)

Sales and Service Offices

of

Texas Instruments are located throughout the United States and in major countries overseas. Contact the Digital

Systems Division, Texas Instruments Incorporated, P.O. Box 1444, Houston, Texas 77001,

or

call (512) 258-7305, for the location

of

the office

nearest to you.

Texas Instruments reserves the right to change its product and service offerings

at

any time without notice.

~

TEXAS

INSTRUMENTS

INCORPORATED

DIGITAL

SYSTEMS

DIVISION

Printed in U.S.A.

P.O.

BOX

1444

•

HOUSTON,

TEXAS

77001

TI-715-lOM-6j78
