User Manual: Digital Audio Board 7KDAB

Open the PDF directly: View PDF .
Page Count: 66

7K Digital Audio Board

Revision 2.0

19-Aug-2007

Vyex LLC

www.vyex.com

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

INTRODUCTION 1

LIMITED HARDWARE WARRANTY 2

TRADEMARKS 3

INSTALLATION 4

Installation into the rack mount cabinet. 4

Installing the FLASH Card 5

Updating the 7K repeater controller firmware 6

USING THE DAB 7

LED Status indicator 7

Basic use 8

Supported WAV File formats 9

Things to consider when deciding file storage parameters 9

Recommended editing programs 10

STORING FILES ON THE FLASH CARD 10

Multi-Media Card adapters 10

File system requirements 11

File system structure for the Audio Files 12

Special files stored in the root directory 12

CONFIG.INI 12

DAB-MAIN.BIN 12

DAB-BOOT.BIN 13

7K-IMAGE.BIN 13

7K-PATCH.BIN 13

SPECIAL WORDS 13

9700 – Custom Delay 13

9701 – Long word continuation 13

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

9702 – Playback Speed Factor 14

9710 – Play Random File 14

9720 – Send Serial Characters 15

9790 – Force 7KDAB Reset 15

9796 – Load 7K Patch file 16

9797 – Provide RTC data to DAB 16

9798 – Load 7K-IMAGE.BIN 16

9799 – Save 7K-IMAGE.BIN 16

MORSE CODE FEATURES 17

Message File Location 17

Message File contents 17

Message file control characters 17

Pitch 17

Speed 18

Amplitude 18

Sending ‘Prosigns’ 18

7KDAB ‘Busy’ message 19

USING THE SERIAL PORT 20

Hardware Interface 20

Baudrate 20

Password 20

Connecting a Modem to the Serial Port 21

The Command Line Interface 22

CD – Change Directory 22

DIR – Directory command 23

DEL – Delete File 24

REN – Rename File 24

FIND – Find a file 24

SY – Send Y-Modem 25

RY – Receive Y-Modem 25

LO – Logout 25

REBOOT – Reboot DAB 25

SMHOST – Force Smart Host Present Flag 25

STOP – Stop current WAV file playback 26

TIME – Display or Set the current Time and Date 26

TYPE – Type a file to the console 26

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

iii

Command line interface commands available with 7K firmware 2.04 27

#!; - Issuing commands to the 7K 27

RFP – Remote Front Panel 28

SCRIPT – Execute text file to program the 7K controller 29

FIRMWARE UPDATE PROCEDURE. 30

MMC card reader/writer attached to your computer running Windows 30

Use your terminal emulator to transfer a file to the MMC card 30

APPENDIX A LIBRARY CONTENTS 31

7K SSM Words 31

Sean Caldwell Words 31

Test Tones 42

APPENDIX B ASCII CHARACTER CHART 43

APPENDIX C – MORSE CODE CHARACTERS 44

APPENDIX D VERSION HISTORY 45

Product Firmware Revisions 45

User Manual Revisions 45

1.2 – 21-Oct-2003 45

1.3 – 10-Dec-2003 45

1.5 – 9-Feb-2004 45

1.5a – 17-Feb-2004 45

1.6 – 20-Mar-2004 45

1.6a – 12-May-2004 45

1.7 – 25-July-2004 45

1.7a – 13-May-2006 45

1.8 – 14-Aug-2007 45

2.0 – 19-Aug-2007 45

APPENDIX E 7K VERSION 2.04 RELEASE NOTES 46

Disclaimer 46

Overview 46

New Commands 47

{PW} 16 Stop playback of current speech word 47

{PW} 24 xxxx Remove Command From Macro 47

{PW} 36 T F xxxx Modify ID Timers 47

{PW} 49 90/91/92/93 xx Message Handler Initial Message Delay 48

{PW} 49 94/95 xx Logic output pulse duration 48

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

{PW} 76 ff yyyy (zzzz) IF-THEN-ELSE 49

New Switches 50

{PW} 63 16 x Daylight Savings time correction 50

{PW} 63 19 x Ignore Landline Busy Input 50

{PW} 63 33 x Enable “OK” Command Responses 50

{PW} 63 34 x Enable “?ERR” Command Responses 50

{PW} 63 35 x Courtesy message can be queued during message playback 50

{PW} 63 36 x Suppress command responses within macro execution 50

{PW} 63 92 x User Soft Switch 1 51

{PW} 63 93 x User Soft Switch 2 51

{PW} 63 94 x User Soft Switch 3 51

{PW} 63 95 x User Soft Switch 4 51

{PW} 63 96 x User Soft Switch 5 51

{PW} 63 97 x User Soft Switch 6 51

{PW} 63 98 x User Soft Switch 7 51

Changed Commands 52

{PW} 02 f … CTCSS Encoder 52

{PW} 40 r xxx Set Transmit Timeout Timers 53

{PW} 89 … Select DTMF Priority/Scan 53

{PW} 50 0/1 99 Review Initial and Normal Tail ID’s 53

{PW} 96 t xx Set DTMF Mute Delay 53

{PW} 63 xx 0/1/2/3 Set User Switch 53

New Message Types 54

Operational Changes 54

Bug Fixes and Changes 55

Version 2.04 55

Version 2.04a 55

Version 2.04b 55

Version 2.04c 55

Version 2.04d 55

Version 2.04e 55

Version 2.04f 56

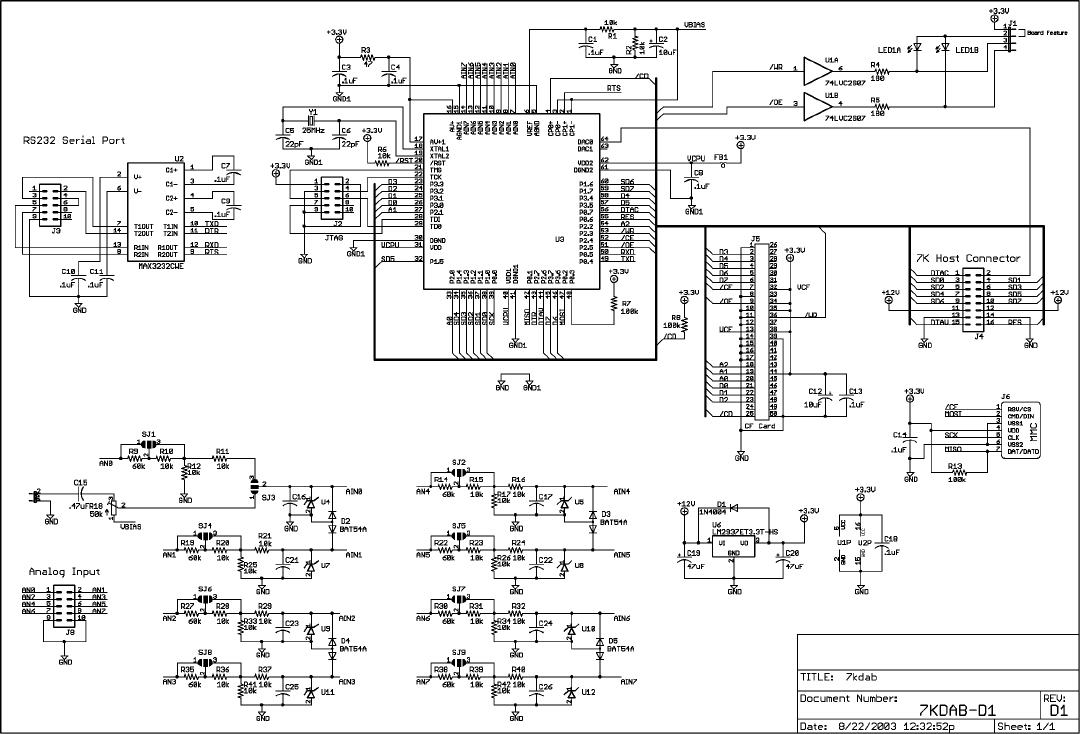

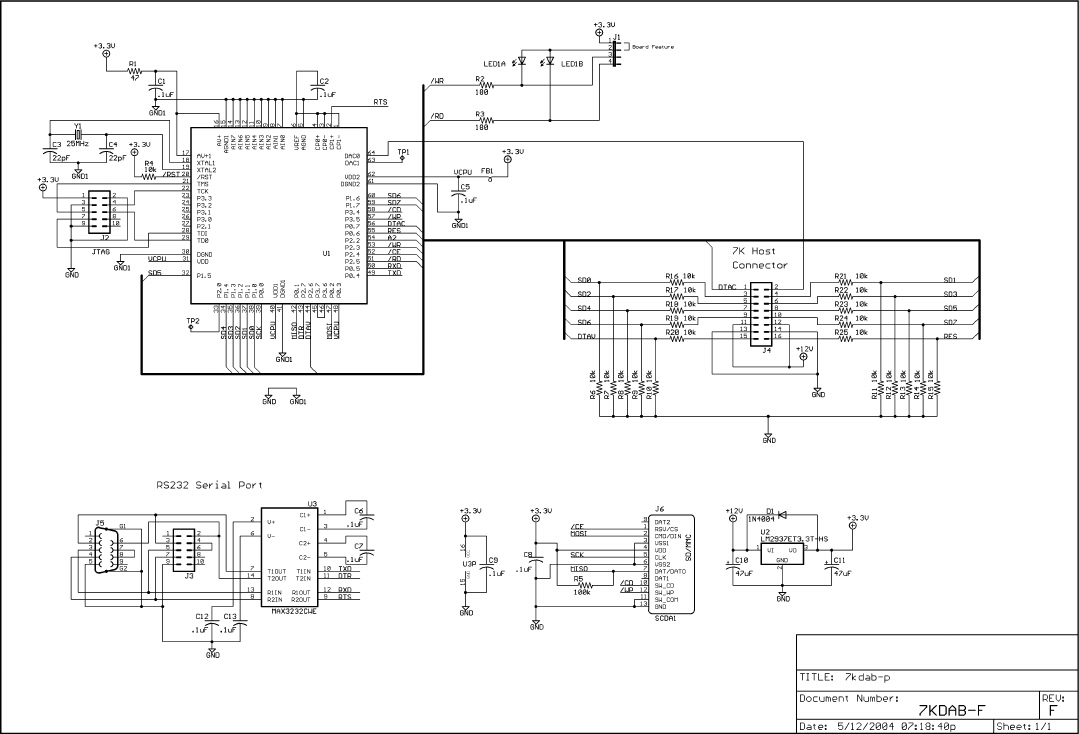

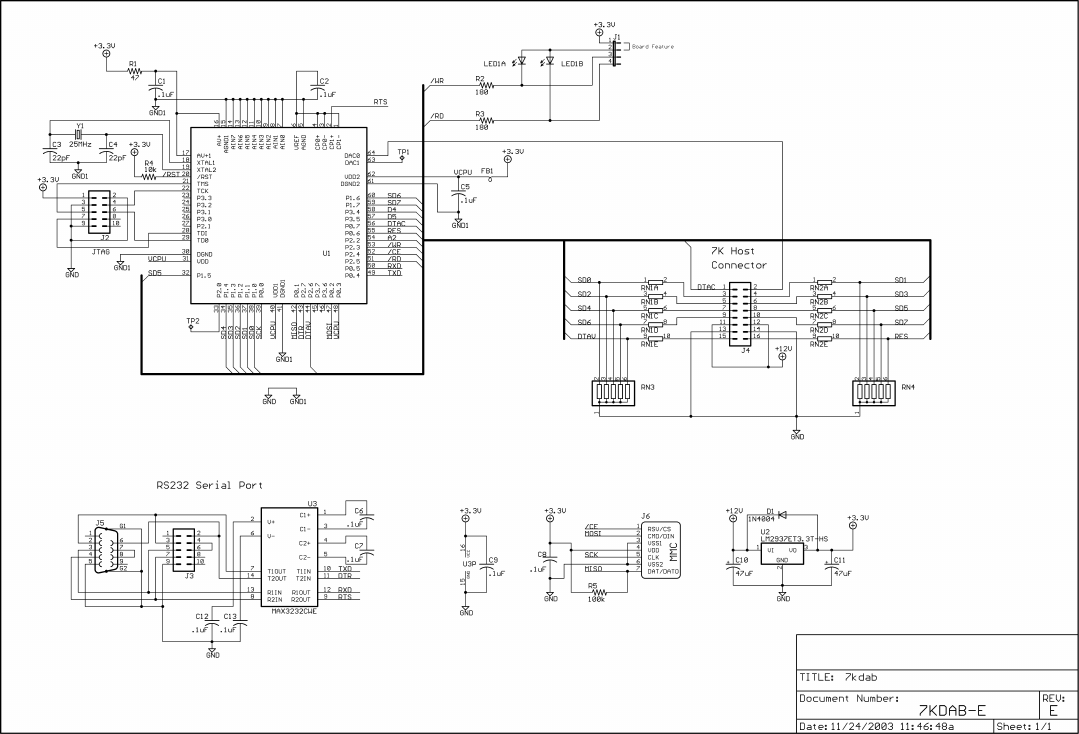

APPENDIX F SCHEMATICS 57

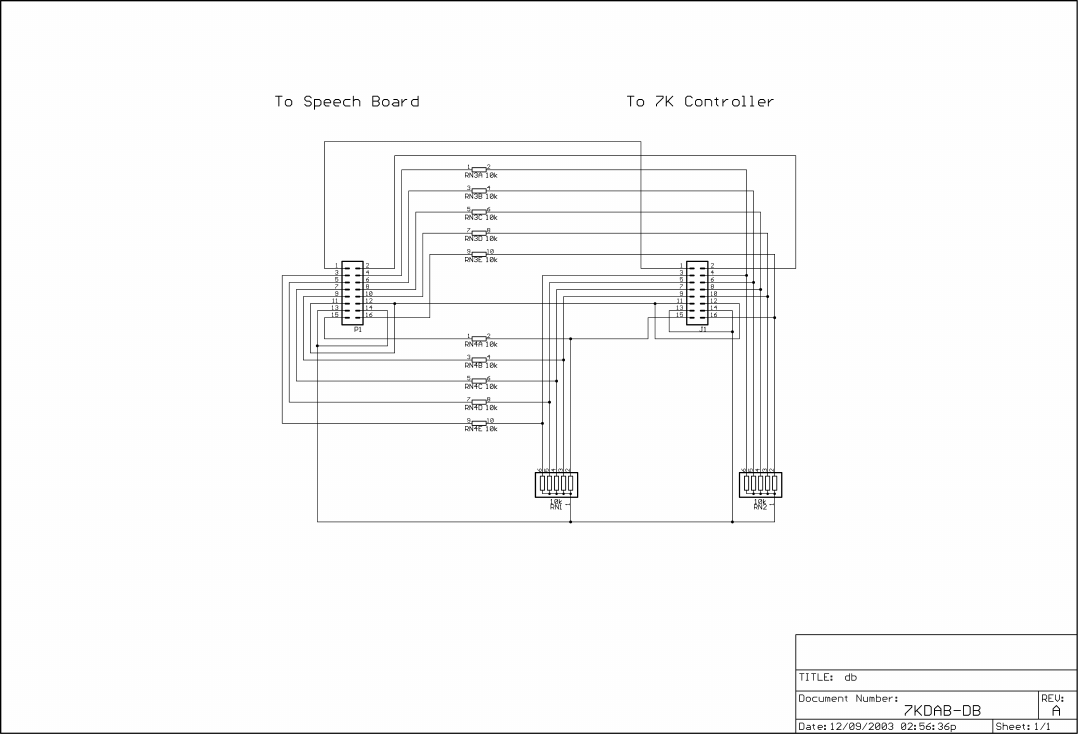

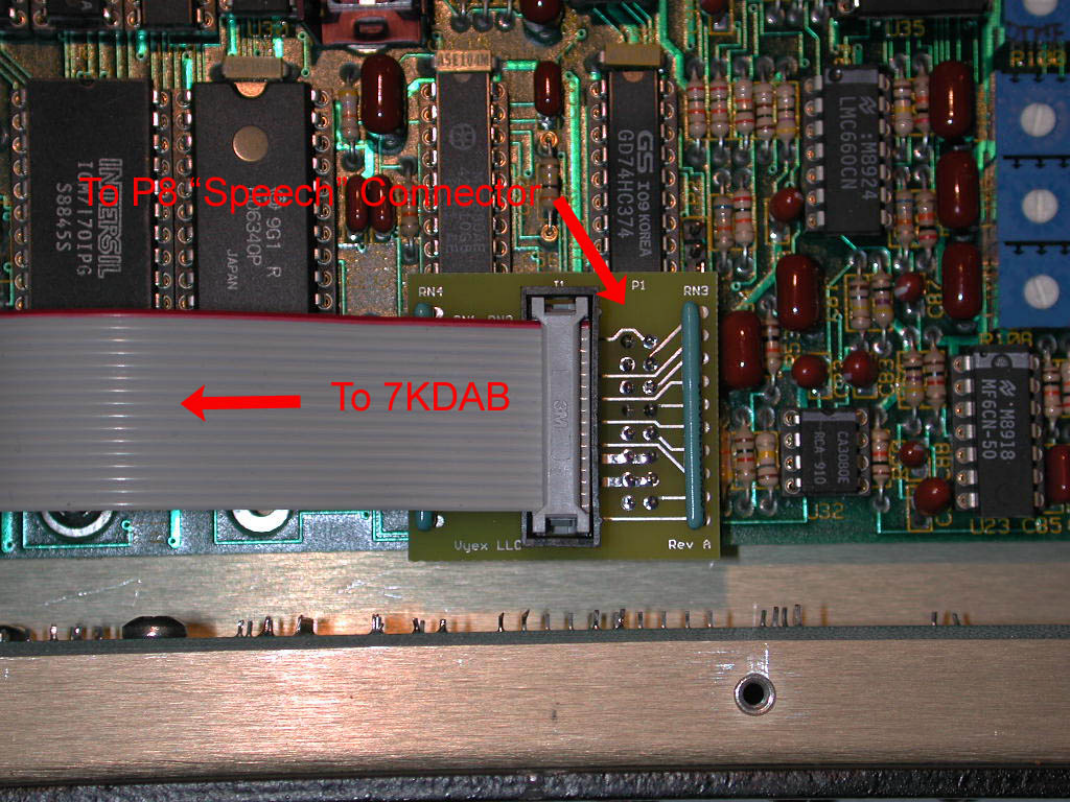

APPENDIX G – DAUGHTER PCB INSTALLATION 61

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

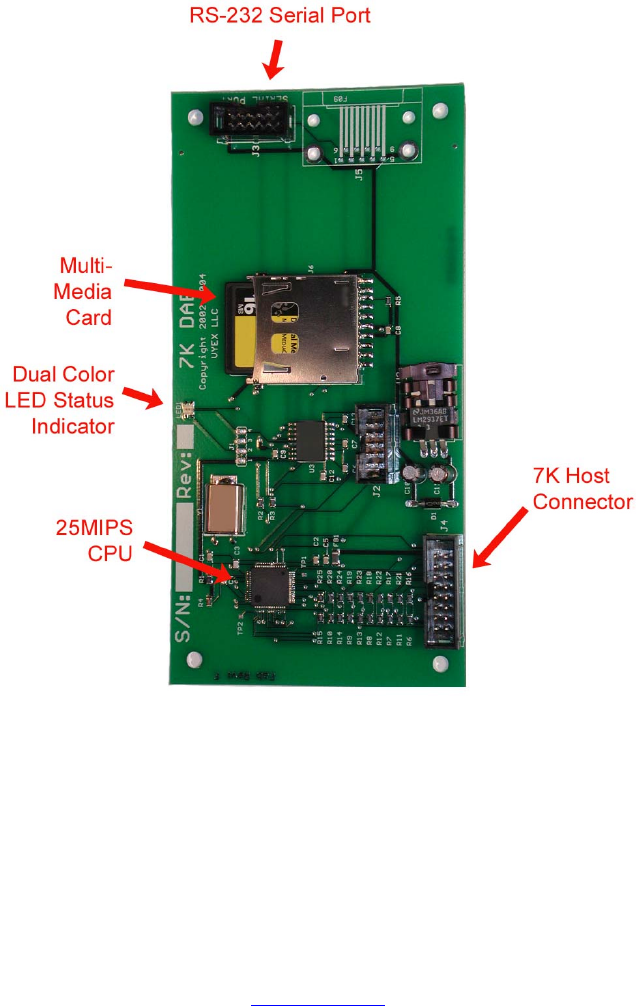

Introduction

Thank you for purchasing the 7K Digital Audio Board (DAB).

The DAB has been designed as a “drop-in” replacement for the Speech Synthesizer board in the S-Com 7K repeater

controller, but does more than just talk.

The DAB utilizes a fast, FLASH based, single chip microprocessor to support audio playback from a FLASH based Multi-

Media Card (MMC) which is used to store digitized speech files played back in response to commands from the 7K

repeater controller.

The MMC media card is the same type of solid state storage media that is used in many consumer devices such as

cameras, personal digital assistants, and MP3 players. The file system used on the FLASH card is the same FAT16 file

system used on desktop computers for years and is thus compatible with any third party MMC I/O device that supports

this type of file system. The FAT16 file system constrains the total storage space to approximately 2 Gigabytes, which

provides the potential to store hours of audio material. The user is free to upgrade the amount of storage space available

at any time simply by purchasing higher capacity FLASH cards from the vendor of their choice.

The audio files are stored in the well-known WAV file format, which is a subset of the Microsoft Resource Interchange File

Format (RIFF) file format. This flexible file format supports dozens of different audio compression methods, of which the

DAB supports only a few specific types.

The DAB also has an RS-232 serial port that can be used to send or retrieve files from the FLASH card in order to allow

the update of audio files, product firmware, and to make product configuration changes.

The DAB’s product firmware is fully field updateable and new firmware revisions can be installed by the end as they

become available.

If you have any questions or comments regarding this product, please know that your feedback is always appreciated.

Contact information:

Vyex LLC

S64 W24740 Susan Street

Waukesha, WI 53189

262.513.0150

support@vyex.com

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Limited Hardware Warranty

Vyex LLC warrants that its products will be free from defects in materials and workmanship for a period of one year from

the date of shipment.

This warranty does not cover damage caused by any of the following:

• Physical damage of any kind.

• Improper installation or connection.

• Electro-static discharge damage caused by improper product handling.

• Lightning.

• Any product in which the customer has attempted to make field repairs or modifications.

During the term of the warranty, Vyex LLC will cover the cost of product repair including parts, labor and return shipping.

Vyex LLC may not support all third party manufacture’s Multi-Media Cards as viable storage devices for use with this

product.

Vyex LLC reserves the right to refund the purchase price as its exclusive warranty remedy.

For service contact Vyex at 262.513.0150

Any product return must include a Return Materials Authorization (RMA) number on the outside of the package.

The product software and associated audio files represent copyrighted materials, an original work of Vyex LLC.

Vyex LLC retains all right, title, and interest in and to the Software, and any rights not granted to you herein are reserved

by Vyex LLC. You may not reverse engineer, disassemble, decompile, or translate the Software, or otherwise attempt to

derive the source code of the Software, except to the extent allowed under any applicable law. If applicable law permits

such activities, any information so discovered must be promptly disclosed to Vyex LLC and shall be deemed to be the

confidential proprietary information of Vyex LLC.

Vyex LLC provides the following End-User License Agreements with respect to the software it distributes. An End-User

License Agreement is a legal agreement between you (either an individual or a single entity) and Vyex LLC for a Vyex

LLC software product. Such software product includes computer software and may include associated media, printed

materials, and "online" or electronic documentation ("SOFTWARE PRODUCT"). By installing, copying, or otherwise using

the SOFTWARE PRODUCT, you agree to be bound by the terms of the End-User License Agreement. If you do not agree

to the terms of the agreement, do not install or use the SOFTWARE PRODUCT; you may, however, return it to your place

of purchase for a full refund.

You may permanently transfer all of your rights under this End-User License Agreement, provided the recipient agrees to

the terms of this End-User License Agreement.

All title and copyrights in and to the SOFTWARE PRODUCT (including but not limited to any images, photographs, audio,

and text, incorporated into the SOFTWARE PRODUCT), the accompanying printed materials, and any copies of the

SOFTWARE PRODUCT are owned by Vyex LLC or its suppliers. The SOFTWARE PRODUCT is protected by copyright

laws and international treaty provisions. Therefore, you must treat the SOFTWARE PRODUCT like any other copyrighted

material.

Vyex LLC expressly disclaims any warranty for the SOFTWARE PRODUCT. The SOFTWARE PRODUCT and any

related documentation is provided "as is" without warranty of any kind, either express or implied, including, without

limitation, the implied warranties or merchantability, fitness for a particular purpose, or noninfringement. The entire risk

arising out of use or performance of the SOFTWARE PRODUCT remains with you.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

In no event shall Vyex LLC or its suppliers be liable for any damages whatsoever (including, without limitation, damages

for loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of

the use of or inability to use this Vyex LLC product, even if Vyex LLC has been advised of the possibility of such

damages. Because some states/jurisdictions do not allow the exclusion or limitation of liability for consequential or

incidental damages, the above limitation may not apply to you.

LICENSEE understands that the Software is subject to export control laws and regulations.

LICENSEE may not download or otherwise export or re-export the software or any underlying information or technology

except in full compliance with all United States and other applicable laws and regulations.

LICENSEE is responsible for paying any sales or use tax imposed at any time whatsoever on this transaction.

LICENSEE acknowledges that LICENSEE has read this Agreement, understands it, and agrees to be bound by its terms

and conditions. This Agreement embraces the full and complete understanding of the parties as to the subject matter

hereof and supersedes any prior agreement, whether written or oral, relating to the subject matter hereof, and may not be

altered or modified, except by written amendment which expressly refers to this Agreement and which is duly executed by

authorized representatives of both parties. If any part of this Agreement is found void and unenforceable, it will not affect

the validity of the balance of the Agreement, which shall remain valid and enforceable according to its terms. Further, this

Agreement shall be construed and governed in accordance with the laws of the State of Wisconsin, excluding the

application of its conflicts of law rules.

Trademarks

MultiMediaCardTM is a trademark of Infineon Technologies AG

Microsoft, Windows, and MS-DOS are registered trademarks of Microsoft Corporation.

All other brand and product names are trademarks or registered trademarks of their respective companies and are hereby

acknowledged.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Installation

CAUTION:

The DAB is a static sensitive electronic device. Proper precautions should be exercised when handling the DAB.

Installation and connection of the DAB can only be performed with power removed from the controller.

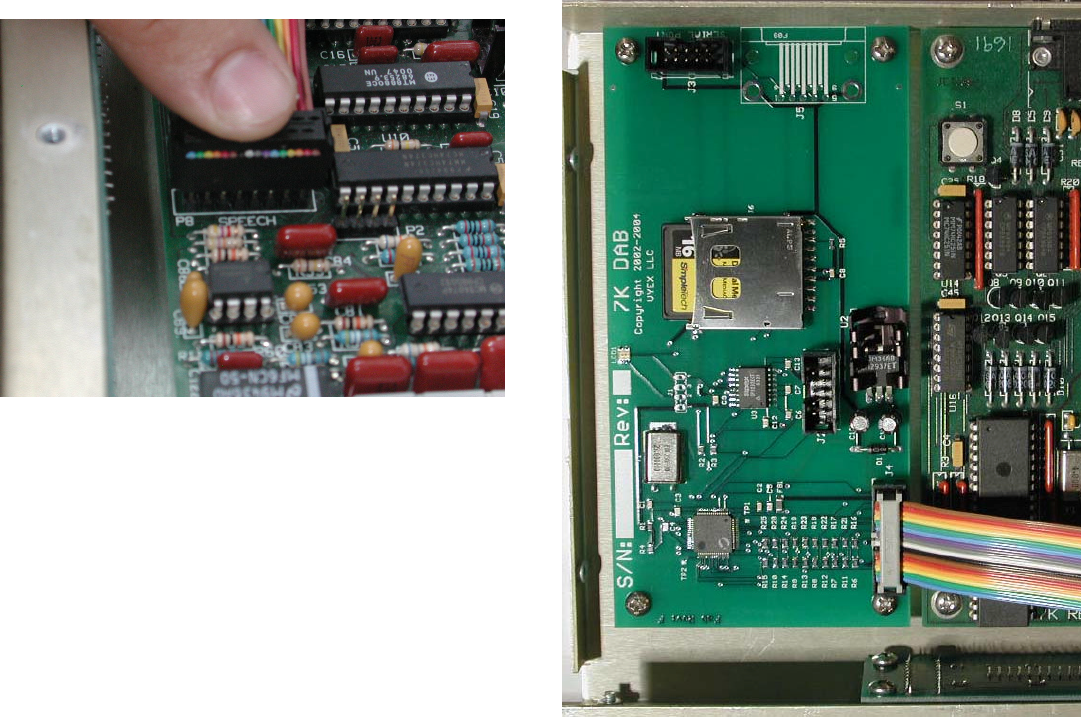

Installation into the rack mount cabinet.

The DAB is installed in the controller cabinet to the left of the repeater controller circuit board and secured in place with

four 6-32 screws.

Using the supplied ribbon cable, connect the ribbon cable

between J4 on the DAB and the speech board connection,

P8, on the 7K repeater controller PCB.

As the 7K does not use a keyed or shrouded connector, use

due caution when making the connection to the 7K

connector. If the cable is not inserted correctly, severe

damage may occur to the DAB and will not be covered

by warranty.

If the serial port on the DAB will be utilized, the short ribbon cable assembly containing the DB-9 connector can be

connected to J3 on the DAB. The method of routing the cable out of the 7K cabinet and/or mounting of the DB-9

connector in the cabinet is left to the end user. Please note that the modification of the controller cabinet may void your

warranty with S-Com.

If you do attempt to modify the cabinet, please use proper precautions to guard against physical damage to the circuit

boards inside the cabinet, and against any metal debris which could potentially short components on the PCB’s.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

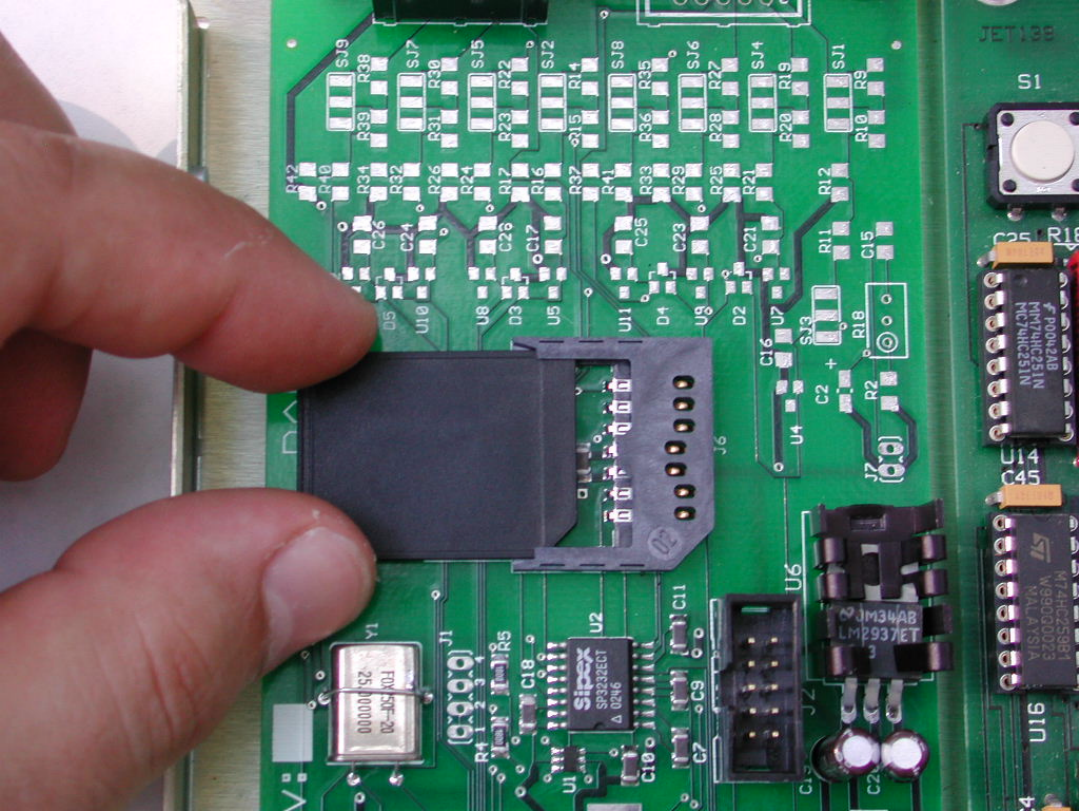

Installing the FLASH Card

The multi-media FLASH card should be inserted into the connector as shown, with the gold contacts facing downward.

When the card is not installed in the DAB, do not touch the gold contacts.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

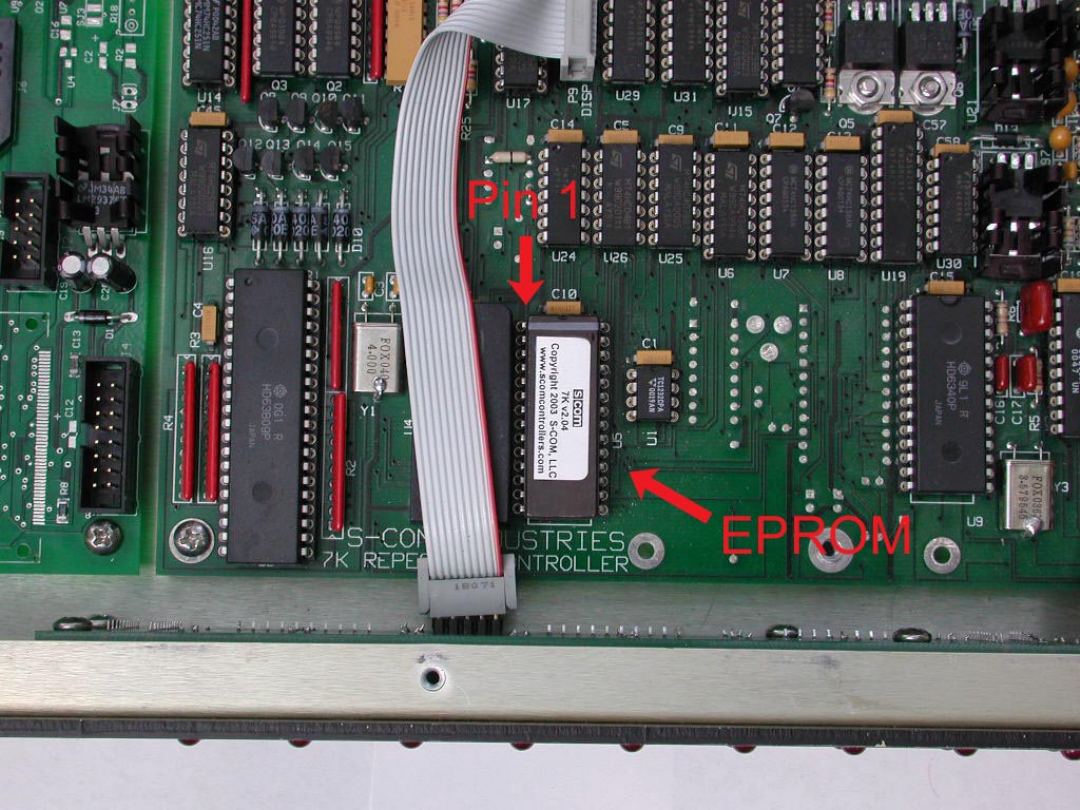

Updating the 7K repeater controller firmware

An EPROM containing new firmware for the 7K has also been included with the DAB. This new firmware provides better

integration between the DAB and 7K controller as well as providing new, generic, features to the 7K itself.

When version 2.04 firmware is installed in the 7K, the 7K will need to be re-initialized before it will work, and the

user will need to reload their program into the controller.

The DAB will work with any version of S-Com firmware that supported the speech synthesizer module, and you may elect

to defer the installation of the new controller firmware.

If your controller is not already at a 2.x version status, and you wish to utilize the new firmware, you will need to contact S-

Com regarding upgrading other components on the 7K controller board.

To change the Firmware, use an IC extraction tool to exert equal force on each end of the old EPROM while pulling

straight up. Place the old EPROM in conductive foam, and then install the new EPROM as shown in the picture below.

Pin one, on the notched end of the EPROM, should be facing towards the rear of the cabinet.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Using the DAB

LED Status indicator

The DAB has a dual color surface mount LED mounted near the board edge near the FLASH card connector.

If the FLASH card is present upon power up, the dual color LED on the DAB should briefly illuminate green as the FAT file

system code initializes its internal variables.

If the FLASH card is removed, both LED’s will illuminate and provide a yellowish glow to indicate the absence of the card.

When the FLASH card is present, if the LED glows solid Red, with brief flashes of Green, this indicates that the FLASH

media is not correctly formatted.

In normal operation, the Green LED will flicker when the FLASH card is being accessed for reading, and the Red LED will

flicker when the FLASH card is being accessed for writing.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Basic use

In its simplest form, the DAB will mimic the original S-Com speech synthesizer board, and thus it is compatible with any

version of 7K firmware that supported the speech board.

The default speech library included with the DAB includes digitized versions of the original TI speech synthesizer

vocabulary. The recordings of the TI speech synthesizer have been low pass filtered to provide a sound which is less

harsh than the original speech synthesizer.

In addition to the original vocabulary, additional words have been recorded by a professional voice over talent. The list of

those words can be found in Appendix A.

If the user wishes to have custom words and phrases recorded in the same voice they may contact:

Sean Caldwell, KF4IWT

Phone: 212.898.1222

http://www.seancaldwell.com/

Sean has agreed to contract with the end users of this product for a very reasonable price.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Supported WAV File formats

For those that wish to create their own WAV files, you will need to know about some specific constraints of exactly what

the DAB does and does not support.

PCM. 8 or 16 bit linear (uncompressed) values, in either mono or stereo format. The maximum supported sample rate is

22.05kHz.

muLaw. This is a logarithmically compressed format which stores 8 bits per sample and expands to approximately 12 bits

of precision. Mono and Stereo forms are supported. The maximum supported sample rate is 22.05kHz.

IMA/DVI ADPCM. Adaptive Delta Pulse Code Modulation essentially stores the difference from one sample to the next.

Several different ADPCM methods and subsets are part of the WAV file specification, the one that the DAB supports is

specifically this type, with 4 bits per sample, in mono format only. The maximum supported sample rate is 16kHz.

For the types that support stereo file playback, no attempt is made to “mix” the two channels together and the data stream

for only the left channel will be audible.

If a WAV file is stored using an unsupported compression method, or at too high of a sample rate, the DAB will simply

treat the file as a missing file and refuse to play it.

Things to consider when deciding file storage parameters

If the user wishes to provide for the highest fidelity playback, then the files should be stored as 16 bit PCM files. Using

this storage method consumes two bytes of disk space per sample.

If the user wishes to conserve as much disk space as possible, then the ADPCM compression method is recommended.

Using this storage method, two samples are stored in one byte of disk space.

The default speech libraries included with the DAB utilize muLaw compression for the TI speech synthesizer recordings,

and ADPCM for the live recordings. Both types are sampled at 11.025kHz.

It was found that applying ADPCM compression to the TI synthesizer recordings resulted in objectionable artifacts when

the files were played, but these same artifacts were not nearly as noticeable for the live recordings.

The practical limit of a narrowband FM voice channel is about 48dB Signal to Noise ratio, so what may sound

objectionable in your recording studio, may be inaudible to the end user.

Sample rates higher than 11.025kHz will be of little practical use when the high frequency rolloff of a normal two-

way radio is considered. In fact, the end user may find that recordings at 8kHz sample rates are quite

satisfactory.

When making your own live recordings using “built-in” audio hardware in your budget desktop computer, you may find that

recording at these lower sample rates results in muddy sounding audio, and come to the conclusion that even a 22.05kHz

sample rate just isn’t enough. In this case, the real culprit is the poor performance of the low cost audio card in your

computer. Here you have two potential solutions. Either record at a higher sample rate, such as 44.1kHz and then

downsample to a lower rate, or buy yourself a professional grade audio card that doesn’t have these same performance

limitations.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Recommended editing programs

Adobe Audition, formally Syntrillium Software’s Cool Edit Pro product, is a preferred tool we use here.

http://www.adobe.com/

SoX – Sound eXchange is a useful tool that claims to be the “swiss army knife of sound processing programs”. This

useful utility can convert from just about any sound format to another format, change sample rates, pitch, speed, filter, etc.

http://sox.sourceforge.net/

Goldwave – is a low cost, simple digital audio editor.

http://www.goldwave.com/

Sound Forge – is a higher end digital audio editor, with capabilities similar to Adobe’s Audition product.

http://www.sonicfoundry.com/

There are literally hundreds, if not thousands of software utilities available to edit, and manipulate WAV files, and to cover

them all in this manual would be impossible. The short list above represents those we have direct experience with and

wouldn’t hesitate to recommend.

Storing files on the FLASH card

Multi-Media Card adapters

A wide range of options exist in both internal and external FLASH card adapters that are compatible with modern desktop

computers. One of the most common adapters plugs into the USB port on your computer and allows you to read and

write files to one or more FLASH card media types.

These types of media adapters can generally be purchased new for less than $20 at your local computer store.

Due to the variety of products available, it is beyond the scope of this manual to provide a tutorial on their use.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

File system requirements

The Multi-Media Card needs to be formatted with a DOS FAT16 file format. For smaller media types, the default of the

format program you utilize may format the card with a FAT12 file system, and you will need to override the default

settings.

Example:

To format a 16MB card under Windows 2000, open a Command Prompt Window and type:

FORMAT d: /a:1024

Where ‘d’ equals the drive letter corresponding to the MMC card, and 1024 equals the size, in bytes, of each cluster.

You will be prompted:

Insert new disk for drive d:

and press ENTER when ready...

Hit [Enter] to continue.

The type of the file system is FAT.

Verifying 15M

Initializing the File Allocation Table (FAT)...

Volume label (11 characters, ENTER for none)?

Hit [Enter] to continue.

Format complete.

15,960,064 bytes total disk space.

15,960,064 bytes available on disk.

1,024 bytes in each allocation unit.

15,586 allocation units available on disk.

16 bits in each FAT entry.

Volume Serial Number is 10D5-D722

The key thing here is to select a cluster size for the disk that results in the format program showing a summary of “16 bits

in each FAT entry.”.

The most efficient disk utilization will generally be realized when the smallest possible cluster size is selected, however

other factors, such as the increase in the FAT table size may offset any gains that may occur through any increase in disk

utilization efficiency.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

File system structure for the Audio Files

The WAV files need to be stored in a predetermined manner in order on the FLASH card.

The Root directory needs to contain a “WAV” subdirectory, and the WAV subdirectory needs to contain additional four

digit numeric subdirectories corresponding to the “hundreds” portion of the word number to be spoken. Within each of

those subdirectories, up to 100 WAV files can be stored.

The file naming convention for each WAV file simply correlates one-for-one with the word number issued from the 7K

command 15.

For example if you wanted to associate a given WAV file with word 3024 you would name the file “3024.WAV” and store it

in the “\WAV\3000\” subdirectory. Similarly word 0007 would be named as “0007.WAV” and stored in the “\WAV\0000\”

subdirectory.

With the exception of the reserved word “0000” and words greater than “9699”, you may utilize as many of the word

numbers as you like, up to the limits of the storage space on your FLASH card.

Special files stored in the root directory

CONFIG.INI

This text file contains user settings that need to survive a power failure. It is a simple text file that contains a variable

keyword, equals sign, and desired setting for the associated parameter.

Comment lines can be preceded with a semicolon, or simply contain white space.

The supported keywords are:

• BaudRate. Specify any standard baudrate up through 115200 baud. If not specified, the default baudrate of 115200

baud will be used.

• Password. This is the case sensitive password used to protect access to the serial port. Only the first 8 characters

are used, and if not specified, the serial port will not require a password.

• BusyMsg. Specify a Morse code message to be played when the 7K commands the 7KDAB to play a file during

periods when the file system is busy. Only the first 9 characters are used. If not specified, the default message of

“BZ” will be used.

Example file contents:

; Configuration file for 7K-DAB

BaudRate = 38400

Password = Secret

BusyMsg = WR9ACY/R

DAB-MAIN.BIN

This file contains the microcontroller’s firmware. If this file exists, its contents are checked against the current program

stored in the microcontrollers own FLASH memory. If they are different, the microcontroller will reprogram itself and

reboot to begin execution of the new firmware.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

DAB-BOOT.BIN

This file contains the small bootstrap loader used to reprogram the microcontroller. If this file exists, its contents are

checked against its program storage space in FLASH memory. If they are different, the microcontroller will reprogram this

portion of the FLASH memory.

7K-IMAGE.BIN

This file contains an image of the 7K controller’s battery backed SRAM. Special commands can be used to save or

restore the contents of the controllers programming.

7K-PATCH.BIN

This file contains a program image of the 7K firmware patch area.

Special Words

Words 9700 through 9799 have been reserved for use by the DAB. When these special words are “spoken” they trigger

special things to occur. Some of the functions represent a stand-alone function performed by the DAB and others

represent a cooperative effort between the new firmware on the 7K and the DAB.

9700 – Custom Delay

When this word is spoken, the word that follows it is used as a delay factor with its time specified in milliseconds.

For example, “9700 1000” would cause a 1 second silent pause during playback.

The maximum delay that can be specified is 5000ms.

9701 – Long word continuation

With 7K firmware revisions prior to 2.04, there is a hard coded timeout timer in the 7K firmware designed to detect a failed

speech board. While the 7K documentation documents this timeout timer as being 5 seconds, in reality a software bug

caused it to be 25 seconds.

In order to allow a DAB user to playback a speech file longer than 25 seconds, the DAB has a timer which artificially

signals the 7K that a phrase has been completely spoken even though playback continues. If the next word received is

9701, the DAB will continue to play the file already in progress, and approximately 25 seconds later signal the 7K that the

phrase has been completely spoken.

For example, “{PW} 15 9960 5000 9701 9701 9701” would allow 5000.WAV to play for approximately 100 seconds if

needed.

There is no harm in issuing too many 9701 continuation words. If no playback is in process, the DAB will simply

handshake with the 7K and move on to the next word.

This command is not needed with version 2.04 firmware as the keep-alive handshake will occur automatically in

the background.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

9702 – Playback Speed Factor

When this word is spoken, the word that follows it is used as a playback speed multiplier against the playback rate

specified in the WAV file header. The word value supplied is specified as a percentage of the playback speed with 0100

(100%) being the normal playback rate.

The value specified can range from 1 to 255%, but if the resulting playback rate exceeds the sample rate limits for the

WAV file, the playback rate will be limited to appropriate maximum playback rate.

The playback speed factor is a static value which defaults to 100% on reset. Whenever a user supplied value is specified,

that playback speed factor remains as the new playback rate until either a new factor is specified, or until a reset occurs.

For example, “{PW}15 9960 9702 0120” would set the playback rate to 120% of normal speed.

9710 – Play Random File

When this control word is issued, the next two word values are used as a starting and ending word value for the controller

to psuedo-randomly play an audio file within the inclusive range supplied. There is no restriction on the start or end value

other than that they need to be in the range of 0001 through 9699.

Due to the integer math used, and the fact that any pseudo-random number generator has its limitations, the user will find

that the span will affect the apparent randomness of the file chosen. Spans that represent a power of two will appear to

give the best degree of randomness, but the span may be of any desired size and should still to be sufficiently random for

the purposes of this function.

Some examples:

{PW} 15 9960 9710 3000 3010 ;play one audio file from the range of 3000 – 3010

{PW} 15 9960 9710 1000 4000 ;play one audio file from the range of 1000 - 4000

{PW} 15 9960 9710 4021 4022 ;play either audio file 4021 or 4022

Note: This will also select and play CW files included within the selection range, so it is conceivable to mix audio

tracks with CW messages if desired.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

9720 – Send Serial Characters

In order to allow a modem to share the same phone line that the repeater controller is connected to, one or more macros

will need to be created in the 7K to cause the modem to answer, or place a call on its own.

Once special word 9720 is encountered, the decimal of each word encountered after it will be used to determine which

ASCII character to send on the serial port. Any word value greater than 0256 will exit the ASCII character mode.

A null character can be sent by using a word value of 0256.

A chart of ASCII characters is provided in Appendix B.

In the following example, two macro’s are created to allow the 7K to answer the phone line. The first macro causes the

modem to generate answer tones, and then, after pausing, executes a second macro to cause the 7K to hang up the

phone line. The delay in this process ensures that the phone call is not dropped in the process of handing off the call to

the modem.

; Macro 5782 sends “ATA<CR>” to modem, delays for 2 seconds, then triggers macro 5783

{PW} 20 5782 {PW} 15 9960 9720 0065 0084 0065 0013 0500 9700 2000 9999 5783

; Macro 5783 disconnects Autopatch line.

{PW} 20 5783 {PW} 83

If you wanted the repeater to call you back on a separate modem line you could configure macro’s as follows.

;Macro 5784 disconnects the autopatch line, pauses for two seconds then sends “ATDT5551212<CR>”.

{PW} 20 5784 {PW} 83

{PW} 29 5784 {PW} 15 9960 9700 2000 9720 0065 0084 0068 0084 0053 0053 0053 0049 0050 0049 0050 0013 0500

Obviously you will need to replace 555-1212 with the phone number you desire the modem to call.

9790 – Force 7KDAB Reset

In the event that the 7KDAB firmware should get “stuck”, it may be possible to issue this word to force the 7KDAB to reset.

Although the 7KDAB does contain a hardware watchdog that will reset the CPU in the event that the 7KDAB should stop

executing as desired, there may be unforeseen situations where the software may appear to operate properly yet fail to

respond to the serial port. Because the 7K host interface software operates at an interrupt level, it may be possible for the

7KDAB to respond to this command.

Example:

{PW} 15 9960 9790

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Notice:

The following special word commands were included to aid in the overall firmware development process and are

somewhat experimental. While they are implemented, they are not supported at this time, but are documented

here for the sake of completeness.

Whenever any of these special word commands are issued, 100% of the 7K’s CPU time is dedicated to executing

the associated command. As such, all other controller activity is frozen… meaning any transmitters currently on

the air, will stay on the air, no DTMF commands will be possible, etc.

Issuing these commands with mismatched versions of firmware, may cause either the DAB or the 7K controller

to hang indefinitely.

Full support may be available in a future release.

9796 – Load 7K Patch file

This causes a patch file to be loaded into the 7K’s firmware patch area. The user needs to be certain that the patch file

exists before issuing this command, or the firmware load will fail ungracefully by resetting the controller.

9797 – Provide RTC data to DAB

This will cause the real time clock maintained in the 7KDAB to be set to the current time in the 7K.

9798 – Load 7K-IMAGE.BIN

Issuing this word causes the contents of the 7K’s battery backed SRAM to be overwritten with the contents in this file.

The image upload takes approximately 25 seconds, after which the 7K will reset.

Note that this literally will restore the controller to the state that it was in when the save command was executed. Beware

of what you ask for… for surely you will find it.

9799 – Save 7K-IMAGE.BIN

Issuing this word cause the contents of the 7K’s battery backed SRAM to be written to the FLASH card. The image

download takes approximately 5 seconds.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Morse Code Features

Message File Location

Text files containing the desired message along with special control sequences to control pitch, speed, and amplitude can

be stored in the same directory structure along with the audio files.

As with the audio files, the Morse code filenames begin with the four digit numeric value of the desired phrase number,

but in this case use the file extension “CW”.

When the 7K controller commands the 7KDAB to play a given word, the 7KDAB will first check to see if a ‘xxxx.WAV’ file

exists, and if none is found, then it will check to see if a ‘xxxx.CW’ file exists, and if present will begin playback of the

Morse message file.

Message File contents

The text file should contain regular ASCII text characters. In addition to letters and numbers, standard punctuation

characters are supported. The full list of characters is included in Appendix C.

Any unsupported characters will be translated to a inter-word delay, or “space” character.

With version 2.04 firmware installed in the 7K controller, the only limitation to the length of a file is the size of the FLASH

memory card.

As with speech messages, a Morse message playback may be stopped with the {PW} 16 command (available in 2.04 7K

firmware), or by issuing the “STOP” command at the serial console prompt.

Message file control characters

Unless otherwise specified, the default for a CW message playback is a pitch of 720Hz at 20WPM and one-half maximum

amplitude. These values are reset at the beginning of each new message playback.

Special control character sequences are used to set the pitch, speed, and amplitude of the message and can appear

anywhere within a message. The control sequences consist of a single control character followed by numeric digits and

terminate with the first non-numeric character.

Note: If the first desired character after a command sequence is a numeric value the command sequence can be

terminated with a forward slash ( / ) character, which in that specific circumstance will not be treated as a inter-

character delay.

Pitch

A character sequence beginning with a tilde ( ~ ) character denotes a change pitch command. The pitch is specified in

Hertz, and can range from 1Hz to 5000Hz inclusive.

Note: The internal frequency resolution is limited to about 600mHz so the specified frequency will vary slightly

from the specified value. Also note that precision of the frequency is limited to that of the microprocessor grade

crystal.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Speed

Two different control characters are supported for setting the speed. For normal cadences, the percent sign ( % ) is used

to select a speed ranging from 1 to 50 words-per-minute.

For code practice purposes, the inter-character speed may be supplied separately by using the asterisk ( * ) character to

select a speed ranging from 1 to 50 words-per-minute.

Note: When the ‘%’ character is used, it will set timing values for both the inter and intra character timing values,

so when using the ‘*’ control character, the ‘%’ control setting should precede the ‘*’ control setting.

Amplitude

A character sequence beginning with a up-caret ( ^ ) character denotes a change in amplitude command. The amplitude

is an 8 bit linear value and can range from 0 (off) to 255 (maximum).

Sending ‘Prosigns’

To send a prosign such as AR, AS, BT, SK, etc., any number of characters can be enclosed in brackets. The left bracket

( [ )has the effect of reducing the inter-character delay time to one dit time, and the right bracket ( ] ) has the effect of

restoring the inter-character delay time to three dit times.

Examples:

The following message sets the pitch to 880Hz, the amplitude to 128 (or half volume), 20WPM for the character timing,

and 13WPM for the inter-character timing, then sends “This is a Morse code message”.

~880^128%20*13This is a Morse code message

The following example sends “DE KA9FUR” using a different pitch for each character. Note that the command prior to

sending the ‘9’ is terminated using a backslash.

^255%13~1000D~1100E~1200 K~1300A~1400\9~1500F~1600U~1700R

The following example shows how to send a message containing a prosign.

Wx here is sunny [SK]

Send 8 dits like this [HH] or this [IIII] or this [EEEEEEEE]

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

7KDAB ‘Busy’ message

If the 7K attempts to command the 7KDAB to play a file while the 7KDAB is otherwise preoccupied with another action

which requires the use of the FLASH file system (such as the user uploading new files to the card), after waiting for 2

seconds, the 7KDAB will play a short CW message in place of the desired word.

By default, the message is simply “BZ”, but can be changed by specifying a message of up to 9 characters. This

message is specified in the “CONFIG.INI” file with the keyword ‘BusyMsg’, which is read when the FLASH file system is

initialized.

For situations where the user may have multiple words playing in succession to form a message, the 7KDAB will only play

the busy message once during a 30 second time window.

The intent of this feature is to allow a legal identification to occur during periods of time when file system maintenance is

occurring. While the preferred method of handling this situation would be to create a macro that changes any system

messages from speech to Morse code, this provides an alternate means of handling this situation.

Example CONFIG.INI File contents:

BusyMsg = KA9FUR/R

Password = Secret

Baudrate = 115200

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Using the Serial Port

Hardware Interface

Connecting the DB-9 serial port connector to a PC type computer can be accomplished with a straight through cable.

The DB-9 connector pinout is as follows:

1. No Connection

2. Transmit Data from DAB

3. Received Data to DAB

4. Ready to send from PC

5. Ground

6. DTR from DAB

7. Connected to pin 8

8. Connected to pin 7

9. No Connection

When the DAB sees pin 4 go ready, it will start a new command line session. If a password has been set, the DAB will

prompt the user for a password. When used with a modem, this pin should be tied to the modem’s carrier detect signal.

Pin 6 will normally be true, but at the end of a session timeout, or as the result of too many incorrect password attempts,

this line will go false for two seconds and then return true. This can be used, with proper modem configuration, to

disconnect a dialup caller.

Modem Wiring:

DAB (DB9) Modem (DB25)

2 2

3 3

4 8

5 7

6 20

Baudrate

The serial port’s baud rate is determined by a setting in the CONFIG.INI file. Any baud rate up to 115200 can be specified

in the configuration file.

Password

The session password, if set in the CONFIG.INI file, must be entered correctly before access is given to the DAB’s

command line interface. Please note that this password is case sensitive.

Up to three attempts at entering the correct password are allowed before the DAB drops the DTR signal to disconnect the

caller.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Connecting a Modem to the Serial Port

Since every modem tends to be a bit different, it is not possible to provide a single example that will work for everyone,

but we can point out the important steps that need to be taken.

First, the modem itself needs to be configured as follows:

• Fixed DTE Speed. Possible command “AT&B1”

• Normal Carrier Detect (CD) operation. In other words, CD should indicate whether or not a carrier is present.

Possible command “AT&C1”

• Normal DTR operation. Modem should disconnect a caller if DTR goes false. Possible command “AT&D2”

• No Hardware Flow Control. Possible command “AT&H0”

• Modem should ignore RTS. Possible command “AT&R1”. Alternately, adding a jumper between pins 4 and 5

on the modem’s DB25 connector may provide the same results.

• Modem should not send result codes. Possible command “ATQ1”

• Modem should not echo characters. Possible command “ATE0”

Most modern modems should allow you to save these settings to EEPROM. Possible command is “AT&W”

Some modems have dip switches that allow the same sort of power on settings to be accomplished, yet others may

require a combination of dip switch and EEPROM settings to be configured.

The modem can share the telephone line with the repeater controller by creating a couple of simple macro’s. Examples of

how to do this were provided a few pages ago under the description of how special word 9720 can be used to send

characters to the serial port.

Modem wiring may also vary slightly, but in general you will need to connect the four signal wires, plus ground as shown

on the previous page.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

The Command Line Interface

Using the Command Line interface (CLI) the user can effect the management of files on the FLASH card. Upon gaining

access to the DAB’s command line interface the user is presented with the prompt:

7kDAB->

As a preface to the list of the following commands, it is important to note that the file system software in the DAB is single

threaded. This means that while a WAV file is being played, file system management commands are temporarily locked

out.

Similarly, if file management commands are in use, any attempts by the 7K to play a WAV file will fail. In this

circumstance, the DAB would simply handshake with the 7K as though the file had been played.

If the user needs to remotely update files on the DAB during periods of repeater use where speech would be regularly

needed, it is suggested that a user macro be written to temporarily change the repeater’s behavior so that speech is not a

normal part of the repeater’s operation.

CD – Change Directory

While similar to the change directory command under MS-DOS, this command only accepts a fully qualified path name.

When the present working directory is changed, it is reflected in the CLI prompt.

Right:

7kDAB-\>cd \wav\1000

7kDAB-\WAV\1000>

7kDAB-\WAV\4300>cd \wav\1000

7kDAB-\WAV\1000>

Wrong:

7kDAB-\WAV\4300>cd ..\1000

Directory not found

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

DIR – Directory command

While similar to the directory command under MS-DOS, this command does not accept any parameters. It simply lists all

the files within the present working directory.

Example:

7kDAB-\>dir

MMC Card MID: 6, PNM: KODAK , PSN: 428348449

08/19/2003 14:04 [D----] WAV

01/01/2001 01:00 [-----] 82 CONFIG.INI

Free Space is: 2160 clusters, 2211840 bytes

The first line of information shows manufacturer information about the MMC card contained in the card identifier.

The Manufacturer Identifier (MID) shows the numeric value of the manufacturer of the card. Known values are:

1 – Infineon

2 – Sandisk

6 - Hitachi

NOTE: If you have a card with an identifier not listed above, please let us know so that we can add it to our list.

The Product Name (PNM) field displays the contents of the six character text field in the card identifier header. The text

may include the products model number, or simply the vendor name.

The Product Serial Number (PSN) field shows the 32 bit serial number of the card.

The file attributes are shown inside brackets and include:

• D – Directory

• H – Hidden

• R – Read Only

• S – System

• V - Volume

Other than the directory attribute, the DAB ignores all other file attributes.

The number of free clusters, which is the smallest disk allocation unit, and the number of free bytes remaining on the

FLASH card are displayed at the bottom of the directory listing.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

DEL – Delete File

While similar to the delete file command under MS-DOS, this command will only delete files in the present working

directory, and will not accept wild cards.

Example:

7kDAB-WAV\4300>del 4380.wav

File Deleted

REN – Rename File

While similar to the delete file command under MS-DOS, this command will only rename files in the present working

directory, and will not accept wild cards.

Example:

7kDAB-\WAV\5000>ren 5024.wav 5035.wav

File 5024.WAV renamed to 5035.WAV

FIND – Find a file

This command’s primary purpose is to show file access time performance information and will display the amount of time

needed to find a given file within the file system.

The user may find this command interesting to show the performance benefits of smaller vs. larger cluster sizes, and how

the ordering of directory entries affects file access times.

Example:

7kDAB-\>find \wav\1000\1000.wav

File Found. 22ms elapsed

7kDAB-\>find \wav\4300\4390.wav

File Found. 61ms elapsed

7kDAB-\>find \wav\4300\4399.wav

File not Found. 53ms elapsed

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

SY – Send Y-Modem

Allows a file to be sent from the DAB to the users computer via the serial port.

Most any popular terminal program written in the past 10-15 years will support Y-Modem file transfers. Since each

program is different, please consult that software’s documentation for use of the file transfer capabilities of your terminal

emulation program.

The filename you wish to download into your computer should be specified on the command line, and needs to exist in the

present working directory.

Example:

7kDAB-\>sy config.ini

Start your YMODEM Download now.

At which point you would start your file transfer software.

RY – Receive Y-Modem

Allows one or more files to be sent to the DAB from the users computer via the serial port.

Example:

7kDAB-WAV\4300>ryCCCCC

The “C”’s shown in the example above are sent periodically by the DAB to signal to the host computer that the DAB

wishes to start receiving files using the CRC checksum method. One startup character is sent every 3 seconds, and up to

20 attempts are made before timing out.

LO – Logout

This command simply terminates a command line session, and will cause a modem to disconnect.

REBOOT – Reboot DAB

This command unceremoniously causes the DAB to reboot. It may be used to take advantage of new settings in the

CONFIG.INI file.

SMHOST – Force Smart Host Present Flag

This command is needed after a Reboot command is issued in order to simulate a special handshake sequence that

occurs when the 7K controller containing Version 2.04 software first powers up. Unless this handshake sequence is seen

by the DAB, some of the more advanced features, such as being able to send commands to the 7K, will be locked out.

Do not issue this command unless your 7K controller has Version 2.04 software.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

STOP – Stop current WAV file playback

Immediately terminates the playback of any WAV file. This may be useful if the command line user wishes to interrupt the

playback of a long WAV file in order to gain access to file management commands.

TIME – Display or Set the current Time and Date

This command will display or set a time of day clock in the 7KDAB. The time and date maintained within the 7KDAB will

be used for the time and date stamp on any files written to the FLASH card.

Note that when setting the time and date, only basic range checking is performed and that in some instances, the day of

month will be set to the maximum number of days for that particular month.

Note that the time of day maintained within the 7KDAB does not survive a power cycle, and that the clocks

accuracy is not specified and may accumulate error of several minutes per day.

Set time example:

7kDAB-\>time 13:33:00

7kDAB-\>

Set time and date example:

7kDAB-\>time 13:33:14 8/23/2007

7kDAB-\>

Display time and date example:

7kDAB-\>time

13:33:15 08/23/2007

TYPE – Type a file to the console

Causes the contents of a file to be echoed to the console serial port.

Control-C can be used to abort the file echo. Control-S will pause the file echo, and Control-Q will resume.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Command line interface commands available with 7K firmware 2.04

#!; - Issuing commands to the 7K

Perhaps one of the more appealing additions to the 7K firmware, when used in conjunction with the DAB, is that

commands to the 7K can be entered on the serial port.

Any digits preceded with an exclamation point will be sent to the 7K and treated as DTMF digits that appear to originate

from within the controller.

Input lines to the command processor are limited to 80 characters in length, but for long lines a continuation character “\”

can be placed at the end of a line to signify more digits for a given command sequence will appear on a subsequent line.

Command execution occurs when the Carriage Return character is received.

White space characters may be freely inserted if it makes the line more readable.

Multiple commands can be entered on one line by using the asterisk (“*”) to signify the end of one command and the start

of the next.

The octothorpe (“#”) can be used to cancel a command in progress.

Any lines proceeded with an octothorpe (“#”) or a semicolon (“;”) are treated as comment lines and are simply ignored.

This allows a commented script file to simply be uploaded with a terminal program to the DAB in order to program the

controller.

If the user desires to use a text file upload method to program the controller, the terminal program should be setup to pace

itself either by waiting for a new command line prompt from the DAB to appear, or by adding a delay at the end of each

line.

Example:

7kDAB->;Program courtesy tone for Rx1

7kDAB->!99 31 9981 9911 76 55 57045912 57051204

7kDAB->;This is an example of a line continuation

7kDAB->!99 31 9981 9911 76 55 57045912\

7kDAB->!57051204

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

RFP – Remote Front Panel

The remote front panel command allows real time viewing of the controller activity via the serial port. When this command

is invoked a representation of the controller’s front panel, along with some additional data is displayed on your screen.

A group of three reverse video spaces is used to form a block to denote an indicator that is ‘lit’ whereas a lower case ‘o’ is

used to indicate an indicator which is ‘dark’.

When speech playback is active, the current audio track being played will be shown in the upper right hand corner of the

screen.

The lower part of the screen is set aside to display decoded DTMF digits as they arrive, and to show where those digits

are being received from. A new line is started each time a command is terminated with an asterisk (*) or octothorpe (#),

or if the DTMF source changes.

If for some reason the screen becomes garbled due to a missed character, you can type the letter “R” to refresh the

screen. When the screen is repainted, the historical DTMF digit information of the screen is lost.

The display mode can be exited at any time by hitting the escape key.

Hit [ESC] to exit or 'R' to refresh Playing: 1027

COR1 CTCSS1 COR2 CTCSS2 COR3 CTCSS3 PTT1 PTT2 DTMF BZIN BZOUT RING ENC

XXX XXX o o o o XXX o o o XXX o XXX

IN1 IN2 IN3 IN4 IN5 IN6 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7

o o XXX o o o o o o o XXX o o

USR1 USR2 USR3 USR4 USR5 USR6 USR7

o o o XXX o o o

Rx1 856*

Rx3 80

Rx1 8754*

LL 9979500*

LL 99717*

LL 99705*

LL 9983*

Rx1 8713*

Indicators in addition to those already provided on the real front panel include:

• RING Phone line ringing status

• ENC CTCSS Encoder output status

• USR1-7 Indicate the current values of user function soft switches 92 through 98

Real time updates are not possible during DAB audio playback due to the fact that during playback, the interface between

the 7K and DAB is dedicated to handshaking between these two units in a way that is compatible with the original S-COM

speech synthesizer module. Information regarding controller operation can only be sent to the DAB during periods when

the interface is otherwise available and I/O status change information will be sent to the DAB once speech playback has

completed.

The DAB firmware utilizes VT100 terminal commands to provide a fast and efficient means of updating the screen, and

thus the user needs to utilize a suitable terminal or terminal emulation program to accomplish this. The list of software

companies that provide terminal emulation and file transfer software is quite extensive and beyond our ability to provide a

list of those that do work correctly vs. those that do not. However, limited testing of freeware, shareware, and commercial

programs clearly demonstrate that “you get what you pay for” in terms of faithful emulation.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

“Hyperterm” users will need to visit the Hilgraeve website http://www.hilgraeve.com/ and download a current version of

this free terminal emulator in order for all characters to be properly displayed. For many years, Microsoft has bundled

Hilgraeve’s terminal emulation software with Windows, and those bundled versions have some issues with some of the

commands that the DAB uses. Hilgraeve’s website is silent as to when the bug(s) related to the screen redraw functions

were addressed, but their version 6.3 appears to work fine.

Hilgraeve’s product is the only “free” emulator known at this time to provide true VT100 emulation and YMODEM file

transfer capabilities. If you find other programs that work, please let us know.

SCRIPT – Execute text file to program the 7K controller

Issuing the script command followed by a text file’s name will echo the contents of that file to the console, and any lines

beginning with an exclamation point (‘!’) will be parsed and sent to the 7K controller in the same manner that a command

may be directly executed from the command line. Just as with manually entered commands, long lines can be continued

on the next line by ending the line with a back slash (‘\’).

Lines beginning with an exclamation point are limited to 80 non-white space characters. Lines exceeding this length will

prematurely terminate the file transfer to the 7K and display an error message.

Keep in mind that the file will be transmitted as quickly as the 7K can receive it and if command responses are enabled

could cause the 7K’s 400 byte message buffer to wrap resulting in some messages being lost or corrupted.

Also keep in mind that the while this command is executing, no speech words can be played and will cause the 7K’s

message system to stall and time out each individual word or phrase. Therefore, it is advised that any enabled command

responses not utilize speech responses.

Control-C can be used to abort the file execution. Control-S will pause execution, and Control-Q will resume.

Example:

7kDAB-\>script test.scr

;play warble tones

!99 15 9900 40 40 9910 5850 74 55 10 20 10 20 10 20

;play morse ditty

!99 15 9900 40 40 54 14 28 14 40 14 14

7kDAB-\>

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Firmware Update Procedure.

The product firmware can be updated by placing a new firmware image file in the root directory of the MMC card. This

can be accomplished in one of two ways.

MMC card reader/writer attached to your computer running Windows

It is beyond the scope of this manual to provide a tutorial on the use of specific computer peripherals, as well as to make

specific brand name recommendations for these third party devices.

Your local computer store, or your favorite on-line retailer, should have these products readily available, although you may

find the term “Secure Digital” more widely used than “MultiMedia Card” or “MMC”. The two technologies are similar, with

Secure Digital being an extension of the MultiMedia Card standard. Secure Digital cards are slightly thicker, and cannot

be used in 7KDAB boards prior to board revision “F”, but a Secure Digital card reader should accept a MMC card.

1.) Download the new firmware binary file to a temporary storage location on your computer.

2.) Remove the MMC card from the DAB and place it in your FLASH card drive.

2.) Copy the firmware binary file into the root directory on the card.

3.) After the file copy has completed, wait at least 30 seconds before removing the card from the drive to allow the system

to flush any unwritten data to the disk.

4.) Re-insert the card into the DAB

5.) When the card is re-inserted and power is applied, you will see the message "Updating FLASH program", followed by

a reset message indicating a software reboot. You should note that the power on message indicates that the new version

of firmware is running.

6.) Once the firmware update is complete, you may delete the firmware binary file from the MMC card.

Use your terminal emulator to transfer a file to the MMC card

1.) Download the new firmware binary file to a temporary storage location on your computer.

2.) Using a terminal emulator, issue the "RY" command at the "7kDAB> prompt.

3.) Within your terminal emulator, initiate a Y-MODEM file transfer of the new binary firmware file. You only have 30

seconds to start the file transfer or the DAB will timeout and cancel the file transfer.

4.) When the file transfer is complete, issue the "reboot" command at the command prompt.

5.) When the DAB reboots, you will see the message "Updating FLASH program", followed by a reset message indicating

a software reboot. You should note that the power on message indicates that the new version of firmware is running.

6.) Once the firmware update is complete, you may delete the firmware binary file from the MMC card.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix A Library Contents

7K SSM Words

Words 0001 through 0597 and 4097 through 4388 are simply recorded versions of the S-COM SSM library using the

latest speech ROM versions. Please refer to the appropriate S-COM documentation for a list of those words.

In addition to the standard library two additional synthesized words are included in the library:

• 4389 – Milwaukee

• 4390 – Repeater (a pleasant sounding version)

Sean Caldwell Words

A 1000

A.M. 1001

A.P.U. 1002

A.T.V. 1003

abeam 1004

Abel (able) 1005

Abington 1006

able 1007

abnormal 1008

abort 1009

about 1010

above 1011

accelerate 1012

accelerated 1013

access 1014

acknowledge 1015

action 1016

activated 1017

activating 1018

active 1019

activity 1020

Adam 1021

address 1022

adjust 1023

advise 1024

advisory 1025

aerial 1026

affirmative 1027

aft 1028

afternoon 1029

again 1030

ahead 1031

air 1032

aircraft 1033

airforce 1034

airport 1035

airspeed 1036

Alabama 1037

alarm 1038

alarmed 1039

Alaska 1040

Albany 1041

Alberta 1042

Albuquerque 1043

alert 1044

all 1045

Allenton 1046

Allentown 1047

aloft 1048

alpha 1049

alternate 1050

altimeter 1051

altitude 1052

always 1053

amateur 1054

amateurs 1055

amber 1056

ambulance 1057

America 1058

American 1059

amp 1060

amplifier 1061

amps 1062

an 1063

analog 1064

Anchorage 1065

and 1066

Angeles 1067

anger 1068

angle 1069

Annapolis 1070

announcement 1071

answer 1072

antenna 1073

Appalachain 1074

Apple 1075

Appleton 1076

approach 1077

approaches 1078

April 1079

are 1080

area 1081

ARES (AIR-ees) 1082

Arizona 1083

Arkansas 1084

armed 1085

army 1086

arrival 1087

as 1088

ask 1089

Aspen 1090

assign 1091

assistance 1092

association 1093

astro 1094

at 1095

Atlanta 1096

Atlantic 1097

attempt 1098

attention 1099

audio 1100

August 1101

Augusta 1102

aural 1103

Austin 1104

authorized 1105

auto 1106

automatic 1107

autopatch 1108

autopilot 1109

auxiliary 1110

available 1111

ave 1112

avenue 1113

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

average 1114

B 1115

back 1116

backbone 1117

backhaul 1118

backup 1119

bad 1120

baker 1121

Baltimore 1122

band 1123

Bangor 1124

bank 1125

Barbara 1126

barometric 1127

bars 1128

Base 1129

bath 1130

Baton Rouge 1131

battery 1132

baud 1133

Bavarian 1134

bay 1135

beacon 1136

beam 1137

bearing 1138

Beautiful 1139

Beaverton 1140

beer 1141

bell 1142

below 1143

Bernadino 1144

between 1145

big 1146

Billings 1147

Birmingham 1148

Bismarck 1149

Black 1150

Bloomsburg 1151

blowing 1152

Blue 1153

bluff 1154

Boeing 1155

Boise 1156

bolt 1157

boost 1158

booster 1159

Boston 1160

bound 1161

box 1162

bozo 1163

Bradford 1164

brake 1165

braking 1166

branch 1167

bravo 1168

break 1169

breaker 1170

brew 1171

Bridge 1172

Bridgeport 1173

Bristol 1174

British 1175

broadcast 1176

broaden 1177

Broadway 1178

broken 1179

Bronx 1180

Brookfield 1181

brown 1182

Bryn Mawr 1183

Bucks 1184

Buffalo 1185

building 1186

burlington 1187

busy 1188

button 1189

by 1190

byte 1191

C 1192

C.T.C.S.S. 1193

C.W. 1194

cabin 1195

calibrate 1196

calibration 1197

California 1198

call 1199

calling 1200

callsign 1201

calm 1202

Cambridge 1203

Camelback 1204

Canada 1205

Canadian 1206

cancel 1207

capacitance 1208

capacitor 1209

Cape May 1210

car 1211

Carbondale 1212

cargo 1213

Carlos 1214

Carmel 1215

Carolina 1216

carriage 1217

carrier 1218

Carson City 1219

case 1220

cast 1221

cat 1222

cathode 1223

caution 1224

Cedar_Rapids 1225

Cedarburg 1226

ceiling 1227

Celsius 1228

center 1229

centi (CEN-tee) 1230

centigrade 1231

central 1232

Cerro 1233

Chambersburg 1234

change 1235

changeover 1236

channel 1237

charge 1238

Charleston 1239

Charlie 1240

Charlotte 1241

check 1242

Chester 1243

Cheyenne 1244

Chicago 1245

Chippewa_Falls 1246

choice 1247

circuit 1248

Circus 1249

cities 1250

city 1251

class 1252

Claude 1253

clear 1254

clearance 1255

climb 1256

clinch 1257

clock 1258

close (adjective) 1259

close (verb) 1260

closed 1261

Closure 1262

clown 1263

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

club 1264

Coast 1265

co-ax 1266

code 1267

coil 1268

cold 1269

college 1270

Colorado 1271

Columbia 1272

Columbus 1273

com 1274

combiner 1275

come 1276

command 1277

common 1278

communication 1279

Communications 1280

compact 1281

Compact_Flash 1282

complete 1283

Complex 1284

compressor 1285

computer 1286

Concord 1287

Concord (alternate) 1288

condition 1289

configuration 1290

Conflicts 1291

Conifer 1292

connect 1293

Connecticut 1294

connector 1295

constant 1296

consumption 1297

contact 1298

contactor 1299

control 1300

controller 1301

converging 1302

converter 1303

cool 1304

cooling 1305

copper 1306

correct 1307

county 1308

course 1309

coverage 1310

cowl 1311

craft 1312

crane 1313

Creek 1314

crescent 1315

cross 1316

crosswind 1317

crystal 1318

Crystal Lake 1319

Culvert 1320

current 1321

cycle 1322

cylinder 1323

D 1324

D.T.M.F. 1325

D.V.R. 1326

damage 1327

danger 1328

danger, alternate 1329

dark 1330

data 1331

date 1332

Davenport 1333

day 1334

days 1335

Dayton 1336

December 1337

decimal 1338

decrease 1339

decreasing 1340

default 1341

deflector 1342

degree 1343

degrees 1344

dehydrator 1345

de-ice 1346

Delaware 1347

delay 1348

Delray 1349

delete 1350

delta 1351

deluxe 1352

Denver 1353

department 1354

departure 1355

depleted 1356

depth 1357

Des Moines 1358

Desert 1359

detect 1360

detected 1361

detector 1362

Detroit 1363

deviation 1364

device 1365

dial 1366

dialed 1367

dialing 1368

did 1369

Diego 1370

diesel 1371

digital 1372

dinner 1373

dip 1374

direct 1375

direction 1376

directory 1377

disable 1378

disabled 1379

disarm 1380

discharge 1381

disconnect 1382

dish 1383

dismal 1384

dispatcher 1385

display 1386

divide 1387

divided 1388

do 1389

dog 1390

Doh! 1391

door 1392

doors 1393

Dot 1394

double 1395

Dover 1396

down 1397

downlink 1398

downwind 1399

drive 1400

driver 1401

drizzle 1402

DuBois 1403

Dubuque 1404

duhhhh 1405

Duluth 1406

dump 1407

duplexer 1408

dust 1409

dynamic 1410

E 1411

E.H.F. 1412

E.M.S. 1413

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

E.T.A. 1414

Eagles_Peak 1415

earth 1416

east 1417

easy 1418

Eau_Claire 1419

echo 1420

Eckley 1421

edison 1422

Edmonton 1423

efficiency 1424

Egg_Harbor 1425

eight 1426

eighteen 1427

eighth 1428

eighty 1429

electric 1430

electrician 1431

electricity 1432

elevation 1433

eleven 1434

Elizabeth 1435

Email 1436

emergency 1437

empty 1438

enable 1439

enabled 1440

end 1441

endless 1442

energy 1443

engage 1444

engine 1445

engineering 1446

enter 1447

equal 1448

equipment 1449

erase 1450

erased 1451

Erie 1452

error 1453

escape 1454

estimated 1455

evacuate 1456

evacuation 1457

evening 1458

event 1459

every 1460

evil 1461

exciter 1462

exclusion 1463

exist 1464

existing 1465

exit 1466

expect 1467

exterior 1468

external 1469

extreme 1470

F 1471

F.M. 1472

fade 1473

fail 1474

failed 1475

failure 1476

fairport 1477

False 1478

Fan 1479

Fancy Hill 1480

farad 1481

Farenheit 1482

Fargo 1483

Farm 1484

fast 1485

faster 1486

fat 1487

fault 1488

February 1489

Federal 1490

feedline 1491

feet 1492

female 1493

femto (phem-to) 1494

Fernando 1495

fest 1496

Festival 1497

field 1498

fifteen 1499

fifth 1500

fifty 1501

filament 1502

file 1503

filed 1504

final 1505

fire 1506

first 1507

Fish 1508

five 1509

flag 1510

flair 1511

flame 1512

flameout 1513

flaps 1514

flash 1515

flat 1516

flight 1517

flight_watch 1518

flood 1519

flooded 1520

floor 1521

Florence 1522

Florida 1523

flow 1524

fog 1525

Fond_Du_Lac 1526

For 1527

Forest 1528

Forever 1529

Fork 1530

Forkston 1531

Fort 1532

forty 1533

forward 1534

four 1535

fourteen 1536

fourth 1537

fox 1538

foxtrot 1539

Francisco 1540

Frankenmuth

(Michigan) 1541

Frankfort 1542

Franklin 1543

Fredericton 1544

free 1545

freedom 1546

Freeport 1547

freeze 1548

freezing 1549

French 1550

frequency 1551

Fresno 1552

Friday 1553

friendly 1554

from 1555

front 1556

fuel 1557

full 1558

fun 1559

function 1560

fuse 1561

G 1562

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

galley 1563

gallons 1564

gap 1565

Garden 1566

gas 1567

gate 1568

Gateway 1569

gauge 1570

gear 1571

generate 1572

Generator 1573

Geneva 1574

George 1575

Georgia 1576

Germantown 1577

get 1578

Gilbert 1579

Glendale_Heights 1580

glide 1581

go 1582

gold 1583

golf 1584

good 1585

good afternoon 1586

good evening 1587

good morning 1588

good night 1589

good_bye 1590

grain 1591

Grand_Rapids 1592

gray 1593

greater 1594

greater than 1595

Green 1596

Green_Bay 1597

Greenwich (GREN-itch)

1598

grid 1599

ground 1600

group 1601

gun 1602

gundish 1603

gust 1604

gusting_to 1605

H 1606

H.F. 1607

hail 1608

half 1609

Halifax 1610

ham 1611

Hamburg 1612

Hamfest 1613

Hamvention 1614

Hancock 1615

hang 1616

Happy_Holidays 1617

hard 1618

hardline 1619

Harrisburg 1620

Harry 1621

Hartford 1622

has 1623

have 1624

Hawaii 1625

haze 1626

head 1627

heading 1628

heat 1629

heating 1630

heavy 1631

Helena 1632

Heliax 1633

hello 1634

help 1635

Henry 1636

here 1637

hertz 1638

Hicks 1639

high 1640

higher 1641

highway 1642

hill 1643

hold 1644

home 1645

Honolulu 1646

horizontal 1647

hospital 1648

hot 1649

hotel 1650

hour 1651

hours 1652

Houston 1653

how 1654

HTTP colon backslash

backslash w w w dot 1655

hundred 1656

hunt 1657

hurricane 1658

I 1659

I.R.L.P. 1660

ice 1661

icing 1662

Ida 1663

Idaho 1664

identification 1665

identifier 1666

identity 1667

idle 1668

if 1669

ignite 1670

ignition 1671

Illinois 1672

immediate 1673

immediately 1674

in 1675

inactive 1676

inbound 1677

inch 1678

increase 1679

increasing 1680

India 1681

Indiana 1682

Indianapolis 1683

indicate 1684

indicated 1685

Indicator 1686

Indigo 1687

indoor 1688

inductor 1689

Industries 1690

inflight 1691

information 1692

inner 1693

input 1694

inside 1695

inspect 1696

inspector 1697

instruction 1698

instrument 1699

instruments 1700

intakes 1701

interface 1702

Internet 1703

interrupt 1704

interstate 1705

interval 1706

Intranet 1707

intruder 1708

invalid 1709

Iowa 1710

iron 1711

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

is 1712

Island 1713

isolation 1714

it 1715

Item 1716

its 1717

J 1718

Jackson 1719

Jacksonville 1720

Janesville 1721

January 1722

Jefferson 1723

jig 1724

Joaquin 1725

John 1726

Join 1727

Joint 1728

Juliet 1729

July 1730

junction 1731

June 1732

Juneau 1733

just 1734

K 1735

K A 9 F U R 1736

Kansas 1737

Kellysville 1738

Kenley 1739

Kenosha 1740

Kentucky 1741

kerchunk 1742

Kewaunee 1743

key 1744

Keyboard 1745

kicks 1746

kill 1747

killer 1748

kilo (KEE-lo) 1749

king 1750

knob 1751

knots 1752

L 1753

Labrador 1754

LaCrosse 1755

Lafayette 1756

Lake 1757

Lambs 1758

land 1759

landing 1760

Lansing 1761

large 1762

Las Vegas 1763

last 1764

Lauderdale 1765

launch 1766

league 1767

leak 1768

lean 1769

leave 1770

left 1771

leg 1772

less than 1773

let 1774

level 1775

Lexington 1776

lick 1777

lid 1778

light 1779

lights 1780

Lima 1781

limit 1782

Lincoln 1783

line 1784

link 1785

list 1786

listen 1787

little 1788

Little Rock 1789

load 1790

localizer 1791

lock 1792

locked 1793

log 1794

logic 1795

Loma Prieta 1796

long 1797

loop 1798

Los 1799

Los Angeles 1800

Louisiana 1801

Love 1802

low 1803

lower 1804

Luis 1805

lunch 1806

Lycoming 1807

Lynchburg 1808

M 1809

machine 1810

Macon 1811

macro 1812

Madison 1813

magnetos 1814

main 1815

maintain 1816

make 1817

male 1818

man 1819

Manchester 1820

Manhattan 1821

Manitoba 1822

Manitowoc 1823

manual 1824

many 1825

March 1826

Marine 1827

Marines 1828

mark 1829

marker 1830

Marquette 1831

Maryland 1832

Massachusetts 1833

mast 1834

master 1835

May 1836

Mayberry 1837

mayday 1838

me 1839

mean 1840

measure 1841

medical 1842

medium 1843

meet 1844

meeting 1845

mega 1846

Memphis 1847

Menomonee_Falls 1848

mercury 1849

message 1850

messages 1851

meter 1852

metering 1853

meters 1854

Mexico 1855

Michigan 1856

micro 1857

microphone 1858

microwave 1859

mid 1860

middle 1861

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

midpoint 1862

Mid-Wisconsin 1863

mike 1864

mile 1865

miles 1866

Military 1867

mill 1868

milli (MILL-ee) 1869

million 1870

Milwaukee 1871

min 1872

mini 1873

Minneapolis 1874

Minnesota 1875

minus 1876

minute 1877

minutes 1878

Mississippi 1879

Missouri 1880

mist 1881

mixture 1882

mobile 1883

mode 1884

modem 1885

moderate 1886

modify 1887

modulation 1888

module 1889

Moline 1890

monday 1891

monitor 1892

mono 1893

Monroe 1894

Montana 1895

Montgomery 1896

month 1897

monthly 1898

Montpelier 1899

more 1900

more than 1901

morning 1902

moron 1903

moron , whoop whoop 1904

moron alert 1905

Morse 1906

motor 1907

Mount 1908

mountain 1909

mouse 1910

move 1911

moving 1912

much 1913

my 1914

N 1915

N 3 K Zed 1916

N 3 K Z 1917

Nan 1918

Nancy 1919

nano (NAN-oh) 1920

Naperville 1921

Narrows 1922

Nashville 1923

National 1924

Navy 1925

Near 1926

Nebraska 1927

negative 1928

net 1929

network 1930

neutral 1931

Nevada 1932

New 1933

New Hampshire 1934

New Jersey 1935

New Mexico 1936

New Orleans 1937

New York 1938

Newark 1939

Newfoundland 1940

Newtown 1941

next 1942

night 1943

nine 1944

niner 1945

nineteen 1946

ninety 1947

ninth 1948

no 1949

nominal 1950

none 1951

noon 1952

Norfolk 1953

Normal 1954

Noroeste 1955

North 1956

North Carolina 1957

North Dakota 1958

North_Prarie 1959

northeast 1960

northwest 1961

Norton 1962

not 1963

notice 1964

Nova Scotia 1965

November 1966

now 1967

number 1968

numbers 1969

Nunavut 1970

O 1971

Oak 1972

Obispo 1973

oboe 1974

obscured 1975

ocean 1976

o'clock 1977

October 1978

of 1979

off 1980

oh 1981

Ohio 1982

ohm 1983

ohms 1984

oil 1985

okay 1986

Oklahoma 1987

old 1988

Olympia 1989

Omaha 1990

Omni 1991

on 1992

one 1993

only 1994

Ontario 1995

Opaca 1996

open 1997

operate 1998

operational 1999

operator 2000

optical 2001

or 2002

Orange 2003

Ord 2004

order 2005

Oregon 2006

originate 2007

oscar 2008

Oshkosh 2009

other 2010

Ottawa 2011

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

ouch 2012

our 2013

out 2014

outdoor 2015

outer 2016

output 2017

outside 2018

over 2019

overcast 2020

overload 2021

overlook 2022

overspeed 2023

Owego (oh-WEE-go) 2024

Oxford 2025

P 2026

P.L. 2027

P.L.L. 2028

P.M. 2029

pacific 2030

pad 2031

page 2032

pair 2033

panther 2034

papa 2035

Parade 2036

parallel 2037

Parking 2038

partially 2039

pass 2040

passed 2041

password 2042

patch 2043

path 2044

Paul 2045

Peak 2046

pearl 2047

pellets 2048

pending 2049

Penn 2050

Pennsylvania 2051

Penobscot (penn-OB-

scot) 2052

Peoria 2053

per 2054

percent 2055

period 2056

Perry 2057

Peter 2058

phase 2059

Philadelphia 2060

Phoenix 2061

phone 2062

pick 2063

pico (PEE-ko) 2064

Pierre 2065

pilot 2066

pine 2067

pink 2068

plan 2069

plant 2070

plate 2071

play 2072

please 2073

plus 2074

point 2075

polar 2076

polarization 2077

polarized 2078

police 2079

pond 2080

poor 2081

port 2082

portable 2083

Portland 2084

position 2085

pots 2086

pound 2087

power 2088

powerhouse 2089

preamplifier 2090

press 2091

pressure 2092

Prince Edward 2093

Princeton 2094

priority 2095

probe 2096

program 2097

Propane 2098

props 2099

Providence 2100

Provo 2101

pull 2102

pulse 2103

pumps 2104

Purple 2105

push 2106

put 2107

Q 2108

Quad 2109

quarter 2110

Quebec 2111

Quebec, French 2112

Queen 2113

question 2114

R 2115

R.F. 2116

R.P.U. 2117

RACES (RAY-sees) 2118

Racine 2119

radar 2120

radial 2121

radio 2122

radios 2123

Rail 2124

rain 2125

raise 2126

Raleigh 2127

range 2128

RATE 2129

Reading (RED-ing) 2130

reading (REED-ing) 2131

ready 2132

rear 2133

receive 2134

receiver 2135

recorded 2136

recorder 2137

Red 2138

reflected 2139

refueling 2140

regenerate 2141

relay 2142

release 2143

remark 2144

remote 2145

repair 2146

repeat 2147

repeater 2148

report 2149

request 2150

rescue 2151

reset 2152

resistance 2153

resistor 2154

response 2155

return 2156

reverse 2157

Rhode Island 2158

rich 2159

Richfield 2160

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Richland 2161

Richmond 2162

Ridge 2163

rig 2164

right 2165

ring 2166

river 2167

road 2168

Roanoke 2169

Rochester 2170

Rockford 2171

Rocky 2172

Rocky Ridge 2173

Rodman 2174

Roger 2175

rollout 2176

Romeo 2177

room 2178

Route 2179

Roxboro 2180

RS232 2181

run 2182

running 2183

runway 2184

S 2185

S.Comm 2186

S.H.F. 2187

S.S.B. 2188

S.T.L. 2189

S.W.R. 2190

Sacramento 2191

safe 2192

Saint 2193

Salem 2194

Salinas 2195

Salt Lake City 2196

San 2197

San Luis Obispo 2198

sand 2199

Sandy 2200

Santa Fe 2201

Santiago 2202

Saskatchewan 2203

Saturday 2204

Savanna 2205

save 2206

scale 2207

scatter 2208

scattered 2209

Schaumburg 2210

schedule 2211

scheduled 2212

scheduler 2213

school 2214

Science 2215

Scranton 2216

screen 2217

Sea 2218

search 2219

Seattle 2220

second 2221

seconds 2222

security 2223

select 2224

selected 2225

selector 2226

self-destruct 2227

semaphore 2228

send 2229

sensor 2230

sent 2231

September 2232

sequence 2233

serial 2234

service 2235

set 2236

seven 2237

seventeen 2238

seventh 2239

seventy 2240

severe 2241

sewage 2242

seymour 2243

Sheboygan 2244

Shoals 2245

short 2246

shortwave 2247

showers 2248

shut 2249

shuttle 2250

side 2251

Sierra 2252

sighting 2253

sigmet 2254

sign 2255

signal 2256

silver 2257

simulcast 2258

single 2259

Sioux Falls 2260

Site 2261

six 2262

sixteen 2263

sixteenth 2264

sixth 2265

sixty 2266

Skokie 2267

Sky Warn 2268

sleet 2269

slope 2270

slower 2271

small 2272

S-meter 2273

smoke 2274

snow 2275

solar 2276

sound 2277

South 2278

South Carolina 2279

South Dakota 2280

South Mountain 2281

southeast 2282

southern 2283

southwest 2284

space 2285

spare 2286

speak 2287

Speaker 2288

special 2289

speed 2290

spill 2291

spirit 2292

spoil 2293

spoilers 2294

spray 2295

Springfield 2296

square 2297

squawk 2298

squawking 2299

squelch 2300

St. Paul 2301

stabilize 2302

stabilizer 2303

stable 2304

stall 2305

standby 2306

star 2307

starboard 2308

start 2309

State 2310

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

station 2311

stationary 2312

status 2313

stereo 2314

stern 2315

stop 2316

storm 2317

street 2318

strength 2319

strobe 2320

structure 2321

studio 2322

Sugar 2323

Summerfest 2324

Sunday 2325

sunset 2326

Superior 2327

supply 2328

Sussex 2329

Swapfest 2330

switch 2331

switched 2332

switching 2333

Sword 2334

sysop 2335

system 2336

T 2337

T.R.L. 2338

T.S.L. 2339

Tahoe 2340

tall 2341

Tallahassee 2342

tango 2343

tank 2344

Tare 2345

target 2346

Tassajera 2347

taxi 2348

teen 2349

telemetry 2350

telephone 2351

temperature 2352

ten 2353

Tennessee 2354

tenth 2355

terminal 2356

terminate 2357

terminated 2358

Territories 2359

Territory 2360

test 2361

Texas 2362

than 2363

thank-you 2364

that 2365

thaw 2366

the (long E) 2367

the (short E) 2368

their 2369

then 2370

thermal 2371

thin 2372

thinly 2373

thir- 2374

third 2375

thirteen 2376

thirtieth 2377

thirty 2378

this 2379

this_is 2380

This_is_the 2381

Thompson 2382

thousand 2383

three 2384

thunder 2385

Thursday 2386

time 2387

time_out 2388

timer 2389

times 2390

today 2391

Tollsville 2392

tomorrow 2393

tone 2394

tonight 2395

too 2396

tool 2397

Topeka 2398

tornado 2399

Toronto 2400

total 2401

touch 2402

touchdown 2403

Towanda 2404

tower 2405

town 2406

track 2407

tracking 2408

trade 2409

traffic 2410

transfer 2411

transformer 2412

transition 2413

transmit 2414

transmitter 2415

treatment 2416

Trenton 2417

trigger 2418

trim 2419

trip 2420

tripped 2421

true 2422

trunk 2423

try 2424

tube 2425

Tuesday 2426

Tug 2427

Tunnel 2428

Turbulence 2429

TURN 2430

turquoise 2431

twelfth 2432

twelve 2433

twentieth 2434

twenty 2435

two 2436

TYPE 2437

U 2438

U.P.S. 2439

UHF 2440

Uncle 2441

under 2442

unicom 2443

uniform 2444

Union 2445

unit 2446

United States 2447

University 2448

unlimited 2449

unlock 2450

until 2451

Up 2452

Uplink 2453

use (noun) 2454

use (verb) 2455

used 2456

Utah 2457

Utility 2458

V 2459

V.F.R. 2460

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

V.H.E. 2461

V.H.F. 2462

V.O.R. 2463

V.S.W.R. 2464

Vaca 2465

vacuum 2466

Valley 2467

Valley Forge 2468

valve 2469

variable 2470

VCO 2471

vector 2472

vectors 2473

Vera 2474

verify 2475

Vermont 2476

version 2477

Vertical 2478

very 2479

Victor 2480

Victoria 2481

video 2482

Violet 2483

Virginia 2484

Virginia Beach 2485

visibility 2486

visual 2487

voice 2488

Voltage 2489

volts 2490

volume 2491

vortac 2492

W 2493

W 9 H H X 2494

W R 3 I R S 2495

W.W.V. 2496

W.W.W. 2497

wait 2498

wake 2499

warning 2500

Warren 2501

Washington 2502

waste 2503

watch 2504

water 2505

Waterdale 2506

Waterford 2507

Watt 2508

watts 2509

Waukesha 2510

Wausau 2511

wave 2512

way 2513

we 2514

weather 2515

Web 2516

Wednesday 2517

week 2518

weekday 2519

weekend 2520

Weekly 2521

welcome 2522

well 2523

Welsh 2524

West 2525

West Virginia 2526

what 2527

whiskey 2528

white 2529

Wichita 2530

Wide 2531

Wilco 2532

Wilkes-Barre 2533

will 2534

William 2535

Williamsport 2536

Willie 2537

Wilmington 2538

win 2539

wind (noun) 2540

window 2541

windows 2542

windspeed 2543

Winnebago 2544

Wisconsin 2545

Wisconsin_Interstate_N

etwork 2546

with 2547

within 2548

without 2549

Wolf 2550

work 2551

working 2552

Works 2553

World 2554

Wrist 2555

wrong 2556

Wyoming 2557

X 2558

X-ray 2559

Y 2560

yada_yada_yada 2561

Yagi 2562

yankee 2563

yard 2564

year 2565

Yearly 2566

Yellow 2567

yes 2568

yesterday 2569

Ynez 2570

Yoke 2571

York 2572

you 2573

Young 2574

your 2575

yours 2576

you've 2577

Yukon 2578

Z 2579

Zebra 2580

zed 2581

zero 2582

zone 2583

Zulu 2584

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Test Tones

Duration Tone dBFS

5000 2 Sec. 1kHz 0

5001 2 Sec. 1kHz -3

5002 2 Sec. 1kHz -6

5003 2 Sec. 300Hz 0

5004 2 Sec. 300Hz -3

5005 2 Sec. 300Hz -6

5006 2 Sec. 2kHz 0

5007 2 Sec. 2kHz -3

5008 2 Sec. 2kHz -6

5010 280ms Stardust -6

5011 385ms Duncecap -6

5012 200ms Piano Chord -6

5020 900ms MF Sequence -6

5021 2 Sec. US Dialtone -6

5022 1 Sec. UK Ringback -6

5023 2 Sec. US Ringback -6

5024 500ms US Busy Tone -6

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix B ASCII Character Chart

Dec Char Name Dec Char Dec Char Dec Char

0 ^@ NUL 32 SP 64 @ 96 `

1 ^A SOH 33 ! 65 A 97 a

2 ^B STX 34 “ 66 B 98 b

3 ^C ETX 35 # 67 C 99 c

4 ^D EOT 36 $ 68 D 100 d

5 ^E ENQ 37 % 69 E 101 e

6 ^F ACK 38 & 70 F 102 f

7 ^G BEL, \a 39 ‘ 71 G 103 g

8 ^H BS, \b 40 ( 72 H 104 h

9 ^I TAB, \t 41 ) 73 I 105 i

10 ^J LF, \n 42 * 74 J 106 j

11 ^K VT, \v 43 + 75 K 107 k

12 ^L FF, \f 44 , 76 L 108 l

13 ^M CR, \r 45 - 77 M 109 m

14 ^N SO 46 . 78 N 110 n

15 ^O SI 47 / 79 O 111 o

16 ^P DLE 48 0 80 P 112 p

17 ^Q DC1 49 1 81 Q 113 q

18 ^R DC2 50 2 82 R 114 r

19 ^S DC3 51 3 83 S 115 s

20 ^T DC4 52 4 84 T 116 t

21 ^U NAK 53 5 85 U 117 u

22 ^V SYN 54 6 86 V 118 v

23 ^W ETB 55 7 87 W 119 w

24 ^X CAN 56 8 88 X 120 x

25 ^Y EM 57 9 89 Y 121 y

26 ^Z SUB 58 : 90 Z 122 z

27 ^[ ESC 59 ; 91 [ 123 {

28 ^\ FS 60 < 92 \ 124 |

29 ^] GS 61 = 93 ] 125 }

30 ^^ RS 62 > 94 ^ 126 ~

31 ^_ US 63 ? 95 _ 127 DEL

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix C – Morse Code Characters

A · — J · — — — S · · · 1 · — — — —

B — · · · K — · — T — 2 · · — — —

C — · — · L · — · · U · · — 3 · · · — —

D — · · M

— — V · · · — 4 · · · · —

E · N — · W

· — — 5 · · · · ·

F · · — · O — — — X — · · — 6 — · · · ·

— — · P · — — · Y — · — — 7 — — · · ·

H · · · · Q — — · — Z — — · · 8 — — — · ·

I · · R · — · 0 — — — — — 9 — — — — ·

Period [ . ] · — · — · — Colon [ : ] — — — · · ·

Comma [ , ] — — · · — — Semicolon [ ; ] — · — · — ·

Question Mark [ ? ] · · — — · · Double Dash [ = ] — · · · —

Apostrophe [ ‘ ] · — — — — · Plus [ + ] · — · — ·

Exclamation Mark [ ! ] — · — · — — Hyphen, Minus [ - ] — · · · · —

Forward Slash [ / ] — · · — · Underscore [ _ ] · · — — · —

Open Parenthesis [ ( ] — · — — · Quotation Mark [ “ ] · — · · — ·

Close Parenthesis [ ) ] — · — — · — Dollar Sign [ $ ] · · · — · · —

Ampersand [ & ] · — · · · At Sign [ @ ] · — — · — ·

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix D Version History

Product Firmware Revisions

Product firmware revision history is available on the website support page: http://www.vyex.com/support.html

User Manual Revisions

1.0c – 1-Sept-2003

• First General release.

1.2 – 21-Oct-2003

• Added new command word 9710

• Corrected sample rate limitations for WAV files. ADPCM will support a maximum of 16kHz, not 22.05kHz as

previously stated.

1.3 – 10-Dec-2003

• Added PCB revision “E” schematic.

• Added daughter board schematic and installation instructions.

• Added commentary regarding bugs fixed in 7K firmware version 2.04a

1.5 – 9-Feb-2004

• Added information regarding speed factor command 9702

• Modified information regarding DIR command to reflect new card identifier information

• Corrected example given for word 9710 and clarified example in 9701.

1.5a – 17-Feb-2004

• Added version release notes for 7K firmware version 2.04b

1.6 – 20-Mar-2004

• Added version release notes for 7K firmware version 2.04c & 2.04d

1.6a – 12-May-2004

• Updated pictures and schematic to depict current PCB revision.

1.7 – 25-July-2004

• Added information regarding 2.04e 7K firmware

1.7a – 13-May-2006

• Added information regarding 2.04f 7K firmware

1.8 – 14-Aug-2007

• Added information regarding version 7KDAB version 1.8 firmware

2.0 – 19-Aug-2007

• Added information regarding version 7KDAB version 2.0 firmware

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix E 7K Version 2.04 Release Notes

Disclaimer

While this software is derived from SCOM’s Version 2.03b firmware, it is not supported by SCOM. Any support issues

related to this software need to be directed to Vyex LLC.

The copyright for this software is still held by SCOM and it is SCOM’s sole discretion that determines how this firmware

may be made available.

Overview

This firmware version contains new functionality to better integrate the 7K Digital Audio Board (DAB) with the operation of

the repeater controller.

In addition to DAB specific additions, additional controller enhancements were introduced and are presented in this

appendix.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

New Commands

{PW} 16 Stop playback of current speech word

Issuing this command will kill a spoken word currently in progress. It’s intent is to provide a means of halting a long

informational message.

{PW} 24 xxxx Remove Command From Macro

Removes last command from Macro ‘xxxx’.

Reports “OK” if successful, or “? LAST” if there is only one command left in the macro.

To delete the last command in the macro, you need to delete the macro and re-create it.

{PW} 36 T F xxxx Modify ID Timers

T = ‘1’ for Transmitter 1, or ‘2’ for Transmitter 2

F = function code

0 Terminate ID timer activity. If ID is pending, it is cancelled.

1 Set ID timer to maximum. ID is NOT triggered.

2 Set ID timer to maximum. ID is immediately triggered.

3 Ensure Normal ID cycle. Start’s ID timer if not already running, otherwise this command has no

effect.

4 Ensure Final ID cycle. Start’s ID timer if not already running, and sets the pending ID flag as

though user activity had occurred. If timer was running, this command has no effect.

5 If ID timer is not running, set the ID timer to maximum and execute macro ‘xxxx’

xxxx = Macro name for function 5

Example use showing a friendly on the hour ID:

{PW} 28 01 8001 99 99 06 59 ;enable on the hour ID’s starting at 6:59am

{PW} 28 02 8002 99 99 21 01 ;disable on the hour ID’s ending at 9:01pm

{PW} 20 8001 {PW} 28 00 4000 99 99 99 00 ;create hourly scheduler setpoint

{PW} 20 8002 {PW} 28 00 ;delete hourly scheduler setpoint

{PW} 20 4000 {PW} 36 5 4001 ;if ID timer is not running, call macro 4001

;and start the ID timer running

; Macro 4001 speaks “KA9FUR repeater” and if interrupted by user activity will revert to “KA9FUR” in CW

{PW} 20 4001 {PW} 15 9981 9961 000 0260 0001 0335 0149 0540 0401 0421 9902 54 59 0852 67 20 10 09 15 30 27

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

{PW} 49 90/91/92/93 xx Message Handler Initial Message Delay

Timer’s 90 through 93 now allow the user to determine the initial message delay value for individual message types.

In previous versions, these timer delay values were fixed at 1.0 seconds. The user can now specify a timer value of zero

to 5.0 seconds with 100ms resolution.

Timer:

90 – CW pre-message delay associated with special message character ‘54’

91 – Beep pre-message delay associated with special message character ‘54’

92 – Paging pre-message delay that is always present

93 – Speech pre-message delay associated with special word ‘0000’

These timer delay’s are utilized only at the beginning of a new message sequence, and with the exception of a paging

sequence, the delay only occurs if the message begins with the special message character or word.

Examples:

{PW} 49 90 15 ;set CW initial delay to 1.5 seconds

{PW} 49 93 20 ;set speech initial delay to 2.0 seconds

;send CW message “KA9FUR” with an initial delay

{PW} 15 9900 54 59 0852 67 20 10 09 15 30 27

;send speech message “KA9FUR repeater” with an initial delay

{PW} 15 9960 0000 0260 0001 0335 0149 0540 0401 0421

{PW} 49 94/95 xx Logic output pulse duration

These timers were introduced in version 2.04f.

Timer 94 now sets the logic pulse ON duration, and timer 95 sets the logic pulse OFF duration. Timer units are in 10ms

increments with the minimum value of 10ms and the maximum of 2540ms.

The pulsed output duration may vary up to +/-10ms.

NOTE: If new firmware is installed in a controller that previously contained an older 2.04 variant AND the

controller is not cold initialized, the timer values will default to zero, meaning the pulsed outputs will not work. In

order to retain backward compatibility either manually set both of the timer values to ‘50’ (500ms), OR cold

initialize the controller.

Examples:

{PW} 49 94 50 ;set logic output pulsed on delay to 500ms

{PW} 49 95 10 ;set logic output pulsed off delay to 100ms

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

{PW} 76 ff yyyy (zzzz) IF-THEN-ELSE

‘ff’ is the feature to be tested

‘yyyy’ is the macro to be executed if the feature tests non-zero / true.

‘zzzz’ is the optional macro to be executed if the feature tests zero / false.

Function ‘ff’ Item Tested Function ‘ff’ Item Tested

00 7KDAB installed 33 Rx1 Anti-Kerchunk Timer

01 User Input 1 34 Rx1 Anti-Kerchunk Rearm Timer

02 User Input 2 35 Rx1 Timeout Penalty Timer

03 User Input 3 36 Rx1 Activity Timer

04 User Input 4 37 Tx2 ID Timer

05 User Input 5 38 Tx2 Unkey Delay Timer

06 User Input 6 39 Rx2 Activity Timer

07 User Output 1 40 Rx3 Activity Timer

08 User Output 2 41 Autopatch Redial Timer

09 User Output 3 42 Autopatch Timeout Message Timer

10 User Output 4 43 Autopatch Call Duration Timer

11 User Output 5 44 Landline Control Timer

12 User Output 6 45 Landline Ringout Message Timer

13 User Output 7 46 Landline Timeout Warning Timer

14 Rx1 COR 47 Landline inter-ring timer

15 Rx1 CTCSS 48 User Timer 1

16 Rx2 COR 49 User Timer 2

17 Rx2 CTCSS 50 User Timer 3

18 Rx3 COR 51 User Timer 4

19 Rx3 CTCSS 52 User Timer 5

20 PTT 1 53 User Timer 6

21 PTT 2 54 User Timer 7

22 Land Line Busy Input 55 User Timer 8

23 Land Line Ring Input 56 User Timer 9

24 Land Line Busy Output 57 User Timer 10

25 Tx1 ID Timer 58 User Switch 1 (cmd 63 92 x)

26 Tx1 Post Activity Timer 59 User Switch 2 (cmd 63 93 x)

27 Tx1 Drop Out Timer 60 User Switch 3 (cmd 63 94 x)

28 Tx1 Courtesy Timer 61 User Switch 4 (cmd 63 95 x)

29 Tx1 Unkey Delay Timer 62 User Switch 5 (cmd 63 96 x)

30 Rx1->Tx1 Timeout Timer 63 User Switch 6 (cmd 63 97 x)

31 Rx2->Tx1 Timeout Timer 64 User Switch 7 (cmd 63 98 x)

32 Rx3->Tx1 Timeout Timer

Example:

{PW} 76 03 2001 2000 ;test user input 3, if input is active then execute macro 2001,

;otherwise execute macro 2000.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

New Switches

{PW} 63 16 x Daylight Savings time correction

This switch defaults to ‘off’.

If switch is turned on, one hour will be added to the Real Time Clock at 2:00am on the first Sunday in April, and one hour

will be subtracted at 2:00am on the last Sunday in October.

{PW} 63 19 x Ignore Landline Busy Input

This switch defaults to ‘off’.

If switch is turned on, the landline busy input will be ignored by the interconnect routines and becomes available for the

user to utilize as a generic user input with the commands that are otherwise already available.

{PW} 63 33 x Enable “OK” Command Responses

{PW} 63 34 x Enable “?ERR” Command Responses

These two switches default to ‘on’.

Note: Switch 02 still acts as a master enable/disable function for command responses.

{PW} 63 35 x Courtesy message can be queued during message playback

This switch defaults to ‘off’.

Turning this switch on will, for example, allow a courtesy message to play after the initial ID.

{PW} 63 36 x Suppress command responses within macro execution

This switch defaults to ‘off’.

Turning this switch on will, inhibit simple (i.e. “OK”, and “ERR?”) command responses when commands are executed from

within a macro.

This switch command was introduced in 2.04e.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

{PW} 63 92 x User Soft Switch 1

{PW} 63 93 x User Soft Switch 2

{PW} 63 94 x User Soft Switch 3

{PW} 63 95 x User Soft Switch 4

{PW} 63 96 x User Soft Switch 5

{PW} 63 97 x User Soft Switch 6

{PW} 63 98 x User Soft Switch 7

All user switches default off and survive power failure. The user can test switch conditions with new user command 76.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Changed Commands

{PW} 02 f … CTCSS Encoder

Function code ‘f’ Description

0 CTCSS Encoder OFF

1 CTCSS Encoder ON continuously when transmitter is active

2 Tx1 coupled OFF delay.

Turns on when Transmitter goes active, and turns off when

delay timer expires.

3 Receiver for Tx1 coupled OFF delay.

Turns on when any receiver with a path to Tx1 goes active,

and turns off when delay timer expires.

4 Receiver for Tx1 coupled loss OFF delay.

Turns on when any receiver with a path to Tx1 is active, and

upon signal loss starts delay timer. When delay timer expires,

encoder is turned off.

7 Zero’s the dynamic timer value, forcing the encoder to

immediately turn off.

8 ‘xxx’ Set’s the default timer value to ‘xx.x” seconds. Valid range is

0 to 12.7 seconds.

9 ‘x’ Associates user output ‘x’ with the CTCSS encode function. 0

disables feature, 1-6 associate a User output with this feature.

Examples:

Encode during user transmissions and hold the encoder active for an additional 200ms after receiver squelch closes

to allow for mobile flutter. Use this example for making your repeater more compatible with an on air linking method,

such as IRLP, that relies on the CTCSS encoder following user activity.

{PW} 02 8 2 ;set timer value to 200ms

{PW} 02 9 3 ;(optional) associate user output 3 with CTCSS encode function

{PW} 02 4 ;set mode 4 to cause CTCSS to be encoded during all user transmissions

Function ‘7’ could be used to disable the CTCSS encoder after a courtesy message is sent.

{PW} 02 8 127 ;set timer to maximum value

{PW} 02 4 ;select mode 4

{PW} 20 1234 {PW} 02 7 ;create macro 1234 with cmd 02 function 7

{PW} 31 10 9910 74 09 9999 1234 ;60ms, 440Hz beep followed by macro 1234

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

{PW} 40 r xxx Set Transmit Timeout Timers

The new ‘r’, receiver, parameter allows the user to independently set different transmit timeout timer values based on the

active receiver(s). Valid values are 1, 2, or 3.

The valid range for ‘xxx’ remains the same. A value of ‘0’ (zero) disables the timeout timer for a given receiver.

The timeout logic was changed such that each receiver now has its own timeout timer. Once ANY timer is started, it is not

reset until the courtesy message event occurs.

Command 10 will reset ALL timeout timers simultaneously.

{PW} 89 … Select DTMF Priority/Scan

This command was changed to cause the DTMF decoder immediately re-prioritize the DTMF inputs rather than waiting for

a high priority device to release it.

{PW} 50 0/1 99 Review Initial and Normal Tail ID’s

This command now only sends the tail ID message rather than causing the full ID to be sent. The change was necessary

due to some code restructuring related to how these messages are stored internally.

{PW} 96 t xx Set DTMF Mute Delay

The DTMF muting logic has been changed to utilize two separate mute delay timers. One timer applies only to the first

DTMF digit, the other timer applies to all subsequent digits. Setting the mute time for the first digit relatively short or to

zero, and the mute timer for all subsequent digits substantially longer will provide better performance in situations where

decoder falsing has been a problem.

When a “*” or “#” command terminator is received, the 1st digit delay timer value will be loaded into the mute timer, thus

un-muting the audio more quickly upon command completion.

A ‘t’ (timer) value of zero (0) allows the first digit delay timer to be set, and a value of one (1) allows the delay timer for all

subsequent digits to be set.

The timer value ‘xx’ is set in 100ms units and can range from zero to 2.5 seconds.

On a cold reset, both timers default to 500ms.

Example:

{PW} 96 0 3 ;set 1st digit delay timer to 300ms

{PW} 96 1 25 ;set subsequent digit delay timer to 2.5 seconds

{PW} 63 xx 0/1/2/3 Set User Switch

In version 2.04e, if the switch values of ‘2’ or ‘3’ are used, they will turn the corresponding switch ‘off’ or ‘on’ but will not

send any command response. This addition was made for those who wish to eliminate command responses from within

macros, but who do not wish to use the new functionality in user switch 36 to suppress all command responses from

within a macro.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

New Message Types

Four new message types were added to support interruptible speech and Morse messages.

9901 - CW Primary

9902 - CW Secondary

9911 - Beep Primary

9912 - Beep Secondary

9961 - Speech Primary

9962 - Speech Secondary

Primary messages will cease playback if a receiver with its path enabled to a transmitter associated with the message

playback is active at the time the playback commences, or any time during message playback.

Secondary messages will only play in circumstances when a primary message would not.

Examples:

This message would speak “KA9FUR Repeater” but if a receiver went active would revert to “KA9FUR” in CW.

{PW} 15 9981 9961 0260 0001 0335 0149 0540 0401 0421 9902 59 0852 67 20 10 09 15 30 27

The following set’s the courtesy tone as mixed on Tx1 as a secondary beep message such that any activity on the

repeater will cause the courtesy message to be discarded. When the new switch “35” is enabled, courtesy messages will

be queued when the repeater is initially activated and an ID is sent. If the resulting courtesy message is not sent as a

“primary” message, then the courtesy message would be sent immediately after the initial ID even if there was user

activity present.

{PW} 31 10 9981 9911 76 55 57 0459 12 57 0512 04 ;set courtesy message

Operational Changes

Added area codes 877 and 866 to the toll free table.

Command 30 and 80 will now accept 1 or 2 digit timer values.

Command 32, transmitter drop out delay, will now accept 1, 2, or 3 digit timer values of up to 12.7 seconds.

Commands 40, 65, and 79 will now accept a single zero rather than requiring 3 zeros.

A new courtesy message will not be placed in the global message queue if there is still a courtesy message pending in

the queue. Note that this change only applies to the courtesy message ({PW} 31 10…) and that the courtesy event macro

will still be triggered without regard as to whether the courtesy message has been sent or not.

The speech board timeout timer is now 10 seconds rather than the 25 seconds in previous versions (even though it was

documented as being 5 seconds it was really 25 seconds).

The number of permissible macros has been increased to 340.

Fixed CW messages were modified to include the special initial delay character ‘54’ at the beginning of the message such

that an initial delay is present.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Bug Fixes and Changes

Version 2.04

Special Messages 9860 through 9895 will no longer cause the controller to crash.

Fixed a problem that could cause the hardware watchdog to trip during cold initialization.

Note: When upgrading from one version 2.04 variant to another, there is no need to cold initialize the controller.

Version 2.04a

This version fixes the macro corruption problem in commands 00, 02, 40, 50, 76, and 96.

A potential problem related to the courtesy beep was addressed. There was a potential that could require the controller to

be cold initialized in order for the controller to once again generate a courtesy beep message.

An initial delay character, 54, was added to command 33’s message playback to allow more time for the control user to

hear the entire command response.

Version 2.04b

This version fixes a problem with command 76. Some of the IF tests were incorrectly testing some byte wide variables as

words and vice versa. Due to the nature of the bug, there is no way to tell, at any given movement, which tests would be

made incorrectly.

Command 76 was also changed to queue any resulting macro at the head of the work queue rather than at the end of the

queue. This allows the immediate execution of the macro, which in turn also allows the nesting and stacking of IF tests.

Command 65 was broken in the transition from 2.03b to 2.04 and was not setting the timer to the user supplied value.

The command now works correctly.

Version 2.04c

This version fixes additional problems with command 76. The tests of hardware inputs did not work correctly and always

returned TRUE.

As a result of the changes in 2.04c, when this version is run for the first time, all appropriate input transition events will

execute once on power up. This is due to the way that the last known input state is stored in non-volatile memory.

Version 2.04d

This version fixes an old bug in the Remote Base software that was exposed as a result of unrelated changes made in

2.04 to the way that the interrupt time slicing works. Specifically when entering a command such as RBPW 41 147000 2

the controller would incorrectly return ?ERR 2 rather than allowing the command to execute.

Version 2.04e

This version added additional functionality to command 63 to suppress command responses from within macros, as well

as new user switch 36, which modifies the behavior of command responses as a result of command execution from within

a macro.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Version 2.04f

• Fixed a problem introduced in version 2.04a related to being able to queue multiple courtesy beep messages while a

message playback was already in progress.

• Added separate time-out timer reset delay timers to prevent a situation where a short transmission on one receiver

could prematurely cause a time-out of a receiver with a longer time-out time set. An example of this would be if the

time-out timer for Rx1 was set to 30 minutes, and Rx2 was set to 3 minutes, if a long transmission was in progress on

Rx1 and a brief transmission occurred on Rx2, the repeater would time out based on the shorter 3 minute time even

though Rx2 had gone inactive. The new method will allow the individual time-out timers to be reset after the courtesy

delay period has elapsed even though a courtesy message was not necessarily generated… in other words, the

courtesy reset time is still imposed on individual receivers even though a different receiver still remains active.

• Added programmable logic output pulse on/off duration periods.

• Added new feature such that if the internal INIT button is held for 5 seconds AFTER power up has occurred, the

Master Password will be reset to default (99) and the Warm Reset message will be sent as an acknowledgement.

Useful for regaining control if the password(s) are lost, forgotten or mistakenly changed.

• The software version runtime variables for CW (9898) and Speech (9899) now include the version suffix as part of the

message.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix F Schematics

Revision F

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Revision E

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Revision D1

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Daughter board used with Digital Audio Boards prior to revision “E”, to correct speech bus voltage overshoot problem.

7KDAB, Version 2.0, 19-Aug-2007  Vyex LLC, 2003-2007

Appendix G – Daughter PCB Installation

The daughter board must be used in conjunction with 7KDAB revisions A through D1.

The board is properly installed when the writing on the printed circuit board is correctly oriented when viewed from the

front of the controller.

When installing the daughter board, take care to properly align the female header connector with the Speech connector

on the 7K main printed circuit board. Extreme damage can occur if any of the ribbon connectors are misaligned or

if the daughter board is plugged in 180 degree’s from its proper orientation.

7kdab Manual 20 Digital Audio Board

7KDAB to the manual 0baab0a9-e681-4276-943d-1e9c4f927928

Navigation menu

Versions of this User Manual:

Views

Navigation
