WCNSS Android Configuration Guide
- 1 Introduction
- 2 System Configuration

WCNSS Android Configuration Guide

80-N8140-1 Rev. E

May 2013

Submit technical questions at:

https://support.cdmatech.com

Confidential and Proprietary – Qualcomm Atheros, Inc.

NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to:

DocCtrlAgent@qualcomm.com.

Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm or its subsidiaries without

the express approval of Qualcomm's Configuration Management.

Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the

express written permission of Qualcomm Atheros, Inc.

Qualcomm is a registered trademark of QUALCOMM Incorporated. Atheros is a registered trademark of Qualcomm Atheros,

Inc. All other registered and unregistered trademarks are the property of QUALCOMM Incorporated, Qualcomm Atheros, Inc.,

or their respective owners and used with permission. Registered marks owned by QUALCOMM Incorporated and Qualcomm

Atheros, Inc. are registered in the United States and may be registered in other countries.

This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to

U.S. and international law is strictly prohibited.

Qualcomm Atheros, Inc.

1700 Technology Drive

San Jose, CA 95110

U.S.A.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

Revision history

Revision Date Description

A Nov 2011 Initial release

B Feb 2012 Updated Section 2.2 and Appendix A

C Jun 2012 Updated Table 2-1, Appendix A, and added Table 2-3

D Dec 2012 Updated Table 2-1

E May 2013 Added and modified config params

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 2

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

Contents

1 Introduction ...................................................................................................... 7

1.1 Purpose.......................................................................................................................... 7

1.2 Scope ............................................................................................................................. 7

1.3 Conventions .................................................................................................................. 7

1.4 References ..................................................................................................................... 7

1.5 Technical assistance ...................................................................................................... 8

1.6 Acronyms ...................................................................................................................... 8

2 System Configuration ..................................................................................... 9

2.1 General params ............................................................................................................. 9

2.1.1 BandCapability .................................................................................................. 9

2.1.2 gEnableCloseLoop ............................................................................................. 9

2.1.3 gChannelBondingMode5GHz ........................................................................... 9

2.1.4 EnableSuspend ................................................................................................... 9

2.1.5 gDot11Mode .................................................................................................... 10

2.1.6 gRoamIntraBand .............................................................................................. 12

2.1.7 gFixedRate ....................................................................................................... 12

2.1.8 gTxPowerCap .................................................................................................. 13

2.1.9 g11dSupportEnabled ........................................................................................ 13

2.1.10 InfraUapsdVoSrvInTv ................................................................................... 13

2.1.11 InfraUapsdViSrvInTv .................................................................................... 13

2.1.12 InfraUapsdBeSrvInTv .................................................................................... 13

2.1.13 InfraUapsdBkSrvInTv ................................................................................... 13

2.1.14 gNumRxAnt ................................................................................................... 14

2.1.15 gNthBeaconFilter ........................................................................................... 14

2.1.16 gShortGI20Mhz ............................................................................................. 14

2.1.17 gShortGI40Mhz ............................................................................................. 14

2.1.18 isAndroidPsEn ............................................................................................... 14

2.1.19 g11hSupportEnabled ...................................................................................... 14

2.1.20 ImplicitQosIsEnabled .................................................................................... 15

2.1.21 gEnableLogp .................................................................................................. 15

2.1.22 gStaKeepAlivePeriod .................................................................................... 15

2.1.23 gEnableAutomaticTxPowerControl ............................................................... 15

2.1.24 isP2pDeviceAddrAdministrated .................................................................... 15

2.2 Power save .................................................................................................................. 15

2.2.1 gEnableImps .................................................................................................... 15

2.2.2 gEnableBmps ................................................................................................... 16

2.2.3 gImpsModSleepTime ...................................................................................... 16

2.2.4 gEnableModulatedDTIM ................................................................................. 16

2.2.5 gEnableDynamicDTIM ................................................................................... 16

2.2.6 gTelescopicBeaconWakeupEn ........................................................................ 16

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 3

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide Contents

2.2.7 telescopicBeaconTransListenInterval .............................................................. 16

2.2.8 telescopicBeaconTransListenIntervalNumIdleBcns ........................................ 16

2.2.9 telescopicBeaconMaxListenInterval ................................................................ 17

2.2.10 telescopicBeaconMaxListenIntervalNumIdleBcns ....................................... 17

2.2.11 enableBeaconEarlyTermination..................................................................... 17

2.2.12 beaconEarlyTerminationWakeInterval .......................................................... 17

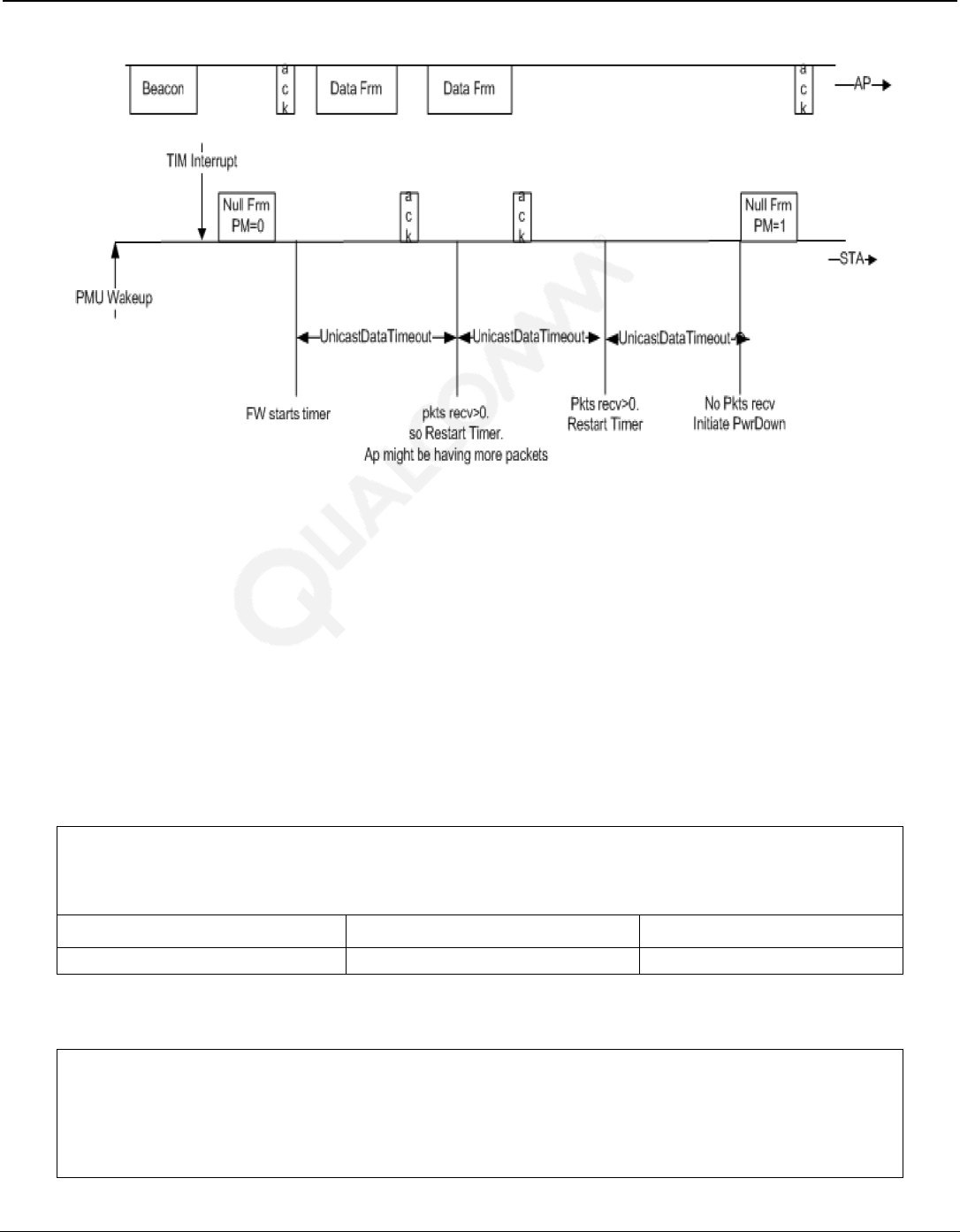

2.2.13 gDataInactivityTimeout ................................................................................. 17

2.3 SoftAP ......................................................................................................................... 18

2.3.1 gEnableApProt ................................................................................................. 18

2.3.2 gEnableApOBSSProt ....................................................................................... 18

2.3.3 gEnableApUapsd ............................................................................................. 19

2.3.4 gAPAutoShutOff ............................................................................................. 19

2.3.5 gEnablePhyAgcListenMode ............................................................................ 19

2.3.6 gDisableIntraBssFwd ....................................................................................... 20

2.3.7 gAPCntryCode ................................................................................................. 20

2.4 Channel range and auto channel selection .................................................................. 20

2.4.1 gApAutoChannelSelection .............................................................................. 20

2.4.2 gAPChannelSelectStartChannel ...................................................................... 20

2.4.3 gAPChannelSelectEndChannel ....................................................................... 20

2.4.4 gAPChannelSelectOperatingBand ................................................................... 20

2.5 Virtual STA support (32 STAs) .................................................................................. 21

2.5.1 gEnableVSTASupport ..................................................................................... 21

2.6 TDLS .......................................................................................................................... 21

2.6.1 gEnableTDLSSupport ...................................................................................... 21

2.6.2 gEnableTDLSImplicitTrigger .......................................................................... 21

2.6.3 gTDLSTxStatsPeriod ....................................................................................... 21

2.6.4 gTDLSTxPacketThreshold .............................................................................. 21

2.6.5 gTDLSDiscoveryPeriod .................................................................................. 22

2.6.6 gTDLSMaxDiscoveryAttempt......................................................................... 22

2.6.7 gTDLSRxIdleTimeout ..................................................................................... 22

2.6.8 gTDLSIdlePacketThreshold ............................................................................ 22

2.6.9 gTDLSRssiHysteresis ...................................................................................... 22

2.6.10 gTDLSRSSITriggerThreshold ....................................................................... 23

2.6.11 gTDLSRSSITeardownThreshold................................................................... 23

2.7 Packet filtering ............................................................................................................ 23

2.7.1 mcastBcastFilter .............................................................................................. 23

2.7.2 hostArpOffload ................................................................................................ 23

2.7.3 isMcAddrListFilter .......................................................................................... 23

2.7.4 gEnableActiveModeOffload ............................................................................ 24

2.8 Scanning...................................................................................................................... 24

2.8.1 gEnableDFSChnlScan ..................................................................................... 24

2.9 BTCoex ....................................................................................................................... 24

2.9.1 BtcExecutionMode .......................................................................................... 24

2.9.2 BtcConsBtSlotToBlockDuringDhcp ............................................................... 24

2.9.3 BtcA2DPDhcpProtectLevel ............................................................................. 24

2.9.4 btcStaticLenInqBt ............................................................................................ 24

2.9.5 btcStaticLenPageBt .......................................................................................... 25

2.9.6 btcStaticLenConnBt ......................................................................................... 25

2.9.7 btcStaticLenLeBt ............................................................................................. 25

2.9.8 btcStaticLenInqWlan ....................................................................................... 25

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 4

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide Contents

2.9.9 btcStaticLenPageWlan ..................................................................................... 25

2.9.10 btcStaticLenConnWlan .................................................................................. 25

2.9.11 btcStaticLenLeWlan ...................................................................................... 25

2.9.12 btcDynMaxLenBt .......................................................................................... 26

2.9.13 btcDynMaxLenWlan ..................................................................................... 26

2.9.14 btcMaxScoBlockPerc .................................................................................... 26

2.9.15 btcDhcpProtOnA2dp ..................................................................................... 26

2.9.16 btcDhcpProtOnSco ........................................................................................ 26

2.10 Roaming .................................................................................................................... 26

2.10.1 CcxEnabled .................................................................................................... 26

2.10.2 FastTransitionEnabled ................................................................................... 27

2.10.3 gNeighborScanTimerPeriod .......................................................................... 27

2.10.4 gNeighborLookupThreshold .......................................................................... 27

2.10.5 gNeighborScanChannelMinTime .................................................................. 27

2.10.6 gNeighborScanChannelMaxTime ................................................................. 27

2.10.7 gNeighborLookupThreshold .......................................................................... 27

2.10.8 gNeighborScanChannelList ........................................................................... 27

2.10.9 FastRoamEnabled .......................................................................................... 28

2.10.10 RoamRssiDiff .............................................................................................. 28

2.11 11AC ......................................................................................................................... 28

2.11.1 gEnableRXSTBC ........................................................................................... 28

2.11.2 gVhtRxMCS .................................................................................................. 28

2.11.3 gVhtTxMCS .................................................................................................. 28

2.11.4 gVhtChannelWidth ........................................................................................ 28

2.12 Params that are invalid or not used ........................................................................... 29

2.12.1 gEnableIdleScan ............................................................................................ 29

2.12.2 gEnableHandoff ............................................................................................. 29

2.12.3 gRoamingTime .............................................................................................. 29

2.12.4 BtAmpPreferredChannel ............................................................................... 29

2.12.5 gEnableBtAmp .............................................................................................. 29

2.12.6 gApMacAddr ................................................................................................. 29

2.12.7 gImmediateRoamRssiDiff ............................................................................. 29

2.12.8 FTRssiFilterPeriod ......................................................................................... 29

A Glossary......................................................................................................... 30

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 5

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide Contents

Tables

Table 1-1 Reference documents and standards ............................................................................................ 7

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 6

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

1 Introduction

1.1 Purpose

This document describes how to configure and operate the Qualcomm WCNSS host

device driver on the Android platform and Qualcomm’s MSM8960 solution.

1.2 Scope

This document is intended for customers who are using or who plan to use the WCNSS

solution in their Android phone designs.

1.3 Conventions

Function declarations, function names, type declarations, and code samples appear in a different

font, e.g., #include.

Shading indicates content that has been added or changed in this revision of the document.

1.4 References

Reference documents, which may include Qualcomm documents, standards, and resources, are

listed in Table 1-1. Reference documents that are no longer applicable are deleted from this table;

therefore, reference numbers may not be sequential.

Table 1-1 Reference documents and standards

Ref. Document

Qualcomm

Q1 Application Note: Software Glossary for Customers CL93-V3077-1

Q2 WCN1314 Android Configuration Guide 80-N4485-1

Q3 Application Note: Telescopic Beacon Wakeup 80-N7461-1

Q4 WCN36X0(A) Training WLAN TX CLPC Characterization

Using QSPR Tools 80-WL300-25

Q5 WCN36X0 Training WLAN TX SCPC Characterization Using

QSPR Tools 80-WL300-26

Q6 Presentation: QCA Android WCN36X0 Central Regulatory

Domain Agent (CRDA) And Country Code Design 80-Y0476-2

Q7 Presentation: Tunneled Direct Link Setup (TDLS) 80-Y0476-3

Q8 Presentation: QCA WCNSS Rate Adaptation (RA) Overview 80-Y0476-11

Q9 QCA WCN36X0 Software Architecture 80-Y0513-1

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 7

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide Introduction

Ref. Document

Q10 QCA WCN36X0 WLAN Power Optimization Guide 80-Y0513-3

Standards

S1 Part 11: Wireless LAN Medium Access Control (MAC) and

Physical Layer (PHY) Specifications Amendment 4:

Enhancements for Higher Throughput

IEEE P802.11n/D7.0, Sep 2008

S2 Codes for the Representation of Names of Countries and

Their Subdivisions – Part 1: Country Codes ISO/IEC 3166-1

1.5 Technical assistance

For assistance or clarification on information in this guide, submit a case to Qualcomm CDMA

Technologies at https://support.cdmatech.com/.

If you do not have access to the CDMATech Support Service website, register for access or send

email to support.cdmatech@qualcomm.com.

1.6 Acronyms

For definitions of terms and abbreviations, see [Q1].

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 8

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

2 System Configuration

2.1 General params

2.1.1 BandCapability

Preferred band

0 – Both 2.4 GHz and 5 GHz, 1 – 2.4 GHz, 2 – 5 GHz

Min Max Default

0 2 0

2.1.2 gEnableCloseLoop

Enable CLPC/SCPC Tx Power control.

See reference document Q4 for CLPC and Q5 for SCPC.

1 – Enable, 0 – Disable (OLPC is applied)

Min Max Default

0 1 1

2.1.3 gChannelBondingMode5GHz

Used for enabling or disabling Channel Bonding in 5GHz.

See reference document Q9.

1 – Enable 0 – Disable

Min Max Default

0 1 1

2.1.4 EnableSuspend

Enable Suspend Mode on Android.

0 – Do not register with Android (applies for WCN1312 and WCN1314)

1 - Enable standby (applies for WCN1312 and WCN1314)

2 - Enable Deep sleep (applies for WCN1312 and WCN1314)

3 – Enable Packet Filtering (applies for WCN1312, WCN1314 and WCNSS solutions)

Min Max Default

0 3 3

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 9

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.1.5 gDot11Mode

Phy mode setting

Min Max Default

0 9 0

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 10

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

PHY mode AP (which the user is accessing)

ABG 11B 11G 11N 11G only 11N only 11B only 11AC only 11AC

STA

mode 0 -802.11_MODE_

AUTO A, G B G N G N B 11AC 11AC

1 - 802.11_MODE_

ABG A, G B G A, G G Not

Connect B Not Connect A, G

2 - 802.11_MODE_B B B B B Not

Connect Not

Connect B Not Connect B

3 - 802.11_MODE_G G B G G G Not

Connect B Not Connect G

4 - 802.11_MODE_N A, G B G N G N B Not Connect N

5 – 802.11_MODE_G_

Only G Not

Connect G Not

Connect Not Connect Not Connect Not Connect

6 – 802.11_MODE_N_

Only Not

Connect Not

Connect N Not

Connect N Not Connect Not Connect Not Connect

7 – 802.11_MODE_B_

Only B B Not

Connect Not

Connect B Not Connect Not Connect

8 – 802.11_MODE_11AC_

Only Not

Connect Not

Connect Not Connect 11AC 11AC

9 - 802.11_MODE_11AC A, G B G N G N B 11AC 11AC

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 11

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.1.6 gRoamIntraBand

Roam only to APs within the current band.

1 - Roaming within band

0 - Roaming across band

Min Max Default

0 1 1

2.1.7 gFixedRate

Fix the transmission rate for 11n mode.

0 – Automatically controlled by Rate Adaptation. See reference document Q8.

Min Max Default

0 31 0

WNI_CFG_FIXED_RATE_AUTO 0

WNI_CFG_FIXED_RATE_1MBPS 1

WNI_CFG_FIXED_RATE_2MBPS 2

WNI_CFG_FIXED_RATE_5_5MBPS 3

WNI_CFG_FIXED_RATE_11MBPS 4

WNI_CFG_FIXED_RATE_6MBPS 5

WNI_CFG_FIXED_RATE_9MBPS 6

WNI_CFG_FIXED_RATE_12MBPS 7

WNI_CFG_FIXED_RATE_18MBPS 8

WNI_CFG_FIXED_RATE_24MBPS 9

WNI_CFG_FIXED_RATE_36MBPS 10

WNI_CFG_FIXED_RATE_48MBPS 11

WNI_CFG_FIXED_RATE_54MBPS 12

WNI_CFG_FIXED_RATE_6_5MBPS_MCS0_20MHZ_SIMO 13

WNI_CFG_FIXED_RATE_13MBPS_MCS1_20MHZ_SIMO 14

WNI_CFG_FIXED_RATE_19_5MBPS_MCS2_20MHZ_SIMO 15

WNI_CFG_FIXED_RATE_26MBPS_MCS3_20MHZ_SIMO 16

WNI_CFG_FIXED_RATE_39MBPS_MCS4_20MHZ_SIMO 17

WNI_CFG_FIXED_RATE_52MBPS_MCS5_20MHZ_SIMO 18

WNI_CFG_FIXED_RATE_58_5MBPS_MCS6_20MHZ_SIMO 19

WNI_CFG_FIXED_RATE_65MBPS_MCS7_20MHZ_SIMO 20

WNI_CFG_FIXED_RATE_7_2MBPS_MCS0_20MHZ_SIMO_SGI 21

WNI_CFG_FIXED_RATE_14_4MBPS_MCS1_20MHZ_SIMO_SGI 22

WNI_CFG_FIXED_RATE_21_7MBPS_MCS2_20MHZ_SIMO_SGI 23

WNI_CFG_FIXED_RATE_28_9MBPS_MCS3_20MHZ_SIMO_SGI 24

WNI_CFG_FIXED_RATE_43_3MBPS_MCS4_20MHZ_SIMO_SGI 25

WNI_CFG_FIXED_RATE_57_8MBPS_MCS5_20MHZ_SIMO_SGI 26

WNI_CFG_FIXED_RATE_65MBPS_MCS6_20MHZ_SIMO_SGI 27

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 12

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

WNI_CFG_FIXED_RATE_AUTO 0

WNI_CFG_FIXED_RATE_72_2MBPS_MCS7_20MHZ_SIMO_SGI 28

WNI_CFG_FIXED_RATE_0_25MBPS_SLR_20MHZ_SIMO 29

WNI_CFG_FIXED_RATE_0_5MBPS_SLR_20MHZ_SIMO 30

WNI_CFG_FIXED_RATE_68_25MBPS_QC_PROP_20MHZ_SIMO 31

2.1.8 gTxPowerCap

Set Maximum Tx power in dBm

Min Max Default

0 128 27

2.1.9 g11dSupportEnabled

802.11d Support. See reference document Q6.

1 – Enable, 0 – Disable

Min Max Default

0 1 1

2.1.10 InfraUapsdVoSrvInTv

Unscheduled automatic power save delivery service interval for VO traffic in ms.

Min Max Default

0 4294967295UL 20

2.1.11 InfraUapsdViSrvInTv

Unscheduled automatic power save delivery service interval for VI traffic in ms.

Min Max Default

0 4294967295UL 300

2.1.12 InfraUapsdBeSrvInTv

Unscheduled automatic power save delivery service interval for BE traffic in ms.

Min Max Default

0 4294967295UL 300

2.1.13 InfraUapsdBkSrvInTv

Unscheduled automatic power save delivery service interval for BK traffic in ms.

Min Max Default

0 4294967295UL 300

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 13

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.1.14 gNumRxAnt

Rx Antenna configuration. WCNSS only supports single Rx antenna.

1 – 1x1

Min Max Default

2.1.15 gNthBeaconFilter

Beacon filtering frequency (unit is beacon intervals).

Firmware will notify the host driver In BMPS, if there is BEACON content change in this period.

Min Max Default

0 255 50

2.1.16 gShortGI20Mhz

Enable Short Guard Interval for HT20 in 5GHz.

1 – Enable, 0 – Disable

Min Max Default

0 1 1

2.1.17 gShortGI40Mhz

Enable Short Guard Interval for HT40 in 5GHz.

1 – Enable, 0 – Disable

Min Max Default

0 1 1

2.1.18 isAndroidPsEn

Enable Power saving mechanism is based on Android Framework. If set to 0 the driver internally controls the Power

saving mechanism. If set to 1, Android Framework controls the Power saving mechanism.

Min Max Default

0 1 0

2.1.19 g11hSupportEnabled

Enable/disable 802.11h support.

Min Max Default

0 1 1

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 14

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.1.20 ImplicitQosIsEnabled

Enable/disable implicit QoS for WMM AC handling.

Min Max Default

0 1 1

2.1.21 gEnableLogp

Enable/disable driver watchdog thread for driver fatal error recovery.

Min Max Default

0 1 0

2.1.22 gStaKeepAlivePeriod

WCN sends the ARP request to connect the AP periodically in seconds to notify STA's existence.

Min Max Default

0 65535 0

2.1.23 gEnableAutomaticTxPowerControl

EnableAutomaticTxPowerControl

Min Max Default

0 1 1

2.1.24 isP2pDeviceAddrAdministrated

Enable P2P administrated interface.

Min Max Default

0 1 0

2.2 Power save

2.2.1 gEnableImps

Enable Idle Mode Power Save. See reference document Q10.

1 – Enable, 0 – Disable

Min Max Default

0 1 1

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 15

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.2.2 gEnableBmps

Enable Beacon Mode Power Save. See reference document Q10.

1 – Enable, 0 – Disable

Min Max Default

0 1 1

2.2.3 gImpsModSleepTime

Increase sleep duration during IMPS (seconds).

0 - implies no periodic wake up from IMPS. Periodic wakeup is unnecessary if Idle Scan is disabled.

Min Max Default

5 65535 0

2.2.4 gEnableModulatedDTIM

Use Modulated DTIM. See reference document Q10.

Min Max Default

0 5 0

2.2.5 gEnableDynamicDTIM

Use Dynamic DTIM. See reference document Q10.

Min Max Default

0 5

2.2.6 gTelescopicBeaconWakeupEn

Enable Telescopic DTIM. See reference document Q10 and Q3.

Min Max Default

0 1 0

2.2.7 telescopicBeaconTransListenInterval

Telescopic Beacon Trans Listen Interval. See reference document Q10 and Q3.

Min Max Default

0 7 3

2.2.8 telescopicBeaconTransListenIntervalNumIdleBcns

Number of Idle Beacon for the Normal state to Transient State. See reference document Q10 and Q3.

Min Max Default

5 255 10

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 16

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.2.9 telescopicBeaconMaxListenInterval

The Maximum LI and the WCNSS will attain if all conditions are met. See reference document Q10 and Q3.

Min Max Default

0 7 5

2.2.10 telescopicBeaconMaxListenIntervalNumIdleBcns

Number of Idle Beacons for the transient state to Maximum Listen Interval. See reference document Q10 and Q3.

Min Max Default

5 255 15

2.2.11 enableBeaconEarlyTermination

Enable Beacon Early Termination (BET). It is a feature that WCNSS does not stay awake until the end of whole

Beacon packet. Instead, WCNSS will go back to power collapse immediately after checking TIM IE.

1 – Enable, 0 – Disable

Min Max Default

0 1 0

2.2.12 beaconEarlyTerminationWakeInterval

BET Wake Interval. How frequent WCNSS needs to check whole Beacon packet. Value us set in beacon interval unit.

Min Max Default

2 255 3

2.2.13 gDataInactivityTimeout

Timer indicating the amount of time the station waits for data frames (in milliseconds).

Min Max Default

1 255 200

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 17

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

1. AP indicates it has queued frames for WCN by turning on the TIM bit in Beacon

2. WCN sends back Data Null frame with PM bit set to 0 indicating WCN is out of sleep. WCN

also starts a SW timer with gDataInactivityTimeout value.

3. AP starts sending the queued frames. WCN acks back accordingly.

4. When the timer expires, WCN checks if it receives any data frame from AP. If it does, WCN

restarts the timer again. If it does not, WCN sends Data Null with PM=1 indicating it is going

to sleep. At this time, If AP has frames for WCN, AP has to queue them until next Beacon

interval.

2.3 SoftAP

2.3.1 gEnableApProt

Enable 802.11 protection flag. This parameter controls the Protection bit when a legacy client joins the SAP; this

enables the protection by setting protection bits in the beacons.

0 - Disable

1 - Enable

Min Max Default

0 1 1

2.3.2 gEnableApOBSSProt

Enable Overlapping BSS (OBSS) Protection. This parameter controls and updates the protection bit.

This param needs to be set for Certification When a legacy AP is present on the same channel (overlapping BSS) as

that of SAP Or

When the SAP is operating in 5 GHz with 40 MHz, and the overlapping legacy AP is present on its current channel of

operation or extension channel

0 - Disable

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 18

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

1 - Enable

Min Max Default

0 1 0

2.3.3 gEnableApUapsd

Enable Unscheduled Automatic Power Save Delivery (UAPSD) for SoftAP.

0 - Disable

1 - Enable

Min Max Default

0 1 0

2.3.4 gAPAutoShutOff

AutoShutdown is to disable AP and turn off WiFi after a user-configurable period of inactivity, i.e., no clients

connected. Auto Shutdown value is in seconds.

Min Max Default

0 4294967295(UL) 0

2.3.5 gEnablePhyAgcListenMode

Energy Detect Mode:

Turn on only the RF energy detector instead of the complete Receive chain when listening for packets.

It is used for SAP to save power as most use case is in short range.

Valid values 0-128

128 means disable Energy Detect feature

0-9 is threshold code and 7 is the recommended value from the system if the feature is to be enabled.

10-128 are reserved.

The EDET threshold mapping is as follows in 3dB step:

0 = -60 dBm

1 = -63 dBm

2 = -66 dBm

...

7 = -81 dBm

8 = -84 dBm

9 = -87 dBm

Note: Any of these settings are valid. Setting 0 will yield the highest power saving (in a noisy environment) at the cost

of more range. The range impact is approximately #calculated as:

Range Loss (dB) = EDET threshold level (dBm) + 97 dBm

Min Max Default

0 128 128

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 19

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.3.6 gDisableIntraBssFwd

Disable Intra BSS forwarding.

0 - Disable

1 - Enable

Min Max Default

0 1 0

2.3.7 gAPCntryCode

Country Code

Min Max Default

USI USI FFF

2.4 Channel range and auto channel selection

2.4.1 gApAutoChannelSelection

To enable SoftAP Auto Channel selection. See reference document Q9.

0 - Disable

1 - Enable

Min Max Default

0 1 0

2.4.2 gAPChannelSelectStartChannel

Start channel to be used by SoftAP for Auto Channel Selection. Valid only when gApAutoChannelSelection is set.

See reference document Q9.

Min Max Default

0 0xff 0

2.4.3 gAPChannelSelectEndChannel

End channel to be used by SoftAP for Auto Channel Selection. Valid only when gApAutoChannelSelection is set. See

reference document Q9.

Min Max Default

0 0xff 11

2.4.4 gAPChannelSelectOperatingBand

Operating Band used for channel selection. Valid only when gApAutoChannelSelection is set. See reference

document Q9.

0 – 2.4 GHz ,

1 – LOW, 5 GHz

2 – MID, 5 GHz

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 20

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

3 – HIGH, 5 GHz

4 - 4.9 GHz.

Min Max Default

0 4 0

2.5 Virtual STA support (32 STAs)

2.5.1 gEnableVSTASupport

To enable Virtual STA support which is needed to support 32 STAs for SoftAP. See reference document Q10.

0 - Disable

1 - Enable

Min Max Default

0 1 0

2.6 TDLS

2.6.1 gEnableTDLSSupport

Global flag that controls the TDLS feature. Set this param to 1 for enabling TDLS. See reference document Q7.

Min Max Default

0 1 0

2.6.2 gEnableTDLSImplicitTrigger

Flag that controls only implicit trigger. For implicit trigger to work, both gEnableTDLSSupport and

gEnableTDLSImplicitTrigger need to be enabled. See reference document Q7.

Min Max Default

0 1 0

2.6.3 gTDLSTxStatsPeriod

Time period (in milliseconds) to evaluate whether the number of Tx packets exceeds TDLSTxPacketThreshold and

triggers a TDLS setup request. See reference document Q7.

Min Max Default

2000 4294967295 5000

2.6.4 gTDLSTxPacketThreshold

Number of Tx packets during the period of gTDLSTxStatsPeriod when exceeded, a TDLS setup request is triggered.

See reference document Q7.

Min Max Default

0 4294967295 100

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 21

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.6.5 gTDLSDiscoveryPeriod

Time period (in milliseconds) to initiate a TDLS discover request for a peer. See reference document Q7.

Min Max Default

5000 4294967295 20000

2.6.6 gTDLSMaxDiscoveryAttempt

Number of failures of discover request, when exceeded, the peer is assumed to be not TDLS capable and no further

request is made. See reference document Q7.

Min Max Default

1 100 3

2.6.7 gTDLSRxIdleTimeout

Time period (in milliseconds) where the TDLS link is idle, when exceeded, a TDLS teardown is triggered. See

reference document Q7.

Min Max Default

2000 40000 5000

2.6.8 gTDLSIdlePacketThreshold

Number of TX/RX packet, below which within last gTDLSTimeout period is considered as idle condition.

Min Max Default

1 40000 5

2.6.9 gTDLSRssiHysteresis

Difference (in dB) between the AP RSSI and the peer RSSI, when exceeded, a TDLS teardown is triggered. See

reference document Q7.

Min Max Default

0 100 100

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 22

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.6.10 gTDLSRSSITriggerThreshold

Absolute value (in dB) of the peer RSSI, below which a TDLS setup request is triggered.

Min Max Default

-120 0 -75

2.6.11 gTDLSRSSITeardownThreshold

Absolute value (in dB) of the peer RSSI, when exceed, a TDLS teardown is triggered.

Min Max Default

-120 0 -75

2.7 Packet filtering

2.7.1 mcastBcastFilter

To filter Mcast/Bcast Rx packets completely.

See reference document Q10.

0: No filtering

1: Filter all Multicasts.

2: Filter all Broadcast.

3: Filter all Mcast and Bcast

Min Max Default

0 3 0

2.7.2 hostArpOffload

To enable HostARPOffload feature so that ARP response is sent by Riva.

See reference document Q10.

0 - Disable

1 - Enable

Min Max Default

0 1

2.7.3 isMcAddrListFilter

To allow Mcast RX packets from registered addresses only and filter remaining Mcast and Bcast Rx packets. See

reference document Q10.

0 - Disable

1 - Enable

Min Max Default

0 1

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 23

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.7.4 gEnableActiveModeOffload

This is the flag to enable/disable packet filter/arp offloading to WCNSS in active mode.

See reference document Q10.

0 - Disable

1 - Enable

Min Max Default

0 1

2.8 Scanning

2.8.1 gEnableDFSChnlScan

Do the scan for DFS channel or not.

Min Max Default

0 1 1

2.9 BTCoex

2.9.1 BtcExecutionMode

Btc execution modes; see Appendix A for details.

Min Max Default

0 5 0

2.9.2 BtcConsBtSlotToBlockDuringDhcp

See Appendix A for details.

Min Max Default

0 255 0

2.9.3 BtcA2DPDhcpProtectLevel

A2DP-specific; see Appendix A for details.

Min Max Default

0 255 7

2.9.4 btcStaticLenInqBt

BT interval length during BT Inquiry.

Min Max Default

5000 500000 120000

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 24

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.9.5 btcStaticLenPageBt

BT interval length during BT Paging.

Min Max Default

5000 500000 10000

2.9.6 btcStaticLenConnBt

BT interval length during BT connection setup.

Min Max Default

5000 500000 10000

2.9.7 btcStaticLenLeBt

BT interval length during BT LE scan.

Min Max Default

5000 500000 10000

2.9.8 btcStaticLenInqWlan

WLAN interval length during BT inquiry.

Min Max Default

0 500000 30000

2.9.9 btcStaticLenPageWlan

WLAN interval length during BT Paging.

Min Max Default

0 500000 0

2.9.10 btcStaticLenConnWlan

WLAN interval length during BT connection setup.

Min Max Default

0 500000 0

2.9.11 btcStaticLenLeWlan

WLAN interval length during BT LE scan.

Min Max Default

0 500000 0

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 25

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.9.12 btcDynMaxLenBt

Dynamically adjust BT interval during ACL Active (A2DP).

Min Max Default

25000 500000 250000

2.9.13 btcDynMaxLenWlan

Dynamically adjust WLAN interval during ACL Active (A2DP).

Min Max Default

15000 500000 45000

2.9.14 btcMaxScoBlockPerc

Maximum SCO skipping percentage.

Min Max Default

0 100 1

2.9.15 btcDhcpProtOnA2dp

Ensure DHCP reliability during A2DP.

Min Max Default

0 1 1

2.9.16 btcDhcpProtOnSco

Ensure DHCP reliability during SCO.

Min Max Default

0 1 0

2.10 Roaming

2.10.1 CcxEnabled

Enable/disable CCX support.

Min Max Default

0 1 0

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 26

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.10.2 FastTransitionEnabled

Enable/Disable 802.11r support.

Min Max Default

0 1 1

2.10.3 gNeighborScanTimerPeriod

Interval between individual channel scans [ms].

Min Max Default

0 1000 200

2.10.4 gNeighborLookupThreshold

RSSI threshold to trigger background scan to find potential roam candidates (Default value is 76 in LFR1.5 while it is

78 in LFR2.0).

Min Max Default

10 120 78

2.10.5 gNeighborScanChannelMinTime

Minimum dwell time for scan.

Min Max Default

10 40 20

2.10.6 gNeighborScanChannelMaxTime

Maximum dwell time for scan.

Min Max Default

10 40 30

2.10.7 gNeighborLookupThreshold

RSSI threshold to trigger background scan to find potential roam candidates (Default value is 76 in LFR1.5 while it is

78 in LFR2.0.).

Min Max Default

10 120 78

2.10.8 gNeighborScanChannelList

List of channels on which to scan.

Min Max Default

NA NA NULL

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 27

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.10.9 FastRoamEnabled

Enable/Disable #Legacy (non-CCX, non-802.11r) Fast Roaming Support.

Min Max Default

0 1 1

2.10.10 RoamRssiDiff

Configuration item for an AP to be qualified as a candidate AP when the AP shows RoamRssiDiff higher in RSSI than

current AP.

Min Max Default

0 30 5

2.11 11AC

2.11.1 gEnableRXSTBC

Enable/disable Rx STBC capability in STA mode.

Min Max Default

0 1 1

2.11.2 gVhtRxMCS

VHT Rx MCS capability.

0=MCS0-7, 1=MCS0-8, 2=MCS0-9

Min Max Default

0 2 2

2.11.3 gVhtTxMCS

VHT Tx MCS capability.

0=MCS0-7, 1=MCS0-8, 2=MCS0-9

Min Max Default

0 2 2

2.11.4 gVhtChannelWidth

Channel width capability for 11ac.

1 - 20 and 40 MHz

2 - 80 MHz (default)

Min Max Default

1 2 2

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 28

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide System Configuration

2.12 Params that are invalid or not used

2.12.1 gEnableIdleScan

Ignore this param in ini file.

2.12.2 gEnableHandoff

Ignore this param in ini file.

2.12.3 gRoamingTime

Ignore this param in ini file.

2.12.4 BtAmpPreferredChannel

Ignore this param in ini file.

2.12.5 gEnableBtAmp

Ignore this param in ini file.

2.12.6 gApMacAddr

Ignore this param in ini file.

2.12.7 gImmediateRoamRssiDiff

Ignore this param in ini file.

2.12.8 FTRssiFilterPeriod

Ignore this param in ini file.

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 29

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

A Glossary

 InfraUapsd*SrvInTv – Unscheduled Automatic Power Save Delivery is applicable only when

the station is connected to the AP. It is primarily driven by QoS-aware applications, e.g.,

VoIP. Applicable abbreviations are:

 BK – Background

 BE – Best Effort

 VI – Video

 VO – Voice

 gNthBeaconFilter – Every Nth beacon is checked for change in content of the beacon frame.

If there are changes in the beacon frame, the frame is forwarded to the host.

 BtcExecutionMode – The BTC execution modes are:

 0 – BTC_SMART_COEXISTENCE – BTC mapping layer decides what is best

 1 – BTC_WLAN_ONLY – WLAN takes all modes

 2 – BTC_PTA_ONLY – Allow only 3-wire protocol in hardware

 3 – BTC_SMART_MAX_WLAN – BTC mapping layer decides what is best; WLAN

weighted

 4 – BTC_SMART_MAX_BT – BTC mapping layer decides what is best; Bluetooth®

weighted

 5 – BTC_SMART_BT_A2DP – BTC mapping layer decides what is best; balanced +

Bluetooth A2DP weight

 6 – BT_BT_EXEC_MODE_MAX – This and beyond are invalid values.

 BtcConsBtSlotToBlockDuringDhcp – SCO-specific parameter, introduced to improve WiFi

DHCP connection timing when a BT SCO call is ongoing, e.g., consider the following case:

 When the flag is set to value 2 – Every alternate Bluetooth SCO reserved slot is blocked

for WLAN, i.e., ½ * 100 = 50% Bluetooth blockage. This improves WiFI DHCP

connection timings but impacts SCO voice quality.

 When the flag is set to value 4 – Every alternate 4th Bluetooth SCO reserved slot is

blocked for WLAN, i.e., ¼ * 100 = 25% Bluetooth blockage.

 Lowering the value is better for WLAN connection time, but Bluetooth audio quality is

impacted.

 The ideal value of this flag is 8, i.e., 1/8 * 100 = 12.5% Bluetooth blockage.

 BtcA2DPDhcpProtectLevel – A2DP-specific parameter; improves WiFi DHCP connection

timing when aBluetooth A2DP call is ongoing. The valid value of the flag is in the range of

0 to 7.

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 30

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST

WCNSS Android Configuration Guide Glossary

 When the flag is 0, no Bluetooth A2DP intervals are blocked for WiFi DHCP completion.

 When the flag is 7, the WLAN DHCP connection time is fastest, but there is an impact on

A2DP audio quality.

 The ideal value of the flag is 3.

 enableBeaconEarlyTermination – BET allows us to power down as soon as the TIM bit is

seen as being clear without waiting for entire beacon to be received and FCS checked. The

actual power savings depends on beacon size and placement of the TIM IE within the beacon.

For a specific use case (150-byte beacon and Cisco 1252 AP), the active receive duration

shrinks from 1.3 ms to 800 µs with BET enabled.

 beaconEarlyTerminationWakeInterval – With BET, since no FCS check is done when TIM is

seen as being clear, RXP does not update the TSF using the timestamp from the beacon. This

can lead to drift over time when no traffic for STA. This configuration periodically and

temporarily suspends BET in order to allow a TSF re-sync by allowing a full beacon to be

received with FCS check and RXP update of TSF.

80-N8140-1 Rev. E MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 31

Confidential and Proprietary – Qualcomm Atheros, Inc.

neko.hsieh-qisda.com

219.87.79.205

2013.11.25 at 17:13:00 PST
