Packet Tracer – Troubleshooting Enterprise Networks 2

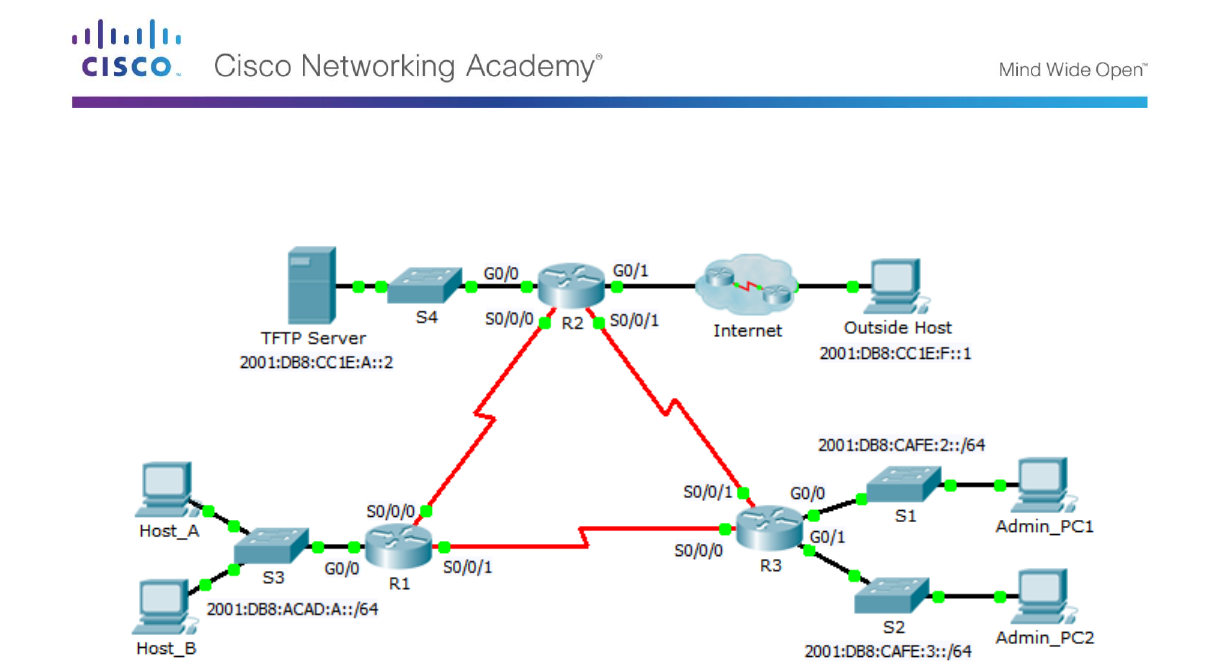

Topology

Packet Tracer – Troubleshooting Enterprise Networks 2

© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 2 of 4

Addressing Table

Device

Interface

IPv6 Address/Prefix

Default Gateway

R1

G0/0

2001:DB8:ACAD:A::1/64

N/A

S0/0/0

2001:DB8:ACAD:12::1/64

N/A

S0/0/1

2001:DB8:ACAD:31::1/64

N/A

R2

G0/0

2001:DB8:CC1E:A::1/64

N/A

G0/1

2001:DB8:ACAD:F::2/64

N/A

S0/0/0

2001:DB8:ACAD:12::2/64

N/A

S0/0/1

2001:DB8:ACAD:23::2/64

N/A

R3

G0/0

2001:DB8:CAFE:2::1/64

N/A

G0/1

2001:DB8:CAFE:3::1/64

N/A

S0/0/0

2001:DB8:ACAD:31::2/64

N/A

S0/0/1

2001:DB8:ACAD:23::1/64

N/A

Admin_PC1

NIC

2001:DB8:CAFE:2::2/64

FE80::3

Admin_PC2

NIC

2001:DB8:CAFE:3::2/64

FE80::3

Host_A

NIC

DHCP Assigned

DHCP Assigned

Host_B

NIC

DHCP Assigned

DHCP Assigned

TFTP Server

NIC

2001:DB8:CC1E:A::2/64

FE80::2

Outside Host

NIC

2001:DB8:CC1E:F::1/64

FE80::4

Background

This activity uses IPv6 configurations that include DHCPv6, EIGRPv6, and IPv6 default routing. Your task is to

review the requirements, isolate and resolve any issues, and then document the steps you took to verify the

requirements.

Requirements

DHCPv6

 Host_A and Host_B are assigned through IPv6 DHCP configured on R1.

IPv6 Routing

 Each router is configured with IPv6 EIGRP and uses AS 100.

 R3 is advertising a summary route to R2 and R1 for the two R3 LANs.

 R2 is configured with a fully specified default route pointing to the ISP.

Connectivity

 Devices should be configured according to the Addressing Table.

 Every device should be able to ping every other device.

Packet Tracer – Troubleshooting Enterprise Networks 2

© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 3 of 4

Troubleshooting Documentation

Device

Error

Correction

Verification Documentation

Capture output from verification commands and provide documentation proving that each of the requirements has

been satisfied.

Note: Some EIGRPv6 commands are not scored in Packet Tracer v6.0.1. Your instructor will verify that all

requirements are met.

Packet Tracer – Troubleshooting Enterprise Networks 2

© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 4 of 4

Suggested Scoring Rubric

Packet Tracer scores 50 points. The troubleshooting documentation and instructor verification is worth 50 points.
