PVI INDUSTRIES, LLC

FORT WORTH, TEXAS 76111

PV 8387 10-12 (800) 784-8326  www.pvi.com

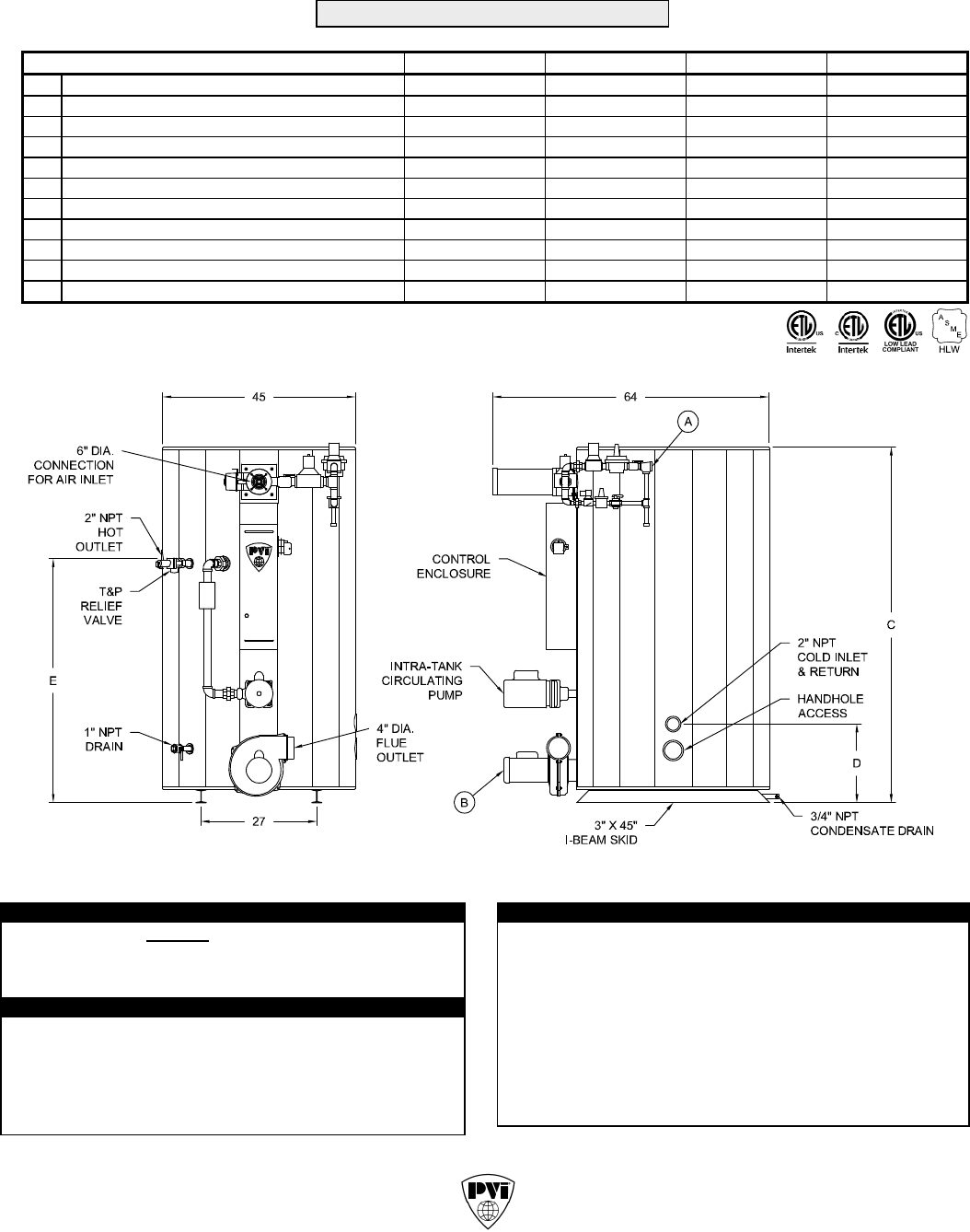

POWER VT® • PACKAGED GAS WATER HEATER

AquaPLEX STORAGE TANK (UNLINED DUPLEX ALLOY)

250 GALLON TANK SERIES

MODEL NUMBER 560 L 250A-PV 800 L 250A-PV 1060 L 250A-PV 1400 L 250A-PV

GPH Recovery Rate at 40°F to 120°F 560 800 1060 1400

GPH Recovery Rate at 40°F to 140°F 450 640 850 1130

Input Btu/h 399,000 565,000 750,000 1,000,000

Nominal Gallons Storage 250 250 250 250

A Gas Inlet - NPT 3/4" 1" 1" 1"

Minimum Inlet Flow Gas Pressure – " W.C. 4-1/2 4-1/2 4-1/2 4-1/2

B Induced-Draft Blower Motor Horsepower 1/3 1/3 1/2 3/4

C Overall Height 79" 79" 81" 81"

D Floor to Cold Inlet 18" 18" 20" 20"

E Floor to Hot Outlet 55" 55" 57" 57"

Approximate Shipping Weight - lbs 1750 1845 1915 2065

Recoveries based on 94% thermal efficiency. ASHRAE 90.1 compliant.

Dimensions are in inches unless otherwise noted.

For standard and optional equipment, see form # PV 8388.

STANDARD GAS PRESSURE REQUIREMENTS:

SEE TABLE FOR MINIMUM PRESSURE BY MODEL NUMBER.

MAXIMUM STATIC INLET GAS PRESSURE : 14" W.C.

FOR GAS PRESSURES OUTSIDE OF THIS RANGE,

CONTACT YOUR PVI REPRESENTATIVE.

STANDARD ELECTRICAL REQUIREMENTS:

CONTROL VOLTAGE: 120V, 1Ø, 60 HZ., 2 AMPS

INDUCED-DRAFT BLOWER:1/3 HP, 120V, 1Ø, 60 HZ., 6 AMPS

1/2 HP, 120V, 1Ø, 60 HZ., 8 AMPS

3/4 HP, 120V, 1Ø, 60 HZ., 11 AMPS

INTRATANK CIRCULATOR: 1/3 HP, 120V, 1Ø, 60 HZ., 7 AMPS

(CIRCULATOR OPERATES ONLY WHEN BURNER IS FIRING)

VENTING REQUIREMENTS:

CATEGORY IV - POSITIVE PRESSURE, CONDENSING.

INTERTEK/ETL LISTED FOR CPVC PLASTIC PIPE ON EXHAUST.

STAINLESS STEEL IS ALSO ACCEPTABLE.

INLET AIR ON ALL INPUTS RATED FOR 120 EQUIV FEET THRU 6"

399 TO 750 MBH: EXHAUST RATED FOR 100 EQUIV FEET THRU 4"

EXHAUST RATED FOR 500 EQUIV FEET THRU 6"

1000 MBH: EXHAUST RATED FOR 50 EQUIV FEET THRU 4"

EXHAUST RATED FOR 390 EQUIV FEET THRU 6"

SEE INSTALLATION MANUAL FOR DETAILS.

PVI RESERVES THE RIGHT TO CHANGE THE DESIGN

AND SPECIFICATION WITHOUT NOTICE.
