Resin sealed for harsh environment applications. Up to 1000 times higher
sealing than standard version.
38999 Connector with Reinforced Sealing
8LT, 8ST & 8D Series
Reinforced Sealing
Fully intermateable 8LT with MS27466 or HE308.
8ST with VG96912 or JN1003.
8D with D38999, EN3645 or BACC63CT/DB.
Wide availability All 38999 layouts.
Aluminum, including RoHS Black Zinc Nickel.
Composite for ultra low weight.
Titanium or stainless steel for outdoor application.
Temperature Fast temperature change: from -55°C to 125°C.
Compatible with wave or iron soldering.
Contacts PC tail or solder contacts.
Male or female contacts.
Tin plated version available.
Shoulderless contact available, consult us.
Not QPL registered.
2
8LT, 8ST & 8D Series | Reinforced Sealing

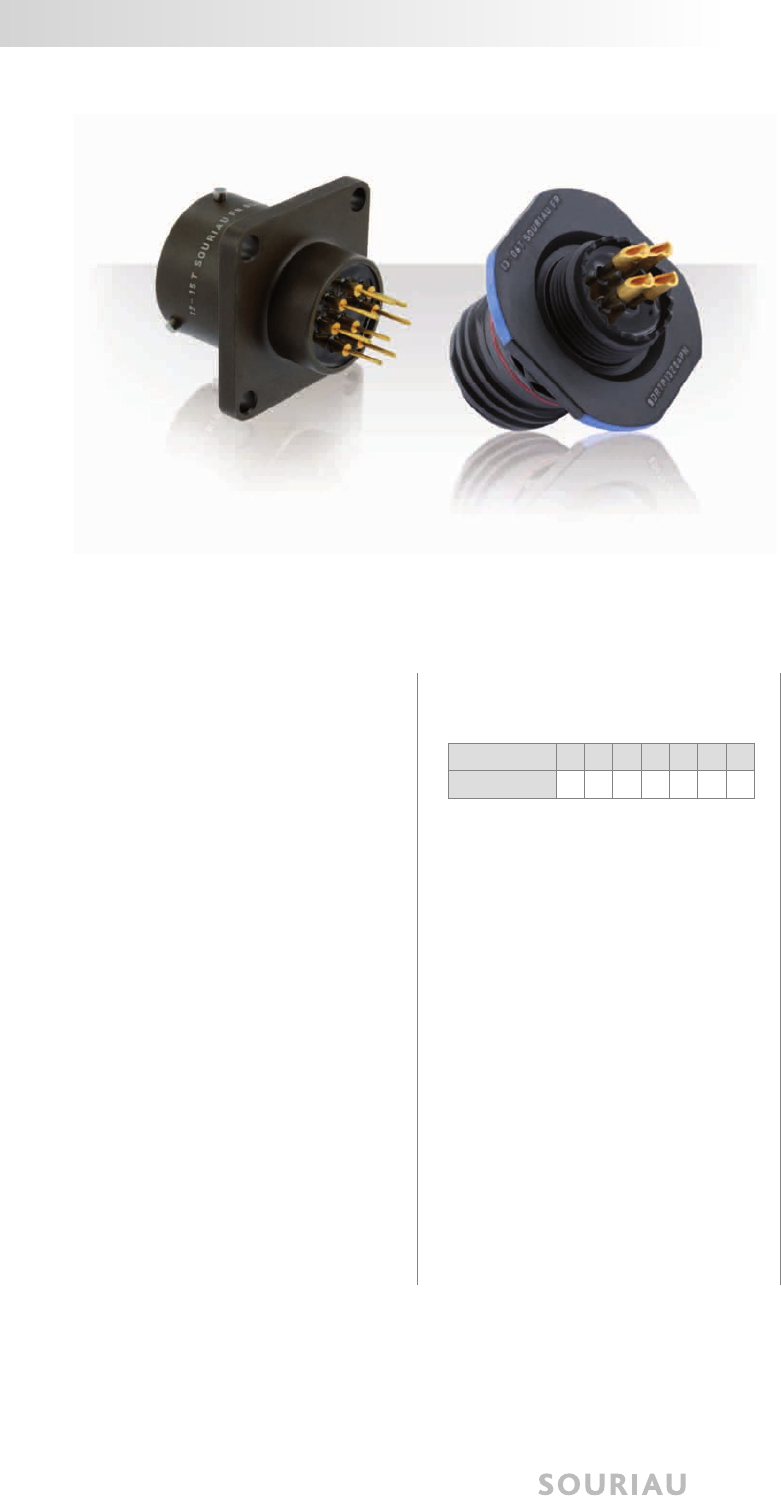

Description
• Reinforced sealed receptacle with male or
female straight PC tail contacts
• Strong sealing performance: 10-7 atm.cm3/s
• Designed for unpressurized area
• 125°C max (operational temperature)
• 100 % scoop proof
• Full RoHS solution
• High density connectors
• Weight saving compared to hermetic version
• Other SOURIAU ranges on request
Technical features
Mechanical
• Shell plating:
. 8LT & 8ST aluminum shell:
. Black zinc nickel (Z)
. Olive drab cadmium (B)
. Nickel (F)
. 8D aluminum shell:
. Black zinc nickel (Z)
. Olive drab cadmium (W)
. Nickel (F)
. 8D composite shell:
. Olive drab cadmium (J)
. Nickel (M)
. 8D stainless steel shell:
. Nickel (S)
. Passivated (K)
. 8D titanium shell:
. Nickel (TF)
. Without plating (TT)
• Insulator: Thermoplastic
• Interfacial seal: Silicone elastomer
• Contacts: Copper alloy
• Contacts plating: Gold over nickel plated
• Endurance:
500 mating/unmating operations
Electrical
• Contact resistance:
• Shielding:
. 8LT: . 90db - 100MHz
. 50db - 10GHz
. 8ST: . 70 db - 100MHz
. 8D: . F; S; TF: 65db - 10GHz
. F; Z; W; J; M: 85db - 1GHz
. Z; W: 50db - 10GHz
. K; TT: 45db - 10GHz
• Shell continuity:
. 8LT: . Z; B: 2.5mΩ
. F: 1mΩ
. 8ST: . Z; B: 2.5mΩ
. F: 1mΩ
. 8D: . F; TF; S: 1mΩ
. Z; ZC; W: 2.5mΩ
. J; M: 3mΩ
. JVS: 5mΩ
. TT; K: 10mΩ
Environmental
• Temperature range: -55°C +125°C
• Sealing (initial): 10-7 atm.cm3/s
• Salt spray:
. 8LT: . B; Z: 500h
. F: 48h
. 8ST: . B; Z: 500h
. F: 48h
. 8D: . F; S; TF: 48h
. Z; W; JVS; TT; K; S: 500h
. J; M: 2000h
Contacts size 26 22 20 16 12 8 4
Resistance mΩ16 14.6 7.3 3.8 3.5 3 2
3
8LT, 8ST & 8D Series | Reinforced Sealing
8LT part number
Basic Series 8LTR 0 C 09 Z 35 P N
Shell style
0: Square ange receptacle
1: In line receptacle
2: Short square ange receptacle not accepting backshell
3: Square ange receptacle, rear mounting
7: Jam nut receptacle
Type
C: Receptacle with short PC tail (male and female #22D, #20, #16)
L: Connector with long PC tail (male and female #22D)
S: Connector with specic PC Tail (male and female #22D)
M: Connector with medium PC tail (male #22D)
P: Connector with solder cup: . Pin: #22D & #16; Socket: #12
. Socket: #22D & #16; Pin: #12 - Please consult us
Shell size
09, 11, 13, 15, 17, 19, 21, 23, 25
Plating
B: Olive green cadmium
F: Nickel
Z: Black zinc nickel
Contact layouts
See page 5
Contact type
P: Male
S: Female
Orientation
N, A, B, C, D (Orientation B & C not developed for shell size 9)
Basic series 8STR 0 C 10 Z 35 P N
Shell style
0: Square ange receptacle
1: In line receptacle
2: Square ange receptacle, not accepting backshell
3: Square ange receptacle, rear mounting
7: Jam nut receptacle
Type
L: Connector with long PC tail contacts
M: Connector with medium PC tail contacts
C: Connector with short PC tail contacts
Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24
Plating
Z: Black zinc nickel
F: Nickel
G: Olive green cadmium
Contact layouts
See page 5
Contact type
P: Pin
S: Socket
Orientation
N, A, B, C, D (Orientation B & C not developed for shell size 8)
8ST part number
Ordering information
4
8LT, 8ST & 8D Series | Reinforced Sealing
Basic Series: 8DR 0 C 09 Z 35 P N
Shell type:
0: Square ange receptacle
1: In line receptacle (8D aluminum only)
7: Jam nut receptacle (except 8D Composite)
Contact type:
C: Receptacle with short PC tail (male and female #22D, #20, #16, #12)
L: Connector with long PC tail (male and female #22D)
S: Connector with specic PC Tail (male and female #22D)
M: Connector with medium PC tail (male #22D)
P: Connector with solder cup: . Pin: #22D, #20 & #16; Socket: #12
. Socket: #22D, #20 & #16; Pin: #12 - Please consult us
Shell size
09, 11, 13, 15, 17, 19, 21, 23, 25
Aluminum plating:
F: Nickel
Z: Black zinc nickel
W: Olive drab cadmium
Composite plating:
J: Olive drab cadmium
M: Nickel
Stainless steel plating:
K: Passivated
S: Nickel
Titanium plating:
TT: Without plating
TF: Nickel
Contact layout
See page 5
Contact type:
P: Male
S: Female
Orientation
N, A, B, C, D, E
8D part number
Dimensions
See «8LT Series / MIL-DTL-38999 Series I», «8ST Series / VG96912 & JN1003» and «8D Series / MIL-DTL-38999 Series III» catalogs.
Ordering information
Double ange receptacle available, please consult us.
Receptacle with integrated clinch nuts or helicoils available, please consult us.
Contacts without shoulder available, please consult us.
5
For further information contact us at contactmilaero@souriau.com
or visit our web site www.souriau.com
WPNRESINWUSEN01 © Copyright SOURIAU Jun 2014 - SOURIAU is a registered trademark.
All information in this document presents only general particulars and shall not form part of any contract. All rights reserved to SOURIAU for changes without prior notication or public announcement. Any duplication is prohibited, unless approved in writing.
8LT, 8ST & 8D Series | Reinforced Sealing

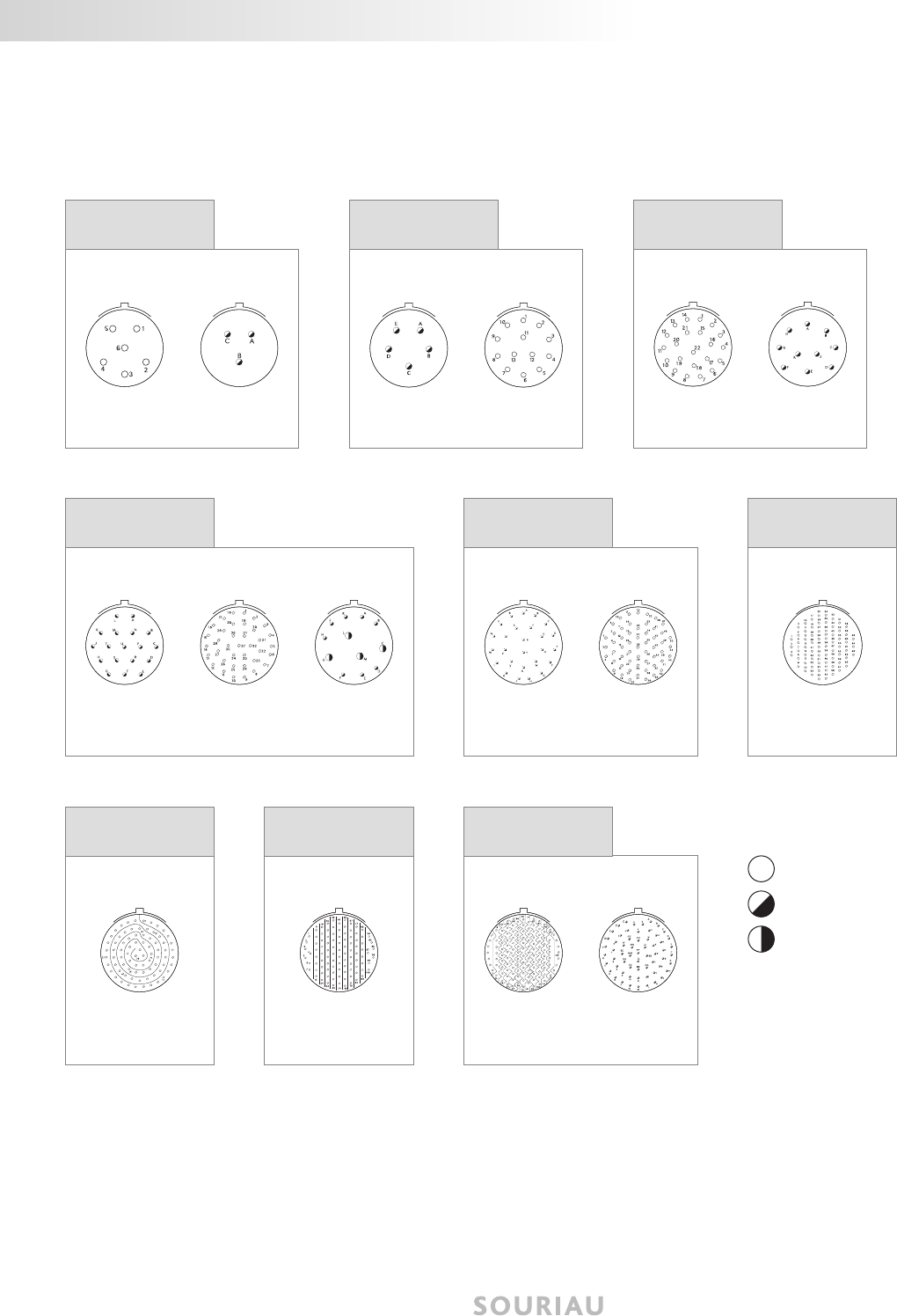

Contact layouts
35
6#22D
Service M
98
3#20
Service I
08 or 09 / A
05
5#20
Service I
35
13#22D
Service M
10 or 11 / B 12 or 13 / C
35
22#22D
Service M
98
10#20
Service I
18
18#20
Service I
35 97
37#22D
Service M
4#16
8#20
Service I
14 or 15 / D 16 or 17 / E
35
55#22D
Service M
26
26#20
Service I
35
66#22D
Service M
18 or 19 / F
20 or 21 / G
35
79#22D
Service M
22 or 23 / H
35
100#22D
Service M
24 or 25 / J
128#22D
Service M
35
61#20
Service I
61 Contact #22D
Contact #20
Contact #16
For C or L contact type. For other contact type or layouts, please consult us.
