Agenda
How Big Is The Ethernet Service Market
Worldwide Ethernet Services Market
Regional Demand for Business Ethernet
2010+ Outlook
Ethernet Service Drivers
Ethernet Migration Sources
Ethernet Purchase Decisions
U.S. Ethernet Service Addressable Market
5-Year Ethernet Opportunity
U.S. Ethernet Service Installations
Ethernet Technology Forecast
What Market Segments & Applications To Target
Ethernet Service - Target Applications
The Fiber Gap
Business Ethernet Speed Forecast
Ethernet Market Growth By Speed
Ethernet Service Target Market
Typical 10Mbps EoC Deployment
Business Ethernet Service Delivery
Addressing the Coverage Gaps
Addressing the Coverage Gaps
EoCu, EoTDM, EoFCompleting the customer reach puzzle
Ubiquitous Ethernet Service Offering
The Business Case
ADTRAN Carrier EthernetGetting Customers, Keeping Customers
A Single Centralized SolutionSingle Platform, Common OAM&P, Full Coverage
ADTRAN CARRIER ETHERNET

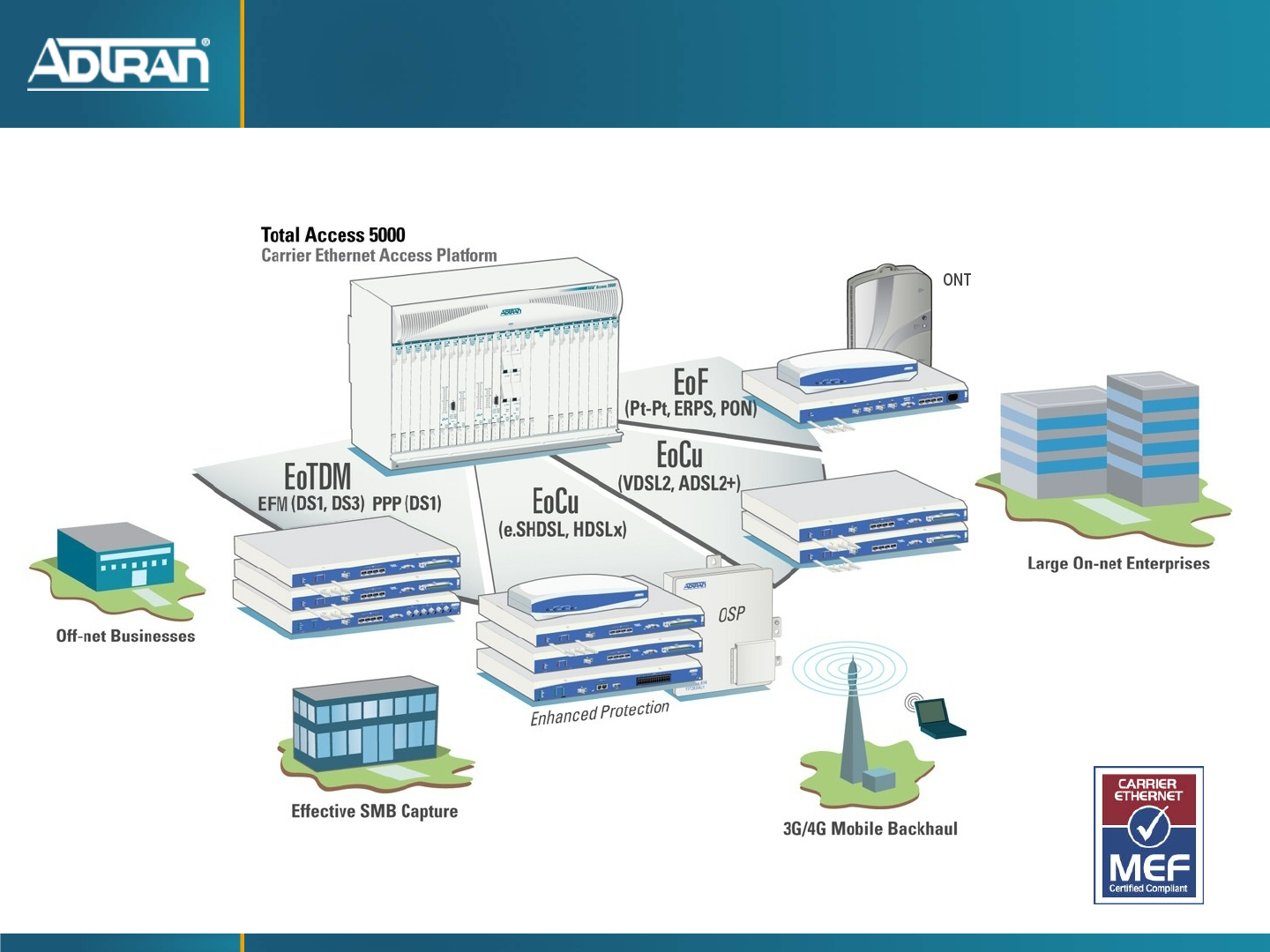

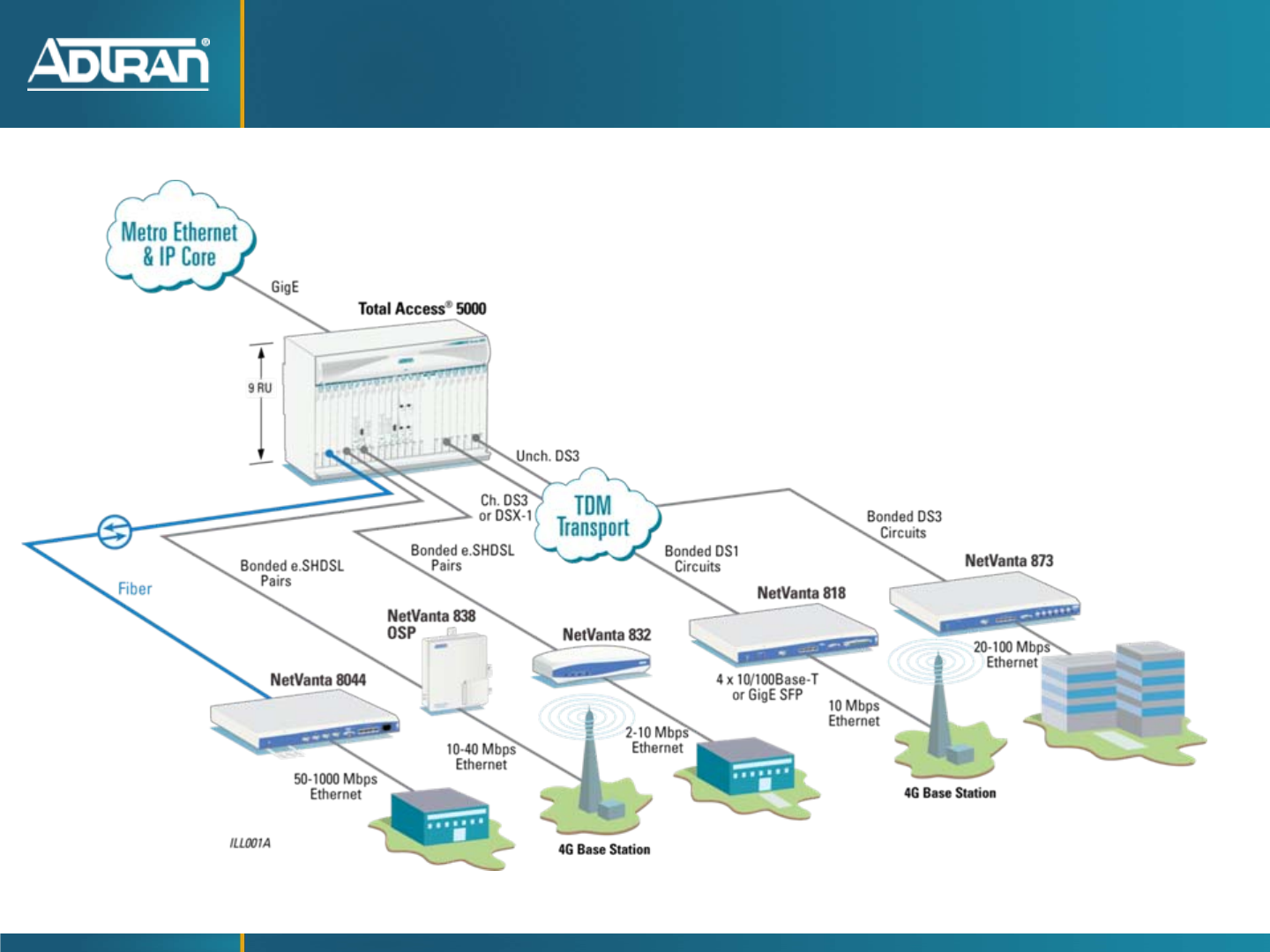

ADTRAN Carrier Ethernet Architectures
ADTRAN Carrier Ethernet Solutions – EoCu and EoTDM
ADTRAN Carrier Ethernet Solutions
A Single Centralized SolutionSingle Platform, Common OAM&P, Full Coverage
ADTRAN EFM NTUEvery Rate, Every Reach, Everywhere
NetVanta EoCu Network Termination
NetVanta 800 series NTU
NetVanta 873 NTU
Slide Number 37

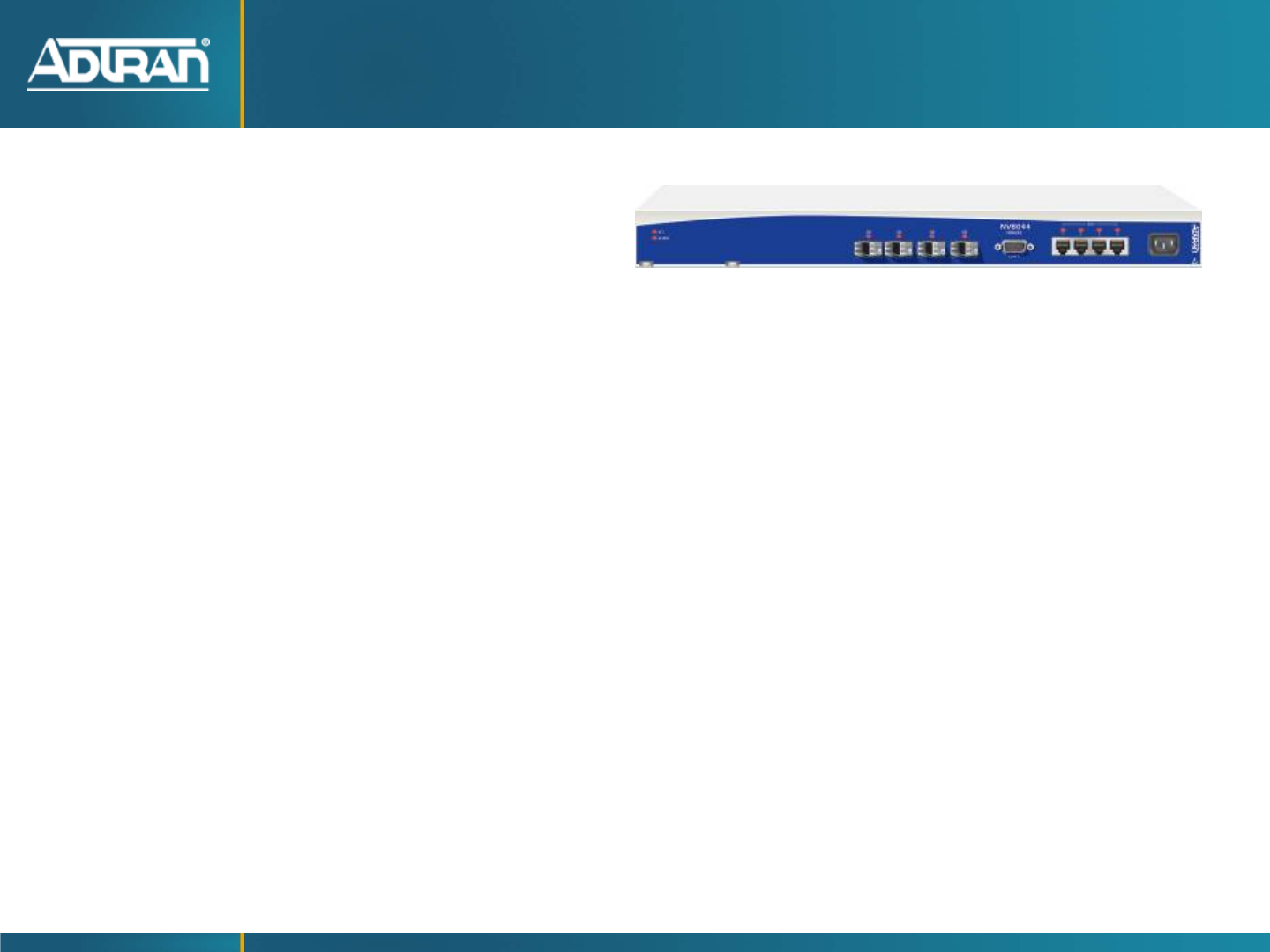

NetVanta 8044 EoF
Ethernet over Fiber Components
ADTRAN EoCu OAM&PStandards based
Ethernet OAM –Supporting/Selling Ethernet SLAs
ADTRAN EoCu OAM&PStandards based SLA monitoring
ADTRAN Ethernet OAM

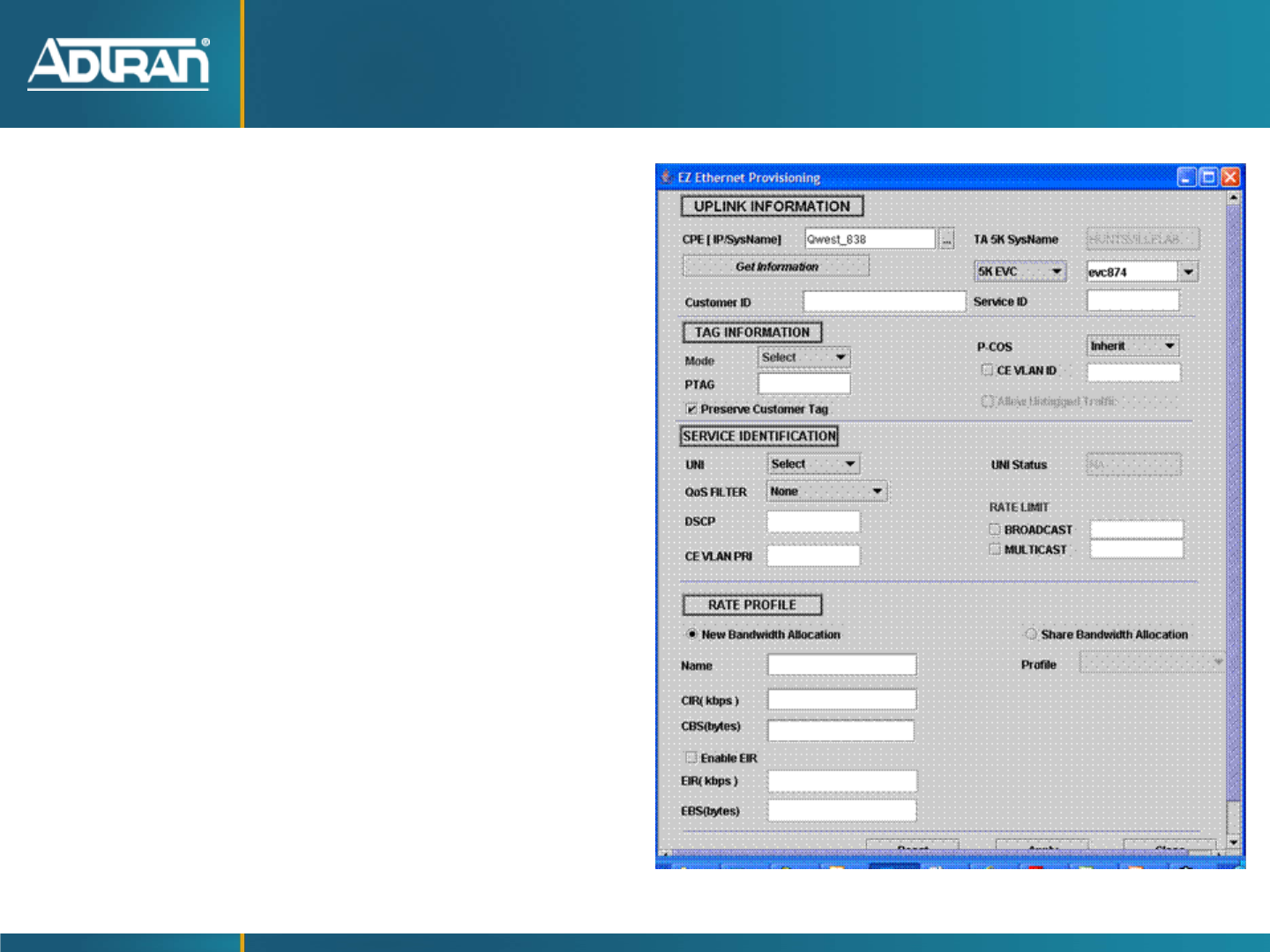

Simplified Ethernet Service Activation
EASY Service Provisioning
ADTRAN Operations Environment
Question and Answers

Agenda

Business Ethernet Market

Market overview

Service Ubiquity

Equipment overview

Performance monitoring

and SLA management

Questions

How Big Is The Ethernet Service Market

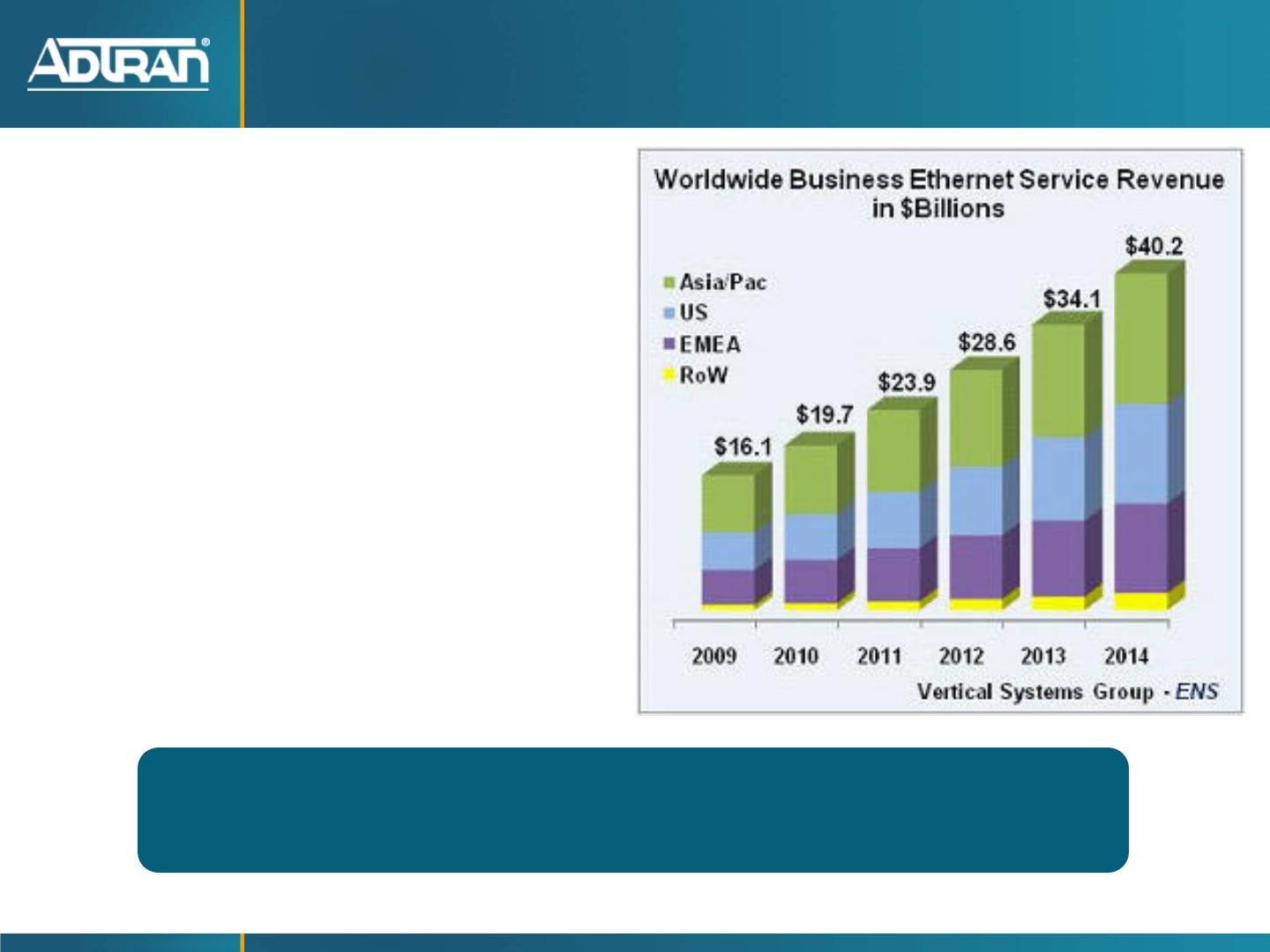

Worldwide Ethernet Services Market

• U.S. revenue was up 24% in 2009 to

$4.5B

• EMEA is projected to grow to

$10.7B by 2014, 21% CAGR

• Asia/Pacific region grew 22% in

2009 to $6.8B

• Regional revenue is projected to

rise to $15.6B by 2014, 18% CAGR

• Rest of World is projected to grow

from $642M in 2009 to $2B in 2014

Business Ethernet services are projected to grow

from $16.1B in 2009 to $40.2B by 2014, 20% CAGR

Feb 2010

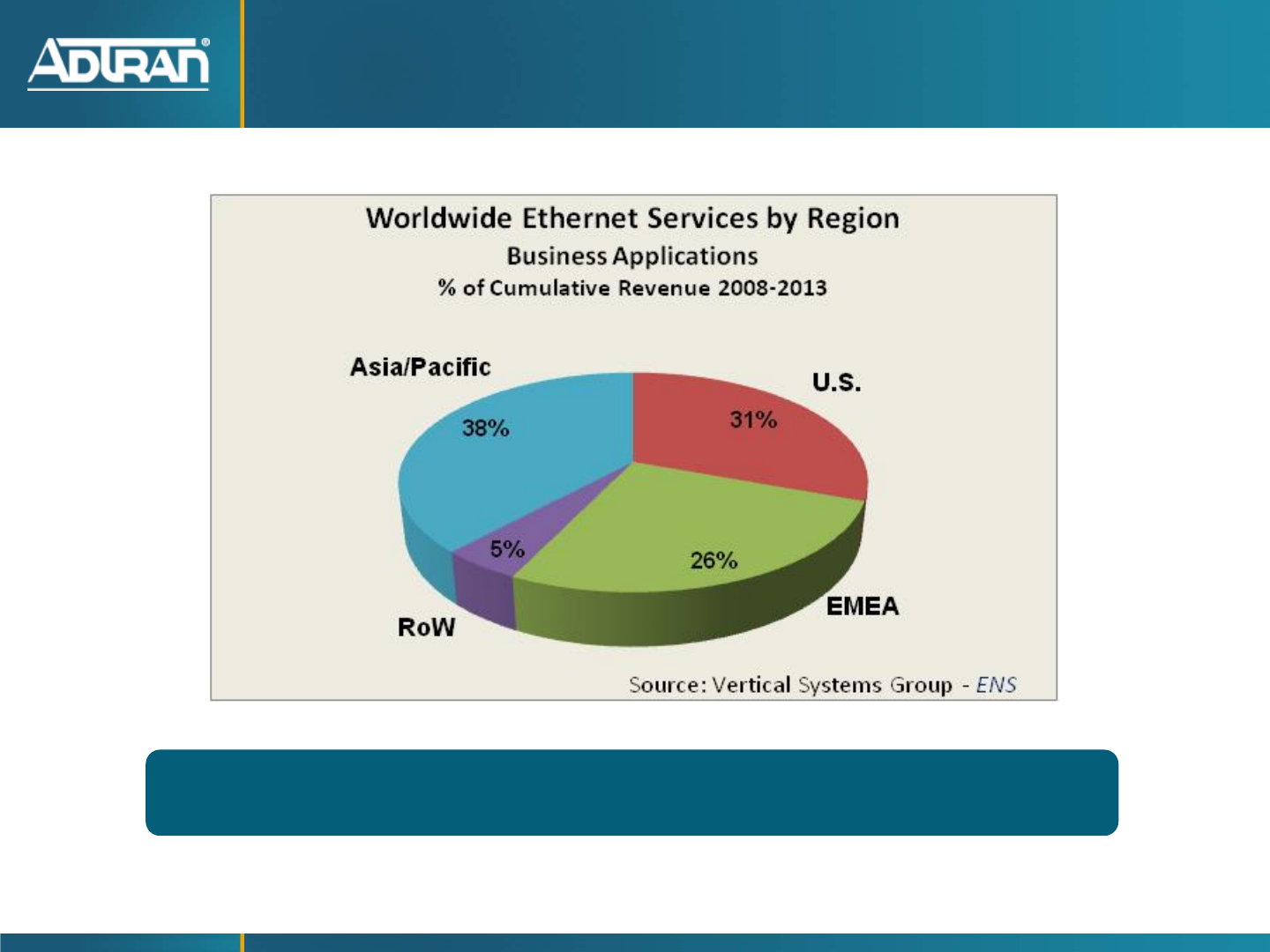

Regional Demand for Business Ethernet

All Regions continue to expand at Double Digit Rates

2010+ Outlook

Page 11 of 14

www.verticalsystems.com

Presentation to the MEF - WW Business Ethernet Market Update

January 26, 2010

Ethernet

OAM

Outlook for 2010+

Vertical Systems Group



Ongoing Fiber Buildouts



Expanded EoC Rollouts



ENNI Standardized



Competition Heats Up



‘Designer’ Pricing



IT Budget Constraints



Higher Speed Demand



More Sub-10 Mbps



10 Gbps emerges



End-to-End Business-

Class Experience



L2/L3 Interworking

Major market initiatives for 2010 include filling in the Big 3

Ethernet Market Gaps and advancements on OAM.

The Big 3

Ethernet Market

Gaps & OAM

Ethernet Service Drivers

Business Ethernet Drivers

Service Applications Drivers

Dedicated

Internet Access

(DIA)

Internet Access

DIY VPNs

Data/Voice Bundles

Hosting

• Migration from TDM lines or DSL

• Bandwidth up to Gigabit speeds

• Lower $/bit as compared to other options

• Convergence offers

EPL

EVPL

Data Center links

Disaster Recovery

Video

Storage Area Networks

• Migration of TDM PLs

• Improve application performance /

reduce latency

• Lower $/bit as compared to TDM services

Metro

LAN

Intra-metro site connectivity

IP Convergence

Regional site aggregation

• Migration from Local FR/ATM services

• Improve application performance /

reduce latency

Long Haul

Mesh

Inter-metro connectivity

Access to IP/MPLS VPNs

Backbone convergence

• Migration from U.S. or global FR/ATM

• Greater control than Layer 3 VPNs

• “Future proof”, scalable to Gigabit speeds

Vertical Systems Group – ENS

Business Ethernet Drivers

Service Applications Drivers

Dedicated

Internet Access

(DIA)

Internet Access

DIY VPNs

Data/Voice Bundles

Hosting

• Migration from TDM lines or DSL

• Bandwidth up to Gigabit speeds

• Lower $/bit as compared to other options

• Convergence offers

EPL

EVPL

Data Center links

Disaster Recovery

Video

Storage Area Networks

• Migration of TDM PLs

• Improve application performance /

reduce latency

• Lower $/bit as compared to TDM services

Metro

LAN

Intra-metro site connectivity

IP Convergence

Regional site aggregation

• Migration from Local FR/ATM services

• Improve application performance /

reduce latency

Long Haul

Mesh

Inter-metro connectivity

Access to IP/MPLS VPNs

Backbone convergence

• Migration from U.S. or global FR/ATM

• Greater control than Layer 3 VPNs

• “Future proof”, scalable to Gigabit speeds

Vertical Systems Group – ENS

Ethernet Migration Sources

Business Ethernet Applications & Migration Sources

Service Applications Top Migration Sources

Ethernet

DIA

Internet Access

DIY VPNs

Data/Voice Bundles

Migration of IP Circuits

Business DSL upgrades

Metro

LAN

Intra-metro connectivity

IP Convergence

Regional site aggregation

Migration of DIY IP VPNs

Migration from Broadband services

Conversions of Local FR/ATM networks

EPL

EVPL

Data Center links

Backup / Disaster Recovery

Video transport

Backbone connections

Conversions of legacy Local Private Lines

Conversions of legacy Long Haul PLs

Greenfield applications

Long Haul

Mesh

Inter-metro connectivity

Integration with IP/MPLS VPNs

Backbone convergence

Migration from Dedicated IP/MPLS VPNs

Conversions of domestic or global FR/ATM

Greenfield applications

Vertical Systems Group – ENS

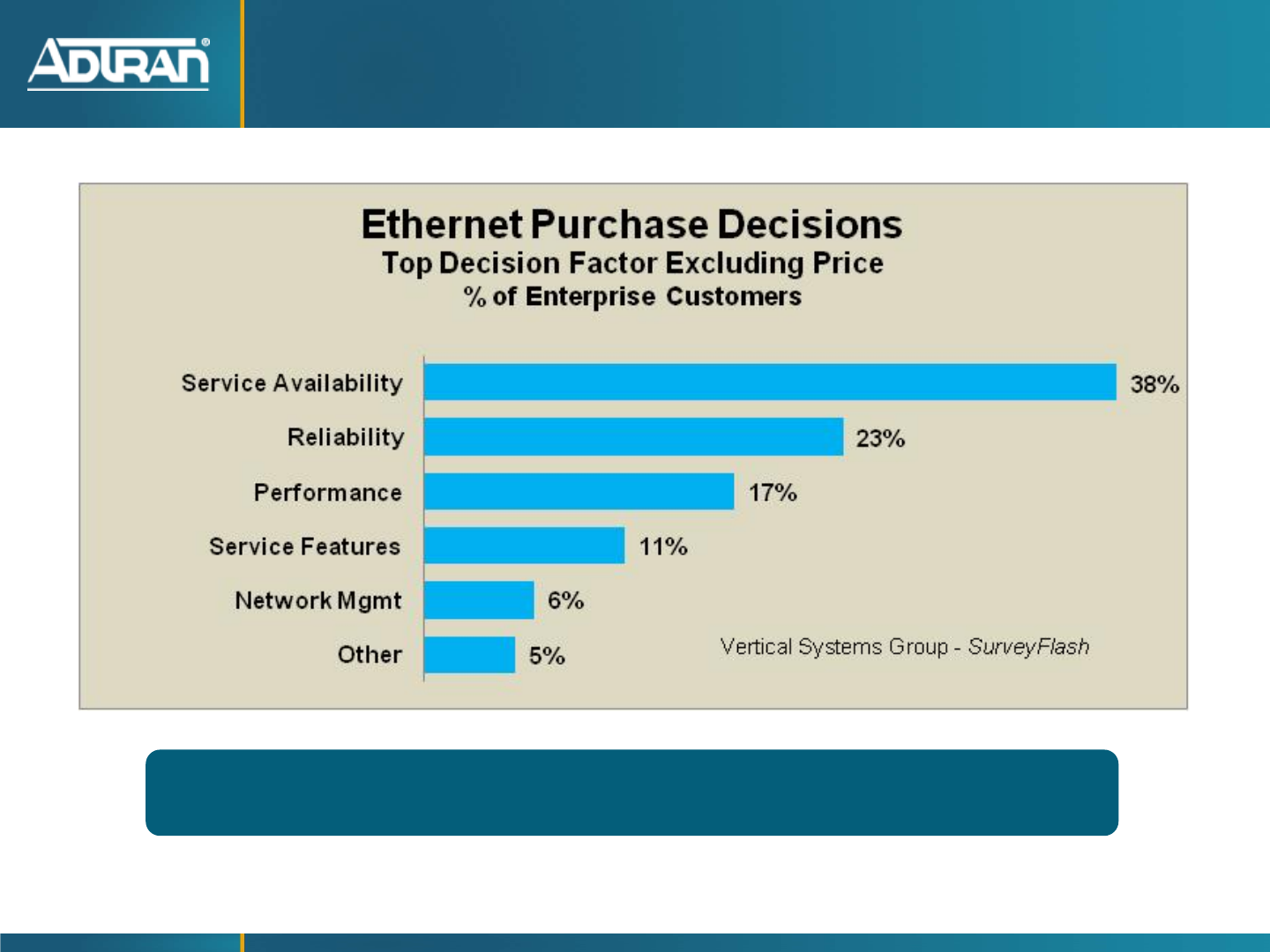

Ethernet Purchase Decisions

Main Drivers Are Service Availability And Reliability

U.S. Ethernet Service Addressable Market

Ethernet Service Opportunity

yNumber of high speed retail access end

points based on 2006 U.S. business

customer installations

Available

U.S. Market

3,667,993

Connections

T1/FT1, T3/FT3, DSL

1,618,717

Connections

T3/FT3, DSL

yNumber of connections into buildings

with no fiber available

Access

Technology

Filter

2,786,459

Connections

No fiber

1,259,035

Connections

No fiber

yNumber of connections with Ethernet

(2 Mbps - 20 Mbps) or (>20 Mbps -

45 Mbps) bandwidth requirement

within next five years

Application

Bandwidth

Filter

971,045

Connections

2 Mbps - 20 Mbps

19,582

Connections

>20 Mbps - 45 Mbps

yAddressable market opportunity

between 2007 and 2011; includes

adjustments for projected service

growth / decline

Addressable

Market

1,106,183

Connections

5-year target

28,265

Connections

5-year target

Ethernet Services

2 Mbps - 20 Mbps Ethernet Services

>20 Mbps - 45 Mbps

Vertical Systems Group

5-Year Ethernet Opportunity

The addressable market for Ethernet services (2 Mbps - 20 Mbps) between

2007 and 2011 is 1.1 million connections.

Ethernet over X Opportunity

5-Year Target by Technology / Speed

T1/FT1 Frame Relay

T1/FT1 Private Lines

DSL Internet Access

T1/FT1 IP VPN Circuits

T1/FT1 Internet Access

T1/FT1 PBX Circuits

T1/FT1 ATM

T3/FT3 IP VPN Circuits

T3/FT3 Private Lines

T3/FT3 ATM

T3/FT3 Internet Access

T3/FT3 Frame Relay

T3/FT3 PBX Circuits

Total Connections

Technology / Speed

291,575

248,540

225,539

179,069

110,306

43,296

3,330

1,271

1,232

814

642

348

221

1,106,183

# of Connections

26.4%

22.5%

20.4%

16.2%

10.0%

3.9%

0.3%

0.1%

< 0.1%

100.0%

% of Total

Source: Vertical Systems Group

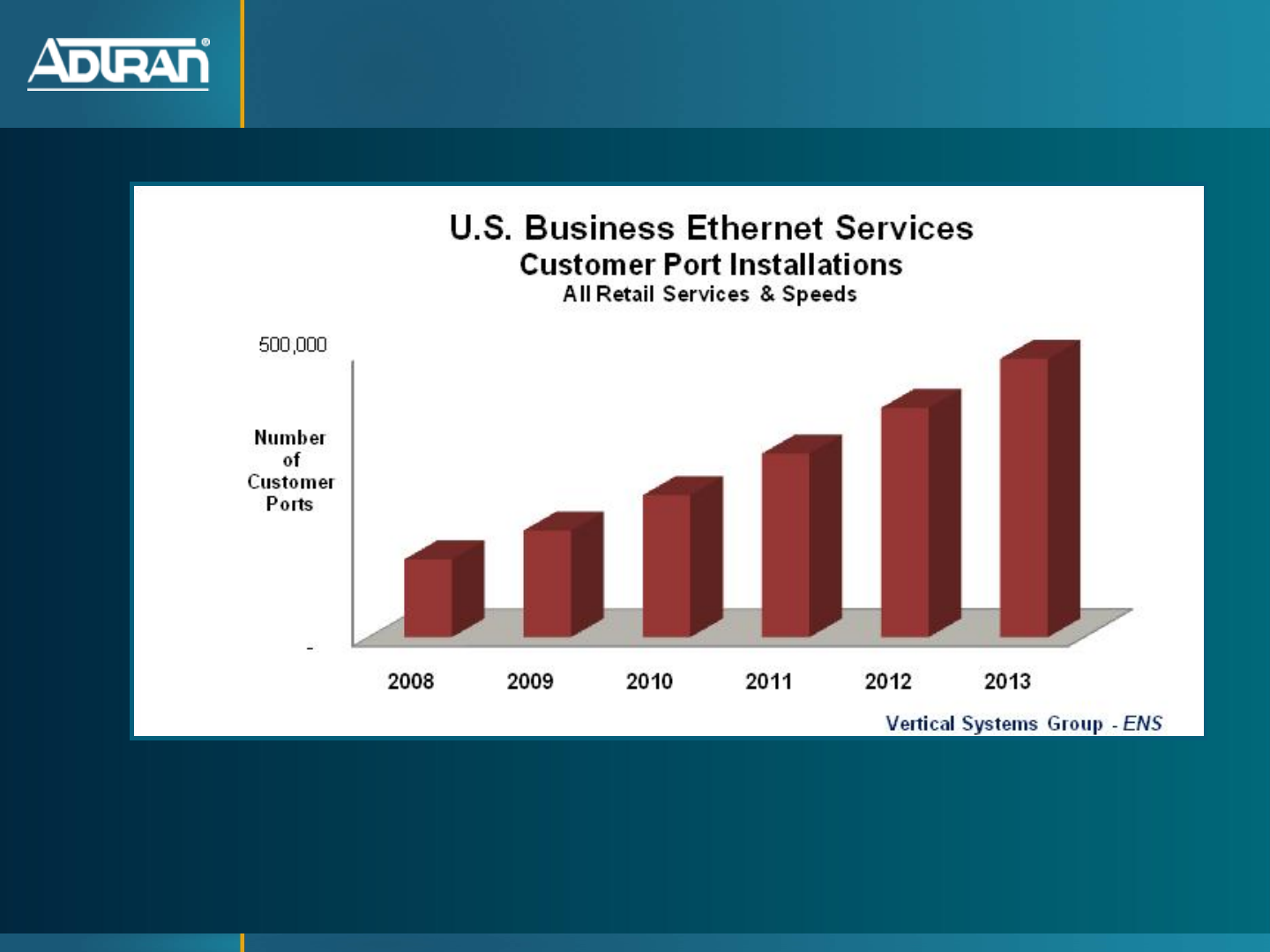

U.S. Ethernet Service Installations

Ethernet Technology Forecast

$50

$100

$150

$200

$250

$300

$350

$400

$450

Million$

2007 2008 2009 2010 2011 2012

Carrier Ethernet

E-o-TDM E-o-Bonded Copper

Source: Heavy Reading,

Carrier Ethernet Access

Platforms Quarterly Market

Tracker; January, 2009

What Market Segments & Applications To

Target

Ethernet Service - Target Applications

Ethernet is high bandwidth upgrade alternative for…

Point-to-Point and DIA Frame Relay

Point-to-Point, Multilink Fiber

Where fiber is not available

yWireless retail providers

(Starbucks)

yService win back from

other T1 providers over

the past few years of

intense T1 pricing

competition

yCity-Wide WiFi Networks

yInternet Access

yPoint-to-Point between

office locations

yHigh-end workers at

home

yApartments and Hotels

yExecutive Suites

yConnection to IP PBX via

Ethernet

yMultilink Frame

Replacement (since it

can’t support CoS)

yE-Rate / Educational

yReplacement of point to

point Frame Relay

yHosted VoIP

• Healthcare / HIPAA

requirements for VPN’s &

Ethernet Private Lines Full

duplex all speeds

• Video Conferencing

yDiverse Routes - EoC

(copper) uses different route

to building than fiber

yCAD/Engineering

transmission

ySecure Government apps

The Fiber Gap

77% to 88% of Businesses don’t have fiber

2005

2009

11.7%

22.9%

6.9%

15.1%

BusinessFiberAvailability

2005vs.2009

%ofBuildingsw/20+Employees

Europe

U.S.

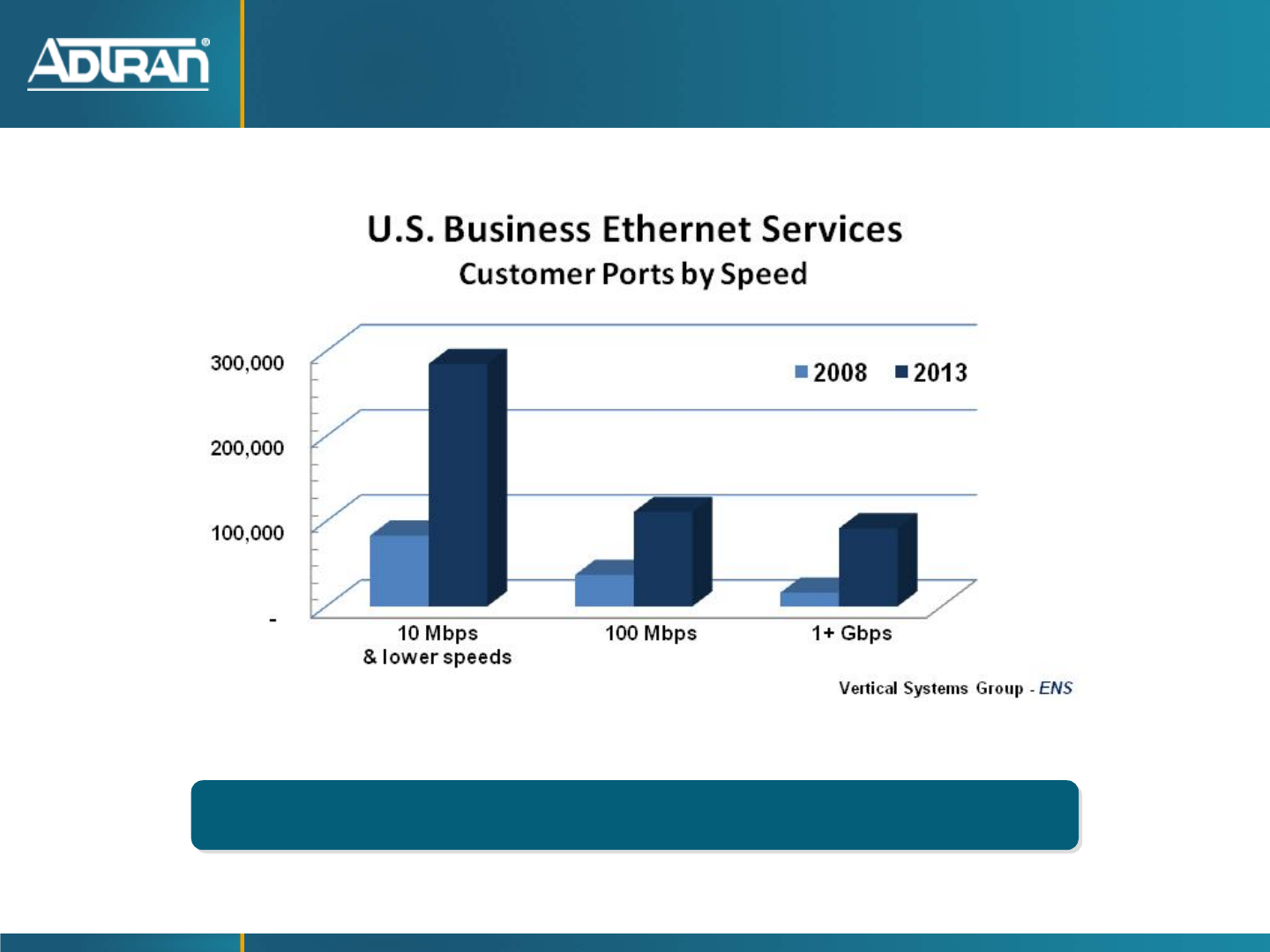

Business Ethernet Speed Forecast

10M and sub 10M is the Sweet Spot

Ethernet Market Growth By Speed

Source: Vertical Systems Group

Sub 10 Mbps Ethernet grew at 227% in 2008

U.S. Retail Business Ethernet Services Market

All Access Technologies by Speed

50000

100000

150000

200000

250000

2007 2008 2009 2010 2011 2012

# Ports by Speed

1 Gbps

100 Mbps

10 Mbps

Sub-10 Mbps

U.S. Retail Business Ethernet Services Market

All Access Technologies by Speed

50000

100000

150000

200000

250000

2007 2008 2009 2010 2011 2012

# Ports by Speed

1 Gbps

100 Mbps

10 Mbps

Sub-10 Mbps

Ethernet Service Target Market

yDisplace T1s

– DIA – 30%, Frame Relay – 26%, Private Lines – 22%, IP VPN

Circuits – 16% and PBX – 4%

yMulti-Location

– Financial, Medical, Insurance, Schools, Gov’t, Business Offices

ySub 10Mbps

– Fastest growing market segment

y10Mbps

– Market sweet spot

yUp to 45Mbps

– Upsell existing customers to higher rates [beyond 10Mbps]

Many opportunities to ramp high growth revenue

5.6%

24.4%

25.5%

20.2%

24.1% 0.2% 10 Mbps

10 - 15 Mbps

15 - 20 Mbps

20 - 25 Mbps

25 < 30 Mbps

45 Mbps

Typical 10Mbps EoC Deployment

Upsell bandwidth at no additional cost

70% of 10Mbps customers can be up-sold bandwidth

Average of 4.48 pairs deployed per customer

•More bandwidth is available by deploying 8 pairs per customer

Bandwidth available to 10Mbps Customers

Understanding the Importance of Delivering

Carrier Ethernet to the Business

Understanding the Importance of Delivering

Carrier Ethernet to the Business

Business Ethernet Service Delivery

Ethernet over Copper

EoCu OSS

Addressing the Coverage Gaps

yIncreasing coverage with disparate technology models

limits revenue and profitability

– Slow customer response time

– Disparate systems increases operational complexity

– Management methods and capabilities vary between systems

Ethernet over Fiber

Ethernet over TDM

EoF OSS

EoTDM OSS

Different Platforms per Access Technology Limits Solution

Value and Increases Operation Complexity and Cost

Different Platforms per Access Technology Limits Solution

Value and Increases Operation Complexity and Cost

Addressing the Coverage Gaps

yAgile coverage model enables new

business

– Ubiquitous coverage

– Expediting New Applications/Services

– Capable and consistent management

yImproved Reliability

yAssured QoS and SLA management

yTestability and Troubleshooting

– Improved Scalability

Unified OSS

EoCu, EoTDM, EoF

Completing the customer reach puzzle

• EoCu – Ethernet over Copper

– Optimized bandwidth per loop

– Perfect for short to medium length loops

– Requires local deployments & loop access

• EoTDM – Ethernet over TDM

– Predictable bandwidth per circuit

– A FastBreak™ toward customer

deployments

– Minimizes CapEx by centralizing

aggregation platform

yEthernet over Fiber

– Active Ethernet for higher rate business

service offerings

• Combination enables ubiquitous

coverage

– Complete Ethernet solution from 2 , 10,

Ubiquitous Ethernet Service Offering

EoC 45Mbps - 4Kft

EoC 10Mbps -

12Kft

EoTDM 12Mbps -

beyond 12Kft

The Business Case

EoC 45Mbps - 4Kft

EoC 10Mbps -

12Kft

EoTDM 12Mbps -

beyond 12Kft

1.5 Mbps Service 5 Mbps Service

T1 Service Delivery $120 $480

EoC Service Delivery $15 $15 - $45

Operational Savings $105 $435 - $465

ADTRAN Carrier Ethernet

Getting Customers, Keeping Customers

• Acquiring new customers with

improved profitability

– Increased revenue via new service

enablement

– Reduced CAPEX by leveraging existing

assets

– Reduced OPEX with simplified OAM&P

• Retaining existing customers with

quality, reliable service

– Scalable, granular QoS mechanisms

– Compatibility with adjacent DSL applications

– Innovative solutions such as ADTRAN

AnyPortTM bonding and TScanTM diagnostic

tools

A Single Centralized Solution

Single Platform, Common OAM&P, Full Coverage

ADTRAN CARRIER ETHERNET

Architecture Overview

ADTRAN Carrier Ethernet Architectures

Carrier Ethernet

aggregation

Metro Ethernet

Cisco 7609

Juniper MX

ME Optical NCTE

Cisco 3550

Cisco 3400

GigE

NetVanta 838

Cell Site or Enterprise

4-10/100

TA5006

EoCu

SHDSL

1 to 8 Pairs

TA 5000

EoCu

SHDSL

NetVanta 834

Cell Site or Enterprise

4-10/100

1 GigE

NetVanta 834T

Cell Site or Enterprise

4-10/100

TA838 - LTU

EoCu

SHDSL

1 to 8 Pairs

EoCu

SHDSL

NetVanta 832T

Enterprise

EoCu

SHDSL NetVanta 832

Cell Site or Enterprise

1-10/100

4-10/100

Point-to-point solutions

GigE

ADTRAN Carrier Ethernet Solutions –

EoCu and EoTDM

Ethernet over TDM

Ethernet over

Copper

Metro Ethernet

Cisco 7609

Juniper IPAG1

ME Optical NCTE

Cisco 3550

Cisco 3400

SONET

TDM

GigE

NetVanta 838

Cell Site or Enterprise

4-10/100

1 GigE

TA5006 MSAP (RT)

EoCu

SHDSL

1 to 8 Pairs

TA 5000 MSAP (CO)

EoCu

SHDSL

NetVanta 838

Cell Site or Enterprise

NetVanta 838

Cell Site or Enterprise 4-10/100

1 GigE

TA 5000 MSAP (POP) DS1

1 to 8 Circuits

DS3

NetVanta 818

Cell Site or Enterprise

4-10/100

1 GigE

4-10/100

1 GigE

NetVanta 873

Cell Site or Enterprise

GigE

DS3

1 to 3 Circuits

ADTRAN Carrier Ethernet Solutions

Metro Ethernet

Cisco 7609

Juniper

GigE

NetVanta 834

Cell Site or Enterprise

4-10/100

1 GigE

TA838 - LTU

EoCu

SHDSL

1 to 8 Pairs

EoCu

SHDSL

NetVanta 832

Enterprise

EoCu

SHDSL NetVanta 832

Cell Site or Enterprise

1-10/100

NetVanta 818

DS1 / E1

1 to 4 Circuits NetVanta 814

Cell Site or Enterprise

4-10/100

1 GigE

4-10/100

1 GigE

NetVanta 814

Cell Site or Enterprise

GigE

DS1 / E1

1 to 4 Circuits

NetVanta 873

Cell Site or Enterprise

4-10/100

1 GigE

SONET

TDM

DS3

1 to 3 Circuits

GigE

Ethernet over TDM

Ethernet over

Copper

A Single Centralized Solution

Single Platform, Common OAM&P, Full Coverage

yPartial Vision of Single

Operational Model

– Single Service and Maintenance

Launch Point

– Full suite of dedicated, low cost

Ethernet Access Gateway for

every access medium

ADTRAN EFM NTU

Every Rate, Every Reach, Everywhere

yThe NetVanta 800 Series NTU

– MEF certified and compliant

– 2, 4 & 8 port bonding solutions

yRobust Ethernet capabilities

– Common Ethernet switching and bonding engines

– Resilient to loop failures with dynamic link adaptation

NCTE Technology Rate per port 2 Port 4 Port 8 Port

814, 818 T1 1.5 Mbps 814

(8 pair)

818

(16 pair)

828 HDSL2 1.5 Mbps 828

(8 pair)

832, 834, 838 E.SHDSL Up to 5.7 Mbps 832

(2 pair)

834

(4 pair)

838

(8 pair)

844 HDSL4 1.5 Mbps 844

(8 pair)

86x VDSL2 1 – 100 Mbps 864

(2010)

868

(2010)

873 DS3 45 Mbps 873

(3 port unchannelized DS3)

NetVanta EoCu Network Termination

NetVanta 838 NetVanta 838T

ADTRAN EoCu

(e.SHDSL) NTU Interface

(Quantity)Type; Connector Environmental

Hardening Power Supply

Model Part No. 10/100T GigE Network Temp.* EP* OSP* DC AC

NetVanta

838 1200633G4 (4) RJ-45 (1) SFP (1) RJ-21

(8) Cu pairs Yes No No -48 or

+/-24V

Convertor

P/N

1202470E1

NetVanta

834 1200633G6 (4) RJ-45 (1) SFP (1) RJ-21

(4) Cu pairs Yes No No -48 or

+/-24V

Convertor

P/N

1202470E1

NetVanta

832 1200718E1 (1) RJ-45

rear access No (1) RJ-45 rear

(2) Cu pairs No No No No 110 –

240V

NetVanta

838T 1172838G1 (4) RJ-45 No (8) RJ-45

(8) Cu pairs Yes No No No 110 –

240V

NetVanta

834T 1172834G1 (4) RJ-45 No (4) RJ-45

(4) Cu pairs Yes No No No 110 –

240V

NetVanta

832T 1172832G1 (4) RJ-45

rear access No (1) RJ-45 rear

(2) Cu pairs No No No No 110 –

240V

NetVanta

838 EP 1172839G1 (2) RJ-45 (1) SFP (8) RJ-45

(8) Cu pairs Yes Yes No -48 or

+/-24V No

NetVanta

838 OSP 1172830G1 (2) RJ-45 (1) SFP (8) RJ-45

(8) Cu pairs Yes Yes Yes -48 or

+/-24V

Convertor

P/N

1172290G1

NetVanta 800 series NTU

yNetwork interface: 4-8 bonded physical interfaces

– Resiliency through dynamic circuit removal and restoration

– Front Access 50 pin RJ-21 (AMP)

yPhysical

– Four 10/100 Bt Ethernet interface via RJ-45

– Single Gigabit Ethernet interface via SFP

– Rackmountable solution in 19” or 23” racks

– Wallmountable

– +/- 24VDC, -48 VDC, AC local powering

NetVanta 873 NTU

yNetwork interface: Up to 3 EFM bonded DS3 ports

– 45Mbps to 134 Mbps

– Resiliency through dynamic circuit removal and restoration

– Front Access 75 ohm BNC

yPhysical

– Four 10/100 Bt Ethernet interface via RJ-45

– Single Gigabit Ethernet interface via SFP

– Rack mountable solution in 19” or 23” racks

– Wallmountable

– +/- 24VDC, -48 VDC, AC local powering

NetVanta T-series EoCu NTE

yNetwork interface: 2 - 8 bonded e.SHDSL ports

– Line Rate : 200kbps to 5.7Mbps per loop

– Resiliency through dynamic circuit removal and restoration

– RJ-45 per port

– ITU-T G.991.2 Annex A/B

yPhysical

– Four 10/100 Bt Ethernet interface via RJ-45

– Universal AC powering

NetVanta 8044 EoF

yFront Panel Interfaces

– 4 -10/100/1000BaseT LAN/WAN

– 4 -100/1000BaseX SFP LAN/WAN

– DB9 local craft (RS-232)

yMounting Options

– 1 RMU Wall, Rack or Desktop

Mounting

– 19” or 23” Universal brackets,

rubber feet.

yPowering Options

– Wide mouth Universal AC powering.

yAC/DC Power Convertor kit option

yIEC cord set options to provide

EU plug or Australian 10 A/240 V

y100 – 240 V at 50 or 60 Hz.

yGrounding via Post and Lug type

conn.

yDimensions

– Height: 44mm (1 RMU)

– Width: 437mm or 483mm (with

mounting brackets)

– Depth: 254 mm or 301mm (with

fibre guide)

yWeight

– 6 lb

– 2 ¾ kg

yPower

– 18W worst case/fully loaded

– 14W typical

NetVanta 8044

Ethernet over Fiber Components

TA5000 8-port Gigabit Ethernet Access Module

– 8 GigE SFP cages

– Link Aggregation

– Link OAM

NetVanta 8044M

– 4 -10/100/1000BaseT WAN or LAN

– 4 - GigE SFP WAN or LAN

– 2 - Expansion Slots

– 1 and 2.5G ERPS Ring support with optical bypass option.

– Clock Sync over Packet Ready e.g. G.8261/62 SyncE

– Dual fed DC options (+/-24V, -48V DC)

Carrier Ethernet

– MEF 9, 14, 18

– Eth OAM CFM and PM

– TACASC+ and RADIUS Authentication, Authorization

8-port GigE

Access Module NetVanta 8044M Modular NTE

EoCu

CPE

EoCu

Aggregation

ADTRAN EoCu OAM&P

Standards based

yTSCAN diagnostic capability

– FaultDetector™

– SpliceDetector™

yEFM OAM for trouble isolation/ detection

– Link performance monitoring

– Fault detection

– Loopbacks

yEthernet OAM

– Continuity check

– Loopback

– Link Trace

– Round trip delay

– Loss measurements – using continuity check messages

yComprehensive Operational Measurements / Statistics

– Physical Loop and Ethernet statistics captured in 15-minute and 24-hour

buckets

– End-to-End and segment-based monitoring (IP SLA equivalent)

– Alarm signaling

– Threshold alarming

Ethernet OAM –

Supporting/Selling Ethernet SLAs

MEN

Switch

Leased

TDM

SONET

IEEE 802.1ag

IEEE 802.3ah

ITU-T Y.1731

IETF T-WAMP

802.1aj Demarc

Access Links OAM

Connectivity Layer OAM (per EVC)

Service Layer OAM (per UNI)

NTU (UNI) NTU

(UNI)

yCommon OAM&P across NV800 and 8000 series NTU

ADTRAN EoCu OAM&P

Standards based SLA monitoring

yTwo-Way Active Measurement

Protocol

– Jitter and Latency measurements for

SLA guarantees

– NCTE implementation

ydraft-ietf-ippm-twamp-04.

ySession reflector/server Ethernet OAM

yPhysical layer turn-up and

troubleshooting tools

– Loopbacks

– Bit Error Rate Testing capabilities

ADTRAN Ethernet OAM

IEEE 802.1ag ITU-T Y.1731

Detection 9 9

Notification 9 9

Verification 9 9

Isolation 9 9

IETF TWAMP ITU-T Y.1731

Delay 9 9

Jitter 9 9

Loss 9 9

Multiple paths for both Fault & Performance Management

Connectivity Fault

Management (CFM)

Performance

Management

Simplified Ethernet Service Activation

• Minimize operational costs associated with Ethernet

service rollouts

– Pre-provisioning by Operations Centers

in advance of NCTE

– Allows for easy service activation

• EZ Series for Ethernet activation

– EZ Bonding: Link assignment

– EZ Set-up: NTU pre-provisioning

– EZ Ethernet: User profiles

EASY Service Provisioning

yCommon Wizard

Screens for EPL and

EVPL service

provisioning.

yFlexibility to allow S-

tag to be configured

on multiple ports with

MAC switching of

traffic between those

ports

ADTRAN Operations Environment

Strong Decision Support

Fault Response

Advanced testing, troubleshooting

and diagnostics

Flexible Integrated Security

Fully Integrated from Planning to Operations to Customer Service

Intelligent Service Activation

Application awareness

OSS integration via Robust Modular

Gateway/Network Automation

Interface (TL1/XML)

Advanced PM, Traffic and Capacity

Management

Performance Monitoring/Trending

Traffic Engineering/Network

Tuning

VQM/DQM

Question and Answers

1 9 27 10 Goodwin ADTRAN Carrier Ethernet KGP

Navigation menu

Versions of this User Manual:

Views

Navigation
