Printed in U.S.A. 928–0234B (Spec A, B) 11–98

Replaces 928–0234 (Spec A) 1–98

GGHB

GGHC

GGHD

Generator Set

Parts Catalog

The following symbols are used in Onan manuals

to alert users to the potentially dangerous condi-

tions relating to maintenance of equipment and re-

placement of parts. Please read and observe.

This symbol warns of immedi-

ate hazards which will result in

severe personal injury or death.

This symbol refers to a hazard

or unsafe practice which can re-

sult in severe personal injury or

death.

This symbol refers to a hazard

or unsafe practice which can re-

sult in severe personal injury or

product or property damage.

To avoid errors or delay in filling your parts order,

always give the MODEL, SPEC NO. and SERIAL

NO. from the Onan nameplate.

For handy reference, insert your nameplate in-

formation in the spaces below.

MODEL AND SPEC NO.

SERIAL NO.

DIGITAL CONTROL SOFTWARE VERSION

AND DATE (IF APPLICABLE)

Contact with USED ENGINE OILS has been identified by a United States federal agency and some USA

state agencies as causing CANCER or REPRODUCTIVE TOXICITY. When checking or changing engine

oils take all necessary precautions not to ingest, breathe the fumes or contact the used oil.

Contact with ASBESTOS has been identified by a United States federal agency and some USA state

agencies as causing CANCER or REPRODUCTIVE TOXICITY. When handling engine gaskets take all

necessary precautions not to ingest, breathe or contact the dust from the gaskets! Use adequate ven-

tilation and wear protective gloves, masks and clothing!

Contact with BENZINE and LEAD, found in gasoline, fuel additives and solvents has been identified

by a United States federal agency and some USA state agencies as causing CANCER or REPRODUC-

TIVE TOXICITY. When checking, draining or adding gasoline and fuel additives or using solvents take

all necessary precautions not to ingest, breathe the fumes or contact the liquids. Use adequate ventila-

tion and wear protective gloves, masks and protective clothing!

PSP-1

Service and repair of Onan equipment must be performed by trained, experienced personnel only. Im-

proper service or repair may result in property damage, severe personal injury or death. Do not use this

catalog as a guide to servicing your equipment. Read and follow the IMPORTANT SAFETY INSTRUC-

TIONS in the Service Manual appropriate for the equipment you are working on.

Introduction

This catalog applies to Onan Generator Models GGHB, GGHC and GGHD as listed in the Generator Set Data Table.

Parts are arranged in groups of related items and each illustrated part is identified by a reference number correspond-

ing to the same reference number in the parts list. Parts illustrations are typical. Unless otherwise mentioned in the

description or page heading, parts are interchangeable between models. Throughout this catalog left and right sides

are determined by facing the engine end (front) of the set unless noted in the description column.

Engine parts that have been modified or added by Onan are identified in this catalog. All other engine replacement

parts must be ordered from the engine manufacturer by referring to the engine manufacturer’s nameplate and supply-

ing all available information. Contact your nearest engine parts distributor for assistance in ordering replacement

parts.

Replacement Engine

Onan/Cummins Generator Model Ford Engine Model

GGHB, GGHC, GGHD LSG875–5C488AA

Replacement engines cannot be ordered from Onan. Order from your nearest Ford

distributor.

Generator Set Data Table

Model and Electrical Data Batter

Model

and

Specification Watts Volts Hertz Wire Phase

Battery

Voltage

54GGHB/* 54,000 # 50 4,6,12 1 or 3 12VDC

54GGHB/

65GGHB/*

000

65,000

4,6,12

1 or 3

12VDC

60GGHC/*

80GGHC/*

60,000

80,000

4,6,12

1 or 3

12VDC

75GGHD/*

100GGHD/*

75,000

100,000

4,6,12

1 or 3

12VDC

* – The diagonal line (/) in the model and specification number separates generator set characteristics from the

specification number and letter. The specification number denotes customer requested options or deviations from

the standard model. The specification letter advances (A to B, B to C, etc.) with major manufacturing changes.

# – Broad range reconnectible

Index

Adapter, Generator, 79

Adapter, Generator Stator, 79

Adapter, Radiator Duct, 52

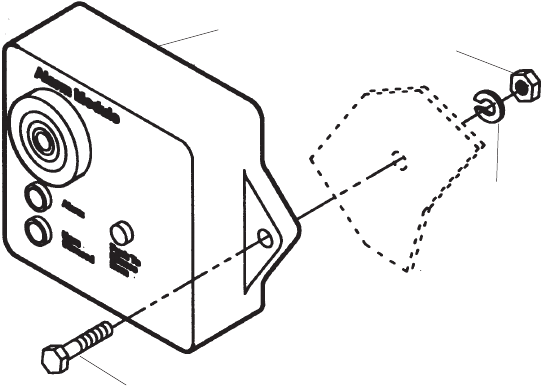

Alarm, Audible – Sets With Detector Control, 102

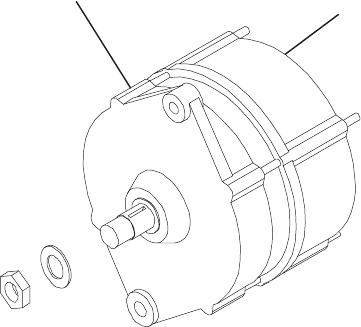

Alternator, 73

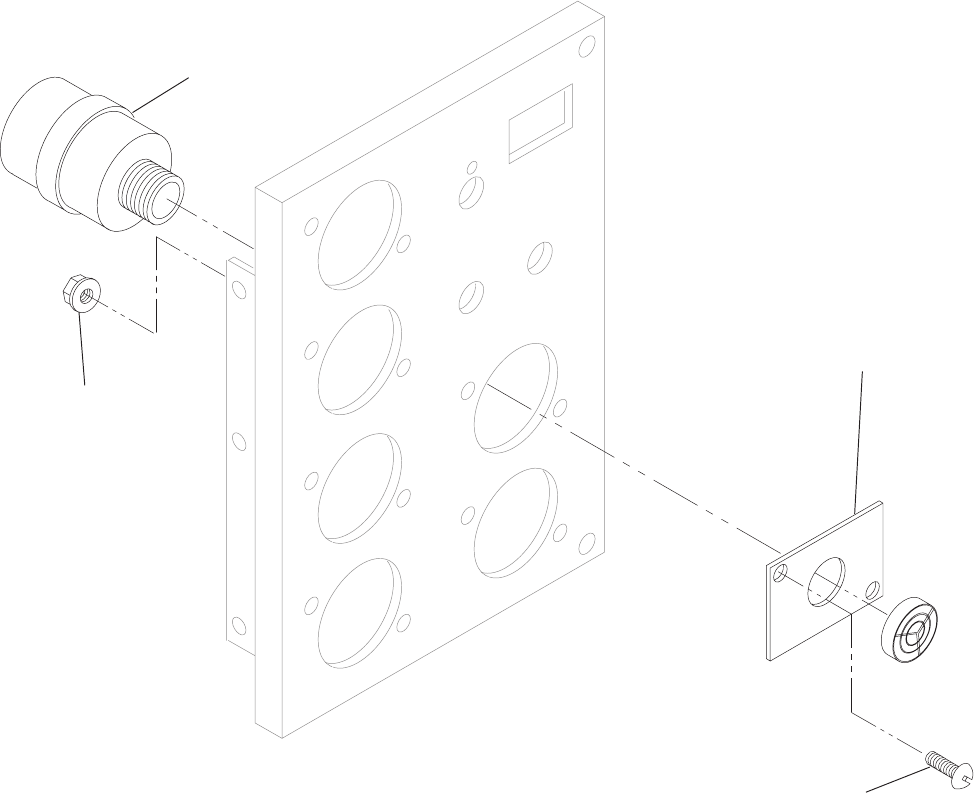

Ammeter – Blank Scale – Emergency Stop Switch, 104

Ammeter, AC – Sets With Detector Control, 89

Ammeter, AC – Sets With Sentinel Control, 108

Armature, Starter, 72

Base, Relay – Low Battery Voltage, 101

Bearing, Ball – Generator, 79

Bearing, Starter, 72

Bell, End, 81

Belt, Fan, 9

Block, Terminal – Engine to Control Wiring Harness – Sets

With Detector Control, 93

Block, Terminal – Engine to Control Wiring Harness – Sets

With Sentinel Control, 94

Block, Terminal – Generator Heater, 77

Block, Terminal – Sets With Detector Control, 89

Board, Printed Circuit – Alarm Relay, 98

Board, Printed Circuit – Common Alarm, 99

Board, Printed Circuit – Electronic Overspeed – Sets With

Detector Control, 106

Board, Printed Circuit – Engine Monitor – Sets With Detector

Control, 89

Board, Printed Circuit – Isolation Transformer – Sets With

Detector Control , 96

Board, Printed Circuit – Isolation Transformer – Sets With

Sentinel Control, 97

Board, Printed Circuit – Sensor Board – Sets With Detector

Control, 89

Board, Printed Circuit – Time Delay Start/Stop, 100

Board, Printed Circuit – Voltage Regulator – Sets With

Detector Control, 96

Board, Printed Circuit – Voltage Regulator – Sets With

Sentinel Control, 97

Boot, Battery Cable, 9

Bottom, Shroud – Remote Radiator – GGHC, GGHD, 51

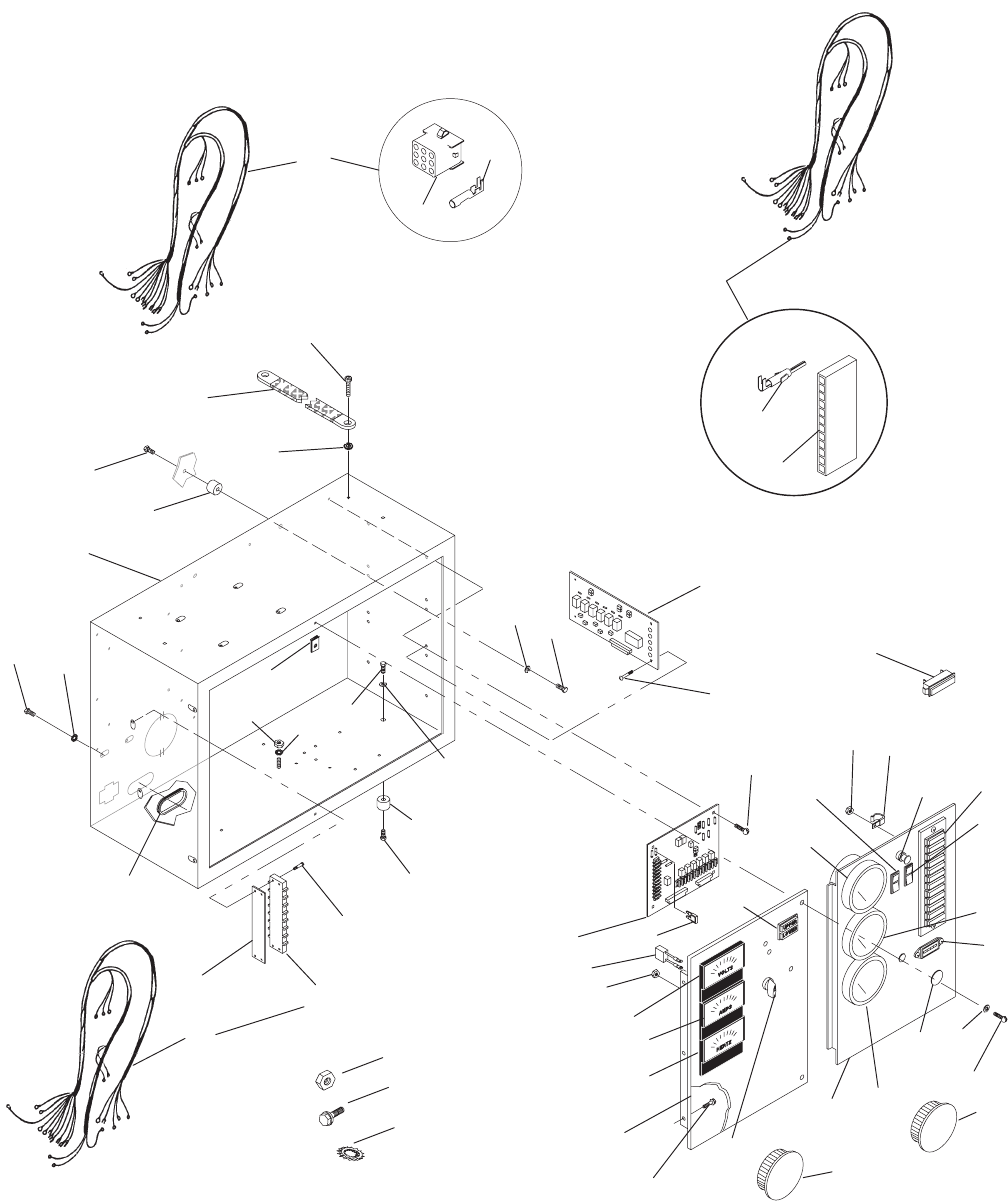

Box, Control – Sets With Detector Control, 89

Box, Entrance, 86

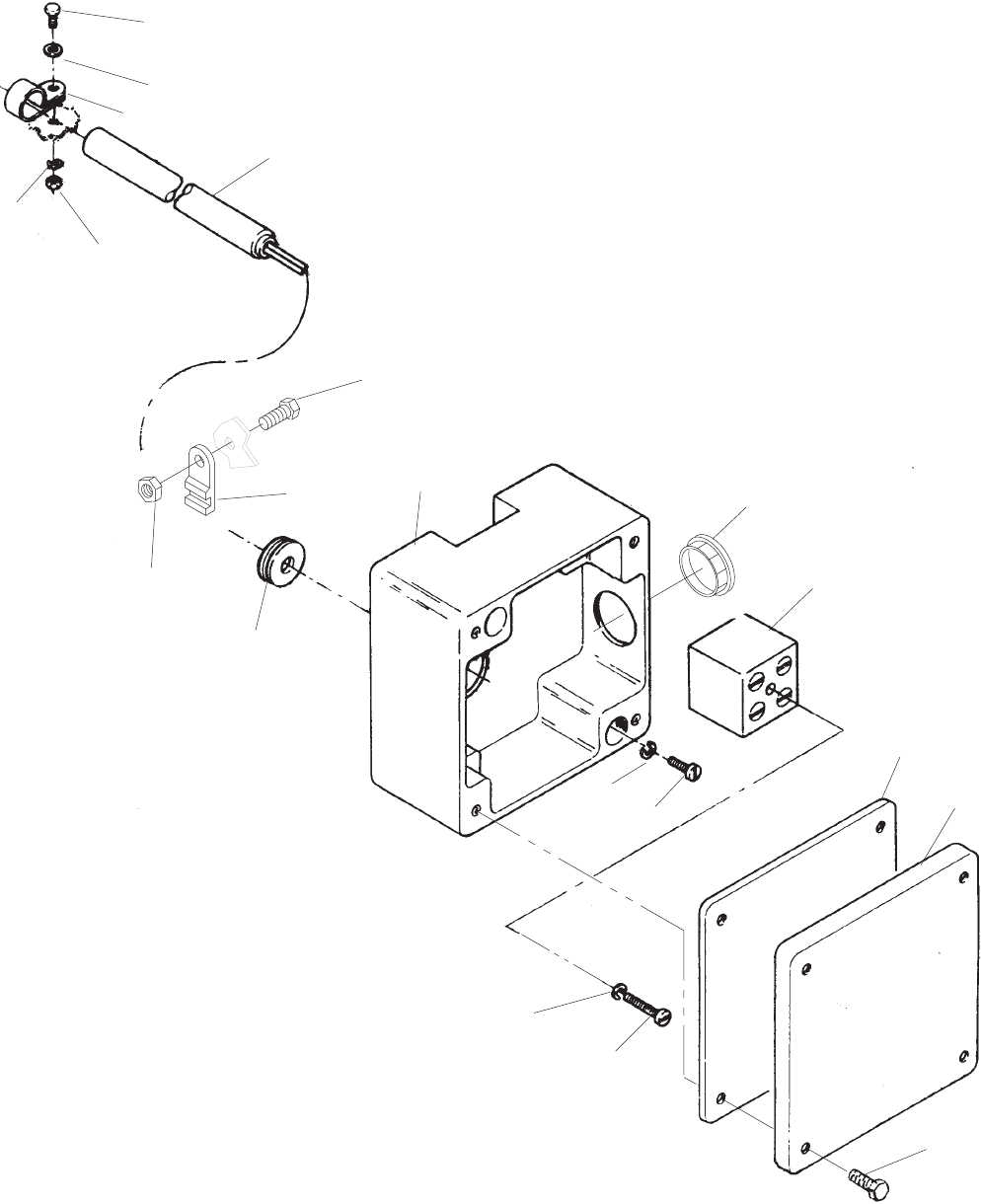

Box, Terminal – Generator Heater, 77

Bracket, Alternator, 9

Bracket, Alternator Adjusting, 9

Bracket, Governor – GGHB – Natural Gas – With Low Fuel

Pressure Warning Switch – Spec B, 17

Bracket, Governor – GGHB – Natural Gas – Without Low

Fuel Pressure Warning Switch, 15

Bracket, Governor – GGHB – Natural Gas and Propane

Liquid Withdrawal With Automatic Changeover, 23

Bracket, Governor – GGHB – Natural Gas and Propane

Vapor Withdrawal With Automatic Changeover, 21

Bracket, Governor – GGHB – Propane Liquid Withdrawal,

Bracket, Governor – GGHB – Propane Vapor Withdrawal –

With Low Fuel Pressure Warning Switch – Spec B, 25

Bracket, Governor – GGHB – Propane Vapor Withdrawal –

Without Low Fuel Pressure Warning Switch, 26

Bracket, Governor – GGHC, GGHD – Natural Gas – With

Low Fuel Pressure Warning Switch – Spec B, 37

Bracket, Governor – GGHC, GGHD – Natural Gas – Without

Low Fuel Pressure Warning Switch, 36

Bracket, Governor – GGHC, GGHD – Natural Gas and

Propane Liquid Withdrawal With Automatic Changeover,

Bracket, Governor – GGHC, GGHD – Natural Gas and

Propane Vapor Withdrawal With Automatic Changeover,

Bracket, Governor – GGHC, GGHD – Propane Liquid

Withdrawal , 35

Bracket, Governor – GGHC, GGHD – Propane Vapor

Withdrawal – With Low Fuel Pressure Warning Switch –

Spec B, 29

Bracket, Governor – GGHC, GGHD – Propane Vapor

Withdrawal – Without Low Fuel Pressure Warning Switch,

Bracket, Mounting – Engine, 70

Bracket, Mounting – Generator Foot, 81

Bracket, Mounting – Ignition Module, 70

Bracket, Mounting – Main Circuit Breaker – Spec A, 111

Bracket, Mounting – Main Circuit Breaker – Spec B, 115

Bracket, Overspeed – Mechanical, 105

Breaker, Circuit – Main – Spec A, 113

Breaker, Circuit – Main – Spec B, 117

Breaker, Circuit – Sentinel Control, 91

Breaker, Circuit – Sets With Sentinel Control, 97

Breather, Air Cleaner – GGHB – Natural Gas – With Low

Fuel Pressure Warning Switch – Spec B, 17

Breather, Air Cleaner – GGHB – Natural Gas – Without Low

Fuel Pressure Warning Switch, 15

Breather, Air Cleaner – GGHB – Natural Gas and Propane

Liquid Withdrawal With Automatic Changeover, 23

Breather, Air Cleaner – GGHB – Natural Gas and Propane

Vapor Withdrawal With Automatic Changeover, 21

Breather, Air Cleaner – GGHB – Propane Liquid Withdrawal,

Breather, Air Cleaner – GGHB – Propane Vapor Withdrawal

– With Low Fuel Pressure Warning Switch – Spec B, 25

Breather, Air Cleaner – GGHB – Propane Vapor Withdrawal

– Without Low Fuel Pressure Warning Switch, 26

Bulb, Replacement – Emergency Stop Switch, 104

Cable, Battery, 9

Cable, Control Heater – Sets With Detector Control, 87

Cap, Radiator – GGHB, 54

Cap, Radiator – GGHC, GGHD, 55

Cap, Rain – GGHB – Exhaust Adapted for Residential

Muffler, 44

Cap, Rain – GGHB – Exhaust Adapted for Slip–on Exhaust

Tube, 38

Cap, Rain – GGHC, GGHD – Exhaust Adapted for Slip–on

Exhaust Tube, 41

Cap, Rain – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

Carburetor – GGHB, 12

Carburetor – GGHC, GGHD, 13

Index

Cartridge, Generator Heater, 77

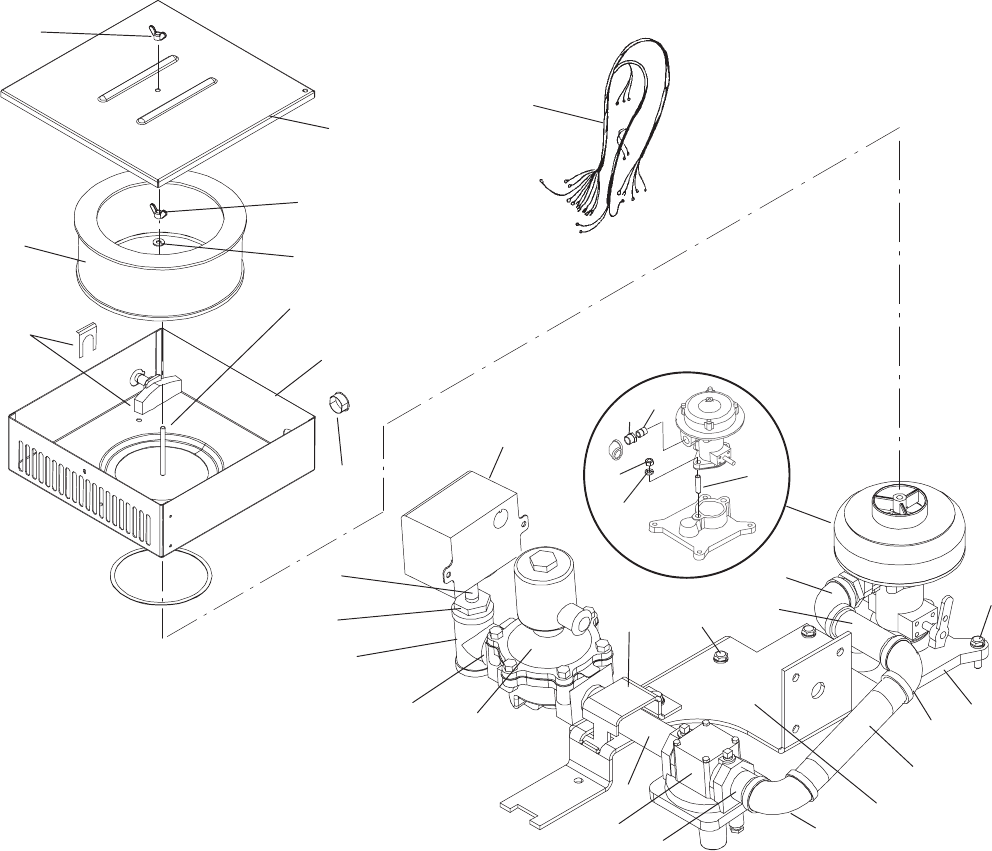

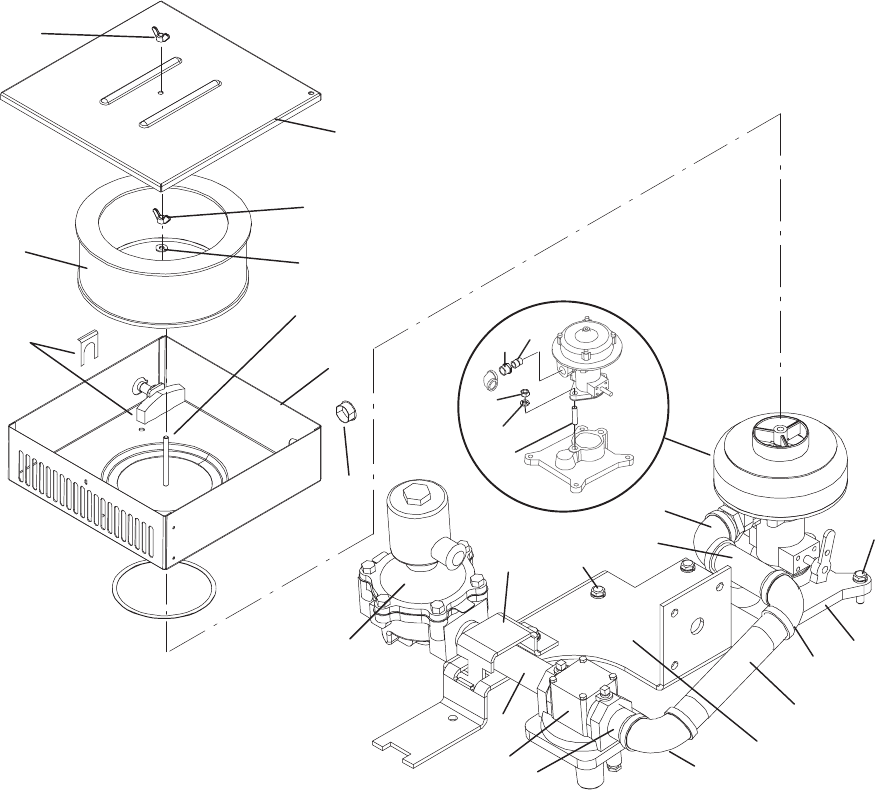

Cleaner, Air – GGHB – Natural Gas – With Low Fuel

Pressure Warning Switch – Spec B, 17

Cleaner, Air – GGHB – Natural Gas – Without Low Fuel

Pressure Warning Switch, 15

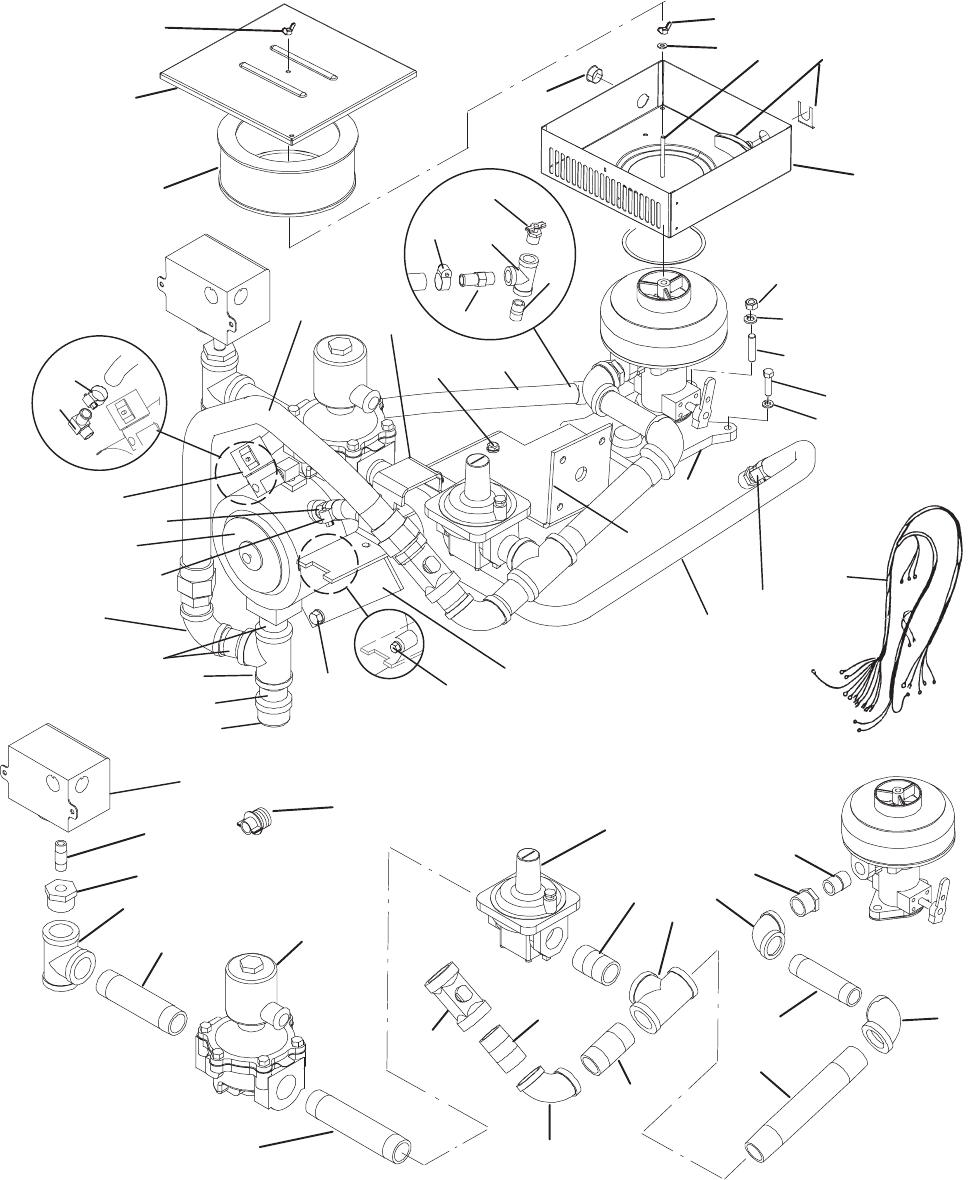

Cleaner, Air – GGHB – Natural Gas and Propane Liquid

Withdrawal With Automatic Changeover, 23

Cleaner, Air – GGHB – Natural Gas and Propane Vapor

Withdrawal With Automatic Changeover, 21

Cleaner, Air – GGHB – Propane Liquid Withdrawal, 19

Cleaner, Air – GGHB – Propane Vapor Withdrawal – With

Low Fuel Pressure Warning Switch – Spec B, 25

Cleaner, Air – GGHB – Propane Vapor Withdrawal – Without

Low Fuel Pressure Warning Switch, 26

Cleaner, Air – GGHC, GGHD – Natural Gas – With Low Fuel

Pressure Warning Switch – Spec B, 37

Cleaner, Air – GGHC, GGHD – Natural Gas – Without Low

Fuel Pressure Warning Switch, 36

Cleaner, Air – GGHC, GGHD – Natural Gas and Propane

Liquid Withdrawal With Automatic Changeover, 31

Cleaner, Air – GGHC, GGHD – Natural Gas and Propane

Vapor Withdrawal With Automatic Changeover, 33

Cleaner, Air – GGHC, GGHD – Propane Liquid Withdrawal,

Cleaner, Air – GGHC, GGHD – Propane Vapor Withdrawal –

With Low Fuel Pressure Warning Switch – Spec B, 29

Cleaner, Air – GGHC, GGHD – Propane Vapor Withdrawal –

Without Low Fuel Pressure Warning Switch, 27

Clutch, Starter, 72

Cock, Drain – Radiator – GGHB, 54

Cock, Drain – Radiator – GGHC, GGHD, 55

Components, Starter, 72

Contact, Dry – Spec B, 95

Control, Detector, 89

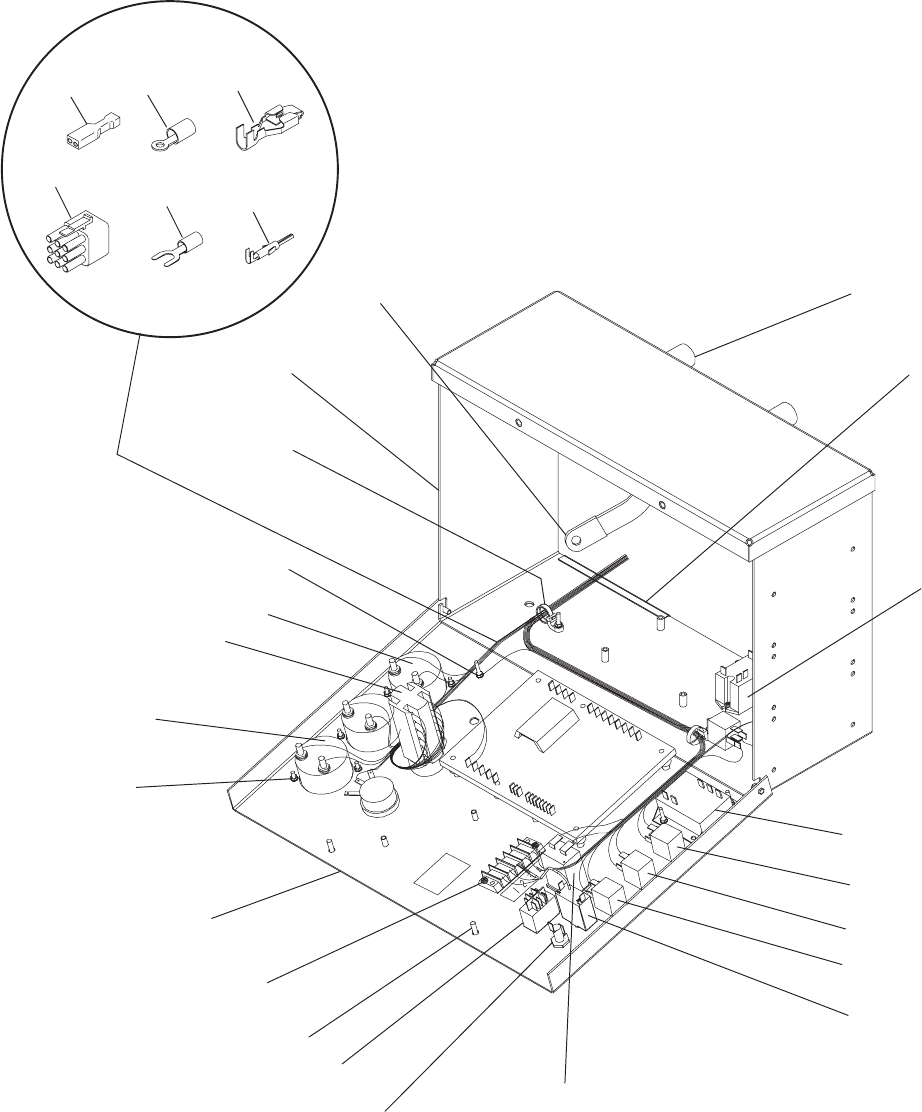

Control, Sentinel, 91

Cooler, Oil – Radiator – GGHC, GGHD, 55

Cooler, Oil – Remote Radiator – GGHC, GGHD, 51

Cover – Main Circuit Breaker – Spec A, 111

Cover – Main Circuit Breaker – Spec B, 115

Cover, Belt Guard – Remote Radiator – GGHB, 50

Cover, Control Housing – Sets With Sentinel or Detector

Control, 75

Cover, End Bell – Permanent Magnet Generator, 85

Cover, End Bell – Sets With Mechanical Overspeed Switch,

105

Cover, Stator – Generator, 79

Cover, Terminal Box – Generator Heater, 77

Cushion, Vibration – Generator Set, 70

Diode – Low Coolant Level Sender – With Continuously

Monitored Low Coolant Level – 12 Light Indicator Controls,

Disc, Drive – Generator, 79

Door, Control – Sets With Detector Control, 89

Drain, Oil, 68

Element, Air Cleaner – GGHB – Natural Gas – With Low

Fuel Pressure Warning Switch – Spec B, 17

Element, Air Cleaner – GGHB – Natural Gas – Without Low

Fuel Pressure Warning Switch, 15

Element, Air Cleaner – GGHB – Natural Gas and Propane

Liquid Withdrawal With Automatic Changeover, 23

Element, Air Cleaner – GGHB – Natural Gas and Propane

Vapor Withdrawal With Automatic Changeover, 21

Element, Air Cleaner – GGHB – Propane Liquid Withdrawal,

Element, Air Cleaner – GGHB – Propane Vapor Withdrawal

– With Low Fuel Pressure Warning Switch – Spec B, 25

Element, Air Cleaner – GGHB – Propane Vapor Withdrawal

– Without Low Fuel Pressure Warning Switch, 26

Element, Air Cleaner – GGHC, GGHD – Natural Gas – With

Low Fuel Pressure Warning Switch – Spec B, 37

Element, Air Cleaner – GGHC, GGHD – Natural Gas –

Without Low Fuel Pressure Warning Switch, 36

Element, Air Cleaner – GGHC, GGHD – Natural Gas and

Propane Liquid Withdrawal With Automatic Changeover,

Element, Air Cleaner – GGHC, GGHD – Natural Gas and

Propane Vapor Withdrawal With Automatic Changeover,

Element, Air Cleaner – GGHC, GGHD – Propane Liquid

Withdrawal, 35

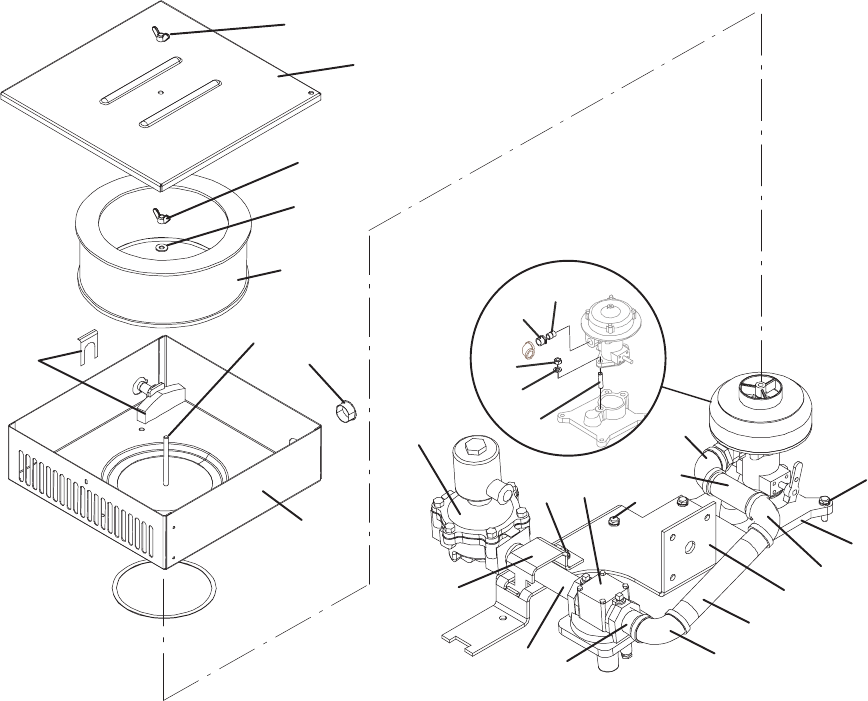

Element, Air Cleaner – GGHC, GGHD – Propane Vapor

Withdrawal – With Low Fuel Pressure Warning Switch –

Spec B, 29

Element, Air Cleaner – GGHC, GGHD – Propane Vapor

Withdrawal – Without Low Fuel Pressure Warning Switch,

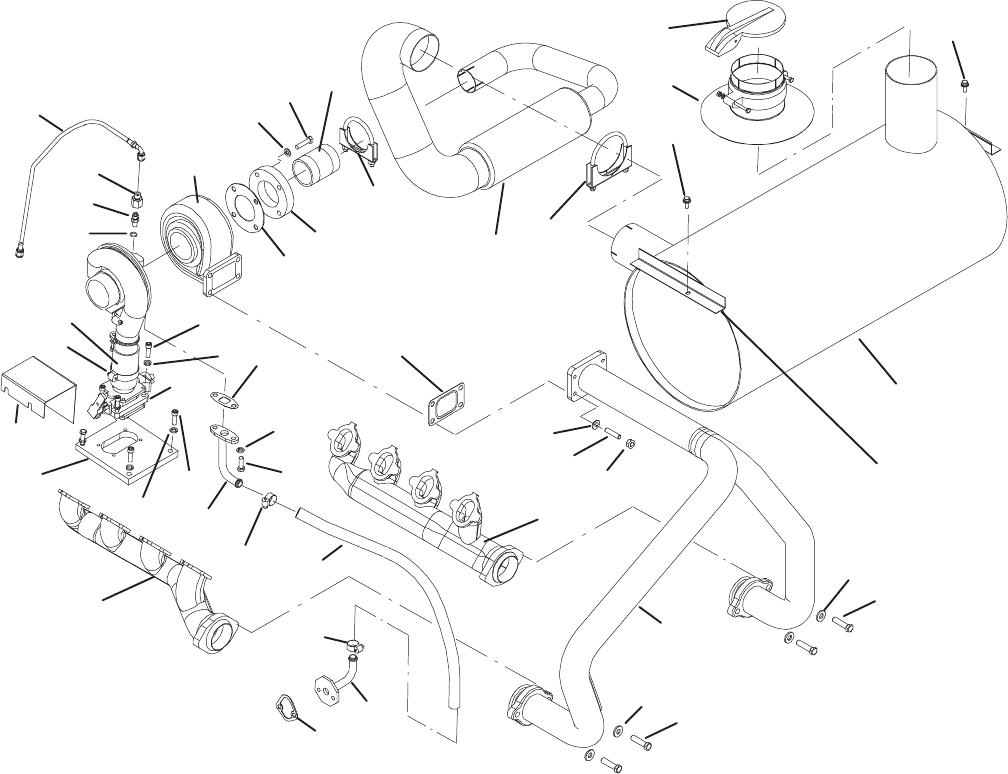

Exhaust System – GGHB – Exhaust Adapted for Residential

Muffler, 44

Exhaust System – GGHB – Exhaust Adapted for Slip–on

Exhaust Tube, 38

Exhaust System – GGHB – Exhaust Adapted for Threaded

Exhaust Pipe, 39

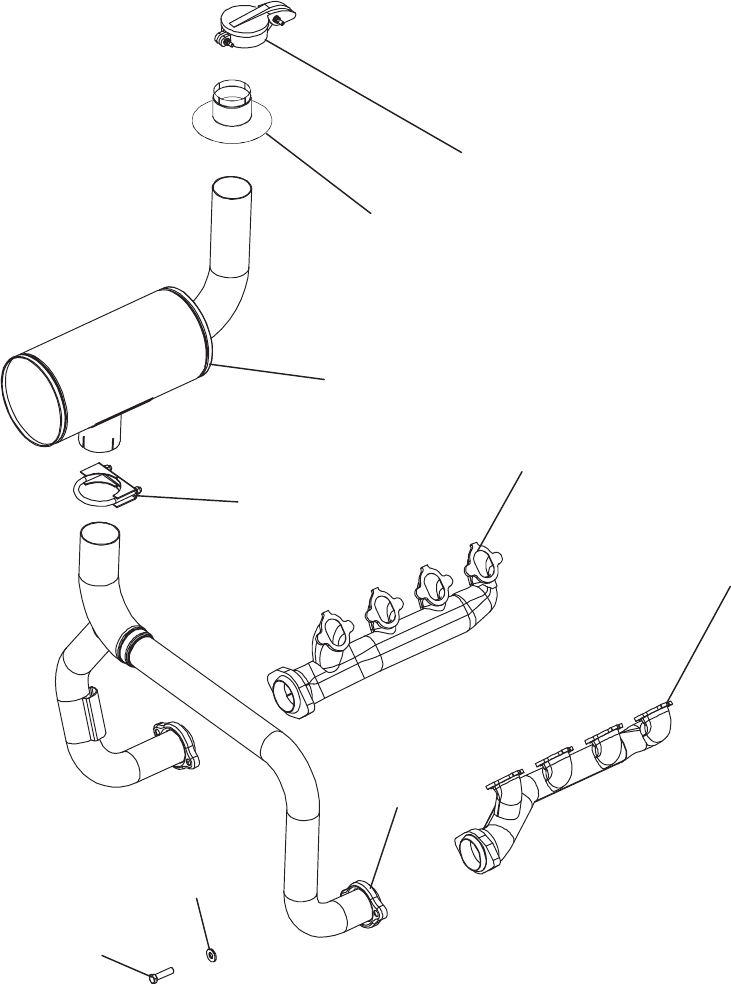

Exhaust System – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Exhaust System – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

Extension, Radiator Drain, 53

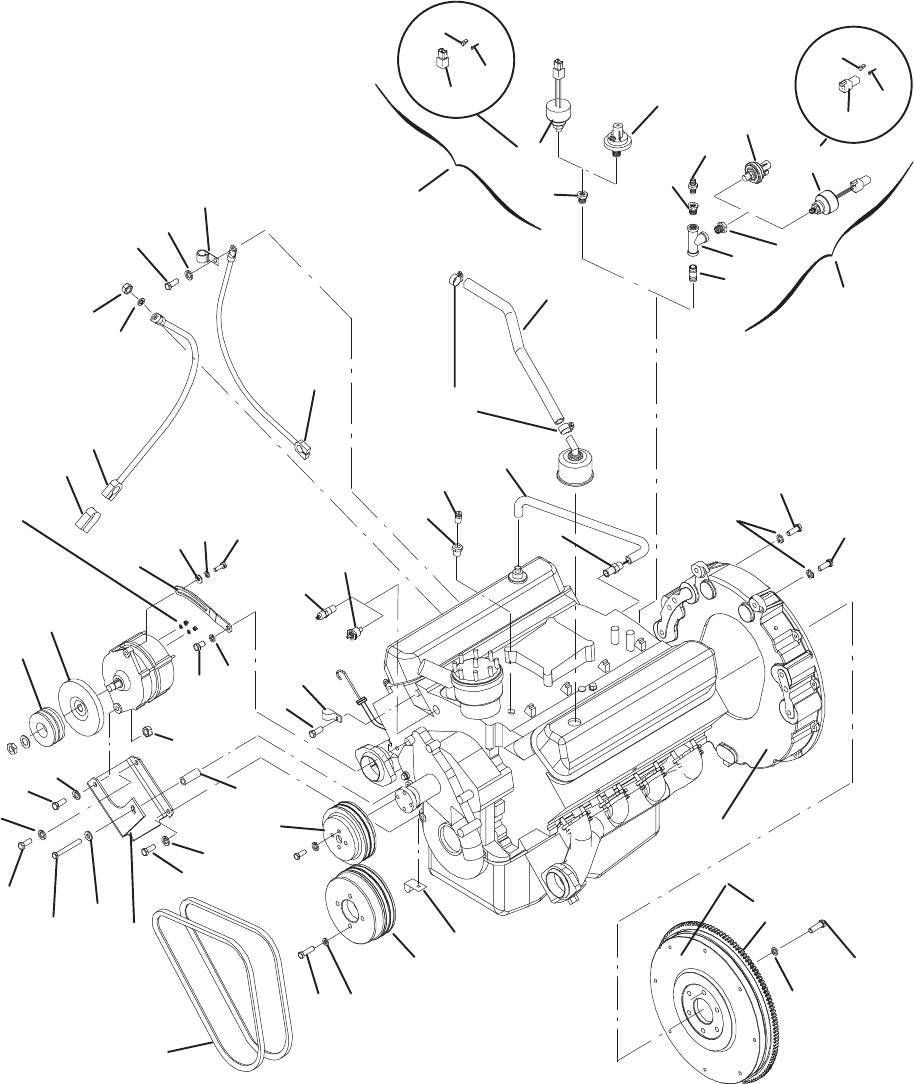

External Engine Parts, 9

Fan, Alternator, 9

Fan, Radiator – GGHB, 54

Fan, Radiator – GGHC, GGHD, 55

Flywheel, 9

Fuel System – GGHB – Natural Gas – With Low Fuel

Pressure Warning Switch – Spec B, 17

Fuel System – GGHB – Natural Gas – Without Low Fuel

Pressure Warning Switch, 15

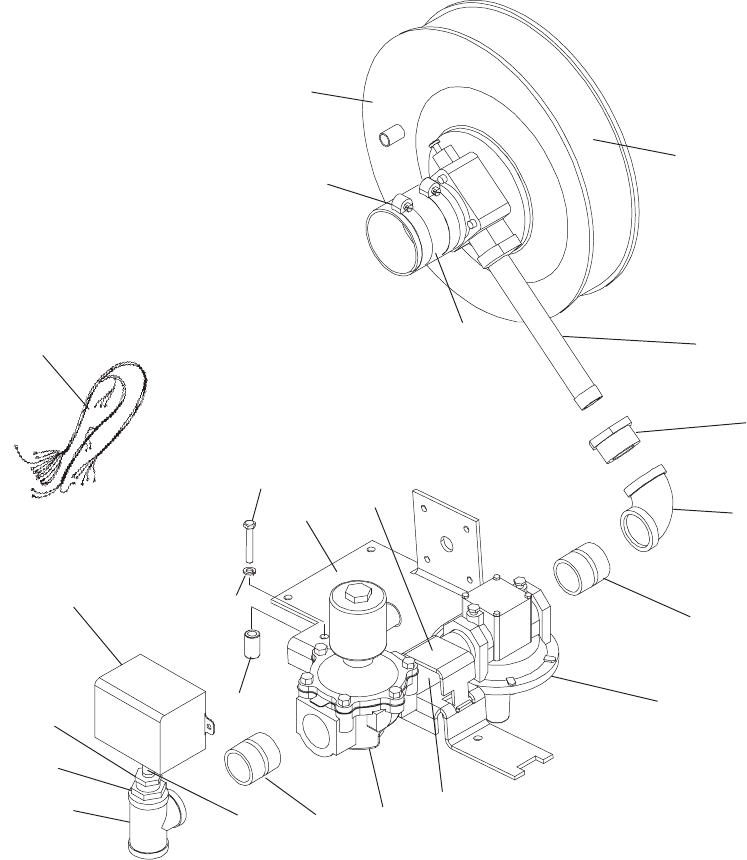

Fuel System – GGHB – Natural Gas and Propane Liquid

Withdrawal With Automatic Changeover, 23

Fuel System – GGHB – Natural Gas and Propane Vapor

Withdrawal With Automatic Changeover, 21

Fuel System – GGHB – Propane Liquid Withdrawal, 19

Fuel System – GGHB – Propane Vapor Withdrawal – With

Low Fuel Pressure Warning Switch – Spec B, 25

Fuel System – GGHB – Propane Vapor Withdrawal –

Without Low Fuel Pressure Warning Switch, 26

Fuel System – GGHC, GGHD – Natural Gas – Without Low

Fuel Pressure Warning Switch, 36

Index

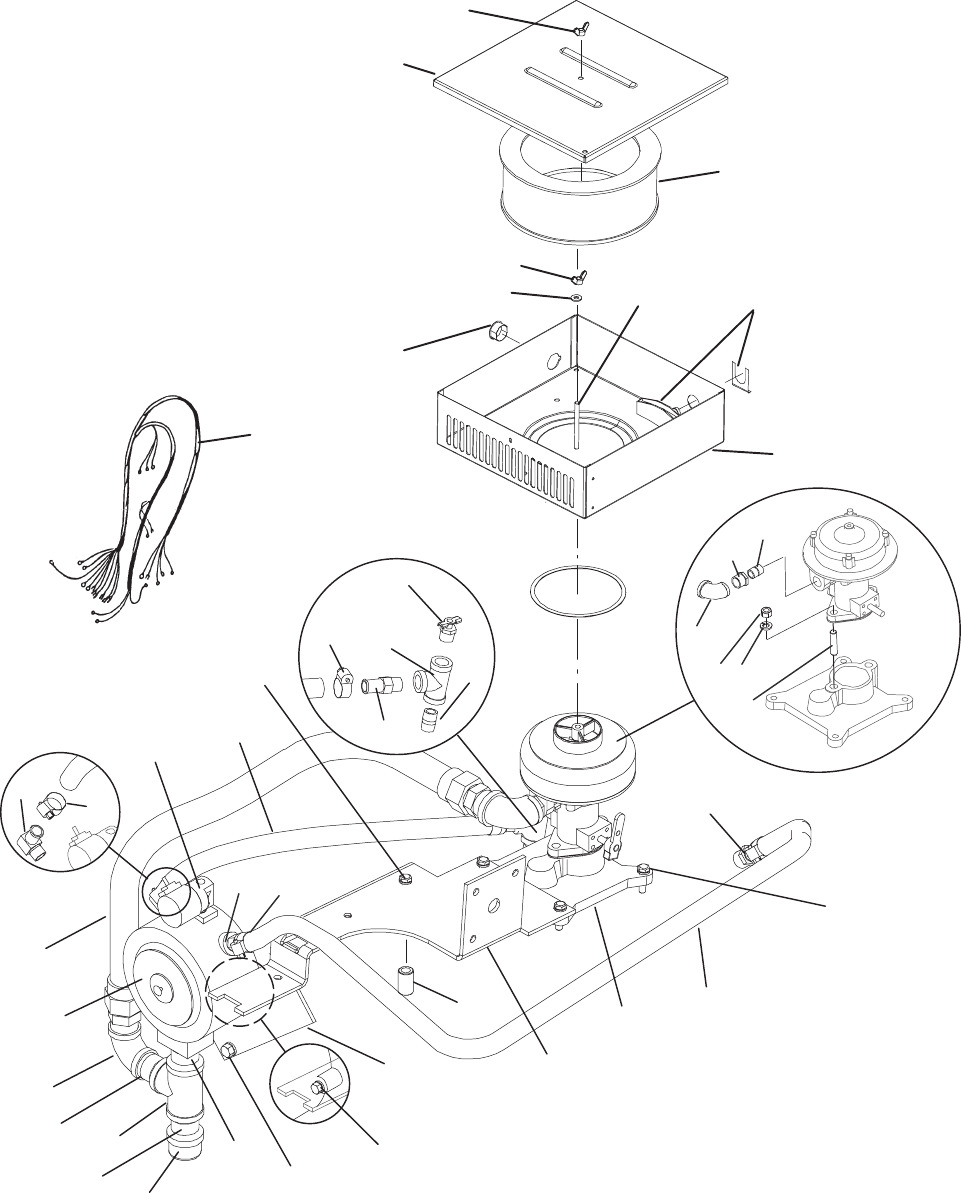

Fuel System – GGHC, GGHD – Natural Gas and Propane

Liquid Withdrawal With Automatic Changeover, 31

Fuel System – GGHC, GGHD – Natural Gas and Propane

Vapor Withdrawal With Automatic Changeover, 32, 33

Fuel System – GGHC, GGHD – Propane Liquid Withdrawal,

34, 35

Fuel System – GGHC, GGHD – Propane Vapor Withdrawal

– With Low Fuel Pressure Warning Switch – Spec B, 29

Fuel System – GGHC, GGHD – Propane Vapor Withdrawal

– Without Low Fuel Pressure Warning Switch, 27

Fuse – Engine Monitor Board – Sets With Detector Control,

Fuse – Sentinel Control, 91

Gasket, Oil Drain, 68

Gauge, Oil Pressure – Control Mounted – Sets With

Detector Control, 89

Gauge, Oil Pressure – Engine Mounted, 10

Gauge, Water Temperature – Control Mounted – Sets With

Detector Control, 89

Gauge, Water Temperature – Engine Mounted, 10

Gauges – Engine Mounted, 10

Gear, Ring – Flywheel, 9

Generator, 79

Generator, Permanent Magnet, 85

Governor, 74

Guard, Belt – Radiator – GGHB, 54

Guard, Belt – Radiator – GGHC, GGHD, 55

Guard, Belt – Remote Radiator – GGHB, 50

Guard, Belt – Remote Radiator – GGHC, GGHD, 51

Guard, Fan – Generator, 81

Guard, Fan – Radiator – GGHB, 54

Guard, Fan – Radiator – GGHC, GGHD, 55

Guard, Fan – Remote Radiator – GGHB, 50

Guard, Fan – Remote Radiator – GGHC, GGHD, 51

Hardware, Mounting – Water Pump Pulley – Remote

Radiator – GGHB, 50

Hardware, Mounting – Water Pump Pulley – Remote

Radiator – GGHC, GGHD, 51

Harness, Wiring – AC Control, 92

Harness, Wiring – AC Control – Sets With Sentinel Control,

Harness, Wiring – AC Control Door – Sets With Detector

Control, 89

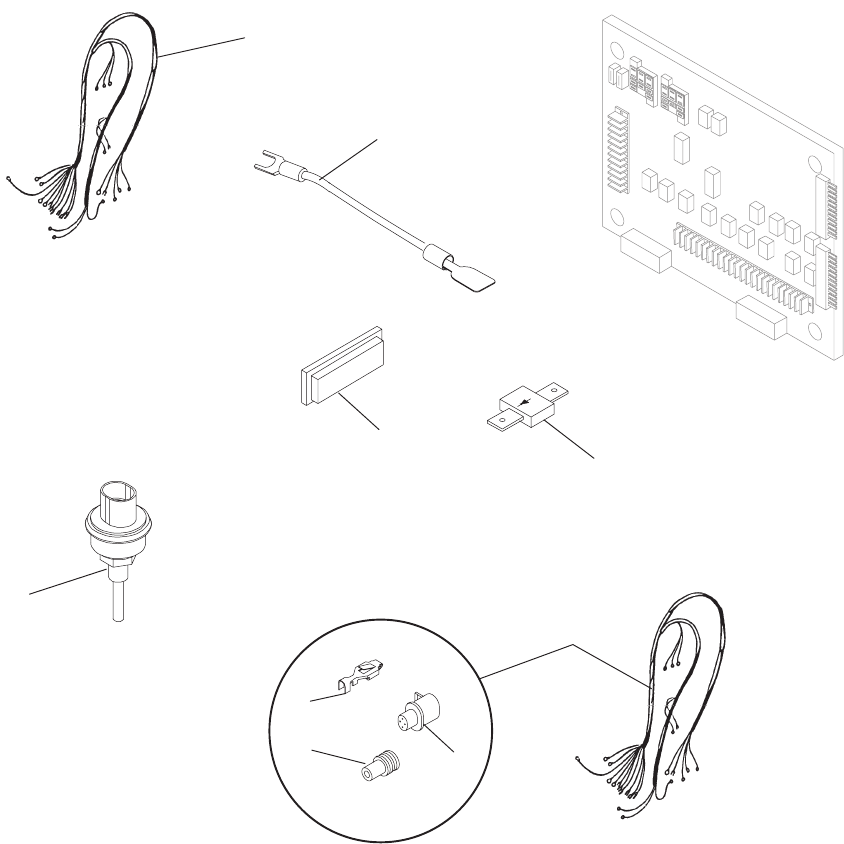

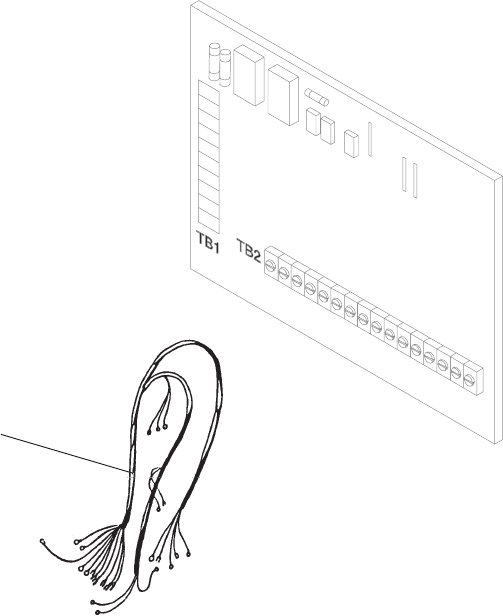

Harness, Wiring – Alarm Relay Board, 98

Harness, Wiring – Common Alarm, 99

Harness, Wiring – DC Control Door – Sets With Detector

Control, 89

Harness, Wiring – Dry Contact, 95

Harness, Wiring – Dual Fuel – GGHB – Natural Gas and

Propane Liquid Withdrawal With Automatic Changeover,

Harness, Wiring – Dual Fuel – GGHB – Natural Gas and

Propane Vapor Withdrawal With Automatic Changeover,

Harness, Wiring – Dual Fuel – GGHC, GGHD – Natural Gas

and Propane Liquid Withdrawal With Automatic

Changeover, 31

Harness, Wiring – Dual Fuel – GGHC, GGHD – Natural Gas

and Propane Vapor Withdrawal With Automatic

Changeover, 33

Harness, Wiring – Electronic Overspeed – Sets With

Detector Control, 106

Harness, Wiring – Electronic Overspeed – Sets With

Sentinel Control, 107

Harness, Wiring – Engine to Control – Sets With Detector

Control, 93

Harness, Wiring – Engine to Control – Sets With Sentinel

Control, 94

Harness, Wiring – GGHB – Natural Gas and Propane Liquid

Withdrawal With Automatic Changeover, 23

Harness, Wiring – GGHC, GGHD – Natural Gas and

Propane Liquid Withdrawal With Automatic Changeover,

Harness, Wiring – Ignition, 92

Harness, Wiring – Low Battery Voltage, 101

Harness, Wiring – Low Coolant Level – Without

Continuously Monitored Low Coolant Level – Spec B, 47

Harness, Wiring – Low Coolant Level Sender – With

Continuously Monitored Low Coolant Level – 12 Light

Indicator Controls, 48

Harness, Wiring – Low Coolant Level Sender – Without

Continuously Monitored Low Coolant Level – Spec A, 46

Harness, Wiring – LPG – GGHB – Propane Liquid

Withdrawal, 19

Harness, Wiring – Permanent Magnet Generator, 85

Harness, Wiring – Terminal Block – Sets With Detector

Control , 89

Harness, Wiring – Time Delay Start/Stop, 100

Harness, Wiring – Vacuum Switch, 45

Harness, Wiring – LPG – GGHC, GGHD – Propane Liquid

Withdrawal, 35

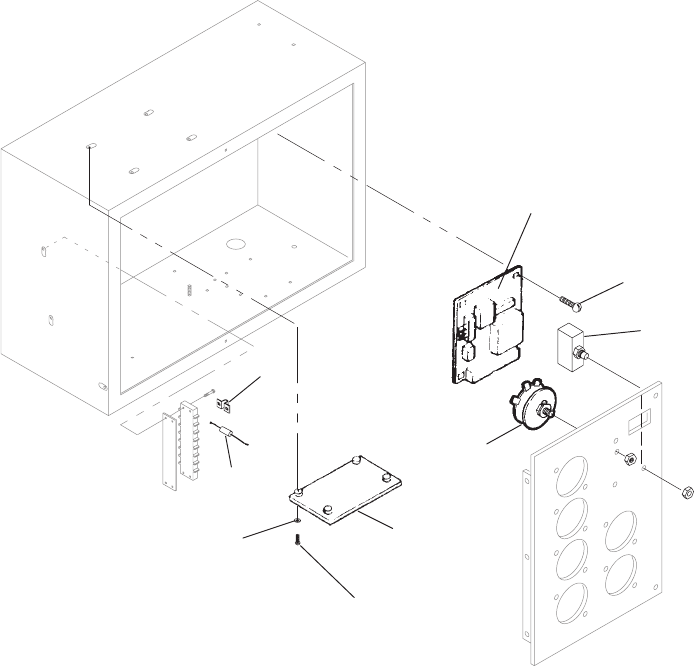

Heater Assembly, Control – Sets With Detector Control, 87

Heater, Engine Coolant, 49

Heater, Generator, 77

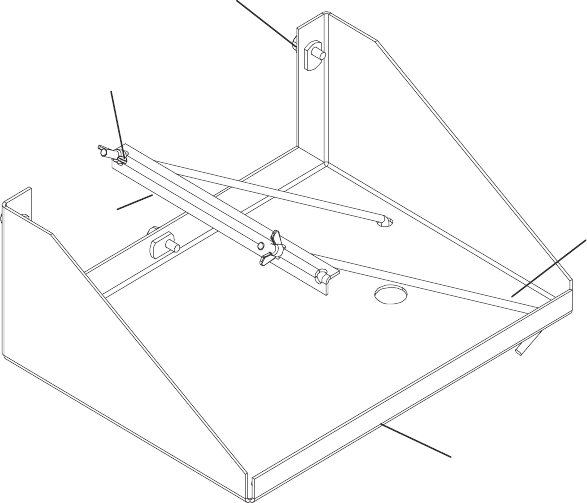

Hold–Down, Battery, 69

Holder, Fuse – Sentinel Control, 91

Hose, Drain – Radiator Drain Extension, 53

Hose, Heater – Engine Coolant Heater, 49

Hose, Oil Cooler – Remote Radiator – GGHC, GGHD, 51

Hose, Oil Drain, 68

Hose, Radiator – GGHB, 54

Hose, Radiator – GGHC, GGHD, 55

Hose, Radiator – Remote Radiator – GGHB, 50

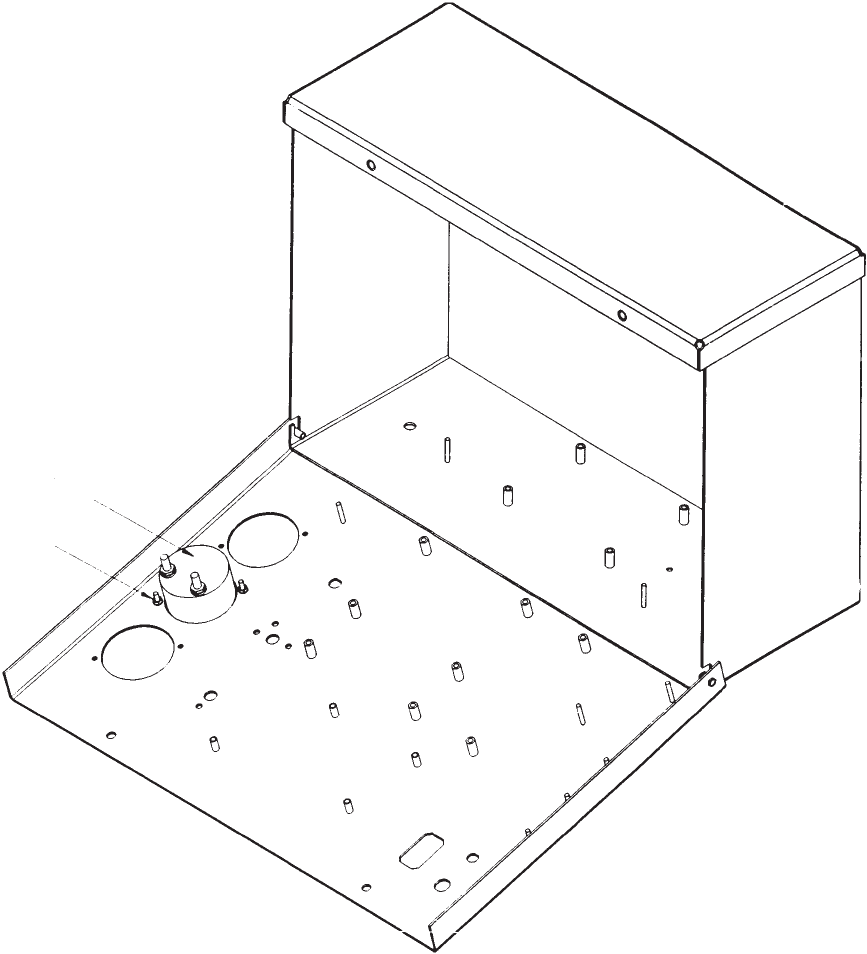

Housing, Control, 75

Housing, Flywheel, 9

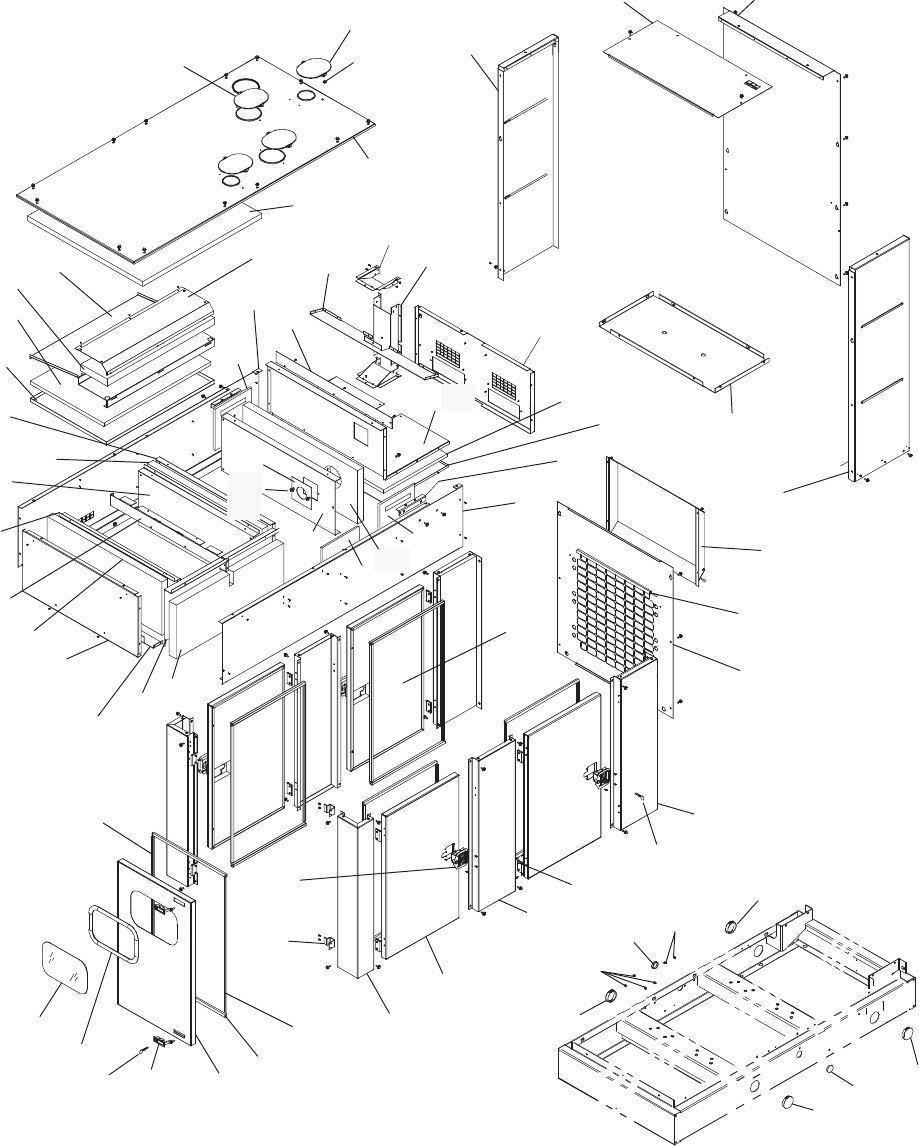

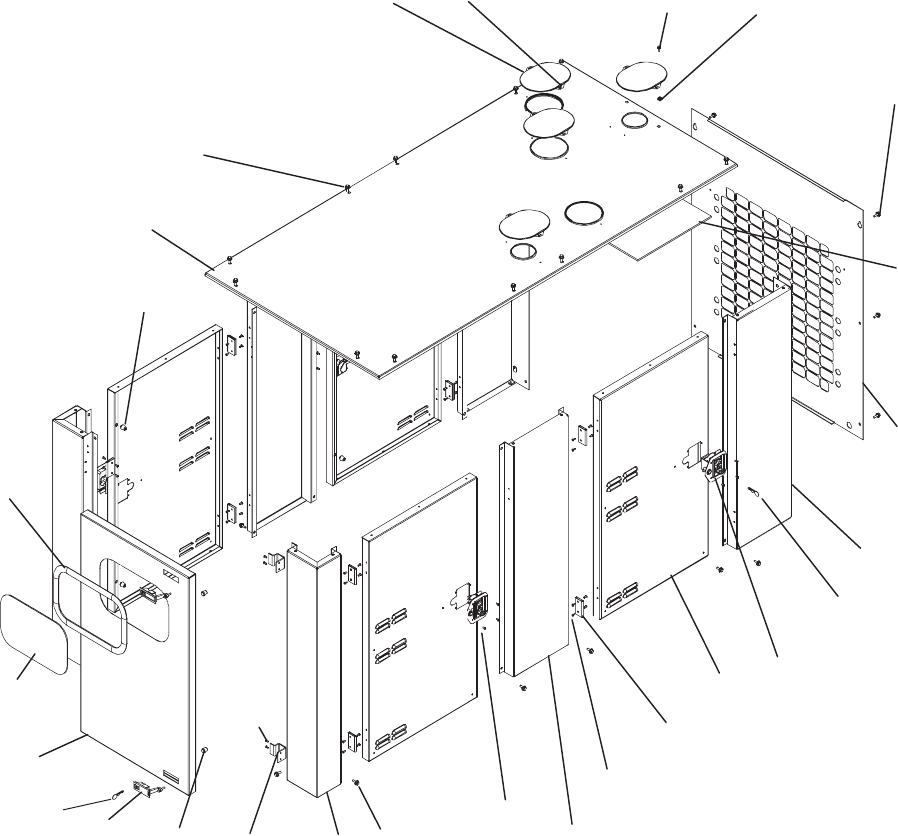

Housing, Generator Set – GGHB – Quiet Site First Stage, 61

Housing, Generator Set – GGHB – Quiet Site Second

Stage, 65

Housing, Generator Set – GGHB – Standard Weather

Protective, 57

Housing, Generator Set – GGHC, GGHD – Quiet Site First

Stage, 63

Housing, Generator Set – GGHC, GGHD – Quiet Site

Second Stage, 67

Index

Housing, Generator Set – GGHC, GGHD – Standard

Weather Protective, 59

Hub, Drive – Generator, 79

Isolator, Vibration – Sets With Detector Control, 89

Isolator, Vibration – Sets With Sentinel Control, 91

Key, Replacement – Housing Door – GGHB – Quiet Site

First Stage, 61

Key, Replacement – Housing Door – GGHB – Quiet Site

Second Stage, 65

Key, Replacement – Housing Door – GGHB – Standard

Weather Protective, 57

Key, Replacement – Housing Door – GGHC, GGHD – Quiet

Site First Stage, 63

Key, Replacement – Housing Door – GGHC, GGHD – Quiet

Site Second Stage, 67

Key, Replacement – Housing Door – GGHC, GGHD –

Standard Weather Protective, 59

Kit, Starter Brush, 72

Lead – Low Coolant Level Sender – With Continuously

Monitored Low Coolant Level – 12 Light Indicator Controls,

Lead – Main Circuit Breaker – Spec A, 111

Lead – Main Circuit Breaker – Spec B, 117

Lens, Indicator Light – Low Battery Voltage, 101

Lens, Indicator Light – Low Coolant Level Sender – With

Continuously Monitored Low Coolant Level – 12 Light

Indicator Controls, 48

Light Assembly, Indicator – Sets With Detector Control, 89

Light, Indicator – Upper and Lower Scale – Sets With

Detector Control, 89

Light, Panel – Sets With Detector Control, 89

Link, Terminal – Sets With Sentinel or Detector Control, 75

Lug, Solderless – Entrance Box, 86

Lug, Solderless – Main Circuit Breaker – Spec A, 111

Lug, Solderless – Main Circuit Breaker – Spec B, 115

Manifold, Exhaust – GGHB – Exhaust Adapted for

Residential Muffler, 44

Manifold, Exhaust – GGHB – Exhaust Adapted for Slip–on

Exhaust Tube, 38

Manifold, Exhaust – GGHB – Exhaust Adapted for Threaded

Exhaust Pipe, 39

Manifold, Exhaust – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Manifold, Exhaust – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

Meter, Frequency – Sets With Detector Control, 89

Meter, Hour – Sets With Detector Control, 89

Module, Audible Alarm, 103

Module, Electric Overspeed – Sets With Sentinel Control,

107

Muffler – GGHB – Exhaust Adapted for Residential Muffler,

Muffler – GGHB – Exhaust Adapted for Slip–on Exhaust

Tube, 38

Muffler – GGHC, GGHD – Exhaust Adapted for Slip–on

Exhaust Tube – Spec A, 41

Muffler – GGHC, GGHD – Exhaust Adapted for Threaded

Exhaust Pipe or Residential Muffler, 43

Package, Mounting Hardware – Main Circuit Breaker – Spec

A, 111

Package, Mounting Hardware – Main Circuit Breaker – Spec

B, 117

Paint, 7

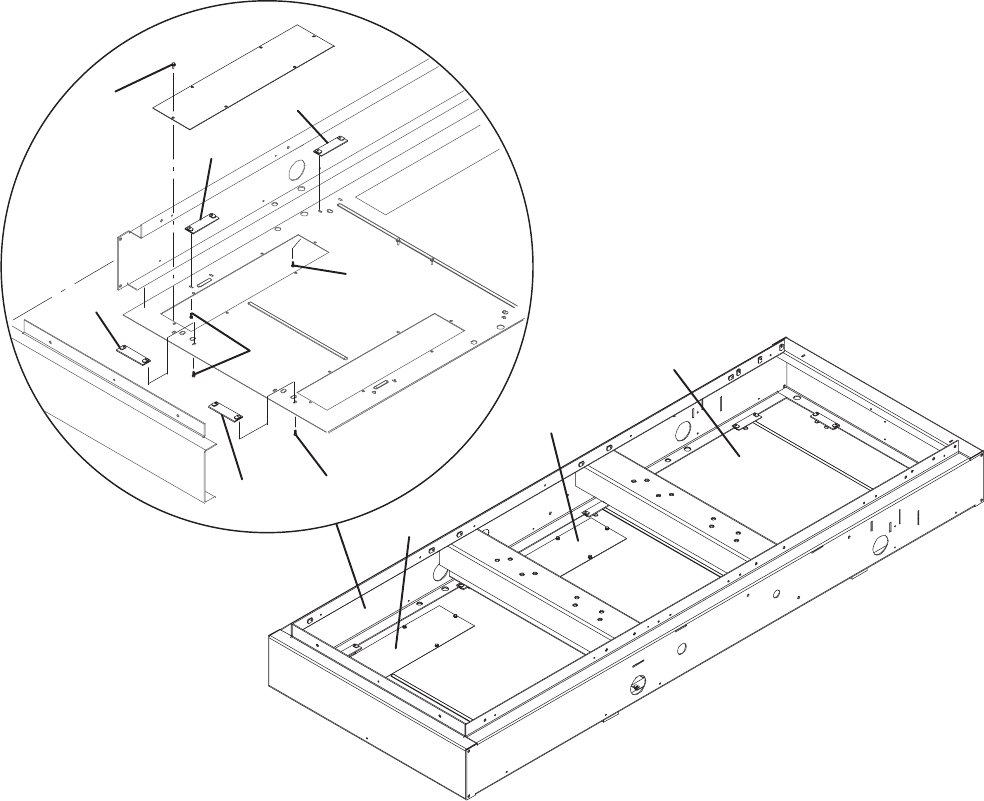

Pan, Skid, 71

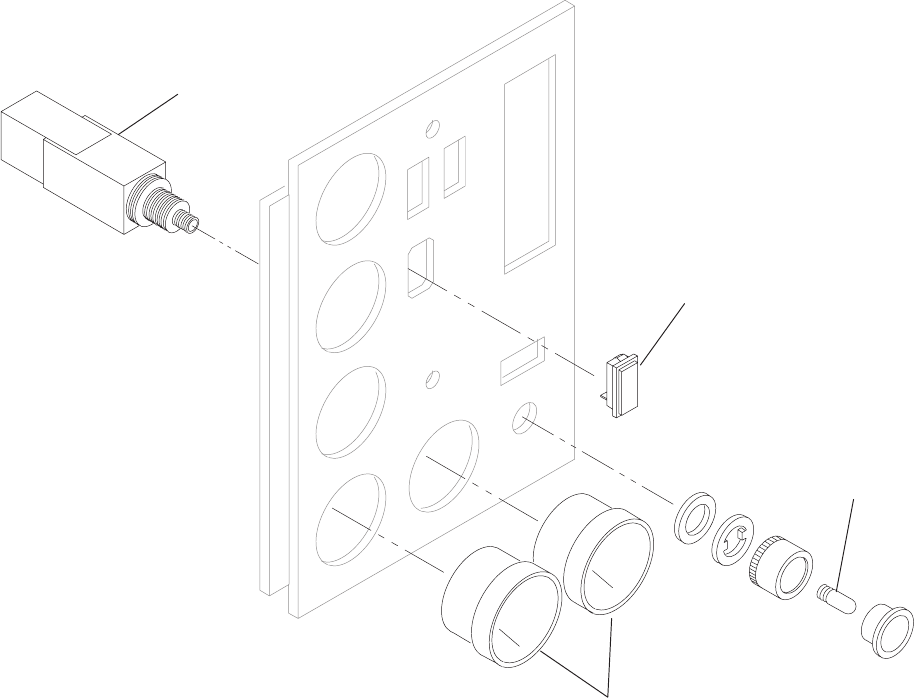

Panel, Control – Sentinel Control, 91

Panel, Front – Remote Radiator – GGHB, 50

Panel, Front – Remote Radiator – GGHC, GGHD, 51

Pickup, Magnetic, 74

Plate, Pressure, 81

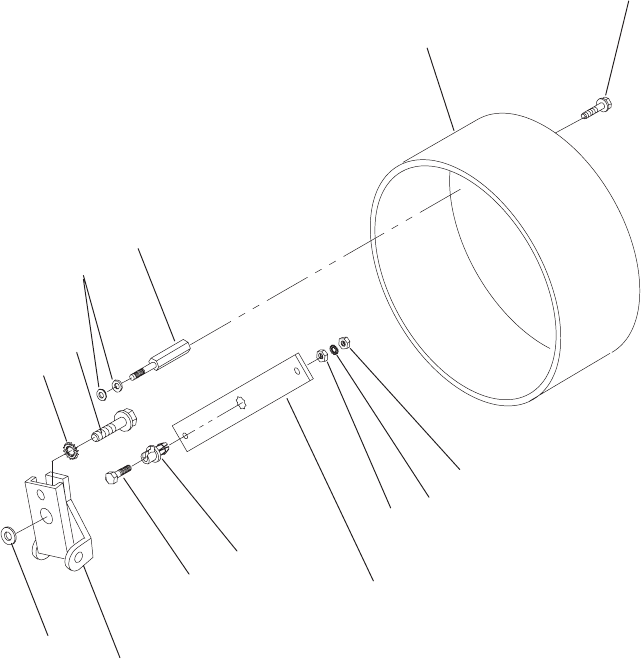

Point, Overspeed – Mechanical, 105

Potentiometer – Sets With Detector Control, 96

Potentiometer – Sets With Sentinel Control, 97

Pulley, Alternator, 9

Pulley, Crankshaft, 9

Pulley, Water Pump, 9

Radiator – GGHB, 54

Radiator – GGHC, GGHD, 55

Radiator, Remote – GGHB, 50

Radiator, Remote – GGHC, GGHD, 51

Regulator, Alternator, 73

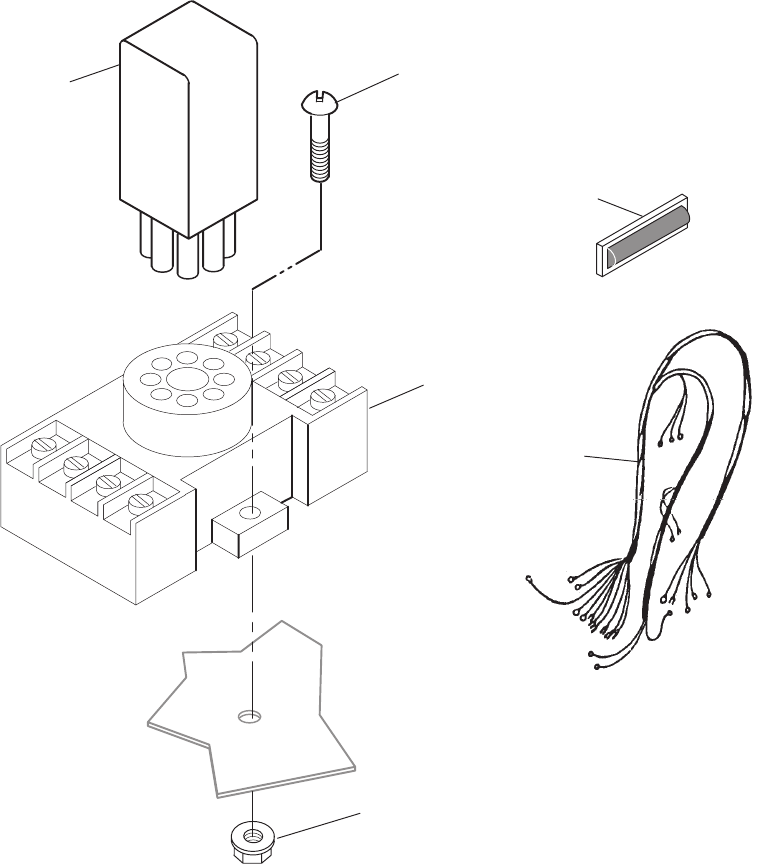

Relay – Alarm Relay Board, 98

Relay – Engine to Control – Sets With Detector Control, 93

Relay – Engine to Control – Sets With Sentinel Control, 94

Relay – Sentinel Control, 91

Relay, Timer – Sentinel Control, 91

Resistor – Engine to Control – Sets With Detector Control,

Resistor – Engine to Control – Sets With Sentinel Control,

Resistor – Voltage Regulator – Sets With Detector Control,

Rod, Governor, 74

Rod, Hold–Down – Battery, 69

Rotor, Exciter, 79

Rotor, Generator, 79

Rotor, Permanent Magnet Generator, 85

Sealant, Thread, 7

Sender, Low Coolant Level – With Continuously Monitored

Low Coolant Level – 12 Light Indicator Controls, 48

Sender, Low Coolant Level – Without Continuously

Monitored Low Coolant Level – Spec A, 46

Sender, Low Coolant Level – Without Continuously

Monitored Low Coolant Level – Spec B, 47

Sender, Oil Pressure – Sets With Detector Control, 9

Sender, Water Temperature – Sets With Detector Control, 9

Sensor – Low Battery Voltage, 101

Shield, Heat – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Index

Shield, Heat – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

Shield, Rain – GGHB – Exhaust Adapted for Slip–on

Exhaust Tube, 38

Shield, Rain – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Shield, Rain – Housing – GGHC, GGHD – Standard

Weather Protective, 59

Shroud, Radiator – GGHB, 54

Shroud, Radiator – GGHC, GGHD, 55

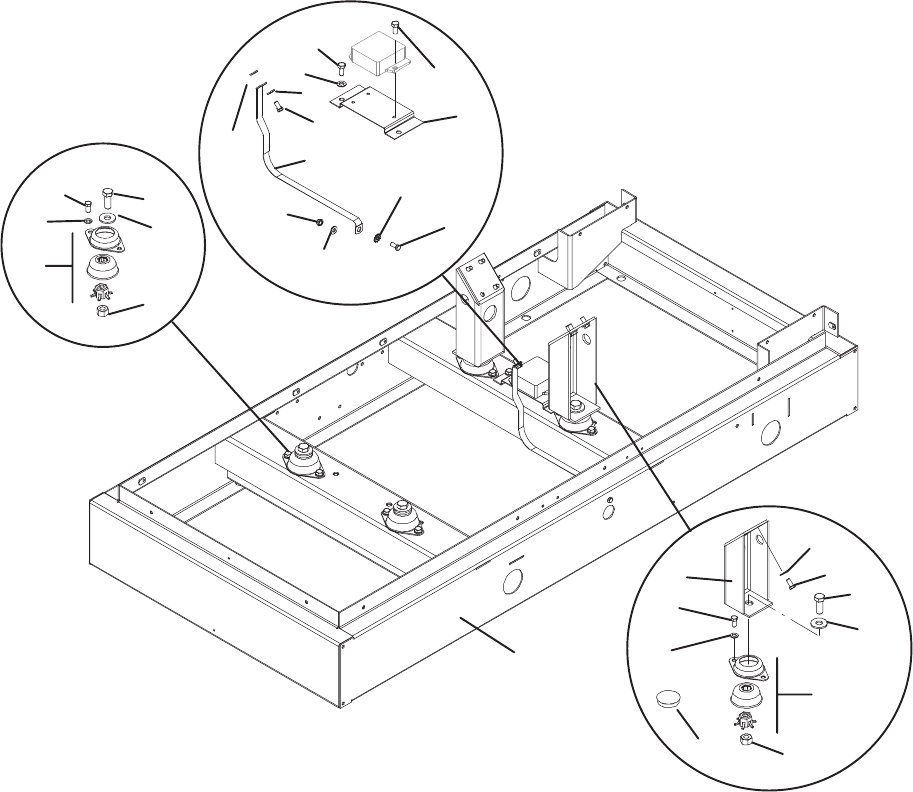

Skid, 70

Spacer, Alternator Mounting, 9

Standoff, Insulator – Main Circuit Breaker – Spec A, 111

Standoff, Insulator – Main Circuit Breaker – Spec B, 115

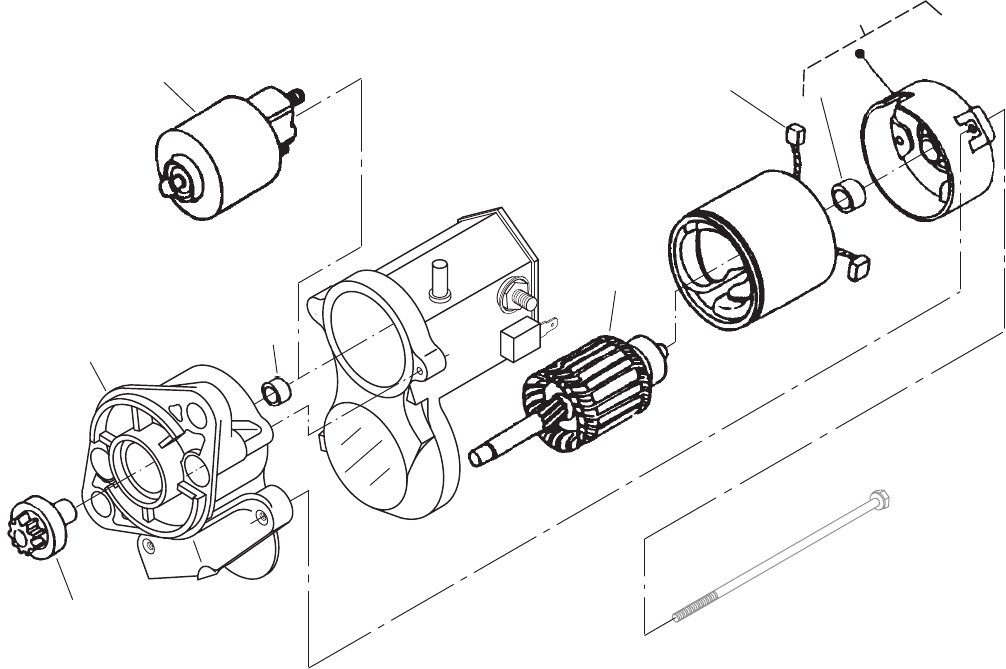

Starter, 72

Stator, Exciter – Generator, 81

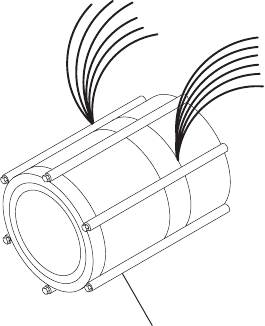

Stator, Generator – GGHB, 82

Stator, Generator – GGHC, 83

Stator, Generator – GGHD, 84

Stator, Permanent Magnet Generator, 85

Strap, Ground – Engine to Skid, 70

Strap, Ground – Sets With Detector Control, 89

Switch – Blank – Emergency Stop Switch, 104

Switch, Auxiliary Contact – Main Circuit Breaker – Spec A,

111

Switch, High Engine Temperature – Sets With Sentinel

Control, 9

Switch, Oil Pressure – Sets With Sentinel Control, 9

Switch, Overspeed – Mechanical, 105

Switch, Pressure – Low Fuel – GGHB – Natural Gas Fuel

System – Spec B , 17

Switch, Pressure – Low Fuel – GGHB – Propane Vapor

Withdrawal Fuel System – Spec B, 25

Switch, Pressure – Low Fuel – GGHC, GGHD – Natural Gas

Fuel System, 37

Switch, Pressure – Low Fuel – GGHC, GGHD – Propane

Vapor Withdrawal – Spec B, 29

Switch, Pushbutton – Emergency Stop, 104

Switch, Rocker – Lamp Test/Reset Panel Lamp – Sets With

Detector Control, 89

Switch, Rocker – Run/Stop/Remote – Sets With Detector

Control, 89

Switch, Rocker – Sentinel Control, 91

Switch, Rotary – Voltmeter/Ammeter – Sets With Detector

Control, 89

Switch, Starter, 72

Switch, Trip Alarm – Main Circuit Breaker – Spec A, 111

Switch, Trip Alarm – Main Circuit Breaker – Spec B, 117

Switch, Vacuum, 45

Transformer, Current, 109

Tray, Battery, 69

Trip, Shunt – Main Circuit Breaker – Spec A, 111

Trip, Shunt – Main Circuit Breaker – Spec B, 117

Tube, Exhaust – GGHB – Exhaust Adapted for Residential

Muffler, 44

Tube, Exhaust – GGHB – Exhaust Adapted for Slip–on

Exhaust Tube, 38

Tube, Exhaust – GGHB – Exhaust Adapted for Threaded

Exhaust Pipe, 39

Tube, Exhaust – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Tube, Exhaust – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

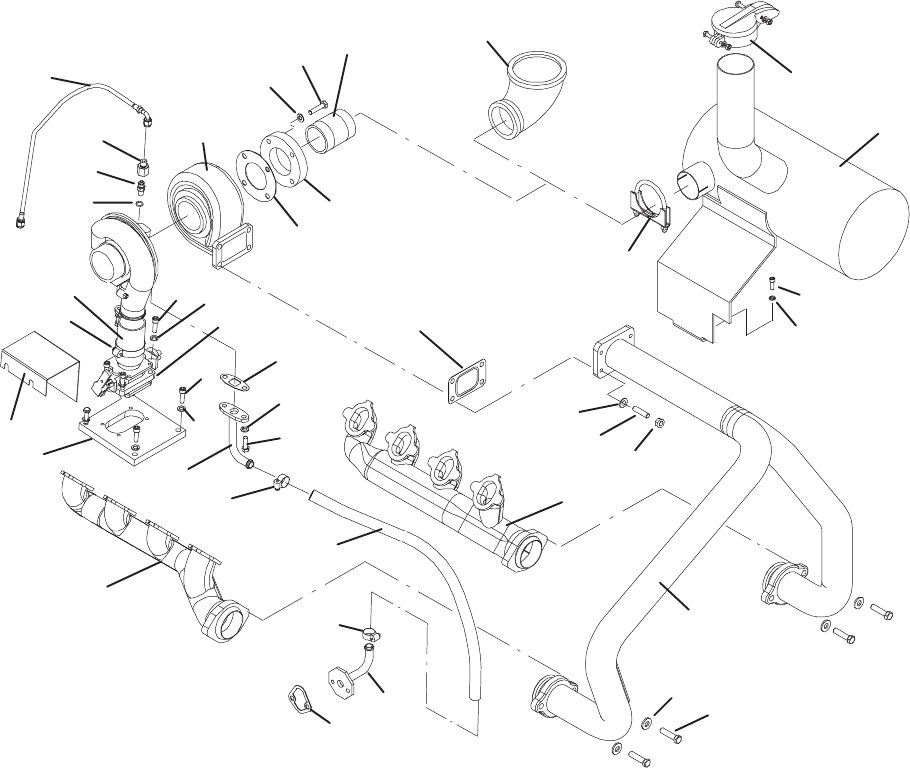

Turbocharger – GGHC, GGHD – Exhaust Adapted for

Slip–on Exhaust Tube, 41

Turbocharger – GGHC, GGHD – Exhaust Adapted for

Threaded Exhaust Pipe or Residential Muffler, 43

Valve, Shutoff – Oil Drain, 68

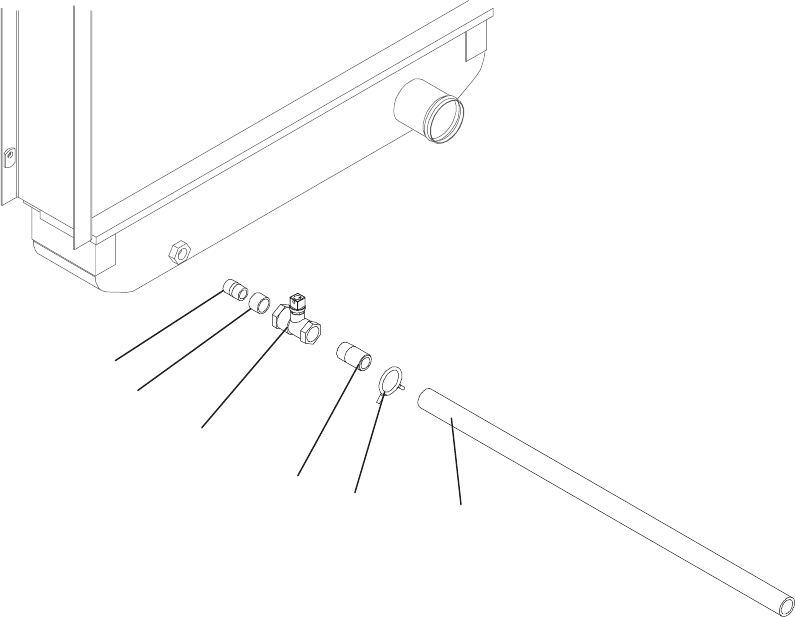

Valve, Shutoff – Radiator Drain Extension, 53

Voltage, Low Battery, 101

Voltmeter, AC – Sets With Detector Control, 89

Voltmeter, DC – Sets With Detector Control, 89

Wrapper, Control – Sentinel Control, 91

Abbreviations

Some of the following abbreviations may be used throughout this Parts Catalog:

AC Alternating Current

Amp Ampere

A/R As Required

AVR Automatic Voltage Regulator

AWG American Wire Gauge

Deg Degree

DC Direct Current

EFC Electronic Fuel Control

ET External Tooth

EIT External/Internal Tooth

GFI Ground Fault Interrupter

ID Inside Diameter

IT Internal Tooth

IEC International Electrotechnical

Commission

kW Kilowatt

LPG Liquid Petroleum Gas

LT Left

M(meter Number) Meter

mm Millimeter

MOH Mobile Off Highway

NFS Not For Sale

NPT National Pipe Thread

OD Outside Diameter

oz. Ounce

PMG Permanent Magnet Generator

Ph Phase

PC Printed Circuit

RFI Radio Frequency Interference

RT Right

Spec Specification

Thk Thick

UL Underwriters Laboratories Inc.

UNC Union National Coarse

UNF Union National Fine

VAC Volts Alternating Current

VDC Volts Direct Current

W/(ET, IT, EIT) With

Paint and Thread Sealant

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

Onan Green Enamel

(Non-Metallic)

525–0305 – 12 oz. Pressurized

Spray Can

525–0306 – Quart Can

525–0304 – Gallon Can

518–0601 – Sealant, Thread (6 ml Tube)

External Engine Parts









































































































































GGHB

Generators

GGHC,

GGHD

Generators

H559,560,562



External Engine Parts

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 191–2258 1 Bracket, Alternator

2 191–2261 1 Bracket, Alternator –

Adjusting

3 191–1981 1 Fan, Alternator

4 191–2035 1 Pulley, Alternator

5 850–0050 6 Washer, Lock – Spring (3/8”)

6 800–0050 1 Screw, Cap – Hex Head

(3/8–16 x 1”)

7 526–2106 1 Washer, Flat (M8)

8 850–2008 2 Washer, Lock – Spring (M8)

9 800–2059 1 Screw, Cap – Hex Head (M8

x 30mm)

10 800–0048 2 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

11 850–2010 3 Washer, Lock – Spring (M10)

12 800–2097 1 Screw, Cap – Hex Head

(M10 x 80mm)

13 850–0055 7 Washer, Lock – Spring

(7/16”)

14 800–0069 1 Screw, Cap – Hex Head

(7/16–14 x 3/4”)

15 191–2260 1 Spacer, Alternator Mounting

16 526–0030 1 Washer, Flat (3/8”)

17 800–0059 1 Screw, Cap – Hex Head

(3/8–16 x 3–1/4”)

18 193–0375 1 Sender, Water Temperature

(Generator Sets With

Detector Control) (E2)

19 505–0395 1 Bushing, Reducer

(3/8” x 1/8”)

20 505–0099 1 Nipple, Pipe – Close (1/8”)

GGHC, GGHD

21 505–0184 1 Tee, Pipe (1/4”) GGHC,

GGHD

22 Bushing, Pipe – Reducer

(1/4” to 1/8”)

505–0007 1 GGHB

505–0007 2 GGHC, GGHD

23 502–1240 1 Connector, Male (GGHC,

GGHD)

24 104–1948 1 Flywheel (Includes Ring

Gear)

25 104–1949 1 Gear, Ring

26 504–0198 1 Vent, Air

27 Bolt, Locking

806–0039 6 Spec A UCD22 Generator

104–1771 6 Spec A UC27 Generators

and Spec B UCD22 and

UC27 Generators

28 231–0388 1 Housing, Flywheel

29 800–0072 4 Screw, Cap – Hex Head

(7/16–14 x 1–1/4”)

30 800–0073 2 Screw, Cap – Hex Head

(7/16–14 x 1–1/2”)

31 800–2088 2 Screw, Cap – Hex Head

(M10 x 35mm)

32 332–2921 1 Clamp, “J”

33 512–0198 1 Pulley, Water Pump (Double

Groove)

34 512–0197 1 Pulley, Crankshaft (Double

Groove)

35 502–1028 1 Connector, Hose (3/8” Pipe

to 3/8” Hose)

36 860–2008 2 Nut, Hex (M8)

37 850–2005 2 Washer, Lock – Spring (M5)

38 860–2006 2 Nut, Hex (M5)

39 332–2634 2 Clamp, “J”

40 309–0641–19 1 Switch, Oil Pressure

(Generator Sets With

Sentinel Control) (S1)

41 503–1608 – Hose – Bulk (3/8” ID) (Order

By The Foot – 2 Feet

Required)

42 503–1791 – Hose – Bulk (5/8” ID) (Order

By The Foot – 2 Feet

Required) GGHC, GGHD

43 503–0131 2 Clamp, Hose (GGHC,

GGHD)

44 511–0192 1 Belt, Fan (Note: Quantity of

1 for this part number

represents a matched set

of two belts)

45 416–0643 2 Cable, Battery (28–1/4”)

46 193–0448 1 Sender, Oil Pressure

(Includes Connector,

Wedge and Sockets)

(Generator Sets With

Detector Control) (E1)

47 323–1549 1 Connector, Receptacle – 4

Place (Generator Sets With

Detector Control)

48 323–1548 1 Wedge, Receptacle

(Generator Sets With

Detector Control)

49 323–1492 4 Socket, Contact (Generator

Sets With Detector Control)

50 309–0554–01 1 Switch, High Engine

Temperature (Generator

Sets With Sentinel Control)

(S2)

51 416–1019 1 Boot, Battery Cable (Colored

Red)

52 800–0052 4 Screw, Cap – Hex Head

(3/8–16 x 1–1/2”)

53 870–2056 1 Nut, Locking – Hex Flange

Head (M10)

54 526–0034–01 6 Washer, Flat (7/16) – Spec A

UCD22 Generator

Engine Mounted Gauges

GGHB

NATURALLY ASPIRATED

GGHC, GGHD

TURBOCHARGED

H563

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 193–0463 1 Gauge, Water Temperature

2 505–0099 1 Nipple, Pipe – Close (1/8”)

3 505–0184 1 Tee, Pipe (1/4”)

4 505–0007 1 Bushing, Pipe – Reducer

(1/4” to 1/8”)

5 193–0451 1 Gauge, Oil Pressure

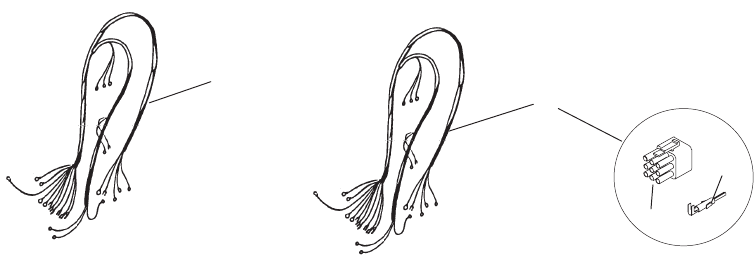

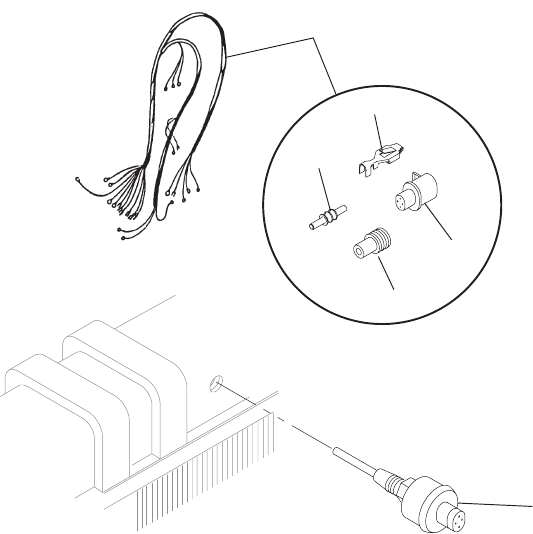

Fuel Alarm

Spec B

H559,H560,H569

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3740 Harness, Fuel Alarm

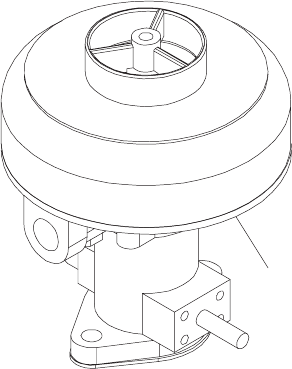

Carburetor

GGHB

CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 148–1095 1 Carburetor

Carburetor

GGHC, GGHD

CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 148–1092 1 Carburetor

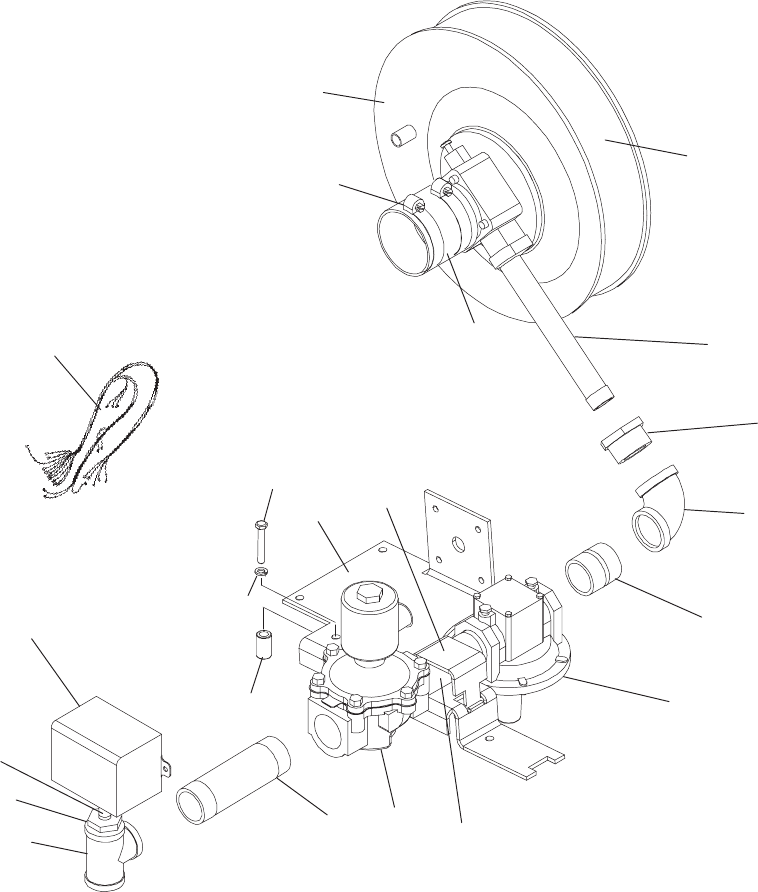

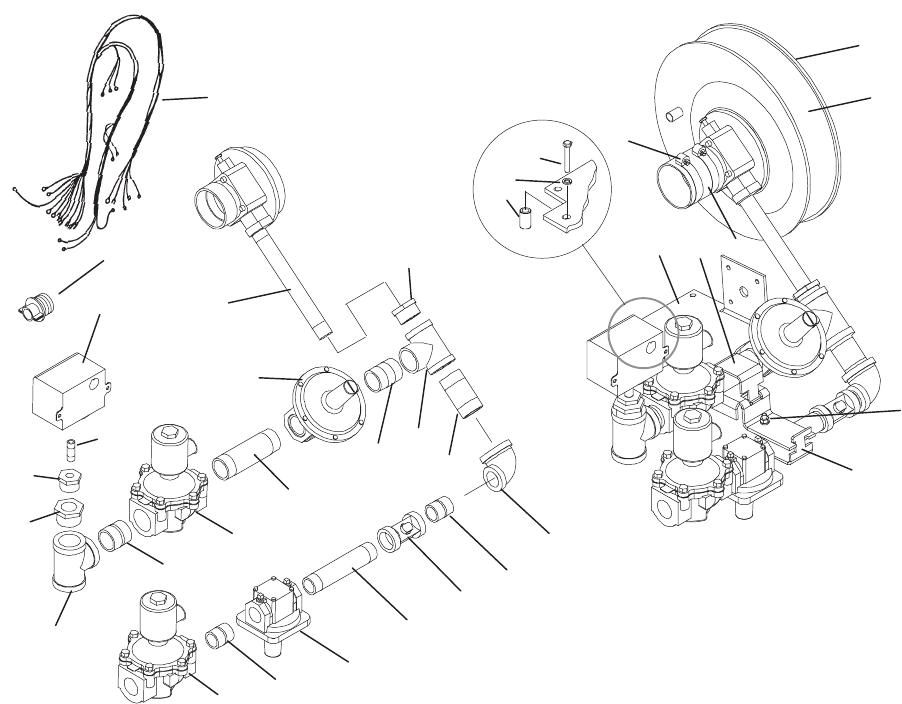

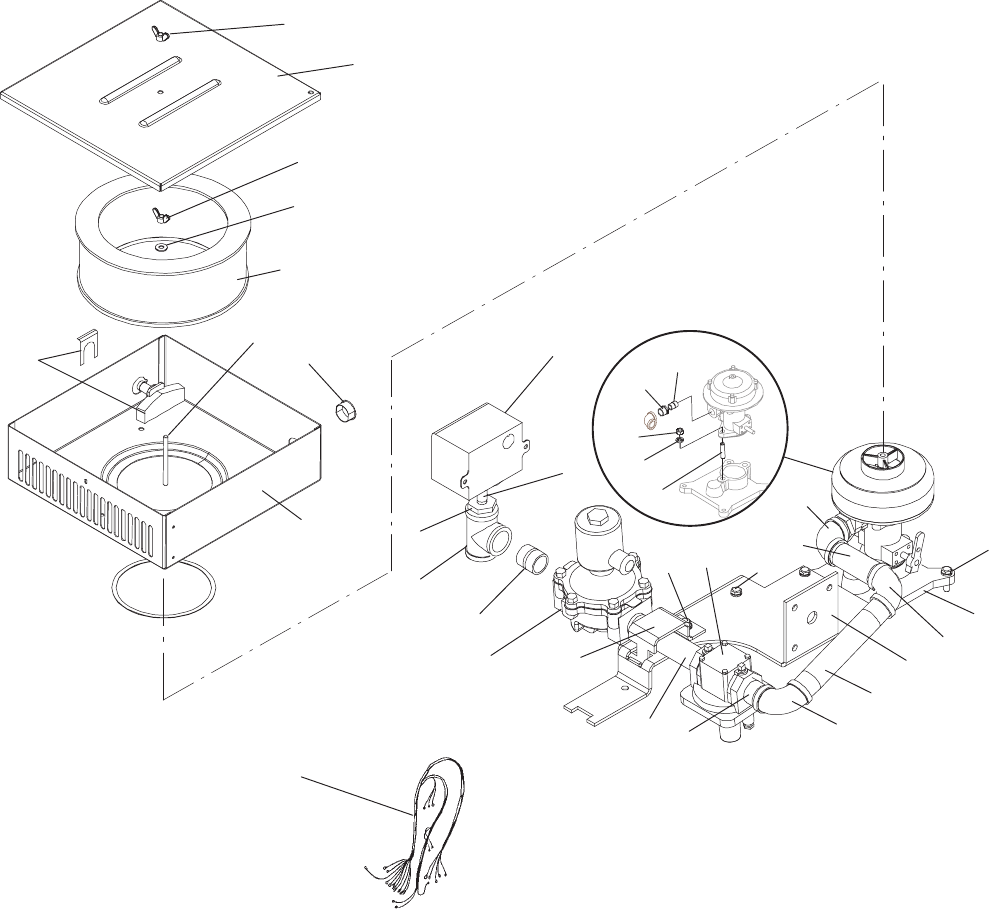

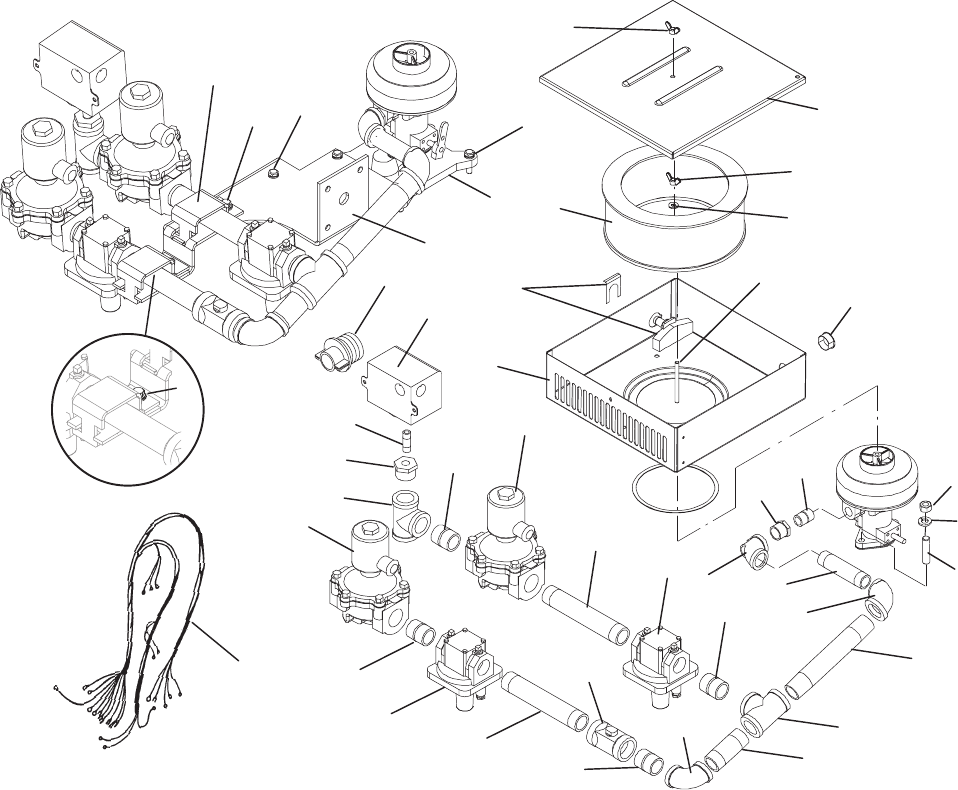

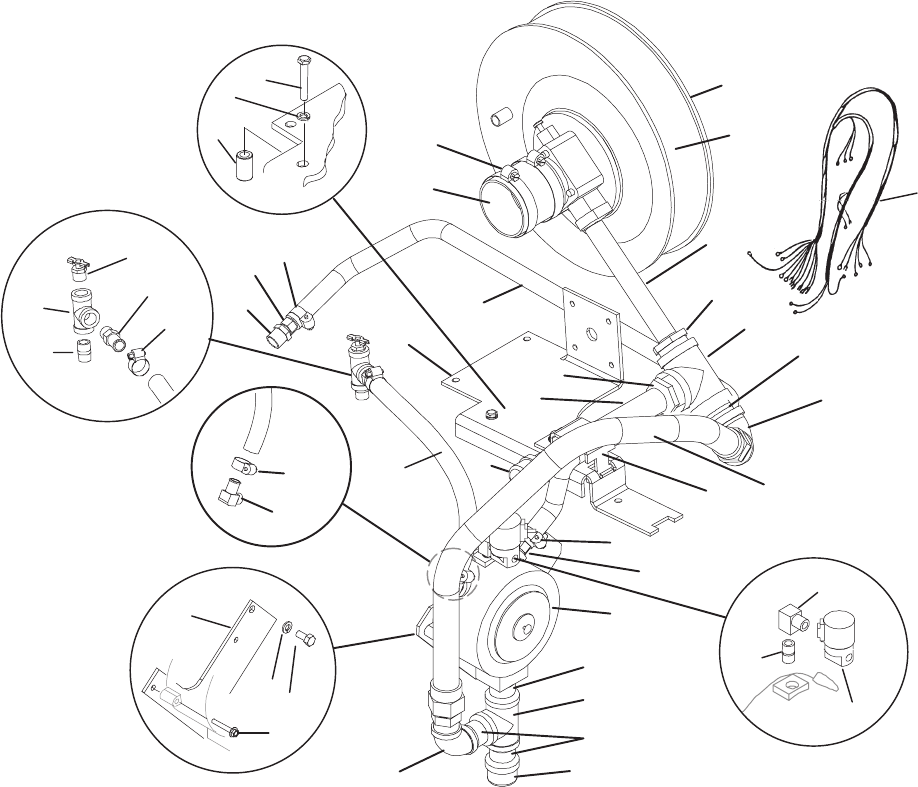

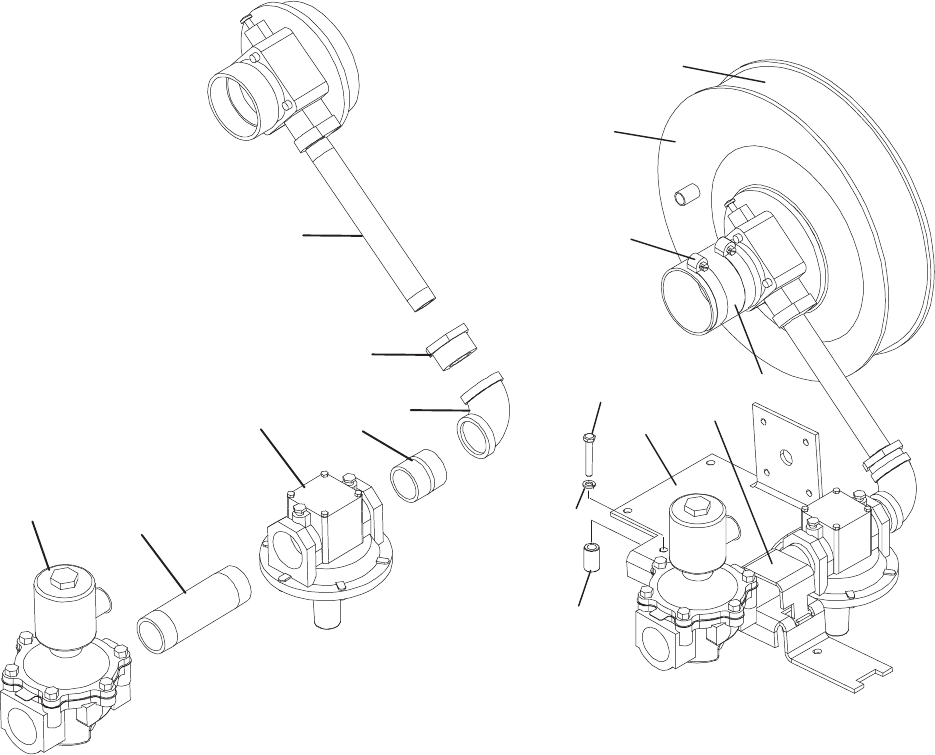

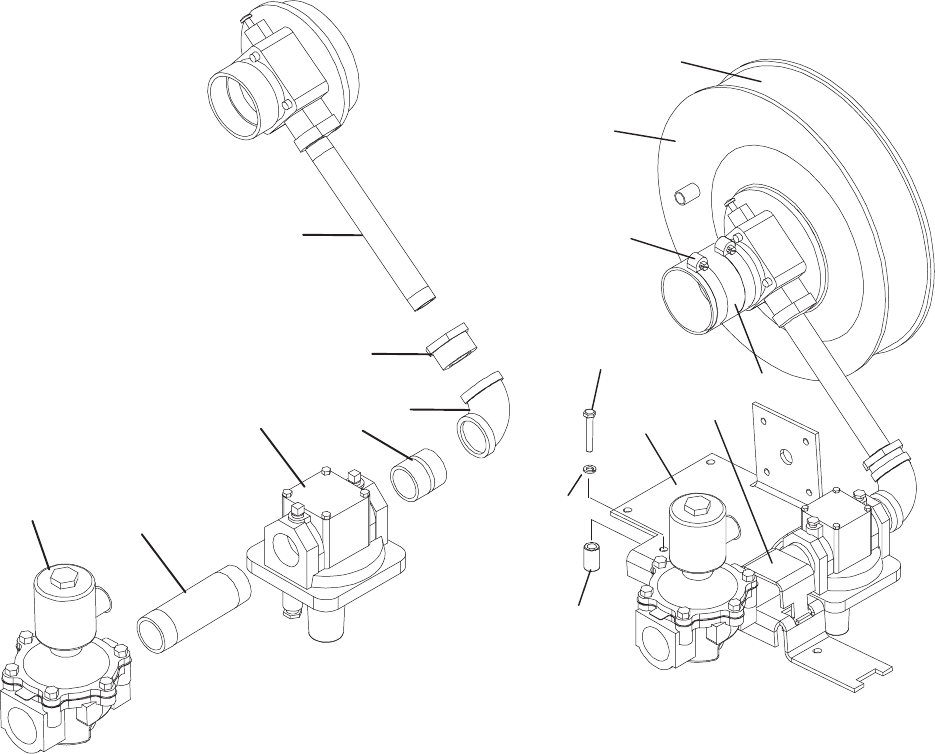

Fuel System

GGHB

Natural Gas

Without Low Fuel Pressure Warning Switch

10 11 12

17 18

C002

Fuel System

GGHB

Natural Gas

Without Low Fuel Pressure Warning Switch

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 145–0482 1 Adapter, Carburetor

2 151–0758 1 Bracket, Governor

3 505–0027 1 Coupling, Pipe (1/4”)

4 850–0045 5 Washer, Lock – Spring

(5/16”)

5 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

6 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

7 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

8 307–2884 1 Valve, Solenoid

9 505–0090 1 Nipple, Pipe (1” x 6”)

10 148–0601 1 Regulator, Natural Gas

11 505–0107 1 Nipple, Pipe (1” x 2”)

12 505–0041 1 Elbow, Pipe (1” x 90 Deg)

13 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

14 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

15 505–0337 1 Nipple, Pipe (3/4” x 4”)

16 505–0132 1 Elbow, Pipe (3/4” x 90 Deg)

17 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

18 505–0100 1 Nipple, Pipe – Close (1/2”)

19 854–0020 2 Washer, Lock – IT (3/8”)

20 867–0031 2 Nut, Hex (3/8–24)

21 148–1090 1 Clamp

22 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

23 140–3139 1 Bottom, Air Cleaner

24 140–3140 1 Cover, Air Cleaner

25 140–3147 1 Element, Air Cleaner

26 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

27 517–0289 1 Plug, Hole (Fits 1” Hole)

28 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

29 865–0020 1 Nut, Wing (1/4–20)

30 526–0018 1 Washer, Flat (1/4”)

31 865–0006 1 Nut, Wing (1/4–20)

Fuel System

GGHB

Natural Gas

With Low Fuel Pressure Warning Switch

Spec B

10 11 12

17 18

C002

Fuel System

GGHB

Natural Gas

With Low Fuel Pressure Warning Switch

Spec B

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 145–0482 1 Adapter, Carburetor

2 151–0758 1 Bracket, Governor

3 505–0027 1 Coupling, Pipe (1/4”)

4 850–0045 5 Washer, Lock – Spring

(5/16”)

5 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

6 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

7 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

8 307–2884 1 Valve, Solenoid

9 505–0090 1 Nipple, Pipe (1” x 6”)

10 148–0601 1 Regulator, Natural Gas

11 505–0107 1 Nipple, Pipe (1” x 2”)

12 505–0041 1 Elbow, Pipe (1” x 90 Deg)

13 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

14 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

15 505–0337 1 Nipple, Pipe (3/4” x 4”)

16 505–0132 1 Elbow, Pipe (3/4” x 90 Deg)

17 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

18 505–0100 1 Nipple, Pipe – Close (1/2”)

19 854–0020 2 Washer, Lock – IT (3/8”)

20 867–0031 2 Nut, Hex (3/8–24)

21 148–1090 1 Clamp

22 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

23 140–3139 1 Bottom, Air Cleaner

24 140–3140 1 Cover, Air Cleaner

25 140–3147 1 Element, Air Cleaner

26 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

27 517–0289 1 Plug, Hole (Fits 1” Hole)

28 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

29 865–0020 1 Nut, Wing (1/4–20)

30 526–0018 1 Washer, Flat (1/4”)

31 865–0006 1 Nut, Wing (1/4–20)

32 505–0004 1 Nipple, Pipe (1” x 1.5”)

33 505–0304 1 Tee, Pipe

34 505–0802 1 Bushing, Reducer (1” x 1/4”)

35 505–0105 1 Nipple, Pipe (1/4” x 1.5”)

36 148–0998 1 Switch, Pressure (12V)

37 331–0027 1 Box, Connector

38 338–3666 1 Harness, Dual Fuel

Fuel System

GGHB

Propane Liquid Withdrawal

228

9,10

22,24,29

24 25

9,12

31,32

38 36

17 7,15

22 24

C053

Fuel System

GGHB

Propane Liquid Withdrawal

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 145–0482 1 Adapter, Carburetor

3 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

4 505–0356 1 Elbow, Pipe – Reducer –

Deg (1” to 3/4”)

5 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

6 505–0100 1 Nipple, Pipe – Close (1/2”)

7 854–0020 4 Washer, Lock – IT (3/8”)

8 867–0031 2 Nut, Hex (3/8–24)

9 850–0045 5 Washer, Lock – Spring

(5/16”)

10 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

11 505–0027 1 Coupling, Pipe (1/4”)

12 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

13 148–0625 1 Converter, Gas

14 148–1102 1 Bracket, Converter

15 800–0048 2 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

16 815–0924 1 Screw, Locking – Hex

Washer Head (M6 x

40mm)

17 505–0107 3 Nipple, Pipe (1” x 2”)

18 505–0304 1 Tee, Pipe (1”)

19 505–0479 1 Cap, Pipe (1”)

20 505–0041 1 Elbow, Pipe (1” x 90 Deg)

21 502–0942 1 Elbow – 90 Deg – Brass

(3/8” Pipe to 5/8” Hose)

22 502–0943 3 Connector, Hose – Brass

(3/8” Pipe to 5/8” Hose)

23 503–0833 1 Hose (5/8” ID x 24”)

24 503–0183 4 Clamp, Hose

25 505–0060 1 Tee, Pipe (3/8”)

26 504–0028 1 Cock, Drain

27 502–0085 1 Nipple, Pipe – Brass (3/8”

x 1”)

28 503–1169 1 Hose (5/8” ID x 48”)

29 505–0019 1 Bushing, Pipe – Reducer

(1/2” to 3/8”)

30 501–0630 1 Hose (1” ID x 38”)

31 505–0099 1 Nipple, Pipe – Close (1/8”)

32 307–0268 1 Valve, Solenoid

33 140–3139 1 Bottom, Air Cleaner

34 140–3140 1 Cover, Air Cleaner

35 140–3147 1 Element, Air Cleaner

36 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

37 517–0289 1 Plug, Hole (Fits 1” Hole)

38 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

39 865–0020 1 Nut, Wing (1/4–20)

40 526–0018 1 Washer, Flat (1/4”)

41 865–0006 1 Nut, Wing (1/4–20)

42 338–3654 1 Harness, Wiring – LPG (2

Wire, 44”) (K1 to K1)

Fuel System

GGHB

Natural Gas and Propane Vapor Withdrawal With Automatic Changeover

910

38 39

18 14

C065

Fuel System

GGHB

Natural Gas and Propane Vapor Withdrawal With Automatic Changeover

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 145–0482 1 Adapter, Carburetor

2 151–0758 1 Bracket, Governor

3 505–0027 1 Coupling, Pipe (1/4”)

4 850–0045 5 Washer, Lock – Spring

(5/16”)

5 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

6 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

7 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

8 505–0132 1 Elbow, Pipe (3/4” x 90 Deg)

9 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

10 505–0100 1 Nipple, Pipe – Close (1/2”)

11 505–0337 1 Nipple, Pipe (3/4” x 4”)

12 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

13 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

14 505–0304 2 Tee, Pipe (1”)

15 505–0004 4 Nipple, Pipe – Close (1”)

16 148–0601 1 Regulator, Natural Gas

17 505–0091 2 Nipple, Pipe (1” x 7”)

18 307–2884 2 Valve, Solenoid

19 505–0802 1 Bushing, Pipe – Reducer (1”

to 1/4”)

20 505–0105 1 Nipple, Pipe (1/4” x 1–1/2”)

21 148–0998 1 Switch, Pressure (S11)

22 505–0087 1 Nipple, Pipe (1” x 3”)

23 505–0041 1 Elbow, Pipe (1” x 90 Deg)

24 148–0626 1 Valve, Load – Adjusting

25 148–0636 1 Regulator, LPG Vapor

26 331–0027 1 Connector, Romex

27 338–3666 1 Harness, Wiring – Dual Fuel

(3 Wire, 14”) (K1 to S11)

28 854–0020 2 Washer, Lock – IT (3/8”)

29 867–0031 2 Nut, Hex (3/8–24)

30 148–1090 2 Clamp

31 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

32 800–3017–20 1 Screw, Cap – Hex Head (M8

x 25mm)

33 850–0114–54 1 Washer, Lock – Spring (M8)

34 860–2008 1 Nut, Hex (M8)

35 140–3139 1 Bottom, Air Cleaner

36 140–3140 1 Cover, Air Cleaner

37 140–3147 1 Element, Air Cleaner

38 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

39 517–0289 1 Plug, Hole (Fits 1” Hole)

40 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

41 865–0020 1 Nut, Wing (1/4–20)

42 526–0018 1 Washer, Flat (1/4”)

43 865–0006 1 Nut, Wing (1/4–20)

Fuel System

GGHB

Natural Gas and Propane Liquid Withdrawal With Automatic Changeover

34 35

45 46

58 56 54

3234

10 10

15 14

C090

Fuel System

GGHB

Natural Gas and Propane Liquid Withdrawal With Automatic Changeover

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 145–0482 1 Adapter, Carburetor

3 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

4 505–0132 1 Elbow, Pipe (3/4 x 90 Deg)

5 505–0021 1 Bushing, Pipe – Reducer

(3/4” x 1/2”)

6 505–0100 1 Nipple, Pipe – Close (1/2”)

7 505–0337 1 Nipple, Pipe – (3/4” x 4”)

8 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

9 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

10 505–0304 2 Tee, Pipe (1”)

11 505–0107 2 Nipple, Pipe (1” x 2”)

12 148–0601 1 Regulator, Natural Gas

13 505–0090 1 Nipple, Pipe (1” x 6”)

14 307–2884 1 Valve, Solenoid

15 505–0089 1 Nipple, Pipe (1” x 5”)

16 505–0802 1 Bushing, Pipe – Reducer (1”

to 1/4”)

17 505–0105 1 Nipple, Pipe (1/4” x 1–1/2”)

18 148–0998 1 Switch, Pressure (S11)

19 505–0086 1 Nipple, Pipe (1” x 2–1/2”)

20 505–0041 1 Elbow, Pipe (1” x 90 Deg)

21 148–0626 1 Valve, Load – Adjusting

22 331–0027 1 Connector, Romex

23 338–3666 1 Harness, Wiring – Dual Fuel

(3 Wire, 14”) (K1 to S11)

24 854–0020 4 Washer, Lock – IT (3/8”)

25 867–0031 2 Nut, Hex (3/8–24)

26 850–0045 5 Washer, Lock – Spring

(5/16”)

27 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

28 505–0027 1 Coupling, Pipe (1/4”)

29 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

30 148–0625 1 Converter, Gas

31 148–1102 1 Bracket, Converter

32 800–0048 2 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

33 815–0924 2 Screw, Locking – Hex

Washer Head (M6 x 40mm)

34 505–0107 3 Nipple, Pipe (1” x 2”)

35 505–0304 1 Tee, Pipe (1”)

36 505–0479 1 Cap, Pipe (1”)

37 505–0041 1 Elbow, Pipe (1” x 90 Deg)

38 502–0942 1 Elbow, Hose – Brass – 90

Deg (3/8” Pipe to 5/8”

Hose)

39 502–0943 3 Connector, Hose (3/8” Pipe

to 5/8” Hose)

40 503–0833 1 Hose (5/8” ID x 2’)

41 503–0183 4 Clamp, Hose

42 505–0060 1 Tee, Pipe (3/8”)

43 504–0028 1 Cock, Drain

44 502–0085 1 Nipple, Pipe – Brass (3/8” x

1”)

45 503–1169 1 Hose (5/8” ID x 4’)

46 505–0019 1 Bushing, Pipe – Reducer

(1/2” to 3/8”)

47 501–0630 1 Hose (1” ID x 38”)

48 502–0054 1 Elbow, Street – Brass (1/4” x

90 Deg)

49 505–0099 1 Nipple, Pipe – Close (1/4”)

50 307–0268 1 Valve, Solenoid

51 140–3139 1 Bottom, Air Cleaner

52 140–3140 1 Cover, Air Cleaner

53 140–3147 1 Element, Air Cleaner

54 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

55 517–0289 1 Plug, Hole (Fits 1“ Hole)

56 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

57 865–0020 1 Nut, Wing (1/4–20)

58 526–0018 1 Washer, Flat (1/4”)

59 865–0006 1 Nut, Wing (1/4–20)

60 148–1090 1 Clamp

61 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

62 338–3654 1 Harness, Wiring – LPG (2

Wire, 44”) (K1 to K1)

Fuel System

GGHB

Propane Vapor Withdrawal

With Low Fuel Pressure Warning Switch

Spec B

11 12

17 18

26 27

C099,H569

Fuel System

GGHB

Propane Vapor Withdrawal

With Low Fuel Pressure Warning Switch

Spec B

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 145–0482 1 Adapter, Carburetor

2 151–0758 1 Bracket, Governor

3 505–0027 1 Coupling, Pipe (1/4”)

4 850–0045 5 Washer, Lock – Spring

(5/16”)

5 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

6 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

7 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

8 307–2884 1 Valve, Solenoid

9 505–0090 1 Nipple, Pipe (1” x 6”)

10 148–0636 1 Regulator, LPG Vapor

11 505–0107 1 Nipple, Pipe (1” x 2”)

12 505–0041 1 Elbow, Pipe (1” x 90 Deg)

13 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

14 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

15 505–0337 1 Nipple, Pipe (3/4” x 4”)

16 505–0132 1 Elbow, Pipe (3/4” x 90 Deg)

17 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

18 505–0100 1 Nipple, Pipe – Close (1/2”)

19 854–0020 2 Washer, Lock – IT (3/8”)

20 867–0031 2 Nut, Hex (3/8–24)

21 148–1090 1 Clamp

22 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

23 140–3139 1 Bottom, Air Cleaner

24 140–3140 1 Cover, Air Cleaner

25 140–3147 1 Element, Air Cleaner

26 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

27 517–0289 1 Plug, Hole (Fits 1” Hole)

28 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

29 865–0020 1 Nut, Wing (1/4–20)

30 526–0018 1 Washer, Flat (1/4”)

31 865–0006 1 Nut, Wing (1/4–20)

32 505–0004 1 Nipple, Pipe (1” x 1/2”)

33 505–0304 1 Tee, Pipe

34 505–0802 1 Bushing, Reducer (1” x 1/4”)

35 505–0105 1 Nipple, Pipe (1/4” x 1/2”)

36 148–0998 1 Switch, Pressure (12V)

37 338–3666 1 Harness, Dual Fuel

38 331–0027 1 Box, Connector

Fuel System

GGHB

Propane Vapor Withdrawal

Without Low Fuel Pressure Warning Switch

11 12

17 18

26 27

C099

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 145–0482 1 Adapter, Carburetor

2 151–0758 1 Bracket, Governor

3 505–0027 1 Coupling, Pipe (1/4”)

4 850–0045 5 Washer, Lock – Spring

(5/16”)

5 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

6 800–0030 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/4”)

7 520–0311 2 Stud (3/8–16 x 3/8–24 x

1–5/16” Long)

8 307–2884 1 Valve, Solenoid

9 505–0090 1 Nipple, Pipe (1” x 6”)

10 148–0636 1 Regulator, LPG Vapor

11 505–0107 1 Nipple, Pipe (1” x 2”)

12 505–0041 1 Elbow, Pipe (1” x 90 Deg)

13 505–1524 1 Nipple, Pipe (1” x 7–1/2”)

14 505–0356 1 Elbow, Pipe – Reducer – 90

Deg (1” to 3/4”)

15 505–0337 1 Nipple, Pipe (3/4” x 4”)

16 505–0132 1 Elbow, Pipe (3/4” x 90 Deg)

17 505–0021 1 Bushing, Pipe – Reducer

(3/4” to 1/2”)

18 505–0100 1 Nipple, Pipe – Close (1/2”)

19 854–0020 2 Washer, Lock – IT (3/8”)

20 867–0031 2 Nut, Hex (3/8–24)

21 148–1090 1 Clamp

22 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

23 140–3139 1 Bottom, Air Cleaner

24 140–3140 1 Cover, Air Cleaner

25 140–3147 1 Element, Air Cleaner

26 140–3146 1 Breather, Air Cleaner

(Includes Housing, Filter

and Retaining Clip)

27 517–0289 1 Plug, Hole (Fits 1” Hole)

28 520–1011 1 Stud (1/4–20 x 1/4–20 x

3–1/8” Long)

29 865–0020 1 Nut, Wing (1/4–20)

30 526–0018 1 Washer, Flat (1/4”)

31 865–0006 1 Nut, Wing (1/4–20)

Fuel System

GGHC, GGHD

Propane Vapor Withdrawal

Without Low Fuel Pressure Warning Switch

567

13 14

C099

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–0636 1 Regulator, LPG Vapor

6 505–0107 1 Nipple, Pipe (1” x 2”)

7 505–0041 1 Elbow, Pipe (1” x 90 Deg)

8 505–0129 1 Bushing, Pipe – Reducer (1”

to 3/4”)

9 505–0268 1 Nipple, Pipe (3/4” x 9”)

10 505–0090 1 Nipple, Pipe (1” x 6”)

11 307–2884 1 Valve, Solenoid

12 148–1090 1 Clamp

13 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

14 148–1086 1 Hose (3” x 3”)

15 503–1870–05 2 Clamp, Hose

16 140–3161 1 Cleaner, Air (Includes

Element)

17 140–3151 1 Element

Fuel System

GGHC, GGHD

Propane Vapor Withdrawal

With Low Fuel Pressure Warning Switch

Spec B

C099

412

Fuel System

GGHC, GGHD

Propane Vapor Withdrawal

With Low Fuel Pressure Warning Switch

Spec B

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–0636 1 Regulator, LPG Vapor

6 505–0107 1 Nipple, Pipe (1” x 2”)

7 505–0041 1 Elbow, Pipe (1” x 90 Deg)

8 505–0129 1 Bushing, Pipe – Reducer (1”

to 3/4”)

9 505–0268 1 Nipple, Pipe (3/4” x 9”)

10 505–0090 1 Nipple, Pipe (1” x 6”)

11 307–2884 1 Valve, Solenoid

12 148–1090 1 Clamp

13 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

14 148–1086 1 Hose (3” x 3”)

15 503–1870–05 2 Clamp, Hose

16 140–3161 1 Cleaner, Air (Includes

Element)

17 140–3151 1 Element

18 505–0304 1 Tee, Pipe

19 505–0802 1 Bushing, Reducer (1” x 1/4”)

20 505–0105 1 Nipple, Pipe (1/4” x 1/2”)

21 148–0998 1 Switch, Pressure (12V)

22 338–3666 1 Harness, Duel Fuel

23 331–0027 1 Box, Connector

Fuel System

GGHC, GGHD

Natural Gas and Propane Liquid Withdrawal With Automatic Changeover

789

C090

Fuel System

GGHC, GGHD

Natural Gas and Propane Liquid Withdrawal With Automatic Changeover

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–0625 1 Converter, Gas

6 148–1102 1 Bracket, Converter

7 850–0050 2 Washer, Lock – Spring (3/8”)

8 800–0048 2 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

9 815–0924 2 Screw, Locking – Hex

Washer Head (M6 x 40mm)

10 505–0107 3 Nipple, Pipe (1” x 2”)

11 505–0304 1 Tee, Pipe (1”)

12 505–0479 1 Cap, Pipe (1”)

13 505–0041 1 Elbow, Pipe (1” x 90 Deg)

14 502–0942 1 Elbow, Hose – Brass – 90

Deg (3/8” Pipe to 5/8”

Hose)

15 502–0943 3 Connector, Hose (3/8” Pipe

to 5/8” Hose)

16 503–0833 1 Hose (5/8” ID x 2’)

17 503–0183 4 Clamp, Hose

18 505–0060 1 Tee, Pipe (3/8”)

19 504–0028 1 Cock, Drain

20 502–0085 1 Nipple, Pipe – Brass (3/8” x

1”)

21 503–1169 1 Hose (5/8” ID x 4’)

22 505–0019 1 Bushing, Pipe – Reducer

(1/2” to 3/8”)

23 501–0630 1 Hose (1” ID x 38”)

24 505–0099 1 Nipple, Pipe – Close (1/4” )

25 502–0054 1 Elbow, Street – Brass (1/4” x

90 Deg)

26 307–0268 1 Valve, Solenoid

27 148–1015 1 Regulator, Gas

28 505–0177 2 Nipple, Pipe – Close (1–1/4”)

29 505–0249 2 Tee, Pipe (1–1/4”)

30 505–0297 1 Bushing, Pipe – Reducer

(1–1/4” to 3/4”)

31 505–0268 1 Nipple, Pipe (3/4” x 9”)

32 505–0157 1 Nipple, Pipe (1–1/4” x 5”)

33 307–2885 1 Valve, Solenoid

34 505–0473 1 Elbow, Pipe – Reducer – 90

Deg (1–1/4” to 1”)

35 505–0004 1 Nipple, Pipe – Close (1” x

1–1/2”)

36 148–0626 1 Valve, Load – Adjusting

37 505–0653 1 Nipple, Pipe (1–1/4” x 4”)

38 505–0023 1 Bushing, Pipe – Reducer

(1–1/4” to 1”)

39 505–0802 1 Bushing, Pipe – Reducer (1”

to 1/4”)

40 505–0105 1 Nipple, Pipe (1/4” x 1–1/2”)

41 148–0998 1 Switch, Pressure (S11)

42 331–0027 1 Connector, Romex

43 338–3666 1 Harness, Wiring – Dual Fuel

(3 Wire, 14”) (K1 to S11)

44 148–1089 1 Clamp

45 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

46 148–1086 1 Hose (3” x 3”)

47 503–1872–05 2 Clamp, Hose

48 140–3161 1 Cleaner, Air (Includes

Element)

49 140–3151 1 Element

50 338–3654 1 Harness, Wiring – LPG (2

Wire, 44”) (K1 to K1)

Fuel System

GGHC, GGHD

Natural Gas and Propane Vapor Withdrawal With Automatic Changeover

234

25 26

C065

Fuel System

GGHC, GGHD

Natural Gas and Propane Vapor Withdrawal With Automatic Changeover

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–1015 1 Regulator, Natural Gas

6 505–0177 2 Nipple, Pipe – Close (1–1/4”)

7 505–0249 2 Tee, Pipe (1–1/4”)

8 505–0297 1 Bushing, Pipe – Reducer

(1–1/4” to 3/4”)

9 505–0268 1 Nipple, Pipe (3/4” x 9”)

10 505–0157 1 Nipple, Pipe (1–1/4” x 5”)

11 307–2885 1 Valve, Solenoid

12 505–0258 1 Nipple, Pipe (1–1/4” x 3”)

13 505–0473 1 Elbow, Pipe – Reducer – 90

Deg (1–1/4” to 1”)

14 505–0004 2 Nipple, Pipe – Close (1”)

15 148–0626 1 Valve, Load – Adjusting

16 505–0090 1 Nipple, Pipe (1” x 6”)

17 148–0636 1 Regulator, LPG Vapor

18 307–2884 1 Valve, Solenoid

19 505–0023 1 Bushing, Pipe – Reducer

(1–1/4” to 1”)

20 505–0802 1 Bushing, Pipe – Reducer (1”

to 1/4”)

21 505–0105 1 Nipple, Pipe (1/4” x 1–1/2”)

22 148–0998 1 Switch, Pressure (S11)

23 331–0027 1 Connector, Romex

24 338–3666 1 Harness, Wiring – Dual Fuel

(3 Wire, 14”) (K1 to S11)

25 148–1089 1 Clamp

26 148–1086 1 Hose (3” x 3”)

27 503–1870–05 2 Clamp, Hose

28 140–3161 1 Cleaner, Air (Includes

Element)

29 140–3151 1 Element

30 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

31 148–1090 1 Clamp

32 800–3017–20 1 Screw, Cap – Hex Head (M8

x 25mm)

33 850–0114–54 1 Washer, Lock – Spring (M8)

34 860–2008 1 Nut, Hex (M8)

Fuel System

GGHC, GGHD

Propane Liquid Withdrawal

910

18 21

19 21

C053

3735 36

Fuel System

GGHC, GGHD

Propane Liquid Withdrawal

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–0625 1 Converter, Gas

6 148–1102 1 Bracket, Converter

7 850–0050 2 Washer, Lock – Spring (3/8”)

8 800–0048 2 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

9 815–0924 2 Screw, Locking – Hex

Washer Head (M6 x 40mm)

10 505–0107 3 Nipple, Pipe (1” x 2”)

11 505–0304 1 Tee, Pipe (1”)

12 505–0479 2 Cap, Pipe (1”)

13 505–0041 1 Elbow, Pipe (1” x 90 Deg)

14 148–1086 1 Hose (3” x 3”)

15 503–1872–05 2 Clamp, Hose

16 505–0268 1 Nipple, Pipe (3/4” x 9”)

17 505–0297 1 Bushing, Pipe – Reducer

(1–1/4” to 3/4”)

18 502–0942 1 Elbow – 90 Deg – Brass (3/8”

Pipe to 5/8” Hose)

19 502–0943 3 Connector, Hose – Brass

(3/8” Pipe to 5/8” Hose)

20 503–0833 1 Hose (5/8” ID x 24”)

21 503–0183 4 Clamp, Hose

22 505–0060 1 Tee, Pipe (3/8”)

23 504–0028 1 Cock, Drain

24 502–0085 1 Nipple, Pipe – Brass (3/8” x

1”)

25 503–1169 1 Hose (5/8” ID x 48”)

26 505–0019 1 Bushing, Pipe – Reducer

(1/2” to 3/8”)

27 501–0630 1 Hose (1” ID x 38”)

28 140–3161 1 Cleaner, Air (Includes

Element)

29 505–0099 1 Nipple, Pipe – Close (1/8”)

30 502–0054 1 Elbow, Street – Brass (1/4”)

31 307–0268 1 Valve, Solenoid

32 338–3654 1 Harness, Wiring – LPG (2

Wire, 44”) (K1 to K1)

33 140–3151 1 Element, Air Cleaner

34 505–0249 1 Tee, Pipe (1–1/4”)

35 505–0023 1 Bushing, Pipe – Reducer

(1–1/4” to 1”)

36 505–0177 1 Nipple, Pipe – Close (1–1/4”)

37 505–0181 1 Nipple, Pipe (1” x 10”)

38 505–0473 1 Elbow, Pipe – Reducer – 90

Deg (1–1/4” to 1”)

39 148–1090 1 Clamp

40 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

Fuel System

GGHC, GGHD

Natural Gas

Without Low Fuel Pressure Warning Switch

567

13 14

C002

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–1015 1 Regulator, Natural Gas

6 505–0177 1 Nipple, Pipe – Close (1–1/4”)

7 505–0042 1 Elbow, Pipe – 90 Deg

(1–1/4”)

8 505–0157 1 Nipple, Pipe (1–1/4” x 5”)

9 307–2885 1 Valve, Solenoid

10 505–0297 1 Bushing, Pipe – Reducer

(1–1/4” to 3/4”)

11 505–0268 1 Nipple, Pipe (3/4” x 9”)

12 148–1089 1 Clamp

13 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

14 148–1086 1 Hose (3” x 3”)

15 503–1870–05 2 Clamp, Hose

16 140–3161 1 Cleaner, Air (Includes

Element)

17 140–3151 1 Element

Fuel System

GGHC, GGHD

Natural Gas

With Low Fuel Pressure Warning Switch

Spec B

C002

412

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 151–0758 1 Bracket, Governor

2 505–0027–01 1 Coupling, Pipe (1/4”)

3 850–0045 1 Washer, Lock – Spring

(5/16”)

4 800–0033 1 Screw, Cap – Hex Head

(5/16–18 x 2”)

5 148–1015 1 Regulator, Natural Gas

6 505–0177 2 Nipple, Pipe – Close (1–1/4”)

7 505–0042 1 Elbow, Pipe – 90 Deg

(1–1/4”)

8 505–0157 1 Nipple, Pipe (1–1/4” x 5”)

9 307–2885 1 Valve, Solenoid

10 505–0297 1 Bushing, Pipe – Reducer

(1–1/4” to 3/4”)

11 505–0268 1 Nipple, Pipe (3/4” x 9”)

12 148–1089 1 Clamp

13 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

14 148–1086 1 Hose (3” x 3”)

15 503–1870–05 2 Clamp, Hose

16 140–3161 1 Cleaner, Air (Includes

Element)

17 140–3151 1 Element

18 505–0249 1 Tee, Pipe

19 505–0023 1 Bushing, Reducer (1-1/4 x 1)

20 505–0802 1 Bushing, Reducer (1 x 1/4)

21 505–0105 1 Nipple, Pipe (1/4 x 1.50)

22 148–0998 1 Switch, Pressure (12V)

23 331–0027 1 Box, Connector

24 338–3666 1 Harness, Dual Fuel

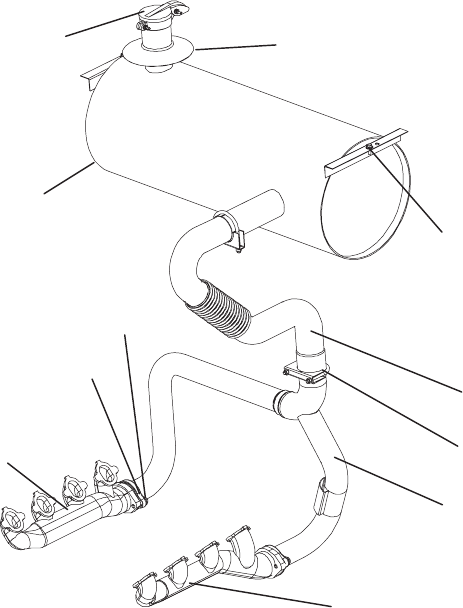

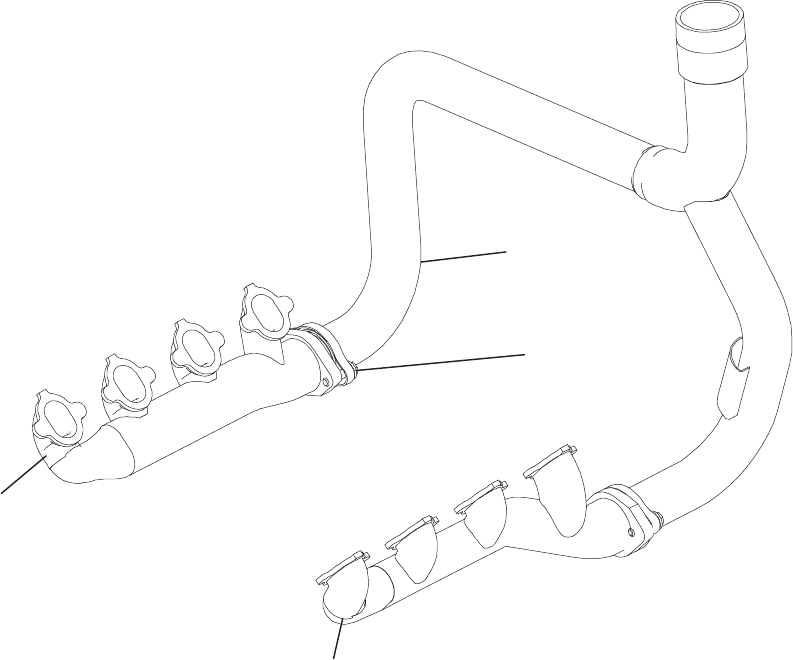

Exhaust System

GGHB

Exhaust Adapted for Slip-on Exhaust Tube

F172,F173

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 154–2499 1 Manifold, Exhaust – Right

Side

2 154–2500 1 Manifold, Exhaust – Left Side

3 154–3052 1 Tube, Exhaust

4 154–3048 1 Tube, Exhaust

5 155–3167 1 Muffler

6 155–2062–10 1 Cap, Rain

7 526–0356 4 Washer, Flat (7/16”)

8 800–0315 4 Screw, Cap – Hex Head

(7/16–14 x 1–3/4”)

9 155–2175 2 Clamp

10 821–6003–02 2 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

11 155–3102–02 1 Shield, Rain

Exhaust System

GGHB

Exhaust Adapted for Threaded Exhaust Pipe

4, 5

A299,CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 154–2499 1 Manifold, Exhaust – Right

Side

2 154–2500 1 Manifold, Exhaust – Left Side

3 154–3049 1 Tube, Exhaust

4 526–0356 4 Washer, Flat (7/16”)

5 800–0315 4 Screw, Cap – Hex Head

(7/16–14 x 1–3/4”)

Exhaust System

GGHC, GGHD

Exhaust Adapted for Slip–on Exhaust Tube

30 31

32 33 34

A298

Exhaust System

GGHC, GGHD

Exhaust Adapted for Slip-on Exhaust Tube

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 154–2499 1 Manifold, Exhaust – Right

Side

2 154–2500 1 Manifold, Exhaust – Left Side

3 154–3063 1 Tube, Exhaust

4 526–0356 4 Washer, Flat (7/16”)

5 800–0315 4 Screw, Cap – Hex Head

(7/16–14 x 1–3/4”)

6 127–0324 1 Gasket, Turbocharger

7 520–2407 4 Stud (M10 x 40mm)

8 145–0748 1 Turbocharger (Includes

Turbocharger Gasket and

Upper Oil Drain Gasket

9 526–2120 4 Washer, Flat (M10)

10 860–2009 4 Nut, Hex (M10)

11 148–1109 1 Hose, Turbocharger (2” ID x

3–3/4”)

12 503–1870–03 2 Clamp, Hose

13 145–0774 1 Body, Throttle

14 145–0672 1 Adapter, Carburetor

15 850–0045 8 Washer, Lock – Spring

(5/16”)

16 800–0031 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/2”)

17 802–0055 4 Screw, Socket Head

(5/16–18 x 1”)

18 502–1240 1 Connector, Male

19 509–0290–04 1 Seal, O-Ring

20 502–1254 1 Connector, Female

21 127–0426 1 Tube, Oil Supply

22 127–0412 1 Gasket, Oil Drain – Upper

23 145–0752 1 Tube, Oil Return

24 850–2008 2 Washer, Lock – Spring (M8)

25 800–2058 2 Screw, Cap – Hex Head (M8

x 25mm)

26 503–1791 – Hose – Bulk (5/8” ID) (Order

By The Foot – 2 Feet

Required)

27 121–0102 1 Tube, Oil Return

28 149–0736 1 Gasket, Oil Drain – Lower

29 503–0183 2 Clamp, Hose

30 155–2649 1 Gasket, Exhaust

31 154–3061 1 Flange, Exhaust

32 526–2100 4 Washer, Flat (M8)

33 800–2060 4 Screw, Cap – Hex Head (M8

x 35mm)

34 505–0645 1 Nipple, Pipe (2” ID x 3”)

35 155–3205 1 Tube, Exhaust

36 155–2080 1 Clamp, Muffler

37 150–2696 1 Shield, Heat

38 Muffler

155–3150–02 1 Spec A

155–3150–03 1 Spec B

39 155–2305 1 Clamp, Muffler

40 821–6003–02 2 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

41 Shield, Rain

155–3180 1 Spec A

155–3180–01 1 Spec B

42 155–2062–13 1 Cap, Rain

43 155–3219 2 Gasket, Muffler

Exhaust System

GGHC, GGHD

Exhaust Adapted for Threaded Exhaust Pipe or Residential Muffler

11 12

13 14

29 30

31 32 33

34 9

F299,379

Exhaust System

GGHC, GGHD

Exhaust Adapted for Threaded Exhaust Pipe or Residential Muffler

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 154–2499 1 Manifold, Exhaust – Right

Side

2 154–2500 1 Manifold, Exhaust – Left Side

3 154–3063 1 Tube, Exhaust

4 526–0356 4 Washer, Flat (7/16”)

5 800–0315 4 Screw, Cap – Hex Head

(7/16–14 x 1–3/4”)

6 127–0324 1 Gasket, Turbocharger

7 520–2407 4 Stud (M10 x 40mm)

8 145–0748 1 Turbocharger (Includes

Turbocharger Gasket and

Upper Oil Drain Gasket)

9 526–2120 4 Washer, Flat (M10)

10 148–1109 1 Hose, Turbocharger (2” ID x

3–3/4”)

11 503–1870–03 2 Clamp, Hose

12 145–0774 1 Body, Throttle

13 145–0672 1 Adapter, Carburetor

14 850–0045 8 Washer, Lock – Spring

(5/16”)

15 800–0031 4 Screw, Cap – Hex Head

(5/16–18 x 1–1/2”)

16 802–0055 4 Screw, Socket Head

(5/16–18 x 1”)

17 502–1240 1 Connector, Male

18 509–0290–04 1 Seal, O–Ring

19 502–1254 1 Connector, Female

20 127–0426 1 Tube, Oil Supply

21 127–0412 1 Gasket, Oil Drain – Upper

22 145–0752 1 Tube, Oil Return

23 850–2008 2 Washer, Lock – Spring (M8)

24 800–2058 2 Screw, Cap – Hex Head (M8

x 25mm)

25 503–1791 – Hose – Bulk (5/8” ID) (Order

By The Foot – 2 Feet

Required)

26 121–0102 1 Tube, Oil Return

27 149–0736 1 Gasket, Oil Drain – Lower

28 503–0183 2 Clamp, Hose

29 155–2649 1 Gasket, Exhaust

30 154–3061 1 Flange, Exhaust

31 526–2100 4 Washer, Flat (M8)

32 800–2060 4 Screw, Cap – Hex Head (M8

x 35mm)

33 505–0645 1 Nipple, Pipe (2” ID x 3”)

34 150–2696 1 Shield, Heat

35 860–2009 4 Nut, Hex (M10)

36 503–1982 1 Elbow, Pipe – Reducing – 90

Deg (3” to 2”)

37 155–3204 1 Muffler

38 526–0174 1 Washer, Flat (.406 ID x .781

OD x .1345 Thick)

39 800–0048 1 Screw, Cap – Hex Head

(3/8–16 x 3/4”)

40 155–2062–10 1 Cap, Rain

41 155–2080 1 Clamp, Muffler

Exhaust System

GGHB

Exhaust Adapted for Residential Muffler

A379,F182

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1154–2499 1 Manifold, Exhaust – Right

Side

2 154–2500 1 Manifold, Exhaust – Left Side

3 154–3052 1 Tube, Exhaust

4 526–0356 4 Washer, Flat (7/16”)

5 800–0315 4 Screw, Cap – Hex Head

(7/16–14 x 1–3/4”)

6 155–3193 1 Muffler

7 Cap, Rain

155–2062–03 1 Without Housing

155–2062–10 1 With Housing

8 155–2175 1 Clamp, Muffler

9 155–3102–02 1 Shield, Rain (With Housing)

Vacuum Switch

GGHB

C059

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 505–0101 1 Nipple, Pipe (3/8” x 1”)

2 505–0060 1 Tee, Pipe (3/8”)

3 502–1028 1 Connector, Hose (3/8” Pipe x

3/8” Hose)

4 505–0395 1 Bushing, Pipe – Reducer

(3/8” x 1/4”)

5 505–0066 1 Pipe, Suction – Oil

(1/8 x 5.00)

6 148–1099 1 Switch, Vacuum (S14)

7 338–3667 1 Harness, Wiring (3 Wire)

(70”) (S14 to K1,B1)

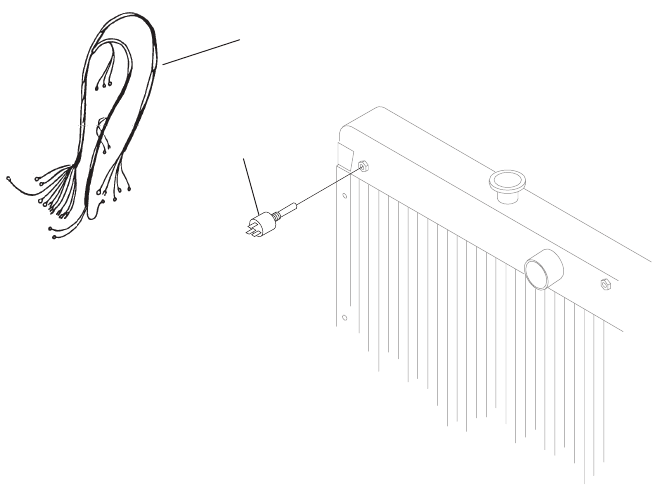

Low Coolant Level Sender

Without Continuously Monitored Low Coolant Level

Spec A

H389,527

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3668 1 Harness, Wiring – Shutdown

and Warning (3 Wire) (64”) 2 193–0481 1 Sender, Low Coolant Level (S7)

Low Coolant Level Sender

Without Continuously Monitored Low Coolant Level

Spec B

H389,H559,H527

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3751 1 Harness, Low Coolant Level

(Includes Parts Marked *)

2 193–0468 1 Sender, Low Coolant Level

3 323–1765 1 *Housing, Connector (4 Pin)

4 323–1709 4 *Socket, Contact (Used in S7)

5 323–1708 4 *Seal, Cable

6 323–1712 1 *Plug, Cavity

* – Parts Included in 338–3751 Wiring Harness

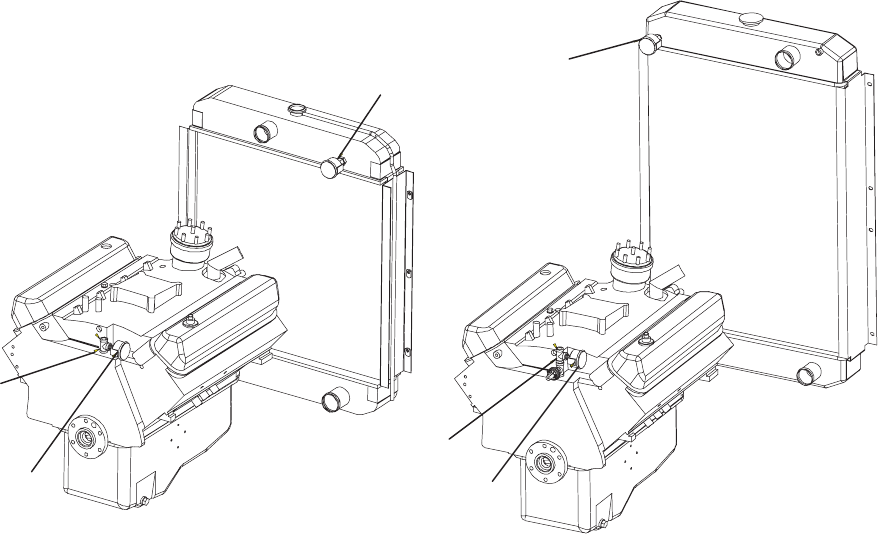

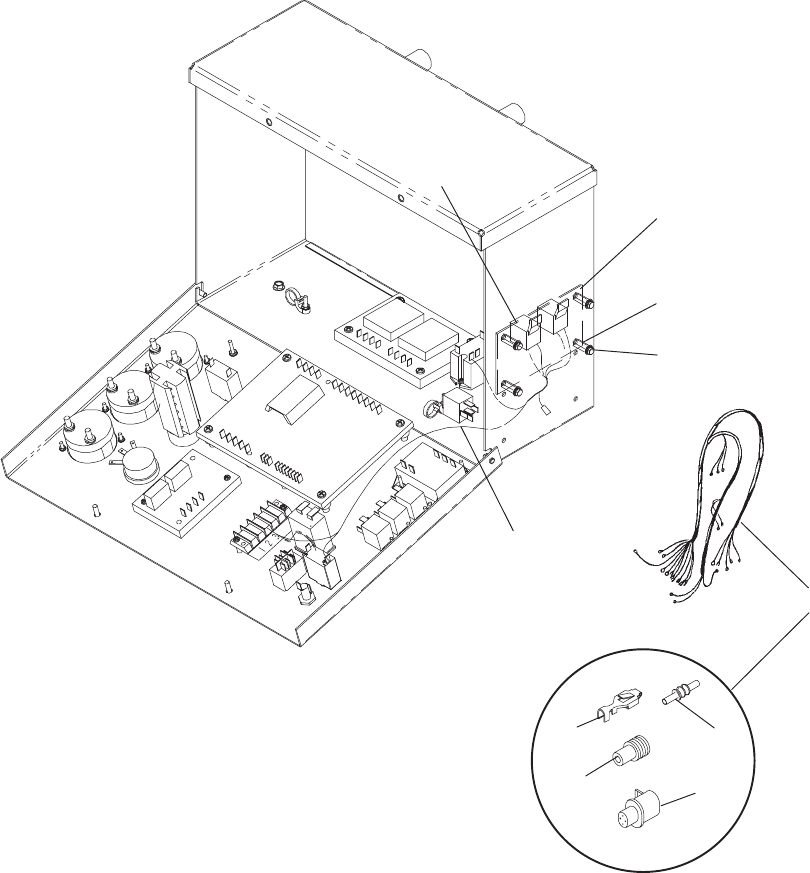

Low Coolant Level Sender

With Continuously Monitored Low Coolant Level

12 Light Indicator Controls

H560

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 322–0431–07 1 Lens, Indicator Light (Marked

”Coolant Lo”)

2 338–3035–01 1 Harness, Wiring

3 193–0468 1 Sender, Low Coolant Level (S7)

4 357–0030 1 Diode (6 Amp)

5 226–4661–02 2 Lead (4”) (No Markings)

(A11TB2–1 to Diode and

A11TB2–16 to Diode)

6 338–3594 1 Harness, Pigtail (Includes

Parts Marked *)

7 323–1765 1 *Housing, Connector (4 Pin)

8 323–1709 4 *Socket, Contact

9 323–1708 4 *Seal, Cable

* – Parts Included in 338–3594 Pigtail Harness

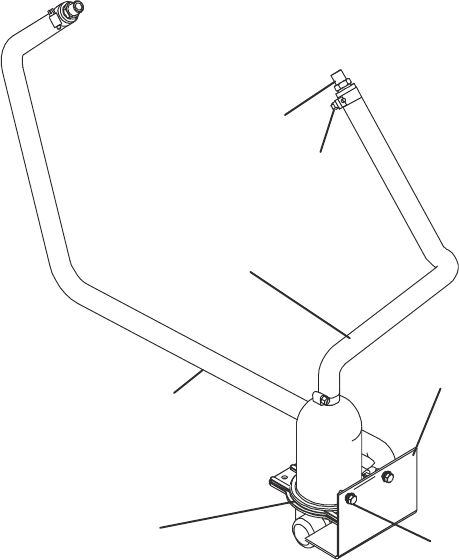

Engine Coolant Heater

H036, 074

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 333–0616 1 Bracket, Mounting

2 Heater, Coolant – 1500 Watt

(HTR)

333–0588–03 1 120 Volt

333–0588–04 1 240 Volt

3 502–0613 2 Connector, Hose (1/4” Pipe

to 5/8” Hose)

4 503–1168 1 Hose, Heater (5/8” ID)

5 503–0833 1 Hose, Heater (5/8” ID)

6 503–0183 4 Clamp, Hose

7 821–6002–03 4 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

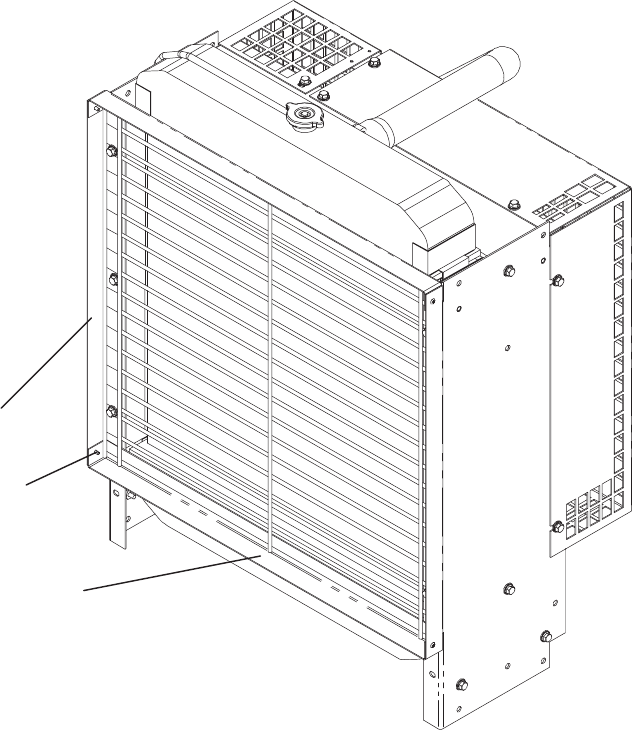

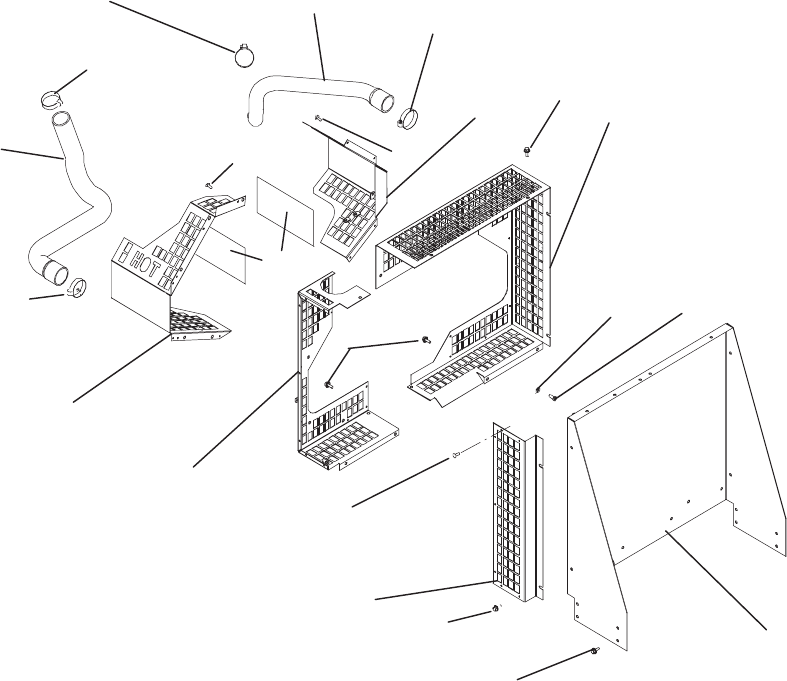

Remote Radiator

GGHB

13 14

9E043

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–6122 1 Panel, Front

2 130–4773 1 Guard, Fan – Right Side

3 130–4807 1 Cover, Belt Guard

4 130–4790 1 Guard, Fan – Left Side

5 130–4775 1 Hose, Radiator – Inlet

6 130–4776 1 Hose, Radiator – Outlet

7 503–0365 1 Clamp, Hose

8 503–0465 3 Clamp, Hose

9 821–6003–02 19 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

10 130–4822 1 Guard, Belt – Right Side

11 130–4823 1 Guard, Belt – Left Side

12 818–0231–02 11 Rivet, Pop

13 740–1006 4 * Washer, Flat (M8)

14 801–0027 4 * Screw, Cap – Hex Head

(5/16–24 x 7/8”)

15 130–4848 – Insulation – Bulk (Order By

The Foot – 2 Feet

Required)

* – Parts used to fasten the water pump pulley

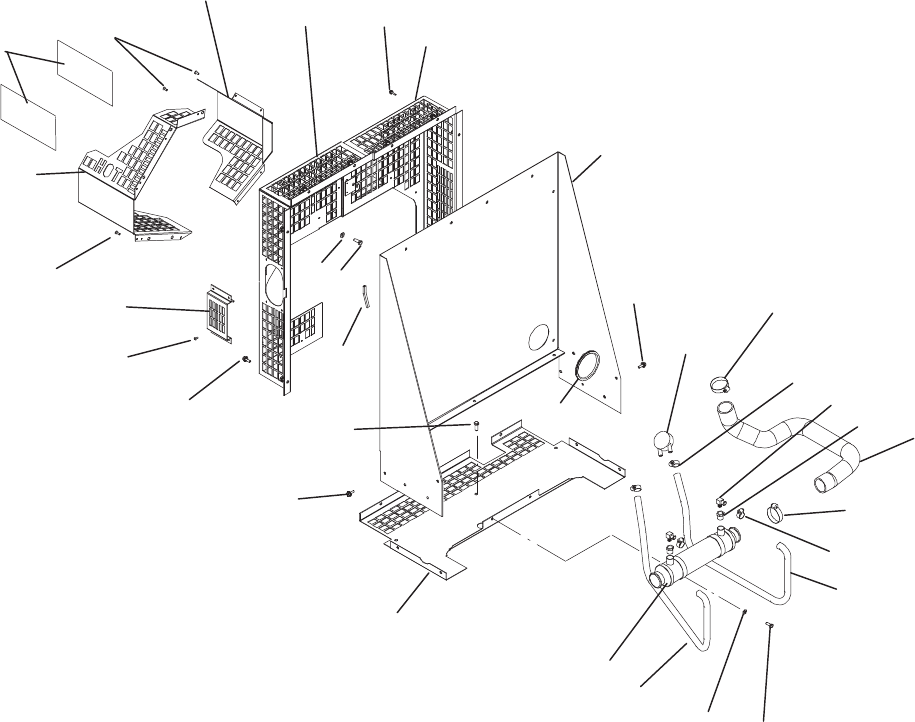

Remote Radiator

GGHC, GGHD

E043

1110

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–6129 1 Panel, Front

2 130–4789 1 Bottom, Shroud

3 130–4782 1 Guard, Fan – Right Side

4 130–4799 1 Guard, Fan – Left Side

5 821–6003–02 24 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

6 130–4822 1 Guard, Belt – Right Side

7 130–4823 1 Guard, Belt – Left Side

8 130–4831 1 Cover, Exhaust Pipe

9 818–0231–02 20 Rivet, Pop

10 801–0027 4 * Screw, Cap – Hex Head

(5/16–24 x 7/8”)

11 740–1006 4 * Washer, Flat (M8)

12 102–1238 1 Cooler, Oil

13 505–0019 2 Bushing, Pipe – Reducer

(1/2” to 3/8”)

14 502–0237 2 Elbow, Hose (90°)

15 526–0018 2 Washer, Flat (1/4”)

16 821–6002–03 2 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

17 503–0183 4 Clamp, Hose

18 503–2099 1 Hose, Flexible (2” ID x 33”)

19 503–1870–03 2 Clamp, Hose

20 503–1101 2 Hose, Oil Cooler – Bulk (1/2”

ID) (Order By The Foot – 4

Feet Required)

21 102–1097 1 Adapter, Retaining

22 130–4848 – Insulation – Bulk (Order By

The Foot – 2 Feet

Required)

23 508–0285 2 Edge, Protection – Bulk

(Order By The Foot – 1

Foot Required)

* – Parts used to fasten the water pump pulley

Radiator Duct Adapter

F013

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Adapter, Duct – Sides

130–4623 2 GGHB

130–4734 2 GGHC, GGHD

2 130–4622 2 Adapter, Duct – Top and

Bottom

3 818–0231–02 4 Rivet, Pop

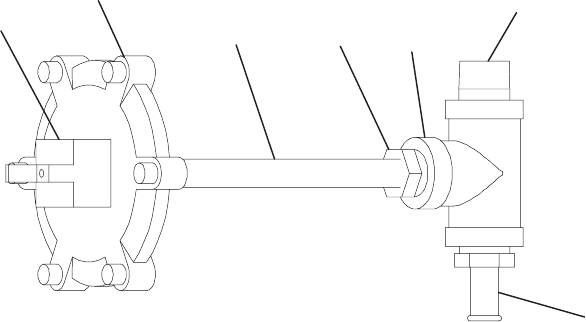

Radiator Drain Extension

E089

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 502–0085 1 Nipple, Pipe – Brass (3/8”)

2 505–0117 1 Bushing, Flush (3/8” X 1/2”)

3 504–0011 1 Valve, Shutoff (1/2”)

4 505–0185 1 Nipple, Pipe – Half (1/2” x

1–1/2”)

5 503–1195 1 Hose, Drain (24”)

6 503–0197 Clamp, Hose

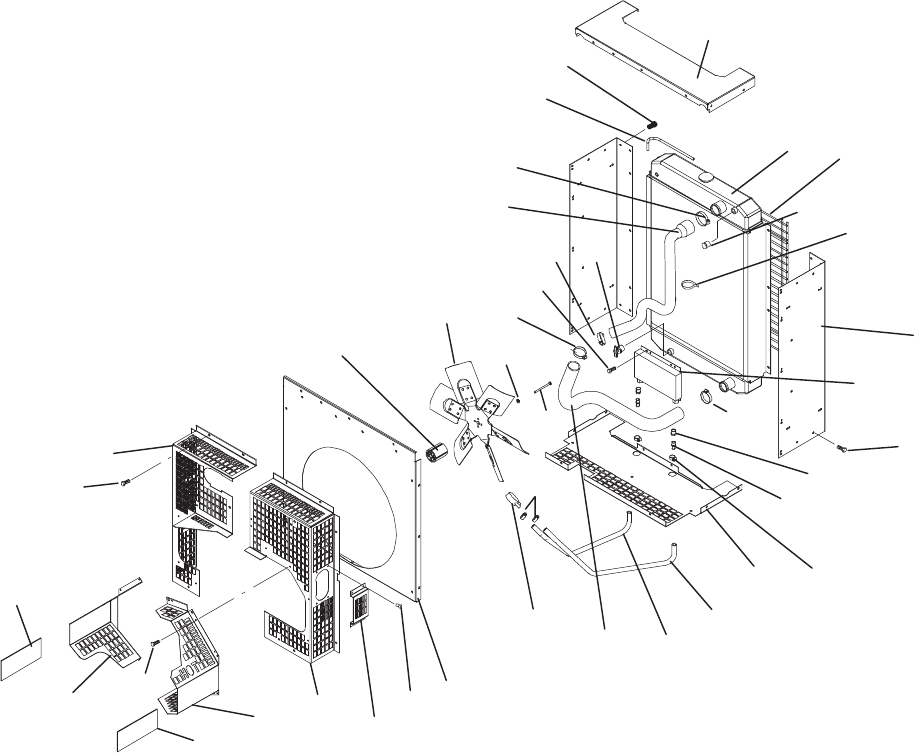

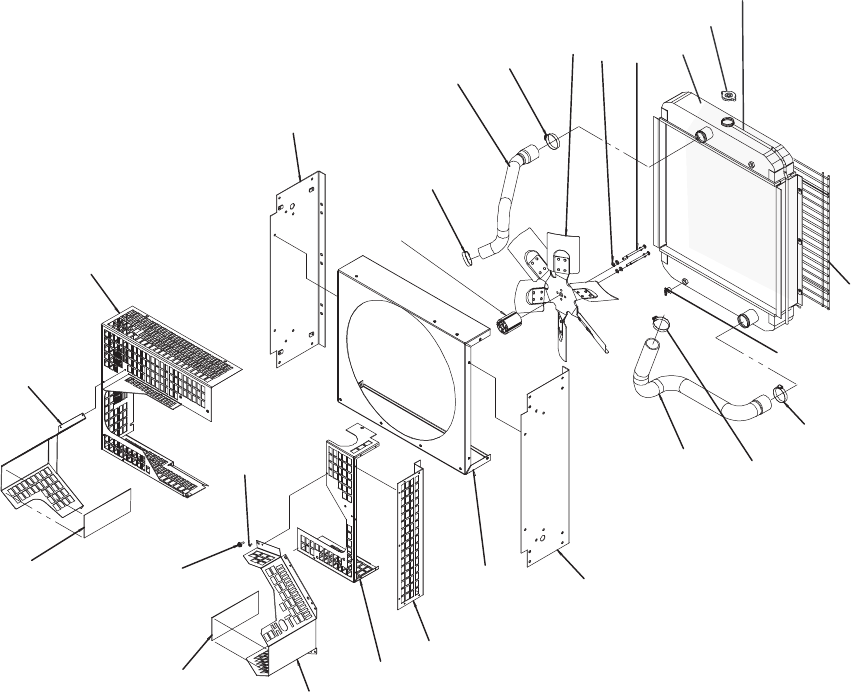

Radiator

GGHB

11 12

E074,082

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 130–4596–02 1 Radiator

2 130–4767 2 Side, Shroud

3 821–6003–02 30 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

4 504–0028 1 Cock, Drain

5 130–4771 1 Shroud

6 130–4775 1 Hose, Radiator – Upper

7 130–4776 1 Hose, Radiator – Lower

8 130–4770–02 1 Spacer, Fan

9 130–4784 1 Fan, Radiator – 6 Blade

10 130–4773 1 Guard, Fan – Right Side

11 130–4790 1 Guard, Fan – Left Side

12 130–4807 1 Cover, Belt Guard

13 818–0231–02 11 Rivet, Pop

14 130–4823 1 Guard, Belt – Left Side

15 130–4822 1 Guard, Belt – Right Side

16 503–0465 3 Clamp, Hose

17 503–0365 1 Clamp, Hose

18 130–4848 – Insulation – Bulk (Order By

The Foot – 2 Feet

Required)

19 740–1006 4 Washer, Flat (M8)

20 801–0519–01 4 Screw, Cap – Hex Head

(5/16–24 x 4”)

21 130–1788 1 Cap, Radiator

22 503–1262 1 Hose, Overflow (5/16” ID x 6’)

23 130–4602 1 Grille, Radiator

Radiator

GGHC, GGHD

28 29 31

E074,082

22 27

334

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 130–4694 2 Side, Shroud

2 Radiator

130–4691–01 1 GGHC

130–4691–02 1 GGHD

3 130–3721–01 1 Cap, Radiator

4 130–4789 1 Bottom, Shroud

5 821–6003–02 51 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

6 102–1098 1 Cooler, Oil

7 505–0019 2 Bushing, Pipe – Reducer

(1/2” to 3/8”)

8 502–1168 2 Connector, Hose (3/8” Pipe

to 1/2” Hose)

9 503–1099 2 Hose (1/2” ID)

10 102–1097 1 Adapter, Hose Retaining

11 503–0446 4 Clamp, Hose

12 821–6002–03 2 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

13 130–4700 1 Top, Shroud

14 130–4781 1 Shroud

15 130–4780 1 Hose, Radiator – Outlet

16 130–4779 1 Hose, Radiator – Inlet

17 503–0465 3 Clamp, Hose

18 503–0365 1 Clamp, Hose

19 504–0003 1 Cock, Drain

20 130–4782 1 Guard, Fan – Right Side

21 130–4799 1 Guard, Fan – Left Side

22 502–0153 1 Plug, Pipe (1/4”)

23 130–4784 1 Fan (6 Blade)

24 130–4770–02 1 Spacer, Fan

25 740–1006 4 Washer, Flat (5/16”)

26 801–0519–01 4 Screw, Cap – Hex Head

(5/16–24 x 4”)

27 130–4830 1 Clamp, Retainer

28 130–4822 1 Guard, Belt – Right Side

29 130–4823 1 Guard, Belt – Left Side

30 818–0231–02 12 Rivet, Pop

31 130–4831 1 Cover, Exhaust Pipe

32 130–4848 – Insulation – Bulk (Order By

The Foot – 2 Feet

Required)

33 503–1262 1 Hose, Overflow (5/16” ID x 6’)

34 130–4735 1 Grille, Radiator

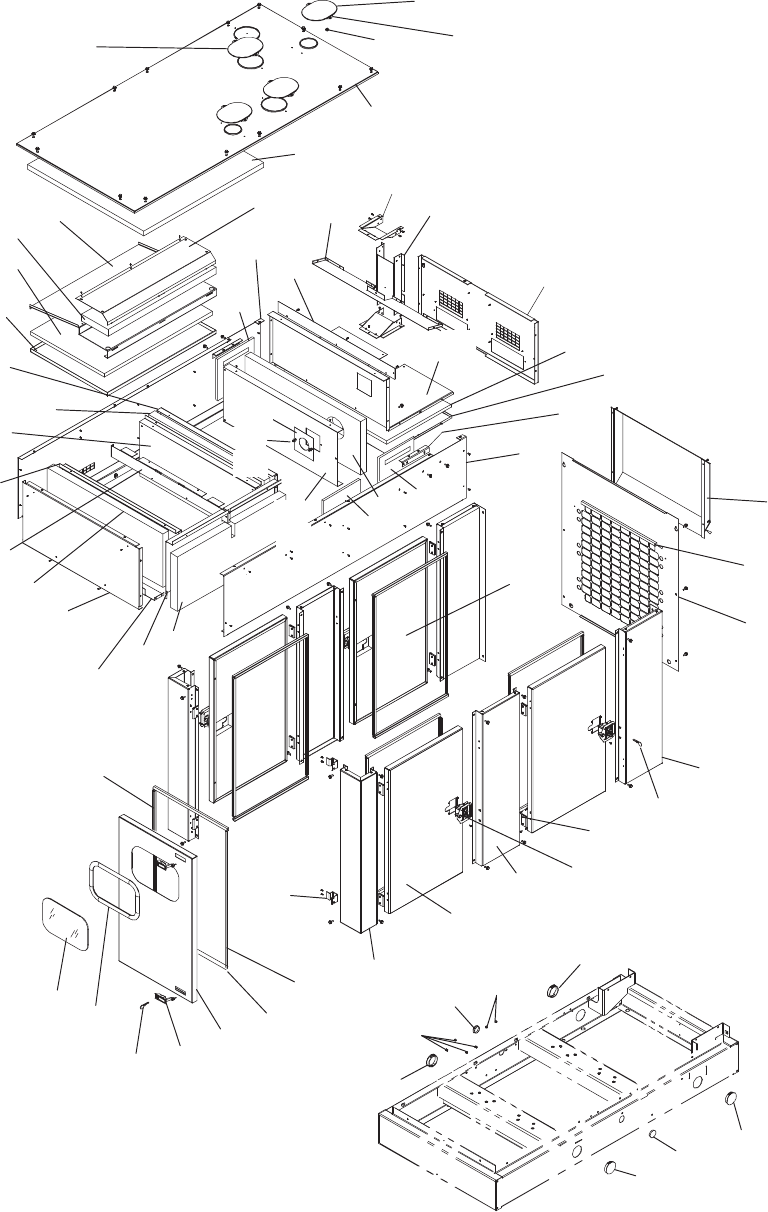

Housing

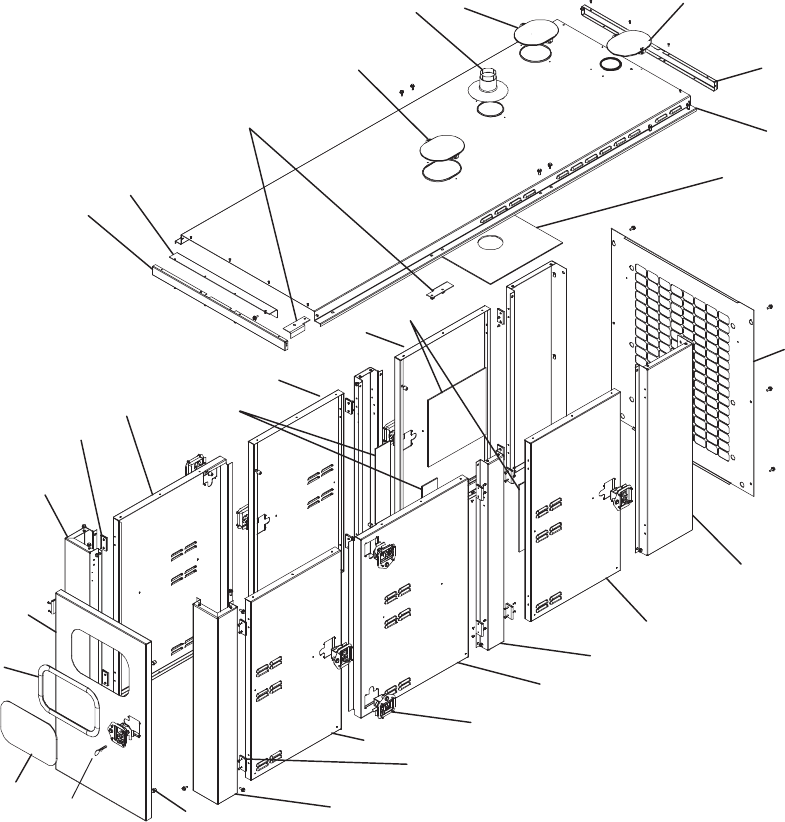

GGHB

Standard Weather Protective































 









F001,180













Housing

GGHB

Standard Weather Protective

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–6018 1 Roof

3 405–5745 2 Post, Center

4 406–0831 10 Hinge

5 405–5832 4 Door, Side

6 405–5916 2 Post, Corner

7 Door, Rear

405–6125 1 Without Window

405–6123 1 With Window

8 895–0363 – Strip, Weather (Order By The

Foot – 5 Feet Required)

(Sets With Rear Door

Window)

9 319–2653 1 Window

10 818–0231–02 60 Rivet, Pop

11 406–0835 4 Latch – Side Door (Includes

Key)

12 406–0782 6 Key, Replacement – Fits Side

and Rear Door Latches

13 821–6003–02 28 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

14 155–3238 4 Cover, Exhaust

15 130–4848 6.3’ Insulation, Foam

16 818–0237–01 6 Rivet, Pop

17 895–0382 10 Bumper, Door

18 405–5910 1 Panel, Front

19 406–0765 2 Latch – Rear Door (Includes

Key, Adjusting Screw and

Adjusting Screw Nut)

20 405–6124 2 Catch, Door

21 870–0504 1 Nut, Captive – Floating (M6)

22 821–6002–03 1 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

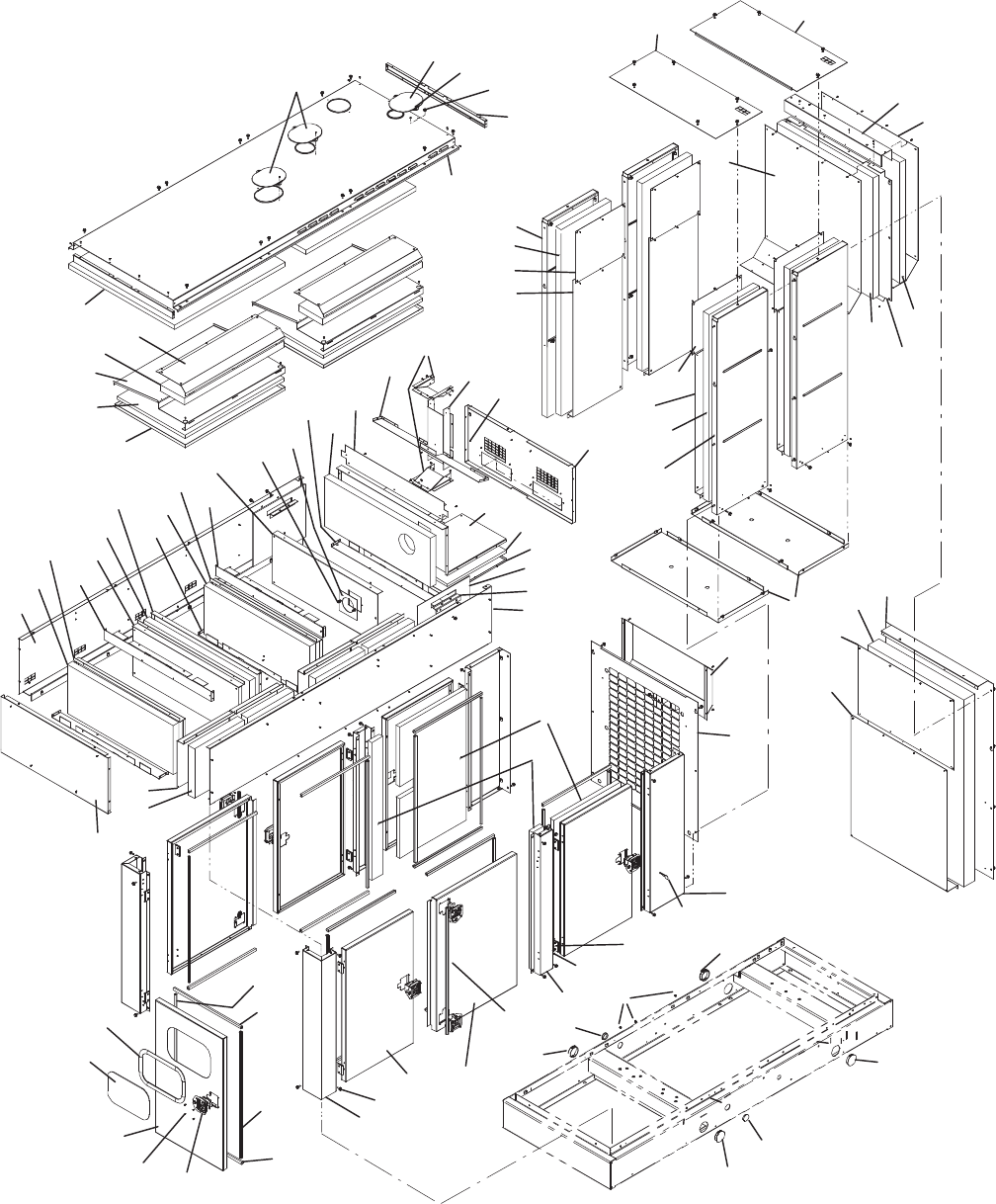

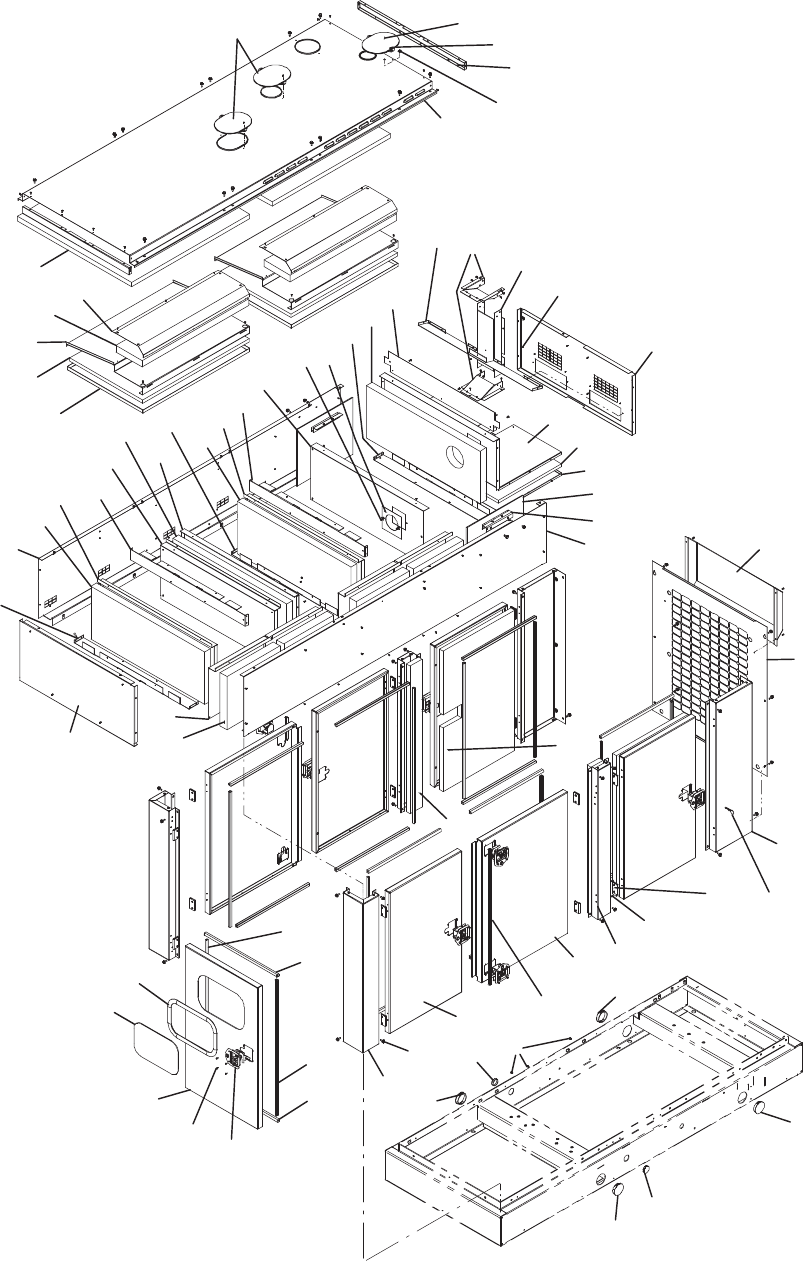

Housing

GGHC, GGHD

Standard Weather Protective

922

F001,180

Housing

GGHC, GGHD

Standard Weather Protective

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–5909 1 Panel, Front

3 405–5926 1 Roof

4 405–5744 2 Post, Center

5 405–5916 2 Post, Corner

6 406–0831 14 Hinge

7 155–3238 3 Cover, Exhaust

8 821–6003–02 36 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

9 818–0231–02 108 Rivet, Pop

10 405–5832 4 Door, Side (With One Latch

Opening)

11 406–0835 9 Latch (Includes Key)

12 Door, Rear

405–5902 1 Without Window

405–5903 1 With Window

13 895–0363 – Strip, Weather (Order By The

Foot – 5 Feet Required)

(Sets With Rear Door

Window)

14 319–2653 1 Window

15 895–0382 14 Bumper, Door

16 405–5917 2 Panel, End – Roof

17 818–0237–01 4 Rivet, Pop

18 128–0154–01 2 Insulation, Foam (4–1/4” x

18”)

19 870–0504 2 Nut, Captive – Floating (M6)

20 821–6002–03 2 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

21 405–5915 2 Angle, Roof

22 405–6181 2 Door, Side (With Two Latch

Openings)

23 405–6183 2 Catch, Door

24 128–0253 1 Insulation, Foam (20” x 20”)

25 155–3102–02 1 Shield, Rain

26 128–0154–04 2 Insulation, Foam(16” x 16”)

27 406–0782 9 Key, Replacement (Fits Side

and Rear Door Latches)

Housing

GGHB

Quiet Site First Stage



































 





































 

 





















































 





















F172,180





Housing

GGHB

Quiet Site First Stage

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–5995 1 Side, Extension – Left Side

3 405–5996 1 Side, Extension – Right Side

4 405–6018 1 Roof

5 405–5745 2 Post, Center

6 406–0831 10 Hinge

7 405–5916 2 Post, Corner

8 Door, Rear

405–6125 1 Without Window

405–6123 1 With Window

9 895–0363 – Strip, Weather – Bulk (Order

By The Foot – 5 Feet

Required) (Sets With Rear

Door Window)

10 319–2653 1 Window

11 818–0231–02 95 Rivet, Pop

12 406–0835 4 Latch, Door

13 821–6003–02 47 Screw, Self-Locking – Hex

Washer Head (M8 x 1.25 x

20mm)

14 155–3238 4 Cover, Exhaust

15 406–0782 6 Key, Replacement (Fits Side

and Rear Door Latches)

16 818–0237–01 72 Rivet, Pop

17 405–5952 1 Panel, End – Front

18 405–5953 1 Panel, End – Rear

19 405–5966 1 Box, Muffler

20 405–5961 2 Retainer, Insulation

21 405–5957 2 Angle

22 405–6015 1 Retainer, Insulation

23 405–5956 1 Support, Center

24 405–5954 1 Baffle, Air

25 405–5958 1 Retainer, Insulation

26 405–5955 1 Retainer, Insulation

27 405–5960 1 Retainer, Insulation

28 405–6003 2 Box, Radiator Fill

29 405–5998 2 Support, Muffler

30 405–6029 1 Baffle

31 405–6030 1 Tube, Radiator Fill

32 405–6068 1 Baffle, Recirculation – Muffler

33 405–5910 1 Panel, Front

34 405–6035 1 Baffle, Air Discharge

35 405–5902 4 Door, Side

36 405–6034 1 Retainer, Insulation

37 405–5987 1 Cover, Exhaust Inlet

38 526–0011 2 Washer, Flat (#10)

39 405–6005 1 Fiberglass (22” x 38–1/2”)

40 405–6109 1 Fiberglass (16” x 39”) (With

Hole)

41 405–5997 1 Fiberglass (16” x 37”)

42 405–5841 2 Fiberglass (16” x 39”)

(Without Hole)

43 405–6000–02 1 Fiberglass (9” x 37”)

44 128–0252 2 Insulation, Foam (17” x 19”)

(With Slot)

45 405–6000–03 1 Fiberglass (25” x 37”)

46 405–6001–01 1 Fiberglass (39–1/2” x 41”)

47 405–5734 2 Insulation, Door (25” x 42”)

48 517–0322 4 Plug, Hole (Fits 3” Hole)

49 517–0131 6 Plug, Hole (Fits 5/16” Hole)

50 895–0384 11 Seal, Weather (25”) (Front

Panel, Top and Bottom of

Housing Door Openings)

51 895–0386 5 Seal, Weather (40–1/2”)

(Hinge Side of Housing

Door Openings)

52 517–0138–07 2 Plug, Hole (Fits 1–3/4” Hole)

53 870–0504 2 Nut, Captive – Floating (M6)

54 821–6002–03 2 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

55 405–6124 2 Catch, Door

56 895–0385 5 Seal, Weather (40–1/2”)

(Latch Side of Housing

Door Openings)

57 406–0765 2 Latch, Door (Includes Key,

Adjusting Screw and

Adjusting Screw Nut)

58 128–0154–04 1 Insulation, Foam (16” x 16”)

Housing

GGHC, GGHD

Quiet Site First Stage













































































































































F172,180



Housing

GGHC, GGHD

Quiet Site First Stage

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–5951 1 Side, Extension – Left Side

3 405–5916 2 Post, Corner

4 405–5744 2 Post, Center

5 405–5998 2 Support, Muffler

6 405–5966 1 Box, Muffler

7 405–5953 1 Panel, End – Rear

8 405–5952 1 Panel, End – Front

9 405–5950 1 Side, Extension – Right Side

10 405–5961 3 Retainer, Insulation

11 405–5956 1 Support, Center

12 405–5957 5 Angle

13 405–5954 2 Baffle, Air

14 405–5958 2 Retainer, Insulation

15 405–5955 2 Retainer, Insulation

16 405–6015 2 Retainer, Insulation

17 405–5926 1 Roof

18 405–5963 1 Tube, Radiator Fill

19 405–6003 2 Box, Radiator Fill

20 405–5909 1 Panel, Front

21 405–5917 2 Panel, End – Roof

22 405–6182 2 Door, Side (With Two Latch

Openings)

23 406–0831 14 Hinge

24 405–5902 4 Door, Side (With One Latch

Opening)

25 Door, Rear

405–5902 1 Without Window

405–5903 1 With Window

26 155–3238 3 Cover, Exhaust

27 405–6109 1 Fiberglass (16” x 39”) (With

Hole)

28 406–0782 9 Key, Replacement

29 406–0835 9 Latch (Includes Key)

30 821–6003–02 46 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

31 405–5959 1 Baffle, Recirculation – Muffler

32 818–0231–02 168 Rivet, Pop

33 818–0237–01 39 Rivet, Pop

34 895–0363 – Strip, Weather – Bulk (Order

By The Foot – 5 Feet

Required) (Sets With Rear

Door Window)

35 319–2653 1 Window

36 517–0322 4 Plug, Hole (Fits 3” Hole)

37 895–0384 15 Seal, Weather (Top and

Bottom of Housing Door

Openings)

38 895–0385 5 Seal, Weather (40–1/2”)

(Latch Side of Housing

Door Openings)

39 895–0386 7 Seal, Weather (40–1/2”)

(Hinge Side of Housing

Door Openings)

40 405–5841 3 Fiberglass (16” x 39”)

(Without Hole)

41 405–6034 1 Retainer, Insulation

42 405–5960 1 Retainer, Insulation

43 517–0131 3 Plug, Hole (Fits 5/16” Hole)

44 517–0138–07 2 Plug, Hole (Fits 1–3/4” Hole)

45 405–6002 1 Dam, Air

46 870–0504 2 Nut, Captive – Floating (M6)

47 821–6002–03 2 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

48 405–5986 1 Cover, Exhaust Inlet

49 526–0011 2 Washer, Flat (#10)

50 405–5962 1 Baffle, Air Discharge

51 128–0252 2 Insulation, Foam (17” x 19”)

(With Slot)

52 405–6001–02 2 Fiberglass (4” x 44”)

53 405–5734 2 Insulation, Door (25” x 42”)

54 405–6005 1 Fiberglass (22” x 38–1/2”)

55 405–6001–01 2 Fiberglass (39–1/2” x 41”)

56 405–6000–03 2 Fiberglass (25” x 37”)

57 405–6000–02 2 Fiberglass (9” x 37”)

58 405–5997 2 Fiberglass (16” x 37”)

Housing

GGHB

Quiet Site Second Stage































 



 





























































































 





































F173,180



Housing

GGHB

Quiet Site Second Stage

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–5995 1 Side, Extension – Left Side

3 405–5996 1 Side, Extension – Right Side

4 405–6018 1 Roof

5 405–5745 2 Post, Center

6 406–0831 10 Hinge

7 405–5916 2 Post, Corner

8 Door, Rear

405–6125 1 Without Window

405–6123 1 With Window

9 895–0363 – Strip, Weather – Bulk (Order

By The Foot – 5 Feet

Required) (Sets With Rear

Window)

10 319–2653 1 Window

11 818–0231–02 95 Rivet, Pop

12 821–6003–02 63 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

13 155–3238 4 Cover, Exhaust

14 406–0782 6 Key, Replacement (Fits Side

and Rear Door Latches)

15 818–0237–01 52 Rivet, Pop

16 405–5952 1 Panel, End – Front

17 405–5953 1 Panel, End – Rear

18 405–5966 1 Box, Muffler

19 405–5961 2 Retainer, Insulation

20 405–5957 2 Angle

21 405–6015 1 Retainer, Insulation

22 405–5956 1 Support, Center

23 405–5954 1 Baffle, Air

24 405–5958 1 Retainer, Insulation

25 405–5955 1 Retainer, Insulation

26 405–5960 1 Retainer, Insulation

27 405–6003 2 Box, Radiator Fill

28 405–5998 2 Support, Muffler

29 405–6029 1 Baffle

30 405–6030 1 Tube, Radiator Fill

31 405–6068 1 Baffle, Recirculation – Muffler

32 405–5910 1 Panel, Front

33 405–6035 1 Baffle, Air Discharge

34 405–5902 4 Door, Side

35 406–0835 4 Latch, Door

36 405–6034 1 Retainer, Insulation

37 405–5987 1 Cover, Exhaust Inlet

38 526–0011 2 Washer, Flat (#10)

39 405–6005 1 Fiberglass (22” x 38–1/2”)

40 405–6109 1 Fiberglass (16” x 39”) (With

Hole)

41 405–5997 1 Fiberglass (16” x 37”)

42 405–5841 2 Fiberglass (16” x 39”)

(Without Hole)

43 405–6000–02 1 Fiberglass (9” x 37”)

44 405–6000–03 1 Fiberglass (25” x 37”)

45 405–6001–01 1 Fiberglass (39–1/2” x 41”)

46 405–5734 2 Insulation, Door (25” x 42”)

47 517–0322 4 Plug, Hole (Fits 3” Hole)

48 895–0384 11 Seal, Weather (25”) (Front

Panel, Top and Bottom of

Housing Door Openings)

49 895–0385 5 Seal, Weather (40–1/2”)

(Latch Side of Housing

Door Openings)

50 895–0386 5 Seal, Weather (40–1/2”)

(Hinge Side of Housing

Door Openings)

51 517–0138–07 2 Plug, Hole (Fits 1–3/4” Hole)

52 870–0504 2 Nut, Captive – Floating (M6)

53 821–6002–03 2 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

54 406–0765 2 Latch, Door (Includes Key,

Adjusting Screw and

Adjusting Screw Nut)

55 405–6124 2 Catch, Door

56 517–0131 6 Plug, Hole (Fits 5/16” Hole)

57 405–5991–01 1 Panel, Side – Air Discharge –

Right Side

58 405–5988 1 Panel, Bottom – Air

Discharge

59 405–5991–02 1 Panel, Side – Air Discharge –

Left Side

60 405–6010 1 Cover, Top – Air Discharge

61 405–5990 1 Panel, Front – Air Discharge

62 128–0154–04 1 Insulation, Foam (16” x 16”)

63 128–0252 2 Insulation, Foam (17” x 19”)

(With Slot)

Housing

GGHC, GGHD

Quiet Site Second Stage















































































































































 









































F173,180



Housing

GGHC, GGHD

Quiet Site Second Stage

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 405–5908 2 Panel, Side

2 405–5951 1 Side, Extension – Left Side

3 405–5916 2 Post, Corner

4 405–5744 2 Post, Center

5 405–5998 2 Support, Muffler

6 405–5966 1 Box, Muffler

7 405–5953 1 Panel, End – Rear

8 405–5952 1 Panel, End – Front

9 405–5950 1 Side, Extension – Right Side

10 405–5961 3 Retainer, Insulation

11 405–5956 1 Support, Center

12 405–5957 5 Angle

13 405–5954 2 Baffle, Air

14 405–5958 2 Retainer, Insulation

15 405–5955 2 Retainer, Insulation

16 405–6015 2 Retainer, Insulation

17 405–5926 1 Roof

18 405–5963 1 Tube, Radiator Fill

19 405–6003 2 Box, Radiator Fill

20 405–5909 1 Panel, Front

21 405–5917 2 Panel, End – Roof

22 405–5991–01 2 Panel, Side – Air Discharge –

Right Side

23 405–5988 2 Panel, Bottom – Air

Discharge

24 405–5991–02 2 Panel, Side – Air Discharge –

Left Side

25 405–5992 1 Panel, Center

26 405–5993 1 Cover, Duct

27 405–5994 2 Retainer, Insulation

28 405–6014 4 Retainer, Insulation

29 406–0831 14 Hinge

30 405–5902 4 Door, Side (With One Latch

Opening)

31 405–6010 1 Cover, Top – Air Discharge –

Front

32 Door, Rear

405–5902 1 Without Window

405–5903 1 With Window

33 155–3238 3 Cover, Exhaust

34 128–0252 2 Insulation, Foam (17” x 19”)

(With Slot)

35 406–0782 9 Key, Replacement

36 406–0835 9 Latch (Includes Key)

37 821–6003–02 86 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

38 405–5959 1 Baffle, Recirculation – Muffler

39 818–0231–02 168 Rivet, Pop

40 818–0237–01 109 Rivet, Pop

41 895–0363 – Strip, Weather – Bulk (Order

By The Foot – 5 Feet

Required) (Sets With Rear

Door Window)

42 319–2653 1 Window

43 405–6044 4 Retainer, Insulation

44 405–6000–07 1 Fiberglass (36” x 60”)

45 517–0322 4 Plug, Hole (Fits 3” Hole)

46 895–0384 15 Seal, Weather (Top and

Bottom of Housing Door

Openings)

47 895–0385 5 Seal Weather (40–1/2”)

(Latch Side of Housing

Door Openings)

48 895–0386 7 Seal, Weather (40–1/2”)

(Hinge Side of Housing

Door Openings)

49 405–5841 3 Fiberglass (16” x 39”)

(Without Hole)

50 405–6034 1 Retainer, Insulation

51 405–5960 1 Retainer, Insulation

52 517–0131 3 Plug, Hole (Fits 5/16” Hole)

53 517–0138–07 2 Plug, Hole (Fits 1–3/4” Hole)

54 405–5989 1 Cover, Top – Air Discharge –

Rear

55 405–5990 1 Cover, Air Discharge

56 405–6013 1 Retainer, Insulation

57 405–6002 1 Dam, Air

58 870–0504 2 Nut, Captive – Floating (M6)

59 821–6002–03 2 Screw, Self-Locking – Hex

Washer Head (M6 x 16mm)

60 405–5986 1 Cover, Exhaust Inlet

61 526–0011 2 Washer, Flat (#10)

62 405–5962 1 Baffle, Air Discharge

63 405–6000–01 2 Fiberglass (36” x 39”)

64 405–6001–02 2 Fiberglass (4” x 44”)

65 405–5734 2 Insulation, Door (25” x 42”)

66 405–6000–04 4 Fiberglass (18–1/2” x 60”)

67 405–6005 1 Fiberglass (22” x 38–1/2”)

68 405–6001–01 2 Fiberglass (39–1/2” x 41”)

69 405–6000–03 2 Fiberglass (25” x 37”)

70 405–6000–02 2 Fiberglass (9” x 37”)

71 405–5997 2 Fiberglass (16” x 37”)

72 405–6109 1 Fiberglass (16” x 39”) (With

Hole)

73 405–6132 1 Retainer, Insulation

74 405–6182 2 Door, Side (With Two Latch

Openings)

Oil Drain

H268

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 102–1054 1 Adapter, Oil Drain

2 504–0011 1 Valve, Shutoff

3 505–0185 1 Nipple, Half (1/2” x 1–1/2”)

4 503–1195 1 Hose, Oil Drain

5 503–0197 1 Clamp, Hose

6 102–1320 1 Gasket, Oil Drain

Battery Tray

F065

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 403–4267 1 Tray, Battery

2 821–6003–02 3 Screw, Self-Locking – Hex

Washer Head (M8 x 20mm)

3 416–1033 1 Hold–Down, Battery

4 416–0993–02 2 Rod, Hold-Down

5 865–0030 2 Nut, Wing (M6)

Skid

414

F179

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Skid

403–4236 1 GGHB (Housing

Compatible)

403–4302 1 GGHB (Basic)

403–4237 1 GGHC, GGHD

2 402–0644 4 Cushion, Vibration

3 517–0094 4 Plug, Hole

4 526–0433 10 Washer, Flat – Hardened

(M12)

5 800–2543–02 10 Screw, Cap – Hex Head

(M12 x 25mm)

6 526–0238–01 8 Washer, Flat (3/4”) Hardened

7 862–0044 4 Nut, Hex (3/4–10)

8 800–0607 4 Screw, Cap – Hex Head

(3/4–10 x 2”) Grade 8

9 403–4246 2 Bracket, Mounting – Engine

10 526–0249–01 6 Washer, Flat (7/16”)

11 800–0608–01 6 Screw, Cap – Hex Head

(7/16–14 x 1”) Grade 8

12 856–0010 2 Washer Lock – EIT (3/8”)

13 337–0090–01 1 Strap, Ground (27”)

14 800–0049 2 Screw, Cap – Hex Head

(3/8–16 x 7/8”)

15 526–0030 2 Washer, Flat (3/8”)

16 870–0281 1 Nut, Hex (3/8–16)

17 403–4279 1 Bracket, Mounting – Ignition

Module

18 821–5002–03 3 Screw, Self–Locking – Hex

Washer Head (1/4–20 x

1/2”)

Skid Pan

F170

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Pan, Skid

403–4290 1 GGHB

403–4287 1 GGHC, GGHD

2 Clamp

403–4110 10 GGHB

403–4110 12 GGHC, GGHD

3 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

821–6002–03 38 GGHB

821–6002–03 42 GGHC, GGHD

4 Cover, Stub–Up – End

403–4116 2 GGHB (7–5/32” x 21–3/8”)

403–4215 2 GGHC, GGHD (7–5/32” x

28”)

5 403–4116 1 Cover, Stub–Up – Side

(7–5/32” x 21–3/8”)

Starter

CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

191–2213 1 Starter – Complete (1.4kW) (B1)

1 191–2215 1 Kit, Starter Brush

2 191–2216 1 Switch

3 191–2217 1 Clutch

4 191–2218 1 Armature

5 191–2219 1 Frame, Commutator End

6 191–2220 1 Housing

7 191–2221 1 Bearing, Commutator End

8 191–2222 1 Bearing, Pinion End

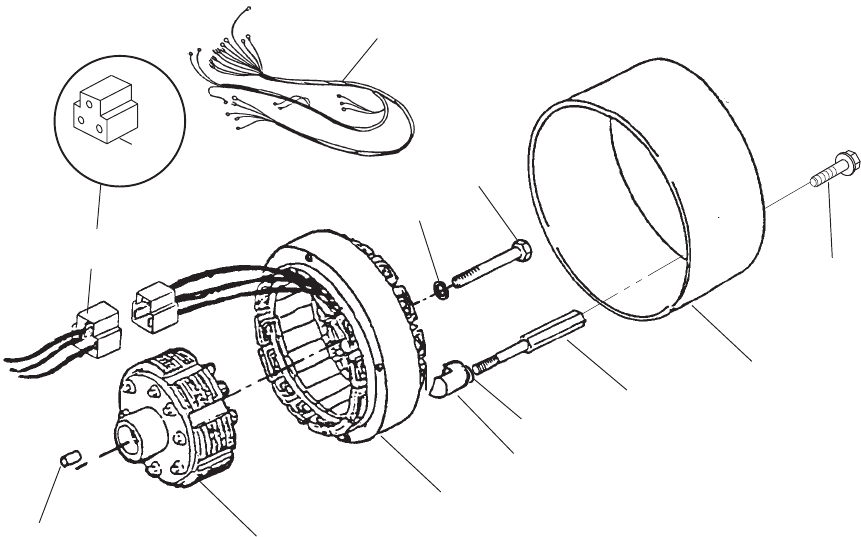

Alternator

CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 191–2209 1 Alternator 2 191–2120 1 Regulator

Governor

5, 7, 8 5,6,10

2, 4

A366,CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 1

2 150–0939 2 Joint, Ball

3 Rod, Governor

150–2697 1 GGHB (6–1/2”)

150–2691 1 GGHC, GGHD (4–5/8”)

4 870–0131 4 Nut, Hex – W/ET

5 526–0018 5 Washer, Flat (1/4”)

6 850–0040 4 Washer, Lock – Spring (1/4”)

7 800–2038 1 Screw, Cap – Hex Head (M6

x 40mm)

8 870–2054 1 Nut, Hex (M6)

9 332–1554 1 Clamp, Loop – Insulated

10 800–0602 4 Screw, Cap – Hex Head

(1/4–20 x 3/4”)

11 150–2651 1 Pickup, Magnetic (P1)

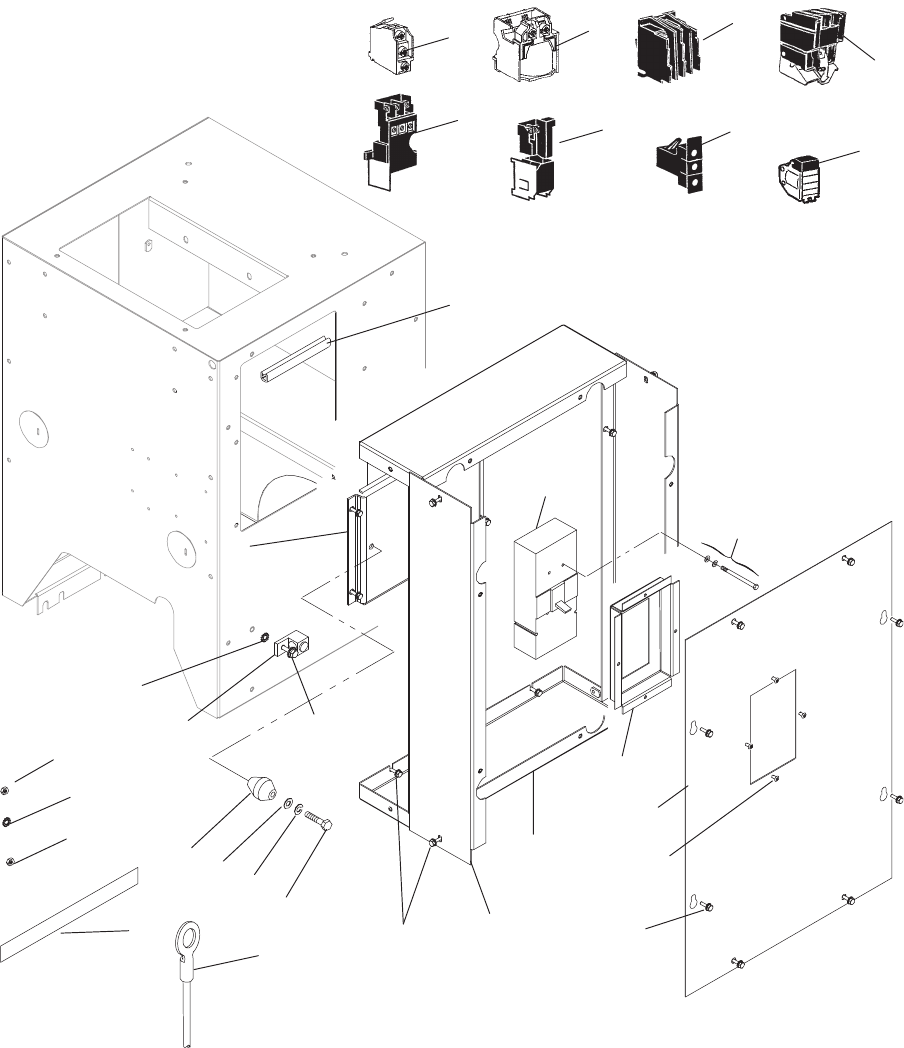

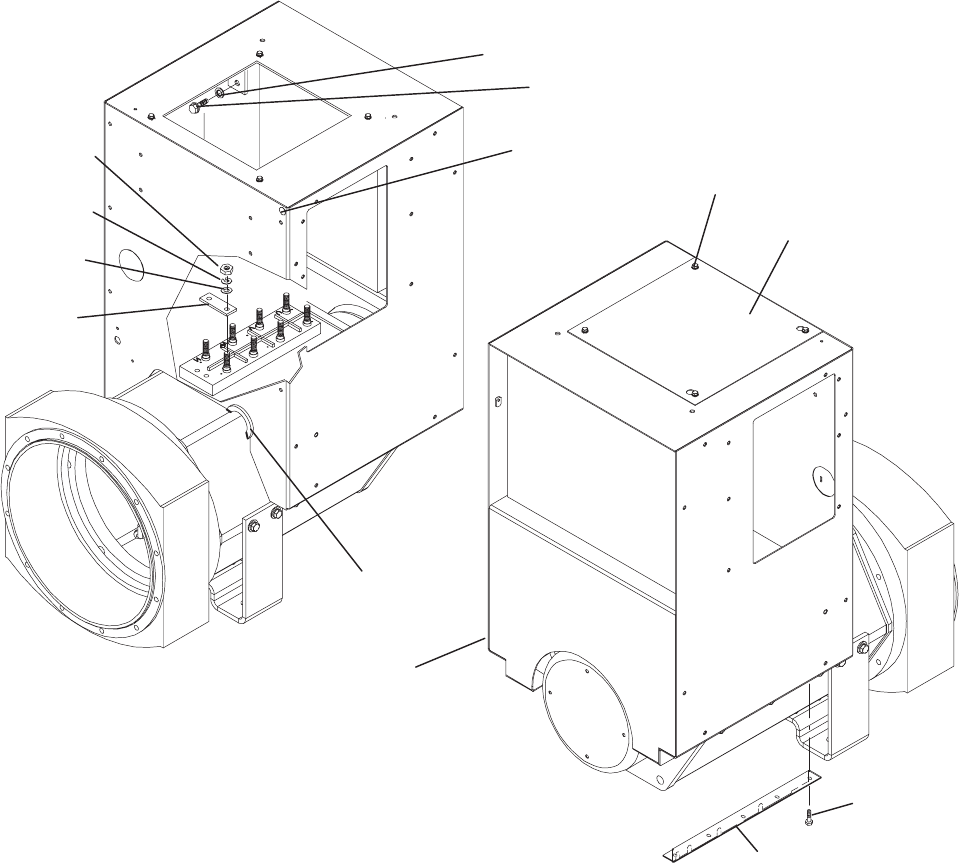

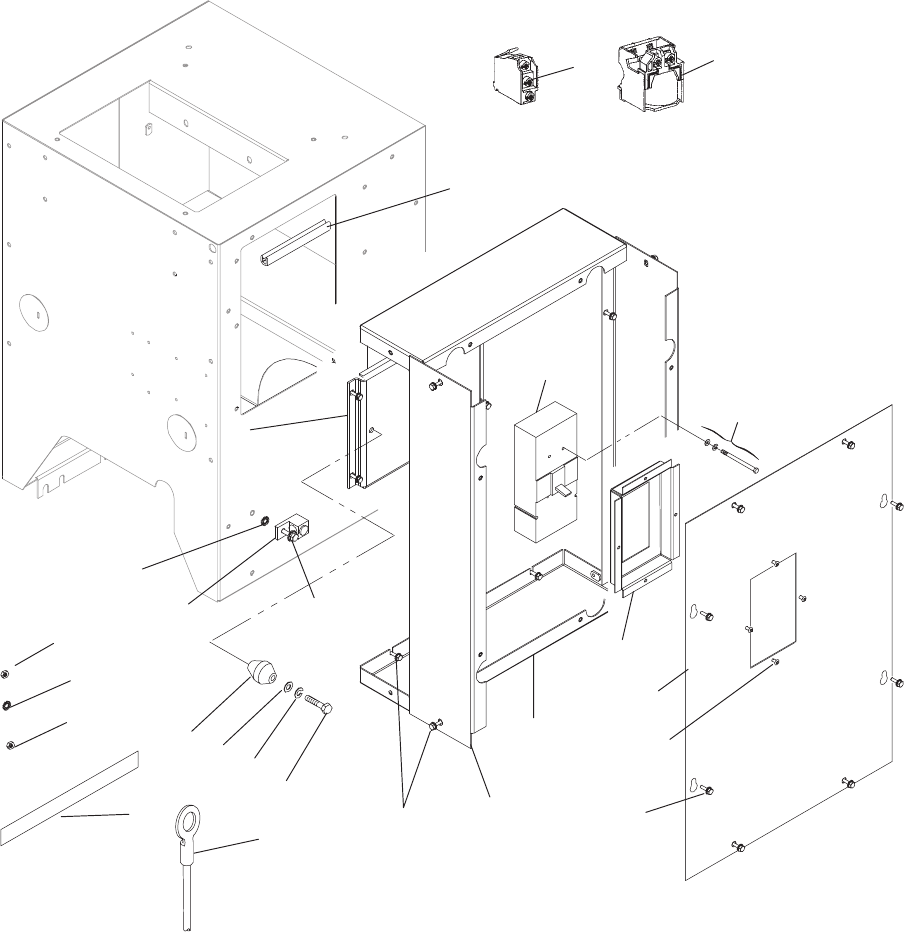

Control Housing

B267,268,273,274,303,304,327,328,339,

340,413,414,415,416,417,418,419,420,

CP01

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Box, Control

319–3208 1 Sets With UCD22 Generator

319–2967 1 Sets With UC27 Generator

2 Cover, Control Housing

319–2996 3 Generator Sets Without Circuit

Breaker or Entrance Box

319–2996 2 Generator Sets With Circuit

Breaker or Entrance Box

319–2996 1 Generator Sets With Two

Circuit Breakers

3 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

821–6002–03 17 Sets With UCD22 Generator

821–6002–03 12 Sets With UC27 Generator

4 860–2009 8 Nut, Hex (M10)

5 850–2010 8 Washer, Lock – Spring (M10)

6 526–2120 8 Washer, Flat (M10)

7 332–2987 4 Link, Terminal

8 Screw, Self –Locking – Hex

Washer Head (5/16–18 x 1/2”)

821–5003–01 4 Sets With UCD22 Generator

821–0014 4 Sets With UC27 Generator

9 856–0008 1 Washer, Lock – ET (5/16”)

10 508–0305–02 – Edging – Bulk (Order By The

Foot – 1 Foot Required)

11 517–0135 1 Plug, Hole (Fits 5/8” Hole)

12 319–3207 1 Bracket, Mounting – Control

Box – Sets With UCD22

Generator

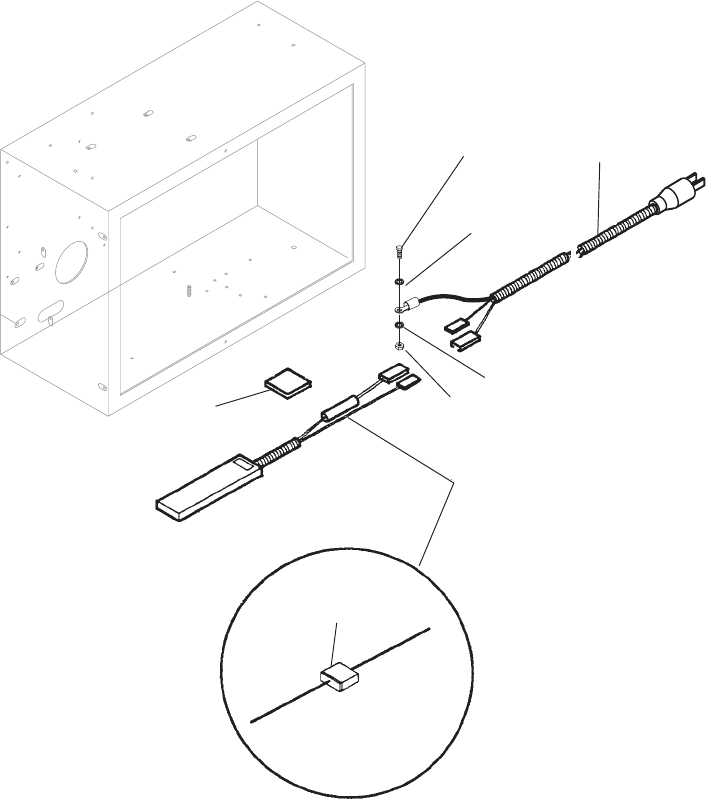

Generator Heater

A292,293,B303,417

517

Generator Heater

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Cartridge, Heater (100 Watt)

333–0438–07 1 120 Volt

333–0438–08 1 240 Volt

2 332–3024–11 2 Clamp, Loop

3 822–3075 6 Screw, Machine – Pan Head

(M4 x 16mm)

4 860–2005 2 Nut, Hex (M4)

5 850–2004 4 Washer, Lock – Spring (M4)

6 526–2050 2 Washer, Flat (M4)

7 330–0142 1 Box, Terminal

8 330–0141–03 1 Cover, Terminal Box

9 330–0141–04 1 Gasket, Terminal Box

10 332–3023 1 Block, Terminal

11 508–0228 1 Grommet

12 822–3047 1 Screw, Machine – Pan Head

(M3 x 20mm)

13 850–2003 1 Washer, Lock – Spring (M3)

14 800–3034 1 Screw, Cap – Hex Head

(M4 x 12mm)

15 332–3228 1 Mount, Cable Tie

16 870–2064–01 1 Nut, Hex (M4)

17 815–0792–04 2 Screw, Pan Head (M4 x 12mm)

18 517–0021 1 Plug, Dot Button

Generator

24 26

25 17

21 60

318

15 5

11 4

39 41

33 35

6454

B267,268,273,274,303,304,327,328,339,

340,413,414,415,416,417,418,419,420

57 63

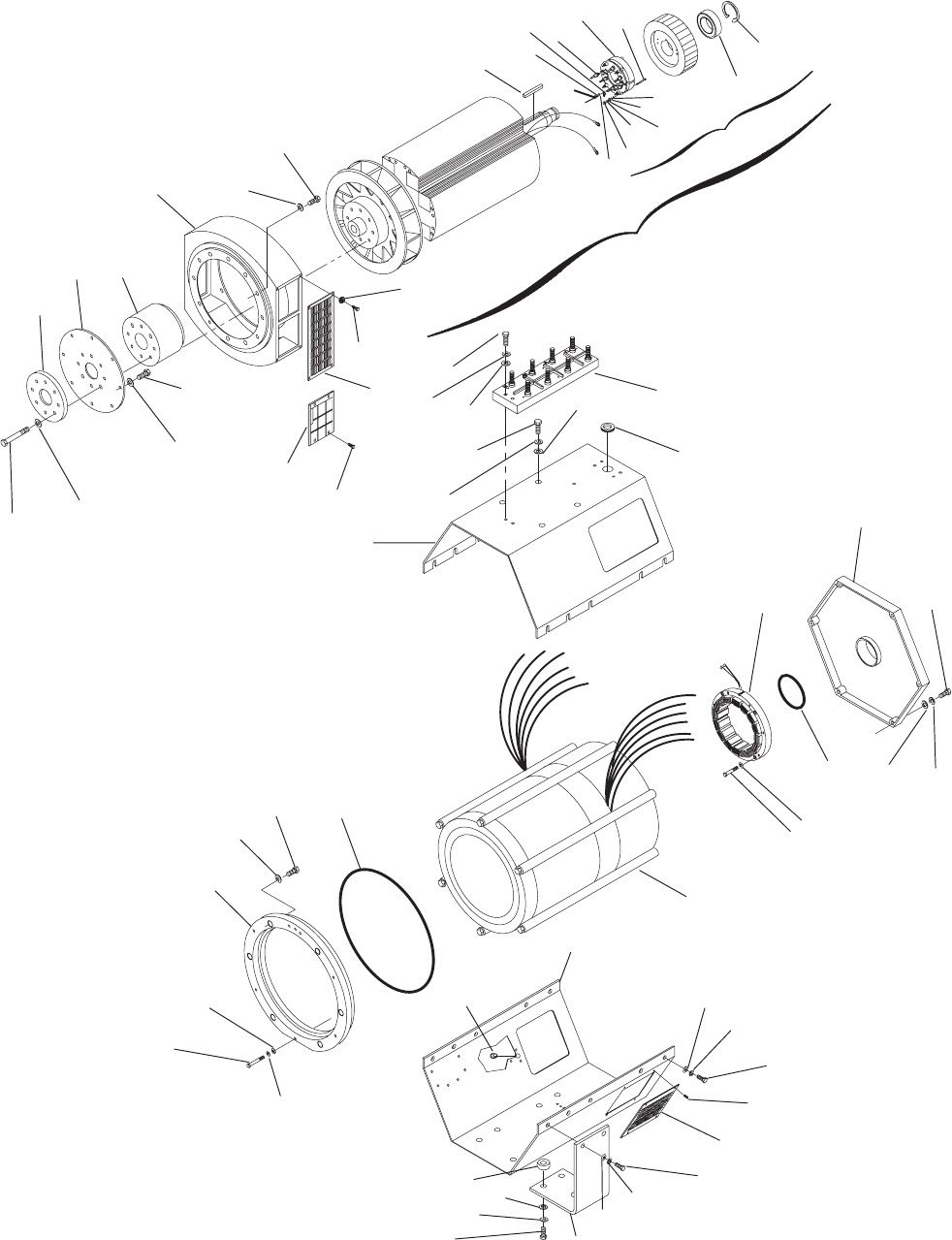

Generator

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 – 1 Stator, Generator (See

Separate Pages for Part

Numbers)

2 Rotor Assembly, Generator

(Includes Parts Marked *)

UCD22 Generator

201–3557–04 1 240mm Stack Length

201–3557–05 1 300mm Stack Length

UC27 Generator

201–3497–01 1 165mm Stack Length

201–3497–02 1 190mm Stack Length

201–3497–03 1 230mm Stack Length

201–3497–04 1 285mm Stack Length

201–3497–05 1 335mm Stack Length

3 *Key, Exciter Rotor

515–0298–02 1 UCD22 Generator

UC27 Generator

515–0298–02 1 165, 190mm Stack Length

515–0298–03 1 230, 285, 335mm Stack

Length

4 *Rotor Assembly, Exciter

(Includes Parts Marked #)

201–3434–02 1 UCD22 Generator

UC27 Generator

201–3434–02 1 165, 190mm Stack

Length

201–3434–03 1 230, 285, 335mm Stack

Length

5 *#Rectifier Assembly (Includes

Parts Marked +)

357–0091 1 Forward ( With Positive

Diode)

357–0092 1 Reverse (With Negative

Diode)

6 *#+Diode

358–0135–01 3 Positive

358–0135–02 3 Negative

7 800–3009 6 *#+Screw, Cap – Hex Head

(M4 x 35mm) (CR1,2,3,4,5,6)

8 860–2005 6 *#+Nut, Hex (M4)

9 850–2004 6 *#+Washer, Lock – Spring (M4)

10 526–2050 6 *#+Washer, Flat (M4)

11 870–2064–01 6 *#Nut, Locking – Nylon (M4)

12 526–2050 6 *#Washer, Flat (M4)

13 *Bearing, Ball

510–0165 1 UCD22 Generator

510–0164 1 UC27 Generator

14 *Ring, Retaining

518–0122 1 UCD22 Generator

518–0083 1 UC27 Generator

15 304–0807 1 *Varistor

16 860–2006 2 *Nut, Hex (M5)

17 232–3695 1 *Hub, Drive – UC27 Generator

18 850–2005 2 *Washer, Lock – Spring (M5)

19 526–2060 2 *Washer, Flat (M5)

20 O–Ring

509–0266–01 1 UCD22 Generator

509–0266–02 1 UC27 Generator

21 Adapter, Generator

231–0383 1 UCD22 Generator

231–0317 1 UC27 Generator

22 Screw, Cap – Hex Head –

UC27 Generator

800–3017–42 5 M10 x 50mm

800–3017–44 1 M10 x 60mm (12 O‘Clock

Position)

23 850–0114–55 6 Washer, Lock – Spring (M10)

UC27 Generator

24 Screw

805–2021–06 8 UCD22 Generator – Hex

Head (M12 x 45mm)

720–1119 8 UC27 Generator – Cap – Hex

Head (M16 x 40mm)

25 Disc, Drive – Generator

232–3959–01 3 UCD22 Generator

232–3699 3 UC27 Generator

26 526–0259 8 Washer, Flat (5/8”) Hardened –

UC27 Generator

27 Adapter, Generator Stator

231–0318 1 UCD22 Generator

231–0319 1 UC27 Generator

28 Seal, Edging – Bulk (Order By

The Foot)

508–0139 – UCD22 Generator (2 Feet

Required)

508–0139 – UC27 Generator (3 Feet

Required)

29 Cover, Stator – Top

UCD22 Generator

234–0936–02 1 240mm Stack Length

234–0936–03 1 300mm Stack Length

UC27 Generator

234–0937–01 1 165, 190mm Stack Length

234–0937–02 1 230, 285mm Stack Length

234–0937–03 1 335mm Stack Length

30 Cover, Stator – Bottom

UCD22 Generator

232–3819–02 1 240mm Stack Length

232–3819–03 1 300mm Stack Length

UC27 Generator

232–3820–01 1 165, 190mm Stack Length

232–3820–02 1 230, 285mm Stack Length

232–3820–03 1 335mm Stack Length

31 Screw, Cap – Hex Head

800–3017–37 10 UCD22 Generator (M10 x

25mm)

800–3017–54 10 UC27 Generator (M12 x

30mm)

* – Parts Included in Generator Rotor Assemblies

# – Parts Included in Exciter Rotor Assemblies

+ – Parts Included in Rectifier Assemblies

Continued...

Generator

24 26

25 17

21 60

318

15 5

11 4

39 41

33 35

6454

B267,268,273,274,303,304,327,328,339,

340,413,414,415,416,417,418,419,420

57 63

Generator

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

Continued...

32 Washer, Lock – Spring

850–0114–55 10 UCD22 Generator (M10)

850–0114–56 10 UC27 Generator (M12)

33 Washer, Flat

526–0399–62 10 UCD22 Generator (M10)

526–0399–64 10 UC27 Generator (M12)

34 508–1057 1 Grommet

35 232–3421 1 Block, Terminal

36 517–0135 1 Plug, Hole

37 Washer

232–3441 12 UCD22 Generator – Special

526–0423 12 UC27 Generator – Flat

(13/32” ID x 1–1/4” OD x 1/4”

Thk)

38 Screw, Cap – Hex Head

800–3017–20 6 UCD22 Generator (M8 x

25mm)

800–3017–38 6 UC27 Generator (M10 x

30mm)

39 850–2008 3 Washer, Lock – Spring –

UC27 Generator (M8)

40 800–2060 3 Screw, Cap – Hex Head

(M8 x 35mm)

41 526–2100 3 Washer, Flat (M8)

42 Washer, Lock – Spring

850–0114–54 6 UCD22 Generator (M8)

850–0114–55 6 UC27 Generator (M10)

43 Guard, Fan – Generator

234–0990 2 UCD22 Generator – Upper

234–0867 2 UC27 Generator

44 Screen, Air Inlet

234–0878 2 UCD22 Generator

234–0879 2 UC27 Generator

45 821–6001–02 8 Screw, Self–Locking – Hex

Washer Head (M5 x 12mm)

46 Bell, End

211–0422 1 UCD22 Generator

211–0423 1 UC27 Generator

47 Washer, Lock – Spring

850–0114–54 6 UCD22 Generator (M8)

850–0114–55 6 UC27 Generator (M10)

48 Screw, Cap – Hex Head

800–3017–20 6 UCD22 Generator (M8 x

25mm)

800–3017–38 6 UC27 Generator (M10 x

30mm)

49 850–2006 4 Washer, Lock – Spring (M6)

50 Screw, Cap – Hex Head

800–2042 4 UCD22 Generator (M6 x

60mm)

UC27 Generator

800–2042 4 165, 190mm Stack Length

(M6 x 60mm)

800–2046 4 230, 285, 335mm Stack

Length (M6 x 80mm)

51 Stator, Exciter

220–4293–05 1 UCD22 Generator

UC27 Generator

220–4293–05 1 165, 190mm Stack Length

220–4293–06 1 230, 285, 335mm Stack

Length

52 Bracket, Mounting – Generator

Foot

232–3940 2 UCD22 Generator

232–3925 2 UC27 Generator

53 Screw, Cap – Hex Head

800–3017–39 4 UCD22 Generator (M10 x

35mm)

800–2543–05 4 UC27 Generator (M12 x

40mm)

54 Washer, Lock – Spring

850–0114–55 8 UCD22 Generator (M10)

850–0117 8 UC27 Generator (M12)

55 Washer, Flat

526–0423 8 UCD22 Generator (M10)

526–0433 8 UC27 Generator (M12)

56 Spacer, Mounting Foot

232–3730–03 4 UCD22 Generator

232–3730–04 4 UC27 Generator

57 232–3960 1 Plate, Pressure – UCD22

Generator

58 805–0015 8 Bolt, Place (3/8–16 x .75”)

59 Screw, Cap – Hex Head

UCD22 Generator

800–2088 4 M10 x 35mm – GGHB, GGHC

800–2090 6 M10 x 45mm – GGHB, GGHC

800–2088 12 UC27 Generator (M10 x

35mm)

60 850–2010 12 Washer, Lock – Spring (M10)

61 526–0174 8 Washer, Flat (3/8”)

62 234–0981 2 Guard, Fan – Generator – Lower

– UCD22 Generator

63 526–0399–11 8 Washer, Flat – UCD22

Generator (#10)

64 Screw, Cap – Hex Head

800–3017–41 4 UCD22 Generator (M10 x

45mm)

800–2543–05 4 UC27 Generator (M12 x

40mm)

65 Screw, Self–Locking – Hex

Washer Head

821–6001–02 16 UCD22 Generator (M5 x

12mm)

821–6001–01 8 UC27 Generator (M5 x

10mm)

* – Parts Included in Generator Rotor Assemblies

# – Parts Included in Exciter Rotor Assemblies

+ – Parts Included in Rectifier Assemblies

Generator Stator

GGHB

REF PART QTY PART

NO. NO. USED DESCRIPTION

1 Stator, Generator

UCD22 Generator

6 Lead, Three Phase, Reconnectible

220–4447–29 1 240mm Stack Length, 105 Deg C (B304)

220–4447–29 1 240mm Stack Length, 125 Deg C (B303)

220–4447–29 1 240mm Stack Length, 150 Deg C (B419)

12 Lead, Single or Three Phase, Reconnectible

220–4447–14 1 240mm Stack Length, 105 Deg C (B415)

220–4447–14 1 240mm Stack Length, 125 Deg C, 50 Hertz, Broad Range

(B327)

220–4447–19 1 240mm Stack Length, 125 Deg C, 60 Hertz, Lower Broad

Range (B417)

220–4447–14 1 240mm Stack Length, 125 Deg C, 60 Hertz, Upper Broad

Range (B414)

220–4447–14 1 240mm Stack Length, 150 Deg C, 50 Hertz (B420)

220–4447–19 1 240mm Stack Length, 150 Deg C, 60 Hertz, Lower Broad

Range (B416)

220–4447–14 1 240mm Stack Length, 150 Deg C, 60 Hertz, Upper Broad

Range (B413)

UC27 Generator

4 Lead, Single Phase, Non–Reconnectible

220–4448–07 1 165mm Stack Length, 105 Deg C (B274)

220–4448–07 1 165mm Stack Length, 125 Deg C (B273)

12 Lead, Single or Three Phase, Reconnectible

220–4448–13 1 165mm Stack Length, 105 Deg C, 50 Hertz, Broad Range

(B328)

220–4448–19 1 165mm Stack Length, 105 Deg C, 60 Hertz (B418)

220–4448–13 1 165mm Stack Length, 125 Deg C, 50 Hertz, Broad Range, Full

Output on Single Phase (B339)

220–4448–13 1 165mm Stack Length, 125 Deg C, 60 Hertz, Broad Range, Full

Output on Single Phase (B267)

220–4448–14 1 190mm Stack Length, 105 Deg C, 50 Hertz, Broad Range, Full

Output on Single Phase (B340)

220–4448–14 1 190mm Stack Length, 105 Deg C, 60 Hertz, Broad Range, Full

Output on Single Phase (B268)

Generator Stator

GGHC

REF PART QTY PART

NO. NO. USED DESCRIPTION

1 Stator, Generator

UCD22 Generator

6 Lead, 3 Phase, Reconnectible

220–4447–30 1 300mm Stack Length, 125 Deg C (B303)

220–4447–30 1 300mm Stack Length, 150 Deg C (B419)

12 Lead, Single or Three Phase, Reconnectible

220–4447–20 1 300mm Stack Length, 125 Deg C (B417)

220–4447–15 1 300mm Stack Length, 125 Deg C, Broad Range (B327)

220–4447–20 1 300mm Stack Length, 150 Deg C (B416)

220–4447–15 1 300mm Stack Length, 150 Deg C, Broad Range (B420)

UC27 Generator

4 Lead, Single Phase, Non–Reconnectible

220–4448–07 1 165mm Stack Length, 125 Deg C (B273)

220–4448–08 1 190mm Stack Length, 105 Deg C (B274)

220–4448–31 1 6 Lead, Three Phase, Reconnectible, 165mm Stack Length, 105

Deg C (B304)

12 Lead, Single or Three Phase, Reconnectible

220–4448–19 1 165mm Stack Length, 105 Deg C (B418)

220–4448–13 1 165mm Stack Length, 105 Deg C, Broad Range (B328)

220–4448–13 1 165mm Stack Length, 125 Deg C (B414)

220–4448–13 1 165mm Stack Length, 125 Deg C, Broad Range, Full Output on

Single Phase (B339)

220–4448–13 1 165mm Stack Length, 150 Deg C (B413)

220–4448–14 1 190mm Stack Length, 105 Deg C (B415)

220–4448–14 1 190mm Stack Length, 105 Deg C, Broad Range, Full Output on

Single Phase (B340)

220–4448–15 1 230mm Stack Length, 105 Deg C (B268)

220–4448–15 1 230mm Stack Length, 125 Deg C (B267)

Generator Stator

GGHD

REF PART QTY PART

NO. NO. USED DESCRIPTION

1 Stator, Generator (UC27 Generator)

4 Lead, Single Phase, Non–Reconnectible

220–4448–09 1 230mm Stack Length, 125 Deg C (B273)

220–4448–10 1 285mm Stack Length, 105 Deg C (B274)

6 Lead, Three Phase, Reconnectible

220–4448–31 1 165mm Stack Length, 150 Deg C (B419)

220–4448–32 1 190mm Stack Length, 105 Deg C (B304)

220–4448–32 1 190mm Stack Length, 125 Deg C (B303)

12 Lead, Single or Three Phase, Reconnectible

220–4448–19 1 165mm Stack Length, 150 Deg C (B416)

220–4448–14 1 190mm Stack Length, 125 Deg C, 50 Hertz, Broad Range (B327)

220–4448–20 1 190mm Stack Length, 125 Deg C, 60 Hertz, Lower Broad Range

(B417)

220–4448–14 1 190mm Stack Length, 125 Deg C, 60 Hertz, Upper Broad Range

(B414)

220–4448–14 1 190mm Stack Length, 150 Deg C, 50 Hertz, Broad Range (B420)

220–4448–14 1 190mm Stack Length, 150 Deg C, 60 Hertz, Upper Broad Range

(B413)

220–4448–15 1 230mm Stack Length, 105 Deg C, 50 Hertz, Broad Range (B328)

220–4448–15 1 230mm Stack Length, 105 Deg C, 50 Hertz, Broad Range, Full

Output on Single Phase (B340)

220–4448–21 1 230mm Stack Length, 105 Deg C, 60 Hertz, Lower Broad Range

(B418)

220–4448–15 1 230mm Stack Length, 105 Deg C, 60 Hertz, Upper Broad Range

(B415)

220–4448–15 1 230mm Stack Length, 125 Deg C (B339)

220–4448–16 1 285mm Stack Length, 125 Deg C (B267)

220–4448–17 1 335mm Stack Length, 105 Deg C (B268)

Permanent Magnet Generator

12 7

B184

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 775–0049 1 Pin, Dowel

2 815–0761–01 1 Bolt, Hex Head

(M10 x 90mm)

3 201–3446 1 Rotor

4 220–4233 1 Stator

5 232–3972 4 Clamp

6 234–0875–02 1 Cover, End Bell

7 232–3462–03 4 Spacer

8 821–6001–01 4 Screw, Self–Locking – Hex

Washer Head (M5 x 10mm)

9 850–2010 1 Washer, Lock – Spring (M10)

10 338–3149 1 Harness, Wiring

(AUX–P2,P3,P4 to

VR21–P2,P3,P4) (3 Wire)

(40”)

11 338–3011 1 Harness, Wiring (P2,P3,P4 to

P2,P3,P4) (3 Wire) (30”)

(Includes Housing Connector)

12 850–2006 4 Washer, Lock – Spring (M6)

13 332–3021 1 Connector, Housing (3 Place)

Entrance Box

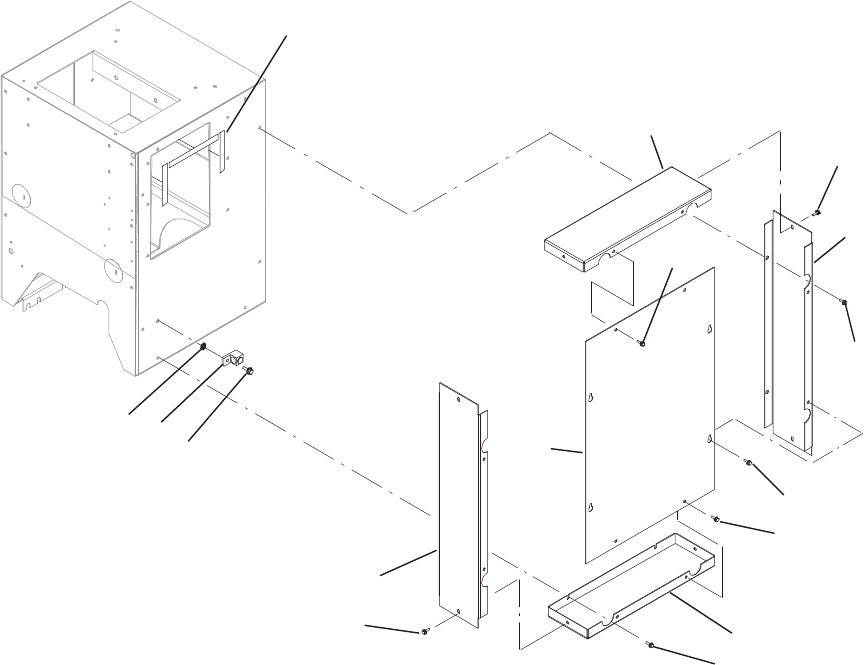

K882

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–3072 2 Panel, Box – Top and Bottom

2 319–2978 2 Panel, Box – Side

3 319–2979–02 1 Cover, Entrance Box

4 821–6002–03 24 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

5 508–0239 – Edging – Bulk (Order By The

Foot – 2 Feet Required)

6 856–0008 1 Washer, Lock – EIT (5/16”)

7 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

8 332–1473 1 Lug, Solderless

Control Heater

Generator Sets With Detector Control

A362,363,H530

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 332–3338 2 *#Mount, Cable

2 Heater Assembly, Control – 100

Watt (Includes Rectifier)

300–4515–01 1 * 120 Volt

300–4515–02 1 # 240 Volt

3 357–0114 1 *#Rectifier (3 Amp)

4 335–0173 1 *Cable, Heater (7’)

5 800–0024 1 *Screw, Cap – Hex Head

(5/16–18 x 3/4”)

6 870–0257 1 *Nut, Locking – Hex (5/16–18)

7 856–0008 2 *Washer, Lock – W/EIT (5/16”)

* – Parts Used in 120 Volt Control Heater Application

# – Parts Used in 240 Volt Control Heater Application

Detector Control

14 15

2122

27 39

10 11 34

H559,560

16 61

Detector Control

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–3030 1 Box, Control

2 402–0527 4 Isolator, Vibration

3 850–0045 4 Washer, Lock – Spring (5/16)

4 508–0051 1 Grommet (Fits 2” Hole)

5 406–0332 2 Receptacle, Fastener

6 406–0333 2 Stud, Fastener

7 406–0334 2 Washer, Stud Retainer

8 332–0052 2 Clip, Wire

9 870–0131 1 Nut, Hex – W/ET (#10–32)

10 871–0015 1 Nut, Hex (1/4–20)

11 526–0018 1 Washer, Flat (1/4”)

12 337–0049 1 Strap, Ground

13 821–0014 1 Screw, Self-Locking – Hex

Head (5/16–18 x 1/2”)

14 815–0905–08 1 Screw, Pan Head – Cross

Recessed (#10–32 x 7/8”)

15 856–0008 2 Washer, Lock – EIT (5/16”)

16 821–0004 3 Screw, Self–Locking – Hex

Washer Head (#10–32 x

5/16”)

17 301–9054–01 1 Door, Control – AC

18 338–2278 1 Harness, Wiring – AC Control

Door (Includes Terminal

Block) (19 Wire, 26”)

(TB21, GND to GND,

M21,22,23, S21, DS21,22)

19 332–0607 1 Block, Terminal (12 Place)

(TB21)

20 322–0363 1 Light, Indicator –

Upper/Lower Scale

(DS21,22)

21 Voltmeter, AC (M21)

302–1148 1 0–300/600

302–1753 1 0–0750

22 Ammeter (M22)

302–1683 1 0–100/200

302–1684 1 0–150/300

302–1724 1 0–250/500

23 302–1968 1 Meter, Frequency (M23)

24 853–0008 1 Washer, Lock – ET (#10)

25 308–1052 1 Switch, Rotary –

Voltmeter/Ammeter

(Includes Handle) (S21)

26 332–2723 1 Strip, Marker

27 815–0901–06 2 Screw, Cross Recessed –

Thread Forming (#6–32 x

5/8”)

28 355–0189 1 Capaciter – Voltmeter (.1

Mfd., 500 WVDC) (C21)

29 870–0183 2 Nut, Hex – W/ET (#6–32)

30 815–0875–02 3 Screw, Machine – Round

Head (M4 x 8mm)

31 338–3429 1 Harness, Wiring – Terminal

Block (9 Wire, 11”)

(Includes Connector Plug

and Sockets) (P2 to TB21)

32 323–1644–02 1 Plug, Connector (P2)

33 323–1648 9 Socket, Contact

34 800–0045 4 Screw, Cap – Hex Head

(5/16–18 x 3/8”)

35 870–1220 6 Nut, Hex (#4–40)

36 821–5000–05 1 Screw, Self–Locking – Hex

Washer Head (#10–32 x

1/2”)

37 815–0388 8 Screw, Pan Head (Cross

Recessed (#6–32 x 1/2”)

38 301–9055–01 1 Door, Control – DC

39 815–0385 4 Screw, Machine – Round

Head (#6–32 x 1/2”)

40 870–0183 4 Nut, Hex – W/ET (#6–32)

41 338–3252 1 Harness, Wiring – DC Control

Door (Includes Connector

Housing and Contact Pins)

(22 Wire, 32”) (A11J4 to

GND, M11,12,13,14,

S11,12, DS11)

42 323–1308 1 Housing, Connector (J4)

43 323–1302 11 Pin, Contact

44 300–4296 1 Board Assembly, Printed

Circuit – Engine Monitor

(Includes Fuses) (A11)

45 Fuse

321–0307–03 2 5 Amp (Tan) (F4, F5)

321–0307–06 1 15 Amp (Light Blue) (F3)

321–0307–07 2 20 Amp (Yellow) (F1, F2)

46 322–0360–01 1 Light Assembly, Indicator

(Includes Wiring Harness

and Connector Housing)

(A12)

47 322–0369–01 1 Light, Indicator –

Replacement

48 322–0361 1 Light, Panel (DS11)

49 322–0004 1 Bulb, Panel Light –

Replacement

50 193–0466 1 Gauge, Oil Pressure (M11)

51 193–0351 1 Gauge, Water Temperature

(M12)

52 302–1641 1 Voltmeter (M13)

53 302–2002 1 Meter, Hour (M14)

54 517–0131 1 Plug, Hole (Fits 7/8” Hole)

55 308–1010 1 Switch, Rocker – Lamp

Test/Reset Panel Lamp

(S11)

56 308–1011 1 Switch, Rocker –

Run/Stop/Remote (S12)

57 853–0008 1 Washer, Lock – ET (#10)

58 300–5098 1 Board, Printed Circuit –

Sensor Board (A27)

59 517–0302 1 Plug, Hole (Fits 2–1/4” Hole)

(Quantity Used As

Required)

60 517–0301 1 Plug, Hole (Fits 2” Hole)

(Quantity Used As

Required)

61 308–1082 1 Handle, Rotary Switch

Sentinel Control

H562

26 25

27 28

Sentinel Control

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–2991 1 Wrapper, Control

2 319–2989 1 Panel, Control

3 308–1011 1 Switch, Rocker

4 307–2871 1 Relay, Timer

5 307–2677–03 1 Relay (20 Amp, 250 VAC)

6 332–2877 2 Tie, Cable

7 821–6002–03 3 Screw, Hex Head (M6 x 16)

8 870–0183 9 Nut, Lock – Acorn (#6–32)

9 402–0527 4 Isolator, Vibration

10 821–0014 4 Screw, Self-Locking – Hex

Washer Head

(5/16–18 x .50)

11 815–0388 4 Screw, Cross Recessed –

Thread Cutting

(#6–32 x 1/2)

12 337–0049 1 Strap, Bond

13 332–2974 1 Terminal, Spade

14 321–0175 1 Holder, Fuse

15 321–0353 1 Fuse (20 Amp)

16 526–0018 1 Washer, Flat (5/16)

17 856–0008 1 Washer, Lock – EIT (5/16)

18 508–0305–02 – Edging – Bulk (Order By The

Foot – 1 Foot Required)

19 856–0003 2 Washer, Lock – ET (5/16)

20 302–2002 1 Meter, Hour

21 Voltmeter, AC

302–1148 1 0–300/0–600 (600 Volt)

302–1753 1 0–750 (All except 600 Volt)

22 302–1968 1 Meter, Hz/RPM

23 308–1052 1 Switch, Rotary (Volt &

Ammeter)

24 338–3391 1 Harness, Wiring – Meters

(Includes Parts Marked *

25 332–0804 9 * Terminal, Ring

26 332–1992 2 * Socket, Contact

27 323–1644–02 1 * Housing, Cap

28 332–2630 11 * Terminal, Spade

29 332–0897 1 * Terminal, Ring

30 323–1648 8 * Pin, Contact

31 332–2468 2 * Terminal, Faston

32 332–1990 2 * Socket, Contact

33 870–1220 4 Nut – W/ET (#4–40)

34 870–0439 4 Nut, Acorn

35 815–0875–02 3 Screw, Machine – Round

Head (M4 x 8)

36 Breaker, Circuit

320–1941 1 2 Pin

320–1824–02 1 4 Pin (With Auxiliary

Contacts)

* – Parts Included in Wiring Harness 338–3391

Wiring Harness

Ignition and AC Control

CP01

H559,560,562

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3662 1 Harness, Wiring – Ignition

(6 Wire, 37”) (Ignition Coil, P3

to P1,2)

2 Harness, Wiring – AC Control

(Includes Connector Plug and

Contact Pins)

338–3405 1 Generators With Full Rated, 3

Phase, 60 Hertz Output at

347/600 Volts (16 Wire, 41”)

(Includes Parts Marked *)

(J2 to 5,6,7,8, GND, P1,

CT21,22,23)

338–3403 1 All Other Generators (12

Wire, 38”) (Includes Parts

Marked #) (J2 to 4,5,6,7,8,

GND, CT21,22,23)

3 Plug, Connector (9 Place)

323–1644–01 2 * Generators With Full Rated, 3

Phase, 60 Hertz Output at

347/600 Volts (P1, J2)

323–1644–01 1 # All Other Generators (J2)

4 Pin, Contact

323–1647 18 * Generators With Full Rated, 3

Phase, 60 Hertz Output at

347/600 Volts

323–1647 9 # All Other Generators

* – Parts Used In 338–3405 AC Control Wiring Harness

# – Parts Used In 338–3403 AC Control Wiring Harness

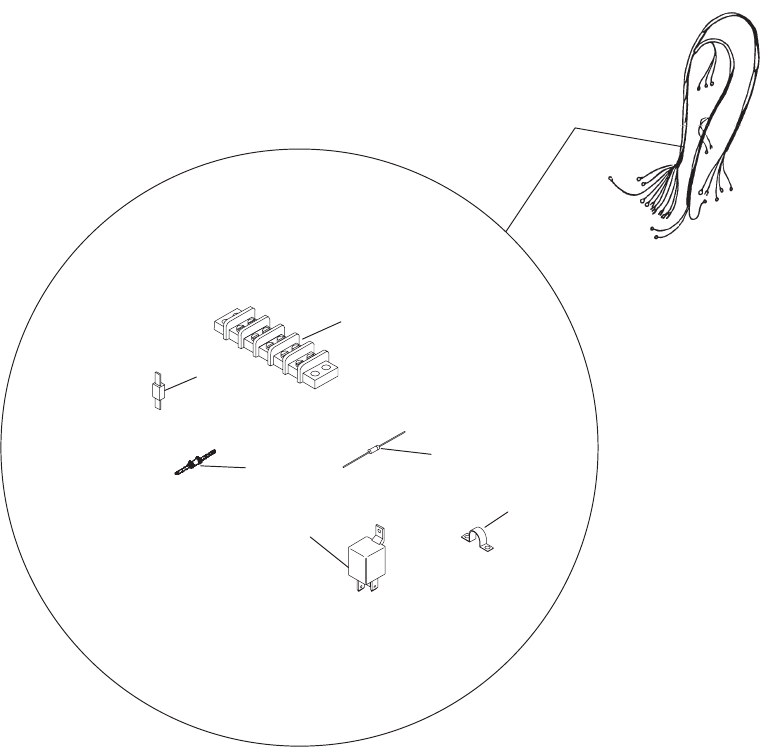

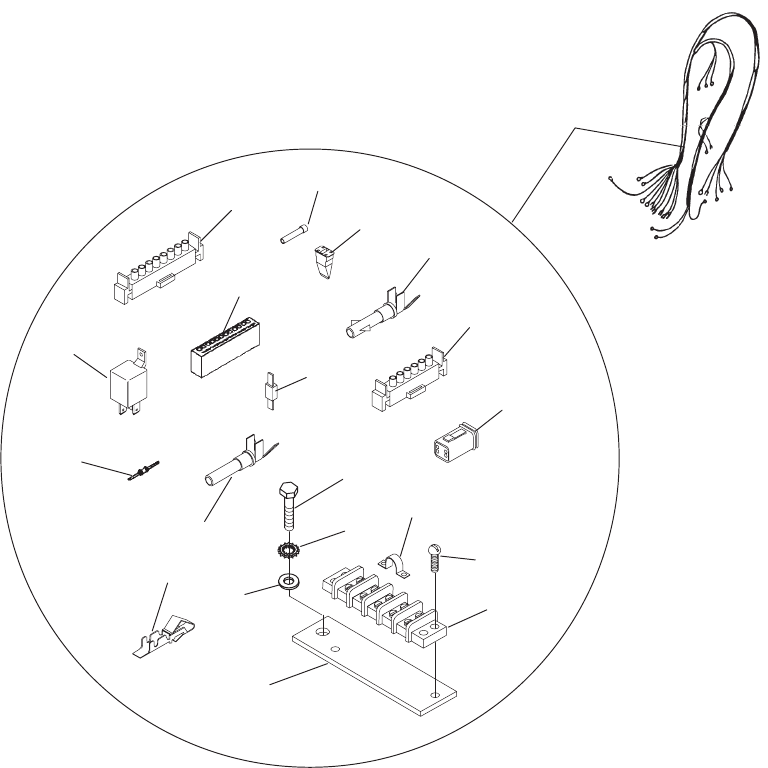

Wiring Harness

Engine to Control

Generator Sets With Detector Control

H559,560

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3664 1 Harness, Wiring – Engine To

Control – Generator Sets With

Detector Control (Includes

Parts Listed Below)

2 323–1591 1 Plug, Seal (Used In E1)

3 323–1548 1 Wedge (Used In E1)

4 323–1200 12 Socket, Contact (Used In J1, J2)

5 323–1304 1 Housing, Connector (6 Place)

(J2)

6 323–1306 1 Housing, Connector (8 Place)

(J1)

7 323–1374–12 1 Housing, Connector (12 Place)

(J3)

8 357–0030 1 Rectifier (CR2)

9 323–1492 3 Socket, Contact (Used In E1)

10 323–1546 1 Plug, Connector (4 Place) (E1)

11 319–2006–01 1 Bracket, Mounting – Terminal

Block (Marked ”26”) (T26)

12 332–0604 1Block, Terminal (5 Place)

13 332–1043 4 Jumper

14 815–0538 2 Screw, Machine – Round

Head – Cross Recessed W/IT

(#8–32 x 1/2”)

15 307–2817–01 1 Relay (K4)

16 351–1599–42 1 Resistor (R1)

17 323–1302 11 Pin, Contact (Used In J3)

18 800–0071 1 Screw, Cap – Hex Head

(7/16–14 x 1”)

19 856–0012 1 Washer, Lock – EIT (7/16”)

20 526–0032 1 Washer, Flat (7/16”)

Wiring Harness

Engine to Control

Generator Sets With Sentinel Control

H562

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 338–3663 1 Harness, Wiring – Engine To

Control – Generator Sets With

Sentinel Control (Includes

Parts Listed Below)

2 332–0604 1 Block, Terminal (5 Place) (TB1)

3 359–0115 1 Diode (CR1)

4 332–1043 1 Jumper

5 357–0030 3 Rectifier (CR2,3,4)

6 351–1599–42 1 Resistor (R1)

7 307–2817–01 3 Relay (K11,12,13)

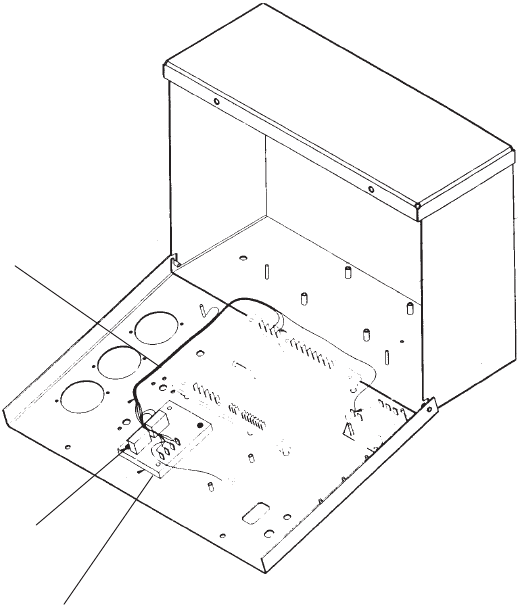

Dry Contact

Spec B

H568

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–3601–02 1 Panel, Relay

2 307–2817–01 2 Relay

3 821–6001–02 2 Screw, Hex Head (M5 x 12)

4 821–5000–05 4 Screw, Hex Head (#10–32 x

.50)

5 338–3731 1 Harness, Wiring – Control

6 338–3743 1 Harness, Wiring – Dry

Contact (Includes Parts

Marked #)

7 323–1765 1 # Housing, Connector (4 Pin)

8 323–1712 A/R # Plug, Cavity

9 323–1709 A/R # Socket, Contact (Used in S7)

10 323–1708 A/R # Seal, Cable

11 870–2204 4 Standoff, Hex (#10–32)

12 870–0131 4 Nut, Hex – W/ET (#10–32)

# – Parts Included in 338–3743 Wiring Harness

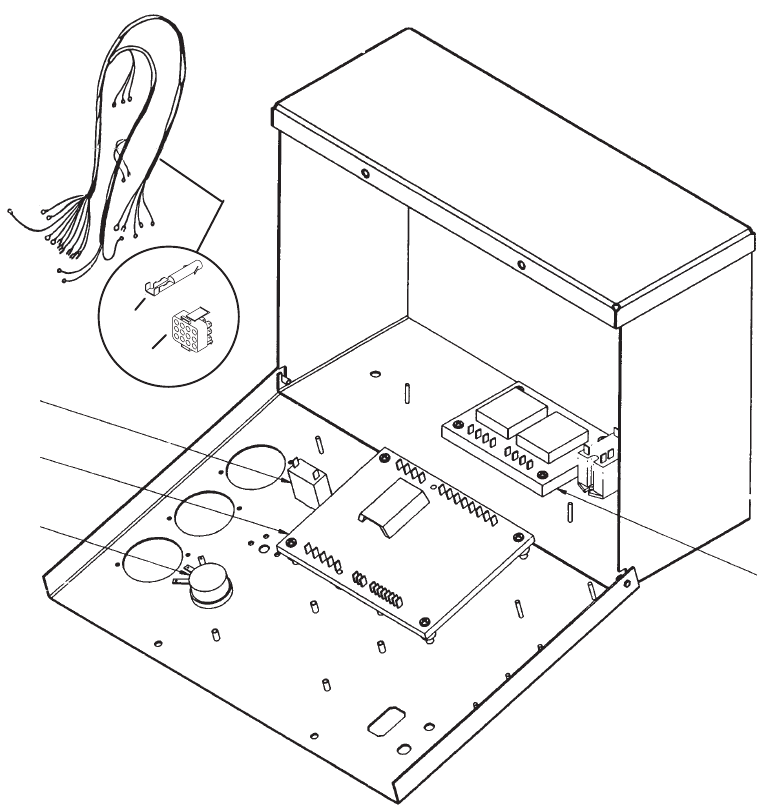

Voltage Regulator

Generator Sets With Detector Control

B184,240

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Potentiometer (R21)

303–0261 1 * 1.5K Ohms (Used With Model

SX460 Voltage Regulator)

303–0285 1 # 5K Ohms (Used With Model

MX321 Voltage Regulator)

2 Board, Printed Circuit – Voltage

Regulator (VR21)

305–0844 1 * Model SX460

305–0823 1 # Model MX321

3 815–0388 4 #Screw, Pan Head – Cross

Recessed (#6–32 x 1/2”)

4 526–0003 4 #Washer, Flat (#8)

5 350–1222 1 *#Resistor (1.5K Ohms) (Used on

TB21)

6 320–1688–01 1 *Breaker, Circuit (CB21)

7 815–0905–08 4 *#Screw, Pan Head – Cross

Recessed (#10–32 x 7/8”)

8 332–1043 1 *#Jumper (Used on TB21)

9 305–0868 1 #Board, Printed Circuit – Isolation

Transformer (T30)

* – Parts Used on Generators Without Permanent Magnet

Exciter

# – Parts Used on Generators With Permanent Magnet Exciter

Voltage Regulator

Generator Sets With Sentinel Control

B184,240

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Board, Printed Circuit –

Voltage Regulator

305–0844 1 * Model SX460

305–0823 1 # Model MX321

2 Potentiometer (Controls With

Meters) (R21)

303–0261 1 * 1.5K Ohms (Used With

Model SX460 Voltage

Regulator)

303–0285 1 # 5K Ohms (Used With

Model MX321 Voltage

Regulator)

3 320–1688–01 1 *# Breaker, Circuit (CB21)

4 305–0868 1 # Board, Printed Circuit –

Isolation Transformer (T30)

5 338–3395 1 Harness, Wiring – AC Control

(3 Wire, 14”) (Includes

Connector Plug and

Sockets)

6 323–1644–02 1 Plug, Connector (9 Place)

(P2)

7 323–1648 3 Socket, Contact

8 Screw, Pan Head – Cross

Recessed (#10–32 x 7/8”)

815–0905–08 4 * Generator Sets Without

Permanent Magnet

Generator

#Generator Sets With

Permanent Magnet

Generator

815–0905–08 4 Controls Without

Isolation

Transformer

815–0905–08 8 Controls With

Isolation

Transformer

* – Parts Used on Generators Without Permanent Magnet

Generator

# – Parts Used on Generators With Permanent Magnet

Generator

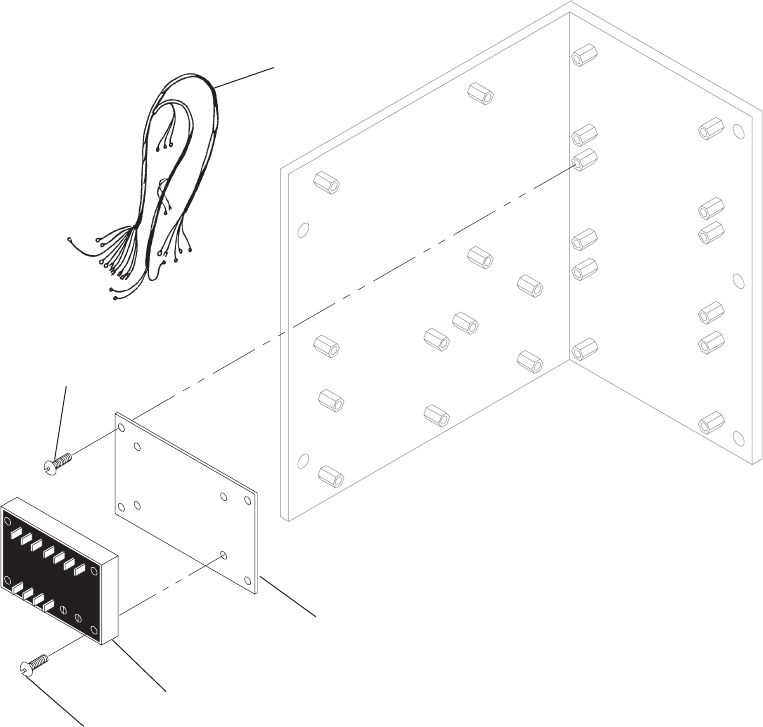

Alarm Relay Board

KJ03

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 300–4111–03 1 Board, Printed Circuit – Alarm

Relay (Includes K1 Relay)

2 307–1058 1 Relay (Quantity Used as

Required) (K1,K2,K3)

3 815–0544 6 Screw, Machine – Round

Head – Cross Recessed W/IT

(#6–32 x 1/2”)

4 870–0517–01 4 Standoff (Clear) (1–7/8”)

5 870–0517–02 2 Standoff (Yellow) (2”)

6 338–2875 1 Harness, Wiring (Includes Parts

Marked *) (A11–TB1 and TB2

to Alarm Relay Board)

7 323–1291 2 *Plug – 9 Place (P1,P2)

8 323–1199 9 *Pin, Contact

9 323–1200 12 *Socket, Contact

10 323–1292 1 *Plug – 4 Place (P3)

* – Parts Included in 338–2875 Wiring Harness

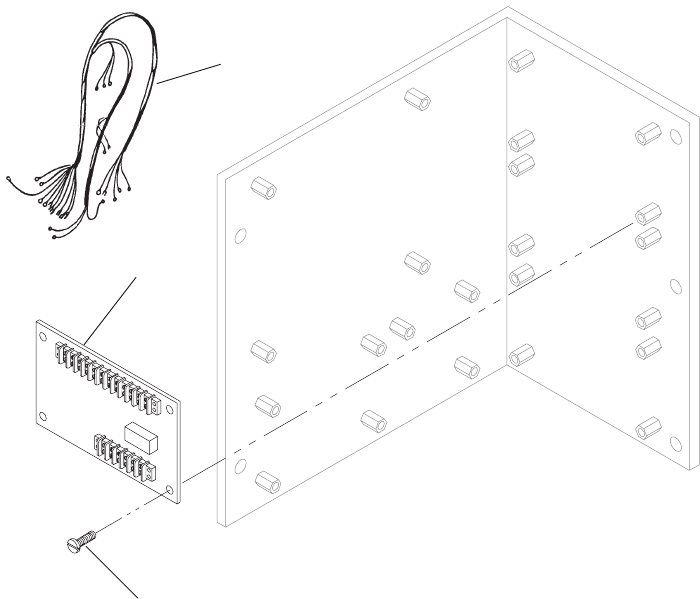

Common Alarm

H560

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 300–4218–01 1 Board, Printed Circuit –

Common Alarm (A27)

2 338–3033 1 Harness, Wiring (12 Wire) (A27

to A11)

3 812–0063 4 Screw, Machine – Round Head

(#6–32 x 1/2”)

100

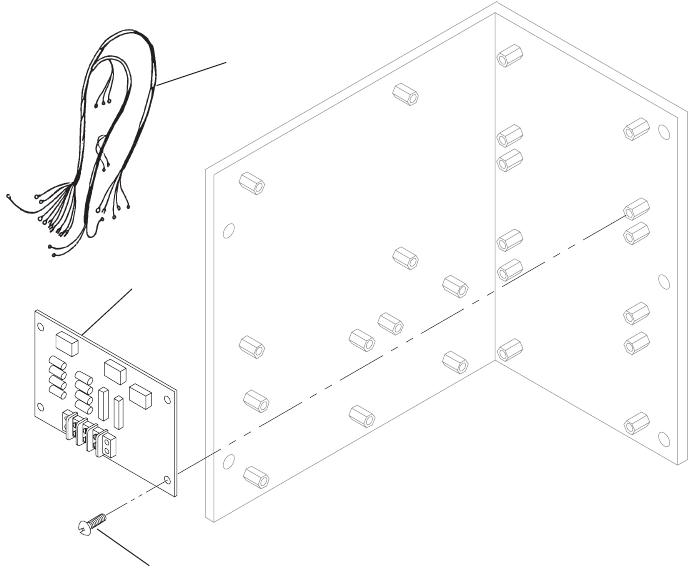

Time Delay Start/Stop

KL39

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 815–0544 4 Screw, Machine – Round

Head – Cross Recessed W/IT

(#6–32 x 1/2”)

2 300–2897 1 Board, Printed Circuit –

Time Delay (A15)

3 338–1904 1 Harness, Wiring (5 Wire)

(21–1/2”)

101

Low Battery Voltage

H543,560

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 322–0431–08 1 Lens, Indicator Light (Marked

”Lo Battery”)

2 338–3034 1 *Harness, Wiring (4 Wire) (36”)

(K15 to A11)

3 323–1410–03 1 *Base, Relay

4 812–0084 2 *Screw, Machine – Round Head

(#8–32 x 1”)

5 870–1221 2 *Nut, Hex – W/ET (#8–32)

6 305–0901 1 *Sensor – Low Battery

Voltage (K15)

* – Not Used on All Models

102

Audible Alarm

Generator Sets With Detector Control

KL39

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 333–0133 1 Alarm, Audible (DS2)

2 319–0898 1 Plate, Mounting

3 870–0183 2 Nut, Hex – W/ET (#6–32)

4 815–0385 2 Screw, Machine – Round Head

(#6–32 x 1/2”)

103

Audible Alarm Module

2KA08

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 300–3998–02 1 Module, Audible Alarm (DS2)

2 800–0006 2 Screw, Cap – Hex Head

(1/4–20 x 7/8”)

3 850–0040 2 Washer, Lock – Spring (1/4”)

4 862–0001 2 Nut, Hex (1/4”)

104

Emergency Stop Switch

KL39

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 302–1723 2 Ammeter – Blank Scale

2 301–6257 1 Switch – Blank

3 308–0853 1 Switch, Pushbutton –

Emergency Stop (Includes

Bulb) (S14)

4 322–0394 1 Bulb, Replacement

105

Mechanical Overspeed Switch

























B240

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 150–2309 1 Bracket, Overspeed

2 150–0956 1 Switch, Overspeed (S3)

3 150–0723 1 Point, Overspeed

4 870–0250 1 Nut, Insulating

5 862–0001 2 Nut, Hex (1/4–20)

6 853–0013 1 Washer, Lock – ET (1/4”)

7 856–0010 1 Washer, Lock – EIT (3/8”)

8 800–2088 1 Screw, Cap – Hex Head

(M10 x 35mm)

9 526–0240 1 Washer, Flat (13/32” ID x

1–1/2” OD x 1/8” Thk)

10 821–6001–01 4 Screw, Self–Locking – Hex

Washer Head (M5 x 10mm)

11 234–0875–01 1 Cover, End Bell

12 232–3462–01 4 Spacer, Cover

13 526–2080 4 Washer, Flat (M6)

106

Electronic Overspeed

Generator Sets With Detector Control

B184

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 305–0902–01 1 Board, Printed Circuit –

Electronic Overspeed (A16)

2 319–0754 1 Plate, Mounting

3 338–3396 1 Harness, Wiring (VR21 to

A11TB1, A16, B–,24) (6 Wire)

(20”)

4 815–0388 4 Screw, Machine – Pan

Head – Cross Recessed

(#6–32 x 1/2”)

5 812–0082 4 Screw, Machine – Round Head

(#8–32 x 3/4”)

107

Electronic Overspeed

Generator Sets With Sentinel Control

1B184

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 305–0902–01 1 Module, Electronic

Overspeed

2 815–0388 2 Screw, Pan Head – Cross

Recessed – Thread

Forming (#6–32 x 1/2”)

3 338–3451 1 Harness, Wiring – Overspeed

(TD, VR21, GND to A16,

TB1)

108

AC Ammeter

Generator Sets With Sentinel Control

H562,K001,R114

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Ammeter, AC (M22)

302–1683 1 Scale Reads 0–100/0–200

302–1684 1 Scale Reads 0–150/0–300

302–1685 1 Scale Reads 0–200/0–400

302–1724 1 Scale Reads 0–250/0–500

2 870–1220 2 Nut, Hex – W/ET (#4–40)

3 870–0439 2 Nut, Acorn – Nylon (1/4–28)

109

Current Transformer

Generator Sets With Detector Control

H530,559,560,562

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 Transformer, Current

(CT21, CT22, CT23)

302–1845–04 3 Ratio 100/5 or 200/5

302–1845–05 3 Ratio 150/5 or 300/5

302–1845–06 3 Ratio 200/5 or 400/5

302–1845–07 3 Ratio 250/5 or 500/5

110

Circuit Breaker

Spec A

911

12 2

5876

KB17,18,19,20,21,22,23,24,25,26

KD17,18,19,20,21,22,23,24,25,26

KL41

KM03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,

20,21,22,23,53,54,55,56,57,58,59,60,61,69,70,71,73

K028,K883

22 23 24

26 27 28 29

111

Circuit Breaker

Spec A

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–3072 2 Panel, Box – Top and Bottom

2 319–2978 2 Panel, Box – Side

3 Bracket, Mounting – Circuit

Breaker

319–3149 1 Used With 320–1959–XX,

320–1960–XX,

320–1961–XX,

320–1962–XX Circuit

Breakers

319–3243 1 Used With 320–1963–XX,

320–1970–XX,

320–1975–XX Circuit

Breakers

4 508–0239 – Edging – Bulk (Order By The

Foot – 2 Feet Required)

5 332–2744–07 1 *Standoff, Insulator

6 800–0048 2 *Screw, Cap – Hex Head (3/8–16

x 3/4”)

7 850–0050 2 *Washer, Lock – Spring (3/8”)

8 526–0029 1 *Washer, Flat (3/8”)

9 332–1473 1 Lug, Solderless

10 856–0008 1 Washer, Lock – EIT (5/16”)

11 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

12 821–6002–03 24 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

13 319–3151 1 Cover, Box

14 Cup

319–3242 1 1–1/2” x 3–1/2” Opening

319–3241 1 1–13/16” x 3–5/16” Opening

319–3150 1 2–1/2” x 4–3/4” Opening

319–3304 1 2–3/4” x 4–13/32” Opening

319–3240 1 3” x 3–15/16” Opening

15 818–0231–02 4 Rivet, Pop

16 860–0012 4 Nut, Hex (#12–24) Mounting

Hardware Used On

320–1962–XX Circuit

Breakers

17 856–0005 4 Washer, Lock – EIT (#12)

Mounting Hardware Used On

320–1962–XX Circuit

Breakers

18 870–0221 4 Nut, Hex – W/ET (#8–32)

Mounting Hardware Used On

320–1961–XX Circuit

Breakers

19 Lead (Quantity Used As

Required)

226–0893 1 3/8” Ring Terminal End to 1”

Stripped End – No Markings

(33”) (#1/0 Wire)

226–3505–01 1 3/8” Ring Terminal End to 1”

Stripped End – No Markings

(30”) (#4 Wire)

226–3505–03 1 3/8” Ring Terminal End to 3/8”

Ring Terminal End – Marked

“LO” (30”) (#4 Wire)

226–3505–04 1 3/8” Ring Terminal End to 3/8”

Ring Terminal End – Marked

“LO” (30”) (#1/0 Wire)

20 091–0002 1 Strip, Copper (Used for

wrapping end of leads before

securing to circuit breakers)

(Quantity Used As Required)

21 Package, Hardware – Circuit

Breaker Mounting (Includes

Screws, Nuts and Lock

Washers – 1 Package

Required Per Circuit Breaker)

320–1986–08 1 Used With 320–1959–XX

Circuit Breakers

320–1986–07 1 Used With 320–1960–XX

Circuit Breakers

320–1986–06 1 Used With 320–1961–XX

Circuit Breakers

320–1986–05 1 Used With 320–1962–XX

Circuit Breakers

320–1986–02 1 Used With 320–1963–XX

Circuit Breakers

320–1986–03 1 Used With 320–1970–XX

Circuit Breakers

320–1986–04 1 Used With 320–1975–XX

Circuit Breakers

Accessories, Circuit Breaker:

The following are used on

320–1959–XX and

320–1960–XX Circuit

Breakers

22 320–1981–01 1 Switch – Used as a Trip Alarm

or Auxiliary Contact

23 320–1981–02 1 12 Volt Shunt Trip

Accessories, Circuit Breaker:

The following are used on

320–1963–XX Circuit

Breakers

24 320–1977–01 1 Switches – Includes 1 Trip

Alarm and 1 Auxiliary

Contact

25 320–1977–02 1 12 Volt Shunt Trip

Accessories, Circuit Breaker:

The following are used on

320–1970–XX Circuit

Breakers

26 320–1978–01 1 Switches – Includes 1 Trip

Alarm and 1 Auxiliary

Contact

27 320–1978–02 1 12 Volt Shunt Trip

Accessories, Circuit Breaker:

The following are used on

320–1975–XX Circuit

Breakers

28 Switches

320–1979–04 1 Trip Alarm

320–1979–01 1 Auxiliary Contact

29 320–1979–02 1 12 Volt Shunt Trip

* – Parts Used On Generator Sets With 2 Or 3 Pole Circuit

Breakers

Continued...

112

Circuit Breaker

Spec A

911

12 2

5876

KB17,18,19,20,21,22,23,24,25,26

KD17,18,19,20,21,22,23,24,25,26

KL41

KM03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,

20,21,22,23,53,54,55,56,57,58,59,60,61,69,70,71,73

K028,K883

22 23 24

26 27 28 29

113

Circuit Breaker

Spec A

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

Continued...

30 Breaker, Circuit (Includes

Lugs and Mounting

Hardware) (CB21)

Two Pole Breakers

320–1961–07 1 # 100 Amp

320–1961–06 1 # 125 Amp

320–1961–05 1 # 150 Amp

320–1961–04 1 # 175 Amp

320–1961–03 1 # 200 Amp

320–1961–02 1 # 225 Amp

320–1961–01 1 # 250 Amp

320–1962–03 1 # 300 Amp

320–1962–02 1 # 350 Amp

320–1962–01 1 # 400 Amp

Three Pole Breakers

320–1975–09 1 # 30 Amp

320–1975–08 1 # 40 Amp

320–1975–07 1 # 45 Amp

320–1975–06 1 # 50 Amp

320–1975–05 1 # 60 Amp

320–1975–04 1 # 70 Amp

320–1975–03 1 # 80 Amp

320–1975–02 1 # 90 Amp

100 Amp

320–1961–14 1 # 240 Volt

320–1975–01 1 # 600 Volt

125 Amp

320–1961–13 1 # 240 Volt

320–1970–06 1 # 600 Volt

150 Amp

320–1961–12 1 # 240 Volt

320–1970–05 1 # 600 Volt

175 Amp

320–1961–11 1 # 240 Volt

320–1970–04 1 # 600 Volt

200 Amp

320–1961–10 1 # 240 Volt

320–1970–03 1 # 600 Volt

225 Amp

320–1961–09 1 # 240 Volt

320–1970–02 1 # 600 Volt

250 Amp

320–1961–08 1 # 240 Volt

320–1970–01 1 # 600 Volt

300 Amp

320–1962–06 1 # 240 Volt

320–1963–06 1 #+ 600 Volt

350 Amp

320–1962–05 1 # 240 Volt

320–1963–05 1 #+ 600 Volt

400 Amp

320–1962–04 1 # 240 Volt

320–1963–04 1 #+ 600 Volt

320–1963–03 1 #+ 450 Amp

320–1963–02 1 #+ 500 Amp

320–1963–01 1 #+ 600 Amp

Four Pole Breakers

320–1959–15 1 + 100 Amp

320–1959–14 1 + 125 Amp

320–1959–13 1 + 160 Amp

320–1959–12 1 + 200 Amp

320–1959–11 1 + 250 Amp

320–1960–10 1 + 320 Amp

320–1960–09 1 + 400 Amp

320–1960–08 1 + 500 Amp

320–1960–07 1 + 630 Amp

* – Parts Used On Generator Sets With 2 Or 3 Pole Circuit

Breakers

# – UL Listed Circuit Breakers

+ – IEC Conformity Circuit Breakers

114

Circuit Breaker

Spec B

911

12 2

5876

KB17,18,19,20,21,22,23,24,25,26

KD17,18,19,20,21,22,23,24,25,26

KL41

KM03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,

20,21,22,23,53,54,55,56,57,58,59,60,61,69,70,71,73

K028,K883

23 22

115

Circuit Breaker

Spec B

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 319–3072 2 Panel, Box – Top and Bottom

2 319–2978 2 Panel, Box – Side

3 319–3149 1 Bracket, Mounting – Circuit

Breaker

4 508–0239 – Edging – Bulk (Order By The

Foot – 2 Feet Required)

5 332–2744–07 1 *Standoff, Insulator

6 800–0048 2 *Screw, Cap – Hex Head (3/8–16

x 3/4”)

7 850–0050 2 *Washer, Lock – Spring (3/8”)

8 526–0029 1 *Washer, Flat (3/8”)

9 332–1473 1 Lug, Solderless

10 856–0008 1 Washer, Lock – EIT (5/16”)

11 821–6003–02 1 Screw, Self–Locking – Hex

Washer Head (M8 x 20mm)

12 821–6002–03 24 Screw, Self–Locking – Hex

Washer Head (M6 x 16mm)

13 319–3151 1 Cover, Box

14 Cup

319–3242 1 1–1/2” x 3–1/2” Opening

319–3150 1 2–1/2” x 4–3/4” Opening

319–3240 1 3” x 3–15/16” Opening

15 818–0231–02 4 Rivet, Pop

16 860–0012 4 Nut, Hex (#12–24) Mounting

Mounting Hardware Used On

320–1962–XX Circuit

Breakers

17 870–0221 4 Nut, Hex – W/ET (#8–32)

Mounting Hardware Used On

320–1961–XX Circuit

18 856–0005 4 Washer, Lock – EIT (#12)

Mounting Hardware Used On

320–1962–XX Circuit

Breakers

19 091–0002 1 Strip, Copper (Used for

wrapping end of leads before

securing to circuit breakers)

(Quantity Used As Required)

* – Parts Used On Generator Sets With 2 Or 3 Pole Circuit

Breakers

Continued...

116

Circuit Breaker

Spec B

911

12 2

5876

KB17,18,19,20,21,22,23,24,25,26

KD17,18,19,20,21,22,23,24,25,26

KL41

KM03,04,05,06,07,08,09,10,11,12,13,14,15,16,17,18,19,

20,21,22,23,53,54,55,56,57,58,59,60,61,69,70,71,73

K028,K883

23 22

117

Circuit Breaker

Spec B

REF PART QTY PART REF PART QTY PART

NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

Continued...

20 Breaker, Circuit

2 Pole (UL)

320–1961–07 1 100 Amp (240 Volts)

320–1961–06 1 125 Amp (240 Volts)

320–1961–05 1 150 Amp (240 Volts)

320–1961–04 1 175 Amp (240 Volts)

320–1961–03 1 200 Amp (240 Volts)

320–1961–02 1 225 Amp (240 Volts)

320–1961–01 1 250 Amp (240 Volts)

320–1962–03 1 * 300 Amp (240 Volts)

320–1962–02 1 * 350 Amp (240 Volts)

320–1962–01 1 * 400 Amp (240 Volts)

3 Pole (UL)

320–1961–14 1 100 Amp (240 Volts)

320–1961–13 1 125 Amp (240 Volts)

320–1961–12 1 150 Amp (240 Volts)

320–1961–11 1 175 Amp (240 Volts)

320–1961–10 1 200 Amp (240 Volts)

320–1961–09 1 225 Amp (240 Volts)

320–1961–08 1 250 Amp (240 Volts)

320–1962–06 1 * 300 Amp (240 Volts)

320–1962–05 1 * 350 Amp (240 Volts)

320–1962–04 1 * 400 Amp (240 Volts)

3 Pole (UL & IEC)

320–1959–20 1 * 30 Amp (600/750 Volts)

320–1959–19 1 * 40 Amp (600/750 Volts)

320–1959–18 1 * 50 Amp (600/750 Volts)

320–1959–17 1 * 60 Amp (600/750 Volts)

320–1959–10 1 * 70 Amp (600/750 Volts)

320–1959–09 1 * 80 Amp (600/750 Volts)

320–1959–08 1 * 90 Amp (600/750 Volts)

320–1959–07 1 * 100 Amp (600/750 Volts)

320–1959–06 1 * 125 Amp (600/750 Volts)

320–1959–05 1 * 150 Amp (600/750 Volts)

320–1959–04 1 * 175 Amp (600/750 Volts)

320–1959–03 1 * 200 Amp (600/750 Volts)

320–1959–02 1 * 225 Amp (600/750 Volts)

320–1959–01 1 * 250 Amp (600/750 Volts)

320–1960–06 1 * 300 Amp (600/750 Volts)

320–1960–05 1 * 350 Amp (600/750 Volts)

320–1960–04 1 * 400 Amp (600/750 Volts)

320–1960–03 1 * 450 Amp (600/750 Volts)

320–1960–02 1 * 500 Amp (600/750 Volts)

320–1960–01 1 * 600 Amp (600/750 Volts)

4 Pole (IEC)

320–1959–16 1 * 80 Amp (750 Volts)

320–1959–15 1 * 100 Amp (750 Volts)

320–1959–14 1 * 125 Amp (750 Volts)

320–1959–13 1 * 160 Amp (750 Volts)

320–1959–12 1 * 200 Amp (750 Volts)

320–1959–11 1 * 250 Amp (750 Volts)

320–1960–10 1 * 320 Amp (750 Volts)

320–1960–09 1 * 400 Amp (750 Volts)

320–1960–08 1 * 500 Amp (750 Volts)

320–1960–07 1 * 630 Amp (750 Volts)

21 Package, Hardware – Circuit

Breaker Mounting (Includes

Screws, Nuts and Lock

Washers)

320–1986–08 1 Used With 320–1959–XX

Circuit Breakers

320–1986–07 1 Used With 320–1960–XX

Circuit Breakers

(Screws Only)

320–1986–05 1 Used With 320–1962–XX

Circuit Breakers

(Screws Only)

Accessories, Circuit

Breaker: The following

are used on 320–1959–XX

and 320–1960–XX Circuit

Breakers

22 320–1981–02 1 Trip, Shunt (12V)

23 320–1981–01 2 Switch – Used as an

Auxiliary Contact or Trip

Alarm

24 Lead (Quantity Used As

Required)

226–0893 1 3/8” Ring Terminal End to

1” Stripped End – No

Markings (33”) (#1/0

Wire)

226–3505–01 1 3/8” Ring Terminal End to

1” Stripped End – No

Markings (30”) (#4

Wire)

226–3505–03 1 3/8” Ring Terminal End to

3/8” Ring Terminal End

– Marked “LO” (30”) (#4

Wire)

226–3505–04 1 3/8” Ring Terminal End to

3/8” Ring Terminal End

– Marked “LO” (30”)

(#1/0 Wire)

* – Includes Mounting Hardware

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

118

091–0002, 111, 115

102–1054, 68

102–1097, 51, 55

102–1098, 55

102–1238, 51

102–1320, 68

104–1771, 9

104–1948, 9

104–1949, 9

121–0102, 41, 43

127–0324, 41, 43

127–0412, 41, 43

127–0426, 41, 43

128–0154–01, 59

128–0154–04, 59, 61, 65

128–0252, 61, 63, 65, 67

128–0253, 59

130–1788, 54

130–3721–01, 55

130–4596–02, 54

130–4602, 54

130–4622, 52

130–4623, 52

130–4691–01, 55

130–4691–02, 55

130–4694, 55

130–4700, 55

130–4734, 52

130–4735, 55

130–4767, 54

130–4770–02, 54, 55

130–4771, 54

130–4773, 50, 54

130–4775, 50, 54

130–4776, 50, 54

130–4779, 55

130–4780, 55

130–4781, 55

130–4782, 51, 55

130–4784, 54, 55

130–4789, 51, 55

130–4790, 50, 54

130–4799, 51, 55

130–4807, 50, 54

130–4822, 50, 51, 54, 55

130–4823, 50, 51, 54, 55

130–4830, 55

130–4831, 51, 55

130–4848, 50, 51, 54, 55, 57

140–3139, 15, 17, 19, 21,

23, 25, 26

140–3140, 15, 17, 19, 21,

23, 25, 26

140–3146, 15, 17, 19, 21,

23, 25, 26

140–3147, 15, 17, 19, 21,

23, 25, 26

140–3151, 27, 29, 31, 33,

35, 36, 37

140–3161, 27, 29, 31, 33,

35, 36, 37

145–0482, 15, 17, 19, 21,

23, 25, 26

145–0672, 41, 43

145–0748, 41, 43

145–0752, 41, 43

145–0774, 41, 43

148–0601, 15, 17, 21, 23

148–0625, 19, 23, 31, 35

148–0626, 21, 23, 31, 33

148–0636, 21, 25, 26, 27,

29, 33

148–0998, 17, 21, 23, 25,

29, 31, 33, 37

148–1015, 31, 33, 36, 37

148–1086, 27, 29, 31, 33,

35, 36, 37

148–1089, 31, 33, 36, 37

148–1090, 15, 17, 21, 23,

25, 26, 27, 29, 33, 35

148–1092, 13

148–1095, 12

148–1099, 45

148–1102, 19, 23, 31, 35

148–1109, 41, 43

149–0736, 41, 43

150–0723, 105

150–0939, 74

150–0956, 105

150–2309, 105

150–2651, 74

150–2691, 74

150–2692–01, 74

150–2696, 41, 43

150–2697, 74

151–0758, 15, 17, 19, 21,

23, 25, 26, 27, 29, 31, 33,

35, 36, 37

154–2499, 38, 39, 41, 43, 44

154–2500, 38, 39, 41, 43, 44

154–3048, 38

154–3049, 39

154–3052, 38, 44

154–3061, 41, 43

154–3063, 41, 43

155–2062–03, 44

155–2062–10, 38, 43, 44

155–2062–13, 41

155–2080, 41, 43

155–2175, 38, 44

155–2305, 41

155–2649, 41, 43

155–3102–02, 38, 44, 59

155–3150–02, 41

155–3150–03, 41

155–3167, 38

155–3180, 41

155–3180–01, 41

155–3193, 44

155–3204, 43

155–3205, 41

155–3219, 41

155–3238, 57, 59, 61, 63,

65, 67

191–1981, 9

191–2035, 9

191–2120, 73

191–2200, 72

191–2209, 73

191–2213, 72

191–2215, 72

191–2216, 72

191–2217, 72

191–2218, 72

191–2219, 72

191–2221, 72

191–2222, 72

191–2258, 9

191–2260, 9

191–2261, 9

193–0351, 89

193–0375, 9

193–0448, 9

193–0451, 10

193–0463, 10

193–0466, 89

193–0468, 47, 48

193–0481, 46

201–3434–02, 79

201–3434–03, 79

201–3446, 85

201–3497–01, 79

201–3497–02, 79

201–3497–03, 79

201–3497–04, 79

201–3497–05, 79

201–3557–04, 79

201–3557–05, 79

211–0422, 81

211–0423, 81

220–4233, 85

220–4293–05, 81

220–4293–06, 81

220–4447–14, 82

220–4447–15, 83

220–4447–19, 82

220–4447–20, 83

220–4447–29, 82

220–4447–30, 83

220–4448–07, 82, 83

220–4448–08, 83

220–4448–09, 84

220–4448–10, 84

220–4448–13, 82, 83

220–4448–14, 82, 83, 84

220–4448–15, 83, 84

220–4448–16, 84

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

119

220–4448–17, 84

220–4448–19, 82, 83, 84

220–4448–20, 84

220–4448–21, 84

220–4448–31, 83, 84

220–4448–32, 84

226–0893, 111, 117

226–3505–01, 111, 117

226–3505–03, 111, 117

226–3505–04, 111, 117

226–4661–02, 48

231–0317, 79

231–0318, 79

231–0319, 79

231–0383, 79

231–0388, 9

232–3421, 81

232–3441, 81

232–3462–01, 105

232–3462–03, 85

232–3695, 79

232–3699, 79

232–3730–03, 81

232–3730–04, 81

232–3819–02, 79

232–3819–03, 79

232–3820–01, 79

232–3820–02, 79

232–3820–03, 79

232–3925, 81

232–3940, 81

232–3959–01, 79

232–3960, 81

232–3972, 85

234–0867, 81

234–0875–01, 105

234–0875–02, 85

234–0878, 81

234–0879, 81

234–0936–02, 79

234–0936–03, 79

234–0937–01, 79

234–0937–02, 79

234–0937–03, 79

234–0981, 81

234–0990, 81

300–2897, 100

300–3998–02, 103

300–4111–03, 98

300–4218–02, 99

300–4296, 89

300–4515–01, 87

300–4515–02, 87

300–5098, 89

301–6257, 104

301–9054–01, 89

301–9055–01, 89

302–1148, 89, 91

302–1641, 89

302–1683, 89, 108

302–1684, 89, 108

302–1685, 108

302–1723, 104

302–1724, 89, 108

302–1753, 89, 91

302–1845–04, 109

302–1845–05, 109

302–1845–06, 109

302–1845–07, 109

302–1968, 89, 91

302–2002, 89, 91

303–0261, 96, 97

303–0285, 96, 97

304–0807, 79

305–0823, 96, 97

305–0844, 96, 97

305–0868, 96, 97

305–0901, 101

305–0902–01, 106, 107

307–0268, 19, 23, 31, 35

307–1058, 98

307–2677–03, 91

307–2817–01, 93, 94, 95

307–2871, 91

307–2884, 15, 17, 21, 23,

25, 26, 27, 29, 33

307–2885, 31, 33, 36, 37

308–0853, 104

308–1010, 89

308–1011, 89, 91

308–1052, 89, 91

308–1082, 89

309–0554–01, 9

309–0641–19, 9

319–0754, 106

319–0898, 102

319–2006–01, 93

319–2653, 57, 59, 61, 63,

65, 67

319–2967, 75

319–2978, 86, 111, 115

319–2979–02, 86

319–2989, 91

319–2991, 91

319–2996, 75

319–3030, 89

319–3072, 86, 111, 115

319–3149, 111, 115

319–3150, 111, 115

319–3151, 111, 115

319–3207, 75

319–3208, 75

319–3240, 111, 115

319–3241, 111

319–3242, 111, 115

319–3243, 111

319–3304, 111

319–3601–02, 95

320–1688–01, 96, 97

320–1824–02, 91

320–1941, 91

320–1959–01, 117

320–1959–02, 117

320–1959–03, 117

320–1959–04, 117

320–1959–05, 117

320–1959–06, 117

320–1959–07, 117

320–1959–08, 117

320–1959–09, 117

320–1959–10, 117

320–1959–11, 113, 117

320–1959–12, 113, 117

320–1959–13, 113, 117

320–1959–14, 113, 117

320–1959–15, 113, 117

320–1959–16, 117

320–1959–17, 117

320–1959–18, 117

320–1959–19, 117

320–1959–20, 117

320–1960–01, 117

320–1960–02, 117

320–1960–03, 117

320–1960–04, 117

320–1960–05, 117

320–1960–06, 117

320–1960–07, 113, 117

320–1960–08, 113, 117

320–1960–09, 113, 117

320–1960–10, 113, 117

320–1961–01, 113, 117

320–1961–02, 113, 117

320–1961–03, 113, 117

320–1961–04, 113, 117

320–1961–05, 113, 117

320–1961–06, 113, 117

320–1961–07, 113, 117

320–1961–08, 113, 117

320–1961–09, 113, 117

320–1961–10, 113, 117

320–1961–11, 113, 117

320–1961–12, 113, 117

320–1961–13, 113, 117

320–1961–14, 113, 117

320–1962–01, 113, 117

320–1962–02, 113, 117

320–1962–03, 113, 117

320–1962–04, 113, 117

320–1962–05, 113, 117

320–1962–06, 113, 117

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

120

320–1963–01, 113

320–1963–02, 113

320–1963–03, 113

320–1963–04, 113

320–1963–05, 113

320–1963–06, 113

320–1970–01, 113

320–1970–02, 113

320–1970–03, 113

320–1970–04, 113

320–1970–05, 113

320–1970–06, 113

320–1975–01, 113

320–1975–02, 113

320–1975–03, 113

320–1975–04, 113

320–1975–05, 113

320–1975–06, 113

320–1975–07, 113

320–1975–08, 113

320–1975–09, 113

320–1977–01, 111

320–1977–02, 111

320–1978–01, 111

320–1978–02, 111

320–1979–01, 111

320–1979–02, 111

320–1979–04, 111

320–1981–01, 111, 117

320–1981–02, 111, 117

320–1986–02, 111

320–1986–03, 111

320–1986–04, 111

320–1986–05, 111, 117

320–1986–06, 111

320–1986–07, 111, 117

320–1986–08, 111, 117

321–0175, 91

321–0307–03, 89

321–0307–06, 89

321–0307–07, 89

321–0353, 91

322–0004, 89

322–0360–01, 89

322–0361, 89

322–0363, 89

322–0369–01, 89

322–0394, 104

322–0431–07, 48

322–0431–08, 101

323–1199, 98

323–1200, 93, 98

323–1291, 98

323–1292, 98

323–1302, 89, 93

323–1304, 93

323–1306, 93

323–1308, 89

323–1374–12, 93

323–1410–03, 101

323–1492, 9, 93

323–1546, 93

323–1548, 9, 93

323–1549, 9

323–1591, 93

323–1644–01, 92

323–1644–02, 89, 91, 97

323–1647, 92

323–1648, 89, 91, 97

323–1708, 47, 48, 95

323–1709, 47, 48, 95

323–1712, 47, 95

323–1765, 47, 48, 95

330–0141–03, 77

330–0141–04, 77

330–0142, 77

331–0027, 17, 21, 23, 25,

29, 31, 33, 37

332–0052, 89

332–0604, 93, 94

332–0607, 89

332–0804, 91

332–0897, 91

332–1043, 93, 94, 96

332–1473, 86, 111, 115

332–1554, 74

332–1990, 91

332–1992, 91

332–2468, 91

332–2630, 91

332–2634, 9

332–2723, 89

332–2744–07, 111, 115

332–2877, 91

332–2921, 9

332–2974, 91

332–2987, 75

332–3021, 85

332–3023, 77

332–3024–11, 77

332–3228, 77

332–3338, 87

333–0133, 102

333–0438–07, 77

333–0438–08, 77

333–0588–03, 49

333–0588–04, 49

333–0616, 49

335–0173, 87

337–0049, 89, 91

337–0090–01, 70

338–1904, 100

338–2278, 89

338–2875, 98

338–3011, 85

338–3033, 99

338–3034, 101

338–3035–01, 48

338–3149, 85

338–3252, 89

338–3391, 91

338–3395, 97

338–3396, 106

338–3403, 92

338–3405, 92

338–3429, 89

338–3451, 107

338–3594, 48

338–3654, 19, 23, 31, 35

338–3662, 92

338–3663, 94

338–3664, 93

338–3666, 17, 21, 23, 25,

29, 31, 33, 37

338–3667, 45

338–3668, 46

338–3731, 95

338–3740, 11

338–3743, 95

338–3751, 47

350–1222, 96

351–1599–42, 93, 94

355–0189, 89

357–0030, 48, 93, 94

357–0091, 79

357–0092, 79

357–0114, 87

358–0135–01, 79

358–0135–02, 79

359–0115, 94

402–0527, 89, 91

402–0644, 70

403–4110, 71

403–4116, 71

403–4202, 70

403–4215, 71

403–4236, 70

403–4237, 70

403–4246, 70

403–4267, 69

403–4279, 70

403–4287, 71

403–4290, 71

405–4745, 57

405–5734, 61, 63, 65, 67

405–5744, 59, 63, 67

405–5745, 61, 65

405–5832, 57, 59

405–5841, 61, 63, 65, 67

405–5902, 59, 61, 63, 65, 67

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

121

405–5903, 59, 63, 67

405–5908, 57, 59, 61, 63,

65, 67

405–5909, 59, 63, 67

405–5910, 57, 61, 65

405–5915, 59

405–5916, 57, 59, 61, 63,

65, 67

405–5917, 59, 63, 67

405–5926, 59, 63, 67

405–5950, 63, 67

405–5951, 63, 67

405–5952, 61, 63, 65, 67

405–5953, 61, 63, 65, 67

405–5954, 61, 63, 65, 67

405–5955, 61, 63, 65, 67

405–5956, 61, 63, 65, 67

405–5957, 61, 63, 65, 67

405–5958, 61, 63, 65, 67

405–5959, 63, 67

405–5960, 61, 63, 65, 67

405–5961, 61, 63, 65, 67

405–5962, 63, 67

405–5963, 63, 67

405–5966, 61, 63, 65, 67

405–5986, 63, 67

405–5987, 61, 65

405–5988, 65, 67

405–5989, 67

405–5990, 65, 67

405–5991–01, 65, 67

405–5991–02, 65, 67

405–5992, 67

405–5993, 67

405–5994, 67

405–5995, 61, 65

405–5996, 61, 65

405–5997, 61, 63, 65, 67

405–5998, 61, 63, 65, 67

405–6000–01, 67

405–6000–02, 61, 63, 65, 67

405–6000–03, 61, 63, 65, 67

405–6000–04, 67

405–6000–07, 67

405–6001–01, 61, 63, 65, 67

405–6001–02, 63, 67

405–6002, 63, 67

405–6003, 61, 63, 65, 67

405–6005, 61, 63, 65, 67

405–6010, 65, 67

405–6013, 67

405–6014, 67

405–6015, 61, 63, 65, 67

405–6018, 57, 61, 65

405–6029, 61, 65

405–6030, 61, 65

405–6034, 61, 63, 65, 67

405–6035, 61, 65

405–6044, 67

405–6068, 61, 65

405–6109, 61, 63, 65, 67

405–6122, 50

405–6123, 57, 61, 65

405–6124, 57, 61, 65

405–6125, 57, 61, 65

405–6129, 51

405–6132, 67

405–6181, 59

405–6182, 63, 67

405–6183, 59

406–0332, 89

406–0333, 89

406–0334, 89

406–0765, 57, 61, 65

406–0782, 57, 59, 61, 63,

65, 67

406–0831, 57, 59, 61, 63,

65, 67

406–0835, 57, 59, 61, 63,

65, 67

416–0643, 9

416–0993–02, 69

416–1019, 9

416–1033, 69

501–0630, 19, 23, 31, 35

502–0054, 23, 31, 35

502–0085, 19, 23, 31, 35, 53

502–0153, 55

502–0237, 51

502–0613, 49

502–0942, 19, 23, 31, 35

502–0943, 19, 23, 31, 35

502–1028, 9, 45

502–1168, 55

502–1240, 9, 41, 43

502–1254, 41, 43

503–0131, 9, 49

503–0183, 19, 23, 31, 35,

41, 43, 51

503–0197, 53, 68

503–0365, 50, 54, 55

503–0446, 55

503–0465, 50, 54, 55

503–0833, 19, 23, 31, 35, 49

503–1099, 55

503–1101, 51

503–1168, 49

503–1169, 19, 23, 31, 35

503–1195, 53, 68

503–1262, 54, 55

503–1608, 9

503–1791, 9, 41, 43

503–1870–03, 41, 43, 51

503–1870–05, 27, 29, 33,

36, 37

503–1872–05, 31, 35

503–1982, 43

503–2099, 51

504–0003, 55

504–0011, 53, 68

504–0028, 19, 23, 31, 35, 54

504–0198, 9

505–0004, 17, 21, 25, 31, 33

505–0007, 9, 10

505–0019, 19, 23, 31, 35,

51, 55

505–0021, 15, 17, 19, 21,

23, 25, 26

505–0023, 31, 33, 35, 37

505–0027, 15, 17, 19, 21,

23, 25, 26

505–0027–01, 27, 29, 31,

33, 35, 36, 37

505–0041, 15, 17, 19, 21,

23, 25, 26, 27, 29, 31, 35

505–0042, 36, 37

505–0060, 19, 23, 31, 35, 45

505–0066, 45

505–0086, 23

505–0087, 21

505–0089, 23

505–0090, 15, 17, 23, 25,

26, 27, 29, 33

505–0091, 21

505–0099, 9, 10, 19, 23, 31,

505–0100, 15, 17, 19, 21,

23, 25, 26

505–0101, 45

505–0105, 17, 21, 23, 25,

29, 31, 33, 37

505–0107, 15, 17, 19, 23,

25, 26, 27, 29, 31, 35

505–0117, 53

505–0129, 27, 29

505–0132, 15, 17, 21, 23,

25, 26

505–0157, 31, 33, 36, 37

505–0177, 31, 33, 35, 36, 37

505–0181, 35

505–0184, 9, 10

505–0185, 53, 68

505–0249, 31, 33, 35, 37

505–0258, 33

505–0268, 27, 29, 31, 33,

35, 36, 37

505–0297, 31, 33, 35, 36, 37

505–0304, 17, 19, 21, 23,

25, 29, 31, 35

505–0337, 15, 17, 21, 23,

25, 26

505–0356, 15, 17, 19, 21,

23, 25, 26

505–0395, 9, 45

505–0473, 31, 33, 35

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

122

505–0479, 19, 23, 31, 35

505–0645, 41, 43

505–0653, 31

505–0802, 17, 21, 23, 25,

29, 31, 33, 37

505–1524, 15, 17, 21, 23,

25, 26

508–0051, 89

508–0139, 79

508–0228, 77

508–0239, 86, 111, 115

508–0285, 51

508–0305–02, 75, 91

508–1057, 81

509–0266–01, 79

509–0266–02, 79

509–0290–04, 41, 43

510–0164, 79

510–0165, 79

511–0192, 9

512–0197, 9

512–0198, 9

515–0298–02, 79

515–0298–03, 79

517–0021, 77

517–0094, 70

517–0131, 61, 63, 65, 67, 89

517–0135, 75, 81

517–0138–07, 61, 63, 65, 67

517–0289, 15, 17, 19, 21,

23, 25, 26

517–0301, 89

517–0302, 89

517–0322, 61, 63, 65, 67

518–0083, 79

518–0122, 79

518–0601, 7

520–0311, 15, 17, 19, 21, 23,

25, 26

520–1011, 15, 17, 19, 21, 23,

25, 26

520–2407, 41, 43

525–0304, 7

525–0305, 7

525–0306, 7

526–0003, 96

526–0011, 61, 63, 65, 67

526–0018, 15, 17, 19, 21,

23, 25, 26, 51, 74, 89, 91

526–0029, 111, 115

526–0030, 9, 70

526–0032, 93

526–0034–01, 9

526–0174, 43, 81

526–0238–01, 70

526–0240, 105

526–0249–01, 70

526–0259, 79

526–0356, 38, 39, 41, 43, 44

526–0399–11, 81

526–0399–62, 81

526–0399–64, 81

526–0423, 81

526–0433, 70, 81

526–2050, 77, 79

526–2060, 79

526–2080, 105

526–2100, 41, 43, 81

526–2106, 9

526–2120, 41, 43, 75

720–1119, 79

740–1006, 50, 51, 54, 55

775–0049, 85

800–0006, 103

800–0024, 87

800–0030, 15, 17, 19, 21,

23, 25, 26

800–0031, 41, 43

800–0033, 15, 17, 19, 21,

23, 25, 26, 27, 29, 31, 33,

35, 36, 37

800–0045, 89

800–0048, 9, 19, 23, 31, 35,

43, 111, 115

800–0049, 70

800–0050, 9

800–0052, 9

800–0059, 9

800–0069, 9

800–0071, 93

800–0072, 9

800–0073, 9

800–0074, 39

800–0315, 38, 41, 43, 44

800–0602, 74

800–0607, 70

800–0608–01, 70

800–2038, 74

800–2042, 81

800–2046, 81

800–2058, 41, 43

800–2059, 9

800–2060, 41, 43, 81

800–2088, 9, 81, 105

800–2090, 81

800–2097, 9

800–2543–02, 70

800–2543–05, 81

800–3009, 79

800–3017–20, 21, 33, 81

800–3017–37, 79

800–3017–38, 81

800–3017–39, 81

800–3017–41, 81

800–3017–42, 79

800–3017–44, 79

800–3017–54, 79

800–3034, 77

801–0027, 50, 51

801–0519–01, 54, 55

802–0055, 41, 43

805–0015, 81

805–2021–06, 79

806–0039, 9

812–0063, 99

812–0082, 106

812–0084, 101

815–0385, 89, 102

815–0388, 89, 91, 96, 106,

107

815–0538, 93

815–0544, 98, 100

815–0761–01, 85

815–0792–04, 77

815–0875–02, 89, 91

815–0901–06, 89

815–0905–08, 89, 96, 97

815–0924, 19, 23, 31, 35

818–0231–02, 50, 51, 52,

54, 55, 57, 59, 61, 63, 65,

67, 111, 115

818–0237–01, 57, 59, 61,

63, 65, 67

821–0004, 89

821–0014, 75, 89, 91

821–5000–05, 89, 95

821–5002–03, 70

821–5003–01, 75

821–6001–01, 81, 85, 105

821–6001–02, 81, 95

821–6002–03, 49, 51, 55,

57, 59, 61, 63, 65, 67, 71,

75, 86, 91, 111, 115

821–6003–02, 15, 17, 21,

23, 25, 26, 27, 29, 31, 33,

35, 36, 37, 38, 41, 50, 51,

54, 55, 57, 59, 61, 63, 65,

67, 69, 86, 111, 115

822–3047, 77

822–3075, 77

850–0040, 74, 103

850–0045, 15, 17, 19, 21,

23, 25, 26, 27, 29, 31, 33,

35, 36, 37, 41, 43, 89

850–0050, 9, 31, 35, 111,

115

850–0055, 9

850–0114–54, 21, 33, 81

850–0114–55, 79, 81

850–0114–56, 81

850–0117, 81

850–2003, 77

850–2004, 77, 79

850–2005, 9, 79

850–2006, 81, 85

850–2008, 9, 41, 43, 81

Numerical Index

Part No. Page Part No. Page Part No. Page Part No. Page

123

850–2010, 9, 75, 81, 85

853–0008, 89

853–0013, 105

854–0020, 15, 17, 19, 21,

23, 25, 26

856–0003, 91

856–0005, 111, 115

856–0008, 75, 86, 87, 89,

91, 111, 115

856–0010, 70, 105

856–0012, 93

860–0012, 111, 115

860–2005, 77, 79

860–2006, 9, 79

860–2008, 9, 21, 33

860–2009, 41, 43, 75

862–0001, 103, 105

862–0044, 70

865–0006, 15, 17, 19, 21,

23, 25, 26

865–0020, 15, 17, 19, 21,

23, 25, 26

865–0030, 69

867–0031, 15, 17, 19, 21,

23, 25, 26

870–0131, 74, 89, 95

870–0183, 89, 91, 102

870–0221, 111, 115

870–0250, 105

870–0257, 87

870–0281, 70

870–0439, 91, 108

870–0504, 57, 59, 61, 63,

65, 67

870–0517–01, 98

870–0517–02, 98

870–1220, 89, 91, 108

870–1221, 101

870–2054, 74

870–2056, 9

870–2064–01, 77, 79

870–2204, 95

871–0015, 89

895–0363, 57, 59, 61, 63,

65, 67

895–0382, 57, 59

895–0384, 61, 63, 65, 67

895–0385, 61, 63, 65, 67

895–0386, 61, 63, 65, 67

 "! "$ 

"&%

! #



'

'))

#"#$"$""  "! "$ 

%##"#$"$"" %# !(

928 0234B Onan GGHB GGHC GGHD (spec A B) Genset Parts Manual (11 1998)
