Aerosol Therapy
Parts Catalog Issued: May 12, 2016
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 93-42. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples:
= Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2016 nvacare Corporation, Elyria, Ohio. Invacare, the Medallion Design and Yes, you can. and Passport are registered trademarks of the Invacare
Corporation. Envoy and Scout are trademarks of Invacare Corporation. Freeway and Sidestream are registered trademarks of Medic-Aid Limited. Tru PFM
Zone is a registered trademark of Monaghan Medical Inc. Information is subject to change without notification.
Parts Catalog Usage Guide
1
Form No. 93-42
To order call toll free 1-800-333-6900, or www.invacare.com
01. Aerosol Compressor (IRC1000) ......................................................................................... 3
02. Aerosol Compressor - Envoy (IRC1192, IRC1192D, IRC1194A, IRC1194B) .................... 5
03. Aerosol Compressor - Envoy Jr. and Envoy Jr. XP (IRC1001) .......................................... 7
04. Aerosol Compressor - Freeway Freedom (IRC1175) ......................................................... 9
05. Aerosol Compressor - Freeway Lite (IRC1195) (Discontinued 10/02) ............................... 11
06. Aerosol Compressor - Passport (IRC1190, IRC9000, IRC1196) ....................................... 13
07. Aerosol Compressor - Stratos Pro and Compact (IRC1700 and IRC1710) ....................... 15
08. Aerosol Compressor - Select (IRC1705) ............................................................................ 17
09. Aerosol Compressor - Stratos Portable (IRC1720) ............................................................ 18
10. Aerosol Compressor - Stratos Portable (IRC1730) ............................................................ 20

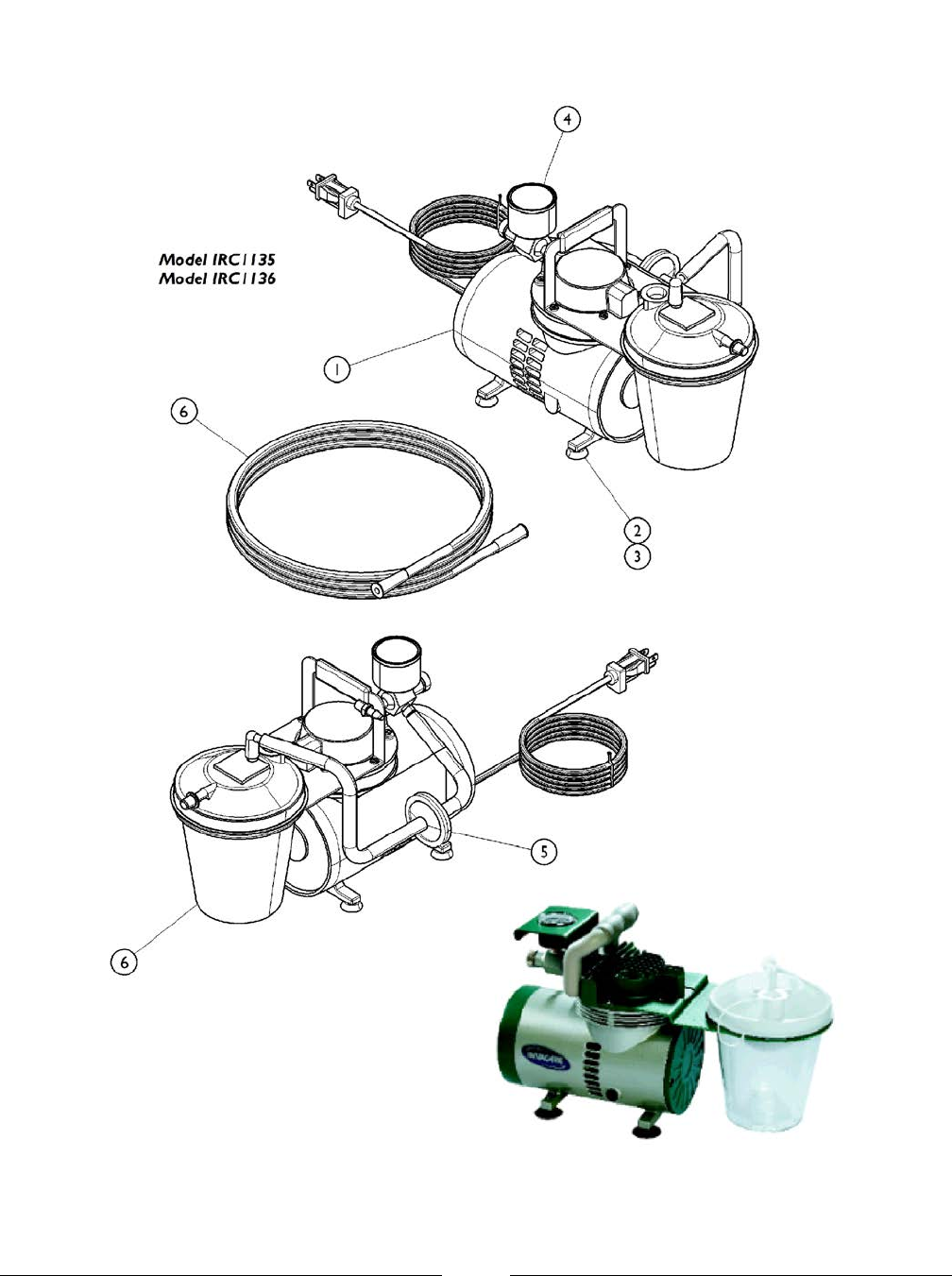

11. Aspirator (IRC1135, IRC1136) ........................................................................................... 22

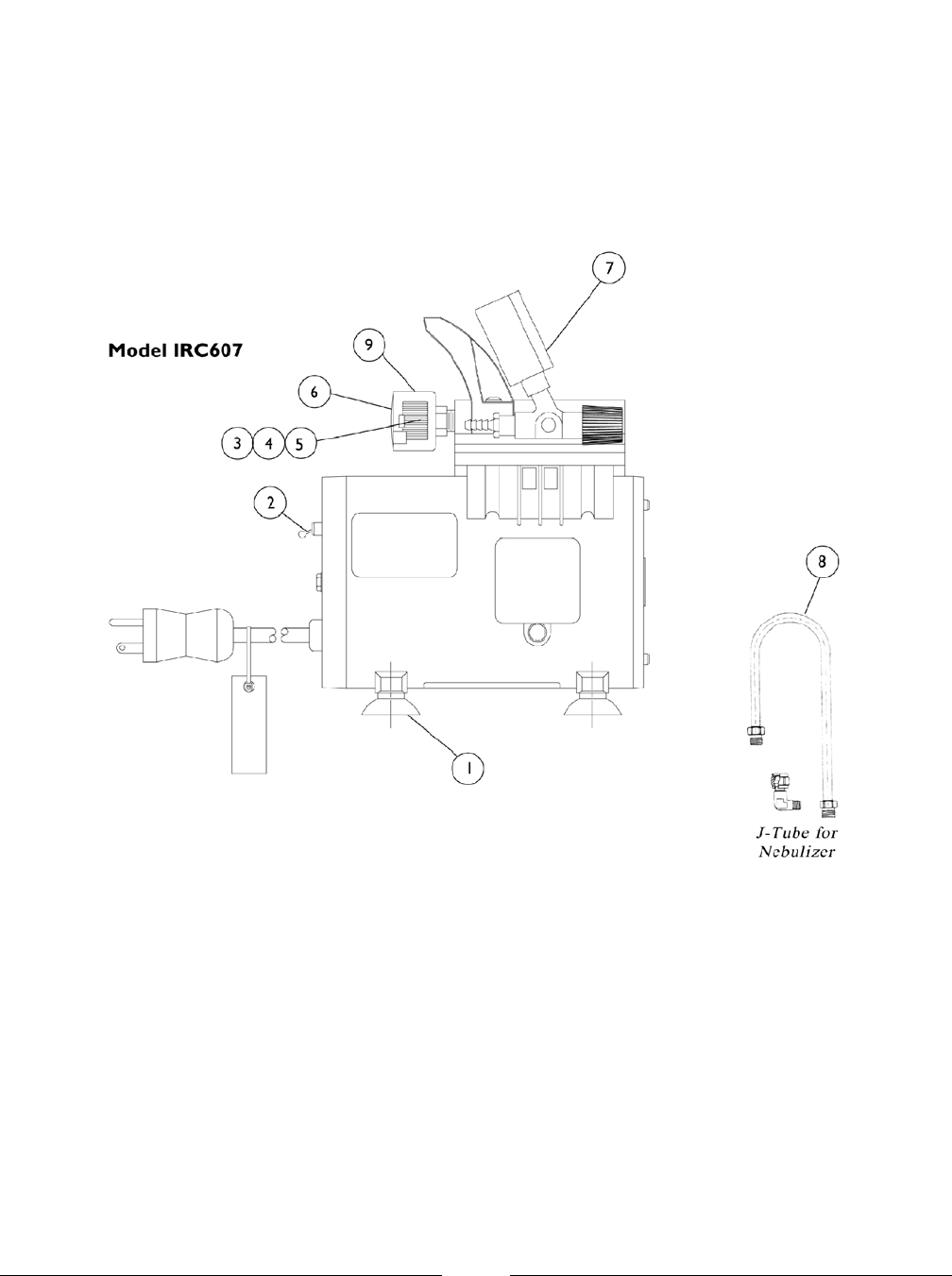

12. Compressor - 50PSI (IRC607) ........................................................................................... 24

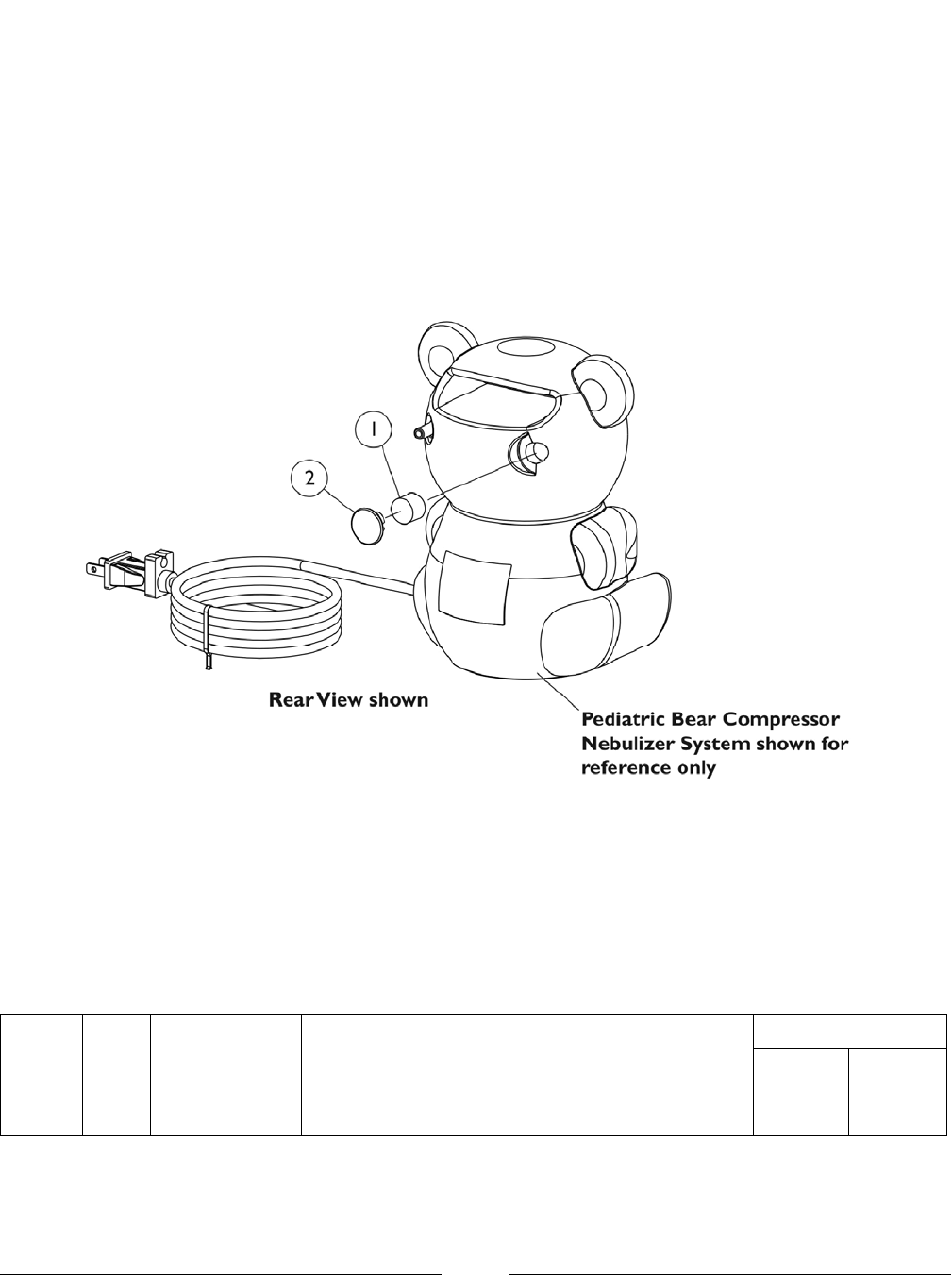

13. Compressor Nebulizer System - Pediatric Bear (IRC 1740) .............................................. 26

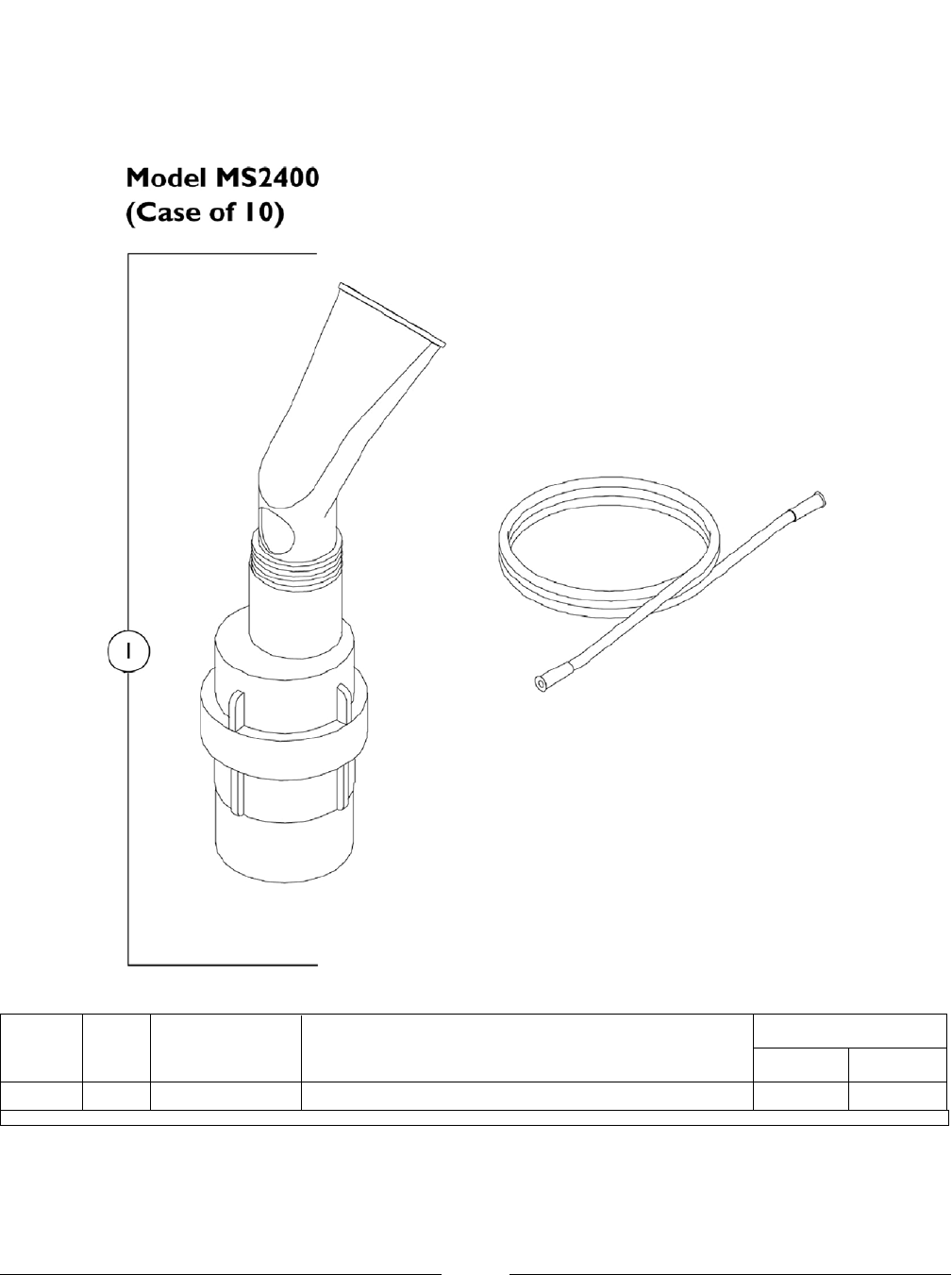

14. Single Nebulizer - Durable Sidestream (MS2400) ............................................................. 27

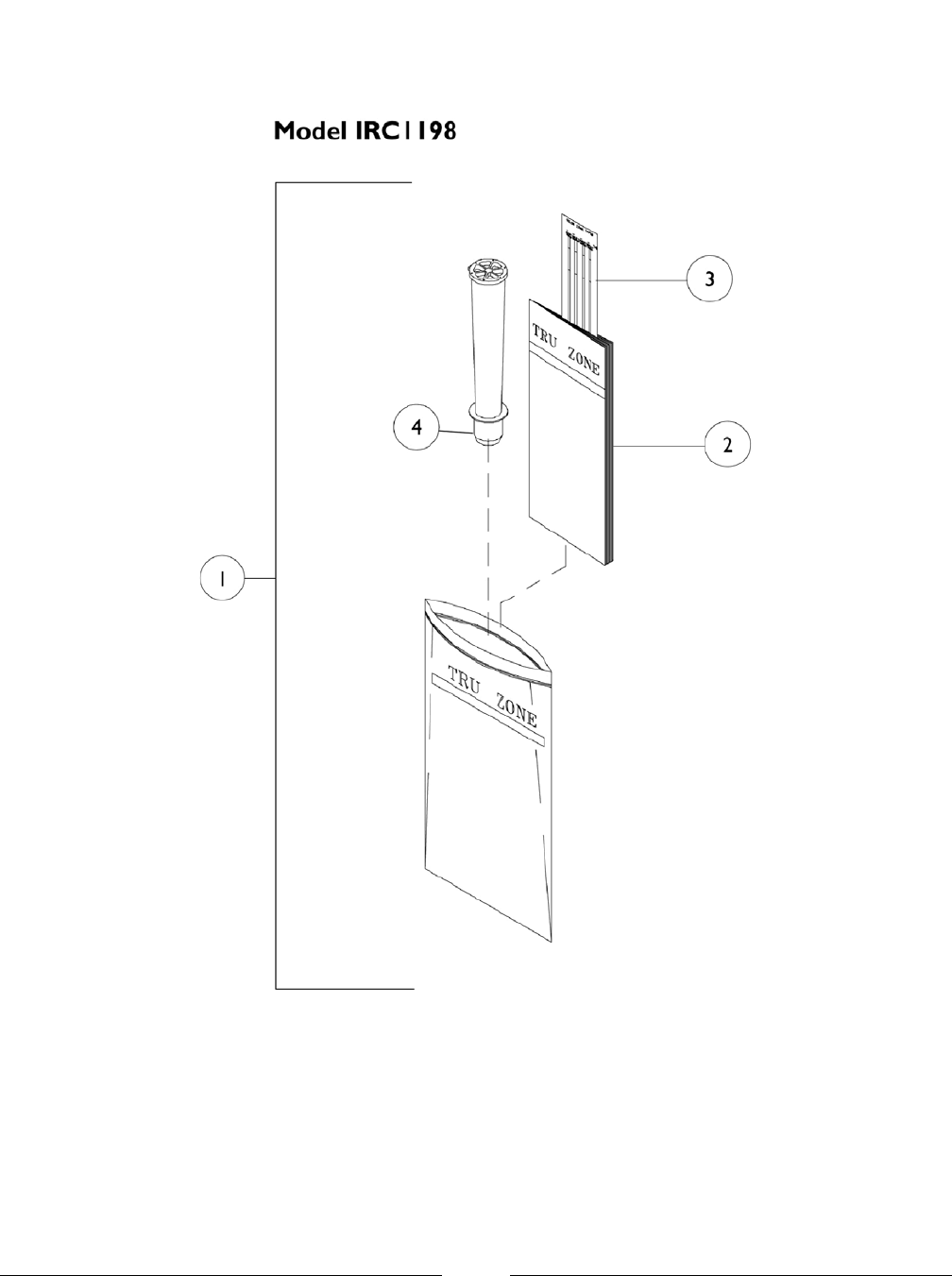

15. Peak Flow Meter - Tru Zone (IRC1198) ............................................................................. 28

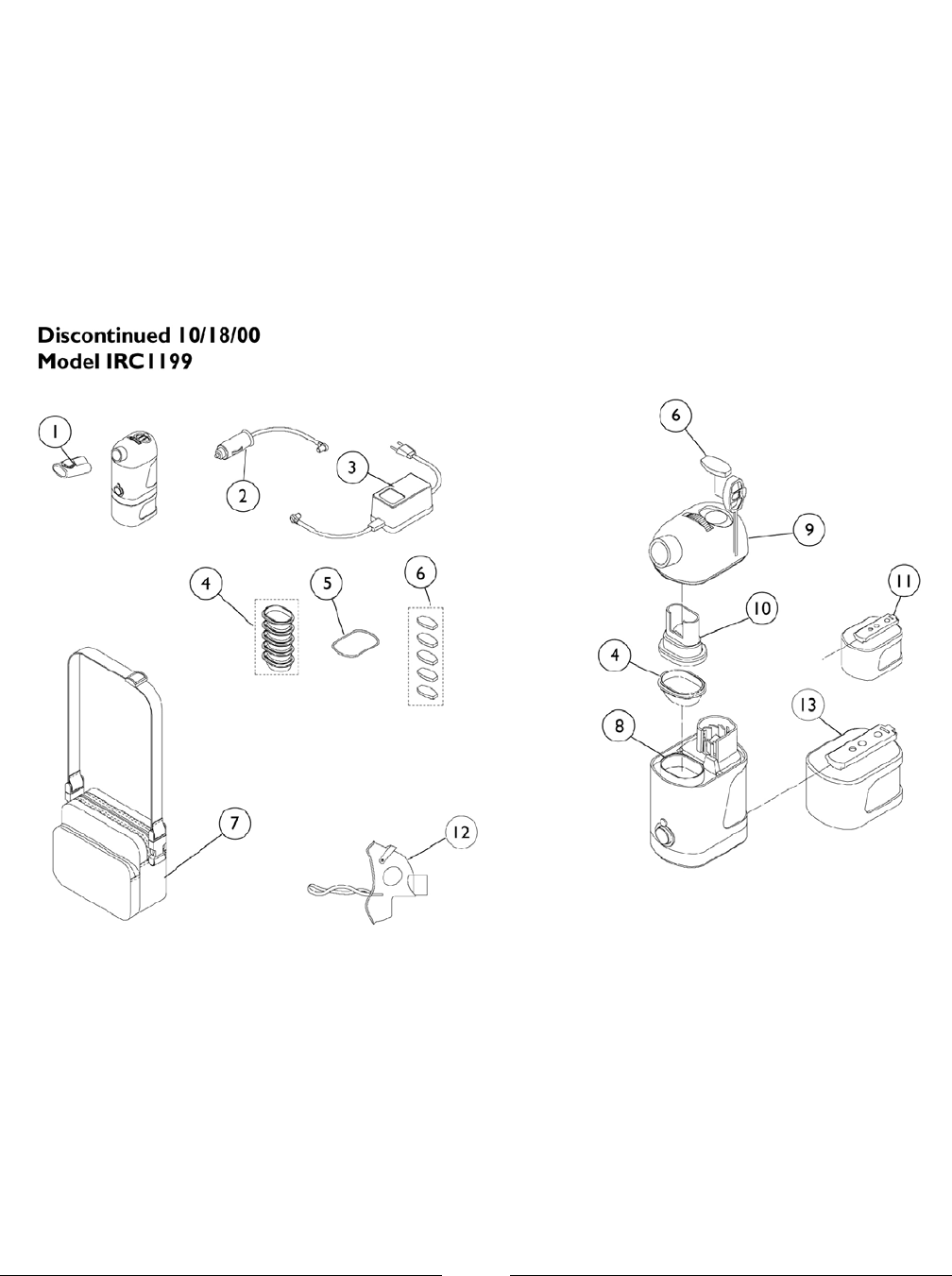

16. Ultrasonic Nebulizer - Scout (IRC1199) ............................................................................. 30
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

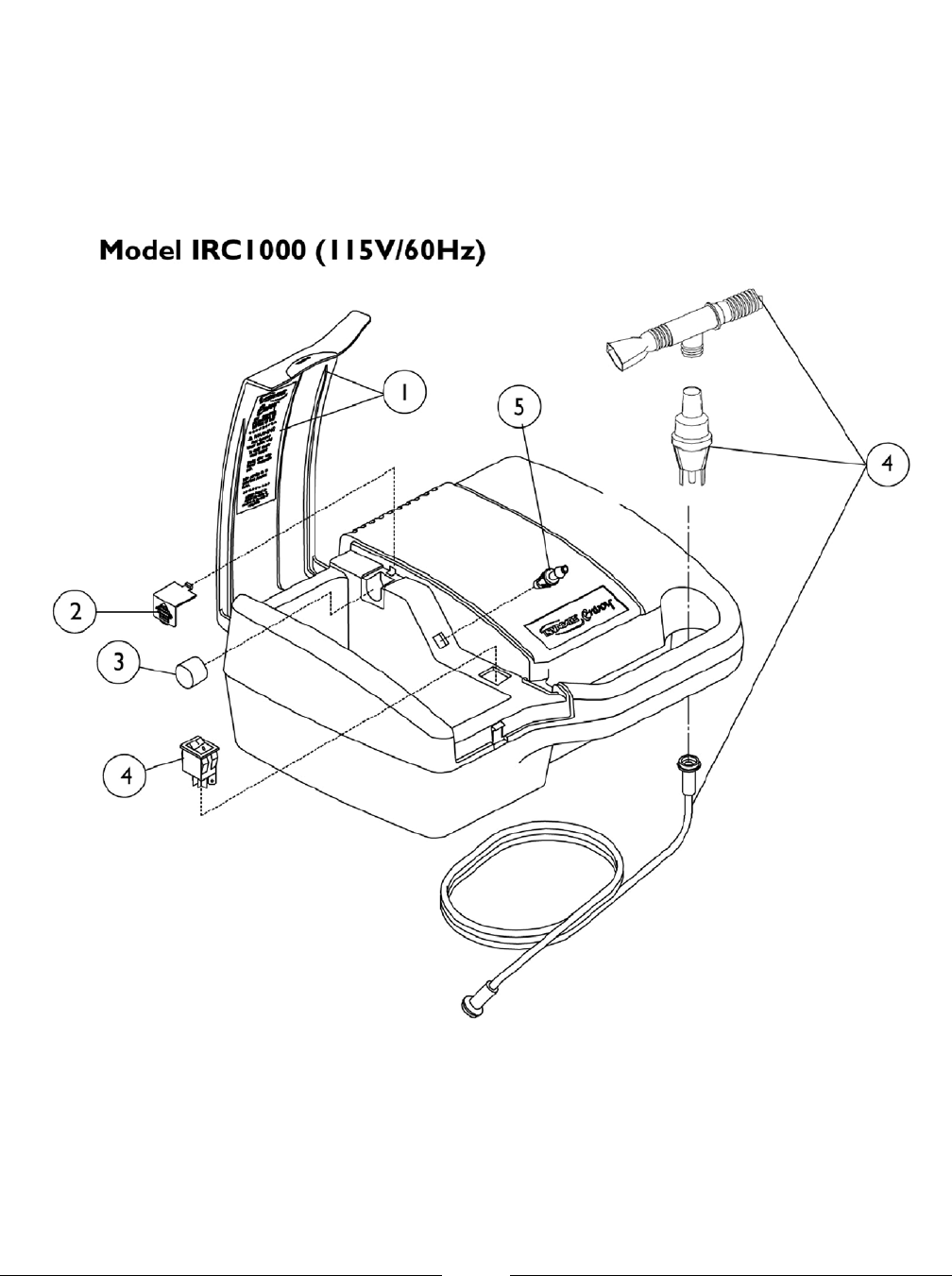

Aerosol Compressor - Envoy
Model - IRC1000
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Envoy
Model - IRC1000

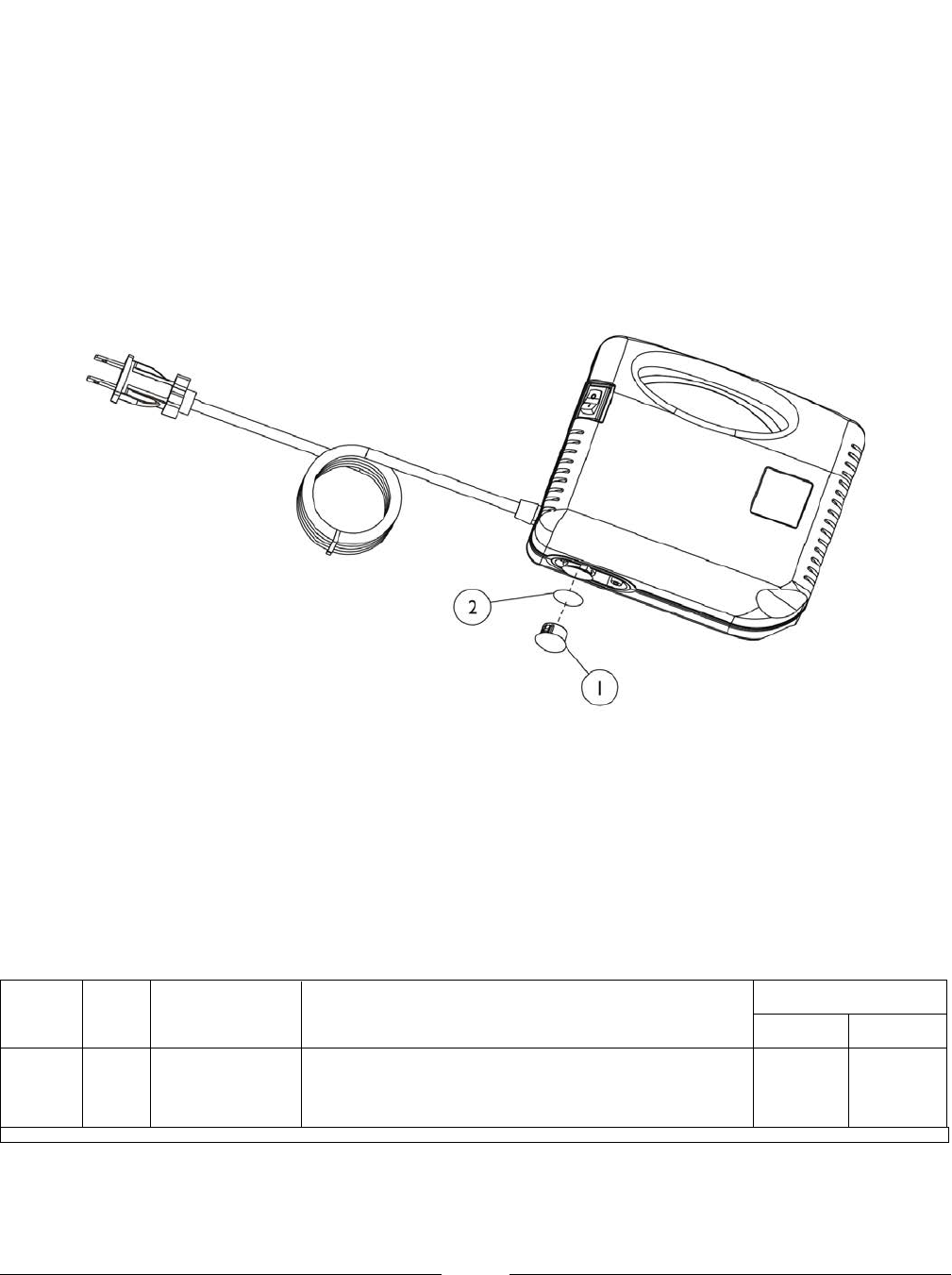

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
2002376 Door, Storage Compartment 1 11
2002594 Cover, Filter 1 12
650391-NLA NLA - Filter, Foam Intake 6 13 D
1156679 Package, Intake Filter 12 1
MS2100 Nebulizer, Disposable Mobil-Mist 50 14 C
2002379 Fitting, Air Outlet 1 15
2002380 Switch, Power, IRC1192, IRC1192D 1 1A
2002593-NLA NLA - Decal, Instruction - IRC1192/ IRC1192D 1 1A
1080803-NLA NLA - Owner's Manual - English 1 1A
1079289-NLA NLA - Kit, Compressor Replacement 1 1A,B
2002930-NLA NLA - Bumper Feet, Rubber 4 1A
1080784 Carton 1 1A
2002863-NLA NLA - Insert, Carton 1 1A
A - Not Shown
B - Includes Compressor and Hardware.
C - Includes Mouth Piece and 7" Tubing.
D - Item no longer available, refer to part #1156679 for replacement.
NOTE:
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

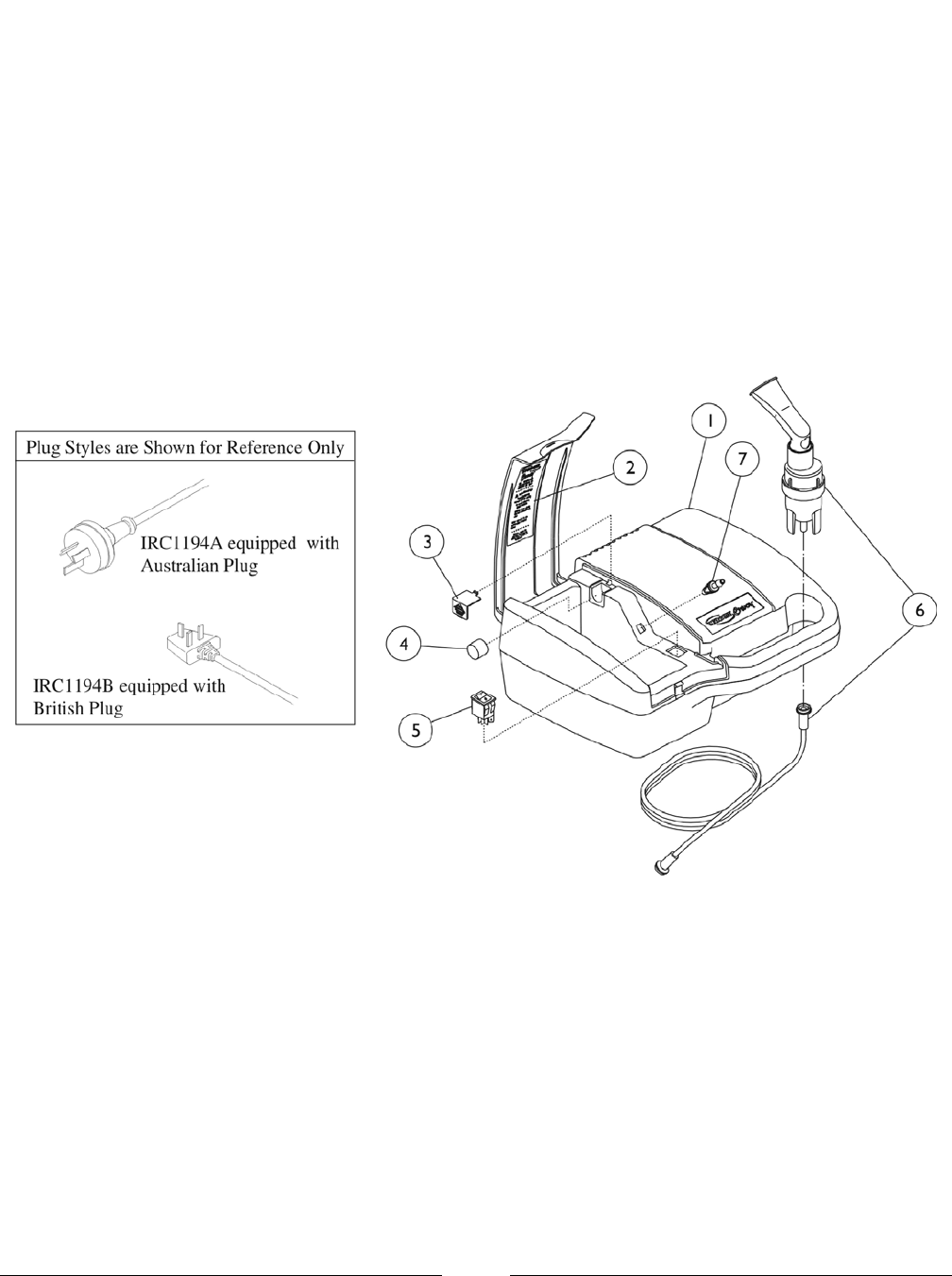

Aerosol Compressor - Envoy
Model - IRC1192, IRC1192D, IRC1194A, IRC1194B
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Envoy
Model - IRC1192, IRC1192D, IRC1194A, IRC1194B
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
2002837-NLA NLA - Envoy Shroud Assembly 1 11 J
2002376 Door, Storage Compartment 1 12
2002594 Cover, Filter 1 13
650391-NLA NLA - Filter, Foam Intake 6 14
1156679 Package, Intake Filter 12 1
2002380 Switch, Power, IRC1192, IRC1192D 1 15
2003025-NLA NLA - Switch, Power, IRC1194A, IRC1194B 1 15
MS2200-NLA NLA - Nebulizer, Disposable Sidestream 50 16 B,G
MS2400-NLA NLA - Nebulizer, Durable Sidestream 10 1A,B,I
2002379 Fitting, Air Outlet 1 17
2002593-NLA NLA - Decal, Instruction - IRC1192/ IRC1192D 1 1A
2003031-NLA NLA - Decal, Instruction - IRC1194A/ IRC1194B 1 1A
2002382-NLA NLA - Owner's Manual - English/Spanish (IRC1192,
IRC1192D) 1 1A
2003027-NLA NLA - Owner's Manual - English/Spanish
(IRC1194A, IRC1194B) 1 1A
1079289-NLA NLA - Kit, Compressor Replacement 1 1A,H
2002930-NLA NLA - Bumper Feet, Rubber 4 1A
2002387-NLA NLA - Carton 1 1A
2002863-NLA NLA - Insert, Carton 1 1A
A - Not Shown.
B - MS2200, MS2400 can be used with either IRC1192, IRC1192A,IRC1192B, or IRC1192D. Standard for IRC1192,
IRC1194A and IRC1194B is MS2200, Standard for IRC1192D is MS2400.
G - Includes Compressor and Hardware.
H - Includes Mouth Piece and 7 ft. Tubing.
I - Individual item no longer available, after 10/12/04 replace entire unit.
J - Item no longer available, refer to part #1156679 for replacement.
NOTE:
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

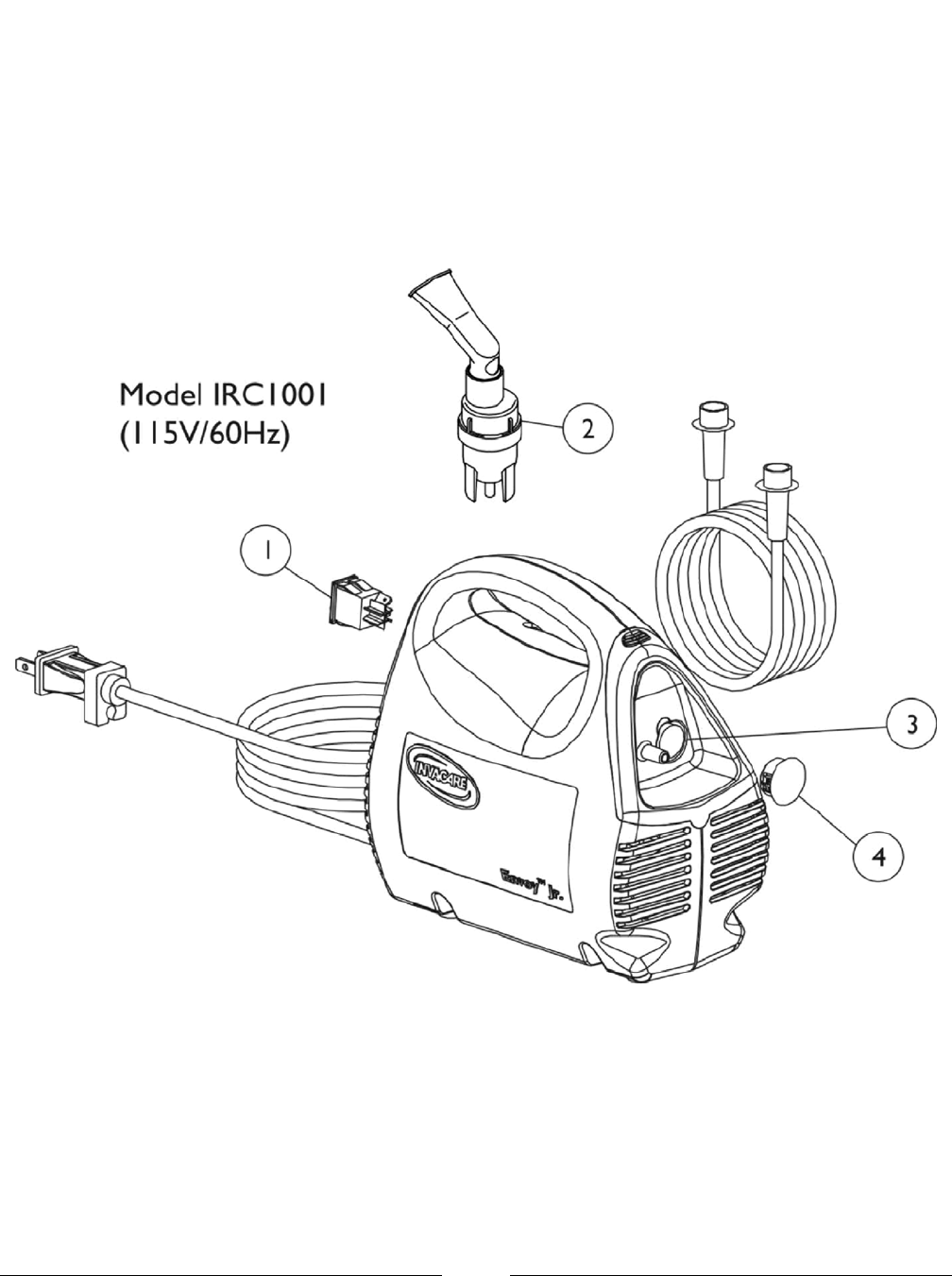

Aerosol Compressor - Envoy Jr. and Envoy Jr. XP
Model - IRC1001
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Envoy Jr. and Envoy Jr. XP
Model - IRC1001
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
2002380 Switch, Power, IRC1192, IRC1192D 1 11
MS2200S-NLA NLA - Nebulizer, Single Sidestream Disposable 1 12 B,D
650391-NLA NLA - Filter, Foam Intake 6 13 C
1156679 Package, Intake Filter 12 1
1091240-NLA NLA - Cover, Filter 1 14
1089736-NLA NLA - Owner's Manual - English, French, and
Spanish 1 1A
2002930-NLA NLA - Bumper Feet, Rubber 4 1A
1094278-NLA NLA - Carton 1 1A
1105120-NLA NLA - Case, Carrying 1 1A
IRC1002 Case, Carrying 1 1A
A - Not Shown
B - Includes Mouth Piece and 6" Flex Tube.
C - Item no longer available, refer to part #1156679 for replacement.
D - Item no longer available as a single component service part, refer to Model MS2600 on Respiratory price list.
Name c
hanged to Envoy Jr. XP after 9/15/04 due to product improvement.
NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

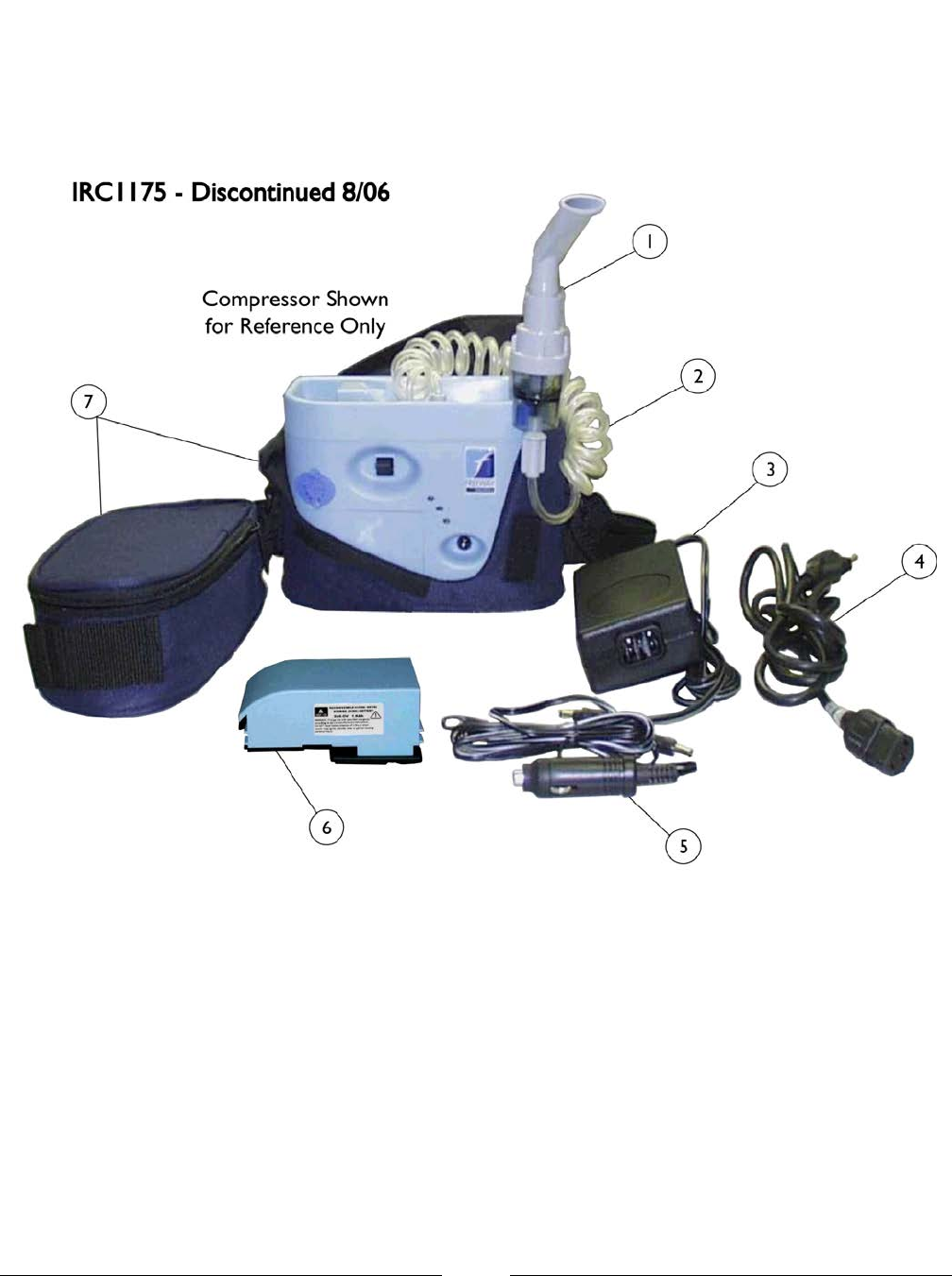

Aerosol Compressor - Freeway Freedom
Model - IRC1175
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Freeway Freedom
Model - IRC1175
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
MS2400-NLA NLA - Nebulizer, Durable Sidestream 10 11 A
2001829-NLA NLA - Tubing, Nebulizer Air 1 12
1114879-NLA NLA - Pack, Power, AC/DC 1 13
2001831-NLA NLA - Cord, AC Power, 3 Prong 1 14
1114882-NLA NLA - Adapter, Car, 12V DC Lead 1 15
1114883-NLA NLA - Pack, Battery, Freeway Freedom 1 16
1114880 Kit, Carrying Case 1 17
Case, Carrying AC/DC 1 1
Case, Carrying Freeway Freedom 1 1
1114885-NLA NLA - Filters, Replacement 4 1B
1110518-NLA NLA - Owner's Manual 1 1B
A - Includes Mouth Piece and 7 ft. Tubing.
B - Not Shown.
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

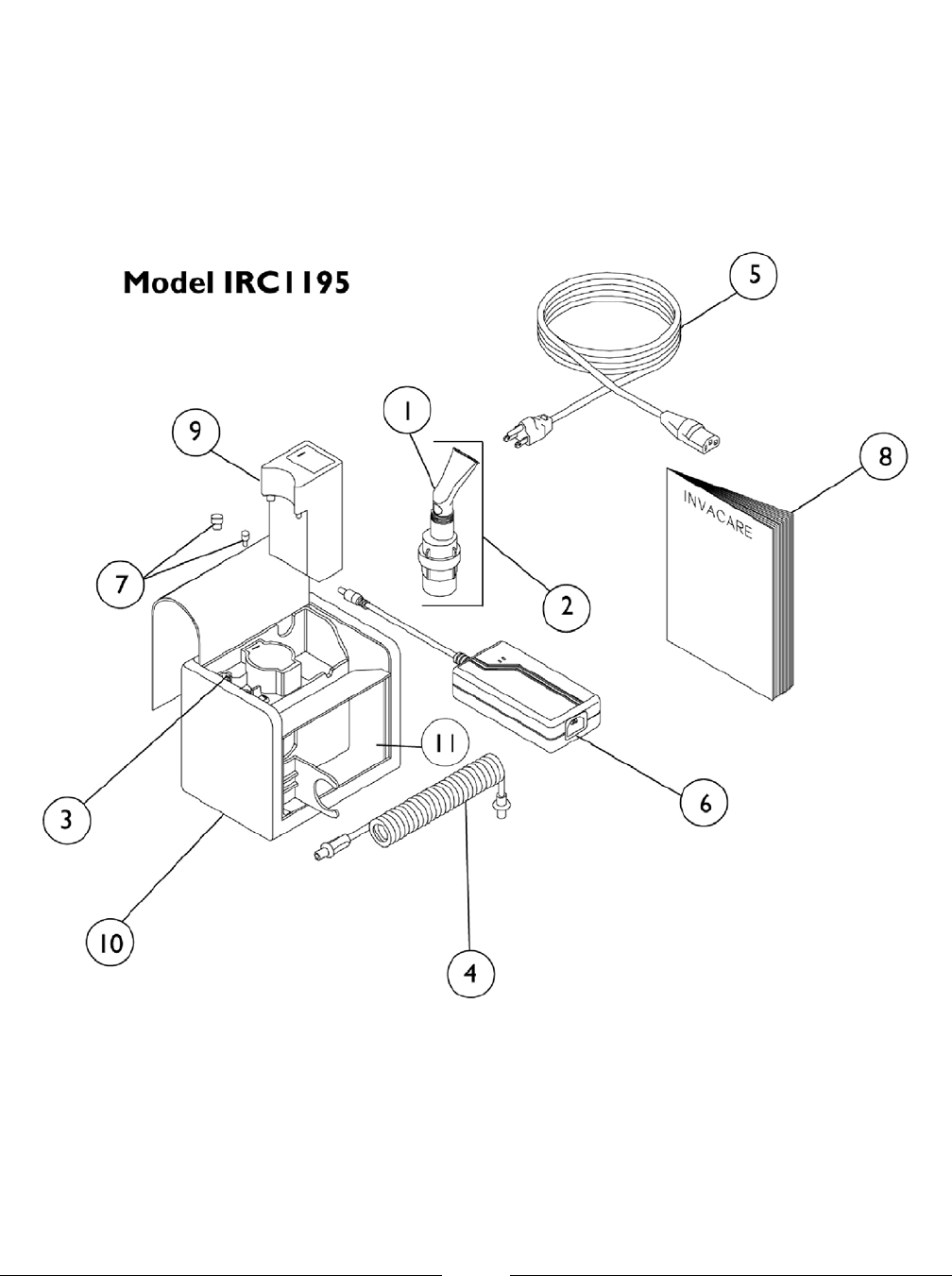

Aerosol Compressor - Freeway Lite
Model - IRC1195 (Discontinued 10/02)
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Freeway Lite
Model - IRC1195 (Discontinued 10/02)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
2001467-NLA NLA - Mouth Piece 1 11
MS2400-NLA NLA - Nebulizer, Durable Sidestream 10 12 B
2001821-NLA NLA - Filters, Replacement 4 13
2001822-NLA NLA - Cover, Filter 1 13
2001829-NLA NLA - Tubing, Nebulizer Air 1 14
2001831-NLA NLA - Cord, AC Power, 3 Prong 1 15
2001818-NLA NLA - Pack, Power, AC/DC 1 16
2001823-NLA NLA - Covers, Rubber, Battery Connections 2 27
2001828-NLA NLA - Owner's Manual 1 18
2001820-NLA NLA - Pack, Battery 1 19
2002145-NLA NLA - Case, Carrying with Detachable Bag 1 110
2001827-NLA NLA - Tray, Accessory 1 111
2002146 Kit, Label Set - Freeway 1 1A
2001824-NLA NLA - Lead, 12V DC 1 1A
A - Not Shown
B - Includes Mouth Piece and 7 ft. Tubing.
NOTE:
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

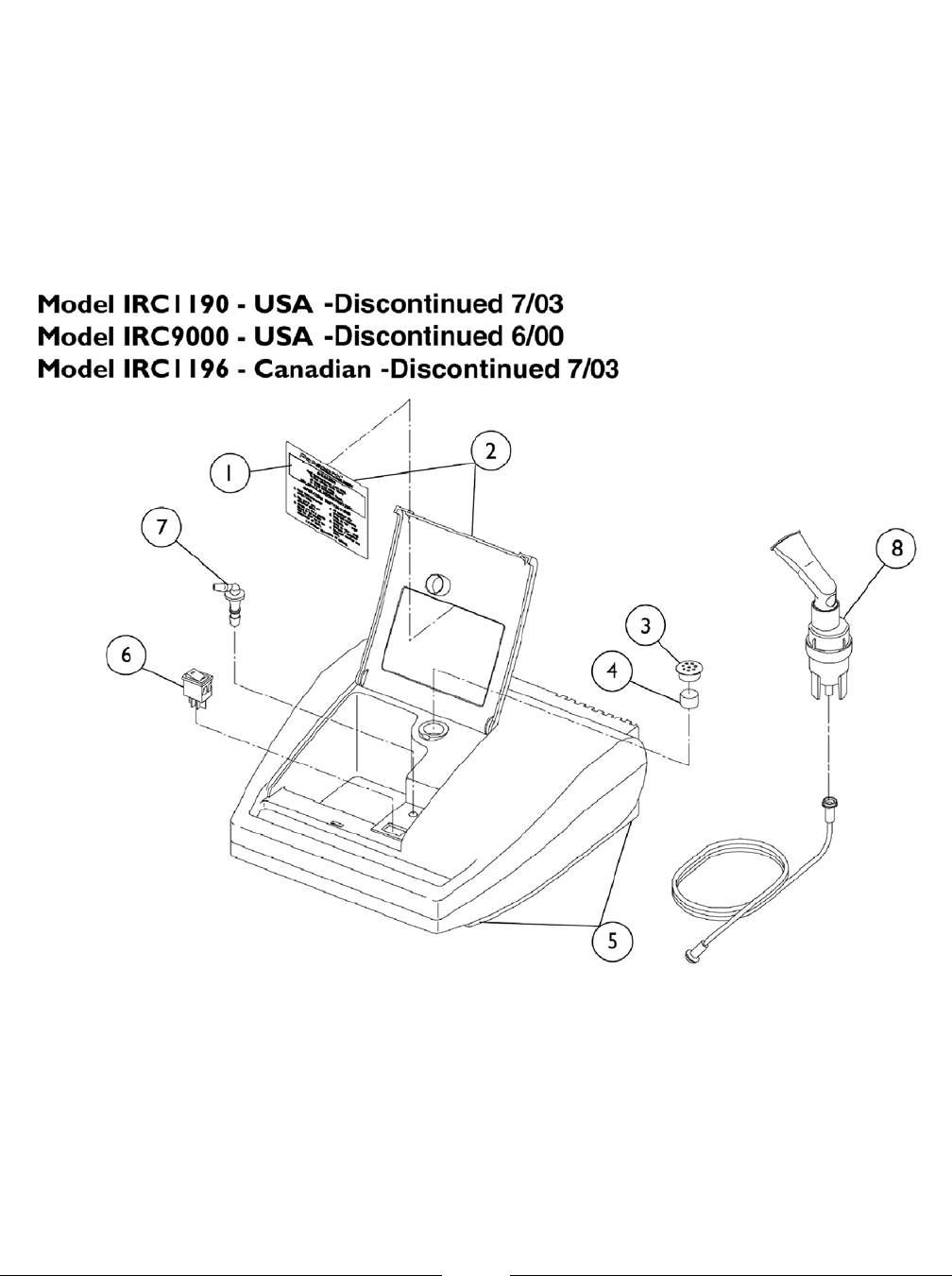

Aerosol Compressor - Passport
Model - IRC1190, IRC9000, IRC1196
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Passport
Model - IRC1190, IRC9000, IRC1196
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
658589-NLA NLA - Decal, Storage Compartment 1 11
661766S-NLA NLA - Lid with Decal Assembly, Storage
Compartment 1 12
638150 Cover, Filter 1 13
650391-NLA NLA - Filter, Foam Intake 6 14 F
1156679 Package, Intake Filter 12 1
2001580-NLA NLA - Bumper, Rubber 1 15
1043555-NLA NLA - Switch, Power 1 16
2001574-NLA NLA - Fitting, Air Outlet 1 17
MS2200-NLA NLA - Nebulizer, Disposable Sidestream 50 18 A,D
MS2400-NLA NLA - Nebulizer, Durable Sidestream 10 18 A,E
642034-NLA NLA - Owner's Manual - English, Spanish and
French 1 1B
1035805-NLA NLA - Owner's Manual - Spanish 1 1B
642076-NLA NLA - Owner's Manual - French and English 1 1B
2001595 Instruction Video Tape, Aerosol 1 1B
2002753-NLA Kit, Passport Compressor 1 1B
NLA - Connector, Closed End 1 1
Terminal (3/16 x 1/32) 1 1
Screw, Phillips Pan Head (8-32 x 5/8") 1 2
Spacer (#8 x 9/32") 1 4
Pad, Foam 1 2
Bracket, Mounting 1 2
NLA - Compressor - Passport 1 1
Nut, Keps (#6-32) 1 2
Instruction Sheet 1 1
650395S-NLA NLA - Kit, Packaging Compressor 1 1B,C
A - MS2200, MS2400 can be used with either IRC1190, IRC9000, or IRC1196. Standard for IRC11900 is MS2200, Standard
for IRC9000, and for IRC1196 is MS2400.
B - Not Shown
C - Includes Carton and Inserts
D - Includes Mouth Piece, Vent Seal Adapter and 7ft. Tubing.
E - Includes Mouth Piece and 7 ft. Tubing.
F - Item no longer available, refer to part #1156679 for replacement.
NOTE:
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Stratos Pro and Compact
Model - IRC1700 and IRC1710
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Stratos Pro and Compact
Model - IRC1700 and IRC1710
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
IRC1701 Case, Compressor - Pro 1 11 A
IRC1711 Case, Compressor - Compact 1 12 B
1133551 Filter, Disk Replacement 5 13 B,E
1133548 Kit, Filter Replacement 5 14 A,B,F
1133547 Cover, Filter - Pro 1 15 A
1133549 Bumper, Foot 1 46 C
1133554-NLA NLA - Cover, Filter - Compact 1 17 B
MS2200S-NLA NLA - Nebulizer, Single Sidestream Disposable 1 18 C,H
1130203-NLA NLA - Owner's Manual - Compact 1 1B,D,G
1130204-NLA NLA - Owner's Manual - Pro 1 1A,D
A - Used with IRC1700.
B - Used with IRC1710.
C - Use with both IRC1700 and IRC1710.
D - Not Shown.
E - Use with IRC1710 (manufactured Before 12/07).
F - Due to filter change, use with IRC1710 (manufactured After 12/07).
G - Must be downloaded from website.
H - Item no longer available as a single component service part, refer to Model MS2600 on Respiratory price list.
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1146967 Cover, Filter 1 11
1156679 Package, Intake Filter 12 12
1148073 Owner's Manual, Select Compressor 1 1A
A - Not Shown.
NOTE:
Aerosol Compressor - Select (IRC1705)
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Stratos Portable
Model - IRC1720
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Stratos Portable
Model - IRC1720
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1133559 Adaptor, AC/DC Switch - Portable 1 11
1133561-NLA NLA - Adaptor, Car - Portable 1 12
1133560-NLA NLA - Cord, Power AC - Portable 1 13
IRC1725-NLA NLA - Kit, Nebulizer - Portable 1 14 B
1133551 Filter, Disk Replacement 5 1A
1133562 Cover, Filter 1 1A
1133563 Cover, Power Input 1 1A
IRC1722 Case, Carrying 1 1A
1130202 Owner's Manual - Portable 1 1A
1130218 Instuction Sheet, Portable Battery 1 1A
IRC1726 Mask - Pediatric 1 1A
IRC1726-2 Kit, Masks, Pediatric 1 1A,C
Mask - Pediatric 1 2
IRC1727 Mask - Adult 1 1A
IRC1727-2 Kit, Masks, Adult 1 1A,C
Mask - Adult 1 2
A - Not Shown.
B - Kit includes Top and Bottom Nebulizer, Nozzle, Expiratory Valve, Inhalation Valve, Holder, Mouth Piece and Tubing.
C - Kit includes (2) Masks.
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aerosol Compressor - Stratos Portable (IRC1730)
20
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42

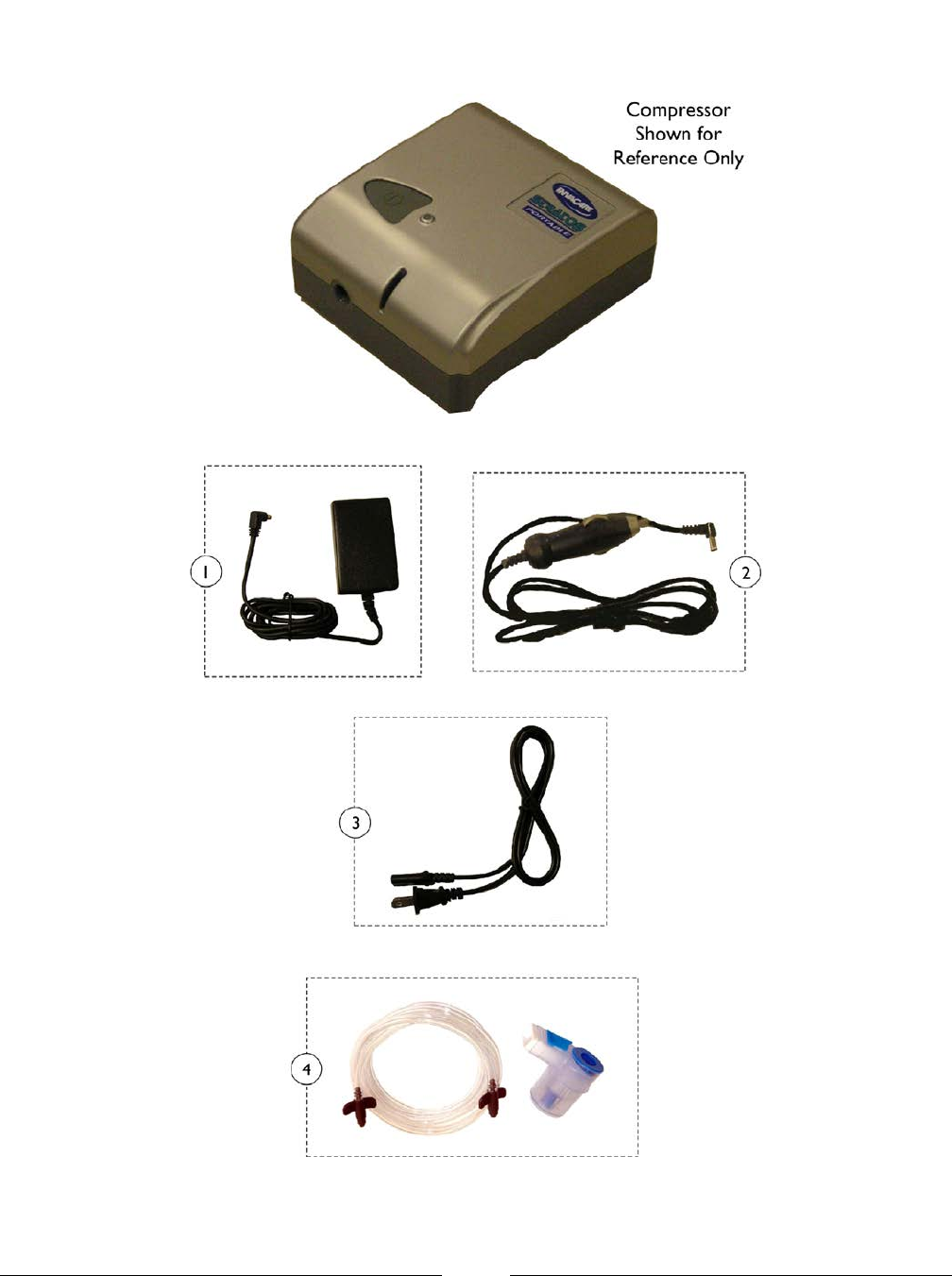

Aerosol Compressor - Stratos Portable (IRC1730)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1156517-NLA NLA - Adaptor, AC/DC Switching Portable 1 11
1133561-NLA NLA - Adaptor, Car - Portable 1 12
MS2700S-NLA NLA - Kit, Nebulizer Jet Plus 1 13
1156513 Package, Filter Replacement 5 14
IRC1722 Case, Carrying 1 15
1133562 Cover, Filter 1 1A
1150755 Owner's Manual - Portable 1 1A
1150754 Instruction Sheet, Portable Battery 1 1A
A - Not Shown.
NOTE:
21
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aspirator
Model - IRC1135, IRC1136
22
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Aspirator
Model - IRC1135, IRC1136
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
602489 Switch, On/Off 1 11 E,G
624000 Bumper, Rubber 1 42 E,G
625331 Screw, Bumper 1 43 E,G
633210 Gauge, Vacuum 1 14 C,E
1154138-NLA NLA - Gauge, Vacuum 1 14 C,D
1071348 Tube and Filter Assembly 1 15 E,B
1148804-NLA NLA - Tube and Filter Assembly 1 15 D,F
1150589 Tube and Filter w/ Elbow Assembly 1 15 D
IRC1140 Jar, Collection with 6 Ft. Suction Tubing 10 16
1086904 Adaptor, Elbow 1 1D
624861-NLA NLA - Fitting, Brass (5/16") 1 1A
636959 Instruction Sheet, Aspirator 1 1A
632439 Carton, Aspirator 1 1A
1164813 Holder, Fuse, External 1 1A
A - Not Shown
B - Includes Tube, Elbow, Filter and Instruction Sheet.
C - Includes Gauge only. The knob is not offered as a service part.
D - Used on units built after 7/30/07.
E - Used on units built before 7/31/07.
F - To complete this Assembly you must also order (2) Elbow Adapters Part #1086904.
G - Item numbers 1, 2, and 3 After 7/30/07 are non-serviceable parts.
NOTE:
23
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Compressor - 50PSI
Model - IRC607
24
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Compressor - 50PSI
Model - IRC607
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
624266-NLA Foot, Suction Cup 1 41 C
624496 Foot, Suction Cup 1 41
602136-NLA NLA - Switch, On/Off 1 12
641034-NLA NLA - Filter, Foam, Grey 1 13
641042-NLA NLA - Filter, Felt 1 14
660710-NLA NLA - Filter Body 1 15
660767-NLA NLA - Cap, Filter Body 9 16
638122 Gauge, Pressure 1 17
IRC5070 J-Tube with DISS* Connector Assembly, Nebulizer 1 18
661575 Inlet Filter Assembly 1 19 A
636960-NLA NLA - Instruction Sheet, 50 PSI Compressor 1 1B
653016 Carton, 50PSI Compressor 1 1B
A - Includes Items 3-6
B - Not Shown
C - Part is no longer serviceable in the field as of 06/30/11. Use 624496 as its replacement.
NOTE:
25
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1156679 Package, Intake Filter 12 11
1163788 Cover, Intake Filter 1 12
Compressor Nebulizer System - Pediatric Bear
Model - IRC1740
26
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
MS2400-NLA NLA - Nebulizer, Durable Sidestream 10 11 A
A - Includes Mouth Piece and 7 ft. Tubing.
NOTE:
Single Nebulizer - Durable Sidestream
Model - MS2400
27
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Peak Flow Meter - Tru Zone
Model - IRC1198
28
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Peak Flow Meter - Tru Zone
Model - IRC1198
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
IRC1198 Meter, Peak Flow 10 11
65001-NLA NLA - Instruction Booklet with Daily Record Log 1 12
95018-NLA NLA - Strips, Zone 1 13
65005-NLA NLA - Mouth Piece 1 14
95030-NLA NLA - Daily Record Log 25 1A
A - Not Shown
NOTE:
29
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Ultrasonic Nebulizer - Scout
Model - IRC1199
30
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Ultrasonic Nebulizer - Scout
Model - IRC1199
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1075009-NLA NLA - Mouth Piece with Valve 1 11
1075020-NLA NLA - Cord, Adapter 12V DC 1 12
1075012-NLA NLA - Adapter, Power, AC/DC 1 13
IRC1199RMC-N
LA NLA - Medicine Cup Package 30 14
1075007-NLA NLA - Ring, Cover Seal 1 15
1075018-NLA NLA - Kit, Air Filter 5 16
1075013-NLA NLA - Case with Shoulder Strap 1 17
1075004-NLA NLA - Cup Holder, Medicine 1 18
1075006-NLA NLA - Cover, Top with Cover Seal Ring 1 19
1075008-NLA NLA - Baffle 1 110
1075011-NLA NLA - Module, Adapter, AC 1 111
1075022-NLA NLA - Mask - Pediatric 1 112
1075272-NLA NLA - Pack, Battery 1 113
IRC1200-NLA NLA - Rechargable Battery and Charger 1 1A
1075014 Owner's Manual, Ultrasonic Nebulizer 1 1A
1075019-NLA NLA - Kit, Fan and Fan Cover Replacement 1 1A,B
A - Not Shown
B - Before 4/28/00
NOTE:
31
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-42
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Florida Technical Support
407-321-5630
Customer Service
800-333-6900
Form No.
93-42
© 2016 Invacare Corporation. All rights
reserved. Republication, duplication or
modification in whole or in part is prohibited
without prior written permission from
Invacare. Trademarks are identified by ™
and ®. All trademarks are owned by or
licensed to Invacare Corporation or its
subsidiaries unless otherwise noted.
(Revised 05/12/16)
