User Manual: Wheelchair Accessories
Open the PDF directly: View PDF
.
Page Count: 60
Accessories Parts List
9000SL / 9000XT / 9000XDT
9000XT Recliner
Parts Catalog Issued: Jan 8, 2018
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 95-115. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples:
= Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2018 Invacare Corporation, Elyria, Ohio. Invacare, the Medallion Design and Yes, you can.; are registered trademarks.
Parts Catalog Usage Guide
1
Form No. 95-115
To order call toll free 1-800-333-6900, or www.invacare.com
Amputee Attachment ................................................................................................................ 6
Anti-Tippers .............................................................................................................................. 9
Carrying Pocket, Carrying Strap, Crutch and Cane Carrier ..................................................... 13
Cyclical Lever Drive - 7 Spoke - After 9/01 .............................................................................. 50
Cyclical Lever Drive - 9 Spoke - For Canadian Chairs Only .................................................... 55
Cyclical Lever Drive -7 Spoke - Before 10/01 .......................................................................... 53
Fabric Clothing Protector .......................................................................................................... 19
Fork and Release Handle for Cyclical Lever Drive ................................................................... 57
Head Support ........................................................................................................................... 17
Headrest Extension Non-Recliner Chairs ................................................................................. 14
I.V. Rod - Recliner .................................................................................................................... 25
I.V./ Oxygen Holder .................................................................................................................. 21
I.V.Rod and Bracket (2218) - Non-Recliner .............................................................................. 23
Lumbar Cushion with Hook Straps and Non-Folding Device ................................................... 29
Non-Folding Device .................................................................................................................. 48
One Arm Drive - 9000XT, 9000XDT ......................................................................................... 30
Oxygen Holder - 1497 .............................................................................................................. 27
Seat Positioning Straps, Tire Pumps, and Transfer Board ....................................................... 36
Solid Back Insert and Back Pack ............................................................................................. 37
Solid Folding Seats - Drop Hook .............................................................................................. 41
Solid Seat Insert and Seat Pouch ............................................................................................ 39
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Torso Support ........................................................................................................................... 44
Upholstery Color and Frame Finishes ...................................................................................... 4
Utility Tray ................................................................................................................................ 34
Wheel Lock Extensions ............................................................................................................ 46
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Upholstery Color and Frame Finishes
Sail Cloth with Velcro Strap
Color Number Description
BlackU245
Nylon Colors
Color Number Description
BlackU240
Hunter Green (9000SL/XT Only)U246
Ruby (9000SL/XT Only)U247
Vinyl Colors
Color Number Description
BlackU67
CamelU88
Dark BlueU85
Dove GreyU75
Marina Blue (9000SL/XT/XDT Only)U60
Ruby RedU86
Sand (9000SL/XT/XDT Only)U52
Light BlueU97
Sky Blue (9000SL/XT/XDT Only)U92
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Upholstery Color and Frame Finishes
Frame Finishes
Color Number Color Touch-Up Paint
Part Number
N/AChrome15P
N/ASilver Vein71P
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

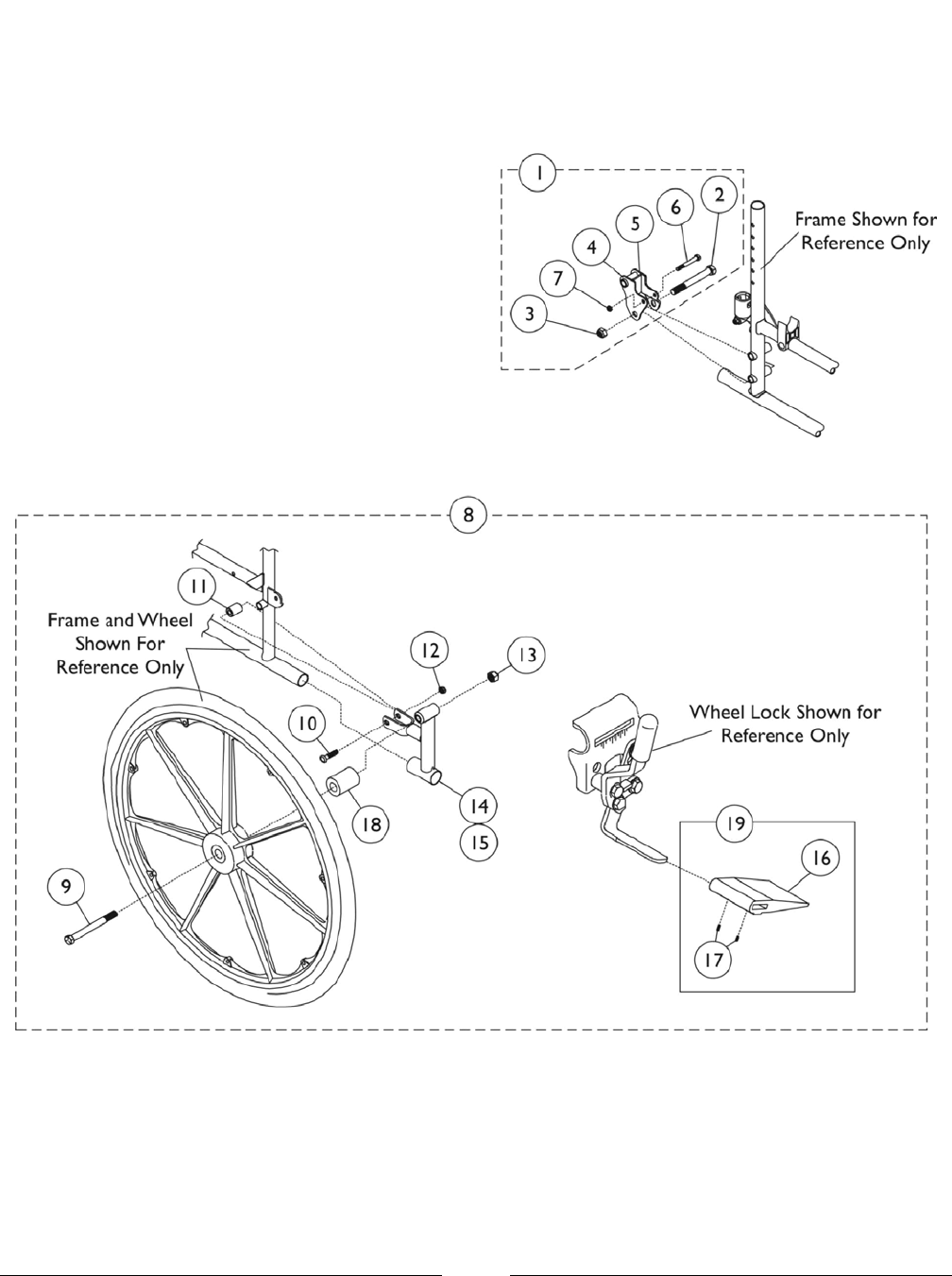

Amputee Attachment
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Amputee Attachment
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1058670 Kit, Amputee Attachment, Chrome (Pair) 1 11 A,B,J
NLA - Screw, Hex Head (7/16-20 x 2-1/2") 1 22
Locknut (7/16-20) 1 23
Bracket, Amputee, Chrome - Right Adult/Left Hemi 1 14
Bracket, Amputee, Chrome - Left Adult/Right Hemi 1 15
Screw, Hex Head (1/4-20 x 1-1/2") 1 26
Locknut (1/4-20) 1 27
NLA - Instruction Sheet 1 1
1064054 Kit, Amputee Attachment, Black (Pair) 1 18 A,C,E
Bolt, Hex Head Cap (7/16-20 x 4-3/4") 1 29
Screw, Hex Head (5/16-24 x 1-1/2") 1 210
Spacer, Chrome (5/16 x 11/16 x 15/16") 1 211
Locknut (5/16-24) 1 212
Locknut (7/16-20) 1 213
Bracket, Amputee, Black - Right 1 114
Bracket, Amputee, Black - Left 1 115
Spacer, Wheel Lock Shoe (2-7/16") 1 216
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 417
Instruction Sheet 1 1
1065224 Kit, Amputee Attachment, Black (Pair) 1 18 A,D,F
Screw, Hex Head Cap (7/16-20 x 5-1/2") 1 29
Screw, Hex Head (5/16-24 x 1-1/2") 1 210
Spacer, Chrome (5/16 x 11/16 x 15/16") 1 211
Locknut (5/16-24) 1 212
Locknut (7/16-20) 1 213
Bracket, Amputee, Black - Right 1 114
Bracket, Amputee, Black - Left 1 115
Spacer, Wheel Lock Shoe (2-7/16") 1 216
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 417
Spacer (7/16 x 5/8 x 1/2") 1 218
Instruction Sheet 1 1
1182824 Kit, Amputee Attachment, Black (Pair) 1 18 A,D,E
Screw, Hex Head Cap (7/16-20 x 5-1/2") 1 29
Screw, Hex Head (5/16-24 x 1-1/2") 1 210
Spacer, Chrome (5/16 x 11/16 x 15/16") 1 211
Locknut (5/16-24) 1 212
Locknut (7/16-20) 1 213
Bracket, Amputee, Black - Right 1 114
Bracket, Amputee, Black - Left 1 115
Spacer, Wheel Lock Shoe (2-7/16") 1 216
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 417
Spacer (7/16 x 5/8 x 1/2") 1 218
Instruction Sheet 1 1
1182825 Kit, Amputee Attachment, Black (Pair) 1 18 A,C,F
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Amputee Attachment
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Bolt, Hex Head Cap (7/16-20 x 4-3/4") 1 29
Screw, Hex Head (5/16-24 x 1-1/2") 1 210
Spacer, Chrome (5/16 x 11/16 x 15/16") 1 211
Locknut (5/16-24) 1 212
Locknut (7/16-20) 1 213
Bracket, Amputee, Black - Right 1 114
Bracket, Amputee, Black - Left 1 115
Spacer, Wheel Lock Shoe (2-7/16") 1 216
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 417
Instruction Sheet 1 1
1048656 Kit, Wheel Lock Shoe Spacer 1 119 C,G,I
Spacer, Wheel Lock Shoe (1-45/64") 1 116
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 217
7400109 Kit, Wheel Lock Shoe Spacer (Pair) 1 119 D,H,I
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 417
Spacer, Wheel Lock Shoe (2-7/16") 1 216
A - Instruction sheet not shown.
B - Includes items 2-7.
C - To be used on Super Low chairs with space saver arm styles.
D - To be used on Super Low chairs with conventional arm styles.
E - Includes items 9-18 and instruction sheet.
F - Includes items 9-18 and instruction sheet.
G - Chairs with 20" or 22" rear wheels, order (2) of part # 1048656 for both sides of chair.
H - 9000XDT Chairs with 19" - 20" seat depth, order (1) of part # 7400109 for both sides of chair.
I - Includes items 16 and 17.
J - For use on Adult or Hemi chairs.
NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

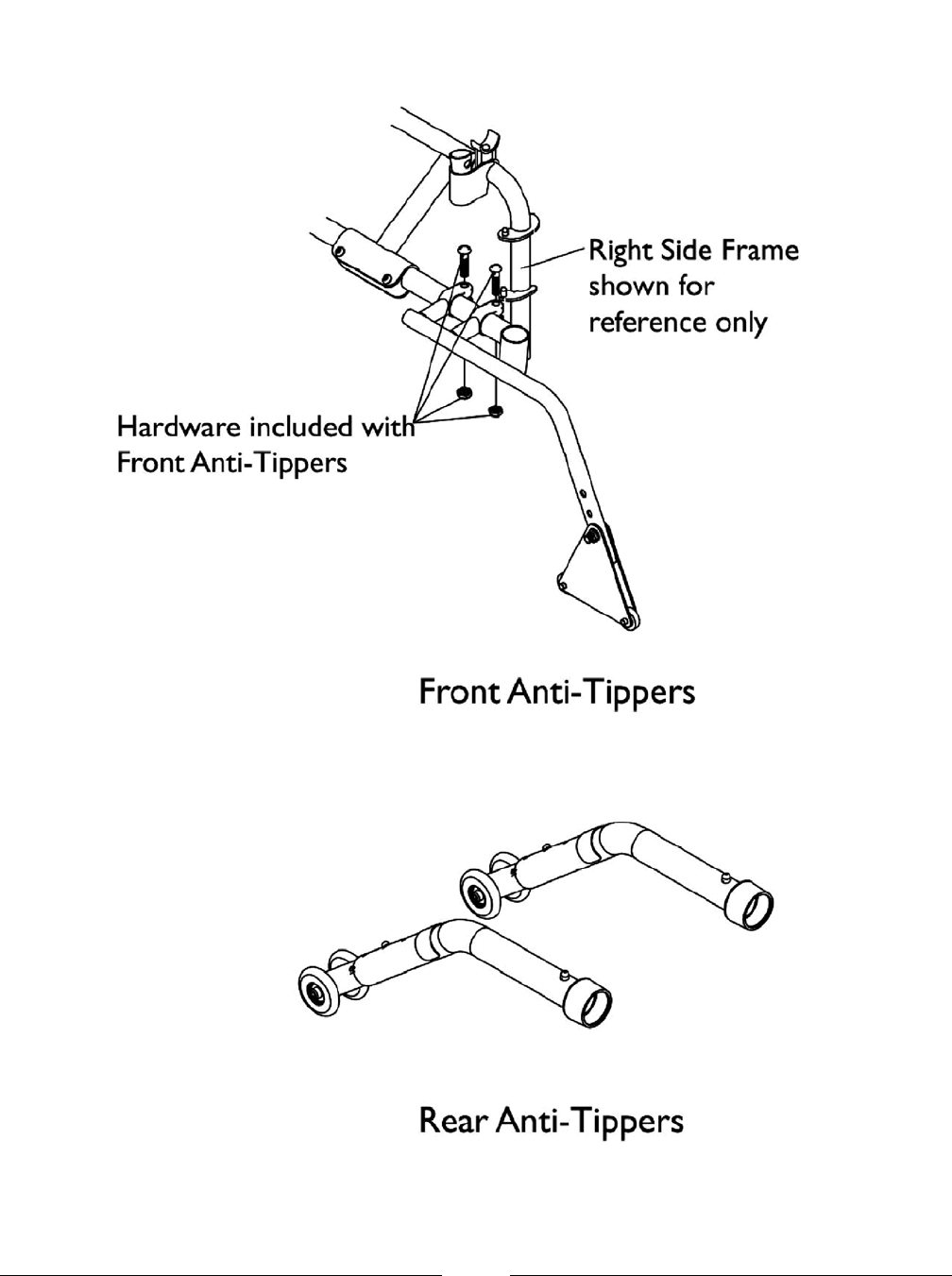

Anti-Tippers
NOTE: The 0 degree and 6 degree chair configurations became available 8/1/02. Rear anti-tippers for
these configurations are not available prior 8/1/02.
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Anti-Tippers
NOTE: The 0 degree and 6 degree chair configurations became available 8/1/02. Rear anti-tippers for
these configurations are not available prior 8/1/02.
9000SL and 9000XT
Model Number Part Number Description Quantity Per Package
2Front Anti-Tippers10359672226
2Rear Anti-Tippers
1061112
1360A See Note(s) G, D, A
2Rear Anti-Tippers
1064520
1360SH See Note(s) E, C, A
2Rear Anti-Tippers
1058836
1360 See Note(s) F, C, B
A - 6" Fork and Caster.
B - 8" Fork and Caster.
C - Standard Seat to Floor angle for 9SL and 9XT is 3 degrees. After 8/1/02, 9XT with offset axle and adjustable journal caster
options allow seat-to-floor angle to be set at 0 degrees, 3 degrees and 6 degrees.
D - For use on Adult, Hemi and Super Hemi models.
E - For use on Super Low models.
F - For use on all models.
G - 9000XT models with Super Hemi and Angle-S back must use Anti-Tipper part # 1058752.
NOTE:
9000XDT
Model Number Part Number Description Quantity Per Package
2Front Anti-Tippers10359672226
2Rear Anti-Tippers
1061112
1360A See Note(s) A
2Rear Anti-Tippers
1058836
1360 See Note(s) B
A - Adult and Hemi Chairs - 8" Fork and Caster.
B - Tall Chairs - 8" Fork and Caster.
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Anti-Tippers
NOTE: The 0 degree and 6 degree chair configurations became available 8/1/02. Rear anti-tippers for
these configurations are not available prior 8/1/02.
9000XT Recliner
Part Number Description Quantity Per Package
2Front Anti-Tipper1035967
2Rear Anti-Tipper
1061109-NLA
See Note(s) A
2Rear Anti-Tipper
8881180805
See Note(s) D, A
2Rear Anti-Tipper
1061110-NLA
See Note(s) B
2Rear Anti-Tipper
8881180802
See Note(s) D, B
2Rear Anti-Tipper
1021767-NLA
See Note(s) C
2Rear Anti-Tipper
8881180799
See Note(s) D, C
A - For use on models with 20" rear wheels.
B - For use on models with 22" rear wheels.
C - For use on models with 24" rear wheels.
D - Specify 71P SIlver Vein when ordering.
NOTE:
9000XT with 0 Degree Seat Angle - After 8/01/02
9000XT w/Offset Axle and Adjustable Journal Caster Options
Kit Number Seat to Floor Height Anti-Tipper Length Anti-Tipper Height Caster Size
6"2-3/4"11-5/8"15-1/2"1061112
6"3-1/2"13-1/2"16-1/2" - 17-1/2"1058836
8"3-1/2"13-1/2"17-1/2" - 18-1/2"1058836
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Anti-Tippers
NOTE: The 0 degree and 6 degree chair configurations became available 8/1/02. Rear anti-tippers for
these configurations are not available prior 8/1/02.
9000SL and 9000XT with 3 Degree Seat Angle
9000XT w/Offset Axle and Adjustable Journal Caster Options
Kit Number Seat to Floor Height Anti-Tipper Length Anti-Tipper Height Caster Size
6"2-3/4"11-5/8"
15-1/2", 16-1/2",
17-1/2"
1061112
See Note(s) A
8"3-1/2"13-1/2"
17-1/2", 18-1/2",
19-1/2"
1058836
See Note(s) A
A - Standard seat to floor angle for 9SL and 9XT is 3 degrees. After 8/1/02, 9XT with offset axle and adjustable journal caster
options allow seat to floor angle to be set at 0 degrees, 3 degrees and 6 degrees.
NOTE:
9000XT with 6 Degree Seat Angle - After 8/1/02
9000XT w/Offset Axle and Adjustable Journal Caster Options
Kit Number Seat to Floor Height Anti-Tipper Length Anti-Tipper Height Caster Size
6"2-3/8"9-1/2"15-1/2"1113764-NLA
6"2-3/4"12-1/2"16-1/2", 17-1/2"1113765-NLA
8"2-7/8"13-1/2"
17-1/2", 18-1/2",
19-1/2"
1113766-NLA
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Carrying Pocket
Part Number Description Quantity Per Assembly
1Carrying Pocket, Expanded Vinyl
8881047954-NLA
See Note(s) A, B
1Carrying Pocket, Expanded Vinyl
8881047957
See Note(s) A, C
1Carrying Pocket, Vinyl
8881047960
See Note(s) A, D
1Carrying Pocket, Nylon
8881047956-NLA
See Note(s) B, A
1Carrying Pocket, Black Nylon
8881047959
See Note(s) C, A
1Carrying Pocket, Nylon
8881047962
See Note(s) D, A
1Carrying Pocket, Vinyl
8881047954-NLA
See Note(s) B, A
1Carrying Pocket, Non-Expanded Vinyl
8881047958-NLA
See Note(s) A, C
1Carrying Pocket, Lightweight Vinyl
8881047961-NLA
See Note(s) D, A
1Hardware Carrying Pocket1041784-NLA
A - Specify upholstery color, see page titled "Upholstery Color Options."
B - 14-15" Wide Chairs
C - 16-20" Wide Chairs
D - 22" Wide Chairs
NOTE:
Carrying Strap and Crutch & Cane Carrier
Part Number Description Quantity Per Assembly
1Carrying Strap
8881025300-NLA
See Note(s) A
1Crutch & Cane Carrier1034204
A - Specify upholstery color, see page titled "Upholstery Color Options". NOTE:
Carrying Pocket, Carrying Strap, Crutch and Cane Carrier
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

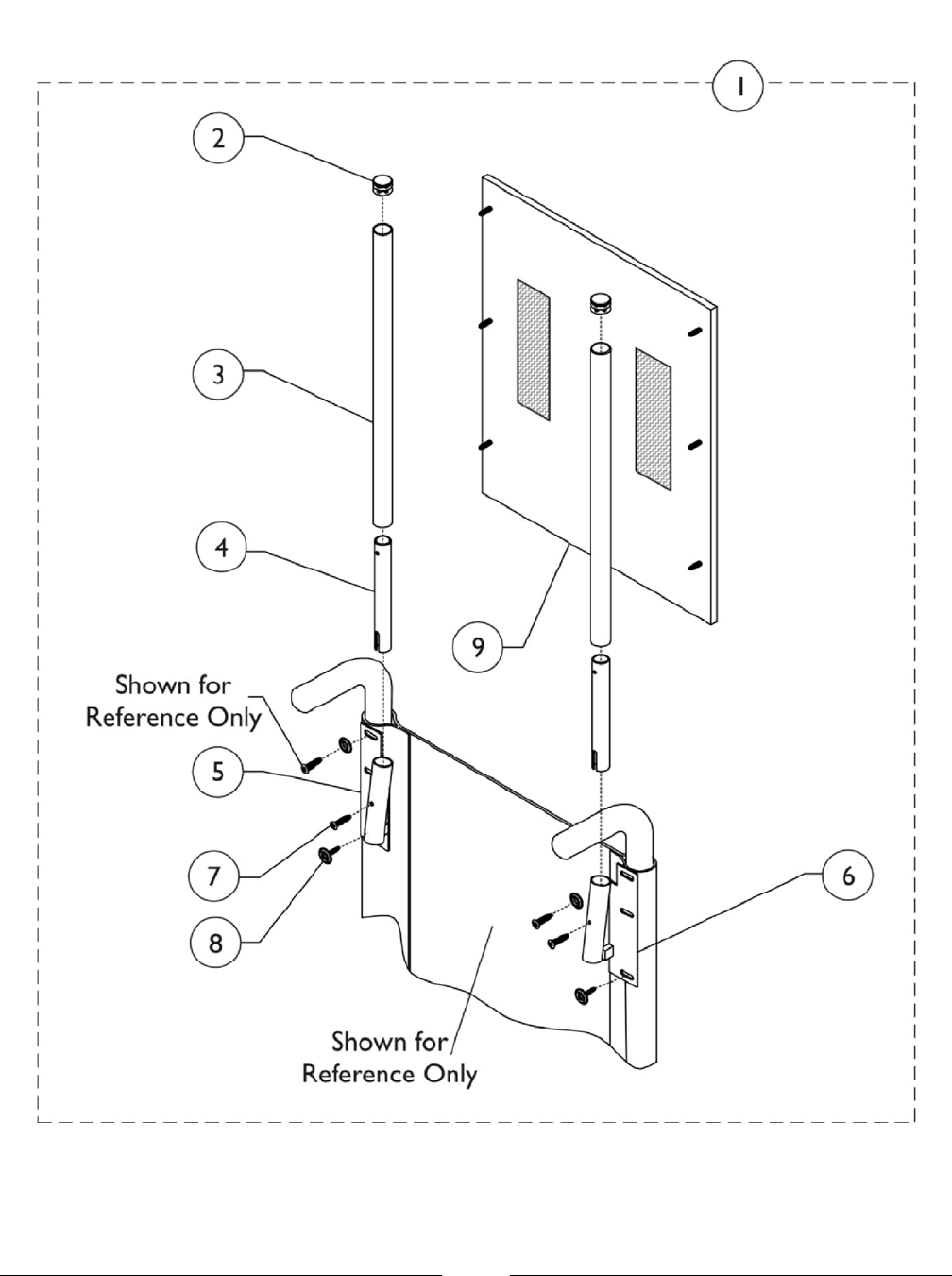

Headrest Extension Non-Recliner Chairs
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Headrest Extension Non-Recliner Chairs
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881050181-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(14" W) 1 11 A,B,F
8881050182-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(15" W) 1 11 A,B,F
8881050183 NLA - Headrest Extension Assembly, Vinyl, Chrome
(16" W) 1 11 A,B,F
8881091224-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(16-1/2" W) 1 11 A,B,F
8881050184-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(17" W) 1 11 A,B,F
8881050185-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(18" W) 1 11 A,B,F
8881050186-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(19" W) 1 11 A,B,F
8881050187-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(20" W) 1 11 A,B,F
8881050188-NL
ANLA - Headrest Extension Assembly, Vinyl, Chrome
(22" W) 1 11 A,B,F
8881052776-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (14" W) 1 11 B,F
8881052777-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (15" W) 1 11 B,F
8881052778-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (16" W) 1 11 B,F
8881052779-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (17" W) 1 11 B,F
8881052780-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (18" W) 1 11 B,F
8881052781-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (19" W) 1 11 B,F
8881052782-NL
ANLA - Headrest Extension Assembly, Nylon,
Chrome (20" W) 1 11 B,F
1027095 Plug Button, Black (7/8") 1 22 B
01058X000-NLA NLA - Tube, Headrest Extension 1 23 C
1054604 Tube, Headrest Extension 1 23 D
48811X003 Tube, Insert 1 24
1028753 Bracket, Headrest, Black - Left 1 15
1028752 Bracket, Headrest, Black - Right 1 16
40163X013-NLA NLA - Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 27
1076283 Screw, Phillips Oval Head w/ Washer (#10-16 x
7/8") 1 28
8881054633-NL
ANLA - Upholstery, Headrest, Vinyl (14" W) 1 19 A
8881054634-NL
ANLA - Upholstery, Headrest, Vinyl (15" W) 1 19 A
8881054638-NL
ANLA - Upholstery, Headrest, Vinyl (16" W) 1 19 A
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Headrest Extension Non-Recliner Chairs
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881054635-NL
ANLA - Upholstery, Headrest, Vinyl (17" W) 1 19 A
8881054637-NL
ANLA - Upholstery, Headrest, Vinyl (18" W) 1 19 A
8881054636-NL
ANLA - Upholstery, Headrest, Vinyl (19" W) 1 19 A
8881054639-NL
ANLA - Upholstery, Headrest, Vinyl (20" W) 1 19 A
8881054640-NL
ANLA - Upholstery, Headrest, Vinyl (22" W) 1 19 A
8881052586-NL
ANLA - Upholstery, Headrest, Nylon (14" W) 1 19
8881052587-NL
ANLA - Upholstery, Headrest, Nylon (15" W) 1 19
8881052588-NL
ANLA - Upholstery, Headrest, Nylon (16" W) 1 19
8881091223-NL
ANLA - Upholstery, Headrest, Vinyl (16-1/2" W) 1 19
8881052589-NL
ANLA - Upholstery, Headrest, Nylon (17" W) 1 19
8881052590-NL
ANLA - Upholstery, Headrest, Nylon (18" W) 1 19
8881052591-NL
ANLA - Upholstery, Headrest, Nylon (19" W) 1 19
8881052592-NL
ANLA - Upholstery, Headrest, Nylon (20" W) 1 19
1098351-NLA NLA - Instruction Sheet 1 1E,G
47447X009 Screw, Phillips (#8 x 3/8") 1 6C,E
A - Specify upholstery color when ordering, see category titled, "Upholstery Color Options."
B - Includes items 2-9.
C - For use on a Headrest Extension Tube with snap fasteners (Before 6/95).
D - For use on a Headrest Extension Tube without snap fasteners (After 5/95).
E - Not Shown.
F - Headrest extension assembly not available in 71P Silver Vein color frame finish.
G - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

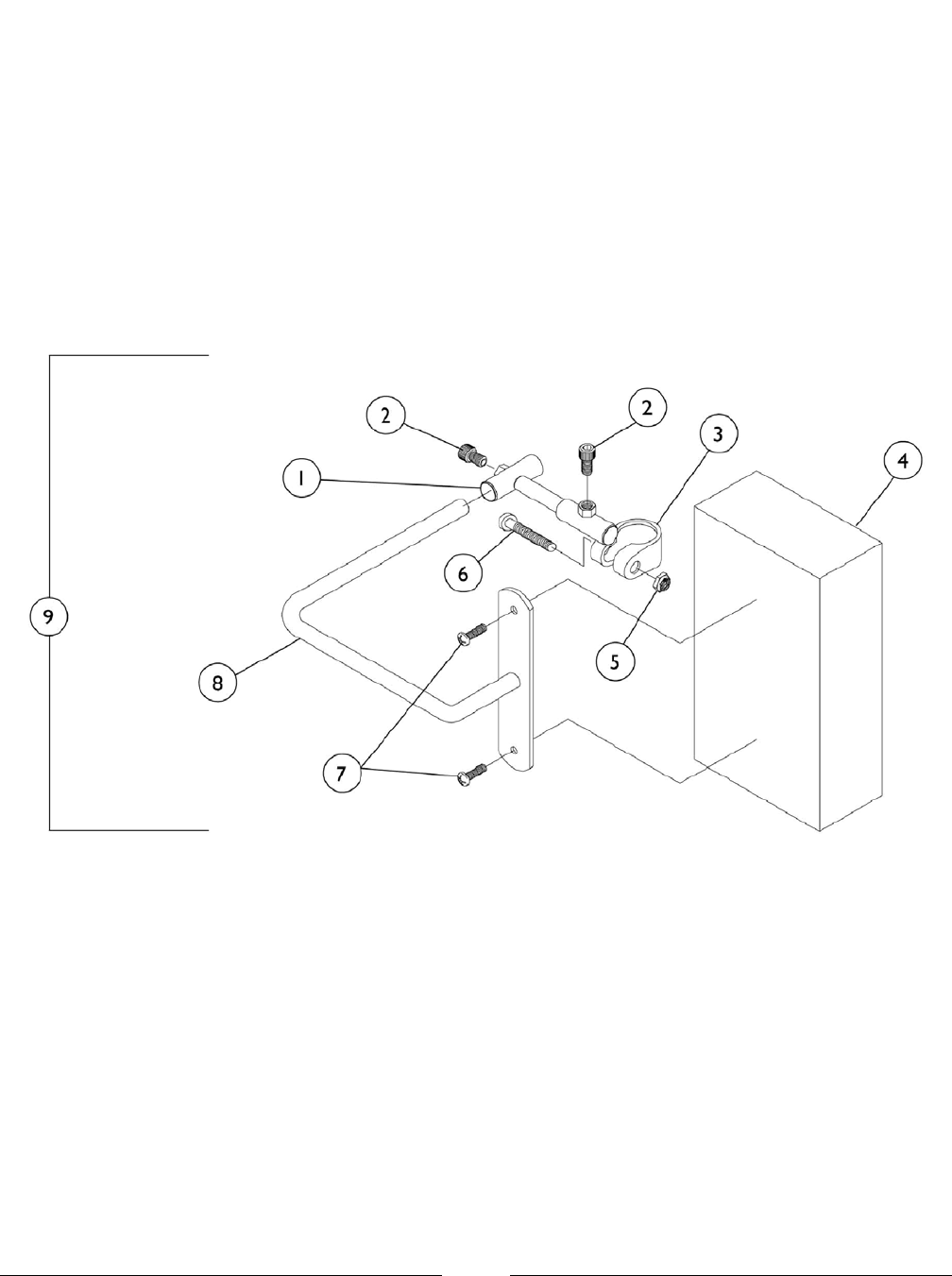

Head Support
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Head Support
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
03018X042 Wing Bracket Assembly, Chrome 1 11
60284X001 Screw, Socket Head (1/4-20 x 1/2") 1 22
03018X043 Bracket, Clamp, Black- Right 1 13
03018X046 Bracket, Clamp, Black - Left 1 13
8881123986-NL
ANLA - Pad, Headrest 1 14 A,E
88804529X040-
NLA NLA - Pad, Headrest 1 14 A
60264X001 Locknut (5/16-24) 1 15
11232X009 Bolt, Lug (5/16-24 x 1-3/8") 1 16
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 27
03018X045 Bracket, Pad Support, Chrome 1 18 B
03018X044-NLA NLA - Bracket, Pad Support, Black 1 18 C
8881050191-NL
ANLA - Head Support Assembly (Pair) 1 19 A,B
8881050192-NL
ANLA - Head Support Assembly (Pair) 1 19 A,C
1023610-NLA NLA - Instruction Sheet 1 1D,F
A - Specify upholstery color when ordering, see category titled, "Upholstery Color Options."
B - Non-Recliner
C - Recliner
D - Not Shown
E - No Longer Available. Use 88804529X040 as replacement.
F - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

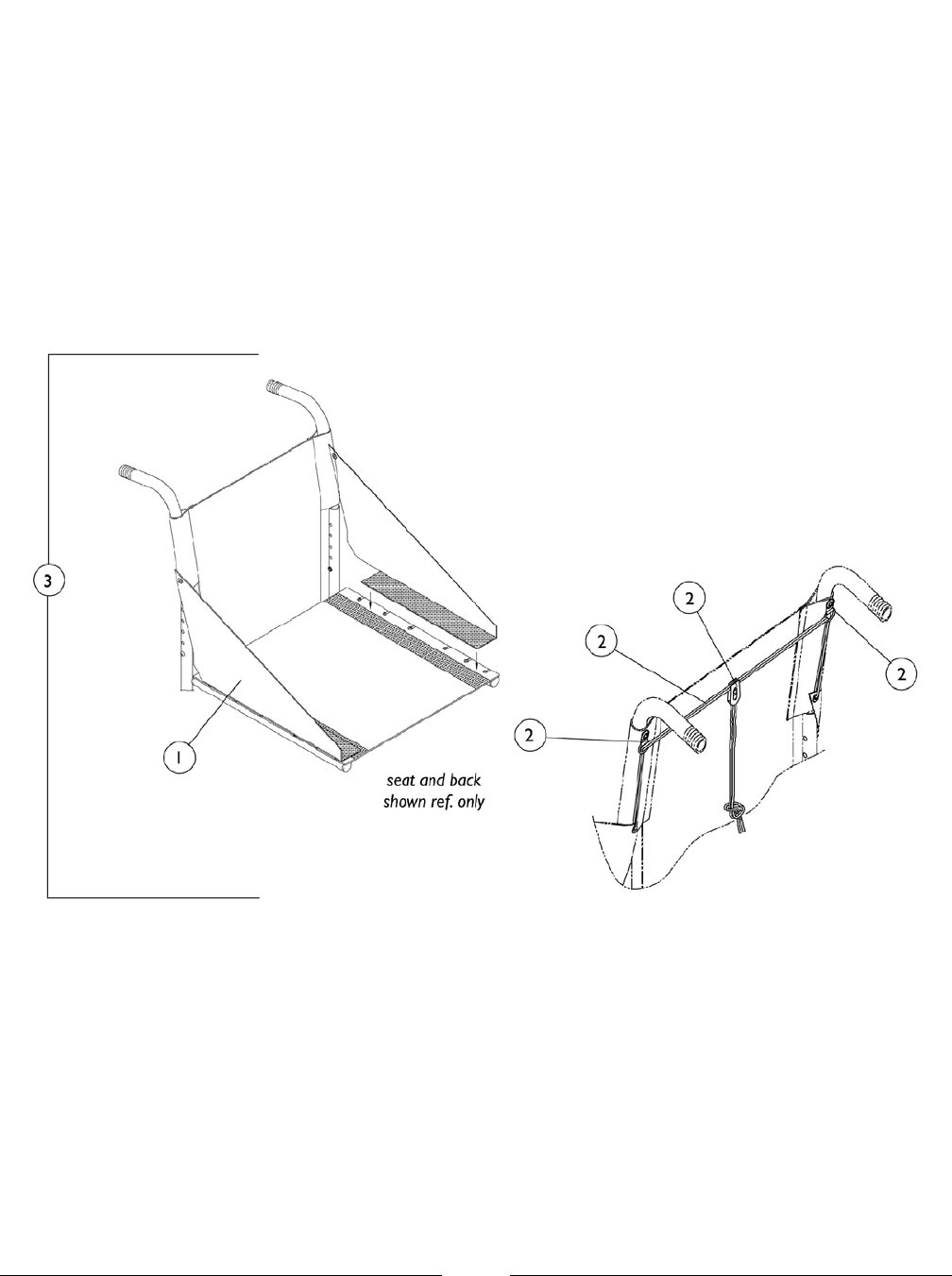

Fabric Clothing Protector
9000XT Only
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Fabric Clothing Protector
9000XT Only
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1017447-NLA NLA - Protector, Fabric Clothing 1 21 A
1057388 Protector, Fabric Clothing (Pair) 1 21 B
1054770-NLA NLA - Kit, Clothing Protector Hardware 1 12 C,D
1035976-NLA NLA - Protector, Fabric Clothing with Hardware
(Pair) 1 13
A - Before 4/95
B - After 3/95
C - Due to a design change, and Clothing Gaurd hardware needed for chairs built before 2/95 will need to order kit number
1054770 so that the chair can be upgraded to the current design. Previous hardware is NLA.
D - Kit includes Cord, Cord Lock, and 2 "D" Rings
NOTE:
20
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

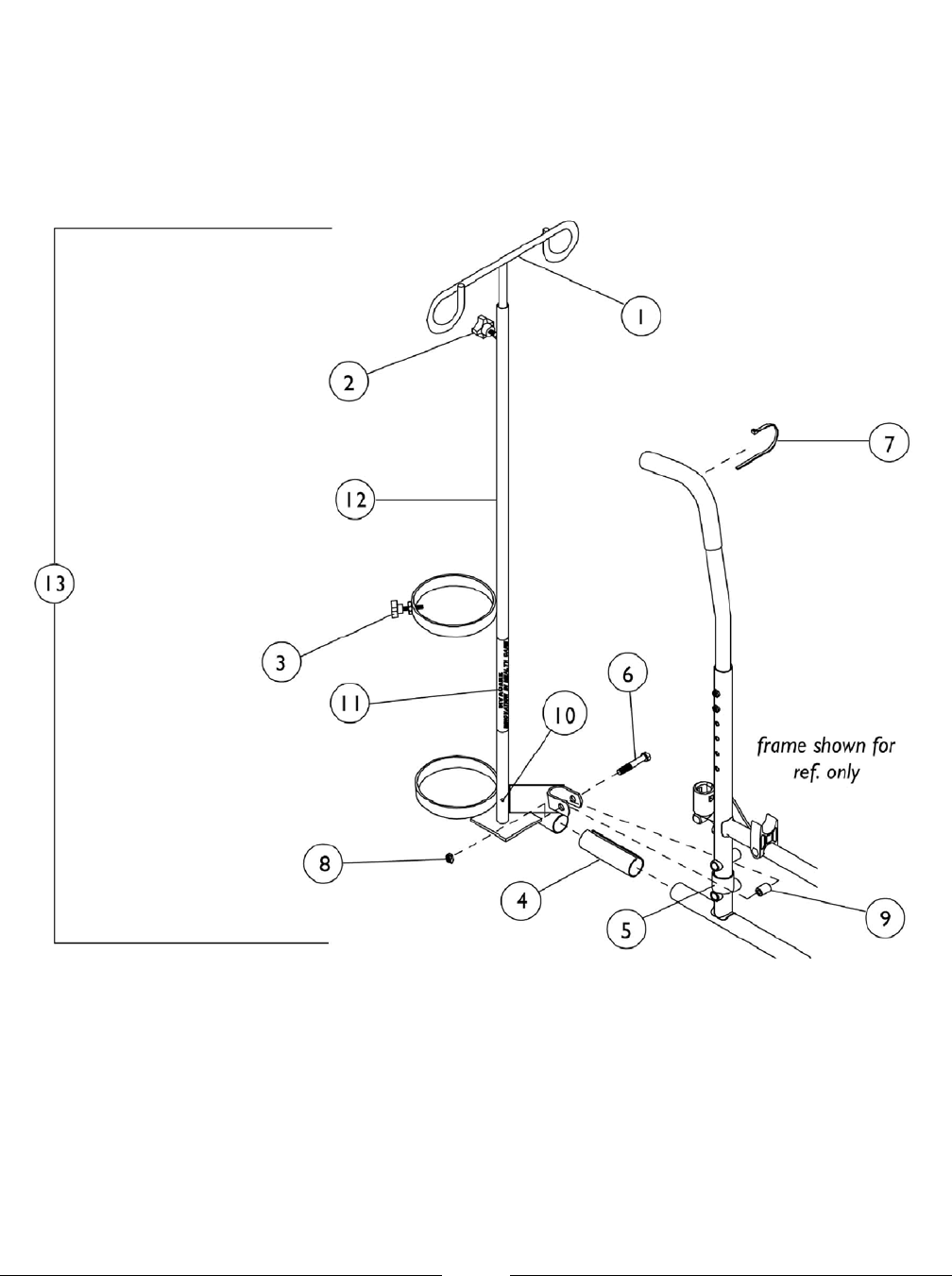

I.V./ Oxygen Holder
21
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
I.V./ Oxygen Holder
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1027468 Rod, I.V. 1 11
1027683 Knob, Adjustment, Black 1 12
1027684 Knob, Clamping, Black 1 13
1023560 Insert, Guide Tube, Black (3-3/4" Long) 1 14
1023618 Insert, Guide Tube, Black (1" Long) 1 15
11239X000-NLA NLA - Screw, Hex Head (5/16-24 x 1-3/4") 1 16
98007X005 Tie Wrap (11-1/2" L) 1 17
7930363-NLA NLA - Package, Locknut (5/16"-24) 25 18
1017843 Spacer, Chrome (5/16 x 11/16 x 15/16") 1 19
1102577 Spacer, Black (5/16 x 11/16 x 15/16") 1 19
1027789 Pin, Roll 1 110
1095497 Decal, Invacare Logo (1.6) 1 111
1070898 Base, I.V./Oxygen 1 112 A
1070899 Holder, I.V./Oxygen 1 113 A,B
1027931 Instruction Sheet, I.V./Oxygen Holder 1 1C
A - For use on 9000SL/XT and XDT models.
B - Includes items 2-12.
C - Not Shown.
NOTE:
22
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

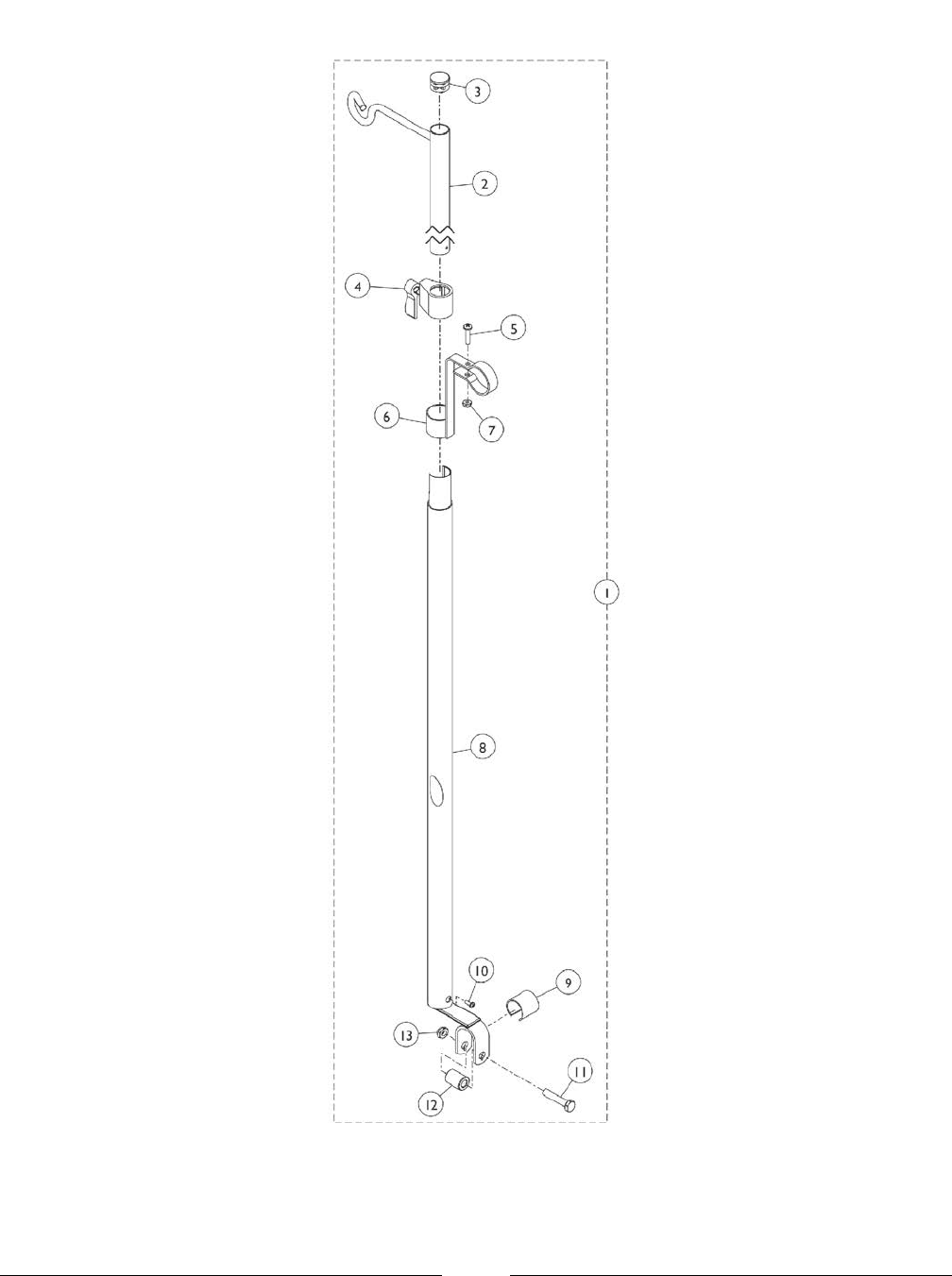

I.V.Rod and Bracket (2218) - Non-Recliner
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1101760 Rod, I.V., Telescoping (Model 2218) 1 11 A
04701X028 Rod, I.V. 1 12
1027095 Plug Button, Black (7/8") 1 13
12592X000-NLA NLA - Adjustment Lock Assembly, Chrome 1 14
16718X000-NLA NLA - Screw, Phillips Pan Head (#10-32 x 7/8") 1 15
1020082 Bracket, Mounting, Chrome 1 16
60279X003 Locknut (#10-32) 1 17
1017623 Socket, I.V. 1 18
1023618 Insert, Guide Tube, Black (1" Long) 1 19
21243X000 Screw, Phillips Pan Head (#6-20 x 3/8") 1 110
11239X001 Screw, Hex Head (5/16-24 x 1-1/2") 1 111
1017843 Spacer, Chrome (5/16 x 11/16 x 15/16") 1 112
60264X001 Locknut (5/16-24) 1 113
1114827 Instruction Sheet 1 1B
A - Includes items 2-13 and instruction sheet.
B - Not shown.
NOTE:
23
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
I.V.Rod and Bracket (2218) - Non-Recliner
24
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

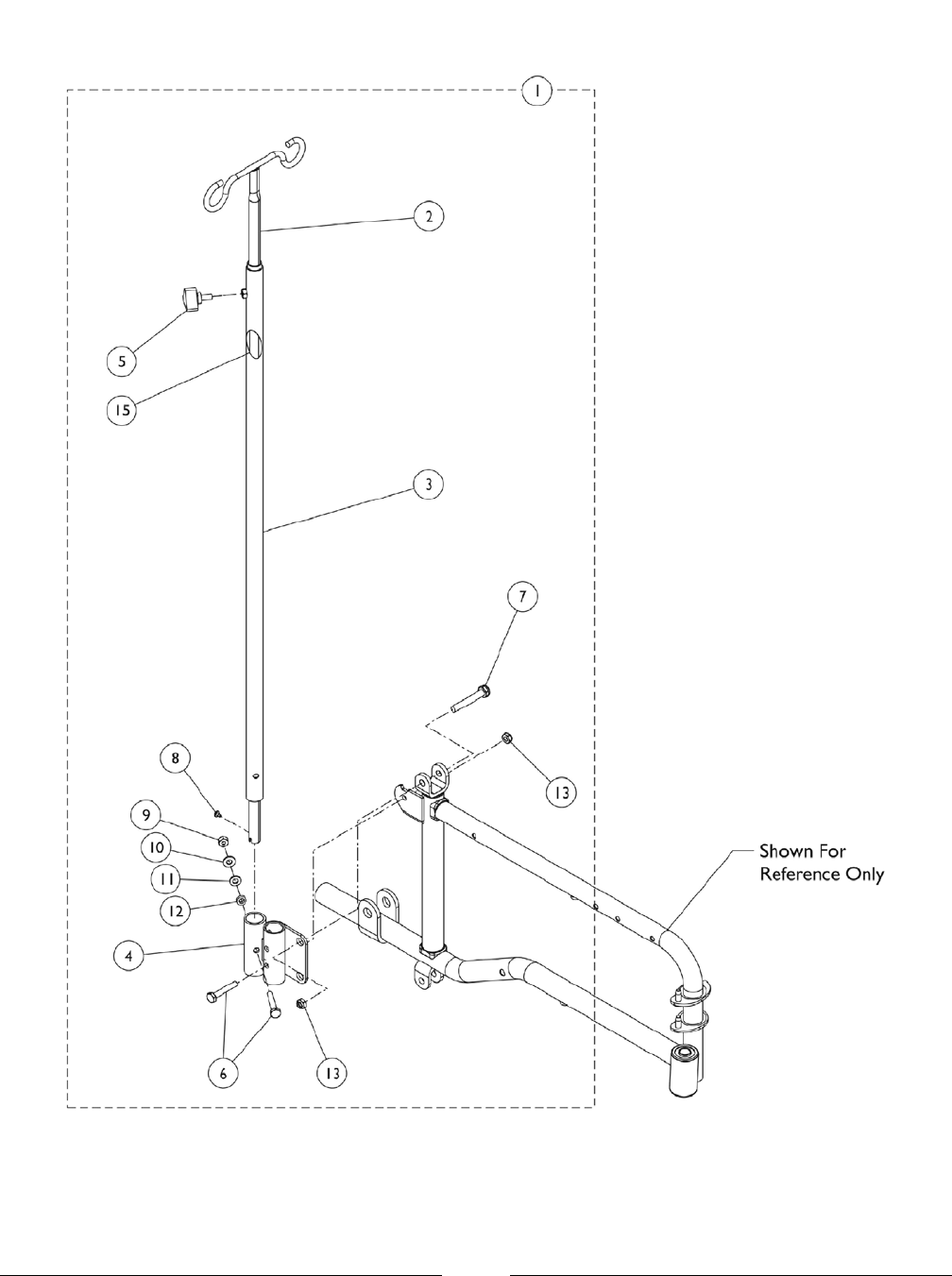

I.V. Rod - Recliner
25
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
I.V. Rod - Recliner
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1074656 Rod Assembly, I.V., Recliner 1 11 A
04701X041 Rod, I.V., Recliner, Black 1 12
1076521 Tube, Support, I.V. Rod, Black 1 13
1074652 Holder, I.V. Rod, Black 1 14
1027683 Knob, Adjustment, Black 1 15
16720X004 Screw, Hex Head (1/4-20 x 1-1/2") 2 26
1044762 Bolt, Pivot (5/16-24 x 1-7/8") 1 17
1080029 Screw, Phillips Pan Head (6-32 x 3/16") 1 18
1008882 Locknut (1/4-20) 1 19
16348X009-NLA NLA - Washer, Steel (3/16 x 9/16 x 1/16") 1 110
1010398 Washer, Nylon (1/4 x 1/2 x 1/16") 1 111
40157X004 Spacer, Nylon (1/4 x 7/16 x 1/8") 1 112
60275X000 Locknut (1/4-20) 1 113
1095497 Decal, Invacare Logo (1.6) 1 115
1029377 Instruction Sheet 1 1B
A - Includes items 2 thru 15 and instruction sheet.
B - Not Shown
NOTE:
26
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Oxygen Holder - 1497
27
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Oxygen Holder - 1497
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1497 Holder, Oxygen, Black (D and E Tanks) 1 11 A
1017672 Plug Button, Grey (1/2") 1 12
1027684 Knob, Clamping, Black 1 13
1095497 Decal, Invacare Logo (1.6) 1 14
1070900-NLA NLA - Base, Oxygen Holder 1 15
7930363-NLA NLA - Package, Locknut (5/16"-24) 25 16
1023618 Insert, Guide Tube, Black (1" Long) 1 17
1023560 Insert, Guide Tube, Black (3-3/4" Long) 1 18
1017843 Spacer, Chrome (5/16 x 11/16 x 15/16") 1 19
11239X000-NLA NLA - Screw, Hex Head (5/16-24 x 1-3/4") 1 110
1027930 Instruction Sheet, Oxygen Holder 1 1B
A - Includes items 2-10 and instruction sheet.
B - Not Shown.
NOTE:
28
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Lumbar Cushion with Hook Straps
Part Number Description Quantity
Per Assembly
1Lumbar Cushion (1" W)
88808017X001-NLA
See Note(s) B, A
1Lumbar Cushion (2" W)
88808017X002-NLA
See Note(s) B, A
A - Loop straps found on back upholstery.
B - Specify upholstery color when ordering, see category titled, "Upholstery Color Option."
NOTE:
Non-Folding Device
Part Number Description Quantity
Per Assembly
1Non-Folding Device (14" - 20" W)1034205-NLA
1Non-Folding Device (14" - 24" W)1143048
Lumbar Cushion with Hook Straps and Non-Folding
Device
29
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

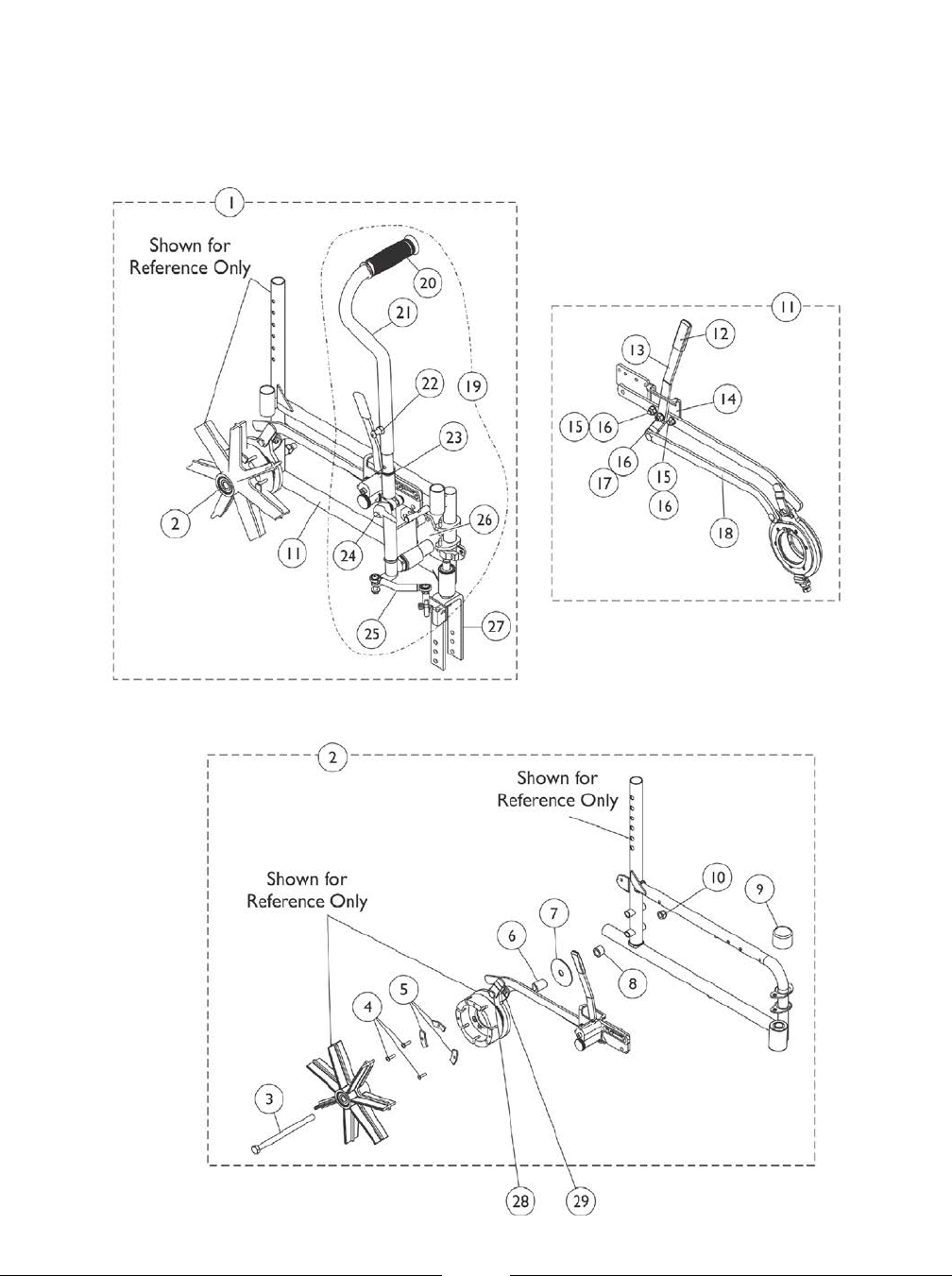

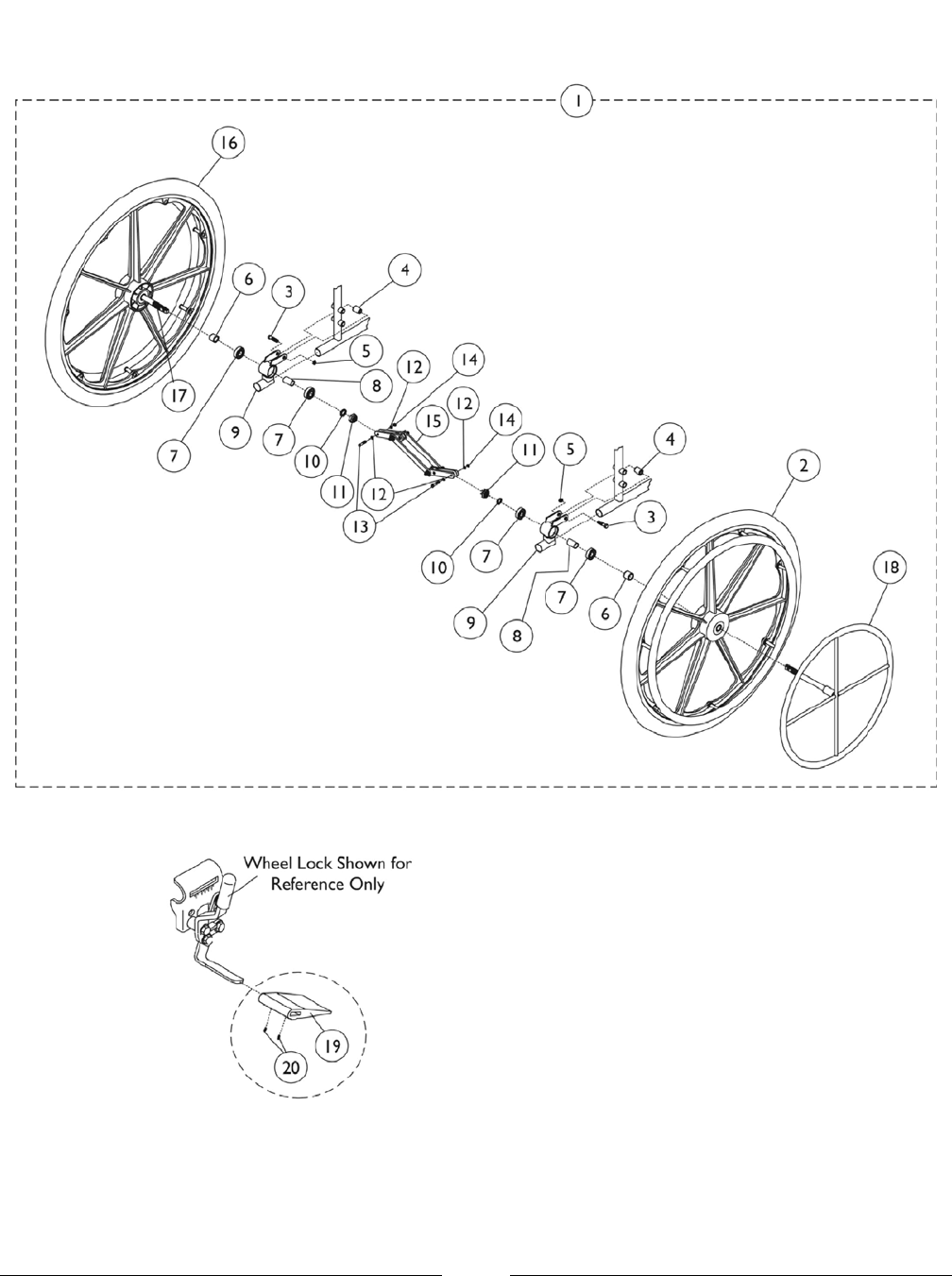

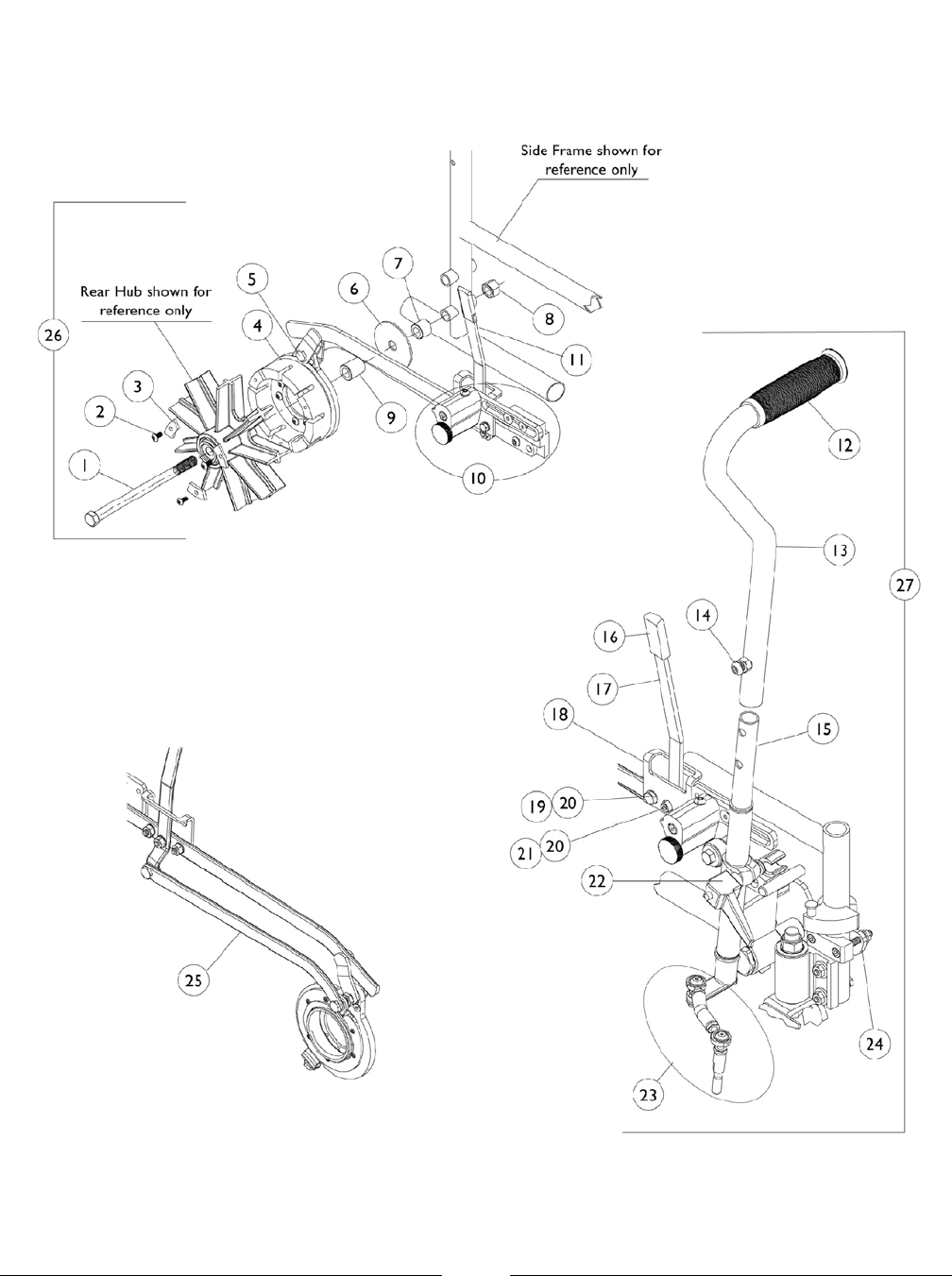

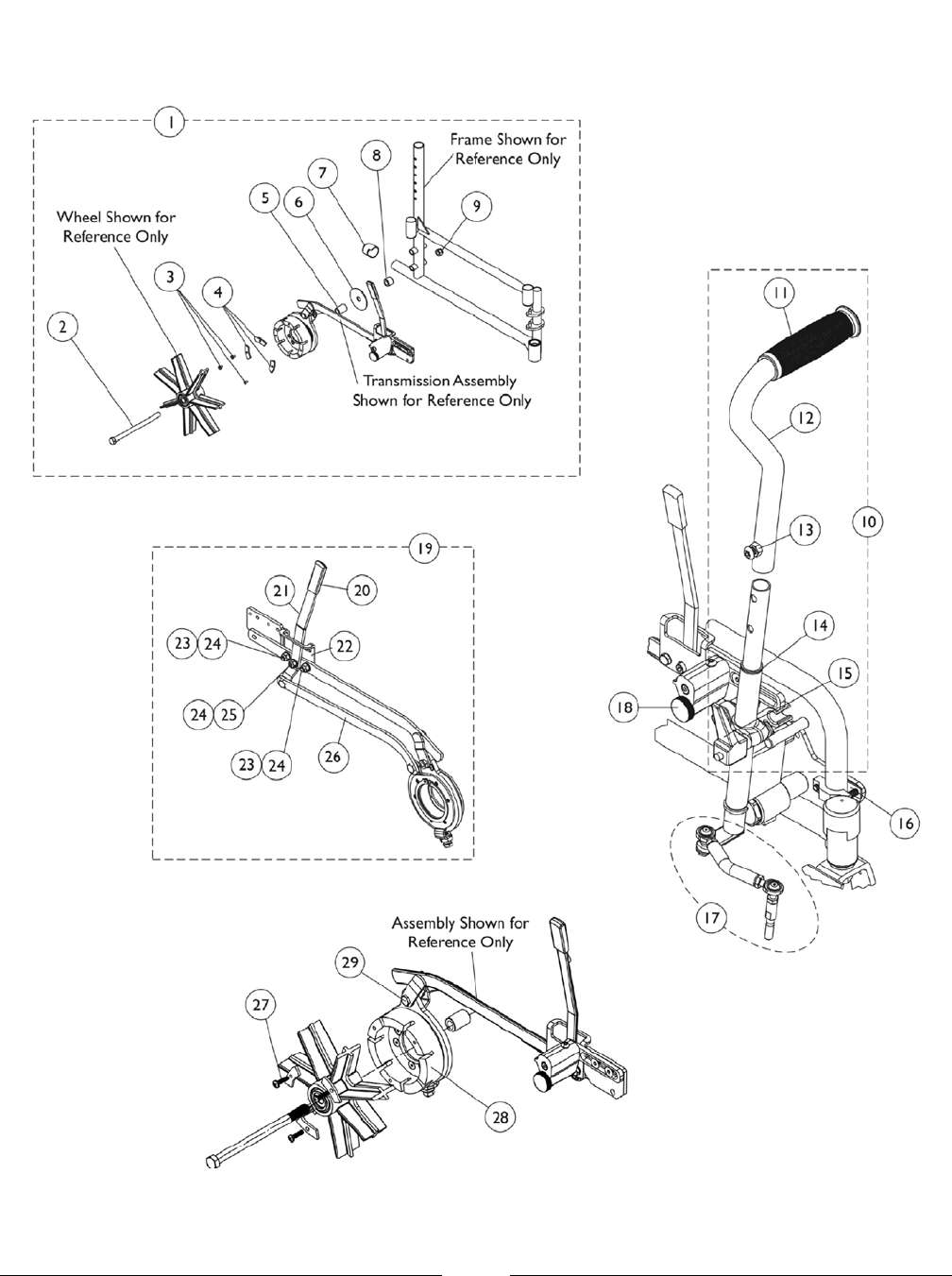

One Arm Drive - 9000XT, 9000XDT
30
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
One Arm Drive - 9000XT, 9000XDT
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart 9000XT/XDT Chairs - Adult 1 11 A
See Chart 9000XT/XDT Chairs - Hemi 1 11 A
See Chart 9000XT/XDT Chairs - Tall 1 11 A
1016420 Wheel Assembly w/ Chrome Handrim, Composite,
Pneumatic Mag (24") 1 12
1036190 Wheel Assembly w/ Chrome Handrim, Composite,
Pneumatic Mag w/ Flat Free Insert (24") 1 12
1065610-NLA NLA - Wheel Assembly w/ Chrome Handrim,
Composite, Urethane (24") 1 12 B
1080385-NLA NLA - Wheel Assembly w/ Chrome Handrim,
Composite, Urethane (24") 1 12 C
1091816 Wheel Assembly w/ Chrome Handrim, Composite,
Corded Urethane (24") 1 12 C,I
1066419 Wheel Assembly w/ Chrome Handrim, Composite,
Pneumatic w/ Heavy Duty Flat Free Insert (24") 1 12 D
11239X001 Screw, Hex Head (5/16-24 x 1-1/2") 1 23
1017843 Spacer, Chrome (5/16 x 11/16 x 15/16") 1 24
1107321 Nut, Low Cap (5/16"-24) 1 25
47183X021 Spacer (5/8 x 7/8 x 3/4") 1 26
40117X006 Bearing (5/8") 1 47
1067747 Spacer, Bearing (5/8 x 3/4 x 1-3/64") 1 28
1058694 Bracket, One Arm Drive, Black 1 29 E
1058695 Bracket, One Arm Drive, Black 1 29 F
1065513-NLA NLA - Bracket, One Arm Drive , Black 1 29 G
48323X013 Washer (5/8 x 7/8 x 1/8") 1 210
60030X000 Locknut (5/8-18) 1 211
40157X000 Washer, Steel (11/32 x 5/8 x 3/64") 1 412
1019101 Screw, Hex Head (1/4-28 x 1-1/2") 1 213
60320X000 Locknut (1/4-28) 1 214
1019105 Scissor Assembly (14 - 15" W) 1 115
1019104 Scissor Assembly (16 - 17" W) 1 115
1019106 Scissor Assembly (18 - 19" W) 1 115
1048655 Scissor Assembly (20" W) 1 115
1019103 Scissor Assembly (20 - 22" W) 1 115
1025397-NLA NLA - Wheel Assembly w/ Drive Axle, Composite,
Pneumatic Mag (24") 1 116
1042075-NLA NLA - Wheel Assembly w/ Drive Axle, Composite,
Pneumatic Mag w/ Flat Free Insert (24") 1 116
1091817 Wheel Assembly w/ Drive Axle, Composite, Corded
Urethane (24") 1 116 I
1066418 Wheel Assembly w/ Drive Axle, Pneumatic w/
Heavy Duty Flat Free Insert (24") 1 116 D
1028609 Axle, Drive 1 117
1020454 Handrim, Dual Drive 1 118
1016980 Spacer, Wheel Lock Shoe (2-63/64") 1 119
1008438 Screw, Set Socket Cup Point (#8-32 x 3/16") 1 420
31
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
One Arm Drive - 9000XT, 9000XDT
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1023334-NLA NLA - Instruction Sheet 1 1H,J
A - Includes items 2-18 and an instruction sheet.
B - Before 11/20/98.
C - After 11/19/98
D - For use on 9000XDT chair.
E - For use on 9000XDT Tall chairs and 9000XT Adult chairs with Pneumatic, Pneumatic with Flat Free Inserts and Urethane
Tires.
F - For use on 9000XDT Adult chairs with Pneumatic with Flat Free Inserts and Urethane Tires and 9000XT Hemi chairs with
Pneumatic, Pneumatic with Flat Free Inserts and Urethane tires.
G - For use on 9000XDT Hemi chairs with Pneumatic with Flat Free Inserts and Urethane Tires.
H - Not shown.
I - Non-Corded Tire replaced with a Corded Tire as of 11/16/09. It is recommended that both sides of the Wheel Assemblies
be ordered for chairs manufactured before 11/16/09.
J - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
NOTE:
Adult
Chair Width Urethane
Tires
9000XDT
Side Pneumatic
Tires
9000XT
Pneumatic
with Flat Free
9000XT
Pneumatic
with Flat Free
9000XDT
Urethane
Tires
9000XT
--1099553--10586961058716-NLARight14-15"
--1099554--10586971058717-NLALeft14-15"
10995651099555106642810586981058718-NLARight16-17"
10995661099556106642910586991058719-NLALeft16-17"
10995671099557106643010587001058720-NLARight18-19"
10995681099558106643110587011058721-NLALeft18-19"
10995691099559106643210587021058722-NLARight20"
10995701099560106643310587031058723-NLALeft20"
10995711099561106643410587041058724-NLARight22"
10995721099562106643510587051058725-NLALeft22"
32
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
One Arm Drive - 9000XT, 9000XDT
Hemi
Chair Width Urethane
Tires
9000XDT
Side Pneumatic
Tires
9000XT
Pneumatic
with Flat Free
9000XT
Pneumatic
with Flat Free
9000XDT
Urethane
Tires
9000XT
--1099563--10587061058726-NLARight14-15"
--1099564--10587071058727-NLALeft14-15"
10655591099565106551610587081058728-NLARight16-17"
10655601099566106551710587091058729-NLALeft16-17"
10655611099567106552010587101058730-NLARight18-19"
10655621099568106552110587111058731-NLALeft18-19"
10655631099569106552410587121058732-NLARight20"
10655641099570106552510587131058733-NLALeft20"
10655651099571106552810587141058734-NLARight22"
10655661099572106552910587151058735-NLALeft22"
Tall
Chair Width Side Pneumatic
with Flat Free
9000XDT
Urethane
Tires
9000XDT
10995551066420Right16-17"
10995561066421Left16-17"
10995571066422Right18-19"
10995581066423Left18-19"
10995591066424Right20"
10995601066425Left20"
10995611066426Right22"
10995621066427Left22"
33
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

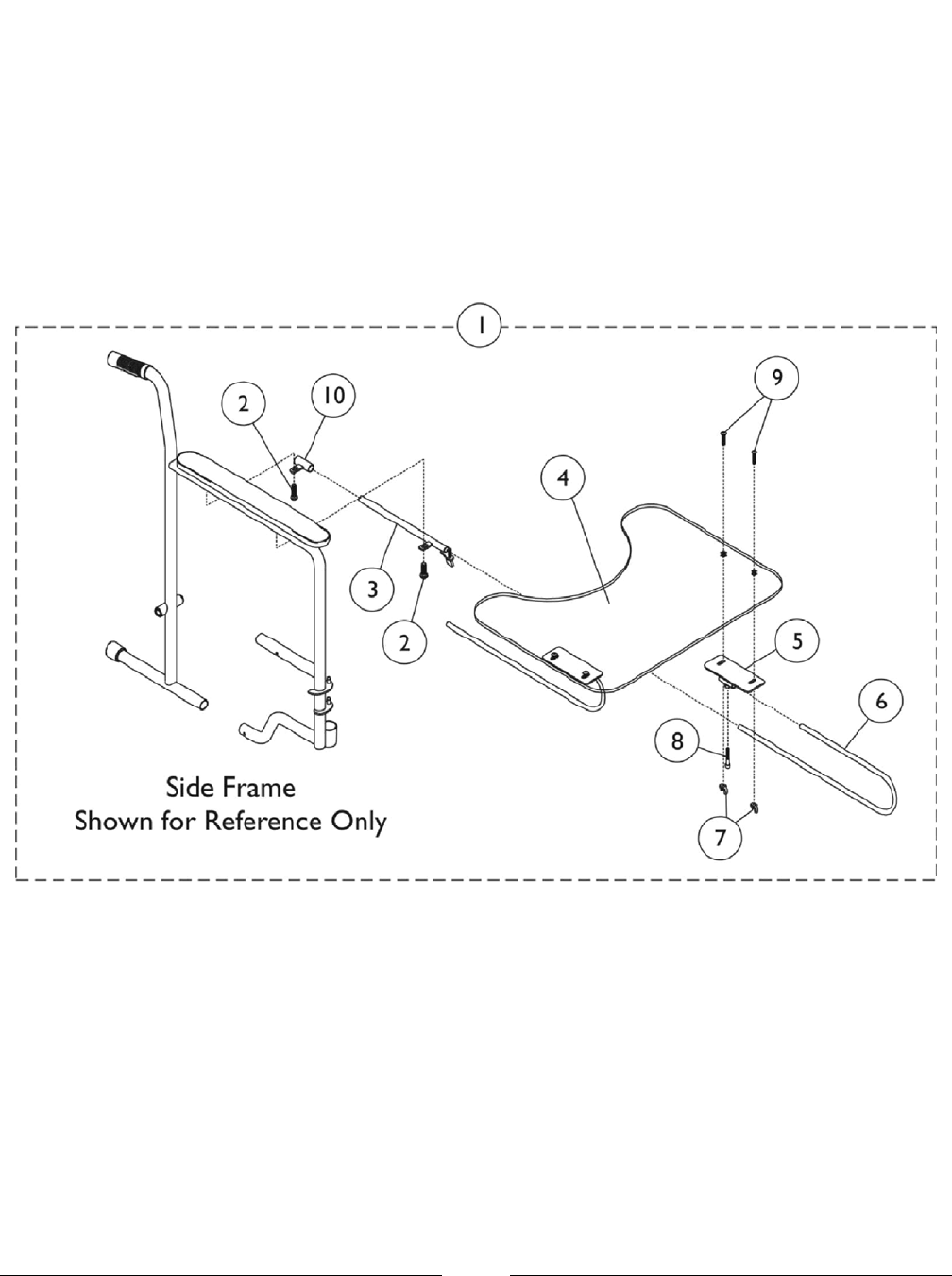

Utility Tray
34
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Utility Tray
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1035965 Tray, Utility, Full Length Arm 1 11 A
1035966 Tray, Utility, Desk Length Arm 1 11 A
11008X011 Screw, Phillips Round Head (#10-32 x 1-3/8") 1 22
04570X009 Tube, Slide Lock, Full Length Arm - Right 1 13
04570X010 Tube, Slide Lock, Full Length Arm - Left 1 13
04570X011-NLA NLA - Tube, Slide Lock, Desk Length Arm - Right 1 13
04570X012-NLA NLA - Tube, Slide Lock, Desk Length Arm - Left 1 13
47469X006-NLA NLA - Tray 1 14
1009341 Bracket, Tray 1 25
1010922-NLA NLA - Tube, Support 1 26
20148X004-NLA NLA - Nut, Wing (1/4-20) 1 47
60284X001 Screw, Socket Head (1/4-20 x 1/2") 1 28
10123X006 Bolt, Carriage (1/4-20 x 3/4") 1 49
04570X002 Tube, Support, Slide, Chrome 1 210
1023704-NLA NLA - Instruction Sheet 1 1B,C
A - Includes items 2-9 and an instruction sheet.
B - Not Shown.
C - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
NOTE:
35
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Seat Positioning Straps
Part Number Description Quantity
Per Assembly
1Airline Style Buckle
1102008
See Note(s) A
1Airline Style Buckle
1034752
See Note(s) B
1Auto Style Buckle
1004310
See Note(s) A
1Auto Style Buckle
1034625
See Note(s) B
1Hook & Loop Style Buckle
1034744
See Note(s) A
1Hook & Loop Style Buckle
1034745
See Note(s) B
A - 14-19" W Chairs
B - 20-22" W Chairs
NOTE:
Tire Pumps
Part Number Description Quantity
Per Assembly
1Tire Pump40176X010
Transfer Board
Part Number Description Quantity
Per Assembly
1Transfer Board1034216
Seat Positioning Straps, Tire Pumps, and Transfer Board
36
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Solid Back Insert and Back Pack
NOTE: Solid Back Inserts are 2" narrower than actual chair width.
Back Pack
Part Number Description Quantity Per Assembly
1
Back Pack, Small (14")
11" W x 13" H x 4" D
1109322
1
Back Pack, Large (15-22")
11" W x 13" H x 4" D
1109323
Solid Back Insert
Chair
Width x Height Nylon Vinyl Lightweight Vinyl
8881052649-NLA
8881034766-NLA
8881052671-NLA
14 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052650-NLA
8881052663-NLA
8881052672-NLA
14 x 18" See Note(s) A See Note(s) A See Note(s) A
8881034225
8881034225
8881034225
14 x 22" Recliner See Note(s) A See Note(s) A See Note(s) A
8881052651-NLA
8881052664-NLA
8881052673-NLA
15 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052652-NLA
8881052665-NLA
8881052674-NLA
15 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052653-NLA
8881034767
8881052675-NLA
16 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052654-NLA
8881034771-NLA
8881052676-NLA
16 x 18" See Note(s) A See Note(s) A See Note(s) A
8881035962-NLA
8881035962-NLA
8881035962-NLA
16 x 22" Recliner See Note(s) A See Note(s) A See Note(s) A
8881052655-NLA
8881052666-NLA
8881052677-NLA
17 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052656-NLA
8881052667-NLA
8881052678-NLA
17 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052657-NLA
8881034768-NLA
8881052679-NLA
18 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052658-NLA
8881034772-NLA
8881052680-NLA
18 x 18" See Note(s) A See Note(s) A See Note(s) A
8881035963-NLA
8881035963-NLA
8881035963-NLA
18 x 22" Recliner See Note(s) A See Note(s) A See Note(s) A
8881052659-NLA
8881052668-NLA
8881052681-NLA
19 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052660-NLA
8881052669-NLA
8881052682-NLA
19 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052661-NLA
8881034769-NLA
8881052683-NLA
20 x 16" See Note(s) A See Note(s) A See Note(s) A
37
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Solid Back Insert and Back Pack
NOTE: Solid Back Inserts are 2" narrower than actual chair width.
Solid Back Insert
Chair
Width x Height Nylon Vinyl Lightweight Vinyl
8881052662-NLA
8881052670-NLA
8881052684-NLA
20 x 18" See Note(s) A See Note(s) A See Note(s) A
N/A
8881034770-NLA
8881063109-NLA
22 x 16" See Note(s) A See Note(s) A
N/A
8881063111-NLA
8881063110-NLA
22 x 18" See Note(s) A See Note(s) A
A - Specify upholstery color when ordering, see category titled, "Upholstery Color Options." NOTE:
38
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Solid Seat Insert and Seat Pouch
Seat Pouch
Part Number Description Quantity Per Assembly
1
Seat Pouch
8-1/2" W x 7" H x 4" D
1109324
Solid Seat Insert
Chair
Width x Height Nylon Vinyl Lightweight Vinyl
8881052536-NLA
8881034646-NLA
8881052557
14 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052537-NLA
8881034655-NLA
8881052558-NLA
14 x 17"
See Note(s) A See Note(s) A See Note(s) A
8881052538-NLA
8881034664-NLA
8881052559
14 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052539-NLA
8881034647
8881052560
15 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052540-NLA
8881034656-NLA
8881052561-NLA
15 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052541-NLA
8881034665-NLA
8881052562
15 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052542-NLA
8881034648-NLA
8881052563
16 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052543-NLA
8881034657-NLA
8881052564
16 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052544-NLA
8881034666-NLA
8881052565
16 x 18" See Note(s) A See Note(s) A See Note(s) A
N/A
8881034675-NLA
8881034675-NLA
16 x 19" See Note(s) A See Note(s) A
N/A
8881034684-NLA
8881034684-NLA
16 x 20" See Note(s) A See Note(s) A 8881052545-NLA
8881034649-NLA
8881052566
17 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052546-NLA
8881034658-NLA
8881052567
17 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052547-NLA
8881034667-NLA
8881052568
17 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052548-NLA
8881034650
8881052569
18 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052549-NLA
8881034659-NLA
8881052570
18 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052550-NLA
8881034668
8881052571
18 x 18" See Note(s) A See Note(s) A See Note(s) A
N/A
8881034677-NLA
8881034677-NLA
18 x 19" See Note(s) A See Note(s) A
39
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Solid Seat Insert and Seat Pouch
Solid Seat Insert
Chair
Width x Height Nylon Vinyl Lightweight Vinyl
N/A
8881034686-NLA
8881034686-NLA
18 x 20"
See Note(s) A See Note(s) A 8881052551-NLA
8881034651
8881052572
19 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052552-NLA
8881034660
8881052573
19 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052553-NLA
8881034669
8881052574
19 x 18" See Note(s) A See Note(s) A See Note(s) A
8881052554-NLA
8881034652-NLA
8881052575
20 x 16" See Note(s) A See Note(s) A See Note(s) A
8881052555-NLA
8881034661-NLA
8881052576
20 x 17" See Note(s) A See Note(s) A See Note(s) A
8881052556-NLA
8881034670
8881052577
20 x 18" See Note(s) A See Note(s) A See Note(s) A
N/A
8881034654-NLA
8881058210
22 x 16" See Note(s) A See Note(s) A
N/A
8881034663-NLA
8881058212
22 x 17" See Note(s) A See Note(s) A
N/A
8881034672
8881058211
22 x 18"
See Note(s) A See Note(s) A
A - Specify upholstery color when ordering, see category titled, "Upholstery Color Options." NOTE:
40
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Drop Hook Solid Folding Seats
NOTE: Solid Folding Seats are 2" narrower than actual chair width and are not available on chairs over
20" wide.
41
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

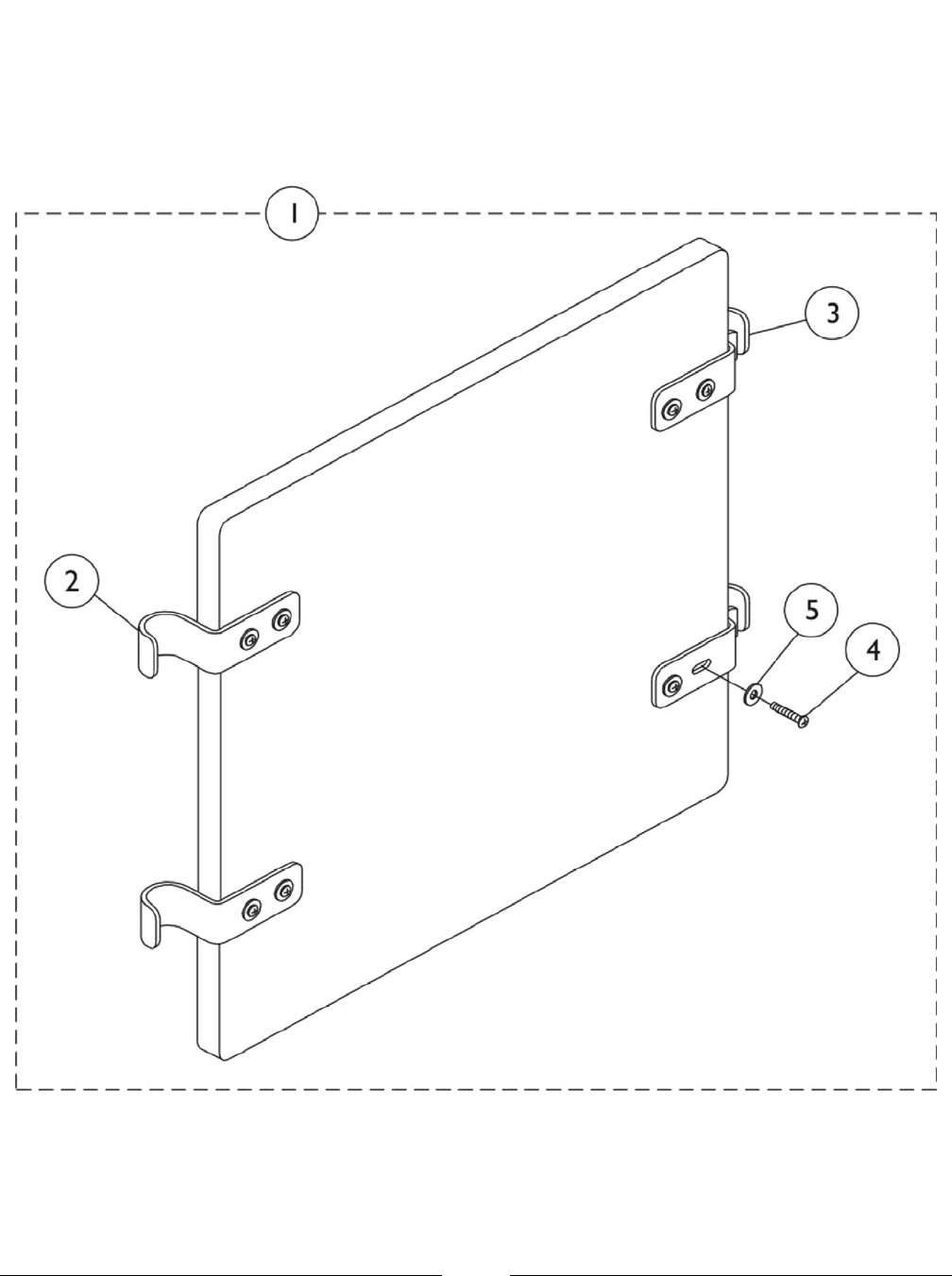

Drop Hook Solid Folding Seats
NOTE: Solid Folding Seats are 2" narrower than actual chair width and are not available on chairs over
20" wide.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Solid Folding Seats - 9000XDT 1 11 A,B
See Chart Solid Folding Seats - 9000XT / Recliner 1 11 A,B
1023986 Hook, Seat 1 22
1023985 Bracket, Hinge, Seat 1 23
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 84
1013218 Washer (#10 Flat) 1 85
1035940-NLA NLA - Solid Folding Seat with Hardware (14" W x
16" D) 1 1C,D
1035941-NLA NLA - Solid Folding Seat with Hardware (14" W x
17" D) 1 1C,D
1035942-NLA NLA - Solid Folding Seat with Hardware (14" W x
18" D) 1 1C,D
1035943-NLA NLA - Solid Folding Seat with Hardware (16" W x
16" D) 1 1C,D
8881035944-NL
ANLA - Solid Folding Seat w/ Hardware (16" W x 17"
D) 1 1C,D
8881035945-NL
ANLA - Solid Folding Seat w/ Hardware (16" W x 18"
D) 1 1C,D
8881035946-NL
ANLA - Solid Folding Seat w/ Hardware (18" W x 16"
D) 1 1C,D
8881035947-NL
ANLA - Solid Folding Seat w/ Hardware (18" W x 17"
D) 1 1C,D
8881035948-NL
ANLA - Solid Folding Seat w/ Hardware (18" W x 18"
D) 1 1C,D
A - Includes items 2-5.
B - For use on chairs manufactured after 5/25/03.
C - Specify upholstery color when ordering, see catefory titled, "Frame Finishes, Upholstery, and Packaging."
D - For use on Adult, Hemi and Recliner chairs manufactured before 5/26/03.
NOTE:
Solid Folding Seats
9000XDT
Width X Depth Nylon Upholstery Vinyl Upholstery
8881110378-NLA
8881110370-NLA
16" x 16"
See Note(s) A See Note(s) A
8881110382-NLA
8881110374-NLA
16" x 18"
See Note(s) A See Note(s) A
8881110379
8881110371-NLA
18" x 16"
See Note(s) A See Note(s) A
8881110383-NLA
8881110375-NLA
18" x 18"
See Note(s) A See Note(s) A
42
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Drop Hook Solid Folding Seats
NOTE: Solid Folding Seats are 2" narrower than actual chair width and are not available on chairs over
20" wide.
Solid Folding Seats
9000XDT
Width X Depth Nylon Upholstery Vinyl Upholstery
8881110380-NLA
8881110372
20" x 16"
See Note(s) A See Note(s) A
8881110384-NLA
8881110376-NLA
20" x 18"
See Note(s) A See Note(s) A
A - Specify upholstery color when ordering, see category titled, "Frame Finishes, Upholstery Colors and Packaging." NOTE:
Solid Folding Seats
(9000XT & XT Recliner)
Width X Depth Nylon Upholstery Vinyl Upholstery
8881110377-NLA
8881110369-NLA
14" x 16"
See Note(s) A See Note(s) A
8881110381-NLA
8881110373
14" x 18"
See Note(s) A See Note(s) A
8881110378-NLA
8881110370-NLA
16" x 16"
See Note(s) A See Note(s) A
8881110382-NLA
8881110374-NLA
16" x 18"
See Note(s) A See Note(s) A
8881110379
8881110371-NLA
18" x 16"
See Note(s) A See Note(s) A
8881110383-NLA
8881110375-NLA
18" x 18"
See Note(s) A See Note(s) A
8881110380-NLA
8881110372
20" x 16"
See Note(s) A See Note(s) A
8881110384-NLA
8881110376-NLA
20" x 18"
See Note(s) A See Note(s) A
A - Specify upholstery color when ordering, see category titled, "Frame Finishes, Upholstery Colors and Packaging." NOTE:
43
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Torso Support
44
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

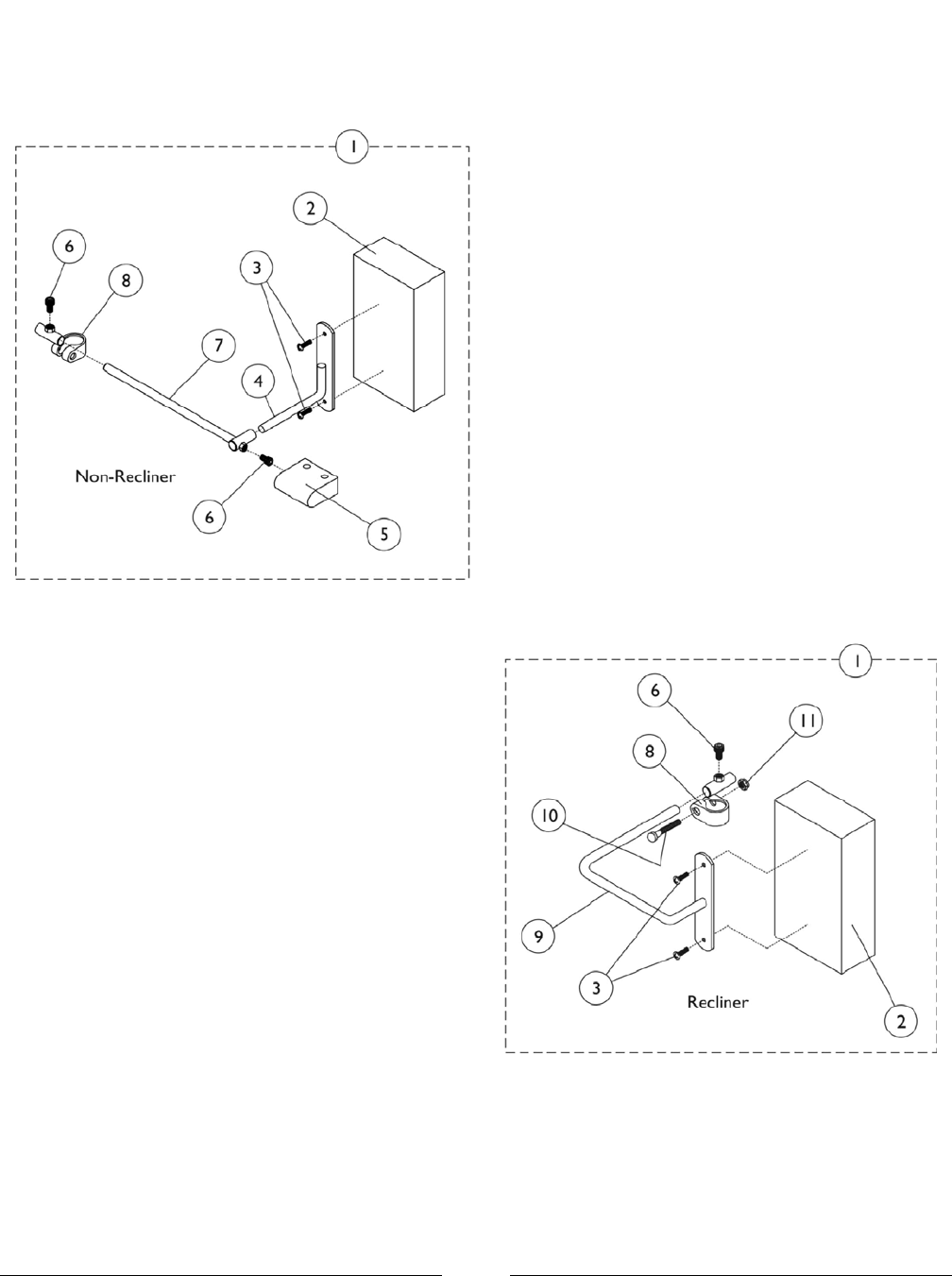

Torso Support
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881050189-NL
ANLA - Torso Support Assembly (Pair) 2 11 A,B
8881050190-NL
ANLA - Torso Support Assembly (Pair) 2 11 A,C
8881123986-NL
ANLA - Pad, Headrest 1 12 D
88804529X040-
NLA NLA - Pad, Headrest 1 12 D,F
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 23
03018X016-NLA NLA - Bracket, Support, Chrome 1 14
88804529X043-
NLA NLA - Cover Torso Bracket 1 15 D
60284X001 Screw, Socket Head (1/4-20 x 1/2") 1 16
03018X012-NLA NLA - Rod, Support w/ Guide Tube 1 17
03018X043 Bracket, Clamp, Black- Right 1 18
03018X046 Bracket, Clamp, Black - Left 1 18
03018X041-NLA NLA - Bracket, Pad Support, Chrome 1 19
11232X009 Bolt, Lug (5/16-24 x 1-3/8") 1 110
60264X001 Locknut (5/16-24) 1 111
1023610-NLA NLA - Instruction Sheet 1 1E,G
A - Includes items 2-11 and an instruction sheet.
B - For use on Non-Recliner style chairs.
C - For use on Recliner style chairs.
D - Specify upholstery color when ordering, see category titled, "Frame Finishes, Upholstery Colors and Packaging."
E - Not Shown.
F - No Longer Available. Use 88804529X040 as replacement.
G - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
NOTE:
45
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Wheel Lock Extensions
46
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

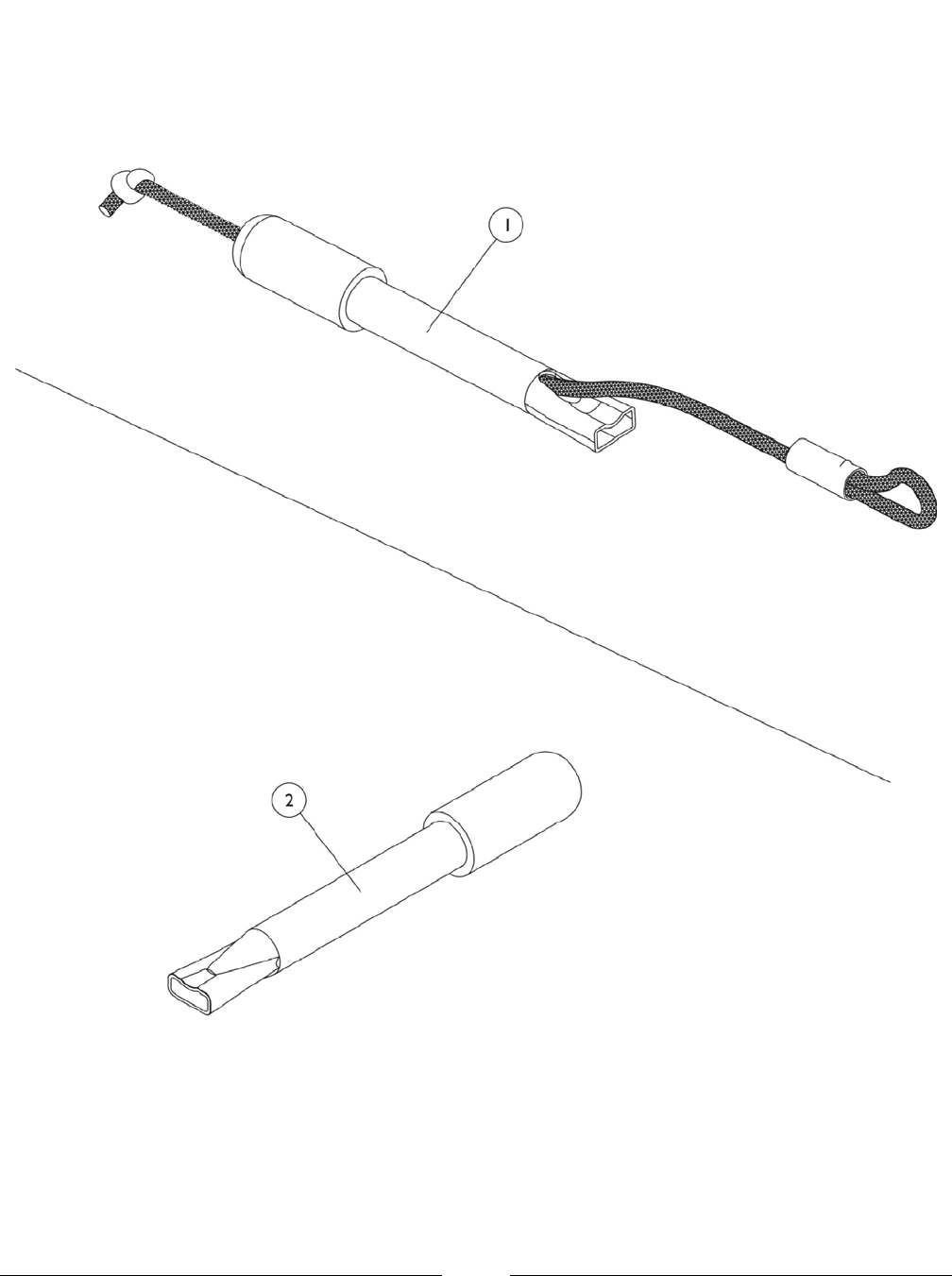

Wheel Lock Extensions
Wheel Lock Extensions
Item Number Part Number Description Quantity Per Assembly
2
Wheel Lock Extension with
Tip & Cord (Pair)
10385991
2
Wheel Lock Extension with
Tip, 6" (Pair)
10501932
2
Kit, Wheel Lock Extension
Handle, Black (8") (Pair)
11430492
47
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Non-Folding Device
48
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

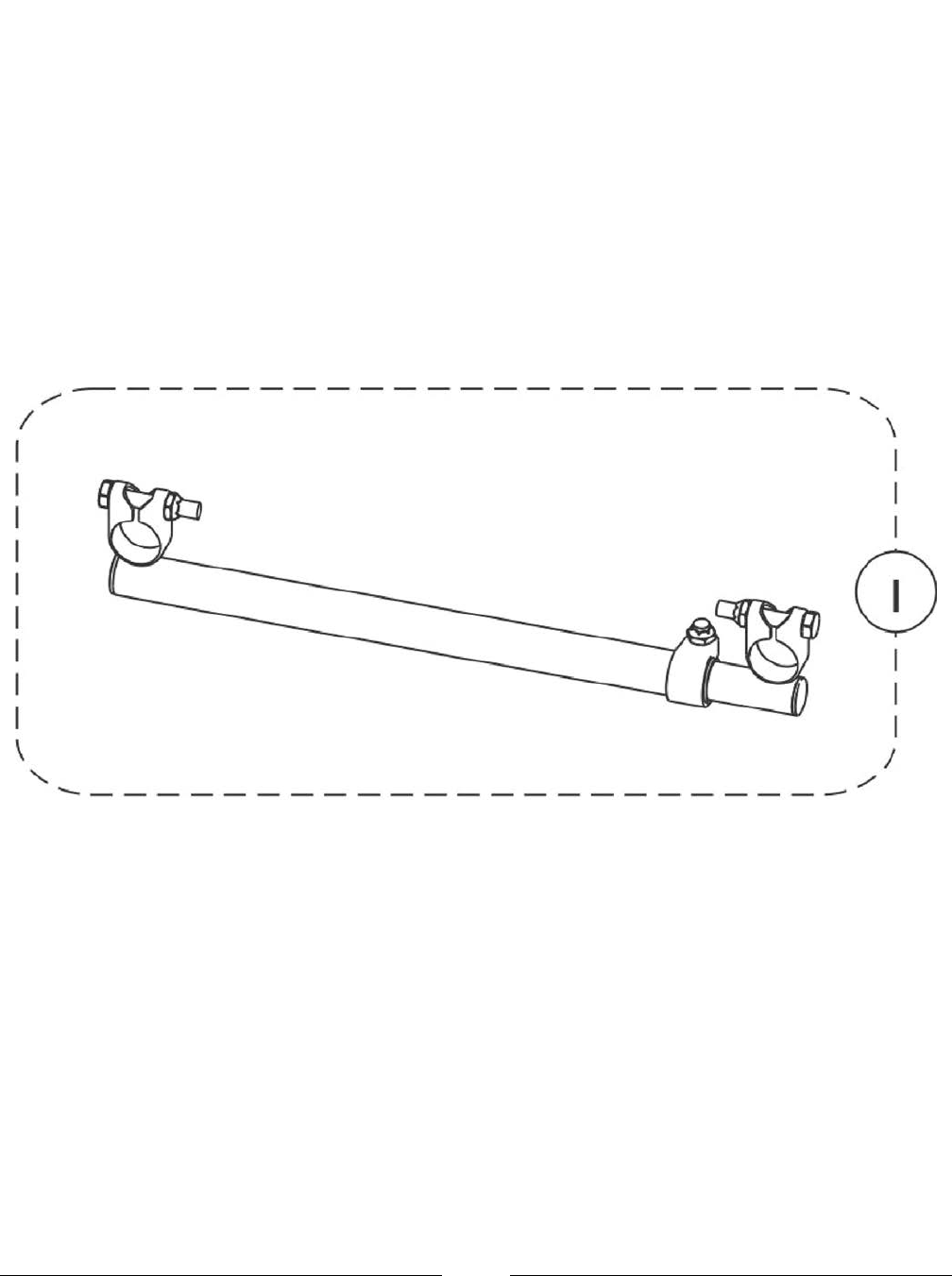

Non-Folding Device
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1143048 Device, Non-Folding (14-24" W) 1 11
49
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive - 7 Spoke - 9000SL/XT Only
(After 9/01)
NOTE: Installation of the Cyclical Lever Drive (CLD) MUST be performed by a qualified dealer. If a
non-approved individual performs any work on these units, the Manufacturer's Warranty is Void. If you
need to order the rigging for a chair that has a CLD, use this quote as a reference: SM - 060110080604.
50
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive - 7 Spoke - 9000SL/XT Only
(After 9/01)
NOTE: Installation of the Cyclical Lever Drive (CLD) MUST be performed by a qualified dealer. If a
non-approved individual performs any work on these units, the Manufacturer's Warranty is Void. If you
need to order the rigging for a chair that has a CLD, use this quote as a reference: SM - 060110080604.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088151 Kit, CLD (6" Caster), Chrome - Right 1 11 C,J,A,B
1088152 Kit, CLD (6" Caster), Chrome - Left 1 11 C,J,A,B
1088153 Kit, CLD (8" Caster), Chrome - Right 1 11 C,J,A,B
1088154 Kit, CLD (8" Caster), Chrome - Left 1 11 C,J,A,B
1194293 Kit, CLD (6" Caster), Chrome - Right 1 11 C,K,A,
B
1194364 Kit, CLD (6" Caster), Chrome - Left 1 11 C,K,A,
B
1194356 Kit, CLD (8" Caster), Chrome - Right 1 11 C,K,A,
B
1194358 Kit, CLD (8" Caster), Chrome - Left 1 11 C,K,A,
B
8881182828-NL
ANLA - Kit, CLD (6" Caster), Color - Right 1 11 C,H,A,
B
8881182829-NL
ANLA - Kit, CLD (6" Caster), Color - Left 1 11 C,H,A,
B
8881182830-NL
ANLA - Kit, CLD (8" Caster), Color - Right 1 11 C,H,A,
B
8881182831-NL
ANLA - Kit, CLD (8" Caster), Color - Left 1 11 C,H,A,
B
1087540-NLA NLA - Kit, Hub Attachment Hardware - Rear -
Right/Left 1 12 D
1087407-NLA NLA - Screw, Hex Head (7/16-20 x 6-1/2") 1 13
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 34
1087504-NLA NLA - Plate, Support Rear Outer Hub 1 35
1087354-NLA NLA - Spacer, Hub Inner (7/16 x 3/4 x 1-1/16") 1 16
1084822-NLA NLA - Washer, Axle (7/16 x 2-3/8" x 1/16") 1 17
1087908-NLA NLA - Spacer, Hub Outer Rear (7/16 x 3/4 x 19/32") 1 18
361441 Cap, End, Notched, Black 1 19 J
1194429 Cap, End, Notched, Black 1 19 K
1045608 Locknut (7/16-20) 1 110
1088008 Transmission and Wheel Lock Assembly - Right 1 111 E
1088009 Transmission and Wheel Lock Assembly - Left 1 111 E
1087761-NLA NLA - Knob, Shift Lever, Black 1 112
1088200 Lever, Shift, Black 1 113
1087738-NLA NLA - Plate, Shift 1 114
1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 115
1087204-NLA NLA - Washer, Flat (1/4 x 9/16 x 1/32") 1 116
1087752-NLA NLA - Screw, Socket Head (1/4-20 x 3/4") 1 117
1088201-NLA NLA - Transmission Lever 1 118
1088115 Drive Arm and Link Steering Assembly - Right 1 119 F
51
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive - 7 Spoke - 9000SL/XT Only
(After 9/01)
NOTE: Installation of the Cyclical Lever Drive (CLD) MUST be performed by a qualified dealer. If a
non-approved individual performs any work on these units, the Manufacturer's Warranty is Void. If you
need to order the rigging for a chair that has a CLD, use this quote as a reference: SM - 060110080604.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1088116 Drive Arm and Link Steering Assembly - Left 1 119 F
1087905-NLA NLA - Grip, Handle (7/8") 1 120
1088108 Handle, Black 1 121
1088117 Screw, Socket Button Head (5/16-18 x 1-1/4") 1 122
1088110 Plunger 1 123
1087420-NLA NLA - Handle, Adjustment, Tapped Type, Black 1 124
1087477 Steering Link Assembly - Right 1 125
1087478 Steering Link Assembly - Left 1 125
1088097 Support Bracket Assembly - Right 1 126
1088098 Support Bracket Assembly - Left 1 126
1087467 Fork Assembly - Right (6") 1 127 J
1087468 Fork Assembly - Left (6") 1 127 J
1087469 Fork Assembly - Right (8") 1 127 J
1087470 Fork Assembly - Left (8") 1 127 J
1194268 Fork Assembly - Right (6") 1 127 K
1194297 Fork Assembly - Left (6") 1 127 K
1194355 Fork Assembly - Right (8") 1 127 K
1194357 Fork Assembly - Left (8") 1 127 K
1087744-NLA NLA - Bolt, Drive Lever 1 128
1087917-NLA NLA - Nut, Hex (5/16-24) 1 129
1087937-NLA NLA - Instruction Sheet 1 1G,I
A - The Cyclical Lever Drive requires the use of treaded rear wheels and is only available on 16", 17" and 18" deep chairs.
Hemi seat-to-floor must use space saver arms.
B - The above options are not available with amputee attachment, offset axle, Super Low seat-to-floor or with adjustable
caster journal.
C - Includes items 2-28. If a customer is changing a CLD from one side to the opposite side, the side that will not have the
CLD may need a wheel lock ordered as well.
D - Includes items 2-10.
E - Includes items 12-18.
F - Includes items 20-26.
G - Not shown.
H - Specify 71P Silver Vein when ordering. No Longer Available. See Item #1 Chrome CLD Kits as a replacement.
I - Item is no longer available from the Invacare Service Parts Department. Refer to the Invacare Website under "Product
Literature Search". Enter the part number in the "Keywords" field and download a free PDF version copy.
J - Before 10/12/16.
K - After 10/11/16.
NOTE: For CLD
release handle see page titled, "Fork and Release Handle for Cyclical Lever Drive."
NOTE:
52
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive -7 Spoke - Before 10/01
NOTE: Installation of the CLD MUST be performed by a qualified dealer. If a non-certified individual
performs any work on these units, the Manufacturer's Warranty is Void.
53
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive -7 Spoke - Before 10/01
NOTE: Installation of the CLD MUST be performed by a qualified dealer. If a non-certified individual
performs any work on these units, the Manufacturer's Warranty is Void.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1087540-NLA NLA - Kit, Hub Attachment Hardware - Rear -
Right/Left 1 11 A
1087407-NLA NLA - Screw, Hex Head (7/16-20 x 6-1/2") 1 12
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 33
1087504-NLA NLA - Plate, Support Rear Outer Hub 1 34
1087354-NLA NLA - Spacer, Hub Inner (7/16 x 3/4 x 1-1/16") 1 15
1084822-NLA NLA - Washer, Axle (7/16 x 2-3/8" x 1/16") 1 16
361441 Cap, End, Notched, Black 1 17
1087908-NLA NLA - Spacer, Hub Outer Rear (7/16 x 3/4 x 19/32") 1 18
1045608 Locknut (7/16-20) 1 19
1087760-NLA NLA - Drive Arm Assembly - Right 1 110 B
1087759-NLA NLA - Drive Arm Assembly - Left 1 110 B
1087905-NLA NLA - Grip, Handle (7/8") 1 111
1088108 Handle, Black 1 112
1088117 Screw, Socket Button Head (5/16-18 x 1-1/4") 1 113
1088110 Plunger 1 114
1087420-NLA NLA - Handle, Adjustment, Tapped Type, Black 1 115
1088097 Support Bracket Assembly - Right 1 116
1088098 Support Bracket Assembly - Left 1 116
1087477 Steering Link Assembly - Right 1 117
1087478 Steering Link Assembly - Left 1 117
1088010-NLA NLA - Wheel Lock Assembly 1 118
1087733-NLA NLA - Transmission Assembly - Right 1 119 C
1087734 Transmission Assembly - Left 1 119 C
1087761-NLA NLA - Knob, Shift Lever, Black 1 120
1087739-NLA NLA - Lever, Shift 1 121
1087738-NLA NLA - Plate, Shift 1 122
7930326-NLA NLA - Package, Screw, Hex Head (1/4-20 x 3/4") 25 223
1087204-NLA NLA - Washer, Flat (1/4 x 9/16 x 1/32") 1 624
1087752-NLA NLA - Screw, Socket Head (1/4-20 x 3/4") 1 125
1088201-NLA NLA - Transmission Lever 1 126
1025716 Screw, Phillips Pan Head (#10-32 x 11/16") 1 327
1087278-NLA NLA - Hub, Outer - Rear (7 Spoke) 1 128
1087744-NLA NLA - Bolt, Drive Lever 1 129
A - Includes Items 2-9.
B - Includes Items 11-15.
C - Includes all of the components shown. Items 20-26 are sold separately.
NOTE:
For CLD release handle see page titled, "Fork and Release Handle for Cyclical Lever Drive."
NOTE:
54
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive - 9 Spoke - Canadian Chairs Only
NOTE: Installation of the CLD MUST be performed by a qualified dealer. If a non-certified individual
performs any work on these units, the Manufacturer's Warranty is Void.
55
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Cyclical Lever Drive - 9 Spoke - Canadian Chairs Only
NOTE: Installation of the CLD MUST be performed by a qualified dealer. If a non-certified individual
performs any work on these units, the Manufacturer's Warranty is Void.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1087407-NLA NLA - Screw, Hex Head (7/16-20 x 6-1/2") 1 11
1088180-NLA NLA - Screw, Pan Head, Phillips (#10-32 x 3/4") 1 62
1087909-NLA NLA - Plate, Hub Support 1 63
1087907-NLA NLA - Hub, Outer - Rear (9 Spoke) 1 14
1087744-NLA NLA - Bolt, Drive Lever 1 15
1084822-NLA NLA - Washer, Axle (7/16 x 2-3/8" x 1/16") 1 16
1087908-NLA NLA - Spacer, Hub Outer Rear (7/16 x 3/4 x 19/32") 1 17
1045608 Locknut (7/16-20) 1 18
1087912-NLA NLA - Spacer, Hub Inner (7/16 x 3/4 x 15/16") 1 19
1087592 Wheel Lock Assembly - Right 1 110
1087463 Wheel Lock Assembly - Left 1 110
1087733-NLA NLA - Transmission Assembly - Right 1 111 A
1087734 Transmission Assembly - Left 1 111 A
1087905-NLA NLA - Grip, Handle (7/8") 1 112
1088108 Handle, Black 1 113
1088117 Screw, Socket Button Head (5/16-18 x 1-1/4") 1 114
1088110 Plunger 1 115
1087761-NLA NLA - Knob, Shift Lever, Black 1 116
1087739-NLA NLA - Lever, Shift 1 117
1087738-NLA NLA - Plate, Shift 1 118
7930326-NLA NLA - Package, Screw, Hex Head (1/4-20 x 3/4") 25 219
1087204-NLA NLA - Washer, Flat (1/4 x 9/16 x 1/32") 1 620
1087752-NLA NLA - Screw, Socket Head (1/4-20 x 3/4") 1 121
1087420-NLA NLA - Handle, Adjustment, Tapped Type, Black 1 122
1087477 Steering Link Assembly - Right 1 123
1087478 Steering Link Assembly - Left 1 123
1087981-NLA NLA - Support Bracket Assembly - Right 1 124
1087982-NLA NLA - Support Bracket Assembly - Left 1 124
1088201-NLA NLA - Transmission Lever 1 125
1087979-NLA NLA - Kit, Hub Attachment - Rear 1 126 B
1087760-NLA NLA - Drive Arm Assembly - Right 1 127 C
1087759-NLA NLA - Drive Arm Assembly - Left 1 127 C
A - Includes Items 1-3, 6-9
B - Includes Items 1-3 and 6-9
C - Includes Items 12-15 and 22-24
NOTE:
For CLD release handle see page titled, "Fork and Release Handle for Cyclical Lever Drive."
NOTE:
56
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Fork and Release Handle for Cyclical Lever Drive
57
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115

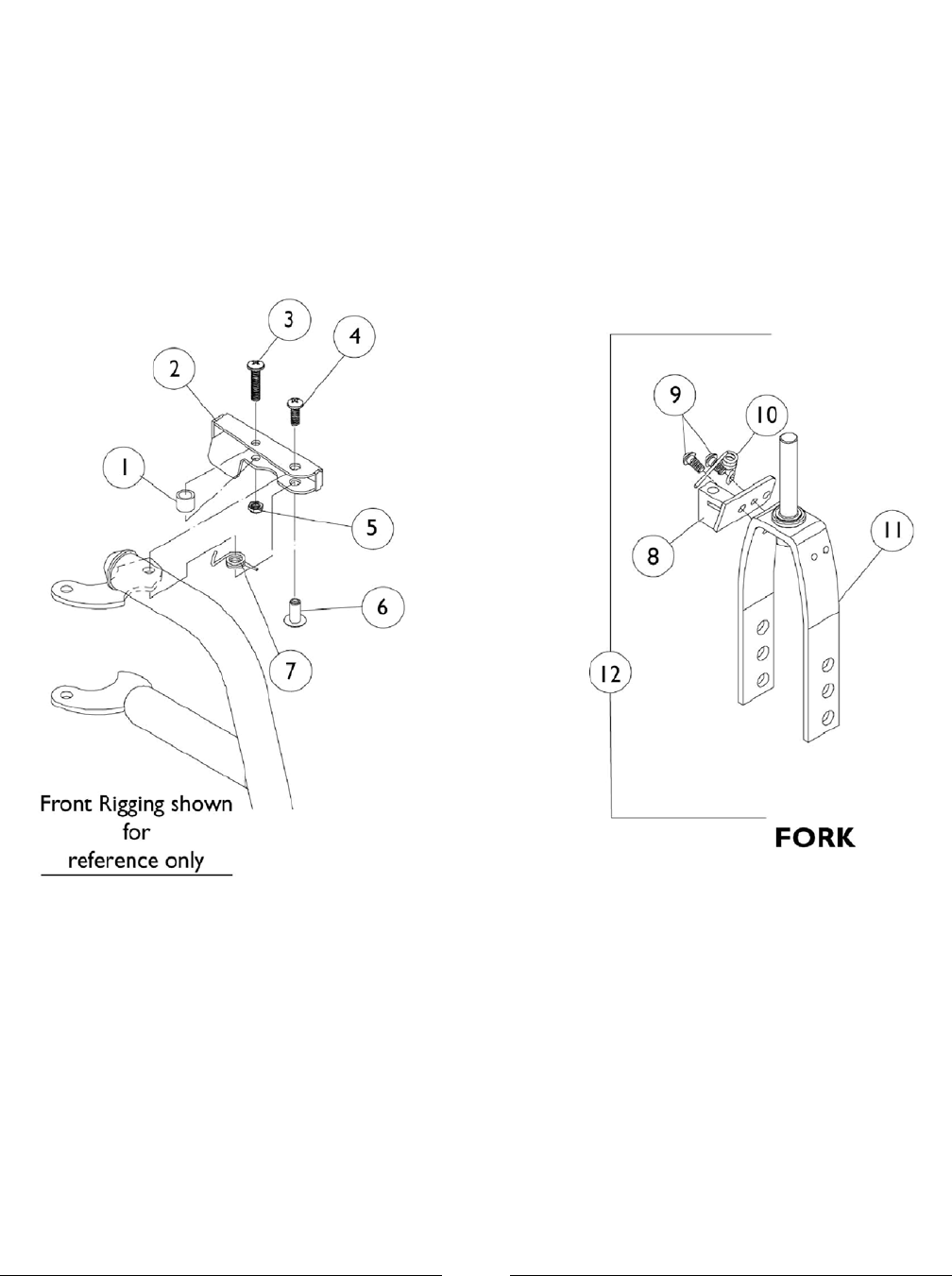

Fork and Release Handle for Cyclical Lever Drive
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
47565X057 Bushing (7/32 x 3/8 x 11/32") 1 11
1033305 Handle, Release, Chrome - Right 1 12 G
1033306 Handle, Release, Chrome - Left 1 12 G
40163X008 Screw, Phillips Pan Head (#10-32 x 11/16") 1 13
40163X002 Screw, Phillips Round Head (#10-32 x 1/2") 1 14
40157X015-NLA NLA - Washer, Nylon (9/16 x 1 x 5/8") 1 15
67005X000 Rivnut (#10-32) 1 16
1008935 Spring, Release - Right 1 17
1008936 Spring, Release - Left 1 17
1087350 Attachment, Steering, Black - Right 1 18 A,E
1087352 Attachment, Steering, Black - Left 1 18 A,E
1087368-NLA NLA - Attachment, Steering, Black - Right 1 18 B,F
1087369-NLA NLA - Attachment, Steering, Black - Left 1 18 B,F
1006773 Screw, Socket Button Head (1/4-20 x 1/2") 1 29
1087449-NLA NLA - Spring, Torsion - Right 1 110
1087450-NLA NLA - Spring, Torsion - Left 1 110
1087715-NLA NLA - Fork and Stem (6") 1 111
1087716-NLA NLA - Fork and Stem (8") 1 111
1087467 Fork Assembly - Right (6") 1 112 C,D,H
1087468 Fork Assembly - Left (6") 1 112 C,D,H
1087469 Fork Assembly - Right (8") 1 112 C,D,H
1087470 Fork Assembly - Left (8") 1 112 C,D,H
1194268 Fork Assembly - Right (6") 1 112 C,D,I
1194297 Fork Assembly - Left (6") 1 112 C,D,I
1194355 Fork Assembly - Right (8") 1 112 C,D,I
1194357 Fork Assembly - Left (8") 1 112 C,D,I
A - 6" Fork
B - 8" Fork
C - Fork; 7 and 9 Spoke CLD
D - Includes Items 8-11
E - Used on 6" Fork
F - Used on 8" Fork
G - Item #2 is not available for sale in 71P Silver Vein frame finish.
H - Before 10/12/16.
I - After 10/11/16.
NOTE:
58
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 95-115
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Florida Technical Support
407-321-5630
Customer Service
800-333-6900
Form No.
95-115
© 2018 Invacare Corporation. All rights
reserved. Republication, duplication or
modification in whole or in part is prohibited
without prior written permission from
Invacare. Trademarks are identified by ™
and ®. All trademarks are owned by or
licensed to Invacare Corporation or its
subsidiaries unless otherwise noted.
(Revised 1/8/18)
