583 95 93-95 (21548361) Rev 1 02.15.13
Printed in the U.S.A.
ENGLISH
Parts Manual
AUTOMATIC TRACTOR
Models
A22A46 46" Automatic Tractor
2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “A22A46 (96046005601)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ..................................................................................................................3
ELECTRICAL ............................................................................................................. 4-5
CHASSIS ................................................................................................................... 6-7
DRIVE......................................................................................................................... 8-9
ENGINE .................................................................................................................. 10-11
STEERING ............................................................................................................. 12-13
MOWER DECK ...................................................................................................... 14-15
MOWER LIFT ......................................................................................................... 16-17
SEAT ...................................................................................................................... 18-19
DECALS ................................................................................................................. 20-21
PARTS AND SERVICE ................................................................................................22
3
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
4
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56

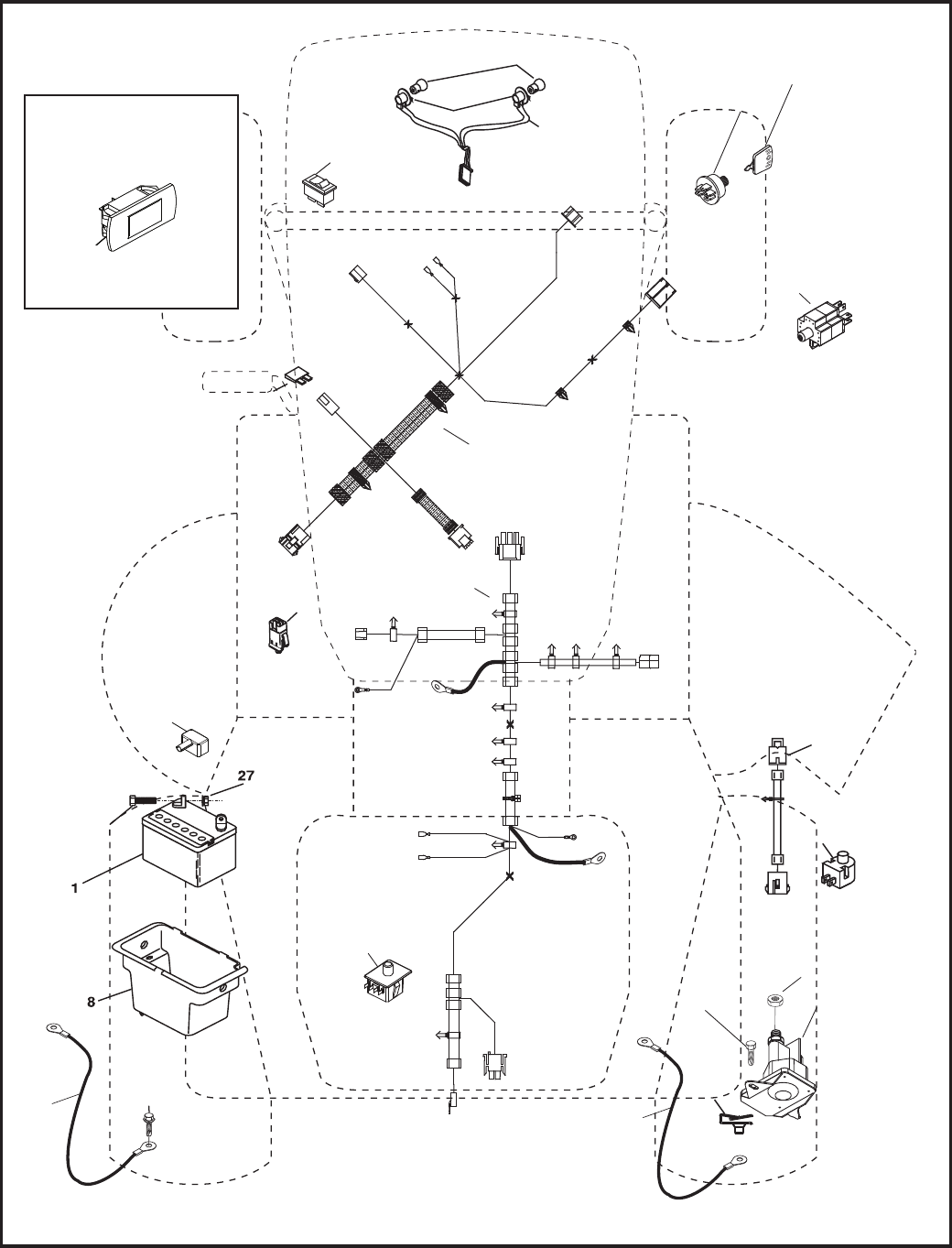

ELECTRICAL
30 33
34
22
79 21
26
40
71
16
TR02K
90
28
55
With Service Minder Option
4646
2
43
27
99
25
87
106
29
102
105
5
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
ELECTRICAL
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 16 34-65 21546162 BATTERY.12.VOLT.28.AMP.WET
2 874 76 04-12 21546803 BOLT HEX HD 1/4-20 UNC X 3/4
8 532 19 32-28 21546315 BOX.BATTERY.MOUNT.FRONT.LT
16 532 17 61-38 21546205 SWITCH.INTERLOCK.NONO.GRAY
21 532 40 02-52 21547584 HARNESS.ASM.LIGHT.22"(4152J)
22 532 00 41-52 21546673 BULB.LIGHT.#1156
25 581 49 80-01 21548381 CABLE STARTER 6 G4. BL/RED 17.5
26 532 17 51-58 21546200 FUSE.20 AMP.
27 873 51 04-00 21546779 NUT, KEPS HEX 1/4-20 UNC
28 532 42 16-86 21548382 CABLE.GROUND 22"
29 532 40 15-45 21546574 SWITCH.SEAT.DELTA.OPC.9LB.
30 532 19 33-50 21546319 SWITCH.IGN.DLTA.P-IN.ROS
33 532 41 19-33 21547339 KEY/CHAIN.BLISTER PACK.GEN.USA
34 532 11 07-12 21546050 SWITCH.LIGHT/RESET.B/B/RED.
40 581 02 31-01 21548383 HARNESS.IGN.DASH.HUSQ/PRED.
43 532 19 25-07 21546294 SOLENOID.W/BRASS PLUNGER.2005
55 817 06 05-12 21546187 SCREW.5/16-18X3/4.SMGML.TAP/R
71 581 02 30-01 21548384 HARNESS.IGN.CHASSIS.TEX
79 532 17 52-42 21546201 SOCKET ASM.BULB.TWISTLOCK
87 532 19 78-02 21546457 SWITCH.INTERLOCK.CLUTCH
90 532 43 53-95 21547570 COVER TERMINAL BATTERY FR. TEX
99 817 67 04-12 21548385 SCREW HEXWSH
102 581 02 34-01 21548309 HARNESS.PIGTAIL
105 532 40 75-68 21546625 SWITCH REVERSE
106 532 17 48-14 21548386 PAL NUT 1/4 LUGS
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
6
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56

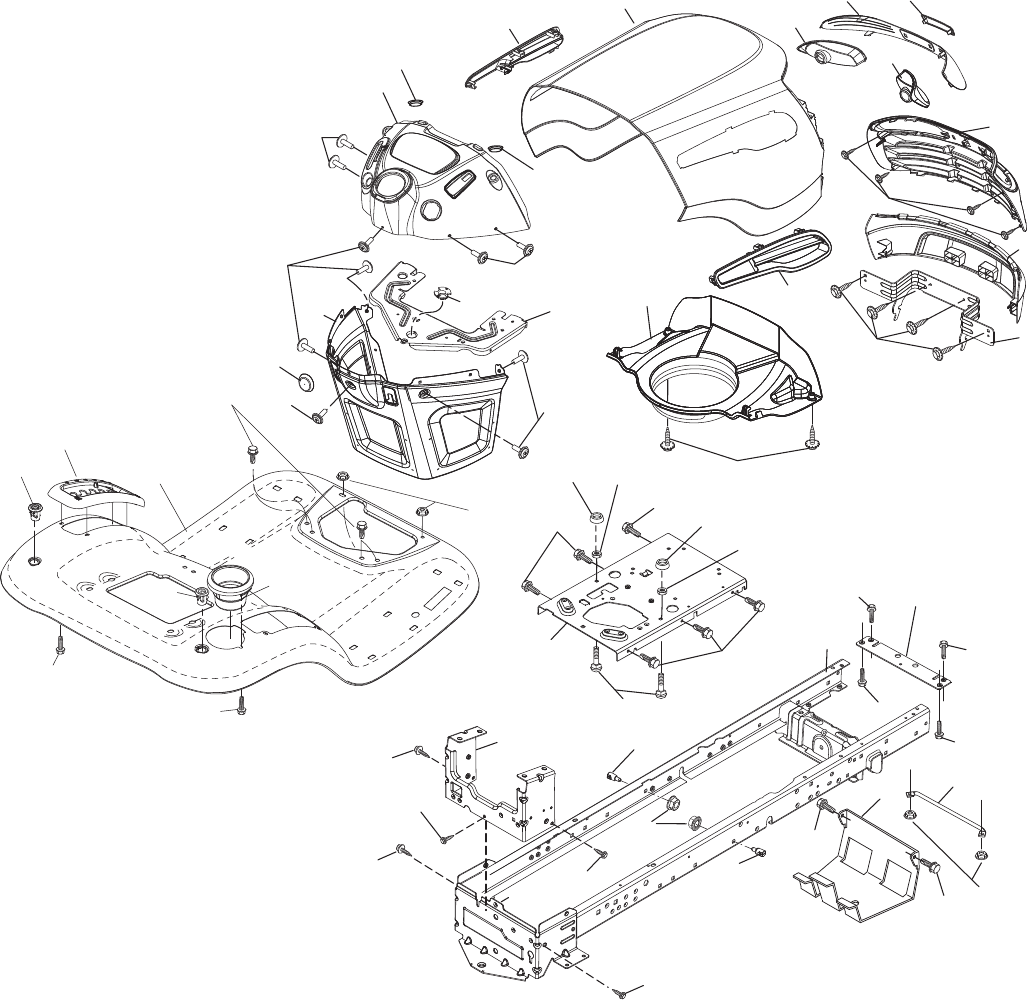

CHASSIS
14 153 226
130
130
130
182
176
176 176
175 150
203
202
208
207
18
151
225
5
237
177
176
176
37
181
181
194
36
196
287
162
138
237
195
159
159
68
68
68
183
236
236
34
228
228
194
180
68
68
213
213
52
218
189
189
152 217
235
235
58
189
189
189
Chassis-Tex_Tex GT PRED_63
7
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
CHASSIS
5 532 44 18-82 21548128 DASH P/L TEX CABLE
14 581 56 40-01 21548085 HOOD
18 532 42 73-33 21548064 GRILLE ELITE ARIENS BLACK
34 580 91 08-01 21548072 PLATE.ENGINE.WELDED.CHASSIS
36 817 06 05-12 21546187 SCREW.5/16-18 X 3/4.SMGML.TAP/R
37 532 44 12-06 21548127 FENDER TLT W/CPH
52 873 68 05-00 21546784 NUT.HEX.CROWNLOCK.5/16-18
58 532 41 22-80 21546643 DRAWBAR UPPER
68 817 49 05-08 21546199 SCREW.THDROL.5/16-18 X 1/2TYTT
130 532 41 63-58 21546675 SCREW
138 532 40 97-30 21547560 CUPHOLDER TL TEX 428
150 532 19 94-11 21548056 AIR DUCT ENGINE
151 532 44 54-94 21548070 BRACKET.PIVOT
152 532 19 95-35 21546501 SHIELD.BROWNING.W/TEX
153 532 42 47-17 21548061 ASM LIGHT BOX
159 817 00 06-12 21546181 SCREW.HEXWSH THDR3/8-16 X 3/4.BL
162 532 14 24-32 21546106 SCREW.HEX.WSH.HI-LO.1/4X1/2 UNC
175 532 19 63-04 21548053 CROSSMEMBER
176 532 40 07-76 21546562 SCREW.#10-24 X 5/8.RND.QUDRX.GIM
177 532 19 52-27 21546356 BUSHING.STEERING.YT/GT
180 532 41 50-63 21546670 CHASS. WLDMT TL 12 GA/2PC 18/22
181 532 40 47-96 21547557 BUSHING MNT FEND CRGO BLK TEX
182 532 40 68-59 21548059 DASH LOWER
183 874 52 05-20 21547383 BOLT.FIN.HEX.5/16-18 UNC X1-1/4
189 817 00 05-12 21546180 SCREW.5/16-18X3/4.SMGML.TAP/BL
194 873 90 05-00 21546789 NUT, LOCK HEX FLANGE 5/16-18 UNC
195 532 40 41-37 21547532 PLUG HOLE DASH LOWER
196 532 43 16-58 21548087 CONSOLE ASM.DECKLFT.BL/RBT.TLT
202 581 30 72-02 21548169 VENT.SIDE.RH
203 581 30 66-02 21548123 VENT.SIDE.LH
207 532 19 89-64 21548055 BEZEL.LH
208 532 19 89-63 21548054 BEZEL.RH
213 874 76 05-12 21546803 BOLT.5/16-18X3/4
217 532 40 91-67 21546636 ROD.HOOD.PIVOT
218 532 19 63-95 21546400 X-PIECE.HOOD.STOP
225 581 56 41-01 21548086 BUMPER
226 581 54 16-01 21548084 ARIENS.LOGO.PLATE
228 532 19 51-61 21546343 STUD.FASTNER.W/'D'ANTI-ROTATIO
235 532 40 61-29 21546619 SPACER.FENDER
236 873 93 05-00 21546793 NUT.CENTER LOCK.5/16-18 UNC
237 532 40 37-04 21547588 PLUG.MOUNT.CARGO
287 817 60 04-06 21546204 SCREW.HEX.WASHEAD.1/4-20 X 3/8
- - 532 44 11-26 21547868 PLUG.DASH.SRVMNDR
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
8
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
DRIVE
17
282
73
116
99 73
116
205 37 33
33 37
205
172
2
2
185
56
1
195
51
345
161
186
189
49
190
187
50
51
52
51
160
160
35
42
184
221
167
143
188
159
15 159
210
214
377
160
211
166
222
211
215
163 125
29
203
drive-tex_VATR_PEDAL_12_r2
64
67 116
125
51
5
373
301
300
303
125
374
378
125
116
298
375
302
213
221
160
206
26
207
209
92 125
376
278
6
197
196
9
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
1 – – – – – – TRANSMISSION, GENTRANS VATR (580486201)
(ORDER PARTS FROM TRANSAXLE MANUFACTURER.)
2 532 12 35-83 21546070 KEY.SQUARE .2.0 X .1845/.1865
5 873 68 06-00 21546785 NUT.CROWNLOCK
6 532 12 40-28 21547114 BUSHING SNAP
15 819 13 13-16 21546284 WASHER 13/32 X 13/16 X 16 GA.
17 532 41 36-78 21546654 SPRING BRAKE
26 532 19 96-79 21546508 SPRING RETURN CRUISE
29 581 47 93-01 21548271 ROD BRAKE
33 812 00 00-01 21546051 E-RING. #5133-75
35 532 43 54-86 21548066 ROD.BRAKE.PARKING.
37 532 18 89-67 21546272 WASHER HARDEN .793 X 1.637 X 060
42 532 12 48-72 21547538 COVER.PEDAL.BLK.ROUND
49 872 11 06-14 21546766 BOLT.RDHD.3/8-16UNCX1-3/4.GR 5
50 532 19 43-27 21546331 IDLER.FLAT
51 873 90 06-00 21546790 NUT, HEX, FLANGELOCK 3/8-16
52 532 19 43-26 21546330 IDLER.V-GROOVE.OFFSET
56 532 19 72-53 21546422 BELT.DRIVE
64 532 44 83-53 21548307 SHAFT ASM. PEDAL BRAKE
67 819 13 13-12 21546283 WASHER 13/32 X 13/16 X 12 GA.
73 874 49 05-44 21546798 BOLT.HEX.FLGHD.5/16-18.GR.5
92 874 76 05-20 21546806 BOLT 5/16-18 X 1-1/4
99 532 43 59-35 21548267 ROD BYPASS
116 873 90 05-00 21546789 NUT, LOCK HEX FLANGE 5/16-18 UNC
125 817 00 05-12 21546180 SCREW.5/16-18 X 3/4.SMGML.TAP/BL
143 817 49 05-08 21546199 SCREW.THDROL.5/16-18 X 1/2 TYTT
159 876 02 04-12 21546820 PIN COTTER 1/8 X 3/4
160 532 16 94-84 21546178 RETAINER.CLIP(M).DIA.290
161 532 10 57-09 21546028 SPRING.RETURN.CLUTCH.6.75
163 532 44 82-68 21548305 ROD CONTROL PEDAL
166 532 42 91-64 21547349 NUT PUSH .625
167 532 40 52-57 21546608 LATCH.BRAKE.PARKING
172 583 97 42-01 21548347 STRAP TORQUE VARIATOR
184 532 44 14-55 21548069 HANDLE.PARKING BRAKE
185 872 11 06-22 21546768 BOLT.RDHD.3/8-16 UNC X 2-3/4 GR.5
186 532 19 43-21 21546328 SPACER.RETAINER
187 819 13 32-10 21546287 WASHER.13/32 X 2 X 10 GA.
188 532 19 43-23 21546329 LINK.CLUTCH.GROUND DRIVE
189 532 19 43-17 21546324 BELLCRANK.GROUNDRIVE.NSTG/NSTL
190 532 19 43-18 21546325 KEEPER.BELLCRANK.DRIVE.GROUND
195 581 50 46-01 21548272 BRAKE BRACKET
203 819 11 11-16 21546279 WASHER 11/32 X 11/16 X 16 GA.
205 532 12 17-48 21546066 WASHER.25/32 X 1-5/8 X 16 GA.
206 532 44 85-96 21548308 BRACKET MOUNT LATCH CRUISE
207 532 44 82-64 21548302 LATCH CONTROL CRUISE
209 532 19 95-92 21548120 ROD CONTROL CRUISE
210 532 44 82-70 21548306 WELDMENT PEDAL
211 532 12 01-83 21546061 BEARING NYLON
213 532 40 31-19 21548124 KNOB CONTROL CRUISE
214 532 42 12-63 21547005 PEDAL FORWARD PAD
215 532 44 82-54 21548301 CAP PEDAL REVERSE
221 532 40 31-87 21546588 RETAINER.SPRING.CLIP.HANDLE
222 879 21 20-10 21546821 WASHER 21/32 X 1-1/4 10 GA.
278 580 36 91-01 21548316 BOLT CRUISE VARIATOR
282 874 49 05-48 21548239 BOLT.HEX. 5/16-18 X
298 532 41 56-83 21547209 BRACKET MOUNT IDLER
300 532 41 56-81 21547210 KEEPER IDLER REAR
301 532 41 56-80 21547211 PULLEY IDLER V-GROOVE
302 581 42 05-01 21548266 PULLEY IDLER FLAT 2.0 OD
303 872 11 06-18 21547133 BOLT RDHD SGNK 3/8-16 X 2-1/4
345 872 11 06-06 21547050 BOLT RDHD
373 581 46 18-01 21548269 SPACER IDLER
374 581 47 52-01 21548270 BRACKET BRAKE ARM
375 874 76 06-36 21548291 BOLT.HEX
376 532 42 65-89 21547489 NUT FLANGE HEX 5/16 X 18
377 584 30 34-01 21548348 GEAR SECTOR CONTROL CRUISE VATR
378 584 28 77-01 21548349 NUT PUSH
10
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
ENGINE
1
29
SPARK ARRESTER KIT
84
45
21
20
62
71
70
79
69
87
2
engine-tex_bs-2cyl_93
37
28
37
18
15
42
85
9
90
96
97
81
82
138
12
11
1 – – – – – – – – – – ENGINE BRIGGS MODEL NO. 407777-3195-G5
(581081901)(ORDER PARTS FROM ENGINE
MANUFACTURER.)
2 532 14 97-23 21546118 MUFFLER ASM.TWIN.LO-TONE
9 532 19 43-19 21546326 KEEPER.BELT.ENGINE.3.25"NSTG
12 532 40 51-40 21546606 PULLEY.ENGINE
15 532 43 30-07 21547730 TANK FUEL
18 532 43 85-96 21547731 CAP FUEL
20 532 42 35-02 21547806 CONTROL THROTTLE/CHOKE
21 532 41 63-58 21546675 SCREW
28 532 13 70-40 21548052 LINE.FUEL.FRONT.20"
29 532 13 71-80 21546090 KIT.SPARK ARRESTOR(392390 B&S)
37 532 12 34-87 21546069 CLAMP.HOSE.BLK.
42 810 04 07-00 21546004 WASHER.LOCK.HVY HLCL.SPR.7/16
45 873 51 04-00 21546779 NUT, KEPS HEX 1/4-20 UNC
62 532 43 40-17 21547370 SHIELD.HEAT.MUFFLER.
69 532 16 53-91 21547297 GASKET MUFFLER
70 532 15 99-55 21547295 EXHAUST TUBE LH
71 532 16 05-89 21547296 EXHAUST TUBE RH
79 532 18 39-06 21547307 SCREW SOCKET HEAD 5/16-18 X 1
81 532 14 84-56 21546117 TUBE.DRAIN.OIL.EASY
82 532 42 82-87 21547348 VALVE OIL DRAIN
84 817 06 06-20 21547225 SCREW 3/8-16 X 1-1/4
85 532 17 39-37 21546191 BOLT.HEX.7/16-20 X 4 X GR. 5-1.5THR.
87 532 17 18-77 21546190 BOLT.5/16-18 UNC X 3/4 W/SEMS.BLK
90 817 00 06-16 21546182 SCREW.3/8-16X1.SMGML.TAP/R.BLK
96 819 09-14-16 21546277 WASHER.9/32 X 7/8 X 16 GA.
97 817 67 04-12 21546207 SCREW.HEXWSH.THDROL.1/4-20 X 3/4
138 532 41 41-19 21546660 PURGE.LINE.CARB.
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
ENGINE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive En-
gineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values
are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operat-
ing conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and
the variety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross
power when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety
of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.),
application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this
Series engine.
12

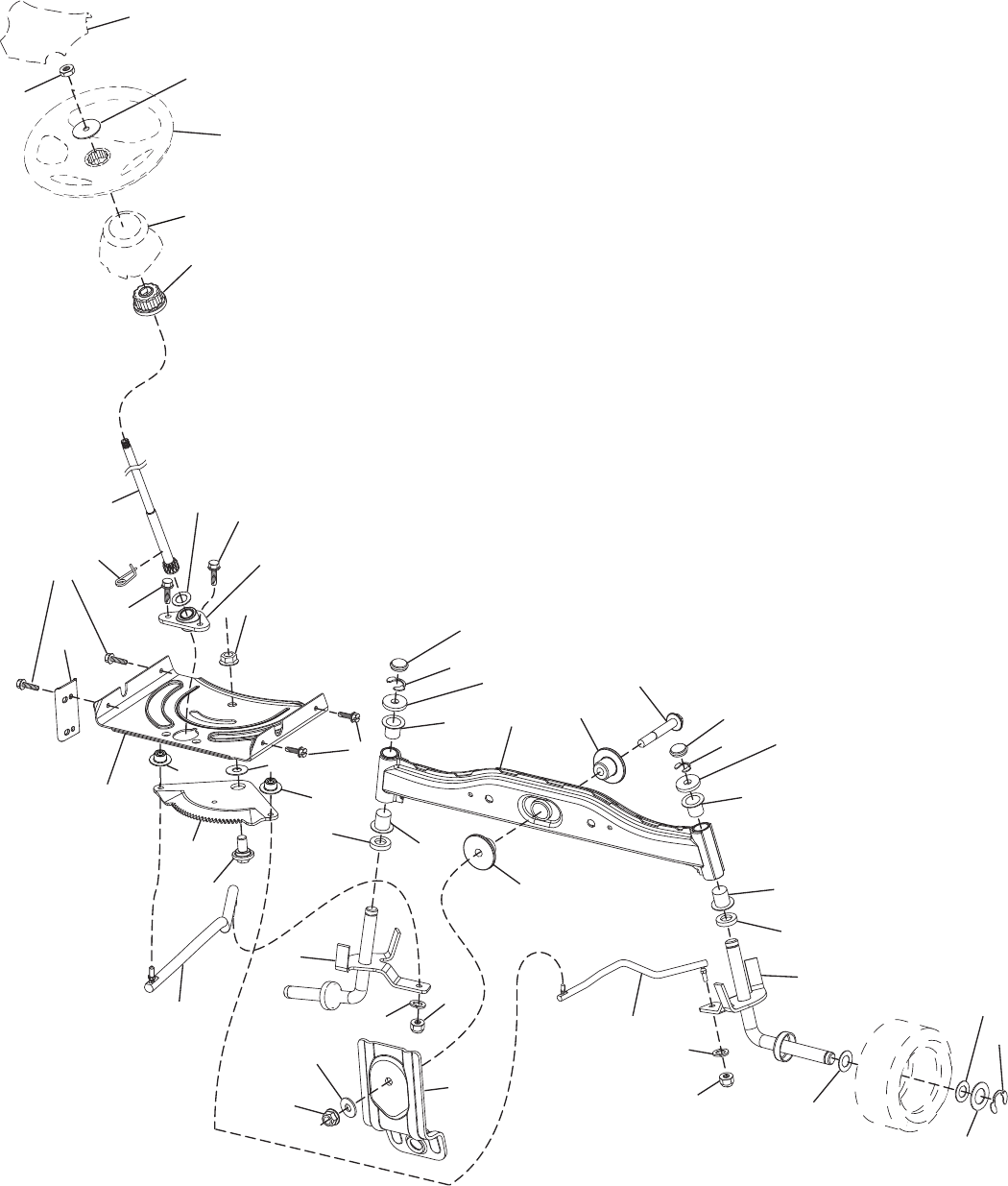

TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
STEERING ASSEMBLY
61
steering-tex_STDSRR_14_r1
19
60
59
58
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
35
6
74
9
8
74
7
9
87
67
67
66
74
74
6
2
63
57
63
21
45
1
26
20
51
122
122
13
1 532 42 41-46 21547582 WHEEL STEERING
2 532 41 81-68 21546681 AXLE ASM.WELDED
4 532 40 30-87 21546582 SPINDLE.WELDED.LH.15"TEX
5 532 40 30-88 21546583 SPINDLE.WELDED.RH.15"TEX
6 532 12 49-31 21547540 WASHER THRUST .75 X 1.230
7 532 12 17-48 21546066 WASHER.25/32 X 1-5/8 X 16GA.
8 812 00 00-29 21546053 RING.KLIP.#T5304-75
9 532 12 12-32 21546064 CAP.SPINDLE.FR.TOP.BLK.
13 532 12 17-49 21546067 WASHER.25/32 X 1 1/4 X 16 GA.
14 810 04 06-00 21546003 WASHER, LOCK 3/8
15 873 54 06-00 21546782 NUT.CROWNLOCK.3/8-24
16 532 40 82-19 21546628 SHAFT.STEER.3/4 TEX.NON-PLATED
19 532 19 47-29 21546334 PLATE.STEER.DDL.NLT/NGT
20 532 42 47-40 21548063 BOOT STEERING.428
21 532 18 67-37 21546234 ADAPTER.WHEEL.STRG..760
22 532 42 05-37 21547007 STEERING SUPT. LOWER
26 532 42 46-91 21547568 CAP WHEEL STEERING BLACK
28 817 00 06-12 21546181 SCREW.HEXWSH THDR 3/8-16 X 3/4.BL
35 532 19 47-32 21546335 GEAR SECTOR.PLATE.DDL.NLT/NGT
45 819 18 38-12 21546291 WASHER.9/16ID X2 3/8OD X 12GA
51 873 94 08-00 21546795 NUT.HEX.JAM.TOPLOCK.1/2-20 UNF
53 532 18 89-67 21546272 WASHER.HARDEN..793 X 1.637 X 060
57 532 40 74-65 21546623 BRACKET.UPSTOP.TEX
58 532 19 47-47 21546339 BOLT.SHOULDER.SECTOR.PIVOT.CFM
59 532 19 47-48 21546340 WASHER.THRUST.SECTOR.STEER.NLT
60 873 97 10-00 21546797 NUT.FLANGE LOCK.5/8-11
61 532 19 47-40 21546337 DRAGLINK.LH.BALLSTUD.DDL.
62 532 19 47-41 21546338 DRAGLINK.RH.BALLSTUD.DDL
63 817 00 05-12 21546180 SCREW.5/16-18X3/4.SMGML.TAP/BL
64 532 19 98-49 21546512 RETAINER.CLIP.SPRING.STEERING
66 871 02 07-48 21546754 BOLT.HEX.FGHD.7/16-14 X 3.SERR
67 532 19 47-37 21546336 BUSHING.PM.FRONT AXLE
68 873 90 07-00 21546791 NUT.LOCK.FLANGE.7/16-14.GR5
69 532 19 91-62 21546483 WASHER.1.5 X .505 X .118
70 532 19 61-97 21546386 BRACKET.DECK.SUSPENSION.FRONT
74 532 12 49-37 21547541 BEARING COL STRNG BLK
122 532 44 49-62 21547948 CAP GEAR SECTOR
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
STEERING ASSEMBLY
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
14

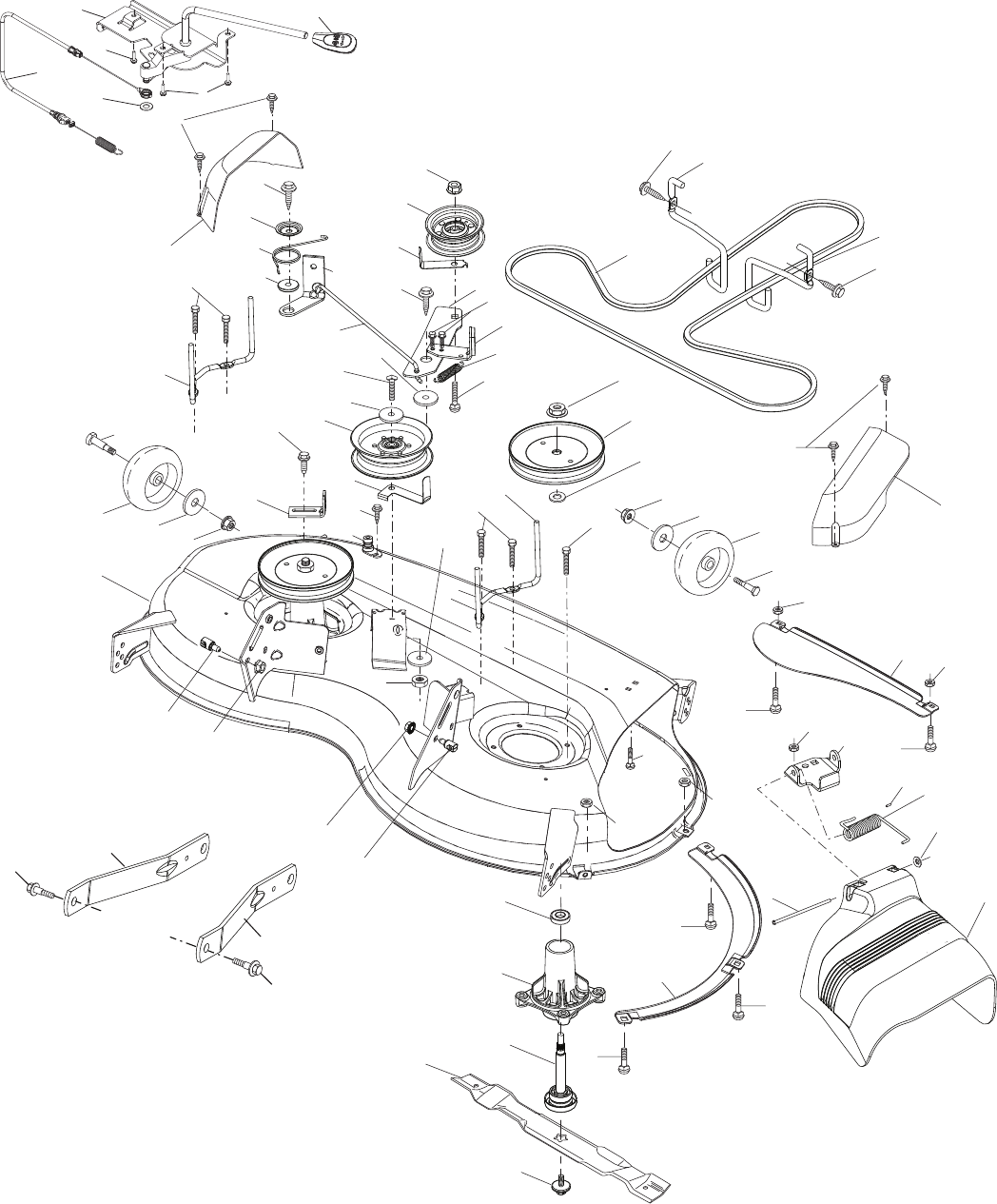

TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
MOWER DECK
30
43
42
60
38
63
46
147
55
64
30
32
31
33
56
34
56 57
59
240
188
1
69
69
69
199
40
145
46_man-Tex_lt_8_r3
15
14
13
11
8
21
25
26
27
198
29
21
21
23
24
144
36
40
57
19
19
6
6
40
117 119
116
40
68 195
122
123
195
189
189
188
21
69
69
69
21
30 38
47
113
116
119
117
197
200
3
46
2
46
242
241
70
7
7
37
67
152
15
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
MOWER DECK
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 16-11 21547818 MOWER HOUSING
2 532 40 55-07 21546618 COVER.MANDREL LH
3 532 40 55-06 21546617 COVER.MANDREL RH
6 532 19 51-86 21546347 ARM.SUSPENSION.MOWER.REAR.LD
7 532 41 63-58 21546675 SCREW #10 X 0.750 BOS THREAD
8 532 19 30-03 21546301 BOLT/WASHER ASM.7/16-20.UNF
11 532 40 53-80 21546611 BLADE.MOWER.46"HI LIFT BAGGER
13 532 19 28-72 21546300 SHAFT ASM.MNDRL.N/GREASEABLE
14 532 18 72-81 21546238 HOUSING.MANDREL.4PT.SERVICE
15 532 11 04-85 21546046 BEARING.BALL.MANDREL
19 532 19 65-39 21546411 BOLT.SHOULDER
21 873 68 05-00 21546784 NUT, HEX, CROWNLOCK 5/16-18
23 532 19 25-57 21546296 BRACKET.DEFLECTOR.38/42"2005
24 532 10 53-04 21546025 CAP.SLEEVE..80 X.112.BLK.MOWER
25 532 19 70-26 21546416 SPRING.TORSION.DFL.38/42/46.GR
26 532 11 04-52 21546045 NUT.PUSH.PHOS.& OIL
27 532 40 53-57 21546610 SHIELD.DEFLECTOR.MOWER 46"BLK
29 532 13 14-91 21546081 ROD.HINGE.42/46"
30 532 17 39-84 21546192 SCREW.THD ROLL.DOD PT.HEX
31 532 18 76-90 21546253 WASHER.SPACER.MANDREL
32 532 19 74-73 21546446 PULLEY.MANDREL.5.438 PD.42"
33 532 40 02-34 21546554 NUT.FLANGE.LOCK.TOP
34 872 11 06-12 21546765 BOLT.CARR.SH.3/8-16 X 1-1/2.GR5
36 532 19 73-79 21546440 PULLEY.IDLER.4.50.RAW
37 819 13 13-16 21546284 WASHER.13/32.X13/16.X16GA
38 532 43 25-20 21547367 KEEPER.BELT
40 873 90 06-00 21546790 NUT, HEX, FLANGELOCK 3/8-16
42 532 19 84-10 21546478 SPRING.TORSION.BRAKE
43 532 19 72-56 21546423 SPRING.TORSION.RETAINER
46 532 13 77-29 21546091 SCREW.THD.ROLL.1/4-20 X 5/8
47 532 19 72-50 21546421 BRACKET.CLUTCH.CABLE
55 532 19 72-49 21546419 IDLER.ARM
56 532 19 90-92 21546482 SPACER.RETAINER
57 817 00 06-16 21546182 SCREW.3/8-16X1.SMGML.TAP/R.BLK
59 532 14 10-43 21546103 GUARD.TUV.IDLER
60 532 19 94-71 21546497 ARM.BRAKE.MOWER.LH
63 532 19 94-77 21546499 ARM.BRAKE.MOWER
64 532 40 51-38 21548125 LINKAGE.ASM.BRAKE
67 532 40 30-12 21547741 HANDLE.CLUTCH.CABLE
68 532 40 51-43 21546607 V-BELT
69 872 14 05-05 21546179 BOLT.5/16-18 HEX.WHS.HD.LCKSERR
70 532 19 99-72 21548121 CLUTCH.ASM.MANUAL
113 817 00 05-10 21546179 BOLT.5/16-18.HEX.WHS.HD.LCKSERR
116 532 12 48-42 21547537 BOLT SHLD "A" 2.41 "B" 1.66
117 532 18 86-06 21546267 WHEEL.GAGE.HALF.SPOKED
119 819 12 14-14 21546281 WASHER 3/8 X 7/8 X 14 GA.
122 532 19 72-58 21546424 KEEPER.BELT.ENGINE.LH
123 532 19 72-59 21546426 KEEPER.BELT.ENGINE.RH
144 532 19 92-04 21546489 KEEPER.BELT.MOWER
145 532 19 31-97 21546308 PULLEY.IDLER
147 532 40 18-72 21546577 SPRING
152 532 43 51-11 21547599 CABLE.CLUTCH.MANUAL
188 532 19 51-61 21546343 STUD.FASTNER.W/'D'ANTI-ROTATION
189 873 90 05-00 21546789 NUT, LOCK HEX FLANGE 5/16-18 UNC
195 817 00 06-12 21546181 SCREW.3/8-16X3/4
197 819 13 13-12 21546283 WASHER.13-32 X 13/16 X 12 GA.
198 532 40 31-49 21546584 BAFFLE.CENTER FRONT
199 532 40 31-50 21546586 BAFFLE.FRONT RH
200 532 41 35-24 21546651 WASHER 13/32 X 1 X 1/2
240 874 52 06-36 21546799 BOLT 3/8-16 X 2-1/4 GR. 5
241 532 15 29-27 21547128 SCREW #10-32.5 3/8 FLANGE
242 532 41 55-98 21547345 PORT WASHOUT
- - 532 41 64-05 21547347 COUPLING QUICK CONNECT
- - 532 19 28-70 21546299 MANDREL ASSEMBLY (INCLUDES HOUS-
ING (KEY #14), SHAFT ASSEMBLY (KEY
#13), AND BEARING ONLY (KEY #15)
- PULLEY/NUT/WASHER AND BLADE
BOLT/WASHERS NOT INCLUDED)
- - 532 41 80-63 21547593 REPLACEMENT MOWER, COMPLETE
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
16

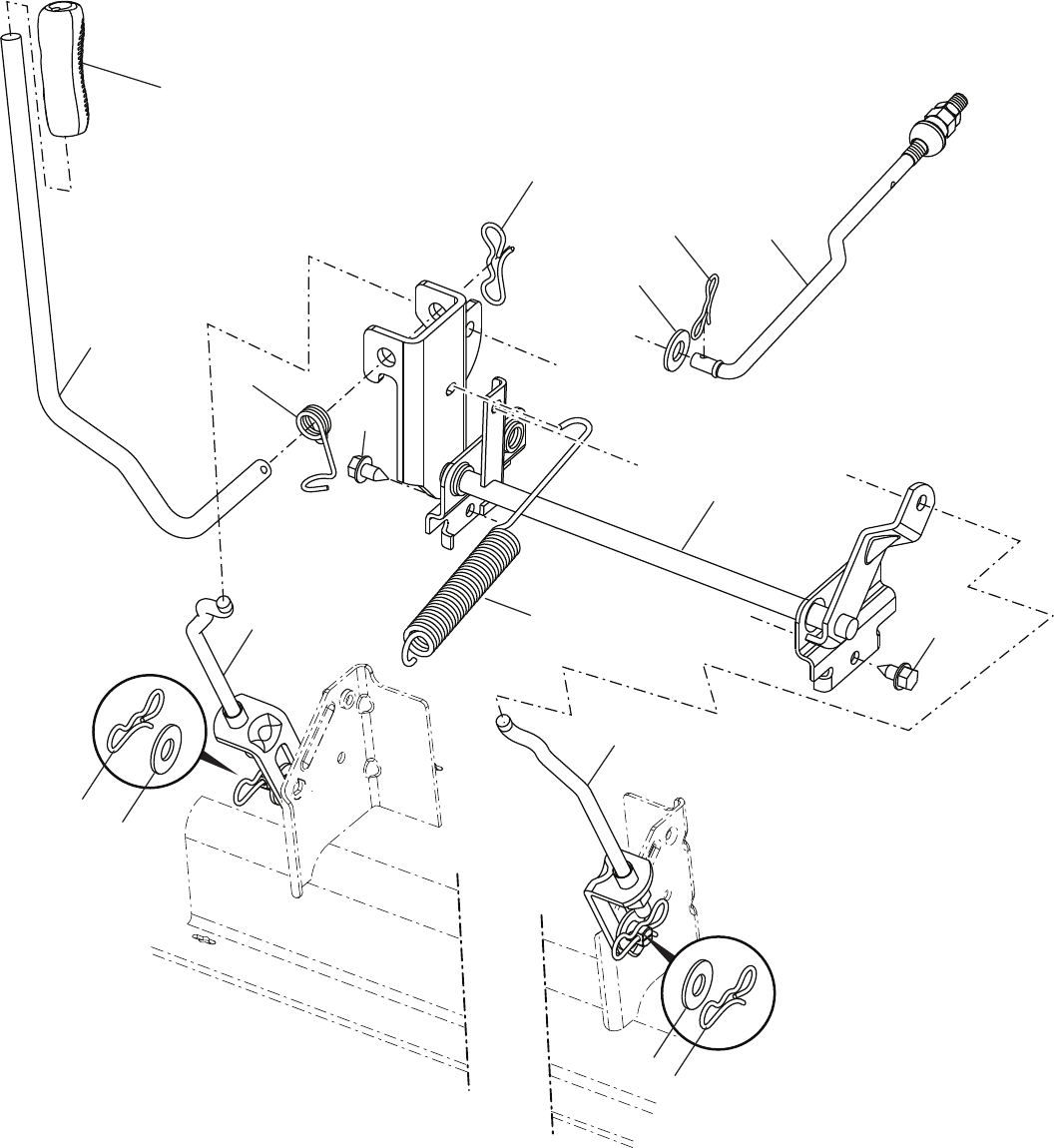

TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
MOWER LIFT
7
3
87
10
88
2
97
97
91
89
90 98
lift-tex_30
91
8987
89
87
17
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
MOWER LIFT
2 532 42 20-27 21547008 SHAFT ASM., LIFT
3 532 42 68-96 21548088 LEVER.LIFT.MULITPOSITION
7 580 96 23-01 21548049 GRIP LEVER 5625 LD BLACK 428
10 532 19 63-14 21546397 SPRING.TORSION.HANDLE.LIFT
87 532 19 42-09 21546322 PIN.COTTER.7/16.BOW TIE LOCK
88 532 41 07-10 21546638 SPRING.LIFT ASSIST
89 819 19 19-12 21546292 WASHER.CLEAR ZINC
90 532 19 42-08 21546321 PIN.COTTER.5/16.BOW TIE LOCK
91 532 19 51-81 21546344 LINK ASM.LIFT.LH.REAR
97 817 00 06-12 21546181 SCREW.HEXWSH THDR3/8-16 X 3/4.BL
98 532 19 52-70 21546360 LINK ASM.SUSP.FRONT.MWR.11
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
18

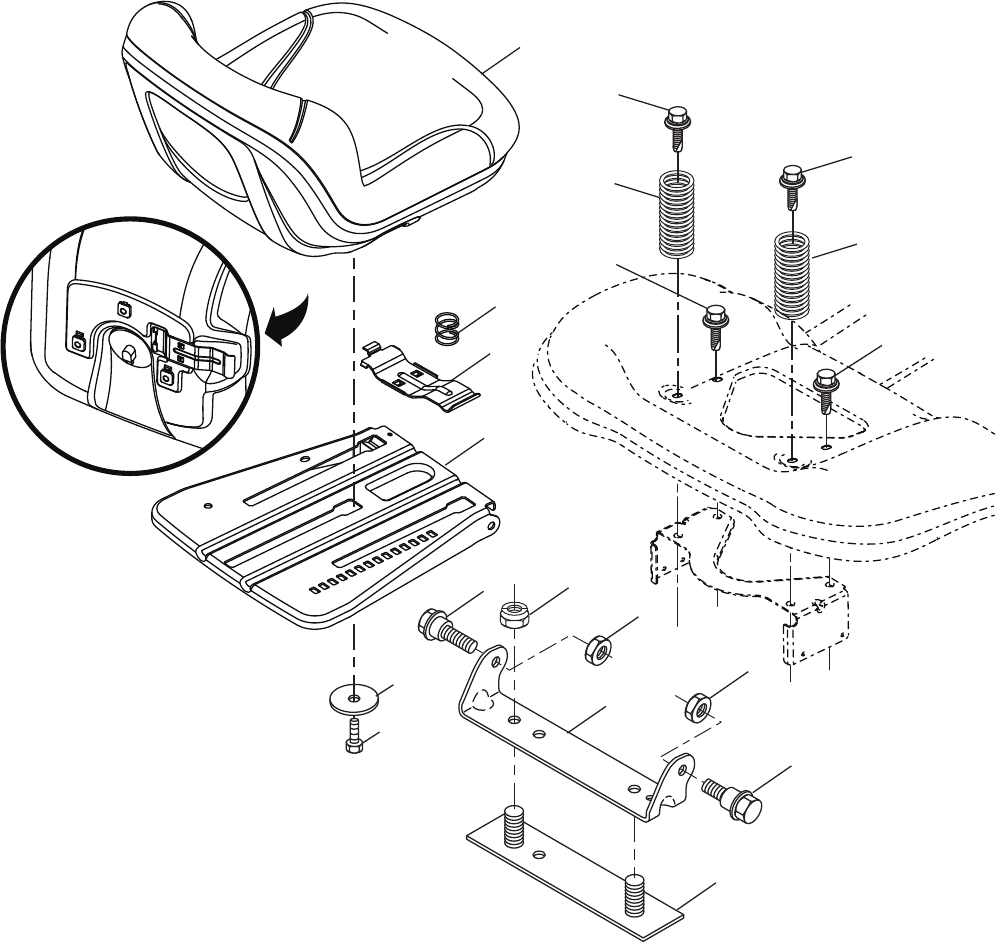

TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
SEAT ASSEMBLY
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43
19
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
SEAT ASSEMBLY
1 532 42 30-10 21546703 SEAT.TA150.KB/SLD.BLK.ARIENS
2 532 18 01-66 21546216 BRACKET.PIVOT.FENDER.2002
3 532 14 06-75 21546101 STRAP ASM.FENDER.94
6 873 80 06-00 21546787 LOCKNUT, WASHER INSERT 3/8-16
7 532 12 41-81 21546074 SPRING.SEAT.CPRSN.2.250.BLK.ZI
8 532 17 18-77 21546190 BOLT.5/16-18 UNC X 3/4 W/SEMS.BLK
10 532 19 69-77 21546414 PAN ASM.SEAT.3PT.
21 532 17 18-52 21546189 BOLT.SHLD.5/16-18 UNC-2A.BLK D
37 873 80 05-00 21546786 LOCKNUT, WASHER INSERT 5/16-18
40 532 19 76-61 21546451 HANDLE.SLIDE.SEAT.TEX.MILSCO
41 532 19 82-00 21546473 SPRING.LATCH.SEAT.TEX
43 874 76 06-12 21546810 BOLT.FIN.HEX.3/8-16 UNC X 3/4
44 819 13 38-12 21546288 WASHER.13/32 X 2 3/8 X 12 GA.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
20
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
DECALS
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
10
11
5
6
3
12
98
14
11
4
10
21
TRACTOR - MODEL NO. A22A46 (96046005601), PRODUCT NO. 960 46 00-56
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 05 91-92 21546747 CAP, VALVE, TIRE
2 532 06 51-39 21546751 STEM, VALVE
3 532 43 96-73 21547813 RIM ASM.6"FRONT.BLACK.SERVICE
4 532 05 99-04 21546748 TUBE, FRONT
5 532 10 62-22 21546034 TIRE, FRONT
6 532 12 49-57 21546037 RIM ASM.6"FRONT.BLACK.SERVICE
7 532 12 49-59 21547542 BEARING FLANGE
8 532 17 50-39 21547547 CAP AXLE (FRONT WHEEL ONLY)
9 532 13 84-68 21546094 TIRE.R.TS.20 X 8-8.C.SERVICE
10 532 12 49-26 21547539 TUBE, REAR
11 532 44 08-81 21547814 RIM ASM.8"REAR.W.GRY.SRVCE.643
- - 532 14 43-34 21546845 SEALANT, TIRE (10 OZ. TUBE)
1 581 51 70-01 21548079 DECAL.LOWER.DASH.22HP
3 532 43 91-26 21547732 DECAL.SDPNL
4 532 43 91-24 21547668 DECAL.FENDER.REAR.ARIENS
5 532 44 63-54 21547918 DECAL.FENDER.AMERICA.CRAFT
6 581 57 89-01 21548131 DECAL WARNING START INST.
8 581 57 95-01 21548132 DECAL MOWER.WARN.KEEP HAND AWY
9 532 14 50-05 21546109 DECAL.BAT.DAN/POI P/L SYM.WPN
10 581 66 51-01 21548134 DECAL FENDER SIDE HYDRO ARIENS
11 581 88 18-01 21548315 DECAL REPLACEMENT
12 581 25 85-01 21548122 DECAL ENGINE
14 581 58 00-01 21548133 DECAL V-BELT.SCH.42/46"MEC/ELE
- - 581 72 48-01 21548135 DECAL BYPASS.FENDER.CRD/LT/YT
- - 532 40 95-07 21547938 PAD FOOTREST
- - 532 40 95-05 21547559 PAD FOOTREST LH TLT BLACK .428
- - 581 91 91-24 21548311 MANUAL, OPERATORS (ENGLISH/FRENCH)
- - 581 91 91-49 21548313 MANUAL, OPERATORS (SPANISH)
- - 583 95 93-95 21548361 MANUAL, PARTS (ENGLISH/FRENCH)
- - 583 95 93-96 51248362 MANUAL, PARTS (SPANISH)
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION
ITEM MFG. ARIENS
NO. NO. PART NO. DESCRIPTION

Navigation menu
