18 GAUGE 2-IN-1
NAILER/STAPLER
Model
97524
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read and understand tool labels and
manual. Failure to follow warnings could
result in DEATH or SERIOUS INJURY.
SAVE THIS MANUAL.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 10a
Page 2 For technical questions, please call 1-800-444-3353. SKU 97524
SAVE THIS MANUAL
Keep this manual for the safety
warnings and precautions, assembly,
operating, inspection, maintenance and
cleaning procedures. Write the product’s
serial number in the back of the manual
near the assembly diagram (or month
and year of purchase if product has no
number). Keep this manual and the
receipt in a safe and dry place for future
reference.
Safety Alert Symbol and Signal
Words
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
Symbol Denitions
Symbol Property or statement
PSI Pounds per square inch of pressure
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Warning marking concerning Risk of
Puncture Injury. Wear heavy-duty
work gloves.
Read the manual before set-up and/
or use.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Page 3For technical questions, please call 1-800-444-3353.SKU 97524
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using tools, basic
precautions should always be
followed, including the following:
General
a. To reduce the risks of electric
shock, re, and injury to persons,
read all the instructions before
using the tool.
Work area
a. Keep the work area clean and well
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
b. Do not operate the tool in
explosive atmospheres, such as in
the presence of ammable liquids,
gases, or dust. The tool is able to
create sparks resulting in the ignition
of the dust or fumes.
c. Keep bystanders, children, and
visitors away while operating the
tool. Distractions are able to result in
the loss of control of the tool.
Personal safety
a. Stay alert. Watch what you are
doing and use common sense
when operating the tool. Do not
use the tool while tired or under
the inuence of drugs, alcohol, or
medication. A moment of inattention
while operating the tool increases the
risk of injury to persons.
b. Dress properly. Do not wear loose
clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases the risk of injury to persons
as a result of being caught in moving
parts.
c. Avoid unintentional starting. Be
sure the trigger is released before
connecting to the air supply. Do not
carry the tool with your nger on the
trigger or connect the tool to the air
supply with the trigger pressed.
d. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance
enables better control of the tool in
unexpected situations.
e. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-duty work
gloves during use.
f. Always wear eye
protection. Wear ANSI-
approved safety goggles
with side shields.
g. Always wear hearing
protection when using
the tool. Prolonged
exposure to high intensity
noise is able to cause hearing loss.
h. Do not attach the hose or tool to
your body. Attach the hose to the
structure to reduce the risk of loss of
balance if the hose shifts.
Page 4 For technical questions, please call 1-800-444-3353. SKU 97524
i. Always assume that the tool
contains fasteners. Do not point
the tool toward yourself or anyone
whether it contains fasteners or not.
j. WARNING – Do not re fastener on
top of another fastener. This is able
to cause the fastener to be deected
and hit someone, or cause the tool to
react and result in a risk of injury to
persons.
k. WARNING – Remove nger from
the trigger when not driving
fasteners. Never carry the tool with
nger on trigger, the tool is able to re
a fastener.
Tool use and care
a. Use clamps or another practical
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or against
the body is unstable and can lead to
loss of control.
b. Do not force the tool. Use the
correct tool for the application. The
correct tool will do the job better and
safer at the rate for which the tool is
designed.
c. Do not use the tool if the trigger
does not turn the tool on or off.
Any tool that cannot be controlled
with the trigger is dangerous and
must not be used until repaired.
d. Disconnect the tool from the
air source before making
adjustments, doing tool
maintenance, clearing jams,
touching the safety nosepiece,
leaving work area, loading,
or unloading the tool. Such
precautionary measures reduce the
risk of injury to persons.
e. Store the tool when it is idle out
of reach of children and other
untrained persons. A tool is
dangerous in the hands of untrained
users.
f. Maintain the tool with care. A
properly maintained tool reduces
the risk of binding and is easier to
control.
g. Check for misalignment or binding
of moving parts, breakage of
parts, and any other condition
that affects the tool’s operation.
If damaged, have the tool serviced
before using. Many accidents are
caused by poorly maintained tools.
There is a risk of bursting if the tool is
damaged.
h. Use only accessories that are
identied by the manufacturer for
the specic tool model. Use of an
accessory not intended for use with
the specic tool model, increases the
risk of injury to persons.
i. Use only those fasteners listed
in the Specications chart of this
manual. Fasteners not identied
for use with this tool by the tool
manufacturer are able to result in
a risk of injury to persons or tool
damage when used in this tool.
Service
a. Tool service must be performed
only by qualied repair personnel.
b. When servicing a tool, use only
genuine replacement parts
available at Harbor Freight Tools.
Page 5For technical questions, please call 1-800-444-3353.SKU 97524
c. Use only the lubricants supplied
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 90 PSI. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry,
regulated compressed air at the rated
pressure or within the rated pressure
range as marked on the tool. Always
verify prior to using the tool that the
air source has been adjusted to the
rated air pressure or within the rated
air-pressure range.
b. Never use oxygen, carbon dioxide,
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons.
SAVE THESE
INSTRUCTIONS.
SPECIFIC SAFETY
INSTRUCTIONS
1. Operators and others in work area
MUST wear ANSI-approved safety
goggles with side shields during
use. The employer is responsible to
enforce the use of eye protection by
the operator and others in the work
area.
2. Keep ngers away from trigger
when not driving fasteners to
avoid accidental ring.
3. Choice of triggering method is
important. Check manual for
triggering options.
4. Always assume the tool contains
fasteners.
5. Do not point the tool toward yourself
or anyone whether it contains
fasteners or not.
6. Do not actuate the tool unless the
tool is placed rmly against the
workpiece.
7. Respect the tool as a working
implement.
8. No horseplay. This tool is not a toy
and can be deadly if misused.
9. Do not load the tool with fasteners
when any one of the operating
controls, such as the Trigger or
Safety Nosepiece, is activated.
10. Do not remove, tamper with, or
otherwise cause the tool’s safety
devices to become inoperable.
11. Do not operate the tool if any portion
of the tool operating controls or safety
devices is inoperable, disconnected,
altered, or not working properly.
12. Disconnect the tool from the air
supply when:
a. Unattended.
b. Performing any maintenance or
repair.
c. Clearing a jam.
d. Moving the tool to a new location.
13. Do not make any modications to this
tool.
Page 6 For technical questions, please call 1-800-444-3353. SKU 97524
14. Refer to the tool maintenance
instructions for detailed information
on the proper maintenance of tool.
15. Fire fasteners into an appropriate
work surface only. Do not attempt to
re fasteners into surfaces too hard
to penetrate. Do not drive fasteners
on top of other fasteners, or at too
steep of an angle. Fasteners can
ricochet causing personal injury.
16. Do not re fasteners too close to the
edge of a workpiece. They may split
the workpiece and y free, causing
personal injury.
17. Keep clear of workpiece near area
being fastened. Fasteners may bend
sideways during ring, causing them
to exit workpiece at an unexpected
point, causing personal injury.
18. Transport Tool safely. Always
disconnect air supply when moving
the tool. Carry the tool by the handle
and avoid contact with the trigger.
19. Hold tool away from head and body.
During operation the Tool may kick
back causing injury.
20. Do not re fasteners into a workpiece
that has people, utility lines, or other
objects behind or inside it.
21. Keep balance while using this tool.
Keep area below clear if working in
an elevated location, and secure air
hose to prevent falls from bystanders
accidentally pulling on it.
22. Obey the manual for the air
compressor used to power this tool.
23. Install an in-line shutoff valve to allow
immediate control over air supply
in an emergency, even if a hose is
ruptured.
24. Do not engrave or stamp anything
into the housing to prevent
weakening of the housing.
25. WARNING: Some dust created by
power sanding, sawing, grinding,
drilling, and other construction
activities, contains chemicals
known [to the State of California] to
cause cancer, birth defects or other
reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures
varies, depending on how often you
do this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially
designed to lter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)
26. WARNING: The brass components
of this product contain lead, a
chemical known to the State of
California to cause birth defects (or
other reproductive harm).
(California Health & Safety code §
25249.5, et seq.)
27. The warnings and precautions
discussed in this manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into this
Page 7For technical questions, please call 1-800-444-3353.SKU 97524
product, but must be supplied by the
operator.
Vibration Precautions
This tool vibrates during use.
Repeated or long-term exposure to
vibration may cause temporary or
permanent physical injury, particularly to
the hands, arms and shoulders. To reduce
the risk of vibration-related injury:
1. Anyone using vibrating tools regularly
or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries,
nervous system disorders, diabetes,
or Raynaud’s Disease should not use
this tool. If you feel any symptoms
related to vibration (such as tingling,
numbness, and white or blue ngers),
seek medical advice as soon as
possible.
2. Do not smoke during use. Nicotine
reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice between
different processes.
5. Include vibration-free periods each
day of work.
6. Grip tool as lightly as possible (while
still keeping safe control of it). Let
the tool do the work.
7. To reduce vibration, maintain tool as
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.
Page 8 For technical questions, please call 1-800-444-3353. SKU 97524

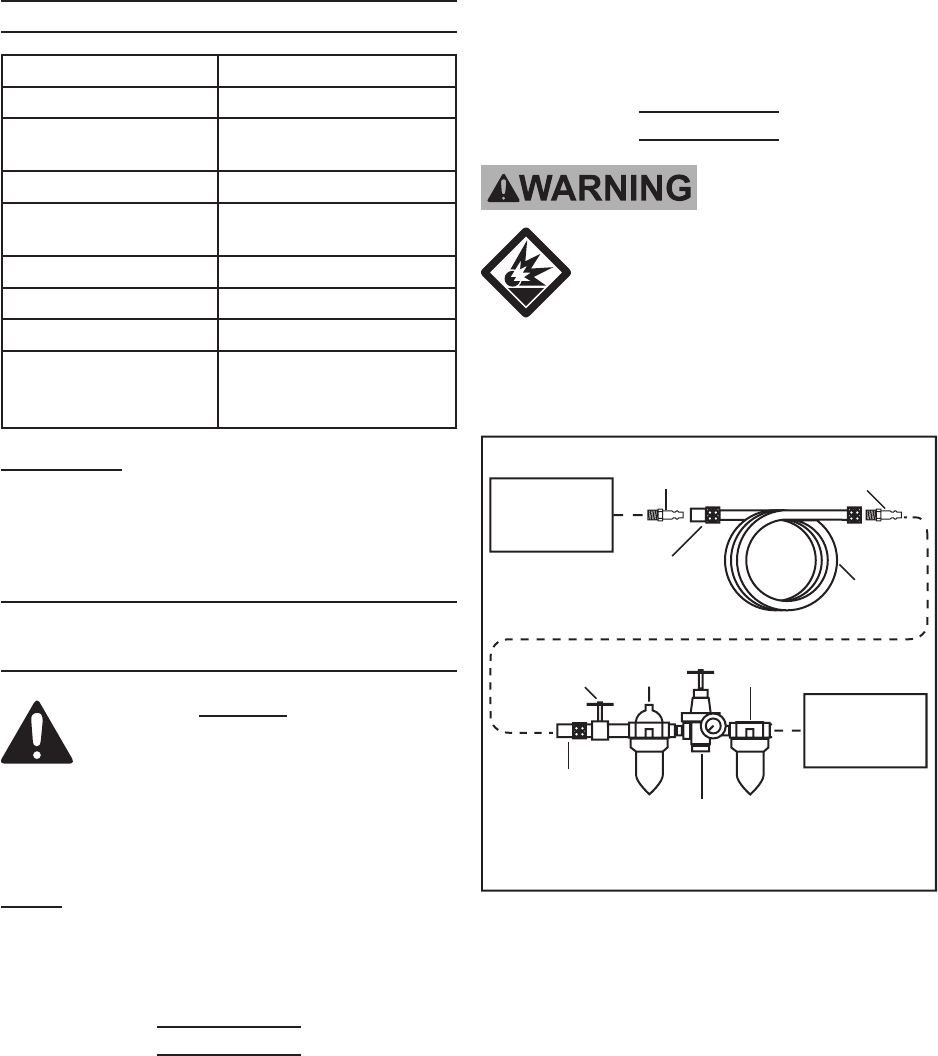

SPECIFICATIONS
Operating Air Pressure 60 - 90 PSI Maximum
Air Inlet 1/4” -18 NPT
Air
Consumption 4-6 SCFM
Brad Nail Sizes 18 Gauge, 1/2” – 2” Long
Staple Sizes 1/4” Crown, 18 Gauge,
3/4” - 1-1/2” Long
Magazine Capacity 100 Nails / 80 Staples
Safety Single Sequential
Lubrication Air Tool Oil
Accessories
Oil Dropper
2 Wrenches
1 Coupler Plug
Safety (52) - Also called the workpiece
contact, the Safety Nosepiece helps
prevent the tool from ring unless it is
pressed against an object.
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.
• This air tool may be shipped with a
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen,
carbon dioxide, combustible
gases, or any other bottled
gas as a power source for this
tool.
Quick
Coupler
Recommended Air Line Components
Regulator with
Pressure Gauge
Quick
Coupler Air Hose
on Reel
Valve FilterOiler
Coupler
Plug
Tool
Air
Compressor
Coupler
Plug
1. Incorporate a lter, regulator with
pressure gauge, oiler, in-line shutoff
valve, and quick coupler for best
service, as shown in the diagram
above. An in-line shutoff ball
valve is an important safety device
because it controls the air supply
even if the air hose is ruptured.
The shutoff valve should be a ball
valve because it can be closed
quickly.
REV 10a
Page 9For technical questions, please call 1-800-444-3353.SKU 97524
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil into the airline connection
before operation. Add a few more
drops after each hour of continual
use.
2. Attach an air hose to the
compressor’s air outlet. Connect the
air hose to the air inlet of the tool.
Other components, such as a coupler
plug and quick coupler, will make
operation more efcient, but are not
required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that will allow
the air tool to retain pressure and
operate accidentally after the air
supply is disconnected.
Note: Air ow, and therefore tool
performance, can be hindered by
undersized air supply components.
3. The air hose must be long enough
to reach the work area with enough
extra length to allow free movement
while working.
4. Release the tool’s trigger.
5. Close the in-line safety valve between
the compressor and the tool.
6. Turn on the air compressor according
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
7. Adjust the air compressor’s output
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
8. The air pressure setting must
not exceed job site regulations/
restrictions. The air pressure setting
must not exceed 90 PSI when being
used with work pieces that have a
thickness of less than 1-3/4”.
9. Inspect the air connections and the
tool for leaks. Repair any leaks
found.
10. If the tool will not be used at this time,
turn off and detach the air supply,
safely discharge any residual air
pressure, and release the trigger to
prevent accidental operation. As
added safety, the Magazine should
also be emptied of any fasteners.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.
Page 10 For technical questions, please call 1-800-444-3353. SKU 97524
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use tool until
repaired.
Work Piece and Work Area Set Up
1. Designate a work area that is clean
and well-lit. The work area must not
allow access by children or pets to
prevent distraction and injury.
2. Route the air hose along a safe
route to reach the work area without
creating a tripping hazard or exposing
the air hose to possible damage.
The air hose must be long enough
to reach the work area with enough
extra length to allow free movement
while working.
3. Secure loose workpieces using a vise
or clamps (not included) to prevent
movement while working.
4. There must not be hazardous objects
(such as utility lines or foreign
objects) nearby that will present a
hazard while working.
Single Sequential Safety Trip
Mechanism Denition
This tool has a single sequential
safety trip mechanism, which is designed
to prevent inadvertent ring. The tool
should only re if the Safety Nosepiece
is pressed against the workpiece prior to
pulling the Trigger. It should only re again
if the trigger is released rst. The Tool
should not re if the Safety Nosepiece is
not pressed against the workpiece.
Single Sequential Safety Trip
Mechanism Testing Procedure
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Empty the tool before this
procedure. Point the tool at a
piece of scrap wood when
testing.
1. Disconnect the tool from the air
supply.
2. Empty the magazine of fasteners.
3. Check that the Trigger (39) and the
Safety (52) move freely, without
sticking.
4. Connect the air supply to the tool and
set within the Operating Air Pressure
indicated on the Specication chart.
5. Test the tool by pressing the Safety
Nosepiece against the workpiece
without pulling the Trigger. The tool
must not cycle (re). If it cycles
(res), stop immediately and take the
tool to a qualied service technician
for repair.
6. Hold the tool away, or off of the
workpiece. The Safety Nosepiece
should return to its original position.
Squeeze the Trigger. The tool must
not cycle (re). If it cycles (res),
stop immediately and take the tool to
a qualied service technician.
Page 11For technical questions, please call 1-800-444-3353.SKU 97524
7. Press the Safety Nosepiece against
the workpiece and squeeze the
Trigger. The tool must cycle (re)
only once. Release the trigger and
squeeze it again. The tool must
cycle (re) again only once. With
the Trigger held, carefully lift the tool
and press it against the workpiece
again. The tool must not cycle
(re). If it fails to act in the manner
explained in bold, have it repaired by
a qualied service technician.
Loading the Tool
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION, BEFORE
LOADING:
• Wear ANSI-approved safety
goggles with side shields.
Other people in the work area
must also wear ANSI-approved
impact safety goggles with side
shields.
• Release the trigger.
• Detach the air supply.
• Attempt to re the Tool into
a piece of scrap wood to
ensure that it is disconnected
and is incapable of ring any
fasteners.
1. Depress the Latch (73) and pull back
on the Magazine Tail Cover (78),
opening Magazine A (67A).
2. Insert the brad nails into Magazine A.
If loading staples, t the crown of the
staples so they t over, and ride on the
rail of the Magazine.
3. After the nails or staples reach the
nose of the tool, close Magazine A .
Note: The window gauge on Magazine A lets
you know how many nails or staples
remain.
General Operating Instructions
1. Test the Tool, as directed in the prior
section, before each use.
2. If an automatic oiler is not used, add
a few drops of Pneumatic Tool Oil to
the air intake of the tool before use.
Add a few drops more after each
hour of continual use.
3. Attach the Nailer/Stapler to the air
supply at the Air Plug (86). Start
your compressor and check the
pressure, making sure it is set at the
recommended 60-90 PSI.
4. To re, place the nose of the Nailer/
Stapler on the workpiece. The Nailer/
Stapler should not re if the Safety
is not depressed. Once depressed,
gently and briey squeeze the Trigger
once. Do not re repeatedly; nails
or staples could bounce off of one
another, damaging the work piece or
causing PERSONAL INJURY.
5. If the tool requires more force to
accomplish the task, verify that the
tool receives sufcient, unobstructed
airow (CFM) and pressure (PSI).
CAUTION! TO PREVENT TOOL
AND ACCESSORY FAILURE,
RESULTING IN INJURY:
Do not exceed the tool’s maximum
air pressure rating.
If the tool still does not have sufcient
force at maximum pressure and
sufcient airow, a larger tool would
then be required.
6. To prevent accidents, release the
trigger, detach the air supply, safely
Page 12 For technical questions, please call 1-800-444-3353. SKU 97524
discharge any residual air pressure in
the tool, and release the trigger after
use. Clean external surfaces with
clean, dry cloth. Then store the tool
indoors out of children’s reach.
Clearing Jams
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION, BEFORE ANY
MAINTENANCE OR REPAIRS
ARE DONE (including clearing
jams):
• Wear ANSI-approved safety
goggles with side shields.
Other people in the work area
must also wear ANSI-approved
impact safety goggles with side
shields.
• Release the trigger.
• Detach the air supply.
• Attempt to re the Tool into
a piece of scrap wood to
ensure that it is disconnected
and is incapable of ring any
fasteners.
• Empty the magazine and leave
it open during service.
1. Disconnect tool from air hose, empty
Magazine A of fasteners, release any
built-up air pressure, and leave the
magazine open, as explained above.
2. While doing this step and the next 2
steps, hold the Nailer/Stapler pointed
away from you and any other people
or fragile objects.
3. Remove all three Safety Cover Bolts
(53) on the Safety Cover (54) - see
Figure 1.
3. Lift the Safety Cover off the top of
the Nailer/Stapler - see Figure 2.
4. Carefully slide the Driver Cover
(57) off and around the Safety.
Note the position of the tab on the
Driver Cover. Remove the jammed
fastener; pliers may be necessary to
remove a stuck fastener.
5. Inspect the Driver (17A) for bends or
breakage. If it is damaged, do not use
the tool until it is repaired by a qualied
technician.
6. Lightly oil the Driver (17A) and replace
the Driver Cover (57) with the tab in
the Cover facing the Driver Guide

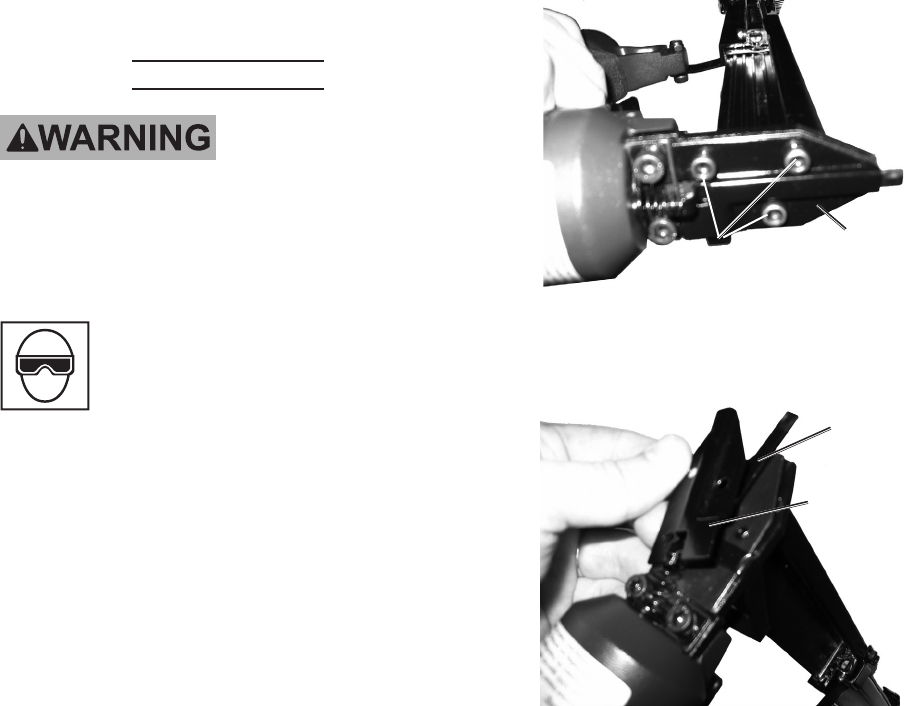

FIGURE 1
Safety
Cover (54)
Safety Cover
Bolts (53)
Safety
(52)
Safety
Cover (54)
FIGURE 2
Page 13For technical questions, please call 1-800-444-3353.SKU 97524
(58). Replace the Safety Cover, being
careful to line up the bolt holes and t
the Safety into the slot. Replace and
securely tighten all of the Safety Cover
Bolts (53). Make sure that the Safety
moves without sticking.
7. Reload the Nailer/Stapler.
8. Reconnect the Nailer/Stapler to the air
hose.
9. Press the Safety of the Nailer/Stapler
against an appropriate piece of scrap
wood.
10. Test fire the Nailer/Stapler several
times, checking for proper operation.
11. Disconnect the Nailer/Stapler, remove
the fasteners, and store the Nailer/
Stapler in a location out of children’s
reach.
12. If you are unable to clear the fastener
jam using the method prescribed above,
the tool should be taken to a qualied
service technician for proper servicing.
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION, BEFORE ANY
MAINTENANCE OR REPAIRS
ARE DONE (including clearing
jams):
• Wear ANSI-approved safety
goggles with side shields.
Other people in the work area
must also wear ANSI-approved
impact safety goggles with side
shields.
• Release the trigger.
• Detach the air supply.
• Attempt to re the Tool into
a piece of scrap wood to
ensure that it is disconnected
and is incapable of ring any
fasteners.
• Empty the magazine and leave
it open during service. The
Magazine is spring-loaded
and may cause parts or a
fastener to y out of the Tool.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal noise,
vibration, or leaking air is
detected, have the problem
corrected before further use.
Page 14 For technical questions, please call 1-800-444-3353. SKU 97524
TO PREVENT EXPLOSION:
Lubricate only with specied
lubricants. Lubricate the air
inlet using only pneumatic
tool oil. Lubricate the internal
mechanism using only white
lithium grease. Other
lubricants may damage the
mechanism and may be highly
ammable, causing an
explosion.
Cleaning, Maintenance, and
Lubrication
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular
operation of the air-operated tool.
1. Daily - Air Supply Maintenance:
Every day, perform maintenance
on the air supply according to
the component manufacturers’
instructions. The lubricator’s oil
level needs to be maintained and
the moisture lter must be regularly
drained. Performing routine
maintenance on the air supply will
allow the tool to operate more safely
and will also reduce wear on the tool.
Page 15For technical questions, please call 1-800-444-3353.SKU 97524
Stop using Nailer/Stapler immediately if any of the following problems occur.
Repairs and part replacements must be done only by a qualied technician.
All procedures in bold are to be attempted only be a qualied technician.
Problem Possible Causes Likely Solutions
Air leaking at Trigger
area.
O-Rings (98, 99) are damaged. Replace O-Rings and check contact
trip operation.
Air leaking between
Housing and Nose.
1. Loose screws in Housing.
2. Damaged O-Rings (91, 93) or
Bumper (94).
1. Tighten screws.
2. Replace O-Rings or Bumper.
Air leaking between
Housing and Cap (4).
1. Loose screws.
2. Damaged Gasket (9).
1. Tighten Screws.
2. Replace Gasket (9).
Has power loss.
1. Insufcient oil.
2. Broken Spring in Head Cap (4).
3. Exhaust is blocked.
4. Insufcient Air Supply
1. Lubricate as instructed.
2. Replace Compression Spring (8).
3. Clean Cap (4) or replace damaged
parts.
4. Check for max. 90 PSI.
Tool skips a nail.
1. Worn Bumper (94) or damaged
Pusher Spring (66).
2. Dirt in Driver Guide (58).
3. Inadequate airow to Nailer/
Stapler.
4. Worn or dry O-Ring on Piston.
5. Damaged O-Ring on Trigger
Valve.
6. Cap Gasket (9) leaking.
1. Replace Bumper or Pusher
Spring.
2. Clean channels in Driver Guide (58).
3. Check hose and compressor ttings.
Make adjustments per specications.
4. Replace O-Rings.
5. Replace O-Rings (98, 99).
6. Replace Gasket (9) and/or Seal
(95).
Fasteners are
jammed.
1. Guide on driver is worn.
2. Fasteners are wrong size or
damaged.
3. Magazine or Nose screws are
loose.
4. Driver (17A) is damaged.
1. Replace Guide.
2. Use correct, undamaged Fasteners.
3. Tighten screws.
4. Replace Driver (17A).
Nailer/Stapler will not
drive down tight.
1. Rounded Driver (17A) slipping
off fastener crown.
2. Lack of air pressure.
3. Slow cycling and loss of power.
1. Replace Driver (17A).
2. Supply correct pressure (60-90 PSI).
3. Check Compression Spring (8) for
broken coils or reduced length.
Make sure Exhaust is clear.
Fastener driven too
deeply.
Worn Bumper (94) and/or Piston
Spacer.
Replace either or both parts.
Troubleshooting
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect air supply before service.
Page 16 For technical questions, please call 1-800-444-3353. SKU 97524
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/
OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
PARTS LIST
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.
Part Description
1Exhaust Deector
3 Hex. Bolt
4 Head Cap
5 Seal
6 Internal Lining
7 O-Ring
8
Compression Spring
9 Gasket
10 O-Ring
11 Head Valve Piston
12 O-Ring
13 O-Ring
14 O-Ring
16 O-Ring
17A Piston & Driver
26 Body
27 Nozzle
35 Compression Spring
37 Spring Pin
38 E-Ring
39 Trigger
40 Retainer Pin
41 Safety Guide
42 Spring Washer
43 Hex Bolt
44 Spring Pin
45 Spring
Part Description
46 Screw Nut
47 Thumb Wheel
48 Spring
49 Steel Ball
50 Stopper
51 E-Ring
52 Safety
53 Safety Cover Bolt
54 Safety Cover
55 Hex. Bolt
56 Spacer
57 Driver Cover
58 Driver Guide
59 Hex. Bolt
60 Pin
61A Magazine B
62A Steel Bar
63 Pusher Unit
64 Spring Holder
66 Pusher Spring
67A Magazine A
68 Stopper
69 Hex. Bolt
70 Hex. Bolt
71A Nail Positioner
72 Retaining Pin
73 Latch
74 Spring
75 O-Ring
Part Description
76 Hex Bolt
77 Cylinder Pin
78 Tail Cover
79 Hex. Bolt
80 Hex. Bolt
81 Tail Hanger
82 Lock Nut
83 Hand Grip
84 O-Ring
85 End Cap
86 Air Plug
87 Collar
88 Fixed Ring
89 O-Ring
90 Lining Ring
91 O-Ring
92 Cylinder
93 Lining Ring
94 Bumper
95 Seal
96 Trigger Valve Upper
97 Trigger Plunger
98 O-Ring
99 O-Ring
100 Trigger Valve Lower
101 Trigger Plate
102 Non-mar Tip
Page 17For technical questions, please call 1-800-444-3353.SKU 97524
ASSEMBLY DIAGRAM
Page 18 For technical questions, please call 1-800-444-3353. SKU 97524
