981 0246_I20 0246 Onan KY (spec A P) KYD C) RV Genset Parts Manual (12 2012)

User Manual: 981-0246 Onan KY (spec A-P) KYD (spec A-C) RV Genset Parts Manual (12-2012)

Open the PDF directly: View PDF PDF.
Page Count: 84

Parts Manual
RV Generator Set
KY (Spec A−P)
KYD (Spec A−C)
English − Original Instructions 12−2012 981−0246 (Issue 21)
2
The following symbols are used in Onan manuals
to alert users to the potentially dangerous condi-
tions relating to maintenance of equipment and re-
placement of parts. Please read and observe.
This symbol warns of immedi-
ate hazards which will result in
severe personal injury or death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
product or property damage.
To avoid errors or delay in filling your parts order,
always give the MODEL, SPEC NO. and SERIAL
NO. from the Onan nameplate.
For handy reference, insert your nameplate infor-
mation in the spaces below.
MODEL AND SPEC NO.
SERIAL NO.
DIGITAL CONTROL SOFTWARE VERSION
AND DATE (IF APPLICABLE)
Contact with USED ENGINE OILS has been identified by a United States federal agency and some USA
state agencies as causing CANCER or REPRODUCTIVE TOXICITY. When checking or changing engine
oils take all necessary precautions not to ingest, breathe the fumes or contact the used oil.
Contact with ASBESTOS has been identified by a United States federal agency and some USA state
agencies as causing CANCER or REPRODUCTIVE TOXICITY. When handling engine gaskets take all
necessary precautions not to ingest, breathe or contact the dust from the gaskets! Use adequate ven-
tilation and wear protective gloves, masks and clothing!
Contact with BENZINE and LEAD, found in gasoline, fuel additives and solvents has been identified
by a United States federal agency and some USA state agencies as causing CANCER or REPRODUC-
TIVE TOXICITY. When checking, draining or adding gasoline and fuel additives or using solvents take
all necessary precautions not to ingest, breathe the fumes or contact the liquids. Use adequate ventila-
tion and wear protective gloves, masks and protective clothing!
PSP-1
Service and repair of Onan equipment must be performed by trained, experienced personnel only. Im-
proper service or repair may result in property damage, severe personal injury or death. Do not use this
catalog as a guide to servicing your equipment. Read and follow the IMPORTANT SAFETY IN-
STRUCTIONS in the Service Manual appropriate for the equipment you are working on.
1
Introduction
This parts manual applies to the KY Recreational Vehicle Sets as listed in the Generator Set Data Table. Parts are
arranged in groups of related items and each illustrated part is defined by a reference number corresponding to the
same reference number in the parts list. Parts illustrations are typical. Using the model and specification number from
your generator set nameplate, select parts that apply to your set. Right and left sides are determined by facing the
engine end (front) of the set.
Generator Set Data Table
MODEL AND Wiring
SPECIFICATION WATTS VOLTS HERTZ FUEL Diagram
3.3KY−FR/11544F 3300 100 50 LPG Vapor 611−1245−03
3.3KY−FR/11544G 3300 100 50 LPG Vapor 611−1264−03
3.3KY−FR/26119B−E 3300 230 50 LPG Vapor 611−1226?
3.3KY−FR/26119F 3300 230 50 LPG Vapor 611−1245−05
3.3KY−FR/26119G−H 3300 230 50 LPG Vapor 611−1264−05
3.3KY−FR/26119J−L 3300 230 50 LPG Vapor 611−1268−05
3.3KYD−3272A−B 3300 230 50 LPG Vapor 611−1268−05
3.6KY−FA/11276A 3600 120 60 LPG Vapor 611−1194
3.6KY−FA/26120B−E 3600 120 60 LPG Vapor 611−1225
3.6KY−FA/26120F 3600 120 60 LPG Vapor 611−1246
3.6KY−FA/26120G−H 3600 120 60 LPG Vapor 611−1265
3.6KY−FA/26120J−M 3600 120 60 LPG Vapor 611−1267
3.6KY−FA/26120P 3600 120 60 LPV Vapor 611−1267
3.6KY−FR/11572G−H 3600 100 50 Gasoline 611−1263−03
3.6KY−FR/11572J−K 3600 100 50 Gasoline 611−1268−03
3.6KY−FR/33742B−E 3600 220 50 Gasoline 611−1212?
3.6KY−FR/33742F−H 3600 230 50 Gasoline 611−1245−05
3.6KY−FR/33742J−K 3600 230 50 Gasoline 611−1268−05
3.6KYD−3270A−B 3600 120 60 LPG Vapor 611−1267
3.6KYD−3271A 3600 230 50 Gasoline 611−1268−05
4.0KY−FA/11320E 4000 120 60 Gasoline 611−1225
4.0KY−FA/11320F 4000 120 60 Gasoline 611−1246
4.0KY−FA/11320G−H 4000 120 60 Gasoline 611−1265
4.0KY−FA/11320J 4000 120 60 Gasoline 611−1267
Continued on next page. −−>
2
* − The diagonal line (/) in the model and specification number separates generator set
characteristics from the specification number and letter. The specification number de-
notes customer requested options or deviations from a standard model. The specifica-
tion letter advances (A to B, B to C, etc.) with major manufacturing changes.
Continued from page 1.
Generator Set Data Table
MODEL AND Wiring
SPECIFICATION WATTS VOLTS HERTZ FUEL Diagram
4.0KY−FA/11580G−H 4000 120 60 Gasoline 611−1265
4.0KY−FA/11580J−K 4000 120 60 Gasoline 611−1267
4.0KY−FA/26100A 4000 120 60 Gasoline 611−1194
4.0KY−FA/26100B−E 4000 120 60 Gasoline 611−1225
4.0KY−FA/26100F 4000 120 60 Gasoline 611−1246
4.0KY−FA/26100G−H 4000 120 60 Gasoline 611−1265
4.0KY−FA/26100J−L 4000 120 60 Gasoline 611−1267
4.0KY−FA/26100P 4000 120 60 Gasoline 611−1267
4.0KY−FA/6747P 4000 120 60 Gasoline 611−1267
4.0KY−FR/11429E 4000 100 60 Gasoline 611−1268−03
4.0KY−FR/11429F 4000 100 60 Gasoline 611−1255−03
4.0KY−FR/11429G−H 4000 100 60 Gasoline 611−1263−03
4.0KY−FR/11429J−L 4000 100 60 Gasoline 611−1268−03
4.0KY−FR/65697E 4000 100 60 Gasoline 611−1268−04
4.0KY−FR/65697F 4000 100 60 Gasoline 611−1255−04
4.0KY−FR/65697G−H 4000 100 60 Gasoline 611−1263−04
4.0KY−FR/65697J−L 4000 100 60 Gasoline 611−1268−04
4.0KYD−3269A 4000 120 60 Gasoline 611−1267
* − The diagonal line (/) in the model and specification number separates generator set
characteristics from the specification number and letter. The specification number de-
notes customer requested options or deviations from a standard model. The specifica-
tion letter advances (A to B, B to C, etc.) with major manufacturing changes.
Index
3
A
Adapter, Exhaust (KY), 41
Adapter, Gasoline Air Cleaner (KY Begin Spec D and
KYD), 21
Adapter, Gasoline Air Cleaner (KY Spec A−H), 19
Adapter, LP Air Cleaner (KY Begin Spec L and KYD
Begin Spec B), 27
Adapter, LP Air Cleaner (KY Spec E−K and KYD), 25
Adapter, Resonator (KY Spec A), 42
Arm, Rocker, 10 , 11
B
Backplate, Exhaust (KY), 41

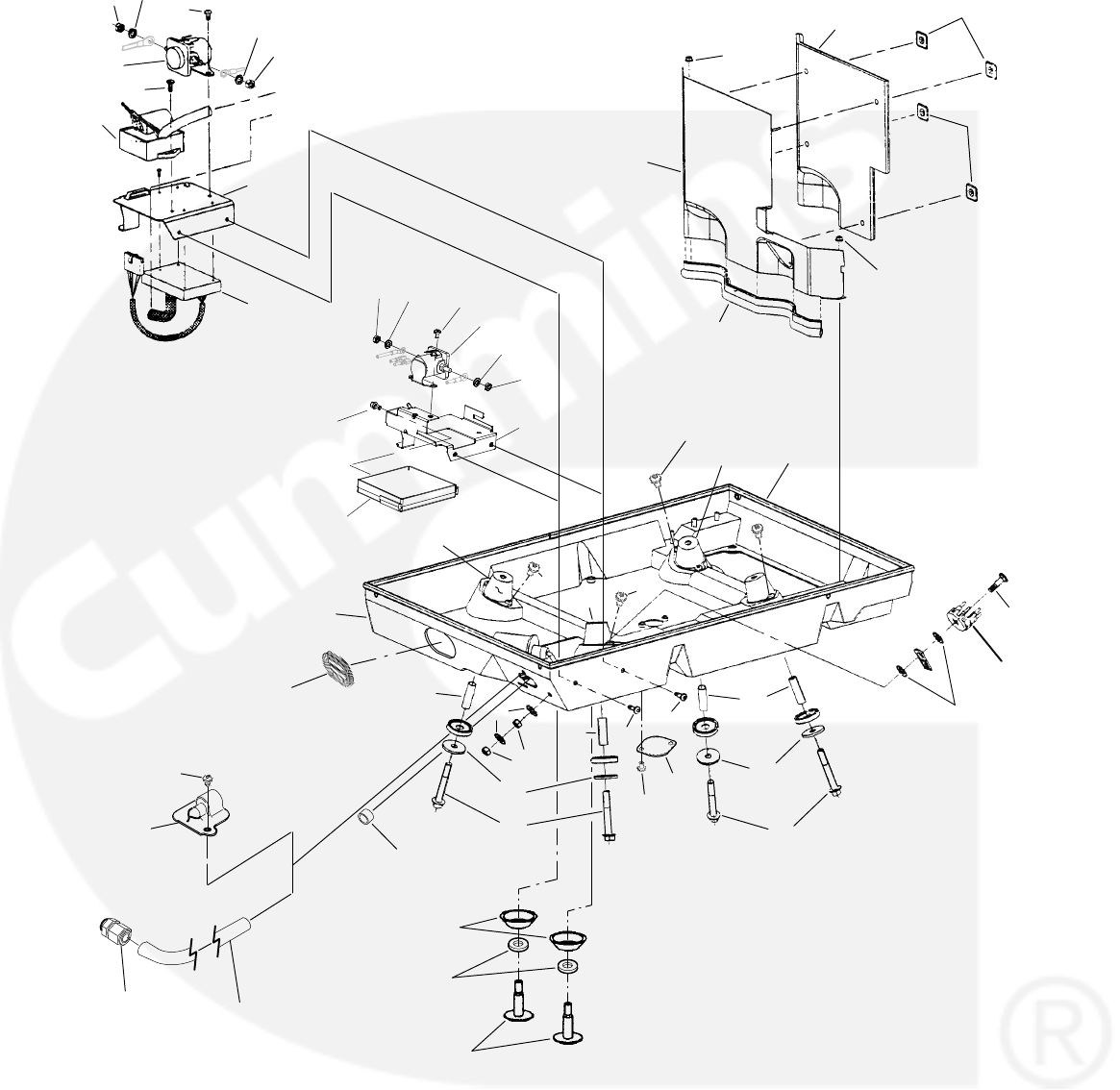

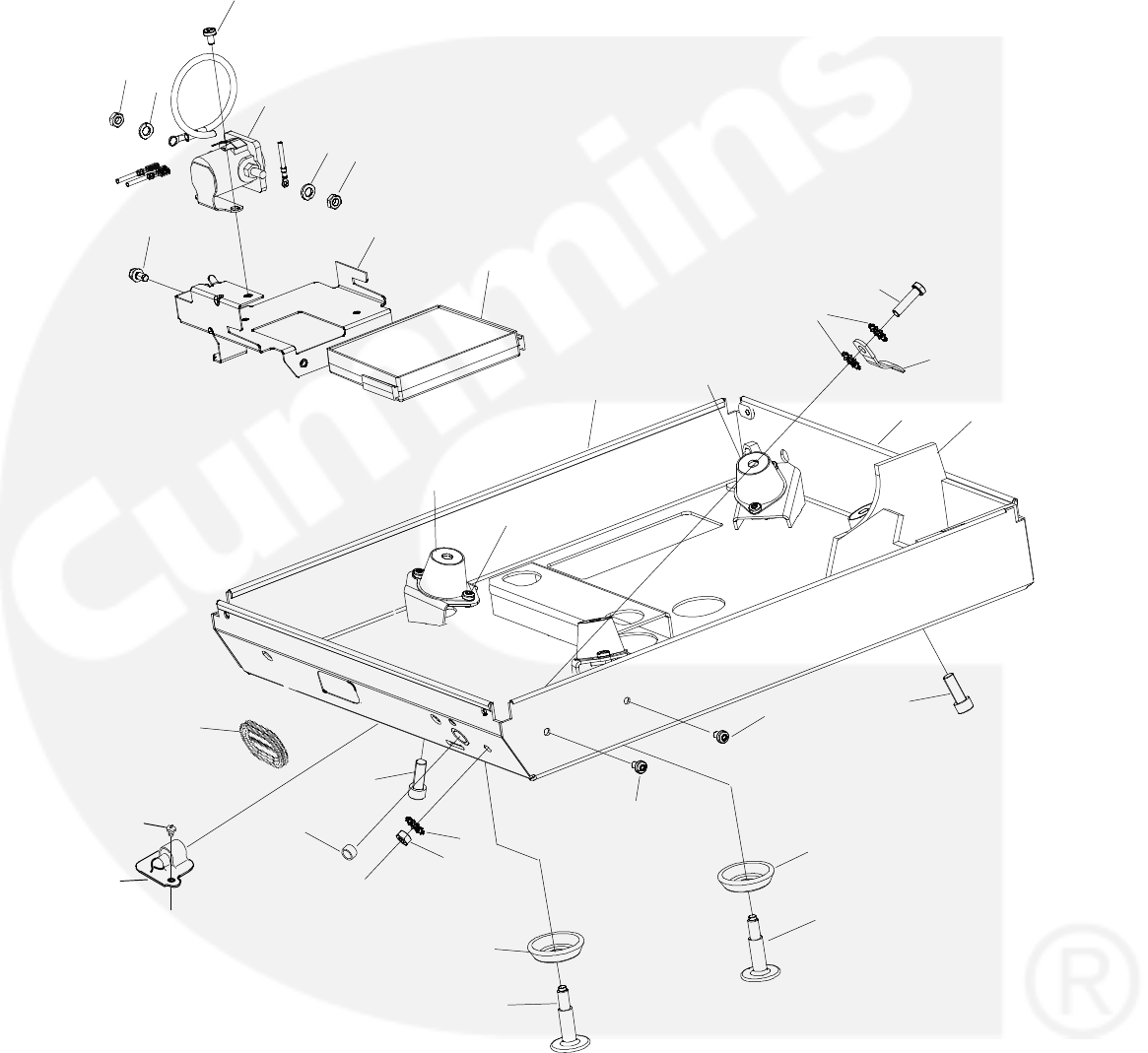

Base, Enclosure (KY Begin Spec B), 45
Base, Enclosure (KY Spec A), 42
Base, Enclosure (KYD), 46

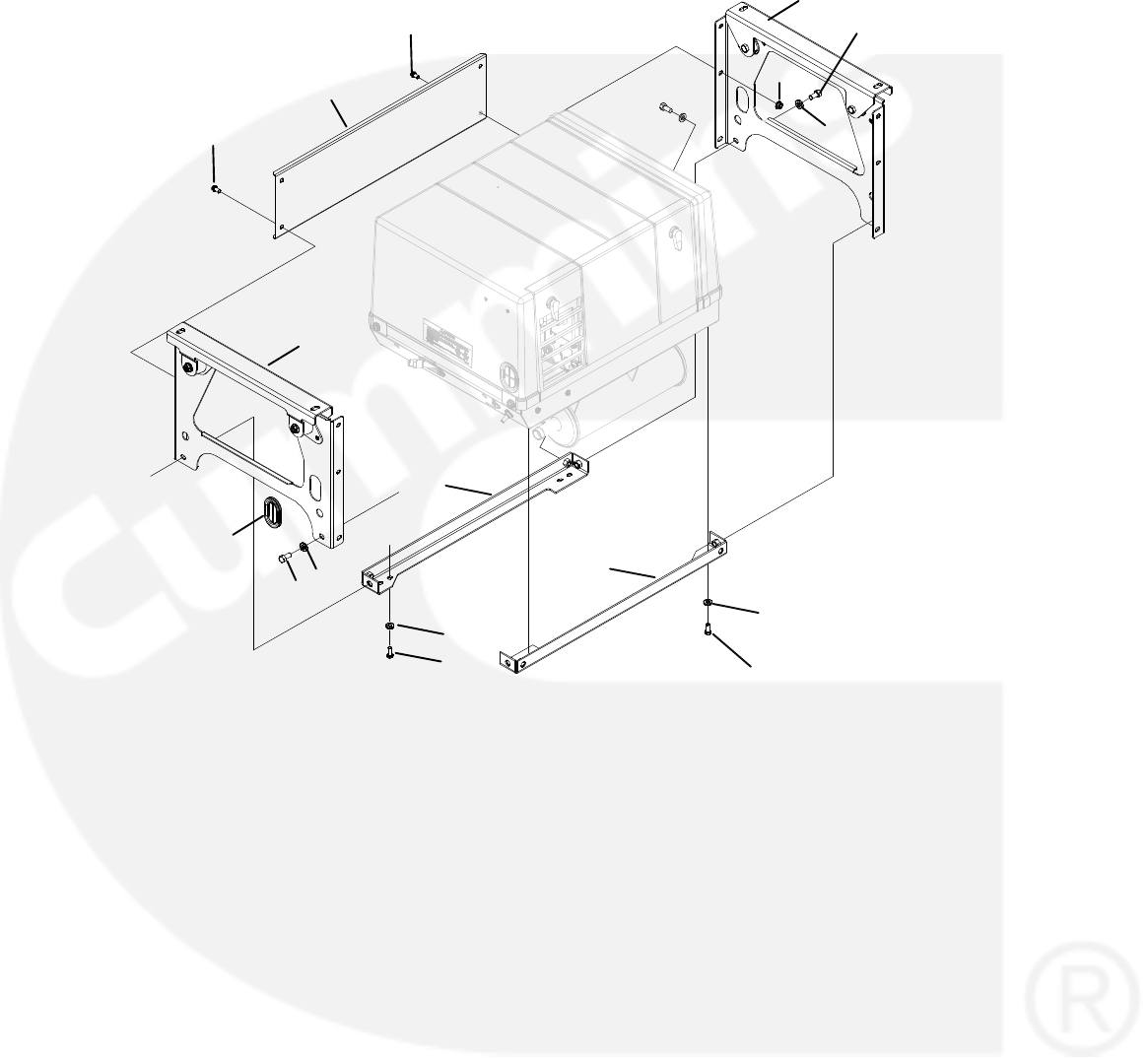

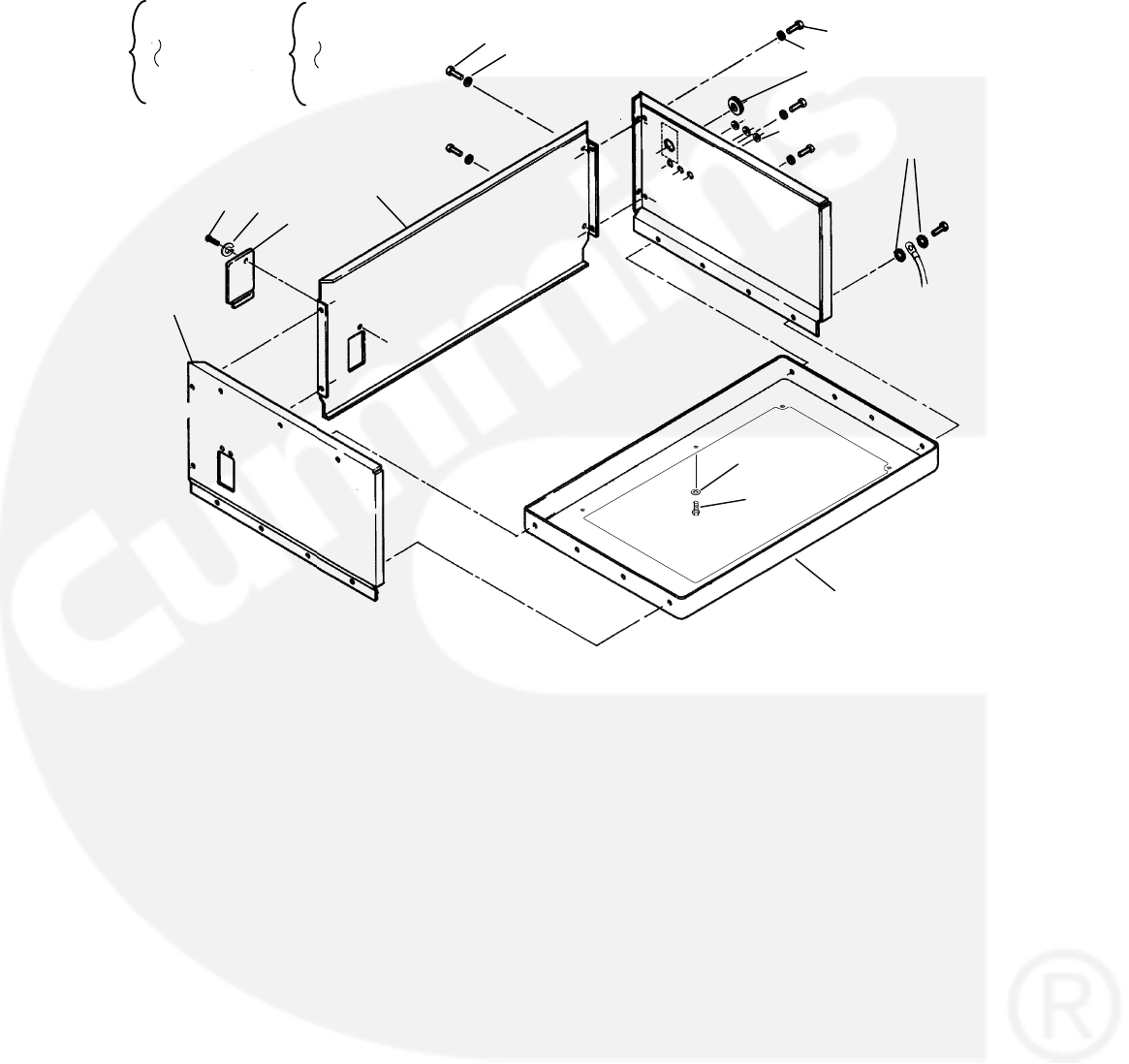

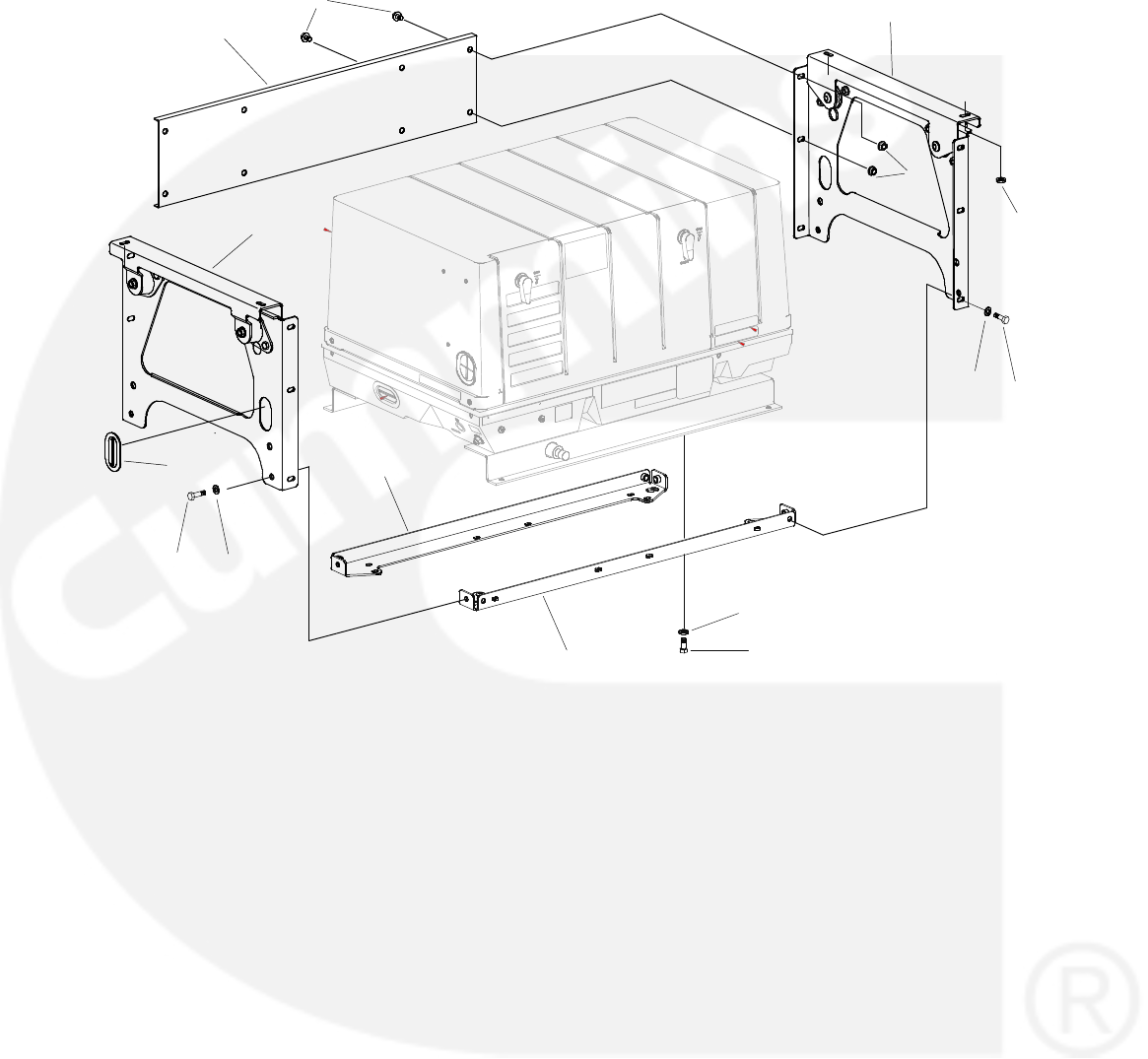

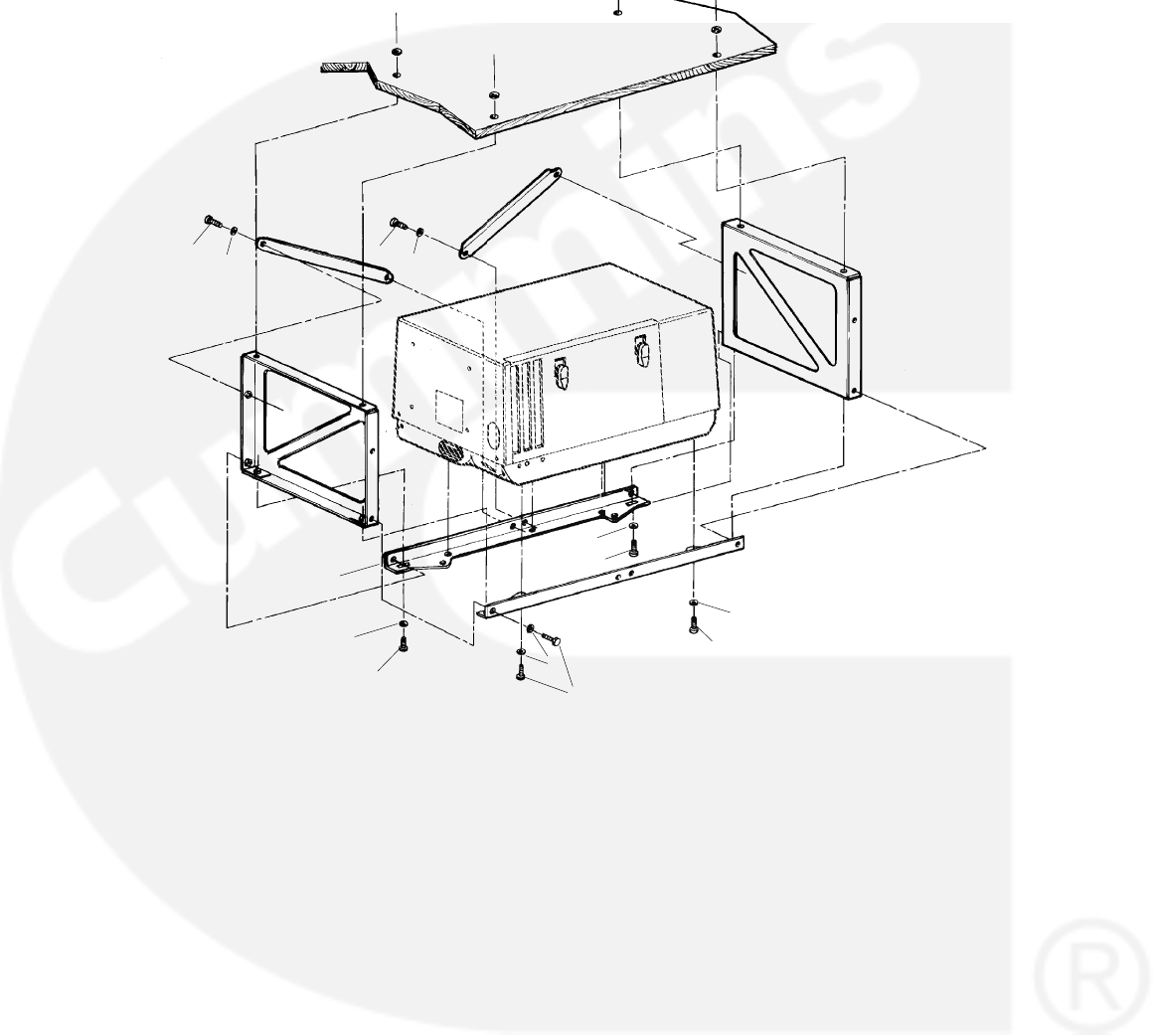

Base, KY Underfloor, 55

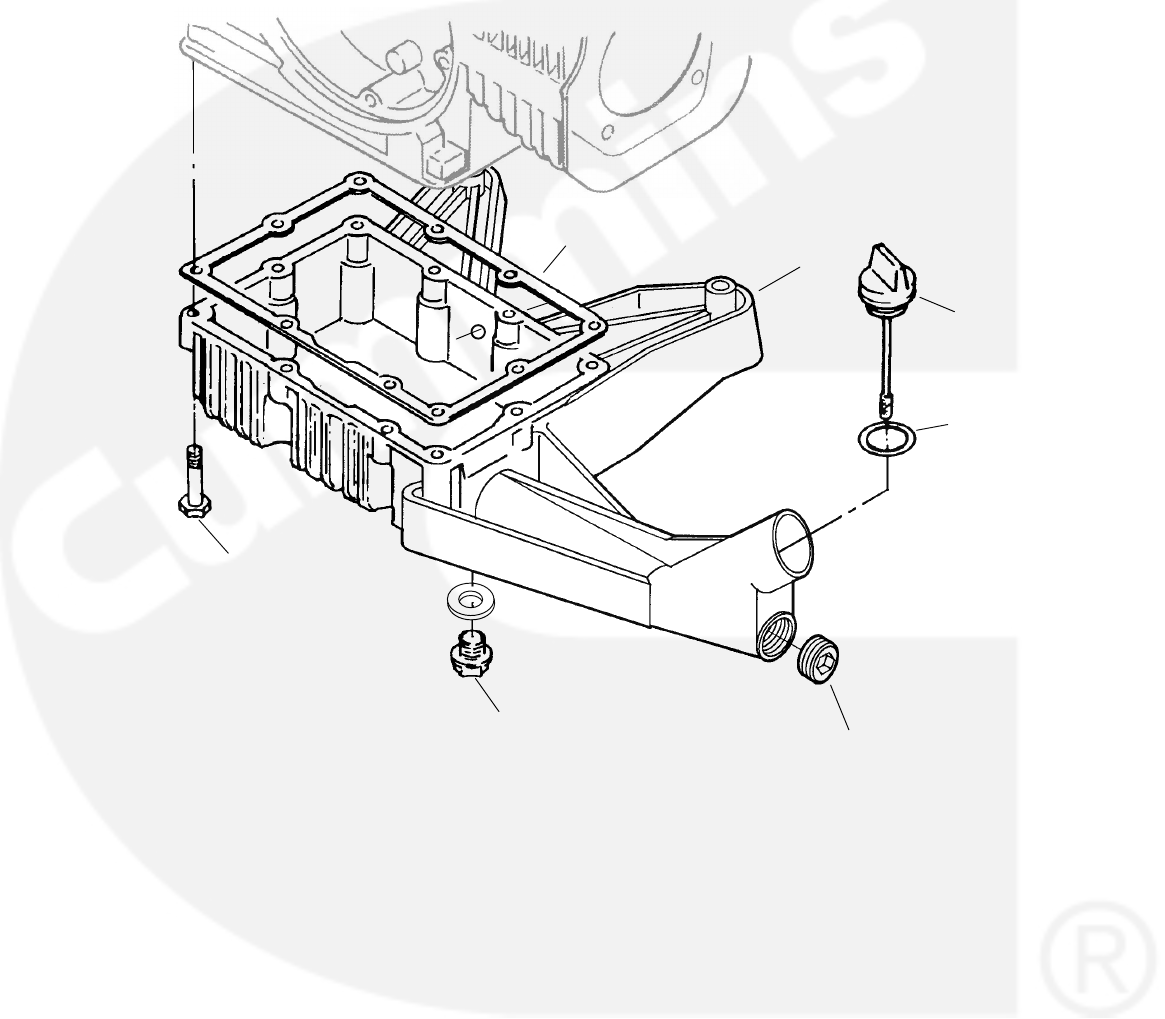

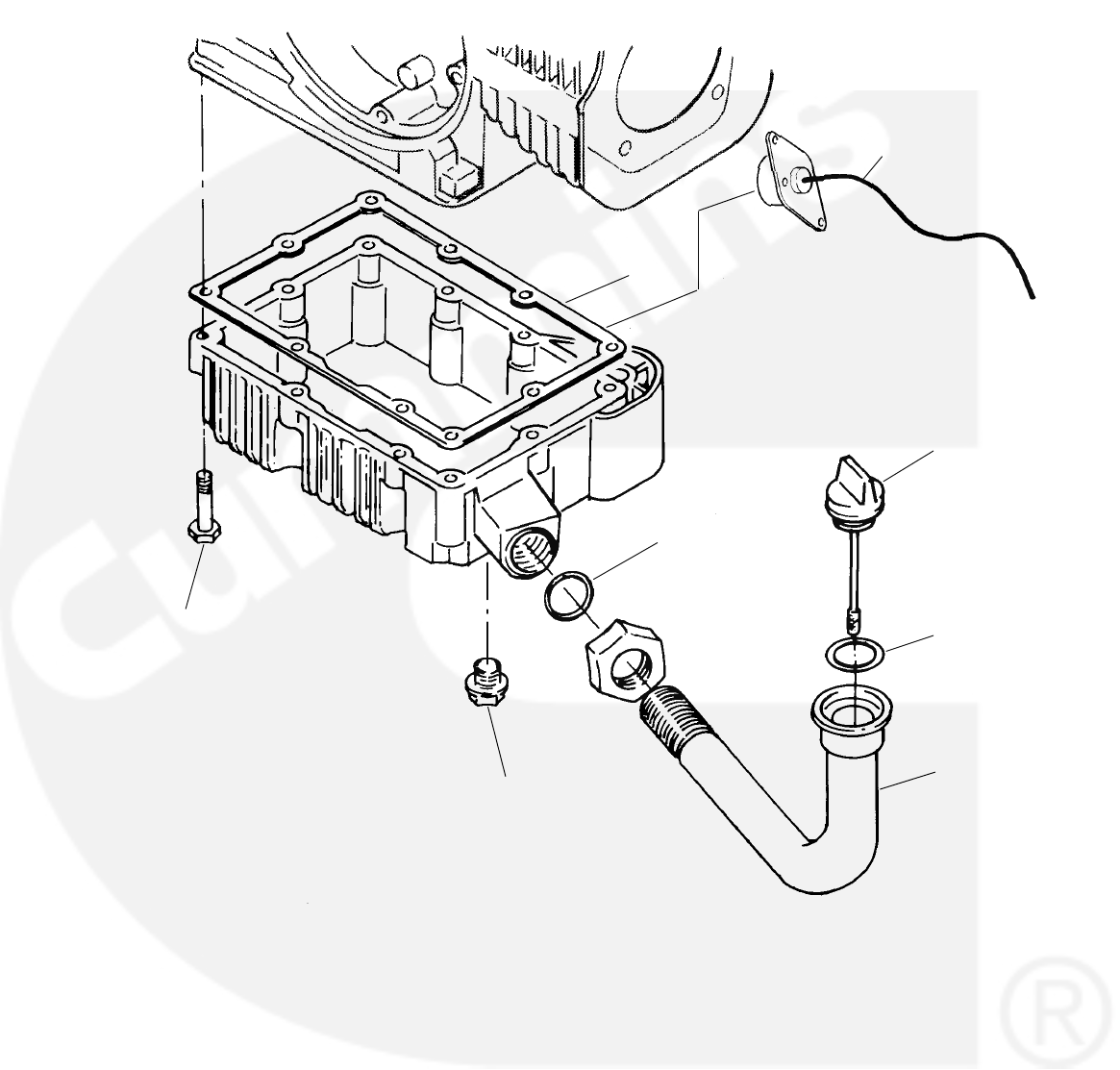

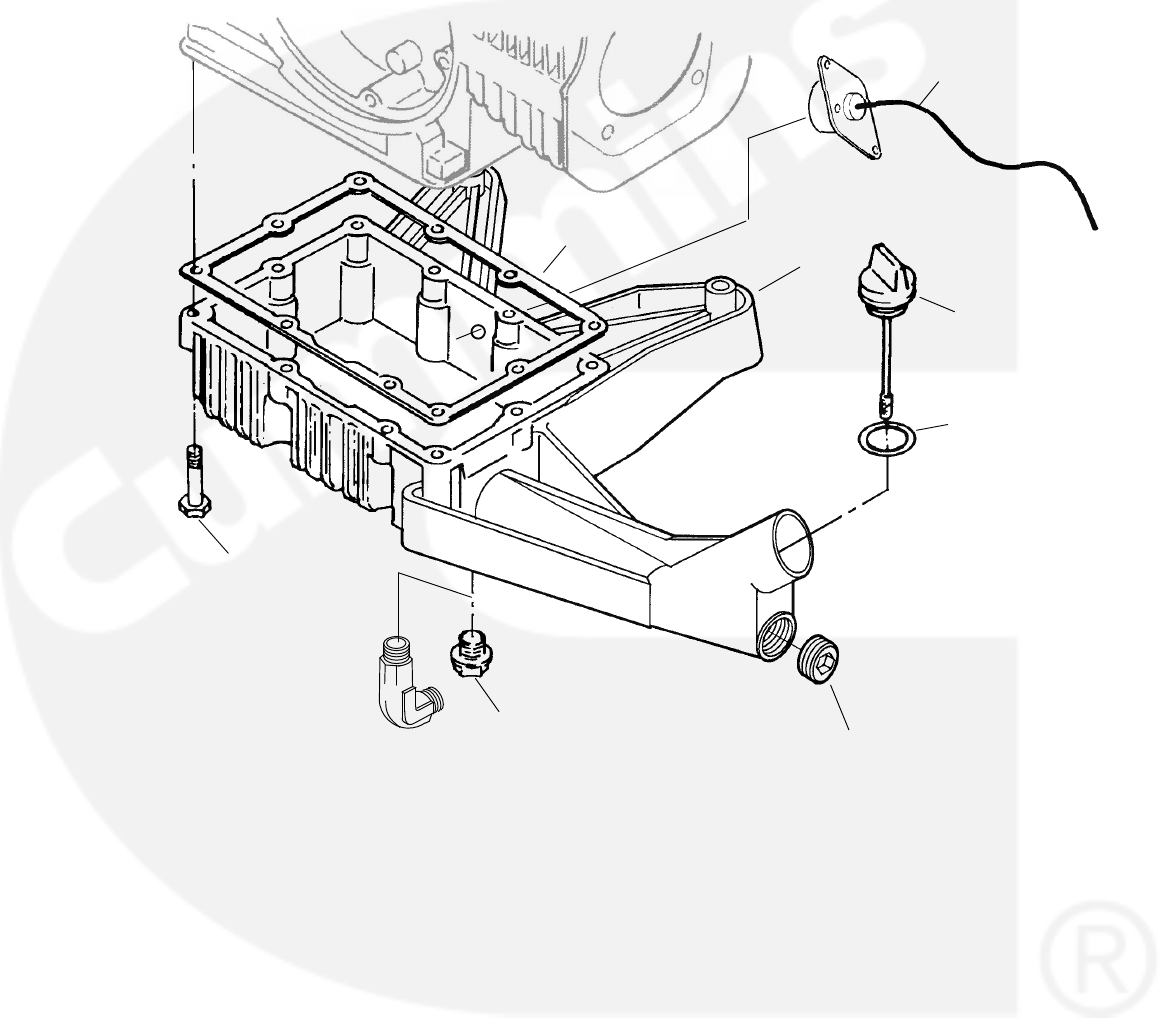

Base, Oil (KY Begin Spec B and KYD), 34 , 35
Base, Oil (KY Spec A), 33
Bearing, 12 , 13
Bearing, Balancer Shaft, 15 , 16
Bearing, Camshaft, 14
Bearing, Flange (KY Begin Spec J and KYD), 21
Bearing, Flange (KY Spec A−H), 19
Bearing, Gearcase End, 12 , 13
Bearing, Rotor (KY Begin Spec B and KYD), 59
Bearing, Rotor (KY Spec A), 57

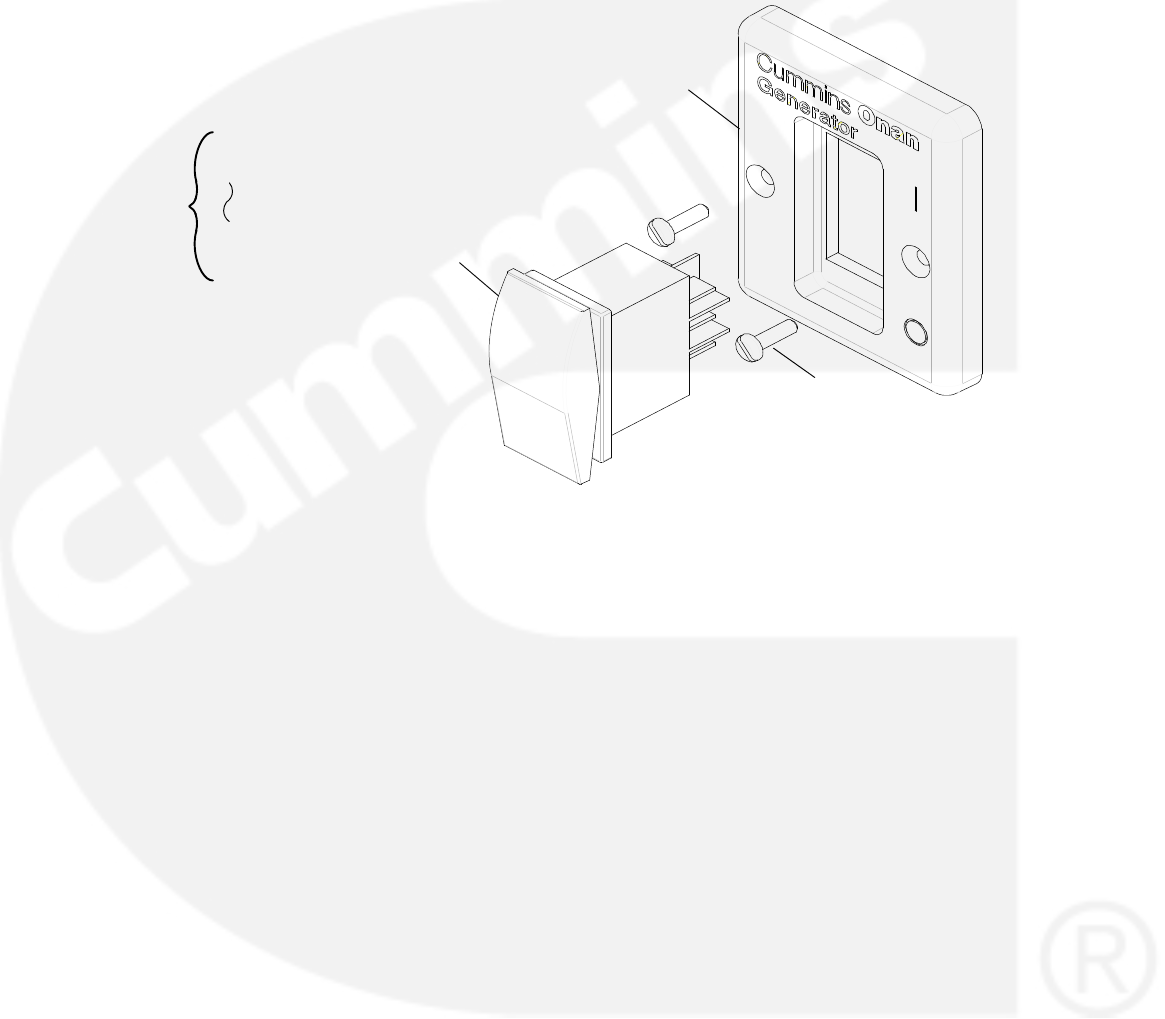

Bezel, On/Off Switch Mounting (KY Spec A), 57
Block Assy, Brush, 30
Block Assy, Brush (KY Spec A), 29
Block, Brush, 30
Block, Brush (KY Spec A), 29
Board, PC (KY Begin Spec B), 45
Board, PC (KY Begin Spec J), 45
Board, PC (KY Spec A), 42
Boot, Generator Harness Insulating (KY Begin Spec J
and KYD), 65
Boot, Generator Harness Insulating (KY Spec B−F),
63
Boot, Generator Harness Insulating (KY Spec G−H),
64
Boot, Spark Plug, 30
Boot, Spark Plug (KY Spec A), 57
Boot, Spark Plug (KY Spec B−H), 60
Bracket, Control (KY Begin Spec J), 45
Bracket, Control (KY Spec A), 42
Bracket, Control (KY Spec B−H), 45
Bracket, Fuel Regulator (KY Begin Spec L and KYD
Begin Spec B), 27
Bracket, Inlet Insulation (KY Begin Spec B), 51
Bracket, Muffler (KY Spec A), 36
Bracket, Regulator (KY Spec A−D), 23
Bracket, Regulator (KY Spec E−K and KYD), 25
Bracket, Solenoid (KY Spec A−D), 23
Bracket, Solenoid (KY Spec E−K and KYD Spec B),
27
Bracket, Solenoid (KY Spec E−K and KYD), 25
Bracket, Transformer (KY Begin Spec B and KYD),
59
Breaker, Circuit (KY Begin Spec J and KYD), 61
Breaker, Circuit (KY Spec A), 57
Breaker, Circuit (KY Spec B−H), 60
Brush, Generator, 30
Brush, Generator (KY Spec A), 29
Bushing, Enclosure Base (KY Begin Spec F), 45
C
Cable, Starter, 30
Cable, Starter (KY Spec A), 57

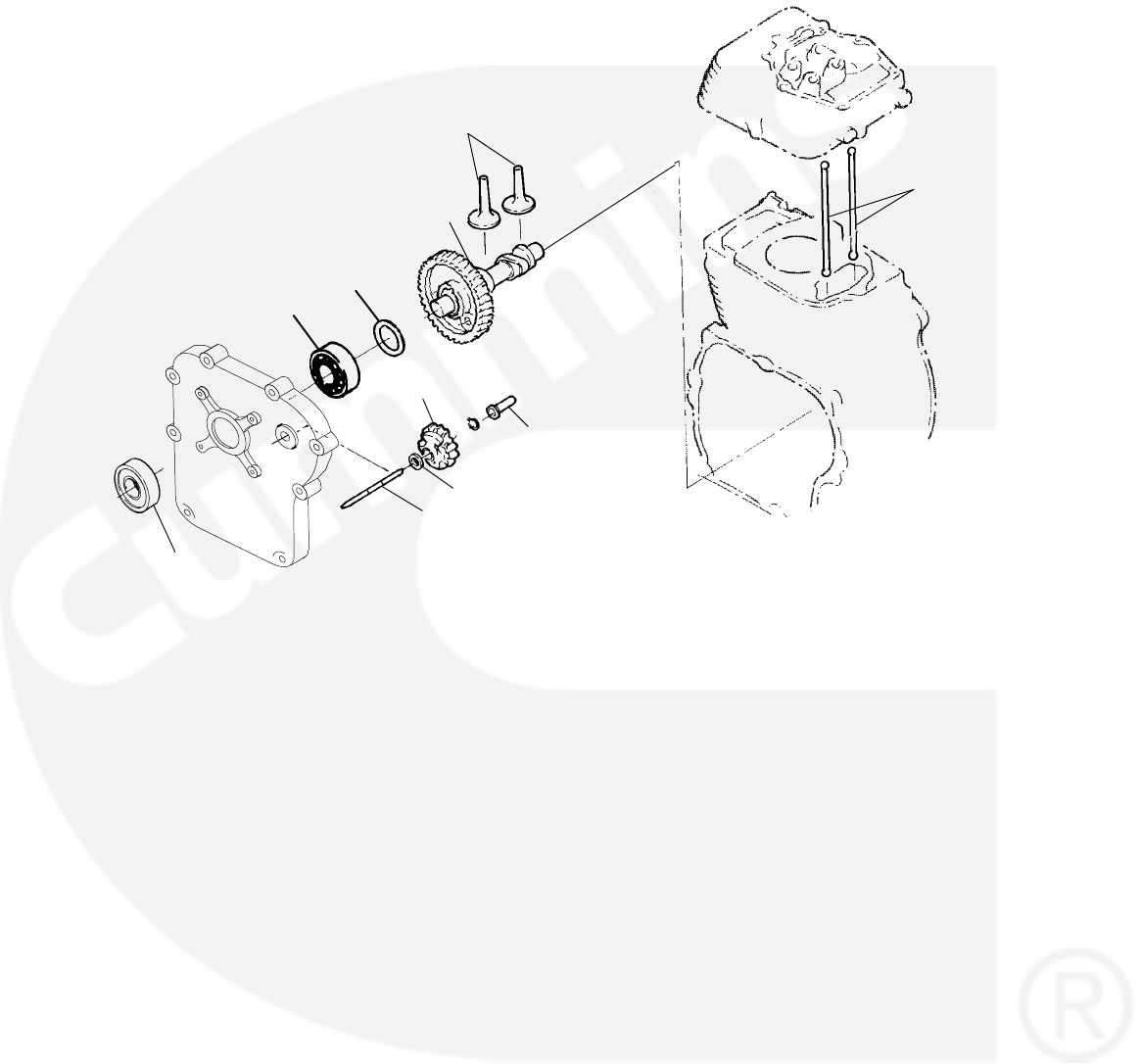

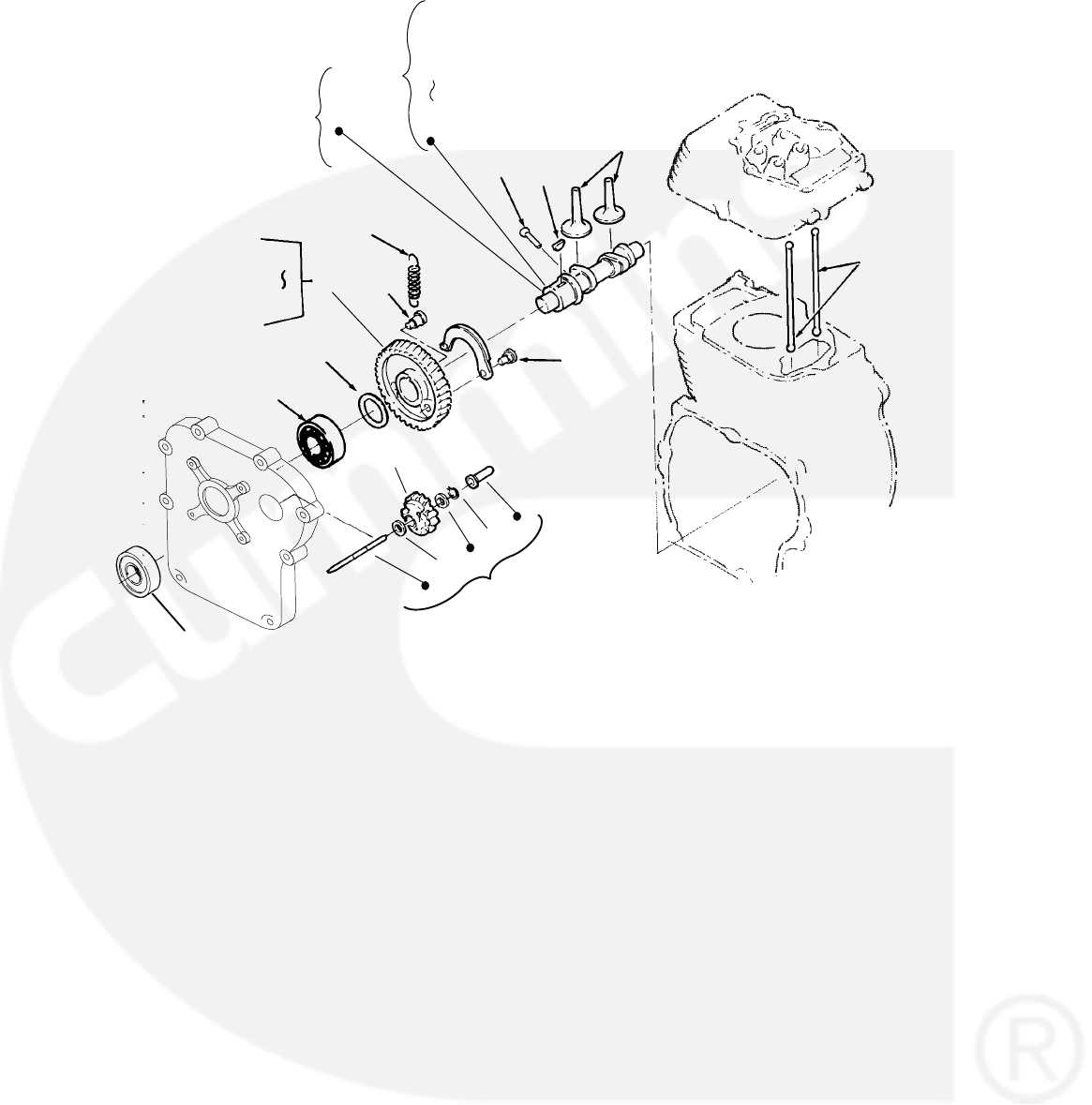

Camshaft, 14 , 15
Camshaft Assy, 15
Cap, Choke Dome (KY Begin Spec J and KYD), 21
Cap, Choke Dome (KY Spec A−H), 19
Carburetor (KY Spec A−H), 19
Carburetor Gasoline (KY Spec A−H), 19
Carburetor, (KY Begin Spec J and KYD), 20
Carburetor, LP (KY Spec A−D), 23
Carburetor, LP (KY Spec E−K and KYD), 25
Charger, Battery (KY Begin Spec B), 51

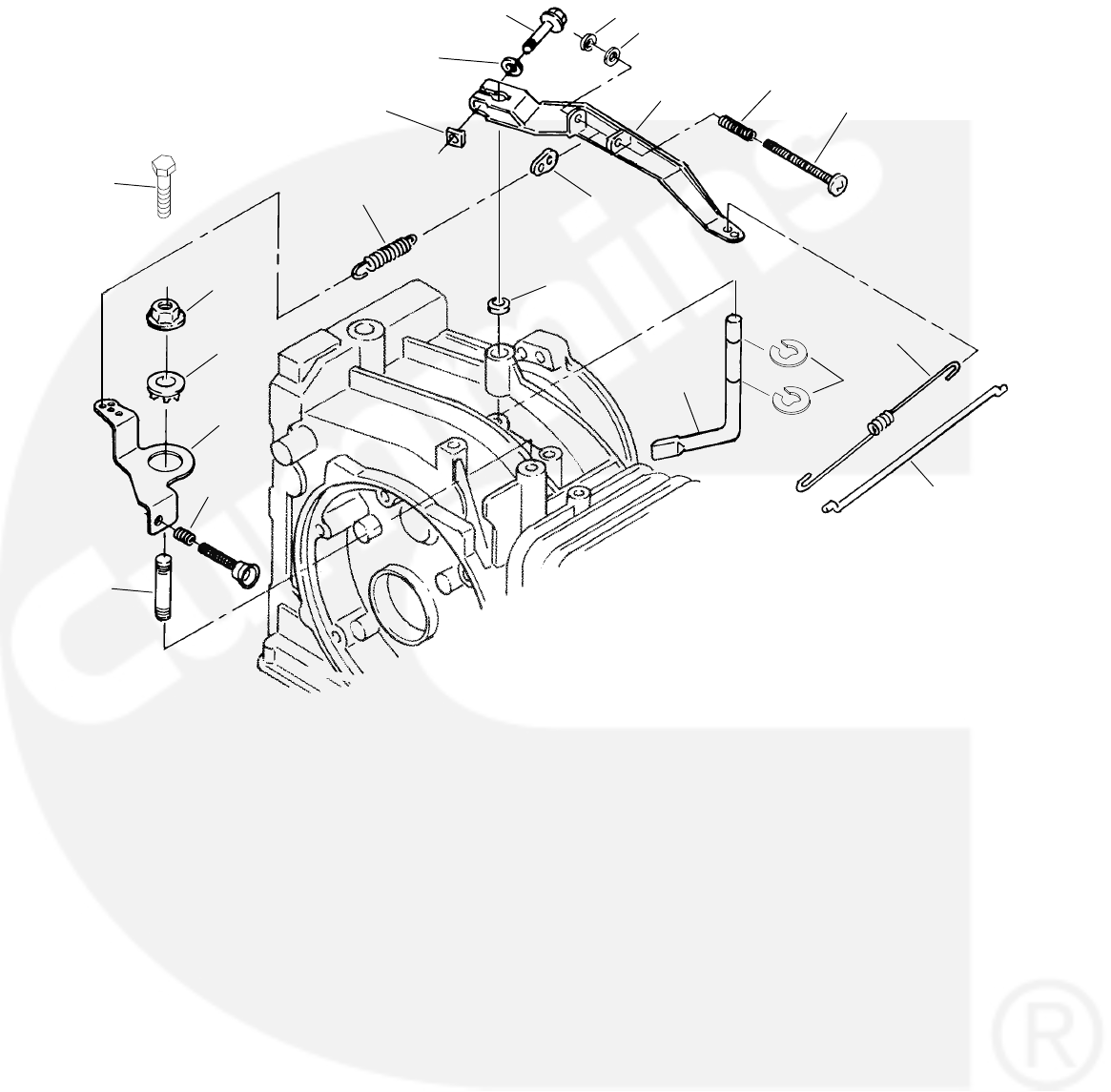

Clip, Governor Retainer, 17
Clip, Piston Pin, 12 , 13
Coil, Ignition (KY Begin Spec J and KYD), 30
Coil, Ignition (KY Spec A), 57
Coil, Ignition (KY Spec B−H), 60
Index
4
Conduit (KY Begin Spec B), 45
Connector, Fuel Valve Female (KY Spec A−D), 23
Connector, Fuel Valve Female (KY Spec E−K and
KYD Spec B), 27
Connector, Fuel Valve Female (KY Spec E−K and
KYD), 25
Connector, LP Regulator Hose (KY Spec A−D), 23
Connector, Straight (KY Begin Spec B), 45
Control (KY Spec A), 57
Control (KY Spec B−H), 60
Coupling, Fuel Valve Anchor (KY Spec A−D), 23
Coupling, Fuel Valve Anchor (KY Spec E−K and KYD
Spec B), 27
Coupling, Fuel Valve Anchor (KY Spec E−K and
KYD), 25
Cover Assy, Enclosure (KY Begin Spec B), 51
Cover Assy, Enclosure (Spec A), 48
Cover, Air Cleaner (KY Begin Spec B and KYD), 31
Cover, Air Cleaner (KY Spec A), 29
Cover, Air Cylinder, 32
Cover, Air Filter Thermostat (KY Spec A), 29
Cover, Choke (KY Begin Spec J and KYD), 21
Cover, Choke (KY Spec A−H), 19
Cover, Choke Element (KY Begin Spec J and KYD),
21
Cover, Choke Element (KY Spec A−H), 19
Cover, Crankcase, 16
Cover, Drain (KY Begin Spec B), 45
Cover, KY Housing Panel, 55
Cover, Resonator (KY Begin Spec B and KYD), 31
Cover, Valve, 10 , 11

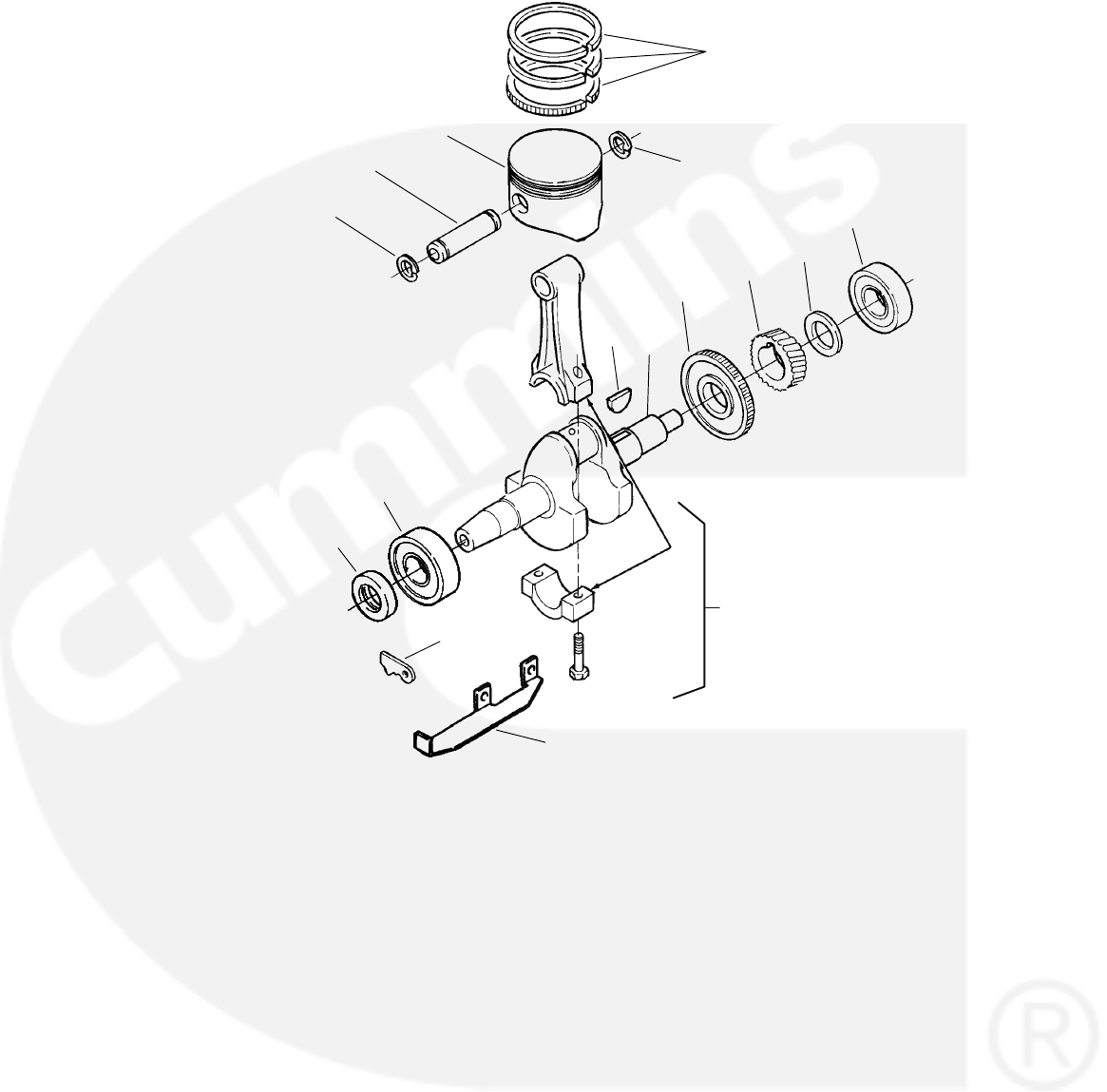

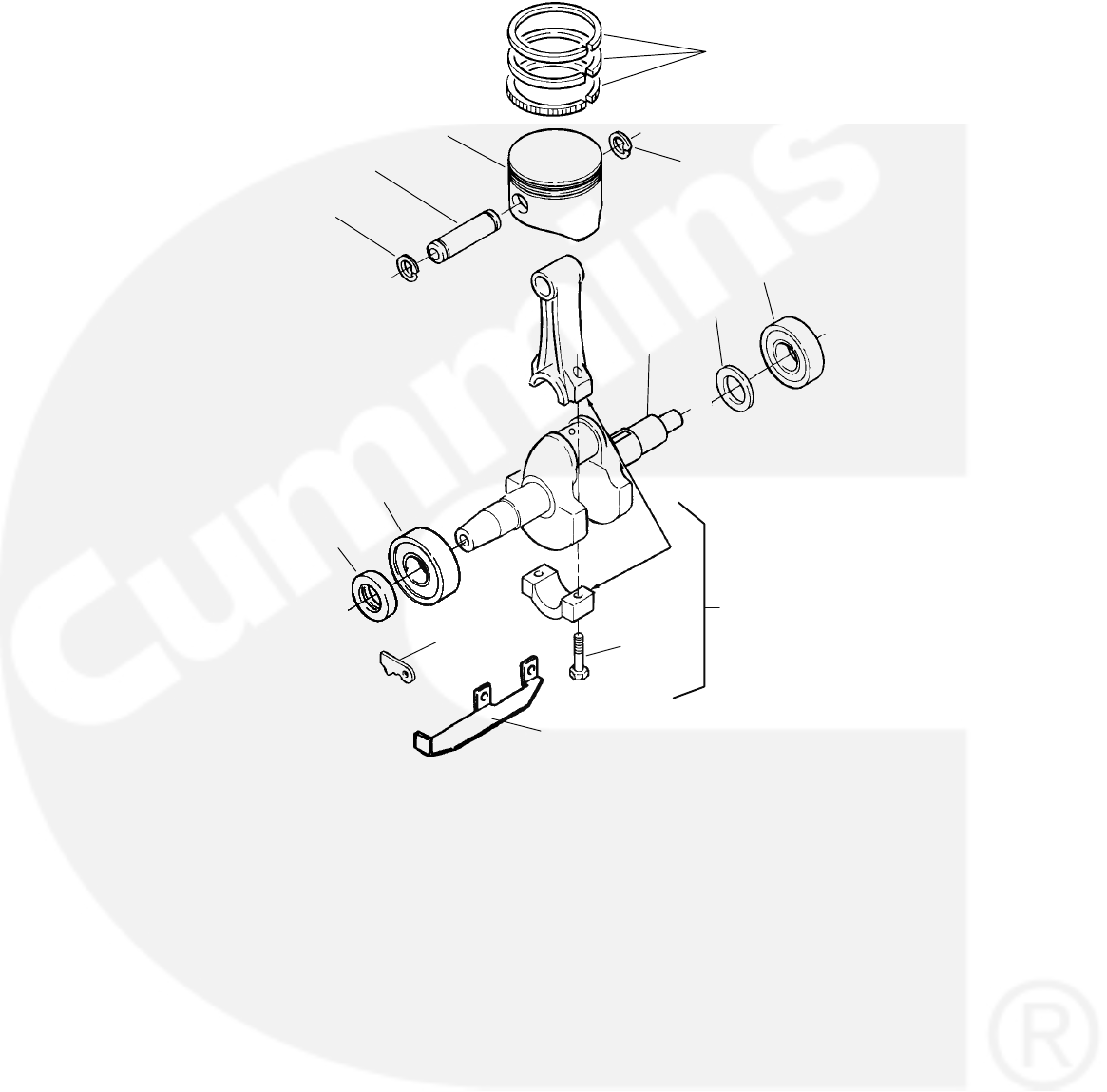

Crankshaft, 12 , 13
Cylinder, Air, 32
D
Dipper, Oil, 12 , 13
E
Edging, Base Pan (KY Begin Spec B), 45
Edging, Base Pan (KY Spec A), 42
Elbow, Enclosure Base Conduit (KY Spec A), 42
Elbow, Exhaust (KY Spec A), 42
Elbow, Exhaust (KY), 41
Element, Air Cleaner (KY Begin Spec B and KYD), 31
Element, Air Cleaner (KY Spec A), 29
Element, Choke Thermostat (KY Begin Spec J and
KYD), 21
Element, Choke Thermostat (KY Spec A−H), 19
Element, Thermostat (KY Begin Spec B and KYD), 31
Element, Thermostat Preheat (KY Spec A), 29

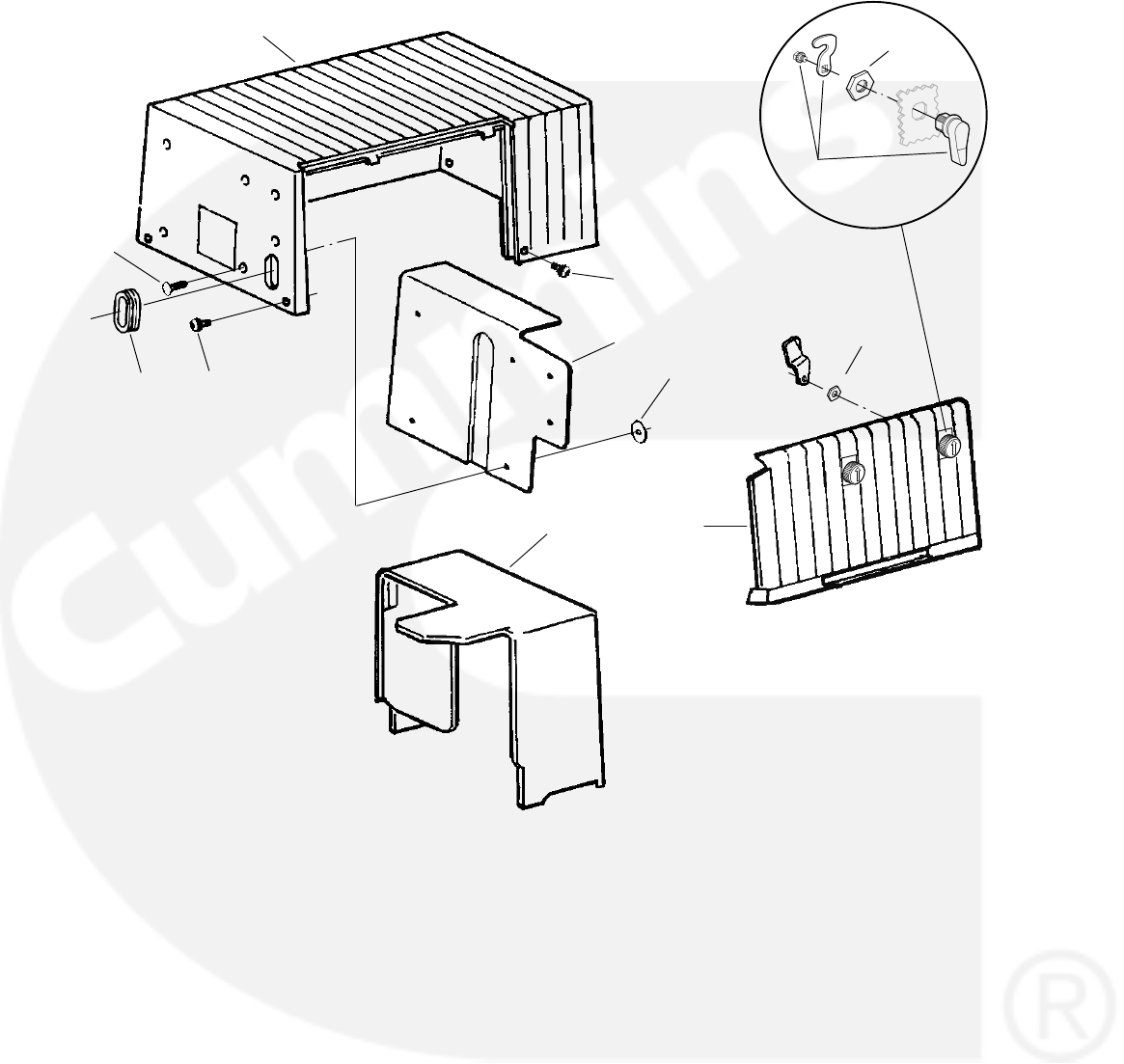

Enclosure, Generator (KY Begin Spec B and KYD),
51
Enclosure, Generator (KY Spec A), 48
Endbell, 30
Endbell (KY Spec A), 29
Endbell (KY Spec B and KYD), 30
Engine, 10 , 11

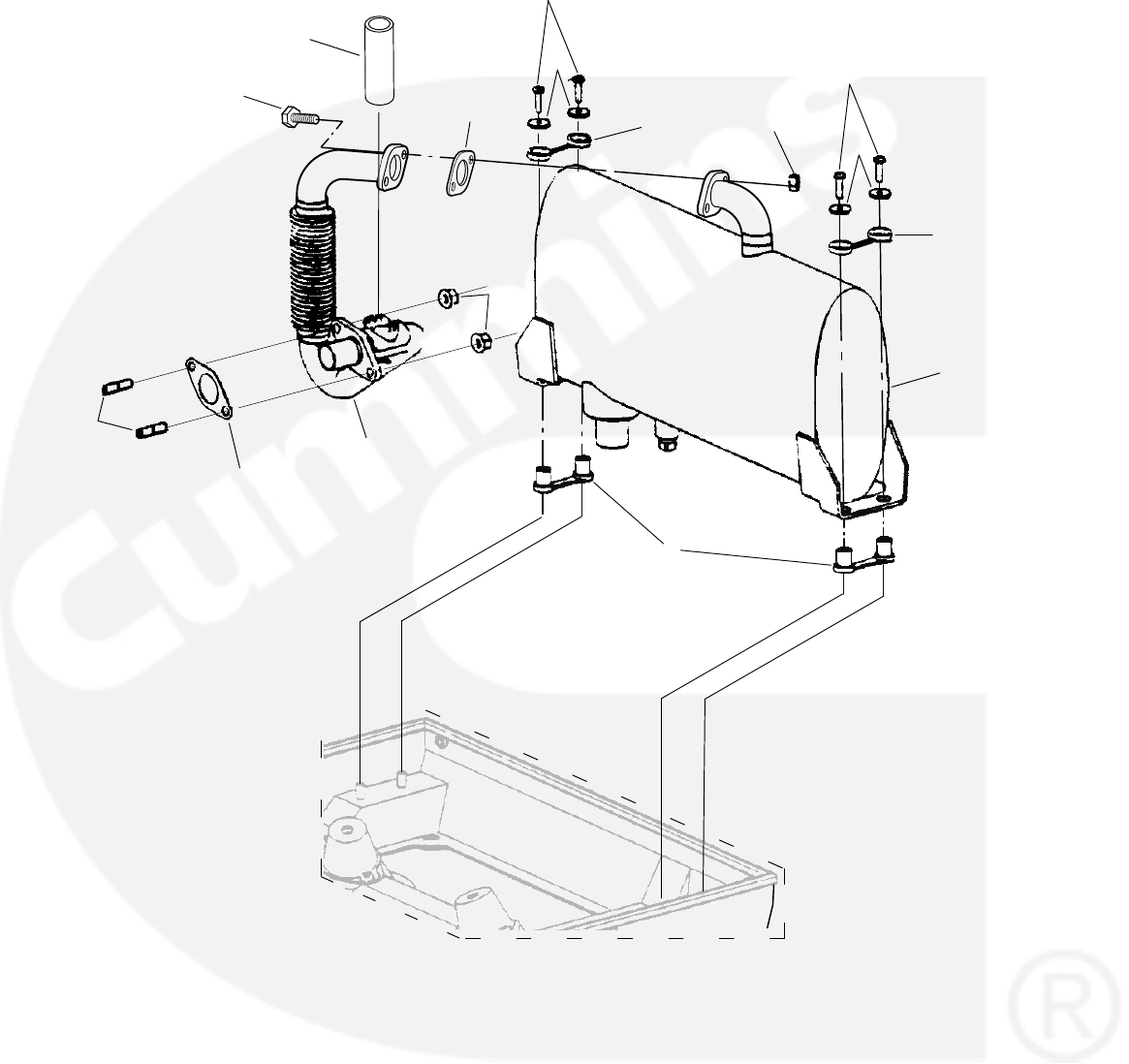

Exhaust (KY Begin Spec B), 37
Exhaust (KY Spec A), 36
Exhaust (KYD), 39
Exhaust Installation KY (Spec P), 38
F
Filter, Fuel (KY Begin Spec J and KYD), 21
Filter, Fuel (KY Spec A−H), 19
Fitting, Fuel Valve Barbed Hose (KY Spec A−D), 23
Fitting, Fuel Valve Barbed Hose (KY Spec E−K and
KYD Spec A), 23
Fitting, Fuel Valve Barbed Hose (KY Spec E−K and
KYD Spec B), 27
Fitting, Fuel Valve Barbed Hose (KY Spec E−K and
KYD), 25

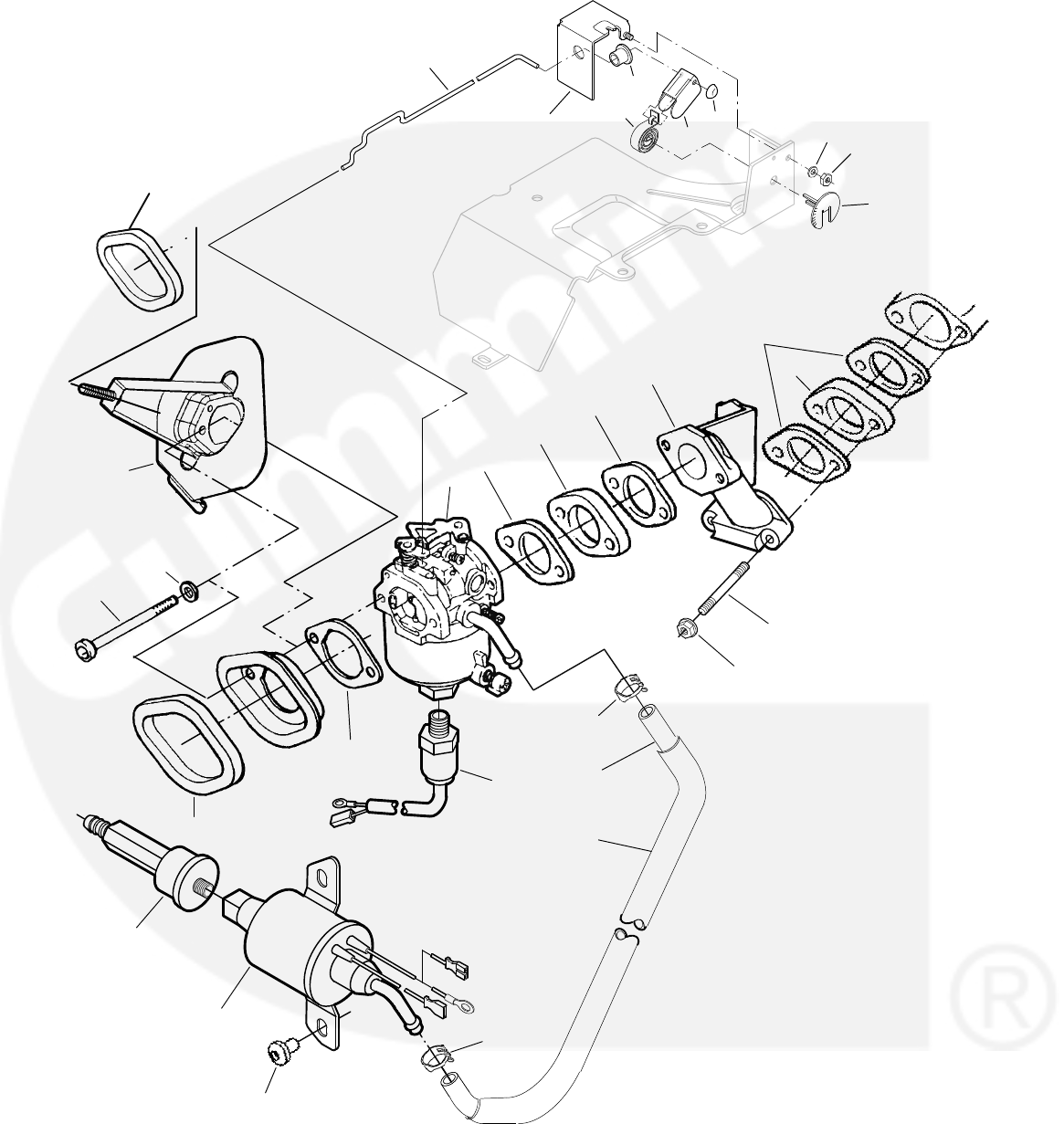

Fuel System − EVAP Gasoline System, 28

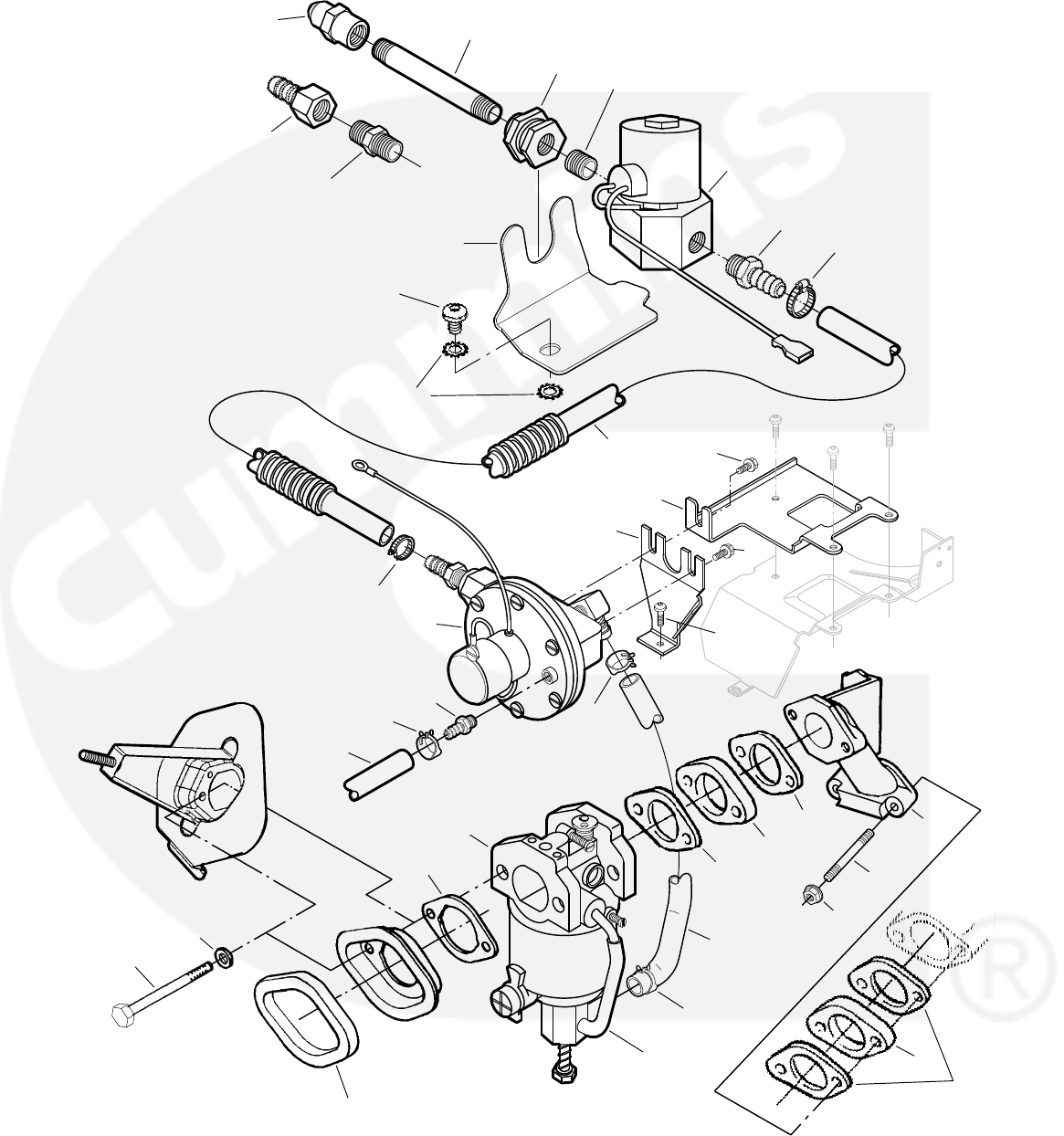

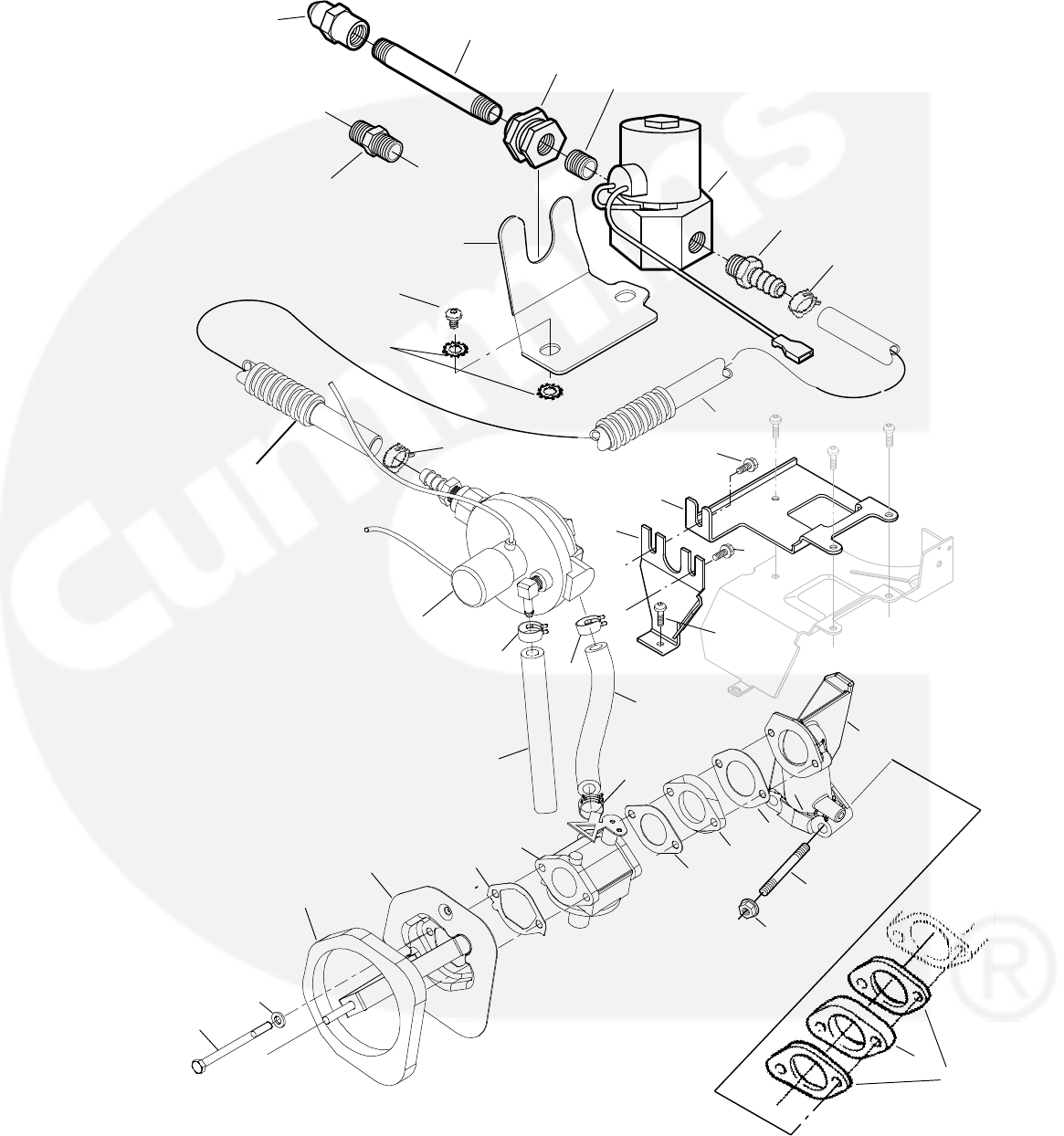

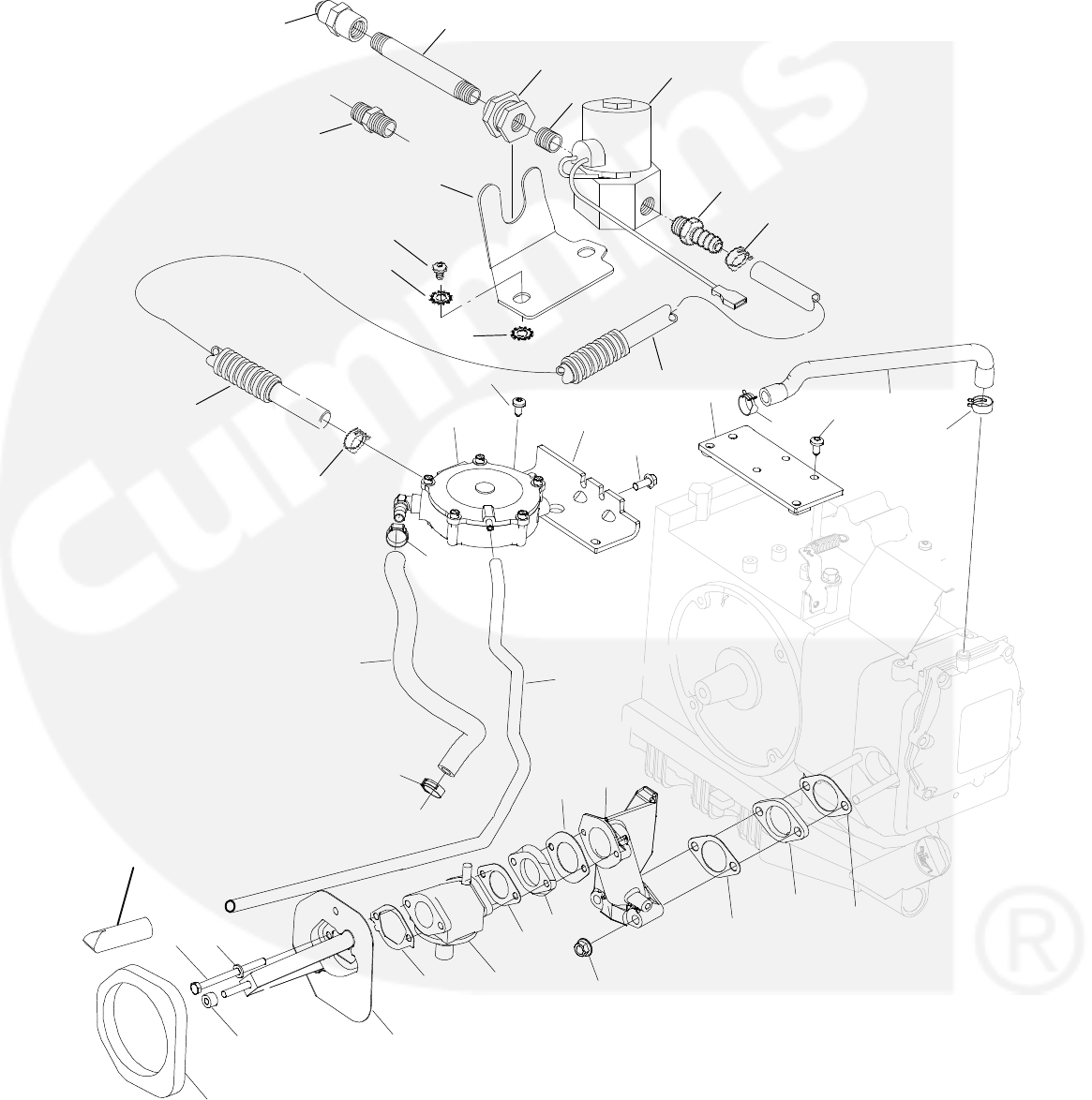

Fuel System LP (KY Begin Spec L and KYD Begin
Spec B), 27
Fuel System LP (KY Spec A−D), 23
Fuel System LP (KY Spec E−K and KYD), 25
Fuse, Generator Harness (KY Spec A), 62
Fuse, Generator Harness (KY Spec B−F), 63
Fuse, Generator Harness (KY Spec G−H), 64
Index
5
G
Gasket, Air Cleaner (KY Begin Spec L and KYD Be-
gin Spec B), 27
Gasket, Carburetor (KY Begin Spec J and KYD), 21
Gasket, Carburetor (KY Spec A−H), 19
Gasket, Carburetor Flange (KY Begin Spec J and
KYD), 21
Gasket, Carburetor Flange (KY Spec A−H), 19
Gasket, Crankcase, 16
Gasket, Cylinder Head, 10 , 11
Gasket, Exhaust (KY Begin Spec B), 37
Gasket, Exhaust (KY Spec A), 36
Gasket, Exhaust Manifold (KYD), 39
Gasket, Exhaust Muffler (KYD), 39
Gasket, Gasoline Air Cleaner Adapter (KY Begin
Spec J and KYD), 21
Gasket, Gasoline Air Cleaner Adapter (KY Spec
A−H), 19
Gasket, Gasoline Intake Manifold (KY Spec A−H), 19
Gasket, Gasoline Manifold Insulator (KY Spec A−H),
19
Gasket, Insulator (KY Begin Spec L and KYD Begin
Spec B), 27
Gasket, Intake Manifold (KY Begin Spec J and KYD),
21
Gasket, LP Air Cleaner Adapter (KY Spec A−D), 23
Gasket, LP Air Cleaner Adapter (KY Spec E−K and
KYD), 25
Gasket, LP Carburetor (KY Begin Spec L and KYD
Begin Spec B), 27
Gasket, LP Carburetor (KY Spec A−D), 23
Gasket, LP Carburetor (KY Spec E−K and KYD), 25
Gasket, LP Carburetor Flange (KY Begin Spec L and
KYD Begin Spec B), 27
Gasket, LP Carburetor Flange (KY Spec A−D), 23
Gasket, LP Carburetor Flange (KY Spec E−K and
KYD), 25
Gasket, LP Intake Manifold (KY Spec A−D), 23
Gasket, LP Intake Manifold (KY Spec E−K and KYD),
25
Gasket, LP Manifold Insulator (KY Spec A−D), 23
Gasket, LP Manifold Insulator (KY Spec E−K and
KYD), 25
Gasket, Manifold Insulator (KY Begin Spec J and
KYD), 21
Gasket, Oil Base (KY Begin Spec B and KYD), 34 ,
35
Gasket, Oil Base (KY Spec A), 33
Gasket, Resonator (KY Spec A), 42
Gasket, Service Panel (KY Begin Spec B), 51
Gasket, Valve Cover, 10 , 11
Gear, Balancer, 12
Gear, Camshaft, 14
Gear, Crankshaft, 12
Gear, Governor, 14 , 15
Generator (KY Begin Spec B and KYD), 59
Generator (KY Spec A), 57
Governor, 17
Grommet, Enclosure Base (KY Begin Spec B), 45
Grommet, Enclosure Base (KY Spec A), 42
Grommet, Enclosure Base (KYD), 47
Grommet, Enclosure Cover (KY Begin Spec B), 51
Grommet, Enclosure Cover (Spec A), 48
Grommet, KY Housing Rubber, 55
Grommet, Underfloor Mounting Remote (KY), 52
Ground Terminal, 45
Guide, Push Rod, 10 , 11
H
Hanger, Exhaust (KY), 41
Harness, AC Output (KY Begin Spec J and KYD), 61
Harness, AC Output (KY Spec B−H), 60
Harness, Adapter (KY Spec F−H and KYD), 67
Harness, Adapter (Spec F−H), 67
Harness, Customer Interface Pigtail (Spec F−H), 67
Harness, Customer Interface Pigtail (KY Spec B−E),
66
Harness, Customer Interface Pigtail (Spec B−E), 66
Harness, Engine (KY Begin Spec J and KYD), 65
Harness, Extension (KY Spec B−E), 66
Harness, Extension (KY Spec F−H and KYD), 67
Harness, Generator (KY Spec A), 62
Harness, Generator (KY Spec B−F), 63
Harness, Generator (KY Spec G−H), 64
Harness, Generator Harness Splitter (KY Spec B−F),
63
Index
6
Harness, Generator Harness Splitter (KY Spec G−H),
64
Harness, Remote, 73
Harness, Remote Panel (Switch Only), 71 , 72
Harness, Remote Panel (Switch Only) (KY Begin
Spec Fand KYD), 70
Harness, Remote Panel Adapter (KY Spec F−H and
KYD), 68
Head, Cylinder, 10 , 11
Holder, Governor Spring, 17
Hose, Air Cleaner Preheat (KY Spec J and KYD), 30
Hose, Choke Preheat (KY Begin Spec B), 37
Hose, Gasoline Fuel (KY Begin Spec J and KYD), 21
Hose, Gasoline Fuel (KY Spec A−H), 19
Hose, LP Fuel (KY Spec A−D), 23
Hose, LP Fuel (KY Spec E−K and KYD), 25
Hose, Preheat (KYD), 39
Housing, Air (KY Begin Spec B and KYD), 31
Housing, Choke (KY Begin Spec J and KYD), 21
Housing, Choke (KY Spec A−H), 19
Housing, Scroll (KY Spec A), 57
Housing, Stator (KY Begin Spec B and KYD), 59
Housing, Stator (KY Spec A), 57
I
Indicator, Oil (KY Begin Spec B and KYD), 34 , 35
Indicator, Oil (KY Spec A), 33
Insulation, Cover (KY Begin Spec B and KYD), 51
Insulation, Door (KY Begin Spec B), 51
Insulation, Exhaust (KY Spec A), 42
Insulation, Exhaust Baffle (Spec A), 48
Insulation, Exhaust Barrier (KY Begin Spec B), 45
Insulation, Inlet (KY Spec B−H), 51
Insulation, Inlet (Spec A), 48
Insulation, Inlet Baffle (KY Begin Spec B and KYD),
31
Insulation, Sound, 40
Insulator, Carburetor (KY Begin Spec J and KYD), 21
Insulator, Carburetor (KY Spec A−H), 19
Insulator, Exhaust (KY), 41
Insulator, Gasoline Intake Manifold (KY Spec A−H),
19
Insulator, Intake Manifold (KY Begin Spec J and
KYD), 21
Insulator, LP Carburetor (KY Spec A−D), 23
Insulator, LP Carburetor (KY Spec E−K and KYD), 25
Insulator, LP Intake Manifold (KY Spec A−D), 23
Insulator, LP Intake Manifold (KY Spec E−K and
KYD), 25
Isolator, Engine Mount (KY Begin Spec B), 45
Isolator, Generator Mount (KY Begin Spec B), 45
Isolator, Generator/Engine Mount (KY Spec A), 42
Isolator, Mount (KYD), 47
Isolator, Muffler (KY Begin Spec B), 37
Isolator, Snubber (KY Begin Spec B), 45
Isolator, Snubber (KY Spec A), 42
Isolator, Snubber (KYD), 47
K
Key, Camshaft, 14
Key, Crankshaft, 12
Key, Fan Hub (KY Begin Spec B and KYD), 59
Key, Fan Hub (KY Spec A), 57
Kit Hose, Vent , 27
Kit Rod, Connecting, 13
Kit, Air Filter (KY Begin Spec B and KYD), 31
Kit, Carburetor (KY Begin Spec K and KYD), 21
Kit, Carburetor Repair (KY Spec A−C), 19
Kit, Carburetor Repair (KY Spec A−J), 19 , 21
Kit, Carburetor Solenoid Repair (KY Spec B−C)), 19
Kit, Enclosure Cover, 51
Kit, Exhaust Elbow, 73
Kit, Exhaust Elbow Adapter (KY), 41
Kit, Exhaust Tailpipe (KY), 41
Kit, Exhaust Tube (KY), 41
Kit, Filter, 27
Kit, Governor Sleeve, 14
Kit, KY Housing, 55
Kit, KY Underfloor Base, 55
Kit, KY Underfloor Housing, 55
Kit, Mounting (Underfloor), 53
Kit, Muffler, 39
Kit, Remote Adapter, 73
Index
7
Kit, Remote Panel (KY Spec B−E), 69
Kit, Remote Panel (Switch and Hourmeter), 71
Kit, Remote Panel (Switch and Voltmeter), 72
Kit, Remote Panel (Switch and Voltmeter) (KY Begin
Spec F and KYD), 72
Kit, Remote Panel (Switch Only), 70
Kit, Remote, Panel (Switch Only), 70
Kit, Set Mounting, 73
Kit, Tailpipe Hanger, 73
Kit, Underfloor Mounting (KY Begin Spec B)), 52
Kit, Underfloor Mounting (KY), 52
Kit, Underfloor Mounting (KYD), 53
Kits (Misc), 73
Kits, KY Exhaust, 41
KY and KYD Labels, 74
L
Label, Air Cleaner (KY Begin Spec B and KYD), 31
Label, Charger (KY Begin Spec B), 51
Latch Assy, Service Panel (KY Begin Spec B), 51
Latch, Service Panel (Spec A), 48
Lever, Governor, 17
Lever, Governor Control, 17
Line, LP Fuel Inlet (KY Spec A−D), 23
Line, LP Fuel Inlet (KY Spec E−K and KYD Spec B),
27
Line, LP Fuel Inlet (KY Spec E−K and KYD), 25
Linkage, Choke (KY Begin Spec J and KYD), 21
Linkage, Choke (KY Spec A−H), 19
Lock, Valve Spring, 10 , 11
M
Magneto (KY Begin Spec B and KYD), 30
Magneto (KY Spec A), 29
Manifold, Exhaust, 38
Manifold, Exhaust (KY Begin Spec B), 37
Manifold, Gasoline Intake (KY Spec A−H), 19
Manifold, Intake (KY Begin Spec J and KYD), 21
Manifold, LP Intake (KY Spec A−D), 23
Manifold, LP Intake (KY Spec E−K and KYD), 25
Meter, Hour (Begin Spec F), 71
Meter, Volt (Begin Spec F), 72
Mixer (KY Begin Spec L and KYD Begin Spec B), 27
Module, Secondary Air Injection, 39
Mount, Generator, 53
Mount, Isolating, 38
Muffler (KY Begin Spec B), 37
Muffler (KY Spec A), 36
Muffler (KYD), 39
N
Nipple, Fuel Valve (KY Spec A−D), 23
Nipple, Fuel Valve (KY Spec E−K and KYD Spec B),
27
Nipple, Fuel Valve (KY Spec E−K and KYD), 25
O
O’Ring, Oil Fill Tube (KY Spec A), 33
O’Ring, Oil Indicator (KY Begin Spec B and KYD), 34
, 35
O’Ring, Oil Indicator (KY Spec A), 33
O’Ring, Rotor (KY Begin Spec B and KYD), 59
O’Ring, Rotor (KY Spec A), 57
P
Paint, 73
Paint, Enamel Green, 73
Panel, Control (KY Begin Spec J and KYD), 61
Panel, Control (KY Spec A), 57
Panel, Control (KY Spec B−H), 60
Panel, KY Housing, 55
Panel, Remote, 70 , 71
Panel, Remote (KY Begin Spec F and KYD), 72
Panel, Remote (KY Spec B−E), 69
Panel, Remote Switch and Hourmeter, 71
Panel, Remote Switch and Voltmeter (KY Begin Spec
F and KYD), 72
Panel, Remote Switch only, 70
Panel, Service (KY Begin Spec B), 51
Panel, Service (Spec A), 48
Panel, Under Floor (KYD), 53
Index
8
Panel, Underfloor Mounting (KY), 52
PCB, Control (KYD), 47
Pin, Cylinder Head Hollow Dowel, 10 , 11
Pin, Decompression, 14
Pin, Endbell Roll (KY Spec A), 29
Pin, Piston, 12 , 13
Pipe, Exhaust (KYD), 39
Piston, 12 , 13
Pivot, Speed Adjusting, 17
Plate, Oil Shield, 12 , 13
Plug, Drain (KY Begin Spec B and KYD), 34 , 35
Plug, Drain (KY Spec A), 33
Plug, Hole (KY Spec A), 57
Plug, Hole (KY Spec B−H), 60
Plug, Spark, 10 , 11
Potentiometer (KY Begin Spec J and KYD), 61
Potentiometer (KY Spec A), 57
Potentiometer (KY Spec B−H), 60
Pump, Fuel (KY Begin Spec J and KYD), 21
Pump, Fuel (KY Spec A−H), 19
R
Rail, KY Underfloor Mounting Bottom, 54
Rail, Mounting (KYD), 53
Rail, Underfloor Mounting (KY), 52
Rectifier, Generator Harness Bridge (KY Spec A), 62
Regulator, Fuel (KY Begin Spec L and KYD Begin
Spec B), 27
Regulator, LP (KY Spec A−D), 23
Regulator, LP (KY Spec E−K and KYD), 25
Regulator, Voltage (KY Spec A), 29
Regulator, Voltage (KY Spec B−H), 45
Relay, Start Solenoid (KY Spec A), 42
Relay, Start Solenoid (KY Spec B−H), 45
Relay, Start Solenoid (KYD), 47
Resistor, Generator Harness (KY Spec A), 62
Resonator, Exhaust (KY), 41
Resonator, Intake (KY Begin Spec B and KYD), 31
Retainer, Valve Spring, 10 , 11
Ring Set, Piston, 12 , 13
Ring, Collector (KY Begin Spec B and KYD), 59
Ring, Collector (KY Spec A), 57
Rings, Valve Guide, 10 , 11
Rod, Air Inlet (KY Spec A), 29
Rod, Connecting, 12
Rod, Governor, 17
Rod, Push, 14 , 15
Rotor Assy, Generator (KY Begin Spec B and KYD),
59
Rotor Assy, Generator (KY Spec A), 57
S
Seal, 14 , 15
Seal, Air (KY Begin Spec B and KYD), 31
Seal, Air Filter Foam (KY Begin Spec B and KYD), 31
Seal, Barrier Edge (KY Begin Spec B), 45
Seal, Crankshaft Oil, 12 , 13
Seal, Cylinder Block Oil, 17
Seal, Endbell (KY Spec A), 29
Seal, Valve Stem, 10 , 11
Secondary Air Assy, 40
Secondary Air Injeciton (SAI) KY (Spec P), 40
Shaft, Balancer, 16
Shaft, Flyweight, 14
Shaft, Governor Lever, 17
Shield, Carburetor (KY Begin Spec J and KYD), 61
Shield, Carburetor (KY Spec A), 57
Shield, Carburetor (KY Spec B−H), 60
Shield, Exhaust, 45
Shield, Exhaust Insulation (KYD), 47
Shim, Balancer, 16
Shim, Breather Valve, 10 , 11
Shim, Camshaft, 14 , 15
Shim, Crankshaft, 12 , 13
Silencer, Exhaust, 38
Sleeve, Governor, 14 , 15
Solenoid, Gasoline Fuel Cut (KY Begin Spec B−C),
19
Solenoid, Start (KY Begin Spec B), 45
Spacer, Muffler (Isolator KYD), 39
Spring, Decompression, 14
Index
9
Spring, Generator Brush, 30
Spring, Generator Brush (KY Spec A), 29
Spring, Governor, 17
Spring, Governor Adjusting Screw, 17
Spring, Governor Rod, 17
Spring, Valve, 10 , 11
Starter, 30
Starter (KY Spec A), 57
Stator, Generator (KY Begin Spec B and KYD), 59
Stator, Generator (KY Spec A), 57
Stiffener, Bracket (KY Spec A−D), 23
Stiffener, Bracket (KY Spec E−K and KYD), 25
Strap, Bond (KY Begin Spec B and KYD), 31
Strap, Bond (KY Spec A), 29
Stud, Exhaust (KY Begin Spec B), 37
Stud, Exhaust (KY Spec A), 36
Stud, Exhaust (KYD), 39
Switch, Oil Level (KY Spec A), 33
Switch, Oil Level (KY Spec B−F Only), 34
Switch, Remote Panel Start/Stop (KY Begin Spec F
and KYD), 70
Switch, Remote Panel Start/Stop (KY Spec B−E), 69
Switch, Remote Panel Start/Stop Switch and Hour-
meter (Begin Spec F), 71
Switch, Start/Stop (Generator Harness) (KY Spec A),
62
Switch, Start/Stop (KY Begin Spec J and KYD), 61
Switch, Start/Stop (KY Spec B−H), 60
T
Tappet, 14 , 15
Terminal, Spark Plug, 30
Terminal, Spark Plug (KY Spec B−H), 60
Transformer, Voltage (KY Begin Spec B and KYD), 59
Transformer, Voltage (KY Begin Spec J and KYD), 61
Tube, Breather, 10 , 11
Tube, Exhaust (KY), 41
Tube, Oil Fill (KY Spec A), 33
Tube, Spacer (KY Begin Spec B), 45
V
Valve Assy, Fuel (KY Spec A−D), 23
Valve Assy, Fuel (KY Spec E−K and KYD Spec B), 27
Valve Assy, Fuel (KY Spec E−K and KYD), 25
Valve, Breather, 10 , 11
Valve, Intake/Exhaust, 10 , 11
Valve, PCV, 28
W
Wheel Assy, Blower (KY Begin Spec B and KYD), 59
Wheel Assy, Blower (KY Spec A), 57
Wrapper, Air Cylinder, 32
KY/ KYD
10

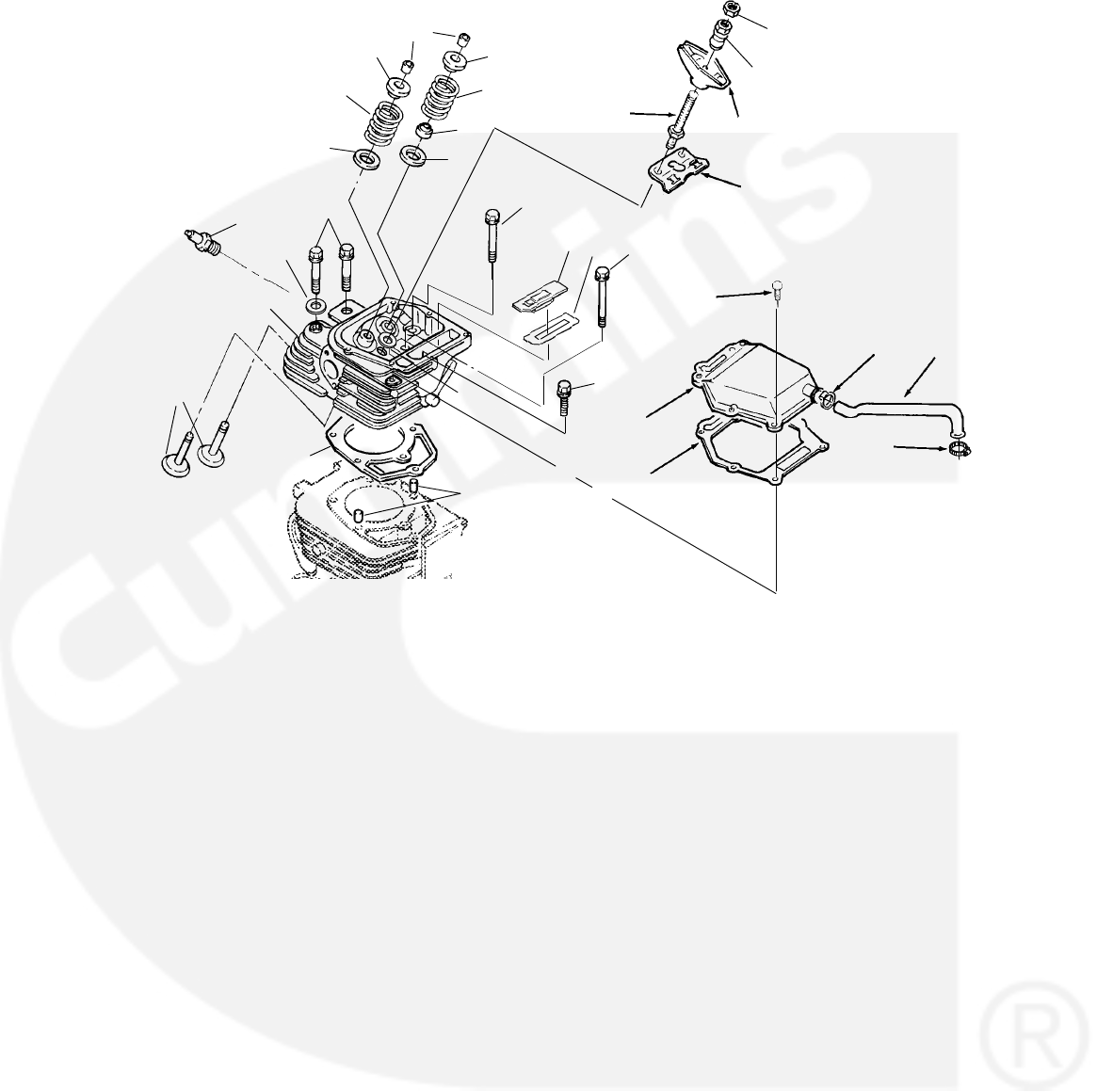

Cylinder Head (All Spec A−K) (3.3KYFR and 3.6KYFA Spec L)
2
3
57
6
13
14 16
17
10
9
8
11
16
10
9
8
19
20
21
22
23
23
24
25
26
27
28
15
12
18
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
100−4152 1 Engine (Spec A−L)
1 Valve
110−3887 1 Intake
110−3888 1 Exhaust
2110−3893 1 Gasket, Cylinder Head
3110−3890 1 Head, Cylinder (Includes
Guides, Seats and Valve
Guide Rings)
4110−3882 2 Rings, Valve Guide (Not Shown)
5 Plug, Spark
167−0275 1 60Hz
167−0305 1 50Hz
6 740−1008 2 Washer, Flat (M10)
7110−3750 2 Bolt, Cylinder Head
(M10 x 1.25 x 66mm)
8110−3698 2 Washer, Valve Spring
9110−3701 2 Spring, Valve
10 110−3700 2 Retainer, Valve Spring
11 110−3914 2 Lock, Valve Spring
12 509−0289 1 Seal, Valve Stem
13 110−3750−03 2 Bolt, Flange
(M10 x 1.5 x 115mm)
14 123−1920 1 Valve, Breather
15 Shim, Breather Valve
110−3922−01 1 .010
110−3922−02 1 .020
16 110−3751−00 1 Bolt, Cylinder Head
(M8 x 1.25 x 85mm)
17 110−3751−01 1 Bolt, Cylinder Head
(M8 x 1.25 x 48mm)
18 110−3892 2 Pin, Hollow Dowel
19 110−3743 1 Cover, Valve
20 110−3861 1 Gasket, Valve Cover
21 800−3026 7 Screw, Hex Flange Head
(M6 x 1 x 25mm)
22 123−1917 1 Tube, Breather
23 503−1851 2 Clamp, Hose
24 115−0465 2 Arm, Rocker
25 185−7144 2 Nut, Rocker Arm Adjusting
26 115−0496 2 Nut, Lock Adjusting
27 115−0472 1 Guide, Push Rod
28 115−0497 2 Stud, Rocker Arm
KY/ KYD
11
Cylinder Head (3.3KYFR, 3.6KYFA Begin Spec M) (3.6KYFR, 4.0KY Begin Spec L)
2
3
57
6
13
14 16
17
10
9
8
11
16
10
9
8
19
20
21
22
23
23
24
25
26
27
28
15
12
18
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Engine
100−4152 1 Spec L,M
1 Valve
110−4035 1 Intake
110−4036 1 Exhaust
2110−3893 1 Gasket, Cylinder Head
3110−3890 1 Head, Cylinder (Includes
Guides, Seats and Valve
Guide Rings)
4110−3882 2 Rings, Valve Guide (Not Shown)
5 Plug, Spark
167−0275 1 60Hz
167−0305 1 50Hz
6 A028V609 2 Washer, Flat (M10)
7 A028X507 2 Bolt, Cylinder Head
8110−3698 2 Washer, Valve Spring
9110−3701 2 Spring, Valve
10 110−3700 2 Retainer, Valve Spring
11 110−3914 2 Lock, Valve Spring
12 A028V752 1 Seal, Valve Stem
13 A028X512 2 Bolt, Flange
110−3750−03 (M13 x 1.5 x 115mm)
14 123−1920 1 Valve, Breather
15 Shim, Breather Valve
110−3922−01 1 .010
110−3922−02 1 .020
16 A028X518 1 Bolt, Cylinder Head
(M10 x 1.25 x 85mm)
17 A028X508 1 Bolt, Cylinder Head
(M10 x 1.25 x 50mm)
18 110−3892 2 Pin, Hollow Dowel
19 110−3743 1 Cover, Valve
20 110−3861 1 Gasket, Valve Cover
21 A028X500 7 Screw, Hex Flange Head
(M6 x 1 x 25mm)
22 123−1917 1 Tube, Breather
23 503−1851 2 Clamp, Hose
24 115−0465 2 Arm, Rocker
25 185−7144 2 Nut, Rocker Arm Adjusting
26 115−0496 2 Nut, Lock Adjusting
27 115−0472 1 Guide, Push Rod
28 115−0497 2 Stud, Rocker Arm
KY/ KYD
12
Crankshaft (Spec A−L)
1
2
3
4
11
10
7
6
98
12
5
13
14
15
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Piston (Includes Pin & Clip)
112−0291 1 Standard
185−6828 1 0.25 Oversize
185−6826 1 0.50 Oversize
2 A028X412 Kit, Piston Rings
3112−0290 1 Pin, Piston
4112−0255 2 Clip, Piston Pin
5 510−0160 1 Bearing, Block End
6 104−1901 1 Gear, Crankshaft
7 104−1899 1 Gear, Balancer
8 104−1780 1 Crankshaft
9 515−0293 1 Key, Woodruff
10 510−0182 1 Bearing
11 509−0258 1 Seal, Oil
12 Shim (Use As Required)
104−1721−01 3 0.20mm
104−1721−02 3 0.30mm
104−1721−03 3 0.40mm
104−1721−05 3 0.50mm
104−1721−07 3 0.60mm
104−1721−08 3 0.70mm
13 Rod Assy, Connecting
(Includes Bolt)
114−0373 1 Standard
No Replacement 1 0.25 Undersize
No Replacement 1 0.50 Undersize
14 120−1264 1 Plate, Oil Shield
15 114−0366 1 Dipper, Oil
KY/ KYD
13
Crankshaft (Begin Spec 3.6KY Spec M and 4.0KY Spec L)
1
2
3
4
5
4
6
7
8
9
10
11
12
13
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1112−0253 1 Piston
2 A028X412 Kit, Piston Rings
3112−0290 1 Pin, Piston
4112−0255 2 Clip, Piston Pin
5 510−0160 1 Bearing, Block End
6 104−2133 1 Crankshaft
7 510−0182 1 Bearing
8 A028V757 1 Seal, Oil
9 Shim (Use As Required)
104−1721−01 3 0.20mm
104−1721−02 3 0.30mm
104−1721−03 3 0.40mm
104−1721−05 3 0.50mm
104−1721−07 3 0.60mm
104−1721−08 3 0.70mm
10 A028X316 Kit Rod, Connecting
(Includes Cap, Bolt, and Rod)
11 A028V775 2 Bolt, Connecting Rod
12 120−1264 1 Plate, Oil Shield
13 A028X304 1 Dipper, Oil
KY/ KYD
14
Camshaft (Spec A−L)
1
3
4
5
6
7
8
9
10
11
12
13
14
5
82 6
3
6
&
15
16
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1115−0463 2 Tappet
2 105−0724 1 Camshaft (Begin Spec E)
(Includes Parts Marked )
3 105−0681 1 +Gear Assy, Camshaft
(Spec A−D) (Includes
Flyweight, Flyweight Shaft
and Pin)
4 150−2302 1 Shaft, Flyweight
5 150−2305 1 Pin, Decompression Spring
6 515−0305 1 +Key, Woodruff
7 150−2465 1 +Pin, Decompression
8 150−2466 1 +Spring, Decompression
9 150−2604 1 Gear, Governor
10 526−2077 1 *Washer, Flat
11 526−2078 1 *Washer, Flat
12 541−0508 1 Sleeve Kit, Governor (Includes
Washers Marked *, Governor
Stop, Governor Sleeve and
Governor Shaft)
13 510−0163 1 Bearing, Ball
14 Shim (Use As Required)
104−1896−02 3 .60mm
104−1896−04 3 .80mm
104−1896−05 3 .90mm
15 115−0471 2 Rod, Push
16 509−0258 1 Seal
+−Parts Included in Camshaft Assy (Spec A−D)
−Parts Included in Camshaft Assy (Begin Spec E)
*−Washers Included in Governor Sleeve Kit.
KY/ KYD
15
Camshaft (Begin Spec 3.6KY Spec M and 4.0KY Spec L)
7
6
5
4
9
8
3
1
2
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1115−0542 2 Tappet
2 105−0754 1 Camshaft Assy
3 150−2604 1 Gear, Governor
4 150−2754 1 Sleeve, Governor
5 510−0163 1 Bearing, Balancer Shaft
6 Shim (Use As Required)
104−1896−02 3 .60mm
104−1896−04 3 .80mm
104−1896−05 3 .90mm
7115−0471 2 Rod, Push
8 150−2273 1 Shaft, Governor
9 A028X300 1 Washer, Governor Shaft
10 510−0182 1 Seal
KY/ KYD
16

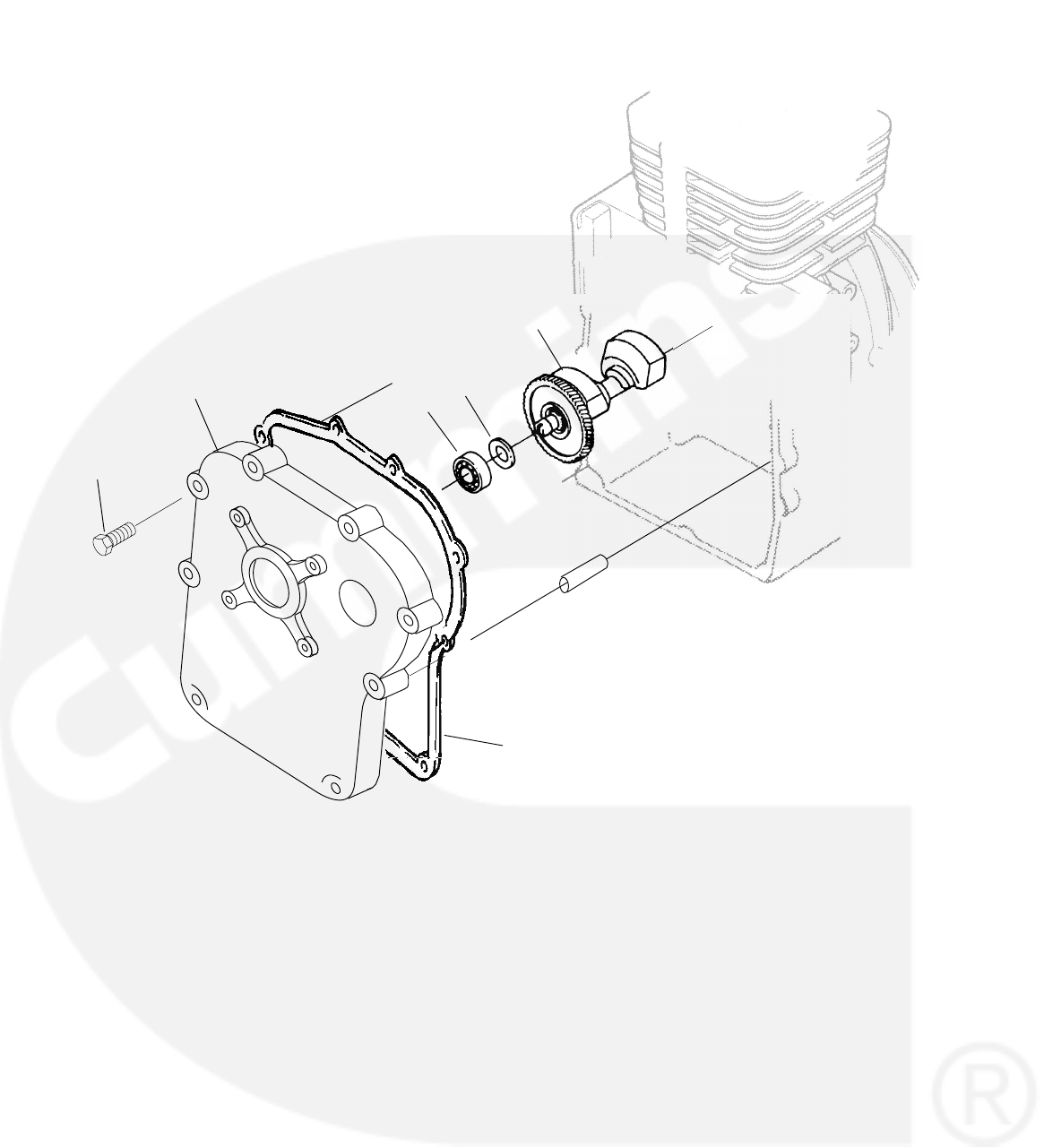

Crankcase Cover
5
6
4
1
2
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 101−0787 1 Cover, Crankcase
2 A028X528 9 Bolt, Crankcase Cover
(M8 x 1.25 x 30mm)
3 101−0788 1 Gasket, Crankcase
4 Shaft, Balancer (Includes Shaft
and Gear)
104−1902 1 Spec A−L
104−2130 1 Begin Spec M
5 510−0163 1 Bearing, Ball
6 Shim, Balancer (Use as
Required)
104−1896−02 3 0.60mm
104−1896−04 3 0.80mm
104−1896−05 3 0.90mm
KY/ KYD
17
Governor
1
10
11
12
13
14
15
16
17
18
2
3
4
567
9
8
8
19
20
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 150−2393 1 Lever, Governor
2 150−2396 1 Holder, Governor Spring
3 870−0465 1 Nut, Square (M8 x 1.25mm)
4 526−0122 1 Washer, Flat (5/16”)
5 718−1039 1 Screw, Hex Head Cap
(M8 x 1.25 x 35mm)
6 518−0617 1 Clip, Retainer
7 740−1002 1 Washer, Flat (M5)
8 150−2394 1 Spring, Adjusting Screw
9 150−2395 1 Screw, Special
10 150−2391 1 Spring, Governor Rod
11 150−2392 1 Rod, Governor
12 518−0576 2 Clip, Retainer
13 150−2401 1 Shaft, Governor Lever
14 150−2448 1 Seal, Oil
15 150−2390 1 Spring, Governor
16 870−2159 1 Nut, Flanged (M8 x 1.25)
17 150−2398 1 Pivot, Speed Adjusting
18 150−2549−02 1 Lever, Governor Control
19 520−2215 1 Stud, Control Lever Mounting
20 800−6373−03 1 *Bolt, Flange (M8 x 25)
*−Item 20 may be used as an alternate option for items 16
and 19.
KY/ KYD
18
Carburetor
Gasoline (KY Spec A−H)
3
4
5
6
7
21
17
18
19
27
25
29
30
26
24
23
22
25
20
8
9
10 11 12
13
14
15 16
1
2
28
20
KY/ KYD
19
Carburetor
Gasoline (KY Spec A−H)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
146−0646 1 Kit, (Parts Without Part
Numbers are Not Sold
Separately)
Solenoid (Spec B, C)
(For use with Carburetor
146−0743 (Includes
Solenoid Valve Assy,
Gaskets and Solenoid
Holder)
146−0783 1 +Kit, Carburetor (Spec B−H)(Con
tains Parts in 146−0484)
(For use with Carburetor
146−0765)(Includes Gas
kets Marked,Parts Marked +
Float, Float, Pin, Float Valve
andGaskets)
146−0651 1 Kit, Carburetor (Spec A−C)
(For use with Carburetors
146−0534 and 146−0743)
(Includes Gaskets Marked ,
Parts Marked ^, Float,
Gaskets, Float Valve, Float
Pin and Main Limiter Cap)
146−0759 1 Kit, Spec A (Includes Gaskets
Marked , Parts Marked *
and Carburetor 146−0534)
Spec B−C
146−0743 1 Kit, Emissions Conversion
(Includes Gaskets
Marked and Parts
Marked ~)
(Converts to Emissions
Carburetor 146−0765
introduced for Spec D)
146−0785 1 xKit, Spec D−H, (Includes
Carb146−0803 and
Parts Marked x)
1 146−0530 1 Insulator
2 154−2821 2 Gasket, Intake Manifold
3 154−2815−02 1 Manifold, Intake
4 146−0531 1 +xGasket, Manifold Insulator
5 146−0532 1 +Insulator
6146−0533 1 +xGasket, Carburetor
7Carburetor (Carburetor only)
146−0534 1 Spec A
146−0743 1 Spec B−C
146−0765 1 Spec D−H
8 153−0639 1 Linkage, Choke
9 232−3720 1 Bearing, Flange
10 153−0638−01 1 Housing, Choke
11 153−0659 1 Cover, Choke Element
12 517−0305 1 Cap, Dome
13 153−0640 1 Element, Choke Thermostat
14 Cover, Choke
153−0651−02 1 Spec A−H
15 526−0003 1 Washer, Flat (3/16”)
16 860−2005 1 Nut, Hex (M4 x .7mm)
17 Adapter, Air Cleaner
145−0705−02 1 ~ Spec D−H
18 740−1004 2 Washer, Flat (M6)
19 800−2046 2 Screw, Hex Head Cap
(M6 x 1 x 80mm)
20 Gasket, Carburetor Flange
145−0617 1 * Spec A
145−0695 2 ~ Spec B−H
21 Gasket, Air Cleaner Adapter
140−2586 1 *^ Spec A−D
140−2771−01 1 +~x Spec E−H
22 149−2457 1 Filter, Fuel
23 149−2311−01 1 Pump, Fuel (Electric) (E2)
(Spade Terminal)
24 823−1002−03 1 Screw, Pan Head Torx
(M6 x 1 x 10mm)
25 503−1951−09 2 Clamp, Hose (.47”)
26 1 Hose, Fuel
503−2735 1 Spec B−J (546mm)
27 146−0646 1 Solenoid, Fuel Cutoff (Spec
B−C Non Emissions Only)
(E3)(Not Replaceable
Spec D−J)
28 898−1314−05 1 Sleeving, Convoluted
29 870−2159 2 Nut, Flanged (M8 x 1.25mm)
30 154−2818 2 Stud
−Gaskets Included with Carburetors and Repair Kits.
−Carburetor Part Numbers are embossed on the
Carburetor.
*−Parts Included with Carburetor (Spec A)
~−Parts Included with Emissions Carburetor Conversion
Kit
(Spec B−C)
^−Parts Included with Carburetor Repair Kit (Spec A−C)
+−Parts Included in Carburetor Repair Kit (Begin Spec B
and
During Spec J)
−Parts Included with Carburetor (During Spec J)

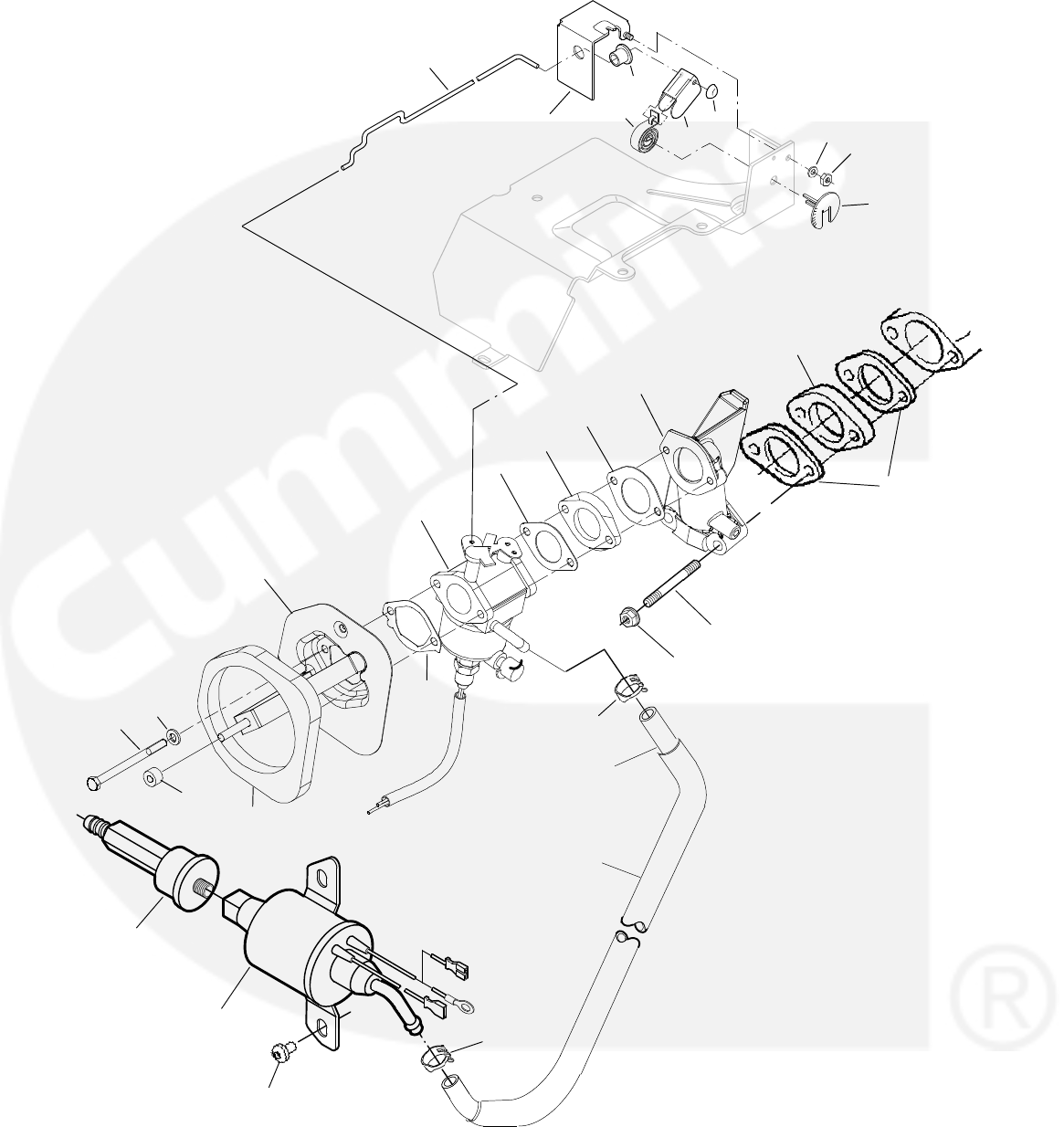

KY/ KYD
20
Carburetor, Gasoline
(KY Begin Spec J and KYD)
25
2
3
4
5
6
7
8
9
10 11 12
13
14
15 16
17
18
19
21
22
23
24
25
26
27
28
29
20
30
1
KY/ KYD
21
Carburetor, Gasoline
(KY Begin Spec J and KYD)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
A042P619 1 Kit, Carburetor (Non−Evap)
(w/Carburetor A041D736 In
cludes Gaskets Marked +,
Float, Float Pin, Float Valve
Covers Spec A−P)
146−0783 1 Kit, Carburetor (Spec B−H, J
thru S/N F120599) (For use
withCarburetor 146−0765)
(Includes Gaskets Marked ,
Parts Marked +, Float, Float
Pin, Float Valve and
Gaskets) Includes
146−0784
146−0784 1 +Obsolete Kit Carburetor Pack
age, Repair(Includes
Float, Float Valve,
Float Pin, and Gaskets,
Float Chamber)
1 Carburetor Only
146−0881 1 4KYFA−6747 Spec A−L
(Evap)
146−0803 1 All other KY Spec A−L
(Non−Evap)
A041D744 1 4KYFA−6747 begin Spec M
(Evap)
A041D736 1 All other KY begin Spec M
(Non−Evap)
2 146−0530 1 Insulator, Head
3 154−2821 2 Gasket, Intake Manifold
4 154−2815−02 1 Manifold, Intake
5 146−0531 1 +xGasket, Manifold Insulator
6 146−0532 1 +Insulator, Carburetor
7 146−0533 1 +xGasket, Carburetor
8 153−0639 1 Linkage, Choke
9 232−3720 1 Bearing, Flange
10 153−0638−01 1 Housing, Choke
11 153−0659 1 Cover, Choke Element
12 517−0305 1 Cap, Dome
13 153−0640 1 Element, Choke Thermostat
14 153−0651−02 1 Cover, Choke (KY Begin Spec
and KYD)
15 526−0003 1 Washer, Flat (3/16”)
16 860−2005 1 Nut, Hex (M4 x .7mm)
17 145−0705−02 1 Adapter, Air Cleaner (KY Begin
Spec D and KYD)
18 740−1004 2 Washer, Flat (M6)
19 800−2046 2 Screw, Hex Head Cap
(M6 x 1 x 80mm)
20 140−2536−06 1 Seal, Air Cleaner Spacer
21 145−0695 1 Gasket, Carburetor Flange
22 140−2771−01 1 +xGasket, Air Cleaner Adapter
23 149−2457 1 Filter, Fuel
24 A029F889 1 Pump, Fuel (Electric) (E2)
(Ring Terminal)
25 823−1002−03 1 Screw, Pan Head Torx
(M6 x 1 x 10mm)
26 503−1951−09 2 Clamp, Hose
27 503−2735 1 Hose, Fuel (546mm)
28 870−2159 2 Nut, Flanged (M8 x 1.25mm)
29 154−2818 2 Stud
30 898−1314−05 1 Sleeving, Convoluted
KY/ KYD
22
Fuel System
LP (KY Spec A−D)
3
4
5
6
7
8
12
15
16
10
19
20
26
10
17
20
27
28
29
30
31
33
34
35
13
18
14
22
24
25
21
1
2
11
10
9
23
36
32
17
KY/ KYD
23
Fuel System
LP (KY Spec A−D)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 146−0530 1 Insulator, Head
2 154−2821 2 Gasket, Intake Manifold
3 154−2815−02 1 Manifold, Intake
4 154−2818 2 Stud
5 870−2159 2 Nut, Flanged (M8 x 1.25mm)
6 146−0531 1 Gasket, Manifold Insulator
7 146−0532 1 Insulator
8 146−0533 1 Gasket, Carburetor
9 503−2006 1 Hose, Fuel (5.63” Lg)
(.375 ID x .75 OD)
10 503−1851 3 Clamp, Hose
11 503−1418 1 Hose, Fuel
12 146−0722 1 Carburetor Kit, LPG
13 140−2586 1 Gasket, Air Cleaner Adapter
14 Gasket, Carburetor Flange
145−0617 1 Spec A
145−0695 1 Begin Spec B
15 800−2046 2 Screw, Hex Head Cap
(M6 x 1 x 80mm)
16 740−1004 2 Washer, Flat (M6)
17 503−2015 2 Hose, Fuel (40”)
(.38 ID x .69 OD)
18 502−0395 1 Connector, Hose
(1/8 NPT x 1/4” ID) (Beginning
Spec E, Hose Connector
Supplied with Regulator)
19 148−1013 1 Regulator (K2)(Includes Inlet
Fitting)
20 503−1851 3 Clamp, Hose
21 307−2831−02 1 Stiffener, Bracket
22 823−0003−06 1 Screw, Torx Pan Head
Thread Forming
(M6 x 12mm)
23 821−0005 1 Screw, Lock Head Flange
(10−32 x 1/2”)
24 148−0985−02 1 Bracket, Regulator
25 821−0004 1 Screw, Flange Lock Hex
(#10−32 x 5/16”)
26 502−1162 1 Fitting, Barbed Hose
27 Valve Assy, Fuel (E3)
307−2501 1 LP Liquid sets
307−3079 1 LP Vapor sets
28 502−0047 1 Nipple, Close
29 502−1133 1 Coupling, Anchor
30 149−2523 1 Line, Inlet Fuel (KY Begin
Spec B)(75 LG x 1/4−18 NPT)
31 502−1214 1 Connector, Female
(1/4−18 NPT) (KY Begin
Spec B and Spec 11276A)
32 502−1200 1 Fitting, Barbed Hose (Spec A
Except Spec 11276A)
33 Nipple
505−0071 1 KY Spec 11276A
34 Bracket, Solenoid
307−2795−02 1 KY Spec A
307−2997−02 1 KY Begin Spec B Obsolete
35 823−1002−03 1 Screw, Torx Pan Head
(M6 x 1 x 10mm)
36 856−0006 2 Washer, EIT Lock Torx (M6)
KY/ KYD
24
Fuel System
LP (KY Spec E−K and KYD Spec A)
34
33
32
31
30 29
28 27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
10
10
18
35
36
KY/ KYD
25
Fuel System
LP (KY Spec E−K and KYD)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
146−0722 1 Kit,Carburetor (Includes
Parts Marked +)
1 146−0530 1 Insulator, Head
2 154−2821 2 Gasket, Intake Manifold
3 154−2815−02 1 *Manifold, Intake
4 154−2818 2 Stud
5 870−2159 2 Nut, Flanged (M8 x 1.25mm)
6 146−0531 1 *+Gasket, Manifold Insulator
7 146−0532 1 *Insulator
8 146−0533 1 *+Gasket, Carburetor
9 503−2006 1 *Hose, Fuel (5.63” Lg)
(.375 ID x .75 OD)
10 503−1851 3 *Clamp, Hose
11 146−0668 1 *+Carburetor
12 140−2771−01 1 *+Gasket, Air Cleaner Adapter
13 145−0695 1 *Gasket, Carburetor Flange
(KY Begin Spec B and KYD)
14 800−2046 2 *Screw, Hex Head Cap
(M6 x 1 x 80mm)
15 740−1004 2 *Washer, Flat (M6)
16 145−0705−02 1 *Adapter, Air Cleaner
17 503−2015 1 *Hose, Fuel (40”)
(.38 ID x .69 OD)
18 503−1851 2 Clamp, Hose
19 148−1013 1 Regulator (K2)
20 307−2831−02 1 Stiffener, Bracket
21 823−0003−06 1 Screw, Torx Pan Head
Thread Forming
(M6 x 12mm)
22 821−0005 1 Screw, Lock Head Flange
(10−32 x 1/2”)
23 148−0985−02 1 Bracket, Regulator
24 821−0004 1 Screw, Flange Lock Hex
(#10−32 x 5/16”)
25 502−1162 1 Fitting, Barbed Hose
26 307−3079 1 Valve, Fuel (Shut Off)
27 502−0047 1 Nipple, Close
28 502−1133 1 Coupling, Anchor
29 149−2523 1 Line, Inlet Fuel (Begin Spec B)
(75 LG x 1/4−18 NPT)
30 502−1214 1 Connector, Female
(1/4−18 NPT) (Begin Spec B
and Spec 11276A)
31 505−0071 Nipple
32 307−2997−02 1 Bracket, Solenoid
33 823−1002−03 1 Screw, Torx Pan Head
(M6 x 1 x 10mm)
34 856−0006 2 Washer, EIT Lock Torx (M6)
35 503−2015 1 Hose, LP Fuel
36 898−1196−24 1 Sleeving, Convoluted
*−Parts Included in Carburetor Assy.
KY/ KYD
26
Fuel System
LP (KY Begin Spec L and KYD Spec B)
1
2
34
5
6
7
8
910
11
12
19
18
17
16
15
14
13
21
20
11
18
15
22
23
24
18
18
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
KY/ KYD
27
Fuel System
LP (KY Begin Spec L and KYD Begin Spec B)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
541−1377 1 Kit Hose, Vent (Includes Hose,
Cable Tie and Instructions)
1 145−0695 1 Gasket, Carburetor Flange
2 140−2536−06 1 Seal, Air Cleaner Spacer
3 740−1004 2 Washer, Flat (M6)
4 800−2046 2 Screw, Hex Head Cap
(M6 x 1 x 80mm)
5 145−0705−02 1 Adapter, Air Cleaner
6 146−0533 1 Gasket, Carburetor
7 870−2159 2 Nut, Locking Flange
8 146−0532 1 Insulator, Carb
9 146−0531 1 Gasket, Insulator
10 154−2815−02 1 Elbow, Intake (Machine)
11 154−2821 2 Gasket, Intake Elbow
12 146−0530 1 Insulator, Head
13 503−2143−05 1 Hose, Vapor LPG
(.69OD x 11.8”)
14 503−2289−06 1 Hose, Vent (.19ID x 22”)
15 823−0003−02 6 Screw, Pan Head Torx Thread
Form (M6 x 1 x 14mm)
16 148−1265−02 1 Bracket, Fuel Regulator
17 821−0018 2 Screw, Locking Head
(1/4−20 x 5/8”)
18 503−1851 4 Clamp, Hose
19 123−1917 1 Tube, Breather
20 140−2771−01 1 Gasket, Air Cleaner
21 146−0829 1 Mixer
22 148−1266 1 Regulator, Fuel
23 148−1264−02 1 Bracket, Fuel Regulator
24 502−1162 1 Fitting, Barbed Hose
25 307−3079 1 Valve, Fuel (Shut Off)
26 502−0047 1 Nipple, Close
27 502−1133 1 Coupling, Anchor
28 149−2523 1 Line, Inlet Fuel (Begin Spec B)
(75 LG x 1/4−18 NPT)
29 502−1214 1 Connector, Female
(1/4−18 NPT) (Begin Spec B
and Spec 11276A)
30 505−0071 Nipple
31 307−2997−02 1 Bracket, Solenoid
32 823−1002−03 1 Screw, Torx Pan Head
(M6 x 1 x 10mm)
33 856−0006 2 Washer, EIT Lock Torx (M6)
34 503−2015 1 Hose, LP Fuel
35 898−1196−24 1 Sleeving, Convoluted
36 503−2309 2 Clamp, Hose
37 541−1377 1 Kit, Filter (Vent Hose)
(Includes Filter, Cable Tie &
Instruction Sheet)
KY/ KYD
28
Fuel System
EVAP Gasoline System
7
1
2
3
4
5
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1110−3972 1 Spring, Valve
2 A026N404 1 Tube, Breather
3 148−1341−02 1 Bracket
4 503−2879 1 Hose, Fuel
5 503−3069 1 Hose, Fuel
6 503−2878 1 Hose, Fuel
7 123−2397 1 Valve, PCV
KY/ KYD
29

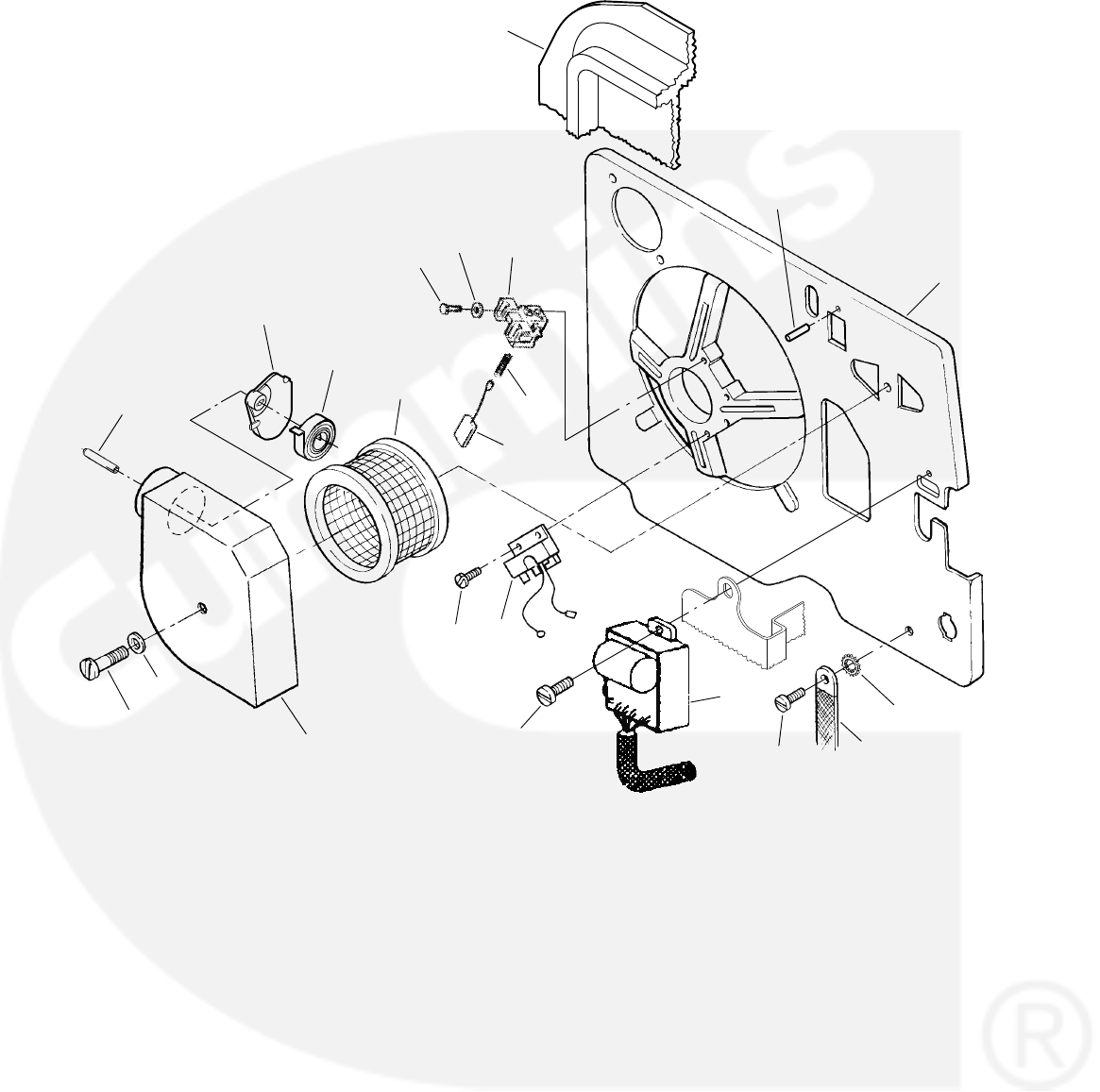

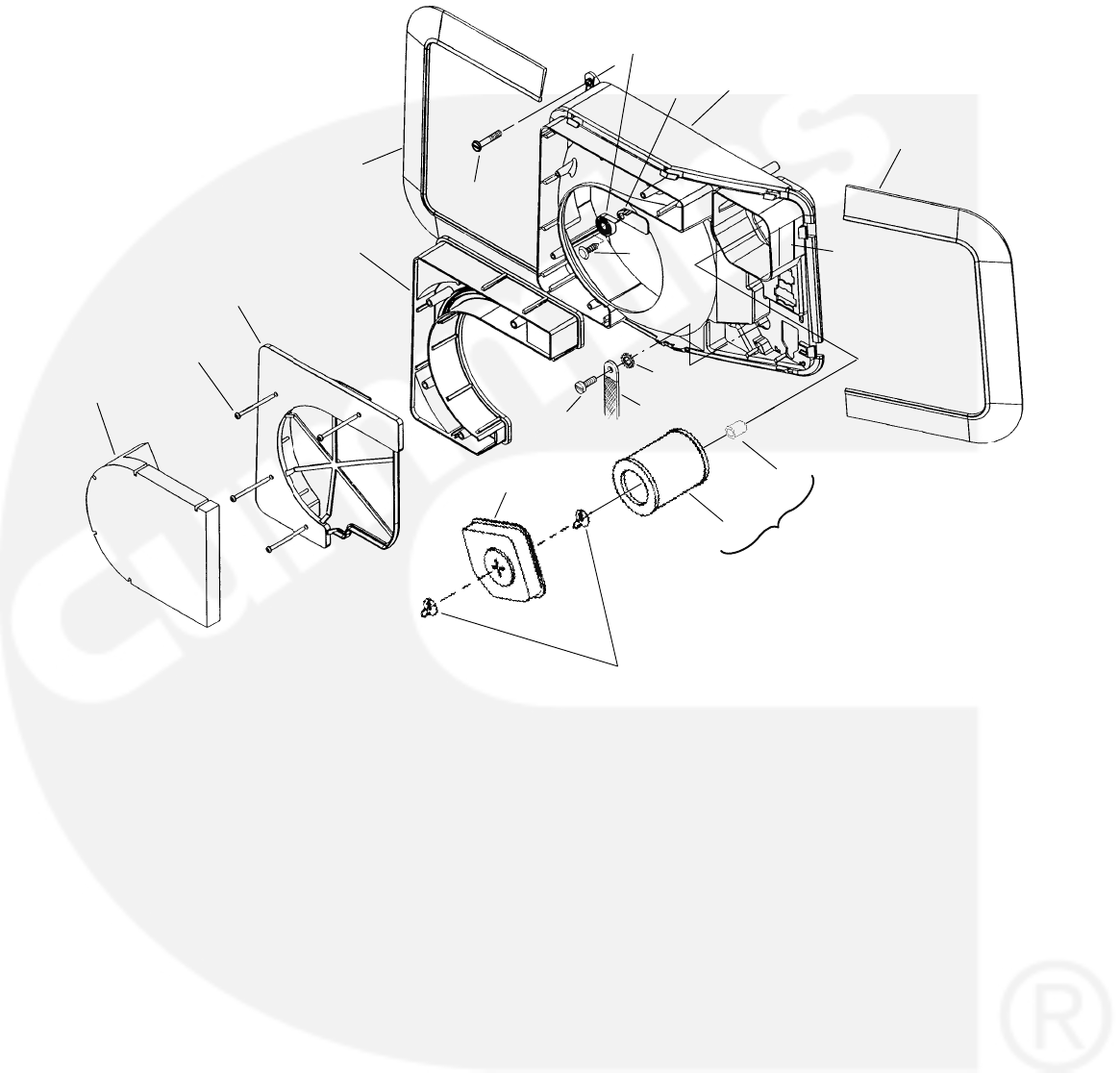

Endbell
(KY Spec A)
,
1
3
10
12
13
11
16
14
15
417
22
20 21
2
6
9
8
75
19
18
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1211−0437 1 Endbell, Obsolete
2 516−0151 1 Pin, Roll
3 509−0274−02 1 Seal, Endbell
4 823−0002−09 4 Screw, Pan Head Torx
(M4 x .7 x 12mm)
5 526−0003 2 Washer, Flat (#8)
6 212−1283−S0 1 Block Assy, Brush (Includes
Brush, Spring and Block)
7 212−1282−S0 1 Block, Brush
8 212−1276−03 2 Spring, Generator Brush
9 214−0103 2 Brush, Generator
10 140−2609 1 Element, Air Cleaner
11 153−0641 1 Element, Thermostat Preheat
12 145−0561 1 Cover, Air Filter Thermostat
13 145−0615 1 Rod, Air Inlet
14 526−0018 1 Washer, Flat (1/4)
15 800−0017 1 Screw, Hex Head Cap
(1/4−20 x 3−1/2”)
16 140−2576 1 Cover, Air Cleaner
17 160−1358−S0 1 Magneto
18 823−0003−04 1 Screw, Torx Pan Head
(M6 x 1 x 25mm)
19 Regulator, Voltage (VR1)
305−0851 1 60 Hz
305−0866 1 50 Hz
20 823−0007−01 1 Screw, Pan Head
(M8 x 1.25 x 20mm)
21 337−2312 1 Strap, Bond
22 856−0008 1 Washer, EIT Lock (5/16”)
KY/ KYD
30
Endbell
(KY Begin Spec B and KYD)
13
15
4
10
11
8
3
4
9
12
20
17
18
19 16
1
2
5
2
67
,
6
7
14
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Endbell
211−0460 1 KY Spec B−H
211−0497−00 1 Gasoline (KY Begin Spec J
and KYD)(Includes Parts
Marked *)
211−0497−01 1 LP (KY Begin Spec J and
KYD)(Includes Parts
Marked *)
2 Screw, Pan Head Torx Thread
Forming (M6 x 25mm)
823−0003−04 4 KY Spec G−H
823−0003−04 6 KY Begin Spec J and KYD
3 160−1358−S0 1 +Magneto (G2) (KY Spec B−H
and KYD)
4 Screw, Pan Head Torx
(M4 x .7 x 16mm)
823−0002−09 4 KY Spec B−H
823−0002−09 2 * KY Begin Spec J and KYD
5 166−0866 1 Coil Ignition (KY Begin Spec J
and KYD, Includes Boot and
Terminal)
6 167−0267 1 Terminal, Spark Plug
7 167−1627 1 Boot, Spark Plug
8 526−0003 2 *Washer, Flat (3/16”)
9 212−1283−S0 1 *Block Assy, Brush (Includes
Brush, Spring and Block)
10 214−0103 2 *Brush, Generator
11 212−1276−03 2 *Spring, Generator Brush
12 212−1282−S0 1 *Block, Brush
13 503−1351 1 +Hose, Preheat (Gasoline Units)
(KY Spec B−H and Part of J)
14 517−0103 1 Plug (LP Units)
15 509−0313 1 +O’Ring (Gasoline Units)
(KY Spec B−H and Part of J)
16 Cable, Starter
226−4297 1 KY Spec B−H
226−4795 1 KY Begin Spec J and KYD
17 815−0781 2 Screw, Hex Washer Head Cap
(M8 x 1.25 x 30mm)
18 Starter
191−2351 1 KY Spec B−J
191−2312 1 KY Begin Spec K and
KYD
19 862−0001 1 Nut, Hex
20 850−0040 1 Washer, Lock−Spring (1/4”)
*−Parts Included with Endbell Beginning Spec J.
+−Eliminated During Spec J.
KY/ KYD
31
Air Housing
(KY Begin Spec B and KYD)
,
1
4
3
2
6
7
89
10
12
11
16
17
18
19
5
13
14
15
20
21
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Housing, Air
134−5029 1 KY Spec B−H
134−5213 1 KY Begin Spec J and KYD
2 140−2855 1 Door, Preheat (Gasoline Units)
3 509−0308 1 Seal, Air (Right)
4 509−0305 1 Seal, Air (Left)
5 823−0009−01 4 Screw, Torx Pan Head
Thread Forming
(M6 x 1 x 20mm)
6 134−5031 1 Resonator, Intake
7 134−5032 1 Cover, Resonator
8 815−0838−02 4 Screw, Torx Pan Head
Thread Forming
9 526−0012 4 Washer, Flat
(5.551D x 19.050 x 8)
10 405−4896 1 Insulation, Inlet Baffle
11 140−2820−01 1 Cover, Air Cleaner
12 865−0029 2 Nut, Wing
13 140−3295 1 Kit, Air Filter (Includes Parts
Marked *)
14 140−3280 1 *Element, Air Cleaner
15 140−2536−06 1 *Seal, Air Cleaner Spacer
16 856−0008 1 Washer, EIT Lock (5/16”)
17 Strap, Bond
337−2312 1 KY Spec B−H
337−3467 1 KY Begin Spec J and KYD
18 821−0018 1 Screw, Pan Head Thread
Forming (M8 x 1.25 x 25mm)
19 518−0649 1 Clip, Push−On (Gasoline Units)
20 153−0664 1 Element, Thermostat (Gasoline
Units)
21 98−6769 1 *Label, Air Cleaner
*−Parts Included in Air Filter Kit
KY/ KYD
32
Air Cylinder
1
3
2
2
REF PART QTY PART
NO. NO. USED DESCRIPTION
1 134−4919−01 1 Cover, Air Cylinder
2 Screw, Torx Pan Head
Thread Forming (M6 x 1 x 12mm)
815−0578 5 Gasoline
815−0578 2 LP
3 134−5119 1 Wrapper, Air Cylinder
KY/ KYD
33
Oil Base
(KY Spec A)
1
2
7
6
5
4
3
8
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 102−1412 1 Gasket, Oil Base
2 815−0829−01 10 Screw, Hex Washer Head
(M8 x 1.25 x 35mm)
3 502−0153 1 Plug, Hex Head Drain (1/4”)
4 509−0282−02 1 O’Ring
5 123−1944−01 1 Tube, Oil Fill
6 509−0142 1 O’Ring
7 123−1953 1 Indicator, Oil (Includes O’Ring)
8 308−1059 1 Switch, Oil Level (S2)
KY/ KYD
34
Oil Base
(KY Begin Spec B and KYD)
7
8
1
2
3
4
5
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 815−0829−01 10 Screw, Hex Head Cap
(M8 x 1.25 x 35mm)
2 502−0153 1 Plug, Drain (1/4−14 NPT)
(All Specs Except 11320)
3 505−1492−02 1 Plug, Drain (3/4−14 NPT
4 509−0307 1 O’Ring
5 123−2015 1 Indicator, Oil (Includes O’Ring)
6 308−1059 1 Switch, Oil Level (S2)
(KY Spec B−F Only)
7 102−1444 1 Base, Oil
8 102−1412 1 Gasket, Oil Base
KY/ KYD
35
Oil Base
(Begin Spec 3.6KY Spec M and 4.0KY Spec L)
7
1
2
3
4
5
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 A028X564 10 Screw, Hex Head Cap
(M8 x 1.25 x 35mm)
2 181−0490 1 Washer
3 181−0489 1 Plug, Drain
4 A028V611 1 Plug, Drain (3/4−14 NPT)
5 509−0307 1 O’Ring
6 123−2015 1 Indicator, Oil (Includes O’Ring)
7 102−1444 1 Base, Oil (Begin Spec B)
8 102−1412 1 Gasket, Oil Base
KY/ KYD
36

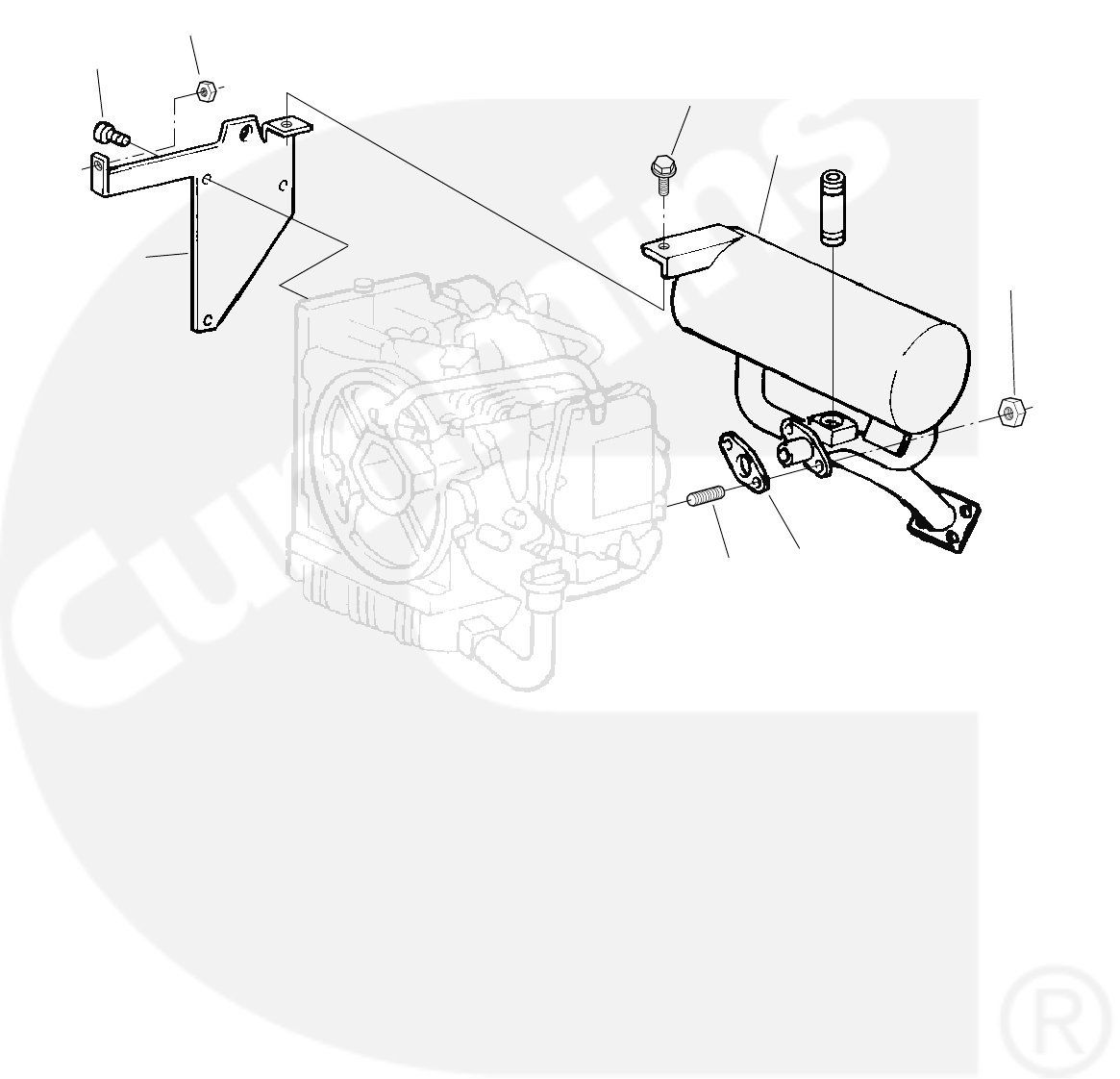

Exhaust
(KY Spec A)
1
2
3
4
5
6
7
8
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 155−2683−02 1 Bracket, Muffler
2 823−0007−01 2 Screw, Torx Pan Head
(M8 x 1.25 x 20mm)
3 870−0236 1 Nut, Hex (#10−32)
4 821−2046 1 Screw, Locking Flange
(M8 x 1.25 x 20mm)
5 155−2678 1 Muffler
6 154−2816 1 Gasket, Exhaust
7 520−2216 2 Stud, Exhaust
8 870−2055 2 Nut, Locking Flange Hex
(M8 1.25)
KY/ KYD
37
Exhaust
(KY Spec B−N)
1
2
3
4
5
6
7
8
9
10
11
2
8
9
7 4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Stud, Exhaust
520−2216 2 KY Spec B−H
520−2215 2 KY Begin Spec J
2 154−2816 2 Gasket, Exhaust
3 154−2975 1 Manifold, Exhaust (Includes
Tube)
4 870−2193−04 4 Nut, Torque Hex (M8)
5 402−0675 2 Isolator, Bottom Muffler
6 155−2783 1 Muffler
7 402−0678 2 Isolator, Top Muffler
8 526−0011 4 Washer, Flat (#10)
9 823−1006−06 4 Screw, Pan Head Machine
(M5 x .8 x 20mm)
10 503−1533−03 1 Hose, PreHeat
11 800−2057 2 Screw
KY/ KYD
38

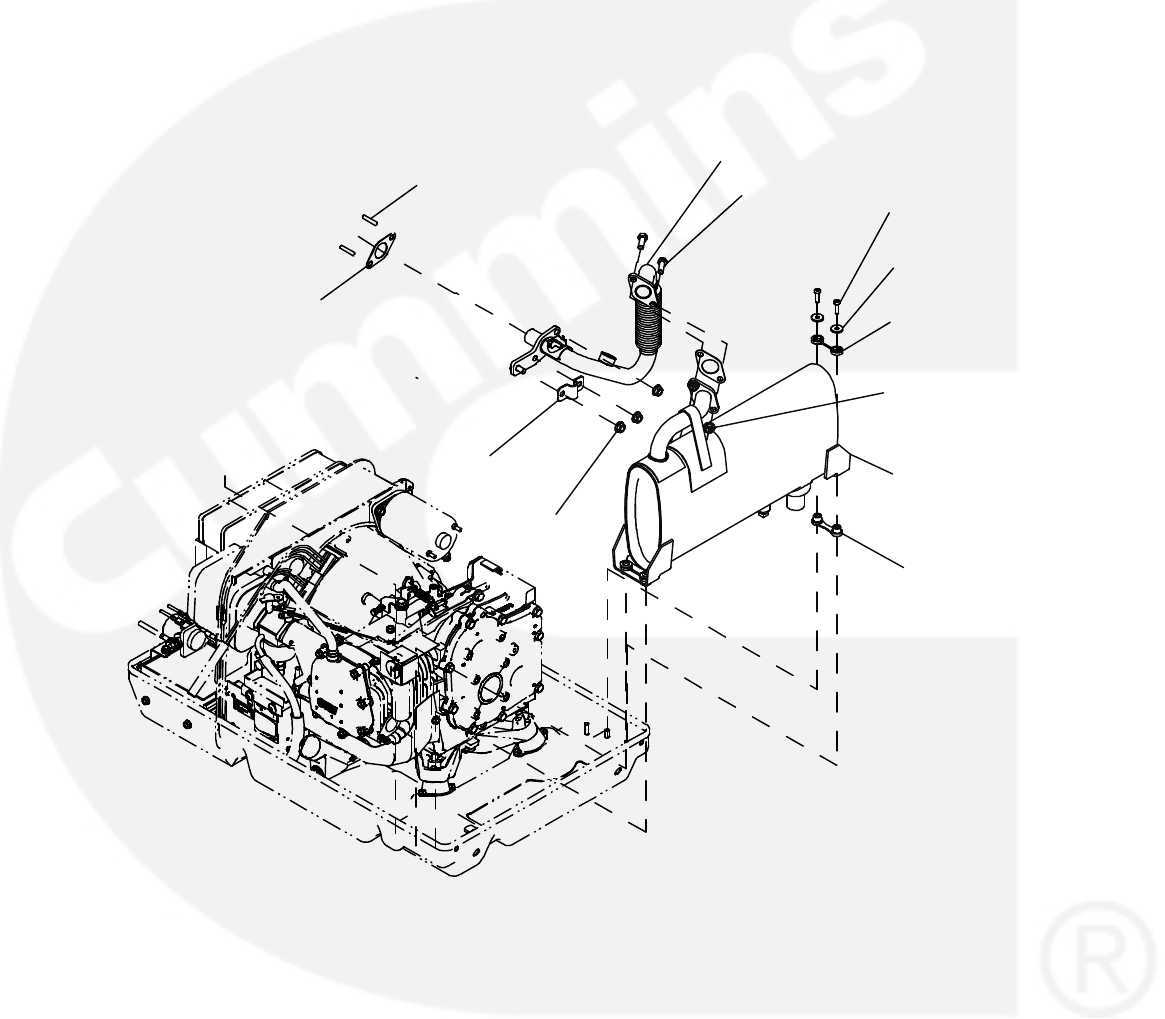

Exhaust Installation KY (60Hz)
(4KYFA26100 Begine Spec P)
(4KYFA6747 Begin Spec P)
(3.6KYFA26120 Begin Spec P)
2
3
5
8
9
10
14
1
4
6
7
11
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 402−0675 2 Mount, Isolating
2 A034F778 1 Silencer, Exhaust
3 402−0678 2 Isolator, Muffler
4 526−0011 4 Washer, Flat
5 823−1006−06 4 Screw, Pan Head
6 154−2816 2 Gasket
7 A034T222 1 Manifold, Exhaust
8 800−2058 2 Screw, Hex Head
9 870−0557 5 Nut, Flange
10 A041H375 1 Clamp
11 520−2215 2 Stud, Exhaust
KY/ KYD
39

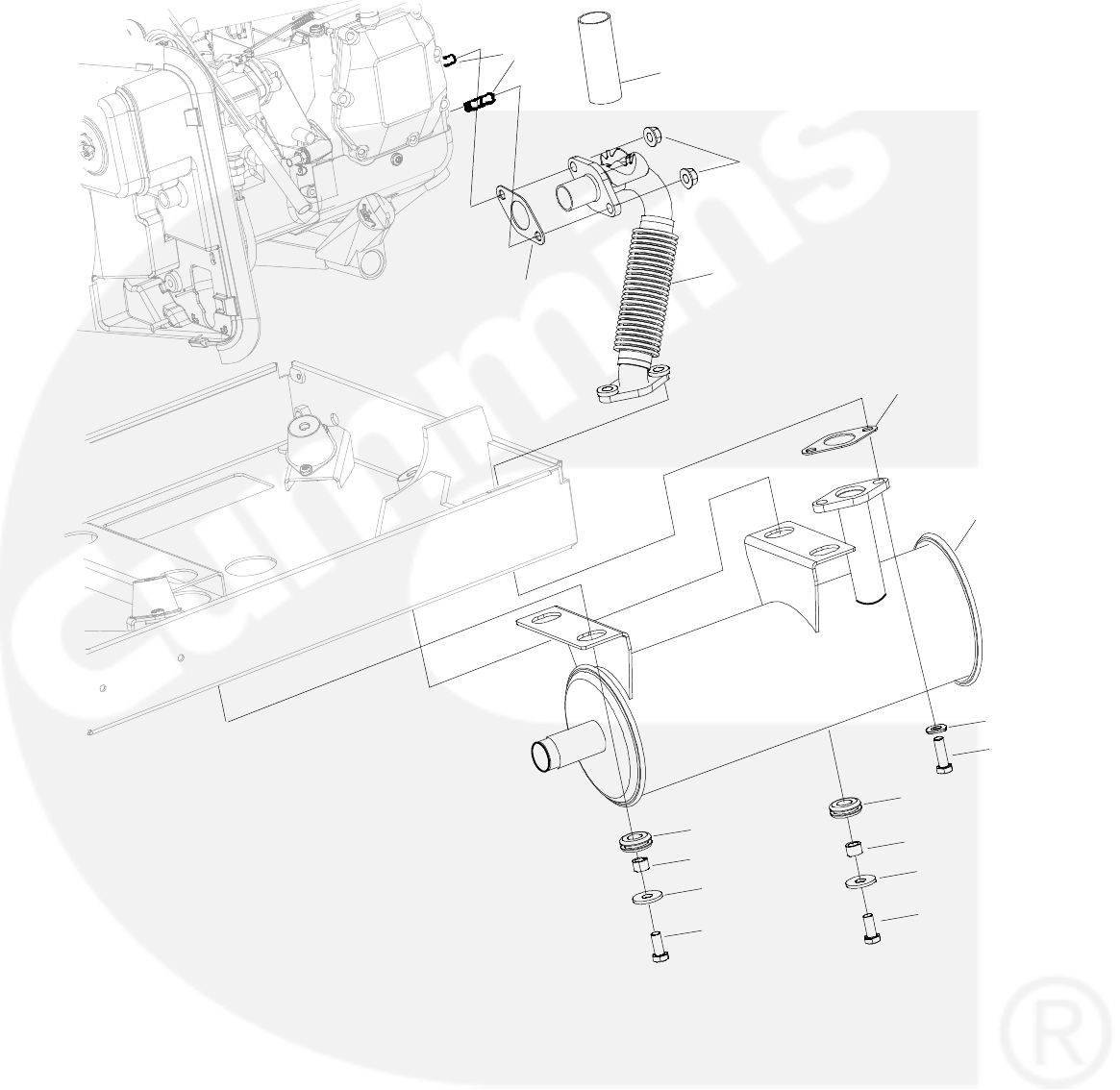

Exhaust
(KYD)
1
2
8
9
10
11
3
7
6
5
4
3
4
5
7
7
12
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
541−0916 1 Kit, Muffler (Includes
Parts Marked *)
1 155−4046 1 *Muffler
2 154−2816 1 *Gasket, Exhaust Muffler
3 508−1194 4 *Grommet
4 155−4084 4 *Spacer, Muffler (Isolator)
5 526−0113 4 *Washer, Flat
6 526−0115 2 *Washer, Flat (5/16”)
7 800−0026 6 *Screw, Hex Head
(5/16−18NC x 3/4”)
8 155−4063 1 Pipe, Exhaust
9 154−2816 1 Gasket, Exhaust Manifold
10 503−1533−03 1 Hose, Preheat (3”)
11 870−0557 2 Nut, Hex Flange (M8 X 1.25mm)
12 520−2215 2 Stud, Exhaust
*−Parts Included in Muffler Kit.
12 1 Module, Secondary Air Injection
A034L017 1 (LP)
A041L448 1 (Gas)
KY/ KYD
40

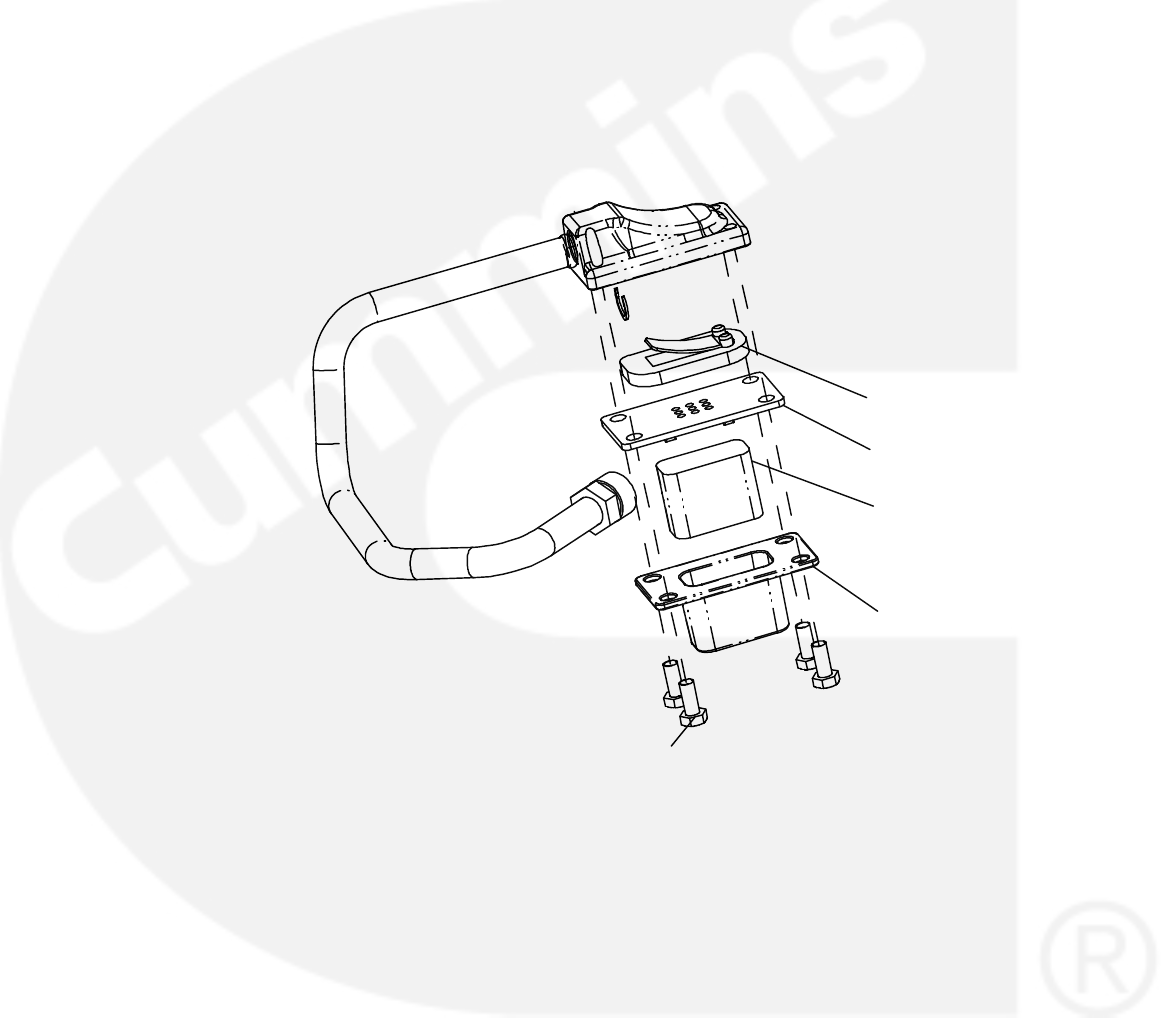

Exhaust/Secondary Air Module
KY (60Hz)
(4KYFA26100 Begine Spec P)
(4KYFA6747 Begin Spec P)
(3.6KYFA26120 Begin Spec P)
2
3
1
4
5
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Secondary Air Assy
A034L017 1 (Gas)
A041L445 1 (LP)
1 A030J339 1 Valve
2 A030J351 1 Cover, Access
3 800−2031 4 Screw, Hex Head
4 A030J333 1 Insulation, Sound
5 A041G409 1 Orifice
KY/ KYD
41
KY Exhaust Kits
Exhaust
Tube
Elbow
Adapter
Tailpipe
2
3
57
8
9
10
11
12
13
14
33
14
6
&
7
13
15
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 155−2850 1 Kit, Exhaust Tube (Includes
Adapter and Clamp)
2 155−2850 1 Adapter, Exhaust
3 155−1256 1 *~Clamp
4 155−2847 1 Kit, Exhaust Elbow Adapter
(Includes Exhaust Elbow and
Clamp)
5 155−2847 1 Elbow, Exhaust
6 Kit, Exhaust Tailpipe
155−2845 1 540mm Tube (Includes Parts
Marked *)
155−3263 1 559mm Tube (Includes Parts
Marked ~)
7 Tube, Exhaust
155−2844−S0 1 * 540mm
155−2844−S1 1 ~ 559mm
8 155−2860 1 *~Insulator, Exhaust
9 155−2861 2 *~Clamp, Exhaust
10 800−0031 2 *~Screw, Hex Head Cap
5/16−18 x 1.5
11 155−2859 3 *~Backplate, Exhaust
12 800−0026 1 *~Screw−Hex Head Cap
5/16−18 x .75
13 862−0015 2 *~Nut, Hex 5/16
14 155−2174 1 Hanger, Exhaust 1.5” O.D.
15 155−2449 1 Resonator, Exhaust
KY/ KYD
42

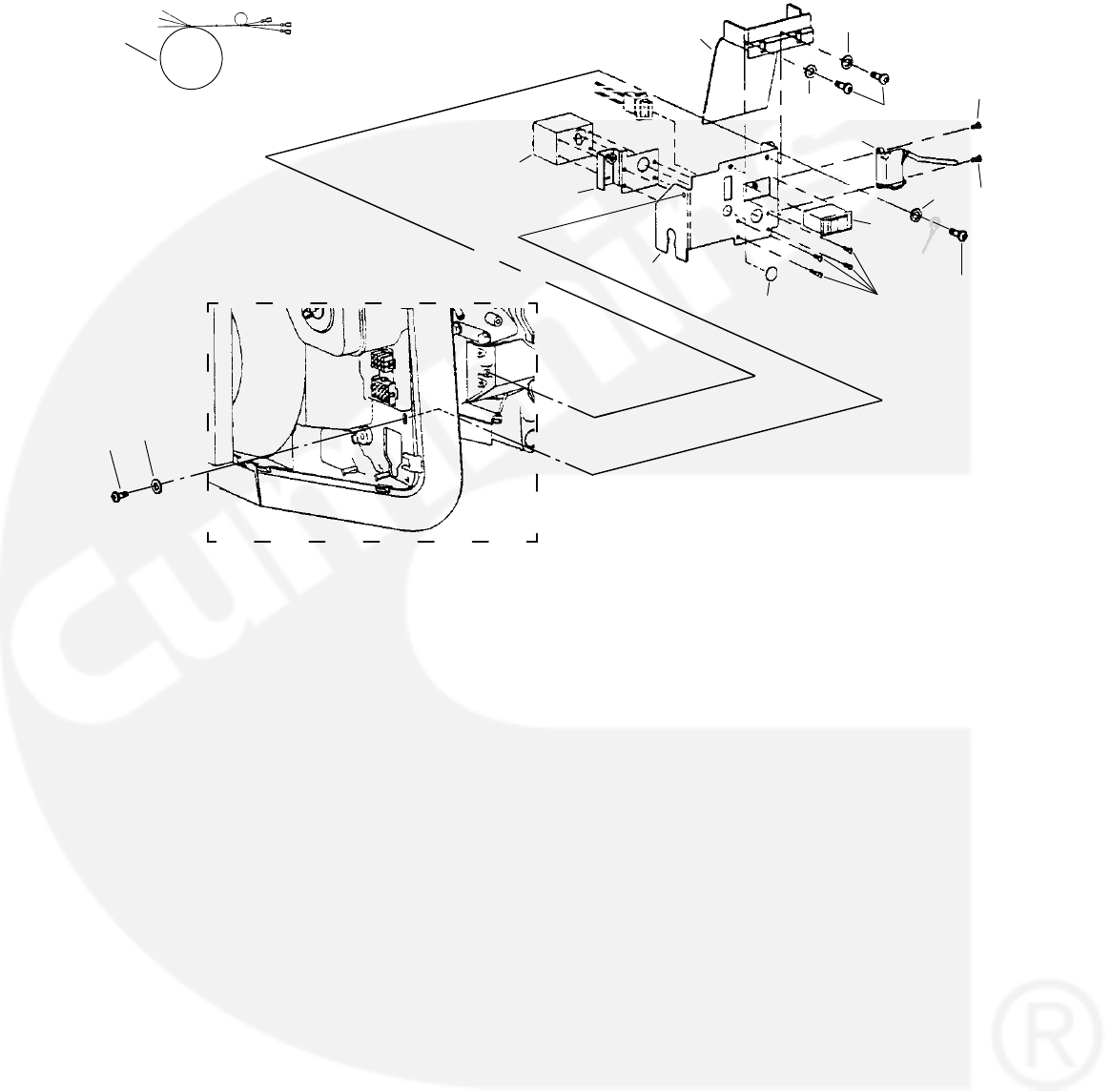

Enclosure Base
(KY Spec A)
1
2
3
4
5
6
7
8
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
14
5
6
28
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−4306 1 Insulation, Exhaust
2 402−0640 3 Isolator, Mounting
3 331−0041 1 Nut, Lock
4 405−4305−01 1 Base, Enclosure
5 868−0002 2 Nut, Hex (5/16−24)
6 Washer, Spring Lock (5/16”)
850−0045 2 60 Hz
850−0045 4 50 Hz
7 823−1002−01 9 Screw, Torx Pan Head
(M6 x 1 x 12mm)
8 307−2586 1 Relay, Start Solenoid (K1)
9 319−1279−01 1 Bracket, Control
10 300−4155 1 Board, PC
11 332−0942 2 Tie, Cable
12 508−0315 1 Grommet, Enclosure Base
13 331−0521 1 Elbow, Conduit
14 856−0008 4 Washer, EIT Lock (5/16”)
15 862−0015 2 Nut, Hex (5/16−18
16 541−0540 3 Screw, Isolator Mounting
(Includes Washer)
17 402−0641 3 Isolator, Snubber
18 816−0101 1 Bolt, Carriage
(5/16−18 x 1−1/4”)
19 155−2677−01 1 Gasket, Resonator
20 155−2675 1 Adapter, Resonator
21 155−2715 1 Clamp, Exhaust (1−3/4”)
22 Elbow, Exhaust
155−2676 1 45 Angle
155−2682 1 90 Angle
23 800−0730 1 Screw, Cap − Hex Head
(5/16−18 x 1”)
24 405−4755−02 1 Edging, Base Pan (1675mm)
25 508−1083−01 1 Edging, Base Pan (683mm))
26 526−0029 3 Washer
KY/ KYD
43
“Blank Page”
KY/ KYD
44
Enclosure Base
(KY Spec B−P)
1
19
20
2
18
16
3
12
17
10
9
8
11
21
23
24
22
25
26 31
32
33
3
20
3
9
25
24 3
3
3
3
11
12
8
8
34
35
35
4
13
14
15
33
3
29
26 24
25
25
24
27
28
30
3
56
7
36
KY/ KYD
45
Enclosure Base
(KY Spec B − P)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−5811−02 Base, Enclosure
2 508−0315 1 Grommet, Enclosure Base
3 823−1002−03 14 Screw, Pan Head Torx
Machine (M6 x 1 x 10mm)
4 331−0539−02 1 Clamp, Conduit (Not Included
With Spec 11580 or 11320)
5 331−0115 1 Connector, Straight (1/2” Pipe
Thread) (Spec 11580)
6 331−0255 1 Conduit (1/2” x 36”)
(Spec 11580)
7 Bushing
508−0208 1 Snap (Begin Spec F Except
Spec 11580 G & H)
331−0545 1 Armor (Spec 11580 G
& H only)
8 402−0686−02 4 Tube, Spacer (Gasoline
Spec B−D; LP Spec B, C)
9 856−0008 4 Washer, EIT Lock (5/16”)
10 862−0015 2 Nut, Hex (5/16−18)
11 526−0014 4 Washer, Flat (7/16”) (Gasoline
Spec B−D; LP Spec B, C)
12 Screw, Hex Head Thread
Forming (M10 x 1.5 x 70mm)
Gasoline
815−0842−05 4 Spec B−D (Hex Head)
815−0874−01 4 Begin Spec E (Socket
Head)
LP
815−0842−05 4 Spec B, C
815−0874−01 4 Begin Spec D
13 402−0641 2 Isolator, Snubber (Gasoline
Begin Spec E; LP Begin
Spec D)
14 526−0032 2 Washer, Flat (Gasoline Spec E;
LP Spec D)
15 Screw, Isolator
541−0540 2 Spec D/E−H (Includes
Washer) (Gasoline Spec E;
LP Spec D)
815−0785 2 Begin Spec J
16 Cover, Drain
Gasoline
405−4964−02 1 Spec B−D
102−1456−02 1 Begin Spec E
LP
102−1456−02 1 Begin Spec D
17 800−0030 1 Bolt, Carriage
(5/16−18 x 1−1/4”)
18 508−1093−01 1 Edging (2388mm)
19 402−0664−02 2 Isolator, Engine End
20 402−0664−01 2 Isolator, Generator End
21 327−1413 1 Board, PC (Begin Spec J)
22 815−0943−02 1 Screw, Torx Pan Head (Begin
Spec J)
23 319−3811−02 1 Bracket, Control (Begin Spec J)
24 868−0002 2 Nut, Hex (5/16−24)
25 850−0045 2 Washer, Spring Lock (5/16”)
26 307−2586 1 Relay, Start Solenoid (K1)
27 Board, PC
300−4320 1 Spec B−E
300−4923 1 Spec F−H
28 319−2152−03 1 Bracket, Control (Spec B−H)
Gasoline Units) (Spec B−H)
29 *Regulator, Voltage (VR1)
(Spec B−H) (60Hz, 120V,
Gasoline Units)
305−0851 1 60 Hz
305−0866 1 50 Hz
30 823−1002−04 1 Screw, Torx Pan Head (Spec
B−H) (M6 x 14mm)
31 Seal, Barrier Edge
508−0330 1 (Spec B−M)
508−1091 1 (Spec P)
32 A035K028 1 Shield, Exhaust
(Spec B−P)
33 870−2054 2 Nut, Flange Lock (M6 x 1)
34 405−4895 1 Insulation, Exhaust Barrier
35 518−0581 4 Nut, Push−On
36 332−3108 1 Ground Terminal
*−Voltage regulator Spec J−M included on PCB
327−1413.
KY/ KYD
46
Enclosure Base
(KYD)
1
2
3
5
7
8
12
11
10 9
6
2
3
10
21
20
20
19
19
18 17
16
15
14
13
7
3
3
5
6
4
3
KY/ KYD
47
Enclosure Base
(KYD)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 508−0315 1 Grommet, Enclosure Base
2 815−0874−01 4 Screw, SKT TH Head Torx
3 815−0578 10 Screw, Pan Head Torx
(M6 x 1 x 12mm)
4 331−0539−02 1 Clamp, Conduit
5 815−0785 2 Screw, Isolated Mounting
6 402−0641 2 Isolator, Snubber
7 856−0008 3 Washer, EIT Locking (5/16”)
8 862−0015 1 Nut, Hex (5/16−18 UNC)
9 405−7661 1 Shield, Exhaust Insulation
10 508−0333 4 Edging
11 402−0664−02 2 Isolator, Mount
12 402−0664−01 2 Isolator, Mount
13 800−0030 1 Screw, Hex Head
(5/16−18 NC x 1.25)
14 508−0208 1 Bushing, Snap
15 337−3467 1 Strap, Bond
16 327−1413 1 PCB, Control
17 319−3811−02 1 Bracket, Control Mounting
18 815−0943−02 1 Screw, Hex Washer Head
Thread Forming (1/4−20 x .5”)
19 868−0002 2 Nut, Hex Jam (5/16−24UNC)
20 850−0045 2 Washer, Split Locking (5/16”)
21 307−2586 1 Relay, Start Solenoid
KY/ KYD
48
Generator Enclosure
(KY Spec A)
1
2
3
4
5
6
78
9
10
6
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 1 Cover Assy, Enclosure
(Includes Parts Marked *)
2 518−0623 6 *Clip, Christmas Tree
3 508−0315 1 *Grommet, Remote
4 405−4308 1 *Insulation, Inlet
5 526−0394 6 *Washer, Flat (Special)
6 823−0010−01 5 Screw, Shoulder Torx
(M6 x 14mm)
7 405−4307−02 1 Insulation, Upper Exhaust Baffle
8 405−6384−01 1 *Panel, Service (Includes
Latches, Insulation, Label,
Gasket and Washers)
9 406−0779 2 Latch Assy, Service Panel
(Later Spec A)
10 870−2198 2 Nut, Hex (M22 x 1.5)
*−Parts Included in Enclosure Cover.
KY/ KYD
49
“Blank Page”
KY/ KYD
50

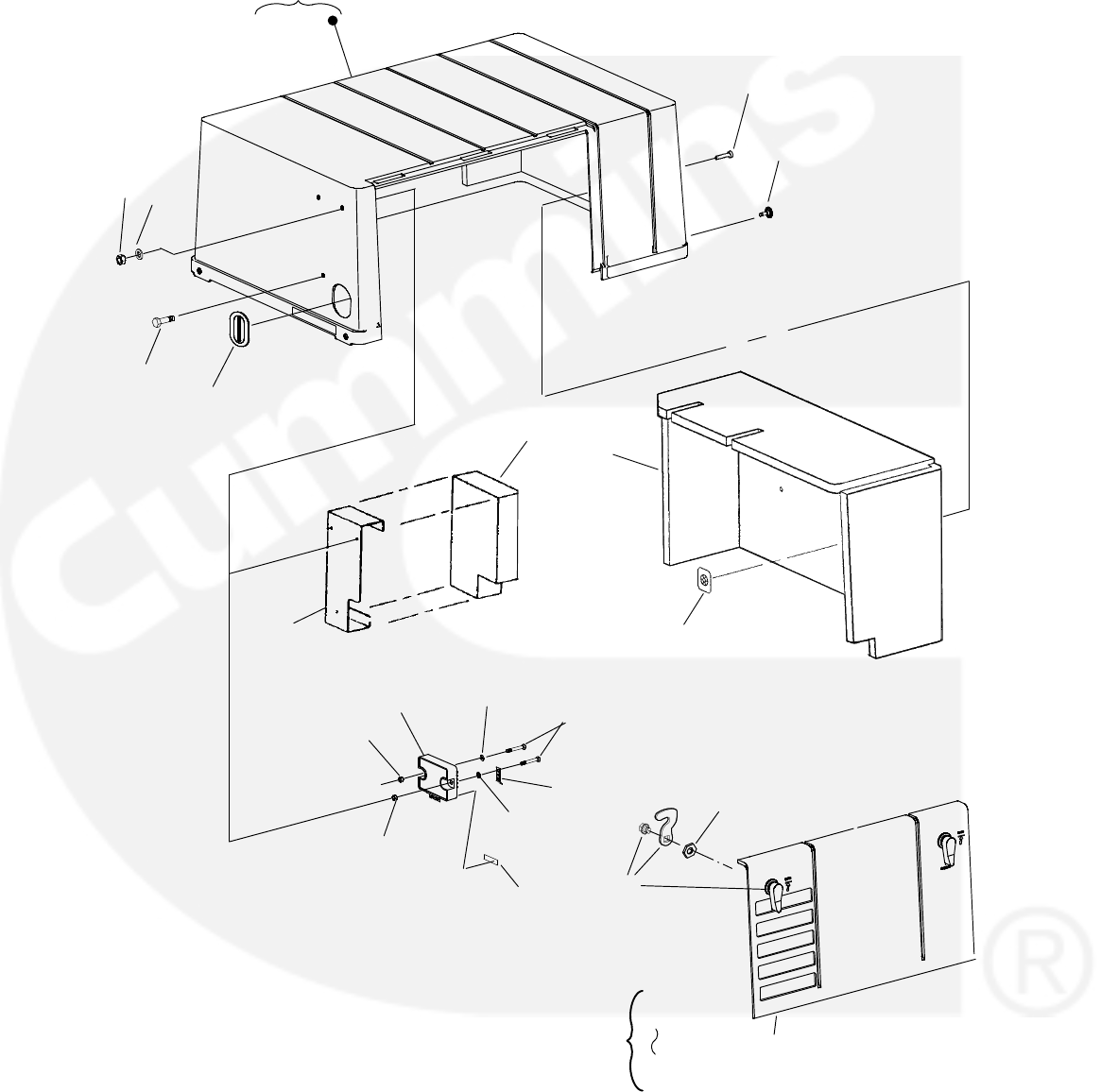

Generator Enclosure
(KY Begin Spec B and KYD)
,789,
1
5
2
3
11
13 17
21
18
20
16
19
10
14
6
17
22
15
13
13
12
26
~
7
11
4
KY/ KYD
51
Generator Enclosure
(KY Begin Spec B and KYD)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
541−0556−01 1 Kit, Enclosure Cover Includes
(KY Enclosure Cover Assy.)
1 Cover Assy, Enclosure
(Includes Parts Marked *)
405−6383−01 1 KY
405−7552 1 KYD
2 *Grommet
508−0315 1 KY Spec B−E
508−1116 1 KY Begin Spec F and KYD
3 818−0226−02 2 *Rivet
4 *Insulation, Cover
405−4894 1 KY Begin Spec B
405−7662 1 KYD
5 518−0581 2 *Nut, Push−On
6 *Panel Assy, Service Onan
(Includes Parts Marked +)
405−6384−01 1 Onan Green
405−6384−02 1 Onan Marine White
405−6384−03 1 Onan Camp Power Grn
7 405−6384−01 1 +Insulation, Door
8 526−0394 3 +Washer, Flat (Special)
9 405−4311−01 1 +Gasket, Service Panel
(250mm)
10 870−2198 2 +Nut, Hex (M22 x 1.5)
11 406−0779 2 +Latch Assy, Service Panel
(Includes Pawl and Latch)
12 98−6806 1 Label, Charger
13 870−2062 4 Nut, Lock (M5 x .8) (50Hz,
100V−60Hz)
14 856−0003 1 Washer, EIT (#10) (50Hz,
100V−60Hz)
15 332−3292 1 Terminal, Spade (50Hz,
100V−60Hz
16 800−2012 2 Screw, Hex Head Cap
(M5 x .8 x 30mm) (50 Hz,
100V−60Hz)
17 526−0009 3 Washer, Flat (M5) (50 Hz,
100V−60Hz)
18 405−4967−03 1 Bracket, Inlet Insulation
(60 Hz) (Spec B−H)
19 305−0784 1 Charger, Battery (50 Hz,
100V−60Hz)
20 405−4966 1 Insulation, Inlet (60 Hz)
(Spec B−H)
21 823−1002−01 3 Screw, Torx Pan Head
(M6 x 1 x 12mm) (60 Hz)
(Spec B−H)
22 823−0010−01 4 Screw, Torx Shoulder (M6)
* − Included in Enclosure Cover Assy.
+−Included in Service Panel Assy.
KY/ KYD
52
Underfloor Mounting Kit
(KY Begin Spec B)
1
3
4
8
9
56
10
2
7
1
5
6
6
7
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
A030X652 1 Kit, Underfloor Mounting
1 403−3672 2 Panel, Underfloor
2 821−0014 4 Screw, Hex Head Lock Flange
(5/16−18 x .5”)
3 403−3396−02 1 Panel, Back
4 508−0315 1 Grommet, Remote
5 800−0048 8 Screw, Hex Head Cap
(3/8−16 x .75”)
6 526−0174 12 Washer, Flat (3/8” Hardened)
7 403−3669−02 2 Rail, Underfloor
8 800−0026 6 Screw, Hex Head Cap
(5/16−18 x .75”)
9 526−0122 6 Washer, Flat (5/16” Hardened)
10 870−0513−02 4 Nut, Hex Flange Lock (5/16−1)
KY/ KYD
53
Underfloor Mounting Kit
(KYD)
1
2
3
5
4
6
7
8
10
9
5
6
73
10
2
1
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
541−0938 1 Kit, Mounting (Underfloor)
1 403−5135−02 2 Rail, Mounting
2 403−3672 2 Panel, Under Floor
3 526−0174 8 Washer, Flat
4 403−5136−02 1 Mount, Generator
5 526−0122 4 Washer, Flat (5/16”)
6 800−0026 4 Screw, Hex Head Cap
(5/16−18 x .75”)
7 800−0048 8 Screw, Hex Head Cap
(5/8−16 x .75”)
8 508−0315 1 Grommet, Remote
9 870−0513−02 4 Nut, Hex Flanged (5/16”)
10 821−0014 4 Screw, Locking Head
(5/16−18 x 1/2”)
KY/ KYD
54
Underfloor Mounting Kit
(KY Spec A)
11
12
13
14
15
12
15
13
14
13
14
13
14
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
A030X652 1 Kit, Underfloor Mounting
(Replaced by 403−3670)
11 403−3581−04 1 Rail, Bottom (w/o Weldnuts)
12 526−0174 16 Washer, Flat (3/8”)
13 800−0026 6 Screw, Hex Head Cap
(5/16−18 x 3/4”)
14 526−0122 6 Washer, Flat (5/16”)
15 800−0049 12 Screw, Hex Head Cap
(3/8−16 x .88”)
KY/ KYD
55
KY Underfloor Housing/Base Kit
3
4
5
6
7
8
13
9
112
10 11
2
11
13
14
15
15
2
10
11
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 405−4241 1 Kit, Housing (Includes Parts
Marked +)
2 405−4662−S0 1 +Panel, Housing (Rear)
3 405−4663−S0 1 +Panel, Housing (LH)
4 405−4668−01 1 +Cover, Panel
5 508−0071 3 +Grommet, Rubber (.62 Id)
6 508−0055 1 +Grommet, Rubber (1.50 Id)
7 813−0098 1 +Screw, RH (#10−32 X.375)
8 856−0008 2 +Washer, EIT Lk (5/16)
9 850−0030 1 +Washer, Lock (#10)
10 800−0026 16 +Screw, Hex Head Cap
(5/16−18 X .75)
11 526−0122 22 +Washer, Flat (5/16”)
12 403−3630 1 Kit, Underfloor Base (Includes
Parts Marked *)
13 403−3631−02 1 *Base, Underfloor
14 800−0026 14 *Screw, Hex Head Cap
(5/16−18 X .75)
15 526−0122 22 +Washer, Flat (5/16 )
*−Parts Included in Base Kit.
+−Parts Included in Housing Kit.
KY/ KYD
56
Generator/Control
(KY Spec A)
20
1
2
3
4
5
6
7
8
9
10
13
15
16
17
19
18
21
22
23 24
25
26
27
29
30 28
31 32
33 34 35
36
37
14
3
30
38
11 12,,
KY/ KYD
57
Generator/Control
(KY Spec A)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 870−2054 1 Nut, Locking Flange (M6 x 1)
(LP)
2 145−0619 1 Shield, Carburetor (Gasoline)
3 823−0009−01 5 Screw, Torx Pan Head
(M6 x 1 x 14mm)
4 308−0969 1 Bezel
5 Panel, Control
319−1412 1 60 Hz
6 517−0133 1 Plug, Hole (50 Hz)
7 303−0303 1 Potentiometer Assy (R5)
(50 Hz) (Includes Lead,
Bracket and Potentiometer)
8 303−0275 1 Potentiometer (R5)(50 Hz)
9 Breaker, Circuit (CB1)
320−1323 1 60 Hz (30 Amp)
320−1780−01 1 50 Hz (15 Amp)
10 166−0784−S0 Coil Assy, Ignition (Includes
Spark Plug Terminal and Boot)
11 167−0267 1 Terminal, Spark Plug
12 167−0265 1 Boot, Spark Plug
13 823−0002−04 2 Screw, Torx Pan Head
(M4 x .7 x 12mm)
14 823−0007−02 4 Screw, Torx Pan Head
(M8 x 1.25 x 25mm)
15 220−4572−01 1 Housing, Stator
16 Stator, Generator
220−4485−S1 1 60 Hz
220−4485−S3 1 50 Hz
17 201−3538−S0 1 Rotor Assy (Includes Bearing
and Collector Ring)
18 515−0289 1 Key, Fan Hub
19 204−0141 1 Ring, Collector
20 510−0216 1 , Rotor
21 509−0285 1 O’Ring
22 815−0787 2 Screw, Torx Socket Head
(M6 x 1 x 70mm)
23 134−4918 1 Housing, Scroll
24 205−0199−S0 1 Wheel Assy, Blower
25 815−0778 1 Bolt, Rotor Thru (3/8−24 x 9.5”)
26 526−0392 1 Washer, Fan Hub
27 823−0003−03 3 Screw, Torx Pan Head
(M6 x 1 x 20mm)
28 1 Endbell Assy (See Separate
Page for Components)
29 750−1006 2 Nut, Hex (M8)
30 740−1006 4 Washer, Flat (M8)
31 191−2351 1 Starter (B1) (See Separate
Page for Components)
32 720−1038 2 Screw, Hex Head Cap
(M8 x 30mm)
33 226−4297 1 Cable, Starter
34 850−0040 1 Washer, Lock−Spring (1/4”)
35 862−0001 1 Nut, Hex (1/4−20)
36 823−0008 1 Screw, Pan Head Torx
(M4 x .7 x 60mm)
37 304−0796 2 Washer, Center (M4)
38 870−0236 1 Nut, Hex (#10−32)
KY/ KYD
58

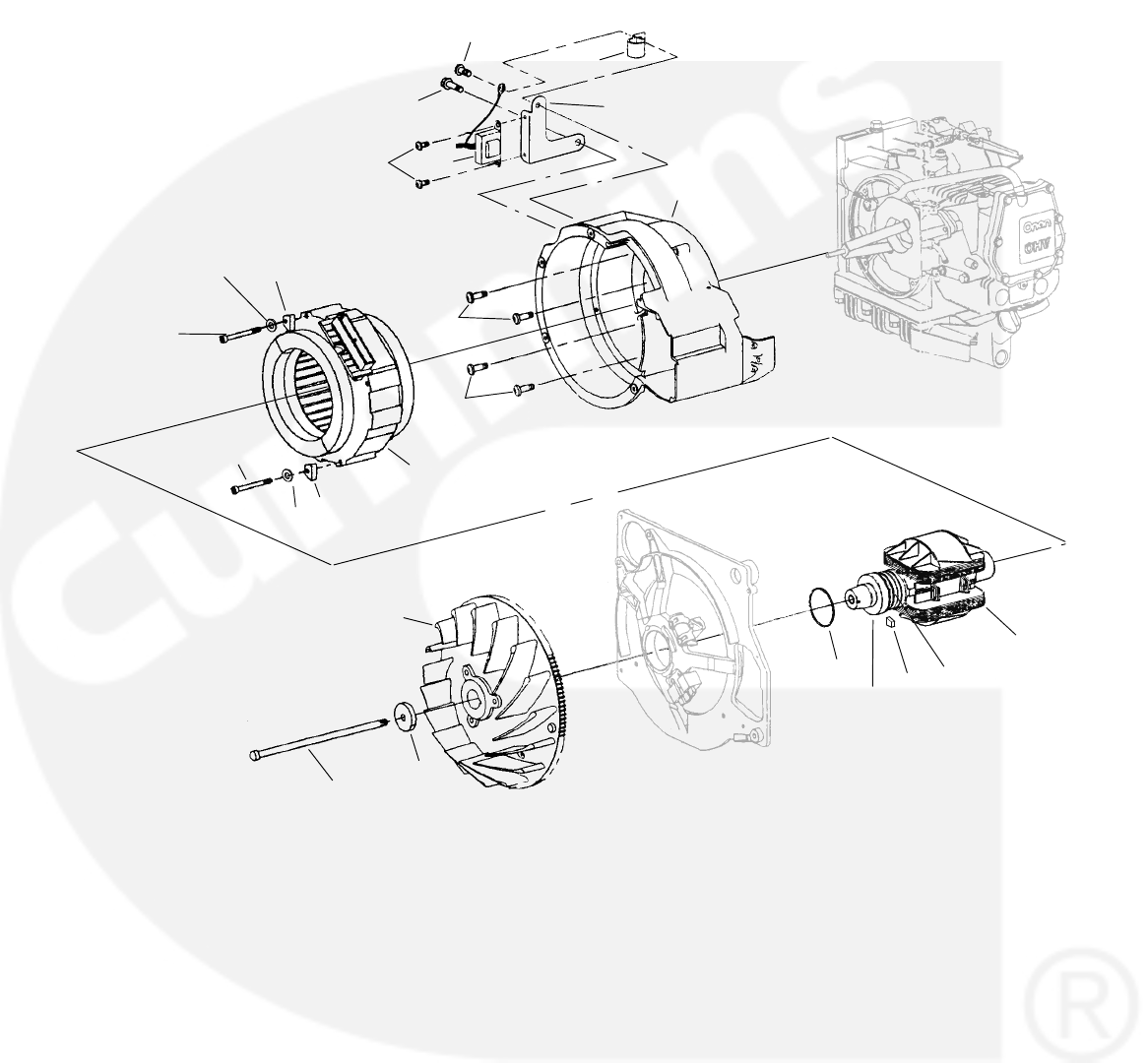

Generator
(KY Begin Spec B and KYD)
16
15
17
18
19
1
2
3
4
5
8
7
9
13
10
14
12
6
12
13
20
10
11
11
KY/ KYD
59
Generator
(KY Begin Spec B and KYD)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Rotor Assy, (Includes Bearing)
60 Hz
201−3538−S0 1 Spec B−H
201−3539−S1 1 Begin Spec J
50 Hz
Gasoline
201−3538−S0 1 Spec B−D
201−3539−S0 1 Begin Spec E
LP
201−3538−S0 1 Spec B−C
201−3539−S0 1 Begin Spec D
2 510−0216 1 Bearing, Rotor
3 204−0141 1 Ring, Collector
4 515−0289 1 Key, Hub
5 509−0421 1 O’Ring
6 526−0392 1 Washer, Fan Hub
7 815−0778 1 Bolt, Rotor Thru
(3/8−24 x 9−1/2”)
8 Wheel Assy, Blower
(Includes Magnet)
205−0199−S0 1 Spec B−H
205−0263 1 Begin Spec J
9 Stator, Generator
60 Hz
Spec B−H
220−4485−S5 1 120V
220−4485−04 1 100V
Begin Spec J
220−4586−S1 1 120V
220−4586−02 1 100V
50 Hz
Gasoline
220−4485−S3 1 Spec B−D
220−4490−S1 1 Spec E−H
220−4586−11 1 Begin Spec J
LP
220−4485−S3 1 Spec B−C
220−4490−S1 1 Spec D−H
220−4586−11 1 Begin Spec J
10 Clamp (50Hz)
232−3881 2 Spec B−H (Angled)
232−4030 2 Begin Spec J (Flat)
11 526−0018 2 Washer, Flat (60Hz) (Begin
Spec J)
12 Screw, Torx Socket Head
815−0787 2 60 Hz (M6 x 1 x 70mm)
815−0936 2 50 Hz (M6 x 1 x 100mm)
Begin Spec B
13 823−0007−02 4 Screw, Pan Head − Torx
Thread Forming
(M8 x 1.25 x 25mm)
14 Housing, Stator
60 Hz
Begin Spec B
220−4572−01 1 Gasoline Units
220−4572−02 1 LP Units
50 Hz
220−4572−03 1 Begin Spec B
15 315−0735−03 1 Bracket, Transformer
(50 Hz,100v−60Hz)
(Spec B−H)
16 518−0515 1 Clip(50 Hz,100v−60Hz)
(Spec B−H)
17 823−0003−06 1 Screw, Torx Pan Head
Thread Forming
(50 Hz,100v−60Hz)
(Spec B−H)
(M6 x 1 x 12mm)
18 815−0829−04 1 Screw, Thread Hex Flange
Forming (M8 x 1.25 x 16mm)
(Spec B−H) (50 Hz,
100V−60Hz)
19 315−0736 1 Transformer, Voltage (T1)
(Spec B−H) (50 Hz,
100V−60Hz)
20 823−1002−01 2 Screw, Pan Head Torx
Machine (M6 x 1 x 12mm)
(Spec B−H) (50 Hz,
100V−60Hz)
When a Rotor is ordered for KY Spec A or B prior to Serial #H943219685 then use a 201−3538−S0 Rotor and one of the Following
Stators unless it has already been replaced:
60Hz − Spec A, Order 220−4485−S1
60Hz − Spec B Order 220−4485−S5
50Hz − Spec A or B Order 220−4485−S3
KY/ KYD
60
Control
(KY Spec B−H)
,,
,
1
23
4
57
6
8
9
10
11 12 13
14
15
16
17 18
15
10
19
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Breaker, Circuit (CB1)
60 Hz
320−1323 1 30A (120V Sets)
320−1780−02 1 20A (100V Sets)
50 Hz
320−1780−01 1 15A
320−1780−03 1 17A
320−1780−02 1 20A
2 303−0308−01 1 Potentiometer Assy (R5)
(50 Hz and 100V/60Hz)
(Includes Lead, Bracket and
Potentiometer)
3 303−0275 1 Potentiometer (R5) (50 Hz and
100V/60Hz)
4 Panel, Control
319−2176−03 1 60 Hz
319−2213−03 1 50 Hz
5 517−0133 1 Plug, Hole (50 Hz Only)
6 308−0852 1 Switch, Start/Stop (S1)
7 Screw, Cross Pan Head
Recessed w/ET (#6−32 x 1/4”)
60 Hz
815−0549 2 120
815−0549 4 100V
815−0549 4 50 Hz
8 853−0013 1 Washer, ET Lock (1/4”)
9 823−0003−06 1 Screw, Torx Pan Head
Thread Forming
60 Hz (M6 x 1 x 12mm)
10 823−0002−04 2 Screw, Torx Pan Head
(M4 x .7 x 12mm)
11 166−0818 1 Coil Assy, Ignition (T1−Ign)
(Includes Terminal and Boot)
12 167−0267 1 Terminal, Spark Plug
13 167−1627 1 Boot, Spark Plug
14 823−0003−01 2 Screw, Torx Pan Head
(M6 x 1 x 10mm)
15 526−0018 2 Washer, Flat (1/4”)
16 145−0689 1 Shield, Carburetor
17 823−1002−03 1 Screw, Pan Head Torx
(M6 x 1 x 10mm)
18 526−0018 1 Washer, Flat (1/4”)
19 Harness, AC Output
338−2909 1 60 Hz
338−3049 1 50 Hz
KY/ KYD
61
Control Panel
(KY Begin Spec J and KYD)
3
10
7
5
6
13
12
11
9
1
8
2
4
1
14
9
10
10
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 526−0018 3 Washer, Flat (1/4”)
2 815−0578 1 Screw, Pan Head Torx
(M6 x 1 x 12mm)
3 315−0736 1 Transformer, Voltage (T1)
(100V, 230V)
4 870−2054 2 Nut, Lock Flange (100V, 230V)
5 303−0332 1 Potentiometer Assy (R5)
(100V, 230V) (Includes Lead,
Bracket and Potentiometer)
6 303−0331 1 Potentiometer (R5) (100V,
230V)
7 Breaker, Circuit (CB1)
320−1780−03 1 17A (Spec 26119, 33742)
320−1780−02 1 20A (Spec 11429, 65697,
11572)
320−1323 1 30A (Spec 11580,
26100, 26120)
8 145−0689 1 Shield, Carburetor
9 815−0753 5 Screw, Torx Pan Head
(M6 x 1 x 14mm)
10 Washer, ET Lock (1/4”)
853−0013 2 (120V, 60Hz)
853−0013 3 (100V, 230V)
11 308−1038 1 Switch, Start/Stop (S1)
12 Screw, Cross Pan Head
Recessed w/ET (#6−32 x 1/4”)
815−0549 2 120V
815−0549 4 100V, 230V
13 319−3844−02 1 Panel, Control
14 Harness, AC Output
338−3814 1 3−wire (Spec 11572,
11580, 26100, 26120)
338−3815 1 4−wire (Spec 11429, 26119,
33742, 65697)
KY/ KYD
62

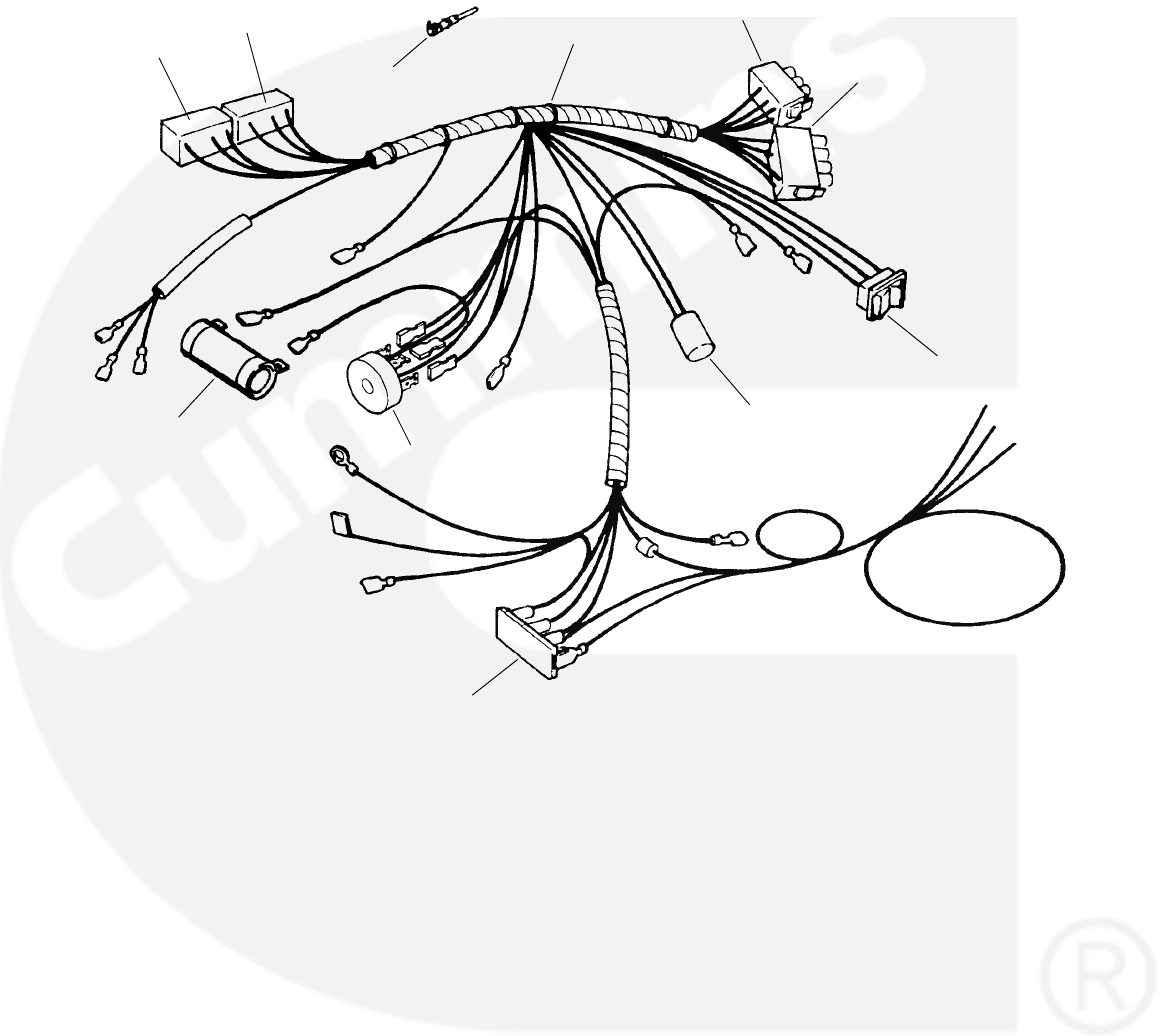

Generator Harness
(KY Spec A)
1
2
3
4
5
6
7
8
9
11
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Generator
338−2568−01 1 60 Hz
338−2568−02 1 50Hz
1 305−0935 1 Rectifier, Bridge (CR1)
2 304−0794 1 Resistor (R1)
3 332−0942 13 Tie, Cable
4 332−3108 1 Terminal, Ground
5 321−0312−S1 1 Fuse (5 Ampere)(F1)
6 308−0968 1 Switch, Start/Stop (S1)
7 323−1314 1 Connector, Plug (12 Pin)(P4)
8 323−1252 1 Connector, Plug (15 Pin)(P1)
9 323−1200 21 Pin, Contact
10 323−1527−01 1 Connector, Plug (P6)
11 323−1527−02 1 Connector, Plug (P5)
KY/ KYD
63

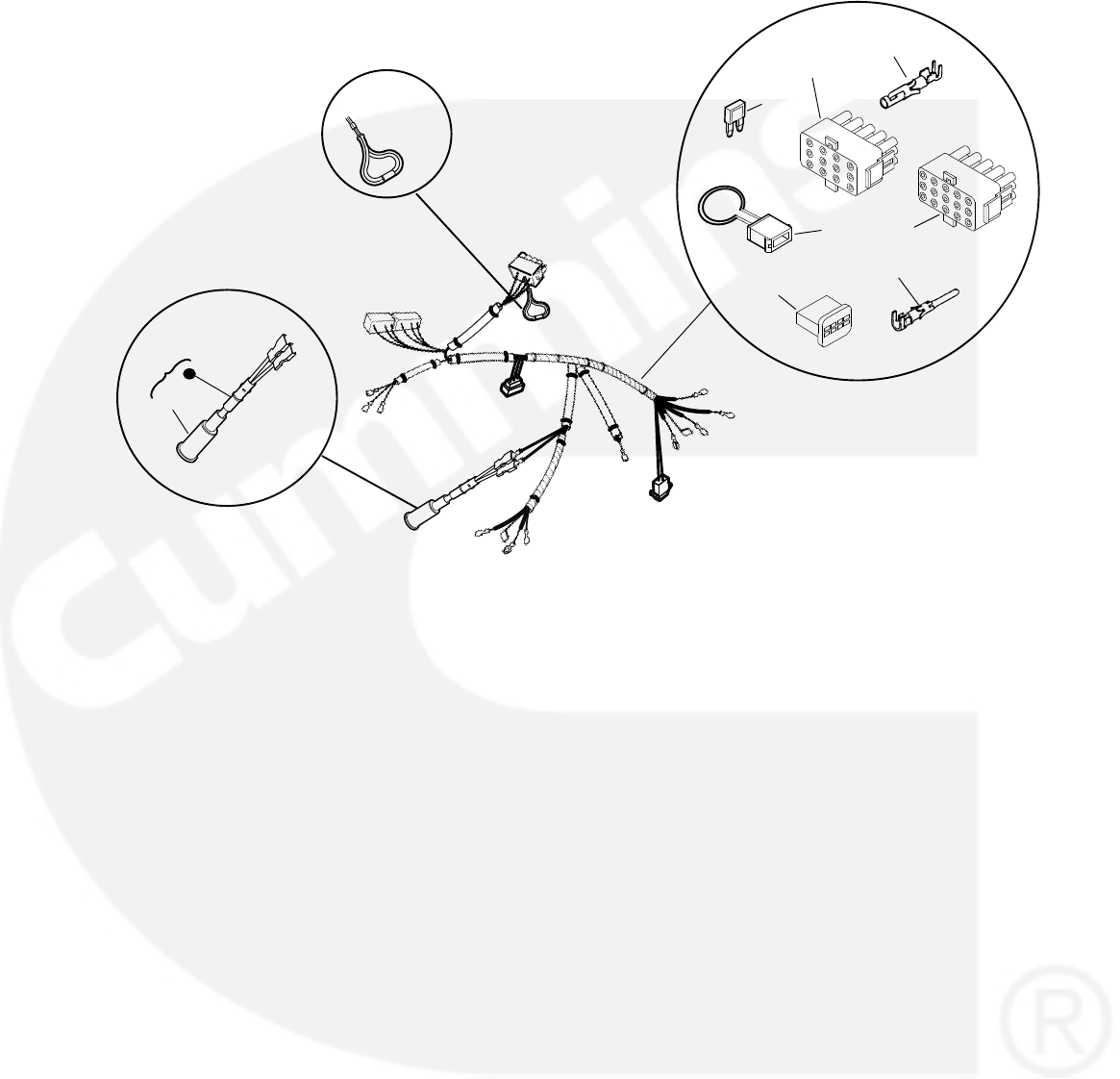

Generator Harness
(KY Spec B−F)
78
3
5
4
1
2
9
10
6
,
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Generator
60 Hz
Gasoline
338−3022−01 1 120 Volt (Includes
Parts Marked *)
100Volt
338−3123−01 1 Isolated Neutral
(Includes Parts
Marked * and +)
338−3379−01 1 Grounded Neutral
(Includes Parts
Marked * and )
338−3022−02 1 LP (Includes Parts
Marked *)
50 Hz (Includes Parts
Marked * and
338−3023−01 1 Gasoline
338−3023−02 1 LP
1 321−0312−02 1 *Fuse Assy (F1) (Includes
5A Fuse)
2 321−0307−03 1 *Fuse, 5A (F1)
3 323−1314 1 *Connector, Plug (12 Pin)(P4)
4 323−1199 12 *Pin,Contact
5 323−1253 1 *Cap, Circuit (15 Pin)(J1)
6 *Socket, Contact
323−1200 9 120V, 220V
323−1200 7 100V
7 323−1527−01 1 *Connector, Plug (P6)
8 323−1527−02 1 *Connector, Plug (P5)
9 338−2807 1 +Harness, Splitter (Includes
Boot)
10 167−1636 1 Boot, Insulating
*−Parts Included with all Harnesses
+−Parts Included in 100V, Isolated Neutral Harness
−Part Included in 100V, Grounded Neutral Harness
−Part Included in 50Hz Harnesses.
KY/ KYD
64
Generator Harness
(KY Spec G−H)
1
2
3
4
5
6
78
9
10
,
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Generator
60 Hz
Gasoline
338−3639−01 1 120 Volt (Includes
Parts Marked *)
100 Volt
338−3641−01 1 Isolated Neutral
(Includes Parts
Marked * and +)
338−3638−01 1 Grounded Neutral
(Includes Parts
Marked * and )
338−3639−02 1 LP (Includes Parts
Marked *)
50 Hz
Gasoline
338−3640−01 1 230 Volt (Includes
Parts Marked *
and )
338−3661−01 1 100 Volt (Includes
Parts Marked *
and +)
LP
338−3640−02 1 230V (Includes
Parts Marked *
and )
338−3661−02 1 100 Volt (Includes
Parts Marked *
and +)
1 321−0312−02 1 *Fuse Assy (F1) (Includes
5 Amp Fuse)
2 321−0307−03 1 *Fuse, 5 Amp (F1)
3 323−1314 1 Connector, Plug (12 Pin)(P4)
4 323−1199 12 *Pin,Contact
5 323−1253 1 *Cap, Circuit (15 Pin)(J1)
6 *Socket, Contact
323−1200 9 120V, 220V
323−1200 7 100V
7 323−1527−01 1 *Connector, Plug (P6)
8 323−1527−02 1 *Connector, Plug (P5)
9 338−2807 1 +Harness Assy, Splitter
(Isolated Neutral Harnesses
only. Includes Boot)
10 167−1636 1 Boot, Insulating
*−Parts Included with all Harnesses
+−Parts Included with 100V, Isolated Neutral Harness.
−Part Included in 100V, Grounded Neutral Harness
−Part Included in 50Hz Harness.
KY/ KYD
65

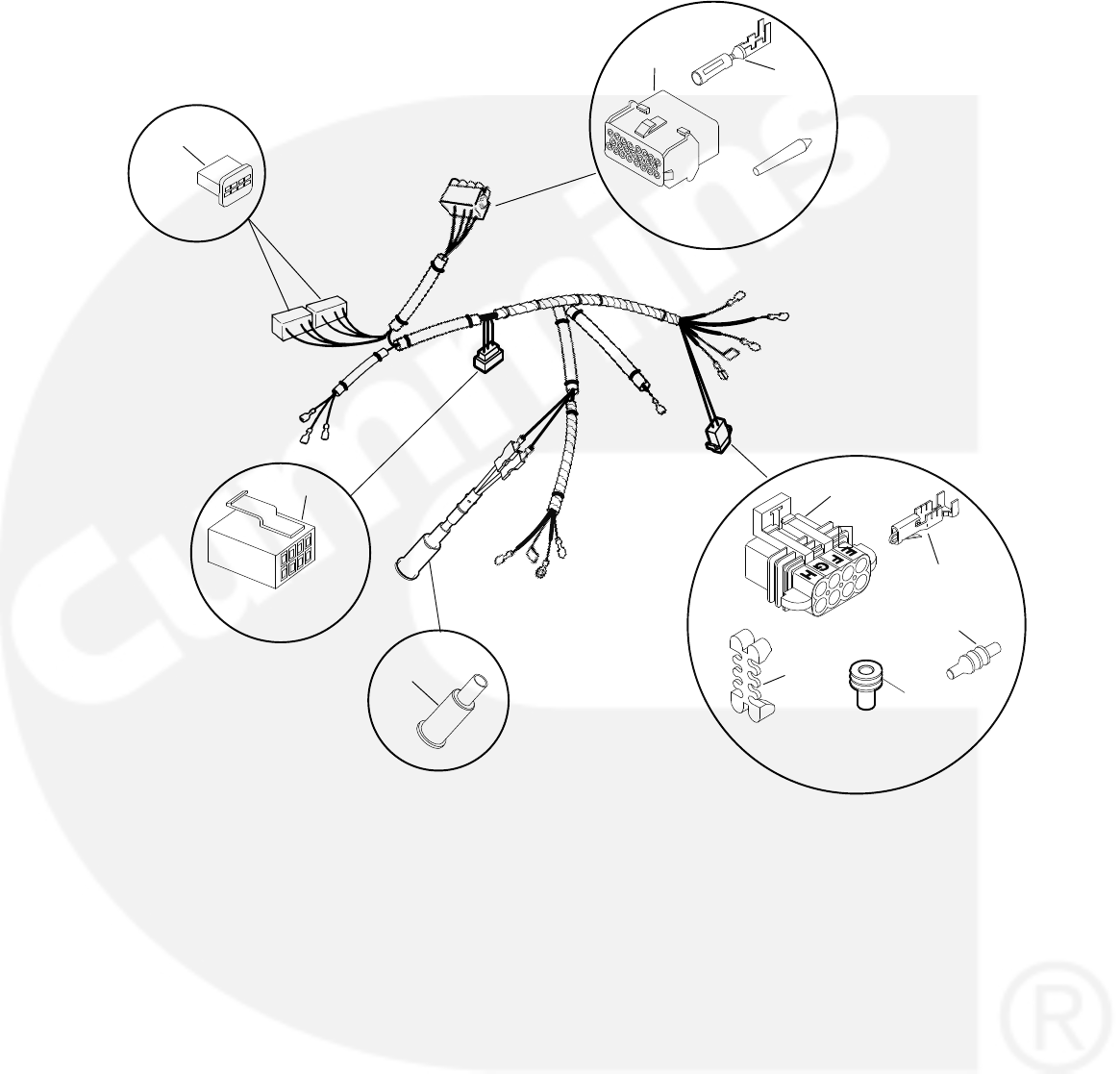

Engine Harness
(KY Begin Spec J and KYD)
12
3
6
10
8
9
11
4
7
5
P1
J2
P5, P6
,
P9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Harness, Engine
60 Hz
Gasoline
338−3813 1 100 Volt
338−3812 1 120 Volt
LP
338−3813 1 50 Hz
1 323−1527−01 1 Connector, Plug (P6)
2 323−1527−02 1 Connector, Plug (P5)
3 323−1605−01 1 Connector, Plug (P1) (23 Pin)
4 323−1614−01 AR Socket, Terminal (P1)
5 167−1636 1 Boot, Insulating (Not Used
on 338−3812)
6 323−1743 1 Connector, Plug (J2)(8 Pin)
7 323−1709 7 Terminal, Socket (J2)
8 323−1712 1 Plug, Cavity (J2)
9 323−1708 7 Seal, Cable (J2)
10 323−1741 1 Housing, Lock (J2)
11 308−1019 1 Connector, Switch (P9)
KY/ KYD
66

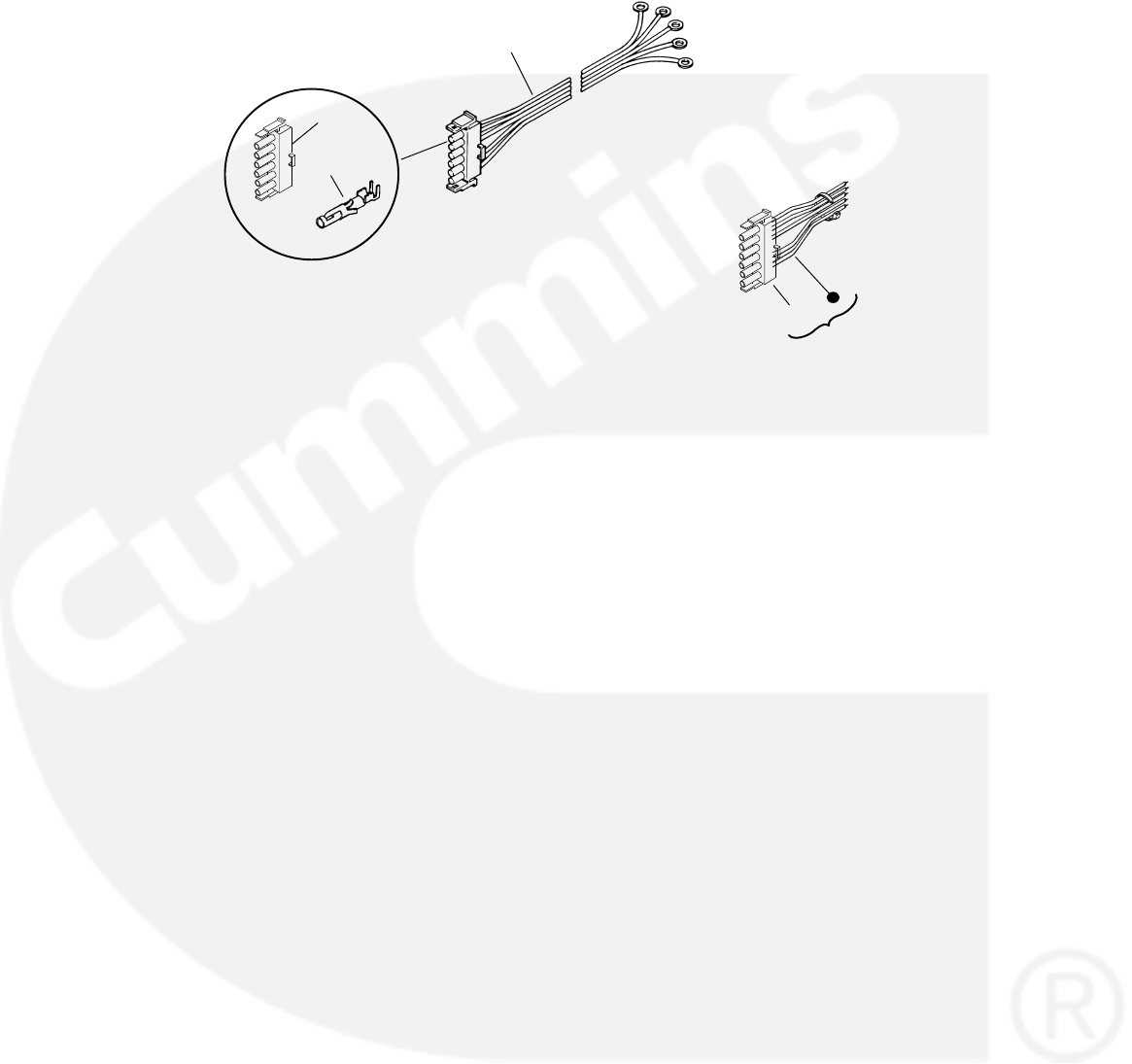

Extension/Pigtail Harness
(KY Spec B−E)
2
1
4
3
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Harness, Extension (Reaches
from Genset to Remote Panel)
(Includes Housing and Pins)
338−2260−01 1 Ten Feet Long
338−2260−02 1 Thirty Feet Long
2 338−2046 1 Harness, Pigtail (6”) (Reaches
from Genset Harness to
Customer Hookup) (Includes
Connector Housing)
3 323−1304 1 Housing, Connector
4 323−1199 5 Pin, Contact
KY/ KYD
67

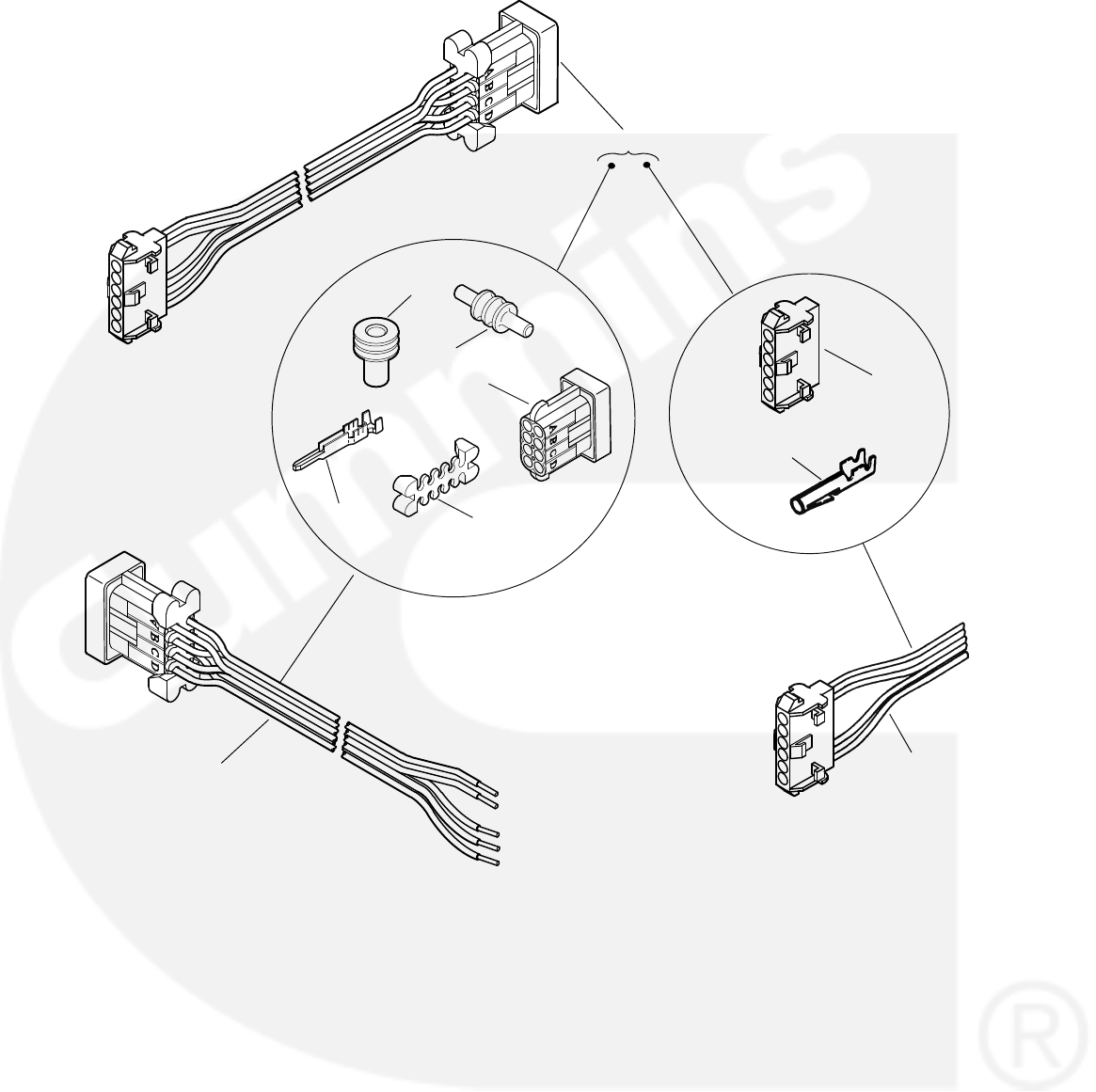

Extension/Pigtail/Adapter Harness
(KY Spec F−H and KYD)
2
1
3
4
5
6
78
9
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Harness, Extension (Reaches
from Genset Harness to
Remote Panel) (Includes Parts
Marked +)
338−3489−01 1 10’
338−3489−02 1 30’
2 300−4946 1 Harness, Customer Interface
Pigtail (Reaches from Genset
Harness to Customer
Hookup or Remote Panel [with
use of Following Adapter
Harness]) (Includes Parts
Marked *)
3 338−3572 1 Harness, Adapter (Reaches
from Remote Panel to Pigtail
Harness) (Includes Parts
Marked #)
4 323−1744 1 +*Connector, Receptacle (8 Pin)
5 323−1712 3 +*Plug, Cavity
6 323−1708 5 +*Seal, Cable
7 323−1707 5 *Pin, Contact
8 323−1741 1 +*Housing, Lock
9 323−1200 1 +#Socket, Contact
10 323−1342 1 +#Cap, Connector
+−Parts Included in Extension Harness.
*−Parts Included in Customer Interface Pigtail Harness.
#−Parts Included in Adapter Harness.
KY/ KYD
68

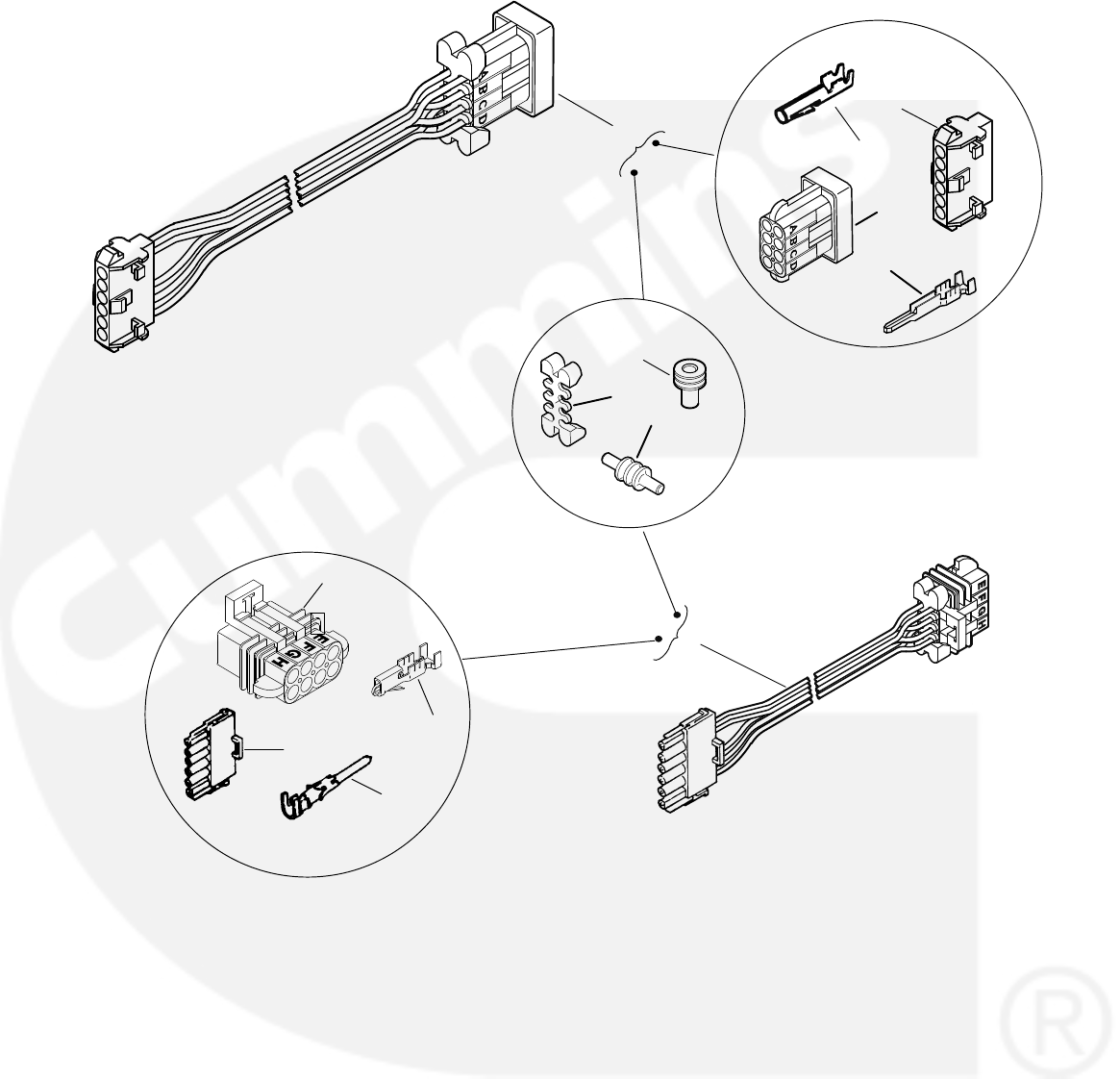

Adapter Harness
(New to Old, Old to New)
(KY Spec F−H and KYD Spec A)
1
2
4
5
6
7
8
9
10
11
12
13
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 338−3513 1 Harness, Remote Panel
Adapter (6”) (Reaches from
New Genset to Old Panel)
(Includes Parts Marked *)
2 338−3514 1 Harness, Remote Panel
Adapter (6”) (Reaches from
Old Genset to New Panel)
(Includes Parts Marked +)
3 323−1744 1 *Connector, Receptacle (8 Pin)
4 323−1708 5 +*Seal, Cable
5 323−1707 5 *Pin, Contact
6 323−1712 3 +*Plug, Cavity
7 323−1741 1 +*Housing, Lock
8 323−1342 1 *Cap, Connector (6 Pl)
9 323−1200 1 *Socket, Contact
10 323−1743 1 +Connector, Plug (8 Pin)
11 323−1709 5 +Socket, Terminal
12 323−1304 1 +Cap, Connector (6 Pl)
13 323−1199 5 +Pin, Contact
*−Parts Included in Remote Panel Adapter Harness
(New Genset to Old Panel).
+−Parts Included in Remote Panel Adapter Harness
(Old Genset to New Panel).
KY/ KYD
69
Remote Control Panel
(KY Spec B−E)
1
3
4
2
3
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
300−4936 1 Kit, Remote Panel
1 815−0910 2 Screw, Oval Head Wood
2 300−4953−01 1 Panel Assy, Remote (Includes
Switch and Panel)
3 319−6987−02 1 Panel, Printed
4 308−1062 1 Switch, Start/Stop (S1)
KY/ KYD
70

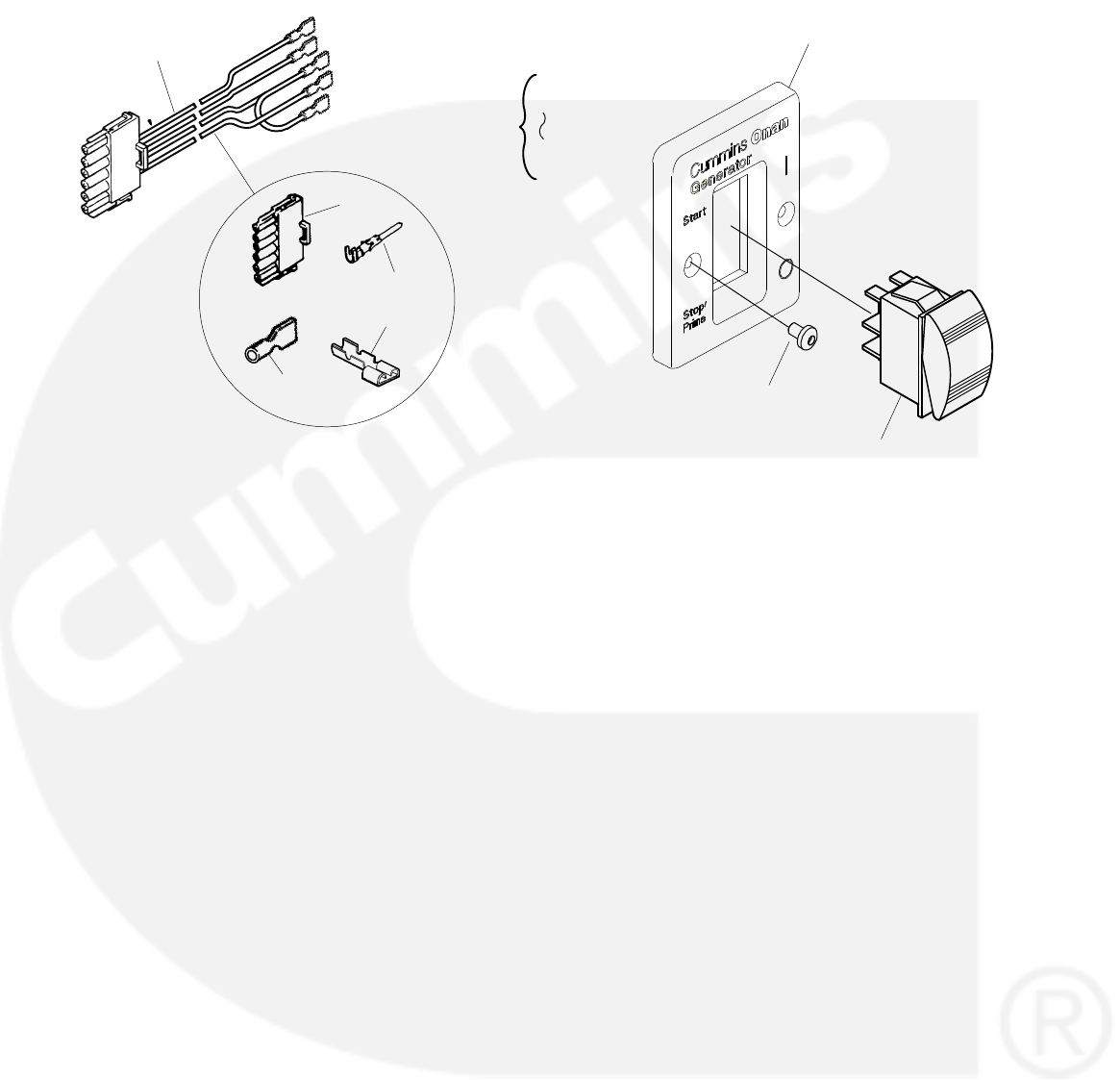

Remote Control Panel
(Switch Only)
1
2
3
4
5
6
7
8
9
3
5
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Remote Panel (Switch Only)
300−5331 1 KY Begin Spec J and KYD
1 815−0910 2 Screw, Wood (#6 x 1”)
2 Panel Assy, Remote (Includes
Parts Marked ^)
300−4953−04 1 KY Begin Spec J and KYD
3 ^Panel, Printed
319−6987−01 1 KY Spec F−H
319−6987−03 1 KY Begin Spec J and KYD
4 308−1062 1 ^Switch, Start/Stop
5 338−3510 1 ^Harness, Remote Panel
(Reaches from Remote Panel
to Extension Harness)
(Includes Parts Marked #)
6 323−1304 1 #Plug, 6−Pin
7 323−1199 4 #Pin, Contact
8 332−0529 3 #Terminal, Receptacle (.25)
9 332−0529 2 #Terminal, Receptacle (.25)
^−Parts Included in Remote Panel Assy.
#−Parts Included in Remote Panel Harness.
KY/ KYD
71

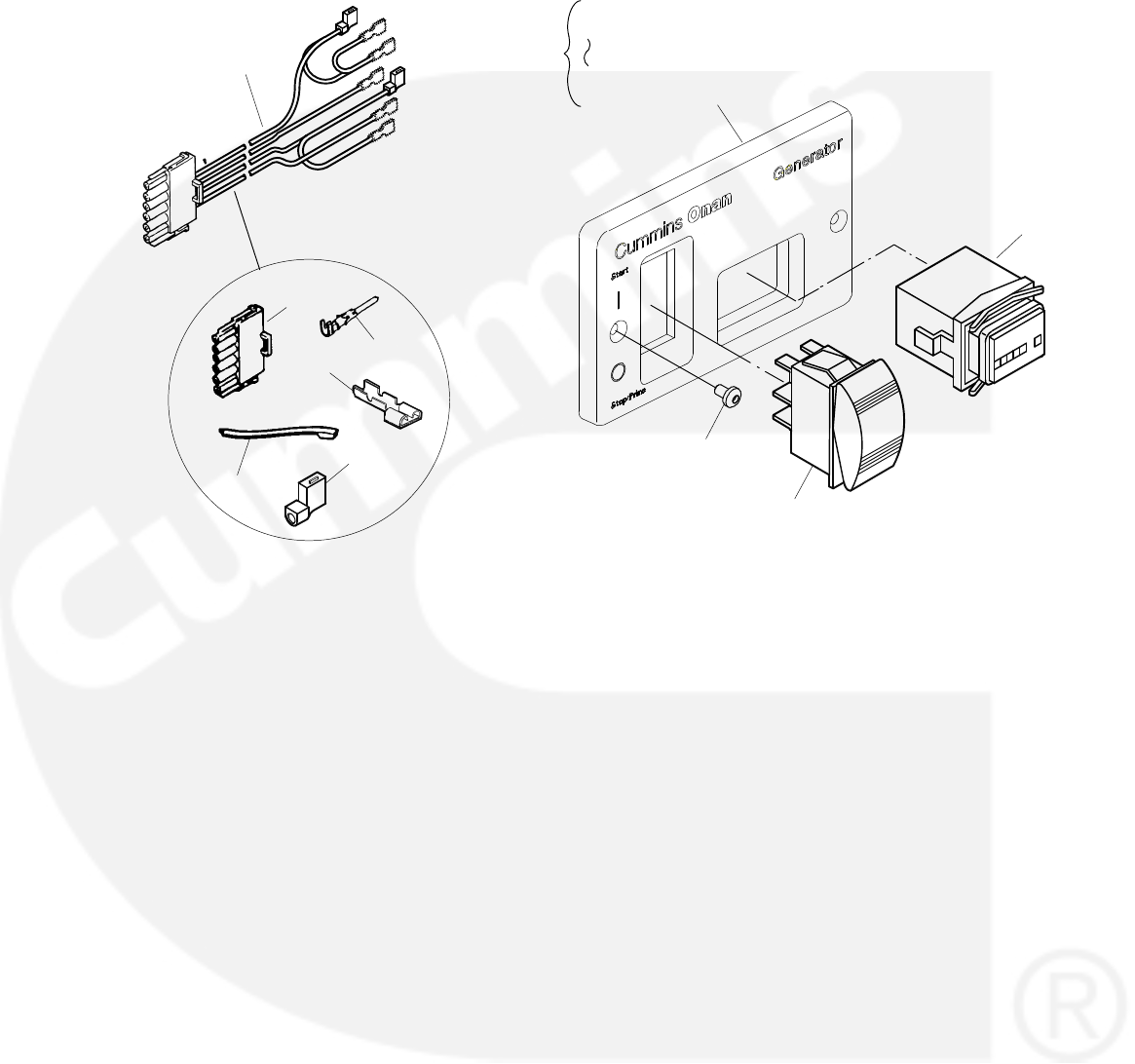

Remote Control Panel
(Switch and Hourmeter))
1
2
3
4
5
6
7
8
9,
10
11
3
6
12
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Remote Panel (Switch and
Hourmeter)
300−5332 1 KY Begin Spec J and KYD
1 815−0910 2 Screw, Wood (#6 x 1”)
2 Panel Assy, Remote (Includes
Parts Marked ^)
300−4951−04 1 KY Begin Spec J and KYD
3 ^Panel, Printed
319−6988−03 1 KY Spec F−H
319−6988−05 1 KY Begin Spec J and KYD
4 308−1062 1 ^Switch, Start/Stop
5 302−2002 1 ^Meter, Hour
6 ^Harness, Remote Panel
(Reaches from Remote Panel
to Extension Harness)
(Includes Parts Marked #)
338−3896 1 KY Begin Spec J and KYD
7 323−1304 1 #Plug, 6−Pin
8 323−1199 4 #Pin, Contact
9 332−0529 4 #Terminal, Receptacle (.25)
10 332−0529 1 #Terminal, Receptacle (.25)
11 332−0942 AR #Tie, Cable
12 332−2571 1 #Terminal, Receptacle (90)
(KY Begin Spec J and KYD)
^−Parts Included in Remote Panel Assy.
#−Parts Included in Remote Panel Harness.
KY/ KYD
72

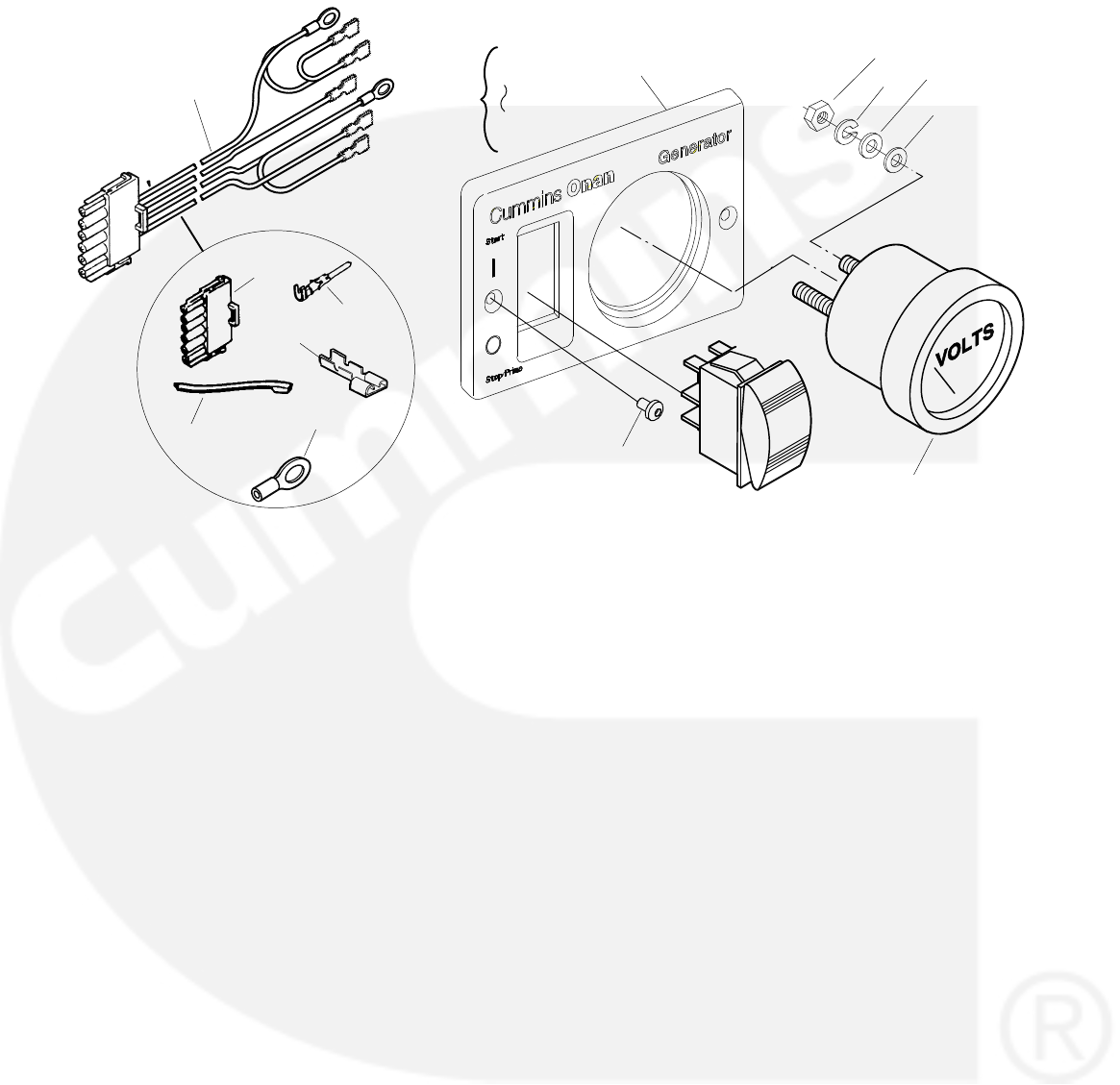

Remote Control Panel
(Switch and Voltmeter)
1
2
3
4
5
6
7
8
9
10
11
12,
13,
14
15
3
9
16
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Remote Panel (Switch and
Voltmeter)
300−5333 1
1 815−0910 2 Screw, Wood (#6 x 1”)
2 Panel Assy, Remote (Includes
Parts Marked ^)
300−4952−04 1 KY Begin Spec J and KYD
3 ^Panel, Printed
319−6989−04 1 KY Begin Spec J and KYD
4 302−1641 1 ^Meter, Volt
5 526−0409 2 ^Washer, Nylon Flat (#10)
6 526−0049 4 ^Washer, Brass Flat (#10)
7 850−0030 2 ^Washer, Lock (#10)
8 871−0010 4 ^Nut, Hex Brass Machine
(#10−32)
9 ^Harness, Remote Panel
(Reaches from Remote Panel
to Extension Harness)
(Includes Parts Marked #)
10 323−1304 1 #Plug, 6−Pin
11 323−1199 4 #Pin, Contact
12 332−0529 3 #Terminal, Receptacle (.25)
13 332−0807 2 #Terminal, Ring (#10)
14 332−0529 5 #Terminal, Receptacle (.25)
15 332−0942 AR #Tie, Cable
16 332−0147 1 #Terminal, Ring (#10) (KY Begin
Spec J and KYD)
^−Parts Included in Remote Panel Assy.
# − Parts Included in Remote Panel Harness.
+−Labels Included in 120V/60Hz Control Labels Assy.
−Labels Included in 100V/60Hz Control Labels Assy.
>−Labels Included in 50Hz Control Labels Assy.
*−Labels Included in 120V/60Hz Label Pkg.
−Labels Included in 100V/60Hz Label Pkg.
#−Labels Included in 50Hz Label Pkg.
KY/ KYD
73
Kits, Paint
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
155−2883 1 Kit, Tailpipe Hanger − Includes
the Following:
155−2860 1 Insulator, Exhaust
155−2861 2 Clamp, Exhaust
800−0031 2 Screw, Hex Head Cap
(5/16−18 x 1−1/2”)
155−2859 3 Backplate, Exhaust
800−0026 1 Screw, Hex Head Cap
(5/16−18 x 3/4”)
862−0015 2 Nut, Hex (5/16”)
155−2887 1 Kit, Exhaust Elbow − Includes
the Following:
155−2886 1 Elbow, Exhaust Adapter
155−1256 1 Clamp
541−0525 1 Kit, Set Mounting − Includes the
Following:
403−4142−02 1 Bracket, Set Mounting
402−0748 4 Isolator, Set
526−0333 4 Washer, Flat
800−0033−01 4 Screw, Hex Head Cap
(5/6−18 x 2”)
305−0979 1 Kit, Remote Adapter
323−1708 2 Seal, Cable
300−4946 1 Harness, Remote
332−3582 5 Splice, Thermal
168−0213 1 Kit, Gasket − Includes the
Following:
101−0788 1 Gasket, Bearing Plate
102−1412 1 Gasket, Oil Base
110−3893 1 Gasket, Cylinder Head
110−3861 1 Gasket, Valve Cover
140−2586 1 Gasket, Air Cleaner
145−0695 1 Gasket, Carburetor Flange
146−0531 1 Gasket, Insulator
146−0533 1 Gasket, Carburetor
154−2816 1 Gasket, Exhaust
154−2821 1 Gasket, Intake Elbow
155−2677−01 1 Gasket, Resonator
525−0305 −Paint, Enamel Green (13 oz.
Pressurized Spray Can)
KY/ KYD
74
Labels
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Labels, KY Spec A−J
98−6539−01 1 Label, Caution (Hot Exhaust
Pipe) (Spec A)
98−6783 1 Label, Control (Stop/Start/
Amp) (120V Sets)(Spec B−H)
98−6762 1 Label, Important (Service Door)
98−4240 1 Label, Kit Number
Label, Model Identification
Spec A−H
98−6288−01 1 MicroLite 4000
98−6288−02 1 MicroLite 3600
98−6288−03 1 MicroLite 3600LP
98−6288−04 1 MicroLite 3300LP
Begin Spec J
98−7620−01 1 MicroQuiet 4000
98−7620−02 1 MicroQuiet 3600
98−7620−03 1 MicroQuiet 3600LP
98−7620−04 1 MicroQuiet 3300LP
98−6756−01 1 Label, Service Panel (Closed
Right) (Spec A)
98−6756−02 1 Label, Service Panel (Closed
Left) (Spec A)
Label, Warning (Installation
Clearance)
98−6289 1 Spec A
98−6526−01 1 Spec B−H
98−7640−01 1 Begin Spec J
98−7282−03 1 #Label Pkg
98−7282−03 1 #Label Pkg
Label, Control (Amperage)
98−6518−02 1 # 15A (50 Hz Sets)
98−7282−02 1 20A (100V/60Hz)
98−7282−03 1 #Label Pkg
98−7282−03 1 # Gas/Combustion Source
50 Hz)
98−7282−03 1 #Label Pkg (Rotating Fan
50 Hz)
98−6859 1 Label, Warning
Label Pkg
60Hz
98−7282−01 1 120V (Includes Labels
Marked *)
98−7282−02 1 100V Includes Labels
Marked )
Labels, KY and KYD
Labels, Control Panel (KY Begin
Spec J and KYD)
60Hz
98−7634−03 1 120V (Includes Labels
Marked +)
98−7634−01 1 100V (Includes Labels
Marked )
98−7634−02 1 50Hz (Includes Labels
Marked>)
98−6477 1 Label, Caution (Recirculating
Hot Air)
Label, Circuit Breaker
98−7634−01 1 17A, 2 Pole
98−6540−01 1 *Label, Caution (Recirculating
Hot Air 60 Hz)
98−6805 1 #Label, Charger Leads
(Disconnect Leads) (50 Hz and
100V/60Hz)
98−6806 1 #Label, Charger (Disconnect
Leads) (50 Hz and 100V/60Hz)
98−6518−01 1 #Label, Control (Amperage)
5A (50 Hz and 100V/60Hz
KY Spec B−H and KYD)
543−0018−02 1 *Label, Decal Kit
98−6434 1 *Label, Warning (Exhaust
Gas/Combustion Source
60 Hz
Label, Logo
98−8752 1 RV QG 4000
98−8759 1 RV QG 4000 EVAP
98−8760 1 RV QG 3300 LP
98−8761 1 RV QG 3600
Labels, KYD
Label, Logo
98−8087−01 1 Camp Power 4000
98−8087−02 1 Camp Power 3600
98−8087−03 1 Camp Power 3300
98−7624 1 Label, Control
98−8159 1 Label, Warning (Installation
Clearance)
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
75
098−4240, 74
098−6288−01, 74
098−6288−02, 74
098−6288−03, 74
098−6288−04, 74
098−6289, 74
098−6434, 74
098−6477, 74
098−6518−01, 74
098−6518−02, 74
098−6526−01, 74
098−6539−01, 74
098−6540−01, 74
098−6756−01, 74
098−6756−02, 74
098−6762, 74
098−6769, 31
098−6783, 74
098−6805, 74
098−6806, 51 , 74
098−6859, 74
098−7282−01, 74
098−7282−02, 74
098−7282−03, 74
098−7620−01, 74
098−7620−02, 74
098−7620−03, 74
098−7620−04, 74
098−7624, 74
098−7634−01, 74
098−7634−02, 74
098−7634−03, 74
098−7640−01, 74
098−8087−01, 74
098−8087−02, 74
098−8087−03, 74
098−8159, 74
098−8752, 74
098−8759, 74
098−8760, 74
098−8761, 74
100−4152, 10 , 11
101−0787, 16
101−0788, 16 , 73
102−1412, 33 , 34 , 35 ,
73
102−1444, 34 , 35
102−1456−02, 45
104−1721−01, 12 , 13
104−1721−02, 12 , 13
104−1721−03, 12 , 13
104−1721−05, 12 , 13
104−1721−07, 12 , 13
104−1721−08, 12 , 13
104−1780, 12
104−1896−02, 14 , 15 , 16
104−1896−04, 14 , 15 , 16
104−1896−05, 14 , 15 , 16
104−1899, 12
104−1901, 12
104−1902, 16
104−2130, 16
104−2133, 13
105−0681, 14
105−0724, 14
105−0754, 15
110−3698, 10 , 11
110−3700, 10 , 11
110−3701, 10 , 11
110−3743, 10 , 11
110−3750, 10
110−3750−03, 10 , 11
110−3751−00, 10
110−3751−01, 10
110−3861, 10 , 11 , 73
110−3882, 10 , 11
110−3887, 10
110−3888, 10
110−3890, 10 , 11
110−3892, 10 , 11
110−3893, 10 , 11 , 73
110−3914, 10 , 11
110−3922−01, 10 , 11
110−3922−02, 10 , 11
110−3972, 28
110−4035, 11
110−4036, 11
112−0253, 13
112−0255, 12 , 13
112−0290, 12 , 13
112−0291, 12
114−0366, 12
114−0373, 12
115−0463, 14
115−0465, 10 , 11
115−0471, 14 , 15
115−0472, 10 , 11
115−0496, 10 , 11
115−0497, 10 , 11
115−0542, 15
120−1264, 12 , 13
123−1917, 10 , 11 , 27
123−1920, 10 , 11
123−1944−01, 33
123−1953, 33
123−2015, 34 , 35
123−2397, 28
134−4918, 57
134−4919−01, 32
134−5029, 31
134−5031, 31
134−5032, 31
134−5119, 32
134−5213, 31
140−2536−06, 21 , 27 , 31
140−2576, 29
140−2586, 19 , 23 , 73
140−2609, 29
140−2771−01, 19 , 21 , 25
, 27
140−2820−01, 31
140−2855, 31
140−3280, 31
140−3295, 31
145−0561, 29
145−0615, 29
145−0617, 19 , 23
145−0619, 57
145−0689, 60 , 61
145−0695, 19 , 21 , 23 ,
25 , 27 , 73
145−0705−02, 19 , 21 , 25
, 27
146−0530, 19 , 21 , 23 ,
25 , 27
146−0531, 19 , 21 , 23 ,
25 , 27 , 73
146−0532, 19 , 21 , 23 ,
25 , 27
146−0533, 19 , 21 , 23 ,
25 , 27 , 73
146−0534, 19
146−0646, 19
146−0651, 19
146−0668, 25
146−0722, 23 , 25
146−0743, 19
146−0759, 19
146−0765, 19 , 21
146−0783, 19 , 21
146−0784, 21
146−0785, 19
146−0803, 21
146−0829, 27
146−0881, 21
148−0985−02, 23 , 25
148−1013, 23 , 25
148−1264−02, 27
148−1265−02, 27
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
76
148−1266, 27
148−1341−02, 28
149−2311−01, 19
149−2457, 19 , 21
149−2523, 23 , 25 , 27
150−2273, 15
150−2302, 14
150−2305, 14
150−2390, 17
150−2391, 17
150−2392, 17
150−2393, 17
150−2394, 17
150−2395, 17
150−2396, 17
150−2398, 17
150−2401, 17
150−2448, 17
150−2465, 14
150−2466, 14
150−2549−02, 17
150−2604, 14 , 15
150−2754, 15
153−0638−01, 19 , 21
153−0639, 21
See also
153−0640, 19 , 21
153−0641, 29
153−0651−02, 19 , 21
153−0659, 19 , 21
153−0664, 31
154−2815−02, 19 , 21 , 23
, 25 , 27
154−2816, 36 , 37 , 38 ,
39 , 73
154−2818, 19 , 21 , 23 ,
25
154−2821, 19 , 21 , 23 ,
25 , 27 , 73
154−2975, 37
155−1256, 41 , 73
155−2174, 41
155−2449, 41
155−2675, 42
155−2676, 42
155−2677−01, 42 , 73
155−2678, 36
155−2682, 42
155−2683−02, 36
155−2715, 42
155−2783, 37
155−2844−S0, 41
155−2844−S1, 41
155−2845, 41
155−2847, 41
155−2850, 41
155−2859, 41 , 73
155−2860, 41 , 73
155−2861, 41 , 73
155−2883, 73
155−2886, 73
155−2887, 73
155−3263, 41
155−4046, 39
155−4063, 39
155−4084, 39
160−1358−S0, 29 , 30
166−0784−S0, 57
166−0818, 60
166−0866, 30
167−0265, 57
167−0267, 30 , 57 , 60
167−0275, 10 , 11
167−0305, 10 , 11
167−1627, 30 , 60
167−1636, 63 , 64 , 65
168−0213, 73
181−0489, 35
181−0490, 35
185−6826, 12
185−6828, 12
185−7144, 10 , 11
191−1798, 30
191−2351, 30 , 57
201−3538−S0, 57 , 59
201−3539−S0, 59
201−3539−S1, 59
204−0141, 57 , 59
205−0199−S0, 57 , 59
205−0263, 59
211−0437, 29
211−0460, 30
211−0497, 30
211−0497−01, 30
212−1276−03, 29 , 30
212−1282−S0, 29 , 30
212−1283−S0, 29 , 30
214−0103, 29 , 30
220−4485−04, 59
220−4485−S1, 57 , 59
220−4485−S3, 57 , 59
220−4485−S5, 59
220−4490−S1, 59
220−4572−01, 57 , 59
220−4572−02, 59
220−4572−03, 59
220−4586−02, 59
220−4586−11, 59
220−4586−S1, 59
226−4297, 30 , 57
226−4795, 30
232−3720, 19 , 21
232−3881, 59
232−4030, 59
300−4155, 42
300−4320, 45
300−4923, 45
300−4936, 69
300−4946, 67 , 73
300−4951−04, 71
300−4952−04, 72
300−4953−01, 69
300−4953−04, 70
300−5331, 70
300−5332, 71
300−5333, 72
302−1641, 72
302−2002, 71
303−0275, 57 , 60
303−0303, 57
303−0308−01, 60
303−0331, 61
303−0332, 61
304−0794, 62
304−0796, 57
305−0784, 51
305−0851, 29 , 45
305−0866, 29 , 45
305−0935, 62
305−0979, 73
307−2501, 23
307−2586, 42 , 45 , 47
307−2795−02, 23
307−2831−02, 23 , 25
307−2997−02, 23 , 25 , 27
307−3079, 23 , 25 , 27
308−0852, 60
308−0968, 62
308−0969, 57
308−1019, 65
308−1038, 61
308−1059, 33 , 34
308−1062, 69 , 70 , 71
315−0735−03, 59
315−0736, 59 , 61
319−1279−01, 42
319−1412, 57
319−2152−03, 45
319−2176−03, 60
319−2213−03, 60
319−3811−02, 45 , 47
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
77
319−3844−02, 61
319−6987−01, 70
319−6987−02, 69
319−6987−03, 70
319−6988−03, 71
319−6988−05, 71
319−6989−04, 72
320−1323, 57 , 60 , 61
320−1780−01, 57 , 60
320−1780−02, 60 , 61
320−1780−03, 60 , 61
321−0307−03, 63 , 64
321−0312−02, 63 , 64
321−0312−S1, 62
323−1199, 63 , 64 , 66 ,
68 , 70 , 71 , 72
323−1200, 62 , 63 , 64 ,
67 , 68
323−1252, 62
323−1253, 63 , 64
323−1304, 66 , 68 , 70 ,
71 , 72
323−1314, 62 , 63 , 64
323−1342, 67 , 68
323−1527−01, 62 , 63 , 64
, 65
323−1527−02, 62 , 63 , 64
, 65
323−1605−01, 65
323−1614−01, 65
323−1707, 67 , 68
323−1708, 65 , 67 , 68 ,
73
323−1709, 65 , 68
323−1712, 65 , 67 , 68
323−1741, 65 , 67 , 68
323−1743, 65 , 68
323−1744, 67 , 68
327−1413, 45 , 47
331−0041, 42
331−0115, 45
331−0255, 45
331−0521, 42
331−0539−02, 45 , 47
331−0545, 45
332−0147, 72
332−0529, 70 , 71 , 72
332−0807, 72
332−0942, 42 , 62 , 71 ,
72
332−2571, 71
332−2870−01, 71
332−3108, 45 , 62
332−3292, 51
332−3582, 73
337−2312, 29 , 31
337−3467, 31 , 47
338−2046, 66
338−2260−01, 66
338−2260−02, 66
338−2568−01, 62
338−2568−02, 62
338−2807, 63 , 64
338−2909, 60
338−3022−01, 63
338−3022−02, 63
338−3023−01, 63
338−3023−02, 63
338−3049, 60
338−3123−01, 63
338−3379−01, 63
338−3489−01, 67
338−3489−02, 67
338−3510, 70
338−3513, 68
338−3514, 68
338−3572, 67
338−3638−01, 64
338−3639−02, 64
338−3640−01, 64
338−3640−02, 64
338−3641−01, 64
338−3661−01, 64
338−3661−02, 64
338−3812, 65
338−3813, 65
338−3814, 61
338−3815, 61
338−3896, 71
402−0640, 42
402−0641, 42 , 45 , 47
402−0664−01, 45 , 47
402−0664−02, 45 , 47
402−0675, 37 , 38
402−0678, 37 , 38
402−0686−02, 45
402−0748, 73
403−3396−02, 52
403−3581−04, 54
403−3630, 55
403−3631−02, 55
403−3669−02, 52
403−3672, 52 , 53
403−4142−02, 73
403−5135−02, 53
403−5136−02, 53
405−4241, 55
405−4305−01, 42
405−4306, 42
405−4307−02, 48
405−4308, 48
405−4311−01, 51
405−4662−S0, 55
405−4663−S0, 55
405−4668−01, 55
405−4755−02, 42
405−4894, 51
405−4895, 45
405−4896, 31
405−4964−02, 45
405−4966, 51
405−4967−03, 51
405−5811−02, 45
405−6383−01, 51
405−6384−01, 48 , 51
405−6384−02, 51
405−6384−03, 51
405−7552, 51
405−7661, 47
405−7662, 51
406−0779, 48 , 51
502−0047, 23 , 25 , 27
502−0153, 33 , 34
502−0395, 23
502−1133, 23 , 25 , 27
502−1162, 23 , 25 , 27
502−1200, 23
502−1214, 23 , 25 , 27
503−1351, 30
503−1418, 23
503−1533−03, 37 , 39
503−1851, 10 , 11 , 23 ,
25 , 27
503−1951−09, 19 , 21
503−2006, 23 , 25
503−2015, 23 , 25 , 27
503−2143−05, 27
503−2289−06, 27
503−2309, 27
503−2735, 19 , 21
503−2878, 28
503−2879, 28
503−3069, 28
505−0071, 23 , 25 , 27
505−1492−02, 34
508−0055, 55
508−0071, 55
508−0208, 45 , 47
508−0315, 42 , 45 , 47 ,
48 , 51 , 52 , 53
508−0330, 45
508−0333, 47
508−1083−01, 42
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
78
508−1091, 45
508−1093−01, 45
508−1116, 51
508−1194, 39
509−0142, 33
509−0258, 12 , 14
509−0274−02, 29
509−0282−02, 33
509−0285, 57
509−0289, 10
509−0305, 31
509−0307, 34 , 35
509−0308, 31
509−0313, 30
509−0421, 59
510−0160, 12 , 13
510−0163, 14 , 15 , 16
510−0182, 12 , 13 , 15
510−0216, 57 , 59
515−0289, 57 , 59
515−0293, 12
515−0305, 14
516−0151, 29
517−0103, 30
517−0133, 57 , 60
517−0305, 19 , 21
518−0515, 59
518−0576, 17
518−0581, 45 , 51
518−0617, 17
518−0623, 48
518−0649, 31
520−2215, 17 , 37 , 38 ,
39
520−2216, 36 , 37
525−0305, 73
526−0003, 19 , 21 , 29 ,
30
526−0009, 51
526−0011, 37 , 38
526−0012, 31
526−0014, 45
526−0018, 29 , 59 , 60 ,
61
526−0029, 42
526−0032, 45
526−0049, 72
526−0113, 39
526−0115, 39
526−0122, 17 , 52 , 53 ,
54 , 55
526−0174, 52 , 53 , 54
526−0333, 73
526−0392, 57 , 59
526−0394, 48 , 51
526−0409, 72
526−2077, 14
526−2078, 14
541−0508, 14
541−0525, 73
541−0540, 42 , 45
541−0556−01, 51
541−0916, 39
541−0938, 53
541−1377, 27
543−0018−02, 74
718−1039, 17
720−1038, 57
740−1002, 17
740−1004, 19 , 21 , 23 ,
25 , 27
740−1006, 57
740−1008, 10
750−1006, 57
800−0017, 29
800−0026, 39 , 41 , 52 ,
53 , 54 , 55 , 73
800−0030, 45 , 47
800−0031, 41 , 73
800−0033−01, 73
800−0048, 52 , 53
800−0049, 54
800−0730, 42
800−2012, 51
800−2031, 40
800−2046, 19 , 21 , 23 ,
25 , 27
800−2057, 37
800−2058, 38
800−3026, 10
800−6373−03, 17
813−0098, 55
815−0549, 60 , 61
815−0578, 32 , 47 , 61
815−0753, 61
815−0778, 57 , 59
815−0781, 30
815−0785, 45 , 47
815−0787, 57 , 59
815−0829−01, 33 , 34
815−0829−04, 59
815−0838−02, 31
815−0842−05, 45
815−0874−01, 45 , 47
815−0910, 69 , 70 , 71 ,
72
815−0936, 59
815−0943−02, 45 , 47
816−0101, 42
818−0226−02, 51
821−0004, 23 , 25
821−0005, 23 , 25
821−0014, 52 , 53
821−0018, 27 , 31
821−2046, 36
823−0002−04, 57 , 60
823−0002−09, 29 , 30
823−0003−01, 60
823−0003−02, 27
823−0003−03, 57
823−0003−04, 29 , 30
823−0003−06, 23 , 25 , 59
, 60
823−0007−01, 29 , 36
823−0007−02, 57 , 59
823−0008, 57
823−0009−01, 31 , 57
823−0010−01, 48 , 51
823−1002−01, 42 , 51 , 59
823−1002−03, 19 , 21 , 23
, 25 , 27 , 45 , 60
823−1002−04, 45
823−1006−06, 37 , 38
850−0030, 55 , 72
850−0040, 30 , 57
850−0045, 42 , 45 , 47
853−0013, 60 , 61
856−0003, 51
856−0006, 23 , 25 , 27
856−0008, 29 , 31 , 42 ,
45 , 47 , 55
860−2005, 19 , 21
862−0001, 30 , 57
862−0015, 41 , 42 , 45 ,
47 , 73
865−0029, 31
868−0002, 42 , 45 , 47
870−0236, 36 , 57
870−0465, 17
870−0513−02, 52 , 53
870−0557, 38 , 39
870−2054, 45 , 57 , 61
870−2055, 36
870−2062, 51
870−2159, 17 , 19 , 21 ,
23 , 25 , 27
870−2193−04, 37
870−2198, 48 , 51
871−0010, 72
898−1196−24, 25 , 27
898−1314−05, 19 , 21
A026N404, 28
A028V609, 11
A028V611, 35
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
79
A028V752, 11
A028V757, 13
A028V775, 13
A028X300, 15
A028X304, 13
A028X316, 13
A028X412, 12 , 13
A028X500, 11
A028X507, 11
A028X508, 11
A028X512, 11
A028X518, 11
A028X528, 16
A028X564, 35
A029F889, 21
A030J333, 40
A030J339, 40
A030J351, 40
A030X652, 52 , 54
A034F778, 38
A034L017, 39 , 40
A034T222, 38
A035K028, 45
A041D736, 21
A041D744, 21
A041G409, 40
A041H375, 38
A041L445, 40
A041L448, 39
A042P619, 21
80
THIS PAGE IS INTENDED TO BE BLANK
Cummins Power Generation
1400 73rd Ave. NE
Minneapolis, MN 55432 USA
Phone 1 763 574 5000
Toll-free 1 800 888 6626
Fax 1 763 574 5298
Email www.cumminsonan.com/contact
www.cumminsonan.com
Cummins, Onan, the “C” logo, and “Performance you rely on.”
are trademarks of Cummins Inc.
2012 Cummins Power Generation, Inc. All rights reserved.

Navigation menu
