981 0264 Onan MDKAD MDKAE (spec A C) Marine Diesel Genset Parts Manual (01 1999)
User Manual: 981-0264 Onan MDKAD MDKAE (spec A-C) Marine Diesel Genset Parts manual (01-1999)
Open the PDF directly: View PDF
.
Page Count: 94
Printed in U.S.A. 1–99 (Spec A–C)
Parts Manual
981–0264
GenSet Parts Manual
Marine
MDKAD
MDKAE
Replaces 981–0263 7–98 (Spec A–B)
The following symbols are used in Onan manuals
to alert users to the potentially dangerous condi-
tions relating to maintenance of equipment and re-
placement of parts. Please read and observe.
This symbol warns of immedi-
ate hazards which will result in
severe personal injury or death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
death.
This symbol refers to a hazard
or unsafe practice which can re-
sult in severe personal injury or
product or property damage.
To avoid errors or delay in filling your parts order,
always give the MODEL, SPEC NO. and SERIAL
NO. from the Onan nameplate.
For handy reference, insert your nameplate in-
formation in the spaces below.
MODEL AND SPEC NO.
SERIAL NO.
DIGITAL CONTROL SOFTWARE VERSION
AND DATE (IF APPLICABLE)
Contact with USED ENGINE OILS has been identified by a United States federal agency and some USA
state agencies as causing CANCER or REPRODUCTIVE TOXICITY. When checking or changing engine
oils take all necessary precautions not to ingest, breathe the fumes or contact the used oil.
Contact with ASBESTOS has been identified by a United States federal agency and some USA state
agencies as causing CANCER or REPRODUCTIVE TOXICITY. When handling engine gaskets take all
necessary precautions not to ingest, breathe or contact the dust from the gaskets! Use adequate ven-
tilation and wear protective gloves, masks and clothing!
Contact with BENZINE and LEAD, found in gasoline, fuel additives and solvents has been identified
by a United States federal agency and some USA state agencies as causing CANCER or REPRODUC-
TIVE TOXICITY. When checking, draining or adding gasoline and fuel additives or using solvents take
all necessary precautions not to ingest, breathe the fumes or contact the liquids. Use adequate ventila-
tion and wear protective gloves, masks and protective clothing!
PSP-1
Service and repair of Onan equipment must be performed by trained, experienced personnel only. Im-
proper service or repair may result in property damage, severe personal injury or death. Do not use this
catalog as a guide to servicing your equipment. Read and follow the IMPORTANT SAFETY INSTRUC-
TIONS in the Service Manual appropriate for the equipment you are working on.
1
Introduction
This catalog applies to the standard marine generator sets listed below. Parts are arranged in groups of related items
and each illustrated part is identified by a reference number corresponding to the same reference number in the parts
list. Parts illustrations are typical. Unless otherwise mentioned in the description or page heading, parts are inter-
changeable between models. Throughout this catalog left and right sides are determined by facing the engine end
(front) of the set.
MODEL HERTZ
MDKAD/* 50/60
MDKAE/* 50/60
* – The diagonal line (/) in the model and specification number separates generator
set characteristics from the specification number and letter. The specification
number denotes customer requested options or deviations from the standard
model. The specification letter advances (A to B, B to C, etc.) with major
manufacturing changes.
WIRING DIAGRAM
612–6667 DC 24V
612–6665 DC 12V
612–6666 AC 1 Phase
612–6673 AC 3Phase
Index
2
Adapter, Dry Exhaust, 53
Adapter, Engine, 11
Adapter, Fuel Line Pipe, 33
Adapter, Fuel Return Pipe, 34
Adapter, Keel Cooling, 41
Adapter, Oil Drain, 48
Adapter, PTO, 49
Adapter, Vacuum Relief Pipe, 37
Alternator (Isolated Ground), 31
Alternator (Negative Ground), 28
Arm Assy, Rocker, 22
Armature, Starter, 12, 13
Baffle Assy, Generator, 59
Baffle, Air, 63
Ball, Crankshaft, 8
Ball, Valve Seat, 26
Bar, Bus, 46
Barb, Keel Cooling, 41, 43
Base, Housing, 59
Base, Mounting, 56
Bearing, Alternator, 29, 30
Bearing, Connecting Rod, 10
Bearing, Coolant Water Pump, 27
Bearing, Crankshaft, 8
Bearing, Fuel Camshaft, 15
Bearing, Generator, 63
Bearing, Governor, 17
Bearing, Governor Weight, 15
Bearing, Starter, 12, 13
Belt, Alternator, 28, 31
Block, Cylinder, 7
Block, Terminal, 69
Box, Control, 65
Bracket, Alternator, 28, 31
Bracket, Belt Guard, 57
Bracket, Control Mounting, 70
Bracket, Fuel Pump, 33
Bracket, Heat Exchanger, 39
Bracket, Lifting, 7
Bracket, PTO, 49
Bracket, Remote Separator Mounting, 35
Bracket, Resistor, 33
Bracket, Rocker Arm, 22
Bracket, Solenoid Relay, 50
Bracket, Starter, 12, 13
Bracket, Stop Solenoid, 32
Breaker Assy (With Gauges), 67
Breaker, Circuit (2A), 67
Breaker, Circuit (CB1, CB4) (With Gauges), 67
Breaker, Circuit (CB2), 65
Breaker, Circuit (CB3), 65
Breather, 25
Brush, Alternator, 29, 30
Bushing, Connecting Rod, 10
Bushing, Control Box Strain Relief, 65
Bushing, Dry Exhaust Reducer, 53
Bushing, Governor, 15
Bushing, Idle Gear, 9
Cam, Water Pump, 42
Camshaft, 9
Camshaft, Fuel, 15
Cap, Coolant Recovery Tank, 45
Cap, Coolant Tank, 44
Cap, Cylinder Head Sealing, 7, 21
Cap, Dual Gauge Switch, 82
Cap, Oil Drain Line, 48
Cap, Speed Control, 16
Cap, Stop Lever Adjusting Bolt, 18
Cap, Valve, 22
Catch, Spring, 59
Clamp, Cord, 16
Clamp, Injection Pipe, 23
Clip, Front Panel Door, 60
Clip, Generator Housing Door, 61
Clip, Sound Shield Door, 59
Clutch, PTO, 49
Cock, Cylinder Block Drain, 7
Cock, Injection Pump Jet Start, 19
Collar, Alternator, 29, 30
Collar, Crankshaft, 8
Collar, Fuel Camshaft, 15
Collar, Idle Gear, 9
Collar, Speed Control, 16
Collet, Valve Spring, 22
Components, 12V Starter, 12
Components, 24V Starter, 13
Components, Alternator (Negative Ground), 29, 30
Components, Generator Housing, 61
Components, Injection Pump, 20
Components, Remote Control Harness, 72
Components, Water Pump, 42
Components, Water Separator, 36
Connector, Oil Line Inverted Male, 34
Connector, Reducer, 39
Cooling, Keel (DryExhaust), 43
Cooling, Keel (Wet Exhaust), 41
Cord, Glow Plug, 23
Coupling, Dry Exhaust Reducer, 53
Coupling, Fuel Return Anchor, 34
Coupling, PTO, 49
Cover Assy, Starter, 12, 13
Cover, Alternator Bearing, 29, 30
Cover, Alternator End, 29, 30
Cover, Bearing Housing, 14
Cover, Breaker, 65
Cover, Circuit Breaker Plate, 65
Cover, Control Box, 65
Cover, Cylinder Head, 25
Cover, Fuel Camshaft, 7
Cover, Generator Inlet, 63
Cover, Heat Exchanger, 39
Cover, Hole, 7
Cover, Injection Pump, 18
Cover, Sound Shield Access, 59
Index
3
Cover, Thermostat, 24
Cover, Water Pump, 42
Crankshaft, 8
Diode, Remote Panel, 75
Diode, Rotor, 63
Disc, Generator Drive, 63
Door Assy, Housing, 59
Drain Assy, Water Separator, 36
Drive Assy, Starter, 12, 13
Edging, Generator Housing, 61
Edging, Housing Front Panel, 60
Edging, Sound Shield, 59
Elbow, Fuel Pump, 33
Elbow, Fuel Return, 34
Elbow, Keel Cooling, 41, 43
Elbow, Oil Drain, 48
Elbow, Street, 35
Elbow, Vacuum Relief Valve, 37
Elbow, Wet Exhaust, 52
Element, Breather, 25
Element, Fuel Filter, 33
Element, Water Separator, 36
Endbell, 63
Engine, Replacement, 7
Exchanger, Heat, 39
Exhaust, Dry, 53
Exhaust, Wet, 52
Fan, Generator, 63
Filter, Fuel, 33
Filter, Oil, 26
Flange, Coolant Water Pump, 27
Flange, Dry Exhaust, 53
Flange, Oil Fill, 26
Flange, Water Outlet, 24
Flange, Water Return, 26
Flywheel Assy, 11
Frame, Alternator Drive End, 30
Frame, Alternator End, 29, 30
Gasket, Bearing Housing, 14
Gasket, Bearing Housing Cover, 14
Gasket, Breather, 25
Gasket, Coolant Water Pump, 27
Gasket, Cylinder Head, 21
Gasket, Cylinder Head Cover, 25
Gasket, Cylinder Head Plug, 7
Gasket, Cylinder Hear Cap Nut, 25
Gasket, Delivery Valve, 20
Gasket, Dry Exhaust, 53
Gasket, Dry Exhaust Adapter, 53
Gasket, Exhaust Manifold, 51
Gasket, Fuel Camshaft Cover, 7
Gasket, Fuel Nozzle, 23
Gasket, Gearcase, 26
Gasket, Heat Exchanger Cover, 39
Gasket, Hole Cover, 7
Gasket, Injection Pump Cover, 18
Gasket, Injection Pump Eye Joint, 19
Gasket, Injection Pump Hollow Screw, 20
Gasket, Intake Manifold, 50
Gasket, Mixer, 52
Gasket, Oil Fill Flange, 26
Gasket, Oil Pan, 48
Gasket, Oil Pan Plug, 48
Gasket, Oil Pump, 7
Gasket, Raw Water Pump, 39
Gasket, Riser/Adapter, 51
Gasket, Speed Control Cap, 16
Gasket, Stop Lever Adjusting Bolt, 18
Gasket, Thermostat Cover, 24
Gasket, Water Outlet Flange, 24
Gasket, Water Pump, 41
Gasket, Water Return Flange, 26
Gauge, Coolant Temperature, 67
Gauge, Oil Pressure, 67
Gauge, Remote Panel Oil Pressure, 76, 80
Gauge, Remote Panel Water Temperature, 76, 80
Gear Assy, Idle, 9
Gear, Camshaft, 9
Gear, Crankshaft, 8
Gear, Injection Pump, 15
Gear, Oil Pump Drive, 7
Gear, Ring, 11
Gear, Starter, 12, 13
Gearcase Assy, 26
Generator, 63
Governor, 17
Grommet, Baffle Assy, 59
Grommet, Control Box, 65
Grommet, Front Panel, 60
Grommet, Generator, 63
Grommet, Generator Housing, 61
Grommet, Housing Front Panel, 60
Grommet, Vacuum Relief Valve, 37
Ground, 46
Ground System, Unique Parts Isolated, 83
Guard, Belt, 57
Guard, PTO Coupling, 49
Guide, Valve, 21
Hanger, Coolant Recovery Tank, 45
Harness Location, Engine, 71
Harness Location, Extension (Or Pigtail), 71
Harness Location, Remote Panel, 71
Harness, Adapter, 81
Harness, Basic Remote Panel, 74, 77
Harness, Control, 69
Harness, Control Relay, 69
Harness, Customer Interface Pigtail, 73
Harness, Deluxe Remote Panel, 75, 78, 79
Harness, Engine Wiring, 65
Harness, Extension, 73
Index
4
Harness, Junction, 81
Harness, Low Coolant Sender Pigtail, 44
Harness, Remote Gauge Panel, 76, 80
Head Assy, Water Separator Replacement, 36
Head, Cylinder, 21
Holder Assy, Alternator Brush, 29, 30
Holder Assy, Nozzle, 23
Holder Assy, Starter Brush, 12
Holder, Delivery Valve, 20
Holder, Fork Lever, 17
Holder, Governor Weight, 15
Holder, Nozzle, 23
Holder, Starter Brush, 13
Hose, Engine Coolant, 39
Hose, Exhaust Manifold, 39
Hose, Intake, 50
Hose, Keel Cooling, 41, 43
Hose, Lower Coolant Tank, 39
Hose, Mixer, 39
Hose, Outlet, 41
Hose, Raw Water Pump, 39
Hose, Rubber, 39
Hose, Upper Coolant Tank ”S”, 44
Hose, Upper Coolant Tank Elbow, 44
Hose, Wet Exhaust, 52
Housing, Generator, 59
Housing, Main Bearing, 14
Hub, Drive, 63
Impeller, Coolant Water Pump, 27
Impeller, Water Pump, 42
Indicator, Oil Level, 48
Insulation, Alternator Brush, 29, 30
Insulation, Control Box, 61
Isolator, Ground, 46
Isolator, Isolated Ground, 47
Isolator, Mounting, 56
Isolator, Vibration, 59, 70
Joint, Breather, 50
Joint, Cylinder Block Drain Cock, 7
Joint, Injection Pump Eye, 19
Joint, Oil Filter Pipe, 26
Key, Camshaft, 9
Key, Crankshaft, 8
Key, Fan Drive Pulley, 28
Key, Fuel Camshaft, 15
Key, Oil Pump, 7
Key, Water Pump, 42
Kit, Basic Remote Panel, 77
Kit, Coolant Recovery, 45
Kit, Deluxe Remote Panel, 78, 79
Kit, Dual Gauge Switch, 82
Kit, Exhaust Adapter, 53
Kit, Exhaust Flange, 53
Kit, Front Panel, 59
Kit, Heat Exchanger, 39
Kit, Heat Exchanger End Cap/Pencil, 39
Kit, Heat Exchanger Zinc Pencil, 39
Kit, Keel Cooling, 41, 43
Kit, Low Coolant Sender, 44
Kit, Muffler, 55
Kit, Muffler/Water Separator, 55
Kit, PTO, 49
Kit, PTO Adapter, 49
Kit, PTO Belt Guard, 57
Kit, Raw Water Pump Service, 42
Kit, Remote Fuel/Water Separator, 35
Kit, Remote Gauge Panel, 80
Kit, Sender, 24
Kit, Siphon Break, 37
Kit, Sound Shield, 59
Kit, Water Separator, 55
Kit, Water Separator Metal Bowl Replacement, 36
Labels, 84
Lever Assy, Fork, 17
Lever Assy, Starter, 12, 13
Lever, Engine Stop, 18
Lever, Fork, 17
Lever, Governor, 17
Lever, Lower Speed Control, 16
Lever, Stop Solenoid Stop, 32
Lever, Upper Speed Control, 16
Line, Flex Fuel, 35
Line, Flex Oil, 48
Line, Fuel, 33
Line, Fuel Return, 34
Line, Oil, 34
Location, Harness, 71
Lock Assy, Plate, 20
Manifold, Exhaust, 51
Manifold, Intake, 50
Manifold, Oil Pressure, 34
Marker, Strip (With Gauges), 69
Meter, Remote Panel Battery Voltage, 75
Meter, Remote Panel Hour, 78
Meter, Remote Panel Running Time, 75, 76, 80
Meter, Remote Panel Volt, 79, 80
Meter, Remote Panel Voltage, 76
Meter, Time Totalizing, 67
Mixer, 52
Mount Assy, Engine, 56
Mount, Control Box, 70
Muffler, 55
Muffler, Dry Exhaust, 54
Nipple, Keel Cooling, 41, 43
Nozzle, Fuel, 23
O’Ring Kit, Water Separator, 36
O’Ring, Crankshaft, 8
O’Ring, Cylinder Head, 7, 21
O’Ring, Gearcase, 26
Index
5
O’Ring, Gover Shaft, 17
O’Ring, Oil Fill Plug, 26
O’Ring, Pickup Tube, 48
O’Ring, Speed Control, 16
O’Ring, Valve Holder, 20
O’Ring, Water Pump, 42
Pan, Oil, 48
Panel Assy, Control, 65
Panel Assy, Control (With Gauges), 67
Panel Assy, Generator Housing, 59
Panel Assy, Housing Front, 59, 60
Panel, Basic Remote Control, 74, 77
Panel, Breaker, 65
Panel, Deluxe Remote Control, 75, 78, 79
Panel, Housing Front, 60
Panel, Remote Gauge Control, 76, 80
Pencil, Zinc, 39
Pin, Cylinder Head Pipe, 7
Pin, Cylinder Head Straight, 7
Pin, Flywheel Alignment, 11
Pin, Gearcase, 26
Pin, Governor Weight, 15, 17
Pin, Piston, 10
Pin, Rocker Arm Bracket Spring, 22
Pin, Speed Control, 16
Pin, Stop Lever Spring, 18
Pin, Tappet Guide, 20
Pinion Set, Starter, 13
Pipe, Injection, 23
Pipe, Overflow, 23
Pipe, Water Return, 24
Piston, 10
Plate, Alternator Retainer, 29, 30
Plate, Breather, 25
Plate, Injection Pump Mounting, 20
Plate, Speed Control, 16
Plate, Water Pump Wear, 42
Plug, Control Panel Button, 67
Plug, Coolant Tank Hex Pipe, 44
Plug, Cylinder Head, 7, 21
Plug, Engine Adapter Hole, 11
Plug, Fuel Filter Drain, 33
Plug, Gearcase, 26
Plug, Glow, 23
Plug, Hex Pipe, 35
Plug, Oil Fill, 26
Plug, Oil Pan, 48
Plug, Oil Pressure Manifold Hex Head Pipe, 34
Plug, Water Outlet Flange, 24
Plug, Water Separator, 36
Plunger, Pump, 20
PTO, 49
Pulley, Alternator, 29, 30, 31
Pulley, Coolant Water Pump, 27
Pulley, Fan Drive, 28
Pump Assy, Coolant Water, 27
Pump Assy, Injection, 19
Pump Assy, Water Separator, 36
Pump, Electric Fuel, 33
Pump, Oil, 7
Pump, Raw Water, 39, 41
Rack, Injection Pump Control, 20
Rail Assy, 59
Rectifier, Alternator, 29, 30
Rectifier, Control Harness, 69
Rectifier, Control Harness (With Gauges), 69
Regulator, Alternator, 29, 30
Regulator, Voltage, 65
Relay, Control Harness, 69
Relay, Control Harness (With Gauges), 69
Relay, Control Relay Harness, 69
Relay, Solenoid, 50
Resistor, Control Harness (With Gauges), 67, 69
Resistor, Fuel Pump, 33
Resistor, Remote Panel, 80
Resistor, Remote Panel Gauge, 76
Resonator, Intake, 50
Retainer, Endbell, 63
Retainer, Valve Spring, 22
Ring, Fuel Camshaft Retaining, 15
Ring, Idle Gear Retaining, 9
Ring, Piston Retaining, 10
Ring, Rocker Arm, 22
Ring, Water Pump Retaining, 42
Riser, Exhaust, 52, 53
Rod Assy, Connecting, 10
Rod, Push, 9
Roof Assy, Housing, 59
Rotor Assy, Generator, 63
Rotor, Alternator, 29, 30
Rotor, Exciter, 63
Seal, Coolant Water Pump, 27
Seal, Crankshaft Oil, 8
Seal, Main Bearing Housing Oil, 14
Seal, Nozzle Heat, 23
Seal, Stop Lever Oil, 18
Seal, Valve Stem, 22
Seal, Water Pump Mechanical, 42
Seat, Spring, 20
Seat, Valve, 26
Sender, Low Coolant, 44
Sender, Oil, 34
Sender, Oil Pressure, 34
Sender, Water Temperature, 24
Separator, Fuel/Water, 55
Separator, Remote Fuel/Water, 35
Separator, Remote Fuel/Water Separator, 35
Separator, Water, 55
Set, Ring, 10
Shaft Assy, Rocker Arm, 22
Shaft, Engine Stop Lever, 18
Shaft, Fork Lever, 17
Shaft, Governor Lever, 17
Index
6
Shaft, Governor Weight, 15
Shaft, Idle Gear, 9
Shield, Sound, 59
Shim, Injection Pump Mounting, 19
Shim, PTO, 49
Shim, Speed Control, 16
Shim, Spring Seat, 20
Sleeve, Air Intake, 50
Sleeve, Crankshaft, 8
Sleeve, Governor, 15
Sleeve, Injection Pump Upper Spring, 20
Slinger, Oil, 8
Solenoid, Stop, 32
Spacer, Generator Fan, 63
Spring, Alternator Brush, 29, 30
Spring, Delivery Valve, 20
Spring, Governor, 17
Spring, Plunger, 20
Spring, Rocker Arm, 22
Spring, Speed Control, 16
Spring, Starter, 12, 13
Spring, Valve, 22
Spring, Valve Seat, 26
Standoff, Control Box, 65
Standoff, Control Insulator, 69
Starter, 11
Stator, Exciter, 63
Stator, Generator, 63
Stopper, Camshaft, 9
Stopper, Fuel Camshaft, 15
Stopper, Starter Set, 12, 13
Strainer, Water Pickup, 55
Strap, Bond, 46, 47, 65
Strip, Ground, 46
Strip, Isolated Ground, 47
Support Assy, Roof, 59
Support, Control Bracket, 70
Support, Fuel Return, 34
Switch, Dual Gauge, 82
Switch, High Exhaust Temperature, 52
Switch, High Water Temperature, 24
Switch, Manual Transfer (On/Off Shore), 82
Switch, Oil Pressure, 34
Switch, Remote Panel Rocker, 74, 75, 76, 77, 78, 79, 80
Switch, Rocker (With Gauges), 67
Switch, Starter Solenoid, 12, 13
Swivel, Stop Solenoid Ball Joint, 32
System, Grounding (Spec A–B), 46
System, Grounding (Begin Spec C), 47
Tank, Coolant, 44
Tank, Coolant Recovery, 45
Tape, Polyurethane, 63
Tappet, 9
Tappet Assy, Injection Pump, 20
Tee, Keel Cooling, 41, 43
Tee, Vacuum Relief Valve, 37
Thermostat, 24
Tube, Breather, 25
Tube, Flexible Exhaust, 54
Tube, Oil Pickup, 48
Valve, Delivery, 20
Valve, Exhaust, 22
Valve, Inlet, 22
Valve, Vacuum Relief, 37
Voltmeter, 67
Weight, Governor, 15
Yoke Assy, Starter, 12, 13

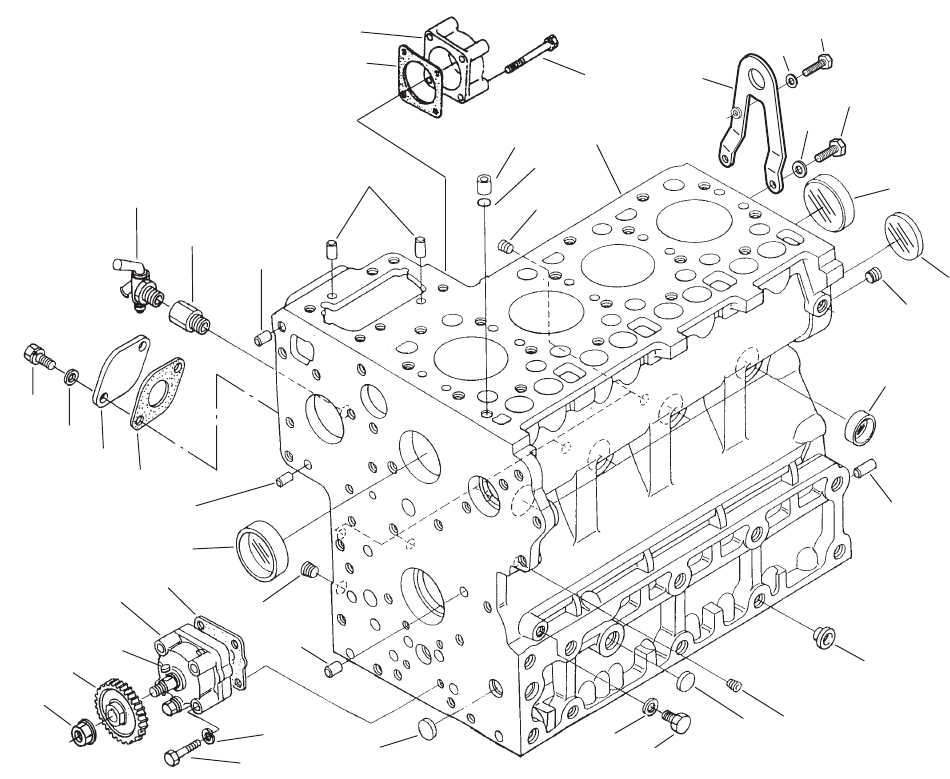

7MDKAD/E
Cylinder Block
1
7
8
4
9
3
5
2
11
12
10
6
16
23
24
17
36
37
30 31
26
25
28 29
27
18
21 22
4
2
9
10
8
33 32
35
34
20
19
14
13 15
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Engine, Replacement
MDKAD
100–3243–01 1 12V
100–3243–02 1 24V
MDKAE
100–3153–01 1 12V
100–3153–02 1 24V
2 185–5841 2 Cap, Sealing
3 185–5839 1 Plug
4 185–2234 2 Plug
5 185–5840 6 Cap, Sealing
6 185–5844 1 Pin, Straight
7 185–5837 2 Plug
8 185–2233 6 Plug
9 185–6121 3 Plug
10 185–5843 2 Pin, Straight
11 185–5842 2 Pin, Straight
12 185–2350 2 Pin, Straight
13 185–6982 1 *Gasket, Cover
14 185–6772 1 *Cover, Fuel Camshaft
15 185–5676 4 *Bolt
16 185–2094 1 Pin, Pipe
17 185–2095 1 O’Ring
18 403–3916–02 1 Bracket, Lifting
19 526–2100 1 Washer (M8)
20 718–1036 1 Screw, Hex Head Cap
(M8 x 20 x 1.25”)
21 526–0399–64 2 Washer, Flat (M12)
22 800–3033 2 Screw, Hex Head Cap
(M12 x 1.25 x 25mm)
23 185–5845 1 Plug
24 185–2338 1 Gasket
25 185–6759 4 Washer, Spring
26 185–5850 4 Bolt
27 185–5852 1 Nut, Flange
28 185–5851 1 Gear, Oil Pump Drive
29 185–2352 1 Key
30 185–5848 1 Pump, Oil
31 185–5849 1 Gasket, Oil Pump
32 185–2125 1 Gasket, Hole Cover
33 185–6784 1 Cover, Hole
34 850–2006 2 Washer, Flat
35 800–2034 2 Bolt
36 185–5846 1 Cock, Drain
37 185–5847 1 Joint, Drain Cock
* – Parts Included in Keel Cooling Kit Found on Keel Cooling
Dry Exhaust Page).

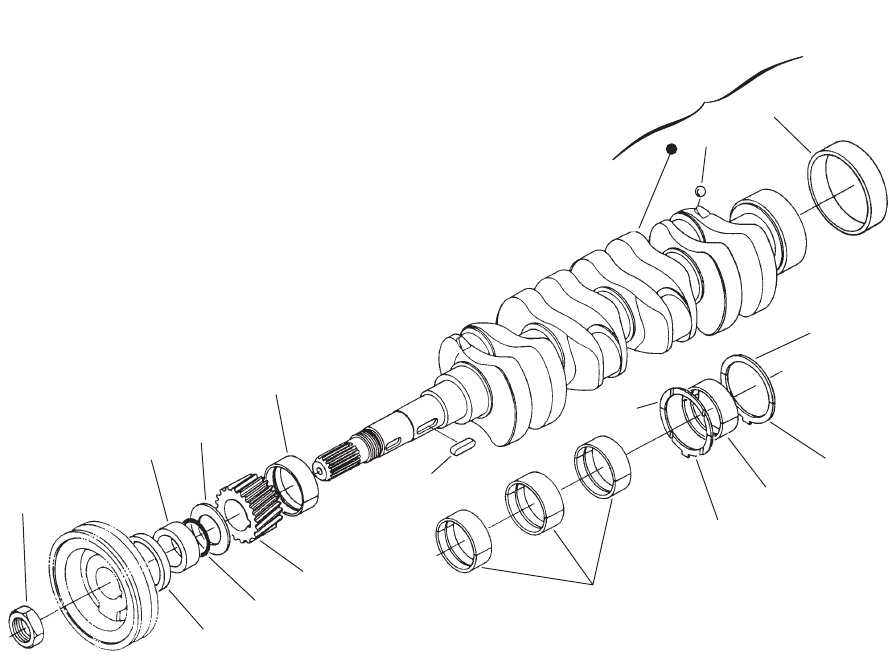

8MDKAD/E

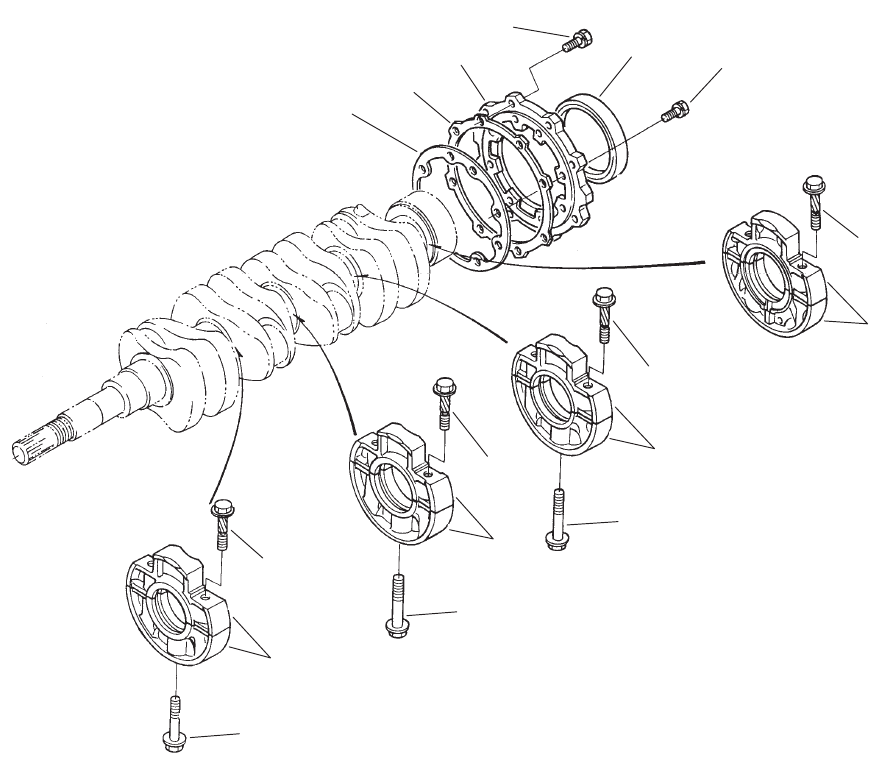

Crankshaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
13
12
14
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6129 1 Crankshaft (Includes Balls and
Sleeve)
2 185–5924 4 Ball
3 185–5925 1 Sleeve
4 185–5926 1 Gear
5 185–5905 1 Key
6 185–5927 1 Slinger, Oil
7 185–5928 1 Collar
8 185–5929 1 O’Ring
9 185–5930 1 Nut
10 185–5931 1 Seal, Oil
11 Bearing
185–6085 1 Standard
185–5933 1 0.2 mm Undersize
185–5934 1 0.4 mm Undersize
12 Bearing, Main
185–6086 4 Standard
185–5936 4 0.2 mm Undersize
185–5937 4 0.4 mm Undersize
13 Bearing, Thrust
185–5938 2 Standard
185–5939 2 0.2 mm Oversize
185–5940 2 0.4 mm Oversize
14 Bearing, Thrust
185–5941 2 Standard
185–5942 2 0.2 mm Oversize
185–5943 2 0.4 mm Oversize
9MDKAD/E

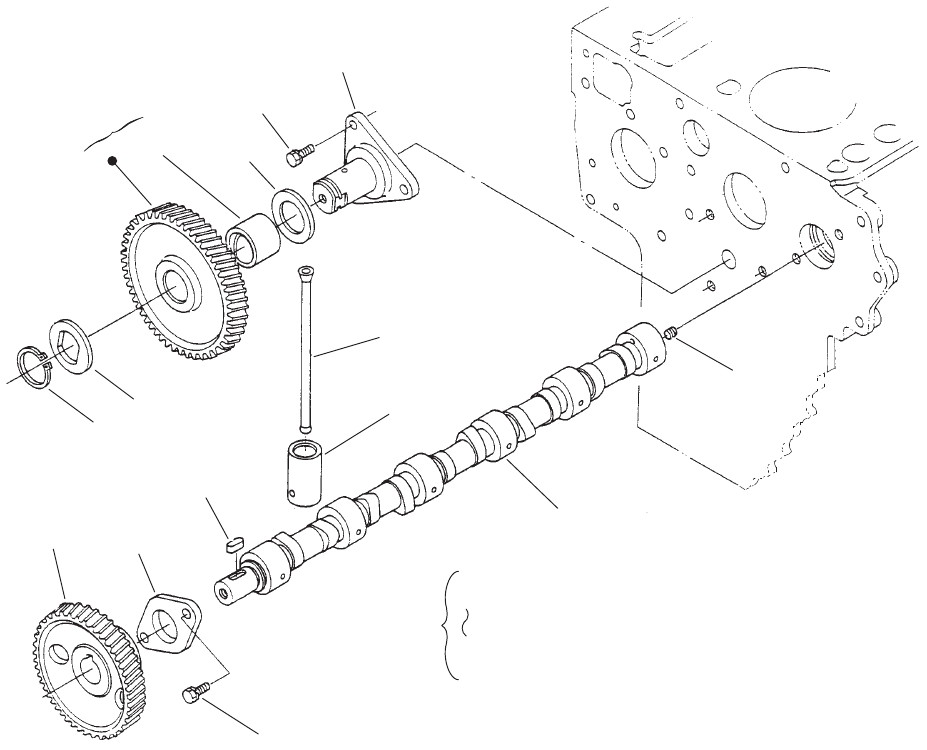

Camshaft
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
4
8
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–5900 8 Tappet
2 185–5901 8 Rod, Push
3 185–5902 1 Camshaft Assy (Includes Parts
Marked *)
4 185–5903 1 *Camshaft
5 185–5558 1 *Screw, Set
6 185–5905 1 *Key
7 185–5906 1 *Stopper, Camshaft
8 185–5904 1 *Gear, Camshaft
9 185–2400 5 Bolt
10 185–5907 1 Gear Assy, Idle (Includes
Bushing)
11 185–5908 Bushing, Idle Gear
12 185–5909 1 Collar
13 185–5910 1 Collar
14 185–5911 1 Ring, External Retaining
15 185–5912 1 Shaft, Idle Gear
* – Parts Included in Camshaft Assy

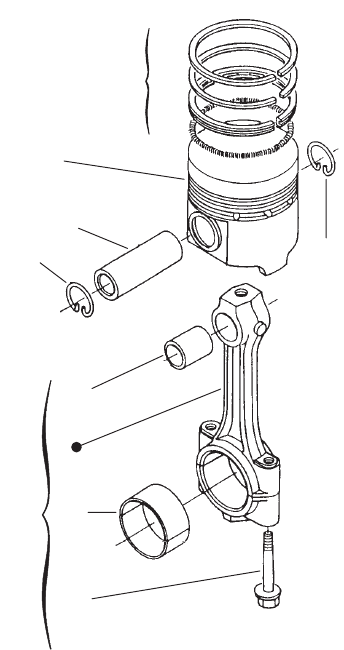

10 MDKAD/E
Piston
1
2
3
4
5
6
8
7
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Piston
MDKAD
185–6767 4 Standard
185–6768 4 0.5 mm Oversize
MDKAE
185–5913 4 Standard
185–6074 4 0.5 mm Oversize
2 Set, Ring
MDKAD
185–6769 4 Standard
185–6770 4 0.5 mm Oversize
MDKAE
185–5914 4 Standard
185–6075 4 0.5 mm Oversize
3 185–5915 4 Pin, Piston
4 185–5916 8 Ring, Retaining
5 185–5917 4 Rod Assy, Connecting
(Includes Bushing, Bearing
and Bolts)
6 185–6209 4 Bushing
7 Bearing
185–6076 4 Standard
185–5921 4 0.2 mm Undersize
185–5922 4 0.4 mm Undersize
8 185–6771 8 Bolt
11 MDKAD/E

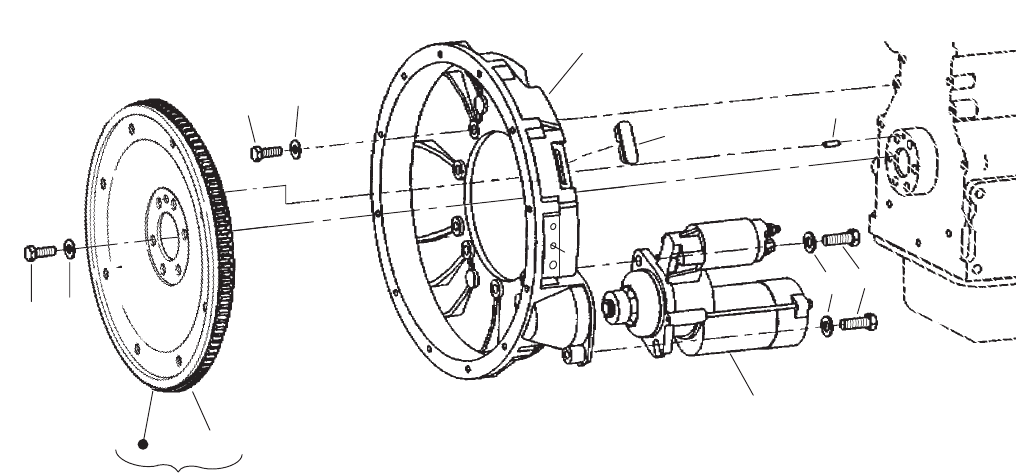

Flywheel
1
2
8
7
4
3
6
59
12
11 10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Flywheel Assy (Includes Ring
Gear)
104–1830 1 Spec A
104–1929 1 Begin Spec B
2 104–1666 1 Gear, Ring
3 800–3032 6 Screw, Hex Head Cap
(M12 x 1.25 x 30mm)
4 526–0145 6 Washer, Flat (M12)
5 Screw, Hex Head Cap
(M10 x 1.25 x 30mm)
800–3005 7 Spec A
800–3005 11 Begin Spec B
6 Washer, Flat (M10)
526–0029 7 Spec A
526–0029 11 Begin Spec B
7 Adapter, Engine
101–0810 1 Spec A
101–0821 1 Begin Spec B
8 101–0811 1 Plug, Hole
9 775–0061 1 Pin, Parallel Hard
10 800–2113 2 Screw, Cap – Hex Head
(M12 x 1.75 x 35mm)
11 526–0399–64 2 Washer, Flat (M12)
12 Starter (See Separate Page for
Components)
191–1959 1 12V
191–1550 1 24V
12 MDKAD/E

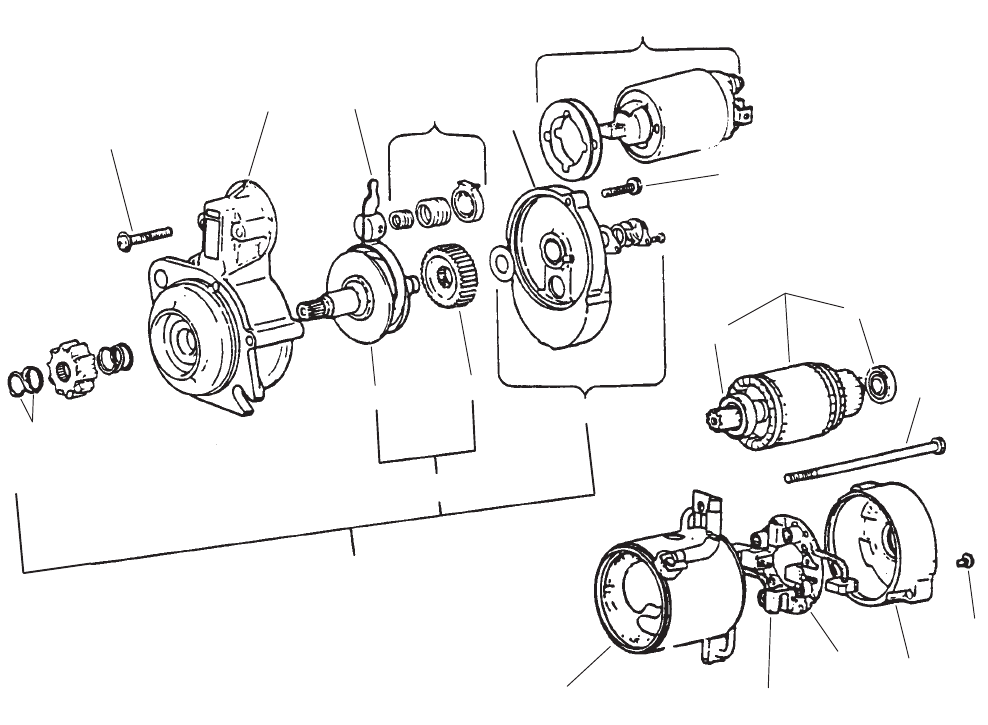

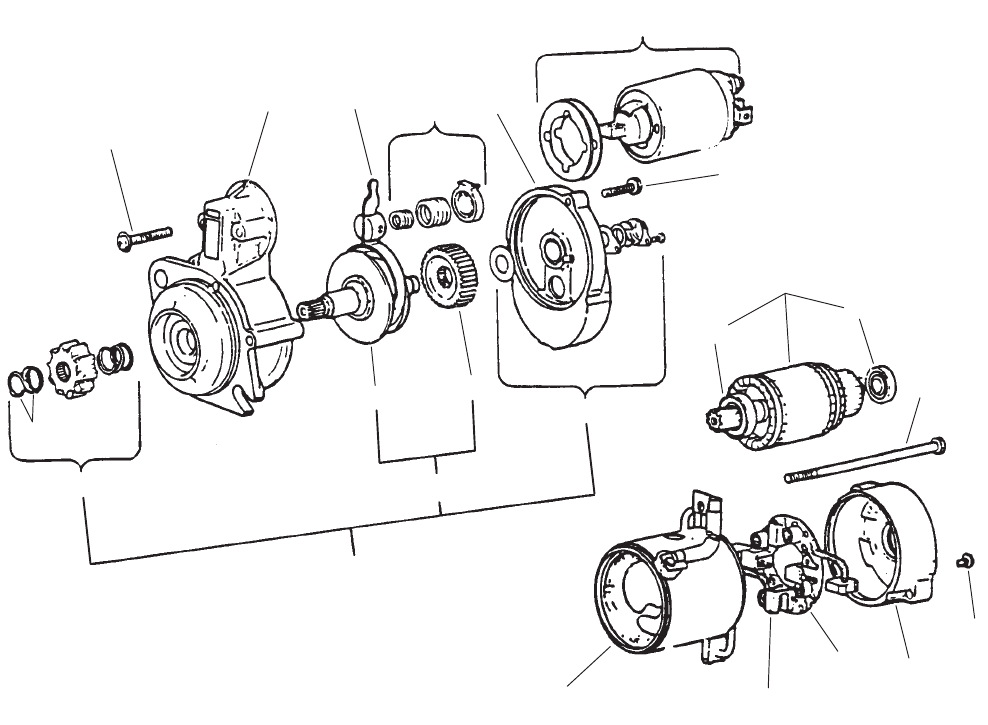

Starter Components
(12V)
1
2
3
45
6
78
10
11 12
13 14
15 16
17
18
19
20
1
1
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
191–1959 1 Starter
1 191–1450 4 Set, Screw
2 191–1449 1 Bracket Assy, Front
3 191–1446 1 Gear
4 191–1445 1 Drive Assy
5 191–1444 1 Cover Assy
6 191–1442 1 Stopper, Set
7 191–1441 1 Lever Assy
8 191–1991 1 Spring, Set
9 191–1439 1 Bracket Assy, Center
10 191–1438 1 Armature (Includes Bearings)
11 191–1437 1 Bearing, Center
12 191–1436 1 Bearing, Rear
13 191–1992 1 Yoke Assy
14 191–1993 1 Holder Assy, Brush
15 191–1433 1 Spring, Brush
16 191–1432 1 Bracket, Rear
17 191–1431 1 Bolt, Set
18 191–1994 1 Switch, Solenoid
19 191–1447 1 Gear, Set
20 191–1448 1 Drive Assy
13 MDKAD/E
Starter Components
(24V)
1
2
3
45
6
7
8910
11
12 13
14 15
16 17
18
19
20
21
1
1
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
191–1550 1 Starter
1 191–1450 4 Set, Screw
2 191–1449 1 Bracket Assy, Front (Includes
Bearing)
3 191–1446 1 Gear
4 191–1445 1 Drive
5 191–1444 1 Cover Assy, Rear (Includes
Cover Plate, Washers,
Screws, and Snap Ring)
6 191–1960 1 Pinion Set (Includes Pinion,
Spring & Stopper Set)
7 191–1442 1 Stopper, Set (Includes Ring)
8 191–1441 1 Lever Assy
9 191–1440 1 Spring Set
10 191–1439 1 Bracket, Center
11 191–1606 1 Armature (Includes Bearings)
12 191–1437 1 Bearing, Center Sleeve
13 191–1436 1 Bearing, Rear Sleeve
14 191–1607 1 Yoke Assy (Includes Pole
Shoes, Field Coil, Positive
Brushes)
15 191–1608 1 Holder, Brush (Includes
Negative Brushes)
16 191–1433 4 Spring, Brush
17 191–1432 1 Bracket, Rear
18 191–1431 1 Bolt, Set
19 191–1609 1 Switch, Solenoid (Includes
Shims)
20 191–1447 1 Gear, Set
21 191–1448 1 Drive Assy
14 MDKAD/E
Main Bearing Housing
1
2
3
4
5
6
7
8
9
10
11
12
2
2
2
12
12
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–5889 1 Housing, Main Bearing
2 185–5890 8 Bolt, Bearing Housing
3 185–6766 1 Gasket, Bearing Housing
4 185–5892 1 Cover, Bearing Housing
5 185–5893 1 Gasket, Bearing Housing Cover
6 185–2403 8 Bolt
7 185–2404 8 Bolt
8 185–5895 1 Seal, Oil
9 185–5896 1 Housing, Main Bearing
10 185–5897 1 Housing, Main Bearing
11 185–5898 1 Housing, Main Bearing
12 185–5899 3 Bolt, Bearing Housing
15 MDKAD/E
Fuel Camshaft
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
14
18
19
20
21
22
15
12
10
16
18
14
17
13
13
2
18
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–5945 1 Camshaft Assy, Fuel
(Includes Parts Marked *)
2 185–5946 1 *Camshaft, Fuel
3 185–5947 1 *Bearing, Ball
4 185–5948 1 *Gear, Injection Pump
5 185–5949 1 *Key
6 185–5950 1 *Ring, External Retaining
7 185–5951 1 *Sleeve, Governor
8 185–5952 2 *Washer, Thrust
9 185–5953 1 *Collar
10 185–5954 2 *Shaft, Governor Weight
11 185–5955 1 *Holder, Governor Weight
12 185–5956 2 *Weight Assy, Governor
(Includes Pin, Weight and
Washer)
13 185–7039 2 *Weight, Governor
14 185–5960 2 *Washer
15 185–5957 2 *Pin, Governor Weight
16 185–5958 4 *Bushing
17 185–5959 2 *Bearing, Governor Weight
18 185–5966 4 *Washer, Flat
19 185–5962 1 Stopper, Fuel Camshaft
20 185–6956 2 Bolt
21 185–5963 1 Ring, External Retaining
22 185–5961 1 Bearing, Ball
* – Parts Included in Fuel Camshaft Assy
16 MDKAD/E

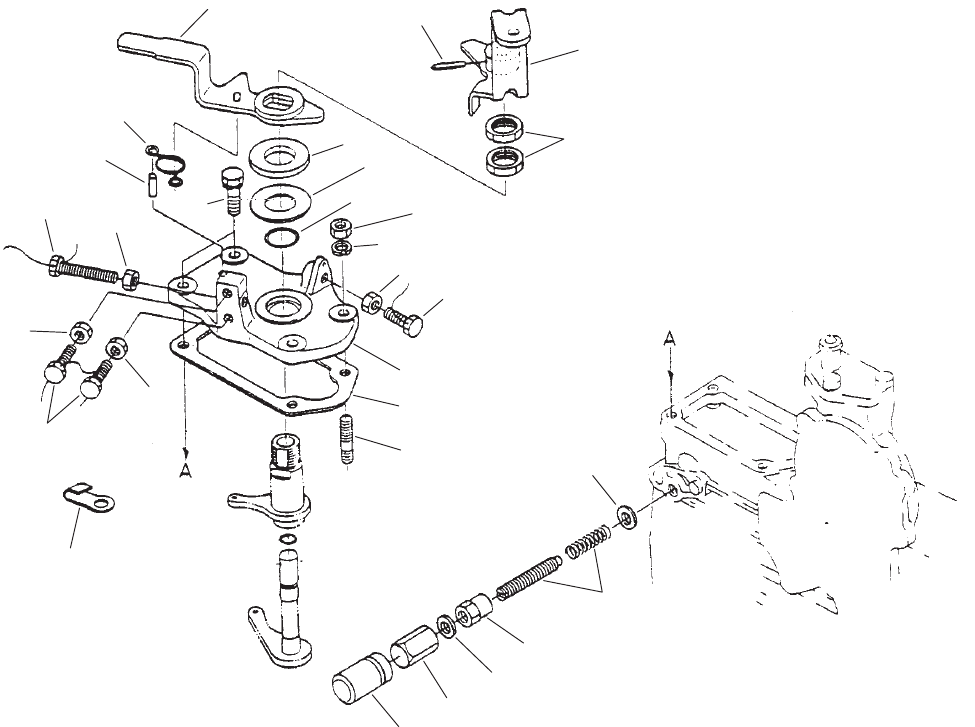

Speed Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
23
23
22
23
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6168 1 Bolt, Maximum Fuel Adjusting
2 185–6169 1 Nut
3 185–2284 2 Gasket
4 185–5529 1 Nut, Cap
5 185–2283 1 Cap
6 185–6171 1 Plate, Speed Control
7 185–5691 1 O’Ring
8 185–3397 1 Shim (0.50 mm)
9 185–6174 1 Collar
10 185–6175 1 Lever, Lower Speed Control
11 185–5693 2 Nut
12 185–6177 1 Lever, Upper Speed Control
13 185–5696 1 Pin, Spring
14 185–6178 1 Spring
15 185–6179 1 Pin, Straight
16 185–6180 1 Gasket
17 185–2390 2 Bolt
18 185–2105 2 Stud
19 185–6759 2 Washer, Spring
20 185–4255 2 Nut
21 185–5140 1 Clamp, Cord
22 800–2036 3 Bolt (M6 x 30)
23 750–1004 4 Nut (M6)
24 800–2038 1 Bolt (M6 x 40)
17 MDKAD/E

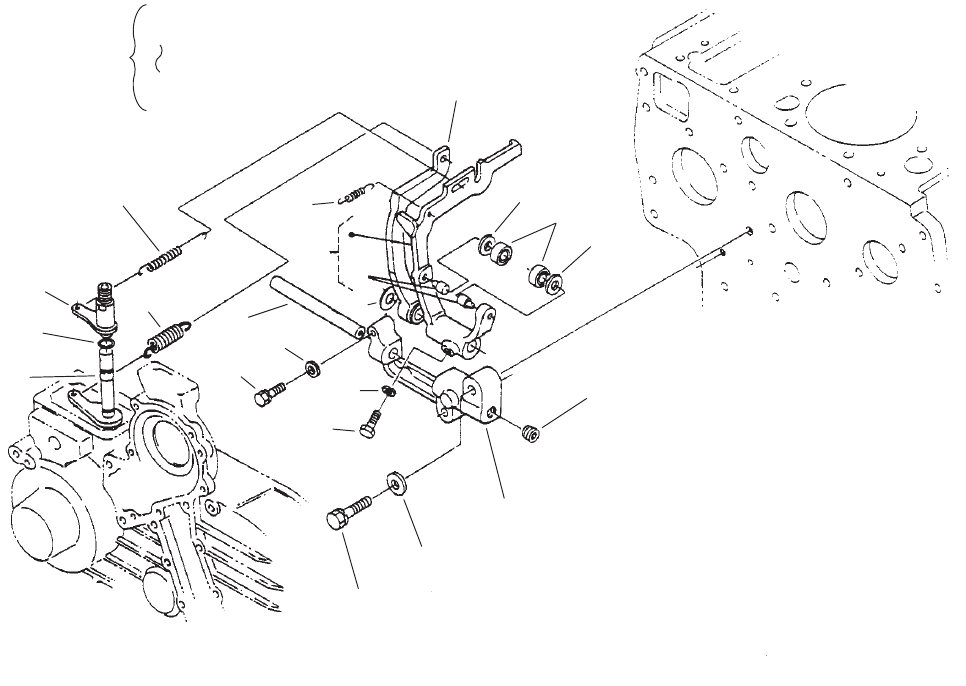

Governor
1
2
3
4
5
6
7
910
22
13
20 21
11
14
15
19
18
17
16
20
8
12
9
17
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6172 1 Shaft, Lever
2 185–2347 1 O’Ring
3 185–6173 1 Lever, Governor
4 Spring, Governor
185–6753 1 Prior to Kubota S/N 60896
185–6167 1 Begin Kubota S/N 60897
5 185–7112 1 Spring, Governor
6 185–2392 1 Bolt
7 740–1004 1 Washer, Flat
8 185–6801 1 Lever Assy, Fork (Includes Parts
Marked *)
9 185–6160 1 *Shaft, Fork Lever
10 185–6163 1 *Washer, Flat
11 185–6158 1 *Lever Assy, Fork (Includes Pin)
12 185–5957 2 *Pin, Governor Weight
13 185–6779 1 *Lever, Fork
14 185–6164 1 *Screw, Set
15 185–6780 1 *Holder, Fork Lever
16 185–2379 1 *Washer, Spring
17 185–6161 1 *Bolt
18 185–6781 2 Bolt
19 740–1006 2 Washer, Flat
20 185–5960 2 Washer
21 185–5959 2 Bearing
22 185–6165 1 Spring, Start
* – Parts Included in Fork Lever Assy.
18 MDKAD/E

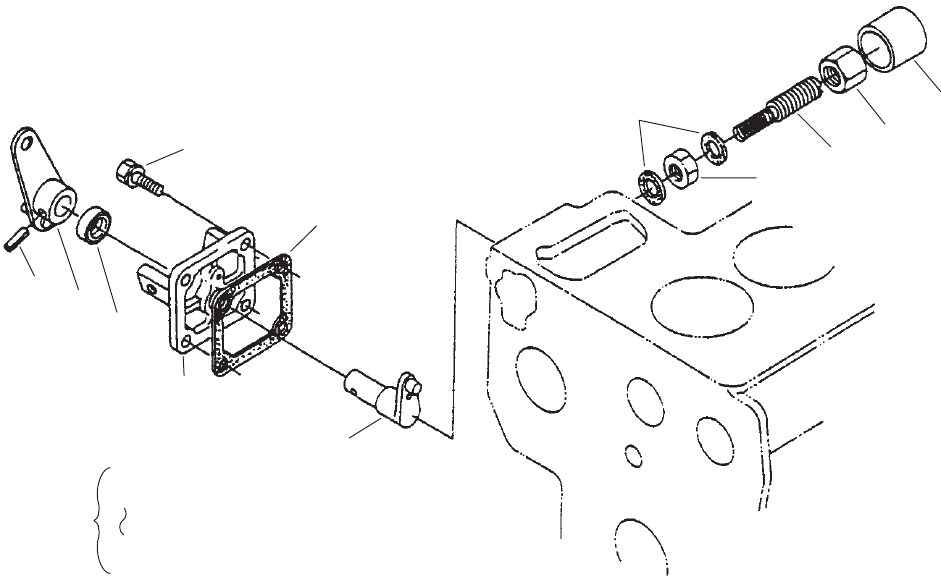

Engine Stop Lever
1
2
3
4
5
6
7
8
9
10
11
12
13
2
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6726 1 Lever Assy, Engine Stop
(Includes Parts Marked #)
2 185–6775 1 #Lever, Engine Stop
3 185–2351 1 #Pin, Spring
4 185–2461 1 #Seal, Oil
5 185–6134 1 #Cover, Injection Pump
6 185–6135 1 #Shaft, Lever
7 185–2389 4 Bolt
8 185–5974 1 Gasket, Injection Pump Cover
9 185–6774 1 Bolt, Adjusting
10 185–2338 2 Gasket
11 185–5969 1 Nut
12 185–5970 1 Nut, Cap
13 185–5971 1 Cap
# – Parts Included in Engine Stop Lever Assy
19 MDKAD/E
Injection Pump
1
2
3
4
5
6
7
8
9
10
5
6
7
10
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–7111 1 Pump Assy, Injection (See
Separate Page for
Components)
2 Shim
185–5976 2 Standard
185–6756 2 .20mm
185–6757 2 .25mm
3 Shim
185–5977 1 .45mm
185–6758 1 .30mm
4 185–2402 4 Bolt
5 185–2106 2 Stud
6 185–2367 2 Nut
7 185–6957 2 Washer, Spring
8 185–6777 1 Cock, Jet Start
9 185–6418 1 Joint, Eye
10 120–1221 2 Gasket
20 MDKAD/E

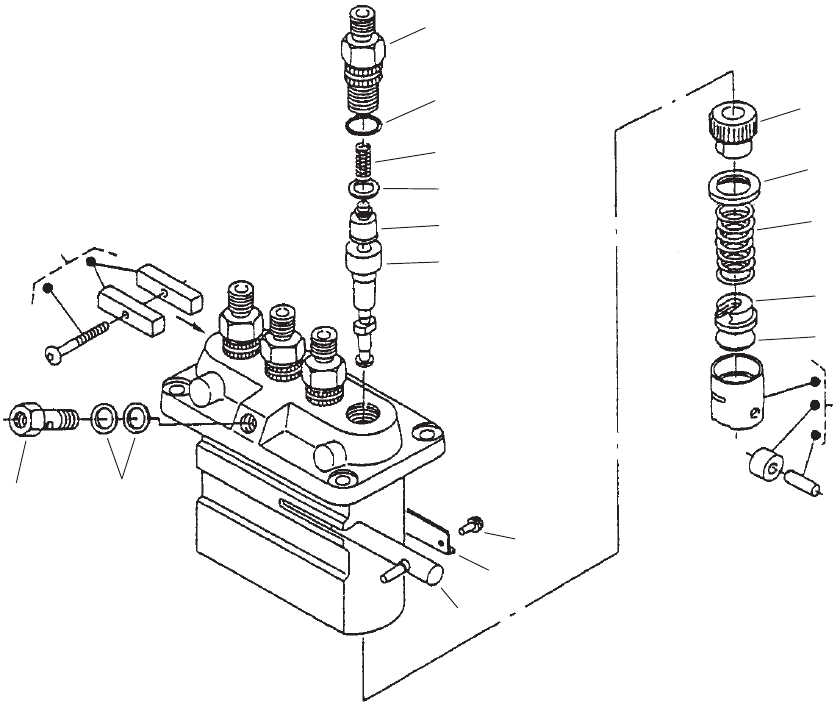

Injection Pump Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
185–7111 Pump Assy, Injection
1 185–6142 4 Holder, Delivey Valve
2 185–6155 4 ORing
3 185–6140 4 Spring, Delivery Valve
4 185–6141 4 Gasket, Delivery Valve
5 185–6139 4 Valve, Delivery
6 Plunger, Pump
185–6138 4 Old (Goes with Old Pump
185–6776)
185– 4 New (Goes w/185–7111)
7 185–6146 2 Plate
8 185–6145 4 Pin, Tappet Guide
9 185–6152 4 Sleeve, Control
10 185–6148 4 Seat, Upper Spring
11 185–6147 4 Spring, Plunger
12 185–6778 4 Seat, Lower Spring
13 185–6151 4 Shim
14 185–6144 4 Tappet Assy
15 185–6150 1 Rack, Control
16 185–6154 2 Gasket
17 185–6153 1 Screw, Hollow
18 185–6143 2 Lock Assy, Plate
21 MDKAD/E
Cylinder Head
1
2
4
5
3
6
7
10
11
9
8
3
4
12
3
7
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Stud
185–2106 1 MDKAD
185–6048 1 MDKAE
2 Head Assy, Cylinder (Includes
Parts Marked *)
185–6763 1 MDKAD
185–5860 1 MDKAE
3 185–2188 2 *Plug
4 185–5861 12 *Cap, Sealing
5 185–2412 1 *Cap, Sealing
6 185–5862 4 *Guide, Inlet Valve
7 185–5863 4 *Guide, Exhaust Valve
8 185–5868 1 Washer (With Rubber)
9 185–5867 1 Plug
10 185–5865 18 Bolt, Cylinder Head
11 Gasket, Cylinder Head
185–6764 1 MDKAD
185–5866 1 MDKAE
12 185–2095 1 O’Ring
* – Parts Included in Cylinder Head Assy.
22 MDKAD/E

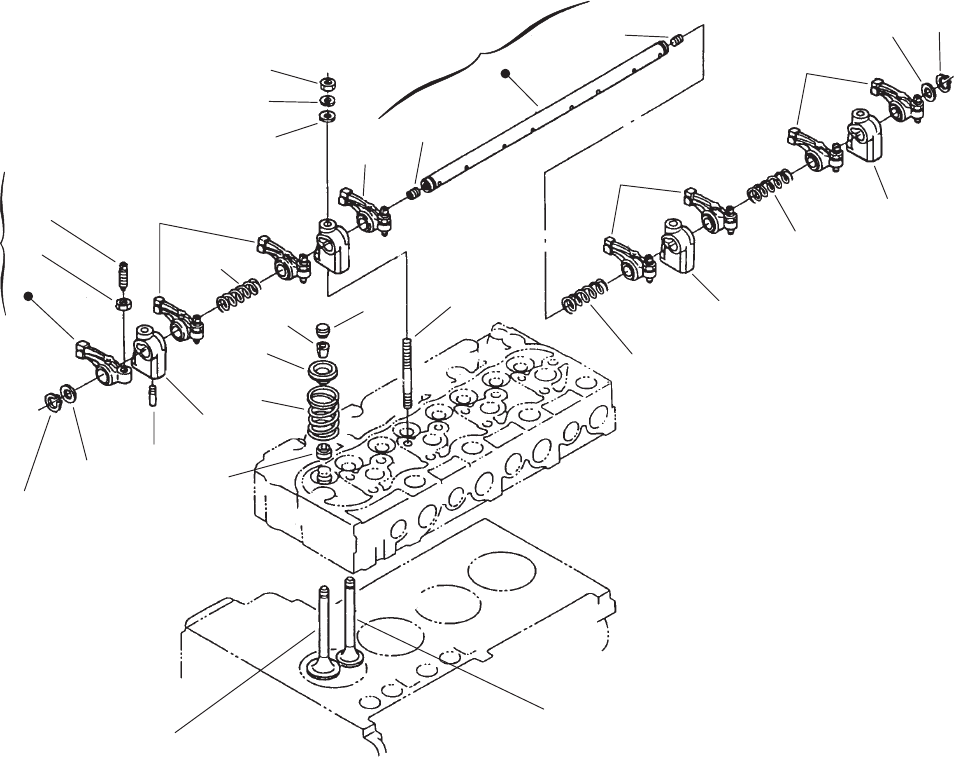

Rocker Arm
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
9
10
10
16
17
17
18
19
19
19
19
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6107 4 Valve, Inlet
2 185–6108 4 Valve, Exhaust
3 185–6016 8 Spring, Valve
4 185–6017 8 Retainer, Valve Spring
5 110–3584 8 Collet, Valve Spring
6 185–6018 8 Seal, Valve Stem
7 185–6019 8 Cap, Valve
8 185–6020 1 Shaft Assy, Rocker Arm
(Includes Set Screws)
9 185–6242 2 Screw, Set
10 185–6022 4 Bracket, Rocker Arm
11 185–6023 4 Stud
12 185–2367 4 Nut
13 185–6957 4 Washer, Spring
14 740–1006 4 Washer, Flat
15 185–6789 1 Pin, Spring
16 185–6025 2 Washer, Rocker Arm Shaft
17 185–6026 3 Spring, Rocker Arm
18 185–6027 2 Ring, External Retaining
19 185–6028 8 Arm Assy, Rocker (Includes
Screw and Nut)
20 185–6029 8 Screw, Adjusting
21 185–6030 8 Nut
23 MDKAD/E

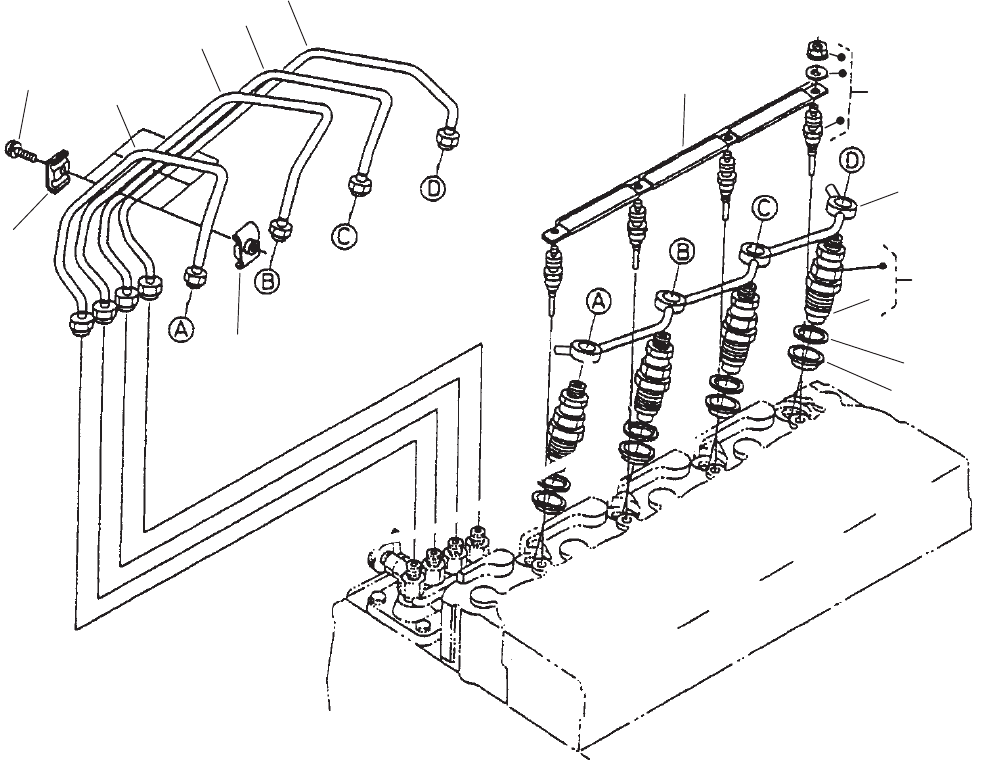

Nozzle Holder
1
23
456
7
89
10
11
12
13
14
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–2345 3 Clamp, Pipe
2 185–2385 3 Screw (With Washer)
3 185–5986 1 Pipe, Injection
4 185–5987 1 Pipe, Injection
5 185–5988 1 Pipe, Injection
6 185–5989 1 Pipe, Injection
7 185–5612 3 Clamp, Pipe
8 185–5991 1 Cord, Glow Plug
9 Plug, Glow
185–5990 4 12V
185–6725 4 24V
10 185–6731 1 Pipe, Overflow
11 Holder Assy, Nozzle (Includes
Nozzle)
185–6094 4 MDKAD
185–6752 4 MDKAE
12 185–6095 4 Nozzle
13 185–5337 4 Gasket, Nozzle
14 185–5985 4 Seal, Heat
24 MDKAD/E

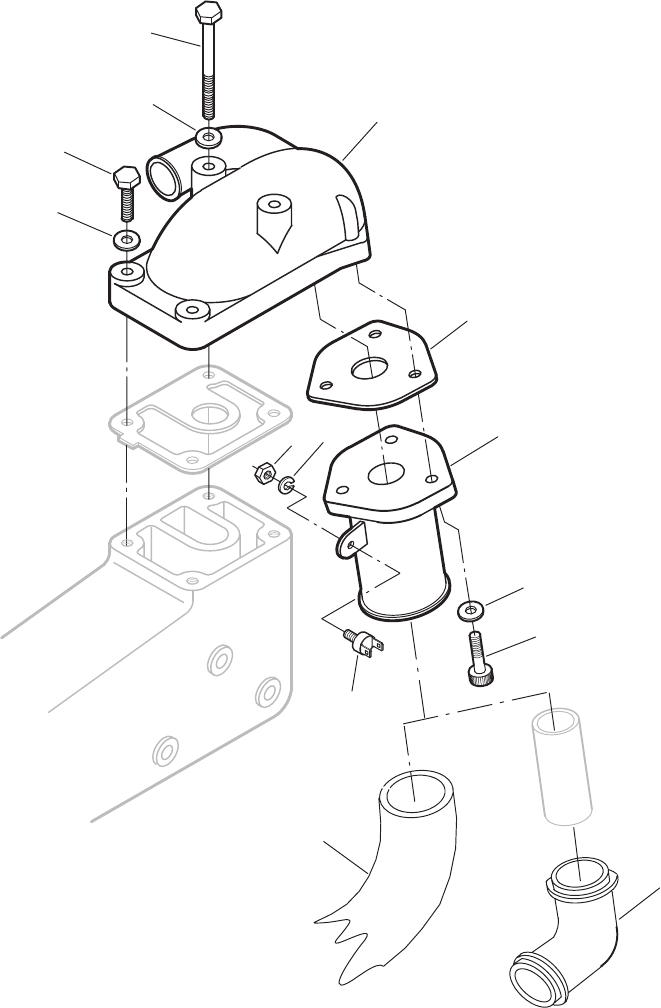

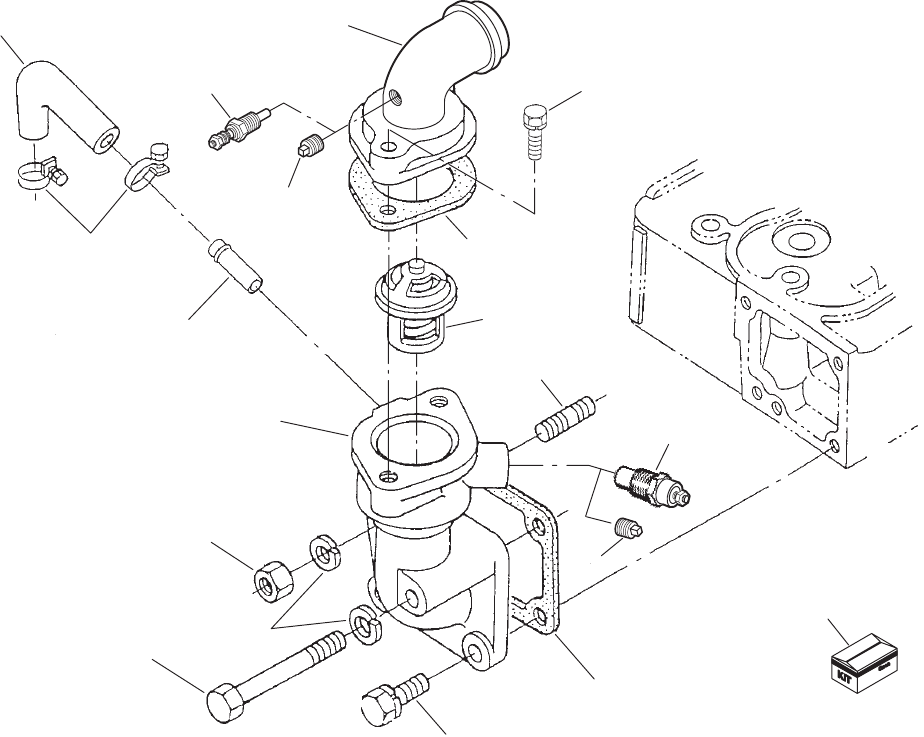

Water Outlet Flange
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
11
19
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6788 1 Flange, Water Outlet (Includes
Pipe)
2 185–6103 1 Pipe, Water Return
3 185–5999 1 Gasket
4 185–2402 2 Bolt
5 185–2362 1 Stud
6 185–5443 1 Bolt
7 185–2367 1 Nut
8 185–6957 2 Washer, Spring
9 185–6000 1 Pipe, Water Return
10 185–6001 2 Band, Pipe
11 185–5826 1 Plug
12 *Switch, High Water
Temperature (S2)
309–0601 1 Negative Ground
309–0576 1 Isolated Ground
13 185–6003 1 Cover, Thermostat
14 185–6004 1 Gasket, Thermostat Cover
15 185–2365 2 Bolt
16 185–6005 1 Thermostat
17 Sender, Water Temperature
(E2)
193–0318 1 Negative Ground
193–0457–01 1 Isolated Ground
18 505–0110 1 Plug, Square Head Pipe (3/8”)
19 *Kit, Sender (Includes Water
Temperature Sender)
300–5040 1 Negative Ground
300–5041 1 Isolated Ground
* – Kit Also Includes Oil Pressure Sender Listed on
Oil Pan Page.
+ – Switch Included in Isolated Ground Kit Listed on Isolated
Ground Page.

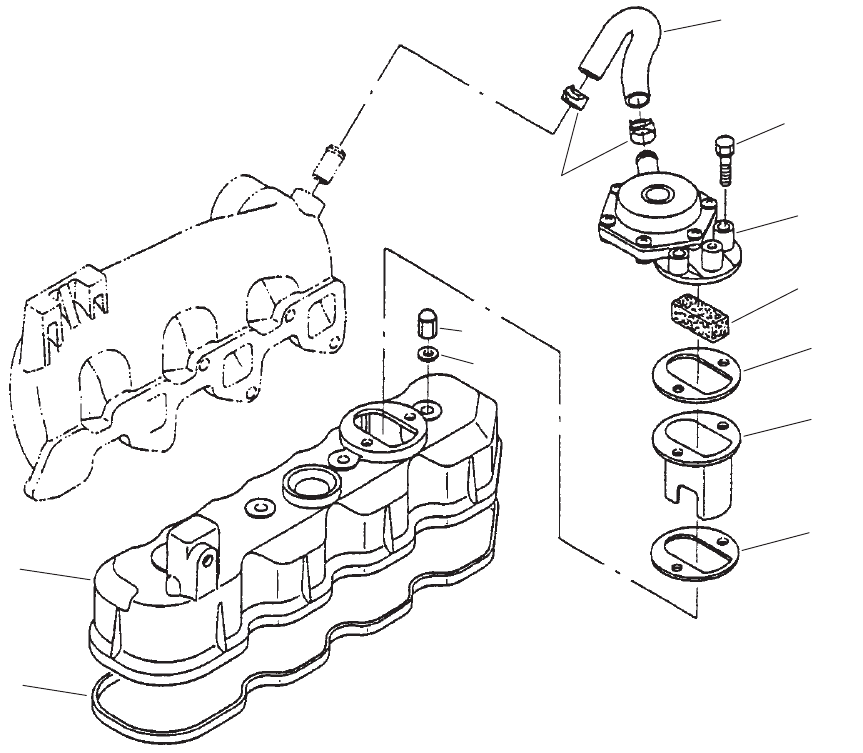

25 MDKAD/E
Cylinder Head Cover
1
2
3
4
5
6
7
8
9
10
11
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6716 1 Cover, Cylinder Head
2 185–5887 1 Gasket, Cover
3 185–6720 1 Breather
4 185–6717 2 Gasket, Breather
5 718–1040 2 Bolt
6 185–6721 1 Element, Breather
7 185–6718 1 Plate
8 185–6719 1 Tube, Breather
9 185–6722 2 Clamp, Hose
10 185–5888 4 Nut, Cap
11 185–2338 4 Gasket
26 MDKAD/E

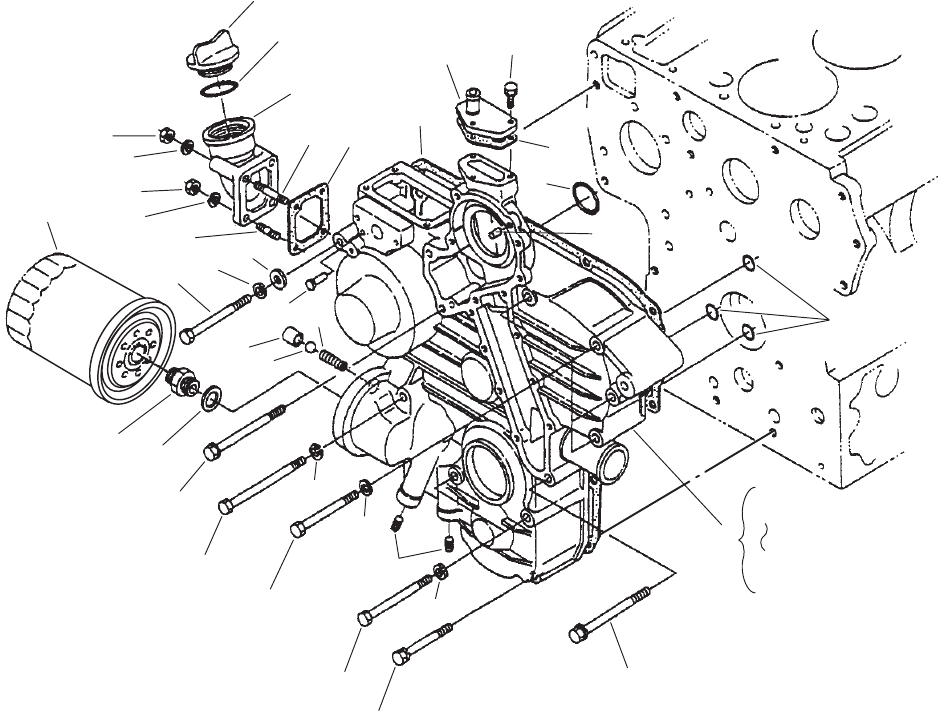

Gearcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19 20
21
22
23
24
25
26
27
28
30
31
32
14
14
29
31
32
12
14
2
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6765 1 Gearcase Assy (Includes
Parts Marked *)
2 185–5505 2 *Plug
3 185–5869 3 *O’Ring
4 185–5870 1 *O’Ring
5 185–6197 1 *Pin, Start Spring
6 185–5843 2 *Pin, Straight
7 185–5871 1 Gasket
8 185–2405 2 Bolt
9 185–5443 5 Bolt
10 185–5872 1 Bolt
11 185–5873 2 Bolt
12 185–5874 3 Bolt
13 185–6078 2 Bolt
14 185–6957 10 Washer, Spring
15 740–1006 1 Washer, Flat
16 185–5875 1 Joint, Pipe
17 185–5876 1 Washer, Flat
18 185–5877 1 Spring
19 185–5878 1 Seat, Valve
20 185–6711 1 Ball
21 185–5879 1 Flange, Water Return
22 185–5880 1 Gasket
23 185–2390 3 Bolt
24 122–0810 1 Filter, Oil
25 185–5407 1 Plug, Oil Fill
26 185–2349 1 O’Ring
27 185–6124 1 Flange, Oil Fill
28 185–6125 1 Gasket
29 185–6126 2 Stud (Top)
30 185–6127 2 Stud (Bottom)
31 185–6759 4 Washer, Spring
32 185–4255 4 Nut
* – Parts Included in Gearcase Assy
27 MDKAD/E

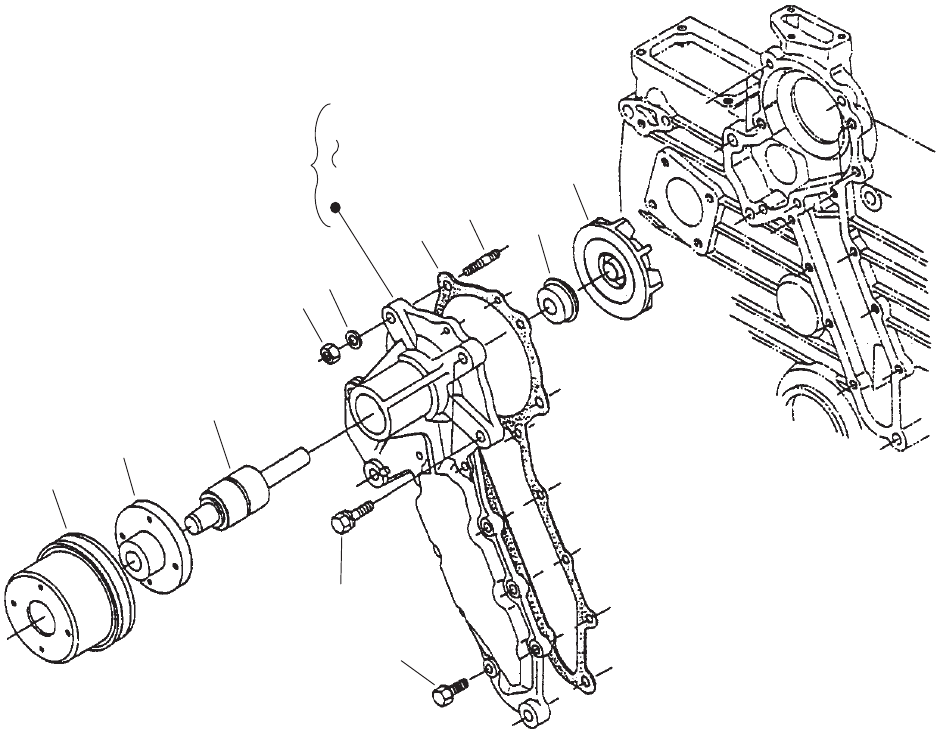

Water Pump
1
2
3
4
5
6
7
8
9
10
11
12
2
5
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6006 1 Pump Assy, Water
(Includes Parts Marked *)
2 185–6007 1 *Bearing, Ball
3 185–7020 1 *Impeller
4 185–7021 1 *Seal
5 185–6010 1 *Flange
6 185–6011 1 Gasket
7 185–2404 2 Bolt
8 185–6012 2 Stud
9 185–6957 2 Washer, Spring
10 185–2367 2 Nut
11 185–2389 8 Bolt
12 185–6013 1 Pulley
* – Parts Included in Water Pump Assy
28 MDKAD/E

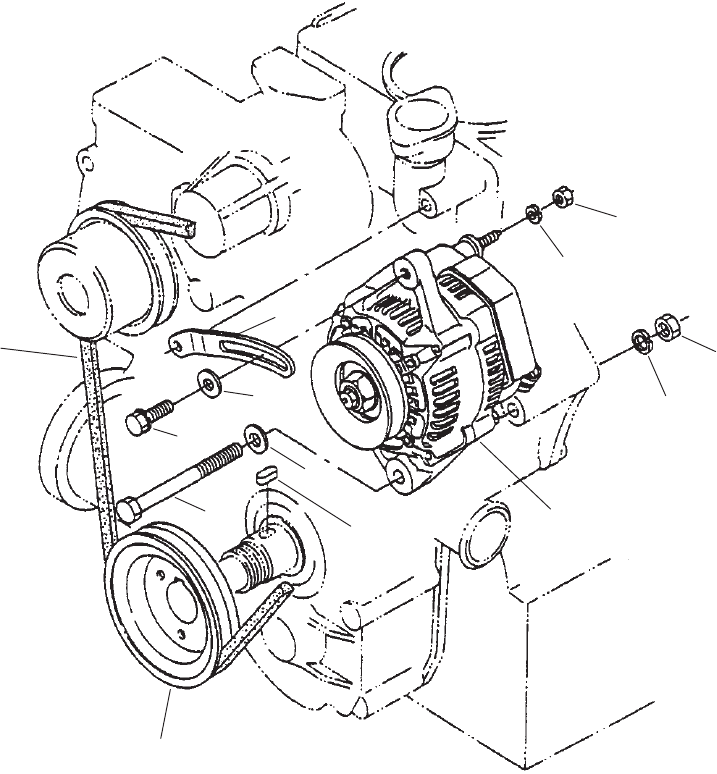

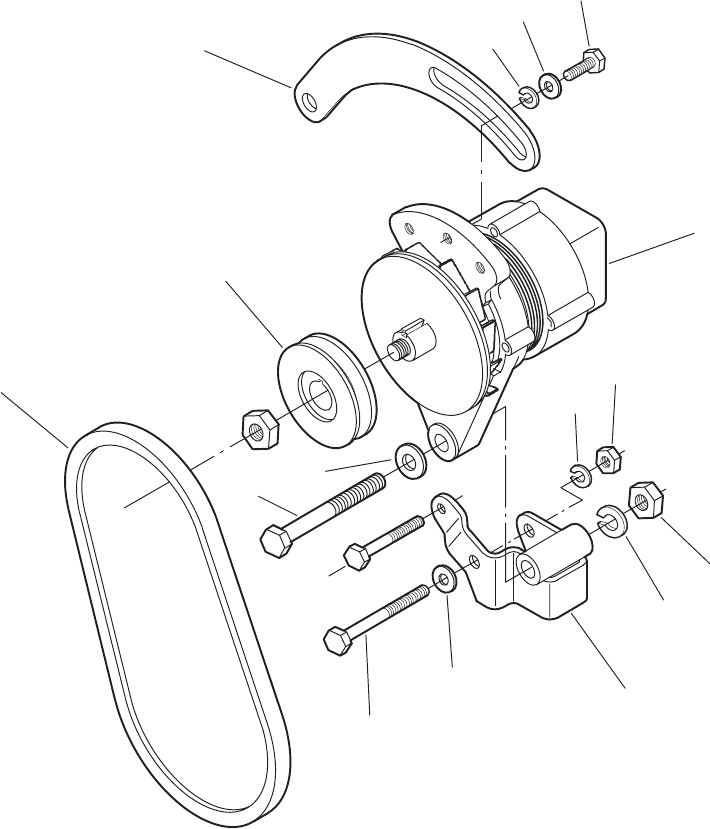

Alternator
(Negative Ground)
1
2
3
4
5
6
7
8
9
10
11
12
13
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Alternator, Complete (See
Separate Page for
Components)
185–5994 1 12V
185–6724 1 24V
2 Bracket, Adjusting
185–6182 1 12V
185–6733 1 24V
3 Bolt
185–6734 1 MDKAD
185–6183 1 MDKAE
4 185–6785 1 Washer, Spring
5 185–2564 1 Bolt
6 185–6786 1 Washer, Flat
7 185–4255 1 Nut
8 185–2380 1 Washer, Spring
9 185–6730 1 Pulley, Fan Drive
10 185–5905 1 Key
11 185–6184 1 Belt
12 185–6185 1 Washer, Flat
13 185–5445 1 Nut
29 MDKAD/E

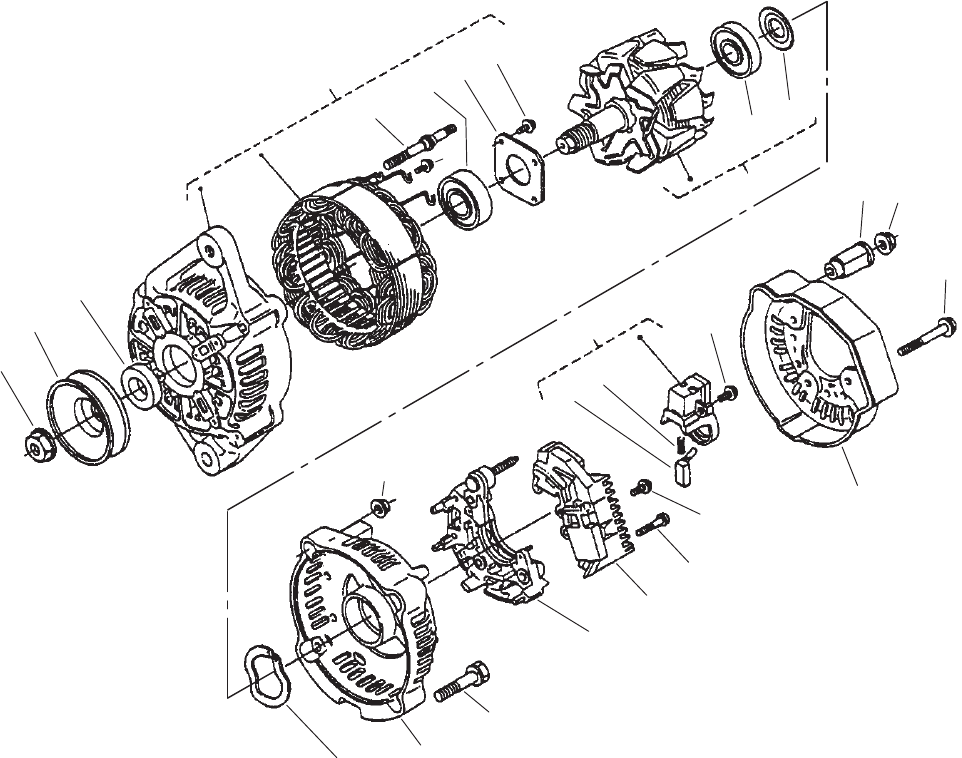

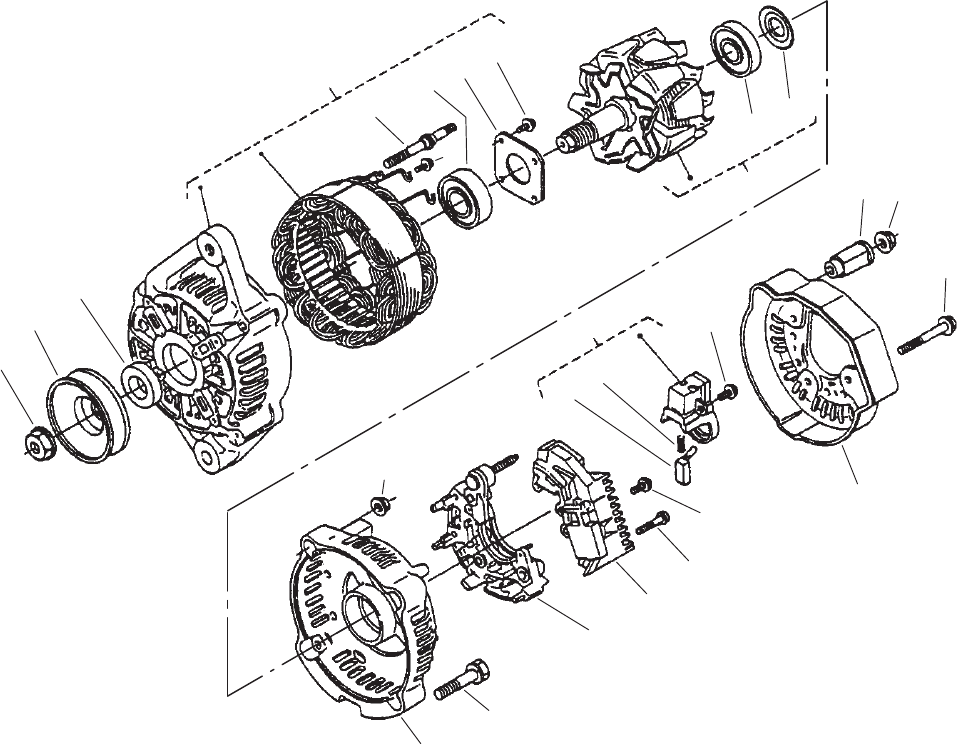

Alternator Components
(Negative Ground)
(12V)
1
2
3
4
5
6
789
10
11 12
13 14
15
16
17
18
19 20
21
22
23
24
25
26
27
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
185–5994 1 Alternator (12V)
1 185–6186 1 Pulley
2 185–5768 1 Nut
3 185–5769 1 Collar
4 185–5773 1 Frame, Drive End (Includes
Parts Marked *)
5 185–5776 2 *Bolt, Through
6 185–5786 6 Screw, Round Head
7 185–5777 1 *Bearing
8 185–5774 1 *Plate, Retainer
9 185–5775 4 *Screw, Round Head
10 185–5770 1 Rotor (Includes Bearing and
Cover)
11 185–5772 1 Bearing
12 185–5771 1 Cover, Bearing
13 185–6191 1 Insulation, Brush
14 185–2961 1 Nut
15 185–5788 3 Bolt
16 185–6189 1 Cover, End
17 185–5787 1 Screw, Round Head
18 185–5782 1 Holder Assy, Brush
(Includes Brushes and
Springs)
19 185–5783 2 Brush
20 185–5784 2 Spring, Brush
21 185–5785 2 Screw, Round Head
22 185–5791 1 Regulator
23 185–6190 1 Rectifier
24 185–5789 2 Nut
25 185–5790 2 Bolt
26 185–6188 1 Frame, End
27 185–6187 1 Washer, Thrust
* – Parts Included in Drive End Frame
30 MDKAD/E
Alternator Components
(Negative Ground)
(24V)
6
1
2
3
4
5
6
789
10
11 12
13 14
15
16
17
18
19 20
21
22
23
24
25
26
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
185–6724 1 Alternator (24V)
1 185–6809 1 Pulley
2 185–5768 1 Nut
3 185–5769 1 Collar
4 185–6812 1 Frame, Drive End (Includes
Parts Marked *)
5 185–5776 2 *Bolt, Through
6 185–5786 6 Screw, Round Head
7 185–6813 1 *Bearing
8 185–5774 1 *Plate, Retainer
9 185–5775 4 *Screw, Round Head
10 185–6810 1 Rotor (Includes Bearing and
Cover)
11 185–6811 1 Bearing
12 185–5771 1 Cover, Bearing
13 185–5781 1 Insulation, Brush
14 185–2961 1 Nut
15 185–5788 3 Bolt
16 185–6815 1 Cover, End
17 185–5787 1 Screw, Round Head
18 185–6819 1 Holder Assy, Brush
(Includes Brushes and
Springs)
19 185–5783 2 Brush
20 185–5784 2 Spring, Brush
21 185–5785 2 Screw, Round Head
22 185–6820 1 Regulator
23 185–6816 1 Rectifier
24 185–5789 2 Nut
25 185–5790 2 Bolt
26 185–6814 1 Frame, End
* – Parts Included in Drive End Frame
31 MDKAD/E
Alternator
(Isolated Ground)
1
2
3
4
5
67
8
9
10
11
12
13
14
15
16
17
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Alternator, Complete (No
Components Available)
191–2169–02 1 12V
191–2169–01 1 24V
2 191–2168–03 1 Bracket, Adjusting
3 191–2167–03 1 Bracket, Alternator
4 800–0104 1 Screw, Hex Head Cap
(1/2–13 x 4–1/2”
5 850–0060 1 Washer, Lock (1/2”)
6 526–0045 1 Washer, Flat (5/16”)
7 800–0027 1 Screw, Hex Head Cap
(5/16–18 x 7/8”)
8 850–0045 1 Washer, Lock (5/16”)
9 511–0186 1 Belt
10 526–0219 1 Washer, Flat (1/2”)
11 862–0016 1 Nut (1/2–13)
12 191–2170 1 Pulley, Alternator
13 718–1048 1 Screw, Hex Head Cap (M8 x 80)
14 800–2100 1 Screw, Hex Head Cap
(M10 x 100)
15 526–2120 1 Washer, (M10)
16 850–2010 1 Washer, Lock (M10)
17 750–1008 1 Nut, Hex (M10)
32 MDKAD/E

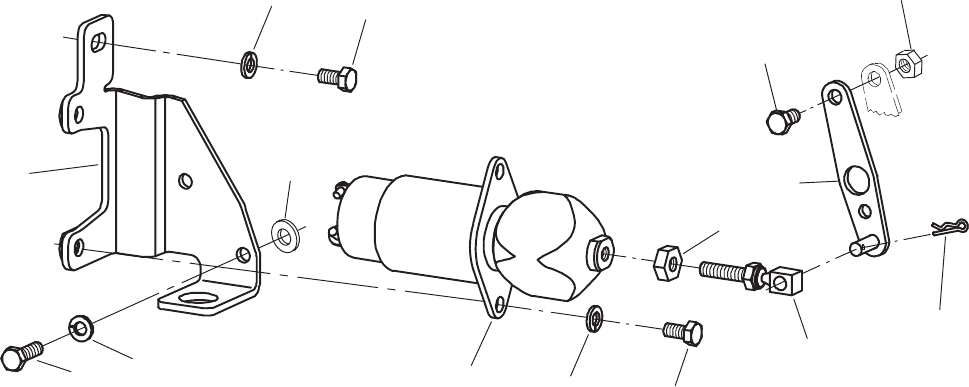

Stop Solenoid
6
9
8
1
7
10
23
11
5
3
3
5
5
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 307–2808–02 1 Bracket, Solenoid
2 800–2034 2 Screw, Hex Head Cap
(M6 x 1 x 20mm)
3 850–2006 5 Washer, Lock (M6)
4 526–2081 2 Washer, Flat (M6)
5 800–2029 4 Screw, Hex Head Cap
(M6 x 1 x 12mm)
6 115–0025 1 Nut, Tappet (1/4–28)
7 Solenoid, Stop (K7)
307–2820 1 12V
307–2820–01 1 24V
8 150–2579 1 Swivel, Ball Joint
9 150–2567–03 1 Lever, Stop
10 518–0656 1 Clip, Linkage
11 870–2054 1 Nut, Lock Flange (M6 x 1)
33 MDKAD/E

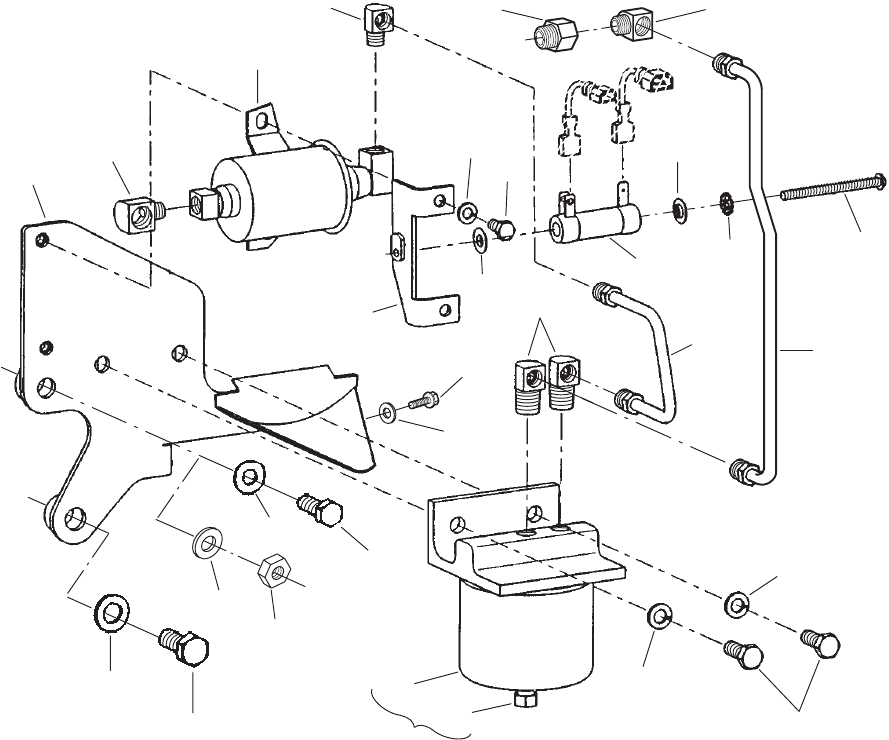

Fuel Pump
13
1
23
3
2
26
27
15
4
14
8
910 11 12
5
17
18
22
21 26
67
4
9
16
24
25
17
19
20
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 149–2531–04 1 Bracket, Fuel Pump
2 502–0099 1 Elbow, Street Pipe
3 149–2331–01 1 Pump, Electric Fuel (E5)
4 502–0002 2 Elbow, Inverted Male
5 502–0175 1 Adapter, Pipe
6 850–2006 2 Washer, Lock (M6)
7 718–1019 2 Screw, Hex Head Cap
(M6 x 1 x 14mm)
8 304–0828–02 1 Bracket, Resistor (24V)
9 304–0796 2 Washer, Centering (24V)
10 304–0797 1 Resistor (24V) (R6)
11 856–0003 1 Washer, EIT (#10) (24V)
12 813–0112 1 Screw, Round Head Machine
(#10–32 x 2.5”) (24V)
13 149–2437 1 Line, Fuel
14 149–2436 1 Line, Fuel
15 502–0041 2 Elbow, Inverted Male
16 Screw, Hex Head Cap
800–3030 1 W/O PTO
(M10 x 1.25 x 20mm)
815–0904 1 * W/PTO
17 526–2120 2 Washer, Flat (M10) (W/O PTO)
18 800–3005 1 Screw, Hex Head Cap
(M10 x 1.25 x 30mm)
(W/O PTO)
19 526–2106 1 *Washer, Flat (W/PTO)
20 860–2008 1 *Nut (W/PTO)
21 526–0399–64 1 Washer, Flat (M12)
22 800–3032 1 Screw, Hex Head Cap
(M12 x 1.25 x 30mm)
23 149–2100 1 Filter, Fuel (Includes Element
Plug and )
24 149–2106 1 Element
25 502–0028 1 Plug, Drain
26 850–2008 2 Washer, Lock (M8)
27 718–1036 2 Screw, Hex Head Cap
(M8 x 1.25 x 20mm)
* – Parts Included in PTO Kit Found on PTO Page.
34 MDKAD/E

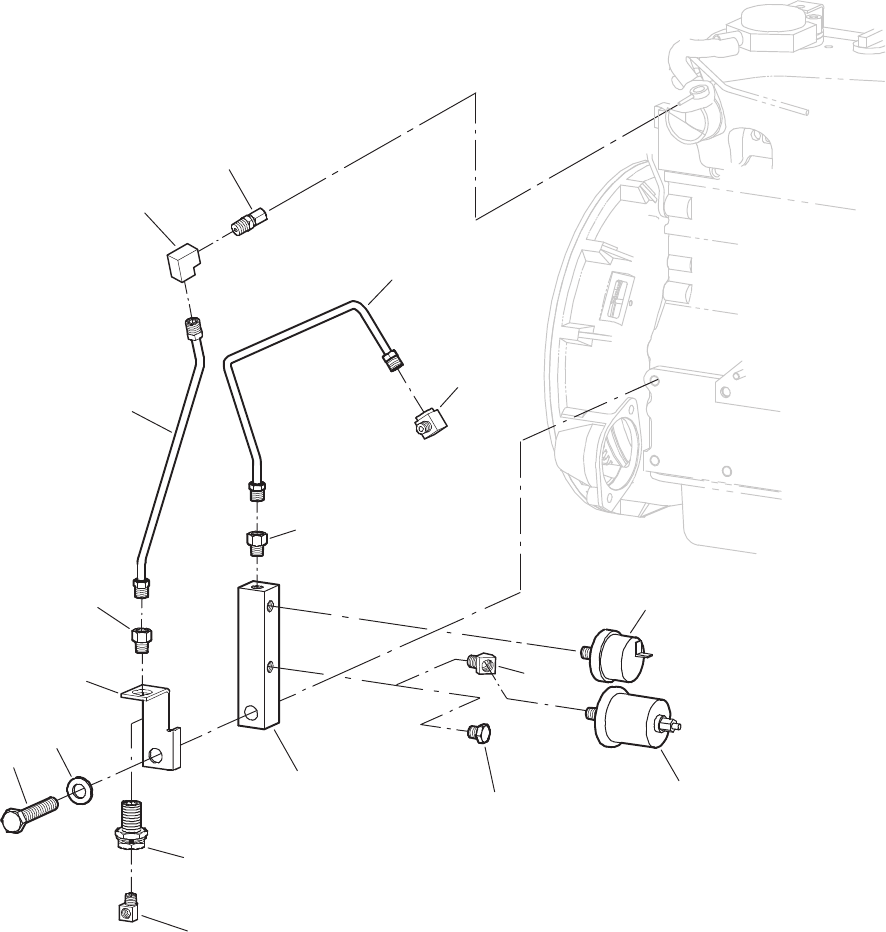

Fuel Return/Oil Sender
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 502–1245 1 Adapter, Pipe
2 502–0005 1 Elbow, Inverted Female
3 149–2488 1 Line, Fuel Return
4 502–0003 2 Connector, Inverted Male
5 149–2489–03 1 Support, Fuel Return
6 526–0399–64 1 Washer, Flat (M12)
7 800–3029 1 Screw, Hex Head Cap
(M12 x 1.25 x 45mm)
8 502–0020–01 1 Elbow, Street Pipe
9 502–1244 1 Coupling, Anchor
10 120–1319 1 Manifold, Oil Pressure
11 502–0028 1 Plug, Hex Head Pipe
12 502–0053 1 Elbow, Street Pipe 45°
13 Sender, Oil Pressure (E1)
193–0244 1 Negative Ground
193–0430–01 1 Isolated Ground
14 Switch, Oil Pressure (S4)
309–0561–05 1 Negative Ground
309–0578 1 Isolated Ground
15 502–1309 1 Elbow, Male
16 122–0813 1 Line, Oil
* – Part Included in Sender Kit Found on Water Outlet Flange
Page.
35 MDKAD/E

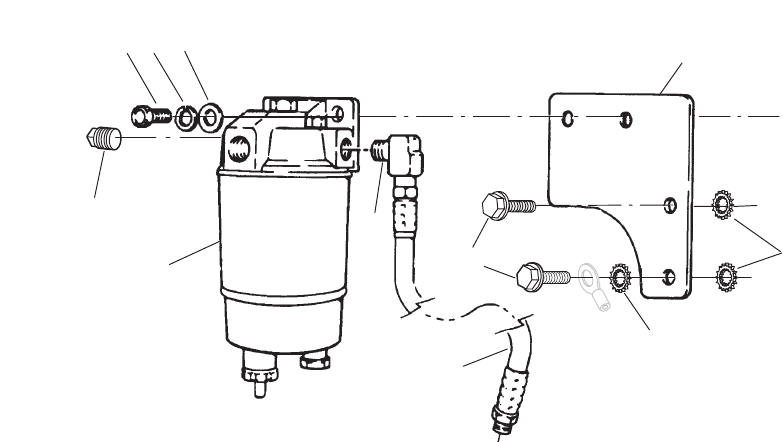

Remote Water Separator
1
2
3
5
6
7
8
9
10
4
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
149–2313 1 Kit, Remote Fuel/Water
Separator
1 149–1908–05 1 Separator, Fuel/Water (See
Separate Page for
Components)
2 149–2312 1 Bracket, Separator Mounting
3 501–0578 1 Line, Flex Fuel
4 718–1038 2 Screw, Hex Head Cap
(M8 x 1.25 x 30mm)
5 850–2008 2 Washer, Lock (M8)
6 502–0054 1 Elbow, Street 90° (1/4 NPT)
7 502–0153 1 Plug, Hex Pipe (1/4 NPT)
8 526–2100 2 Washer, Flat (M8)
9 856–0012 3 Washer, EIT (7/16”)
10 718–1055 2 Screw, Hex Head Cap
(M10 x 1.5 x 30mm)
36 MDKAD/E
Water Separator Components
1
2
3
4
5
6
7
8
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
149–1908–05 1 Separator, Water
1 149–2046 1 Kit, Metal Bowl Replacement
(Includes Plug, O–Rings and
Drain Assy)
2 149–1953 1 Drain Assy (Includes Knob
and Seal)
3 149–1914–05 1 Element (Includes Seals)
4 502–0153 1 Plug, Hex (1/4”)
5 149–1949 1 Head Assy, Replacement
(Includes Vent Plug, O–Rings,
Seal, Cap, Tube and Pump
Assy)
6 149–1952 1 Plug, Vent (Includes O–Ring)
7 149–2047 1 Pump Assy (Includes
Plunger, Retainer, Shaft,
Check Ball, Knob and Screw)
8 149–2045 1 O’Ring Kit (Includes Seal and
Plunger)
37 MDKAD/E

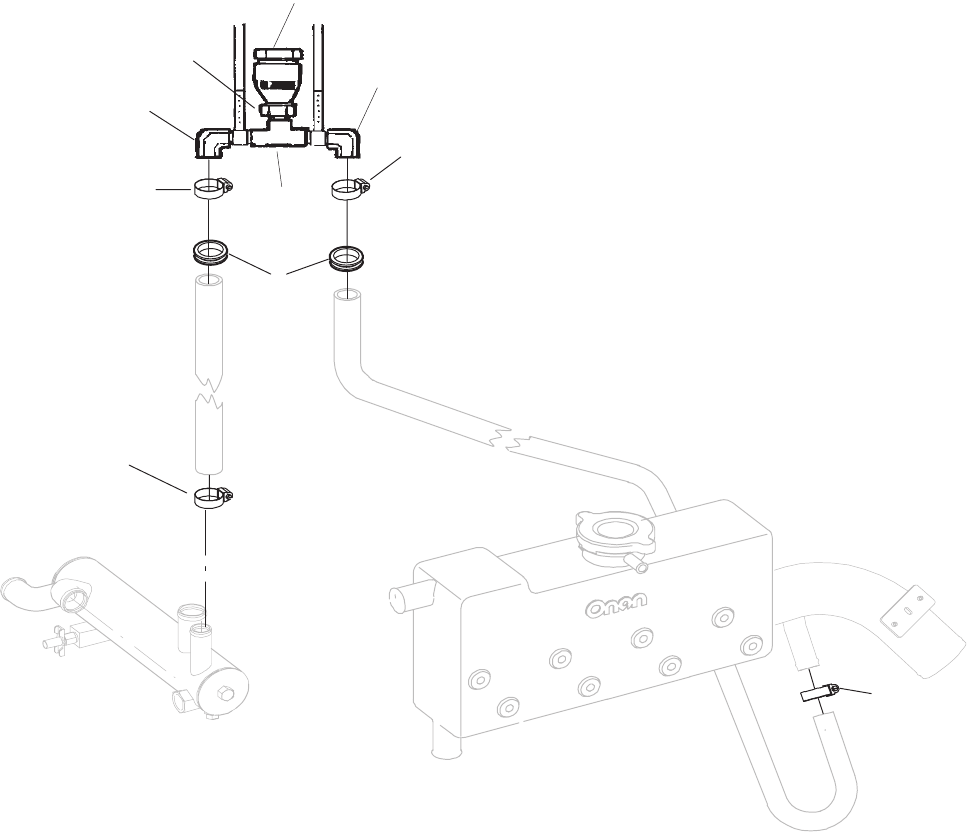

Vacuum Relief Valve
1
3
4
5
6
5
5
5
4
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
155–2950 1 Kit, Siphon Break
1 504–0062 1 Valve, Vacuum Relief
2 502–0270 1 Adapter, Pipe (3/8” x 1/2”)
3 502–0090 1 Tee (3/8”)
4 502–0942 2 Elbow, 90 Hose (3/8 Npt X 5/8”)
5 503–0977 4 Clamp, Hose (#10)
6 508–1102 2 Grommet
38 MDKAD/E

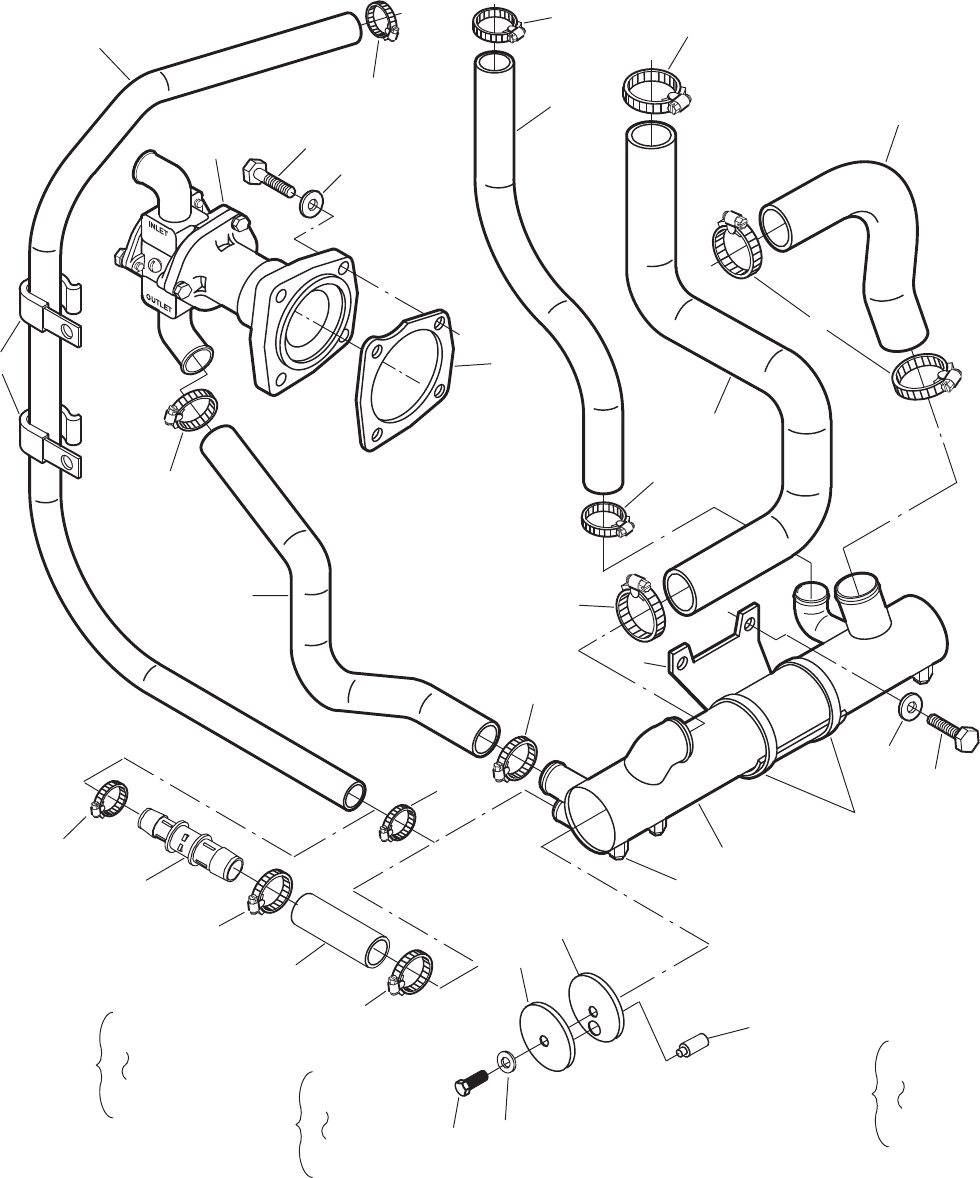

Heat Exchanger
1
6
15
18
14
11
12
8
7
3
13
10
19
5
17
16
4
12
8
8
87
7
9
2
29
30
25 26 27
28
31
20
24
21
31
26
31
22
23
23
21
24
29
39 MDKAD/E
Heat Exchanger
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Exchanger, Heat
130–4433–02 1 Spec A–B
130–5006–02 1 Begin Spec C
2 130–4434 1 Pencil, Zinc (w/Screw)
3 503–1143 2 Clamp, Hose (3”)
4 800–3030 2 Screw, Hex Head Cap
(M10 x 1.25 x 20mm)
5 526–2120 2 Washer, Flat (M10)
6 130–4234–03 1 Bracket, Heat Exchanger
7 503–1138 4 Clamp, Hose (1–3/8”)
8 503–1137 4 Clamp, Hose (1”)
9 503–1977 1 Hose, Exhaust Manifold
(1–3/8”) (Includes Sleeving)
10 503–1896 1 Hose, Engine Coolant (1–3/8”)
11 Hose, Coolant Tank Lower
(1” x 22”)
503–1163 1 Spec A–B
503–0501 1 Begin Spec C
12 503–0977 2 Clamp, Hose
13 Hose, Mixer
503–1562–02 1 Spec A–B (5/8 x 43”)
503–2122 1 Begin Spec C (3/4 x 43”)
14 332–2634 2 Clamp, ”J”
15 132–0356 1 Pump, Raw Water (See
Separate Page for
Components)
16 718–1036 4 Screw, Hex Head Cap
(M8 x 1.25 x 20)
17 526–2100 4 Washer, Flat (M8)
18 132–0346 1 Gasket, Water Pump
19 503–1978 1 Hose, Water Pump (1”)
20 130–5008 1 Kit, Heat Exchanger (Includes
Connector, Hose and Clamps)
(Adapt Old Hoses to New Heat
Exchanger)
21 503–1134 1 Clamp, Hose
22 503–2106 1 Connector, Reducer
23 503–1135 2 Clamp, Hose
24 503–1194 1 Hose, Rubber
25 130–4979 1 Kit, Heat Exchanger Zinc Pencil
(Includes Parts Marked +)
26 800–0317 1 +Screw, Hex Head
(5/16–18 x 3/4”)
27 850–0165 1 +Washer, Lock (5/16”)
28 130–5012 1 +Kit, End Cover (Includes Parts
Marked *)
29 Cover, Heat Exchanger
130–4567 1 W/O Zinc Pencil Boss)
130–4962–01 1 +* W/Zinc Pencil Boss)
30 Gasket, Cover
130–4566 1 W/O Zinc Pencil Hole
130–4960 1 +* W/Zinc Pencil Hole
31 130–4961 1 +*Pencil, Zinc (w/o Screw)
+ – Parts Included in Heat Exchanger Zinc Pencil Kit.
* – Parts Included in End Cover Kit.
40 MDKAD/E

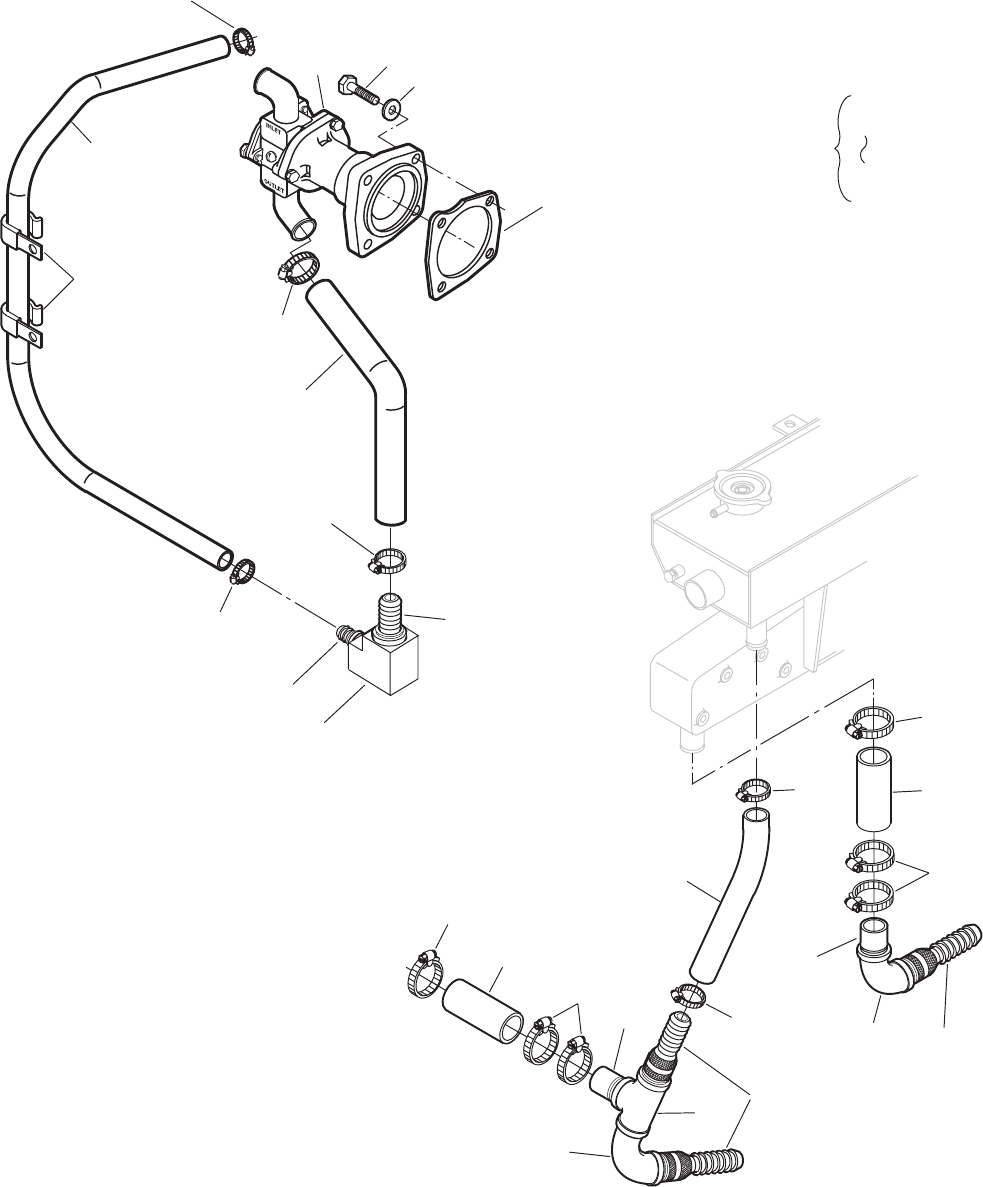

Keel Cooling
(Wet Exhaust)
3
19
8
1
2
18
4
7
15
5
6
13
10
8
19
19
19
13
8
8
21
18
10
14
17
14
17
5
11
12
16
9
20
41 MDKAD/E
Keel Cooling
(Wet Exhaust)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 132–0346 1 Gasket, Water Pump
2 526–2100 4 Washer, Flat (M8)
3 718–1036 4 Screw, Hex Head Cap
(M8 x 20mm)
4 132–0356 1 Pump, Raw Water
5 503–0977 2 Clamp, Hose
6 Hose
503–1168 1 Spec A–B (5/8”)
503–0200 1 Begin Spec C (3/4” x 36”)
7 332–2634 2 Clamp, “J”
8 503–1137 4 Clamp, Hose (1”)
9 503–2025–02 1 Hose, Outlet (1” x 12”)
10 502–1295–02 1 *Adapter (3/4” NPT x 1” Barb)
11 502–1297 1 *Elbow, 90
12 *Adapter (3/4”NPT)
502–1295–01 1 Spec A–B (5/8” Barb)
502–1295–03 1 Begin Spec C (3/4” Barb)
13 503–2023 2 *Hose, Coolant (1–3/8” x 4”)
14 505–0446–01 2 *Nipple, Half
15 505–0003 1 *Elbow
16 505–0304 1 *Tee
17 505–1509 3 *Barb, Hose
18 505–0041 1 *Elbow
19 503–1138 6 Clamp, Hose (1–3/8”)
20 503–2025–01 1 Hose, Coolant (1” x 10”)
21 155–3148–01 1 Kit, Keel Cooling (Includes Parts
Marked *)
* – Parts Included in Keel Cooling Kit.
42 MDKAD/E

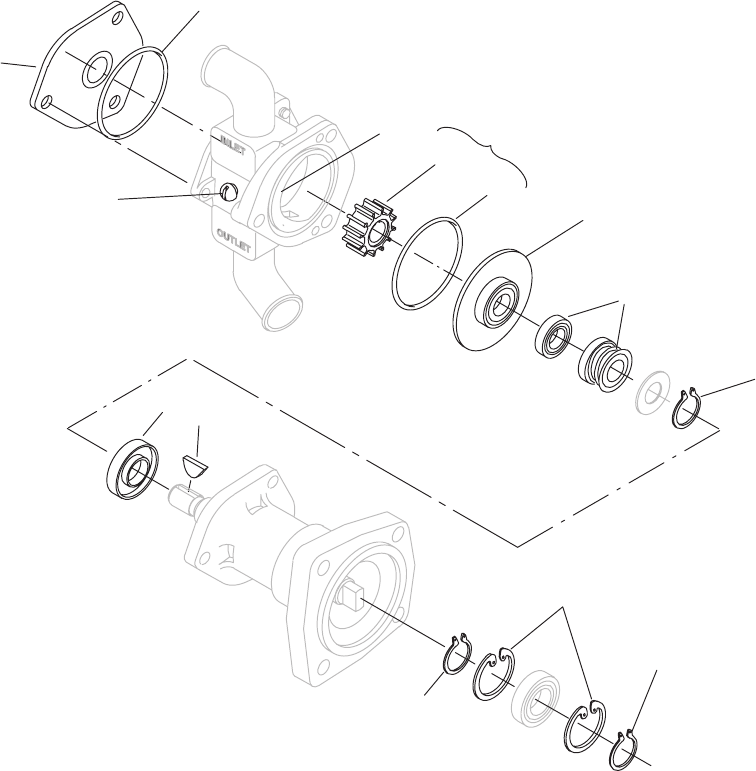

Water Pump Components
10
9
12
11
34
5
8
1
7
2
613
9
9
2
,
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
MDKAD
*Old Water Pump Prior to S/N F96353298
*New Water Pump Begin S/N F96353298
MDKAE
*Old Water Pump Prior to S/N F963543104
*New Water Pump Begin S/N F963543104
Kit, Major Service
132–0350 1 Old (Includes Parts Marked *)
132–0384 1 New (Includes Parts
Marked +)
1 Cover
– 1 # Old Pump
132–0386 1 + New Pump
2 132–0293 2 #+O’Ring
3 132–0390 1 #+Screw, Cam
4 132–0389 1 #+Washer, Seal
5 132–0388 1 #+Cam
6 132–0348 1 #+Impeller
7 Plate, Wear
– 1 # Old Pump
132–0385 1 + New Pump
8 Seal/Seat Assy
– 1 # Old Pump (Lip)
132–0387 1 + New Pump (Mechanical)
9 132–0393 3 +Ring, Retaining
10 132–0394 1 +Seal, Lip
11 132–0391 1 #+Key
12 132–0392 2 +Ring, Retaining
13 132–0349 1 Kit, Minor Water Pump Service
(Includes Impeller and O’Ring)
* – See Definition Above.
# – Parts Included in Major Service Kit for *Old Pump.
+ – Parts Included in Major Service Kit for *New Pump.
43 MDKAD/E

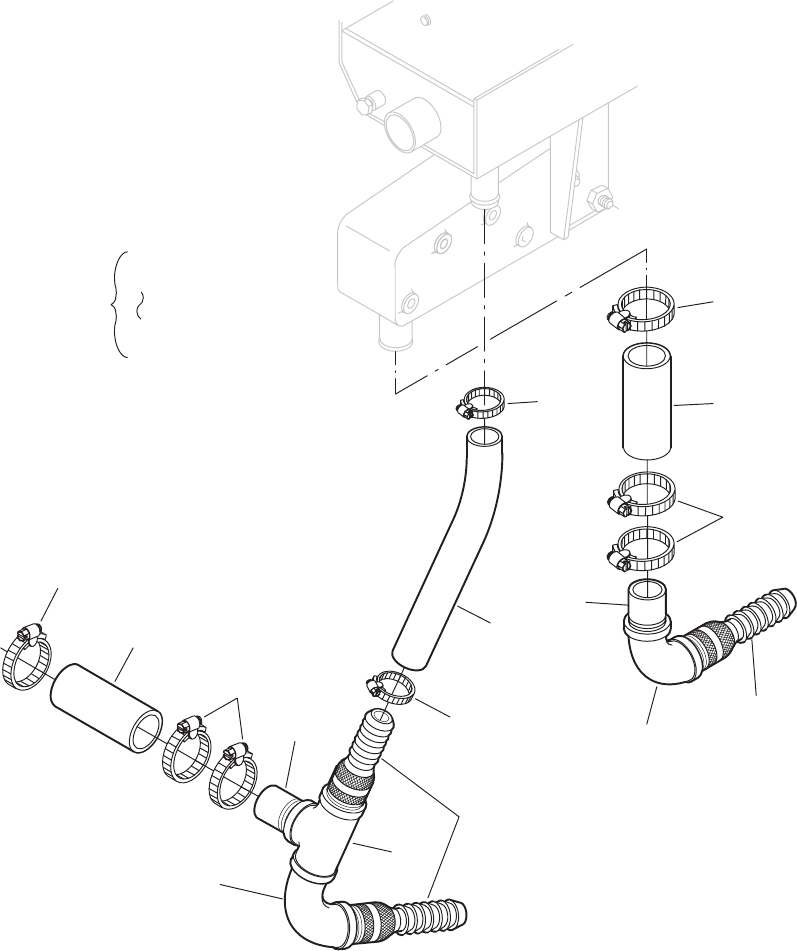

Keel Cooling System
(Dry Exhaust)
1
2
39
7
8
1
1
1
2
9
10
2
8
4
6
3
6
5
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 503–1138 6 Clamp, Hose (1–3/8”)
2 503–2023 2 *Hose, Coolant (1–3/8” x 4”)
3 505–0446–01 2 *Nipple, Half
4 505–0003 1 *Elbow
5 505–0304 1 Tee
6 505–1509 3 *Barb, Hose
7 503–2025–01 1 *Hose, Coolant (1” x 10”)
8 505–0041 1 *Elbow
9 503–1137 2 Clamp, Hose (1”)
10 155–3087 1 Kit, Keel Cooling (Includes Parts
Marked *)
* – Parts Included in Keel Cooling Kit. (Also Includes Cover,
Gasket and Hardware Found on Cylinder Block Page.)
44 MDKAD/E

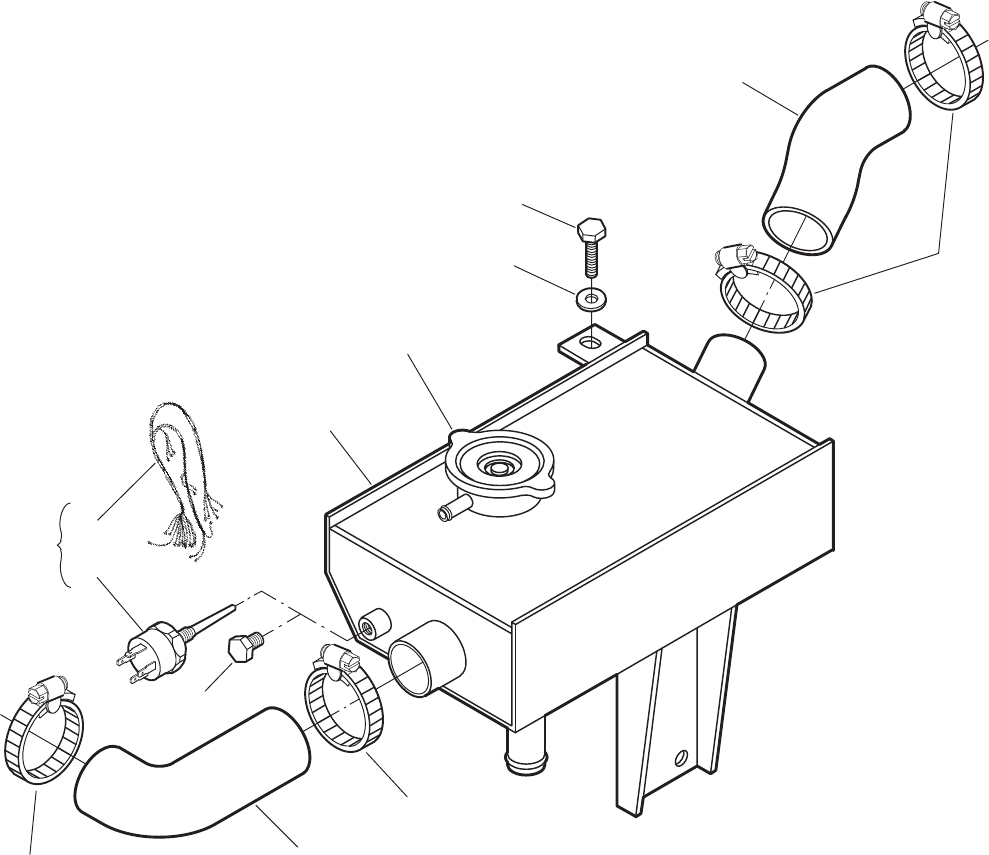

Coolant Tank
1
3
5
6
7
3
4
10
8
2
3
911
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 130–4881–02 1 Tank, Coolant
2 Cap, Tank
130–2248 1 Old (Used w/Old Tank
130–4235–02)
130–3721 1 New (Used w/New Tank
130–4881–01)
130–4718 1 Accy (Used w/Second
Coolant Tank)
3 503–1138 4 Clamp, Hose (1–3/8”)
4 503–1898 1 Hose, Upper Elbow
(1–3/8”)
5 503–1899 1 Hose, Upper ”S”
(1–3/8”)
6 526–2100 1 Washer, Flat (M8)
7 800–2054 1 Screw, Hex Head Cap
(M8 x 1.25 x 14mm)
8 502–0153 1 Plug, Hex Pipe (1/4)
9 300–4686 1 Kit, Low Coolant Sender
(Includes Switch and Harness)
10 193–0468 1 Sender, Low Coolant
11 338–3594 1 Harness, Pigtail
45 MDKAD/E

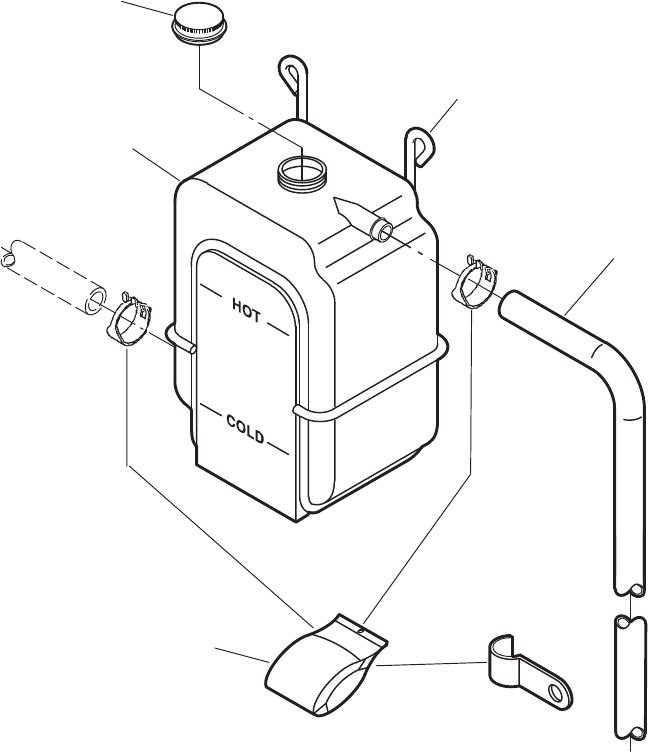

Coolant Recovery
1
2
3
5
4
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
130–3574 1 Kit, Coolant Recovery
1 130–3570 1 Tank, Coolant Recovery
2 130–3571 1 Hanger, Tank
3 503–1692 1 Hose (5/16 I.D. x 120” Lg.)
4 130–3572 1 Cap, Tank
5 130–3573 1 Hardware Package (Includes
Mounting Hardware)
46 MDKAD/E

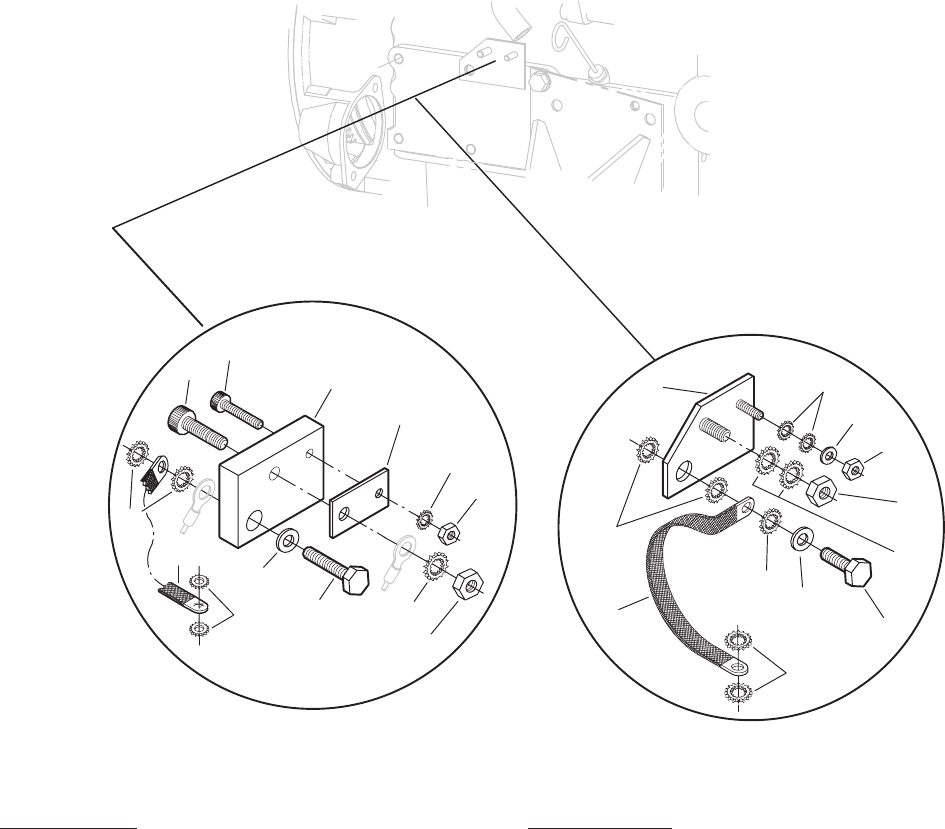

Grounding System
(Spec A–B)
14
15
16
18
19
20 21
22
23
21
20
17
1
2
3
4
5
6
7
8
9
10
11
12
13
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Isolated Ground
1 800–2115 1 Screw, Hex Head Cap
(M12 x 45)
2 337–2832 1 Isolator, Ground
3 337–2833–02 1 Strip, Ground
4 802–0038 1 Screw, Socket Head
(1/4–20 x 1.5”)
5 802–0057 1 Screw, Socket Head
(5/16–18 x 1.5”)
6 856–0006 1 Washer, EIT Lock (1/4)
7 856–0008 1 Washer, EIT Lock (5/16”)
8 862–0001 1 Nut, Hex (1/4–20)
9 862–0015 1 Nut, Hex (5/16–18)
10 856–0013 2 Washer, EIT Lock (1/2”)
11 526–2140 1 Washer, Flat (M12)
12 337–2785 1 Strap, Bond
13 856–1008 3 Washer, Lock – EIT(5/16”)
Negative Ground
14 337–2784–02 1 Bar, Bus
15 337–2785 1 Strap, Bond
16 526–0052 1 Washer, Flat (17/64) (Used with
12V Sets Only)
17 526–2140 1 Washer, Flat (M12)
18 800–3033 1 Screw, Cap – Hex Head
(M12 x 1.25 x 25mm)
19 856–0006 2 Washer, Lock – EIT (1/4”)
20 856–0013 3 Washer, Lock – EIT(1/2”)
21 856–1008 4 Washer, Lock – EIT(5/16”)
22 862–0015 1 Nut, Hex (5/16–18)
23 871–0016 1 Nut, Hex (1/4–20)
47 MDKAD/E

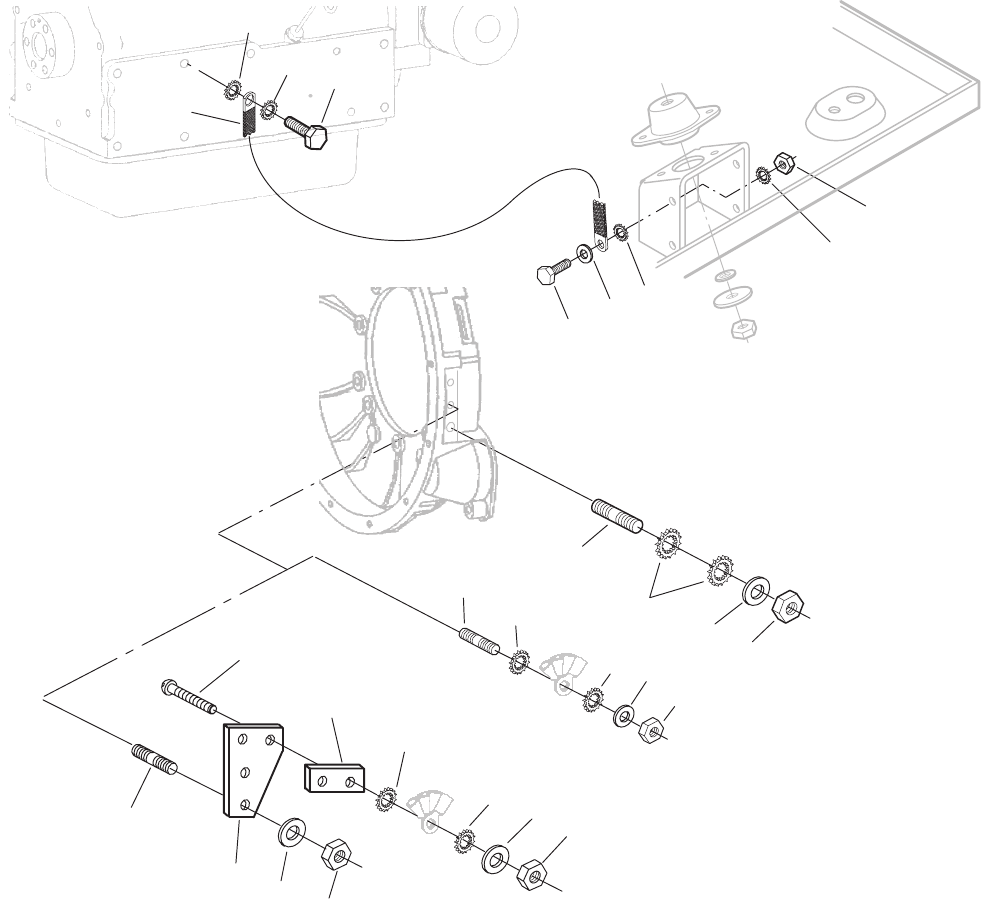

Grounding System
(Begin Spec C)
1
2
3
56
8
6
9
10
11
12
14
15
13
Isolated
Ground Only
Negative
Ground Only
16
4
7
13
12
21
23
24
19
20
17
18
20
22
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 520–1006 1 Stud, Stainless Steel
2 856–0008 2 Washer, EIT Lock (5/16”)
3 871–0025 1 Nut, Hex Brass (5/16–18)
4 526–0045 1 Washer, Flat (5/16”)
Negative Ground Only
5 520–1005 2 Stud, Stainless Steel
6 856–0006 4 Washer, EIT Lock (1/4
7 526–0016 2 Washer, Flat (1/4”)
8 871–0015 2 Nut, Hex Brass (1/4–20)
Isolated Ground Only
9 810–0156 2 Screw, Round Head Brass
Machine (1/4–20 x 1–1/2”)
10 337–2970 1 Strip, Ground
11 337–2969 1 Isolator, Ground
12 856–0006 4 Washer, EIT Lock
13 526–0016 4 Washer, Flat (1/4”)
14 871–0015 2 Nut, Hex Brass (1/4–20)
15 862–0013 2 Nut, Hex (1/4–20)
16 520–1005 2 Stud, Stainless Steel
17 526–2100 1 Washer, Flat (M8)
18 718–1036 1 Screw, Hex Head Cap
(M8 x 1.25 x 20mm)
19 860–2008 1 Nut, Hex (M8)
20 856–0008 2 Washer, EIT Lock (5/16”)
21 856–0013 1 Washer, EIT Lock (1/2”)
22 526–0399–64 15 Washer, Flat (M12)
23 800–3031 1 Screw, Hex Head Cap
24 337–2785 1 Strap, Bond
48 MDKAD/E

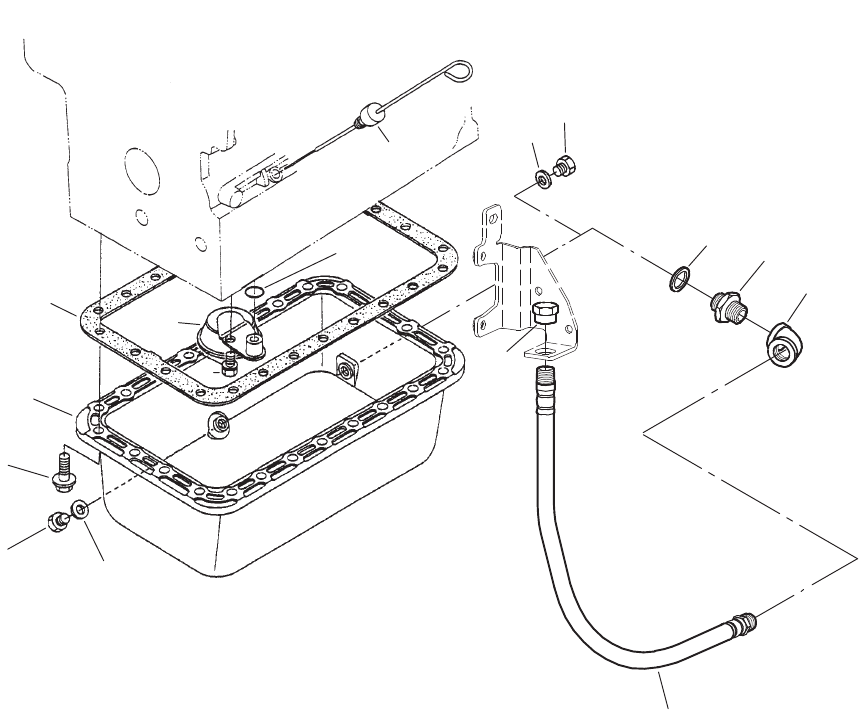

Oil Pan
1
2
3
45
6
7
8
9
10
11
12
13
14
15
16
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6727 1 Pan, Oil
2 185–5854 1 Gasket
3 185–5855 24 Bolt, Flange
4 185–2096 1 Plug
5 185–2343 1 Gasket
6 185–6760 1 Bolt
7 185–6761 1 Gasket
8 185–6728 1 Tube, Oil Pickup
9 185–6762 1 Bolt
10 185–3078 1 O’Ring
11 185–6122 1 Indicator, Oil Level
12 102–1449–01 1 Adapter, Oil Drain
13 501–0624 1 Line, Flex Oil (24”)
14 502–0263 1 Elbow, Pipe
15 502–1123 1 Cap, Pipe
16 526–0413 1 Washer, Oil Drain
(.625ID x .875OD x .075Thk)
49 MDKAD/E

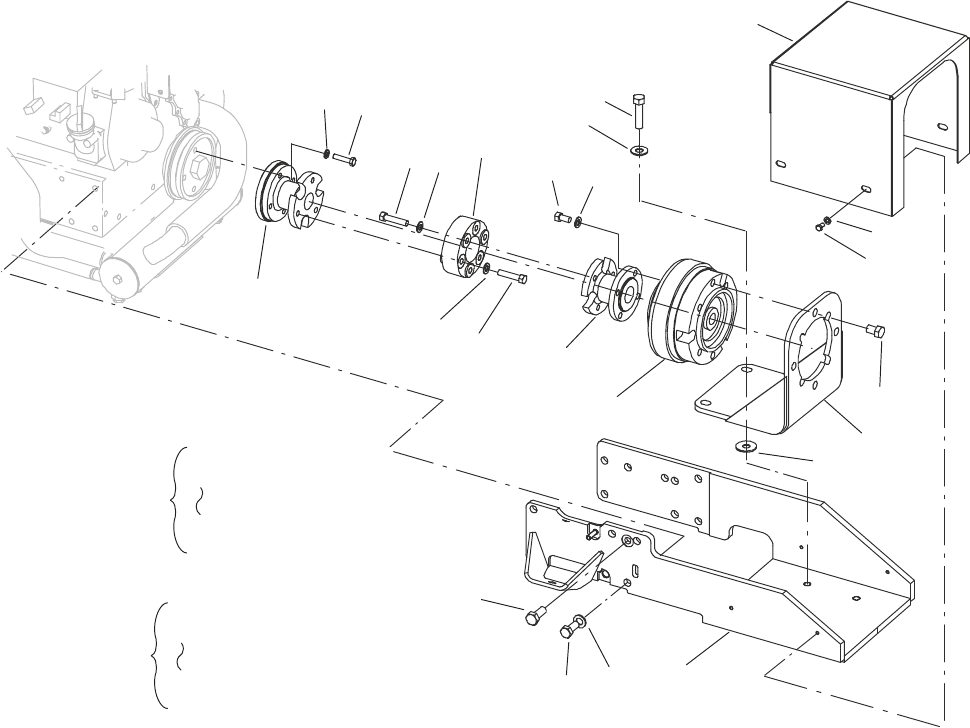

PTO
15
1
6
17
14
10
21
5
8
11
2
20
4
13
9
12
3
19
18
7
5
45
23
21
4
22
1
3
16
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 190–0730–02 1 +Adapter, Engine Coupling
2 526–2101 3 +Washer, Flat (M8)
3 800–2060 3 +Screw, Hex Head Cap (M8 x 35)
4 800–0054 6 *Screw, Hex Head Cap
5 526–0026 10 *Washer, Flat
6 190–0731 1 *Coupling, Flex
7 801–1050 4 *Screw, Hex Head Cap
8 526–0399–44 4 *Washer, Flat (1/2”)
9 800–0091 4 *Screw, Hex Head Cap
10 190–0736–03 1 *Guard, Coupling
11 526–2080 4 *Washer, Flat
12 800–2029 4 *Screw, Hex Head Cap (M6 x 12)
13 800–0090 2 *Screw, Hex Head Cap
14 190–0734–03 1 *Bracket, PTO Clutch
15 1 *Clutch
190–0729–01 1 12V
190–0729–02 1 24V
16 Shim, PTO
190–0756–01 AR .005
190–0756–02 AR .010
190–0756–03 AR .020
17 190–0732–02 1 *Adapter, Coupling Clutch
18 800–3033 1 *Screw, Hex Head Cap
19 800–3032 10 *Screw, Hex Head Cap
(M12 x 1.25)
20 526–0399–64 10 *Washer, Flat
21 190–0745–04 1 *Bracket, PTO
22 190–0740 1 Kit, PTO Adapter (Includes
Parts Marked +)
23 Kit, PTO (Includes Parts
Marked *)
190–0738 1 12V
190–0739 1 24V
+ – Parts Included in PTO Adapter Kit. (Also Includes Mount–
ing Isolator Found on Mounting Base Page)
* – Parts Included in PTO Kit. (Also Includes Fuel Pump
Mounting Hardware Found on Fuel Pump Page)
50 MDKAD/E

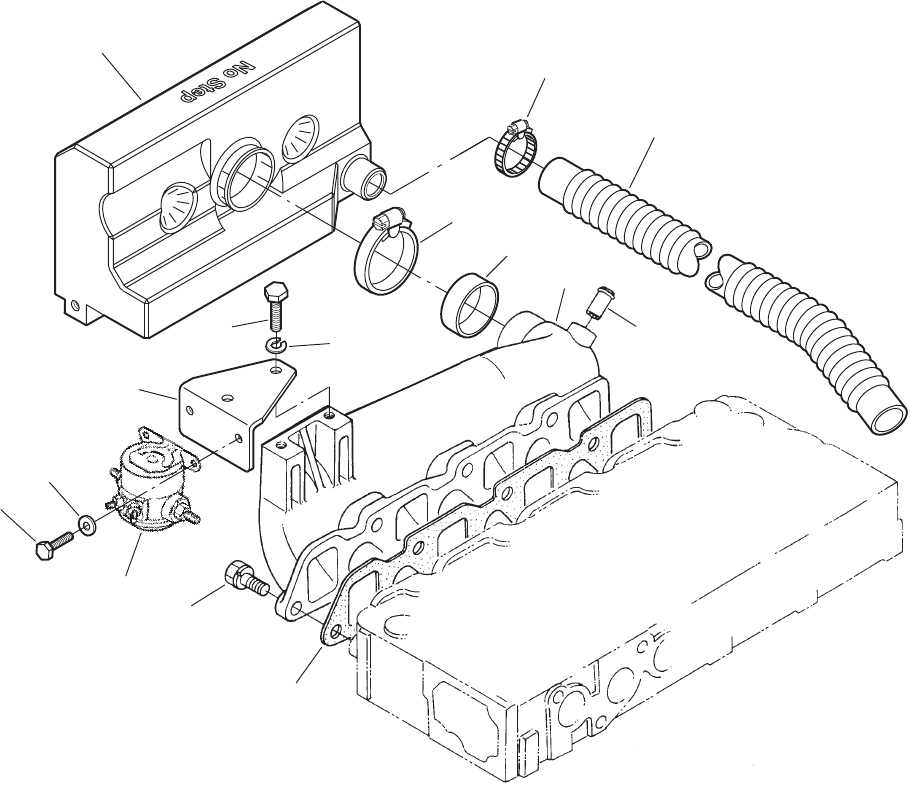

Intake Manifold
1
3
4
5
6
7
8
9
2
10
11 12
13
14
15
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 185–6715 1 Manifold, Intake
2 185–6723 1 Joint, Breather
3 185–6035 1 Gasket
4 185–2402 7 Bolt
5 140–2859 1 Resonator, Intake
6 140–3048 1 Sleeve, Air Intake
7 503–1138 1 Clamp, Hose (1–3/8”)
8 503–1143 1 Clamp, Hose (3”)
9 503–1939 1 Hose, Intake (1–3/8” x 28”Lg)
10 191–2166–03 1 Bracket, Solenoid Relay
(Isolated Ground)
11 800–3018 2 Screw, Hex Head Cap
(M10 x 16mm) (Isolated
Ground)
12 850–2010 2 Washer, Lock (M10) (Isolated
Ground)
13 Relay, Solenoid (Isolated
Ground)
307–1617 1 12V
307–2656 1 24V
14 800–2029 2 Screw, Hex Head Cap
(M6 x 12mm) (Isolated
Ground)
15 526–2080 2 Washer, Flat (M6) (Isolated
Ground
51 MDKAD/E

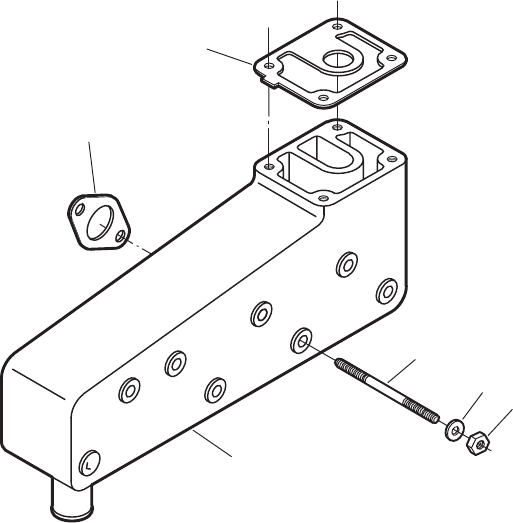

Exhaust Manifold
3
2
1
4
56
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 155–2975 1 *Gasket, Riser/Adapter
2 154–2915 4 Gasket, Exhaust Manifold
3 154–2887 1 Manifold, Exhaust
4 520–2218–01 8 Stud
5 526–2100 8 Washer, Flat (M8)
6 750–1006 8 Nut (M8 x 1.25)
* – Part Included in Exhaust Adapter Kit Found on Dry
Exhaust Page.
52 MDKAD/E
Wet Exhaust
6
4
5
9
10
3
1
11
7
8
12
13
2
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 800–2067 2 Screw, Hex Head Cap
(M8 x 1.25 x 70mm)
2 526–2100 4 Washer, Flat (M8)
3 718–1038 2 Screw, Hex Head Cap
(M8 x 1.25 x 30mm)
4 154–2891 1 Riser
5 155–3061 1 Gasket, Mixer
6 Mixer
154–2768 1 Spec A–B (5/8”)
154–3006 1 Begin Spec C (3/4”)
7 850–0025 1 Washer, Lock (M8)
8 860–0008 1 Nut, Hex (8–32)
9 309–0597 1 Switch, High Exhaust
Temperature (S5)
10 740–1004 3 Washer, Flat (M6)
11 802–2068 3 Screw, Socket Cap
(M6 x 1 x 20mm)
12 155–2033 1 Elbow, 90° Exhaust (2”)
13 Hose, Exhaust
503–1963–04 1 2” x 3’
503–1963–05 1 2” x 5’
503–1353 1 2” x 10’
503–1320 1 2” (Bulk Hose)
53 MDKAD/E

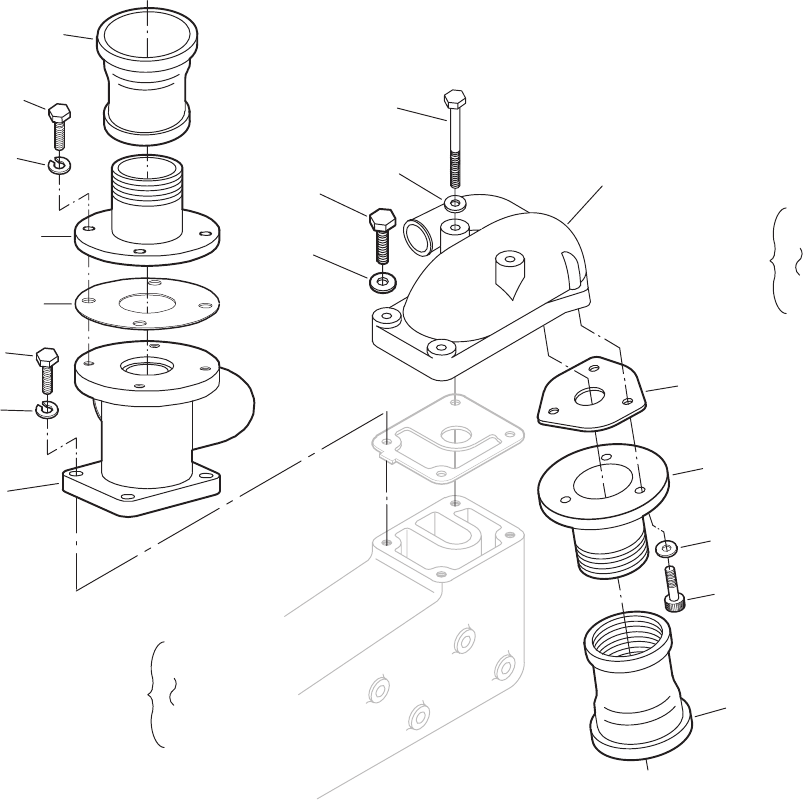

Dry Exhaust
(Up or Down)
11
8
7
10
9
6
13
14
15
16
17
8
7
2
3
1
4
4
511
12
13
17
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 154–2891 1 Riser
2 718–1038 2 Screw, Hex Head Cap
(M8 x 1.25 x 30mm)
3 800–2067 2 Screw, Hex Head Cap
(M8 x 1.25 x 70mm)
4 526–2100 4 Washer, Flat (M8)
5 155–2980 1 Kit, Exhaust Adapter (Includes
Parts Marked *)
6 154–2963–02 1 *Adapter, Exhaust
7 850–2008 8 *Washer, Lock (M8)
8 800–2058 8 *Screw, Hex Head Cap
(M8 x 25mm)
9 155–2981 1 *Gasket, Exhaust Adapter
10 155–3069–02 1 *Flange, Exhaust
11 505–0339–02 1 *Coupling, Reducer (2 x 1–1/2”)
12 155–3094 1 Kit, Exhaust Flange (Includes
Parts Marked +)
13 155–3061 1 +Gasket, Exhaust
14 155–3068–02 1 +Flange, Exhaust
15 740–1004 3 +Washer, Flat (M6)
16 802–2068 3 +Screw, Allen Socket Cap
(M6 x 1 x 20mm)
17 505–0339–02 1 +Bushing, Reducer (1–1/2 x 2”)
* – Parts Included in Exhaust Adapter Kit.(Also Includes
Gasket on Exhaust Manifold Page.)
+ – Parts Included in Exhaust Flange Kit.
54 MDKAD/E

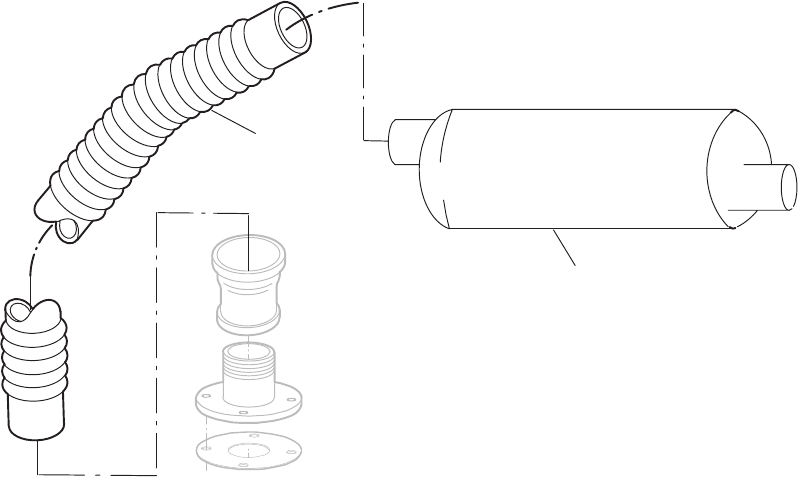

Muffler
1
2
REF PART QTY PART
NO. NO. USED DESCRIPTION
1 155–2355–04 1 Tube, Flexible Exhaust (2”)
2 Muffler, Dry Exhaust (Up) (2”)
155–2063–09 1 Industrial
155–2064–09 1 Critical
55 MDKAD/E

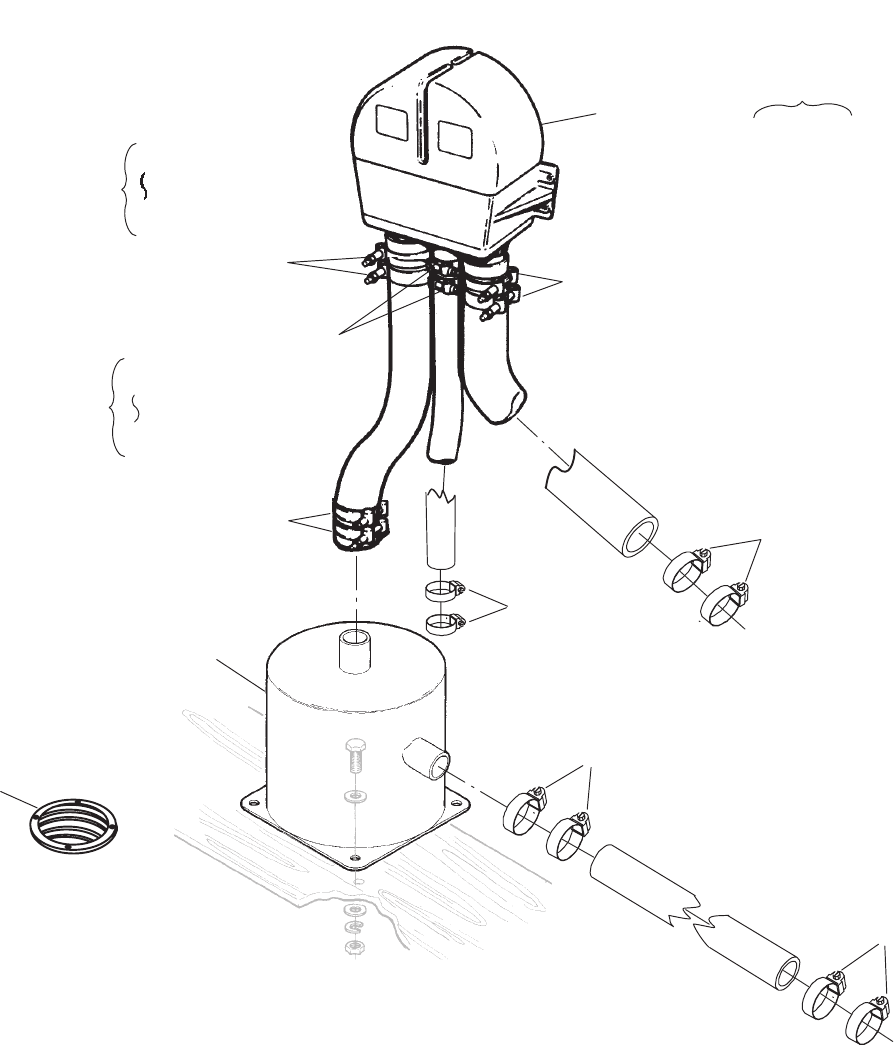

Water Separator/Muffler
4
5
6
5
5
5
55
1
2
3
7
8
4
8
4
6
578
8
,,
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 155–3217 1 Kit, Muffler/Separator (Includes
Parts Marked *)
2 155–2030 1 Kit, Muffler (Includes Parts
Marked +)
3 155–3216 1 Kit, Water Separator (Includes
Parts Marked S)
4 155–2029 1 *+Muffler, Marine
5 Clamp, Hose (2”)
503–1142 8 + Muffler Kit
503–1142 4 SSeparator Kit
503–1142 10 * Muffler/Separator Kit
6 155–1002 1 *+Strainer, Water Pickup
7 155–3218 1 *SSeparator, Water (2”)
8 503–1139 4 *SClamp, Hose (1–1/2”)
* – Parts Included in Muffler/Separator Kit.
+ – Parts Included in Muffler Kit.
S– Parts Included in Water Separator Kit.
56 MDKAD/E

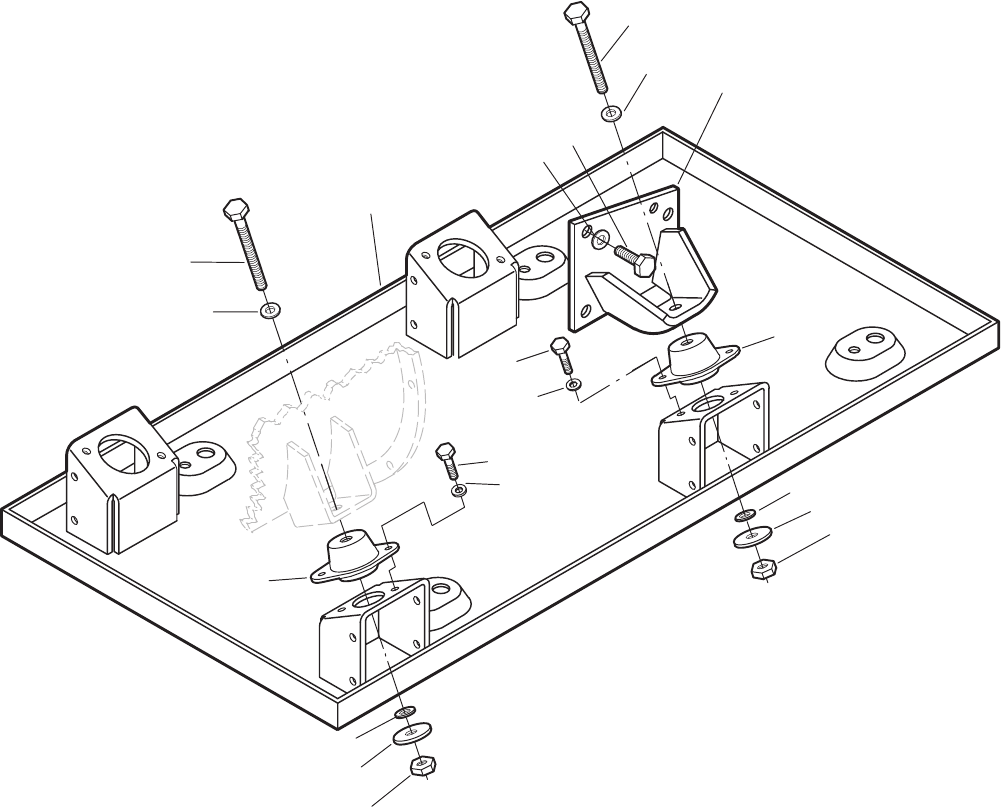

Mounting Base
1
10
5
6
8
3
9
2
4
7
5
6
3
7
3
2
8
9
3
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 403–4059–03 2 Mount, Engine (W/O PTO)
2 800–2118 4 Screw, Cap – Hex Head
(M12 x 1.75 x 60mm)
3 526–0399–64 15 Washer, Flat (M12)
4 800–3031 7 Screw, Cap – Hex Head
(M12 x 1.25 x 25mm)
5 Isolator, Mounting
403–3573 4 W/O PTO
W/PTO
403–3573 2 Generator End
403–3955 2 * Engine End
6 526–0172 4 Washer, Flat (M12)
7 750–1010 4 Nut, Hex Machine
(M12 x 1.75)
8 526–2106 8 Washer, Flat (M8) (Spec A)
9 821–6003–02 8 Screw, Cap – Hex Head
(M8 x 20mm)
10 403–3737–02 1 Base, Generator Mounting
* – Part Included in PTO Adapter Kit Found on PTO Page.
57 MDKAD/E

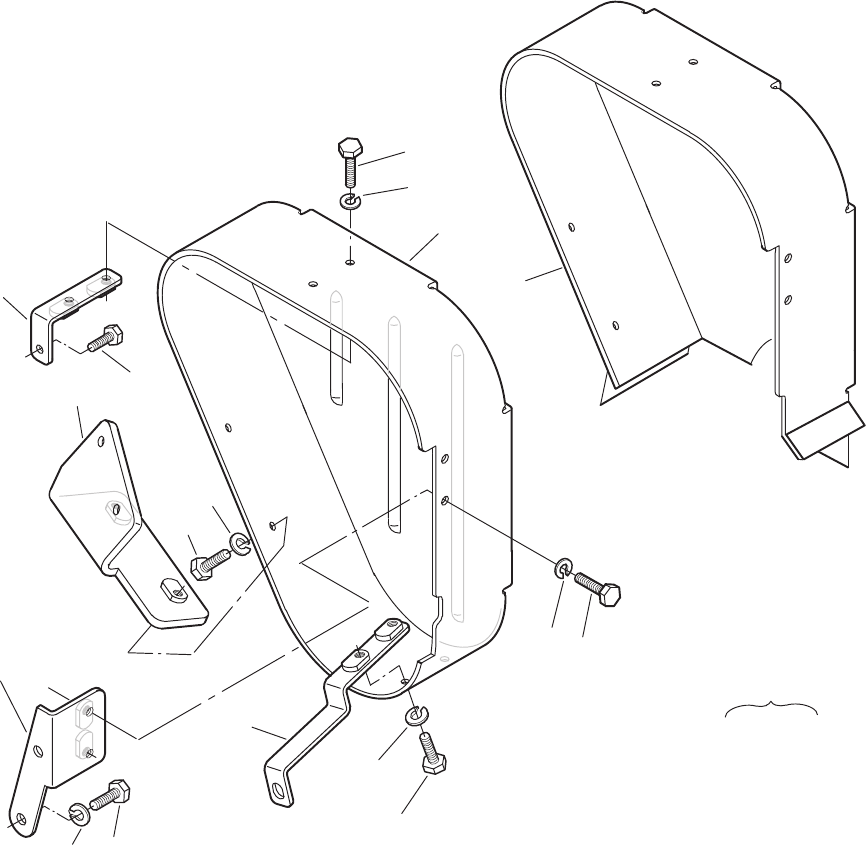

Belt Guard
1
3
4
5
6
7
8
98
8
8
9
9
9
8
9
2
10
98
2,,
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Guard, Belt W/O PTO
Spec A–B
130–4331–03 1 Negative Ground
130–4414–03 1 Isolated Ground
Begin Spec C
130–4652–03 1 Negative Ground
130–4714–03 1 Isolated Ground
2 130–4633–04 1 *Guard, Belt W/PTO
3 130–4381–03 1 Bracket, Guard
4 Bracket, Guard
130–4382–03 1 Negative Ground
130–4411–03 1 Isolated Ground
5 130–4491–03 1 Bracket, Guard (Negative
Ground) (W/O PTO)
6 130–4492–03 1 Bracket, Guard (Negative
Ground)
7 718–1047 1 Screw, Hex Head Cap (M8 x 75)
(Negative Ground)
8 Screw, Hex Head Cap (M6 x 12)
800–2029 8 Negative Ground (W/O PTO)
800–2029 6 * Negative Ground (W/PTO)
800–2029 4 Isolated Ground
9 Washer, Lock (M6)
850–2006 8 Negative Ground (W/O PTO)
850–2006 6 * Negative Ground (W/PTO)
850–2006 4 Isolated Ground
10 190–0744 1 Kit, PTO Belt Guard (Includes
Parts Marked *)
* – Parts Included in PTO Belt Guard Kit.
58 MDKAD/E

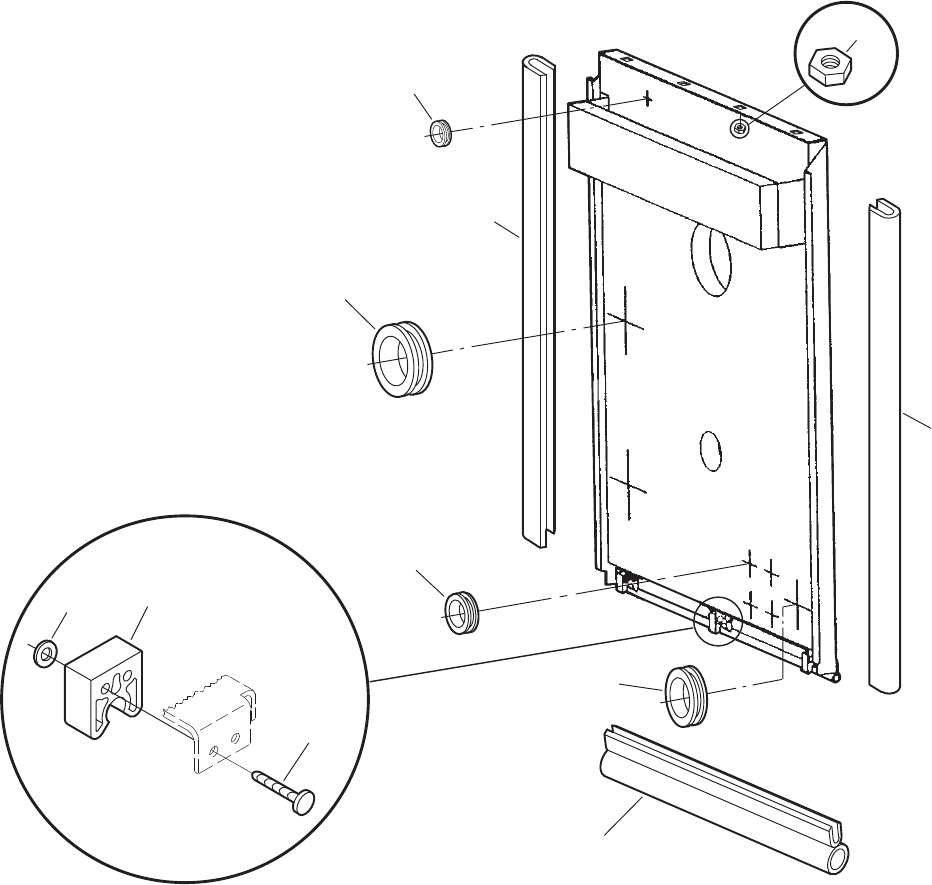

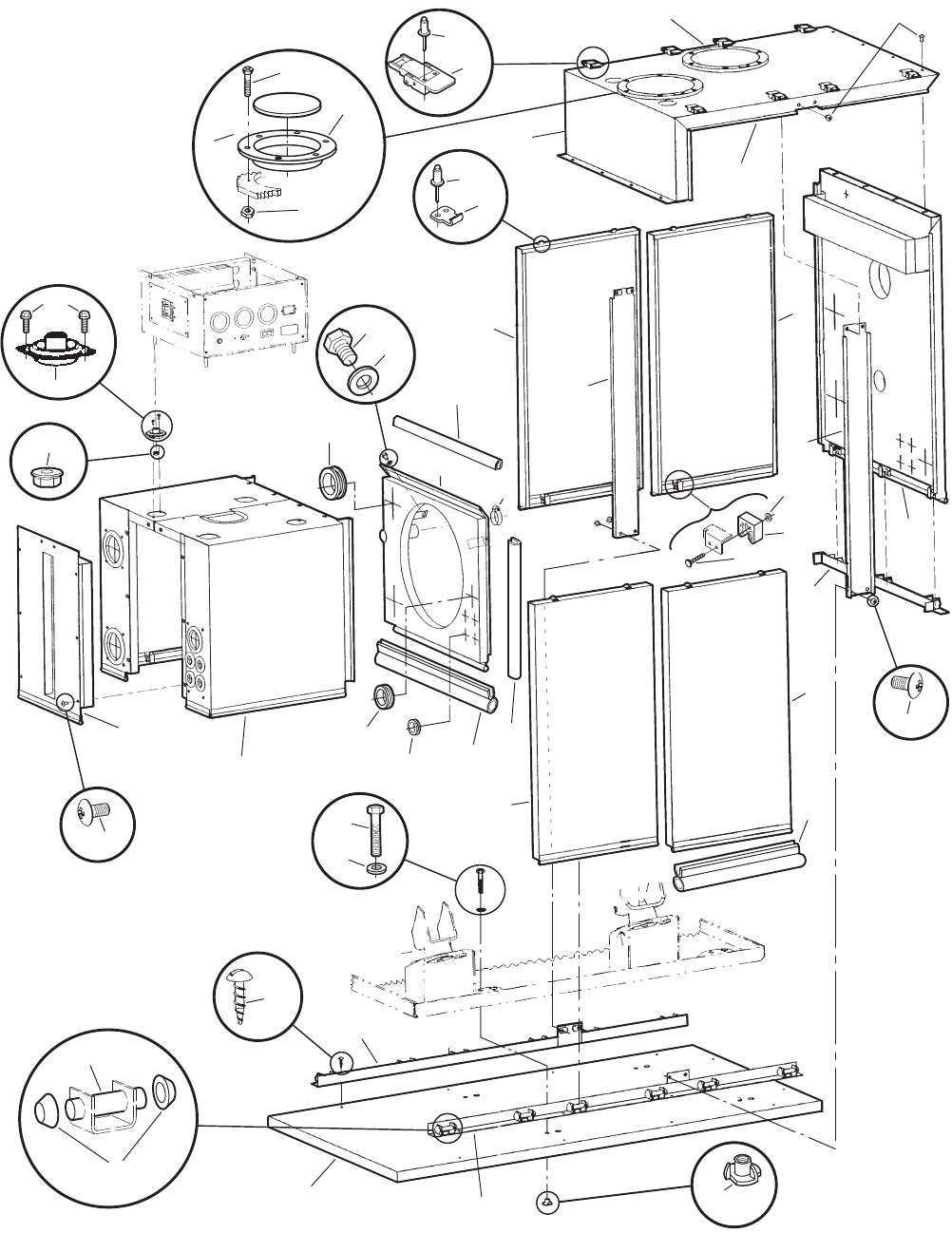

Sound Shield
1
2
4
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22
24
25
26
27
30
31
32
33
34
35
36
37
38
39
40
2
6
7
9
9
9
15
34
39
41
39
23
23
28
29
59 MDKAD/E
Sound Shield
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Sound Shield (W/O PTO)
405–5253 1 MDKAD
405–5252 1 MDKAE
1 402–0681 4 Isolator, Vibration
2 405–5013 2 Support Assy, Roof (Includes
Edging)
3 508–0210 4 Edging (632mm)
4 405–5015–S1 1 Rail Assy, Door – Left Side
(Includes Pin and Nut)
5 405–5015–S2 1 Rail Assy, Door – Right Side
(Includes Pin and Nut)
6 405–5018 1 Rail Assy, Door –Front
(Includes Pin and Nut)
7 405–3111 15 Pin, Clip
8 870–0400 30 Nut, Push Cap
9 405–5023–S2 4 Door Assy, Housing (Includes
Parts Marked *)
10 405–1872 2 *Clip, Door
11 406–0528–01 2 *Catch, Spring
12 508–1011 1 *Seal, Edge (353mm)
13 526–0003 4 *Washer, Flat (#8)
14 818–0150 4 *Rivet, Drive
15 818–0194 36 +*Rivet, Stainless Steel
16 Panel Assy, Front (See
Separate Page for
Components)
405–5026–S2 1 W/O PTO
W/PTO
405–5701 1 STop
405–5727–02 1 SBottom
17 Housing Assy, Generator
(See Separate Page for
Components)
MDKAD
405–5034–S2 1 Right Side
405–5036–S2 1 Left Side
MDKAE
405–5034–S1 1 Right Side
405–5036–S1 1 Left Side
18 405–5037 1 Panel, Generator Housing
(Includes Edging )
19 405–5038 1 Baffle Assy, Generator (Includes
Parts Marked ◊)
20 508–0115 1 ◊Grommet, Rubber
21 508–0117 4 ◊Grommet, Rubber
22 508–0330 1 ◊Seal, Edge (495mm)
23 508–0210 3 ◊Edging (415mm, 543mm,
415mm)
24 508–1095 2 ◊Grommet, Rubber
25 Roof Assy, Housing
405–5043–S2 1 Spec A–B (Includes
Parts Marked +)
405–6341–02 1 Begin Spec C (Includes
Parts Marked #)
26 Cover, Access
405–4528 2 + Spec A–B
405–6340 2 # Begin Spec C
27 406–0528–02 8 +#Catch, Spring
28 508–0210 4 +#Edging (289mm)
29 508–0210 2 +#Edging (170mm)
30 815–0807 12 +Screw, Cross Fillister
Recessed
31 Fastener
870–0427 12 + Nut, Hex (#10–24)
818–0239–03 12 # Rivet, Stainless Steel
32 Base, Housing
405–5045–02 1 MDKAD
405–5045–01 1 MDKAE
33 503–1138 1 Clamp, Hose (1–3/8”)
34 526–0022 6 Washer, Flat (M8)
35 800–0540 4 Screw, Hex Head Cap
(5/16–18 x 1–5/8”)
36 800–2052 2 Screw, Hex Head Cap
(M8 x 1.25 x 12mm)
37 808–0045 10 Screw, Round Head Sheet
Metal (#12 x 1–1/2)
38 815–0498 8 Screw, Thread Forming Hex
Head (#8–32 x 3/8”)
39 Screw, Truss
815–0765 26 W/O PTO
815–0765 30 SW/PTO
40 870–0257 4 Nut, Self–Lock
41 870–0413 4 Nut, Tee
42 190–0742 1 Kit, Front Panel (Includes Parts
Marked S)
* – Parts Included in Housing Door Assy.
◊– Parts Included in Generator Baffle Assy.
+ – Parts Included in Spec A–B Housing Roof Assy.
# – Parts Included in Spec C Roof Assy.
S– Parts Included in Front Panel Kit (Includes Qty 4 Screws)
60 MDKAD/E

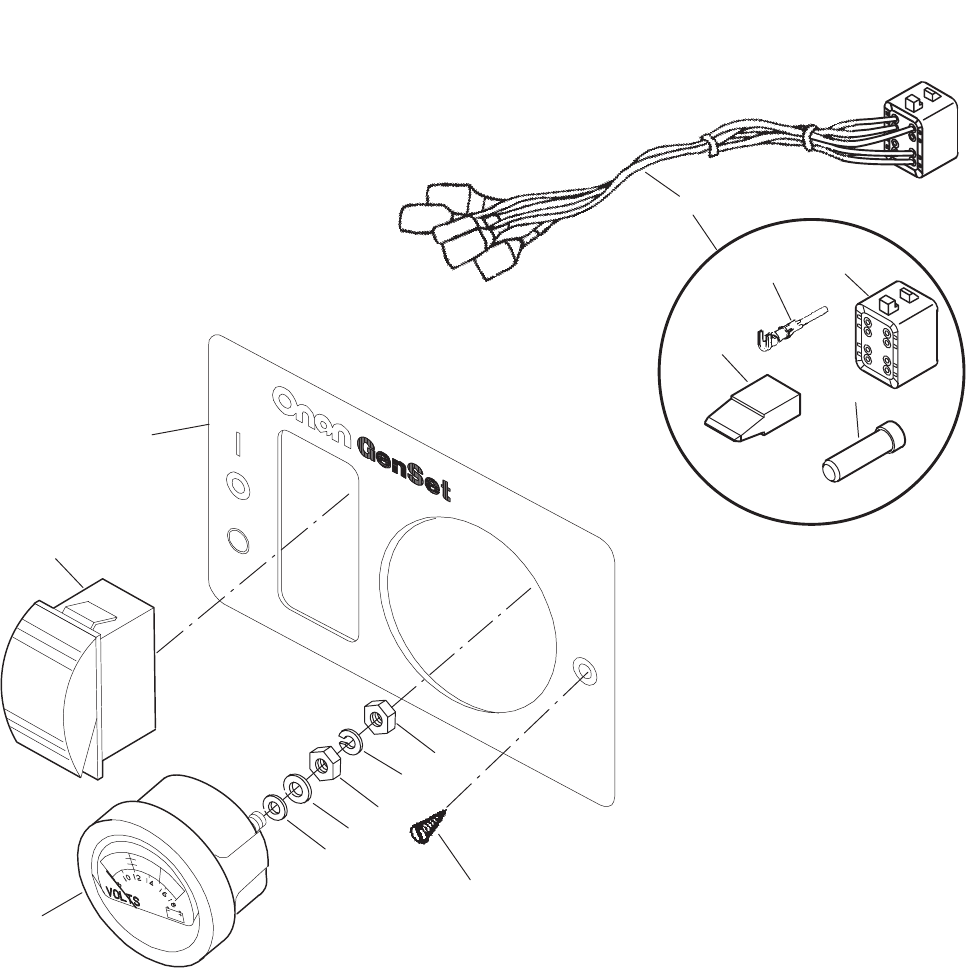

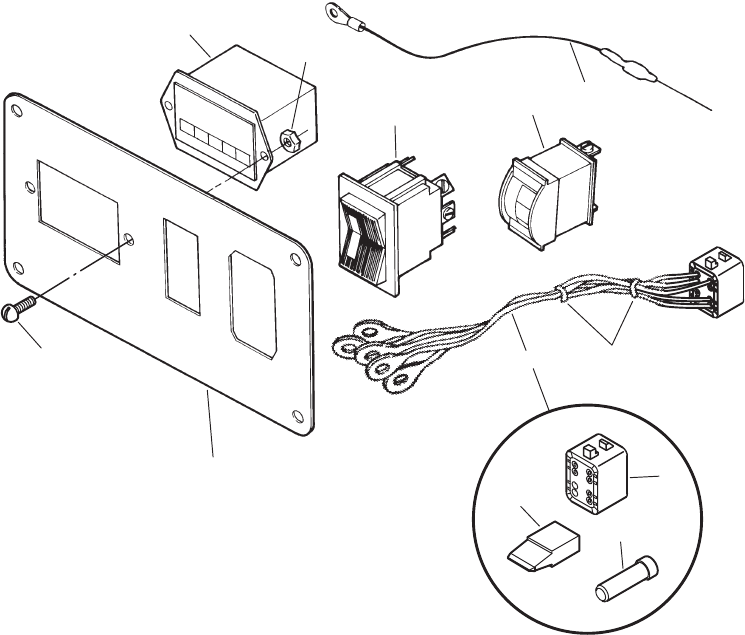

Housing Front Panel
1
2
3
4
5
6
7
8
9
10
5
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Panel Assy, Front
405–5026 1 W/O PTO
W/PTO
405–5701 1 Top
405–5727–02 1 Bottom
1 405–1872 3 Clip, Door
2 508–0021 1 Grommet, Rubber
3 508–0115 1 Grommet, Rubber
4 508–0117 4 Grommet, Rubber
5 508–0210 2 Edging (628mm)
6 508–1011 1 Seal, Edge (514mm)
7 508–1095 2 Grommet, Rubber
8 526–0003 6 Washer, Flat (#8)
9 818–0150 6 Rivet, Drive
10 870–0110 4 Nut, Retainer(1/4–20)
61 MDKAD/E
Generator Housing
1
2
4
5
6
7
8
9
10
4
2
2
2
11
3
3
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Housing, Generator
MDKAD
405–5034–S2 1 Right Side
405–5036–S2 1 Left Side
MDKAE
405–5034–S1 1 Right Side
405–5036–S1 1 Left Side
1 405–1872 4 Clip, Door
2 508–0210 4 Edging (458mm, 94mm,
237mm, 458mm)
3 Seal, Edge
508–1011 2 MDKAD (388mm)
508–1011 2 MDKAE (425mm)
4 508–1011 2 Seal, Edge (123mm)
5 508–1095 2 Grommet, Rubber (Right Side
Housing)
6 526–0003 8 Washer, Flat (#8)
7 818–0150 8 Rivet, Drive
8 870–0110 14 Nut, Retainer (1/4–20)
9 508–0115 1 Grommet, Rubber (Left Side
Housing)
10 508–0117 4 Grommet, Rubber (Left Side
Housing)
11 405–5114 1 Insulation, Control Box
62 MDKAD/E

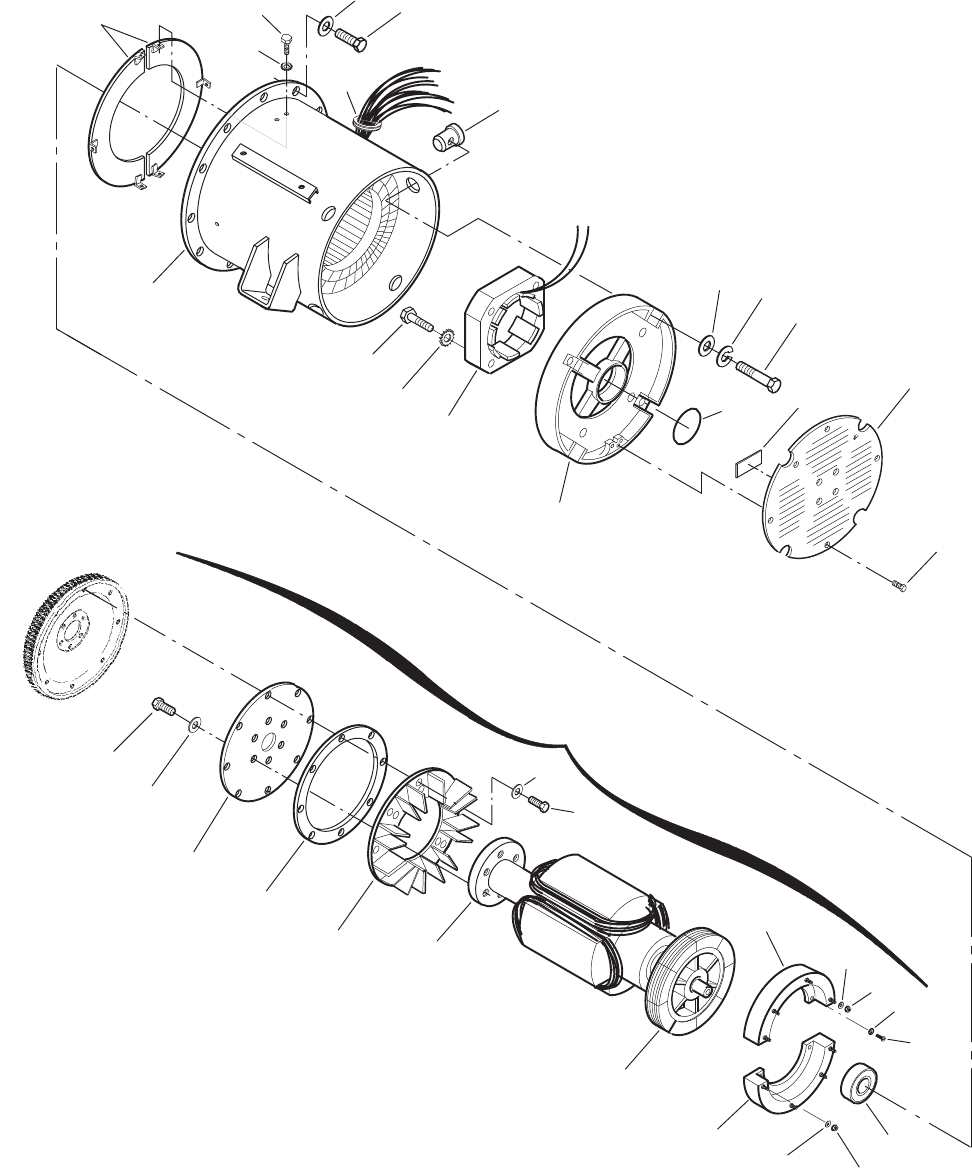

Generator
1
2
21
36
31 32
24
23
22
26 29
30
35
34
33
12
11 13
9
10
16
19
20
15
18
14
7
6
25
17
8
27
32
14
34
5
28
63 MDKAD/E
Generator
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Stator, Generator
1 Phase (Includes
Grommet)
Spec A–B
220–4417–02 MDKAD
220–4417–04 MDKAE
Begin Spec C
220–4570–02 MDKAD
220–4570–04 MDKAE
3 Phase (Includes Parts
Marked +)
Spec A–B
220–4451–02 MDKAD
220–4451–04 MDKAE
Begin Spec C
220–4569–02 MDKAD
220–4569–04 MDKAE
2 508–1073 1 +Grommet
3 234–0935–02 2 +Baffle, Air (3 Phase)
4 800–0310–02 6 +Screw, Hex Head Cap
(1/4–20 x 1/2”) (3 Phase)
5 853–0040–05 6 +Washer, ET Lock (1/4”)
(3 Phase)
6 526–0174 12 Washer, Flat (3/8)
7 800–0051 12 Screw, Hex Head Cap
(3/8–16 x 1–1/4)
8 232–3706–02 4 Retainer, Endbell
9 815–0935 4 Screw, Hex Head Thread
Forming (1/4–20 x 2”)
10 853–0013 4 Washer, ET Lock (1/4”)
11 220–4413–02 1 Stator, Exciter
12 211–0435–01 1 Endbell
13 509–0094 1 Seal, O’Ring
14 526–0399–42 12 Washer, Flat (3/8)
15 850–0114–06 4 Washer, Lock (5/16”)
16 800–0310–27 4 Screw, Hex Head Cap
(5/16”–18 x 2–1/2”)
17 895–0308 1 Tape, Polyurethane (40mm)
18 234–0876–01 1 Cover, Inlet
19 815–0181 3 Screw, Hex Head Thread
Cutting (#10–32 x 1/2”)
20 800–0310–36 8 Screw, Hex Head Cap
(3/8–16 x 1)
21 Rotor Assy, Generator
(Includes Parts Marked *)
201–3517–02 1 MDKAD
201–3517–04 1 MKDAE
22 800–0310–64 6 *Bolt, Hex Head Cap
(1/2–13 x 1”)
23 526–0399–44 6 *Washer, Flat (M12)
24 232–3672–03 1 *Disc, Drive
25 232–3826–02 1 *Spacer, Fan
26 205–0229–02 1 *Fan, Generator
27 232–3705–01 1 *Hub, Drive
28 201–3515–02 1 *Rotor, Exciter
29 358–0069 1 *Diode, Positive
30 358–0070 1 *Diode, Negative
31 526–0008 2 *Washer, Flat (#10)
32 870–0131–01 8 *Nut, ET Hex (#10)
33 526–0399–11 8 *Washer, Flat (#10)
34 853–0040–04 4 *Washer, ET Lock (#10)
35 822–2160–37 4 *Screw, Pan Head Machine
(#10–32 x 1/2)
36 510–0112 1 *Bearing, Ball
+ – Parts Include in 3 Phase Generator Stator.
* – Parts Included in Generator Rotor Assy.
64 MDKAD/E

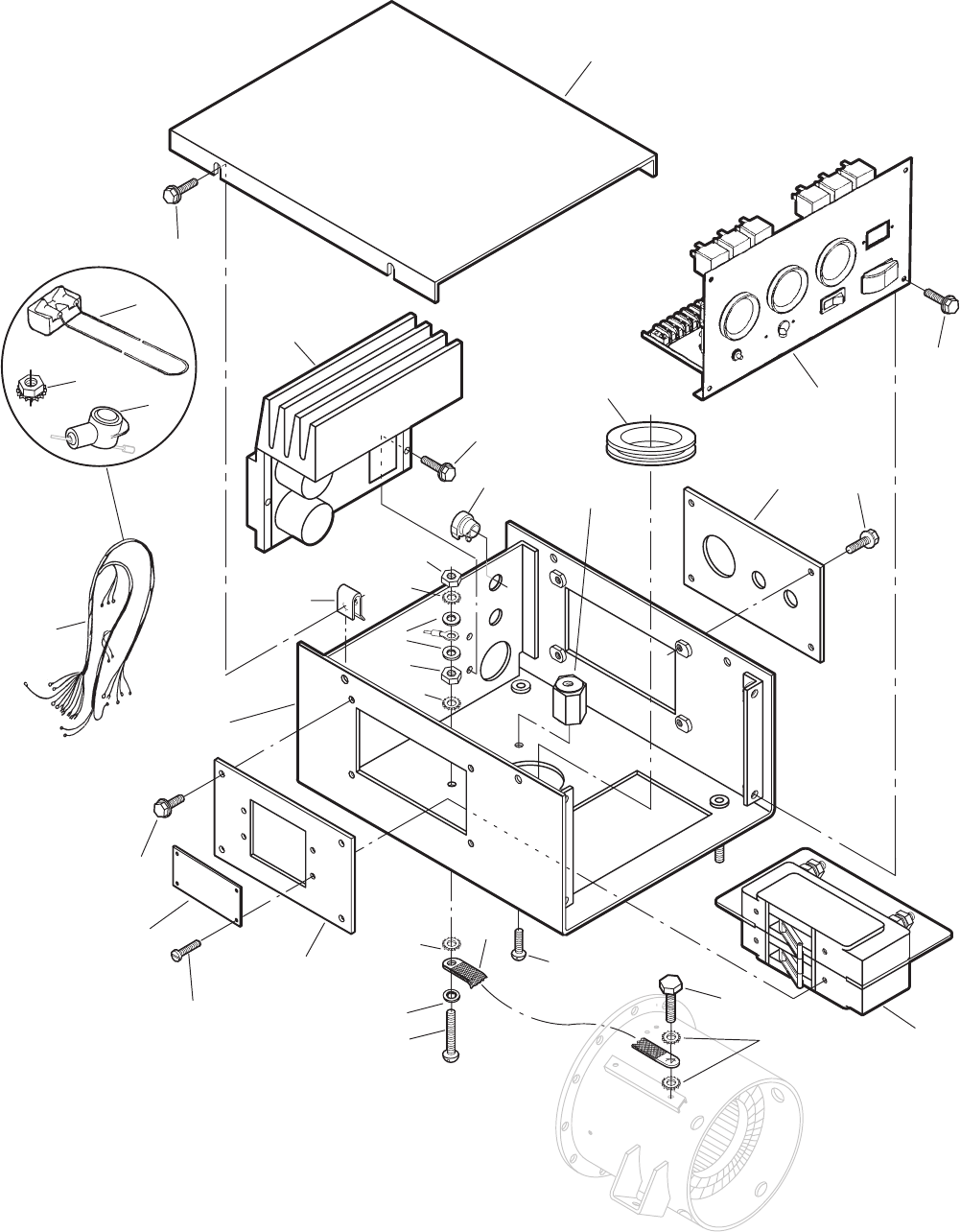

Control Box
1
4
13
14
15
2
12
6
24
5
11
22
9
10
8
3
20
25
19
9
9
8
23
2
2
2
26
27
18
21
16
17
2
7
65 MDKAD/E
Control Box
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 319–2106–04 1 Cover, Control Box
2 821–0005 19 Screw, Lock Head Flange
(#10–32 x 1/2”)
3 Panel Assy, Control (See
Separate Page for
Components)
With Gauges
12V
300–4658 1 Negative Ground
300–4872 1 Isolated Ground
24V
300–4662 1 Negative Ground
300–4874 1 Isolated Ground
Without Gauges
12V
300–4659 1 Negative Ground
300–4873 1 Isolated Ground
24V
300–4663 1 Negative Ground
300–4875 1 Isolated Ground
4 319–2114–03 1 Cover, Breaker
5 508–0116 1 Grommet
6 332–2370 1 Standoff
7 508–0179 1 Bushing, Strain Relief
8 871–0016 2 Nut, (1/4–32)
9 856–0006 3 Washer, ET (1/4–20)
10 526–0052 2 Washer, Brass (1/4–20)
11 870–0398 4 Clip, Nut (#10–32)
12 305–0896 1 Regulator, Voltage (SRA)
13 Harness, Engine (Includes
Circuit Breaker, Boot and Nuts)
338–2930 1 Spec A–B
338–3387 1 Begin Spec C
14 Breaker, Circuit (CB3)(40A)
320–1658 1 Spec A–B
320–1928–01 1 Begin Spec C
15 416–1021–03 1 Boot
16 870–0131 2 Nut, ET Hex (10–32)
17 319–2107–03 1 Box, Control
18 320–1813–02 1 Cover, Plate (Use with Single
Pole Circuit Breaker)
19 Screw, Cross Recessed ET
Pan Head (#6–32 x 3/8”)
815–0550–01 4 1 Phase Sets
815–0550–01 6 3 Phase Sets
20 Panel, Breaker
319–2108–03 1 1 Phase
319–2113–03 1 3 Phase
21 854–0014 1 Washer, IT Lock
22 810–0155 1 Bolt, Brass (1/4–20 x 1–1.4”)
23 337–2795 1 Strap, Bond
24 821–0008 1 Screw, Round Head Machine
(1/4–20 x 5/16”)
25 Breaker, Circuit (CB2)
Single Pole (Use with Cover)
320–1690–10 1 55A
320–1690–03 1 60A
320–1690–11 1 65A
320–1690–12 1 75A
320–1690–13 1 85A
Two Pole
320–1689–08 1 50A
320–1689–09 1 55A
320–1689–10 1 60A
320–1689–11 1 65A
320–1689–12 1 70A
320–1689–13 1 75A
320–1689–15 1 85A
320–1689–17 1 95A
Three Pole
320–1891–03 1 20A
320–1891–01 1 25A
320–1891–02 1 30A
320–1891–04 1 35A
320–1836–06 1 40A
320–1836–07 1 45A
320–1836–08 1 50A
320–1836–09 1 55A
320–1836–10 1 60A
320–1836–11 1 65A
320–1836–12 1 70A
320–1836–13 1 75A
26 718–1036 1 Screw, Hex Head Cap
(M8 x 20mm)
27 856–0008 2 Washer, EIT Lock
Shipped Loose in Plastic Bag:
323–1591 2 Plug, Seal
323–1543 1 Wedge, Plug
323–1541 1 Plug (8 Pin)
66 MDKAD/E

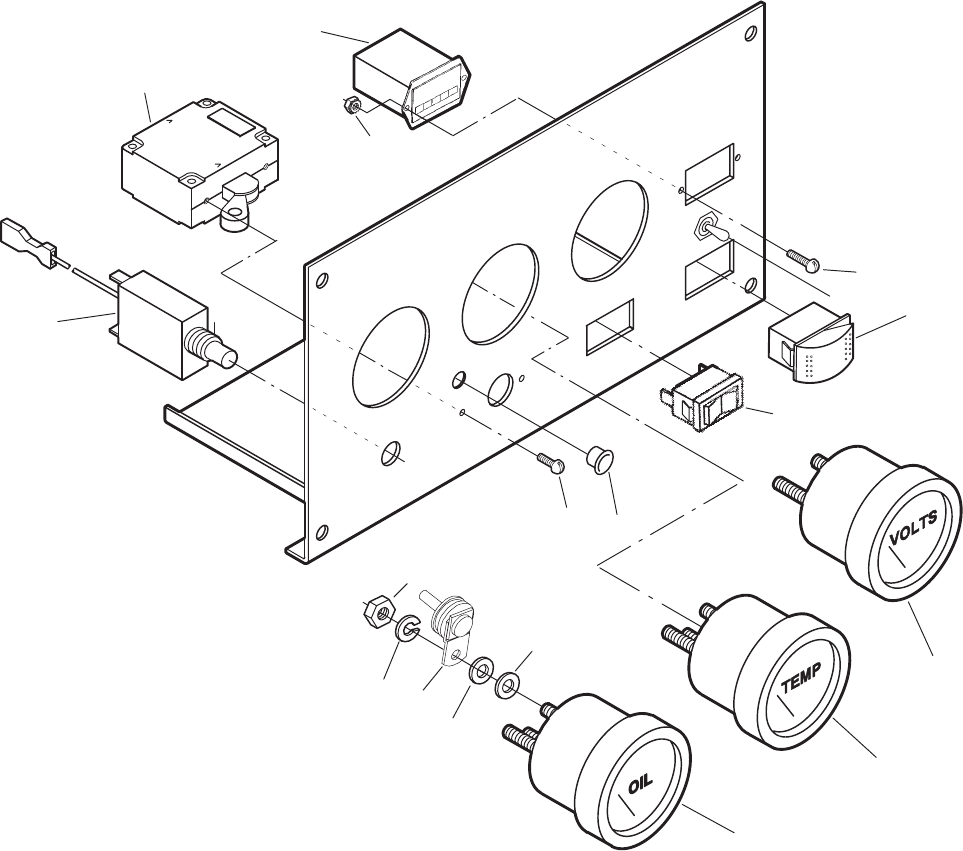

Control Panel
7
8
2
9
1
3
5
4
11
12
13
18
14
15
16
17
10
6
67 MDKAD/E
Control Panel
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Panel Assy, Control (Includes
Parts Marked *)
Spec A
With Gauges
12V Sets
300–4658 1 Negative Ground
300–4872 1 Isolated Ground
24V Sets
300–4662 1 Negative Ground
300–4874 1 Isolated Ground
Without Gauges
12V Sets
300–4659 1 Negative Ground
300–4873 1 Isolated Ground
24V Sets
300–4663 1 Negative Ground
300–4875 Isolated Ground
Begin Spec B
With Gauges
12V Sets
300–5243 1 Negative Ground
300–5244 1 Isolated Ground
24V Sets
300–5245 1 Negative Ground
300–5246 1 Isolated Ground
Without Gauges
12V Sets
300–5247 1 Negative Ground
300–5248 1 Isolated Ground
24V Sets
300–5249 1 Negative Ground
300–5250 Isolated Ground
1 320–1863 1 *Breaker Assy (Includes
Terminal)
2 320–1862–01 1 *Breaker, Circuit (50A) (CB1)
3 302–0885 1 *Meter, Time Totalizing (M1)
4 870–0183 2 *Nut, ET Hex (#6–32)
5 815–0385 2 *Screw, Round Head Machine
(#6–32 x 1/2”)
6 320–1769–01 1 Breaker, Circuit (2A) (Begin
Spec B)
7 308–1027 1 *Switch, Rocker (S1)
8 *Breaker, Circuit (CB4)
320–1710 1 12V Sets (20A)
320–1140 1 24V Sets (15A)
9 812–0059 2 *Screw, Round Head Machine
(6–32 x 1/4”)
10 517–0131–02 1 Plug, Button
11 *Voltmeter (M4)
302–1641 1 12V Sets (8–18V)
302–1642 1 24V Sets (16–36V)
12 193–0351 1 *Gauge, Coolant Temperature
(M3)
13 193–0352 1 *Gauge, Oil Pressure (M2)
14 526–0409 8 *Washer, Nylon Flat (#10)
15 526–0049 8 *Washer, Brass Flat (#10)
16 850–0030 8 *Washer, Lock (#10)
17 871–0010 10 *Nut, Hex Brass Machine
(#10–32)
18 193–0250 2 *Resistor (24V Sets With
Gauges) (R4, R5)
* – Parts Included in Control Panel Assy (Also include Parts
Marked on Control Harness Page).
68 MDKAD/E

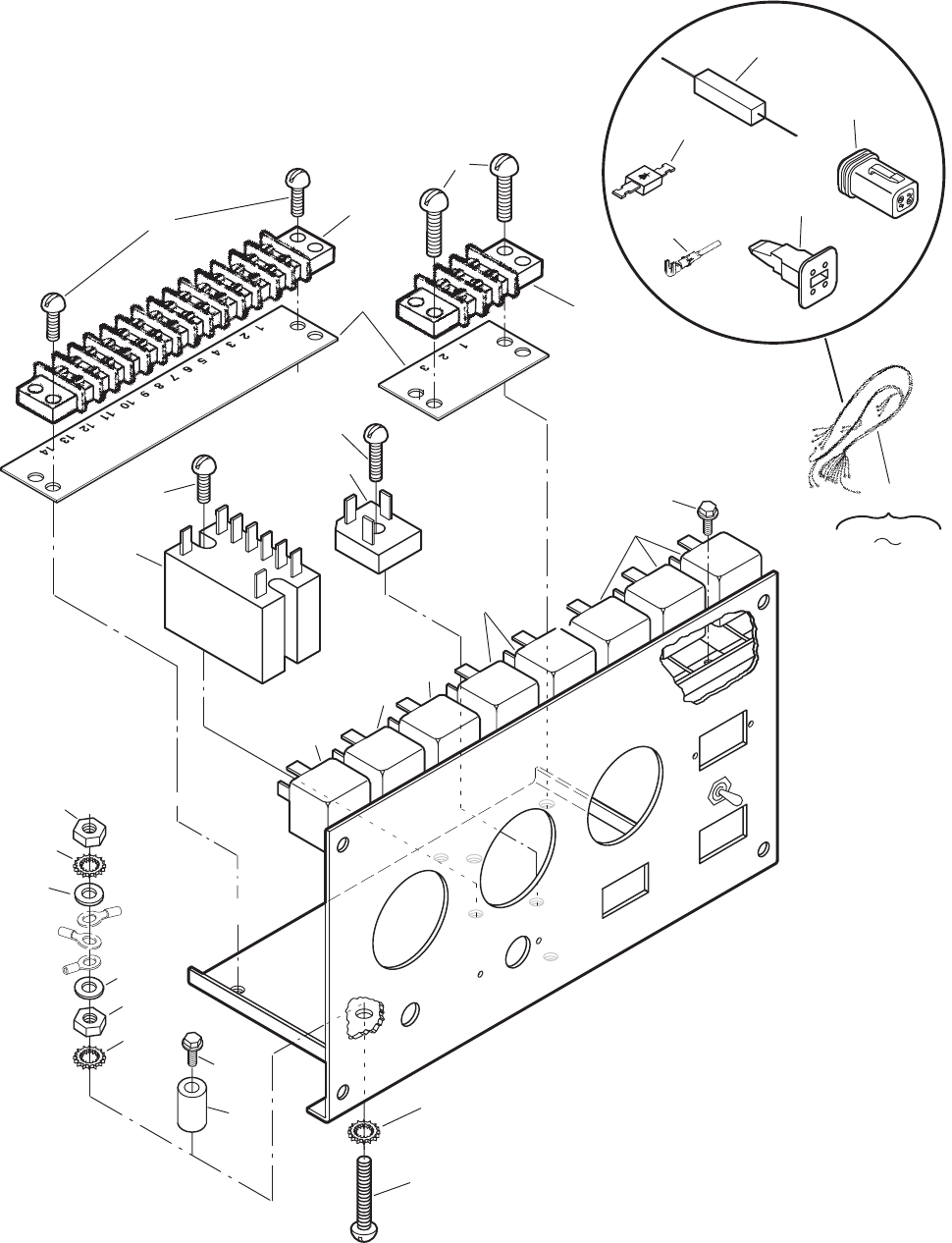

Control Harness
1
12
13
14
15
19
20 21 22
18
17
23
24
25
711
2
,,
10
14
13
8
9
7
16
13 25
6
5
5
2
6
2
3
4
26 27
,
69 MDKAD/E
Control Harness
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 *Screw
810–0155 1 Round Head Machine
Brass (1/4–20 x 1–1/4”)
(Negative Ground)
821–0010 1 Lock Head (1/4–20 x 1/2”)
(Isolated Ground)
2 *Washer
856–0006 3 Lock EIT (1/4”)
(Negative Gound)
526–0052 1 Brass Flat (1/4”)
(Isolated Ground)
3 332–2370 1 *Standoff, Insulator (Isolated
Ground)
4 821–0008 1 *Screw, Lock Head (Isolated
Ground)
(1/4–20 x 5/16”)
5 871–0016 2 *Nut, Hex Brass Machine
(1/4–20) (Negative Ground)
6 526–0052 2 *Washer, Brass Flat (1/4”)
(Negative Ground)
7 812–0079 4 *Screw, Round Head Machine
(#8–32 x 3/8”)
8 *Marker, Strip
332–3296 1 14 Pos.
332–3298 1 3 Pos.
9 813–0102 2 *Screw, Round Head Machine
(10–32 x 5/8”)
10 815–0539 1 *Screw, Round Head Machine
(#8–32 x 5/8”)
11 821–0004 6 *Screw, Lock (#10–32 x 5/16”)
12 *Harness, Control (Includes
Parts Marked +)
With Gauges
338–3246 1 12V Sets
338–3248 1 24V Sets
Without Gauges
338–3247 1 12V Sets
338–3249 1 24V Sets
13 +Relay (K1, K2, K3, K6)
307–1886 4 12V Sets
307–2643 4 24V Sets
14 +Relay (K5, K8)
307–2817–01 2 12V Sets
307–2817–02 2 24V Sets
15 +Relay (K4)
307–2828–01 1 12V Sets
307–2828–02 1 24V Sets
16 305–0548 1 +Rectifier, Bridge (CR1)
17 332–3385 1 +Block, Terminal (14 Position)
(TB2)
18 332–3297 1 +Block, Terminal (3 Position)
(TB1)
19 357–0030 3 +Rectifier (CR2, CR3, CR4)
20 +Resistor (R1)
353–0053 1 12V Sets (10 Ohms, 10W)
352–0197 1 24V Sets (36 Ohms, 15W)
21 +Resistor (R2)
352–0194 1 12V Sets (10 Ohms, 5W)
352–0196 1 24V Sets (24 Ohms, 10W)
22 +Resistor (R3)
352–0195 1 12V Sets (8.5 Ohms, 5W)
352–0198 1 24V Sets (18 Ohms, 10W)
23 323–1546 1 +Plug, (4 Pin) (P2)
24 323–1548 1 +Wedge, Plug (P2)
25 323–1492 4 +Pin (P2)
26 Harness, Relay (Includes
Relay) (Isolated Ground)
12V
338–3383–01 1 K10, 7” (3 Leads)
338–3383–02 1 K11, 3” (4 Leads)
24V
338–3383–03 1 K10, 7” (3 Leads)
338–3383–04 1 K11, 3” (4 Leads)
27 Relay, K10, K11
(Isolated Ground)
307–1886 1 12V
307–2654 1 24V
* – Parts Included in Control Panel Assy Listed on Control
Panel Page.
+ – Parts Included in Control Harness.
70 MDKAD/E

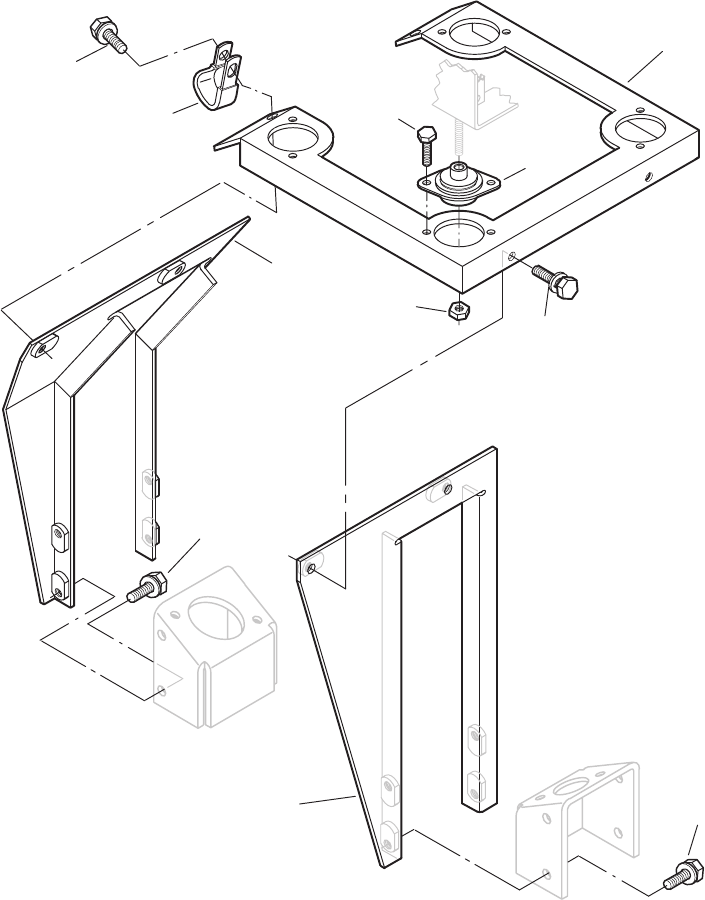

Control Box Mount
6
1
3
4
7
2
5
8
2
2
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 319–2493–03 1 Support, Control Bracket
2 821–6003–02 12 Bolt (M8 x 16)
3 319–2494–03 1 Support, Control Bracket
4 402–0681 4 Isolator, Vibration
5 815–0498 8 Screw, Hex Head Thread
Forming
6 319–2954–04 1 Bracket, Control Mounting
7 503–2040 1 Clip, Tube
8 870–0257 4 Nut, Self–Lock
71 MDKAD/E

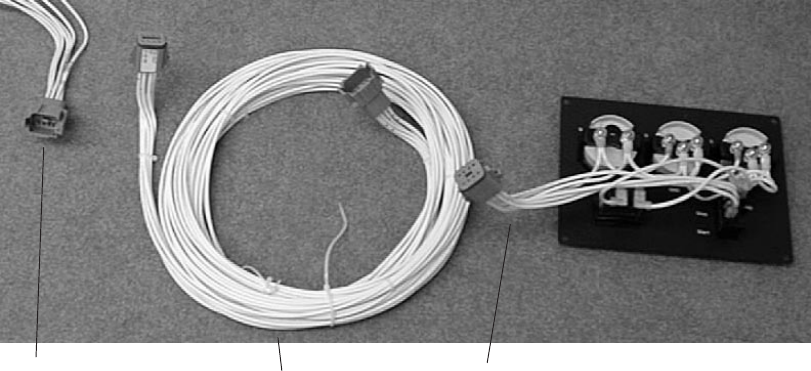

Harness Location
123
REF PART QTY PART
NO. NO. USED DESCRIPTION
1 * – Harness, Remote Control (Reaches From
Control Terminal Board to Extension
or Customer Interface Pigtail Harness)
2 * – Harness, Extension (Or Customer Interface Pigtail)
(Reaches From Remote Control Harness to Remote
Panel Harness or Customer Hookup)
3 * – Harness, Remote Panel (Reaches From Remote Panel
to Extension Harness)
* – See Index for Page Numbers of Detailed Descriptions and Part Numbers.
72 MDKAD/E

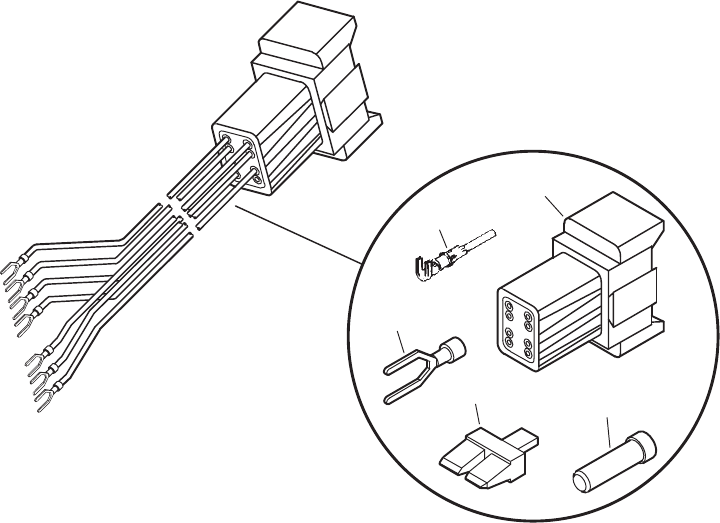

Remote Control Harness
1
2
3
45
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
338–3093 1 Harness, Remote Control (21”)
(Reaches From Terminal Block
to Extension Harness or
Customer Interface Pigtail
Harness)
1 323–1492 7 °Terminal, Pin
2 332–2683 7 °Terminal, Spade
3 323–1542 1 °Housing, Receptacle (8 Pin)
4 323–1544 1 °Wedge, Receptacle (8 Pin)
5 323–1591 1 °Plug
73 MDKAD/E
Extension and Pigtail Harness
(Deutsch Connector – Gray)
1
23
4
5
6
7
8
9
10
11
12
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 Harness, Extension
(Reaches From Remote
Control Harness to Remote
Panel Harness) (Includes
Parts Marked #)
338–3167 1 15 feet
338–3168 1 25 feet
338–3169–00 1 45 feet
338–3169–01 1 75 feet
338–3169–02 1 100 feet
338–3169–03 1 150 feet
2 323–1541 1 #Plug (8 Pin)
3 323–1492 8 #Terminal, Socket
4 323–1543 1 #Wedge, Plug (8 Pin)
5 323–1542 1 #Receptacle (8 Pin)
6 323–1491 8 #Terminal, Pin
7 323–1544 1 #Wedge, Receptacle (8 Pin)
8 338–3098 1 Harness, Pigtail (Customer
Interface) (12”) (Reaches
from Remote Control Harness
to Customer Hookup)
(Includes Parts Marked *)
9 323–1492 7 *Terminal, Socket
10 323–1541 1 *Plug (8 Pin)
11 323–1543 1 *Wedge, Plug (8 Pin)
12 323–1591 1 *Plug, Connector
# – Parts Included in Extension Harness.
* – Parts Included in Pigtail (Customer Interface) Harness.
74 MDKAD/E

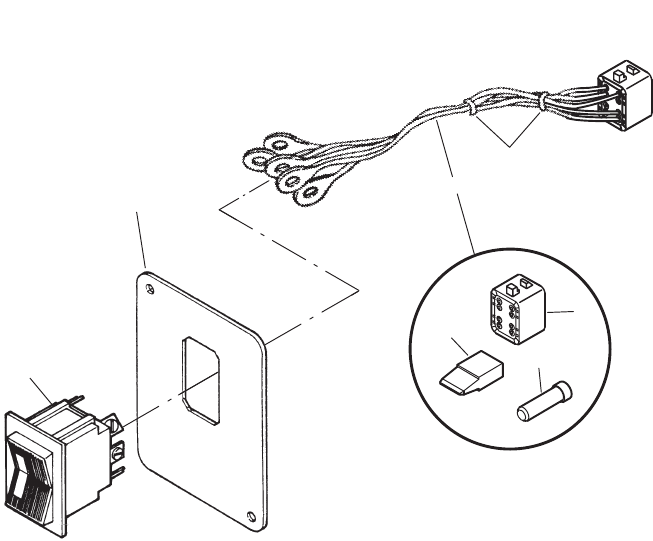

Basic Remote Control Panel
(Ring Terminals)
12
3
4
5
6
7
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Panel Assy, Remote
300–4679 1 12V
300–4680 1 24V
1 319–0491 1 Panel, Remote
2 338–3170 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
3 323–1541 1 *Plug (8 Pin)
4 332–1445 2 *Tie, Cable
5 323–1591 3 *Plug, Connector
6 323–1543 1 *Wedge, Plug (8 Pin)
7 Switch, Rocker
308–0827 1 12V
308–0975 1 24V
* – Parts Included in Remote Panel Harness.
75 MDKAD/E
Deluxe Remote Control Panel
(Ring Terminals)
1
3
4
5
6
7
8
9
10
11 12
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
300–4681 1 Panel Assy, Deluxe Remote
(12V Only)
1 319–0492 1 Panel, Remote
2 308–0827 1 Switch, Rocker
3 338–3170 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
4 323–1541 1 *Plug (8 Pin)
5 332–1445 2 *Tie, Cable
6 323–1591 3 *Plug, Connector
7 323–1543 1 *Wedge, Plug (8 Pin)
8 302–0885 1 Meter, Running Time (M11)
9 815–0385 2 Screw, Round Head Machine
(#6–32 x 1/2”)
10 870–0183 2 Nut, Hex (#6–32)
11 302–0888 1 Meter, Battery Voltage (M14)
12 359–0034 1 Diode and Lead Assy
* – Parts Included in Remote Panel Wiring Harness.
76 MDKAD/E

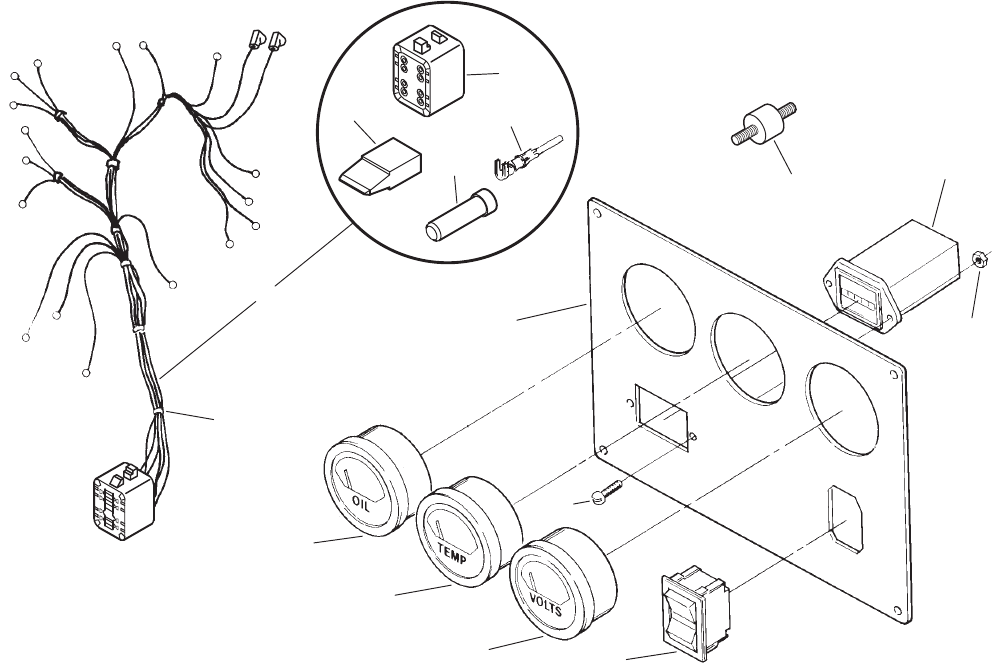

Remote Gauge Control Panel
(Ring Terminals)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Panel Assy, Remote Gauge
300–4547 1 12V
300–4684 1 24V
1 319–0141 1 Panel, Remote
2 Switch, Rocker
308–0827 1 12V
308–0975 1 24V
3 Meter, Voltage (M14)
302–1641 1 12V (8–18V)
302–1642 1 24V (18–34V)
4 338–3171 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
5 323–1541 1 *Plug (8 Pin)
6 323–1491 1 *Pin, Contact (Use as Required)
7 332–0942 8 *Tie, Cable
8 323–1543 1 *Wedge, Plug (8 Pin)
9 323–1591 1 *Plug, Seal
10 193–0351 1 Gauge, Water Temperature
(M13)
11 193–0352 1 Gauge, Oil Pressure (M12)
12 302–0885 1 Meter, Running Time (M11)
13 815–0385 2 Screw, Round Head Machine
(#6–32 x 1/2”)
14 870–0183 2 Nut, Hex (#6–32)
15 193–0250 2 Resistor, Gauge (24V Only)
* – Parts Included in Remote Panel Harness.
77 MDKAD/E

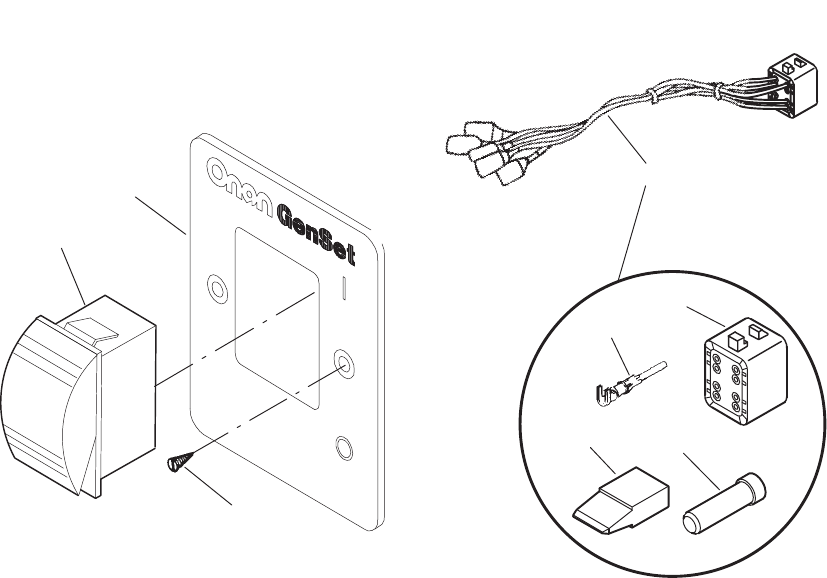

Basic Remote Control Panel
(Push–On Terminals)
1
3
87
5
4
6
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Basic Panel
300–4990–01 1 12V
300–4990–02 1 24V
1 Switch, Rocker (S11)
308–1062 1 12V
308–1062–01 1 24V
2 319–2339–02 1 Panel, Remote (Includes
Printing)
3 815–0910 2 Screw, Wood (#6 x 1)
4 338–3598 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
5 323–1541 1 *Plug (8 Pin) (J4)
6 323–1492 5 *Pin, Contact
7 323–1591 3 *Plug, Seal
8 323–1543 1 *Wedge, Plug (8 Pin)
* – Parts Included in Remote Panel Harness.
78 MDKAD/E

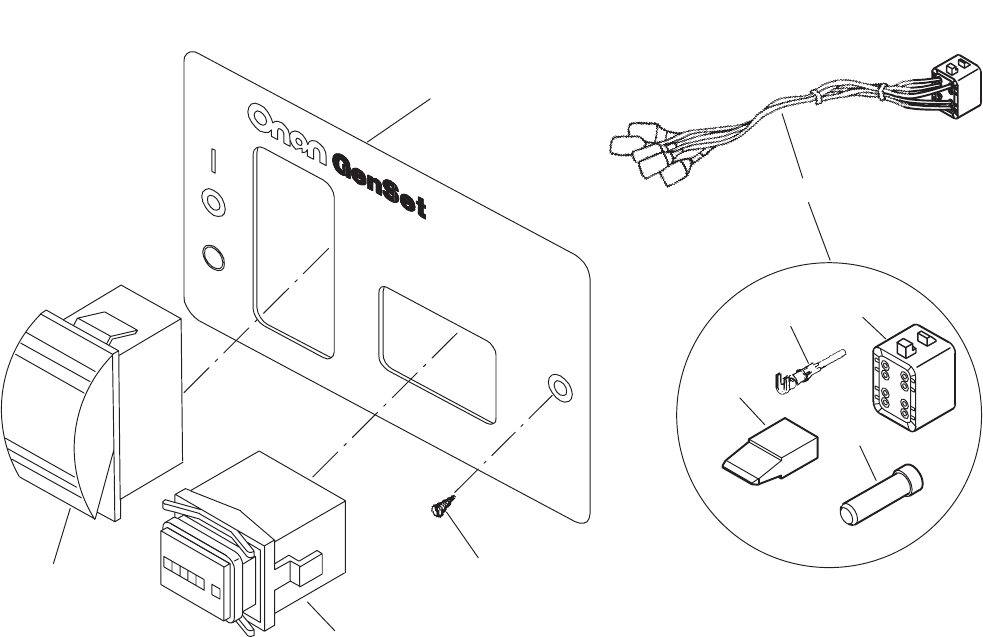

Deluxe Remote Control Panel
W/Hour Meter
(Push–On Terminals)
1
2
3
4
5
6
7
8
9
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Deluxe Panel
300–4991–01 1 12V
300–4991–02 1 24V
1 319–2340–04 1 Panel, Remote
2 Switch, Rocker (S11)
308–1062 1 12V
308–1062–01 1 24V
3 302–2002 1 Meter, Hour (M11)
4 338–3599 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
5 323–1541 1 *Plug (8 Pin) (J4)
6 323–1591 3 *Plug, Connector
7 323–1543 1 *Wedge, Plug (8 Pin)
8 323–1492 5 *Pin, Contact
9 815–0910 2 Screw, Wood (#6 x 1)
* – Parts Included in Remote Panel Wiring Harness.
79 MDKAD/E
Deluxe Remote Control Panel
W/Volt Meter
(Push–On Terminals)
1
2
3
45
6
7
8
9
10
11
12
13
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Remote Panel
300–4989–01 1 12V
300–4989–02 1 24V
1 319–3132–01 1 Panel, Remote
2 Switch, Rocker (S11)
308–1062 1 12V
308–1062–01 1 24V
3 Meter, Volt (M14)
302–1641 1 12V (8–18V)
302–1642 1 24V (16–36V)
4 526–0409 2 Washer, Nylon
5 526–0049 4 Washer, Flat
6 871–0010 4 Nut, Hex Brass (10–32)
7 850–0030 2 Washer, Lock
8 338–3597 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked *)
9 323–1541 1 *Plug (8 Pin) (J4)
10 323–1591 3 *Plug, Connector
11 323–1543 1 *Wedge, Plug (8 Pin)
12 323–1492 5 *Pin, Contact
13 815–0910 2 Screw, Wood (#6 x 1)
* – Parts Included in Remote Panel Wiring Harness.
80 MDKAD/E

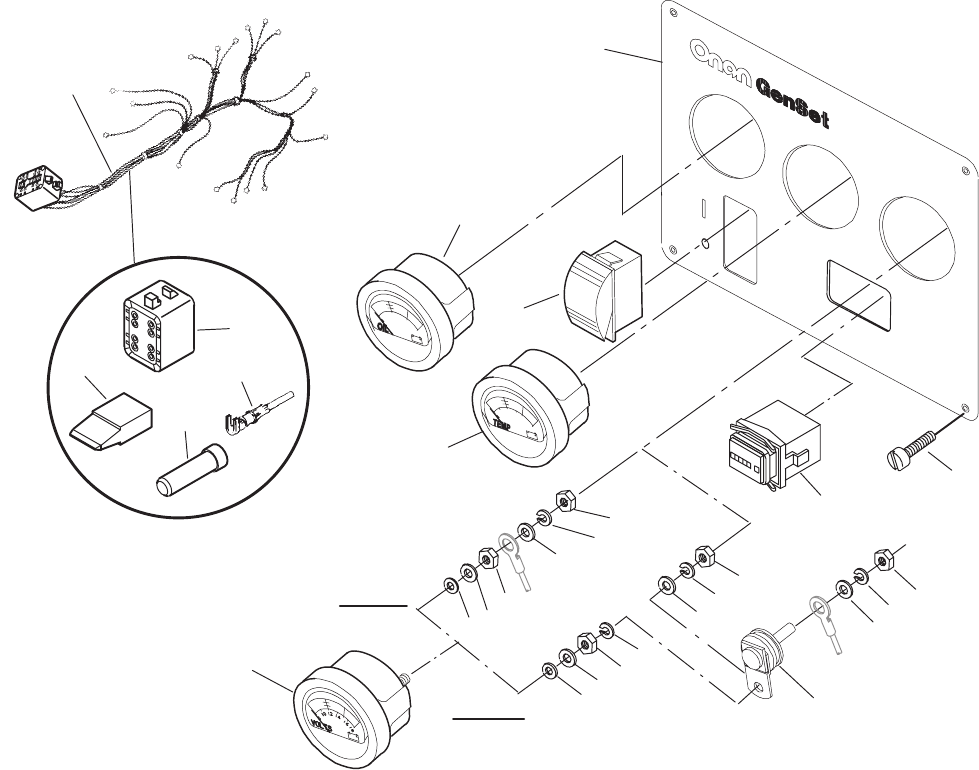

Remote Gauge Control Panel
(Push–On Terminals)
911
12
13
8
9
11
12
9
11
10
911
12
8
12 Volt
24 Volt
11
9
7
5
4
3
2
1
14
15
16
17
18
6
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Kit, Remote Gauge Panel
300–5018–01 1 12V
300–5018–02 1 24V
1 319–3254–02 1 Panel, Remote
2 193–0352 1 Gauge, Oil Pressure (M12)
3 Switch, Rocker (SPDT) (S11)
308–1062 1 12V Sets
308–1062–01 1 24V Sets
4 193–0351 1 Gauge, Water Temperature
(M13)
5 302–2002 1 Meter, Running Time (M11)
6 808–0023 4 Screw, Pan Head Sheet Metal
(#8 x .50)
7 Meter, Volt (M14)
302–1641 1 12V Sets (8–18V)
302–1642 1 24V Sets (18–34V)
8 526–0409 8 Washer, Nylon (.194”)
9 Washer, Brass Flat (#10–32)
526–0049 16 12V
526–0049 18 24V
10 193–0250 1 Resistor (24V Only)
11 Nut, Brass Hex (#10–32)
871–0010 16 12V
871–0010 18 24V
12 Washer, Lock (#10)
850–0030 8 12V
850–0030 10 24V
13 853–0008 1 Washer, ET Lock (#10)
(24V Only)
14 338–3625 1 Harness, Remote Panel
(Reaches From Remote Panel
to Extension Harness)
(Includes Parts Marked +)
15 323–1591 1 +Plug, Seal
16 323–1543 1 +Wedge, Plug (8 Pin)
17 323–1541 1 +Plug (8 Pin) (P4)
18 323–1492 7 +Contact, Socket
+ – Parts Included in Remote Panel Harness
81 MDKAD/E

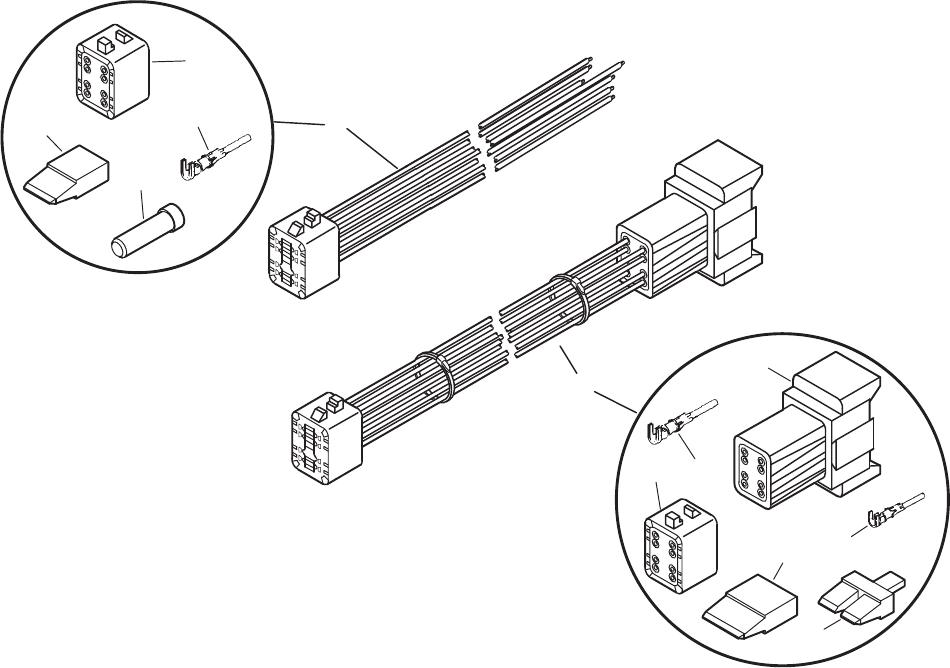

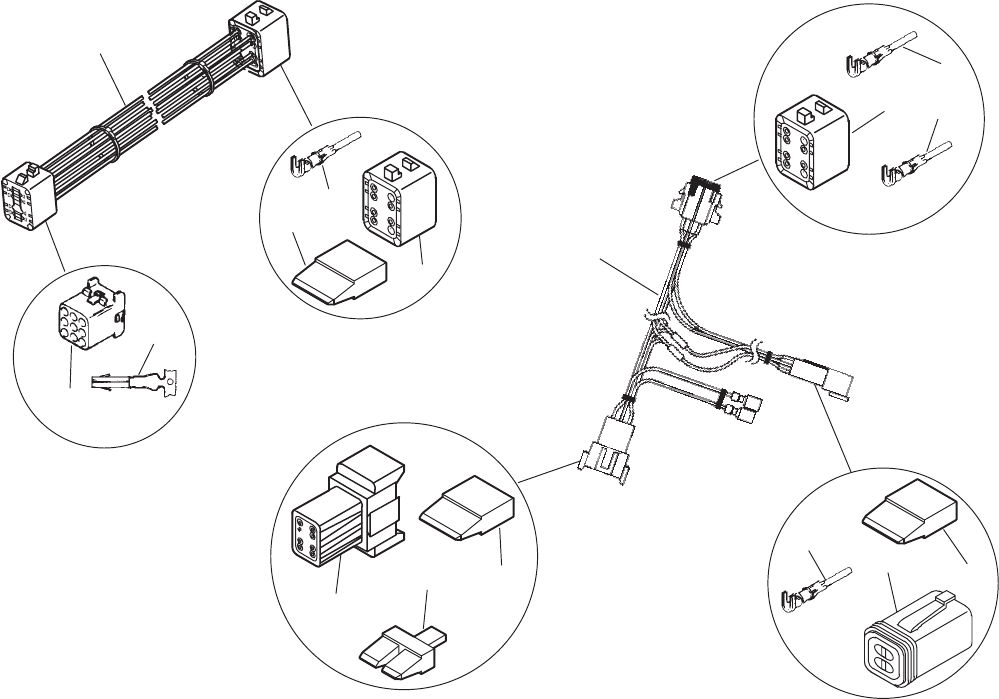

Adapter and Junction Harness
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15
12
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 *Harness, Adapter (Includes
Parts Marked °)
338–3695 1 Single Circuit for On/Off
/Preheat
338–3696 1 Two Circuits for On/Off
and Preheat
2 323–1541 1 °Plug (9 Pin)
3 323–1492 AR °Terminal, Socket
4 323–1543 1 °Wedge, Plug (8 Pin)
5 323–1325 1 °Cap, Connector
6 323–1200 AR °Socket, Contact
7 338–3697 1 *Harness, Junction (Includes
Parts Marked +)
8 323–1541 1 +Plug (9 Pin)
9 323–1492 AR +Terminal, Socket
10 323–1543 1 +Wedge, Plug (8 Pin)
11 323–1542 1 +Receptacle (8 Pin)
12 323–1491 8 +Terminal, Pin
13 323–1544 1 +Wedge, Receptacle (8 Pin)
14 323–1549 1 +Socket, Recrptacke (4 Pin)
15 323–1547 1 +Wedge, Lock Receptacle (4 Pin)
* – See Accessory Manual for Application Description.
°– Parts Included in Adapter Harness.#
+ – Parts Included in Remote Extension Harness.
82 MDKAD/E

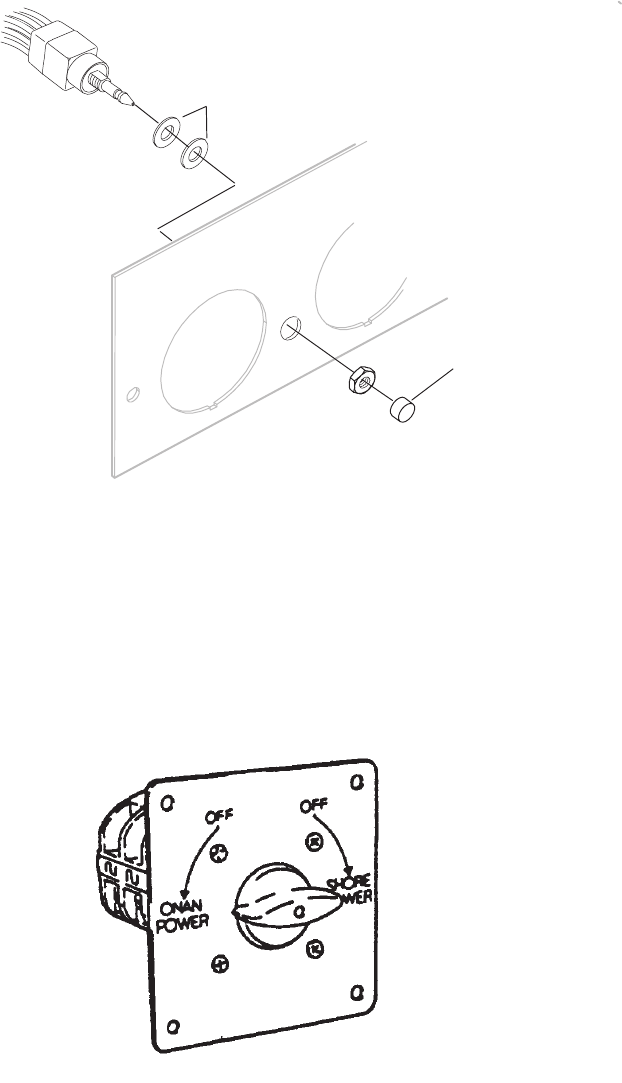

Dual Gauge Switch
1
2
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
300–4835 1 Kit, Dual Gauge Switch
(Nut is Part of Switch) 1 308–1072 1 Cap, Switch
2 850–0038 2 Washer, Flat (1/4)
Manual Transfer Switch
REF PART QTY PART
NO. NO. USED DESCRIPTION
Switch, On Shore/Off Shore Rotary
308–0269 1 120V (2 Wire)
308–0270 1 120/240V (3 Wire)
83 MDKAD/E
Isolated Ground System
Unique Parts*
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
Isolated Ground Insulation Assy
337–2832 1 Isolator, Ground
337–2833–02 1 Strip, Ground
802–0038 1 Screw, Socket Head
(1/4–20 x 1.5”)
802–0057 1 Screw, Socket Head
(5/16–18 x 1.5”)
856–0006 1 Washer, EIT Lock (1/4”)
856–0008 1 Washer, EIT Lock (5/16”)
862–0001 1 Nut, Hex (1/4–20)
862–0015 1 Nut, Hex (5/16–18)
800–2115 1 Screw, Hex Head Cap
(M12 x 45mm)
Alternator, Complete
191–2169–01 1 12V
191–2169–02 1 24V
191–2168–03 1 Bracket, Adjusting
800–0104 1 Bolt
850–0060 1 Washer, Spring
526–0045 1 Washer, Lock
800–0028 1 Screw, Hex Head Cap
(5/16–18 x 1)
850–0045 1 Washer, Spring
511–0186 1 Belt
526–0219 1 Washer, Flat
862–0016 1 Nut
191–2170 1 Pulley, Alternator
718–1048 1 Screw, Hex Head Cap (M8 x 80)
800–2100 1 Screw, Hex Head Cap
(M10 x 100)
526–2133 1 Washer, (M10)
850–2010 1 Washer, Lock (M10)
750–1008 1 Nut, Hex (M10)
309–0578 1 Switch, Pressure
193–0415 1 Sender, Low Coolant
309–0576 1 Thermostat
130–4411–03 Bracket, Belt Guard (Bottom)
130–4414–03 Guard, Belt
800–2029 2 Screw, Hex Head Cap
(M6 x 12mm)
Panel Assy, Control (Includes
But is Not Limited to Parts
Marked °)
Without Gauges
300–4873 1 12V
300–4875 1 24V
With Gauges
300–4872 1 12V
300–4874 1 24V
°Marker, Strip (14 Pos.)
332–3296 1 14 Pos.
332–3298 1 3 Pos.
821–0010 1 °Screw, Lock Head
(1/4–20 x .5”)
821–0008 1 °Screw, Lock Head
(1/4–20 x .312)
526–0052 1 °Washer, Flat Brass (1/4”)
332–2370 1 °Standoff, Insulator
Relay, Solenoid
307–1617 1 12V
307–2656 1 24V
191–2166–03 1 Bracket, Solenoid Relay
(Isolated Ground)
800–3018 2 Screw, Hex Head Cap
(M10 x 16mm) (Isolated
Ground)
526–2080 2 Washer, Flat (M6) (Isolated
Ground)
* – These Parts Duplicated Here for Handy Reference. Also
Found on Appropriate Pages Throughout This Book.
°– Parts Included in Control Panel Assy.
84 MDKAD/E
Labels
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
98–5948 1 Decal, Front Panel – Basic
Remote Control
98–5945 1 Decal, Rear Panel – Basic
Remote Control
98–5947 1 Decal, Front Panel – Deluxe
Remote Control
98–5944 1 Decal, Rear Panel – Deluxe
Remote Control
98–5803 1 Decal, Front Panel – Remote
Gauge Control
98–5761 1 Decal, Rear Panel – Remote
Gauge Control
Label, Control Back
98–6861 1 Spec A–B
98–7566 1 Begin Spec C
Label, Control Front
Spec A–B
98–6860 1 With Gauges
98–6925 1 Without Gauges
Begin Spec C
98–7564 1 With Gauges
98–7565 1 Without Gauges
Label, Control Top
98–6862 1 Spec A–B
98–7567 1 Begin Spec C
98–5161 1 Label, Coolant (Housed Sets)
98–5347 1 Label, Danger (Voltge)
98–2235 1 Label, Ground
98–6997 1 Label, Lifting Eye (Housed Sets)
Label, No Step
98–6996 1 Unhoused Sets
98–6996 2 Housed Sets
98–1714 1 Label, Onan (Housed Sets)
98–6388–01 1 Label, Phone Info
98–6953 1 Label, Reconn Chart
98–6757 1 Label, Voltage Regulator
98–5667 1 Label, Warning (Coolant)
(Housed Sets)
98–5755 1 Label, Warning (Backfeed)
98–6995 5 Label, Warning (Housed Sets)
98–6074–02 1 Label, Warning (Operation)
98–4798–01 1 Label, Warning (Rotating Parts)
(Unhoused Sets)
98–7541 1 Label, Zinc Anode
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
85
098–1714, 84
098–2235, 84
098–4798–01, 84
098–5161, 84
098–5347, 84
098–5667, 84
098–5755, 84
098–5761, 84
098–5803, 84
098–5944, 84
098–5945, 84
098–5947, 84
098–5948, 84
098–6074–02, 84
098–6388–01, 84
098–6757, 84
098–6860, 84
098–6861, 84
098–6862, 84
098–6925, 84
098–6953, 84
098–6995, 84
098–6996, 84
098–6997, 84
098–7541, 84
098–7564, 84
098–7565, 84
098–7566, 84
098–7567, 84
100–3153–01, 7
100–3153–02, 7
100–3243–01, 7
100–3243–02, 7
101–0810, 11
101–0811, 11
101–0821, 11
102–1449–01, 48
104–1666, 11
104–1830, 11
104–1929, 11
110–3584, 22
115–0025, 32
120–1221, 19
120–1319, 34
122–0810, 26
122–0813, 34
130–2248, 44
130–3570, 45
130–3571, 45
130–3572, 45
130–3573, 45
130–3574, 45
130–3721, 44
130–4234–03, 39
130–4331–03, 57
130–4381–03, 57
130–4382–03, 57
130–4411–03, 57, 83
130–4414–03, 57, 83
130–4433–02, 39
130–4434, 39
130–4491–03, 57
130–4492–03, 57
130–4566, 39
130–4567, 39
130–4633–04, 57
130–4652–03, 57
130–4714–03, 57
130–4718, 44
130–4881–02, 44
130–4960, 39
130–4961, 39
130–4962–01, 39
130–4979, 39
130–5006–02, 39
130–5008, 39
130–5012, 39
132–0293, 42
132–0346, 39, 41
132–0348, 42
132–0349, 42
132–0350, 42
132–0356, 39, 41
132–0384, 42
132–0385, 42
132–0386, 42
132–0387, 42
132–0388, 42
132–0389, 42
132–0390, 42
132–0391, 42
132–0392, 42
132–0393, 42
132–0394, 42
140–2859, 50
140–3048, 50
149–1908–05, 35, 36
149–1914–05, 36
149–1949, 36
149–1952, 36
149–1953, 36
149–2045, 36
149–2046, 36
149–2047, 36
149–2100, 33
149–2106, 33
149–2312, 35
149–2313, 35
149–2331–01, 33
149–2436, 33
149–2437, 33
149–2488, 34
149–2489–03, 34
149–2531–04, 33
150–2567–03, 32
150–2579, 32
154–2768, 52
154–2887, 51
154–2891, 52, 53
154–2915, 51
154–2963–02, 53
154–3006, 52
155–1002, 55
155–2029, 55
155–2030, 55
155–2033, 52
155–2063–09, 54
155–2064–09, 54
155–2355–04, 54
155–2950, 37
155–2975, 51
155–2980, 53
155–2981, 53
155–3061, 52, 53
155–3068–02, 53
155–3069–02, 53
155–3087, 43
155–3094, 53
155–3148–01, 41
155–3216, 55
155–3217, 55
155–3218, 55
185–2094, 7
185–2095, 7, 21
185–2096, 48
185–2105, 16
185–2106, 19, 21
185–2125, 7
185–2188, 21
185–2233, 7
185–2234, 7
185–2283, 16
185–2284, 16
185–2338, 7, 18, 25
185–2343, 48
185–2345, 23
185–2347, 17
185–2349, 26
185–2350, 7
185–2351, 18
185–2352, 7
185–2362, 24
185–2365, 24
185–2367, 19, 22, 24, 27
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
86
185–2379, 17
185–2380, 28
185–2385, 23
185–2389, 18, 27
185–2390, 16, 26
185–2392, 17
185–2400, 9
185–2402, 19, 24, 50
185–2403, 14
185–2404, 14, 27
185–2405, 26
185–2412, 21
185–2461, 18
185–2564, 28
185–2961, 29, 30
185–3078, 48
185–3397, 16
185–4255, 16, 26, 28
185–5140, 16
185–5337, 23
185–5407, 26
185–5443, 24, 26
185–5445, 28
185–5505, 26
185–5529, 16
185–5558, 9
185–5612, 23
185–5676, 7
185–5691, 16
185–5693, 16
185–5696, 16
185–5768, 29, 30
185–5769, 29, 30
185–5770, 29
185–5771, 29, 30
185–5772, 29
185–5773, 29
185–5774, 29, 30
185–5775, 29, 30
185–5776, 29, 30
185–5777, 29
185–5781, 30
185–5782, 29
185–5783, 29, 30
185–5784, 29, 30
185–5785, 29, 30
185–5786, 29, 30
185–5787, 29, 30
185–5788, 29, 30
185–5789, 29, 30
185–5790, 29, 30
185–5791, 29
185–5826, 24
185–5837, 7
185–5839, 7
185–5840, 7
185–5841, 7
185–5842, 7
185–5843, 7, 26
185–5844, 7
185–5845, 7
185–5846, 7
185–5847, 7
185–5848, 7
185–5849, 7
185–5850, 7
185–5851, 7
185–5852, 7
185–5854, 48
185–5855, 48
185–5860, 21
185–5861, 21
185–5862, 21
185–5863, 21
185–5865, 21
185–5866, 21
185–5867, 21
185–5868, 21
185–5869, 26
185–5870, 26
185–5871, 26
185–5872, 26
185–5873, 26
185–5874, 26
185–5875, 26
185–5876, 26
185–5877, 26
185–5878, 26
185–5879, 26
185–5880, 26
185–5887, 25
185–5888, 25
185–5889, 14
185–5890, 14
185–5892, 14
185–5893, 14
185–5895, 14
185–5896, 14
185–5897, 14
185–5898, 14
185–5899, 14
185–5900, 9
185–5901, 9
185–5902, 9
185–5903, 9
185–5904, 9
185–5905, 8, 9, 28
185–5906, 9
185–5907, 9
185–5908, 9
185–5909, 9
185–5910, 9
185–5911, 9
185–5912, 9
185–5913, 10
185–5914, 10
185–5915, 10
185–5916, 10
185–5917, 10
185–5921, 10
185–5922, 10
185–5924, 8
185–5925, 8
185–5926, 8
185–5927, 8
185–5928, 8
185–5929, 8
185–5930, 8
185–5931, 8
185–5933, 8
185–5934, 8
185–5936, 8
185–5937, 8
185–5938, 8
185–5939, 8
185–5940, 8
185–5941, 8
185–5942, 8
185–5943, 8
185–5945, 15
185–5946, 15
185–5947, 15
185–5948, 15
185–5949, 15
185–5950, 15
185–5951, 15
185–5952, 15
185–5953, 15
185–5954, 15
185–5955, 15
185–5956, 15
185–5957, 15, 17
185–5958, 15
185–5959, 15, 17
185–5960, 15, 17
185–5961, 15
185–5962, 15
185–5963, 15
185–5966, 15
185–5969, 18
185–5970, 18
185–5971, 18
185–5974, 18
185–5976, 19
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
87
185–5977, 19
185–5985, 23
185–5986, 23
185–5987, 23
185–5988, 23
185–5989, 23
185–5990, 23
185–5991, 23
185–5994, 28, 29
185–5999, 24
185–6000, 24
185–6001, 24
185–6003, 24
185–6004, 24
185–6005, 24
185–6006, 27
185–6007, 27
185–6010, 27
185–6011, 27
185–6012, 27
185–6013, 27
185–6016, 22
185–6017, 22
185–6018, 22
185–6019, 22
185–6020, 22
185–6022, 22
185–6023, 22
185–6025, 22
185–6026, 22
185–6027, 22
185–6028, 22
185–6029, 22
185–6030, 22
185–6035, 50
185–6048, 21
185–6074, 10
185–6075, 10
185–6076, 10
185–6078, 26
185–6085, 8
185–6086, 8
185–6094, 23
185–6095, 23
185–6103, 24
185–6107, 22
185–6108, 22
185–6121, 7
185–6122, 48
185–6124, 26
185–6125, 26
185–6126, 26
185–6127, 26
185–6129, 8
185–6134, 18
185–6135, 18
185–6138, 20
185–6139, 20
185–6140, 20
185–6141, 20
185–6142, 20
185–6143, 20
185–6144, 20
185–6145, 20
185–6146, 20
185–6147, 20
185–6148, 20
185–6150, 20
185–6151, 20
185–6152, 20
185–6153, 20
185–6154, 20
185–6155, 20
185–6158, 17
185–6160, 17
185–6161, 17
185–6163, 17
185–6164, 17
185–6165, 17
185–6167, 17
185–6168, 16
185–6169, 16
185–6171, 16
185–6172, 17
185–6173, 17
185–6174, 16
185–6175, 16
185–6177, 16
185–6178, 16
185–6179, 16
185–6180, 16
185–6182, 28
185–6183, 28
185–6184, 28
185–6185, 28
185–6186, 29
185–6187, 29
185–6188, 29
185–6189, 29
185–6190, 29
185–6191, 29
185–6197, 26
185–6209, 10
185–6242, 22
185–6418, 19
185–6711, 26
185–6715, 50
185–6716, 25
185–6717, 25
185–6718, 25
185–6719, 25
185–6720, 25
185–6721, 25
185–6722, 25
185–6723, 50
185–6724, 28, 30
185–6725, 23
185–6726, 18
185–6727, 48
185–6728, 48
185–6730, 28
185–6731, 23
185–6733, 28
185–6734, 28
185–6752, 23
185–6753, 17
185–6756, 19
185–6757, 19
185–6758, 19
185–6759, 7, 16, 26
185–6760, 48
185–6761, 48
185–6762, 48
185–6763, 21
185–6764, 21
185–6765, 26
185–6766, 14
185–6767, 10
185–6768, 10
185–6769, 10
185–6770, 10
185–6771, 10
185–6772, 7
185–6774, 18
185–6775, 18
185–6777, 19
185–6778, 20
185–6779, 17
185–6780, 17
185–6781, 17
185–6784, 7
185–6785, 28
185–6786, 28
185–6788, 24
185–6789, 22
185–6801, 17
185–6809, 30
185–6810, 30
185–6811, 30
185–6812, 30
185–6813, 30
185–6814, 30
185–6815, 30
185–6816, 30
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
88
185–6819, 30
185–6820, 30
185–6956, 15
185–6957, 19, 22, 24, 26,
27
185–6982, 7
185–7020, 27
185–7021, 27
185–7039, 15
185–7111, 19, 20
185–7112, 17
190–0729–01, 49
190–0729–02, 49
190–0730–02, 49
190–0731, 49
190–0732–02, 49
190–0734–03, 49
190–0736–03, 49
190–0738, 49
190–0739, 49
190–0740, 49
190–0742, 59
190–0744, 57
190–0745–04, 49
190–0756–01, 49
190–0756–02, 49
190–0756–03, 49
191–1431, 12, 13
191–1432, 12, 13
191–1433, 12, 13
191–1436, 12, 13
191–1437, 12, 13
191–1438, 12
191–1439, 12, 13
191–1440, 13
191–1441, 12, 13
191–1442, 12, 13
191–1444, 12, 13
191–1445, 12, 13
191–1446, 12, 13
191–1447, 12, 13
191–1448, 12, 13
191–1449, 12, 13
191–1450, 12, 13
191–1550, 11, 13
191–1606, 13
191–1607, 13
191–1608, 13
191–1609, 13
191–1959, 11, 12
191–1960, 13
191–1991, 12
191–1992, 12
191–1993, 12
191–1994, 12
191–2166–03, 50, 83
191–2167–03, 31
191–2168–03, 31, 83
191–2169–01, 31, 83
191–2169–02, 31, 83
191–2170, 31, 83
193–0244, 34
193–0250, 67, 76, 80
193–0318, 24
193–0351, 67, 76, 80
193–0352, 67, 76, 80
193–0415, 83
193–0430–01, 34
193–0457–01, 24
193–0468, 44
201–3515–02, 63
201–3517–02, 63
201–3517–04, 63
205–0229–02, 63
211–0435–01, 63
220–4413–02, 63
220–4417–02, 63
220–4417–04, 63
220–4451–02, 63
220–4451–04, 63
220–4569–02, 63
220–4569–04, 63
220–4570–02, 63
220–4570–04, 63
232–3672–03, 63
232–3705–01, 63
232–3706–02, 63
232–3826–02, 63
234–0876–01, 63
234–0935–02, 63
300–4547, 76
300–4658, 65, 67
300–4659, 65, 67
300–4662, 65, 67
300–4663, 65, 67
300–4679, 74
300–4680, 74
300–4681, 75
300–4684, 76
300–4686, 44
300–4835, 82
300–4872, 65, 67, 83
300–4873, 65, 67, 83
300–4874, 65, 67, 83
300–4875, 65, 67, 83
300–4989–01, 79
300–4989–02, 79
300–4990–01, 77
300–4990–02, 77
300–4991–01, 78
300–4991–02, 78
300–5018–01, 80
300–5018–02, 80
300–5040, 24
300–5041, 24
300–5243, 67
300–5244, 67
300–5245, 67
300–5246, 67
300–5247, 67
300–5248, 67
300–5249, 67
300–5250, 67
302–0885, 67, 75, 76
302–0888, 75
302–1641, 67, 76, 79, 80
302–1642, 67, 76, 79, 80
302–2002, 78, 80
304–0796, 33
304–0797, 33
304–0828–02, 33
305–0548, 69
305–0896, 65
307–1617, 50, 83
307–1886, 69
307–2643, 69
307–2654, 69
307–2656, 50, 83
307–2808–02, 32
307–2817–01, 69
307–2817–02, 69
307–2820, 32
307–2820–01, 32
307–2828–01, 69
307–2828–02, 69
308–0269, 82
308–0270, 82
308–0827, 74, 75, 76
308–0975, 74, 76
308–1027, 67
308–1062, 77, 78, 79, 80
308–1062–01, 77, 78, 79,
80
308–1072, 82
309–0561–05, 34
309–0576, 24, 83
309–0578, 34, 83
309–0597, 52
309–0601, 24
319–0141, 76
319–0491, 74
319–0492, 75
319–2106–04, 65
319–2107–03, 65
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
89
319–2108–03, 65
319–2113–03, 65
319–2114–03, 65
319–2339–02, 77
319–2340–04, 78
319–2493–03, 70
319–2494–03, 70
319–2954–04, 70
319–3132–01, 79
319–3254–02, 80
320–1140, 67
320–1658, 65
320–1689–08, 65
320–1689–09, 65
320–1689–10, 65
320–1689–11, 65
320–1689–12, 65
320–1689–13, 65
320–1689–15, 65
320–1689–17, 65
320–1690–03, 65
320–1690–10, 65
320–1690–11, 65
320–1690–12, 65
320–1690–13, 65
320–1710, 67
320–1769–01, 67
320–1813–02, 65
320–1836–06, 65
320–1836–07, 65
320–1836–08, 65
320–1836–09, 65
320–1836–10, 65
320–1836–11, 65
320–1836–12, 65
320–1836–13, 65
320–1862–01, 67
320–1863, 67
320–1891–01, 65
320–1891–02, 65
320–1891–03, 65
320–1891–04, 65
320–1928–01, 65
323–1200, 81
323–1325, 81
323–1491, 73, 76, 81
323–1492, 69, 72, 73, 77,
78, 79, 80, 81
323–1541, 65, 73, 74, 75,
76, 77, 78, 79, 80, 81
323–1542, 72, 73, 81
323–1543, 65, 73, 74, 75,
76, 77, 78, 79, 80, 81
323–1544, 72, 73, 81
323–1546, 69
323–1547, 81
323–1548, 69
323–1549, 81
323–1591, 65, 72, 73, 74,
75, 76, 77, 78, 79, 80
332–0942, 76
332–1445, 74, 75
332–2370, 65, 69, 83
332–2634, 39, 41
332–2683, 72
332–3296, 69, 83
332–3297, 69
332–3298, 69, 83
332–3385, 69
337–2784–02, 46
337–2785, 46, 47
337–2795, 65
337–2832, 46, 83
337–2833–02, 46, 83
337–2969, 47
337–2970, 47
338–2930, 65
338–3093, 72
338–3098, 73
338–3167, 73
338–3168, 73
338–3169–00, 73
338–3169–01, 73
338–3169–02, 73
338–3169–03, 73
338–3170, 74, 75
338–3171, 76
338–3246, 69
338–3247, 69
338–3248, 69
338–3249, 69
338–3383–01, 69
338–3383–02, 69
338–3383–03, 69
338–3383–04, 69
338–3387, 65
338–3594, 44
338–3597, 79
338–3598, 77
338–3599, 78
338–3625, 80
338–3695, 81
338–3696, 81
338–3697, 81
352–0194, 69
352–0195, 69
352–0196, 69
352–0197, 69
352–0198, 69
353–0053, 69
357–0030, 69
358–0069, 63
358–0070, 63
359–0034, 75
402–0681, 59, 70
403–3573, 56
403–3737–02, 56
403–3916–02, 7
403–3955, 56
403–4059–03, 56
405–1872, 59, 60, 61
405–3111, 59
405–4528, 59
405–5013, 59
405–5015–S1, 59
405–5015–S2, 59
405–5018, 59
405–5023–S2, 59
405–5026, 60
405–5026–S2, 59
405–5034–S1, 59, 61
405–5034–S2, 59, 61
405–5036–S1, 59, 61
405–5036–S2, 59, 61
405–5037, 59
405–5038, 59
405–5043–S2, 59
405–5045–01, 59
405–5045–02, 59
405–5114, 61
405–5252, 59
405–5253, 59
405–5701, 59, 60
405–5727–02, 59, 60
405–6340, 59
405–6341–02, 59
406–0528–01, 59
406–0528–02, 59
416–1021–03, 65
501–0578, 35
501–0624, 48
502–0002, 33
502–0003, 34
502–0005, 34
502–0020–01, 34
502–0028, 33, 34
502–0041, 33
502–0053, 34
502–0054, 35
502–0090, 37
502–0099, 33
502–0153, 35, 36, 44
502–0175, 33
502–0263, 48
502–0270, 37
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
90
502–0942, 37
502–1123, 48
502–1244, 34
502–1245, 34
502–1295–01, 41
502–1295–02, 41
502–1295–03, 41
502–1297, 41
502–1309, 34
503–0200, 41
503–0501, 39
503–0977, 37, 39, 41
503–1134, 39
503–1135, 39
503–1137, 39, 41, 43
503–1138, 39, 41, 43, 44,
50, 59
503–1139, 55
503–1142, 55
503–1143, 39, 50
503–1163, 39
503–1168, 41
503–1194, 39
503–1320, 52
503–1353, 52
503–1562–02, 39
503–1692, 45
503–1896, 39
503–1898, 44
503–1899, 44
503–1939, 50
503–1963–04, 52
503–1963–05, 52
503–1977, 39
503–1978, 39
503–2023, 41, 43
503–2025–01, 41, 43
503–2025–02, 41
503–2040, 70
503–2106, 39
503–2122, 39
504–0062, 37
505–0003, 41, 43
505–0041, 41, 43
505–0110, 24
505–0304, 41, 43
505–0339–02, 53
505–0446–01, 41, 43
505–1509, 41, 43
508–0021, 60
508–0115, 59, 60, 61
508–0116, 65
508–0117, 59, 60, 61
508–0179, 65
508–0210, 59, 60, 61
508–0330, 59
508–1011, 59, 60, 61
508–1073, 63
508–1095, 59, 60, 61
508–1102, 37
509–0094, 63
510–0112, 63
511–0186, 31, 83
517–0131–02, 67
518–0656, 32
520–1005, 47
520–1006, 47
520–2218–01, 51
526–0003, 59, 60, 61
526–0008, 63
526–0016, 47
526–0022, 59
526–0026, 49
526–0029, 11
526–0045, 31, 47, 83
526–0049, 67, 79, 80
526–0052, 46, 65, 69, 83
526–0145, 11
526–0172, 56
526–0174, 63
526–0219, 31, 83
526–0399–11, 63
526–0399–42, 63
526–0399–44, 49, 63
526–0399–64, 7, 11, 33,
34, 47, 49, 56
526–0409, 67, 79, 80
526–0413, 48
526–2080, 49, 50, 83
526–2081, 32
526–2100, 7, 35, 39, 41,
44, 47, 51, 52, 53
526–2101, 49
526–2106, 33, 56
526–2120, 31, 33, 39
526–2133, 83
526–2140, 46
718–1019, 33
718–1036, 7, 33, 39, 41,
47, 65
718–1038, 35, 52, 53
718–1040, 25
718–1047, 57
718–1048, 31, 83
718–1055, 35
740–1004, 17, 52, 53
740–1006, 17, 22, 26
750–1004, 16
750–1006, 51
750–1008, 31, 83
750–1010, 56
775–0061, 11
800–0027, 31
800–0028, 83
800–0051, 63
800–0054, 49
800–0090, 49
800–0091, 49
800–0104, 31, 83
800–0310–02, 63
800–0310–27, 63
800–0310–36, 63
800–0310–64, 63
800–0317, 39
800–0540, 59
800–2029, 32, 49, 50, 57,
83
800–2034, 7, 32
800–2036, 16
800–2038, 16
800–2052, 59
800–2054, 44
800–2058, 53
800–2060, 49
800–2067, 52, 53
800–2100, 31, 83
800–2113, 11
800–2115, 46, 83
800–2118, 56
800–3005, 11, 33
800–3018, 50, 83
800–3029, 34
800–3030, 33, 39
800–3031, 47, 56
800–3032, 11, 33, 49
800–3033, 7, 46, 49
801–1050, 49
802–0038, 46, 83
802–0057, 46, 83
802–2068, 52, 53
808–0023, 80
808–0045, 59
810–0155, 65, 69
810–0156, 47
812–0059, 67
812–0079, 69
813–0102, 69
813–0112, 33
815–0181, 63
815–0385, 67, 75, 76
815–0498, 59, 70
815–0539, 69
815–0550–01, 65
815–0765, 59
Numerical Index
Part No. Page Part No. Page Part No. Page Part No. Page
91
815–0807, 59
815–0904, 33
815–0910, 77, 78, 79
815–0935, 63
818–0150, 59, 60, 61
818–0194, 59
818–0239–03, 59
821–0004, 69
821–0005, 65
821–0008, 65, 69, 83
821–0010, 69, 83
821–6003–02, 56, 70
822–2160–37, 63
850–0025, 52
850–0030, 67, 79, 80
850–0038, 82
850–0045, 31, 83
850–0060, 31, 83
850–0114–06, 63
850–0165, 39
850–2006, 7, 32, 33, 57
850–2008, 33, 35, 53
850–2010, 31, 50, 83
853–0008, 80
853–0013, 63
853–0040–04, 63
853–0040–05, 63
854–0014, 65
856–0003, 33
856–0006, 46, 47, 65, 69,
83
856–0008, 46, 47, 65, 83
856–0012, 35
856–0013, 46, 47
856–1008, 46
860–0008, 52
860–2008, 33, 47
862–0001, 46, 83
862–0013, 47
862–0015, 46, 83
862–0016, 31, 83
870–0110, 60, 61
870–0131, 65
870–0131–01, 63
870–0183, 67, 75, 76
870–0257, 59, 70
870–0398, 65
870–0400, 59
870–0413, 59
870–0427, 59
870–2054, 32
871–0010, 67, 79, 80
871–0015, 47
871–0016, 46, 65, 69
871–0025, 47
895–0308, 63
92
Onan Corporation
1400 73rd Avenue N.E.
Minneapolis, MN 55432
1-800-888-ONAN
612-574-5000 International Use
Telex: 275477
Fax: 612-574-8087
Onan is a registered trademark of Onan Corporation
