MTU_ValueService
Technical Documentation
Fluids and Lubricants
Specification
A001061/33E
All commercial MTU series
(except Series 1800) and DDC S60 Marine
Printed in Germany
© 2008 Copyright MTU Friedrichshafen GmbH
This Publication is protected by copyright and may not be used in any way whether in whole or in part without the
prior written permission of MTU Friedrichshafen GmbH. This restriction also applies to copyright, distribution,
translation, microfilming and storage or processing on electronic systems including data bases and online services.
This handbook is provided for use by maintenance and operating personnel in order to avoid malfunctions or
damage during operation.
Subject to alterations and amendments.
Table of Contents 01
1 Preface ....................................................................... 03
2 Lubricants .................................................................... 05
3 Coolants ..................................................................... 13
4 Fuels ........................................................................ 21
5 Preservatives . . . .............................................................. 35
6 Approvedfluidsandlubricants ................................................... 37
7 Preservation Specifications ...................................................... 77
8 FlushingandCleaningSpecificationsforEngineCoolantSystems ..................... 97
9 Revision overview from version A001061/33 to A001061/32 . . .......................... 101
A001061/33E 08-01 ©MTU
02 Table of Contents
A001061/33E 08-01 ©MTU
Preface 03
1 Preface
The service life, operational reliability and function of the drive systems are largely dependent on the fluids
and lubricants employed. The correct selection and treatment of these fluids and lubricants are therefore
extremely important. This publication specifies which fluids and lubricants are to be used.
The Fluids and Lubricants Specifications will be amended or supplemented as necessary. Before
using them, make sure you have the latest version. The latest version is also available at:
http://www.mtu-online.com/Service/Technische Dokumentation/Betriebsstoffvorschriften
If you have further queries, please contact your MTU representative.
Test standards for fluids and lubricants:
DIN Federal German Standards Institute
EN European Standards
ISO International Standards Organization
ASTM American Society for Testing and Materials
IP Institute of Petroleum
Note:
Use of the approved fluids and lubricants, either under the brand name or in accordance with the
specifications given in this publication, constitutes part of the warranty conditions.
The supplier of the fluids and lubricants is responsible for the worldwide standard quality of the named products.
Fluids and lubricants for drive plants may be hazardous materials. Certain regulations must be
obeyed when handling, storing and disposing of these substances.
These regulations are contained in the manufacturers’ instructions, legal requirements and technical guidelines
valid in the individual countries. Great differences can apply from country to country and a generally valid guide
to applicable regulations for fluids and lubricants is therefore not possible within this publication.
Users of the products named in these specifications are therefore obliged to inform themselves
of the locally valid regulations. MTU accepts no responsibility whatsoever for improper or illegal
use of the fluids and lubricants which it has approved.
A001061/33E 08-01 ©MTU
TIM ID: 0000010134 – 003
04 Preface
A001061/33E 08-01 ©MTU
TIM ID: 0000010134 – 003
Lubricants 05
2 Lubricants
Engine oils
Dispose of used fluids and lubricants in accordance with local regulations.
Used oil must never be disposed of via the fuel tank!
Requirements of the engine oils for MTU approval
The MTU requirements for approval of engine oils for diesel engines are contained in the MTU Factory Standards
MTL 5044 and MTL 5051 for first-use oils and corrosion-inhibiting oils. For gas engines, oil approval requirements
are contained in MTU Factory Standard MTL 5074. These standards can be ordered under these reference numbers.
Manufacturers of engine oils are notified in writing if their product is approved.
Approved engine oils are divided into the following MTU Quality Categories:
• Oil category 1: Standard quality / Single and multigrade oils
• Oil category 2: Higher quality / Single and multigrade oils
• Oil category 2.1: Multigrade oils with a low ash-forming additive content (low SAPS oils)
• Oil category 3: Highest quality / Multigrade oils
• Oil category 3.1: Multigrade oils with a low ash-forming additive content (low SAPS oils)
Low SAPS oils are oils with a low sulfur and phosphor content and an ash-forming additive content of ≤1%.
They are only approved if the sulfur content in the fuel does not exceed 500 mg/kg. When using diesel particle
filters, it is advisable to use these oils to avoid fast coating of the filter with ash particles.
Selection of a suitable engine oil is based on fuel quality, projected oil drain interval and on-site climatic conditions.
At present there is no international industrial standard which alone takes into account all these criteria.
Mixing of engine oils
Basically, engine oils of different SAE classes can also be mixed with one another and are compatible. This
applies to all engine oils irrespective of whether they are based on mineral or synthetic base oils.
The performance and viscosity-temperature relation of oil mixtures, however, is poorer than with unmixed oils. For
this reason, engines can only be run with oil mixtures in exceptional cases and following consultation with MTU.
Oil mixtures refer to residual oil quantities following an oil change. It does not refer to replenishment
of used oil quantities through other approved oils.
Special features
MTU engine oils
One single-grade and one multigrade oil are available from MTU/MTU-DD. These engine oils are marketed under
the name Power Guard DEO SAE 40 and SAE 15W-40. The engine oils are tuned to the MTU Off-Highway
application groups and correspond to oil category 2. A single-grade and multigrade oil are available at MTU
Asia. These engine oils are marketed under the name Fascination of Power SAE 40 or SAE 15W40.
Engine oils for the Series 2000, 4000-01, 4000-02
For Series 2000, 4000-01 and 4000-02 engines, engine oils other than those listed as approved in Section 6 may be
used provided they satisfy all of the specifications and match all of the characteristics listed in Tables 1 and 2.
Performance specifications for engine oils for Series 2000 and 4000-01/02 (Table 1)
Oil category 1 Specification min. API CG-4/CH-4 and ACEA E2–96
Oil category 2 Specification ACEA E7–04
Oil category 3 Specification ACEA E4–04
Oil category 3.1 Specification ACEA E4–04, E6–04
Note for engine oils of category 1:
Engine oils which comply with only one of the standards API CF, CF-2, CF-4, CG-4, CH-4 or CI-4 or with
a combination of these specifications, do not fully meet performance specifications.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
06 Lubricants
If these oils are intended for use, the oil drain interval is to be shortened by up to 50% after consultation with MTU.
Chemical-physical characteristics for engine oils (Table 2)
Test Method Limit Value
Total base number ASTM D 2896
ISO 3771
>8mgKOH/g
Shear stability ASTM D 3945 or
CEC-L-14-A-88
Limit values of respective
viscosity class
Deposit test 1) DIN 51535 Max. 120 mg
1) Required for multigrade oils used in closed crankcase ventilation.
Restrictions on Series 4000-03 Marine applications
The engines of the Series 4000-03 Marine must not use oils in oil category 1.
Restrictions on Series 595, 1163 and 8000 applications
For fast commercial ferries with Series 595 or 1163 engines, Category 2 or 3 oils are generally
specified.
Oil Categories 2.1 and 3.1 may be used if the sulfur content in the fuel does not exceed
500 mg/kg.
For Series 8000, only the following engine oils may be used:
• Exxon Mobil Delvac1630 SAE 30
• Shell Sirius X SAE 30
Engine Oil Requirements for Gas Engines
Viscosity grade SAE 40 is stipulated for gas engines!
The selection of a suitable engine oil for gas engines depends primarily on the type of gas used to power the engine.
Another significant factor is the quality of the gas regarding its purity. This requires that the operator regularly carries
out gas checks. The gas-engine oils to be used feature a low ash content (< 0.6%) and base numbers within a range
of 4-6 mgKOH/g. This prevents increased ash deposits which can lead to reduced catalytic converter performance.
Selection of viscosity grades
Selection of the viscosity grade is based primarily on the ambient temperature at which the engine
is to be started and operated. If the relevant performance criteria are observed the engines can be
operated both with single grade and multigrade oils, depending on the application. Standard values

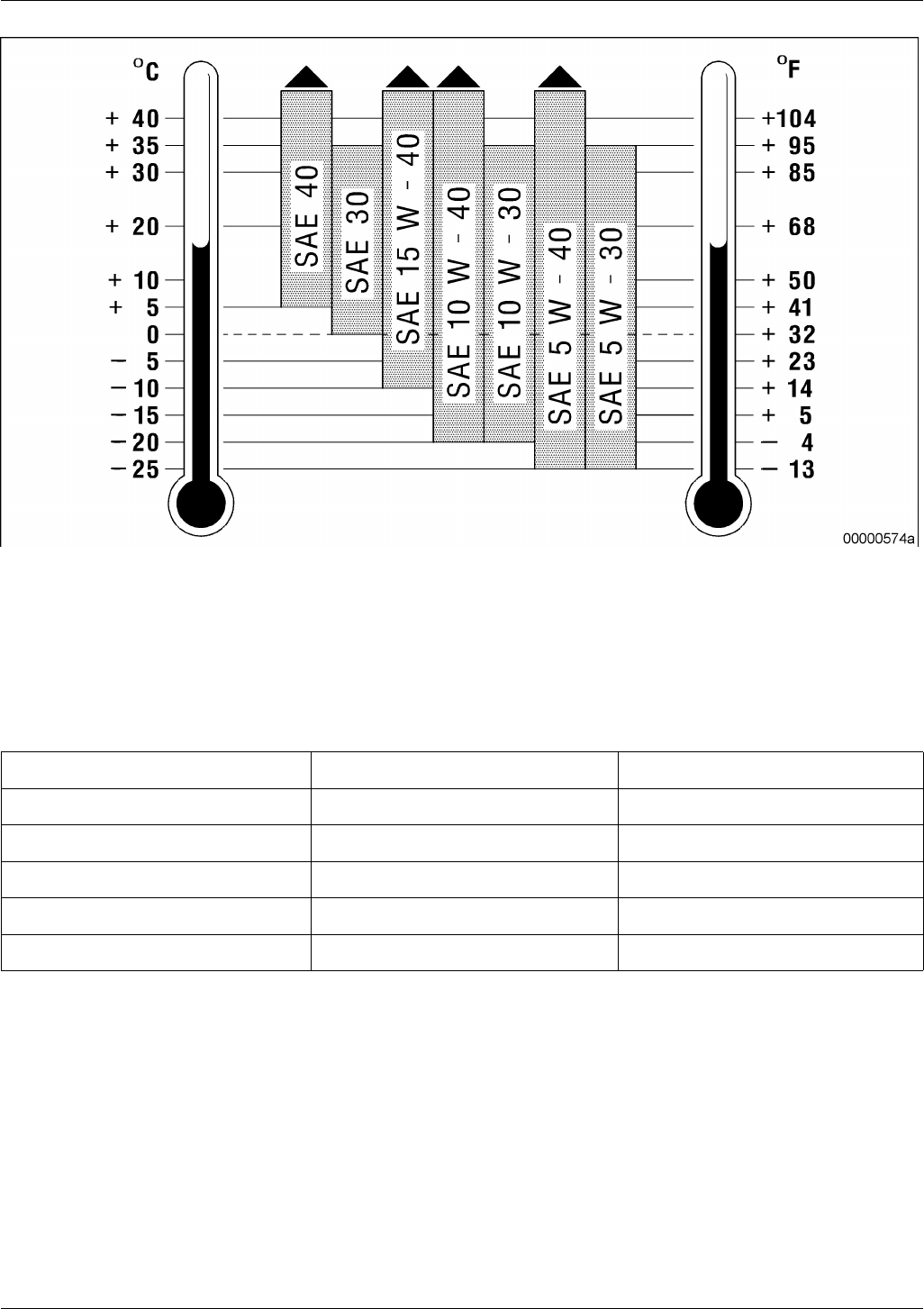

for the temperature limits in each viscosity grade are shown in Chart 1.
If the prevailing temperature is too low, the engine oil must be preheated.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
Lubricants 07

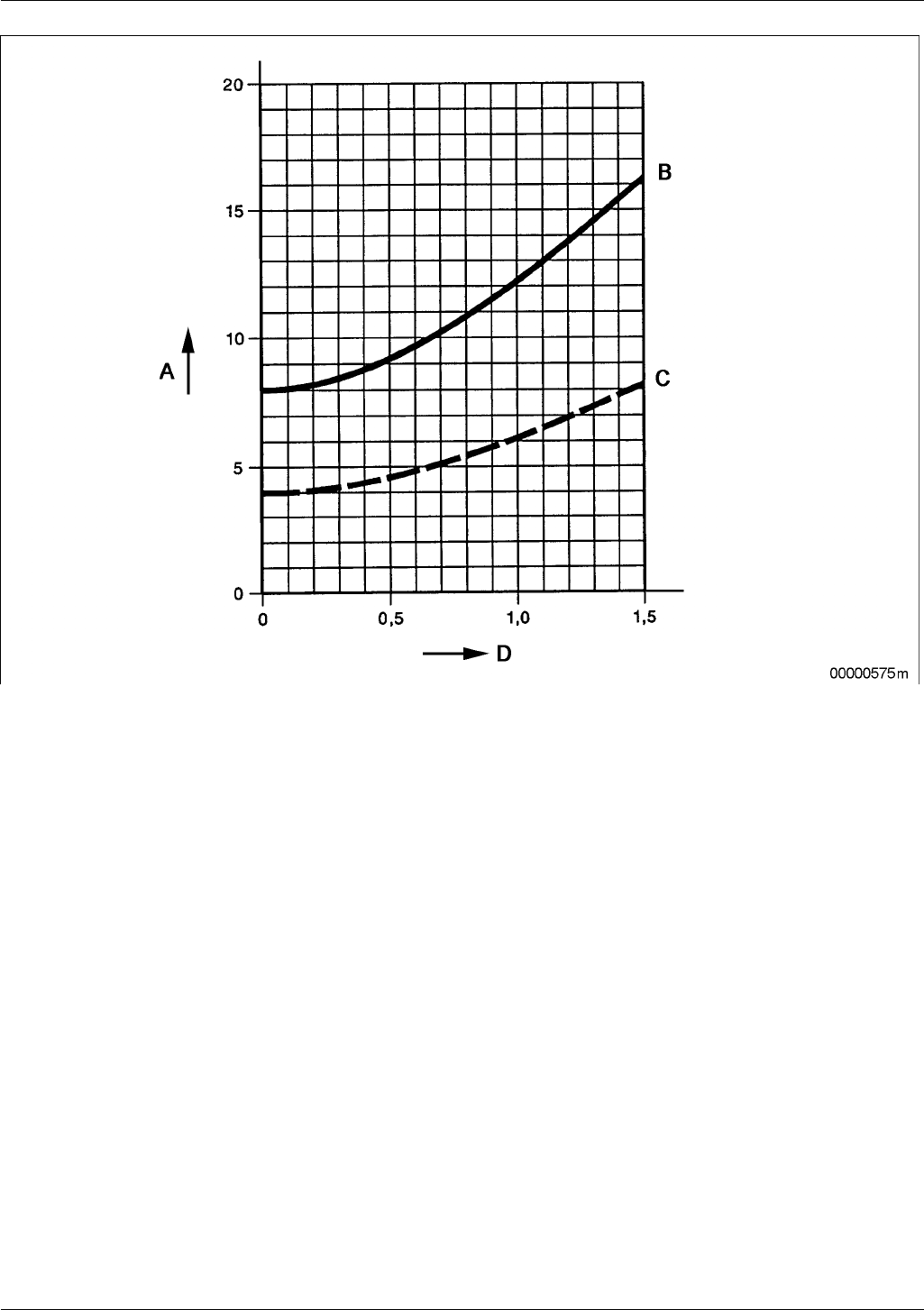

Diagram 1
Oil Drain Intervals for Diesel Engines
Engine oil drain intervals depend on the engine-oil quality, its conditioning, the operating conditions and the fuel used.
The intervals quoted (Table 3) are guidelines based on operational experience and are valid
for applications with a standard load profile.
Oil Drain Intervals (Table 3)
Oil category Without centrifugal oil filter With centrifugal oil filter
1250 operating hours 500 operating hours
2500 operating hours 1000 operating hours
2.11) 500 operating hours 1000 operating hours
3750 operating hours 1500 operating hours
3.11) 750 operating hours 1500 operating hours
1) = To be used in conjunction with fuels with max. 500 mg/kg sulfur content.
The oil drain intervals in the table are recommended guidelines when using diesel fuels with < 0.5%
sulfur content. The limit values specified in Table 4 for used oil must be complied with. The numbers of
operating hours quoted for oils must be confirmed by means of oil analysis.
The oil drain intervals must be determined by oil analysis if one or more of the following
difficult operating conditions are encountered:
• Extreme climatic conditions
• High engine start-up frequency
• Frequent and prolonged idling or low-load operation
• High sulfur content in the fuel of 0.5 to 1.5% by weight (→Page 10)
New oils must be selected which have total base numbers appropriate to the sulfur
content of the fuel in use. (→Page 08)
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
08 Lubricants
For applications involving low runtimes, the engine oil must be changed every two years
at the latest irrespective of its category.
Where engine oils with higher-grade corrosion-inhibiting characteristics are in use (→Page 37),
a change must be carried out every 3 years at the latest.
In individual cases the service life of the engine oil can be optimized by regular laboratory analysis and
appropriate engine inspections in consultation with the MTU service point responsible:
The first oil sample should be taken from the engine as a “basic sample” after the engine has
run for approximately 1 hour after being filled with fresh oil.
Further oil samples should be analyzed after engine runtimes which are to be specified. (→Page 08)
The appropriate engine inspections are to be carried out before and after the oil analyses.
After completion of all analyses, and depending on the findings, special agreements
can be reached for individual cases.
Oil samples must always be taken under the same conditions and at the point provided
for that purpose (see Operating Instructions).
Oil drain intervals for gas engines in Series 4000 L61/L62
Engine oil drain intervals depend on the engine-oil quality, its conditioning, the operating conditions and the fuel used.
Regular oil analyses are necessary because of the varying gas qualities. At the beginning of the product’s
life cycle, oil samples must be taken and analyzed after every 500 hours of operation.
Given consistent gas quality, an oil drain interval of max. 1,500 hours of operation is recommended.
In individual cases, the oil change intervals can be optimized:
For this purpose, oil samples are analyzed after every 200 – 250 hours of operation (→Page 08).
The oil samples must always be taken from the extraction point provided and under the same conditions.
Special Additives
Engine oils approved have been specially developed for diesel engines and have all necessary properties.
Further additives are therefore superfluous and may even be harmful.
Laboratory Analysis
General information
Orders for engine oil analyses can be placed with MTU.
The oil sample must be taken in accordance with the Operating Instructions.
The following data is required:
• Oil manufacturer
• Brand name with viscosity class
• Oilservicelifetodate
• Serial number of engine from which oil sample was taken
The following must be submitted (for each oil change):
• Min. 0.25 liters used oil
• Min. 0.25 liters reference sample (after approx. 1 hour’s operation)
• Min. 0.25 liters new oil
Spectrometric Oil Analysis
Analysis of the engine oil’s additive-metal content is carried out by the MTU laboratory to determine the brand of oil.
MTU does not generally analyze the oil’s wear-metal contents in order to determine the degree of engine wear.
These content levels are very much dependent on the following factors, among others:
• Individual engine equipment status
• Tolerance scatter
• Operating conditions
•Dutyprofile
• Fluids and lubricants
• Miscellaneous assembly materials
Unambiguous conclusions as to the wear status of the engine components involved are therefore not
possible. This means that no limit values can be given for wear-metal contents.
Used-oil Analysis
In order to check the used oil, it is recommended that regular oil analyses be carried out. Oil samples should be
taken and analyzed at least once per year and during each oil change and under certain conditions, depending on
application and the engine’s operating conditions, sampling / analysis should take place more frequently.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
Lubricants 09
The test methods and limit values given in Table 4 and Table 5 (Analytical Limit Values for Diesel / Gas Engine
Oils) indicate when the results of an individual oil sample analysis are to be regarded as abnormal.
An abnormal result requires immediate investigation and remedy of the abnormality.
The limit values relate to individual oil samples. When these limit values are reached or exceeded,
an immediate oil change is necessary. The results of the oil analysis do not necessarily give an
indication of the wear status of particular components.
In addition to the analytical limit values, the engine condition, its operating condition and any
operational faults are decisive factors with regard to oil changes.
Some of the signs of oil deterioration are:
• Abnormally heavy deposits or precipitates in the engine or engine-mounted parts such as oil filters,
centrifugal oil filters or separators, especially in comparison with the previous analysis.
• Abnormal discoloration of components.
Analytical limit values for diesel engine oils (Table 4)
Test Method Limit Value
Viscosity at 100 °C
max. mm²/s
ASTM D445
DIN 51562
SAE 30
SAE 5W-30
SAE 10W-30
.
15.0
SAE 40
SAE 10W-40
SAE 15W-40
19.0
min. mm²/s SAE 30
SAE 5W-30
SAE 10W-30
9.0
SAE 40
SAE 10W-40
SAE 15W-40
10.5
Flash point °C (COC) ASTM D 92
ISO 2592
Min. 190
Flash point °C (PM) ASTM D 93
EN 22719
Min. 140
Soot (% weight) DIN 51452
CEC-L-82-A-97
Max. 3.0 (Oil Category 1)
Max. 3.5 (Oil category 2, 2.1, 3 and 3.1)
Total base number
(mg KOH/g)
ASTM D 2896
ISO 3771
Min. 50% of new-oil value
Water (% by vol.) DIN 51777
ASTM 1744
Max. 0.2
Ethylene glycol (mg/kg) ASTM D 2982 Max. 100
Analytical limit values for gas engine oils SAE 40 (Table 5)
Test Method Limit Value
Viscosity at 100 °C
(mm²/s)
ASTM D 445
DIN 51562 max. 17.5 max.
min. 11.5 min.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
10 Lubricants
Total base number (mg KOH/g) ASTM D 2896
ISO 3771
Min. 3
Acid number (mgKOH/g) ASTM D664 New oil value + 2.5
pH value Min. 4.5
Water (% by vol.) DIN 51777 Max. 0.2
Oxidation (A/cm) DIN 51453 Max. 20
Nitration (A/cm) Max. 20
Wear elements (mg/kg)
Iron (Fe)
Lead (Pb)
Aluminum (Al)
Copper (Cu)
Tin (Sn)
Silicon (Si)
RFA, ICP
Max. 30
Max. 20
Max. 10
Max. 20
Max. 5
Max. 15
Use of High-Sulfur Diesel Fuel
The following measures must be taken in the case of diesel fuels with a sulfur content above 0.5%:
• Use of an engine oil with a total base number (TBN) (ASTM D 2896) of more than 8 mgKOH/g
• Shortening of oil drain intervals (→Page 07)
The total base numbers for the approved engine oils are listed in Chapter 6 (→Page 37).
Chart 2 (Total Base Numbers) lists the recommended minimum total base numbers for new and
used oils depending on the sulfur content of the diesel fuel.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
Lubricants 11
Diagram 2
A Total base number in mgKOH/g,
ISO 3771
B Recommended min. total base
number for fresh oil
C Min. total base number for used oil
D Sulfur content of fuel in % weight
Use of Low-Sulfur Diesel Fuel
The use of diesel fuels with low sulfur content (< 0.5%) does not influence the oil drain intervals.
Minimum Requirements for Operational Checks
Oil analyses can be carried out using the MTU Test Kit. The Test Kit contains all the
equipment required as well as instructions for use.
The following checks can be performed:
• Determination of oil dispersing capacity (spot test)
• Determination of diesel fuel content in the oil.
• Determination of water content in oil
Lubricating Greases
Requirements
The MTU conditions for lubricating-grease approval are specified in the MTU Factory Standard
MTL 5050, which can be ordered under this reference number.
Grease manufacturers are notified in writing if their product is approved by MTU.
Lubricating Greases for General Applications
Lithium-saponified greases are to be used for all lubrication points with the exception of:
• Emergency air shutoff flaps fitted between turbocharger and intercooler. (→Page 11)
• Coupling internal centering
High Melting-point Greases
High-temperature grease (up to 250 °C) must be used for emergency shutoff flaps located
between turbocharger and intercooler:
• Aero Shell Grease 15
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
12 Lubricants
• Optimol Inertox Medium
General purpose greases suffice for emergency air shutoff flaps located before the turbocharger or after the intercooler.
Coupling Internal Centerings
Greases for internal centerings:
• Esso Unirex N3 (stable up to approx. 160 °C)
Special-Purpose Lubricants
Turbochargers
Exhaust turbochargers with integrated oil supply are generally connected to the engine oil system.
For ABB turbochargers which are not connected to the engine lube oil system, mineral-based
turbine oils with viscosity grade ISO-VG 68 must be used.
Gear Couplings
Depending on the application, the following lubricants have been approved for curvic gear couplings:
• - Klüber: Structovis BHD MF (highly viscous lubricating oil)
• - Klüber: Klüberplex GE11–680 (adhesive transmission lubricant)
Guidelines on use and service life are contained in the relevant Operating Instructions and Maintenance Schedules.
A001061/33E 08-01 ©MTU
TIM ID: 0000010135 – 006
Coolants 13
3 Coolants
Requirements
Coolants must be prepared from suitable fresh water and an MTU-approved coolant additive.
Conditioning of the coolant takes place outside the engine.
Mixing of different coolant additives and supplementary additives is prohibited!
The MTU conditions for coolant-additive approval are specified in MTU Factory Standards
(MTL). The following standards are available:
• Emulsifiable corrosion-inhibiting oils, MTL 5047
• Corrosion-inhibiting antifreeze: MTL 5048
• Water-soluble corrosion inhibitors, MTL 5049
Coolant manufacturers are informed in writing if their product is approved by MTU.
To prevent cooling system damage:
• When topping up (following loss of coolant) it must be ensured that the concentration of corrosion-inhibiting
additive in the cooling system is 50% by volume (frost-protection to –37 °C).
• Do not use concentrations of corrosion-inhibiting additives exceeding 55% by volume (max. antifreeze
protection). Concentrations in excess of this reduce antifreeze protection and heat dissipation.
Coolant mixtures:
Antifreeze protection to °C –37 approx. –45
Water % by vol. 50 45
Corrosion-inhibiting additive % by
vol.
50 Max. 55
Fresh water
Only clean, clear water with values in accordance with those in the following table must be used
for preparing the coolant. If the limit values for the water are not achieved, its hardness or mineral
content can be decreased by adding demineralized water.
Min. Max.
Total earth alkalines1)
(Water hardness)
0mmol/l
0°d
2.7 mmol/l
15°d
pH-value at 20 °C 6.5 8.0
Chloride ions 100 mg/l
Anion total 200 mg/l
1) Common designations for water hardness in various countries:
1mmol/l = 5.6°d = 100 mg/kg CaCO³
• 1°d = 17.9 mg/kg CaCO³, USA hardness
• 1°d = 1.79° French hardness
• 1°d = 1.25° English hardness
Coolant Additives
Emulsifiable Corrosion Inhibiting Oils
A 2% by volume concentration must be used for initial filling.
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
14 Coolants
Emulsions of MTU-approved corrosion-inhibiting oils (1.0 – 2.0% by volume) and suitable
fresh water provide adequate corrosion protection.
Some corrosion-inhibiting oils tend to foam if used with completely demineralized water. This can
be avoided by adding an appropriate quantity of harder water.
The required quantity of corrosion-inhibiting oil is best mixed in advance in a container with 4 to 5 times the amount
of fresh water and then added to the coolant when the engine is running at operating temperature.
In maintenance stations or multi-engine installations the complete amount of coolant required should be prepared
in a separate container, it can then be used for initial filling or replenishment as required.
Under unfavorable conditions, individual cases of bacterial attack may occur in the emulsifiable
corrosion-inhibiting oils. In such cases, and after consultation with the MTU chemical laboratory, the
emulsion is to be treated with biocides.
Note:
Slight precipitation may occur where coolant emulsions are used. This is shown by a layer on the surface of the
coolant in the expansion tank. This is of no significance provided that the emulsion concentration remains within
the specified limit values. Change the coolant in the event of a sudden drop in coolant additive concentration
or if the additive is no longer absorbed. If necessary, the engine coolant chambers are to be cleaned (see the
Flushing and Cleaning Specification for Engine Coolant Systems at the end of this specification).
Emulsifiable corrosion-inhibiting oil must never be used for coolant temperatures >90 °C
except during test stand runs and test runs.
Emulsifiable corrosion-inhibiting oil is to be used for the Series 595, 956 and 1163
engines in marine applications exclusively.
Emulsifiable corrosion-inhibiting oils must not be used with the following Series:
• Series 183
• Series 396 TB (external charge air cooling with plate core heat exchanger)
• Series 396 TE (split-circuit cooling system)
• Series 4000
• Series 8000
Corrosion-inhibiting antifreezes
General information
These antifreezes are necessary for engines without heating facilities and operating in areas
where below-freezing temperatures may occur.
Provided that the specified concentrations are maintained, the MTU-approved corrosion inhibiting
antifreezes ensure adequate corrosion protection.
The corrosion inhibiting antifreeze concentration must therefore be determined not only in accordance with
the minimum anticipated temperatures but with the corrosion protection requirements also.
If a higher level of corrosion-inhibiting antifreeze is used, a higher engine temperature will result.
Limitations on the Use of Corrosion-Inhibiting Antifreezes
Marine engines are subject to the following limitations when using corrosion-inhibiting antifreezes:
• Series 538, 595 and 956/1163:
These engines are fitted with heating units. Because of their cooler capacity,
corrosion-inhibiting antifreezes must not be used.
• Series 099, 183, 396:
The use of corrosion-inhibiting antifreeze in these engines is permitted only at seawater
temperatures of up to 20 °C maximum.
• Series 2000 and 4000:
Corrosion-inhibiting antifreeze may be used with these engines at seawater temperatures up to 25 °C
• Series 8000:
The use of corrosion-inhibiting antifreezes is not allowed for these engines.
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
Coolants 15
Corrosion-inhibiting antifreezes can be used without reservation in vehicle, locomotive and stationary applications.
Corrosion-Inhibiting Antifreezes for Special Applications
Propylene glycol-based corrosion-inhibiting antifreezes are stipulated for use in some types of applications.
These products have a lower thermal conductivity than the usual ethylene glycol products. This brings about a
higher temperature level in the engine. Specifications for concentrations are in accordance with (→Table Calc.
table for corrosion-inhibiting antifreezes for special applications (Table 8) on page 17).
The product BASF G206 (see Chapter 6) is available for use at extremely low temperatures (< –40
°C) (→Page 37). Specifications for concentrations are in accordance with (→Table Calc. table for
corrosion-inhibiting antifreezes for special applications (Table 8) on page 17).
Water-soluble corrosion inhibitors
General information
Water-soluble corrosion inhibitors are required for higher coolant temperatures and large temperature drops in heat
exchangers, e.g. in TB- (with plate core heat exchanger) and TE-systems in Series 396, 4000 and 183 engines.
For Series 8000 engines, only water-soluble corrosion-inhibitors in accordance with
Chapter 6 may be used. (→Page 37)
The watersoluble corrosion inhibitors recommended by MTU ensure adequate protection provided the correct
concentrations are used. The relevant concentration range for use is listed in the section on Operational Monitoring
(→Table Permissible concentrations (Table 6) on page 16) under “Water-soluble corrosion inhibitors”.
Special arrangements are possible after consultation with MTU. Special arrangements presently in effect remain valid.
Note:
Flushing with water is required during every product change. This also applies to new engines.
The work involved and cleaning agents required are described in the MTU Flushing and Cleaning
Specifications (see appendix to these Fluids and Lubricants Specifications).
Coolant additives for aluminum-free engine series (Series 2000
C&I, Series 4000 C&I/Genset)
For Series 2000 C&I, Series 4000 C&I and Series 4000 genset engines, all of the coolant additives listed in Chapter 6
as being suitable for light-alloy-free engines may be used. (→Page 37) The restrictions listed under “Remarks” with.
The coolant additives listed in Chapter 6 must not be used for any other engine series! (→Page 37)
Operational Monitoring
Inspection of the fresh water and continuous monitoring of the coolant are essential for trouble-free engine operation.
Fresh water and coolant should be inspected at least once per year and with each fill-up. Inspections can be carried
out using the MTU test kit which contains the necessary equipment, chemicals and instructions for use.
The following tests can be conducted with the MTU Test Kit:
• Determination of total hardness (°d)
• pH value
• Chloride content of fresh water
• Corrosion-inhibiting oil content
• Antifreeze (corrosion-inhibiting) concentration
• Water-soluble corrosion inhibitor content
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
16 Coolants
Orders for fresh water and coolant analysis may be placed with MTU. Samples of min. 0.25 l must be supplied.
Permissible concentrations (Table 6)
Min. % by vol. Max. % by vol.
Emulsifiable corrosion-inhibiting oils 1.0 2.0
Corrosion-inhibiting antifreezes 35
Antifreeze protection to approx. –25
°C
50
Antifreeze protection to approx. –40
°C
Propylene glycol corrosion-inhibiting
antifreeze
35
Antifreeze protection to approx. –25
°C
50
Antifreeze protection to approx. –40
°C
BASF G206 35
Antifreeze protection to approx. –18
°C
65
Antifreeze protection to approx. –65
°C
Water-soluble corrosion inhibitors
– BASF Glysacorr G93–94 911
– Ginouves York 719
– Valvoline ZEREX G-93
CCI Manufacturing IL Corp.
– Nalco Alfloc 2000 3 4
– Nalco Nalcool 2000
– Nalco Nalco 2000
– Detroit Diesel Power Cool 2000
– Peentray Pencool 2000
– Nalco Alfloc 3477 711
– Arteco Havoline Extended Life
Corrosion Inhibitor
– Chevron Texaco Extended Life
Corrosion Inhibitor Nitrite Free
– Caltex XL Corrosion Inhibitor
Concentrate
– Fleetguard DCA-4L 56
Table 7 can be used to determine the concentration of water-soluble corrosion inhibitors using the hand refractometer.
Calibrate the hand refractometer with clean water at coolant temperature. Coolant temperature should be 20 – 30 °C.
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
Coolants 17
Test kits are available from the manufacturer for determining the concentration of the
other water-soluble corrosion inhibitors.
Calculation table for water-soluble corrosion inhibitors (Table 7)
Product Product Product Product
BASF Glysacorr
G93–94
Arteco Havoline
Extended Life
Corrosion Inhibitor
CCI Manufacturing
IL Corp.
– Nalco Alfloc 3477
Ginouves York 719 Chevron Texaco
Extended Life
Corrosion Inhibitor
Nitrite Free
Valvoline ZEREX
G-93
Caltex XL Corrosion
Inhibitor Concentrate
Reading on hand refractometer at 20 °C (= degrees Brix) Corresponds to a
concentration of
3.5 2.6 4.9 1.75 7% by volume
4.0 3.0 5.6 2.0 8% by volume
4.5 3.4 6.3 2.25 9% by volume
5.0 3.7 7.0 2.5 10% by volume
5.5 4.1 7.7 2.75 11% by volume
6.0 4.4 8.4 3.0 12% by volume
Calc. table for corrosion-inhibiting antifreezes for special applications (Table 8)
Product Product
Propylene glycol corrosion-inhibiting antifreeze BASF G206
Reading on hand refractometer at 20 °C (= degrees Brix) Corresponds to a
concentration of
26.3 24.8 35% by volume
26.9 25.5 36% by volume
27.5 26.1 37% by volume
28.2 26.7 38% by volume
28.8 27.4 39% by volume
29.5 28.0 40% by volume
30.1 28.6 41% by volume
30.8 29.2 42% by volume
31.3 29.8 43% by volume
31.9 30.4 44% by volume
32.5 30.9 45% by volume
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
18 Coolants
33.1 31.5 46% by volume
33.7 32.1 47% by volume
34.2 32.6 48% by volume
34.8 33.2 49% by volume
35.3 33.8 50% by volume
34.4 51% by volume
34.9 52% by volume
35.5 53% by volume
36.1 54% by volume
36.7 55% by volume
37.2 56% by volume
37.8 57% by volume
38.3 58% by volume
38.9 59% by volume
39.4 60% by volume
39.9 61% by volume
40.5 62% by volume
41.0 63% by volume
41.5 64% by volume
42.0 65% by volume
Limit values for prepared coolant (Table 9)
pH value when using:
– Emulsifiable corrosion inhibiting oil Min. 7.5 Max. 9.5
– Corrosion inhibitor / antifreeze Min. 7.0 Max. 9.0
– Water-soluble corrosion inhibitor for engines with aluminum / light-alloy parts Min. 7.0 Max. 9.0
– Water-soluble corrosion inhibitor for engines without aluminum / light-alloy
parts
Min. 7.0 Max. 11.0
Silicon (valid for coolants containing Si) Min. 25 mg/l
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
Coolants 19
Storage capability of coolant concentrates up to max. 35 °C (Table 10)
Emulsifiable corrosion-inhibiting oil 6 months
Corrosion-inhibiting antifreezes 5 years
Products containing propylene glycol 3 years BASF G206
Water-soluble corrosion inhibitors 2 years – Nalco Alfloc 2000
Nalco Nalcool 2000
Nalco Nalco 2000
Detroit Diesel Power Cool 2000
Pentray Pencool 2000
3 years Alfloc 3477
BASF Glysacorr G93–94
Ginouves York 719
Valvoline ZEREX G-93
5 years Arteco Havoline Extended Life Corrosion Inhibitor
Caltex XL Corrosion Inhibitor Concentrate
Chevron Texaco Extended Life Corrosion Inhibitor
Nitrite Free
Fleetguard DCA-4L
CCI Manufacturing IL A216
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
20 Coolants
A001061/33E 08-01 ©MTU
TIM ID: 0000010136 – 006
Fuels 21
4 Fuels
Diesel Fuels
Selection of a Suitable Diesel Fuel
The quality of the fuel is very important for satisfactory engine performance, long engine service life and acceptable
exhaust emission levels. The engines can be operated with most diesel fuels sold worldwide. The properties and
limit values specified in Table 11 (fuels of comparable quality) ensure optimum engine performance.
In order to achieve optimum engine performance and satisfactory service life for the entire fuel and injection system,
the limit values for water and total contamination must be complied with in the engine tank for all approved fuel
qualities. Furthermore, it is advisable to integrate an additional filtering system in the fuel system.
Emission certification
The certification measurements for verifying observance of the statutory emission limits are carried
out with the respectively prescribed certification fuels.
Dispose of used fluids and lubricants in accordance with local regulations.
Used oil must never be disposed of via the fuel tank!
Fuels of comparable quality with following test results: (Table 11)
Test Method Limit Value
ASTM ISO
Composition The diesel fuel must be free of
inorganic acids, visible water,
solid foreign matter and chlorous
compounds.
Total contamination Max. D 6217 EN 12662 24 mg/kg
Spec. grav. at 15 °C Min. D 1298 EN 3675 0.820 g/ml
Max. D 4052 EN 12185 0.860 g/ml
API grade at 60 °F Min. D 287 41
Max. 33
Viscosity at 40 °C Min. D 445 EN 3104 1.5 mm²/s
Max. 4.5 mm²/s
Flashpoint (closed crucible) Min. D93 EN 22719 60 °C
Boiling curve: D86 3405
– Initial boiling point 160 – 220 °C
– Recovery at 250 °C Max. 65% by volume
– Recovery at 350 °C Min. 85% by volume
– Residue and loss Max. 3% by volume
Water Max. EN 12937 200 mg/kg
Carbon residue from 10% distillation
residue
Max. D 189 EN 10370 0.30% by weight
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
22 Fuels
Test Method Limit Value
ASTM ISO
Oxide ash Max. D 482 EN 6245 0.01 by weight %
Sulfur1) Max. D 5453
D 2622
EN 20846
EN 20884
0.5 by weight %
Cetane number Min. D 613 EN 5165 45
Cetane index Min. D 976 EN 4264 42
Corrosion effect on copper. 3 hrs. at
50 °C
Max.
degree of
corrosion
D 130 EN 2160 1a
Oxidation resistance Max. D 2274 EN 12205 25 g/m³
Lubricity at 60 °C Max. D6079 12156-1 460 µm
Filter plugging point D 4359 EN 116 See Note 2)
Neutralization number Max. D 974 0.2 mgKOH/g
1) Sulfur content of more than 0.5% requires an engine oil with a higher TBN and shorter oil drain intervals.
2) It is the fuel supplier’s responsibility to provide a fuel that will assure correct engine operation at the expected
minimum temperatures and under the given geographical and other local conditions.
Laboratory Analysis
An order for fuel analysis can be placed with MTU.
The following data is required:
• Fuel specifications
• Sampling point
•S
erial number of engine from which fuel sample was taken
Submit the following:
• 0.5 liters of fuel
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 23
Requirements
Commercially available diesel fuels meeting the following specifications are approved for use:
Distillate Fuels
– Diesel fuel in accordance with EN 590
– Grade No. 1–D (S15, S500, S5000) in accordance with ASTM D 975–06
– Grade No. 2–D (S15, S500, S5000) in accordance with ASTM D 975–06
Distillate fuels with a sulfur content <50 mg/kg must not be used if lubricity (HFRR) is <460µm.
Distillate fuels according to ASTM D 975–06 must only be used for Series 4000-03 if the cetane
number ≥45 or the cetane index ≥42.
Distillate fuels according to ASTM D 975-06 are generally approved.
A lubricity of ≤460µm is required because with lubricities > 460µm increased wear must be expected!
Marine Distillate Fuels
The following can be used if the oil quality and service-life limitations are taken into consideration:
– DMX acc. to ISO 8217
– DMA according to ISO 8217 with the restrictions specified in Table 12
• Not for Series 2000, S60
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
24 Fuels
Fuel specifications for marine applications (Table 12)
Applies to Series 595/4000-01/4000-02/4000-03/956/1163/8000
Characteristics Test Method Limit Value Typical
Test Data*
Limit
Values**
Spec. grav. at 15 °C g/ml D 1298
D 4052
EN 3675
EN 12185
Min.
Max.
0.820
0.870
0.820
0.890
Kinematic viscosity at 40
°C
mm2/s D 445 EN 3104 Min.
Max.
1.5
4.5
1.5
6.0
Cetane number D 613 EN 5165 Min. 45 40
Cetane index D 976 EN 4264 Min. 42 40
Carbon residue from
10% distillation residue
by
weight
%
D 189 EN 10370 Max. 0.3 0.3
Flashpoint (closed
crucible)
°C D93 EN 22719 Min. 60 60
Proportion of water mg/kg EN 12937 Max. 200 200
Total contamination mg/kg EN 12662 Max. 24 24
Oxide ash by
weight
%
D 482 EN 6245 Max. 0.01 0.01
Sulfur by
weight
%
D 2622 EN 20884 Max. 0.5 1.5
Lubricity at 60 °C µm D 6079 ISO 12156-1 Max. 460 460
* = limit values with which fuel must comply at inlet to engine
** = limit values that can be approved in special project cases through special measures, such as the use of filter
system, water separator, additives or additional maintenance tasks. The special measures serve to optimize the
DMA fuel with regard to requirements before entry to the engine and must be coordinated with MTU.
Aviation turbine fuels are generally not approved.
– Other qualities on request
Biodiesel
The standardized general term “FAME” (Fatty Acid Methyl Ester) is used here to designate biodiesel fuels.
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 25
The following engines are approved / not approved (as indicated) for operation with
100% FAME in compliance with EN 14214.
Series Approved / Not approved Conversion necessary
SUN Not approved
700 Not approved
750 Not approved
OM 457 LA From series introduction No
460 From series introduction No
900 From series introduction No
500 From series introduction No
S40 Not approved
S50 Not approved
S60 Not approved
1800 From series introduction No
2000 Not approved
396 Not approved
4000 Not approved
595 Not approved
956 Not approved
1163 Not approved
8000 Not approved
Diesel fuel with a FAME content of max. 5% in compliance with DIN EN 590 may be used. Such
fuel may also be used in engines which have not been approved for operation with FAME, without
affecting oil drain intervals.
It is intended that future engine series will be approved for operation with 100% FAME. Further
details will be published at the appropriate time.
Fuel
• The fuel must comply with DIN EN 14214. Operation with fuels of lower quality can
lead to damage and malfunctions.
• Either FAME or diesel fuel may be used. The various mixtures of FAME and normal diesel fuel
which may occur in the fuel tank as a result, present no problems.
Engine Oil and Servicing
• For operation using 100% FAME, engine oils are to be preferred which comply with MB Fluids and
Lubricants Specifications, Sheet 228.5 or Oil Category 3 in accordance with MTU Fluids and Lubricants
Specifications. Engine oils in accordance with Sheet 228.3 or Oil Category 2 as per MTU Fluids and
Lubricants Specifications may also be used provided that oil drain intervals are reduced.
• A certain amount of fuel always finds its way into the engine oil via the pistons and cylinders. Its high boiling
point means that FAME does not evaporate but remains in the engine oil in its entirety. Under certain conditions
chemical reactions may take place between FAME and the engine oil. This can lead to engine damage.
• For this reason, engine oil and filter change intervals must be shortened for operation both
with pure FAME and with FAME-diesel mixtures.
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
26 Fuels
• For Series 457, 460/1800, 900 and 500 engines, special equipment is available which facilitates an increase in
the engine oil change intervals for operation with 100% FAME. This involves fitting the engines with special
equipment Code MK21 (special unit pump) and Code MK04 (fuel prefilter with heated water separator).
Engine version Engine oil change interval
Engines not fitted with special equipment for operation
with FAME
Reduction of engine oil change interval to 30% of the
interval required for operation with fossil diesel fuels.
Engines fitted with special equipment Code MK21 and
Code MK04
Reduction of engine oil change interval to 50% of the
interval required for operation with fossil diesel fuels.
The relevant engine oil change intervals must be complied with without fail!
Exceeding the engine oil change intervals can cause engine damage!
• Operation with 100% FAME requires shortened fuel filter change intervals. A new fuel filter
must be fitted each time the engine oil is changed.
• Fuel and engine oil must be changed approximately 25 operating hours after conversion to FAME due to the
danger of blockage caused by loosened deposits (FAME has a pronounced cleaning effect).
• Over longer periods, fuel filter service life may be reduced as a result of old residues being carried into the filter
from the fuel system. A special, approved fuel prefilter can be installed as an improvement. This fuel prefilter
with heated water separator is already installed on engines fitted with special equipment Code MK04.
Engine Power and Engine Standstill
• Due to its calorific value, operation with 100% FAME involves a reduction of approx. 8%-10%
in engine power. This leads to a corresponding increase in fuel consumption as compared to
operation with diesel fuel. Engine power corrections are not permissible.
• Prior to any extended period out of operation, the fuel system must be flushed out in order to prevent
congestion. For flushing, the engine must be operated for at least 30 minutes on diesel fuel.
General Information
• We can make no comment with regard to the level of FAME resistance of the fuel system,
which is not part of our scope of supply.
• FAME is an extremely effective solvent. Any contact with paint, for example, must therefore be avoided.
• The characteristic smell of FAME exhaust, especially during long periods of idling, may be perceived
as unpleasant. The nuisance caused by smell can be reduced by an oxidation catalyzer which may
be installed by the vehicle / equipment manufacturers at their own risk.
Our company accepts no responsibility for and provides no warranty in respect of any fault or damage
connected in any way with the use of FAME of a lower quality or resulting from noncompliance with
our specifications on operation using FAME. All resultant irregularities and consequential damage
lie outside our responsibility.
Vegetable Oils as an Alternative to Diesel Fuel
The use of pure vegetable oils as an alternative to diesel fuel or FAME is strictly prohibited due to the
absence of standardization and to negative experience (engine damage caused by coking, deposits
in the combustion chambers and oil sludge)!
Low-Sulfur Diesel Fuels
Sulfur is contained in chemically bound form in crude oil and is therefore present in fuel at varying levels.
A sulfur content of max. 50 mg/kg or 10 mg/kg (depending on category) has been a European Union requirement
since 01.01.2005. The term “sulfur-free” is used here to designate diesel fuels with a sulfur content of max. 10
mg/kg. Low-sulfur diesel fuels (max. 50 mg/kg) are to be recommended for environmental reasons. In order to
avoid problems with wear, lubricity additives, among other things, are added by the manufacturer.
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 27
On older series engines (Series 538, 595, 956, 1163) with cylinder heads not fitted with valve seat
inserts, the use of low-sulfur fuel (< 50 mg/kg) can lead to increased valve seat wear. This wear can
be reduced by the addition of anti-wear additives. Approved additives are listed in Table 13 and must
be added to the fuel. The additive must be filled before every refueling.
Approved anti-wear additives (Table 13)
Manufacturer Brand name Concentration for use
Liqui Moly
Jerg-Wielandstr.4
89081 Ulm
Tel. +49 (0)731/1420–13
Fax. +49 (0)731/1420–82
Blei-Ersatz 250 mg per 1 kg
The Lubrizol Corporation
29400 Lakeland Boulevard
Wickliffe, Ohio 44092
USA
Tel. +01 440–943–4200
ADX 76611 250 mg per 1 kg
Tunap Industrie GmbH
Bürgermeister-Seidl-Str. 2
82515 Wolfratshausen
Tel. +49 (0)8171/1600–0
Fax. +49 (0)8171/1600–91
Tunadd PS 250 mg per 1 kg
Diesel Fuels in Winter Operation
At low outdoor temperatures, the diesel fuel’s fluidity can be inadequate on account of paraffin precipitation.
In order to prevent operational problems (e.g. clogged filters) during the winter months, diesel fuel
with suitable cold-flow characteristics is available on the market. Deviations are possible during
transitional periods and in individual countries. If no frost-resistant diesel fuels are available, paraffin
oil or aviation turbine fuel must be added before frost sets in. As a basic guide, adding 5% by
volume achieves an improvement of frost resistance of approx. 1° C.
Add the additive to the diesel fuel in good time before the fluidity of the diesel fuel is impaired by paraffin precipitation.
Malfunctions resulting from paraffin precipitation can only be eliminated by heating the entire fuel system.
Petrol (gasoline) must not be added.
Flow improvers
Flow improvers cannot prevent paraffin precipitation but they do influence the size of the
crystals and allow the diesel fuel to pass through the filter.
The effectiveness of the flow improvers is not guaranteed for every fuel.
Certainty is only assured after laboratory testing of the filtering capability.
Required quantities and mixing procedures must be carried out according to the manufacturer’s instructions.
Heating Oil EL
Domestic heating oil differs from diesel fuel mainly because of the following characteristics:
– Cetane number
– Sulfur content
– Oxidation stability
– Corrosion effect on copper
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
28 Fuels
– Lubricity
– Low temperature behavior
Technically, if the characteristics of domestic heating oil satisfy the specifications for the required
diesel fuel, then it can be used in a diesel engine.
Cetane number
DIN 51 603 -1 does not specify the cetane number. If heating oil is used, the cetane number must
therefore be quoted by the supplier or measured and be at least 45 as required in the MTU Fluids and
Lubricants Specification. The calculated cetane index must not be less than 42.
Sulfur content
In accordance with DIN 51 603 -1, the maximum sulfur content for EL-1 standard heating oil is 0.2%.
The maximum sulfur content for EL-1 heating oil is 50 mg/kg. Lubricity additives must never be
added as its primary purpose is for heating. Lubrication problems can therefore be expected when
using these qualities of heating oil because of the missing additives.
Consultation with the individual fuel supplier is necessary.
Supplementary fuel additives
The engines are so designed that satisfactory operation with normal, commercially available fuels is
ensured. Many of these fuels already contain performance-enhancing additives.
The additives are added by the supplier as the agent responsible for product quality.
The anti-wear additives in (→Table Approved anti-wear additives (Table 13) on page 27) represent an exception.
Attention is drawn to the fact that the use of diesel fuels or additives other than those stipulated in the
MTU Fluids and Lubricants Specifications is always the responsibility of the operator.
Microorganisms in fuel
Bacterial attack and sludge formation may occur in the fuel under unfavorable conditions. In
such cases, the fuel must be treated with biocides in accordance with the manufacturer’s
specifications. Overconcentration must always be avoided.
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 29
For prophylactic use, the appropriate concentration must be identified in consultation with the relevant manufacturer.
Approved biocides (Table 14)
Manufacturer Brand name Concentration for use
ISP Global Technologies
Deutschland GmbH
Emil-Hoffmann-Str. 1a
50996 Köln
Tel. +49 (0)2236 9649 304/301
Fax. +49 (0)2236 9649 295
Bakzid 100 ml per 100 l
Schülke und Mayr
22840 Norderstedt
Tel. +49 (0) 40/52100-00
Fax. +49 (0) 40/52100-244
Grota MAR 71
StabiCor 71
0.5 l / ton
0.5 l / ton
Rohm und Haas
In der Kron 4
60489 Frankfurt
Tel. +49 (0) 69/78996–0
Fax. +49 (0) 69/7895356
Kathon FP 1.5 100-200 mg/kg
Maintenance Technologies
Simon’s Town
7995 Cape Town – South Africa
Tel. +27 21 9877377
Fax. +27 21 9794611
E-mail: maintech@telkomsa.net
Dieselcure Fuel Decontainment 1 : 4000 (250mg/kg)
Fuel for gas engines
Gas engines must be operated exclusively with gases which have been specifically approved for the type of
gas engine in use. The suitability for use of approved gas types must be checked every six months by means
of a gas analysis in order to detect changes in the gas composition and changes to harmful components in
the gas and to take appropriate action. In the entire application and operating range of the engine, the use
of fuels is restricted to purely gaseous fuels. Liquid fuels are not permissible and not specified.
Components that may be used for gas engines are listed in the following tables. Generally valid limits
for the main elements are specified in Table 15. Examples of typical natural gas compositions are shown
in Tables 16 and 17. The listed components are relevant to gas engines. Components other than
those listed below are not permitted for gas engines. They provide a reference value for the most gas
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
30 Fuels
compositions used today. Limit values for the individual components, unless they are explicitly restricted,
are based on the general requirements of freedom from fluid elements, the exclusion of condensate and
hydrocarbons and the global parameters of gas mixing in accordance with Table 18.
Main elements of natural gases (Table 15)
Name Components Unit Value range
Natural gas CO
CO2
CH4
C2H6
C3H8
C4H10
N2
O2
%byvol.
%byvol.
%byvol.
%byvol.
%byvol.
%byvol.
%byvol.
%byvol.
<2
<10
80-100
<12
<9
<1
<20
<3
Examples for natural gases
Typical natural gas compositions, natural gas H (according to DVGW worksheet G260) (Table 16)
Russia North Sea I North Sea II Network gas
CO %byvol. 0.0000 0.0000 0.0000 0.0000
CO2%byvol. 0.1000 0.0000 0.3000 1.4000
CH4%byvol. 98.3000 88.6000 83.0000 88.6000
C2H4%byvol. 0.0000 0.0000 0.0000 0.0000
C2H6%byvol. 0.5000 8.4000 11.6000 5.3000
C3H6%byvol. 0.0000 0.0000 0.0000 0.0000
C3H8%byvol. 0.2000 1.7000 3.1000 1.4000
C4H6%byvol. 0.0000 0.0000 0.0000 0.0000
C4H8%byvol. 0.0000 0.0000 0.0000 0.0000
C4H10 %byvol. 0.1000 0.7000 0.5000 0.6000
C5H12 %byvol. 0.0000 0.0000 0.0000 0.0000
CXHY%byvol. 0.0000 0.0000 0.0000 0.0000
N2%byvol. 0.8000 0.6000 1.5000 2.7000
O2%byvol. 0.0000 0.0000 0.0000 0.0000
H2%byvol. 0.0000 0.0000 0.0000 0.0000
H2O%byvol. 0.0000 0.0000 0.0000 0.0000
H2S%byvol. 0.0000 0.0000 0.0000 0.0000
SO2%byvol. 0.0000 0.0000 0.0000 0.0000
AR %byvol. 0.0000 0.0000 0.0000 0.0000
Σ%byvol. 100.000 100.000 100.000 100.000
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 31
Russia North Sea I North Sea II Network gas
Ho kWh/m3N11.1 12.2 12.5 11.5
Hu kWh/m3N10.0 11.0 11.3 10.3
Density kg/m3N0.731 0.810 0.853 0.814
rel. density –– 0.56 0.62 0.66 0.63
Ws,n kWh/m3N14.7 15.4 15.4 14.5
Methane number Methane no.
(±2)
89 72 68 78
Typical natural gas composition, natural gas L (according to DVGW worksheet G260 (Table 17))
Holland I Holland II Osthannover (East
Hanover)
CO %byvol. 0.0000 0.0000 0.0000
CO2%byvol. 1.0000 1.3000 0.7000
CH4%byvol. 81.3000 82.9000 79.5000
C2H4%byvol. 0.0000 0.0000 0.0000
C2H6%byvol. 2.8000 3.7000 1.1000
C3H6%byvol. 0.0000 0.0000 0.0000
C3H8%byvol. 0.4000 0.7000 0.1000
C4H6%byvol. 0.0000 0.0000 0.0000
C4H8%byvol. 0.0000 0.0000 0.0000
C4H10 %byvol. 0.3000 0.3000 0.0000
C5H12 %byvol. 0.0000 0.0000 0.0000
CXHY%byvol. 0.0000 0.0000 0.0000
N2%byvol. 14.2000 11.1000 18.6000
O2%byvol. 0.0000 0.0000 0.0000
H2%byvol. 0.0000 0.0000 0.0000
H2O%byvol. 0.0000 0.0000 0.0000
H2S%byvol. 0.0000 0.0000 0.0000
SO2%byvol. 0.0000 0.0000 0.0000
AR %byvol. 0.0000 0.0000 0.0000
Σ%byvol. 100.000 100.000 100.000
Ho kWh/m3N9.76 10.20 9.04
Hu kWh/m3N8.81 9.21 8.15
Density kg/m3N0.836 0.832 0.835
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
32 Fuels
Holland I Holland II Osthannover (East
Hanover)
Rel. density –– 0.64 0.64 0.64
Ws,n kWh/m3N12.2 12.7 11.3
Methane number Methane no. (±2) 90 86 101
Requirements for fuel gas
Requirements and marginal conditions fuels and fuel supply (Table 18)
Designation Unit Limit Value Remarks
Type of gas Natural gas Applies to natural gas H and L, other
gases are currently not approved
Methane number –– ≥70 Combustion knock, gas analysis and
consultation with manufacturer
Calorific power Hu kWh/m³N8.0< Hu <11.5 Consultation with manufacturer required
in case of lower values.
Calorific value deviation
from the setting value
%±5 Consultation with manufacturer required
for higher values
Permissible change speed
of calorific value
kWh/m³N/h 0.5 Linear constant change required
Density of gas kg/m³N0.73-0.84 The density of the gas can fluctuate in
accordance with the composition; it is
constant for a certain type of gas. When
using gas from different gas supply areas,
the density may vary. When changing
the gas supplier, a gas analysis is
necessary; an adaptation of the mixture
control may be necessary.
Setting value for gas
pressure, gas train entry
mbar 80-200 Observe the specifications for the gas
train corresponding to the project
Gas pressure deviation
from the setting value
%±5
Permissible change speed
of gas pressure
mbar/min. 0.08 Constant change required
Gas temperature °C 10< T <40 Condensation of water vapor at <10 °C,
thermal aging of NBR materials (seals,
diaphragms) and influence on elasticity
characteristics at higher temperatures
Gas temperature deviation
from the setting value
°C ±9
Permissible change speed
of gas temperature
K/min. 0.3
Rel. gas humidity in gas at
20 °C
%<30 No steam condensation in the pressure
and temperature range; for higher values,
a gas drying system must be provided
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Fuels 33
Designation Unit Limit Value Remarks
Oil vapors (HC with carbon
number >5)
mg/m³N<0.4 No condensation in lines carrying fuel gas
and fuel gas-air mixture, nor formation of
condensable oil mists
HC solvent vapors mg/m³N0Consultation with manufacturer and
analysis necessary
Organically fixed silicon
(e.g. hydrosilicons,
siloxanes, silicons)
mg/m³N<1.0 Consultation with manufacturer and
analysis necessary
Inorganically fixed silicon mg/m³NCH4<5 With Si >5 mg/m³Nbased on 100% CH4
fuel gas content, wear products must be
taken into consideration during the oil
analysis
Dust 3-10 µm mg/m³N5DVGW worksheet G260
Dust <3µm mg/m³NAnalysis
Tot al s ul fur mg/m³N30 DVGW worksheet G260
Mercaptan sulfur mg/m³N6DVGW worksheet G260
Hydrogen sulphide H2Smg/m³N5DVGW worksheet G260
Chlorine mg/m³N10* With higher values, consultation with
manufacturer and analysis are necessary
Fluorine mg/m³N5* With higher values, consultation with
manufacturer and analysis are necessary
Chlorine + fluorine mg/m³N10* With higher values, consultation with
manufacturer and analysis are necessary
NH3ppm 70* With higher values, consultation with
manufacturer and analysis are necessary
* = a non-binding guideline value, where oxidation-type catalytic converters are in use.
Analysis and consultation with MTU necessary.
The limit values are based on a calorific value of 10 kWh/m3N. This corresponds to a reference
to fuels with 100% by vol. methane or, if there are other combustible elements in the fuel, an
equal energy equivalent and thus an equal input of pollutants.
Example:
Russian natural gas with a calorific value of 10 kWh/m3N(Table 16) is used. The permissible value for total
sulfur in the gas thus corresponds exactly to the limit value specified in Table 18.
When using gas from Osthannover, for example, with Hu = 8.15 kWh/m3N(Table 17) the
permissible max. value of total sulfur is calculated thus:
permissible total sulfur content = 30 mg/m³N(8.15 kWh/m3N: 10.0 kWh/m3N) = 24.5 mg/m³N
No warranty is given in respect of impairment and / or damage (corrosion, contamination etc.)
resulting from gases or materials the presence of which was unknown and agreed upon on
conclusion of contract.
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
34 Fuels
A001061/33E 08-01 ©MTU
TIM ID: 0000010137 – 007
Preservatives 35
5 Preservatives
Requirements
The MTU conditions for preservative approval are specified in MTU Factory Standards
(MTL). The following standards are available:
• Initial-operation oil and corrosion-inhibitor oil, MTL 5051
• Corrosion inhibitors for external preservation, MTL 5052
The preservation product manufacturer is informed in writing if his product is approved by MTU.
Types of Preservation
See Preservation Specification, Chapter 8 (→Page 77)
Initial Operation Oils and Corrosion Inhibiting Oils for Internal Preservation
SAE 30 viscosity grade corrosion inhibiting oils are to be used for internal preservation (oil-
moistened components) of MTU engines and gearboxes.
These oils may also be used for running-in and acceptance testing procedures. Some are also
suitable for continuous operation, see Chapter 6 (→Page 37).
Corrosion Inhibitors for External Preservation
For external preservation, all non-painted parts are to be treated with a corrosion inhibitor providing
a wax-like protective coating after the inhibitor solvent has evaporated.
Corrosion Inhibiting Oils for Internal Preservation of the Fuel System
Fuel injection-pump test oil conforming to DIN ISO 4113 is to be used for internal preservation of the fuel
system. The engine should be run with these oils for the last 10 minutes before shutdown.
Preservation can also be effected using diesel fuel to which approximately 10-12% corrosion-
inhibitor oil for internal preservation has been added.
A001061/33E 08-01 ©MTU
TIM ID: 0000010138 – 003
36 Preservatives
A001061/33E 08-01 ©MTU
TIM ID: 0000010138 – 003
Approved fluids and lubricants 37
6 Approved fluids and lubricants
Engine oils
For details and special information, see chapter on “Lubricants” (→Page 05)
Single-grade Oils – Category 1, SAE-grades 30 and 40 for Diesel Engines
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Lube Oil Addinol Marine MS4011
Addinol Turbo Diesel MD305
Addinol Turbo Diesel MD405
40
30
40
X
X
X
Avia Avia Special HDC 30, 40 X
BP p.l.c. Energol DS3-153/154 30, 40 X
Castrol Ltd. Castrol MLC 30, 40 X
Cepsa Lubricantes Cepsa Rodaje Y Proteccion 30 XIncreased corrosion
protection
Chevron Texaco Ursa Super LA 30, 40 X
ENI S.p.A Agip Cladium 120 30, 40 Not for Series 2000,
4000
Exxon Mobil Essolube X 4 40 X
Titan Universal HD 30, 40 XFuchs
FuchsTitan EM 30 MTU 30 XIncreased corrosion
protection
Gulf Oil Ltd. Gulf Superfleet 40 X
Hindustan Petr.
Comp. India
Hylube MTU 40 X
Huiles Berliet S.A. RTO Prexima 30, 40 X
Idemitsu, Singapore Daphne Marine Oil MT 40 X
Igol, France Trans Turbo Mono 40 X
Kuwait Petroleum Q8 T 520 30, 40 X
Mexicana De Lubri-
cantes, Mexico
Mexlub CF/CF-2
Akron Extra Fleet
40
40
X
X
Misr Petroleum Company Misr Super DEO CG-4 40 X
Motor Oil (Hellas) EMO Turbo Champion Plus 30, 40 X
OMV AG OMV truck 30, 40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
38 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Pertamina
Indonesia
Meditran SMX 40 X
Petrobras Marbrax CCD-310
Marbrax CCD-410
30
40
X
X
Petrol Ofisi Süpersarj MF 30 30 X
PTT Public Comp. PTT Navita MTU Type 1 40 X
Ravensberger
Schmierstoffvertrieb
GmbH
RAVENOL Standard Truck 30, 40 X
Wintershall Antikorrol M 30 XIncreased corrosion
protection
SRS Schmierstoff
Vertrieb GmbH
Wintershall Rekord 30, 40 X
Shell Shell Gadinia
Shell Rimula X Monograde
Shell Rimula R3
Shell Sirius Monograde
30, 40
30, 40
30, 40
30, 40
X
X
X
X
Sakson Parnas Hercules 1 40 X
Tot al Elf Performance Super D
Fina Delta Super
Total Rubia S
30, 40
30, 40
30, 40
X
X
X
United Oil XD 7000 Extra Duty-3U
XD 7000 Extra Duty-4U
30
40
X
X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 39
Single-grade Oils – Category 1, SAE-grade 40 for Gas Engines
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
5–6mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Chevron Texaco Geotex LA 40 40 X
Exxon Mobil Mobil Pegasus 705
Mobil Pegasus 805
40
40
X
X
Fuchs Fuchs Titan Ganymet LA 40 X
Shell Shell Mysella LA 40 40 X
SRS Schmierstoff
Vertrieb GmbH
Wintershall Mihagrun LA 40 40 X
Tot al Nateria MH 40 40 X
Multigrade oils – Category 1, SAE-grades 10W-40 and 15W-40 for Diesel Engines
1) These multigrade oils can only be used if crankcase ventilation is routed to atmosphere.
2) Engine oils with the index 2) are also approved for “Series 60”
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Lube Oil Addinol Super Star MX 1547 15W-40 X
Avia Avia HDC Extra UTM 15W-40 X
BP p.l.c. BP Vanellus C5 Global 15W-40 X
Chevron Texaco Ursa Super LA 15W-40 X
Claas Claas Agrimot SDM 15W-40 X
ENI S.p.A Agip Superdiesel Multigrade 15W-40 X2)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
40 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Mobil Delvac MX 15W-40 X1) and oil change
interval 500 operating
hours
Mobil Delvac MX Extra 10W-40 X1) and oil change
interval 500 operating
hours
Essolube XT 5 15W-40 X1) and oil change
interval 500 operating
hours
Exxon Mobil
Essolube XT 3
Mobil Delvac Super 1300
15W-40
15W-40
X
X
1)
1)
Feoso Oil Super VG Motor Oils 15W-40 X
Fuchs Titan Hydromat SL SAE 10W40
Titan Universal HD
10W-40
15W-40 X
X
Gulf Oil International Gulf Superfleet 15W-40 X
Igol, France Trans Turbo 4X 15W-40 X
Kuwait Petroleum Q8 T 520 15W-40 X
Lukoil Oil Company
LLK-International
Lukoil-Super 15W40 X
OPET Petrolcülük Omega Turbo Power SHPD 15W-40 X1) and oil change
interval 500 operating
hours
OMV AG OMV Truck M plus 15W-40 X
Petróleos de Portugal Galp Galaxia Super 15W-40
Galp MDM 1 15W-40
15W-40
15W-40
X
X
Shell Tongyi (Beijing)
Petroleum Chemical Co.,
Ltd.
You Ya Wong 15W-40 X
SRS Schmierstoff
Vertrieb GmbH
Wintershall Primalub 15W-40 X
Singapore
Petroleum Comp.
SPC SDM 801 15W-40 X
Sinopec Great wall century supremacy 15W-40 X2)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 41
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Tot al Elf Performance Super D
Fina Kappa Turbo DI
Total Caprano TD
Total Rubia 4400
Total Rubia XT
15W-40
15W-40
15W-40
15W-40
15W-40
X
X
X
X
X
Unicorn Oil Comp. Dexus 9000 15W-40 X
United Oil XD 9000 Ultra Diesel-U 15W-40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
42 Approved fluids and lubricants
Single-grade Oils – Category 2, SAE-grades 30 and 40 for Diesel Engines
MTU/MTU-DD single-grade engine oil
TBNBrand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Power Guard DEO SAE 40 40 X20l Container (Order
No. X00037908)
208l Container (Order
No. X00037903)
Fascination of Power 40 X18l barrel (order no.
93636/P)
200l container (order
no. 94545/D)
available through MTU
Asia
Other Single-grade Engine Oils
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Addinol Turbo Diesel MD 407 40 X
Belgin Madeni Yaglar Lubex Marine M-30
Lubex Marine M-40
30
40
X
X
BP p.l.c. BP Energol HPDX 30, 40 XApproved for fast
commercial vessels up
to 1500h
Castrol Ltd. Castrol HLX 30, 40 XApproved for fast
commercial vessels up
to 1500h
Cepsa Lubricants Ertoil Koral HDL 30, 40 X
Chevron Texaco Ursa Super TD
Texaco Ursa Premium TDX
Caltex Delo Gold [ISOSYN]
Chevron Delo 400
30, 40
40
30, 40
30, 40
X
X
X
X
Chevron
–Lyteca–
Texaco Ursa Premium TDX 40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 43
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Cyclon Hellas Cyclon D Super 40 X
Delek Delkol Super Diesel
Delkol Super Diesel MT Mono
40
40 X
X
ENI S.p.A. Agip Sigma GDF 40 X
Exxon Mobil Mobil Delvac 1630 30 XApproved for Series
8000
Mobil Delvac 1640 40 X
Gulf Oil Ltd. Gulf Superfleet Plus 40 X
Hyrax Oil Hyrax top deo 40 X
KloraGresVeYağSanay A. ŞKlora Motor Yagi SAE 40 K 40 X
Koçak Petrol Ürünleri Speedol Ultra HDX 30, 40 X
Kuwait Petroleum Q8 T 750 30, 40 X
Motor Oil, Hellas EMO SHPD Plus 30, 40 X
Panolin AG Panolin Extra Diesel 40 X
Paz Lubricants & Chemicals Pazl Marine S 40 40 X
Petrobras Marbrax CCD-310-AP
Marbrax CCD-410-AP
30
40
X
X
Petrol Ofisi Turbosarj Ekstra SAE 40-E
PO Turbosarj Extra
40
30, 40 X
X
Petróleos de Potugal Galp Galaxia 40 40 X
PTT Public Comp. PTT Navita MTU Type 2 40 X
Shell Shell Sirius X 30 XApproved for Series
8000
Shell Sirius X 40 X
Singapore
Petroleum Comp.
SPC 900
SDM 900
40
30, 40
X
X
Sonol, Israel Sonol 2340 40 X
SRS Schmierstoff
Vertriebs GmbH
Wintershall Rekord plus 30, 40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
44 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Statoil Statoil Diesel Way 30, 40
Tot al Total Disola MT 30
Tot al D isola MT 40
Total Rubia TIR XLD
30
40
40
X
X
X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 45
Multigrade oils – Category 2, SAE-grades 10W-40, 15W40 and 20W-40 for Diesel Engines
2) Engine oils with the index 2) are also approved for “Series 60“
MTU/MTU-DD multigrade engine oil
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Power Guard DEO SAE 15W-40 15W-40 X20l container (order no.
X00037902)2)
208l container order
no. X00037897)2)
Fascination of Power 15W-40 X18l container (order no.
91818/P)2)
200l container (order
no. 92727/D)2)
available through MTU
Asia
Other multigrade oils
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Lube Oil Addinol Diesel Longlife MD1047
Addinol Diesel Longlife MD1548
Addinol Diesel Power MD1547
Addinol Diesel Longlife MD1546
Addinol Diesel Longlife MD1547
10W-40
15W-40
15W-40
15W-40
15W-40
X
X
X
X
X
2)
2)
2), not for Series 4000
2)
Anomina Petroli Italiana IP Taurus
IP Taurus Turbo
IP Taurus Turbo Plus
15W-40
15W-40
15W-40
X
X
X2)
API D Multi Diesel Turbo 15W-40 X2)
AP Oil International
Ltd.
AP X-Super Dieselube Turbo
CF-4
15W-40 X
Arabi Enertech KSC Burgan Diesel CH-4 15W-40 X2)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
46 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Belgin Madeni Yaglar Lubex Marine M 15W-40 X
Bharat Petroleum MAK MB SHPD 15W-40 15W-40 X
Bölünmez Petrocülük A-S MOIL Dizel 15W-40 15W-40 X
BP p.l.c. BP Vanellus C6 Global
BP Vanellus C6 Global Plus
BP Vanellus E6
BP Vanellus C7 Global
BP Vanellus Multi-Fleet
BP Mine Multi
15W-40
10W-40
15W-40
15W-40
15W-40
15W-50
X
X
X
X
X
X
2)
2)
2)
2)
2)
Castrol Ltd. Castrol Diesel X
Castrol Tection T
Castrol Tection Plus
15W-40
15W-40
15W-40
X
X
X
2)
2)
2)
Cepsa Cepsa Euromax 15W-40 X2)
Chevron Caltex Delo SHP Multigrade
Caltex Delo Gold [ISOSYN]
Multigrade
Caltex Delo 400 Multigrade
Chevron RPM Heavy Duty Motor Oil
Chevron Delo 400 Multigrade
Texaco Ursa Super Plus
Texaco Ursa Super TD
Texaco Ursa Super TDS
Texaco Ursa Premium TDX
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
10W-40
15W-40
X
X
X
X
X
X
X
X
X
2)
2)
2)
2)
2)
2)
Chinese Petroleum Company CPC Superfleet CG-4 Motor Oil 15W-40 X
Conoco Phillips Com. Conoco Hydroclear Power D 15W-40 X
Cubalub Cubalub ExtraDiesel 15W-40 X
Delek Delkol Super Diesel 15W-40 X
Denizati Petrokimya Urunleri
San
Seahorse Motor Oil 15W-40 15W-40 X
EKO Eko Forza Extra 15W-40 X
ENI S.p.A. Agip Sigma Truck
Agip Sigma Turbo
Agip Blitum T
15W-40
15W-40
15W-40
X
X
X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 47
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Mobilgard 1 SHC 20W-40 XApproved for fast
commercial vessels up
to 1500h
Exxon Mobil
Essolube XT 4
Mobil Delvac Super 1400
Mobil Delvac XHP
Mobil Delvac XHP
15W-40
15W-40
10W-40
15W-40
X
X
X
X
2)
Feoso Oil Ultra VG Motor Oils 15W-40 X
FL Selenia Urania LD7 15W-40 X
Fuchs Fuchs Titan Truck Plus
Fuchs Titan HPE
Fuchs Titan Cargo LD
TitanUnicPlusMC
Titan Unic Ultra MC
Titan Formel Plus
Titan Truck
Titan Unimax
15W-40
15W-40
10W-40
10W-40
10W-40
15W-40
15W-40
15W-40
X
X
X
X
X
X
X
X
2)
2)
2)
Gulf Oil International Gulf Superfleet LE
Gulf Superfleet LE
Gulf Superfleet Supreme
Gulf Superfleet Supreme
Gulf Superfleet Plus
10W-40
15W-40
10W-40
15W-40
15W-40 X
X
X
X
X
2)
2)
Huiles Berliet S.A. RTO Maxima RD
RTO Maxima RLD
15W-40
15W-40
X
X
2)
2)
Hyrax Oil Hyrax Admiral 15W40 X
Igol, France Trans Turbo 5X
Trans Turbo 7X
Trans Turbo 9X
Protruck 100 X
Protruck 100 X
15W-40
15W-40
15W-40
10W-40
15W-40
X
X
X
X
X
2)
2)
2)
Imperial Oil Esso XD-3 Extra 15W-40 X2)
Indy Oil SA Indy Super Turbo Diesel 15W-40 X2)
Indian Oil Corp. Servo Premium (N) 15W-40 X2)
Kuwait Petroleum Q8 T 720
Q8 T 750
10W-40
15W-40
X
X
2)
2)
Kocak Petrol Ürünleri San Speedol SHPD Tirot 15W-40 15W-40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
48 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Lotos Oil Turdus Powertec CI-4 15W-40 15W-40 X2)
Lukoil Oil Company
LLK-International
Lukoil Avangard 15W-40 X
Mauran SAS Turboland 15W-40 X2)
MOL-LUB Ltd. MOLDynamic MK9
MOL Mk-9
Mol Dynamic Super Diesel
15W-40
15W-40
15W-40 X
X
Motor Oil, Hellas EMO SHPD Plus 15W-40 X
OMV AG OMV eco truck extra
OMV truck LD
10W-40
15W-40 X
X
2)
Panolin AG Panolin Universal SFE
Panolin Diesel Synth
10W-40
10W-40
X
X
PDVSA Deltaven S.A. Ultradiesel MT 15W-40 X
Pennzoil Products Supreme Duty Fleet Motor Oil
Longlife EF Heavy Duty Multigrade
Engine Oil
Pennzoil Long.Life Gold
15W-40
15W-40
15W-40
X
X
X2)
Pertamina Meditran SMX 15W-40 X2)
Petro-Canada Lubricants Duron
Duron XL Synthetic Blend
15W-40
15W-40
X
X
2)
2)
Petrol Ofisi PO Maximus Turbo Dizel Extra
PO Turbo Dizel Extra
15W-40
15W-40
X
X2)
Petrolimex Petrochmical
Joint-Stock Company
PLCDieselSHPD15W-40 15W-40 X2)
Petron Corporation Petron REV-X Trekker 15W-40 X
Prista Oil AD Prista SHPD
Prista Turbo Diesel
15W-40
15W-40
X
X
2)
Ravensberger Schmierst-
offvertrieb GmbH
RAVENOL Expert SHPD
RAVENOL Formel Diesel Super
RAVENOL Mineralöl Turbo Plus
SHPD
10W-40
15W-40
15W-40 X
X
X
2)
Repsol YPF Repsol Extra Vida MT 15W-40 X
Shanghai HIRI Lubricants HIRI 245 15W-40 X2)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 49
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Shell Shell DEO Super
Shell Rimula MV
Shell Rimula R3 X
Shell Rimula R4 L
Shell Rimula RT4 L
Shell Rimula Super
Shell Rimula X
Shell Rotella T
Shell Rotella T Multigrade
Rimula X CH-4
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
X
X
X
X
X
X
X
X
X
X
2)
2)
2)
2)
2)
2)
2)
2)
Sinclair Oil Corp. Sinclair Dura Tec Premium 1000 15W-40 X
Singapore Petroleum
Company
SDM 900, SAE 15W40 15W-40 X2)
Sinopec Corp. Great Wall Jinpai Zunlong 15W-40 X2)
SRS Schmierstoff Vertrieb
GmbH
Wintershall Multi-Rekord top
Wintershall Multi Rekord plus
Wintershall Turbo Rekord
Wintershall Turbo Diesel Plus
Wintershall TFX
15W-40
15W-40
15W-40
15W-40
10W-40
X
X
X
X
X
2)
2)
2)
Statoil Turbosynt 15W-40 X2)
Svenska Statoil MaxWay 15W-40 X2)
Tot al Antar Milantar PH
Antar Milantar PX
Elf Performance Trophy DX
Elf Performance Victory
Fina Kappa Optima
Total Caprano TDH
Total Caprano TDI
Tot al D isola W
Total Rubia TIR 6400
Total Rubia TIR 7400
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
15W-40
X
X
X
X
X
X
X
X
X
X
2)
2)
2)
2)
2)
2)
2)
2)
Unil Opal Medos 700 15W-40 X2)
Valvoline Valvoline Premium Blue 15W-40 X
Yacco Inboard 100 4 T Diesel
Transpro 40 S
15W-40
10W-40
X
X
2)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
50 Approved fluids and lubricants
Multigrade oils – Category 2.1 (low SAPS oils)
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Imperial Oil Esso XD-3 Extra CJ-4 15W-40 X
Multigrade oils – Category 3, SAE-grades 5W-30, 5W-40, and 10W-40 for Diesel Engines,
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Lube Oil Addinol Ultra MD 0538
Addinol Super Truck MD 1048
5W-30
10W-40
X
X
Aral AG Aral Super Turboral 5W-30 X
BP p.l.c BP Energol IC-MT
BP Vanellus E8 Ultra
10W-40
5W-30
X
X
Bucher Motorex MC Power 3 10W-40 X
Castrol Ltd. Castrol Enduron MT
Castrol Enduron Plus
Castrol Elixion 5W-30
10W-40
5W-30
5W-30 X
X
X
Cepsa Cepsa Eurotrans SHPD
Cepsa Eurotrans SHPD
5W-30
10W-40 X
X
Chevron Caltex Delo XLD Multigrade
Texaco Ursa Super
Texaco Ursa Premium FE
Tex aco Ursa Super TDX
10W-40
10W-40
5W-30
10W-40
X
X
X
X
Elinoil Elin Diesel Tec Synthetic 10W-40 X
ENI S.p.A. Agip Sigma Trucksint TFE
Agip Sigma Super TFE
Agip Sigma Ultra TFE
5W-40
10W-40
10W-40
X
X
X
Enoc Enoc Vulcan 770 SLD 10W-40 X
Exxon Mobil Mobil Delvac XHP Extra
Mobil Delvac 1 SHC
10W-40
5W-40
X
X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 51
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
FL Selenia Urania 100 K
Urania FE
10W-40
5W-30
X
X
Fuchs Titan Cargo SL
Titan Cargo MC
Titan Cargo LDF
5W-30
10W-40
10W-40
X
X
X
Ginouves York 847 10W40 10W-40 X
Gulf Oil International Gulf Fleet Force synth.
Superfleet ELD
5W-30
10W-40 X
X
Huiles Berliet S.A. RTO Extensia ECO
RTO Extensia RXD
5W-30
10W-40 X
X
Igol, France Trans Turbo 8X 5W-30 X
INA INA Super 2000 10W-40 X
Iranol Oil Co. Iranol D – 40000 10W-40 X
Kuwait Petroleum Q8 T 860
Q8 T 905
10W-40
10W-40 X
X
Lotos Oil Turdus Semisynthetic XHPDO
Turdus Powertec Synthetic
10W-40
5W-30
X
X
Meguin Megol Motorenöl Super LL Dimo
Premium
Megol Engine Oil Diesel Truck
Performance
10W-40
10W-40
X
X
MOL-LUB MOL Synt Diesel 10W-40 X
Ölwerke Julius Schindler Econo Veritas Truck FE 5W-30 X
OMV OMV truck FE plus
OMV super truck
10W-40
5W-30
X
X
Panolin Panolin Diesel HTE 10W-40 X
Petróleos de
Portugal
Galp Galaxia Ultra EC
Galp Galaxia Extreme
10W-40
5W-30
X
X
Petrol Ofisi PO Maxima Diesel 10W-40 X
Prista Oil AD Prista UHPD 10W-40 X
Ravensberger Schmierst-
offvertrieb GmbH
RAVENOL Super Performance
Truck
RAVENOL Performance Truck
5W-30
10W-40
X
X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
52 Approved fluids and lubricants
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Redoil Italia Challoils Syntextruck 10W-40 X
Repsol YPF Repsol Diesel Turbo VHPD 5W-40 X
Shell Shell Rimula Ultra
Shell Rimula R6 M
Shell Rimula Ultra E7
5W-30
5W-30
10W-40
X
X
X
SMV GmbH JB German Oil JB German Oil High Tech Truck 10W-40 X
SRS Schmierstoff Vertrieb
GmbH
Wintershall TFF
Wintershall TFL
Wintershall TFG
10W-40
5W-30
10W-40
X
X
X
Tot al Antar Maxolia
Elf Performance Experty FE
Elf Performance Experty
Fina Kappa First
RTO Extensia ECO
RTO Extensia RXD
Total Rubia TIR 8600
Total Rubia TIR 9200 FE
10W-40
5W-30
10W-40
5W-30
5W-30
10W-40
10W-40
5W-30
X
X
X
X
X
X
X
X
Unil Opal LCM 800 10W-40 X
Valvoline International Profleet
Valvoline Pro Fleet Extra
10W-40
5W-30
X
X
Wolf Oil Corporation Champion Turbofleet UHPD 10W-40
Yacco Yacco Transpro 45 10W-40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 53
Multigrade oils – Category 3.1 (Low SAPS Oils)
TBN
Manufacturer Brand name SAE
Vis-
cosity
class
8 – 10 mgKOH/g
10 – 12 mgKOH/g
>12 mgKOH/g
Remarks
Addinol Lube Oil Addinol Extra Truck MD 1049 LE 10W-40 X
Cepsa Cepsa Eurotech LS 10W-40 X
Chevron Texaco Ursa Ultra 10W-40 X
Exxon Mobil Mobil Delvac XHP LE 10W-40 X
FL Selenia Urania Ecosynth 10W-40 X
Fuchs Titan Cargo Maxx 10W-40 X
Gulf Oil Gulf Superfleet XLE 10W-40 X
Igol Protruck 200 X 10W-40 X
Kuwait Petroleum R&T Q T 900 10W-40 X
Panolin Panolin Diesel Synth EU-4 10W-40 X
Petróleos de Portugal Galp Galaxia Ultra LS 10W-40 X
Repsol YPF Repsol Diesel Turbo UHPD MID
SAPS
10W-40 X
Shell Shell Rimula Signia
Shell Rimula R6 LM
10W-40
10W-40
X
X
SRS Schmierstoff Vertrieb
GmbH
Wintershall TLA 10W-40 X
Svenska Statoil Statoil TruckWay E6 10W-40 X
Valvoline Valvoline Perofleet LS 10W-40 X
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
54 Approved fluids and lubricants
Lubricating Greases for General Applications
For details and special information, see chapter on “Lubricants” (→Page 05)
Manufacturer Brand name Remarks
Aral AG Mehrzweckfett Arallub HL2
BP p.l.c. Energrease LS2
Castrol Ltd. Spheerol AP2
Chevron Multifak EP2
Exxon Mobil Beacon 2X
SRS Schmierstoff Vertrieb GmbH Wintershall Wiolub LFK2
Shell Shell Retinax EP2
Veedol International Multipurpose
Coolant additives for Series 099 Marine, Series 183/183 Marine, Series 396
Marine, Series 396TE (raw water temperature <20 °C)
For details and special information, see chapter on “Coolants” (→Page 13)
Corrosion-inhibiting antifreeze concentrate
Manufacturer Brand name Runtime
Hour / Year
Remarks
Addinol Antifreeze Super 9000 / 5
Arteco Freecor SPC [EU Code 502247] 9000 / 3
Ashland Drewgard ZX 9000 / 3
Avia Antifreeze APN 9000 / 5
BASF Glysantin G05
Glysantin Antikorrosion
Glysantin G48
Glysantin Protect Plus
Glysantin G30
Glysantin Alu Protect
9000 / 5
9000 / 5
9000 / 5
9000 / 5
9000 / 3
9000 / 3
Bucher Motorex Antifreeze G05
Motorex Antifreeze Protect G48
Motorex Antifreeze Protect Plus G30
9000 / 5
9000 / 5
9000 / 3
Chevron URSA AFC +
Chevron Delo Custom Made +
9000 / 3
9000 / 3
Clariant Genatin Super 9000 / 3
CCI L 415 9000 / 3
CCI Manufacturing IL
Corporation
C 521 9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 55
Manufacturer Brand name Runtime
Hour / Year
Remarks
Detroit Diesel Power Cool Antifreeze
Power Cool Off.Highway
9000 / 3
9000 / 5
Deutsche BP Aral Antifreeze Extra
ARAL Antifreeze SF
Castrol Antifreeze NF
Castrol Antifreeze SF
Veedol Antifreeze NF
Veedol Antifreeze SF
9000 / 5
9000 / 3
9000 / 5
9000 / 3
9000 / 5
9000 / 3
Fuchs Fricofin
Maintain Fricofin
Maintain Fricofin G12 Plus
9000 / 5
9000 / 5
9000 / 3
Ginouves York 716 9000 / 5
Ineos C2272 9000 / 3
Krafft Refrigerante ACU 2300 9000 / 3
Maziva INA Antifriz Al Super 9000 / 5
MOL-LUB EVOX Plus G05 Antifreeze
concentrate
EVOX Plus concentrate
EVOX Extra G48 Antifreeze
concentrate
9000 / 5
9000 / 5
9000 / 5
Nalco Nalcool 5990 9000 / 3
Old World Fleetcharge SCA Precharged
Heavy Duty Coolant Antifreeze
FinalCharge GLOBAL Extended Life
Coolant Antifreeze
9000 / 3
9000 / 3
OMV OMV Coolant Plus
OMV Coolant SF
9000 / 5
9000 / 3
Panolin Panolin Antifrost MT-325 9000 / 5
Ravensberger
Schmierstoffvertrieb
GmbH
RAVENOL Kühlerfrostschutz
silikatfrei
9000 / 3
Recochem R542 9000 / 3
Samyang Auto Cool S100 9000 / 5
Shell Glyco Shell
Glyco Shell SF longlife
Shell HD Premium
9000 / 5
9000 / 3
9000 / 3
Sotragal – Mont Blanc Antigel Power Cooling Concentrate 9000 / 5
Tot al Glacelf MDX 9000 / 5
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
56 Approved fluids and lubricants
Manufacturer Brand name Runtime
Hour / Year
Remarks
Univar BR Standard Blue Antifreeze 9000 / 5
Valvoline Zerex G-05
Zerex G-48
Zerex G-30
9000 / 5
9000 / 5
9000 / 3
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour / Year
Remarks
Bantleon Avilub Antifreeze Mix (50%) 9000 / 5
BASF Kühlstoff G05-23/50 (50%)9000 / 5
Castrol Ltd. Castrol Antifreeze NF Premix (45%) 9000 / 5
CCI L 415 (50%) 9000 / 3
CCI Manufacturing
Corporation
C 521 (50%) 9000 / 3
Detroit Diesel Power Cool Plus Marine (30/70)
Power Cool Off-Highway 50/50 (50%)
9000 / 5
9000 / 5
Samyang Auto Cool S105 (50%) 9000 / 5
Sotragal – Mont Blanc L.R.-30 Power Cooling (44%)
L.R.-38 Power Cooling (52%)
9000 / 5
9000 / 5
Old World Final Charge Global 50/50 Prediluted
Extended Life Coolant / Antifreeze
9000 / 3
Tot al Coolelf MDX (40%) 9000 / 5
Corrosion-inhibiting antifreeze concentrates for special applications
Manufacturer Brand name Runtime
Hour / Year
Remarks
BASF G206 9000 / 3 For use in arctic regions (<
–40 °C)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 57
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A 216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for Series 099 Marine, Series 183/183 Marine, Series 396
Marine, Series 396TE (raw water temperature >20 °C)
For details and special information, see chapter on “Coolants” (→Page 13)
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A 216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for Series 396 TB
For details and special information, see chapter on “Coolants” (→Page 13)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
58 Approved fluids and lubricants
Emulsifiable corrosion inhibiting oils
Manufacturer Brand name Runtime
Hour / Year
Remarks
Shell Shell Oil 9156 6000 / 1 For applicability, see chapter
3 (emulsifiable corrosion
inhibitor oils)
Corrosion-inhibiting antifreeze concentrate
Manufacturer Brand name Runtime
Hour / Year
Remarks
Addinol Antifreeze Super 9000 / 5
Arteco Freecor SPC [EU Code 502247] 9000 / 3
Ashland Drewgard ZX 9000 / 3
Avia Antifreeze APN 9000 / 5
BASF Glysantin G05
Glysantin Antikorrosion
Glysantin G48
Glysantin Protect Plus
Glysantin G30
Glysantin Alu Protect
9000 / 5
9000 / 5
9000 / 5
9000 / 5
9000 / 3
9000 / 3
Bucher Motorex Antifreeze G05
Motorex Antifreeze Protect G48
Motorex Antifreeze Protect Plus G30
9000 / 5
9000 / 5
9000 / 3
Chevron URSA AFC +
Chevron Delo Custom Made +
9000 / 3
9000 / 3
Clariant Genatin Super 9000 / 3
CCI L 415 9000 / 3
CCI Manufacturing IL
Corporation
C 521 9000 / 3
Detroit Diesel Power Cool Antifreeze
Power Cool Off.Highway
9000 / 3
9000 / 5
Deutsche BP Aral Antifreeze Extra
ARAL Antifreeze SF
Castrol Antifreeze NF
Castrol Antifreeze SF
Veedol Antifreeze NF
Veedol Antifreeze SF
9000 / 5
9000 / 3
9000 / 5
9000 / 3
9000 / 5
9000 / 3
Fuchs Fricofin
Maintain Fricofin
Maintain Fricofin G12 Plus
9000 / 5
9000 / 5
9000 / 3
Ginouves York 716 9000 / 5
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 59
Manufacturer Brand name Runtime
Hour / Year
Remarks
Ineos C2272 9000 / 3
Krafft Refrigerante ACU 2300 9000 / 3
Maziva INA Antifriz Al Super 9000 / 5
MOL-LUB EVOX Plus G05 Antifreeze
concentrate
EVOX Plus concentrate
EVOX Extra G48 Antifreeze
concentrate
9000 / 5
9000 / 5
9000 / 5
Nalco Nalcool 5990 9000 / 3
Old World Fleetcharge SCA Precharged
Heavy Duty Coolant Antifreeze
FinalCharge GLOBAL Extended Life
Coolant Antifreeze
9000 / 3
9000 / 3
OMV OMV Coolant Plus
OMV Coolant SF
9000 / 5
9000 / 3
Panolin Panolin Antifrost MT-325 9000 / 5
Ravensberger
Schmierstoffvertrieb
GmbH
RAVENOL Kühlerfrostschutz
silikatfrei
9000 / 3
Recochem R 542 9000 / 3
Samyang Auto Cool S100 9000 / 5
Shell Glyco Shell
Glyco Shell SF longlife
Shell HD Premium
9000 / 5
9000 / 3
9000 / 3
Sotragal – Mont Blanc Antigel Power Cooling Concentrate 9000 / 5
Tot al Glacelf MDX 9000 / 5
Univar BR Standard Blue Antifreeze 9000 / 5
Valvoline Zerex G-05
Zerex G-48
Zerex G-30
9000 / 5
9000 / 5
9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
60 Approved fluids and lubricants
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour / Year
Remarks
Bantleon Avilub Antifreeze Mix (50%) 9000 / 5
BASF Kühlstoff G05-23/50 (50%) 9000 / 5
Castrol Ltd. Castrol Antifreeze NF Prmix (45%) 9000 / 5
CCI L 415 (50%) 9000 / 3
CCI Manufacturing
Corporation
C 521 (50%) 9000 / 3
Detroit Diesel Power Cool Plus Marine (30/70)
Power Cool Off-Highway 50/50 (50%)
9000 / 5
9000 / 5
Samyang Auto Cool S105 (50%) 9000 / 5
Sotragal – Mont Blanc L.R.-30 Power Cooling (44%)
L.R.-38 Power Cooling (52%)
9000 / 5
9000 / 5
Old World Final Charge Global 50/50 Prediluted
Extended Life Coolant / Antifreeze
9000 / 3
Tot al Coolelf MDX (40%) 9000 / 5
Corrosion-Inhibiting Antifreezes for Special Applications
Manufacturer Brand name Runtime
Hour / Year
Remarks
BASF G206 9000 / 3 For use in arctic regions (<
–40 °C)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 61
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A 216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for Series BR 538, 595, 956, 1163 Marine application
For details and special information, see chapter on “Coolants” (→Page 13)
Emulsifiable corrosion inhibiting oils
Manufacturer Brand name Runtime
Hour / Year
Remarks
Shell Shell Oil 9156 6000 / 1 For applicability, see chapter
3 (emulsifiable corrosion
inhibitor oils)
Coolant additives for Series BR 956, 1163, genset application
For details and special information, see chapter on “Coolants” (→Page 13)
Emulsifiable corrosion inhibiting oils
Manufacturer Brand name Runtime
Hour / Year
Remarks
Shell Shell Oil 9156 6000 / 1 For applicability, see chapter
3 (emulsifiable corrosion
inhibitor oils)
Corrosion-inhibiting antifreeze concentrate
Manufacturer Brand name Runtime
Hour / Year
Remarks
Addinol Antifreeze Super 9000 / 5
Arteco Freecor SPC [EU Code 502247] 9000 / 3
Ashland Drewgard ZX 9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
62 Approved fluids and lubricants
Manufacturer Brand name Runtime
Hour / Year
Remarks
Avia Antifreeze APN 9000 / 5
BASF Glysantin G05
Glysantin Antikorrosion
Glysantin G48
Glysantin Protect Plus
Glysantin G30
Glysantin Alu Protect
9000 / 5
9000 / 5
9000 / 5
9000 / 5
9000 / 3
9000 / 3
Bucher Motorex Antifreeze G05
Motorex Antifreeze Protect G48
Motorex Antifreeze Protect Plus G30
9000 / 5
9000 / 5
9000 / 3
Chevron URSA AFC +
Chevron Delo Custom Made +
9000 / 3
9000 / 3
Clariant Genatin Super 9000 / 3
CCI L 415 9000 / 3
CCI Manufacturing IL
Corporation
C 521 9000 / 3
Detroit Diesel Power Cool Antifreeze
Power Cool Off.Highway
9000 / 3
9000 / 5
Deutsche BP Aral Antifreeze Extra
ARAL Antifreeze SF
Castrol Antifreeze NF
Castrol Antifreeze SF
Veedol Antifreeze NF
Veedol Antifreeze SF
9000 / 5
9000 / 3
9000 / 5
9000 / 3
9000 / 5
9000 / 3
Fuchs Fricofin
Maintain Fricofin
Maintain Fricofin G12 Plus
9000 / 5
9000 / 5
9000 / 3
Ginouves York 716 9000 / 5
Ineos C2272 9000 / 3
Krafft Refrigerante ACU 2300 9000 / 3
Maziva INA Antifriz Al Super 9000 / 5
MOL-LUB EVOX Plus G05 Antifreeze
concentrate
EVOX Plus concentrate
EVOX Extra G48 Antifreeze
concentrate
9000 / 5
9000 / 5
9000 / 5
Nalco Nalcool 5990 9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 63
Manufacturer Brand name Runtime
Hour / Year
Remarks
Old World Fleetcharge SCA Precharged
Heavy Duty Coolant Antifreeze
FinalCharge GLOBAL Extended Life
Coolant Antifreeze
9000 / 3
9000 / 3
OMV OMV Coolant Plus
OMV Coolant SF
9000 / 5
9000 / 3
Check specification
Panolin Panolin Antifrost MT-325 9000 / 5
Ravensberger
Schmierstoffvertrieb
GmbH
RAVENOL Kühlerfrostschutz
silikatfrei
9000 / 3
Recochem R 542 9000 / 3
Samyang Auto Cool S100 9000 / 5
Shell Glyco Shell
Glyco Shell SF longlife
Shell HD Premium
9000 / 5
9000 / 3
9000 / 3
Sotragal – Mont Blanc Antigel Power Cooling Concentrate 9000 / 5
Tot al Glacelf MDX 9000 / 5
Univar BR Standard Blue Antifreeze 9000 / 5
Valvoline Zerex G-05
Zerex G-48
Zerex G-30
9000 / 5
9000 / 5
9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
64 Approved fluids and lubricants
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour / Year
Remarks
Bantleon Avilub Antifreeze Mix (50%) 9000 / 5
BASF Kühlstoff G05-23/50 (50%) 9000 / 5
Castrol Ltd. Castrol Antifreeze NF Prmix (45%) 9000 / 5
CCI L 415 (50%) 9000 / 3
CCI Manufacturing
Corporation
C 521 (50%) 9000 / 3
Detroit Diesel Power Cool Plus Marine (30/70)
Power Cool Off-Highway 50/50 (50%)
9000 / 5
9000 / 5
Samyang Auto Cool S105 (50%) 9000 / 5
Sotragal – Mont Blanc L.R.-30 Power Cooling (44%)
L.R.-38 Power Cooling (52%)
9000 / 5
9000 / 5
Old World Final Charge Global 50/50 Prediluted
Extended Life Coolant / Antifreeze
9000 / 3
Tot al Coolelf MDX (40%) 9000 / 5
Corrosion-Inhibiting Antifreezes for Special Applications
Manufacturer Brand name Runtime
Hour / Year
Remarks
BASF G206 9000 / 3 For use in arctic regions (>
–40 °C)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 65
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A 216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for Series 2000, 4000 Marine application (raw water temperature <25 °C)
For details and special information, see chapter on “Coolants” (→Page 13)
Corrosion-inhibiting antifreeze concentrate
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Addinol Antifreeze Super 9000 / 5
Arteco Freecor SPC [EU Code 502247] 9000 / 3
Ashland Drewgard ZX 9000 / 3
Avia Antifreeze APN 9000 / 5
BASF Glysantin G05
Glysantin Antikorrosion
Glysantin G48
Glysantin Protect Plus
Glysantin G30
Glysantin Alu Protect
9000 / 5
9000 / 5
9000 / 5
9000 / 5
9000 / 3
9000 / 3
Bucher Motorex Antifreeze G05
Motorex Antifreeze Protect G48
Motorex Antifreeze Protect Plus G30
9000 / 5
9000 / 5
9000 / 3
CCI L415 9000 / 3
CCI
Manufacturing
IL
C521 9000 / 3
Chevron URSA AFC +
Chevron Delo Custom Made +
9000 / 3
9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
66 Approved fluids and lubricants
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Clariant Genatin Super 9000 / 3
Detroit Diesel Power Cool Antifreeze
Power Cool Off-Highway
9000 / 3
9000 / 5
Deutsche BP Aral Antifreeze Extra
ARAL Antifreeze SF
Castrol Antifreeze NF
Castrol Antifreeze SF
Veedol Antifreeze NF
Veedol Antifreeze SF
9000 / 5
9000 / 3
9000 / 5
9000 / 3
9000 / 5
9000 / 3
Fuchs Fricofin
Maintain Fricofin
Maintain Fricofin G12 Plus
9000 / 5
9000 / 5
9000 / 3
Ginouves York 716 9000 / 5
Ineos C2272 9000 / 3
Krafft Refrigerante ACU 2300 9000 / 3
Maziva INA Antifriz Al Super 9000 / 5
MOL-LUB EVOX Plus G05 Antifreeze concentrate
EVOX Plus concentrate
EVOX Extra G48 Antifreeze concentrate
9000 / 5
9000 / 5
9000 / 5
Nalco Nalcool 5990 9000 / 3
Old World Fleetcharge SCA Precharged
Heavy Duty Coolant / Antifreeze
Final Charge Global Extended Life
Coolant Antifreeze
9000 / 3
9000 / 3
OMV OMV Coolant Plus
OMV Coolant SF
9000 / 5
9000 / 3
Check specification
Panolin Panolin Anti-Frost MT-325 9000 / 5
Ravensberger
Schmierstoffver-
trieb GmbH
RAVENOL Kühlerfrostschutz silikatfrei 9000 / 3
Recochem R542 9000 / 3
Samyang Auto Cool S100 9000 / 5
Shell Glyco Shell
Glyco Shell SF longlife
Shell HD Premium
9000 / 5
9000 / 3
9000 / 3
Sotragal – Mont
Blanc
Antigel Power Cooling Concentrate 9000 / 5
Tot al Glacelf MDX 9000 / 5
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 67
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Univar BR Standard Blue Antifreeze 9000 / 5
Valvoline Zerex G-05
Zerex G-48
Zerex G-30
9000 / 5
9000 / 5
9000 / 3
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Bantleon Avilub Antifreeze Mix (50%) 9000 / 5
BASF Kühlstoff G05-23/50 (50%) 9000 / 5
Castrol Ltd. Castrol Antifreeze Premix (45%) 9000 / 5
CCI L 415 (50%) 9000 / 3
CCI
Manufacturing
Corporation
C 521 (50%) 9000 / 3
Detroit Diesel Power Cool Plus Marine (30/70)
Power Cool Off-Highway (50%)
9000 / 5
9000 / 5
Samyang Auto Cool S105 (50%) 9000 / 5
Sotragal – Mont
Blanc
L.R.-30 Power Cooling (44%)
L.R.-38 Power Cooling (52%)
9000 / 5
9000 / 5
Old World Final Charge Global 50/50 Prediluted
Extended Life Coolant / Antifreeze
9000 / 3
Tot al Coolelf MDX (40%) 9000 / 5
Corrosion-inhibiting antifreeze concentrates for special applications
Manufacturer Brand name Runtime
Hour / Year
Remarks
BASF G206 9000 / 3 For use in arctic regions (>
–40 °C)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
68 Approved fluids and lubricants
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freeco NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for Series 2000, 4000 Marine application (raw water temperature >25 °C)
For details and special information, see chapter on “Coolants” (→Page 13)
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Coolant additives for light-alloy-free engines (Series 2000 C&I,
Series 4000 C&I, 4000 Genset
For details and special information, see chapter on “Coolants” (→Page 13)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 69
Corrosion-inhibiting antifreeze concentrate
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Addinol Antifreeze Super 9000 / 5
Arteco Freecor SPC [EU Code 502247]
Havoline Extended Life Coolant
[EU Code 30379] (XLC)
9000 / 3
9000 / 3
Ashland Drewgard ZX 9000 / 3
Avia Antifreeze APN 9000 / 5
BASF Glysantin G05
Glysantin Antikorrosion
Glysantin G48
Glysantin Protect Plus
Glysantin G30
Glysantin Alu Protect
9000 / 5
9000 / 5
9000 / 5
9000 / 5
9000 / 3
9000 / 3
Bucher Motorex Antifreeze G05
Motorex Antifreeze Protect G48
Motorex Antifreeze Protect Plus G30
9000 / 5
9000 / 5
9000 / 3
Caltex Caltex Extended Life Coolant
[Code510614] (XLC)
9000 / 3
CCI L415 9000 / 3
CCI
Manufacturing
IL
C521 9000 / 3
Chevron URSA AFC +
Chevron Delo Custom Made +
Havoline Dexcool Extended Life
Antifreeze [US Code 227994]
9000 / 3
9000 / 3
9000 / 3
Clariant Genatin Super 9000 / 3
Detroit Diesel Power Cool Antifreeze
Power Cool Off.Highway
9000 / 3
9000 / 5
Deutsche BP Aral Antifreeze Extra
ARAL Antifreeze SF
Castrol Antifreeze NF
Castrol Antifreeze SF
Veedol Antifreeze NF
Veedol Antifreeze SF
9000 / 5
9000 / 3
9000 / 5
9000 / 3
9000 / 5
9000 / 3
Fuchs Fricofin
Maintain Fricofin
Maintain Fricofin G12 Plus
9000 / 5
9000 / 5
9000 / 3
Fuchs Australia Titan HDD Coolant Concentrate 9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
70 Approved fluids and lubricants
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Ginouves York 716 9000 / 5
Ineos C2272 9000 / 3
Krafft Refrigerante ACU 2300
Energy Plus K-140
9000 / 3
9000 / 3
Maziva INA Antifriz Al Super 9000 / 5
MOL-LUB EVOX Plus G05 Antifreeze concentrate
EVOX Plus concentrate
EVOX Extra G48 Antifreeze concentrate
9000 / 5
9000 / 5
9000 / 5
Nalco Nalcool 4070
Nalcool 5990
9000 / 3
9000 / 3
OAO Cool Stream Premium C 9000 / 3
Old World Fleetcharge SCA Precharged
Heavy Duty Coolant / Antifreeze
Final Charge Global Extended Life
Coolant Antifreeze
9000 / 3
9000 / 3
OMV OMV Coolant Plus
OMV Coolant SF
9000 / 5
9000 / 3
Panolin Panolin Anti-Frost MT-325 9000 / 5
Ravensberger
Schmierstoffver-
trieb GmbH
RAVENOL Kühlerfrostschutz silikatfrei 9000 / 3
Recochem R542
Turbo Power R824M
9000 / 3
9000 / 3
Samyang Auto Cool S100 9000 / 5
Shell Glyco Shell
Glyco Shell SF longlife
Shell HD Premium
Shell HD Premium N
9000 / 5
9000 / 3
9000 / 3
9000 / 3
Sotragal – Mont
Blanc
Antigel Power Cooling Concentrate 9000 / 5
Tot al Elf Glacelf Auto Supra
Glacelf MDX
Glacelf Supra
9000 / 3
9000 / 5
9000 / 3
Univar BR Standard Blue Antifreeze 9000 / 5
Valvoline Zerex G-05
Zerex G-48
Zerex G-30
9000 / 5
9000 / 5
9000 / 3
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 71
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour /
Year
Remarks
Arteco Havoline Extended Life Coolant + B2
50/50 OF01 [EU Code 33073] (50%)
Havoline Extended Life Coolant + B2
40/60 OF01 [EU Code 33069] (40%)
Havoline Extended Life Coolant + B2
35/65 OF01 [EU Code 33074] (35%)
9000 / 3
9000 / 3
9000 / 3
Bantleon Avilub Antifreeze Mix (50%) 9000 / 5
BASF Kühlstoff G05-23/50 (50%) 9000 / 5
Caltex Caltex Extended Life Coolant
Pre-Mixed 50/50 [Code 510609] (50%)
9000 / 3
Castrol Ltd. Castrol Antifreeze Premix (45%) 9000 / 5
CCI L 415 (50%) 9000 / 3
CCI
Manufacturing
Corporation
C 521 (50%) 9000 / 3
Chevron Havoline Dexcool Extended Life
Predeluted 50/50 Antifreeze Coolant [US
Code 227995] ((50%)
9000 / 3
Detroit Diesel Power Cool Plus Marine (30/70)
Power Cool Off-Highway (50%)
9000 / 3
9000 / 5
Fleetguard PG XL (40%) 9000 / 3
Fuchs Australia Titan HDD Premix Coolant (50%) 9000 / 3
Nalco Nalcool 4100 (50%) 9000 / 3
Samyang Auto Cool S105 (50%) 9000 / 5
Sotragal – Mont
Blanc
L.R.-30 Power Cooling (44%)
L.R.-38 Power Cooling (52%)
9000 / 5
9000 / 5
Old World Final Charge Global 50/50 Prediluted
Extended Life Coolant / Antifreeze
9000 / 3
Tot al Coolelf MDX (40%) 9000 / 5
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
72 Approved fluids and lubricants
Corrosion-inhibiting antifreeze ready mixtures
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Havoline Extended Life Coolant +
B2 50/50 OF01 [EU Code 33073]
(50%)
Havoline Extended Life Coolant +
B2 40/60 OF01 [EU Code 33069]
(40%)
Havoline Extended Life Coolant +
B2 35/65 OF01 [EU Code 33074]
(35%)
9000 / 3
9000 / 3
9000 / 3
Caltex Caltex Extended Life Coolant
Pre-Mixed 50/50 [Code 510609]
(50%)
9000 / 3
Chevron Havoline Dexcool Extended Life
Prediluted 50/50 Antifreeze Coolant
[US Code 227995] (50%)
9000 / 3
Fleetguard PG XL (40%) 9000 / 3 Propylene glycol
Fuchs Australia Titan HDD Premix Coolant (50%) 9000 / 3
Nalco Nalcool 4100 (50%) 9000 / 3
Old World Final Charge Global 50/50
Prediluted Extended Life Coolant /
Antifreeze
9000 / 3
Tot al Coolelf Supra (40%) 9000 / 3
Corrosion-inhibiting antifreeze concentrates for special applications
Manufacturer Brand name Runtime
Hour / Year
Remarks
BASF G206 9000 / 3 For use in arctic regions (>
–40 °C)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 73
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI
Havoline Extended Life Corrosion
Inhibitor [EU Code 32765] (XLI)
6000 / 2
6000 / 2
BASF Glysacorr G93-94 6000 / 2
Caltex XL Corrosion Inhibitor Concentrate
[Code510533]
6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A 216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 2000
Power Cool Plus 6000
6000 / 2
6000 / 2
Fleetguard DCA-4L 2000 / 1
Ginouves York 719 6000 / 2
Nalco Alfloc (Maxitreat) 3477
Alfloc 2000
Nalco 2000
Nalcool 2000
6000 / 2
6000 / 2
6000 / 2
6000 / 2
Old World A 216 6000 / 2
Penray Pencool 2000 6000 / 2
Tot al Total WT Supra 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Water-soluble corrosion inhibiting antifreezes ready mixtures
Manufacturer Brand name Runtime
Hour / Year
Remarks
Caltex Caltex XL Corrosion Inhibitor [Code
510534] (10%)
6000 / 2
Nalco Alfloc (Maxitreat) 3443 (7%) 6000 / 2
Coolant additives for Series 8000
For details and special information, see chapter on “Coolants” (→Page 13)
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
74 Approved fluids and lubricants
Water-soluble corrosion inhibitors concentrates
Manufacturer Brand name Runtime
Hour / Year
Remarks
Arteco Freecor NBI 6000 / 2
BASF Glysacorr G93-94 6000 / 2
CCI A 216 6000 / 2
CCI Manufacturing
Corporation
A 216 6000 / 2
Chevron Texcool A – 200 6000 / 2
Detroit Diesel Power Cool Plus 6000 6000 / 2
Ginouves York 719 6000 / 2
Old World A 216 6000 / 2
Valvoline ZEREX G-93 6000 / 2
Preservatives
For details and special information, see chapter on “Preservation” (→Page 35)
Initial operation corrosion-inhibiting oils for internal preservation
Manufacturer Brand name Remarks
BP p.l.c. Motorenschutzöl MEK SAE 30
Cespa Lubricants Cepsa Rodaje Y Proteccion SAE 30 Full-load engine oil in
compliancewithOil
Category 1
Exxon Mobil Mobilarma 524 Only suitable for
preservation run!
(→Page 77)
Fuchs TitanEM30MTU Full-load engine oil in
compliancewithOil
Category 1
SRS Schmierstoff Vertrieb GmbH Wintershall Antikorrol M SAE 30 Full-load engine oil in
compliancewithOil
Category 1
Shell Shell Running-In Oil 7294 SAE 30
Shell Ensis Engine Oil SAE 30
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Approved fluids and lubricants 75
Corrosion inhibitors for external preservation
Manufacturer Brand name Remarks
Castrol Ltd. Rustilo 181
Esso Lubricants Rust BAN 397
Valvoline Oel Tectyl 846
Corrosion inhibiting oils for internal preservation of the fuel system
Manufacturer Brand name Remarks
Esso Prüföl 4113
Ravensberger Schmierstoffvertrieb GmbH RAVENOL Calibration Fluid
SRS Schmierstoff Vertrieb GmbH Wintershall Calibration Fluid
V – Oil 1404Shell
Shell Oil S 9356
Corrosion inhibitors for internal preservation of cooling system
Manufacturer Brand name Remarks
BASF Glysacorr P113 10%
Exxon Mobil Kutwell 40 2%
Shell Shell Oil 9156 2%
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
76 Approved fluids and lubricants
A001061/33E 08-01 ©MTU
TIM ID: 0000020848 – 003
Preservation Specifications 77
7 Preservation Specifications
Preliminary note
Please note the following warnings in bold type:
Caution!
Work which has to be carried out exactly in order to avoid danger to persons.
Attention!
Work which has to be carried out exactly in order to avoid damage or destruction of material.
Note:
If a particular aspect requires special attention while work is being carried out.
Introduction
The preservation and represervation specifications apply to all diesel and gas engines from MTU. They apply
to new engines direct from the test stand, to field engines in uninterrupted operation and to engines that have
been decommissioned for a scheduled major overhaul, provided that the period between the end of engine
operation and return to operation is more than 3 months and that storage conditions are normal. If storage
conditions are difficult or unsuitable, preservation must be carried out in any case.
Cooling circuits must always be preserved after the coolant has been drained irrespective of the storage conditions.
Preservation is carried out during the acceptance test on the test stand, or immediately after
it. Engines in the field must be preserved immediately after their last service period. The
represervation interval depends on the storage conditions.
A distinction is made between the following storage conditions:
normal (free of frost, closed heated rooms, max. temperature fluctuations of between 10 and 40
°C, clean, monthly average relative air humidity ≤65%)
difficult (dust / contamination, with drops below dew point > 20% of the month, monthly average
relative air humidity > 65%)
unsuitable (salt-laden air, outdoor storage)
The following packaging and represervation intervals based on the above:
normal storage conditions: Standard packaging, represervation every 12 months
difficult storage conditions: Standard packaging, represervation every 6 months
unsuitable storage conditions: Special packaging, represervation every 12 months, additionally every 3 – 4
months a check of the humidity indicator in the special packaging
The preservation or represervation agent is the same for all engine types. The type of engine packaging
depends on the storage and transport conditions. The gearbox manufacturer’s preservation specifications
must also be complied with when complete powerpacks / drive systems are be preserved.
Note:
Warranty claims are invalid if the storage is not according to specifications.
Do not use natural rubber sealing material, as it is not resistant to aging.
Only MTU-approved fluids and lubricants as specified in Chapter 6 (Approved Fluids and Lubricants)
are to be used for preservation and represervation (→Page 37).
In event of extended out-of-service periods, machined, non-protected surfaces, for example cylinder liner
running faces, are susceptible to corrosion and must therefore be preserved.
The applicable engine documentation must also be considered together with this Preservation
Specification. Refer to the engine documentation for tasks and checks to be carried out when
shutting down an engine and before re-operating an engine.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
78 Preservation Specifications
Preserving diesel engines
Out-of-service period of < 1 month with engines installed
Engines do not need to be preserved separately. It is sufficient to close the emergency-air shutoff flaps, if fitted.
Out-of-serviceperiodof1–3monthswithenginesinstalledorremoved
Run engine up to operating temperature, then run up to rated speed for about 30 seconds and then
shut down at rated speed. The engine must not be started again. This engine run must also be
carried out before the engine is removed for a period out-of-service.
Engine in installed condition
The following openings must be sealed tightly:
• Cooling-air inlet
• Combustion-air inlet (close the emergency air shutoff flaps if they are provided).
• Exhaust outlet
• Crankcase breather, if possible (when venting to atmosphere)
With engine removed
The following openings must be sealed tightly:
• Cooling-air inlet
• Combustion-air inlet (Close the emergency air shutoff flaps if they are provided).
• Exhaust outlet
• Crankcase breather, if possible (when venting to atmosphere).
• Coolant circuit
• Fuel system
• Lubricating oil system
• Hydraulic oil circuit
• Electrical connections
Commissioning these engines
Remove all sealing covers. The engine can then be put into operation according to the engine documentation.
Out-of-service period of > 3 months, new engines, overhauled engines
General information
The preservation work must be recorded in the check sheet (→Page 93). For engines put into
storage under manufacturer’s warranty, the monitoring card (→Page 94) must be filled out and
returned to MTU in good time before the engine is put into service.
Note
If the engine cannot be properly accessed to carry out preservation work (e.g. charge-air pipe inaccessible) then the
engine must be removed and mounted on a ground run base or a test stand while preservation is completed.
Preservation of cooling system, lubrication system and fuel system of new engines
• Clean engine if necessary.
• Completely fill cooling system with inhibitor concentrate Glysacorr P 113 (9-11% by
vol.) and water (91 – 89% by vol.).
• Fill with initial operation corrosion inhibitor oil in accordance with current MTU specs
A 001061 at least up to the min. mark.
• Fill the fuel system completely with diesel fuel.
• Carry out the engine preservation run for approx. 10 mins at increased idling speed; the
inhibitor concentrate must reach at least operating temperature.
• Shut down engine.
• Allow engine to cool down, where possible, to max. 40 °C.
• Drain the inhibitor concentrate.
• Drain initial operation corrosion inhibitor oil.
• Leave the fuel in the system.
If there is danger of frost, fill up with antifreeze (40%)! (Only for installed engines)
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 79
Preservation of combustion chamber on new engines
• Clean engine if necessary.
• Fill with initial operation corrosion-inhibiting oil up to the “Min” mark at least.
• Clear access to the charge-air pipe. This may require removal of the flame-start canisters,
sensors, covers or pipes. Access to the charge-air pipe must be available after the intercooler,
after the pressure fine filter / air filter and after the turbocharger.
• Bar warm engine with starting equipment. The engine must not respond. This requires actuation of the
stop lever in the case of mechanical governors. With electronic governors, switch off the power supply
and turn the engine over either with the emergency start or another suitable method.
• While the engine is turning, fill with initial operation corrosion inhibitor oil in accordance with
the current MTU Fluids and Lubricants Specifications A001061/.. for approx. 15 seconds with
a fine atomizer spray gun into the charge air manifold openings.
• Drain initial operation corrosion inhibitor oil.
• Re-seal the openings to the charge-air manifolds.
Preservation of cooling system, lubrication system and fuel system of engines from the field
• Clean engine if necessary.
• Drain engine oil.
• Fill with initial operation corrosion inhibitor oil in accordance with the current MTU Fluids and
Lubricants Specifications A001061/.. up to the Min. mark at least
• Fill the fuel system completely with diesel fuel
• When using a corrosion inhibiting antifreeze, leave it in the system; otherwise, drain coolant and fill the system
in accordance with MTU Fluids and Lubricants Specifications A001061/.. with corrosion inhibiting antifreeze
if there is a risk of frost. If there is no risk of frost, the customer’s coolant can be left in the system.
• Carry out the engine preservation run for approx. 10 mins at increased idling speed; the
coolant must reach at least operating temperature.
• Shut down engine.
• Leave corrosion inhibiting antifreeze in the system
• Drain initial operation corrosion inhibitor oil.
• Leave the fuel in the system.
Preservation of combustion chamber on engines from the field
• Clean engine if necessary.
• Fill with initial operation corrosion-inhibiting oil up to the “Min” mark at least.
• Clear access to the charge-air pipe. This may require removal of the flame-start canisters,
sensors, covers or pipes. Access to the charge-air pipe must be available after the intercooler,
after the pressure fine filter / air filter and after the turbocharger.
• Bar warm engine with starting equipment. The engine must not respond. This requires actuation of the
stop lever in the case of mechanical governors. With electronic governors, switch off the power supply
and turn the engine over either with the emergency start or another suitable method.
• While the engine is turning, fill with initial operation corrosion inhibitor oil in accordance with
the current MTU Fluids and Lubricants Specifications A001061/.. for approx. 15 seconds with
a fine atomizer spray gun into the charge air manifold openings.
• Drain initial operation corrosion inhibitor oil.
• Re-seal the openings to the charge-air manifolds.
In addition to the preservation steps, the following measures must still be carried out:
in installed condition:
• Seal following openings tight against moisture:
• Cooling-air inlet
• Combustion-air inlet (close the emergency air shutoff flaps if they are provided)
• Exhaust outlet
with engine removed:
• Seal following openings tight against moisture:
• Cooling-air inlet
• Combustion-air inlet (close the emergency air shutoff flaps if they are provided)
• Exhaust outlet
• Electrical plug connectors
• Crankcase vent (with venting to atmosphere)
• Coat or spray non-painted parts with corrosion inhibitor for external preservation in accordance
with MTU Fluids and Lubricants Specifications A001061/..
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
80 Preservation Specifications
• Seal check sheet in a clear plastic envelope and attach to engine at a clearly visible location.
• Complete the check sheet after completion of preservation work.
• Seal supply and drain lines of:
• Coolants
• Fuel
• Engine oil
Preserving diesel engines
• Remove sealed covers from combustion-air inlet and exhaust outlet.
• Preserve combustion chamber (see item Preservation of combustion chamber).
• Seal off the combustion air intake and exhaust outlet openings against moisture / humidity once again.
• Fill the cooling circuit with an external pump with corrosion inhibiting antifreeze, or fill 100% with
customer’s coolant (without antifreeze if there is no risk of frost).
• Leave corrosion inhibiting antifreeze in the system
Represervation of the cooling system is not necessary with further represervation replenishments.
Before return to service, the engine must be depreserved. The following steps must be carried out:
• Clean engine if necessary.
• Remove all sealing covers
• Drain off remaining corrosion-inhibiting oil.
• Fit new oil filters (inserts) (not applicable for new deliveries; after 1 year at latest).
• Fit new oil filters (inserts) (not applicable for new deliveries; after 1 year at latest).
• Fill up with engine oil.
• Bar engine manually.
• Prepare engine for operation.
• Renew coolant
Note
Put engine into operation according to the engine documentation.
Preserving gas engines
The same specifications as for preservation or represervation of diesel engines apply.
The following section lists deviations from the above-named specifications.
Preservation of cooling system and lubrication system of new engines
• Clean engine if necessary.
• Completely fill cooling system with inhibitor concentrate Glysacorr P 113 (9-11% by
vol.) and water (91 – 89% by vol.).
• Fill with initial operation corrosion inhibitor oil in accordance with the current MTU Fluids and
Lubricants Specifications A001061/.. up to the Min. mark at least.
• Run the engine for 15 minutes at half load.
• Shut down engine.
• Allow engine to cool to max. 40 °C.
• Drain the inhibitor concentrate.
• Drain initial operation corrosion inhibitor oil.
If there is danger of frost, fill up with antifreeze (40%)! (Only for installed engines)
Preservation of combustion chamber on new engines
• Clean engine if necessary.
• Fill with initial operation corrosion-inhibiting oil up to the “Min” mark at least.
• Clear access to the charge-air pipe. This may require removal of the flame-start canisters,
sensors, covers or pipes. Access to the charge-air pipe must be available after the intercooler,
after the pressure fine filter / air filter and after the turbocharger.
• Use the starting system to bar the engine. The engine must not respond. To ensure this, the
gas supply must be reliably interrupted by closing the gas line.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 81
• While the engine is turning, fill with initial operation corrosion inhibitor oil in accordance with
the current MTU Fluids and Lubricants Specifications A001061/.. for approx. 15 seconds with
a fine atomizer spray gun into the charge air manifold openings.
• The starter unit must only be used to bar the engine if the engine is filled at least up to the “Min”
mark and the oil filters are filled with initial operation corrosion-inhibiting oil.
• Drain initial operation corrosion inhibitor oil.
• Re-seal the openings to the charge-air manifolds.
Preservation of cooling system and lubrication system of engines from the field
• Clean engine if necessary.
• Drain engine oil.
• Fill with initial operation corrosion inhibitor oil in accordance with the current MTU Fluids and
Lubricants Specifications A001061/.. up to the Min. mark at least
• When using a corrosion inhibiting antifreeze, leave it in the system; otherwise, drain coolant and fill the system
in accordance with MTU Fluids and Lubricants Specifications A001061/.. with corrosion inhibiting antifreeze
if there is a risk of frost. If there is no risk of frost, the customer’s coolant can be left in the system.
• Run the engine for 15 minutes at half load.
• Shut down engine.
• Leave corrosion inhibiting antifreeze or the customer’s coolant in the system.
• Drain initial operation corrosion inhibitor oil.
Preservation of combustion chamber on engines from the field
• Clean engine if necessary.
• Drain the customer’s engine oil.
• Fill with initial operation corrosion-inhibiting oil up to the “Min” mark at least.
• Clear access to the charge-air pipe. This may require removal of the flame-start canisters,
sensors, covers or pipes. Access to the charge-air pipe must be available after the intercooler,
after the pressure fine filter / air filter and after the turbocharger.
• Use the starting system to bar the engine. The engine must not respond. To ensure this, the
gas supply must be reliably interrupted by closing the gas line.
• While the engine is turning, fill with initial operation corrosion inhibitor oil in accordance with
the current MTU Fluids and Lubricants Specifications A001061/.. for approx. 15 seconds with
a fine atomizer spray gun into the charge air manifold openings.
• The starter unit must only be used to bar the engine if the engine is filled at least up to the “Min”
mark and the oil filters are filled with initial operation corrosion-inhibiting oil.
• Drain initial operation corrosion inhibitor oil.
• Re-seal the openings to the charge-air manifolds.
Represerving gas engines
• Remove sealed covers from combustion-air inlet and exhaust outlet.
• Preserve combustion chamber (see item Preservation of combustion chamber).
• Seal off the combustion air intake and exhaust outlet openings against moisture / humidity once again.
• Fill the cooling circuit with an external pump with corrosion inhibiting antifreeze, or fill 100% with
customer’s coolant (without antifreeze if there is no risk of frost).
• Leave corrosion inhibiting antifreeze in the system
Represervation of the cooling system is not necessary with further represervation replenishments.
Before return to service, the engine must be depreserved. The following steps must be carried out:
• Clean engine if necessary.
• Remove all sealing covers
• Drain off remaining corrosion-inhibiting oil.
• Fit new oil filters (inserts) (not applicable for new deliveries; after 1 year at latest).
• Fit new oil filters (inserts) (not applicable for new deliveries; after 1 year at latest).
• Fill up with engine oil.
• Bar engine manually.
• Prepare engine for operation.
• Renew coolant
Note
Put engine into operation according to the engine documentation.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
82 Preservation Specifications
Special packing
Special packing must be carried out for storage outdoors, immediately following preservation if possible, for
engines which are to be taken out of service for more than 36 months or which are to be transported by sea
or in polar or tropical regions, see Section (→Page 78)and (→Page 80). Likewise, special packing is also
usually advisable for protecting the engine against corrosion during shorter periods of storage.
General information on special packing
Engines / drive plants must be specially packed for transportation by sea or in polar / tropical regions and before
long-term storage. This means that the engine must be preserved according to Section (→Page 78) or (→Page 80)
(completely drain off coolant and preservation oil) and enclosed in special packing in addition.
The following types of special packing are available:
• Envelopes of bonded-layer material (e.g. aluminum bonded-layers).
• Hygroscopic (water-absorbing) materials (e.g. silica gel).
The engine is welded into a foil with limited water-vapor permeability, the enclosed air is then extracted by
means of a vacuum-cleaner, and is dried to the desired relative humidity with desiccant. Desiccant is used
to achieve a specific relative humidity inside the foil envelope. The climatic packing of bonded-layer material
hinders the formation of condensed water on the metal surface and resulting corrosion.
Maintenance Intervals
Every 3 to 4 months
• Check humidity indicators (→Page 84)
Note:
When storing the engine in special packing (with laminated-aluminum layers), note that the elastomers
have a limited life. The calculation of the total service life of the elastomers begins with either the year of
manufacture or last engine overhaul (see nameplate). Based on current knowledge, elastomer components
made of fluorocarbon rubber (e.g. O-rings) have a total service life of about 20 years and those made
of other rubber materials (hoses) have a total service life of about 10 years.
In cases of storage for more than 10 years (from date of manufacture on identification
plate) but before putting into service
• Replace all rubber parts on engine (hoses, sleeves, etc.)
Storage beyond 20 years (as of year of manufacture on nameplate) but before commissioning:
• Replace all elastomers during a major overhaul of the engine.
Note:
A long storage period shortens the time limit for an engine’s major overhaul (TBO) because of the limited total
service life of the elastomers. MTU recommends that engines should not be stored for more than 10 years.
Envelopes of laminated material
The envelopes consist of tightly-bonded layers of aluminum composite foil which has limited
permeability to water vapour and gas.
The material used by MTU is composed of polyethylene – aluminum and polyester, with the following properties:
• Temperature range for applications from +70 °C to –50 °C.
• Water vapor permeability (WVP): 0.1 g/m² per day at 38 °C and 80% relative humidity
(compared with PVC soft foil: WVP 6 g/m² per day)
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 83
Desiccant
Desiccant, mostly silica gel, is the name usually given to water-absorbing materials as used in the
special packing. The desiccant is in packs of highly-permeable (for water vapour) and strong material
(e.g. natron crepe paper) which are placed in the transport package.

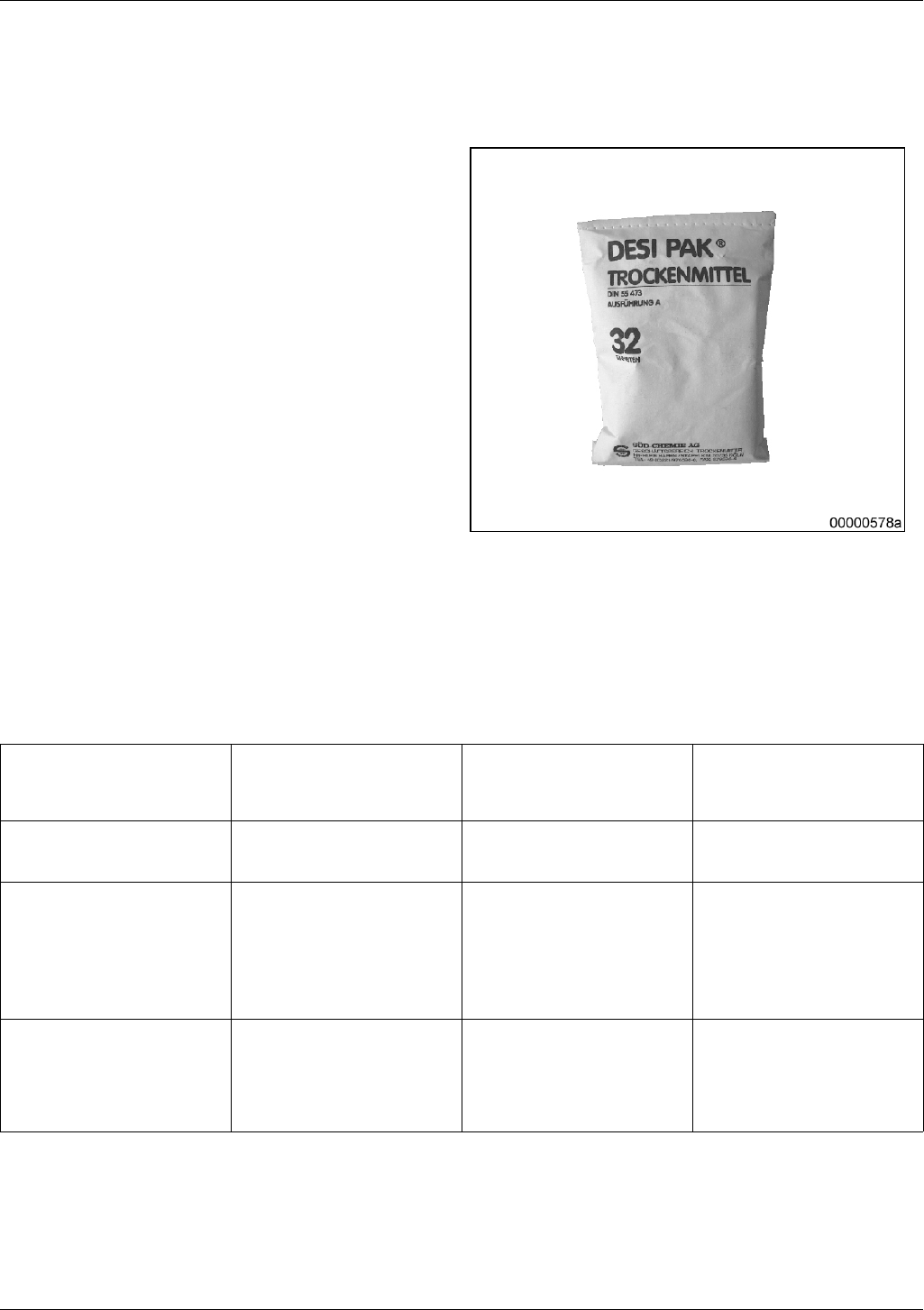

Desiccant pack
The following drying-agent packs are used for transport packing:
• MTU-No. 49542 desiccant 125 g = 4 units
• MTU No. 49543 desiccant 259 g = 8 units
• MTU-No. 49544 desiccant 500 g = 16 units
• MTU No. 49545 desiccant 1000 g = 32 units
Calculation of required desiccant
The amount of units placed in the special packing depends on the climatic conditions and type of storage at
the place of destination. The minimum amount of units to be used is calculated as follows:
Climatic zone Per m² laminated
aluminum foil surface
(A)
Per kg auxiliary packing
materials (APM)
Desiccant units (DU)
A
Europe (excluding Russia) 6xA 17 x APM = DU per shipment
package
B
USA
Canada
Mediterranean
Near East
8xA 20 x APM
= DU per shipment
package
C
Russia
South and Middle America
Middle and Far East
17xA 20 x APM
= DU per shipment
package
Procedure
1. Measure surface A of the laminated aluminum foil for the packing.
2. Weigh the packing material (e.g. wood, corrugated cardboard, etc.) necessary to support
and protect the engine within the special packing envelope.
3. Determine which climatic zone(s) the protected engine will be transported through and finally stored in.
4. Calculate the required desiccant (DU).
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
84 Preservation Specifications
Note:
If the laminated aluminum foil is replaced or repaired following damage, the calculation for the desiccant
required (DU) must be carried out again as follows (example) (→Page 83).
Calculation example for desiccant units
Determination of DU for the seaworthy transport of an engine to Singapore:
• Laminated aluminum foil surface 10 m²
• Packing material: 3 kg
• Packing for climatic zone C:
17 DU/m² laminated aluminum foil x 10 m² =170
+20 DU/kg x3kg =60
Total 230 DU
Result: Sufficient protection of the engine requires 230 desiccant units (DU).
Humidity Indicator
Humidity indicators can be inserted into the foil envelope to show the saturation level of the desiccant. The
indicators signalize by changing color that the specified level of relative humidity has been exceeded. An increase
in relative humidity e.g. due to leaks or damage, presents a risk of corrosion for the engine.
A viewing window with a humidity indicator is screwed into the laminated aluminum foil at a point
as far away as possible from the desiccant. It is thus possible to check the relative humidity
inside the foil envelope and / or to verify any changes.
The humidity must be checked regularly every 3 to 4 months.
30 Colored pink:
Relative humidity above
30%.
40 Colored pink:
Relative humidity above
40%
50 Colored pink:
Relative humidity above
50%
Relative humidity above 30%
Reduce time between checks, i.e. check every 4 weeks.
Relative humidity above 40%
The desiccant must be replaced (→Page 91); evenly distribute the new desiccant primarily in the upper
section of the packaging. Required units of desiccant for special packaging (→Page 83).
Relative humidity above 50%
Check condition of packed engine, represerve engine, (→Page 80)and (→Page 81) and repack engine (→Page 85).
Note:
The humidity indicator regenerates itself; replacement is not necessary.
Order numbers for packing materials
Details required when ordering from MTU:
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 85
MTU No. 20447 Humidity indicator
MTU No. 20448 Viewing window
MTU-No. 49542 desiccant 125 g = 4 units
MTU-No. 49543 desiccant 250 g = 8 units
MTU-No. 49544 desiccant 500 g = 16 units
MTU No. 49545 desiccant 1000 g = 32 units
MTU No. 49576 Laminated aluminum foil 1.00 m wide
MTU No. 49577 Laminated aluminum foil 1.25 m wide
MTU No. 49579 Laminated aluminum foil 1.50 m wide
MTU No. 49578 PE (polyethylene) foam foil 1.25 m wide, 4 mm thick
Special packing procedure for finished products
Preparation for special packing
Provided that the engine is not new or has not undergone a major overhaul carried out by MTU (and has
already been preserved ), preservation (→Page 78)and (→Page 80) must be carried out before special
packing takes place. Coolant and preservation oil must be completely drained.
Transportation locking device
Check whether a transportation locking device is required (see engine documentation or consult MTU).
Block crankshaft and engine mounts as specified in the engine documentation.
Special packing of an engine

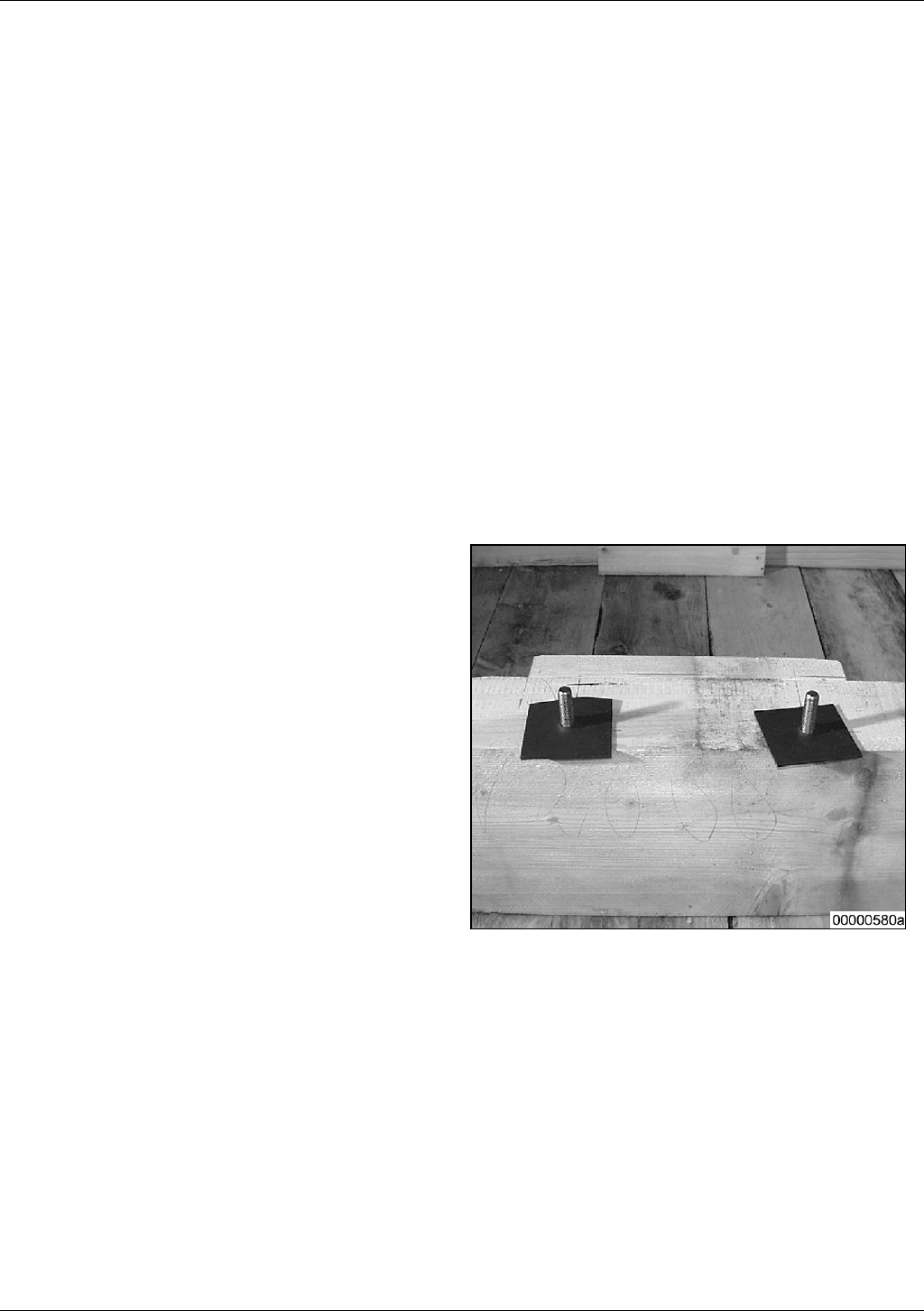

The laminated aluminum foil is to be clamped
between two hard-rubber pads around the anchor
studs. Use a hole punch to cut out holes for the
studs.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
86 Preservation Specifications

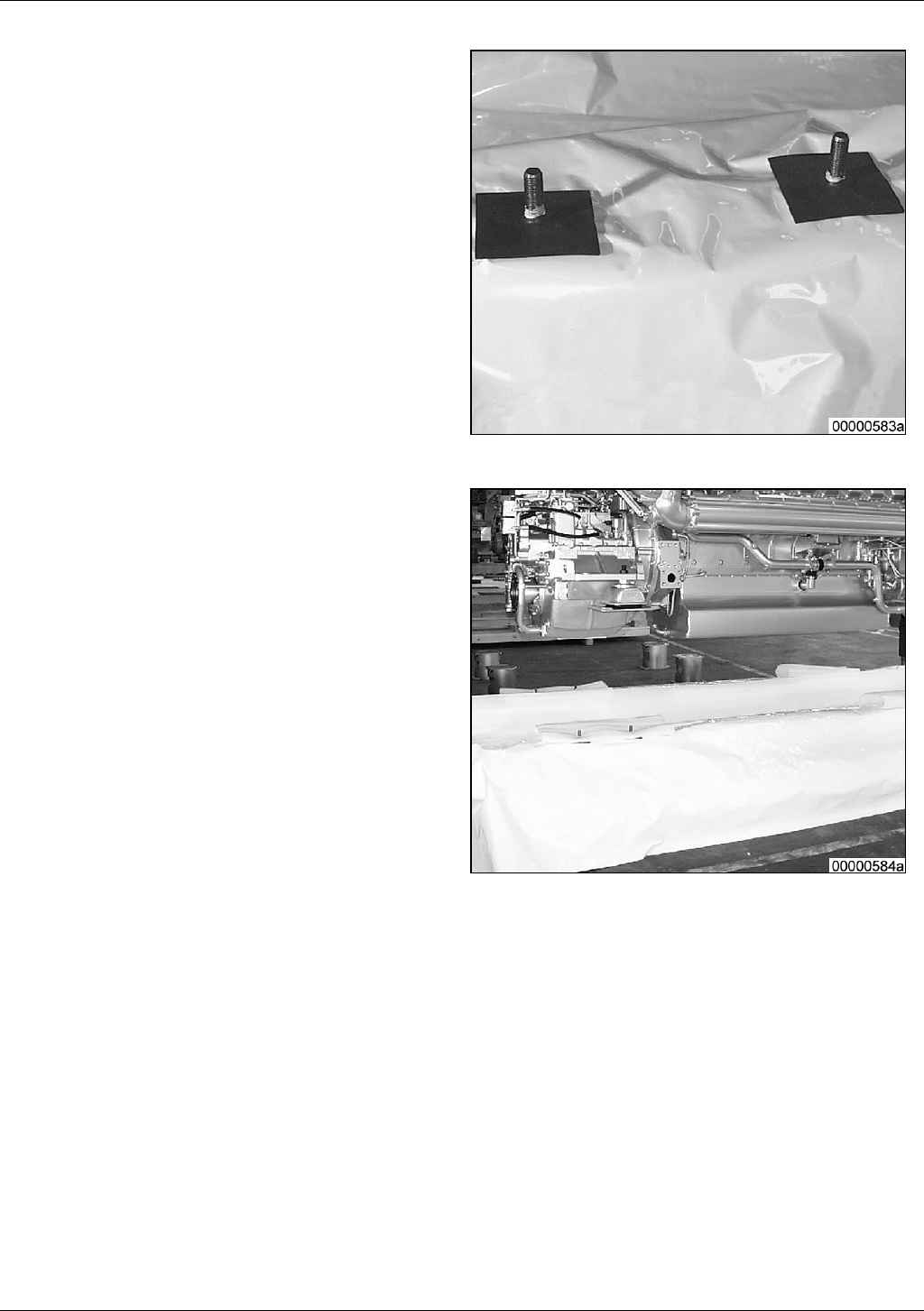

Coat the intermediate pads liberally with
non-hardening sealant (Loctite 5970, MTU Part
No. 50773) around the studs.
After positioning the aluminum foil over the
studs, coat liberally around the stud holes with
non-hardening sealant (Loctite 5970, MTU Part
No. 50773).
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 87
Position the second hard-rubber pads.
For additional protection of the laminated
aluminum foil, position foam foil over the upper
hard-rubber pad. The complete system is
compressed and sealed after the engine mounts
are installed and secured.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
88 Preservation Specifications

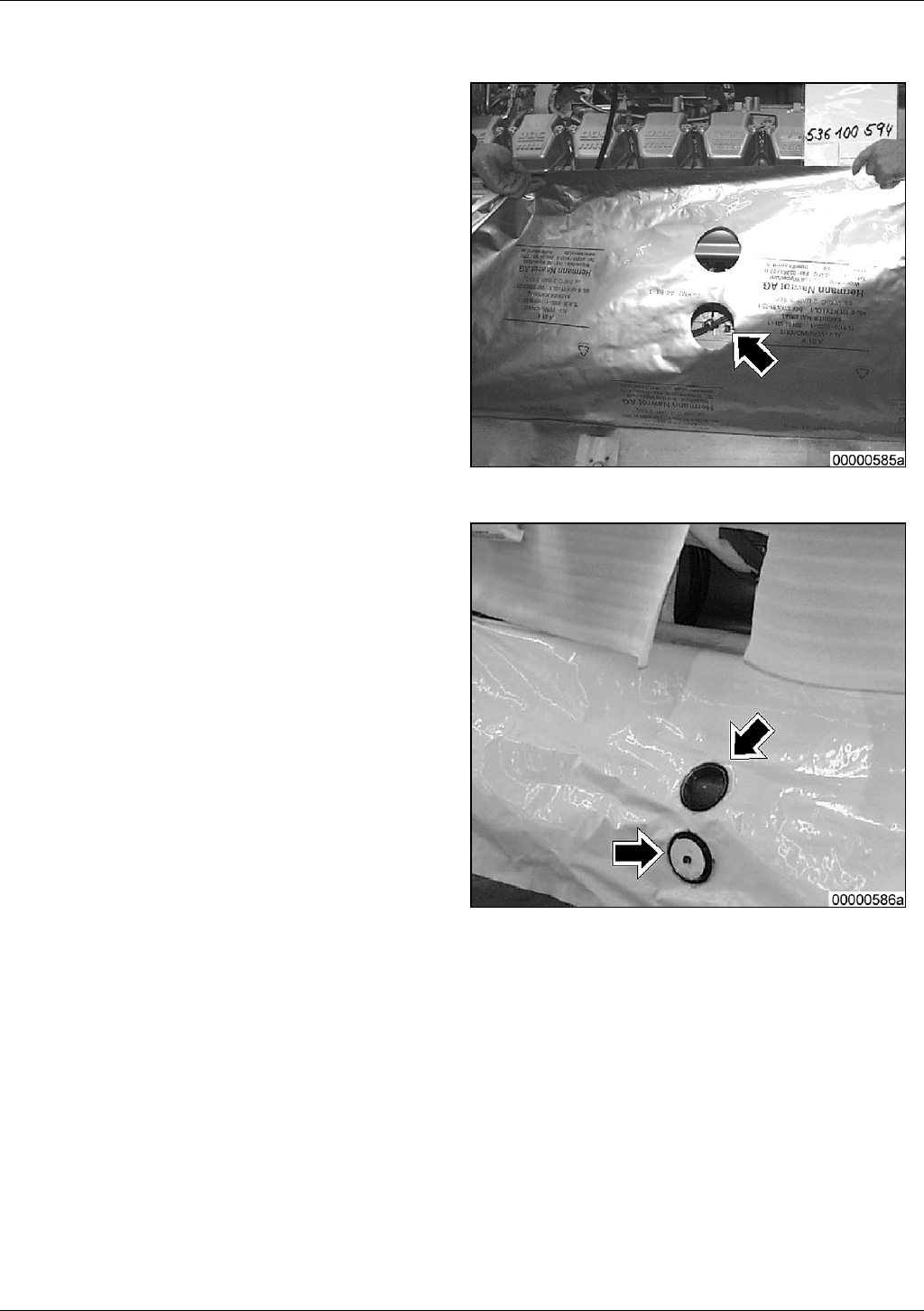

Installation of Humidity Indicator
The holes for the indicator and the viewing
window are to be cut into the laminated aluminum
foil in a clearly visible position and as far as
possible from the desiccant units. The viewing
window must be so positioned that the engine
No. can be checked.
Screw in the humidity indicator and the viewing
window.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 89

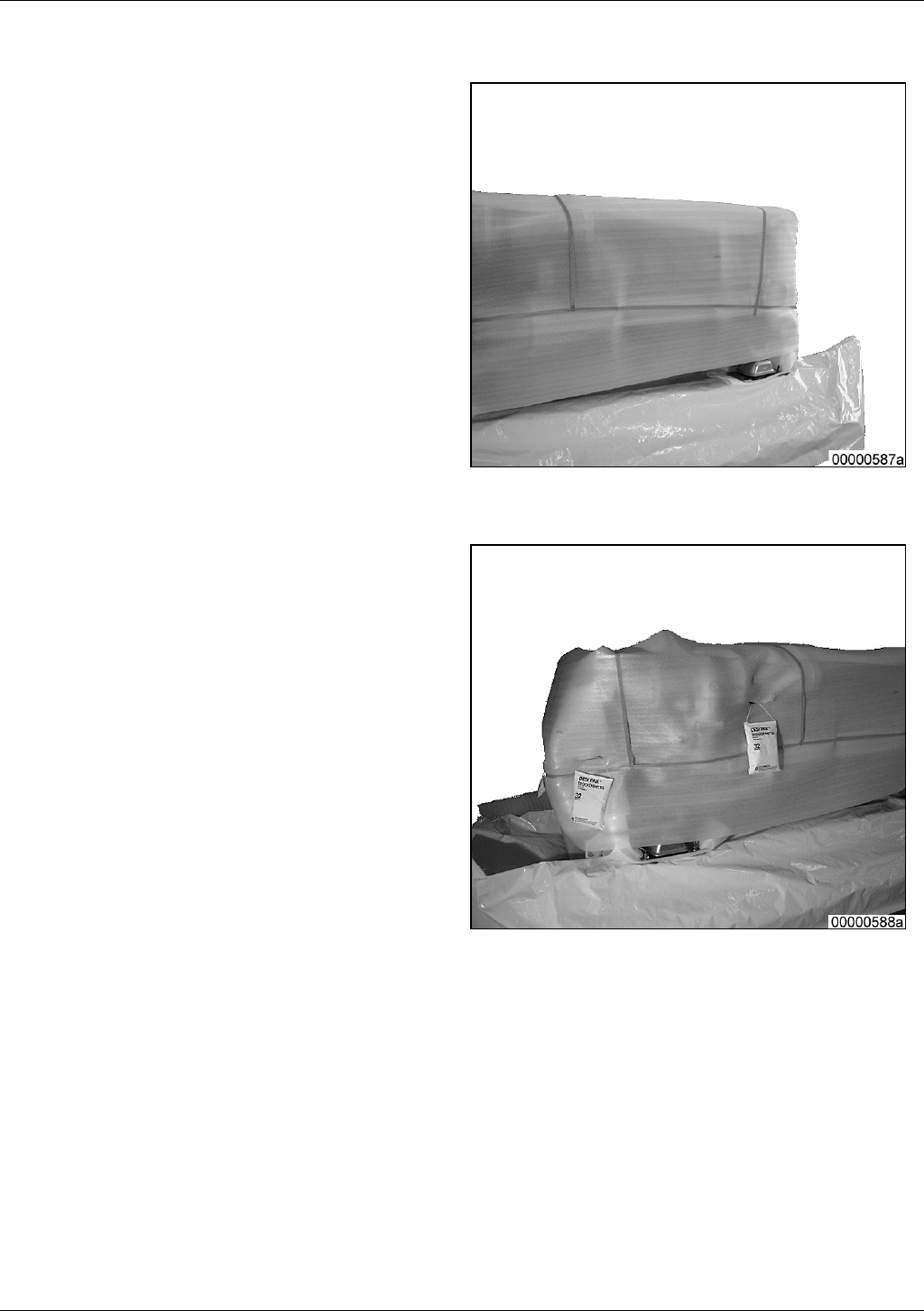

Cushioning of engine edges and corners
Engine edges and corners, which could damage
the laminated aluminum foil, must be cushioned
using foam foil or foam rubber.
Location of desiccant units
Use the formula (→Page 83) to calculate the
required number of desiccant units and put them
in place. The desiccant units must be arranged
in the upper third of the envelope and attached
to the engine, hanging free wherever possible.
Ensure that the desiccant units are attached
(with string, adhesive tape or other suitable
material) so that no damage can be caused to
the desiccant units, the engine or the laminated
aluminum foil.
Note:
The desiccant units must not be in direct contact with corrosion-sensitive engine components.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
90 Preservation Specifications

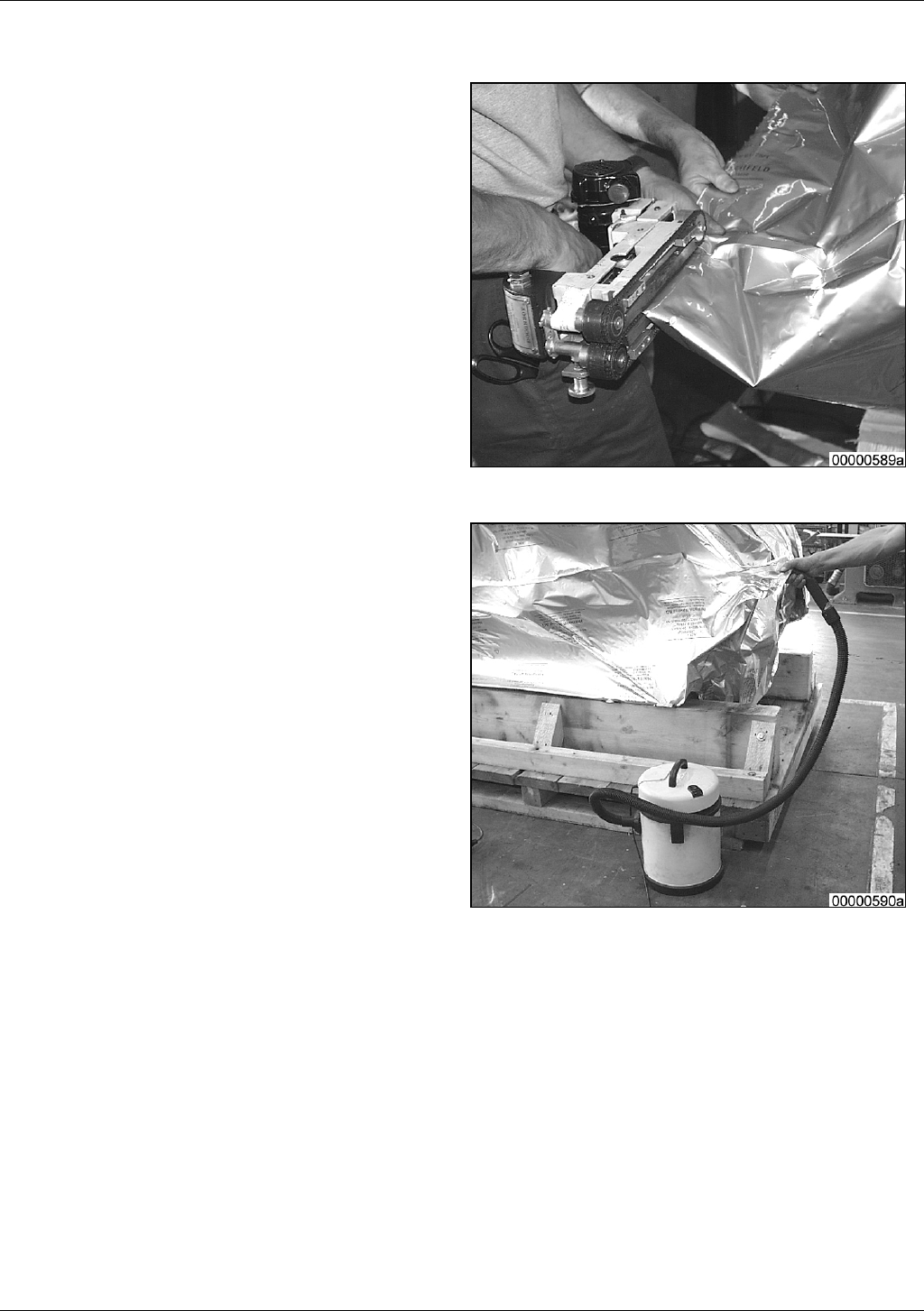

Laminated aluminum foil sealing
Use a manual foil-welding unit suitable for
aluminum laminate foils to seal the aluminum
laminate envelope (→Page 92).
Prior to final sealing of the aluminum laminate
envelope, use a vacuum pump (e.g. vacuum
cleaner) to extract the entrapped air.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 91

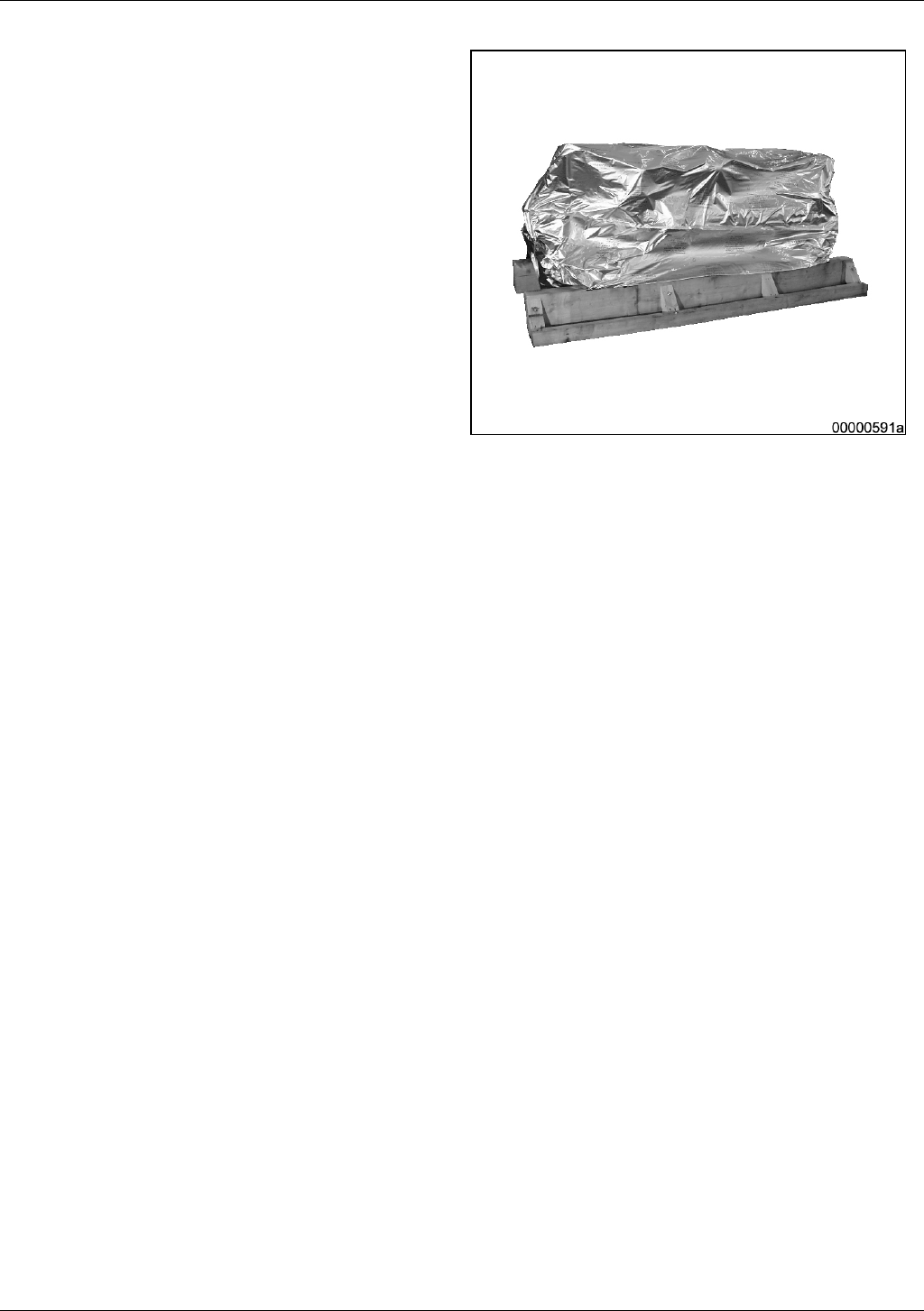

As a consequence of the resulting pressure drop,
the envelope must shrink into light contact with
the engine. Excessively heavy contact must be
avoided as friction damage could result during
transportation.
Note:
When the air is extracted, the air humidity is eliminated, thus ensuring a favorably low initial level of
moisture in the packaging. Extraction of the air also verifies that the envelope is free of leaks. If the
envelope is not adequately sealed, it will re-expand within 30 minutes.
A leak can be found by pressurizing the envelope and repaired by welding.
Special packing checks
Humidity check
Humidity within the envelope must be checked regularly every 3–4months(→Page 84). The results of the
check must be entered on the monitoring sheet (→Page 94). If the engine is still under warranty, return the
monitoring sheet (→Page 94) to MTU Friedrichshafen after putting the engine into service.
Attention!
When checking the special packing, ensure that the laminated aluminum foil is not damaged, exercise
great care when opening the transportation box (if provided).
The condition of the laminated aluminum foil is to be checked minutely at every customs, stock or storage
check. Protection against corrosion is not guaranteed if the aluminum composite foil is damaged.
Desiccant replacement
Open the upper section of the envelope and remove the old desiccant. Place the same amount of fresh desiccant in
the upper section of the envelope (→Page 89). Re-weld the envelope and extract the air (→Page 90).
Repair of special packing
If the laminated aluminum foil is damaged, the damaged area can be cut out and a new section welded into
position. If repairs have to be carried out, the envelope must be stocked with fresh desiccant (→Page 89) and
the air must be extracted again (→Page 90). Incorrect repair, e.g. using adhesive tape, is not permissible,
as the partial vacuum in the envelope cannot be maintained. In order to ensure correct repair, the specified
packing materials (→Page 84) and the manual welding unit (→Page 92) must be used.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
92 Preservation Specifications

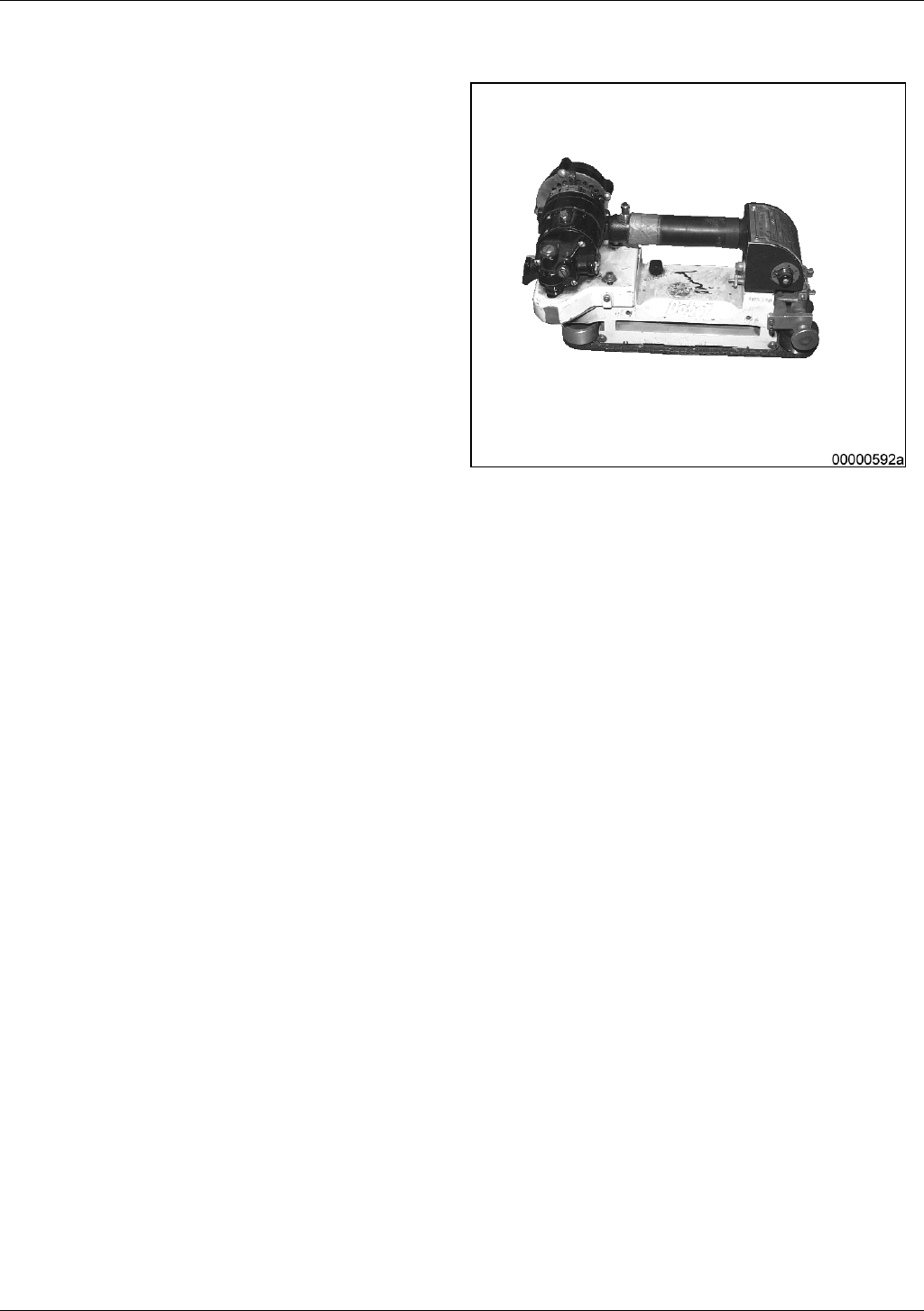

Manual welding unit
A supplier of foil-welding units is, for example:
W. Kopp Verpackungsmaschinen
Stettener Straße 111-117
D-73732 Esslingen- Waeldenbronn
Designation: HSD 95 Cello manual sealing unit
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 93
Form Sheets
Preservation Check Sheet
Engine model: .............................. Engine No. .............................. Acceptance date: ..............................
Correct completion of the preservation tasks as specified in the preservation instructions must be certified on this
check sheet by the person completing the various tasks.
Tasks completed Date Name
Lubrication system
Preserved with preservation oil.
Brand of oil used:
....................................................................................................
Fuel system
Preserved with preservation fuel.
Preservation fuel used:
....................................................................................................
Fuel main and prefilters, fuel pipework not drained.
Cooling system
Is preserved with specified coolant.
Coolant is not drained (except with special packing, engines which have
been de-installed and engines for dispatch).
Non-painted parts
These are brush-coated with corrosion inhibitor. All engine openings are
sealed as specified. All parts to be kept free of paint such as flywheel,
starter ring gear and starter pinion as well as non-painted sections of the
control linkage and the uncovered coupling flange (as appropriate) for the
3-phase generator are brush-coated with corrosion-inhibiting oil.
Corrosion inhibitor used:
....................................................................................................
Engine is preserved as specified.
Represervation completed as specified
On completion of preservation, place the completed check sheet in a plastic envelope. Seal the envelope and tie it
to the engine at a clearly visible location. Keep this check sheet with the engine until completion of depreservation.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
94 Preservation Specifications
Monitoring Sheet for Engines in Special Packing
Engine model: .............................. Engine No. .............................. Date of delivery: ..............................
The following checks are to be made before, during and at the end of the engine storage period and correct
execution must be confirmed by date and signature.
Note:
With new products, entry of the delivery date is mandatory.
No. Tas k Date Name
1Visual check of special packing for damage
Relative humidity: .............................. %
2Relative humidity: .............................. %
3Relative humidity: .............................. %
4Relative humidity: .............................. %
5Relative humidity: .............................. %
6Relative humidity: .............................. %
7Relative humidity: .............................. %
8Relative humidity: .............................. %
9Relative humidity: .............................. %
10 Relative humidity: .............................. %
11 Relative humidity: .............................. %
12 Relative humidity: .............................. %
13 Humidity indicator check before opening the envelope
Relative humidity: .............................. %
14 Depreservation completed
15 Date of scheduled initial operation of engine
Repairs Tasks completed
To the laminated aluminum
foil or packing box
Important NOTE: Inform MTU during the warranty period:
Inform MTU
• If two or all three humidity indicators are pink.
• If external corrosion on the engine or damage to rubber hose connections is found when the engine
is depreserved.
Inform MTU in good time before initial operation of the engine.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Preservation Specifications 95
Check sheet for depreservation of engines in special packing
Check sheet for engine depreservation
Attention!
Before opening the envelope, read this check sheet carefully and follow the instructions exactly, especially
those requiring contact with MTU.
1. Read off the humidity status at the indicators and
enter on the Monitoring Sheet.
6. Record the date of depreservation on the
Monitoring Sheet.
Attention:a. If all 3 fields are blue, everything is OK
b. If the 30% and 40% sections are partly or totally
pink, check the envelope for damage. Report
damaged envelopes to MTU.
c. If all three fields are pink, do not open the
envelope and report to MTU.
7. Do not remove the sealing covers from the
engine openings (turbocharger inlet, exhaust
manifold outlet, coolant inlet and outlet,
connecting flanges for vent lines on coolant
distribution pipes) until these are to be used.
2. If the humidity readings are in order and there are
no visible signs of faults / damage, remove the
laminated aluminum foil from the engine.
8. Compliance with the initial-operation
instructions in the engine documentation is
mandatory.
3. Check the exposed engine externally for corrosion or
damage. Enter date and findings on the Monitoring
Sheet.
4. Inspect visually all rubber-hose connections, they
must not be brittle or swollen.
5. Report any faults to MTU immediately and await
their reply. Do not prepare the engine for installation
or make changes. Store the engine in a dry and
covered location.
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
96 Preservation Specifications
A001061/33E 08-01 ©MTU
TIM ID: 0000010139 – 006
Flushing and Cleaning Specifications for Engine Coolant Systems 97
8 Flushing and Cleaning Specifications for Engine
Coolant Systems
General information
These cleaning specifications are for the engine cooling systems in MTU diesel engines
In the course of time, sludge deposits from aging coolant additives can accumulate in the cooling system. Reduced
cooling capacity, clogged vent lines and drain points and dirty coolant level sight-glasses can result.
Below-standard water quality or incorrect coolant preparation can also heavily contaminate the system.
If such conditions occur, the coolant system is to be flushed out with fresh water, repeatedly if necessary.
If these flushing sequences are insufficient or if the system is too heavily contaminated, the
system and all affected parts must be cleaned.
Only clean, fresh water (no river or sea water) must be used for flushing.
Only MTU-approved or corresponding products at the specified concentrations may be used for
cleaning. The specified cleaning procedure is to be complied with.
Immediately after flushing or cleaning, fill the cooling systems with treated engine coolant as stipulated
in the current MTU Fluids and Lubricants Specifications A001061 (→Page 37).
Fluids and lubricants (e.g. treated engine coolant), used flushing water, cleaning agents and cleaning solutions can be
hazardous materials. Certain regulations must be obeyed when handling, storing and disposing of these substances.
These regulations are contained in the manufacturer’s instructions, legal requirements and technical guidelines
valid in the individual countries. Considerable differences can apply from country to country so that no generally
valid statement on the applicable regulations for fluids and lubricants etc. can be made in this publication.
Users of the products named in these specifications are therefore obliged to inform themselves of
the locally valid regulations. MTU accepts no responsibility whatsoever for improper or illegal use
of the fluids and lubricants / cleaning agents which it has approved.
Scrap oil heat exchangers from engines with bearing or piston seizures or friction damage!
Test equipment, auxiliary materials and fluids and lubricants
MTU test kit or electric pH-value measuring instrument
•Freshwater
• Prepared engine coolant
• Superheated steam
• Compressed air
A001061/33E 08-01 ©MTU
TIM ID: 0000010140 – 004
98 Flushing and Cleaning Specifications for Engine Coolant Systems
Approved Cleaning Products
Manufacturer Product name Concentration for use Order No.
For coolant systems:
Henkel P3-Neutrasel 5262 2% by volume Liquid 4)
Henkel P3-Saxin 2% by weight Powder 4)
Novamax Grision 5716 2% by weight Powder 4)
Nalco Maxi Clean 2 2% by volume Liquid 40495
For subassemblies:
Henkel P3-FD1) 3 to 5% by weight Powder 4)
Henkel Porodox2) 5 to 10% by
weight
Powder 4)
Kluthe Hakutex 60 100% by volume Liquid 50602
Novamax Euron 13083)5 to 10% by
weight
Powder 4)
1)For greasy lime deposits 3)For heavy lime deposits
2)Preferred for heavy lime deposits 4)Not stocked by MTU
Flushing engine coolant systems
Drain engine coolant.
Measure pH-value of the fresh water (MTU test kit or electric pH-value measuring device).
Fill coolant system with fresh water.
• Never pour cold water into a hot engine!
Preheat, start and run engine until warm.
Run engine for approx. 30 minutes at increased speed.
Take flush-water sample (engine-coolant-sample extraction cock).
Shut down engine and drain flush water.
Measure pH-value of the flush-water sample (MTU test kit or electric pH-value measuring device).
If pH-value after flushing is only slightly above pH-value of fresh water, (pH-value difference < 1):
Fill system with treated coolant and start engine.
If pH-value after flushing is still significantly above pH-value of fresh water, (pH-value difference > 1):
Fill system with fresh flush water and repeat flushing process.
If the pH-value after 4 or 5 flushing sequences is still significantly above pH-value of
fresh water, (pH-value difference > 1):
Clean coolant system and, if necessary, the components also.
For further information, see Operating Instructions for engine in question.
Cleaning engine coolant systems
Prepare concentrated solution of detergent (for coolant systems) in warm fresh water.
In the case of powdered products, stir until the detergent is completely dissolved and without sediment.
Pour solution together with fresh water into coolant system.
Start engine and run until warm.
Run engine for approx. 2 hours at increased speed.
Shut down engine.
A001061/33E 08-01 ©MTU
TIM ID: 0000010140 – 004
Flushing and Cleaning Specifications for Engine Coolant Systems 99
Drain off cleaning agents and flush the engine cooling system with fresh water.
Take flush-water sample (engine-coolant-sample extraction cock).
Measure pH-value of the flush-water sample (MTU test kit or electric pH-value measuring device).
If pH-value after flushing is only slightly above pH-value of fresh water, (pH-value difference < 1):
Fill system with treated coolant and start engine.
If pH-value after flushing is still significantly above pH-value of fresh water, (pH-value difference > 1):
Clean components
For further information, see Operating Instructions for engine in question.
Cleaning components
Remove, disassemble and clean components that are exposed to heavy sludge deposits e.g. expansion
tanks, preheating units, heat exchangers (coolant cooler, oil heat-exchanger, intercooler, charge-air
preheater, fuel preheater etc.) and lower sections of pipework.
Before cleaning, examine degree of contamination on water sides.
If greasy lime deposits are found, first degrease the water side.
Stubborn deposits caused by oil mist in intercoolers can be removed with Kluthe Hakutex 60.
Remove hard lime deposits with a decalcifying product.
In the event of stubborn lime deposits, a 10% inhibited hydrochloric solution may have to be used.
Dissolve deposits on and in heat-exchanger elements in a heated cleaning bath.
Use only approved detergents in the permissible concentration.
Always follow the manufacturer’s instructions when preparing cleaning baths!
• Deposits on the oil side can also be dissolved in a kerosene bath.
• The period spent in the cleaning bath depends on the type and degree of contamination,
as well as the temperature and activity of the bath.
Clean individual components such as housings, covers, pipes, sight glasses, heat-exchanger elements
and similar with superheated steam, a nylon brush (soft) and a powerful water jet.
In order to avoid damage:
• Do not use hard or sharp-edged tools (steel brushes, scrapers etc.) (oxide protective layer)
• Do not set the water-jet pressure too high (damage, e.g. to cooling fins)
After cleaning, blow through the heat exchanger elements with low-pressure steam in the direction opposite to
operational flow, rinse with clear water (until pH-value difference is < 1) and blow dry with compressed or hot air.
Check that all components are in perfect condition, repair or replace as necessary.
Flush oil and engine coolant sides of heat-exchanger elements with corrosion-inhibiting oil.
• This step may be omitted if the heat exchanger is installed and taken into service immediately after cleaning.
After reinstalling all components, flush engine-coolant system once.
Check coolant system for leaks during initial operation of engine.
For further information, see the Maintenance Manual for the engine in question.
A001061/33E 08-01 ©MTU
TIM ID: 0000010140 – 004
100 Flushing and Cleaning Specifications for Engine Coolant Systems
A001061/33E 08-01 ©MTU
TIM ID: 0000010140 – 004
Revision overview from version A001061/33 to A001061/32 101
9 Revision overview from version A001061/33 to
A001061/32
General section
All information on the Series 1800 has been taken from MTU Fluids and Lubricants Specifications
A001061/32. The Series 1800 has its own MTU Fluids and Lubricants Specifications, which
are available under publication number A001062/..
Ser. no. Page Subject Action Measure
1Requirements of the
engine oils for MTU
approval
added Oil category 2.1
2Mixing of engine oils added whole paragraph
3Special Features added Single-grade and
multigrade oils are
available through
MTU Asia
4Performance
specifications for
engine oils for Series
2000 and 4000
added Oil category 2.1
5Oil change intervals added Oil category 2.1
6Analytical limit
values for diesel
engine oils
added in Soot (limit
value) line:
Oil category 2.1
7Analytical limit
values for gas engine
oils
omitted in Wear
elements (silicon)
line:
Index1)
8Requirements added Conditioning of the
coolant takes place
outside the engine.
9Information (after
Table 8)
Position changed moved forward
to paragraph
on Emulsifiable
corrosion inhibiting
oils
10 Selection of a
Suitable Diesel Fuel
Change 2nd paragraph new
11 Emission
certification
added whole paragraph
12 Warning added Dispose of used
fluids and lubricants
...
13 Fuels of comparable
quality with following
test results (Table
11)
added in line Total
contamination
D 6217 in column
Test methods
A001061/33E 08-01 ©MTU
TIM ID: 0000029758 – 001
102 Revision overview from version A001061/33 to A001061/32
Ser. no. Page Subject Action Measure
14 Distillate Fuels added to warning Distillate fuels
according to ASTM
D 975–06 must only
be used, ...
15 Marine Distillate
Fuels
omitted (with DMA
accordingtoISO
8217)
Series 8000 M71:
generally usable
Series 8000 M90:
Approved for specific
projects only.
16 Marine Distillate
Fuels
added Fuel specifications
for marine
applications (Table
12)
17 Warning added Aviation turbine fuels
are generally not
approved.
18 Approved anti-wear
additives
added Manufacturer:
The Lubrizol
Corporation
19 Fuel for Gas Engines complete chapter
revised
20 Approved fluids and
lubricants (engine
oils)
revised complete chapter
21 Approved fluids and
lubricants (coolant
additives)
revised complete chapter
structure based on
series
22 Approved fluids and
lubricants Series
1800 (engine oils +
coolant additives)
omitted complete chapter
23 Preservation
Specifications
complete chapter
revised
24 Approved Cleaning
Products
change of material
number
P3-Neutrasel
A001061/33E 08-01 ©MTU
TIM ID: 0000029758 – 001

Navigation menu
