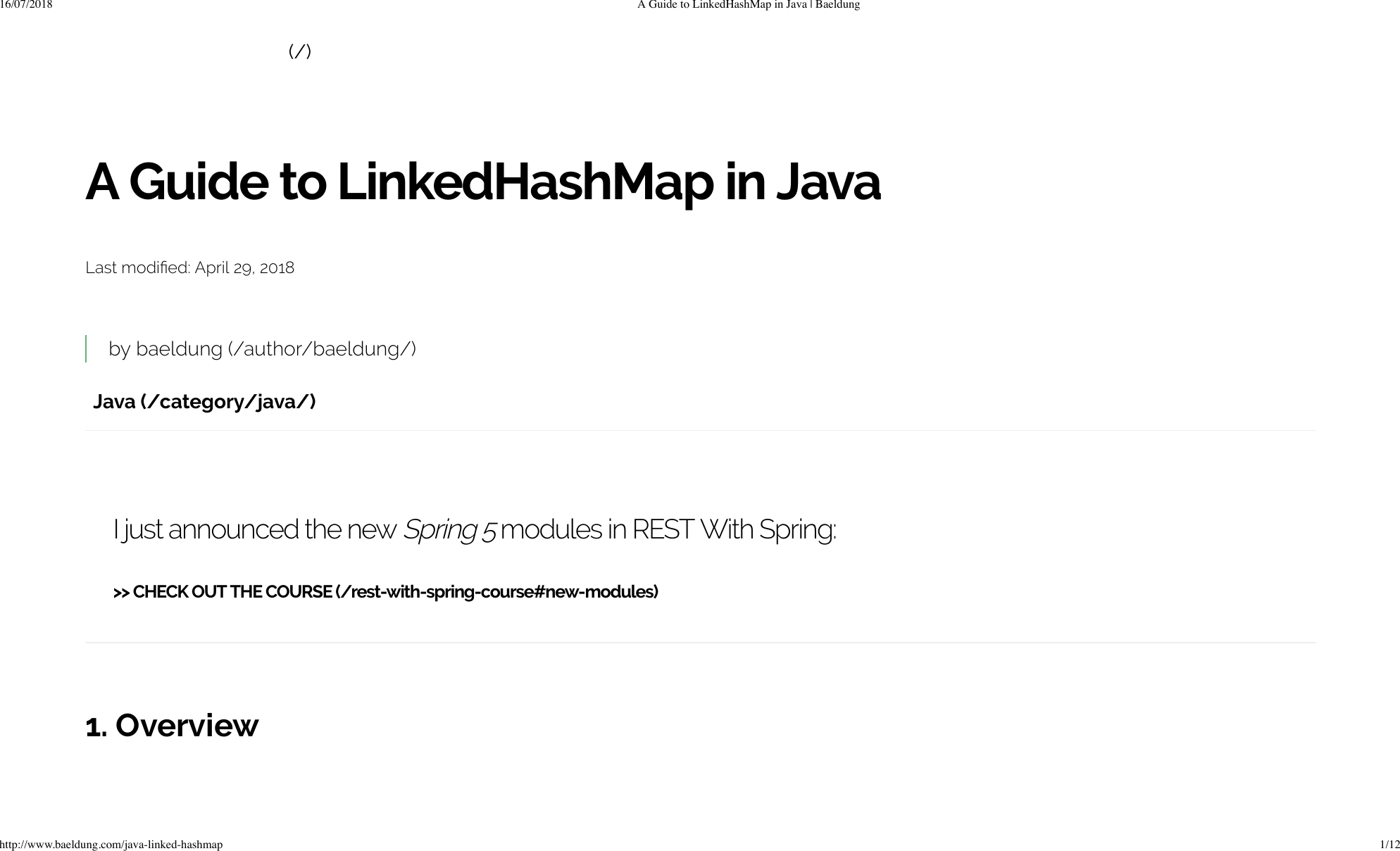

A Guide to LinkedHashMap in Java
Last modied: April 29, 2018
by baeldung (/author/baeldung/)
Java (/category/java/)
I just announced the new
Spring 5
modules in REST With Spring:
>> CHECK OUT THE COURSE (/rest-with-spring-course#new-modules)
1. Overview
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 2/12
In this article, we are going to explore the internal implementation of
LinkedHashMap
class.
LinkedHashMap
is a common
implementation of
Map
interface.
This particular implementation is a subclass of
HashMap
and therefore shares the core building blocks of the
HashMap
implementation (/java-hashmap). As a result, it’s highly recommended to brush up on that before proceeding with this article.
2.
LinkedHashMap
vs
HashMap
The
LinkedHashMap
class is very similar to
HashMap
in most aspects. However, the linked hash map is based on both hash table and
linked list to enhance the functionality of hash map.
It maintains a doubly-linked list running through all its entries in addition to an underlying array of default size 16.
To maintain the order of elements, the linked hashmap modies the
Map.Entry
class of
HashMap
by adding pointers to the next and
previous entries:
Notice that the
Entry
class simply adds two pointers;
before
and
after
which enable it to hook itself to the linked list. Aside from that, it
uses the
Entry
class implementation of a the HashMap.
Finally, remember that this linked list denes the order of iteration, which by default is the order of insertion of elements (insertion-
order).
1
2
3
4
5
6
static class Entry<K,V> extends HashMap.Node<K,V> {
Entry<K,V> before, after;
Entry(int hash, K key, V value, Node<K,V> next) {
super(hash, key, value, next);
}
}
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 3/12
3. Insertion-Order
LinkedHashMap
Let’s have a look at a linked hash map instance which orders its entries according to how they’re inserted into the map. It also
guarantees that this order will be maintained throughout the life cycle of the map:
Here, we’re simply making a rudimentary, non-conclusive test on the ordering of entries in the linked hash map.
We can guarantee that this test will always pass as the insertion order will always be maintained. We cannot make the same
guarantee for a HashMap.
This attribute can be of great advantage in an API that receives any map, makes a copy to manipulate and returns it to the calling code.
If the client needs the returned map to be ordered the same way before calling the API, then a linked hashmap is the way to go.
Insertion order is not aected if a key is re-inserted into the map.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Test
public void givenLinkedHashMap_whenGetsOrderedKeyset_thenCorrect() {
LinkedHashMap<Integer, String> map = new LinkedHashMap<>();
map.put(1, null);
map.put(2, null);
map.put(3, null);
map.put(4, null);
map.put(5, null);
Set<Integer> keys = map.keySet();
Integer[] arr = keys.toArray(new Integer[0]);
for (int i = 0; i < arr.length; i++) {
assertEquals(new Integer(i + 1), arr[i]);
}
}
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 4/12

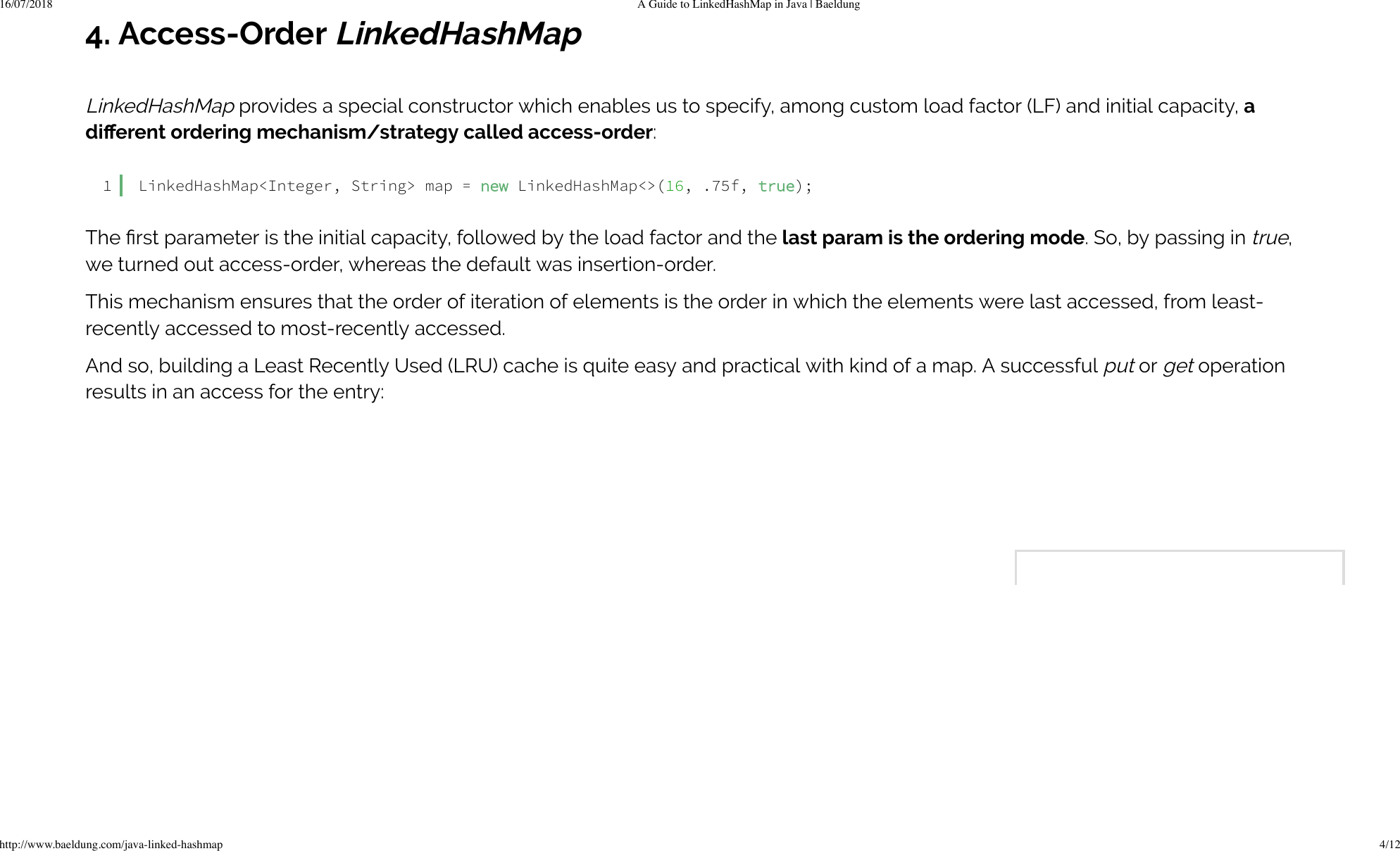

4. Access-Order
LinkedHashMap
LinkedHashMap
provides a special constructor which enables us to specify, among custom load factor (LF) and initial capacity, a
dierent ordering mechanism/strategy called access-order:
The rst parameter is the initial capacity, followed by the load factor and the last param is the ordering mode. So, by passing in
true
,
we turned out access-order, whereas the default was insertion-order.
This mechanism ensures that the order of iteration of elements is the order in which the elements were last accessed, from least-
recently accessed to most-recently accessed.
And so, building a Least Recently Used (LRU) cache is quite easy and practical with kind of a map. A successful
put
or
get
operation
results in an access for the entry:
1 LinkedHashMap<Integer, String> map = new LinkedHashMap<>(16, .75f, true);
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 5/12
Notice how the order of elements in the key set is transformed as we perform access operations on the map.
Simply put, any access operation on the map results in an order such that the element that was accessed would appear last if an
iteration were to be carried out right away.
After the above examples, it should be obvious that a
putAll
operation generates one entry access for each of the mappings in the
specied map.
Naturally, iteration over a view of the map does’t aect the order of iteration of the backing map; only explicit access operations on
the map will aect the order.
LinkedHashMap
also provides a mechanism for maintaining a xed number of mappings and to keep dropping o the oldest entries in
case a new one needs to be added.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
@Test
public void givenLinkedHashMap_whenAccessOrderWorks_thenCorrect() {
LinkedHashMap<Integer, String> map
= new LinkedHashMap<>(16, .75f, true);
map.put(1, null);
map.put(2, null);
map.put(3, null);
map.put(4, null);
map.put(5, null);
Set<Integer> keys = map.keySet();
assertEquals("[1, 2, 3, 4, 5]", keys.toString());
map.get(4);
assertEquals("[1, 2, 3, 5, 4]", keys.toString());
map.get(1);
assertEquals("[2, 3, 5, 4, 1]", keys.toString());
map.get(3);
assertEquals("[2, 5, 4, 1, 3]", keys.toString());
}
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 6/12

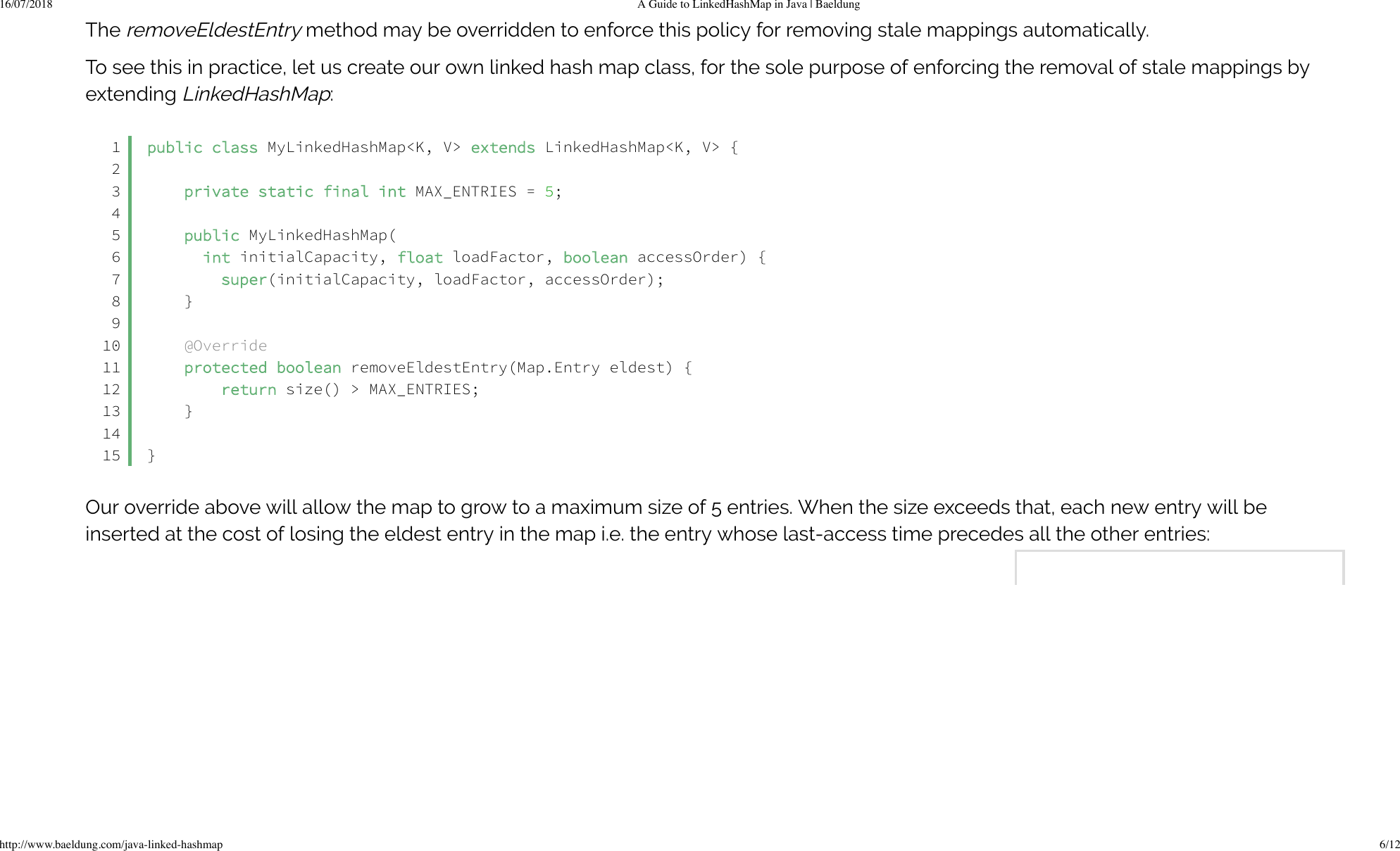

The
removeEldestEntry
method may be overridden to enforce this policy for removing stale mappings automatically.
To see this in practice, let us create our own linked hash map class, for the sole purpose of enforcing the removal of stale mappings by
extending
LinkedHashMap
:
Our override above will allow the map to grow to a maximum size of 5 entries. When the size exceeds that, each new entry will be
inserted at the cost of losing the eldest entry in the map i.e. the entry whose last-access time precedes all the other entries:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class MyLinkedHashMap<K, V> extends LinkedHashMap<K, V> {
private static final int MAX_ENTRIES = 5;
public MyLinkedHashMap(
int initialCapacity, float loadFactor, boolean accessOrder) {
super(initialCapacity, loadFactor, accessOrder);
}
@Override
protected boolean removeEldestEntry(Map.Entry eldest) {
return size() > MAX_ENTRIES;
}
}
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 7/12
Notice how oldest entries at the start of the key set keep dropping o as we add new ones to the map.
5. Performance Considerations
Just like
HashMap
,
LinkedHashMap
performs the basic
Map
operations of add, remove and contains in constant-time, as long as the
hash function is well-dimensioned. It also accepts a null key as well as null values.
However, this constant-time performance of
LinkedHashMap
is likely to be a little worse than the constant-time of
HashMap
due
to the added overhead of maintaining a doubly-linked list.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@Test
public void givenLinkedHashMap_whenRemovesEldestEntry_thenCorrect() {
LinkedHashMap<Integer, String> map
= new MyLinkedHashMap<>(16, .75f, true);
map.put(1, null);
map.put(2, null);
map.put(3, null);
map.put(4, null);
map.put(5, null);
Set<Integer> keys = map.keySet();
assertEquals("[1, 2, 3, 4, 5]", keys.toString());
map.put(6, null);
assertEquals("[2, 3, 4, 5, 6]", keys.toString());
map.put(7, null);
assertEquals("[3, 4, 5, 6, 7]", keys.toString());
map.put(8, null);
assertEquals("[4, 5, 6, 7, 8]", keys.toString());
}
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 8/12
Iteration over collection views of
LinkedHashMap
also takes linear time
O(n)
similar to that of
HashMap
. On the ip side,
LinkedHashMap
‘s linear time performance during iteration is better than
HashMap
‘s linear time.
This is because, for
LinkedHashMap
,
n
in
O(n)
is only the number of entries in the map regardless of the capacity. Whereas, for
HashMap
,
n
is capacity and the size summed up,
O(size+capacity).
Load Factor and Initial Capacity are dened precisely as for
HashMap
. Note, however, that the penalty for choosing an excessively
high value for initial capacity is less severe for
LinkedHashMap
than for
HashMap
, as iteration times for this class are unaected by
capacity.
6. Concurrency
Just like
HashMap
,
LinkedHashMap
implementation is not synchronized. So if you are going to access it from multiple threads and at
least one of these threads is likely to change it structurally, then it must be externally synchronized.
It’s best to do this at creation:
The dierence with
HashMap
lies in what entails a structural modication. In access-ordered linked hash maps, merely calling the
get
API results in a structural modication. Alongside this, are operations like
put
and
remove
.
7. Conclusion
In this article, we have explored Java
LinkedHashMap
class as one of the foremost implementations of
Map
interface in terms of usage.
We have also explored its internal workings in terms of the dierence from
HashMap
which is its superclass.
1 Map m = Collections.synchronizedMap(new LinkedHashMap());
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 9/12

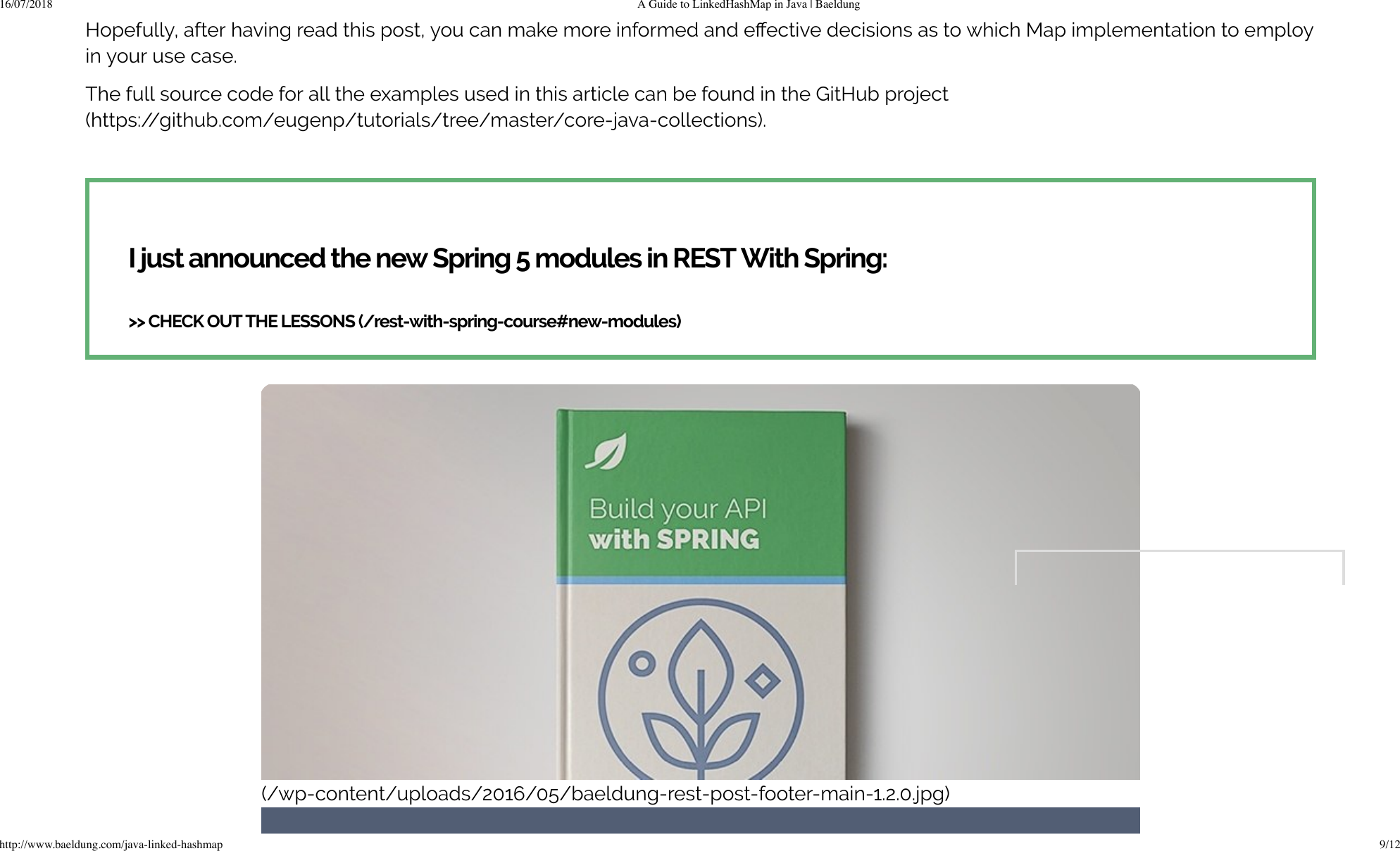

Hopefully, after having read this post, you can make more informed and eective decisions as to which Map implementation to employ
in your use case.
The full source code for all the examples used in this article can be found in the GitHub project
(https://github.com/eugenp/tutorials/tree/master/core-java-collections).
I just announced the new Spring 5 modules in REST With Spring:
>> CHECK OUT THE LESSONS (/rest-with-spring-course#new-modules)
(/wp-content/uploads/2016/05/baeldung-rest-post-footer-main-1.2.0.jpg)
16/07/2018 A Guide to LinkedHashMap in Java | Baeldung
http://www.baeldung.com/java-linked-hashmap 10/12
CATEGORIES
SPRING (/CATEGORY/SPRING/)
REST (/CATEGORY/REST/)
JAVA (/CATEGORY/JAVA/)
SECURITY (/CATEGORY/SECURITY-2/)
(/wp-
content/up
loads/2016
/05/baeld
ung-rest-
post-
footer-icn-
1.0.0.png)

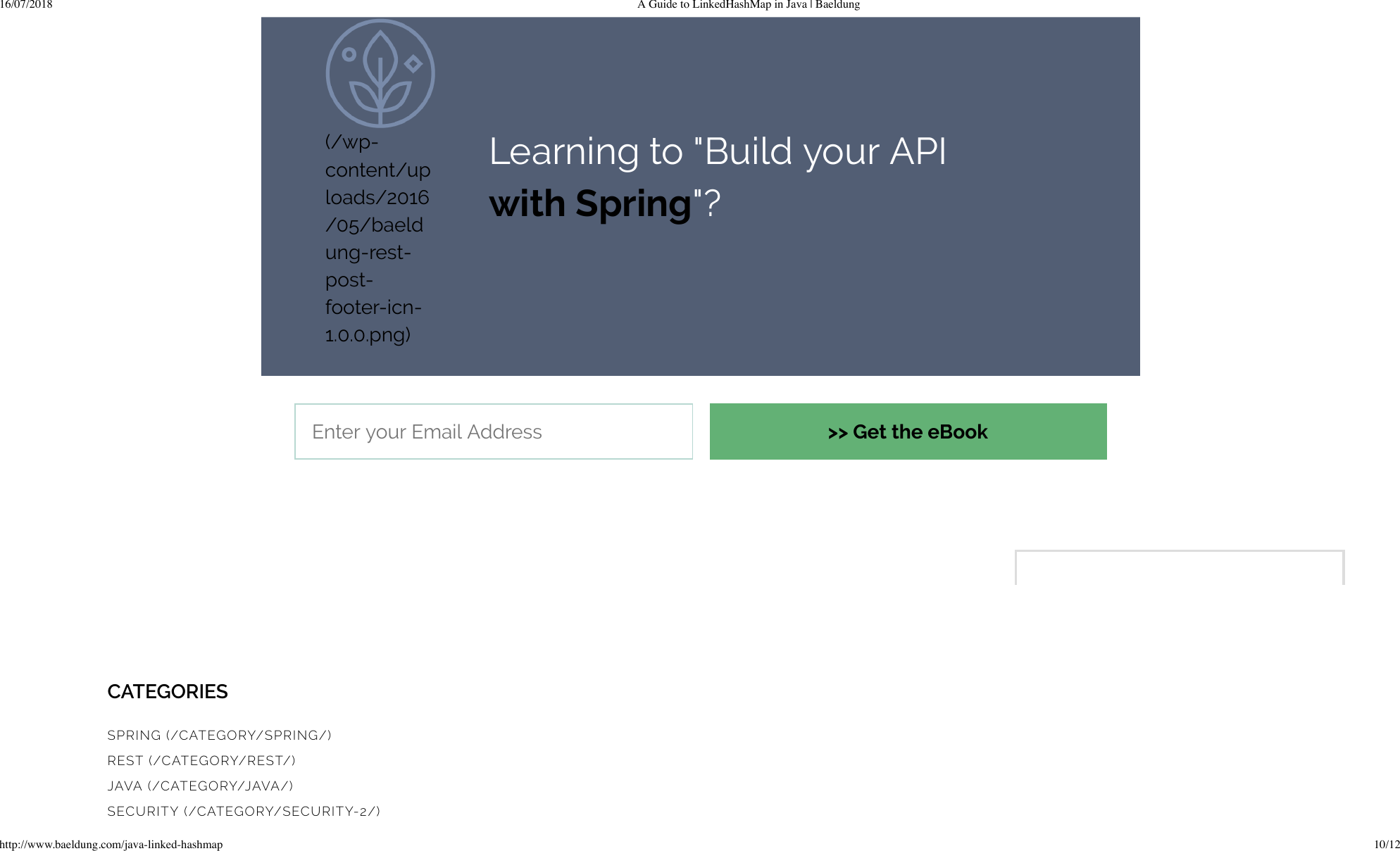

Learning to "Build your API
