A2 352 Real Fyre EPK 2V3V Pilot Kits Instructions.indb PAS 2V

User Manual: PAS 2V

Open the PDF directly: View PDF PDF.
Page Count: 16

1L-A2-352
Rev 2 - 1712201520
Important: Read these instructions carefully
before starting installation of the
burner control system.
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, California 91746
ELECTRONIC PILOT KIT
INSTALLATION &
OWNER’S MANUAL
The Peterson Real-Fyre® burner system is to be
installed only in a solid-fuel-burning fi replace with a
working fl ue constructed of noncombustible material.
Solid fuels shall not be burned in a fi replace where the
unit is installed. The installation, including provisions
for combustion, ventilation air, and required minimum
permanent vent opening, must conform with the
National Fuel Gas Code (ANSI Z223.1/NFPA 54)
and applicable local building codes. In Canada, the
installation must conform with the Natural Gas and
Propane Storage and Handling Installation Code
(CSA-B-149.1). A damper stop clamp is included to
maintain the minimum permanent vent opening and to
prevent full closure of the damper blade. The chimney
damper must be fi xed fully opened when burning
the unit. The burner system is designed to burn
with yellow fl ames; thus, adequate ventilation is
absolutely necessary.
INSTALLER & CONSUMER
These instructions MUST be
retained with this appliance
EPK-2V/3V PILOT KITS
Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Open a window.
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in the building.
• Immediately call the gas supplier from
a neighbor’s phone and follow the gas
supplier’s instructions.
• If you cannot reach the gas supplier,
call the fi re department.
WARNING
If the information in this manual is not followed
exactly, a fi re or explosion may result, causing
property damage, personal injury, or loss of life.
Installation and service must be
performed by an NFI Certifi ed or other
qualifi ed professional installer, service
agency, or the gas supplier.
(Suitable for G4 and G45 series burners)
• INTERMITTENT SPARK
IGNITION PILO T
• REMOTE OR MANUAL
OPERATION
• BATTERY OPERATION
• VARIABLE FLAME
HEIGHT CONTROL
2V model shown
Models #
EPK-2V(P)
EPK-3V(P)
2L-A2-352
Rev 2 - 1712201520
TABLE OF CONTENTS
2 TABLE OF CONTENTS
3 IMPORTANT INFORMATION
4 WIRING DIAGRAM
4 SPECIFICATIONS
5 REPLACEMENT PARTS LIST - 2V MODEL
6 REPLACEMENT PARTS LIST - 3V MODEL
7 INSTALLATION
7 PREPARATION
7 INSTALL PILOT MOUNTING BRACKET
7 INSTALL THE VALVE
7 INSTALL THE FLAME DIVERTER BRACKET
8 INSTALL THE PILOT/IGNITER ASSEMBLY TO THE BURNER
8 CONNECT TO GAS SUPPLY
9 INSTALL/REPLACE REMOTE TRANSMITTER BATTERY
9 INSTALL/REPLACE SWITCH BOX BATTERIES
9 HEAT SHIELD PLACEMENT
10 SWITCH BOX PLACEMENT
10 DECORATIVE MEDIA REPLACEMENT
11 LIGHTING INSTRUCTIONS
11 REMOTE LIGHTING
12 MANUAL LIGHTING
12 SHUTTING DOWN
12 PILOT APPEARANCE
13 REMOTE OPERATING INSTRUCTIONS
13 ORIENTATION
13 FLAME HEIGHT
13 TIMER
13 TEMPERATURE INDICATOR ( ˚F OR ˚C)
14 TROUBLESHOOTING
14 SYNCING THE REMOTE
15 ELECTRONIC PILOT TROUBLESHOOTING (02V ONLY)
16 WARRANTY
3L-A2-352
Rev 2 - 1712201520
CHECK TO BE SURE THAT THE PROPER FUEL GAS IS BEING USED WITH THIS PILOT KIT.
The installation, including provisions for combustion and ventilation air, must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code (ANSI Z223.1/NFPA 54).
This component and its individual shutoff valve must be disconnected from the gas-supply piping system when
testing at pressures that exceed 1/2 psig. This is accomplished by closing the gas-supply line valve.
This component must be isolated from the gas-supply piping system by closing its individual manual shutoff
valve during any testing of the gas-supply system at test pressures up to and including 1/2 psig.
A fi replace screen must be in place when the gas burner system is in operation. Unless other provisions for
combustion air are provided, the screen shall have an opening(s) for introduction of combustion air.
WHEN GLASS FIREPLACE ENCLOSURES (DOORS) ARE USED, OPERATE THE BURNER SYSTEM WITH
THE GLASS DOORS FULLY OPEN; BOTH SIDES IF THE FIREPLACE IS A SEE-THROUGH TYPE.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home where not
prohibited by local codes. Installation of appliances designed for manufactured homes or mobile homes must
conform with Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 in the U.S.; or with
CAN/CSA Z240 MH in Canada; or with ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations
Standard when such as standard is not applicable.
Do not use this appliance if any part has been underwater. Immediately call a qualifi ed service technician to
inspect the appliance and to replace any part of the control system and any gas control that has been underwater.
IMPORTANT INFORMATION
TO PREVENT VALVE DAMAGE AND FAILURE:
IT IS CRITICAL THAT THE HEAT SHIELD BE PLACED CORRECTLY OVER THE VALVE PRIOR TO
OPERATION.
KEEP LAVA GRANULES/COALS, SAND/VERMICULITE, EMBERS/GLASS AND ALL FOREIGN
OBJECTS AWAY FROM THE PILOT ASSEMBLY, VALVE ASSEMBLY, AND HEAT SHIELD DURING
MEDIA PLACEMENT AND AT ALL TIMES.
4L-A2-352
Rev 2 - 1712201520

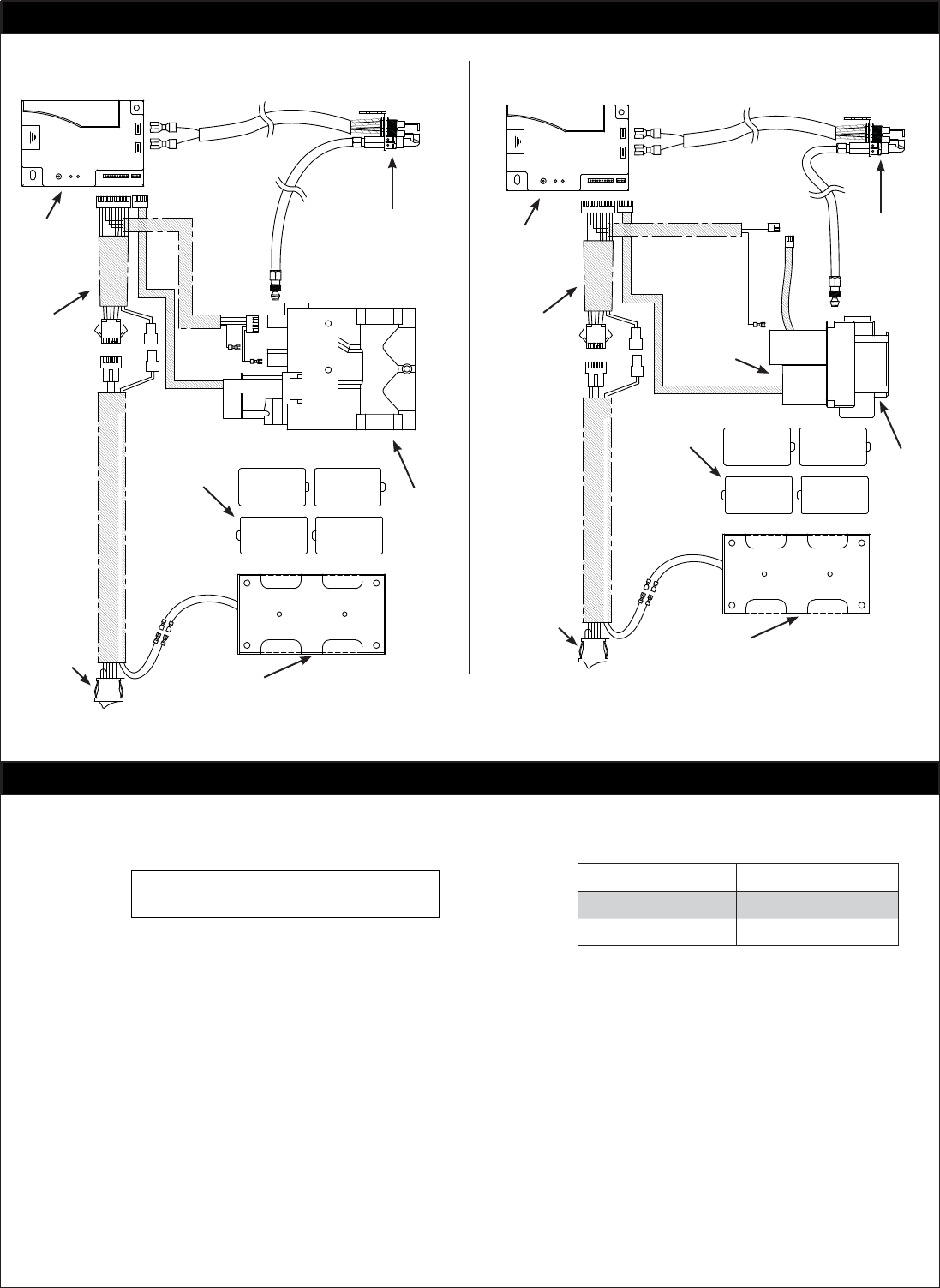

WIRING DIAGRAM
Fig. 4-1
EPK-2V Wiring Diagram EPK-3V Wiring Diagram
Control
valve
D-cell
Batteries
(4)
Ignition
module
pack
Pilot/Igniter
assembly
Switch
Wire
harness
Battery pack
Control
valve
D-cell
Batteries
(4)
Ignition
module
pack
Pilot/Igniter
assembly
Switch
Wire
harness
Battery pack
Shut off
valve
SPECIFICATIONS
Table 1 - Maximum BTUs
Model BTUs
EPK-2V(P) 100,000
EPK-3V(P) 200,000
Refer to the burner owner's manual
for minimum fi rebox dimensions.
5L-A2-352
Rev 2 - 1712201520
OFF
ON
AUTO
ON
OFF
HI/LO
TIMER
5

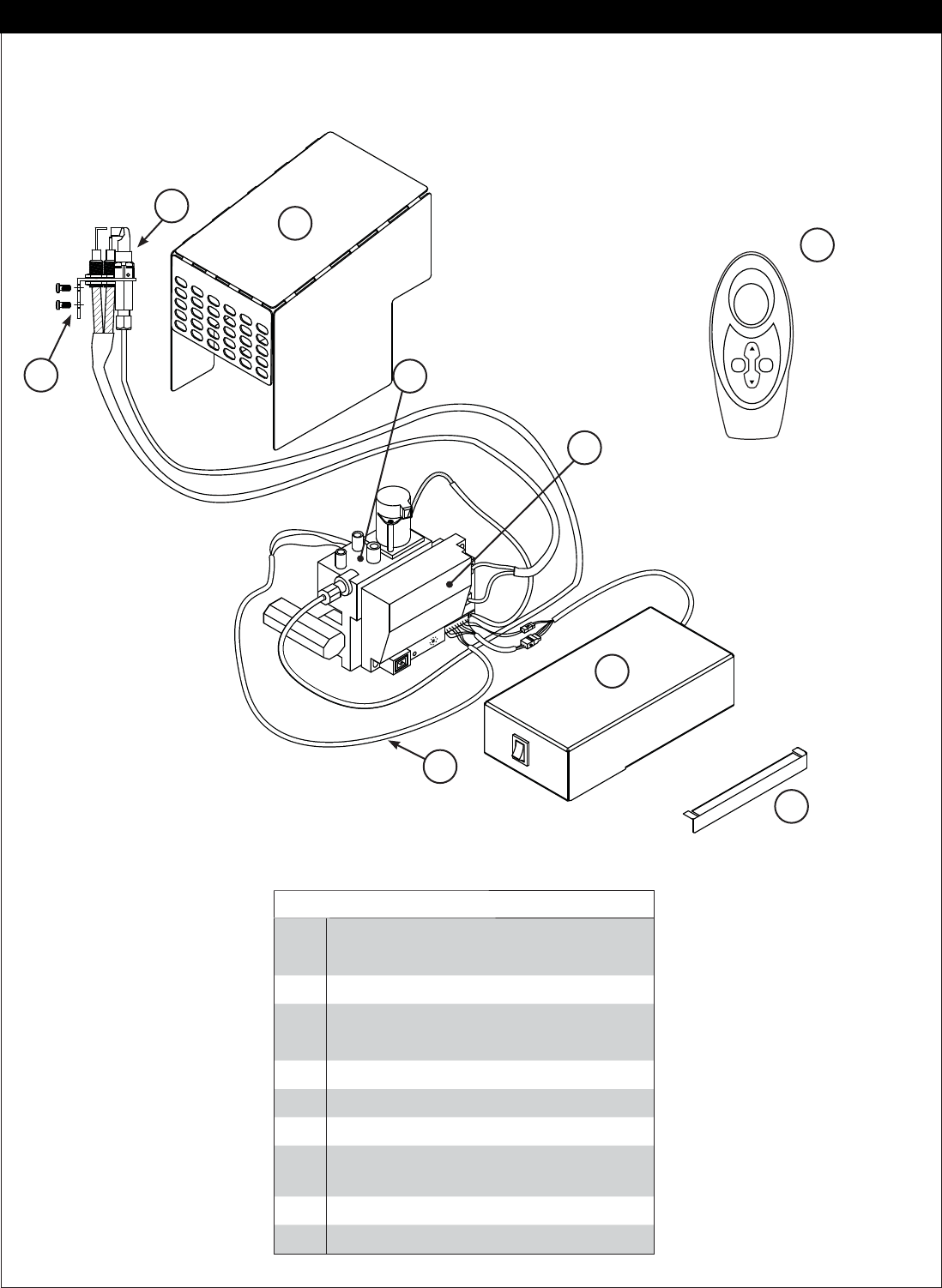

REPLACEMENT PARTS LIST - 2V MODEL
6

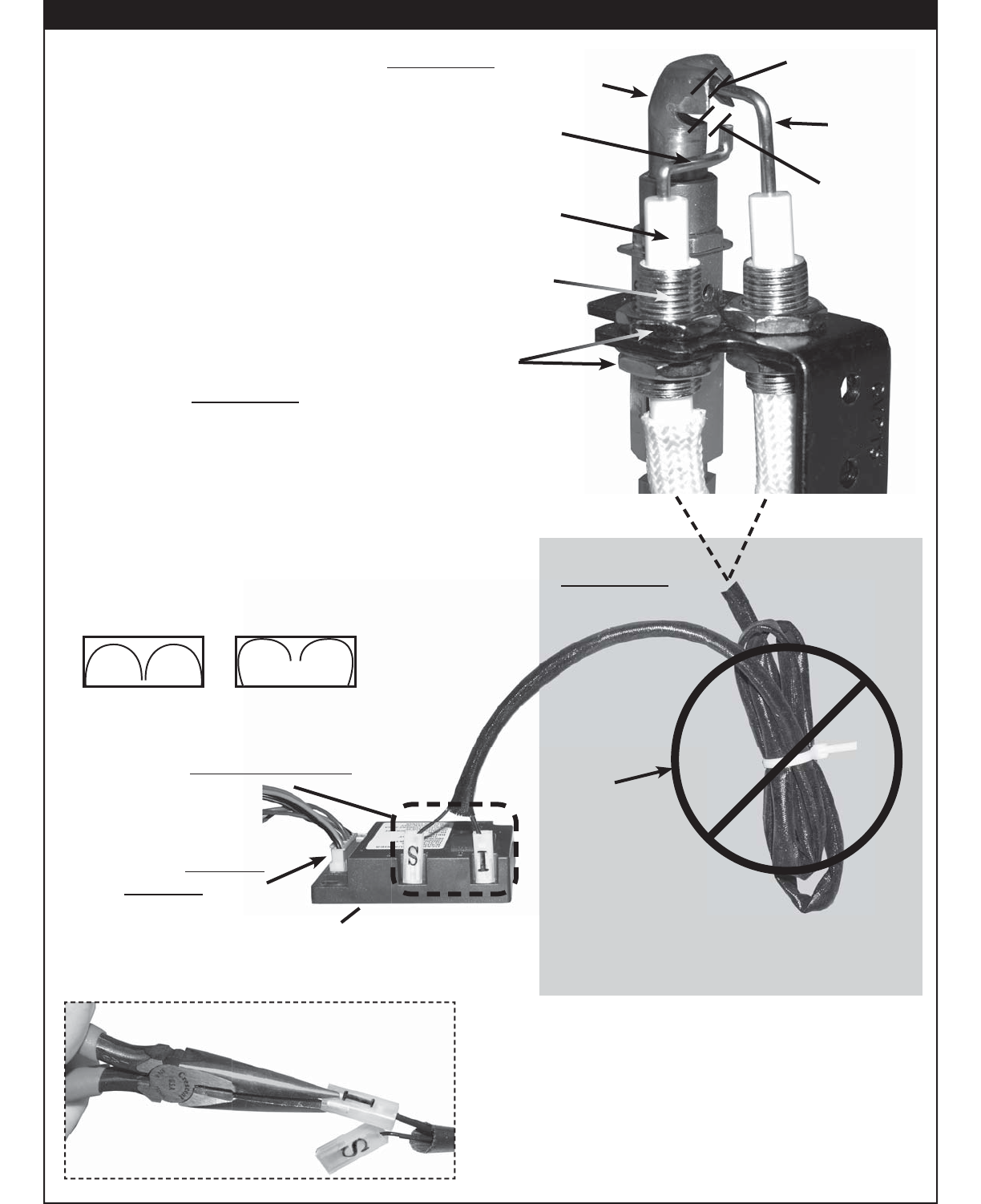

DO NOT REMOVE THE PILOT/IGNITER ASSEMBLY FROM THE VALVE OR IGNITER PACK.
3
2
7
Note: Photos not to scale
8
4
1
Item Description
1. Pilot/igniter assembly (natural)
or Pilot/igniter assembly (propane)
2. Pilot mounting bracket kit
3. Control valve (natural)
or Control valve (propane)
4. Ignition module pack
5. Remote
6. Flame diverter bracket
7. Switch box (w/ switch, battery pack,
and wire harness)
8. Main wire harness
9. Heat shield
9
6L-A2-352
Rev 2 - 1712201520
OFF
ON
AUTO
ON
OFF
HI/LO
TIMER
5

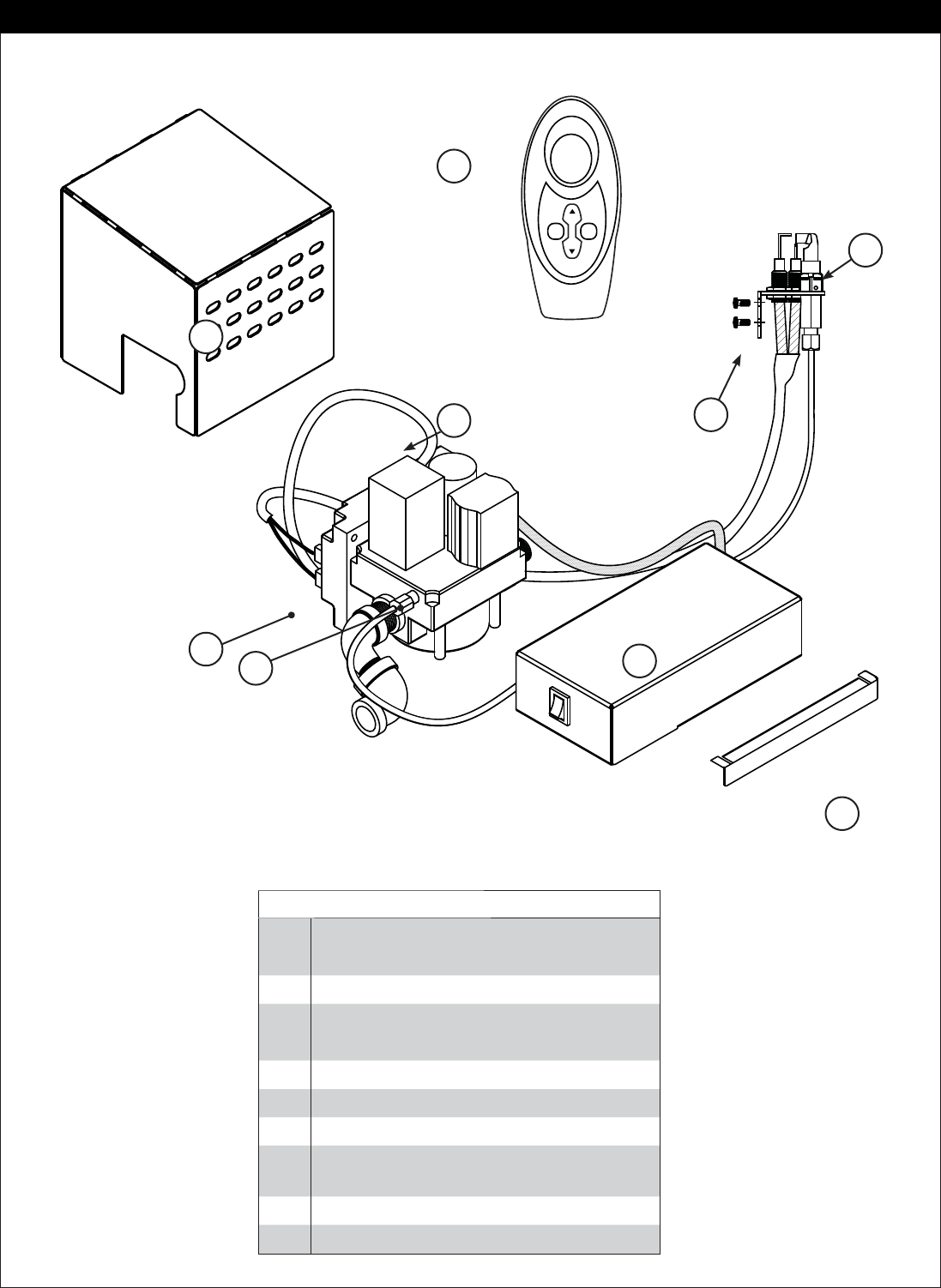

REPLACEMENT PARTS LIST - 3V MODEL
6
DO NOT REMOVE THE PILOT/IGNITER ASSEMBLY FROM THE VALVE OR IGNITER PACK.
3
1
2
47
Note: Photos not to scale
8
Item Description
1. Pilot/igniter assembly (natural)
or Pilot/igniter assembly (propane)
2. Pilot mounting bracket kit
3. Control valve (natural)
or Control valve (propane)
4. Ignition module pack
5. Remote
6. Flame diverter bracket
7. Switch box (w/ switch, battery pack, and
wire harness)
8. Main wire harness
9. Heat shield
9
7L-A2-352
Rev 2 - 1712201520
This safety pilot system must be installed by a qualifi ed professional service technician. Instructions
must be followed carefully when installing to ensure proper performance and full benefi t from the
burner system and safety pilot system.
These instructions must be used as a supplement to the instructions supplied with the Peterson burner system.
Follow the burner system instructions and make adjustments as appropriate for the addition of a safety pilot
system. Use gas pipe sealing compound that is resistant to all gasses (or Tefl on tape) and apply to all male
pipe connections. Make sure that all connections are tight.
The valve system is shipped pre-assembled for easy installation
onto the burner pan. Perform installation with care ensuring
not to damage the pilot assembly, or the wires that connect
the components and heat shield.
Note: Installation is easier when done outside of the fi replace.
PREPARATION
If the burner that the valve system is to be added to is already
installed; remove all decorative media, set aside to be reinstalled
later, and disconnect the fl ex connector from the burner pan
(using the instructions that came with the original burner).
INSTALL PILOT MOUNTING BRACKET
CAUTION: Use only the pilot assembly pre-assembled with
this kit. Never substitute with an existing pilot.
The pilot assembly comes with an L-shaped mounting bracket.
Remove the two phillips screws holding the bracket in place,
then use them to fasten the bracket to burner pan (short side
toward the back of the pan) using the pre-drilled holes in the
pan (see Fig. 7-1).
INSTALL THE VALVE
1. Apply gas pipe sealing compound (or Tefl on tape) to the
male end of the fuel injector or air mixer on the burner.
2. Attach the adapter (pre-assembled to valve) to the fuel
injector or air mixer by screwing the pan onto the adapter
(Fig. 7-2). Take care not to damage the attached pilot
assembly when rotating the burner pan. Be sure all
connections are tight.
Important: The rear of the valve may need to be angled
slightly upward to allow for the pan to sit fl at
against the fi replace fl oor. Adjust as necessary.
INSTALL THE FLAME DIVERTER BRACKET
For installation on G4/G45 burners only. When properly installed
onto the burner pan, the fl ame diverter bracket will promote
quicker ignition and protect the safety control system from
overheating.
Note: You must fi rst install the fl ame diverter bracket before
installing the pilot/igniter assembly.
1. Place the fl ame diverter bracket over the side edge
of the burner pan, near the location the safety control
system pilot bracket will be attached. It should be placed
approximately 2-1/2" from the rear wall of the burner
pan (see Fig. 7-3).
2. Tap the bracket lightly with a hammer to secure it in place.

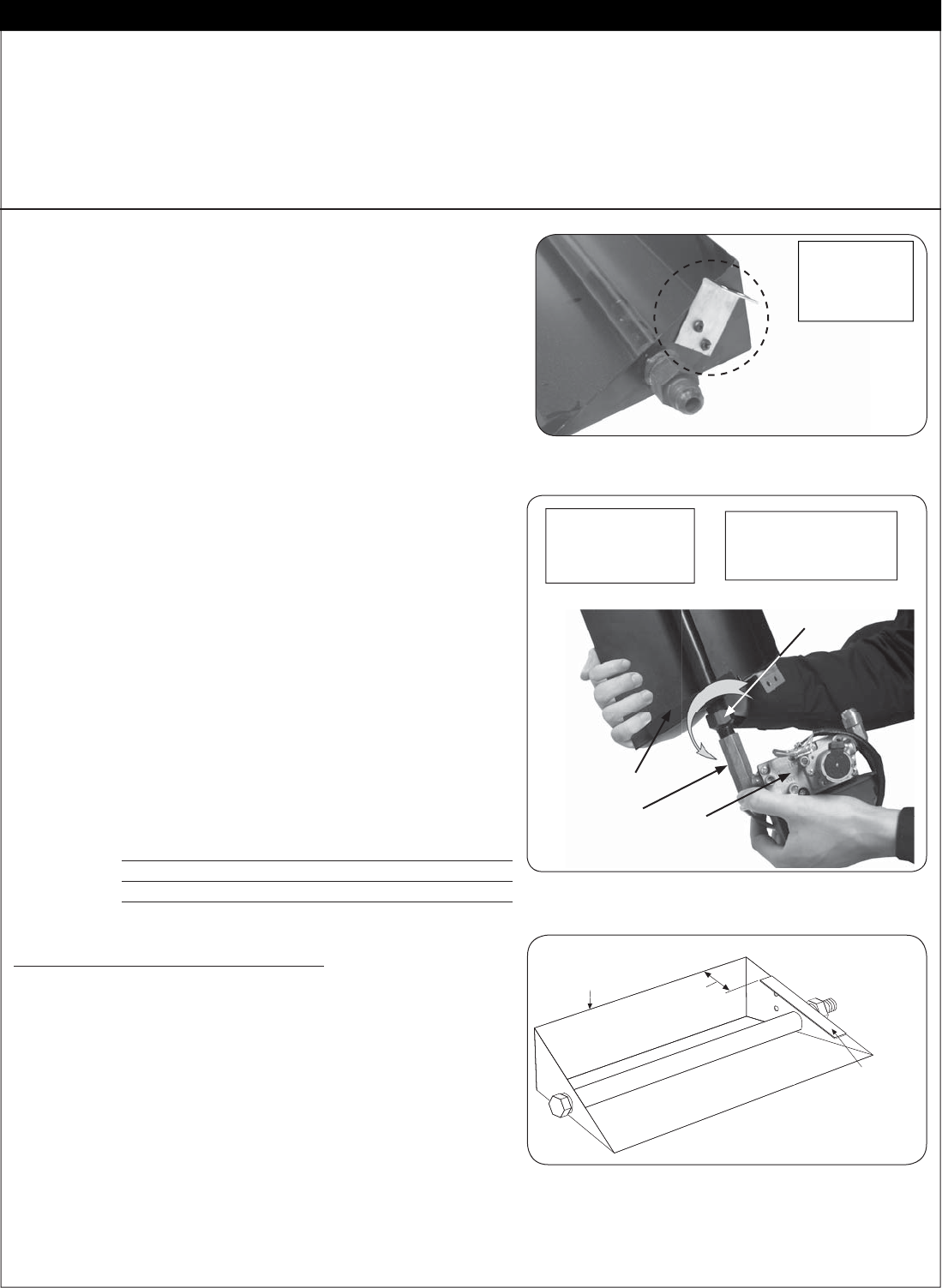

INSTALLATION
Fasten
bracket to
burner pan
Fig. 7-1
Burner pan
Fuel injector
or air mixer
Valve
Adapter
Attach the valve to the
air mixer/fuel injector by
rotating the burner pan.
Fig. 7-2
Install for 2V and
3V valves is the
same. 2V SHOWN.
Fig. 7-3
FLAME
DIVERTER
BRACKET
BURNER
PA N
2 1/2
REAR WALL
Burner
pan Flame
diverter
bracket
2-1/2"
8L-A2-352
Rev 2 - 1712201520
INSTALLATION (Cont.)
Pilot assembly
installed
Fig. 8-1
Fasten pilot
assembly to
bracket (Valve not shown
for clarity)

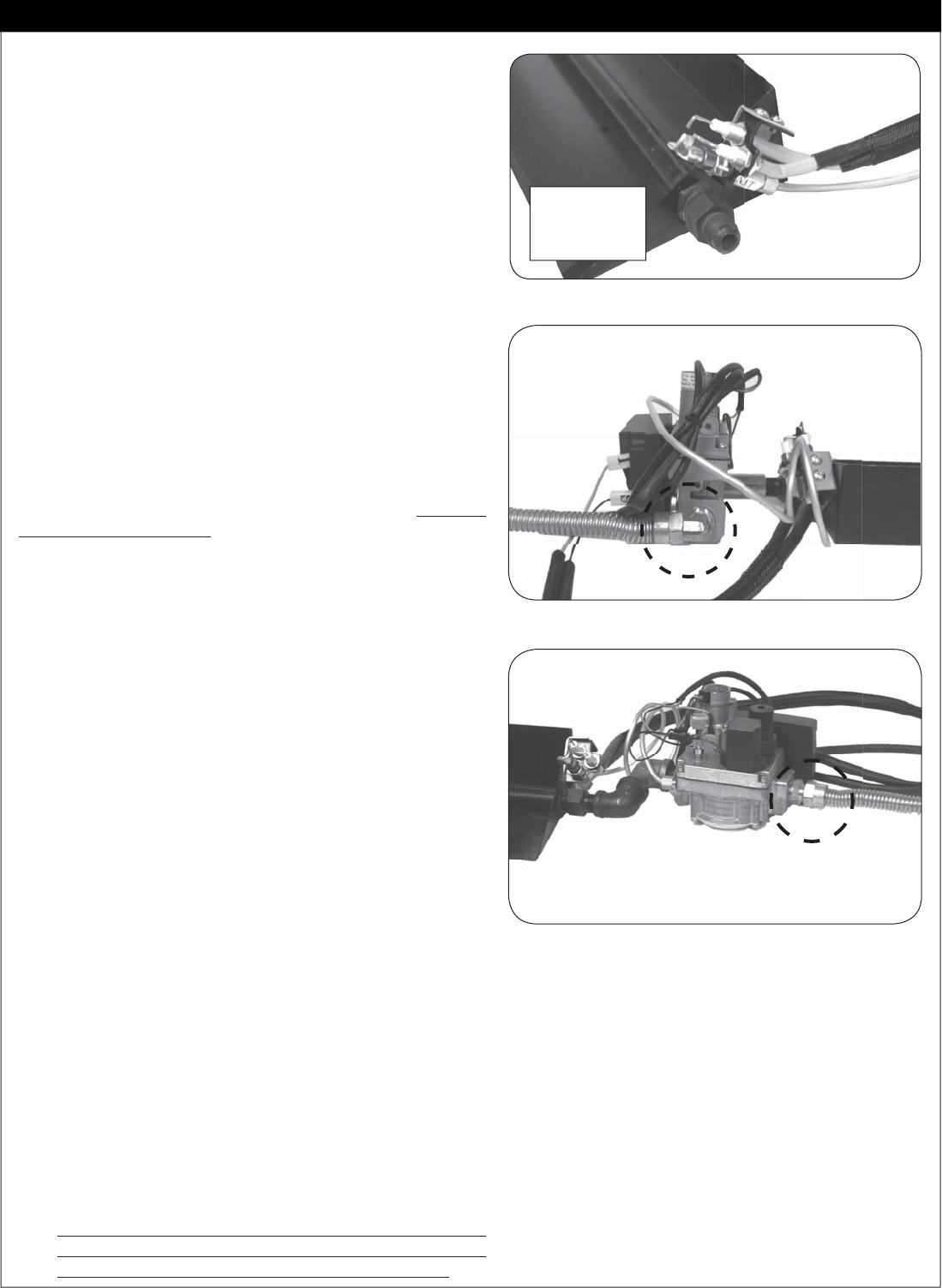

Attach the fl ex
connector to
the elbow on
the valve
Fig. 8-2 2V models: Attach fl ex to valve
Attach the fl ex
connector to the
adapter on the valve
Fig. 8-3 3V models: Attach fl ex to valve
(rear view of valve)
INSTALL THE PILOT/IGNITER ASSEMBLY TO
THE BURNER
CAUTION: Do not kink or damage the pilot supply tube,
sparking, and sensor probes. Do not unscrew
the gas line from the valve.
1. Using the two (2) remaining screws, mount the pilot
assembly onto the bracket (from below) and tighten
until snug (Fig. 8-1). Check to be certain the pilot
hood and probes are situated above the edge of
the pan. Adjust if necessary.
2. The valve is shipped with the pilot supply tube bent in
an ideal manner to prevent damage / unsafe operation,
and to allow for proper heat shield placement. Maintain
this orientation at all times (reference Fig. 8-2 or 8-3).
WARNING: Keep the pilot/igniter assembly clear at all
times. Never cover any part of the pilot/
igniter assembly.
CONNECT TO GAS SUPPLY
To connect the valve to the gas supply, the fl ex connector
kit and component parts will be needed, which are included
with the burner system. Refer to the PARTS LIST in the
instructions supplied with the burner to identify the key
parts needed.
1. MAKE SURE THE FIREPLACE GAS SUPPLY IS
TURNED OFF.
2. Locate the gas-supply stub inside the fi replace and
remove the cap, if attached.
CAUTION: When removing the cap, make sure the stub
does not turn, loosening the connection inside
the wall.
3. Discard the small adapter included with burner fl ex
connector kit. Attach one end of the fl ex connector
(included with burner) to the elbow/adapter found
on the control valve. Tighten securely. See Fig. 8-2
or Fig. 8-3.
4. Place the burner system in the fi replace. Center the
burner in the fi replace.
5. Be sure gas to the fi replace is off. Attach the large
adapter (included with burner fl ex connector kit) to
the gas-supply stub using a pipe compound resistant
to all gasses. Tighten securely. Then attach the open
end of the fl ex connector to the large adapter. Tighten
securely.
6. LEAK TEST: Turn on the fi replace gas supply, and test
at all connections for leaks using the appropriate soapy
water solution. If bubbles appear, a leak is present.
Turn off the gas and tighten at all connections. Repeat
until no leaks are present. If a leak persists, turn off
the gas supply and contact the local gas company
or dealer. NEVER USE A FLAME TO CHECK FOR
LEAKS.
7. Follow the instructions supplied with the Peterson
burner system for any additional requirements
regarding specifi c burner setup and placement.
9L-A2-352
Rev 2 - 1712201520
INSTALLATION (Cont.)
INSTALL/REPLACE REMOTE TRANSMITTER
BATTERY
CAUTION: ENSURE THE UNIT IS CONNECTED
TO THE GAS LINE AND HAS BEEN
TESTED FOR LEAKS BEFORE YOU
INSERT BATTERIES.
To access the battery, slide open the lid found on the back
of the remote transmitter. Replace the old batteries with 3
new "AAA" batteries. Re-secure the lid.
INSTALL/REPLACE SWITCH BOX BATTERIES
To access the batteries, locate the switch box and turn it
over. Use a Phillips screwdriver to remove the screw found
on the back of the switch box, then remove the battery
compartment. Replace the old batteries with 4 new "D"
batteries. (See Fig. 9-1.)
When battery replacement is complete; properly place the
switch box in the the fi replace as instructed in this manual.
Important: Low/dead batteries will affect burner
system operation. Replace batteries any
time the burner will not turn on.
HEAT SHIELD PLACEMENT
TO PREVENT VALVE DAMAGE AND FAILURE:
IT IS CRITICAL THAT THE HEAT SHIELD BE
PLACED CORRECTLY OVER THE VALVE PRIOR
TO OPERATION.
TO PREVENT OVERHEATING THE VALVE:
Cover the valve with the heat shield as shown in Fig. 9-2
or Fig. 9-3. It should rest fl at above the valve.
Keep the area above and below the heat shield clear
of decorative media or any other objects at all times.
Important: Ensure the pilot supply tube does not
interfere with heat shield placement. For
2V models, the tube will come out of the
rear and coil back to the pilot. For 3V
models, the tube will come out of the left
side of the heatshield and coil to the pilot.
Important: Keep lava granules/coals, sand/vermiculite,
embers/glass, and all foreign objects away
from the pilot assembly, valve assembly, and
heat shield during media placement and at
all times.

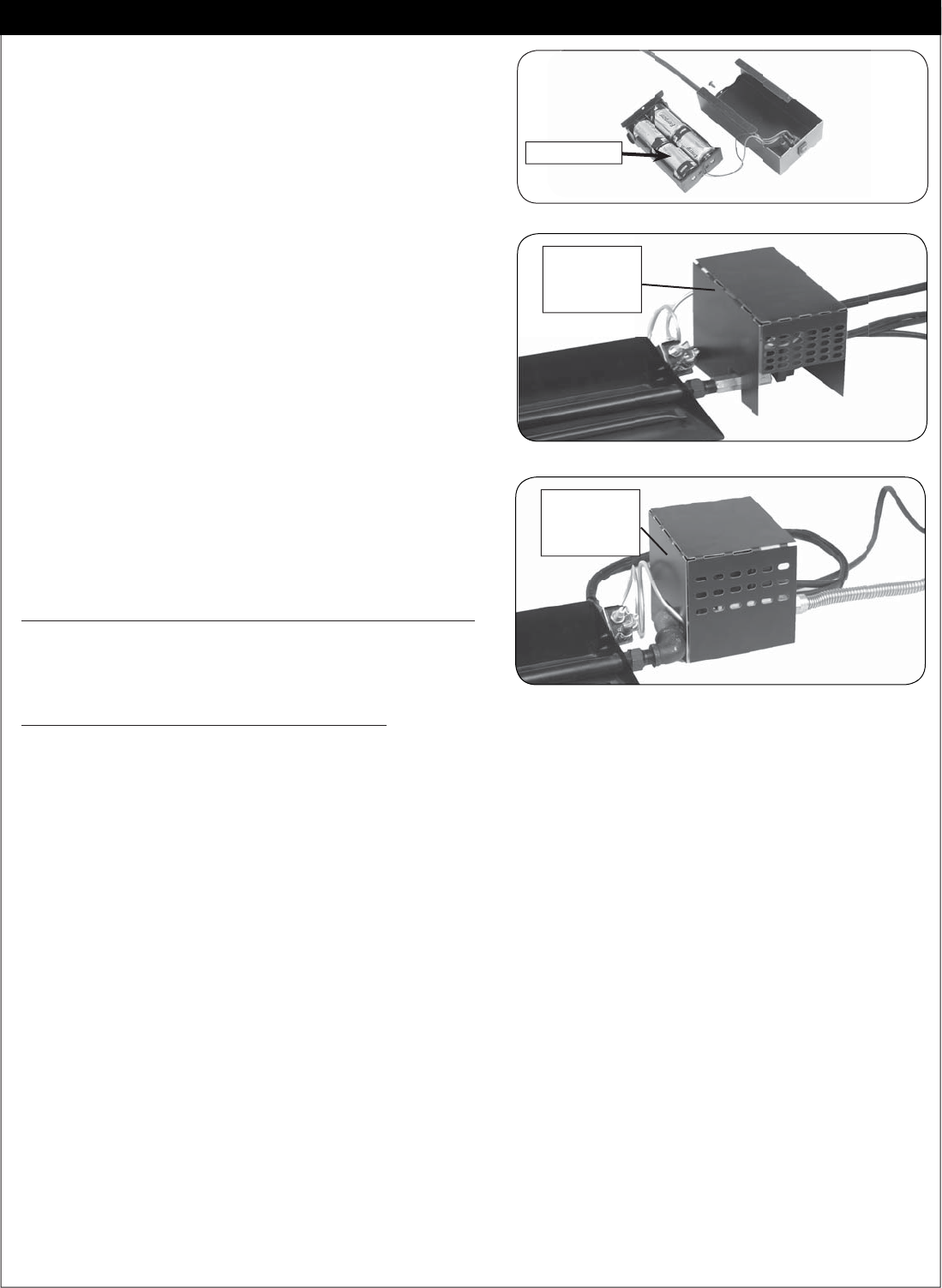

"D" batteries
Fig. 9-1
Valve
heat shield
in place
Burner pan
Fig. 9-2 2V models: Place heat shield
Valve
heat shield
in place
Burner pan
Fig. 9-3 3V models: Place heat shield
Heat
shield
Heat
shield
10 L-A2-352
Rev 2 - 1712201520
INSTALLATION (Cont.)
SWITCH BOX PLACEMENT
Place the switch box outside of the fi rebox and a minimum
of 6" from the burner/fl ame. If the switch box is in the
fi rebox, the switch box must only be oriented as shown in
Fig. 10-1. The switch box must not be placed in the rear
of the fi replace, or in any other manner than shown in Fig.
10-1. Set the box on its side and place the bottom of the
box toward the right fi rebox wall (box must be a minimum
of 6" from the burner/fl ame). Be sure that the pilot and
valve wire bundles remain clear of the burner, valve, and
heat shield at all times.
Note: Coil excess wire within the box.
CAUTION: THE SWITCH BOX WILL BE HOT DURING
AND AFTER OPERATION.
Installation is complete at this point. Ensure ALL information
in this manual is followed to ensure proper operation.
LIGHTING TEST
Prior to proceeding with installation, perform a lighting test
(see lighting instructions for lighting your burner). Allow
the unit to completely cool after testing.
DECORATIVE MEDIA REPLACEMENT
Refer to the burner instructions for proper replacement of
decorative media.
Important: Keep sand, lava granules, and all foreign
objects away from the pilot assembly, valve
assembly, and heat shield during media
placement and at all times.
Wire bundles go around
the valve and away from
the burner.
Valve wire
bundle
Pilot
wire
bundle
Switch
box
Valve and heat shield
Burner pan
(G45 burner shown)
6"
min
(FIREBOX)
IF SWITCH BOX IS INSIDE FIREBOX; ORIENT ONLY AS
SHOWN BELOW:
(FIREBOX) BOX ON ITS SIDE
Bottom
6"
min
SWITCH BOX PLACEMENT (EPK-2V shown here)
Fig. 10-1 Place switch box
11
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fi re or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance is equipped with an ignition device that automatically lights the pilot. DO NOT attempt to
light the pilot by hand.
B. BEFORE OPERATING, smell all around the appliance area for gas. Be sure to smell next to the fl oor
because some gas is heavier than air and will settle on the fl oor.
WHAT TO DO IF YOU SMELL GAS
• Do not light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fi re department.
C. Use only the supplied switch or the control/remote system components to light the pilot. This valve will not
operate if the pilot is not lit and stable.
D. Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water. Attempted operation may result in fi re or explosion resulting in property damage, personal
injury or loss of life.
OFF
ON
AUTO
ON
OFF
HI/LO
TIMER
Fig. 11-2 Remote transmitter detail
OFF/DOWN
key
ON/UP
key
HI/LO key
(Display
screen)
Timer
key
REMOTE LIGHTING
CAUTION: DO NOT attempt to light the pilot by hand.
Note: Step 1 may not be required if previously done during
an earlier lighting.
1. Locate the 3-position switch on the switch box (see Fig.
11-1). Press the switch down to the REMOTE position.
2. Locate the remote transmitter and press the ON key
(see Fig. 11-2). The ignition sequence will begin.
The remote receiver will emit an audible "beep"; then
the igniter will begin to spark. After the pilot lights and
is established, the valve will automatically open and
the burner will light. Adjust to the desired setting(s) with
the remote transmitter. See the REMOTE OPERATING
INSTRUCTIONS section for details.
Note: The ignition sequence will take approximately 5
seconds.
WARNING: If the pilot fails to light within 10 seconds,
press the OFF button on the remote
transmitter or move the switch to the
center OFF position to turn OFF the
system. Allow fi ve (5) minutes for any gas
in the unit to dissipate, then repeat step
2 above. IF YOU SMELL GAS, SEE STEP
B ABOVE.
If the pilot fails to light after several tries, turn all control/
remote system components to OFF and contact a qualifi ed
professional service technician.
I
O
II
Fig. 11-1 Switch box, switch detail
ON
REMOTE
OFF
12
LIGHTING INSTRUCTIONS (cont.)
Fig. 12-2 Proper pilot fl ame
MANUAL LIGHTING
CAUTION: DO NOT attempt to light the pilot by hand.
1. Locate the 3-position switch on the switch box (see Fig.
12-1). Press the switch up to the ON position.
The remote receiver will emit an audible "beep"; then
the igniter will begin to spark. After the pilot lights and
is established, the valve will automatically open and
the burner will light.
Note: The ignition sequence will take approximately 5
seconds.
WARNING: If the pilot fails to light within 10 seconds,
turn OFF the system. Allow fi ve (5) minutes
for any gas in the unit to dissipate, then
repeat step 2 above. IF YOU SMELL GAS,
SEE STEP B ABOVE.
If the pilot fails to light after several tries, turn the system
OFF and contact a qualifi ed professional service technician.
Note: In manual mode, the remote transmitter will not
operate the burner system.
SHUTTING DOWN
• For a remote shut down, press the OFF button on
the remote transmitter.
• For a manual shutdown (or if your remote is
unavailable), press the switch on the switch box to
the center OFF position.
PILOT APPEARANCE
Periodically check the pilot for proper fl ame pattern. The
pilot fl ame should encircle the generator tip, and is preset
at the factory (see Fig. 12-2).
If the pilot fl ame burns incorrectly; shut down completely
and contact a qualifi ed professional service technician.
I
O
II
Fig. 12-1 Switch box, switch detail
ON
REMOTE
OFF
13
REMOTE OPERATING INSTRUCTIONS
ROOM
SET 73F°
80 F°
TIMER
Fig. 13-3 Flame height detail
Set desired
fl ame level
1 - 5
ROOM
SET 20 e°
80 F°
TIMER
Fig. 13-4 Timer detail
Set
desired
time
ORIENTATION
Prior to remote transmitter use, light the appliance per the
REMOTE LIGHTING section. The remote will only operate
the burner system in remote mode. Familiarize yourself with
the transmitter keys and display, as illustrated in Fig. 13-1
and Fig. 13-2.
Identify the four transmitter keys:
• ON/OFF KEYS: These keys turn the system ON or OFF.
• HI/LO KEY: This key, when the system is on, is used to
set the desired fl ame height via the Flame Height mode.
• TIMER KEY: This key, when the system is on, is used to
set the desired time via the Timer mode.
• UP/DOWN KEYS: In Flame Height or Timer mode, the
ON/OFF keys become UP/DOWN keys to increase or
decrease the Flame Height or Timer amount.
The display will show all active icons on the screen.
FLAME HEIGHT
Five fl ame height levels are available. Press the HI/LO key to
enter the Flame Height mode. A number 1 - 5 will be displayed
at the bottom of the screen. Pressing the Up/Down keys once
will increase/decrease the fl ame height by 1 of 5 increments.
See Fig. 13-3.
TIMER
In Timer Mode, the unit will remain functioning until the set
amount of time has expired. Press the Timer key to enter the
Timer mode. Pressing the Up/Down keys once in this mode will
increase/decrease the set time in increments of 10 minutes.
See Fig. 13-4.
To turn off the timer mode press the OFF key. This will turn
off the unit.
TEMPERATURE INDICATOR ( ˚F or ˚C)
The temperature can be displayed in °F or °C. When you fi rst
install the batteries, the temp indicator at the top of the screen
will be fl ashing. Use the Up/Down keys to switch between °F
or °C.
ROOM
20
88 F°
TIMER
Fig. 13-2 Remote display detail
Flame Height
/ Timer
detail
Flame icon
indicates
system is in
operation
Room
temperature
Transmission
OFF
ON
AUTO
ON
OFF
HI/LO
TIMER
OFF/DOWN
key
ON/UP
key
HI/LO key
(Display
screen)
Timer
key

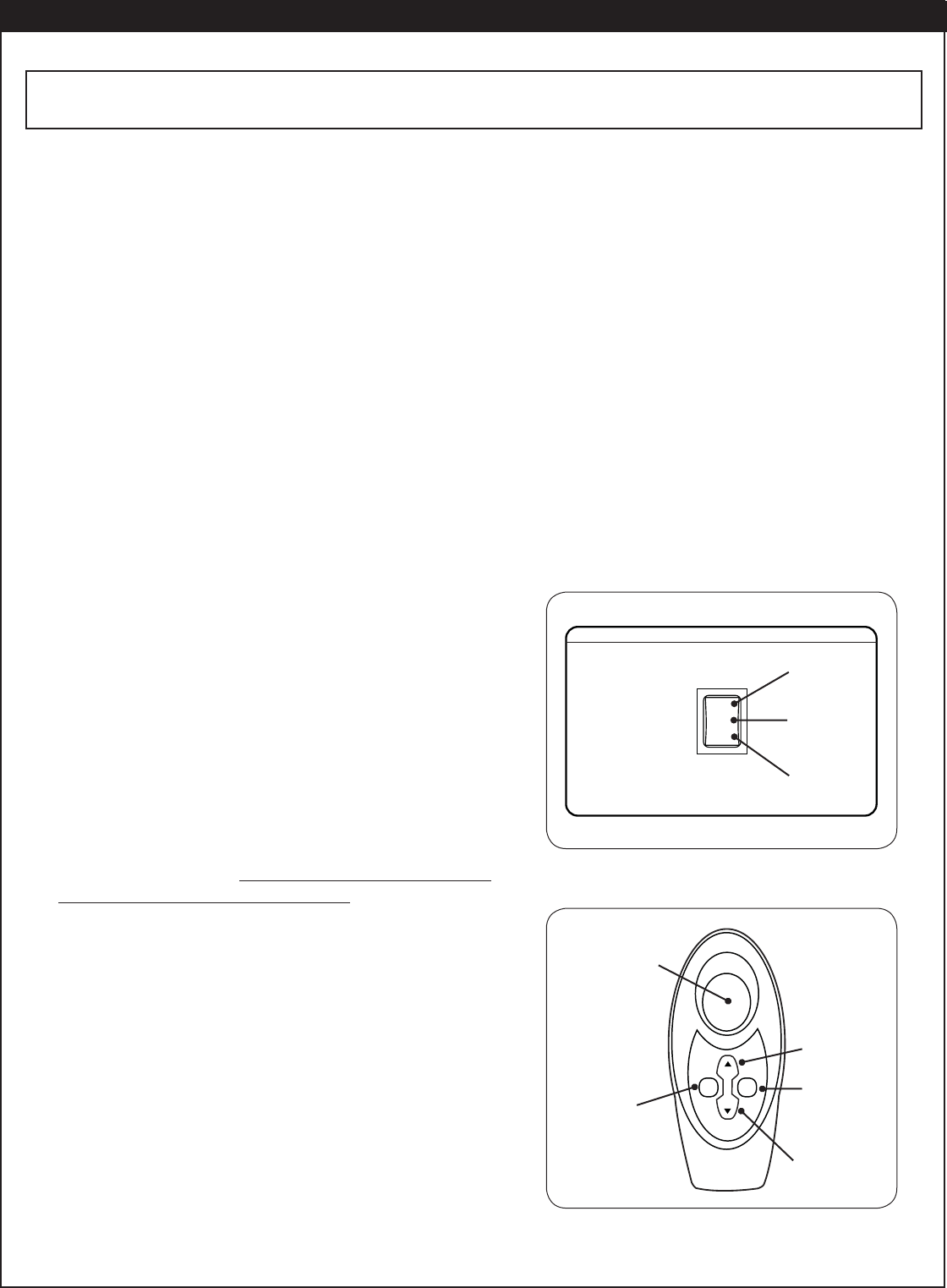

Fig. 13-1 Remote transmitter detail
14

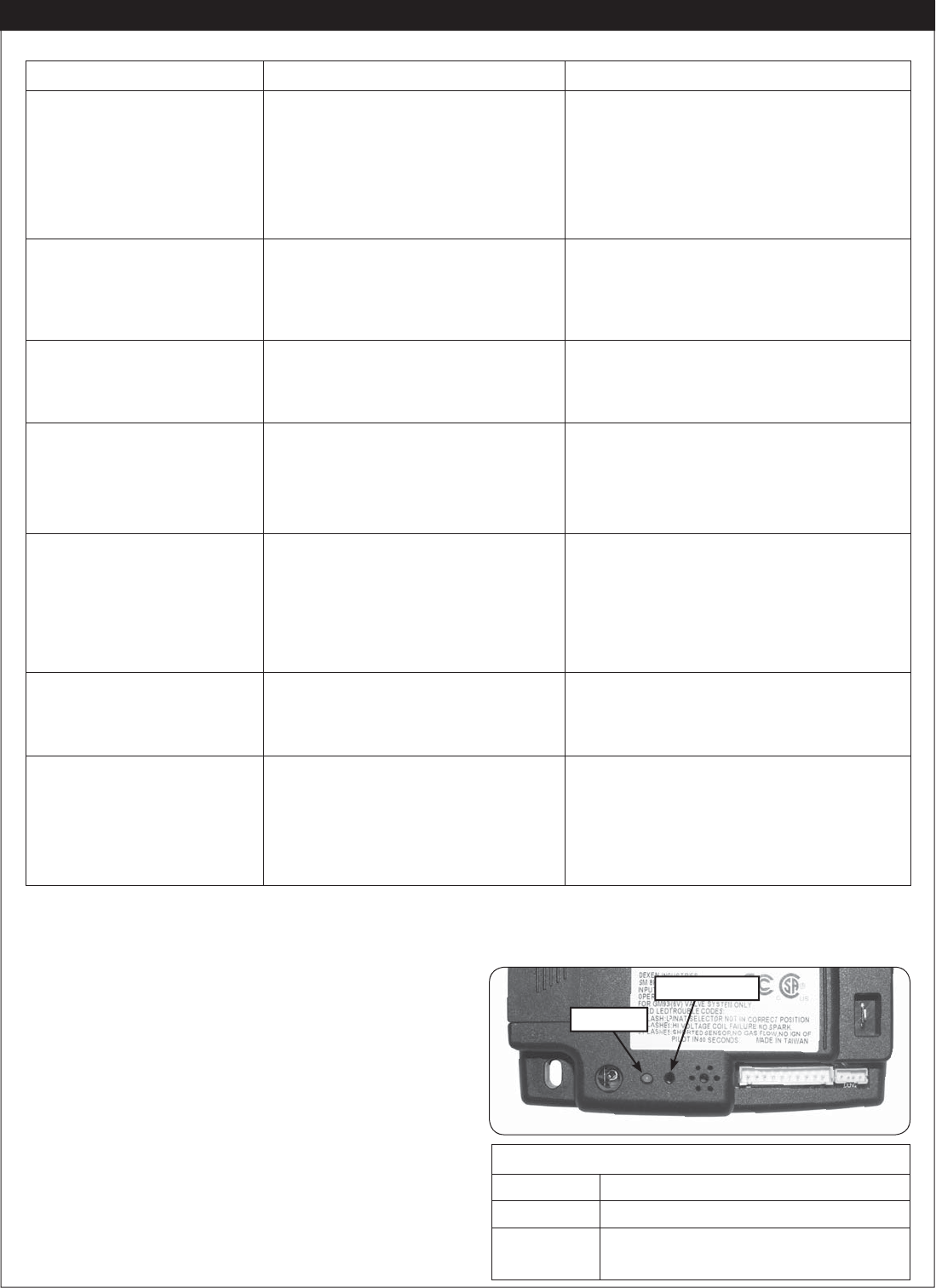

TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
1. Pilot will not light a. Obstruction in pilot gas supply or
pilot gas-supply line is kinked
b. Inadequate gas supply
c. Air in line
d. Gas is shut off on control valve
(3V models only)
a. Clear out obstruction. Replace pilot gas-
supply line if kinked
b. Have gas pressure checked by installer
or gas supplier
c. Air should clear; attempt to relight
d. Turn on valve (3V models only)
2. No spark at pilot a. Loose wires
b. Dead batteries
c. Faulty switch or remote (if
equipped)
a. Check all wires are securely in place
b. Replace batteries
c. Replace the switch or remote system as
appropriate
3. Pilot lights, but main
burner will not
a. Loose or broken connector wires
b. Batteries too low for voltage output
c . Defective valve
a. Check and replace if necessary
b. Replace with new ones
c . Replace valve
4. Burner system not
burning properly
a. Low fl ame/uneven fl ame a. Check for low gas pressure; should have
operating pressures of 7" w.c. for natural
gas, 11" w.c. for propane at manifold
b. Burner should be fi lled completely with
sand or vermiculite
5. Burner system shuts
down during operation
a. Glass doors closed, causing
excessive heat buildup
b. Pilot electrode not properly set to
pilot location
c. Heat shield not in place
a. Open glass doors
b. See INSTALL THE PILOT ASSEMBLY
TO THE BURNER section
c. Place heat shield over valve. Be sure the
solid black face of the shield is between
the valve and the burner
6. Intermittent ignitor spark
during use (main burner
has been burning for well
over a minute).
a. Embers or sand covering pilot
assembly
a. Clear all foreign material from around the
pilot assembly
7. Remote control not
functioning
a. Low/dead batteries
b. No gas fl ow to the valve
c. Remote too far from receiver
d. Spark ignition interfering with
remote signal
a. Check and replace
b. Check gas supply to valve
c. Move remote closer to receiver
d. Move remote closer to receiver
Periodically inspect the pilot assembly and valve controls and maintain them free of obstruction or debris. If the pilot
fl ame is not blue with possibly yellow tips and does not impinge on the electrodes or if the pilot does not stay lit, contact
a qualifi ed professional service technician to service the pilot system.
SYNCING THE REMOTE
The ignition module pack has a sync button that is located
next to the LED light.
Move the 3-position switch (on the switch box ) down to
the REMOTE position. Use the tip of a pen or a wire
clip to push the sync button and hold. One beep will be
heard. While continuing to hold, press and hold the "ON"
button on the remote transmitter, until a double beep is
heard. Follow the LIGHTING INSTRUCTIONS to test
remote funcionality.
Refer to the TROUBLE CODES table for a guide if the
ignition module pack is fl ashing the red lights.
LED light
SYNC button
RED LED TROUBLE CODES
1 Flash Nat/LP selector not in correct position
2 Flashes HI voltage coil failure, no spark
3 Flashes Shorted sensor, no gas fl ow, no ignition
of pilot in 60 seconds
15
Detail A Hood
Spark electrode
Electrode Ceramic
Threaded barrel
Retainer nuts
1/8"
min. gap
Electrode (A)
When adjusting the spark electrode (if
necessary); NEVER adjust the electrode by
bending the wire. ALWAYS adjust the electrode
by loosening the retainer nut(s), then adjust
accordingly.
The minimum gap between the spark electrode/
heat sensor and the pilot fl ame hood is 1/8".
The maximum is 5/32".
If the electrode ceramic is loose in the threaded
barrel; the pilot assembly must be replaced.
DO NOT
bundle tightly
together as
shown
Ensure that spade terminals
(S and I) are attached securely
Ensure that multi-wire
connector is properly
engaged
Detail C
Control Module
(DESIGN MAY VARY)
CORRECT INCORRECT
Spade Terminal Detail
Assembly Wires (C)
DO NOT bundle the excess pilot assembly
wires tightly together as this can reduce the
intensity of the spark.
Detail B
Terminal Connections (B)
All of the connections on the control module
must be properly attached. If the spade
terminals are loose; inspect to ensure they
correctly appear as detailed below. Use needle
nose pliers to clamp down on the center/sides
of the terminals if needed (to provide a tight
fi t.) See Fig B-3 below.
Fig. A-1
(Fig. B-2)
Tighten terminals if needed
(Fig. B-3)
(Fig. C-1)
(Fig. B-1)
1/8"
min. gap
Heat
sensor
ELECTRONIC PILOT TROUBLESHOOTING (02V ONLY)
16
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Quality Check Date:_________________
Leak Test: ________________ Burn Test: _________________ Gas Type: Nat. / L.P.
Inspector: ________________
A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED
This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.
This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure
to protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.
This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.
Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.
This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.
For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.
When contacting your Peterson dealer or the R. H. Peterson Co., please provide the following information:
- Your name, address, telephone number, e-mail
- Sales receipt showing where purchased and date purchased
- Model number, serial number of product, date code
- Relevant information: installer, additions, repairs, when defect was fi rst noted
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
PETERSON VENTED DECORATIVE GAS APPLIANCE
LIMITED WARRANTY
Robert H. Peterson Co. ("RHP") warrants your Real Fyre® vented decorative gas appliance to be free from defects in material and
workmanship.
Peterson vented ceramic refractory gas logs are warranted for as long as you own them (lifetime).
Peterson vented burner assemblies are WARRANTED for TEN (10) YEARS. Peterson vented outdoor stainless-steel burner
assemblies are warranted for FIVE (5) YEARS.
Peterson glass, gems, nuggets, and fi ber-ceramic blend gas logs are warranted for FIVE (5) YEARS.
SPK-26 controls are warranted for THREE (3) YEARS.
APK-17 controls (including -17 valve) are warranted for TWO (2) YEARS.
All other Peterson valves, pilots, and controls are warranted for ONE (1) YEAR (excluding batteries).
WARRANTY

Navigation menu
