• 225 MHz bandwidth

(optional 1.5, 3, 5, or 12.4 GHz)

• 10- or 12-digit resolution with

1 s gate time

• GPIB interface and IntuiLink

connectivity software standard

• Data transfer rate of up to 200 fully

formatted measurements/second

Agilent 53131A/132A/181A Counters

High-performance, low-cost counters simplify and

speed systems and bench frequency measurements

Data Sheet

Recommended replacement products:

53200 Series RF & universal frequency counter/timers

(Data sheet publication number: 5990-6283EN)

A family of universal and

RF counters to meet your needs

Agilent Technologies 53131A/132A/

181A high-performance counters give

you fast, precise frequency measure-

ments at an affordable price. These

counters feature an intuitive user

interface

and one-button access to

frequently

used functions so you can

make accurate measurements quickly

and easily.

Real-time digital signal processing

technology is used to analyze data

while simultaneously taking new read-

ings, speeding measurement through-

put. The technology, developed for

Agilent’s high-end line of modulation

domain analyzers, allows the counters

to gather more data for each measure-

ment, so you get higher-resolution

measurements in a fraction of the time

it takes other counters.

The 53131A/132A/181A counters offer

built-in statistics and math functions

so you can scale measurements and

simultaneously measure and track

average, min/max and standard devia-

tion. Automated limit testing lets you

set upper and lower limits for any mea-

surement. An analog display mode lets

you see at a glance whether a mea-

surement is within pass/fail limits. The

counters flag out-of-limit conditions

and can generate an output signal to

trigger external devices when a limit

is exceeded. For quick access to fre-

quently used tests, a single keystroke

recalls up to 20 different stored front-

panel set-ups.

For computer-controlled systems

applications, each counter includes

a standard GPIB interface with full

SCPI-compatible programmability and

a data transfer rate of up to 200 fully

formatted measurements per second.

The standard RS-232 talk-only interface

provides printer support or data trans-

fer to a computer through a terminal-

emulation program.

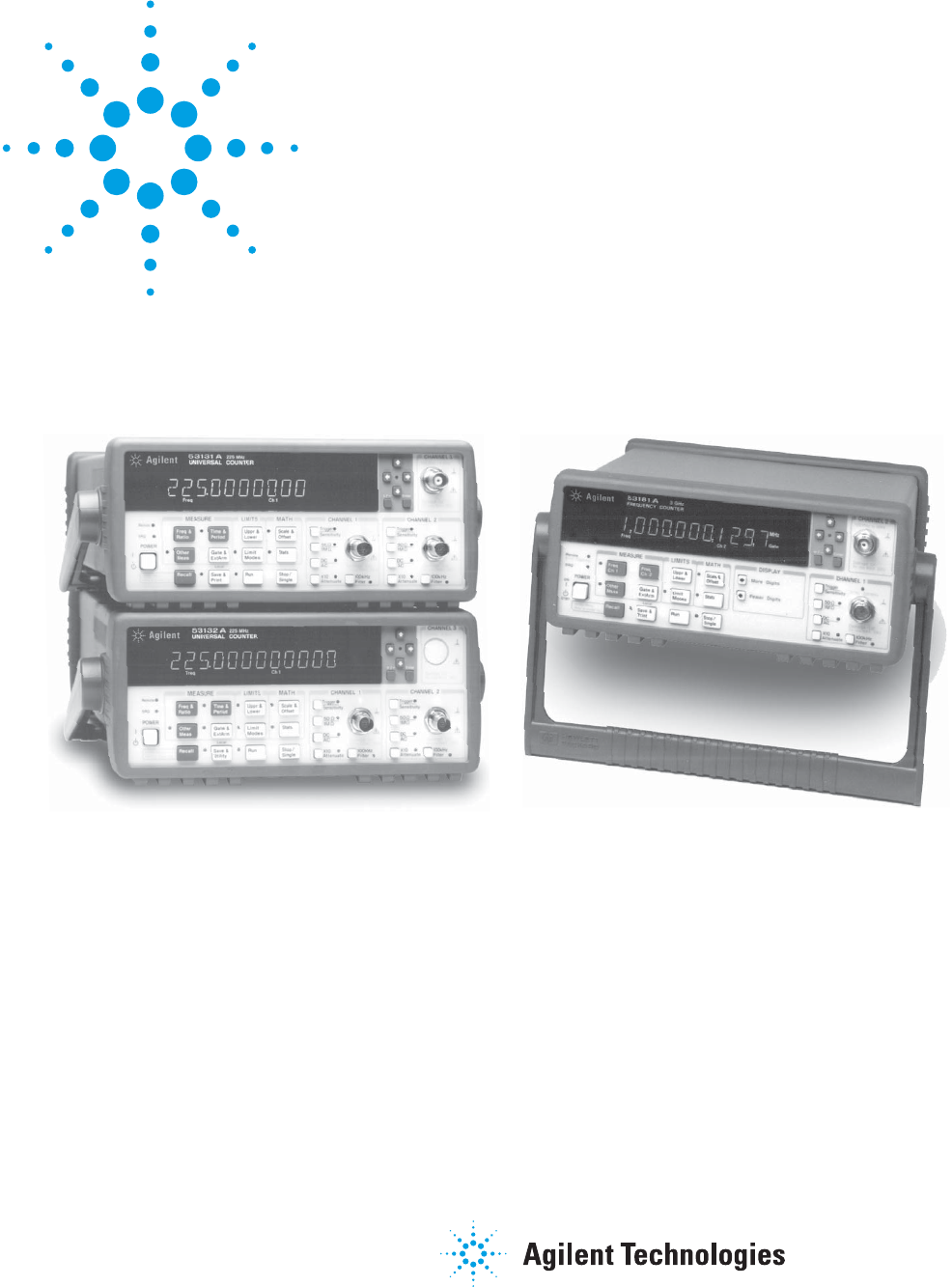

Agilent 53131A universal counter

The two-channel 53131A counter offers

10 digits per second of frequency/

period resolution and a bandwidth of

225 MHz. Time interval resolution is

specified at 500 ps. An optional third

channel provides frequency measure-

ments up to 3 GHz, 5 GHz, or 12.4 GHz.

Standard measurements include fre-

quency, period, ratio, time interval,

pulse width, rise/fall time, phase

angle, duty cycle, totalize, and peak

voltage.

Agilent 53132A universal counter

For applications requiring higher

resolution, the 53132A offers the same

features and functions as the 53131A,

with up to 12 digits/sec frequency/

period resolution and 150 ps time

interval resolution. In addition, the

53132A offers advanced arming modes

for time interval measurements.

Agilent 53181A RF counter

Optimized for RF applications, the

single-channel 10 digit/s 53181A

measures frequency, period and peak

voltage. A digit-blanking function lets

you easily eliminate unnecessary digits

when you want to read measurements

quickly. For higher-frequency measure-

ments, choose an optional second

channel that provides measurements

up to 1.5 GHz, 3 GHz, 5 GHz, or 12.4 GHz.

A self-guided shallow menu makes this

counter exceptionally easy to use.

Agilent IntuiLink provides easy access

to the counter’s data from your PC

The Agilent 53131A/132A/181A

counters, capture precise frequency

and time measurements. IntuiLink

software allows that data to be put

to work easily. You work in a familiar

environment at all times, using PC

applications such as Microsoft Excel®

or Word® to analyze, interpret, display,

print, and document the data you get

from the counter.

It gives you the flexibility to configure

and run tests from your PC making

data gathering more convenient.

Agilent IntuiLink lets you:

• Configure tests, including measure-

ment type, number of readings,

measurement speed, and more.

• Choose display modes from real-

time strip chart, histogram, readout,

and table mode.

• Scale measurements data.

• Copy captured data to other

programs.

Optional timebases offer

increased stability

Optional timebases are available

for 53131A/132A/181A counters to

increase measurement accuracy. Option

010 provides a high stability oven

timebase with aging of less than

5 x 10-10 per day.

1-year warranty

Each counter comes with operating,

programming and service manuals,

IntuiLink software, a power cord and

a full 1-year warranty.

Time Base

Internal time base stability (see graph 3 for timebase contribution of measurement error)

Standard Medium oven High oven Ultra high oven

(0° to 50°C) (Option 001) (Option 010) (Option 012 for 53132A only)

Temperature stability (referenced to 25°C) < 5 x 10-6 < 2 x 10-7 < 2.5 x 10-9 < 2.5 x 10-9

Aging rate Per Day: < 4 x 10-8 < 5 x 10-10 < 1 x 10-10

(after 30 days) Per Month: < 3 x 10-7 < 2 x 10-7 < 1.5 x 10-8 < 3 x 10-9

Per Year: < 2 x 10-8

Turn-on stability vs. time

(in 30 minutes) < 2 x 10-7 < 5 x 10-9 < 5 x 10-9

referenced to 2 h referenced to 24 h referenced to 24 h

Calibration Manual adjust Electronic Electronic Electronic

Note that power to the time base is maintained when the counter is placed in standby via the front panel switch. The internal fan will continue to operate

when in standby to maintain long-term measurement reliability.

Input specifications

Channel 1 & 2 (53131A, 53132A)1

Channel 1 (53181A)

Frequency range

dc coupled dc to 225 MHz

ac coupled 1 MHz to 225 MHz (50 Ω)

30 Hz to 225 MHz (1 MΩ)

FM tolerance 25%

Voltage range and sensitivity (Sinusoid)2

dc to 100 MHz 20 mVrms to ±5 V ac + dc

100 MHz 30 mVrms to ±5 V ac + dc

to 200 MHz

200 MHz 40 mVrms to ±5 V ac + dc

to 225 MHz (all specified at 75 mVrms

with opt. rear connectors)3

Voltage range and sensitivity

(Single-shot pulse)2

4.5 ns to 10 ns 100 mVpp to 10 Vpp

pulse width (150 mVpp with optional

rear connectors)3

>10 ns 50 mVpp to 10 Vpp

pulse width (100 mVpp with optional

rear connectors)3

Trigger level2

Range ± 5.125 V

Accuracy ± (15 mV + 1% of trigger level)

Resolution 5 mV

Damage level

50 Ω 5 Vrms

0 to 3.5 kHz, 350 Vdc + ac pk

1 MΩ

3.5 kHz to 350 Vdc + ac pk linearly

100 kHz, 1 MΩ

derated to 5 Vrms

>100 kHz, 5 Vrms

1 MΩ

Input characteristics

Channel 1 & 2 (53131A, 53132A)1

Channel 1 (53181A)

Impedance 1 MΩ or 50 Ω

1 MΩ 30 pF

capacitance

Coupling ac or dc

Low-pass filter

100 kHz, switchable

-20 dB at > 1 MHz

Input Selectable between Low,

sensitivity Medium, or High (default).

Low is approximately 2x

High Sensitivity.

Trigger slope Positive or negative

Auto trigger level

Range 0 to 100% in 10% steps

Frequency > 100 Hz

Input amplitude

> 100 mVpp

(No amplitude modulation)

Attenuator

Voltage range x10

Trigger range x10

Input Specifications4

Channel 3 (53131A, 53132A)

Channel 2 (53181A)

Frequency range

Option 015 100 MHz to 1.5 GHz

(for 53181A (see Opt. 030 for

only) additional specs)

Option 030 100 MHz to 3 GHz

Option 050 200 MHz to 5 GHz

Option 124 200 MHz to 12.4 GHz

Power range and sensitivity (Sinusoid)

Option 030 100 MHz to 2.7 GHz:

-27 dBm to +19 dBm

2.7 GHz to 3 GHz:

-21 dBm to +13 dBm

Option 050 200 MHz to 5 GHz:

-23 dBm to +13 dBm

Option 124 200 MHz to 12.4 GHz

-23 dBm to +13 dBm

Damage level

Option 030 5 Vrms

Option 050 +25 dBm

Option 124 +25 dBm

Characteristics

Impedance 50 Ω

Coupling AC

VSWR < 2.5:1

External arm input specifications5

Signal input range

TTL compatible

Timing Restrictions

Pulse width > 50 ns

Transition time < 250 ns

Start-to-stop time

> 50 ns

Damage level 10 Vrms

External arm input characteristics5

Impedance 1 kΩ

Input capacitance

17 pF

Start/stop slope Positive or negative

External time base input specifications

Voltage range 200 mVrms to 10 Vrms

Damage level 10 Vrms

Frequency 1 MHz, 5 MHz, and 10 MHz

(53132A 10 MHz only)

Time base output specifications

Output frequency

10 MHz

Voltage > 1 Vpp into 50 Ω

(centered around 0 V)

1. Specifications and characteristics for Channels

1 and 2 are identical for both common and

separate configurations.

2. Values shown are for X1 attenuator setting.

Multiply all values by 10 (nominal) when using

the X10 attenuator setting.

3. When the 53131A or 53132A are ordered with

the optional rear terminals (Opt. 060), the channel

1 and 2 inputs are active on both front and rear

of the counter. When the 53181A is ordered with

the optional rear terminal, the channel 1 input is

active on both front and rear of the counter. For

this condition, specifications indicated for the rear

connections also apply to the front connections.

4. When optional additional channels are ordered

with Opt. 060, refer to configuration table for

Opt. 060 under ordering info on page 8. There is

no degradation in specifications for this input,

as applicable.

5. Available for all measurements except peak volts.

External arm is referred to as external gate for

some measurements.

Instrument Inputs

Gate time

tacc ×Frequency

period

± Time base error ±

Gate time =Frequency

Gate time

res (2 + × Trigger error)2

×Frequency

period

Gate time

tres ×Frequency

period

LSD displayed:

RMS resolution:

Systematic uncertainty:

Trigger: Default setting is auto trigger at 50%

53131A tres

650 ps

typical

see graphs for worst case resolution performance

53132A tres

200 ps

53181A tres

650 ps

53131A tacc

350 ps

1.25 ns

Typical

Worst case

53132A tacc

100 ps

500 ps

53181A tacc

350 ps

1.25 ns

For automatic arming:

where N = 1 for standard channel frequency < 1 MHz

4 for standard channel frequency > 1 MHz

128 for optional channel

4 × t 2res +

(2 ×Trigger error 2)

Gate time

tacc ×Frequency

period

± Time base error ±

Gate time

tjitter

Gate time × Number of samples ×Frequency

period

LSD displayed:

RMS resolution

(see graph 2):

Systematic uncertainty:

Trigger: Default setting is auto trigger at 50%

tres

500 ps

Typical

See graphs for worst case resolution performance

tjitter

50 ps

tjitter

3 ps

tres

225 ps

53131A/181A

tacc

100 ps

300 ps

Typical

Worst case

53132A

tacc

10 ps

100 ps

Gate time

tjitter

Gate time × Number of samples

2 2 × tres ×Frequency

period

53131A/181A 53132A

Number of samples = Gate time × Frequency (Frequency < 200 kHz)

Gate time × 200,000

(Frequency > 200 kHz)

For time or digits arming:

For automatic or external arming:

(and signals < 100 Hz using timed arming)

Frequency (53131A, 53132A, 53181A)

Channel 1 and 2 (53131A, 53132A)

Channel 1 (53181A)

Range 0.1 Hz to 225 MHz

Channel 3 (53131A, 53132A)

Channel 2 (53181A)

Option 015 100 MHz to 1.5 GHz

(53181 A only)

Option 030 100 MHz to 3 GHz

Option 050 200 MHz to 5 GHz

Option 124 200 MHz to 12.4 GHz

(Period 2 or 3 selectable via GPIB only)

Period (53131A, 53132A, 53181A)

Channel 1 and 2 (53131A, 53132A)

Channel 1 (53181A)

Range 4.44 ns to 10 s

Channel 3 (53131A, 53132A)

Channel 2 (53181A)

Option 015 0.66 ns to 10 ns

(53181A only)

Option 030 0.33 ns to 10 ns

Option 050 0.2 ns to 5 ns

Option 124 80 ps to 5 ns

Frequency ratio (53131A, 53132A, 53181A)

Measurement is specified over the full signal

range of each input.

Results range 10-10 to 1011

“Auto” gate time

100 ms

Time interval (53131A, 53132A)

Measurement is specified over the full signal

ranges6 of Channels 1 and 2.

Results range -1 ns to 105 s

LSD 500 ps (53131A)/150 ps

(53132A)

Phase (53131A, 53132A)

Measurement is specified over the

full signal range of Channels 1 and 2.

Results range -180° to +360°

Duty cycle (53131A, 53132A)

Measurement is specified over the full

signal range of Channel 1. However, both the

positive and negative pulse widths must be

greater than 4 ns.

Results range 0 to 1 (e.g. 50% duty cycle

would be displayed as .5)

Rise/fall time (53131A, 53132A)

Measurement is specified over the full signal

ranges of Channel 1. The interval between the

end of one edge and start of a similar edge

must be greater than 4 ns.

Edge selection Positive or negative

Trigger Default setting is auto trigger

at 10% and 90%

Results range 5 ns to 10 5 s

LSD 500 ps (53131A)/150 ps

(53132A)

Pulse width (53131A, 53132A)

Measurement is specified over the full signal

range of Channel 1. The width of the opposing

pulse must be greater than 4 ns.

Pulse selection

Positive or negative

Trigger Default setting is auto trigger

at 50%

Results range 5 ns to 10 5 s

LSD 500 ps (53131A)/150 ps

(53132A)

Totalize (53131A, 53132A)

Measurement is specified over the

full signal range of Channel 1.

Results range 0 to 1015

Resolution ± 1 count

Peak volts (53131A, 53132A, 53181A)

Measurement is specified on Channels 1 and 2

for dc signals; or for ac signals of frequencies

between 100 Hz and 30 MHz with peak-to-peak

amplitude greater than 100 mV.

Results range -5.1 V to +5.1 V

Resolution 10 mV

Peak volts systematic uncertainty

for ac signals: 25 mV + 10% of V

for dc signals: 25 mV + 2% of V

Use of the input attenuator multiplies all

voltage specifications (input range, results

range, resolution and systematic uncertainty)

by a nominal factor of 10.

Gate time

Auto mode, or 1 ms to 1000 s

Measurement throughput

GPIB ASCII 200 measurements/s (maximum)

Measurement arming

Start Free run, manual, or external

measurement

Stop Continuous, single, external,

measurement

or timed

Time interval 100 µs to 10 s (53131A)

Delayed 100 ns to 10 s (53132A)

arming

Arming modes

(Note that not all arming modes are available

for every measurement function.)

5. Available for all measurements except peak volts.

External arm is referred to as external gate for some

measurements.

6. See specifications for pulse width and rise/fall time

measurements for additional restrictions on signal

timing characteristics.

Measurement Specifications

Auto arming: Measurements are initiated

immediately and acquired as fast as possible,

using a minimum number of signal edges.

Timed arming: The duration of the measurement

is internally timed to a user-specified value

(also known as the “gate time”).

Digits arming: Measurements are performed

to the requested resolution (number of digits)

through automatic selection of the acquisition

time.

External arming: An edge on the external arm

Input enables the start of each measurement.

Auto arming, timed arming modes or another

edge on the external arm input may be used to

complete the measurement.

Time interval delayed arming: For time interval

measurements, the stop trigger condition is

inhibited for a user-specified time following the

start trigger. The 53132A offers advanced time

interval arming capabilities including use of user

specified time or Channel 2 events to delay both

start and stop triggers.

Measurement limits

Limit checking: The measurement value is

checked against user-specified limits at the

end of each measurement.

Display modes: The measurement result may

be displayed as either the traditional numeric

value or graphically as an asterisk moving

between two vertical bars.

Out-of-limits Indications:

• The limits annunciator will light on the front

panel display.

• The instrument will generate an SRQ if

enabled via GPIB.

• The limits hardware signal provided via the

RS-232 connector will go low for the duration

of the out-of-limit condition.

• If the analog display mode is enabled, the

asterisk appears outside the vertical bars,

which define the upper and lower limits.

2 × Ch2 Freq × 1 + (Ch1 Freq × Ch2 Trigger error) 2

(Ch1 Freq) 2 × Gate time

(tres) 2 + Start trigger error 2 + Stop trigger error 2

RMS resolution:

Time interval, pulse width, rise/fall time (53131A and 53132A only):

RMS Resolution:

Systematic uncertainty: ± 2x resolution

LSD: Ratio :

tres 53131A

750 ps

53132A

300 ps

Systematic uncertainty:

± (Time base error × Measurement) Trigger level timing error ± 1.5 ns Differential channel error (53131A)

± (Time base error × Measurement) Trigger level timing error ± 900 ps Differential channel error (53132A

)

where tres = 750 ps for the 53131A, 300 ps for the 53132A

Systematic uncertainty:

( ± Trigger level timing error ± 1.5 ns Differential channel error) × Frequency × 360° (53131A)

( ± Trigger level timing error ± 900 ps Differential channel error) × Frequency × 360° (53132A)

Ch2 Freq × Gate time

Ch2 Freq

(Ch1 Freq) 2 × Gate time

Frequency ratio:

Phase (53131A and 53132A)

Duty cycle (53131A and 53132A)

Ch1 ,

Ch2

Ch1 ,

Ch3

Ch2 ,

Ch1

Ch3

Ch1

Ch1 ,

Ch2

Ch1

(53131A and 53132A) (53181A)

Ratio :

Ratio : 2 × 1 + (Ch1 Freq × Ch2 Trigger error) 2

Ch2 Freq × Gate time

× Frequency ×360°

360°

Phase

((Tres)2 (2 × Trigger error 2)) × (1 + Duty cycle 2) × Frequency

((Tres)2 + (2 x Trigger error 2))

For measurements using Ch3,

substitute Ch3 for Ch2 in these

equations. To minimize relative

phase measurement error,

connect the higher frequency

signal to channel 1.

Fractional time base error (see graph 3)

Time base error is the maximum fractional frequency variation of the time base due to aging or

fluctuations in ambient temperature or line voltage:

∆f ∆f ∆f

Time base error

= ( —

Aging rate

+ —

Temperature

+ —

Line voltage

)

f f f

Multiply this quantity by the measurement result to yield the absolute error for that measurement.

Averaging measurements will not reduce (fractional) time base error. The counters exhibit negligible

sensitivity to line voltage; consequently the line voltage term may be ignored.

Trigger error

External source and input amplifier noise may advance or delay the trigger points that define the

beginning and end of a measurement. The resulting timing uncertainty is a function of the slew rate

of the signal and the amplitude of spurious noise spikes (relative to the input hysteresis band).

The (rms) trigger error associated with a single trigger point is:

Trigger error =Input signal slew rate at trigger point (in seconds)

(E )

input

2(E )

signal

where

Einput = RMS noise of the input amplifier: 1 mVrms (350 µVrms typical). Note that the internal

measurement algorithms significantly reduce the contribution of this term.

Esignal = RMS noise of the input signal over a 225 MHz bandwidth (100 kHz bandwidth when the

low-pass filter is enabled). Note that the filter may substantially degrade the signal’s slew rate at

the input of the trigger comparator.

For two-trigger-point measurements (e.g. rise time, pulse width), the trigger errors will be referred

to independently as start trigger error and stop trigger error.

Trigger level timing error (see graph 6)

Trigger level timing error results from a deviation of the actual trigger level from the specified level.

The magnitude of this error depends on resolution and accuracy of the trigger level circuit, input

amplifier fidelity, input signal slew rate, and width of the input hysteresis band.

The following equations should be summed together to obtain the overall trigger level timing error.

At the “High” sensitivity input setting, the hysteresis band can be assumed to be the sensitivity of

the counter input (see page 2). Reduction of input sensitivity or use of the attenuator will increase the size of this band.

Input hysteresis error: –

Trigger level setting error: ± ±

Differential channel error

The differential channel error term stated in several systematic uncertainty equations accounts for

channel-to-channel mismatch and internal noise. This error can be substantially reduced by performing

a TI calibration (accessible via the utility menu) in the temperature environment in which future

measurements will be made.

0.5 x hysteresis band

Input signal slew rate at start trigger point

15 mV ± (1% x start trigger level setting)

Input signal slew rate at start trigger point

15 mV ± (1% x stop trigger level setting)

Input signal slew rate at stop trigger point

0.5 x hysteresis band

Input signal slew rate at stop trigger point

1E + 02

1E + 00

1E – 02

1E – 04

1E – 06

1E – 08

1E – 10

10 100 1000 10000 1E + 05 1E + 06 1E + 07 1E + 08 1E + 09 1E + 10

Input frequency (Hz)

10 100 1000 10000 1E + 05 1E + 06 1E + 07 1E + 08 1E + 09 1E + 10

Input frequency (Hz)

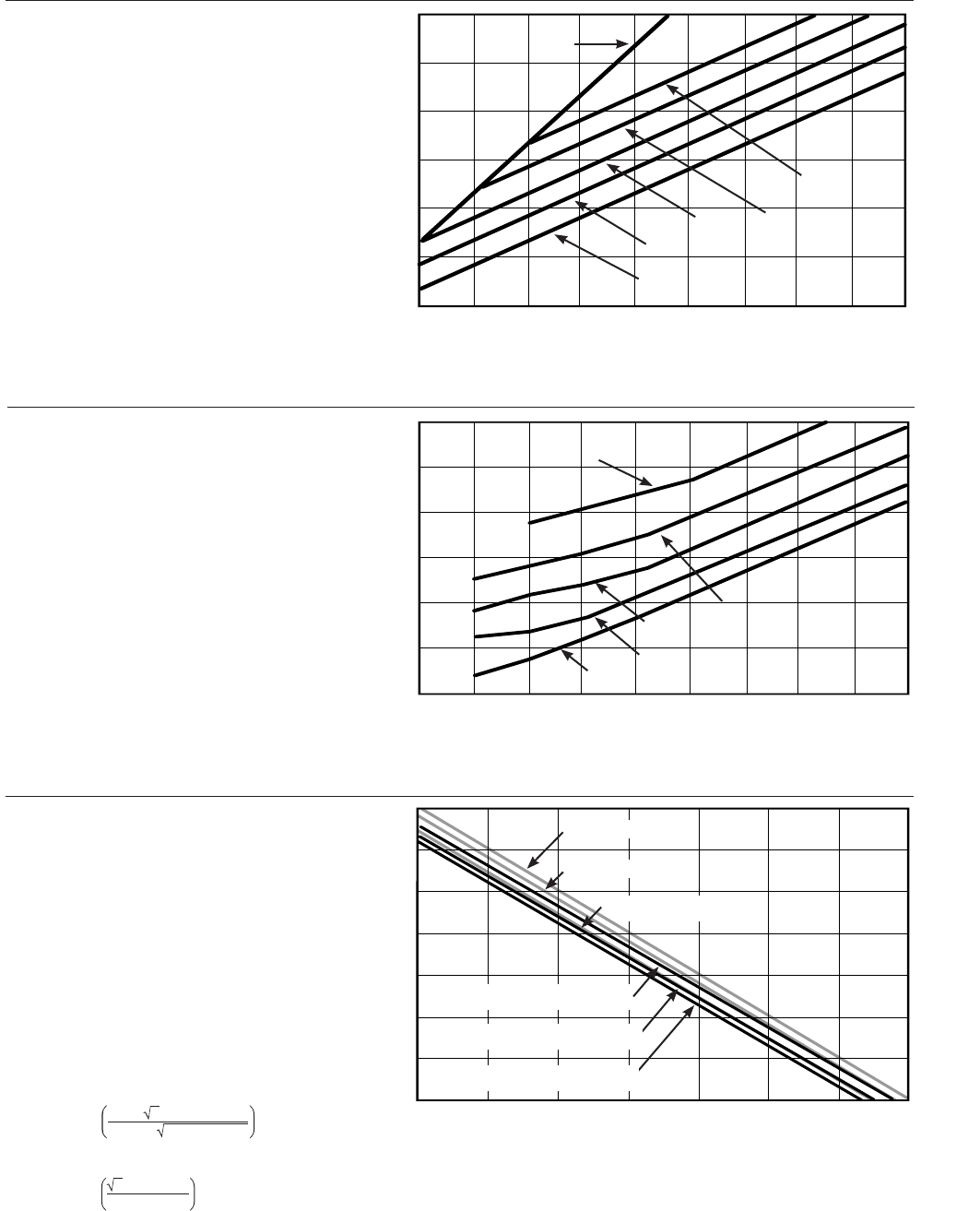

Graph 1:

Agilent 53131A/181A–Worst case

RMS resolution7

(Automatic or external arming)

The graphs may also be used to compute errors

for period measurements. To find the period

error (DP), calculate the frequency of the input

signal (F = 1/P) and find the frequency error

(DF) from the chart.

Then calculate the period error as:

Graph 2:

Agilent 53131A/181A–Worst case

RMS resolution7

(Time or digits arming)

Graph 3:

Timebase error

Frequency error (Hz)

Auto armed

1 ms

10 ms Gate

time

100 ms

1 s

10 s

∆

P×P

Time or digit arming

Gate time Number of samples

4 × 2 × Trigger error ×Frequency

period

Frequency error + ×

Automatic or external arming

Gate time

2 × Trigger error ×Frequenc

period

requency error +

7. Graphs 1, 2, 4 and 5 do not reflect the effects of

trigger error. To place an upper bound on the added

effect of this error term, determine the frequency

error from the appropriate graph and add a trigger

error term as follows:

E + 02

1E + 00

1E – 02

1E – 04

1E – 06

1E – 08

1E – 10

Frequency error (Hz)

1 ms

10 ms

100 ms

1 s

10 s

1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz

1 ns 10 ns 100 ns 1 µs 10 µs 100 µs 1 ms 10 ms 100 ms 1 sec

Input signal frequency or time

10 kHz

1 kHz

100 Hz

10 Hz

1 Hz

100 mHz

10 mHz

1 mHz

100 µHz

10 µHz

1 µHz

100 nHz

10 nHz

10 µs

1 µs

100 ns

10 ns

1 ns

100 ps

10 ps

1 ps

100 fs

10 fs

1 fs

100 as

10 as

Frequency error

Time error

Gate

time

Standard T.B.

1 year after cal

Medium T.B.

1 year after cal

High stability T.B.

10 years after cal

High stability T.B.

1 year after cal

Ultra stability T.B.

1 year after cal

High stability T.B.

1 month after cal

Standard T.B.

1 month after cal

Medium T.B.

1 month after cal

10 100 1000 10000 1E + 05 1E + 06 1E + 07 1E + 08 1E + 09 1E + 10

Input frequency (Hz)

1E + 02

1E + 00

1E – 02

1E – 04

1E – 06

1E – 08

1E – 10

E + 02

1E + 00

1E – 02

1E – 04

1E – 06

1E – 08

1E – 10

Graph 4:

Agilent 53132A–Worst case

RMS resolution7

(Automatic or external arming)

Graph 5:

Agilent 53132A–Worst case

RMS resolution7

(Time or digits arming)

Auto armed

1 ms

10 ms

100 ms

1 s

10 s

Frequency Error (Hz)

Frequency error (Hz)

1 V/ms 10 mV/µs 100 mV/µs 1 V/µs 10 mV/ns 100 mV/ns 1 V/ns 10 mV/ps

Input signal slew rate at trigger point

100 µs

10 µs

1 µs

100 ns

10 ns

1 ns

100 ps

10 ps

Graph 6:

Trigger level timing error

(Level setting error and

input hysteresis)

1 ms

10 ms

100 ms

1 s

10 s

200 to 225 MHz rep. rate

100 to 200 MHz rep. rate

dc to 100 MHz rep. rate

Pulse and T.I. at 5 V trigger point

Pulse and T.I. at 2.5 V trigger point

Pulse and T.I. at 0 V trigger point

Gate

time

Gate

time

10 100 1000 10000 1E + 05 1E + 06 1E + 07 1E + 08 1E + 09 1E + 10

Input frequency (Hz)

Time or digit arming

Gate time Number of samples

4 × 2 × Trigger error ×Frequency

period

Frequency error + ×

Automatic or external arming

Gate time

2 × Trigger error ×Frequenc

period

requency error +

7. Graphs 1, 2, 4 and 5 do not reflect the effects of

trigger error. To place an upper bound on the added

effect of this error term, determine the frequency

error from the appropriate graph and add a trigger

error term as follows:

Trigger error per trigger point

Available statistics

Mean, Minimum, Maximum, Standard Deviation

Number of measurements 2 to 1,000,000.

Statistics may be collected on all measurements

or on only those which are between the limit

bands. When the limits function is used in

conjunction with statistics, N (number of

measurements) refers to the number of in-limit

measurements. In general, measurement

resolution will improve in proportion to N,

up to the numerical processing limits of

the instrument.

Measurements

Statistics may be collected for all measurements

except peak volts and totalize.

Save and recall

Up to 20 complete instrument setups may

be saved and recalled later. These setups

are retained when power is removed from

the counter.

Rack dimensions (HxWxD)

88.5 mm x 212.6 mm x 348.3 mm

Weight

3.5 kg maximum

Warranty

1 year

Power supply

100 to 120 VAC ± 10% -50, 60 or

400 Hz ± 10% 220 to 240 VAC

± 10% -50 or 60 Hz ± 10%

ac Line selection

Automatic

Power requirements

170 VA maximum (30 W typical)

Environment

0°C to 55°C operating

–40°C to 71°C storage

Remote Interface

GPIB (IEEE 488.1-1987,

IEEE 488.2-1987)

Remote programming language

SCPI-1992.0 (Standard Commands

for Programmable Instruments)

Safety

Designed in compliance with IEC-1010,

UL-3111-1 (draft), CAN/CSA 1010.1

EMC

CISPR-11, EN50082-1,

IEC 801-2, -3, -4

Radiated immunity testing

When the product is operated at maximum

sensitivity (20 mVrms) and tested at 3 V/m

according to IEC 801-3, external 100 to 200 MHz

electric fields may cause frequency miscounts.

Measurement

Statistics

General

Information

53131A

10 digit/s, 500 ps universal counter

53132A

12 digit/s, 150 ps universal counter

53181A

10-digit/s RF counter

Accessories included

Each counter comes with IntuiLink software,

standard timebase, and power cord. CD with

the following: IntuiLink software, Operating,

Programming, Service and Getting Started

Guides, a data sheet, and application notes.

Manual options

(please specify one when ordering)

ABA US English

ABD German

ABE Spanish

ABF French

ABJ Japanese

ABZ Italian

ABO Taiwan Chinese

AB1 Korean

AB2 Chinese

Other options

Opt. 001 Medium-stability timebase

Opt. 010 High-stability timebase

Opt. 012 Ultra-high stability timebase

(53132A only)

Opt. 015 1.5 GHz RF input Ch 2

for 53181A only

Opt. 030 3 GHz RF input Ch 3

(Ch 2 on 53181A)

Opt. 050 5 GHz RF input

with type N connector

Ch 3 (Ch 2 on 53181A)

Opt. 124 12.4 GHz RF input

with type N connector

Ch 3 (Ch 2 on 53181A)

Opt. 060 Rear-panel connectors*

Opt. A6J ANSI Z540 compliant calibration

*Opt 060 configuration table

53131A/132A

Ch1 & Ch2 front & rear (in parallel)

Ch3 Opt. 030 rear only, front plugged

Ch3 Opt. 050/124 front only

Ch2 Opt. 050/124 front only

53181

Ch1 front & rear (in parallel)

Ch2 Opt. 015/030 rear only, front plugged

Ch2 Opt. 050/124 front only

Accessories

34131A Hard carrying case

34161A Accessory pouch

34190A Rackmount kit: designed for use

with only one instrument, mounted

on either the left or the right side of

the rack.

34191A 2U dual flange kit: secures the

instrument to the front of the

rack. This kit can be used with the

34194A dual lock link kit to mount

two half-width, 2U height instru-

ments side-by side.

34194A Dual lock link kit: recommended

for side-by-side combinations and

includes links for instruments of dif-

ferent depths. This kit can be used

with the 34191A 2U dual flange kit

to mount two half-width, 2U height

instruments side-by-side.

Ordering

Information

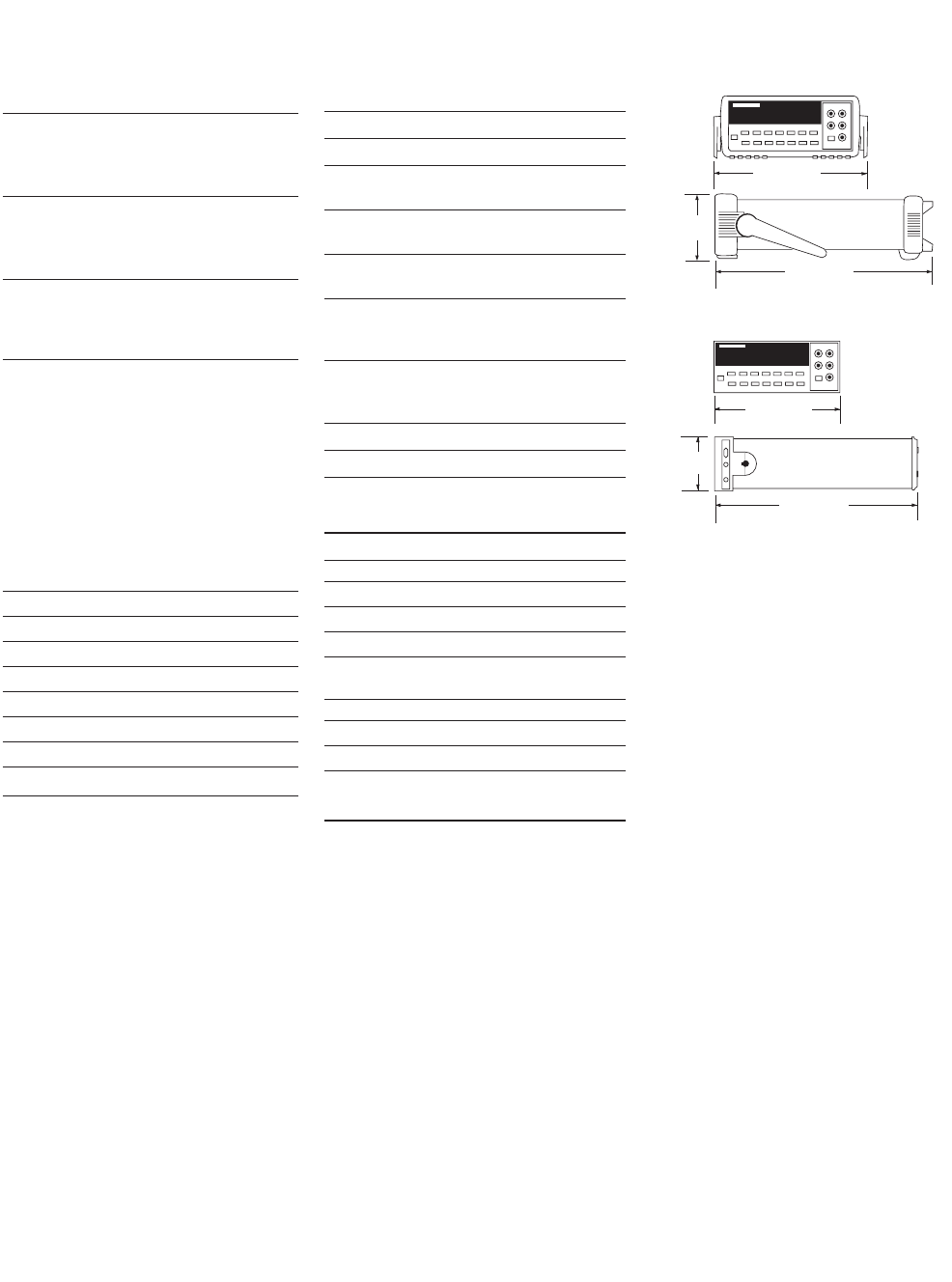

254.4 mm

103.6 mm

374.0 mm

212.6 mm

348.3 mm

88.5 mm

www.agilent.com

www.agilent.com/find/counters

Agilent Email Updates

www.agilent.com/find/emailupdates

Get the latest information on the

products and applications you select.

www.axiestandard.org

AdvancedTCA® Extensions for

Instrumentation and Test (AXIe) is

an open standard that extends the

AdvancedTCA for general purpose

and semiconductor test. Agilent

is a founding member of the AXIe

consortium.

www.lxistandard.org

LAN eXtensions for Instruments

puts the power of Ethernet and

the Web inside your test systems.

Agilent is a founding member of the

LXI consortium.

www.pxisa.org

PCI eXtensions for Instrumentation

(PXI) modular instrumentation

delivers a rugged, PC-based high-

performance measurement and

automation system.

Agilent Channel Partners

www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s

measurement expertise and product

breadth, combined with channel

partner convenience.

For more information on Agilent

Technologies’ products, applications or

services, please contact your local Agilent

office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada (877) 894 4414

Brazil (11) 4197 3500

Mexico 01800 5064 800

United States (800) 829 4444

Asia Pacific

Australia 1 800 629 485

China 800 810 0189

Hong Kong 800 938 693

India 1 800 112 929

Japan 0120 (421) 345

Korea 080 769 0800

Malaysia 1 800 888 848

Singapore 1 800 375 8100

Taiwan 0800 047 866

Other AP Countries (65) 375 8100

Europe & Middle East

Belgium 32 (0) 2 404 93 40

Denmark 45 70 13 15 15

Finland 358 (0) 10 855 2100

France 0825 010 700*

*0.125 €/minute

Germany 49 (0) 7031 464 6333

Ireland 1890 924 204

Israel 972-3-9288-504/544

Italy 39 02 92 60 8484

Netherlands 31 (0) 20 547 2111

Spain 34 (91) 631 3300

Sweden 0200-88 22 55

United Kingdom 44 (0) 131 452 0200

For other unlisted countries:

www.agilent.com/find/contactus

Revised: June 8, 2011

Product specifications and descriptions

in this document subject to change

without notice.

Published in USA, November 8, 2011

5967-6039EN

Agilent Advantage Services is committed

to your success throughout your equip-

ment’s lifetime. To keep you competitive,

we continually invest in tools and

processes that speed up calibration and

repair and reduce your cost of ownership.

You can also use Infoline Web Services

to manage equipment and services more

effectively. By sharing our measurement

and service expertise, we help you create

the products that change our world.

www.agilent.com/quality

www.agilent.com/find/advantageservices

5967 6039EN 11 08 A_53132A A 53132A

A_53132A A_53132A

Navigation menu

Versions of this User Manual:

Views

Navigation
