A_8643A A 8643A
Keysight-formerly-Agilent-TM-8643A-Signal-Generator Keysight-formerly-Agilent-TM-8643A-Signal-Generator
User Manual: A_8643A
Open the PDF directly: View PDF
.
Page Count: 331 [warning: Documents this large are best viewed by clicking the View PDF Link!]

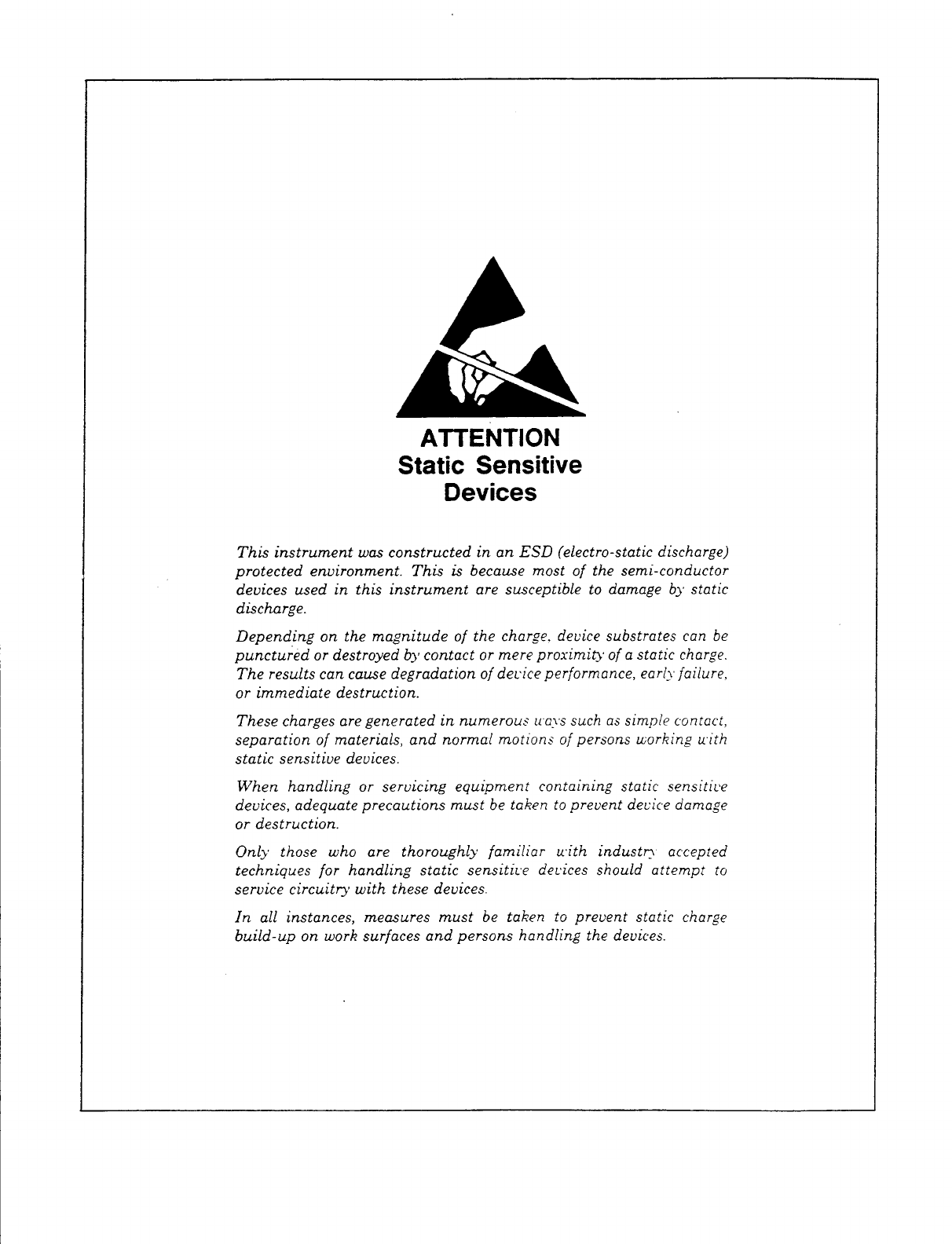

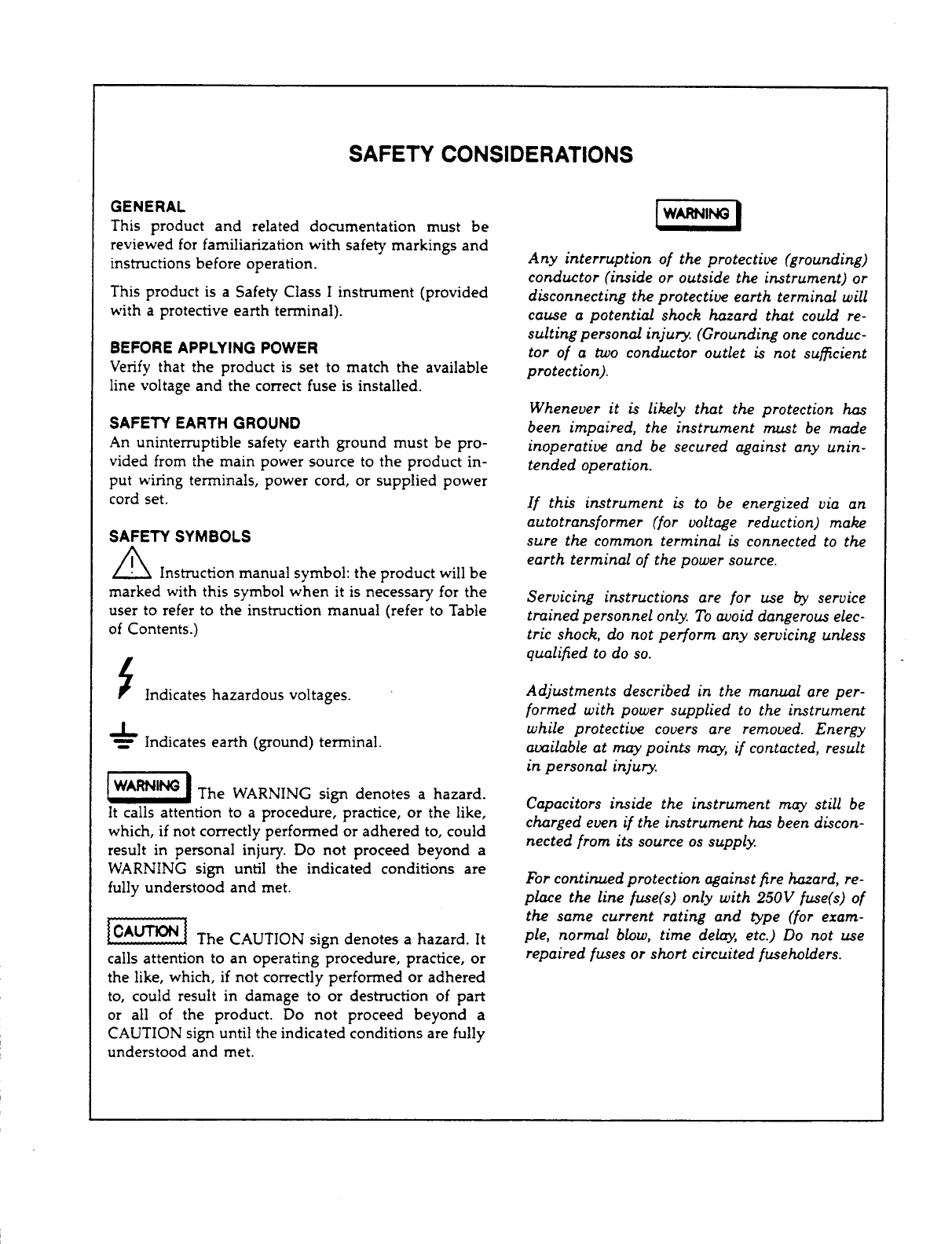

- Title Page
- Table of Contents

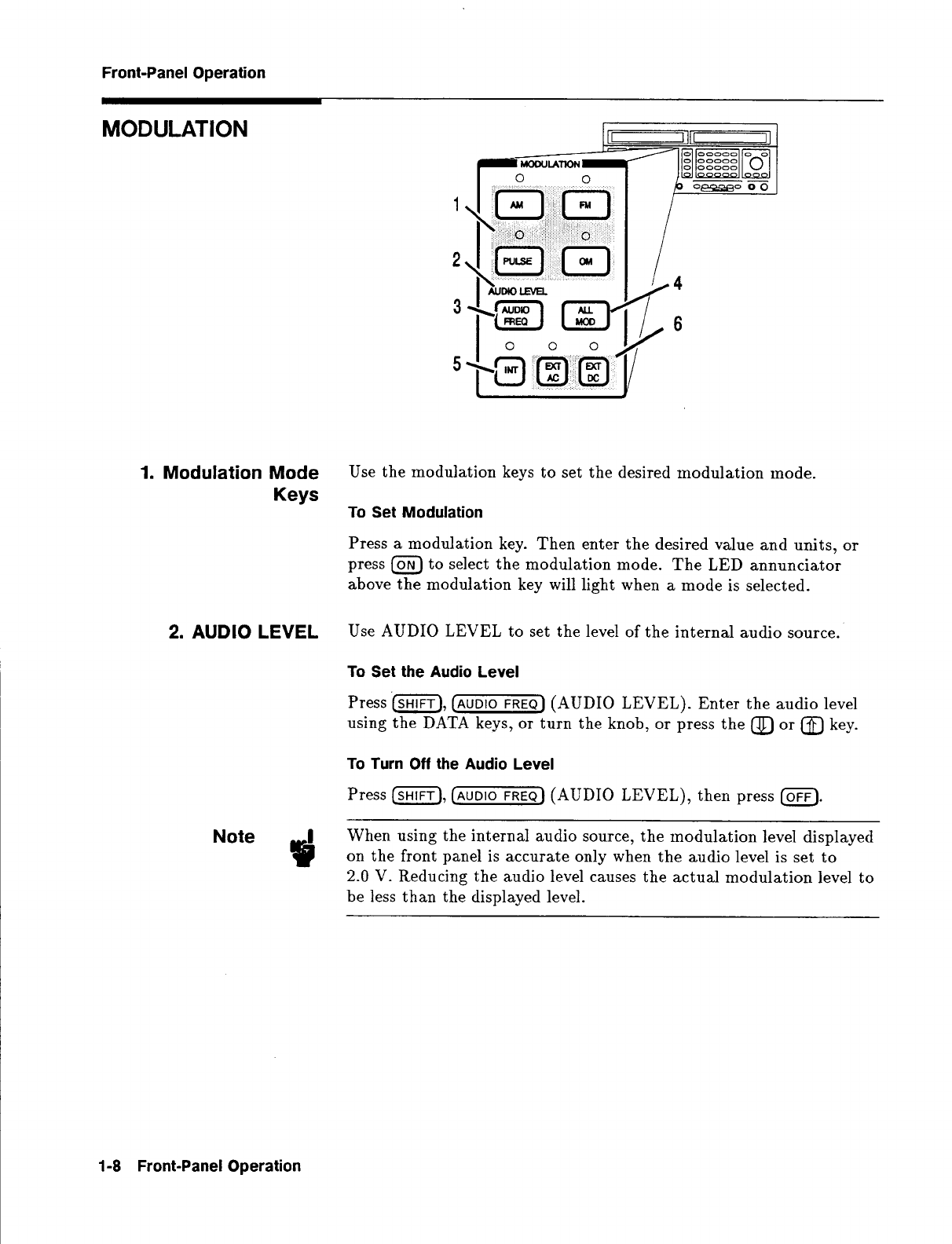

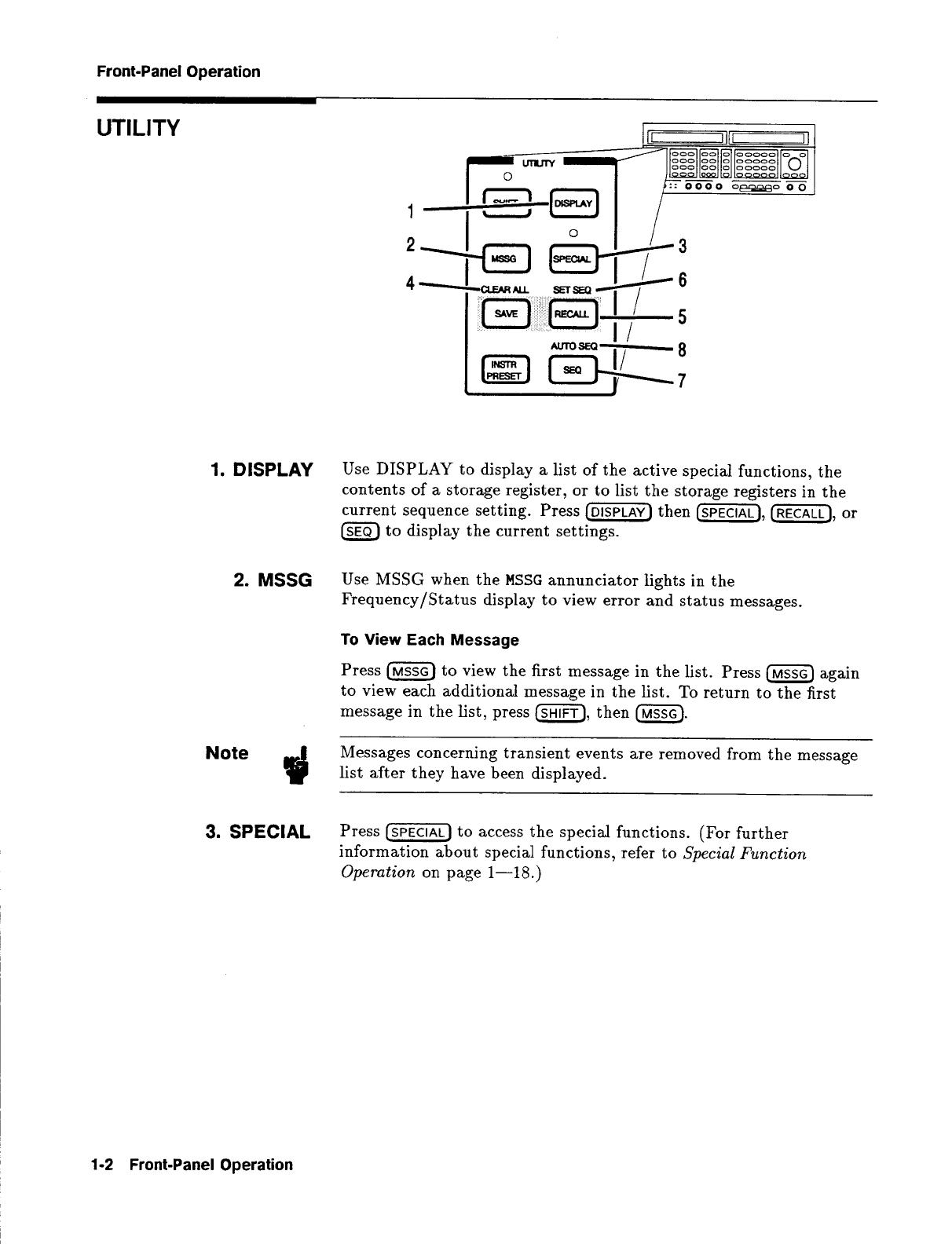

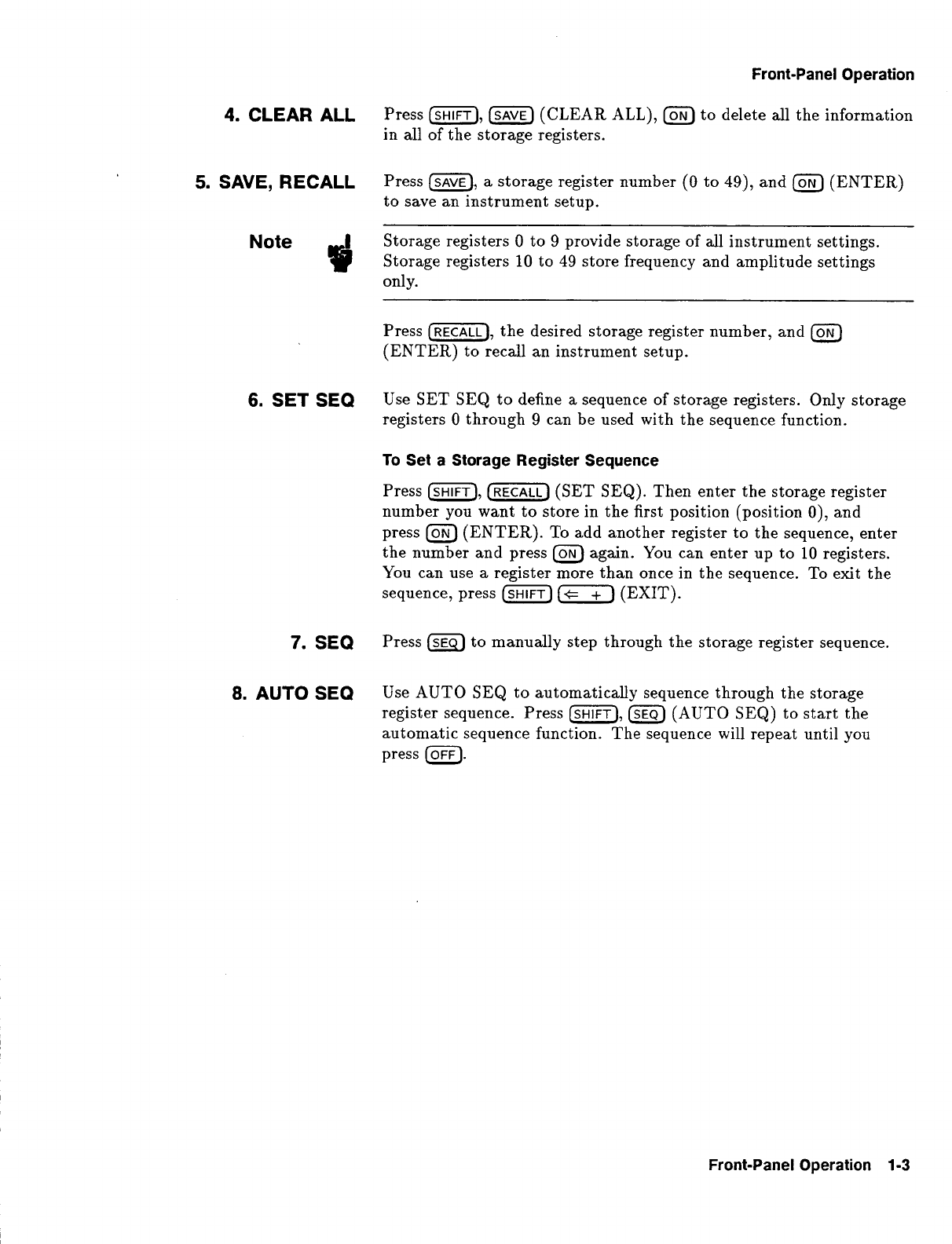

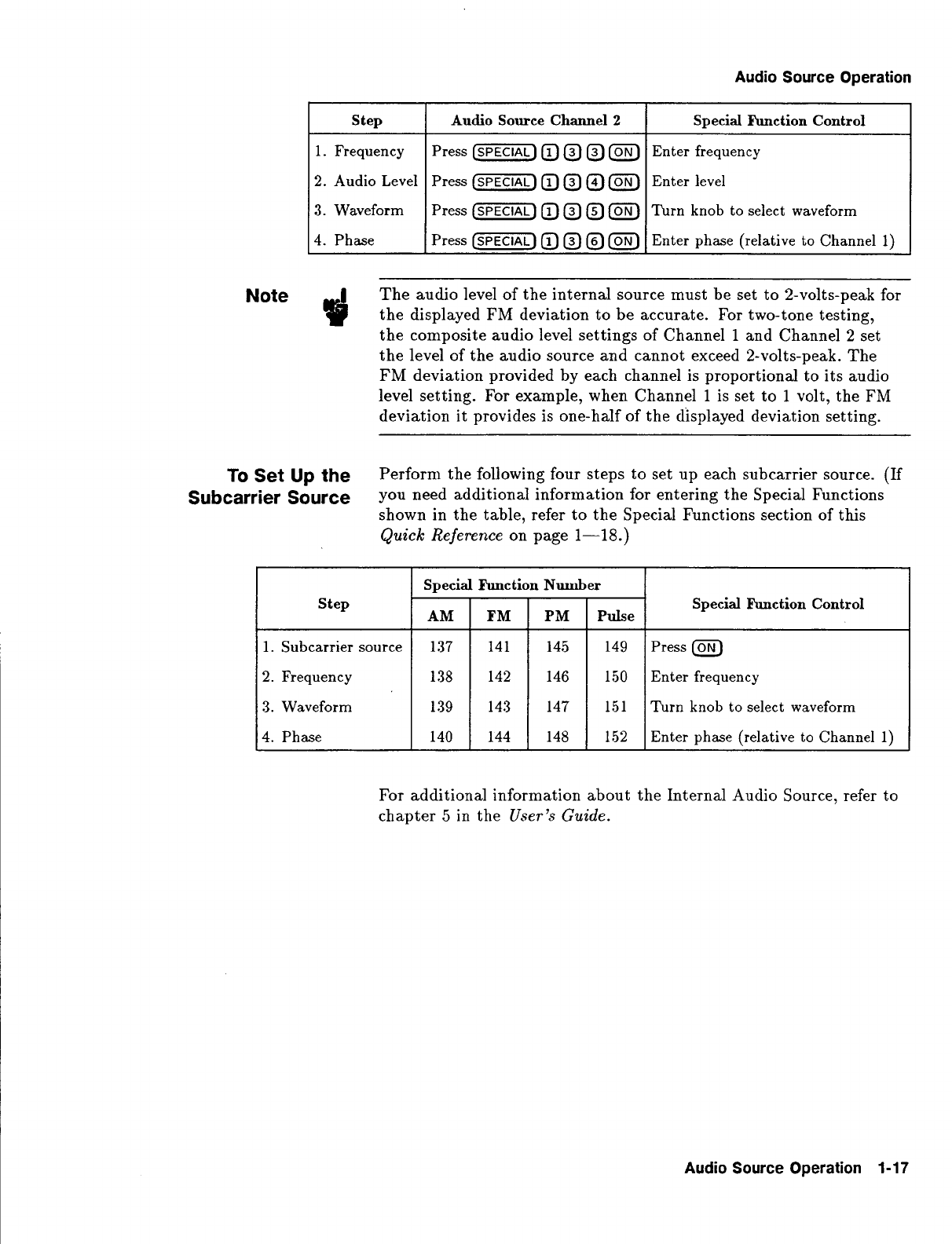

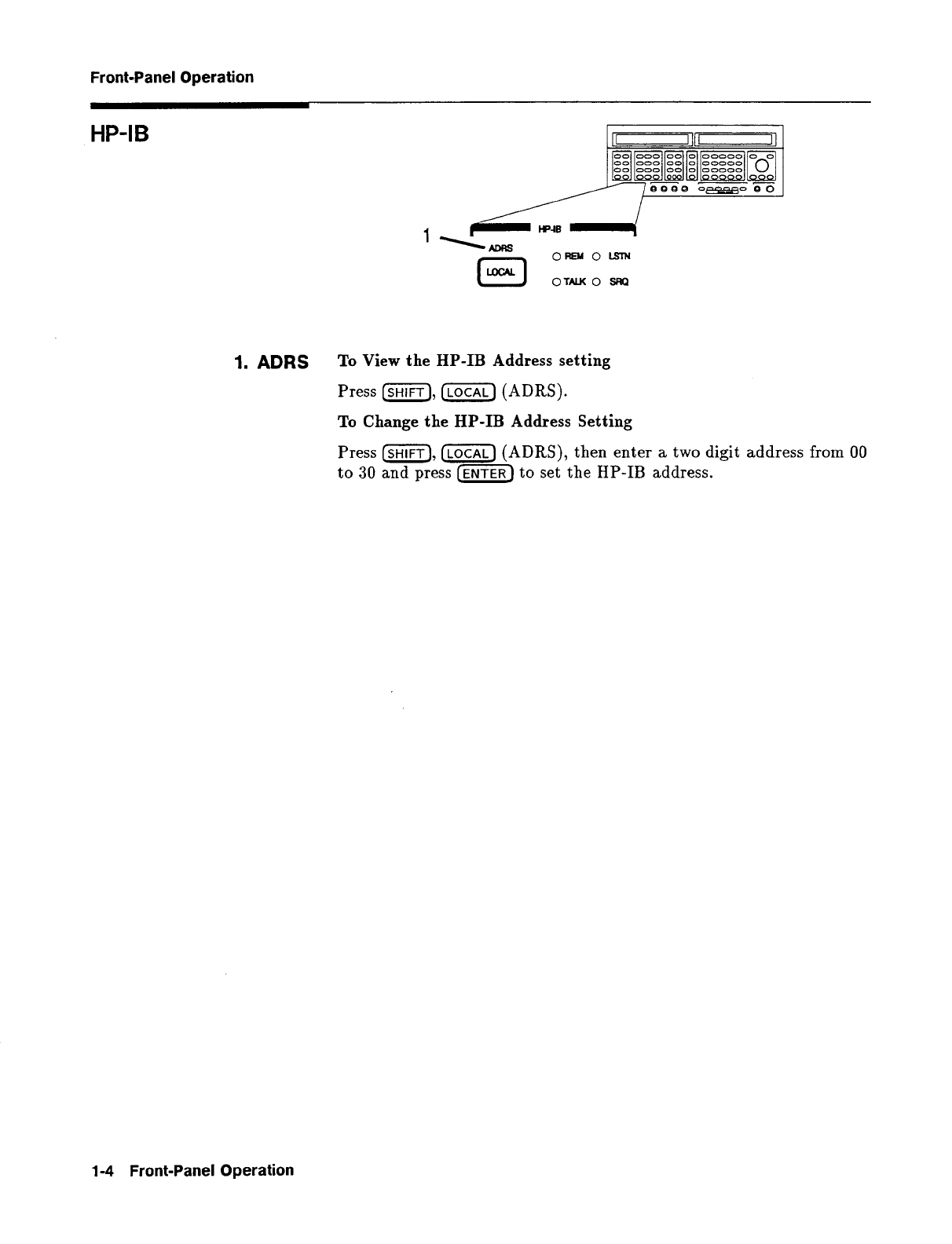

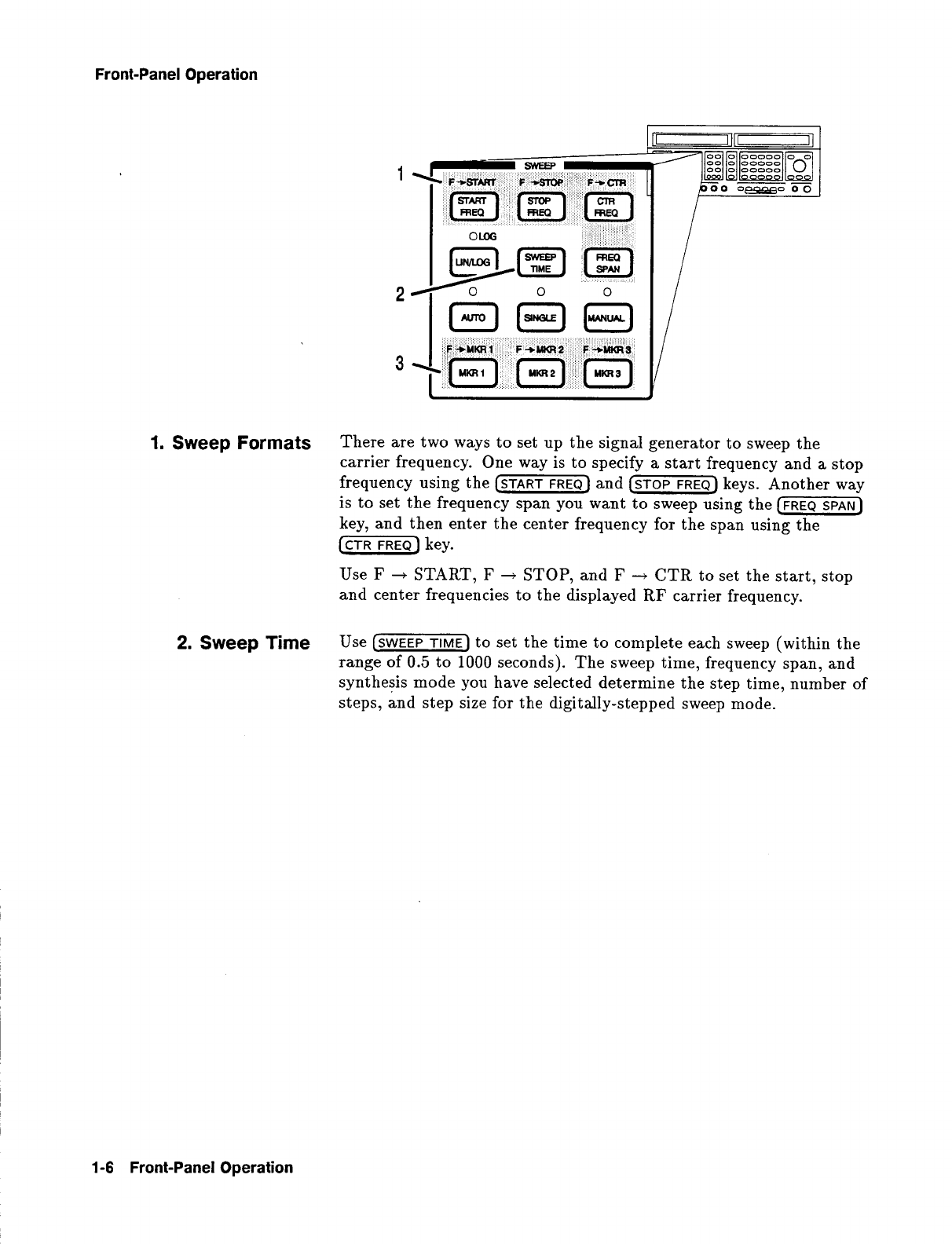

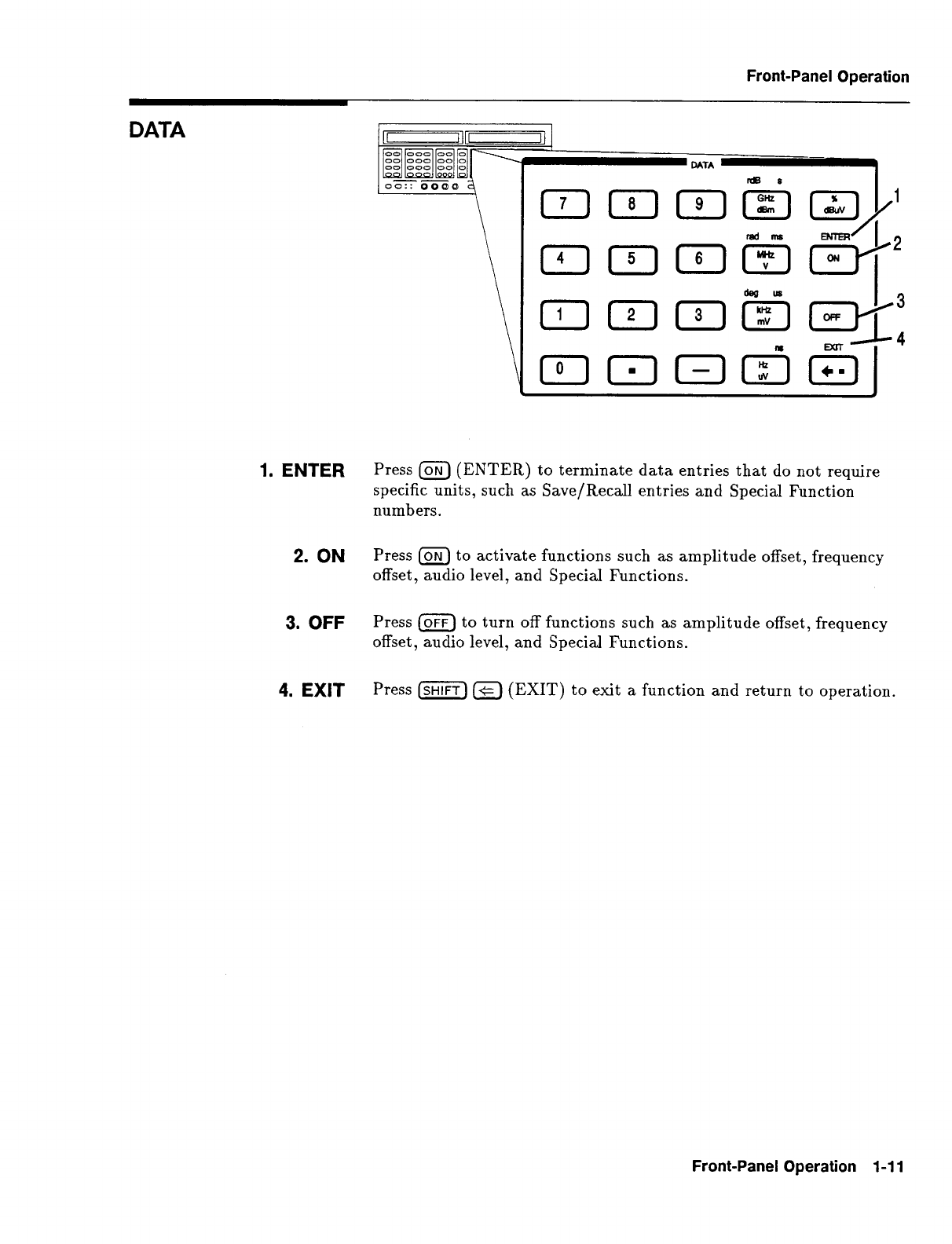

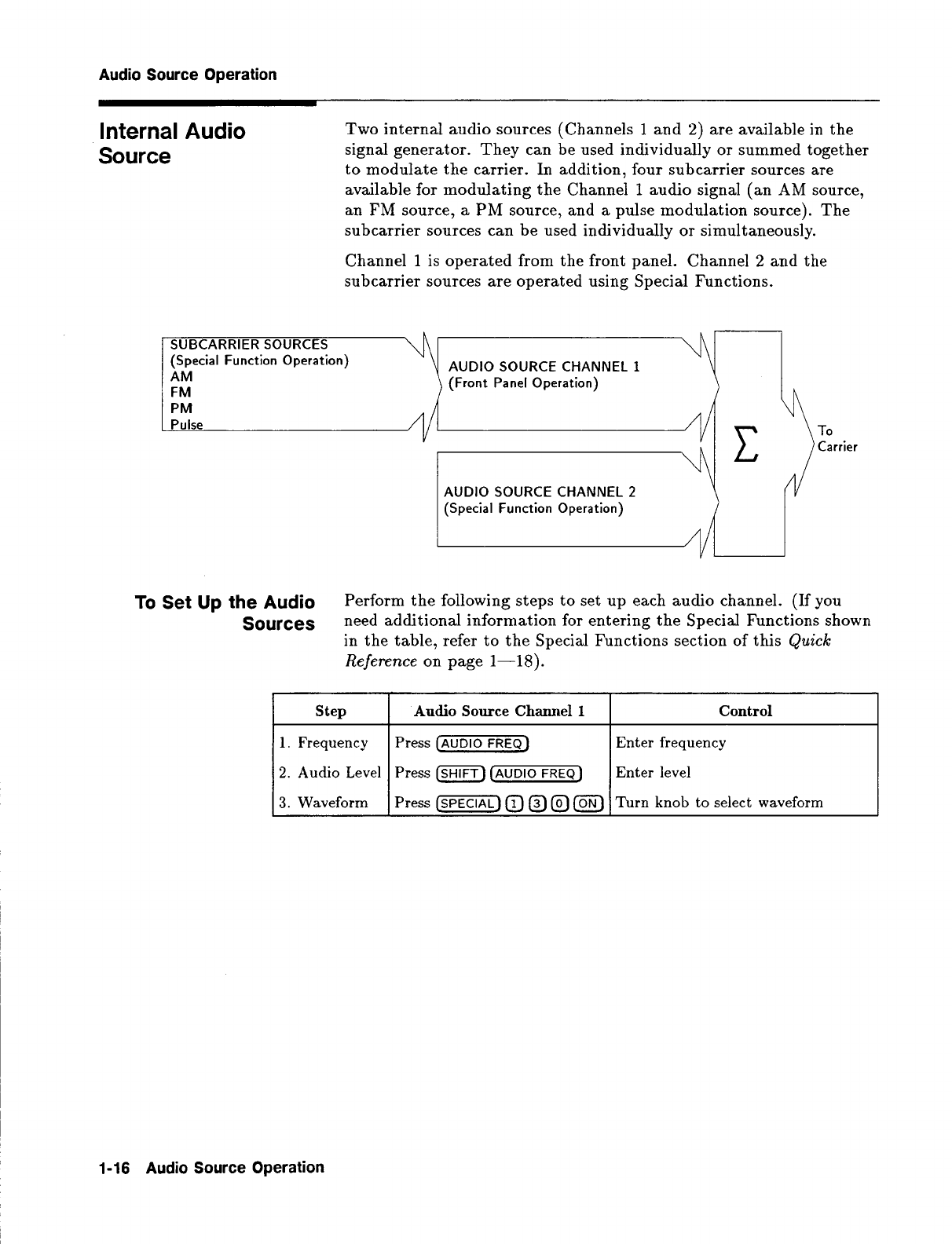

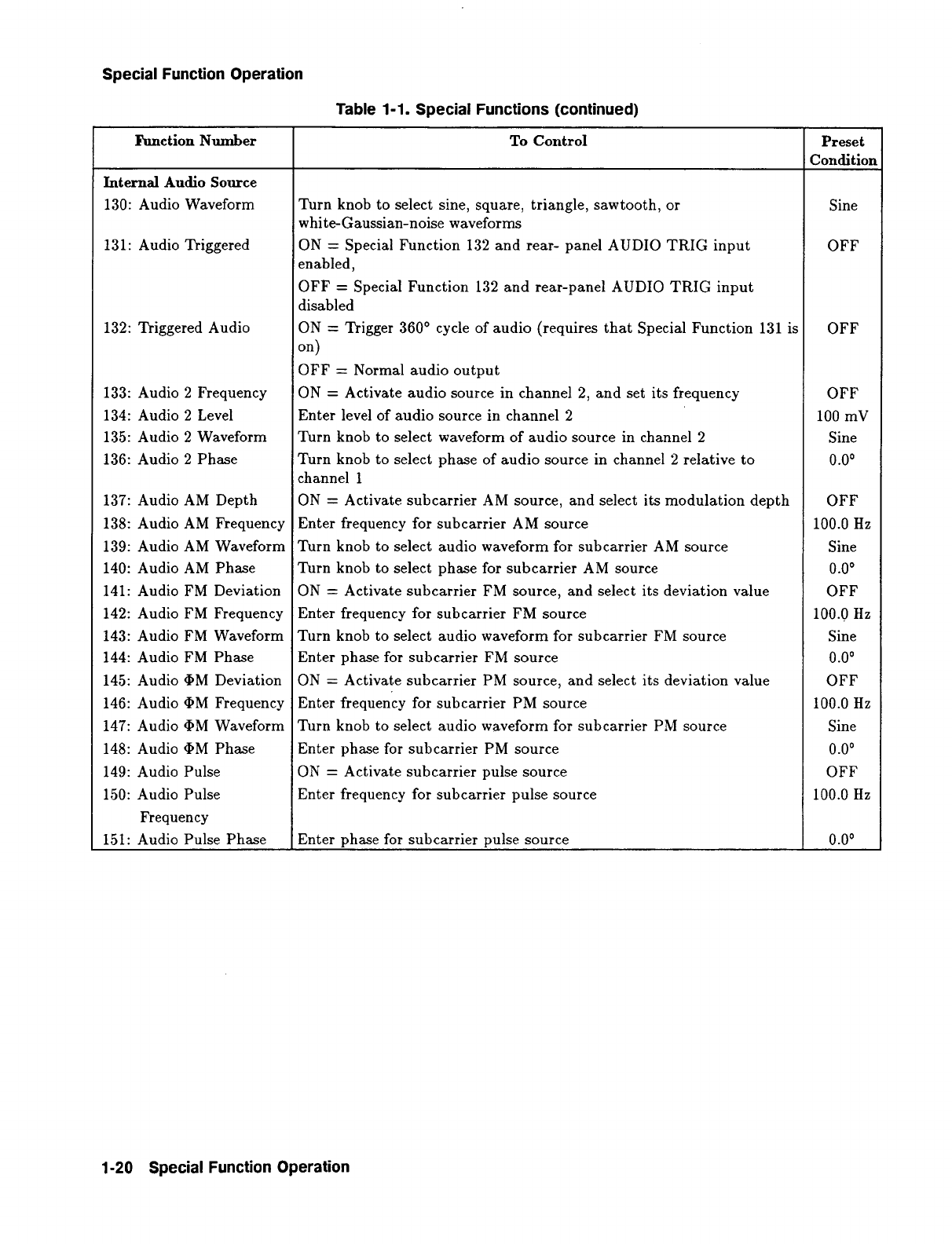

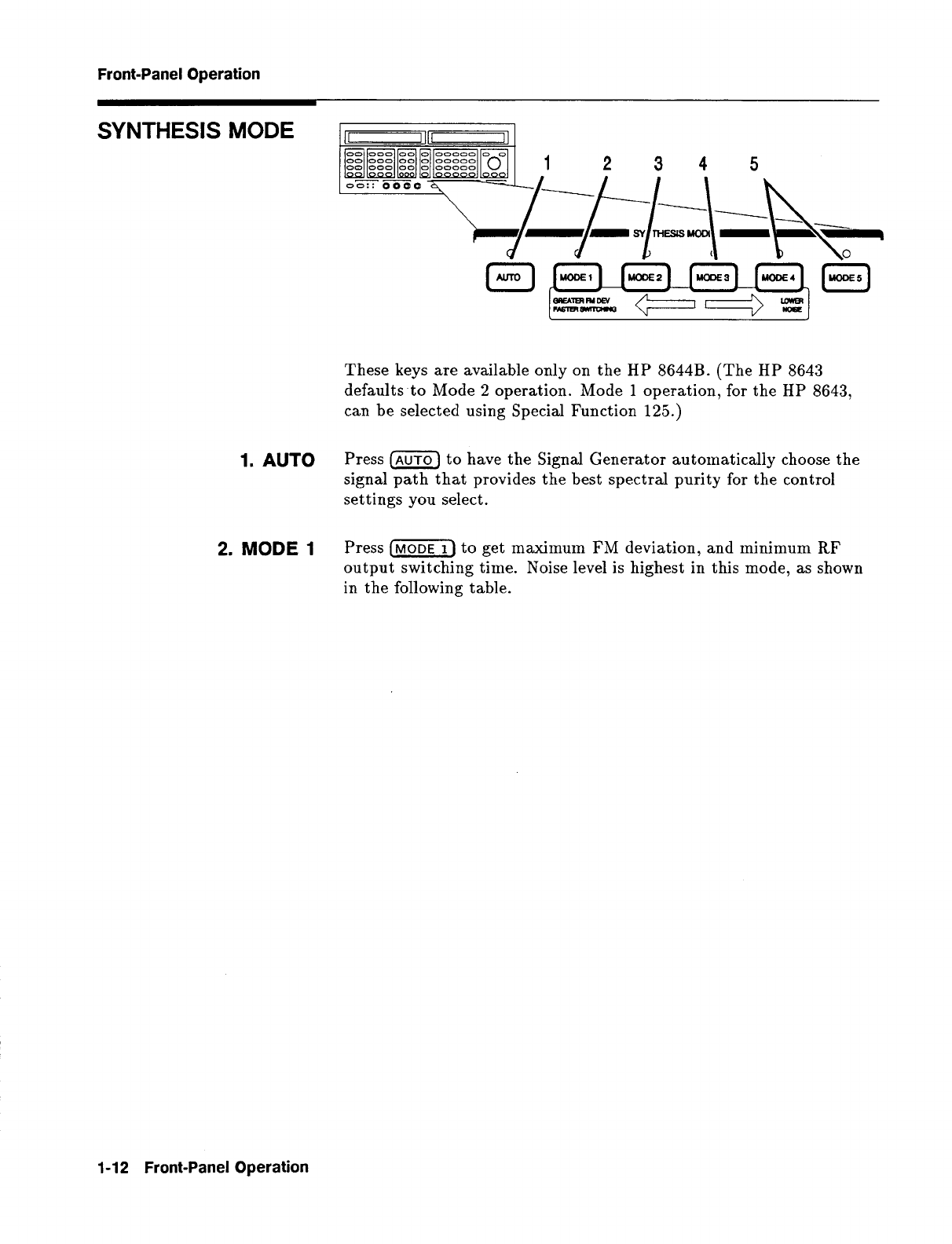

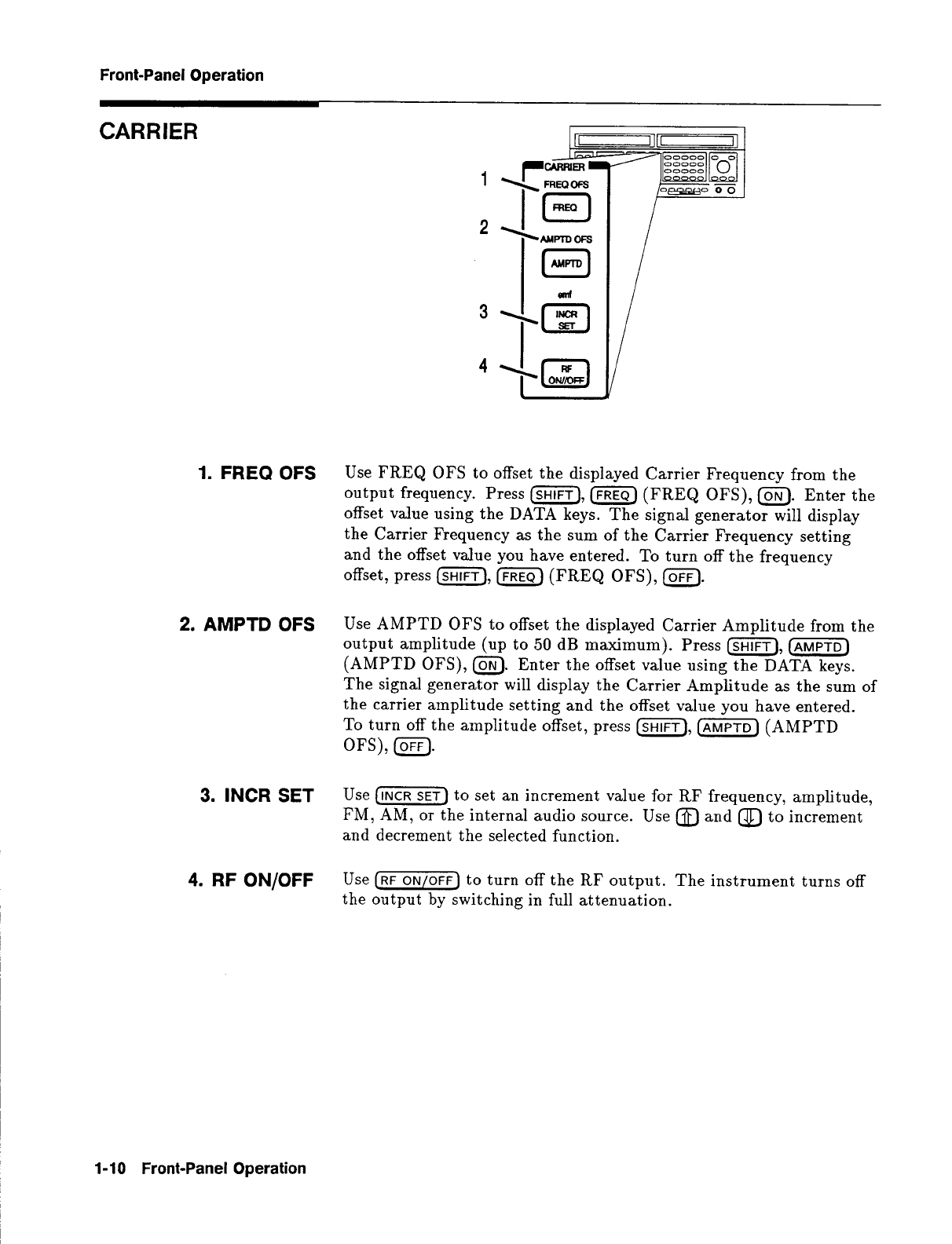

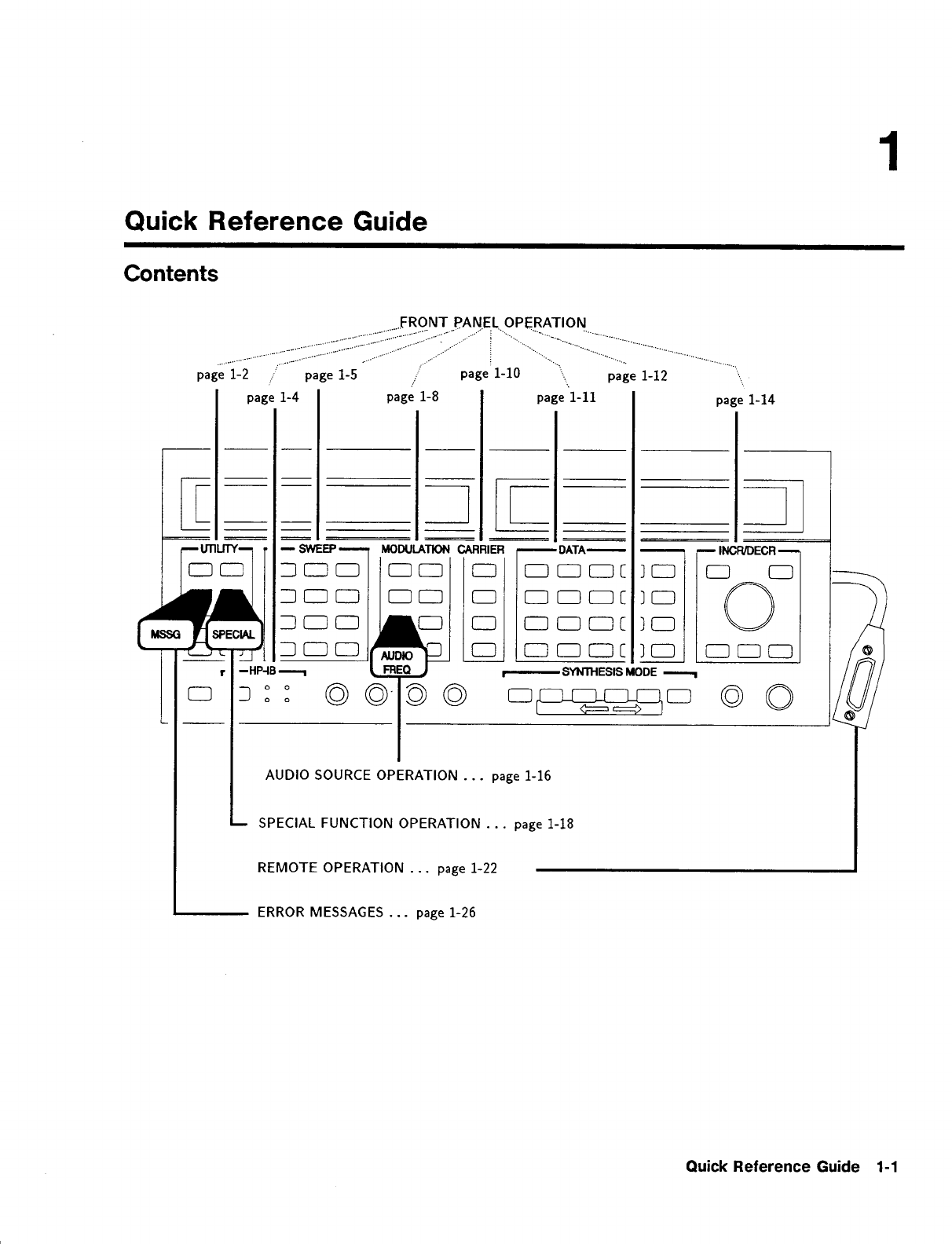

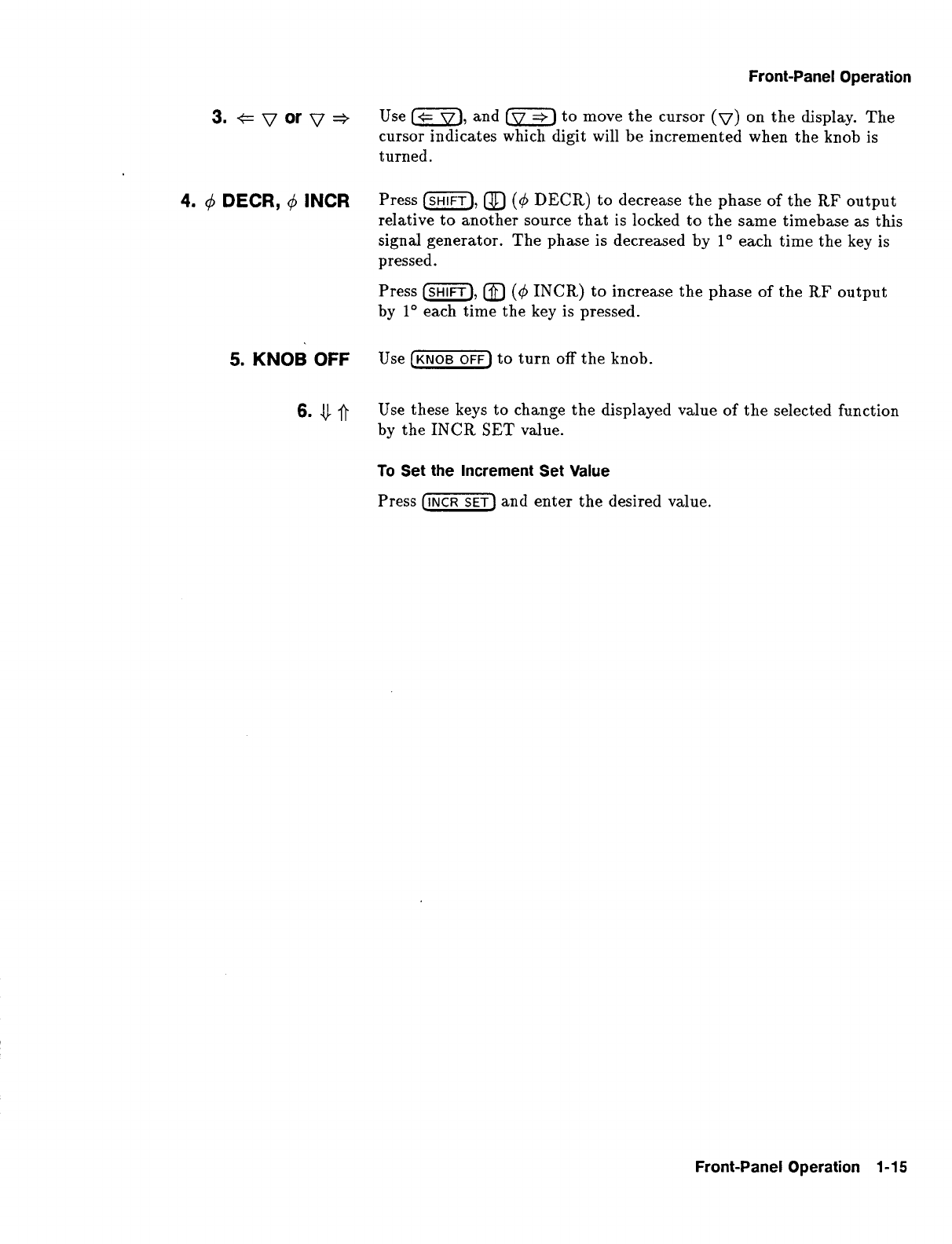

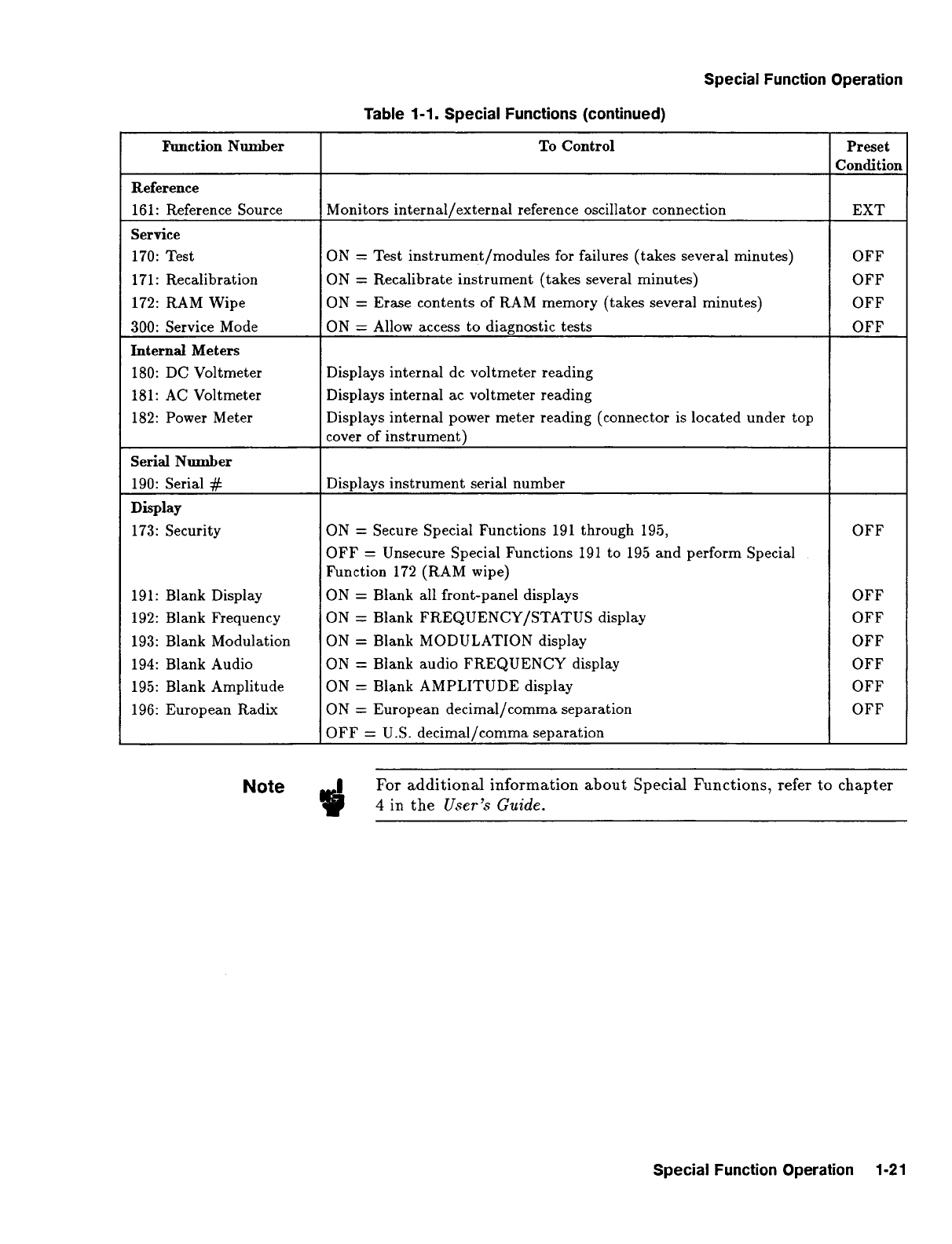

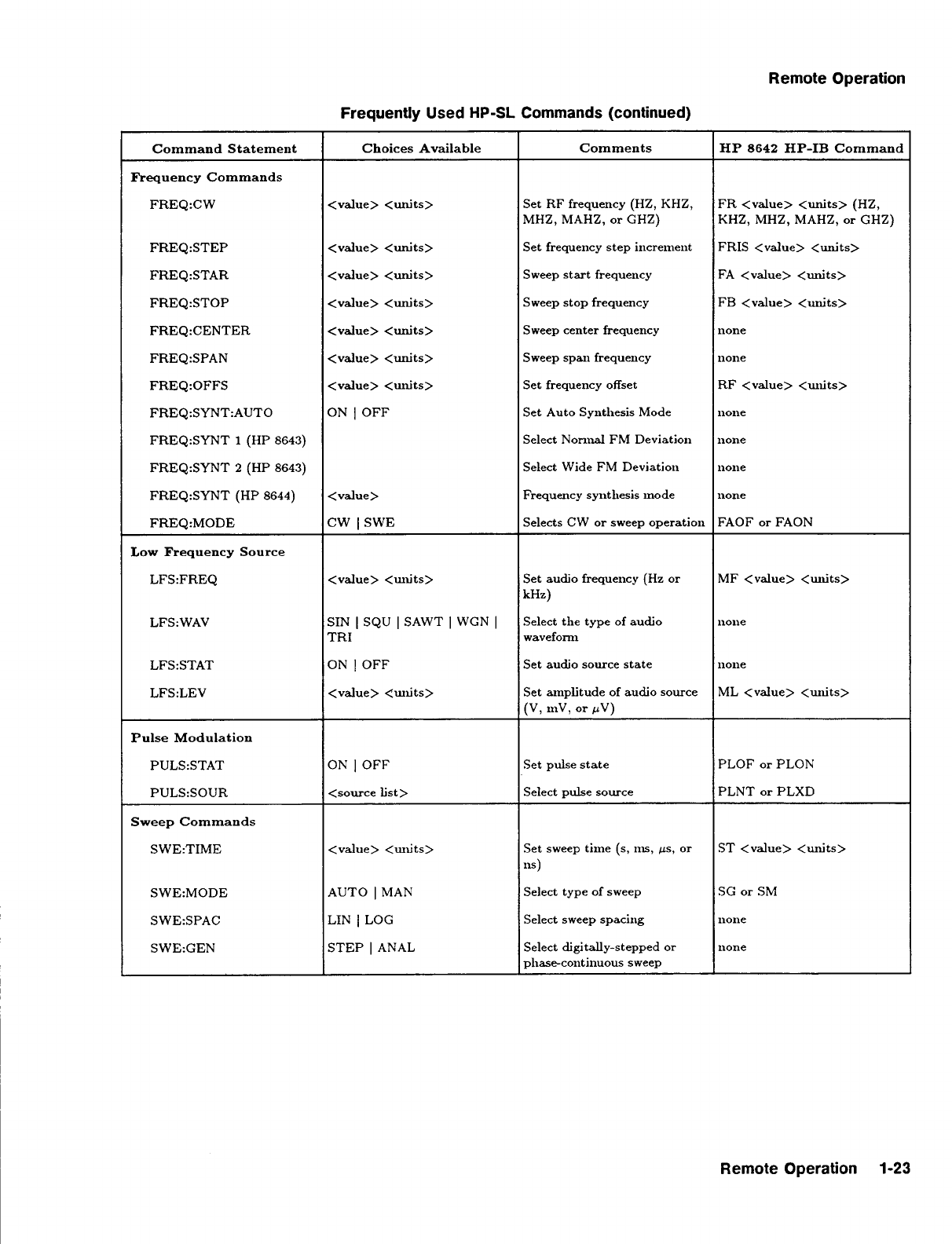

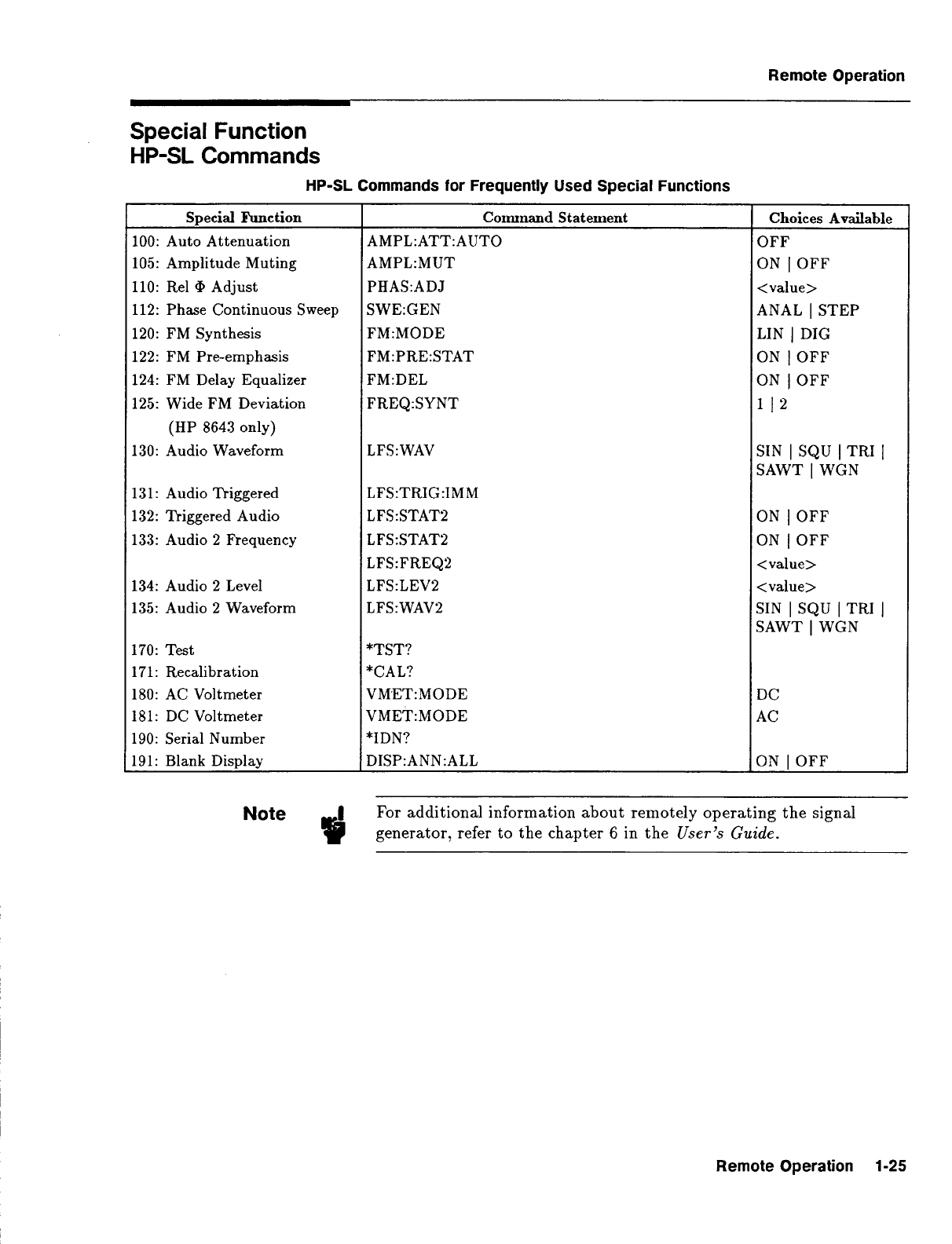

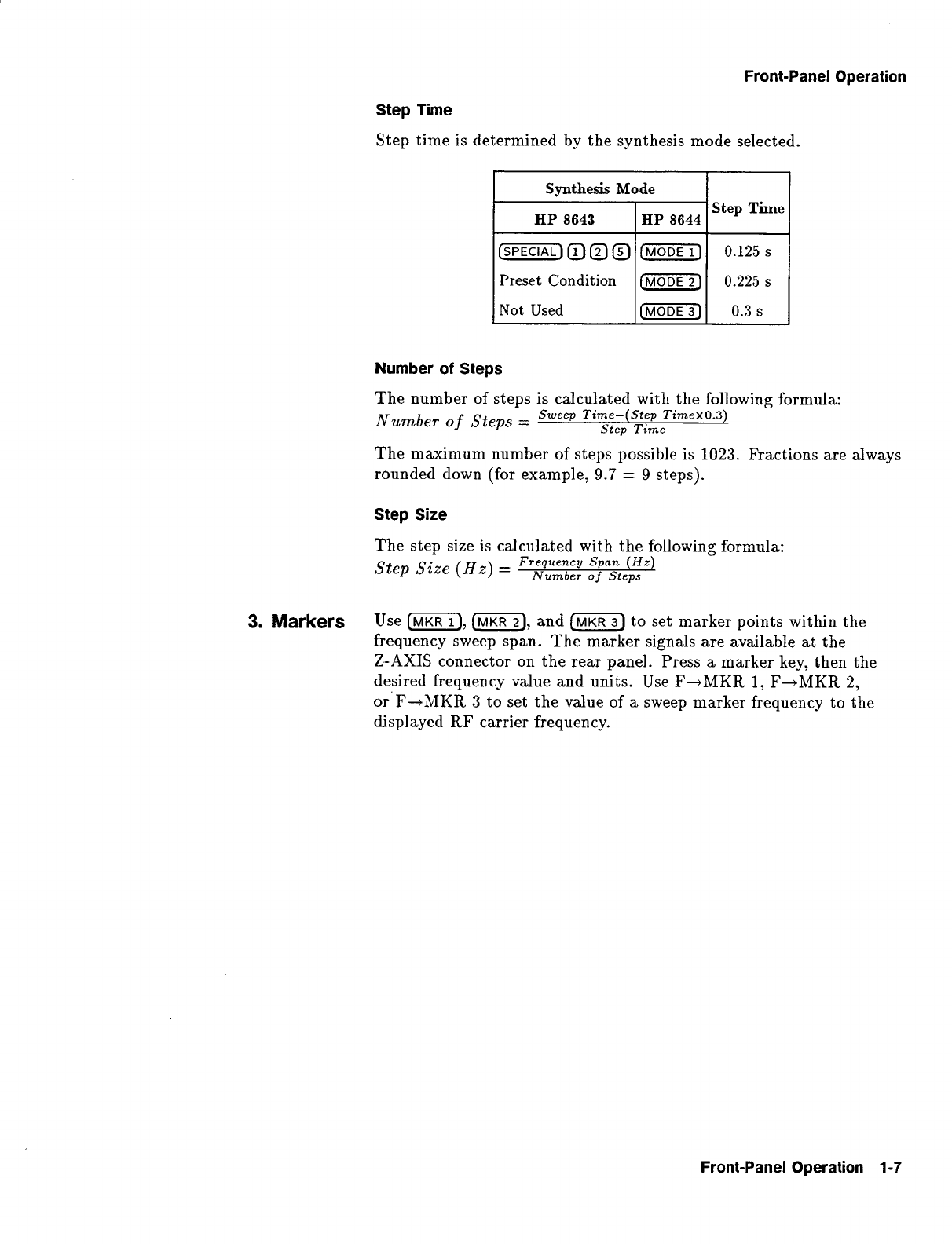

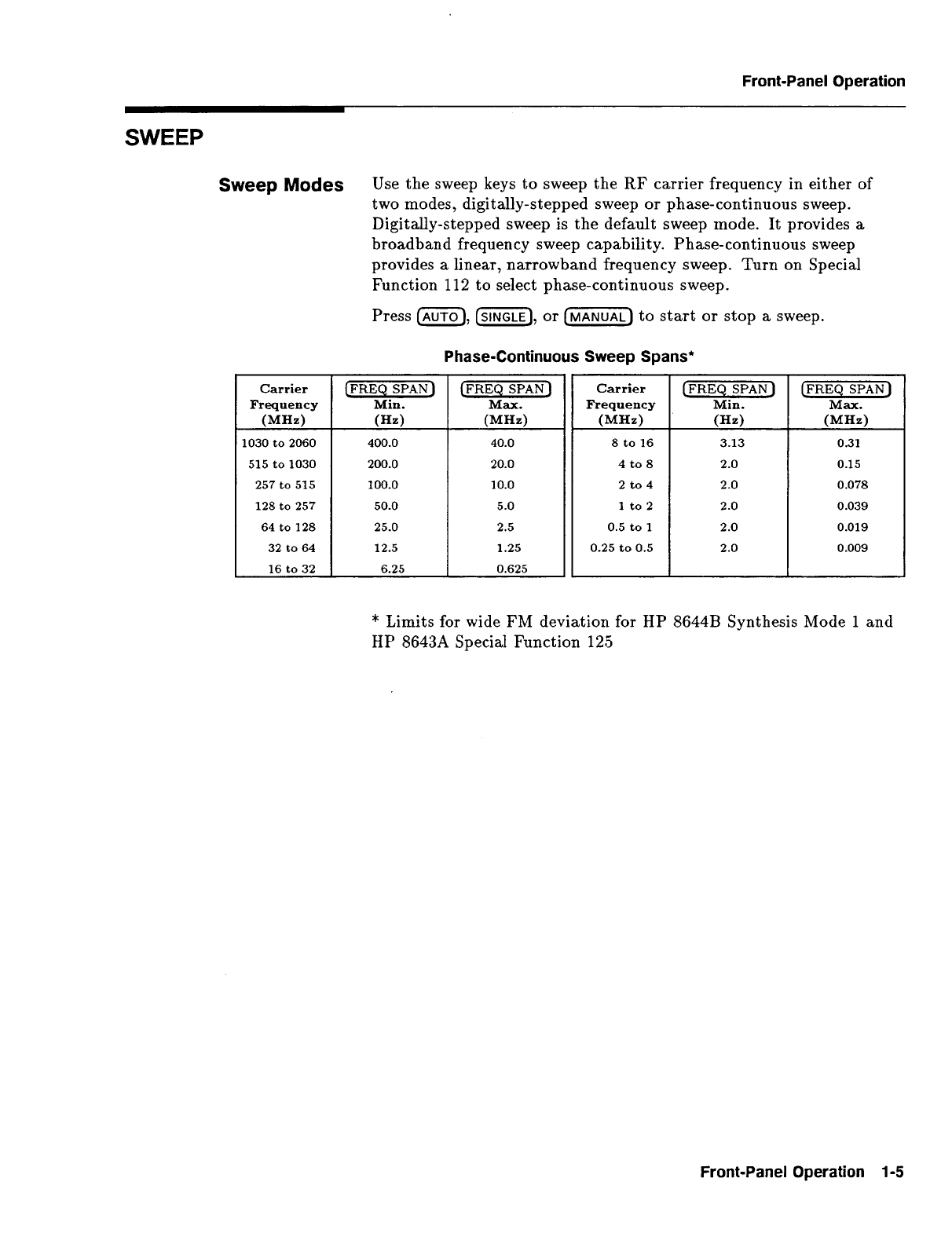

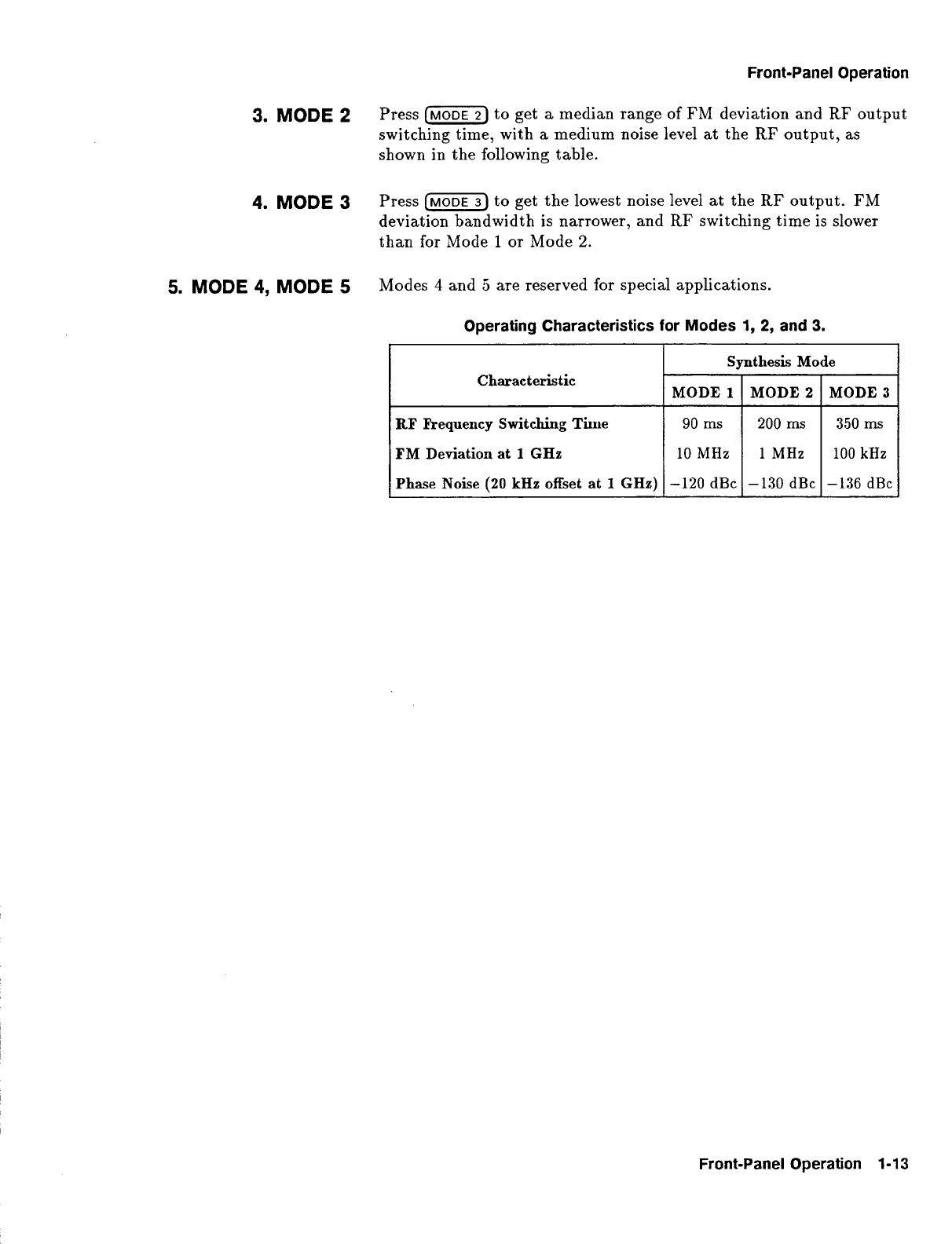

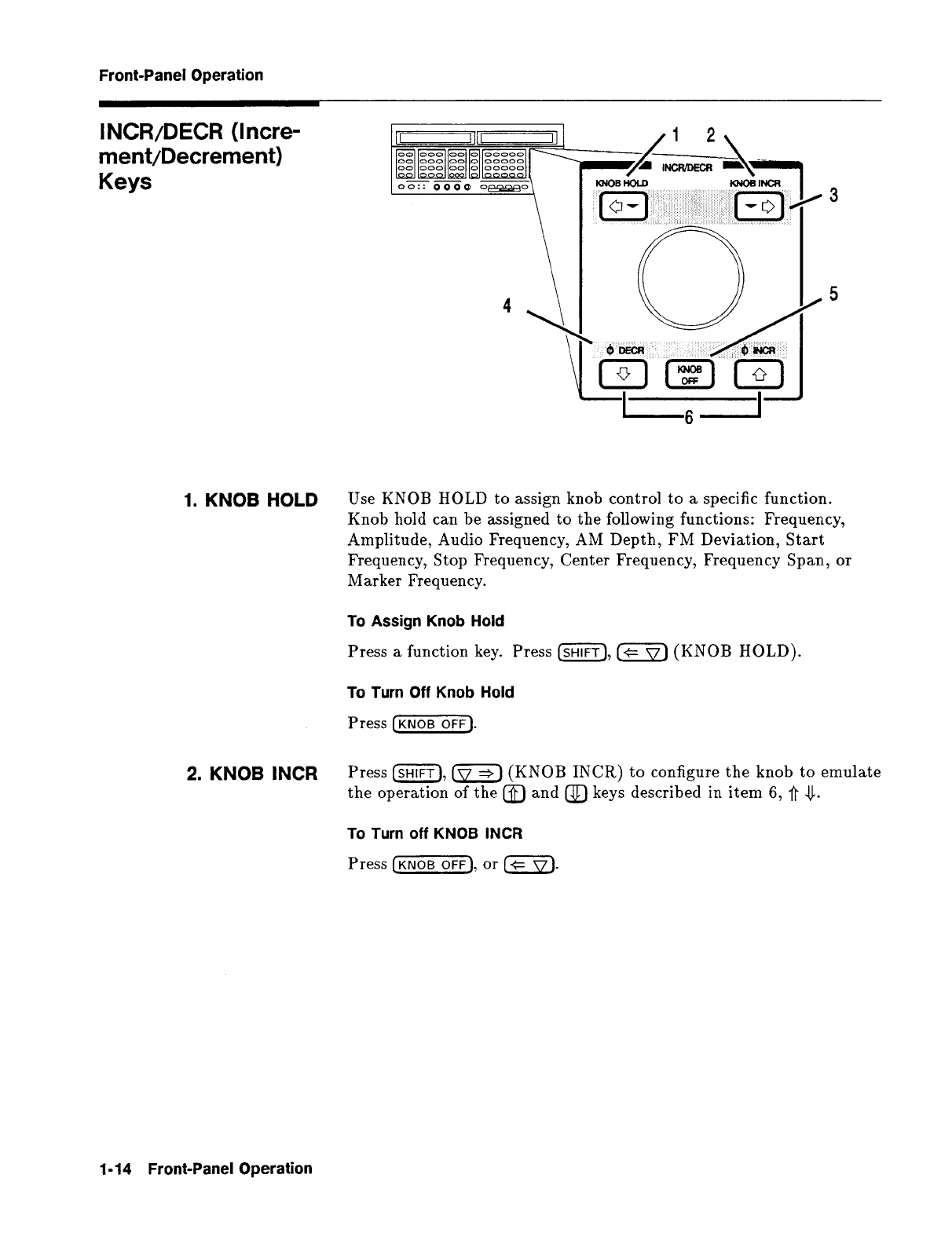

- Chapter 1-Quick Reference Guide

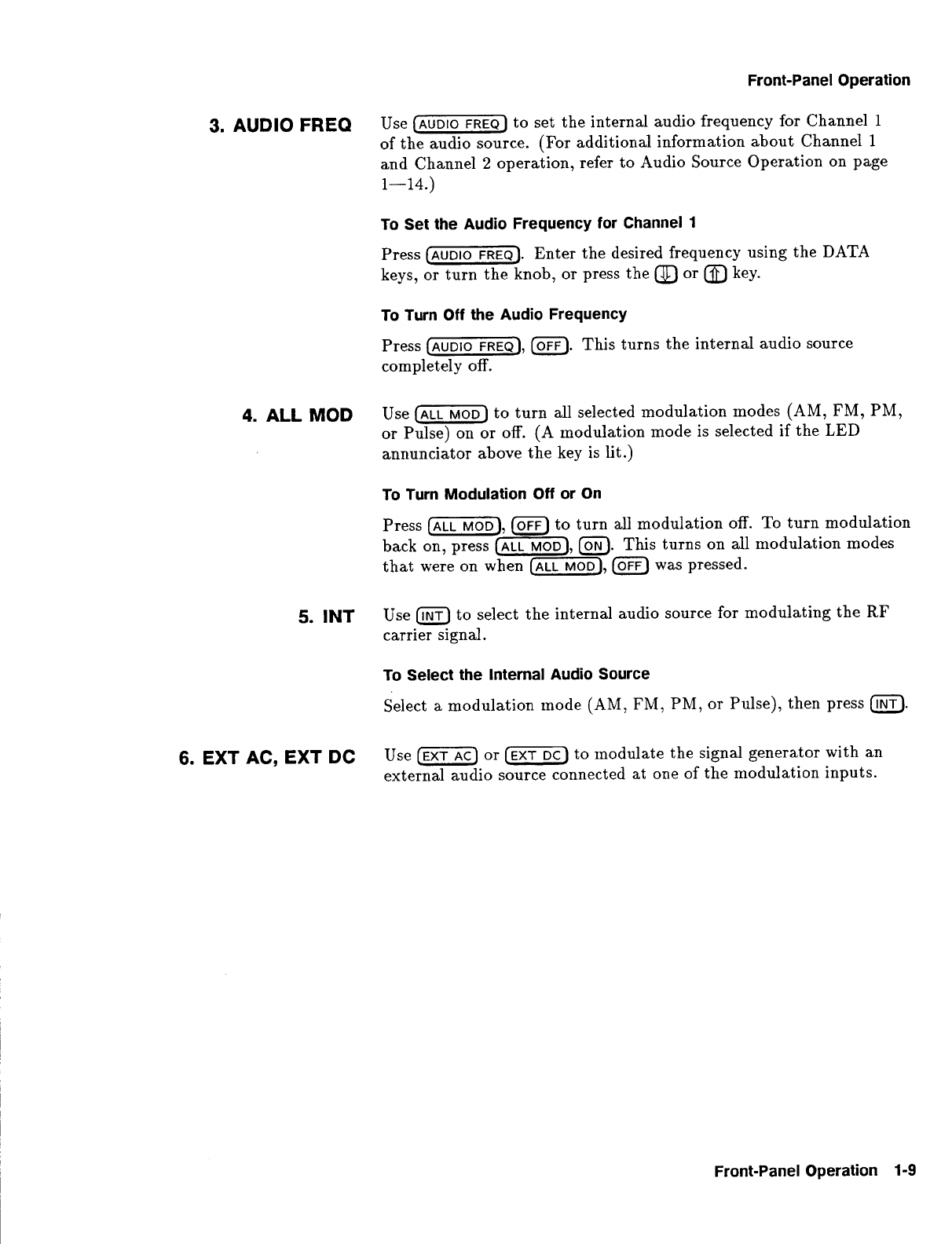

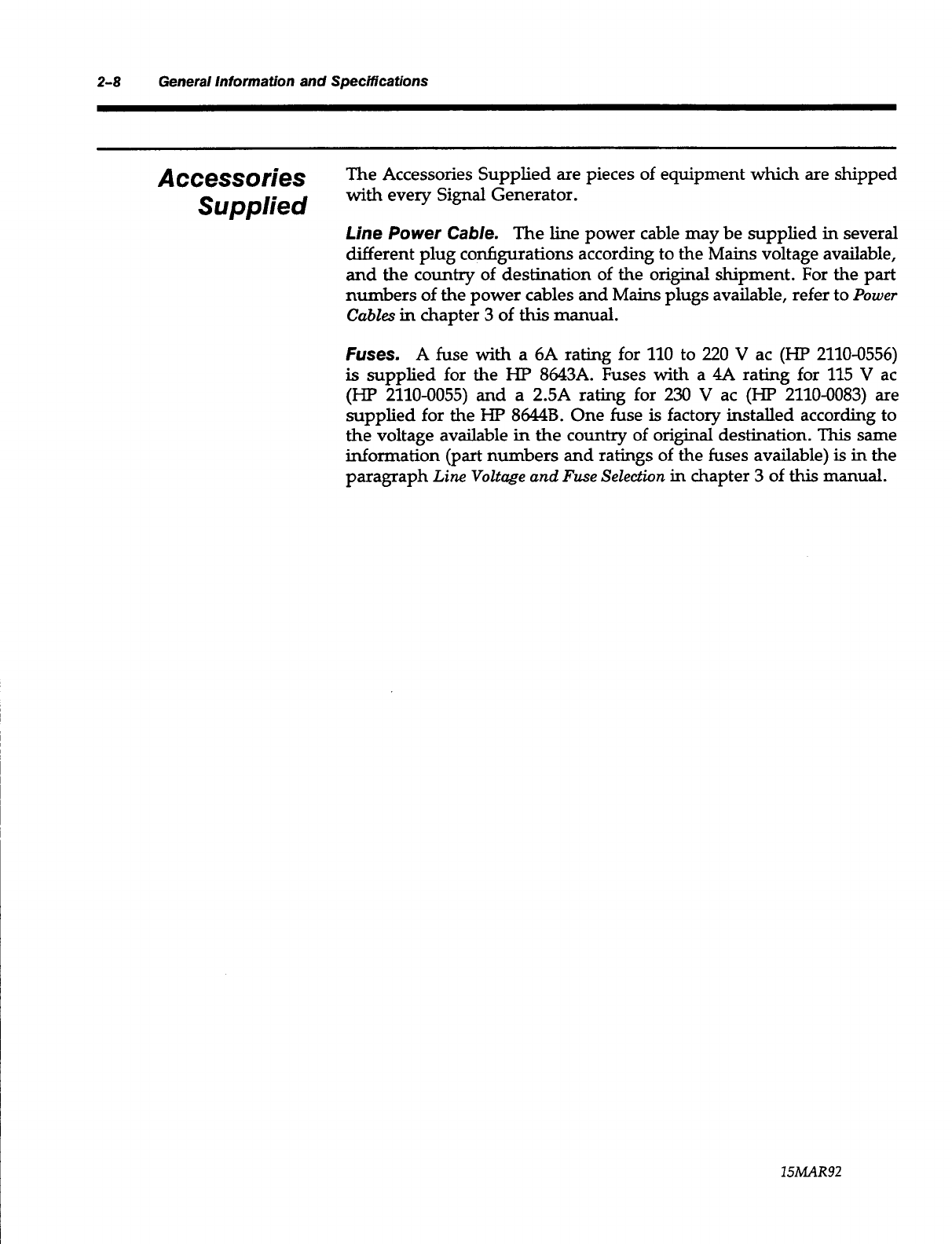

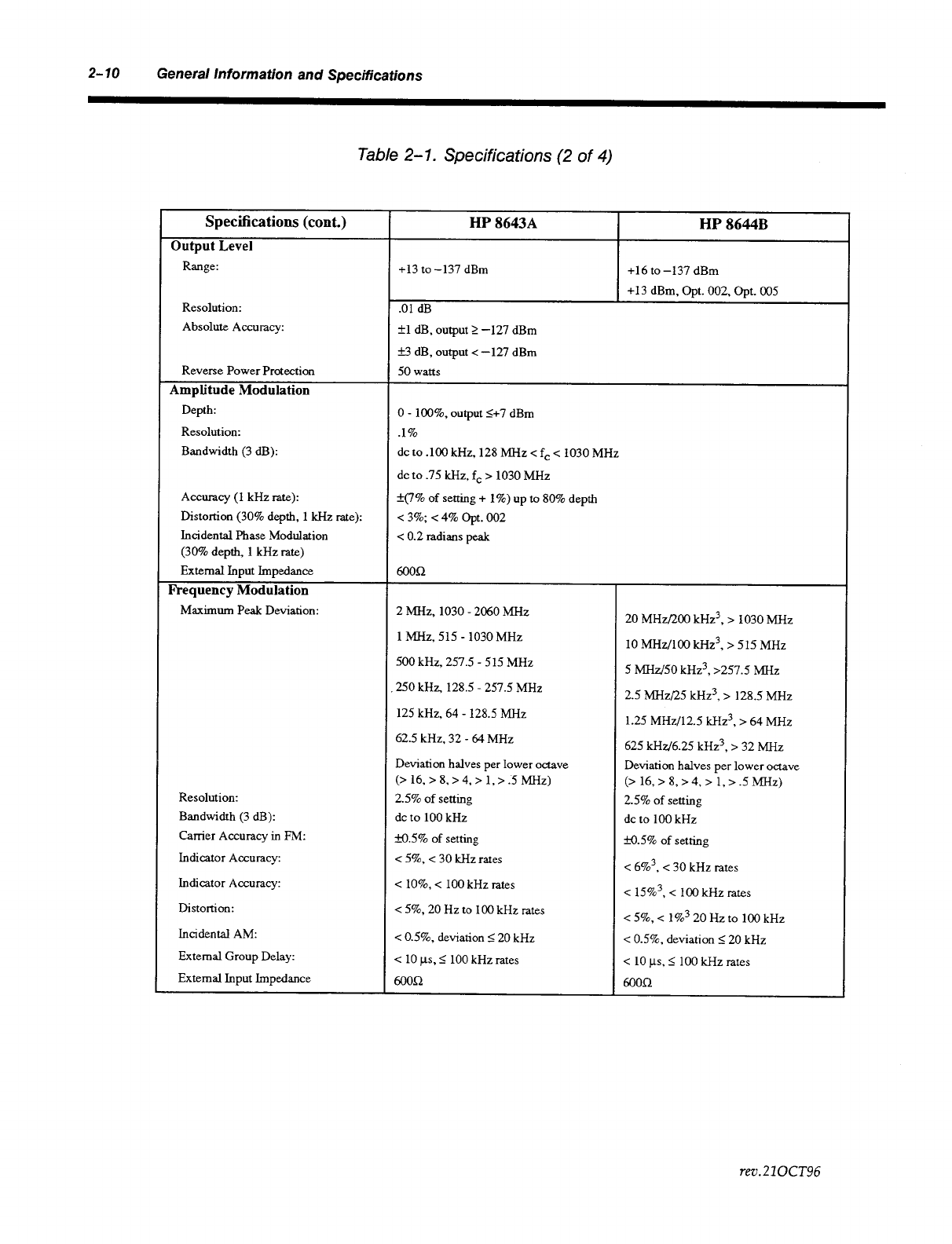

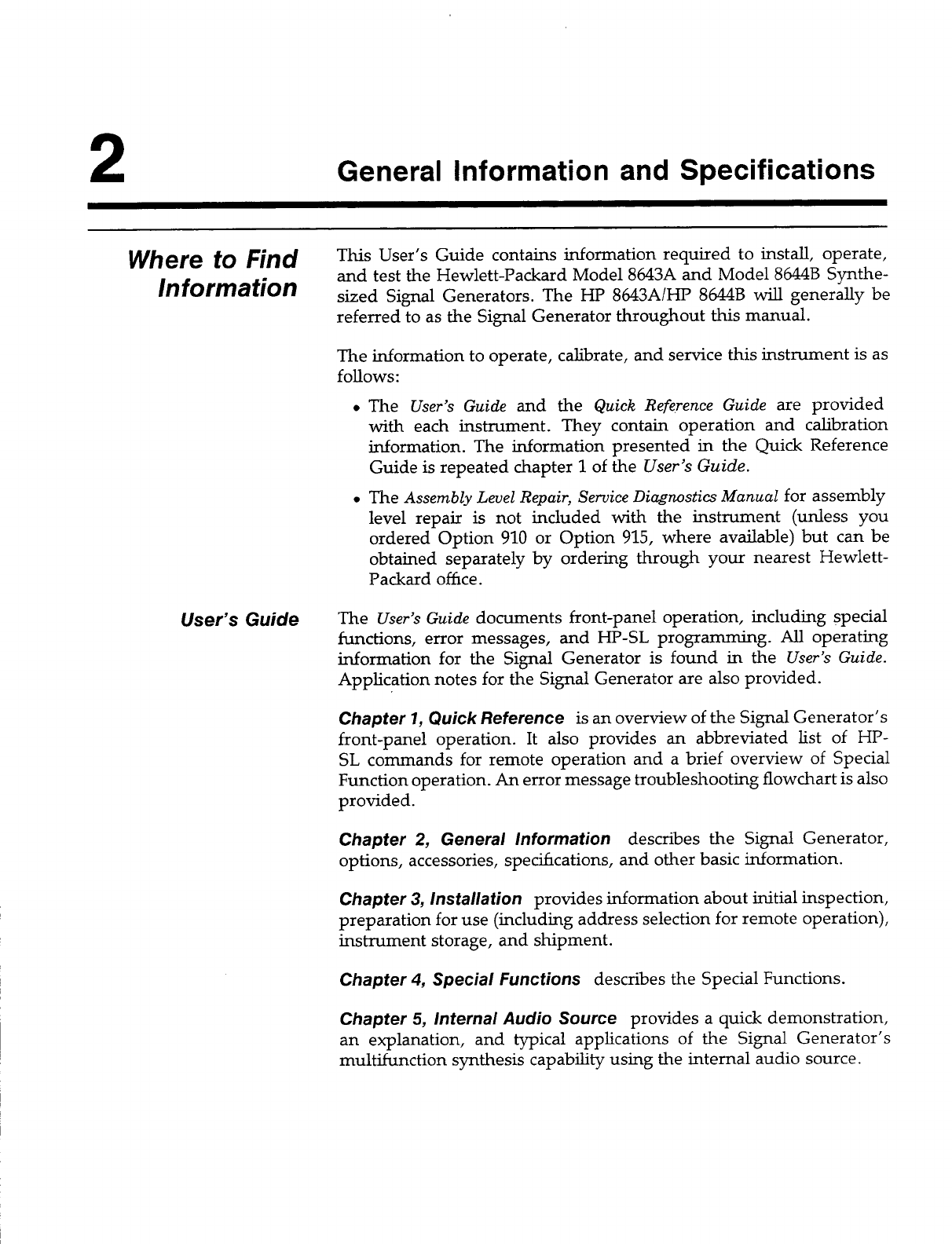

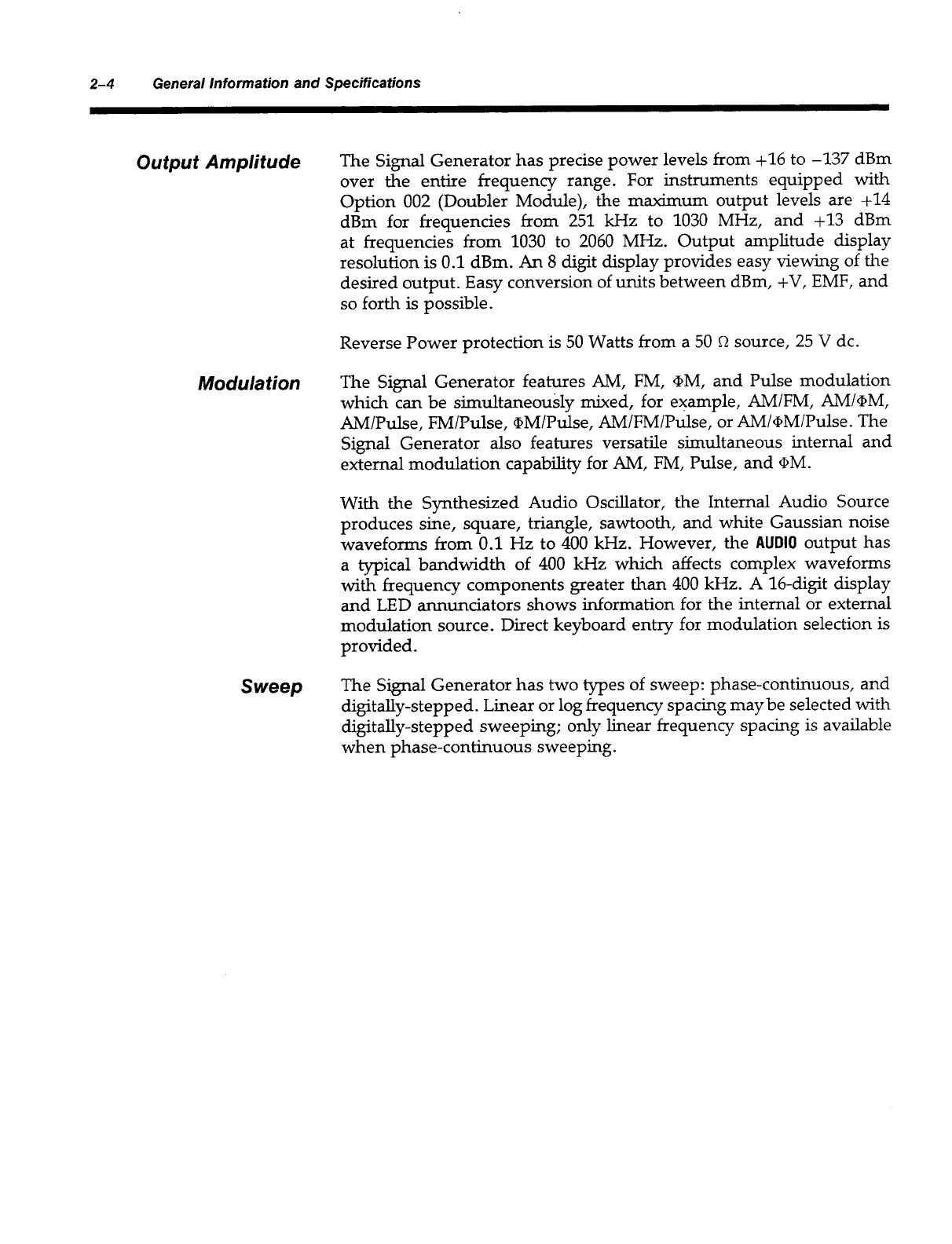

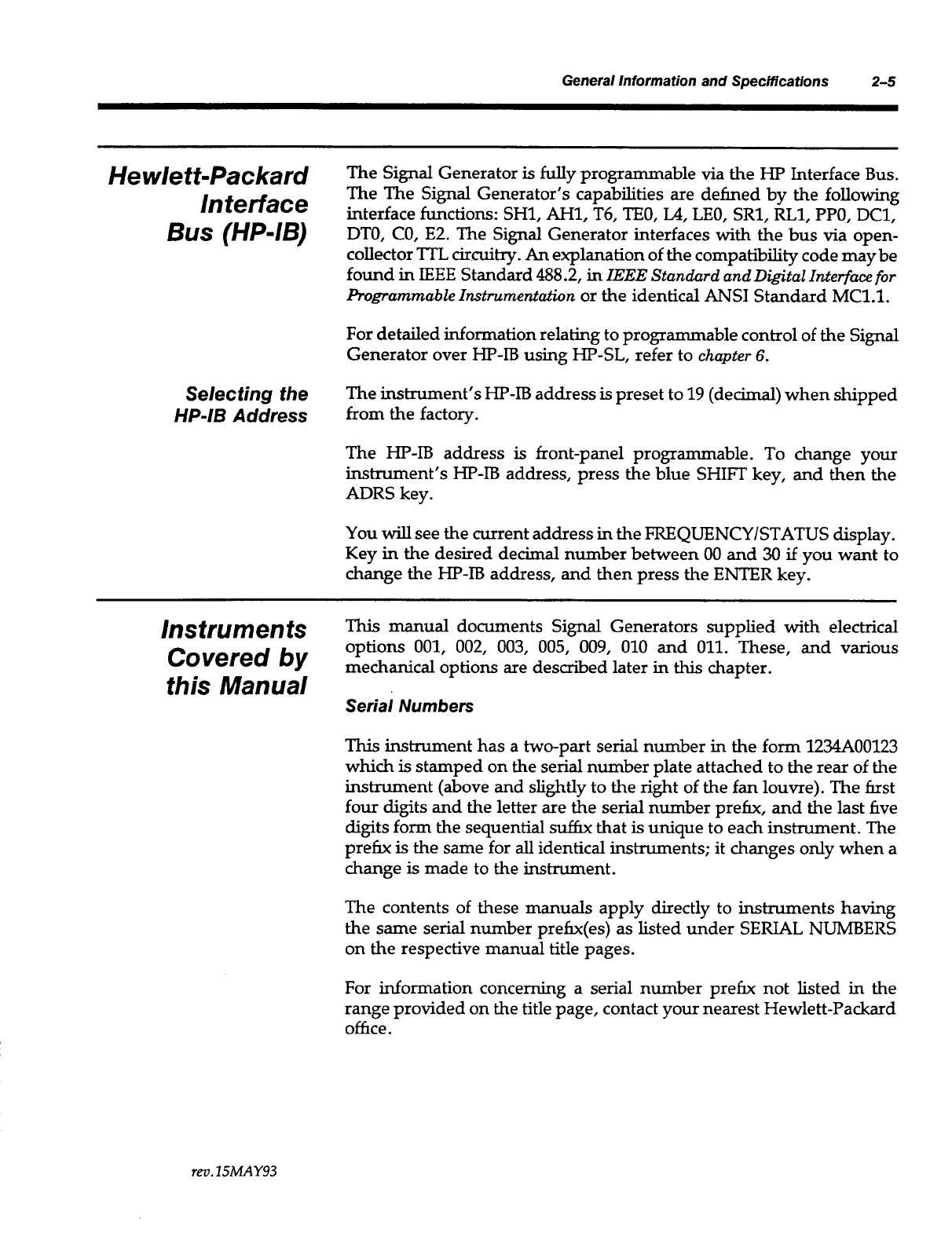

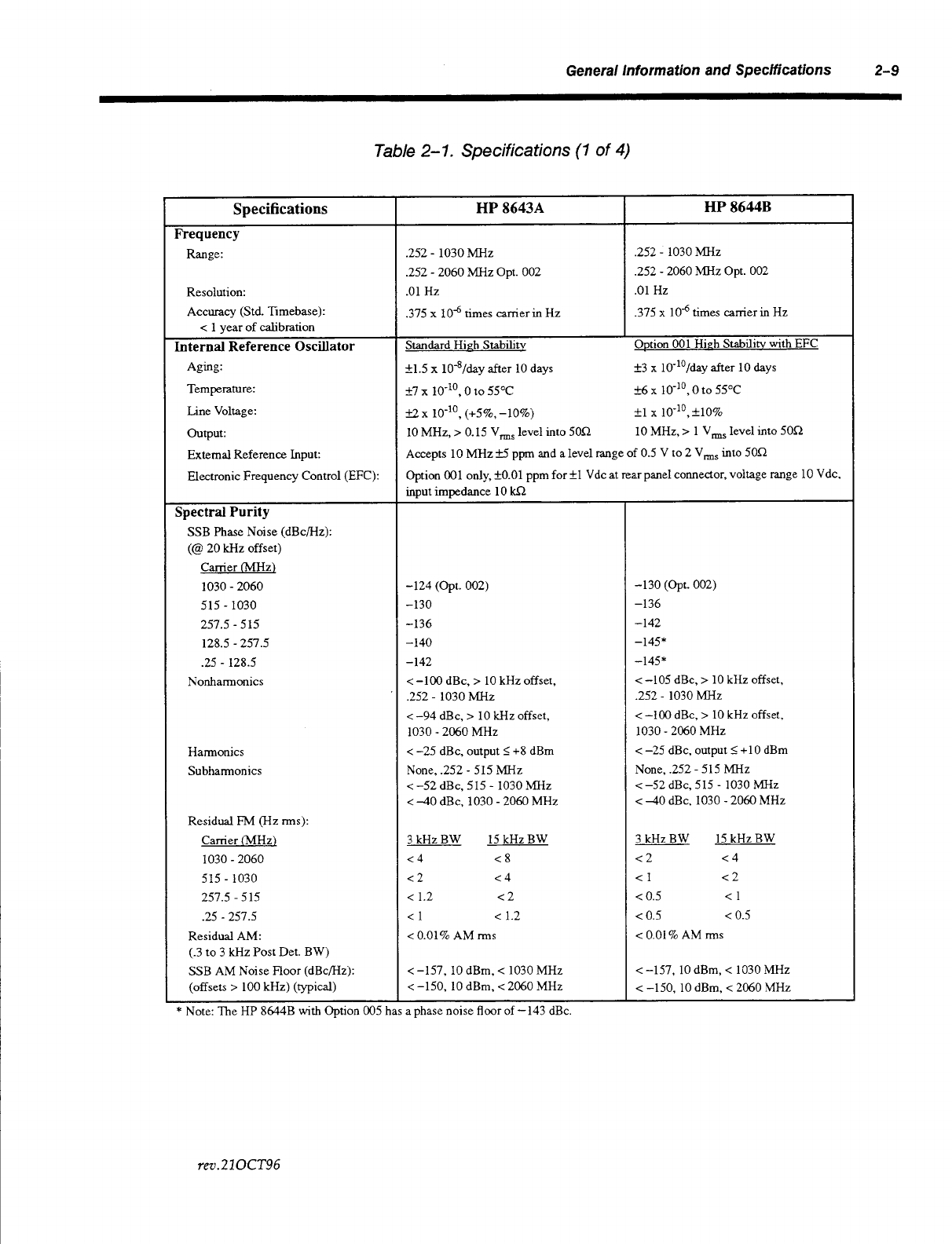

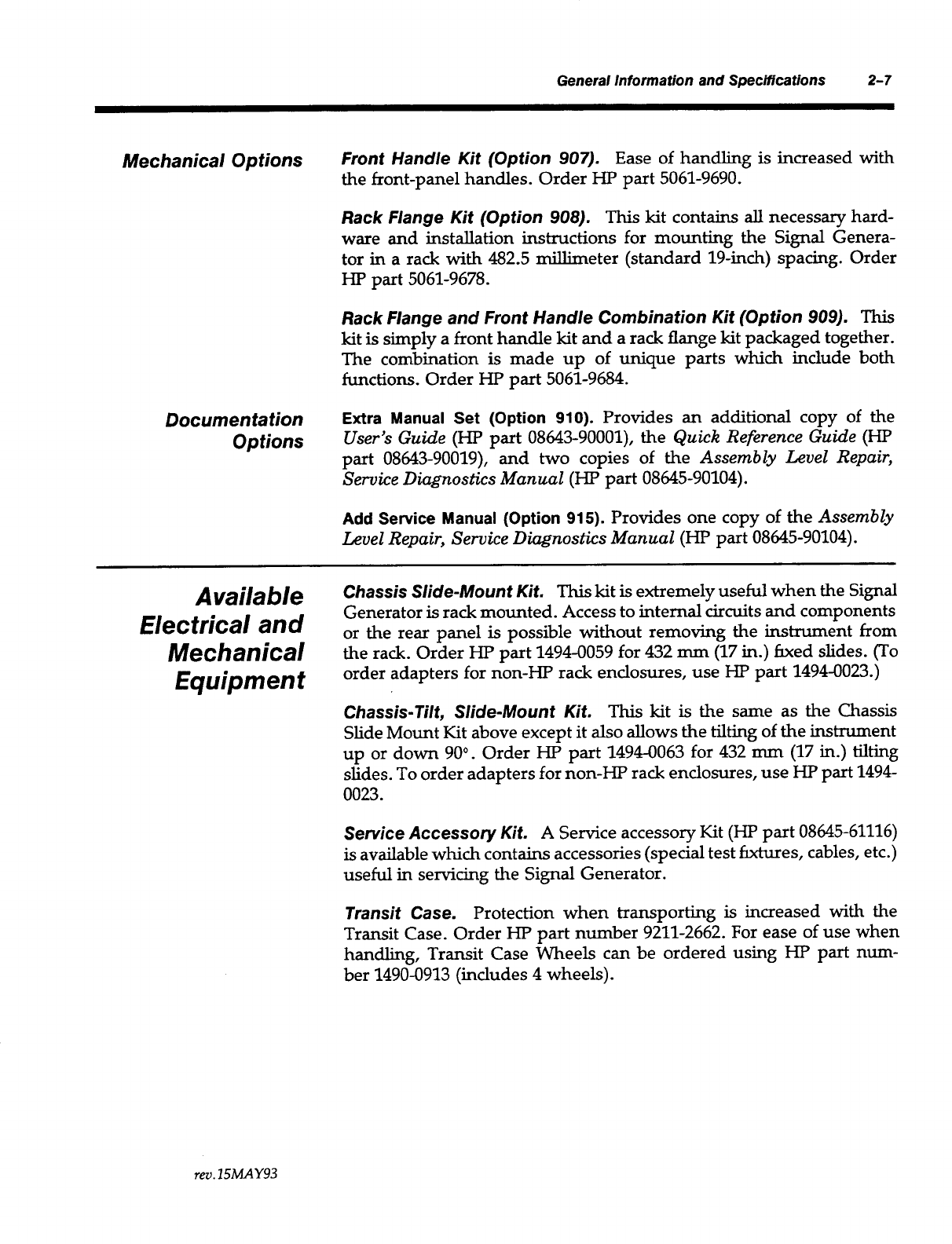

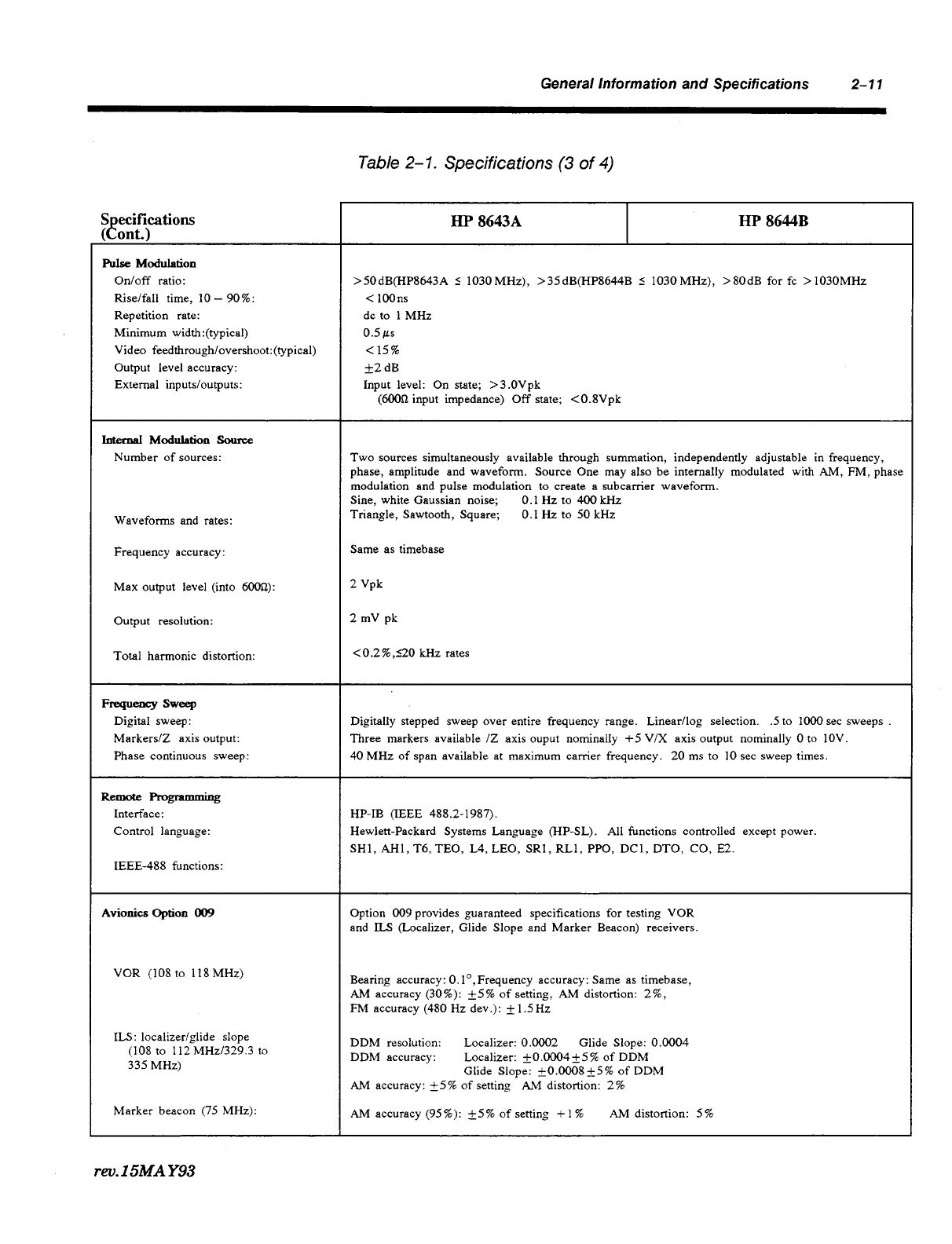

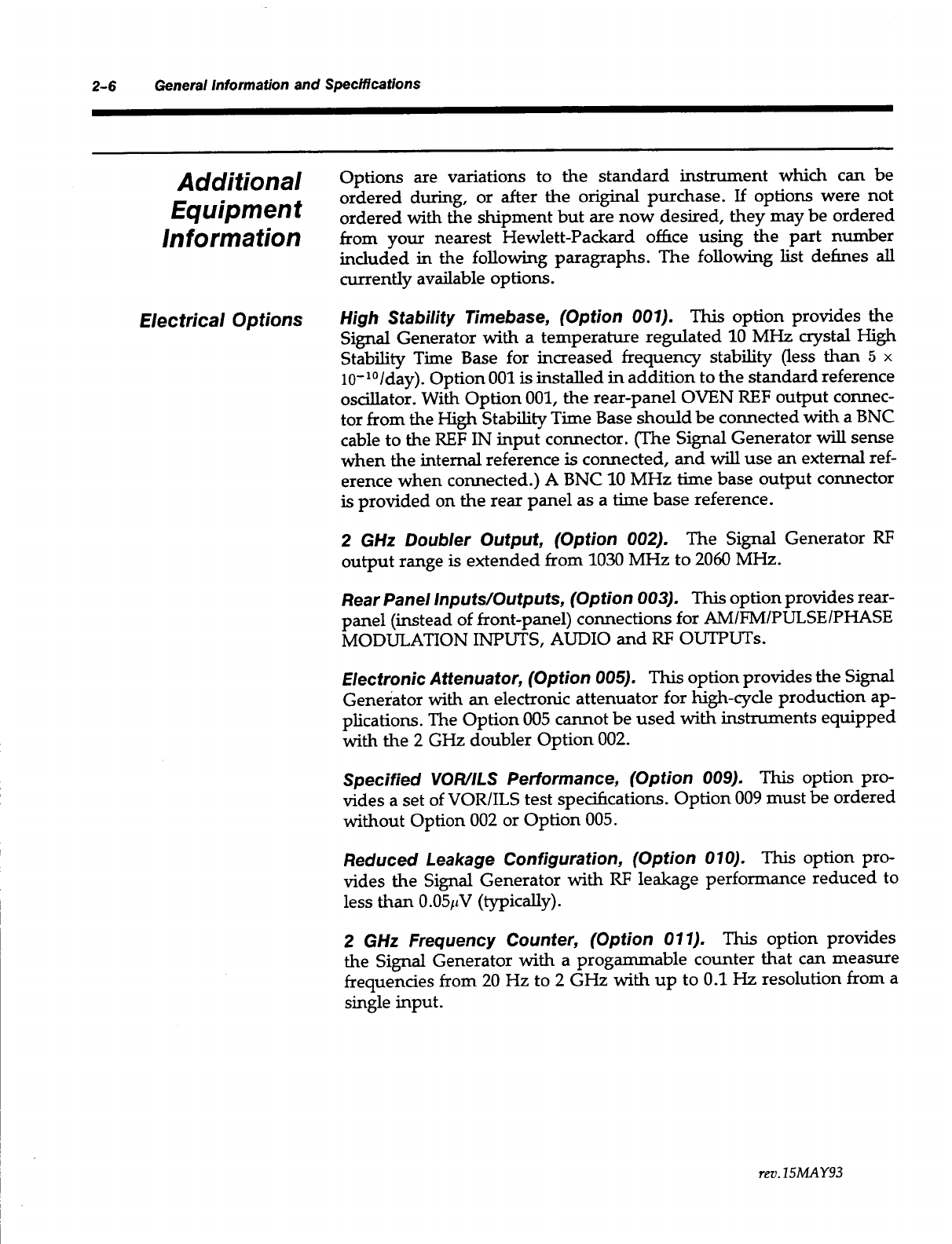

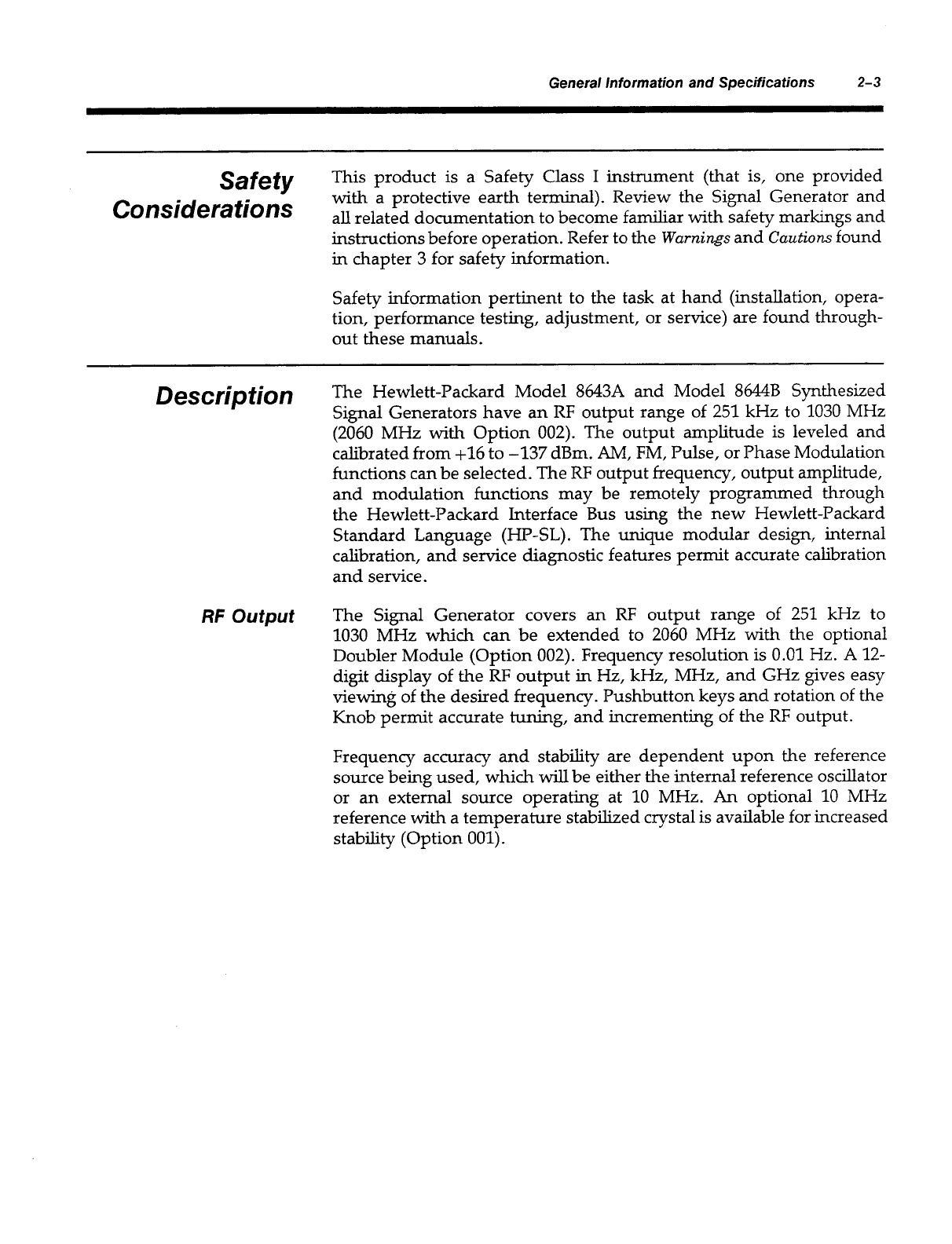

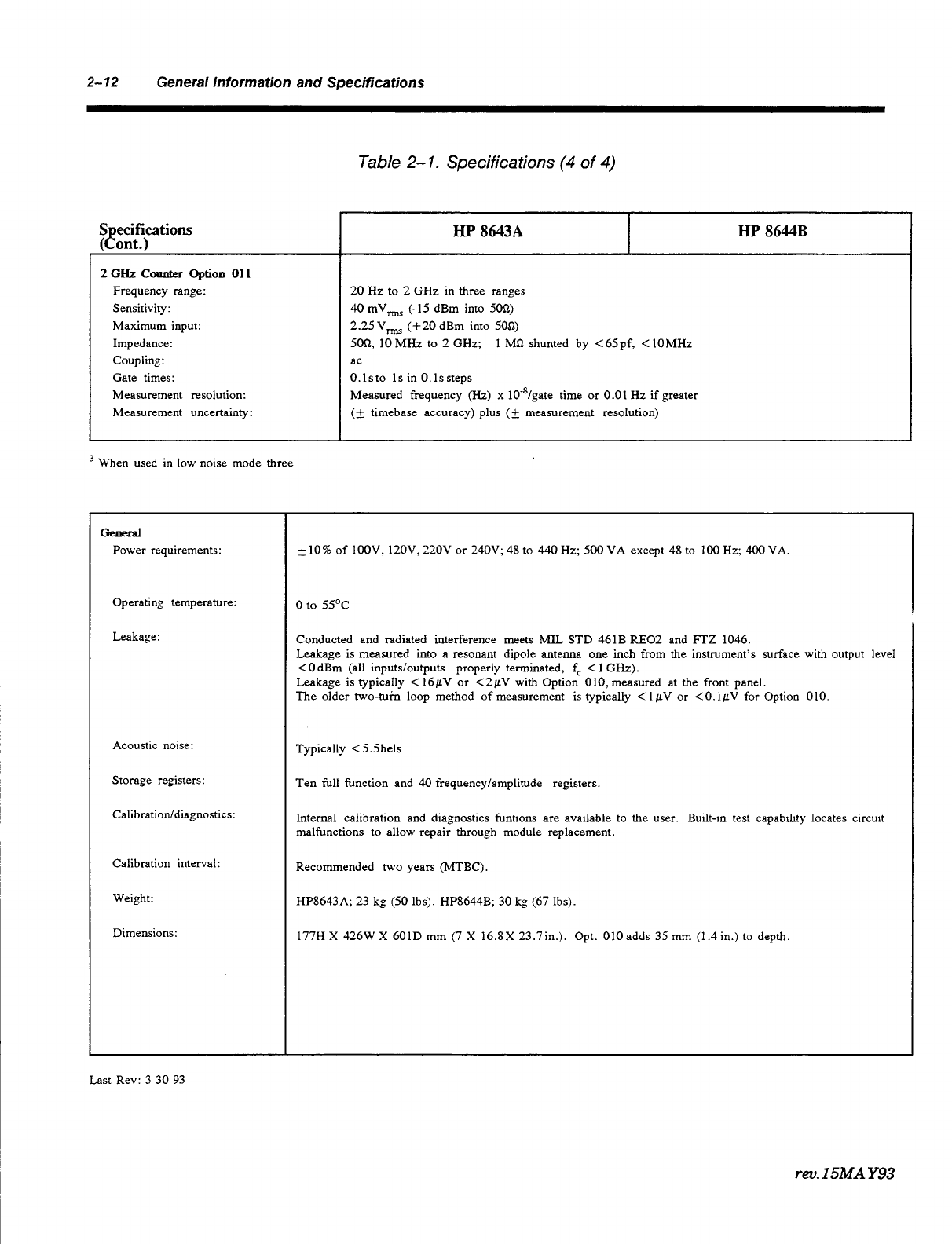

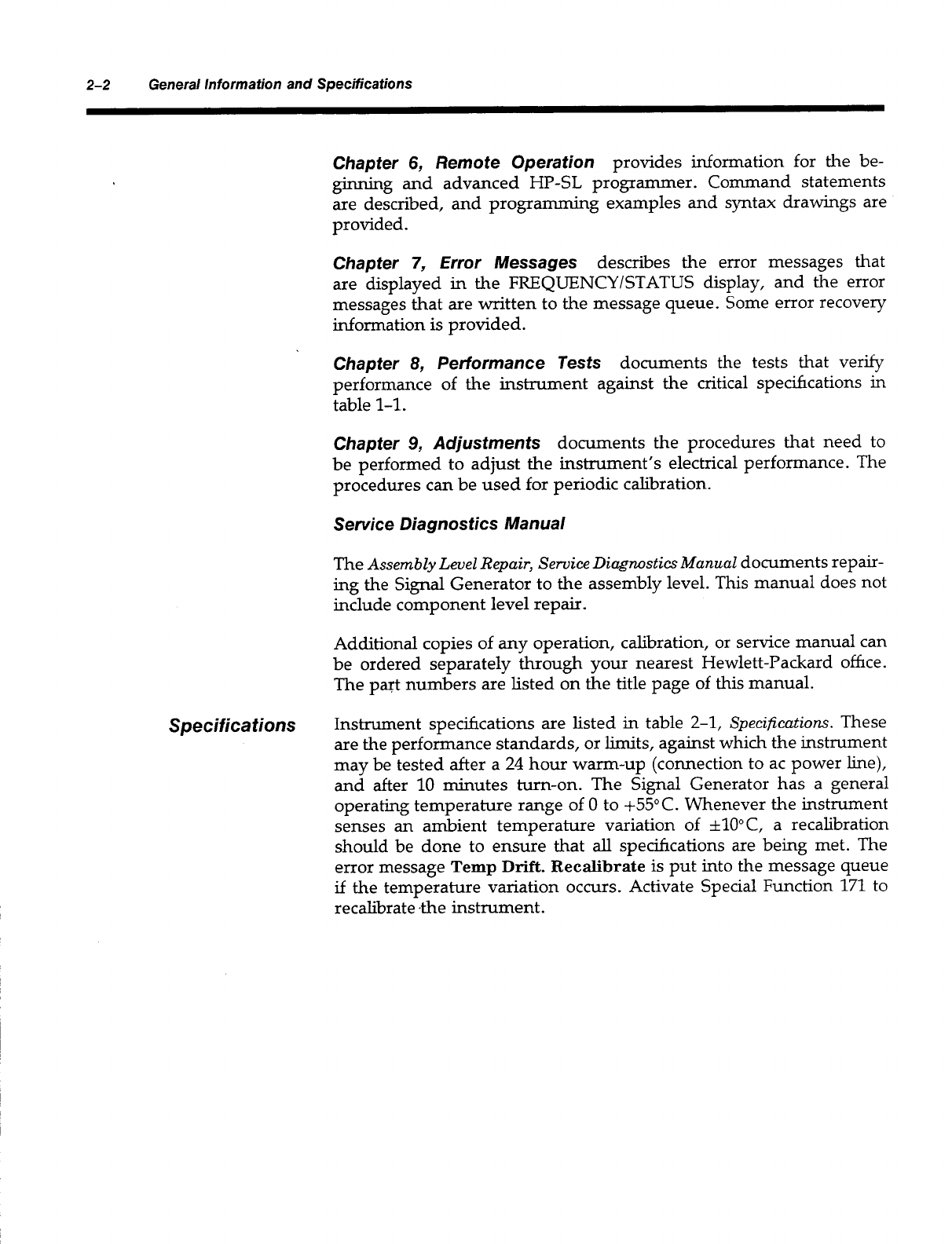

- Chapter 2-General Information and Specifications

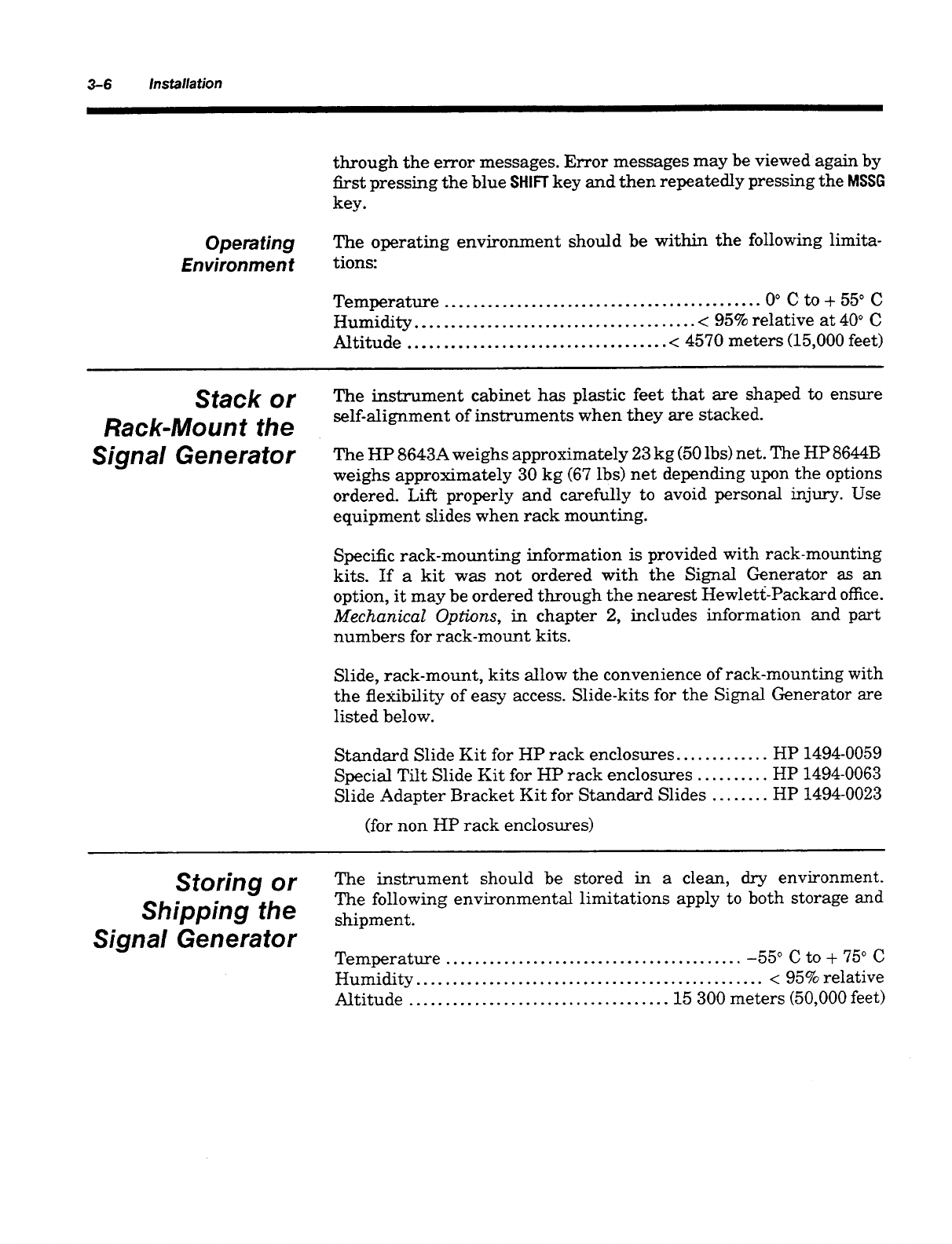

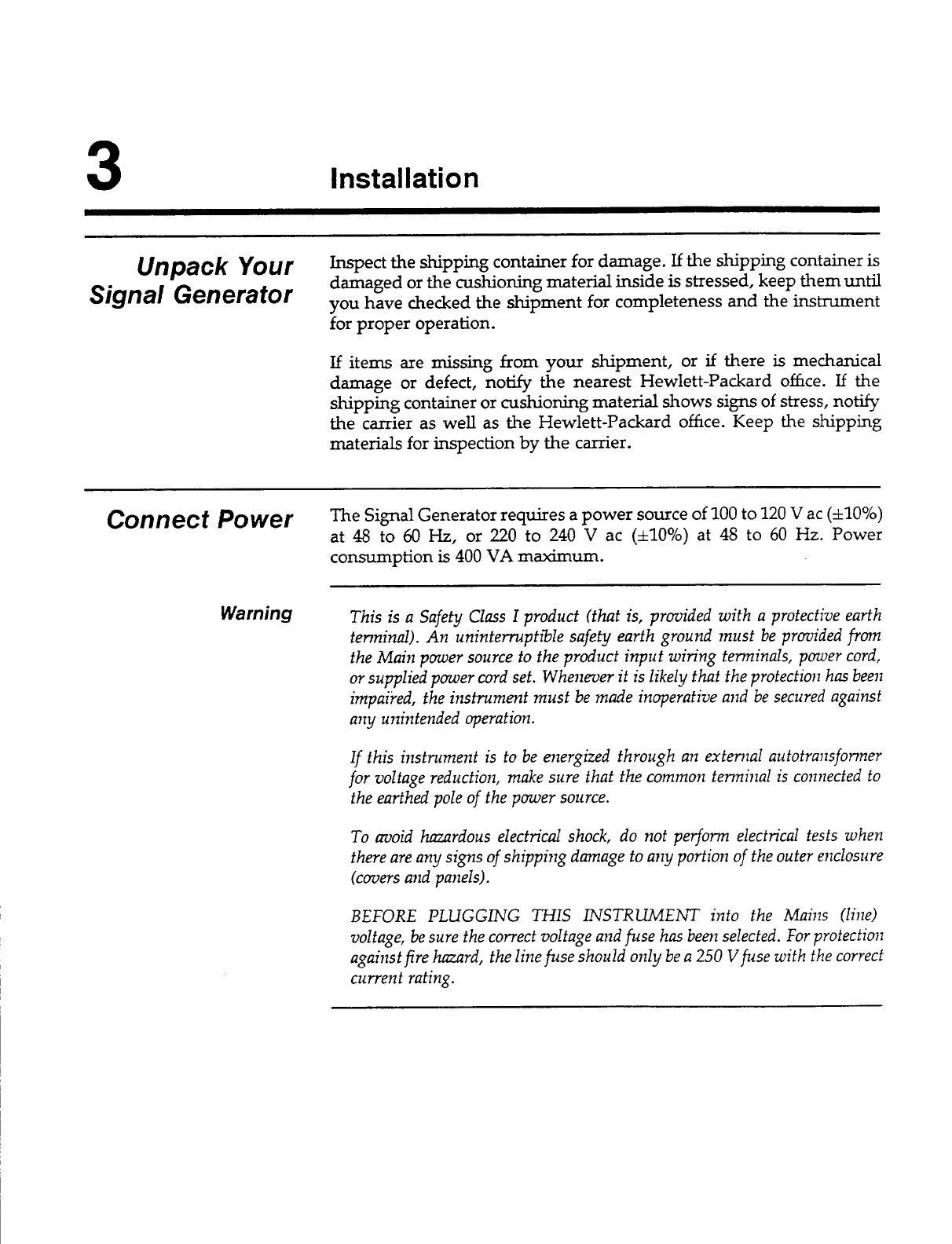

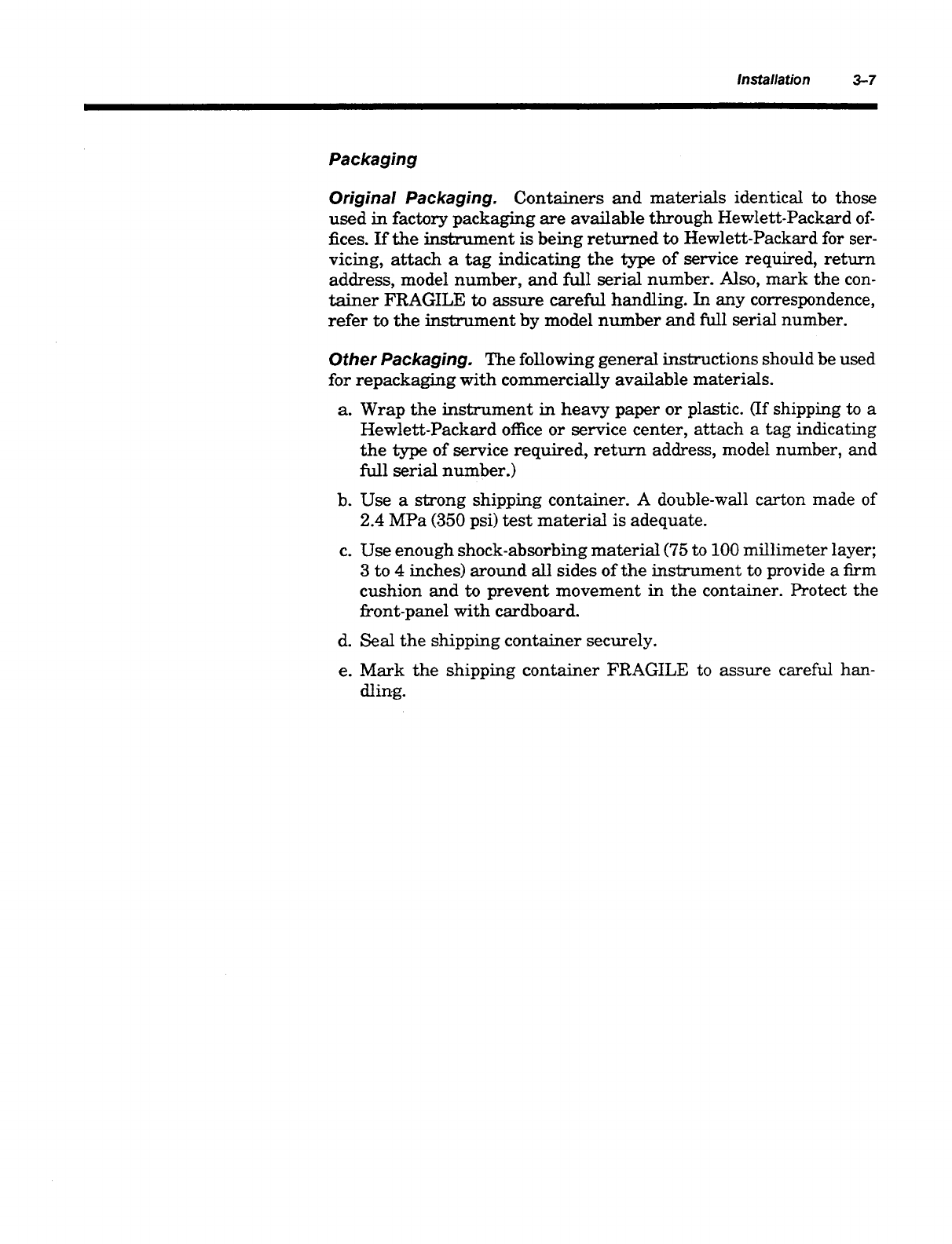

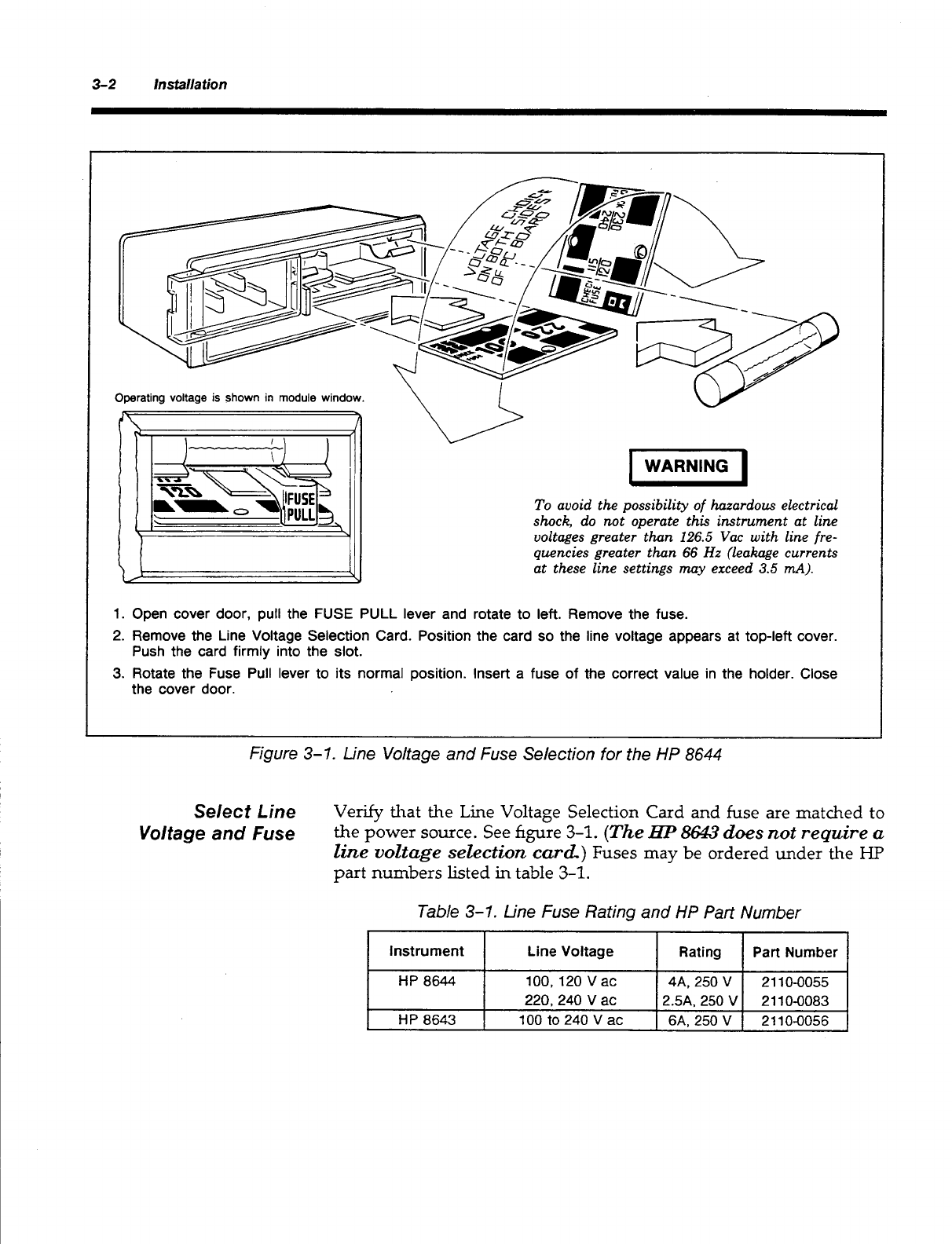

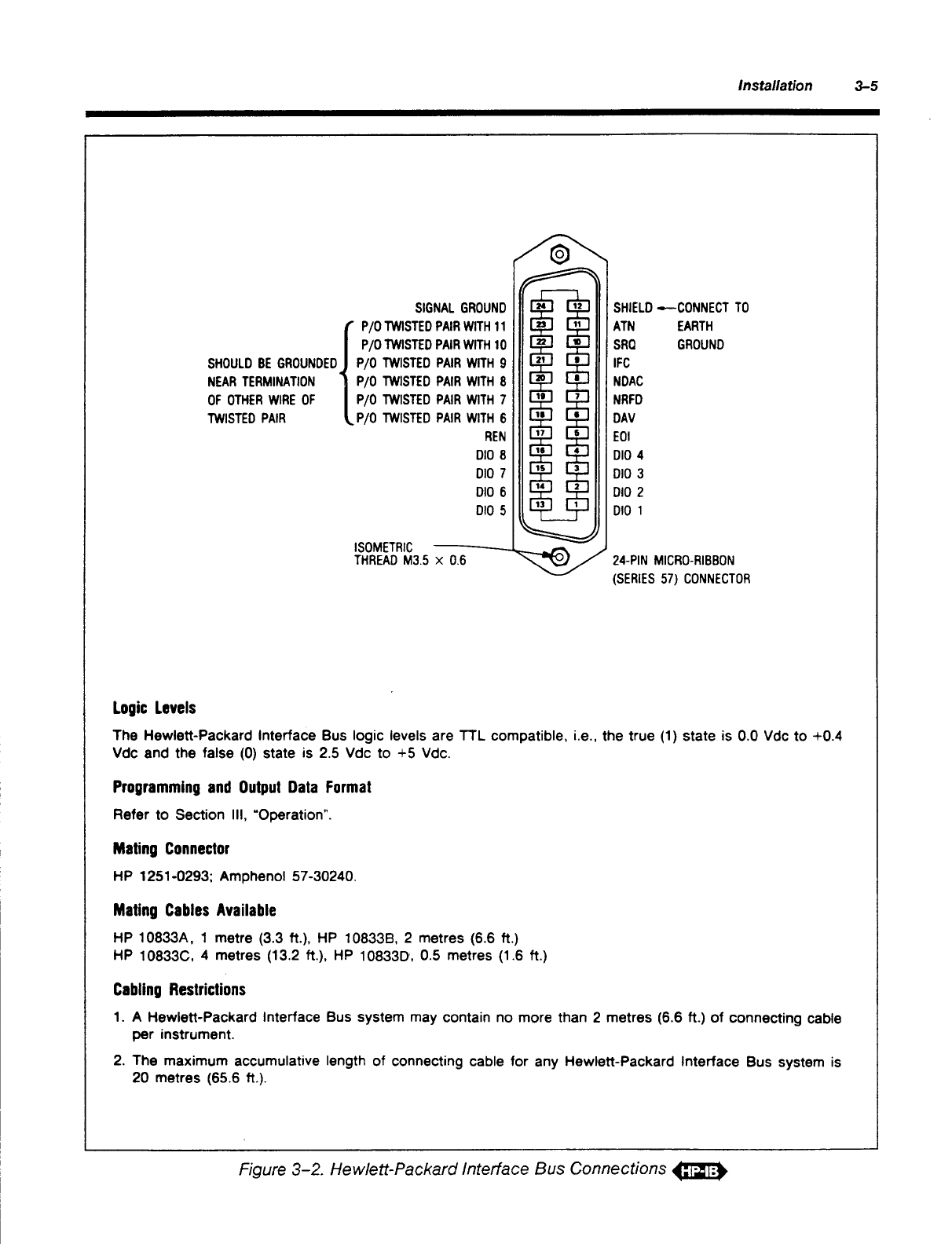

- Chapter 3-Installation

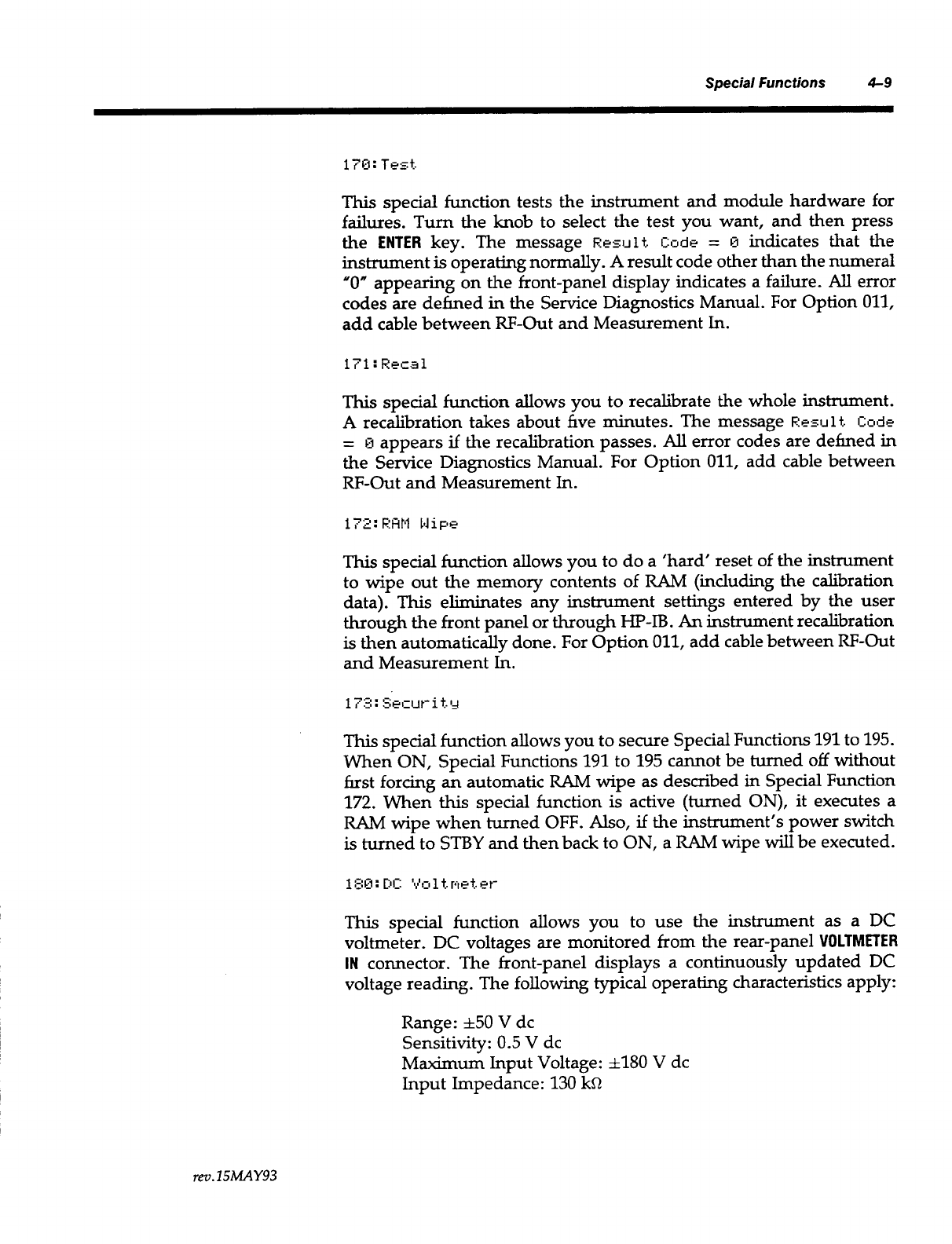

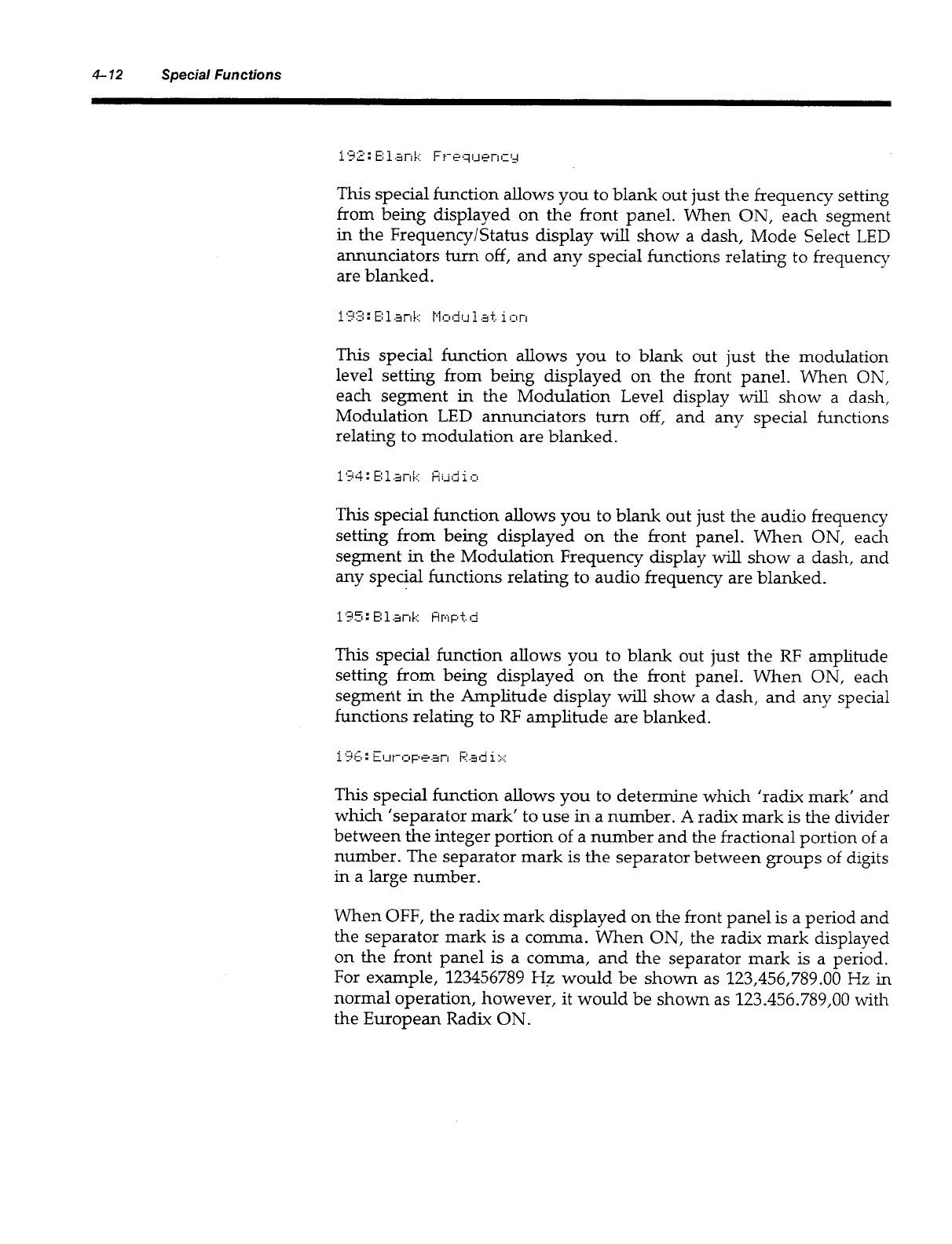

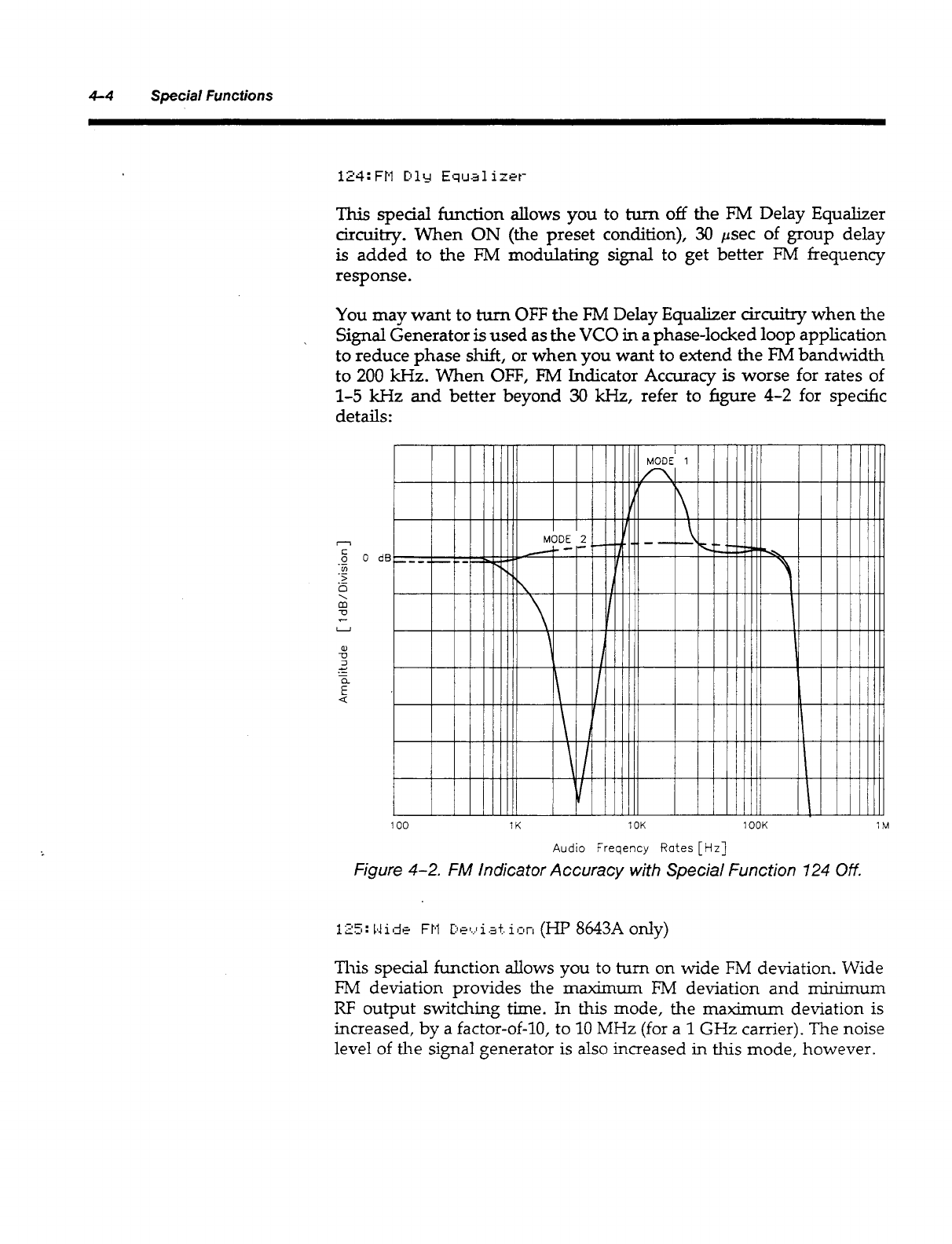

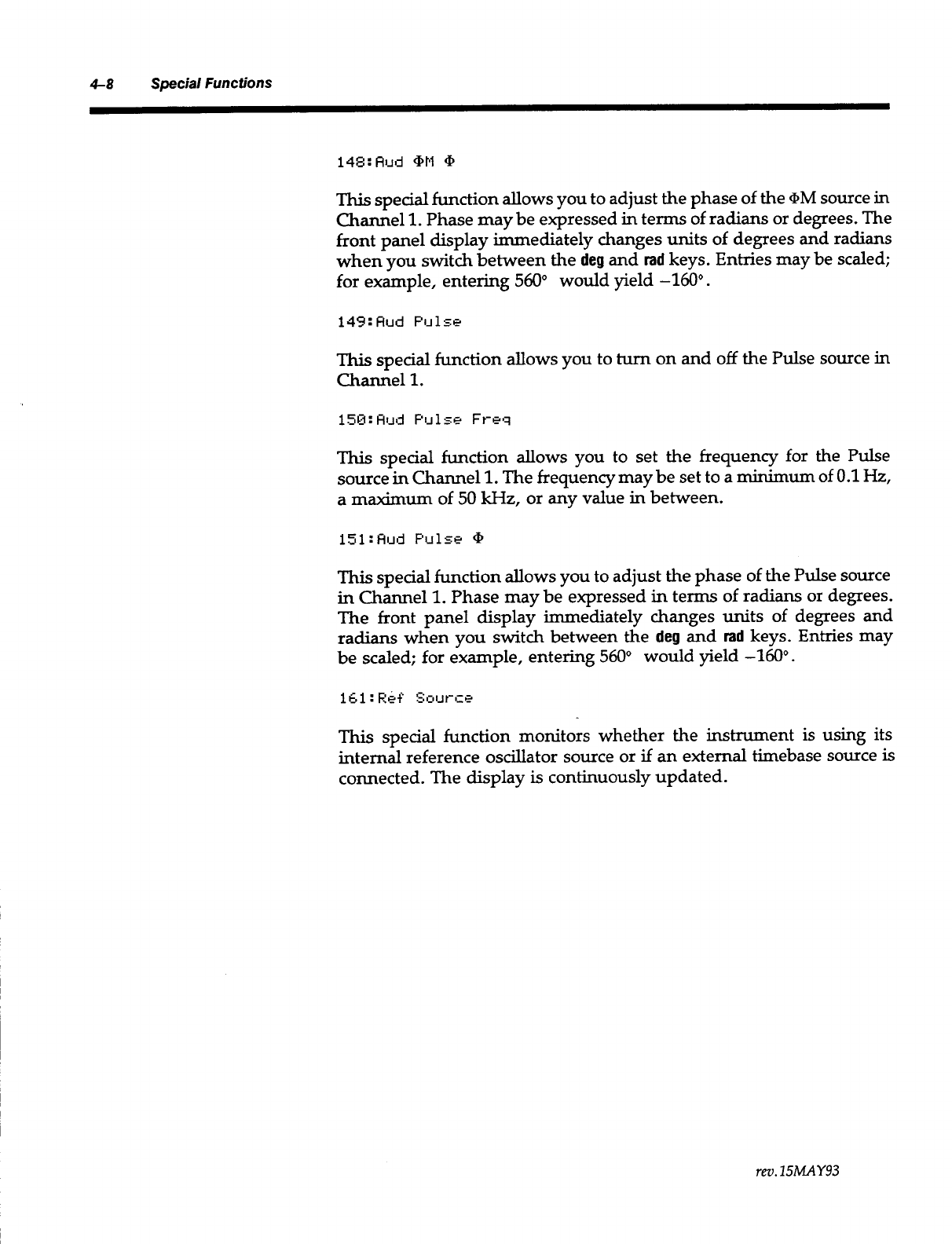

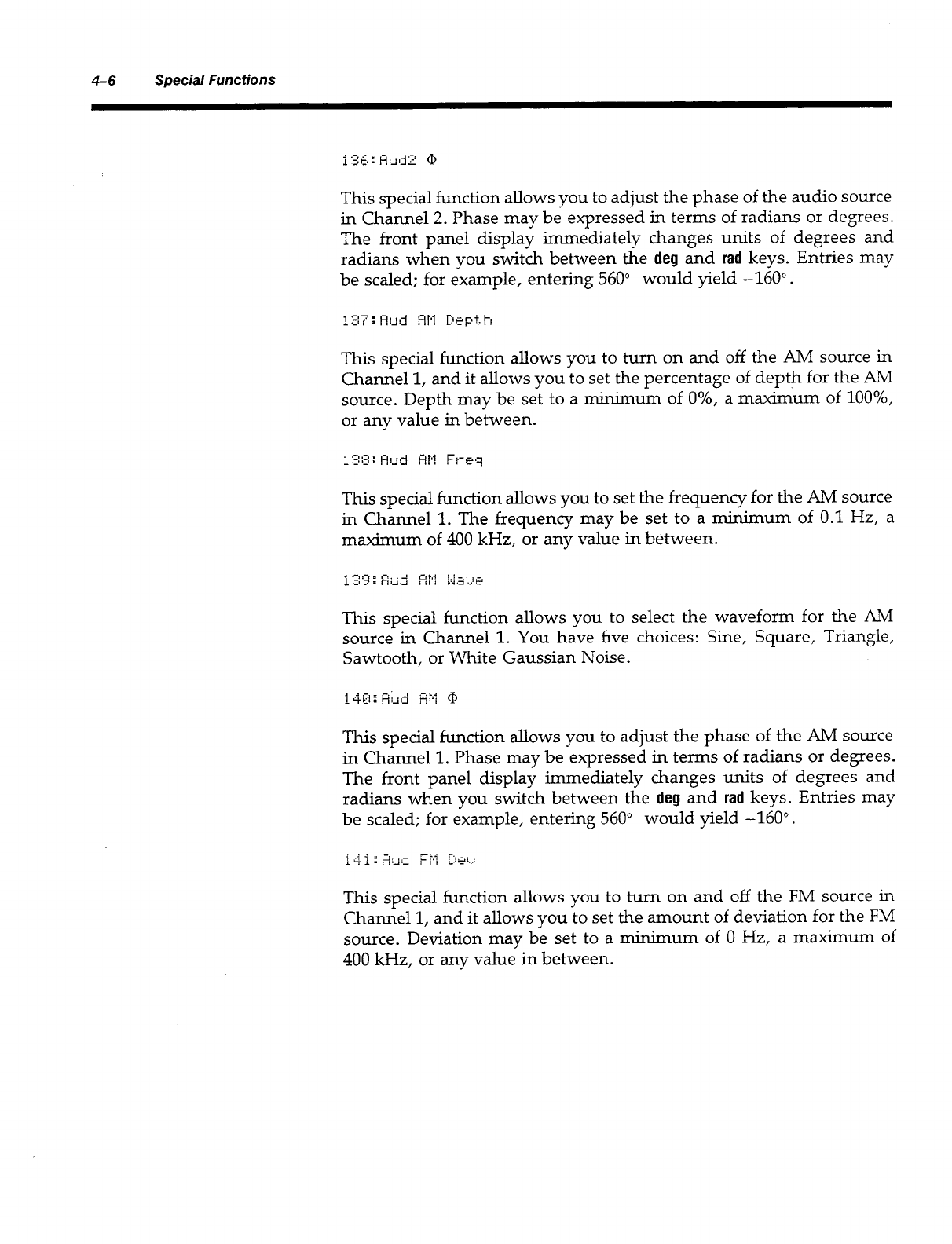

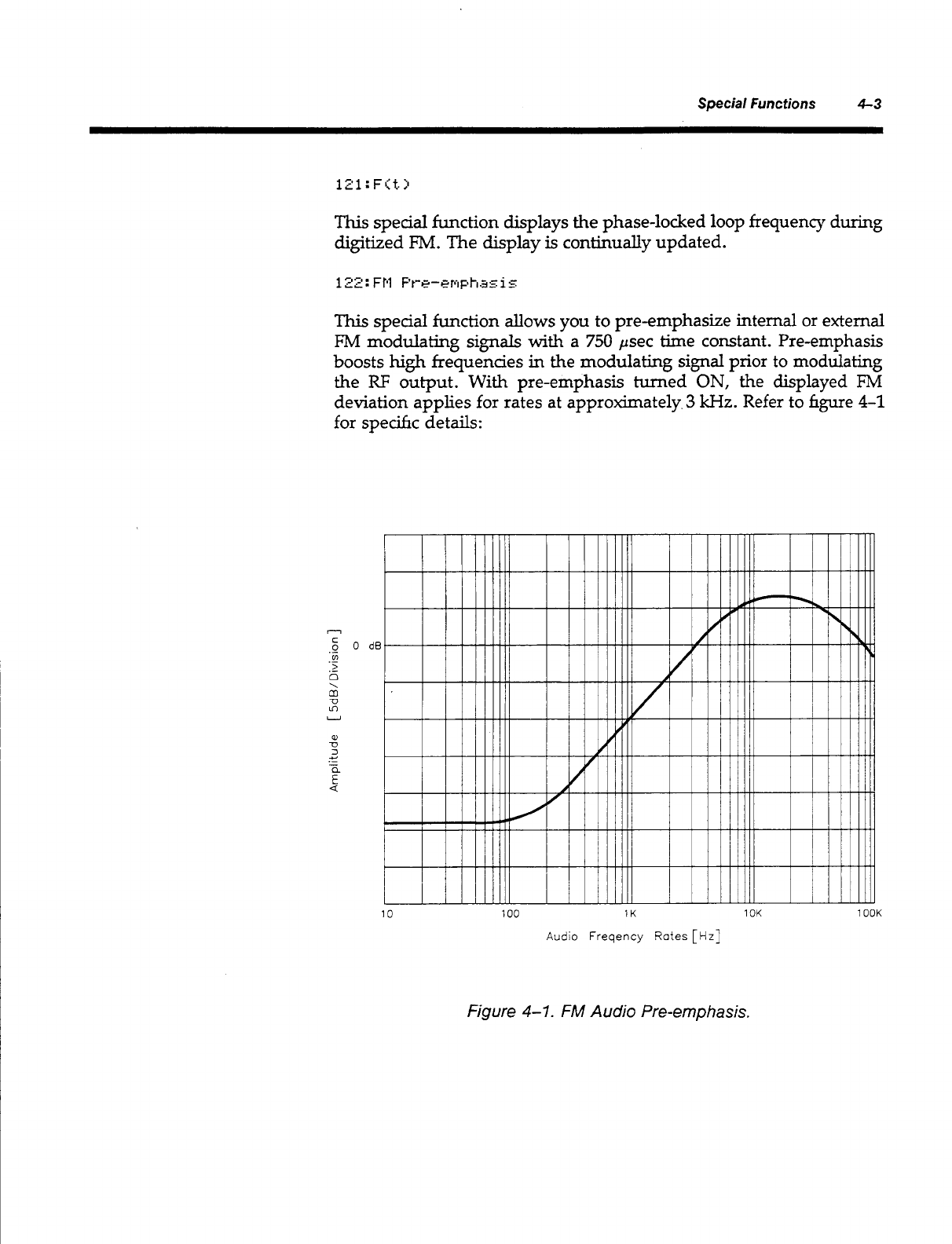

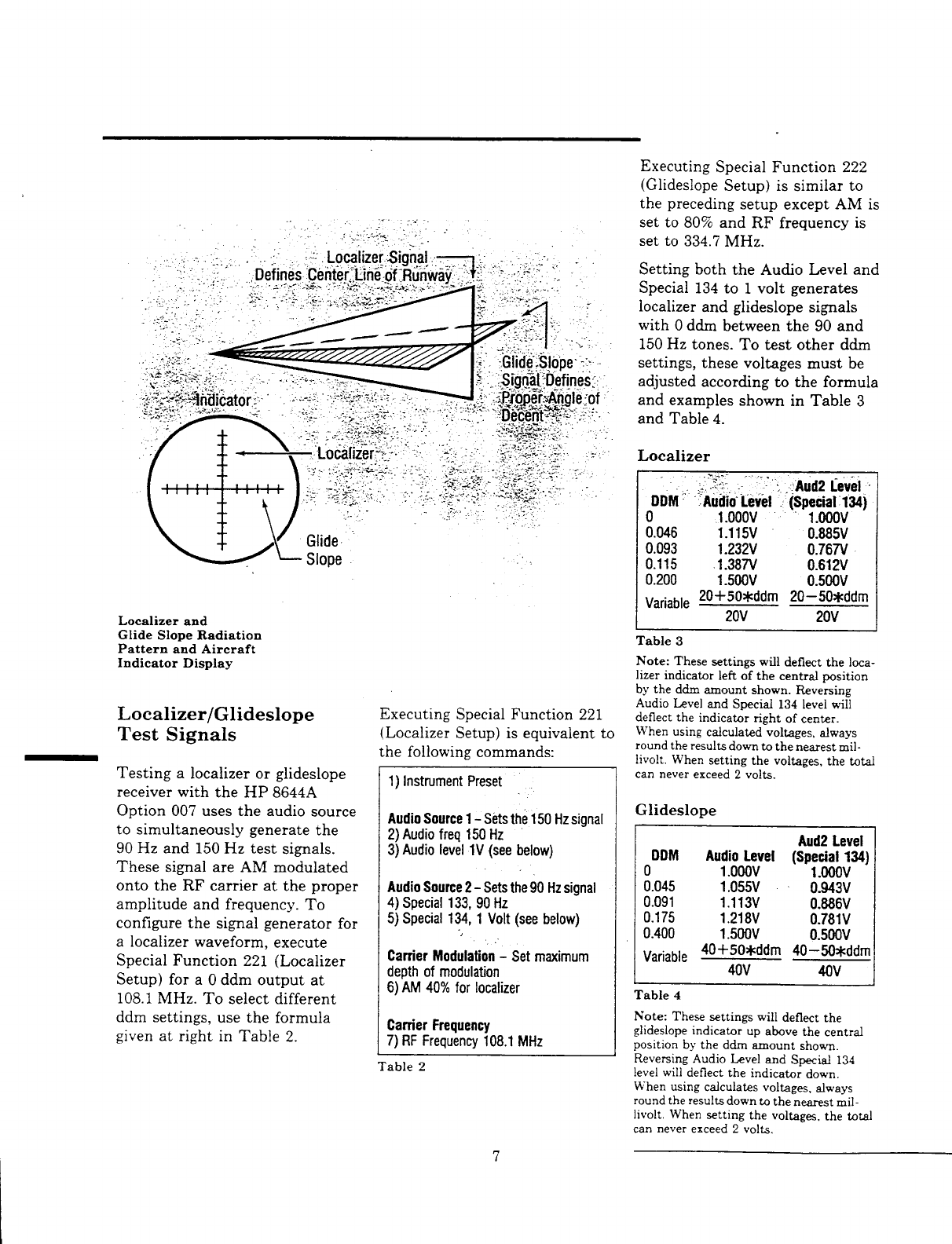

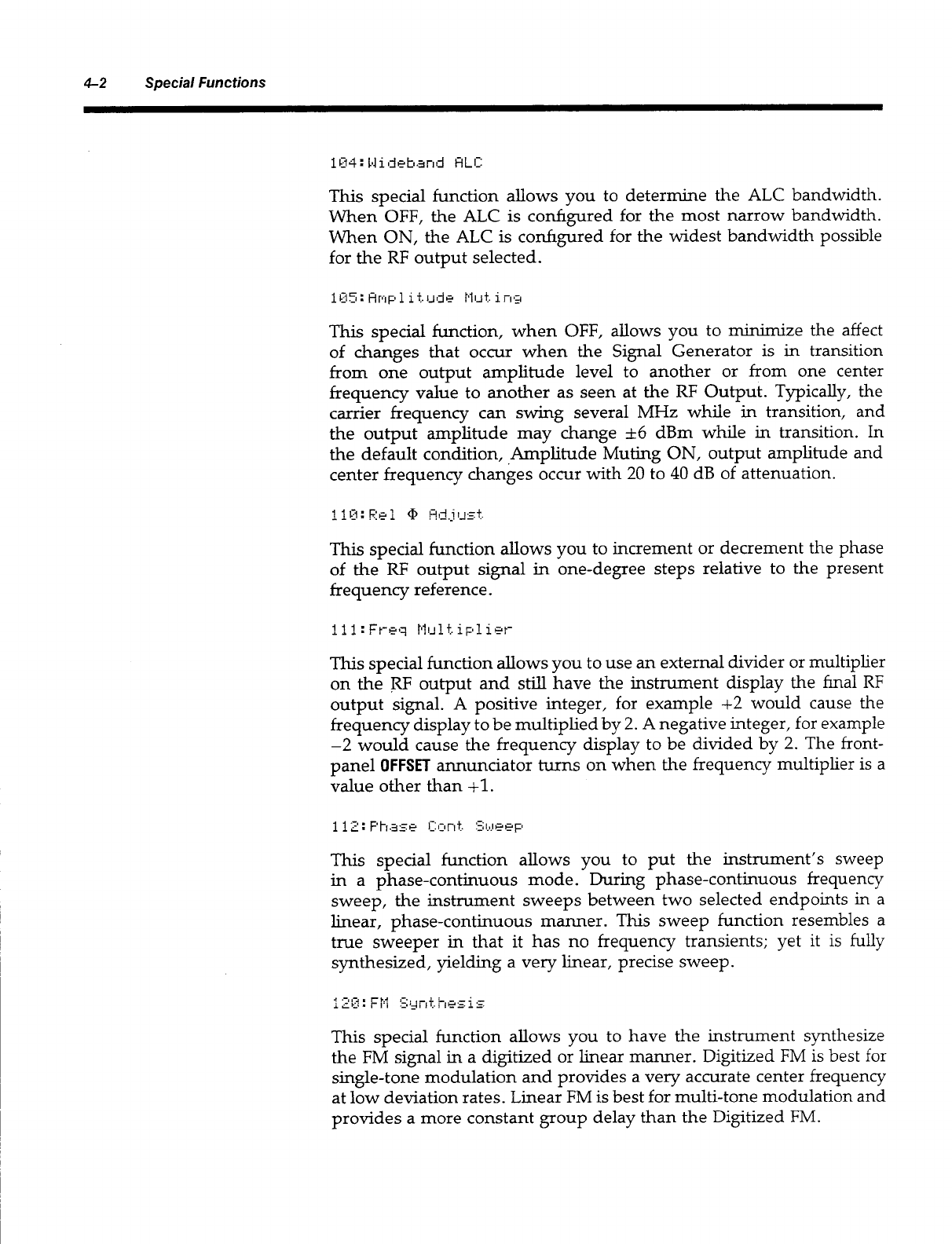

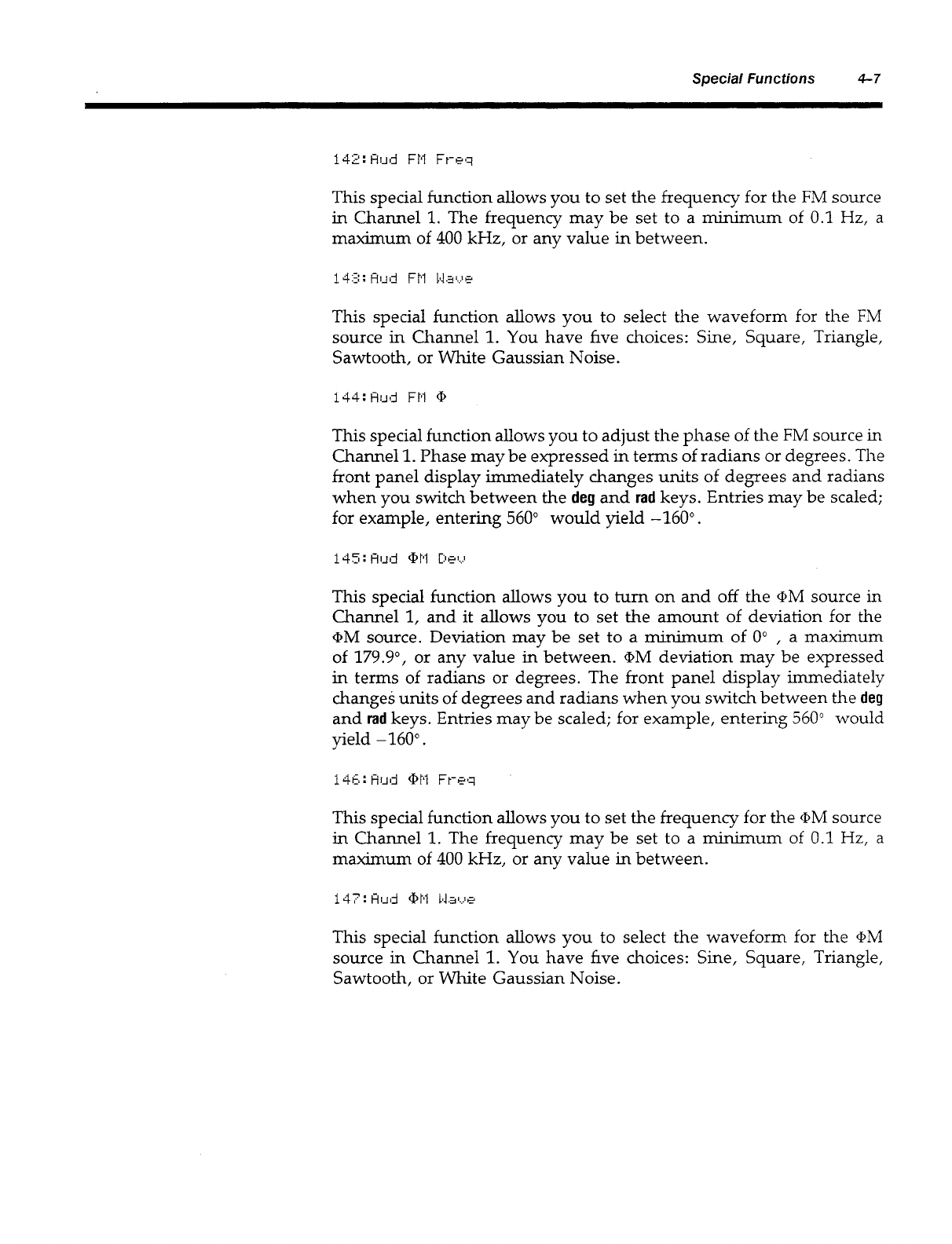

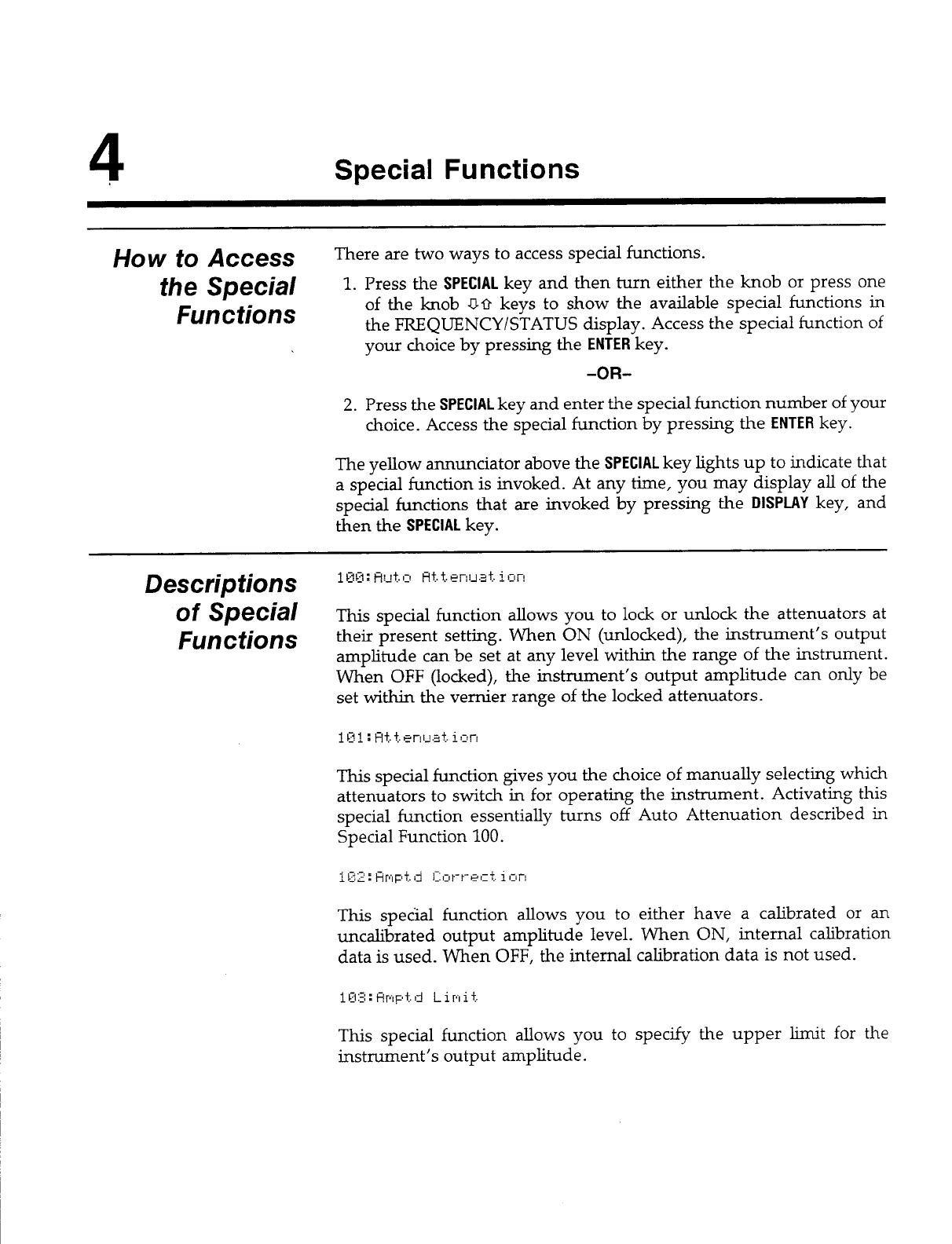

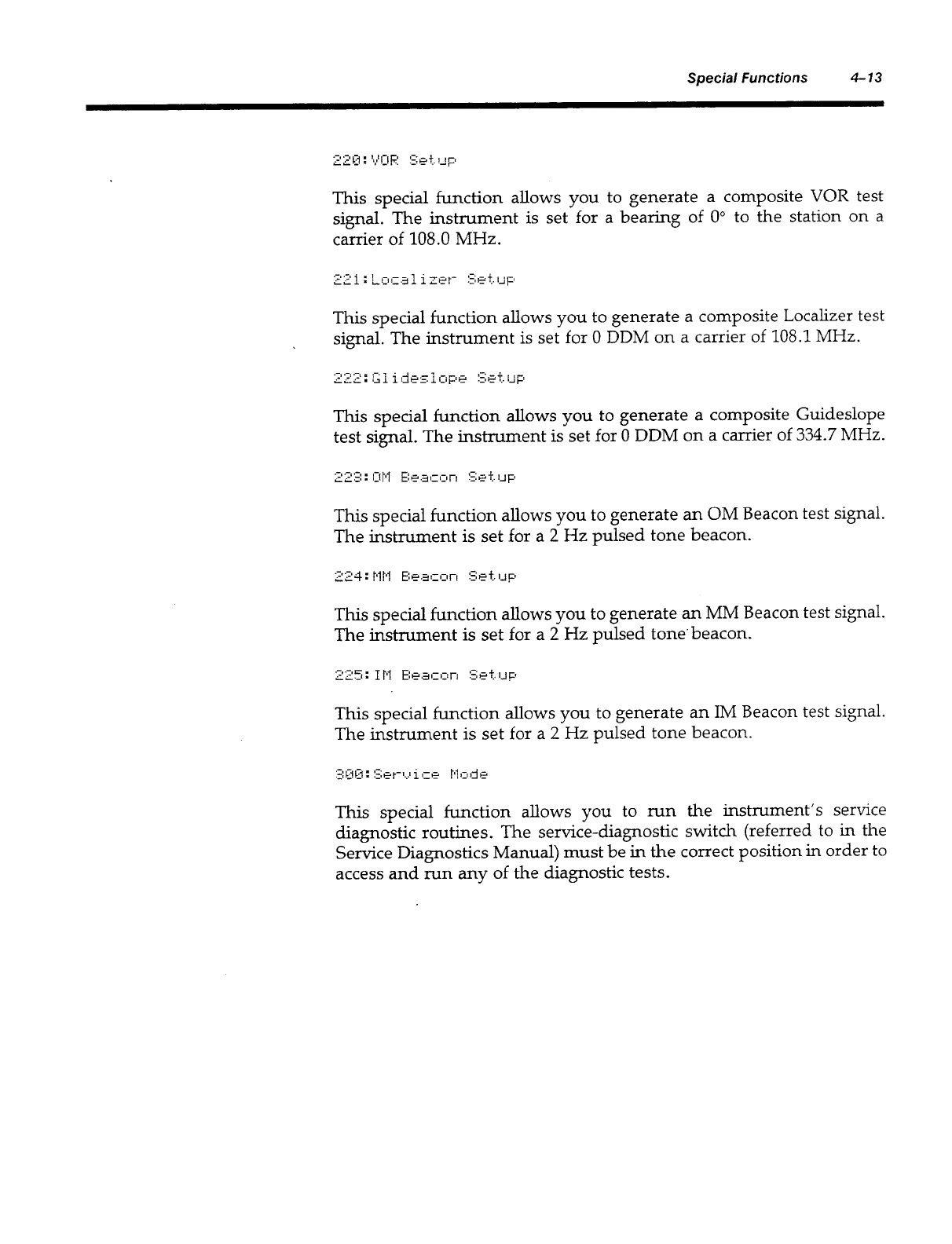

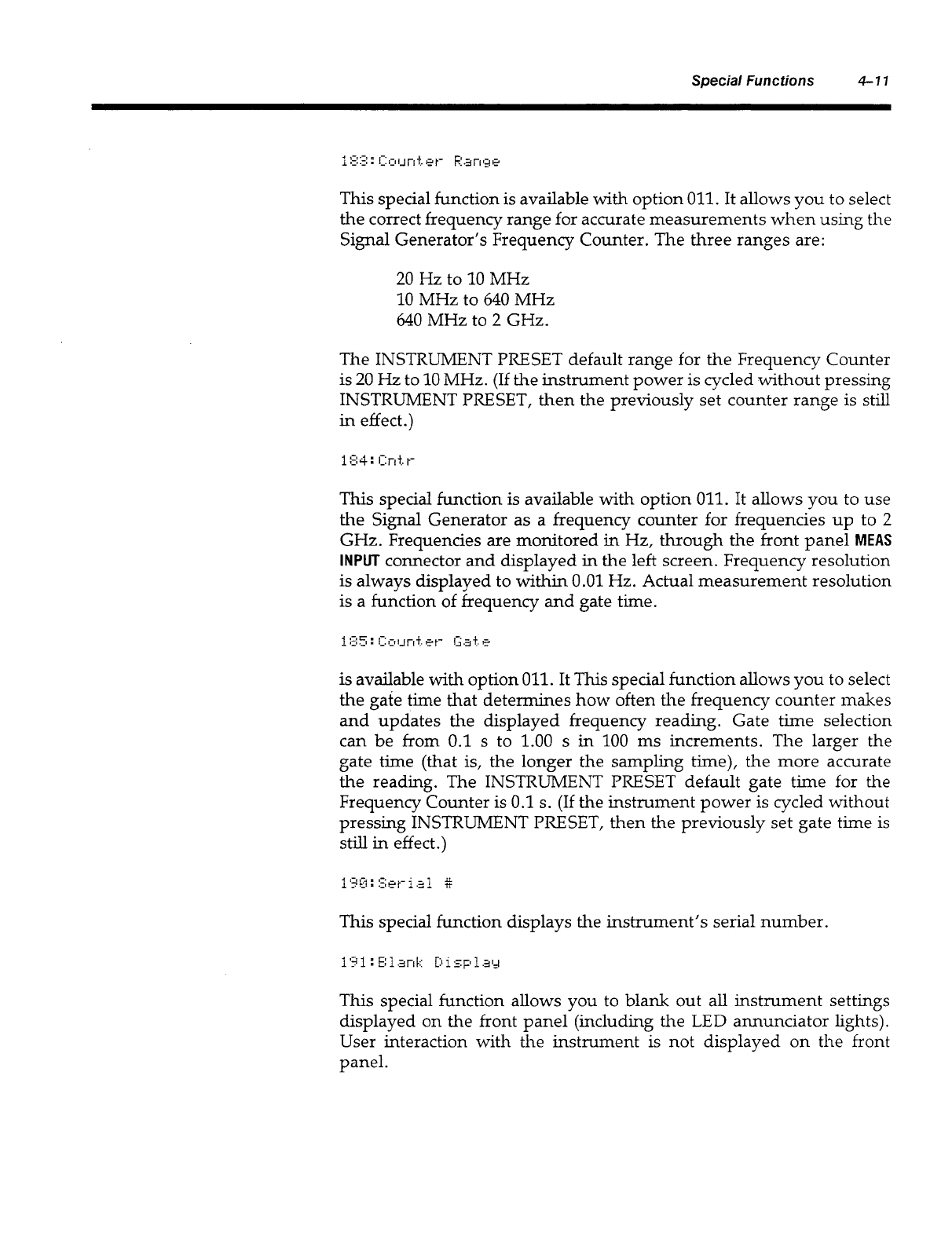

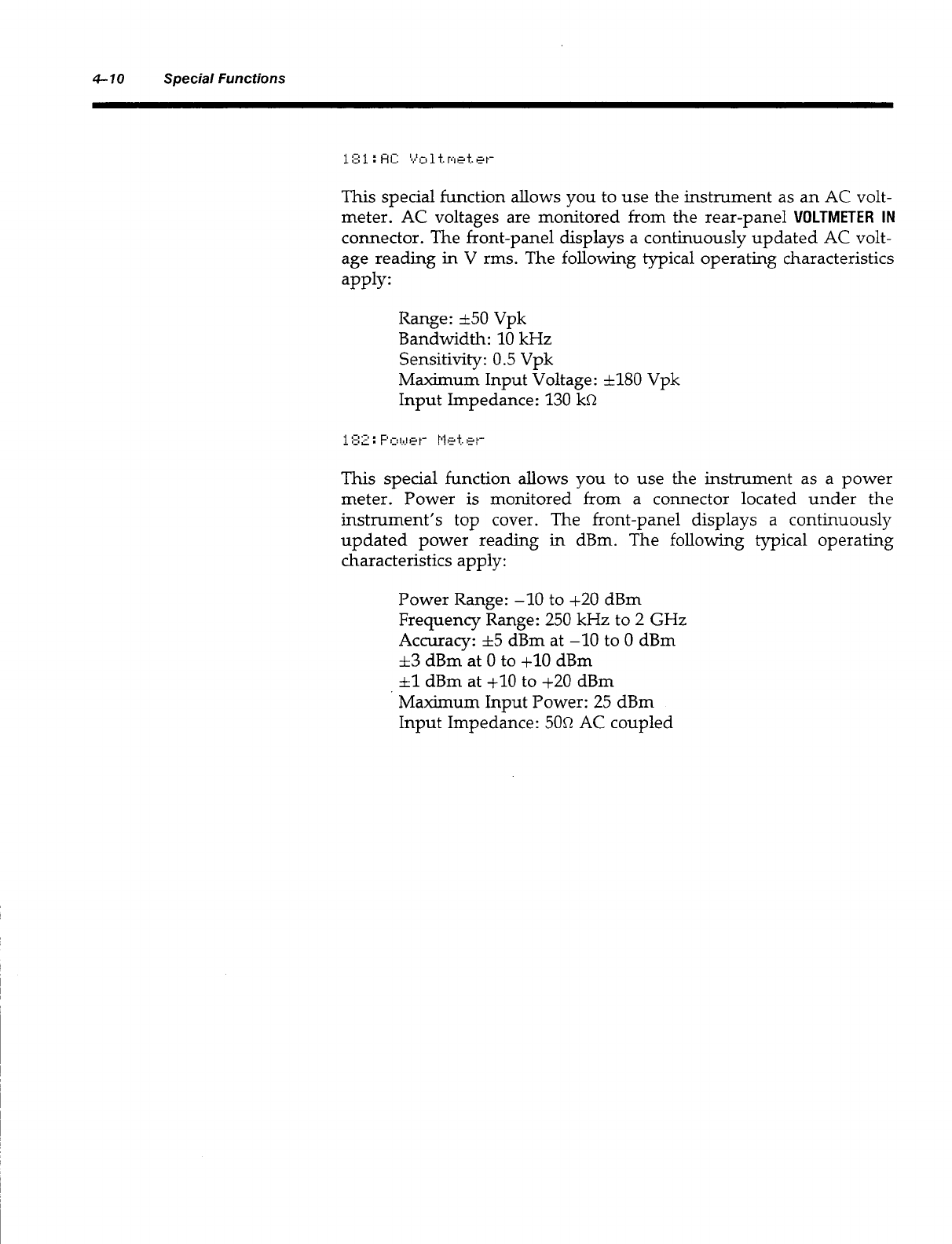

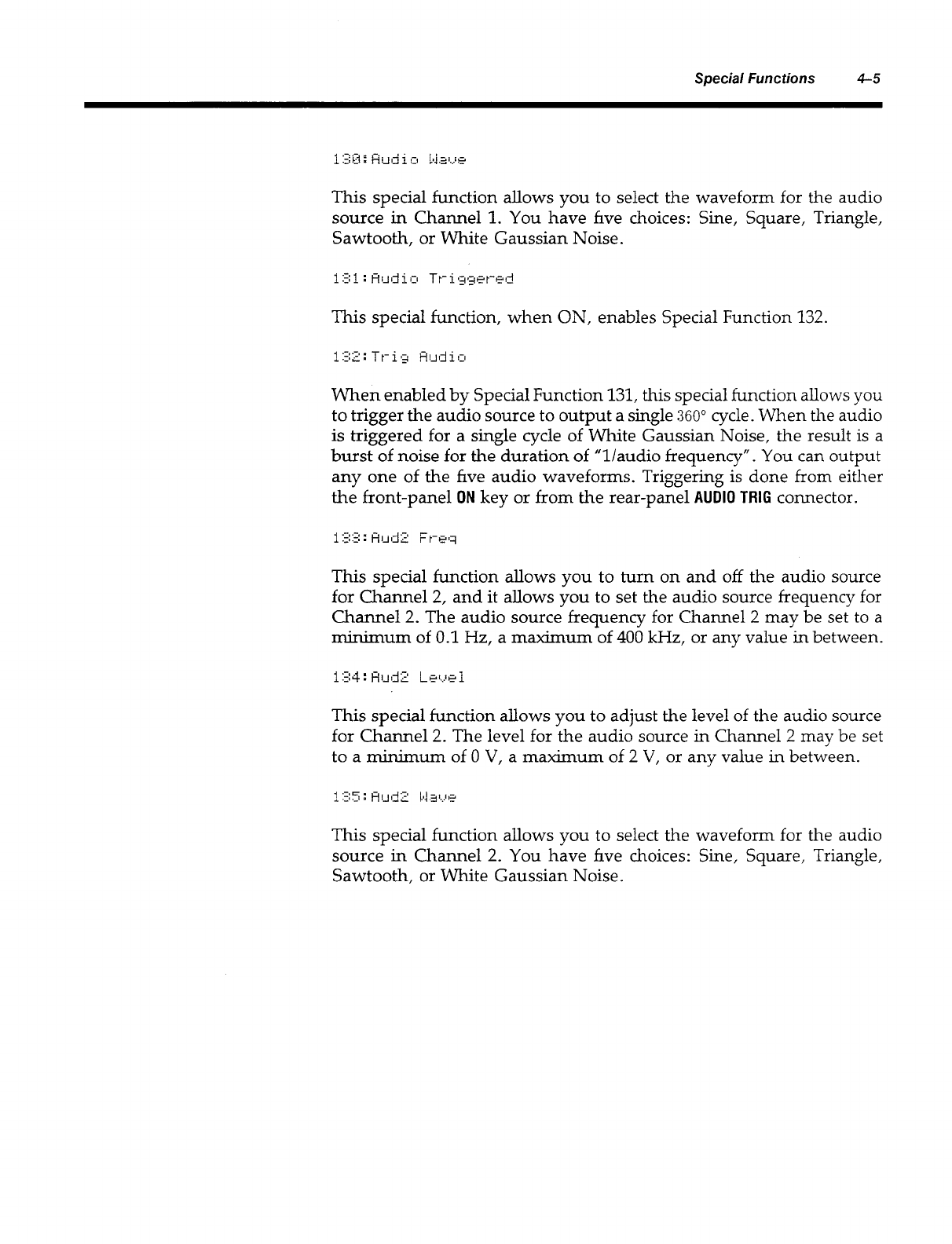

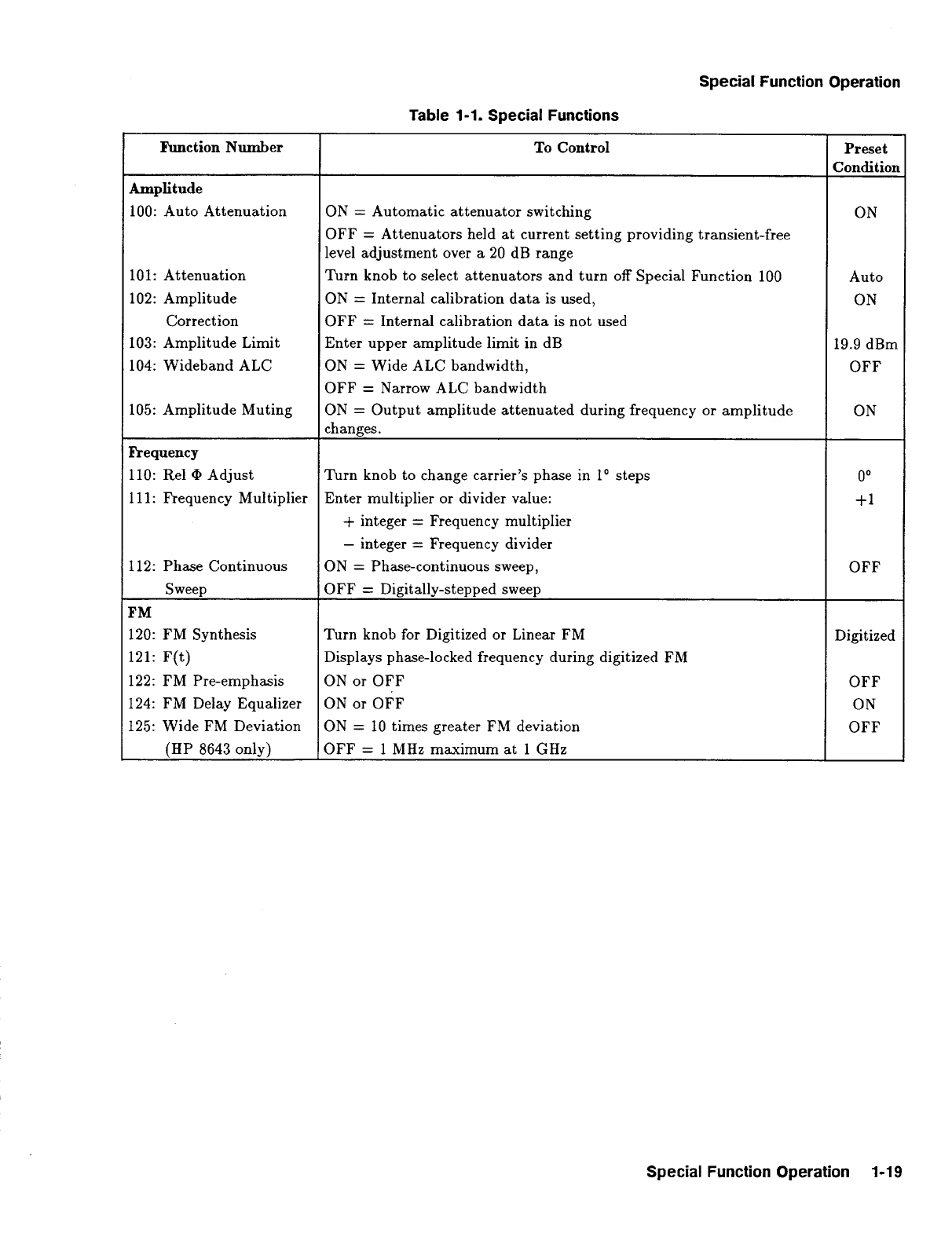

- Chapter 4-Special Functions

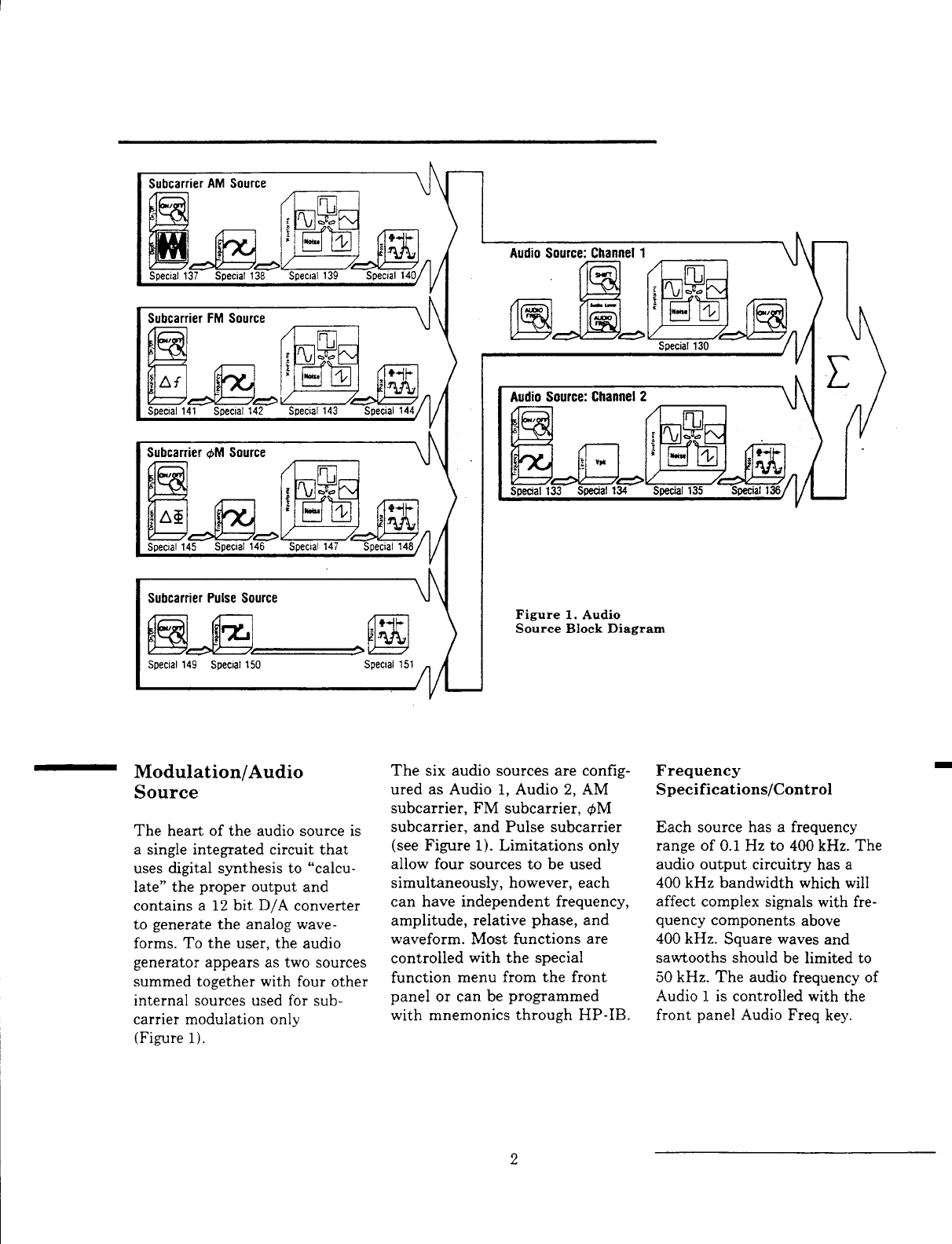

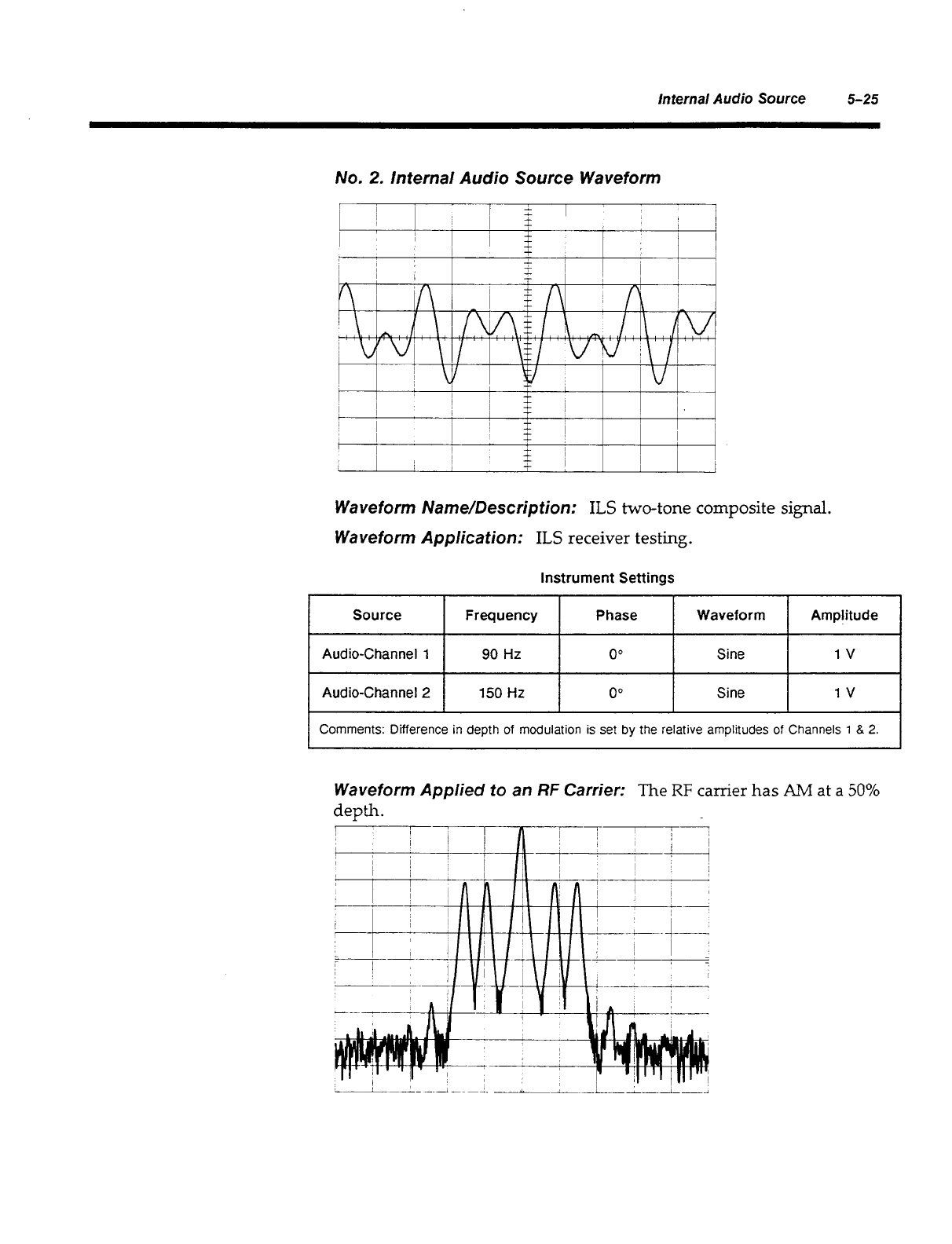

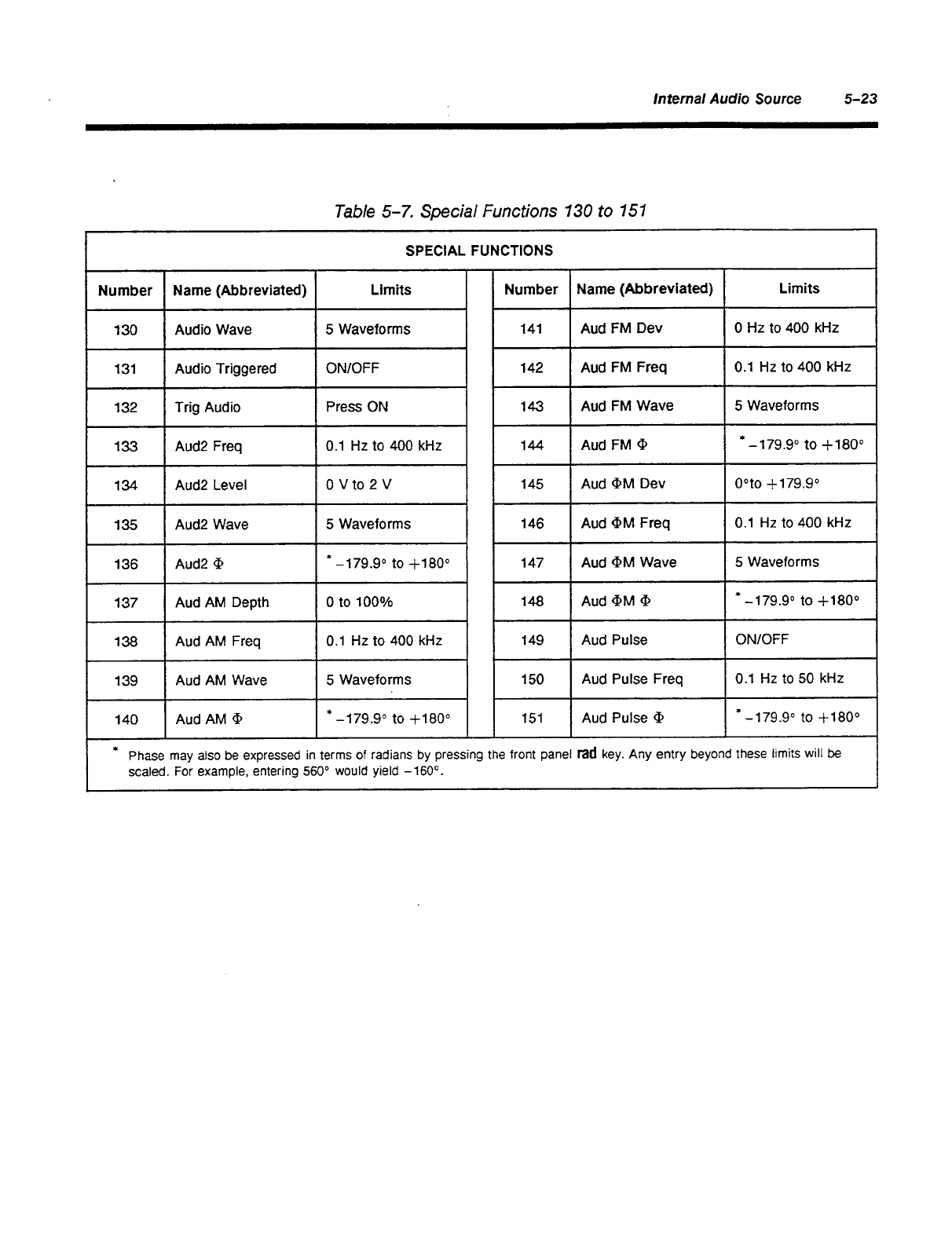

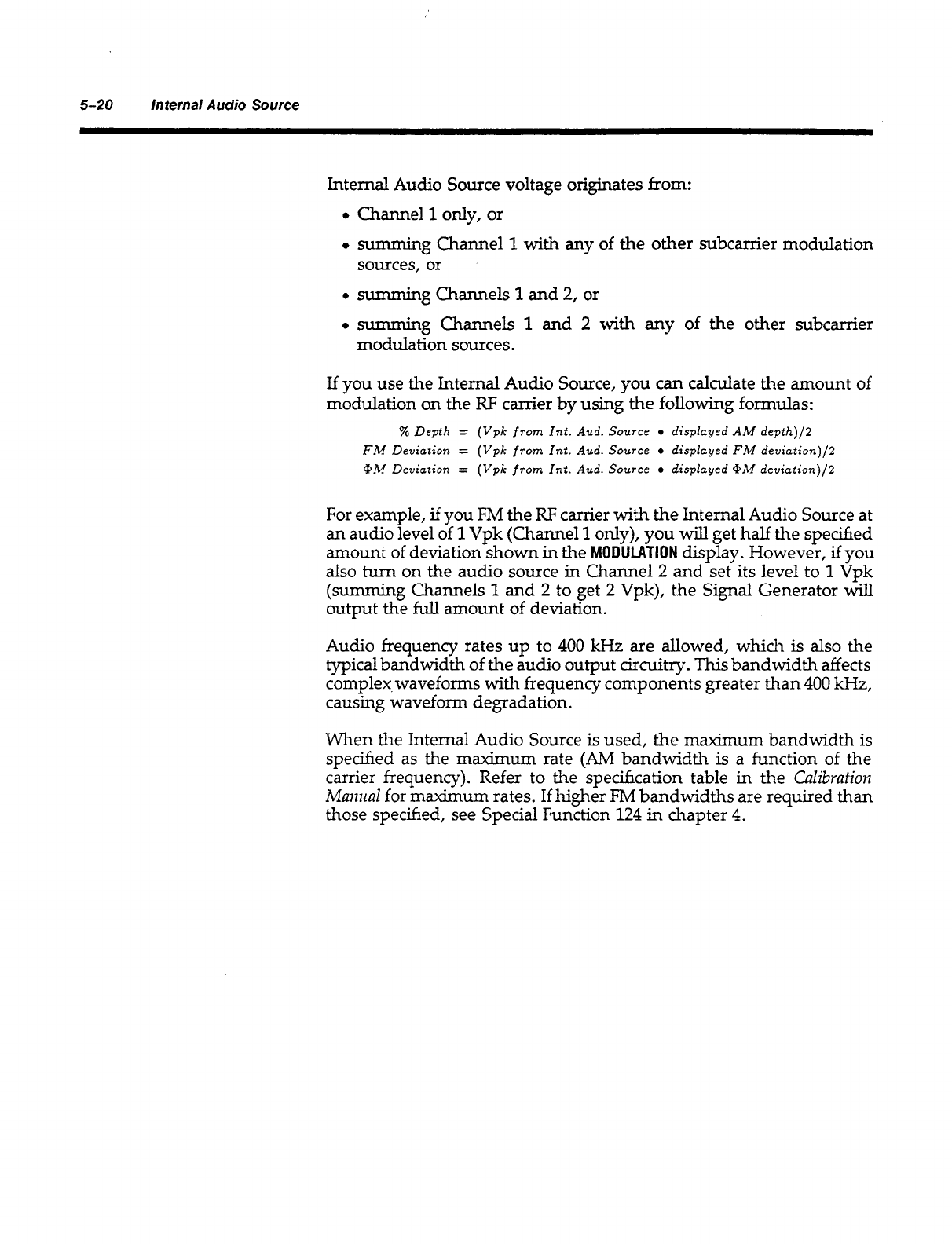

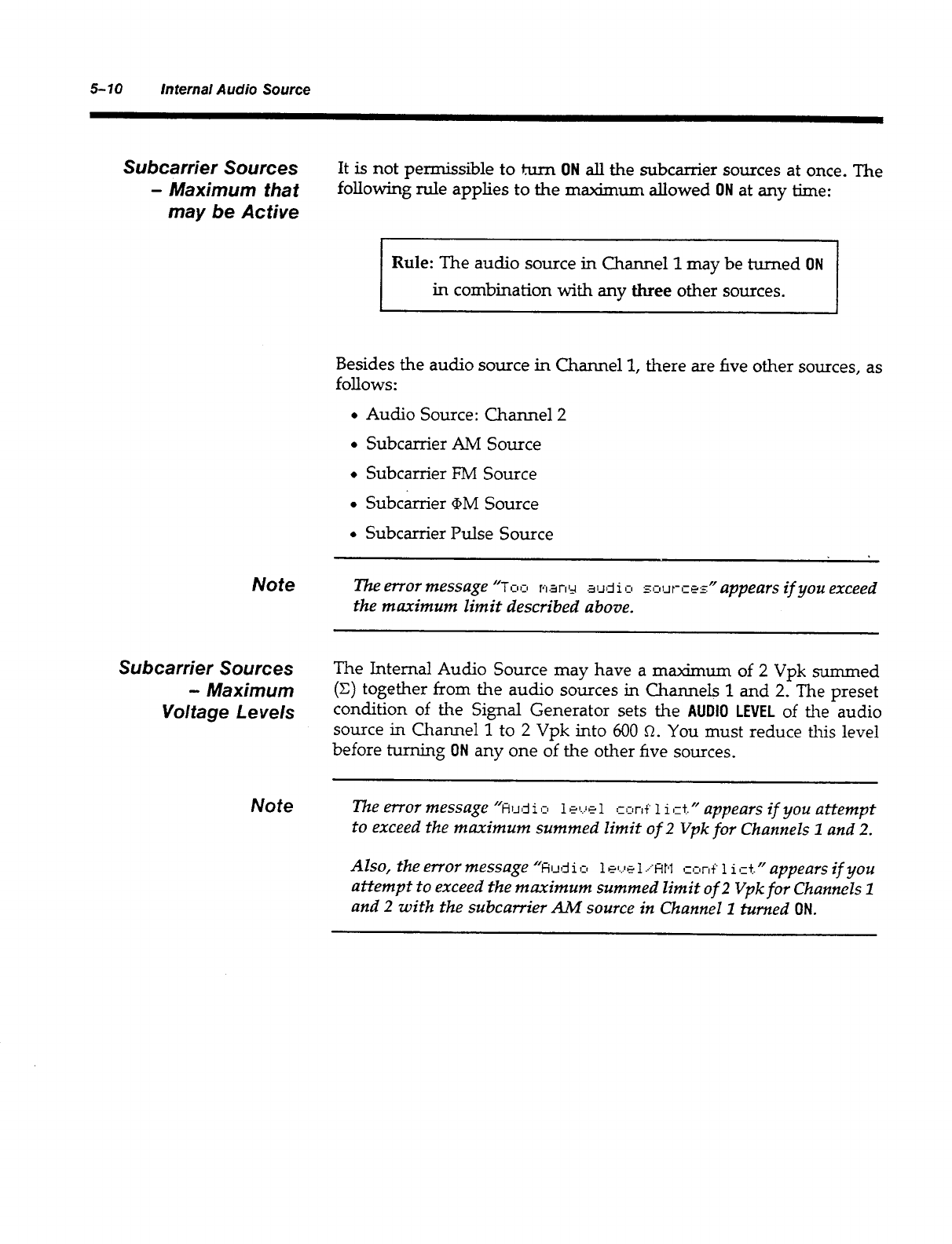

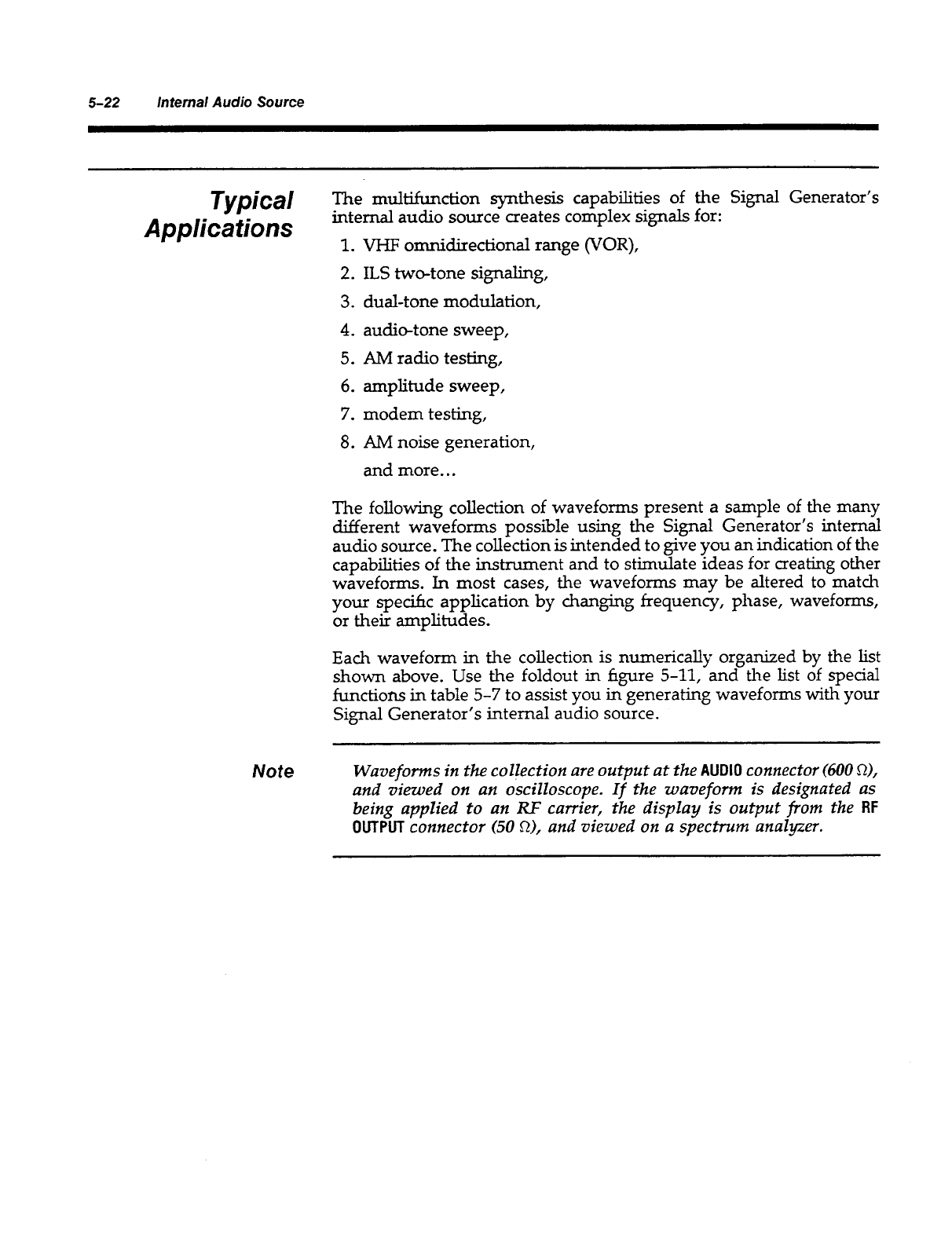

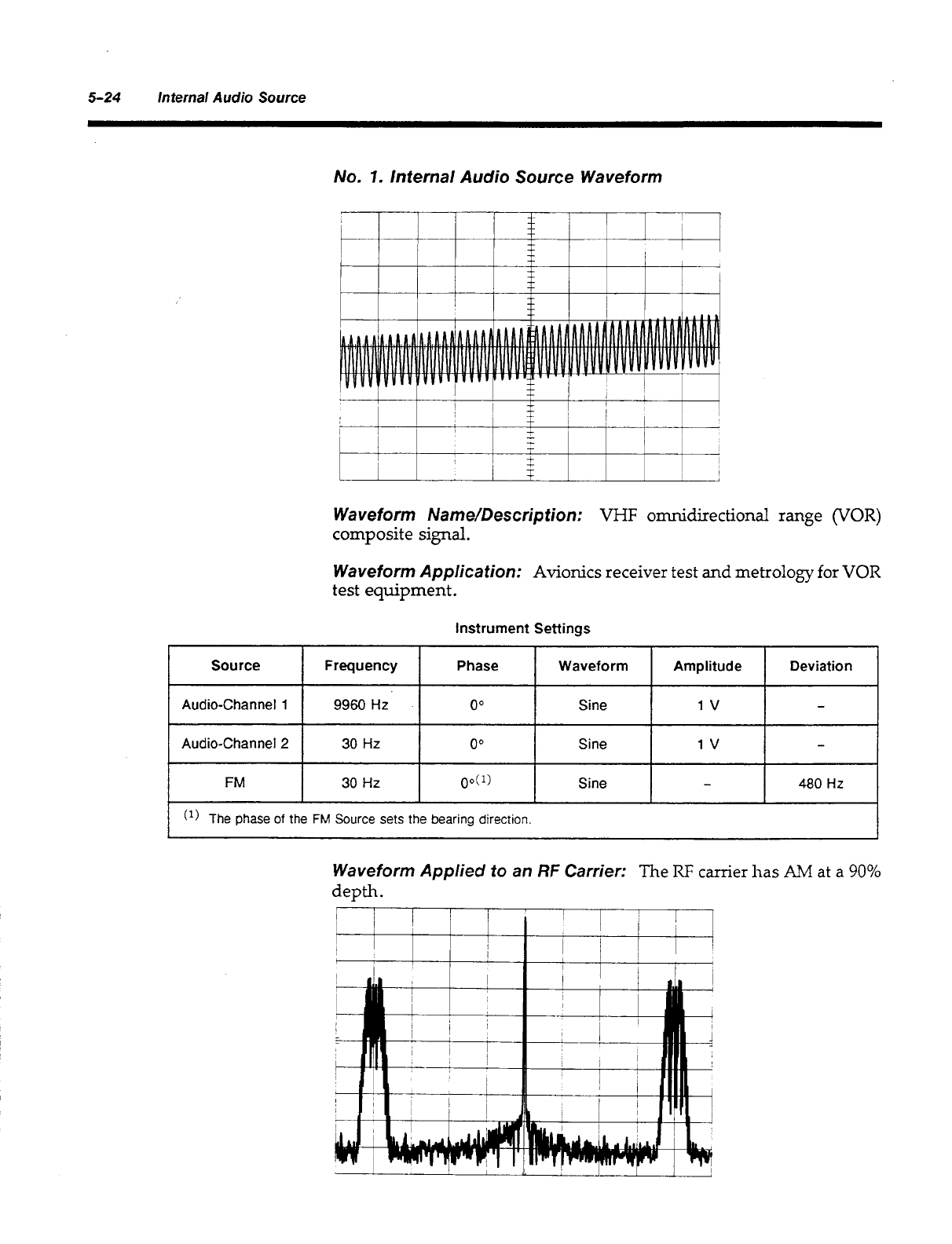

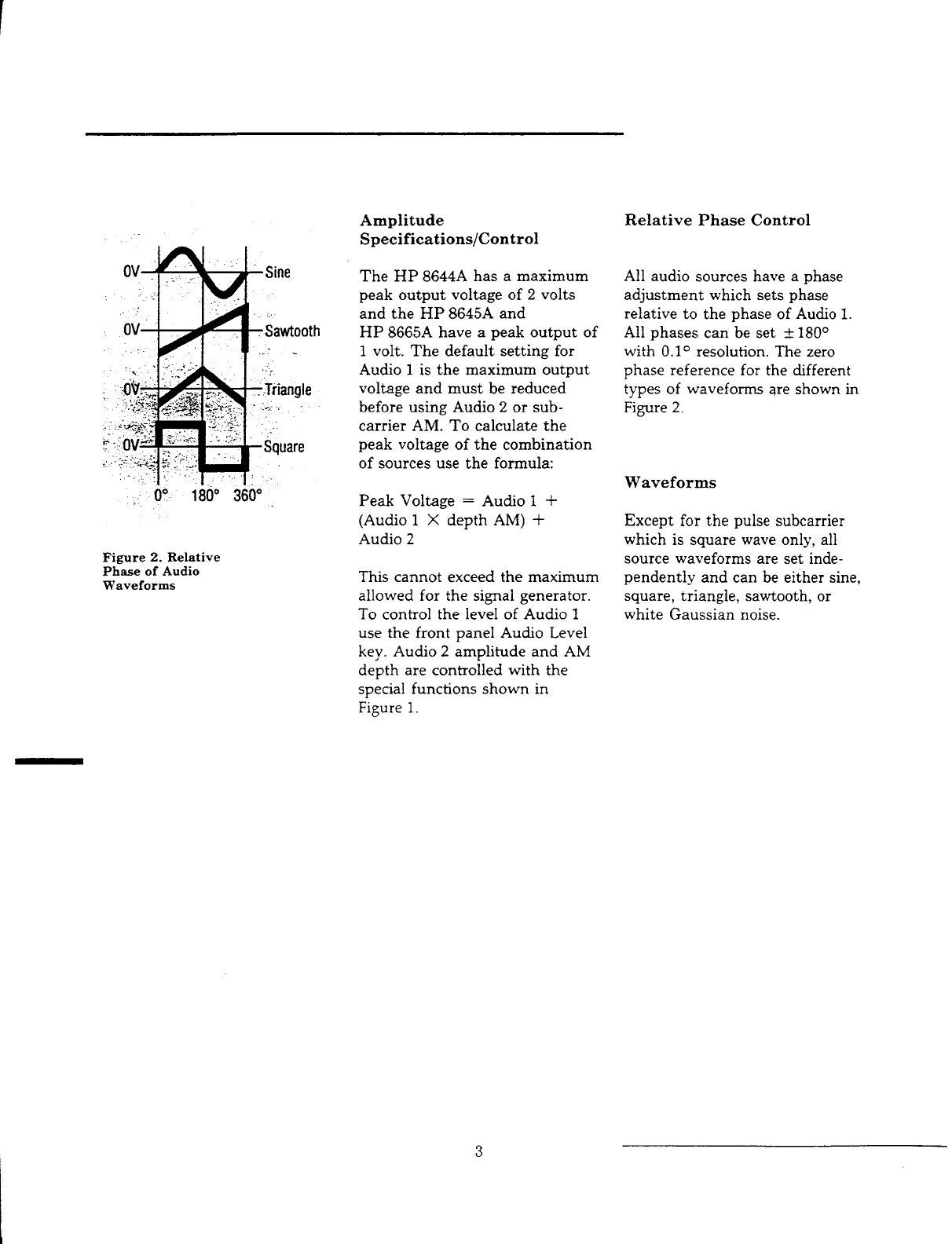

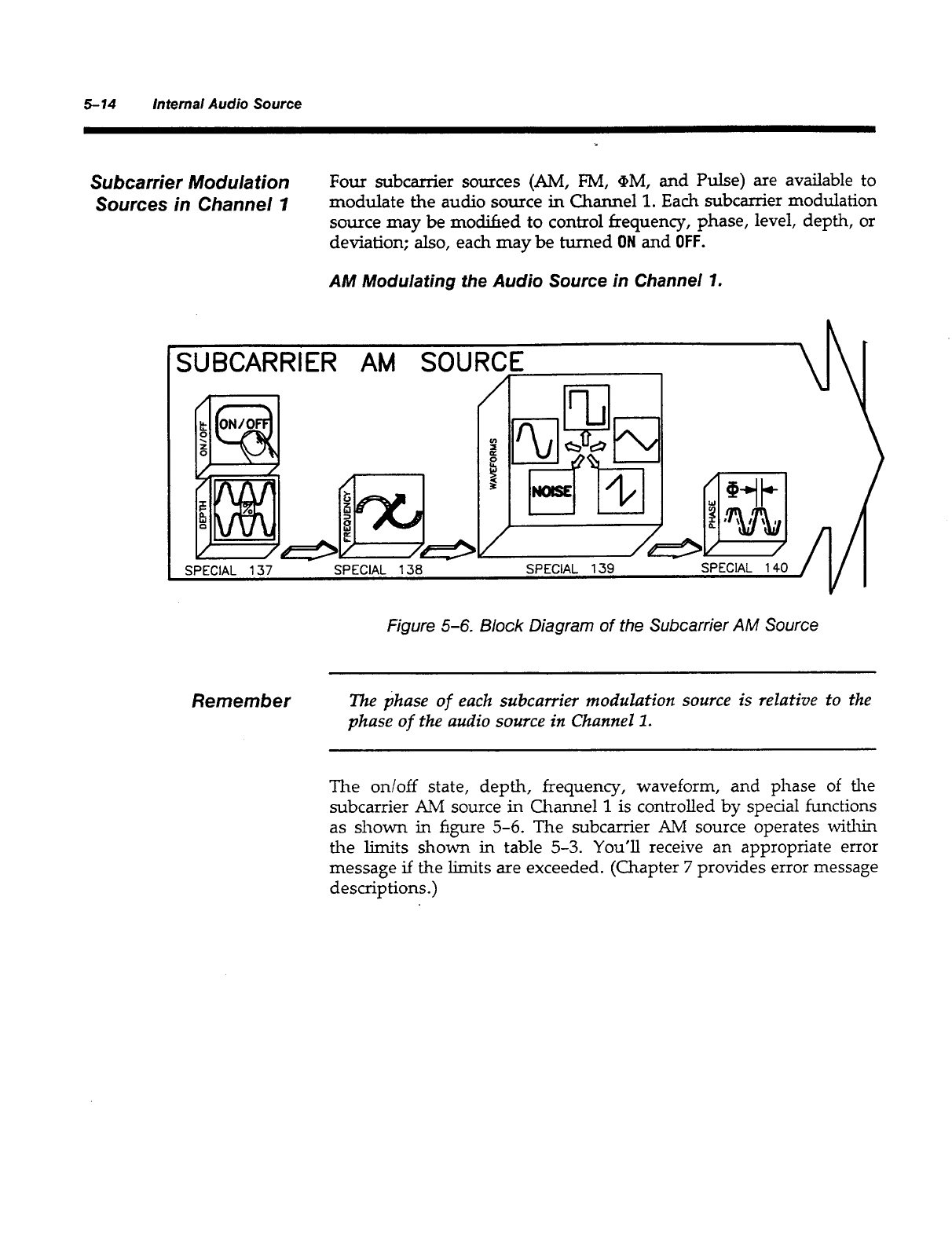

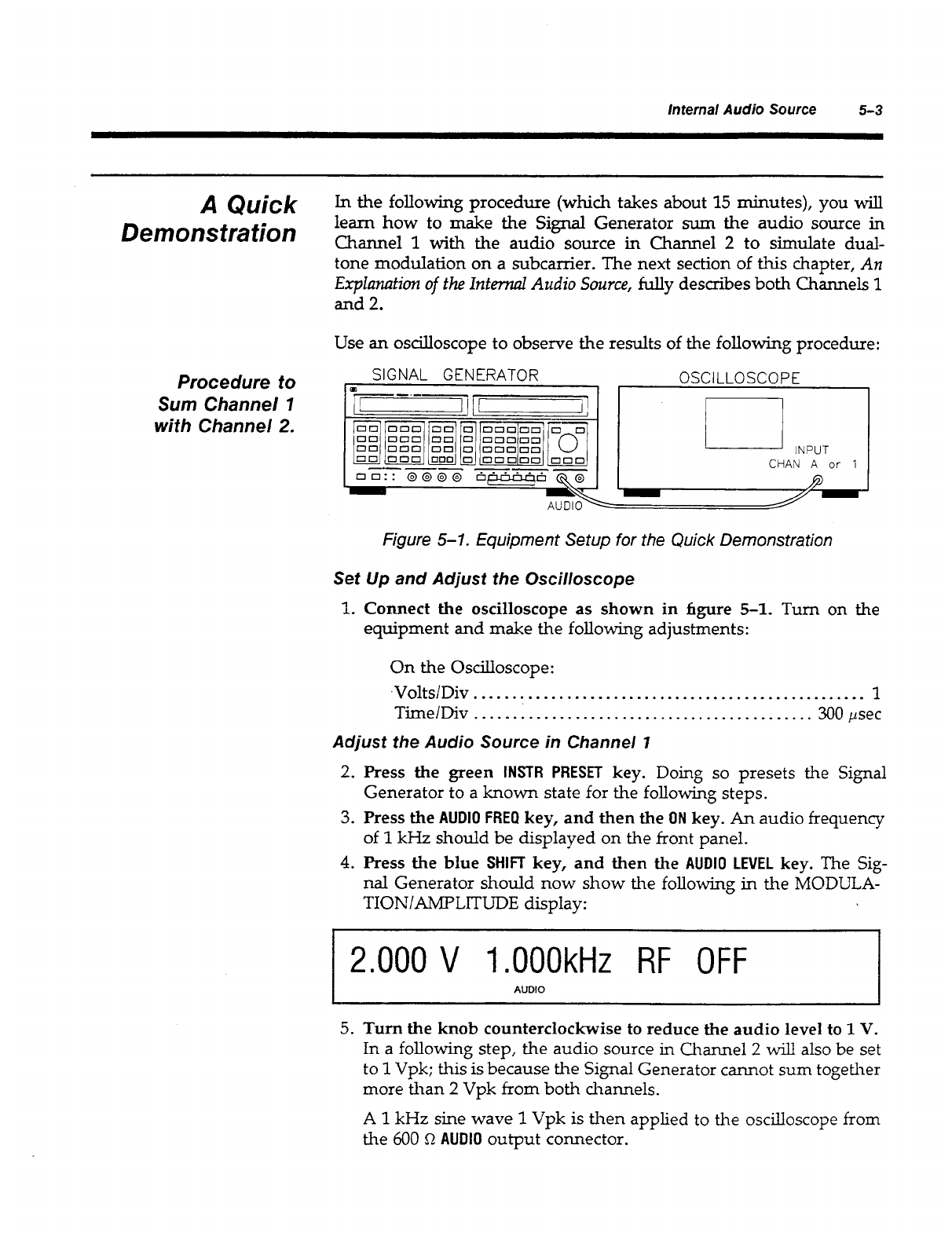

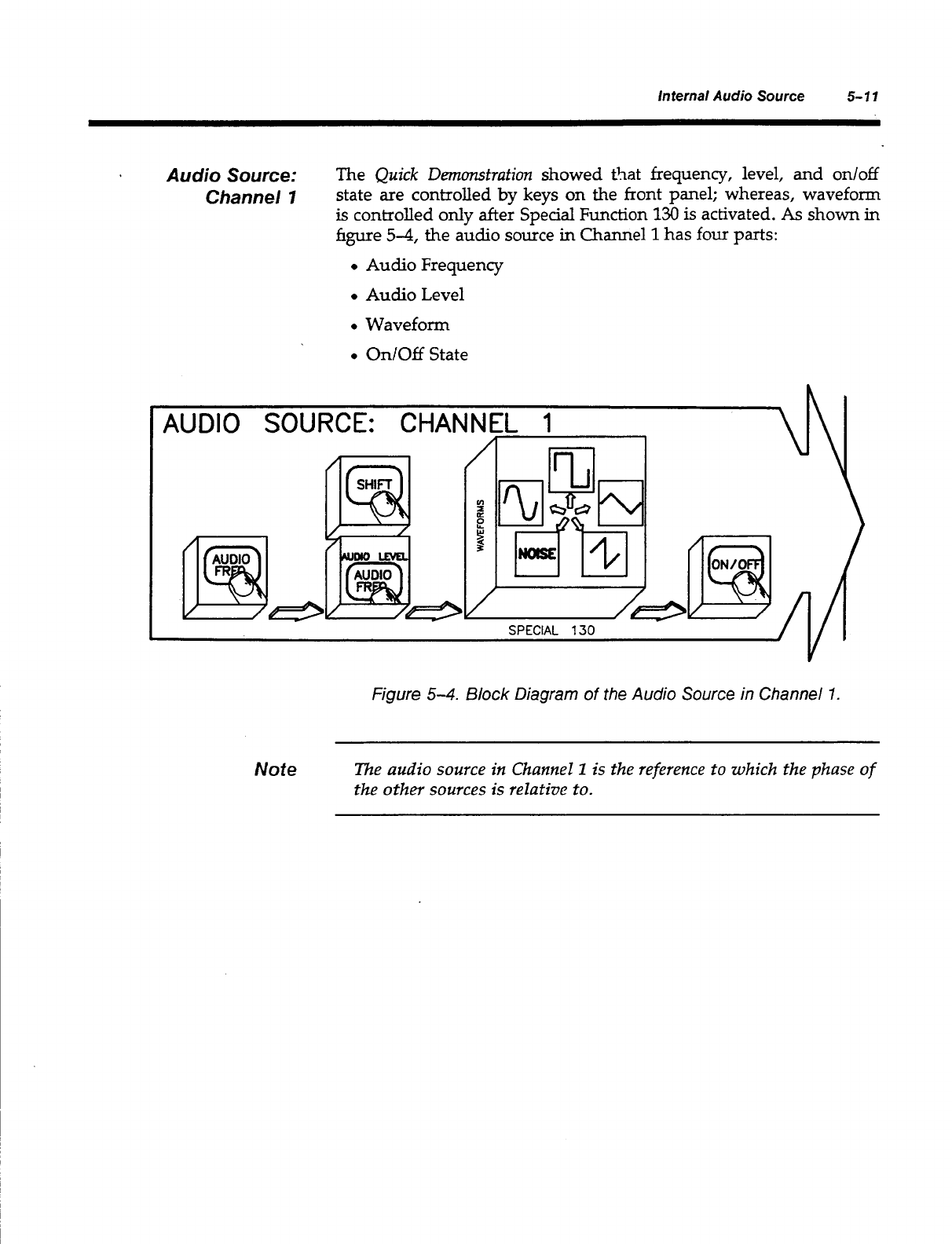

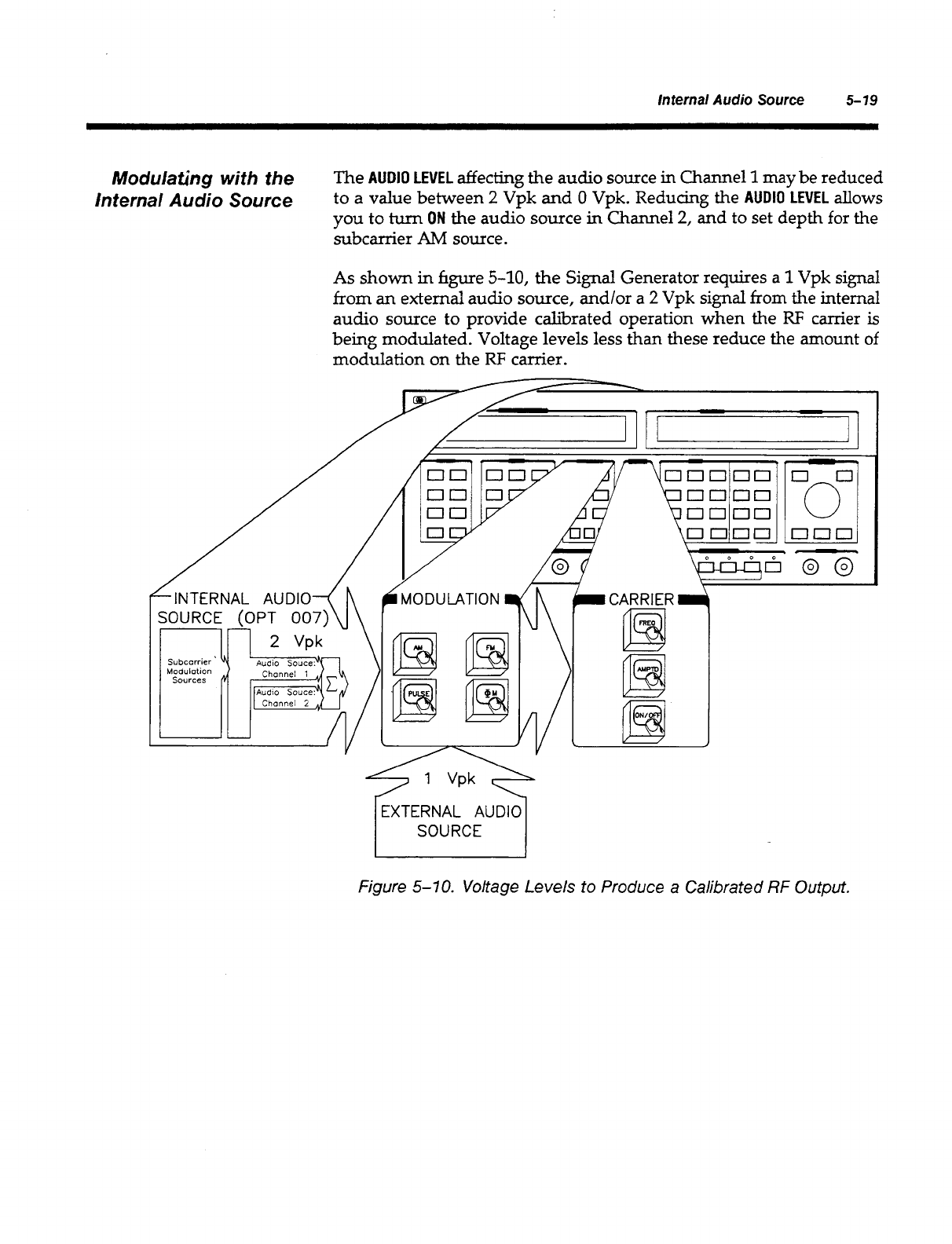

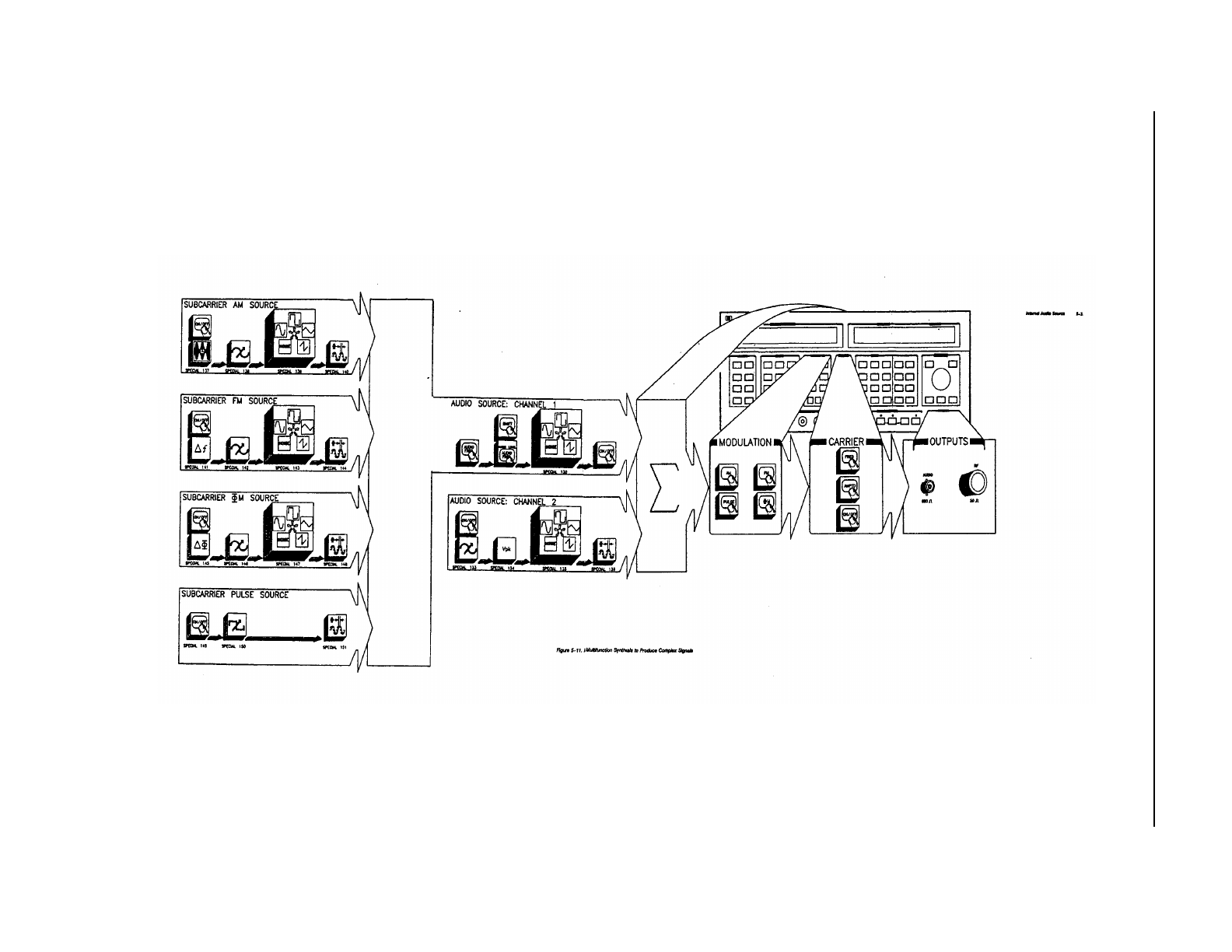

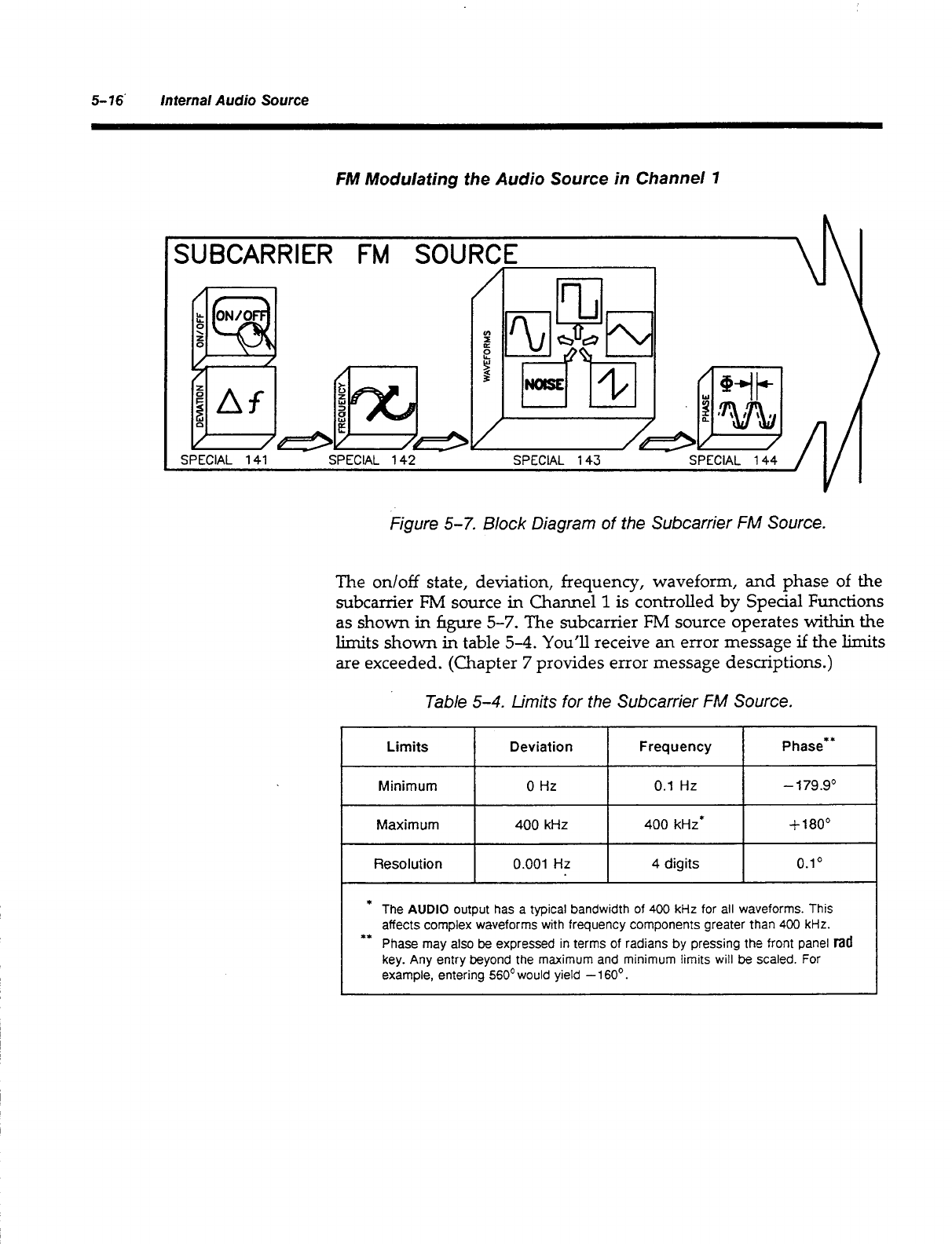

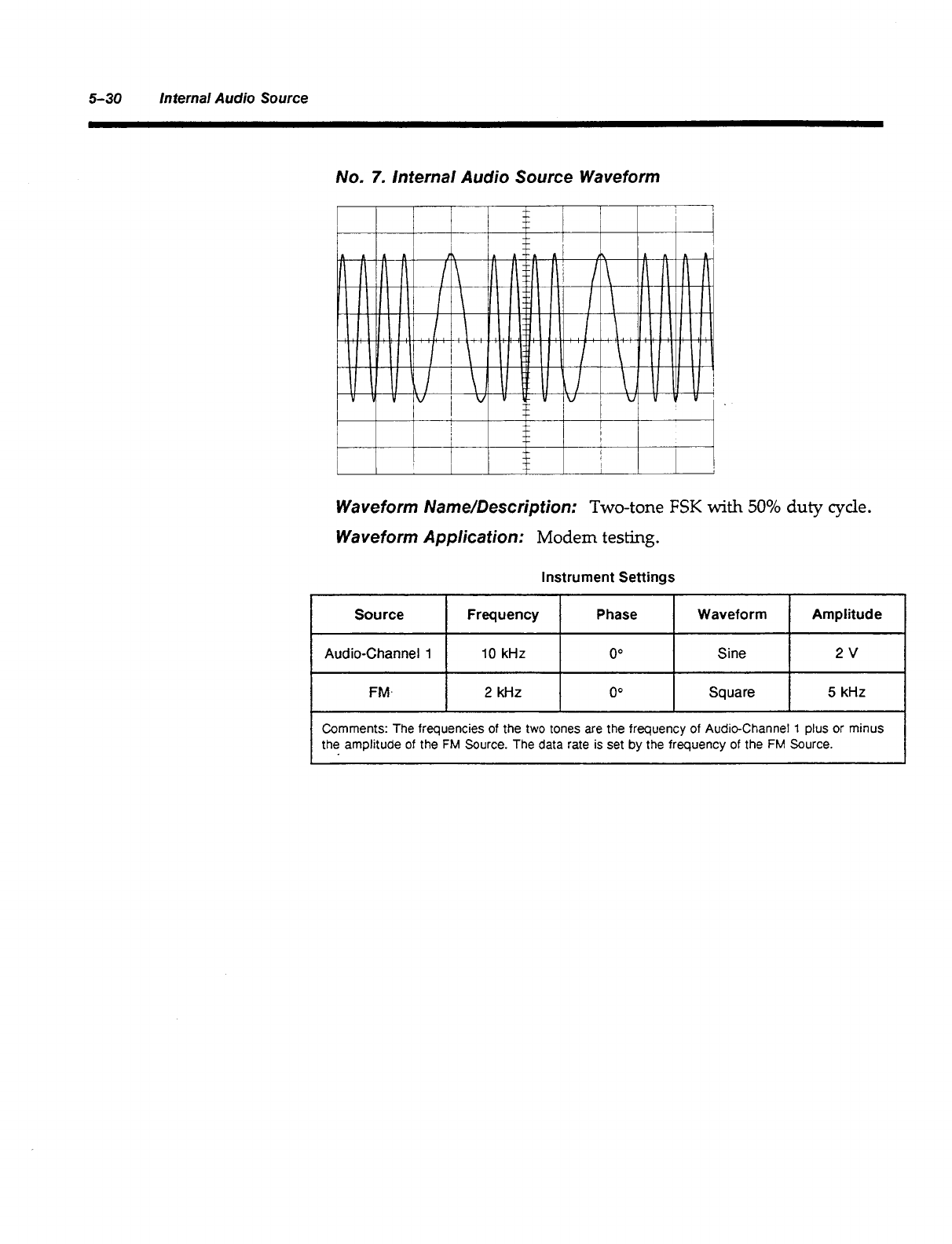

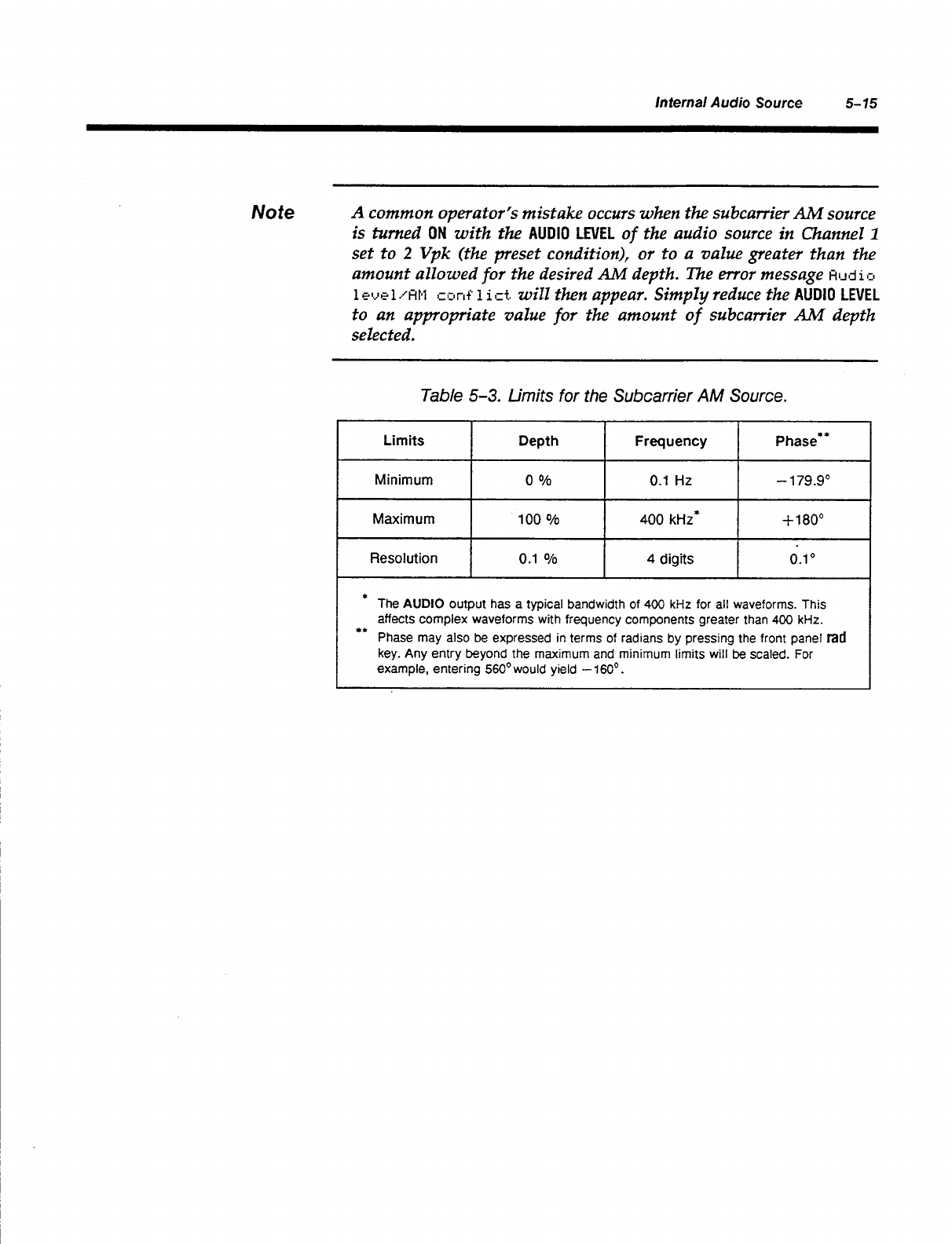

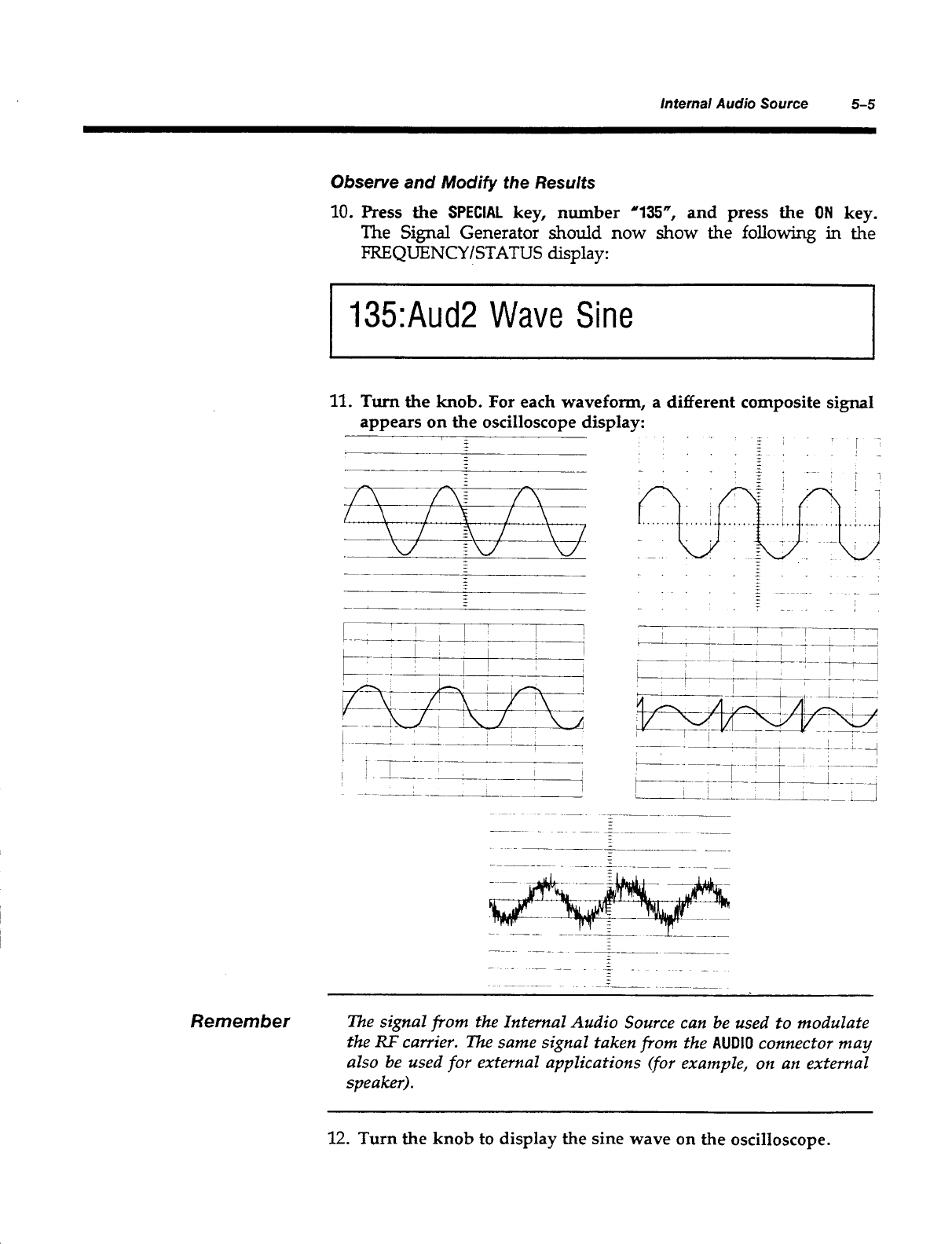

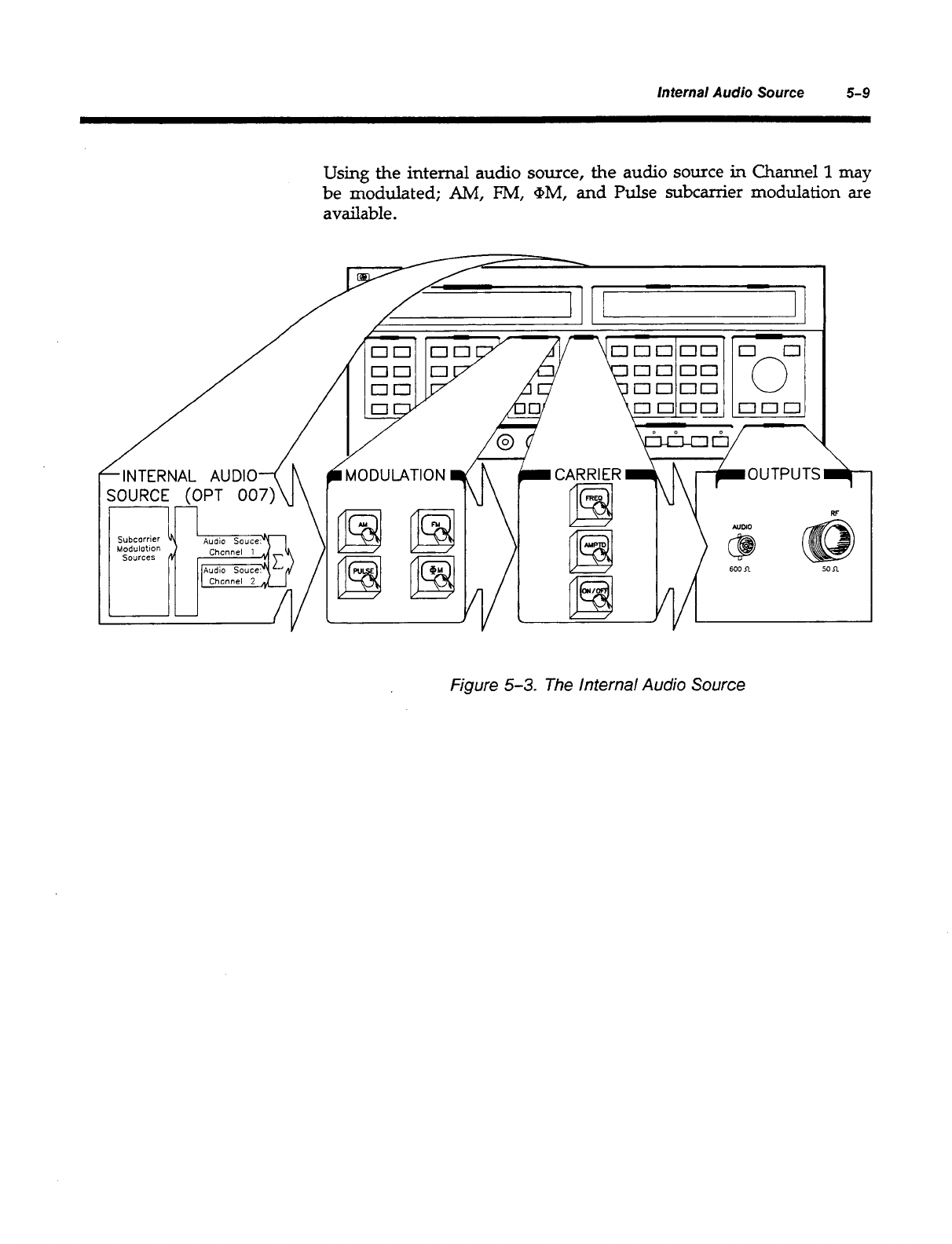

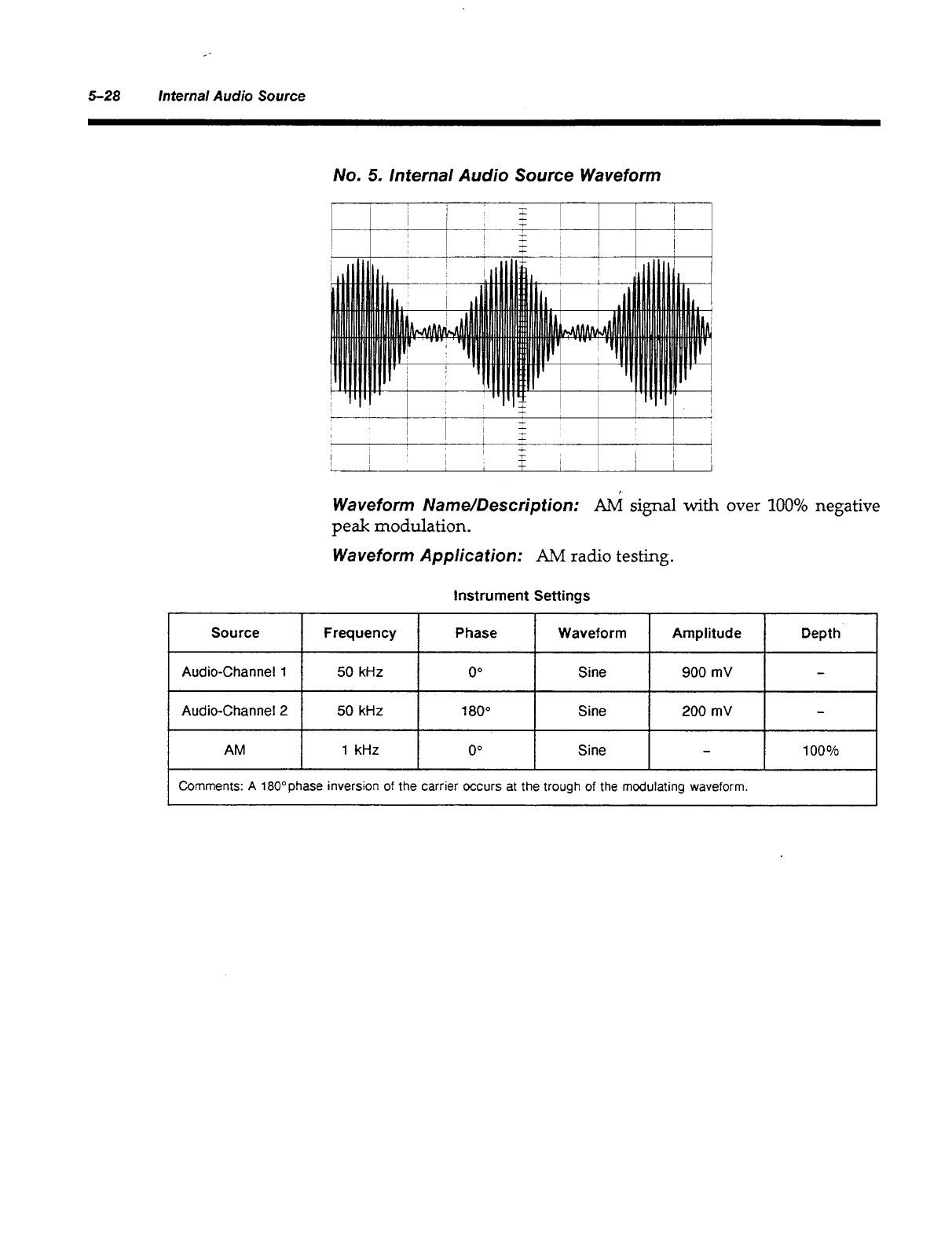

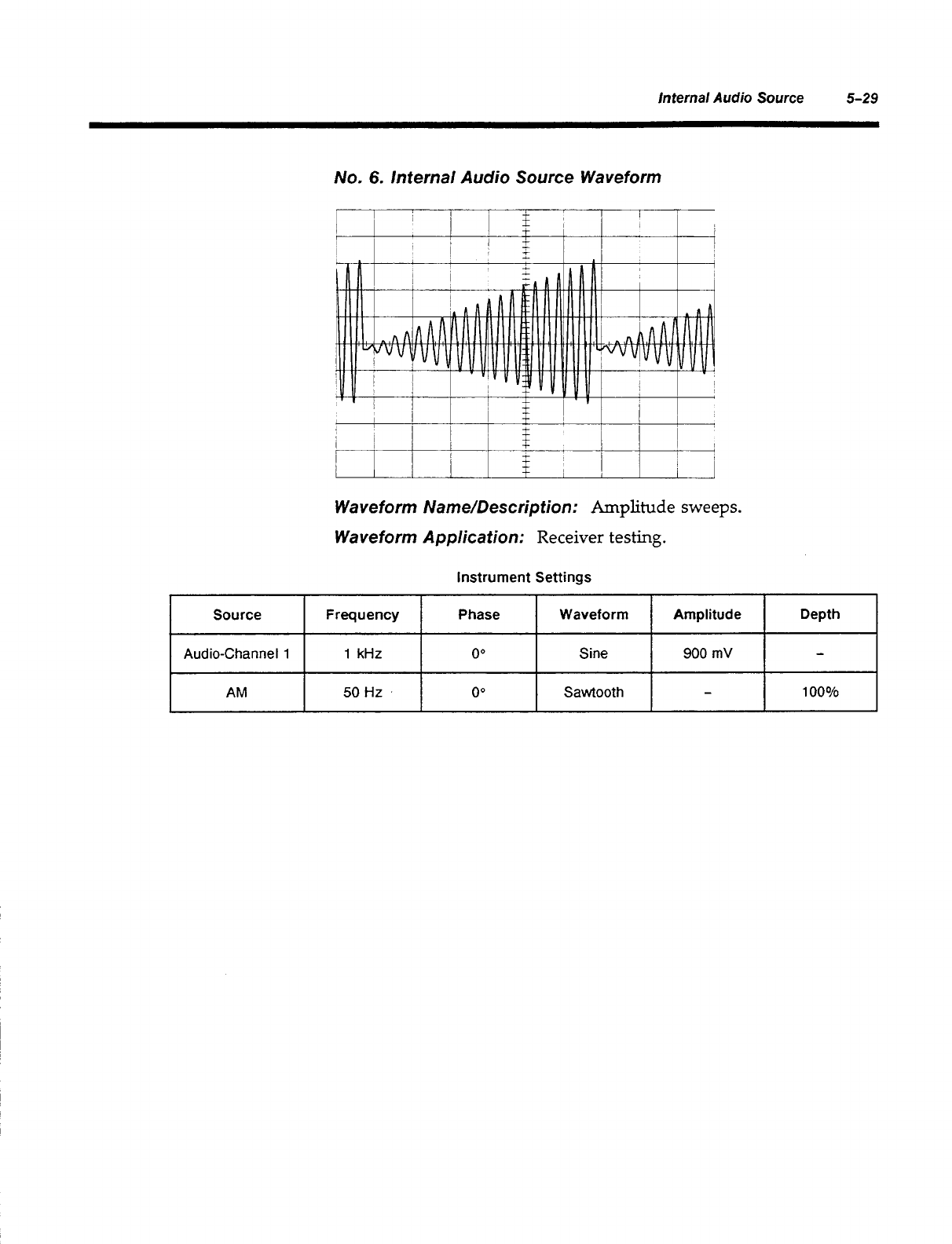

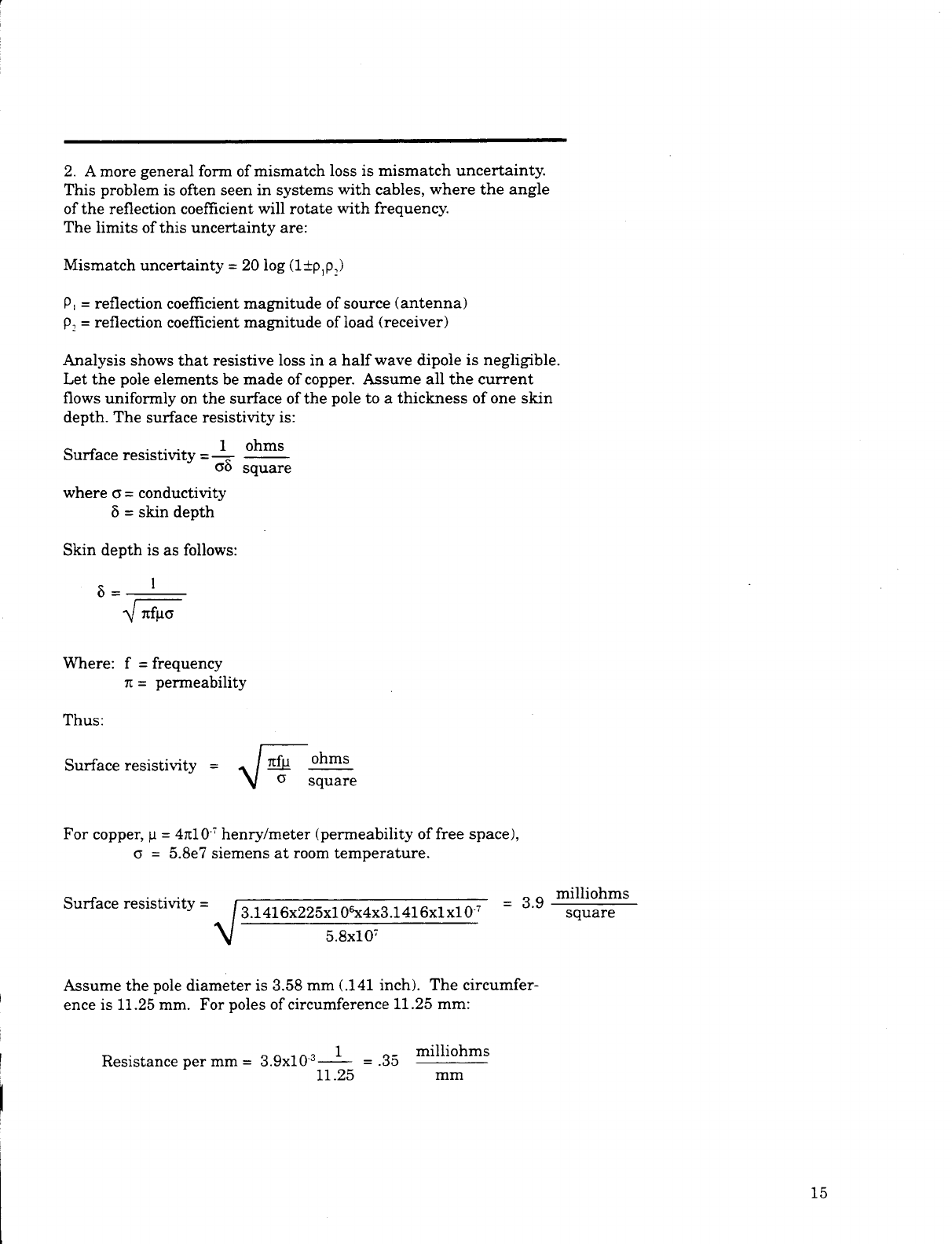

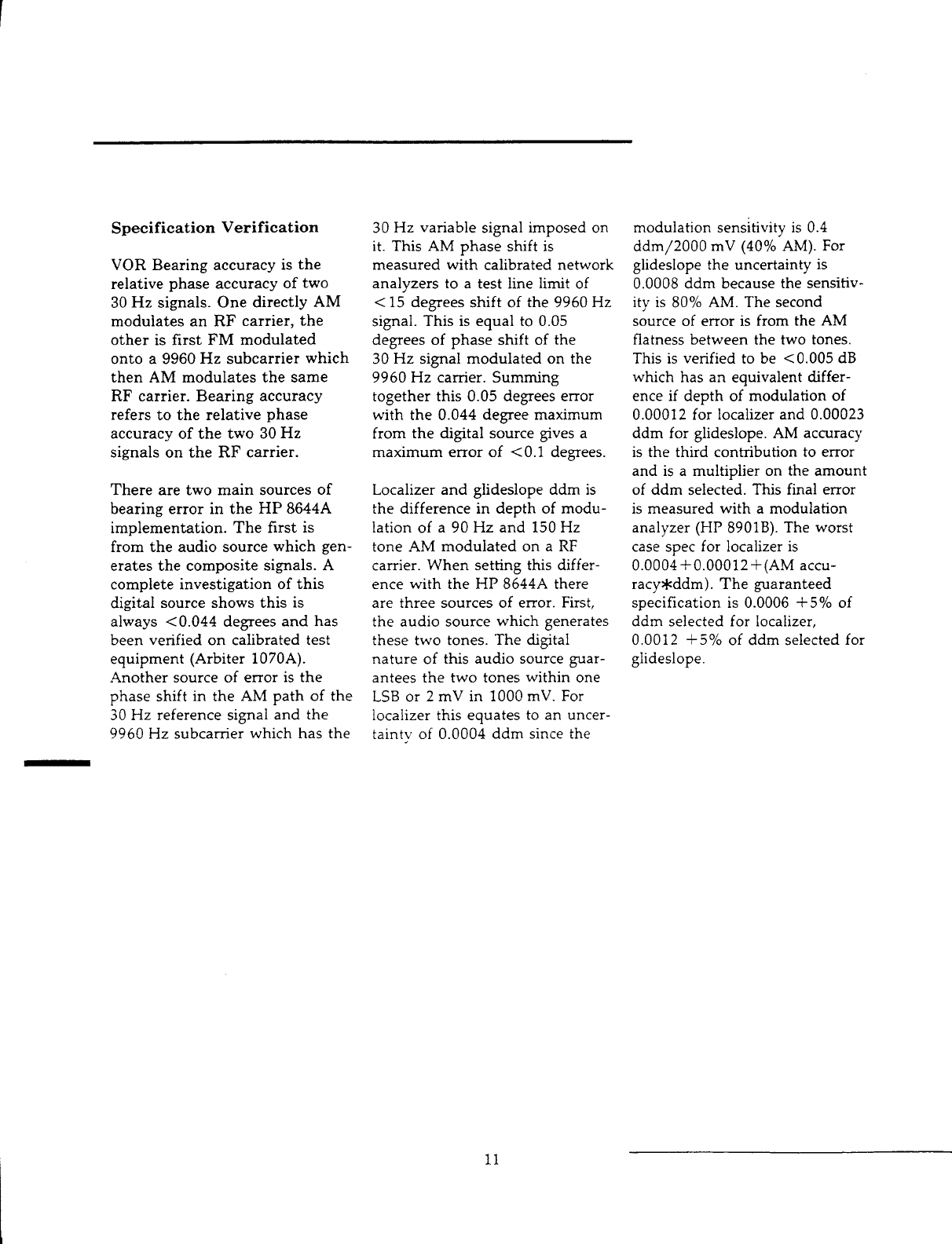

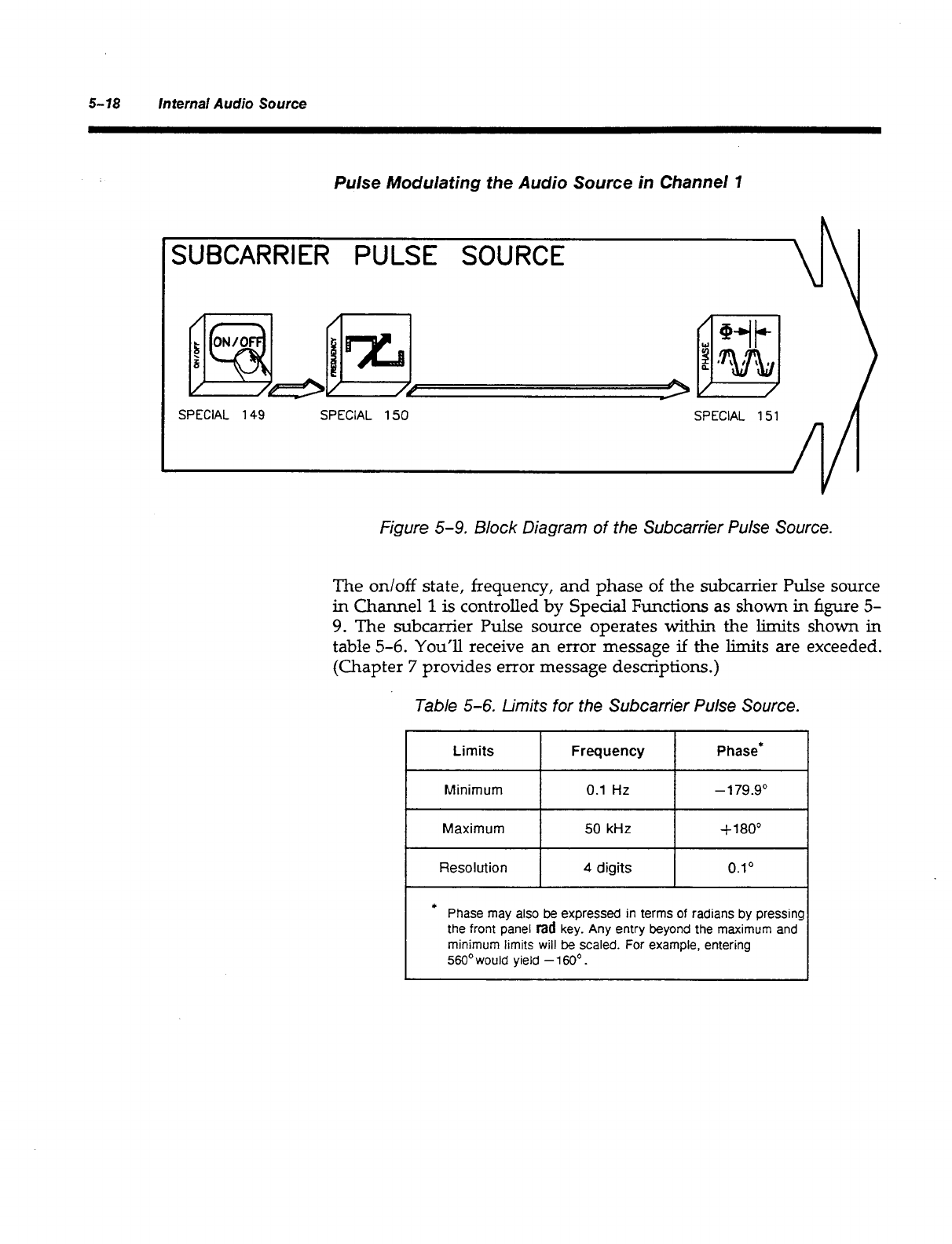

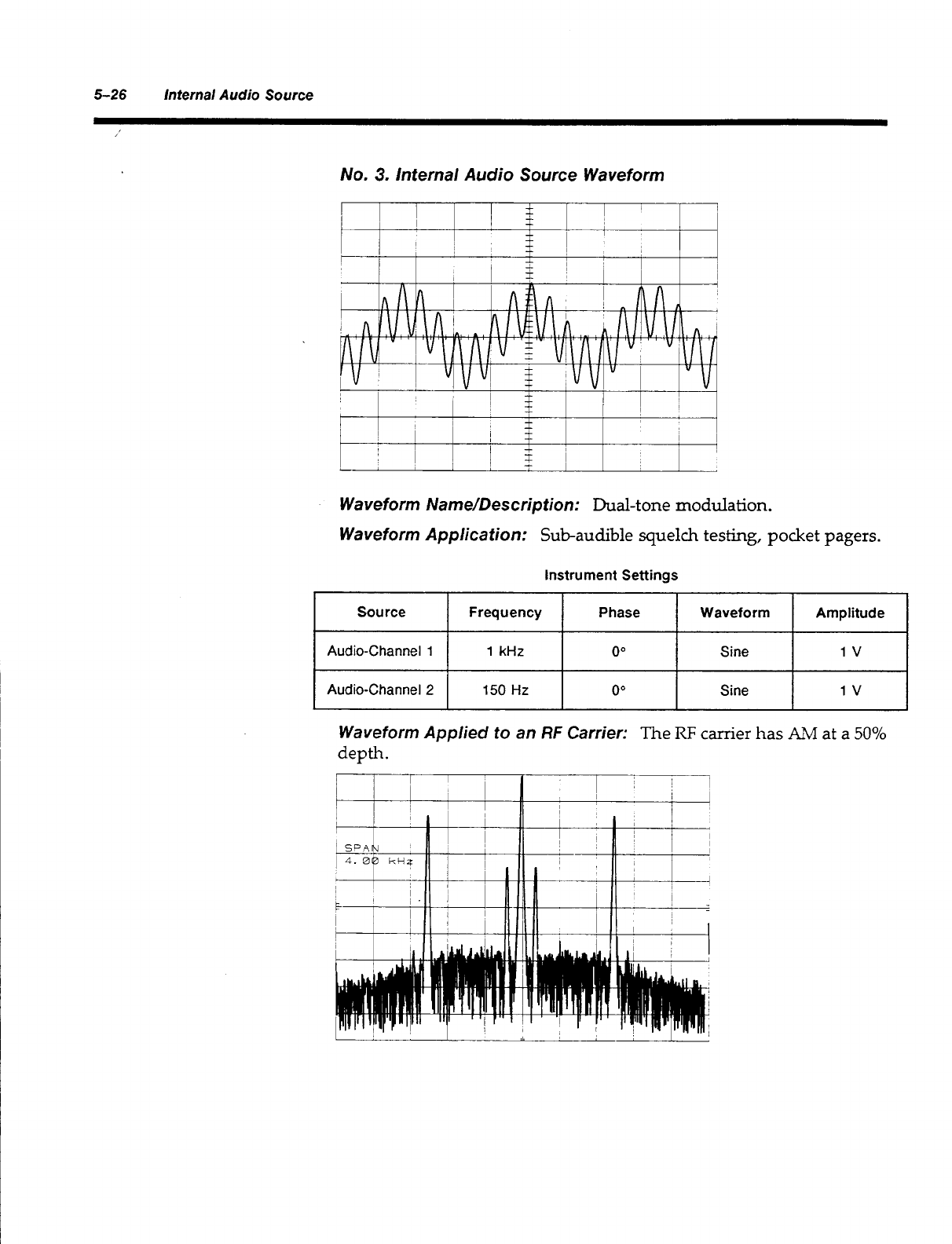

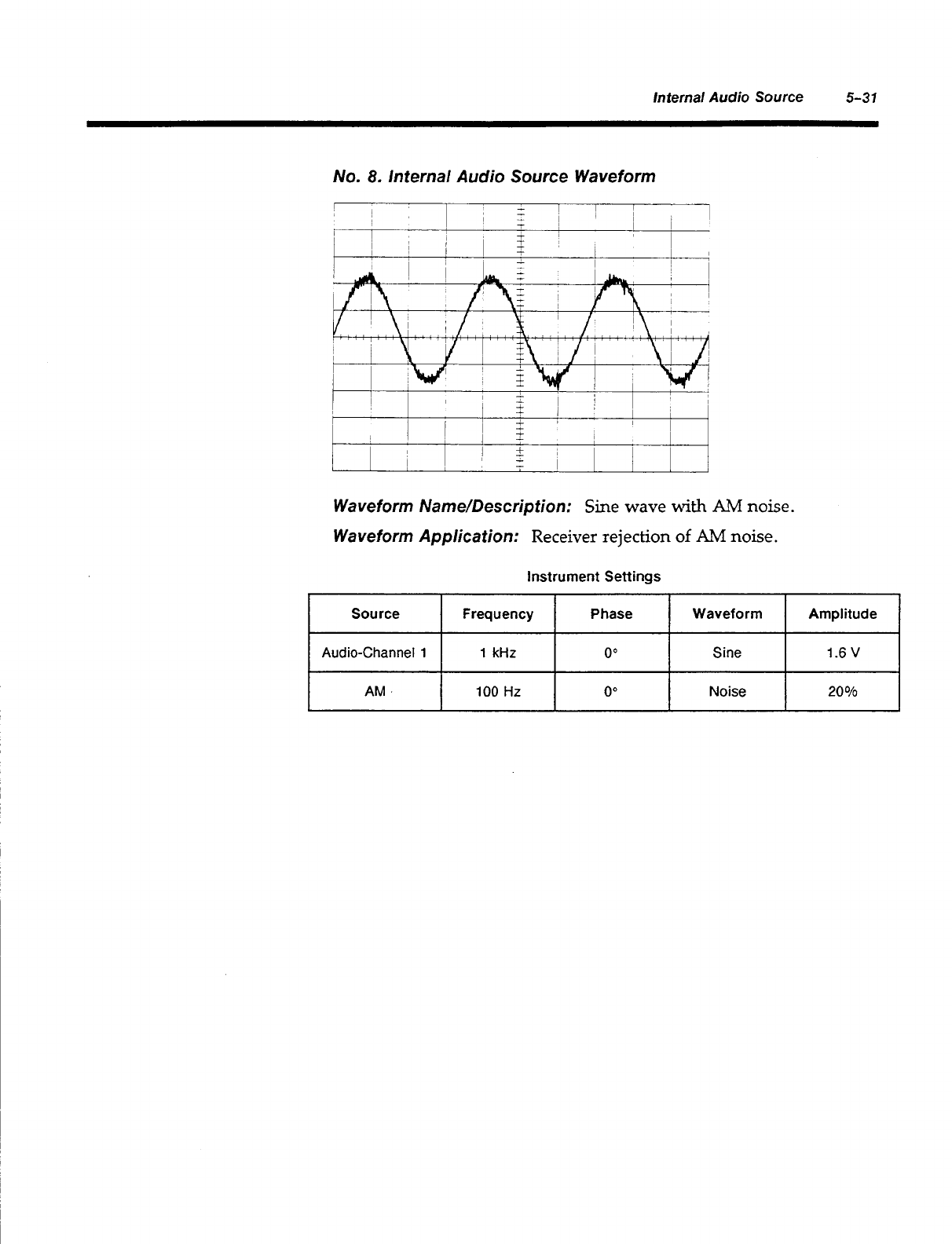

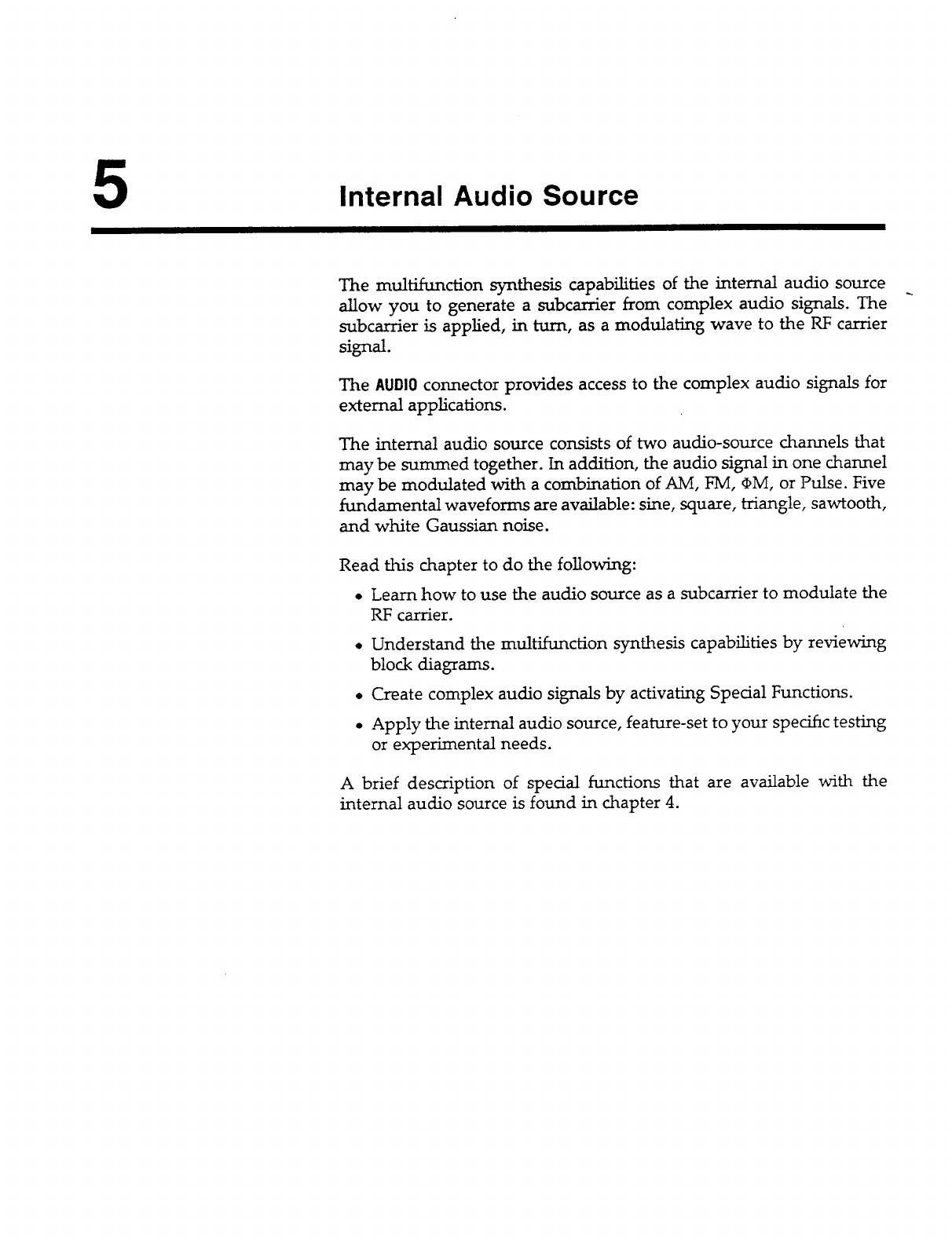

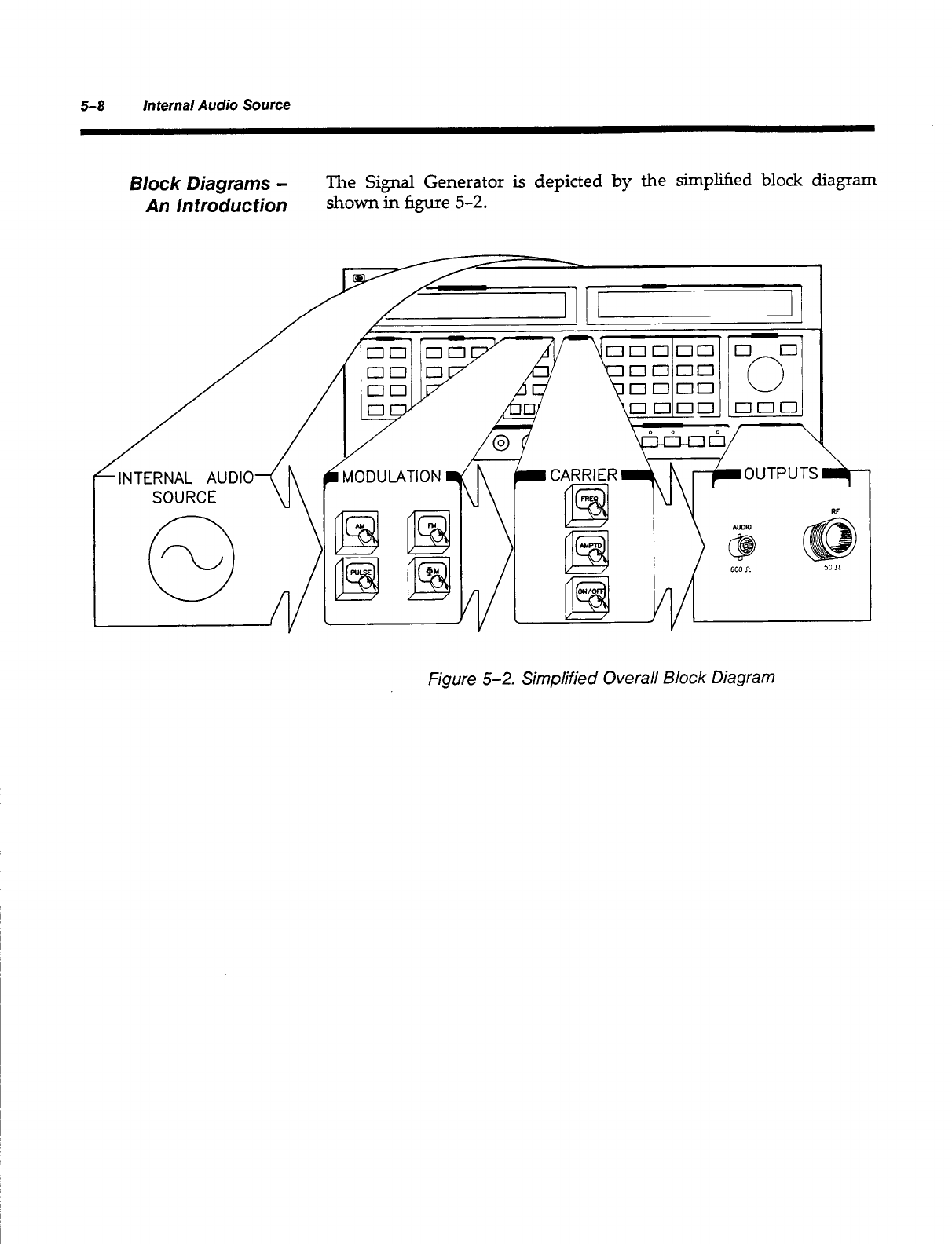

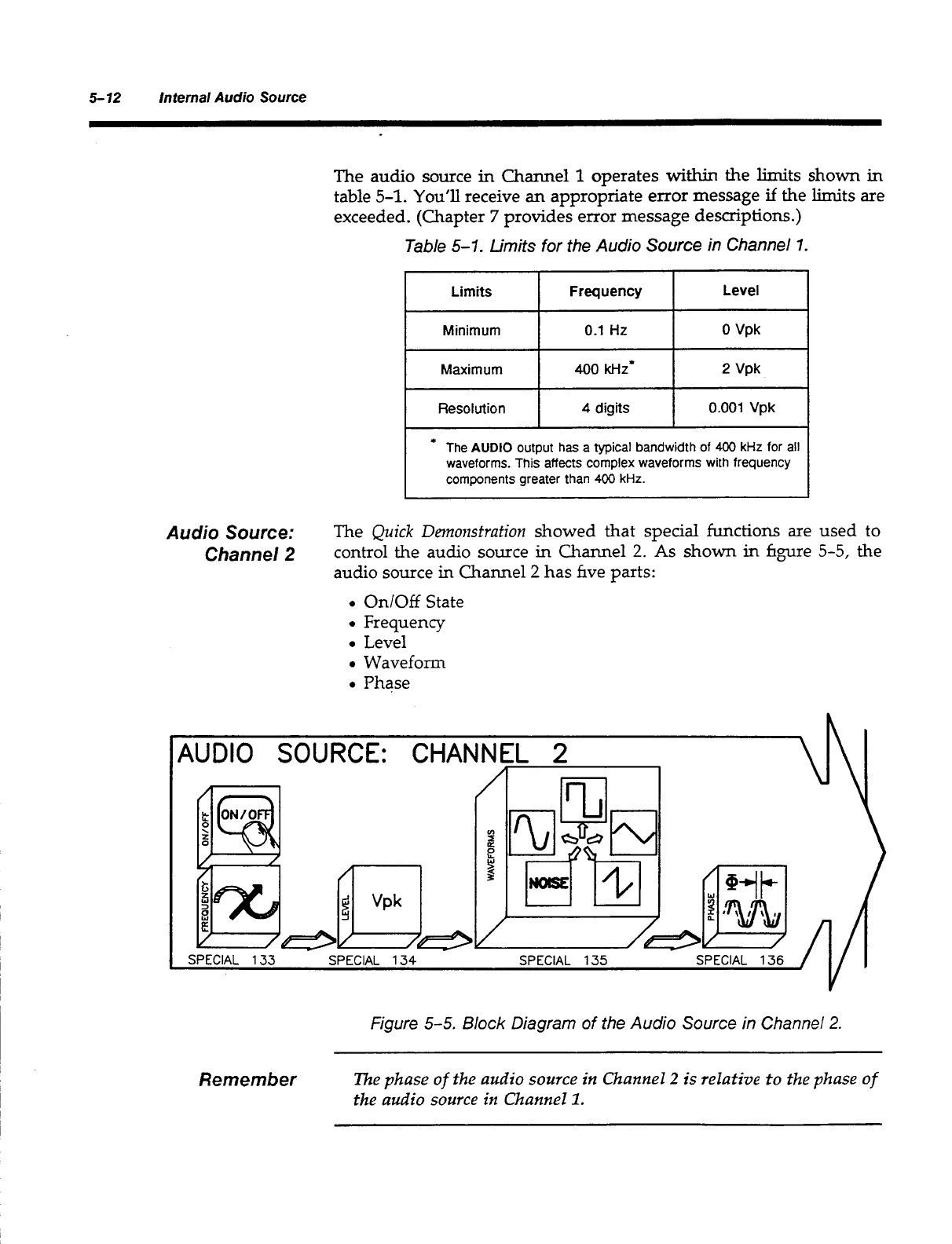

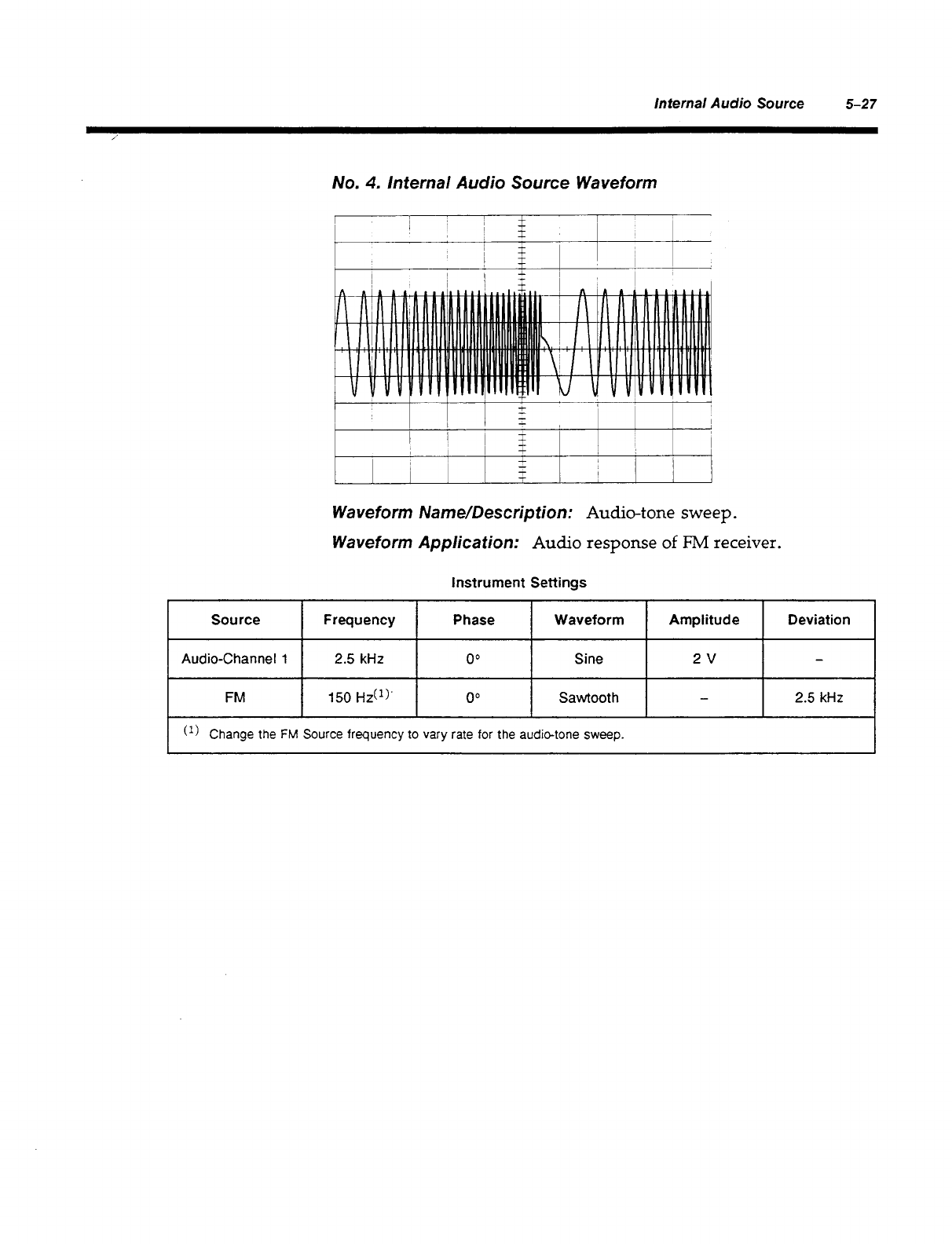

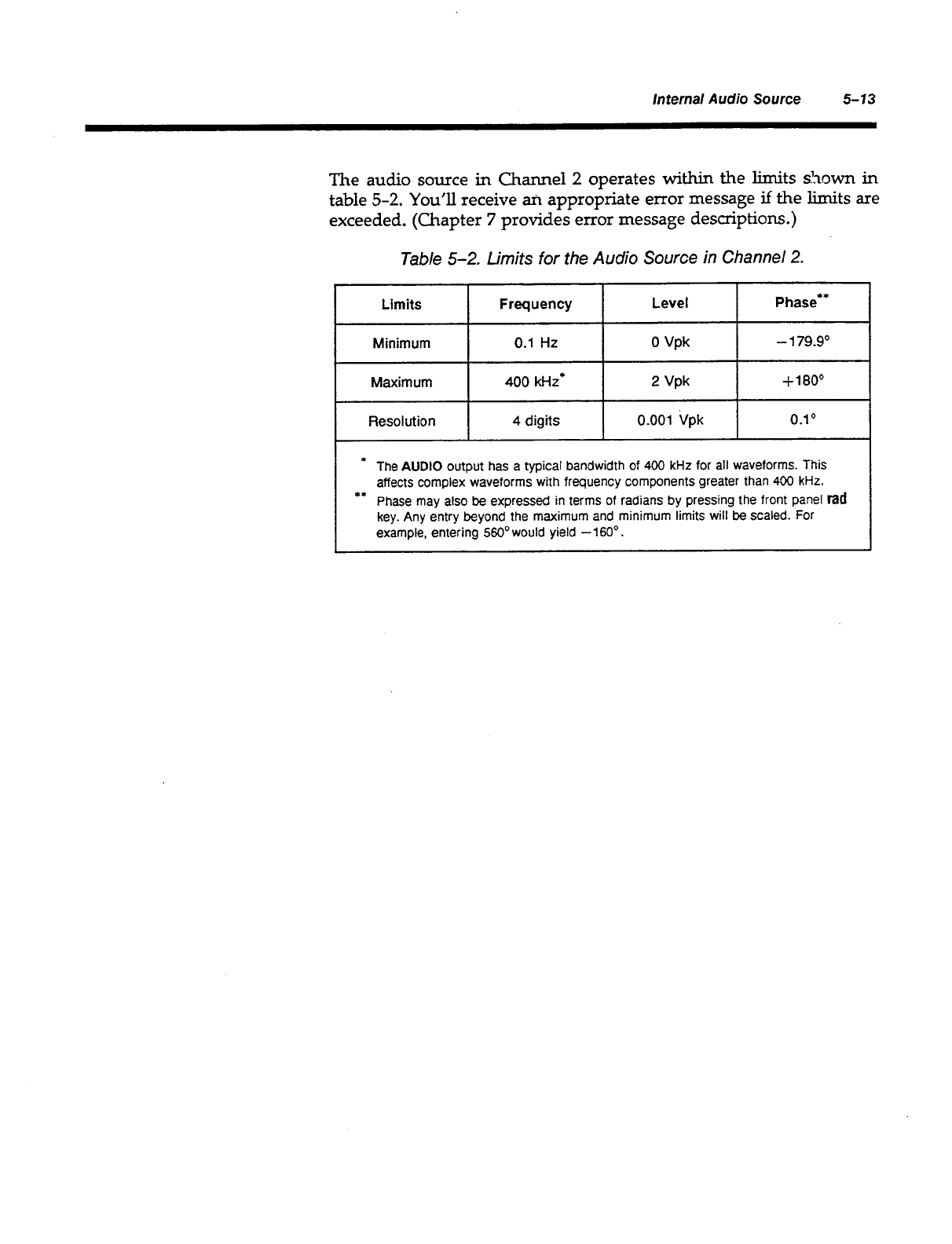

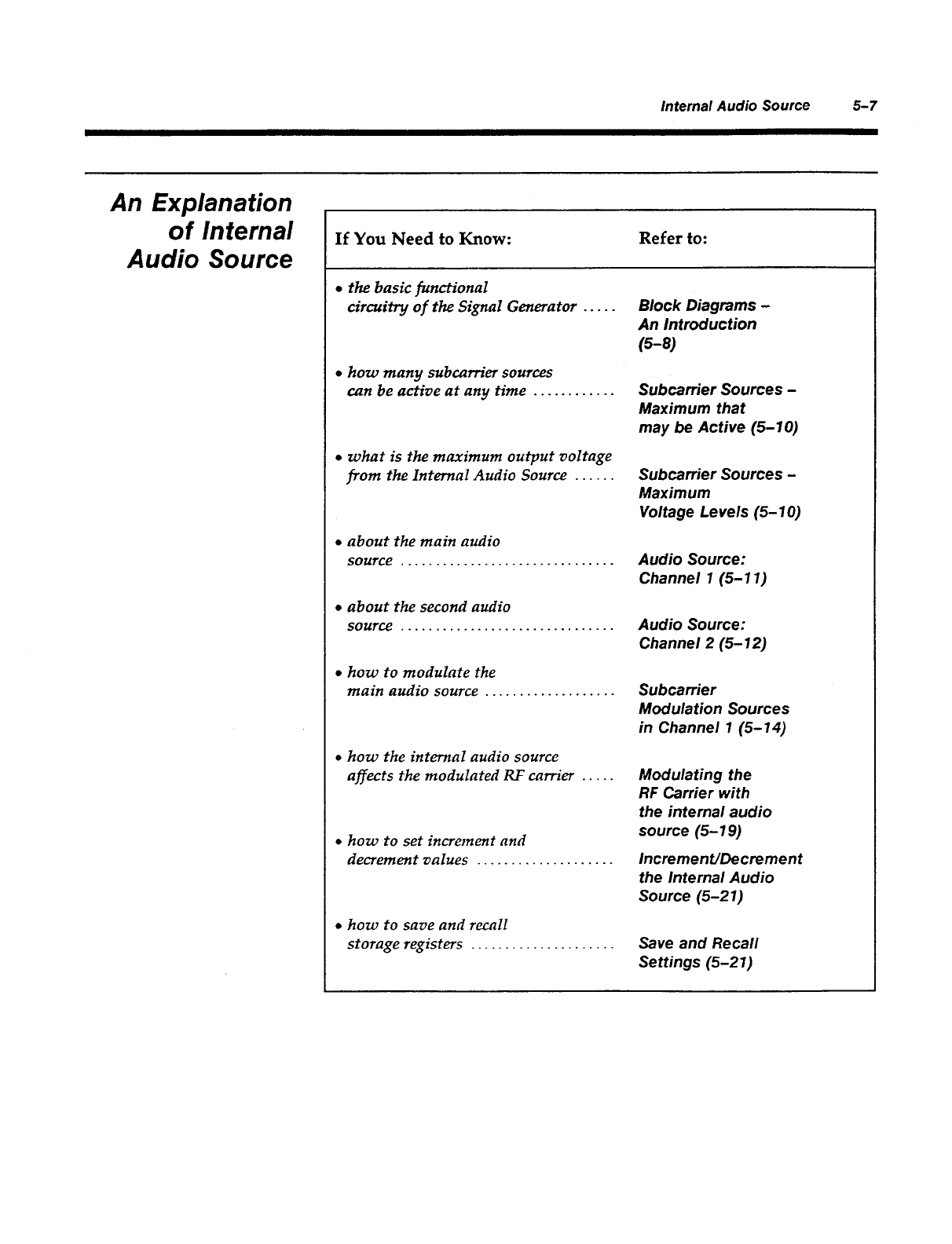

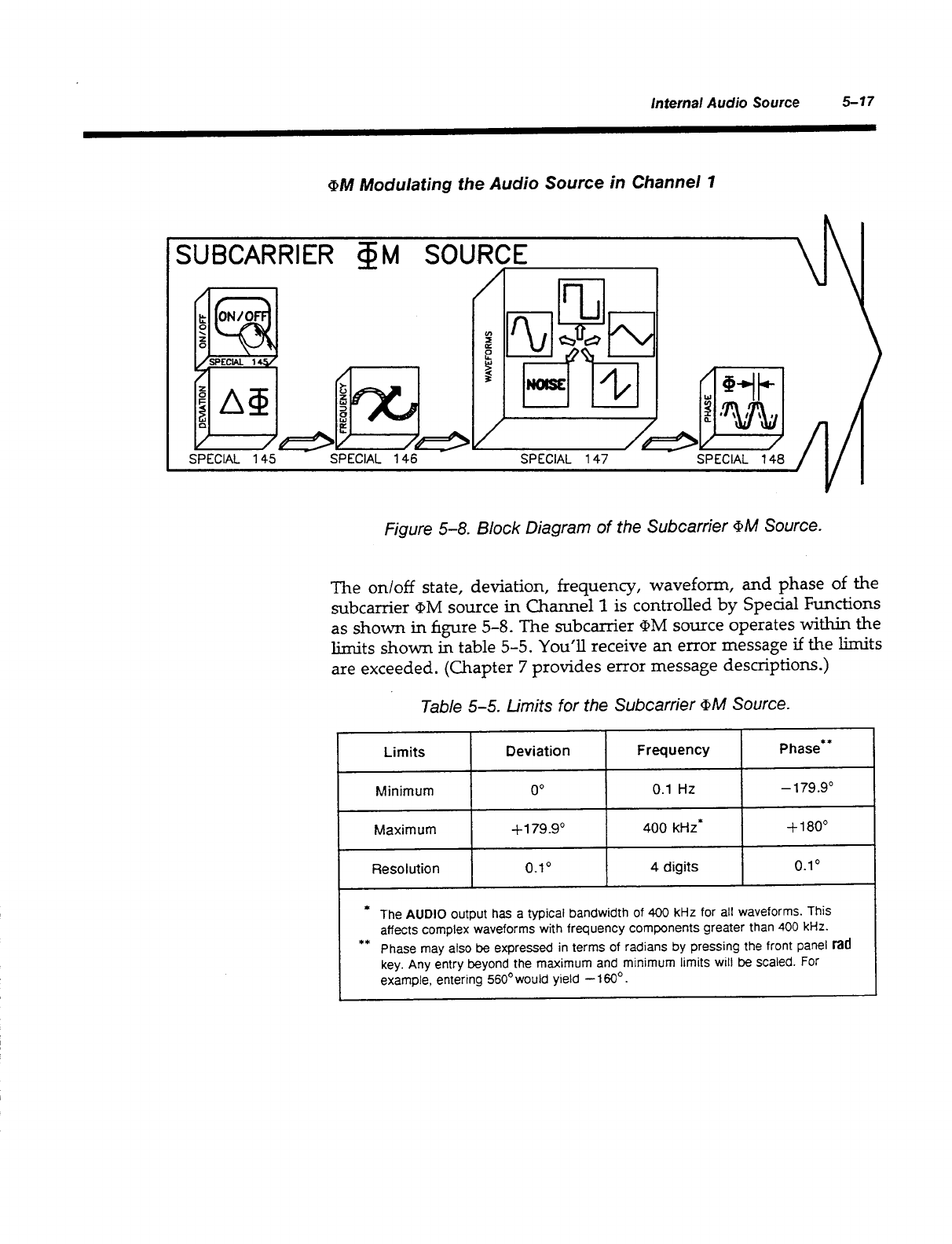

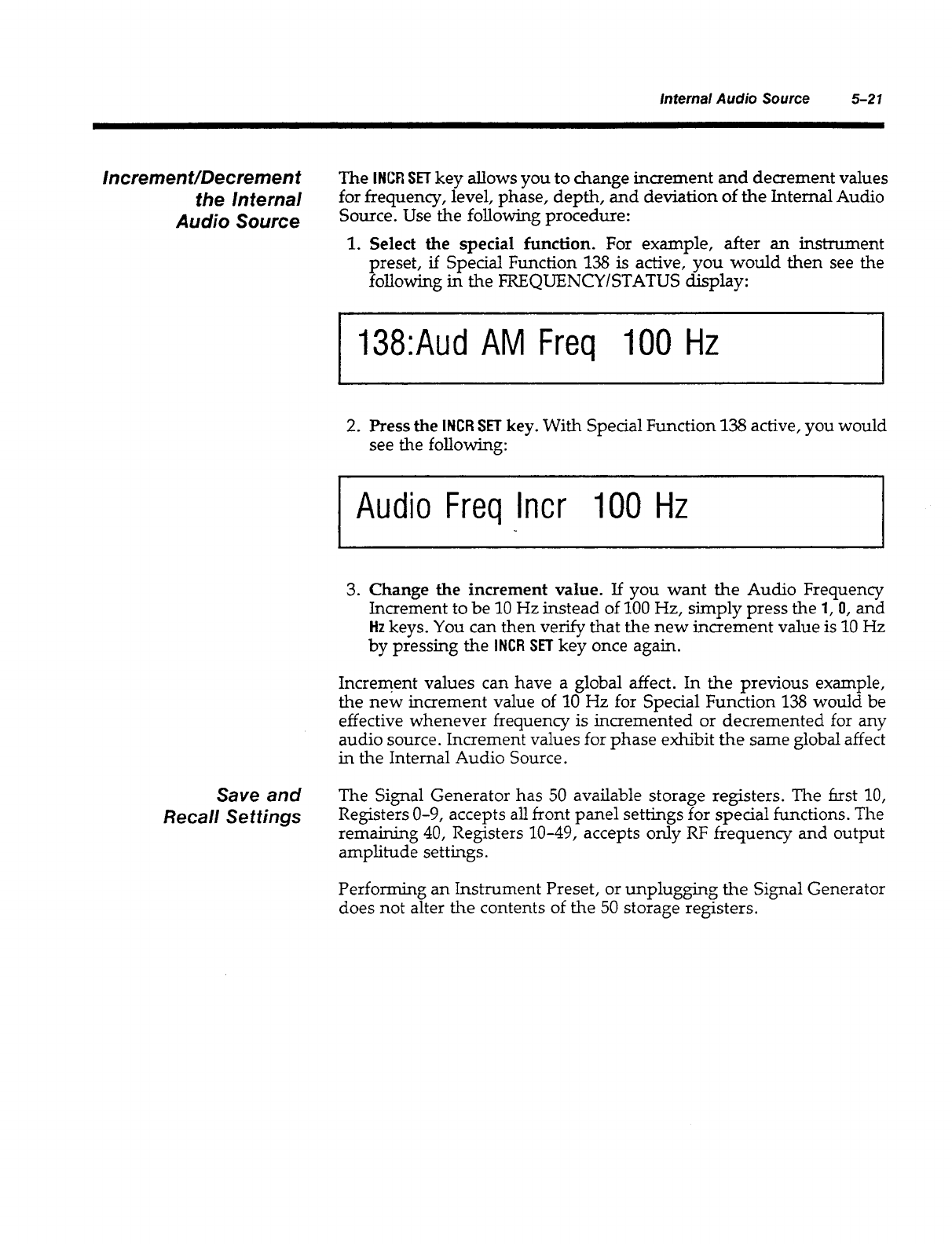

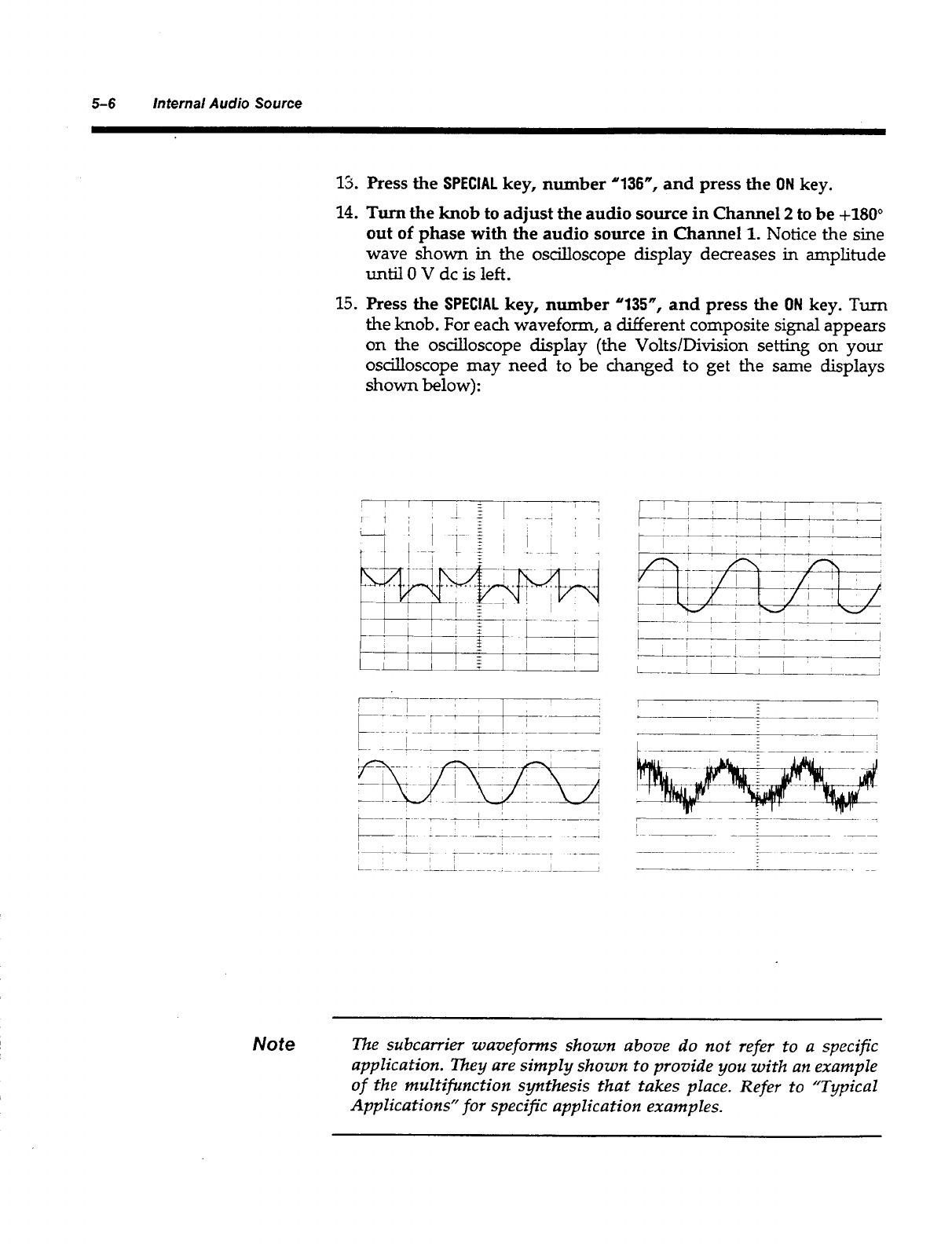

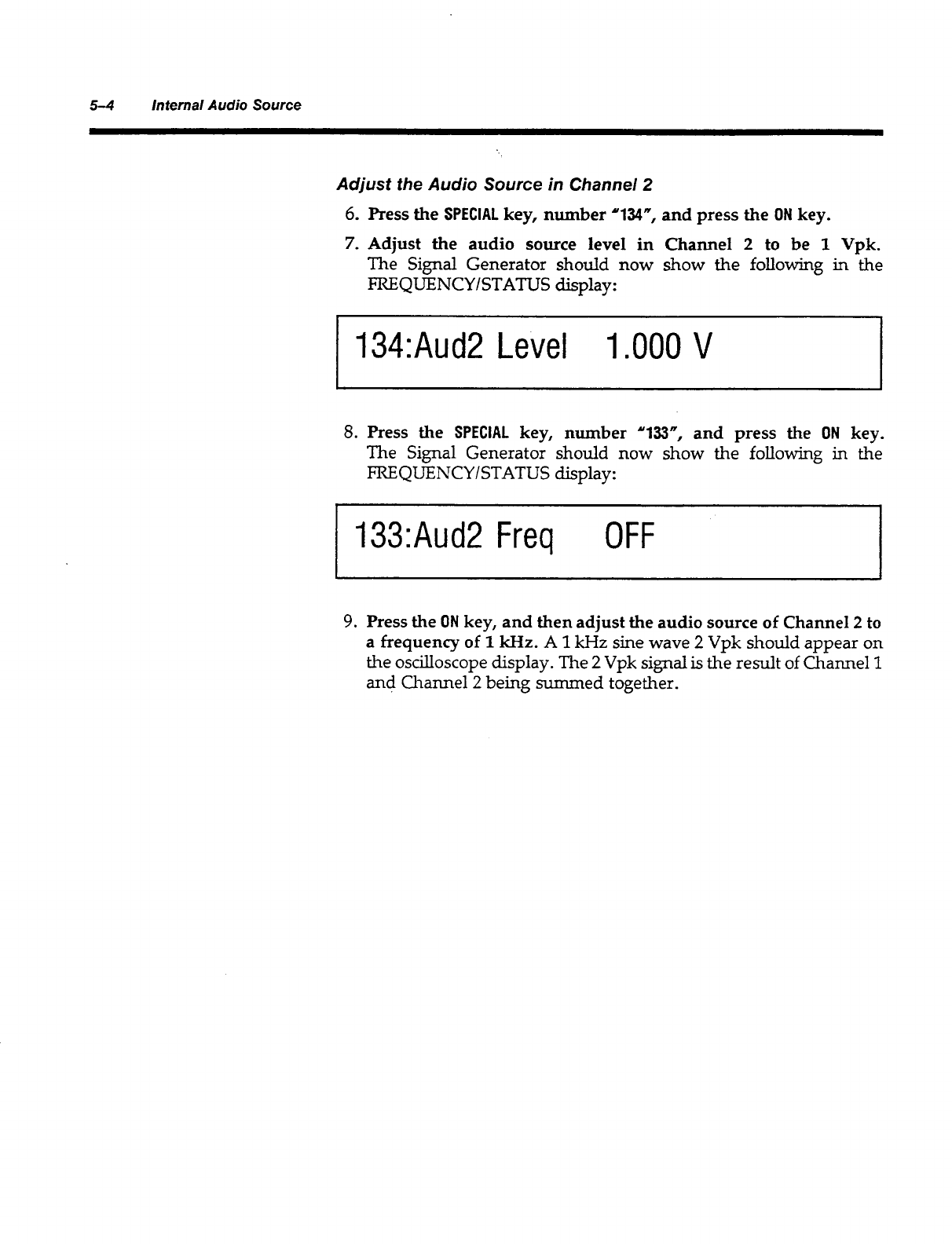

- Chapter 5-Internal Audio Source

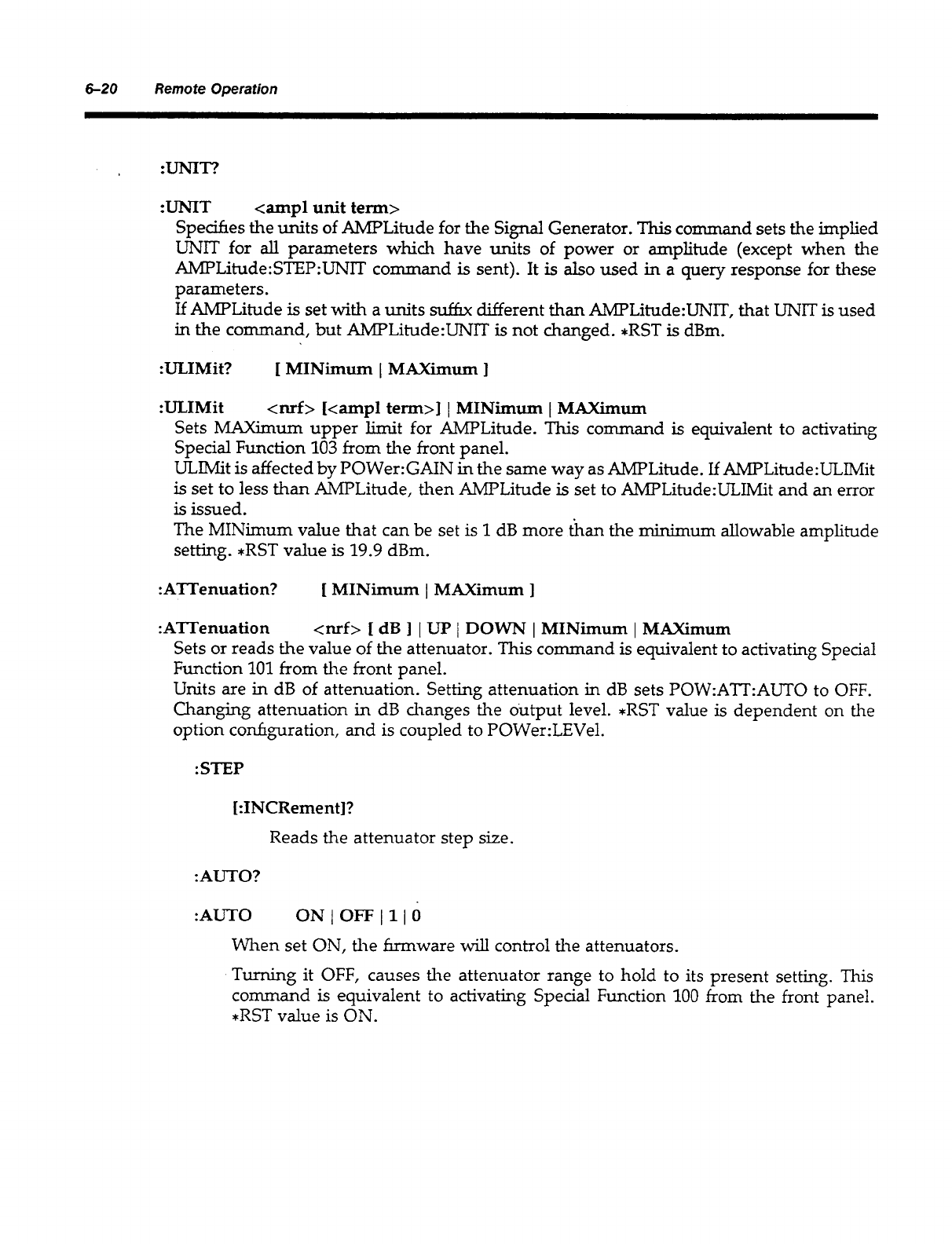

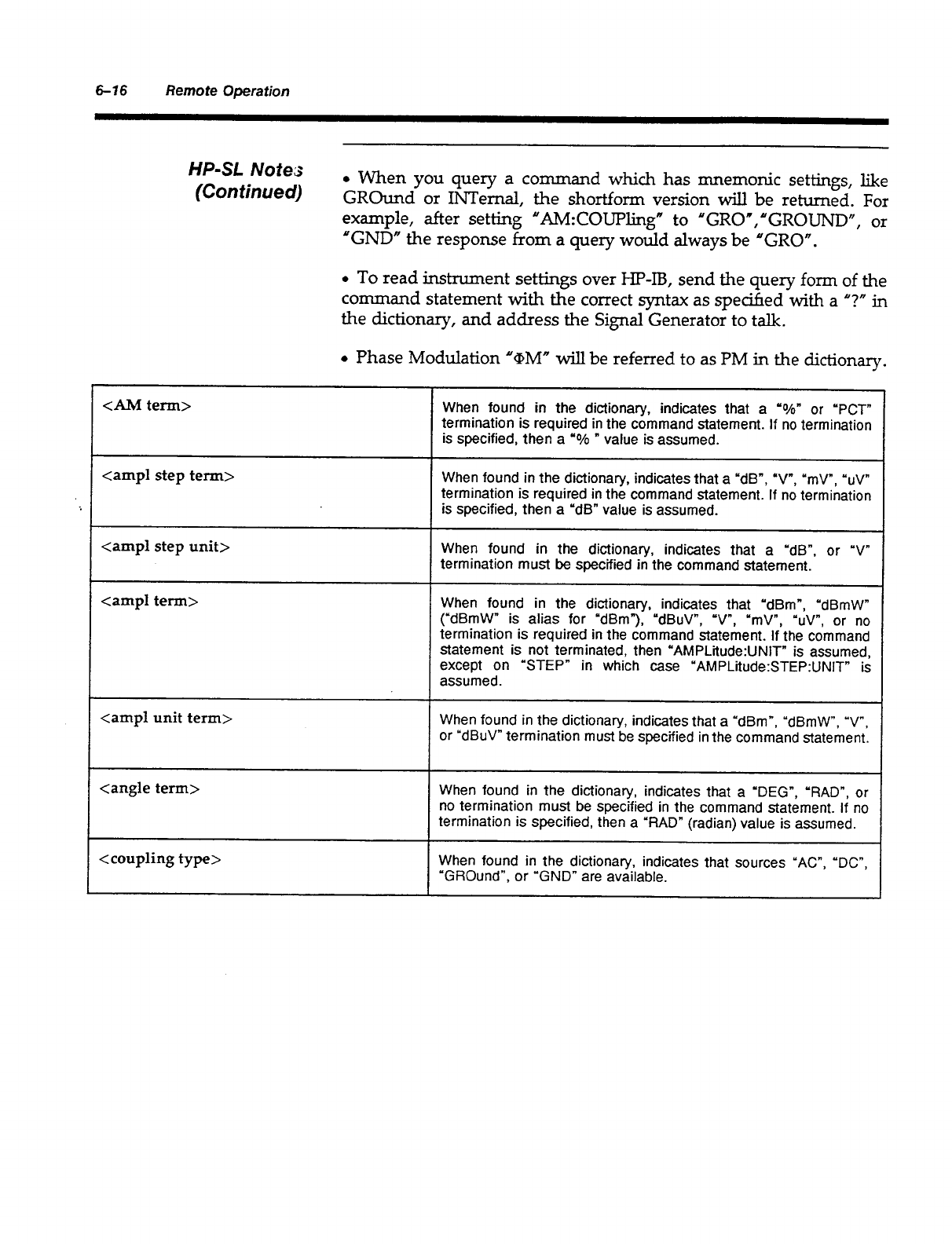

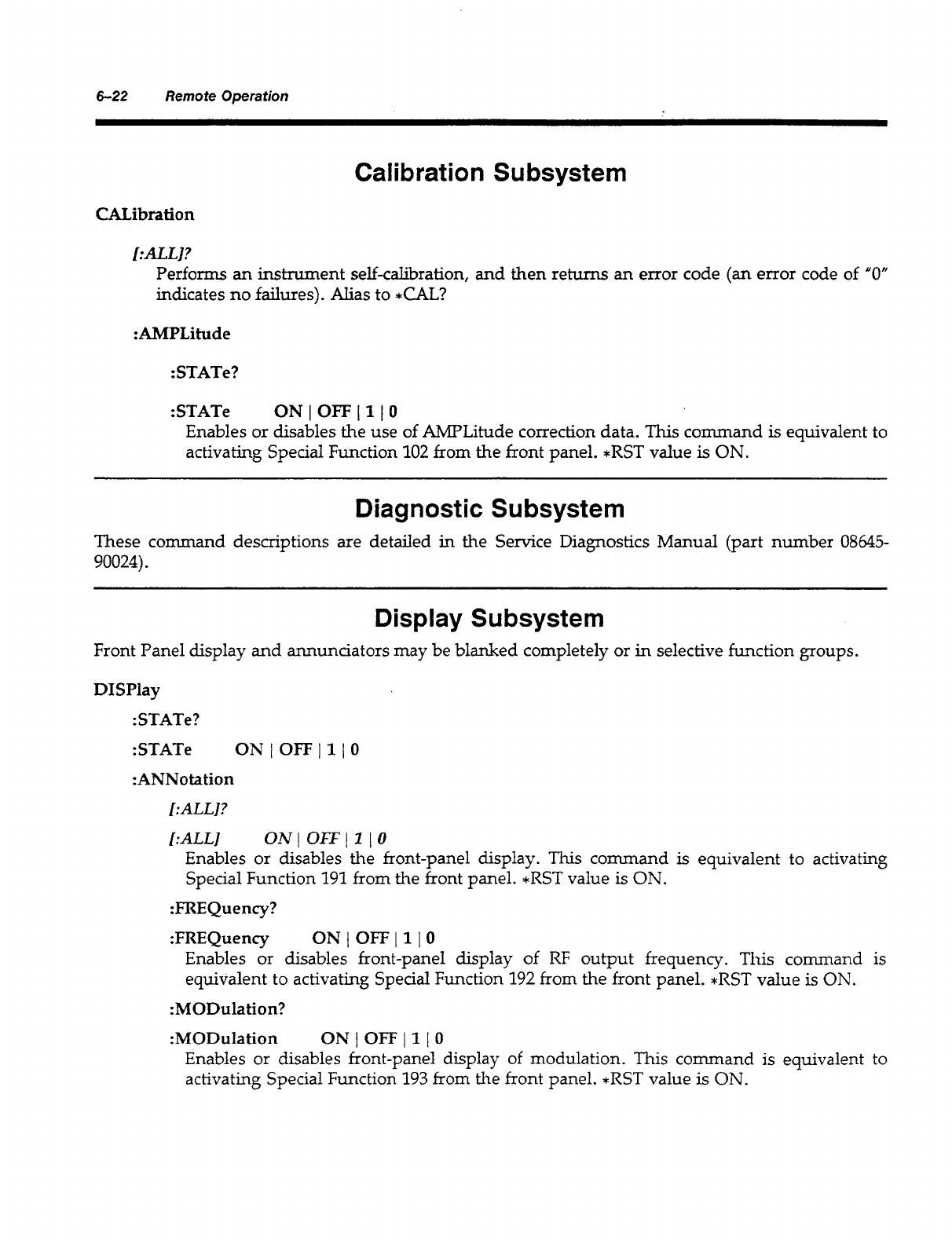

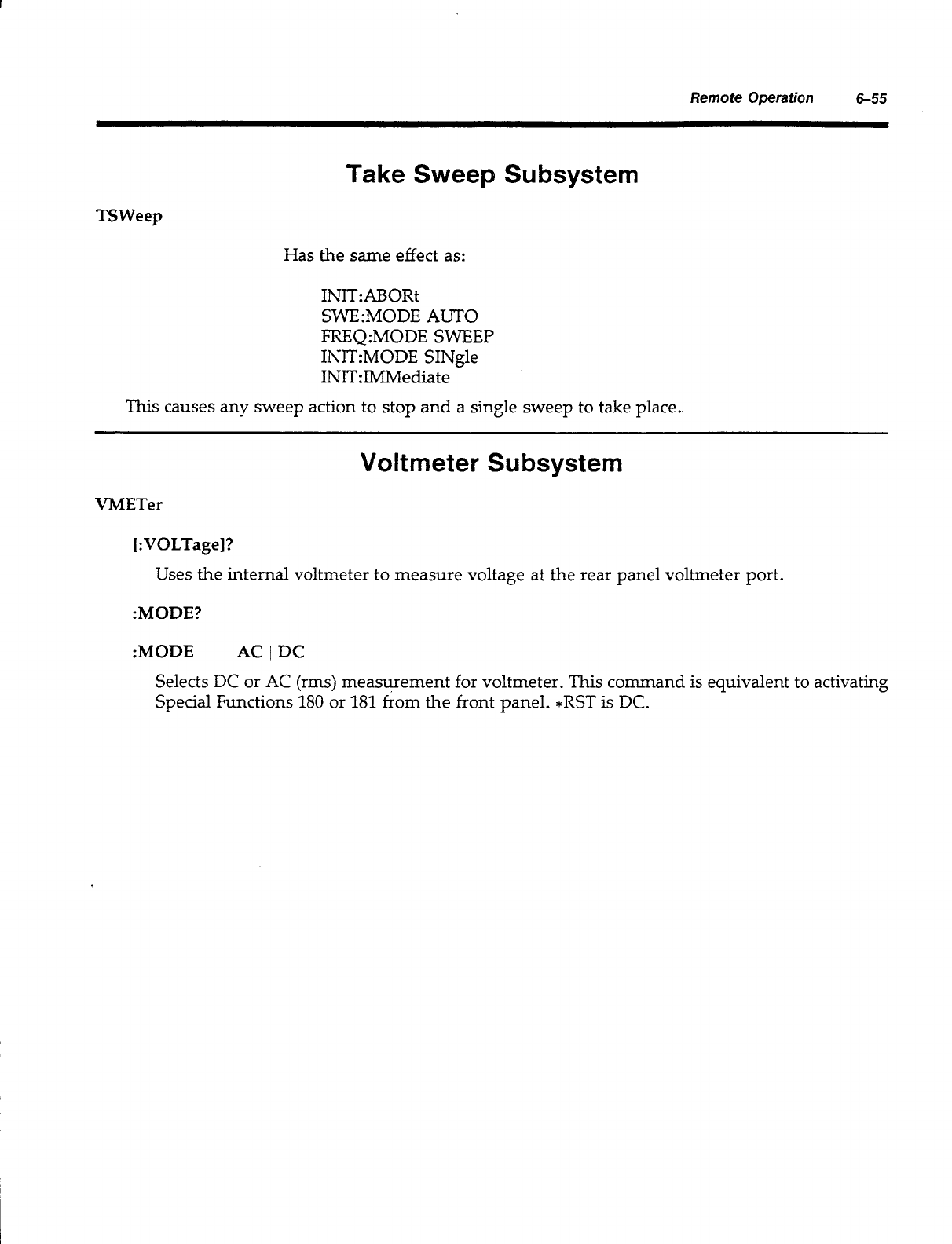

- Chapter 6-Remote Operation

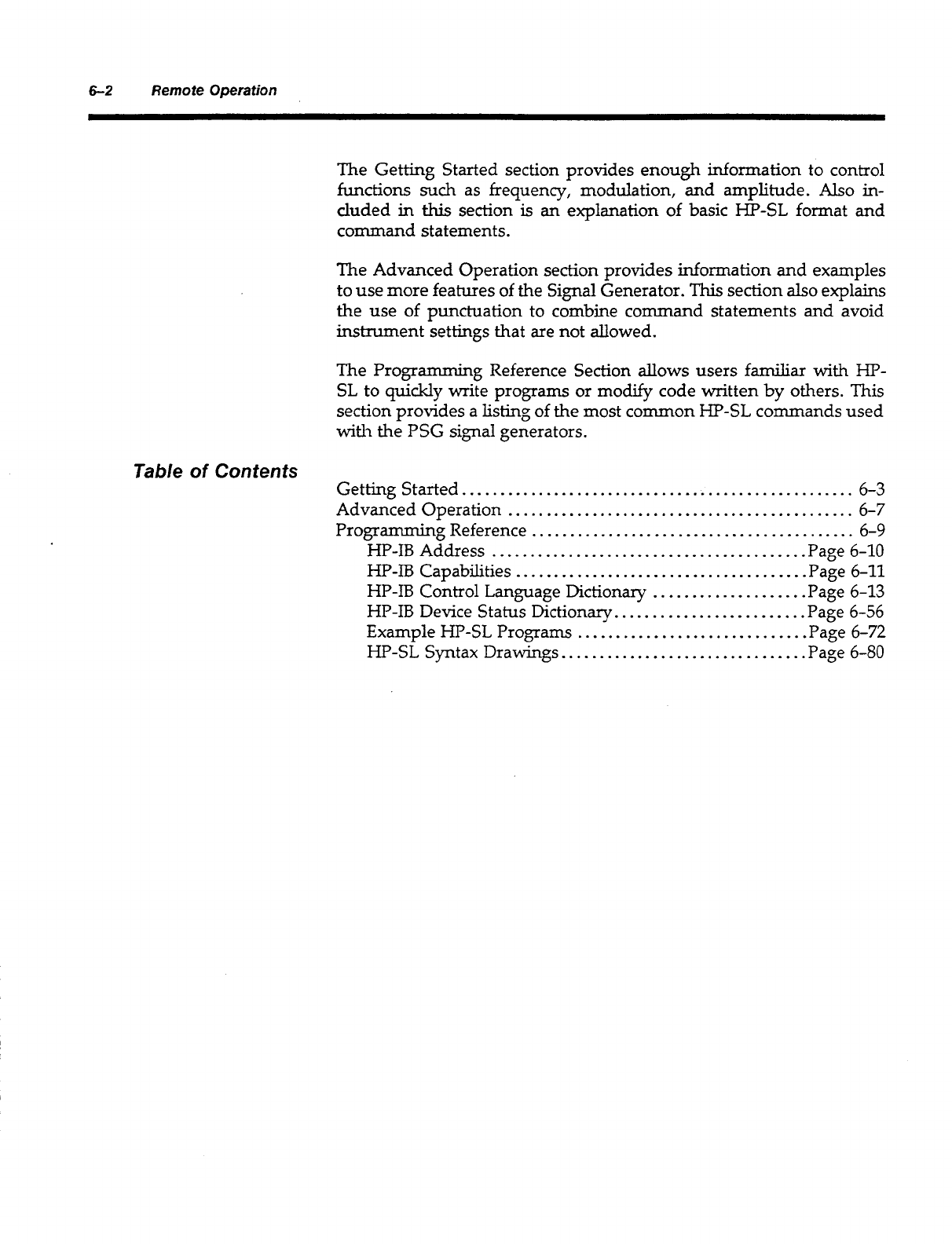

- Table of Contents

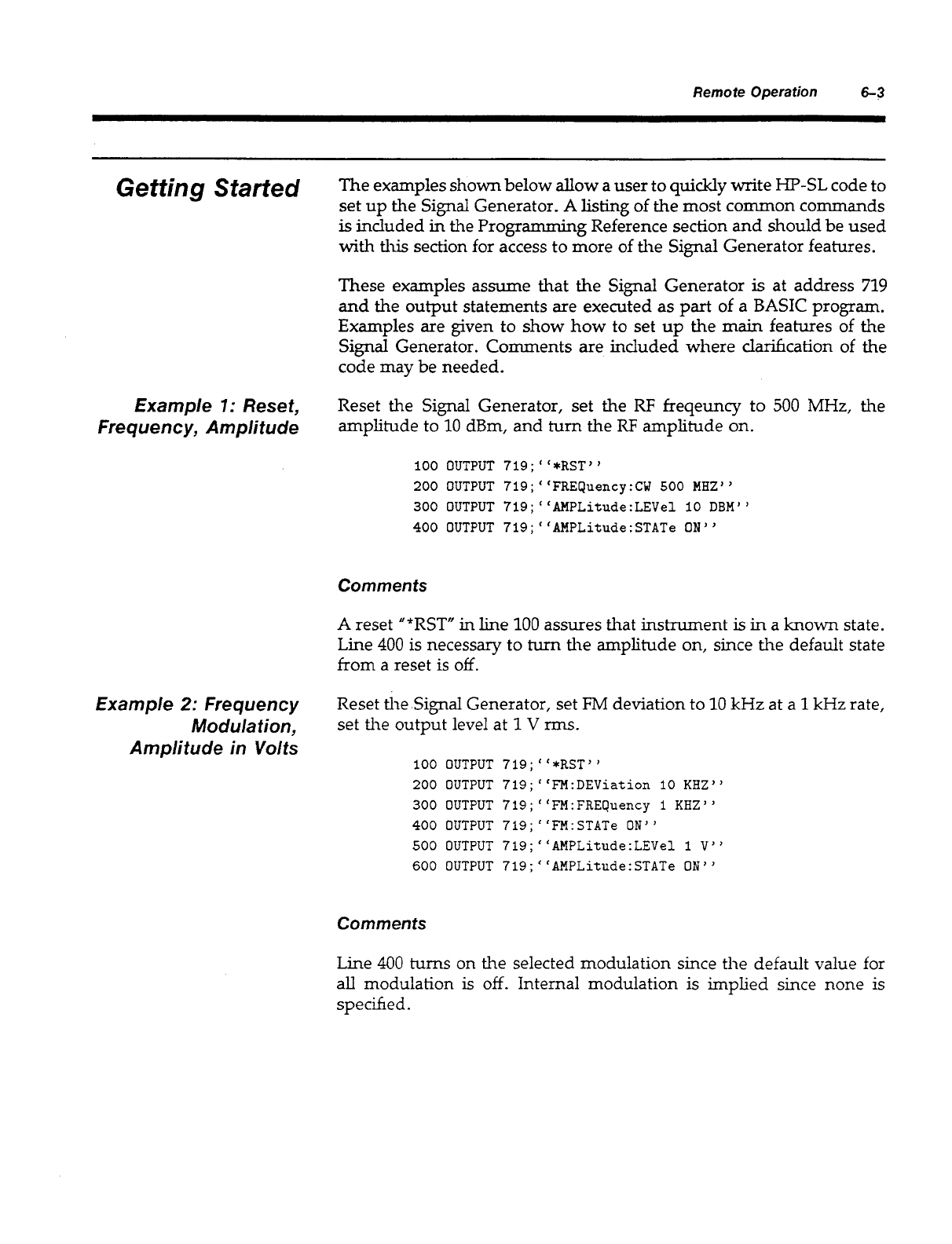

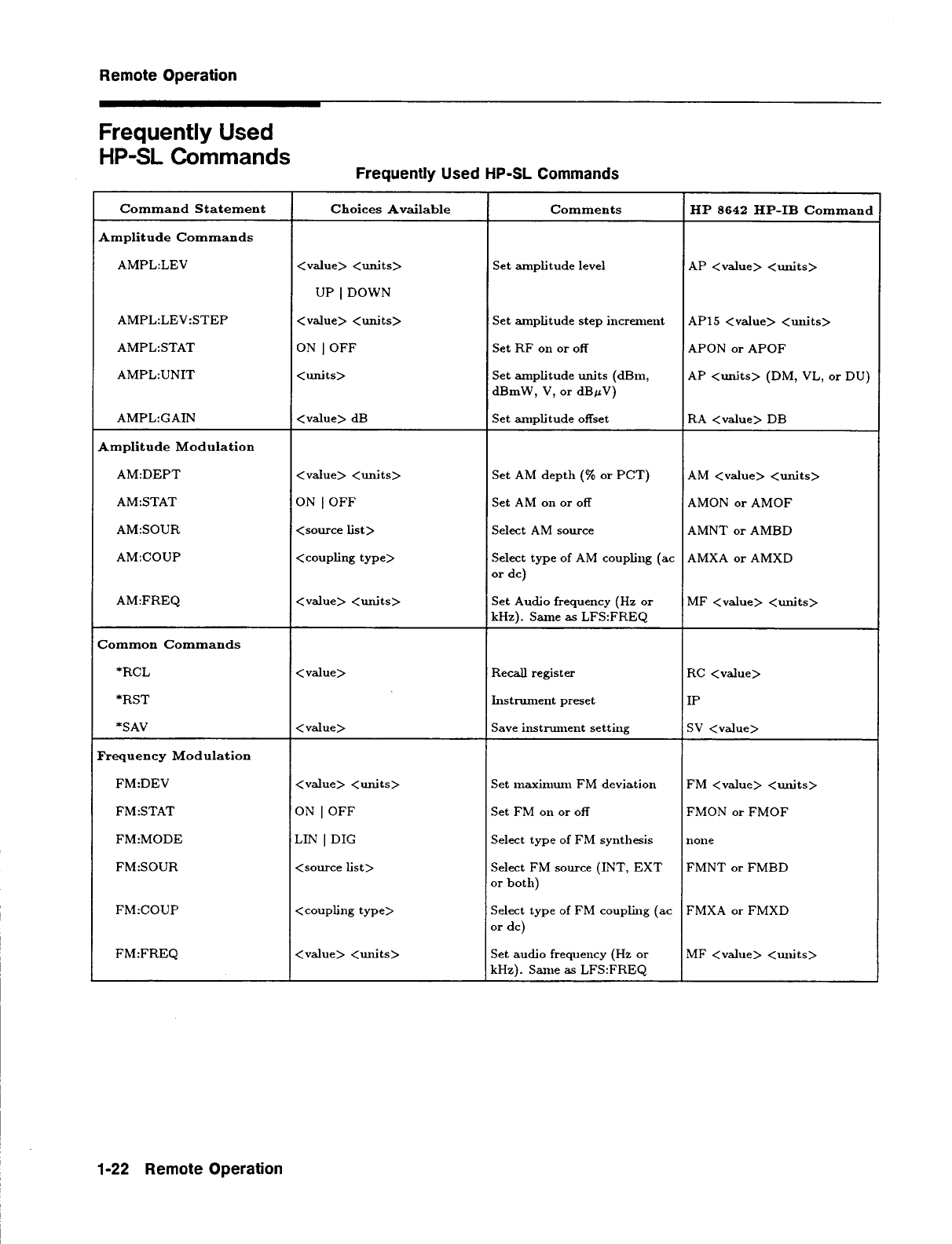

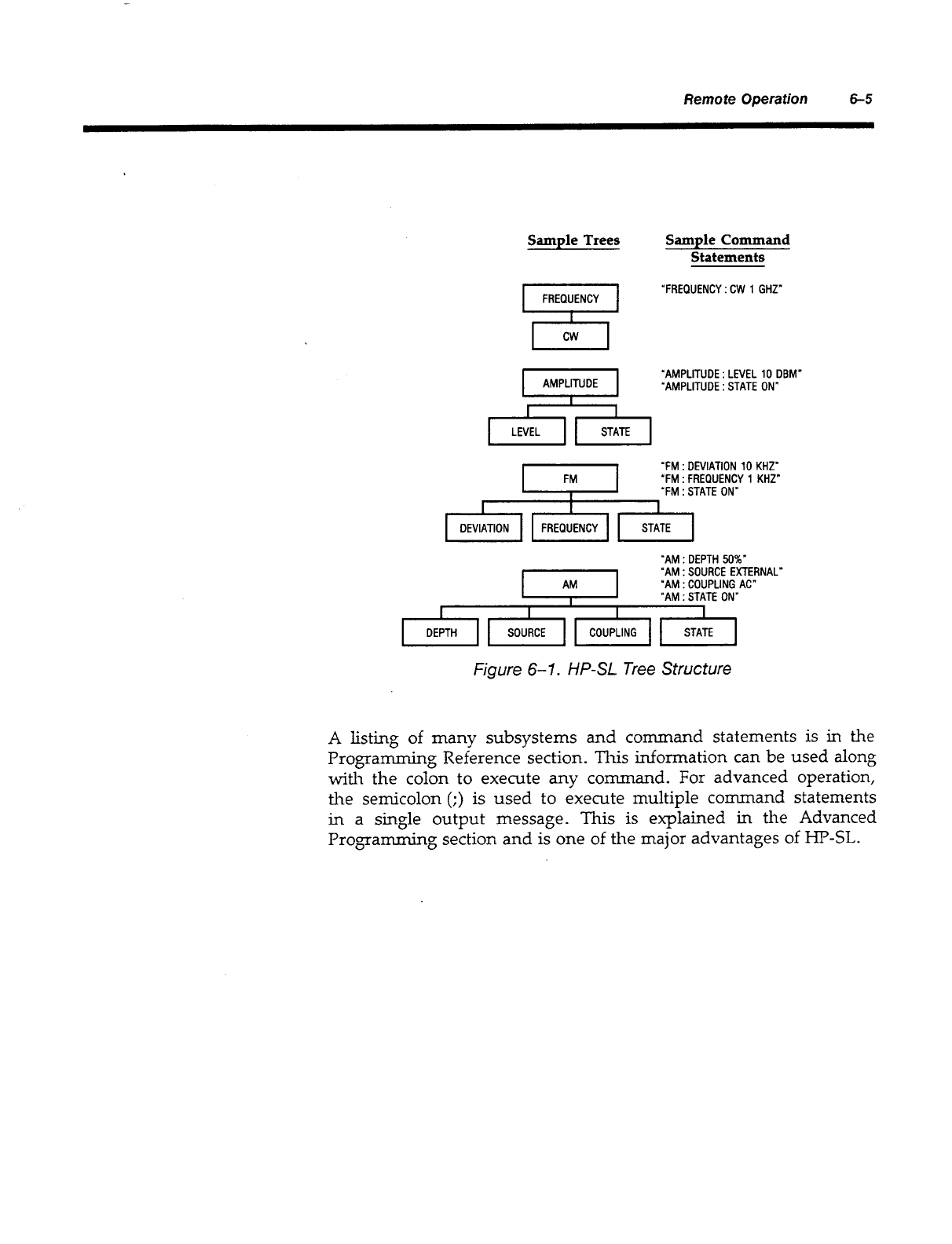

- Getting Started

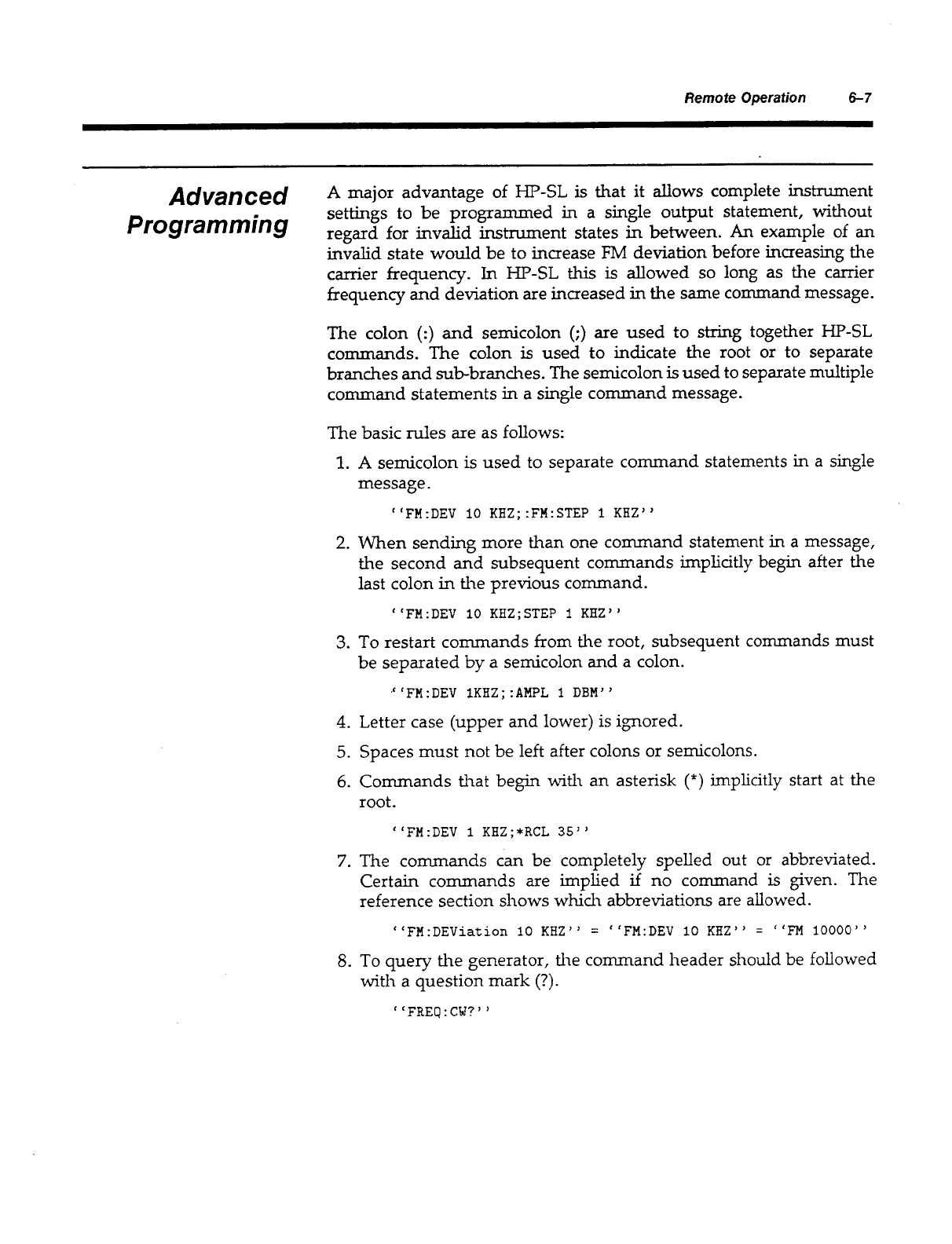

- Advanced Programming

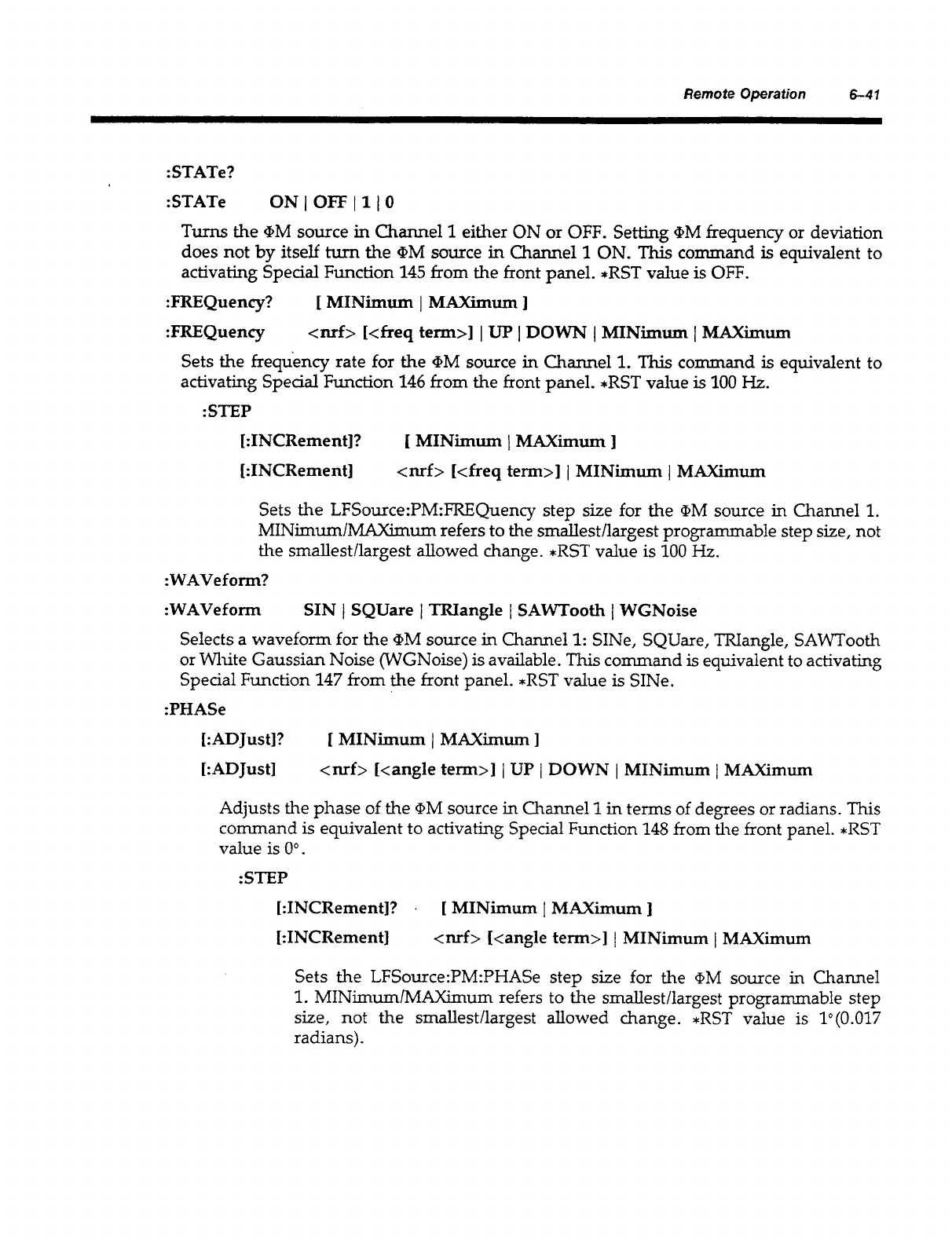

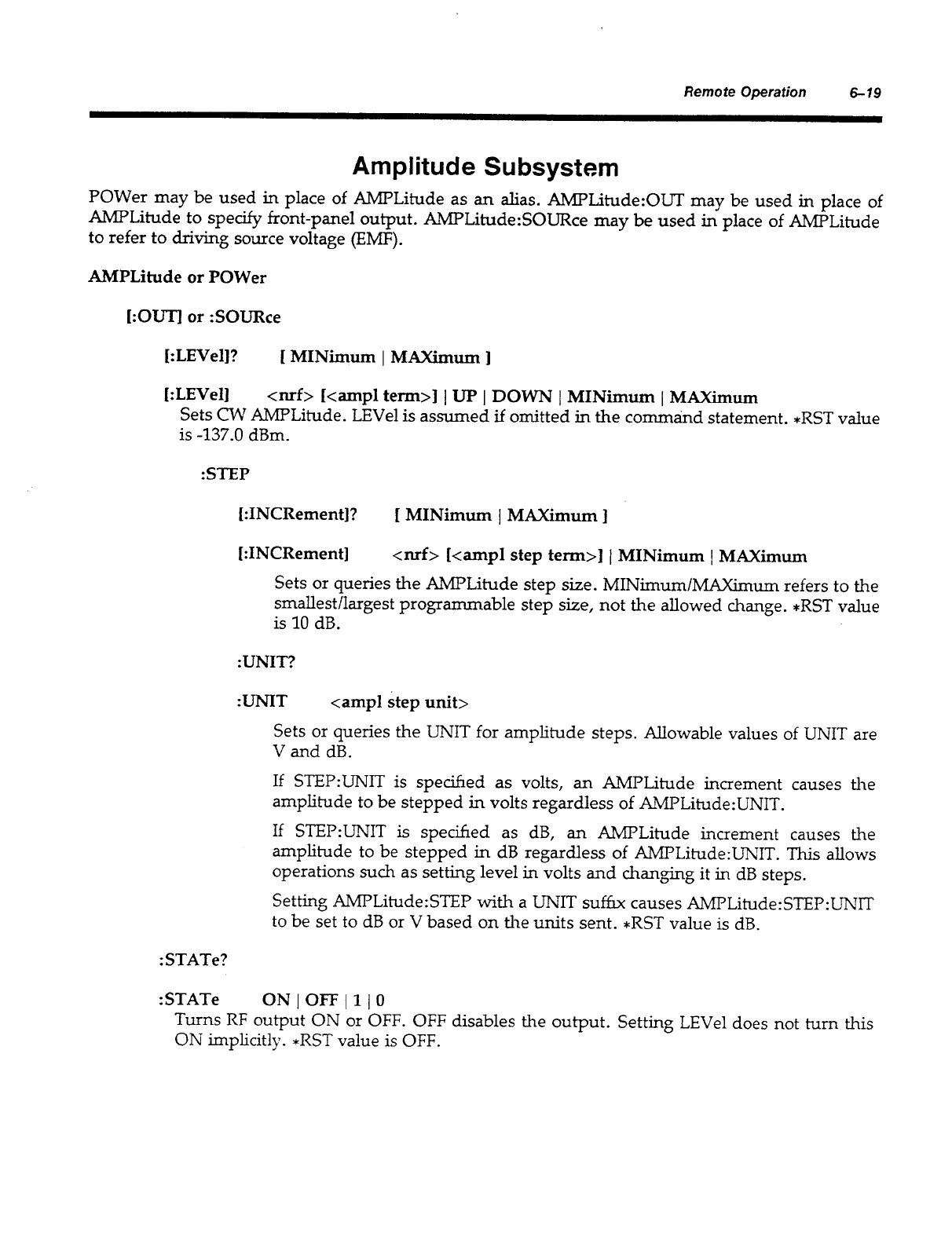

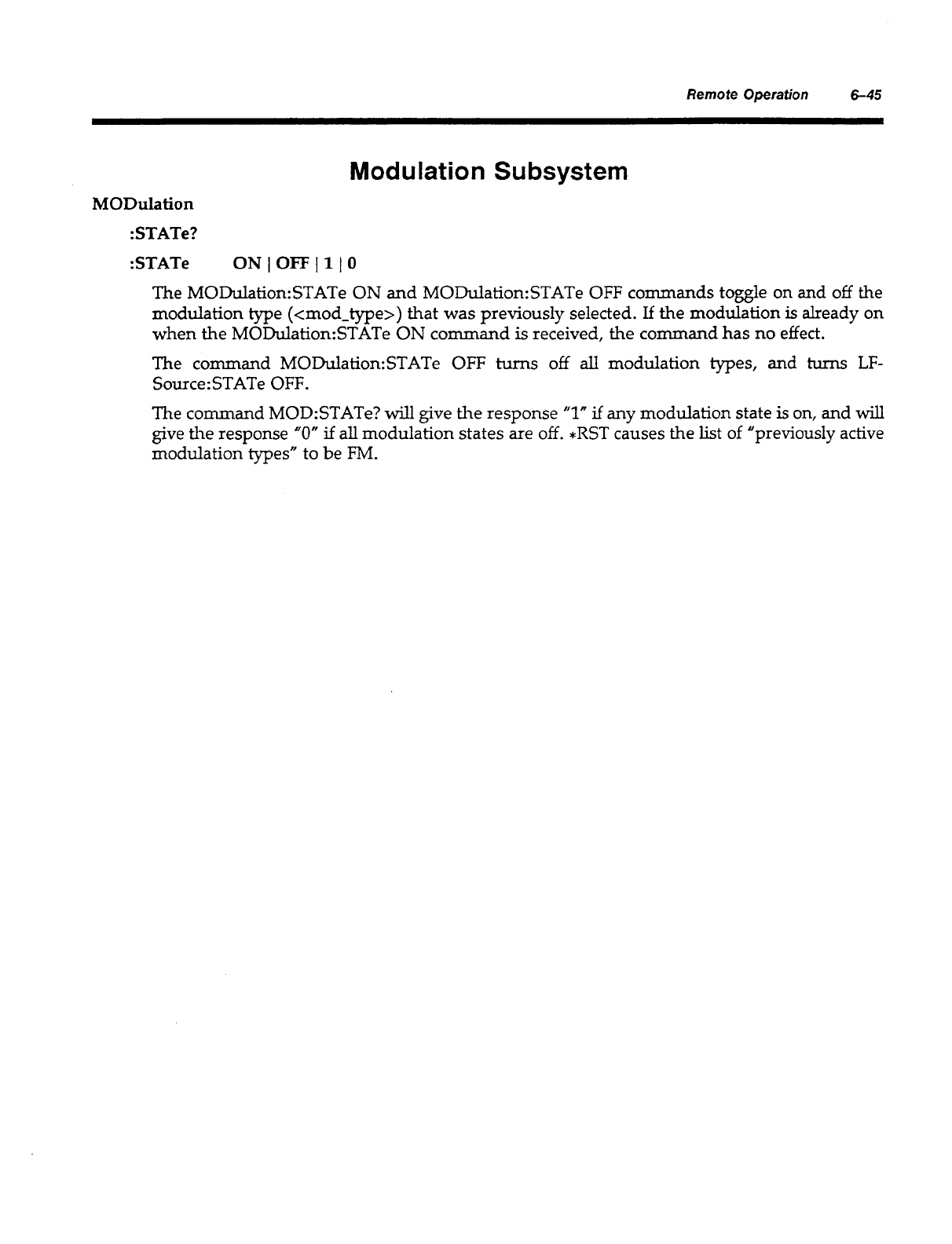

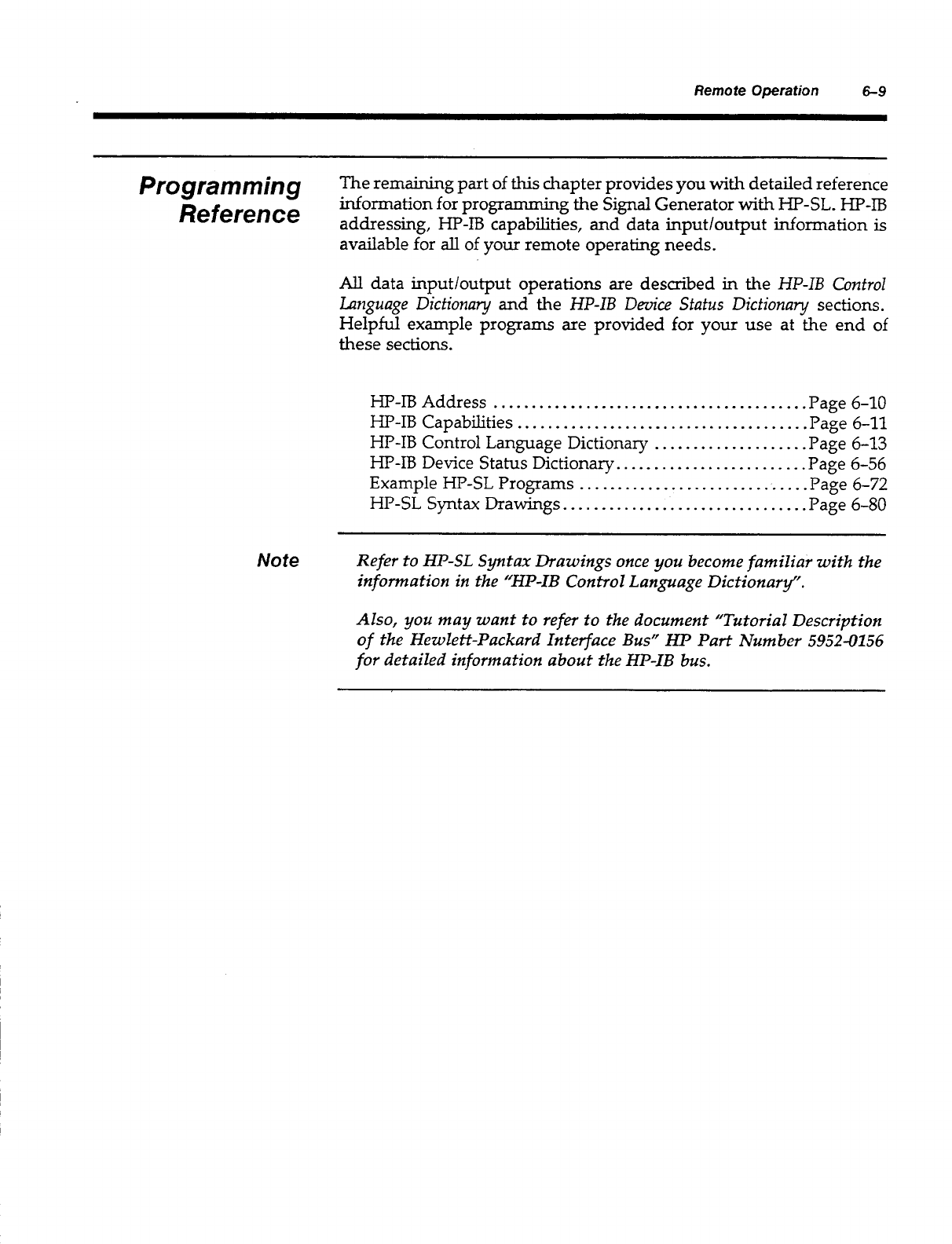

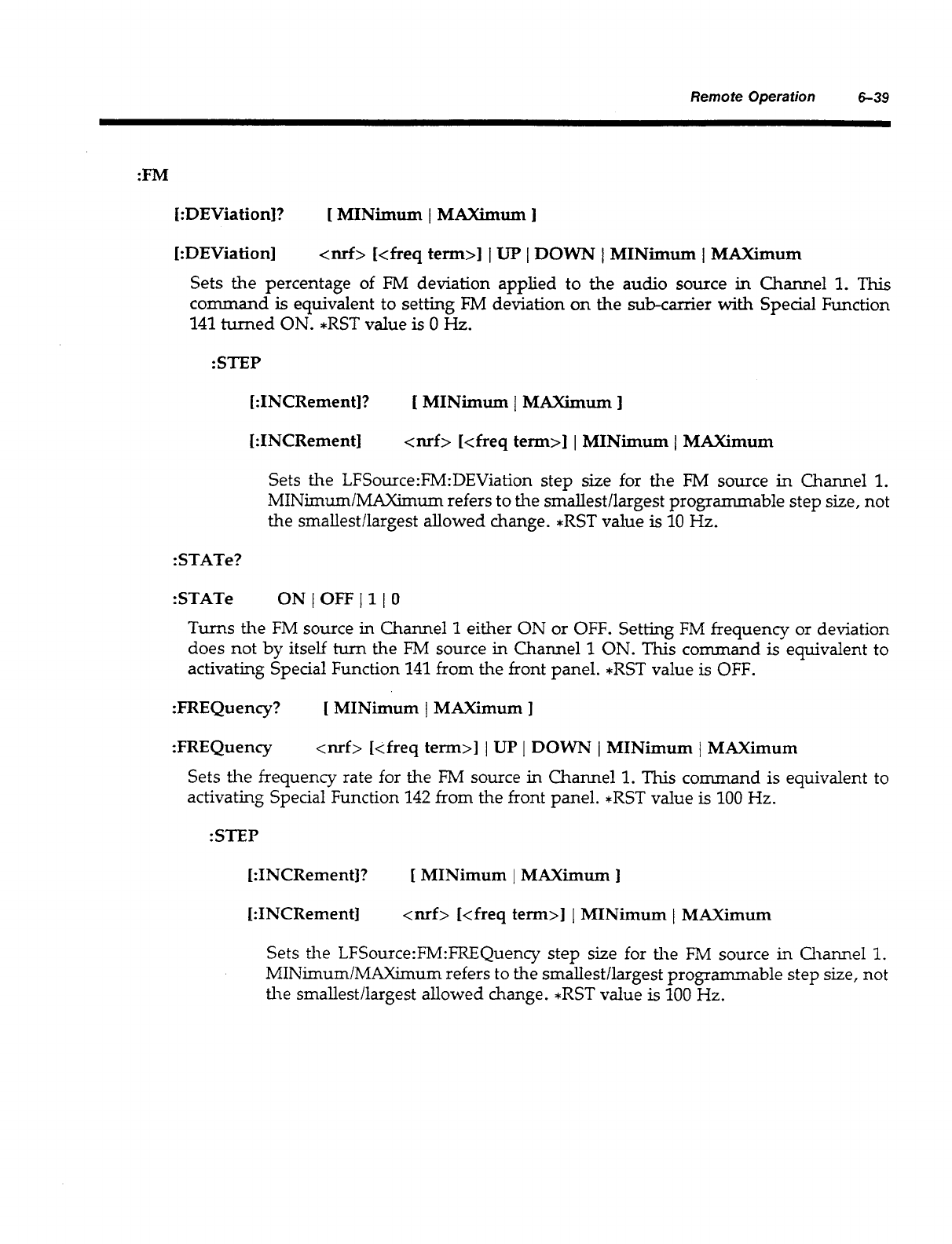

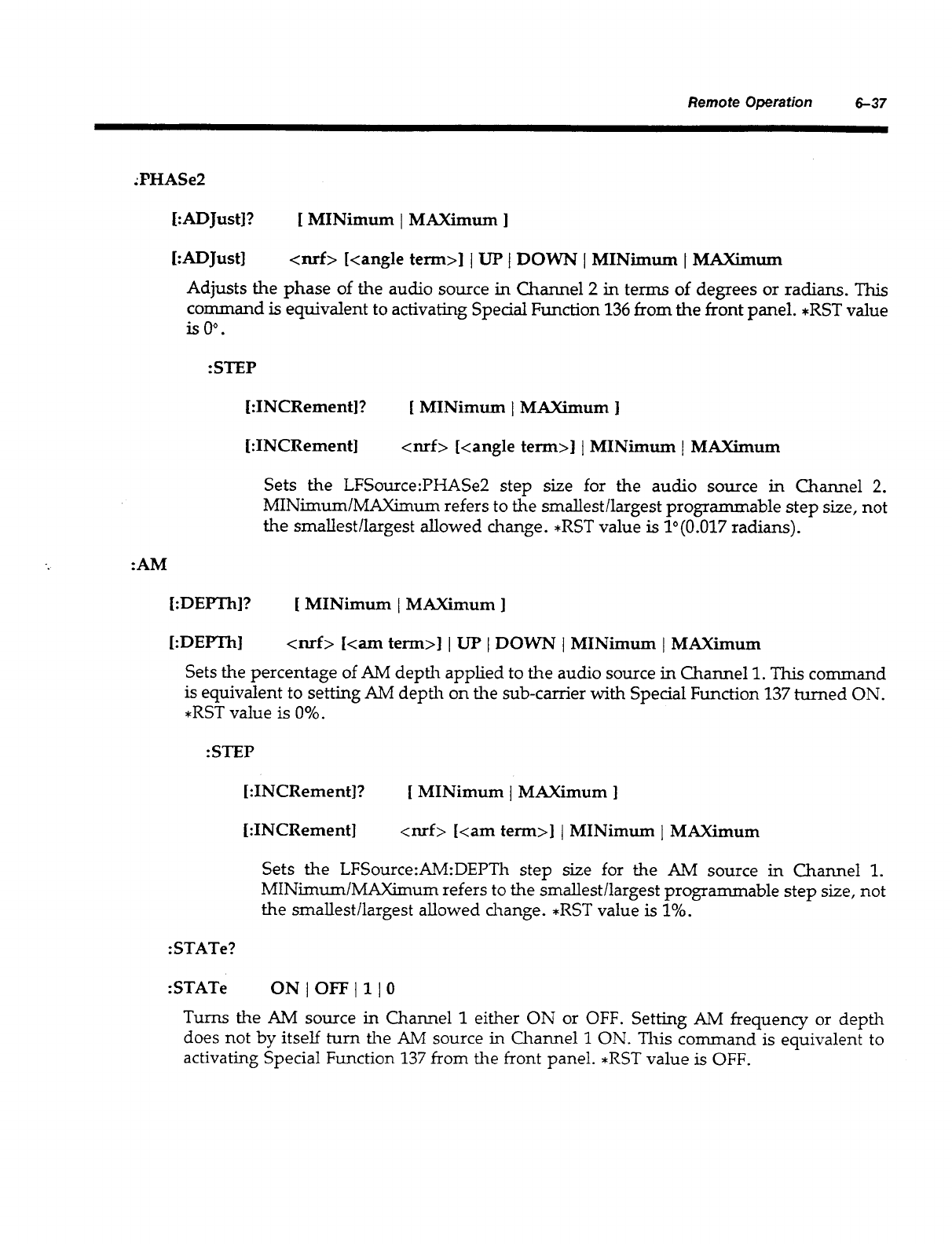

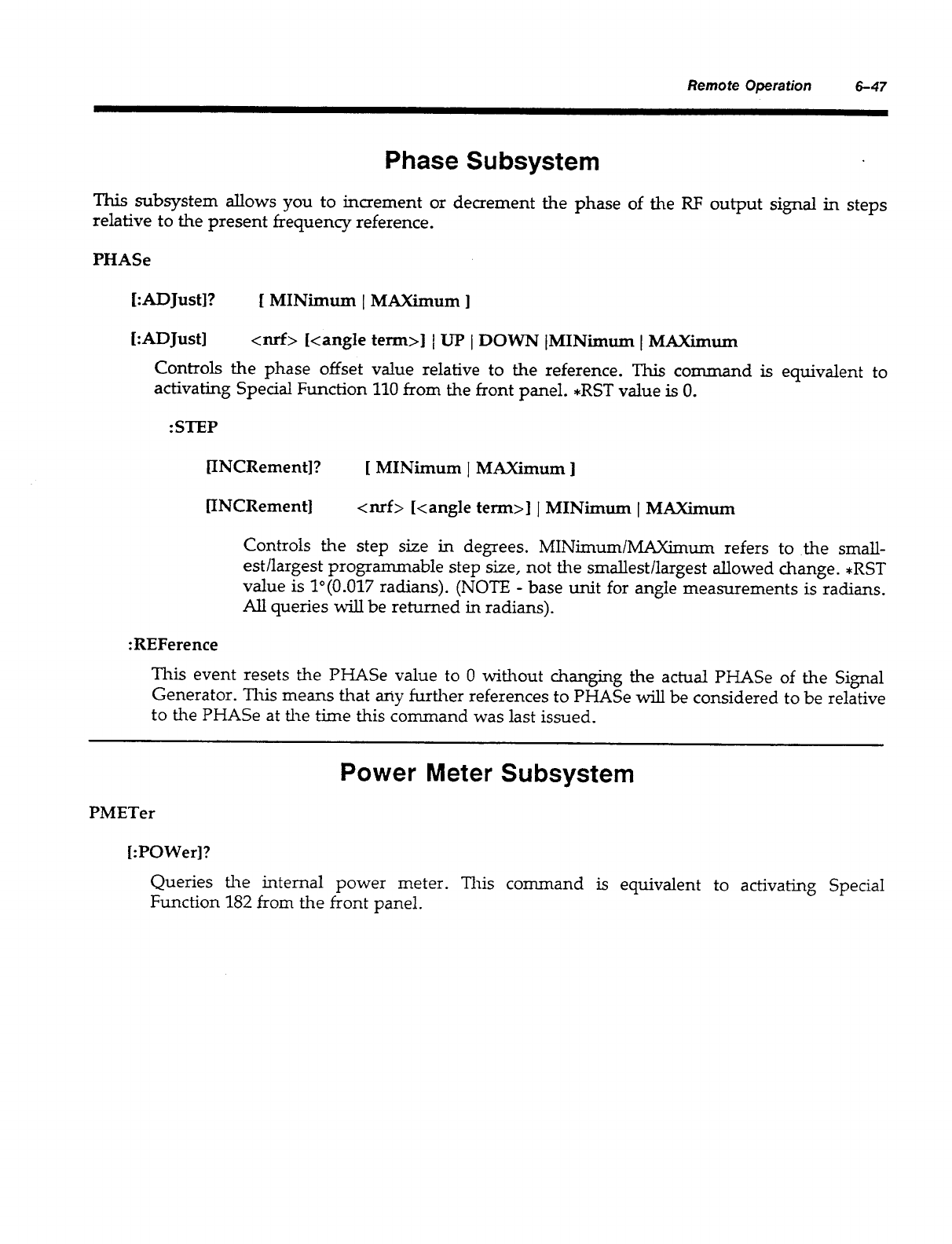

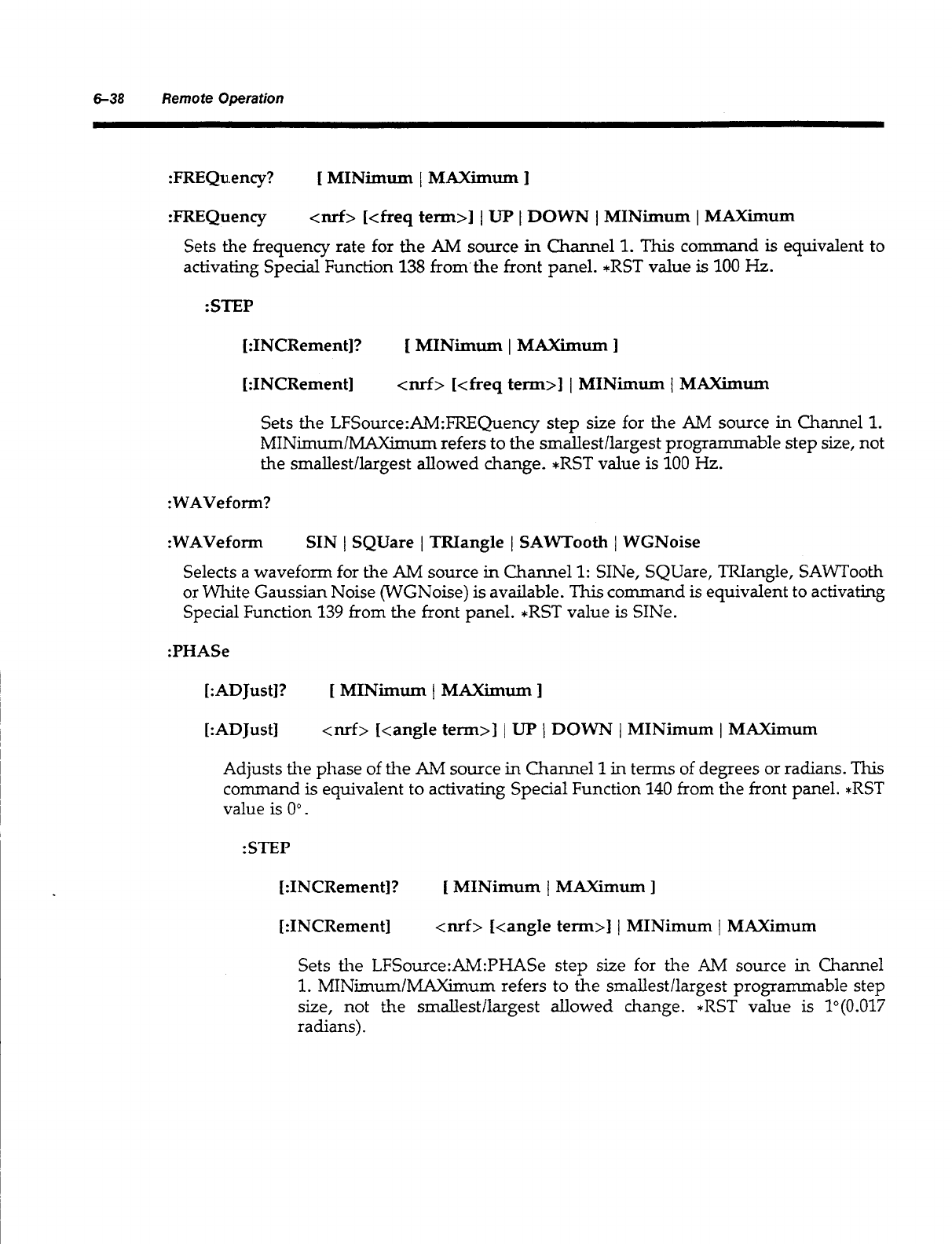

- Programming Reference

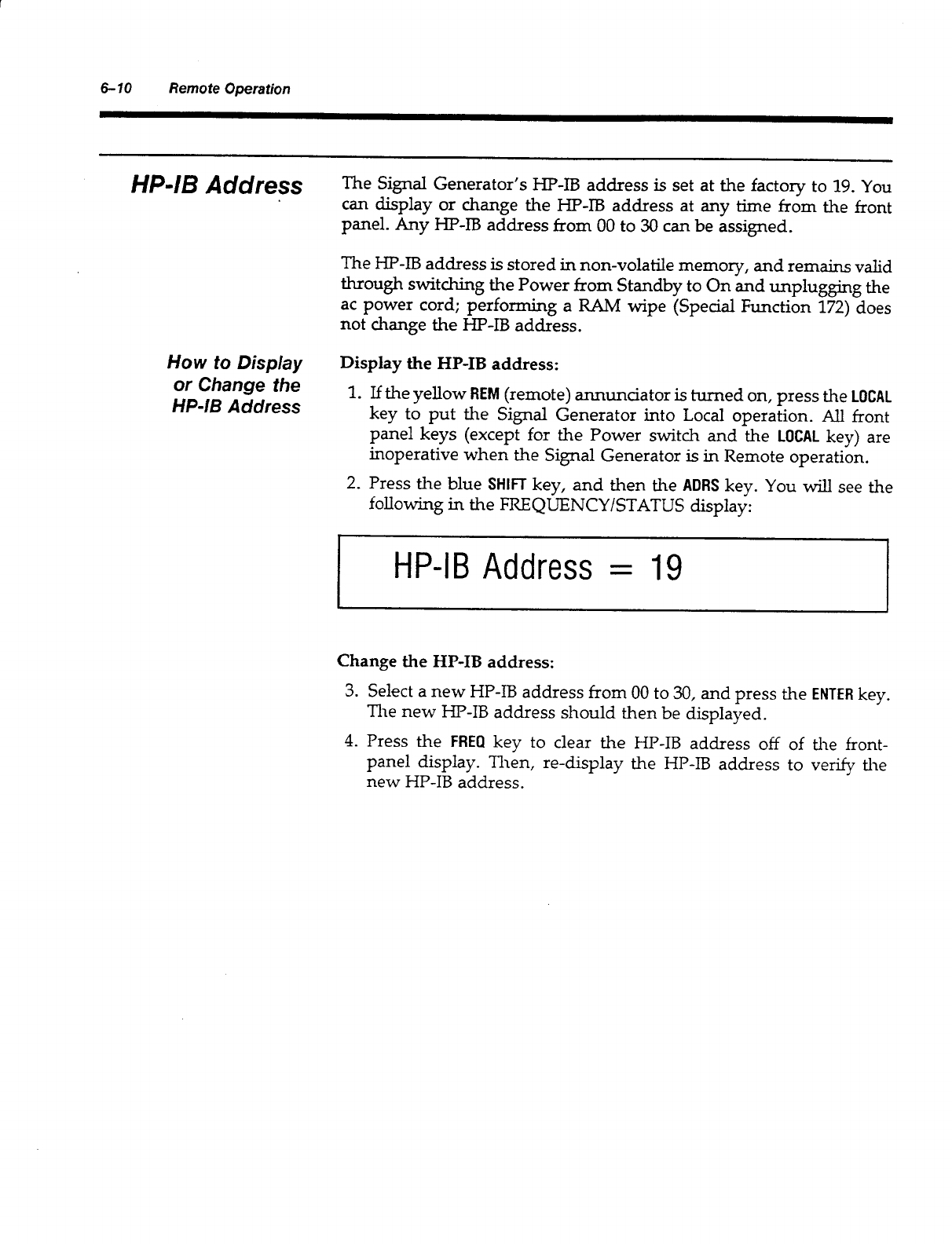

- HP-IB Address

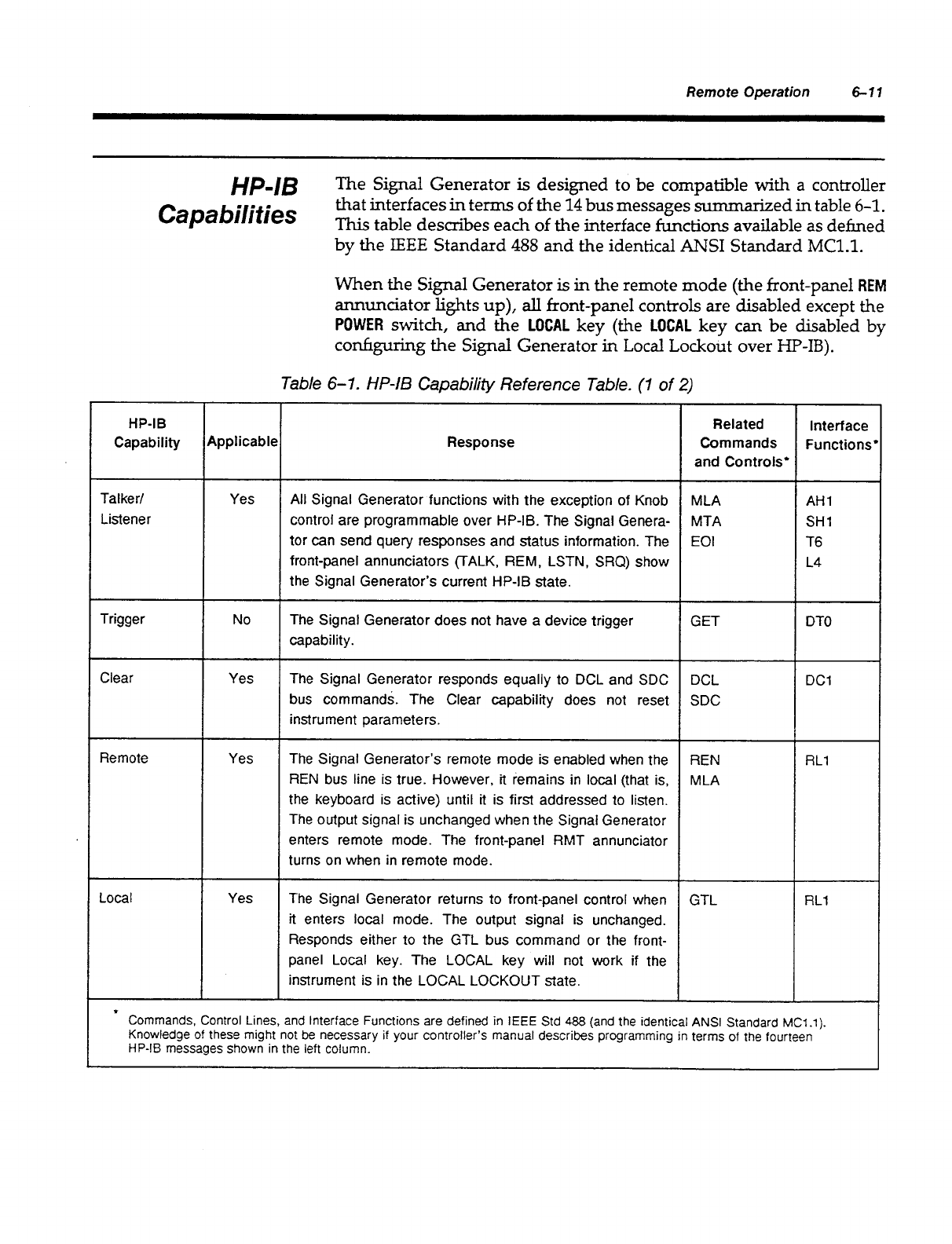

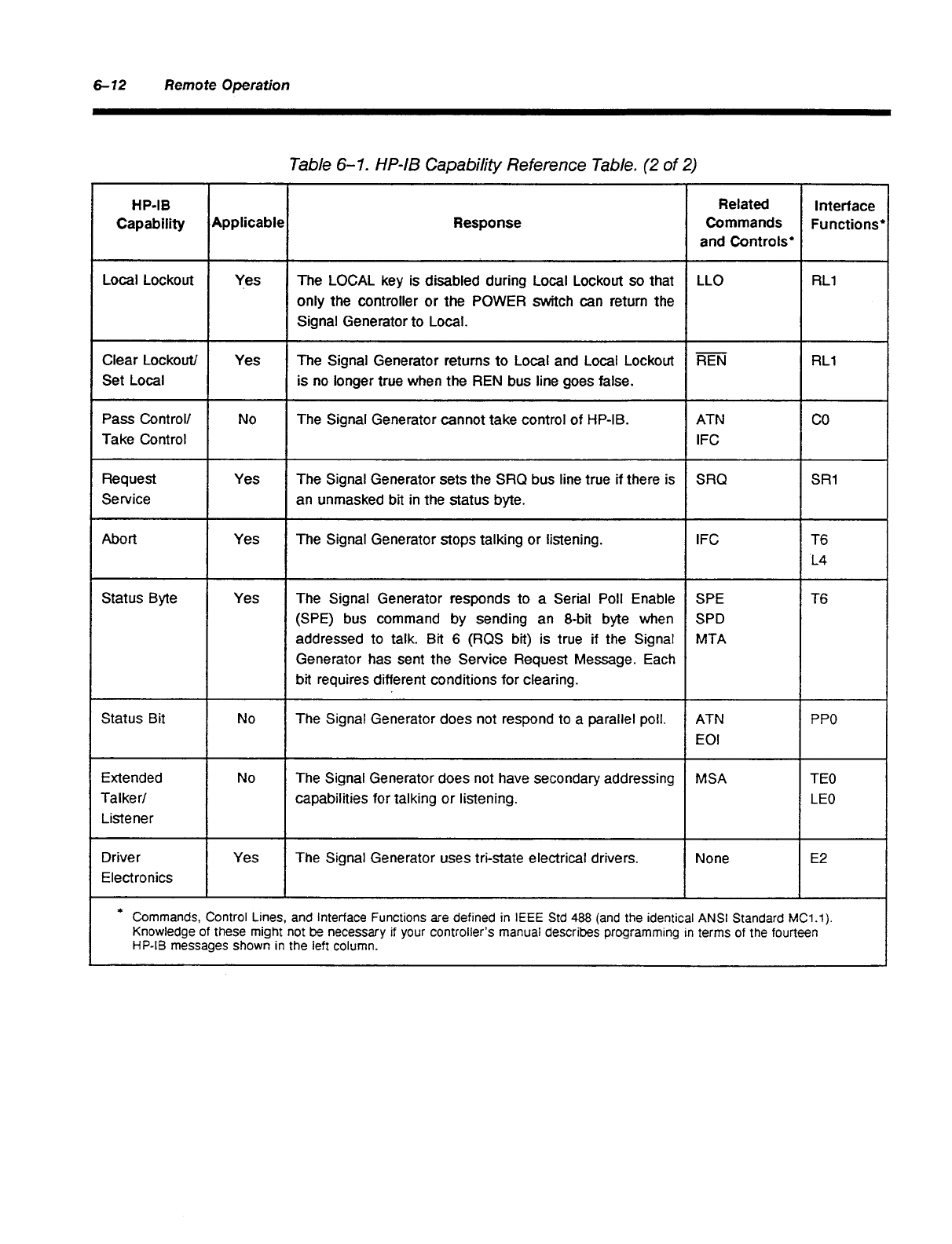

- HP-IB Capabilities

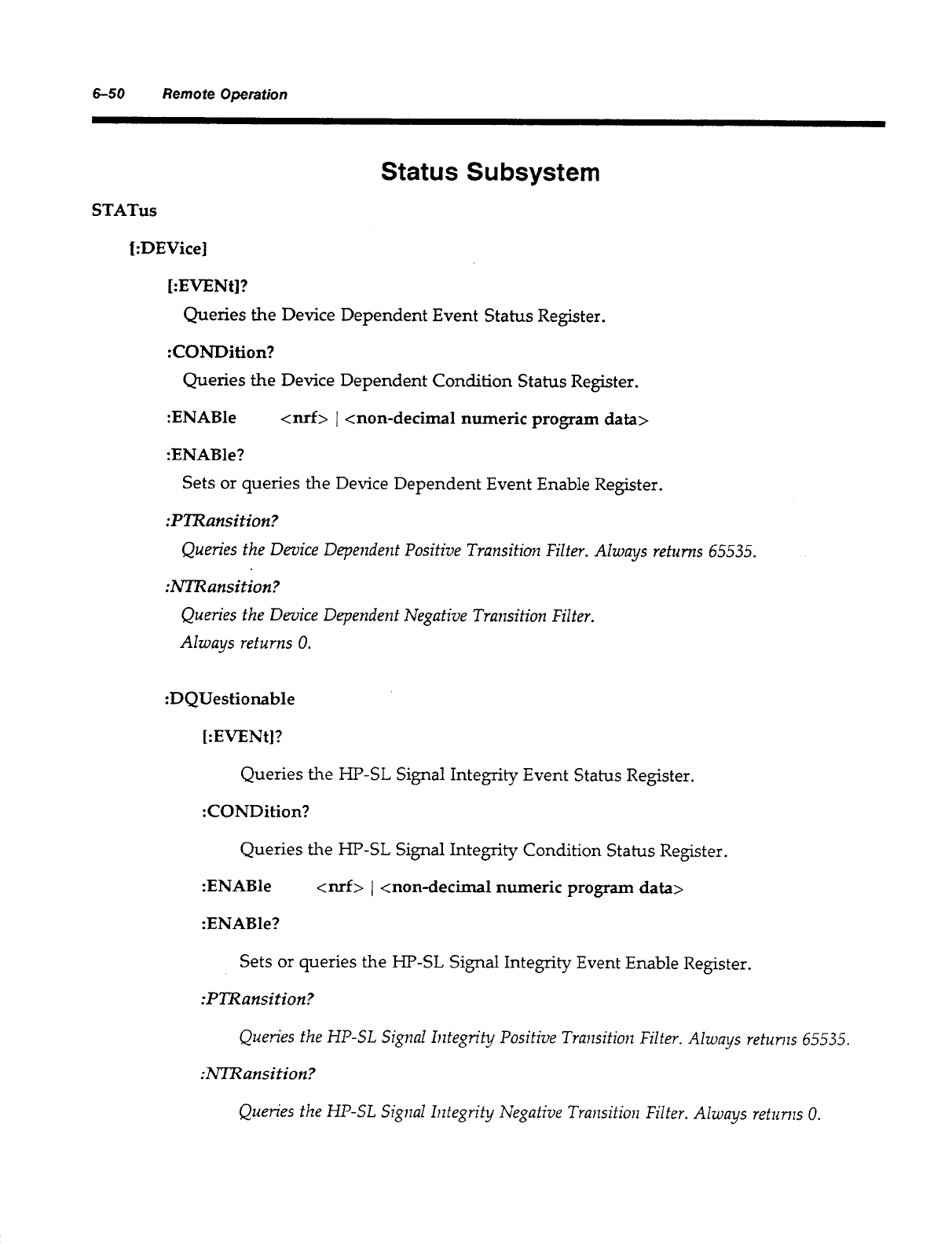

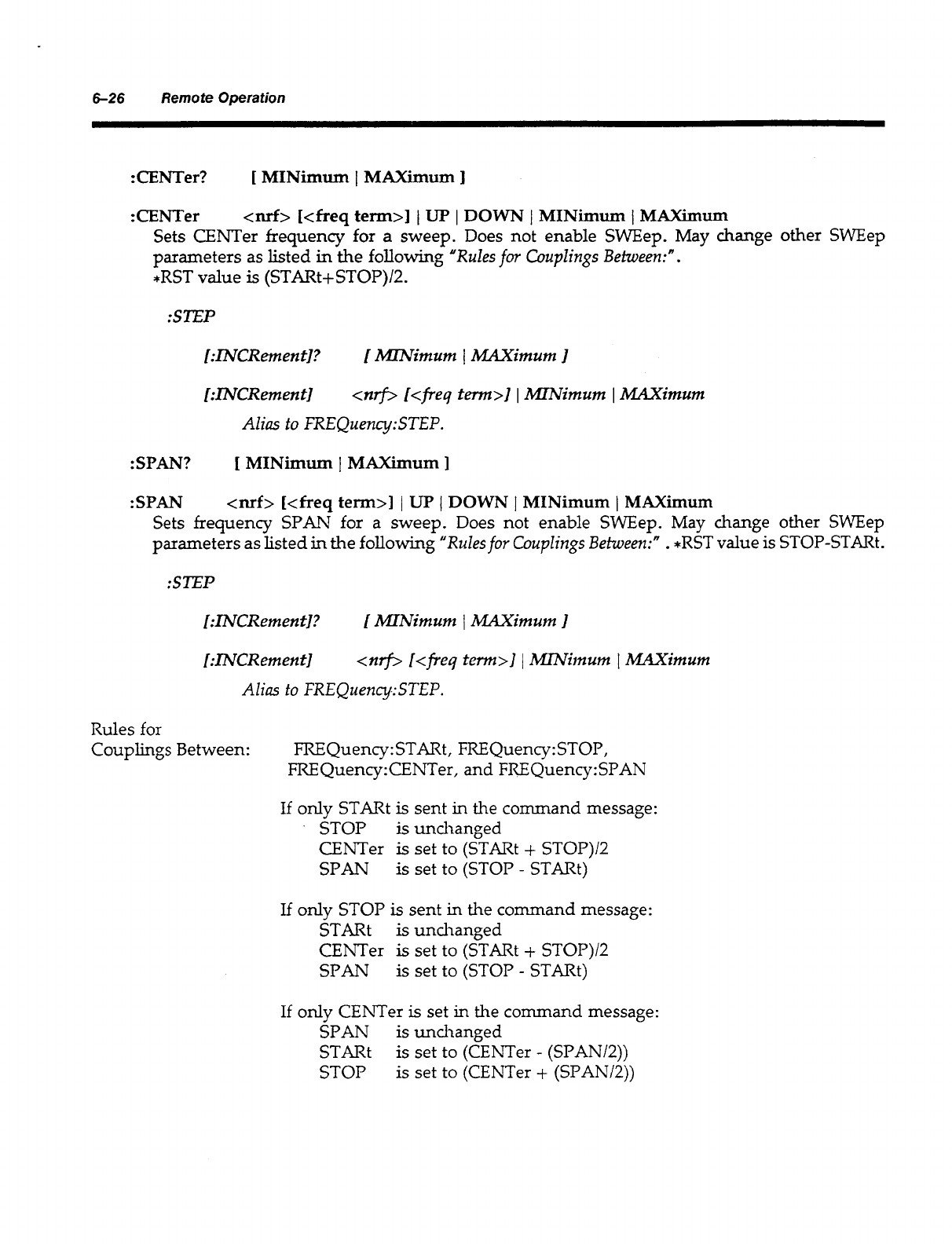

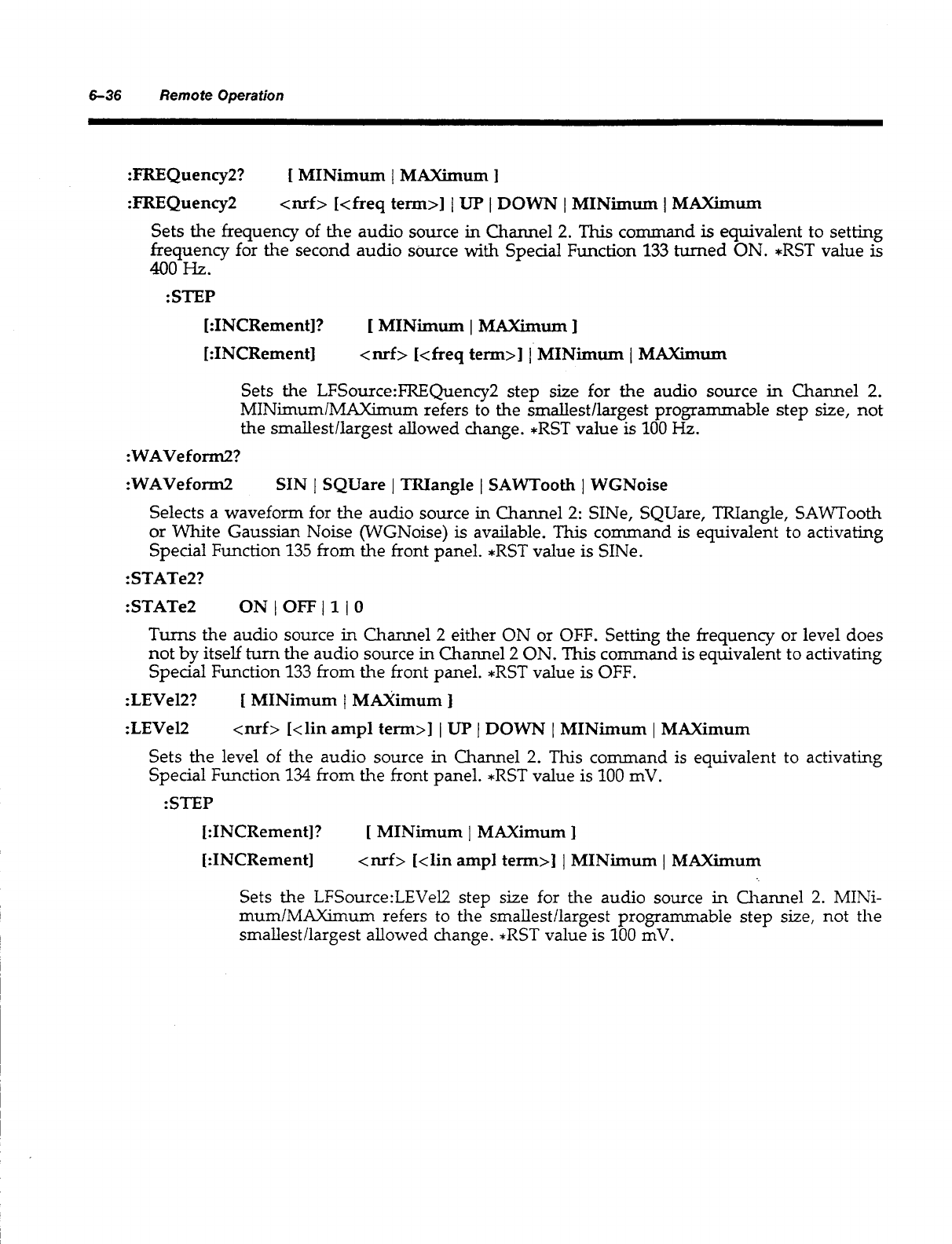

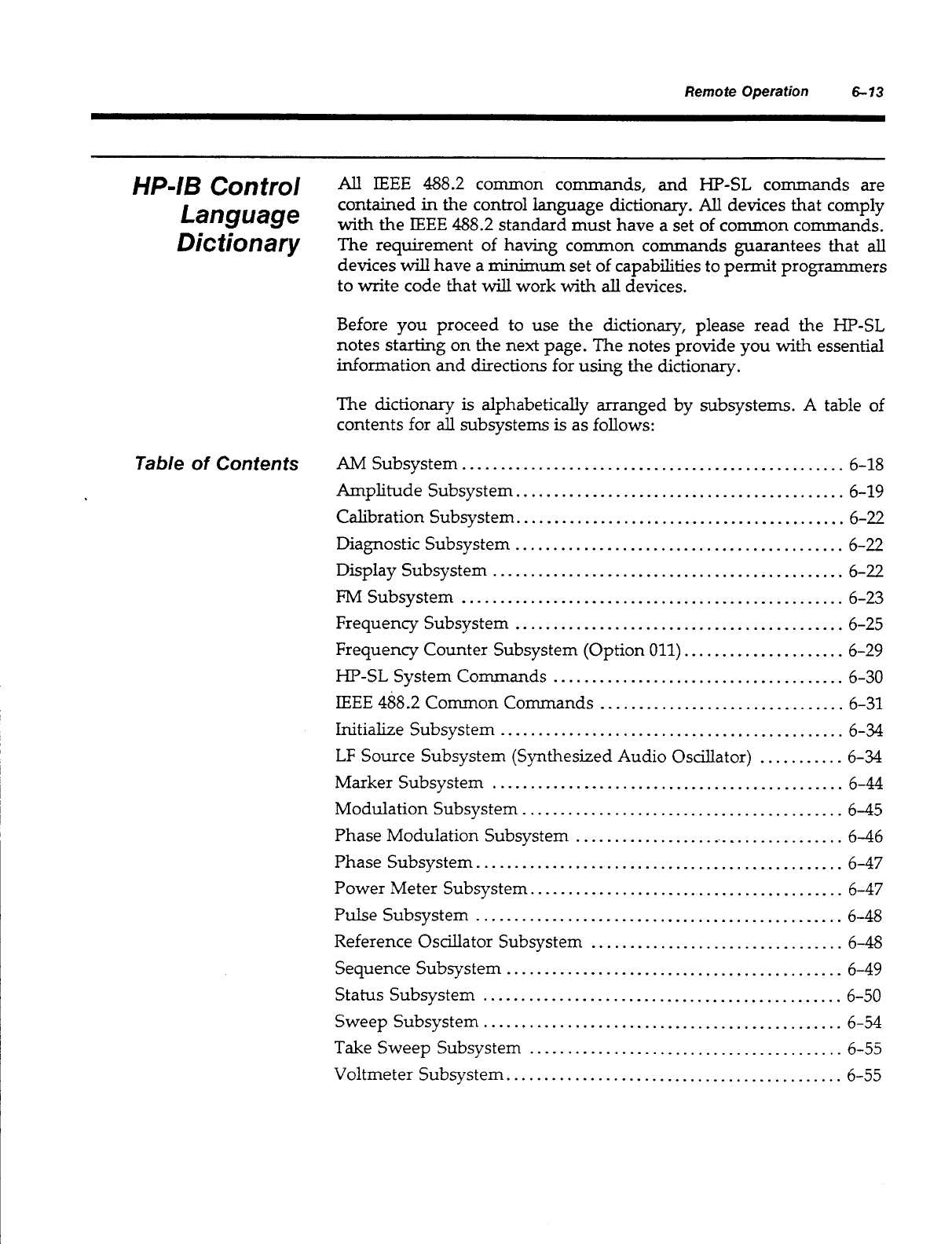

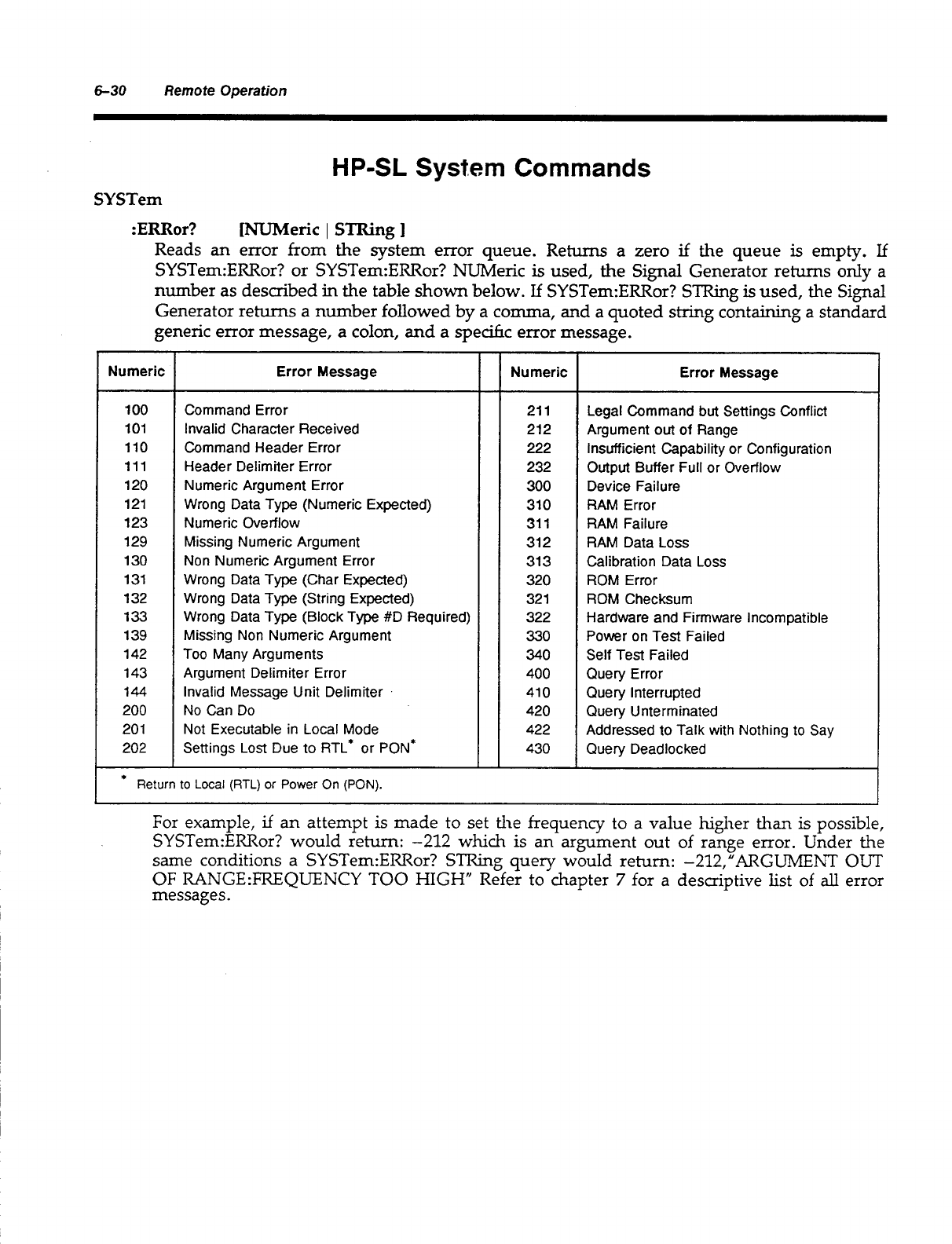

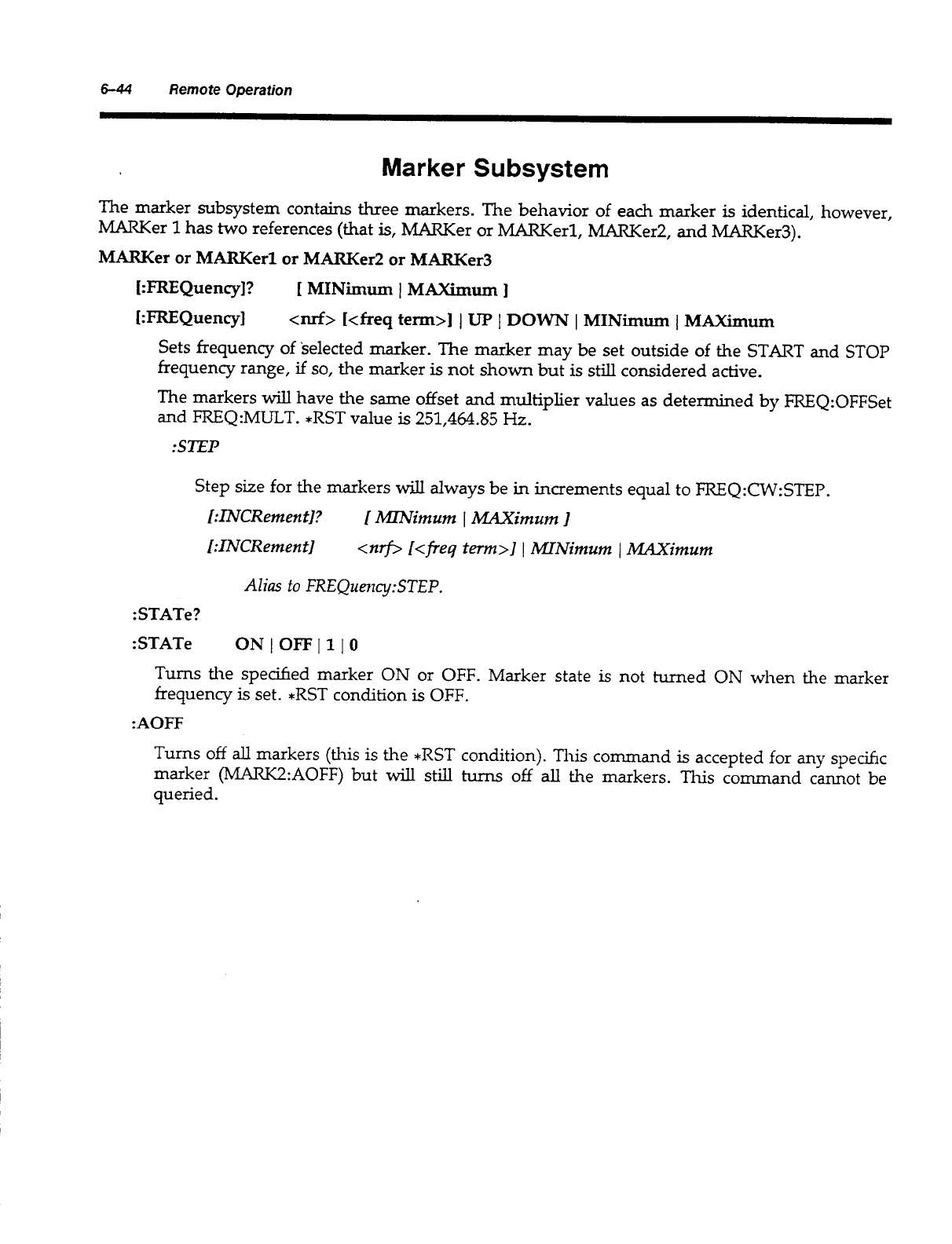

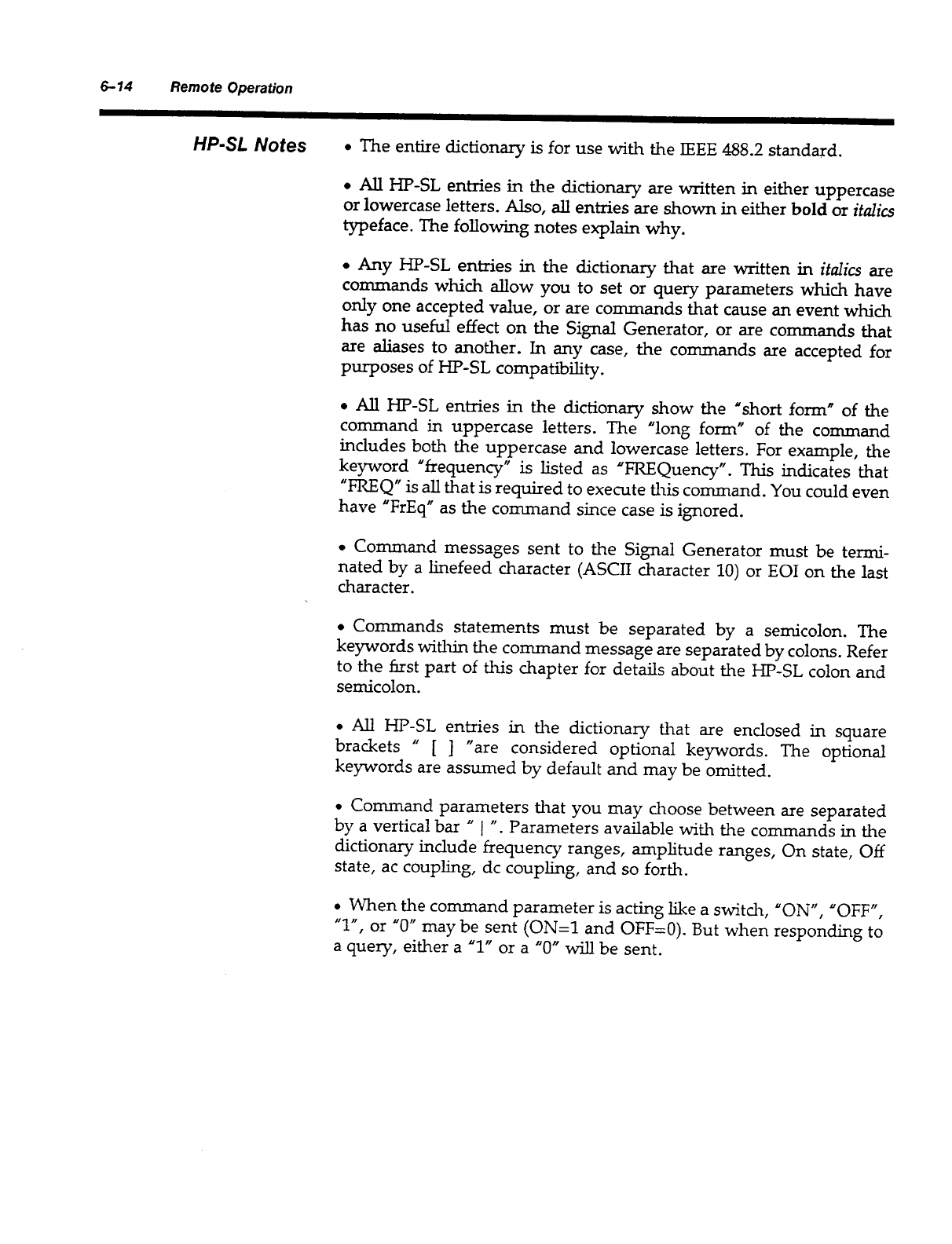

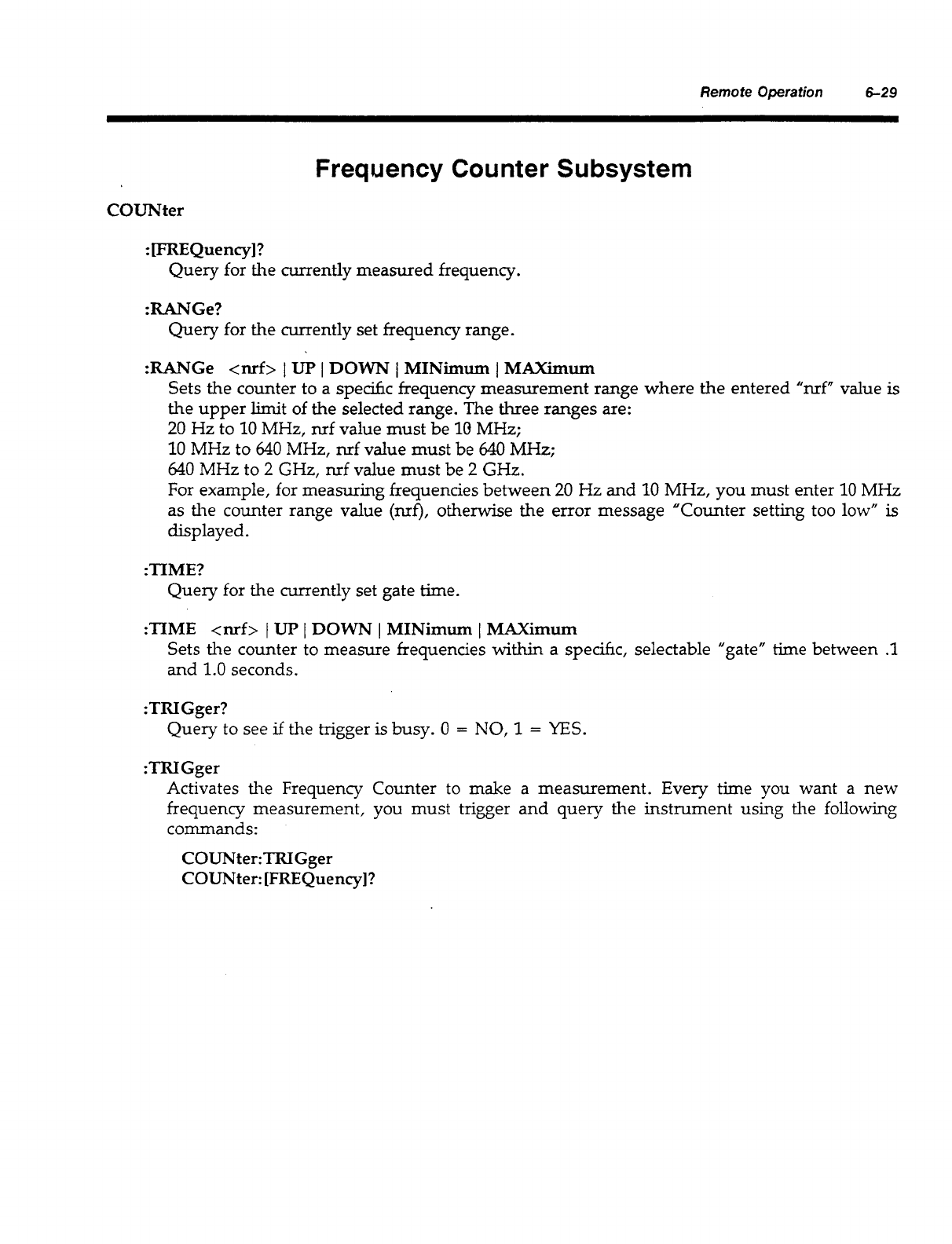

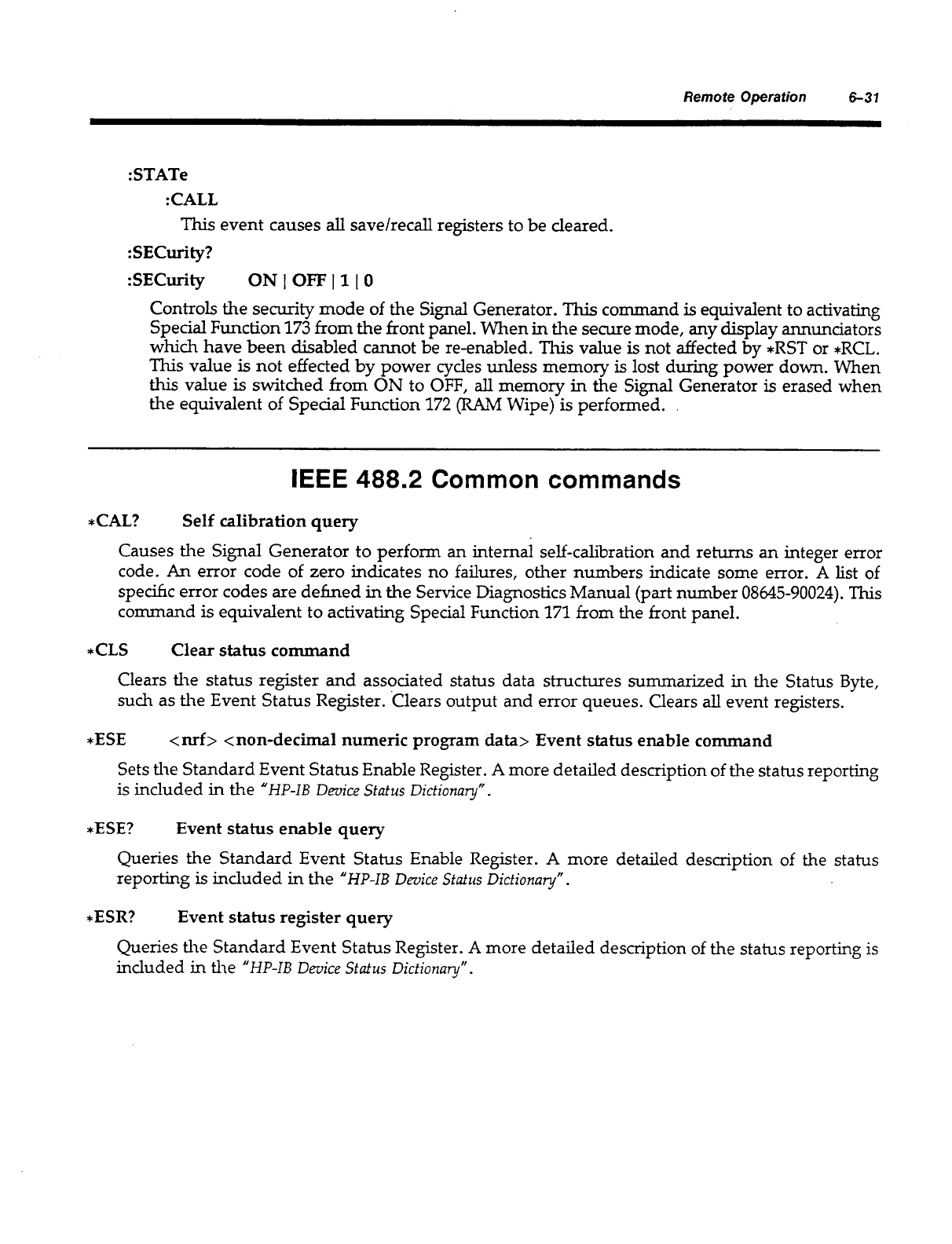

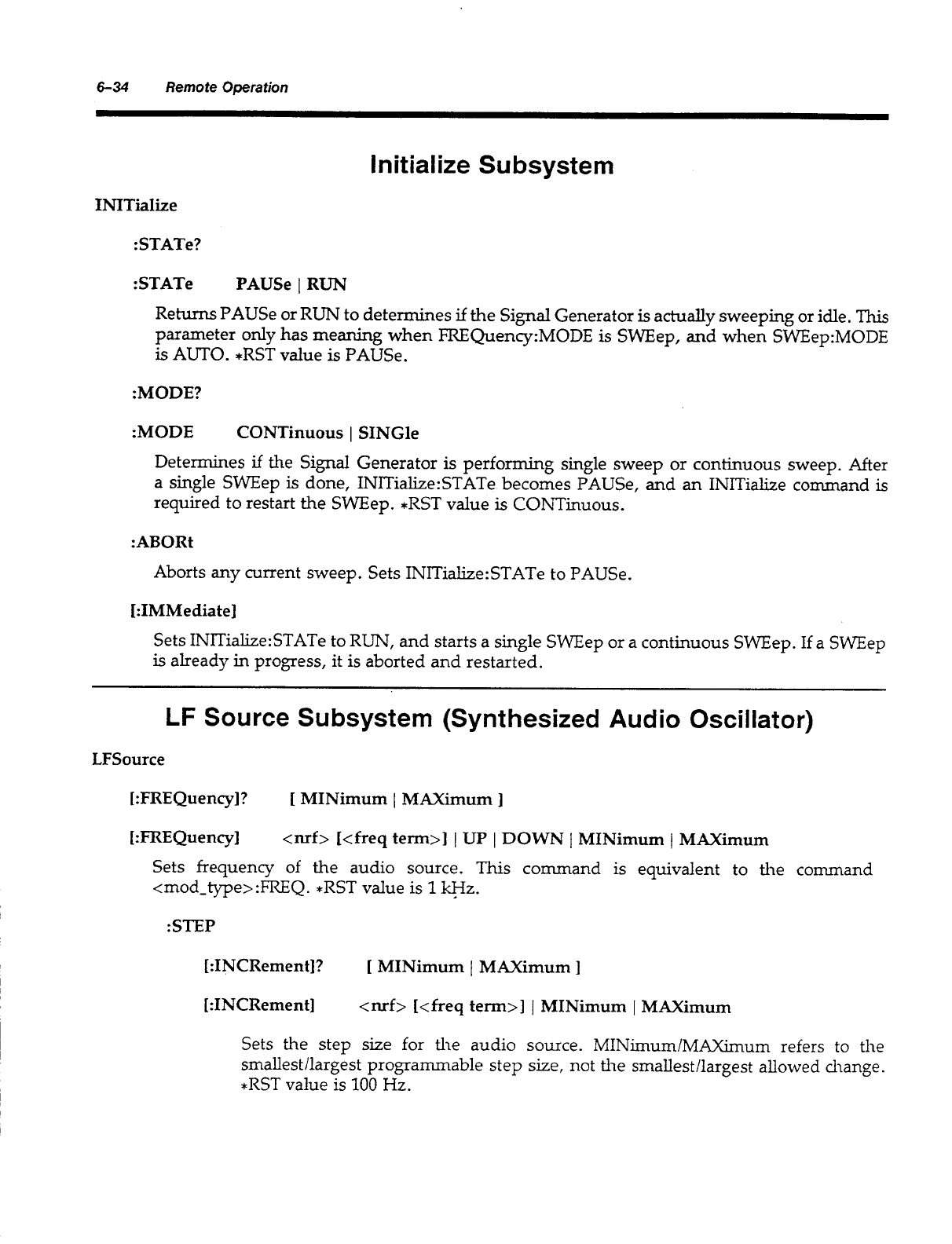

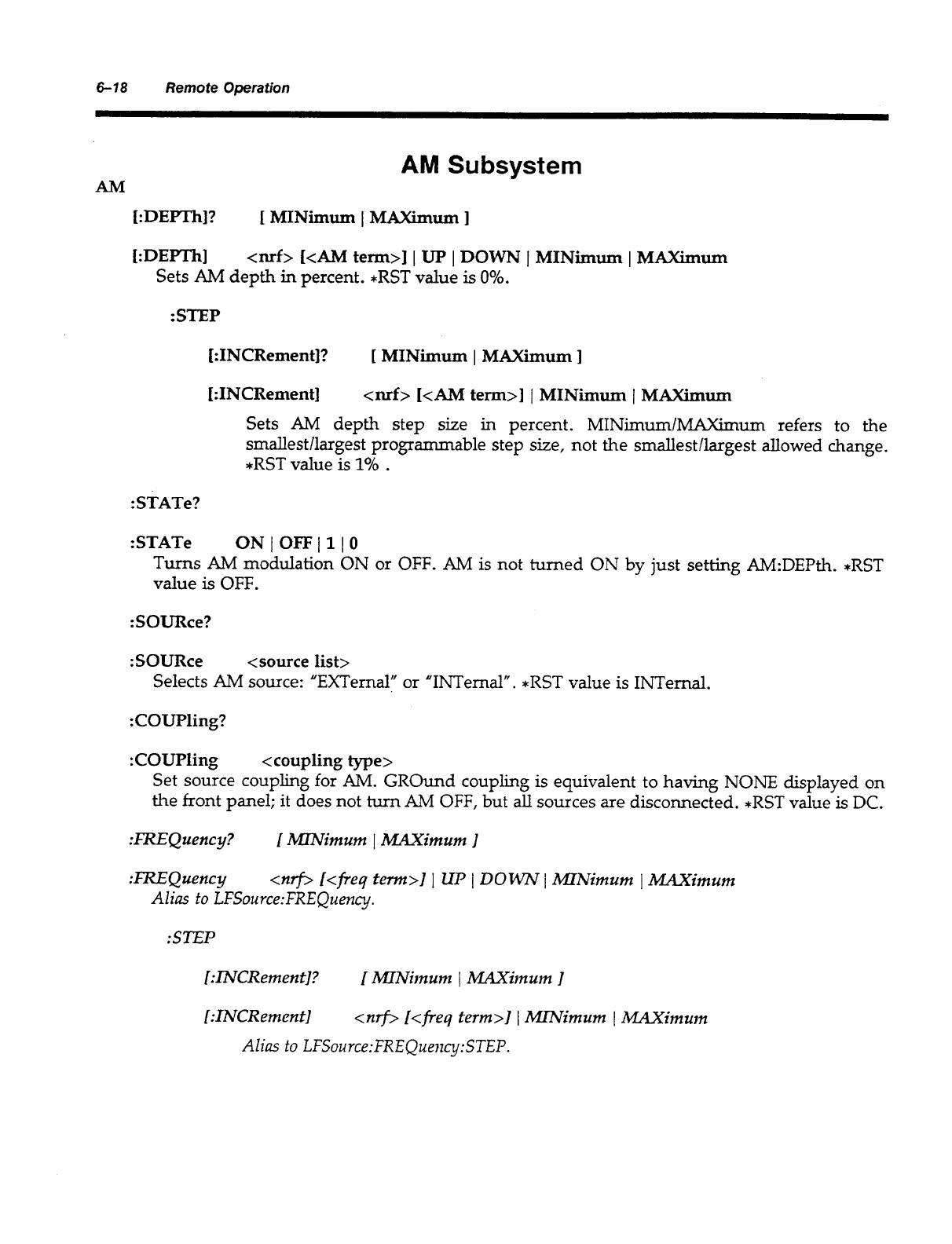

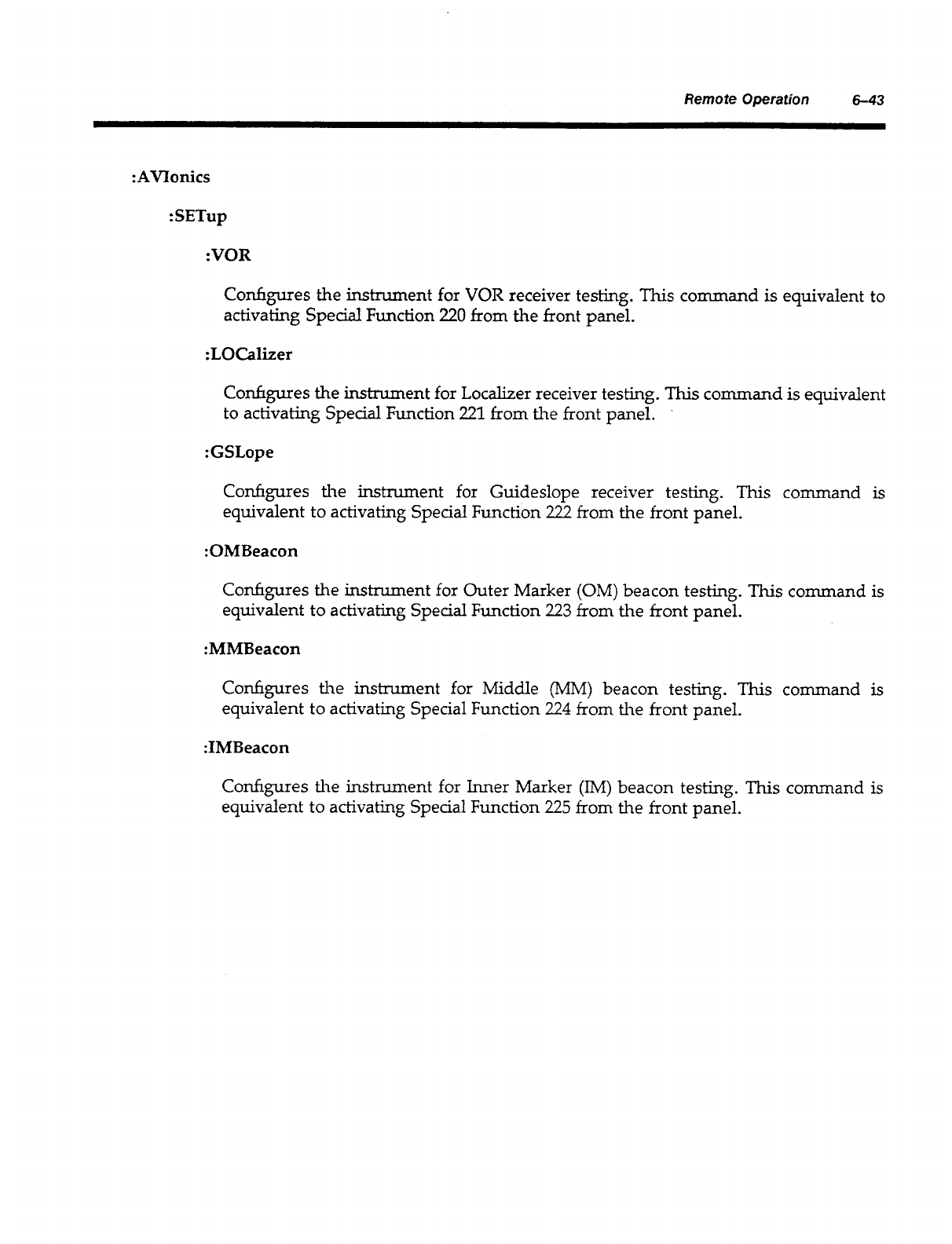

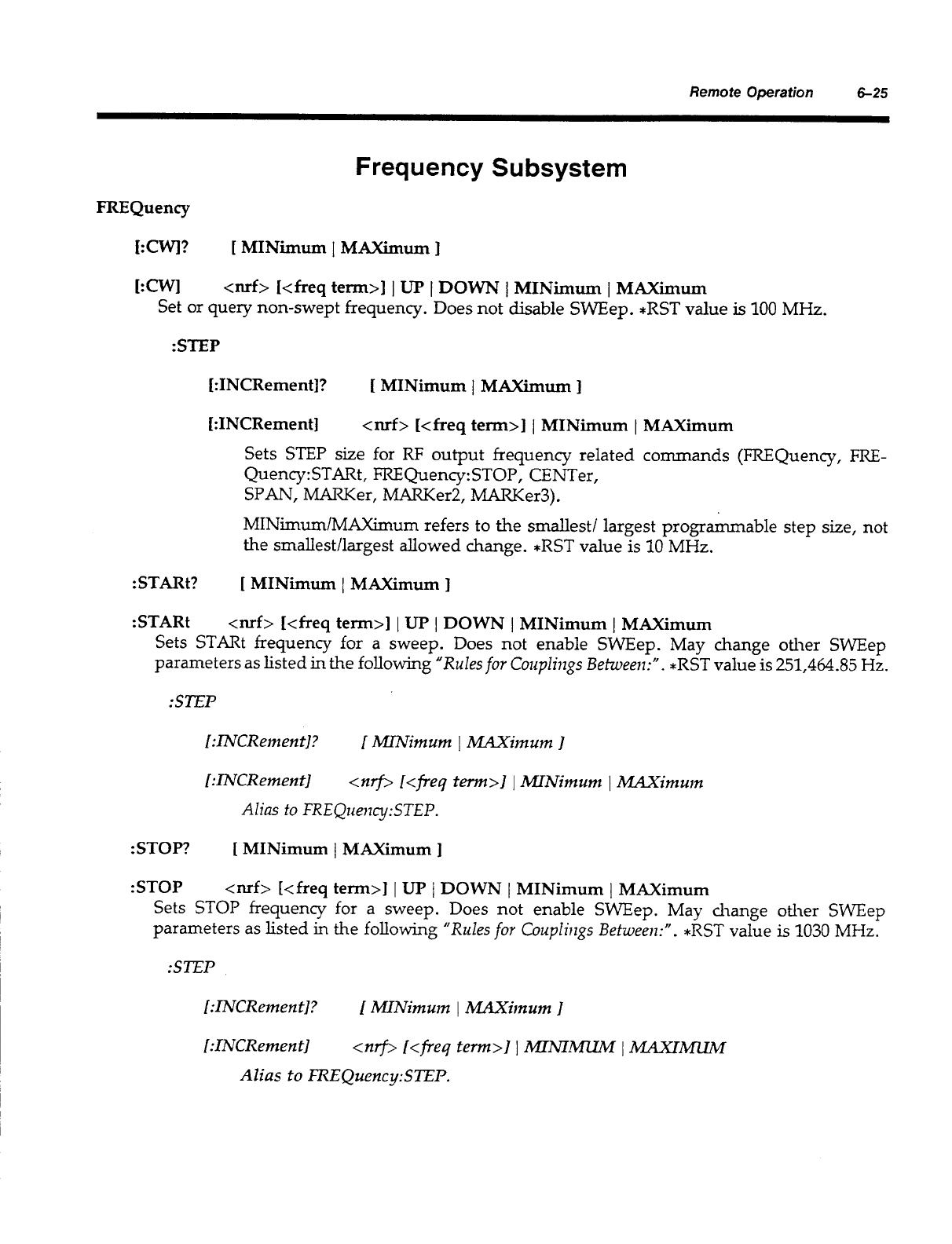

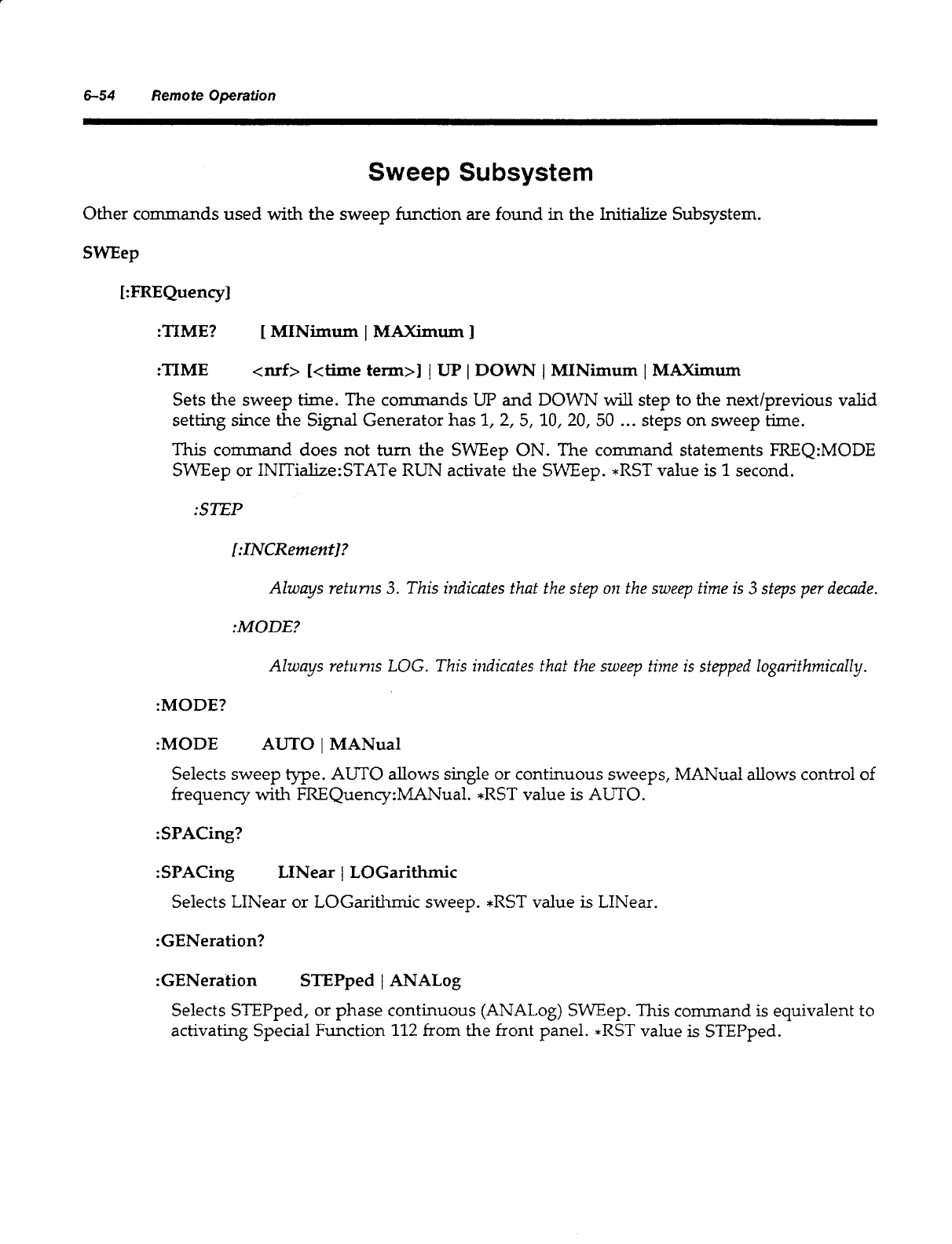

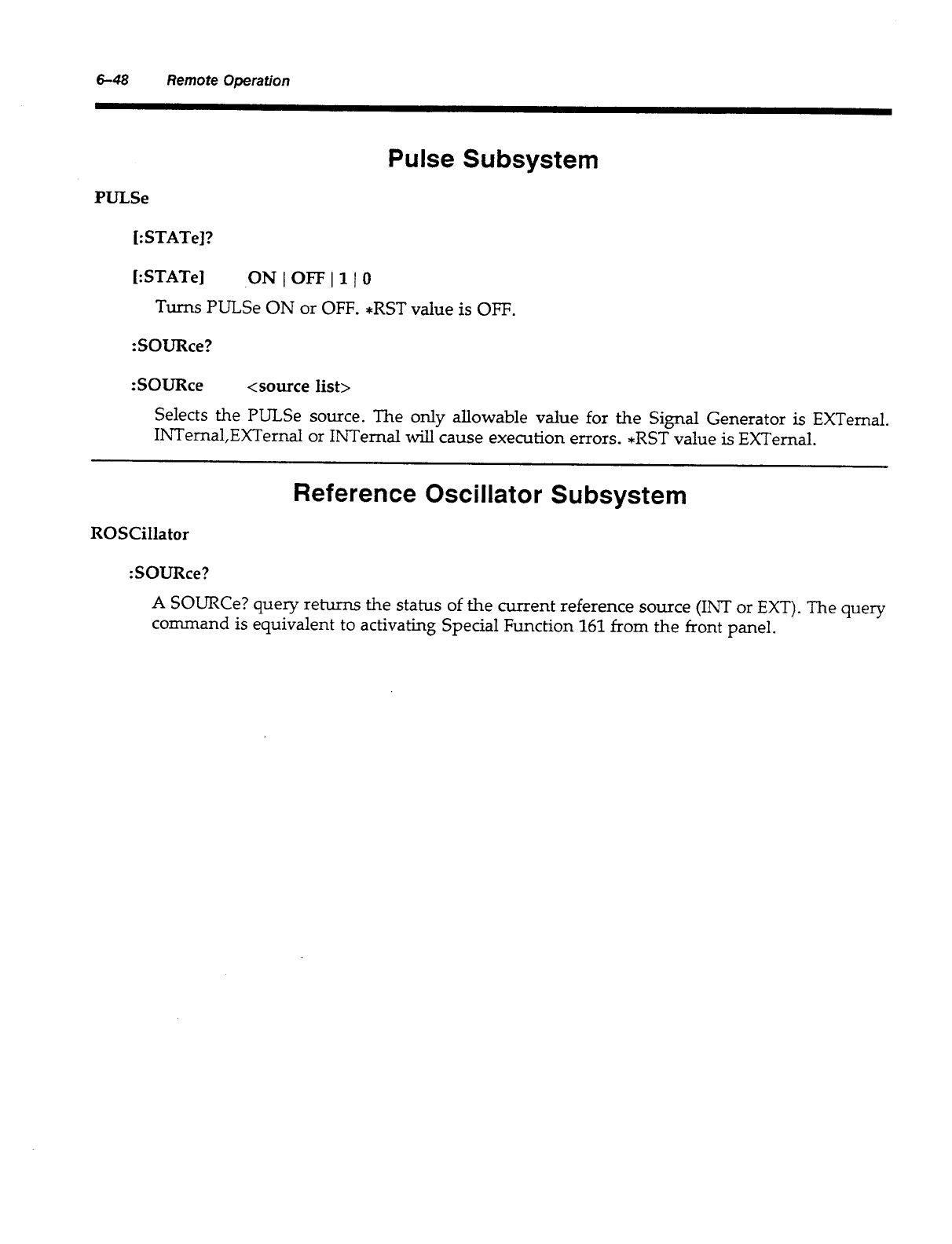

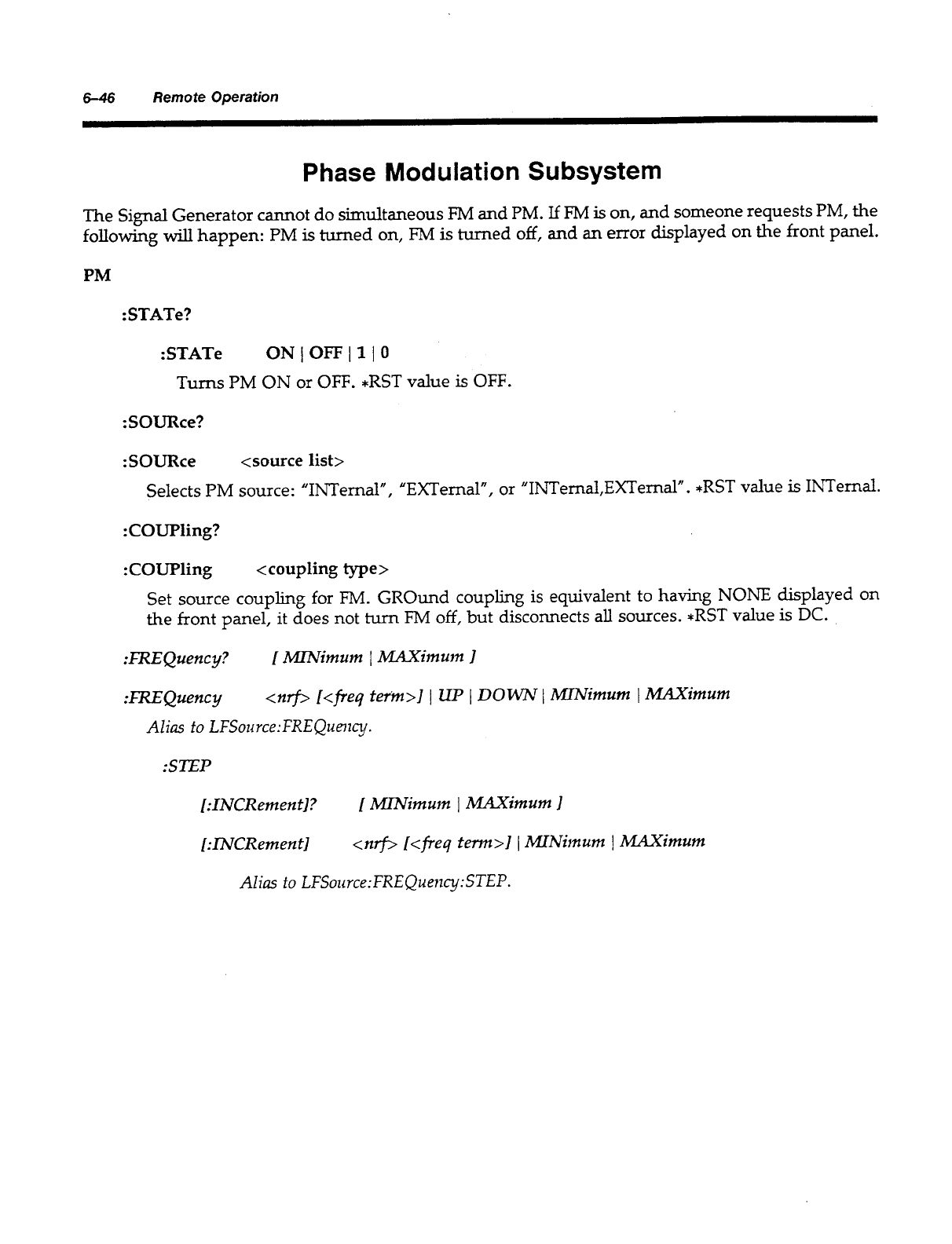

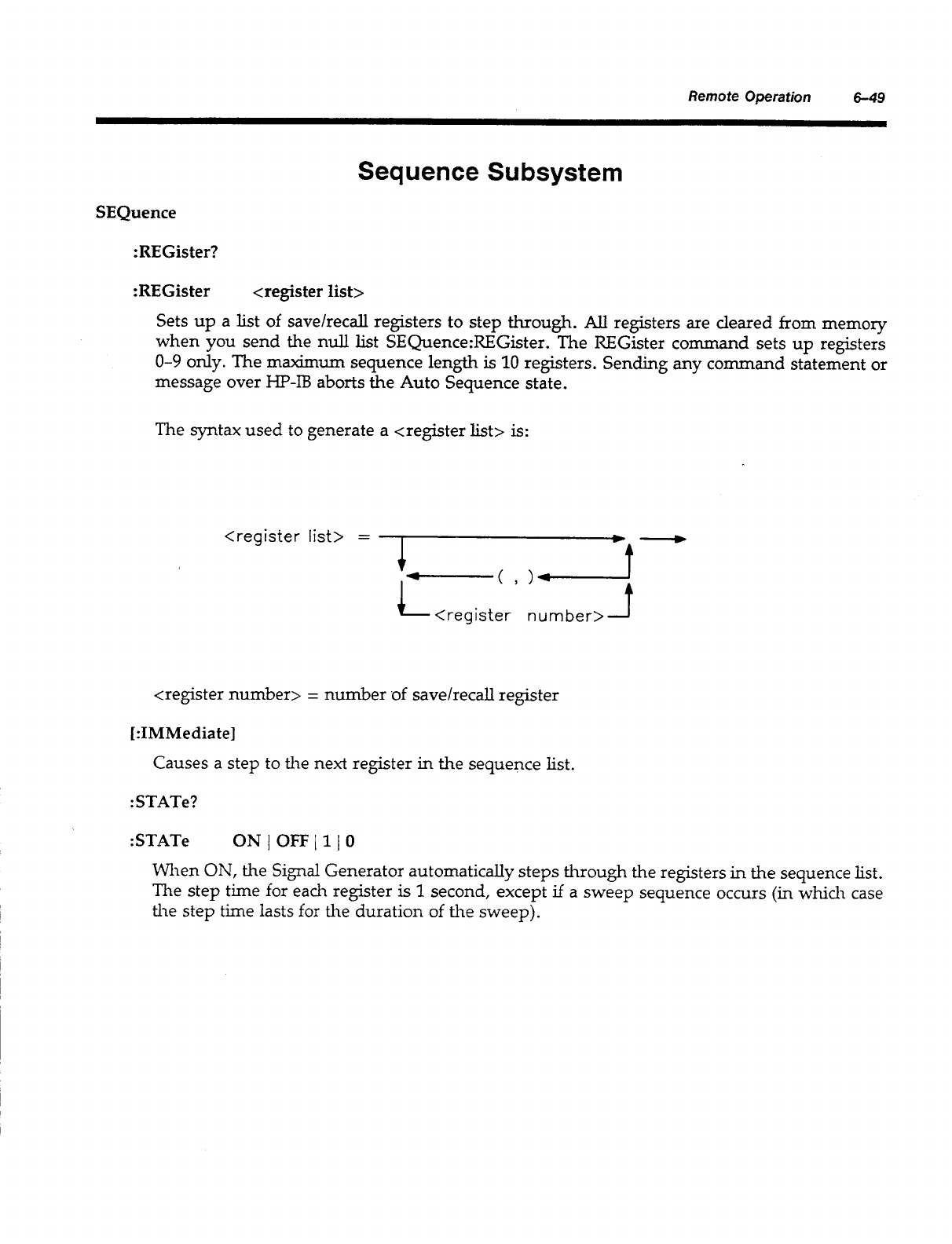

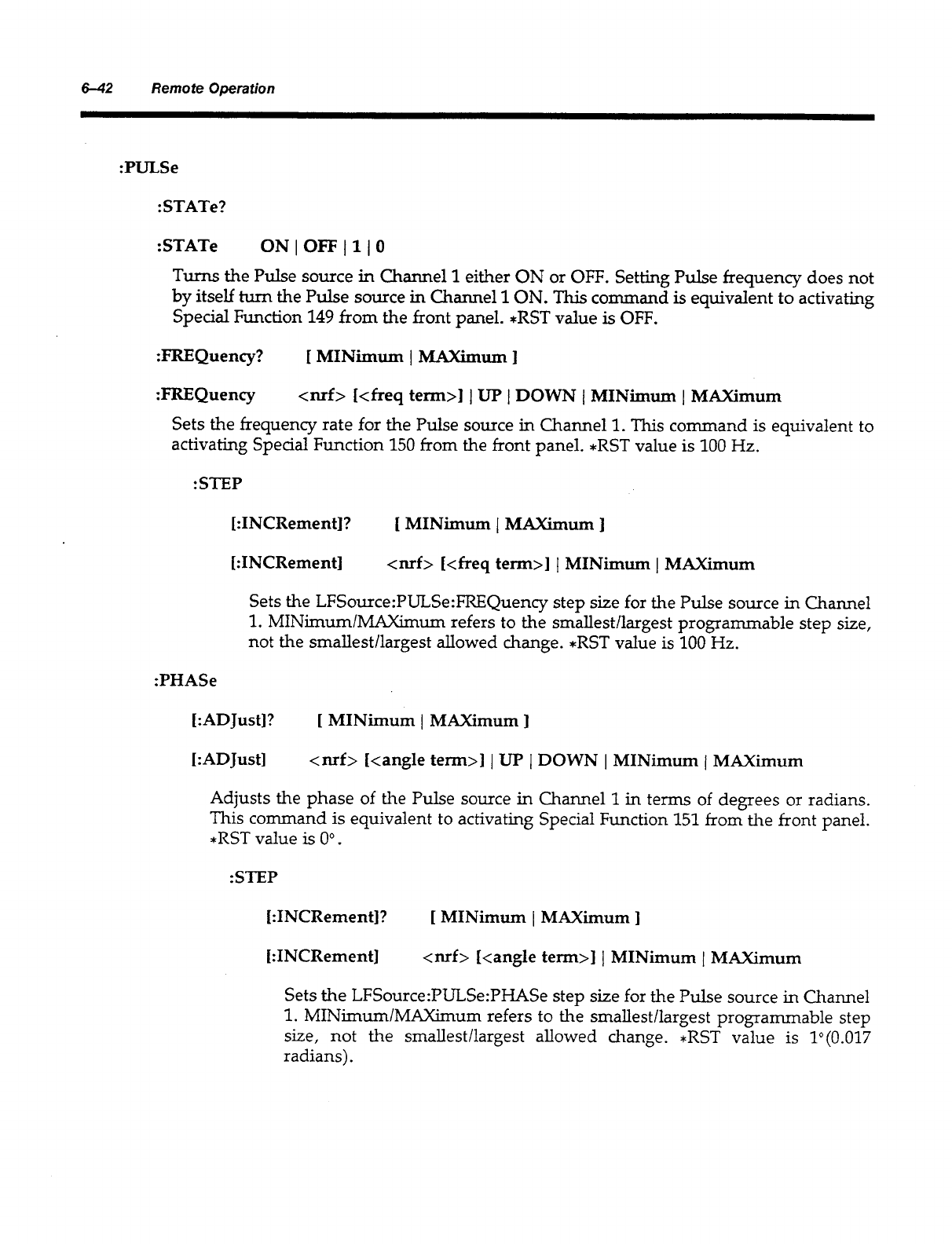

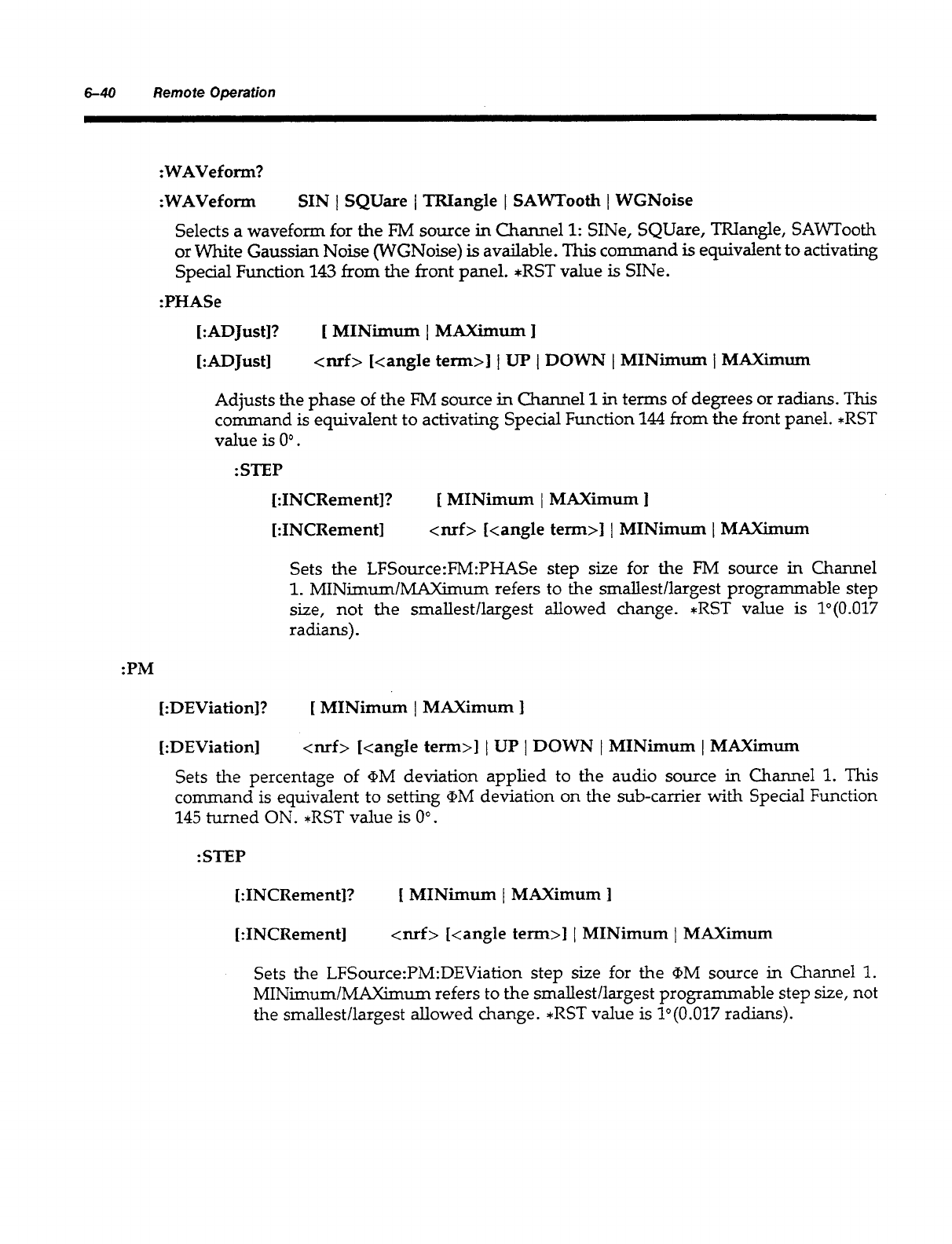

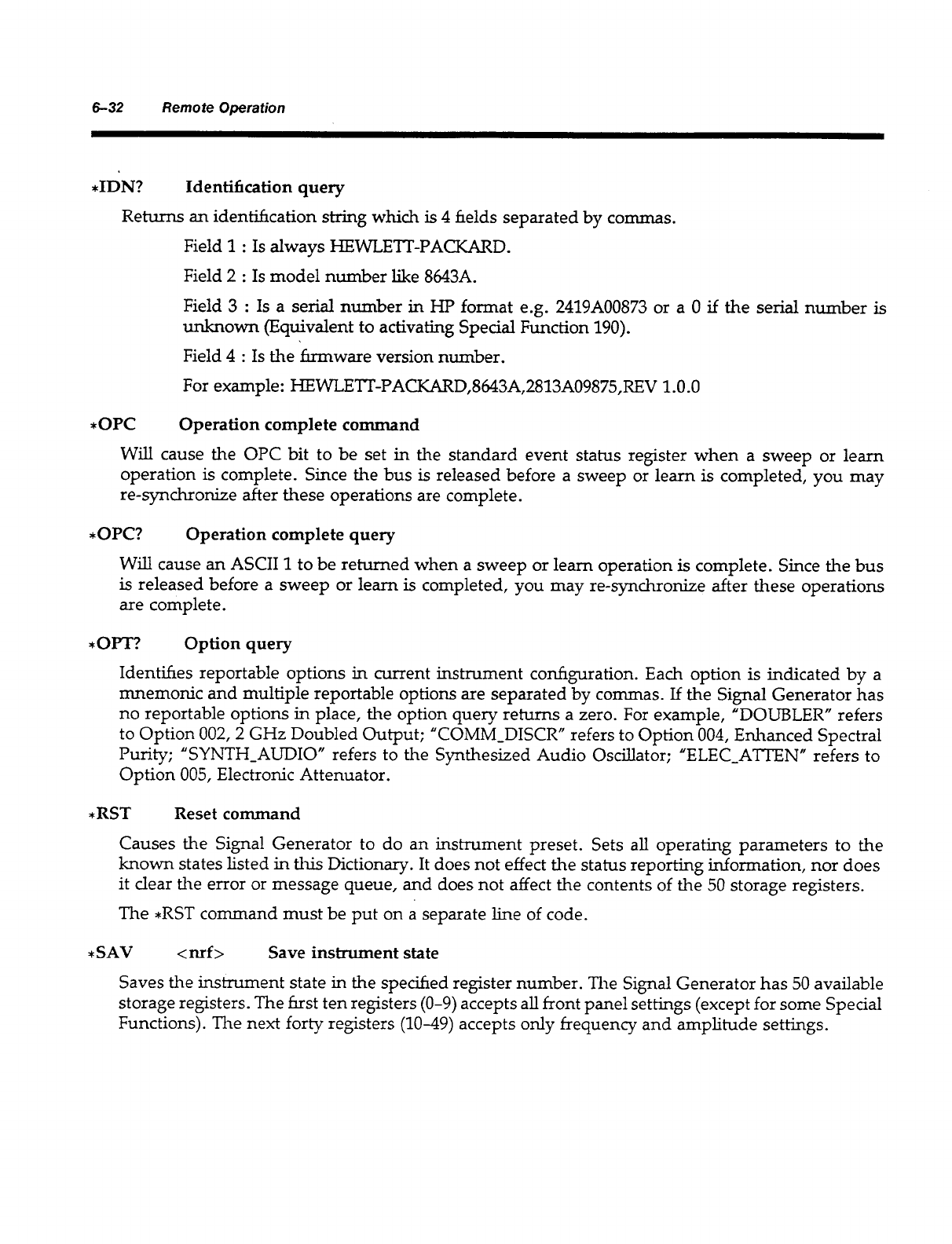

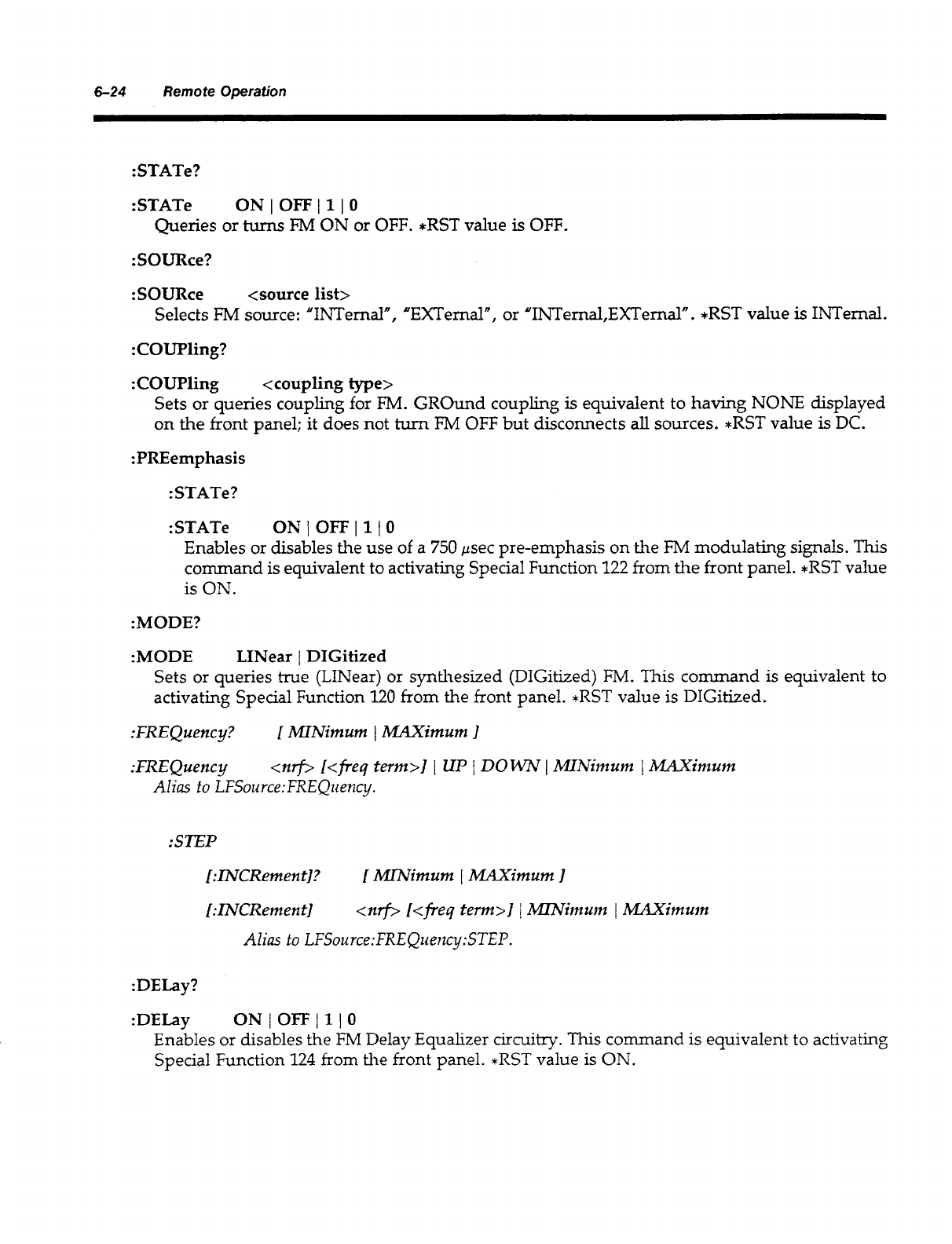

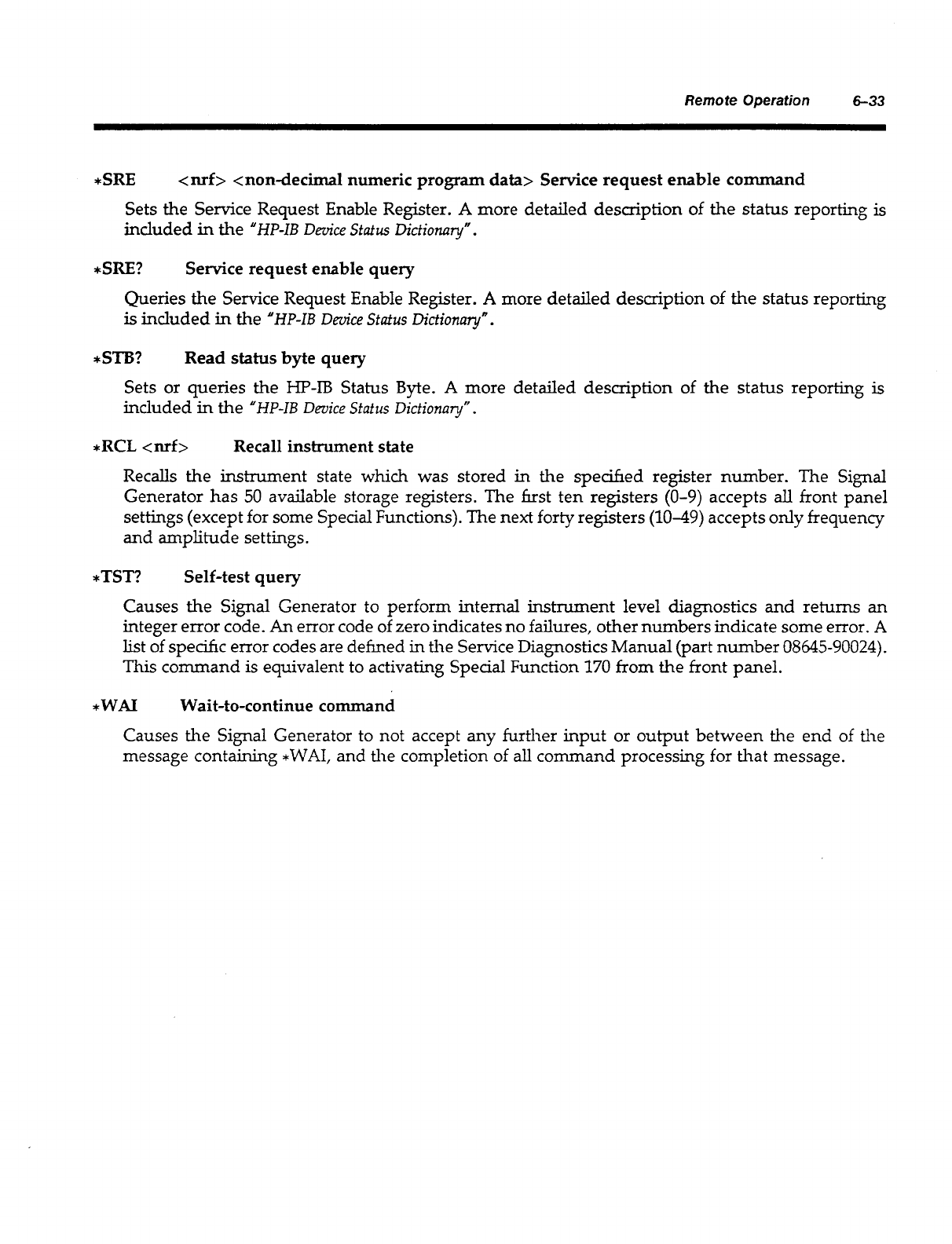

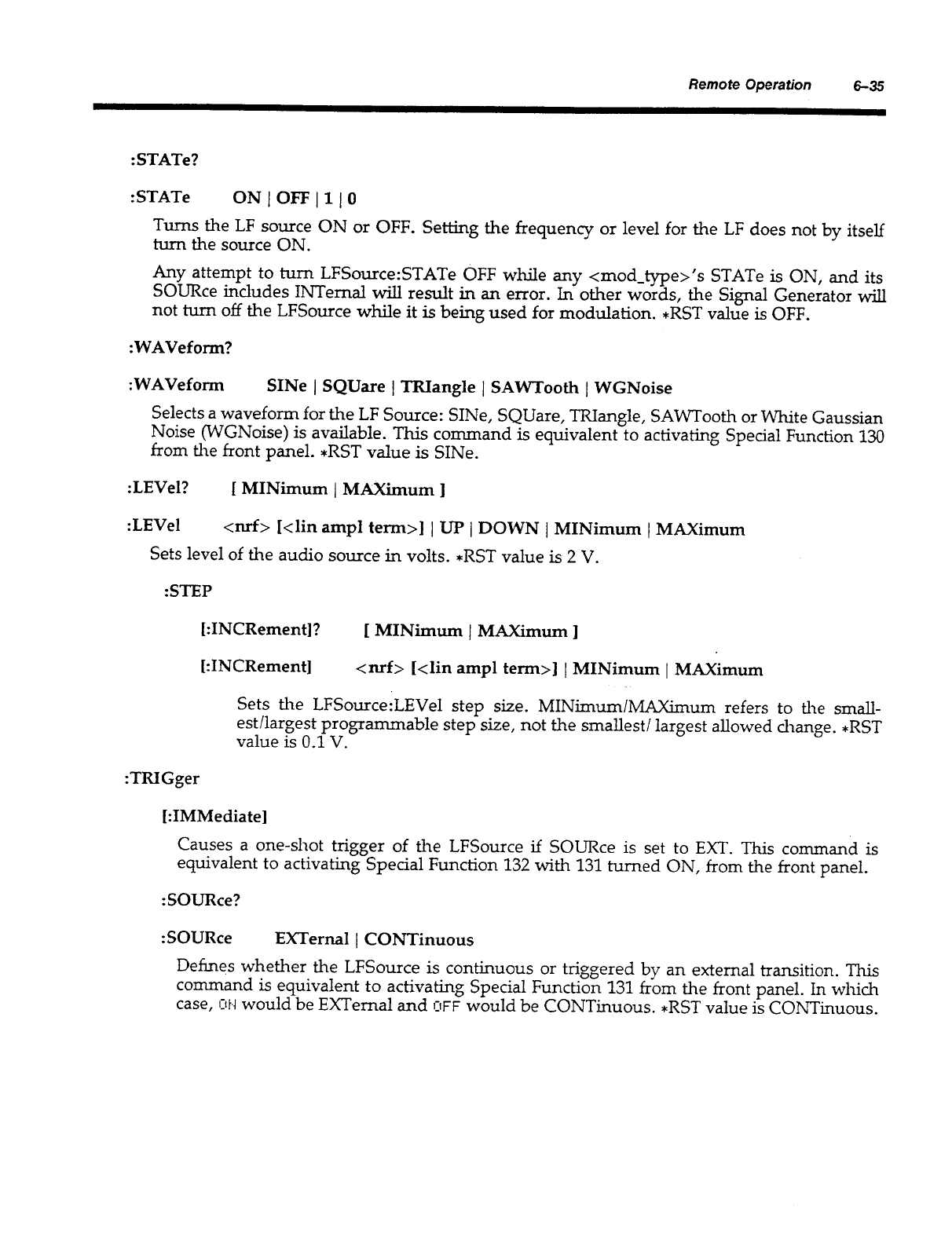

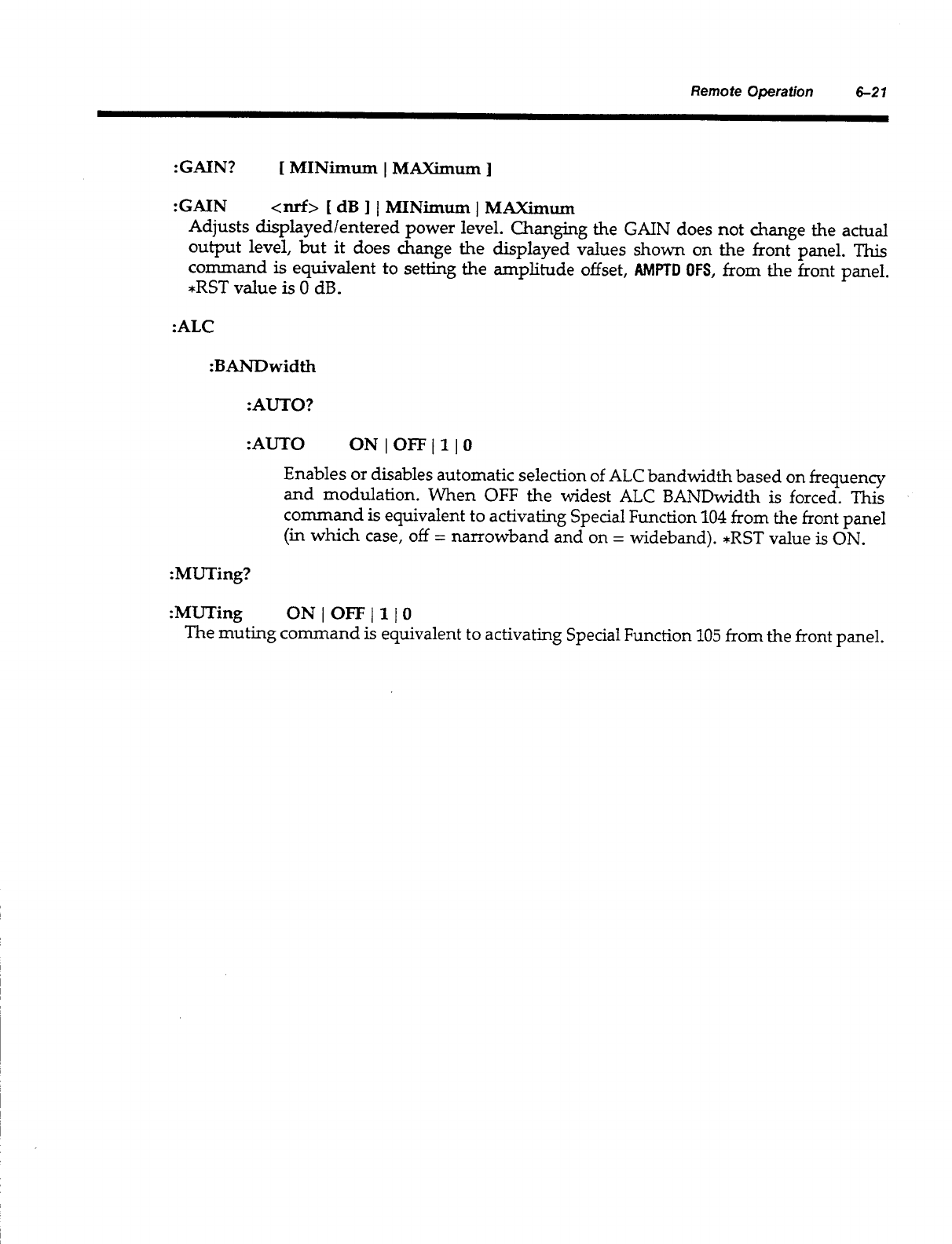

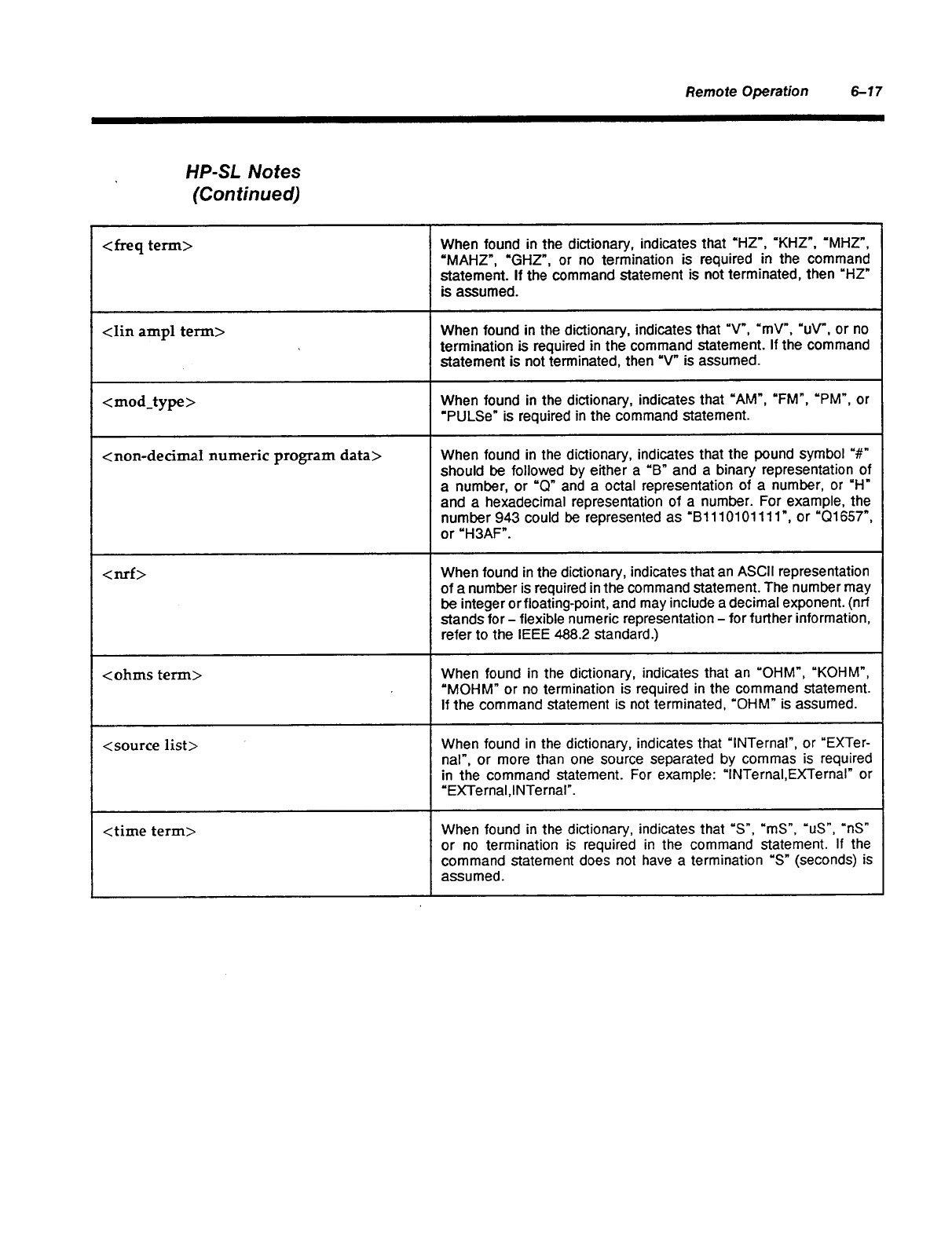

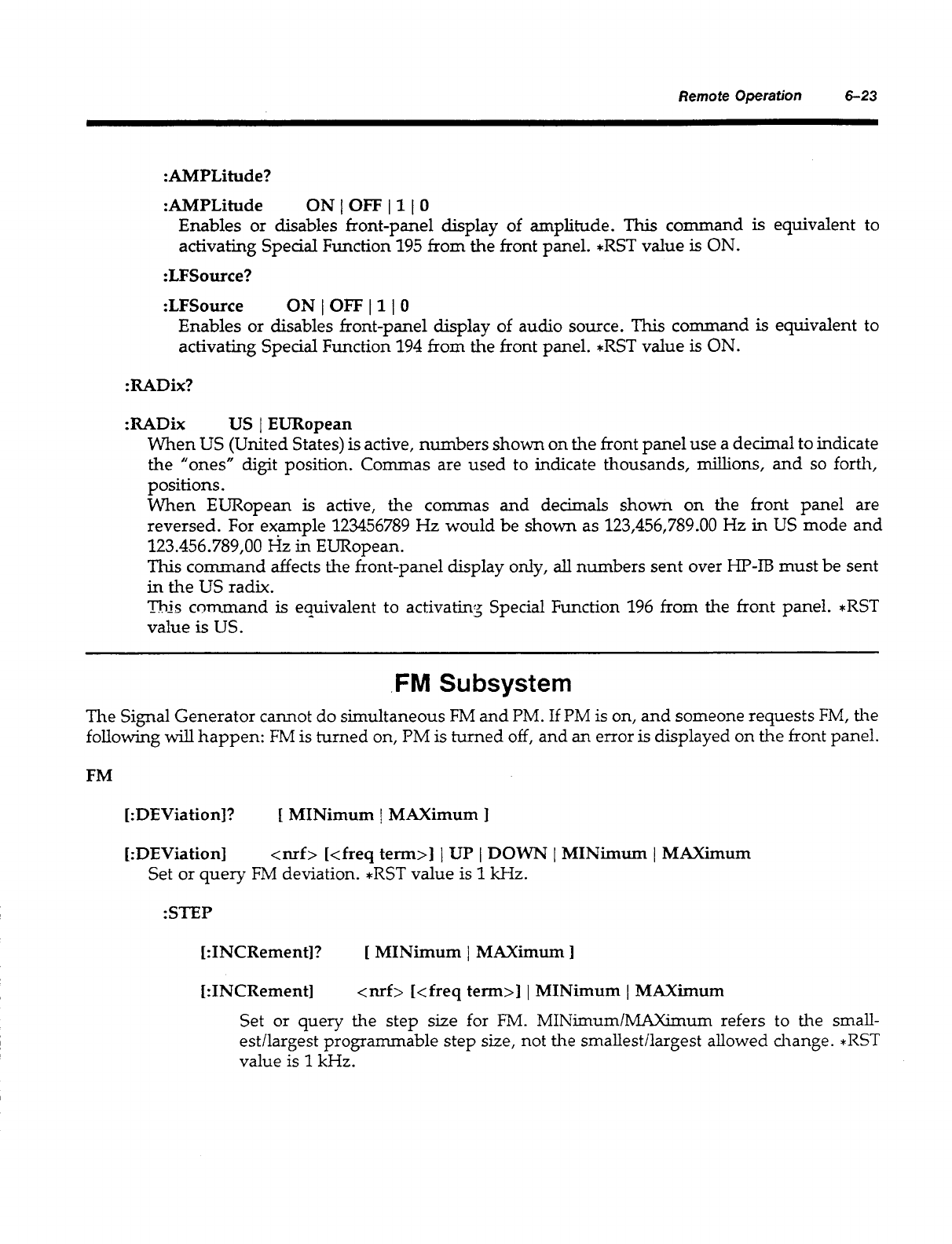

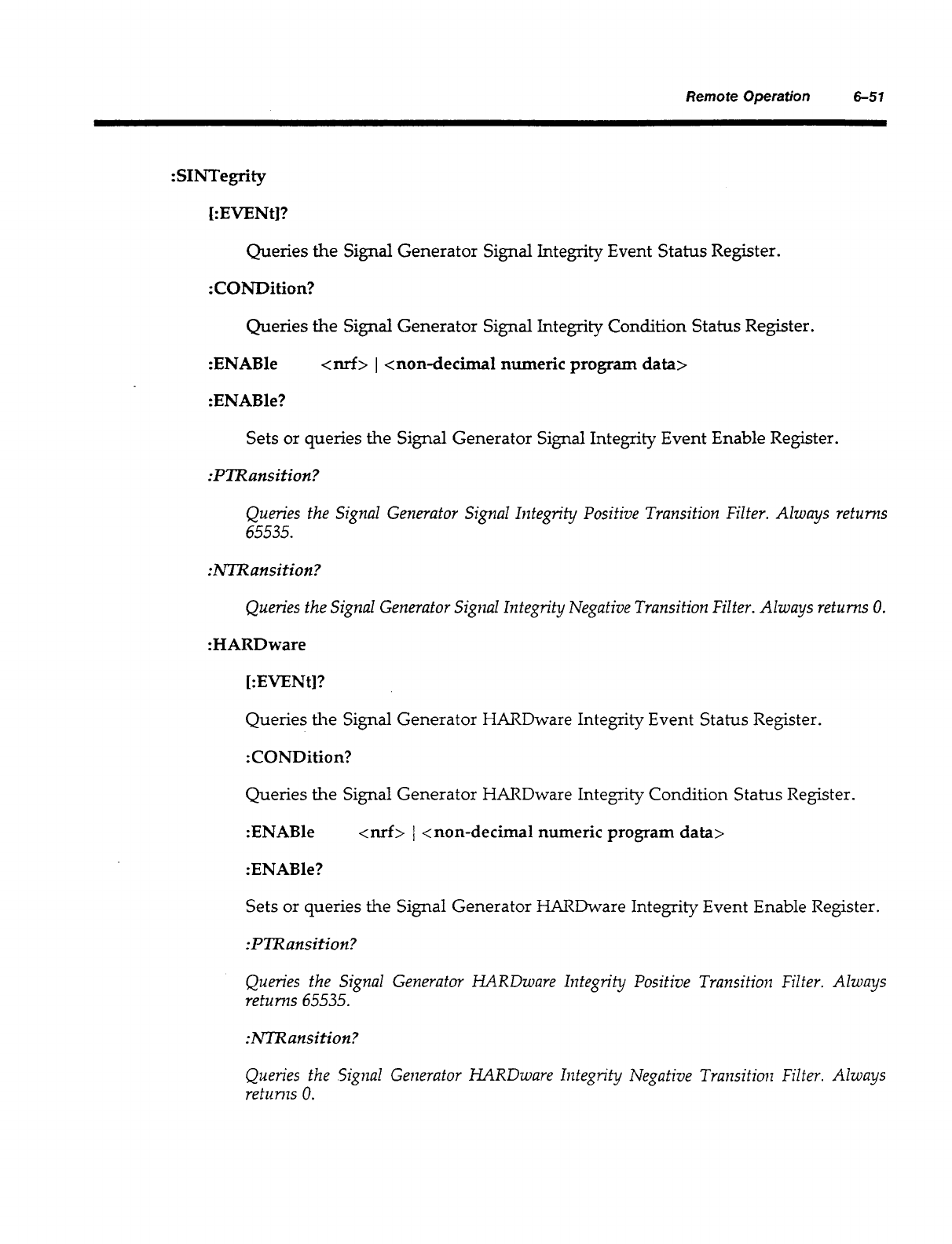

- HP-IB Control Language Dictionary

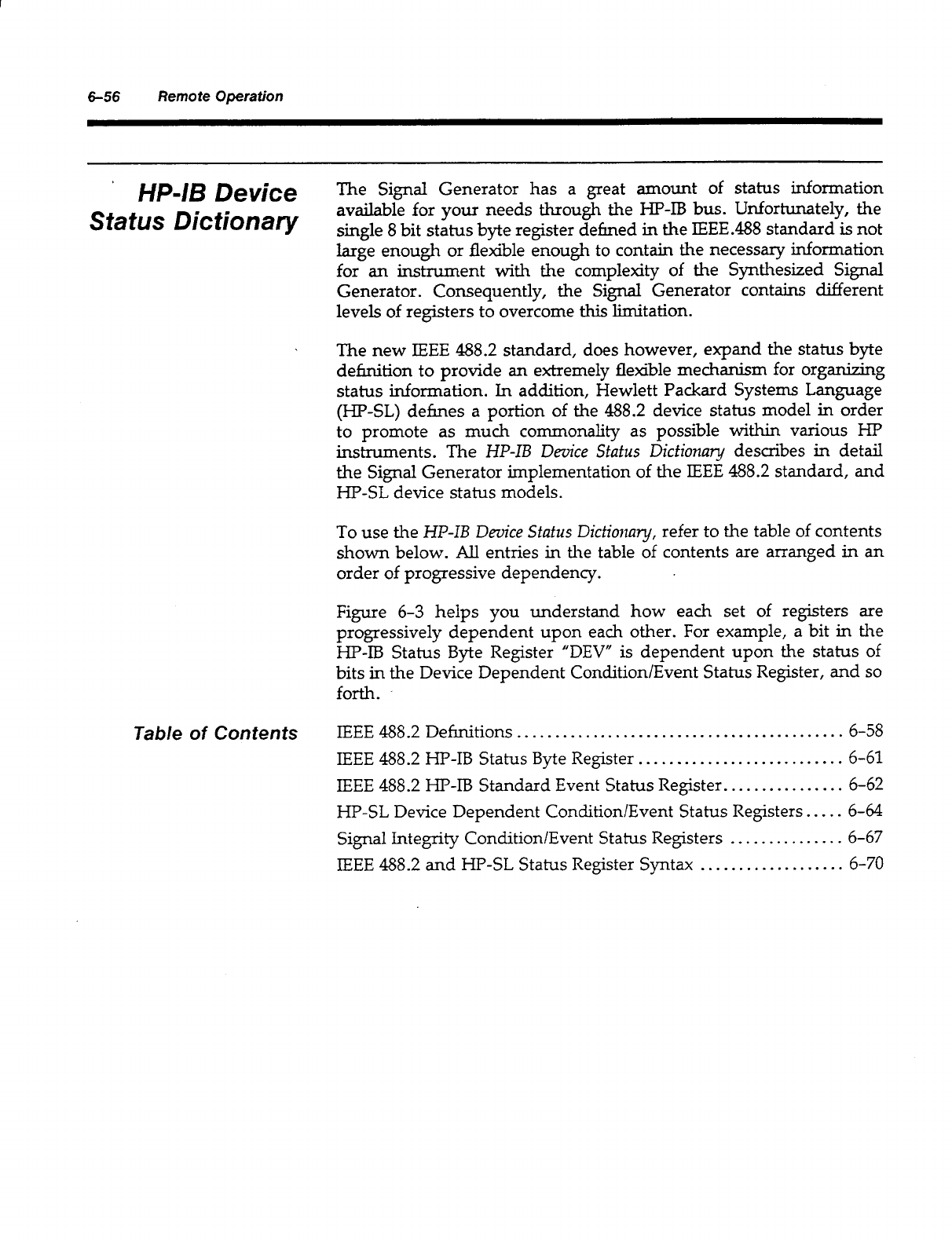

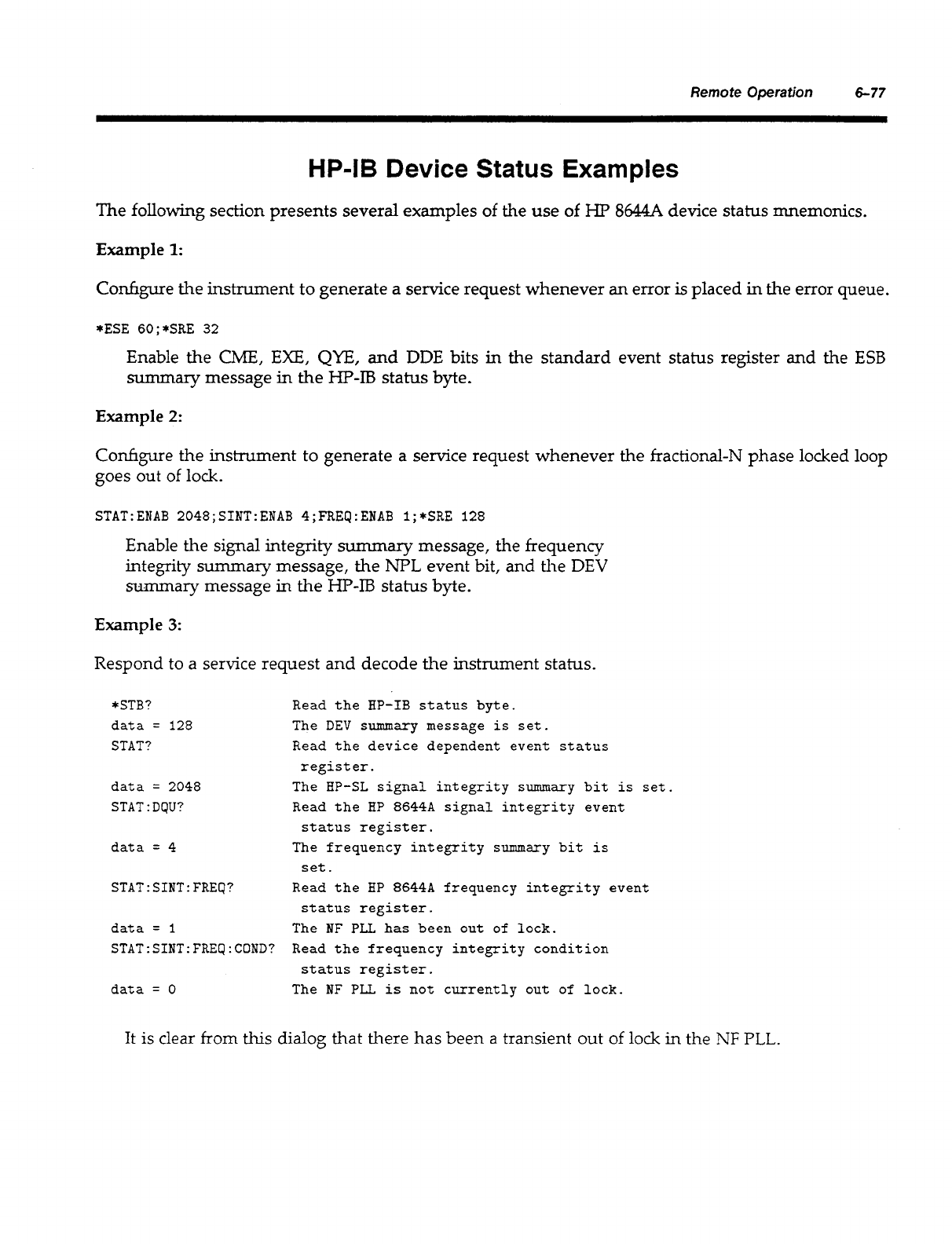

- HP-IB Device Status Dictionary

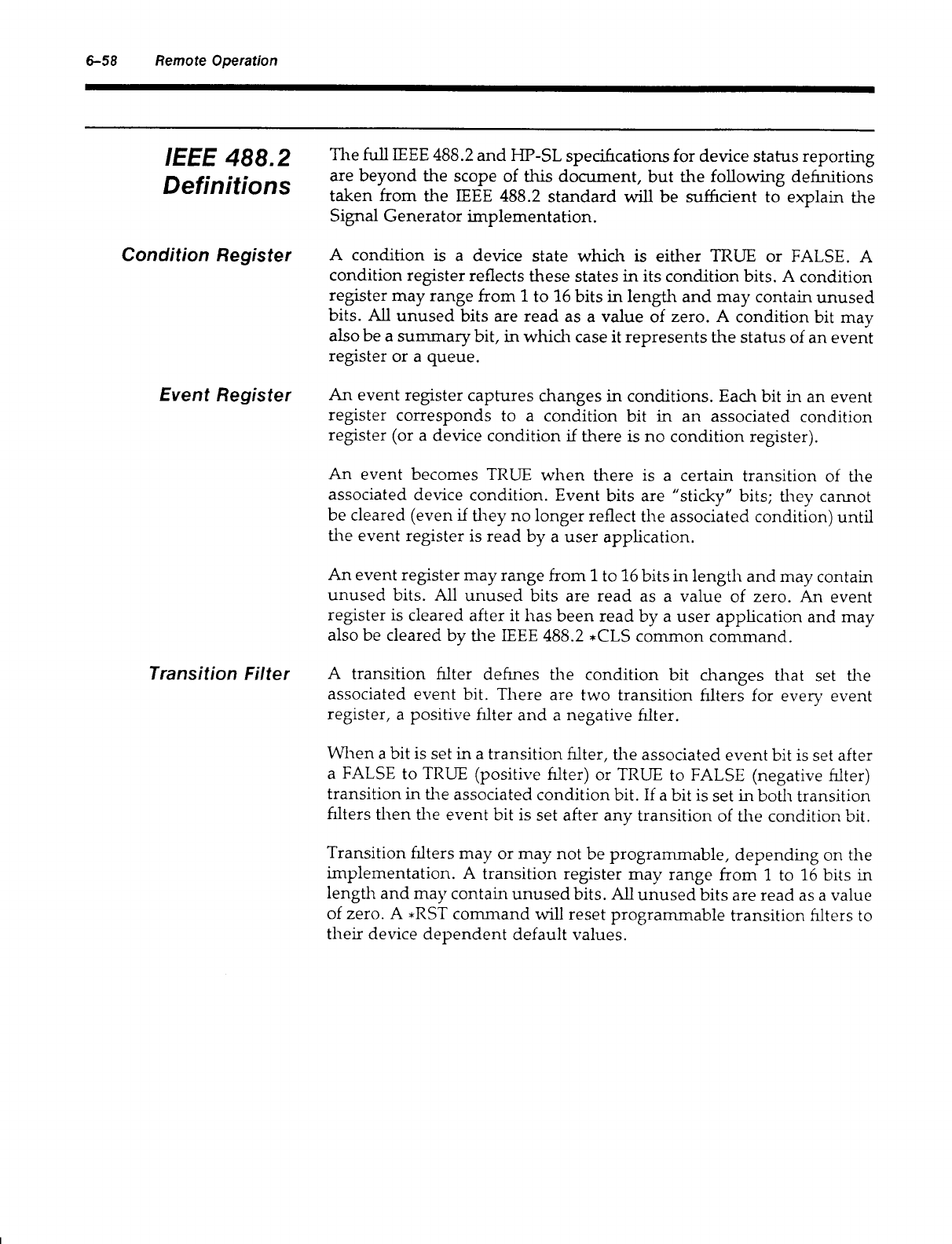

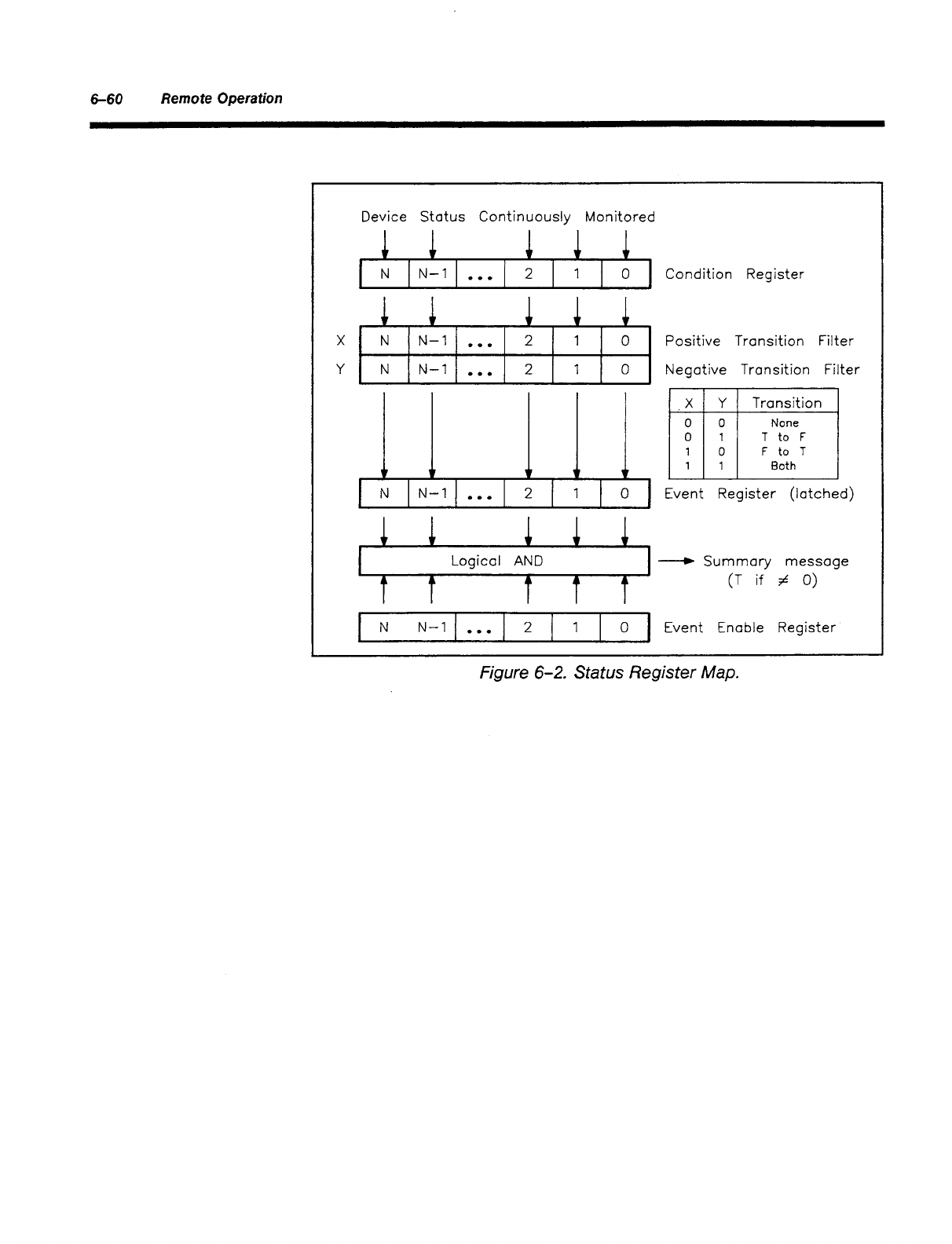

- IEEE 488.2 Definitions

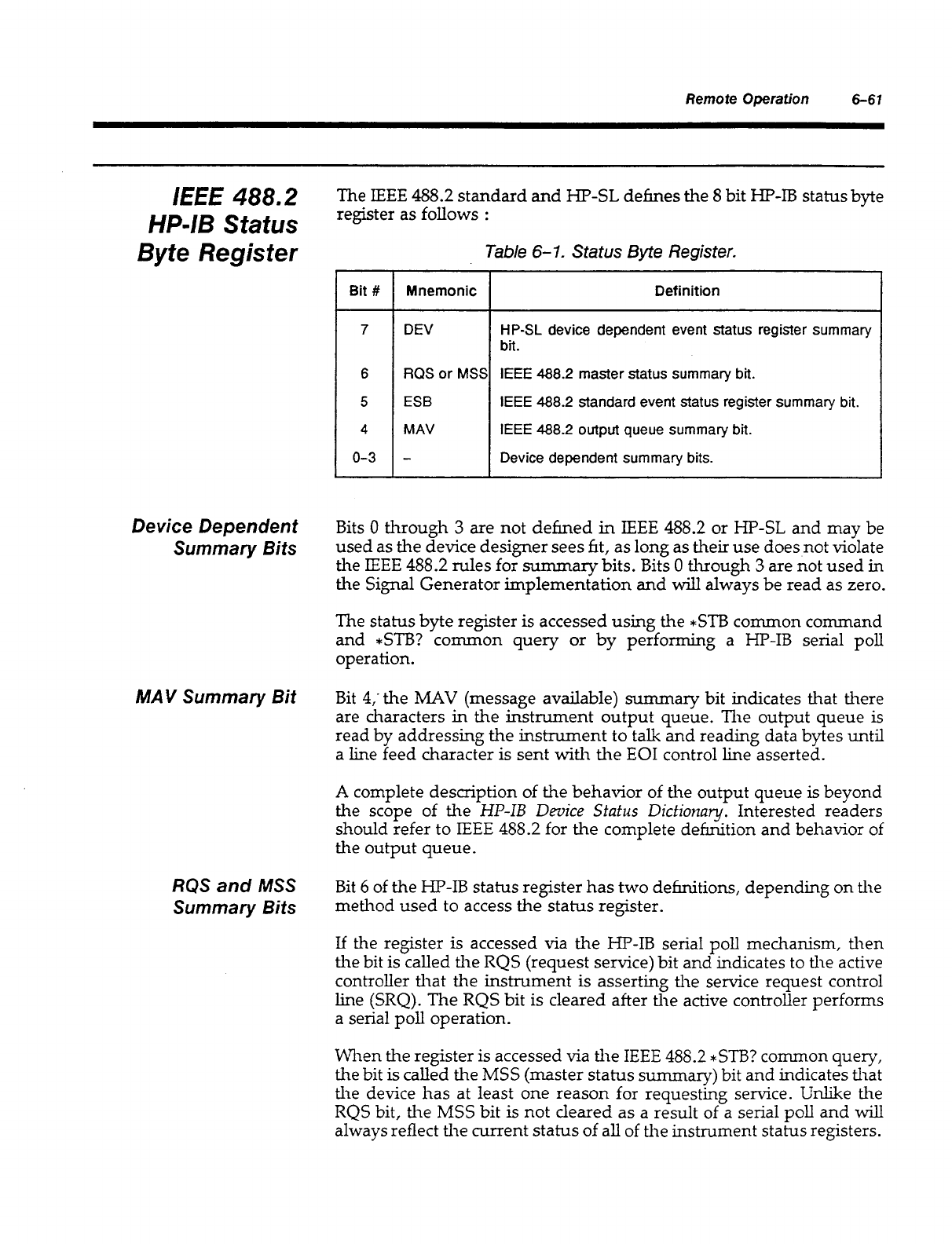

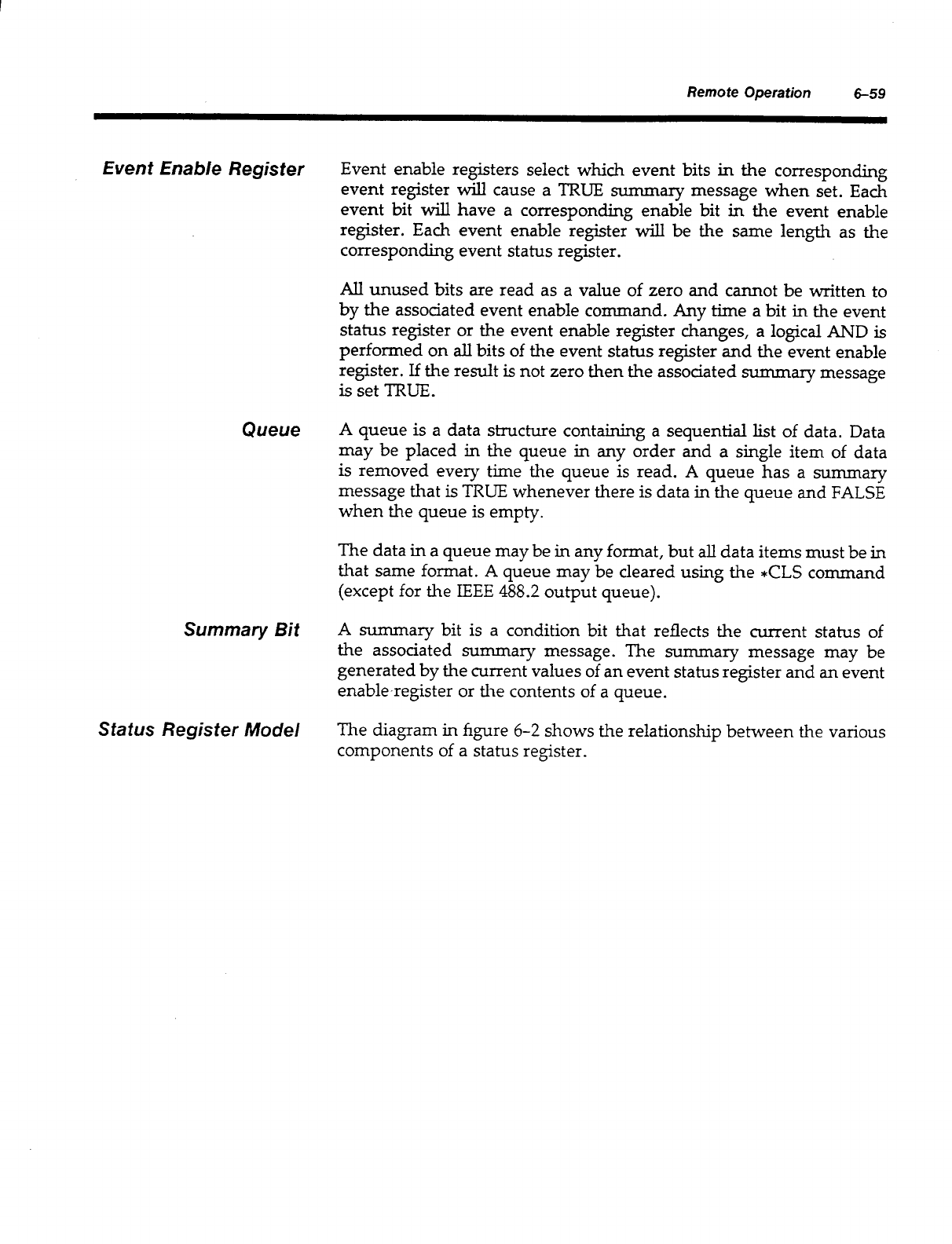

- IEEE 488.2 HP-IB Status Byte Register

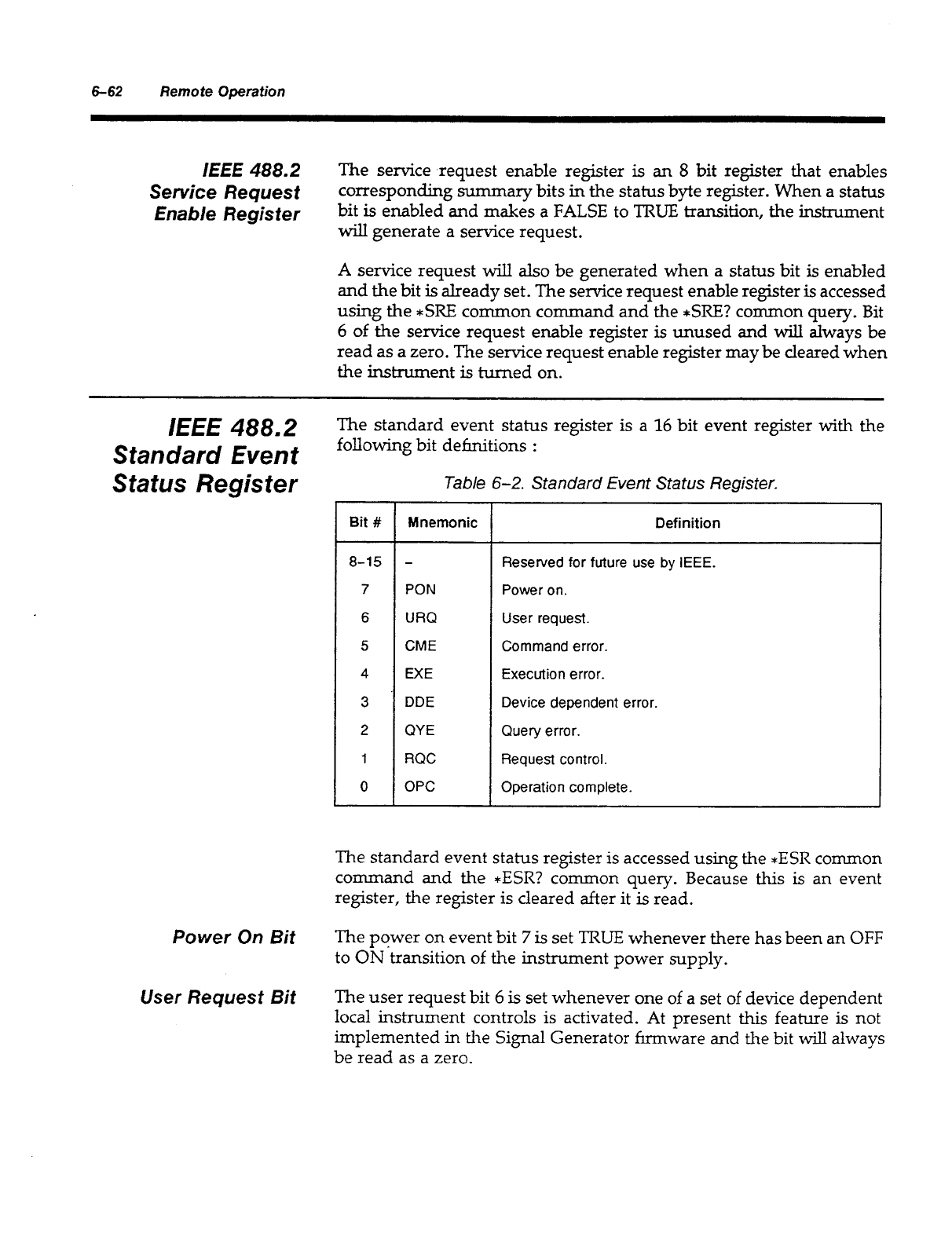

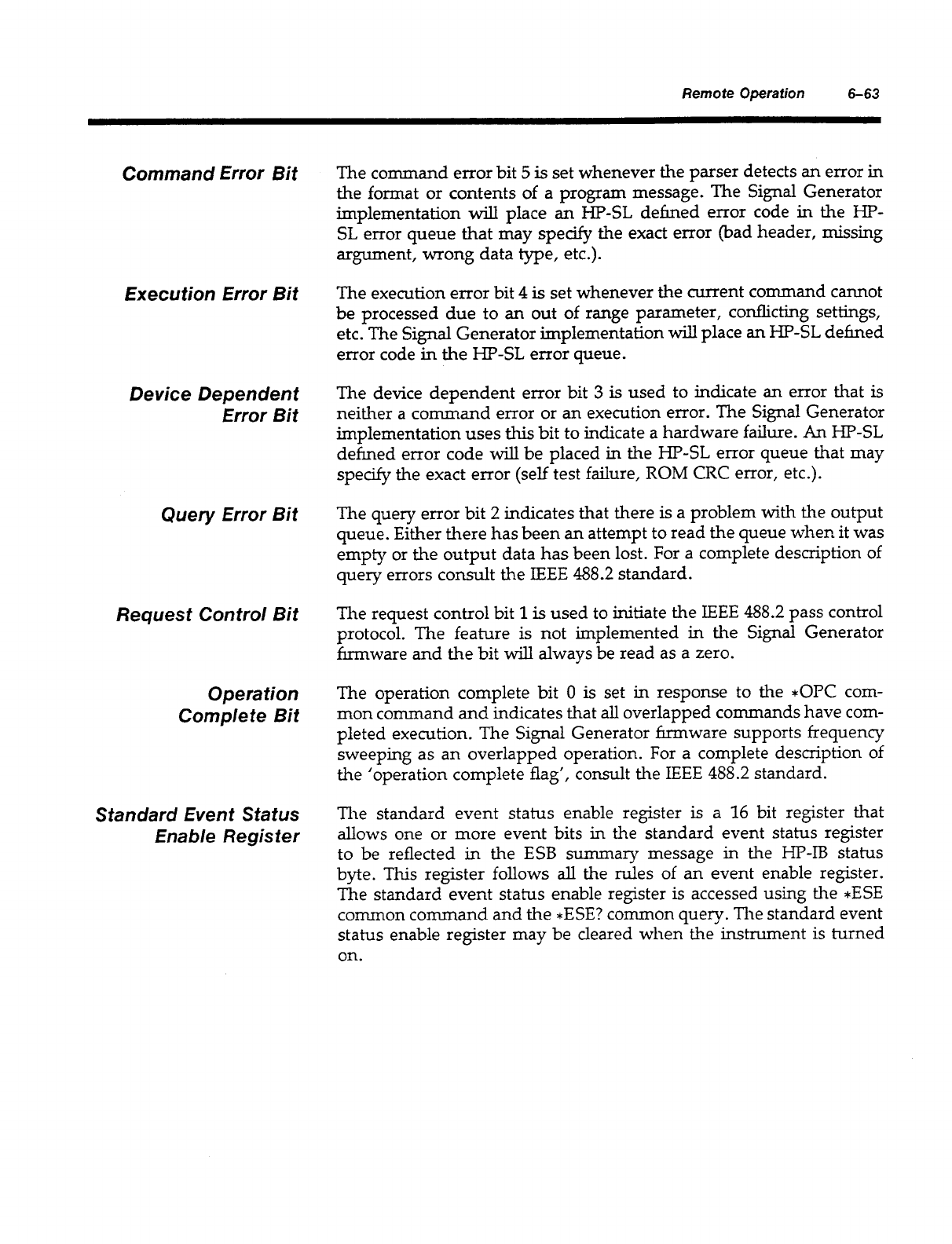

- IEEE 488.2 Standard Event Status Register

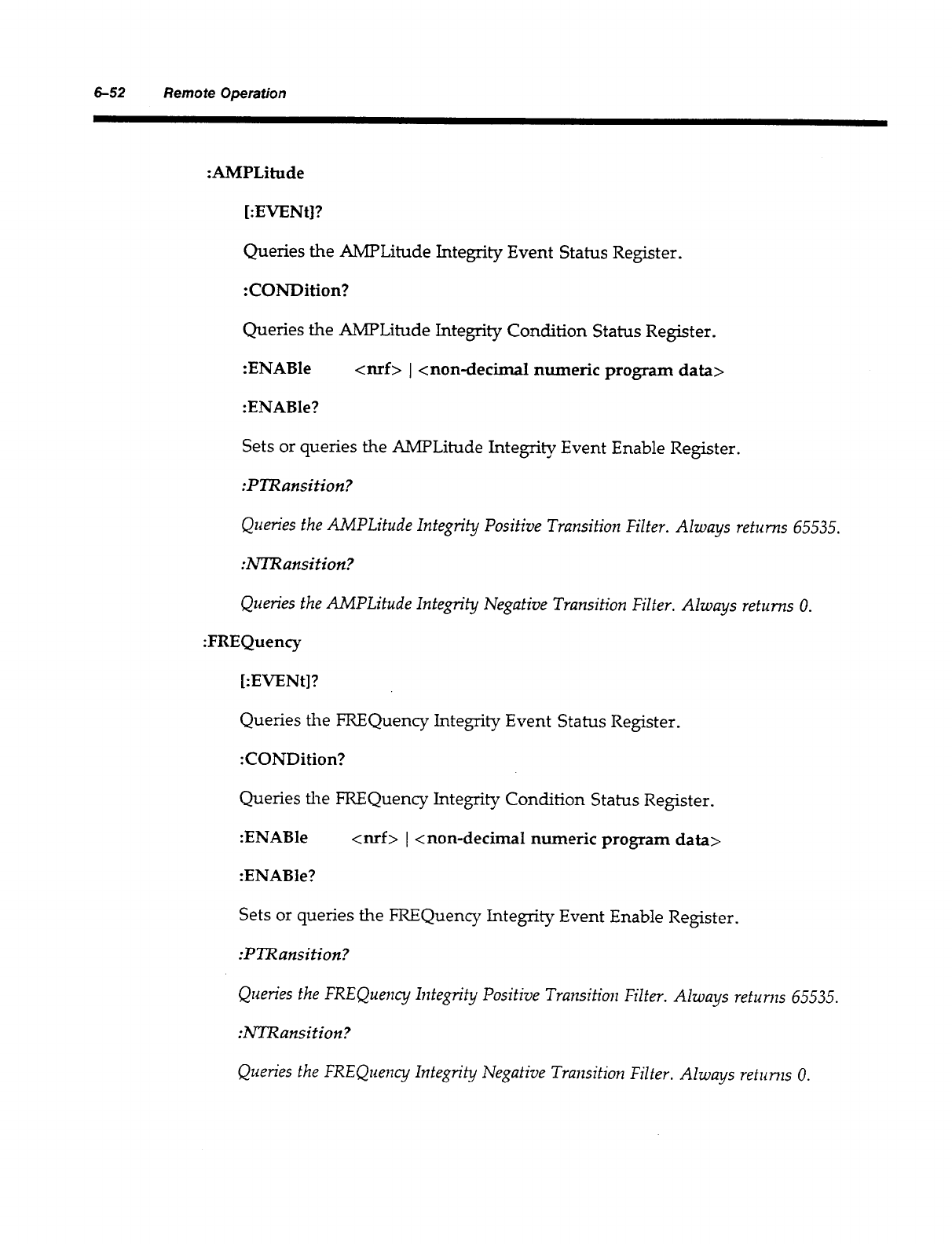

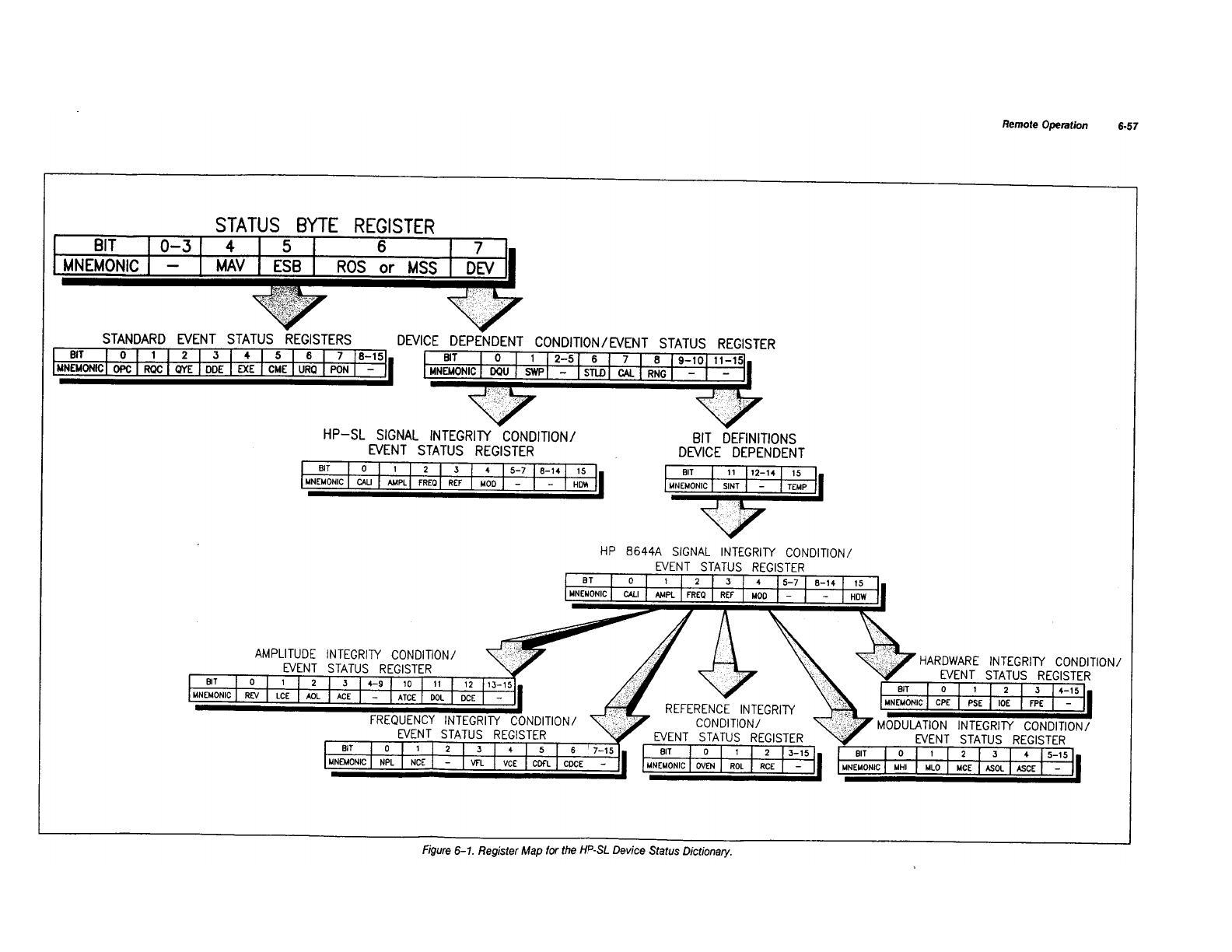

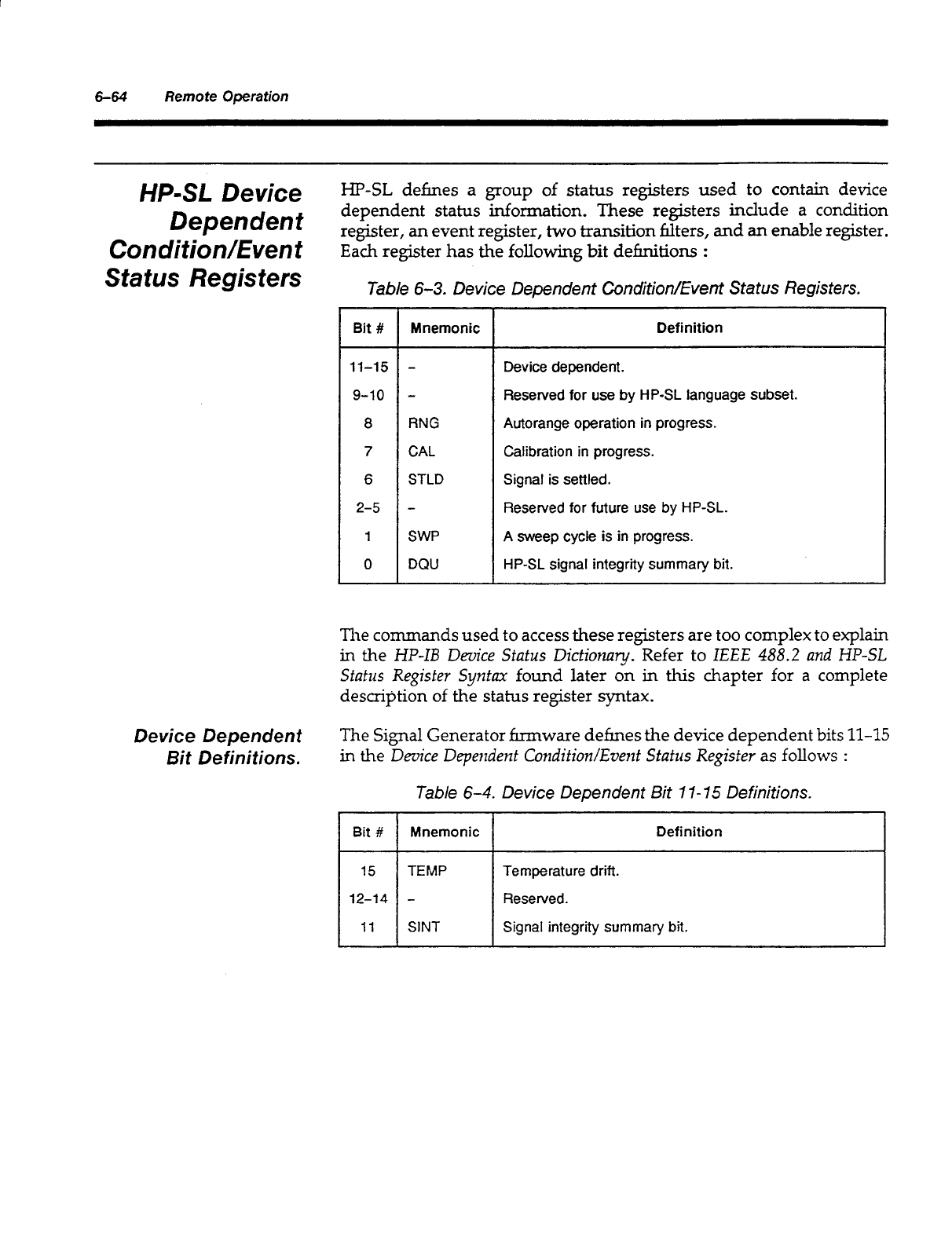

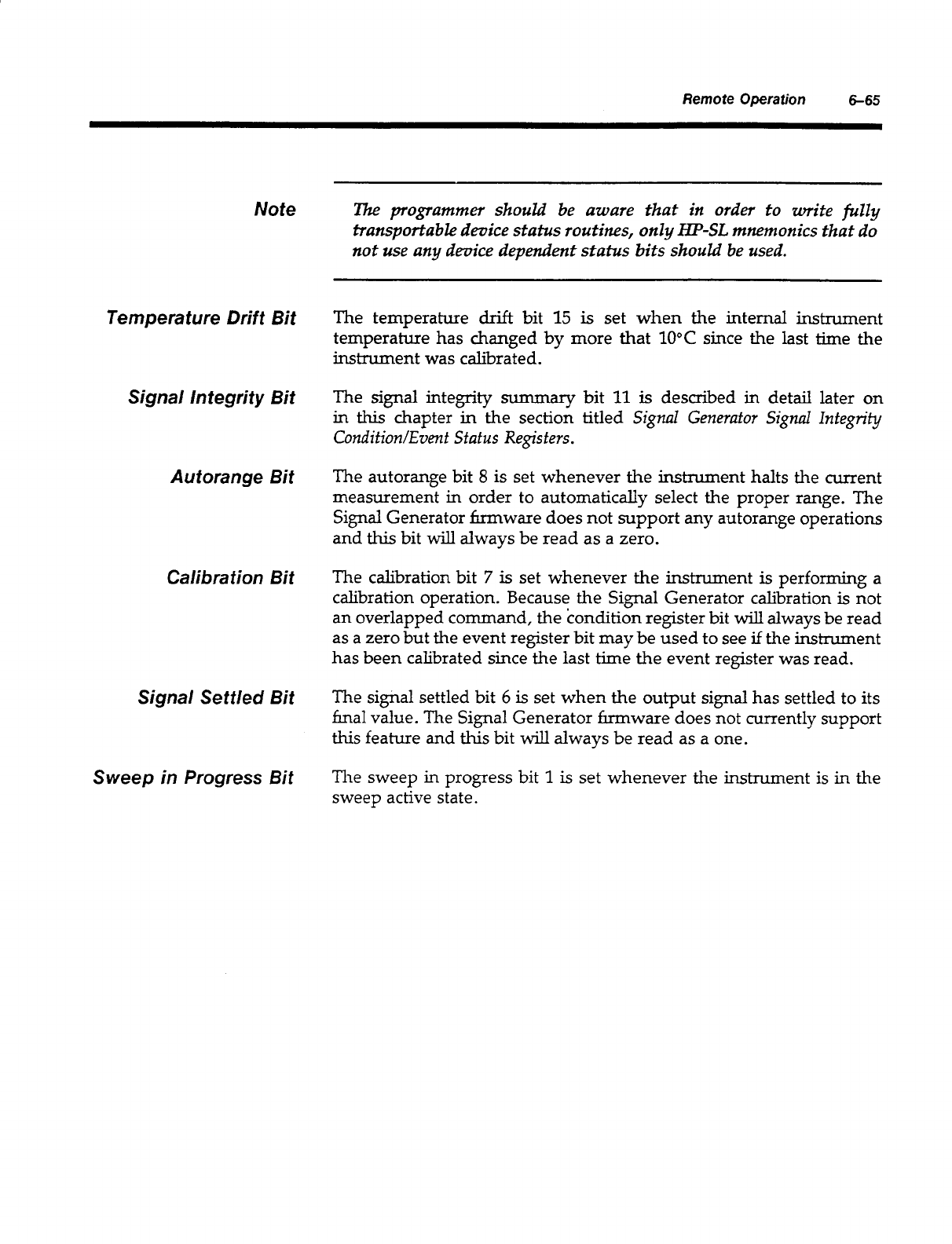

- HP-SL Device Dependent Condition/Event Status Registers

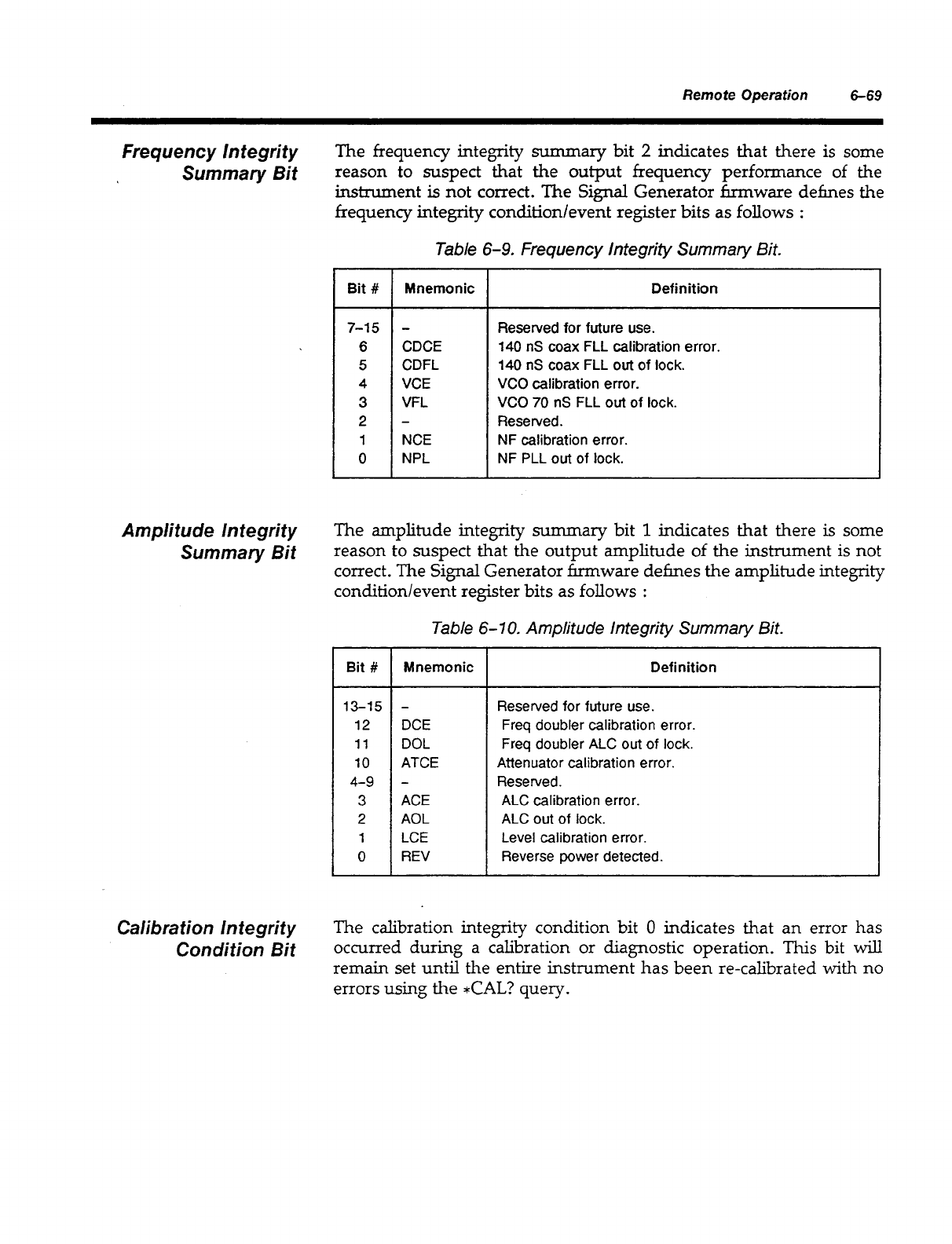

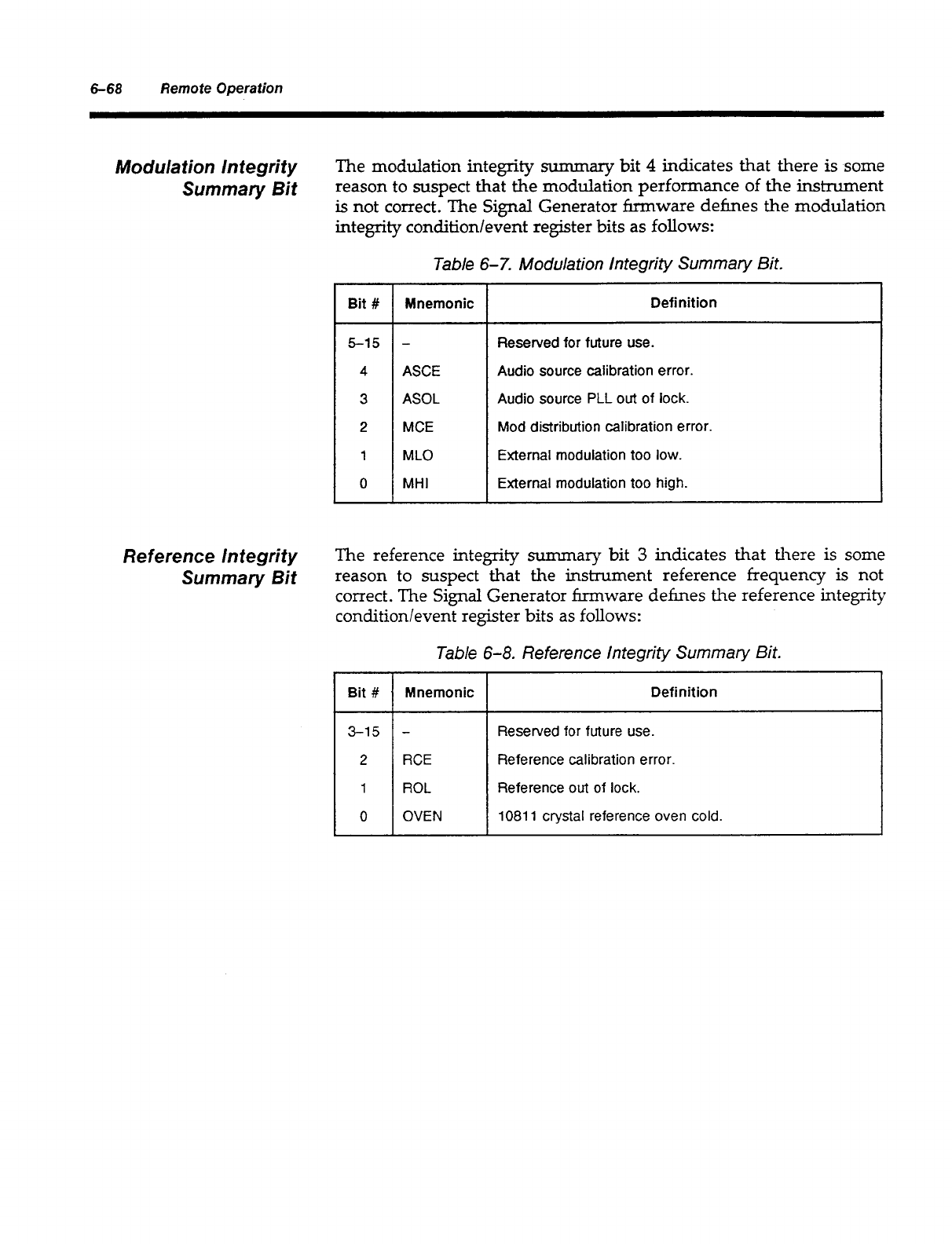

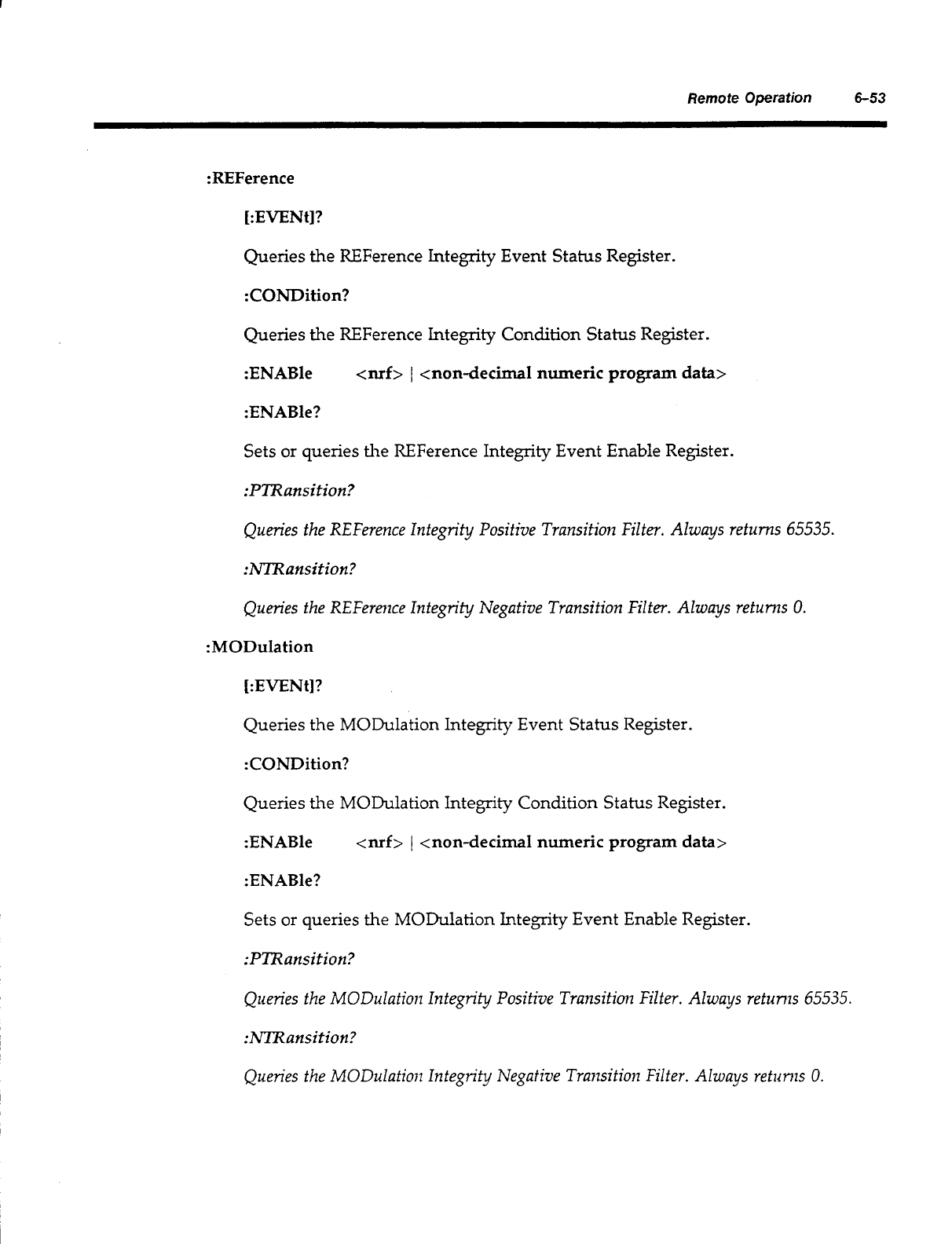

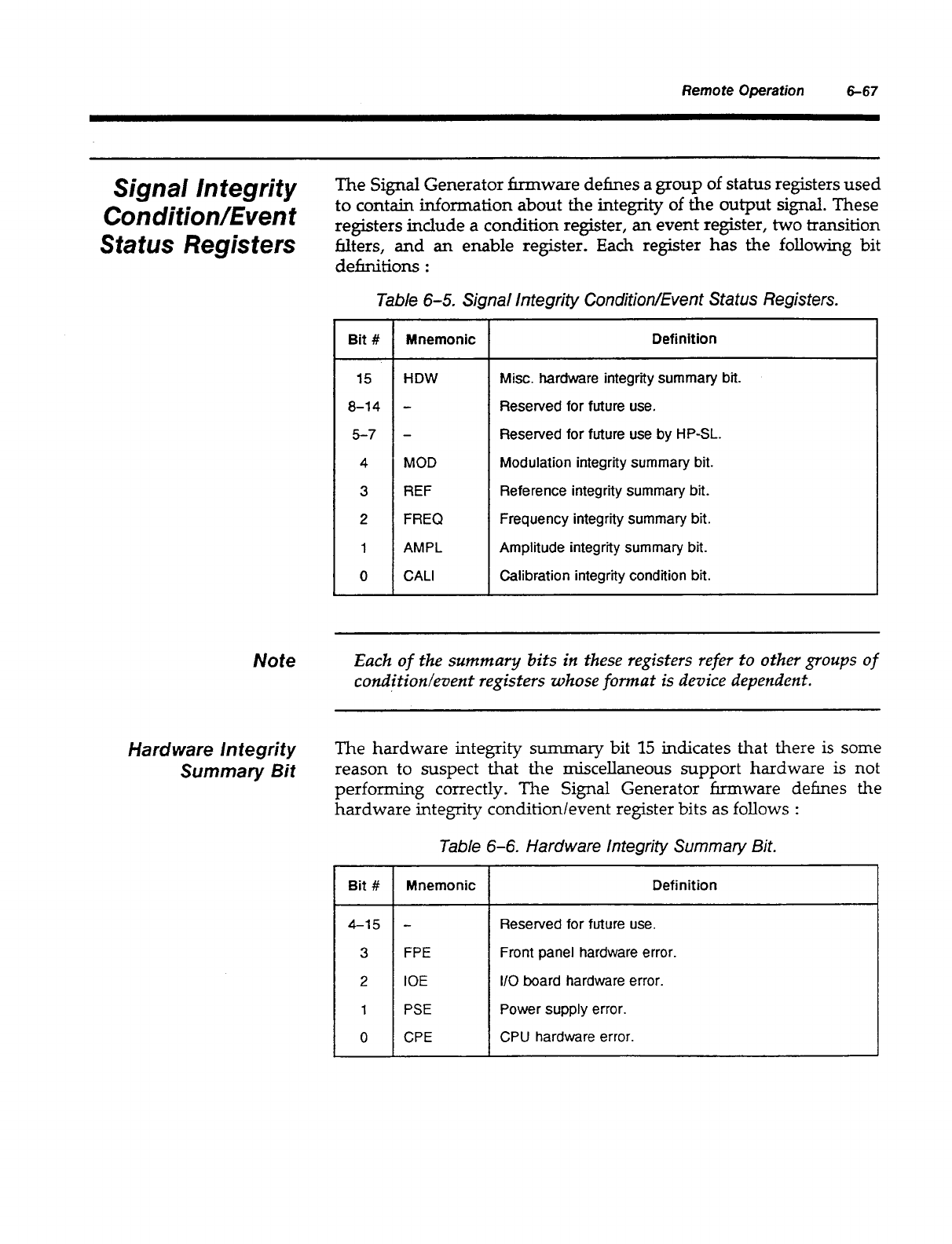

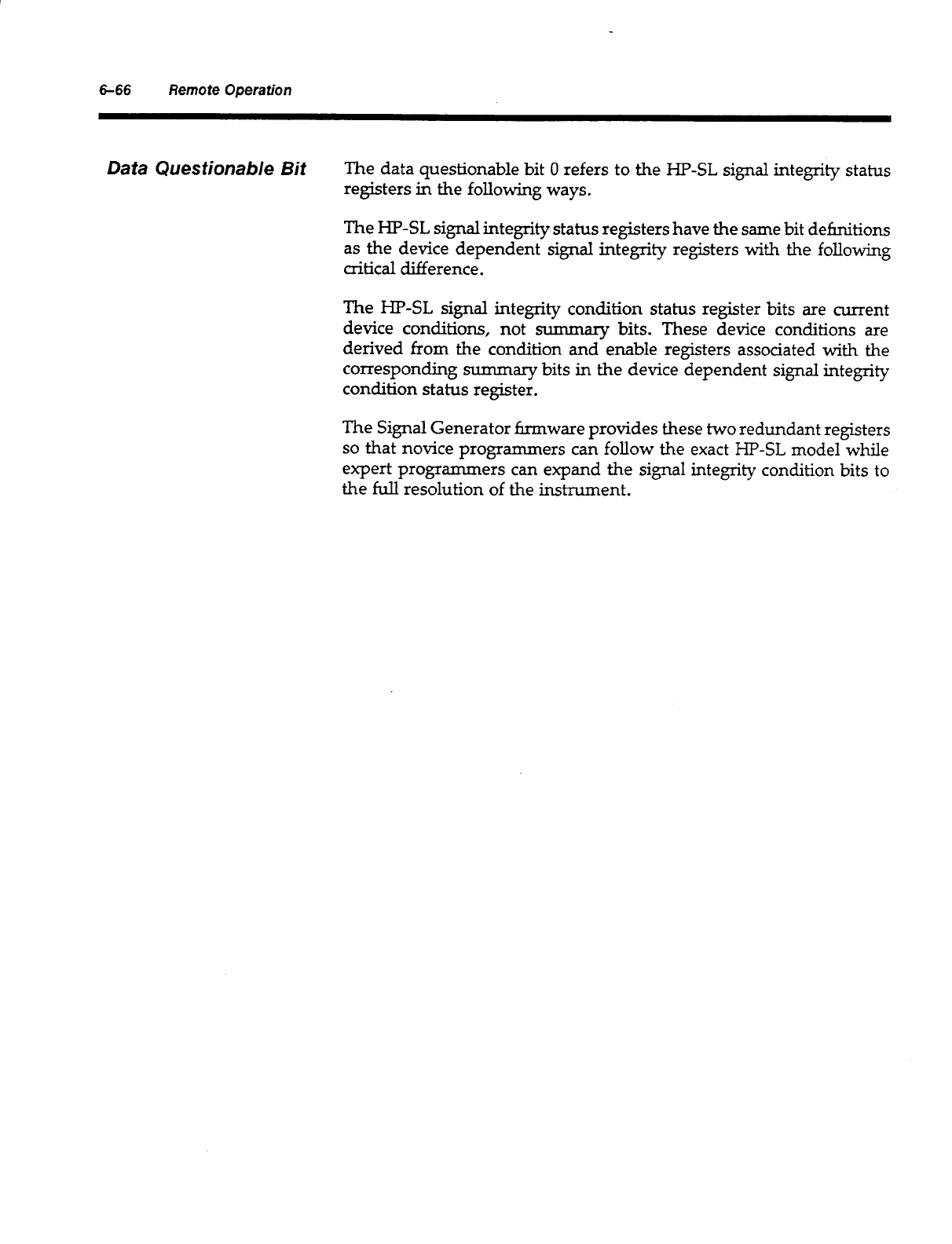

- Signal Integrity Condition/Event Status Registers

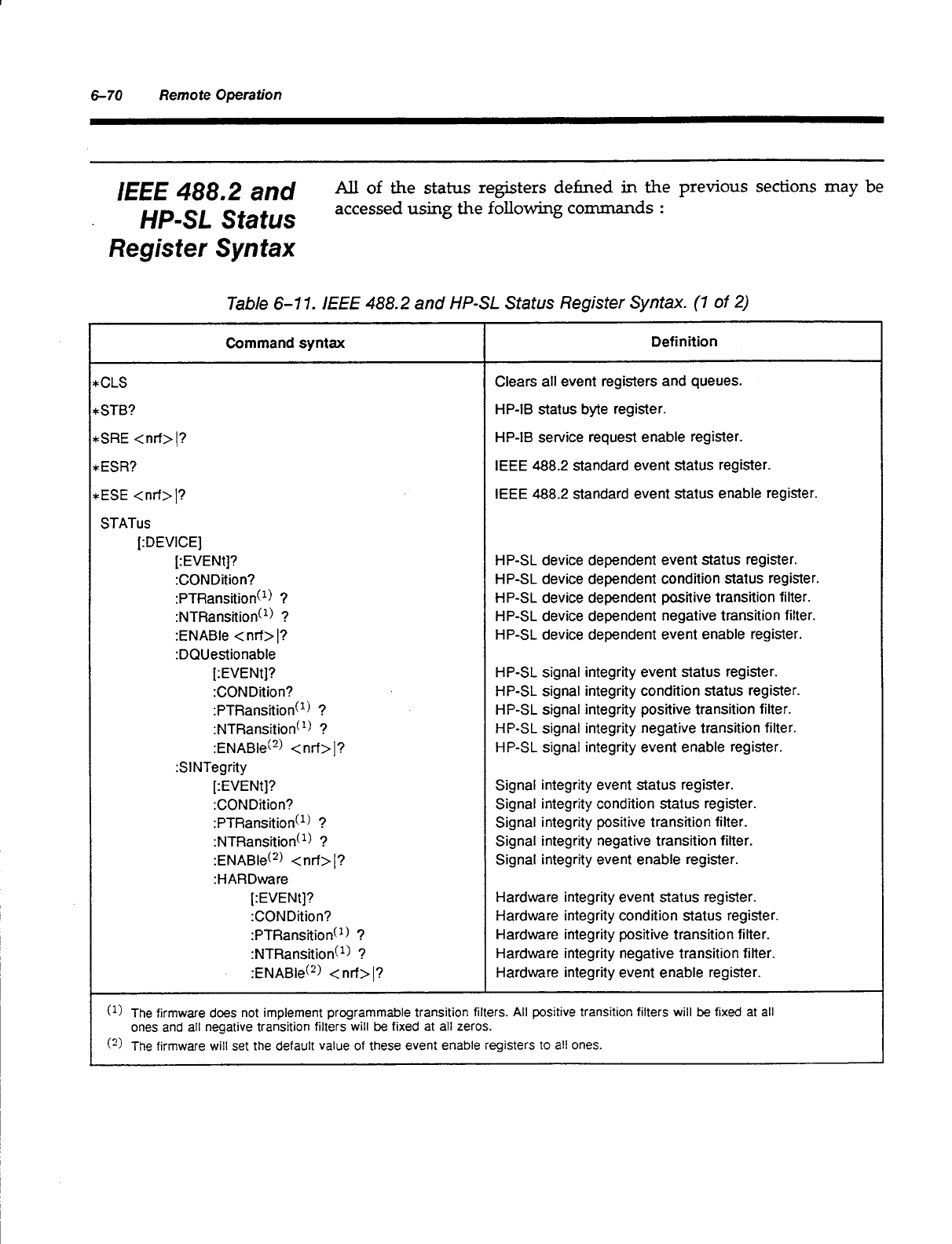

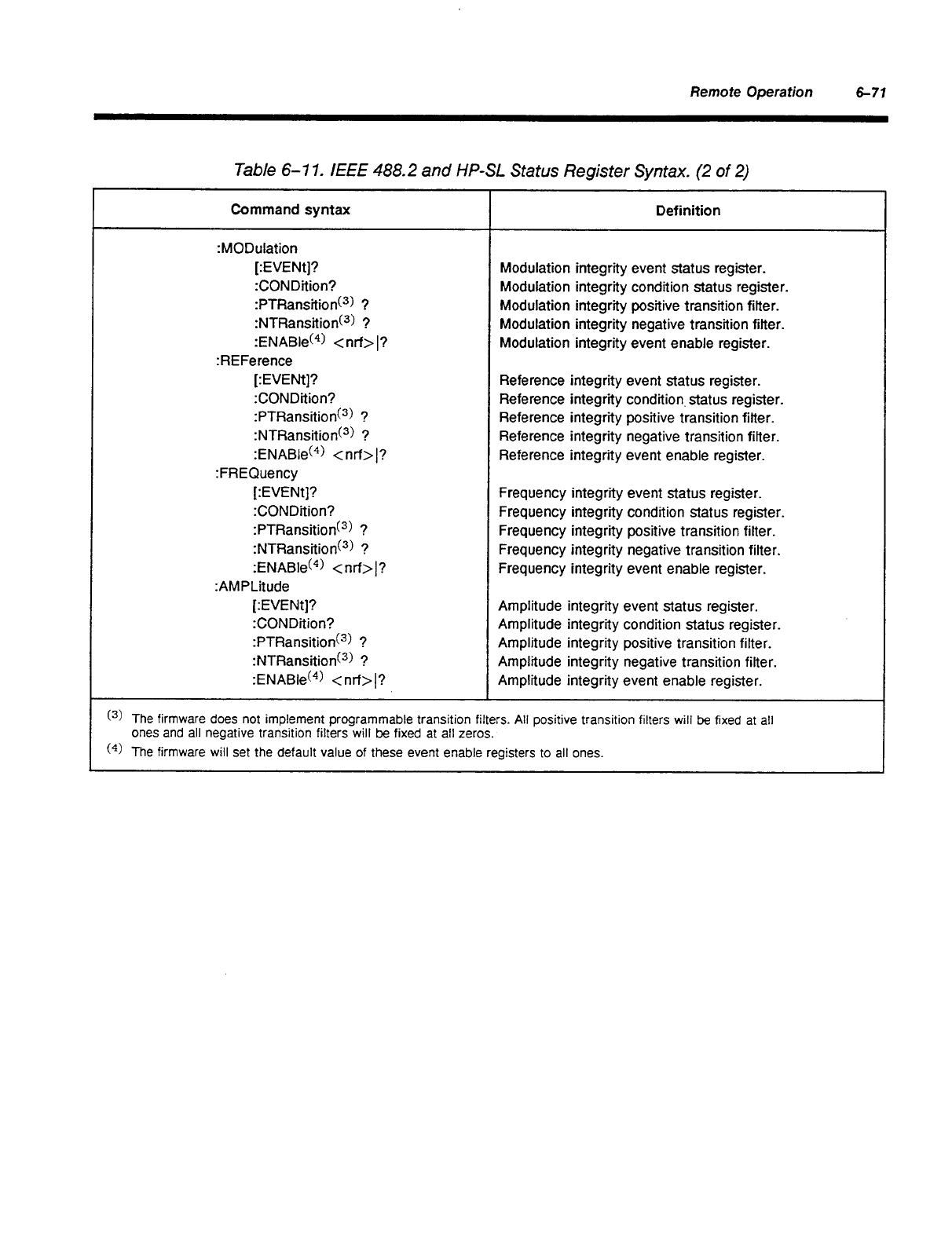

- IEEE 488.2 and HP-SL Status Register Syntax

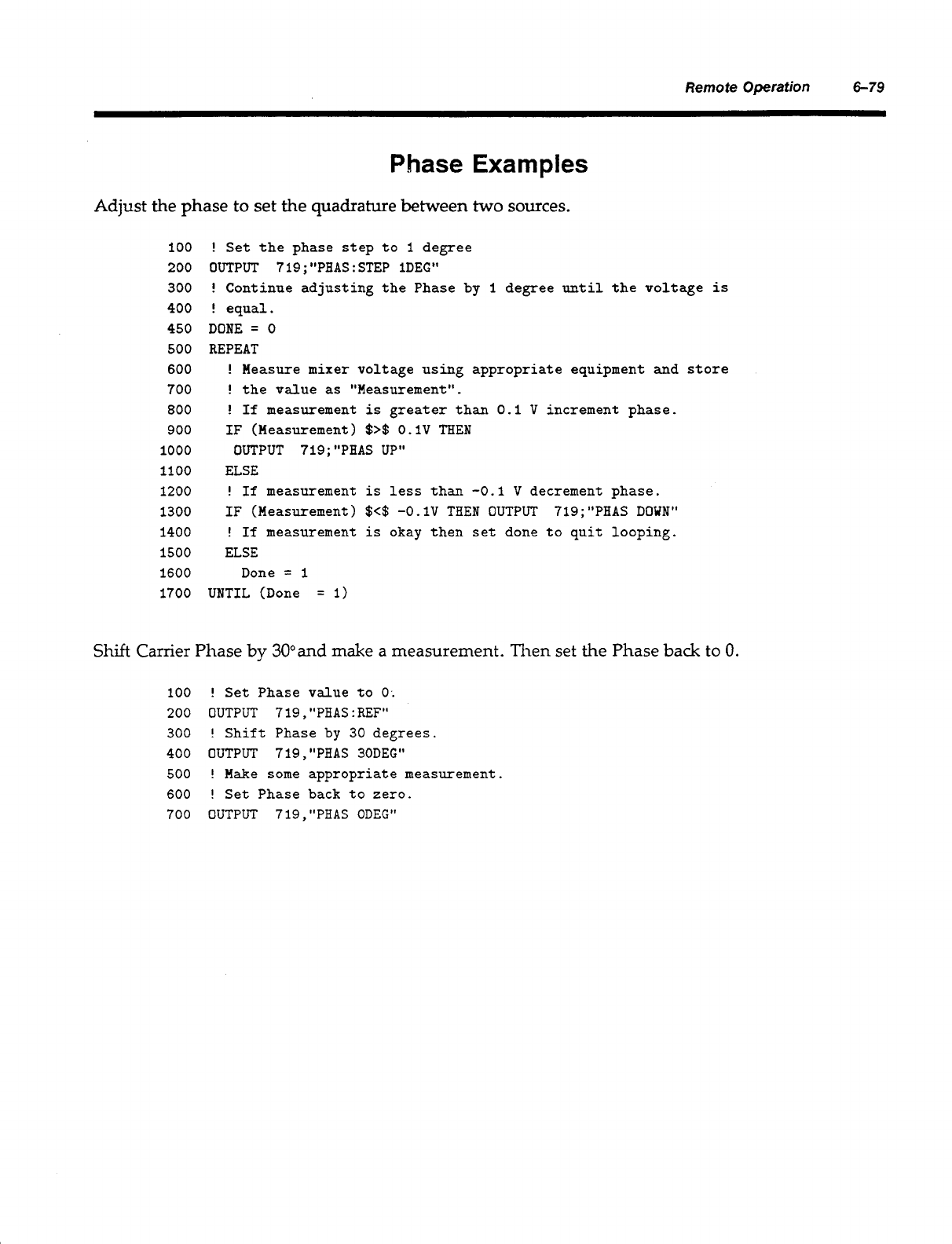

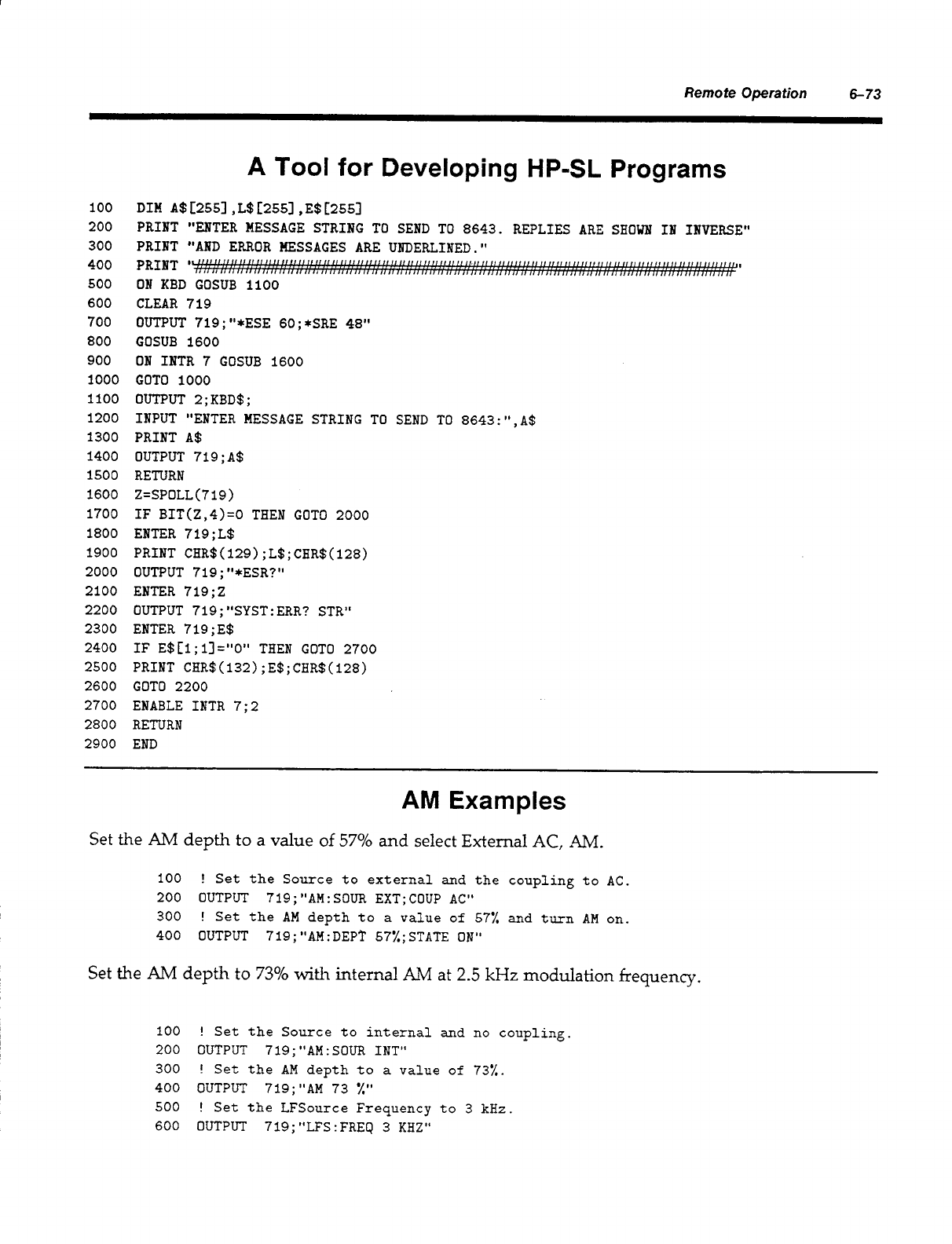

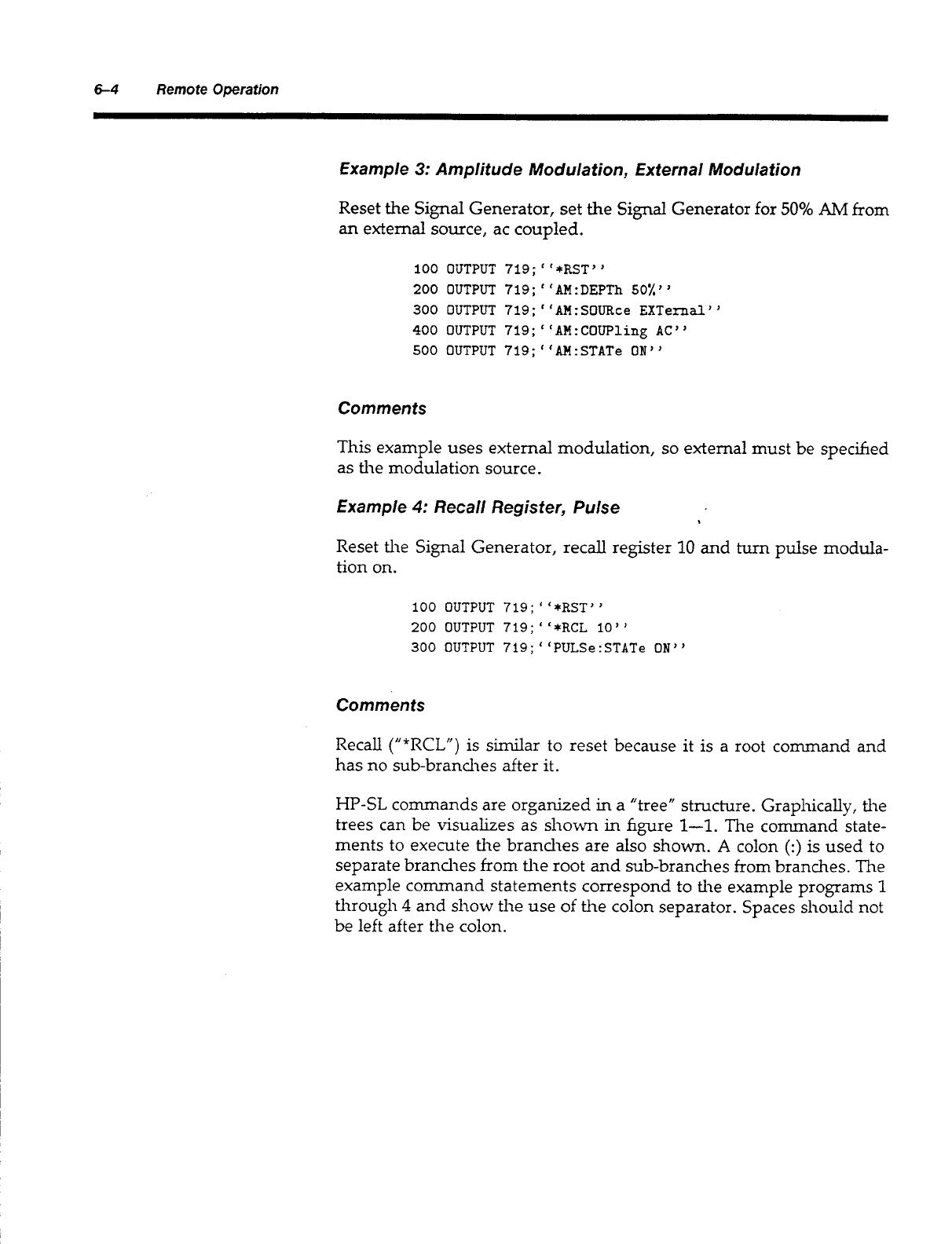

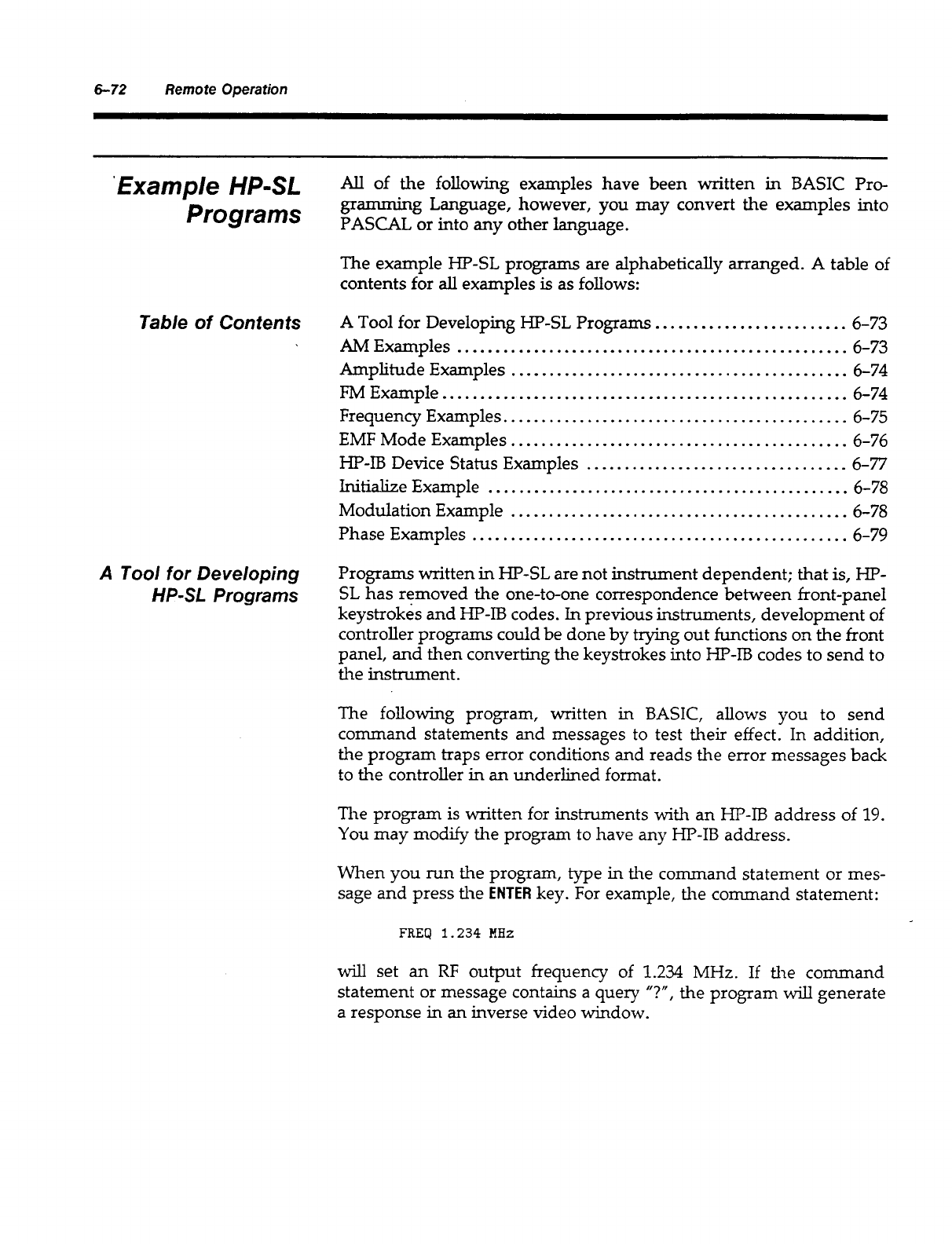

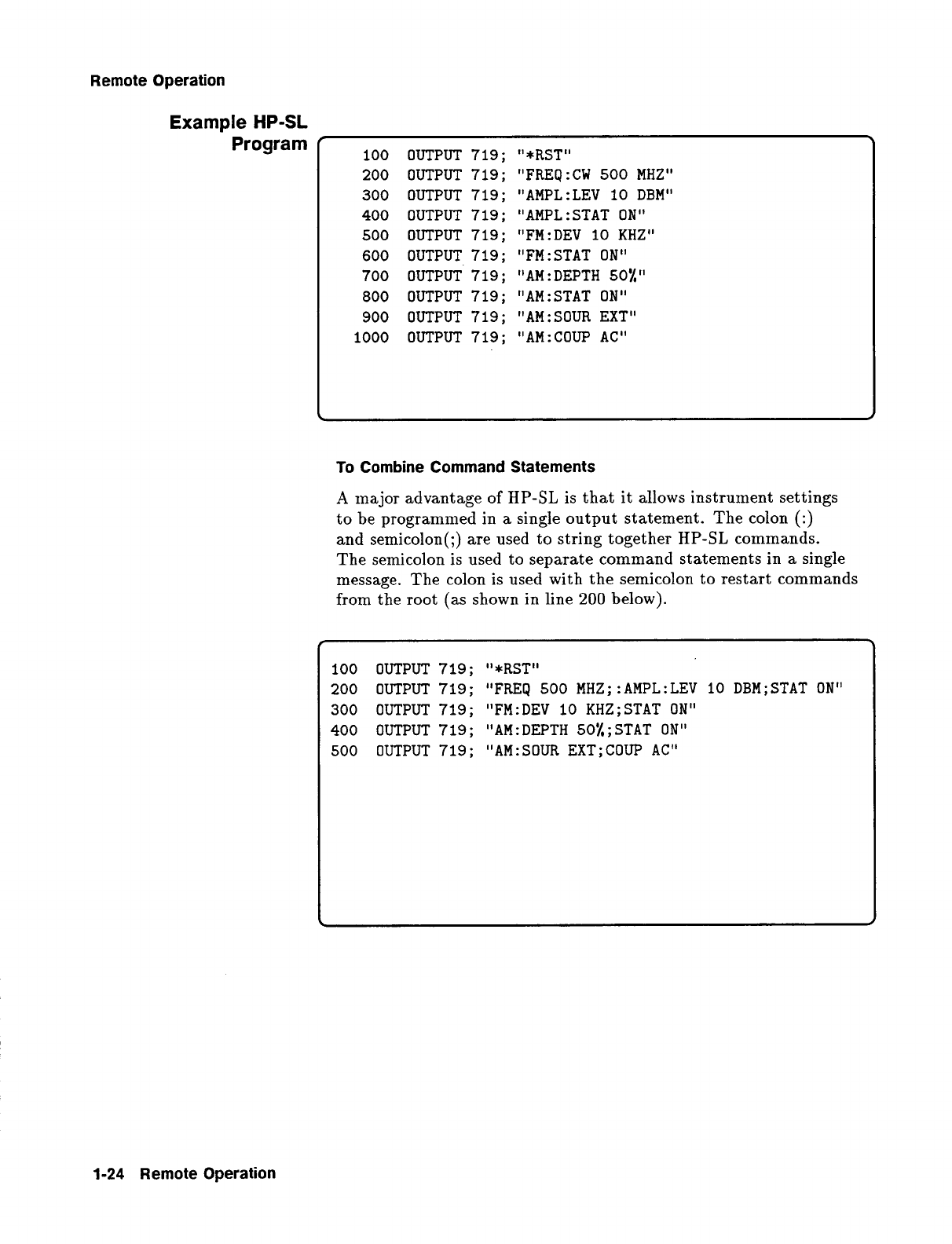

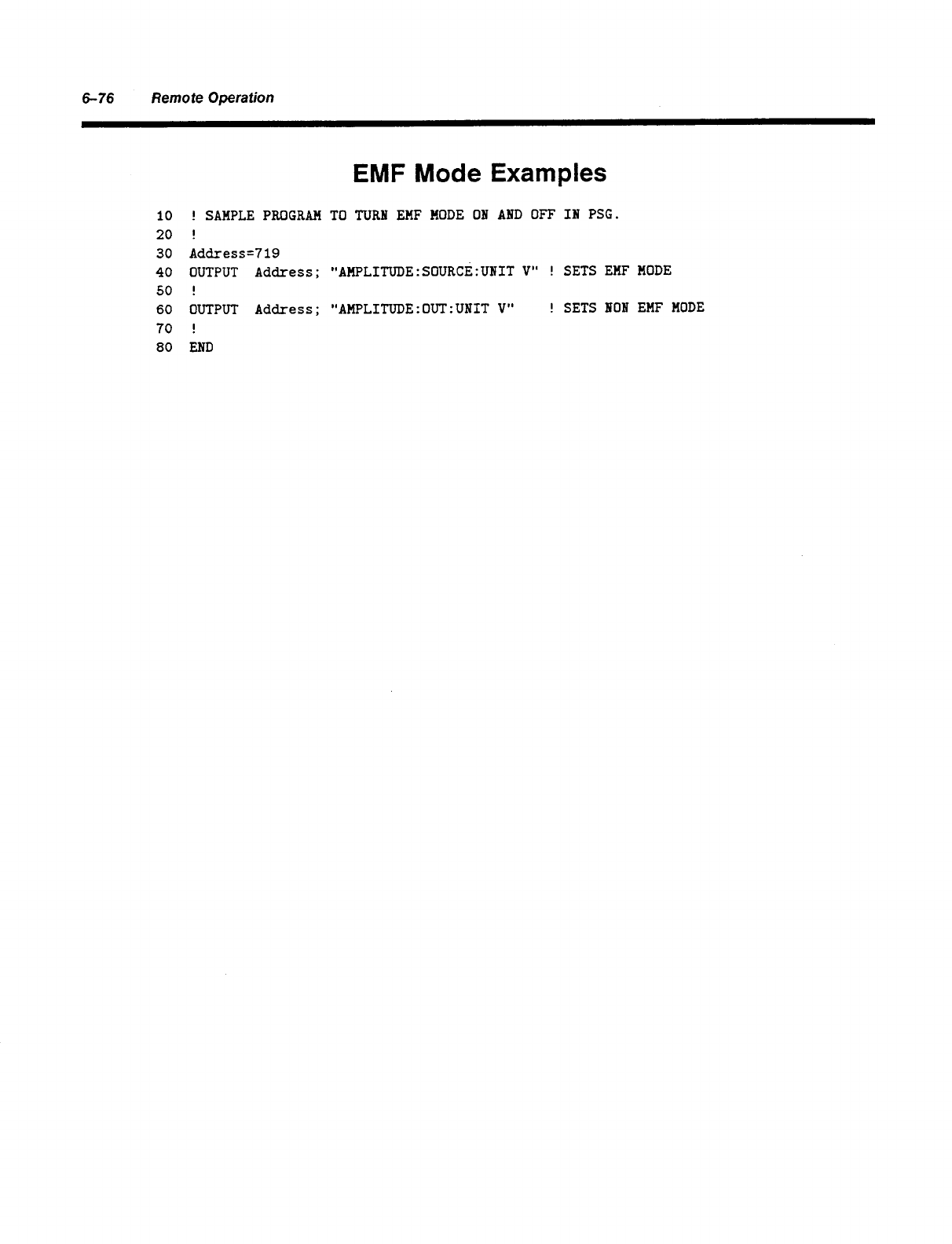

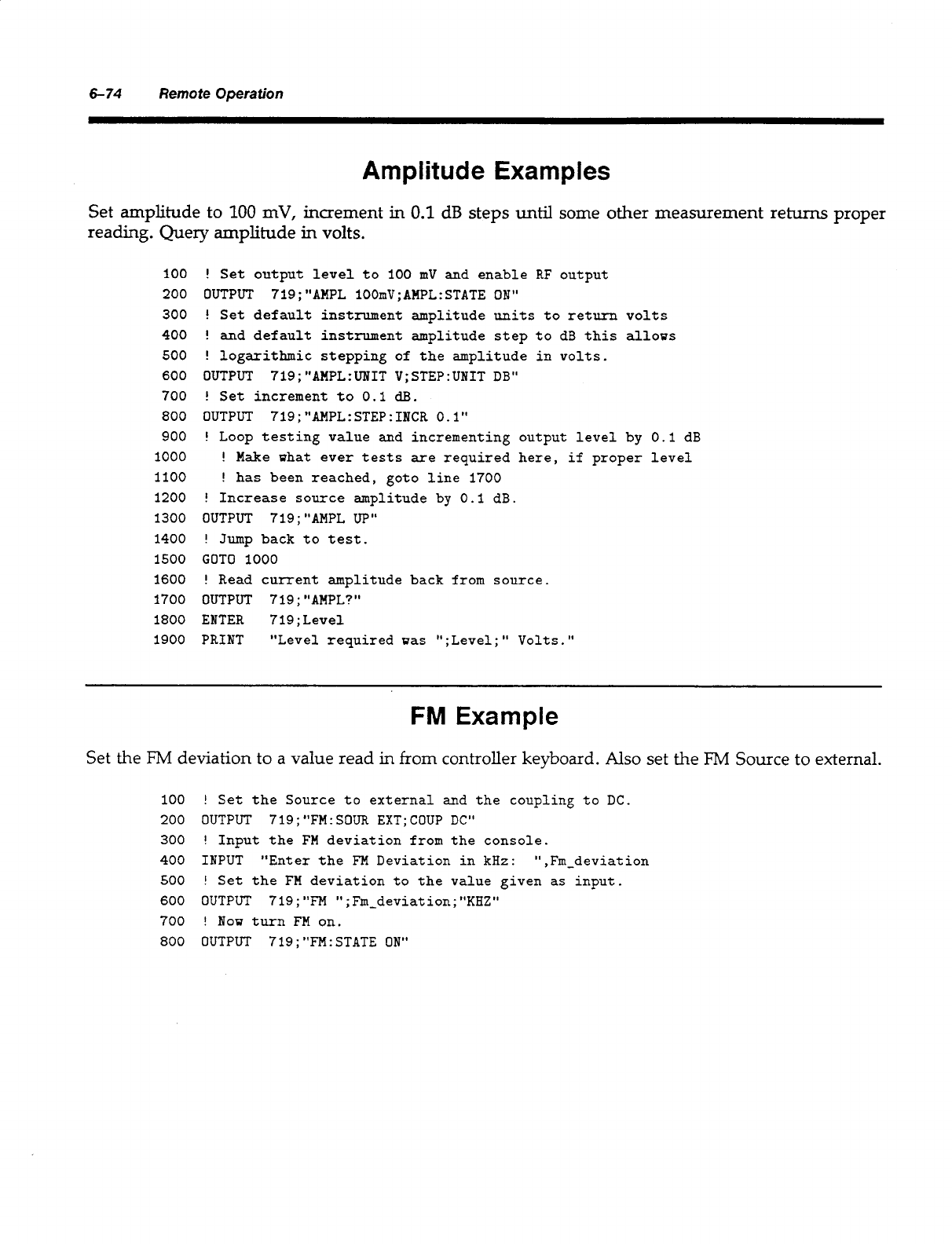

- Example HP-SL Programs

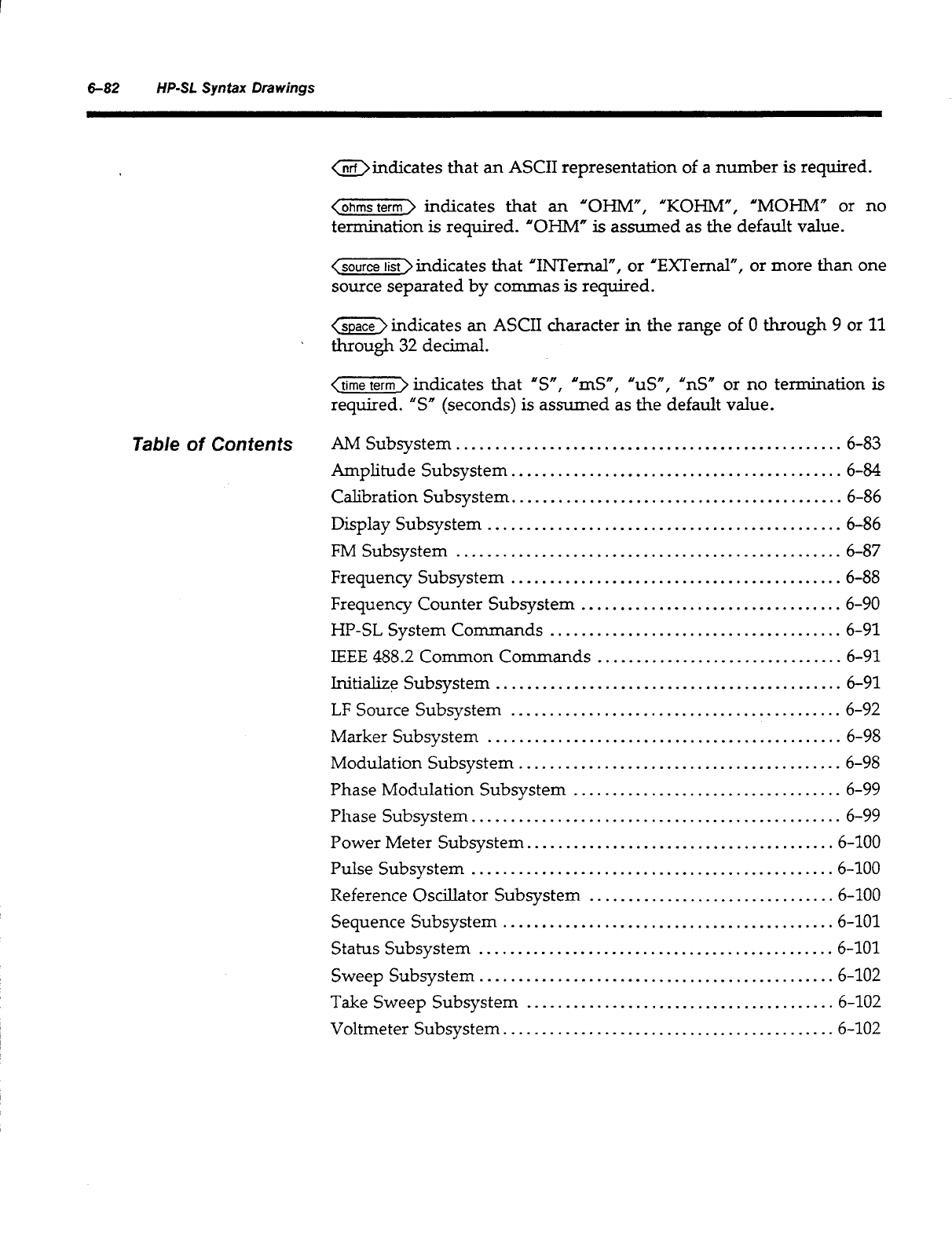

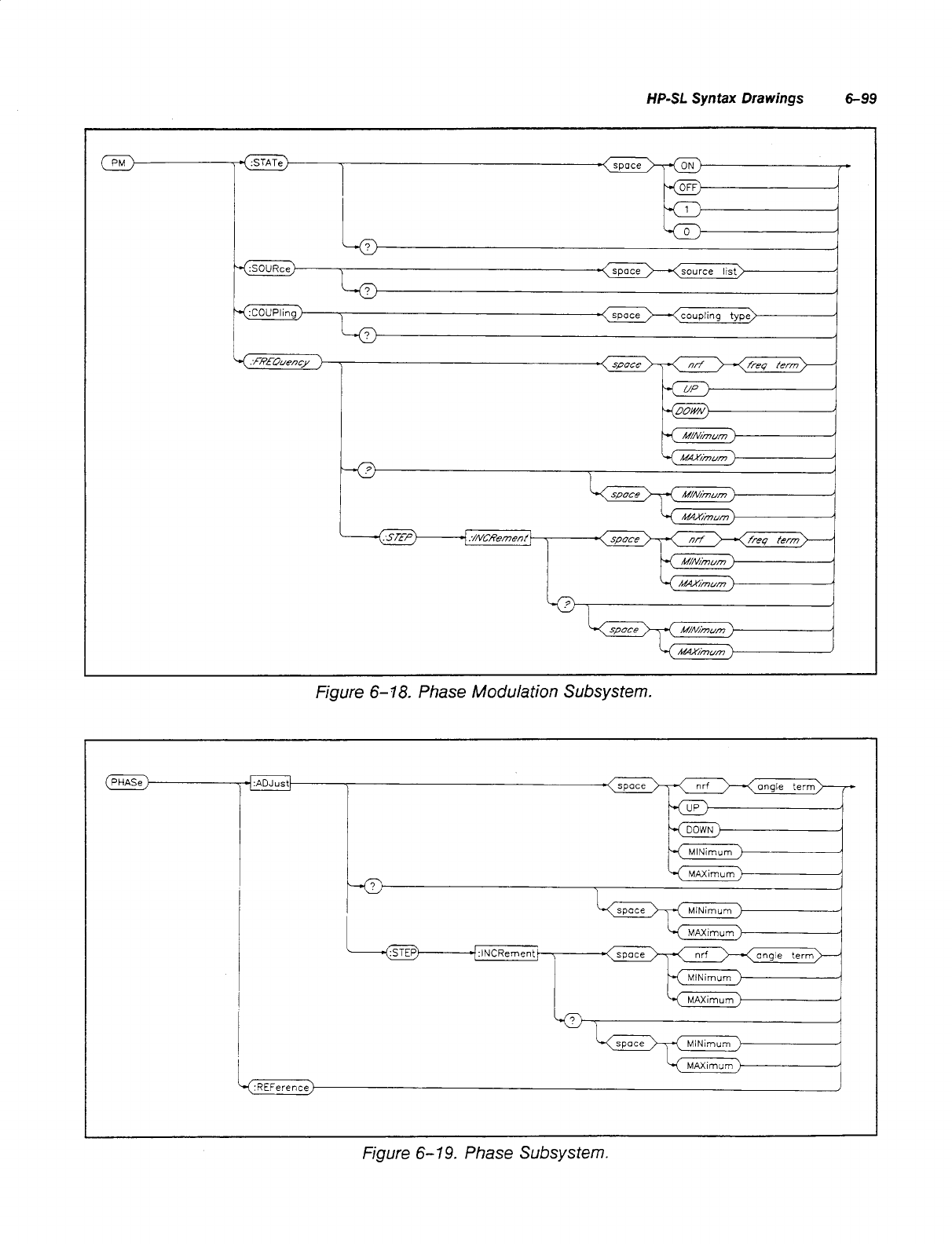

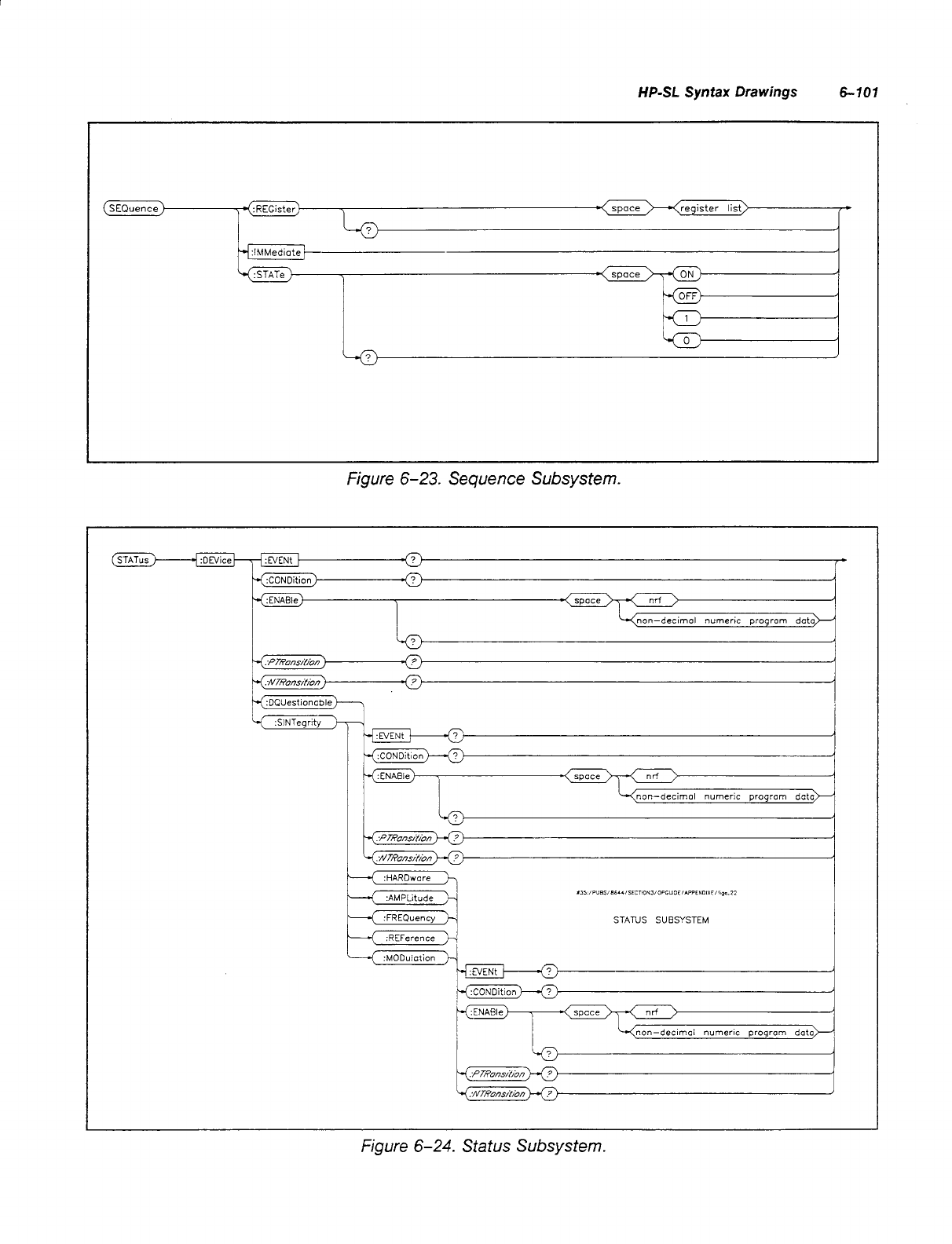

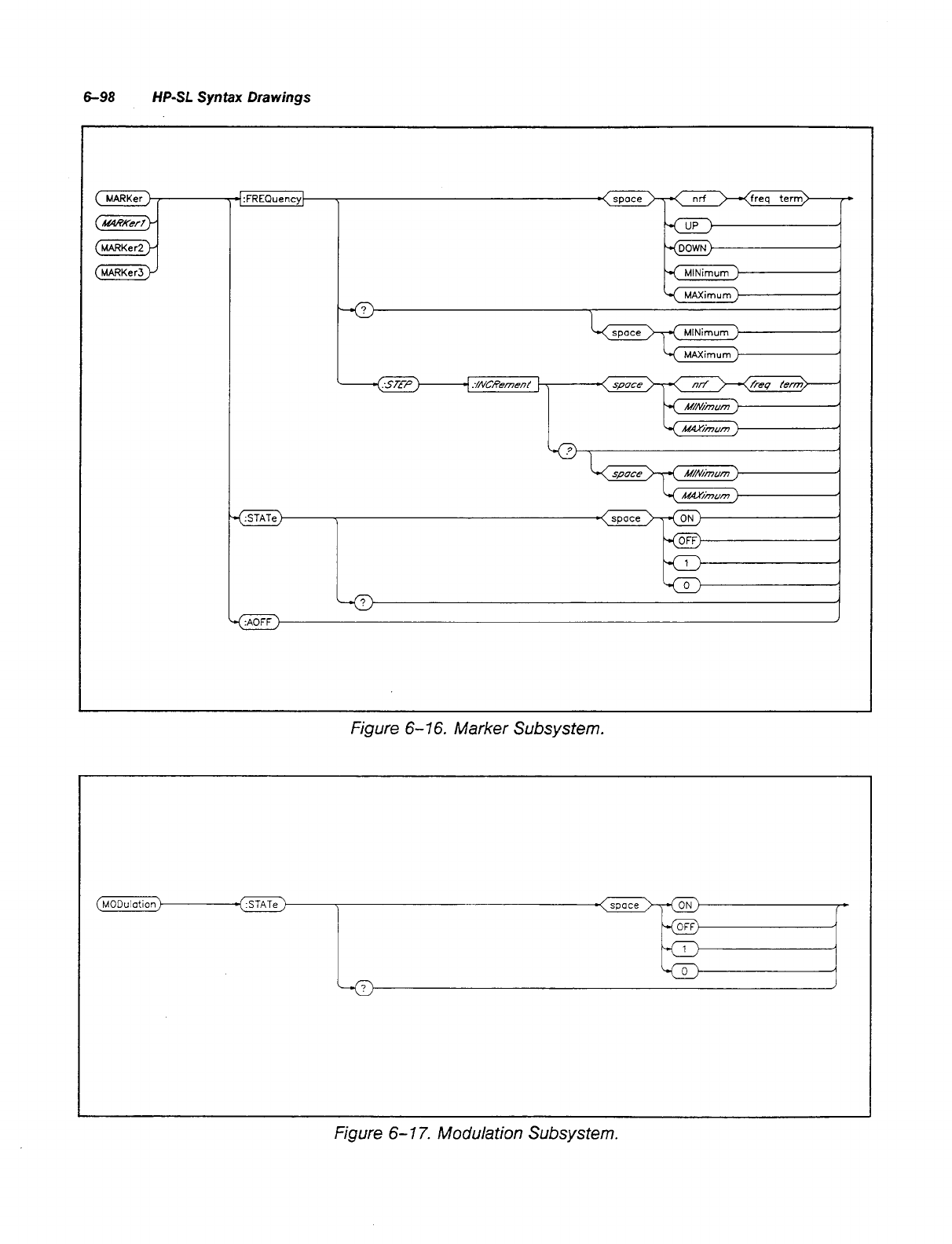

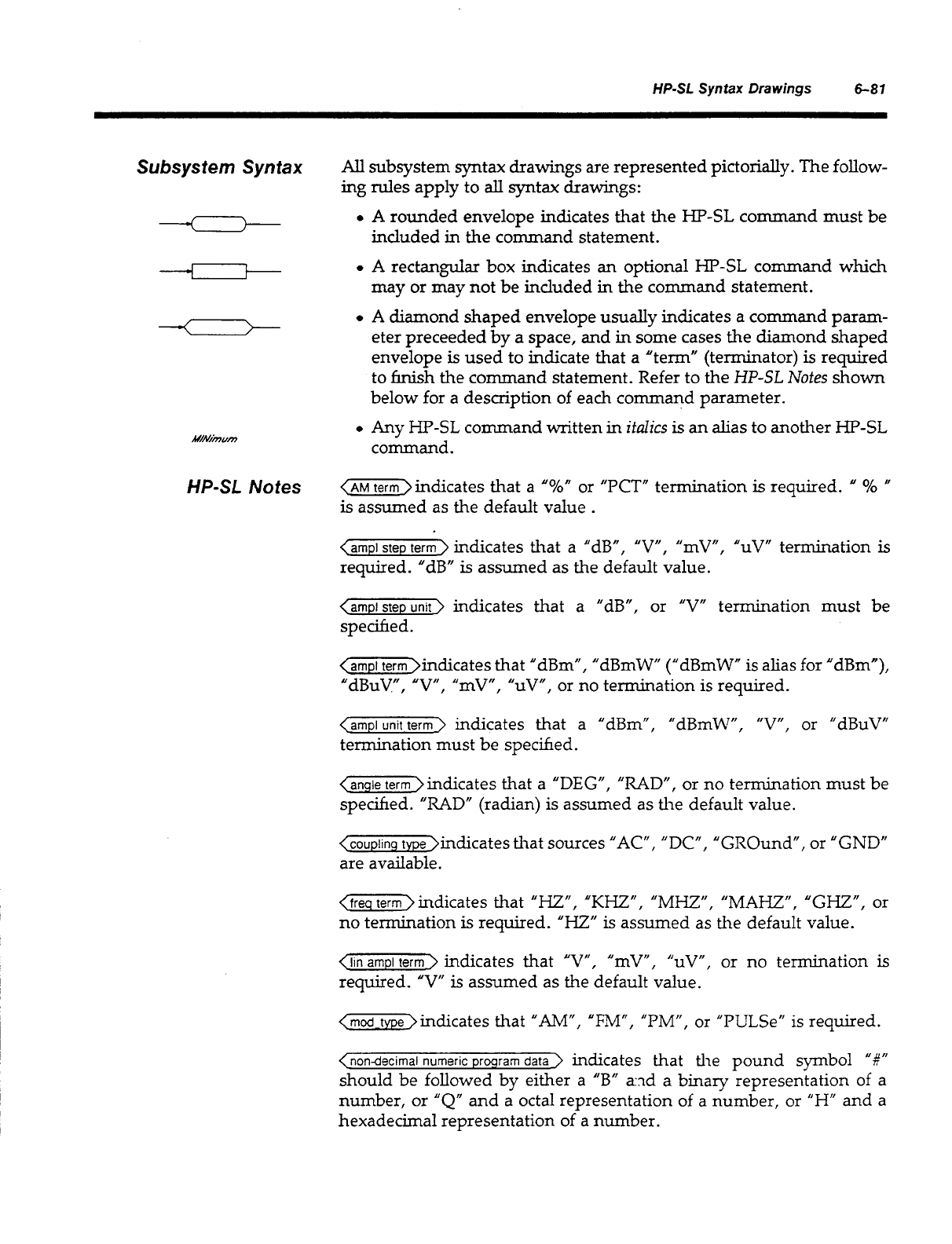

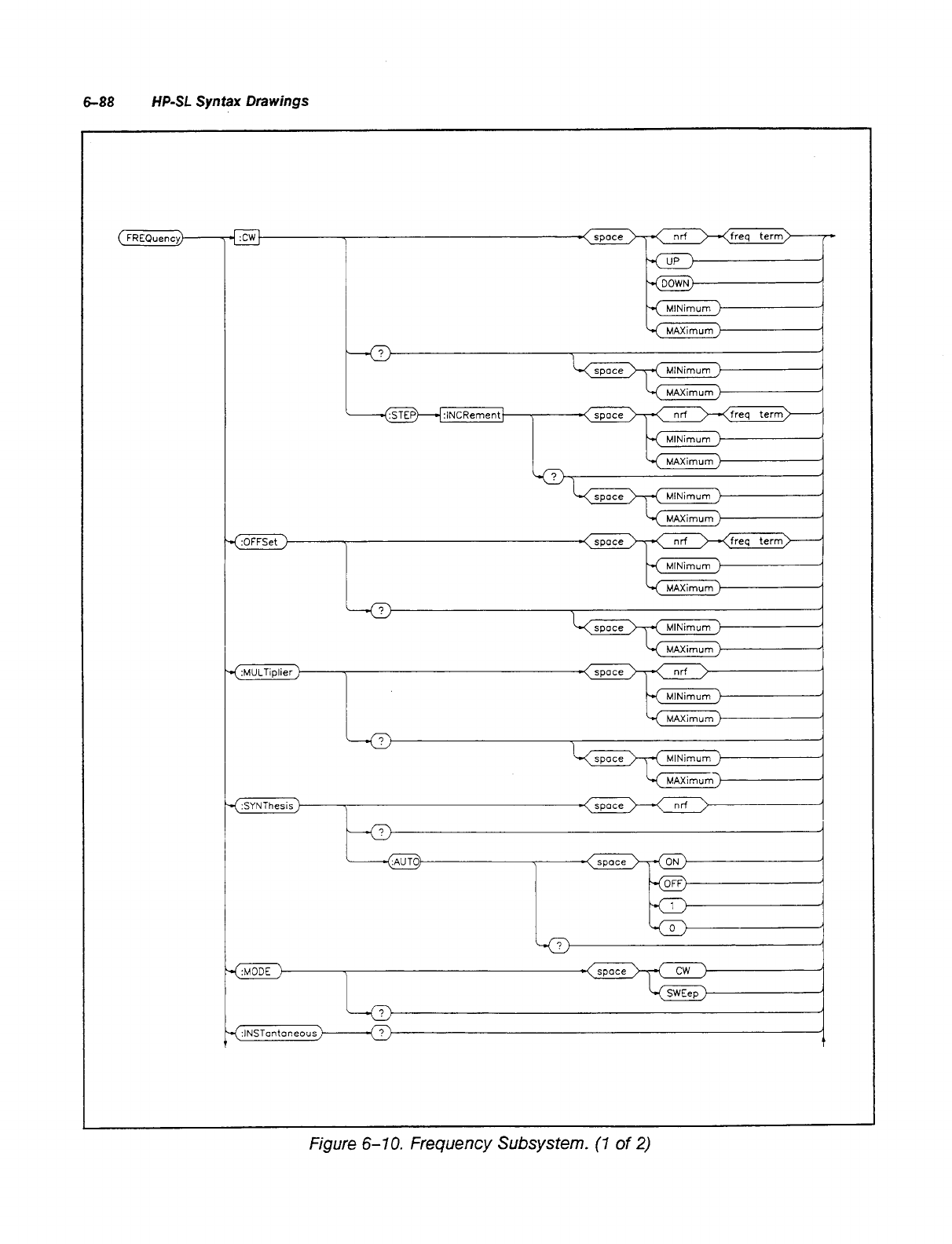

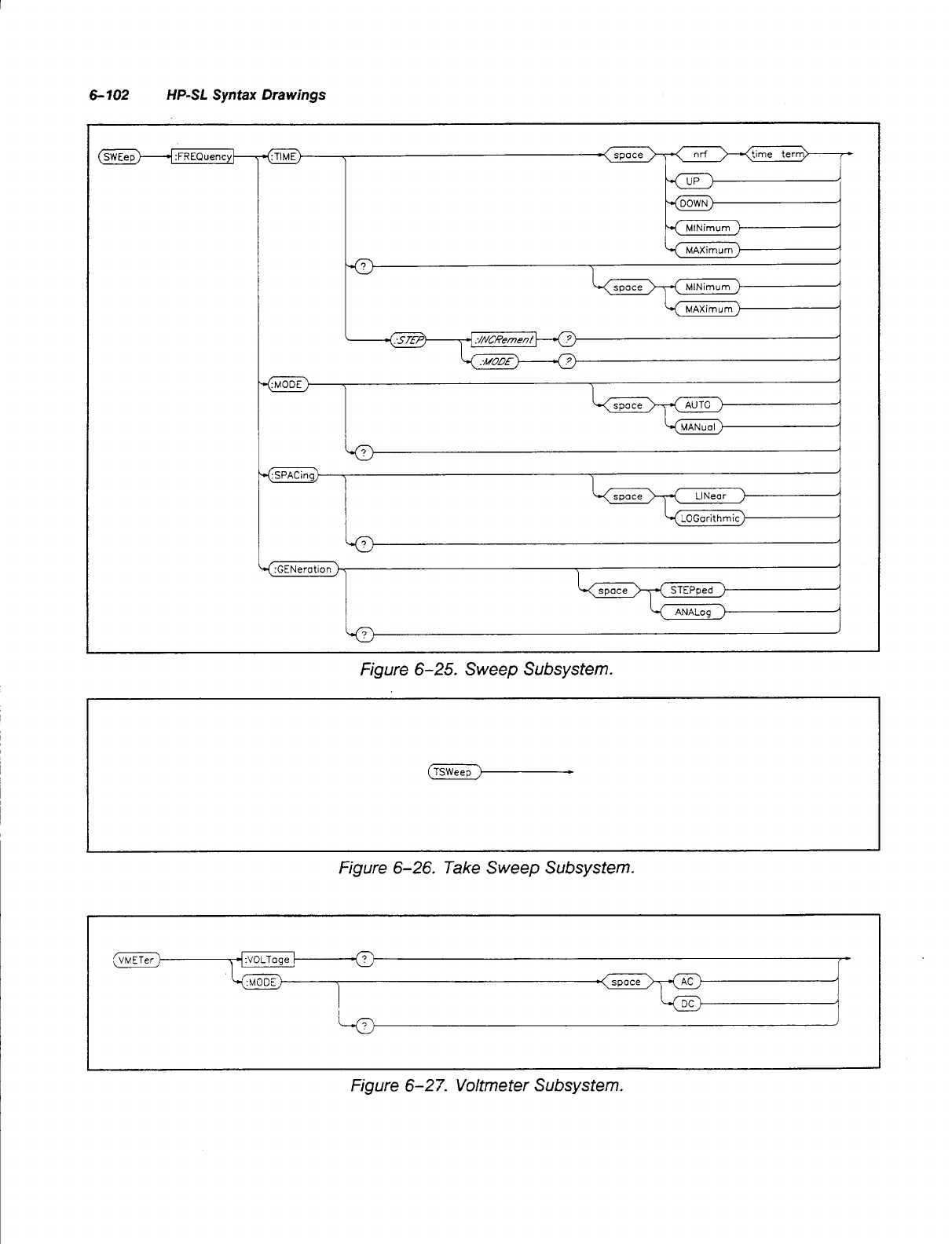

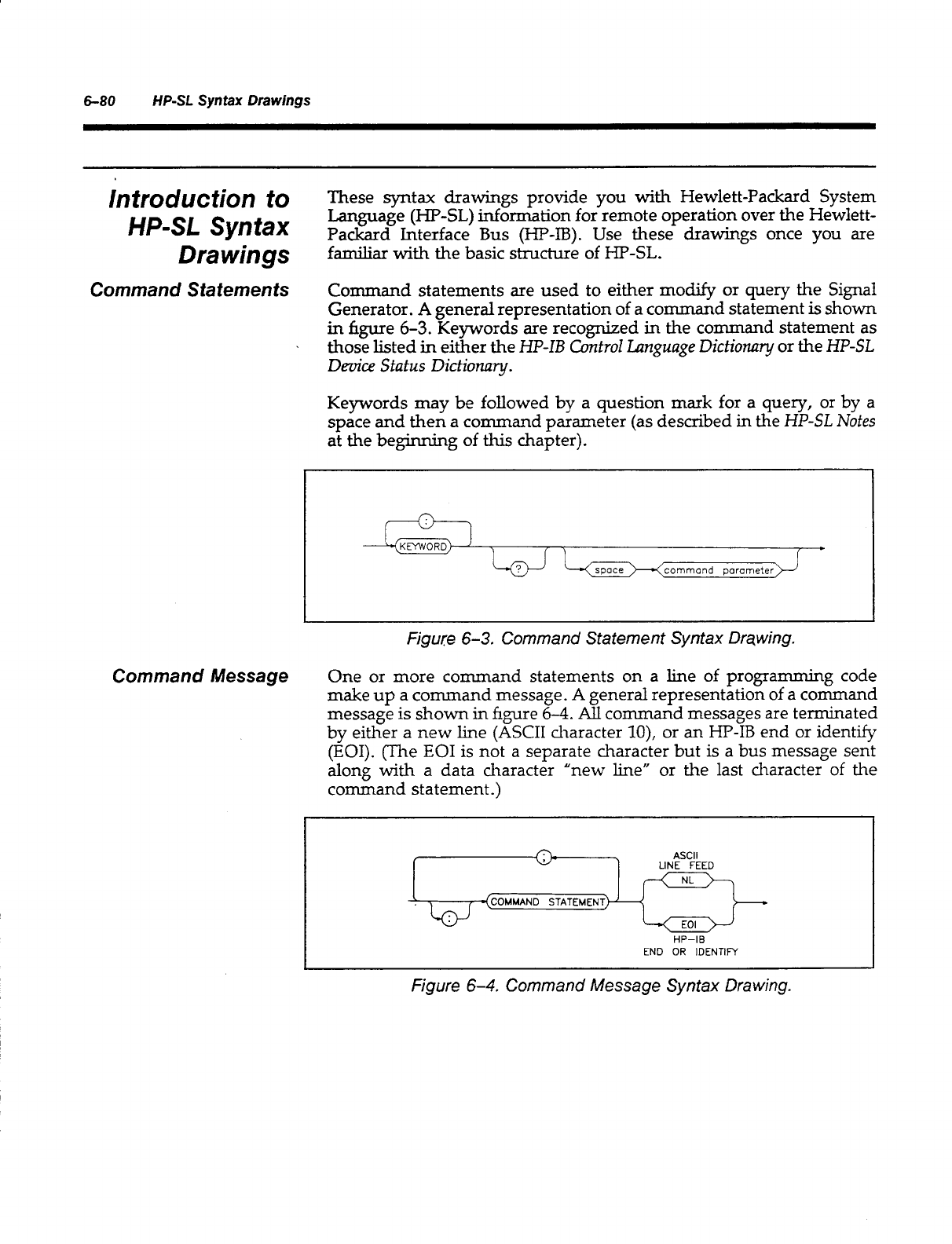

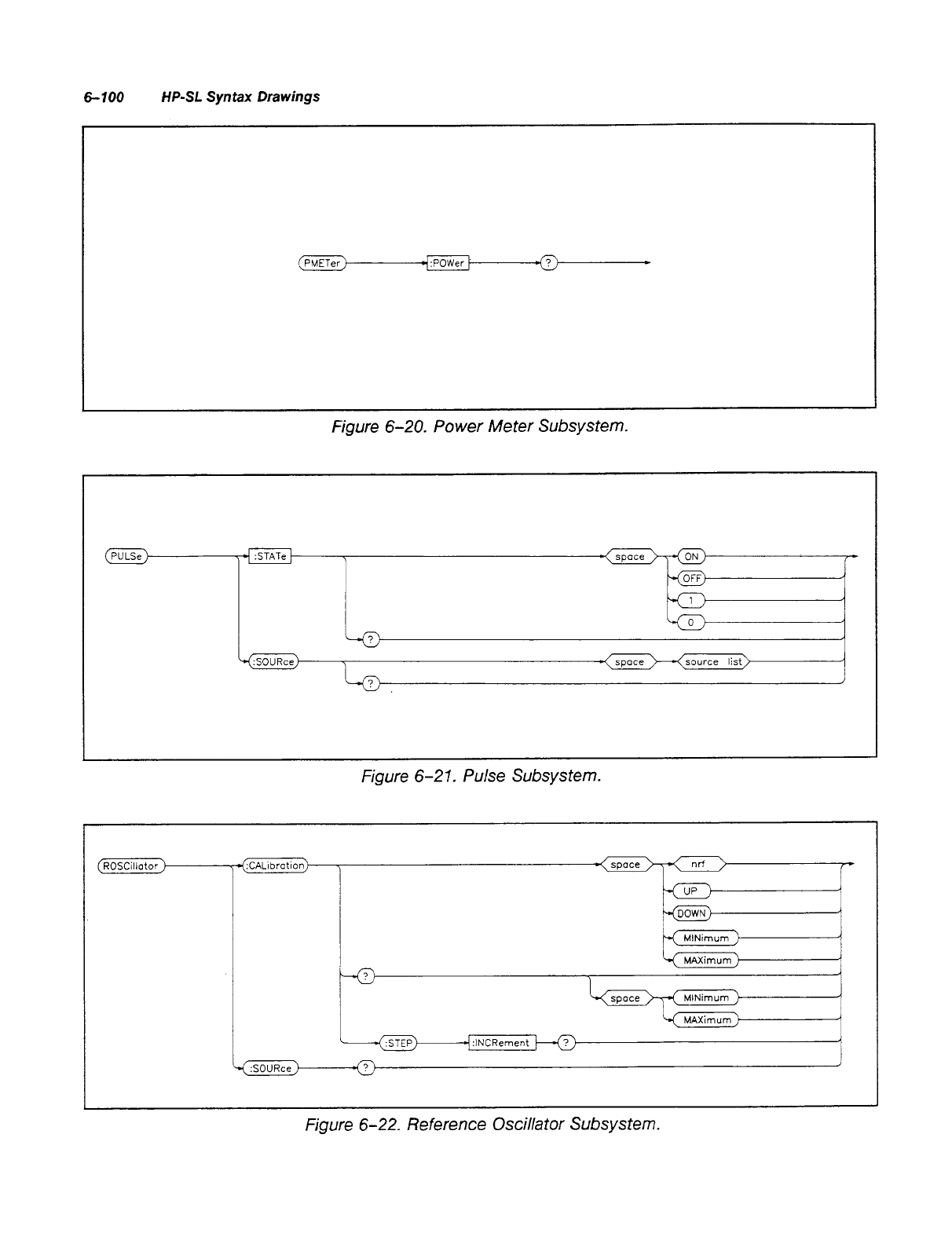

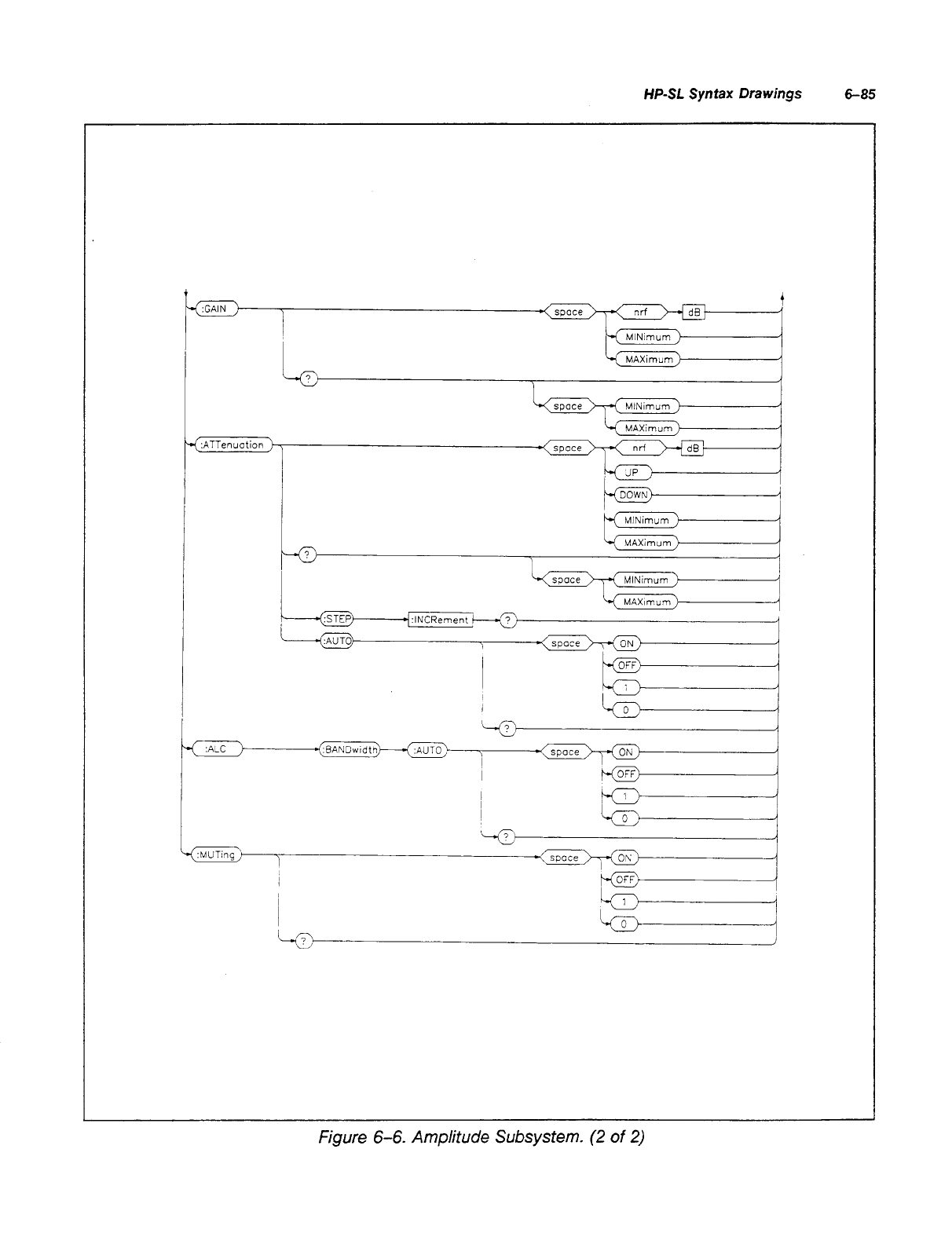

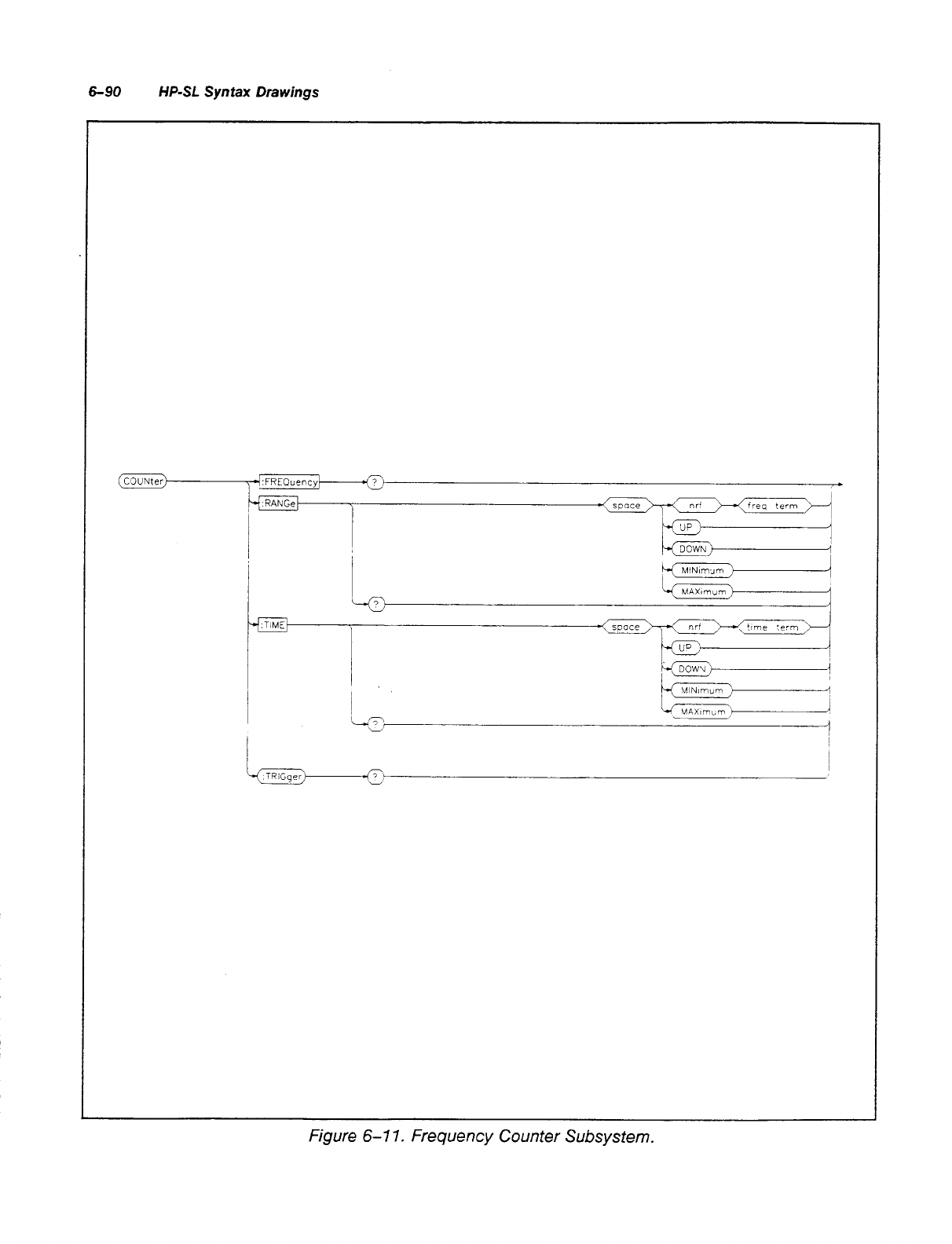

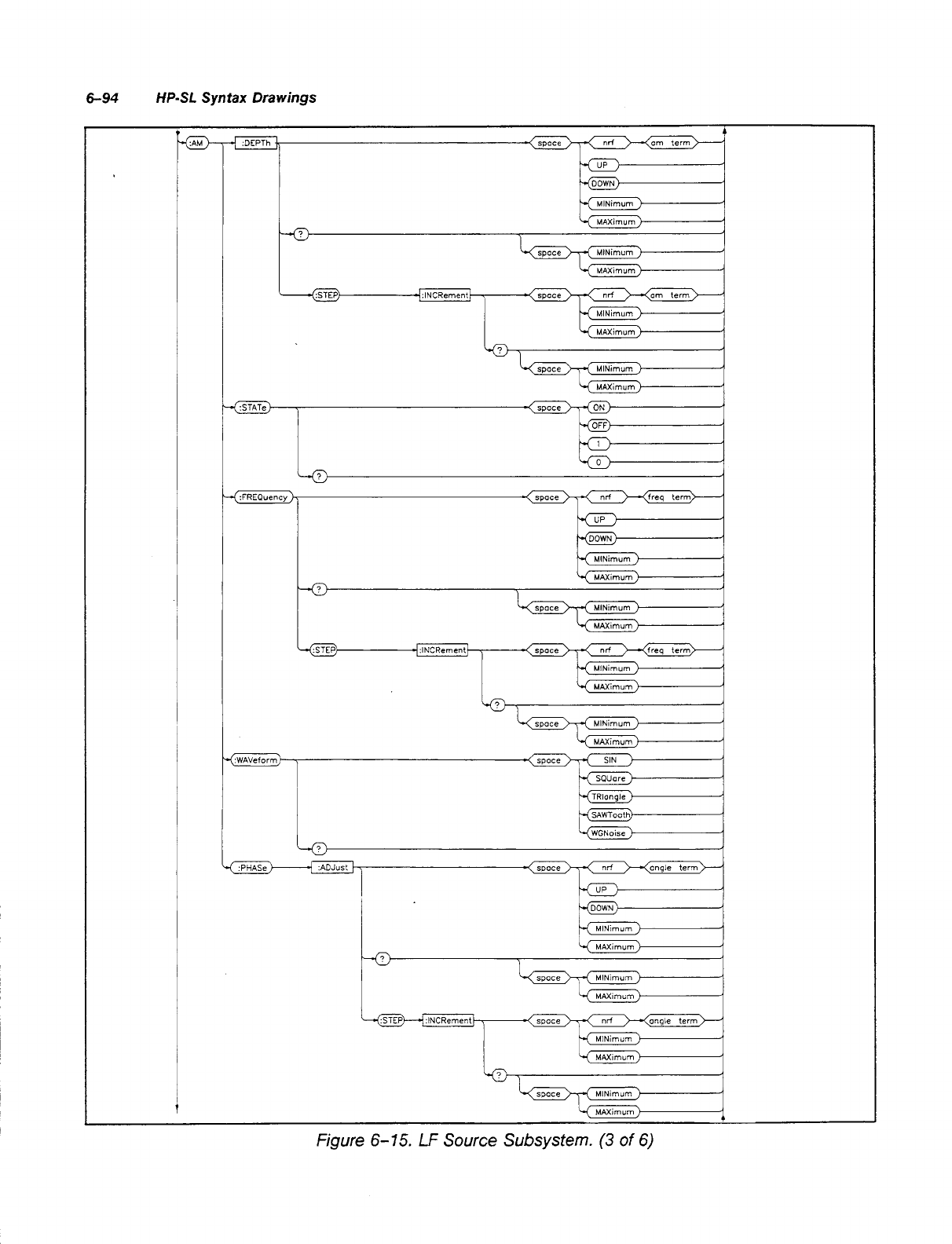

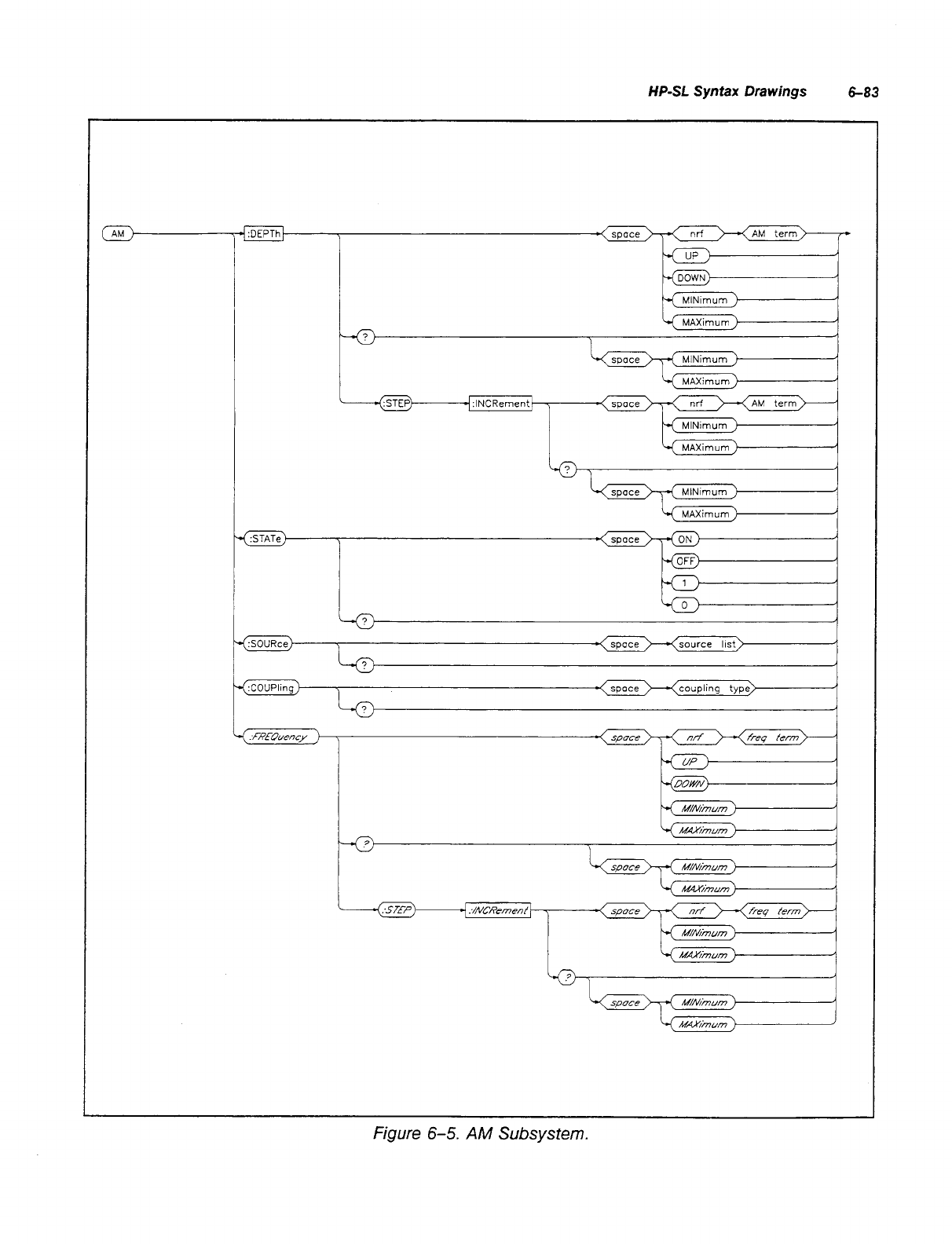

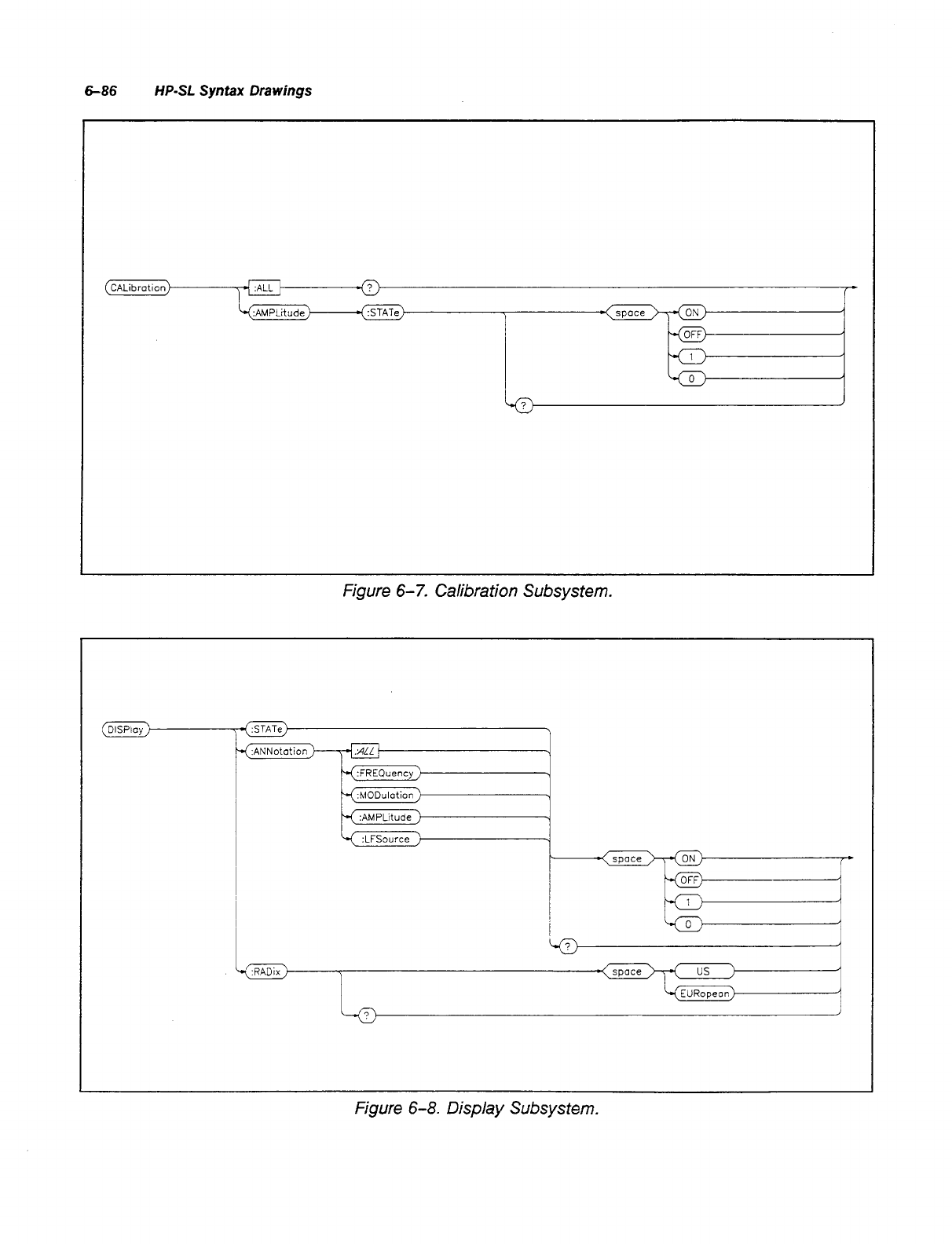

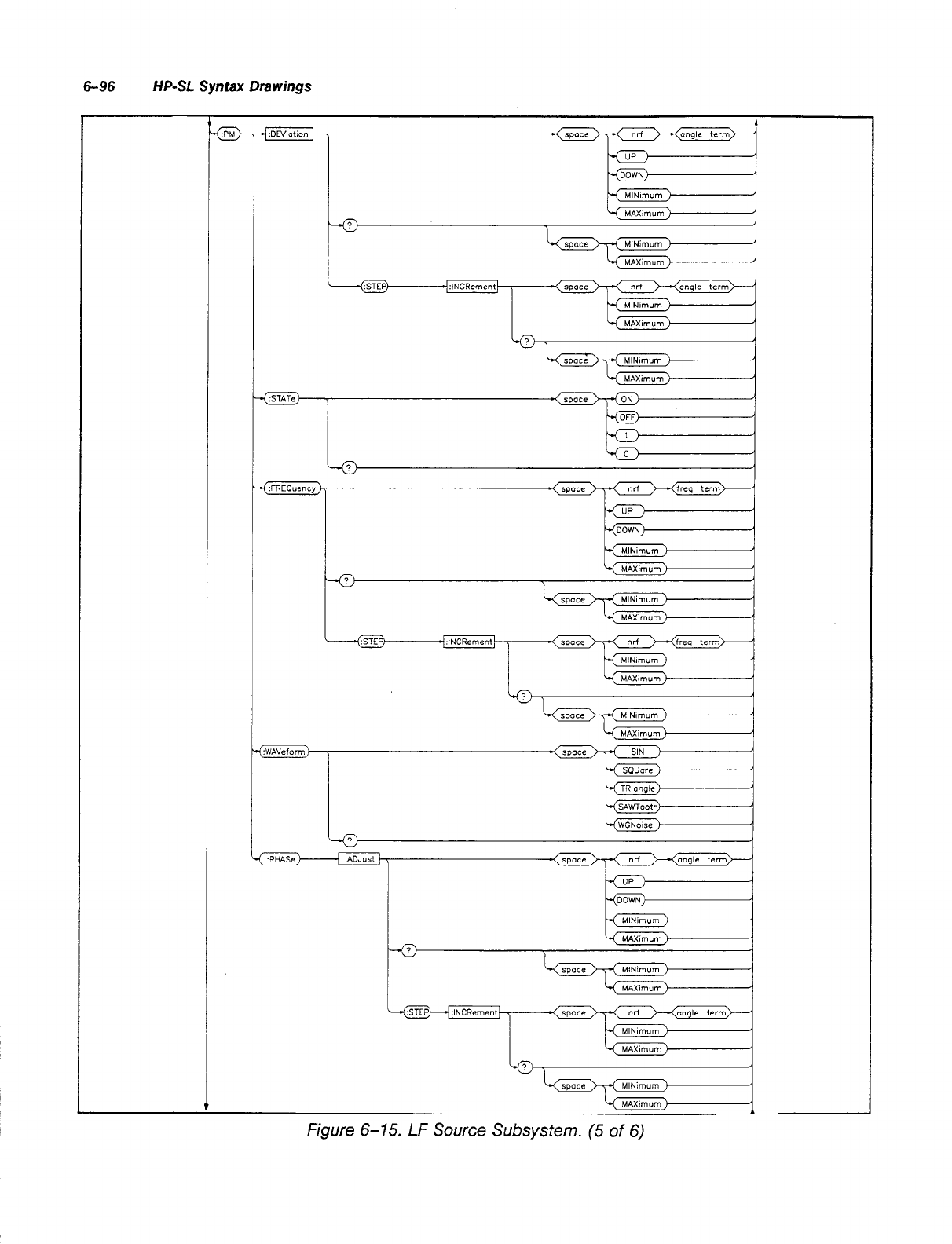

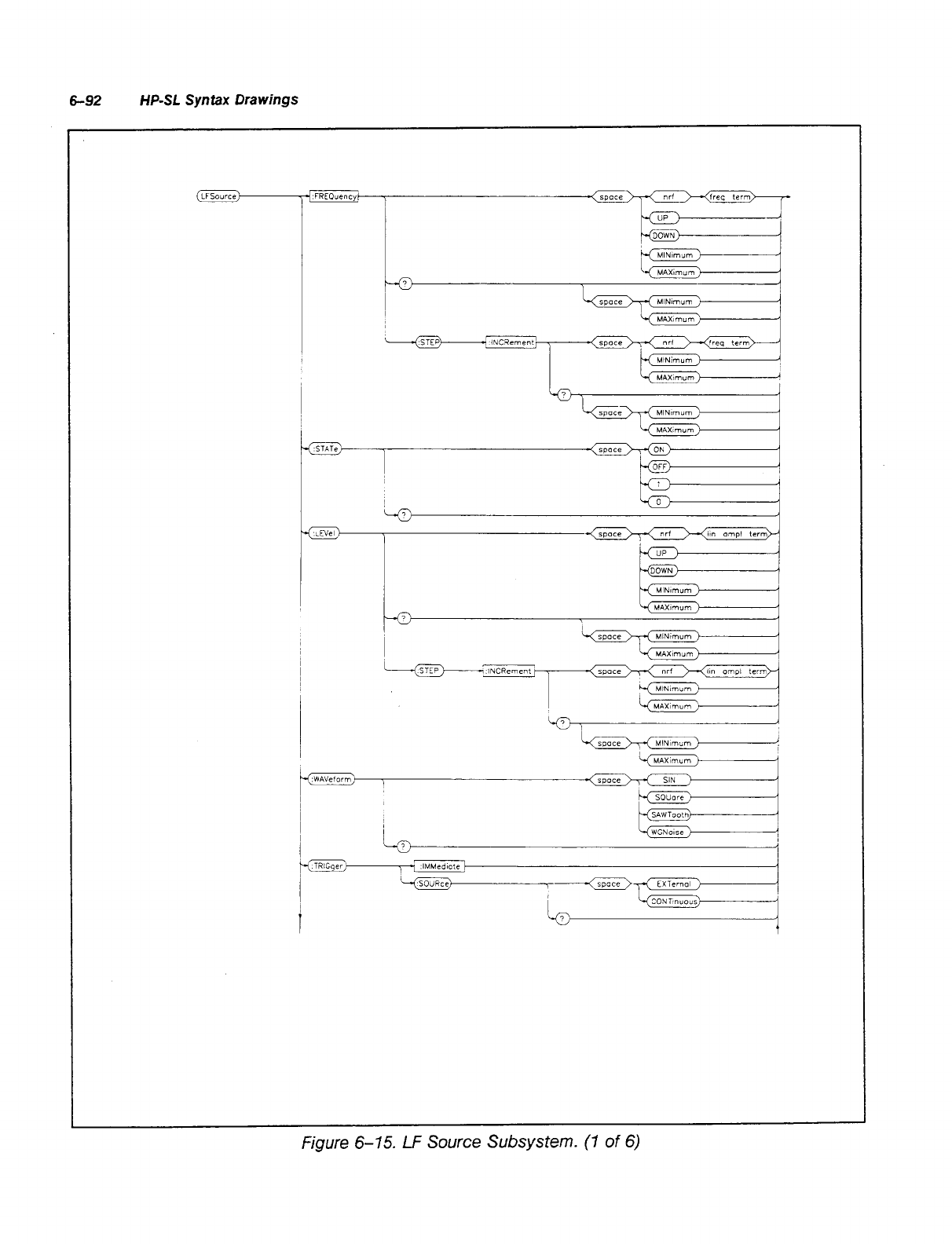

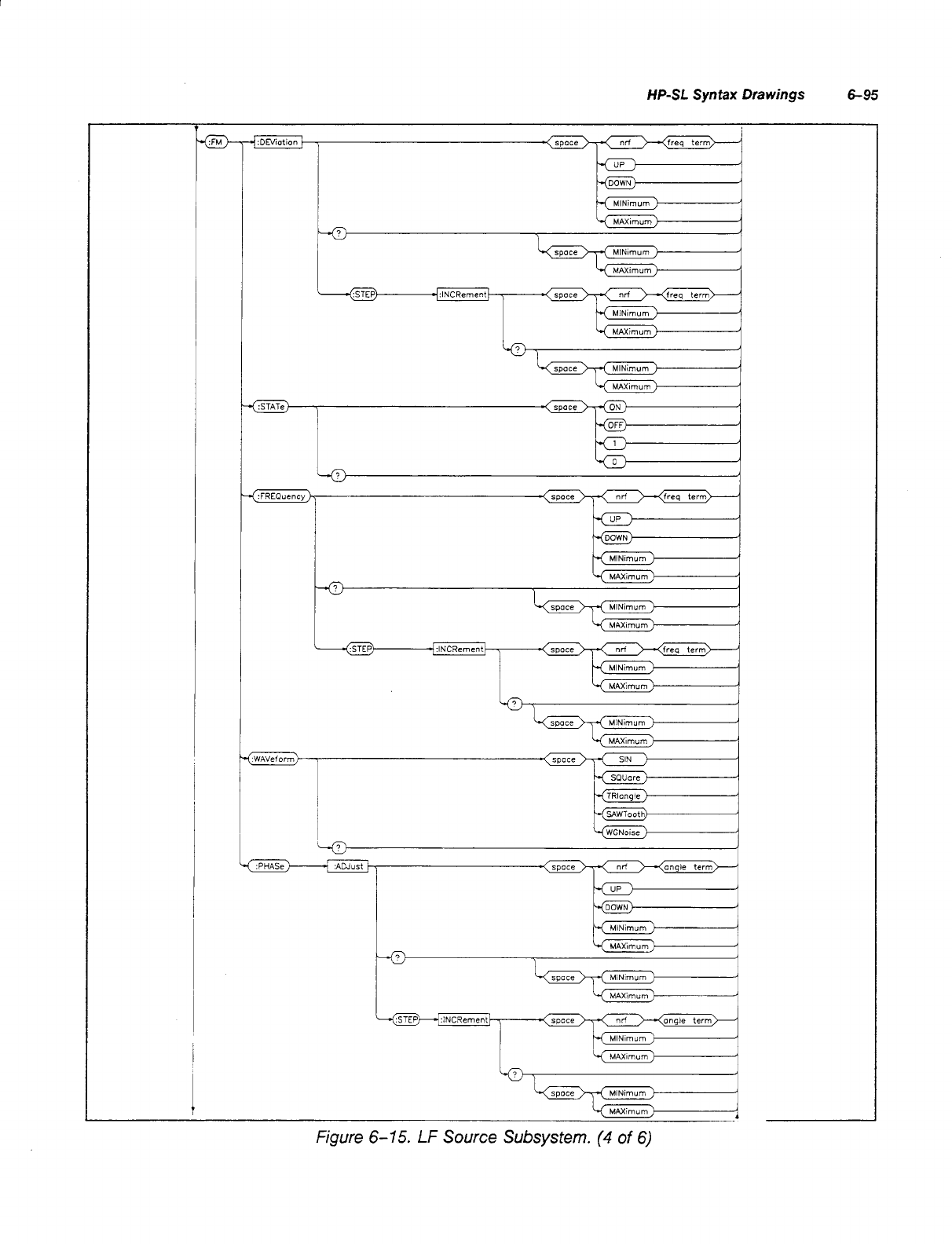

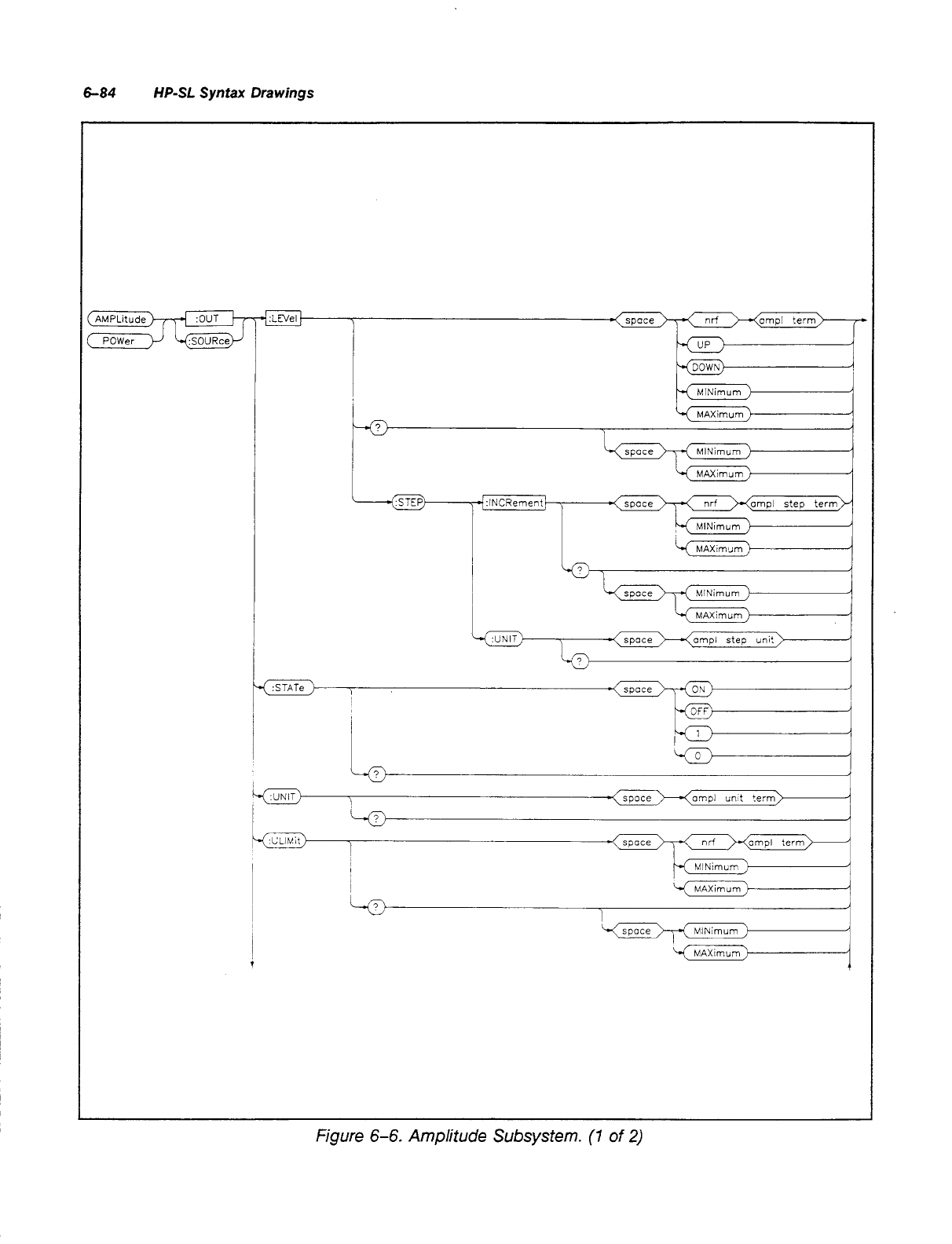

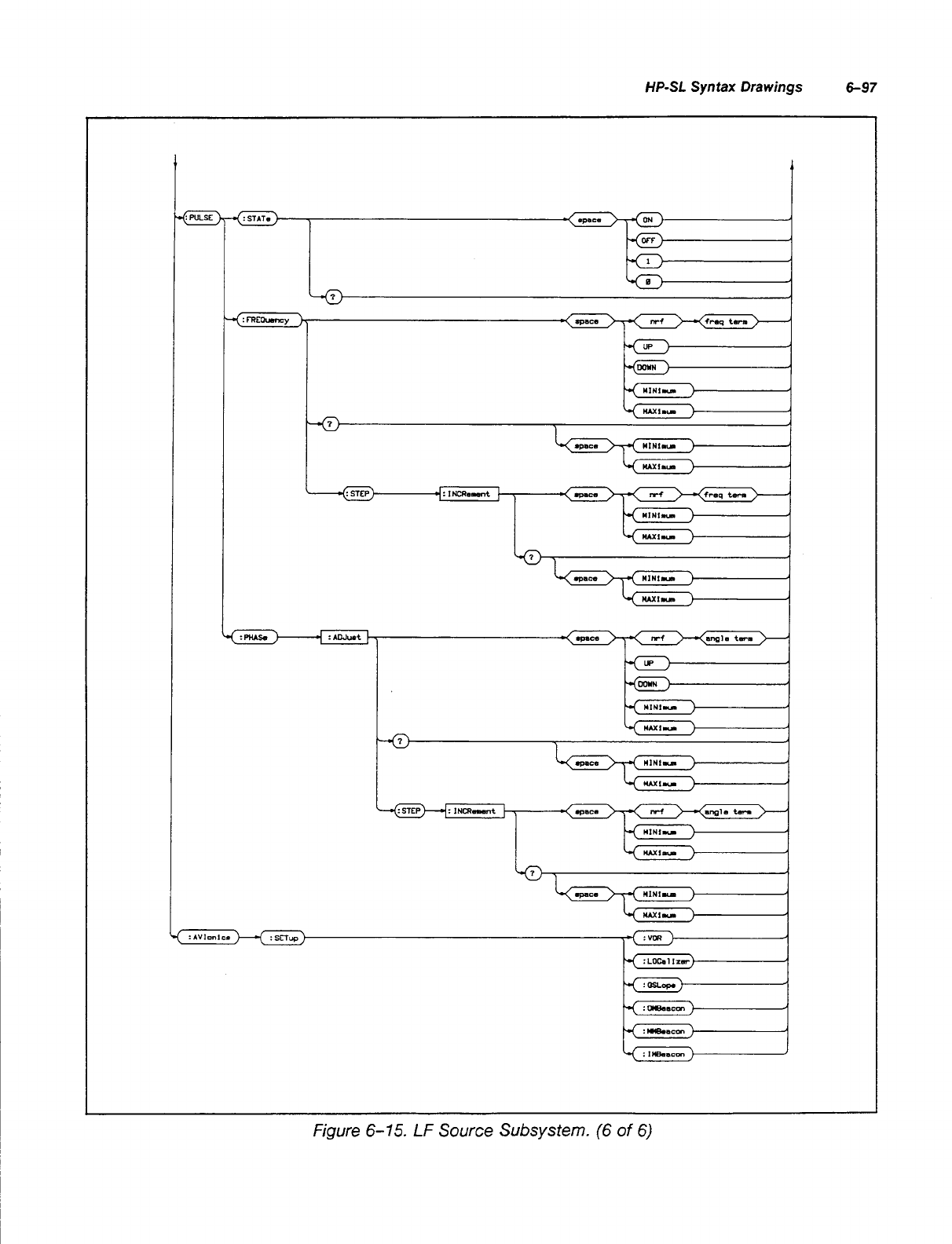

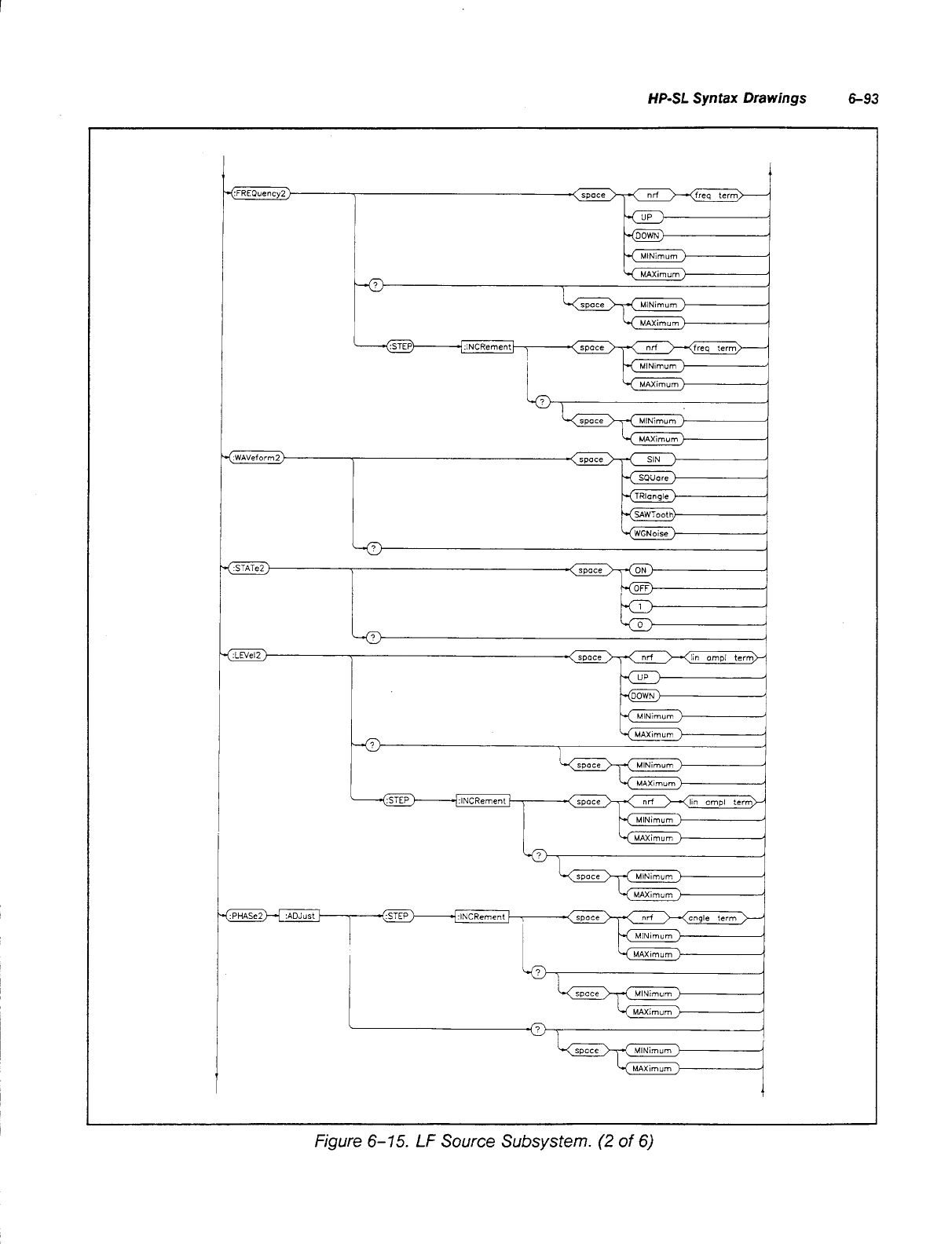

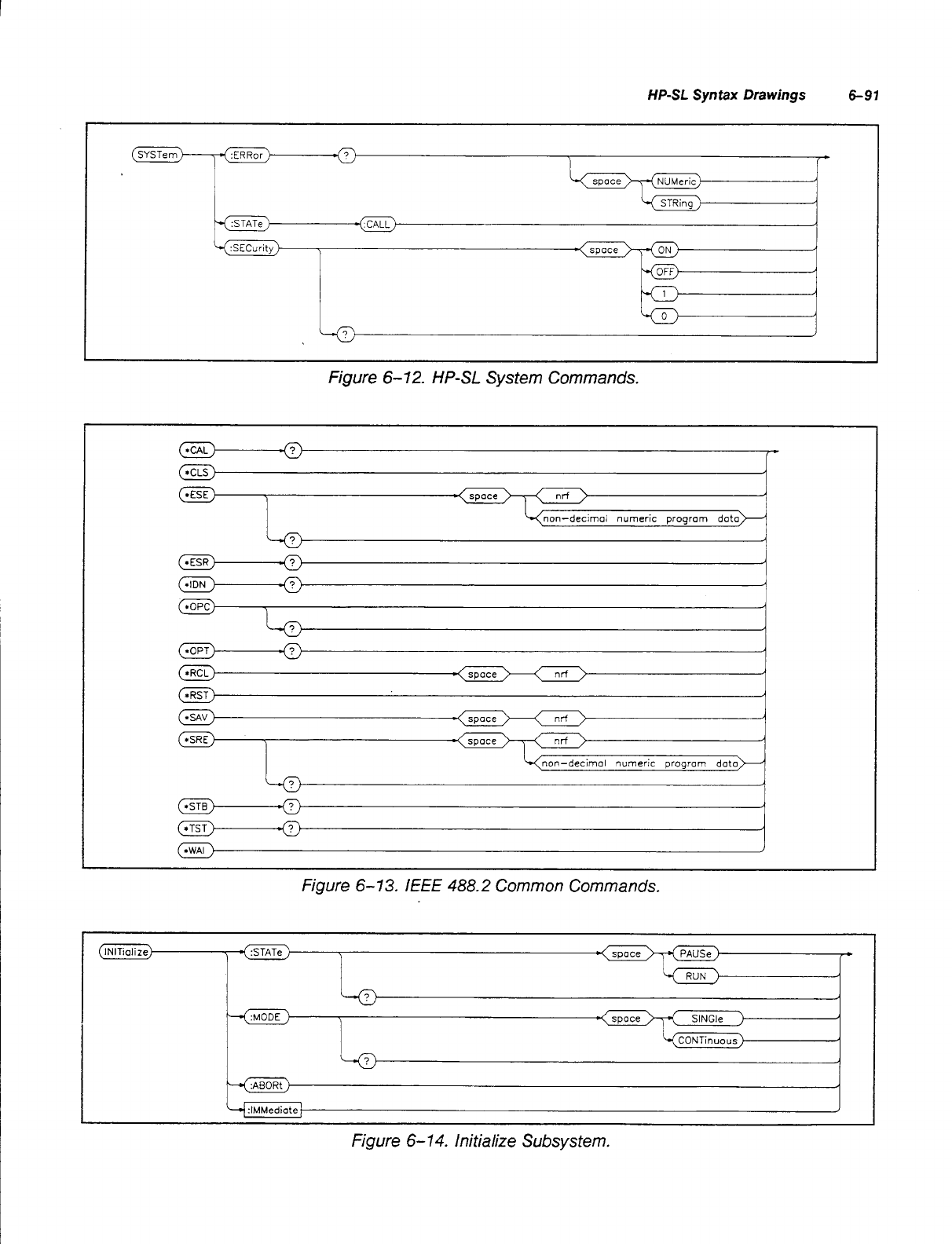

- Introduction to HP-SL Syntax Drawings

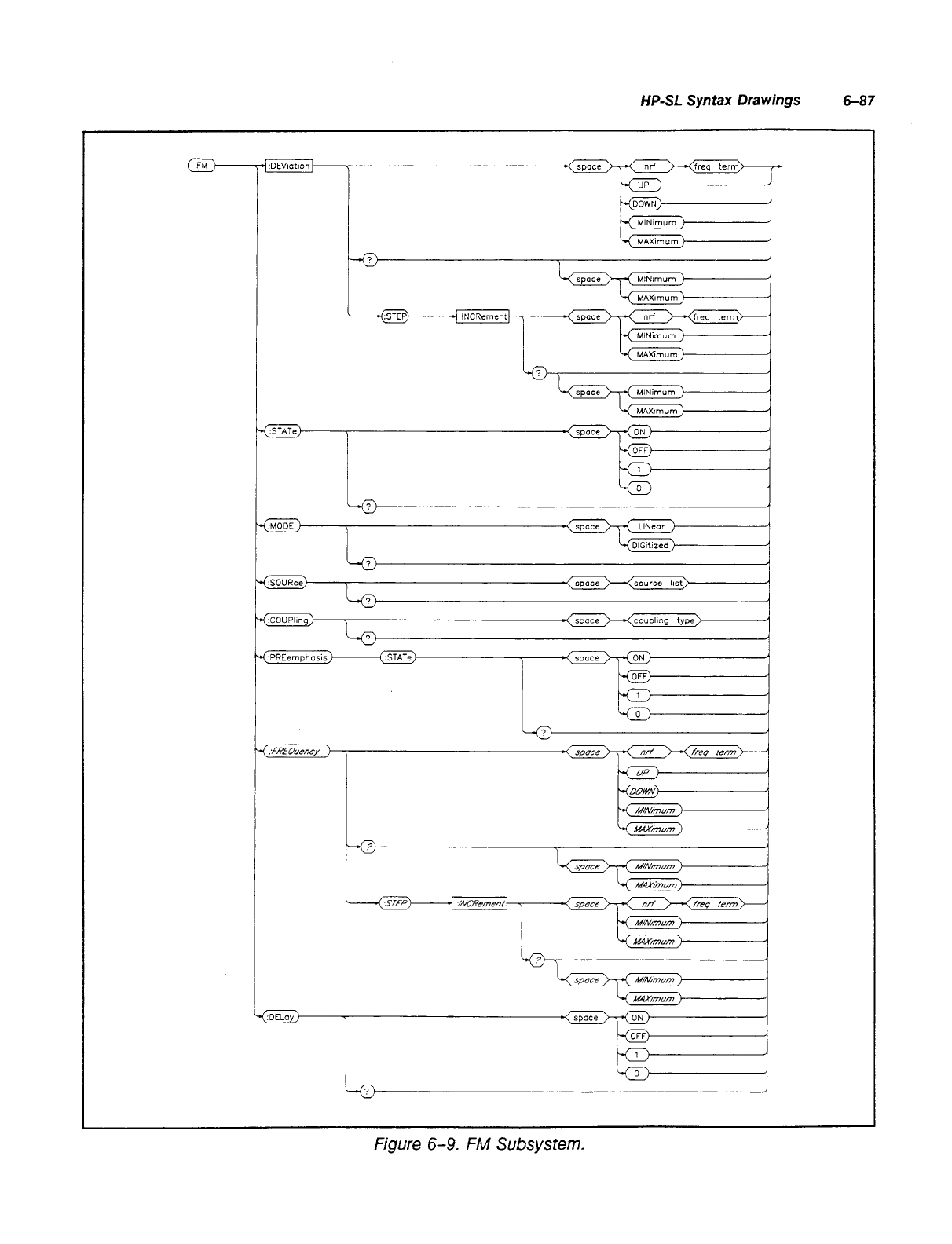

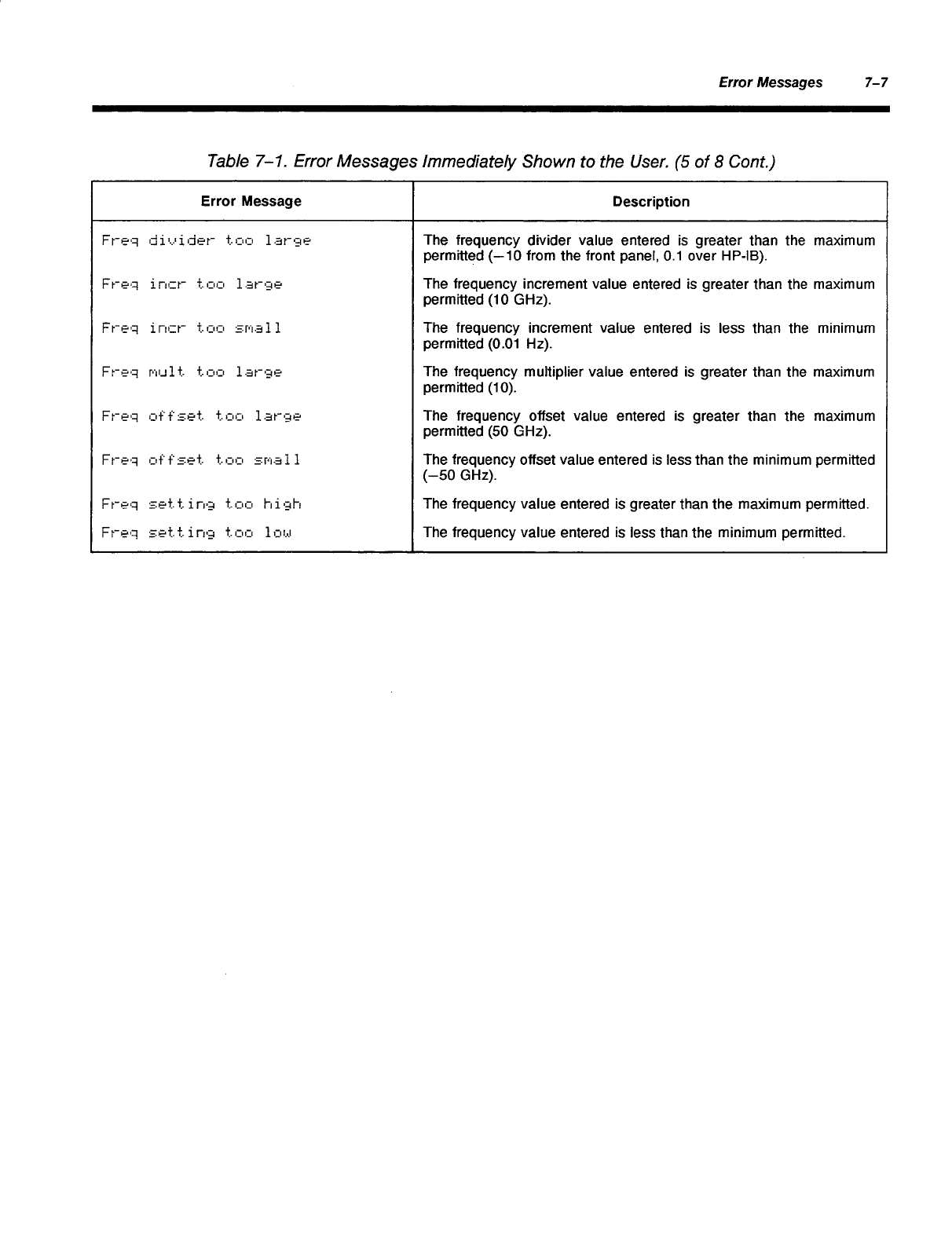

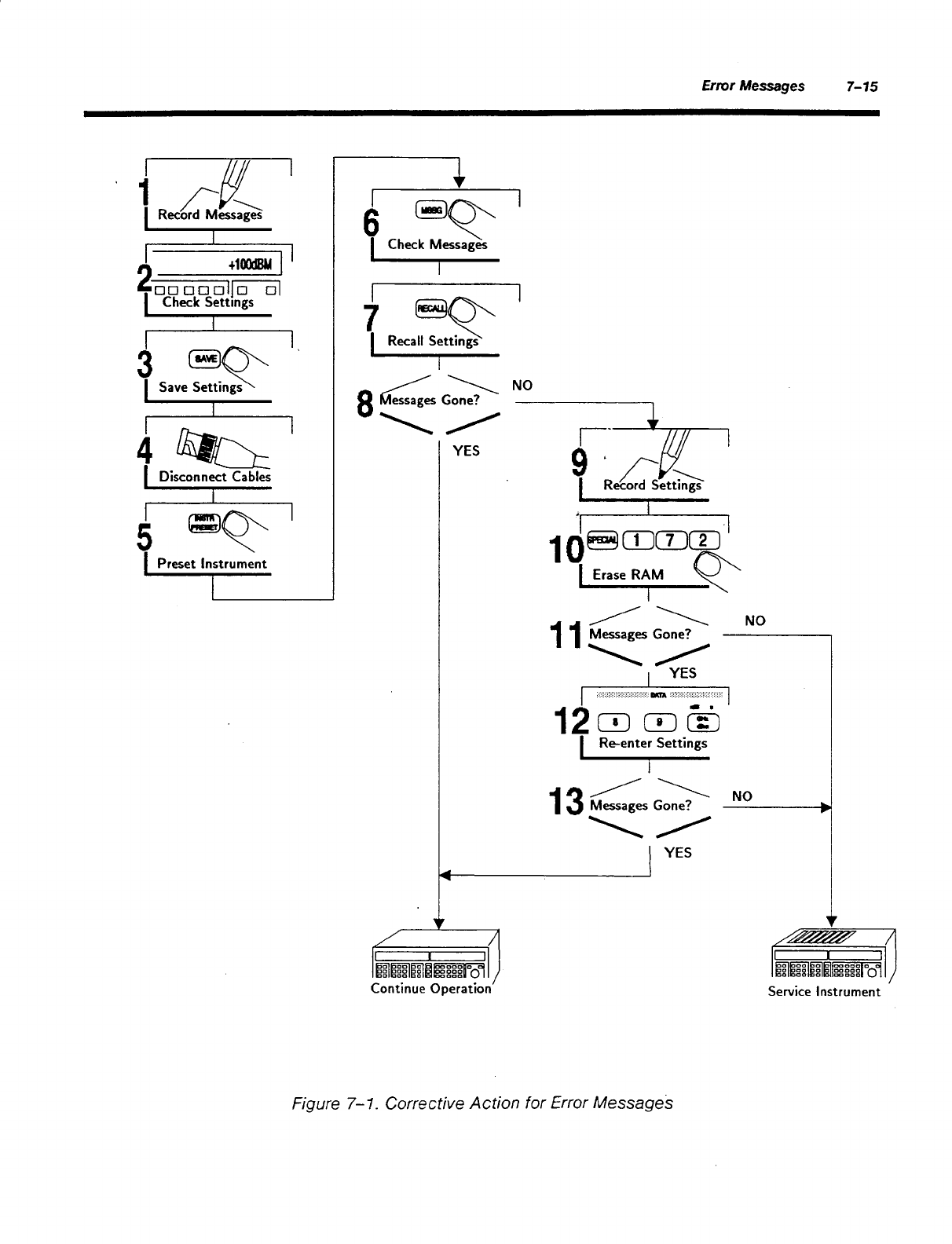

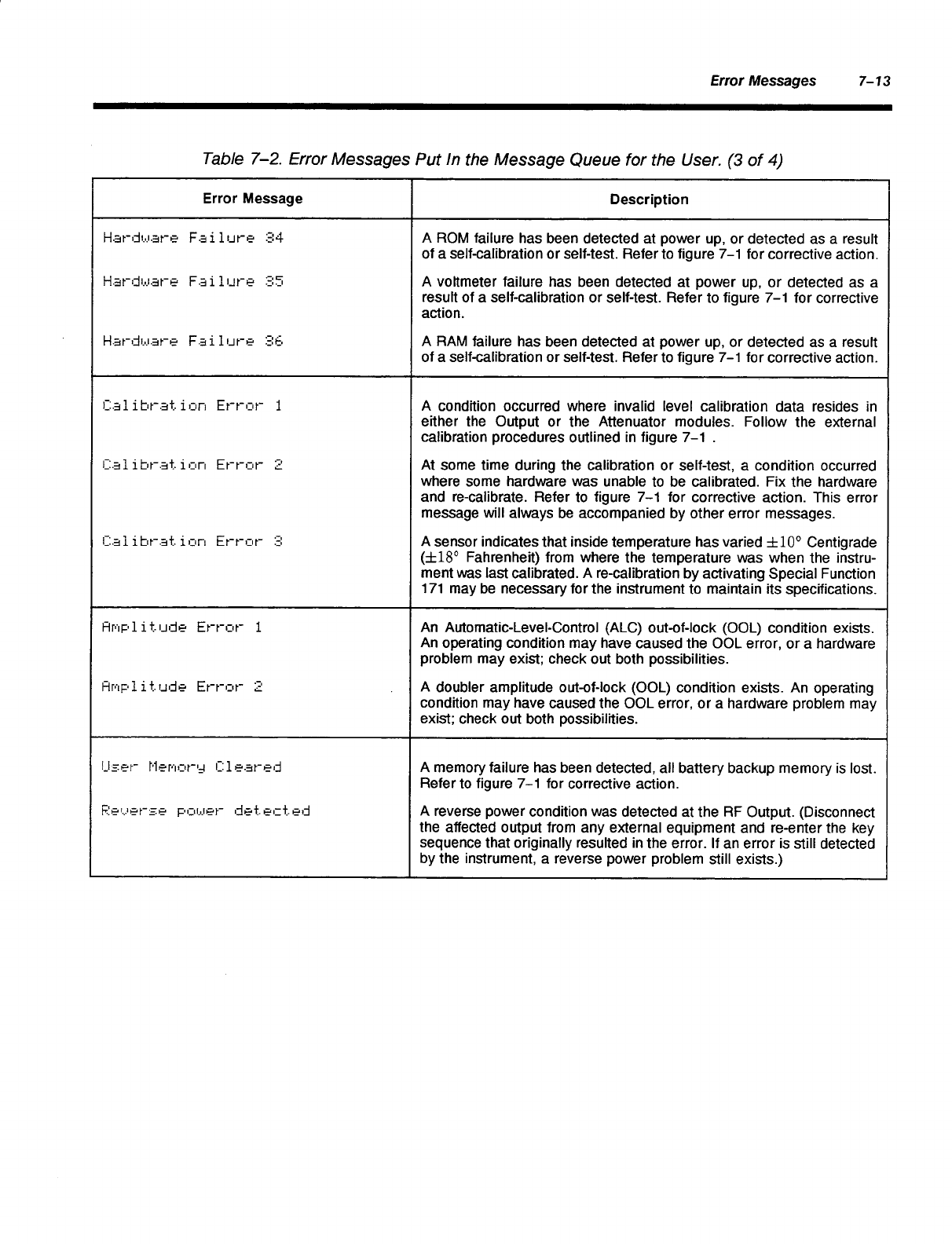

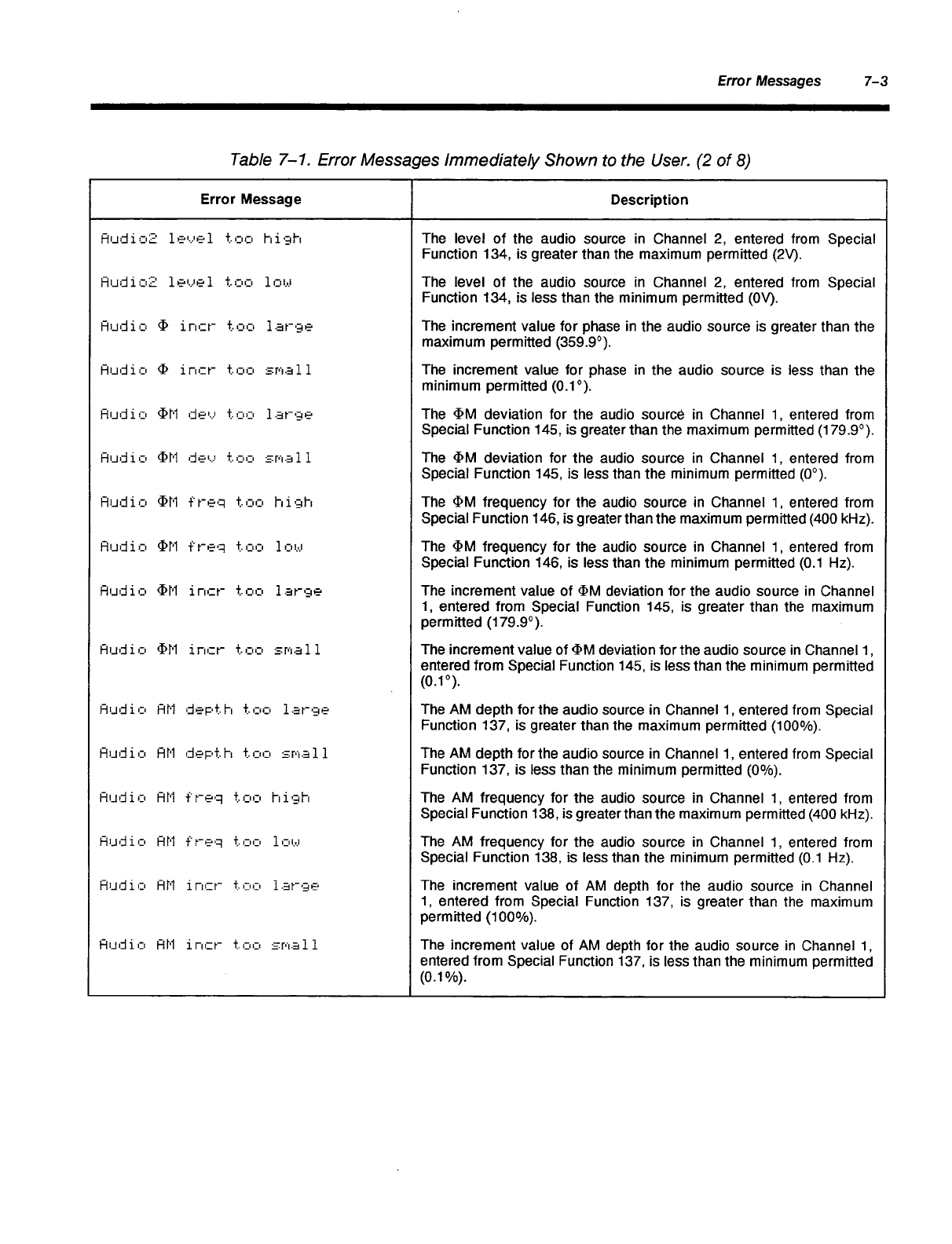

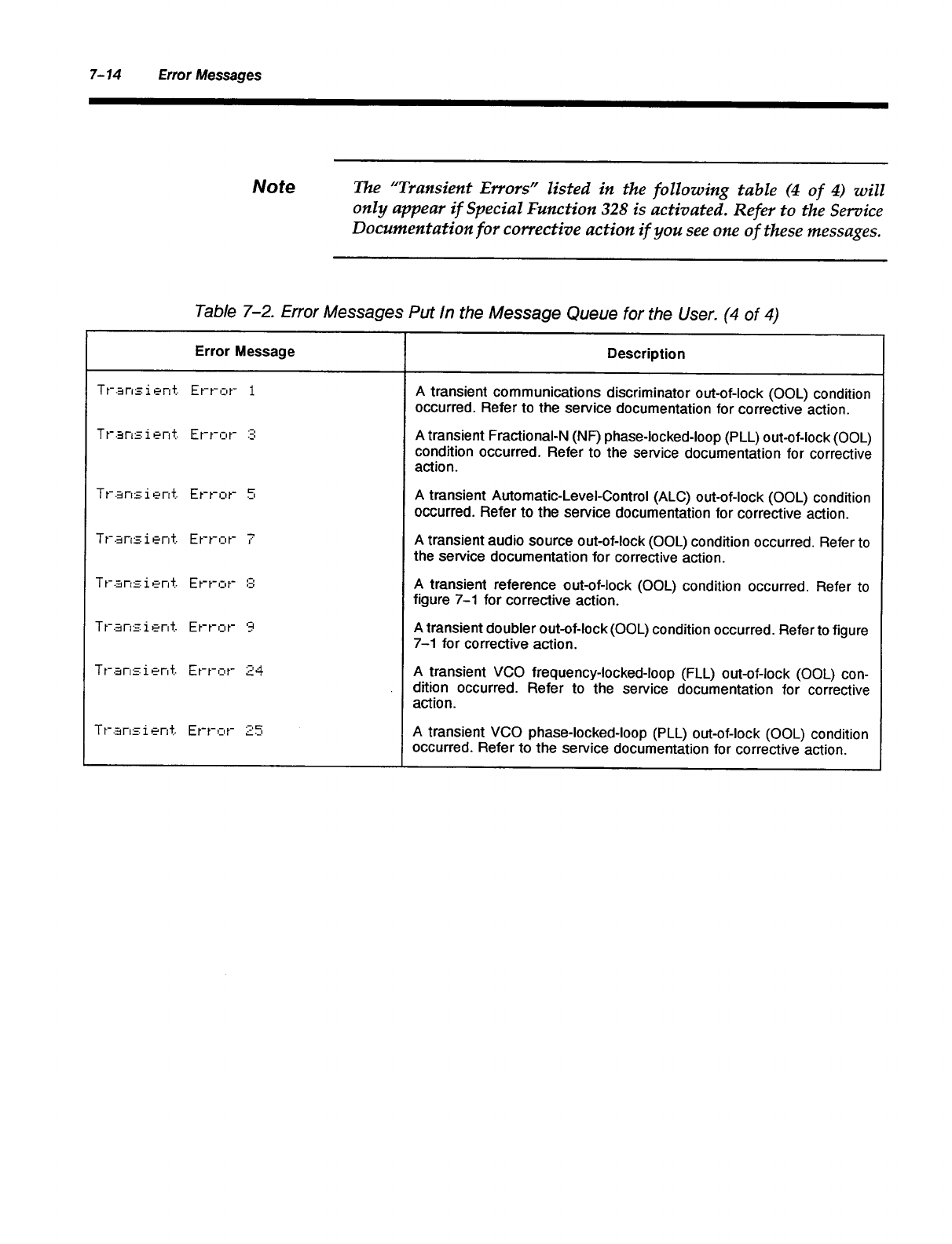

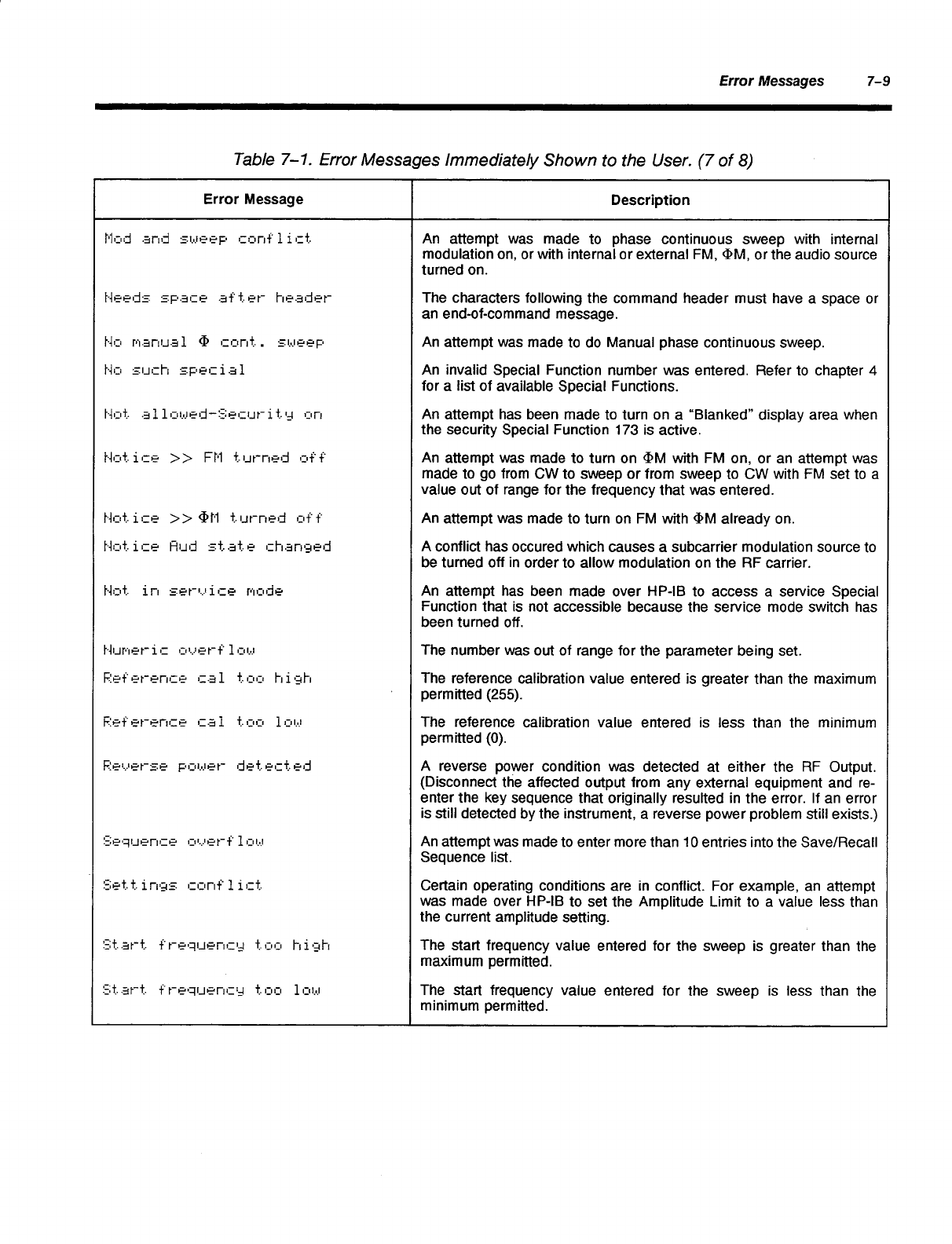

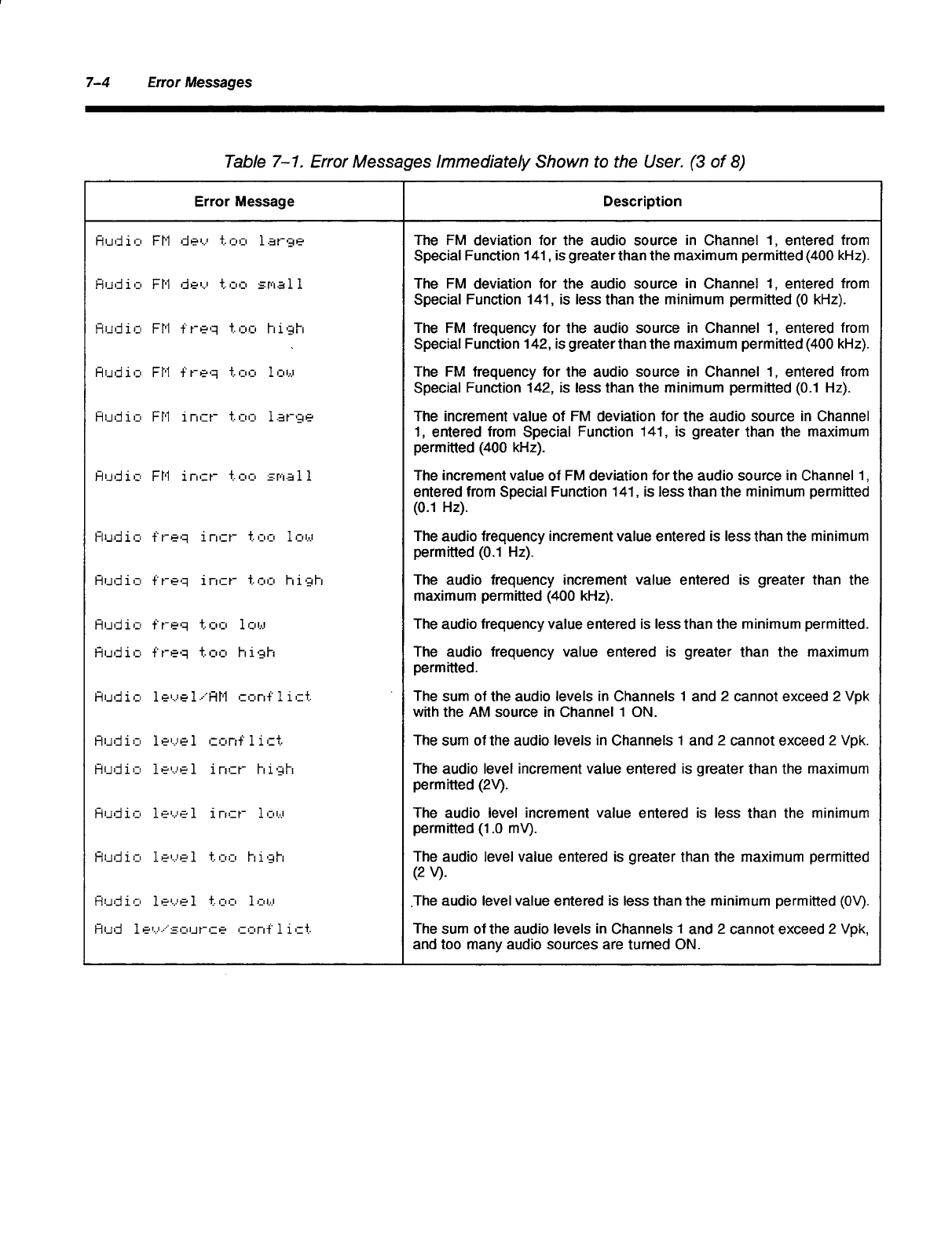

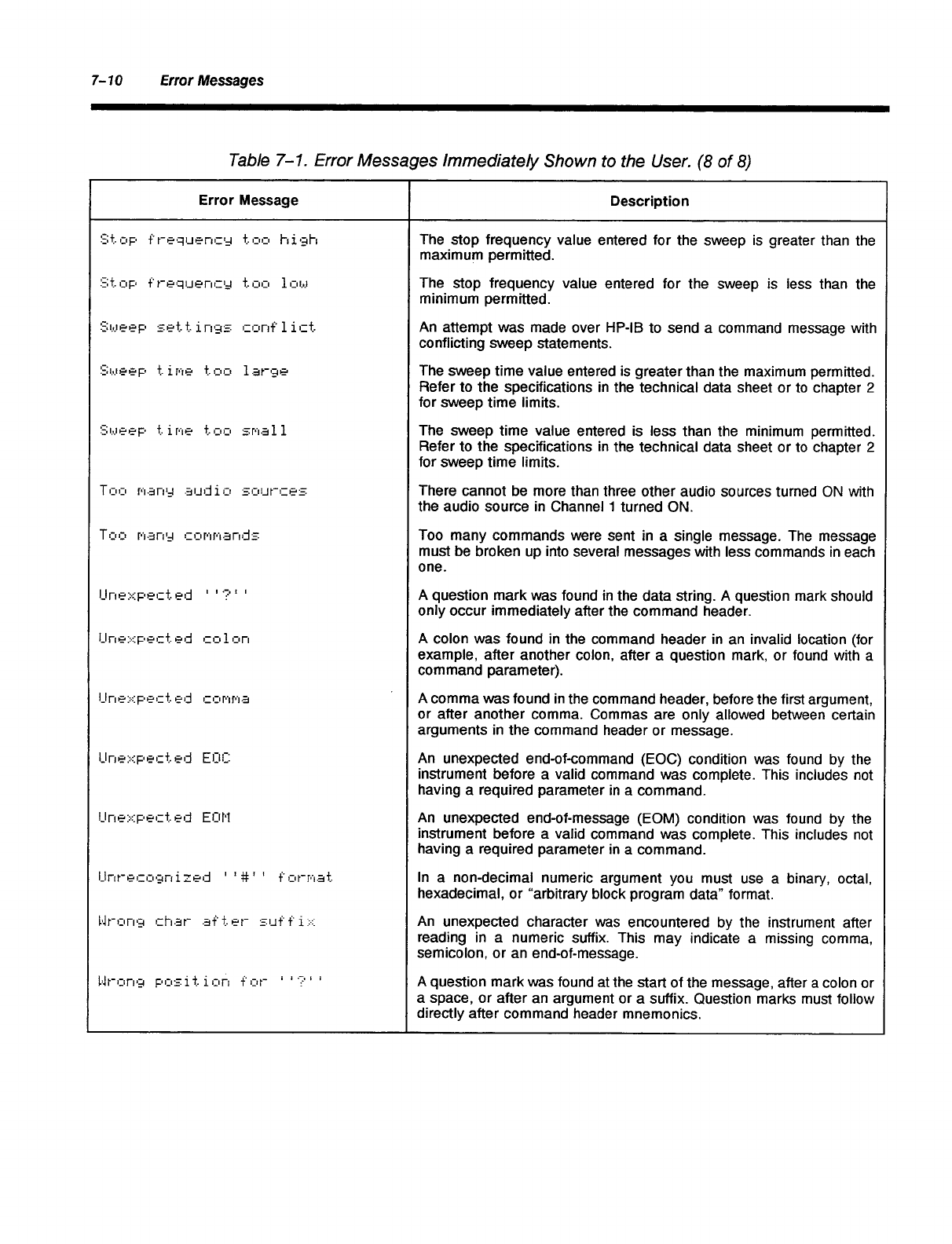

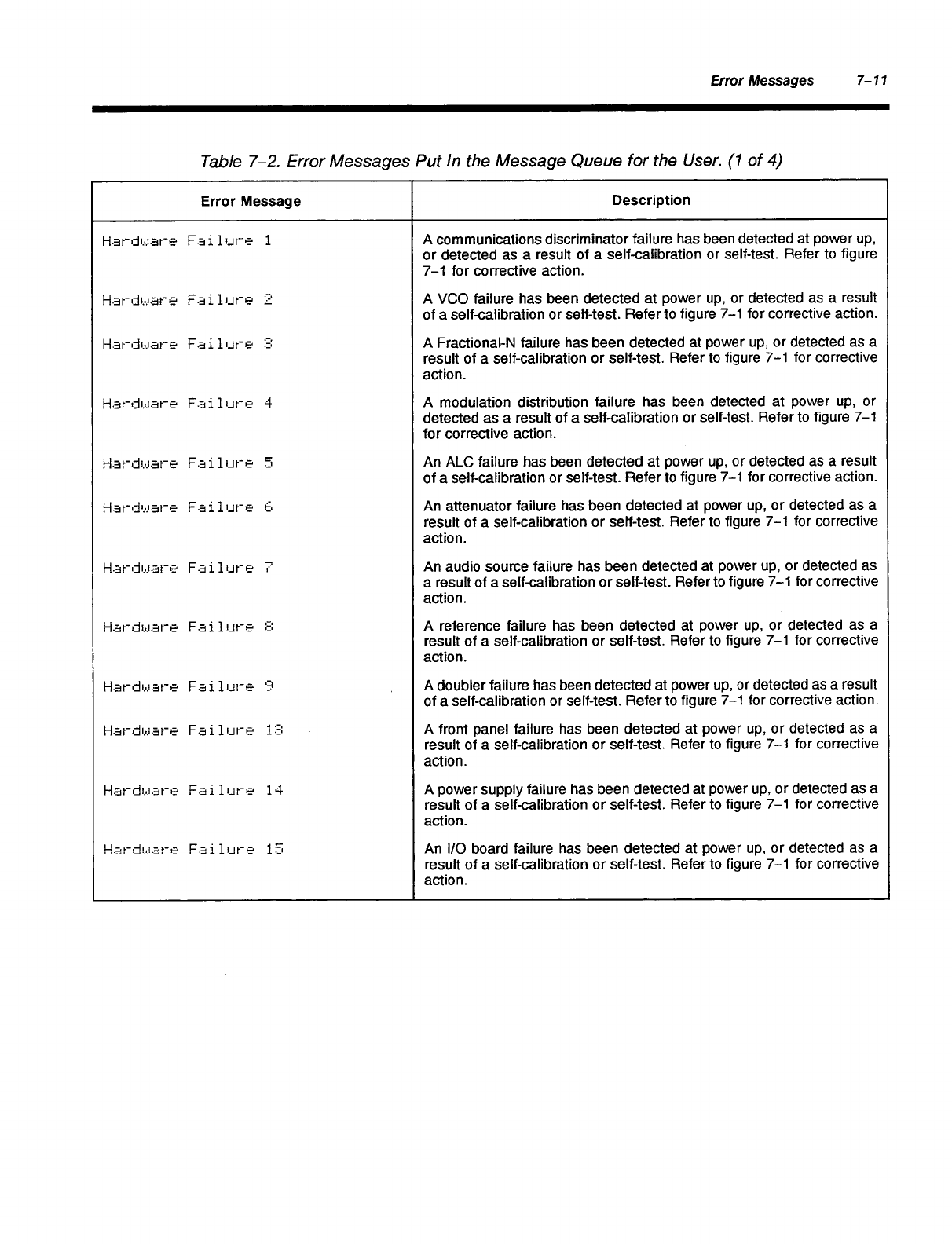

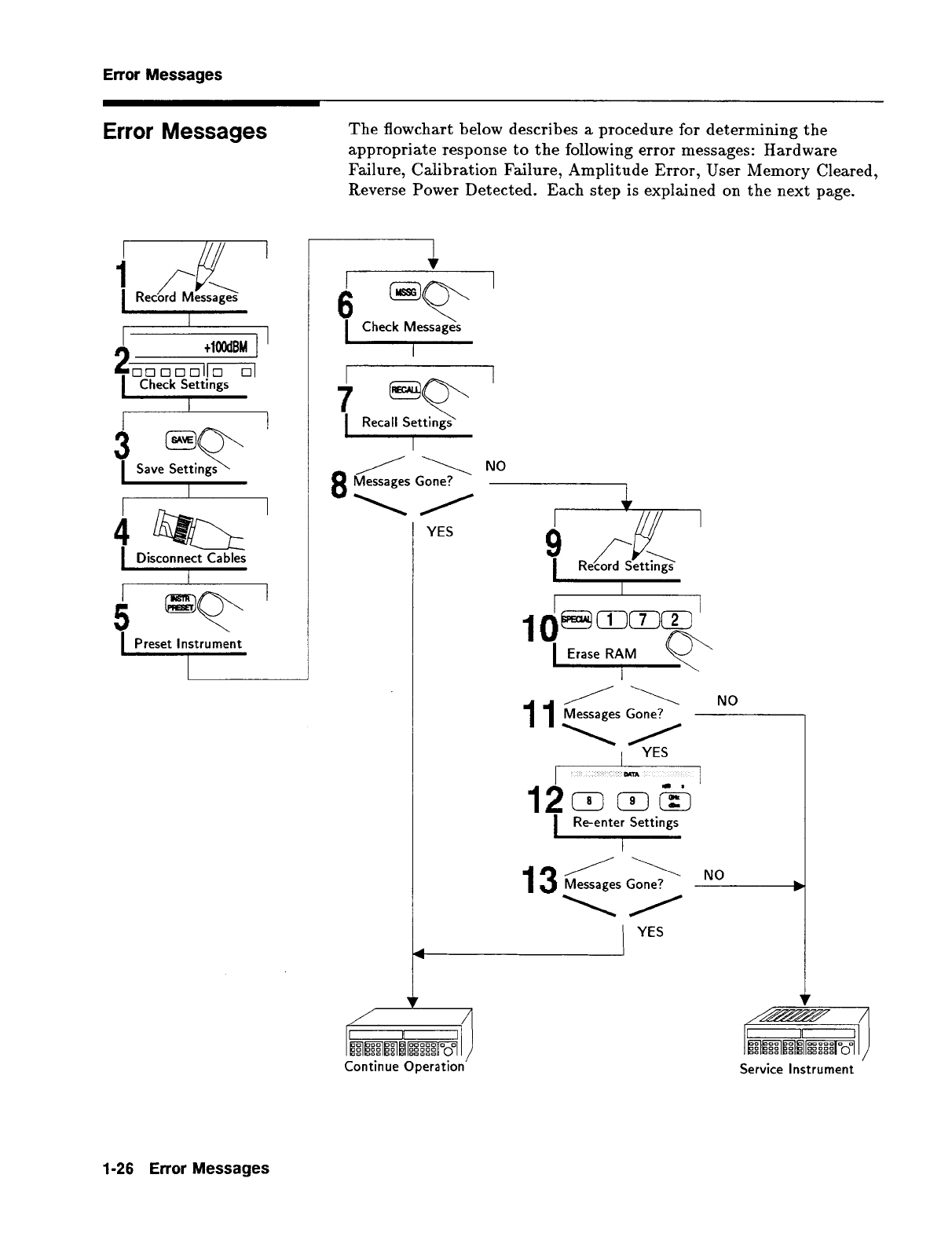

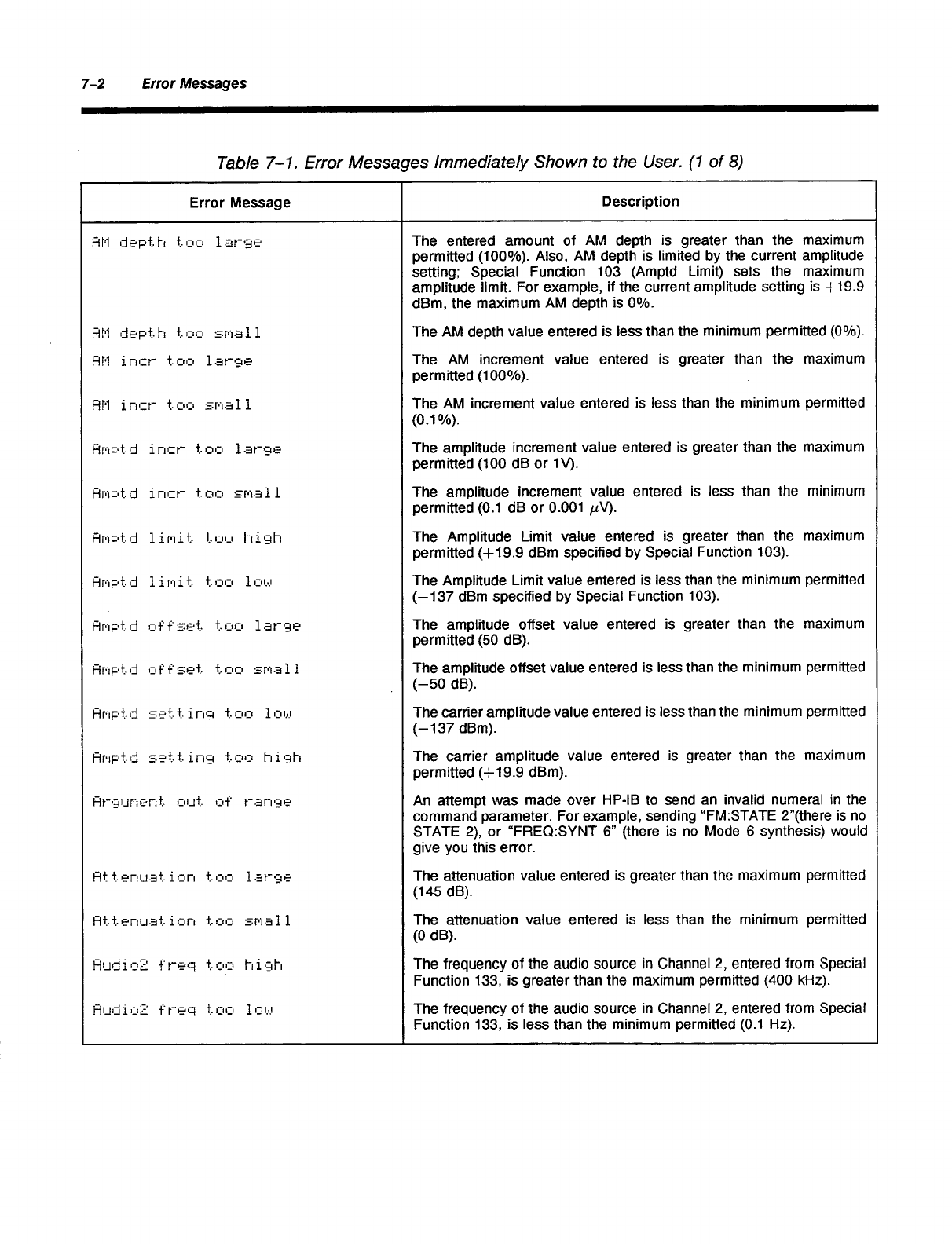

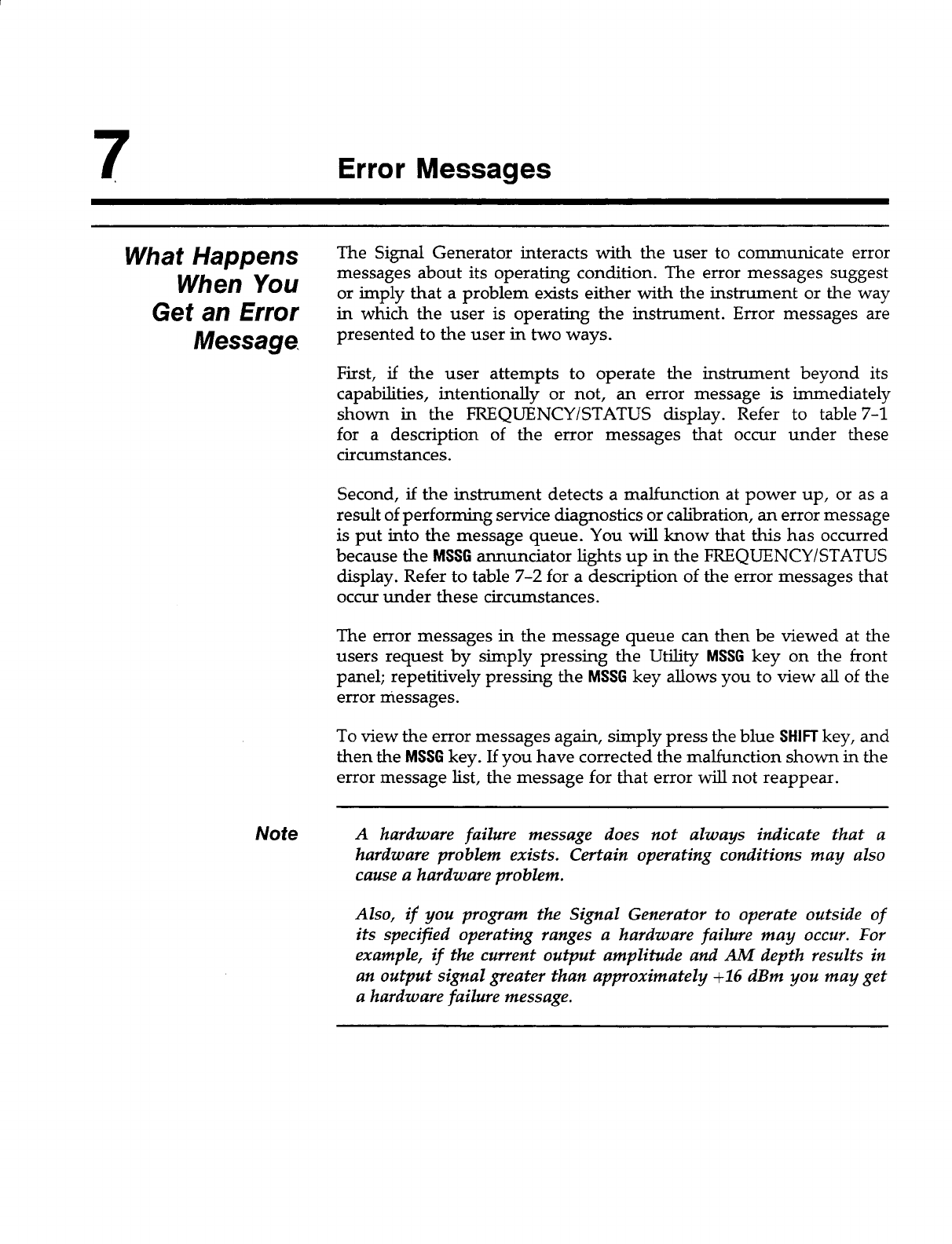

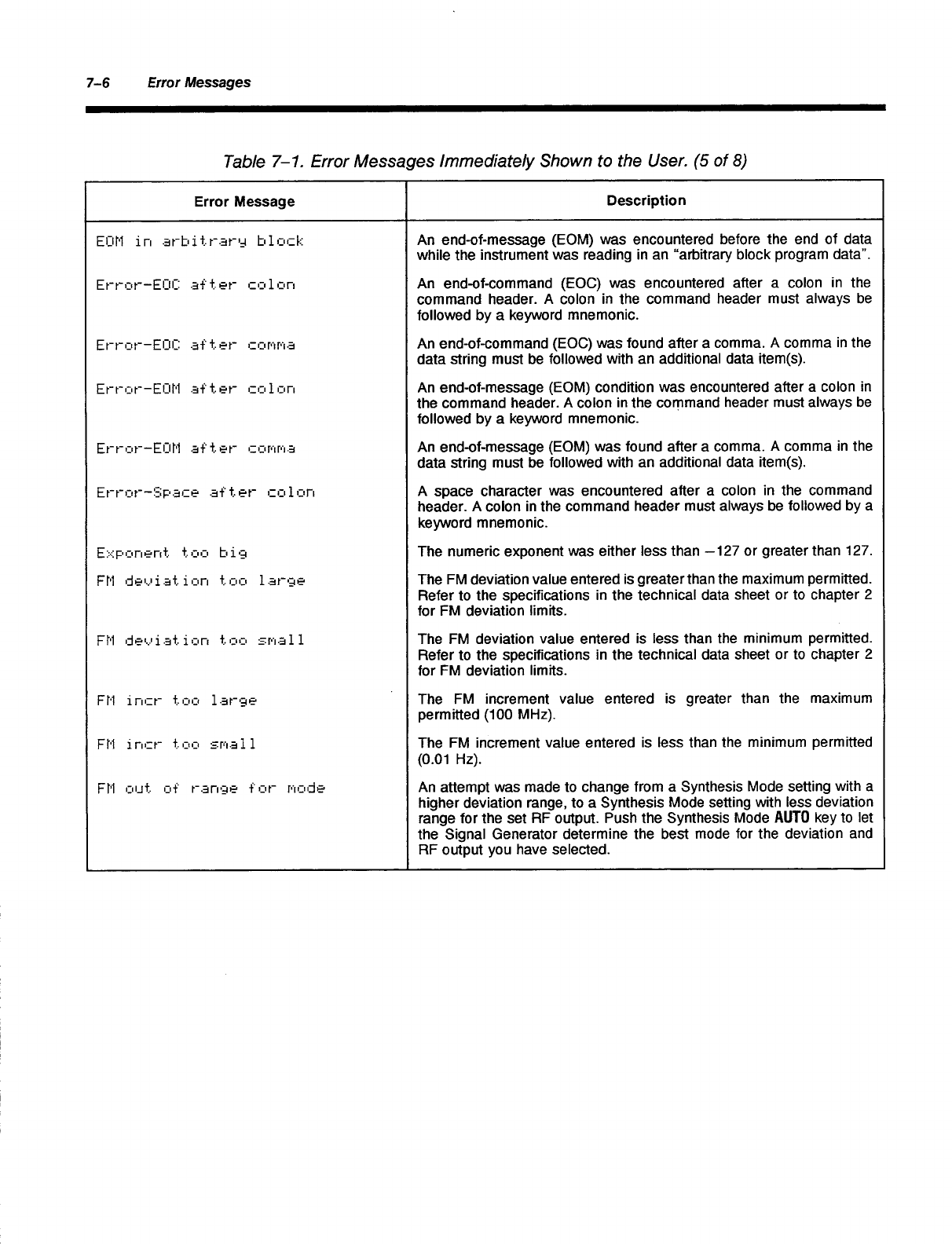

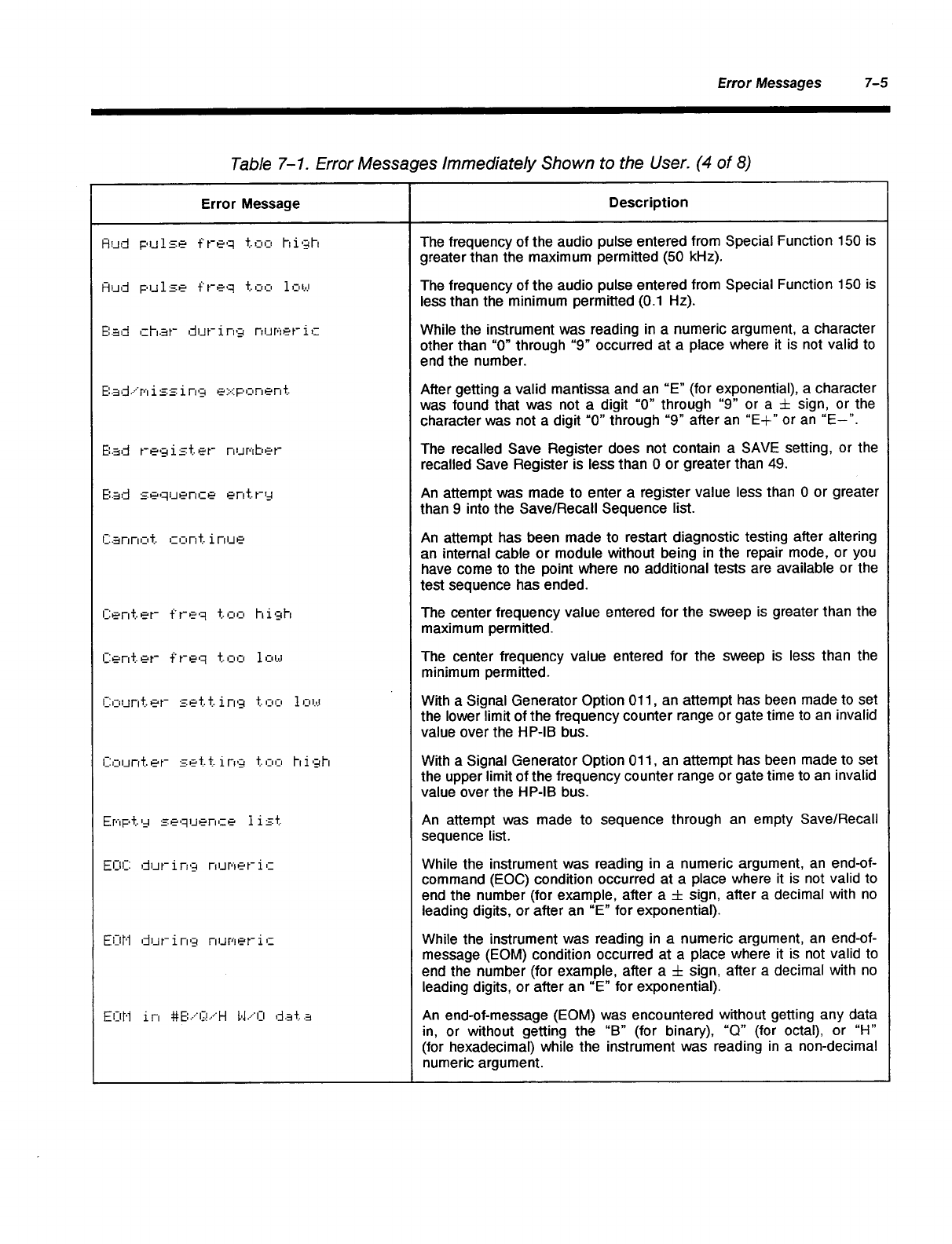

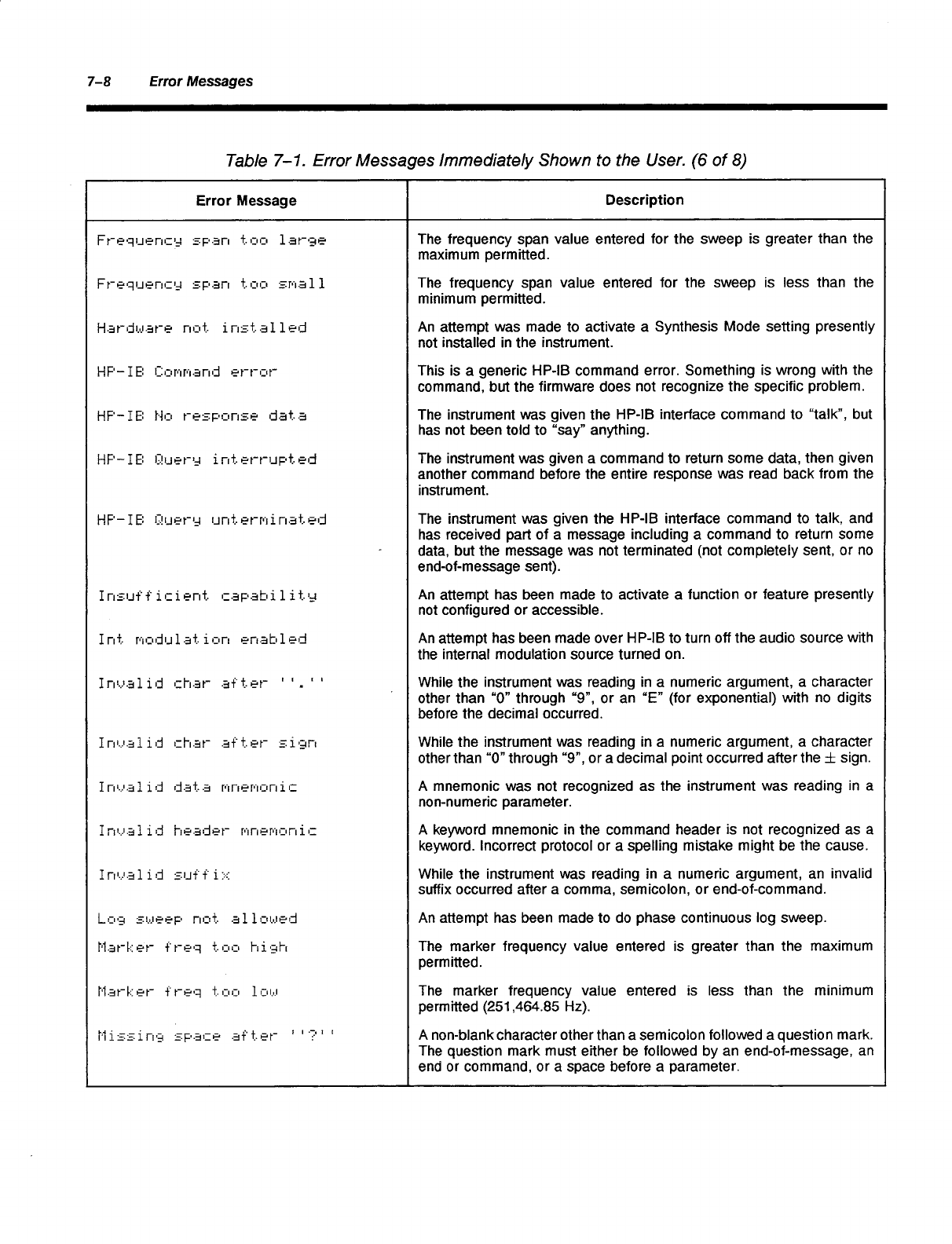

- Chapter 7-Error Messages
- Chapter 8-Performance Tests

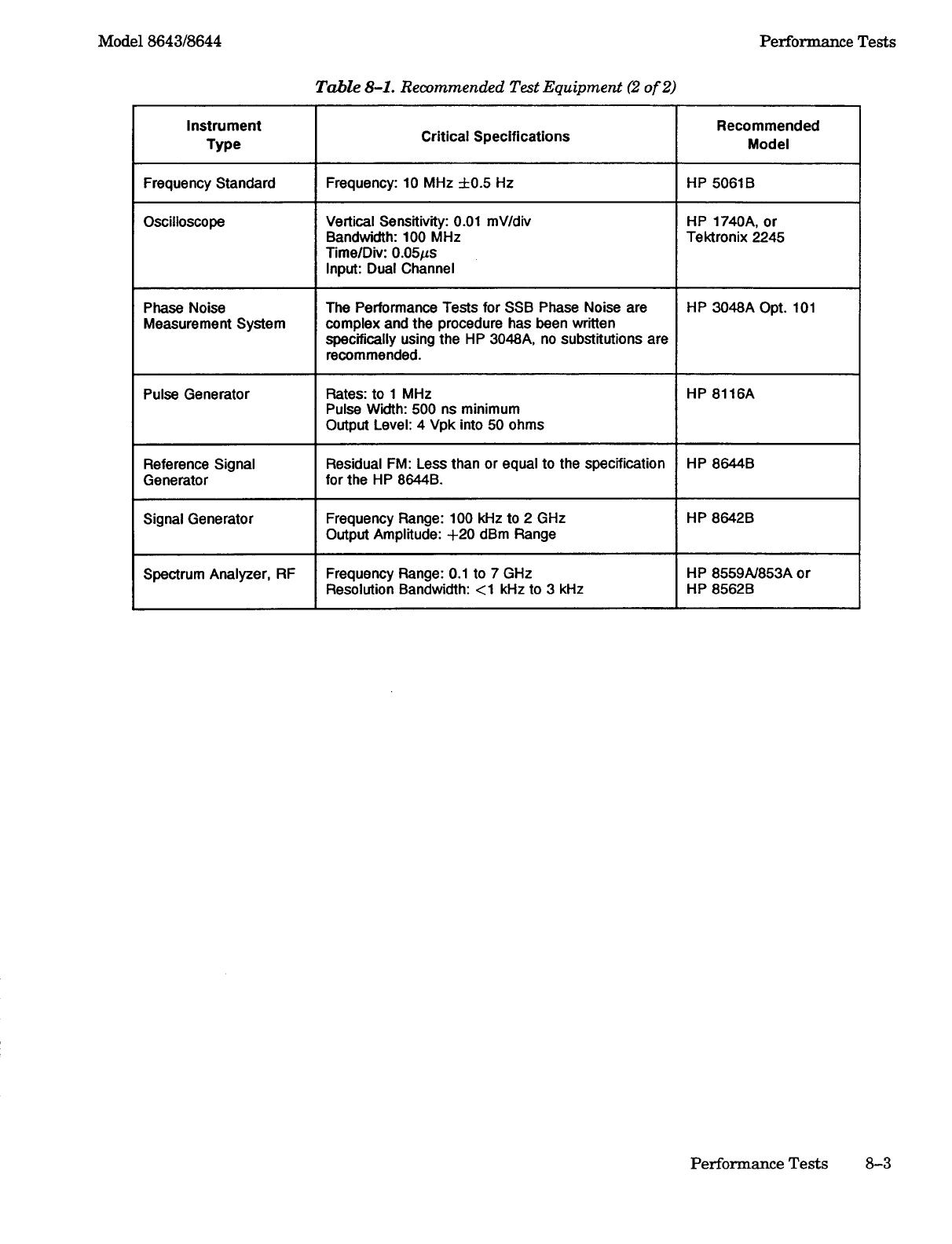

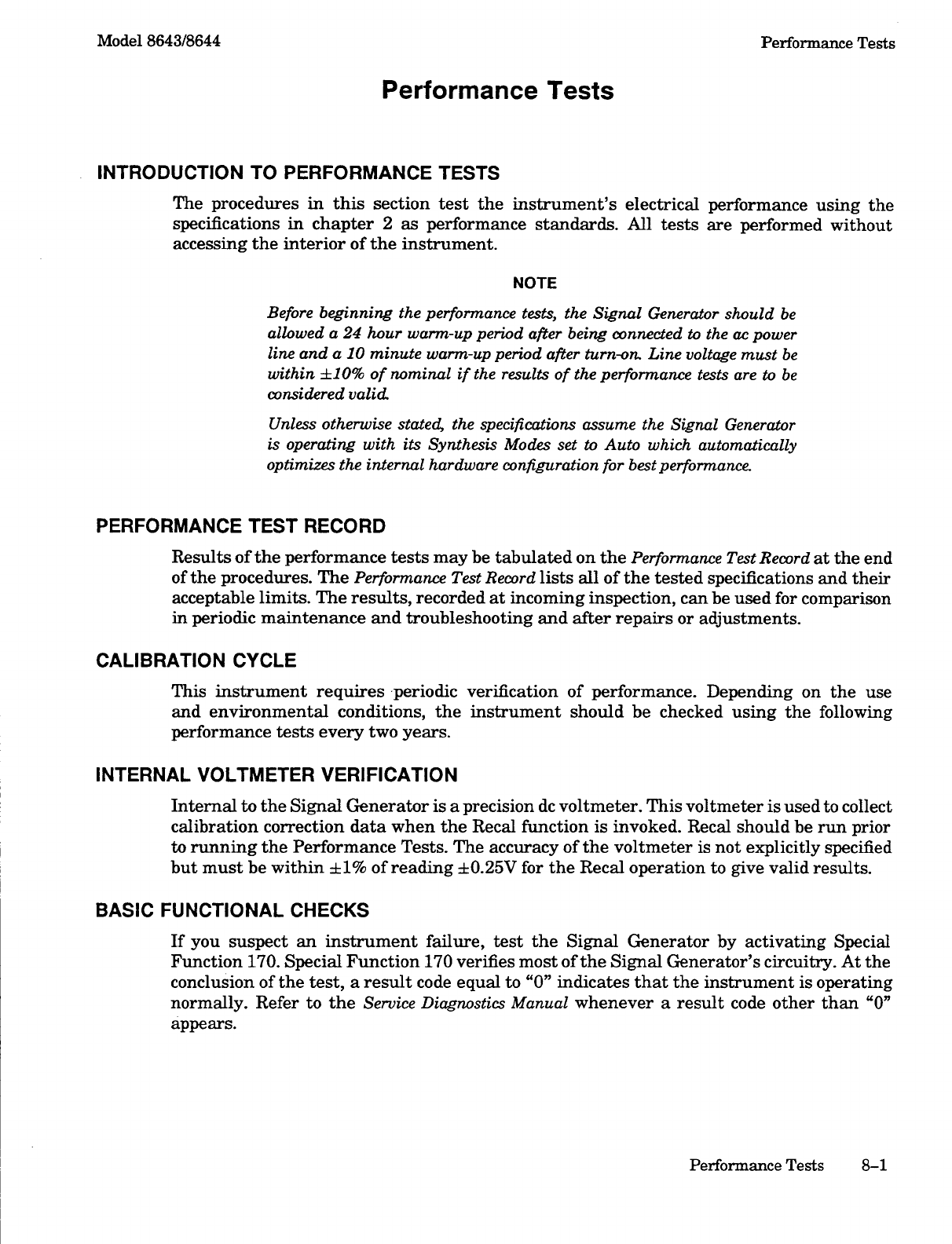

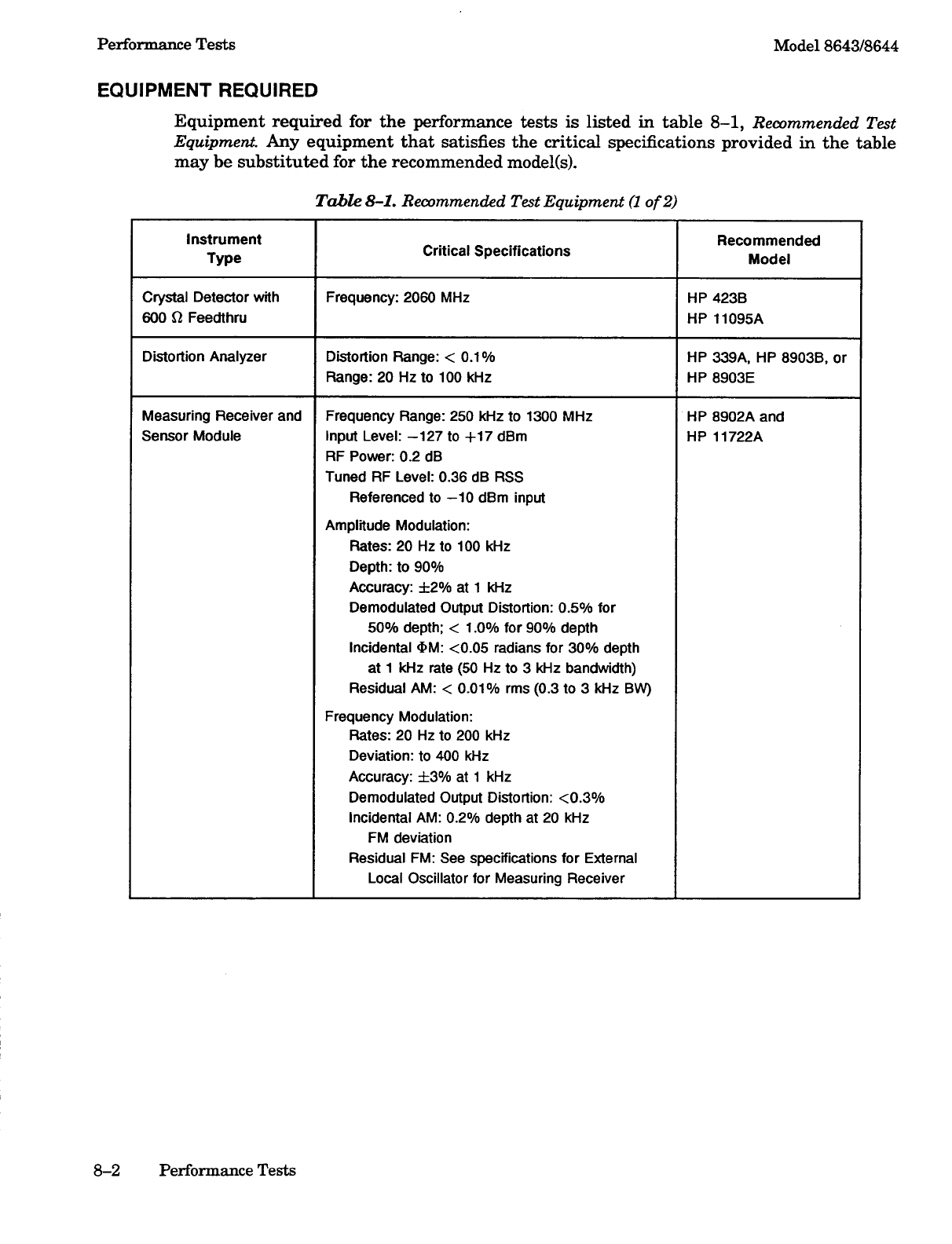

- Performance Tests

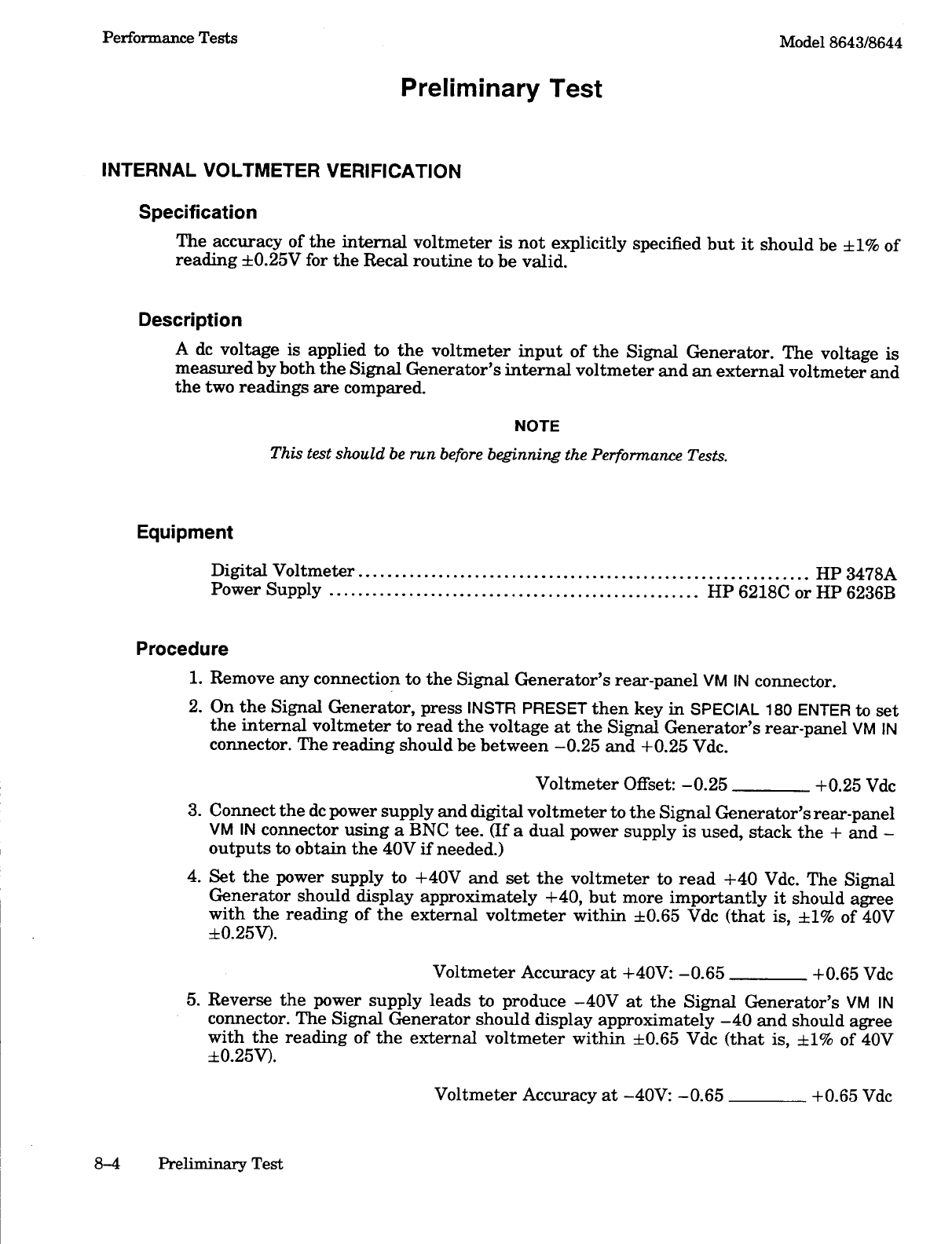

- Preliminary Test, Internal Voltmeter Verification

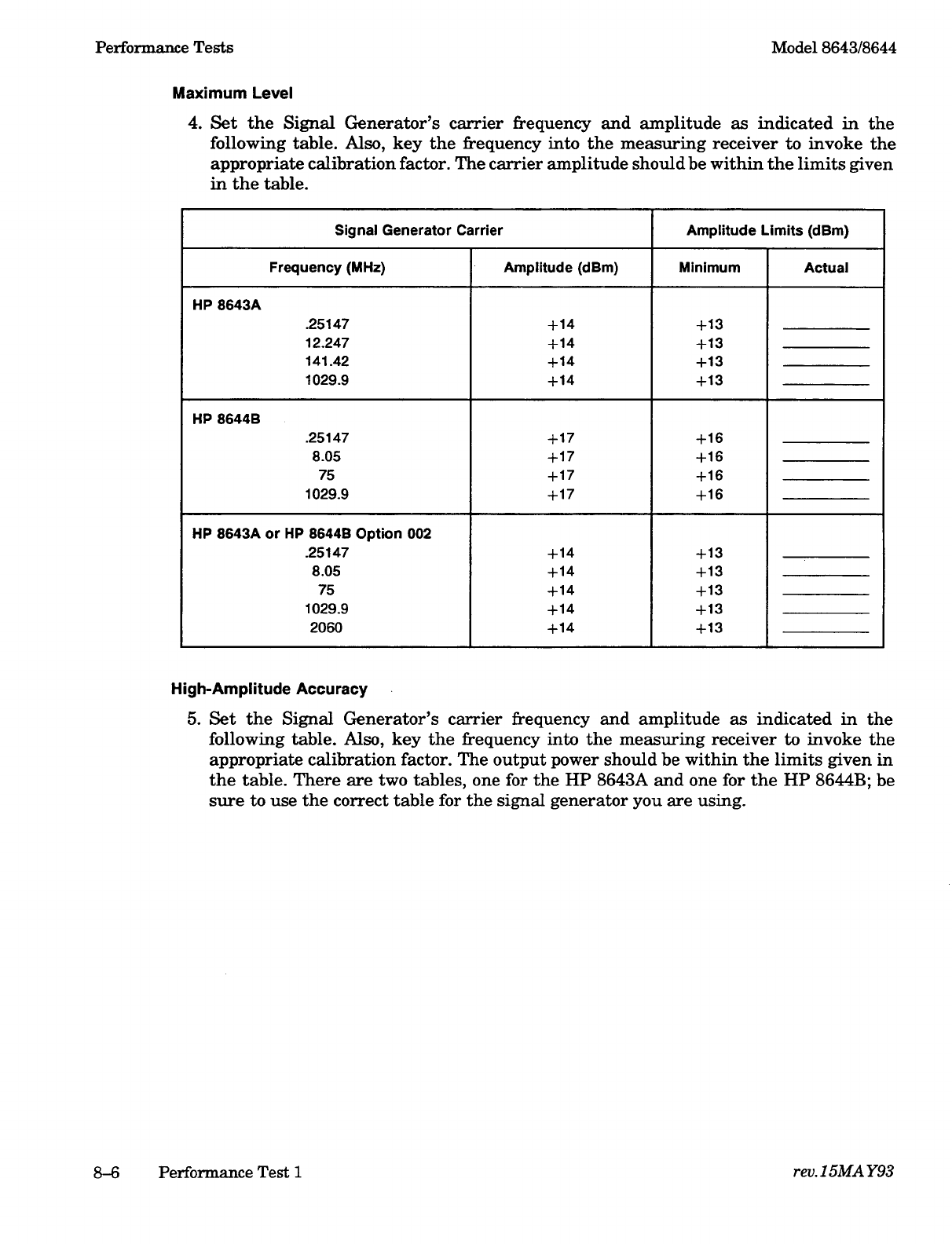

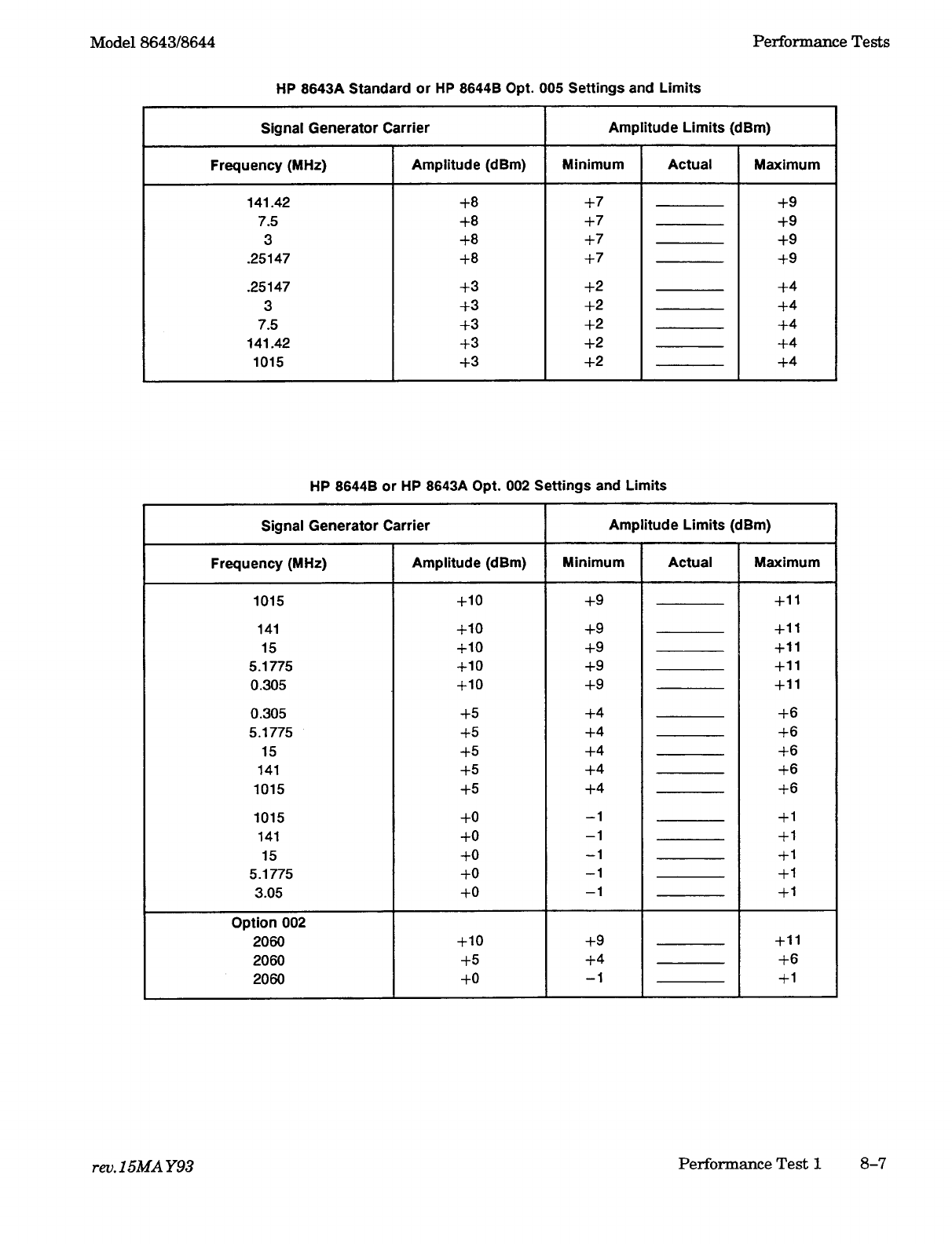

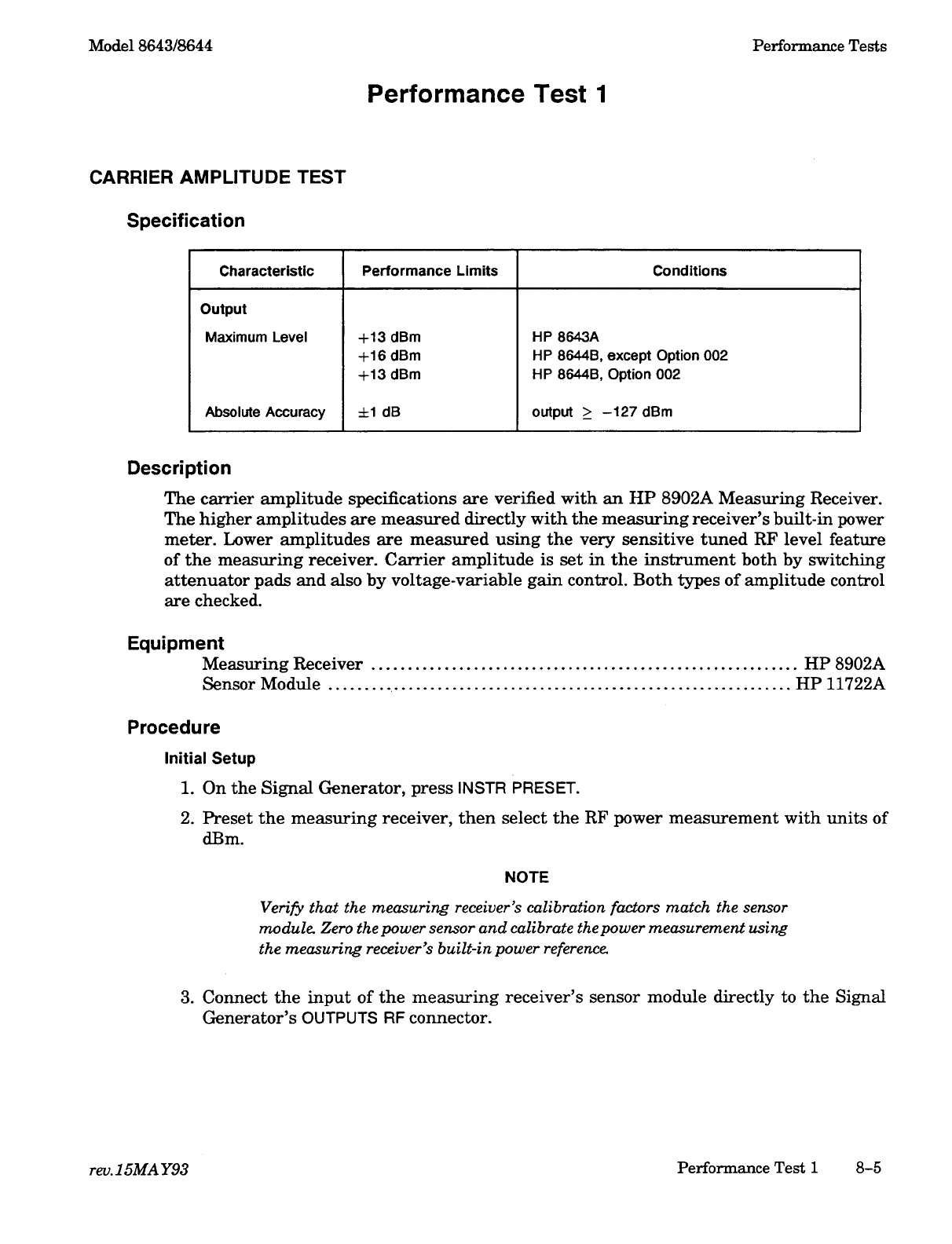

- Performance Test 1, Carrier Amplitude Test

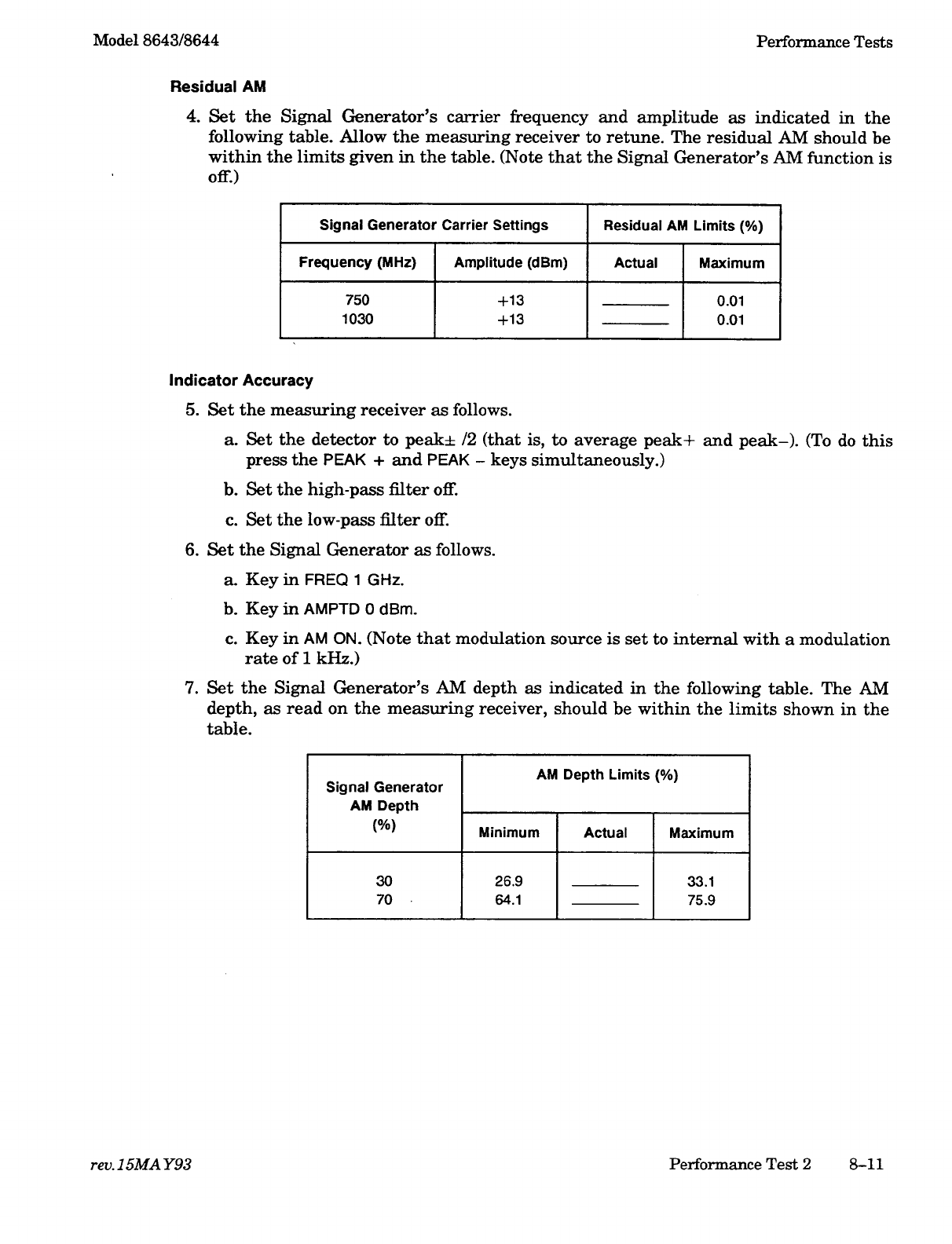

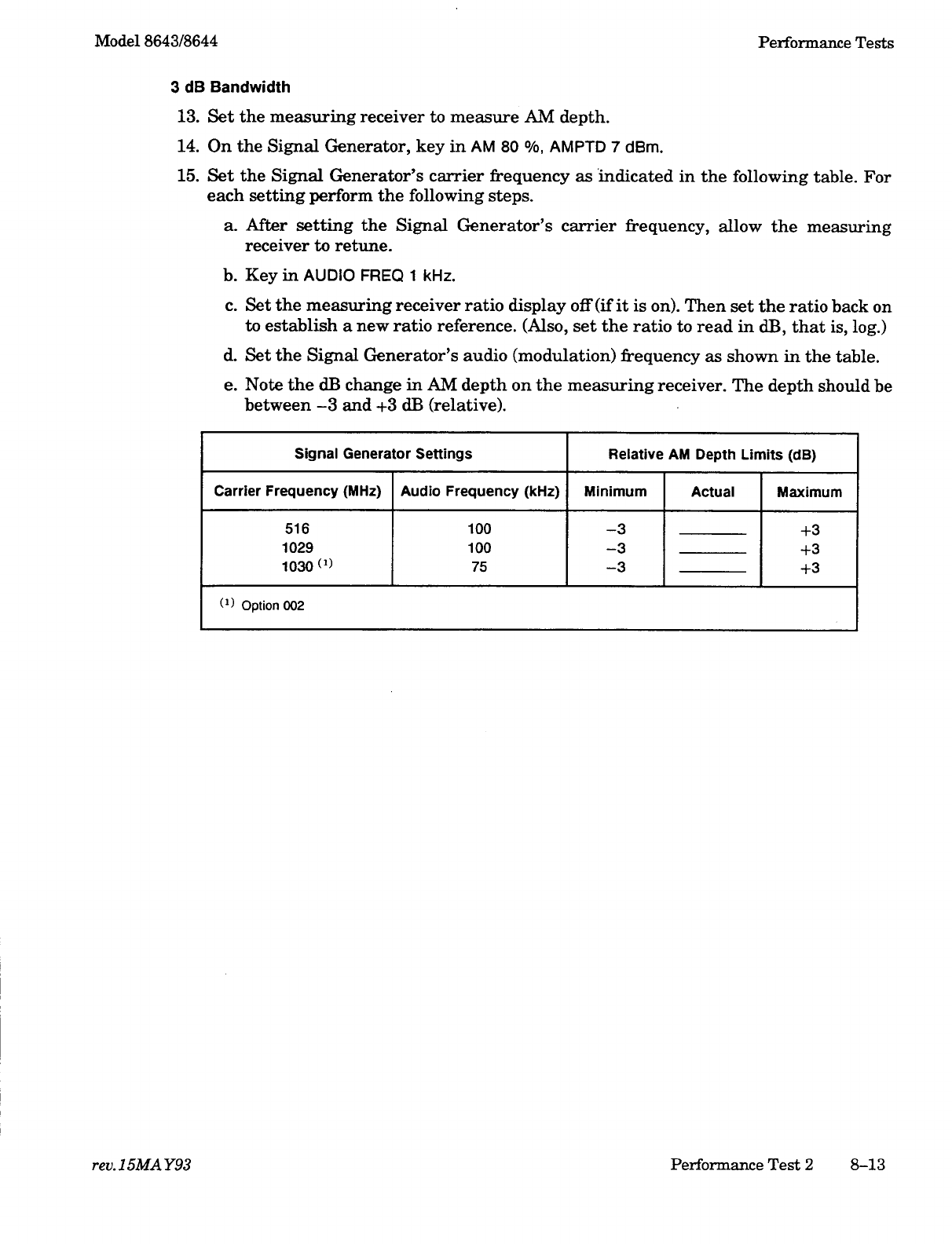

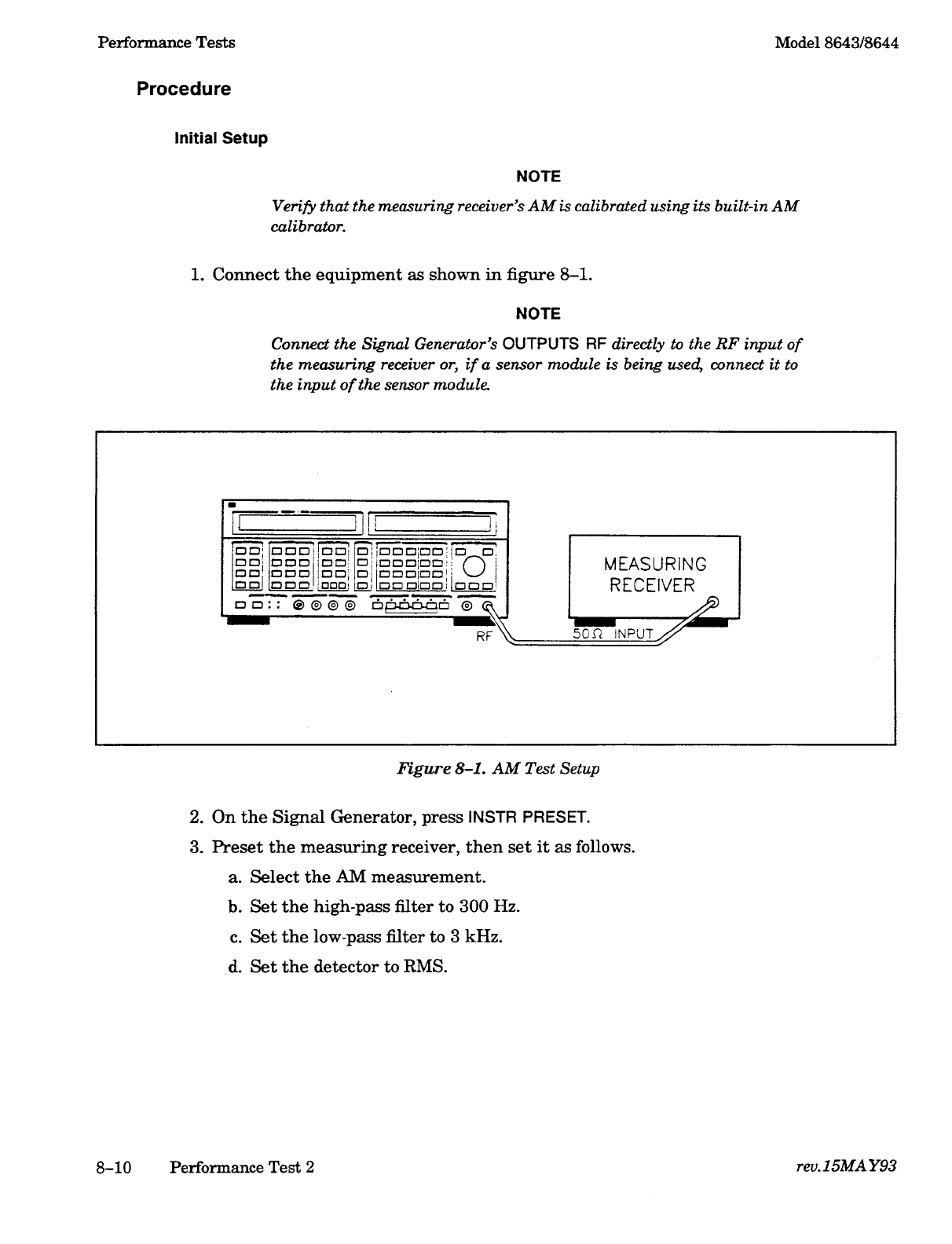

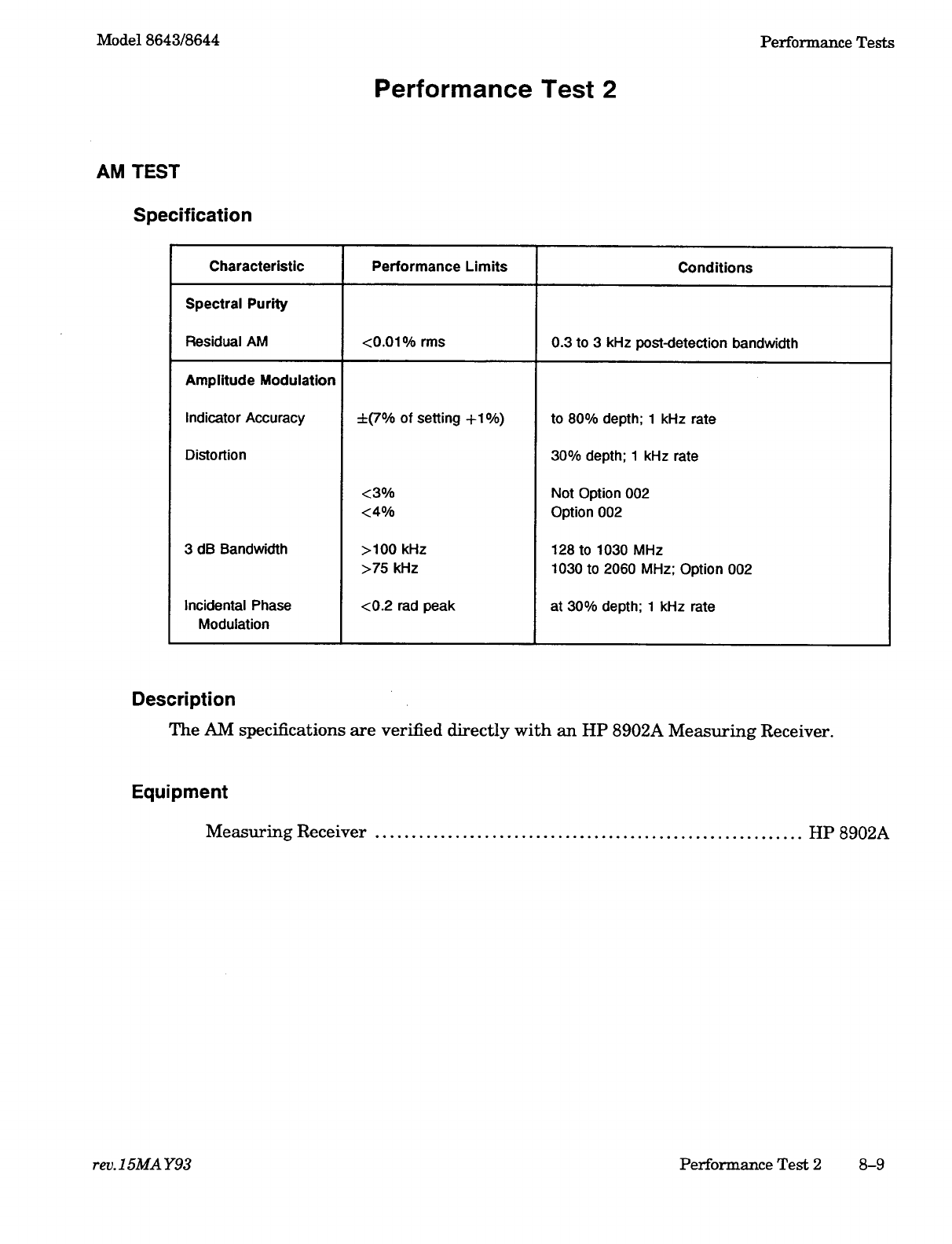

- Performance Test 2, AM Test

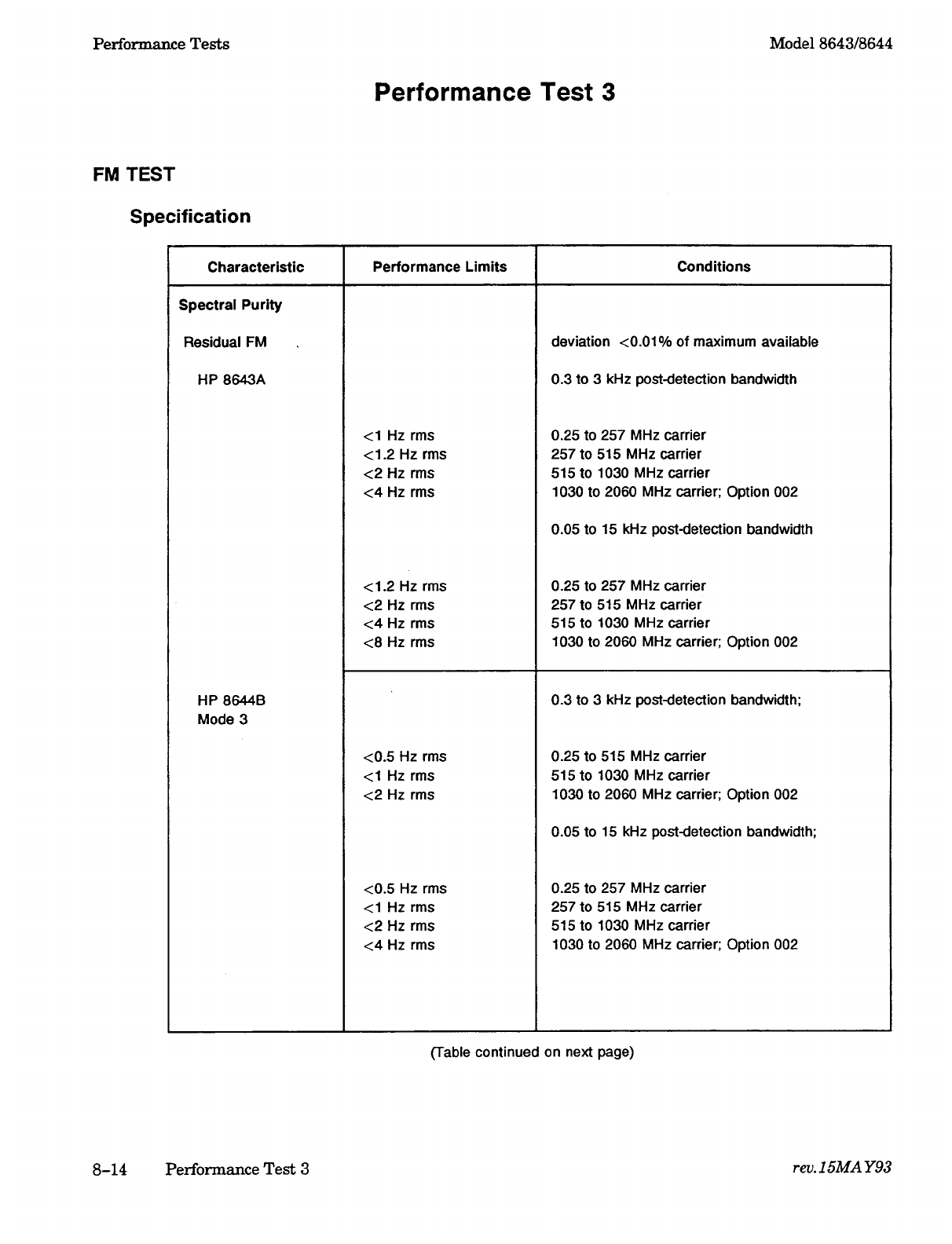

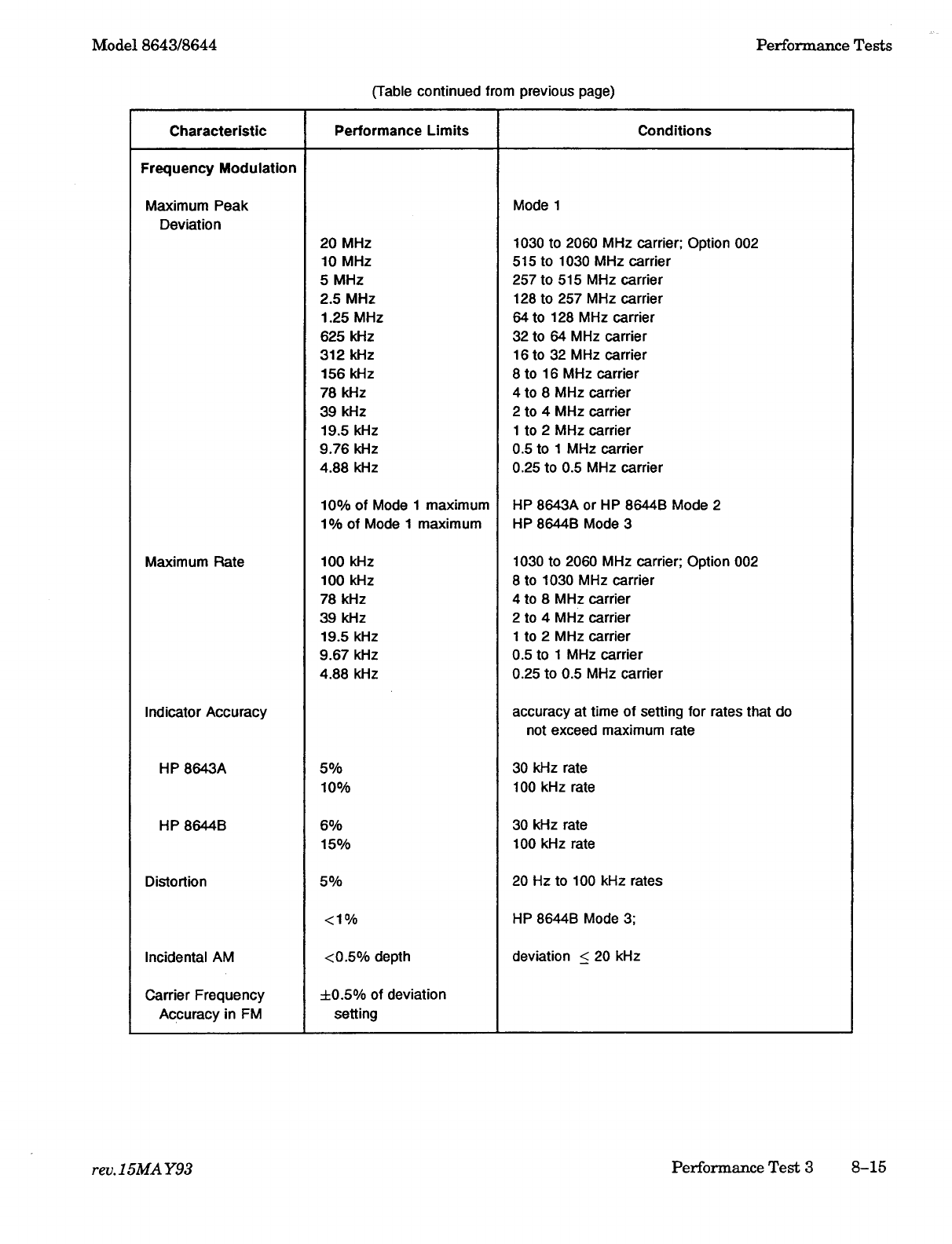

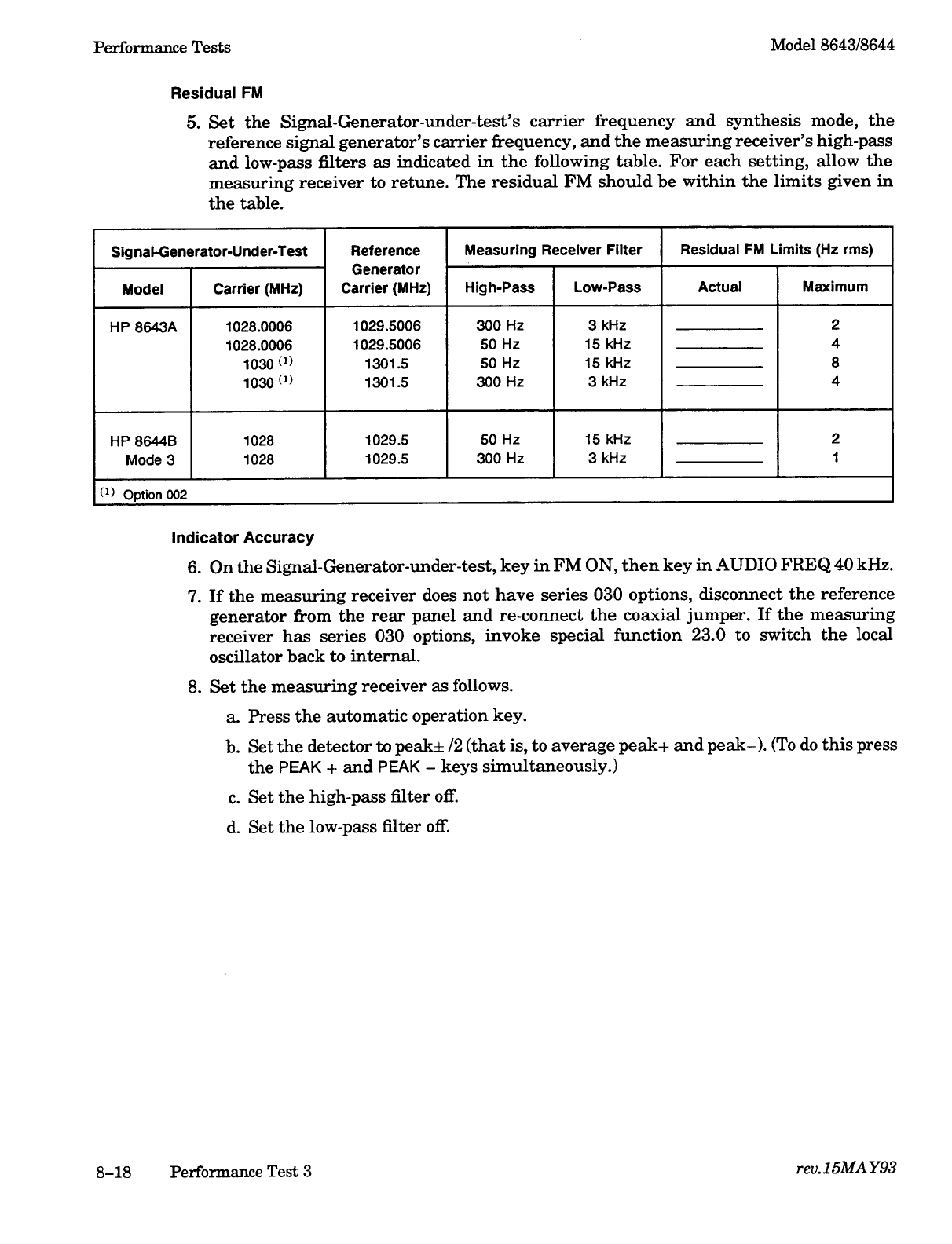

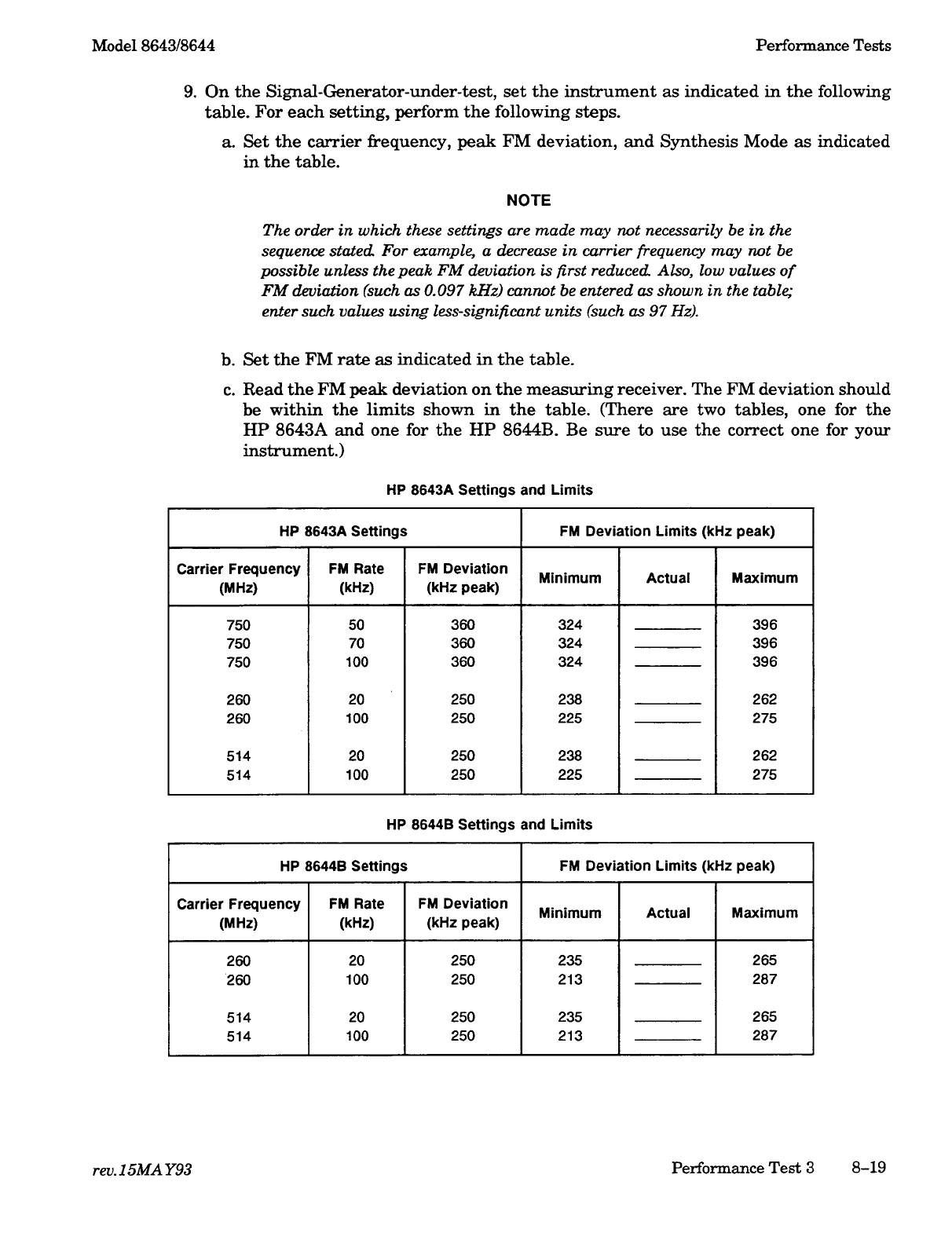

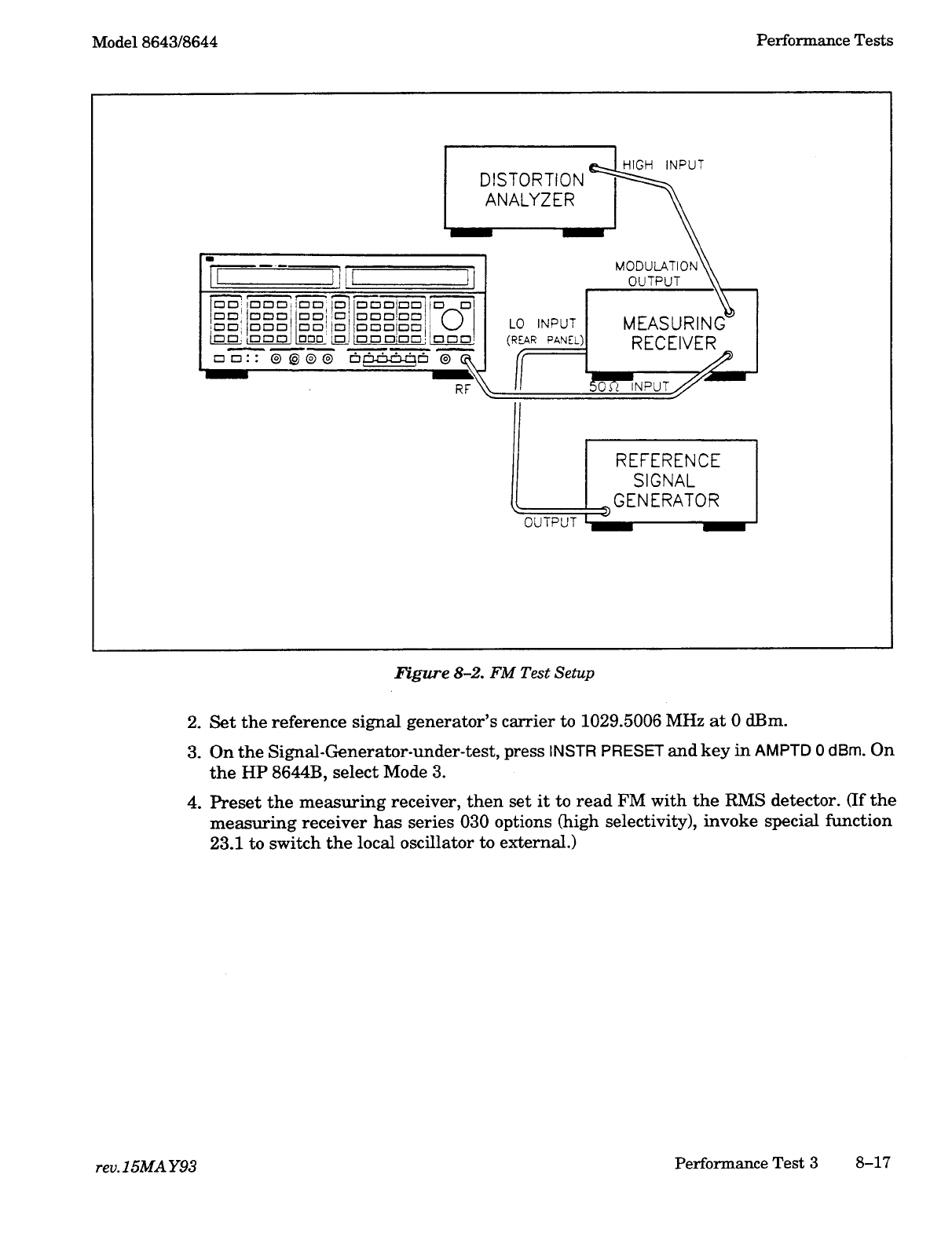

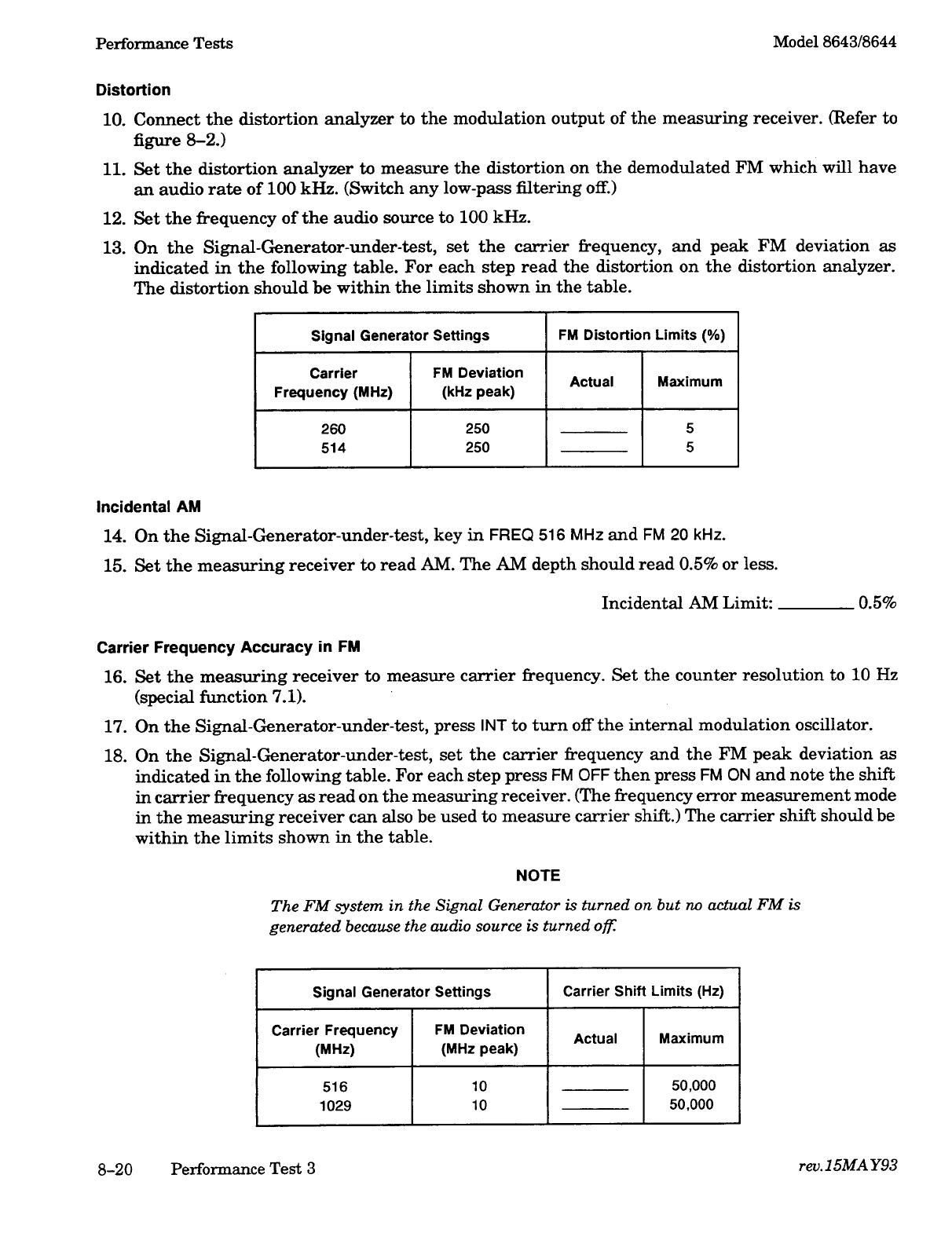

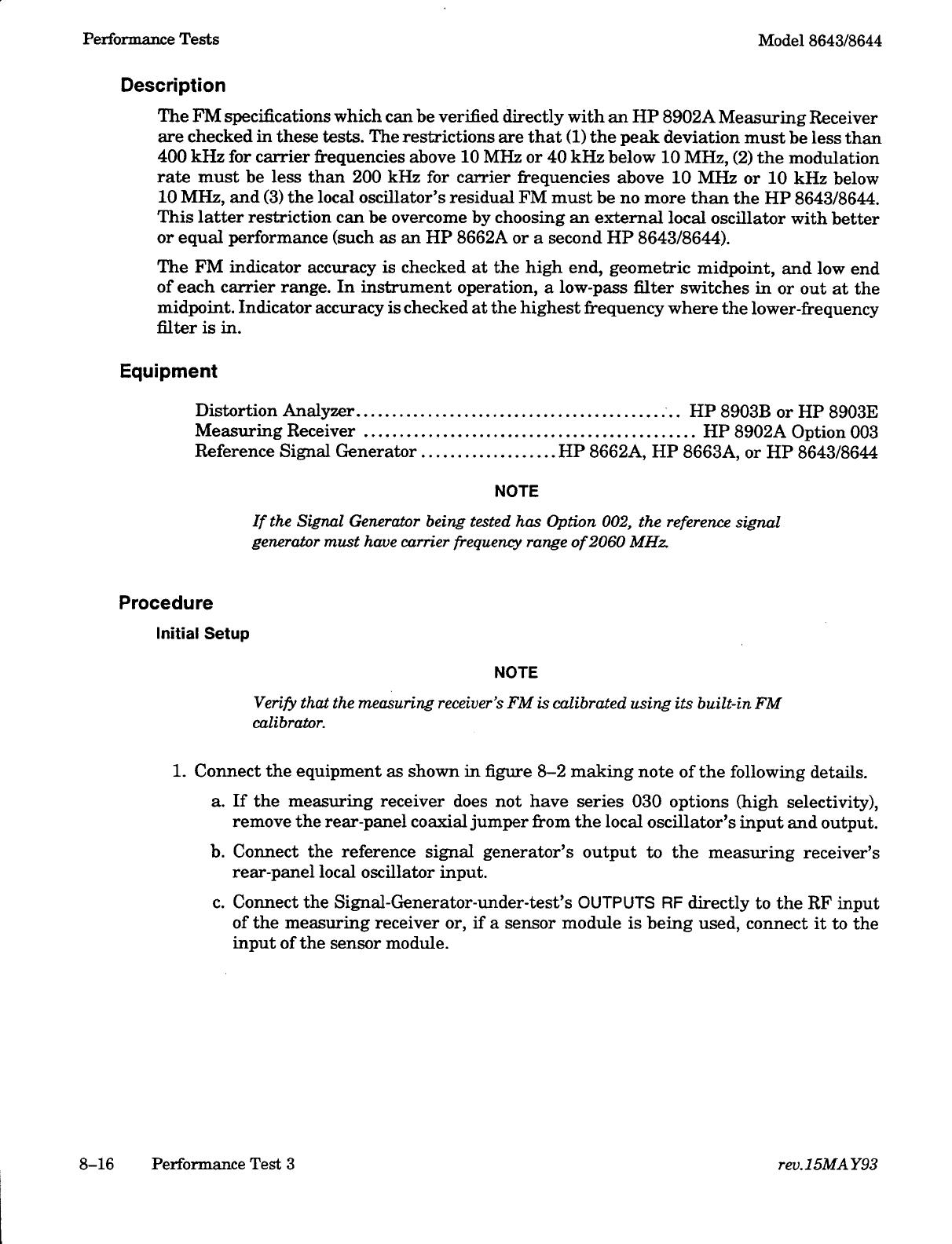

- Performance Test 3, FM Test

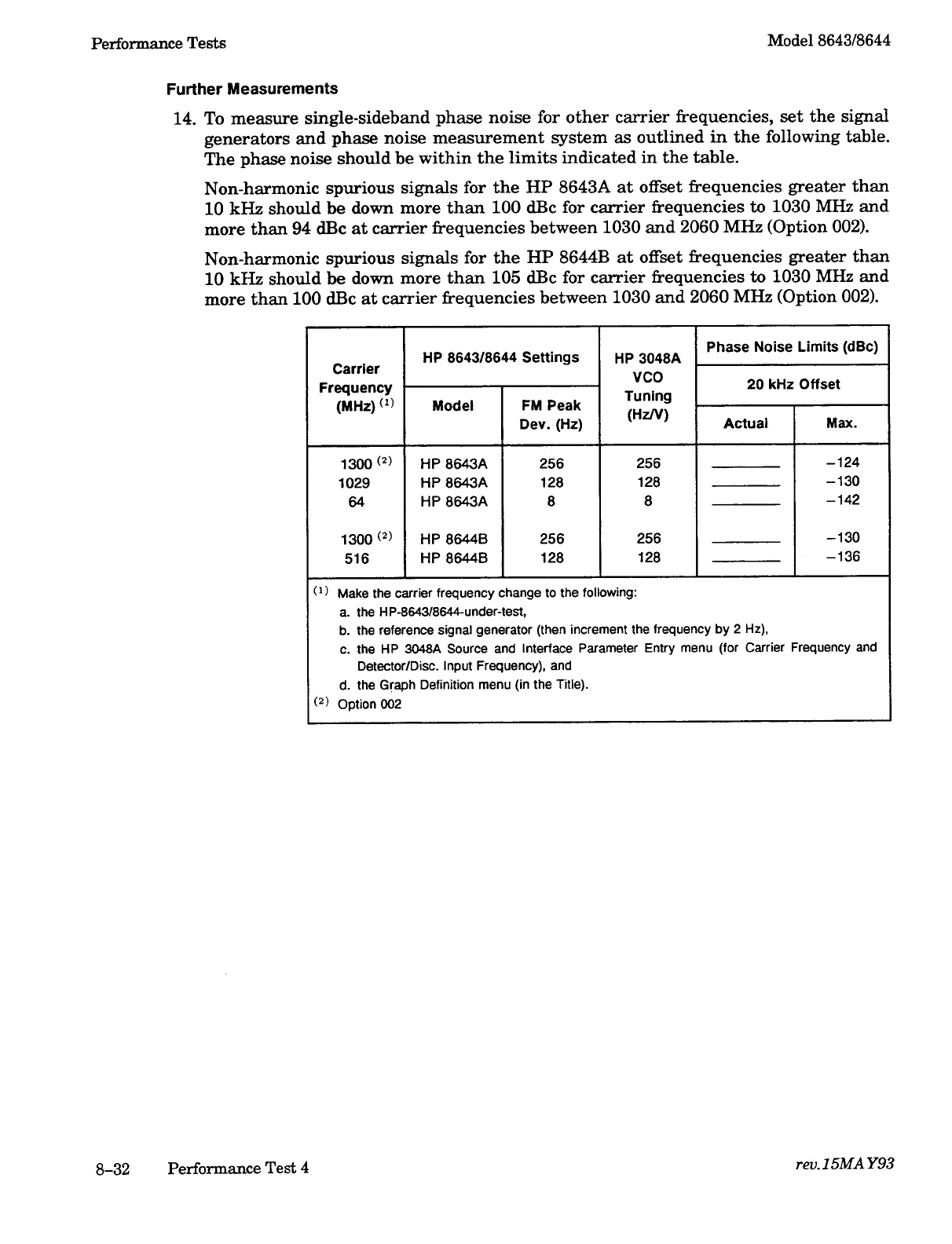

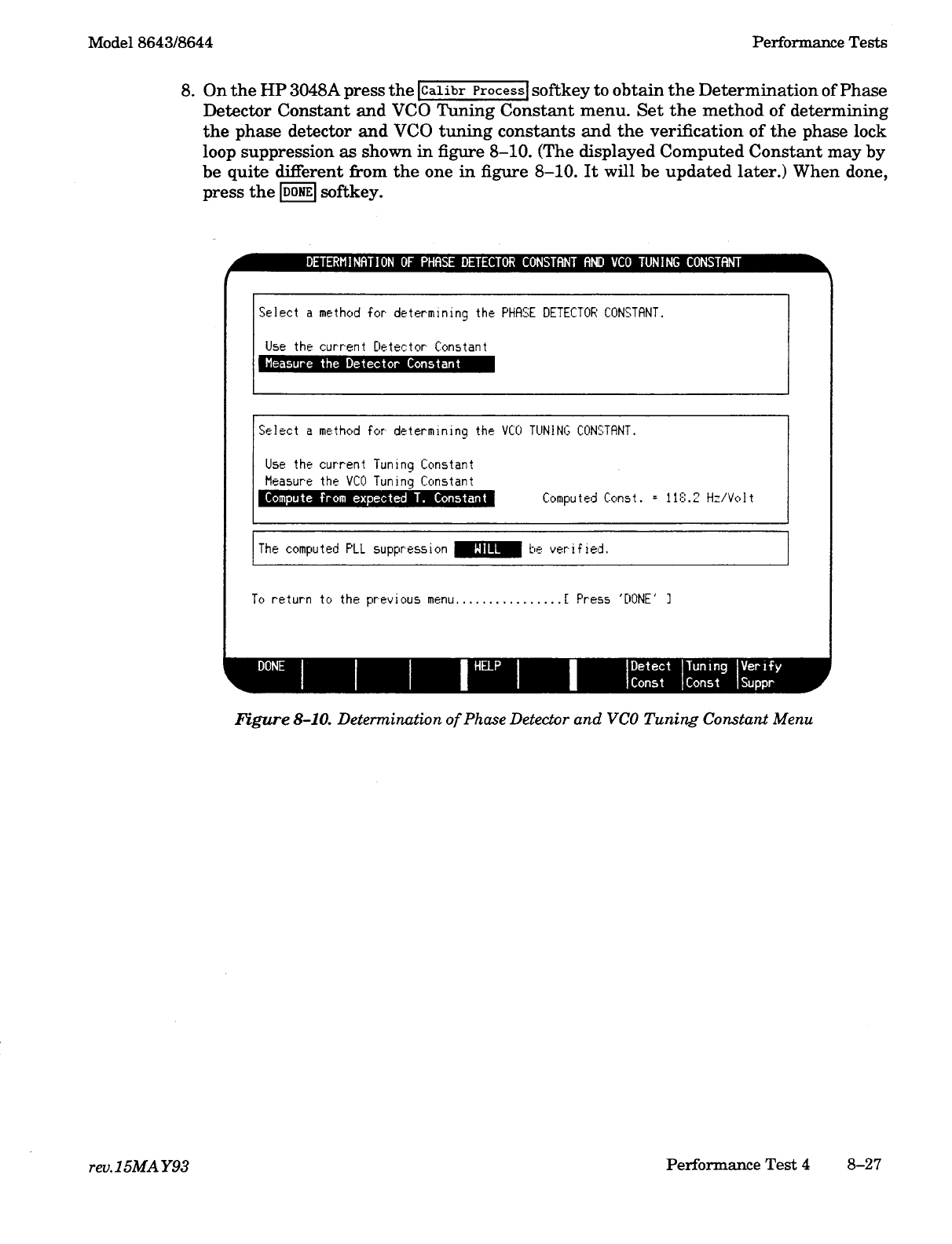

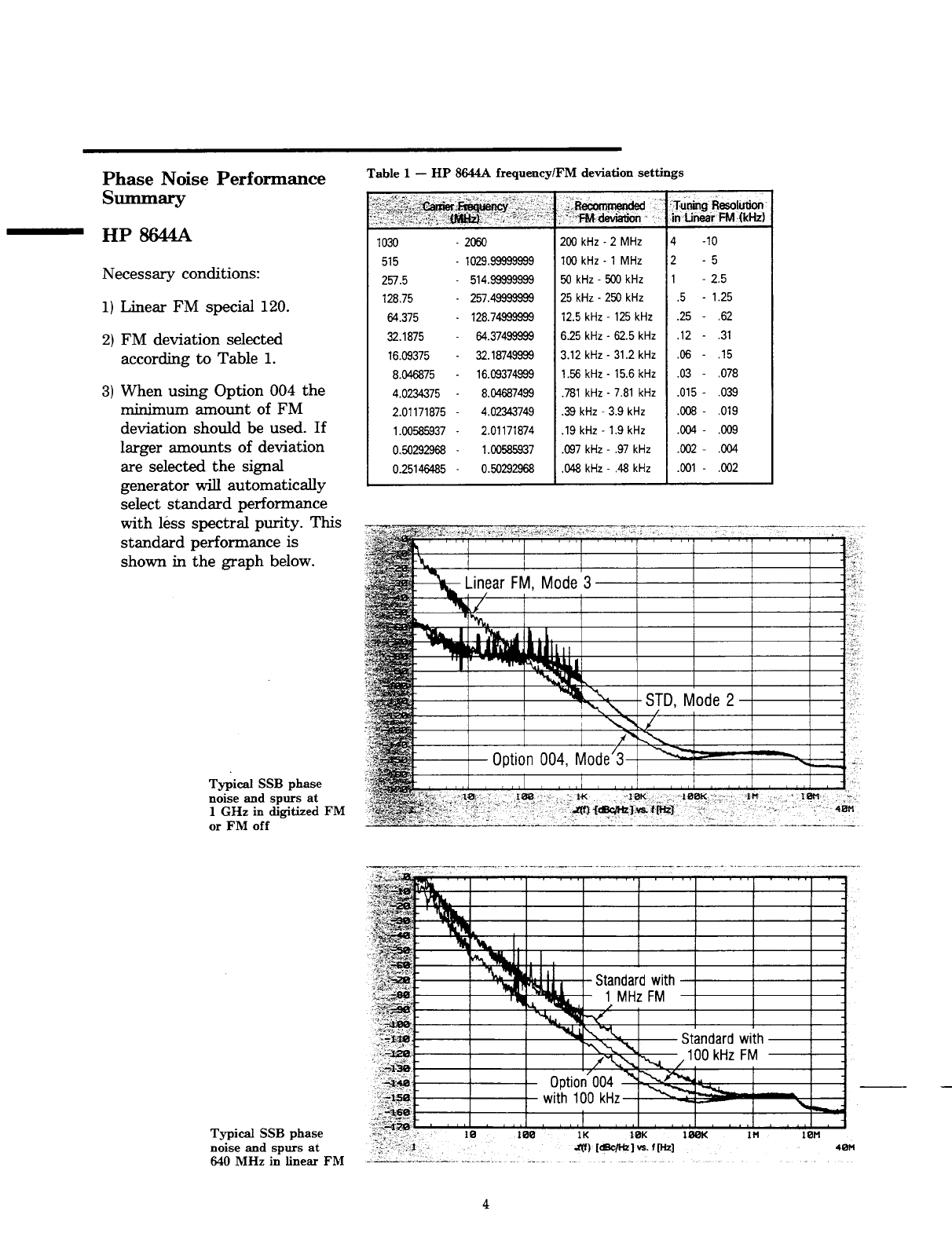

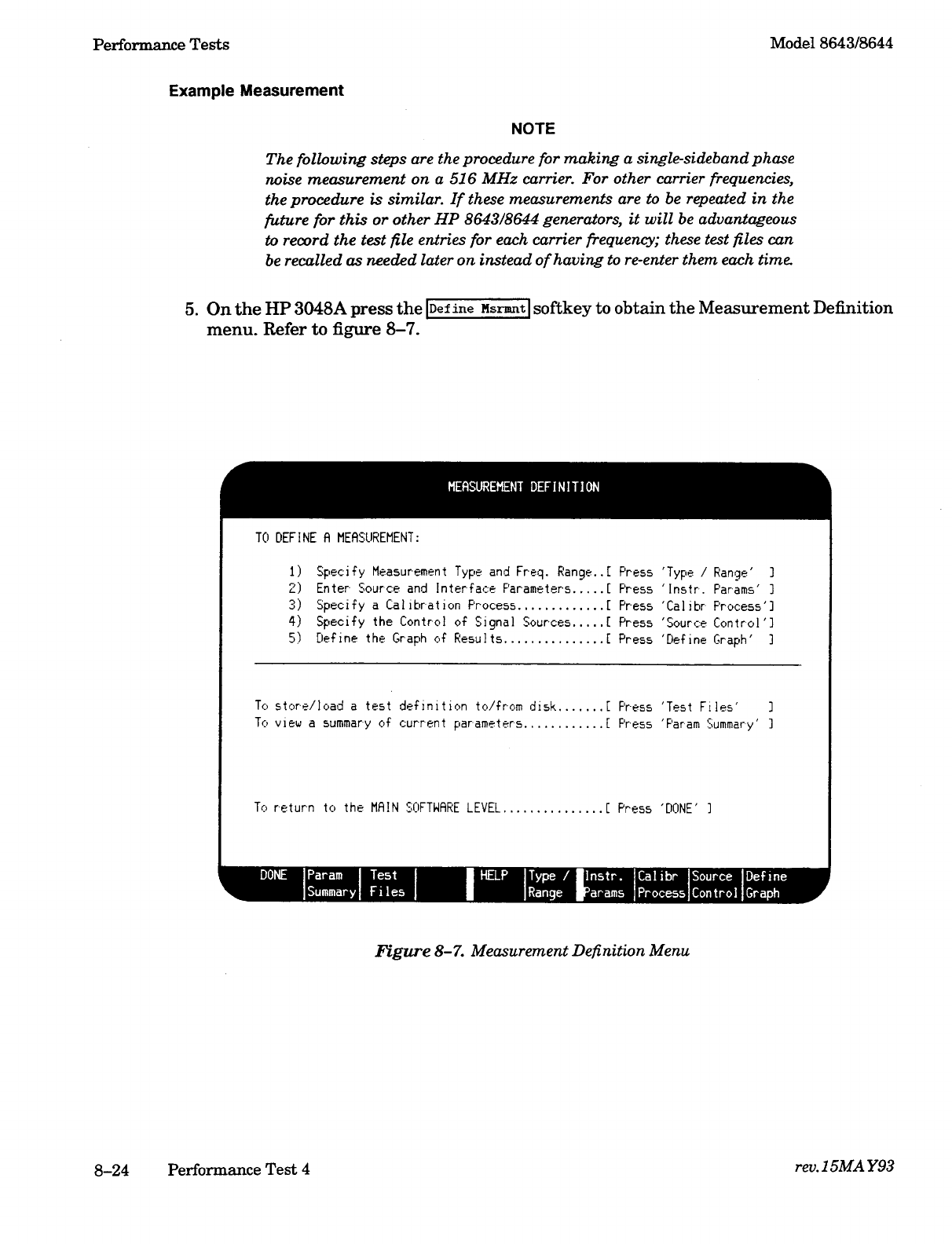

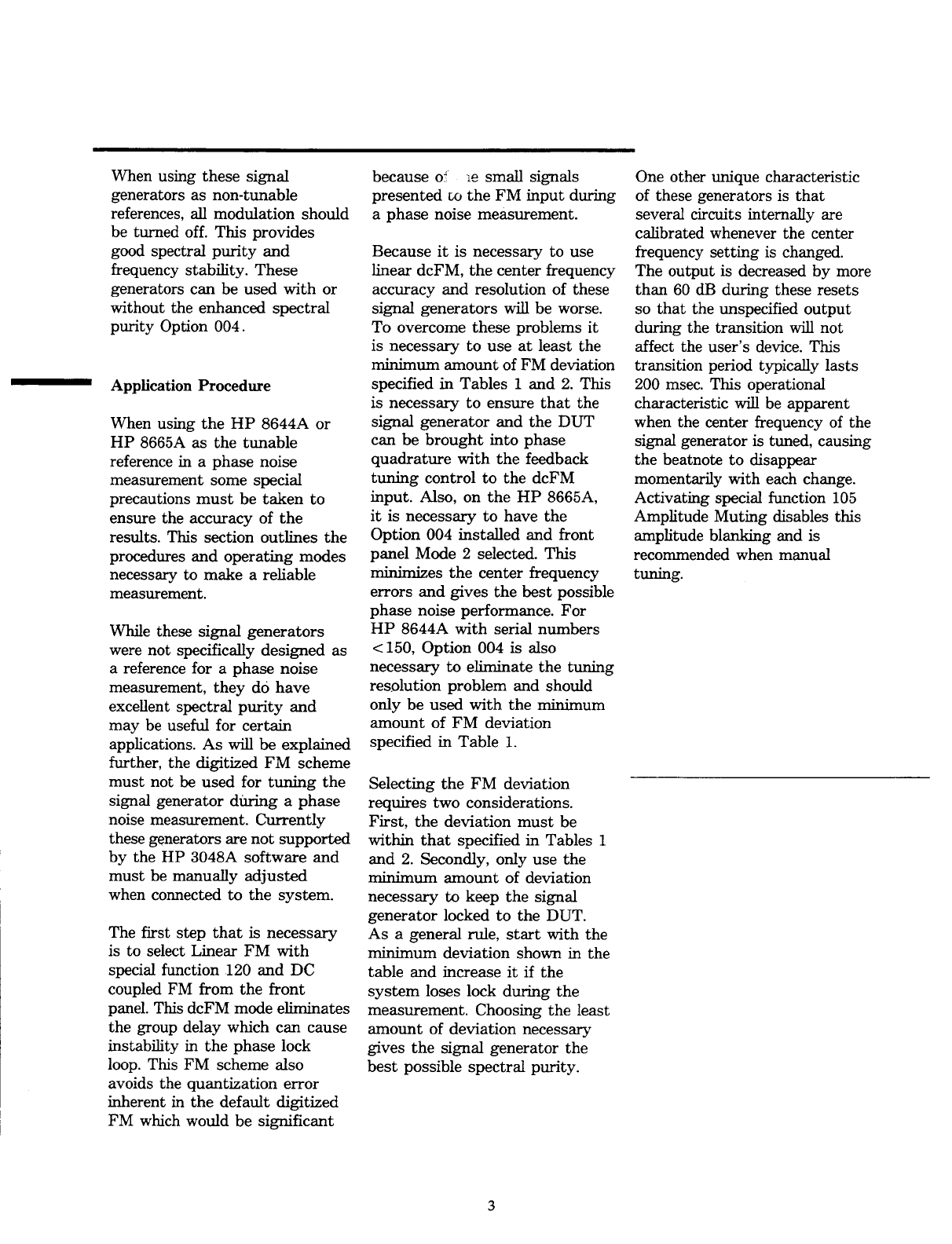

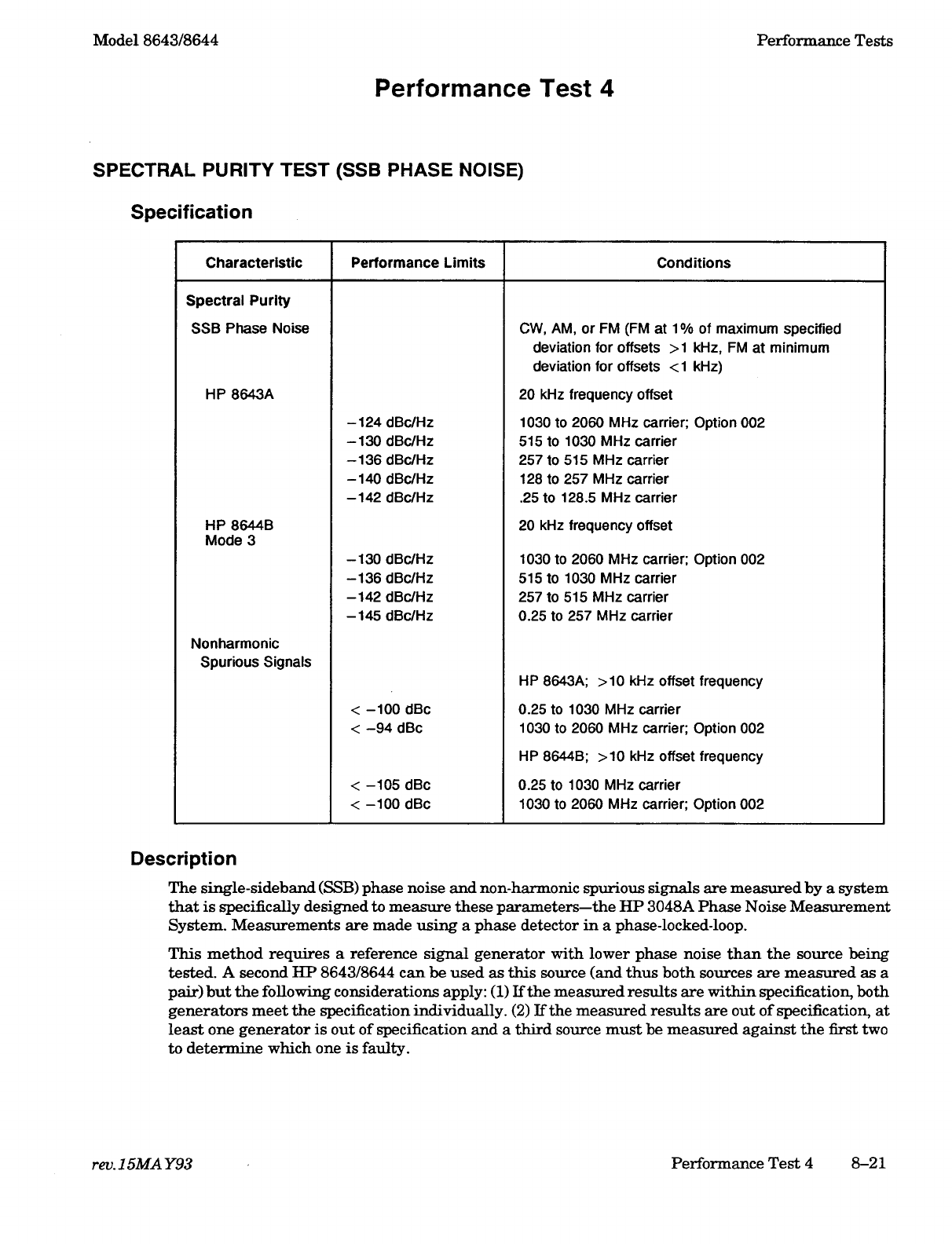

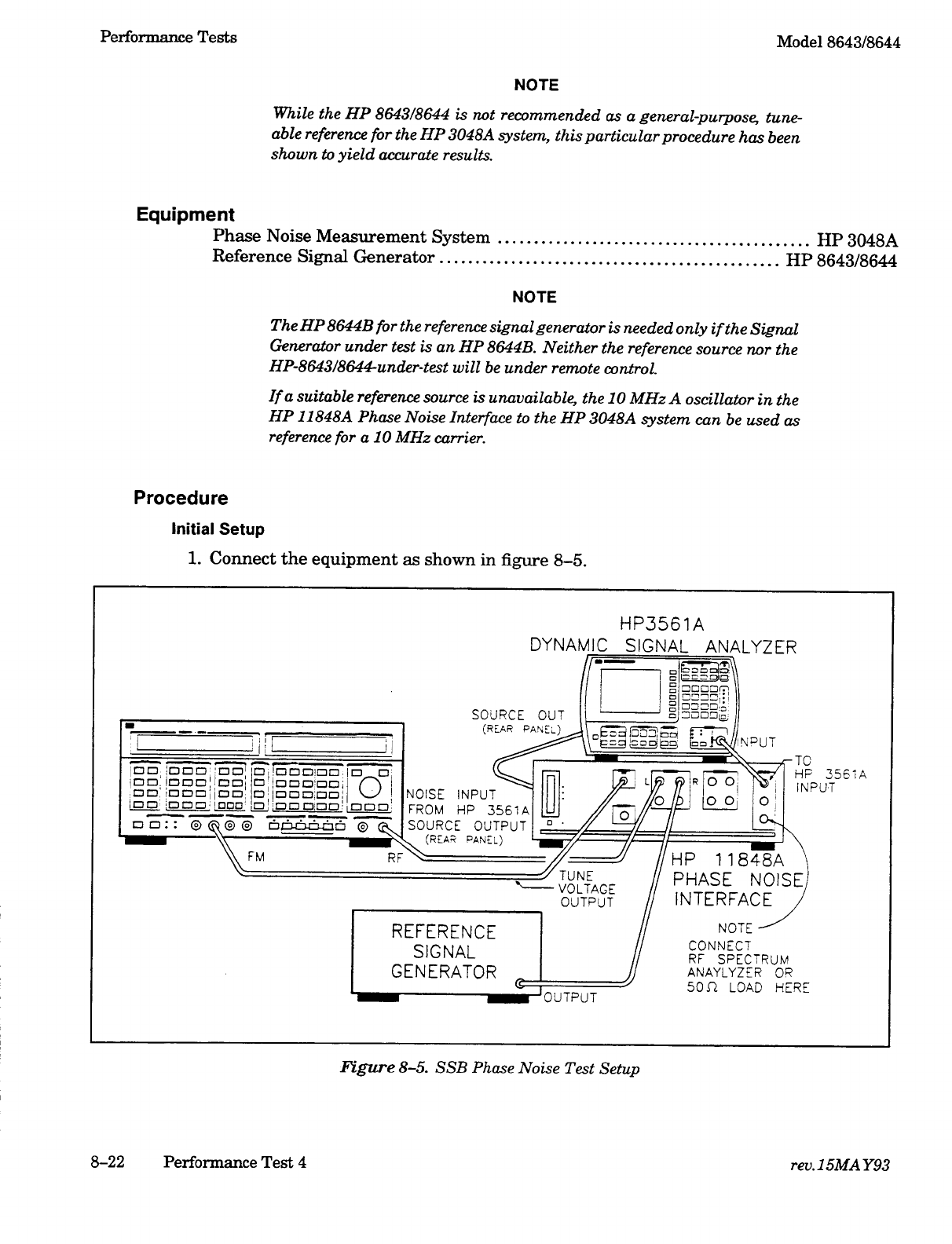

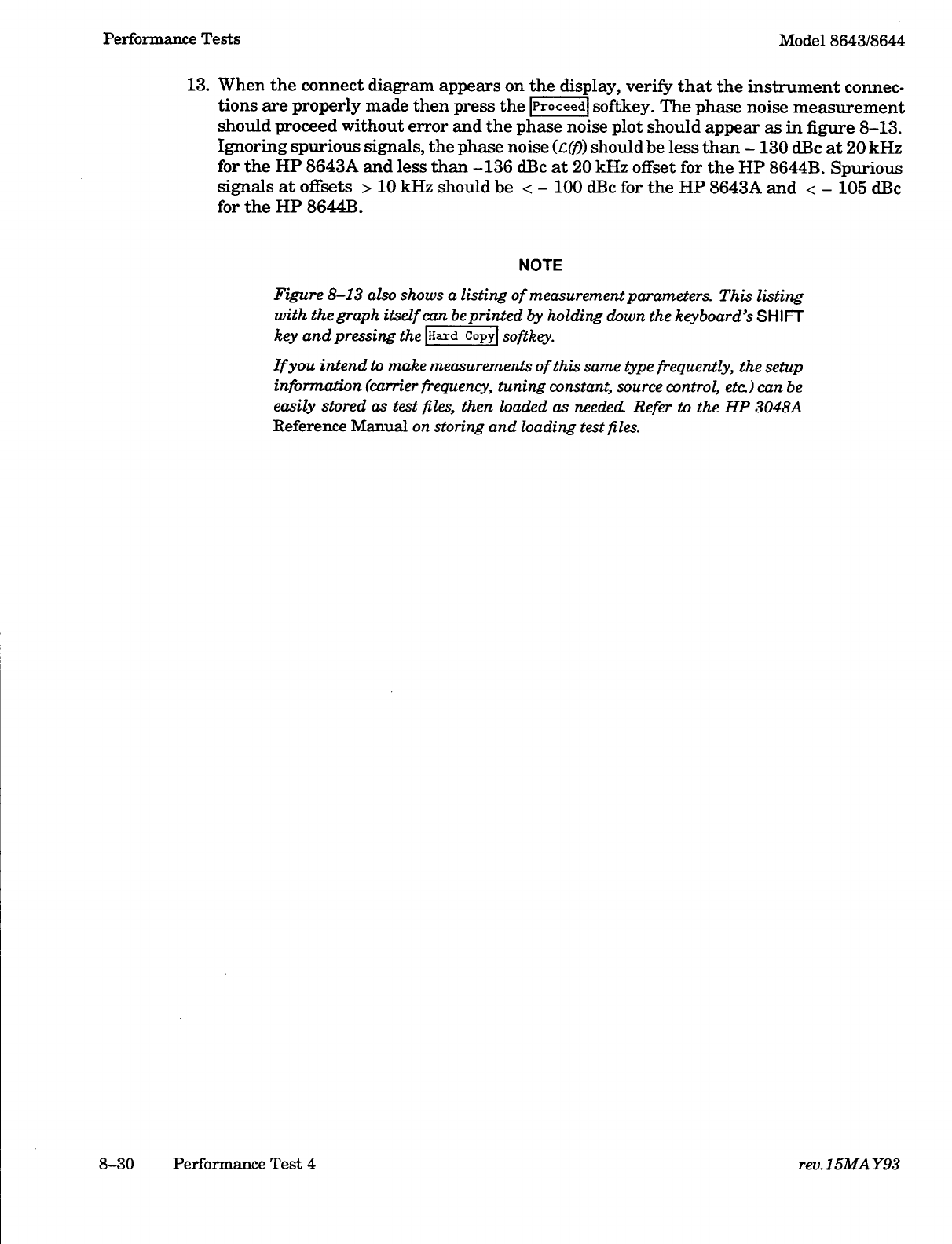

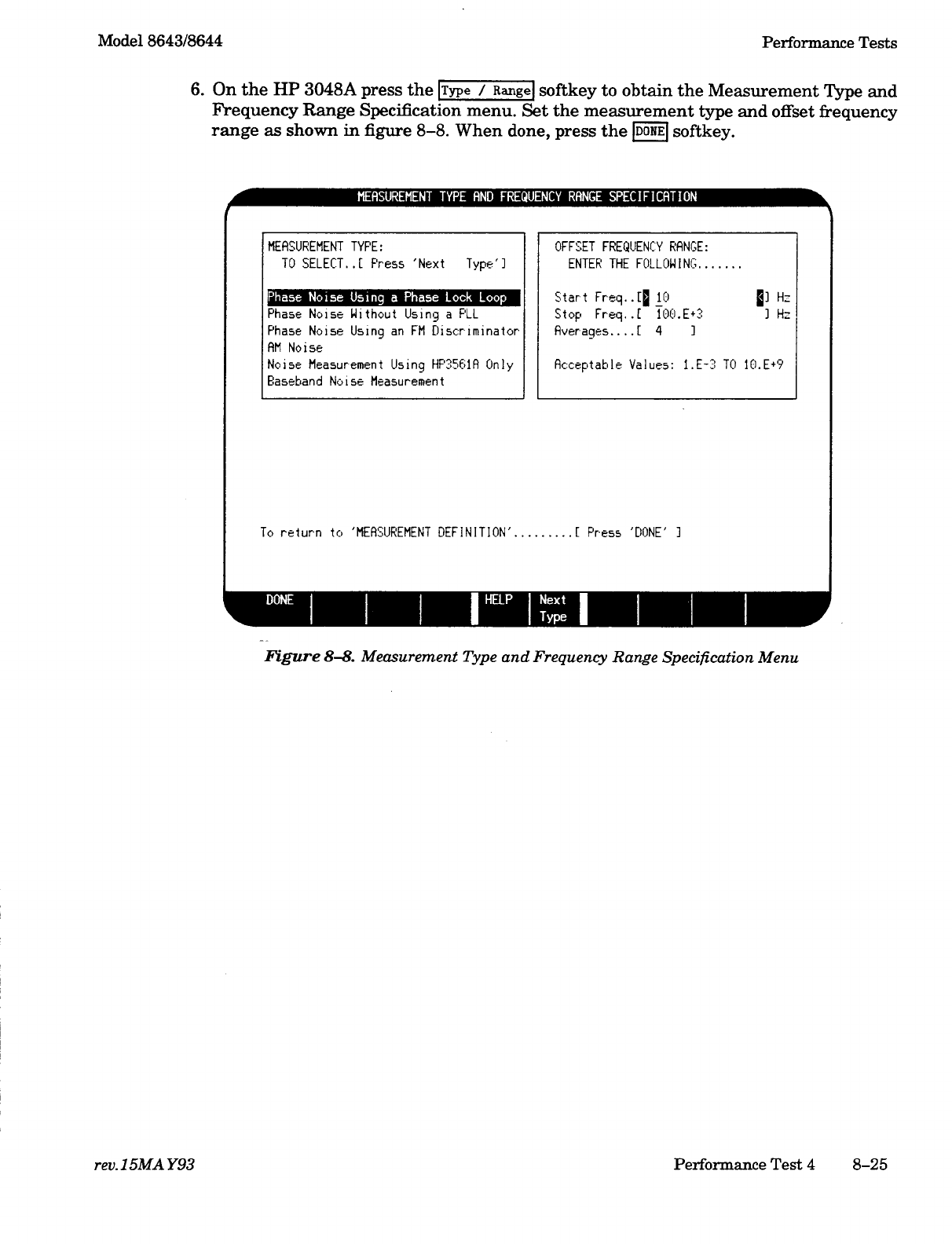

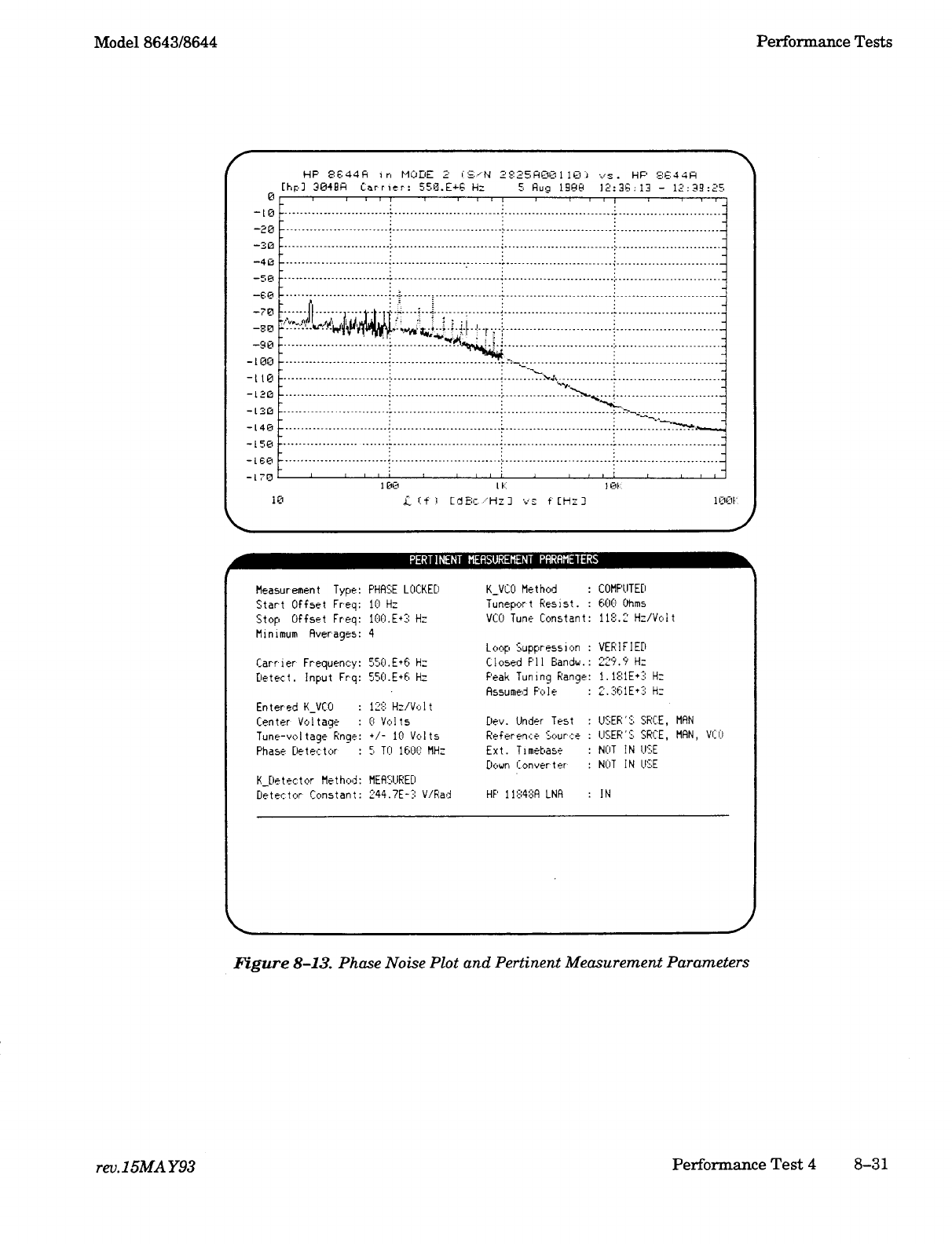

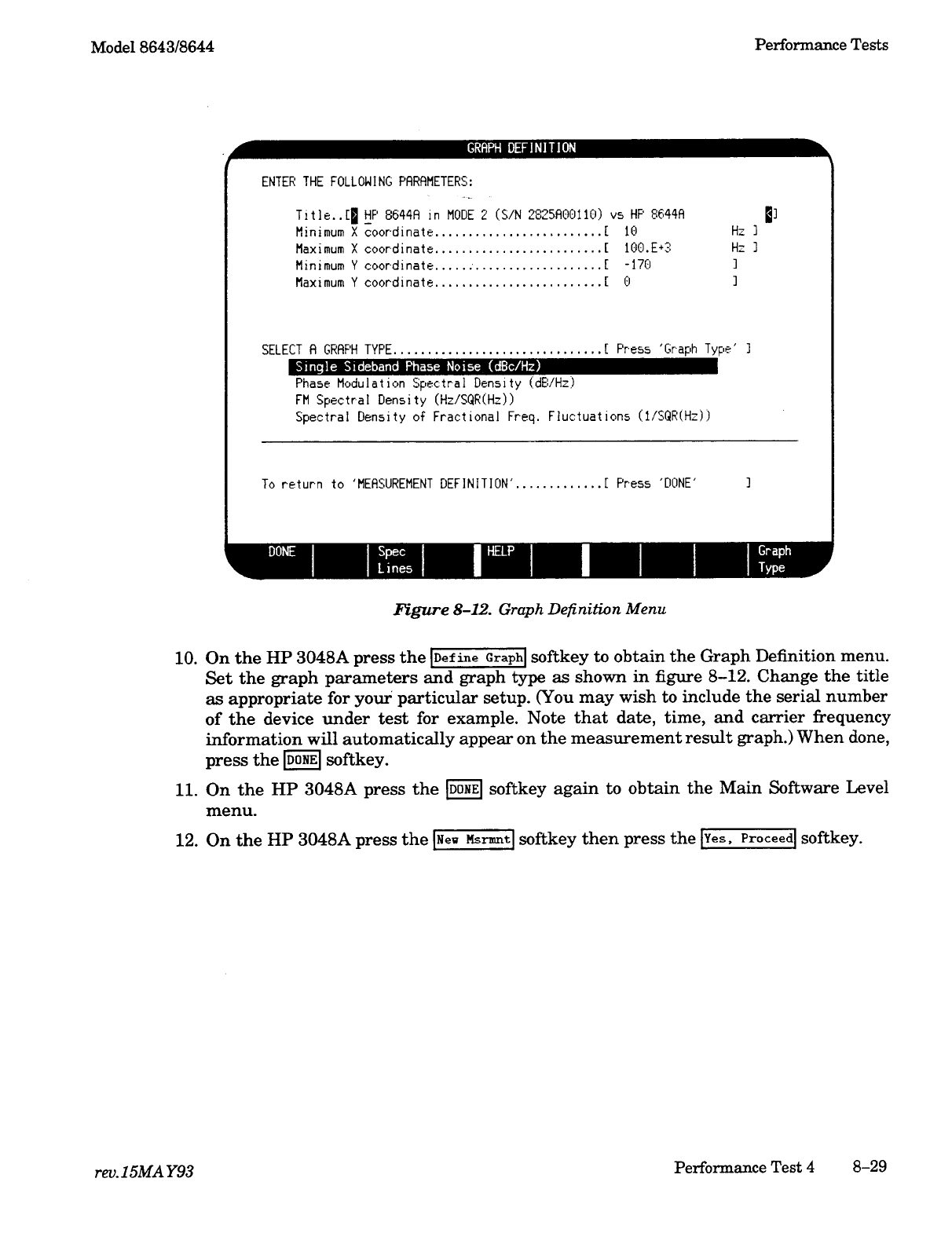

- Performance Test 4, Spectral Purity Test (SSB Phase Noise)

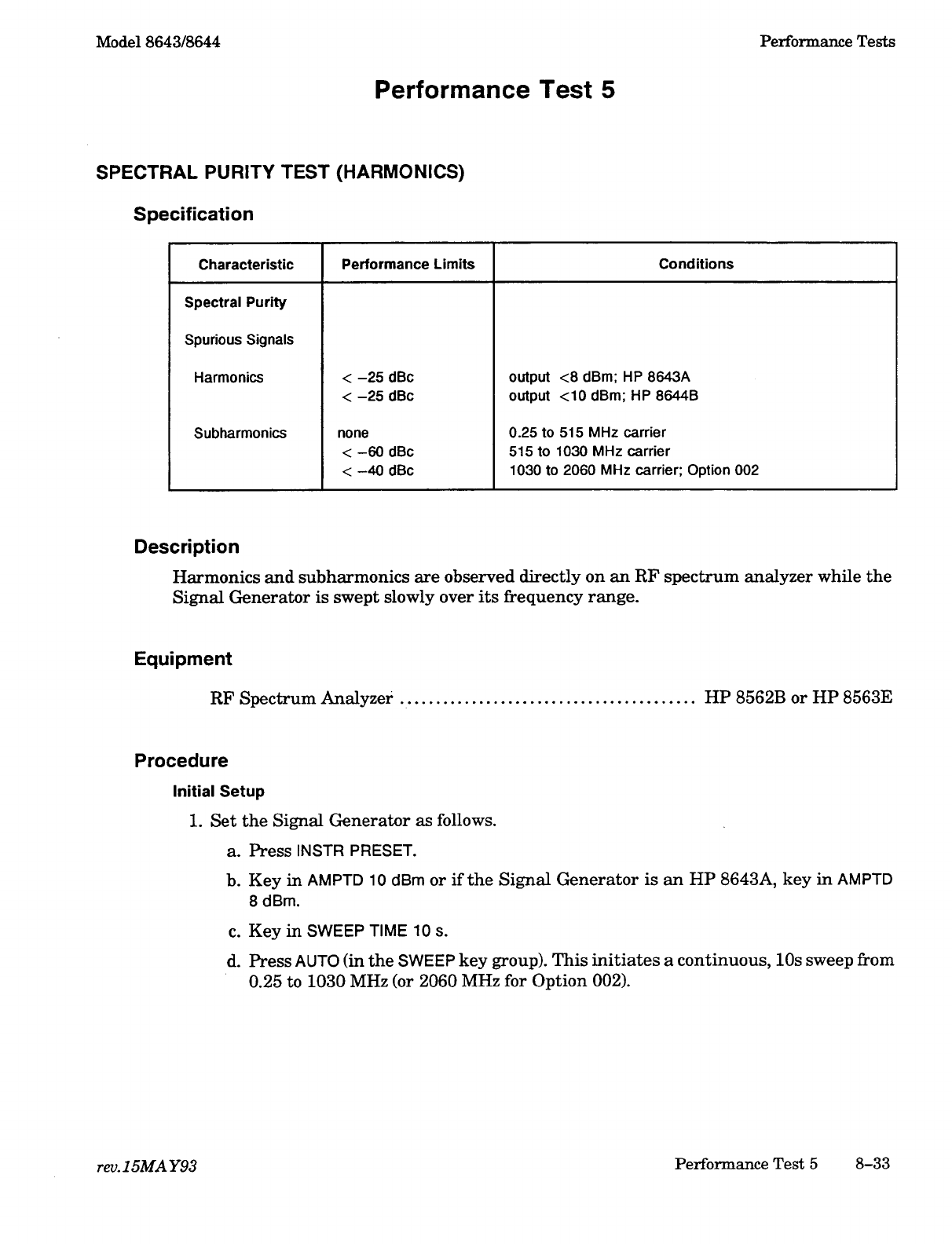

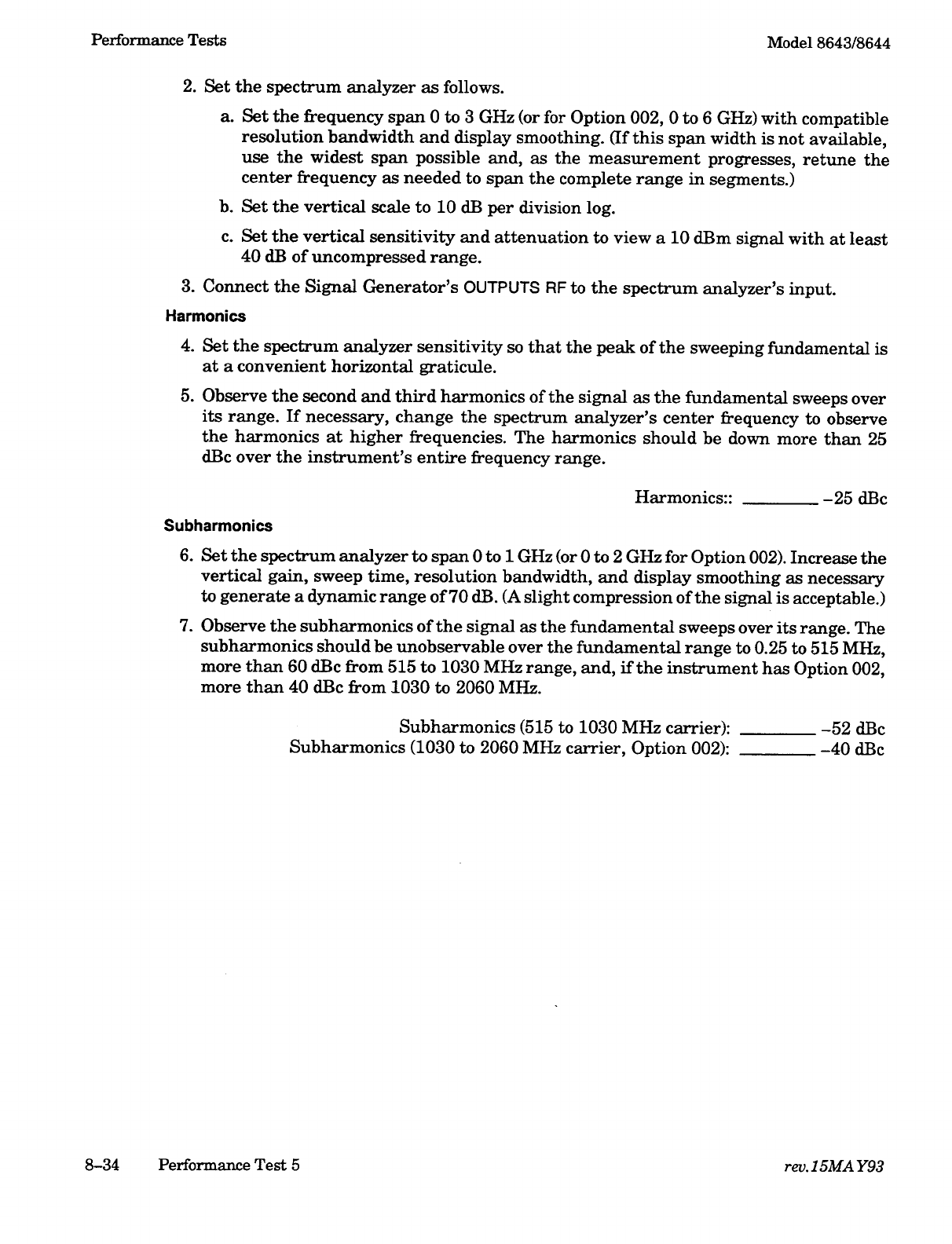

- Performance Test 5, Spectral Purity Test (Harmonics)

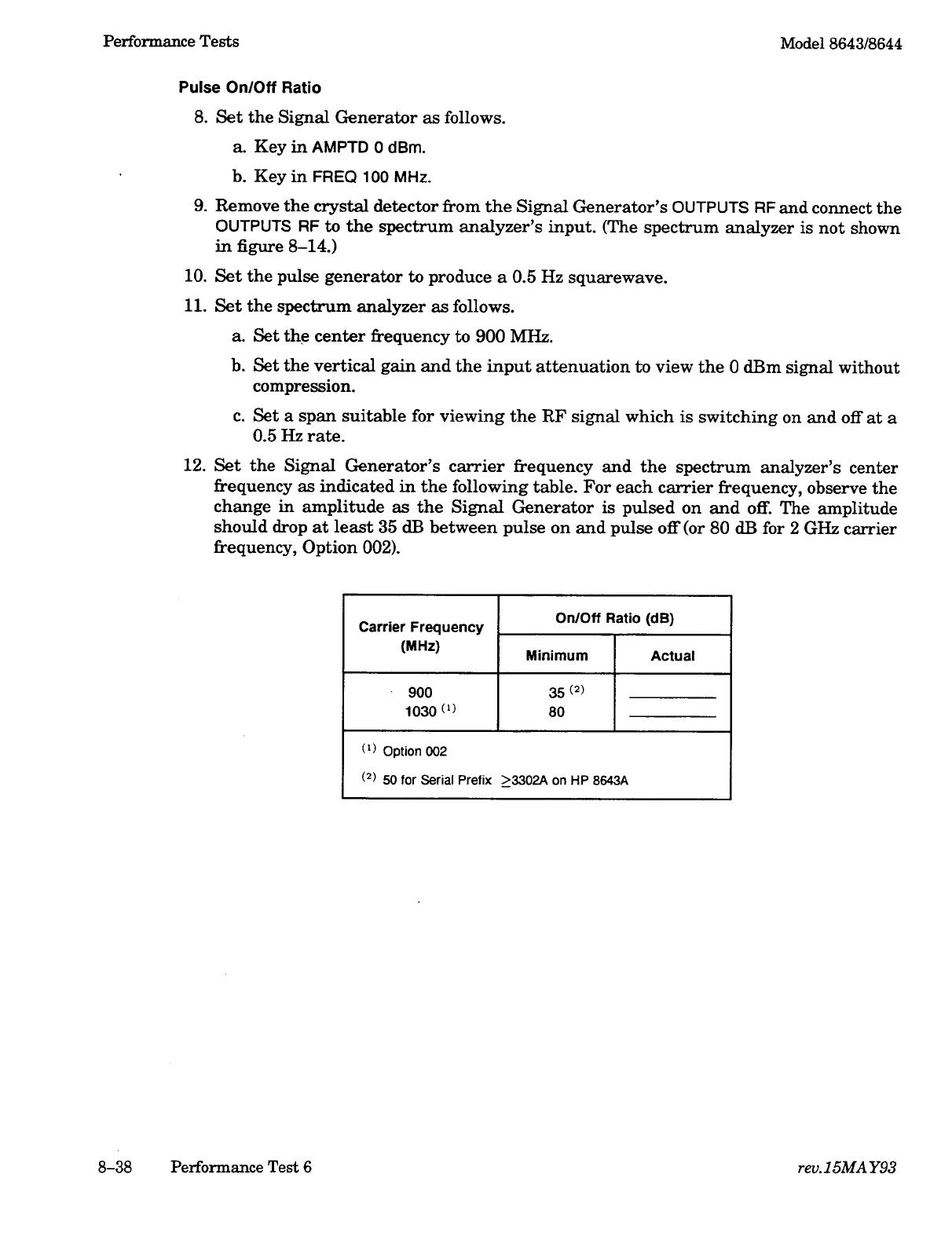

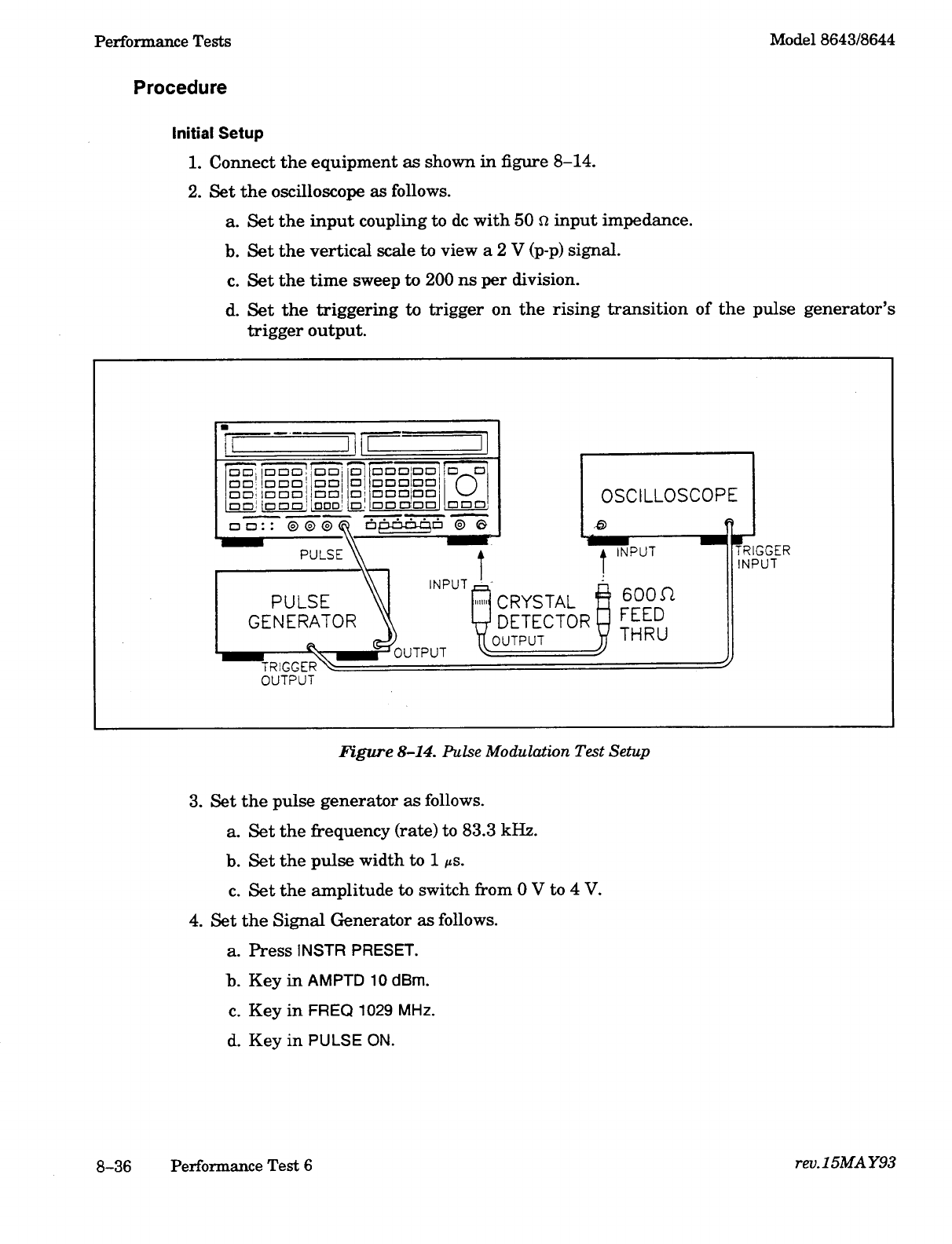

- Performance Test 6, Pulse Modulation Test

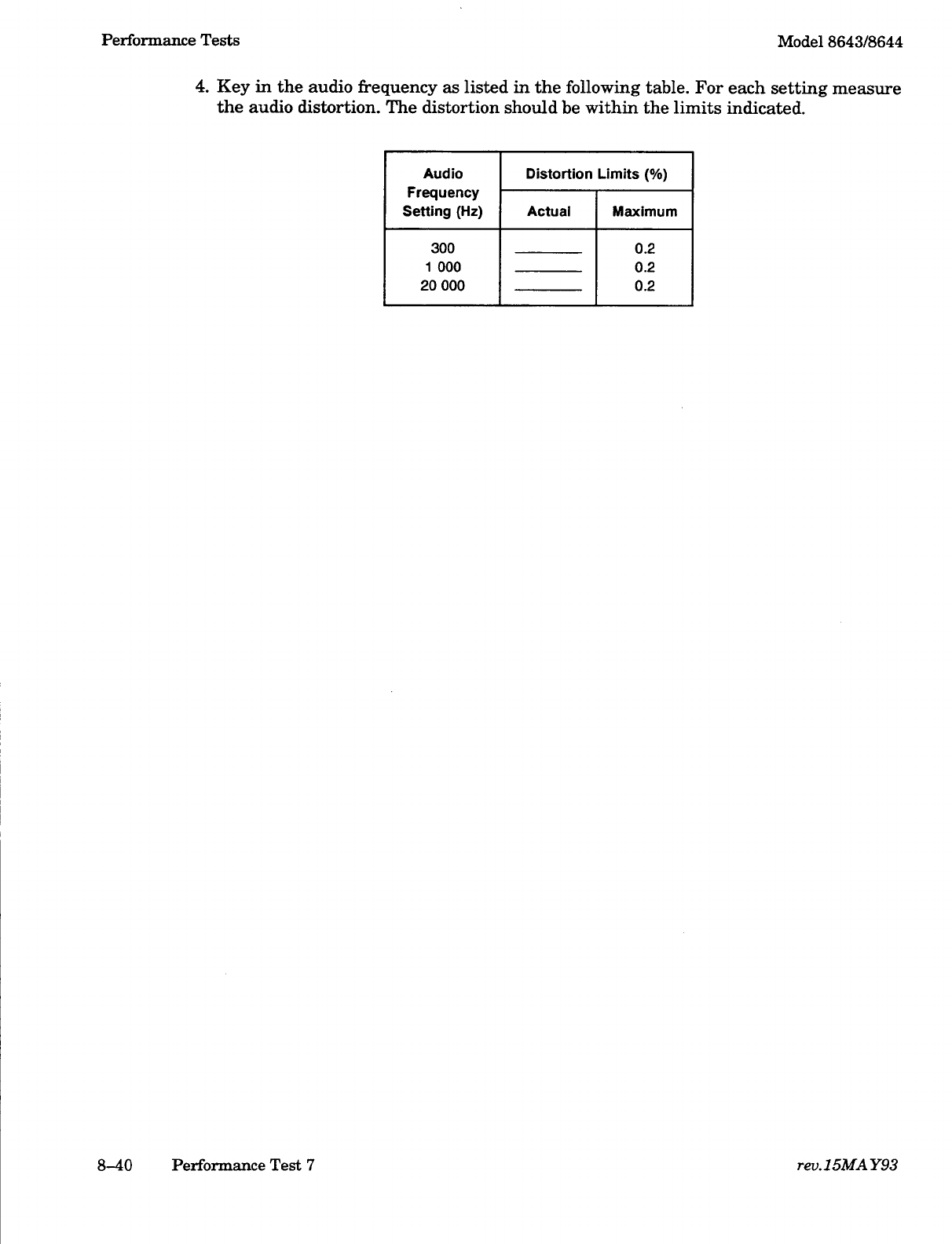

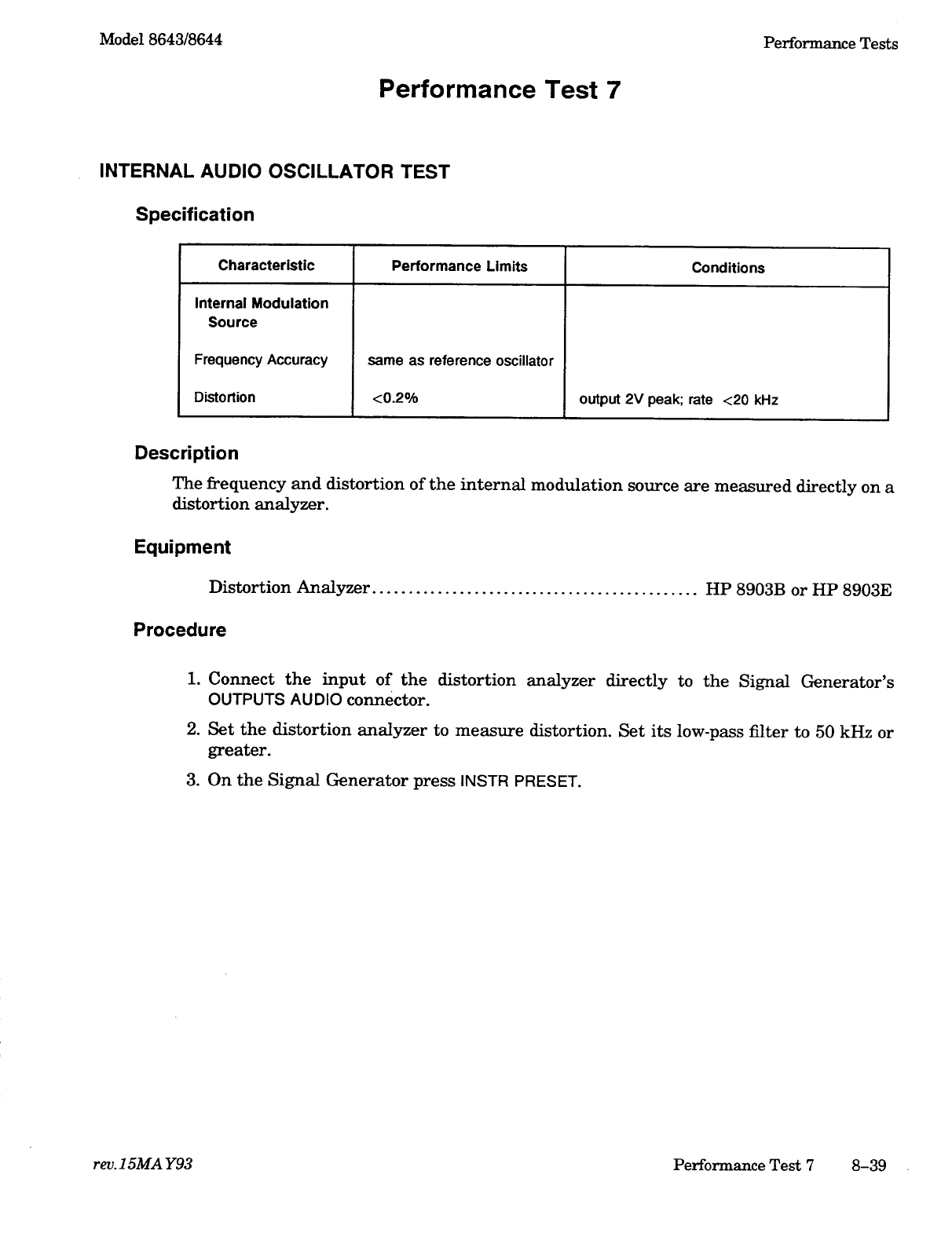

- Performance Test 7, Internal Audio Oscillator Test

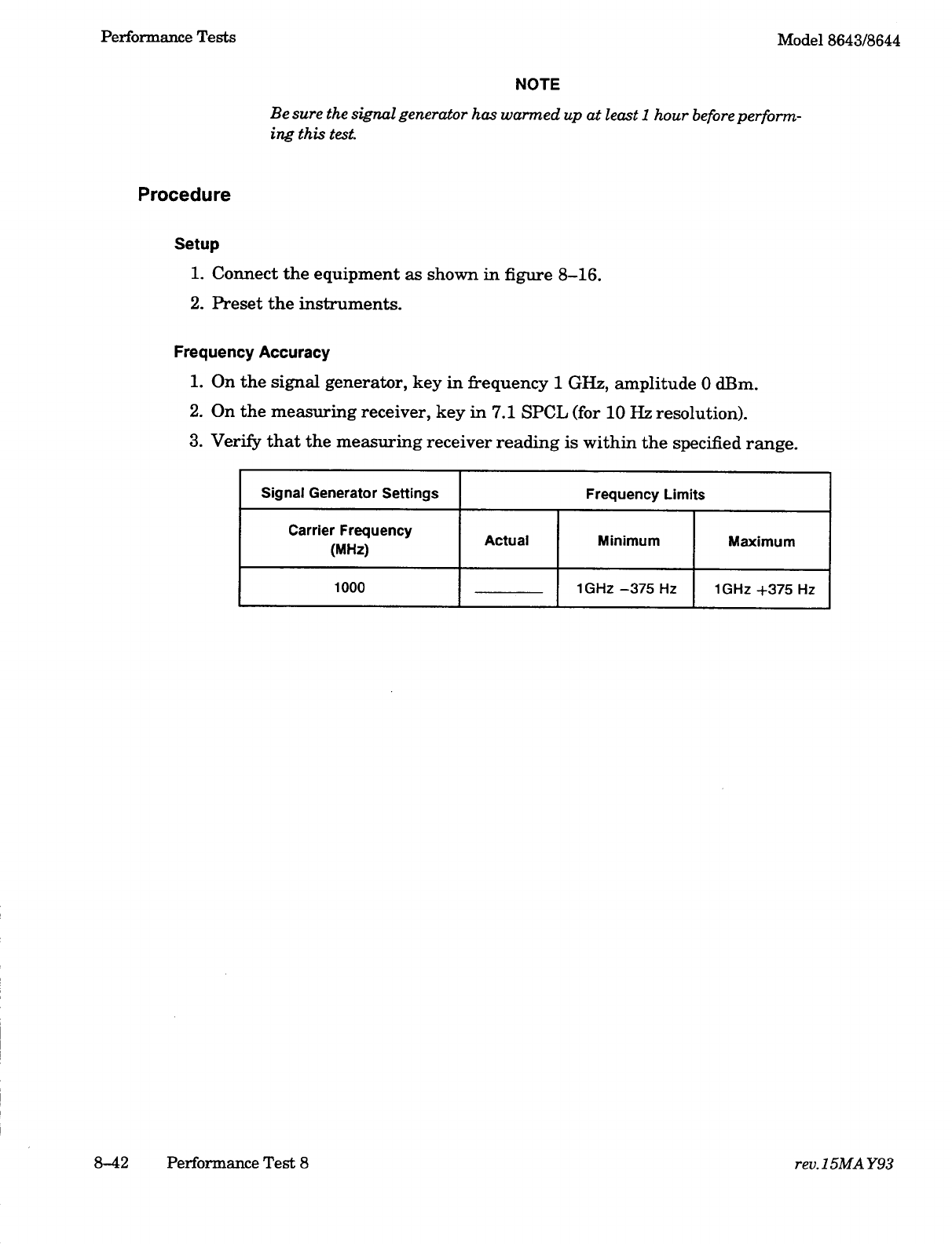

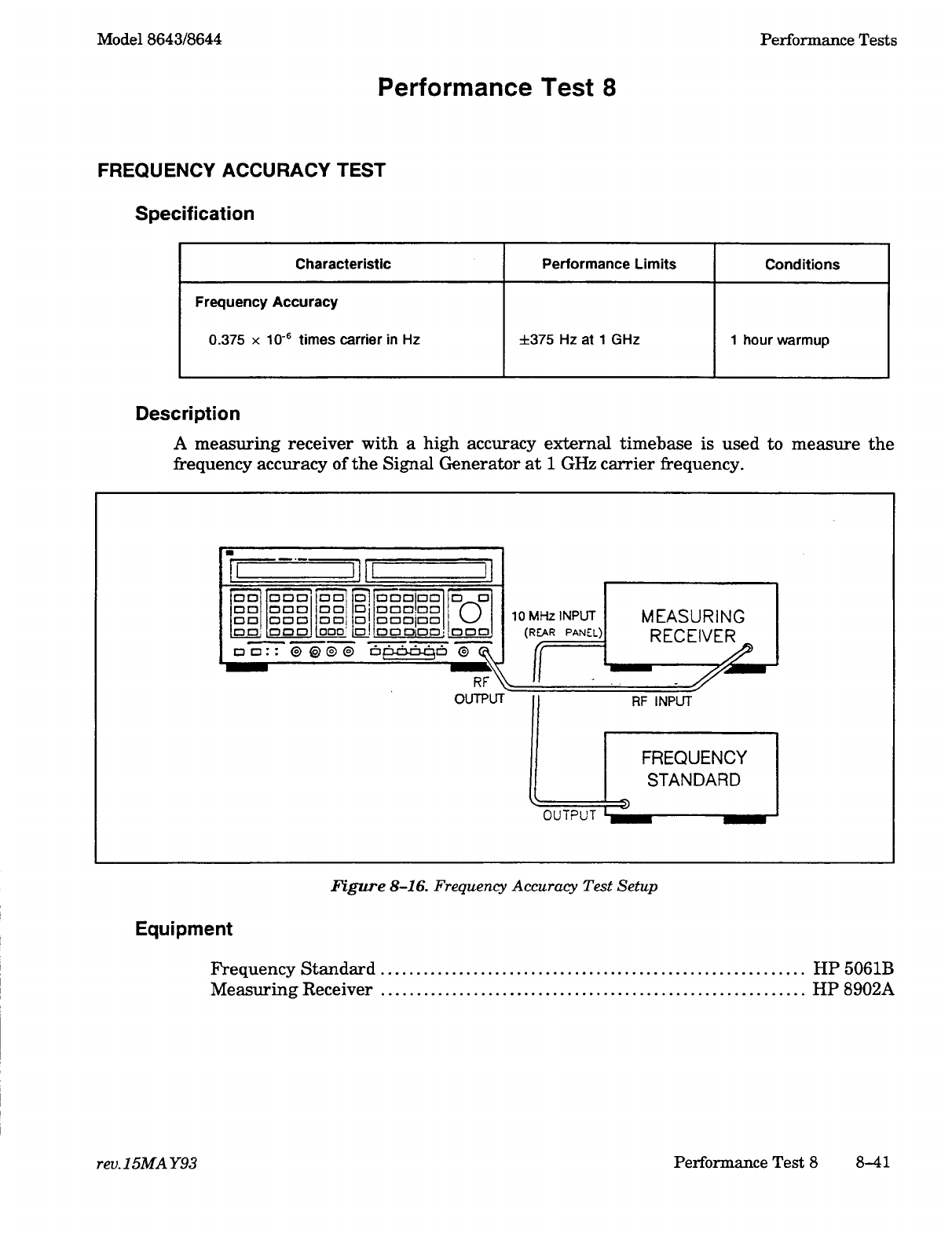

- Performance Test 8, Frequency Accuracy Test

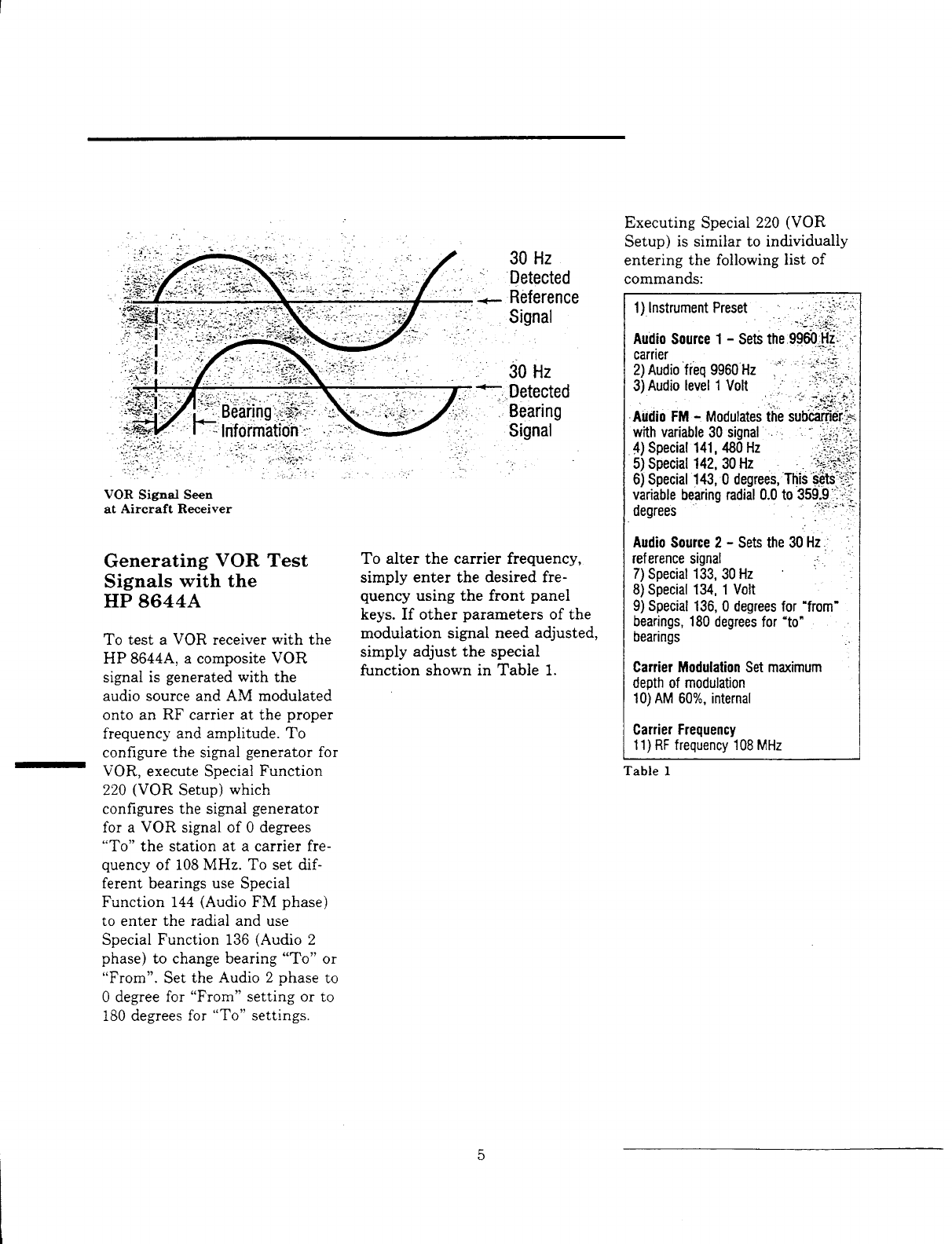

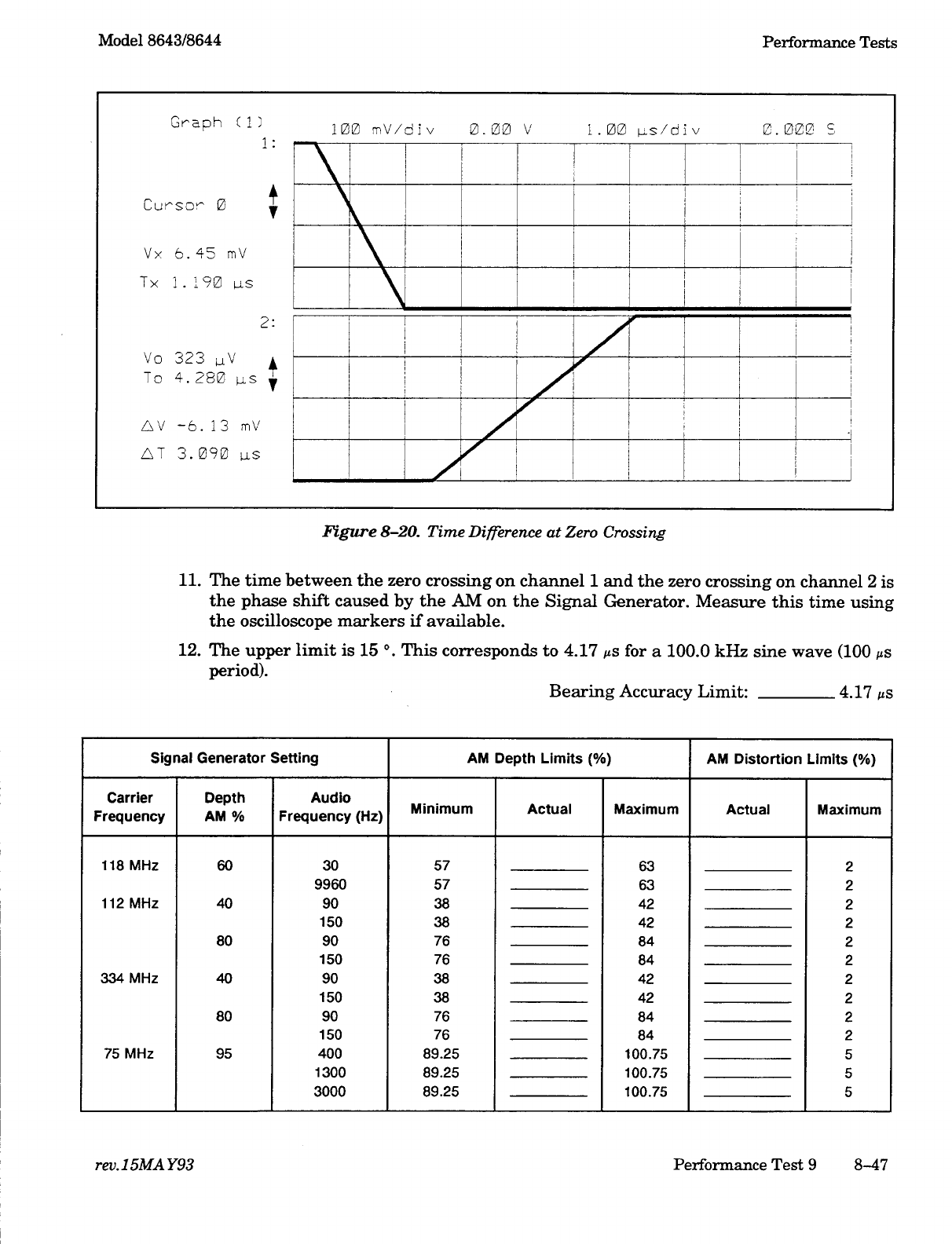

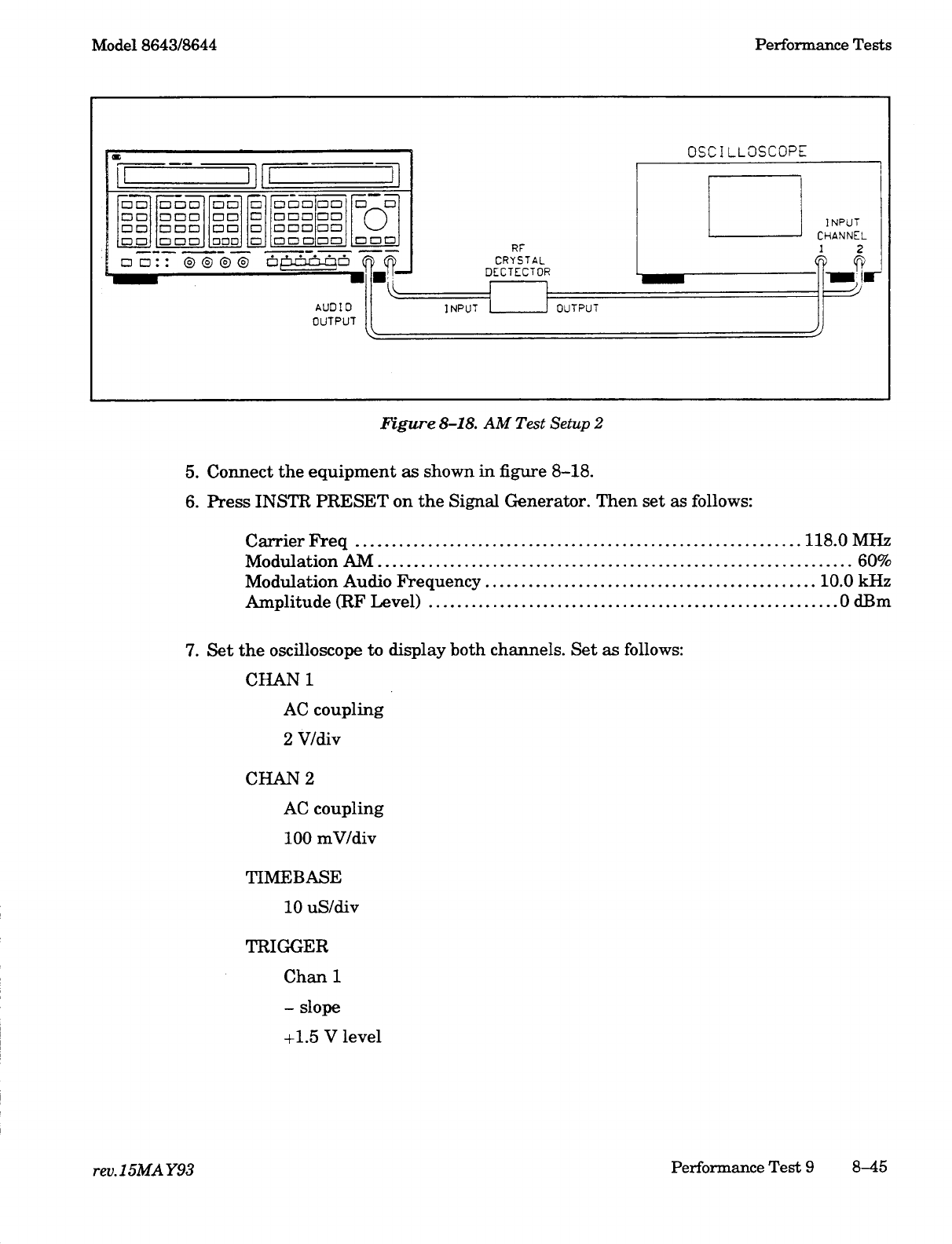

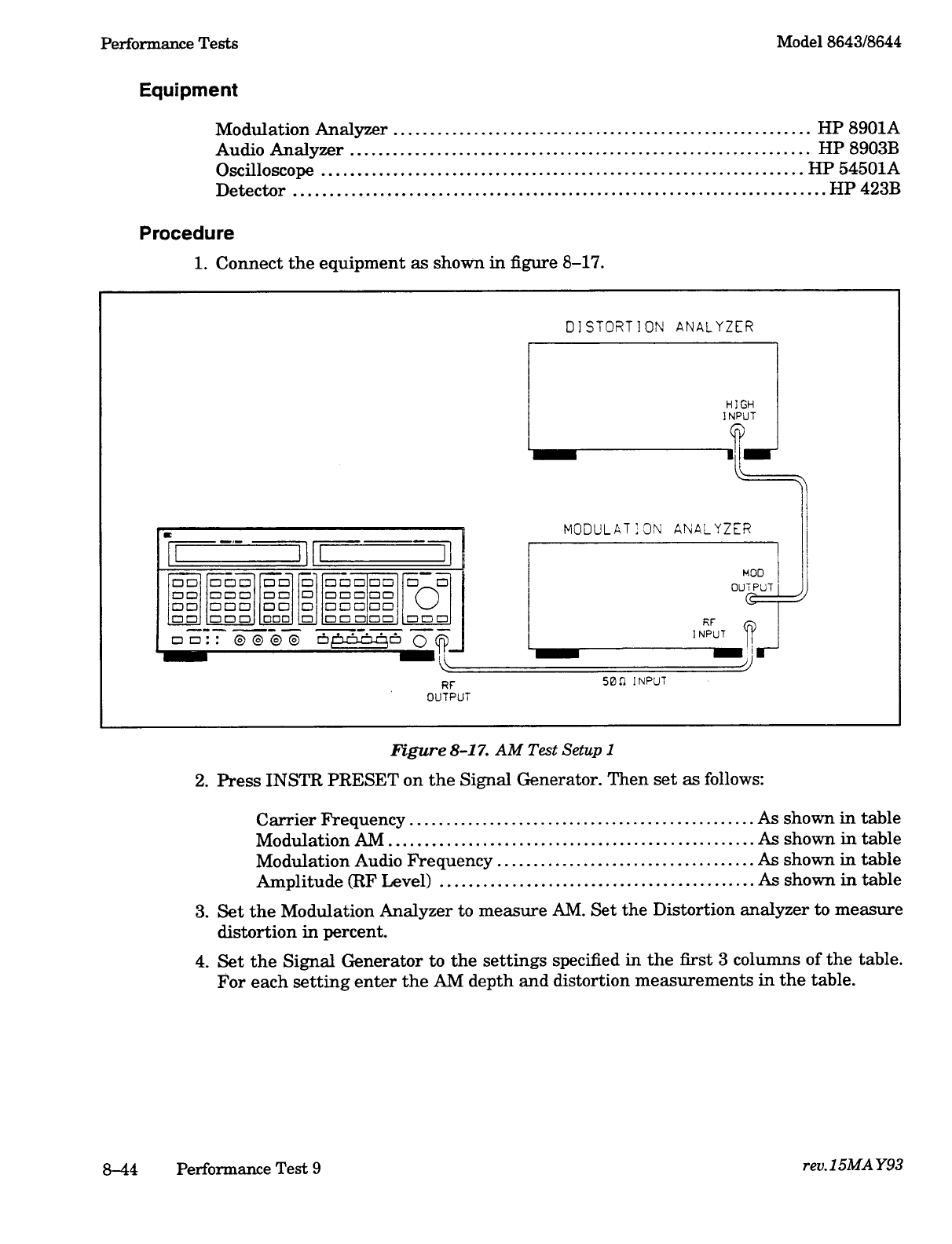

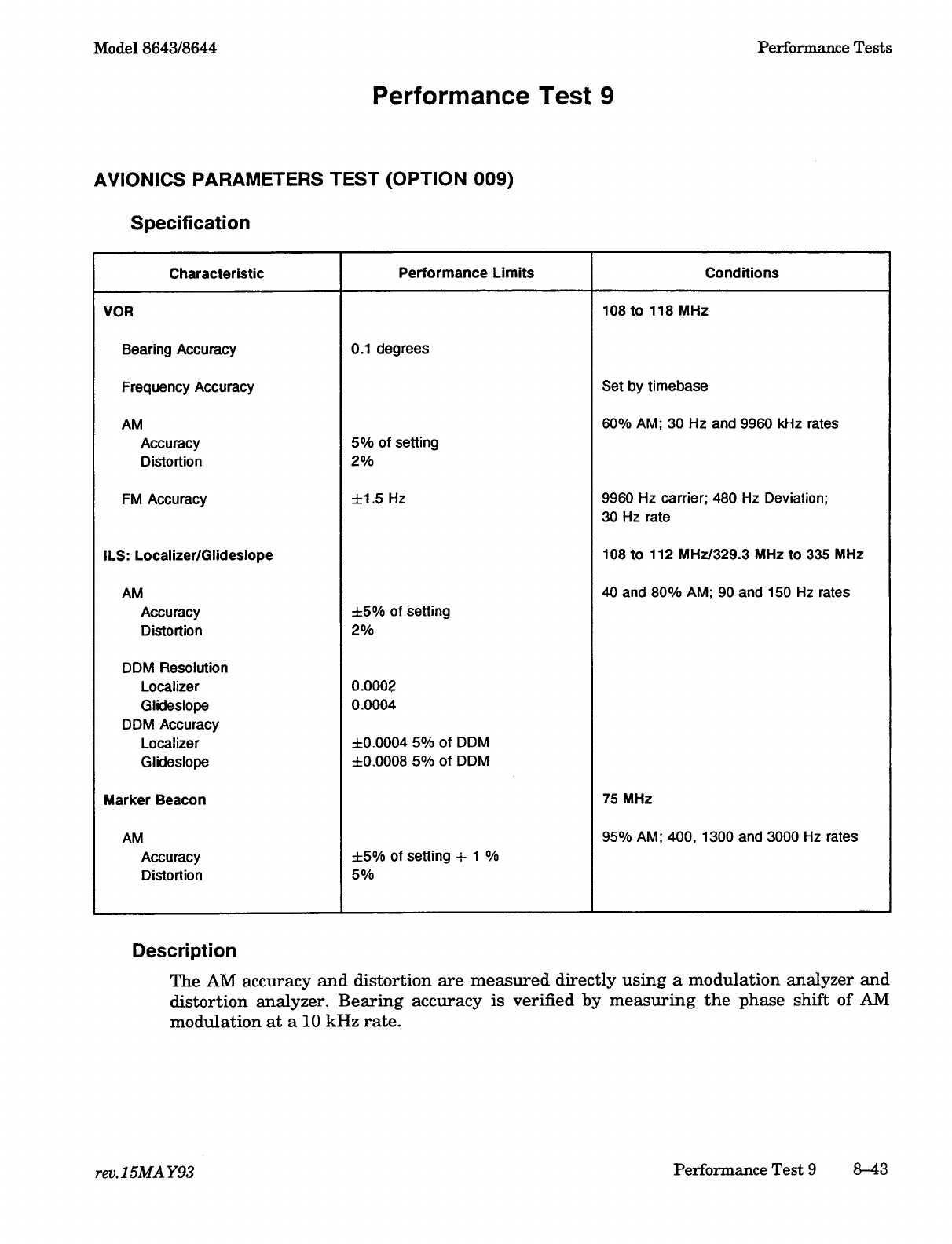

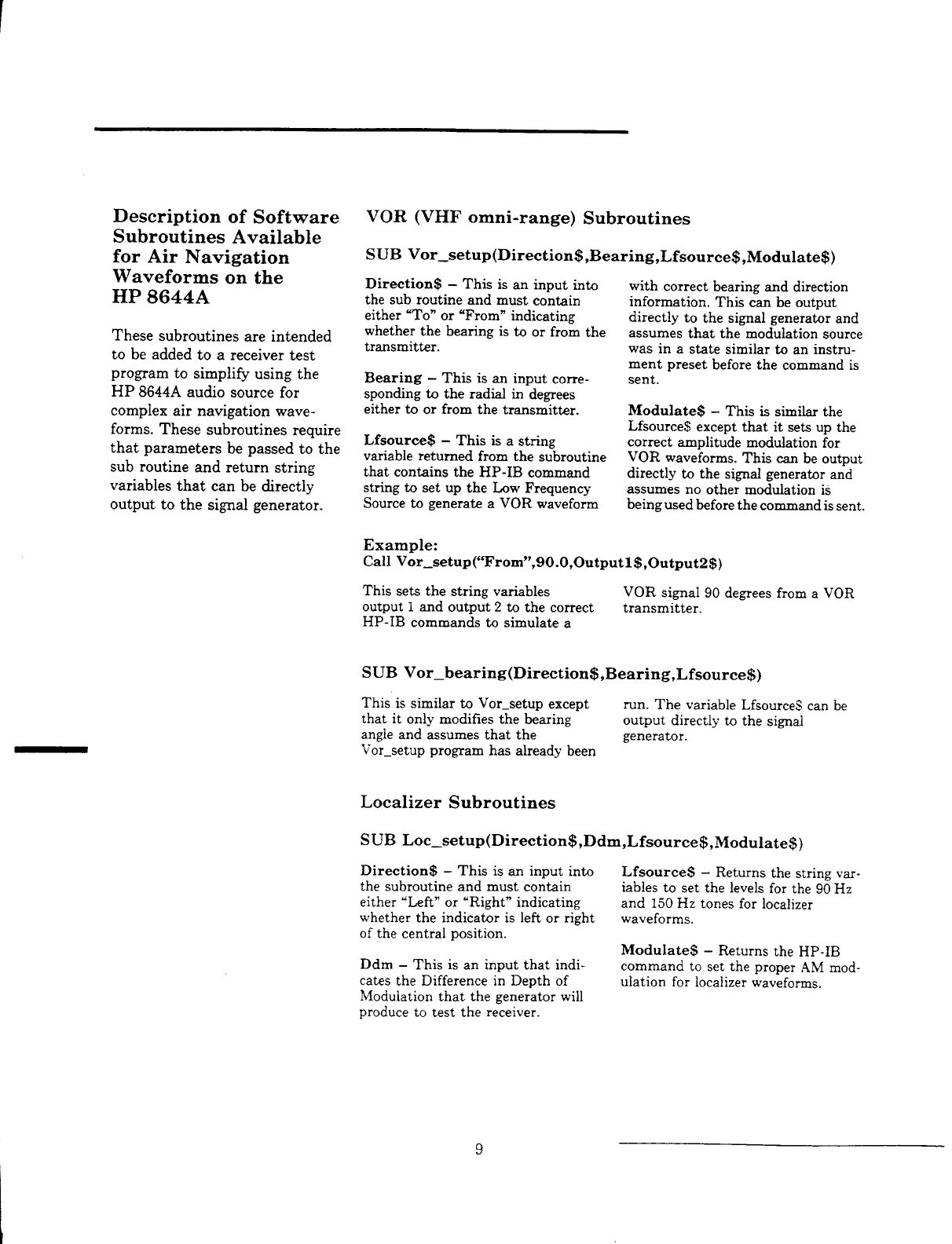

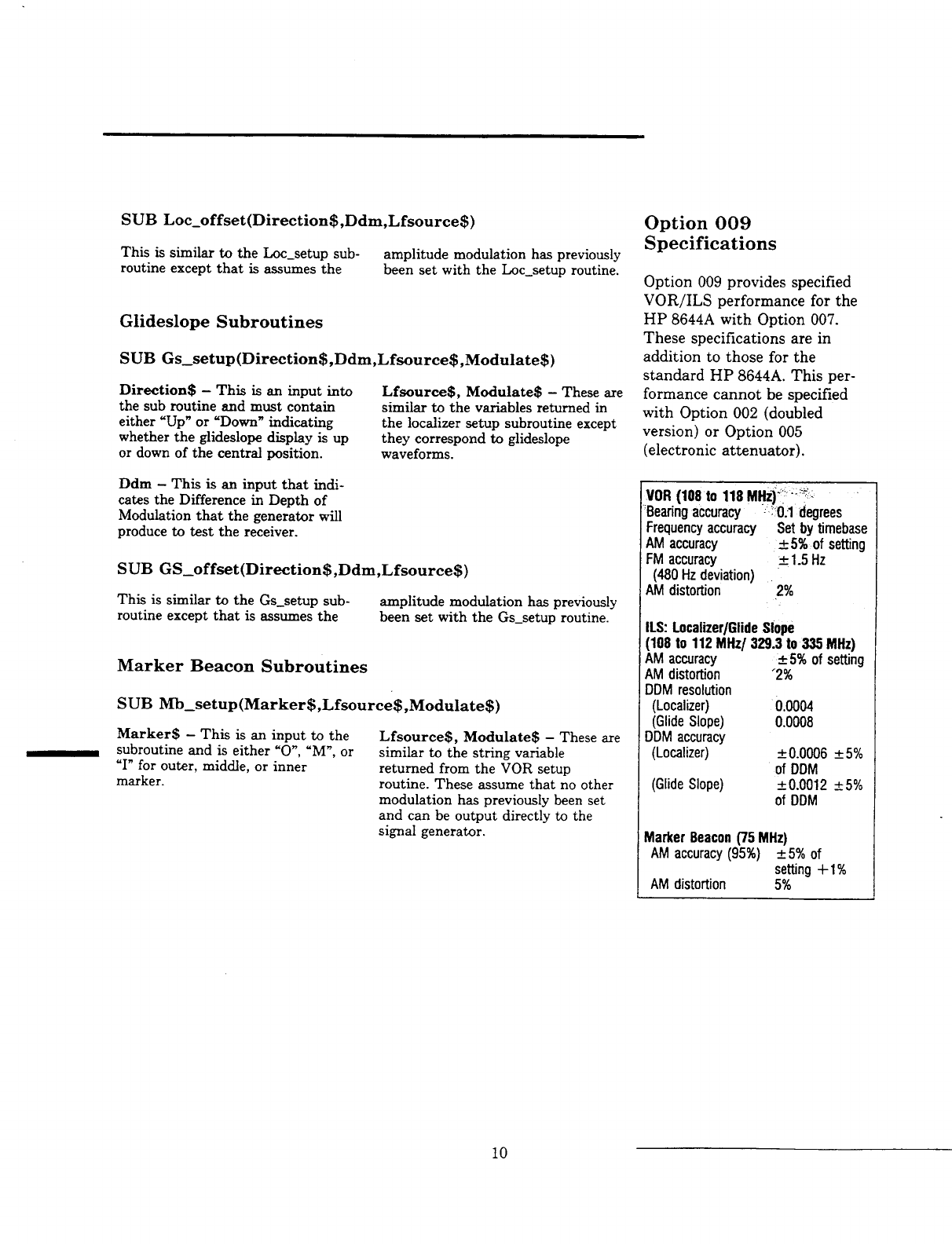

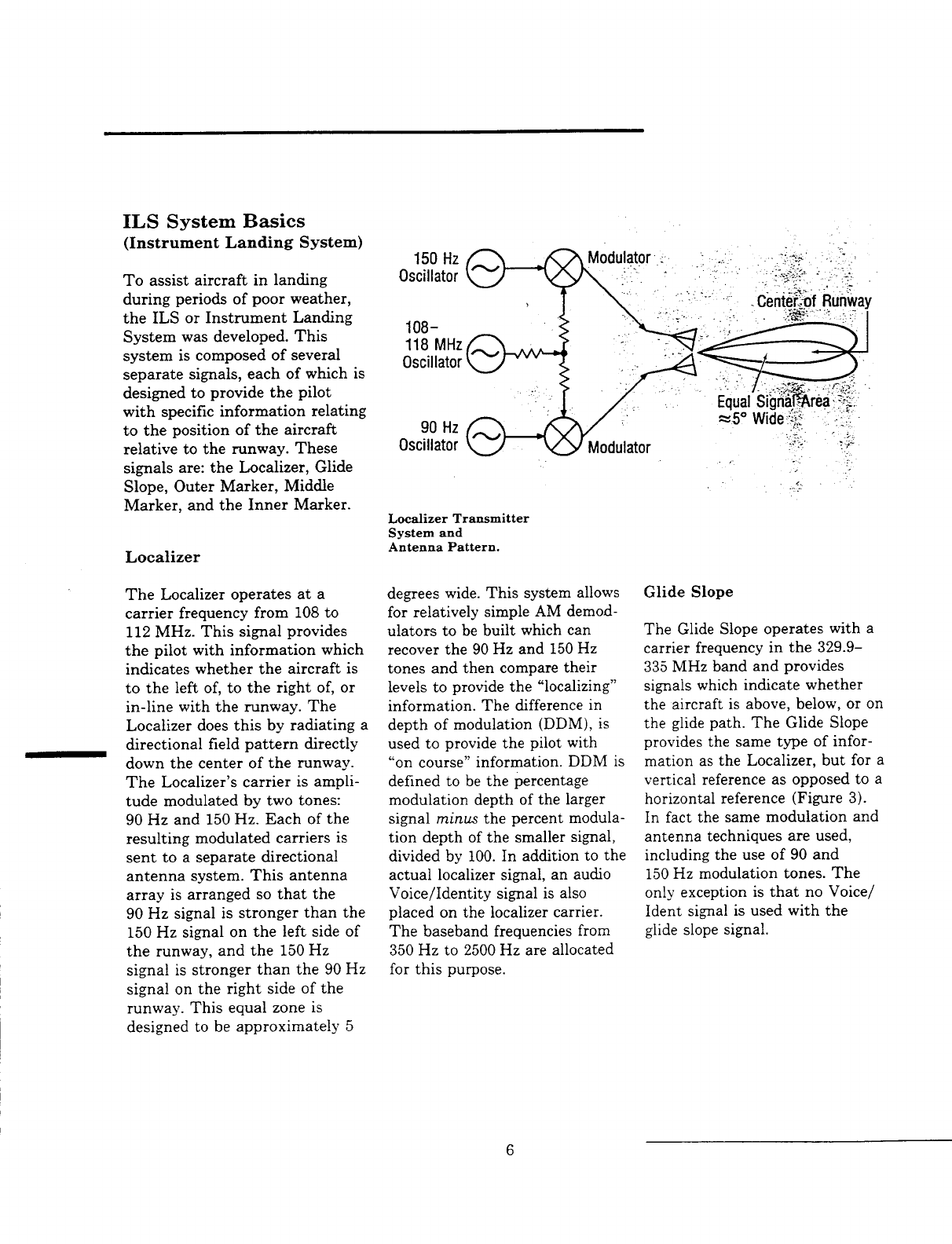

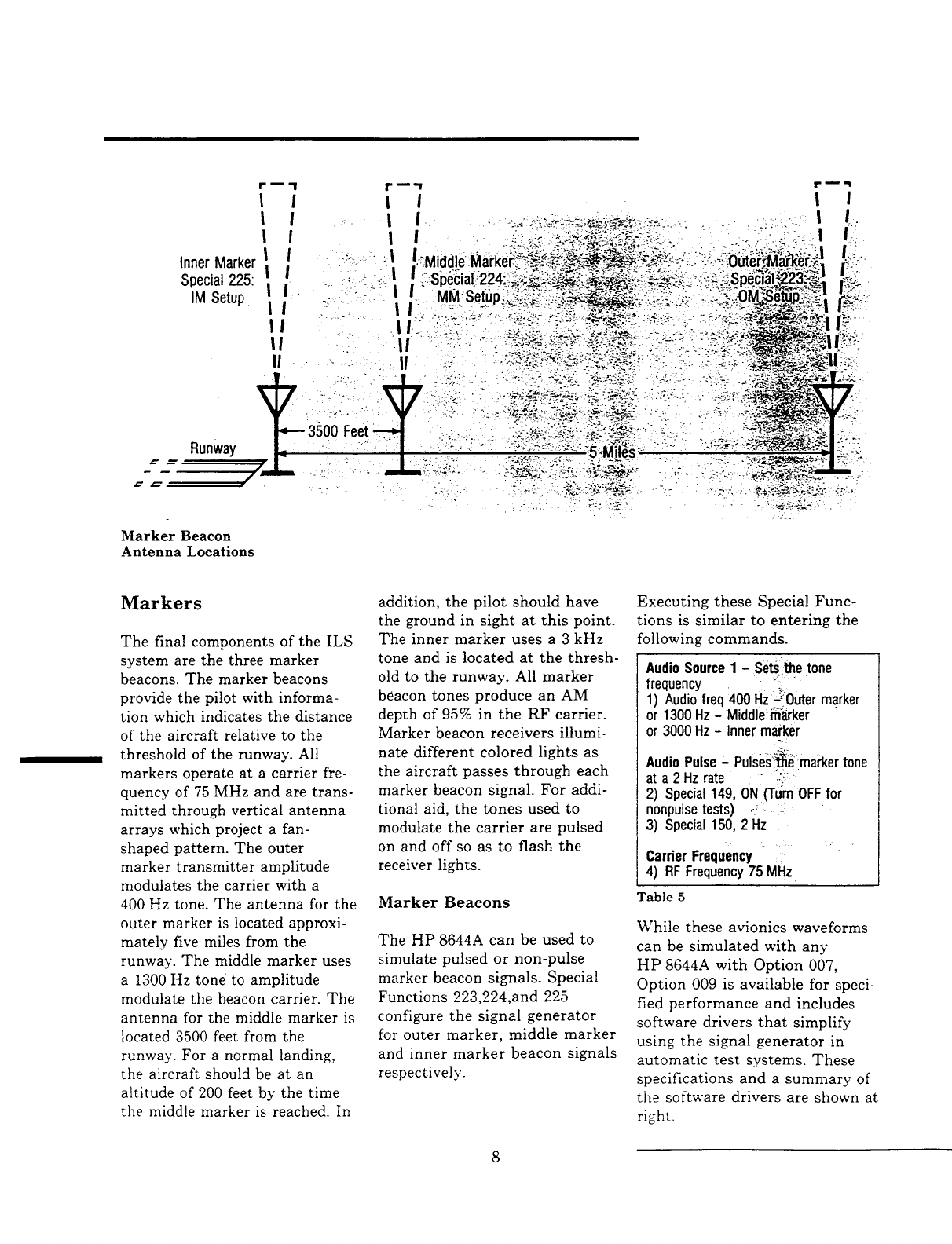

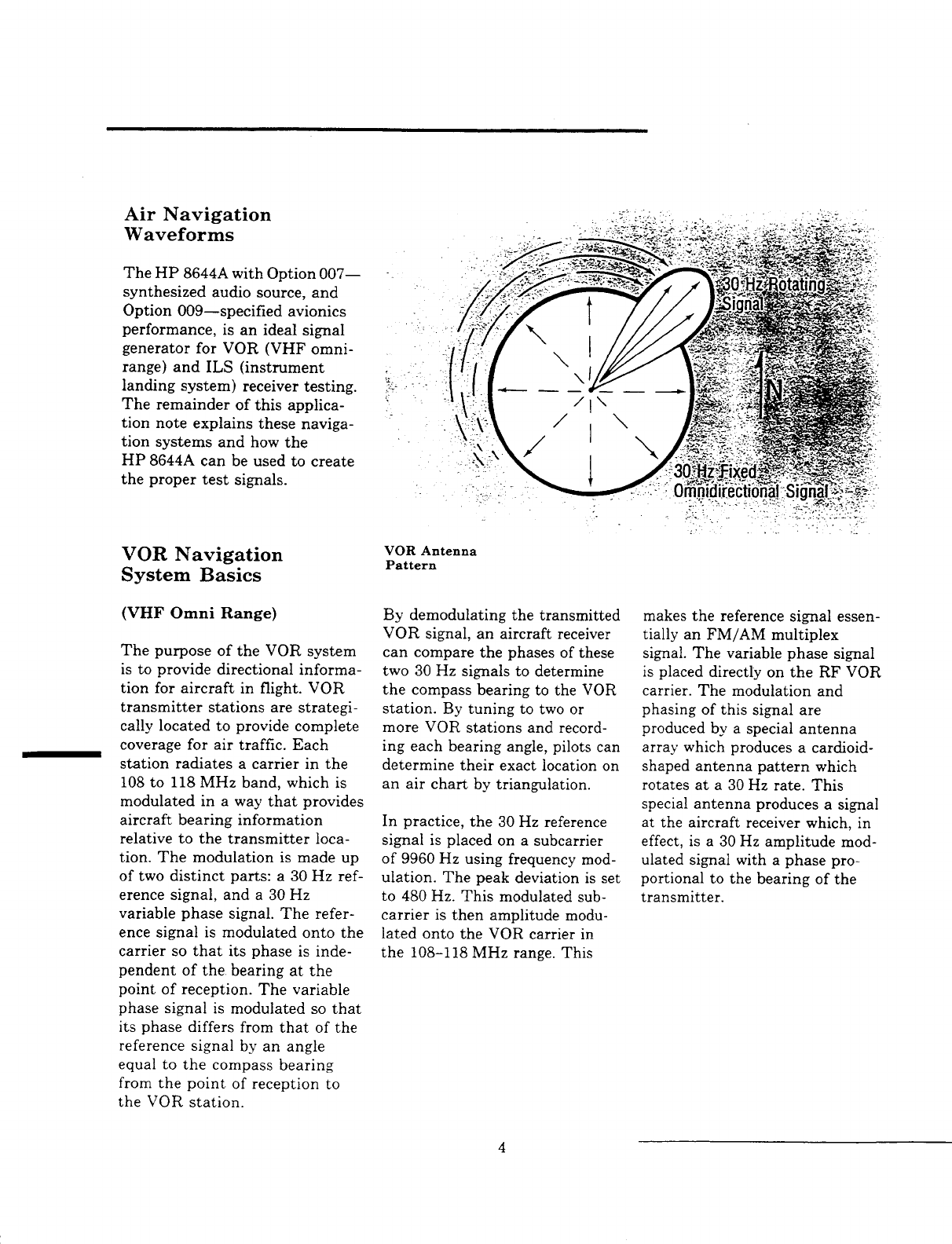

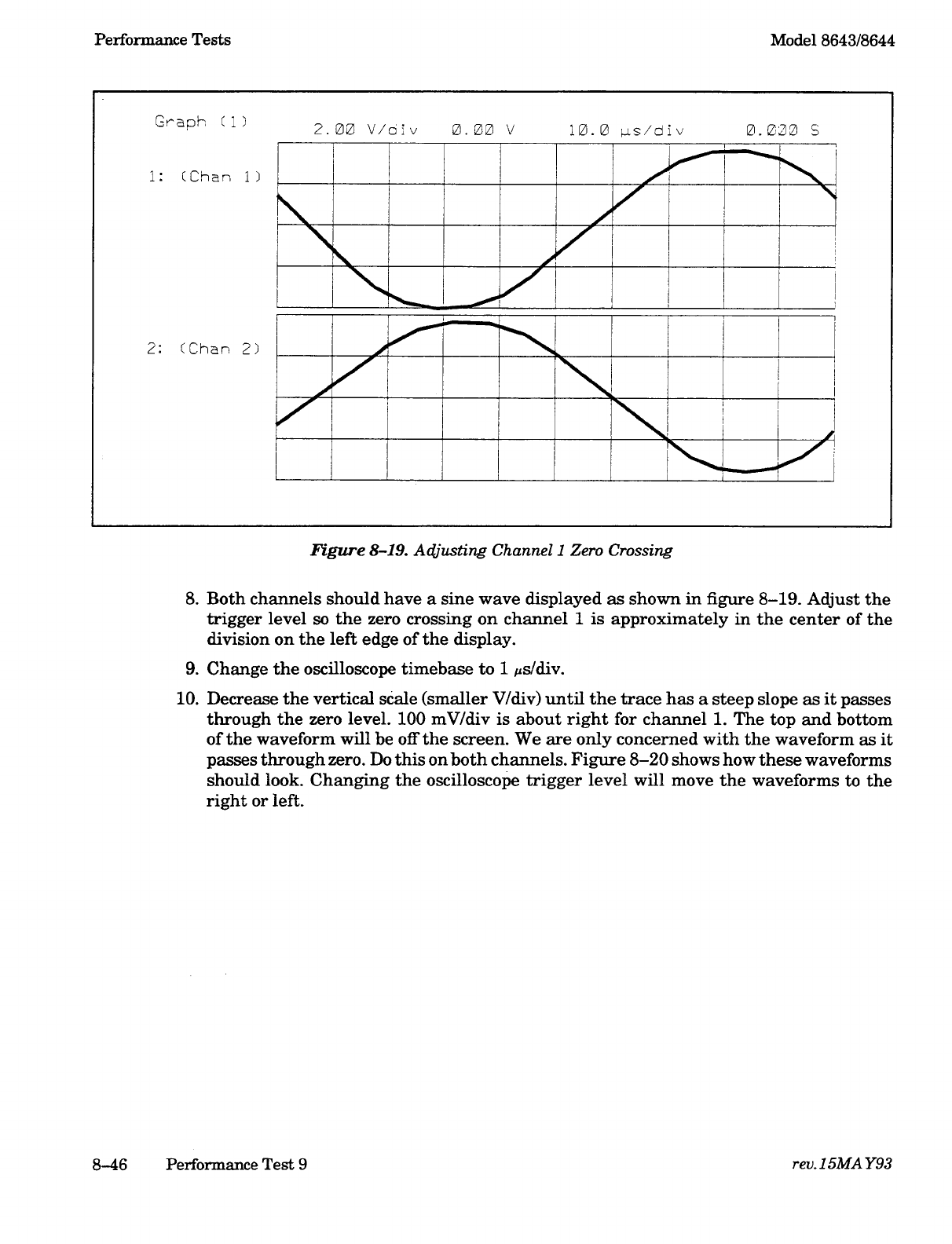

- Performance Test 9, Avionics Parameters Test (Option 009)

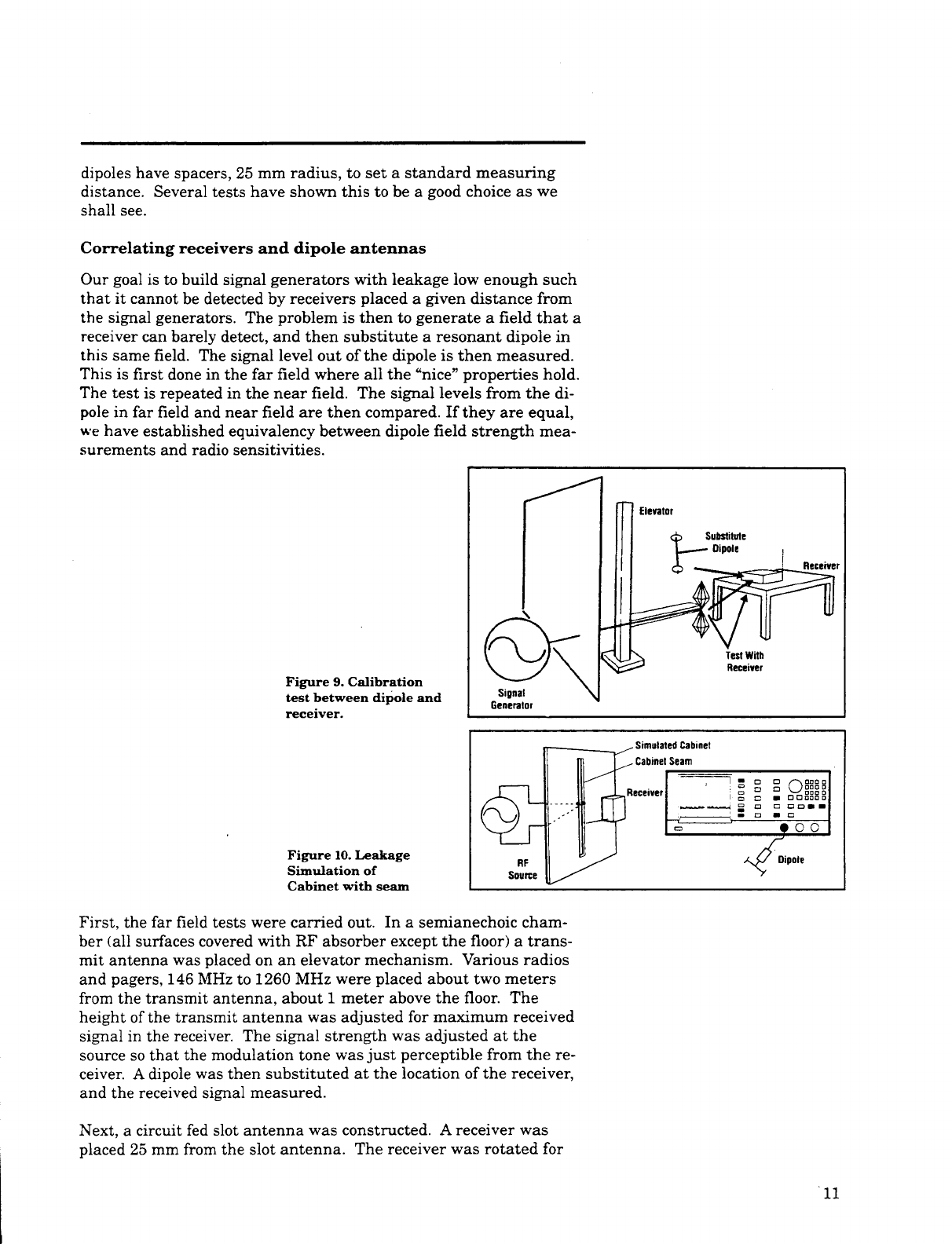

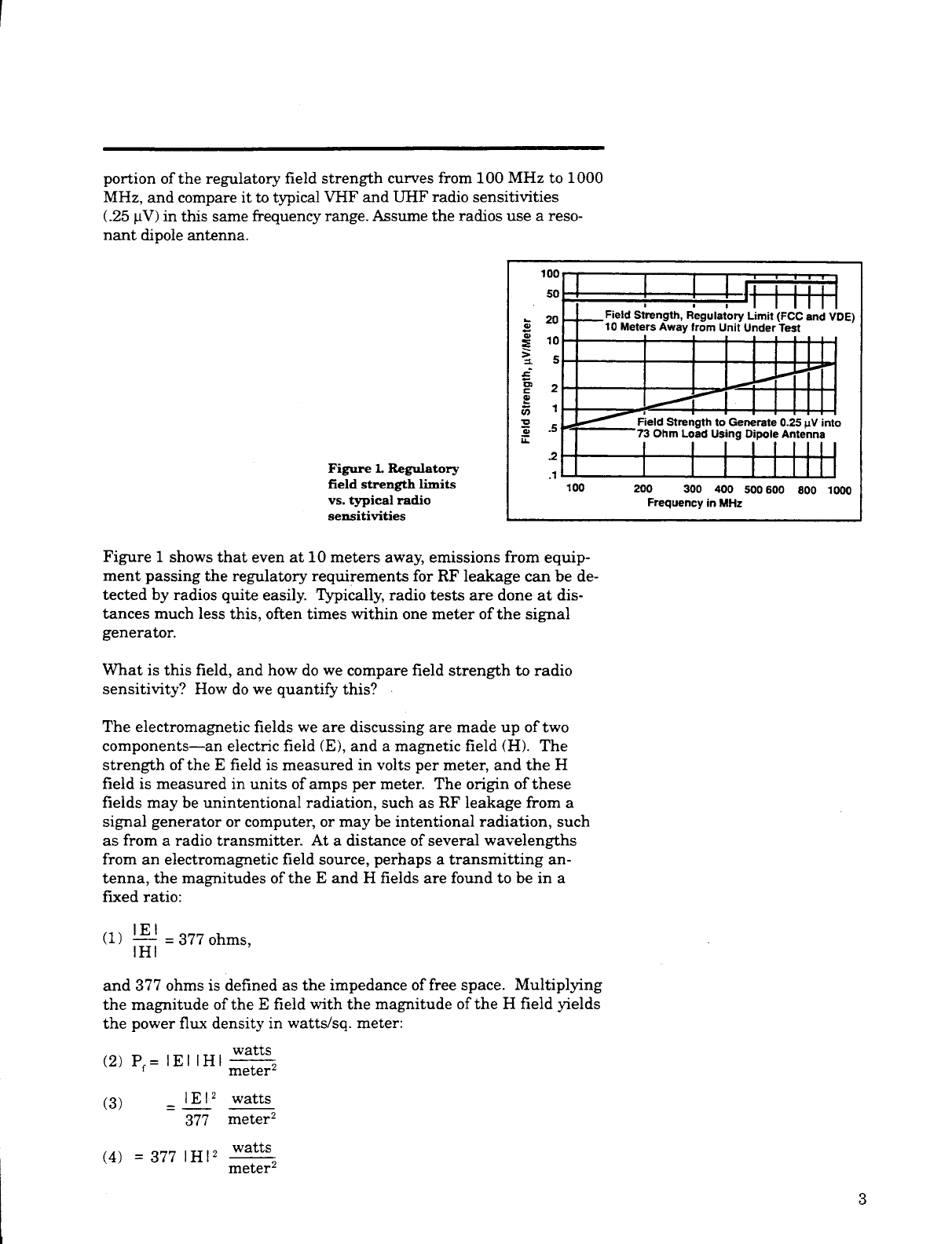

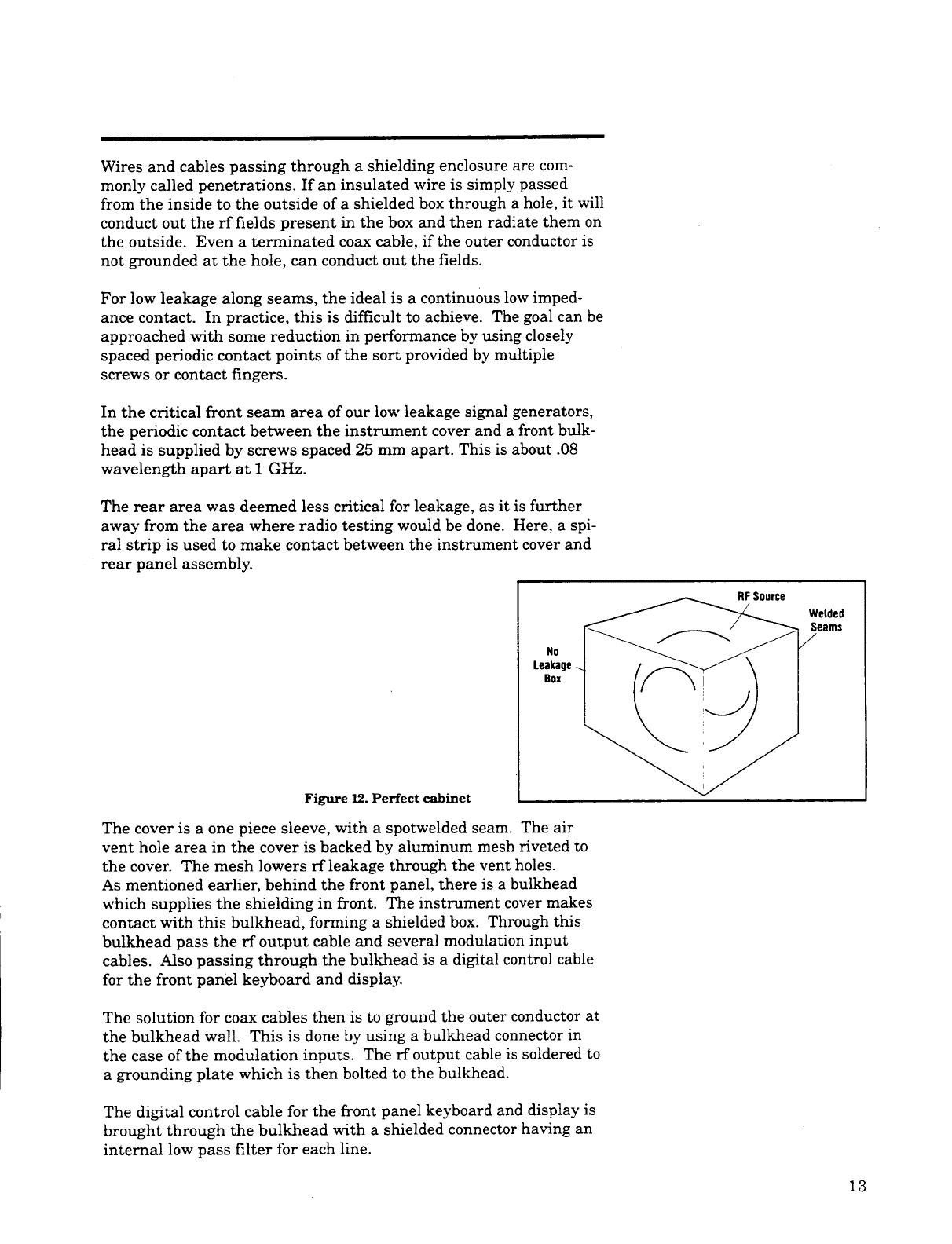

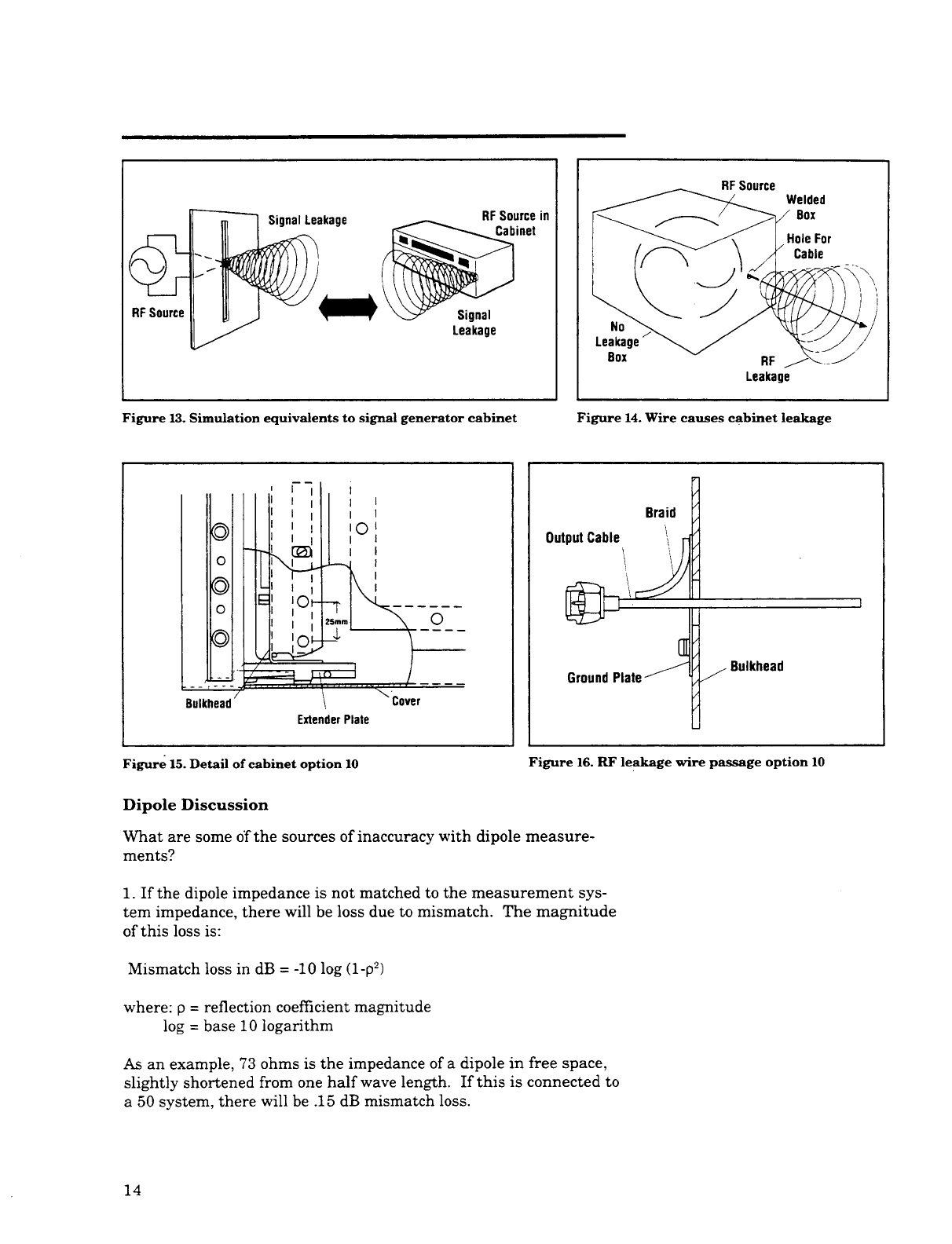

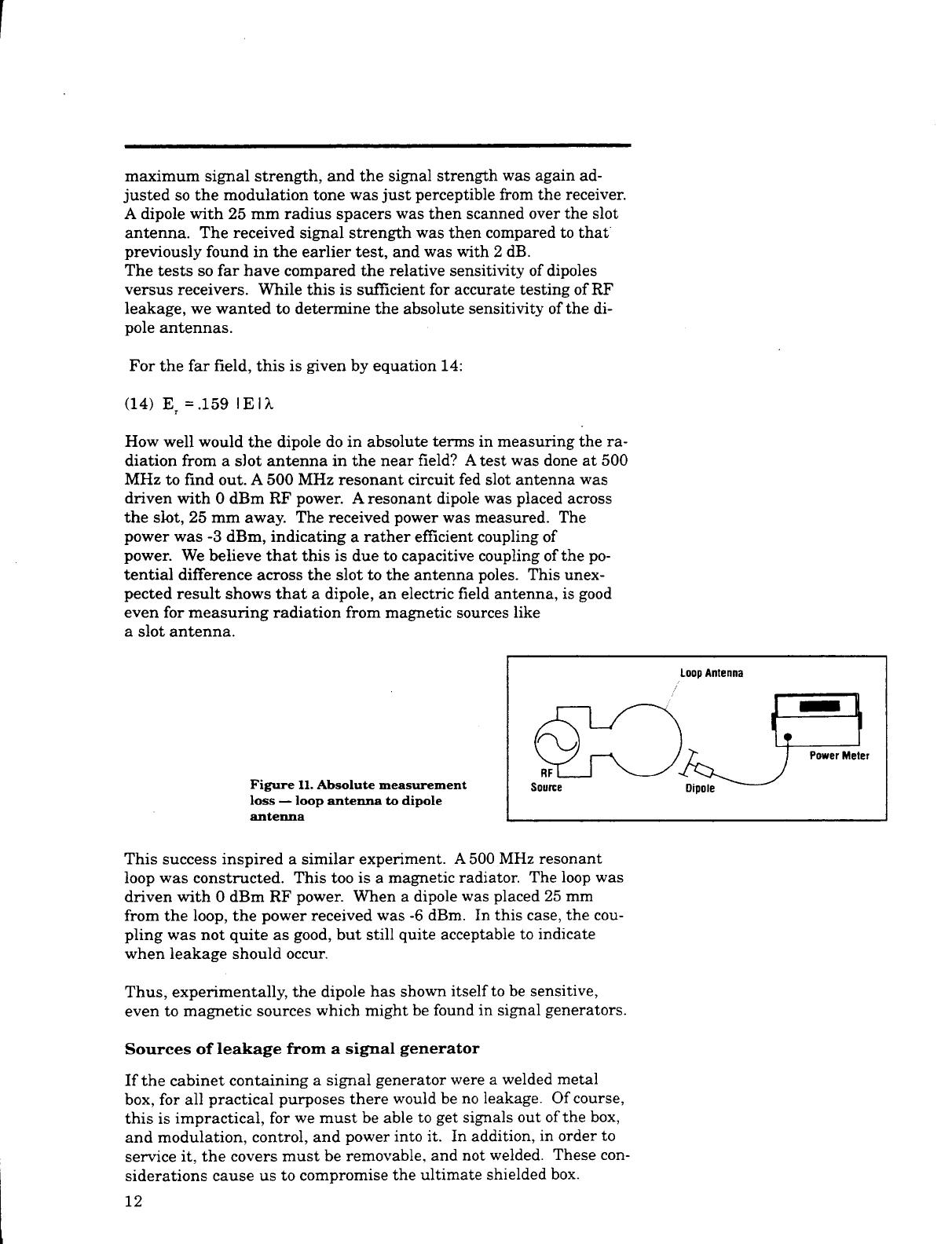

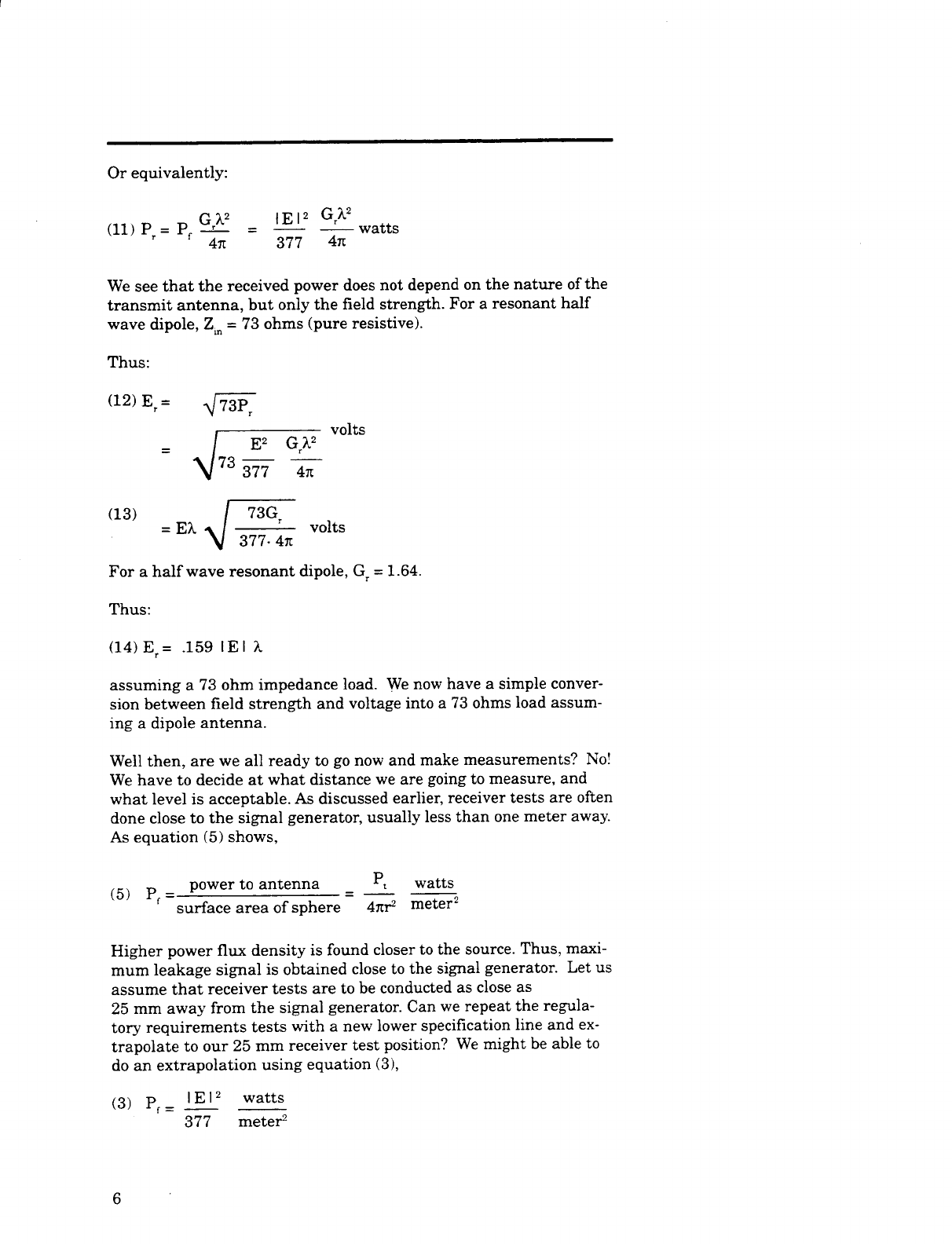

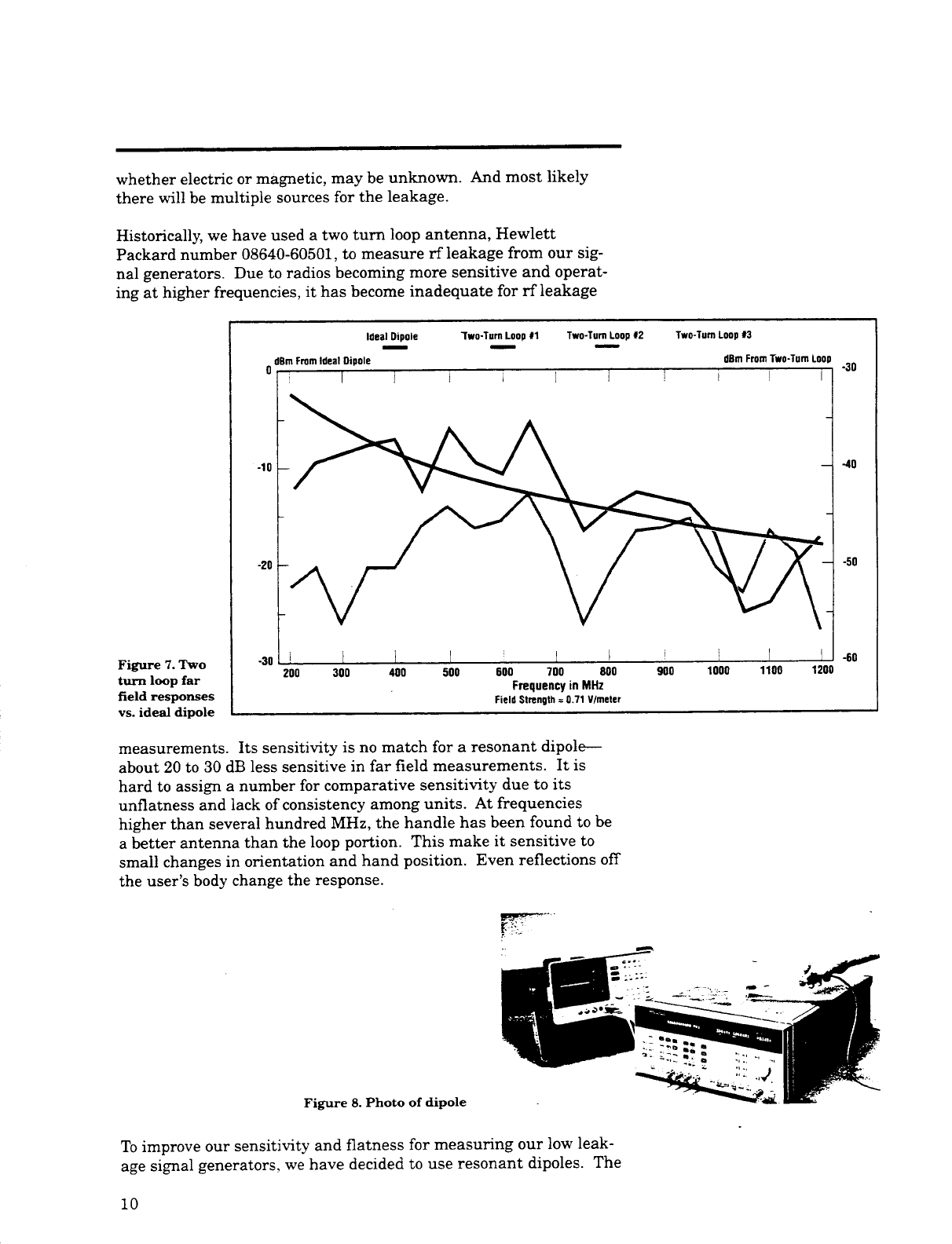

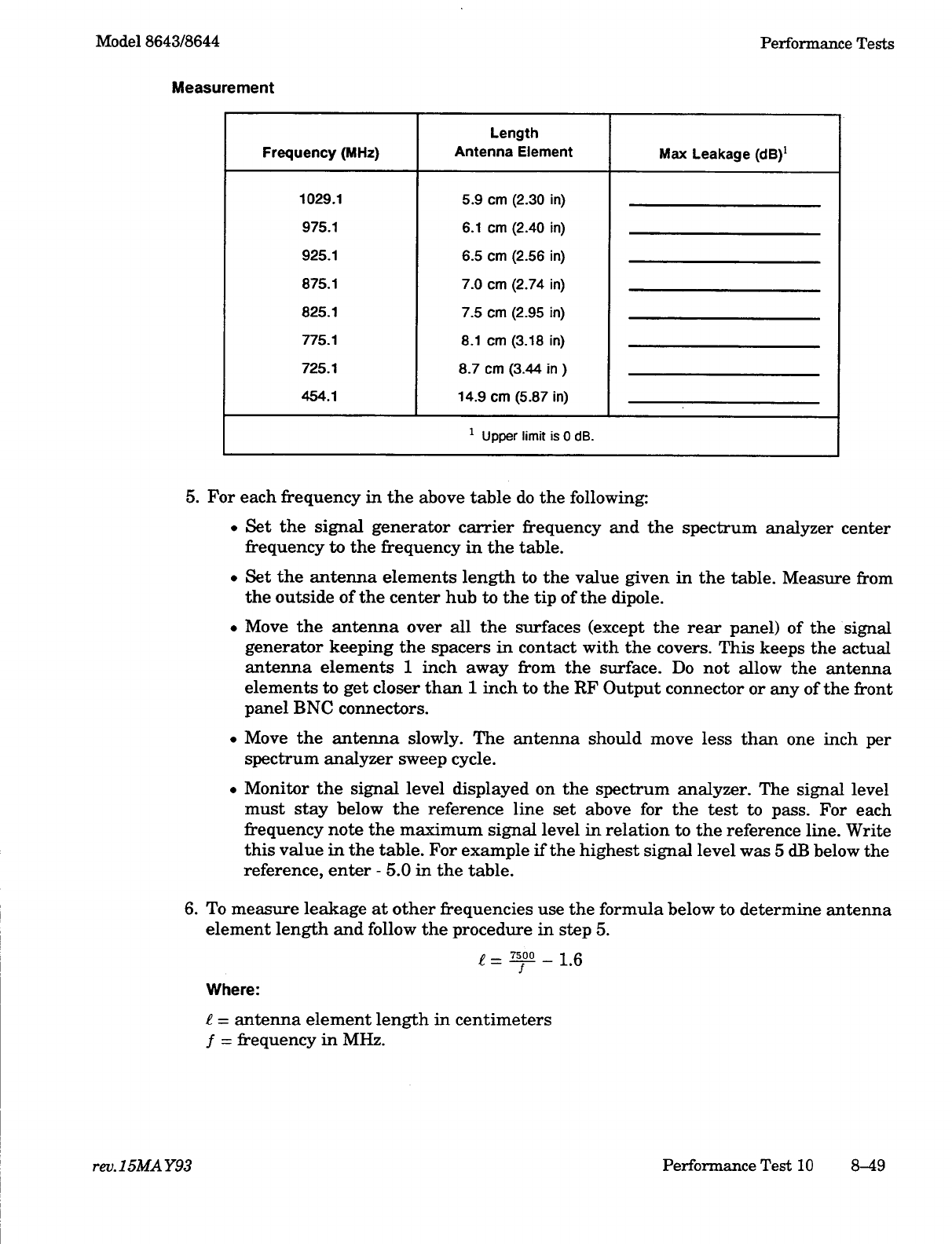

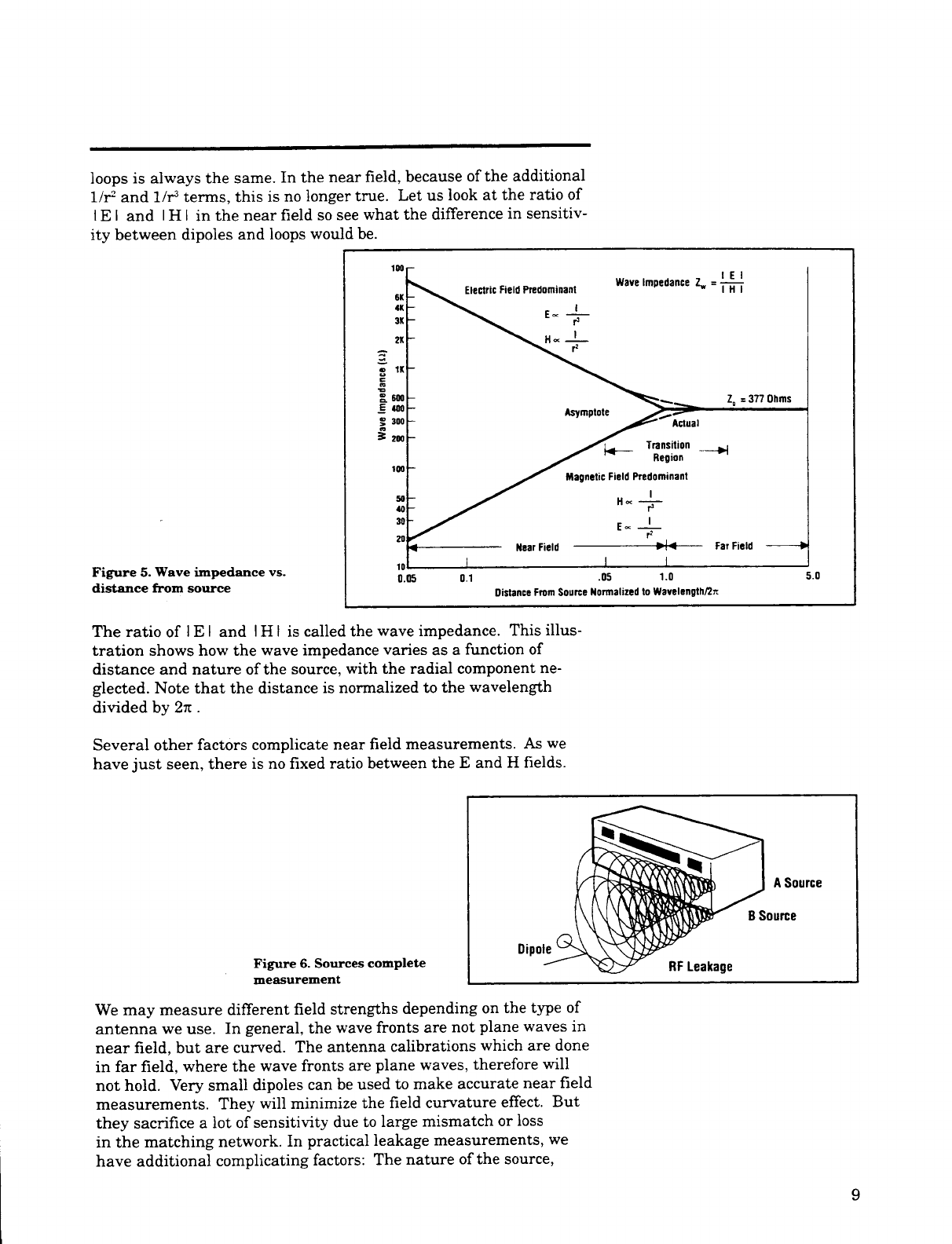

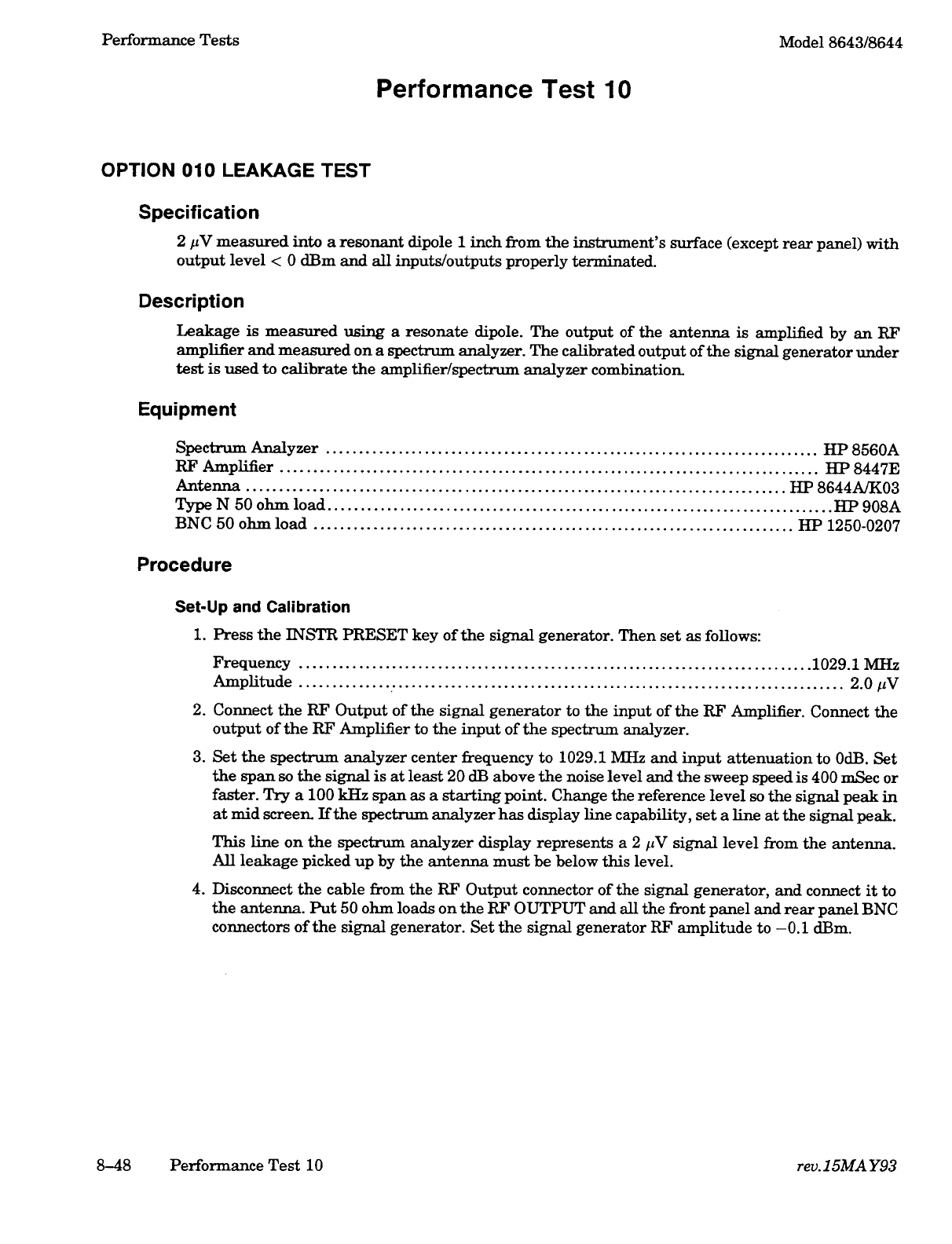

- Performance Test 10, Option 010 Leakage Test

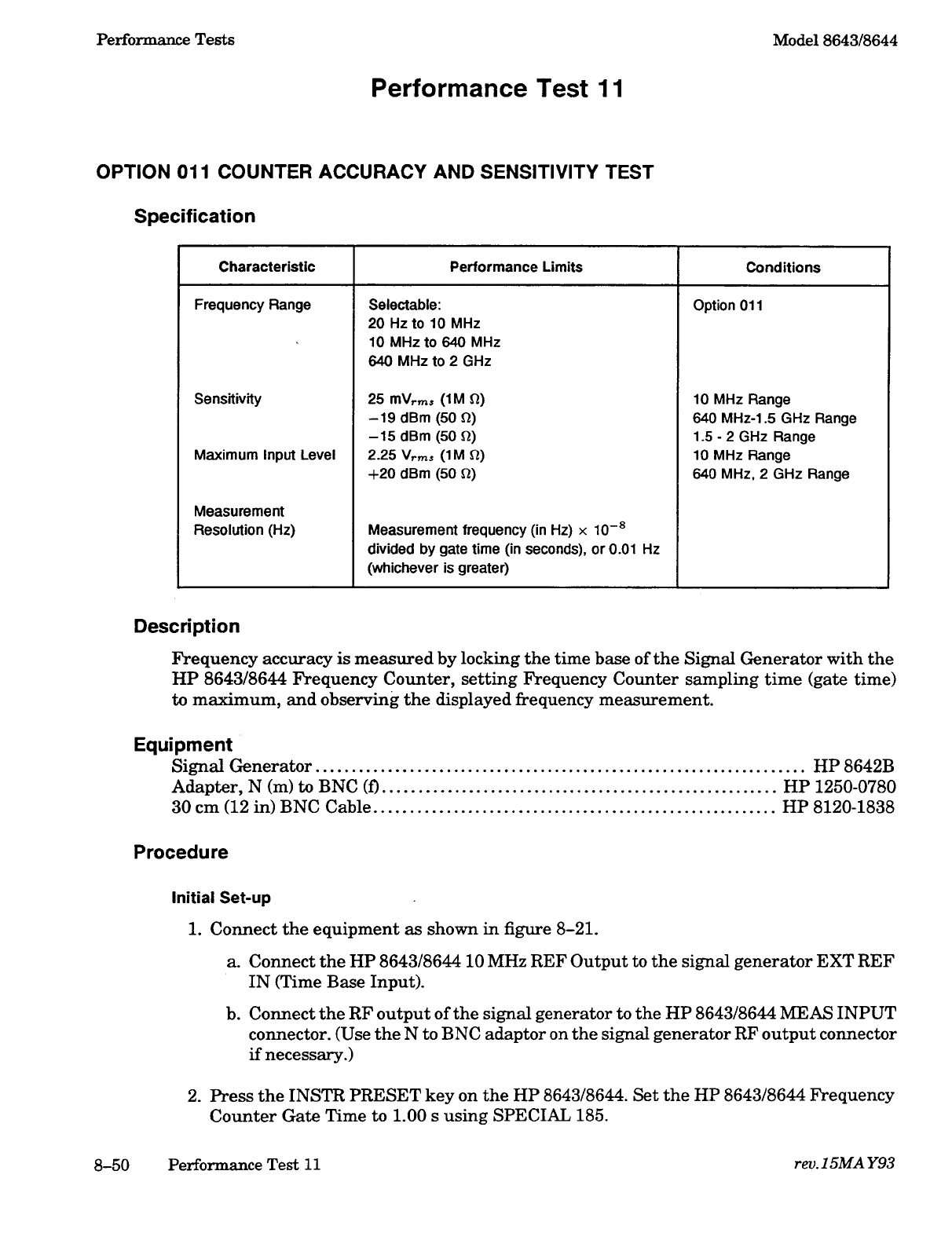

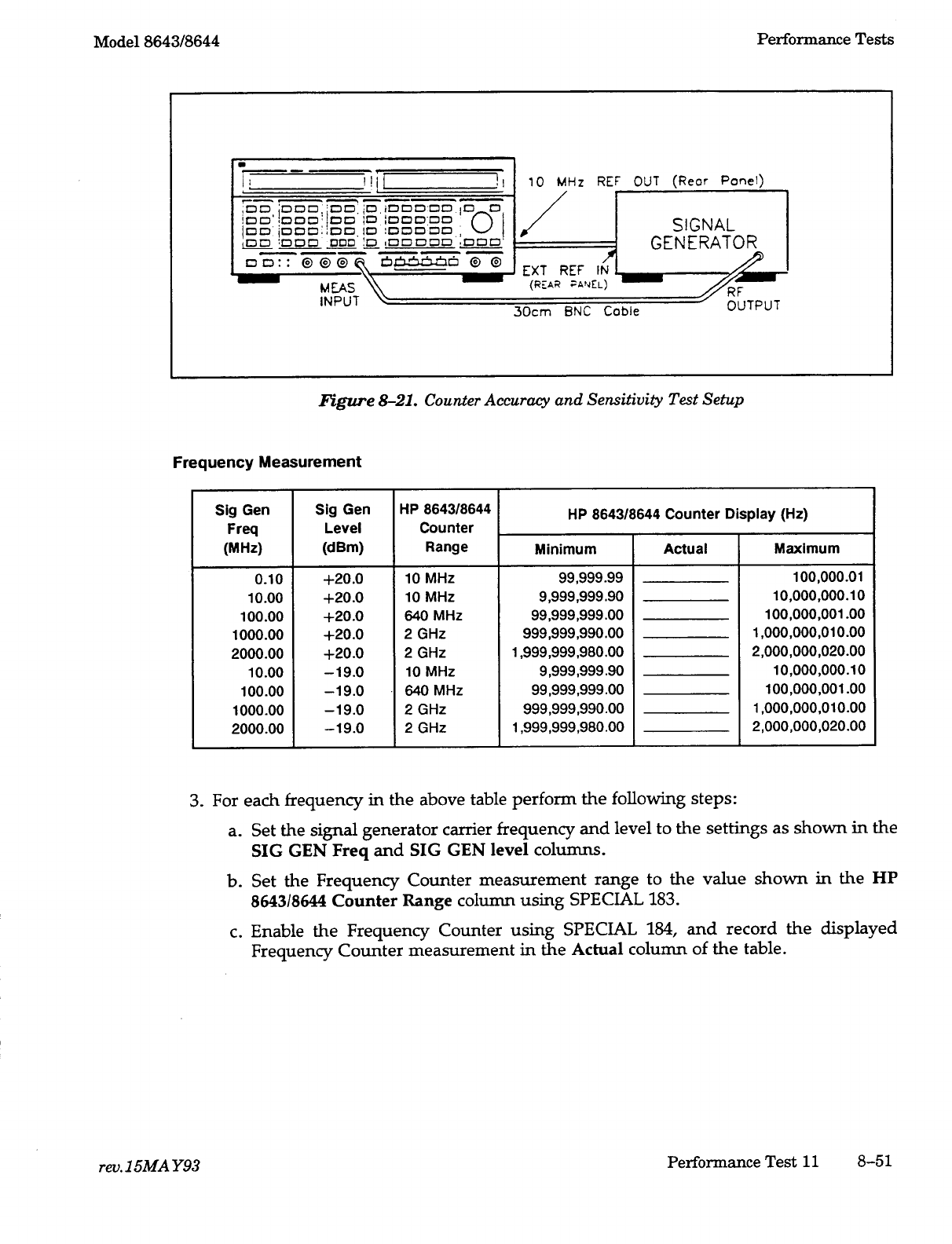

- Performance Test 11, Option 011 Counter Accuracy and Sensitivity Test

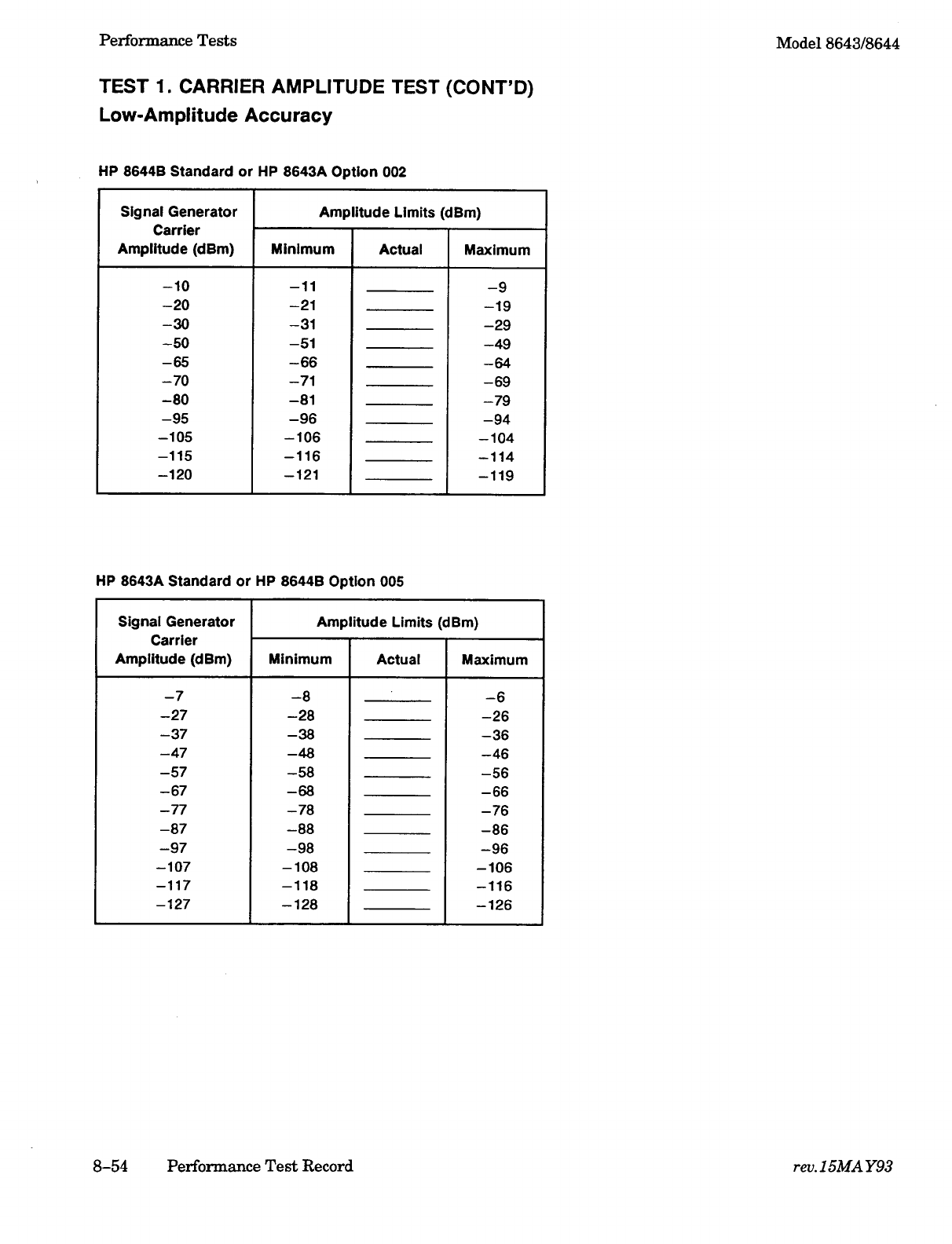

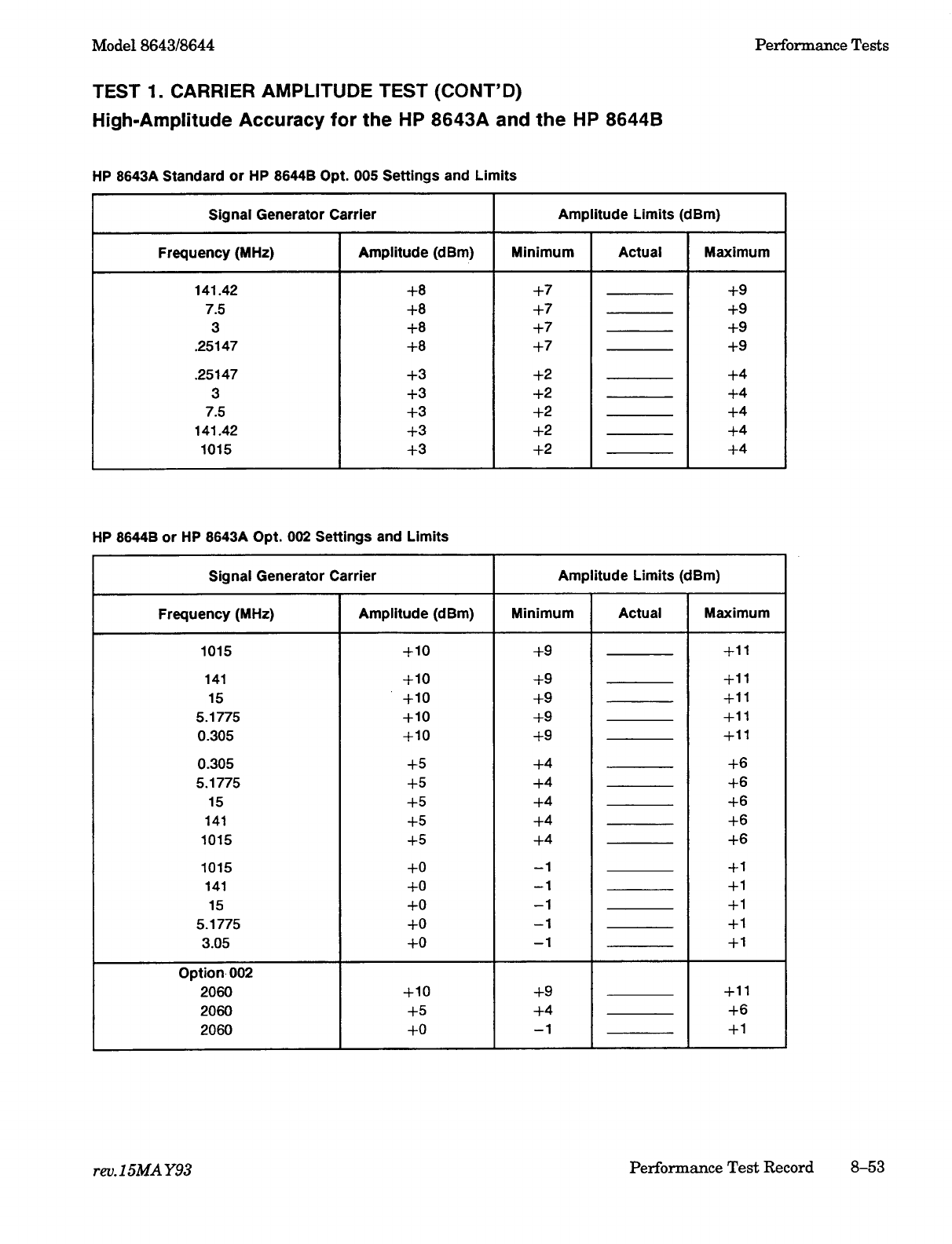

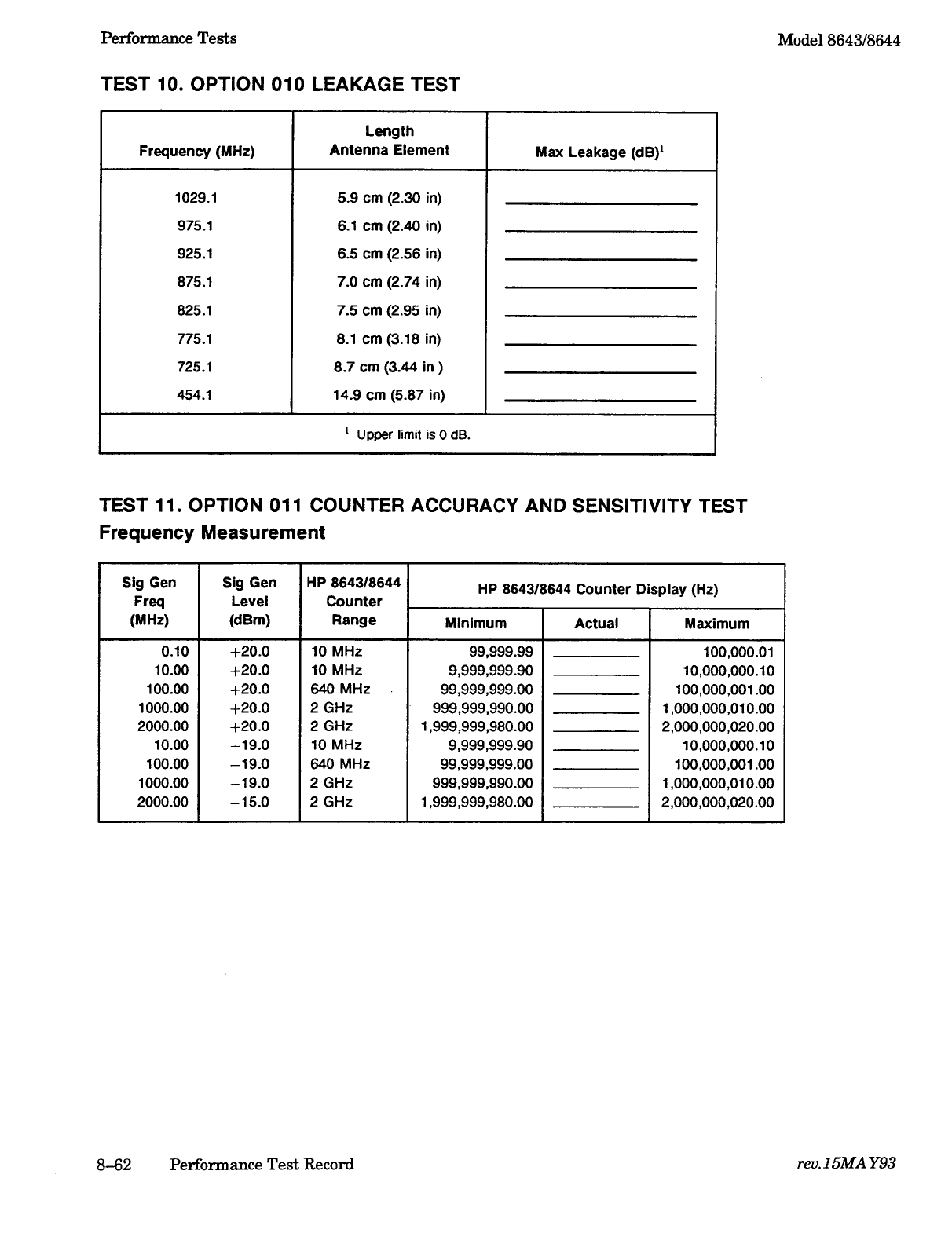

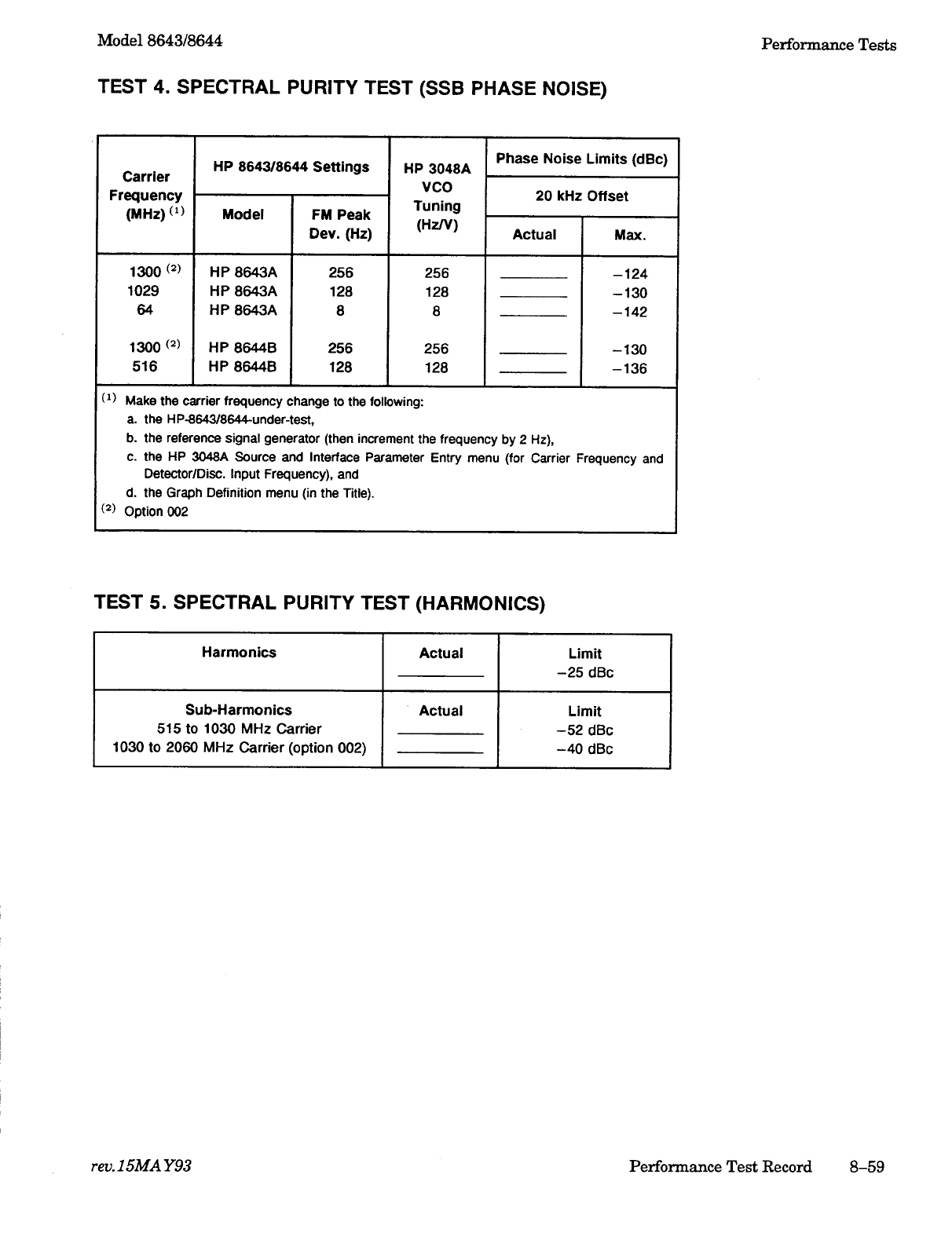

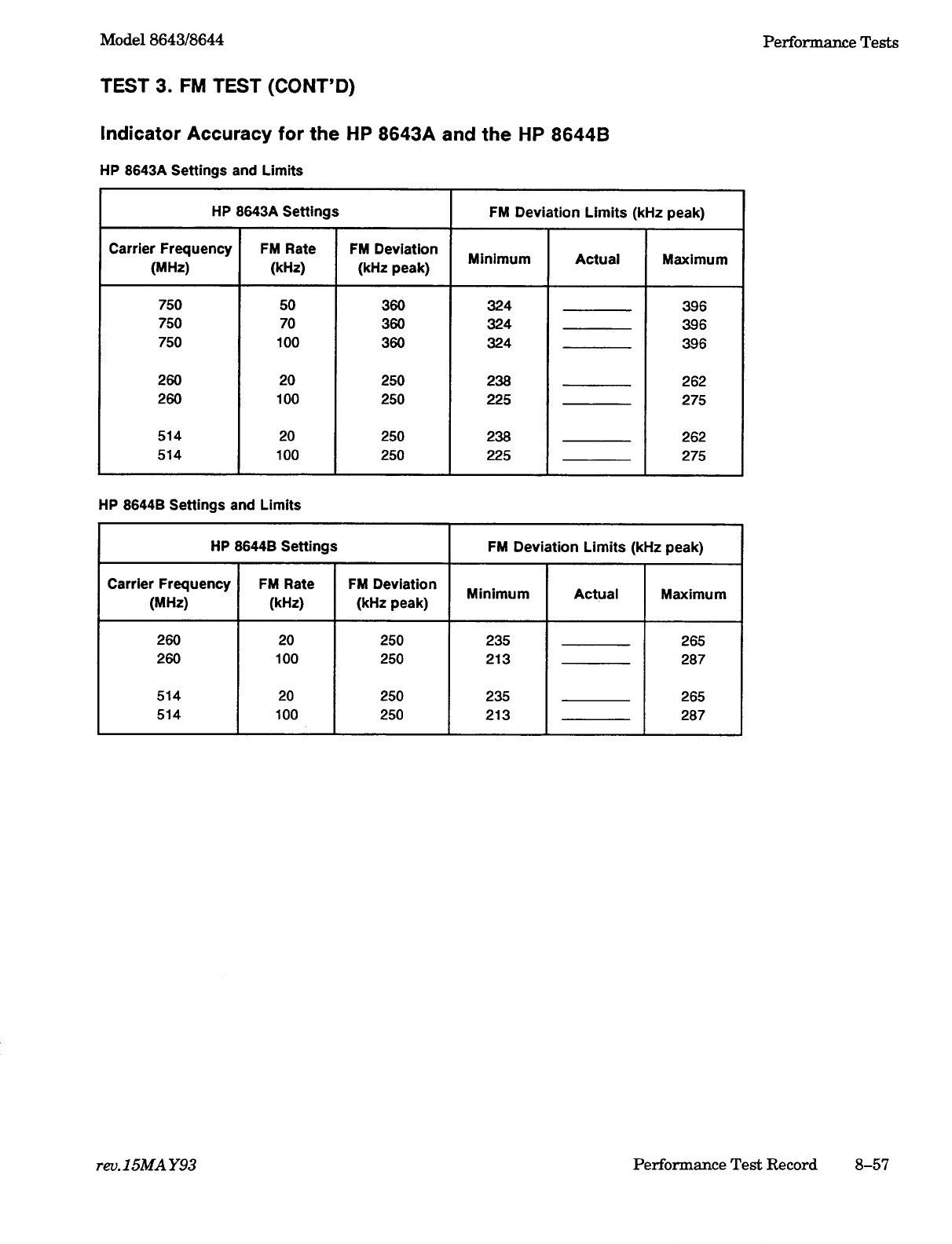

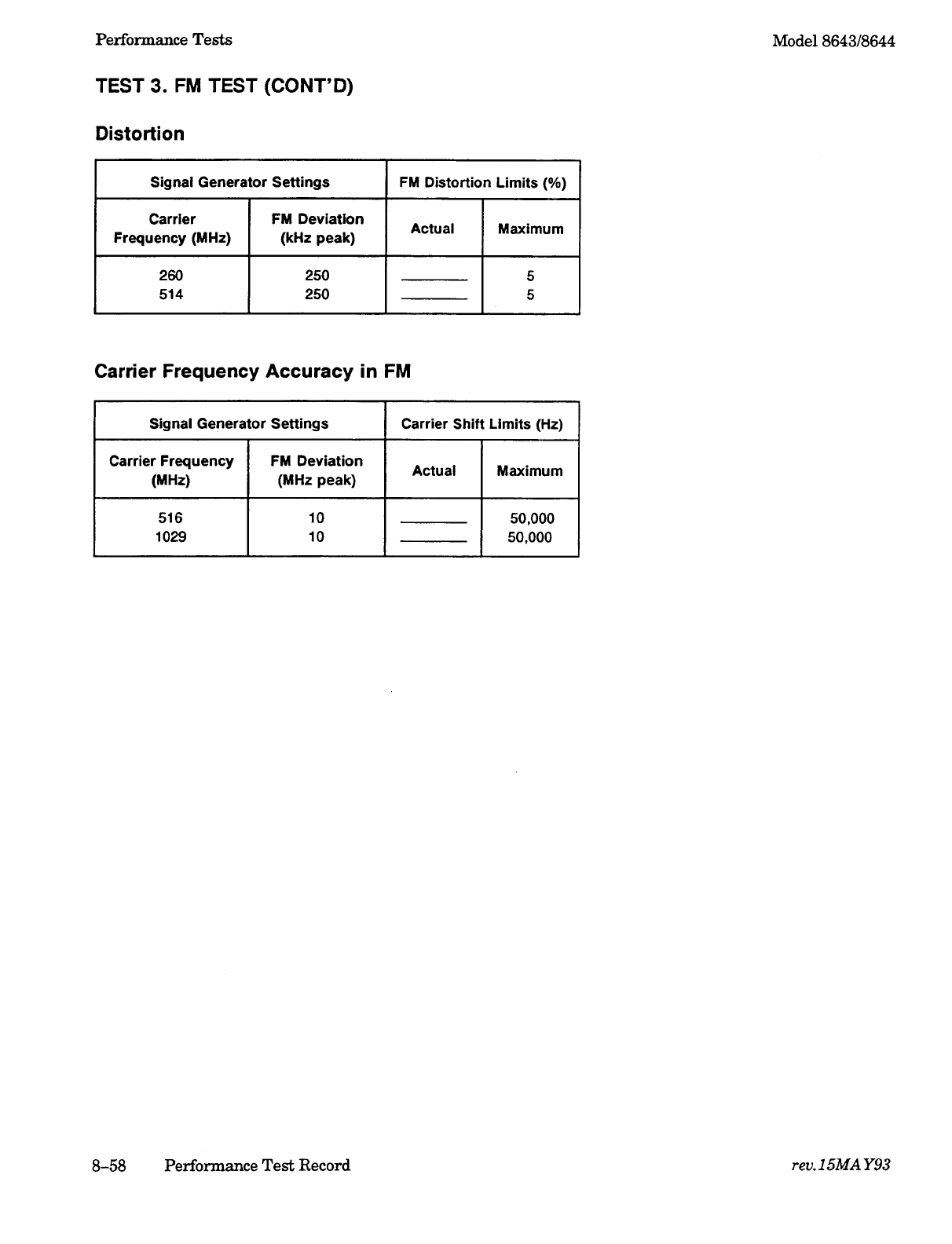

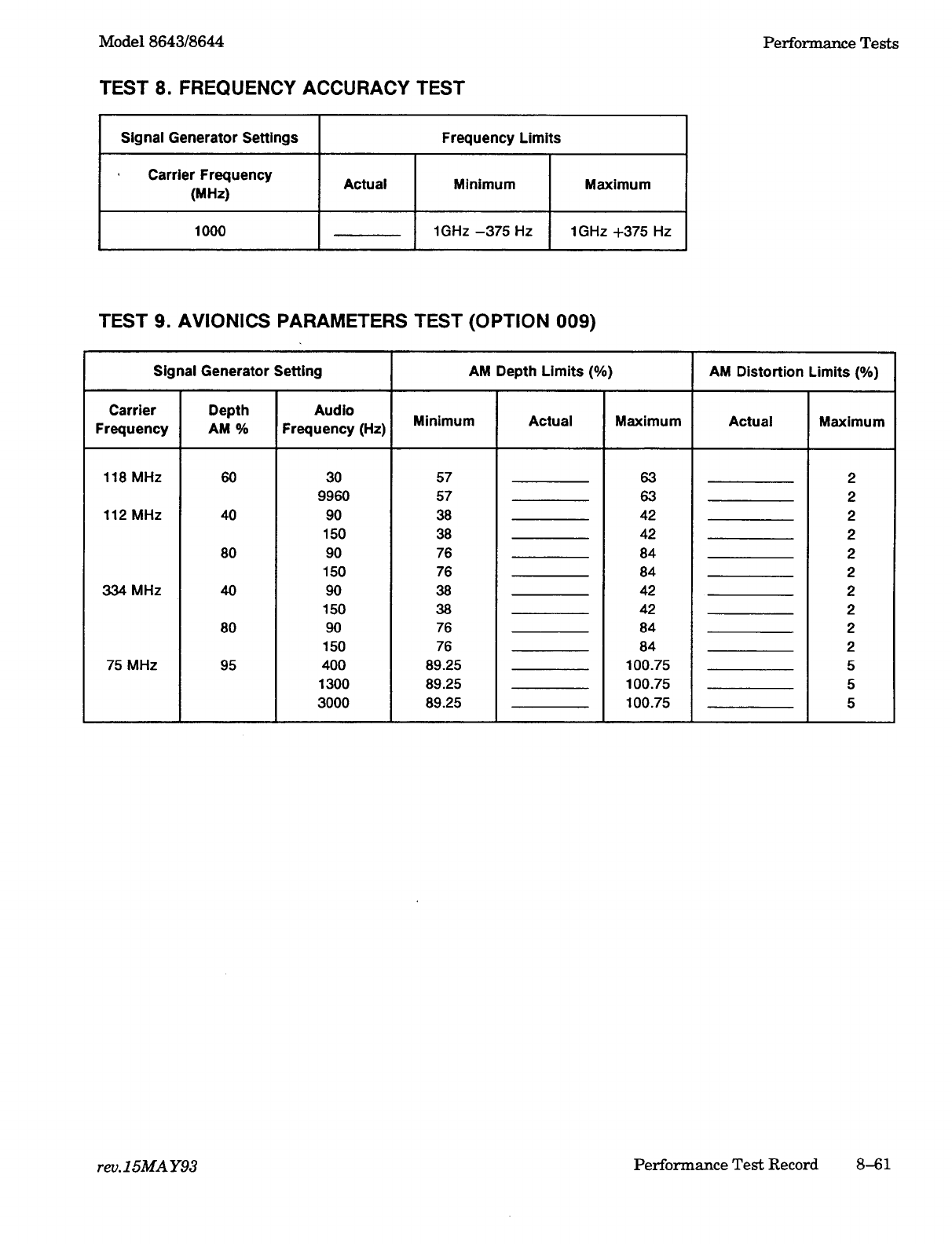

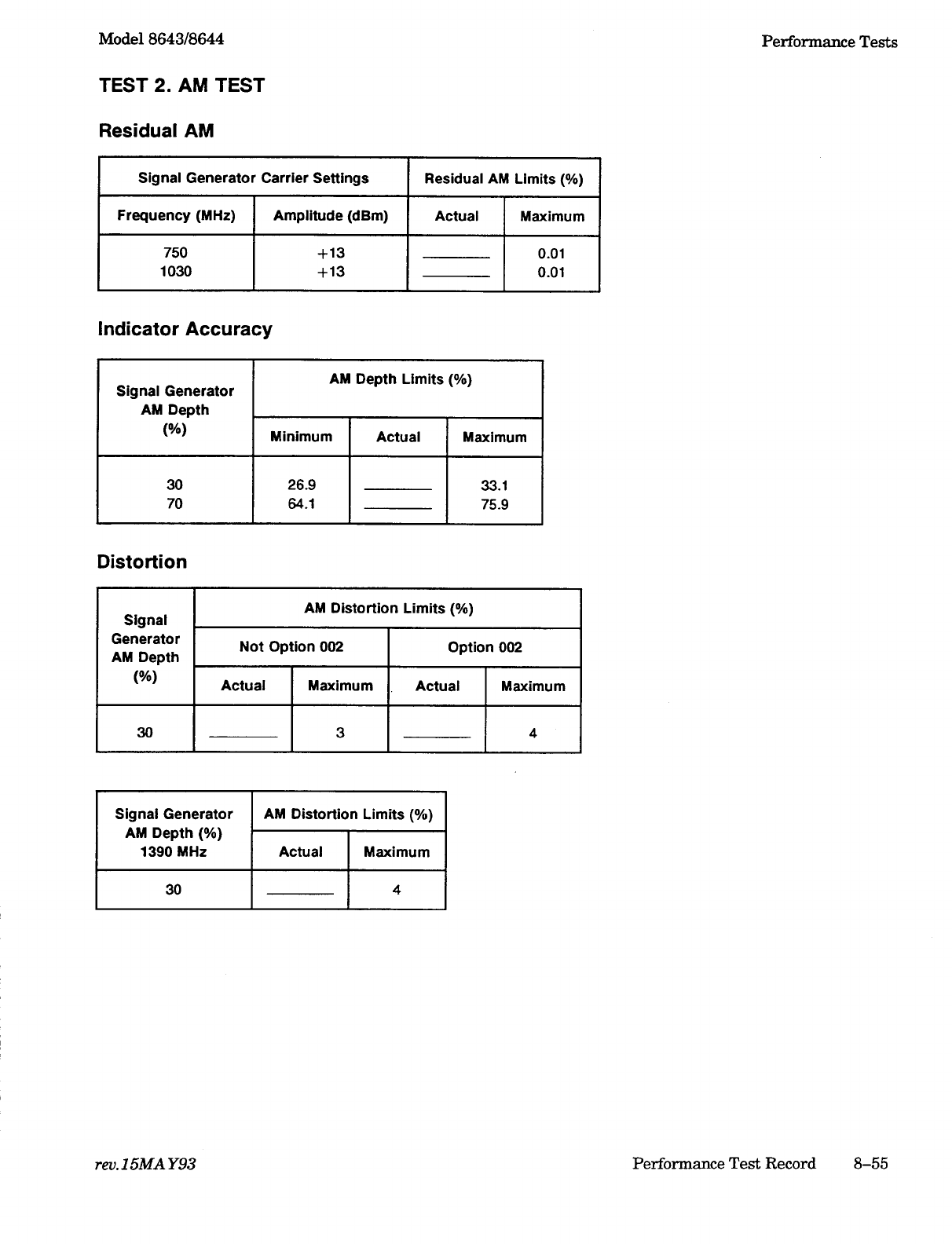

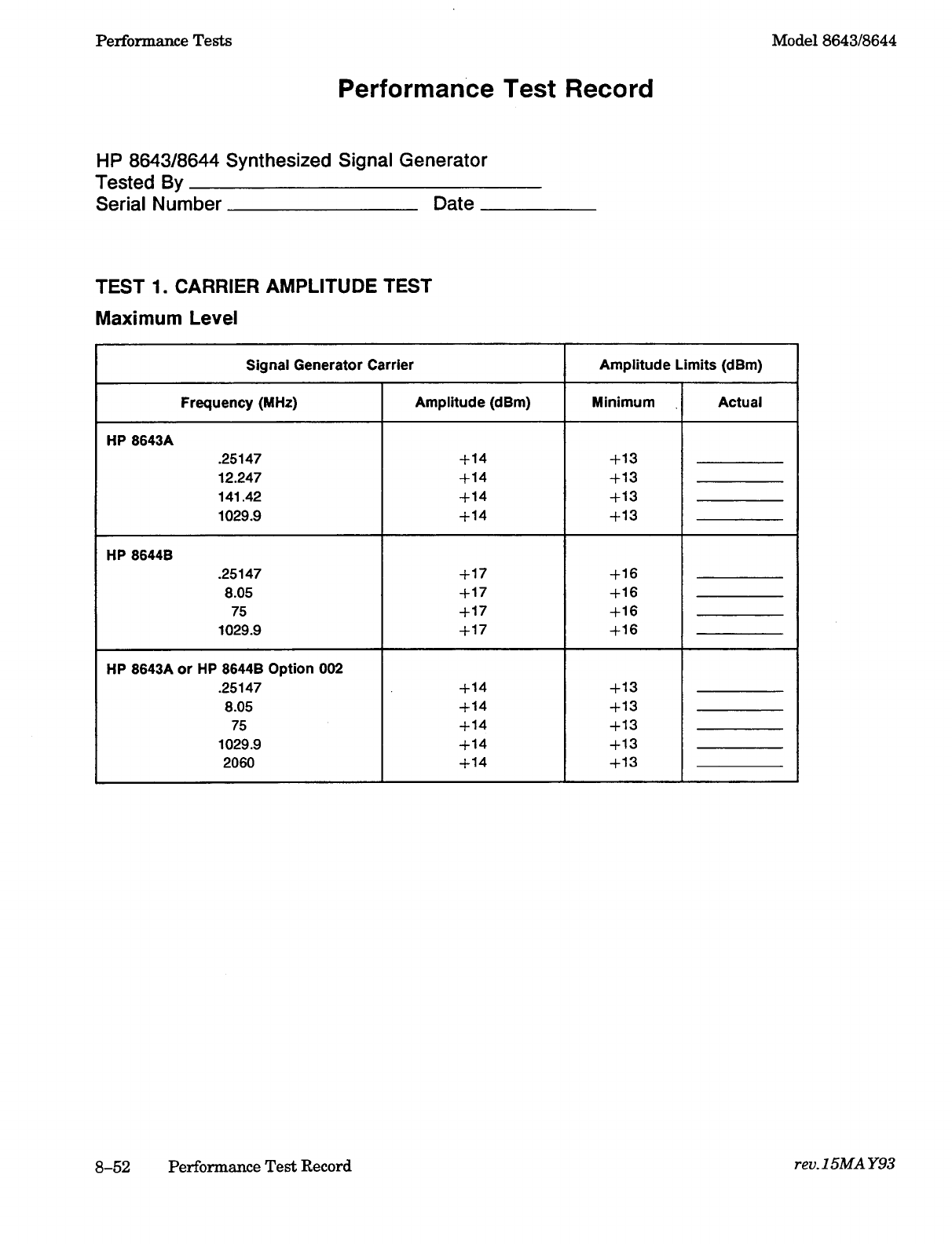

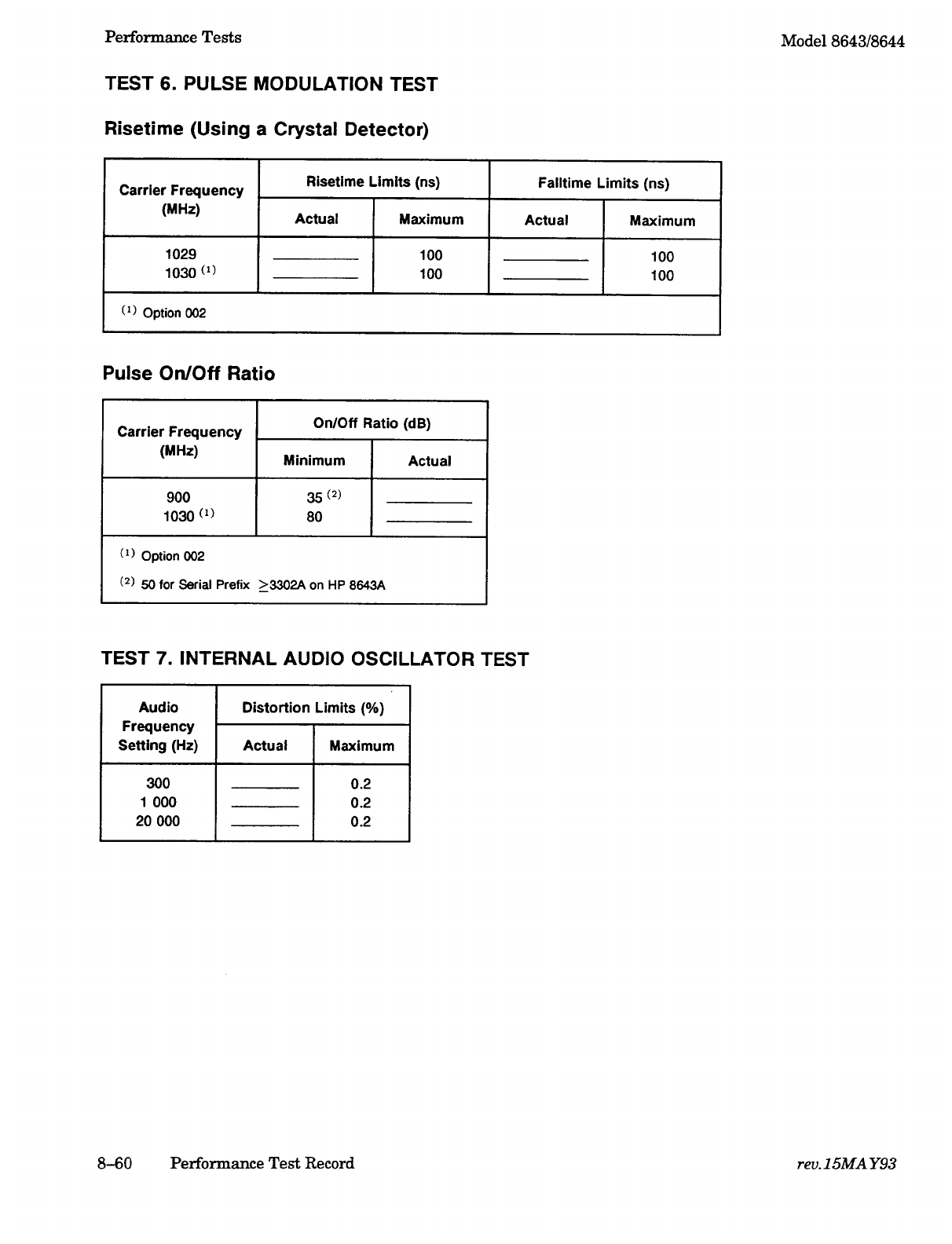

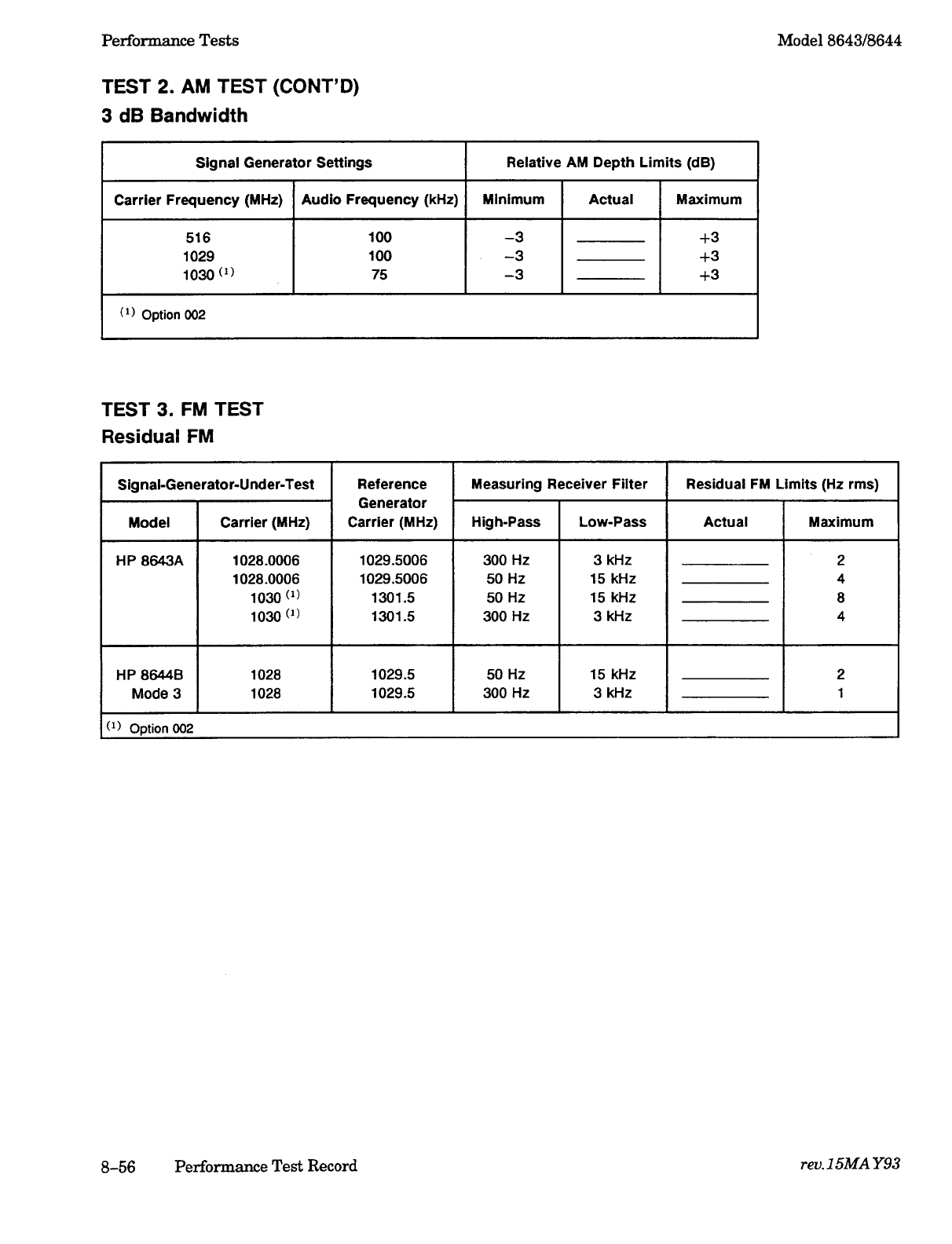

- Performance Test Record

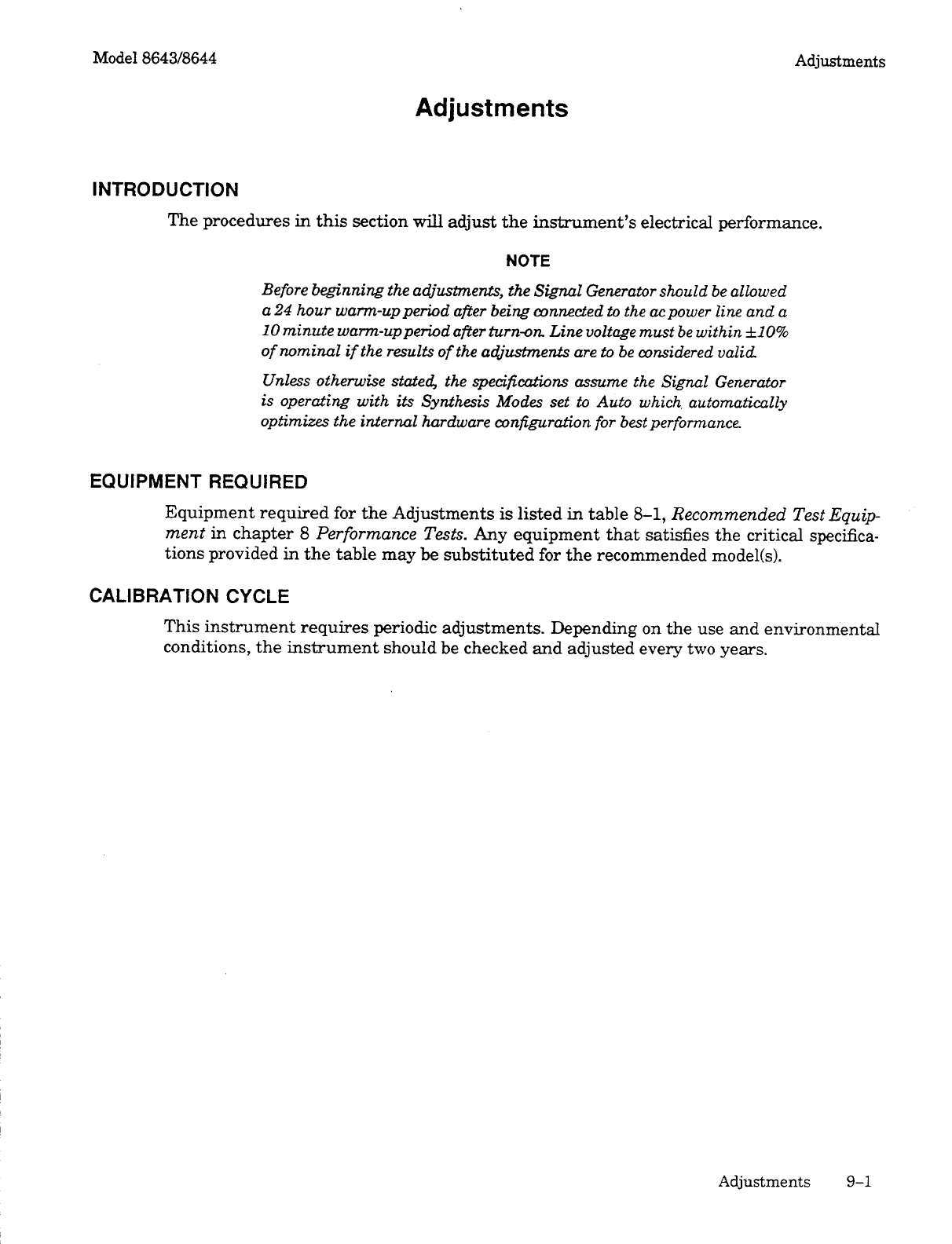

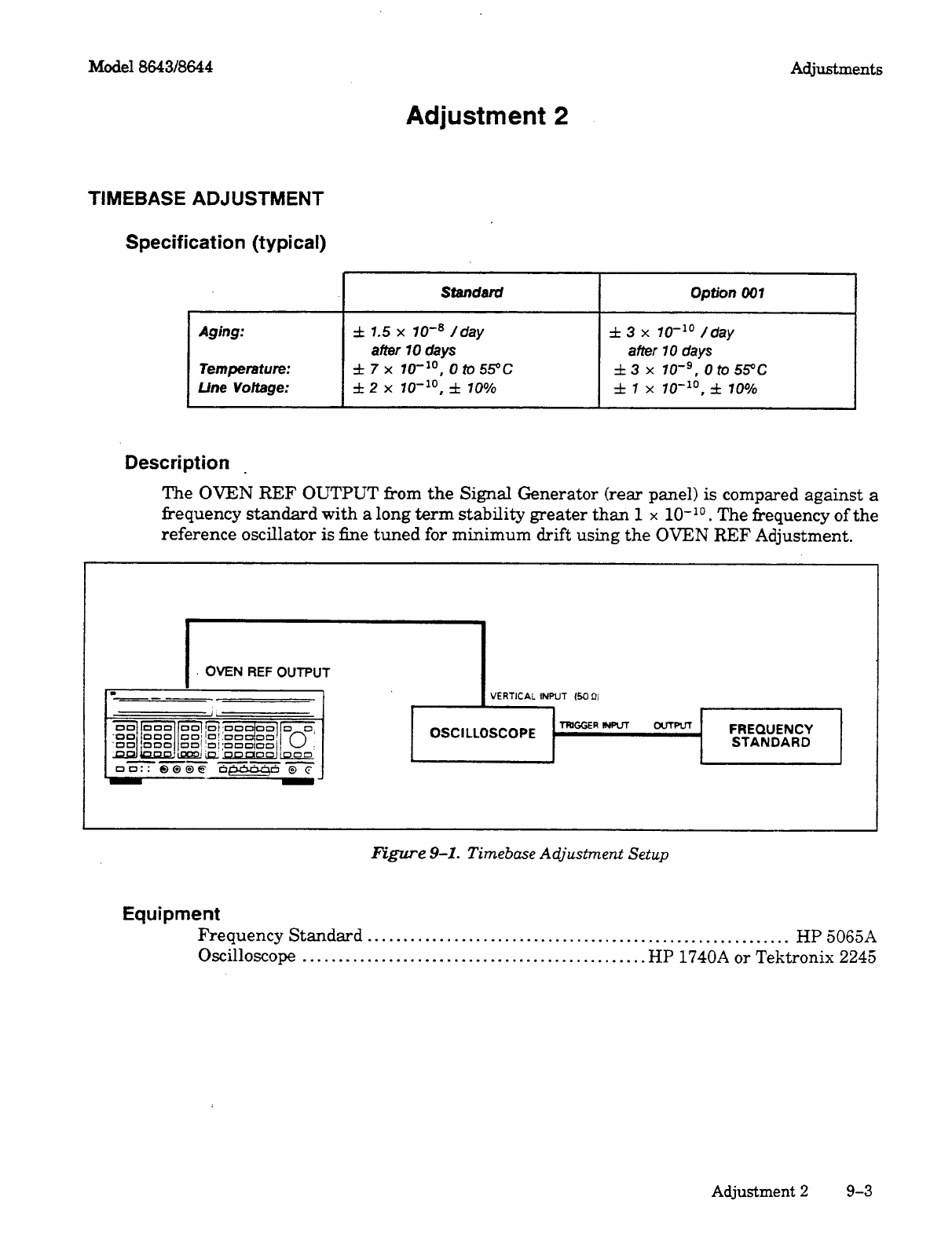

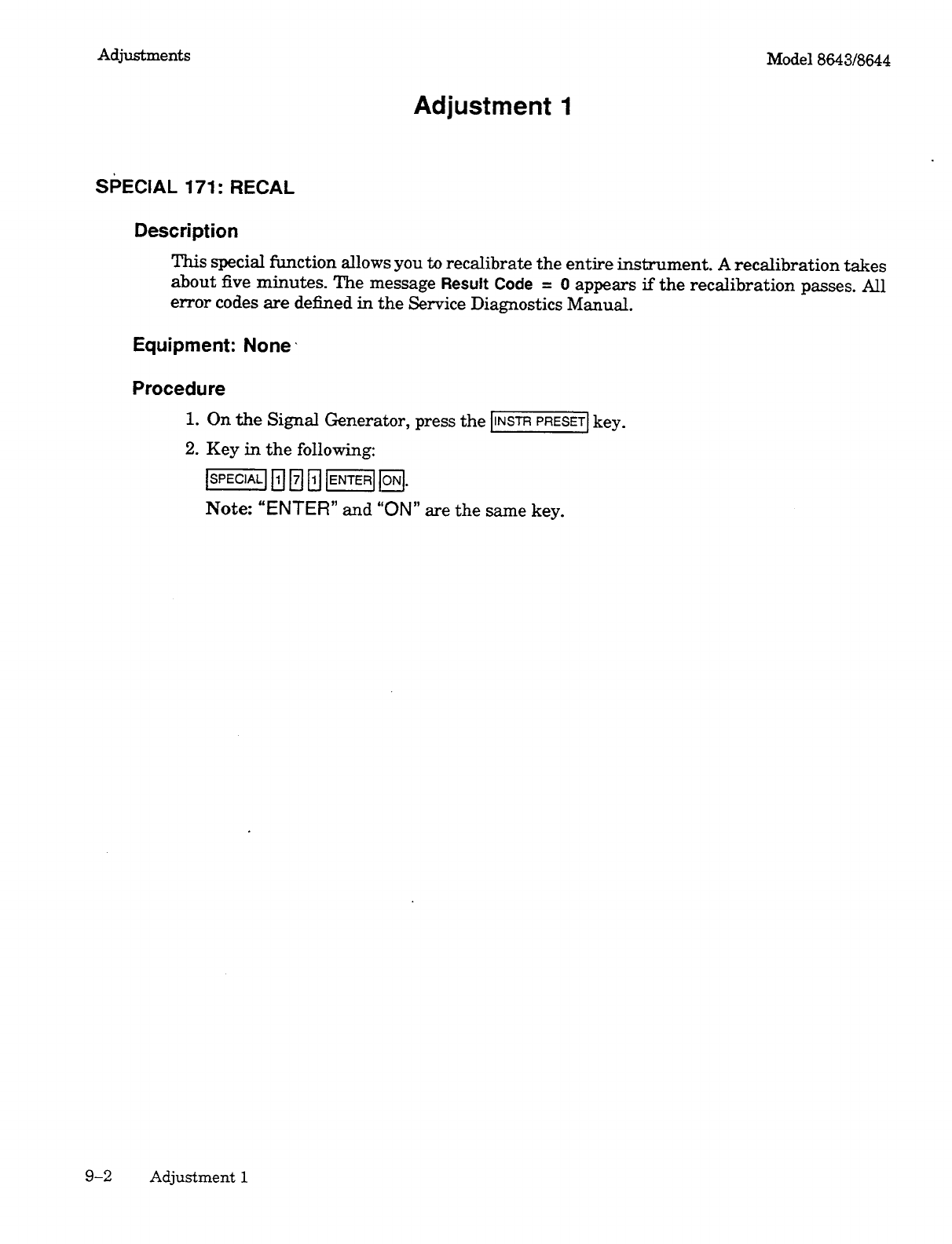

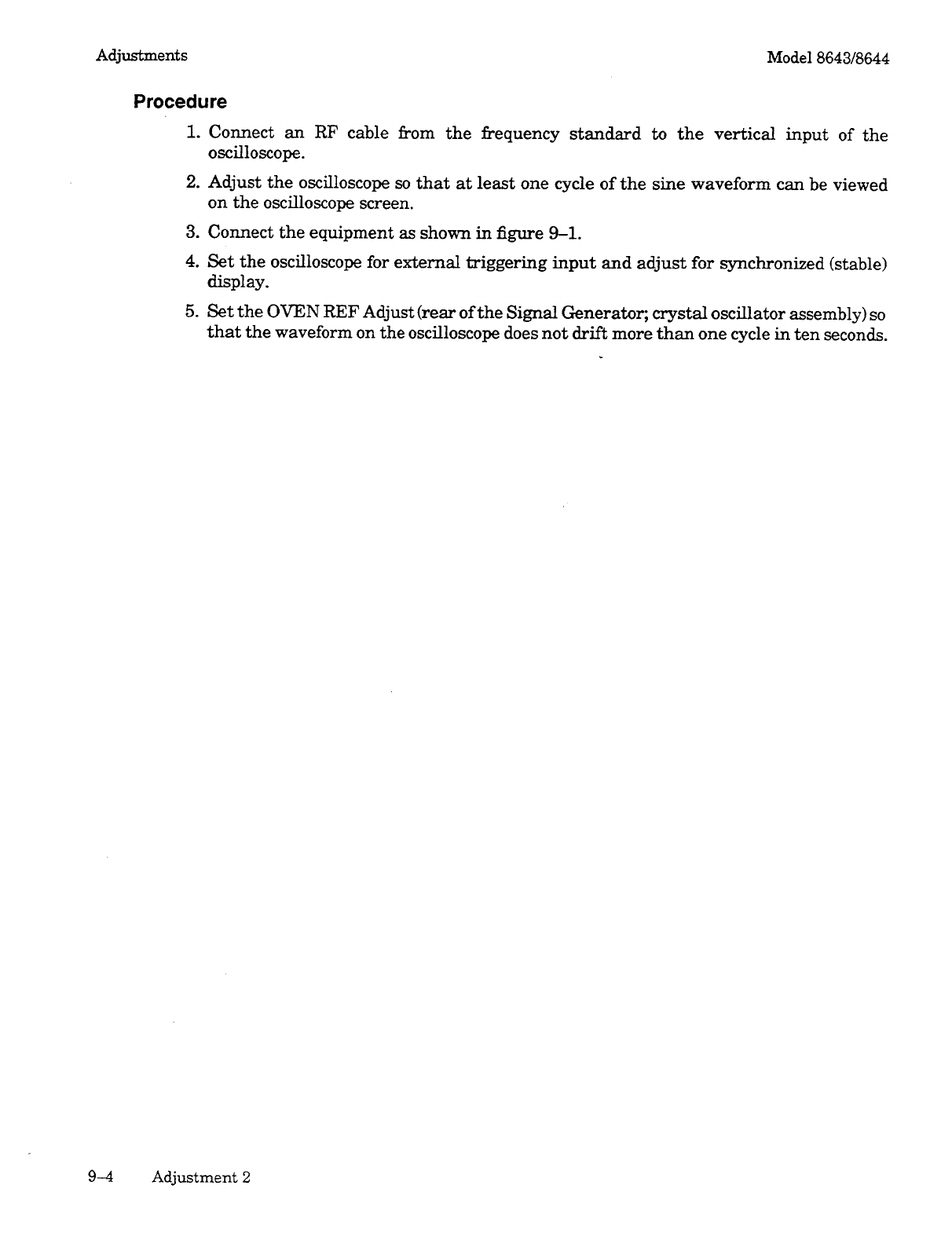

- Chapter 9-Adjustments

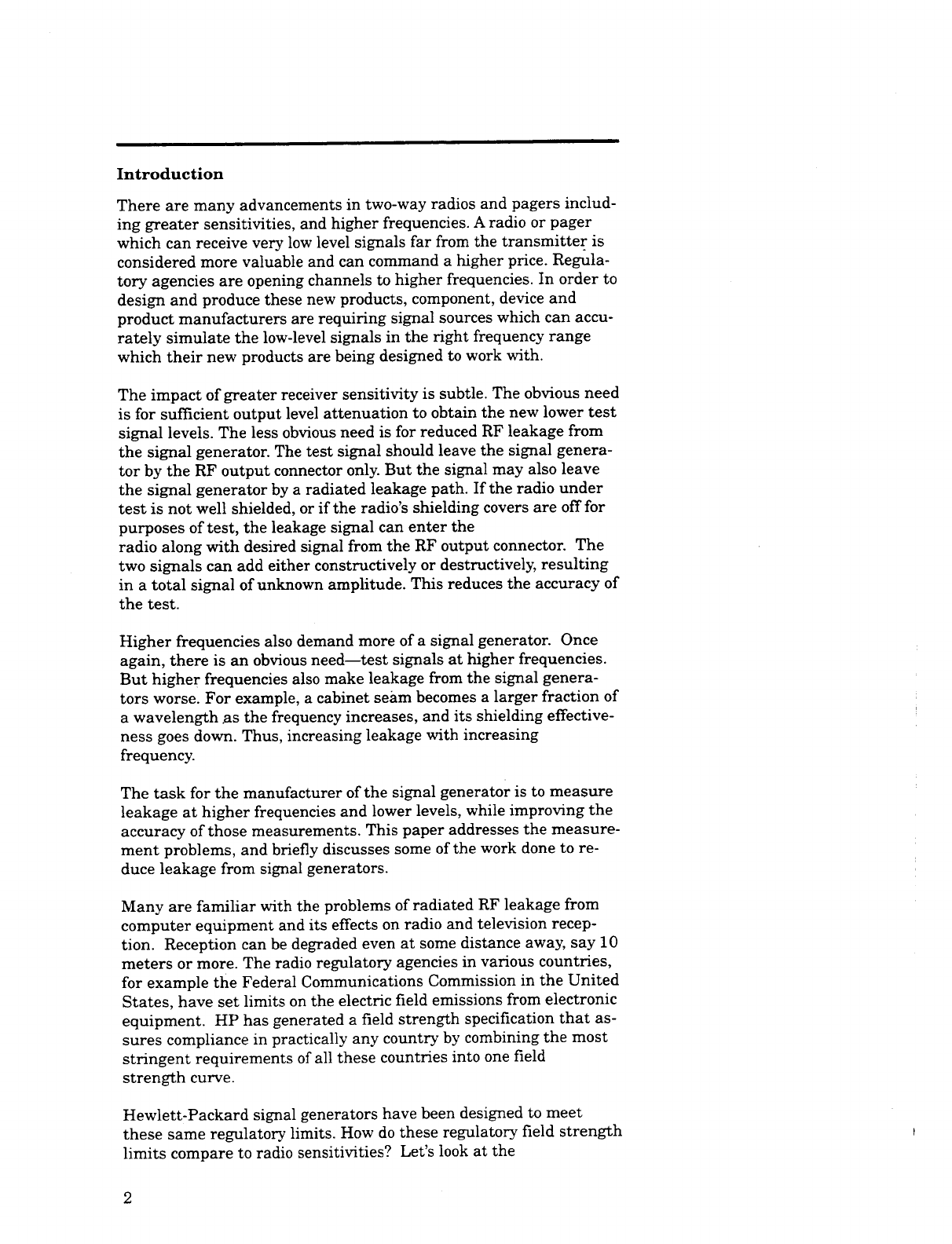

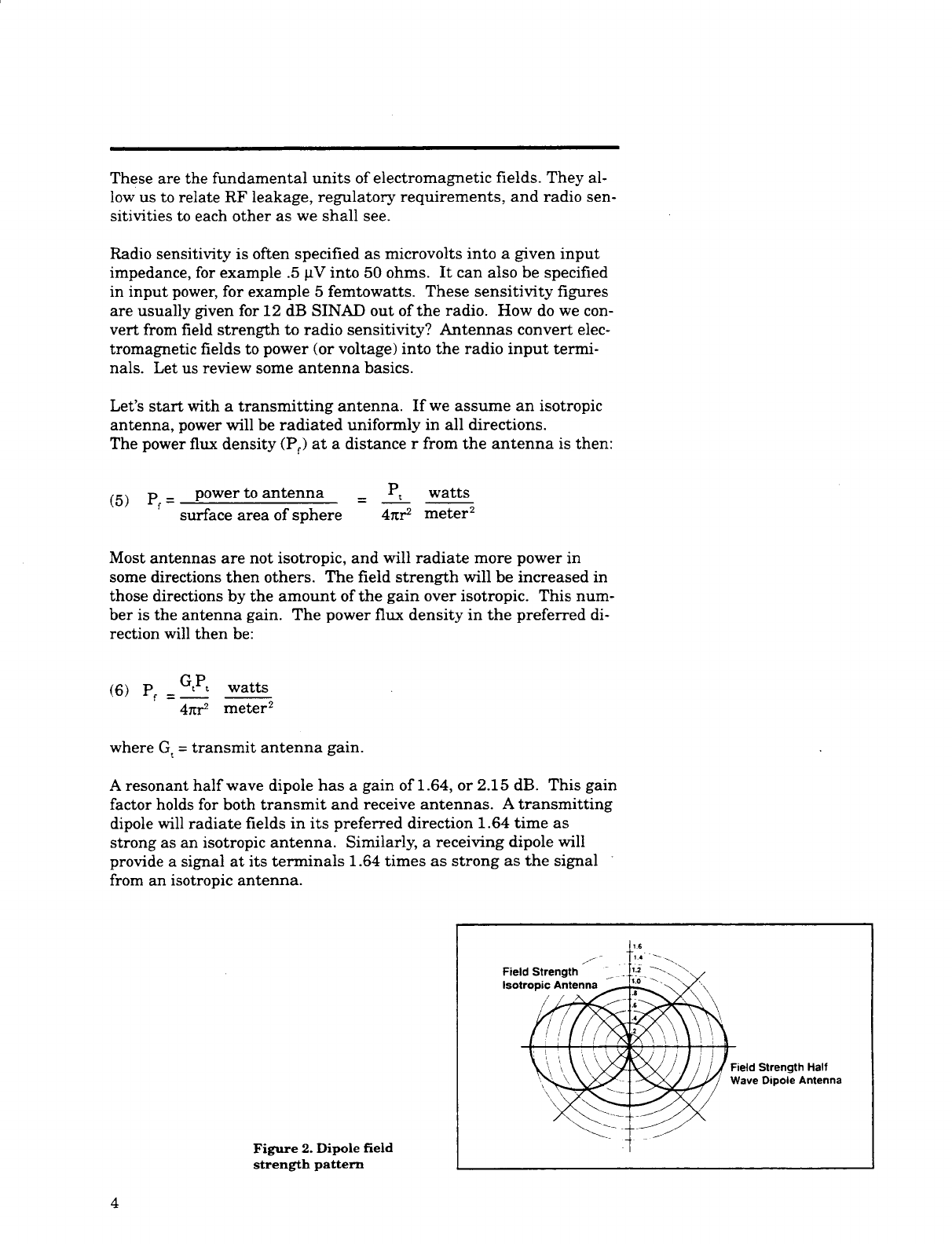

- errata_large.pdf
About this Manual
We’ve added this manual to the Agilent website in an effort to help you support
your product. This manual is the best copy we could find; it may be incomplete
or contain dated information. If we find a more recent copy in the future, we will
add it to the Agilent website.
Support for Your Product
Agilent no longer sells or supports this product. Our service centers may be able
to perform calibration if no repair parts are needed, but no other support from
Agilent is available. You will find any other available product information on the
Agilent Test & Measurement website, www.tm.agilent.com.
HP References in this Manual
This manual may contain references to HP or Hewlett-Packard. Please note that
Hewlett-Packard's former test and measurement, semiconductor products and
chemical analysis businesses are now part of Agilent Technologies. We have
made no changes to this manual copy. In other documentation, to reduce
potential confusion, the only change to product numbers and names has been in
the company name prefix: where a product number/name was HP XXXX the
current name/number is now Agilent XXXX. For example, model number
HP8648A is now model number Agilent 8648A.
