ACM System Admin Guide

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 174 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Wall Street Systems – Empowering Treasury Trade and Settlement
www.wallstreetsystems.com
Wallstreet Suite
Accounting Module
System Administration Guide
Version 7.3.14
2
Information in this document is subject to change without notice and does not represent a commitment on the part
of Wall Street Systems. The software and documentation, which includes information contained in any databases,
described in this document is furnished under a license agreement or nondisclosure agreement and may only be
used or copied in accordance with the terms of the agreement. It is against the law to copy the software or
documentation except as specially allowed in the license or nondisclosure agreement. No part of this publication
may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Wall Street Systems.
Although Wall Street Systems has tested the software and reviewed the documentation, Wall Street Systems
makes herein no warranty or representation, either expressed or implied, with respect to software or
documentation, its quality, performance, marketability, or fitness for a particular purpose. As a result, this
software is provided "as is", and in no event will Wall Street Systems be liable for direct, indirect, special,
incidental, or consequential damages from any defect in the software or by virtue of providing this
documentation, even if advised of the possibility of such damages. The documentation may contain technical
inaccuracies and omissions.
The mention of an activity or instrument in this publication does not imply that all matters relating to that activity or
instrument are supported by Wallstreet Suite, nor does it imply that processing of or by that activity or instrument is
carried out in any particular way, even if such processing is customary in some or all parts of the industry.
The windows and screen images shown herein were obtained from prototypes during software development. The
actual windows and screen images in the software may differ.
Wall Street Systems, WSS, WALLSTREET, WALLSTREET SUITE and the Wall Street Systems logos are
trademarks of Wall Street Systems Delaware, Inc.
Finance KIT, Trema and Trema logo are trademarks of Wall Street Systems Sweden AB.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
All other products mentioned in this book may be trademarks or service marks of their respective companies or
organizations.
Company names, people names, and data used in examples are fictitious unless otherwise noted.
This edition applies to Wallstreet Suite version 7.3.14 and to all later releases and versions until indicated in new
editions or Wall Street Systems communications. Make sure you are using the latest edition for the release level of
the Wall Street Systems product.
© Copyright 2011 Wall Street Systems IPH AB. All rights reserved.
First Edition (April 2011)
Accounting Module System Administration Guide 3
Contents
Preface .............................................................................................................................9
How to use this guide .................................................................................................................... 9
How to rotate pages in Acrobat Reader ...................................................................................... 9
Methodology ................................................................................................................................ 9
Using the script examples ........................................................................................................... 9
IMPORTANT! UTF-8 encoding ................................................................................................... 9
Copying and pasting script examples ......................................................................................... 9
Associated documents ................................................................................................................ 10

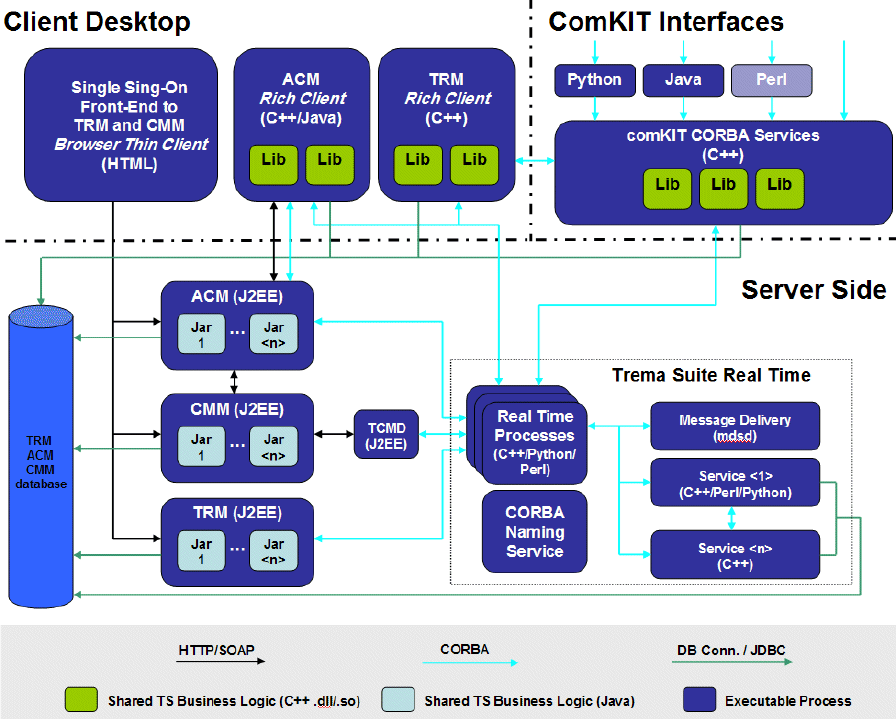

1 System architecture ..................................................................................................11
1.1 Overview ................................................................................................................................ 11
1.2 Application server ................................................................................................................. 11
1.3 Database ................................................................................................................................ 11
1.4 Shared components .............................................................................................................. 11
2 Hardware requirements ............................................................................................15
3 Database maintenance .............................................................................................17
3.1 Building the database ........................................................................................................... 17
3.1.1 Oracle ............................................................................................................................. 17
3.1.2 Microsoft SQL Server ......................................................................................................19
3.1.3 Sybase ............................................................................................................................ 19
3.2 Manual database upgrade .................................................................................................... 20
3.2.1 Upgrading from version before 7.2.2.1 ........................................................................... 20
3.2.2 Upgrading from 7.2.2.1 ................................................................................................... 22
3.3 Enabling SDM on a non-SDM system ................................................................................. 23
3.4 Performance tuning .............................................................................................................. 24
4 ACM server configuration and maintenance ..........................................................25
4.1 ORB services configuration ................................................................................................. 25
4.1.1 Client side ....................................................................................................................... 25
4.1.2 Server side ...................................................................................................................... 25
4.1.3 Specific configuration use cases ..................................................................................... 26
4.1.3.1 BiDirectional setting for ACM Reports .................................................................. 26
4.1.3.2 ACM Server IP setting on machine with multiple network interfaces .................... 27
4 © Wall Street Systems IPH AB - Confidential
4.2 Memory settings .................................................................................................................... 27
4.3 Logging .................................................................................................................................. 28
4.3.1 Server log file size ........................................................................................................... 28
4.3.2 Server log file appender ..................................................................................................28
4.4 Connection Pool setup ......................................................................................................... 29
4.5 Time zones setup .................................................................................................................. 29
5 ACM client configuration and maintenance ...........................................................31
5.1 Verifying ACM menu ............................................................................................................. 31
5.2 Setting Accounting Manager directory ............................................................................... 31
5.3 SSL setup ............................................................................................................................... 32
5.3.1 SSL without client authentication .................................................................................... 32
5.3.2 SSL with client authentication ......................................................................................... 32
5.3.3 Example .......................................................................................................................... 32
5.4 ORB configuration ................................................................................................................ 33
6 Using accounting administrator tools ....................................................................35
6.1 Accounting dynamic data verification report ..................................................................... 35
6.1.1 Introduction ..................................................................................................................... 35
6.1.1.1 Ledger independent checks ................................................................................. 35
6.1.1.2 Perspectives checks ............................................................................................. 35
6.1.1.3 Stored balances checks ....................................................................................... 35
6.1.1.4 Voucher balances checks ..................................................................................... 36
6.1.1.5 Account properties checks ................................................................................... 36
6.1.1.6 Posting checks ..................................................................................................... 36
6.1.1.7 All checks ............................................................................................................. 36
6.1.2 Starting the report ........................................................................................................... 37
6.1.3 Starting parameters ........................................................................................................ 37
6.1.4 Report layouts ................................................................................................................. 37
6.1.5 Report drill-downs ........................................................................................................... 38
6.1.6 Report output example .................................................................................................... 38
6.2 Accounting System Administration Task activity .............................................................. 38
6.2.1 Introduction ..................................................................................................................... 38
6.2.2 Starting parameters ........................................................................................................ 39
6.2.3 Activating workflow ......................................................................................................... 39
6.2.3.1 ACM-ERP-SAP-RETRY-STOP workflow ............................................................ 40
6.2.3.2 Other workflows .................................................................................................... 40
6.2.4 Saving ERP document to file .......................................................................................... 40
6.2.5 Setting accounting system log level ................................................................................ 40
6.2.6 Setting system properties ............................................................................................... 41
7 Setting up security ....................................................................................................43
7.1 Storing the ACM Server password ...................................................................................... 43
7.2 Managing permissions ......................................................................................................... 43
Accounting Module System Administration Guide 5
7.2.1 Static data permissions ...................................................................................................44
7.2.1.1 Domain permissions ............................................................................................. 44
7.2.1.2 Object permissions ............................................................................................... 45
7.2.2 Accounting user groups .................................................................................................. 48
7.2.3 Ledger permissions ......................................................................................................... 49
7.2.3.1 Ledger permissions for activities .......................................................................... 49
7.2.3.2 Ledger permissions for reports ............................................................................. 49
7.2.3.3 Ledger permissions for voucher states ................................................................. 50
8 Customizing accounting framework .......................................................................51

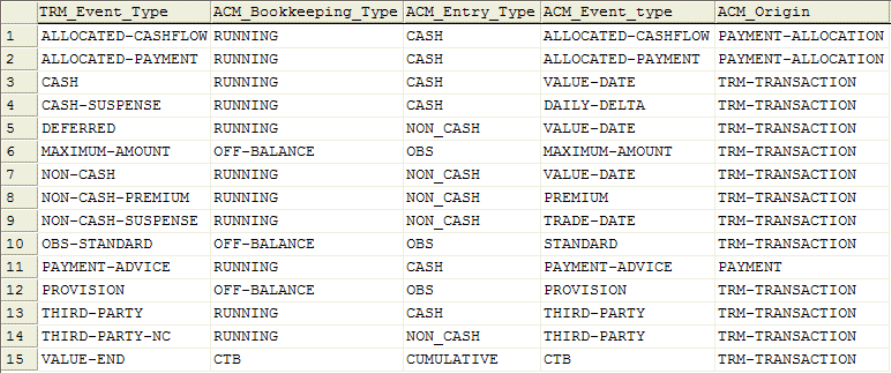

8.1 TRM accounting inputs and events generation ................................................................. 51
8.1.1 Customizing inputs generation ........................................................................................ 51
8.1.2 Customizing events generation ....................................................................................... 53
8.2 CLM accounting inputs and events generation ................................................................. 54
8.2.1 Customizing inputs generation ........................................................................................ 54
8.2.2 Customizing events generation ....................................................................................... 55
8.3 Accounting processing ........................................................................................................ 55
8.3.1 Customizing entries and vouchers .................................................................................. 56
8.3.1.1 Introduction ........................................................................................................... 56
8.3.1.2 BEFORE-MAPPING and BEFORE-POSTING customizations ............................ 57
8.3.1.3 AFTER-POSTING customization ......................................................................... 58
8.3.1.4 Customizations vs. Undo Accounting ................................................................... 60
8.3.1.5 Using csd_auxiliary field ....................................................................................... 60
8.3.1.6 Using CSD Auxiliary flag ...................................................................................... 60
8.3.1.7 Troubleshooting .................................................................................................... 61
8.3.2 Customizing transaction zero-sweeping granularity ....................................................... 61
8.3.3 Activity Parallelization ..................................................................................................... 62
8.4 Accounting reports ............................................................................................................... 63
8.4.1 Customizing report parameters and output columns ...................................................... 63
8.4.1.1 Report files ........................................................................................................... 63
8.4.1.2 Customizing columns ........................................................................................... 63
8.4.1.3 Customizing startup parameters ........................................................................... 64
8.4.1.4 Customizing postprocessors ................................................................................ 65
8.4.2 Customizing maximum rows in report ............................................................................. 66
8.4.3 Customizing drill-downs .................................................................................................. 66
8.4.4 Restricting list of offered ledgers ..................................................................................... 66
8.5 Accounting Manager ............................................................................................................. 67
8.5.1 Customizing drill-downs to the report generator ............................................................. 67
8.5.2 Customizing memory settings ......................................................................................... 67
8.5.3 Restricting list of offered ledgers ..................................................................................... 68
8.6 Hedge Manager ..................................................................................................................... 68
8.6.1 Hedge relation flow ......................................................................................................... 68
8.6.1.1 Default flow ........................................................................................................... 68
8.6.1.2 Flow customization ............................................................................................... 69
8.6.1.3 Conditioned flow ................................................................................................... 69
8.6.1.4 Calling CSDs from the flow ................................................................................... 71
6 © Wall Street Systems IPH AB - Confidential
8.6.2 Hedge Manager modes .................................................................................................. 73

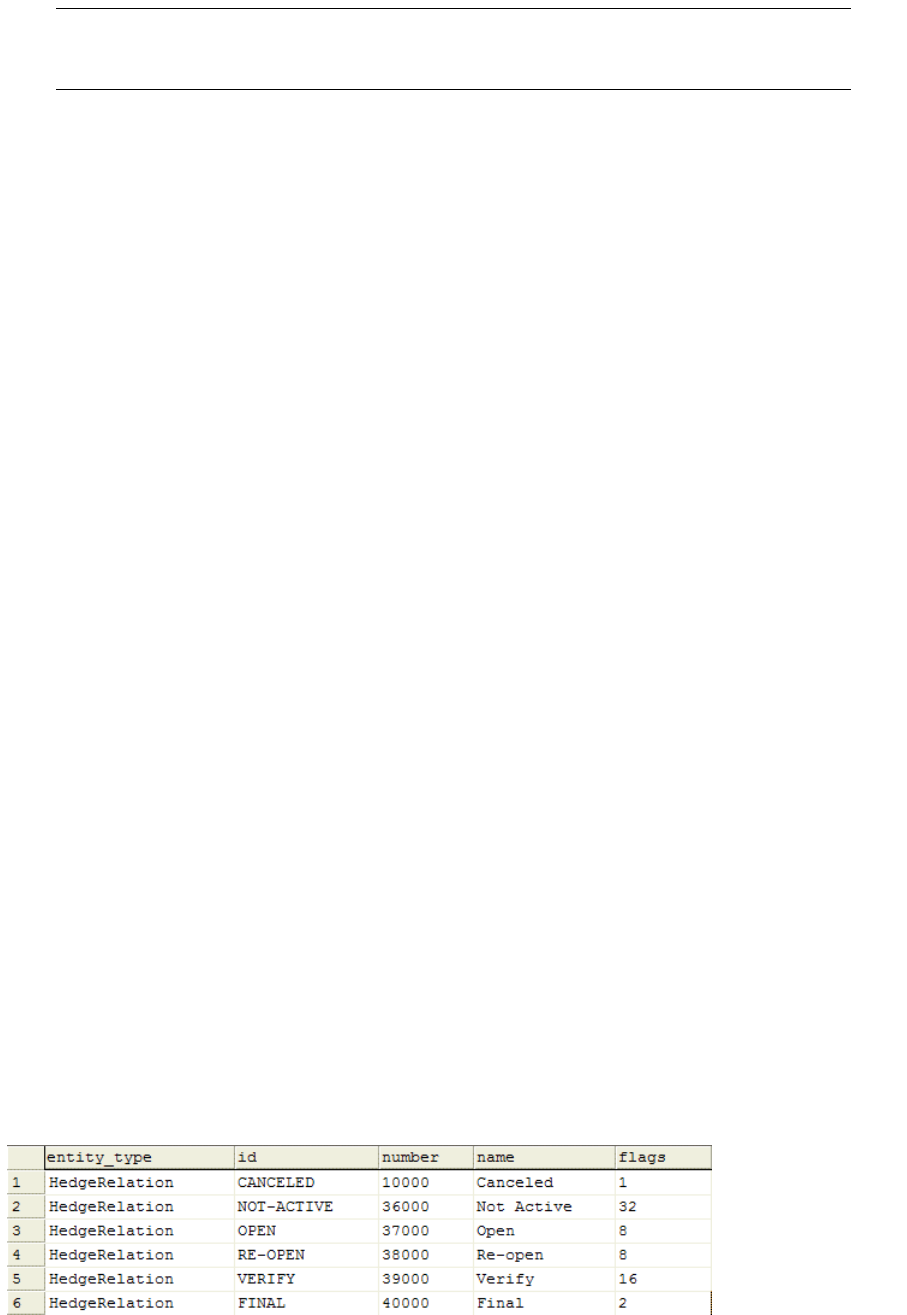

8.6.2.1 Hedge relation states vs. Hedge Manager commands ......................................... 73
8.6.2.2 Default modes ...................................................................................................... 74
8.6.2.3 Modes customization ............................................................................................ 74
8.6.3 Hedge Managers per result modes ................................................................................. 75

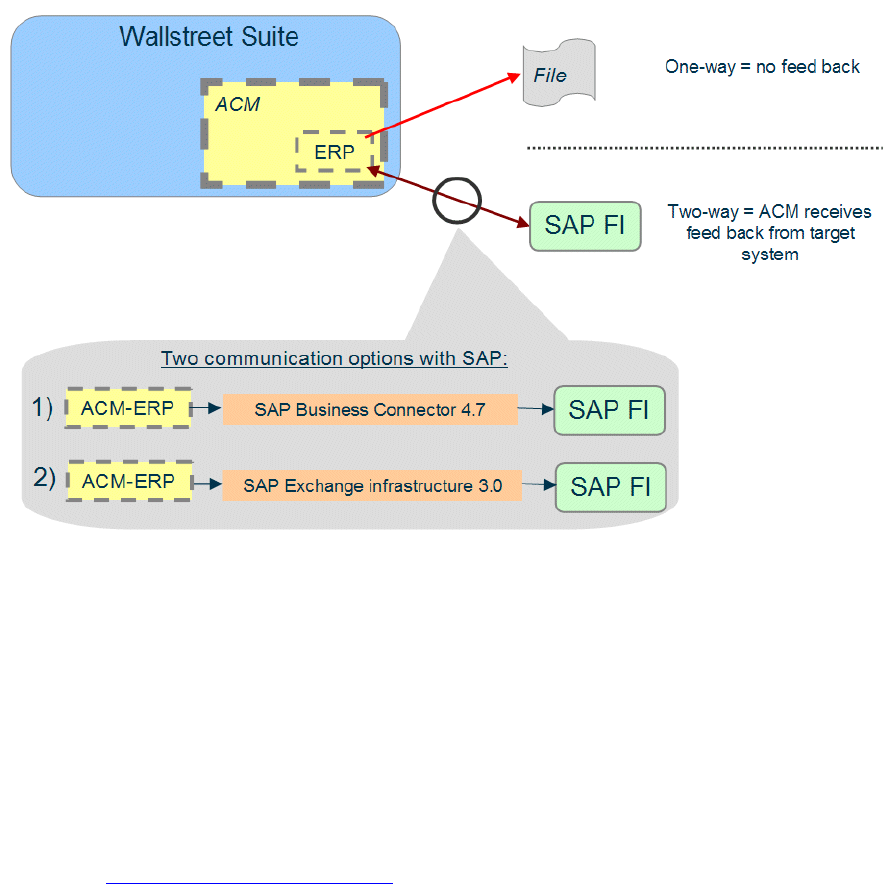

9 Interfacing with ERP .................................................................................................77

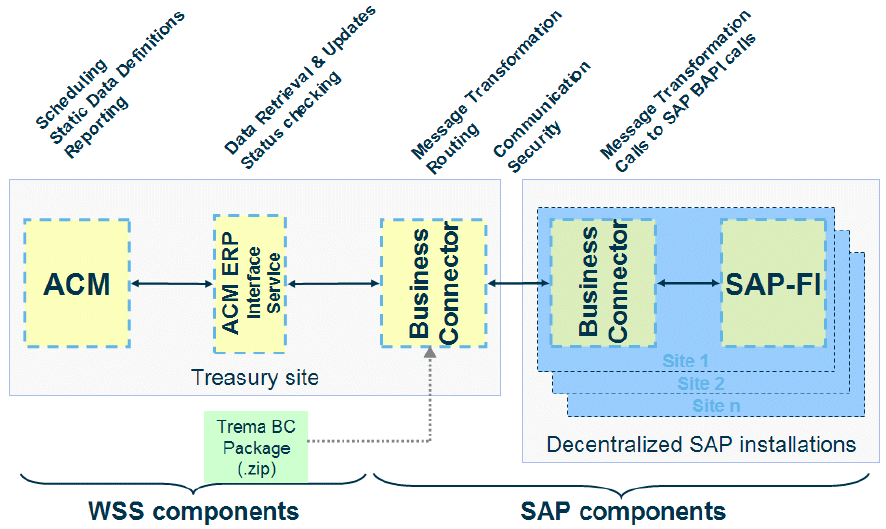

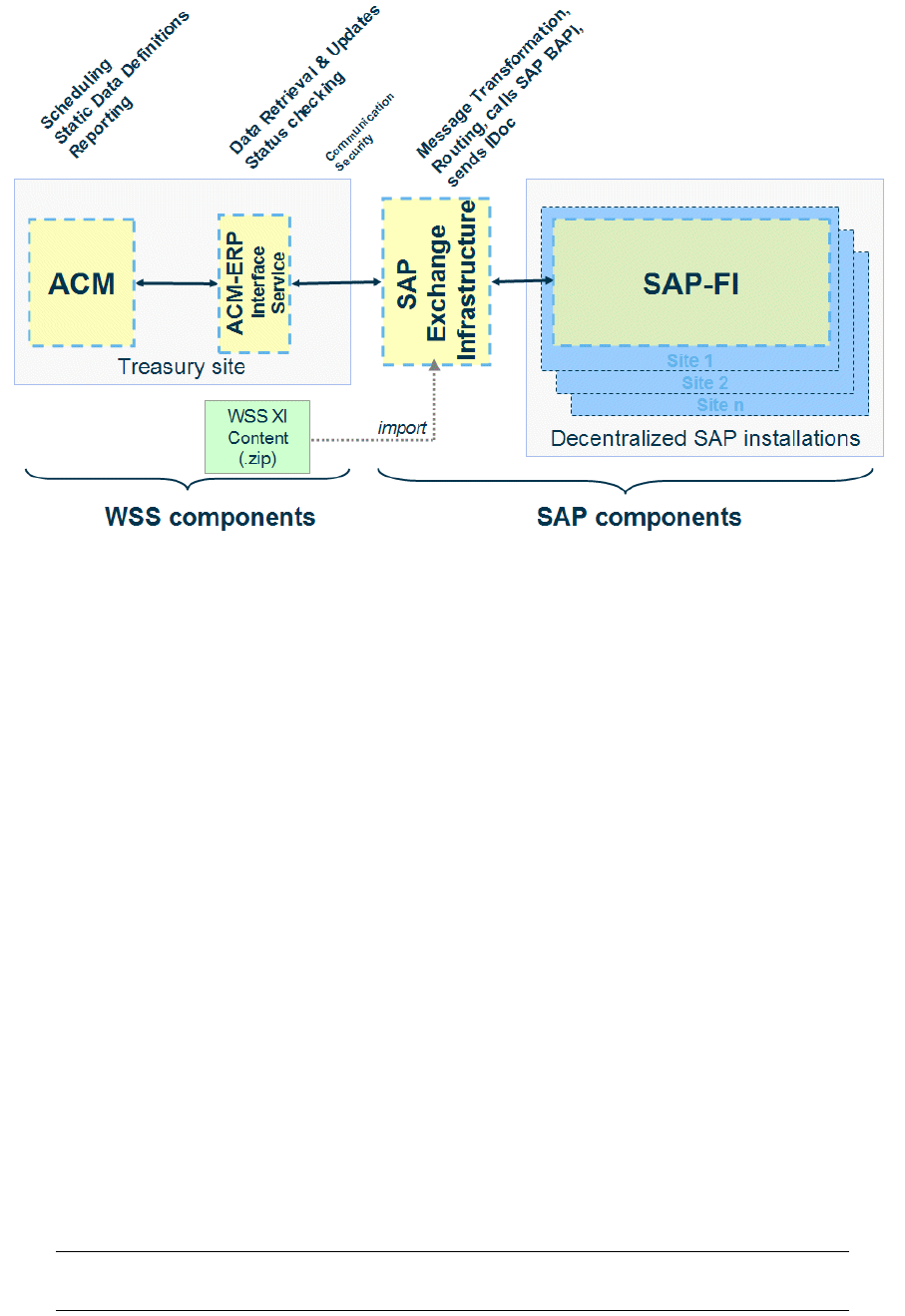

9.1 Technical overview ............................................................................................................... 77
9.2 Interfacing with SAP ............................................................................................................. 78
9.2.1 Using SAP Business Connector ..................................................................................... 79
9.2.2 Using SAP Exchange Infrastructure ............................................................................... 79
9.3 ERP Document Key adjustment .......................................................................................... 80
9.3.1 ERP Document Key mechanism ..................................................................................... 80
9.3.2 ERP Document Key example ......................................................................................... 81
9.3.3 Possible problems if exporting to SAP ............................................................................ 81
9.3.3.1 WSS database vs. SAP containing some previous exports ................................. 81

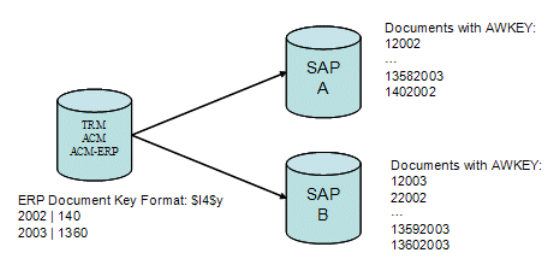

9.3.3.2 Multiple WSS to one SAP ..................................................................................... 83
9.4 Using Targets 2 and 3 in Account Mode ............................................................................. 84
9.5 Customizations ..................................................................................................................... 84
9.5.1 XSL transformation ......................................................................................................... 84
9.5.2 Customization via reports ............................................................................................... 85
9.5.3 Support for special characters in the ERP document ..................................................... 85
9.6 Troubleshooting .................................................................................................................... 86

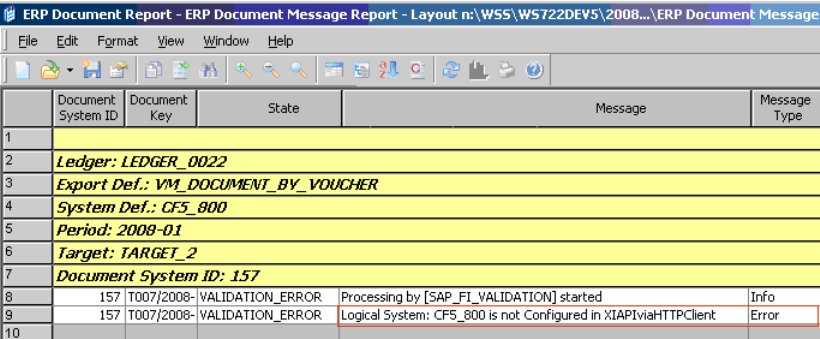

9.6.1 Logical System: XY is not configured in XIAPIviaHTTPClient ........................................ 86
9.6.1.1 Symptoms ............................................................................................................. 86
9.6.1.2 Resolution ............................................................................................................. 87
10 Accounting Balances Snapshot API .....................................................................91

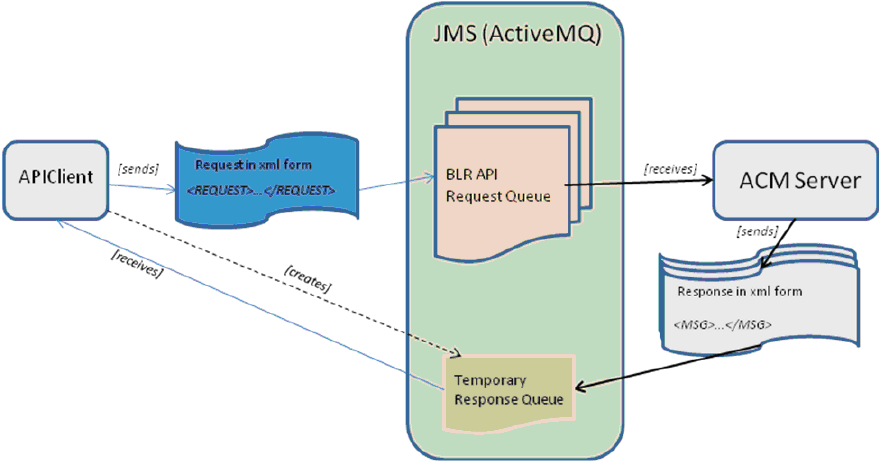

10.1 Technical overview ............................................................................................................. 91
10.2 Message structure .............................................................................................................. 93
10.2.1 Request Message Structure ......................................................................................... 93
10.2.2 Response message structure ....................................................................................... 93
10.2.2.1 Regular response message structure ................................................................. 93
10.2.2.2 Stable vs. not stable snapshot ............................................................................ 94
10.2.2.3 Balance Structure ............................................................................................... 94
10.2.2.4 Error Message .................................................................................................... 97
10.2.2.5 Closing message structure ................................................................................. 97
10.3 API usage example ............................................................................................................. 97
10.4 Other configuration parameters ........................................................................................ 98
11 Factory accounting data upload ..........................................................................101
11.1 Loading factory accounting data ..................................................................................... 101
Accounting Module System Administration Guide 7
12 Tips for migration to ACM ....................................................................................103
12.1 Using the Migration Date .................................................................................................. 103
12.2 Upload of manual vouchers for open TRM transactions .............................................. 103
12.3 Manually entered PRE-BOOKED vouchers .................................................................... 104
12.4 Starting-up time to maturity feature ................................................................................ 105
Appendix A: Event DIMs structure .......................................................................................107
A.1 Accounting Event ............................................................................................................... 107
A.2 Entity Event ......................................................................................................................... 111

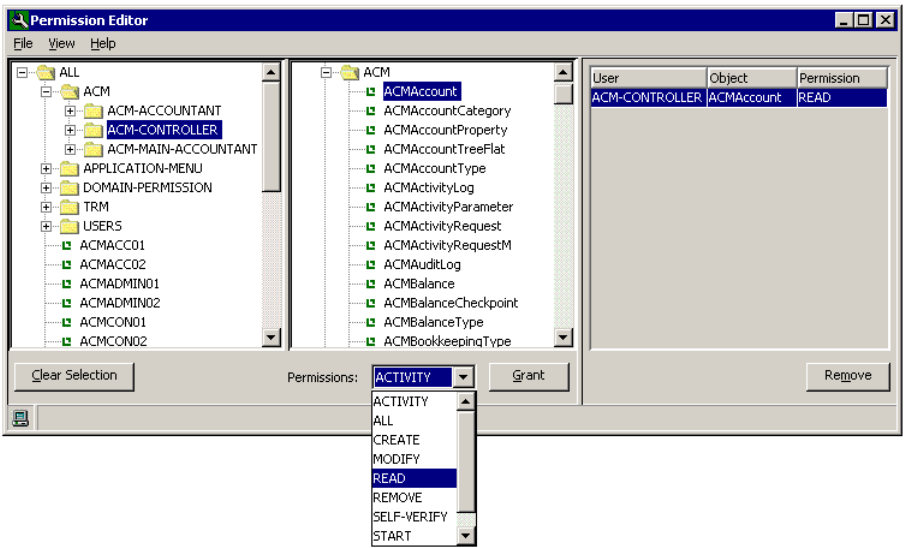

Appendix B: Object permissions..........................................................................................115
B.1 ACM permissions ............................................................................................................... 115
B.2 ACM objects with permissions per ACM user groups .................................................... 115
B.3 ACM-MAIN-ACCOUNTANT vs. ACM-ADMIN .................................................................... 132
B.4 ACM-ACCOUNTANT vs. ACM-MAIN-ACCOUNTANT ....................................................... 132
B.5 Handling of M tables .......................................................................................................... 133
Appendix C: ERP document structure .................................................................................135
C.1 ERP output - description in table ...................................................................................... 135
C.2 ERP output - description by XSD ...................................................................................... 139
C.3 ERP output in XML format - example ............................................................................... 156
C.3.1 About the structure ....................................................................................................... 156
C.3.2 Example for Voucher Mode .......................................................................................... 157
C.3.3 Example for Account Mode by balance ........................................................................ 160
Appendix D: ACM environment variables............................................................................163
Appendix E: Secure Socket Layer (SSL)..............................................................................167
E.1 Basic SSL terms ................................................................................................................. 167
E.2 System setup ...................................................................................................................... 168
Appendix F: TRM FX conversion ..........................................................................................169
Appendix G: Event Type mapping to ACMEntry .................................................................173
8 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 9
Preface
Welcome to the Accounting Module System Administration Guide. This guide describes the system
administrative tasks required for the Wallstreet Suite Accounting Module (ACM). The guide also
includes a few tips, how to customize the default accounting behavior of the system.
This guide is intended for system administrators, who maintain and administer ACM, and the
technical consultants implementing the system. They all should have experience with the following:
•The particular database and operating system platforms being used
•3-tier architecture concepts
•Network configuration and maintenance
•TRM installation.
How to use this guide
How to rotate pages in Acrobat Reader
Some pages in this book have graphics rotated so that they can fit on the page. To see these
normally on your computer monitor, use the View - Rotate View menu option in Acrobat Reader,
or the equivalent keyboard shortcuts: Shift+Ctrl+Plus keys and Shift+Ctrl+Minus keys.
Methodology
There is no single "correct" way of administrating ACM. This guide proposes one way which can be
used as a basis.
Using the script examples
Included in this guide are scripts that you can use during administration. These are examples, and
therefore use some values that you must change to suit your administration.
IMPORTANT! UTF-8 encoding
From TRM version 7.1, all SQL scripts use UTF-8 encoding. When copying and pasting script
examples, ensure that your text editor or terminal console supports UTF-8. Otherwise, characters
that are outside the 7-bit ASCII character range can be inadvertently changed, and the database
tools that you use may not warn you that a problem has occurred.
Copying and pasting script examples
You can copy script examples by opening this guide in Adobe Acrobat or Acrobat Reader, then
pasting the clipboard contents into a plain text editor. However, if the script starts on one page and
ends on another, you should ensure that you do not copy a block of text that goes over a page
boundary; if you do this, you will find unwanted data being inserted into the script. To avoid this:
•In Acrobat, Select the Text tool (the mouse pointer becomes an "I" bar).
•In Acrobat, select and copy only as far as the end of the page.
10 © Wall Street Systems IPH AB - Confidential
•In the plain text editor, paste the text.
•In Acrobat, select and copy from the top of the next page.
•And so on.
Warning: Some code lines in this book may be too long to be displayed as a single line and as
such they are displayed on more lines. When you paste such code into an editor, it
will be pasted as more lines of code. Please remember to remove the unwanted line
breaks.
Associated documents
Associated documents can be accessed from the Help menu of the Wallstreet Suite’s applications.
Accounting Module System Administration Guide 11
Chapter 1 System architecture
This chapter outlines the key concepts of ACM architecture. A technical understanding of the overall
ACM architecture is a prerequisite for correct ACM administration and customizaition.
1.1 Overview
•ACM is based on a 3-tier architecture containing client applications, a J2EE application server,
and a database server.
•ACM is installed as an add-on module to TRM:
–ACM uses some core TRM components in all tiers (client, application server, and database).
–TRM has to be fully installed and operational prior to ACM installation. The versions of TRM
and ACM must match.
1.2 Application server
•J2EE based, allows deployment under Apache Tomcat or BEA Weblogic.
•Executes the business logic of the ACM application.
•Uses connection pooling in order to use database resources efficiently. Connections are open
under a privileged application server user acmdbo
1.3 Database
•ACM builds and uses its specific database objects (tables, views, stored procedures etc.) in the
same database as TRM.
•ACM accesses some TRM database objects (security model, shared static data entities,
interfacing tables).
1.4 Shared components
These are components delivered with TRM and used by ACM:
•Static Data Framework – all ACM editors are implemented as SDF editors. The binaries from the
TRM installation are executed when any ACM editor is launched.
•Report Generator.
•Naming Service.
1 System architecture
1.4 Shared components
12 © Wall Street Systems IPH AB - Confidential
•TRM Message Delivery System (mdsd).
•Subset of TRM database objects (tables, stored procedures, views) in the database.
•TRM database build script (extended by ACM-specific features).

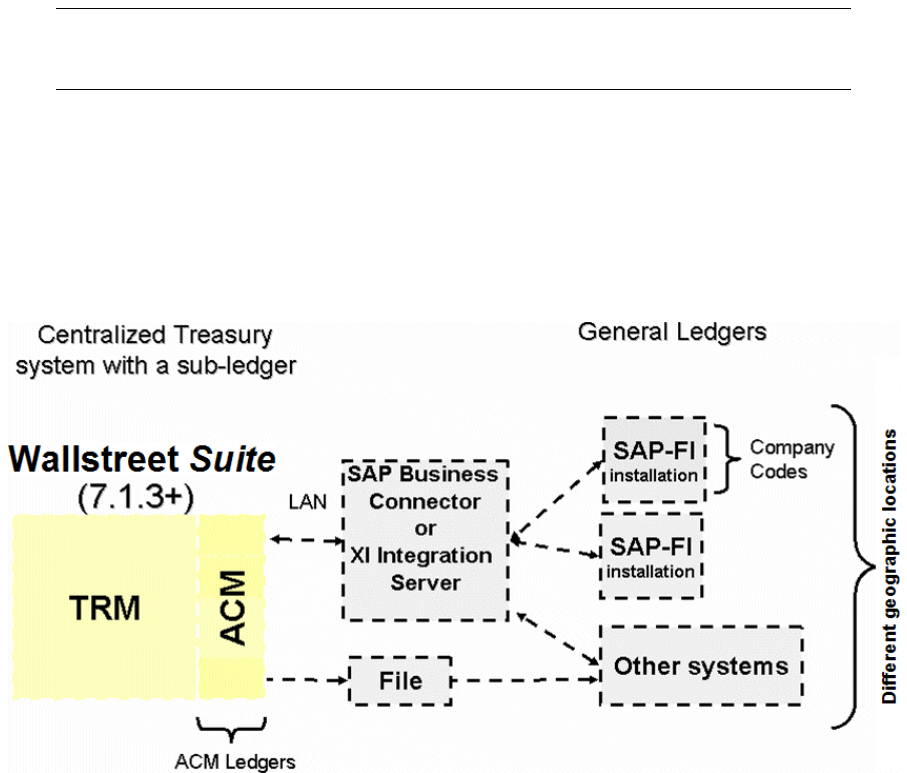

The following picture shows the the overall Wallstreet Suite architecture:
The diagram depicts several important aspects, namely in the area of communication between the
key components:
•ACM Client
–ACM editors are SDF based and consequently they communicate with the ACM database via
the standard TRM components (database connection).
–ACM reports are based on the TRM Report Generator. ACM reports use the capability to
invoke its data source as a CORBA service. ACM implements this CORBA server inside its
application server. ACM registers with the naming service (shared with TRM) under the
context finance-kit/<FK_IDENT> as service report_datasource. <FK_IDENT> represents the
real value,for example PROD or TEST1: FK_IDENT is a mandatory TRM environment variable.
–ACM Entry Manager communicates with ACM Application Server via the HTTP protocol. The
ACM Application Server business logic is implemented as servlets running inside the J2EE
container.
•ACM Application Server
–ACM Application Server is registered as a listener to mdsd events in order to be notified
about static data changes in TRM. Therefore it is essential that mdsd is operational for
applications to behave correctly.
1 System architecture
1.4 Shared components
Accounting Module System Administration Guide 13
–ACM Application Server communicates with CMM via the Web Services interface in order to
exchange accounting data. Consequently, on the network level, the HTTP protocol must be
enabled.
–ACM Application Server communicates with the TRM / ACM database via pooled JDBC
connections in order to use DB resources efficiently.
1 System architecture
1.4 Shared components
14 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 15
Chapter 2 Hardware requirements
ACM installation requires an installed and fully operational TRM database. The TRM database must
be exactly the same version as ACM (e.g. ACM version 7.1.0.7 requires TRM version 7.1.0.7)
ACM requires the same hardware as TRM (see the WSS Database Setup Guide). In addition, ACM
modifies and adds the following requirements:
For the ACM database server, a computer equipped with the following:
–TRM database server requirements
–An extra 500 MB of free disk space available need per each 100,000 accounting entries
in the system.
Oracle Database Server tablespace sizes:
For the ACM Server:
–TRM Real-time Server requirements
–An extra 500 MB of free disk space.
For the ACM Client:
–TRM client requirements
–An extra 200 MB of free disk space
–the network must be configured to allow the ACM Client computers communicating with the
ACM Application Server via the HTTP protocol on the ports specified in the ACM Application
Server configuration.
Note: ACM Application Server and ACM database can be installed either on a single machine or
on two dedicated machines if higher performance is required.
Tablespace Used by Minimum size
USERS ACM tables TRM size + 250MB per 100,000 entries
INDX ACM indexes TRM size + 250MB per 100,000 entries
WORK ACM temporary tables TRM size + 200MB
2 Hardware requirements
16 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 17
Chapter 3 Database maintenance
Correct database maintenance is one of the key assumptions of a correct system usage and
operation. You can read all about it in the WSS Database Setup Guide. That guide covers all three
supported databases: Oracle, MSSQL, and Sybase.
3.1 Building the database
ACM is installed into the same database (and into the same database schema for Oracle) as TRM.
Once the TRM database is installed, you simply add the ACM objects to those created for TRM.
For building the database objects, ACM uses a wrapper script acmbuild.pl around the TRM build
script (build.pl); this acm scripts adds some functionality to the TRM build script (for instance,
accounting perspective checking, extended validations, referencing integrity checking, etc.). All that
functionality is added into the generated stored procedures used by ACM editors, e.g. they are
added into the commit, remove, revert and search procedures.
The command line options for the ACM build are the same as for the TRM build script, i.e. all the
build script options (-U, -P, -S, etc.) as described in the appendix of the WSS Database Setup Guide
are valid for the ACM build too.
3.1.1 Oracle
This section describes the ACM database build process for Oracle. Follow these steps:
1. Check the connection to the Oracle database (replace <password> with the dbo user’s password)
Unix:
sqlplus dbo/<password>@$FK_DB_SERVER
Windows:
sqlplus dbo/<password>@%FK_DB_SERVER%
2. When successfully connected, type exit and press ENTER
If the connection fails, check that:
–tnsnames.ora contains a proper connection specification.
–Oracle client is properly installed.
–The database server you are connecting to is running.
–There is no network error.
3. Switch to the appropriate directory
Unix
cd $FK_HOME/share/oracle
Windows
cd /d %FK_HOME%\share\oracle
3 Database maintenance
3.1 Building the database
18 © Wall Street Systems IPH AB - Confidential
4. Build ACM database objects using the Perl script acmbuild.pl provided:
Unix:
./acmbuild -D $FK_DB_SERVER -U dbo -P <password> -t \* -V \* -p \* -g \* -u -w -v
Windows:
perl acmbuild.pl -D %FK_DB_SERVER% -U dbo -P <password> -t * -V * -p * -g * -u -w
-v
Warning: The -w option enables the database for the Static Data Manager (SDM). You should
include the -w option only if you are going to install SDM. Please note that it is
mandatory to install SDM for ACM when SDM has been installed for TRM.
5. Start an SQLPLUS session
Unix
sqlplus dbo/<password>@$FK_DB_SERVER
Windows
sqlplus dbo/<password>@%FK_DB_SERVER%
6. Recompile the invalid dbo’s stored objects (run inside the SQLPLUS session):
Unix
START $FK_HOME/share/oracle/migration/fast_recomp.sql
Windows
START %FK_HOME%\share\oracle\migration\fast_recomp.sql
7. Ensure that there are no invalid objects for the user dbo (run inside the SQLPLUS session)
select object_type, count(object_name) qty_invalid from user_objects where status
= 'INVALID' group by object_type;
8. Make sure that the last database build version finished is the same as the version of ACM you
installed:
select max(SPKGVersion) from ACMVersion where SParameters = 'finished';
9. Exit the SQLPLUS session by typing exit and pressing the ENTER key.
Notes
•It is necessary to escape the asterisks (*) with the backslashes for non-Windows platforms.
Replace <password> with the dbo user password in the command line examples.
•Owing to a bug in Oracle database server version 9.2.0.6 and some later versions, views using
ANSI joins become invalid when compiled under a user other than the view’s owner. If you use a
recompilation script run under the SYS user, then ACM views become invalid. Recompile ACM
views under the DBO user only. For the bug reference, see
https://metalink.oracle.com/metalink/plsql/showdoc?db=Bug&id=3466980
•Despite the fact that ACM Application Server uses the ORACLE_SID environment variable to
populate the ACM_JDBC_URL environment variable, the sqlplus command must be run with a
database name according to the local tnsnames.ora configuration file. Typically ORACLE_SID
contains the Oracle database SID while FK_DB_SERVER environment variable contains a TNS alias
from the local tnsnames.ora.
3 Database maintenance
3.1 Building the database
Accounting Module System Administration Guide 19
3.1.2 Microsoft SQL Server
This section describes the ACM database build process for MSSQL. Follow these steps:
1. Check the connection to the MSSQL database (replace <password> with the fk user’s password)
isql –S %FK_DB_SERVER% –d %FK_DATABASE% –U fk –P <password>
2. When successfully connected, type exit and press the ENTER key.
If the connection fails, check that
–The MSSQL client is properly installed.
–The database server you are connecting to is properly registered.
–The database server you are connecting to is running.
–You are using the MSSQL isql tool and not the Sybase isql tool. The MSSQL isql utility
path must be on system PATH prior to any path containing the Sybase isql utility.
–There is no network error.
3. Switch to the appropriate directory
cd /d %FK_HOME%\share\mssql
4. Build ACM database objects using the Perl script acmbuild.pl provided:
perl acmbuild.pl –S %FK_DB_SERVER% -D %FK_DATABASE% -U dbo -P <password> -t * -V
* -p * -g * -u -w -v
Warning: The -w option enables the database for the Static Data Manager (SDM). You should
include the -w option only if you are going to install SDM. Please note that it is
mandatory to install SDM for ACM when SDM has been installed for TRM.
5. Start an isql session:
isql –S %FK_DB_SERVER% –d %FK_DATABASE% –U fk –P <password>
6. Make sure that the last database build version finished is the same as the version of ACM you
installed:
select max(SPKGVersion) from ACMVersion where SParameters = 'finished'
go
7. Exit the isql session by typing exit and pressing the ENTER key.
3.1.3 Sybase
This section describes the ACM database build process for Sybase. Follow these steps:
1. Check the connection to the Sybase database (replace <password> with the fk user’s password)
isql –S %FK_DB_SERVER% –D %FK_DATABASE% –U fk –P <password>
2. When successfully connected, type exit and press the ENTER key.
If the connection fails, check that
–The Sybase client is properly installed.
–The database server you are connecting to is properly registered.
–The database server you are connecting to is running.
–You are using the Sybase isql tool and not the MSSQL isql tool. The Sybase isql utility
path must be on system PATH prior to any path containing the MSSQL isql utility.
–There is no network error.
3 Database maintenance
3.2 Manual database upgrade
20 © Wall Street Systems IPH AB - Confidential
3. Switch to the appropriate directory
cd /d %FK_HOME%\share\sybase
4. Build ACM database objects using the Perl script acmbuild.pl provided:
perl acmbuild.pl –S %FK_DB_SERVER% -D %FK_DATABASE% -U dbo -P <password> -t \* -V
\* -p \* -g \* -u -w -v
Warning: The -w option enables the database for the Static Data Manager (SDM). You should
include the -w option only if you are going to install SDM. Please note that it is
mandatory to install SDM for ACM when SDM has been installed for TRM.
5. Start an isql session:
isql –S %FK_DB_SERVER% –D %FK_DATABASE% –U fk –P <password>
6. Make sure that the last database build version finished is the same as the version of ACM you
installed:
select max(SPKGVersion) from ACMVersion where SParameters = 'finished'
go
7. Exit the isql session by typing exit and pressing the ENTER key.
3.2 Manual database upgrade
ACM upgrade depends on a version from which you start the upgrade.
•If your version, from which you start the upgrade, is 7.2.2.1 or later, follow just the guidelines
described in chapter 3.2.2 Upgrading from 7.2.2.1 on page 22.
•If your version, from which you start the upgrade, is older than 7.2.2.1, you have to upgrade to
7.2.2.1 version first as described in 3.2.1 Upgrading from version before 7.2.2.1 on page 20
and then you must continue the upgrade up to the just installing version according the
guidelines in chapter 3.2.2 Upgrading from 7.2.2.1 on page 22.
3.2.1 Upgrading from version before 7.2.2.1
All the upgrade tasks including the database upgrade should be done via the Suite Installer.
However, if there is a reason for it, you can perform the database upgrade manually.
ACM provides an automatic upgrade script to upgrade the database structures of ACM.
Before running the upgrade script, make sure that you have evaluated the TRM/ACM environment.
To run the script run the following commands (replace <db_platform> with one of the following:
oracle, mssql, sybase):
Unix:
cd $FK_HOME/share/<db_platform>
–Oracle:
./acmupgrade.pl -D <database_name> -U <user_name> -P <password> -w
–Sybase:
./acmupgrade.pl –S <server_name> -D <database_name> -U <user_name> -P
<password> -w
Windows:
3 Database maintenance
3.2 Manual database upgrade
Accounting Module System Administration Guide 21
cd %FK_HOME%\share\<db_platform>
–Oracle
perl acmupgrade.pl -D <database_name> -U <user_name> -P <password> -w
–MSSQL, Sybase
perl acmupgrade.pl –S <server_name> -D <database_name> -U <user_name> -P
<password> -w
Warning: The -w option enables the database for the Static Data Manager (SDM). You should
include the -w option only if you are upgrading an installation with SDM installed.
The acmupgrade.pl options are as follows:
-S <server_name> Database server name. This option is used for MSSQL and Sybase only.
-D <database_name> Database name (MSSQL, Sybase) or Oracle TNS alias set up on the local machine
-U <user_name> Username of the database objects owner (typically "DBO" for Oracle, "fk" for
MSSQL and Sybase)
-P <password> User password
-w Create or upgrade the SDM data structures. You should include the -w option
only if you are upgrading an installation with SDM installed.
-s <source> Source version of ACM, e.g. "7.1.1.0" (without the double quotes). Optional for
sources of version 7.1.1.0 or above. It is recommended to omit the parameter
when performing standard upgrade to the latest version. The upgrade script is
able to determine the installed ACM version reading the version info from the
database.
-d <destination> Destination version of ACM, e.g. "7.1.2.0" (without the double quotes). Optional,
defaulted to the version of the package. It is recommended to omit the parameter
when performing standard upgrade to the latest version.
Note: Destination version is an optional parameter. If it is not
specified, the upgrade script executes all the steps up to the
version of the package.
If upgrading from 7.1.1.0 version or any higher it is
recommended to not specify the source version and to let the
upgrade script automatically determine the source.
Note: As of 7.2.2.2 version the only accepted destination version is
version 7.2.2.1, even you install a later version (e.g. 7.2.2.3).
However, you can still run the upgrade without specifying this
parameter.
-Y This option ensures that all the prompted questions raised during the upgrade
script execution are answered automatically Yes. This option can be used, for
instance, if you want to perform an unattended upgrade, e.g. as a part of the
nightly tasks. Read more below in the text.
Warning: It is recommended to check the log, whether the
automated answer Yes was not set for some unexpected
question.
3 Database maintenance
3.2 Manual database upgrade
22 © Wall Street Systems IPH AB - Confidential
The script detects the actual version of ACM installed, and does not allow an upgrade to start from a
version higher than the detected version. If the script cannot detect the version of ACM installed, it
reports it as "UNKNOWN" and asks for confirmation.
When the upgrade of the database structures finishes successfully, the following prompt (or similar)
is displayed:
Do you want to proceed (Do you want to run build of procedures, views, indexes and
grants for ACM version 7.1.2.0? )?
Warning: If you run the upgrade script with -Y option then this question will be answered as
Yes and you will not have an option to rebuild the objects manually.
If you want the upgrade script to rebuild the procedures, views, indexes and grants simply type y
and press the ENTER key.
If you want to rebuild the objects manually, type n and press the ENTER key: the upgrade script will
terminate.
Rebuilding procedures, views, indexes and grants is mandatory to complete the ACM upgrade
process. If you do not rebuild the mentioned objects, the upgrade cannot be considered finished.
If you do not want the upgrade script to rebuild the objects, you can rebuild it manually using the
ACM build script:
Unix:
./acmbuild (-S ...) -D ... -U ... -P ... -V \* -i \* -p \* -g \* -u -w -v
Windows:
perl acmbuild.pl (-S ...) -D ... -U ... -P ... -V * -i * -p * -g * -u -w -v
For further information about the acmbuild script, please refer to the section on building the
database in section 3.1 Building the database on page 17.
Warning: The -w option enables the database for the Static Data Manager (SDM). You should
include the -w option only if you are upgrading an installation with SDM installed.
Note: When you run the upgrade for MS SQL Server, make sure that the PATH environment
variable is set so that it contains the directory where the isql or bcp utility is present
(usually under C:\Program Files\Microsoft SQL Server\80\Tools\Binn). Optionally
you can set the MSSQL_HOME environment variable to the MS SQL Server installation
directory (C:\Program Files\Microsoft SQL Server) – the upgrade script then
determines the correct location.
3.2.2 Upgrading from 7.2.2.1
Warning: This upgrade procedure is very different from the previous one. It uses ACM build -X
option which aligns database tables by adding, altering, renaming, and dropping
columns so that a table in the database has the same structure as in the perl
description of the installing package. So if you have a column that was added by a
plain SQL command (for example, a CSD), it will be lost (including its data).
Therefore you must first modify the perl description so that it reflects your CSD.
1. Run the following acmbuild command, and if Static Data Management (SDM) is already installed
(and only if it is already installed), add the option -w:
Unix:
3 Database maintenance
3.3 Enabling SDM on a non-SDM system
Accounting Module System Administration Guide 23
./acmbuild (-S ...) -D ... -U ... -P ... -X -v -e
Windows:
perl acmbuild.pl (-S ...) -D ... -U ... -P ... -X -v -e
2. Rebuild all procedures, triggers, views, indexes, permissions, default logins, groups, and users:
Unix:
./acmbuild (-S ...) -D ... -U ... -P ... -V \* -i \* -p \* -g \* -u -v
Windows:
perl acmbuild.pl (-S ...) -D ... -U ... -P ... -V * -i * -p * -g * -u -v
Note: Option -u creates default logins, groups, and users that do not yet exist in the database. It
does not change existing ones.
3.3 Enabling SDM on a non-SDM system
This chapter describes how to enable Static Data Management (SDM) for ACM. Note that SDM is
described in the TRM System Administration Guide.
Warning: This section applies only to Wallstreet Suite version 7.2.1.0 or later. Do not attempt
this procedure on a system before version 7.2.1.0.
If you are enabling SDM on ACM, then:
–You should complete all ACM upgrade steps before enabling SDM; in other words, you should
have an upgraded and fully-functional Wallstreet Suite before following the steps below.
–You should ensure that ACM is configured without SDM; in other words, the steps below
must not be applied on ACM with enabled/installed SDM.
–You should ensure that SDM is already enabled on TRM.
The process of enabling SDM on ACM consists from two steps.
1. Upgrade non SDM system to SDM system:
Unix:
./acmbuild (-S ...) -D ... -U ... -P ... -X -v -e -w
Windows:
perl acmbuild.pl (-S ...) -D ... -U ... -P ... -X -v -e -w
2. Rebuild all procedures, triggers, views, indexes, permissions, default logins, groups, and users
for SDM:
Unix:
./acmbuild (-S ...) -D ... -U ... -P ... -V \* -i \* -p \* -g \* -u -v -w
Windows:
perl acmbuild.pl (-S ...) -D ... -U ... -P ... -V * -i * -p * -g * -u -v -w
Note: For all the steps in this chapter the option -w is not optional, but mandatory.
3 Database maintenance
3.4 Performance tuning
24 © Wall Street Systems IPH AB - Confidential
3.4 Performance tuning
Due to the huge processed and maintained data volumes the accounting processing is prone to the
performance issues. For their solving see the instructions in the WSS Database Setup Guide. For
instance, for the Oracle performance issue, see the chapter about computing statistics.
Accounting Module System Administration Guide 25
Chapter 4 ACM server configuration and
maintenance
This chapter describes the tasks related the ACM server configuration and maintenance.
4.1 ORB services configuration
Most of the ACM reports is based on a CORBA communication. Sometimes it is necessary to assign a
specific IP and port used by the ACM server for the CORBA communication with the Report
Generator (FKReport.exe).
ACM Server registers own reference called “report_datasource” into the Naming Service dedicated
for the running environment. Report Generator (client) resolves IOR for
“finance-kit/<FK_IDENT>/report_datasource” from the Naming Service and uses this references for
the query of report parameters and report processing.
From a technical point of view there is Omni Names ORB on client (FKReport); one of the following
ORB implementations on ACM Server is used:
•JACORB – since 7220, tomcat, weblogic
•OpenORB – before 7220, tomcat, weblogic
•IBM ORB – all versions, websphere
ACM internally creates two server ORBs, one for the report generator (registered in the naming) and
one for MDSD (to get notifications about static data changes). Typically, only the report generator
communication will go through firewall as ACM and MDSD are collocated (not separated by the
firewall).
4.1.1 Client side
For setting specific ORB parameters on the client side, start fkreport with –ORB* parameter. For
seeing the full list of all available parameters open shell and type:
>mdsd –ORBhelp
If you need to explicitly specify an IP and port for fkreport.exe you can achieve this by using the
following command line:
>fkreport -ORBendPoint giop:tcp:<host>:<port>
For details see the OmniOrb documentation available at http://omniorb.sourceforge.net/docs.html.
4.1.2 Server side
As explained above, there are a few services running inside the ACM Server and using ORB
communication. For each such service you can set specific ORB parameters using system variables
with a proper prefix.
For MDSD Listener service running inside the ACM Server use parameters with prefix “MDSD_ORB”.
For Report Service inside ACM server use variables with prefix “RG_ORB”.
If you need to explicitly specify an IP and/or port for ACM Report Service (report_datasource) set
following environment variable:
RG_ORBOAPort=12345.
4 ACM server configuration and maintenance
4.1 ORB services configuration
26 © Wall Street Systems IPH AB - Confidential
where OAPort is a regular parameter on JacORB. OAPort parameter specifies a port used by the
report_datasource service registered by the ACM Server.
For detail list of parameters available in JacORB see JacORB the website http://www.jacorb.org.
Specifically, you may need to read an article „How can I make the server use a specific port number
or IP address (in case of multi-homed hosts)?” (http://www.jacorb.org/FAQ.html#Help.E)
Warning: Properties with prefixes MDSD_ORB and RG_ORB are taken into account just on
7.2.1.6a and higher 7.2.1.x packages and on 7.2.2.3 and higher 7.2.2.x packages.
Older versions of ACM do not support these prefixes for ORB services running inside
the ACM Server. Therefore it is no possibility to set these ORB properties selectively
for one service only in those old ACM versions. In other words, in old ACM versions
that port cannot be effectively assigned by this way (just the first service takes that
port and others fails).
If you are looking for parameters on OpenORB which were used before the 7220 version see
http://openorb.sourceforge.net/docs/1.3.0/OpenORB/doc/orb.html#N1036B.
Note: For a permanent change of the environment system variables you have to modify
config.peoperties in your site/components/acm/ and reconfigure the environment. For
details read the Suite Installation Guide.
4.1.3 Specific configuration use cases
4.1.3.1 BiDirectional setting for ACM Reports
ACM Reports are handled on the client side by FKReport.exe application which communicates with
the ACM Server. Sometimes there is a necessity to put a firewall between a client machine and the
server. As explained earlier the FKReport.exe application uses OMNI ORB implementation and ACM
Server starting with 722x uses JACORB. This chapter is about specifying a single port on the ACM
Server for handling requests from the FKReport clients.
The setup described below ensures that the communication between the FKReprt and the ACM
server uses a single port on the ACM server side (the one specified in the RG_ORBOAPort property).
If you have multiple network interfaces on a machine where the ACM Server is running, you may
also need to read 4.1.3.2 ACM Server IP setting on machine with multiple network interfaces on
page 27.
•Client configuration
On client (FKReport) you have to set in the orb.conf file (accessible via the environment variable
OMNIORB_CONFIG) a property clientTransportRule to allow bidir and offerBiDirectionalGIOP
as follows:
•Server configuration
a. Stop all Weblogic/Tomcat services (ACM, WSS Web Suite) and Weblogic Administration
Server (via PMM)
b. Modify the file /sharedconf/components/appservers/appservers.weblogic.properties (if using
Weblogic) or /sharedconf/components/appservers/appservers.tomcat.properties (if using
Tomcast) so you have the following two lines (the first line is shown on two rows below)
there:
clientTransportRule = 172.24.64.9 unix,tcp,bidir
= * ssl,tcp,bidir
offerBiDirectionalGIOP = 1
4 ACM server configuration and maintenance
4.2 Memory settings
Accounting Module System Administration Guide 27
ts.appserver.t3.jvmarg.9=-DRG_ORBorg.omg.PortableInterceptor.ORBInitializerCl
ass.bidir_init=org.jacorb.orb.giop.BiDirConnectionInitializer
ts.appserver.t3.jvmarg.10=-DRG_ORBOAPort=22226
You may use different port number (we use 22226); it is the one configured on the firewall.
c. Reconfigure your environment according to an explanation in the WSS Installation Guide, for
instance:
...SI_Manager>setup
...SI_Manager>%si% reconfigure -p ts-weblogic -i c:\ws-suite\v7216 -e dev71 -n 1
or
[...SI_Manager>%si% reconfigure -p ts-tomcat -i c:\ws-suite\v7216 -e dev71 -n 1]
d. Start all Weblogic/Tomcat services (ACM, WSS Web Suite) and Weblogic Administration
Server (via PMM).
4.1.3.2 ACM Server IP setting on machine with multiple network interfaces
On a multi-homed host (a host having multiple IP addresses configured) you might need to specify
one IP which should be used for Corba services published to the naming service by the ACM server.
A service responsible for the ACM reports is called “report_datasource”. As mentioned earlier you
can configure ORB properties for this service using the property prefix “RG_ORB”.
The following procedure specifies report_datasource’s IP address published in IOR; a configuration is
done on the server side only (not on the client side):
•Server configuration
a. Stop all Weblogic/Tomcat services (ACM, WSS Web Suite) and Weblogic Administration
Server (via PMM)
b. Modify the file /sharedconf/components/appservers/appservers.weblogic.properties (if using
Weblogic) or /sharedconf/components/appservers/appservers.tomcat.properties (if using
Tomcast); add next free number for the ts.appserver.t3.jvmarg, for instance:
ts.appserver.t3.jvmarg.11=-DRG_ORBOAIAddr=123.124.125.126
i.e. the previous used ts.appserver.t3.jvmarg was ts.appserver.t3.jvmarg10 since the
sequence must unbroken and always increased by 1. The specified IP address (in our
example 123.124.125.126) is one of the server’s IP addresses you want to use.
c. Reconfigure your environment according to an explanation in the WSS Installation Guide, for
instance:
...SI_Manager>setup
...SI_Manager>%si% reconfigure -p ts-weblogic -i c:\ws-suite\v7216 -e dev71 -n 1
or
[...SI_Manager>%si% reconfigure -p ts-tomcat -i c:\ws-suite\v7216 -e dev71 -n 1]
d. Start all Weblogic/Tomcat services (ACM, WSS Web Suite) and Weblogic Administration
Server (via PMM).
4.2 Memory settings
ACM Server is running as a java process on a selected operating system. Sun’s JVM is used
normally. There are some restrictions put by a hardware and the operating system on a maximum
size of a memory which can be used by each process. If you use 64bit operating system and you use
4 ACM server configuration and maintenance
4.3 Logging
28 © Wall Street Systems IPH AB - Confidential
–d64 parameter for a java process, you can set a heap memory size according your needs.
However, on 32-bit data model you are limited by various factors. For details see the following links:
1. Sun’s JVM Tuning
http://java.sun.com/performance/reference/whitepapers/tuning.html
(See part called “Heap Sizing” for explanation of maximum heap size)
2. Memory Limits for Windows Releases
http://msdn.microsoft.com/en-us/library/aa366778.aspx#physical_memory_limits_windows_x
p
3. Why can´t I get a larger heap with the 32-bit JVM
http://java.sun.com/docs/hotspot/HotSpotFAQ.html#gc_heap_32bit
Each Java process can be configured using the –X options on a command line:
•-Xms<size>
Sets initial Java heap size
•-Xmx<size>
Sets maximum Java heap size
•-Xss<size>
Sets java thread stack size
ACM server is provided with the following default settings in appservers.tomcat.properties (or
appservers.weblogic.properties):
ts.appserver.t3.jvmarg.1=-Xmx1300m
ts.appserver.t3.jvmarg.2=-Xms128m
You can change –Xmx to a value according your needs and limits taking into account your operating
system or hardware restrictions. Once you change the mentioned properties file you have to follow
instructions for reconfiguring the environment (at least ts-tomcat or ts-weblogic) as described in the
WSS installation Guide.
Note: Wall Street Systems experienced that for the 32-bit java a maximum memory heap
available for the ACM Server is around a value -Xmx1440m (on condition that you have
enough physical resources on that machine).
If your limit is set nearly to value 1400m and you get OutOfMemory exceptions in logs
regularly, you should consider the 64-bit option.
4.3 Logging
4.3.1 Server log file size
The server log files size is 10 times 100 MB for the standard logging and 3 times 100 MB for the ERP
export logging. A total size of the ACM logs is 1.3 GB.
4.3.2 Server log file appender
The ACM server contains a rolling file Log4J appander collecting the runtime performance statistics.
They statistics are written into a CSV file located in ACM server’s log directory. Once the file reaches
its limit of 500 MB, it is renamed, appended by an index and new file is created. The system creates
up to 10 files containing historical performance date. After reaching the limit of 10 files, the oldest
4 ACM server configuration and maintenance
4.4 Connection Pool setup
Accounting Module System Administration Guide 29
one is deleted and a new one is created. When dedicating a space for the ACM server, you must
reserve 5 GB for these files. The statistics can be used by Wall Street Systems engineers for
investigating potential performance issues.
4.4 Connection Pool setup
To be completed.
4.5 Time zones setup
Wallstreet Suite is designed to run in one time zone. All parts of the system should use the same
time zone to avoid unexpected conversions of a date. Default installation forces GMT setting to
server as well as client. Such configuration is suitable for all installations regardless of a real time
zone in which the system runs. It is strongly recommended to not touch the default setting (GMT)
since the customization of the time zone may cause serious troubles (especially in accounting).
An example of possible troubles related to time zone setting is the communication between
WebSuite and ACM or usage of the Accounting Manager. If you get into a situation where, for
instance, Accounting Manager has GMT and ACM Server is defined in MST, the date of 2/1/08 0:00
will be interpreted on ACM Server as 1/1/08 17:00 and all subsequent actions will be done using
1/1/08 17:00.
Warning: ACM Server version 7.2.2.12 and higher will not start if the user.timezone property is
not set to GMT!
4 ACM server configuration and maintenance
4.5 Time zones setup
30 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 31
Chapter 5 ACM client configuration and
maintenance
This chapter describes the tasks related the ACM client configuration and maintenance.
5.1 Verifying ACM menu
To check that the ACM menu was successfully added to the TRM Client menu during the ACM
package installation:
1. Start the TRM Application Manager.
2. Check that the Accounting Module submenu appears at the root level of the Application Manager
menu.
The menu structure of the first and the second level is as follows:
•Accounting Module
•Set-Up Management
•Advanced Set-Up Management
•Process Management
•Accounting Reports
•Set-Up Reports
•Verification Reports
•ERP Interface.
5.2 Setting Accounting Manager directory
Accounting Manager needs Write access to some directories to store its configuration and create
temp files. By default, it creates these files in the home directory of the logged-in user in its
subdirectory Application Data/Accounting Manager. This directory is also used for writing logs.
If necessary, the directory can be changed by changing the file
%ACM_HOME%/share/java/acm/client/AccountingManager.ini. Change line –configuration
@user.home/Application Data/Accounting Manager to –configuration <your dir>.
You also need to change the configuration of log4j (file log4j.xml in the same directory) to output
the log somewhere else.
If you are not successful with starting Accounting Manager, you can enable console output. To
enable it, add to AccountingManager.ini as first line option –consoleLog.
5 ACM client configuration and maintenance
5.3 SSL setup
32 © Wall Street Systems IPH AB - Confidential
5.3 SSL setup
There are two security levels when working with SSL. The level depends on the server setup. The
description of all properties needed for the set up can be found in Appendix D ACM environment
variables on page 163. For more details about SSL see Appendix E Secure Socket Layer (SSL) on
page 167.
There is a demo setup which can be found in the %ACM_HOME%/share/java/acm/client. This
setup is ready for a usage with Tomcat. See the README.txt file for other details.
Warning: Do not use the demo certificates in any production environment!
5.3.1 SSL without client authentication
The simpler way of SSL communication is based only on server certificates. To make this work, set
ACM_PROTOCOL and truststore location in ACM_TRUSTSTORE.
5.3.2 SSL with client authentication
This more advanced setup provides a higher security. In order to make this functional, the client
needs the keystore having the key-pair and the server needs client’s public certificate in its
truststore.
ACM_PROTOCOL and ACM_TRUSTSTORE are essential, for the client authentication additional
properties ACM_KEYSTORE and ACM_KEYSTORE_PASS are to be set on the client side to make
things work.
5.3.3 Example
To run Accounting over SSL, first it is needed to setup protocol.
SET ACM_PROTOCOL=https
Ensure the port is a https port, 8443 for example.
Let’s assume we get the server.crt certificate that contains server public certificate. Move to the
Accounting Manager directory (%ACM_HOME%/share/java/acm/client). Then create a truststore
using the keytool (best to have it on the path):
>keytool -keystore truststore.jks -import -alias server -trustcacerts -file
server.crt
Enter keystore password: server
Owner: CN=ekit, OU=esolution, O=trema, L=sophia-antipolis, ST=cote d'azur, C=fr
Issuer: CN=ekit, OU=esolution, O=trema, L=sophia-antipolis, ST=cote d'azur, C=fr
Serial number: 0
Valid from: Mon Jan 28 14:57:04 CET 2002 until: Tue Jan 28 14:57:04 CET 2003
Certificate fingerprints:
MD5: 4B:A9:7D:5C:3C:75:AA:A6:A8:2A:EE:DC:64:ED:0B:80
SHA1: 4B:18:C2:7C:85:EC:EB:1F:3F:4C:E4:E3:9B:8D:5B:E7:F7:DE:AB:C0
Trust this certificate? [no]: yes
Certificate was added to keystore
Then set the property
SET ACM_TRUSTSTORE=truststore.jks
That’s it. Now the Accounting Manager will communicate with the Accounting Server over SSL.
For more advanced setup (the server has the client authentication enabled) we go further. Let’s
create a key-pair for the Accounting Manager.
>keytool -keystore AccountingManager.jks -genkey -alias AccountingManager
Enter keystore password: AccountingManager
5 ACM client configuration and maintenance
5.4 ORB configuration
Accounting Module System Administration Guide 33
What is your first and last name?
[Unknown]: Accounting Manager
What is the name of your organizational unit?
[Unknown]:
What is the name of your organization?
[Unknown]:
What is the name of your City or Locality?
[Unknown]:
What is the name of your State or Province?
[Unknown]:
What is the two-letter country code for this unit?
[Unknown]:
Is CN=Accounting Manager, OU=Unknown, O=Unknown, L=Unknown, ST=Unknown, C=Unknown
correct?
[no]: yes
Enter key password for <AccountingManager>
(RETURN if same as keystore password):
Hit <ENTER>. It is essential for Accounting Manager to have the same password for keystore itself
and the key-pair.
Now it’s time to sign the key-pair. The easiest way is to create so called self-signed certificate. There
is no security problem in it.
>keytool -keystore AccountingManager.jks -selfcert -alias AccountingManager
Enter keystore password: AccountingManager
Good habit is to check the certificates once they are created to ensure that everything is right:
>keytool -keystore AccountingManager.jks -list
Enter keystore password: AccountingManager
Keystore type: jks
Keystore provider: SUN
Your keystore contains 1 entry
accountingmanager, 13.2.2007, keyEntry,
Certificate fingerprint (MD5): 7A:B2:53:D0:CC:89:4C:6B:F9:55:0F:65:CD:30:94:5B
Now it’s time to setup the last system properties like this:
SET ACM_KEYSTORE=AccountingManager.jks
SET ACM_KEYSTORE_PASS=AccountingManager
5.4 ORB configuration
In some cases it is necessary to define the ORB parameters on the client side. For details see 4.1
ORB services configuration on page 25.
5 ACM client configuration and maintenance
5.4 ORB configuration
34 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 35
Chapter 6 Using accounting administrator tools

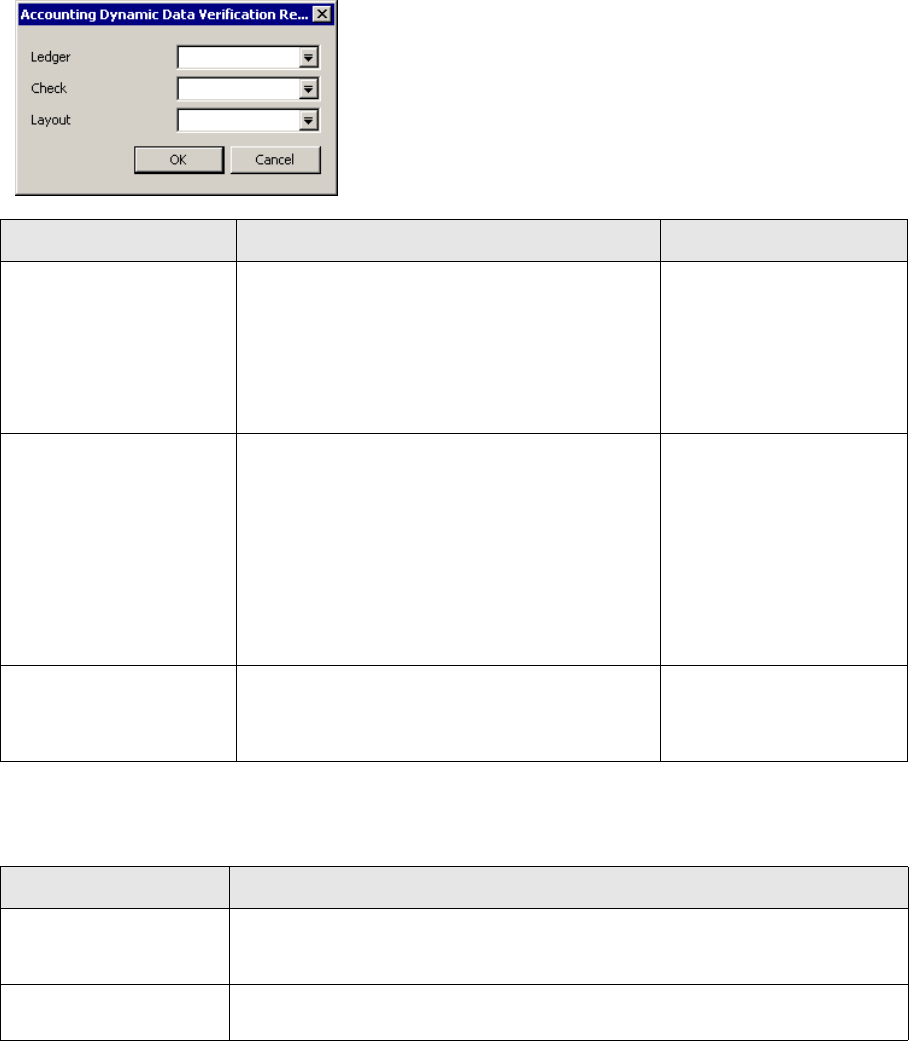

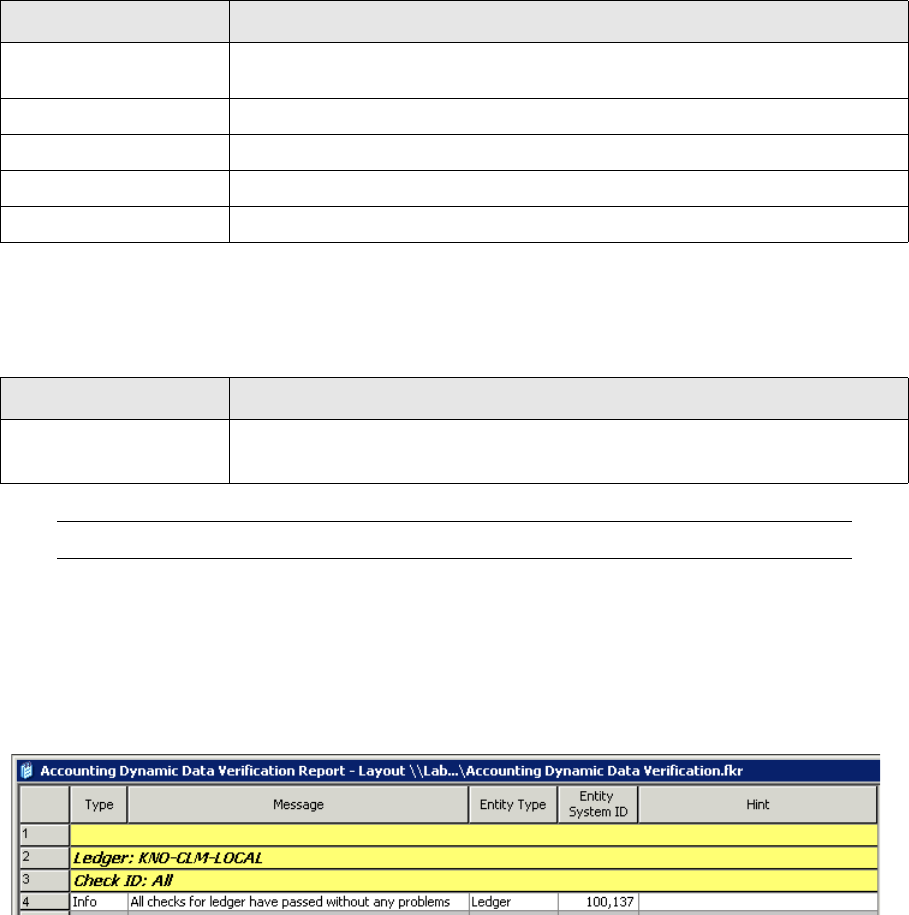

6.1 Accounting dynamic data verification report
6.1.1 Introduction
Consistency of dynamic accounting data is a critical assumption for correct working of ACM.
Accounting Dynamic Data Verification Report is a tool executing a few basic verification checks
performed on accounting dynamic data like vouchers, entries and account balances. It is
recommended to run the report as the last step of the following three actions:
1. Upgrade from GLM to ACM.
2. Upgrade from TRM accounting to ACM.
3. Upgrade (patch installation) of ACM.
The report performs various checks divided into a few logical groups.
6.1.1.1 Ledger independent checks
The handling (assignment) of system IDs is handled via a specific table ACMId. It table keeps a next
available ID for any entity used by ACM, which contains column ID. This check verifies the next
system ID, what will be assigned to the entity, is higher than a maximum system ID already
assigned (used).
6.1.1.2 Perspectives checks
It checks if all entities on ACMEntry and ACMVoucher really belong to a ledger for which the voucher
belongs. The following entities are checked:
•on ACMEntry: account, cost center, project, mapping rule, mapping rule action, secondary
account.
•on ACMVoucher: voucher type, period
6.1.1.3 Stored balances checks
It checks if stored balances (table ACMBalance) correspond with posted vouchers and entries.
Verification is done on the most detail granularity (ledger, account, period, cost center, project,
document currency). Following checks are available:
•Movement of stored balances equals to sum of amounts on the corresponding entries.
•Opening balance of stored balances equals to sum of amounts on the corresponding entries.
•Whether for each FINAL voucher with set balance checkpoint exists the corresponding stored
balance row (balance for combination of the key characteristics: ledger, account, period, cost
center, project, document currency). Amounts are not checked.
The first two checks are driven from the stored balances, i.e. for each stored balance (the
combination of ledger, account, period, cost center, project, document currency) it checks the stored
value (balance) by summing the posted entries in Final vouchers. The third check starts from the
posted vouchers, i.e. for each posted voucher it finds the appropriate row in the table of balances.
6 Using accounting administrator tools
6.1 Accounting dynamic data verification report
36 © Wall Street Systems IPH AB - Confidential
Warning: When performing this check it is necessary to ensure that the balances and vouchers
are not changed at that moment, i.e. no new voucher should be created and no
voucher state shift should be performed.
6.1.1.4 Voucher balances checks
It checks if vouchers in any state after OPEN match the following conditions:
•Voucher is balanced per event date.
•Each voucher has at least two entries.
•Voucher is balanced per event date and document currency if the voucher property
ACM-VOUCHER-BALANCE-PER-DOCUMENT-CURRENCY on voucher type is set.
Note: Since the voucher type property ACM-VOUCHER-BALANCE-PER-DOCUMENT-CURRENCY
can be defined later, it may happen an issue is reported for vouchers which were created
before defining that property.
6.1.1.5 Account properties checks
It checks if account settings are reflected on the posted entries. The following account settings are
checked:
•Counterparty code required, i.e. if each entry posted on the account keeps information about a
counterparty code.
•Cost center required, i.e. if each entry posted on the account keeps information about a cost
center.
•Project required, i.e. if each entry posted on the account keeps information about a project.
•Transaction maturity date required, i.e. if each entry posted on the account keeps information
about a transaction maturity date.
•Document currency, i.e. if each entry posted on the account has document currency equal to the
specified account document currency.
•Non-posting, i.e. if no entry is posted on the account which is marked as non-posting.
Note: All the mentioned account settings can be change in course of time, so it may happen an
issue is reported for entries which were created at the moment when the setup was
consistent.
6.1.1.6 Posting checks
It performs the following general checks:
•All entries in state POSTED are assigned to some voucher.
•All vouchers in state FINAL or PREBOOKED have period.
•No accounting entry is assigned to a parent account.
•No voucher is posted to a parent period.
•Entries mapped according the mapping rules with actions, where account breakdown is not
used, have accounts which exist in the appropriate actions as account or secondary account. The
check is performed only for entries with filled action id.
6.1.1.7 All checks
It performs all the checks listed above at once.
6 Using accounting administrator tools
6.1 Accounting dynamic data verification report
Accounting Module System Administration Guide 37
6.1.2 Starting the report
The report is not accessible from the standard Application Manager menu. If you wan to run it, you
must run the Report Generator, File -> Open, go one folder level up, select the folder types and
from there open acm-dynamic-data-verification.frd file.
6.1.3 Starting parameters
The report is executed per ledgers. However, there is no ledger permission check. For the report
execution you must have just the object permission ACMDynamicDataVerification. This permission is
by default granted for the user group ACM-ADMIN only.
The report is started with the following starting parameters:
6.1.4 Report layouts
The total list of report output columns including their description is in the table below:
Starting Parameter Parameter Description Default Value
Ledger The ledger you want to verify. It is not a
mandatory starting parameter. If none specified, it
performs the checks for all the ledgers in the
application.
-,
i.e. it performs the checks
for all the ledgers.
Note: The execution for all
ledgers will last longer
than just for one
ledger.
Check The type of check:
•All
• Account Properties
• Ledger Independent
• Perspective
•Postings
•Stored Balances
• Voucher Balances
All,
i.e. it performs all the
checks.
Layout How the report output is displayed, i.e. what
columns are selected, how they are grouped, etc.
The report is distributed with one pre-configured
layout.
Accounting Dynamic Data
Verification
Column name Column description
Check ID Each verification check has its ID. The ID can be used as a link to the
documentation for a detail description, e.g. P5. If there is no issue reported, the
Item ID is P.
Entity System ID System ID of an entity for which an issue is reported. If there is no issue reported,
this field contains the ID of the ledger.
6 Using accounting administrator tools
6.2 Accounting System Administration Task activity
38 © Wall Street Systems IPH AB - Confidential
It is recommended to group the report output by column Ledger and Check. It allows you to see for
what ledger and check the result is reported.
The report is distributed with one default layout. It can be used as a starting point for creating own
report layouts.
Note: Depending on the amount of dynamic data the report execution may last a few minutes.
6.1.5 Report drill-downs
The report does not contain any drill-down.
6.1.6 Report output example
If all the checks are passed without any problem, the following report output appears:
6.2 Accounting System Administration Task activity
6.2.1 Introduction
Accounting System Administration Task activity is a special ACM activity, which can be used by the
system administrators only. There are several tasks which can be performed by this activity. The
activity allows:
•Activating a workflow
•Saving ERP Document to file
•Setting accounting system log level
•Setting the system properties
Entity Type Type of an entity for which an issue is reported. It can be voucher, entry or
balance.
Tip What you should do for correcting the reported error.
Ledger For what ledger the check was performed.
Message Description of a check result.
Severity Severity of the message: Info or Error.
Layout name Layout usage
Accounting Dynamic Data
Verification
The default layout.
Can be used for most of the cases.
Column name Column description
6 Using accounting administrator tools
6.2 Accounting System Administration Task activity
Accounting Module System Administration Guide 39
All the tasks are described in the next sub-chapters.
6.2.2 Starting parameters

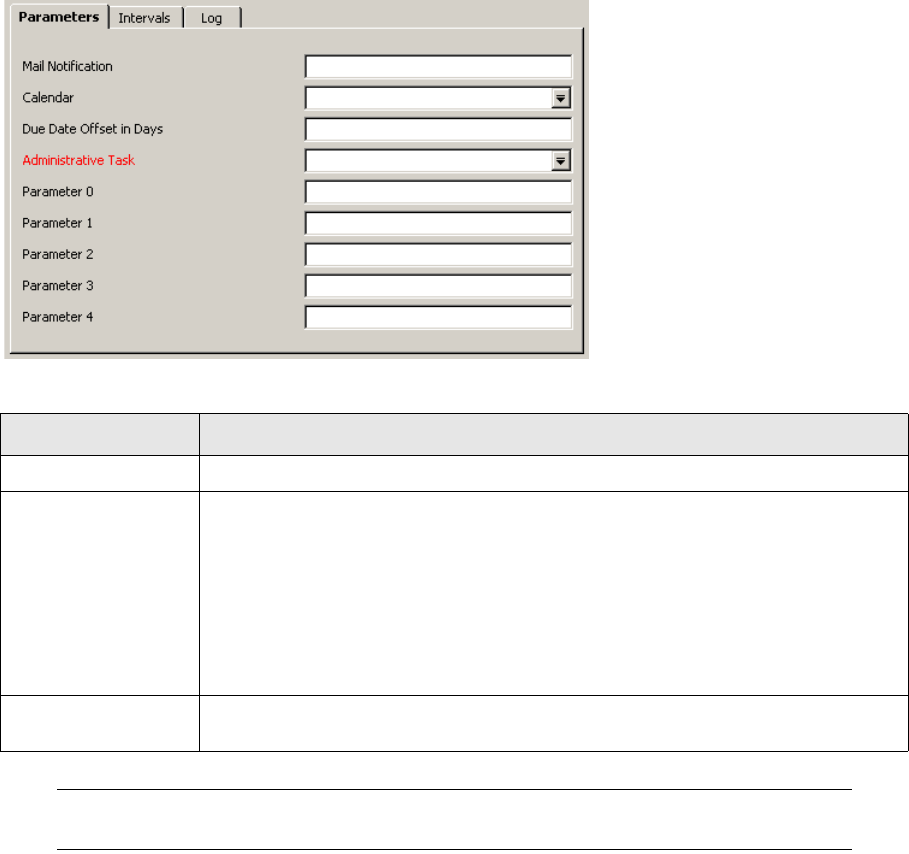

The activity starting parameters are following:
The meaning of the activity-specific starting parameters is following:
Note: If Parameter 0 is empty, the task fails and generates an exception which describes the
expected starting parameters.
The Accounting System Administration Task activity is designed for special administrator tasks so
special permission is required. To start the Accounting System Administration Task activity, you (or
your user group) must have the object permission "AdministratorActivity". This permission is

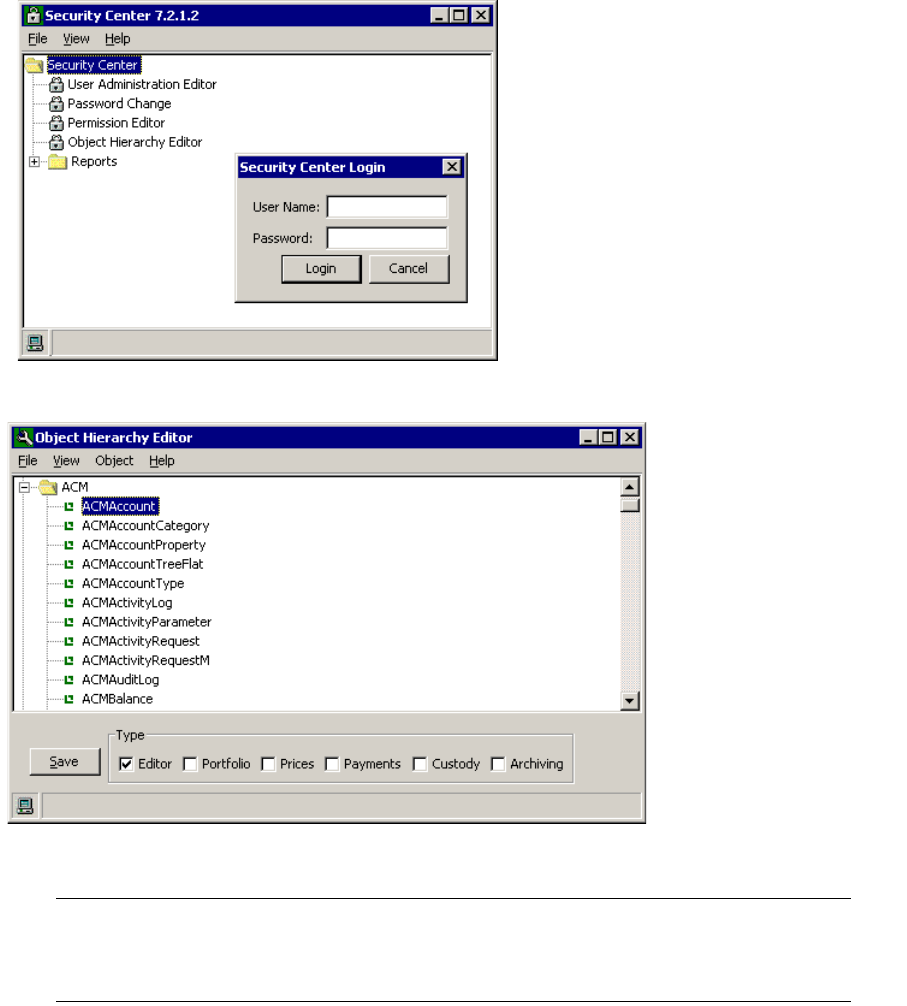

granted via the Security Center (see the TRM System Administration Guide for details).
The following sections describe the particular administrative tasks.
6.2.3 Activating workflow
There is a workflow processor inside the accounting system which performs initial activation of the
processes after its start and enables you to stop them. A workflow file is stored as an xml file inside
the acm.war file for a complete startup and complete stop of the system. Additionally, there are
workflows which enable you to stop or start the individual daemons running inside ACM.
For doing that select the administration task Activate workflow and use parameter 0 as follows:
Parameter 0 ........... Workflow Name
Starting Parameter Parameter Description
Due Date Due date is used just for starting the activity.
Administrative Task There are several administration task which can be performed by this activity:
• Activate workflow
• Save ERP Document to file
• Set Accounting System Log Level
• Set System Property
You must select one of these.
For a detailed description of each task, see below.
Parameter 0 .. 1 The activity has five possible input parameters. Each administration task requires a
specific input parameter.
6 Using accounting administrator tools
6.2 Accounting System Administration Task activity
40 © Wall Street Systems IPH AB - Confidential
6.2.3.1 ACM-ERP-SAP-RETRY-STOP workflow
In some situations, your target ERP system (e.g. SAP) might not be accessible for a few hours or
days and you have many documents waiting in the queue to be posted to that SAP system. There is
SAP Retry Daemon running inside ACM. It holds all the ERP documents which could not be
posted/validated by the SAP system due to the inaccessibility. The SAP Retry daemon keeps trying
to connect to the target SAP system at specified intervals.
During this time all documents are kept in memory and might exceed the permitted number of
documents in the system at same time. When the connection is re-established, all waiting
documents are re-processed. If you activate ACM-ERP-SAP-RETRY-STOP workflow, all waiting
documents in SAP Retry Daemon are set to error state and memory is released. When the
connection to the SAP system is back, you can start ERP Restart Document with given parameters to
re-process documents.
6.2.3.2 Other workflows
There are other workflows which might be initiated by the Activate workflow task. All these
workflows are used only in specific situations, and they can be processed just on a request by Wall
Street Systems Support Center during a troubleshooting phase.
6.2.4 Saving ERP document to file
Select the task Save ERP Document to file if you need to save your ERP document to file. This is not for
a regular file export. This activity does not make any changes to the document state; it simply saves
the specified document to a file you specified without keeping a track of it. There is no check, where
you save the document, or whether this file somehow hits the automatic mechanism of a regular file
export. If you save an ERP document to the same path where you normally export the documents
automatically you could have the same document there twice.
For this administration task you use the activity parameters as follows:
Parameter 0 ........... Document System ID (number which you can see in ERP reports) .
Parameter 1 ........... path and filename for new document to be created. This path and file
must be accessible by the ACM server process.
6.2.5 Setting accounting system log level
Wall Street Systems Support Center could ask you to increase the log level. ACM writes messages
into a log file using the Log4J library. This product takes a default setting from a property file.
If you switch the log level from INFO to DEBUG, the system runs in the DEBUG mode, but this
change is not saved into the Log4J property file, so the log level is lost when you stop the instance.
As soon as you identify the problem for which you increased the log level, switch it back to the INFO
level (the default level).
Warning: There are performance costs imposed by higher log levels.
One way to increase the log level is to stop the ACM server, to change the Log4j property file and to
start the ACM server again. The administration task Set Accounting System Log Level offers the similar
functionality in runtime without requiring to stop and start the server.
For this administration task you use only the activity parameter Parameter 0 as follows:
Parameter 0 ........... required log level.
As a value you can set one of the following values from the table below:
Log level Log level description
trace The most detail logging; can significantly decrease the system performance. The
amount of information is typically uselessly big.
6 Using accounting administrator tools
6.2 Accounting System Administration Task activity
Accounting Module System Administration Guide 41
6.2.6 Setting system properties
ACM server operates in a Java runtime environment where system properties specified by the
environment file are loaded and accessible by the ACM processes. Some parts of ACM can change
their behavior in runtime based on the changes to these system properties in runtime. This task is
helpful for troubleshooting.
If you want to change some system property in runtime, select the administration task Set System
Property and use the parameters 0 and 1 as follows.
Parameter 0 .... System Property Name
Parameter 1 .... New system property value
Warning: Do not use this task unless you are asked by the Wall Street Systems Support Center
to do so.
debug A typical logging level for a development or an issue investigation.
info The default log level; only errors, warnings and information messages are logged.
warn Only errors and warnings are logged.
error The most economic logging; only the errors are logged.
Log level Log level description
6 Using accounting administrator tools
6.2 Accounting System Administration Task activity
42 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 43
Chapter 7 Setting up security
This chapter describes the security setup in ACM.
7.1 Storing the ACM Server password
A password for the ACM Server can be stored in the shared memory in the same way as for the TRM
applications. See WSS Database Setup Guide for more information.
For configuring the ACM Server in this way (i.e. based on reading the password from the shared
memory), do the following:
1. In the shared memory, store the password of the user name under which you want to run the
ACM Server.
2. Set the environment variable ACM_JDBC_USER to the user from step 1 and remove the variable
ACM_JDBC_PASS from the environment.
If you set the ACM_JDBC_PASS variable, the ACM Server does not search for the password in the
shared memory.
Important: It is not mandatory to read the password from the shared memory.
7.2 Managing permissions
Permission management supported by ACM allows to secure an access to different objects and
functions (features) of ACM. Per user or user group you can define:
•What data you can access; note that you can define not only type of data (e.g. accounting period
set), but within one data type you can define an access per particular rows.
•What you can do with accessed data (e.g. only read).
•For what ledger(s) (accounting books) you can perform what activity.
•For what ledger(s) you can work with voucher state.
•For what ledger(s) you can run what report.
All that is handled via the following principals:
1. Domain and object permissions
ACM static data access is controlled by domain permissions and by ACM object permissions
which allow to define an access to the individual ACM static data editors.
2. Users and user groups

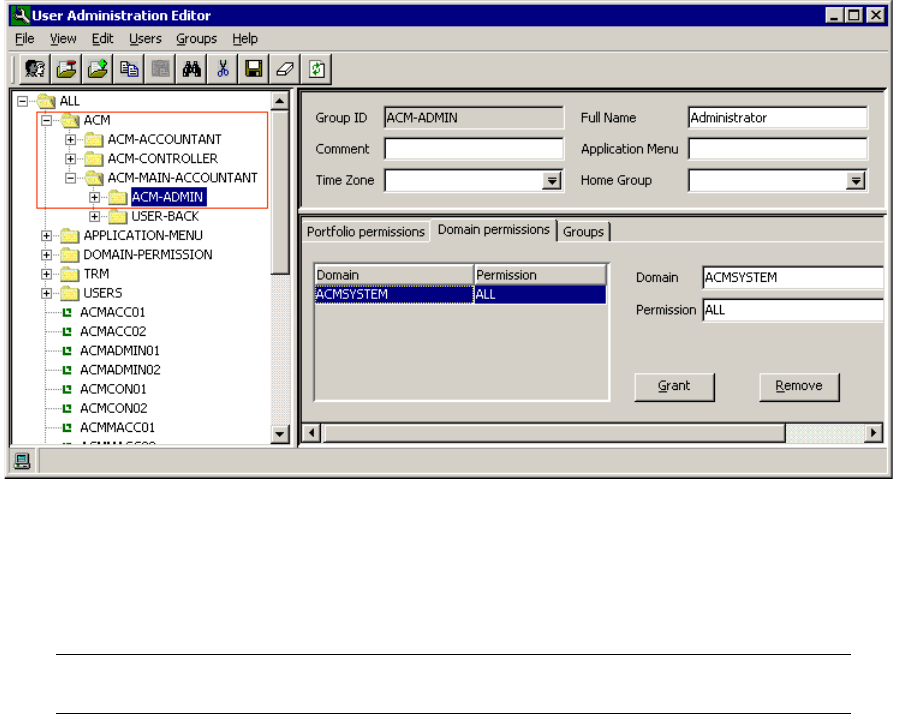

Object permissions are defined per users or user groups. You define the user groups if you can
split the users to standardized groups. Instead of defining particular object permissions for each
new user, you can just assign a user to some existing user group. Any user can belong to zero,
7 Setting up security
7.2 Managing permissions
44 © Wall Street Systems IPH AB - Confidential
one or more user groups. Note that each user or user group inherits all permissions from all the
user groups to which belongs.
3. Ledger permissions
ACM Ledger permissions define per ledger what type of activity, report, and/or voucher state is
allowed for what user or user group. The ledger permissions are defined via the Ledger editor,
page Ledger Permission. This approach is very close to the TRM portfolio permissions definition
via the Allowed Users tab in the Portfolio editor.
As you can see, the very the same principals are used by TRM.
Warning: Each person working with ACM should use his/her own system user name. It is
strongly recommended not to use an administrator user name or to share a user
name between the multiple users (mainly due to the mixing accounting
perspectives).
The description of each permission management follows.
7.2.1 Static data permissions
Static data access is controlled by domain permissions and by object permissions. These two types
of permissions are used in combination, i.e. for manipulating with some static data entity you must
be granted for both:
•the correct domain permissions for the domain to which the entity belongs and
•correct object permissions for the entity.
In other words: while domains control which set of rows in a database a user can manipulate (for
example, change data in a domain called Europe), object permissions allow a user to perform
certain general tasks (for example, change a chart).
7.2.1.1 Domain permissions
The domain permissions control the access to the data located in a single organizational unit – the
domain. Domain permissions specify whether a user can read, create, modify, or delete entities in

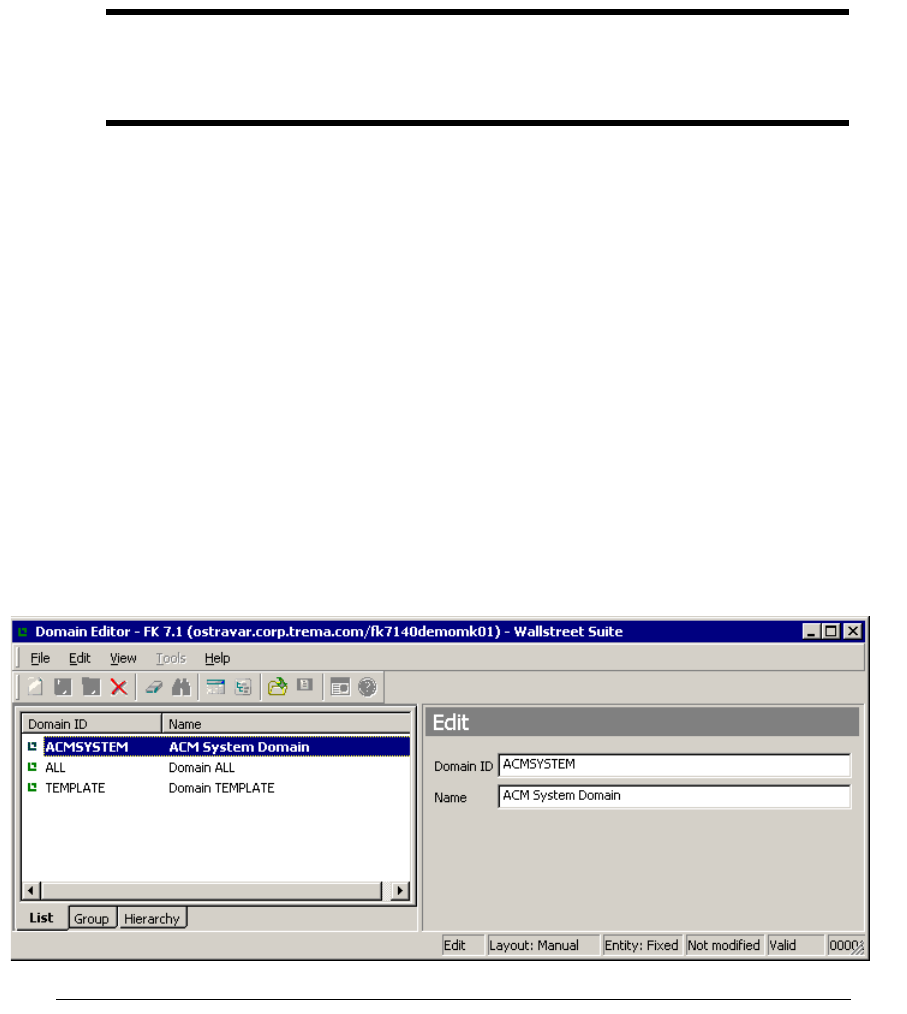

the domain. Domains are defined via the Domain Editor (Application Manager -> WallstreetSuite ->
Transaction and Risk Mgmt -> Administration Tools).
Note: Each accounting processing step allows a certain customization/configuration. To simplify
the ACM configuration, the setup of some steps is preconfigured. Whereas some
pre-configuration is done directly (e.g. Event to entry mapping where no owner is defined),
some configuration is a chart dependent. For this reason, each ACM installation contains
7 Setting up security
7.2 Managing permissions
Accounting Module System Administration Guide 45
the ACMSYSTEM chart. All such data are defined in the domain ACMSYSTEM. For details
see the ACM User Guide.
Warning: Do not ever delete the domain ACMSYSTEM!
Typically, a domain is defined for the set of individual entity instances (for example, several specific
charts and several specific ledgers), and one dedicated user is responsible for the definition and
maintenance of all entity instances which have the same access level in that domain. Domains are
not related to behavior or functionality; they are used to categorize static data that should be
maintained together. Consequently, domains should be defined at the beginning of the system setup
according to business requirements. The individual entity instances are then created inside the
predefined domains according to the domain permissions.
Key ACM entities are domain-dependent. They are:
•Ledger
•Ledger Group
•Period Set
•Chart
•ACM Rule.
Period Set and Chart are the entities to which some other ACM entities belong. The entities
dependent on either Period Set (only Accounting Periods) or Chart (Account Types, Accounts,
Mapping Rules, Voucher Types, Cost Centers, Projects, Grouping Rules, etc.) are domain-free, and
are maintained from the perspective of the key entity only.
Domain permissions are inherited by these key entity-dependent entities via the key entities. For
example, if Period Set “1” belongs to a domain “A” and a user has permission for this domain, the
user can access the Accounting Periods defined for the Period Set “1” (depending on the object
permissions).
Each entity from the list above is created in (assigned into) a primary (main) domain. Beside the
primary domain, all of the entities above can be assigned zero, one or more secondary domains.
Secondary domains provide a way of making the static data entity accessible to users that typically
maintain a domain other than the entity’s primary domain. The secondary domains provide only
Read access to the static data entities (regardless of the type of permission to the secondary domain
the user has).
7.2.1.2 Object permissions
Object permissions control the access to the actions that a user can perform on the static data. Even
the objects are defined on the level of the particular database tables, they finally represent an
access to the individual ACM static data editors.
The objects are placed in an object hierarchy. The object hierarchy serves as a way of organizing
the objects into a user-friendly view. The objects as well as the object permissions are defined via
7 Setting up security
7.2 Managing permissions
46 © Wall Street Systems IPH AB - Confidential
the Security Center. Note that it is quite often necessary to change a login name to an user with
administration permissions (File/Login):
The objects are defined via the Object Hierarchy Editor which looks as follows:
All the ACM (accounting) objects are defined under the ACM parent object.
Note: Besides the ACM parent object you can see there also the parent object Accounting
Management. It is a residue object from the TRM accounting available in versions before
the 7.x version (accounting before ACM). You should not define anything there. The object
is kept in the system just for some backwards compatibility and upgrade needs.
For each user/user group (for their definition see the next chapter 7.2.2 Accounting user groups on
page 48) and object you may define a specific object permission (READ, MODIFY, ALL, etc.).
The object permissions are defined via the Security Center, Permission Editor. This editor links
together the defined users/user groups (the editor lefthand sub-window) and the security objects
(the editor middle sub-window). For each combination of a user/user group and object you can
7 Setting up security
7.2 Managing permissions
Accounting Module System Administration Guide 47
define a particular set of permissions (the editor righthand sub-window). See the example below for
the user group ACM-CONTROLER and object ACMAccount.
Ther object permissions are of the following types:
•ALL
•READ
•CREATE
•REMOVE
•MODIFY
Object permissions specify if a user can read, create, modify, or delete e.g. charts, accounts,
ledgers, and other static data objects.
A complete list of the ACM objects including the link of the individual objects to the ACM editors
(column Description) is listed in Appendix B Object permissions on page 115.
7 Setting up security
7.2 Managing permissions
48 © Wall Street Systems IPH AB - Confidential
7.2.2 Accounting user groups
User groups as well as the particular system users are defined via the Security Center, User
Administration Editor. See its example below:
For each user and user group you can define:
•Portfolio permissions (what type of access to what portfolio).
•Domain permissions (what type of access to what domain).
•To what group a particular user or user group belongs.
Note: Each user or user group inherits all permissions from all the user groups to which belongs.
All users in the same user group have the same object permissions.
ACM is pre-configured with four user groups that can be used without any additional setup, i.e. it is
just up to you to what user group you assign a particular system user. The available accounting
groups are:
1. ACM-ADMIN
This is the most powerful user group having permission ALL for all the accounting objects
including those defined in domain ACM-SYSTEM and including the possibility to run the
accounting administrator tools (for details see Chapter 6 Using accounting administrator tools on
page 35).
2. ACM-MAIN-ACCOUNTANT
This is the second most powerful accounting user group. It has the same permissions as
ACM-ADMIN with the following exceptions:
a. Only READ permission for domain ACM-SYSTEM.
b. No possibility to run the accounting administrator tools.
c. Only READ permission for defining event to entry mapping via the Event to Entry Mapping
Editor.
d. Only READ permission for defining accounting parameters via the Accounting Parameter.
3. ACM-ACCOUNTANT
This user group has the same restrictions as ACM-MAIN-ACCOUNTANT plus the following ones:
7 Setting up security
7.2 Managing permissions
Accounting Module System Administration Guide 49
a. Only READ permission for objects having M at the end of their name (e.g. ACMLedgerM)
used for assigning multiple domains on some entities (e.g. ledger). Note that these so called
secondary domains add a reading permission for the domains defined in the "Domains" tab
of the editors, e.g. in the Ledger editor. The READ permission on the M table allows only to
see domains defined in that tab, but no editing.
b. Only READ permission for objects needed for the definition of ERP static data (ACMERPExport
Def, ACMERPSystemDef, ACMERPTarget).
c. Only READ permission for defining ledger permissions via the Ledger Editor (object
ACMLedgerPermission).
d. Only READ permission for defining accounting statement report templates (objects
ACMStmtReportRow, ACMStmatReportTmpl).
4. ACM-CONTROLER
Has just READ permission for all the accounting objects. If you belong to this group you can
open all accounting editors, can view all data in domains, for which you have at least the READ
permission, but you cannot do anything else, i.e. you cannot create new data nor modify or
remove the existing ones. You have only READ permission for domain ACM-SYSTEM and you
cannot run the accounting administrator tools.
A detail list of all the ACM permission objects versus all the ACM user groups can be seen in the
Appendix B Object permissions on page 115.
Warning: The assignment of the particular accounting activities and reports to users and/or
user groups for given ledger must be configured during an implementation project
via the Ledger Editor (Ledger Permission page). For details see the next chapter.
7.2.3 Ledger permissions
Ledger permissions allow the definition of fine-grained permissions for operations which are
executed for a ledger. There are three basic types of such operations:
1. Activities, i.e. a possibility to manipulate with the key ACM dynamic data: entries and vouchers
2. Reports, i.e. a possibility to view the dynamic data (entries, vouchers, account balances) and
ledger specific data (e.g. period state).
3. Voucher states.
Note: If an activity or report is started for a ledger group, it checks a permission for each ledger
within the group separately. Permissions must be defined for every ledger: if a permission
for even one ledger is missing, the whole process fails.
7.2.3.1 Ledger permissions for activities
One set of ledger permissions is linked to activities. There is a specific ledger permission linked to
each ACM activity type, which is starting by a ledger or a ledger group. The ledger permission
names related to the activities start with the word "Activity".
At the time when an activity is executed by a user, the system checks whether the user has the
particular permission for the given ledger and activity type and only then the activity is performed.
There is a specific permission - ALL_ACTIVITIES. If a user is granted ALL_ACTIVITIES permission
for a particular ledger, any activity may be performed on that ledger by the user.
7.2.3.2 Ledger permissions for reports
The second set of ledger permissions is linked to reports. There is a specific ledger permission linked
to each ACM report which start with a ledger or a ledger group. The ledger permission names related
to the reports start with the word "Report".
7 Setting up security
7.2 Managing permissions
50 © Wall Street Systems IPH AB - Confidential
When a report is executed by a user, the system checks whether the user has the particular
permission for the given ledger and report, and only then the report is executed.
Note: To fetch and see vouchers and entries in any state in Accounting Manager, the user must
have the ACM-JOURNAL-REPORT permission granted.
There is a specific permission - ALL_REPORTS. If a user is granted ALL_REPORTS permission for a
particular ledger, any report may be performed on that ledger by the user.
7.2.3.3 Ledger permissions for voucher states
The third set of ledger permissions is linked to voucher states. There is a specific ledger permission
linked to each voucher state. They all have the name started by "Voucher state", e.g. Voucher state
Verify.
When a voucher is shifted to a certain voucher state, the application first checks if the user is
granted the proper permission for the given voucher state, i.e. a destination voucher state is
checked, not the source one.
Note: If you want to modify the vouchers, you must have the ledger permission
ACM-STATE-OPEN.
There is a specific permission - ALL_STATES. If a user is granted ALL_STATES permission for a
particular ledger, any voucher may be shifted to any voucher state on that ledger by the user.
Note: There are two voucher states which are not used by the system by default. They are
Voucher state Verify-2 and Voucher state Verify-3. It is not necessary to define the
permissions for them.
Accounting Module System Administration Guide 51
Chapter 8 Customizing accounting framework
This chapter describes possible customizations in the following areas of the accounting framework:
•TRM accounting inputs and events generation
•CLM accounting inputs and events generation
•Accounting processing
•Accounting reports
•Accounting Manager
•Hedge Manager
8.1 TRM accounting inputs and events generation
Accounting events in TRM are generated from accounting inputs. This applies for daily (RUNNING
and OFF-BALANCE) as well as for closing accounting events (CTB and DAILY-DELTA).
Accounting input is elementary information from which an accounting event might be generated.
Accounting input exists for every transaction/cashflow date which might be important for the
accounting of the particular transaction/cashflow. Accounting inputs are processed by input handlers
(the part of the AccountingEventRules), which result in accounting events (none, one or more from
one input).
Note: Accounting inputs as an entity exist in TRM only. CMM does not use accounting inputs, i.e.
CMM does not need accounting inputs for the accounting events generation.
Accounting event is a standardized structure of accounting data generated by TRM containing all
necessary information for processing in ACM. Accounting events in TRM are generated from
Accounting Inputs. Accounting events are generated by running the appropriate TRM
CTB/Daily/Daily Detla Events Generation activities.
Accounting events are taken over by ACM and they are transformed to accounting entries.
Accounting entry is an elementary accounting information in ACM, which is the subject of accounting
processing in ACM.
This chapter describes the customizations of TRM accounting inputs and events generation.
8.1.1 Customizing inputs generation
Accounting inputs generation logic is handled via the queues framework (aka message bus), i.e. a
message from the transaction flow is sent into a queue, and an independently running process takes
the message and creates Accounting Inputs asynchronously.
Transaction States are defined in transaction_state.sql. By running it, it creates records into
TransactionState table.
Transaction Operations/Agents are defined in the flow.py file. By running it, it creates records into
TransactionOp, TransactionOpAgent, AgentProcedure and AgentMessaging tables.
8 Customizing accounting framework
8.1 TRM accounting inputs and events generation
52 © Wall Street Systems IPH AB - Confidential
In addition, there is also a commit.py file contributing to TransactionOp and TransactionOpAgent
tables for Committing (Applying) transactions.
Note: Configuration in the TransactionOpAgent table specifies what agent procedure (setup_key)
is called for (i) what transaction/cashflow (rule_id, not_rule_id), (ii) what transaction
action (op_id) and (iii) at what transaction state (minimum_state_id, maximum_state_id).
Accounting inputs are generated for the transactions/cashflows matching the rule(s) with a
setup_key linked to the agent procedure (table AgentProcedure) DoTAccountingInput,
which is the name of a stored procedure generating the inputs.
The Suite standard set-up in the above files ensures that
•Accounting inputs for relevant transactions are created at state COMMITTED (a hidden
state) when transaction is matching TFLO-ACT_BOOKING rule (delivered with the standard
set-up). At this point transaction details are sent as a message to accounting-input.update
queue, from which the accounting inputs serviced provider reads it and creates Accounting
inputs.
•Reverse accounting inputs are created in the following cases
–Transaction is matching TFLO-ACT_BOOKING and moves back in the flow (on relevant Reject
button) cross COMMITTED (a hidden state). At this point transaction details are sent as a
message to accounting-input.update queue, from which the accounting inputs serviced
provider reads it and creates reversing accounting inputs.
–At any Cancel operation (Cancel button) DoTCancelAccountingInput is called directly. Note
that in this case queues are not used and that stored procedure is called in the beginning of
process, since Cancel deletes transactions cashflows and important information is lost before
asynchronous Accounting input processing would process the transaction.
•Some actions (as BVC, additional fees, etc.) which are touching transactions without moving in
the flow after COMMITTED state are updating Accounting inputs as necessary. This is done via
sending transaction information into accounting-input.finetune queue, from which accounting
inputs serviced provider reads it and reverses/creates accounting inputs accordingly. Those
actions have to be listed in commit.py file, and all supported actions are in the delivered file.
'execute_bvc' action can be taken as an example to see how they are handled (mask 1 is set,
and it is used then as a condition for sending message to queue).
•Accounting inputs serviced provider, which handles all accounting inputs generation, uses new
REFRESH-TRANSACTION operation defined by flow to ensure processing of fresh information
regardless of the asynchronous processing (it re-fetches transaction information before their
actual processing).
In addition, there is a mechanism ensuring when a cashflow of a transaction is changed at specific
listed columns and there is an input already existing, the input is marked and then reprocessed. The
marking is done via an update database trigger on the Cashflow table.
In addition to a hidden COMMITTED state which determines when Accounting Inputs are created and
reversed, there is also a hidden BOOKABLE state, which determines when Accounting Events are
created for the transaction (and when also FX conversion is ran).
Note: From the accounting point of view the 7.3 standard set-up behaves differently than the
framework in 7.1 and 7.2: it reverses accounting inputs whenever the transaction is
moved back "over the line" of the COMMITTED state. This means that when
transaction is in any of the states before that (such as RE-OPEN, etc.), reversing
Accounting Inputs will be generated (and processed when accounting is run, typically at
the end of the day).
Every Suite version comes with a functioning pre-configured transaction flow. If the transaction
state agents are customized, it is necessary to ensure that relevant Accounting inputs are still
created by calling the Agents at right places to ensure that no new bookkeeping nor reverse is
missed. When you customize the flow, it is also important to ensure that the definition files
corresponding to the generated flow are safely kept and identified so you do not break the
configuration by re-running a different version of the file.
8 Customizing accounting framework
8.1 TRM accounting inputs and events generation
Accounting Module System Administration Guide 53
Warning: Any customization must not be done directly into the database tables,
otherwise the definition files and database content (used for actual processing) would
not be in sync and the tables could not be re-build anymore!
Off-balance inputs (type = 2) generation should never require any user customization. The same
applies for Closing inputs (type = 3), which are automatically created by the TRM CTB Events
Generation and/or TRM Daily Delta Events Generation activities. They should never require any user
customization either.
8.1.2 Customizing events generation
Accounting events are generated according to the rules defined in the AccountingEventRule table of
TRM database. The standard TRM rule logic applies: if Rule matches and Not Rule does not match,
then the procedure specified in the rule is executed and an accounting event of the given type is
created.
The accounting event generation process is run for a specified date. Each accounting input is
matched with the accounting event rules in order of priority. If Rule matches and Not Rule does not
match, the stored procedure specified in event_proc field is executed and accounting events are
created. All matching rules are executed, so one accounting input can generate a number of
accounting events.
The standard Wallstreet Suite installation contains the pre-configured accounting event rules (table
AccountingEventRule). They refer to some default Rules and Not Rules.
Warning: Even the configuration is in the database and as such could be customized, it
is strongly recommended to not perform them and to keep the default setup
since these areas are very sensitive and any customization may complicate
a support from Wall Street Systems.
TRM accounting events are of three basic categories corresponding to three input types:
•RUNNING
•OFF-BALANCE
•CLOSING
Key information like event dates, amounts and FX rates are put to the events by the events
generation process itself. Additional information are enriched by stored procedures. The information
are populated into so called DIM fields. For a default structure of those additional information see
A.1 Accounting Event on page 107.
TRM includes four procedures for filling the DIM fields.The procedures can be customized by a
software engineer during the implementation project at a customer site so they provide additional
information which are not provided by default.
Warning: By default, the procedures provide all useful and necessary accounting information,
so normally there is no need to customize them. They should be customized only in
situations when you need some extra TRM transaction parameters and/or branch
8 Customizing accounting framework
8.2 CLM accounting inputs and events generation
54 © Wall Street Systems IPH AB - Confidential
codes (first 10 parameters and first 5 branch codes are provided by default only), or
when some unusual TRM information is needed.
The procedures should be customized per portfolio owner. You can either customize the default
procedures or you can create your own. If you create your own procedures, you must specify their
names for the appropriate portfolio owner in the Accounting table.
Note: When using the default procedures/setup there is no need to specify the procedures in the
Accounting table; they are used by default although they are not specified there.
The default procedures responsible for the creation of TRM events are structured as follows:
8.2 CLM accounting inputs and events generation
Accounting of CLM payment advices and payment allocations is based on payment allocation events
(aka entity events). An event is a standardized structure of accounting data generated for CLM
transactions containing all necessary information for processing in ACM. The events are generated
from payment allocation inputs (aka entity inputs). Input is an elementary information from which
the events might be generated.
The events are taken over by ACM and they are transformed to accounting entries. Accounting entry
is an elementary accounting information in ACM, which is the subject of accounting processing in
ACM.
This chapter describes possible customizations of inputs and events generation for CLM payment
advices and payment allocations.
8.2.1 Customizing inputs generation
Events for CLM payment advices and payment allocations are generated from inputs.
Accounting inputs are processed by input handlers. The processing of one input results into none,
one or more events.
The best way for viewing and checking the accounting inputs in TRM is the usage of the Accounting
Payment Allocation Input Event Report. For details about the report see the ACM User Guide.
Accounting inputs for CLM transactions (payments and payment allocations) are created without a
link to any result mode since they are the same for all of them.
Procedure Name Procedure Description Customized procedure to be put into
Accounting table column
GetGeneralEventDims Fills event information general for all
3 basic bookkeeping types: Running,
CTB, Off-Balance
general_dim_proc
GetRunningEventDims Fills event information relevant for
Running bookkeeping type only
running_dim_proc
GetClosingEventDims Fills event information relevant for
Running bookkeeping type only
closing_dim_proc
GetOffBalanceEventDims Fills event information relevant for
Running bookkeeping type only
off_balance_dim_proc
8 Customizing accounting framework
8.3 Accounting processing
Accounting Module System Administration Guide 55
Warning: No customization is allowed for generation of inputs for payment advices and
allocations!
8.2.2 Customizing events generation
Events for CLM payment advices and payment allocations are of two categories corresponding to
two input types:
•Payment
•Payment Allocation
They are created by running the TRM Payment Allocation Events Generation activity. The only part
of the process, which can be customized, is the structure of the events.
Key information like event dates, amounts and FX rates are put to the events by the events
generation process itself. Additional information are enriched by stored procedures. The information
are populated into so called DIM fields. For a default structure of those additional information see
A.2 Entity Event on page 111.
DIM fields are populated by two stored procedures.The procedures can be customized by a software
engineer during the implementation project at a customer site so they provide additional
information which are not provided by default.
Warning: The procedures provide by default all useful and necessary accounting information,
so normally there is no need to customize them. They should be customized only in
situations when you need some unusual TRM information is needed.
The procedures should be customized per portfolio owner. You can either customize the default
procedures or you can create your own. If you create your own procedures, you must specify their
names for the appropriate portfolio owner in table AccountingEntity.
Note: When using the default procedures/setup there is no need to specify the procedures in the
AccountingEntity table; they are used by default although they are not specified there.
The default procedures responsible for the creation of events for CLM payment advices and
allocations are structured as follows:
8.3 Accounting processing
Most of the accounting processing is implemented in Java and runs inside an application container
such as Tomcat. Therefore the customizations of that processing are quite limited and are reduced
to just a few options.
Procedure Name Procedure Description Customized procedure to be put into
AccountingEvent table column
GetPaymentEventDims Fills event information for payment
advices and payment side of
allocations.
dim_proc for a kind Payment
GetAllocCashflowEventDims Fills event information cashflow side
of allocations.
dim_proc for a kind PaymentAlloc
8 Customizing accounting framework
8.3 Accounting processing
56 © Wall Street Systems IPH AB - Confidential
8.3.1 Customizing entries and vouchers
8.3.1.1 Introduction
8.3.1.1.1 CSDs overview
Accounting events from TRM and CMM are processed in ACM by running the Accounting Processing
activity. Accounting processing in ACM consists of the following basic steps:
•Accounting event takeover and its transformation to an accounting (ACM) entry
•Entries aggregation
•Mapping to accounts
•Grouping to vouchers
•Voucher posting
The processing steps are configurable via the editors (as described in the ACM User Guide). This
chapter describes some exceptional customer specific developments (CSDs, aka customizations)
done outside the editors. The CSDs in accounting processing can be done at three different stages
as shown in the picture below:
The supported stages are:
•BEFORE-MAPPING – enables customizing of entries that have not been mapped yet. More
precisely, the entries are customized already during the takeover step, i.e. already before the
entries aggregation so the entries created in state NEW are already customized.
Warning: CSD BEFORE-MAPPING is just a one time process since each entry goes via that hook
place just once; in other words, when running the Undo Accounting Processing
followed by Accounting Processing, the entry is not affected by that CSD anymore.
•BEFORE-POSTING – enables customizing of entries after mapping but before posting to
vouchers, i.e. entries in state MAPPED
•AFTER-POSTING – enables customizing of entries posted into vouchers but before the voucher is
shifted to FINAL state. You can customize entries as well as vouchers.
8.3.1.1.2 Enabling CSD per ledger vs. all ledgers
Each customization type is implemented as a stored procedure. ACM allows to specify the ledgers for
which a specified customization type takes place. By default, no customization is done. To enable
8 Customizing accounting framework
8.3 Accounting processing
Accounting Module System Administration Guide 57
customization for a ledger at a particular stage, the following ledger properties (defined in the
Ledger and/or Chart of Accounts editors) must be set to Yes:
•ACM-CSD-BEFORE-MAPPING=Yes
•ACM-CSD-BEFORE-POSTING=Yes
•ACM-CSD-AFTER-POSTING=Yes
To apply customizations to entries in all ledgers, the following environment variables can be set to
true:
•ACM_CSD_BEFORE_MAPPING=true
•ACM_CSD_BEFORE_POSTING=true
•ACM_CSD_AFTER_POSTING=true
The properties set on the ledger have priority over the properties specified in the environment. The
following example describes a scenario where the customization is done at the BEFORE-MAPPING
stage for all ledgers, with the exception of ledger WSS-WORLD:
•ACM-CSD-BEFORE-MAPPING=No (for ledger WSS-WORLD only – ACM Ledger Editor)
•ACM_CSD_BEFORE_MAPPING=true (environment variable)
8.3.1.1.3 CSD_NOT_PROCESSED flag usage
The customization of entries and vouchers is controlled by flag CSD_NOT_PROCESSED (value
134217728, column flags in ACMVoucher and ACMEntry tables). All entries and vouchers to be
processed are marked by ACM with this flag once the above mentioned property is set to Yes/True.
An entry or voucher with such flag does not enter further processing stages. Therefore, the
customization routine must clear the flag when the customization is done.
Warning: The flag is set by ACM on all entries and vouchers so the customization routine must
clear the flag from all the entries and vouchers, not only from those which are the
subject of the customization.
8.3.1.1.4 Useful tips
The following are tips you should follow when creating the CSD:
•ACM uses optimistic locking to prevent data corruption in a concurrent environment. The
customization routine should always increment the value of the version column (ACMEntry and
ACMVoucher table) for each updated entry. ACM does not use the automatic timestamp
optimistic locks provided by the Sybase and MSSQL platforms.
•The customization procedures are always called within an existing database transaction context.
The customization should never attempt to commit or roll back the transaction. A non-zero
return value from the procedure indicates an error, and instructs ACM to roll back the database
transaction. The routine may provide additional error information using the output variable
@fail_reason.
•Command print (MSSQL, Sybase) or RESULTS.PRINT (Oracle) can be used in customization
procedures to create messages what are written to thee ACM server log file. If message
precedes character ’!’ then it is also written to Accounting Activity Log and can be viewed by the
Accounting Activity Log report.
The next sub-chapters describe the principles of the customization in detail.
8.3.1.2 BEFORE-MAPPING and BEFORE-POSTING customizations
The BEFORE-MAPPING and BEFORE-POSTING customizations should be used whenever
customization applies to entries.
The customizations are of two types:
8 Customizing accounting framework
8.3 Accounting processing
58 © Wall Street Systems IPH AB - Confidential
•BEFORE-MAPPING – enables customizing of entries that have not been mapped yet. More
precisely, the entries just after the takeover, but before aggregation, i.e. the entries in state
NEW.
•BEFORE-POSTING – enables customizing of entries after mapping but before posting to
vouchers, i.e. entries in state MAPPED
Warning: These two CSDs are applied only for entries processed by Accounting Processing
activity. They are not applied for manually entered vouchers/entries via the
Accounting Entry Manager.
The BEFORE-MAPPING and BEFORE-POSTING customizations should be implemented in stored
procedures ACMCSDBeforeMapping and ACMCSDBeforePosting respectively. Both procedures are
called with the same parameters:
@ledger_id numeric(19,0),
@instrument_group_id UMPathId = null,
@portfolio_id PortfolioId = null,
@instrument_id nvarchar(30) = null,
@number numeric(19,0) = null,
@origin_group_id int = null,
@bookkeeping_type_id int,
@fail_reason nvarchar(255) = null output)
The routine should always apply the customization only to entries that satisfy the provided
parameter conditions. Whether the parameters are provided or they are null depends on the
parameters of the executed Accounting Processing activity. The following code illustrates a typical
implementation:
update ACMEntry set
param_19="CSD Before Mapping",
flags=flags-134217728,
version=version+1
where
ledger_id=@ledger_id and … and … and …
and flags&134217728 = 134217728
and state_id=100 --Only state NEW entries in BEFORE-MAPPING
ACM is installed with default ACMCSDBeforeMapping and ACMCSDBeforePosting procedures.
•Procedure ACMCSDBeforeMapping fills ACM entry parameter 19 by value "CSD Before Mapping"
and removes the flag CSD_NOT_PROCESSED from entries.
•Procedure ACMCSDBeforePosting fills ACM entry parameter 18 by value "CSD Before Posting"
and removes the flag CSD_NOT_PROCESSED from entries.
8.3.1.3 AFTER-POSTING customization
The AFTER-POSTING customization should be used whenever customization applies to entries
posted to vouchers and can be done on entries and/or vouchers.
Warning: This CSD is applied to any posting voucher, i.e. for voucher created by any activity
including the vouchers entered manually via the Accounting Entry Manager.
When customization is specified, it must be applied to all vouchers including those manually posted
via ACM Accounting Manager. The ACMCSDAfterPosting procedure has the following signature:
create procedure ACMCSDAfterPosting
(@ledger_id numeric(19,0),
@target_voucher_state numeric(19,0),
@process_version int,
8 Customizing accounting framework
8.3 Accounting processing
Accounting Module System Administration Guide 59
@fail_reason nvarchar(255) = null output)
as …
Customization at this stage takes a different approach to identify vouchers to be customized. Again,
the flag CSD_NOT_PROCESSED is set on vouchers that have not been customized yet. In addition, the
provided parameter @process_version identifies those vouchers that are currently being processed
either in the ACM Processing or ACM Shift Voucher State activity or are being manually shifted to
another state using ACM Entry Manager. A voucher with the CSD_NOT_PROCESSED flag set on will
never reach FINAL state. The following code shows a simple customizing description:
update ACMVoucher set
flags=flags-134217728,
description=’CSD’+description,
version=version+1
where
flags&134217728=134217728
and process_version=@process_version
and not voucher_state_id=1000 -- sanity check
and ledger_id=@ledger_id
ACM automatically marks with the appropriate process version those vouchers which are currently
being processed. The flag CSD_NOT_PROCESSED is assigned to the voucher when the voucher is
created. The customization procedure defines whether the flag will be cleared during the shift to
FINAL state, or earlier. The additional parameter @target_voucher_state provides the target
voucher state of the processed vouchers.
For certain types of customization, it can be convenient to temporarily exclude certain vouchers
from the processing. This can be achieved by using the voucher state PARKED. ACM does not
attempt to move such vouchers to any higher state (you can only move such voucher to state OPEN
via the Accounting Entry Manager, the Reject button). Additional custom functionality must be
implemented (e.g. new activity) to un-park these vouchers – i.e. to set the UNPARKED state on such
vouchers. ACM then allows shifting of such vouchers to FINAL state using either the Accounting
Entry Manager (the Accept button) or via the Shift Voucher State activity.
8 Customizing accounting framework
8.3 Accounting processing
60 © Wall Street Systems IPH AB - Confidential
The meaning of these special voucher states is summarized in the table below:
Note: ACM is installed with default ACMCSDAfterPosting procedure, but it only removes the flag
CSD_NOT_PROCESSED from entries and vouchers.
Note: ACM provides Undo functionality, allowing you to undo-post and undo-map entries. When
such process takes place, customizations of certain entries can take place more than once.
The same applies to the Reject button in the Accounting Entry Manager. When a voucher is
rejected, it is automatically assigned the flag CSD_NOT_PROCESSED, i.e. the voucher must
be customized again. ACM may attempt to customize certain entries and vouchers more
than once.
8.3.1.4 Customizations vs. Undo Accounting
None customization done by the BEFORE-MAPPING hook is the subject of the Undo Accounting
Processing activity.
Those customizations, which are done by the BEFORE-POSTING hook on the newly created entries,
e.g. entries resulting from the entries aggregation (Originating State = AGGREGATED) or from
mapping actions split (Originating State = MAPPED), are removed since such entries are removed by
the Undo Accounting Processing activity. The customizations done on the entries with Originating
State NEW are not removed by the Undo Accounting Processing.
Very the same applies for the customizations done by the AFTER-POSTING hook. Any customization
done on the simulated vouchers (voucher part) can be undone. Only changes done on the newly
created entries (Originating State different from NEW) are removed by running the Undo Accounting
Processing activity.
8.3.1.5 Using csd_auxiliary field
On the ACM entry level you can use a field csd_auxiliary for your specific development. The system
does not use this field by default for anything. The field is of type numeric (19,0).
8.3.1.6 Using CSD Auxiliary flag
On the ACM entry level (ACMEntry.flags) as well as the ACM voucher level (ACMVoucher.flags) you
can use specific flags dedicated just for the CSDs. They both have the same value, which is
Visible ID in ACM Simulation State description
PARKED By default a voucher cannot be posted to this state. You can post the
vouchers to this state only by using the CSD after posting.
Vouchers in this state can be viewed in the reports or Accounting Entry
Manager, but they cannot be shifted to a higher state (neither by running
the Shift Voucher State activity nor from the Accounting Entry Manager).
You can only move such vouchers to state OPEN via the Accounting Entry
Manager (the Reject button).
Additional custom functionality must be implemented (e.g. new activity) to
un-park these vouchers and to set them to the UNPARKED state, from
which they can be shifted to FINAL either by running the Shift Voucher
State activity or from the Accounting Entry Manager (the Accept button).
UNPARKED By default a voucher cannot be posted to this state. You must use this
state for vouchers previously posted to state PARKED (typically by CSD
after posting).
Additional custom functionality must be implemented (e.g. new activity) to
un-park the PARKED vouchers and to set them to the UNPARKED state.
Only from this state the previously parked vouchers can be shifted to
FINAL. You can shift them either by running the Shift Voucher State
activity or from the Accounting Entry Manager (the Accept button).
8 Customizing accounting framework
8.3 Accounting processing
Accounting Module System Administration Guide 61
1,073,741,824. These two flags will stay available for CSDs forever and will not be used by the
system by default.
It is possible to define own labels for these two CSD flags be setting the ACM_ENTRY_CSD_AUX_DESC
and ACM_VOUCHER_CSD_AUX_DESC ACM server environment variables.
These labels will be displayed everywhere in the system where the flag value appears (e.g. reports,
Accounting Entry Manager, Balance monitor) by loading the configuration from the ACM server.
8.3.1.7 Troubleshooting
It may happen that you request a customization via the ledger ACM-CSD-xxx properties, but the
appropriate customization procedures are defined incorrectly. The affected entries and/or vouchers
get the flag "CSD not processed" and due to the incorrectly defined procedure this flag is not
removed. The entries are stopped within the accounting processing. You can see this flag in the
Accounting Entry State report. The following table shows how the failed entries are identified at the
particular accounting processing stages:
The only way, how to solve such situation is to correct the appropriate customization procedure.
If the customization is required on the level of a ledger (i.e. the appropriate ACM-CSD-xxx property
is set to Yes), but the appropriate procedure is totally missing, the Accounting Processing activity
fails with the following Failure Reason:
java.sql.SQLException: Could not find stored procedure ’ACMCSDBeforeMapping’
or
java.sql.SQLException: Could not find stored procedure ’ACMCSDBeforePosting’
or
java.sql.SQLException: Could not find stored procedure ’ACMCSDAfterPosting’
8.3.2 Customizing transaction zero-sweeping granularity
Zero-sweeping is a functionality supporting the booking of entries or balances to some account
depending on a booking currency balance of some associated account. In other words, if the system
posts some entry or balance to account A, it checks the booking currency balance on account B.
ACM supports three types of zero-sweeping differing in the granularity of checked balances:
•Transaction zero-sweeping
•Position zero-sweeping
•Account zero-sweeping
For details see the ACM User Guide: Using advanced operations: Applying zero-sweeping.
Important: The possible customization relates only the transaction zero-sweeping.
The rebooking between the zero-swept accounts is represented by entries, which are created in
some default granularity. This chapter is about customizing the granularity of those rebooking
entries. It is not about customizing the granularity of the swept account balances calculation.
The granularity of zero-sweeping entries for transaction zero-sweeping can be extended
by 5 other dimensions.
Processing stage Entry State Voucher State Flags (on entry) Voucher Flags
Before mapping NEW - CSD not processed -
Before posting MAPPED - CSD not processed -
After posting POSTED VERIFY - CSD not processed
8 Customizing accounting framework
8.3 Accounting processing
62 © Wall Street Systems IPH AB - Confidential
For such customization the database table Configuration has 5 records allowing to add maximally 5
additional new dimensions. The names of these records are ACM transaction granularity #X, where
X goes from 1 to 5. The customization should be done via the Configuration Table editor.
Since the editor does not allow to search by other field than value, it is recommended to sort the
rows in the left hand part of the editor by System ID. Those 5 rows relating the transaction
zero-sweeping customization have IDs from 10,001 to 10,005.

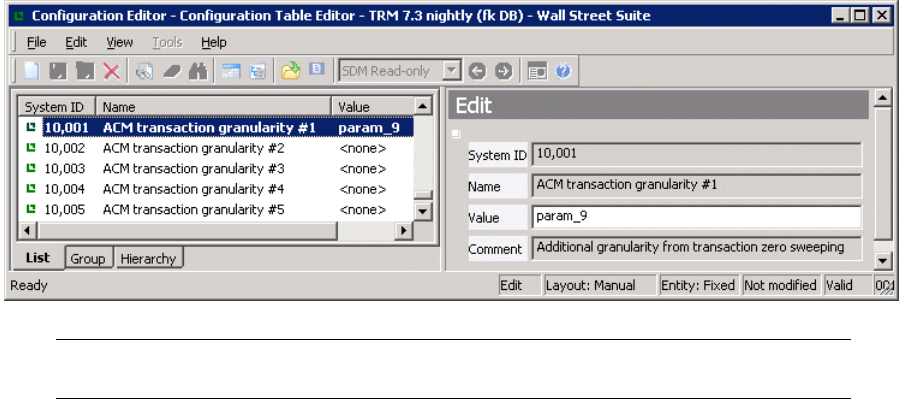

The editor allows to change only the field Value. By default it contains value <none>. Replace this
value by the ACMEntry table column name, which should be added to the transaction zero sweeping
granularity, e.g. param_9 as shown in the picture below.
Note: Typically only a user with administrator rights can see the content in the Configuration
editor.
8.3.3 Activity Parallelization
For a better performance, the Accounting Processing activity can be run in a multi threaded way if
executed for a ledger group.
The Configuration table contains two lines where you can switch multithreading for the Accounting
Processing activity. You can also define the number of allowed threads.
The lines are:
•id = 10,007, ACM Activity Multithreading
By default false, set true for enabling the multithreading.
•id = 10,008, ACM Activity Thread Count
By default 4.
You can change these configurations via the Configuration Table Editor. Just note that you must
have appropriate permissions for modifying the Configuration table.
It is not necessary to restart the ACM Server after this change.
Once you change the “Use Threads in ACM Activities” configuration to true (System ID 10007), next
Accounting Processing activity execution for a ledger group will be processed in the ACM Server
multi threaded way. The ACM Server internally splits all ledgers from the ledger group into a
few sets of ledgers according the ledger owners; these sets are then processed in parallel with
the degree specified in the “Number of allowed threads” configuration (System ID 10008).
Any time the ACM Server runs the activity in the parallel mode, each record in the ACM Activity Log
contains an Entity Key column populated by Ledger ID to which that record refers to.
8 Customizing accounting framework
8.4 Accounting reports
Accounting Module System Administration Guide 63
Warning: Only ledgers having different owners may be processed in parallel!
8.4 Accounting reports
8.4.1 Customizing report parameters and output columns
8.4.1.1 Report files
It is possible to customize some ACM reports. You can enhance existing reports or create new ones.
An ACM report is defined by two file types:
•Report type file (extension frd) - located on the client side in a directory defined by the variable
FK_REPORT_TYPES. It defines connection to report definition, report parameters, column
names.
•Report definition file (extension xml) - located on the server side, by default inside the war file
(inside WEB-INF\lib\DataModel-gen-<version>.jar and there in directory
reports\xml). It defines the Java class that executes report generator request, and other
parameters.
For better customizing definitions they could be read from the external location specified by variable
ACM_REPORT_DEFINITIONS_DIR (outside war file).
Reports can be customized as follows:
•Modify existing report
On client side - modify report type file (frd).
On server side - modify the report definition inside the war file, or create new XML file with the same
name in the external location. Both definitions (from war and from external locations) are then
merged. Properties from the definition in the external location have higher priority.
•Create brand new report
On client side - create new report type file (frd).
On server side - create new report definition file in the external location or inside the war file.
•Create new one based on existing report
On client side - create new report type file (frd).
On server side - create new report definition file in the external location. In the header of this
definition (tag <report>) set property @parent-type="parent-report-definition". The property
"parent-report-definition" is then merged with the new definition. Properties from the new definition
have higher priority.
8.4.1.2 Customizing columns
You can customize columns only for reports executed by the following classes:
com.trema.acm.reporting.sql.SQLReport,
com.trema.acm.reporting.java.TrialBalanceDetailReport or
com.trema.acm.reporting.sql.SQLProcedureReport.
These reports use the database views or stored procedures to retrieve data. Depending on the used
class you can do the following:
For com.trema.acm.reporting.sql.SQLReport
•For adding a column
8 Customizing accounting framework
8.4 Accounting reports
64 © Wall Street Systems IPH AB - Confidential
Add a column to the view in the database and add the column to the report type (frd) on the
client side. Column name must be in lower case although in the database its name contains
capitals. No change to the server definition file is needed.
•Removing a column
Remove the column from the view in database. No change on the server nor client side is
needed.
For com.trema.acm.reporting.java.TrialBalanceDetailReport
•Adding a column
Add column renaming in report type (frd) on client side. Column name must be in lower case
although in the database its name contains capitals. On sever side create the report definition in
an external location and add your new column definition to the tag <columns>. You can add any
column available in ACMJournalView.
For com.trema.acm.reporting.sql.SQLProcedureReport
•Adding a column
Add a column to the output of stored procedure and add column renaming in report type (frd) on
client side. Column name must be in lower case although in the database its name contains
capitals. No change to the server definition file is needed.
•Removing a column
Remove the column from the output of stored procedure. No change to server or client files is
needed.
Example - Adding an entry parameter 0 to the Trial Balance Detail report.
Create an external definition location file acm-trial-balance-detail.xml with the following content:
<?xml version="1.0" encoding="utf-8"?>
<report type="acm-trial-balance-detail">
<columns>
<column>
<id>ACMEntry_param_0</id>
</column>
</columns>
</report>
8.4.1.3 Customizing startup parameters
You can customize startup parameters only for reports executed by classes
com.trema.acm.reporting.sql.SQLReport or
com.trema.acm.reporting.sql.SQLProcedureReport. These reports use the database view or
stored procedure to retrieve data.
To add a new startup parameter do the following:
•Add the new parameter to the report type (frd) on client side
•Create in the external location the file <report-type>.xml. You can use the file from the war as a
template.
For com.trema.acm.reporting.sql.SQLReport
•In the XML file, create the tag <report-conditions>. Specify the condition to be added to the end
of the original one, or create the tag report-conditions with property @mode="overwrite" and
specify the whole condition. Condition is a piece of SQL code and the query is constructed as
"select * from <view> where <report-conditions>". In condition, you can use special operators
such as #=, #<=. #>= (in the XML file you must use #&lt;=, #&gt;= syntax) which are
converted to =, <=, >= if input parameter is not null or to (1=1) if null. If you use these
enhancers, the parameter must be on the right side of the condition. This access significantly
improves the performance of reports.
8 Customizing accounting framework
8.4 Accounting reports
Accounting Module System Administration Guide 65
For com.trema.acm.reporting.sql.SQLProcedureReport
•In database add to proper stored procedure new starting parameter.
•In the XML file create tag <procedureParameters>. This tag must contain comma separated list
of all parameters (constraints) what are sent to the stored procedure (in order as they are
accepted by this procedure). Number of parameters must be exactly same as the number of
parameters of procedure.
Example (SQLReport): how to add to the journal report a new parameter to allow filtering of rows
based on Parameter 0.
•Change acm-journal.frd as follows:
Parameters=ACMLedger_id, ACMPeriod_id … ,AdditionalGrouping, ACMEntry_parameter0
..
..
[Parameter ACMEntry_parameter0]
Name=Entry Parameter 0
Type=TEXT
•Create an external definition location file acm-journal.xml with the following content:
<?xml version="1.0" encoding="utf-8"?>
<report type="acm-journal">
<report-conditions>
and (ACMEntry_param_0 #= :ACMEntry_parameter0)
</report-conditions>
</report>
Example (SQLProcedureReport): how to add to the acm-off-balance-calculation-period report new
parameter to allow filtering of rows based on Parameter 0.
•Change the stored procedure ACMReportOTFBalCalcPeriod to accept a new parameter
parameter0 and a filter based on it.
•Change acm-journal.frd as follows:
Parameters=ACMLedger_id, ACMPeriod_id … ,AdditionalGrouping, ACMEntry_parameter0
..
..
[Parameter ACMEntry_parameter0]
Name=Entry Parameter 0
Type=TEXT
•Create an external definition location file acm-off-balance-calculation-period.xml with the
following content:
<?xml version="1.0" encoding="utf-8"?>
<report type="acm-otf-balance-calculation-period">
<procedureParameters>ACMLedger_id,ACMPeriod_id,ACMAccount_id,zero_balances,
ACMVoucherState_id,ACMEntryOriginEntity_id1,number1,ACMEntryOriginEntity_id2,
number2,ACMCostCenter_id,ACMProject_id,counterparty_code,elem_one,elem_one_value,
elem_two,elem_two_value,report_type,ACMEntry_parameter0</procedureParameters>
</report>
8.4.1.4 Customizing postprocessors
Postprocessors allow you to modify fetched data before it is sent to the report generator. In ACM
there are post-processors for translating bit flags to string representation, convert numeric system
ID to human readable ID, to convert direct/indirect currencies, etc.
You can add a postprocessor to any report. Create the report definition in an external location and
add your postprocessor definition to the tag <postprocessors>. The ACM Server then will use all the
postprocessors from original report along with the new postprocessor.
Example: postprocessor translating entry flags to its string representation
8 Customizing accounting framework
8.4 Accounting reports
66 © Wall Street Systems IPH AB - Confidential
<postprocessor class="com.trema.acm.reporting.FlagsPostProcessor">
<sourceColumn>ACMEntry_flags</sourceColumn>
<entity>ACMEntry.flags</entity>
</postprocessor>
8.4.2 Customizing maximum rows in report
The maximum number of displayed rows in the ACM reports is driven by the ACM server property
reports.maxRows. This property is by default set to 100,000 and applies for all ACM reports.
If a report output has more rows than the specified maximum, the output is not provided and the
following message is displayed: "There are more rows meeting the input criteria. Current limits is
100,000 rows. Please, specify more restrictive input parameters. Note: Do not use this output as a
final report for business purposes as its interpretation could be incorrect."
If you want to change that limit globally for all ACM reports, you must change that property and to
restart the ACM server.
Or, you can change that limit per particular report by adjusting the appropriate report XML file by
defining the tag <MaxRows>. For details about that XML file see 8.4.1.1 Report files on page 63. If
the tag is set to 0, the number of rows is unlimited. If the MaxRows tag is missing, the value from
the ACM server property reports.maxRows is used.
Example for adjusting the MaxRows report tag
Let us assume you want to set the maximum number of fetched rows for the Accounting Journal
report to 200,000 while for all other reports you want to keep a default value.
You must create an external definition location file acm-journal.xml with the following content:
<?xml version="1.0" encoding="utf-8"?>
<report type="acm-journal">
<MaxRows>200000</MaxRows>
</report>
8.4.3 Customizing drill-downs
Drill down functionality is a native functionality of the report generator. The configuration for ACM
reports is stored in the acm_drilldown.ini in the directory specified by the variable
FK_REPORT_LAYOUTS.
For details of customizing drill-downs, see TRM System Administration Guide.
8.4.4 Restricting list of offered ledgers
By default, all ACM reports offer in the selection list for ledgers all the ledgers defined in the system
with the only restriction given by the domain check. If you want to restrict the list only to those
ledgers for which the user has the appropriate ledger report permissions, you must change the
configuration in the Configuration table, id 10009. Note that this configuration applies to the
restriction of ledgers in Accounting Manager too.
Note: The only ACM report, for which no ledger permission verification is done, is the Accounting
Dynamic Data Verification report (see details in 6.1 Accounting dynamic data verification
report on page 35).
8 Customizing accounting framework
8.5 Accounting Manager
Accounting Module System Administration Guide 67
8.5 Accounting Manager
8.5.1 Customizing drill-downs to the report generator
Drill-down definitions for Accounting Manager are stored on the client side in
AccountingClient####.jar (resources\ReportLaunches.xml), where #### represents the
Wallstreet Suite version number. If you want to add your own drill-downs, you must create the
drill-down definitions in a file outside the jar file and set the environment variable
ACM_AM_DRILLDOWN_DEFINITIONS be referring to this file.
Definitions are read during Accounting Manager startup and added to the end of drill-downs list. The
format of the drill-down definition file is following:
<ReportLaunches>
<ReportLaunch>
<Label></Label> - label of drilldown
<Type></Type> - report type
<Layout></Layout> - report layout - only one of type/layout tags can be used
<SourceEntity></SourceEntity> - table where drilldown is active. Allowed values are
ACMEntry, ACMVoucher, ACMMatchEntry.
<SourceUse>
<Use></Use> - if there are more tables (grids) based on same entity this allows
you to specify in what drilldown is active
- for ACMMatchEntry it could be USE_MATCHED, USE_POSITIVE, USE_NEGATIVE
- for rest leave it empty
</SourceUse>
<Parameters>
<Parameter SourceProperty=""|Constant="" Selection="all" Destination=""/>
- parameters to be send to report
- Destination is name of parameter in destination report
- SourceProperty is name of property in source table
- Constant - constant - e.g. 1000 for Voucher State FINAL
- Selection="all" - if there is more selected rows in grid it creates comma
separated list of values
- AllowNull="true" - by default drilldown is enabled only if "SourceProperty"
is not null. If this property is set to "true" then it is enabled although
"SourceProperty" is null.
</Parameter>
</Parameters>
</ReportLaunch>
</ReportLaunches>
8.5.2 Customizing memory settings
You can set up memory usage limit in the Accounting Manager. By default the value is set to 128
MB. This value might not be high enough for large data amounts, such as Import/Export operations.
In such cases, an Out of memory message will be shown. If this happens, use a text editor to open
this file:
%FK_HOME%\share\java\acm\client\AccountingManager.ini
8 Customizing accounting framework
8.6 Hedge Manager
68 © Wall Street Systems IPH AB - Confidential
and change the value in the expression -Xmx128m to a bigger value (-Xmx256m and similar).
Note: Since the Accounting Manager runs as java process like the ACM server, you may look for
relevant information about the memory settings to chapter 4.2 Memory settings on page
27 too.
8.5.3 Restricting list of offered ledgers
By default, Accounting Manager offers in the selection list for ledgers all the ledgers defined in the
system with the only restriction given by the domain check. If you want to restrict the list only to
those ledgers for which the user has the appropriate ledger permission, you must change the
configuration in the Configuration table, id 10009. Note that this configuration applies to the
restriction of ledgers in ACM reports too.
8.6 Hedge Manager
Hedge Manager can be customized in the following areas:
•Hedge relation flow
What are the possible hedge relation states and how a hedge relation can flow between the
states.
•Hedge Manager modes
You can define multiple Hedge Manager modes. For each mode you can define:
–Available hedge relation states.
–How particular states are restricted for editing within the mode.
–What commands are available per particular state within the mode.
•Hedge Managers per result modes
A possibility to view the hedge relations just from one specified result mode (e.g. IFRS, FAS,
Local, etc.).
This chapter describes how to customize all these areas.
8.6.1 Hedge relation flow
The process of hedge relation handling and control, from initial entry to final acceptance, is referred
to in ACM as a hedge relation flow. The hedge relation flow logic is very close to the transaction flow
logic available in TRM.
Different commands available in the Hedge Manager can be configured for different modes and
hedge relation states.
8.6.1.1 Default flow
At all points in the hedge relation flow, a hedge relation has a state.
The states are defined in the EntityState table:
8 Customizing accounting framework
8.6 Hedge Manager
Accounting Module System Administration Guide 69
As you can see, each state has some flag. Their meaning is following:
•1 = cancelled
•2 = final
•8 = provisional
•16 = intermediate
•32 = not active
Note that hedge relation states are closely linked to the commands available in the Hedge Manager
application. This link is defined via the hedge manager modes. For details see 8.6.2 Hedge Manager
modes on page 73.
8.6.1.2 Flow customization
The hedge relation flow configuration is driven from two files:
•hedge_relation.sql located in $FK_HOME/share/<database>/setup folder.
The script consists from several calls of another procedures. The procedure related to the hedge
relation flow definition SetupEntityState, which defines the particular hedge relation states.
•hedge_relation.py located in $FK_HOME/share/python folder.
This file defines the state flow via agents, i.e. it defines next state for a specified state and
applied action. The hedge relation flow can be conditions based, i.e. a hedge relation can be sent
to some state only if some condition is fulfilled. For details see the next chapter.
The default versions of these two files represent the default flow as shown above.
By customizing these files (and executing the appropriate SQL commands) you can customize the
hedge relation flow.
Warning: The flow definition is very closely link to the definition of modes. Read 8.6.2 Hedge
Manager modes on page 73 for details!
Note: Since the hedge relation flow logic is very close to the flow logic implemented for
transactions in TRM, you can refer for many details to the TRM System Administration
Guide, chapter Transaction flow.
8.6.1.3 Conditioned flow
The hedge relation flow can be conditions based, i.e. a hedge relation can be sent to some state only
if some condition is fulfilled. For instance, you can define some flow shortcuts (e.g. direct movement
from OPEN to FINAL) if some conditions are fulfilled. Such conditions can be used for defining the
exceptions in the hedge relation flow.
The conditions are represented by special entity rules stored in two database tables:
•EntityRulesHeader
•EntityRules.
Warning: The tables must not be filled by direct database inserts! They can be filled by
executing a Python script only, e.g. you can adjust and execute the
hedge_relation.py script. Note that this file is always replaced by new
hedge_relation.py file from the WSS package.
The data in the column value of the EntityRules table are kept in certain internal format and cannot
be read. Therefore you cannot read easily the structure of the rules and the definition in the Python
file is the only place from where you can read them.
8 Customizing accounting framework
8.6 Hedge Manager
70 © Wall Street Systems IPH AB - Confidential
A Python syntax for defining the condition rules is as follows:
from entity_agents import *
define_rule ("HedgeRelation", "rule_id", "rule_name", (
("column_id", "value"),
("column_id", "value"),
...
))
where:
Note: The hedge_relation.py file is located in $FK_HOME/share/python folder and you can
execute it from the Wallstreet Suite Shell by command python hedge_relation.py.
Entity rules might be then referenced in the hedge_relation.py file, where you define for
•what action,
•what initial state, and
•under what condition (rule and not_rule),
what target state is allowed.
Example
Let us assume that you want to skip the state VERIFY for hedge relations with strategy code
SIMPLE_FX not having a value Test in the hedge relation parameter 1 and not having a value Test2
in the hedge relation parameter 2.
The hedge_relation.py file must be modified as follows:
from entity_agents import *
define_rule ("HedgeRelation", "SC-SIMPLE_FX", "", (
("strategy_code", "SIMPLE_FX"),
))
Column id Column meaning
rule_id Mandatory field.
Unique key. Each rule must have its id.
rule_name Optional field.
You can define some name for the rule too.
column_id Mandatory field.
In this field you specify the column name of the field from the HedgeRelation
table, e.g. strategy_code, param_0, param_1, etc.
value Mandatory field.
In this field you specify a value, which should be filled for the particular column
defined above, so the rule is considered as a matching rule.
Note that as value you can specify also non-string values, e.g. for column
critical_terms_match the specified value could be 0 (does not match, i.e.
No) or 1 (does match, i.e Yes). In such a case the value in the Python script would
not be specified in double quotes.
8 Customizing accounting framework
8.6 Hedge Manager
Accounting Module System Administration Guide 71
define_rule ("HedgeRelation", "P1-TEST", "", (
("param_1", "Test"),
("param_2", "Test2")
))
# Move forward in the flow.
define_op ("HedgeRelation", "ACCEPT", "Accept Hedge Relation", (
(state('NOT-ACTIVE'), action_mask(0), not_mask(0),
set_state('OPEN', 'Accept')),
(state_between('OPEN', 'RE-OPEN'), action_mask(0), not_mask(0),
rule('SC-SIMPLE_FX'), not_rule('P1-TEST'),
set_state('FINAL', Verify')),
...
8.6.1.4 Calling CSDs from the flow
The flow configuration in the hedge_relation.py file allows to define CSDs which can be executed
at the moment of hedge relation state transitions. The CSDs should be created as stored procedures
which are called by command
call_proc(’Procedure_name’)
Hedge ID is a key parameter provided to the procedure.
Some example is shown below. It calls the procedure HAMAcceptCSD from ACCEPT action:
# Move forward in the flow.
define_op ("HedgeRelation", "ACCEPT", "Accept Hedge Relation", (
...
txn_begin(),
service('service/entity-board/hedge-manager@validate'),
service('service/entity-board/hedge-manager@save'),
service('service/entity-board/hedge-manager@check-designation'),
call_proc('HAMAcceptCSD'),
txn_commit(),
))
...
The CSD procedure examples are provided in the next two sub-chapters
8.6.1.4.1 Sybase_HAMAcceptCSD.pl
&header ('$wss$ ');
use utf8;
8 Customizing accounting framework
8.6 Hedge Manager
72 © Wall Street Systems IPH AB - Confidential
&procedure ('HAMAcceptCSD', '
Make CSD actions when accepting a hedge relation.',
'@id', 'ID',
'@state_id', 'StateId',
'@current_state_id', 'StateId',
'@action_id', 'varchar(32)', '= null',
'@date', 'datetime', '= null',
'@param0', 'varchar(32)', '= null',
'@param1', 'varchar(32)', '= null',
'@param2', 'varchar(32)', '= null',
'@param3', 'varchar(32)', '= null',
'@param4', 'varchar(32)', '= null',
'@param5', 'varchar(32)', '= null',
'@param6', 'varchar(32)', '= null',
'@param7', 'varchar(32)', '= null',
'@param8', 'varchar(32)', '= null',
'@param9', 'varchar(32)', '= null',
'@stamp', 'timestamp', '= null',
'as
-- Put the CSD code here
return ', &status_OK, '
');
&grant ('execute');
1;
__END__
8.6.1.4.2 Oracle_HAMAcceptCSD.pl
&header ('$wss$ ');
use utf8;
&procedure ('HAMAcceptCSD', '
Make CSD actions when accepting a hedge relation.',
'Pid IN numeric',
'Pstate_id IN varchar2',
'Pcurrent_state_id IN varchar2',
'Paction_id IN varchar2 := null',
8 Customizing accounting framework
8.6 Hedge Manager
Accounting Module System Administration Guide 73
'Pdate IN date := null',
'Pparam0 IN varchar2 := null',
'Pparam1 IN varchar2 := null',
'Pparam2 IN varchar2 := null',
'Pparam3 IN varchar2 := null',
'Pparam4 IN varchar2 := null',
'Pparam5 IN varchar2 := null',
'Pparam6 IN varchar2 := null',
'Pparam7 IN varchar2 := null',
'Pparam8 IN varchar2 := null',
'Pparam9 IN varchar2 := null',
'Pstamp IN number := null',
' RETURN NUMBER as BEGIN SYBEMU.pushProcName(\'HAMAcceptCSD\');
-- Put the CSD code here
SYBEMU.popProcName;
return ',&status_OK,';END;');
&grant ('execute');
1;
__END__
8.6.2 Hedge Manager modes
Different modes of the Hedge Manager can be configured for different purposes.
You can define multiple Hedge Manager modes. For each mode you can define:
–Available hedge relation states.
–How particular states are restricted for editing within the mode.
–What commands are available per particular state within the mode.
8.6.2.1 Hedge relation states vs. Hedge Manager commands
The definition of available commands per each hedge relation state is fully configurable. However,
you should always keep in your mind the following rule:
Commands changing a hedge relation can be performed only in states Open, Re-open or
Not Active.
The commands changing a hedge relation are:
–Delete Hedge Relation
–Add Hedge Relation Risk
–Add Hedge Key Figure
–Add Hedge Relation Type
–Dedesignate Hedge Relation (Full)
8 Customizing accounting framework
8.6 Hedge Manager
74 © Wall Street Systems IPH AB - Confidential
–Dedesignate Hedge Relation (Partial)
–Dedesignated Transaction
–Adjust Discharge Date
All other commands can be performed at any state. However, for some hedge manager modes, e.g.
QUERY or CANCELLED, some additional commands restrictions are applied. For details see the next
chapter.
8.6.2.2 Default modes
In the default ACM installation, different Hedge Manager modes are configured by default. They are:
–FINAL (only for state Final)
–VERIFY (only for state Verify)
–NOT-ACTIVE (only for state Not Active)
–CANCELLED (only for state Cancelled)
–OPEN (only for states Open and Re-Open)
–ADMIN
–QUERY
For details see the ACM User Guide.
8.6.2.3 Modes customization
The modes are primarily defined in the sql script located in
$FK_HOME/share/<database>/setup/hedge_relation.sql.
Note: It is the same file as for defining the hedge relation states.
The procedure consists from several calls of another procedures. The procedures related to the
modes definition are:
•SetupEntityMode
It defines the Hedge Manager modes (mode_id) including:
–The definition of states visible in the mode.
–Default behavior for fields, where grant_grant_p = 1 means all fields are frozen, zero
enables all.
–Default available commands and Flow actions, where action_grant_p = 1 means all
commands (actions) as well as shifts in flow are disabled, zero enables all.
All these defaults can be adjusted by the next procedure.
•SetupModeAction
It specifies the exceptions from the default behavior defined by the SetupEntityMode procedure,
for instance, for mode FINAL you enable all the commands (@action_grant_p = 0), but then you
disable for this mode all the commands listed in 8.6.2.1 Hedge relation states vs. Hedge
Manager commands on page 73.
The particular modes can be used for starting the Hedge Manager. The definition is done via the
FKApplicationManagerMenu.xml file.
Note: Since the modes logic is very close to the modes logic implemented for transaction flow
and Transaction Manager in TRM, you can refer for many details to the TRM System
Administration Guide, chapter Transaction flow.
8 Customizing accounting framework
8.6 Hedge Manager
Accounting Module System Administration Guide 75
8.6.3 Hedge Managers per result modes
If no result mode is specified in the Configure Hedge Manager dialog, the Hedge Manager allows to
fetch and display the hedge relations for all the result modes at once. In order to start the Hedge
Manager in specific result mode only, an extra parameter "--group" has to be passed to the
appropriate hedge manager starting command used by the Application Manager. You do this
customization in the FKApplicationManagerMenu.xml file.
8 Customizing accounting framework
8.6 Hedge Manager
76 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 77
Chapter 9 Interfacing with ERP
ACM is typically used as a sub-ledger from which you typically export the entries or account
balances to a target ERP system for further processing and reporting. Such export functionality in
ACM is called as ERP Interface.
This chapter provides information related to this interface.
Note: ACM has integrated interface with other Wallstreet Suite modules - TRM and CMM. After
successful ACM installation these interfaces does not require any special administration
tasks.
9.1 Technical overview
This chapter provides a technical overview of the ACM/ERP interface. For a business aspects look to
the ACM User Guide.
The overall technical architecture of the ERP interface looks as follows:
As you can see there are two methods of an integration:
•FILE based
•SAP_FI based
The method is specified by selecting a target type in the ERP System Definition editor. While the
FILE target type besides the definition of the ACM_ERP_FILE_OUTPUT_PATH variable does not
require any other special technical configuration, the SAP_FI target type requires a lot of
configuration on the side of ACM as well as SAP.
The next chapter provides a very brief overview of that ACM/SAP set-up.
9 Interfacing with ERP
9.2 Interfacing with SAP
78 © Wall Street Systems IPH AB - Confidential
9.2 Interfacing with SAP
For SAP_FI (connection to SAP system) we provide two methods of communication as follows:
Based on system variable ACM_ERP_SAP_CONNECTION system uses SAP Business Connector
(ACM_ERP_SAP_CONNECTION = BC) or SAP Exchange Infrastructure (ACM_ERP_SAP_CONNECTION
= XI).
ACM ERP interface is compatible with the following SAP versions:
•R/3
4.6, 4.7
•ERP Components:
5.0, 6.0
For details about the ACM/SAP interface configuration see the ACM to SAP Configuration Guide,
which is distributed upon request (it cannot be downloaded from the Wall Street Systems Customer
Support site http://www.trema.com/support).
9 Interfacing with ERP
9.2 Interfacing with SAP
Accounting Module System Administration Guide 79
9.2.1 Using SAP Business Connector
If you decided to use SAP Business Connector (BC) for connection to SAP system, then you must
perform a special step required during the installation. The following picture shows the connection
where SAP BC is used:
The BC Package is a zip file which is provided on a request. It inclused also a documentation for
importing this package into SAP Business Connector including the description of required entities
setup in SAP R/3 system.
9.2.2 Using SAP Exchange Infrastructure
If you decided to use SAP XI all libraries are packaged with ACM so there are no other libraries
necessary comparing to SAP BC.
9 Interfacing with ERP
9.3 ERP Document Key adjustment
80 © Wall Street Systems IPH AB - Confidential

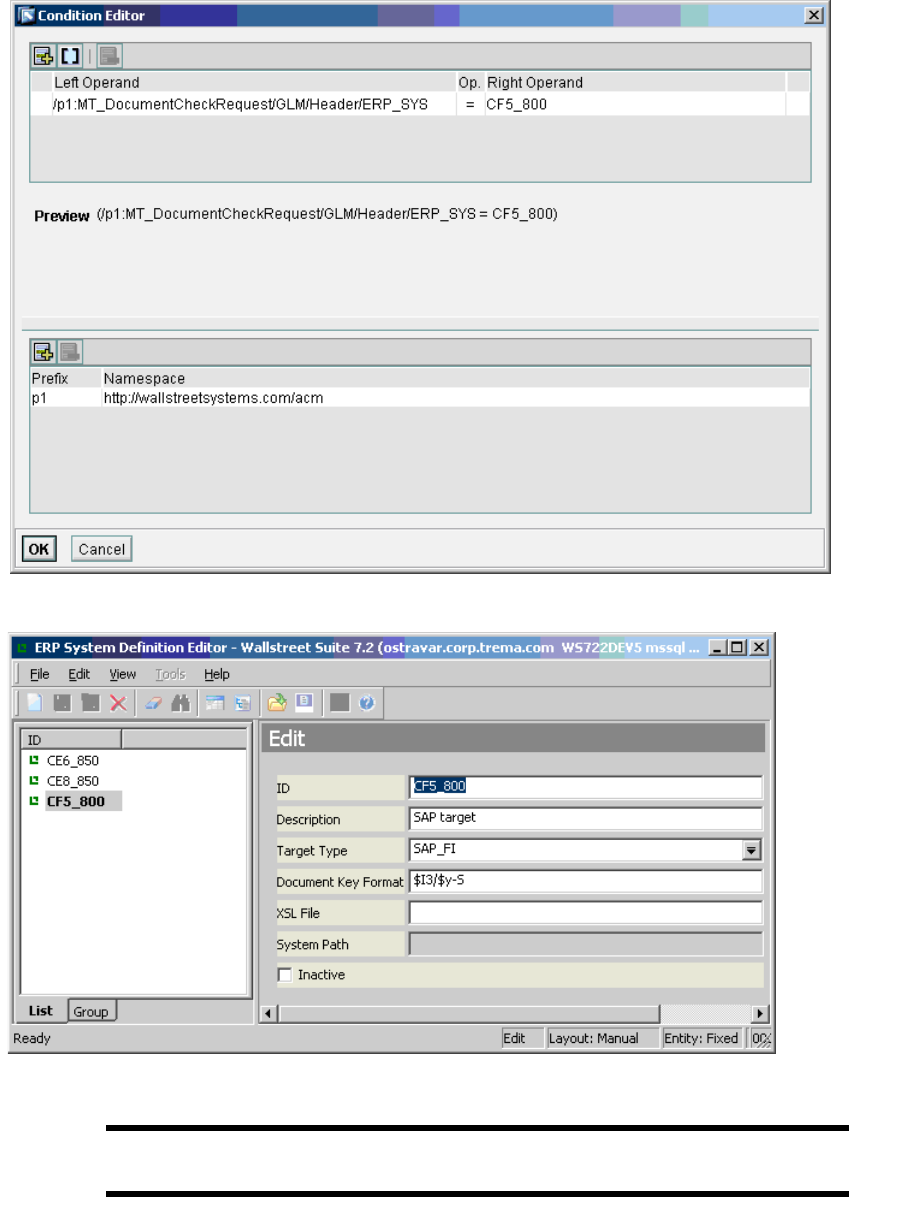

A complete overview of the technical architecture is provided by the following picture:
The XI Content *.tpz is provided on request together with documentation how to install and set all
required objects in SAP R/3 system.

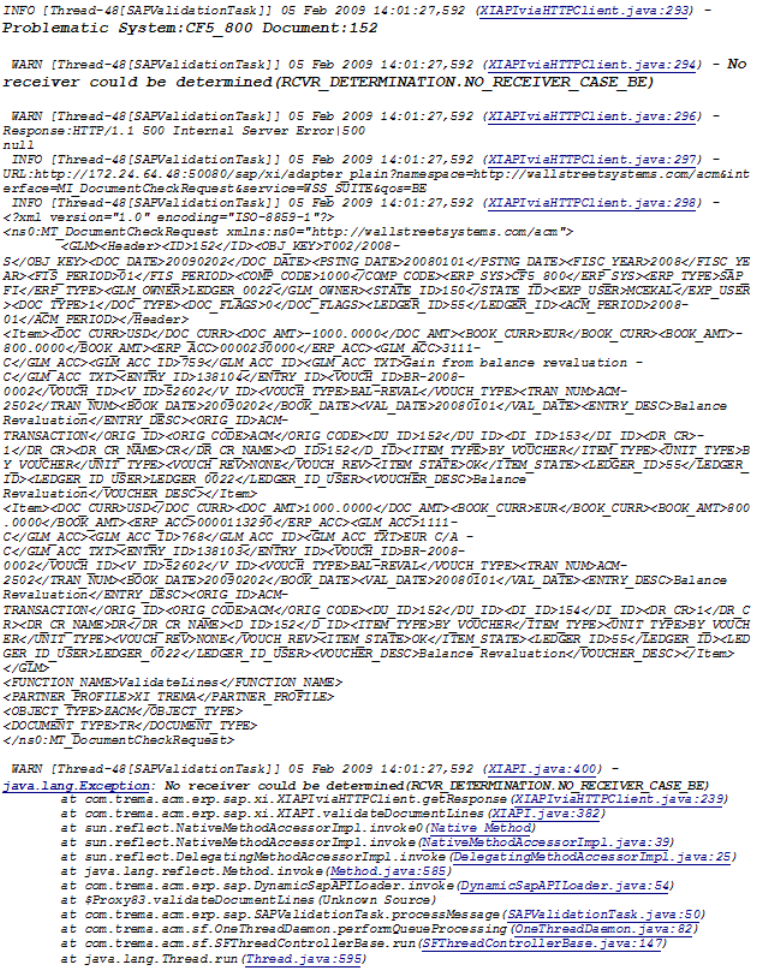

Communication with the SAP Exchange Infrastructure uses the HTTP protocol.
9.3 ERP Document Key adjustment

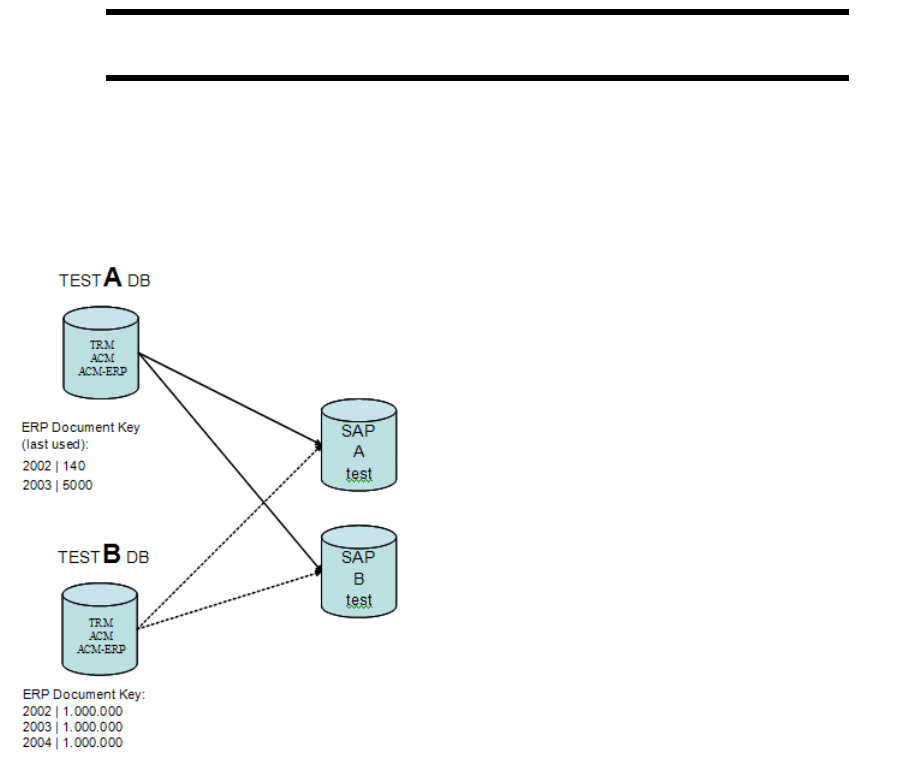

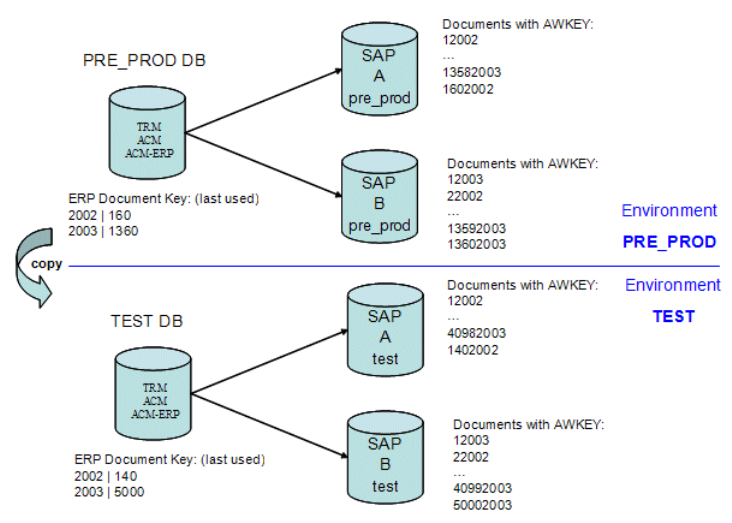

This section explanes a mechanism of ERP Document Key generation, its usage including a
description of required manual adjustments in situations when moving/migrating the WSS
databases across the environments.
9.3.1 ERP Document Key mechanism
When the ACM ERP Interface performs the export, it always packages a set of accounting entries
into the ERP Document. Each such document has two IDs:
•ID
This is an internal ID of a document within ACMERPDoc table and is used in many ERP Interface
reports in ACM
•ERP Document Key
"External" ID by which the document can be looked up in the target system, e.g. in SAP
The interface keeps one independent sequence of the ERP Document Key for each ERP System
Definition and per other entities specified in the Document Key Format (like fiscal year if $y macro is
used). When a new document is being created a new ERP Document Key is generated using the
Document Key Format and Document Key Prefix defined for the Target.
Note: Setup of the Document Key Format should be done in cooperation with the ERP system
administrator.
9 Interfacing with ERP
9.3 ERP Document Key adjustment
Accounting Module System Administration Guide 81
9.3.2 ERP Document Key example
If you define the Document Key Format as "$y_$I5" and Document Key Prefix as "T1_", the ACM
Server will generate Document Keys for 2008 period as follows:
T1_2008_00001
T1_2008_00002
…
T1_2008_99999
If counter specified by $I is consumed, an exception is thrown and no new documents are created
unless you modify the Format, you change the ACM ERP System Definition or update the
ACMNumberSequence table according to the instructions mentioned later in this document.
9.3.3 Possible problems if exporting to SAP
9.3.3.1 WSS database vs. SAP containing some previous exports
9.3.3.1.1 Problem description
As long as there is a new installation or reinstallation of the ACM ERP Interface that exports data to
SAP installations to which the ACM ERP interface did not export any data before, there is no problem
and nothing has to be adjusted.
The following diagram shows an example of such environment after posting 1500 documents from
the WSS System.
However, during the implementation phases, it happens that WSS databases are migrated from one
environment to another. Let us assume the following setup:
When a copy of the PRE_PROD DB is loaded into the TEST environment and ERP-TARGETs of
Ledgers are reconfigured to the SAP TEST machines, then if there is no adjustment performed,
9 Interfacing with ERP
9.3 ERP Document Key adjustment
82 © Wall Street Systems IPH AB - Confidential
the interface may not work properly in the case that higher ERP Document Keys have already
been used in the TEST environment. See the picture below:
A problem is that when the TEST is restarted with the copy of the PRE_PROD database, the interface
would export a new document for fiscal year 2003 with the ERP Reference Key 13612003; but such
a document may already exist in the target SAP! And if the new document contained an error and it
was not posted by SAP, SAP would reply that it has been posted! A reason for such behavior is that
the ERP Document Key is the input parameter to the SAP function which provides information about
a posting success/failure and a document with this key may be already posted from the "old" test
environment.
9.3.3.1.2 Problem solution
A solution for previously described problem consists from two steps:
1. Find out the highest used keys in the "old" environment
Option A (setup on WSS ACM):
–Retrieve some information from the WSS database before the new DB is loaded by running
the following select:
select sd.system_name,ns.* from ACMNumberSequence ns join ACMERPSystemDef sd
on (ns.system_definition_id=sd.id) where ns.system_definition_id is not null
order by ns.id
You should see columns "system_name","id", "sequence_format" and "last_index". Store
values and once you load the new WSS database, execute the same command and align the
values appropriately.
Option B (setup in SAP):
This option is needed when the previous WSS DB, that was linked to the SAP systems, is no
longer available:
–Within each target SAP system find a maximum value of AWKEY (or XBLNR which is equal)
for each fiscal year that has been posted into. An easy way to do this is:
a. SAP transaction SE16, Enter
b. Table name: BKPF, Enter
9 Interfacing with ERP
9.3 ERP Document Key adjustment
Accounting Module System Administration Guide 83
c. GJAHR - enter Fiscal Year, AWTYP - enter ZGLM (to filter document only from Trema),
Execute
d. Sort by BELNR (because XBLNR is sorted as text, not numbers)
e. Get the highest (last) AWKEY/XBLNR
–For each fiscal year, take the maximum from all individual SAP systems
2. If the value for any of the fiscal years found in step 1 is higher than the value in the new DB, you
must do the following:
a. update the fiscal year by running
update ACMNumberSequence set last_index=xxx where id=xy,
where xxx represents new last_index you need and xy represents id of a row which you need
to align.
b. or inserted new line if it does not exist (set the STEP attribute to 1).
Warning: Any manual update in the ACMNumberSequence table can be done just when the
ACM Server is stopped!
9.3.3.2 Multiple WSS to one SAP
9.3.3.2.1 Problem description
There might be a requirement that multiple WSS environments are linked to a shared SAP
installation. This is shown on the next diagram:
In such case there might be a conflict in generated Document Keys.
9.3.3.2.2 Problem solution
When linking the second WSS environment - TEST"B" (with ACM ERP Interface) - to the same SAP
systems, a possible solution is to "separate the ERP Document Key namespace" before starting to
use the ACM ERP interface by moving the appropriate values in the ACMNumberSequence table (see
9 Interfacing with ERP
9.4 Using Targets 2 and 3 in Account Mode
84 © Wall Street Systems IPH AB - Confidential
the previous problem solution for details) to numbers that will not be reached from the TEST"A"
WSS database.
Warning: This scenario can become dangerous when DB migrations into TEST"A" or TEST"B"
are performed because it might not be easy to find the maximum numbers of the
keys from the SAP target systems for each fiscal year and each "namespace" as
described in the previous Option B problem solution.
In any case, it is essential that all such decisions taken for the environments are carefully
documented by the implementation project.
9.4 Using Targets 2 and 3 in Account Mode
If you want to use Target 2 or 3 in the Account Mode, from the performance reasons it is
recommended to build additional index using the following command:
create unique index amerp1XY on ACMEntry
(ledger_id,account_id,dr_cr,erp_target_XY,cost_center_id,project_id,voucher_id, id)
where XY is 2 if using Target 2 and is 3 if using Target 3.
9.5 Customizations
A default output of the ERP interface (the ERP document) produced by the ACM server is called
TremaXMLDocument. Its structure is described in Appendix C ERP document structure on page 135.
Under the normal circumstances there is no need to modify the default TremaXMLDocument
structure since it contains all the fields from a voucher and entries. However, sometimes a further
processing of the ERP documents requires a modified structure. For such situations the ERP interface
offers several places where the TremaXMLDocument can be modified. They are:
•XSL Transformation.
•Customization of reports used for the export of ERP Document and ERP Document Items.
•Customization outside the ACM Server.
The customization outside the ACM Server is not a subject of further description since it is only a
client specific; the first two options are described in the following 2 sub-chapters.
9.5.1 XSL transformation
The customization of the TremaXMLDocument can be done by the XSL transformation (XSLT). Using
this approach you can define an XSL file, which is attached to the system definition via the ERP
System Definition Editor. Once you set this XSL file, the ACM Server processes all the ERP
documents (in XML form) for given system definition by the specified XSLT. This transformation
might be applied to both target types - SAP-FI as well as FILE.
Using XSLT you can freely modify the output format. If no XSL file is defined for the used system
definition, the generated ERP documents have the structure of the default TremaXMLDocument.
The XSLT takes a place inside the ACM server. For keeping the ACM server stable we strongly
recommend to keep in mind the following tips:
•Memory
The XSLT transformation performed on huge ERP documents (like documents with hundreds
items) is a memory very intensive task. Therefore:
9 Interfacing with ERP
9.5 Customizations
Accounting Module System Administration Guide 85
–Keep the number of document items small enough.
–Assign enough memory to the ACM server.
–Manage the XSLT outside of the ACM server.
•Character set
Keep a character set aligned and correctly set over all the systems. Especially if you use non-US
characters, align a character set across all the servers and PCs accessing the system. ACM
server is running in UTF-8 normally. In this case the ACM server process on the unix style
operating systems should have set the LC_CTYPE or LC_ALL variables to value "en_US.UTF-8",
otherwise an exception occurs during the XSL transformation. To ensure a specific output code
page, use the standard <xsl:output … encoding="UTF-8"/>.
•XSL file
The XSL file path defined in the ERP System Definition Editor should be accessible by the ACM
server process. The ACM server must have a read permission for the XSL file.
Obviously there are some functional restrictions if the XSLT is applied for the SAP-FI target type: the
ERP document after the applied XSLT has to be aligned with the interfaces implemented on the BC
or XI servers. On the other hand there are no functional restrictions for customizing the ERP
documents using the XSLT for the target type FILE.
9.5.2 Customization via reports
Once the ERP document is exported by the ERP Export activity the document waits in the queue
inside the ACM server to be processed. Once this happens the ACM server fetches the ERP document
and its ERP Document Items from the database using the standard ACM reports, which can be
customized. See the table below for details.
9.5.3 Support for special characters in the ERP document
There are two system variables recognized by the ACM Server:
•ACM_ERP_XI_OUTPUT_ENCODING
•ACM_ERP_FILE_ENCODING.
Administrator can specify encoding to be used for XI request and the file format. Default encoding
for XI is ISO-8859-1. Default encoding for file is UTF-8.
Report View Usage
acm-IS-doc ACMERPISDocView This report and the underlying database view is used
for the ERP document fetch. The returned result from
this report determines header fields of final ERP
Documents.
acm-erp-document-item ACMERPISItemsView This report and the underlying database view is used
for the ERP Document Item fetch. Output from this
report determines the item fields. If you need more or
less columns to be exported on the item level, you can
modify this report for achieving this.
9 Interfacing with ERP
9.6 Troubleshooting
86 © Wall Street Systems IPH AB - Confidential
9.6 Troubleshooting
9.6.1 Logical System: XY is not configured in XIAPIviaHTTPClient
9.6.1.1 Symptoms
In the ERP Document Report you can see the following error:
9 Interfacing with ERP
9.6 Troubleshooting
Accounting Module System Administration Guide 87
If this error occurs you can see the following in the ACM server log:
9.6.1.2 Resolution
This error is caused by the fact that your Receiver Determination cannot find a proper service. For
fixing the error you must modify the Receiver Determination for all three Interfaces:
•MI_DocumentPostRequest
•MI_DocumentExistsRequest
•MI_DocumentCheckRequest
9 Interfacing with ERP
9.6 Troubleshooting
88 © Wall Street Systems IPH AB - Confidential
See the example below:
9 Interfacing with ERP
9.6 Troubleshooting
Accounting Module System Administration Guide 89
In the condition section you must specify a condition, for instance,
/p1:MT_DocumentCheckRequest/GLM/Header/ERP_SYS = CF5_800
The ERP_SYS value is your ID for specifying in the ERP System Definition Editor:
Such system definition you can use then in the ERP Target Editor and assign it to any ERP target.
Warning: All the changes done in the Integration Builder (XI) must be activated before the first
use!
9 Interfacing with ERP
9.6 Troubleshooting
90 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 91
Chapter 10 Accounting Balances Snapshot API
ACM contains an API for providing accounting balances. The API is called Accounting Balances
Snapshot API.
The API provides all accounting balances in the most detail granularity of all fixed, flexible and trade
level balances dimensions. The snapshot is provided for any requested period (open or closed).
The snapshot is suited for use cases when closing balance at a given point in time is essential while
the incremental changes are not needed. The API does not provide the incremental changes; it
provides total balances only (as opposed to the ERP interface in the Account Export Mode by
balances). It can be ensured that last snapshot may be easily deleted when loading a new snapshot.
The API inputs and outputs are provided in the XML format via the JMS queue requests using an
ActiveMQ message broker.
The input parameters are:
•ledger
•period
The output may by sent in multiple result messages to optimize a memory consumption and
performance.
The API is language and HW neutral, so it may be accessed from Java or C++ from a distributed
machine.
10.1 Technical overview
The API allows transferring of accounting balances in XML format from the ACM Server to any target
system via JMS system. WSS Suite is delivered with ActiveMQ (an open source message broker ich
implementing JMS), so after a clean installation of ACM the Accounting Balances Snapshot API is
exposed via the delivered ActiveMQ.
10 Accounting Balances Snapshot API
10.1 Technical overview
92 © Wall Street Systems IPH AB - Confidential
Basic overview of data flow and components acting in this scenario are shown in the following
picture:
For getting the Balance Snapshot data a client has to send a request (tag REQUEST) to a specific
queue for Balance Snapshot Requests created on the JMS server. Also the Client has to create a
temporary queue on the JMS server and to set a reference to this temporary queue via the
"setJMSReplyTo()" method on the request message.
…
Session session = connection.createSession(transacted, ackMode);
Destination tempDest = session.createTemporaryQueue();
TextMessage txtMessage = session.createTextMessage();
txtMessage.setJMSReplyTo(tempDest);
…
All messages in REQUEST queue are consumed by ACM Server. Once request is consumed by ACM
Server, balances for given Ledger and Period are fetched and sent as messages in form of XML to
TEMPORARY Queue created by client. One request for balance snapshot may be answered by
multiple messages sent to temporary queue by ACM Server. Each message (root tag for message is
MSG) contains several balances (tag BALANCEBLR). For performance reasons balances are
technically fetched by batch size and each batch size is represented by one message. The structure
of message will be explained later in this document. The number of balances in one message is
determined by variable (BalanceSnapshotExportTask.batchSize) which has default value 10000.
Very last message sent by ACM Server to temporary queue is special "closing" message (tag
BLR_FINISHED). This message informs the client about total count of balances and total count of
messages so client can be sure that whole snapshot has been transferred.
To develop a client application it may be convenient to start from the sample application provided
with the ACM package. There is acm_blr_api_client.jar which contains fully working example
including a java source code. There are two java classes only for showing a small client example:
BLRSnapshotRequestParameters.java
BLRSnapshotAPIClient.java
The BLRSnapshotRequestParameters provides fields and method for a request generation.
The BLRSnapshotAPIClient is simple Accounting Balances Snapsot API client application which make
request for balance snapshot and saves received messages into files. The client application is written
to demonstrate basic function how to develop client applications/services. The ultimate solution
developed by clients will likely parse the xml documents and update their custom data structures in
10 Accounting Balances Snapshot API
10.2 Message structure
Accounting Module System Administration Guide 93
their target database. The sample application concentrates only on the communication part
including demonstration how to receive multi-message response from the server. For details see
section BLRSnapshotRequestParameters usage.
10.2 Message structure
All communication in JMS is done via messages. This document describes several structures. There
is one single structure for Request (root tag REQUEST) and two type of structures for responses:
•Regular Response Message (root tag MSG)
•Closing Response Message (root tag BLR_FINISHED)
Each of these structures are explained by individual chapter below.
10.2.1 Request Message Structure
A client has to send a Request to a queue where the ACM Server is listening for handling Balance
Snapshot Requests. The request has XML form and contains input parameters for which balance
snapshot is requested.
<REQUEST><LEDGER>LEDGER_0023</LEDGER><PERIOD>2004-08</PERIOD></REQUEST>
In the example above the client is requesting Balance Snapshot for Ledger "LEDGER_0023" and
Period "2004-08". Tag names are fixed in Java Class called BLRSnapshotRequestParameters. This
class is contained on the ACM Server as well as in "ACM BLR API Client package" to ensure
compatibility.
The request can contain following input fields(tags):
Both types of information (period and ledger) have to be specified in the request. The client can
choose whether to specify in form of name or system id.
10.2.2 Response message structure
One request is answered by one or more regular response messages and one final closing response
message. The balance snapshot can be split to several batches if there is a huge number of balances
for given request criteria. Default batch size is 10 000 of balances, however, this default can be
changed (if necessary) via the ACM System Variable "BalanceSnapshotExportTask.batchSize".
10.2.2.1 Regular response message structure
Each regular response message has one root tag MSG and several BALANCEBLR tags; each
represents one single Balance row.
<MSG>
BALANCEBLR>…</BALANCEBLR>
<BALANCEBLR>…</BALANCEBLR>
…
TAG Database Field Explanation
LEDGER ACMLedger.id_user ACM Ledger Name
LEDGER_ID ACMLedger.id ACM Ledger System ID
PERIOD ACMPeriod_user ACM Period Name
PERIOD_ID ACMPeriod.id ACM Period System ID
10 Accounting Balances Snapshot API
10.2 Message structure
94 © Wall Street Systems IPH AB - Confidential
<BALANCEBLR>…</BALANCEBLR>
/MSG>
10.2.2.2 Stable vs. not stable snapshot
When the balance snapshots via this API are provided for an open accounting period to which new
vouchers can be posted, no two API calls for the same parameters (ledger and period) return the
same snapshot. This is due to the fact, that the balance snapshot can be provided from not closed
accounting periods too.
You are informed about the snapshot stability via the tag MSG, which can have value true or false.
Therefore, if two API calls should return two identical snapshots, then the requested period must be
closed and all its previous periods must be closed too. Such result contains a tag MSG
snapshot_stable=true and we talk about a stable snapshot.
Another condition for the stable snapshot is the fact, that the Balance Updater finished its work.
Therefore the Balance Snapshot service waits until the Balance Updater finishes its work. There is a
configurable timeout specified for this waiting (property
"BalanceSnapshotExportTask.periodClosingTimeout" in ms; its default value is 10 minutes). If
timeout expires and balances are not fully calculated for all closed periods, an error message is sent
to the client.
If requested period and all previous periods are closed and balances are calculated, the Balance
Snapshot Service marks each message sent to the client as stable using attribute on MSQ tag.
<MSG snapshot_stable="true" run_at_date="01/11/2011 09:34:10">
<BALANCEBLR>…</BALANCEBLR>
<BALANCEBLR>…</BALANCEBLR>
…
<BALANCEBLR>…</BALANCEBLR>
</MSG>
If the period (or some previous period) is open, the snapshot result may change between the 2 calls.
The provided snapshot is still consistent (sum = 0), however, since the result from another call
might be different, the tag MSG snapshot_stable="false".
As you can see in the example above, the MSG tag contains also an attribute providing information
about the date and time, when the balance was obtained too. This information is available as
attribute run_at_date. The format of the date is the same as in the ACM balance reports and is
configurable by a server environment variable ACM_BLR_SNAPSHOT_API_DATE_FORMAT. Rules for
specifying format are driven by Java class SimpleDateFormat. The default is defined as
ACM_BLR_SNAPSHOT_API_DATE_FORMAT=MM/dd/yyyy HH:mm:ss. For more information about
the date and time setup (including some examples), see the Java SDK documentation at
http://download.oracle.com/javase/6/docs/api/java/text/SimpleDateFormat.html.
10.2.2.3 Balance Structure
Balances are transferred in the XML format. The following example shows one single balance.
<BALANCEBLR>
<LEDGER>LEDGER_0023</LEDGER>
<LEDGER_ID>57</LEDGER_ID>
<B_CL>100000.0200</B_CL>
<D_CR_MV>0.0000</D_CR_MV>
<D_DR_MV>3000000.0000</D_DR_MV>
10 Accounting Balances Snapshot API
10.2 Message structure
Accounting Module System Administration Guide 95
<B_MV>100000.0200</B_MV>
<D_OP>0.0000</D_OP>
<D_CL>3000000.0000</D_CL>
<B_OP>0.0000</B_OP>
<B_CR_MV>0.0000</B_CR_MV>
<D_MV>3000000.0000</D_MV>
<B_DR_MV>100000.0200</B_DR_MV>
<DOC_CURR>CZK</DOC_CURR>
<ACM_PERIOD>2004-08</ACM_PERIOD>
<GLM_ACC>EOY-X111-D</GLM_ACC>
<PROJ_ID>PROJECT-D2</PROJ_ID>
<COSTCENTER>COST-CENTER-D</COSTCENTER>
</BALANCEBLR>
Each balance (tag BALANCEBLR) contains only fields relevant for specific balance. Balances are
provided in most detailed granularity as stored by ACM system according to Flex Balance Definitions
as well as Balances By Logical Reference switch.
In the following table you can find full list of tags which may appear as a child tag of the
BALANCEBLR tag. Obviously, the presence of a field is determined by setup of the balances
dimensions in the system. As there is only 6 fixed and 10 flexible and 3 trade level dimensions,
which can be defined, the balance tag will never contain more than 30 child tags.
Tag names are compatible with the tag names used by the ACM-ERP Export Interface.
TAG Explanation
LEDGER Ledger ID*
LEDGER_ID Ledger System ID
B_CL Booking Closing Balance
D_CL Document Closing Balance
B_OP Booking Opening Balance
D_OP Document Opening Balance
D_MV Document Movement
B_MV Booking Movement
B_CR_MV Booking Credit Movement
B_DR_MV Booking Debit Movement
D_DR_MV Document Debit Movement
D_CR_MV Document Credit Movement
FIGURE_ID Figure ID
10 Accounting Balances Snapshot API
10.2 Message structure
96 © Wall Street Systems IPH AB - Confidential
*User visible ID in the applications (id_user column in the database).
All decimal values are formatted using a pattern "0.0000". This pattern can be changed by the ACM
system administrator via variable "BalanceSnapshotExportTask.numberFormat". For detailed
explanation of patterns see the following web page on the Internet:
http://java.sun.com/j2se/1.4.2/docs/api/java/text/DecimalFormat.html.
Note: There are no processing instructions (<?xml …) inserted into any XML message.
GLM_ACC
Note: „GLM“ is used to
meet compatibility
with ACM-ERP
Interface.
Account ID*
PROJ_ID Project ID*
COSTCENTER Cost Center ID*
DOC_CURR Document Currency
BOOK_CURR Booking Currency
T_CCY_ID Transaction Currency
T_CCY_2_ID Trnasaction Currency 2
CPTY Counterparty
CPTY_GRP Counterparty group
PORTF Portfolio
ISSR Issuer
ISSR_GRP Issuer Group
BANK Bank
INSTR_GRP Instrument Group
INSTR Instrument
LEG Leg
LEG_GROUP Leg Group
BANK_ACC Bank Account
BANK_ACC_CCY Bank Account Currency
TRADE_ID Counterparty Code
O_T_CPTY One Time Counterparty
BANK_ACC_HOLDER Bank Account Holder
P0 ... P19 Entry paramerer 0 ... Entry parameter 10
ACM_PERIOD ACM Period ID*
ORIG_ID Entity Origin
LOG_REF Logical Reference ID
TAG Explanation
10 Accounting Balances Snapshot API
10.3 API usage example
Accounting Module System Administration Guide 97
10.2.2.4 Error Message
Once the snapshot is requested via a request message, a client waits for a response on a temporary
queue, which the client created. Received message can have two forms:
1. Form as described in the previous chapter.
2. Form "Error" message, which indicates some troubles with completing the request (for instance,
the user has no permissions for fetching the balances, balances are not calculated in the given
timeout, etc.). Such message has the following structure:
<ERROR>The request has not been sent by autenticated user. Request is
ignored.</ERROR>
10.2.2.5 Closing message structure
Once the ACM Server finishes sending of messages with balances, it sends to same temporary
queue last closing message. The purpose of this message is to inform the client that the balances
snapshot transfer ends. It specifies how many balances and how many messages were produced as
an answer to the request. The client should use these numbers for checking that the transfer was
successful.
<BLR_FINISHED><BAL_COUNT>34</BAL_COUNT><MSG_COUNT>3</MSG_COUNT></BLR_FINISHED>
10.3 API usage example
There is a biz.wss.acm.blr.api.jar file which contains working example of the client application which
sends requests to the server and receives answers. Default usage is shown below:
Usage:java BLRSnapshotAPIClient ledger=MyLedger period=2008-01
broker=http:\localhost:61616 queue=ACM_BAL_SNAPSHOT_API_REQUEST user=MyUser
pass=MyPass file=MyFile
Parameters:
ledger Specify Ledger Name
period Specify Period Name
broker Specify Broker URL ($FK_MQ_BROKER_URL_JAVA)
queue Specify Queue Name ($ACM_BAL_SNAPSHOT_API_QUEUE_NAME) Default is defined
as:${wss_env_name}.acm.blr.api.request.queue
user Specify username with permissions to log into WSS Suite and having
ACM-BALANCE-QUERY-LEDGER-REPORT permission for given ledger.
pass Password
file Output filename prefix including path.
As you can see you have to specify ledger, period, broker, queue, user, pass and file prefix.
If you have installed Wallstreet Suite, you can simply open shell and proceed the following
procedure:
cd %FK_HOME%\etc\acm\blr-api
TAG Explanation
BAL_COUNT Total count of balances transferred as result of request
MSG_COUNT Total count of balance messages sent by ACM Server to temporary queue. The
last "closing" message is not counted.
10 Accounting Balances Snapshot API
10.4 Other configuration parameters
98 © Wall Street Systems IPH AB - Confidential
java -jar biz.wss.acm.blr.api ledger=MyLedger period=2008-01
broker=http:\localhost:61616 queue=ACM_BAL_SNAPSHOT_API_REQUEST user=MyUser
pass=MyPass file=MyFile
Taking parameter:ledger=LE_DCAGF_LOC_DE
Taking parameter:period=2008-08
Taking parameter:broker=failover:tcp://velvet.eu.wallstreetsystems.com:20460
Taking parameter:queue=MC72.acm.blr.api.request.queue
Taking parameter:user=dbo
Taking parameter:pass=fk71
Taking parameter:file=c:\2008_08.xm
Starting BLRSnapshotAPIClient
Oct 14, 2008 10:48:35 AM
org.apache.activemq.transport.failover.FailoverTransport doReconnect
INFO: Successfully connected to tcp://velvet.eu.wallstreetsystems.com:20460
<REQUEST><LEDGER>LE_DCAGF_LOC_DE</LEDGER><PERIOD>2008-08</PERIOD></REQUEST>
OK! Messages Received:9
Exiting. Run time:170s.
In the previous example the client application produced one file MyFile.xm0. If there are more
messages returned, also other files will be generated (MyFile.xm1, MyFile.xm1, …).
10.4 Other configuration parameters
The ACM Server needs to know some basic configuration variables to properly connects to and serve
requests. Following table summarizes this:
System Property Value Explanation
ACM_BAL_SNAPSHOT_API_QUEUE
_NAME
MC72.acm.blr.api.request.queue Name of queue where ACM Server
listen for request
jms_broker_url failover:tcp://hostname:port Broker URL
ActiveMQExporter.time_to_live 900000 Time to Live for response
messages in miliseconds
ActiveMQExporter.delivery_mode 2 Delivery Mode according to JMS
Specification 1=non-persistent,
2=persistent.
BalanceSnapshotExportTask.batch
Size
5000 Response Batch Size None
response message contains more
then specified number of balances.
BalanceSnapshotExportTask.numb
erFormat
0 Number format for amount values.
See
http://java.sun.com/j2se/1.4.2
/docs/api/java/text/DecimalFor
mat.html for examples how to
define number format.
10 Accounting Balances Snapshot API
10.4 Other configuration parameters
Accounting Module System Administration Guide 99
BalanceSnapshotExportTask.period
ClosingTimeout
600000 Timeout for wainting for finalizing
balance calculation on closed
periods. Value is in miliseconds.
jms_broker_url failover:tcp://hostname:port Broker URL
System Property Value Explanation
10 Accounting Balances Snapshot API
10.4 Other configuration parameters
100 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 101
Chapter 11 Factory accounting data upload
Factory data is the a general name for default static data which may be distributed with Wallstreet
Suite.
11.1 Loading factory accounting data
Factory accounting data can be loaded into the ACM database tables in two ways:
•Via the DBLoader tool distributed with Wallstreet Suite.
•Via the comKIT programming interface distributed with Wallstreet Suite (for details see comKIT
Programming Guide).
When using these tools to load the static data (charts, accounts, ledgers etc.) all the entities are
verified prior their upload into the database tables. One of the checks is about the verification
whether the entity is loaded within an accounting perspective. For details about the accounting
perspective (i.e. what it is, what entities are handled via the perspectives, how accounting
perspectives are set up) see the ACM User Guide, chapter Accounting Perspective Editor.
In order to make the usage of these tools more convenient and straight forward, a special option
can be set up to disable the verification of the accounting perspective.
To check the value of the option, connect to the database using the appropriate tool:
•Sybase
isql -S <server> -D <database> -U <user> -P <password>
•Microsoft SQL Server
isql -S <server> -d <database> -U <user> -P <password>
•Oracle
sqlplus <user>/<password>@<database>
Then issue the following query (for all database platforms):
select value from Configuration where id = 10000
Result value can be one of the following two:
•true
Perspective checking is disabled
•false
Perspective checking is enabled
For chaning the value run the following command:
update Configuration set value = ’true’ where id = 10000
or
update Configuration set value = ’false’ where id = 10000
11 Factory accounting data upload
11.1 Loading factory accounting data
102 © Wall Street Systems IPH AB - Confidential
The first update disables the perspective check for the both loading tools as well as for the client
editors, the second update enables the check.
Warning: The default value is false, i.e.the accounting perspective checking is performed. You
can change it to true only for the data upload and must be always set back to false
after the data upload. Leaving the option set to true can result in inconsistent
static data setup!
Accounting Module System Administration Guide 103
Chapter 12 Tips for migration to ACM
This chapter provides a few tips, how to migrate from the non-Wallstreet Suite accounting system to
ACM.
12.1 Using the Migration Date
After migrating/upgrading the TRM transactions you may want to block the accounting events
generation before a certain date. That date is called Migration Date and is configurable in the
Configuration table; by default its id is 950 and it is specified in format yyyyMMdd.
That blocking logic is implemented in the following 3 activities:
•TRM Daily Events Generation
•TRM CTB Events Generation
•TRM Daily Delta Events Generation
These activities don't create events before/equal to the migration date, i.e. these activities can be
executed only for dates > than the migration date. If any of them is started with Due Date before
the migration date, it fails with a failure message "Due date <= migration date. Not allowed to start
process before migration date."
Besides the accounting events generation, it also blocks the selling and FX conversion logic before
the migration date (since this logic is the part of the TRM Daily Events Generation activity).
12.2 Upload of manual vouchers for open TRM transactions
It is assumed that all open (live) transactions at the moment of the go-live date are captured in
TRM. For these transactions it is necessary to post into ACM all daily (RUNNING, OFF-BALANCE,
DAILY DELTA) bookings till the go-live date. If you decide to do it manually via the Accounting Entry
Manger Export Tool, fill the origins on the accounting entry level as follows:
•Origin Group = TRM,
•Origin = TRM-GENERIC,
•Origin Entity = TRM-TRANSACTION
Their Reference ID must be equal to the appropriate transaction number in TRM.
Voucher Source will by automatically set to ENTRY-MANAGER (you cannot influence on that) so it
will be always obvious it was entered manually.
You can use a special voucher type for them too, so you can really easily identify them in the
system.
When uploading the opening balances for active TRM transactions by Import function in Accounting
Manager in the granularity of trade level balances, besides the other fields you should fill the
following ones in this way:
12 Tips for migration to ACM
12.3 Manually entered PRE-BOOKED vouchers
104 © Wall Street Systems IPH AB - Confidential
–Reference ID = number of the TRM transaction for which you are entering the opening
balances
–Logical Reference ID = Continuation Number of the transaction for which you are entering
the opening balances (note1: it should be used only for non-sellable instruments)
–Leg Group = Leg Group of the appropriate leg from Transaction/Cashflows
–Leg = Leg (Instrument) of the appropriate leg from Transaction/Cashflows
–Continuation Number = continuation number of the transaction for which you are entering
the opening balances (note: all TRM transactions have Continuation Number even if it equals
to Transaction Number – these should be filled to Accounting Entries as well)
–Origin = TRM-GENERIC
–Origin = TRM (or might be empty since the TRM value is derived automatically based on the
origin TRM-GENERIC)
–Origin Entity = TRM-TRANSACTION
Note that you can easily recognize a manual voucher by its source (Voucher Source =
ENTRY-MANAGER)
12.3 Manually entered PRE-BOOKED vouchers
You may need to enter some vouchers, which must be posted to the FINAL state just in future (e.g.
the OCI account discharges). This requirement is supported by ACM via the voucher state
PRE-BOOKED, to which the system posts all vouchers with Required Booking Date in future.
Warning: For booking of vouchers to state PRE-BOOKED the corresponding future periods must
be open; otherwise the future vouchers are posted to state VERIFY.
Note: Required Booking Date is filled by a maximum event date from the entries grouped to a
voucher.
Vouchers from the PRE-BOOKED state can be posted to FINAL (by running the Accounting
Processing or Shift Voucher State activity, or manually from the Entry Manager) earliest on a day,
when the voucher Required Booking Date is equal to a current date.
You have two ways for entering the PRE-BOOKED vouchers into the system:
1. Manually to enter voucher by voucher.
You can enter the appropriate voucher for each future (e.g. discharge) date; when entering such
voucher you must set the event date of the entries to that future date.
2. Using the rebooking feature.
If you want to rebook some initial balance from account A to account B periodically within some
period, you may do it via the rebooking feature (for details see the ACM User Guide, chapter
Rebooking Accounting Entries). You can assign the rebooking feature for the initial balance
(entry) and to leave the system generate the future vouchers. For the initial entry you must fill
the following fields:
–Special Treatment = REBOOKING
–Special Type ... the type of rebooking defined in the Rebooking Type editor
–Secondary Account ... the account to which the initial balance should be re-booked
–Transaction Opening/Value/Maturity Date ... for defining the From/To period of rebooking
12 Tips for migration to ACM
12.4 Starting-up time to maturity feature
Accounting Module System Administration Guide 105
The PRE-BOOKED vouchers cannot be rejected nor canceled. They can only be reversed. If you want
to post some PRE-BOOKED voucher immediately, it is best to apply on it Reverse+Copy action from
the Entry Manager. For the initial PRE-BOOKED voucher its exact reverse will be created and on the
new (OPEN) voucher you can adjust the event dates to the current date. Such voucher will be
posted to FINAL.
Note that initial PRE-BOOKED voucher as well as its reversing voucher (also posted in state
PRE-BOOKED) remain in the system and will be posted to FINAL on their Required Booking Date. But
since they offset each other they have no impact on account balances.
12.4 Starting-up time to maturity feature
You must post the entries, which should be the subject of the time to maturity feature, to the
leading account and not to the particular time band accounts; posting to the particular time band
accounts breaks the feature! To the particular time band accounts the exact balances are posted by
running the Time to Maturity Processing activity
Warning: Don’t forget to fill the Transaction Maturity Date for the manually entered entries!
12 Tips for migration to ACM
12.4 Starting-up time to maturity feature
106 © Wall Street Systems IPH AB - Confidential
Accounting Module User Guide 107
Appendix A Event DIMs structure
Accounting of TRM transactions and CLM payment advices and allocations is based on accounting
events. They are stored in two tables:
•AccountingEvent
This table is used for storing the events related the TRM transactions.
•EntityEvent
This table is used for storing the events related the CLM payment advices and payment
allocations.
Key information like event dates, amounts and FX rates contained in events are filled automatically
from the events generation process itself. Additional information like instrument, counterparty, bank
account, etc., are enriched by stored procedures. The information are populated into so called DIM
fields. The following two subchapters describe a default content of those DIM fields.
A.1 Accounting Event
Since the structure of the accounting event (table AccountingEvent) is generic and might be
changed by CSDs, some columns are named in a generic way. They are of 5 types for 5 different
data types:
•date ... ddim_0 - ddim_9
•float ... fdim_0 - fdim_9
•integer ... idim_0 - idim_14
•money ... mdim_0 - mdim_9
•string ... sdim_0 - sdim_39
Values into these fields are retrieved via 4 SQL procedures:
•GetGeneralEventDims, which is called for all three input types (RUNNING, CTB, OBS).
•GetRunningEventDims, which is called for RUNNING inputs/events only.
•GetClosingEventDims, which is called for CLOSING (CTB) inputs/events only.
•GetOffBalanceEventDims, which is called for Off Balance (OBS) inputs/events only.
The table below shows what SQL procedure fills what field.
Table column
name Description Get
General
Get
Running
Get
Closing
Get
OffBalance
ddim_0 Transaction opening date transactions.
opening_dat
e
ddim_1 Transaction value date transactions.
value_date
A Event DIMs structure
A.1 Accounting Event
108 © Wall Street Systems IPH AB - Confidential
ddim_2 Transaction maturity date transactions.
maturity_dat
e
ddim_3 Cashflow payment date @ref_date
ddim_4 .. 9 NOT USED
fdim_0 Deal rate transactions.
deal_rate
transactions.
deal_rate
fdim_1 Deal price transactions.
deal_price
transactions.
deal_price
fdim_2 .. 9 NOT USED
idim_0 Transaction Number transactions.
number
idim_1 Package ID transactions.
package_id
transactions.
package_id
transactions.
package_id
idim_2 Transaction Type ID transactions.
type_id
idim_3 Cashflow Type / Key Figure ID CashFlowTyp
e.key_id
@figure_id Note:
For OBS
events this
field is
populated by
@event_subt
ype_id
(directly in
the
MakeOffBala
nceEvent
procedure)
idim_4 Transaction Sign transactions.
sign_id
idim_5 Continuation number transactions.
logical_num
ber
idim_6 NOT USED
idim_7 Instrument group path ID UMI.path_id
idim_8 PL Category (cashflow kind)
The value
might be
assigned by
the events
generation
process (for
some special
cases, e.g.
time to
maturity).
cashflow@ki
nds
idim_9 Transaction Kind ID transactions.
kind_id
idim_10 NOT USED
Table column
name Description Get
General
Get
Running
Get
Closing
Get
OffBalance
A Event DIMs structure
A.1 Accounting Event
Accounting Module User Guide 109
idim_11 Accounting Treatment @acc_treat
ment
@acc_treat
ment
idim_12 .. 14 NOT USED
mdim_0 Nominal Amount (local) transactions.
amount
mdim_1 Book Value (Local) transactions.
book_value
mdim_2 .. 9 NOT USED
sdim_0 Market transactions.
market_id
sdim_1 Transaction Instrument ID transactions.
instrument_i
d
sdim_2 Base Currency of Transaction transactions.
currency_id
sdim_3 Quote Currency of Transaction transactions.
currency_2_i
d
sdim_4 Portfolio ID transactions.
portfolio_id
sdim_5 Counterparty ID isnull(sdim_
5,transaction
s.cp_client_i
d)
isnull(sdim_
5,transaction
s.cp_client_i
d)
@payment_c
lient_id
sdim_6 Counterparty Group ID ClientGroup
Map.group_i
d
sdim_7 Issuer ID transactions.
issuer_id
sdim_8 Package Type ID PackageMap.
type_id
PackageMap.
type_id
PackageMap.
type_id
sdim_9 Instrument Type ID UMI.type_id
sdim_10 Transaction Parameter #0, 1, 2,
3, 4
transactions.
param_0, 1,
2, ,3, 4
sdim_11
sdim_12
sdim_13
sdim_14
sdim_15 Our Bank ID ClientAccoun
t.bank_id
@local_bank
_id, but is is
mostly
empty for
the CTB
events/entri
es.
Table column
name Description Get
General
Get
Running
Get
Closing
Get
OffBalance
A Event DIMs structure
A.1 Accounting Event
110 © Wall Street Systems IPH AB - Confidential
sdim_16 Our Account ID ClientAccoun
t.id
@local_acco
unt_id, but it
is mostly
empty for
the CTB
events/entri
es.
sdim_17 Issuer Group ID ClientGroup
Map.group_i
d
sdim_18 Classification Classification
Map.classific
ation_id
sdim_19 Facility ID transactions.
sattr_1
sdim_20 Bank Account Holder as the
owner of the accounting event
@owner_id @owner_id
sdim_21 Bank Account Currency @payment_c
urrency_id
ClientAccoun
t.currency_i
d;
If more
accounts for
given client,
bank and
bank
account
exist, then it
is null
sdim_22 Third Party Owner of the
portfolio; if not specified then
Owner
if sdim_4 is
not null then
value from
PropertyMap
where
key_id =
@sdim_4
and type_id
=
"THIRD-PAR
TY-OWNER"
and
object_id =
"Portfolio"
if sdim_22 is
null then
owner_id
sdim_23 Leg, i.e. the instrument of a leg
(Cashflow.leg_id)
@leg_id @leg_id @leg_id
sdim_24 Bank Account Holder (sdim_20)
Client Group ID
ClientGroup
Map.group_i
d
Table column
name Description Get
General
Get
Running
Get
Closing
Get
OffBalance
A Event DIMs structure
A.2 Entity Event
Accounting Module User Guide 111
A.2 Entity Event
Since the structure of the entiy event (table EntityEvent) is generic and might be changed by CSDs,
some columns are named in a generic way. They are of 5 types for 5 different data types:
•date ... ddim_0 - ddim_9
•float ... fdim_0 - fdim_9
•integer ... idim_0 - idim_14
•money ... mdim_0 - mdim_9
•string ... sdim_0 - sdim_39
Values into these fields are retrieved via 2SQL procedures with the excpetion of a few columns to
which the values are sent directly when creatin the events (see the column Filled out of the Get...
procedures below in the table). The 2basic SQL procedures are:
•GetPaymentEventDims, which is used for payment advices and payment side of allocations
•GetAllocCashflowEventDims, which is used for cashflow side of allocations
The table below shows what SQL procedure fills what field.
sdim_25 Transaction Parameter #5, 6, 7,
8, 9
transactions.
param_5, 6,
7, 8, 9
sdim_26
sdim_27
sdim_28
sdim_29
sdim_30 Branch Code #0, 1, 2, 3, 4 of a
given transaction instrument.
Branch codes are read from the
UMIBranch table considering a
time validity for given event date
and date range defined via the
Active From/Active To dates in
the Instrument editor.
UMIBranch.b
ranch_id
where
branch_num
ber = 0, 1,
2, 3, 4
and umi_id=
@sdim_1
sdim_31
sdim_32
sdim_33
sdim_34
sdim_35 Branch Code #0, 1, 2, 3, 4 of a
given leg instrument.
Branch codes are read from the
UMIBranch table considering a
time validity for given event date
and date range defined via the
Active From/Active To dates in
the Instrument editor.
UMIBranch.b
ranch_id
where
branch_num
ber = 0, 1,
2, 3, 4
and umi_id
= leg_id
sdim_36
sdim_37
sdim_38
sdim_39
Table column
name Description Get
General
Get
Running
Get
Closing
Get
OffBalance
Table column
name Description Filled out of the Get
... procedures
Get
Payment
Get
AllocCashflow
ddim_0 Transaction opening date transactions.openi
ng_date
ddim_1 Transaction value date transactions.value
_date
A Event DIMs structure
A.2 Entity Event
112 © Wall Street Systems IPH AB - Confidential
ddim_2 Transaction maturity date transactions.matur
ity_date
ddim_3 Cashflow payment date YES
ddim_4 .. 9 NOT USED
fdim_0 Deal rate transactions.deal_r
ate
fdim_1 Deal price transactions.deal_
price
fdim_2 .. 9 NOT USED
idim_0 Transaction Number transactions.numb
er
idim_1 Package ID transactions.packa
ge_id
idim_2 Transaction Type ID transactions.type_i
d
idim_3 Cashflow Type / Key Figure
ID
YES
idim_4 Transaction Sign transactions.sign_i
d
idim_5 Continuation number @payment_id transactions.logica
l_number
idim_6 NOT USED
idim_7 Instrument group path ID Settlement.instru
ment_path ID
UMI.path_id
idim_8 NOT USED
idim_9 Transaction Kind ID transactions.kind_i
d
idim_10 NOT USED
idim_11 Accounting Treatment YES
idim_12 .. 14 NOT USED
mdim_0 Nominal Amount (local) transactions.amou
nt
mdim_1 Book Value (Local) transactions.book_
value
mdim_2 .. 9 NOT USED
sdim_0 Market transactions.mark
et_id
sdim_1 Transaction Instrument ID settlement.instrum
ent_id
transactions.instru
ment_id
sdim_2 Base Currency of
Transaction
transactions.curre
ncy_id
sdim_3 Quote Currency of
Transaction
transactions.curre
ncy_2_id
Table column
name Description Filled out of the Get
... procedures
Get
Payment
Get
AllocCashflow
A Event DIMs structure
A.2 Entity Event
Accounting Module User Guide 113
sdim_4 Portfolio ID settlement.portfoli
o_id
transactions.portfo
lio_id
sdim_5 Counterparty ID settlement.other_c
lient_id
isnull(sdim_5,tran
sactions.cp_client_
id)
sdim_6 Cparty Group ID ClientGroupMap.gr
oup_id
ClientGroupMap.gr
oup_id
sdim_7 Issuer ID transactions.issuer
_id
sdim_8 Package Type ID if idim_1 not null
then sdim_8 =
PackageMap.type_
id
sdim_9 Instrument Type ID UMI.type_id
sdim_10 Transaction Parameter #0,
1, 2, 3, 4
transactions.para
m_0, 1, 2, ,3, 4
sdim_11
sdim_12
sdim_13
sdim_14
sdim_15 Our Bank ID settlement.local_b
ank_1_id
if @payment_id
not null then
sdim_15 =
ClientAccount.ban
k_id
sdim_16 Our Account ID settlement.local_a
ccount_1_id
if @payment_id
not null then
sdim_15 =
ClientAccount.id
sdim_17 Issuer Group ID ClientGroupMap.gr
oup_id
sdim_18 NOT USED
sdim_19 Facility ID settlement.param_
0
transactions.sattr_
1
sdim_20 Bank Account Holder as the
owner of the accounting
event
@owner_id @owner_id
sdim_21 Bank Account Currency settlement.currenc
y_id
@payment_curren
cy_id
sdim_22 .. 23 NOT USED
sdim_24 Bank Account Holder
(sdim_20) Client Group ID
ClientGroupMap.grou
p_id
Table column
name Description Filled out of the Get
... procedures
Get
Payment
Get
AllocCashflow
A Event DIMs structure
A.2 Entity Event
114 © Wall Street Systems IPH AB - Confidential
sdim_25 Transaction Parameter #5,
6, 7, 8, 9
transactions.para
m_5, 6, 7, 8, 9
sdim_26
sdim_27
sdim_28
sdim_29
sdim_30 Branch Code #0, 1, 2, 3, 4
of a given transaction
instrument.
Branch codes are read from
the UMIBranch table
considering a time validity
for given event date and
date range defined via the
Active From/Active To
dates in the Instrument
editor.
UMIBranch.branch
_id where
branch_number =
0, 1, 2, 3, 4
and umi_id=
@sdim_1
sdim_31
sdim_32
sdim_33
sdim_34
sdim_35 Branch Code #0, 1, 2, 3, 4
of a given leg instrument.
Branch codes are read from
the UMIBranch table
considering a time validity
for given event date and
date range defined via the
Active From/Active To
dates in the Instrument
editor.
UMIBranch.branch
_id where
branch_number =
0, 1, 2, 3, 4
and umi_id =
leg_id
sdim_36
sdim_37
sdim_38
sdim_39
Table column
name Description Filled out of the Get
... procedures
Get
Payment
Get
AllocCashflow
Accounting Module System Administration Guide 115
Appendix B Object permissions
This appendix contains details for the Permission Editor, used to grant and revoke access to the ACM
objects.
Warning: For a complete set of permissions for a particular user/user group do not forget to
view the Permission Editor with activated view option Inherited Permissions.
B.1 ACM permissions
The following table contains the list of permissions that can be set on the ACM objects:
B.2 ACM objects with permissions per ACM user groups
The following table describes all the accounting related objects for which you can set the user
permissions. The objects are of the following 3 basic kinds:
1. Data: tables representing key static data which can be manipulated via the editors; for such
objects the table contains the name of the appropriate editor too.
2. Lists: tables representing the selection lists (for editors, reports, activities) or key values (e.g.
voucher states, bookkeeping types, etc.)
3. System: tables used by the system for the processing.
The table also includes the configuration of the particular objects in relation to the default (installed
automatically with ACM) accounting user groups. Since the permissions of the ACM-ADMIN user
group are the sub-set of the ACM-MAIN-ACCOUNTANT user group, the permissions for the
Permission Description
ACTIVITY Not applicable for the ACM objects.
ALL All permissions
CREATE Permission to create entities
MODIFY Permission to modify entities
READ Permission to read entities
REMOVE Permission to remove entities.
SELF-VERIFY Self-verify object modifications.
START Not applicable for the ACM objects.
VERIFY Not applicable for the ACM objects.
B Object permissions
B.2 ACM objects with permissions per ACM user groups
116 © Wall Street Systems IPH AB - Confidential
ACM-ADMIN group are listed just as the exceptions from the ACM-MAIN-ACCOUNTANT group in the
next chapter.
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
ACMAccount Data Account
Editor
Determines the user
permission for manipulating
with data in Account Editor;
since the accounts are used in
some other ACM applications
and activities, each user
should have at least READ
permission. Permissions for
the Attribute Overriding page
are defined separately.
READ ALL ALL
ACMAccountC
ategory
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMAccountTr
eeFlat
System READ ALL ALL
ACMAccountT
ype
Data Account
Type
Editor
Determines the user
permission for manipulating
with data in Account Type
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMActivityLo
g
System READ ALL ALL
ACMActivityPa
rameter
System READ ALL ALL
ACMActivityRe
quest
System READ ALL ALL
ACMAuditLog System ALL ALL ALL
ACMBalance System System table to which the
account balances are stored.
ALL ALL ALL
ACMBalanceC
heckpoint
System READ ALL ALL
ACMBalanceTy
pe
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMBookkeep
ingType
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 117
ACMCMMState List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMCMMView
Type
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMCTBHistor
y
System READ ALL ALL
ACMCTBHistor
yType
System System object; a permission
for this object is not checked
by default.
ACMCTBSequ
ence
System System object; a permission
for this object is not checked
by default.
ACMCTBSequ
enceBalance
System System object; a permission
for this object is not checked
by default.
ACMCTBSequ
enceState
System System object; a permission
for this object is not checked
by default.
ACMCTBTypeR
ule
Data Closing
Book Type
Editor
Determines the user
permission for manipulating
with data in Closing Book Type
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMChart Data Chart of
Accounts
Editor
Determines the user
permission for manipulating
with data in Chart of Accounts
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission. Permissions
for the Domains page are
defined separately.
READ ALL ALL
ACMChartM Data Chart of
Accounts
Editor
Determines the user
permission for manipulating
with additional domains setup
in Chart of Account Editor,
page Domains. Each user
should have at least READ
permission.
READ READ ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
118 © Wall Street Systems IPH AB - Confidential
ACMChartPers
AccType
Data Account
Type
Editor
Determines the user
permission for making the
attribute overriding setup in
Account Type Editor, page
Attribure Overriding, in the
chart perspective. Each user
should have at least READ
permission.
READ ALL ALL
ACMChartPers
Account
Data Account
Editor
Determines the user
permission for making the
attribute overriding setup in
Account Editor, page Attribure
Overriding, in the chart
perspective. Each user should
have at least READ
permission.
READ ALL ALL
ACMChartPers
CC
Data Cost
Center
Editor
Determines the user
permission for making the
attribute overriding setup in
Cost Center Editor, page
Attribure Overriding, in the
chart perspective. Each user
should have at least READ
permission.
READ ALL ALL
ACMChartPers
Project
Data Project
Editor
Determines the user
permission for making the
attribute overriding setup in
Project Editor, page Attribure
Overriding, in the chart
perspective. Each user should
have at least READ
permission.
READ ALL ALL
ACMChartTree
Flat
System READ ALL ALL
ACMCostCent
er
Data Cost
Center
Editor
Determines the user
permission for manipulating
with data in Cost Center
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMCptyRelat
ion
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 119
ACMCritValue
Mapping
Data Breakdow
n Criterion
Editor
Determines the user
permission for manipulating
with data in Breakdown
Criterion Editor, page Criterion
Components; since this data
are used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMCriterion Data Breakdow
n Criterion
Editor
Determines the user
permission for manipulating
with data in Breakdown
Criterion Editor; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission. Permissions for
the Domains page are defined
separately.
READ ALL ALL
ACMCriterion
M
Data Breakdow
n Criterion
Editor
Determines the user
permission for manipulating
with additional domains setup
in Breakdown Criterion Editor,
page Domains. Each user
should have at least READ
permission.
READ READ ALL
ACMCurrency
Balance
System READ ALL ALL
ACMCurrency
BalanceKind
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMCurrency
BalanceType
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMCurrency
EntryState
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMCurrency
Position
Data Determines the user
permission for manipulating
with data in the Currency
Position Editor; since this data
are used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
120 © Wall Street Systems IPH AB - Confidential
ACMCurrency
Rule
Data Determines the user
permission for manipulating
with data in Currency Position
Editor, page Rules; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission.
READ ALL ALL
ACMDataVersi
on
System ALL ALL ALL
ACMDynamic
DataVerificati
on
System System table needed for the
execution of the Accounting
Dynamic Data Verification
report. Note that by default
only users from the
ACM-ADMIN group have
permission ALL for this object.
ACMDrCr List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMERPDoc System READ READ ALL
ACMERPDocIt
em
System READ READ ALL
ACMERPDocIt
emState
System System object; a permission
for this object is not checked
by default.
READ READ ALL
ACMERPDocSt
ate
System System object; a permission
for this object is not checked
by default.
READ READ ALL
ACMERPDocU
nit
System READ READ ALL
ACMERPDocU
nitState
System System object; a permission
for this object is not checked
by default.
READ READ ALL
ACMERPExpor
tDef
Data ERP Export
Definition
Editor
Determines the user
permission for manipulating
with data in ERP Export
Definition Editor; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission.
READ READ ALL
ACMERPExpor
tMode
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 121
ACMERPJoinH
elp
System System table used by the ERP
interface executed in the
account mode. A permission
for this object is not checked
by default.
ACMERPMessa
ge
System System object; a permission
for this object is not checked
by default.
READ READ ALL
ACMERPState System System object; a permission
for this object is not checked
by default.
READ ALL ALL
ACMERPSyste
mDef
Data ERP
System
Definition
Editor
Determines the user
permission for manipulating
with data in ERP System
Definition Editor; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission.
READ READ ALL
ACMERPTarget Data ERP Target
Editor
Determines the user
permission for manipulating
with data in ERP Target Editor;
since this data are used in
some other ACM applications
and activities, each user
should have at least READ
permission.
READ READ ALL
ACMERPTarget
Number
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMERPTarget
Type
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMERPType List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMEntry System Key system table containing
all informatoin about the
accounting entries.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
122 © Wall Street Systems IPH AB - Confidential
ACMEntryOrigi
n
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMEntryOrigi
nEntity
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMEntryOrigi
nGroup
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMEntryStat
e
System System object; a permission
for this object is not checked
by default.
READ ALL ALL
ACMEntryType List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMEventEntr
yMap
Data Event to
Entry
Mapping
Editor
Determines the user
permission for manipulating
with data in Event to Entry
Mapping Editor; since this data
are used in some other ACM
applications and activities,
each user should have at least
READ permission. Note that by
default only users from the
ACM-ADMIN group have
permission ALL for this object.
READ READ READ
ACMEventTyp
e
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMEventTyp
eMap
System System object; a permission
for this object is not checked
by default.
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 123
ACMGrouping
Rule
Data Accounting
Grouping
Rule Editor
Determines the user
permission for manipulating
with data in Accounting
Grouping Rule Editor; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ ALL ALL
ACMGrouping
RuleType
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMHedgeEff
Cat
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMHedgeLeg
Cat
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMHedgeQu
alifCat
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMHedgeRea
lized
System System object; a permission
for this object is not checked
by default.
READ READ ALL
ACMHedgeRea
lizedState
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMId System System object; a permission
for this object is not checked
by default.
ALL ALL ALL
ACMInstructio
nEvent
System System object; a permission
for this object is not checked
by default.
ACMInstructio
nState
List System table containing
values for a selection list used
in ACM applications or the
table of key values; a
permission for this object is
not checked by default.
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
124 © Wall Street Systems IPH AB - Confidential
ACMInstructio
nType
List System table containing
values for a selection list used
in ACM applications or the
table of key values; a
permission for this object is
not checked by default.
ACMLedger Data Ledger
Editor
Determines the user
permission for manipulating
with data in Ledger Editor;
since this data are used in
some other ACM applications
and activities, each user
should have at least READ
permission. Permissions for
the Domains page are defined
separately.
READ ALL ALL
ACMLedgerGr
oup
Data Ledger
Group
Editor
Determines the user
permission for manipulating
with data in Ledger Group
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission. Permissions
for the Domains page are
defined separately.
READ ALL ALL
ACMLedgerGr
oupM
Data Ledger
Group
Editor
Determines the user
permission for manipulating
with additional domains setup
in Ledger Group Editor, page
Domains. Each user should
have at least READ
permission.
READ READ ALL
ACMLedgerLe
dgerGroup
Data Ledger
Group
Editor
Determines the user
permission for manipulating
with data in Ledger Group
Editor, page Ledgers; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ ALL ALL
ACMLedgerM Data Ledger
Editor
Determines the user
permission for manipulating
with additional domains setup
in Ledger Editor, page
Domains. Each user should
have at least READ
permission.
READ READ ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 125
ACMLedgerPer
mission
Data Ledger
Editor
Determines the user
permission for manipulating
with data in Ledger Editor,
page Ledger Permission; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ READ ALL
ACMLedgerPer
sAccType
Data Account
Type
Editor
Determines the user
permission for making the
attribute overriding setup in
Account Type Editor, page
Attribure Overriding, in the
ledger perspective. Each user
should have at least READ
permission.
READ ALL ALL
ACMLedgerPer
sAccount
Data Account
Editor
Determines the user
permission for making the
attribute overriding setup in
Account Editor, page Attribure
Overriding, in the ledger
perspective. Each user should
have at least READ
permission.
READ ALL ALL
ACMLedgerPer
sCC
Data Cost
Center
Editor
Determines the user
permission for making the
attribute overriding setup in
Cost Center Editor, page
Attribure Overriding, in the
ledger perspective. Each user
should have at least READ
permission.
READ ALL ALL
ACMLedgerPer
sPeriod
Data Period
Editor
Determines the user
permission for making the
attribute overriding setup in
Period Editor, page Attribure
Overriding, in the ledger
perspective. Each user should
have at least READ
permission.
READ ALL ALL
ACMLedgerPer
sProject
Data Project
Editor
Determines the user
permission for making the
attribute overriding setup in
Project Editor, page Attribure
Overriding, in the ledger
perspective. Each user should
have at least READ
permission.
READ ALL ALL
ACMLock System System object; a permission
for this object is not checked
by default.
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
126 © Wall Street Systems IPH AB - Confidential
ACMMapRuleP
aramSrc
Data Accounting
Parameter
Configurati
on Editor
Determines the user
permission for manipulating
with data in Accounting
Parameter Configuration
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission. Note that by
default only users from the
ACM-ADMIN group have
permission ALL for this object.
READ READ READ
ACMMappedV
alue
Data Value
Mapping
Editor
Determines the user
permission for manipulating
with data in Value Mapping
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMMappingA
ction
Data Accounting
Mapping
Rule Editor
Determines the user
permission for manipulating
with data in Accounting
Mapping Rule Editor, page
Actions; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMMappingD
ataSource
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ READ
ACMMappingR
ule
Data Accounting
Mapping
Rule Editor
Determines the user
permission for manipulating
with data in Accounting
Mapping Rule Editor; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission. Permissions for
the Actions page are defined
separately.
READ ALL ALL
ACMMatching
Type
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
ACMNumberS
equence
System System object; a permission
for this object is not checked
by default.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 127
ACMPLCatego
ry
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMParamList Data Accounting
Parameter
List Editor
Determines the user
permission for manipulating
with data in Accounting
Parameter List Editor; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ ALL ALL
ACMParamList
Value
Data Accounting
Parameter
List Editor
Determines the user
permission for manipulating
with data in Accounting
Parameter List Editor, page
Accounting Parameter List
Value; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMPeriod Data Period
Editor
Determines the user
permission for manipulating
with data in Period Editor;
since this data are used in
some other ACM applications
and activities, each user
should have at least READ
permission.
READ ALL ALL
ACMPeriodCat
egory
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMPeriodOrd
erNumber
System System table containing the
order of all the periods defined
within a period set.
ALL ALL ALL
ACMPeriodSet Data Period Set
Editor
Determines the user
permission for manipulating
with data in Period Set Editor;
since this data are used in
some other ACM applications
and activities, each user
should have at least READ
permission. Permissions for
the Domains page are defined
separately. Permissions for the
Domains page are defined
separately.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
128 © Wall Street Systems IPH AB - Confidential
ACMPeriodSet
M
Data Period Set
Editor
Determines the user
permission for manipulating
with additional domains setup
in Period Set Editor, page
Domains. Each user should
have at least READ
permission.
READ READ ALL
ACMPeriodTyp
e
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMPerspecti
ve
System System object; a permission
for this object is not checked
by default.
ALL ALL ALL
ACMProject Data Project
Editor
Determines the user
permission for manipulating
with data in Project Editor;
since this data are used in
some other ACM applications
and activities, each user
should have at least READ
permission.
READ ALL ALL
ACMRebookin
gDate
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMRebookin
gMethod
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMRebookin
gMoment
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMRebookin
gRolling
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 129
ACMRebookin
gType
Data Rebooking
Type
Editor
Determines the user
permission for manipulating
with data in Rebooking Type
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMRestrictio
nMode
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMRevCance
lState
System System object; a permission
for this object is not checked
by default.
READ ALL ALL
ACMRule Data Accounting
Entry Rule
Editor
Determines the user
permission for manipulating
with data in Rule Editor; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission. Permissions for
the Domains page are defined
separately.
READ ALL ALL
ACMRuleM Data Accounting
Entry Rule
Editor
Determines the user
permission for manipulating
with additional domains setup
in Rule Editor, page Domains.
Each user should have at least
READ permission.
READ READ ALL
ACMSign List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ READ
ACMSpecialTr
eatment
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMStmtRepo
rtRow
Data Accounting
Statement
Report
Templa te
Editor
Determines the user
permission for manipulating
with data in Accounting
Statement Report Editor, page
Statement Report Row; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ READ ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
130 © Wall Street Systems IPH AB - Confidential
ACMStmtRepo
rtTmpl
Data Accounting
Statement
Report
Templa te
Editor
Determines the user
permission for manipulating
with data in Accounting
Statement Report Editor; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ READ ALL
ACMTimeBand Data Time Band
Set Editor
Determines the user
permission for manipulating
with data in Time Band Set
Editor, page Time Band; since
this data are used in some
other ACM applications and
activities, each user should
have at least READ
permission.
READ ALL ALL
ACMTimeBand
Set
Data Time Band
Set Editor
Determines the user
permission for manipulating
with data in Time Band Set
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMTransactio
nSign
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ READ
ACMUserPersp
ective
Data Accounting
Perspectiv
e Editor
Determines the user
permission for manipulating
with data in Accounting
Perspective Editor; since this
data are used in some other
ACM applications and
activities, each user should
have at least READ
permission.
ALL ALL ALL
ACMUserSetu
p
System ALL ALL ALL
ACMUserSetu
pData
System ALL ALL ALL
ACMValueMap
ping
Data Value
Mapping
Editor
Determines the user
permission for manipulating
with data in Value Mapping
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission. Permissions
for the Domains page are
defined separately.
READ ALL ALL
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.2 ACM objects with permissions per ACM user groups
Accounting Module System Administration Guide 131
Note: In the Object Hierarchy Editor, all the ACM objects are of the Editor type, i.e. they all have
ON the switch Editor in the lower part of the Object Hierarchy Editor.
ACMValueMap
pingM
Data Value
Mapping
Editor
Determines the user
permission for manipulating
with additional domains setup
in Value Mapping Editor, page
Domains. Each user should
have at least READ
permission.
READ READ ALL
ACMVoucher System Key system talbe containing
all information about the
vouchers.
READ ALL ALL
ACMVoucherS
ource
List System table containing
values for a selection list used
in ACM applications or the
table of key values; a
permission for this object is
not checked by default.
ACMVoucherS
tate
List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ ALL ALL
ACMVoucherT
ype
Data Voucher
Type
Editor
Determines the user
permission for manipulating
with data in Voucher Type
Editor; since this data are
used in some other ACM
applications and activities,
each user should have at least
READ permission.
READ ALL ALL
ACMYesNo List System table containing
values for a selection list used
in ACM applications or the
table of key values; you
should only read data from
this table.
READ READ ALL
Administrator
Activity
System System table needed for the
execution of the Accounting
System Administration Task
activity. Note that by default
only users from the
ACM-ADMIN group have
permission ALL for this object.
Object Kind Primary
Editor Description
ACM-
CONTROL
LER
ACM-
ACCOUNT
ANT
ACM-MAIN
-
ACCOUNT
ANT
B Object permissions
B.3 ACM-MAIN-ACCOUNTANT vs. ACM-ADMIN
132 © Wall Street Systems IPH AB - Confidential
B.3 ACM-MAIN-ACCOUNTANT vs. ACM-ADMIN
ACM-MAIN-ACCOUNTANT, the second most powerfull user group, can do almost the same as
ACM-ADMIN with the following exceptions:
•Only READ permision ACM-SYSTEM domain
•No possibility to run the Dynamic Data Verification report (for details see 6.1 Accounting
dynamic data verification report on page 35).
•No possibility to run the Accounting System Administration Task activity (for details see 6.2
Accounting System Administration Task activity on page 38).
•Only READ permission for object(s) needed for defining event to entry mapping via the Event to
Entry Mapping Editor.
•Only READ permission for object(s) needed for defining accounting parameters via the
Accounting Parameter Editor.
Note that ACM-ADMIN has permission ALL for all the above listed objects and domain.
Besides the first possibility all other permissions are available due to the following object
permissions:
B.4 ACM-ACCOUNTANT vs. ACM-MAIN-ACCOUNTANT
ACM-ACCOUNTANT can do almost the same as ACM-MAIN-ACCOUNTANT with the following
exceptions:
•Only READ permission for objects having M at the end of their name (e.g. ACMLedgerM) used for
assigning multiple domains on some entities (e.g. ledger). Note that these so called secondary
domains add a reading permission for the domains defined in the "Domains" tab of the editors,
e.g. in the Ledger editor. The READ permission on the M table allows only to see domains defined
in that tab, but no editing.
•Only READ permission for objects needed for the definition of ERP static data (ACMERPExport
Def, ACMERPSystemDef, ACMERPTarget).
Object Kind Primary
Editor Description
ACM-MAIN
-
ACCOUNT
ANT
ACM-ADMIN
ACMDynamicDataVerific
ation
System System table needed for the
execution of the Accounting
Dynamic Data Verification
report.
ALL ALL
ACMEventEntryMap Data Event to
Entry
Mapping
Editor
Determines the user
permission for manipulating
with data in the Event to
Entry Mapping Editor.
ALL ALL
ACMMapRuleParamSrc Data Accounting
Parameter
Configuration
Editor
Determines the user
permission for manipulating
with data in Accounting
Parameter Configuration
Editor.
ALL ALL
AdministratorActivity System System table needed for the
execution of the Accounting
System Administration Task
activity.
ALL ALL
B Object permissions
B.5 Handling of M tables
Accounting Module System Administration Guide 133
•Only READ permission for defining ledger perissions via the Ledger Editor (object
ACMLedgerPermission).
•Only READ permission for defining accounting statement report templates (objects
ACMStmtReportRow, ACMStmatReportTmpl).
ACM-MAIN-ACCOUNTANT has permission ALL for all these objects.
B.5 Handling of M tables
Some objects in the table listing the accounting objects end by letter M. Permissions on these
objects are checked by the corresponding editors which allow assigning multiple domains on the
same entity (e.g. ledger). These secondary domains allow just a reading permission and they are
defined in the "Domains" tab of the editors, e.g. in the Ledger editor. The READ permission on the M
table allows to see domains defined in that tab. For a possibility to add/remove a domain in the tab
you need:
•permission ALL for the appropriate M table,
•at least permission READ for the main object (e.g. ACMLedger), and
•permission ALL for the domain, in which the particular enity (e.g. ledger) is defined.
B Object permissions
B.5 Handling of M tables
134 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 135
Appendix C ERP document structure
This appendix contains a default structure of the ERP output (ERP document), so called
TremaXMLDocument, as generated by the ACM server. Its whole structure is described by the XSD
as well as by the table.
C.1 ERP output - description in table
The following table shows the mapping of exported ACM fields to the XML EPR output structure:
XML level XML tag Short
description Long description ACM source
table
ACM source
field
Header ID ERP Document
System ID
Unique internal ID for
the export document
ACMERPDoc id
Header OBJ_KEY ERP
Document(Obje
ct) Key
Unique user ID for the
export document
ACMERPDoc document_num
ber
Header DOC_DATE Document Date Date assigned to
export document
ACMERPDoc document_date
Header PSTNG_DATE Posting Date Posting date of the
export document,
determines the
selection of the
posting period in
NACOS
ACMERPDoc posting_date
Header FISC_YEAR Fiscal Year Fiscal year the export
document is assigned
to.
This tag appears if
you defined ERP
value for your fiscal
year; is mandatory
for export to SAP.
ACMERPDoc erp_year
Header FIS_PERIOD Fiscal Period Accounting period in
SAP the export
document is assigned
to.
This tag appears if
you defined ERP
value for your
posting period.
ACMERPDoc erp_period
C ERP document structure
C.1 ERP output - description in table
136 © Wall Street Systems IPH AB - Confidential
Header COMP_CODE Ledger Code
(Company
Code)
Target ledger in SAP
for the export
document.
This tag appears if
you defined ERP
Ledger Code in the
ERP Target editor;
is mandatory for
export to SAP.
ACMERPTarget ledger_code
Header ERP_SYS Logical ERP
Target System
Technical definition of
the target system
ACMERPSystem
Def
system_name
Header ERP_TYPE ERP Target
System Type
Target system type
(technical)
ACMERPTargetTy
pe
id_user
Header GLM_OWNER Ledger user ID User ID for the ACM
ledger the export
document is related
with
ACMLedger id_user
Header STATE_ID ERP document
state
ERP document state
system ID
ACMERPDoc state_id
Header EXP_USER Export User User to initiate the
export
ACMERPDoc last_state_user
Header DOC_TYPE ERP document
state
ERP document state:
1 = BY_VOUCHER
2 = BY_ENTRY
3 = BY_BALANCCE
ACMERPDoc erp_type_id
Header DOC_FLAGS ERP document
flags
ERP document flags ACMERPDoc flags
Header LEDGER_ID Ledger system
ID
Ledger system ID ACMLedger id
Header LEDGER_ID_US
ER
Ledger user ID Ledger user ID ACMLedger id_user
Header ACM_PERIOD Voucher period
user ID
ACM posting period
assigned to the
voucher
ACMPeriod id_user
Line Item VOUCHER_DESC Voucher
description
Description field on
the voucher level
ACMVoucher description
Line Item DOC_CURR Document
Currency
Document currency
for the entry/balance
Currency id
Line Item DOC_AMT Document
Amount
Entry/balance amount
in document currency
ACMEntry amount
Line Item BOOK_CURR Booking
Currency
Booking currency for
the entry/balance
(EUR for DCAG)
Currency id
Line Item BOOK_AMT Booking Amount Entry amount in
booking currency
ACMEntry bookingAmount
XML level XML tag Short
description Long description ACM source
table
ACM source
field
C ERP document structure
C.1 ERP output - description in table
Accounting Module System Administration Guide 137
Line Item ERP_ACC ERP Account Target account
number.
This tag appears if
you defined ERP
value for your
account; is
mandatory for
export to SAP. The
specified value is
automatically
completed by zeros
from left to reach
10 characters.
ACMERPDocIte
m
erp_account
Line Item GLM_ACC GLM Account User account number
for the source account
in ACM
ACMAccount id_user
Line Item GLM_ACC_TXT GLM Account
Name
User account name for
the source account in
ACM
ACMAccount name
Line Item VOUCH_REV Voucher Reverse
State
Flag to indicate
reversing voucher
ACMRevCancelS
tate
id_user
Line Item VOUCH_TYPE ACM Voucher
Type
Voucher type assigned
in ACM to indicate
purpose of the related
posting
ACMVoucherTyp
e
id_user
Line Item ENTRY_ID ACM Entry ID Unique reference ID
for the entry in ACM
ACMEntry id
Line Item VOUCH_ID ACM Voucher ID Voucher number (user
ID) for the voucher in
ACM
ACMVoucher voucher_numbe
r
Line Item TRAN_NUM ACM Entry
Origin + ACM
Reference ID
TRM/CMM/ACM
transaction number
if applicable
ACMEntry number
Line Item PORTF Portfolio Portfolio Portfolio id
Line Item INSTR Instrument Instrument ACMEntry instrument_id
Line Item INSTR_GRP Instrument
Group
Instrument Group UMPathNode path
Line Item CPTY Counerarty Counerarty Client client_id
Line Item CPTY_GRP Counerarty
Group
Counerarty Group ClientGroup id
Line Item ISSR Issuer Issuer Client client_id
Line Item ISSR_GRP Issuer Group Issuer Group ClientGroup id
Line Item T_OPN_DATE Trans Opening
Date
Opening date for the
TRM transaction if
applicable
ACMEntry transaction_ope
ning_date
Line Item T_MAT_DATE Trans Maturity
Date
Maturity date for the
TRM transaction if
applicable
ACMEntry transaction_mat
urity_date
XML level XML tag Short
description Long description ACM source
table
ACM source
field
C ERP document structure
C.1 ERP output - description in table
138 © Wall Street Systems IPH AB - Confidential
Line Item T_VAL_DATE Trans Value Date Value date for the TRM
transaction if
applicable
ACMEntry transaction_valu
e_date
Line Item VAL_DATE ACM Value Date Event date in ACM for
the booking (used to
determine the posting
period in ACM)
ACMEntry event_date
Line Item BOOK_DATE ACM Bookung
Date
Booking date in ACM
(date when the
voucher was created)
ACMEntry booking_date
Line Item TRADE_ID Trading Partner Counterparty Code ACMERPDocIte
m
erp_cpty_code
Line Item COSTCENTER Cost Center Cost center attributed
to the entry in ACM
(used to assign P&L
account entries to
affiliated entities)
ACMERPDocIte
m
erp_cost_center
Line Item ENTRY_DESC ACM Entry
Description
Description field for
the entry
ACMERPDocIte
m
description
Line Item ORIG_ID ACM Entry
Origin ID
Origin for the entry,
e.g. "TRM"
ACMOriginEntity id_user
Line Item ORIG_CODE ACM Entry
Origin Code
Shorthand for Origin
Entity
ACMOriginEntity code
Line Item PROJ_ID ERP Project Project attributed to
the entry in ACM
(might be employed in
the future)
ACMERPDocIte
m
erp_project
Line Item P0 .. 9 ACM Entry
Param_0 .. 9
Entry parameter ACMEntry param0 .. 9
Line Item A_P0 .. 9 ACM Account
Param_0 .. 9
Account parameter ACMAccount parameter_0 ..
9
Line Item VOUCHER_DESC Voucher
description
Description field on
the voucher level
ACMVoucher description
Line Item DU_ID Document Unit
System ID
Document Unit
System ID
ACMERPDocUnit id
Line Item DI_ID Document Item
System ID
Document Item
System ID
ACMERPDocIte
m
id
Line Item DR_CR Item DR/CR
Sysrtem ID
Item DR/CR Sysrtem
ID
ACMERPDocIte
m
dr_cr
Line Item DR_CR_NAME Item DR/CR Item DR/CR ACMDrCr id_user
Line Item ITEM_TYPE Item Type Item Type ACMERPType id_user
Line Item UNIT_REV Reversed DU
System ID
Reversed DU System
ID
ACMERPDocUnit reversed_du_id
XML level XML tag Short
description Long description ACM source
table
ACM source
field
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 139
C.2 ERP output - description by XSD
Note: The whole structure is sent to a target system only if SAP-FI is used. For the FILE target
type only the GLM element is stored.
<?xml version="1.0" encoding="ISO-8859-1" ?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns="http://trema.com/acm" targetNamespace="http://trema.com/acm">
<xsd:complexType name="TremaXMLDocument">
<xsd:sequence>
<xsd:element name="OBJECT_TYPE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Object Type For Accounting
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PARTNER_PROFILE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Specifies Partner Profile for which message is intendent
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DOCUMENT_TYPE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Specifies Document Type
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FUNCTION_NAME" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Specifies Function for which this message is intended for
C ERP document structure
C.2 ERP output - description by XSD
140 © Wall Street Systems IPH AB - Confidential
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="GLM">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Header">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Header of Trema XML Document
</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="ID" type="xsd:integer">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Trema ERP Document System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OBJ_KEY" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Document Key
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DOC_DATE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Document Date (yyyyMMdd)
</xsd:documentation>
</xsd:annotation>
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 141
</xsd:element>
<xsd:element name="PSTNG_DATE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Posting Date (yyyyMMdd)
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FISC_YEAR" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Fiscal Year
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FIS_PERIOD" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Fiscal Period
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="GLM_OWNER" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Ledger
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="COMP_CODE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Ledger Code (Company Code)
</xsd:documentation>
C ERP document structure
C.2 ERP output - description by XSD
142 © Wall Street Systems IPH AB - Confidential
</xsd:annotation>
</xsd:element>
<xsd:element name="DOC_TYPE" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Trema ERP Document Type
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EXP_USER" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Export User
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ERP_SYS" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Logical ERP Target System
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ERP_TYPE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Target System Type
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="STATE_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Document State System ID
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 143
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DOC_FLAGS" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Document Flags
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LEDGER_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Ledger System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ACM_PERIOD" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Period
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="Item" minOccurs="2" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Each document must balance -&gt;at least two items in each document
</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
C ERP document structure
C.2 ERP output - description by XSD
144 © Wall Street Systems IPH AB - Confidential
<xsd:sequence>
<xsd:element name="DOC_CURR" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Document Currency
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BOOK_CURR" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Booking Currency
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DOC_AMT" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Document Amount
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BOOK_AMT" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Booking Amount
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ERP_ACC" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Account
</xsd:documentation>
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 145
</xsd:annotation>
</xsd:element>
<xsd:element name="GLM_ACC" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="GLM_ACC_TXT" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Name
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="V_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Voucher System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ENTRY_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VOUCH_ID" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Voucher Number
C ERP document structure
C.2 ERP output - description by XSD
146 © Wall Street Systems IPH AB - Confidential
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VOUCH_TYPE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Voucher Type
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VOUCH_REV" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Voucher Reverse State
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PORTF" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Portfolio
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CPTY" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Counterparty
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="INSTR" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 147
Instrument
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CPTY_GRP" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Counterparty Group
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ISSR" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Issuer
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ISSR_GRP" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Issuer Group
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TRAN_NUM" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Origin + ACM Reference ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="T_OPN_DATE" type="xsd:string" minOccurs="0">
<xsd:annotation>
C ERP document structure
C.2 ERP output - description by XSD
148 © Wall Street Systems IPH AB - Confidential
<xsd:documentation xml:lang="EN">
Transaction Opening Date
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="T_MAT_DATE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Transaction Maturity Date
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="T_VAL_DATE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Transaction Value Date
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TRADE_ID" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Trading Partner
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BOOK_DATE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Booking Date
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="COSTCENTER" type="xsd:string" minOccurs="0">
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 149
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Cost Center
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ENTRY_DESC" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Description
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VAL_DATE" type="xsd:string">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Value Date
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ORIG_ID" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Origin ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ORIG_CODE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Origin Code
</xsd:documentation>
</xsd:annotation>
</xsd:element>
C ERP document structure
C.2 ERP output - description by XSD
150 © Wall Street Systems IPH AB - Confidential
<xsd:element name="PROJ_ID" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ERP Project
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P0" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 0
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P1" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 1
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P2" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 2
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P3" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 3
</xsd:documentation>
</xsd:annotation>
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 151
</xsd:element>
<xsd:element name="P4" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 4
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P5" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 5
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P6" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 6
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P7" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 7
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="P8" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 8
</xsd:documentation>
C ERP document structure
C.2 ERP output - description by XSD
152 © Wall Street Systems IPH AB - Confidential
</xsd:annotation>
</xsd:element>
<xsd:element name="P9" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Entry Parameter 9
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P0" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 0
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P1" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 1
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P2" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 2
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P3" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 3
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 153
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P4" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 4
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P5" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 5
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P6" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 6
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P7" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 7
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P8" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
C ERP document structure
C.2 ERP output - description by XSD
154 © Wall Street Systems IPH AB - Confidential
ACM Account Parameter 8
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="A_P9" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Account Parameter 9
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="INSTR_GRP" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Instrument group
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="D_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM ERP Document System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DU_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM ERP Document Unit System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DI_ID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
C ERP document structure
C.2 ERP output - description by XSD
Accounting Module System Administration Guide 155
<xsd:documentation xml:lang="EN">
ACM ERP Document Item System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DR_CR_NAME" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Item DR/CR
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ITEM_TYPE" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM ERP Item Type
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="UNIT_REV" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
Reversed ACM ERP DU System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VOUCHER_DESC" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Voucher Description
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LEDGER_ID" type="xsd:integer" minOccurs="0">
C ERP document structure
C.3 ERP output in XML format - example
156 © Wall Street Systems IPH AB - Confidential
<xsd:annotation>
<xsd:documentation xml:lang="EN">
ACM Ledger System ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:schema>
C.3 ERP output in XML format - example
C.3.1 About the structure
A structure of the ERP export file is very close for both ERP export modes: Voucher and Account
Mode (either by entries or balances). It differs in a few tags only:
Depending on the ERP target type the ERP_SYS and ERP_TYPE tags are filled as follows:
Export Mode
Document Header Document Item
DOC_TYPE ITEM_TYPE UNIT_TYPE
VOUCHER 1 BY_VOUCHER BY_VOUCHER
ACCOUNT by ENTRY 2 BY_ENTRY ... for the account entry
ENTRY_MIRROR ... for the technical mirror
entry
BY_ENTRY
ACCOUNT by
BALANCE
3 BY_BALANCE ... for the account
movement
BALANCE_MIRROR ... for the balance
movement technical mirror entry/item
BY_BALANCE
Target Type
Document Header
ERP_SYS ERP_TYPE
SAP-FI SAP BC/XI alias SAP_FI
FILE FILE FILE
C ERP document structure
C.3 ERP output in XML format - example
Accounting Module System Administration Guide 157
C.3.2 Example for Voucher Mode
Below you can see an example of the ERP output file in XML format for the Voucher Mode (i.e. all
the entries from a voucher are transferred in one ERP document). Note that only tags, for which a
value in ACM exists, are filled.
<GLM>
<Header>
<ID>10</ID>
<OBJ_KEY>2005_00010</OBJ_KEY>
<DOC_DATE>20080229</DOC_DATE>
<PSTNG_DATE>20050414</PSTNG_DATE>
<FISC_YEAR>2005</FISC_YEAR> .......... this tag appears if you defined ERP value for your
fiscal year; is mandatory for export to SAP.
<FISC_PERIOD>04</FISC_PERIOD> ...... this tag appears if you defined ERP value for your
posting period.
<COMP_CODE>1000</COMP_CODE> ..... this tag appears if you defined the ERP Ledger
Code in the ERP Target Editor; is mandatory for
export to SAP.
<ERP_SYS>FILE</ERP_SYS>
<ERP_TYPE>FILE</ERP_TYPE>
<GLM_OWNER>WSS_LMTD</GLM_OWNER>
<STATE_ID>1210</STATE_ID>
<EXP_USER>CHARLIE</EXP_USER>
<DOC_TYPE>1</DOC_TYPE>
<DOC_FLAGS>0</DOC_FLAGS>
<LEDGER_ID>142</LEDGER_ID>
<ACM_PERIOD>2005-04</ACM_PERIOD>
</Header>
<Item>
<DOC_CURR>USD</DOC_CURR>
<DOC_AMT>500000.0000</DOC_AMT>
<BOOK_CURR>EUR</BOOK_CURR>
<BOOK_AMT>342000.0000</BOOK_AMT>
<ERP_ACC>0000075000<ERP_ACC> ...... this tag appears if you defined ERP value for your
account; is mandatory for export to SAP;
the specified values is completed by zeros from
left to reach 10 characters.
<GLM_ACC>111</GLM_ACC> ................ user ID from ACM
<GLM_ACC_ID>947</GLM_ACC_ID> ..... system ID
<GLM_ACC_TXT>EUR C/A</GLM_ACC_TXT>
<ENTRY_ID>3935</ENTRY_ID>
C ERP document structure
C.3 ERP output in XML format - example
158 © Wall Street Systems IPH AB - Confidential
<VOUCH_ID>DL-2005-003</VOUCH_ID>
<V_ID>1401</V_ID>
<VOUCH_TYPE>DL</VOUCH_TYPE>
<TRAN_NUM>TRM-486</TRAN_NUM>
<PORTF>WSS_SHORT_DEP_PTF_1</PORTF>
<INSTR>SHORT_DEPO_EUR</INSTR>
<CPTY>ABNAMRO</CPTY>
<CPTY_GRP>EXTERNAL</CPTY_GRP>
<ISSR>KOBA</ISSR>
<ISSR_GRP>EXTERNAL</ISSR_GRP>
<T_OPN_DATE>20050112</T_OPN_DATE>
<T_MAT_DATE>20050414</T_MAT_DATE>
<T_VAL_DATE>20050114</T_VAL_DATE>
<BOOK_DATE>20080229</BOOK_DATE>
<VAL_DATE>20050414</VAL_DATE>
<ENTRY_DESC>WSS-CITI-EUR113</ENTRY_DESC>
<ORIG_ID>TRM-TRANSACTION</ORIG_ID>
<ORIG_CODE>TRM</ORIG_CODE>
<DU_ID>14</DU_ID>
<DI_ID>27</DI_ID>
<DR_CR>1</DR_CR>
<DR_CR_NAME>DR</DR_CR_NAME>
<D_ID>10</D_ID>
<ITEM_TYPE>BY_VOUCHER</ITEM_TYPE>
<UNIT_TYPE>BY_VOUCHER</UNIT_TYPE>
<VOUCH_REV>NONE</VOUCH_REV>
<ITEM_STATE>OK</ITEM_STATE>
<LEDGER_ID>142</LEDGER_ID>
<LEDGER_ID_USER>WSS_IFRS</LEDGER_ID_USER>
<INSTR_GRP>SHORT</INSTR_GRP>
</Item>
<Item>
<DOC_CURR>USD</DOC_CURR>
<DOC_AMT>-500000.0000</DOC_AMT>
<BOOK_CURR>EUR</BOOK_CURR>
<BOOK_AMT>-342000.0000</BOOK_AMT>
<ERP_ACC>ERP121</ERP_ACC>
<GLM_ACC>121</GLM_ACC>
<GLM_ACC_ID>950</GLM_ACC_ID>
<GLM_ACC_TXT>Deposits Given</GLM_ACC_TXT>
C ERP document structure
C.3 ERP output in XML format - example
Accounting Module System Administration Guide 159
<ENTRY_ID>3929</ENTRY_ID>
<VOUCH_ID>DL-2005-004</VOUCH_ID>
<V_ID>1402</V_ID>
<VOUCH_TYPE>DL</VOUCH_TYPE>
<TRAN_NUM>TRM-487</TRAN_NUM>
<PORTF>WSS_SHORT_DEP_PTF_1</PORTF>
<INSTR>SHORT_DEPO_EUR</INSTR>
<CPTY>ABNAMRO</CPTY>
<CPTY_GRP>EXTERNAL</CPTY_GRP>
<ISSR>KOBA</ISSR>
<ISSR_GRP>EXTERNAL</ISSR_GRP>
<T_OPN_DATE>20050112</T_OPN_DATE>
<T_MAT_DATE>20050414</T_MAT_DATE>
<T_VAL_DATE>20050114</T_VAL_DATE>
<BOOK_DATE>20080229</BOOK_DATE>
<VAL_DATE>20050414</VAL_DATE>
<ENTRY_DESC>Principal</ENTRY_DESC>
<ORIG_ID>TRM-TRANSACTION</ORIG_ID>
<ORIG_CODE>TRM</ORIG_CODE>
<DU_ID>15</DU_ID>
<DI_ID>31</DI_ID>
<DR_CR>-1</DR_CR>
<DR_CR_NAME>CR</DR_CR_NAME>
<D_ID>10</D_ID>
<ITEM_TYPE>BY_VOUCHER</ITEM_TYPE>
<UNIT_TYPE>BY_VOUCHER</UNIT_TYPE>
<VOUCH_REV>NONE</VOUCH_REV>
<ITEM_STATE>OK</ITEM_STATE>
<LEDGER_ID>142</LEDGER_ID>
<LEDGER_ID_USER>WSS_IFRS</LEDGER_ID_USER>
<INSTR_GRP>SHORT</INSTR_GRP>
</Item>
</GLM>
C ERP document structure
C.3 ERP output in XML format - example
160 © Wall Street Systems IPH AB - Confidential
C.3.3 Example for Account Mode by balance
Below you can see an example of the ERP output file in XML format for the Account Mode by
balances (movements), i.e. an account movement in the fixed balances granularity is posted against
a technical account. Note that only tags, for which a value in ACM exists, are filled.
<GLM>
<Header>
<ID>3351</ID>
<OBJ_KEY>KNO-FILE-2002-000004</OBJ_KEY>
<DOC_DATE>20110310</DOC_DATE>
<PSTNG_DATE>20020430</PSTNG_DATE>
<ERP_SYS>FILE</ERP_SYS>
<ERP_TYPE>FILE</ERP_TYPE>
<GLM_OWNER>KNO-IFRS-USD</GLM_OWNER>
<STATE_ID>1210</STATE_ID>
<EXP_USER>CHARLIE</EXP_USER>
<DOC_TYPE>3</DOC_TYPE>
<DOC_FLAGS>0</DOC_FLAGS>
<LEDGER_ID>100047</LEDGER_ID>
<ACM_PERIOD>2002-04</ACM_PERIOD>
</Header>
<Item>
<DOC_CURR>EUR</DOC_CURR>
<DOC_AMT>1008194.4400</DOC_AMT>
<BOOK_CURR>USD</BOOK_CURR>
<BOOK_AMT>1245120.1300</BOOK_AMT>
<GLM_ACC>11-2-50-015-010</GLM_ACC>
<GLM_ACC_ID>300</GLM_ACC_ID>
<GLM_ACC_TXT>EUR in Transit</GLM_ACC_TXT>
<TRAN_NUM>-</TRAN_NUM>
<VAL_DATE>20020430</VAL_DATE>
<ENTRY_DESC>Bal. Mv.</ENTRY_DESC>
<DU_ID>6901</DU_ID>
<DI_ID>15451</DI_ID>
<DR_CR>1</DR_CR>
<DR_CR_NAME>DR</DR_CR_NAME>
<D_ID>3351</D_ID>
<ITEM_TYPE>BY_BALANCE</ITEM_TYPE>
<UNIT_TYPE>BY_BALANCE</UNIT_TYPE>
<ITEM_STATE>OK</ITEM_STATE>
<LEDGER_ID>100047</LEDGER_ID>
C ERP document structure
C.3 ERP output in XML format - example
Accounting Module System Administration Guide 161
<LEDGER_ID_USER>KNO-IFRS-USD</LEDGER_ID_USER>
</Item>
<Item>
<DOC_CURR>EUR</DOC_CURR>
<DOC_AMT>-1008194.4400</DOC_AMT>
<BOOK_CURR>USD</BOOK_CURR>
<BOOK_AMT>-1245120.1300</BOOK_AMT>
<ERP_ACC>0999888777</ERP_ACC>
<TRAN_NUM>-</TRAN_NUM>
<VAL_DATE>20020430</VAL_DATE>
<ENTRY_DESC>Bal. Mv. Technical Mirror</ENTRY_DESC>
<DU_ID>6901</DU_ID>
<DI_ID>15452</DI_ID>
<DR_CR>-1</DR_CR>
<DR_CR_NAME>CR</DR_CR_NAME>
<D_ID>3351</D_ID>
<ITEM_TYPE>BALANCE_MIRROR</ITEM_TYPE>
<UNIT_TYPE>BY_BALANCE</UNIT_TYPE>
<ITEM_STATE>OK</ITEM_STATE>
<LEDGER_ID>100047</LEDGER_ID>
<LEDGER_ID_USER>KNO-IFRS-USD</LEDGER_ID_USER>
</Item>
</GLM>
C ERP document structure
C.3 ERP output in XML format - example
162 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 163
Appendix D ACM environment variables
The following table provides a list of the ACM environment variables.
Environment variable name Note Example value / Default Value
ACM_64BIT_MODE Set to “true” to run ACM server under
64-bit JVM – 64-bit TRM and JVM
(1.4.2_10 or higher) is required.
ACM_64BIT_MODE=false
ACM_ASYNC_LOG Set this to false if you do not want to
run the system logging asynchronously.
true
ACM_CMM_INTERFACE_PROXY
_URL
CMM web service URL. Must contain a
complete URL of the CMM web service.
http://localhost:8081/cmm/iw
s/acmcmm
ACM_DEFAULT_SCHEMA The default schema for ACM database
objects
Dbo
ACM_ERP_BC_HOST Host name for SAP business connector. tolar.prg.trema.com
ACM_ERP_BC_PORT Port number for SAP business
connector.
5555
ACM_ERP_BC_USER SAP business connector user. Administrator
ACM_ERP_BC_USER_PASS SAP business connector user password. manage
ACM_ERP_SAP_CONNECTION Type of connection to SAP system. Use
value XI or BC.
XI
ACM_ERP_XI_DOCUMENT_TYP
E
Document Type created on target ERP
system (SAP) and used for all
documents posted from ACM. For details
see configuration guide “Interface
WallstreetSystems Suite to mySAP
Financials”.
TR
ACM_ERP_XI_HOST Hostname for SAP XI service. xi.prg.trema.com
ACM_ERP_XI_HTTP_PROXY_HO
ST
If you need to use HTTP proxy server for
XI communication specify proxy
hostname. Use this variable undefined
in all other cases.
proxy.prg.trema.com
ACM_ERP_XI_HTTP_PROXY_PO
RT
If you need to use HTTP proxy server for
XI communication specify proxy port.
Use this variable undefined in all other
cases.
8080
ACM_ERP_XI_OUTPUT_ENCOD
ING
Specify output encoding used for XML
documents sent to XI server.
ISO-8859-1
ACM_ERP_XI_OBJECT_TYPE Object type for Accounting on target
ERP system. For details see
configuration guide “Interface
WallstreetSystems Suite to mySAP
Financials”.
ZGLM
D ACM environment variables
164 © Wall Street Systems IPH AB - Confidential
ACM_ERP_XI_PARTNER_PROFI
LE
Partner profile defined on target ERP
system to be used. For details see
configuration guide “Interface
WallstreetSystems Suite to mySAP
Financials”.
XI_TREMA
ACM_ERP_XI_PORT Port number for SAP XI service. 50080
ACM_ERP_XI_USER SAP XI user. xiuser
ACM_ERP_XI_USER_PASS SAP XI password xiuser12
ACM_ERP_USE_SAP Set "true" if your system will post to the
SAP R/3 system. (See step 15 in
installation steps for the ACM server). If
not, set to false or leave it empty.
TRUE
ACM_HTTP_HOST HTTP server hostname where Tomcat
container for ACM Server is running
localhost
ACM_HTTP_PORT HTTP server port where
Tomcat/WebLogic/WebSphere for ACM
Server is running
8080
ACM_JDBC_PASS JDBC database connection user
password. To change the password
before creating the user during the
database build adjust
FK_HOME/share/<platform>/acmconfig
.pl
acmdbo12
ACM_JDBC_URL JDBC database connection string. The
value is derived from the variables
already defined.
Oracle:
jdbc:oracle:thin:@%ACM_MOD
ULES_DB_ADDR%:%ORACLE_
SID%
Sybase:
jdbc:sybase:Tds:%ACM_MODU
LES_DB_ADDR%/%FK_DATAB
ASE%?DYNAMIC_PREPARE=tr
ue
MSSQL:
jdbc:jtds:sqlserver://%ACM_
MODULES_DB_ADDR%/%FK_
DATABASE%
ACM_JDBC_USER JDBC database connection user name.
This user is used to connect to the
database. To create the user with a
different username adjust
FK_HOME/share/<platform>/acmconfig
.pl
acmdbo
ACM_JVM_BITMODE Switch for JVM to set proper bit mode. It
is automatically evaluated based on
ACM_64BIT_MODE.
ACM_KEYSTORE Location of the file containing key-pair
(public and private key) of the client. It
is used for client authentication setup
only.
c:\AccountingManager.jks
ACM_KEYSTORE_PASS Password of the keystore. It has to
match with the key-pair password. It is
used for client authentication setup
only.
AccountingManager12
Environment variable name Note Example value / Default Value
D ACM environment variables
Accounting Module System Administration Guide 165
ACM_LIBRARY_PATH Path where ACM searches for native
libraries
ACM_LIBRARY_PATH=%FK_H
OME%\bin
ACM_LOG_MAIL_FROM Sender address to send email messages
from.
acm_server@trema.com
ACM_LOG_MAIL_IGNORE Specifies whether the error mails will be
sent to the address specified in
ACM_LOG_MAIL_TO variable. If you
want to suppress sending the error
mails set this variable value to "true".
false
ACM_LOG_MAIL_MAX_MAILS_
PER_DAY
The maximum number of email
messages sent per day or following the
ACM Server startup. The counter gets
reset to 0 after 24 hours or after ACM
Server startup. The default is 40.
40
ACM_LOG_MAIL_SMTP_HOST SMTP server hostname to be used to
send email messages via Log4j.
labex2.corp.trema.com
ACM_LOG_MAIL_SUBJECT The email subject text. %FK_IDENT% ACM error
(%FK_RDBMS%,
%FK_DATABASE%)
ACM_LOG_MAIL_TO Recipient address to send the email
messages to.
_ACM-build@trema.com
ACM_MODULES_DB_ADDR Database server location
Oracle - <hostname>:<port>
Sybase+MSSQL -
<servername>:<port>
Oracle:
test1.corp.trema.com:1521
Sybase: SYBASE_LABS:4100
MSSQL: DUKAT:1433
ACM_NAMING_HOST The hostname of the computer where
naming service is running - usually set
via MODULES_NAMING_HOST (if set in
the master TRM environment file)
%MODULES_NAMING_HOST%
ACM_NAMING_PORT The port number where the naming
service is listening - usually set via
MODULES_NAMING_PORT (if set in the
master TRM environment file)
%MODULES_NAMING_PORT%
ACM_OPENORB_CONFIG Path to the OpenORB configuration file %ACM_HOME%\etc\acm\Ope
nORB.xml
ACM_PROTOCOL Protocol used for client to server
communication (http/https). It is only
needed when https is the wanted
protocol.
http
ACM_REPORT_DEFINITIONS_B
ASE_DIR
ACM_REPORT_DEFINITIONS_D
IR
For easier customization of report
definitions (xml files) you can override a
default setting and force the ACM server
load it from an external location
specified by this variable.
ACM_STARTUP_WORKFLOW The internal components configuration -
default is "ACM-STARTUP" which
includes all components.
ACM-STARTUP
Environment variable name Note Example value / Default Value
D ACM environment variables
166 © Wall Street Systems IPH AB - Confidential
The values in bold are the default values – these are the values used in the acm_config.pl (Unix) or
acm_config.bat (Windows) configuration file.
ACM_TOMCAT_BASE The first property ACM_TOMCAT_HOME
points to the location of the common
information, while the other property
ACM_TOMCAT_BASE points to the
directory where all the instance specific
information are held. For the single
instance installation these two values
equal.
%ACM_TOMCAT_HOME%
ACM_TOMCAT_HOME ACM_TOMCAT_HOME must point to the
home directory of Tomcat installation.
This property must be set in order to
install ACM into a container
%TOMCAT_HOME%
ACM_TRUSTSTORE Location of the file containing server
public key (if self-signed) or the
complete chain of issuing authorities. It
is used only if the https protocol is
choosen.
c:\truststore.jks
ACM_WEB_CONTEXT The web context that is used during the
ACM Server installation and also during
ACM Entry Manager communication with
ACM Server, default is "acm"
acm
PATH Add some extra paths to the PATH
system variable, namely a path to the
ACM Entry Manager executable and also
to the java executable (using TRM's
JRE)
%FK_HOME%\jre\bin;
%PATH%;
%FK_HOME%\share\java\ac
m\client
Environment variable name Note Example value / Default Value
Accounting Module System Administration Guide 167
Appendix E Secure Socket Layer (SSL)
ACM can be configured to communicate via a secured connection. It uses the secure socket layer
(SSL) standard. This chapter describes basic information about this topic:
SSL provides the following security advantages:
•Ciphers the communication.
•Verifies the client communicates with a right server.
•Verifies the client is allowed to communicate with the server (so called client authentication).
E.1 Basic SSL terms
The following are basic SSL terms:
Certificate
Certificate is a digitally signed statement from one entity (the issuer), saying that the public key
(and some other information) of another entity (the subject) has some specific value.
Certification Authority (CA)
Company that issues the certificates. It is the one you can trust. See details below.
http://en.wikipedia.org/wiki/Certificate_authority
Keystore
Keystore is a file storing key entries — pair of public and private key. In ACM context all the
keystores are Java keystores (JKS) no matter what the file extention is.
Trustore
Truststore is a keystore that contains certificates that you can trust. It may be the same file as a
keystore.
Keytool
keytool.exe is a Java tool (to be found in the J2SDK distribution) that is used to handle keystores
and the certificates stored there. It allows certificates to be imported, exported etc. See
complete documentation (follow the link below).
OpenSSL
A set of tools to handle certificates similar way as keytool does. It is widely used to provide SSL
functionality. In our case the Tomcat server can use this library to manage certificates.
Detailed information about all the terms above can be found on the following addresses.
http://java.sun.com/j2se/1.4.2/docs/tooldocs/solaris/keytool.html
http://java.sun.com/j2se/1.4.2/docs/tooldocs/windows/keytool.html
E Secure Socket Layer (SSL)
E.2 System setup
168 © Wall Street Systems IPH AB - Confidential
E.2 System setup
There are two security levels using SSL.
1. Only server provides its certificate.
It’s a simpler way that ensures the server is trusted plus the communication is ciphered.
To enable this security, the server has to set up its keystore having a key-pair (public and
private key of the server) and the keystore password. The password has to be the same as the
key pair password stored in the keystore.
On the client there has to be specified the truststore location with the server public key or the
complete certificate chain that issues the server public key.
2. Both server and client have their certificates to provide them to the other side to ensure
that the server is trusted and the client is allowed to connect to the server.
To enable this functionality, on the server the administrator needs to specify the keystore
location (and keystore password) with the key-pair and the truststore location with the client
public key or the client issuing CA public key.
There are two ways how to get a certificate — create the own one (so called self-signed) or let
the CA to create one for you. For our purposes it's enough to have a self-signed certificate —
there is absolutelly no need to have a CA signed one. It causes no security issues in case of ACM
securing.
See the keytool documentation for details on how to generate the certificates/keystores.
Accounting Module System Administration Guide 169
Appendix F TRM FX conversion
TRM Daily Events Generation activity consists from the following basic steps:
a. Average price selling method execution
b. FIFO selling method execution
c. FX conversion (i.e. FX results calculations)
d. Processing of TRM accounting inputs (RUNNING and OFF-BALANCE) and the appropriate
events generation.
This appendix provides some details about the FX conversion step.
The FX Conversion process is performed automatically before the daily accounting events are
generated. The setup is stored in the FXConversionRule table in the TRM database. The FX
conversion process is rule driven and the standard TRM rule logic applies. The TRM cashflows are
compared with FX Conversion Rules in order of their priorities. If Rule matches and Not Rule does
not match, the stored procedure specified in the conversion_proc field is executed.
Key cashflow rates affected by the FX conversion rules setup are:
–cashflow.fx_rate
Aka Base FX Rate in the Transaction Manager, Cashflow view
–cashflow.fx_book_rate
Aka Base Book FX Rate in the Transaction Manager, Cashflow view
–cashflow.fx_trade_rate
Aka Payment Trade FX Rate in the Transaction Manager, Cashflow view
–cashflow.fx_value_rate
Aka Payment Value FX Rate in the Transaction Manager, Cashflow view
These rates are then used for the conversion of document amounts to booking amounts and for the
calculation of FX results.
In general (since there are a few exceptions), cashflow.fx_book_rate is used for creating a CASH
event, while cashflow.fx_rate is used for creating a NON-CASH event.
Here is a description of the FXConversion table:
Field Name Field Description
id ID of the FX Conversion Rule
description Short name
priority Priority of the FX Conversion Rule
contexts Result contexts for which the rule applies. -1 represents all the contexts.
F TRM FX conversion
170 © Wall Street Systems IPH AB - Confidential
date_type_id Cashflow date type:
1 - Cashflow Active From date (Cashflow.active_since)
Cashflow.active_since date is usually set to Opening Date of the Transaction
2 - Cashflow Value Date (Cashflow.value_date)
3 - Cashflow Payment Date (Cashflow.payment_date)… in Transaction Admin only
displayed if different from Value Date
4 – Cashflow Effective Date (Cashflow.realize_date)
5 – Cashflow From When date (Cashflow.since_when)
Is usually the Value Date of the Transaction
rule_ID
not_rule_id
Rules and Not Rules are defined in Rule Editor.
counter
conversion_proc FX Conversion Procedure. In the description below @fx_rate denotes the actual FX rate
(for realized_portfolio specified per user in Accounting Configuration Editor).
The following procedures are available:
FXSetTradeRate – updates Payment Trade FX Rate of a cashflow visible in the
Transaction Admin (Cashflow view) with the actual FX rate:
update Cashflow
set fx_trade_rate = @fx_rate
where id = @id
and fx_value_rate != @fx_rate
FXSetValueRate – updates Payment Value FX Rate of a cashflow visible in the
Transaction Admin (Cashflow view) with the actual FX rate:
update Cashflow
set fx_value_rate = @fx_rate
where id = @id
and fx_value_rate != @fx_rate
FXSetBookRate – updates Base Book FX Rate of a cashflow visible in the Transaction
Admin (Cashflow view) with the actual FX rate:
update Cashflow
set fx_book_rate = @fx_rate
where id = @id
and fx_book_rate != @fx_rate
FXSetRate – updates Base FX Rate of a cashflow visible in the Transaction Admin
(Cashflow view) with the actual FX rate:
update Cashflow
set fx_rate = @fx_rate
where id = @id
and fx_rate != @fx_rate
FXSetRatesAvgBalance - updates all rates on average transactions if @active_since
>< @since_when:
update Cashflow
set fx_rate = @fx_rate,
fx_book_rate = @fx_rate,
fx_value_rate = @fx_rate,
base_amount = @base_amount
where id = @id
Field Name Field Description
F TRM FX conversion
Accounting Module System Administration Guide 171
The standard Wallstreet Suite installation contains pre-configured FX Conversion Rules (table
FXConversionRule). They refer to some default Rules and Not Rules.
Warning: All these system rules cannot be either deleted or modified. You should not
even add any new rule! Any such change is considered as a customer
specific modification will all possible subsequent impacts. It is always a user’s
responsibility to modify the rules when any change of the default rules set-up comes
with new patch/version. When doing any customization related the FX conversion
rules, think about both realized and unrealized figures, specify how selling, buy-back,
early expiration, option exercise, roll-over and other actions should work for you,
what FX rates should be used for what action, etc.
FXSetReferenceRate – updates Base FX Rate and Base Amount of a cashflow visible in
the Transaction Admin (Cashflow view) using the actual FX rate:
update Cashflow
set fx_rate = @fx_rate,
base_amount = @base_amount
where id = @id
and (fx_rate != @fx_rate
or base_amount != @base_amount)
where @base_amount is amount converted to base currency using @fx_rate:
exec ConvertAmount
@from_id = @currency_id,
@to_id = @base_currency_id,
@from_amount = @amount,
@to_amount = @base_amount output,
@fx_rate = @fx_rate
Note: This procedure also updates Base FX Rate of all related future interest cashflowsl.
Note: This procedure does nothing for Principal cashflow of the sell transaction in case of
trade date selling.
FXDoRealize – creates (or updates if already exists) FX Profit cashflow. FX Profit
cashflow is calculated as the difference between the ‘old’ cashflow Base Amount and the
‘new’ cashflow Base Amount (Amount converted to base currency using actual FX rate):
@profit = @new_base_amount - @old_base_amount
where @new_base_amount is amount converted to base currency using @fx_rate:
exec ConvertAmount
@from_id = @currency_id,
@to_id = @base_currency_id,
@from_amount = @amount,
@to_amount = @new_base_amount output,
@fx_rate = @fx_rate
FXDoRealizeFX – works the same way as FXDoRealize procedure, but there are two
profit cashflows generated: FX Profit cashflow and IR Profit cashflow. Calculation
methods of both profit cashflows (and Cashflow Type of the IR profit cashflow) depend on
the Profit Method selected for the instrument (Result FX page of Result Template or
Instrument Editors).
FXDoRealizeVD.
Flags 1 – Stop. If conversion rule is marked with this flag then the processing (for the actual
cashflow) stops after the ‘stop’ rule is processed.
Field Name Field Description
F TRM FX conversion
172 © Wall Street Systems IPH AB - Confidential
Accounting Module System Administration Guide 173
Appendix G Event Type mapping to ACMEntry
Event types available at acounting event level are mapped to four fields in ACM entry. They are:
–Bookkeeping Type (table ACMBookkeepingType),
–Entry Type (table ACMEntryType),
–Event Type (table ACMEventType),
–Origin Entity (table ACMEntryOriginEntity).
This mapping is defined in the ACMEventTypeMap table. Its default content is shown below:
The real ACMEventTypeMap table uses just system IDs referencing to the appropriate tables. Those
system IDs were replaced by user IDs for better comprehension in the picture above.
G Event Type mapping to ACMEntry
