61950025L1 1B ADVISION User Manual

User Manual: ADVISION User Manual

Open the PDF directly: View PDF .
Page Count: 76

ADVISION v 3.1

User Manual

Part Number 1950025L1

61950025L1-1B

July 2001

Trademarks

ADVISION and T-Watch Pro are trademarks of ADTRAN, Inc.

OpenView is a trademark of Hewlett-Packard Company.

901 Explorer Boulevard

P.O. Box 140000

Huntsville, AL 35814-4000

(256) 963-8000

Printed in U.S.A.

iii

ADTRAN Year 2000 (Y2K) Readiness Disclosure

ADTRAN has established a Year 2000 program to ensure that our products will correctly function in

the new millennium. ADTRAN warrants that all products meet Year 2000 specifications regardless of

model or revision. Information about ADTRAN’s Year 2000 compliance program is available at the fol-

lowing:

Product Matrix www.adtran.com/y2kfax.html

E-mail year2000@adtran.com

Faxback Document Line (256) 963-8200

Y2K plans and product certifications are listed in the Product Matrix

(see above).

Y2K Project Line (256) 963-2200

61950025L1-1 ADVISION User Manual v

Table of Contents

List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

ADVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

ADVISION GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

ADVISION Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

HP OPENVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Maps/Submaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

HP OpenView Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Chapter 2 Installing and Using ADVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installing ADVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Uninstall Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Login Privilege Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

ReadWrite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

ReadOnly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

None . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Login Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Login Privilege File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Using ADVISION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Using Online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Chapter 3 ADVISION Integration with HP OpenView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Management Information Bases (MIBs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

MIB Loading Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Proxied Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

IP Auto-Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

IP Auto-Discovery: Smart 16/16e Shelf Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

IP Auto-Discovery: TSU Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Manual Rediscovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Manual Rediscovery: Smart 16/16e Shelf Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Table of Contents

vi ADVISION User Manual 61950025L1-1

Removing Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Object Placement without Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Adding IP-Addressable Objects via Loadhosts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Manually Adding Proxied Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

ADTRAN Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Chapter 4 Graphical User Interface (GUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Activating the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

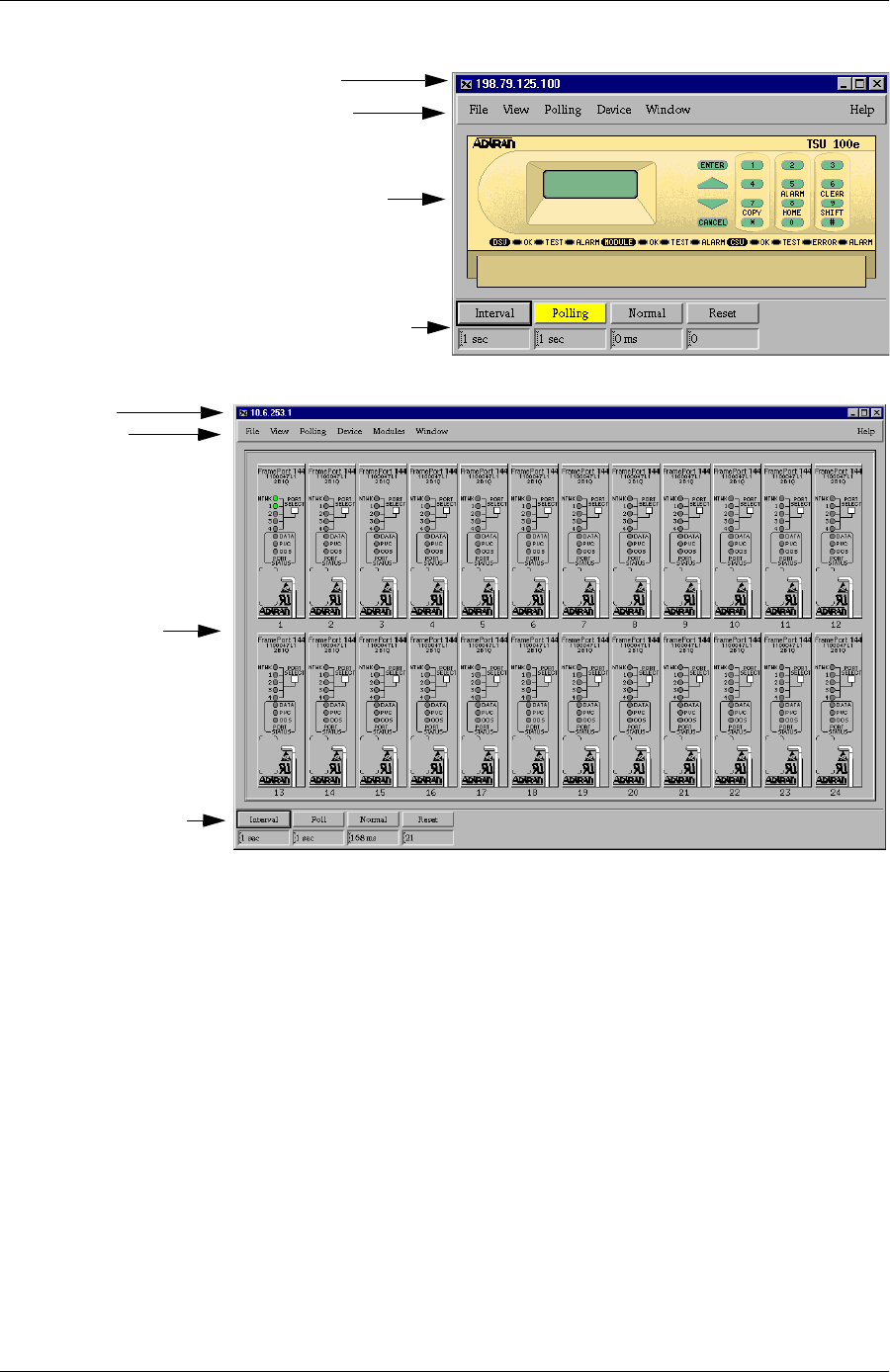

Device Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Accessing the MIB Viewer from the Device Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6

Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Statistics Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Push-button Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

PB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

PB2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

PB3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

PB4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Numeric Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

MIB Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Title Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

SNMP Data Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Text Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13

Combo Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13

Toggle Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Table Index Selectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Statistics Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Command Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14

Done . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Apply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Revert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14

Reviewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Title Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

SNMP Data Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Text Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-16

Table of Contents

61950025L1-1 ADVISION User Manual vii

Combo Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Toggle Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Table Index Selectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

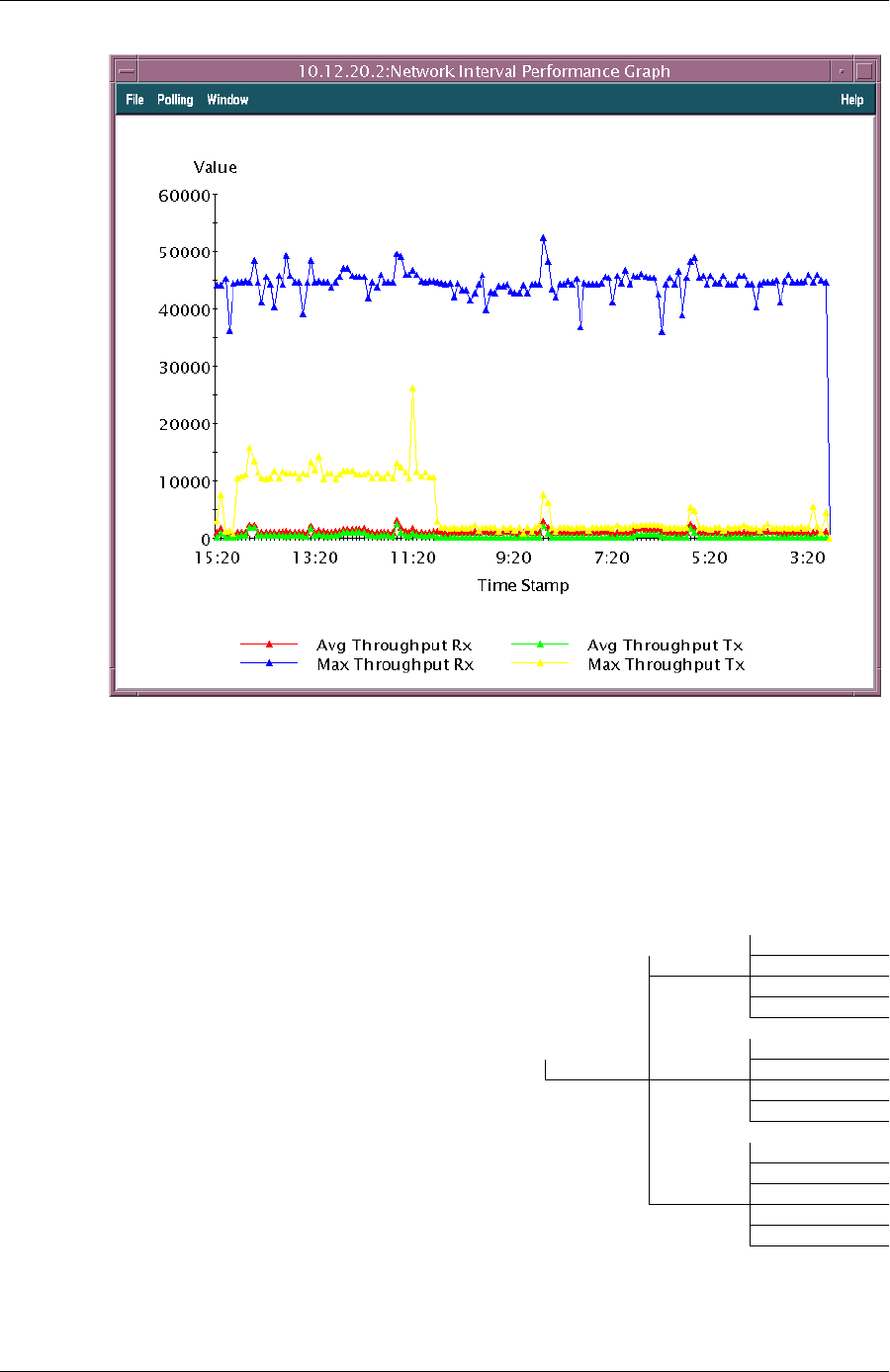

Graph Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Title Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Variable Selection Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Graph Data Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Progress Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Scales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Axes Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Data Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Window Resize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Resizing/Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Zooming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Return to Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Error Dialogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Table Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Title Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Variable Selection Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Table Data Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Progress Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Window Resize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Row/Column Resize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Error Dialogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Chapter 5 Device-Specific Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Supported Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

IQ Units Prior to v 3.22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

IQ Units Later than v 3.22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Get Error Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Specifying a New PVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

IP Host Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

FramePort 144 & 768 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Smart 16/16e Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

DSU III DBU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Removing a Device Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

SNMP I/O Timeout Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

T3SU 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

TSU 100, 120,

Table of Contents

viii ADVISION User Manual 61950025L1-1

& 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

TSU 100e, 120e, & 600e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

TSU Mux Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Naming Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

SNMP I/O Timeout Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

TSU Mux Option Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Chapter 6 ADVISION Setup Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Preferences Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

File Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Environment Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Command Line Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Database Server (advdb) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Changing the Number of Supported Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Appendix A Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Appendix B Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Appendix C Installation Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

61950025L1-1 ADVISION User Manual ix

List of Figures

Figure 1-1. Front and Rear Graphical Representations of a TSU 100e . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Figure 1-2. HP OpenView Submap Showing Different ADTRAN-Specific Symbols . . . . . . . . . . . 1-2

Figure 2-1. Login Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Figure 3-1. ADVISION Communicating with a Proxied Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Figure 4-1. ADVISION Opening Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Figure 4-2. Two Views of the Device Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Figure 4-3. Menu Tree for the Device Viewer Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Figure 4-4. Statistics Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Figure 4-5. MIB Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Figure 4-6. Menu Tree for the MIB Viewer Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Figure 4-7. Menu Tree for the Reviewer Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Figure 4-8. Graph Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Figure 4-9. Menu Tree for the Graph Viewer Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

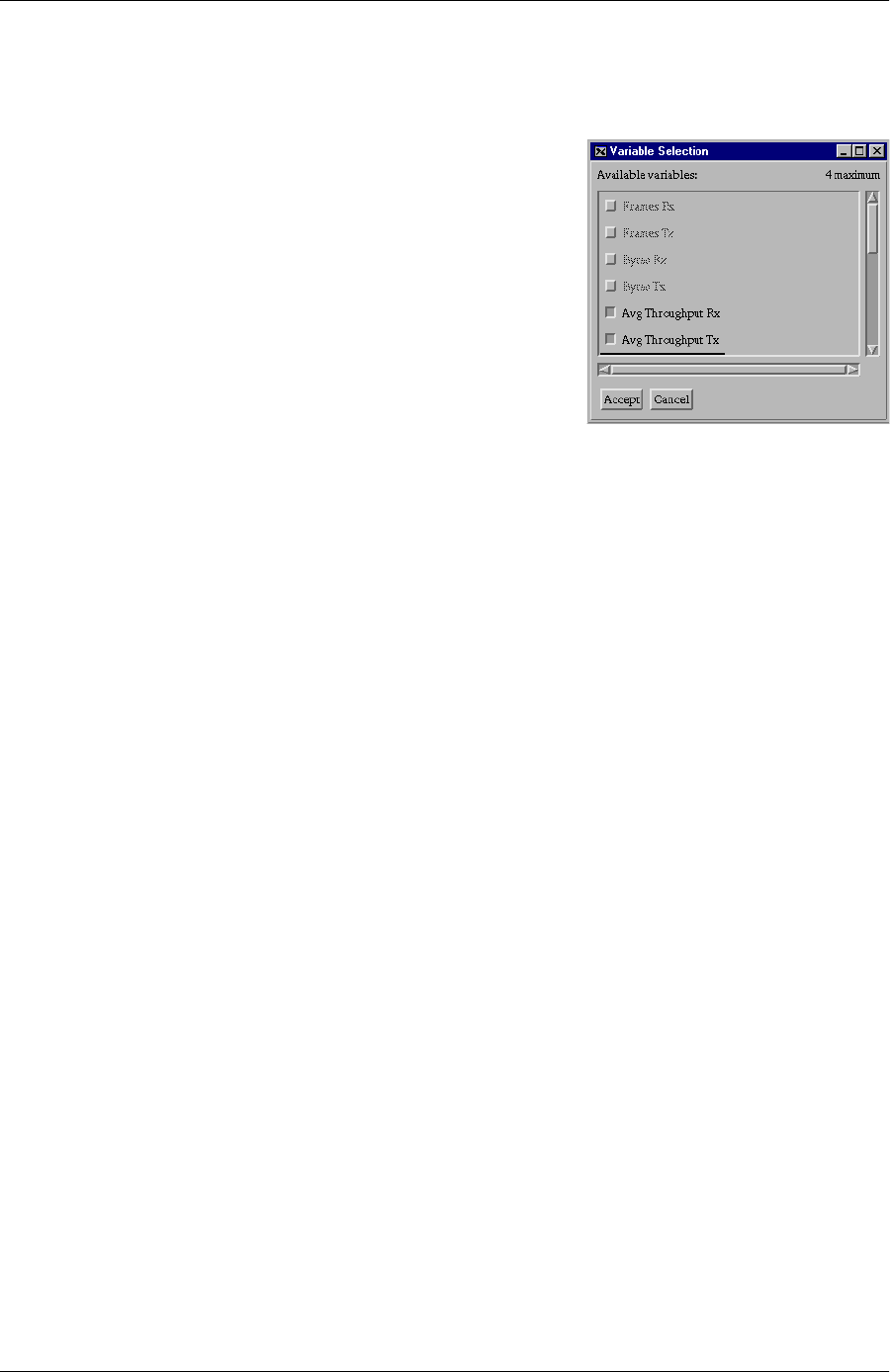

Figure 4-10. Variable Selection Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Figure 4-11. Menu Tree for the Table Viewer Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Figure 4-12. Table Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

List of Figures

x ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual xi

List of Tables

Table 1-1. Color Definitions for Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Table 6-1. Preferences File Entry Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Table 6-2. Environmental Variables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Table 6-3. Command Line Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

List of Tables

xii ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual 1-1

Chapter 1 Introduction

ADVISION ADTRAN’s ADVISION™ is a comprehensive network management

application that provides the tools necessary to control, configure, and monitor

ADTRAN data communication products that can be managed using Simple

Network Management Protocol (SNMP). Integration into Hewlett-Packard’s

(HP) OpenView™ Network Node Manager for UNIX™ platform ensures

compatibility with industry standards and eliminates the need for proprietary

management systems. With ADVISION, a single management station controls

and configures networks that include DDS, Switched 56, ISDN, Frame Relay,

and T1. In addition, ADVISION limits use of the system resources on the

management platform to those needed during active management.

ADVISION GUI ADVISION’s device-specific graphical user interface (GUI) displays animated

graphical representations of devices, both front and rear views (see Figure 1-1),

to assist with field installations or diagnostics.

Figure 1-1. Front and Rear Graphical Representations of a TSU 100e

Activating the application GUI requires a simple point-and-click of a mouse.

Once activated, a network manager has complete access to all features supported

by the ADTRAN SNMP devices. The GUI contains device-specific symbols on

the submaps, displays animated product images that reflect device options and

indicators, and provides a set of product-specific dialogs boxes for monitoring,

configuring, and testing ADTRAN SNMP devices.

Chapter 1. Introduction

1-2 ADVISION User Manual 61950025L1-1

ADVISION also provides Management Information Bases (MIBs) to use

with the HP OpenView MIB Browser and Event Browser. Included MIB trap

definitions describe formatting for device-specific alarms and events.

ADVISION

Features A summary of ADVISION’s features follows:

• Easy-to-use SNMP application with graphical user interface (GUI)

• Integration into HP OpenView’s UNIX platform (see Chapter 3)

• Automatic device discovery

• Comprehensive trap and alarm processing

• Color-coded, device-specific symbols indicate network status

• View, modify, save, and apply device configuration

• Complete diagnostic control

• Detailed status information

• Performance graphs

• Online help

HP OPENVIEW By coupling ADVISION with HP OpenView, OpenView’s maps become

more informative.

Maps/Submaps A map contains related objects, symbols, and submaps that provide a graph-

ical and hierarchical representation of a network. Submaps can contain ad-

ditional submaps (child submaps), child submaps can have additional

submaps, and so on. While you can create multiple maps, you may only

view one map at a time.

HP OpenView

Features HP OpenView provides the following features:

•Symbols to place on submaps. ADVISION allows OpenView to auto-

matically discover ADTRAN devices and place them into the appropri-

ate OpenView submap using ADTRAN-specific symbols, instead of

generic symbols (see Figure 1-2).

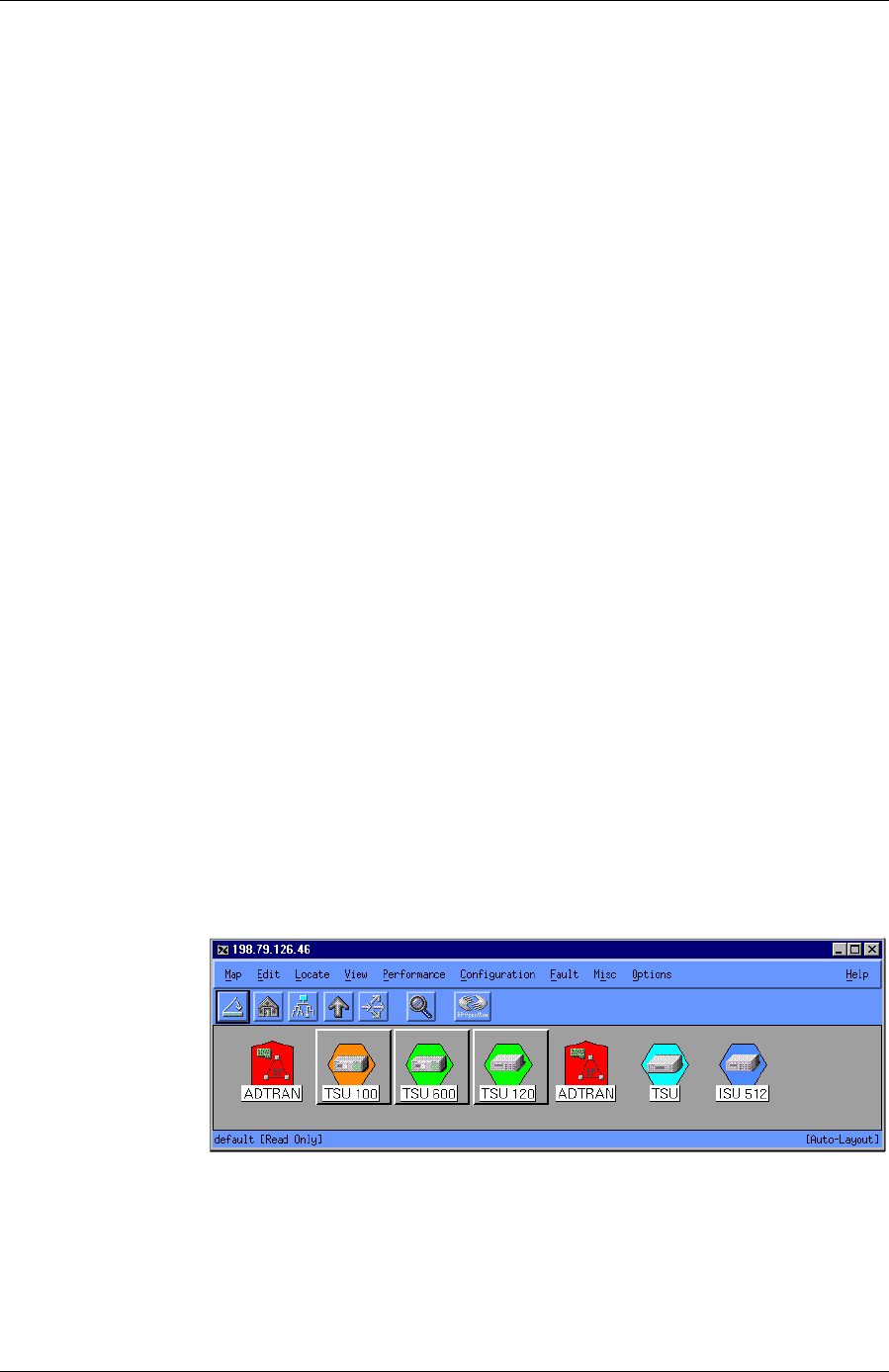

Figure 1-2. HP OpenView Submap Showing Different ADTRAN-Specific Symbols

•Auto-discovery of ADTRAN devices, customized to display installed

options. You can also manually add SNMP-proxied ADTRAN devices

to these maps.

Chapter 1. Introduction

61950025L1-1 ADVISION User Manual 1-3

• Visual indication of ADTRAN device status derived from traps and

polling, propagated and integrated with HP OpenView IP status

throughout the map. ADVISION interprets traps received by Open-

View, and sets the color of the corresponding symbol to the severity lev-

el color of any error condition, allowing a network manager to quickly

determine the status of a particular device (see Table 1-1).

• Ability to launch the ADVISION GUI by clicking on the appropriate

ADTRAN symbol from the HP OpenView submap.

Table 1-1. Color Definitions for Device Status

Color Meaning

Cyan Warning

Red Critical

Orange Major

Ye l l o w M i n o r

Green Normal

Blue Unknown device

Chapter 1. Introduction

1-4 ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual 2-1

Chapter 2 Installing and Using ADVISION

OVERVIEW This chapter provides information on installing ADVISION (including system

requirements and the packing list) and using ADVISION (including security in-

formation). In addition, this chapter discusses the registration process.

SYSTEM

REQUIREMENTS

To run ADVISION, your system must meet the following requirements:

• HP 9000 UNIX workstation with HP-UX 10.20 or 11, SUN workstation (Su-

per Sparc or later) with Solaris 2.5.1, 2.6 or 2.7

• HP OpenView Network Node Manager 4.11, 5.X or 6.X

• 256 pseudo-color display

•CD-ROM drive

• 10 megabytes (MB) memory per GUI session

• 40 MB free disk space

PACKING LIST The ADVISION package contains the following items:

• ADVISION installation CD

• ADVISION Quick Start Guide/Software License Agreement

• ADVISION User Manual (included in PDF format on the CD)

If something is missing from your shipment, contact ADTRAN Technical Sup-

port (see inside the back cover).

INSTALLING

ADVISION

The installation program does the following during the installation procedure:

• Transfers all files into the installation directory tree

• Links ADVISION files to the appropriate HP OpenView directories

• Registers the ADVISION database server with HP OpenView for start-up

via ovstart

• Registers other ADVISION fields and applications

•Updates /etc/server to define the ADVISION database server socket ad-

dress as 7966

The ADVISION installation program requires that all HP OpenView environ-

ment variables be defined.

Chapter 2. Installing and Using ADVISION

2-2 ADVISION User Manual 61950025L1-1

Installation To install ADVISION, follow these steps:

If you are reinstalling ADVISION, run $OV_BIN/ovstop

advdb before proceeding with the installation.

UNIX Installation Procedure

Step Action

1Log in as root.

Mount the CD-ROM, specifying the appropriate device

filename and mount directory. For example,

/usr/sbin/mount /dev/dsk/c0t2d0/cdrom

3Change the directory to the mounted CD-ROM directory.

4Execute the following: ./INSTALL_CD.SH

a Enter the path to the tar file depot (CD-ROM mount

directory).

b Confirm the target Operating System for the installation

(default is determined via uname).

c Enter the ADVISION installation directory (/opt/advision

is assumed).

If the ADVISION installation directory already exists, the

system issues an installation error. Disregard the error and

continue the installation.

5Define the ADVISION environment variable

ADVISION_INSTALL, as follows:

a If running sh or ksh, add the following to your login script

(.profile or.login):

. /opt/advision/bin/adv.envvars.sh

b If running csh, add the following to your csh resource file

(.cshrc):

source /opt/advision/bin/adv.envvars.csh

If you have selected another location for the ADVISION

installation directory, modify this script to reflect your

installation directory.

6To start the ADVISION database server, execute the following:

$OV_BIN/ovstart advdb

Chapter 2. Installing and Using ADVISION

61950025L1-1 ADVISION User Manual 2-3

Uninstall

Process To remove the ADVISION installation, as root and with OV environment

variables defined, execute the following from the command line:

/opt/advision/UNINSTALL.SH

REGISTRATION Registration defines ADVISION processes to OpenView. This definition

occurs on installation. Registration involves four processes.

1. The first process involves the ADVISION database server. One copy of

this database server runs per HP OpenView installation. The database

server starts when HP OpenView starts.

The following three processes start with each window session of HP

OpenView.

2. ADVISION Discover

3. ADVISION Status (maintains ADTRAN objects’ map color status)

4. ADVISION GUI

The four process names follow:

1. database - advdb

2. discover - advdisc

3. status - advstat

4. GUI - advision

Once activated, the current user name and privileges are displayed in the Lo-

gin dialog box, followed by the data entry region.

7Installation is now complete. Dismount the CD-ROM and log

off as root.

8Execute ovw to start the ADVISION processes advstat and

advdisc.

To view formatted traps in HP OpenView, load MIBS for ADTRAN

devices into HP OpenView. Device MIBs are located in the following

directory:

/var/opt/OV/share/snmp_mibs/Vendor/Adtran

UNIX Installation Procedure (Continued)

Step Action

Chapter 2. Installing and Using ADVISION

2-4 ADVISION User Manual 61950025L1-1

Levels The four privilege (security) levels include Provision, ReadWrite, ReadOnly,

and None.

Provision Provides complete ReadWrite capabilities, plus the ability to make provi-

sioning changes for ADTRAN Carrier products.

ReadWrite Allows users to view current status, configuration, and provisioning data for

all devices, to modify configuration parameters for ADTRAN Enterprise

products, and to initiate tests on all devices.

ReadOnly Allows users to view current status, configuration, and provisioning data for

all devices.

None User has no access to ADVISION.

Box

The Login dialog box is the interface used to login to ADVISION (see

Figure 2-1).

Figure 2-1. Login Dialog Box

Instructions for Activating the Login Dialog Box

Step Action

1Ensure that you are in the Device Viewer and that the network

administrator has activated ADVISION’s security feature. (If

this option is grayed out, it has not been activated yet.)

2From the File menu, select Login.

Chapter 2. Installing and Using ADVISION

61950025L1-1 ADVISION User Manual 2-5

File The privilege (permission) levels are defined in the following authorization

file: ${ADVISION_INSTALL}/auth

If this file is not present on a system, all users are granted Provision privi-

leges. If the file is present, users not included in the file are denied access to

ADVISION. Entries in the file have the following format:

User names and passwords must be defined for standard login on the UNIX

system (see the following sample file):

# Sample ${ADVISION_INSTALL}/auth file

# Username Permissions

# --------- ----------

john None

paul ReadOnly

george ReadWrite

ringo Provision

Using this file, the site administrator grants or denies access privileges on a

per-user basis. When installed, the authorization file should have Read per-

mission for all users and Write permission for the administrator’s account.

Instructions for Changing User Accounts using the Login Dialog Box

Step Action

1Open the Login dialog box (see the previous Step/Action table

on page 2-4).

2Enter the user name and password, and then click Done.

(Standard system login names and passwords are defined in

/etc/passwd.)

Comment lines begin with pound signs (#) in the first column.

Chapter 2. Installing and Using ADVISION

2-6 ADVISION User Manual 61950025L1-1

USING

ADVISION To start the ADVISION GUI, select one of the following three methods:

While loading, the ADVISION loading-status window displays. Once AD-

VISION successfully loads, the loading-status window automatically closes,

and a device-specific window opens to provide complete access to all fea-

tures supported by the ADTRAN SNMP devices.

Using Online

Help ADVISION help is delivered online as a subset of the HP OpenView help

system. Access the file from within the ADVISION GUI by selecting and ex-

ecuting an ADTRAN device, and then clicking on the Help button. You can

also access the ADVISION help system by selecting ADVISION from the HP

OpenView Help menu. Choose Print from Help’s File menu to print a hard

copy of the help information.

1. From the OpenView map, single-click the left mouse button on any

ADTRAN object and select the following from the pull-down menu

on the menu bar:

Tools > ADVISION Manager > ADVISION

2. From the OpenView map, single-click the right mouse button on any

ADTRAN object and select ADVISION from the pop-up menu.

3. From the OpenView map, double-click the left mouse button on any

executable ADTRAN object. (Executable objects have a raised, but-

ton-like appearance.)

61950025L1-1 ADVISION User Manual 3-1

Chapter 3 ADVISION Integration with

HP OpenView

OVERVIEW When integrated with HP OpenView, ADVISION becomes a comprehensive

network management application. ADTRAN provides MIBs containing

definitions of management information used to remotely monitor, configure,

and control networked devices. ADVISION allows OpenView to automatically

discover ADTRAN devices and place them into the appropriate submap using

an ADTRAN-specific symbol (see Figure 1-2 on page 1-2). ADVISION also

allows you to manually discover devices and add them to a submap. In addition,

OpenView provides device-status based on received traps or polled status

information. This chapter discusses MIBs, discovery methods, and ADTRAN

status.

MANAGEMENT

INFORMATION

BASES (MIBS)

ADTRAN-provided MIBs provide the following information and functions:

• Definitions needed to format traps with descriptions and interpretation of

status variables contained in the trap messages. These embedded definitions

can be passed to HP OpenView during the MIB loading process to automat-

ically build the trap configuration database entries. This process eliminates

the need for manual trap definition in HP OpenView version 4.x and later.

• Ability to use the OpenView MIB Browser to examine and alter SNMP data

in ADTRAN devices.

MIB Loading

Procedure Follow the instructions in the ensuing Step/Action table to load the ADTRAN

MIBs:

Instructions for Loading ADTRAN-provided MIBs

Step Action

1Start HP OpenView.

2From the HP OpenView menu bar, select the following:

Options > Load > Unload MIBS: SNMP

3From the Load/Unload MIBS dialog box, click on the Load

button.

Chapter 3. ADVISION Integration with HP OpenView

3-2 ADVISION User Manual 61950025L1-1

DISCOVERY Discovery is the process by which devices (objects) are added to the HP

OpenView submap. This process occurs either through IP Auto-Discovery

(below) or Manual Rediscovery (see page 3-3). In both cases, an entry for the

device is added into HP OpenView’s SNMP configuration database, and

onto a specific map.

Proxied Devices ADVISION can also communicate by proxy, via SNMP, with a device that

can’t directly communicate with ADVISION. Figure 3-1 illustrates this

process.

Figure 3-1. ADVISION Communicating with a Proxied Device

IP Auto-Discovery

HP OpenView automatically discovers IP-addressable devices and places

them on the submap as part of its normal auto-discovery process.

ADVISION’s auto-discovery process recognizes which option cards are

installed in these devices and places these cards on the child submap.

Through the process of auto-discovery, ADVISION automatically creates a

second executable symbol for the object on the device's child submap. The

new symbol’s device status is set to “Status” indicating that the device's

4Load adtran.mib, ads1.mib (for T1 product support), and

all device MIBs applicable to your setup. (ADTRAN MIBs are

located under Vendor/Adtran.)

5Click OK. The message “MIB Successfully Loaded” appears.

6When asked if you want to load the TRAP-TYPE macro, click

OK. The system notifies you that the load was successful.

The Technical Support section of the ADTRAN website provides a

complete list of the MIBs required to support each ADTRAN device.

Instructions for Loading ADTRAN-provided MIBs (Continued)

Step Action

Proxied Device

Proxy Device

ADVISION

SNMP

ADTRAN

Proprietary

Chapter 3. ADVISION Integration with HP OpenView

61950025L1-1 ADVISION User Manual 3-3

condition is dependent on the alarm or test conditions reflected in traps and

is independent of the polling status maintained by HP OpenView.

IP Auto-Discovery:

Smart 16/16e Shelf

Controller

For any auto-discovered Smart 16/16e Shelf controller, the ADVISION

discovery process interrogates the unit and determines which (if any) other

Smart 16/16e controllers are being proxied and adds symbols for the

proxied shelf on the auto-discovered unit’s child submap. A child submap

for each proxied chassis is created with the second executable chassis

symbol (which also reflects the unit status) and symbols for any of the

proxied unit’s option cards.

IP Auto-Discovery:

TSU Products While there is no auto-discovery option card support for the TSU 100, 120,

& 600, the TSU 100e, 120e, & 600e do have option card support.

Manual

Rediscovery ADVISION does not automatically revise the configuration of a device (with

respect to its resident option cards) within the HP OpenView database.

Whenever a card is added or replaced in the unit, the user must manually

rediscover the device so that the proper configuration is displayed.

Rediscovery is also necessary when a unit is given an IP address which has

been previously assigned to a different device type. To initiate a rediscovery

of an ADTRAN product, follow the steps in the ensuing Step/Action table:

The rediscovery process interrogates the unit and updates its set of option

cards listed on the child submap. The objects for existing cards which have

changed type are updated accordingly; any newly discovered cards are

added to the map; and any cards no longer present are deleted from the

submap on the HP OpenView database.

Manual Rediscovery:

Smart 16/16e Shelf

Controller

The rediscovery process for the Smart 16/16e Shelf controller searches for new

controllers being proxied by the device. If a new controller is found, it is

added to the submap and its option cards are placed on their respective

submap. You must initiate a manual discovery on a proxied chassis to

discover changes. Any existing proxied chassis is not affected by this

process.

Removing Objects If a proxied chassis has been physically removed from service, it is also

removed from the submap through manual object deletion. This practice

alleviates the potential removal from a submap of a proxied device, in the

event that communication with the unit fails during the rediscovery process.

To remove an object that refers to units which have been removed from

Instructions for Manually Rediscovering an ADTRAN Product

Step Action

1Select the applicable unit on the HP OpenView map.(Only one

selection at a time is allowed, and the map must be a Read/

Write map.)

2Execute ADTRAN’s discovery process by selecting

Tools > ADVISION Manager > ADVISION Discovery

from the HP OpenView menu bar.

Chapter 3. ADVISION Integration with HP OpenView

3-4 ADVISION User Manual 61950025L1-1

service, select and delete the object from the HP OpenView map (Edit >

Delete > From All Submaps).

OBJECT

PLACEMENT

WITHOUT

DISCOVERY

In two instances, you must manually place ADTRAN objects on the map:

1. When you need to add IP-addressable units on an installation where

OpenView’s discovery has been disabled.

2. When you need to add proxied units which are not discovered during

the normal discovery process (for instance, chained units attached to a

TSU 100e, 120e, & 600e).

Adding IP-

Addressable

Objects via

Loadhosts

The following Step/Action table provides instructions for adding IP-

addressable units to an OpenView installation using OpenView’s

loadhosts utility. (The loadhosts utility adds (loads) hosts to the

OpenView database.)

Instructions for Using loadhosts to Add IP-addressable Units

Step Action

1Ensure the device is not already on the map.

Create a text file which contains the IP address followed by the

name of the device you wish to add. An example of the file

contents follows (underlined text is not included in the file):

IP Address Device Comment identifying unit

10.22.3.7 tsuiq #Pleasant Prairie

You can have multiple devices in the file, but restrict the file to

units of the same type (for instance, only TSU IQs in one file

and DSU IQs in another).

If using DNS, ensure it is updated with the hostnames specified

in the above file(s).

Otherwise, add the contents of the file(s) to the end of the

/etc/hosts file for name resolution.

Chapter 3. ADVISION Integration with HP OpenView

61950025L1-1 ADVISION User Manual 3-5

Manually

Adding Proxied

Objects

You must manually add proxied devices to the submap (except for the Smart

16/16e Shelf which is placed on the submap via auto-discovery). Follow the

instructions in the ensuing Step/Action table:

Logged in as root, run the loadhosts command

($OV_BIN/loadhosts -o) from a command prompt. (This

action loads the nodes into the OpenView database/map.)

Example invocations follow for TSU IQs and the TSU 600es,

where the last parameter is the file you created in step 2. Type

all of this information on one line.

$OV_BIN/loadhosts -o 1.3.6.1.4.1.664.1.147

TSUIQfilename

$OV_BIN/loadhosts -o 1.3.6.1.4.1.664.1.149

TSU600efilename

The last group of numbers of the octet string (147 and 149 in

the above example) changes for each product type. A list of

octet values for each supported product is located in the

following file: /opt/advision/conf/C/oid2sym.txt

Instructions for Using loadhosts to Add IP-addressable Units

Step Action

Instructions for Manually Adding Proxied Objects

Step Action

1Select Edit > Add Object from the HP OpenView menu. (The

Add Object: Palette window appears.)

2Select the device class from the Symbol Classes list.

3Select the appropriate symbol of the device you want to add.

4Click and hold the middle-mouse button to drag the symbol to

the child submap. (The Add Object dialog box appears.)

5Enter the words that you want displayed underneath the symbol

into the Label field.

If the ADVISION GUI supports the device, select Execute. If

the device is not supported, skip to step 9.

(See the section Supported Devices on page 5-1 for a list of

supported devices.)

7From the list under Application Action:, select

ADVISION:ADVISION.

8Set Target Objects for Self.

Chapter 3. ADVISION Integration with HP OpenView

3-6 ADVISION User Manual 61950025L1-1

ADTRAN

STATUS The HP OpenView database contains a field entitled ADTRAN Status for

each ADTRAN device (object). This field reflects the status of the device as

determined through traps received from the device or from status

information obtained while polling the device when displaying the unit’s

Device View.

The ADTRAN status field drives the HP OpenView object status for all non-

IP-addressable ADTRAN objects, and drives the symbol status for the

symbol of an IP-addressable device which resides on that object’s child

submap. (This action does not interfere with the device’s object status which

is determined by HP OpenView’s netmon, a daemon that maintains the

network topology and status).

Some ADTRAN devices have no SNMP status data associated with them

(for instance all ESP option cards) and, therefore, normally have a status of

“Unknown” (blue color). Also, while some devices may have SNMP status

data available, the data in some cases may not be retrieved from the device

while displaying the Device Viewer (for example, option cards within a

Smart 16e Shelf).

9Under Object Attributes, select AdvisionStatus.

10 Click on Set Object Attributes.... (The Add Object-Set

Attributes dialog box opens.)

11 Enter the physical address or slot number into the ADTRAN

Device Address/Slot field.

12 Select the ADTRAN Product Type from the scrollable list.

Click on Verify. (The message All Data OK should appear. If

not, information on how to correct the error is shown.)

If an error occurs, modify the appropriate entry and select

Verify again.

14 Once you receive the All Data OK message, click OK. (The

system returns to the Add Object window.)

15 For executable objects, enter the Selection Name. This entry

consists of the selection name of the proxy, followed by a tilde

and then the address, for example, device.mycomp.com~3

Instructions for Manually Adding Proxied Objects (Continued)

Step Action

Chapter 3. ADVISION Integration with HP OpenView

61950025L1-1 ADVISION User Manual 3-7

You may modify the ADTRAN Status value (for instance, to set ESP option

cards to Normal) by following these steps:

Instructions for Modifying the ADTRAN Status

Step Action

1Start OpenView.

2Select an ADTRAN object.

3Select Edit > Describe/Modify Object.

4In the Object Description dialog box, select AdvisionStatus

and then select View / Modify Object Attributes.

5In the Attributes for Object dialog box, select the desired

status from the scrollable list displayed under ADTRAN Status.

6Select Verify and, after receiving a confirmation message,

select OK.

7The object status (or symbol status for the child submap

symbol for IP devices) on the map should now reflect the

selected status.

Chapter 3. ADVISION Integration with HP OpenView

3-8 ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual 4-1

Chapter 4 Graphical User Interface (GUI)

OVERVIEW The ADVISION GUI provides access to configuration information, which is

viewable and modifiable though a series of pull-down and pop-up menus locat-

ed in five different device-specific viewers. This chapter discusses the GUI view-

ers and their menus in the following sections:

•Device Viewer on page 4-2

•MIB Viewer on page 4-10

•Reviewer on page 4-14 (also called the MIB Reviewer)

•Graph Viewer on page 4-16

•Table Viewer on page 4-21

ACTIVATING

THE GUI To activate the device-specific GUI (shown in Figure 4-2 on page 4-3), follow one

of the procedures described below.

1. From the OpenView map, single-click the left mouse button on any

ADTRAN object and select the following from the pull-down menu on

the menu bar:

Tools > ADVISION Manager > ADVISION

2. From the OpenView map, single-click the right mouse button on any

ADTRAN object and select ADVISION from the pop-up menu.

3. From the OpenView map, double-click the left mouse button on any exe-

cutable ADTRAN object. (Executable objects have a raised, button-like

appearance.)

Chapter 4. Graphical User Interface (GUI)

4-2 ADVISION User Manual 61950025L1-1

While loading, the ADVISION window displays (see Figure 4-1). Once

ADVISION successfully loads, the window automatically closes. The

device-specific window opens to provide complete access to all features

supported by the ADTRAN SNMP devices.

Figure 4-1. ADVISION Opening Window

DEVICE

VIEWER The Device Viewer (see Figure 4-2 on page 4-3) is the visual interface to the

ADVISION-supported ADTRAN device. Four sections make up this viewer:

the Title Bar, the Menu Bar, the Device Image, and the Statistics Panel.

The Title Bar identifies the device. The Menu Bar (see also, Menu Bar on

page 4-4) contains a number of menus to configure the device. The Device

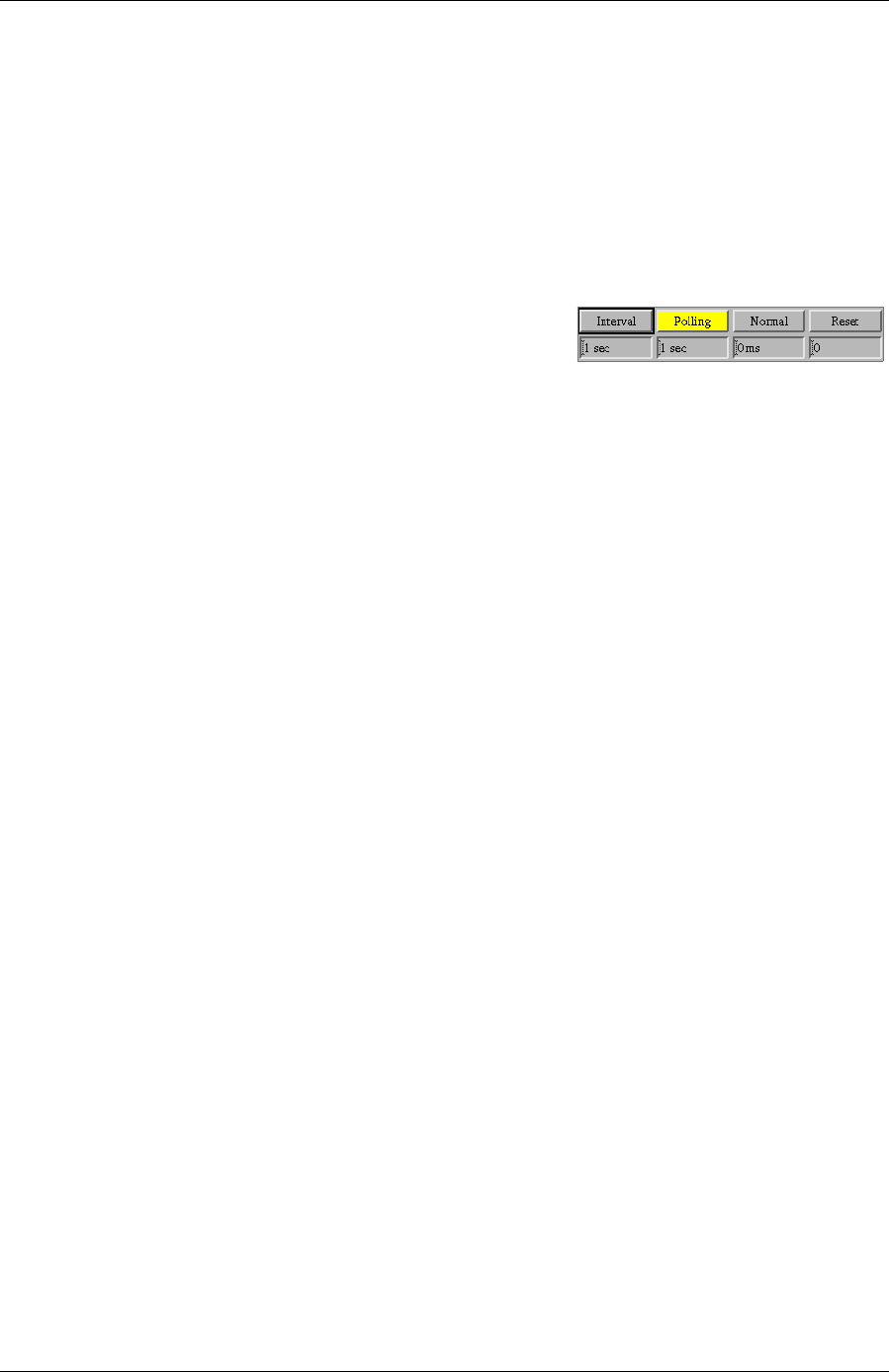

Image pictorially depicts the unit. The Statistics Panel (see also, Statistics

Panel on page 4-7) contains push buttons and numeric fields that keep you

informed of the GUI’s communication with the unit.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-3

Figure 4-2. Two Views of the Device Viewer

Menu Bar

Title Bar

Device Image

Statistics Panel

Title Bar

Menu Bar

Device Image

Statistics Panel

Chapter 4. Graphical User Interface (GUI)

4-4 ADVISION User Manual 61950025L1-1

Accessing the

MIB Viewer from

the Device

Viewer

A special feature of the Device Viewer is the ability to jump from the Device

Viewer to the MIB Viewer.

Menu Bar The following options make up the menu bar: File, View, Polling, Device, Mod-

ules, and Window. (The Modules option only appears if an option card is in-

stalled in the device; compare the menu bars in Figure 4-2 on page 4-3.)

Figure 4-3. Menu Tree for the Device Viewer Menu Bar

Instructions for Accessing the MIB Viewer from the Device Viewer

Step Action

1Ensure that you are in the Device Viewer (see Figure 4-2 on

page 4-3).

2Right-click on the device or on any option card. The available

menus and unit identification for that item display in a pop-up

menu.

For Option Cards Only:

Double-click the left mouse button on the option card to launch

an independent option card Device Viewer. (You can then dis-

play menu options by using the menu bar or by right-clicking on

the option card.)

If the main unit’s Device Viewer is no longer needed, you can dismiss

it without affecting the option card’s Device Viewer. This procedure

eliminates unnecessary polling.

Apply Configuration

File Save Configuration

Exit

View Front

Rear

Hide/Show Statistics

Menu Bar Suspend/Resume Polling

Demand Poll

Polling Clear Error

Reset Statistics

Device Device Polling

All Polling

Modules

Devices

MIB Viewers

Window Reviewers

Graphs

Tables

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-5

File Includes the menu items Login, Apply Configuration, Save Configuration,

Close, and Exit.

Apply Configuration Applies to the displayed device a complete device configuration previously

saved in a text file. A Load File dialog box displays to allow selection of the

text file (generated via the Save Configuration item described in the next

section).

When the file selection is made, ADVISION reads the saved configuration

data from the selected file into memory. The restrictions for each saved field

are compared to the user's permissions. If ANY field has a higher

permission requirement than that of the user, the download process is

terminated and the user is notified through an information dialog box.

Otherwise, ADVISION begins to transfer the saved configuration to the

device.

A Downloading Progress dialog box displays during the transfer showing

the number of required and completed transmissions. The Stop button in

the Downloading Progress dialog box allows you to stop the transfer. If an

SNMP error occurs (principally no-response timeouts), an information dia-

log box displays noting the error, and the rest of the transfer is terminated.

Terminating a Download Sequence

Only in the most unusual circumstances should you terminate a download

sequence. Whenever a termination occurs (either manually initiated or due

to I/O errors), immediately attempt to restore the device to a known config-

uration state by attempting a new Apply Configuration or by reviewing the

configuration with the MIB Viewer and applying any required modifica-

tions.

Updating MIB-II System Parameters

An Apply Configuration updates the user-selectable system parameters of

MIB-II. Therefore, while a saved configuration can be applied to two units

of the same type, ensure that the sysContact, sysLocation, and sys-

Name are correct after doing so.

Save Configuration Retrieves a complete device configuration from the displayed device and

saves it in a text file. A Save File dialog box displays which allows you to

select a file to create or update.

Date and time values in the device are not affected by an Apply

Configuration.

Chapter 4. Graphical User Interface (GUI)

4-6 ADVISION User Manual 61950025L1-1

Uploading the Configuration

After you select the file, ADVISION begins retrieving the device's current

configuration. An Uploading Progress dialog box displays during the re-

trieval process, showing the number of required and completed transmis-

sions. The Stop button in the Uploading Progress dialog box allows you to

stop the transfer. If an SNMP error occurs (principally no-response time-

outs), an information dialog displays noting the error, and the uploading

process terminates.

Terminating the Upload

A terminated upload, via the Stop button selection or an I/O error, does not

affect the text file because all data must be retrieved without error before the

text file opens and the retrieved data is written to it. This procedure helps en-

sure that a partial configuration file is never created.

I/O Errors

If problems persist with I/O timeouts during either an upload or download

sequence, try suspending all polling of the device (and its proxy or host

unit if it's a card in a multi-card unit), and try again. The reduced I/O load

should have a positive impact on performance.

Close Closes the current Device Viewer and all open MIB Viewers generated from

the Device Viewer. If you close all windows without exiting, ADVISION

remains dormant in memory, ready to quickly respond to the next invoca-

tion with no delay for program loading.

Exit Exits ADVISION—closing all Device and MIB Viewers. A confirmation dia-

log box avoids accidental termination.

View Selects from the views available for the unit (front and rear).

Polling Contains the menu items Hide/Show Statistics, Suspend/Resume Polling,

Demand Poll, Clear Error, Reset Statistics, Device Polling, and All Polling.

Hide/Show Statistics Hides or shows the Statistics Panel. The Preferences Files specifies the default

visibility of this panel (see also, Preferences Files on page 6-1).

Suspend/Resume

Polling Suspends or resumes polling for device status if Interval polling is specified.

Demand Poll Forces an immediate poll, if no poll is currently outstanding.

Clear Error Returns the error or timeout indication to Normal.

Reset Statistics Resets the last poll elapsed time and the poll counter (displayed in the Sta-

tistics Panel) to 0.

Device Polling Suspends or resumes polling for the Device View and all MIB Views cur-

rently displayed for this device. Does not affect the initial polling parame-

ters set for any MIB View displayed at a later time. Suspend terminates a

Graph or Table View refresh in progress.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-7

All Polling Suspends or resumes polling for the Device View and all MIB Views cur-

rently displayed for all devices. Does not affect the initial polling parame-

ters set for any MIB View displayed at a later time. Suspend terminates a

Graph or Table View refresh in progress.

Device These headings indicate which MIB Viewers (dialog pages) are available for

the selected device. Headings are device-specific and include categories

such as Status, Configure, Diagnostics, Performance, Dial, Test, etc.

Modules Accesses the Device menus for the option cards (for units containing option

cards) and identifies these options cards.

Window Provides a list of open ADVISION views. All MIB, graph, and table views

opened for a unit remain in this list until the unit’s device view is closed.

These lists consists of Devices, the MIB Viewer, the Graph Viewer, the Table

Viewer, and the MIB Reviewer.

•Devices - lists names of open device views. Select from the list of unit

names to bring that view to the top of the desktop.

•MIB Viewers - lists names of opened MIB views. Entries include Unit

Name: MIB View Title. Select from the list to bring that view to the top

of the desktop (see also, MIB Viewer on page 4-10).

•Reviewer - lists names of open reviews. The entries are Unit Name: MIB

View Title. For reviews of files, the unit name is extracted from the saved

file. Select from the list to bring that view to the top of the desktop (see

also, Reviewer on page 4-14).

•Graph Viewer - lists names of opened graph views. The entries are Unit

Name: Graph View Title. Select from the list to bring that view to the top

of the desktop (see also, Graph Viewer on page 4-16).

•Table Viewer - lists names of opened table views. The entries are Unit

Name: Table View Title. Select from the list to bring that view to the top

of the desktop (see also, Table Viewer on page 4-21).

Statistics Panel The Statistics Panel, if enabled, appears on both the Device Viewer and the

MIB Viewer windows. To hide or display the Statistics Panel, use the selec-

tions under Polling (from the menu bar). The default state of hidden or vis-

ible is an installation option specified in the Preferences Files (see Preferences

Files on page 6-1). The Statistics Panel automatically becomes visible if an

SNMP error or a time-out occurs. Automatic visibility ensures that the ab-

See the selected device’s user manual for information on the fields

represented on the MIB Viewers.

The MIB Viewer and the MIB Reviewer differ in that the MIB

Reviewer does not communicate with the device at all and all fields

are editable.

Chapter 4. Graphical User Interface (GUI)

4-8 ADVISION User Manual 61950025L1-1

normal condition displays. Changing a view image in either type of viewer

also automatically initializes the Statistics Panel.

The Statistics Panel is organized into two rows of four blocks (see

Figure 4-4). The top row contains four push-button (PB) indicators, referred

to as PB1—PB4 in the following paragraphs. The bottom row contains nu-

meric (N) fields (some editable, some strictly informative), referred to as

N1—N4 in the following paragraphs.

Figure 4-4. Statistics Panel

Push-button

Indicators

The push-button indicators act as shortcuts for the Polling menu.

Click these

buttons to activate the following options. The push-buttons vary, depending

on the view selected and the action requested.

PB1 Indicates the viewer’s polling mode by displaying Demand, Once, Interval,

or Suspended.

Demand

Polling takes place only upon your request. This mode is uncommon and is

found on views that contain no dynamic data (such as some option cards).

Once

Polls the device only once to supply dynamic data (which is most commonly

unchanging configuration data). You can initiate a demand poll at any time.

Interval

Repeatedly polls the device to collect dynamic data for the viewer. Polling

takes place at the rate indicated in the numeric field directly below this

push-button (N1). The time shown in the field is the time between the end of

one poll and the beginning of the next poll. Click this push-button indicator

or change the

Polling

menu selection to suspend interval polling.

Suspended

Suspends polling. Click this push-button indicator to suspend polling then

use the

Polling

menu to resume interval polling. (The field now displays In-

terval.)

PB2 Indicates SNMP input/output (I/O) activity by displaying Poll, Polling, or

Applying.

PB1 PB2 PB3 PB4

N1 N2 N3 N4

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-9

Poll Displays when there is no SNMP I/O activity. Click this push-button indi-

cator or change the

Polling

menu selection to initiate a demand poll. You can

initiate a demand poll no matter what poll mode is active (interval, once, de-

mand, or suspended); however, attempting to demand a poll while a poll is

still outstanding has no effect.

Polling Displays with a yellow highlight the duration of time that the SNMP GET

request and response transaction is in progress. The elapsed time displays in

N3.

Applying Displays with a green highlight for the duration of time that the SNMP SET

transaction is in progress. The elapsed time displays in N3.

PB3 Indicates the status of the last SNMP transaction by displaying Normal,

Timeout, or Error. If a time-out or error condition occurs while the Statistics

Panel is hidden, the panel automatically becomes visible again. Reset the

Error or Timeout indication back to Normal by clicking this push-button

indicator or by changing the

Polling

menu selection.

Normal Initially (and at the end of every successfully completed SNMP transaction)

Normal displays and continues to display until an abnormal result is re-

ceived.

Timeout Indicates that a poll failed to obtain a response after waiting and retrying as

specified in the HP OpenView SNMP configuration database. Timeout indi-

cates that the displayed data is not current. Possible errors resulting in this

display include community string errors, loss of physical link, and device er-

rors.(see also, SNMP I/O Timeout Errors on page 5-3).

Error Indicates that an SNMP error occurred. An SNMP error usually indicates

that the device does not have a compatible firmware revision for ADVISION

management. Report this condition to ADTRAN Technical Support (see in-

side back cover) for resolution.

This error could also indicate a device configuration change. If an SNMP er-

ror is detected and the polling mode is Interval, polling automatically sus-

pends because this error is unlikely to be corrected by retries. You can

demand a poll to verify this and/or to resume interval polling, as previously

described.

PB4 Displays the word “Reset” and is not an indicator. Click on this button to

reset the duration of the last poll in N3 and to reset to zero the count of the

number of polls in N4.

Numeric Fields Specify the length of time between successive polls when in the interval

mode, the length of time between successive polls when a timeout condi-

tion occurs, displays the time that the last SNMP activity took to complete

the transaction of a GET or SET request, and displays a count of the number

of SNMP transactions completed.

N1 Determines the length of time between successive polls when in the interval

mode. Most device and status views are defined to poll at one-second inter-

vals. You can suspend interval polling or temporarily override the rate by

Chapter 4. Graphical User Interface (GUI)

4-10 ADVISION User Manual 61950025L1-1

editing the value to any suitable value (in seconds) and then pressing Enter.

Specifying a value of zero causes ADVISION to poll the device continu-

ously at the fastest rate possible. The flashing yellow polling indicator in

block PB2 reflects the impact of this setting.

N2 Specifies the length of time between successive polls when a timeout condi-

tion occurs. Typical default value are the same as the timeout value for nor-

mal Polls. To reduce congestion during high traffic periods, manually

increase this value by editing the field to the appropriate value (in seconds)

and then pressing Enter.

N3 Displays the time that the last SNMP activity took to complete the transac-

tion of a GET or SET request and its corresponding response. Use this time

when diagnosing network problems, when determining practical timeout

settings for the SNMP Configuration database, or when establishing base-

lines of access performance.

N4 Displays a count of the number of completed SNMP transactions, with or

without error, since either initiating the view or resetting the statistics.

MIB VIEWER MIB Viewers are dialog pages which display SNMP data obtained from a

device. View, change, and control the data parameters from within the

pages. These pages consist of six parts: the Title Bar, the Menu Bar, the

SNMP Data Area, the Table Index Selectors, the Statistics Panel, and the Com-

mand Buttons (see Figure 4-5).

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-11

Figure 4-5. MIB Viewer

To select a MIB Viewer, go to the Device Viewer menu bar and select Device

(for the main device MIB Viewer) or Module (for any option card MIB

Viewer). MIB Viewers are also accessible from the Device Viewer through

the pop-up menus displayed when you right-click an ADTRAN device (or

its option cards).

Title Bar Identifies the device and the title of the MIB Viewer.

Menu Bar The following menu items make up the Menu Bar: File, Polling, Status, and

Window. Status is unique to the device and the category selected (for exam-

ple Status, Configure, etc.).

File Contains the following options: Login, Load, Save, and Close.

Title Bar

Menu Bar

SNMP Data Area

Table Index Selectors

Command Buttons

Statistic Panel

Chapter 4. Graphical User Interface (GUI)

4-12 ADVISION User Manual 61950025L1-1

Figure 4-6. Menu Tree for the MIB Viewer Menu Bar

Load Restores any MIB View to a previously saved set of values. When loading

the saved values, all user-modifiable fields are updated and can be subse-

quently edited. Any ReadOnly fields or fields not modifiable due to the

user's privilege level are not restored. When you click the Apply button, all

updated fields (either by File > Load or user input) are downloaded to the

device.

You can also use the File > Load feature to download common configura-

tions to other devices. After properly configuring one device, save the base-

lines and then load them to the corresponding pages of other devices. After

loading the saved configuration to the MIB page, you can make adjustments

to the fields as necessary. Click the Apply button to download the new con-

figuration.

ADVISION issues a warning message to prevent you from loading a saved

page file that is different from the currently displayed page.

For pages with Table Index Selectors, if the selected index is different from the

index saved in the file, a warning message generates noting the mismatch. If

you continue the load by clicking Apply, the values from the file update the

associated fields, disregarding the index mismatch.

By default, these files are located in your home directory with a preferred

suffix of .sav. You can alter this location during navigation in the Load >

Save dialog, or preset the location in the Preferences Files.

Save When saving a MIB Viewer page to a file, all of the values are stored as they

are currently displayed (even if some fields have been edited since the

device was last polled). All fields, whether they have permissions of

ReadOnly or ReadWrite, are stored in the file. Saving all the fields captures

File Load

Save

Refresh Viewer

Hide/Show Statistics

Suspend/Resume Polling

Polling Demand Poll

Menu Bar Clear Error

Reset Statistics

Device Polling

Status All Polling

Devices

MIB Viewer

Window Graph Viewer

Table Viewer

MIB Reviewer

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-13

the complete MIB Viewer page state as a baseline, so you can review it at a

later time.

Close Closes the current MIB Viewer.

Polling Contains the same menu options as Device Viewer/Polling (see page 4-6) with

the addition of Refresh Viewer.

Refresh Viewer Conditionally enabled when a page containing a Table Index Selector’s

value range is dynamically bounded by an SNMP variable obtained from

the device. Whenever a page is initially viewed, the unit is polled to obtain

the valid range for the selector and then data is retrieved for the selector’s

default value. Any subsequent polling of the device maintains the limits

initially obtained.

However, in many cases the Table Index Selector’s range may change while

the page is being reviewed. If you have reason to believe the range might

have changed during this time, simply select Refresh Viewer and the Table

Index Selector’s range variable will be polled. Data displayed within the di-

alog will be subsequently polled.

Status Shows the status category (Status, Configure, etc.) of the displayed page.

Menu items under this option are radio-buttons identifying all of the pages

associated with the category. To display a different page, select the page

name from the list.

Window See Window on page 4-7.

SNMP Data Area Displays information about SNMP data parameters. Several different field

types contain this information. Some fields are editable or executable; some

fields are view-only. The different types of fields are described below:

Text Fields Accepts data entered using the keyboard and allows you to view the dis-

played information. The system beeps if you attempt to edit a read-only

text field, or if you attempt to enter more characters than are supported by

the device.

Combo Boxes Provide additional menus. To access these menus, click the box located to

the right of the combo box menu field to view and select from the menu

options. Combo box menus with an arrow indicate alterable fields. Combo

box menus with no arrow indicate a read-only field.

Scales Increases and decreases a value when you drag the selector right or left,

respectively. Click to the right/left of the selector to increase/decrease the

value by one.

Push Buttons Activates an option when you click on the push-button.

Push-button action implicitly applies all pending field changes.

Chapter 4. Graphical User Interface (GUI)

4-14 ADVISION User Manual 61950025L1-1

Toggle Boxes Enables (checked box) and disables (unchecked box) mutually exclusive

options when you click the box. If the system does not respond to your

command, the field is read-only.

Table Index

Selectors

Some MIB Viewer pages display selected data for a set of parameters within

the device. For example, a device may have multiple ports which have iden-

tical configuration parameters. To identify which port the data is associated

with, a scale displays between the Data Area and the Command Buttons. Se-

lect data for two different parameters, using two scales displayed in the

same region. When a page with selectors first displays, the selector values

default to their minimum. If you want to view data for a different item (e.g.,

port), move the scale to the appropriate value. The data associated with the

new selection is retrieved from the device and displayed.

Statistics Panel This section is the same as for Device Viewer Statistics Panel (see page 4-7).

Command

Buttons

Located beneath the Statistics Panel, the Command Buttons include Done,

Apply, Revert, and Cancel.

Done Applies any changes made on the current page to the device and dismisses

the MIB Viewer.

Apply Applies changes to the device. This button is only active when fields have

been altered. In any text field, altered integer values are compared to an

allowable range for the text field before being sent to the device. If the value

is not within range, a message dialog opens noting which field is in error

and describing the allowable range. Correct the value before attempting

another Apply.

Revert Discards field changes made since the last Apply and polls the unit for its

current set of values.

Cancel Discards field changes made since the last Apply and dismisses the MIB

Viewer.

REVIEWER The MIB Reviewer allows you to review and modify the contents of MIB

views which have been saved through the File > Save function of the MIB

Viewer. The two primary differences between the MIB Viewer and the MIB

Reviewer are that the Reviewer does not communicate with the device (nei-

ther Polling nor Apply is supported) and all fields are editable.

When launched from the Device Viewer, the MIB Reviewer displays a File >

Load dialog box which prompts you for a file to display. When launched

from the MIB Viewer, the current MIB view is copied and displayed. The Re-

viewer consists of the following sections: Title Bar, Menu Bar, SNMP Data Ar-

ea, and Table Index Selectors.

Title Bar Identifies the device and the title of the MIB Reviewer.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-15

Menu Bar Includes the following menu items: File, Page, and Window.

Figure 4-7. Menu Tree for the Reviewer Menu Bar

File Contains the following menu items: Login, Load, Save, Close, and Exit.

Load Displays a previously saved set of values. When loading, all saved values

(including Table Index Selectors) are updated and can be subsequently

edited and saved.

By default, these files are located in your home directory with a preferred

suffix of .sav. You can alter this location during navigation in the

Load > Save dialog, or preset the location in the Preferences Files.

Save Saves the current MIB Reviewer contents to a text file. All fields, regardless

of current user permissions, are stored in the file.

Close Closes the Reviewer window.

Exit Exits ADVISION, closing all Viewers and exiting the ADVISION applica-

tion. Your response to a confirmation box, avoids accidental termination.

Page Conditionally displays the total configuration page for some products, for

example, TSU 100e, TSU 120e, and TSU 600e. Page is actually a set of pages,

consisting of its own total configuration page and additional total configu-

ration pages for each of its option cards. When multiple pages make up the

total configuration page, Page becomes visible and has a drop-down ra-

dio-button list of included page names. To view a page, simply select the

page name from the list.

Window See Window on page 4-7.

Load

File Save

Page Exit

Menu Bar

Device Viewer

MIB Viewer

Window Graph Viewer

Table Viewer

Reviewer

Chapter 4. Graphical User Interface (GUI)

4-16 ADVISION User Manual 61950025L1-1

SNMP Data Area Contains several different field types. All fields are editable regardless of

your permission. These field types include the following: Text Fields, Combo

Boxes, Scales, Push Buttons, and Toggle Boxes.

Text Fields See Tex t Fi e l d s on page 4-13.

Combo Boxes See Combo Boxes on page 4-13.

Scales See Scales on page 4-13.

Push Buttons See Push Buttons on page 4-13.

Toggle Boxes See Toggle Boxes on page 4-14.

Table Index

Selectors Some pages display selected data for a set of parameters within the device.

For example, a device may have multiple ports which have identical config-

uration parameters. To identify which port the data is associated with, a

scale displays between the Data Area and the Command Buttons. Data may

be selected for two different parameters, which are displayed with two

scales in the same region. In the MIB Reviewer, the Table Index Selector val-

ues are view-only items.

GRAPH

VIEWER Provides a graphical presentation of various tabular MIB data available in

ADTRAN devices. Each graph displays in a separate window. Some graphs

are preconfigured so that the viewable data sets are not user-selectable.

However, several graphs have logically grouped together a sizable number

of MIB variables and allow you to select from a list a reasonable number of

variables to simultaneously view. You may also modify several presentation

parameters at run time. The following sections make up the Graph Viewer:

Title Bar, Menu Bar, Variable Selection Dialog, and Graph Data Area.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-17

Figure 4-8. Graph Viewer

Title Bar Identifies the device and presented data.

Menu Bar The following menu options make up the Menu Bar: File, Polling, and Win-

dow.

Figure 4-9. Menu Tree for the Graph Viewer Menu Bar

File Export Data

Exit

Refresh

Menu Bar Polling Reconfigure

Device Polling

All Polling

Device Viewer

MIB Viewer

Window Graph Viewer

Table Viewer

Reviewer

Chapter 4. Graphical User Interface (GUI)

4-18 ADVISION User Manual 61950025L1-1

File Contains the following menu items: Login, Export Data, Close, and Exit.

Export Data Allows you to save data currently displayed on the Graph to a file which

can later be transferred to a database or spreadsheet program. The data is

saved in a comma-delimited format with data for each variable stored in a

single column. When you select Export Data, a file dialog box prompts you

to select the data filename.

Importing the Exported Data File

When importing the file, be aware that several identifier lines are saved at

the beginning of the file identifying the user who created the file, his ADVI-

SION permissions, the file creation time, the filename, the source ADTRAN

unit, and the ADVISION graph page name. Following these identifier lines,

the first data row contains a description of the field and the second data row

contains the actual MIB variable, along with any instance specification noted

as an index.

Close Closes the Graph window.

Exit Exits ADVISION, closing all viewers. Your response to a confirmation box

avoids accidental termination.

Polling Includes the following items: Refresh, Reconfigure, Device Polling Suspend/Re-

sume, and All Polling Suspend/Resume.

Refresh Accesses the device to update all data displayed on the graph. A progress

dialog box displays progress during data acquisition.

Reconfigure Displays the Variable Selection Dialog from which to select for viewing a dif-

ferent set of data.

Device Polling

Suspend/Resume Suspends or resumes polling for the Device View and all MIB Views cur-

rently displayed for this device. It does not affect the initial polling parame-

ters set for any MIB View displayed at a later time. Suspend terminates a

Graph or Table View refresh in progress.

All Polling

Suspend/Resume Suspends or resumes polling for the Device View and all MIB Views cur-

rently displayed for all devices. It does not affect the initial polling parame-

ters set for any MIB View displayed at a later time. Suspend terminates a

Graph or Table View refresh in progress.

Window See Window on page 4-7.

Variable

Selection Dialog

Lists variables that may be displayed in the Graph Viewer (see Figure 4-10

on page 4-19). The listed variables are logically associated, for example, list-

ing all Network Frame Relay Performance data for a unit from the IQ prod-

uct family. Each list has a maximum number of variables that may be

simultaneously viewed. Typically, that number is four and is displayed in

the upper-right corner of the dialog box. To select a variable, simply check

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-19

the toggle button to the left of the variable description. If the maximum num-

ber of variables has been selected, the remaining list is grayed-out.

Figure 4-10. Variable Selection Dialog Box

If the maximum number of variables has been selected, you can replace a

current variable with a grayed-out variable, by de-selecting (unchecking)

one of the current variables. This action makes the number of variables se-

lected no longer the maximum. Then, you can select a new variable from the

list of available variables. After making a new selection, click the Accept

button at the bottom of the dialog box to view the new graph, or click Cancel

to view data for previous variable selections.

Graph Data

Area

Displays in several different ways: point plot, area plot, bar chart, and

stacked bar. The default display method is chosen to best represent the data.

Each axis is appropriately scaled and labeled. The Graph Viewer window

size and the graph size and scale can be modified.

Progress Dialog While data is acquired from the device, either from the initial window dis-

play or a subsequent Refresh Graph request, a Progress dialog box displays

to show how much of the requested data has been retrieved. A progress bar

along with a numeric percentage is shown. This is particularly useful when

most of the retrieved data is plotted along the X-axis, and, therefore, not vis-

ible.

Stop Button Interrupts data acquisition and leaves the graph in its current, partially com-

plete state. This option can eliminate unnecessary network traffic if only part

of the graphed data is of interest and is already displayed.

Scales Presets scaling to show defined ranges of data, for example, 0-900 for DS1

Errored Seconds by 15-minute intervals. Scales can also “float,” automatical-

ly re-scaling the graph to plot the displayed data, as in DS1 Path Coding Vi-

olations by 15-minute interval.

Axes Labels Displays text along the graph's axes describing the engineering units of the

data.

Chapter 4. Graphical User Interface (GUI)

4-20 ADVISION User Manual 61950025L1-1

Data Labels Provides labels across the bottom of graph identifying the data represented

by symbol type (for point/line plots) or by color (for area or bar charts).

Window Resize Resizes the graph window in any direction, at any time. The aspect ratio of

the graph need not be maintained.The graph is redrawn to fit the new win-

dow display area, rescaling the axes and possibly changing the data label or-

ganization to best-fit the new window area.

Resizing/Scaling Changes the graph scale, independent of the window. To alter the graph

scale, press the Ctrl key on the keyboard and simultaneously hold down the

middle mouse button. To increase the graph's size, drag the mouse towards

you. To decrease its size, drag the mouse away from you. When enlarging

the view, the graph display is clipped within the window.

Translation Re-positions (translates) the location of the graph within the window (under

normal scale or when reduced) or of the portion of the graph being viewed

(when the scale has been so enlarged that all of the graph is not viewable).

Press the Shift key on your keyboard and simultaneously hold down the

middle mouse button. Move the mouse in the appropriate direction to

re-position the graph. Releasing the middle mouse button “drops” the

graph at the current location within the window.

Zooming Enlarges (zooms-in on) a particular portion of a graph to fill the current win-

dow. The zoomed graph may or may not have labeled axes depending on

the selection method. To view the data without any axes, place the mouse

pointer at a corner of the area to be enlarged. Simultaneously press the Ctrl

key on your keyboard and the left mouse button, and proceed to “lasso” a

rectangular region to enlarge. Release the mouse button and the graph

changes to display the lassoed region. If an axis is included in the lassoed re-

gion, it is shown in the resulting view. To ensure that both axes are dis-

played, use the Shift key instead of the Ctrl key.

Return to Default After scaling, translation, or zooming the graph, you may return the graph

to its original display settings by pressing the r key on your keyboard. All

interactive scaling, translation, and zooming are removed and the default

graph margins and axes bounds display. While the original geometry is re-

stored, the axes scaling may differ slightly from the original display.

Error Dialogs Various errors may occur when communicating with a device to retrieve

data for display in the graph. When errors occur, the viewer displays a dia-

log box to help explain the encountered problem. The dialogs are listed be-

low along with a brief explanation of the problem and its possible source.

GET Error A general SNMP communication error occurred. The type of error is dis-

played within the dialog. This error can result from several different prob-

lem sources including an intermittent communication error, an incorrect

GET community string, and an attempt to retrieve data not stored within

the device.

Viewer Creation

Warning The message states, Device contains no data. A graph with a selectable list

of indices (for example, the TSU/DSU IQ PVC Interval Performance Graph)

has no list entries from which to select. In this example, this error may occur

when the unit has not identified any PVCs to monitor.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-21

Initialization Error A problem occurred while trying to determine data display constraints

(index ranges) before actually retrieving data. For instance, all TSU IQ per-

formance graphs have to poll (interrogate) the device to determine what set

of intervals and PVCs are available for retrieval. If an SNMP I/O error

occurs during this phase of graph generation, the dialog text explains the

detected error. If the index ranges are obtained and the index maximum

value is zero, the dialog text states, Device contains no data. You may

observe this when attempting to retrieve daily performance statistics before

the unit has recorded the first day’s data.

If the maximum index range value is nonzero, but still below the minimum

value, the text states, Startup limits out of range. No errors resulting from

normal operations should result in this notice.

TABLE VIEWER Provides a tabular view of various MIB data available in ADTRAN devices.

Each table opens within a separate window and is ReadOnly regardless of

the user’s permission. Some tables are preconfigured so that the viewable

data sets are not user-selectable. However, several tables have logically

grouped a sizable number of MIB variables together and allow you to select

from a list a reasonable number of variables which can be simultaneously

viewed.

This viewer consists of the following sections: Title Bar, Menu Bar, Variable

Selection Dialog, and Table Data Area (see the menu tree in Figure 4-11 and,

also, Figure 4-11 on page 4-21).

Title Bar The title bar identifies the device and presented data.

Menu Bar The following menu items make up the Men Bar: File, Polling, and Window.

Figure 4-11. Menu Tree for the Table Viewer Menu Bar

File Export Data

Exit

Refresh

Menu Bar Polling Reconfigure

Device Polling

All Polling

Device Viewer

MIB Viewer

Window Graph Viewer

Table Viewer

Reviewer

Chapter 4. Graphical User Interface (GUI)

4-22 ADVISION User Manual 61950025L1-1

Figure 4-12. Table Viewer

File Contains the following menu items: Login, Export Data, Close, and Exit.

Export Data Saves data currently displayed in the table to a text file which can later be

transferred to a database or spreadsheet program. The data is saved in a

comma-delimited format with data for each variable stored in a single col-

umn. After selecting Export Data, you are prompted with a file dialog box

to enter a name for the text file.

Importing the Export Data File

When importing the text file, be aware that several identifier lines are saved

at the beginning of the file identifying the user who created the file, his

ADVISION permissions, the file creation time, the filename, the source

ADTRAN unit, and the ADVISION table page name. Following these

identifier lines, the first data row contains a description of the field and the

second row contains the actual MIB variable along with any instance

specification noted as an index.

Chapter 4. Graphical User Interface (GUI)

61950025L1-1 ADVISION User Manual 4-23

Close Closes the table window.

Exit Exits ADVISION, closing all viewers. Your response to a confirmation box

avoids accidental termination.

Polling Contains the following options: Refresh, Reconfigure, Device Polling Sus-

pend/Resume, and All Polling Suspend/Resume.

Refresh See Refresh on page 4-18.

Reconfigure See Reconfigure on page 4-18.

Device Polling

Suspend/Resume See Device Polling Suspend/Resume on page 4-18.

All Polling

Suspend/Resume See All Polling Suspend/Resume on page 4-18.

Window See Window on page 4-7.

Variable

Selection Dialog

Lists variables that may be displayed on the Table Viewer. The listed vari-

ables are logically associated, for example, listing all Network Frame Relay

Performance data for an IQ product. Each list has a maximum number of

variables that may be simultaneously viewed. Typically, that number is

eight and is displayed in the upper-right corner of the dialog box. To select

a variable, simply check the toggle button to the left of the variable descrip-

tion. If the maximum number of variables has been selected, the remaining

list is grayed-out.

If the maximum number of variables has been selected, you can replace a

current variable with a grayed-out variable, by deselecting (unchecking) one

of the current variables. This action makes the number of variables selected

no longer the maximum. Then, you can select a new variable from the list of

available variables. After making a new selection, click the Accept button at

the bottom of the dialog box to view the new graph, or click Cancel to view

data for previous variable selections.

Table Data Area The displayed table represents tabular MIB data displayed in columnar fash-

ion. Each row represents data for a given index for the MIB table with each

column a MIB variable within the table. The Viewer’s window size and the

size of a column or row can be modified.

Progress Dialog Shows how much data has been retrieved from the device (either from the

initial window display or from a subsequent Refresh Table request). The di-

alog box includes a progress bar and a numeric percentage. The Progress di-

alog box also has a Stop push-button which interrupts the data acquisition

and leaves the table in its current, partially complete state. Stopping data ac-

quisition can eliminate unnecessary network traffic if only part of the table’s

data is of interest and is already displayed.

Labels Each table column contains a label identifying the displayed MIB variable,

and each row has a label identifying the entry’s index.

Chapter 4. Graphical User Interface (GUI)

4-24 ADVISION User Manual 61950025L1-1

Window Resize Resizes the window in any direction, at any time; however, the table is not

rescaled to adjust to the new window size. Table adjustments must be per-

formed by the user. If the table display area is larger than the window size,

scroll bars automatically appear to allow the user to view the entire table.

Row/Column Resize Alters the height of each row and the width of each column. When you po-

sition the mouse cursor over a cell border, the cursor changes to a bounded

arrow (e.g. ->|). Hold down the left mouse button and drag the border to the

desired location, and drop it there by releasing the button. By selecting an

intersection, the width and height of a cell (along with its row and column)

can be concurrently altered in a similar manner.

Error Dialogs Various errors may occur when communicating with the device to retrieve

data to display in the table. When errors occur, the viewer displays a dialog

box to help explain the encountered problem. The dialogs are listed below

along with a brief explanation of the problem and its possible source.

GET Error A general SNMP communication error occurred. The type of error is dis-

played within the dialog. This error can result from several different prob-

lem sources including an intermittent communication error, an incorrect

GET community string, and an attempt to retrieve data not stored within

the device.

Viewer Creation

Warning Message states, Device contains no data. A table with a selectable list of

indices (for example, the TSU/DSU IQ PVC Interval Performance Table)

has no list entries from which to select. In this example, this error may occur

when the unit has not identified any PVCs to monitor.

Initialization Error A problem occurred while trying to determine data display constraints

(index ranges) before actually retrieving data. For instance, all TSU IQ per-

formance tables have to poll (interrogate) the device to determine what set

of intervals and PVCs are available for retrieval. If an SNMP I/O error

occurs during this phase of table generation, the dialog text explains the

detected error. If the index ranges are obtained and the index maximum

value is zero, the dialog text states, Device contains no data. You may

observe this error when attempting to retrieve daily performance statistics

before the unit has recorded the first day’s data.

If the maximum index range value is nonzero, but still below the minimum

value, the text states, Startup limits out of range. No errors resulting from

normal operations should result in this notice.

61950025L1-1 ADVISION User Manual 5-1

Chapter 5 Device-Specific Information

OVERVIEW This chapter discusses device-specific information for ADVISION and provides

details on the features unique to the ADVISION GUI. For all other device-

specific information, refer to the device user manual.

SUPPORTED

DEVICES

ADVISION supports the following devices:

SYSTEM

INFORMATION Activate the system information MIB Viewer by selecting it from the device’s

Status menu. You can edit the following fields: System contact, Name, and Loca-

tion. All other fields are read-only.

IQ UNITS PRIOR

TO V 3.22

For DSU/TSU IQ units with a software revision prior to 3.22, most SNMP con-

figuration modifications are not applied by the unit until an Apply Configura-

tion command is sent. Send this command by clicking the push button on the

Unit Configuration page. Refer to your DSU/TSU IQ manual for the list of items

which do not require an Apply Configuration command to become active.

Also, for these units to allow a total configuration download to work without er-

ror, the Apply Configuration command is not automatically sent at the end of

• ATLAS 800, ATLAS 800PLUS (base units and Quad T1/PRI Option Card

only)

• IQ Units (DSU IQ, TSU IQ, IQ Probe, NxIQ, TSU IQ Rackmount, and

TSU IQ+)

•DSU IV ESP

•FramePort 144 & 768 on page 5-2

• MX2800 & MX2810

•Smart 16/16e Shelf on page 5-3

•T3SU 300

• Total Access Shelf (Gen 1 SCU and NMI)

•TSU 100, 120, & 600 on page 5-4

•TSU 100e, 120e, & 600e on page 5-4

•TSU ESP

Chapter 5. Device-Specific Information

5-2 ADVISION User Manual 61950025L1-1

the application sequence. You must manually send the Apply Configuration

to activate the downloaded configuration.

IQ UNITS

LATER THAN

V 3.22

DSU IQ, TSU IQ, IQ Probe and TSU IQ+ units with software revision 3.22

and later do not require the Apply Configuration command for updates to

take effect. Individual modifications and Total Configuration updates take

effect automatically. On all units, applying a Total Configuration does not

update PVC performance monitoring configurations or PVC diagnostic con-

figurations. This decision allows a Total Configuration file saved for one

unit to be readily applied to another unit (whose list of defined PVC DLCIs

are most likely different).

The last parameters to be updated when applying a Total Configuration to

these devices are the Performance data interval settings (for example, num-

ber of intervals, length of interval, etc.). The device’s SNMP agent typically

will not respond before a timeout condition occurs, since it is in the process

of reallocating its memory to the specified settings (even if the values did not

change). Therefore, the Apply Total Configuration process typically gener-

ates an error on the last buffer transmitted, while the unit actually has been

updated properly. Be sure to review the Performance data interval settings

after observing this to ensure the desired settings were achieved.

Get Error Dialog

Box A Get Error dialog may occur when retrieving the last interval of a large set

of performance data for the TSU IQ / DSU IQ. This is especially true if

5-minute intervals are being retrieved. The interval range is determined at

the start of data retrieval. Data for the oldest interval may be removed from

the unit’s buffers before the graph or table viewer attempts to retrieve it.

Specifying a

New PVC To specify a new PVC within the Configure PVC dialog, select the largest

available index, which will have a DLCI value of zero (0). Enter the appro-

priate settings and select Apply. The new DLCI will be entered into the con-

figuration table and the next higher index will be available for entering a

new definition. To view the new index, you must select Refresh Viewer (see

page 4-13) from the Polling item in the menu bar.

IP Host Table The entire IP Host table is currently not included in the unit’s Total Config-

uration. Only the first table entry is saved and restored upon applying the

configuration to the unit. Additions to the IP Host table should be handled

in a similar fashion as described in Specifying a New PVC, above.

FRAMEPORT

144 & 768

ADVISION displays the option cards installed in the FramePort 144 and 768

in a shelf called a D4 DiGroup. The shelf is arranged in two rows of twelve

cards and does not necessarily reflect the actual layout of the option card’s

physical chassis. Gain access to information on the network data associated

with the FramePort via the D4 DiGroup menu selections (by selecting De-

vice from the menu bar or by right-clicking on the shelf in an area where an

installed card is not shown). Gain access to information and options for in-

dividual cards by selecting the card from the Modules menu or by right-

clicking the card.

Chapter 5. Device-Specific Information

61950025L1-1 ADVISION User Manual 5-3

An additional menu item, the Provisioning selection, is included in the

FramePort 144 and 768 ADVISION interface. Access this selection from the

Device menu. Choose to provision the card, port, PVC, or DLCI. You must

have Provision permission to be able to write to the Provisioning pages;

however, with ReadWrite permission, you may perform test functions. See

the Using Online Help on page 2-6 for more information on Provision and

ReadWrite permission.

SMART 16/16E

SHELF The Smart 16/16e Shelf controller provides SNMP support for up to 16

shelves. The rackmount cards supported include the following:

DSU III DBU The DSU III DBU V.32 is treated as a V.34 card and is controlled in the same

manner.

Removing a

Device Card Removing a device card from the Smart 16e Shelf causes the MIB Viewer to

report an error in the statistics panel and to suspend interval polling. When

the card is replaced, polling may be resumed. If the card configuration is al-

tered so that the HP OpenView submap is no longer valid, select the Smart

16/16e Shelf symbol and initiate Manual Rediscovery to rebuild the sub-

map. Close the ADVISION Device Viewer for the shelf and relaunch to al-

low the GUI to reflect the new configuration.

SNMP I/O

Timeout Errors You may experience SNMP I/O timeout errors when applying a Total Con-

figuration to a unit or its option cards or when applying several changes

from any MIB View/Configuration page. Responses from the unit can be de-

layed since all changes have to be validated. To alleviate this problem, in the

OpenView SNMP Configuration Database extend the unit's timeout value

(up to 5 seconds) and set its retry value to none (0). Note that these values do

not affect ADVISION's operation until the Device View of the unit is closed

and re-opened.

• DSU III AR

• DSU III DBU (V.34, V.32, ISDN, S4W)

•ISU 128

•ISU 2x64

•T1 ESF CSU

• TSU (V.35, EIA-530)

Chapter 5. Device-Specific Information

5-4 ADVISION User Manual 61950025L1-1

T3SU 300 Port Configurations cannot be updated directly on the T3SU 300. To modify

a port configuration, select the Port Configuration page. Next select which

port to modify by setting the field Update Profile from Port and clicking

Apply. The port’s configuration will be copied to the units temporary

working buffer which is displayed in the configuration dialog. Modify the

configuration as desired and then select the port in the Apply Profile to Port

field. Clicking Apply updates the selected port’s configuration with the

working buffer’s settings.

The port configuration procedure described above is not supported under

the current Load/Save Configuration for the T3SU 300. All non-port config-

uration parameters are saved and restored. You must update each port con-

figuration separately to completely restore a unit’s configuration. You may

use the individual page Save > Load feature from the port configuration

page to aid you in this.

TSU 100, 120,

& 600

These products have limited SNMP support for ADVISION version 3.1 us-

ing the SNMP Agent option card, although they have complete proprietary

management support using the ADTRAN product T-Watch Pro™.

Under ADVISION 3.1, the following limitations exist for the TSU Multiplex-

ers (TSU Mux) product family (TSU 100, 120, and 600):

• In the front view of the Device Viewer, only three of four CSU indicators

are animated: OK, ALARM, and TEST (ERROR is not supported). The

OK (green) indicator is on when the DS1 line status variable indicates no

errors. The ALARM (red) indicator is on when an error is reported. The

TEST (yellow) indicator is only on when the device is reporting an active

local loopback test but does not show when the device is in non-loop-

back test mode. Some test conditions at the device produce OK and

ALARM indications that are not reported to ADVISION.

• The rear view in the Device Viewer does not display the presence of op-

tion cards. There is no SNMP support of TSU MUX option cards in AD-

VISION 3.1.

• Members of this product family, as well as the standalone TSU and

ISU 512, can be chained to a TSU with an SNMP agent card to provide

SNMP support through one IP address. The existence of these chained

devices is currently not reported by the SNMP agent card to ADVISION.

Manually place these devices on a submap to allow management with

ADVISION by following the procedure described under Manually Add-

ing Proxied Objects on page 3-5.

TSU 100E, 120E,

& 600E

These products have expanded SNMP support for ADVISION version 3.1.

The Device Viewer presents an accurate representation of all front panel

LEDs and shows supported option cards in their appropriate location on the

rear view of the device. Status, configuration, and test parameters for the op-

tion cards are available for review and setting. While there is some addition-

al support for the base units, complete management support requires use of

the ADTRAN product T-Watch Pro (for instance, to manipulate the DS1-

DS0s mapping.)

Chapter 5. Device-Specific Information

61950025L1-1 ADVISION User Manual 5-5

TSU Mux

Limitations Under ADVISION 3.1, the following limitation exists for the TSU Multiplex-

ers (TSU Mux) “e” product family (TSU 100e, 120e, and 600e):

• Members of this product family, as well as the standalone TSU and

ISU 512, can be chained to a TSU “e” unit to provide SNMP support

through one IP address. The existence of these chained devices is cur-

rently not reported by the unit to ADVISION. Manually place these de-

vices on a submap to allow management with ADVISION by following

the procedure described under Manually Adding Proxied Objects on

page 3-5.

• ADTRAN units which are remotely controllable via the FDL link with a

TSU Mux “e” product are accessible to ADVISION. However, the user

must manually add the remote device to the OpenView map. See Man-

ually Adding Proxied Objects on page 3-5 for general help on adding ob-

jects to the map. The following describes naming conventions and

Address/Slot specifications for the TSU Mux “e” units.

NAMING

CONVENTIONS Remember the following naming conventions:

• The name of the remote device should be the name of the unit which is

connected to it via the FDL with the remote unit’s unit address append-

ed (separated by “~”), for example, near.unit.name~25. Set the remote

device’s Address/Slot specification in the Advision Status dialog to the

unit’s address.

• To add the remote device’s option cards, add them to the Open View

map with a name constructed by appending the card’s slot and port

(separated by “~”) to the remote unit’s name (near.unit.name~unitad-

dress~slot~port), for example, near.unit.name~25~1~3 (for unit 25, slot

1, and port 3). Set the card’s Address/Slot specification in the Advision

Status dialog to the unit’s Interface Index. This number can be viewed

on the Interface Table dialog of the remote unit.

SNMP I/O

TIMEOUT

ERRORS

You may experience SNMP I/O timeout errors when applying a Total Con-

figuration to a unit containing option cards or when applying several chang-

es from a MIB View Configuration page. Responses from the unit can be

delayed since all changes have to be validated. To alleviate this problem, in

the OpenView SNMP Configuration Database extend the unit's timeout val-

ue (up to 20 seconds) and set its retry value to none (0). These values do not

affect ADVISION's operation until the Device view of the unit is closed and

re-opened.

Chapter 5. Device-Specific Information

5-6 ADVISION User Manual 61950025L1-1

TSU MUX

OPTION CARDS ADVISION supports the following TSU Mux option cards:

•DSU III

• Drop and Insert

•DSX-1

• Dual OCU DP

•Dual Modem

•Dual Nx56/64

•E&M

•FXO

•FXS

•Multiport DBU

• Nx56/64

• Nx56/64 DBU

•OCU DP

• Quad Modem

61950025L1-1 ADVISION User Manual 6-1

Chapter 6 ADVISION Setup Parameters

OVERVIEW ADVISION’s setup parameters include preference files, environment variables,

and command line options. Preference files contain entry definitions that affect

software operation and specify certain filenames. Environment variables specify

file locations and the directories used. Command line options include run time

specifications which affect operation of the GUI. This chapter provides informa-

tion on these three parameters.

PREFERENCES

FILES ADVISION allows the installation of two .advisionrc preferences files. The

administrator may place one .advisionrc file in the ADVISION_INSTALL di-

rectory, and all users may have one in their home directory. The

ADVISION_INSTALL directory provides an example of this file.

File Entries Preferences file entries ARE case sensitive. Table 6-1 on page 6-2 lists the entry

definitions. The syntax for each option is as follows:

Any options set by .advisionrc found in the home directory take

precedence over values set by the ADVISION_INSTALL preference

file.

Chapter 6. ADVISION Setup Parameters

6-2 ADVISION User Manual 61950025L1-1

ENVIRONMENT

VARIABLES The environmental variables listed in Table 6-2 are entered at the command

line or within a .profile (or .bashrc, etc.) file.

Table 6-1. Preferences File Entry Definitions

Option Value Definition

confirm TRUE = required (default)

FALSE = none required

User preference for requiring a confirmation step

after selecting a push-button control in a MIB

Viewer and before exiting ADVISION.

dir.load $HOME = default Directory from which saved configuration pages

are retrieved.

dir.save $HOME = default Directory to which configuration pages are saved.

file.errors .advision_errors = default Informs ADVISION where to output the error data.

splash TRUE = always displayed

(default)

FALSE = never displayed

The user preference for the ADVISION About win-

dow displayed at startup.

statistics TRUE = initially visible

(default)

FALSE = initially hidden.

The user preference for the initial display of the

statistics panel on any viewer.

Table 6-2. Environmental Variables

Option Definition

ADVISION_FILE_ERRS Tells ADVISION where to output the error data, other than

.advision_errors.

ADVISION_INSTALL Directory in which the ADVISION files are installed (not just the applica-

tion). This directory is defined at installation and must be correct for the

HP OpenView connection to work properly.

HOME Environment variables of the user’s home directory. This option can be

set by command line or .advisionrc file, but it is typically the $HOME

environment variable. This is a mandatory variable and is required for

ADVISION to run. In most cases, $HOME is defined by the system for the

user, so no additional action is required.

Chapter 6. ADVISION Setup Parameters

61950025L1-1 ADVISION User Manual 6-3

COMMAND

LINE OPTIONS This information is provided only for reference purposes. The command line

options listed in Table 6-3 supersede all other options and are entered when

typing the ADVISION command.

Database

Server (advdb) The database base server, as a default, supports 10,000 ADTRAN objects in-

cluding IP-addressable units, proxied units, and their option cards. If the

maximum supported value is reached, the daemon exits with an error mes-

sage stating that maximum number of objects has been reached.

Changing the Number

of Supported Objects To change the number of supported objects, edit the advdb startup com-

mand in the following file to include as a command line argument “-nxxx,”

where xxxx is the number of objects to be supported:

$ADVISION_INSTALL/advdb.lrf

Then, restart advdb by entering the following on the command line:

$OV_BIN/ovstart advdb

The command line argument can also be used to decrease the number of

supported objects and hence the amount of memory required by advdb.

This should only be done if the number of ADTRAN devices is known to be

small.

Table 6-3. Command Line Options

Option Definition

-error_file=<filename> Informs ADVISION of where to output the error data, other than

.advision_errors.

-ovw Required for HP OpenView integration; notifies the process to reg-

ister with HP OpenView for ADTRAN object selections.

-server Required for HP OpenView integration; notifies process to connect

with .advdb (ADVISION database server) to identify the configu-

ration of objects for display.

Chapter 6. ADVISION Setup Parameters

6-4 ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual A-1

Appendix A Acronyms

CSU...................................... Channel Service Unit

DLCI.................................... Data Link Connection Identifier

DSU ..................................... Data Service Unit

FDL...................................... Facility Data Link

FSU ...................................... Frame Relay Service Unit

HP........................................ Hewlett Packard

ISU ....................................... ISDN Service Unit

MIB ...................................... Management Information Base

PVC...................................... Permanent Virtual Circuit

SNMP .................................. Simple Network Management Protocol

TSU...................................... Terminal Service Unit

Appendix A. Acronyms

A-2 ADVISION User Manual 61950025L1-1

61950025L1-1 ADVISION User Manual B-1

Appendix B Glossary

D4 DiGroup

An ADVISION shelf that displays the FramePort 144 and 768.

daemon

A background program that runs unattended, collecting information or performing operating system

administration tasks. Some daemons activate when an event occurs while others activate at timed

intervals.

Data Link Connection Identifier (DLCI)

A group of bits in a frame relay connection’s overhead that identifies the virtual circuit or channel over

which the data is being sent to its address.

discovery

The process by which devices are added to an HP OpenView submap.

event

An occurrence or happening.

lasso

The process of selecting an area on an active window by using the left mouse button to draw a rectan-

gular or square outline around the area.

loadhosts

HP OpenView file that loads (adds) hosts to the IP topology database maintained by ovtopmd and

used by netmon and ipmap. Lines are read from standard input, or from the specified in-file, and are

in the format used by /etc/hosts.

Management Information Base (MIB)

Specifications containing definitions of management information so that networked systems can be

remotely monitored, configured, and controlled.

netmon

A daemon that attempts to discover nodes on the network. After it discovers a node, it polls the node

regularly to check for status, topology, configuration, and threshold changes. This daemon discovers

and polls only the nodes in the management region.

object

Object has many meanings. It can represent a logical or physical entity or resource, or a group of such

physical entities or resources that exist in a network environment. For example, an object can be an

ADTRAN device or a group of ADTRAN devices.

Appendix B. Glossary

B-2 ADVISION User Manual 61950025L1-1

permanent virtual circuit (PVC)

A dedicated (private line) channel in a multiplexed transmission or packet network.

polling

The periodic gathering of data.

proxy

A device that provides communication between two noncommunicating devices.

registration

The permanent assignment of a unique object identity to an item.

Simple Network Management Protocol (SNMP)

A protocol that communicates management information between network management stations

and the agents in the network elements.

trap

A message sent to indicate a failure or problem with a specific device.

61950025L1-1 ADVISION User Manual C-1

Appendix C Installation Files

INSTALLED

FILES The following files comprise the ADVISION install. These files are placed in the

specified directory $ADVISION_INSTALL:

FileName Function

Advision X-Resource file for the ADVISION (GUI)

Data_A File containing device descriptions which drives

all GUI views

Help/ Contains files for integration into the CDE Help

system

INSTALL.SH Tape Installation script (obsolete)

INSTALL_CD.SH CD Installation script

Images/ Image files for ADTRAN unit Device Views

README Text file describing new features, new product

support, etc.

advdb.lrf File to use with ovaddobj to register advdb, the

ADTRAN database server

auth.sample Sample user-authentication file

bin/ Contains executables and user-includes for login

scripts

bitmaps/C/device/*.pm Bit maps defining OpenView symbols for

ADTRAN devices

conf/C/ Contains files to be added to OpenView's

oid_to_sym and oid_to_type files to prop-

erly register ADTRAN units for netmon discov-

ery.

fields/C/Adtran.fld File to register additional OpenView database

fields required to support ADVISION

registration/*.lrf OpenView registration files for ADVISION pro-

cesses associated with an OpenView window

(map) session

snmp_mibs/*.mib ADTRAN product MIBs

Appendix C. Installation Files

C-2 ADVISION User Manual 61950025L1-1

FILES ALTERED

INSTALLATION

During installation, the files in the following directories are linked into the

specified OV directories.

Installation also updates the /etc/services file, with an entry for the ad-

vdb socket.

symbols/C/Adtran.mib File used to register symbols for ADTRAN prod-

ucts with OpenView

Uninstall.sh This is an uninstall script which runs without

operator intervention (once started).

Directory Filename

bitmaps/ $OV_BITMAPS

conf/ $OV_CONF

fields/ $OV_FIELDS

registration/ $OV_REGISTRATION

snmp_mibs/ $OV_SNMP_MIBS

symbols/ $OV_SYMBOLS

61950025L1-1 ADVISION User Manual Index-1

Index

accessing configuration information 4-1

accessing the MIB viewer from the device viewer

4-4

activating downloaded configurations 5-1

activating the GUI 4-1

adding IP-addressable units when Open View

discovery disabled 3-4

adding IP-addressble unit to an Open View in-

stallation 3-4

adding object to HP Open View submap 3-2

adding proxied devices to submap 3-5

adding proxied units not discovered during nor-

mal discovery process 3-4

ADTRAN object status 3-6

advdb (database process) 2-3

advdis (discover process) 2-3

ADVISION

features 1-2

GUI 1-1

installing 2-1

onlilne help (UNIX only) 2-6

packing list 2-1

registration process 2-3

ADVISION GUI (advision) 2-3

database server (advdb) 2-3

discover (advdisc) 2-3

object status (advstat) 2-3

system requirements 2-1

using the GUI 2-6

advision (GUI process) 2-3

ADVISION Integration with HP OpenView 3-1

advstat (status process) 2-3

altering SNMP data 3-1

apply 4-14

applying a configuration 4-5

changing the ADTRAN Status value 3-7

child submap 3-2

closing the device viewer 4-6

command line options 6-3

advdb 6-3

changing the number of supported ob-

jects 6-3

-error_file=<filename> 6-3

-ovw 6-3

-server 6-3

configuration information

accessing 4-1

D4 DiGroup 5-2

device naming conventions 5-5

device viewer 4-2

apply configuration 4-5

close 4-6

menu bar 4-4

file 4-5

apply configuration 4-5

save configuration 4-5

device viewer, menu bar 4-2

device 4-7

file

close 4-6

exit 4-6

save configuration 4-5

modules 4-7

polling 4-6

all polling suspend/resume 4-7

clear error 4-6

demand poll 4-6

device polling suspend/resume 4-6

hide/show statistics 4-6

reset statistics 4-6

view 4-6

window

devices 4-7

graphs 4-7

MIB viewers 4-7

reviewers 4-7

device-specific information 5-1

discovery 3-2

IP auto-discovery 3-2

Index

Index-2 ADVISION User Manual 61950025L1-1

manual 3-3

proxied chassis 3-3

displaying statistics panel 4-6

dministrator 2-5

download sequence, terminating 4-5

DSU III DBU 5-3

entering data into text fields 4-16

environemental variables 6-2

ADVISION_FILE_ERRS 6-2

ADVISION_INSTALL 6-2

HOME 6-2

errors, I/O 4-6

exiting the device viewer 4-6

FramePort 144 and 768 5-2

accessing network information 5-2

displaying installed cards 5-2

provisioning options 5-3

get error dialog box 5-2

graph viewer 4-16

graph viewer, menu bar 4-17

file 4-18

close 4-18

exit 4-18

export data 4-18

graph viewer, title bar 4-17

graph viewer, variable selection dialog 4-18

graph viewer,graph data area 4-19

axis lables 4-19

data lables 4-20

error dialogs 4-20

GET error 4-20

initialization error 4-21

viewer creation warning 4-20

progress dialog 4-19

resizing/scaling 4-20

return to default 4-20

scales 4-19

translation 4-20

window resize 4-20

zooming 4-20

GUI 1-1

GUI, activating 4-1

hide/show statistics 4-6

hiding statistics panel 4-6

HP 1-2

HP Open View 1-1, 3-1

HP OpenView

description 1-2

features 1-2

maps/submaps 1-2

symbols 1-2

colors, meaning of 1-3

I/O errors 4-6

installing ADVISION 2-1

IP auto-discovery 3-2

IP host table 5-2

IQ units 5-1

applying performance data interval settings

5-2

including the IP Host table 5-2

prior to revision 3.22

applying SNMP configuration modifica-

tions 5-1

downloading configurations 5-1

retrieving large sets of performance data 5-2

revision 3.22 and later

applying configuration modifications 5-2

updating PVC performance monitoring

configurations 5-2

specifying a new PVC 5-2

IQ Units later than v 3.22 5-2

IQ units prior to v 3.22 5-1

log-in 2-3

dialog box 2-4

activating 2-4

changing user accounts 2-5

sample file 2-5

privilege levels

2-4

None 2-4

ReadOnly 2-4

ReadWrite 2-4

manual discovery 3-3

maps/submaps 1-2

MIB reviewer

SNMP data area 4-16

MIB reviewer, menu bar 4-15

file 4-15

Index

61950025L1-1 ADVISION User Manual Index-3

close 4-15

exit 4-15

load 4-15

save 4-15

page 4-15

window 4-15

MIB reviewer, SNMP data area

pull-down menus 4-16

push buttons 4-16

scales 4-16

text fields 4-16

toggle boxes 4-16

MIB reviewer, title bar 4-14

MIB viewer 4-10

get error dialog box 5-2

IQ Units later than v 3.22 5-2

IQ Units Prior to v 3.22 5-1

system information 5-1

MIB viewer, command buttons 4-14

cancel 4-14

done 4-14

revert 4-14

MIB viewer, device image 4-2

MIB viewer, menu bar

file 4-11

close 4-13

load 4-12

save 4-12

MIB viewer, SNMP data area 4-13

push buttons 4-13

scales 4-13

text fields 4-13

toggle boxes 4-14

MIB viewer, statistics panel 4-7, 4-14

numeric fields 4-9

N1 4-9

N2 4-10

N3 4-10

N4 4-10

push-button indicators

PB1 4-8

PB2 4-8

PB3 4-9

PB4 4-9

MIB viewer, table index selectors 4-14

MIB-II system parameters, updating 4-5

MIBs 3-1

naming conventions, device 5-5

object status 3-6

online help (UNIX only) 2-6

Open View 1-1, 3-1

placing ADTRAN objects on the map 3-4

polling

demanding 4-6

resuming 4-7

suspending 4-7

preferences file

file entries

confirm 6-1, 6-2

dir.load 6-2

dir.save 6-2

file.errors 6-2

splash 6-2

statistics 6-2

preferences files 6-1

file entries 6-1

proxied chassis 3-3

manually deleting 3-3

proxied devices 3-2

rediscovery

IP address 3-3

procedure for 3-3

when adding new cards 3-3

removing a device card (Smart 16/16e shelf) 5-3

removing objects 3-3

resizing table columns and rows 4-24

resume polling 4-7

reviewing and modifying MIB views 4-14

saving a configuration 4-5

setting up ADVISION

command line options 6-3

environmental variables 6-2

preference files 6-1

Smart 16/16(e) Shelf 5-3

SNMP I/O timeout errors 5-3

Smart 16/16e Shelf

removing a device card 5-3

SNMP configuration modifications for IQ units 5-

SNMP I/O timeout errors 5-5

specifying a new PVC 5-2

statistics panel

displaying 4-6

hiding 4-6

Index

Index-4 ADVISION User Manual 61950025L1-1

returning error indicator to normal 4-6

submap

child 3-2

supported devices 5-1

suspend polling 4-7

symbols, and unit status 3-3

system information (MIB viewer) 5-1

system requirements 2-1

T3SU 300 5-4

table viewer 4-21

table data area 4-23

table viewer, menu bar 4-21

file 4-22

close 4-23

exit 4-23

export data 4-22

polling 4-23

all polling suspend/resume 4-23

device polling suspend/resume 4-23

reconfigure 4-23

refresh 4-23

window 4-23

table viewer, table data area

error dialogs 4-24

GET Error 4-24

initialization error 4-24

viewer creaton warning 4-24

lables 4-23

progress dialog 4-23

rown/column resize 4-24

window resize 4-24

table viewer, title bar 4-21

table viewer, variable selection dialog 4-23

technical support 2-1

terminating a download sequence 4-5

TSU 100, 120, & 600 5-4

TSU 100e, 120e, & 600e 5-4

TSU mux limitations 5-5

TSU mux option cards 5-6

TSU, IP auto-discovery 3-3

unit status and symbols 3-3

units supported by ADVISION 5-1

updating MIB-II system parameters 4-5

using ADVISION 2-1

using ADVISION GUI 2-6

using push buttons 4-16

using scales 4-16

variable selection dialog 4-18

ADTRAN Support

General Information (800) 9ADTRAN

ADTRAN Home Page http://www.adtran.com

ADTRAN Technical Support Phone: (888) 4ADTRAN

E-mail: support@adtran.com

61950025L1 1B ADVISION User Manual
