AG DVC7
User Manual: AG-DVC7
Open the PDF directly: View PDF
.
Page Count: 23
AG-DVC7 Mechanical Parts List
99
100

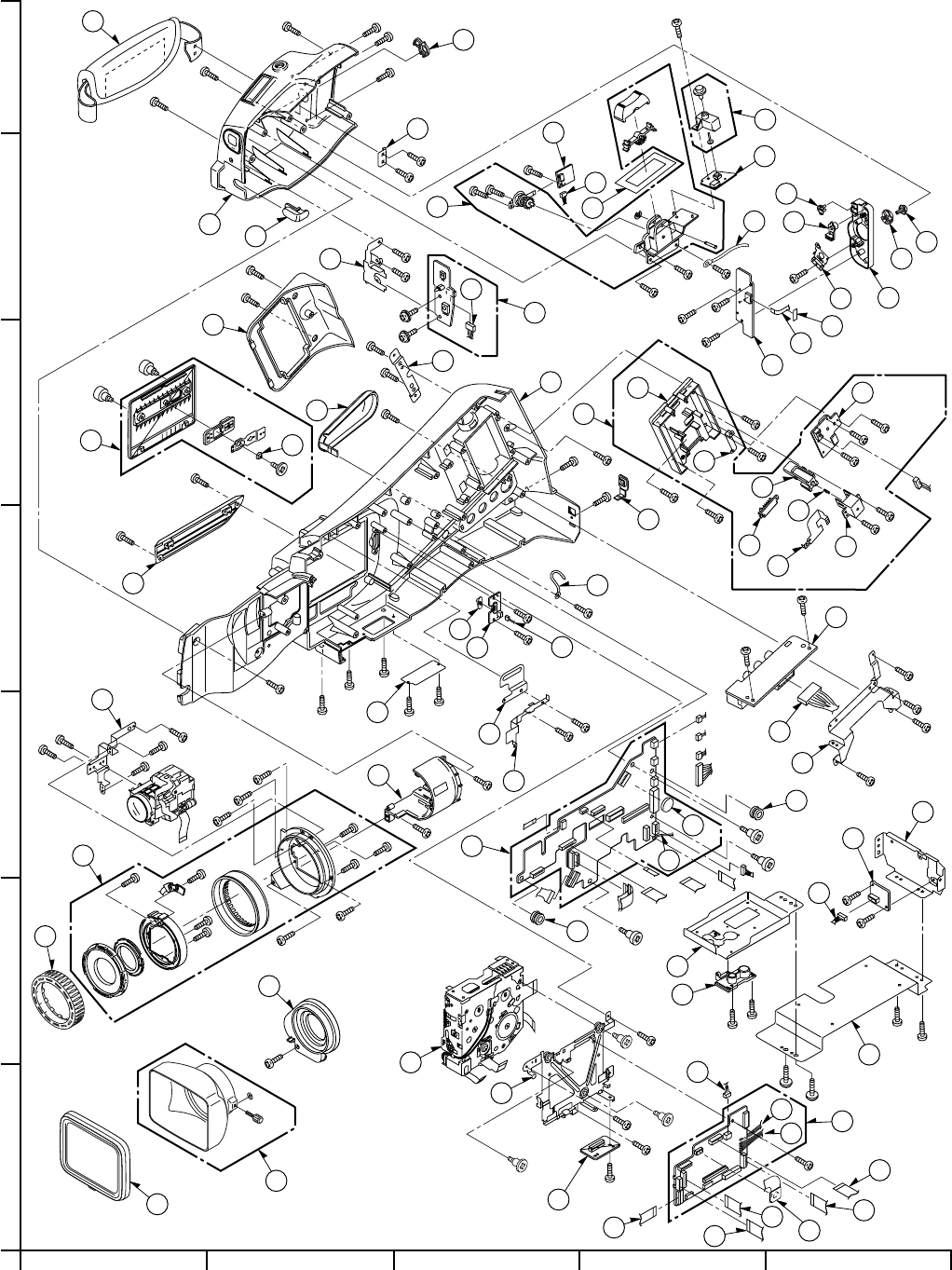

12.1. FRAME & CASING ASSEMBLY (1)
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
B3,B4 XQN16+B4FZ SCREW 2
1 VGQ5988 EVR COVER 1 B5-B7 VHD1540 SCREW 3
2 VKF3305 HOOD CAP 1 B8,B9 VHD1421 SCREW 2
3 VYK0V73 CASSETTE COVER (L) ASS'Y 1 B10-12 VHD1422 SCREW 3
4 VJF1443 CLAMPER 1 B13,14 XQN16+BJ4FN SCREW 2
6 VEE0U52 POWER CABLE 1 B15-22 XQN2+BJ5FZ SCREW 8
7 VEE0U53 BATTERY CABLE 1 B23,24 XTN26+8GFZ SCREW 2
8 ML920S/F9D LITHIUM BATTERY 1 B25 XQN16+B4FZ SCREW 1
9 VEE0W08 GND CABLE 1 B26,27 XQN16+B5FZ SCREW 2
10 VYQ2552 MECHA FRAME ASS'Y 1 B28,29 XQN2+CJ6FZ SCREW 2
11 VYK0Q12 SIDE CASE L (1) ASS'Y 1 B30,31 XSB2+5FZ SCREW 2
12 VGQ7231 BATTERY HOLDER 1 B32,33 XTN26+4G SCREW 2
13 VGQ6037 BATTERY LOCK HOLDER 1 B34-40 XTV26+8G SCREW 7
14 VGU8749 BATTERY LOCK BUTTON 1 B41-44 XTV3+8G SCREW 4
15 VMB3314 DOOR LOCK SPRING 1 B45-47 XSN3+6FZ SCREW 3
16 VWJ1604 POWER BUS FLEX 1 B48-50 XTB3+8FFZ SCREW 3
17 K4ZZ04000032 BATTERY CATCHER 1 B51-54 XTB3+10GFZ SCREW 4
18 VYK0V72 GRIP COVER (1) ASS'Y 1 B55,56 XYN3+F8 SCREW 2
19 VYK0Q13 BATTERY CASE ASS'Y 1 B57,58 XQN2+B4 SCREW 2
21 VXU1598 PHOTO SHOT BUTTON 1 B59-61 XQN2+BJ6 SCREW 3
22 VEE0U54 ZOOM/PHOTO CABLE 1 B62,63 XTN26+6J SCREW 2
23 VMT1197 ZOOM PROTECT SHEET 1 B64 XQN16+B5FZ SCREW 1
24 VYQ2246 ZOOM ASS'Y 1 B65-67 XQN2+BJ4FZ SCREW 3
25 VWJ08G4130AA S/S FLEX 1 B68,69 XTN26+6J SCREW 2
26 VGQ6071 OPERATION P.C.B. PLATE 1 B70-72 XTB3+10GFZ SCREW 3
27 VGU9247 VTR SELECT BUTTON 1 B73,74 XYN3+K6 SCREW 2
28 VGL0764 VTR SELECT PANEL LIGHT 1 B75,76 XTB26+6GFZ SCREW 2
29 VMC1271 S/S CLICK SPRING 1 B77 XQN2+BJ4 SCREW 1
30 VMP6760 REMOCON C.B.A. FIX ANGLE 1 B78 XQN2+BJ8 SCREW 1
31 VFC3902 GRIP BELT ASS'Y 1 B79-82 XQN2+BJ4 SCREW 4
32 VMP6741 BELT HOLDER ANGLE 1 B83 VHD1105 SCREW 1
33 VGQ4494 S/S LEVER 1 B91 XTN26+8GFZ SCREW 1
34 VGQ4272 S/S BUTTON PIECE 1 B92,93 XQN16+B4FN SCREW 2
35 VGU7577 S/S BUTTON 1 B94,95 XQN2+BJ5FZ SCREW 2
36 VGQ2759 SHEET 1 B96 XQN16+B4FZ SCREW 1
37 VSC5420 EARTH PLATE (L) 1 B97 XQN2+BJ4 SCREW 1
38 VJF1477 JACK COVER 1 B98,99 XTV3+6F SCREW 2
39 VJF1478 DV TERMINAL COVER 1
40 VEE0U49 EJECT CABLE 1 W1 XUC15FP E-RING 1
41 VGU7575 EJECT BUTTON 1
42 VMP7612 BELT HOOK ANGLE (FRONT) 1
43 VMP6749 BATTERY ANGLE 1
44 VEE0U51 AV JACK CABLE 1 E1 VEP03F85G MAIN C.B.A. 1
45 VMP7350 AV JACK ANBLE 1 E2 VEP06F10A MOTHER C.B.A. 1
46 VMP7387 DV TERMINAL ANGLE 1 E3 VEP06F19B EVR INT C.B.A. 1
47 VEE0U93 DV CABLE 1 E5 VEP06F12A BATTERY INT C.B.A. 1
48 VGQ5990 BATTERY CASE COVER 1 E6 VEP06F17A ZOOM C.B.A. 1
49 VMP6737 WEIGHT ANGLE 1 E7 VEP06F16A PHOTO SHOT C.B.A. 1
50 VMD2796 TRIPOD FRAME 1 E8 VEP06F13A FRONT C.B.A. 1
51 VMP6654 TRIPOD FRAME ANGLE 1 E9 VEP06F14A S/S & POWER C.B.A. 1
52 VJF1443 CLAMPER 1 E10 VEP06F15A EJECT C.B.A. 1
53 VKW2418 REMOTE CONTROLLER WINDOW 1 E11 VEP04824B AV JACK C.B.A. 1
55 VYK0Q23 CASSETTE COVER ASS'Y 1 E12 VEP03G26A DV TERMINAL C.B.A. 1
58 VMB3148 CASSETTE COVER SPRING 1
59 VYK0L39 LENS CASE (R) ASS'Y 1
60 VXP2213 MF RING ASS'Y 1
61 VFC3571 LENS HOOD ASS'Y 1
62 VYQ2555 ND FILTER CASE ASS'Y 1
65 VMP7349 LENS FRAME 1
66 VMG1357 FOCUS RING 1
67,68 VMG1466 DUMPER RUBBER 2
69 VEE0U50 SPEAKER CABLE 1
70 VWJ1468 FRONT FLEX 1
71 VWJ1595 MONITOR FLEX 1
72 VWJ1596 EVF FLEX 1
73 VWJ18G4055AA OPERATION FLEX (1) 1
74 VWJ20G4050AA OPERATION FLEX (2) 1
75 VXY1629 MECHA ASS'Y 1
76 VEE0U55 FRONT CABLE 1
77 VEP22336A CCD INT FLEX CARD C.B.A. 1
78 VGQ7025 ALUMINIUM SHEET 1
B1,B2 XQN2+BJ5FZ SCREW 2
101
B65
B53
B52
B51
B66
B67
B75
B46
B68
B43
B96
B99
B98
B48
B77
B72
B71
B70
B79 B80
B82
B81
B34
B35
B62
B59
B60
B61
B63
B36
B37
B38
B97
B39
B40
B57
B58
B50
B93
B49
B78
B69
B73
B74
B41
B42
B45
B47
B9
B83
B8
B1
B2
B54
B13 B18
B19
B25
B95
B22
B24
W1
B21
B14 B30 B3 B4
B23
B91
B29
B5
B32
B33
B44
B28
B31
B76
Front C.B.A.
Zoom
C.B.A. Photo Shot
C.B.A.
33
35
34
26
29
25
36
32
11
76
12
19
17 13
14
78
16
15
23 27
28
22
4
21
43
58
38
39
52
44
51
49
67
B7
68
B6
B26
B55
B56
B27
18
30
24
48
3
55
65
60
61
2
62
66
1
59
41
42
8
9
50
70
69
72
74
71
73
7
6
10
75
37
31
53
E8
E6
E7
Battery Int
C.B.A.
E5
S/S & Power
C.B.A.
E9
Eject
C.B.A.
E10
AV Jack C.B.A.
E11
45
46
47
40
B94
B20
B15
B10
B11
B12 B17
B92
B16
DV Terminal
C.B.A.
Mother
C.B.A.
EVR Int
C.B.A.
Main C.B.A.
E12
E2
E3
77
E1
B64
A
B
C
D
E
F
G
12345
12.1. FRAME & CASING ASSEMBLY (1)
102

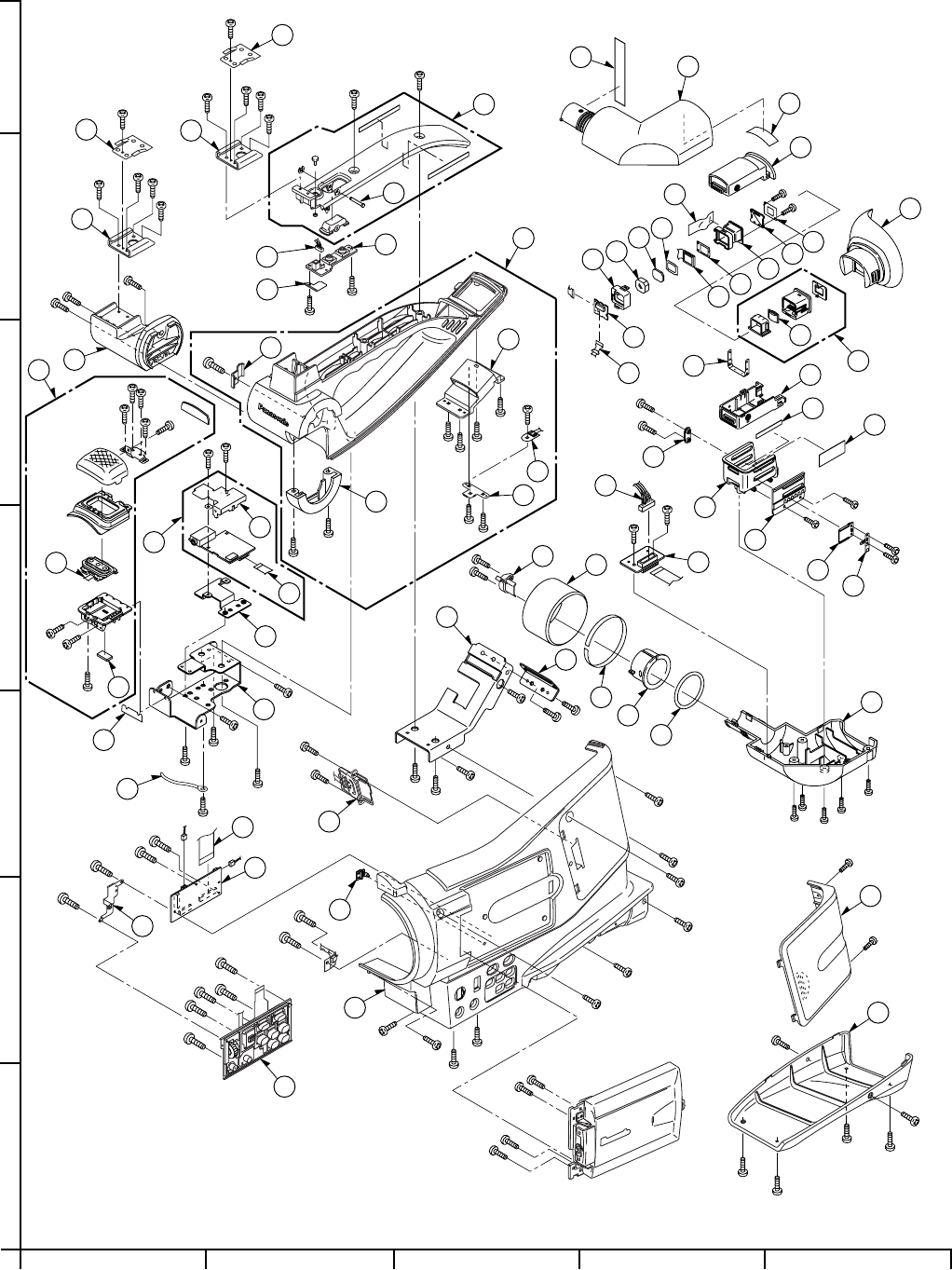

12.2. FRAME & CASING ASSEMBLY (2)
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
B118-21 XYN3+J10FZ SCREW 4
101 VYK0Q15 SIDE CASE R (1) ASS'Y 1 B122,23 XTV4+8G SCREW 2
102 VYK0L28 SPEAKER HOLDER ASS'Y 1 B124-27 XQN2+BJ6 SCREW 4
103 N9ZZ00000177 SIDE (R) CASE ASS'Y 1 B128-38 XQN2+BJ5FZ SCREW 11
104 VGU8945 RESET BUTTON 1 B139 XQN2+B2 SCREW 1
105 VSC5421 HINGE EARTH PLATE 1 B140 XQN2+BJ4FN SCREW 1
106 VWJ1602 SIDE (R) FLEX 1 B141,42 XTV4+8G SCREW 2
107 VMP6650 HANDLE HOLD ANGLE (REAR) 1 B143,44 XYN26+K6 SCREW 2
108 VGQ6038 MIC HOLDER PLATE 1 B145 XQN2+B3FZ SCREW 1
109 VMP7613 BELT ANGLE (REAR) 1 B146-50 XTB3+10GFZ SCREW 5
110 VMP2407 SHOE 1 B151-54 XQS2+AJ7FZ SCREW 4
111 VMC1288 SHOE SPRING 1 B155,56 XTN3+8B SCREW 2
112 VYK0Q20 HANDLE (1) ASS'Y 1 B157,58 XQN2+BJ35 SCREW 2
113 VKF3644 HANDLE COVER 1 B159-63 XQN2+CJ6FZ SCREW 5
114 VEK7927 INSULLATION SENSOR 1 B164-66 XTN26+8GFZ SCREW 3
115 VMP7404 DEW SENSOR ANGLE 1 B167,68 XTV26+8G SCREW 2
116 VGQ5995 SLIDE COVER 1 B169,70 XTN3+8B SCREW 2
117 VJF0804 CABLE CLAMPER 1 B171,72 XTN3+10G SCREW 2
118 VKM6141 EVF CASE (UPPER) 1 B173-76 VHD1127 SCREW 4
119 VKM6142 EVF CASE (LOWER) 1 B177,78 VHD1303 SCREW 2
120 VEE0U56 EVF CABLE 1 B179 XQN2+B3FZ SCREW 1
121 VKM5987 EVF HOLDING CASE (UPPER) 1 B180-83 XQS2+AJ7FZ SCREW 4
122 VKM5988 EVF HOLDING CASE (LOWER) 1 B184,85 XSB26+4FX SCREW 2
123 VMP5464 EVF CASE ANGLE 1 B186-90 XQN2+B4 SCREW 5
124 VGK2684 EVF HOLD CASE 1 B191,92 XQN2+B5FN SCREW 2
125 VYQ2563 VIEW ADJ. CASE ASS'Y 1 B193-95 XQN16+CJ5 SCREW 3
126 VDL1220 EVF LENS 1 B196 XQN2+B3FZ SCREW 1
127 L5EDDXH00005 EVF LCD PANEL 1 B197,98 XQN2+BJ8 SCREW 2
128 VGQ5492 EVF PROTECT COVER 1 B199 XTB3+10GFZ SCREW 1
129 VGQ6265 PROTECT COVER SHEET 1 B200,50 XQN2+BJ6 SCREW 2
130 VGQ6143 LCD MASK 1
131 VJF1422 LCD HOLDING PIECE 1 W102 XUC2FP E-RING 1
132 VJF1423 LCD PRESS SHEET 1
133 LSFL0039 LCD LENS 1
134 LSFL0040 LCD DIFFUSION SHEET 1
135 VGQ6172 EVF TAPE 1 E13 VEP06F11A SIDE (R) C.B.A. 1
136 VMG1464 EYE CAP 1 E15 VEP28298A EVF INT C.B.A. 1
137 VGQ4585 EVF ROTARY HOLDER 1 E16 VEP28284A EVF C.B.A. 1
138 VMC1365 EVF ROTARY SPRING 1 E17 VEP06F18A HANDLE ZOOM C.B.A. 1
139 VGQ6068 EVF SLIDE PIECE 1 E18 VEP04823A MIC JACK C.B.A. 1
140 VGQ6096 EVF SLIDE PLATE 1
141 VMZ3141 EVF SLIDE SPACER 1
142 VGQ6328 EVF BARRIER 1
143 VWJ1470 EVF FLEX 1
144 VMZ3140 VF UPPER SPACER 1
145 VMG1372 O-RING 1
146 VGQ6999 EVF LOCK RING 1
147 VGQ7001 EVF BUSH 1
148 VGQ5994 EVF RING 1
149 VMT1202 EVF RING TAPE 1
150 VMP2407 SHOE 1
151 VMC1288 SHOE SPRING 1
152 VEE0U57 HANDLE ZOOM CABLE 1
153 VMZ3182 ZOOM CBA INSULATION SHEET 1
154 VYF2903 HANDLE COVER (1) ASS'Y 1
156 VMS7039 ZOOM SHAFT 1
158 VMP6666 MIC C.B.A. HOLDER ANGLE 1
159 VMP6649 HANDLE HOLD ANGLE (FRONT) 1
160 VYK0L54 MIC CASE ASS'Y 1
165 VGQ6148 CAMERA RADIATION PLATE 1
166 VSC4666 FRONT SHIELD CASE (A) 1
167 VWJ08G4050AA MIC JACK FLEX 1
168 VGP5435 FACE PANEL 1
169 VMG1355 SHOULDER PAD 1
170 VWJ06G4065AA MIC FLEX 1
171 VJF1443 CLAMPER 1
172 VGQ7110 MIC SPACER 1
175 VGQ7115 EVF SLIDE SPACER (R) 1
176 VGQ7170 EVF SHEET 1
B101-03 XSB2+6FZ SCREW 3
B104,05 XTB3+10GFZ SCREW 2
B106-17 XTB3+8GFZ SCREW 12
103
B147
B146
W102
B197
B159
B190
B156
B155
B189
B195
B192
B103
B139
B140
B131
B132
B133
B134
B135
B191
B186 B187
B193
B188
B194
B198
B163
B196 B175
B168
B167
B173
B174
B166
B170
B169
B116
B164
B165
B176
B250
B200
B177
B178
B162
B161
B157
B158
B171
B172
B144
B143
B107
B106
B142
B141
B123 B138
B137
B122
B184
B185
B130
B129
B128
B136
B109
B108
B160
B145
B179
B180 B181
B182
B183
B148
B150
B149
B151 B152
B153
B154
111
112
144
121
124
148
109
141
119
168
169
122
175
123
120
136
129
128
131
130
127
126
125
143
113
142
132
137
102
171
172
104
101
103
105
145
146
149
138
140
139
133 134 135
115
116
147
106
114
156
117
110
152
153
151
150
160 108
170
E18 166
167
158
107
159
165
154
176 118
Handle
Zoom
C.B.A.
E17
Mic Jack
C.B.A.
E16
E15
EVF
C.B.A.
EVF Int
C.B.A.
E13
Side (R)
C.B.A.
B117
B111
B110
B119
B105
B102
B101 B124
B125
B127
B126
B121
B199
B104
B118
B120
B115
B114
B113
B112
A
B
C
D
E
F
G
12345
12.2. FRAME & CASING ASSEMBLY (2)
104

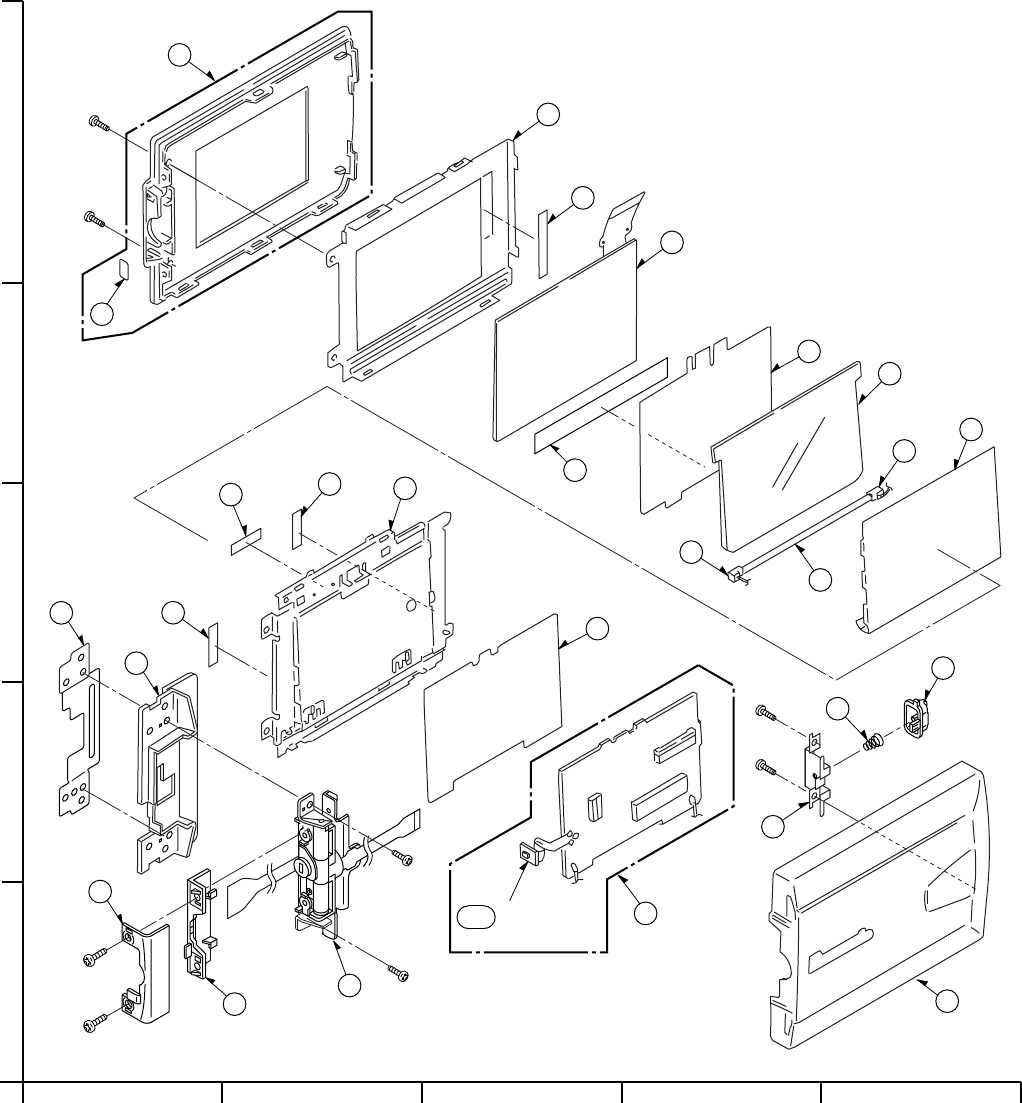

12.3. LCD ASSEMBLY
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
201 VYK0L32 LCD CASE (LOWER) ASS'Y 1
202 VYK0Q18 LCD CASE (UPPER) ASS'Y 1
203 VGU8841 LCD LOCK BUTTON 1
204 VMP6774 LOCK BUTTON FIX ANGLE 1
205 VMB3505 LCD LOCK SPRING 1
206 VGQ6915 LCD HINGE HOLDER 1
207 VMP7348 HINGE REINFORCEMENT ANGLE 1
208 VGQ6171 SENSOR PROTECT SHEET 1
209 VKW2909 LIGHT GUIDE PLATE 1
210 EDTCA29QJ0 LCD PANEL ASS'Y 1
211 VGL0929 REFLECTION SHEET 1
212 KC56D1889DH FLUORESCENCE TUBE 1
213,14 VGQ6138 FLUORESCENCE TUBE RUBBER 2
215 VGL0927 DIFFUSION SHEET 1
216 VGQ5810 MF INSULATION SHEET 1
217 VGQ6181 LCD INSULATION BARRIER 1
218-20 VGQ6170 LCD PANEL FIXATION TAPE 3
221 VSC5206 LCD FRAME 1
222 VSC5211 LCD SHIELD CASE 1
223 VXD0374 LCD HINGE ASS'Y 1
224 VGQ6914 HINGE COVER (UPPER) 1
225 VGQ6145 HINGE COVER (LOWER) 1
226 VGQ6272 LCD BLIND BARRIER 1
B201,02 VHD1411 SCREW 2
B203,04 XQN16+BJ6FZ SCREW 2
B205,06 XQN16+BJ4 SCREW 2
B207,08 VHD1209 SCREW 2
E14 VEP26254D MONITOR C.B.A. 1
E14-1 VEP06E18A HOLE SENSOR FPC C.B.A. 1 FOR VEP26254D
106

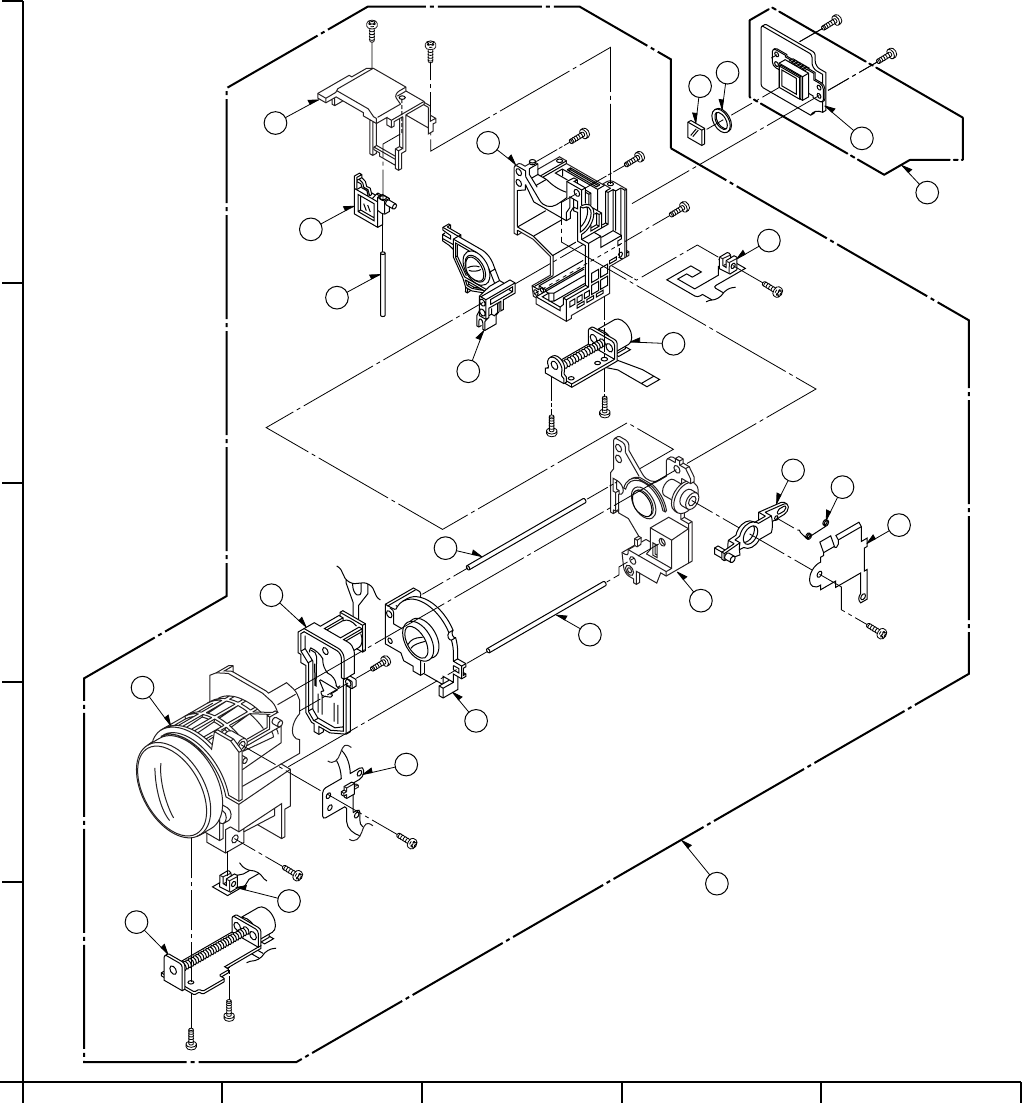

12.4. CAMERA LENS ASSEMBLY
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
301 VDL1193 CRYSTAL FILTER 1
302 VEK0A12 CCD ASS'Y 1
303 VMX3070 CCD CUSHION 1
304 VXW0570 LENS ASS'Y 1
305 10S1F10F6NF ZOOM MOTOR ASS'Y 1
306 10S1F10F7NF FOCUS MOTOR ASS'Y 1
307,08 CNA1302KR0SL PHOTO SENSOR 2
309 L9ZZ00000184 IRIS ASS'Y 1
310 VDW0740 MASTER FLANGE 1
311 VEK9866 LENS FLEX ASS'Y 1
312 VMB3504 F SPRING 1
313 VML3592 LEVER 1
314 VMP6769 PROTECT SHEET 1
315,16 VMS6943 GUIDE POLE 2
317 VXP2122 2ND MOVING FRAME ASS'Y 1
318 VXP2124 4TH MOVING FRAME ASS'Y 1
319 VXQ1010 MAIN FRAME ASS'Y 1
320 VXQ1011 3RD MOVING FRAME ASS'Y 1
321 VDW0742 F FIXATION FRAME 1
322 VMS6838 F GUIDE POLE 1
323 VXQ1012 F FRAME ASS'Y 1
B301,02 VHD0852 SCREW 2
B303-10 XQN16+CJ5 SCREW 8
B311-13 XQN16+CJ8 SCREW 3
B314 VHD1508 SCREW 1
B315,16 XQN16+CJ6 SCREW 2
E4 VEP22335A CCD C.B.A. 1
108

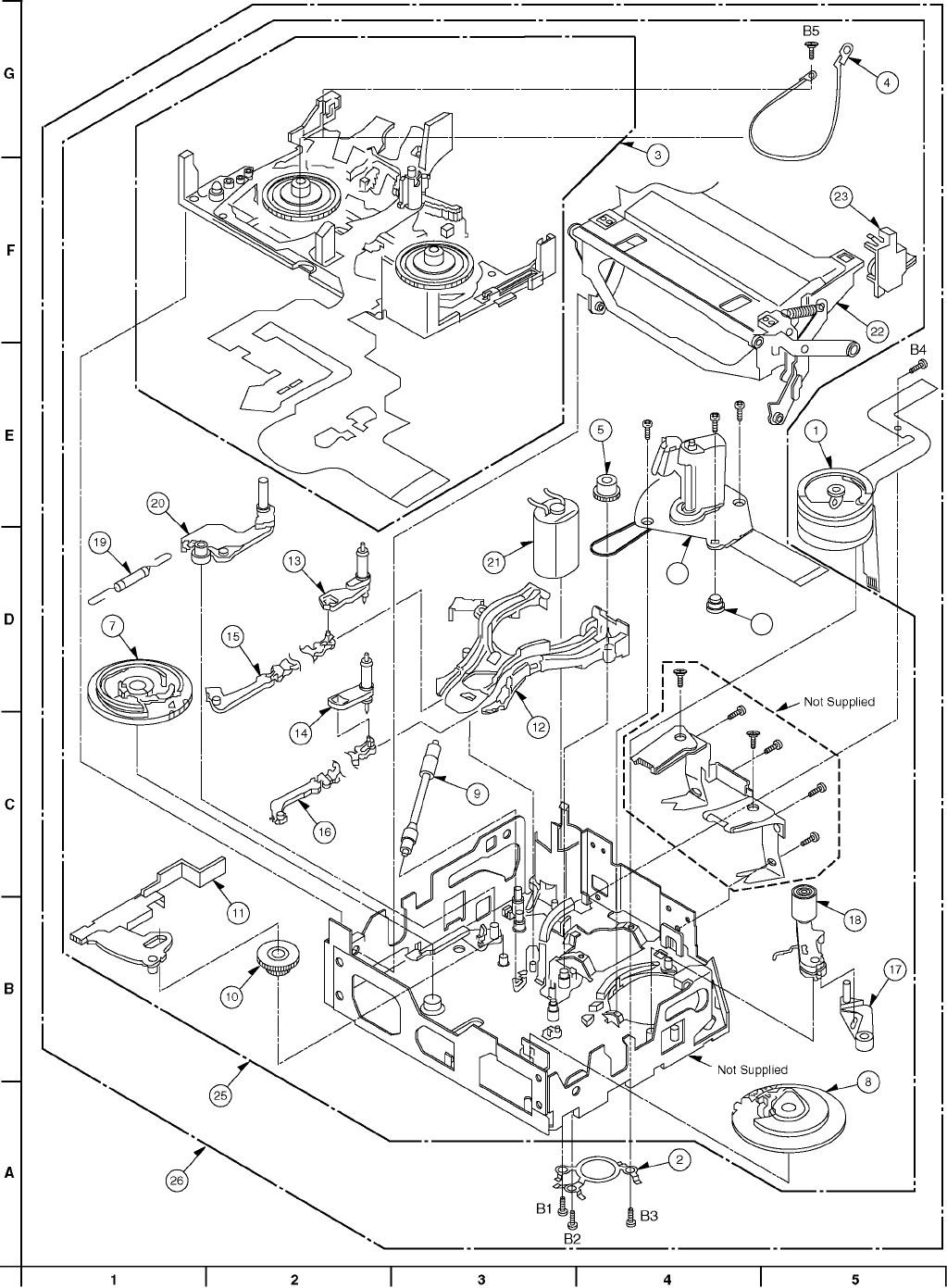

12.5. VCR MECHANISM ASSEMBLY
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
1 VEG1576 CYLINDER U 1
2 VMC1702 CYLINDER SPRING 1
3 VXA6999 REEL PLATE ASS’Y 1 <M>
4 VMC1701 TR BAND 1 <M>
5 VDG1498 CENTER GEAR 1 <M>
7 VXA7001 MODE SW ASS’Y 1
8 VXA7002 T LOAD GEAR ASS’Y 1
9 VDG1496 CONNECTION WORM 1
10 VDG1497 BRAKE GEAR 1
11 VMA0J34 TR ROD 1
12 VMD4184 RAIL 1
13 VXA6995 S-BOAT ASS’Y 1 <M>
14 VXA6996 T-BOAT ASS’Y 1 <M>
15 VMD4181 S-POST LOADING BAND 1
16 VMD4182 T-POST LOADING BAND 1
17 VXL3096 T3 ARM ASS’Y 1
18 VXL3203 PINCH ARM ASS’Y 1 <M>
19 VMB3510 TENSION SPRING 1
20 VXL3092 TR ARM 1
21 VEM0744 LOADING MOTOR ASS’Y 1
22 VXA7003 CASSETTE COMPARTMENT 1
23 VXP2111 DUMPER 1
25 VXY1629Z1 MECHA CHASSIS (1) ASS’Y 1
26 VXY1629 MECHA CHASSIS 1
27 DFX25A7VWD CAPSTAN MOTOR ASS’Y 1
28 VMB3512 CAPSTAN ADJ. SPRING 1
B1-B3 VHD1428 SCREW 3
B4 XQN14+B1FN SCREW 1
B5 VMS6968 SCREW 1
B6 VHD1427 CAPSTAN ADJ. SCREW 1
B7,B8 VHD1426 SCREW 2
110
12.6. PACKING PARTS ASSEMBLY
402
AC Adaptor
Battery
Pack U.
Button-Type
Battery
Battery
412
415
411
406
405
403
404
401
External Stereo
Microphone
E
A
B
C
D
E
F
G
12345
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
401 VPG0S76 PACKING CASE 1 406 K2CB2DB00001 AC CORD 1
402 VQT0C34 OPERATING INSTRUCTIONS 1 411 VFC3877 SHOULDER BELT 1
403 VPN5481 CUSHION (UPPER) 1 412 N2QAEC000003 REMOTE CONTROLLER 1
404 VPN5482 CUSHION (LOWER) 1 415 VFK1451 HEAD CLANER 1
405 VPK0825 ACCESSORY BOX 1

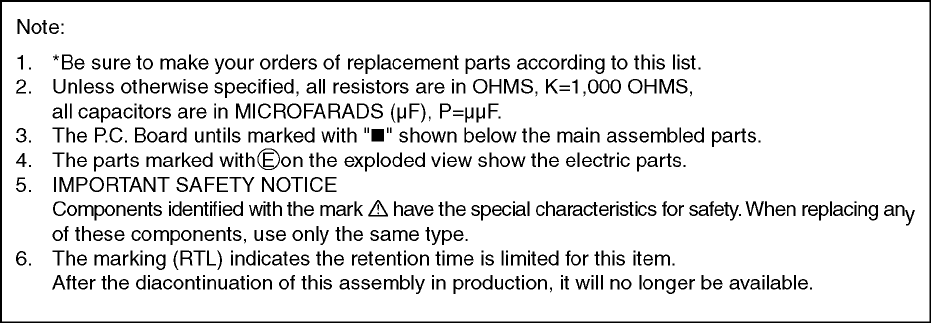

Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
12.6. PACKING PARTS ASSEMBLY
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
12.7. ELECTRICAL REPLACEMENT PARTS LIST
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
C602 ECJ0EC1H180J C.CAPACITOR CH 50V 18P 1
E1 VEP03F85G MAIN C.B.A. 1 (RTL)
C605 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C606,07 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 2
E2 VEP06F10A MOTHER C.B.A. 1 (RTL)
C610 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C611 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
E3 VEP06F19B EVR INT C.B.A. 1 (RTL)
C612 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C614 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 1
E4 VEP22335A CCD C.B.A. 1 (RTL)
C616 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C617 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
E5 VEP06F12A BATTERY INT C.B.A. 1 (RTL)
C618-20 ECUX1A474KBV C.CAPACITOR CH 10V 0.1U 3
C622-24 ECJ0EB1E471K C.CAPACITOR CH 25V 470P 3
E6 VEP06F17A ZOOM C.B.A. 1 (RTL)
C625 ECUX1A474KBV C.CAPACITOR CH 10V 0.1U 1
C626 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
E7 VEP06F16A PHOTO SHOT C.B.A. 1 (RTL)
C627 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C629 ECST0JY335Z T.CAPACITOR CH6.3V 3.3U 1
E8 VEP06F13A FRONT C.B.A. 1 (RTL)
C630 ECJ0EB1C682K C.CAPACITOR CH 16V 6800P 1
C701 ECJ0EC1H101J C.CAPACITOR CH 50V 100P 1
E9 VEP06F14A S/S & POWER C.B.A. 1 (RTL)
C702 ECJ2VB1C224K C.CAPACITOR CH 16V 0.22U 1
C704 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
E10 VEP06F15A EJECT C.B.A. 1 (RTL)
C706-09 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 4
C710 ECJ0EB1E472K C.CAPACITOR CH 25V 4700P 1
E11 VEP04824B AV JACK C.B.A. 1 (RTL)
C711 F3H1A476A004 T.CAPACITOR CH 10V 47U 1
C712 ECJ0EB1E471K C.CAPACITOR CH 25V 470P 1
E12 VEP03G26A DV TERMINAL C.B.A. 1 (RTL)
C713 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C714 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
E13 VEP06F11A SIDE (R) C.B.A. 1 (RTL)
C716 ECJ0EB1E472K C.CAPACITOR CH 25V 4700P 1
C717 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
E14 VEP26254D MONITOR C.B.A. 1 (RTL)
C718 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
VEP06E18A HOLE SENSOR FPC C.B.A. 1 (RTL)FOR VEP26254D
C719 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C720 ECJ1VB1A224K T.CAPACITOR CH 10V 0.22U 1
E15 VEP28298A EVF INT C.B.A. 1 (RTL)
C721 ECST1AY106Z T.CAPACITOR CH 10V 10U 1
C722 ECJ0EC1H151J C.CAPACITOR CH 50V 150P 1
E16 VEP28284A EVF C.B.A. 1 (RTL)
C723 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 1
C724 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
E17 VEP06F18A HANDLE ZOOM C.B.A. 1 (RTL)
C1002 ECJ4YB1C106V C.CAPACITOR CH 16V 10U 1
C1003 F1J1A335A005 C.CAPACITOR CH 10V 3.3U 1
E18 VEP04823A MIC JACK C.B.A. 1 (RTL)
C1011 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1012 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1021 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1022 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1041 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1042 F1J0J475A006 C.CAPACITOR CH6.3V 1U 1
C1043 ECJ0EB1E472K C.CAPACITOR CH 25V 4700P 1
C1052 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
C1053 ECJ0EB1E222K C.CAPACITOR CH 25V 2200P 1
C1054 F1G1C223A004 C.CAPACITOR CH 16V 0.022U 1
C1056 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
C1061,62 F1J1A335A005 C.CAPACITOR CH 10V 3.3U 2
C1082 ECJ3YB1E105K T.CAPACITOR CH 25V 1M 1
C1101 ECJ0EC1H101J C.CAPACITOR CH 50V 100P 1
C1102 F1H1A334A028 C.CAPACITOR CH 10V 0.33U 1
C1103 F1G1C223A004 C.CAPACITOR CH 16V 0.022U 1
E1 VEP03F85G MAIN C.B.A. 1 (RTL)
C1104,05 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C1106 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1108 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
C201 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C1111 ECJ1VB1E223K C.CAPACITOR CH 25V 0.022U 1
C202 ECST1VX225Z T.CAPACITOR CH 35V 2.2U 1
C1113 ECJ0EC1H151J C.CAPACITOR CH 50V 150P 1
C203,04 ECST1AX106R T.CAPACITOR CH 10V 10U 2
C1114 ECJ0EC1H390J C.CAPACITOR CH 50V 39P 1
C205 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 1
C1121 ECJ1VB1H472K C.CAPACITOR CH 50V 4700P 1
C207 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1123 ECJ0EC1H151J C.CAPACITOR CH 50V 150P 1
C210 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C1124 ECJ0EC1H390J C.CAPACITOR CH 50V 39P 1
C211 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C1142 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C213 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1143 ECJ0EC1H151J C.CAPACITOR CH 50V 150P 1
C214 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1144 ECJ0EC1H390J C.CAPACITOR CH 50V 39P 1
C215 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C1151 ECJ1VB1H822K C.CAPACITOR CH 50V 8200P 1
C216 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C1152 ECJ0EB1C822K C.CAPACITOR CH 16V 8200P 1
C217,18 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C1153 ECJ0EC1H151J C.CAPACITOR CH 50V 150P 1
C219 F1J0J475A006 C.CAPACITOR CH6.3V 1U 1
C1154 ECJ0EC1H820J C.CAPACITOR CH 50V 82P 1
C220 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1155 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C221,22 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C1211,12 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C223 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C1221-26 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 6
C224,25 ECST0JY106Z T.CAPACITOR CH6.3V 10U 2
C1228 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C228 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1241 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C229 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C1251,52 F1J1C105A091 C.CAPACITOR CH 16V 1U 2
C230,31 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C1281 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
111
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
C1282 ECJ3YB1E105K T.CAPACITOR CH 25V 1M 1
C3052 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C1321 ECST0GY226 T.CAPACITOR CH 4V 22U 1
C3053 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C1322,23 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C3054 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C1341 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3055 ECST0JX476Z T.CAPACITOR CH6.3V 47U 1
C1451 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3103 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C2001 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3104 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C2004 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3105,06 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 2
C2005,06 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C3107 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C2007 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3108 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C2008 ECJ0EC1H330J C.CAPACITOR CH 50V 33P 1
C3109 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C2009 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3110 F3H0J1070005 T.CAPACITOR CH6.3V 100U 1
C2010 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3112 F1J1A225A003 C.CAPACITOR CH 10V 2.2M 1
C2012 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3114 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2015 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3115 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
C2017 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3116 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C2020 ECJ0EC1H060C C.CAPACITOR CH 50V 6P 1
C3117 F1J1A225A003 C.CAPACITOR CH 10V 2.2M 1
C2021 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3118 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C2022 ECJ0EC1H101J C.CAPACITOR CH 50V 100P 1
C3119 F3H0J1070005 T.CAPACITOR CH6.3V 100U 1
C2023 ECJ0EC1H060C C.CAPACITOR CH 50V 6P 1
C3121 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2028 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3123 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2029 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3125 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2030 F1G1H100A448 C.CAPACITOR CH 50V 10P 1
C3126,27 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 2
C2031 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 1
C3128,29 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C2033 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 1
C3131,32 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C2034 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3134 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C2037 ECJ0EB1A473K C.CAPACITOR CH 10V 0.047U 1
C3136,37 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C2040-42 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 3
C3138 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C2043 F1G1H100A448 C.CAPACITOR CH 50V 10P 1
C3139 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2044,45 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 2
C3140,41 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C2048 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3142 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2050,51 ECJ0EB1E102K C.CAPACITOR CH 25V 1000P 2
C3202 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2053 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3203-07 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 5
C2201,02 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C3209 F1J0J475A006 C.CAPACITOR CH6.3V 1U 1
C2203 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3211 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
C2204 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3215 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C2205-07 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 3
C3218 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C2211,12 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C3220 F1J0J475A006 C.CAPACITOR CH6.3V 1U 1
C2213 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3221-23 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 3
C2216 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
C3226 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C2217-19 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 3
C3227 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C2220 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3229 ECJ0EC1H220J C.CAPACITOR CH 50V 22P 1
C2221 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3252 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2222,23 ECJ0EB1E472K C.CAPACITOR CH 25V 4700P 2
C3253 ECJ0EC1H221J C.CAPACITOR CH 50V 220P 1
C2225 ECJ1VB1A224K T.CAPACITOR CH 10V 0.22U 1
C3254 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2226 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3255 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C2231 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3256 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C2232 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3257 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3001 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3258 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3003,04 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C3259 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3005 F1J0J475A006 C.CAPACITOR CH6.3V 1U 1
C5001 F3F0J226A007 T.CAPACITOR CH6.3V 22U 1
C3006 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C5002 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
C3007,08 ECST0JY106Z T.CAPACITOR CH6.3V 10U 2
C5003 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C3009,10 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
C5005 ECJ0EB1E681K C.CAPACITOR CH 25V 680P 1
C3011 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C5006 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3012 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
C5008 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3013 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C5012 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
C3014,15 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 2
C5013 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
C3016 ECST0GY226 T.CAPACITOR CH 4V 22U 1
C5014 ECJ1VC1H470J C.CAPACITOR CH 50V 47P 1
C3017-23 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 7
C5021-24 ECUX1H080CCV C.CAPACITOR CH 50V 8P 4
C3025-27 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 3
C5025 F3F0J226A007 T.CAPACITOR CH6.3V 22U 1
C3028 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 1
C3029-33 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 5
D201 MA2J11100L DIODE 1
C3034 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
D601 MA338 DIODE 1 MA2X338
C3035,36 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 2
D701 B0JCEE000002 DIODE 1
C3037 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
D1051,52 MA2J11100L DIODE 2
C3038 ECST0GY226 T.CAPACITOR CH 4V 22U 1
D1082 MA2J11100L DIODE 1
C3039 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
D1101 MAZ81200LL DIODE 1
C3040 ECJ0EC1H050C C.CAPACITOR CH 50V 5P 1
D1151 MAZ81600ML DIODE 1
C3041 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
D1152 MA2J11100L DIODE 1
C3042 ECJ0EC1H050C C.CAPACITOR CH 50V 5P 1
D1421 MA2J11100L DIODE 1
C3043 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
D2001 MA2S72800L DIODE 1
C3044 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
D2004 MA2J11100L DIODE 1
C3046-49 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 4
D2005 MA3S13300L DIODE 1
C3050 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
D2009 MA2S72800L DIODE 1
C3051 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
D3101 MA2J11100L DIODE 1
112
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
D6901-04 MA3S781D0L DIODE 4
LB3006 J0JBC0000013 FILTER 1
D6905,06 MA2S72800L DIODE 2
LB3007 J0JCC0000071 FILTER 1
D6908 MA2S72800L DIODE 1
LB3013-16 J0JCC0000071 FILTER 4
LB3201 J0JBC0000013 FILTER 1
FL1001 J0MAB0000091 FILTER 1
LB3203 J0JBC0000013 FILTER 1
LB3205-07 J0JBC0000013 FILTER 3
FP601 K1MN26A00043 CONNECTOR 1
LB5001-03 J0JCC0000071 FILTER 3
FP701 K1MN22A00042 CONNECTOR 1
FP801 K1MN22A00042 CONNECTOR 1
P4201 VJP3172D002 CONNECTOR (MALE) 1 K1KA02B00051
FP2201 K1MN18B00059 CONNECTOR 1
FP2202 K1MN10B00032 CONNECTOR 1
PP201 K1KA14A00100 CONNECTOR (MALE) 1
FP2203 K1MN26B00063 CONNECTOR 1
PP3001 K1KA60B00052 CONNECTOR (MALE) 1
FP4801 K1MN39B00001 CONNECTOR 1
FP5001 K1MN08B00049 CONNECTOR 1
PS3901 K1KBA0A00081 CONNECTOR (FEMALE) 1
FP6301 K1MN20A00023 CONNECTOR 1
FP6302 K1MN18A00011 CONNECTOR 1
Q201 B1ACGD000006 TRANSISTOR 1
Q203,04 B1ACGD000006 TRANSISTOR 2
IC201 MN52A4 IC 1
Q602,03 B1ACGD000006 TRANSISTOR 2
IC202 C1AB00001334 IC 1
Q701 XN4501 TRANSISTOR-RESISTOR 1
IC203 C0DBCGF00001 IC 1
Q702 2SB1462JHL TRANSISTOR 1
IC204 C0DBZFA00008 IC 1
Q705 B1ACGD000006 TRANSISTOR 1
IC305 MN31121SA IC 1
Q706 XN0460100L TRANSISTOR-RESISTOR 1
IC601 C0HBA0000094 IC 1
Q707 B1ADPC000004 TRANSISTOR 1
IC701 C0GBC0000005 IC 1
Q708 XP0450100L TRANSISTOR 1
IC702 C0ABCA000053 IC 1
Q1011 B1ZBZ0000018 TRANSISTOR 1
IC703 C0ABAA000046 IC 1
Q1021 B1ZBZ0000018 TRANSISTOR 1
IC1001 C0DBAFA00012 IC 1
Q1041 B1ZBZ0000018 TRANSISTOR 1
IC1321 C0DBZFZ00003 IC 1
Q1051 B1BDBD000020 TRANSISTOR 1
IC2001 C2DBLJ000082 IC 1
Q1061,62 B1ZBZ0000018 TRANSISTOR 2
IC2002 C2BBFD000328 IC 1
Q1321 B1BDBD000020 TRANSISTOR 1
IC2003 C0CBABB00037 IC 1
Q1341 2SB0970X0L TRANSISTOR 1
IC2004 C0EBE0000091 IC 1
Q1342 XP1501 TRANSISTOR-RESISTOR 1
IC2005 C0ABAA000046 IC 1
Q1381 2SB1462JHL TRANSISTOR 1
IC2006 C0BBBA000059 IC 1
Q1382 XP1501 TRANSISTOR-RESISTOR 1
IC2007 C1ZBZ0001483 IC 1
Q1383 2SB1462JHL TRANSISTOR 1
IC2008 C3EAGG000001 IC 1
Q1384 XP1501 TRANSISTOR-RESISTOR 1
IC2009 C0FBBD000079 IC 1
Q1411 2SB1462JHL TRANSISTOR 1
IC2201 C0GBG0000023 IC 1
Q1422 2SB1462JHL TRANSISTOR 1
IC3001 C1AB00001130 IC 1
Q1451 2SD2216J0L TRANSISTOR 1
IC3002 AN2903FJQ-V IC 1
Q1452 XP1401 TRANSISTOR-RESISTOR 1
IC3004 C0FBZJ000005 IC 1
Q1453 2SB1462JHL TRANSISTOR 1
IC3201 C1AB00001132 IC 1
Q1481 2SD2216J0L TRANSISTOR 1
IC3202 C1AB00001612 IC 1
Q1482 XP1401 TRANSISTOR-RESISTOR 1
IC5001 AN3732FJMEFV IC 1
Q2007 B1ACGD000006 TRANSISTOR 1
Q2011 B1HFCFA00010 TRANSISTOR 1
IP1001 K5H3121A0005 FUSE 1
IP1003 K5H8011A0004 FUSE 1
QR201 B1GBCFJJ0022 TRANSISTOR 1
QR601 UNR9112J0L TRANSISTOR 1
L601 VLQ0426J100 COIL 10UH 1 G1C100J00008
QR602-04 UNR9213J0L TRANSISTOR 3
L1011 G1C470MA0024 COIL 47UH 1
QR701 UNR9215J0L TRANSISTOR 1
L1021 G1C150MA0024 COIL 15UH 1
QR702 XP0121400L TRANSISTOR 1
L1041 G1C330MA0024 COIL 33UH 1
QR703 UNR9214J0L TRANSISTOR 1
L1061 G1C330MA0024 COIL 33UH 1
QR704 B1GBCFEN0001 TRANSISTOR 1
L1062 G1C101MA0024 COIL 100UH 1
QR705 UNR9211J0L TRANSISTOR 1
L1211 G1C4R7MA0031 COIL 4.7UH 1
QR706 UNR9214J0L TRANSISTOR 1
L1212 G1C100MA0031 COIL 100UH 1
QR1001 UNR9111J0L TRANSISTOR 1
L1221 G1C4R7M00013 COIL 4.7UH 1
QR1101 UNR9214J0L TRANSISTOR 1
L1222-26 VLQ0319K100 COIL 10UH 5 G1C100K00023
QR1161 UNR9115J0L TRANSISTOR 1
L1241 G1C4R7MA0031 COIL 4.7UH 1
QR1351 UNR9213J0L TRANSISTOR 1
L1251,52 VLQ0319K100 COIL 10UH 2 G1C100K00023
QR1352 UNR9113J0L TRANSISTOR 1
L1281,82 VLQ0319K100 COIL 10UH 2 G1C100K00023
QR1411 UNR9212J0L TRANSISTOR 1
L1321,22 VLQ0319K100 COIL 10UH 2 G1C100K00023
QR1412 XP0431400L TRANSISTOR 1
L1341 G1C4R7MA0031 COIL 4.7UH 1
QR1451 UNR9213J0L TRANSISTOR 1
L2003 G1C100K00019 COIL 10UH 1
QR1481 UNR9212J0L TRANSISTOR 1
L3002 VLQ0807K100 COIL 10UH 1 G1C100K00024
QR1482 UNR9113J0L TRANSISTOR 1
L3009 G1C100K00019 COIL 10UH 1
QR2001 B1GDBEJG0002 TRANSISTOR 1
L3011,12 VLQ0807K100 COIL 10UH 2 G1C100K00024
QR2002 UNR921FJ0L TRANSISTOR 1
L3017 G1C100K00025 COIL 10UH 1
QR2005 UNR921FJ0L TRANSISTOR 1
QR2006 B1GHCFJA0003 TRANSISTOR 1
LB201,02 J0JBC0000013 FILTER 2
QR2008 B1GDCFJA0006 TRANSISTOR 1
LB203-05 J0JCC0000071 FILTER 3
LB701 J0JCC0000071 FILTER 1
R203 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
LB703 J0JCC0000071 FILTER 1
R204 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
LB2001,02 J0JBC0000013 FILTER 2
R205-07 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 3
LB3001-04 J0JBC0000013 FILTER 4
R208 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
113
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R209 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
R747 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
R210 ERJ2GEJ105 M.RESISTOR CH 1/16W 1M 1
R748 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R211-14 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 4
R750 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R216 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R751 ERJ2GEJ562 M.RESISTOR CH 1/16W 5.6K 1
R217 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R752 ERJ2GEJ683 M.RESISTOR CH 1/16W 68K 1
R218,19 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R753 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R221,22 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R754 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R226 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R755 ERJ2GEJ683 M.RESISTOR CH 1/16W 68K 1
R227 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R756 ERJ2GEJ333 M.RESISTOR CH 1/16W 33K 1
R229 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R757 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R232 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R758 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R602-05 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 4
R759 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R606 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R760 ERJ2GEJ393 M.RESISTOR CH 1/16W 39K 1
R608 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R761 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R609 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1001 ERJ8GEY0R00 M.RESISTOR CH 1/8W 0 1
R610,11 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 2
R1011 ERJ3RBD682 M.RESISTOR CH 1/16W 6.8K 1
R612 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R1012,13 ERJ2RKD820 M.RESISTOR CH 1/16W 82 2
R613 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R1014 ERJ3RBD361 M.RESISTOR CH 1/16W 360 1
R614 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1015 ERJ3RBD272 M.RESISTOR CH 1/16W 2.7K 1
R615 ERJ2GEJ333 M.RESISTOR CH 1/16W 33K 1
R1021 ERJ3RBD272 M.RESISTOR CH 1/16W 2.7K 1
R616 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 1
R1022,23 ERJ2RKD820 M.RESISTOR CH 1/16W 82 2
R617 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R1024 ERJ3RBD221 M.RESISTOR CH 1/16W 220 1
R618,19 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 2
R1025 ERJ3RBD272 M.RESISTOR CH 1/16W 2.7K 1
R626 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1041 ERJ3RBD561 M.RESISTOR CH 1/16W 560 1
R629 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R1042,43 ERJ2RKD820 M.RESISTOR CH 1/16W 82 2
R631 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R1044 ERJ3RBD681 M.RESISTOR CH 1/16W 680 1
R632 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R1045 ERJ3RBD272 M.RESISTOR CH 1/16W 2.7K 1
R634 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R1051 ERJ6RBB273 M.RESISTOR CH 1/10W 27K 1
R635 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R1052,53 ERJ2RKD820 M.RESISTOR CH 1/16W 82 2
R636 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R1054 ERJ3RBD271 M.RESISTOR CH 1/16W 270 1
R638-40 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 3
R1055 ERJ6RBB272 M.RESISTOR CH 1/10W 2.7K 1
R641 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R1056 ERJ2GEJ331 M.RESISTOR CH 1/16W 330 1
R642 ERJ6GEYJ4R7 M.RESISTOR CH 1/10W 4.7K 1
R1101 ERJ2RHD223 M.RESISTOR CH 1/16W 22K 1
R643 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R1103 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R644 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R1104 ERJ2GEJ123 M.RESISTOR CH 1/16W 12K 1
R645 ERJ2RHD393 M.RESISTOR CH 1/16W 39K 1
R1105 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R646 ERJ2RHD333 M.RESISTOR CH 1/16W 33K 1
R1107 ERJ2GEJ225 M.RESISTOR CH 1/16W 2.2M 1
R651 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R1112 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R652,53 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R1122 ERJ2GEJ682 M.RESISTOR CH 1/16W 6.8K 1
R657 ERJ2GEJ394 M.RESISTOR CH 1/16W 390K 1
R1141 ERJ2GEJ471 M.RESISTOR CH 1/16W 470 1
R661 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R1142 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R701,02 ERJ3GEYJ4R7 M.RESISTOR CH 1/16W 4.7 2
R1151 ERJ2GEJ151 M.RESISTOR CH 1/16W 150 1
R703 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R1152 ERJ2GEJ562 M.RESISTOR CH 1/16W 5.6K 1
R704,05 ERJ3GEYJ4R7 M.RESISTOR CH 1/16W 4.7 2
R1153 ERJ2RHD243 M.RESISTOR CH 1/16W 24K 1
R706 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R1154 ERJ2RHD104 M.RESISTOR CH 1/16W 100K 1
R707,08 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 2
R1155 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R709 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R1161 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R710 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R1341 ERJ2RKD820 M.RESISTOR CH 1/16W 82 1
R711 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R1343 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
R712 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R1344 ERJ2GEJ221 M.RESISTOR CH 1/16W 220 1
R713 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R1345 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R714 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1349 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R715 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R1381 ERJ2RHD223 M.RESISTOR CH 1/16W 22K 1
R716 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1382 ERJ2RHD221 M.RESISTOR CH 1/16W 220 1
R717 ERJ2GEJ221 M.RESISTOR CH 1/16W 220 1
R1383 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
R718 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R1384 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R719 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R1386 ERJ2RHD822 M.RESISTOR CH 1/16W 8.2K 1
R720 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R1387 ERJ2RHD271 M.RESISTOR CH 1/16W 270 1
R721 ERJ2GEJ184 M.RESISTOR CH 1/16W 180K 1
R1388 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
R722 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1389 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R723 ERJ2GEJ155 M.RESISTOR CH 1/16W 1.5M 1
R1401 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R724-26 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 3
R1402 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R727 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R1403 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R728 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R1404 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R729 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R1411 ERJ2GEJ203 M.RESISTOR CH 1/16W 20K 1
R730 ERJ2GEJ824 M.RESISTOR CH 1/16W 820K 1
R1412 ERJ2GEJ822 M.RESISTOR CH 1/16W 8.2K 1
R731 ERJ2GEJ274 M.RESISTOR CH 1/16W 270K 1
R1421 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R732 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R1422 ERJ2GEJ242 M.RESISTOR CH 1/16W 2.4K 1
R733-35 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 3
R1451 ERJ2RHD113 M.RESISTOR CH 1/16W 11K 1
R736 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R1452 ERJ2RHD561 M.RESISTOR CH 1/16W 560 1
R737 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K 1
R1453 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
R738,39 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 2
R1454 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R741 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R1456 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R742 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R1457 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R744 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R1481 ERJ2RHD223 M.RESISTOR CH 1/16W 22K 1
114
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R1482 ERJ2RHD242 M.RESISTOR CH 1/16W 2.4K 1
R2097 ERJ2GEJ392 M.RESISTOR CH 1/16W 3.9K 1
R1483 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
R2098,99 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R1484 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R2100-04 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 5
R2000 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2105 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2001 ERJ2GEJ394 M.RESISTOR CH 1/16W 390K 1
R2106,07 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2002 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2108 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2003 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2109,10 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 2
R2004-07 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 4
R2111 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2008 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2112 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2009,10 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2113 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2011 ERJ2GEJ181 M.RESISTOR CH 1/16W 180 1
R2114 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2012 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2115 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2013 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2116 ERJ2GEJ105 M.RESISTOR CH 1/16W 1M 1
R2014 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R2117 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
R2015 ERJ2GEJ391 M.RESISTOR CH 1/16W 390 1
R2118,19 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 2
R2016 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2120-22 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 3
R2017 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2123 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2018,19 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2124,25 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R2020 ERJ2GEJ331 M.RESISTOR CH 1/16W 330 1
R2126,27 ERJ2GEJ331 M.RESISTOR CH 1/16W 330 2
R2021 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2128 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2022 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2129 ERJ2RHD473 M.RESISTOR CH 1/16W 47K 1
R2023 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2132 ERJ2RHD103 M.RESISTOR CH 1/16W 10K 1
R2024,25 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2133 ERJ2RHD273 M.RESISTOR CH 1/16W 27K 1
R2026 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2134,35 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2027 ERJ2GEJ474 M.RESISTOR CH 1/16W 470K 1
R2136 ERJ2RHD473 M.RESISTOR CH 1/16W 47K 1
R2028 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2137 ERJ2RHD273 M.RESISTOR CH 1/16W 27K 1
R2029 ERJ2GEJ394 M.RESISTOR CH 1/16W 390K 1
R2138 ERJ2RHD103 M.RESISTOR CH 1/16W 10K 1
R2030 ERJ2GEJ274 M.RESISTOR CH 1/16W 270K 1
R2139 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R2031 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2141 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2032 ERJ2GEJ331 M.RESISTOR CH 1/16W 330 1
R2142 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2033 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2143-45 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 3
R2034 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 1
R2146 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2035 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2147,48 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2036 ERJ2RHD563 M.RESISTOR CH 1/16W 56K 1
R2153 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2037 ERJ2RHD223 M.RESISTOR CH 1/16W 22K 1
R2154 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2038 ERJ2GEJ393 M.RESISTOR CH 1/16W 39K 1
R2155 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R2039 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R2157-60 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 4
R2040 ERJ6GEYG101 M.RESISTOR CH 1/10W 100 1
R2161 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 1
R2041 ERJ2GEJ681 M.RESISTOR CH 1/16W 680 1
R2162 ERJ2GEJ104 M.RESISTOR CH 1/16W 100K 1
R2042 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2163 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2043 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K 1
R2164 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2044,45 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 2
R2165,66 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2048,49 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 2
R2167 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2050 ERJ2GEJ105 M.RESISTOR CH 1/16W 1M 1
R2168 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2051 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2169 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2053,54 ERJ2GEJ562 M.RESISTOR CH 1/16W 5.6K 2
R2170 ERJ2GEJ822 M.RESISTOR CH 1/16W 8.2K 1
R2055 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2171 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2056 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2172 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2057 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2173 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2058 ERJ2GEJ562 M.RESISTOR CH 1/16W 5.6K 1
R2174 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2059 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2175-78 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 4
R2060 ERJ2GEJ394 M.RESISTOR CH 1/16W 390K 1
R2179 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2061 ERJ2GEJ393 M.RESISTOR CH 1/16W 39K 1
R2180,81 ERJ2GEJ122 M.RESISTOR CH 1/16W 1.2K 2
R2062 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 1
R2182 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2063 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2183 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2064 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R2184 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2065 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2185 ERJ6GEYG330 M.RESISTOR CH 1/10W 33 1
R2066,67 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R2186 ERJ2GEJ822 M.RESISTOR CH 1/16W 8.2K 1
R2069 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2187-89 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 3
R2070 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R2190 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2072 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2191 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2073,74 ERJ2GEJ563 M.RESISTOR CH 1/16W 56K 2
R2192 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2075 ERJ2GEJ152 M.RESISTOR CH 1/16W 1.5K 1
R2193 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2076,77 ERJ2GEJ563 M.RESISTOR CH 1/16W 56K 2
R2194 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2078 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2195 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R2079 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2196 ERJ2GEJ122 M.RESISTOR CH 1/16W 1.2K 1
R2081 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R2197 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2082,83 ERJ2GEJ154 M.RESISTOR CH 1/16W 150K 2
R2198 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2084-87 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 4
R2199 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
R2088-90 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 3
R2201 ERJ2GEJ101 M.RESISTOR CH 1/16W 100 1
R2091 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R2202 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
R2092 ERJ2GEJ332 M.RESISTOR CH 1/16W 3.3K 1
R2203 ERJ2GEJ823 M.RESISTOR CH 1/16W 82K 1
R2093 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2204 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
R2094 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R2205-08 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 4
R2096 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2209 ERJ2GEJ224 M.RESISTOR CH 1/16W 220K 1
115
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R2210 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
R5004 ERJ2GEJ182 M.RESISTOR CH 1/16W 1.8K 1
R2211 ERJ8RQJR27 M.RESISTOR CH 1/8W 0.27 1
R5006 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
R2212 ERJ2GEJ122 M.RESISTOR CH 1/16W 1.2K 1
R5007,08 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
R2213 ERJ8RQJR27 M.RESISTOR CH 1/8W 0.27 1
R5009-12 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 4
R2214 ERJ2GEJ273 M.RESISTOR CH 1/16W 27K 1
R5015 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R2216 ERJ2GEJ393 M.RESISTOR CH 1/16W 39K 1
R6901,02 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 2
R2219 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R6906,07 ERJ3GEYJ330 M.RESISTOR CH 1/16W 33 2
R2222 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R6908 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R2224,25 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 2
R6911-13 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 3
R3001 ERJ2GEJ100 M.RESISTOR CH 1/16W 10 1
R3002 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
T1051 G5DYA0000023 TRANSFORMER 1
R3004 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R3005 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
W2006 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R3006 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R3007 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
X201 H1A3605B0001 CRYSTAL OSCILLATOR 1
R3008 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
X2002 H0J327200051 CRYSTAL OSCILLATOR 1
R3010-12 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 3
X2003 H0J270500024 CRYSTAL OSCILLATOR 1
R3015 ERJ2GEJ273 M.RESISTOR CH 1/16W 27K 1
X3001 H0J245500021 CRYSTAL OSCILLATOR 1
R3016 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
R3017 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
MISCELLANEOUS
R3021 ERJ2GEJ123 M.RESISTOR CH 1/16W 12K 1
R3022-24 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 3
VEE0U52 POWER CABLE ASS'Y 1
R3030-32 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 3
VEE0U53 BATTERY CABLE ASS'Y 1
R3033 ERJ2GEJ105 M.RESISTOR CH 1/16W 1M 1
VJR0811 TERMINAL 3
R3034 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
VGQ5174 SHEET 1
R3035 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
R3036 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R3037 ERJ2GEJ273 M.RESISTOR CH 1/16W 27K 1
R3041 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
R3101 ERJ2GEJ682 M.RESISTOR CH 1/16W 6.8K 1
R3102 ERJ2GEJ392 M.RESISTOR CH 1/16W 3.9K 1
R3103 ERJ2GEJ391 M.RESISTOR CH 1/16W 390 1
E2 VEP06F10A MOTHER C.B.A. 1 (RTL)
R3104 ERJ2GEJ122 M.RESISTOR CH 1/16W 1.2K 1
R3105,06 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 2
R3107 ERJ2GEJ100 M.RESISTOR CH 1/16W 10 1
B6501 ML920S/F9D LITHIUM BATTERY 1
R3108 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
R3109 ERJ2GEJ100 M.RESISTOR CH 1/16W 10 1
C501 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3110 ERJ2GEJ182 M.RESISTOR CH 1/16W 1.8K 1
C502 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
R3111 ERJ2GEJ391 M.RESISTOR CH 1/16W 390 1
C3502 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
R3112 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
C3504,05 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 2
R3113 ERJ2GEJ394 M.RESISTOR CH 1/16W 390K 1
C3506 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3115 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
C3507 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 1
R3116 ERJ2GEJ182 M.RESISTOR CH 1/16W 1.8K 1
C3509,10 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 2
R3118,19 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 2
C3512,13 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 2
R3120 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
C3514,15 ECJ1VB1H102K C.CAPACITOR CH 50V 1000P 2
R3122 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
C3516 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
R3124 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
C3517,18 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 2
R3125 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
C3519 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3126,27 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 2
C3521-23 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 3
R3128 ERJ2GEJ472 M.RESISTOR CH 1/16W 4.7K 1
C3551 ECJ1VC1H220J C.CAPACITOR CH 50V 22P 1
R3129 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
C3552,53 ECJ1VC1H560J C.CAPACITOR CH 50V 560P 2
R3130 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
C3554 ECJ1VC1H220J C.CAPACITOR CH 50V 22P 1
R3131 ERJ2GEJ562 M.RESISTOR CH 1/16W 5.6K 1
C3555 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3132 ERJ2GEJ392 M.RESISTOR CH 1/16W 3.9K 1
C3556 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
R3133 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
C3557 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3151 ERJ2GEJ222 M.RESISTOR CH 1/16W 2.2K 1
C3558-60 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 3
R3201 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
C3561 ECJ1VC1H220J C.CAPACITOR CH 50V 22P 1
R3203 ERJ2GEJ470 M.RESISTOR CH 1/16W 47 1
C3562 ECJ1VC1H560J C.CAPACITOR CH 50V 560P 1
R3204 ERJ2GEJ181 M.RESISTOR CH 1/16W 180 1
C3563 ECUX1H390JCV C.CAPACITOR CH 50V 39P 1
R3205 ERJ2RHD272 M.RESISTOR CH 1/16W 2.7K 1
C3569 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 1
R3209 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
C3581,82 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 2
R3210 ERJ2GEJ153 M.RESISTOR CH 1/16W 15K 1
C4221,22 ECST0JY106Z T.CAPACITOR CH6.3V 10U 2
R3211,12 ERJ2GEJ681 M.RESISTOR CH 1/16W 680 2
C6503,04 ECJ1VC1H470J C.CAPACITOR CH 50V 47P 2
R3213 ERJ2GEJ273 M.RESISTOR CH 1/16W 27K 1
C6505 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
R3215 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 1
C6507 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
R3216 ERJ2GEJ223 M.RESISTOR CH 1/16W 22K 1
C6512,13 ECJ1VC1H330J C.CAPACITOR CH 50V 33P 2
R3217 ERJ2GEJ102 M.RESISTOR CH 1/16W 1K 1
R3218 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
D6501 MA2SD2400L DIODE 1
R3229 ERJ2GEJ100 M.RESISTOR CH 1/16W 10 1
R3251-54 ERJ2RKD560 M.RESISTOR CH 1/16W 56 4
FP6503 K1MN26A00038 CONNECTOR 1
R3255,56 ERJ2GEJ103 M.RESISTOR CH 1/16W 10K 2
FP6504 K1MN39B00001 CONNECTOR 1
R3257 ERJ2RHD622 M.RESISTOR CH 1/16W 6.2K 1
FP6505 K1MN22A00007 CONNECTOR 1
R3258 ERJ2RHD101 M.RESISTOR CH 1/16W 100 1
FP6506 K1MN22A00042 CONNECTOR 1
R3259 ERJ2GEJ473 M.RESISTOR CH 1/16W 47K 1
FP6507 K1MN22A00007 CONNECTOR 1
R5001 ERJ2GE0R00 M.RESISTOR CH 1/16W 0 1
FP6509 K1MN08A00032 CONNECTOR 1
116
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
FP6511 K1MN20A00023 CONNECTOR 1
R3557,58 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 2
FP6516 K1MN50B00013 CONNECTOR 1
R3559 ERJ3GEYJ821 M.RESISTOR CH 1/16W 820 1
FP6518 K1MN05B00028 CONNECTOR 1
R3560 ERJ3GEYJ222 M.RESISTOR CH 1/16W 2.2K 1
FP6520 K1MN08A00032 CONNECTOR 1
R3561,62 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 2
FP6521 K1MN18A00011 CONNECTOR 1
R3563 ERJ3GEYJ222 M.RESISTOR CH 1/16W 2.2K 1
R3568 ERJ3GEYJ183 M.RESISTOR CH 1/16W 18K 1
IC501 C0JBAS000075 IC 1
R3580 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 1
IC502,03 C0JBAZ000516 IC 2
R3584-86 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 3
IC504 TC7SH04F IC 1
R3591 ERJ3GEYG152 M.RESISTOR CH 1/16W 1.5K 1
IC507 C0CBCAC00046 IC 1
R3592 ERJ3GEYJ821 M.RESISTOR CH 1/16W 820 1
IC3501 C1AB00001280 IC 1
R3593 ERJ3GEYG152 M.RESISTOR CH 1/16W 1.5K 1
IC3502 C0ABAA000046 IC 1
R3594 ERJ3GEYJ821 M.RESISTOR CH 1/16W 820 1
IC3503 C1AB00000647 IC 1
R4205 ERJ3GEYJ562 M.RESISTOR CH 1/16W 5.6K 1
IC6501 C0CBCBC00029 IC 1
R4208,09 ERJ3GEYJ330 M.RESISTOR CH 1/16W 33 2
IC6502 C0CBABC00124 IC 1
R4210,11 ERJ3GEYG332 M.RESISTOR CH 1/16W 3.3K 2
R4212 ERJ3GEYJ562 M.RESISTOR CH 1/16W 5.6K 1
L3505-09 VLQ0426J330 COIL 33UH 5 G1C330J00005
R4216 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R4228,29 ERJ3GEYJ680 M.RESISTOR CH 1/16W 68 2
P6510 K1KA05A00259 CONNECTOR (MALE) 1
R6502 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
P6512 VJP3125D015 CONNECTOR (MALE) 1 K1KA15B00034
R6504 ERJ6GEYG331 M.RESISTOR CH 1/10W 330 1
P6513 VJP3172D003 CONNECTOR (MALE) 1 K1KA03B00006
R6505 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
P6514 K1KA07B00061 CONNECTOR (MALE) 1
R6510,11 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 2
P6515 K1KA06A00207 CONNECTOR (MALE) 1
R6515-20 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 6
P6517 VJP3172D002 CONNECTOR (MALE) 1 K1KA02B00051
R6523-25 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 3
P6519 VJP3172D002 CONNECTOR (MALE) 1 K1KA02B00051
R6526 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
P6520 K1KA05A00259 CONNECTOR (MALE) 1
R6539 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 1
R6540-42 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 3
PP6501 K1KAA0A00092 CONNECTOR (MALE) 1
R6543,44 ERJ3GEYJ392 M.RESISTOR CH 1/16W 3.9K 2
PP6508 K1KA30A00106 CONNECTOR (MALE) 1
MISCELLANEOUS
Q3501 B1ACGD000006 TRANSISTOR 1
Q3503,04 2SB1218AHL TRANSISTOR 2
VEE0W08 GND SUPPORT CABLE ASS'Y 1
Q3505 2SD1819A0L TRANSISTOR 1
VEE8184
AV JACK A MECHA CHASSIS EARTH CABLE
1
Q3508 2SD1819A0L TRANSISTOR 1
Q3581-83 2SD1819A0L TRANSISTOR 3
Q4201 XN4504 TRANSISTOR-RESISTOR 1
QR501 UNR9215J0L TRANSISTOR 1
QR3502 B1GBBEMM0001 TRANSISTOR 1
E3 VEP06F19B EVR INT C.B.A. 1 (RTL)
QR3584 UNR9114J0L TRANSISTOR 1
QR3585 UNR9213J0L TRANSISTOR 1
QR4202 XP0431200L TRANSISTOR 1
PP6851 K1KB60A00105 CONNECTOR (FEMALE) 1
PP6852,53 K1KA30A00149 CONNECTOR (MALE) 2
R501 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
R502 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 1
R503 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
R504 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
R505 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
R506 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
E4 VEP22335A CCD C.B.A. 1 (RTL)
R507 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 1
R508,09 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 2
R3501 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
C294 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
R3502 ERJ3GEYJ392 M.RESISTOR CH 1/16W 3.9K 1
C295 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
R3503 ERJ3RBD332 M.RESISTOR CH 1/16W 3.3K 1
R3504 ERJ3RBD181 M.RESISTOR CH 1/16W 180 1
D291 MA3J14300L DIODE 1
R3505,06 ERJ3RBD102 M.RESISTOR CH 1/16W 1K 2
R3507 ERJ3RBD392 M.RESISTOR CH 1/16W 3.9K 1
FP291 K1MN14A00041 CONNECTOR 1
R3508 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R3509 ERJ3GEYJ750 M.RESISTOR CH 1/16W 75 1
Q291 2SC3930 TRANSISTOR 1
R3510,11 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 2
R3512 ERJ3GEYJ680 M.RESISTOR CH 1/16W 68 1
R292 ERJ6GEYF822 M.RESISTOR CH 1/10W 8.2K 1
R3513 ERJ3GEYJ750 M.RESISTOR CH 1/16W 75 1
R3514 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R3515 ERJ3GEYJ331 M.RESISTOR CH 1/16W 330 1
R3516-18 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 3
R3519 ERJ3GEYG682 M.RESISTOR CH 1/16W 6.8K 1
R3520 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
E5 VEP06F12A BATTERY INT C.B.A. 1 (RTL)
R3521 ERJ3GEYJ202 M.RESISTOR CH 1/16W 2K 1
R3522 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R3551 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 1
C6751 F1J0J475A008 C.CAPACITOR CH6.3V 4.7U 1
R3552 ERJ3GEYG472 M.RESISTOR CH 1/16W 4.7K 1
C6752 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
R3553 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
R3554 ERJ3GEYJ202 M.RESISTOR CH 1/16W 2K 1
FP6751 VJS3319B014 CONNECTOR (FEMALE) 1
R3555 ERJ3GEYG332 M.RESISTOR CH 1/16W 3.3K 1
R3556 ERJ3GEYJ103 M.RESISTOR CH 1/16W 10K 1
JK6751 K2EC3A000001 JACK 1
117
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
P6751 K1KA05A00102 CONNECTOR (MALE) 1
R6601-04 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 4
S6601 ESE103119 SWITCH 1
S6602 VMG0763 SWITCH 1
S6603 EVQPLPA08 SWITCH 1
E6 VEP06F17A ZOOM C.B.A. 1 (RTL)
FP6661 K1MN03B00002 CONNECTOR 1
E10 VEP06F15A EJECT C.B.A. 1 (RTL)
P6660 VJP3172D003 CONNECTOR (MALE) 1 K1KA03B00006
P6620 K1KA02A00385 CONNECTOR (MALE) 1
S6620 ESD165236 SWITCH 1
E7 VEP06F16A PHOTO SHOT C.B.A. 1 (RTL)
P6640 VJP3172D004 CONNECTOR (MALE) 1 K1KA04B00007
E11 VEP04824B AV JACK C.B.A. 1 (RTL)
S6640 EVQP1D05M SWITCH 1
C4501 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C4507,08 ECJ1VB1H472K C.CAPACITOR CH 50V 4700P 2
C4511 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C4512,13 ECJ1ZB1H103K C.CAPACITOR CH 50V 0.01U 2
E8 VEP06F13A FRONT C.B.A. 1 (RTL)
D4501 B0BC6R100014 DIODE 1
D4511 B0BC6R100014 DIODE 1
C6801 ECJ1VB1C104K C.CAPACITOR CH 16V 0.1U 1
C6802 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
JK4501 K2HZ106B0005 JACK 1
C6803 F1H0J474A002 T.CAPACITOR CH6.3V 0.47U 1
JK4502 K2HA306B0067 JACK 1
C6804 ECJ1VB1C104K C.CAPACITOR CH 16V 0.1U 1
JK4511 K2HC103B0143 JACK 1
C6806 ECJ1VB1C104K C.CAPACITOR CH 16V 0.1U 1
LB4501-03 VLF1144A102 FILTER 3
D6801 LN28CALUS DIODE 1
LB4504,05 J0JBC0000034 FILTER 2
D6802 B3GA00000022 DIODE 1
LB4511-13 VLF1144A102 FILTER 3
D6803 MA3S132D0L DIODE 1
D6804,05 B0BC6R100014 DIODE 2
P4501 VJP3125D015 CONNECTOR (MALE) 1 K1KA15B00034
IR6801 PNA4618M05VT REMOCON 1
R4503 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
P6801 VJP3172D005 CONNECTOR (MALE) 1 K1KA05B00053
Q6801 2SD103000L TRANSISTOR 1
Q6802 2SD1819A-R TRANSISTOR 1
E12 VEP03G26A DV TERMINAL C.B.A. 1 (RTL)
R6801 ERJ6GEYG181 M.RESISTOR CH 1/10W 180 1
R6802 ERJ6GEYG470 M.RESISTOR CH 1/10W 47 1
R6803 ERJ3GEYG472 M.RESISTOR CH 1/16W 4.7K 1
JK4591 K1FA104A0011 CONNECTOR 1
R6804 ERJ3GEYJ182 M.RESISTOR CH 1/16W 1.8K 1
R6805 ERJ3GEYJ334 M.RESISTOR CH 1/16W 330K 1
P4591 K1KA05A00259 CONNECTOR (MALE) 1
R6806 ERJ3GEYJ225 M.RESISTOR CH 1/16W 2.2M 1
R6807 ERJ3GEYJ106 M.RESISTOR CH 1/16W 10M 1
MISCELLANEOUS
VMX1658 LED HOLDER 1
E13 VEP06F11A SIDE (R) C.B.A. 1 (RTL)
VEE0U55 FRONT CABLE ASS'Y 1
VJS3172B005 CONNECTOR (FEMALE) 5P 2
FP6701 K1MN50B00014 CONNECTOR 1
FP6702 K1MN26A00043 CONNECTOR 1
FP6703 K1MN21B00033 CONNECTOR 1
P6701,02 VJP3172D002 CONNECTOR (MALE) 2 K1KA02B00051
E9 VEP06F14A S/S & POWER C.B.A. 1 (RTL)
R6701,02 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 2
R6705 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
D6601 CL150YG DIODE 1
R6906-08 ERJ6GEYG102 M.RESISTOR CH 1/10W 1K 3
D6602 B3AAB0000050 DIODE 1
S6701 K0H1BA000260 SWITCH 1
FP6601 K1MN08B00040 CONNECTOR 1
118
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R919 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R920 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R921 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
R922 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 1
E14 VEP26254D MONITOR C.B.A. 1 (RTL)
R923 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
VEP06E18A HOLE SENSOR FPC C.B.A. 1 (RTL)FOR VEP26254D
R924 ERJ3GEYJ223 M.RESISTOR CH 1/16W 22K 1
R925 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
R926 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
C903 ECST0JY106Z T.CAPACITOR CH6.3V 10U 1
R927 ERJ3GEYJ393 M.RESISTOR CH 1/16W 39K 1
C906 ECJ0EB1E471K C.CAPACITOR CH 25V 470P 1
R928 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
C907-09 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 3
R929 ERJ3GEYJ220 M.RESISTOR CH 1/16W 22 1
C910 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
R930 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
C911 ECJ0EB1E471K C.CAPACITOR CH 25V 470P 1
R931 ERJ3GEYJ393 M.RESISTOR CH 1/16W 39K 1
C913 ECJ0EB1E471K C.CAPACITOR CH 25V 470P 1
R932 ERJ3RBD203 M.RESISTOR CH 1/16W 20K 1
C916-18 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 3
R933 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
C921 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
R934 ERJ3GEYJ103 M.RESISTOR CH 1/16W 10K 1
C923 ECJ4YB1C106V C.CAPACITOR CH 16V 10U 1
R936 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 1
C927 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
R937 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
C929 ECJ0EB1E152K C.CAPACITOR CH 25V 1500P 1
R938,39 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 2
C931 ECJ2YB1A105K C.CAPACITOR CH 10V 1U 1
R940,41 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 2
C932 ECJ3YB1E105K T.CAPACITOR CH 25V 1M 1
R942,43 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 2
C934 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
R945 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
C935 ECJ4YB1C106V C.CAPACITOR CH 16V 10U 1
R946 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
C937 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U 1
R947 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
C938 ECJ0EC1H101J C.CAPACITOR CH 50V 100P 1
R948,49 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 2
C939 ECJ1VC1H331G C.CAPACITOR CH 50V 330P 1
R950 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
C940 ECJ0EC1H560J C.CAPACITOR CH 50V 56P 1
R951 ERJ3GEYJ560 M.RESISTOR CH 1/16W 56 1
C941 F1G1H100A448 C.CAPACITOR CH 50V 10P 1
R952 ERJ3GEYG472 M.RESISTOR CH 1/16W 4.7K 1
C942 ECJ2YB1C474K C.CAPACITOR CH 16V 0.47U 1
R953 ERJ3GEYJ823 M.RESISTOR CH 1/16W 82K 1
C943,44 ECJ1VB1A224K T.CAPACITOR CH 10V 0.22U 2
R954 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
C945 ECJ0EB1E332K C.CAPACITOR CH 25V 3300P 1
R956 ERJ3RBD103 M.RESISTOR CH 1/16W 10K 1
C946 ECJ4YB1C106V C.CAPACITOR CH 16V 10U 1
R957 ERJ3RBD101 M.RESISTOR CH 1/16W 100 1
C947,48 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 2
R958 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
C950 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
R959 ERJ3GEYJ473 M.RESISTOR CH 1/16W 47K 1
C952 ECJ2VB1E104K C.CAPACITOR CH 25V 0.1U 1
R960 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
C953 ECJ0WB1C103K C.CAPACITOR CH 16V 0.01U 1
R961 ERJ3GEYJ272 M.RESISTOR CH 1/16W 2.7K 1
R962 ERJ3GEYJ561 M.RESISTOR CH 1/16W 560 1
D903 MA3S132D0L DIODE 1
R963 ERJ3GEYJ104 M.RESISTOR CH 1/16W 100K 1
D904 MA4X159A0L DIODE 1
R964,65 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 2
D905 MA6Z12100L DIODE 1
R966 ERJ3GEYG152 M.RESISTOR CH 1/16W 1.5K 1
D906 MA2J11100L DIODE 1
R967 ERJ3GEYJ104 M.RESISTOR CH 1/16W 100K 1
D908 B0BC6R100014 DIODE 1
R968,69 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 2
R970 ERJ3GEYJ562 M.RESISTOR CH 1/16W 5.6K 1
FP901 VJS3320B024 CONNECTOR (FEMALE) 1
R971 ERJ3GEYJ335 M.RESISTOR CH 1/16W 3.3M 1
FP903 K1MN25B00033 CONNECTOR 1
R972 ERJ3GEYJ224 M.RESISTOR CH 1/16W 220K 1
R973,74 ERJ8GEYJ335 M.RESISTOR CH 1/8W 3.3M 2
IC901 AN2540FHQ-V IC 1
R975 ERJ3GEYJ223 M.RESISTOR CH 1/16W 22K 1
IC902 TC4W53FU IC 1
R976 ERJ3RBD681 M.RESISTOR CH 1/16W 680 1
IC908 SN74LV04APW IC 1 C0JBAB000247
R977 ERJ3RED180 M.RESISTOR CH 1/16W 18 1
IC991 DN8797MSC IC 1 FOR VEP06E18A
R978 ERJ6GEYJ335 M.RESISTOR CH 1/10W 3.3M 1
R979 ERJ3GEYJ224 M.RESISTOR CH 1/16W 220K 1
L901 VLQ0807K100 COIL 10UH 1 G1C100K00024
R980 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 1
L905 VLQ0807K100 COIL 10UH 1 G1C100K00024
R983 ERJ3GEYJ333 M.RESISTOR CH 1/16W 33K 1
R988 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
Q901 B1HBCFA00001 TRANSISTOR 1
R989 ERJ3GEYJ104 M.RESISTOR CH 1/16W 100K 1
Q902 B1DFCG000004 TRANSISTOR 1
Q903 B1HFCFA00010 TRANSISTOR 1
T901 ETJ09K59AZ TRANSFORMER 1
Q905 B1HFCFA00010 TRANSISTOR 1
T902 EFTU21R203 TRANSFORMER 1
Q906 2SB1462J0L TRANSISTOR 1
QR901 UNR9210J0L TRANSISTOR 1
QR902,03 UNR9214J0L TRANSISTOR 2
QR904 UNR9210J0L TRANSISTOR 1
QR905 UNR9212J0L TRANSISTOR 1
E15 VEP28298A EVF INT C.B.A. 1 (RTL)
R901 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R903 ERJ3GEYJ153 M.RESISTOR CH 1/16W 15K 1
FP852 K1MN22B00029 CONNECTOR 1
R904 ERJ3RBD622 M.RESISTOR CH 1/16W 6.2K 1
R907 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
P851 K1KA30A00106 CONNECTOR (MALE) 1
R908-10 ERJ3GEYJ101 M.RESISTOR CH 1/16W 100 3
R912 ERJ3GEYJ334 M.RESISTOR CH 1/16W 330K 1
R851 ERJ6GEY0R00 M.RESISTOR CH 1/10W 0 1
R914 ERJ3GEYJ104 M.RESISTOR CH 1/16W 100K 1
R915 ERJ3RBD333 M.RESISTOR CH 1/16W 33K 1
R917 ERJ3RBD103 M.RESISTOR CH 1/16W 10K 1
R918 ERJ3GEYJ272 M.RESISTOR CH 1/16W 2.7K 1
119
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
R4915 ERJ6GEYG563 M.RESISTOR CH 1/10W 56K 1
E16 VEP28284A EVF C.B.A. 1 (RTL)
R4916 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
R4917 ERJ3GEYJ562 M.RESISTOR CH 1/16W 5.6K 1
R4918 ERJ3GEYJ151 M.RESISTOR CH 1/16W 150 1
C802 F1J1C105A091 C.CAPACITOR CH 16V 1U 1
R4919 ERJ3GEYG472 M.RESISTOR CH 1/16W 4.7K 1
R4921 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
D801,02 B3AFB0000016 LED 2
R4923,24 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 2
D803 B0BC6R100014 DIODE 1
R4925,26 ERJ3GEYJ393 M.RESISTOR CH 1/16W 39K 2
D804 MA3S13300L DIODE 1
R4927 ERJ3GEYJ103 M.RESISTOR CH 1/16W 10K 1
R4928,29 ERJ6GEYG104 M.RESISTOR CH 1/10W 100K 2
FP802 K1MN21B00020 CONNECTOR 1
FP803 K1MN22B00062 CONNECTOR 1
MISCELLANEOUS
Q801 XP0450100L TRANSISTOR 1
VSC4666 FRONT SHIELD CASE (A) 1
VWJ08G4050AA MIC JACK FFC 1
R801 ERJ3GEYG472 M.RESISTOR CH 1/16W 4.7K 1
R803,04 ERJ3RED470 M.RESISTOR CH 1/16W 47 2
R805 ERJ3GEYJ103 M.RESISTOR CH 1/16W 10K 1
E17 VEP06F18A HANDLE ZOOM C.B.A. 1 (RTL)
P6681 K1KA07A00067 CONNECTOR (MALE) 1
S6680 K0H1BA000399 SWITCH 1
S6681,82 K0H1BA000105 SWITCH 2
E18 VEP04823A MIC JACK C.B.A. 1 (RTL)
C4901,02 ECJ1VB1H222K C.CAPACITOR CH 50V 2200P 2
C4903 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
C4905 F2H0J470A003 E.CAPACITOR 6.3V 47U 1
C4906,07 ECJ1VB1E223K C.CAPACITOR CH 25V 0.022U 2
C4908 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
C4910,11 F2H0J470A003 E.CAPACITOR 6.3V 47U 2
C4912 ECJ1ZB1C104K C.CAPACITOR CH 16V 0.1U 1
C4913 ECJ1VB0J105K C.CAPACITOR CH 35V 1M 1
C4914,15 ECJ1VB1H102K C.CAPACITOR CH 50V 1000P 2
FP4902 K1MN06B00048 CONNECTOR 1
FP4903 K1MN08B00040 CONNECTOR 1
JK4901 K2HC105E0003 JACK 1
LB4901 J0JHC0000032 FILTER 1
Q4901 2SD1819A-R TRANSISTOR 1
Q4902 2SB1218AHL TRANSISTOR 1
Q4903 2SD1819A-R TRANSISTOR 1
Q4904 2SB1218AHL TRANSISTOR 1
Q4905-07 2SD1819A-R TRANSISTOR 3
R4901 ERJ3GEYG682 M.RESISTOR CH 1/16W 6.8K 1
R4902 ERJ3GEYJ104 M.RESISTOR CH 1/16W 100K 1
R4903 ERJ3GEYG682 M.RESISTOR CH 1/16W 6.8K 1
R4904 ERJ3GEY0R00 M.RESISTOR CH 1/16W 0 1
R4905 ERJ3GEYG471 M.RESISTOR CH 1/16W 470 1
R4906 ERJ6GEYG103 M.RESISTOR CH 1/10W 10K 1
R4907 ERJ6GEYG154 M.RESISTOR CH 1/10W 150K 1
R4908 ERJ6GEYG563 M.RESISTOR CH 1/10W 56K 1
R4909 ERJ3GEYG102 M.RESISTOR CH 1/16W 1K 1
R4910 ERJ3GEYJ562 M.RESISTOR CH 1/16W 5.6K 1
R4911 ERJ3GEYJ151 M.RESISTOR CH 1/16W 150 1
R4912 ERJ3GEYG471 M.RESISTOR CH 1/16W 470 1
R4913 ERJ6GEYG103 M.RESISTOR CH 1/10W 10K 1
R4914 ERJ6GEYG154 M.RESISTOR CH 1/10W 150K 1
120
SCD0302OYNK107
