User Manual: FR-TC5000

Open the PDF directly: View PDF PDF.
Page Count: 42

SERVICE MANUAL
DATA
FR-TC5000
S/M Code No. 09-02A-454-9R2
K(S)
CD CLOCK RADIO BASIC CD MECHANISM: BZG-4 AB2NC1
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
(S/M Code No. 09-02A-454-9T2).
REVISION
-2-
Maximum outside dimensions (W × H × D)
216 × 193 × 261 mm
(excluding projecting parts and
controls)
Weight Approx. 2.85 kg
(excluding the backup battery)
The specifications and external appearance are subject to
change without notice.
Specifications, trade mark, model name and double square
symbol are marked on the bottom of the unit.
<Tuner section>
Frequency range FM: 87.5 – 108 MHz
(50 kHz steps)
MW: 531 – 1,602 kHz
(9 kHz steps)
LW: 144 – 288 kHz
(9 kHz steps)
Antenna FM: Wire antenna
LW, MW: Ferrite bar antenna
<CD player section>
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 8-times oversampling digital
filter + 1-bit DAC
Frequency response 20 – 20,000 Hz
<Common section>
Power source AC 230 V, 50 Hz
Output 1,000 mW + 1,000 mW (JEITA)
Power consumption 15 W
Speaker 66 mm, 8 ohms (2)
SPECIFICATIONS -1/1
• Design and specifications are subject to change without notice.
-3-
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION. BE
SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling vedåbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsÊttelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L'utillisation de commandes, réglages ou procédures autres
que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT

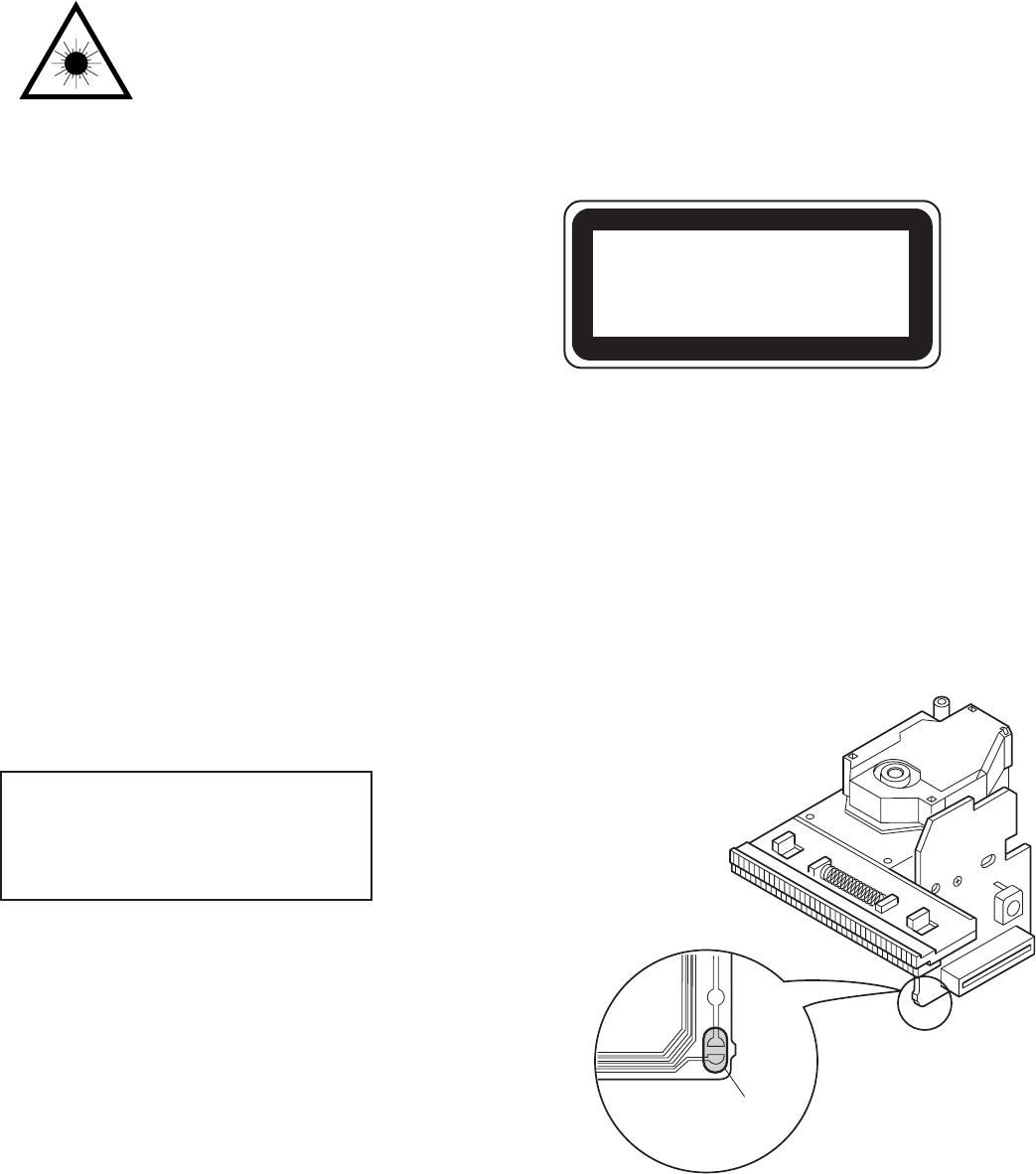

Precaution to replace Optical block
(BZL-5 A1NF)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
Solder
CD PICK-UP Assy
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
ACCESSORIES PARTS LIST -1/1
FR-TC5000
KSC
O AS1001 8C-RD2-908-010 IB,(K) a
! O AS1002 87-099-726-110 EURO CONVERTOR PLUG 250V/2.5A a
-5-
SERVICE PRECAUTIONS -1/2

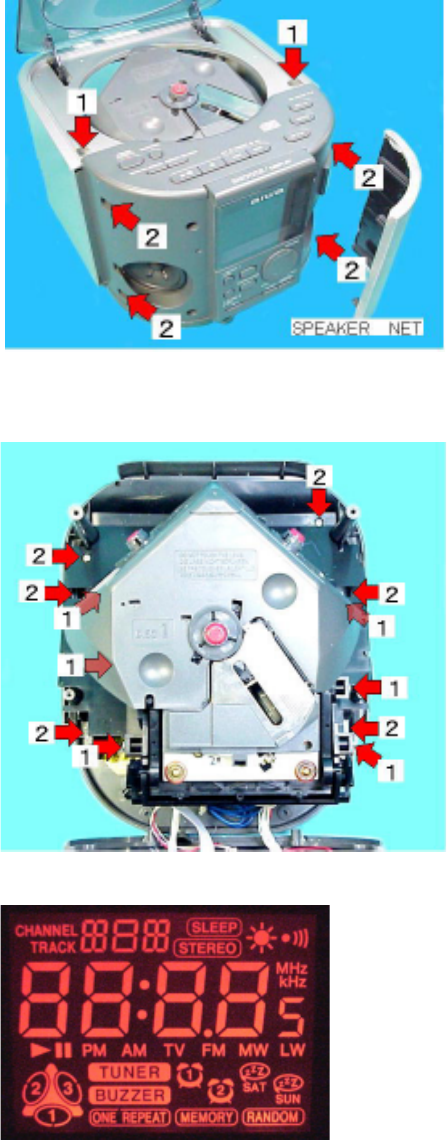

1. Disassembly Procedure
1. Remove 4 screws of a main part bottom.
2. Remove 2 screws of a inside CD lid (No-1 portion of Photo-1).
3. The speaker net left and right is removed, left and right each 2 screws
are removed. (No-2 portion of Photo-1)
Reference Photo-1
2. Service Position
1. When Checking CD main circuit board.
Remove 6 screws (Photo-2, No-1) , remove the CD Mechanism and you
verify when it is stabilized.
2. When CD Mechanism Assy is taken out.
Remove 6 screws (Photo-2, No-2) and remove 1 screw of a substance
bottom central and the Mechanism is removed.
Reference Photo-2
3. Test Mode
1. CD test mode starting method
While pushing the FUNCTION button of the substance,insert the AC
plug in the power source electrical outlet.
Test mode starts and the DYISPLAY lights up all.
Reference Photo-3
2. CD test mode cancellation method
Push the Power button and turn off a power supply.
Push the FUNCTION button again.
Test mode is canceled by one of methods.
Photo-1
Photo-2
Photo-3
-6-
SERVICE PRECAUTIONS -2/2
Notes 1: Do not continue operating Search Mode 10 minutes or more continuously for driver IC protection.
Notes 2: When canceling Traverse Mode, the PLAY button is pushed once again.
Notes 3: Operation after Disc Change is equivalent to Play Mode.
MODE
DISC Change
CD3
CD1
CD2
Tracking Servo OFF
All-points light
All-points light
All-points light
All-points light
All-points light
Operation

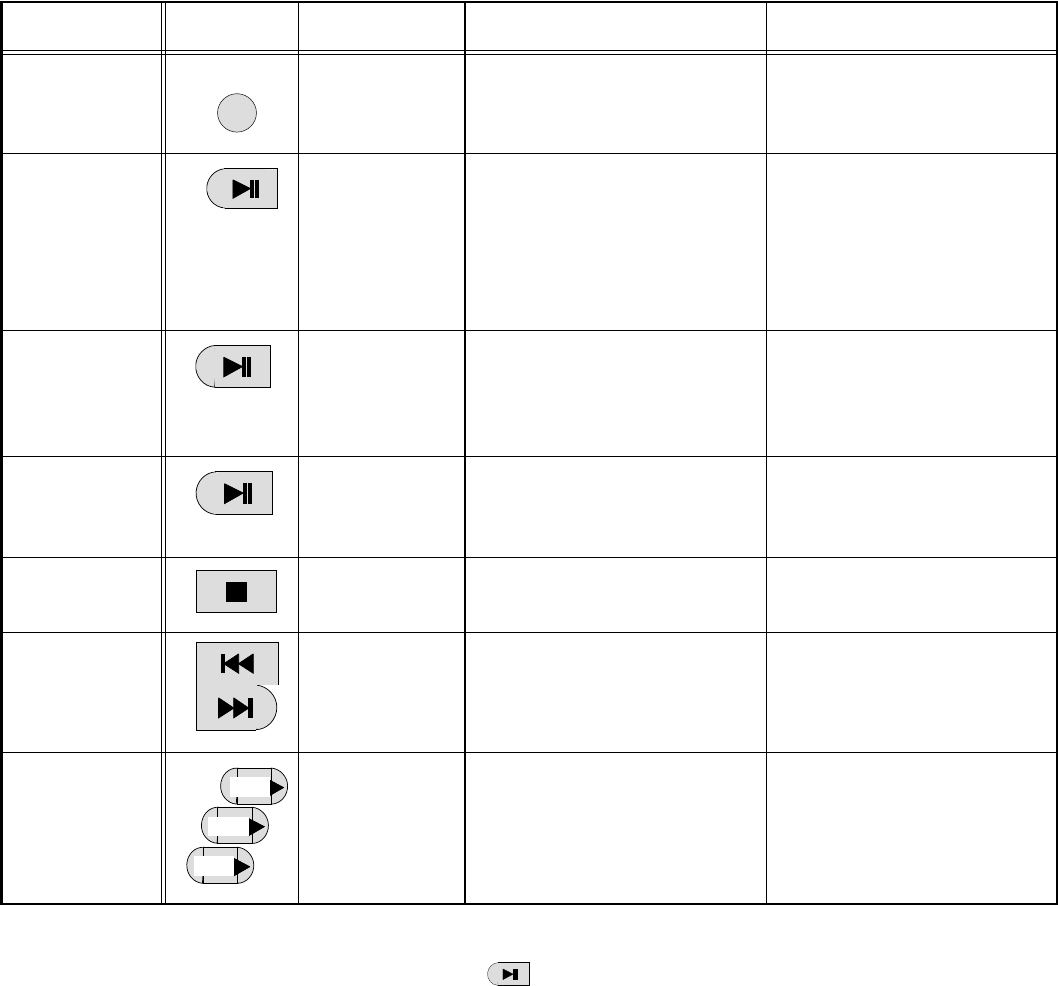

3. CD test mode functional explanation
Sled Mode
STOP
Traverse Mode
Start Mode
Search Mode
Play Mode
FUNCTION
APC circuit check
Leather current measurement
Focus error waveform check
(Notes 1) PU lens repeats full
swing operation.
Focus Servo check
Tracking Servo check
CLV Servo check
Sled Servo check
ALL SERVO OFF
LASER ON/OFF
All SERVO OFF
LASER ON
VCC ON
Sled Servo /
Mechanism operation check
Mechanism operation check
It changes to specified DISC
(Notes 3).
Normality playback
When TOC READ is improper,
it is the same operation as search
mode.
Playback pause state (Note 2)
Stand by
Track No, and
performance time
are displayed.
Track No, Disc No,
and performance
time are displayed.
The pickup moves to outer circle.
The pickup moves to the inside
perimeter.
Test mode starting
Contents
Display
Operation
Key
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
ELECTRICAL PARTS LIST -1/8
FR-TC5000
KSC
CD O C 0101 S1-101-001-0C0 CAP,E 100-10V a
CD O C 0102 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0103 S5-102-120-500 C-CAP,0.001UF-50V a
CD X C 0104 S5-224-820-160 C-CAP,0.22UF-16V a
CD X C 0105 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0121 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0122 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0123 S5-473-120-250 C-CAP,0.047-25V a
CD X C 0124 S5-223-120-500 C-CAP,0.022-50V a
CD X C 0125 S6-471-520-500 C-CAP,470PF-50V a
CD O C 0126 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0127 S1-101-001-0C0 CAP,E 100-10V a
CD O C 0128 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0129 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0130 S5-222-120-500 C-CAP,0.0022UF-50V a
CD O C 0131 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0132 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0133 87-A10-260-080 C-CAP,0.1-16 a
CD X C 0134 S6-151-520-500 C-CAP,150PF-50V a
CD O C 0135 S2-020-005-0C0 CAP,E 2.2-50V a
FR-TC5000
KSC
CD O C 0136 87-A10-260-080 C-CAP,0.1-16 a
CD X C 0137 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0139 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0140 S5-473-120-250 C-CAP,0.047-25V a
CD O C 0141 S2-220-001-6C0 CAP,E 22-16V a
CD O C 0142 S2-040-003-5C0 CAP,E 4.7-35V a
CD X C 0143 S5-153-120-500 C-CAP,0.015P-50V a
CD O C 0144 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0145 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0153 S2-010-005-0C0 CAP,E 1-50V a
CD X C 0155 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0156 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0157 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0158 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0160 S6-330-520-500 C-CAP,33PF-50V a
CD X C 0161 S5-272-120-500 C-CAP,0.0027-50V a
CD O C 0181 S1-470-001-6C0 CAP,E 4-16V a
CD X C 0182 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0185 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0191 S5-473-120-250 C-CAP,0.047-25V a
FR-TC5000
KSC
CD X C 0192 S5-681-120-500 C-CAP,680P-50V a
CD X C 0193 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0194 S6-221-520-500 C-CAP,220PF-50V a
CD X C 0195 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0197 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0199 S5-472-120-500 C-CAP,0.0047-50V a
CD X C 0201 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0202 S2-100-001-6C0 CAP,E 10-16V a
CD O C 0203 S2-100-001-6C0 CAP,E 10-16V a
CD X C 0206 S5-102-120-500 C-CAP,0.001UF-50V a
CD O C 0221 S2-010-005-0C0 CAP,E 1-50V a
CD X C 0223 S5-681-120-500 C-CAP,680P-50V a
CD X C 0224 S5-681-120-500 C-CAP,680P-50V a
CD X C 0225 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0226 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0228 S6-100-520-500 C-CAP,10PF-50V a
CD X C 0229 S6-100-520-500 C-CAP,10PF-50V a
CD X C 0230 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0231 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0234 S0-331-000-6C0 CAP,E 330-6.3 a
FR-TC5000
KSC
CD X C 0235 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0236 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0237 S5-331-120-500 C-CAP,330PF-50V a
CD X C 0251 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0252 S0-471-001-0C0 CAP,E 470-10V a
CD O C 0253 S0-102-001-0C0 CAP,E 1000-10V a
CD X C 0254 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0255 S0-471-001-0C0 CAP,E 470-10V a
CD X C 0256 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0258 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0259 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0260 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0261 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0270 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0271 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0272 S5-104-821-250 C-CAP,0.1-25 a
CD O CN 0101 87-A60-424-010 FFC CONN,16P P=1MM a
CD O CN 0201 S0-062-320-400 FFC CONN,4P PITCH=1MM a
CD O CN 0251 S0-096-040-600 FFC CONN,6P IMSA-9604 a
CD O CN 0252 SP-HS0-200-200 HEADER CTL 2 PINS PHS-02 PITC a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
ELECTRICAL PARTS LIST -2/8
FR-TC5000
KSC
CD O D 0101 87-020-027-080 C-DIODE,1SS184 a
CD O D 0221 87-020-027-080 C-DIODE,1SS184 a
CD O D 0254 87-020-027-080 C-DIODE,1SS184 a
CD S IC 0101 87-A20-547-010 IC,CXA1992AR a
CD S IC 0161 87-A20-546-010 IC,CXD2589Q a
CD O IC 0251 S4-059-360-000 IC,BA5936S a
CD X JR 0100 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0101 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0122 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0138 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0139 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0181 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0182 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0191 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0229 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0231 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0251 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0252 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0261 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0262 S3-000-510-180 C-RES,0-1/8W a
FR-TC5000
KSC
CD X JR 0263 S3-000-510-180 C-RES,0-1/8W a
CD O L 0102 S0-100-160-000 INDUCTOR,10UH a
CD O L 0201 S0-103-372-010 COIL,3.3UH a
CD O L 0231 S0-100-160-000 INDUCTOR,10UH a
CD O L 0252 S0-100-160-000 INDUCTOR,10UH a
CD O Q 0101 89-113-625-080 C-TR,2SA1362GR a
CD O Q 0102 SA-001-148-000 C-TR,DTC114TK/TKA a
CD O Q 0103 SA-001-148-000 C-TR,DTC114TK/TKA a
CD O Q 0104 SA-001-148-000 C-TR,DTC114TK/TKA a
CD S Q 0105 89-333-266-080 C-TR,2SC3326B a
CD S Q 0106 89-333-266-080 C-TR,2SC3326B a
CD S Q 0251 89-112-134-080 TR,2SA1213Y a
CD O Q 0252 SA-001-246-000 TR,DTC124XKA a
CD O Q 0253 SA-001-246-000 TR,DTC124XKA a
CD S Q 0254 87-A30-075-080 TR,2SA1235 a
CD S Q 0255 87-A30-075-080 TR,2SA1235 a
CD O Q 0256 SA-001-148-000 C-TR,DTC114TK/TKA a
CD X R 0101 S3-100-520-160 C-RES,10-1/16W a
CD X R 0102 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0103 S3-682-520-160 C-RES,6.8K-1/16W a
FR-TC5000
KSC
CD X R 0104 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0105 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0106 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0107 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0108 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0109 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0110 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0111 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0112 S3-820-520-160 C-RES,82-1/16W a
CD X R 0113 S0-222-510-160 RES,2.2K-1/16W a
CD X R 0114 S0-222-510-160 RES,2.2K-1/16W a
CD X R 0115 S3-821-520-160 C-RES,820-1/16W a
CD X R 0116 S3-821-520-160 C-RES,820-1/16W a
CD X R 0117 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0118 S3-154-520-160 C-RES,150K-1/16W a
CD X R 0119 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0120 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0121 S3-104-520-160 C-RES,100K-1/ a
CD X R 0122 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0123 S3-334-520-160 C-RES,330K-1/16W a
FR-TC5000
KSC
CD X R 0124 S3-473-520-160 C-RES,47K-1/16W a
CD X R 0125 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0126 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0127 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0131 S3-684-520-160 C-RES,680K-1/16W a
CD X R 0132 S3-683-520-160 C-RES,68K-1/16W a
CD X R 0133 S3-393-520-160 C-RES,39K-1/16W a
CD X R 0134 S3-474-520-160 C-RES,470K-1/16W a
CD X R 0136 S3-823-520-160 C-RES,82K-1/16W a
CD X R 0137 S3-683-520-160 C-RES,68K-1/16W a
CD X R 0141 S3-823-520-160 C-RES,82K-1/16W a
CD X R 0142 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0143 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0144 S3-473-520-160 C-RES,47K-1/16W a
CD X R 0145 S3-104-520-160 C-RES,100K-1/ a
CD X R 0146 S3-563-520-160 C-RES,56K-1/16W a
CD X R 0147 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0148 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0149 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0151 S3-105-520-160 C-RES,1M-1/16W a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
ELECTRICAL PARTS LIST -3/8
FR-TC5000
KSC
CD X R 0152 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0153 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0154 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0156 S3-225-520-160 C-RES,2.2M-1/16W a
CD X R 0157 S3-225-520-160 C-RES,2.2M-1/16W a
CD X R 0158 S3-155-520-160 CHIP RESISTOR 1.5 Mohm +-5% 1 a
CD X R 0181 S3-104-520-160 C-RES,100K-1/ a
CD X R 0192 S3-332-520-160 C-RES,3.3K-1/16W a
CD X R 0193 S3-122-520-160 C-RES,1.2K-1/16W a
CD X R 0194 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0195 S3-105-520-160 C-RES,1M-1/16W a
CD X R 0196 S3-224-520-160 C-RES,220K-1/16W a
CD X R 0197 S3-104-520-160 C-RES,100K-1/ a
CD X R 0201 S3-272-520-160 C-RES,2.7K-1/16W a
CD X R 0202 S3-272-520-160 C-RES,2.7K-1/16W a
CD X R 0203 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0204 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0211 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0212 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0213 S0-103-510-160 RES,10K-1/16W (1 a
FR-TC5000
KSC
CD X R 0214 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0215 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0216 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0217 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0218 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0219 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0220 S3-222-520-160 C-RES,2.2K-1/16W a
CD X R 0221 S3-224-520-160 C-RES,220K-1/16W a
CD X R 0222 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0223 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0224 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0225 S3-104-520-160 C-RES,100K-1/ a
CD X R 0226 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0227 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0228 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0230 S3-330-520-160 C-RES,33-1/16W a
CD X R 0253 S3-478-520-160 C-RES,4.7-1/16W a
CD X R 0254 S3-228-530-120 C-RES,2.2-1/2W a
CD X R 0255 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0256 S3-682-520-160 C-RES,6.8K-1/16W a
FR-TC5000
KSC
CD X R 0257 S3-273-520-160 C-RES,27K-1/16W a
CD X R 0258 S3-273-520-160 C-RES,27K-1/16W a
CD X R 0259 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0260 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0262 S3-100-510-180 C-RES,10-1/8W a
CD X R 0263 S3-100-510-180 C-RES,10-1/8W a
CD X R 0265 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0266 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0267 S3-471-520-160 C-RES,470-1/16W a
CD X R 0268 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0269 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0270 S3-822-520-160 C-RES,8.2K-1/16W a
CD X R 0271 S3-100-520-160 C-RES,10-1/16W a
CD X R 0272 S3-100-520-160 C-RES,10-1/16W a
CD X R 0273 S0-478-510-160 RES,4.7-1/16W a
CD X R 0274 S0-478-510-160 RES,4.7-1/16W a
CD X R 0276 S0-103-510-160 RES,10K-1/16W (1 a
CD O SFR0301 S1-040-851-020 SFR,100K a
CD O W 0181 8C-RD2-612-010 CONN,PHR-15 a
CD O W 0191 SF-006-250-000 CONN,PHR-06 a
FR-TC5000
KSC
CD O X 0221 S0-016-930-050 CER,RESO 16.93 MHz ZT a
DOOR SW O Q 0303 89-327-125-080 C-TR,2SC2712GR a
DOOR SW X R 0319 S3-474-520-160 C-RES,470K-1/16W a
DOOR SW O SW 0321 S0-246-110-000 DETECTOR SWITCH 1P1T ESE24SV6 a
FRONT O C 0301 S2-220-001-6C0 CAP,E 22-16V a
FRONT X C 0302 S5-105-820-100 C-CAP,1UF-10V a
FRONT X C 0303 S5-105-820-100 C-CAP,1UF-10V a
FRONT X C 0306 87-018-147-080 CAP,CER 10PF-50V a
FRONT X C 0307 87-018-147-080 CAP,CER 10PF-50V a
FRONT X C 0308 87-A11-889-080 CAP,CER 330PF-50V a
FRONT X C 0310 S2-682-200-160 CAP,CER 0.0068UF-16V a
FRONT X C 0311 S2-104-100-250 CAP,CER 0.1UF-25V a
FRONT X C 0312 87-018-150-080 CAP,CER 18P-50 a
FRONT X C 0313 S2-104-100-250 CAP,CER 0.1UF-25V a
FRONT O CN 0302 SB-14B-PH1-410 CONN,14P B14B-PH-SM3 a
FRONT O CN 0303 SB-15B-PH1-510 CONN,15P B15B-PH-SM3 a
FRONT O CN 0351 S0-702-401-300 CONN,7P (3+234+3) a
FRONT O CN 0352 S0-702-401-300 CONN,7P (3+234+3) a
FRONT O CN 0702 SB-05B-PH0-510 CONN,5P B5B-PH-SM3-T a
FRONT O D 0302 S0-093-440-030 LED,L-934SECK a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
ELECTRICAL PARTS LIST -4/8
FR-TC5000
KSC
FRONT O D 0303 S0-093-440-030 LED,L-934SECK a
FRONT O D 0304 S0-093-440-030 LED,L-934SECK a
FRONT S D 0305 011-010033-123 C-ZENER,3.3V 1/2W a
FRONT S IC 0301 87-A22-301-030 IC,LC877348A5Z52 a

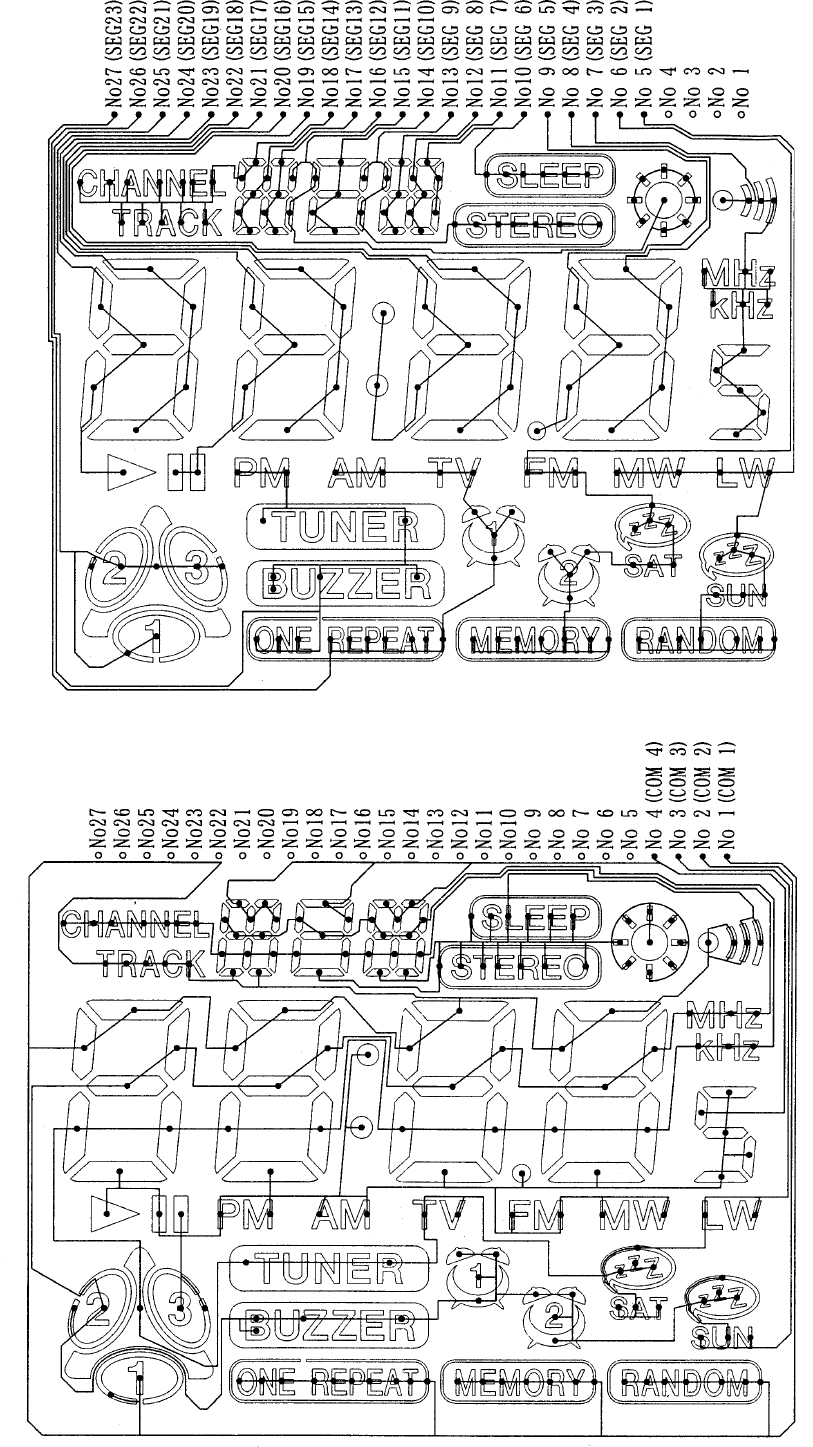

FRONT O LCD0301 8C-RD2-609-010 LCD,N-04D-32 a
FRONT O Q 0301 S3-181-500-010 TR,2SC1815GR a
FRONT X R 0275 S3-104-520-160 C-RES,100K-1/ a
FRONT X R 0303 S0-223-510-160 RES,22K-1/16W (1 a
FRONT X R 0304 S0-332-510-160 RES,3.3K-1/16W a
FRONT X R 0305 S0-153-510-160 RES,15K-1/16W (1 a
FRONT X R 0306 S0-223-510-160 RES,22K-1/16W (1 a
FRONT X R 0307 S0-153-510-160 RES,15K-1/16W (1 a
FRONT X R 0308 S0-472-510-160 RES,4.7K-1/16W a
FRONT X R 0310 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0312 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0313 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0314 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0315 S3-153-520-160 C-RES,15K-1/16W a
FRONT X R 0316 S3-102-520-160 C-RES,1K-1/16 a
FRONT X R 0330 S0-151-510-160 RES,150-1/6W a
FR-TC5000
KSC
FRONT X R 0721 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0722 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0723 S0-104-510-160 RES,100K-1/16W ( a
FRONT X R 0724 S0-104-510-160 RES,100K-1/16W ( a
FRONT O S 0302 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0303 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0304 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0305 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0306 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0307 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0308 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O T 0301 S0-010-030-750 IFT,(OSC COIL) KY1003NC a
FRONT O VR 0701 87-A92-380-01 VR,E12M&GV020KAWSH&DXV0122GPV a
FRONT O X 0301 87-030-194-010 X’TAL,32.768 KHZ a
JACK O CN 0705 8C-RD2-615-010 CONN,3P 2001-WR-3 a
JACK O J 0701 8A-CKA-628-010 HP,JACK HTJ-035-08 a
JACK O L 0701 S0-100-160-000 INDUCTOR,10UH a
JACK X R 0735 S0-101-510-160 RES,100-1/16W (1 a
JACK X R 0736 S0-101-510-160 RES,100-1/16W (1 a
JACK X R 0737 S0-330-510-160 RES,33-1/16W a
FR-TC5000
KSC
JACK X R 0738 S0-330-510-160 RES,33-1/16W a
KEY X R 0317 S0-472-510-160 RES,4.7K-1/16W a
KEY X R 0318 S0-472-510-160 RES,4.7K-1/16W a
KEY O S 0309 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0310 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0311 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0312 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0313 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0314 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0315 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0316 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0317 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0318 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0319 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0320 S1-102-000-010 SW,TACT 4P 4.3MM a
MAIN O BPF0001 87-A91-680-010 BPS,FILTER GFMB5-C3 a
MAIN X C 0001 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0002 S2-181-100-500 CAP,CER 180P-50 a
MAIN X C 0003 S0-478-400-500 CAP,CER 4.7PF-50V a
MAIN X C 0004 S2-103-100-160 CAP,CER 0.01UF-16V a
FR-TC5000
KSC
MAIN X C 0005 S2-101-500-500 CAP,CER 100PF-50V a
MAIN X C 0007 87-A11-840-080 CAP,CER 6.8PF-50V a
MAIN X C 0008 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0009 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0013 S2-228-100-500 CAP,CER 2.2PF-50V a
MAIN X C 0014 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0015 S2-101-500-500 CAP,CER 100PF-50V a
MAIN X C 0017 S4-470-500-500 CAP,CER 47PF-50V a
MAIN X C 0021 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN X C 0022 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0023 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN X C 0024 S2-680-500-500 CAP,CER 68PF-50V a
MAIN X C 0025 S4-221-500-500 CERAMIC CAP 220pF/50V +-5% (N a
MAIN X C 0026 S4-221-500-500 CERAMIC CAP 220pF/50V +-5% (N a
MAIN O C 0027 S4-270-500-500 CAP,CER 27PF-50V a
MAIN X C 0028 87-A10-130-010 CAP,CER 4PF-50V a
MAIN X C 0029 S4-181-500-500 CAP,CER 180PF-50V a
MAIN X C 0030 S4-180-500-500 CAP,CER 18P-50 a
MAIN X C 0032 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0033 S2-102-500-500 CAP,CER 0.001UF-50V a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-11-
ELECTRICAL PARTS LIST -5/8
FR-TC5000
KSC
MAIN O C 0034 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0035 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0036 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0037 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0038 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0039 87-016-643-080 CAP,E 4.7-50V a
MAIN X C 0040 S2-153-100-500 CAP,CER 0.015-50 a
MAIN X C 0041 S2-153-100-500 CAP,CER 0.015-50 a
MAIN X C 0042 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0043 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN O C 0044 87-A10-458-080 CAP,E 100-10V a
MAIN X C 0045 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0046 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0047 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0048 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN O C 0049 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0050 S0-470-001-6C0 CAP,E 47-16V a
MAIN O C 0051 S0-470-001-6C0 CAP,E 47-16V a
MAIN X C 0052 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0053 S2-103-100-160 CAP,CER 0.01UF-16V a
FR-TC5000
KSC
MAIN X C 0055 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0056 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0058 S2-680-500-500 CAP,CER 68PF-50V a
MAIN X C 0059 S2-680-500-500 CAP,CER 68PF-50V a
MAIN O C 0320 87-A10-119-080 CAP,E 10-50V a
MAIN X C 0701 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0702 S2-473-800-500 CAP,CER 0.047-50 a
MAIN O C 0703 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0704 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0705 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0706 S0-010-005-0C0 CAP,E 1-50V a
MAIN X C 0707 87-A11-889-080 CAP,CER 330PF-50V a
MAIN X C 0708 87-A11-889-080 CAP,CER 330PF-50V a
MAIN O C 0709 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0710 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0711 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0712 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0713 87-A10-458-080 CAP,E 100-10V a
MAIN O C 0714 87-A10-458-080 CAP,E 100-10V a
MAIN O C 0715 S0-004-005-0C0 CAP,E 0.47-50V a
FR-TC5000
KSC
MAIN O C 0716 S0-004-005-0C0 CAP,E 0.47-50V a
MAIN O C 0717 S0-102-001-0C0 CAP,E 1000-10V a
MAIN O C 0718 S0-102-001-0C0 CAP,E 1000-10V a
MAIN O C 0720 S0-221-001-0C0 CAP,E 220-10V a
MAIN X C 0721 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN X C 0723 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0724 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0725 87-A11-129-080 CAP,CER 0.0056UF-16V a
MAIN X C 0726 87-A11-129-080 CAP,CER 0.0056UF-16V a
MAIN X C 0727 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN X C 0728 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O C 0730 S0-101-001-6C0 CAP,E 100-16V a
MAIN O C 0801 S0-332-002-5C0 CAP,E 3300-25V a
MAIN O C 0802 S0-472-001-6C0 CAP,E 4700-16V a
MAIN X C 0803 87-A11-917-080 CAP,CER 0.0022UF-16V a
MAIN O C 0804 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0805 87-A10-458-080 CAP,E 100-10V a
MAIN X C 0806 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O C 0807 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0808 S0-470-001-6C0 CAP,E 47-16V a
FR-TC5000
KSC
MAIN X C 0809 S2-470-500-500 CAP,CER 47P-50V a
MAIN X C 0813 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0814 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0815 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0816 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0817 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0818 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0819 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0821 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O CD 0001 S6-010-700-020 CER,RESO #CDA10.7MG6 a
MAIN O CF 0001 8A-RH2-611-010 CER,FIL SFU450B a
MAIN O CF 0002 87-PC4-617-010 CER,FIL SFE10.7MS2-A/LT a
MAIN O CN 0301 8C-RD2-613-010 CONN,PHR-14 a
MAIN O CN 0701 8C-RD2-614-010 CONN,5P PHR-05 a
MAIN O CN 0703 SP-HS0-600-600 HEADER CTL 6P a
MAIN O CN 0704 SF-003-200-010 CONN,PHR-03 a
MAIN O D 0001 S0-613-600-000 VARACTOR DIODE,KV1360NT a
MAIN O D 0002 S0-613-600-000 VARACTOR DIODE,KV1360NT a
MAIN O D 0006 S0-015-900-010 VARI-CAP,KV1590NT a
MAIN O D 0009 S0-041-480-000 DIODE,1N4148 a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-12-
ELECTRICAL PARTS LIST -6/8
FR-TC5000
KSC
MAIN O D 0012 S0-041-480-000 DIODE,1N4148 a
MAIN O D 0013 S0-041-480-000 DIODE,1N4148 a
MAIN O D 0310 011-004148-000 DIODE,1N4148 a
MAIN O D 0801 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0802 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0803 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0804 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0805 8A-RU2-620-010 ZENER,BZX55C6V8 a
MAIN O D 0806 S0-100-560-010 ZENER,5.6V a
MAIN O D 0807 S0-100-560-010 ZENER,5.6V a
MAIN S D 0808 S0-100-471-240 ZENER,MTZJ4.7B a
MAIN O D 0810 S0-041-480-000 DIODE,1N4148 a
MAIN ! S F 0801 S0-200-200-010 FUSE #218002 2A/250V 5x20mm T a
MAIN X FM 0001 S6-79A-200-090 JP WIRE AWG26#1007 3x0mm 1200 a
MAIN S IC 0001 S8-321-040-010 IC,TA2104AN a
MAIN O IC 0002 S7-172-130-2A0 IC,LC72131D/-N a
MAIN O IC 0701 S8-382-270-000 IC,TA8227P a
MAIN O IFT0001 8Z-CS1-609-010 IFT,4A-224R,10mm a
MAIN O L 0000 S1-900-071-200 LW COIL a
MAIN O L 0000 S0-580-051-000 MW ANT COIL 58T:0 USTC a
FR-TC5000
KSC
MAIN O L 0001 S0-500-450-080 FM,COIL 5T 4.5MM DIA 0.8MM a
MAIN O L 0003 8Z-CM2-632-010 FM,COIL 4T 4.5MM a
MAIN O L 0011 87-003-152-080 COIL,100UH a
MAIN O L 0012 87-003-152-080 COIL,100UH a
MAIN O L 0015 S0-304-742-000 CHOKE COIL,4.7MH a
MAIN O L 0301 S0-102-260-000 COIL,22UH a
MAIN O Q 0001 S3-192-300-000 TR,2SC1923(O) a
MAIN O Q 0002 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0003 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0004 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0005 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0006 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0007 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0008 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0009 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0010 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0302 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0701 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0702 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0703 S3-181-500-010 TR,2SC1815GR a
FR-TC5000
KSC
MAIN O Q 0704 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0801 S2-015-660-000 TR,2SB1566E/F a
MAIN O Q 0802 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0803 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0804 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0805 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0806 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0807 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0808 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0809 S3-181-500-010 TR,2SC1815GR a
MAIN X R 0001 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0002 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0003 S0-270-510-160 RES,27-1/16W a
MAIN X R 0004 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0005 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0006 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0007 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0008 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0009 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0010 S0-222-510-160 RES,2.2K-1/16W a
FR-TC5000
KSC
MAIN X R 0011 S0-151-510-160 RES,150-1/6W a
MAIN X R 0013 S0-474-510-160 RES,470K-1/16W a
MAIN X R 0017 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0018 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0019 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0020 S0-471-510-160 RES,470-1/16W a
MAIN X R 0021 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0022 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0023 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0024 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0025 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0026 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0027 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0028 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0030 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0031 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0032 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0033 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0034 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0035 S0-472-510-160 RES,4.7K-1/16W a
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-13-
ELECTRICAL PARTS LIST -7/8
FR-TC5000
KSC
MAIN X R 0036 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0037 S0-100-510-160 RES,10-1/16W (1/ a
MAIN X R 0038 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0039 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0041 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0043 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0045 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0046 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0047 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0048 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0049 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0050 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0051 S0-152-510-160 RES,1.5K-1/16W a
MAIN X R 0052 S0-220-510-160 RES,22-1/16W (1/ a
MAIN X R 0053 S0-823-510-160 RES,82K-1/16W a
MAIN X R 0054 S0-105-510-160 RES,1M-1/16W a
MAIN X R 0055 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0056 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0057 S0-220-510-160 RES,22-1/16W (1/ a
MAIN X R 0059 S0-104-510-160 RES,100K-1/16W ( a
FR-TC5000
KSC
MAIN X R 0060 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0320 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0321 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0322 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0323 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0324 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0325 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0326 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0701 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0702 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0703 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0704 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0705 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0706 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0707 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0708 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0709 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0710 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0711 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0712 S0-103-510-160 RES,10K-1/16W (1 a
FR-TC5000
KSC
MAIN X R 0713 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0714 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0717 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0718 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0719 S0-478-510-160 RES,4.7-1/16W a
MAIN X R 0720 S0-478-510-160 RES,4.7-1/16W a
MAIN X R 0721 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0722 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0723 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0724 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0731 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0732 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0733 S0-221-510-160 RES,220-1/16W a
MAIN X R 0734 S0-221-510-160 RES,220-1/16W a
MAIN X R 0740 S0-471-510-160 RES,470-1/16W a
MAIN X R 0801 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0802 S0-331-500-120 RES,330-1/2W a
MAIN X R 0803 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0804 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0805 S0-102-510-160 RES,1K-1/16W (1/ a
FR-TC5000
KSC
MAIN X R 0806 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0807 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0808 S0-221-510-160 RES,220-1/16W a
MAIN X R 0809 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0810 S0-333-510-160 RES,33K-1/16W (1 a
MAIN X R 0811 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0812 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0813 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0814 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0815 S0-151-510-160 RES,150-1/6W a
MAIN O S 0301 87-A92-381-01 TACT SW SKHMPFA010 a
MAIN O TC 0001 S2-006-300-000 TRIMMER CAP CVN630 6.5-30pF G a
MAIN O TC 0002 S2-006-100-000 TRIMMER CAP CVN610 3-10pF WHI a
MAIN O X 0001 87-A70-306-01 X’TAL,4.5 MHz(CSA309) a
ELECTRICAL PARTS LIST -8/8
-14-
88
A

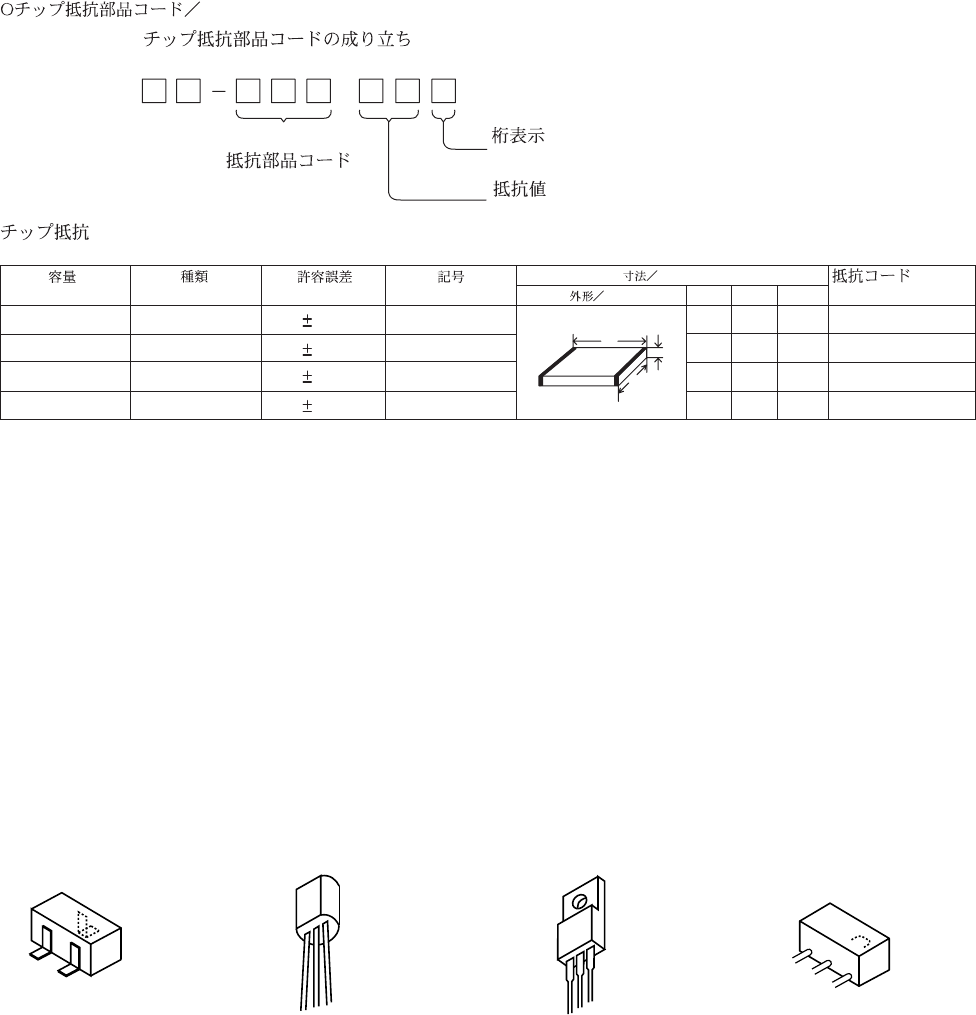

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
TRANSISTOR ILLUSTRATION -1/1
BCE
C
2SA1362
2SC2712
2SC3326
DTC114TK/TKA
DTC124XKA
2SA1015
2SC1815
2SC1923
2SA1235
2SB1566
2SA1213
E C B
E
C
B C E
B
-15-

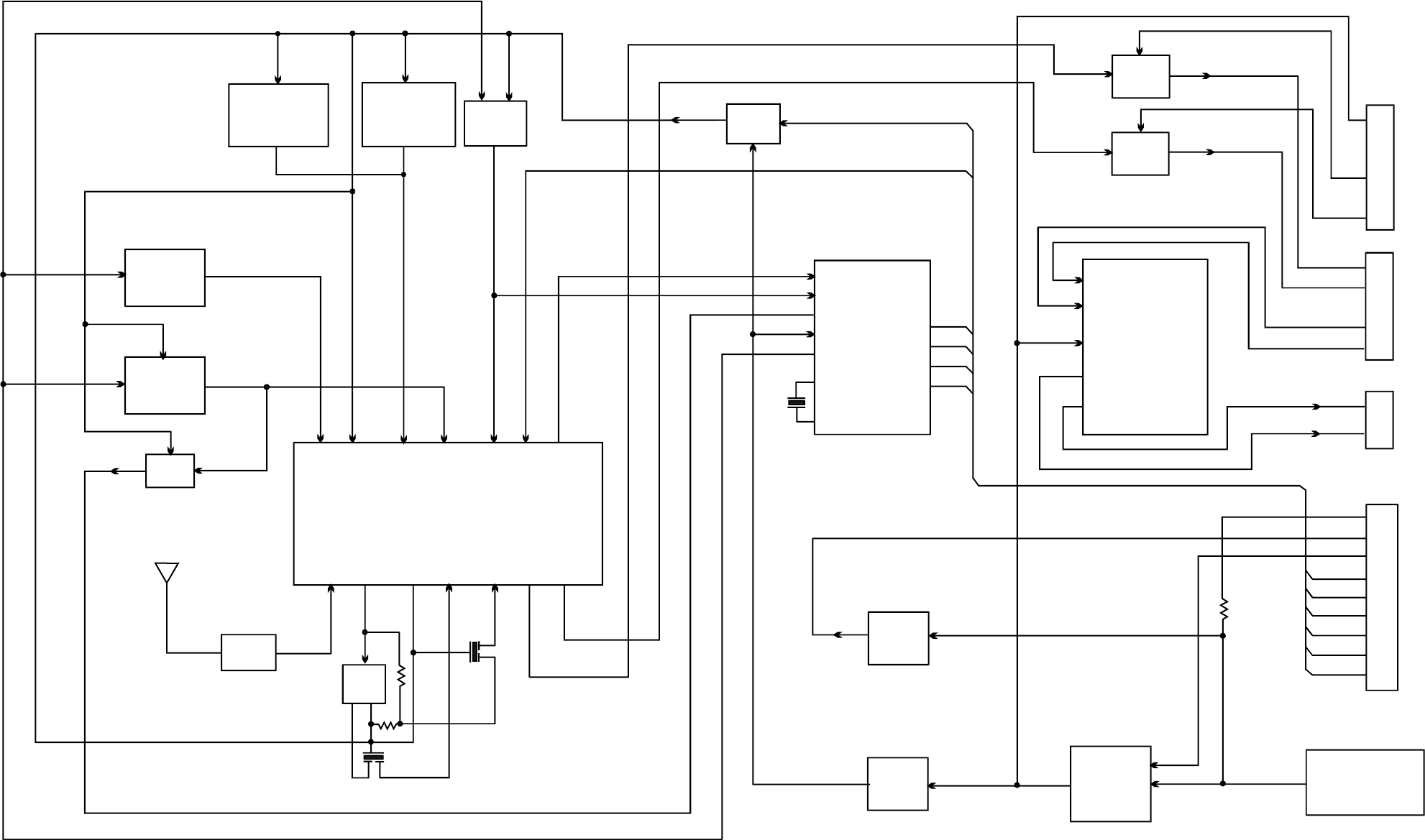

BLOCK DIAGRAM -1/2 (TUNER & POWER AMP. SECTION)
FM RF
L1 , D2
MW
L10,TC2 AM RF
L11,D6
FM OSC
L3 , D1
Q6,Q7
Q1
AM/FM IF AMP+MPX
IC1 TA2104AN
24 23 22 21 20 18 17
24 56 71112
BPF
FM
ANT
IFT1
LW
TRACKING TRACKING
L9,TC1
CF1
CF2
PLL
IC2
LC72131
12
15
16
17
22
1
6
5
4
3
X1
Q702
Q701
6
5
4
3
2
1
5
4
3
2
1
1
POWER
AMP
IC701
TA8227P
6
7
12
11
2
2
4
7
9
10
11
12
13
14
Q806
D807
Q805
D806
Q801
Q802
Q803
RECTIFIER
D801~D804
18
CN703
CN701
3
CN704
CN301
-16-

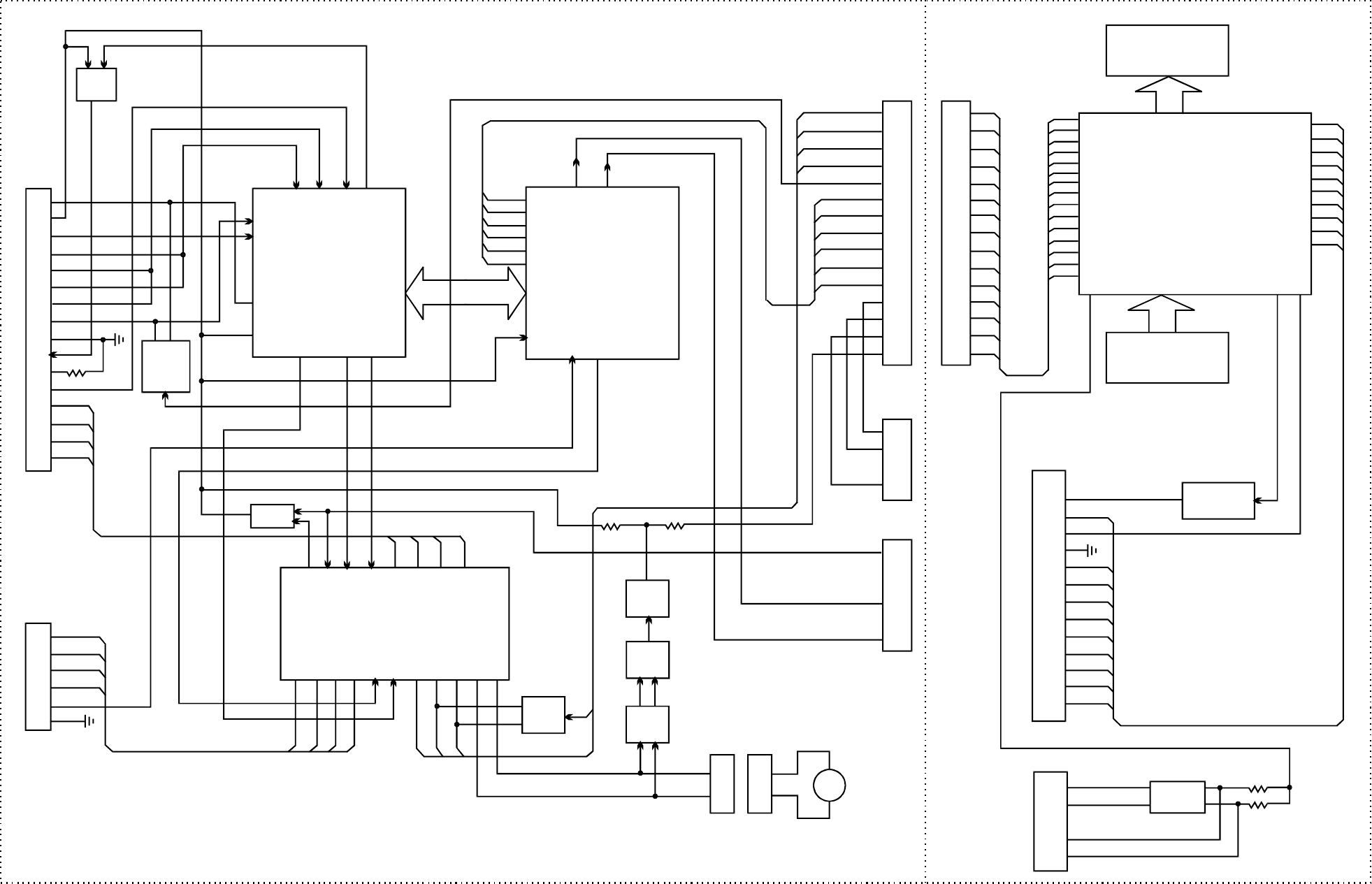

BLOCK DIAGRAM -2/2 (CD & CPU SECTION)
ASP DSP
IC101 IC161
CXA1992AR CXD2589Q
41
42
51
39 38 37 36
16 13 6
4
5
6
7
8
9
61 16 21
74 67
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6
5
4
3
2
1
18
Q101
Q102
Q103
Q104
15
14
13
12
11
10
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
4
3
2
1
Q251
DRIVER
IC251
BA5936S
10 8 654321
17 18 19 20 21 22 27 28 29 30 31
6
5
4
3
2
1
Q252
Q253
Q256
D254
Q254
Q255
11
22 MLD
MOTOR
LCD DRIVER
IC301
LC877348A5Z52
11
22
23
26
94
95
96
97
98
99
10 24 17
LCD
DISPLAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5
4
3
2
1
LED
D302~304
VR701
KEY MATRIX
CN101
CN251
W181 CN303
CN201
W191
CN302
CN702
CD SECTION CPU SECTION
-17-

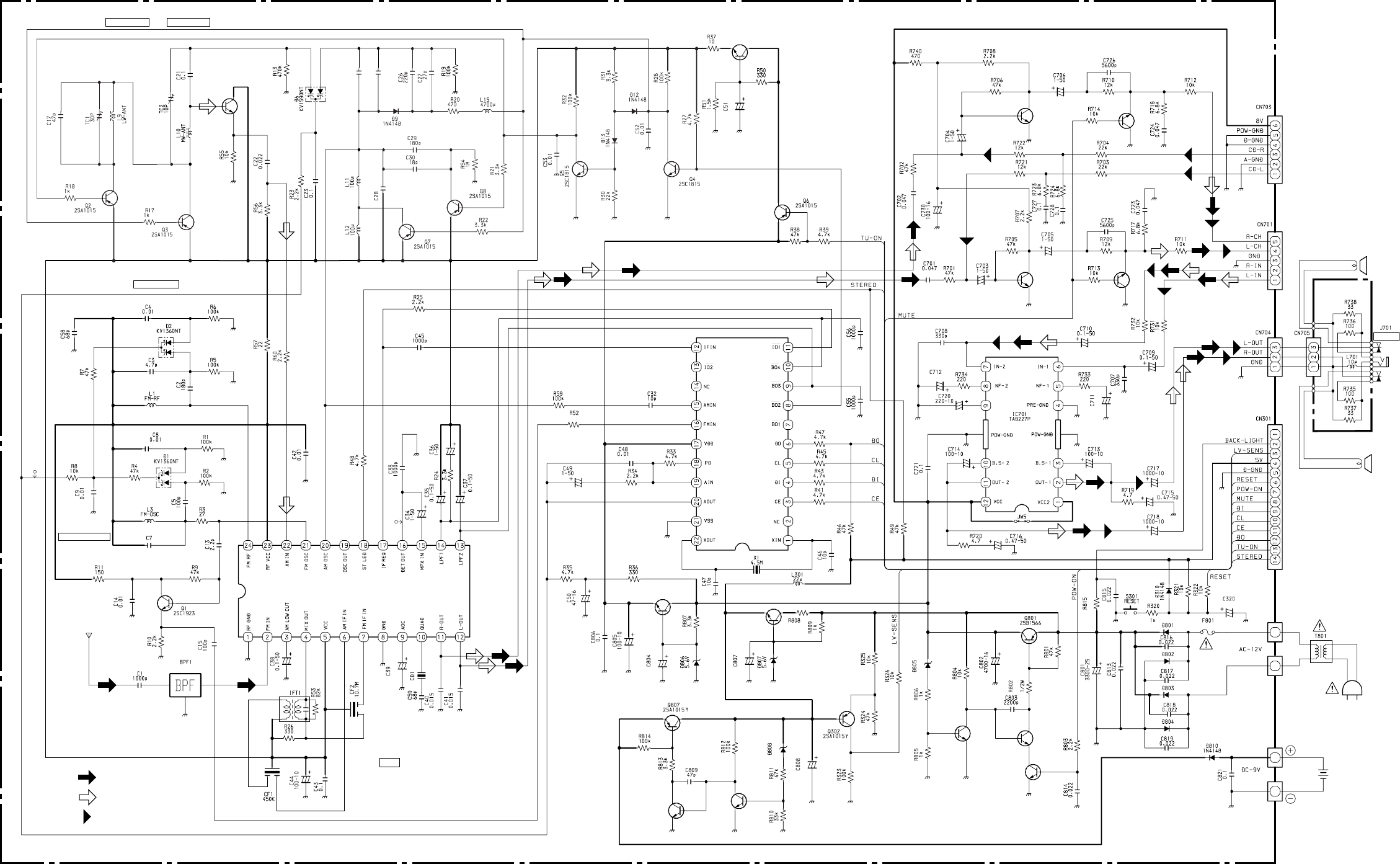

SCHEMATIC DIAGRAM -1/3 (MAIN SECTION)
Q10
2SC1815GR
Q9
2SC1815GR
Q701
2SC1815GR
Q702
2SC1815GR
Q803
2SC1815GR
Q802
2SC1815GR
Q804
2SC1815GR
Q809
2SC1815GR
Q806
2SC1815GR
5V REG
Q805
2SC1815GR
5V REG
Q808
2SC1815GR
Q704
2SC1815GR
Q703
2SC1815GR
L10,TC2
MW TRACKING
47-16
Q6,Q9
3V REG Y
MIX
MUTE SW
MUTE SW
MIX
10-50
10-50
RIPPLE
POWER AMP
To
CD C.B
W191
To
FRONT C.B
CN702
To
FRONT C.B
CN302
AC230V
50Hz
CLOCK
BATTERY
BACKUP
006P-UE
(6F22)
9V-PP3
D801-D804
1.5A-50V
RECTIFIER
150
10-50
330
E/F
BZX55C6V8
Q801-Q804
8V REG
10-50
10-50
47-16
MTZJ4.7B
IC2
LC72131D/N
PLL
22
10.7MHz
4.7-50
IC1
TA2104AN
AM/FM IF AMP + MPX
IFT1
AM IF
GFMB5-C3
FM1
(FM ANT.)
6.8p
C24
68p
C25
220p
SP701(L-CH)
SP702(R-CH)
PHONES
MAIN C.B
JACK C.B
: AM AUDIO SIGNAL
: FM AUDIO SIGNAL
: CD SIGNAL
220
TP1
TP2
L9,TC1
LW TRACKING
L3
FM FREQ.RANGE
L1
FM TRACKING
4p
GR
GR
Y
Y
Y
Y
2A/250V
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
MAIN C.B
CD1
R9
14 1 14 1
14
1
1
3
1
3
CN703
S301
(RESET)
C821
D805
C813
C814
C803
Q804
TC2
TC1
E
C
B
E
C
BE
C
B
E
C
B
B
C
E
B
CE
B
CE
E
CB
E
C
B
E
C
B
B
C
E
E
C
B
E
C
B
B
C
E
B
C
E
E
CB
B
CE
B
CE
B
CE
E
CB
B
CE
B
CE
E
CB
E
CB
1
6
15 1
1
5
5
RED
BLK
BLK
WHT
CLOCK BATTERY BACKUP
006P-UE(6F22)9V-PP3
WHT
GRY
GRY
GRY
GRY
GRY
GRY
GRY
GRY
GRY
GRY
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
BLK
BLK
BLK
BLK
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
RED
CN301
To
FRONT C.B
CN302
To
CD C.B
W191
To
JACK C.B
CN705
WHT
WHT
RED WHT
WHT
RED
AC230V
50Hz
T801
To
FRONT C.B
CN702
FM1
(FM ANT.)
F801
L10
(MW-ANT.)
L9
(LW-ANT.)
TP2
TP1
1234567892526272829303132

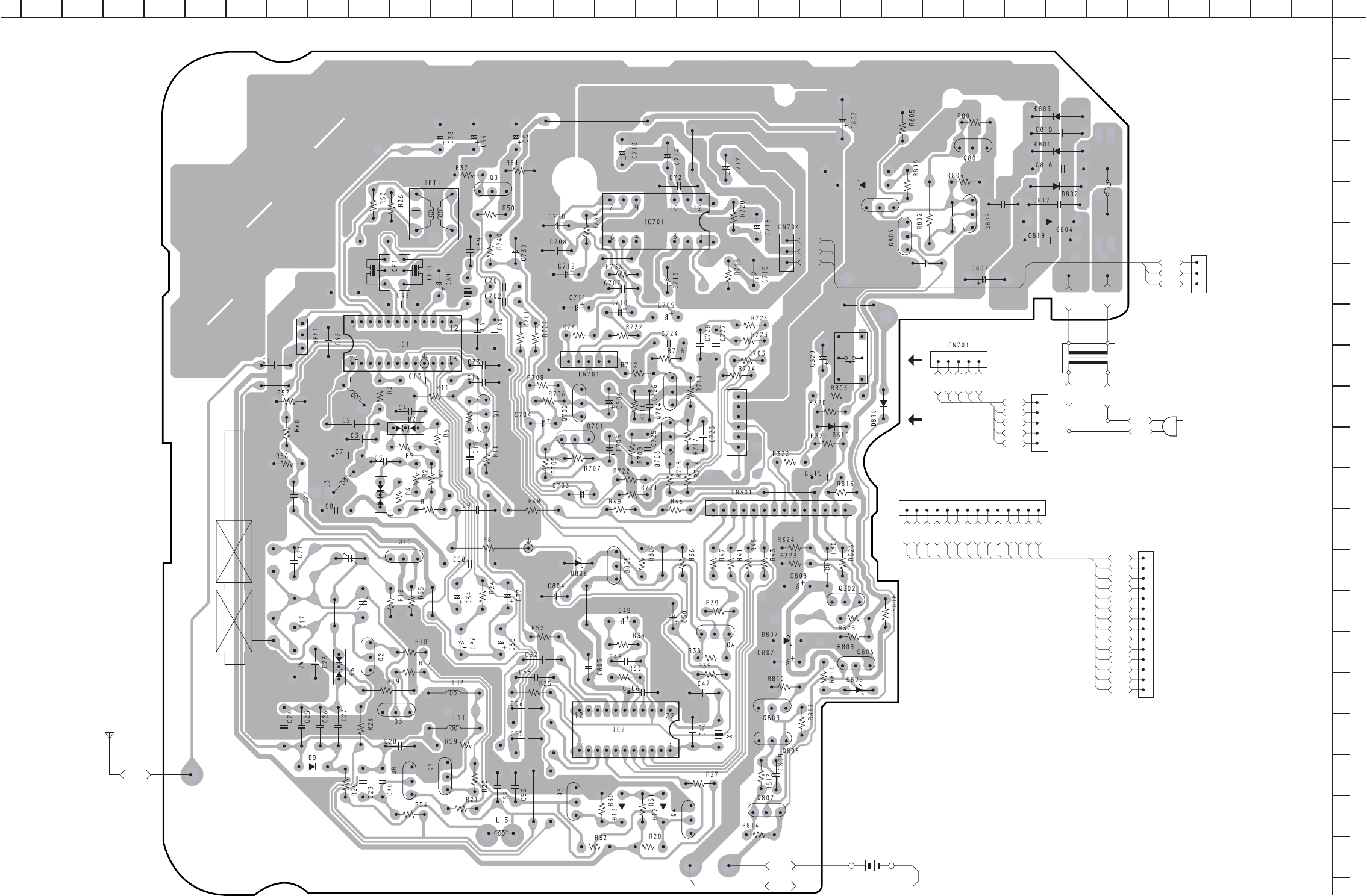

WIRING -1/5 (MAIN C.B)
-18-
-19-

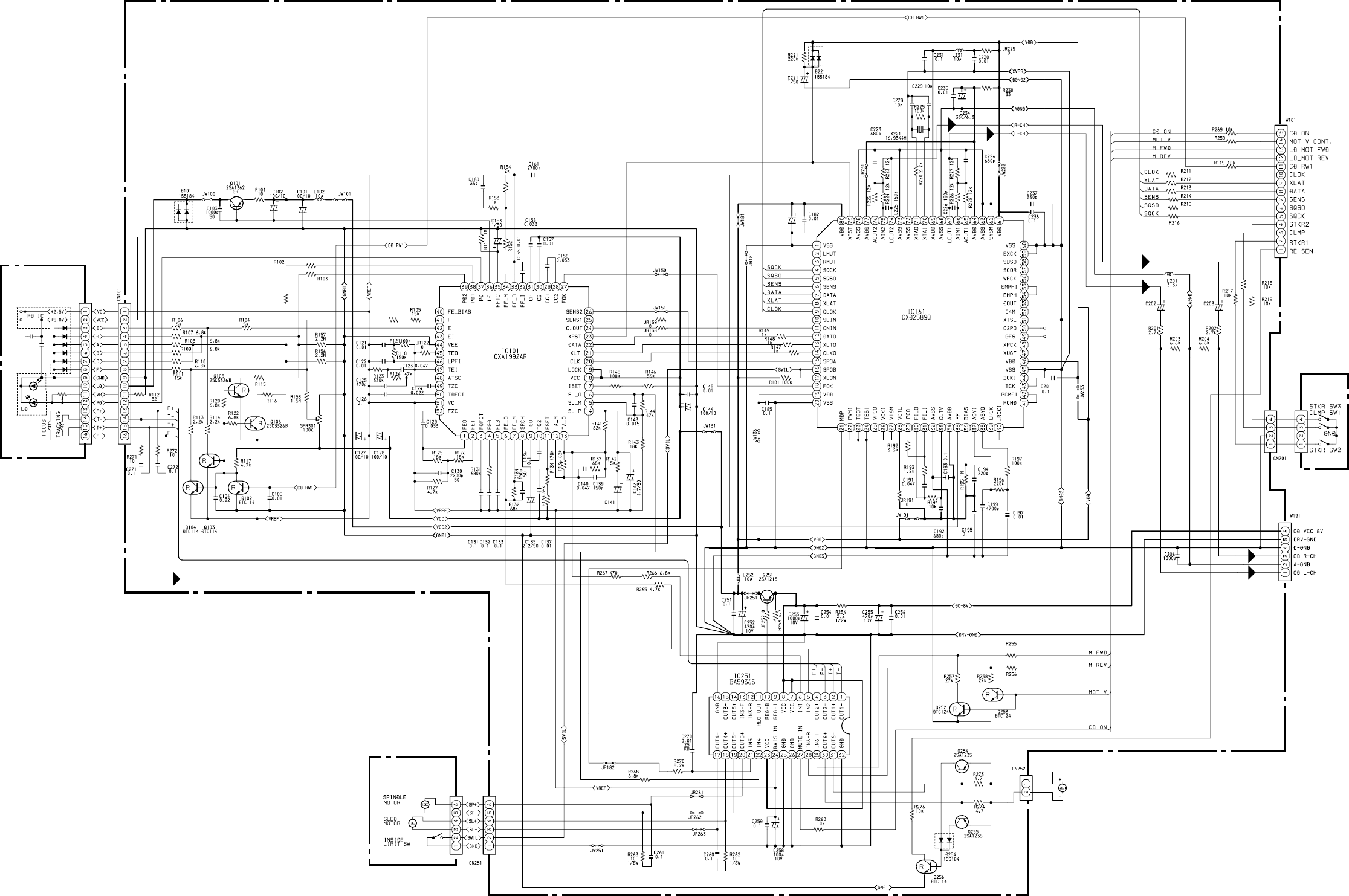

SCHEMATIC DIAGRAM -2/3 (CD SECTION)
CD C.B
6.8k
6.8k
820
820
TK/TKA
TK/TKATK/TKA
ASP
22/16
15k
DSP
10k
10k
10k
10k
10k
10k
10k
10/16 10/16
6.8k
6.8k
XKA
XKA
Y
DRIVER
TK/TKA
M3
LOADING
MOTOR
To
MAIN C.B
CN703
To
FRONT C.B
CN303
: CD SIGNAL
FFC101
FFC251
FFC201
PICK UP
UNIT
SW C.B
MOTOR C.B
M1
M2
SW4
JR100
0JR101
0
C181
47/16
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
15
1
15
1
15
1
FFC251
To
MOTOR C.B
FFC101
To
PICK UP
UNIT
CD C.B
Q251
JW107
JW109
JR100
JR101
E
B
C
EB
C
EB
C
EB
C
E
B
C
E
B
C
E
BC
E
BC
E
B
C
EB
C
EB
C
E
B
C
1
1
1
4
1
2
3
4
2
6
1
6
RED
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
BLK
RED
To
MAIN C.B
CN703
M3
LOADING
MOTOR
To
SW C.B
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
To
FRONT C.B
CN303
6
1
1
16
1
5
6
6
16
15
1
2
FFC201
1234567892526272829303132

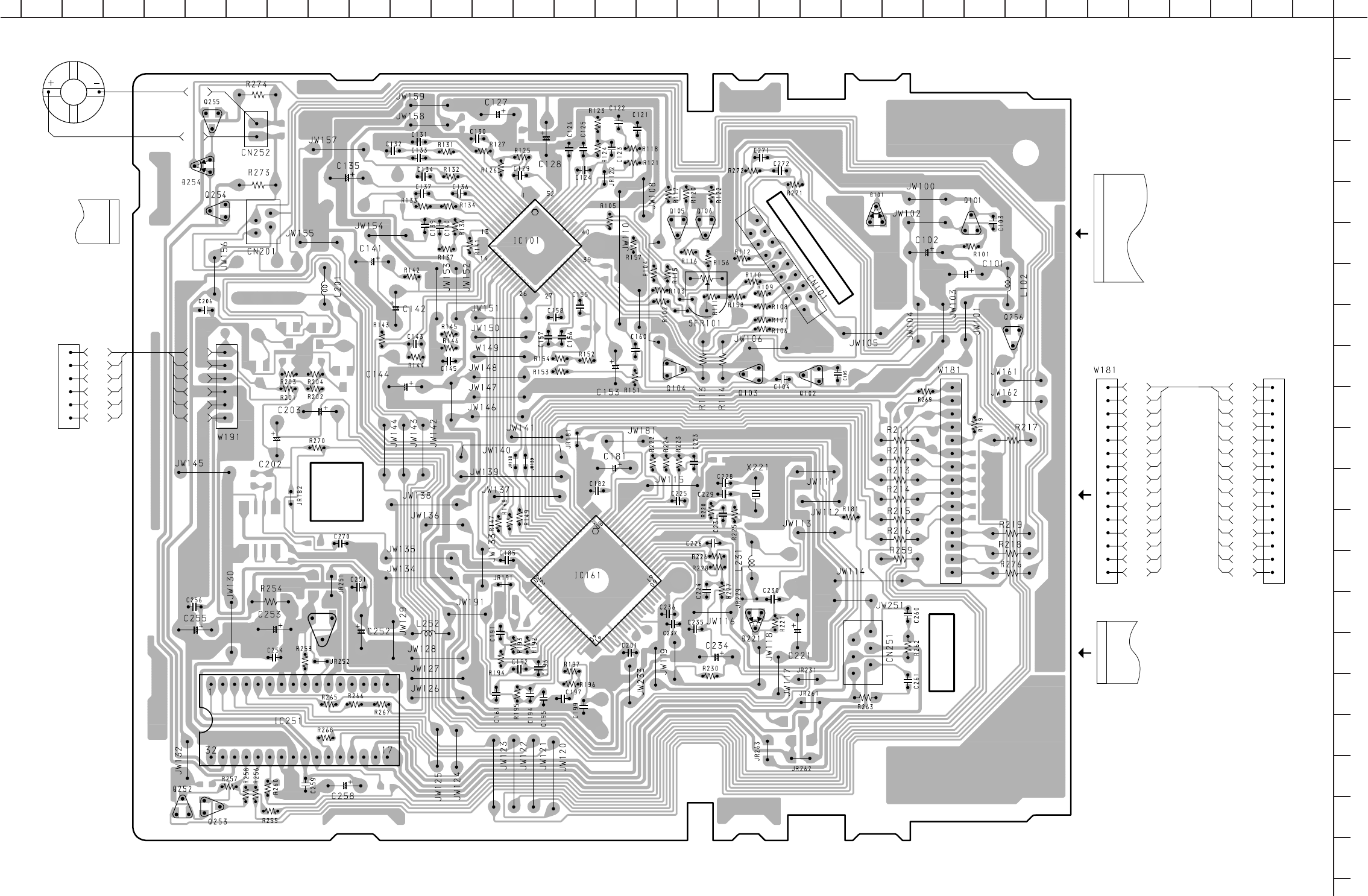

WIRING -2/5 (CD C.B)
-20-
M
M
SW4
LIMIT SW
11
5
2
66
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
44
2
3
11
SW3
STKR2 SW
SW1
CLMP SW
SW2
STKR1 SW
To
CD C.B
CN101
To
CD C.B
CN251
To
CD C.B
CN201
FFC101
1
16
FFC201
FFC251
PICK UP
UNIT
MOTOR C.B
SW C.B

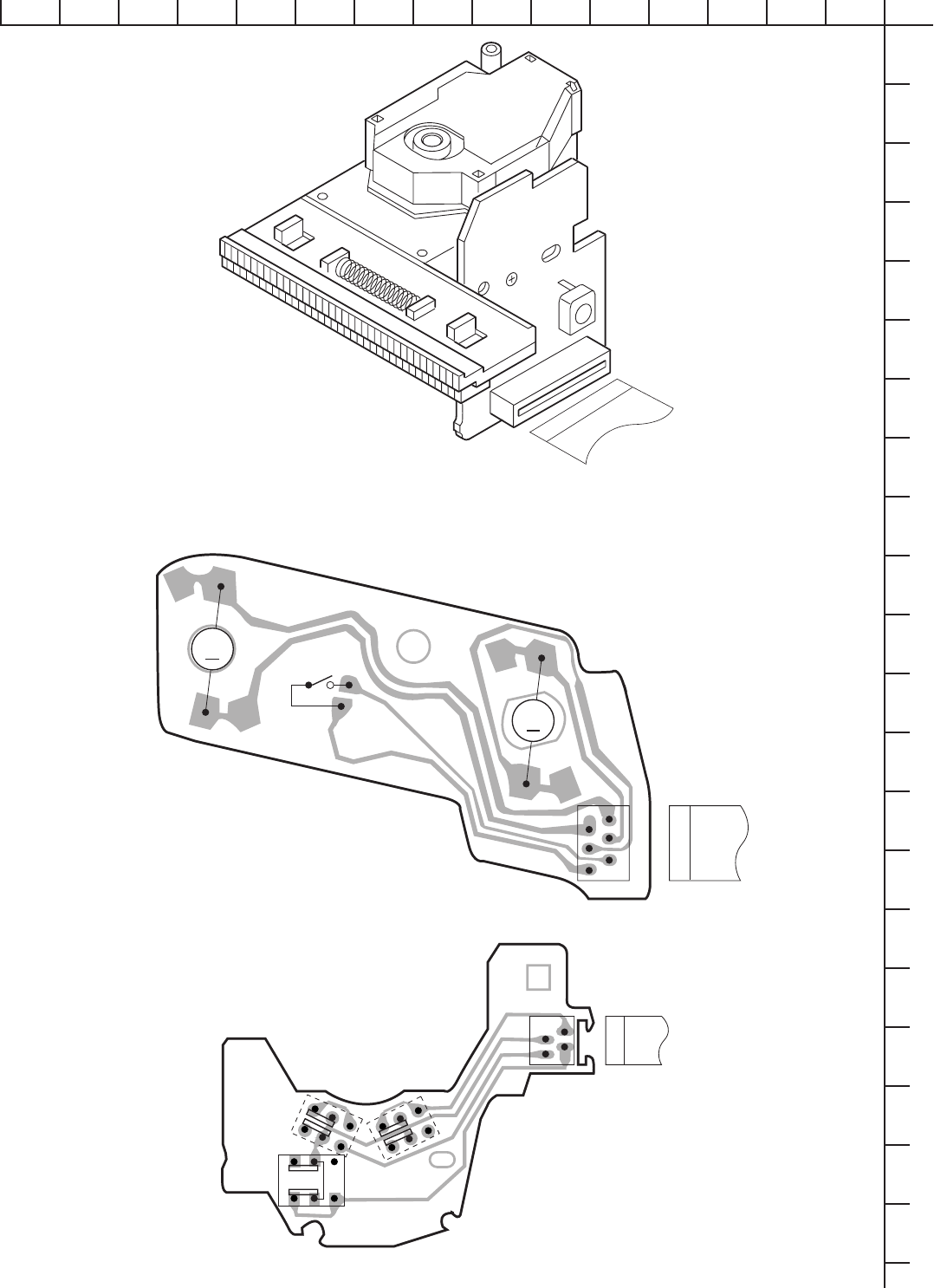

WIRING -3/5 (MOTOR C.B/SW C.B)
-21-
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
-22-
(DOOR SW)

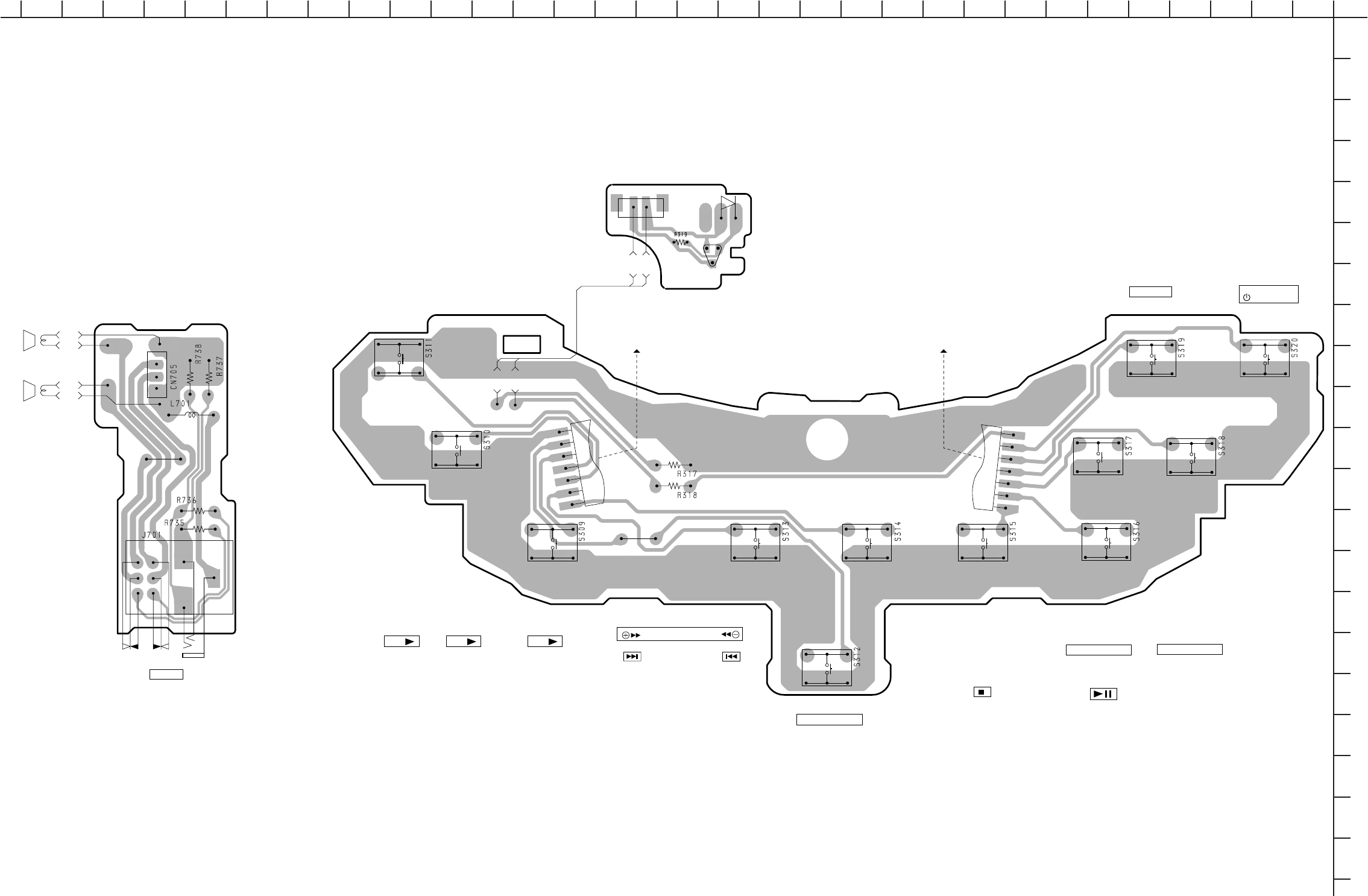

DOOR SW C.B KEY C.B

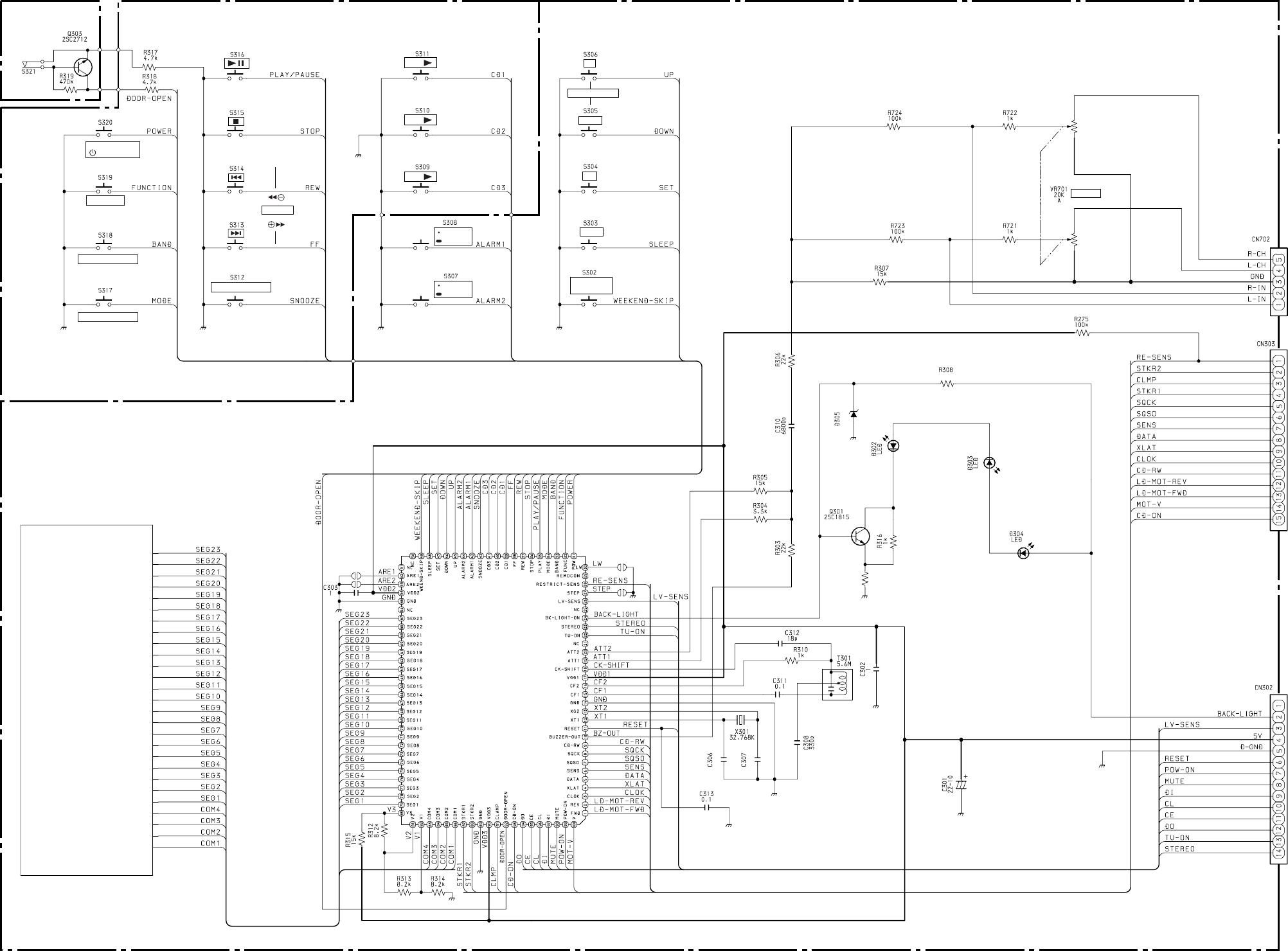

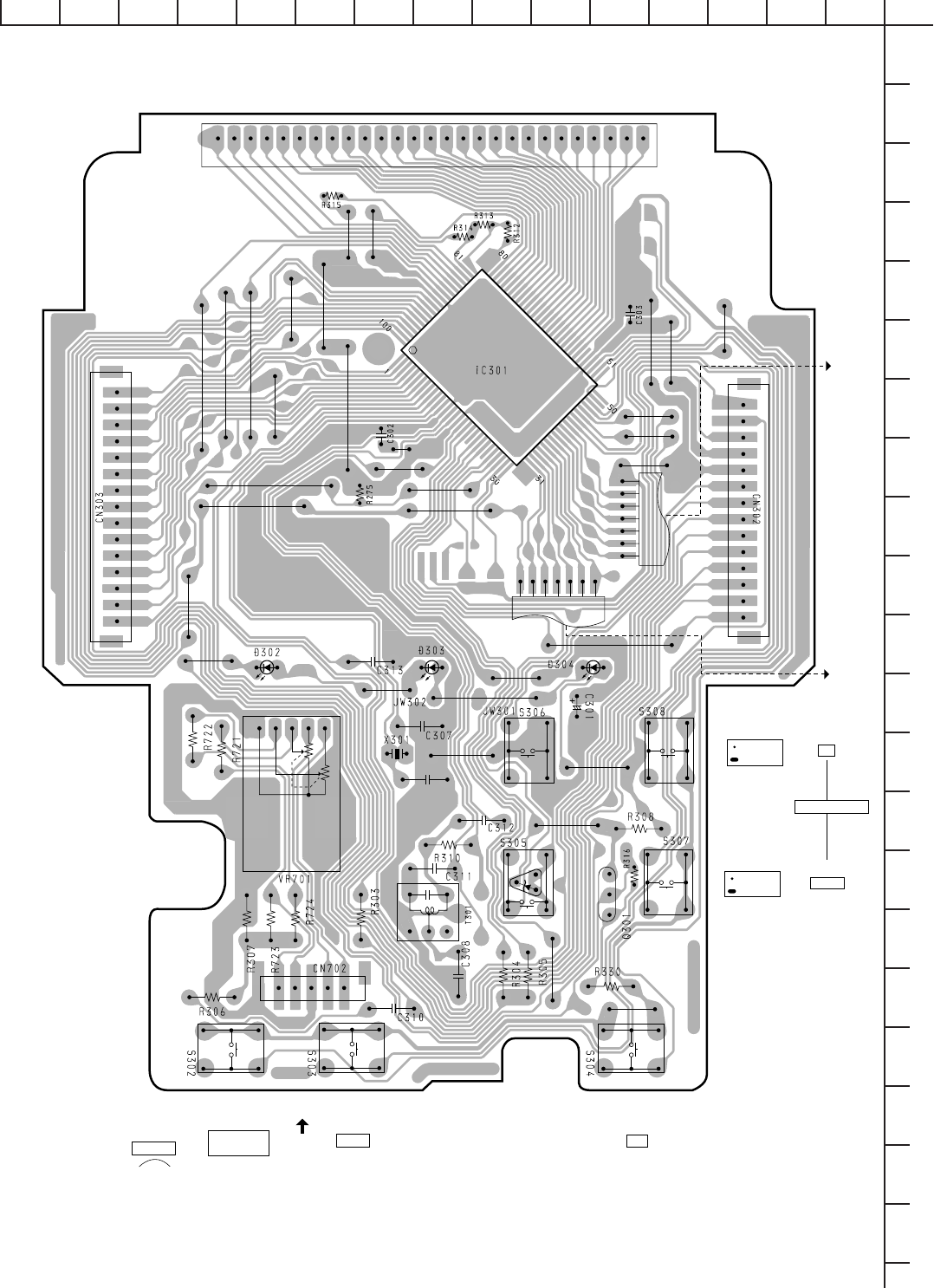

FRONT C.B
POWER
STANDBY/ON
FUNCTION
BAND/FM STEREO
SNOOZE/DISPLAY
REPEAT/RANDOM
PRESET
CD1
CD2
CD3
ALARM 1
OFF
ALARM 2
OFF
UP
DOWN
TUNING/CLOCK
SET
SLEEP
WEEKEND
ALARM SKIP
VOLUME
To
MAIN C.B
CN701
To
CD C.B
W181
To
MAIN C.B
CN301
D302-D304
L-934SECK
GR
10p
10p
IC301
LC877348A5Z52
LCD DRIVER
LCD301
N-04D-32
LCD DISPLAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
5
210
11
12
13
14
6
7
8
9
4
3
1
CN351
(1-7)
CN351
(1-7)
CN351
(1-7)
CN352
(8-14)
2
1
CN304
4.7k
R330
150
GR
3.3V 1/2W
SCHEMATIC DIAGRAM -3/3 (FRONT SECTION)
To
CD C.B
W181
To
MAIN C.B
CN301
14 8
7
1
To
MAIN C.B
CN701
D305
FRONT C.B
27 1
LCD301
ALARM 1
OFF
ALARM 2
OFF
S308
S307 S305
S306
UP
DOWN
TUNING/CLOCK
SET
SLEEP
WEEKEND
ALARM SKIP
S302
RV701 S303 S304
VOLUME
MAX MIN
B
C
E
1
14
15
1
C306
15
To
KEY C.B
CN351
To
KEY C.B
CN352
CN351
CN352
WIRING -4/5 (FRONT C.B)
-23-
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
J701
PHONES
SP701
(L-CH)
SP702
(R-CH)
Q303
S321
(DOOR SW)
1
7
14
8
EB
C
BRN
RED
BRN
RED
BLK
ORG
RED
BLK
1
3To
MAIN C.B
CN704
CD1 CD2 CD3
S311 S310 S309
S313 S314
S312
S315 S316
S317 S318
PRESET
SNOOZE/DISPLAY
REPEAT/RANDOM BAND/FM STEREO
FUNCTION POWER
STANDBY/ON
S319 S320
JACK C.B
KEY C.B
DOOR SW C.B
To
FRONT C.B
CN351
To
FRONT C.B
CN352
CN351
CN304
CN352
12
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
WIRING -5/5 (KEY C.B/JACK C.B/DOOR SW C.B)
-24-
-25-
VOLTAGE CHART -1/3
THE MEASURED VALUE IS DC VOLTAGE
UNIT: V
CD SECTION
TEST CONDITION: CD PLAY
IC301 (LC877348A5Z52)
PIN'S NUMBER 1 2345678910
CD PLAY 0 0 4.87 4.92 4.81 0.05 0.58 4.86 00
PIN'S NUMBER 11 12 13 14 15 16 17 18 19 20
CD PLAY 4.92 1.17 2.55 0 2.09 2.25 4.93 0.91 0 0
PIN'S NUMBER 21 22 23 24 25 26 27 28 29 30
CD PLAY 0 4.74 4.90 0.78 0.85 5.52 4.19 4.88 0 4.91
PIN'S NUMBER 31 32 33 34 35 36 37 38 39 40
CD PLAY 4.91 0 4.91 4.91 4.91 0 4.91 4.91 4.91 4.91
PIN'S NUMBER 41 42 43 44 45 46 47 48 49 50
CD PLAY 4.91 4.91 4.91 0 4.91 4.91 4.91 4.91 4.91 4.91
PIN'S NUMBER 51 52 53 54 55 56 57 58 59 60
CD PLAY 4.91 0 4.91 4.93 0 1.51
PIN'S NUMBER 61 62 63 64 65 66 67 68 69 70
CD PLAY
PIN'S NUMBER 71 72 73 74 75 76 77 78 79 80
CD PLAY 3.03
PIN'S NUMBER 81 82 83 84 85 86 87 88 89 90
CD PLAY 2.02 0 1.52 1.52 1.52 1.52 0.48 4.91 0 4.93
PIN'S NUMBER 91 92 93 94 95 96 97 98 99 100
CD PLAY 0.48 4.00 0 4.91 0 0 0 0 4.67 0
IC161 (CXD2589Q)
PIN'S NUMBER 1 2345678910
CD PLAY 0 4.98 4.98 4.87 0.55 0 4.81 4.93 4.88 4.91
PIN'S NUMBER 11 12 13 14 15 16 17 18 19 20
CD PLAY 0.08 4.07 4.87 4.94 4.98 4.93 4.98 5.00 4.99 0
PIN'S NUMBER 21 22 23 24 25 26 27 28 29 30
CD PLAY 2.70 0 0 0 0 0 0 4.99 2.53 2.54
PIN'SNUMBER 31 32 33 34 35 36 37 38 39 40
CD PLAY 2.53 0 2.54 4.97 2.49 0.85 2.50 2.50 2.49 2.49
PIN'S NUMBER 41 42 43 44 45 46 47 48 49 50
CD PLAY 2.51 2.50 2.41 2.41 0 4.98 4.97 2.35 4.98 0
PIN'S NUMBER 51 52 53 54 55 56 57 58 59 60
CD PLAY 0 2.37 2.44 0 0 2.50 0 0.12 0 0
PIN'SNUMBER 61 62 63 64 65 66 67 68 69 70
CD PLAY 4.98 0.13 0.13 4.69 2.05 2.07 2.08 0.13 4.98 2.44
PIN'SNUMBER 71 72 73 74 75 76 77 78 79 80
CD PLAY 2.45 0 0.13 2.06 0 2.09 4.69 0.13 4.88 4.98
IC101 (CXA1992AR)
PIN'SNUMBER 1 234567891011
CD PLAY 2.55 2.54 2.51 2.54 2.52 2.54 2.53 2.77 2.53 2.53 0.81
PIN'SNUMBER 12 13 14 15 16 17 18 19 20 21 22
CD PLAY 2.53 2.55 2.55 2.54 2.58 1.29 5.04 5.04 4.94 4.98 4.87
PIN'SNUMBER 23 24 25 26 27 28 29 30 31 32 33
CD PLAY 4.88 0.08 4.91 4.97 5.01 1.21 1.30 2.11 2.28 2.53 3.24
PIN'S NUMBER 34 35 36 37 38 39 40 41 42 43 44
CD PLAY 2.55 3.16 3.93 0.17 2.55 2.53 2.53 2.54 2.56 2.26 0
PIN'SNUMBER 45 46 47 48 49 50 51 52
CD PLAY 2.53 2.47 2.53 2.44 2.52 2.50 2.53 2.52
-26-
VOLTAGE CHART -2/3
IC251 (BA5936S)
PIN’SNUMBER 1 2345678
CD PLAY 3.57 3.56 3.50 3.58 2.53 2.53 7.60 7.63
PIN’SNUMBER 9 10 11 12 13 14 15 16
CD PLAY 7.61 7.02 5.04 0 0 3.87 3.87 0
PIN’SNUMBER 17 18 19 20 21 22 23 24
CDPLAY 3.43 3.60 3.22 0 0 2.53 7.62 2.53
PIN’SNUMBER 25 26 27 28 29 30 31 32
CD PLAY 0 0 3.12 0 0 3.88 3.88 0
TUNER SECTION
TEST CONDITION: SET AM/FM TUNER ON ONE FREQUENCY
IC1 (TA2104AN)
PIN’SNUMBER 1 2345678
AM 0 0 1.17 2.98 3.01 2.33 3.01 0
FM 0 0.79 0 2.65 2.93 2.57 2.93 0
PIN’SNUMBER 9 10 11 12 13 14 15 16
AM 0.47 2.81 1.21 1.23 0 0 0.70 1.06
FM 0.16 2.15 1.20 1.22 2.07 0 0.70 1.38
PIN’SNUMBER 17 18 19 20 21 22 23 24
AM 1.24 4.91 2.81 3.01 2.98 3.00 2.98 2.98
FM 1.11 4.92 2.72 2.93 2.85 2.93 2.86 2.86
IC2 (LC72131D/N)
PIN’SNUMBER 1 234567891011
FM 2.300004.92 0 1.15 2.07 0 1.30
PIN’SNUMBER 12 13 14 15 16 17 18 19 20 21 22
FM 0 1.20 0 0 2.31 4.67 0.90 0.90 3.12 0 2.28
IC701 (TA8227P)
PIN’SNUMBER 1 23456
FM 8.09 4.13 7.75 0 0.58 0
PIN’SNUMBER 7 8 9 10 11 12
FM 0 0.58 4.58 7.76 4.17 8.09
TRANSISTORS Q6(A1015) Q9(C1815)
ECBECB
AM 4.80 4.74 4.05 3.18 4.74 3.87
FM 4.78 4.71 4.03 3.14 4.71 3.85
TRANSISTORS Q10(C1815) Q1(C1923)
ECBECB
AM 2.50 3.10 3.10 1.82 2.94 2.52
TRANSISTORS Q805(C1815) Q806(C1815) Q807(A1015)
ECBECBECB
FM 4.8 8.1 5.5 5 9.6 5.66 8.8 4.97 8.76
TRANSISTORS Q808(C1815) Q809(C1815) Q302(A1015)
ECBECBECB
FM 0 4.53 0 0 0 0.57 8.8 4.97 8.76
TRANSISTORS Q801(B1566) Q802(C1815) Q803(C1815)
ECBECBECB
FM 14.26 8.09 13.5 0 13.5 0.6 0 0 0.73
TRANSISTORS Q804(C1815) Q301(C1815)
ECBECB
FM 0 0.6 0.64 2.43 5.7 3.15
-27-
VOLTAGE CHART -3/3
TRANSISTORS Q101(A1362) Q102(C114) Q103(C114)
ECBECBECB
CD 4.63 1.9 3.99 0 3.74 0 2.54 2.54 3.74
TRANSISTORS Q104(C114) Q105(C3326) Q106(C3326)
ECBECBECB
CD 2.54 2.54 3.74 2.54 2.54 3.2 2.54 2.54 3.2
TRANSISTORS Q251(A1213Y) Q252(C124) Q253(C124)
ECBECBECB
CD 7.6 5.04 7.0 0 0 2.8 0 0 2.8
TRANSISTORS Q254
(
A1235
)
Q255
(
A1235
)
Q256
(
C114
)
ECBECBECB
CD 3.87 -0.6 3.87 3.87 -0.6 3.87 0 4.9 -0.7
TRANSISTORS Q303(C2712)
ECB
CD (door open) 0 0.85
2.75 0 2.72 2.75 2.72 2.04
0 0 0.69
2.75 -5.03 2.72
0 1.08 0.64
0 1.08 0.64
2.75 2.75 2.050 2.72 0.21
0 1.07 0.64 0 0 0000
0 1.08 0.64 0 0 0000
0.77
CD (door close) 0 4.53 0
TRANSISTORS Q2(A1015) Q3(A1015)
ECBECB
AM
TRANSISTORS Q4(C1815) Q5(C1815) Q7(A1015)
ECBECBECB
AM
TRANSISTORS Q8(A1015)
ECB
AM
TRANSISTORS Q701(C1815)
ECB
FM
AM
TRANSISTORS Q702(C1815) Q703(C1815) Q704(C1815)
ECBECBECB
FM
AM
-28-

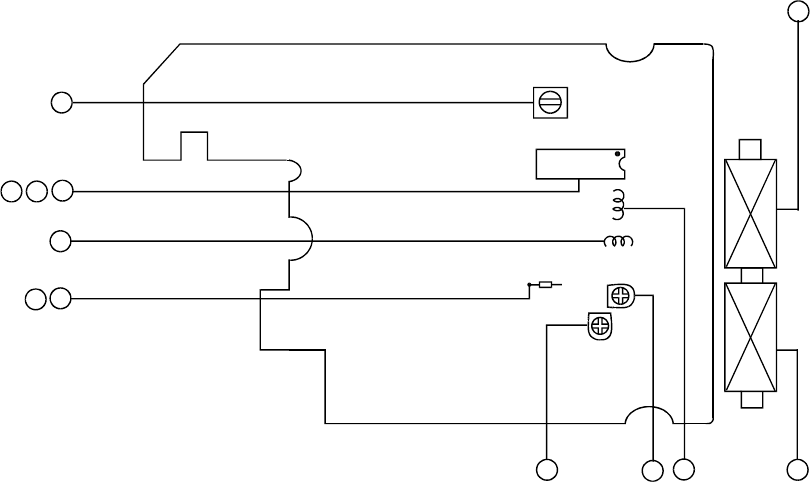

ADJUSTMENT -1/1
IC1
IFT1
L1
L3
R8 TC2
TC1
1
1
4
2
356
4
35
6
3
L10
L9
Test point 1
MAIN C.B
Test point 2
16pin
1. AM IF Adjustment
Testpoint: IC1 (TA2104AN) 16PIN (TP1)
Adjustment location: IFT1
IFT1 .......................................................................... 450kHz
2. MW VT Check
Testpoint: R8 (TP2)
Set the frequency to be 531kHz and observe the test point
voltage.It should be 0.9~1.2V.
Change the frequency to be 1602kHz
and observe the test point voltage. It should be less than 7 V.
3. MW Tracking Adjustment
Testpoint: IC1 (TA2104AN )16PIN (TP1)
Adjustmentlocation:L10, TC2
L10 ........................................................................... 594kHz
TC2 ..........................................................................1404kHz
4. FM VT Check
Testpoint: R8 (TP2)
Adjustment location: L3
Set the frequency to be 87.5 MHz then test the voltage.
Adjust L3 so that test point voltage is 1.5 ± 0.05 V.
Change the frequency to be 108 MHzand observe the test point
voltage.It should be less than 4 V.
5. FM Tracking Adjustment
Testpoint: IC1 (TA2104AN) 16PIN (TP1)
Adjustmentlocation: L1
L1 ............................................................................87.5MHz
7. LW VT Check
Testpoint: R8 (TP2)
Set the frequency to be 144kHz and observe the test point
voltage.
It should be 1~1.4V.
8. LW Tracking Adjustment
Testpoint: IC1 (TA2104AN )16PIN (TP1)
Adjustmentlocation:L9, TC1
L9 .............................................................................. 153kHz
TC1 ........................................................................... 288kHz
-29-
LCD DISPLAY -1/1 (N-04D-32)
SEGMENT
COMMON
-30-

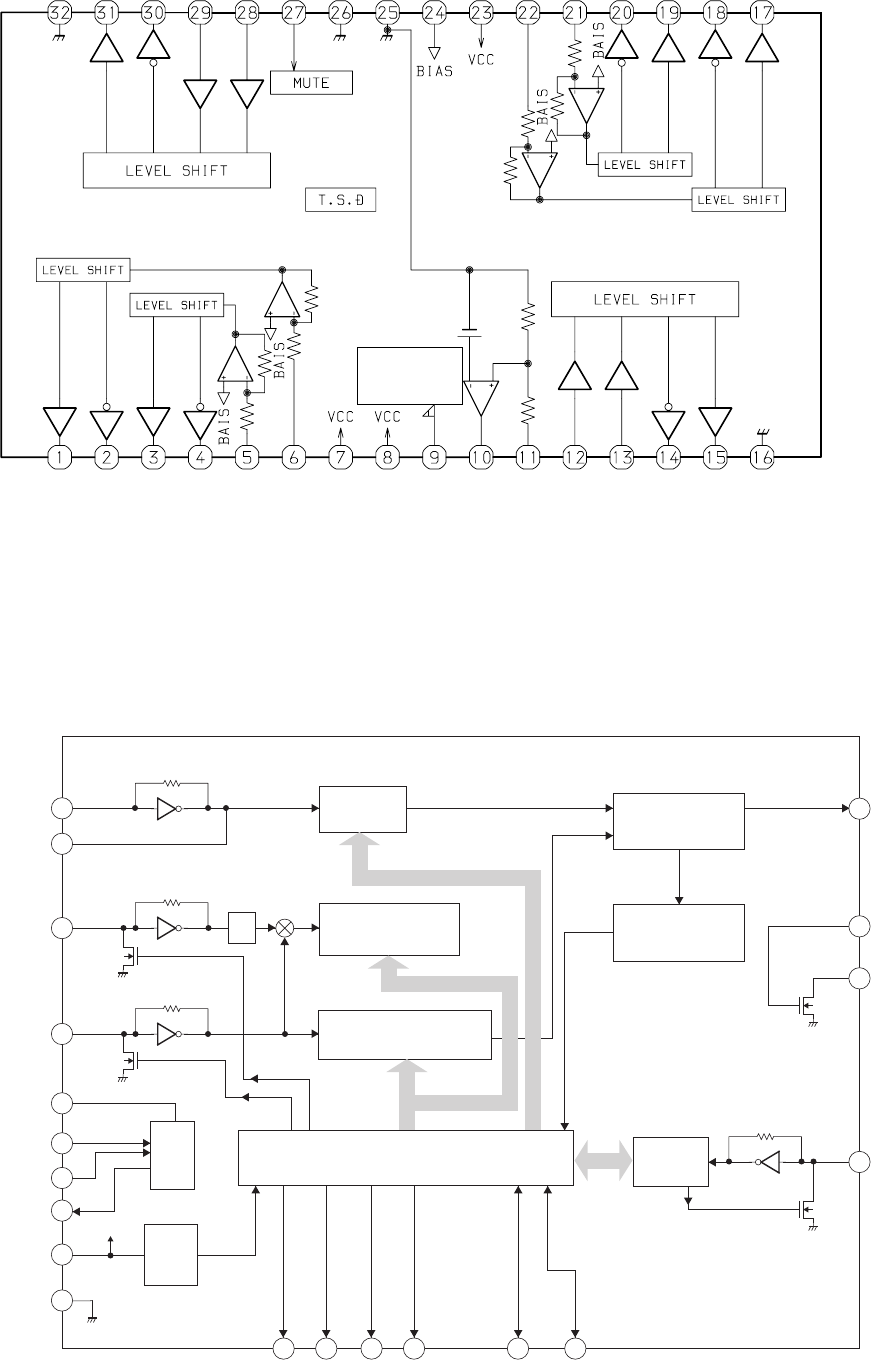

IC BLOCK DIAGRAM -1/3
IC, BA5936S
Rog CURRENT
DETECTOR
TERMINAL
DDD
DDD
DD
D
D
D
D
18
12
20
19
789
10 11 13
3
4
5
6
17
21
22
16
15
1REFERENCE
DIVIDER
SWALLOW COUNTER
1/16,1/17 4bits UNLOCK
DETECTOR
PHASE DETECTOR
CHARGE PUMP
UNIVERSAL
COUNTER
DATA SHIFT REGISTER
LATCH
12bits PROGRAMMABLE
DIVIDER
C B
I/F
POWER
ON
RESET
1/2
2
IC, LC72131D
-31-

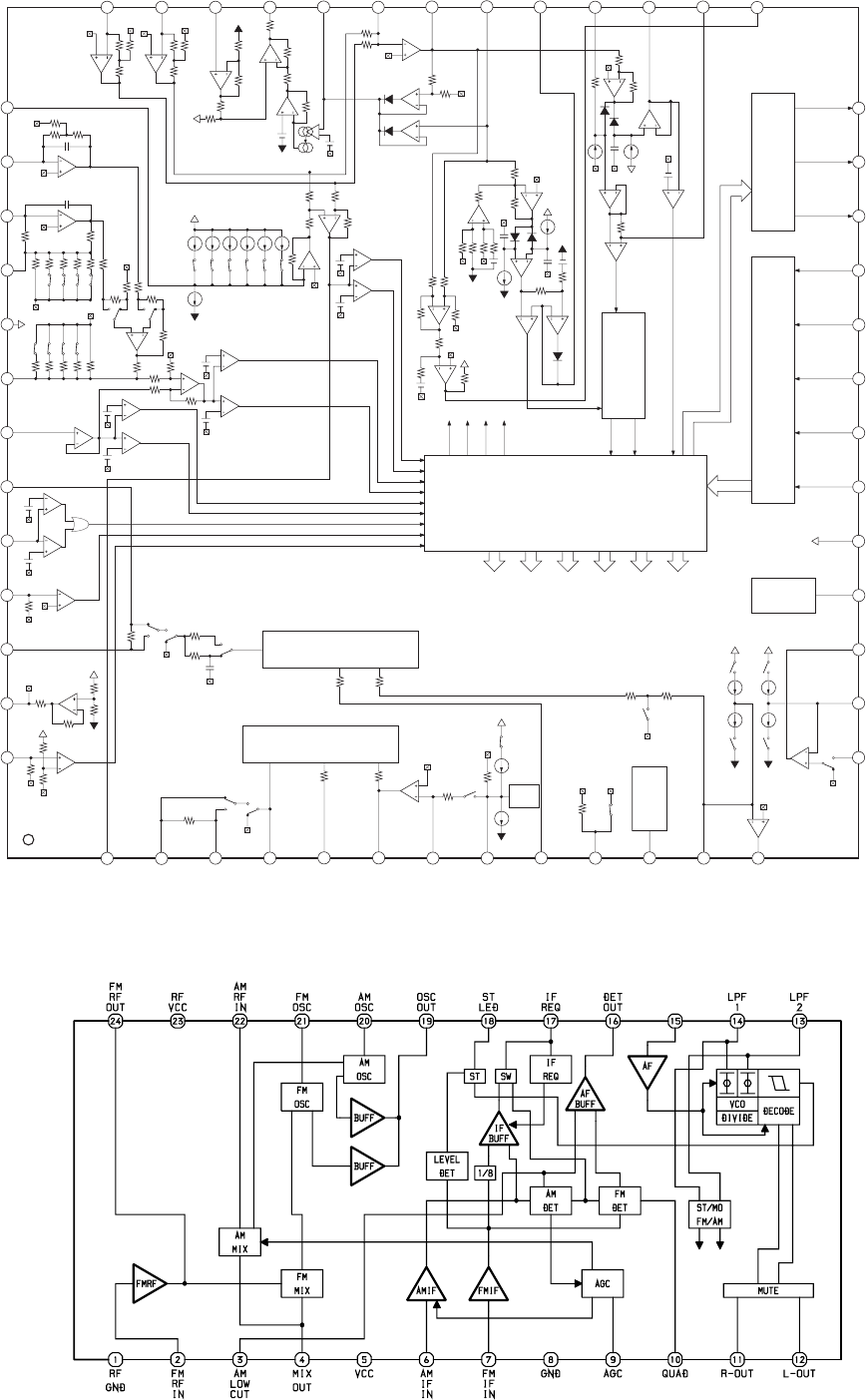

IC BLOCK DIAGRAM -2/3
PS1-4TM1-7TG1-2FS1-4IFB1-6
BAL1-4
TOG1-4
DFCTO
IFB1
VEE
FE AMP
FO. BIAS
WINDOW COMP.
TGFL
TRK. GAIN
WINDOW COMP.
TOG1
TOG2
TOG3
TOG4
E-F BALANCE
WINDOW COMP.
BAL1
F IV AMP
E IV AMP
VCC
VEE
VCC
TG1
TM1
DFCT
TRACKING
PHASE COMPENSATION
IIL DATA REGISTER
INPUT SHIFT REGISTER
ADDRESS DECODER
SENS SELECTOR
OUTPUT DECODER
FZC
VC
TDFCT
TZC
VEE
ATSC
LPFI
TEO
TEI
VEE
FE_BIAS
E
F
EI
FEO
FEI
FDFCT
FLB
FE_O
FE_M
TA_M
TG2
TGU
SRCH
FGD
FSET
TA_O
LD
RFTC
RF_M
RF_O
RF_I
CB
CC1
FOK
CC2
CP
PD2
PD1
PD
SL_P
SL_O
ISET
VCC
CLK
DATA
XRST
SL_M
LOCK
C. OUT
XLT
SENS1
SENS2
PD2 IV
AMP PD1 IV
AMP
VCC
VCC
VEE
APC
VEE
LASER POWER CONTROL
RF SUMMING AMP
VCC
VEE
LEVEL S
FZC
TZC
ATSC
BALL
BALH
TGL
TGH
FOL
FOH
LDON
LPCL
LPC
TGFL
VEE
VCC
TTL
MIRR
DFCT1
VEE
VCC
DFCT
CC1
ISET
VCC
VEE
VCC
TM5
TM6
VEE
VCC
TM3
TM4
FSET
TG2
FOCUS
PHASE COMPENSATION
TM7
VEE
VCC
FS1
Charge
up
FS2
DFCT
FS4
IIL
TTL
IIL
TTL
IIL
49
50
51
52
40
41
42
43
44
45
46
47
48
2345678910 11 12
113
27
28
29
30
39 38 37 36 35 34 31
32
33
14
15
16
17
18
19
20
21
22
23
24
25
26
TM2
FZC COMP.
TZC COMP.
ATSC
WINDOW
COMP.
MIRR
↓
↓
↓
FOK
BAL2
BAL3
BAL4
IFB6
IFB5
IFB4
IFB3
IFB2
IC, CXA1992AR
MPX
IN
IC, TA2104AN
-32-

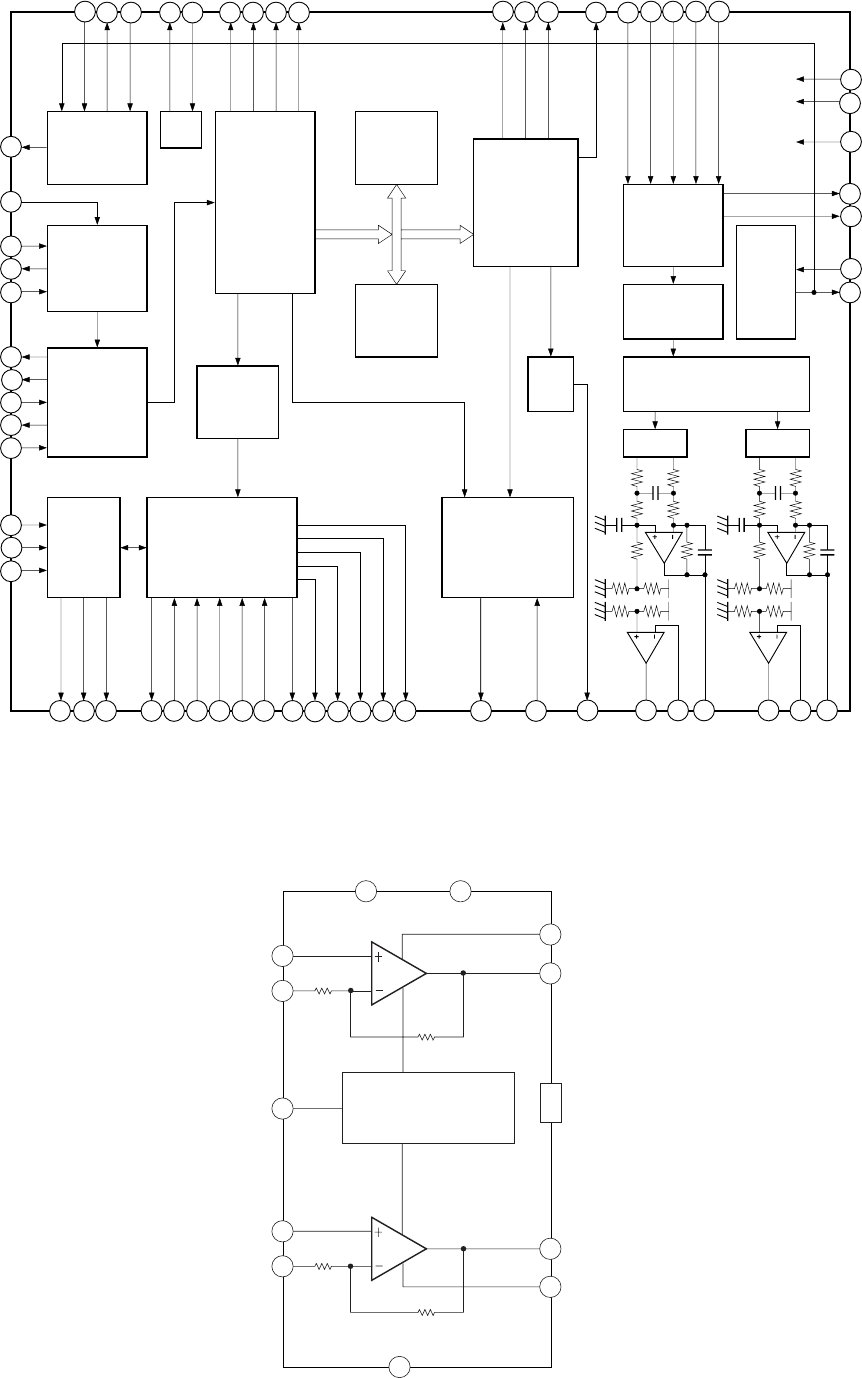

IC BLOCK DIAGRAM -3/3
IC, TA8227P
EFM
demodurator
Clock
Generator
OSC Error
Corrector
D/A
Interface Serial-In
Interface
Over Sampling
Digital Filter
Timing
Logic
3rd-Order
Noise Shaper
PWM PWM
16K
RAM
Digital
OUT
Digital
CLV
CPU
Interface
Servo
Auto
Sequencer
Asymmetry
Corrector
Digital
PLL
Sub Code
Processor
C4M
RF
ASYI
ASYO
BIAS
XPCK
FILO
FILI
PCO
CLTV
FOK
SEIN
CNIN
DATO
XLTO
CLKO
SENS
DATA
XLAT
CLOK
XLON
SCOR
SBSO
EXCK
SQSO
SQCK
MDP
DOUT
LOUT2
AIN2
AOUT2
LOUT1
AIN1
AOUT1
XTSL
VPCO
VCKI
V16M
VCTL
XUGF
GFS
EMPH
WFCK
C2PO
LRCK
PCMD
BCK
EMPHI
LRCKI
PCMDI
BCKI
SYSM
RMUT
LMUT
XTAI
XTAO
PWMI
XRST
TEST
TES1
SPOA
SPOB
40
39
38
37
36
35
31
33
41 42
43 44
47
48
49 50
51
52
53
54 55
56
57 58 59
70
67 65
66
62
71
74 75 76
79
2
3
4
5
6789
10
11
12 13 14 15 16 17
18
21
23
24
25 26 27 28
29
30
22
VCC2 VCC1
6
5
9
7
8
4
PRE-GND
10
11
2
3
12
1
FIN
45
30k
45
30k
CH-1
CH-2
BIAS CIRCUIT
THERMAL SHUT DOWN
PROTECTION CIRCUIT
B.S.1
OUT1
PW-GND
OUT2
B.S.2
NF2
IN2
RIPPLE
NF1
IN1
IC, CXD2589Q
Pin No. Pin Name I/O Description
-33-
IC DESCRIPTION -1/1 (LC877348A5Z52)-1/2
O
O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
I
I
O
-
I
O
-
O
O
O
-
O
I
O
I/O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
CD mechanic changer control output motor control
CD mechanic changer control output motor control
CD control serial port
CD control serial port
CD control serial port
CD control serial port
CD control serial port
CD control serial port
CD-R/W change output
Buzzer sound output
System reset
Oscillation
Oscillation
GND
Oscillation
Oscillation
VDD1
Oscillation frequency change terminal
Buzzer sound control terminal
Buzzer sound control terminal
Not connected
Tuner power source. At the time of tuner Lo
FM stereo detection. At the time of stereo Lo
LCD back light output
Not connected
Power failure detection. When having a power failure Lo
AM step change
CD mechanic restrict detection terminal
Remote control input
TV LW selection change
POWER button input terminal (Lo active)
FUNCTION button input terminal (Lo active)
BAND button input terminal (Lo active)
MODE button input terminal (Lo active)
PLAY/PAUSE button input terminal (Lo active)
STOP button input terminal (Lo active)
REW button input terminal (Lo active)
FF button input terminal (Lo active)
CD1 button input terminal (Lo active)
CD2 button input terminal (Lo active)
CD3 button input terminal (Lo active)
SNOOZE button input terminal (Lo active)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
LD-MOT-FWD
LD-MOT-REV
CLOCK
XLAT
DATA
SENS
SQSO
SQCK
CD-RW
BZ-OUT
RESET
XT1
XT2
GND
CF1
CF2
VDD1
CK-SHIFT
ATT1
ATT2
N.C
TU-ON
STEREO
BACK-LIGHT
N.C
LV-SENS
STEP
RESTRICT-SENS
REMOCON
LW
POWER KEY
FUNCTION KEY
BAND KEY
MODE KEY
PLAY/PAUSE KEY
STOP KEY
REW KEY
FF KEY
CD1 KEY
CD2 KEY
CD3 KEY
SNOOZE KEY
Pin No. Pin Name I/O Description
-34-
ALARM1 KEY
ALARM2 KEY
UP KEY
DOWN KEY
SET KEY
SLEEP KEY
WEEKEND-SKIP KEY
N.C
N.C
ARE1
ARE2
VDD2
GND
N.C
SEG23 ~ SEG1
V3
V2
V1
COM4
COM3
COM2
COM1
STKR1
STKR2
GND
VDD3
CLMP
DOOR-OPEN
CD-ON
DO
CE
CL
DI
MUTE
POWER-ON
MOT-V CONT
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57 ~ 79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
I
I
I
I
I
I
I
-
-
I
I
-
-
-
O
-
-
-
-
-
-
-
I
I
-
-
I
I
O
I/O
I/O
I/O
I/O
O
O
O
ALARM1 button input terminal (Lo active)
ALARM2 button input terminal (Lo active)
UP button input terminal (Lo active)
DOWN button input terminal (Lo active)
SET button input terminal (Lo active)
SLEEP button input terminal (Lo active)
WEEKEND-SKIP button input terminal (Lo active)
Not connected
Not connected
Reception area change 1
Reception area change 2
VDD3
GND
Not connected
LCD segment
LCD bias3
LCD bias2
LCD bias1
LCD common 4
LCD common 3
LCD common 2
LCD common 1
CD Stocker detection
GND
VDD3
CD mechanic clamp detection terminal (SW1 ON: Lo) Play:ON,Middle:OFF
CD door detection terminal (CD ON:Hi)
At the time of the CD function it outputs the Hi
Tuner control serial port
Tuner control serial port
Tuner control serial port
Tuner control serial port
MUTING output
POWER ON output. ON: Hi
CD mechanic changer motor torque UP output
ON: Lo Stocker1 Stocker2 Stocker3 Rotary middle
SW2 ON ON OFF OFF
SW3 ON OFF ON OFF
IC DESCRIPTION -1/1 (LC877348A5Z52)-2/2
-35-

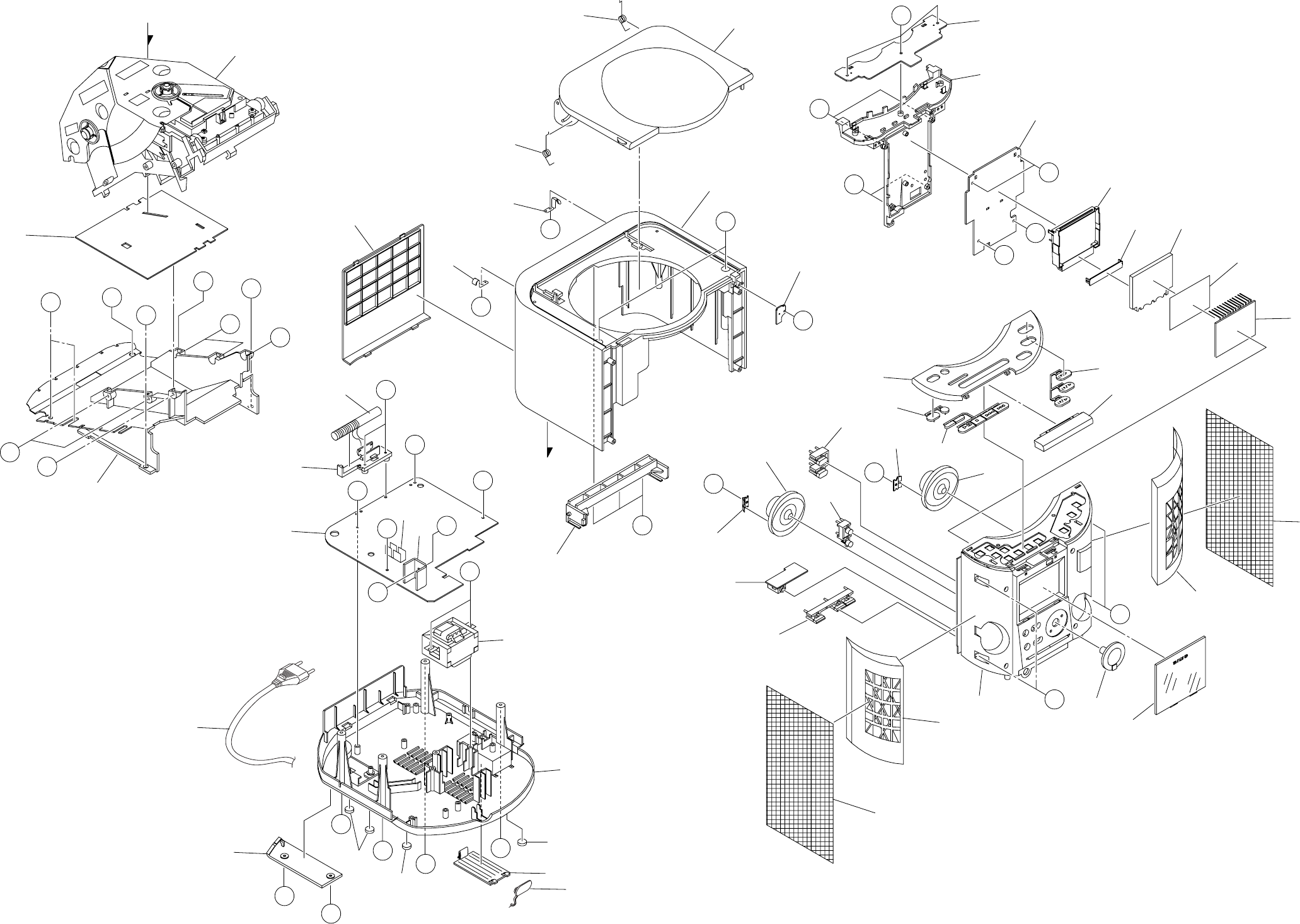

MECHANICAL EXPLODED VIEW -1/1
E
E
E
E
E
E
E
E
E
C
E
EF
F
F
E
C
B
B
E
DD
E
E
D
D
D
D
D
G
H
E
EE
E
E
E
A
7
27
7
25
24 23
22
21
17
16
29
34
36
11
9
42
35
26
28
28
28
8
3
4
14
4
30
31
18
13
2
1
15
5
7
9
19
38
732
33
39
37
40
44
8
10
12
33
a
a
6
20
41
43
45
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-36-
MECHANICAL PARTS LIST -1/1
FR-TC5000
KSC
O MC1001 8C-RD2-011-010 WINDOW,FR a
O MC1002 8C-RD2-012-010 KNOB,VOL a
O MC1003 8C-RD2-010-010 GRILL,SPEAKER (L) a
X MC1004 S0-052-000-000 CLOTH,SPKR a
O MC1005 8C-RD2-014-110 KNOB,SET/SLP/WE a
! O MC1006 SB-103-320-010 (F134-220120-019) PLA-VDE-6’0 a
X MC1007 S0-0CR-D25-010 PWB,CRD2-02-02,03,04,05,06 a
O MC1008 87-A92-382-010 SPK,8OHM 2W a
O MC1009 8C-RD2-206-010 FRAME,SPKR a
O MC1010 8C-RD2-019-010 BTN,ALARM a
O MC1011 8C-RD2-013-010 BTN,FREQ a
O MC1012 8C-RD2-016-010 BTN,BAND/MO/PL a
O MC1013 8C-RD2-015-010 BTN,POW/FUNC a
O MC1014 8C-RD2-009-010 GRILL,SPEAKER (R) a
O MC1015 8C-RD2-001-010 CAB,FRONT a
O MC1016 8C-RD2-018-010 BTN,SNOOZE a
O MC1017 8C-RD2-017-010 BTN,CD a
O MC1018 8C-RD2-004-010 PANEL,TOP a
O MC1019 SC-RD2-220-000 FRAME,CD HINGE a
O MC1020 S7-RU5-000-000 BATT,SNAP “T” TYPE a
FR-TC5000
KSC
O MC1021 8C-RD2-609-010 LCD,N-04D-32 a
X MC1022 SC-RD2-290-000 SH,REFLECTION a
O MC1023 8C-RD2-207-010 PLATE,REFLECTION a
O MC1024 SC-RD2-240-000 COVER,LED a
X MC1025 SC-RD2-230-000 HLDR,LCD a
O MC1026 8C-RD2-007-010 LID,BATTERY a
O MC1027 SC-RD2-210-000 FRAME,FRONT a
O MC1028 8C-RD2-208-010 FOOT RUBBER a
O MC1029 8C-RD2-003-010 LID,CD a
O MC1030 8C-RD2-210-010 SPR-T,LID CD (R) a
O MC1031 8C-RD2-211-010 SPR-T,LID CD (L) a
O MC1032 8C-RD2-006-010 LID,REAR a
O MC1033 8C-RD2-320-000 SPRING PLATE,LID CD a
O MC1034 8C-RD2-002-010 CAB,TOP a
O MC1035 8C-RD3-005-010 CAB,BOTTOM a
X MC1036 S0-0CR-D21-000 PWB,CRD2-01-01 137x160.9x1.6 a
O MC1037 SC-RD2-200-000 MECHANISM FRAME a
O MC1038 S0-101-000-000 FERRITE BAR 10x100mm (LW) a
O MC1039 8C-RD2-205-010 HLDR,BAR ANT a
X MC1040 S0-0CR-D22-010 PWB,CRD2-02-01 195x330x1.6 a
FR-TC5000
KSC
O MC1041 S0-CDG-740-000 HEAT SINK CDG-74 T=2.0mm ALUM a
! O MC1042 SC-330-311-000 PT012WEI48/23&F&WEN& 230V EN a
X MC1043 S3-838-000-000 HEAT SINK a
O MC1044 8C-RD2-008-010 AC CORD PLATE COVER a
X MC1045 M8-BZG-495-070 BZG-4 AB 2NC1 a
O MC1A S0-303-001-200 SCREW ST3-12 a
O MC1B S1-102-600-600 SCREW,ST2.6-6MM a
O MC1C S1-102-601-000 SCREW,ST2.6-10MM BB a
O MC1D 87-B10-365-010 SCREW,ST3-10MM HEAD V5.9-6.3 a
O MC1E S1-103-001-200 SCREW ST3-12MM HEAD a
O MC1F S1-402-600-800 SCREW,ST 2.6-8 a
O MC1G S0-103-000-800 V+3-8 a
O MC1H 86-CS3-217-010 NUT M3x0.5 PITCH Ni a
-37-
COLOR NAME TABLE -1/1
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
HM Metallic Gray NH Champagne Gold M Wood Pattern
-38-

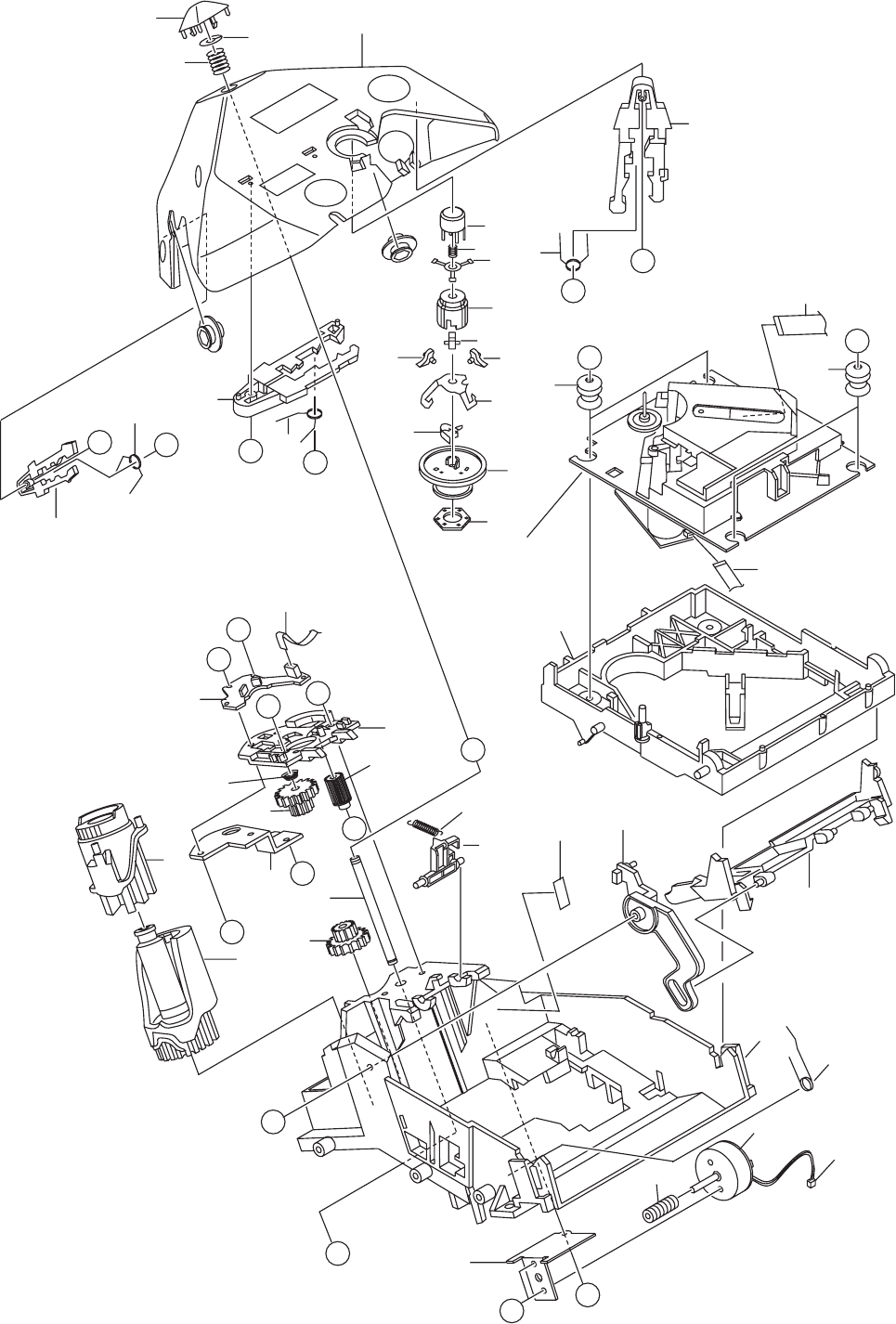

CD MECHANISM EXPLODED VIEW -1/2 <BZG-4 AB2NC1>
124
3
14
14
15
15
AAAA
5
67
8
99
9
10
11
12
13
41
14
15
A
A
16
17
B17
B
18
25
26
F
C
D
EE
24
22
23
21
40
20
27
30
H
28
29
I
G35
JC
36
37
38
34
42
33
32
31
19
K
K
39
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-39-
CD MECHANISM PARTS LIST -1/2 <BZG-4 AB2NC1>
BZG-4
AB2NC1
O SC1001 8B-ZG4-258-010 CAP,TT a
O SC1002 8B-ZG4-252-010 W-P,3.2-10-0.5 SLIT a
O SC1003 8B-ZG4-250-010 SPR-C,TT BH a
O SC1004 8B-ZG4-202-010 TURN TABLE,BH a
O SC1005 8B-ZG4-225-010 CAP,CD A a
O SC1006 8B-ZG4-237-010 SPR-C,CAP a
O SC1007 8B-ZG4-234-010 CAP,CD C a
O SC1008 8B-ZG4-226-010 CAP,CD B a
O SC1009 8B-ZG4-223-010 LEVER,HOOK a
O SC1010 8B-ZG4-240-010 SPR-P,HOOK a
O SC1011 8B-ZG4-228-010 SPR-P,CAP a
O SC1012 8B-ZG4-211-010 TURN TABLE,BC a
O SC1013 8B-ZG4-213-010 PLATE,CHUCK a
O SC1014 8B-ZG4-206-010 LEVER,LOCK TT a
O SC1015 8B-ZG4-248-010 SPR-T,LOCK TT a
O SC1016 8B-ZG4-604-010 FF-CABLE,16P 1.0 220MM a
O SC1017 8A-ZG1-204-010 CUSHION,CD880BRN a
O SC1018 88-906-121-110 FF-CABLE,6P a
O SC1019 8B-ZG4-241-010 HLDR,MECHA HORIZ a
O SC1020 8B-ZG4-602-010 FF-CABLE,4P 1.0 220MM a
BZG-4
AB2NC1
O SC1021 8B-ZG4-221-010 PLATE,GEAR a
O SC1022 8B-ZG4-259-010 SPR-C,GB a
O SC1023 8B-ZG4-218-110 GEAR,B a
O SC1024 8B-ZG4-219-010 GEAR,C a
O SC1025 8B-ZG4-230-010 CAM,MAIN A2 a
O SC1026 8B-ZG4-231-010 CAM,MAIN B2 a
O SC1027 8B-ZG4-208-010 SHAFT,CTR a
O SC1028 8B-ZG4-236-010 SPR-E,CAM LOCK a
O SC1029 8B-ZG4-222-010 LEVER,CAM LOCK a
O SC1030 8B-ZG4-217-010 GEAR,A a
X SC1031 8B-ZG4-255-010 SH, 6-15-0.15 a
O SC1032 8B-ZG4-215-010 LEVER,M UP a
O SC1033 8B-ZG4-216-010 LEVER,M LOCK a
O SC1034 8B-ZG4-201-010 BASE, a
O SC1035 8B-ZG4-229-010 HLDR,MOT a
O SC1036 8B-ZG4-220-010 GEAR,MOT a
O SC1037 87-045-305-010 MOT,RF-500TB a
O SC1038 8B-ZG4-601-010 F-CABLE,2P 120MM a
O SC1039 8B-ZG4-235-010 PLATE,HOLD a
X SC1040 8B-ZG4-612-010 PWB,SW BZG4 a
BZG-4
AB2NC1
X SC1041 M8-BZG-D91-040 BZG-D YB1NF a
O SC1042 8B-ZG4-254-010 SPR-T,HLDR M a
O SC1A 8B-ZG4-249-010 S-SCREW,LOCK TT S a
O SC1B 8B-ZG4-260-010 S-SCREW,DAMPER 2 a
O SC1C 87-751-073-410 VT2+2.6-6 W/O SLOT a
O SC1D 87-B10-409-010 VFT2+2-5 a
O SC1E 87-751-096-410 VT2+3-10 W/O SLOT a
O SC1F 8B-ZG4-265-010 W-L,2.16-4-0.25 SLIT a
O SC1G 8B-ZG4-261-010 W-L,3.6-6-0.5 C-CUT a
O SC1H 8B-ZG4-264-011 W-L,4.2-9-0.125 a
O SC1I 8B-ZG4-251-010 S-SCREW,M UP a
O SC1J 87-251-070-410 U+2.6-3 a
O SC1K 87-B10-401-010 VT2+2-5 W/O SLOT BLK a
-40-

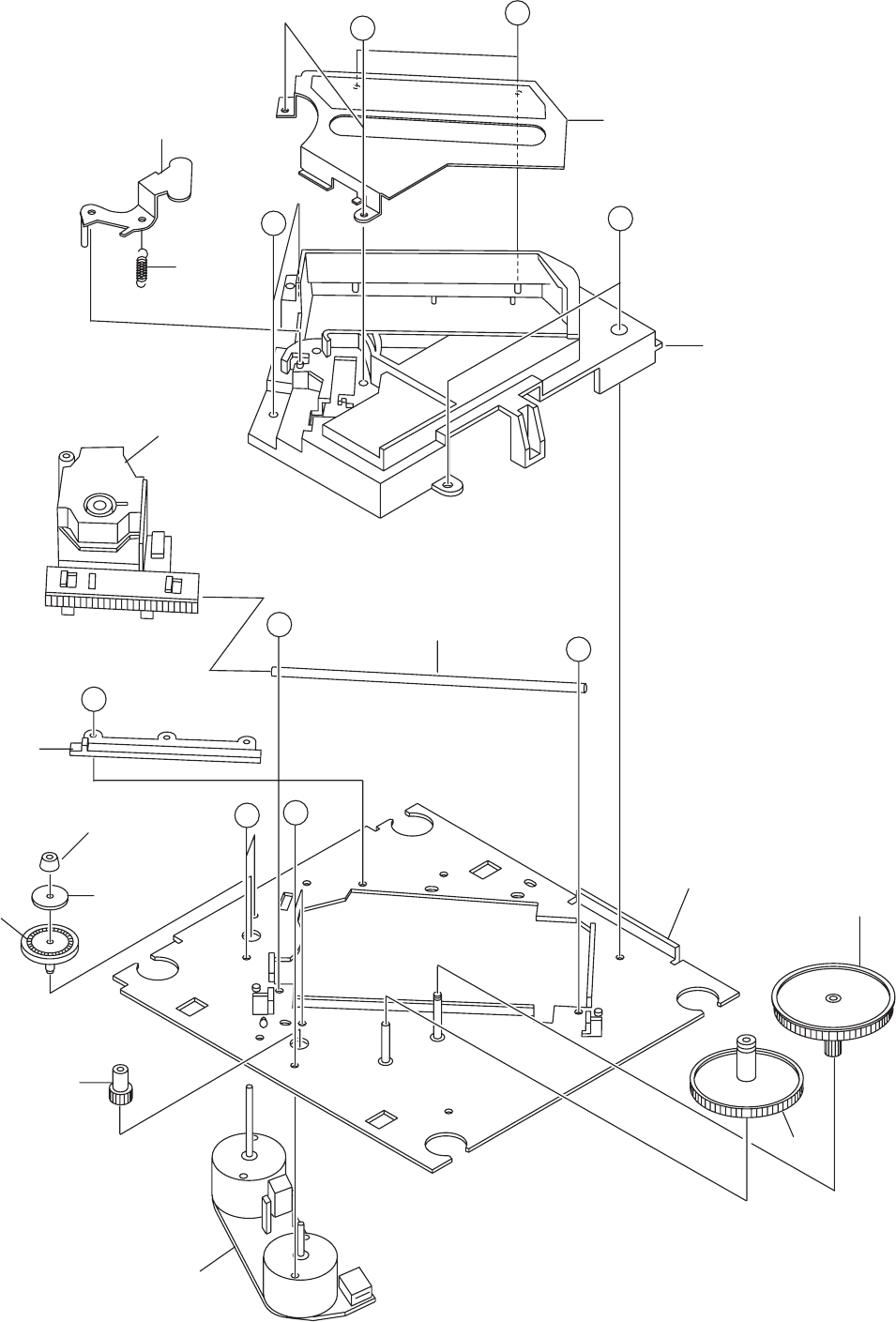

CD MECHANISM EXPLODED VIEW -2/2 <BZG-D YB1NF>
AA
2
3
1
BB
4
5
C
C
6
A
7
8
9
10
11
DD
12
13
14
15
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-41-
CD MECHANISM PARTS LIST -2/2 <BZG-D YB1NF>
BZG-D
YB1NF
O SC2001 8B-ZGD-216-010 PLATE,DECO2 a
O SC2002 8B-ZGD-209-110 LEVER,SHUTTER a
O SC2003 8B-ZGD-211-110 SPR-E,SHUTTER a
O SC2004 8B-ZGD-213-110 HLDR,DECO a
O SC2005 M8-BZL-590-040 BZL-5 A1NF a
O SC2006 83-ZG2-253-110 SHAFT,SLIDE 5 a
O SC2007 8B-ZGD-208-010 PLATE,GUIDE a
O SC2008 8B-ZGD-217-010 CAP,MAGNET a
O SC2009 8B-ZG4-212-010 MAGNET,G4 a
O SC2010 8B-ZG4-210-110 PULLEY,SP a
O SC2011 83-ZG2-236-010 GEAR,MOTOR 3 a
X SC2012 8B-ZGD-602-010 PWB,DRIVE BZGD a
O SC2013 8B-ZGD-214-010 CHAS ASSY,MAIN HORIZ a
X SC2013a 8B-ZGD-210-010 CHAS,MAIN HORIZ a
X SC2013b 8B-ZGD-203-010 SHAFT,GEAR A a
X SC2013c 8B-ZGD-204-010 SHAFT,GEAR B a
O SC2014 8B-ZGD-207-010 GEAR,B a
O SC2015 8B-ZGD-206-010 GEAR,A a
O SC2A 87-067-644-010 VTT+1.7-4 BLK a
O SC2B 87-067-421-010 VTT+2-4 a
BZG-D
YB1NF
O SC2C 8B-ZGD-215-010 S-SCREW,GUIDE a
O SC2D 87-261-032-210 V+2-3 a
OTHER PARTS LIST -1/1
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-42-
FR-TC5000
KSC
X S0-019-000-000 EYELET a
X S0-001-000-000 CABLE/PLASTIC TIE a
X SC-RD2-970-000 POLYTHENE FOAM CUSHION S:55x5 a
X 8C-RD2-043-010 AC CORD CAUTION LABEL CRD2-94 a
X 87-057-961-010 CAUTION LABEL a
X 87-056-864-010 DIFFERENCE LABEL <K> a
X 87-B50-078-010 FACILITY LIST (S)-0007 a
X 8C-RD2-857-010 G/B(EZSC) CRD2-92-02 E-PLY a
X 87-056-168-010 INFORMATION WARRANTY SHEET a
X 8C-RD2-863-010 INNER CARTON(KS) CRD2-96-04 a
X 87-B40-281-010 LBL,BAR CODE(A-35-8) a
X 87-B40-154-010 LBL,BAR CODE(CU) a
X 87-057-995-010 LBL,CLASS 1 a
X S0-000-010-000 METAL TIE a
X 8C-RD2-864-010 OUTER CARTON(KS) CRD2-93-04 a
X S0-401-300-000 PE POLY BAG 0.045x4"x13" w/RE a
X 87-B40-085-010 POLY BAG 0.045-8.5-14 a
X 8C-RD2-851-010 POLYFOAM CRD2-90 #2704 a
X 8C-RD2-912-010 SH,CAUTION a
X S9-990-000-020 SH,FOAM POLYTHENE a
FR-TC5000
KSC
X 8C-RD2-022-010 SPEC LABEL(K) CRD2-94-05 a
X S6-751-000-090 JP WIRE 100MM(BLK) a
X S1-000-000-010 BAR,SOLDERING a
X 8C-CHB-647-010 HSG CD170-2A JP WIRE a
X S6-751-000-060 JP WIRE 100MM(RED) a
X S6-751-000-030 JP WIRE,AWG26#1007 5x5mm 100m a
X S1-060-400-010 SOLDERING BAR a
X S0-060-401-120 WIRE,SOLDER 1.2MM a
X S0-060-401-080 WIRE,SOLDERING a
X SC-RD2-340-010 SH, LID CD (B) FELT CRD2-34 T a
X SC-RD2-350-000 SH,SPR-P LID CD a
X SC-RD2-370-000 SH,BOTM a
X SC-RD2-360-000 SH,BTN a
X SC-RD2-330-000 SH,LID CD (A) a
X 8C-RD2-218-010 RING,GRILLE SPKR a
X S7-900-000-000 FUSE HOLDER 7900, HTF-015 a
X S0-002-000-000 JOINT,WIRE IN/CLIP a
X S9-938-560-000 SPK. BOX FELT 80x8x0.3mm, 993 a
X S0-000-010-200 SPONGE 12x12x8mm WHITE a
X SA-CM3-300-000 FOAM BAR FOAM ACM3-30 a

Navigation menu
