AL 1552/1553 Service Manual GB AL1552

User Manual: AL1552

Open the PDF directly: View PDF PDF.
Page Count: 46

CODE : 00Z
qSERVICE MANUAL
CONTENTS
Parts marked with "!" are important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
SHARP CORPORATION This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
AL1553/A1E
DIGITAL MULTIFUNCTIONAL
SYSTEM
AL-1552
MODEL AL-1553
AL-1552
The AL-1552/AL-1553 Service Manual describes only changed from
AL-1217/AL-1457 Service Manual.
For the common contents, please refer to the AL-1217/AL-1457
Service Manual (Code: 00ZAL1457/A1E)
The AL-1552/AL-1553 is a developed from the AL-1217/AL-1457, and
provided with the duplex function.
For the duplex section, refer to the AL-1555 Service Manual and Parts
Guide.
[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
[ 2 ] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 1
DParts Guide
Model Reference Model
1 AL-1552 AL-1217
2 AL-1553 AL-1457
3 Duplex AL-1555
AL-1552/AL-1553 GENERAL
1 – 1
[ 1 ] GENERAL
1. MAJOR FUNCTIONS
Configurations
Descriptions of items
Descriptions of items
F: Standard provision
×: No function or no option available
Item CPM SB/MB 2 Tray SPF R-SPF Color
Scanner GDI
printer PCL
printer SOPM Duplex Memory FAX
Model
AL-1552 15CPM SB ×××FF ×FF
16M ×
AL-1553 15CPM MB ×F×FF ×FF
16M ×
CPM: Copy speed (Copies Per Minute)
SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass
2 tray: Second cassette unit.
SPF: Original feed unit
R-SPF: Duplex original feed unit
Color scanner: Color scanner function
GDI printer: GDI printer function with USB.
PCL printer: PCL printer function with USB.
SOPM: Scan Once Print Many function (Many copies are made by one scan.)
Duplex: Auto duplex copy function
Memory: Standard page memory
FAX: FAX function.
AL-1553
AL-1552
AL-1552/AL-1553 DUPLEX-RELATED ITEMS
1 – 2
[ 2 ] DUPLEX-RELATED ITEMS
1. Motors and solenoids
No. Part name Control signal Function/Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Cools the optical section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 SPF motor SPFM Drives the single pass feeder
9 Duplex motor DMT Devices the duplex paper transport section
10 Original feed solenoid SPUS Original feed solenoid
11 Paper feed solenoid CPFS2 Cassette Paper feed solenoid 2
12 SPF resist roller solenoid SRRS Original resist roller solenoid
13 SPF paper feed solenoid SPFS Original paper feed solenoid
3
9
213
8
12
10
4
1
5
7
11
6
AL-1552/AL-1553 DUPLEX-RELATED ITEMS
1 – 3
2. Duplex motor section (Duplex model only)
A. Remove the rear cabinet.
1) Remove four screws.
2) Remove the rear cabinet.
B. Remove the main PWB.
1) Disconnect each connector.
2) Remove four screws, and remove the MCU PWB.
3) Disconnect the connector.
4) Remove five screws, and remove the I/F PWB.
C. Remove the Duplex motor.
1) Remove two screws.
2) Remove the Duplex motor cover.
3) Remove the Duplex motor.
Note: When reassembling, be sure to engage the Duplex motor gear
with the belt on the main body side.
3. Reverse roller section (Duplex model only)
A. Remove the reverse unit.
1) Remove four screws.
2) Remove the spring, and the earth wire.
3) Remove the reverse unit.
B. Remove the reverse roller.
1) Bend the reverse roller and remove it.
1)
1)
1)
1)
1)
1)
1)
1)
2)
2)
2)
3) 1)
1)
2)
2)
2)
1
2
3
1
1
2
3
1
AL-1552/AL-1553 DUPLEX-RELATED ITEMS
1 – 4
4. Duplex adjustment
A. Adjusting the paper reverse position in memory
for duplex copying
This step adjusts the front surface printing (odd-number pages of a doc-
ument set) in the S-D mode copying and the leading edge position of an
image on even-number pages in the D-S mode.
That is, it covers the adjustment of the second surface printing mode
(image loss at the front edge of an image) in which image data is once
stored in memory.
The image data is read, starting from its front end in the document deliv-
ery direction (Reference direction of document setting in the OC
mode)and stored in memory.
This stored image data is printed starting at the printing start position, in
the order of last-stored data to the first-stored data.
In other words, the front edge image loss of the image can be adjusted
by changing the document read end position.
(Adjustment procedure)
1) Preparing test chart (Draw a scale at the rear end of one side of a
sheet of A4 white paper or letter paper).
2) Set the test chart so that the scale is positioned as shown below,
in the S-D mode.
3) Execute simulation 50-18 to make a copy and check the front edge
image loss at the area where the scale is printed.
Adjust the setting so that the front edge image loss is less than 4.0
mm in the Duplex mode.
An increase of 1 in setting represents an increase of 0.1 mm
in image loss.
B. Adjusting trailing edge void in duplex copy mode
This is the adjustment of the first surface printing mode (rear end void)
in duplex copying.
In a duplex copying operation, the paper is delivered starting from the
rear end of the first printing surface. It is therefore necessary to make a
void area at the rear end on the first printing surface to prevent paper
jam at the fusing part.
Adjustment modes:
1) Paper trailing edge void quantity 50-19 (TEXT)
This adjustment is made when the cassette paper size is recog-
nized. The trailing edge void quantity can be adjusted by changing
the trailing edge image laser OFF timing.
(Adjustment procedure)
(1) Paper trailing edge void quantity
1) Preparing test chart (Draw a scale at the rear end of one side of a
sheet of A/4 white paper or letter paper)
2) Set the test chart on the document glass as shown below.
3) Using the user simulation [18], set the paper size of the first cassette.
4) Execute simulation 50-19 to turn on the TEXT lamp and make the
printing mode in OC-D mode.
Make a copy of the test chart to check the void area of the scale on
the image.
Adjust the setting so that the void area is 4 - 5 mm. An increase in 1
of setting represents 0.1 mm in void area.
510
Scale (S-D mode)
510
The front edge of the
scale on test chart
Front edge of paper
Void area
less than 4 mm
• Letter paper : 4
• A4 paper : 3
2nd printin
g
surface where scale is printed
(
lower side
)
Document guide The trailing edge has a scale
Table glass
The trailing edge void on the first printing surface is shown above.
Paper
Void position to be check
AL-1552/AL-1553 DUPLEX-RELATED ITEMS
1 – 5
5. List of simulations
Sim
No. Kind of
main code Sub
code Operation
01 Optical system 01
06
Mirror scan operation
Aging of mirror scanning
02 SPF Individual
load operation 02
03
04
SPF sensor status display
Motor ON
Paper feed solenoid ON
05 Lamp ON check 01
02
03
Operation panel display check
Fusing lamp, cooling fan operation check
Copy lamp ON
06 Machine
individual load
operation
01
02
Paper feed solenoid ON
Resist solenoid ON
07 Aging 01
06
Warm-up display and aging with jam
Intermittent aging
08 High voltage
output check 01
02
03
06
Developing bias
Main charger (Grid high)
Grid voltage (Low)
Transfer charger
10 Other None Toner motor aging
14 Trouble reset None Cancel of troubles other than U2
16 U2 trouble reset None Cancel of U2 trouble
22 Counter display 04
05
08
12
14
17
18
19
21
22
JAM total counter display
Total counter display
SPF counter display
Drum counter display
P-ROM version display
Copy counter display
Printer counter display
Scanner mode counter display
Scanner counter display
SPF JAM counter display
24 Special counter
clear 01
04
07
08
09
13
14
15
JAM total counter clear
SPF counter clear
Drum counter clear
Copy counter clear
Printer counter clear
Scanner counter clear
SPF JAM total counter clear
Scanner mode counter clear
25 Main motor ON 01
10
Main motor operation check (Cooling
fan motor rotation check)
Polygon motor ON
26 Various setup 01
02
03
04
06
07
20
30
38
39
40
42
43
44
62
63
Manual feed setup
(R) SPF setup
Second cassette setup
Machine duplex setup
Destination setup
Machine conditions check
Rear edge void setup
CE mark support control ON/OFF
Cancel of stop at drum life over
Memory capacity check
Polygon motor OFF time setup
Time required for turning OFF after
completion of printing)
Transfer ON timing control setup
Side void setup
SPF document rear edge read setup
Energy-save mode copy lamp setup
Fan control select setup
30 Sensor
operation check
(Standard
provision)
01 Paper sensor status display
43 Fusing
temperature
setup
01
04
05
09
Fusing temperature setup (Normal copy)
Fusing temperature setup 2
Fusing temperature setup in duplex
copy
Setup of fusing control of postcard size
paper
46 Exposure
adjustment 01
02
18
19
20
29
31
32
Copy density adjustment (300dpi)
Copy density adjustment (600dpi)
Image contrast adjustment (300dpi)
γ table setup or AE operation mode setup
SPF exposure correction
Image contrast adjustment (600dpi)
Image sharpness adjustment
Copier color reproduction setup
48 Magnification
ratio correction 01 Front/rear (main scanning) direction and
scan (sub scanning) direction
magnification ratio adjustment
49 01 Flash ROM program writing mode
50 Lead edge
adjustment 01
10
18
19
Lead edge image position
Center offset adjustment
Memory reverse position adjustment
in duplex copy
Duplex copy rear edge void adjustment
51 Timing
adjustment 02 Resist quantity adjustment
53 08 SPF scan position automatic adjustment
61 Laser system
operation 03 Polygon motor check
(HSYNC output check)
63 Shading 01 Shading check
64 Self print 01 Self print
Sim
No. Kind of
main code Sub
code Operation
AL-1552/AL-1553 DUPLEX-RELATED ITEMS
1 – 6
6. Contents of simulations
Input method: Clear key 3 Exposure Select key 3 Clear key 3 Exposure Select key
Main
code Sub
code Content
50 18 Memory reverse position adjustment in duplex copy
When this simulation is executed, the current setup value of correction is displayed. Enter the correction value with the 10-key and
press the PRINT switch, and the entered value will be saved. (Correction value 1 ~ 99, correction zero = 0, or 50) When the correc-
tion value is set to 0, the correction value is written as 50.
Front surface printing in the S-D mode and printing on even pages in the D-S mode are reverse memory copy operations from the
document rear edge section.
When, therefore, the output image print position adjustment is required, adjust as follows:
In the reverse memory copy operation, if the document scan direction is in the direction of the arrow in the figure, the scan rear edge
section of the image is printed first.
When, therefore, the print lead edge is shifted, set the reference chart so that the reference position is in the rear edge section, and
use this simulation to adjust so that the print image lead edge comes to the lead edge.
Since printing is performed by processing the scanned image from the scan end position to the scan lead edge, the print lead edge
position adjustment is performed by changing the end data position stored in memory with the simulation setup value.
19 Duplex copy rear edge void adjustment
Used to adjust the rear edge void quantity in duplex copy.
(Operating procedure)
When this simulation is executed, the current setup value is displayed the current setup value is displayed in two digits. (Center
value: 50 However, setup 50 = setup 0) When the correction value is set to 0, the correction value is written as 50. Press the copy
mode select key to select your desired copy mode, and the display will change. Enter the adjustment value with the 10-key and press
the PRINT switch, and the setup value will be saved and a copy will be made. (The paper information is cleared for every copying.)
Press the clear key to save the setup value and exit from the simulation mode. (Increasing the setup value by 1 increases the void
quantity by about 0.1mm.)
Print lead edge
Lead edge void (1)
Print start position
Rear edge void
Print rear edge
Document transport direction
Scan lead edge
Scan end position
(Default: Scan cut by void (1))
Scan direction
Scan rear edge
Paper transport direction
Adjustment mode Lamp ON
Paper rear edge void quantity TEXT lamp
Print start position (Duplex back) PHOTO lamp
– 1 –
MEMO
q PARTS GUIDE
CONTENTS
SHARP CORPORATION
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
CODE:00ZAL1553/P1E
DIGITAL
MULTIFUNCTIONAL
SYSTEM
AL-1552
MODEL AL-1553
(For Europe)
(AL-1553)
1Exteriors
2Original cover unit(AL-1552)
3SPF exteriors (AL-1553)
4SPF transport unit (AL-1553)
5SPF pick up unit (AL-1553)
6Operation panel
7Side door unit
8Optical frame
9LSU unit
FDelivery paper guide unit
GMiddle frame
HBase plate unit 1
IBase plate unit 2
J Fusing unit
K Drive unit
L Single manual paper feeding cover unit
(AL-1552)
M Multi manual paper feeding cover unit
(AL-1553)
N Single manual paper feeding unit
(AL-1552)
O Multi manual paper feeding unit
(AL-1553)
P Socket holder unit
Q TC case unit
R
250 sheets tray
S Harness
T Packing material & accessories
U Operation PWB
V MCU PWB
W IF PWB
X DC power supply PWB
■ Index
– 1 –
DEFINITION
The definition of each Rank is as follows and also noted in the list
Rank A : Maintenance parts, and consumable parts which are not included in but closely related to maintenance parts
Rank B : Performance/function parts (sensors, clutches, and other electrical parts), consumable parts
Rank E : Unit parts including PWB
Rank D : Preparation parts (External fitting, packing, parts packed together)
Rank C : Parts other than the above (excluding sub components of PWB)
Because parts marked with "!" is indispensable for the machine safety maintenance and operation, it must be replaced with
the parts specific to the product specification.
FOther than this Parts Guide, please refer to documents Service Manual(including Circuit Diagram)of this model.
FPlease use the 13 digit code described in the right hand corner of front cover of the document, when you place an order.
FFor U.S. only-Use order codes provided in advertising literature. Do not order from parts department.
* These parts are supplied by SMF.

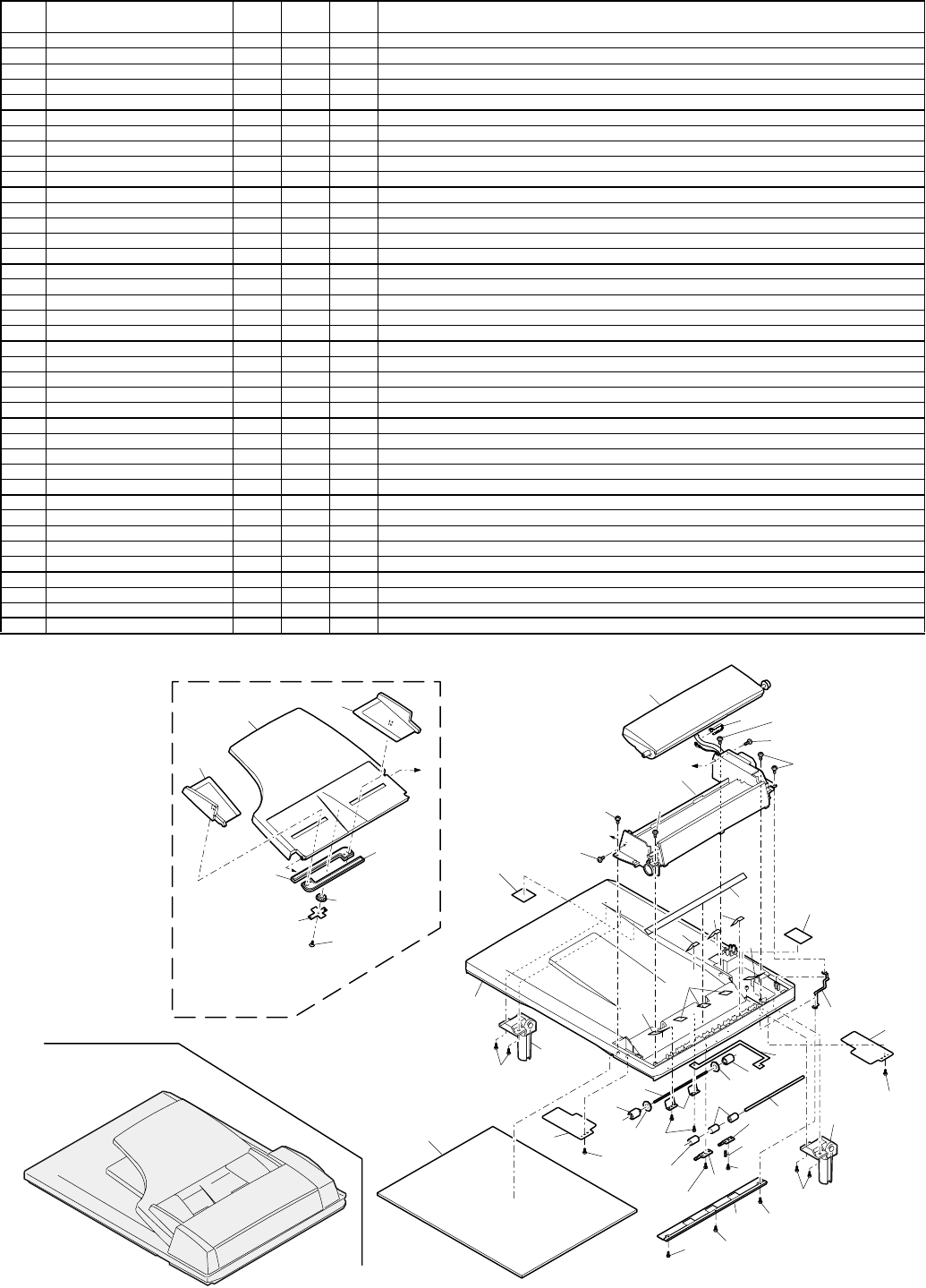

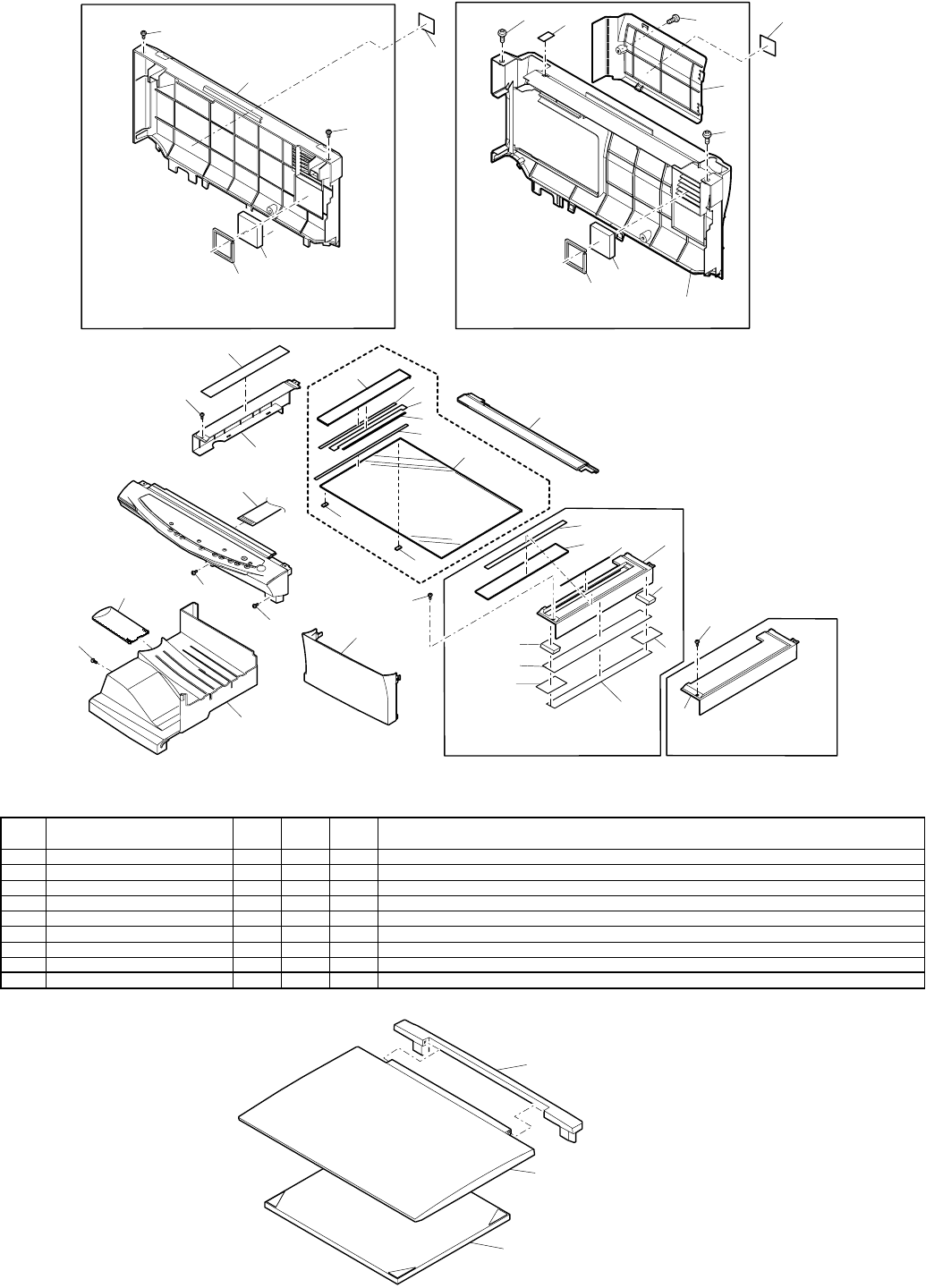

1Exteriors
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CCAB-0003QS22 AS D Front cover
2LSOU-0001QSJZ AY D Delivery tray
3XEBS730P08000 AC C Screw(3×8)
4LSOU-0008QSJZ AH D Extension tray
5XEBS740P12000 AA N C Screw(4×12)
6PTPE-0041QSZZ AB C Glass fixing tape B
7DHAI-0285QSZZ AK C OP-MCU harness
8PSHEZ0369QSZZ AE C Shading sheet
9XBBS730P08000 AA N C Screw(3×8)
10 GCAB-0061QSZ1 AK D Left cabinet
11 TLABH0387TSZZ ∗NDOperation instruction label
12 GCOV-0045QSZ7 AK N D Rear cover OC (AL-1552)
GCOV-0045QSZ6 AK N D Rear cover SPF (AL-1553)
13 CFIX-0021QS11 AH D Glass fixing plate
14 PGLSP0007QSZZ AV B Table glass
15 PTPE-0059QSZZ AC C Glass fixing tape A
16 PCOVP0040QSJZ AL D Rear cabinet cover SPF (AL-1553)
17 GCAB-0062QSZ3 AL D Right cabinet OC (AL-1552)
GCAB-0062QSZ2 AN D Right cabinet (AL-1553)
18 GCAB-0004QSJ1 AX D Rear cabinet (AL-1552)
GCAB-0026QSJ2 AZ D Rear cabinet SPF (AL-1553)
20 PMLT-0024QSZZ AC C Fan cushion
21 PFILZ0002QSZZ AL B Ozone filter
22 PTPE-0044QSZZ AC C Slit glass tape (AL-1553)
23 PGLSP0008QSZZ AH B SPF glass (AL-1553)
24 PSHEZ0181QSJZ AC C Rear cabinet sheet (AL-1553)
25 PTPE-0010QSZZ AC C Slit glass tape (AL-1553)
26 TLABZ0531TSZZ ∗NDClass 1 & cautions label
27 PMLT-0069QSZZ AA C Ground cushion (AL-1553)
28 PSHEZ0404QSZZ AF C Right cabinet ground sheet (AL-1553)
29 PTPE-0047QSZZ AC C Ground tape F (AL-1553)
30 PTPE-0048QSZZ AA C Ground tape R (AL-1553)
31 PTPE-0049QSZZ AC C Right cabinet ground tape (AL-1553)
32 PTPE-0060QSZZ AC C Glass aluminum tape
33 PGSK-0034QSZZ AE C Gasket
– 2 –
1Exteriors

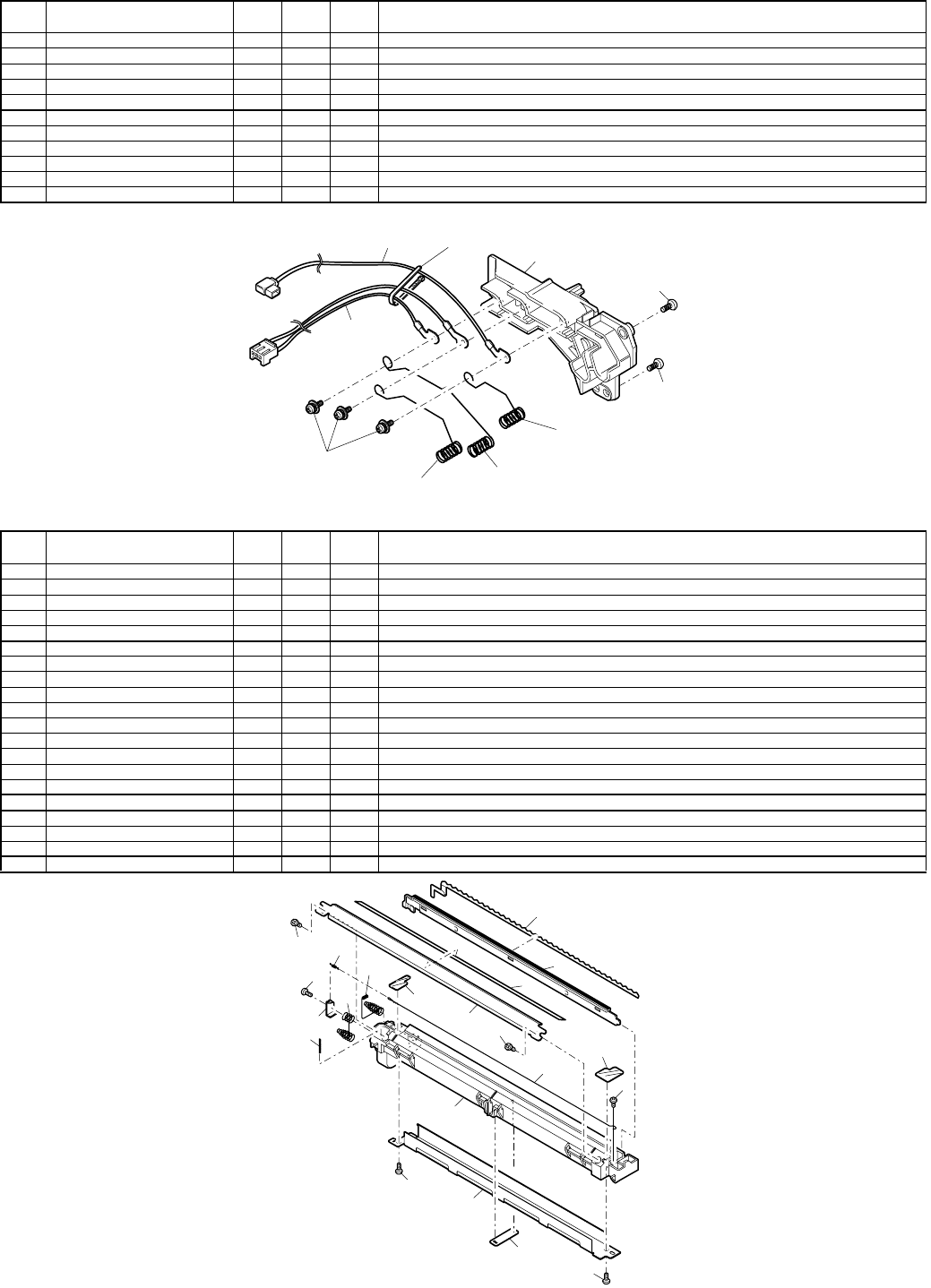

2Original cover unit(AL-1552)
2Original cover unit(AL-1552)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1GCOVH0003QSJZ AL D OC cover S
2GCOVH0004QSJ1 AX D OC cover M
3PCUSS0024QSZZ AV D OC mat
(Unit)
901 CCOVH0004RS54 BF E OC cover unit
1
2
3
4
18
9
9
16
21
20
AL-1553
5
5
9
11
9
10
12
7
24 26
PRP02507
17
AL-1552
25
AL-1553
9
29
17
9
22
23
30
27
27
31
18
AL-1552
26
21
20
9
9
28
13 15
8
6
32
33
33
14
1
2
3
PRP02508
– 3 –

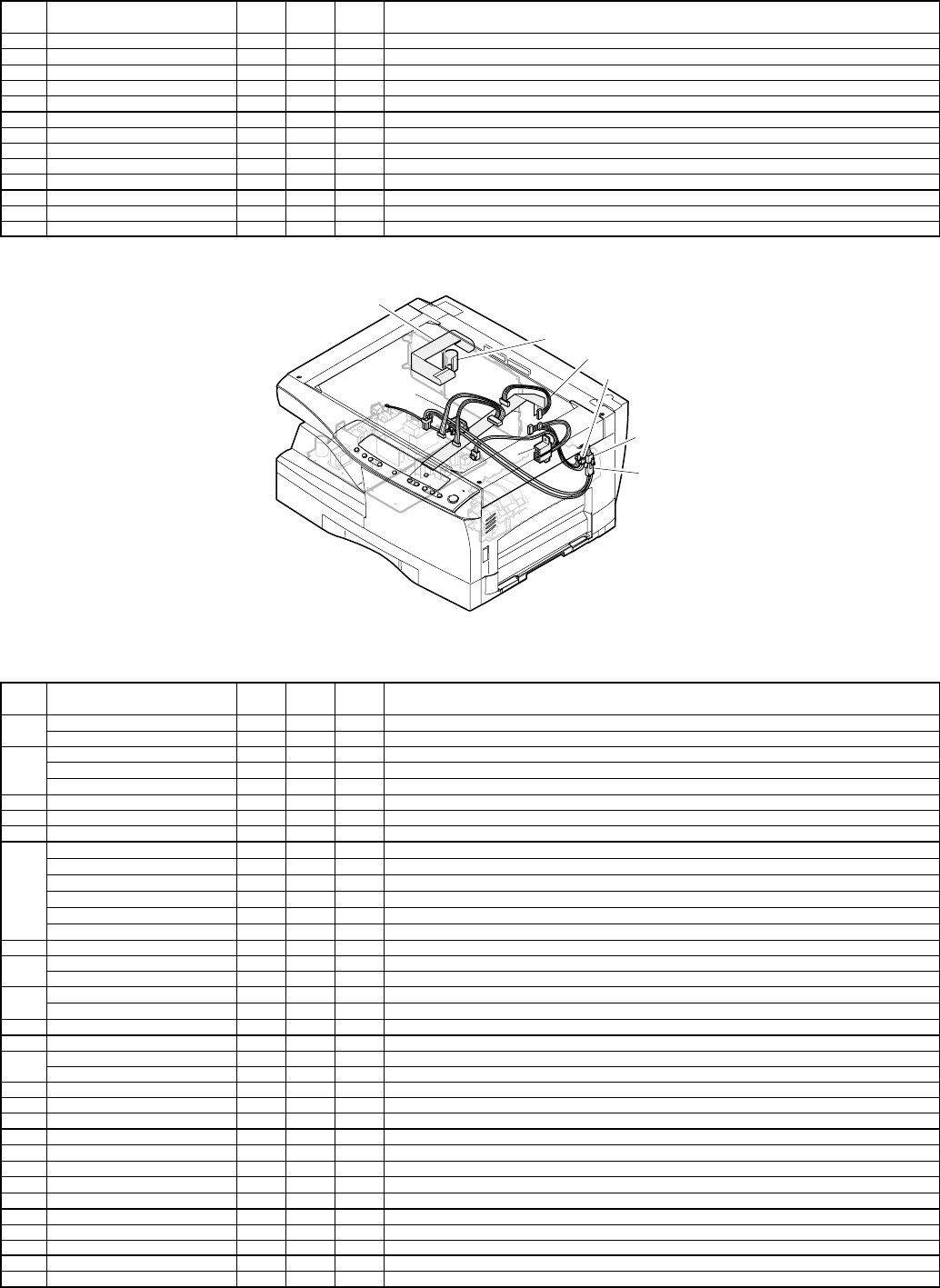

3SPF exteriors (AL-1553)
3SPF exteriors (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1LSOU-0035QSZZ AR D Original tray
2LPLTP0011QSJ2 AH C Control plate F
3LPLTP0012QSJ2 AH C Control plate R
4NGERR0377FCZZ AD C Manual feeding rack gear
5XEPS730P08X00 AA N C Screw(3×8X)
6NGERH0193FCZZ AB C Manual feeding gear
7MSPRP0059QSZZ AD C Control plate spring
11 CFRM-0011RS58 BF E SPF pick-up unit
13 XEBS740P10000 AA N C Screw(4×10)
14 CFRM-0013RS59 BM E SPF transport unit
15 LBNDJ0013FCZ1 AE C Wire band
16 PSHEZ0384QSZZ AD C Base tray sheet
17 PSHEP0063QSZZ AC C Transport sheet
18 MSPRP0113QSZ1 AD C Earth spring
19 PSHEZ0379QSZZ AD C OC sheet
20 XEBS730P08000 AC C Screw(3×8)
21 MHNG-0017QSZZ AQ C SPF hinge
22 XEBS740P14000 AB N C Screw(4×14)
23 NROLP0011QSZZ AD C Delivery roller
24 PSPO-0001QSZZ AB C Cushion
25 NSFTZ0010QSZZ AE C Delivery shaft
26 MSPRT0061QSZZ AC C Delivery spring
27 MSPRP0060QSZZ AD C Transport spring
28 NROLP0010QSZZ AD C Transport roller
29 NSFTZ0009QSZZ AE C Transport shaft
30 LPLTM0096QSZ1 AF C Base tray reinforce plate
31 LX-BZ0016QSZZ AC C Screw(3×8)
33 LSOU-0005QSJ4 BA D Base tray
34 PCUSS0025QSZ1 AQ D OC mat
35 PSHEZ0102QSZZ AD C Motor pressure sheet
36 PSHEZ0112QSZZ AE C Delivery earth sheet SPF
37 MSPRC0149QSZZ AC C PS earth spring SPF
38 PSHEZ0386QSZZ AB D Rear side sheet A
39 PSHEZ0387QSZZ AB D Rear side sheet B
40 PSHEZ0388QSZZ AD C OC mat sheet 2
45 PSHEZ0383QSZZ AC C Book detect sheet
501 CSOU-0035RS51 AZ E SPF original tray unit
39
38
39
45
1
2
3
4
5
6
7
15
16
18 40
31
21
22 23
24
25
26 27
28
29
30 31
21
33
13
13
22
13
4
17
17
24
23
28
20
31
31
31
19
22
20
27
20
34
PRP02509
11
501
14
22
13
36
37
35
– 4 –

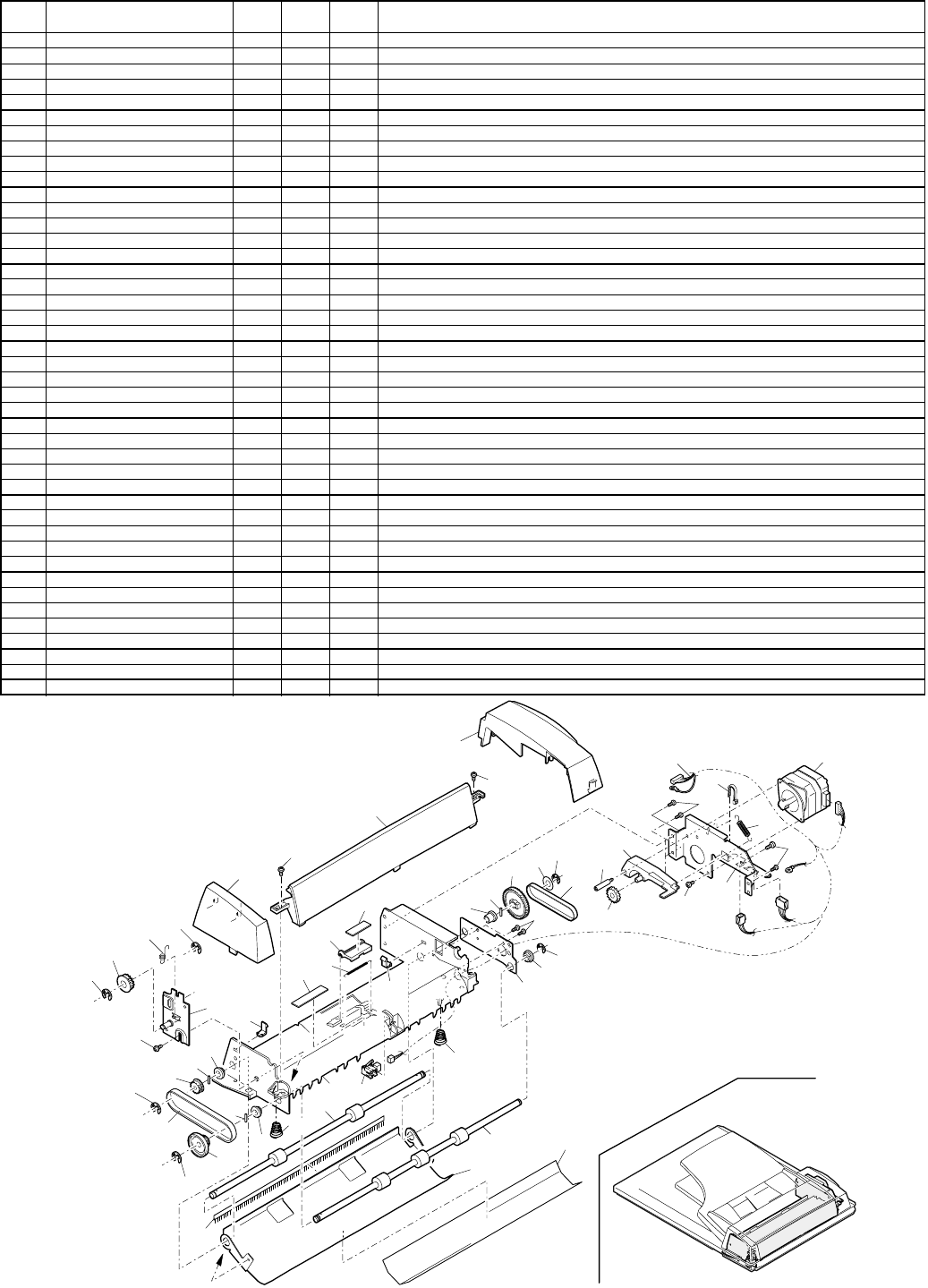

4SPF transport unit (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1PGIDM0042QSJZ AL C U-turn paper guide
2XEBS730P12000 AC C Screw(3×12)
3LX-BZ0012QSZZ AC C Screw
4NGERH0972FCZZ AB C Gear(27T)
5MARMP0001QSZZ AF C Drive arm
6XBPS730P05K00 AA N C Screw(3×5K)
7RMOTP0013QSZZ BB B SPF motor
9DHAI-0290QSZ1 AN C SPF interface harness
10 LBNDJ0013FCZ1 AE C Wire band
11 MSPRT0064QSZ1 AC C Drive arm spring
12 LFRM-0013QSZZ AG D Drive frame
13 XRESP50-06000 AA C E-ring(E5)
14 PSHEP3029FCZZ AA C Flange sheet DUP2
15 NBLTT0046QSZZ AE B Belt(83MXL4.8)
16 NGERH0047QSZZ AF C Gear(48T/15T)
17 LPINS0019QSZZ AA C Spring pin(φ2.5-9)
18 NBRGC0017QSZZ AC C Bearing
19 NBRGM0501FCZZ AB C Metal D
20 LFRM-0012QSZZ AD D Frame R
21 PSHEZ0445QSZZ AC C Separation sheet
22 LPLTP0013QSZ1 AC C Plate
23 MSPRC0062QSZZ AC C Pressure spring
24 MSPRP0065QSZZ AD C Open and shut lock spring
25 PSHEZ2174FCZZ AB C Paper feeding sheet
26 NPLYZ0146FCZZ AB C 22MXL pulley
27 NBLTT0003QSZ1 AF B Belt(B75MXL4.8)
28 JKNBZ0004QSZZ AD C JAM release knob
29 MSPRC0063QSZZ AB C Delivery paper guide spring
30 PGIDM0024QSZ3 AN C Transport paper guide
31 RDTCT0004QSZZ AL B Inlet detect sensor
32 NROLM0023QSZ1 AP C Delivery roller
33 PBRSR0003QSZ2 AG B Discharger brush
34 PGIDH0029QSZ1 AL C Delivery paper guide
35 PSHEP0044QSZZ AF C White sheet
36 NROLM0022QSZ1 AL C PS roller
37 PCOVP0037QSJZ AH D Front cover
38 PCOVP0038QSJ1 AL D Rear cover
39 XEBS730P10000 AC C Screw(3×10)
40 CPLTM0298QS01 AF C SPF tension plate
41 MSPRT0294QSZZ AC C SPF tension spring
(Unit)
901 CFRM-0013RS59 BM E SPF transport unit
27
28
41
26
13
39
13
40
13
13
1
23
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
29
30 31
32
33
34
35
36
2
2
17
17
24
19
13
19
PRP02510
37
38
39
39
29
4
SPF transport unit (AL-1553)
– 5 –

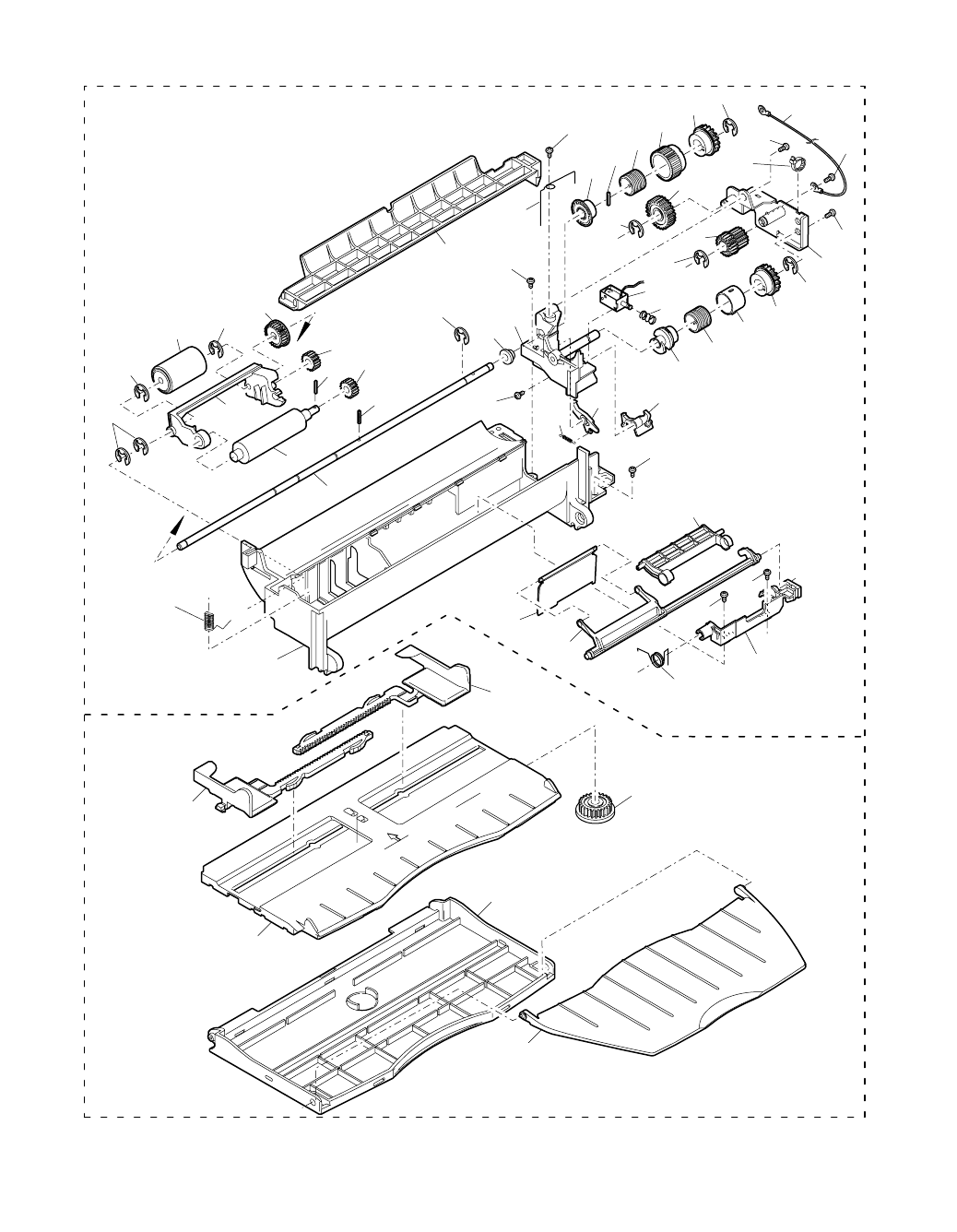

5SPF pick up unit (AL-1553)
5SPF pick up unit (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1GCAB-0008QSJZ AM D Open and shut cabinet
2PSPO-0002QSZZ AC C Stopper cushion
4MARMP0003QSZ1 AD C Stopper arm
5LSTPP0001QSZ1 AD C Paper stopper R
6XEBS730P08000 AC C Screw(3×8)
7CPWBF0155QSE1 AM E SPF sensor PWB
8DHAI-0293QSZZ AE C Sensor harness
9MLEVP0009QSZZ AD C Set detect lever ACT
10 MLEVP0010QSZZ AE C Open and shut detect lever ACT
11 RPLU-0004QSZ1 AQ B PU solenoid
12 XBPS730P06KS0 AB N C Screw(3×6KS)
13 MARMP0002QSZZ AD C Solenoid arm
14 MSPRT0067QSZ1 AB C Solenoid arm spring
15 XRESP40-06000 AA C E-ring(E4)
16 NGERH0073QSZZ AE C Clutch gear(20T)
17 PPIPP0008QSZZ AD C Clutch sleeve
18 MSPRC1316FCZ1 AE C MF clutch spring B
19 LBOSZ1851FCZZ AC C STK clutch boss
20 LBSHZ0303FCZZ AC C M bushing C
21 NSFTZ0012QSZZ AG C Clutch shaft
22 LBSHZ0006QSZZ AC C M Bushing 2
23 NPLYZ0010QSZZ AE C 20MXL pulley
24 XRESP30-06000 AA C E-ring(E3)
25 MSPRT0066QSZ1 AC C Clutch pawl spring
26 PTME-0019QSZZ AD C Clutch pawl
27 NROLP0024QSZ1 AH C Pick-up roller
28 NGERH0990FCZZ AB C Gear(16T)
29 XPSSP20-07000 AA C Spring pin(φ2-7)
30 NGERH0992FCZZ AB C Gear(20T)
31 NROLR0922FCZ2 AR C Manual feeding roller
32 NSFTZ0011QSZ2 AF C PF shaft
33 MSPRC0115QSZZ AB C Paper feeding spring
34 MARMP0004QSZZ AF C Pick-up arm
35 LFRM-0011QSJ2 AL D Paper feeding frame
36 MSPRD0114QSZ1 AD C PF frame spring
(Unit)
901 CFRM-0011RS58 BF E SPF pick-up unit
PRP02511
1
2
4
5
6
7
910
11
12
13
15
16 17 18 19
20
21
23 24
25 26
28
29 30 31
32
33
34
35
6
15
30
29
22
14
8
6
15
20
20
30
6
29
27
36
12
– 6 –
6Operation panel
6Operation panel
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION

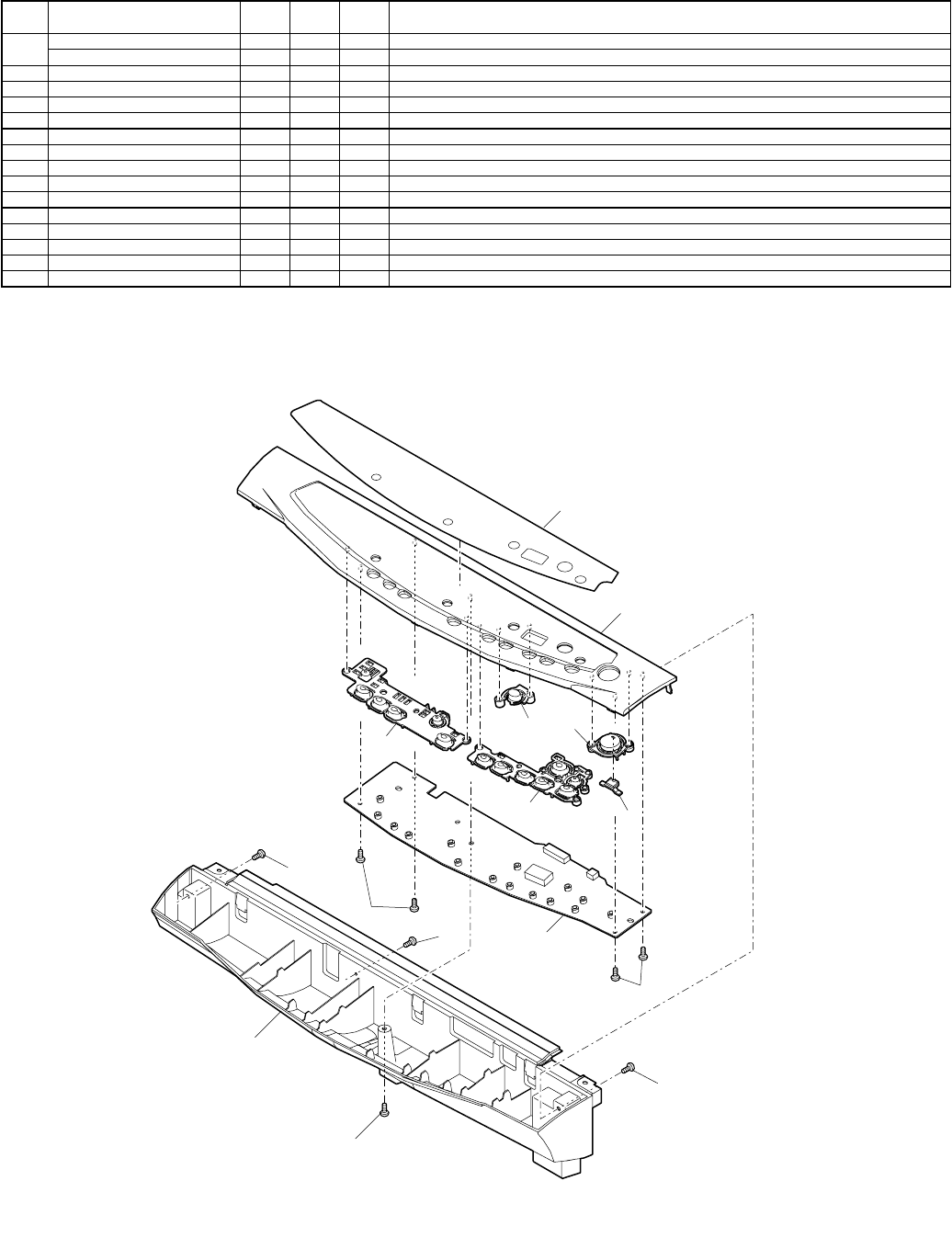

1CPNLH0023QS0U AR N D Panel (AL-1552)
CPNLH0023QS0V AR N D Panel (AL-1553)
2CBTN-0019QS02 AF E Copy key
3JBTN-0020QSZZ AC C Copy key light
4JBTN-0005QSZZ AC C % Key
5CBTN-0050QS01 AE E Operation key R
6JBTN-0049QSZZ AF C Operation key L
8CPWBF0113QSG3 BB N E Operation PWB
9XEBS730P08000 AC C Screw(3×8)
10 GCAB-0063QSZZ AT D Operation cabinet
11 XEBS730P10000 AC C Screw(3×10)
12 GCAB-0064QSZZ AN D Operation panel
9
9
9
9
11
9
1
12
42
3
5
6
8
10
PRP02512
– 7 –

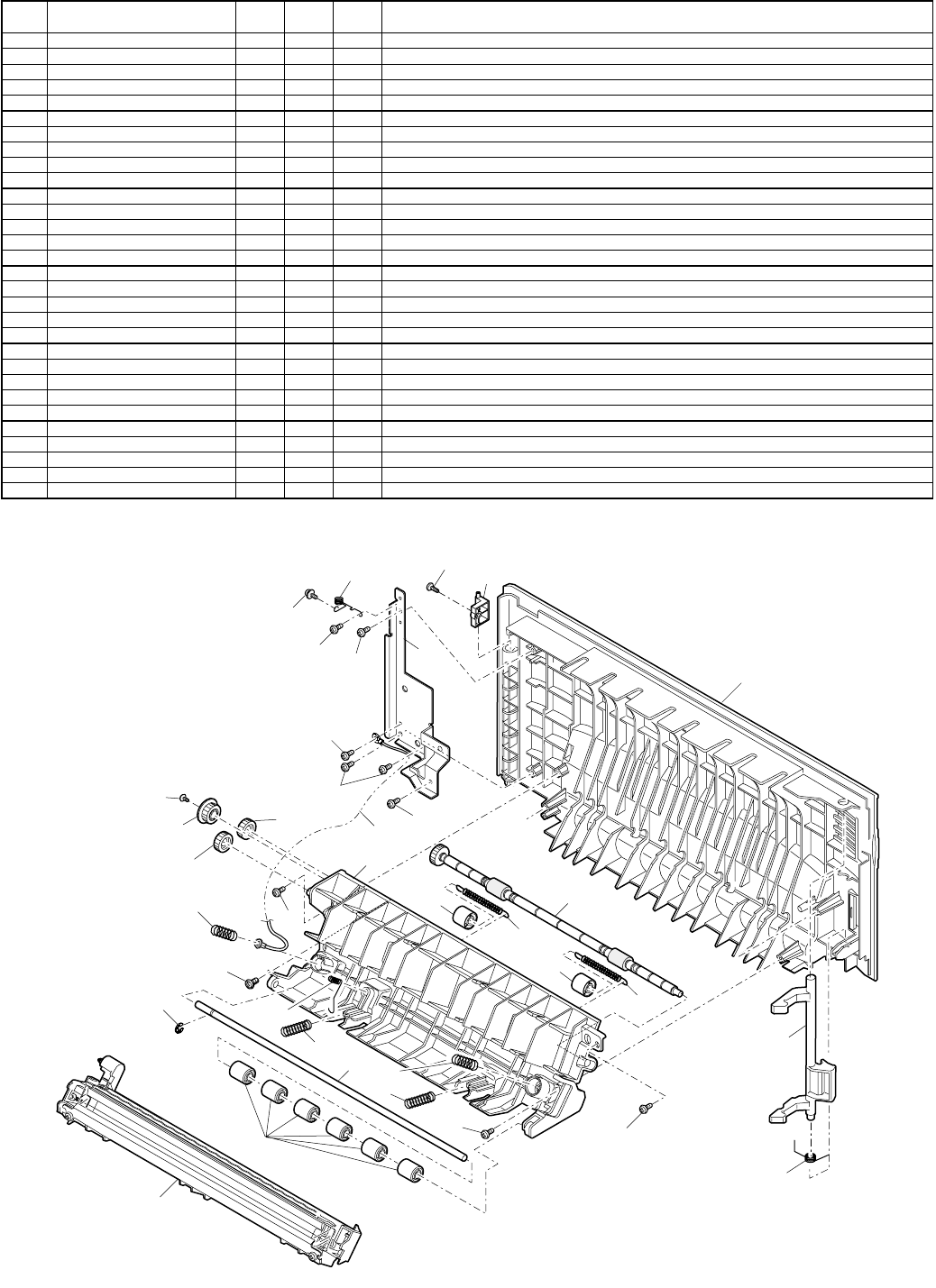

7Side door unit
7Side door unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION

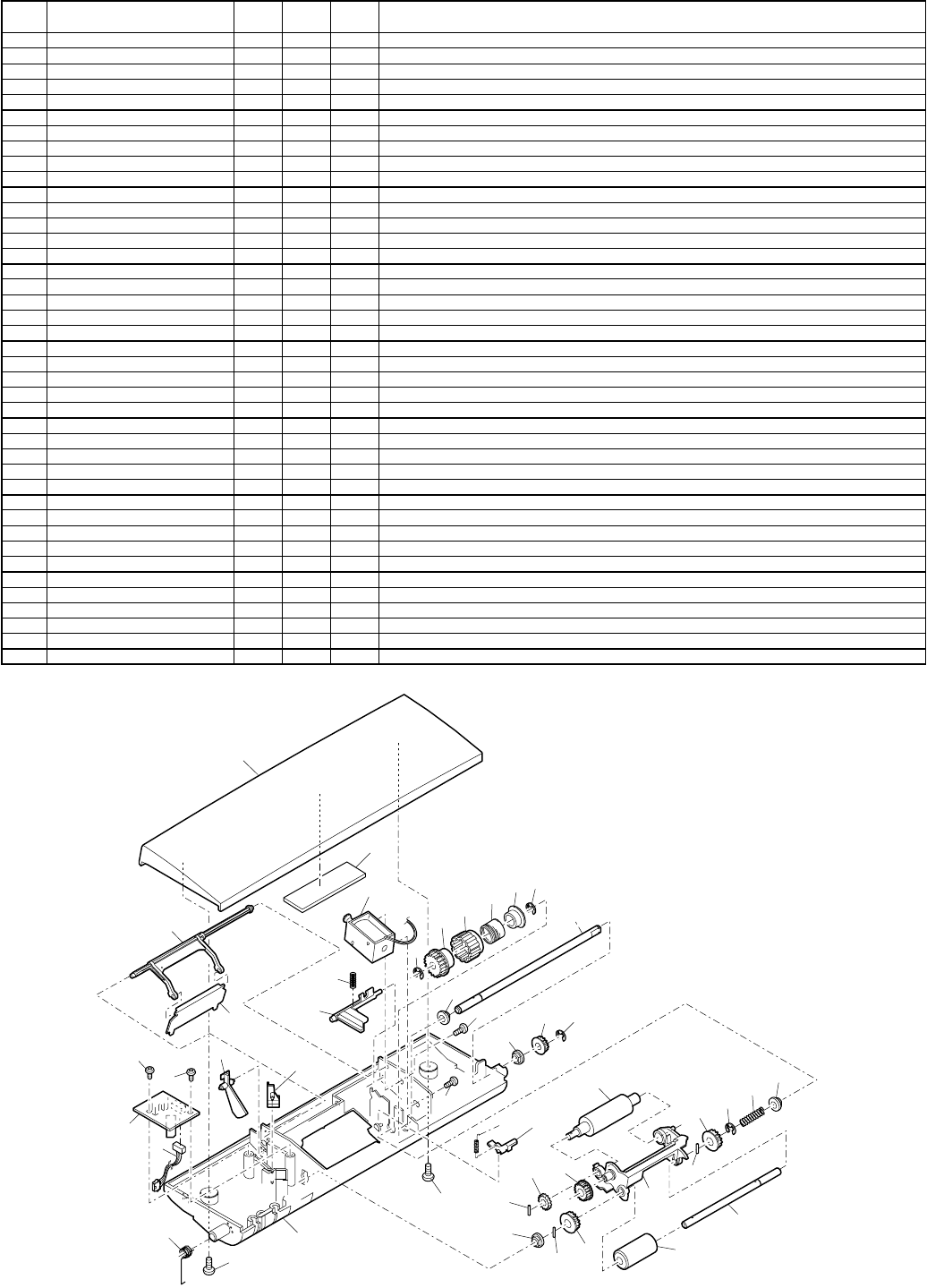

1GCAB-0007QSJ2 AU D Side door
2PTME-0004QSZZ AG C Lock pawl
3MSPRT0029QSZZ AC C Lock pawl spring
4PGIDM0008QSZZ AD C Hinge guide
5LPLTM0132QSZZ AH C Earth plate
6MSPRD0076QSZ1 AD C Earth spring
7XHBS730P06000 AC C Screw(3×6)
8XEBS730P06000 AA N C Screw(3×6)
9LFRM-0003QSJ3 AN D Side door inner frame
10 XEBS730P10000 AC C Screw(3×10)
11 MSPRC0032QSZZ AB C Transcription pressure spring
12 DHAI-0291QSZZ AC C TCFB harness
13 MSPRC0031QSZZ AB C PS earth spring
14 MSPRC0030QSZZ AC C PS pressure spring
15 NSFTZ0006QSZZ AG C PS shaft
16 XRESP30-06000 AA C E-ring(E3)
17 NROLP1122FCZZ AF C PS upper roller
18 CHLDZ0010RS52 AU E Transfer holder unit
21 XEPS730P08X00 AA N C Screw(3×8X)
22 NGERH0048QSZZ AE C DUP drive gear
23 NGERH0051QSZZ AE C DUP drive gear A
24 NROLP0025QSZZ AM C DUP drive roller
25 MSPRC0050QSZZ AB C DUP pressupe spring
26 NROLP1122FCZZ AF C PS upper roller
27 XBPS730P04KS0 AB N C Screw(3×4KS)
28 XBBS740P08000 AA N C Screw(4×8)
PRP02513
3
6
78
8
7
2
8
17
18
16
14 15
10
13
11
14
1
4
5
12
9
10
10
11
10
21
22 23
23
24
25
25
26
26
28
27
– 8 –

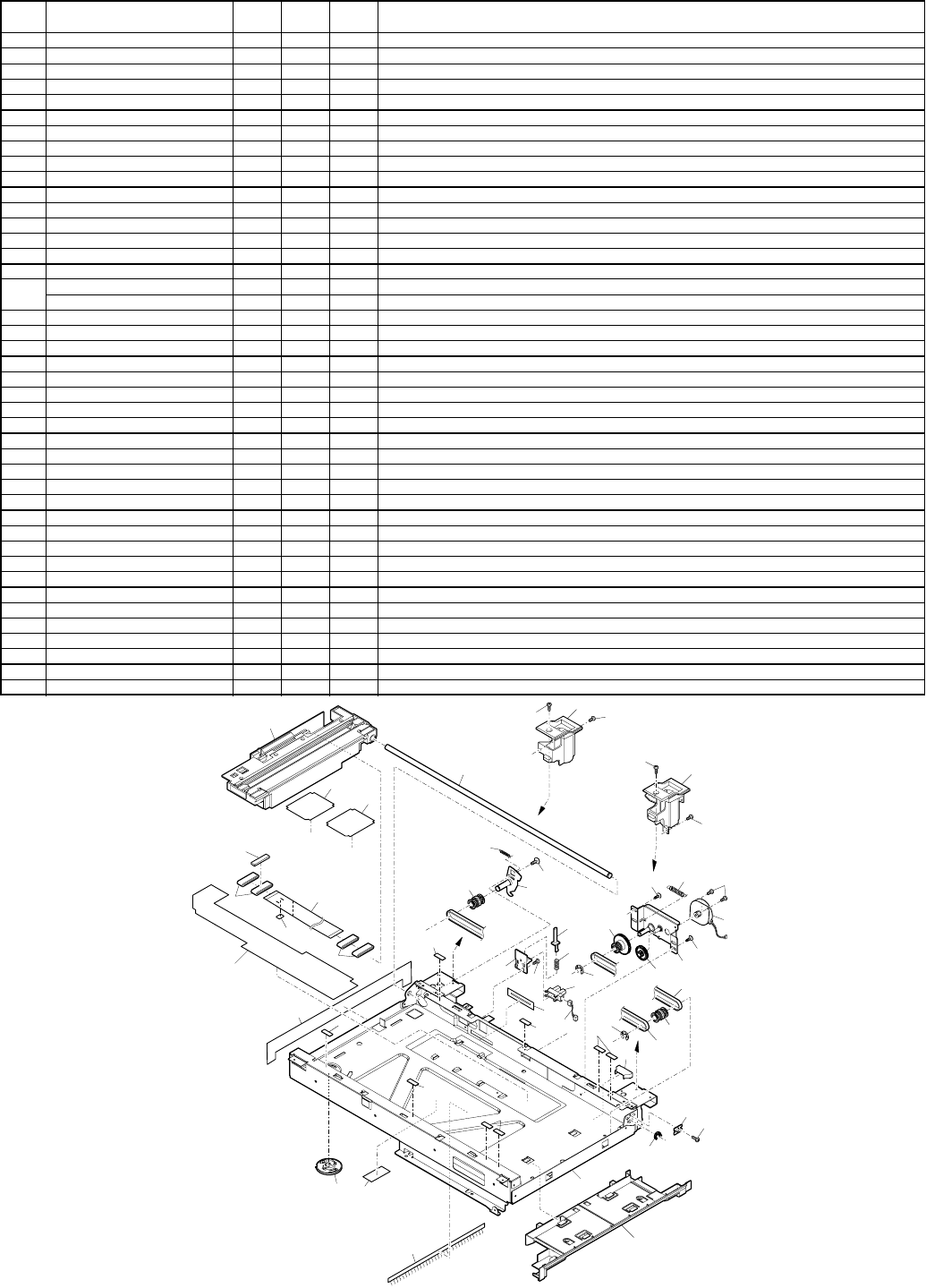

8Optical frame
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CGERH0162QS01 AN C Pulley gear
2CPLTM0288QS01 BC C Scanner plate
3CPLTM0291QS01 AG C Tension plate
4CPLTM0294QS01 AK C Motor fixing plate
5CPLYZ0028QS01 AM C Idle pulley
6DUNT-0404QSZZ BU C Carriage unit
7LHLDZ0093QSZZ AC C Rod holder
8LSTPF0013QSZZ AC C Rod stopper
9LX-BZ0033QSZZ AB C Screw(3×6)
10 MLOKZ0004QSZ1 AD C Carriage lock
11 MSPRT0283QSZZ AC C Tension spring
12 MSPRT0284QSZZ AC C Motor spring
13 NBLTT0030QSZ1 AH B Belt(473MXL)
14 NBLTT0031QSZ1 AF B Belt(190MXL)
15 NGERH0161QSZZ AL C Idle gear
16 NSFTZ0063QSZZ AK C Slide shaft
17 PBRSR0002QSZ1 AH B Discharger brush (AL-1552)
PBRSR0002QSZ2 AG B Discharger brush (AL-1553)
18 PGIDM0099QSZ1 AH C Paper guide
19 PGUMS0004QSZZ AA C Table glass cushion
21 PSHEZ0367QSZ1 AD C Cable fixing sheet
22 PDUC-0005QSZ2 AD C Fan duct JAG
24 PSHEZ0377QSZZ AC C Edge protect sheet
25 RMOTS0038QSZZ BL B Scanner motor
26 XHBS730P06000 AC C Screw(3×6)
27 XRESP50-06000 AA C E-ring(E5)
28 XRESP70-08000 AA C E-ring(E7)
29 PGIDM0019QSJZ AH C SPF hinge guide L (AL-1553)
30 PGIDM0020QSJ1 AH C SPF hinge guide R (AL-1553)
31 XHBS730P08000 AB C Screw(3×8)
32 RCORF0018QSZZ AR C FFC core
33 LPLTP0131QSZZ AD C Book sensor attachment plate (AL-1553)
34 MLEVP0047QSE1 AD C Book sensor actuator (AL-1553)
35 MSPRC0153QSZZ AB C Book sensor spring (AL-1553)
36 VHPGP1A71A1-1 AG B Photo transistor(GP1A71A1) (AL-1553)
37 DHAI-0303QSZZ AD C Harness (AL-1553)
39 PSHEZ0389QSZ1 AK C Scanner sheet
40 DHAI-0268QSZ3 AG C CCD-MCU harness
43 PTPE-0045QSZZ AA C CCD harness double-sided tape
44 PSHEZ0403QSZZ AG C Noise sheet
47 PMLT-0068QSZZ AC C Core holder cushion
50 PSHEZ0349QSZZ AC C Insulated sheet C
13
14
17
19
19
19
19 19
19
6
16
10
21
21
2
3
4
5
5
15
1
8
7
18
9
9
9
11
12
25
26
29
30
31
31
31
31
33
34
35
36
37
24
28
27
31
26
PRP02514
22
39
44
50
47
32
32
40
43
8 Optical frame
– 9 –
9LSU unit
9LSU unit
FDelivery paper guide unit
FDelivery paper guide unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1XEBS730P12000 AC C Screw(3×12)
2DHAI-0282QSZZ AG C LSU harness
3LBNDJ0013FCZ1 AE C Wire band
4DUNTK0013QS13 BS E LSU unit(A4600D)
5MSPRT0019QSZ1 AB C Delivery paper guide spring
6PSHEZ0350QSZZ AB C LSU protect sheet A
7PSHEZ0351QSZZ AB C LSU protect sheet B
8RCORF0021QSZZ AK C Core
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1NROLP0046QSZZ AC C Delivery roller upper
2MSPRT0020QSZ1 AB C Delivery roller spring
4CPWBF0147QSE6 AL E POD sensor PWB
5MLEVP0005QSZ2 AC C Delivery actuator
6PGIDM0006QSZ3 AM C Delivery paper guide
7MSPRC0021QSZZ AB C Delivery transport roller spring
8NROLP1122FCZZ AF C PS upper roller
9MSPRD0281QSZZ AD C Delivery earth spring
10 DHAI-0285QSZZ AK C OP-MCU harness
14 DHAI-0282QSZZ AG C LSU harness
15 RCORF0018QSZZ AR C FFC core
16 PSHEZ0402QSZZ AG C Panel core sheet
PRP02515
6
7
2
3
4
5
1
1
1
8
1
1
5
PRP02516
16
15
1
2
1
5
4
6
9
7
7
8
8
10
2
14
– 10 –
GMiddle frame
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION

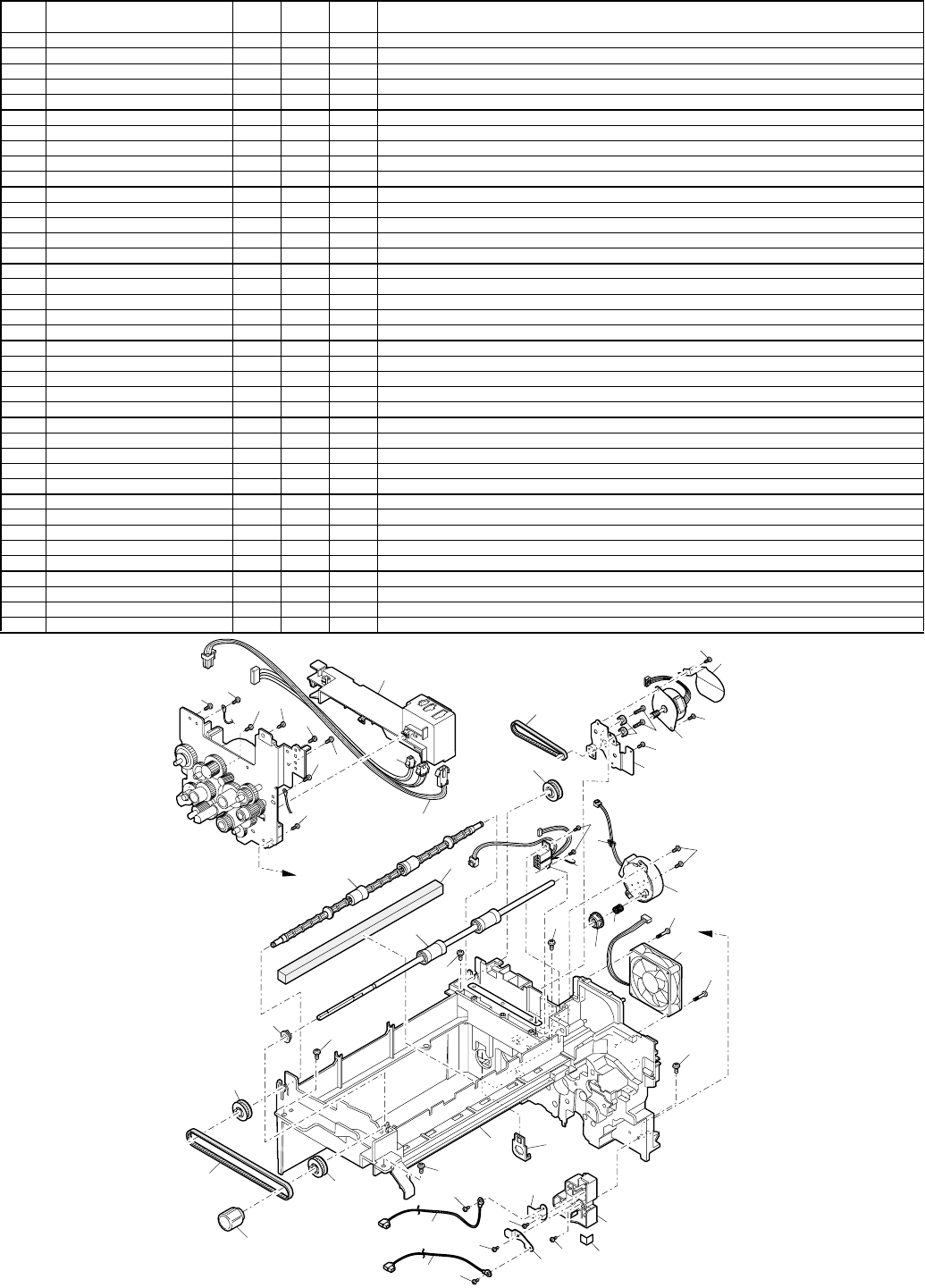

1NROLP0007QSZ1 AQ C Delivery roller lower
2NBRGC0579FCZZ AE C Roller bearing
3NROLP0012QSZ2 AL C Delivery transport roller lower
4NPLYZ0001QSZZ AE C Pulley(22T)
6LBNDJ0043FCZZ AA C Snap band(SG-130)
7NCPL-0002QSZZ AC C Hopper coupling S
8MSPRC0330QSZZ AC C Hopper spring
9RMOTD0009QSZZ AU B Toner motor
10 XEBS730P10000 AC C Screw(3×10)
11 XEBS730P30000 AC N C Screw(3×30)
12 NFANP0005QSZ2 AU B Fan
13 LHLDZ0018QSZZ AE C TC high voltage holder
14 QSLP-0006QSZZ AE C BC HV electrode plate
15 XEBS730P06000 AA N C Screw(M3×6)
16 QSLP-0005QSZZ AE C TC HV electrode plate
17 XBPSC30P06K00 AA C Screw(3×6K)
18 DHAI-0267QSZZ AG C BC harness
19 DHAI-0292QSZZ AF C TC harness
20 NBLTT0039QSZZ AE B Belt 308
21 LFRM-0002QSZ1 AV D Middle frame
22 JKNBZ0001QSZZ AE C Roller rotation knob
23 DHAI-0287QSZZ AF C PPD2 interface harness
24 DHAI-0276QSZZ AL C HL harness 1 (200V Series)
25 PGIDM0009QSZ2 AG C Harness guide
26 LPINS0007QSZZ AC C DV guide pin
27 DHAI-0271QSZZ AP C DSV harness
28 LX-BZ3006SC0S AA C Screw(3×6)
29 XBBS730P08000 AA N C Screw(3×8)
30 XEBS740P12000 AA N C Screw(4×12)
31 LPLTM0133QSZ1 AE C DUP motor sink
32 PSPAZ0017QSZZ AK C DUP spacer
33 XEBS730P10000 AC C Screw(3×10)
34 XHBS730P06000 AC C Screw(3×6)
35 RMOTS0048QSZZ BD B DUP transport motor
36 PSHEZ0156QSZ1 AE C Harness protection sheet
37 NBLTT0040QSZZ AE B Belt
38 PSHEZ0155QSZ1 AD C Sheet
39 PMLT-0067QSZZ AC C Cushion
PRP02517
27
15
26
1
2
3
4
7
8
610
11
12
13
14
15
16
17
17
18
19
20 4
4
10
11
21
15
9
24
23
25
10
10
10
10
10
29
28
29
30
30
30
30
30
39
22
37
34
32
31
35
34
36
34
33
38
G Middle frame
– 11 –

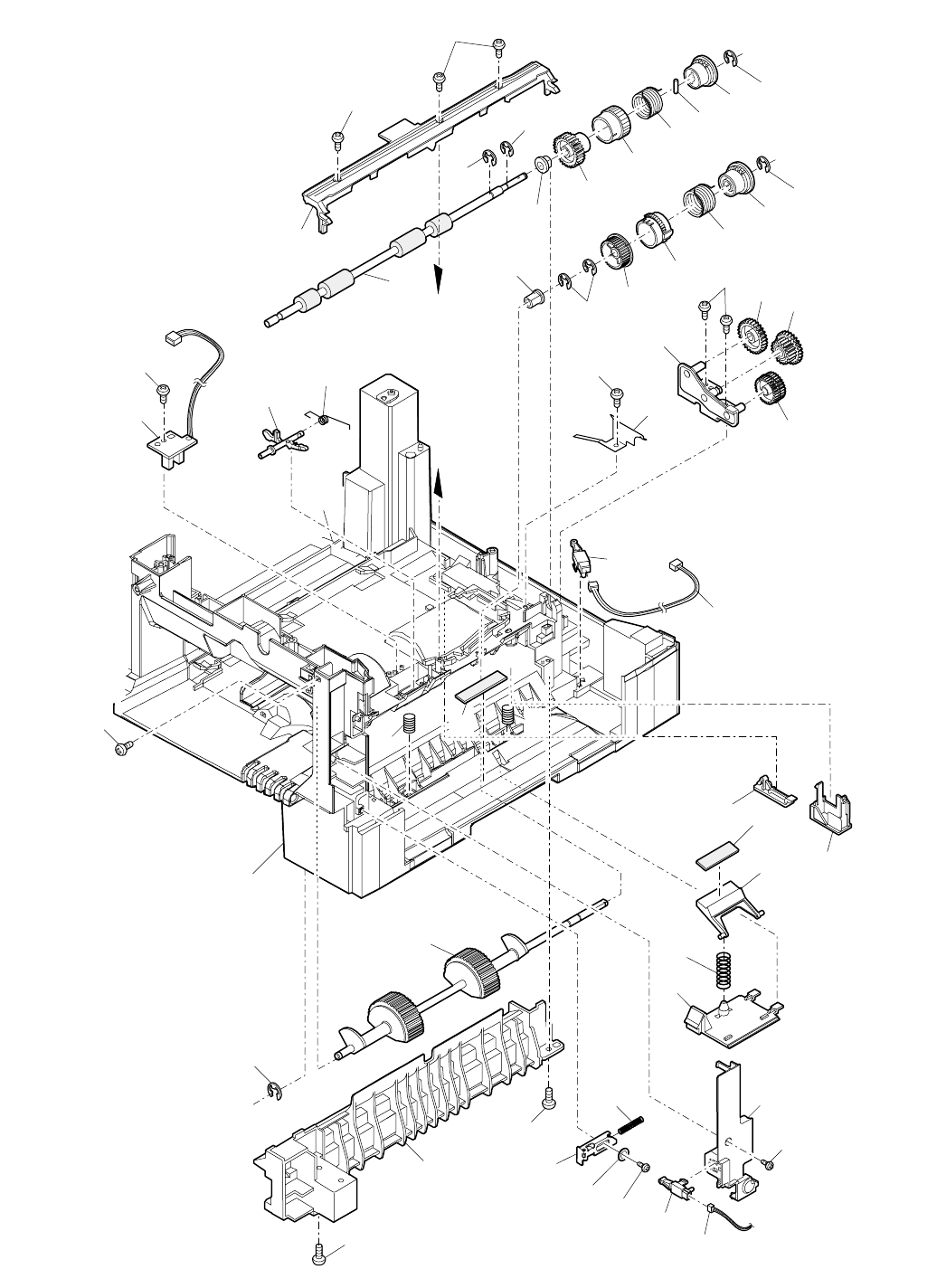

HBase plate unit 1
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CPWBF0147QSE7 AL E PPD1 sensor PWB
2MLEVP0006QSZZ AD C PS front actuator
3MSPRC0026QSZ1 AB C PS front actuator spring
4XEBS730P10000 AC C Screw(3×10)
5PGIDM0010QSZ1 AG C TC front guide upper
6XRESP50-06000 AA C E-ring(E5)
7NROLR0013QSZZ AQ C PS lower roller
8NBRGC0100FCZ1 AC C Bearing 6
9NGERH0020QSZZ AG C Clutch gear(26T)
10 PPIPP0109FCZ1 AC C Pipe A
11 MSPRC1316FCZ1 AE C MF clutch spring B
12 XPSSJ20-07000 AA C Spring pin(φ2-7)
13 LBOSZ1851FCZZ AC C STK clutch boss
14 XRESP40-06000 AA C E-ring(E4)
15 LBOSZ1031FCZZ AC C Clutch boss
16 MSPRC0161QSZZ AF C Clutch spring
17 PPIPP0003QSZZ AD C Clutch sleeve
18 NGERH1132FCZZ AH C Clutch gear(29T)
19 NBRGP0562FCZZ AD C Bearing
20 CSFTZ0068RS72 AX C Paper feeding roller
21 NGERH0022QSZZ AC C Gear(33T)
22 NGERH0026QSZZ AD C Gear(21/29T)
23 NGERH0025QSZZ AD C W gear(30T)
24 CPLTM0024QS01 AG C PF plate 2
25 LPLTM0046QSZZ AE C PS earth plate
26 QSW-B0017QSZZ AF B Tray detect switch
27 DHAI-0269QSZZ AD C CED1 harness
28 GDAI-0001QSJ1 BE D Base plate
29 PSHEZ2026FCZ1 AB C Sheet M1 (AL-1553)
30 LHLDZ0017QSZZ AD C Pressure plate holder (AL-1553)
31 MSPRC0047QSZZ AA C Pressure plate spring (AL-1553)
32 PCOVP0013QSZZ AD D Multi cover (AL-1553)
34 LRALP0001QSJ2 AM C Base plate rail R
35 XEBS740P12000 AA N C Screw(4×12)
36 PSHEZ2174FCZZ AB C Paper feeding sheet (AL-1553)
37 XBPS730P08KS0 AB N C Screw(3×8KS)
38 PCOVP0007QSJZ AE D Sensor cover
39 DHAI-0270QSZZ AD C D-RST harness
40 XEBS730P12000 AC C Screw(3×12)
41 MSPRC0077QSZ1 AB C Front cabinet lever spring
42 LPLTM0016QSZZ AE C Front cabinet lever plate
43 LX-WZ0023FCZZ AA C Washer
44 XEBS730P10000 AC C Screw(3×10)
60 PCOVP0008QSZZ AE D 2nd gear cover
61 PCOVP0009QSZZ AE D 2nd connector cover
62 MSPRC0037QSZZ AB C Transport lower roller spring (AL-1552)
– 12 –
HBase plate unit 1
PRP02518
14
14
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
14
421 22
23
24
25
4
26
27
28
14
20
29
30
31
32
34
35
19
35
36
4
37
38
40
44
43
42
41
61
60
62
62
26
39
– 13 –

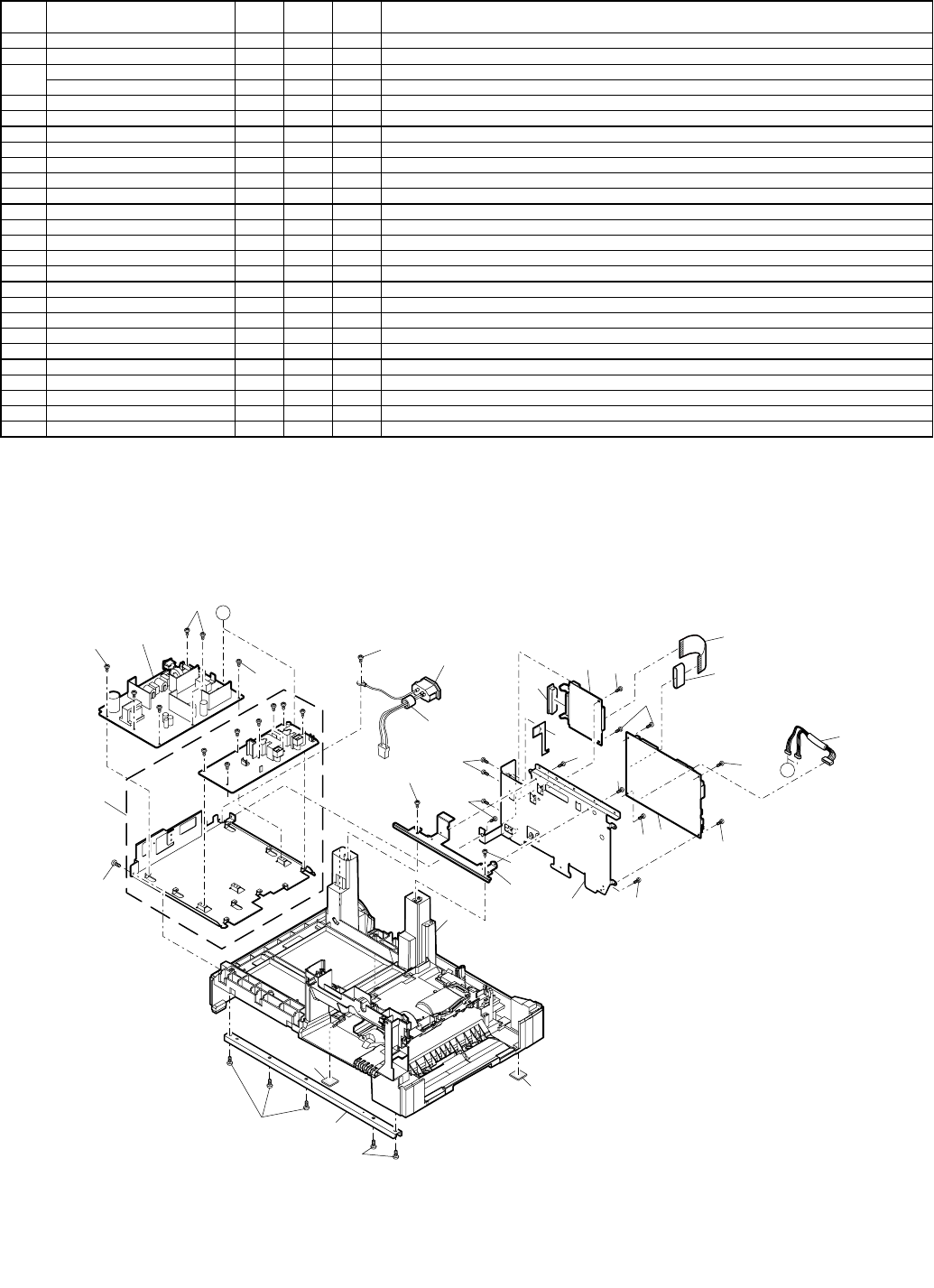

IBase plate unit 2
IBase plate unit 2
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1LHLDZ0092QSZZ AP C PWB holder JAG
3XHBS730P06000 AC C Screw(3×6)
4CPWBX0121QS4K CD N E MCU PWB (AL-1552)
CPWBX0121QS4J CD N E MCU PWB (AL-1553)
5CPWBF0114QSF1 BA N E IF PWB
!6RDENC0007QSZZ BG E High voltage PWB
7DHAI-0283QSZ1 AG C MCU-I/F harness
11 XEBS730P10000 AC C Screw(3×10)
!13 RDENC0006QS15 BN E DC power supply PWB (200V Series)
14 XBBS730P06000 AC C Screw(3×6)
15 XEBS740P12000 AA N C Screw(4×12)
17 GDAI-0001QSJ1 BE D Base plate
18 GLEGG0064FCZZ AC C Rubber foot
21 LPLTM0020QSZZ AL C Base plate reinforce plate F
25 XBPSN40P06K00 AA C Screw(4×6K)
27 RCORF0021QSZZ AK C Core
30 LFRM-0062QSZZ AG D Connector frame
31 RCORF1028LCZZ AP C Ferrite core
40 DHAI-0294QSZZ AK C Center frame harness
41 DHAI-0305QSZ1 AL C Inlet interface harness
42 PCAPH1001ACZZ AE D Protection cover
48 PSHEZ0405QSZZ AE C Connector ground sheet
PRP02519
40
3
A
A
6
25
14
14
14
15
15
30
31
41
42
48
27
1
34
3
3
3
3
13
11
17
18
18
15
15 21
3
3
5
7
3
3
– 14 –
JFusing unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1PGIDM0023QSZ2 AN N C U-turn guide lower
2VRH-ST2HB157K AD C Resistor(1/2W 150MΩ)
3MSPRD0335QSZZ AD C Fusing upper earth spring
4PBRSR0004QSZ1 AD B Discharger brush FU
5PCOVP0010QSZ1 AF D Fusing cover F
6MSPRP0033QSZZ AD C Copy lamp spring F
7LFRM-0004QSZ1 AR D Fusing upper frame
8LX-BZ0010QSZZ AB C Screw(3×6)
9RDTCT0128FCZZ AR B Thermistor
10 XBPS730P10KS0 AB N C Screw(3×10KS)
11 CTME-0229FC04 AG C Separator pawl
12 CTHM-0019DS52 AT E FU thermostat unit
13 CPWBF0147QSE8 AL E PPD2 sensor PWB
14 MSPRP0034QSZZ AE C Copy lamp spring R
15 PCOVP0011QSZ1 AG D Fusing cover R
16 DHAI-0280QSZ1 AH C HL harness 2 (200V Series)
17 LBNDJ0037FCZ1 AA C Wire band
18 LSTPP0116FCZZ AA C Roller stopper
19 NGERH0540FCZ3 AD C Fusing gear(45T)
20 NBRGP0567FCZZ AG C Fusing bearing
21 NROLI0014QSZ3 BA C Heart roller
!22 RLMPU0011QSZZ BA B Heater lamp (230V Series)
23 MLEVP0015QSZZ AF C Pressure lever R
24 NBRGP0260FCZ1 AD C Pressure bearing N
25 MSPRC0055QSZZ AC C Pressure spring
26 LX-WZ0313FCZZ AA C Washer
27 NROLR0028QSZZ AZ C Pressure roller
28 MLEVP0014QSZZ AF C Pressure lever F
29 LPLTM0022QSZ4 AG C Scraper
30 LFRM-0005QSZ2 AM D Fusing lower frame
31 XEBS730P12000 AC C Screw(3×12)
32 TCAUH0017QSZ1 AC D High temperature cushion label
33 PSHEZ0045QSZ2 AC C PG earth sheet N2
34 PGIDH0026QSZZ AE C Fusing front paper guide
35 PSHEP0023QSZZ AF C Fusing front PG sheet
36 LX-BZ0735FCZZ AA C Screw
37 MSPRT0054QSZ1 AB C Gate spring
38 LPLTP0009QSZZ AS C Turn over gate
39 XRESP30-04000 AA C E-ring(E3)
40 PSHEP0047QSZZ AC C Handle label
41 XEBS730P08000 AC C Screw(3×8)
42 LX-BZ0011QSZZ AB C Screw
43 MSPRD0336QSZZ AD C Fusing lower earth spring
(Unit)
901 DUNTW0285RS11 BS E Fusing unit (230V Series)
– 15 –
JFusing unit
31
4
40
PRP02520
1
2
5
6
7
8
8
8
9
10
11
12
11
13
14
15 16
17
18
19
20
21
22 23
24
25
26
27
18
20
26
24
25
28
29
30
31
32
34
35
36
36
37
38
39
41
41
41
41
41
33
42
42
3
43
– 16 –

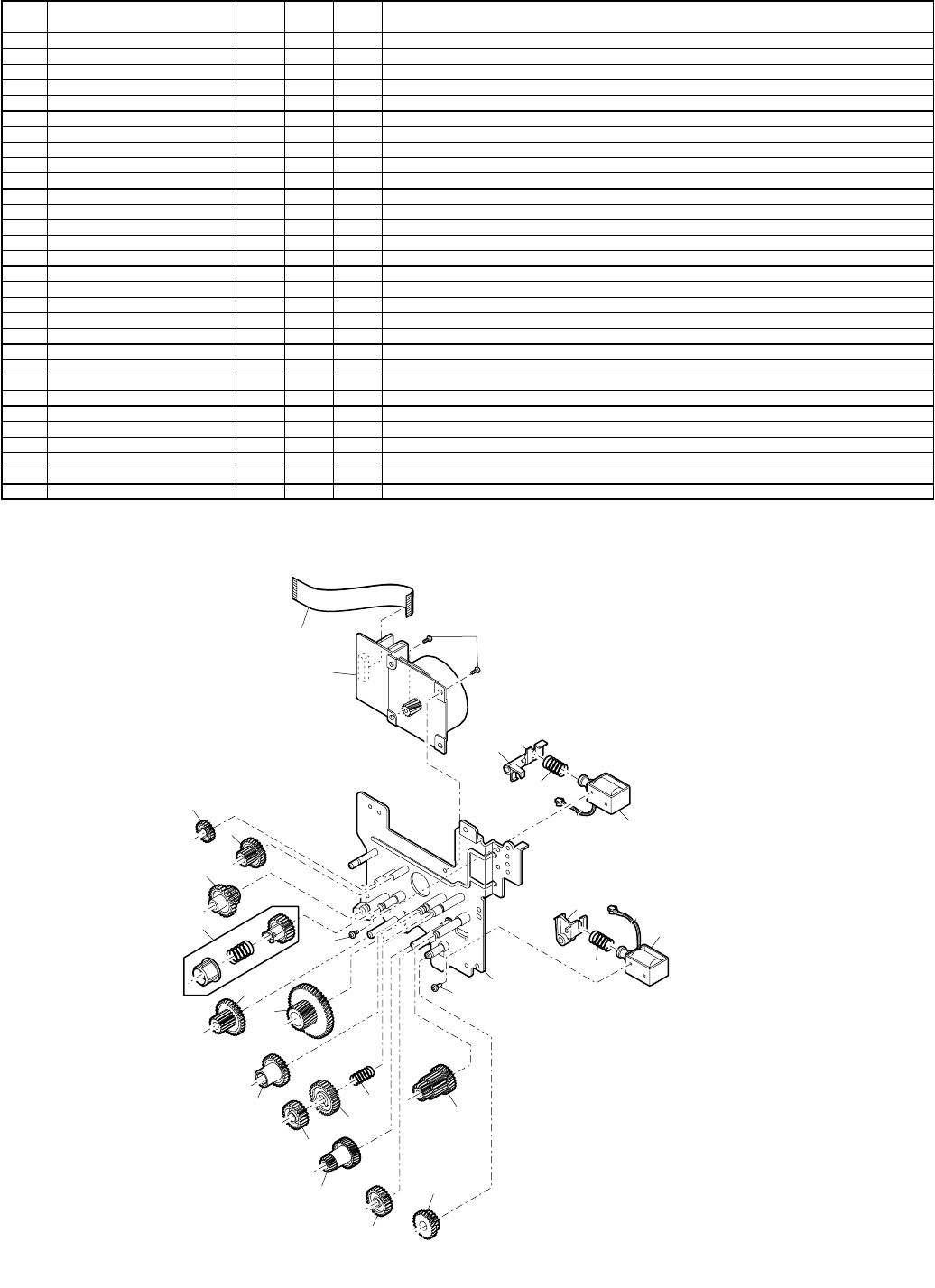

KDrive unit
KDrive unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1XBBS740P06000 AA N C Screw(4×6)
2RMOTP0036QSZZ BD B Main motor
6NGERH0010QSZZ AD C Gear(28T)
7NGERH0009QSZZ AD C Gear(46/16T)
8NGERH0014QSZZ AD C Gear(30/15T)
9CGERH0011RS51 AE E MG gear unit
10 NGERH0015QSZZ AD C Gear(37/15T)
11 NGERH0007QSZZ AH C Gear(68/26T)
12 NGERH0016QSZZ AD C Coupling gear(34T)
13 NGERH0019QSZZ AD C Ratchet gear(21T)
14 NGERH0018QSZZ AC C Ratchet gear(28T)
15 MSPRC0023QSZ1 AC C Ratchet spring
16 NGERH0008QSZ3 AL C Gear(55/19T)
17 NGERH0017QSZZ AD C Gear(33/20/15T)
18 NGERH0012QSZZ AE C Gear(20T)
19 NGERH0013QSZZ AG C Gear(31/17T)
20 CPLTM0042QS02 AY C Main drive plate
21 XBBS730P04000 AA N C Screw(3×4)
22 RPLU-0035QSZZ AL B Solenoid
23 MSPRC1318FCZ1 AA C Spring B
24 PTME-0002QSZZ AD C PS roller pawl
25 RPLU-0002QSZZ AN B Solenoid
26 PTME-0003QSZ1 AD C Roller pawl
27 DHAI-0296QSZZ AK C Main motor harness
(Unit)
901 CPLTM0042RS56 BM E Drive unit[Except No.27]
PRP02521
23
26
25
22
23
24
2
1
6
7
8
9
10
11
21
21
17
19
18
16
15
14
13
12
20
27
– 17 –

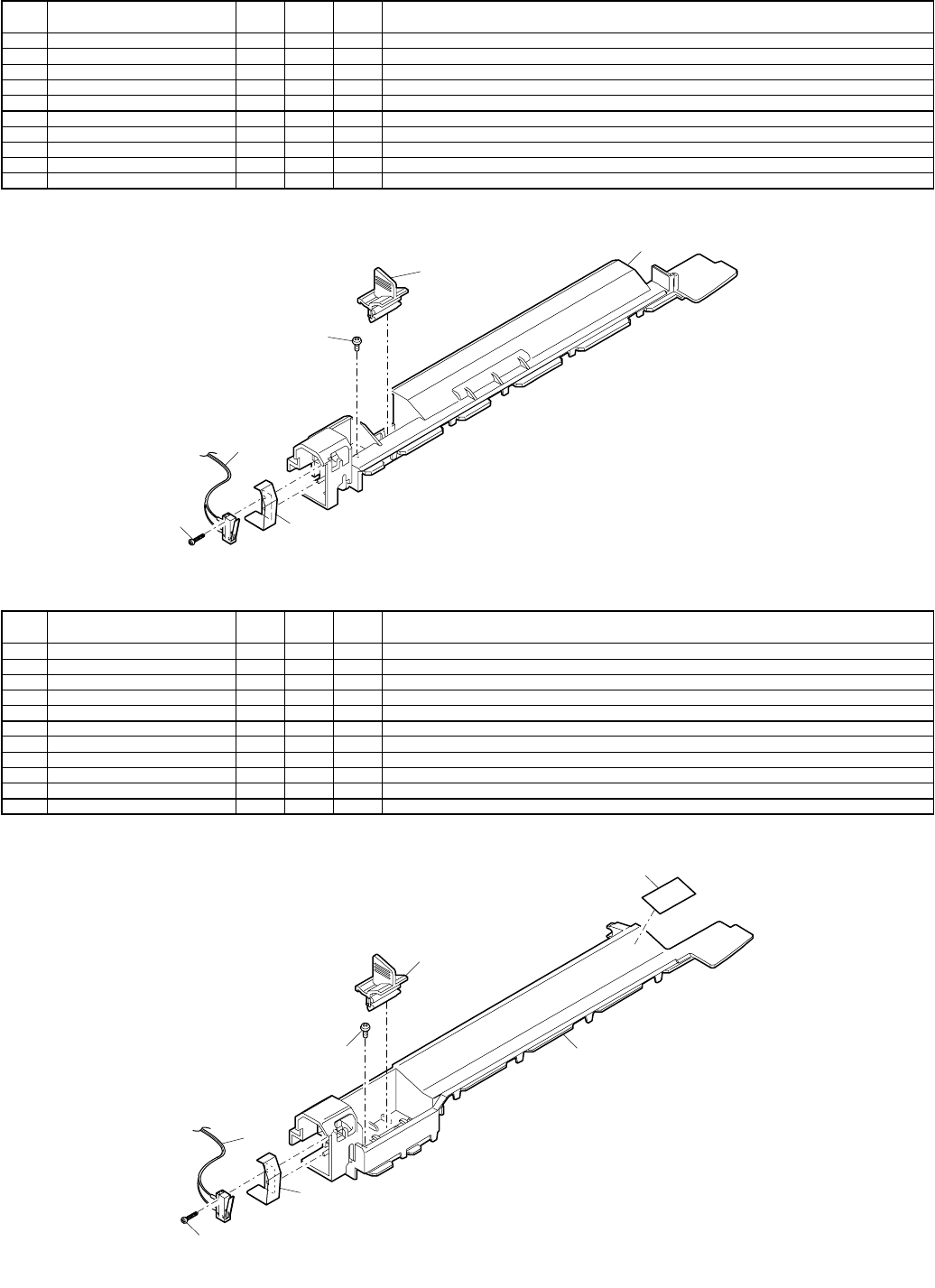

LSingle manual paper feeding cover unit (AL-1552)
LSingle manual paper feeding cover unit (AL-1552)
MMulti manual paper feeding cover unit (AL-1553)
MMulti manual paper feeding cover unit (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CCLEZ0005RS51 AQ A Charger cleaner unit
2XEBS730P08000 AC C Screw(3×8)
3PCOVP0012QSJ1 AH D Single upper cover
4CSW-M0016RS51 AG B Side door detect switch unit
5XEPS720P10000 AA N C Screw(2×10)
6MSPRP0110QSZ1 AD C Door switch spring
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CCLEZ0005RS51 AQ A Charger cleaner unit
2XEBS730P08000 AC C Screw(3×8)
3PCOVP0023QSJ1 AH D Multi upper cover
4CSW-M0016RS51 AG B Side door detect switch unit
5XEPS720P10000 AA N C Screw(2×10)
6MSPRP0110QSZ1 AD C Door switch spring
7PSHEZ0075QSZZ AC C MB upper guide sheet
1
2
3
4
6
5PRP02522
1
23
7
4
5
6
PRP02523
– 18 –
NSingle manual paper feeding unit (AL-1552)
NSingle manual paper feeding unit (AL-1552)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1CPWBF0116RS54 AP E MFD sensor PWB
2DHAI-0295QSZZ AC C Manual feeding earth harness
3LBNDJ0013FCZ1 AE C Wire band
4XHBS730P06000 AC C Screw(3×6)
5CPLTM0023QS02 AF C SB plate 1
6NGERH0972FCZZ AB C Gear(27T)
7XRESP40-06000 AA C E-ring(E4)
8XEBS730P08000 AC C Screw(3×8)
9NGERH0990FCZZ AB C Gear(16T)
10 XPSSJ20-07000 AA C Spring pin(φ2-7)
11 NBRGP0562FCZZ AD C Bearing
12 NROLR0016QSZZ AT C MF transport roller
13 LFRM-0006QSJZ AN D Single manual feed frame
14 MSPRC0039QSZ1 AC C Earth spring
15 XBPS730P06KS0 AB N C Screw(3×6KS)
16 MSPRC0038QSZ1 AC C Actuator spring
17 MLEVP0007QSZZ AD C Actuator
18 MSPRC0080QSZZ AB C SB transport earth spring
20 PGIDM0014QSJ1 AF C DUP upper guide
21 PGIDM0013QSJZ AF C SB side guide R
22 PGIDM0012QSJZ AF C SB side guide F
23 NSFTZ0007QSZZ AG C Roller shaft
24 NROLP1122FCZZ AF C PS upper roller
25 LFRM-0007QSJ2 AL D Single manual feed lower frame
26 MSPRC0036QSZ1 AB C MF spring
27 NGERH0021QSZZ AD C Manual feeding gear
28 XEPS730P06X00 AA N C Screw(3×6X)
29 MSPRP0079QSZZ AD C SB earth plate spring
30 XEBS730P06000 AA N C Screw(3×6)
31 MSPRD0108QSZZ AC C SB lower earth spring
32 XEBS740P12000 AA N C Screw(4×12)
33 MSPRC0109QSZZ AC C Spring
501 CFRM-0007RS54 AX E SB manual feeding lower frame unit
502 CFRM-0006RS53 BB E Single manual paper feeding unit
501
502
1
2
3
4
5
6
7
7
7
9
10
11
12
13
14
15
16
17
22
21
25
26
27
28
24
24
23
18
8
8
8
20
32
32
32
29
30
31
PRP02524
33
– 19 –
OMulti manual paper feeding unit (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1NROLR0922FCZ2 AR C Manual feeding roller
2XRESP40-06000 AA C E-ring(E4)
3NGERH0992FCZZ AB C Gear(20T)
4MARMP0173FCZ1 AC C Arm C
5NROLR0105QSZZ AR C Pick up roller R
6XPSSJ20-07000 AA C Spring pin(φ2-7)
7NGERH0990FCZZ AB C Gear(16T)
8NSFTZ2311FCZZ AU C Cam boss A shaft
9LBSHZ0303FCZZ AC C M bushing C
10 LBRC-0055FCZZ AK C Multi F bracket
11 XEBS730P08000 AC C Screw(3×8)
12 PGIDM0014QSJ1 AF C DUP upper guide
13 XEBS730P06000 AA N C Screw(M3×6)
14 MSPRC0049QSZZ AC C Manual feeding earth spring
15 LBOSZ1851FCZZ AC C STK clutch boss
16 MSPRC1315FCZ1 AD C Clutch spring A
17 PPIPP0109FCZ1 AC C Pipe A
18 LBOSZ0118QSZZ AE C Cam boss A1R
19 NGERH0972FCZZ AB C Gear(27T)
20 NGERH0991FCZZ AC C Gear(20.20MXL)
21 LBNDJ0013FCZ1 AE C Wire band
22 DHAI-0295QSZZ AC C Manual feeding earth harness
23 XHBS730P06000 AC C Screw(3×6)
24 XBPS730P06KS0 AB N C Screw(3×6K)
25 CPLTM0023QS03 AG C Paper plate 1
26 PPIPP0009QSZZ AD C Clutch sleeve
27 MSPRC1316FCZ1 AE C MF clutch spring B
28 LBOSZ1509FCZ1 AD C Cam boss B
29 RPLU-0003QSZZ AN B Multi feeding solenoid
30 MSPRC1318FCZ1 AA C Spring B
31 PTME-0179FCZZ AC C Manual paper feeding pawl B
32 PTME-0178FCZ1 AC C Manual paper feeding pawl A
33 MSPRC2175FCZZ AA C Pawl A spring
34 XBBS730P08000 AA N C Screw(3×8)
35 LFRM-0010QSJZ AN D Multi frame
36 XEBS740P12000 AA N C Screw(4×12)
37 LSTPP0300FCZZ AB C Stopper plate
38 MARMP0205FCZZ AF C Arm B
39 MARMP0204FCZ1 AF C Arm A
40 MHNG-0002QSZ1 AC C Arm hinge
41 MSPRC0048QSZZ AB C Arm C spring
42 PGIDM0018QSJZ AF C MB side guide R
43 PGIDM0017QSJZ AF C MB side guide L
44 PCOVP0019QSJ2 AL D Multi tray front cover
46 NGERH0021QSZZ AD C Manual feeding gear
48 LSOU-0002QSJ1 AL D Multi tray 1
49 LSOU-0003QSJ1 AH D Multi tray 2
50 MSPRC0109QSZZ AC C Spring
501 CSOU-0002RS56 AX E Multi manual paper feeding tray unit
502 CFRM-0010RS54 BG E Multi manual paper feeding unit
– 20 –
OMulti manual paper feeding unit (AL-1553)
PRP02525
35
12
40
41
11
14
13
34
25
22
21
19
20
23
24
38
37
5
7
4
39
3
1
8
28
26
27
18
30
29
31
33
32
10
9
17
16
15
11
2
2
11
2
27
6
6
2
2
2
36
6
18
2
11
42
46
48
44
43
49
501
502
50
– 21 –

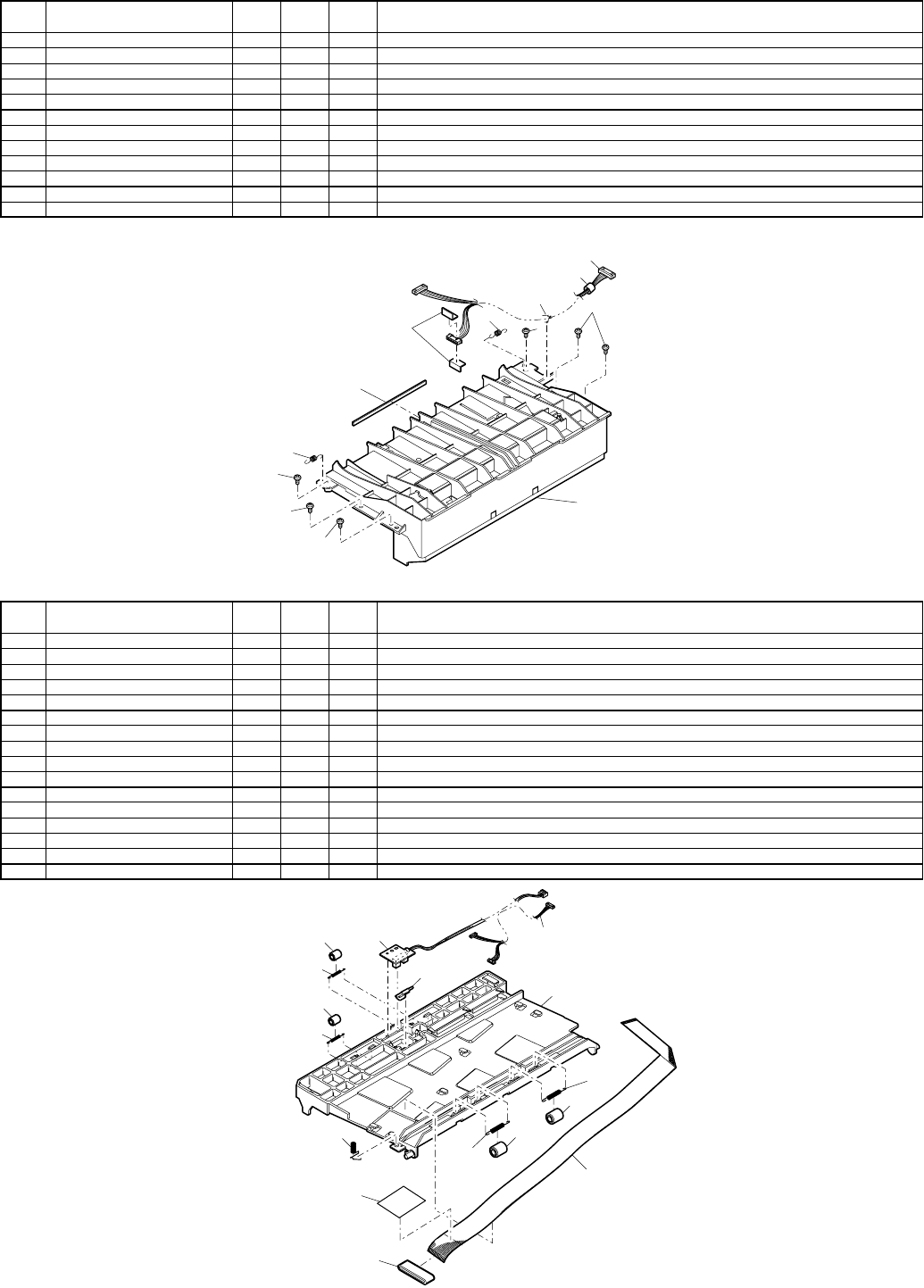

PSocket holder unit
PSocket holder unit
QTC case unit
QTC case unit
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1LHLDZ0009QSAZ AF C HV interface holder
2CHAI-0298RS51 AL C MC harness unit
3CHAI-0273RS51 AN C GB-MCFB harness unit
4XBPSC30P06ES0 AA C Screw(3×6ES)
5MSPRC0017QSZ1 AC C HV terminal spring
6MSPRC0018QSZ1 AC C HV terminal spring
7MSPRC0016QSZ1 AC C HV terminal spring
8XEBS730P08000 AC C Screw(3×8)
9LBNDJ0013FCZ1 AE C Wire band
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1PSHEZ0018QSZZ AF C Discharge plate sheet
2PGIDM0011QSZZ AE C Separator guide
3PSHEP0019QSZ1 AC C TC sheet
4PGIDH0025QSZ1 AG C TC front guide
5XEBS730P06000 AA N C Screw(M3×6)
6PSHEP0021QSZZ AA C TC cover sheet R
7MSPRT0513FCZ1 AA C MC tension spring
8DWIR-0466CSZZ BE B Charger wire
9QSLP-0007QSZZ AC C TC electrode plate
10 MSPRC0027QSZZ AC C TC electrode spring
11 MSPRC0028QSZZ AC C BC electrode spring
12 MSPRC0051QSZ1 AA C Front guide earth spring
13 PSHEP0020QSZZ AB C TC cover sheet F
14 LHLDZ0010QSZ1 AL C TC holder
15 LFIX-0004QSZZ AC C Holder fixing plate
16 PCASZ0002QSZZ AL D TC case
(Unit)
901 CHLDZ0010RS52 AU E Transfer holder unit
PRP02526
2
1
8
8
7
6
4
3
9
5
PRP02527
1
2
3
45
57
8
9
10
11
12
13
5
5
15
14
5
16
6
5
– 22 –

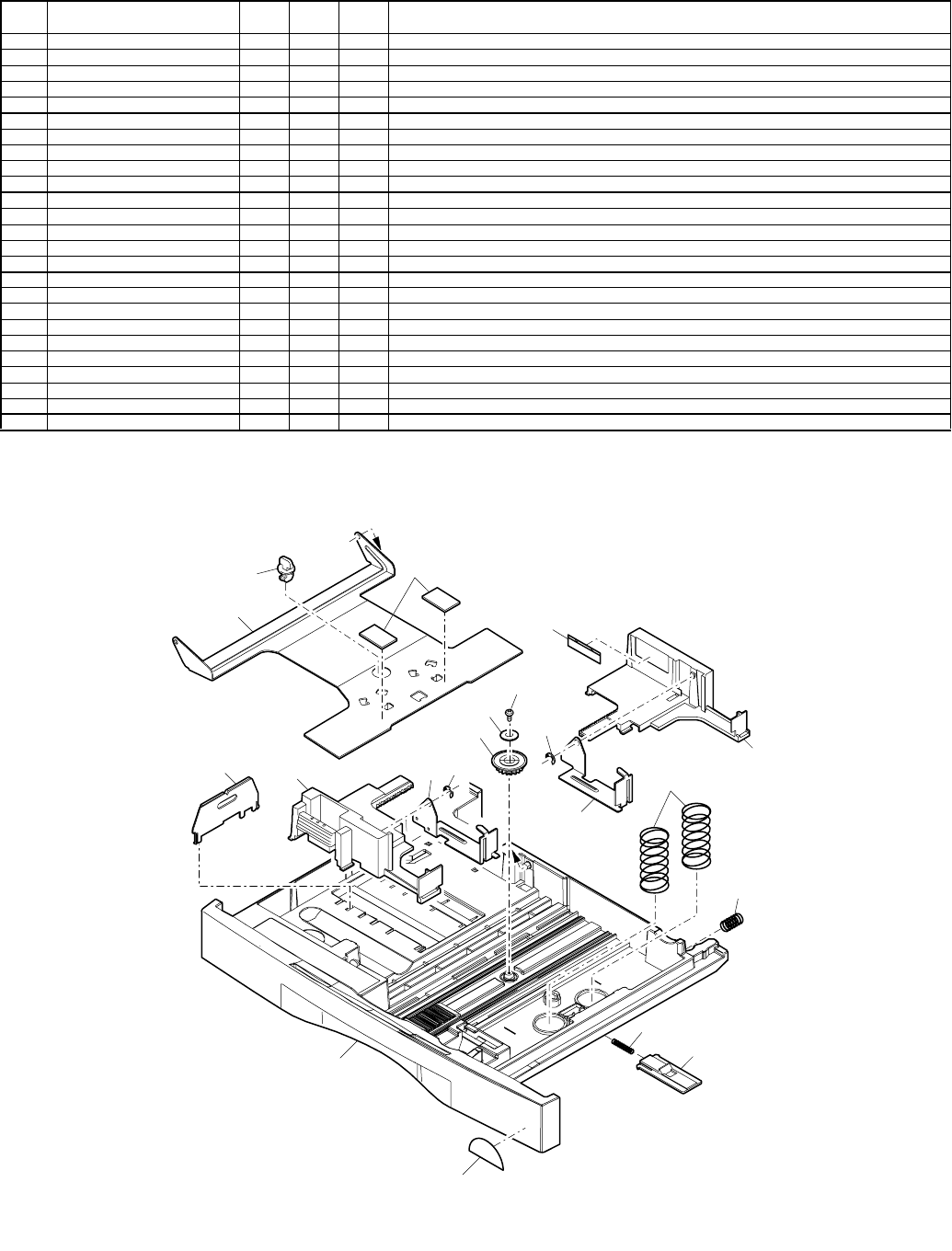

R250 sheets tray
R250 sheets tray
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1LPLTM5106FCZZ AR C Turning plate 250
2PSHEZ4142FCZZ AC C Rotation plate sheet
3LHLDW1226FCZZ AB C Turn fastener
4LPLTM2642FCG2 AD C Tray rear plate
5LPLTP5107FCZ1 AG C 250 tray side plate F
6PTME-0255FCZZ AG C 250 tray pawl F
7XRESP40-06000 AA C E-ring(E4)
9XEBS730P08000 AC C Screw(3×8)
10 LX-WZ2028SCZZ AA C Washer(φ12)
11 NGERH0193FCZZ AB C Manual feeding gear
12 TLABZ3568GHZZ ∗NDIndication label
13 LPLTP5108FCZ1 AG C 250 tray side plate R
14 PTME-0256FCZZ AG C 250 tray pawl R
15 MSPRC0108QSZZ AC C 250 tray spring
16 MSPRC1873FCZ1 AB C Tray spring
17 MSPRC1145FCZZ AA C Stopper spring
18 LSTPP0161FCZ1 AB C Rotation plate stopper
19 GCASP0001QSJ2 AZ D 250 tray case
20 TLABZ4047FCZZ AC D Energy star label
(Unit)
901 CCASP0001RS55 BF E 250 tray unit(Except No.20)
PRP02528
20
17
18
19
15
14
7
9
10
11
7
6
5
4
1
2
12
13
3
16
– 23 –
SHarness
SHarness

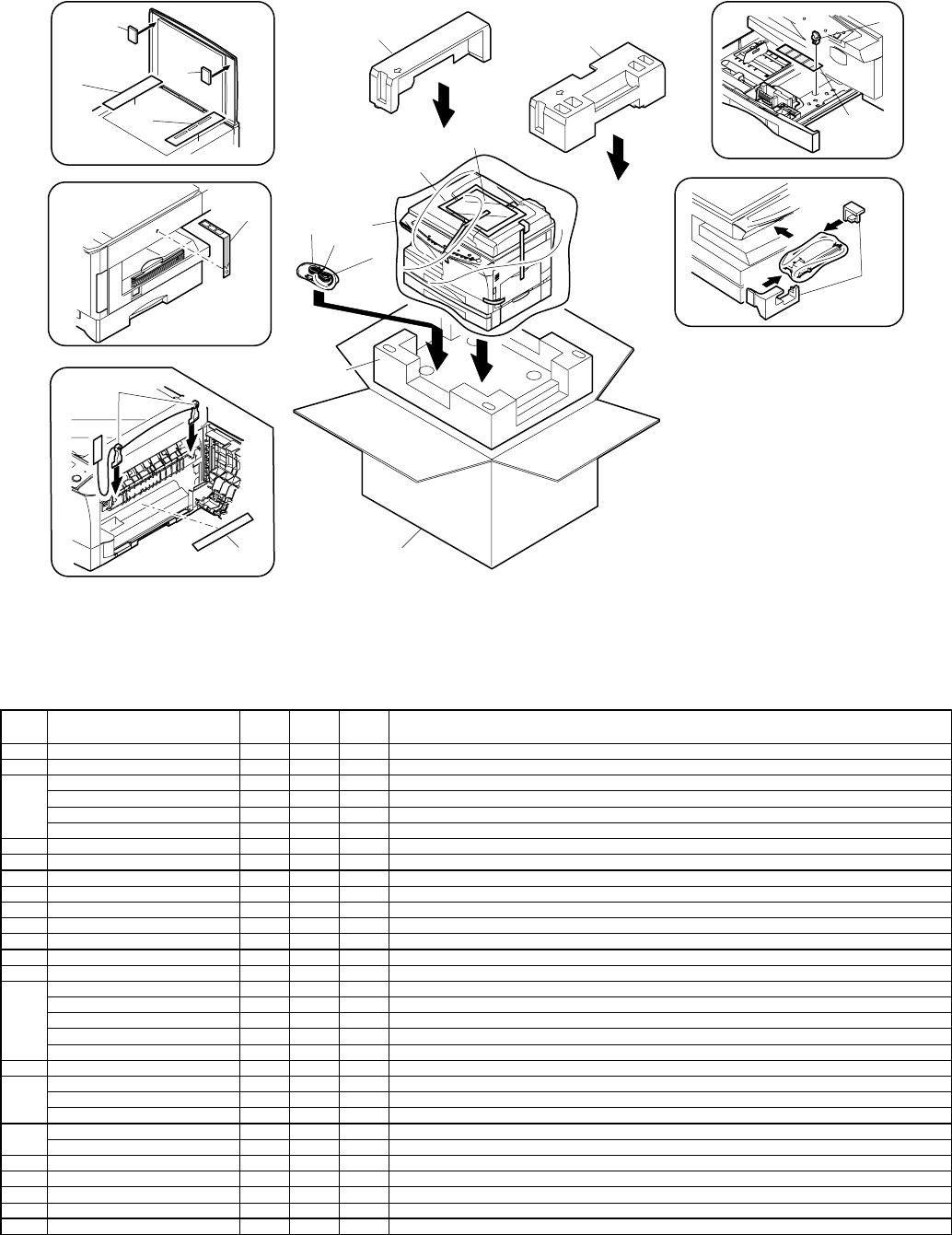

TPacking material & accessories
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1DHAI-0283QSZ1 AG C MCU-I/F harness
2DHAI-0268QSZ3 AG C CCD-MCU harness
3DHAI-0294QSZZ AK C Center frame harness
4DHAI-0285QSZZ AK C OP-MCU harness
5DHAI-0296QSZZ AK C Main motor harness
7DHAI-0287QSZZ AF C PPD2 interface harness
8DHAI-0276QSZZ AL C HL harness 1 (200V Series)
9DHAI-0271QSZZ AP C DSV harness
10 DHAI-0280QSZ1 AH C HL harness 2 (200V Series)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1SPAKA0408QSZZ AN D Top packing OC (AL-1552)
SPAKA0409QSZZ AR D Top packing SPF (AL-1553)
!
3
QACCBR623QCPZ AU B AC cord (U.kingdom)
!QACCE7623QCPZ ∗NBAC cord (Switzerland)
!QACCV6621JHPZ ∗NBAC cord (Other countries)
4UBNDA0001FCZZ AA C AC cable band
5SSAKA5003CCZZ AA D Vinyl bag(140×260mm)
6SSAKZ0002QSZZ AF D Body vinyl bag
7
TINSE1409TSZZ ∗NDOperation manual [ENGLISH]
TINSF1410TSZZ ∗NDOperation manual [FRENCH]
TINSG1408TSZZ ∗NDOperation manual [GERMAN]
TINSH1411TSZZ ∗NDOperation manual [DUTCH]
TINSI1413TSZZ ∗NDOperation manual [ITALIAN]
TINSW1412TSZZ ∗NDOperation manual [SWEDISH]
8SSAKA2347QCZZ AB D Vinyl bag(240×300mm)
9SPAKA0405QSZZ AN D Bottom packing (AL-1552)
SPAKA0406QSZZ AS D Bottom packing (AL-1553)
10 SPAKC0402TS41 ∗NDPacking case (AL-1552)
SPAKC0403TS26 ∗NDPacking case (AL-1553)
12 LHLDW1226FCZZ AB C Turn fastener
13 TTAG-0002QSZZ AB D Tray rotation tag
14 SPAKA0051RSZZ AC D OC packing (AL-1552)
SPAKA0064RSZ1 AC D OC packing (AL-1553)
15 TTAG-0006QSZ1 AD D Scanner fixing tag JAG
17 CLEVP0016QS02 AF C Pressure block lever
20 SPAKA0411QSZZ AE D Accessories Add A
21 SPAKA5116FCZZ AB D SPF protect sheet (AL-1553)
22 TCAUH0007TSZZ ∗NDLaser caution label
23 SPAKA0432QSZZ AC D SPF protect sheet JAG (AL-1553)
101 CDSKA0019TS46 ∗NDCD-ROM
PRP02529
3
4
2
5
7
8
9
10
1
– 24 –
TPacking material & accessories
UOperation PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1QCNCM0861FCZZ AB C Connector(3pin) [CN302]
2QCNCW1132LC1H AD C Connector(18pin) [CN301]
3
QSW-P0001ESZZ AC B Tact switch(SKQNAB010) [MAGK,ZDWK,CLK,ZUPK,PSW]
QSW-P0001ESZZ AC B Tact switch(SKQNAB010) [10UPK,1UPK,EXUPK,EXDWK]
QSW-P0001ESZZ AC B Tact switch(SKQNAB010) [EXMODK,CRSK,OLK,SCNK]
QSW-P0001ESZZ AC B Tact switch(SKQNAB010) (AL-1457)[BPK,DUPK]
4VCCCCY1HH201J AA C Capacitor(50WV 200pF) [C317,C319,C326,C327]
5VCEAJU1CW476M AB C Capacitor(16WV 47µF) [C301]
6VCKYCY1CB104K AB C Capacitor(16WV 0.1µF) [C311,C323]
7VCKYCY1HB102K AA C Capacitor(50WV 1000pF) [C302∼310,312∼316]
8VCKYCY1HB223K AC C Capacitor(50WV 0.022µF) [C318,325]
9VHD1SS133++-1 AA B Diode(1SS133) [D301∼310]
10 VHILC7935//-1 AN B IC(LC7935) [IC303]
11 VHI74HC151M-1 AD B IC(74HC151M) [IC301,IC302]
12 VHP1LHEE-002A AC B LED(Red)(1LHEE-002A) [SJAL,TPL,DPL,JPL,MPL]
13
VHP1LHLE-002A AC B LED(Green)(LTL-1LHLE-002A) [PE,ME,RPL,AE,ZPL,ONLL]
VHP1LHLE-002A AC B LED(Green)(LTL-1LHLE-002A) [EXD,EXN,EXL,CS1L,SCNL]
VHP1LHLE-002A AC B LED(Green)(LTL-1LHLE-002A) [BPL,3RE,2RE,1RE,NOR]
VHP1LHLE-002A AC B LED(Green)(LTL-1LHLE-002A) [1ENR,2ENR,PML,SPFL,CS2L]
VHP1LHLE-002A AC B LED(Green)(LTL-1LHLE-002A) [DAA1,DAA2,DU21,DU22]
14 VHP3650AG2J-1 AL B LED(7SEGMENT)(LTC-3650AG-02J) [LEDM]
15
VRS-CY1JD101J AA C Resistor(1/16W 100Ω ±5%) [R302,308,309,310,312]
VRS-CY1JD101J AA C Resistor(1/16W 100Ω ±5%) [R313,314,318,319,321]
VRS-CY1JD101J AA C Resistor(1/16W 100Ω ±5%) [R322,324,327,336]
16 VRS-CY1JD102J AA C Resistor(1/16W 1.0KΩ ±5%) [R317,335,338]
VRS-CY1JD102J AA C Resistor(1/16W 1.0KΩ ±5%) [R340,352,357,360]
17 VRS-CY1JD121J AA C Resistor(1/16W 120Ω ±5%) [R328∼334,341∼349,361]
18 VRS-CY1JD151J AA C Resistor(1/16W 150Ω ±5%) [R350,351,358]
19 VRS-CY1JD152J AA C Resistor(1/16W 1.5KΩ ±5%) [R304,359]
20 VRS-CY1JD471J AA C Resistor(1/16W 470Ω ±5%) [R353,354]
21 VRS-CY1JD472J AA C Resistor(1/16W 4.7KΩ ±5%) [R301,303,305,306,307]
10
3
5
11
6
9
7
8
22
4
21 14
14
23
15
17
PRP02530
12
13
20
– 25 –
UOperation PWB
VMCU PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
21 VRS-CY1JD472J AA C Resistor(1/16W 4.7KΩ ±5%) [R311,315,316,320,323]
VRS-CY1JD472J AA C Resistor(1/16W 4.7KΩ ±5%) [R325,326,337,355]
22 VRS-CY1JD511J AA C Resistor(1/16W 510Ω ±5%) [R356,362]
23 RH-TX0003ESZZ AC B Digital transistor(KRA225S) [Q301,302,303]
(Unit)
901 CPWBF0113QSG3 BB N E Operation PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1QCNCM0923FC14 AE C Connector(14pin) [CN115]
2QCNCM0923FC24 AF C Connector(24pin) [CN101,CN122]
3QCNCM7014SC0C AA C Connector(3pin) [CN109]
4QCNCW0948FCZ5 AC C Connector(5pin) [CN114]
5VHI74HC151M-1 AD B IC(74HC151M) [IC114,IC115,IC117]
6VHITD62064AF/ AM B IC(TD62064AF) [IC123,IC126]
7RMPTW4102QCJJ AB B Block resistor(1.0KΩ×4) [BR160,BR161,BR162,BR163]
8
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR101,BR102,BR103,BR104,BR105]
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR106,BR107,BR108,BR109,BR110]
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR111,BR112,BR114,BR115,BR117]
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR133,BR135,BR137,BR139,BR145]
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR146,BR148,BR150,BR152,BR153]
RMPTW4103QCJJ AB B Block resistor(10KΩ×4) [BR154,BR155,BR159]
9VRS-CZ1JD100J AA C Resistor(1/16W 10Ω ±5%) [R144,R145,R149,R267]
10
VRS-CZ1JD102J AA C Resistor(1/16W 1.0KΩ ±5%) [R157,R181,R185,R195,R207]
VRS-CZ1JD102J AA C Resistor(1/16W 1.0KΩ ±5%) [R214,R216,R235,R236,R237]
VRS-CZ1JD102J AA C Resistor(1/16W 1.0KΩ ±5%) [R244,R187,R188,R282,R291]
11
VRS-CZ1JD152J AA C Resistor(1/16W 1.5KΩ ±5%) [R150,R151,R152,R153,R160]
VRS-CZ1JD152J AA C Resistor(1/16W 1.5KΩ ±5%) [R162,R163,R164,R165,R167]
VRS-CZ1JD152J AA C Resistor(1/16W 1.5KΩ ±5%) [R168,R179,R180]
12 VRS-CZ1JD203J AA C Resistor(1/16W 20KΩ ±5%) [R215,R217]
13 VCCCCZ1HH330J AA C Capacitor(50WV 33pF) [C186,C188,C194,C302]
14
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C101,C107,C108,C110,C111]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C112,C113,C114,C115,C124]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C128,C129,C130,C131,C132]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C133,C134,C135,C136,C137]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C138,C140,C141,C142,C143]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C144,C145,C146,C147,C148]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C149,C150,C151,C152,C153]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C154,C155,C156,C157,C158]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C159,C160,C161,C162,C164]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C168,C170,C173,C176,C177]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C178,C179,C180,C181,C182]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C183,C184,C185,C187,C189]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C193,C195,C196,C198,C199]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C205,C207,C220,C260,C283]
VCKYCZ1CF104Z AB C Capacitor(16WV 0.1µF) [C285,C288,C289,C308,C323,C328]
15
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C261,C262,C263,C264,C265]
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C266,C278,C279,C280,C281]
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C290,C291,C292,C293,C294]
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C295,C296,C297,C298,C303]
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C304,C305,C306,C307,C309]
VCKYCZ1HB102K AA C Capacitor(50WV 1000pF) [C310,C311,C312]
16 VHDKDS121++-1 AC B Diode(KDS121) [D116,D117,D118,D125,D126]
VHDKDS121++-1 AC B Diode(KDS121) [D130,D131,D132,D136]
17 VHDKDS120++-1 AC B Diode(KDS120) [D121,D122,D123,D128,D129]
VHDKDS120++-1 AC B Diode(KDS120) [D133,D134,D135,D137]
18 VHDKDS226++-1 AC B Diode(KDS226) [D102,D103,D119,D138,D140,D143]
19 VHDDSS133//-1 AA B Diode(1SS133) [D104,D120,D124,D127]
20 VHEMTZJ22B/-1 AA B Zener diode(MTZJ22B) [D109]
21 RH-DX0001ESZZ AC B Diode(11EQS06-TA1B2) [D139]
22 VHVICPN38//-1 AF B IC protector(ICPN38) [CP101,CP102,CP103]
23 TLABZ4201FCZZ AC D Version label [For IC111]
24 VHI28F4BVEB85 AX B IC(28F4BVEB85) [IC111]
26 VHIH8S2321+-1 AX B CPU(HD6412321VF25) [IC103]
27 VHIHG73C1191C BH B IC(HG73C1191C) [IC106]
28 RCRSP0016QSZZ AD B Crystal(19.6608MHz) [X101]
29 RCRUB0016QSZZ AN B Crystal(13.9867MHz) [X103]
30 RCRUB0013QSZ1 AN B Crystal(24.000MHz) [X102]
31 QCNCM0923FC18 AF C Connector(18pin) [CN119]
32 QCNCM1005MCZZ AB C Connector(2pin) [CN124]
33 QCNCM0079QSZZ AC C Connector(2pin) [CN116]
34 QCNCM2401SC0C AB C Connector(3pin) [CN111]
35 QCNCM2401SC0D AC C Connector(4pin) [CN106,CN103]
36 QCNCM2401SC0E AC C Connector(5pin) [CN123]
37 QCNCM7014SC0C AA C Connector(3pin) [CN113,CN110]
– 26 –
VMCU PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
38 QCNCM7014SC0D AB C Connector(4pin) [CN112]
39 QCNCM7014SC0E AB C Connector(5pin) [CN120]
40 QCNCM7014SC0F AB C Connector(6pin) [CN125]
41 QCNCP0341QCZZ AC C Connector(3pin) [CN117]
42 QCNCP0340QCZZ AC C Connector(3pin) [CN108]
43 QCNCW1124LC0H AC C Connector(8pin) [CN107]
44 QCNCW1124LC1H AD C Connector(18pin) [CN102]
45 QCNCW0078QSZZ AF C Connector(35Pin) [CN104]
46 QCNCW0024QSZZ AF C Connector(32pin) [CN105]
47 QSOCZ0002QSZZ AD C IC socket(8pin) [For IC102]
48 RH-IX7001XCZZ AQ B SRAM(IS63LV1024L) [IC112]
49 RH-IX0001QSZZ BD B IC(MT48LC8M16ATG) [IC110]
50 RH-IX0005ESZZ AE B IC(IX0005ES) [IC131]
51 VHINC7ST08M-1 AD B IC(NC7ST08M) [IC107]
52 VHIKIA358F+-1 AE B IC(KIA358F) [IC122]
53 VHIEES02L400P AG B IC(EES02L400P) [IC102]
54 VHIM51957BFP1 AH B IC(M51957BFP1) [IC104]
55 VHIKIA393F+-1 AE B IC(KIA393F) [IC120]
56 VHIMTD1361F-1 AR B IC(MTD1361F) [IC128]
57 VHIL6219DS+-1 AN B IC(L6219DS) [IC127]
58 VHIBA6920FP-1 AL B IC(BA6920FP) [IC129]
59 VHID65503F+-1 AG B IC(D65503F) [IC124,IC125]
60 VHID65001AF-1 AG B IC(D65001AF) [IC119,IC121]
61 VHIP2010ASR-1 AN B IC(P2010ASR) [IC101]
62 VHILCX244WM-1 AG B IC(74LCX244WM) [IC118,IC113]
63 VHIVHCT244M-1 AG B IC(VHCT244M) [IC116]
64 VHIKA7805AP-1 AE B IC(KIA7805API) [IC130]
65 RMPTW4100QCJJ AA B Block resistor(10Ω×4) [BR156,BR157,BR158]
66
RMPTW4330QCJJ AB B Block resistor(33Ω×4 1/32W ±5%) [BR116,BR118,BR119,BR120,BR121]
RMPTW4330QCJJ AB B Block resistor(33Ω×4 1/32W ±5%) [BR122,BR123,BR124,BR125,BR126]
RMPTW4330QCJJ AB B Block resistor(33Ω×4 1/32W ±5%) [BR127,BR128,BR129,BR130,BR134]
RMPTW4330QCJJ AB B Block resistor(33Ω×4 1/32W ±5%) [BR136,BR138,BR140,BR141,BR131]
RMPTW4330QCJJ AB B Block resistor(33Ω×4 1/32W ±5%) [BR132,BR142,BR143,BR144,BR147,BR149,BR151]
67 VRD-HT2EY151J AA C Resistor(1/4W 150Ω ±5%) [R251]
68 VRD-HT2EY391J AA C Resistor(1/4W 390Ω ±5%) [R245,R246,R247,R253]
69 VRD-HT2EY472J AA C Resistor(1/4W 4.7KΩ ±5%) [R166]
70 VRN-VT3ATR68J AC C Resistor(1W 0.68Ω ±5%) [R178,R177]
71 VRS-HT3DA102J AA C Resistor(2W 1.0KΩ ±5%) [R220]
72 VRS-HT3DA1R0J AB C Resistor(2W 1.0Ω ±5%) [R206,R197]
73 VRS-HT3DAR22J AA C Resistor(2W 0.22Ω ±5%) [R219]
74 VRS-HT3DA101J AA C Resistor(2W 100Ω ±5%) [R225]
75 VRS-CZ1JD000J AA C Resistor(1/16W 0Ω ±5%) [R102,R105,R106,R287]
76 VRS-CZ1JD220J AA C Resistor(1/16W 22Ω ±5%) [R107]
77 VRS-CZ1JD101J AA C Resistor(1/16W 100Ω ±5%) [R120,R170,R202,R278]
78 VRS-CZ1JD102F AA C Resistor(1/16W 1KΩ ±1%) [R154]
79 VRS-CZ1JD103F AA C Resistor(1/16W 10KΩ ±1%) [R117,R158,R173]
80
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R108,R111,R112,R115,R122]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R123,R124,R125,R126,R127]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R128,R137,R140,R141,R146]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R147,R148,R172,R189,R208]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R209,R210,R212,R213,R221]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R222,R224,R228,R233,R234]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R238,R242,R248,R249,R250]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R266,R263,R269,R271,R283]
VRS-CZ1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R284,R290,R286]
81 VRS-CZ1JD393J AA C Resistor(1/16W 39KΩ ±5%) [R211,R223,R226,R227]
82 VRS-CZ1JD105F AA C Resistor(1/16W 1.0MΩ ±1%) [R155]
83 VRS-CZ1JD122J AA C Resistor(1/16W 1.2KΩ ±5%) [R201]
84 VRS-CZ1JD202J AA C Resistor(1/16W 2.0KΩ ±5%) [R184]
85 VRS-CZ1JD242J AA C Resistor(1/16W 2.4KΩ ±5%) [R198,R203]
86 VRS-CZ1JD301J AA C Resistor(1/16W 300Ω ±5%) [R169,R199]
87 VRS-CZ1JD332J AA C Resistor(1/16W 3.3KΩ ±5%) [R232]
88 VRS-CZ1JD473J AA C Resistor(1/16W 47KΩ ±5%) [R161,R204,R205]
89 VRS-CZ1JD621J AA C Resistor(1/16W 620Ω ±5%) [R200]
90 VRS-CZ1JD751J AA C Resistor(1/16W 750Ω ±5%) [R196]
91 VRS-CZ1JD752J AA C Resistor(1/16W 7.5KΩ ±5%) [R191,R194,R229,R230,R231]
92 VRS-CZ1JD752F AA C Resistor(1/16W 7.5KΩ ±1%) [R156]
93 VRS-CZ1JD122F AA C Resistor(1/16W 1.2KΩ ±1%) [R171]
94 VRS-CZ1JD113F AA C Resistor(1/16W 11KΩ ±1%) [R114]
95 VRS-CZ1JD472J AA C Resistor(1/16W 4.7KΩ ±5%) [R281]
96 VRS-CZ1JD153J AA C Resistor(1/16W 15KΩ ±5%) [R240,R275]
97 VRS-CZ1JD241J AA C Resistor(1/16W 240Ω ±5%) [R174,R175,R176]
98 VRS-CZ1JD272J AA C Resistor(1/16W 2.7KΩ ±5%) [R218]
99 VRS-CZ1JD432F AA C Resistor(1/16W 4.3KΩ ±1%) [R159]
100
VRS-CZ1JD330J AA C Resistor(1/16W 33Ω ±5%) [R119,R254,R255,R256,R257]
VRS-CZ1JD330J AA C Resistor(1/16W 33Ω ±5%) [R258,R259,R260,R261,R262]
VRS-CZ1JD330J AA C Resistor(1/16W 33Ω ±5%) [R276,R277,R285,R121]
101 VRS-CZ1JD303J AA C Resistor(1/16W 30KΩ ±5%) [R182,R183]
102 VRS-CZ1JD562J AA C Resistor(1/16W 5.6KΩ ±5%) [R239]
103 VRS-CZ1JD511J AA C Resistor(1/16W 510Ω ±5%) [R186]
– 27 –
VMCU PWB
WIF PWB
XDC power supply PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
104 VRS-CZ1JD563J AA C Resistor(1/16W 56KΩ ±5%) [R241]
105 VCCCCZ1HH101J AA C Capacitor(50WV 100pF) [C104,C105,C190,C191,C192]
106 VCCCCZ1HH470J AA C Capacitor(50WV 47pF) [C126,C315,C316,C317,C318]
VCCCCZ1HH470J AA C Capacitor(50WV 47pF) [C319,C320,C321,C166,C341]
107 VCCCCY1HH470J AA C Capacitor(50WV 47pF) [C336]
108 VCKYCZ1HB222K AA C Capacitor(50WV 2200pF) [C211,C214,C218,C222]
109 VCKYCZ1CB223K AB C Capacitor(16WV 0.022µF) [C125,C163,C169,C197,C200]
110 VCCCCZ1HH120J AA C Capacitor(50WV 12pF) [C106,C165,C167]
111 VCCCCZ1HH220J AA C Capacitor(50WV 22pF) [C102.C103]
112 VCKYCZ1HB821K AC C Capacitor(50WV 820pF) [C201,C202,C203,C204]
113 VCKYCY1HB104K AA C Capacitor(50WV 0.10µF) [C277,C313,C314,C339,C209]
VCKYCY1HB104K AA C Capacitor(50WV 0.10µF) [C210,C213,C334,C335,C301]
114 VCEAGA1CW106M AA C Capacitor(16WV 10µF) [C109]
115 VCEAGA1CW226M AB C Capacitor(16WV 22µF) [C174,C286,C287,C322]
116 VCEAGA1CW476M AB C Capacitor(16WV 47µF) [C139,C217,C219]
117 VCEAGA1CW105M AA C Capacitor(16WV 1.0µF) [C206]
118 VCEAGA1EW476M AA C Capacitor(25WV 47µF) [C284]
119 VCEAGA1VW106M AA C Capacitor(35WV 10µF) [C212]
120 VCEAGA1VW476M AB C Capacitor(35WV 47µF) [C208,C276,C282,C299,C300]
121 VSKTA1505S+-1 AC B Transistor(KTA1505S) [Q101]
122 VSKRA119S++-1 AB B Transistor(KRA119S) [Q102]
123 VSKRC106S++-1 AB B Transistor(KRC106S) [Q103,Q106,Q107,Q110]
124 RFILZ0004QSZZ AM C Filter(ZJSR5101-223) [L101,L113,L123,L124,L125]
RFILZ0004QSZZ AM C Filter(ZJSR5101-223) [L126,L127]
125 RFILN0043FCZZ AC C Filter(ZJSR5101-102) [L103,L110]
126 RH-DZ0016FCZZ AB B Diode(MA700) [D101]
127 VSKTA1281++-1 AD B Transistor(KTA1281) [Q108]
128 VSKTC3198++-1 AB B Transistor(KTC3198+) [Q109]
129 RCILZ0015QSZZ AD C Coil(700mA/220µH) [L129]
(Unit)
901 CPWBX0121QS4K CD N E MCU PWB (AL-1552)
CPWBX0121QS4J CD N E MCU PWB (AL-1553)
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
1DHAI-0310QSZZ AB C IF GND harness
2QCNCW0078QSZZ AF C Connector(35Pin)(35FE-BT-VK-N) [CN403]
3QSOCN0002ESZZ AH C Connector(36Pin)(RBE42-36K1153) [CN401]
4QSOCN0005ESZZ AE C Connector(UBR23-4K2200) [CN402]
5RFILN0010QSZZ AB C Coil(BLM18BB121SN1D) [L405]
6RH-DX0001ESZZ AC B Diode(11EQS06-TA1B2) [D401]
7VCCCCY1HH101J AA C Capacitor(50WV 100pF/1608Type/CH) [C404∼415,417∼419]
VCCCCY1HH101J AA C Capacitor(50WV 100pF/1608Type/CH) [C422,426]
8VCCCCY1HH331J AB C Capacitor(50WV 330pF) [C416]
9VCEAGU1CW476M AB C Capacitor(16WV 47µF) [C401,402]
10 VCKYCY1CF104Z AA C Capacitor(16WV 0.1µF) [C403,420,421,423]
VCKYCY1CF104Z AA C Capacitor(16WV 0.1µF) [C424,425,427]
11 VHEUDZS6.2B-1 AC B Zener diode(UDZS6.2B) [D402]
12 VHI74LVX16128 AP B IC(74LVX16128) [IC403]
13 RH-IX0005ESZZ AE B IC(IX0005ES) [IC402]
14 VHIUSB11AMX-1 AH B IC(USB1T11AMX) [IC401]
15 VRS-CY1JD000J AA C Resistor(1/16W 0Ω ±5%) [L403,404]
16 VRS-CY1JD103J AA C Resistor(1/16W 10KΩ ±5%) [R424∼429]
17 VRS-CY1JD152J AA C Resistor(1/16W 1.5KΩ ±5%) [R423]
18 VRS-CY1JD220J AA C Resistor(1/16W 22Ω ±5%) [R405∼419,421,422]
19 VRS-CY1JD240J AA C Resistor(1/16W 24Ω ±5%) [R402,403,430]
20 VRS-CY1JD332J AA C Resistor(1/16W 3.3KΩ ±5%) [R420]
(Unit)
901 CPWBF0114QSF1 BA N E IF PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
10AV1690000106 AD C Ceramic capacitor(DE1007-486E222M-KH 2200PF KH) [C20,C021]
20AV1610000115 AC C Ceramic capacitor(DE52-0-979C222K5000 2200PF 500V) [C101]
30AV1690000088 AC C Ceramic capacitor(TRPE132R104K50 0.1µF 50V) [C4,C019,C114,C012]
40AV1560000002 AD C Film capacitor(RE104-C 0.1µF 250V) [C5,C006]
50AV1690000111 AD C Ceramic capacitor(DE1210-2E222M-KX 2200PF KX) [C1,C003,C007]
60AV1480000093 AK C Film capacitor(ECQU2A824MLC 0.82µF 250V) [C24]
70AV1480000094 AL C Film capacitor(ECQU2A105MLC 1µF 250V) [C2]
80AV1480000083 AC C Film capacitor(ECQB1H102JF4 1000pF 50V) [C8,C023]
– 28 –
XDC power supply PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
90AV1480000079 AC C Film capacitor(ECQB1H103JF4 0.01µF 50V) [C9,0014]
10 0AV1390000183 AQ C Al-electrolytic capacitor(LLS2G101MHLY 100µF 400V) [C10]
11 0AV1610000091 AC C Ceramic capacitor(DE0905-979R102K1K 1000PF 1KV) [C11]
12 0AV1390000184 AC C Al-electrolytic capacitor(UPJ1H2R2MDH 2.2µF 50V) [C106]
13 0AV1390000107 AC C Al-electrolytic capacitor(UPJ1HR47MDH 0.47µF 50V) [C13]
14 0AV1610000108 AD C Ceramic capacitor(DE1307-486R222K1K 2200PF 1KV) [C15]
15 0AV1390000108 AC C Al-electrolytic capacitor(UPJ1V220MDH 22µF 35V) [C17,C018,C111]
0AV1390000108 AC C Al-electrolytic capacitor(UPJ1V220MDH 22µF 35V) [C107,C108,C109]
16 0AV1390000177 AC C Al-electrolytic capacitor(UPJ1E221MPH 220µF 25V) [C102]
17 0AV1390000181 AE C Al-electrolytic capacitor(UHD1A102MPR 1000µF 10V) [C103,C104]
18 0AV1390000138 AF C Al-electrolytic capacitor(UPJ1H471MHH 470µF 50V) [C105,C116]
19 0AV1390000182 AG C Al-electrolytic capacitor(UHD1V102MHR 1000µF 35V) [C110]
20 0AV1390000179 AC C Al-electrolytic capacitor(UPJ1H100MDH 10µF 50V) [C112]
21 0AV1610000109 AC C Ceramic capacitor(DE0705-979R471K1K 470PF 1KV) [C113]
22 0AV1390000180 AC C Al-electrolytic capacitor(UPJ1H3R3MDH 3.3µF 50V) [C115]
23 0AV1610000114 AD C Ceramic capacitor(DE0605-979SL680J2K 68PF 2KV) [C16]
24 0AV3050086000 AB B Diode(1SS270 0.15A 70V) [D1,D014,D106,D108]
0AV3050086000 AB B Diode(1SS270 0.15A 70V) [D111,D113,D115,D118]
25 0AV3060027000 AH B Diode(D3SB60 4A 600V) [D2]
26 0AV3060043000 AC B Rectifier(RLIN4005-E 1A 600V) [D3,D004,D012,D015]
27 0AV3070058000 AC B Zener diode(RD5.6ES 0.4W) [D5,D110,D116]
28 0AV3050036000 AF B Diode(RG1C 0.7A 1000V) [D6]
29 0AV3050019000 AF B Diode(ERA9102 0.5A 200V) [D7,D008,D010]
30 0AV3070085000 AC B Zener diode(RD33ES 0.4W) [D9]
31 0AV3070056000 AD B Zener diode(RD20ES 0.4W) [D11]
32 0AV3050097000 AG B Diode(SF10LC20U 10A 200V) [D101]
33 0AV3050099000 AD B Diode(D1NL20U 1A 200V) [D102]
34 0AV3050098000 AG B Diode(SF5SC4 5A 40V) [D103]
35 0AV3070061000 AC B Zener diode(RD4.7ES 0.4W) [D104]
36 0AV3070057000 AC B Zener diode(RD30ES 0.4W) [D107,D013]
37 0AV3070074000 AC B Zener diode(RD13ES 0.4W) [D109]
38 0AV3070081000 AC B Zener diode(RD3.9ES 0.4W) [D112,D117]
39 0AV3042605000 AN B FET(2SK2605 5A 800V) [Q1]
40 0AV3001015090 AD B Transistor(2SA1015 -0.15A -50V) [Q2]
41 0AV3020143999 AD B Transistor(DTC143ESA 0.1A 50V) [Q101,Q108,Q110]
42 0AV3040494000 AP B FET(2SJ494 20A 60V) [Q102]
43 0AV3021815090 AC B Transistor(2SC1815 0.15A 50V) [Q104,Q106,Q107]
0AV3021815090 AC B Transistor(2SC1815 0.15A 50V) [Q109,Q113]
44 0AV3001020000 AE B Transistor(2SA1020 -2A -50V) [Q105]
45 0AV3000143999 AD B Transistor(DTA143ESA -0.1A -50V) [Q112]
46 0AV2012743030 AA C Fixed carbon film resistor(RDF50S270KΩJ 270KΩ 1/2W) [R1]
47 0AV2041013020 AC B Fusing resistor(RF25S100ΩJ 100Ω 1/4W) [R2]
48 0AV2011213030 AB C Fixed carbon film resistor(RDF50S120ΩJ 120Ω 1/2W) [R3]
49 0AV2041213030 AC B Fusing resistor(RF50S120ΩJ 120Ω 1/2W) [R4]
50 0AV2011043030 AA C Fixed carbon film resistor(RDF50S100KΩJ 100KΩ 1/2W) [R5,R006]
51 0AV2012243010 AA C Fixed carbon film resistor(RDF16S220KΩJ 220KΩ 1/6W) [R7,R008]
52 0AV2012233010 AA C Fixed carbon film resistor(RDF16S22KΩJ 22KΩ 1/6W) [R121,R133,R135]
53 0AV2013333010 AA C Fixed carbon film resistor(RDF16S33KΩJ 33KΩ 1/6W) [R10,R014]
54 0AV2011003020 AA C Fixed carbon film resistor(RDF25S10ΩJ 10Ω 1/4W) [R11]
55 0AV2091083042 AC C Special power resistor(SPR1B0.1ΩJ 0.1Ω 1W) [R12]
56 0AV2044703010 AB B Fusing resistor(RF16S47ΩJ 47Ω 1/6W) [R13]
57 0AV2011033010 AA C Fixed carbon film resistor(RDF16S10KΩJ 10KΩ 1/6W) [R15,R019,R023]
0AV2011033010 AA C Fixed carbon film resistor(RDF16S10KΩJ 10KΩ 1/6W) [R104,R122,R134]
58 0AV2016833010 AA C Fixed carbon film resistor(RDF16S68KΩJ 68KΩ 1/6W) [R16]
59 0AV2011013010 AA C Fixed carbon film resistor(RDF16S100ΩJ 100Ω 1/6W) [R17]
60 0AV2021043062 AD C Metal oxide film resistor(RSS3FB100KΩJ 100KΩ 3W) [R18]
61 0AV2016803030 AA C Fixed carbon film resistor(RDF50S68ΩJ 68Ω 1/2W) [R20]
62 0AV2015633010 AA C Fixed carbon film resistor(RDF16S56KΩJ 56KΩ 1/6W) [R21]
63 0AV2011023010 AA C Fixed carbon film resistor(RDF16S1KΩJ 1KΩ 1/6W) [R22,R113]
64 0AV2012243020 AA C Fixed carbon film resistor(RDF25S220KΩJ 220KΩ 1/4W) [R24,R025]
65 0AV2011033030 AB C Fixed carbon film resistor(RDF50S10KΩJ 10KΩ 1/2W) [R101]
66 0AV2012733010 AA C Fixed carbon film resistor(RDF16S27KΩJ 27KΩ 1/6W) [R9]
67 0AV2014723010 AA C Fixed carbon film resistor(RDF16S4.7KΩJ 4.7KΩ 1/6W) [R106,R114,R115,R116]
0AV2014723010 AA C Fixed carbon film resistor(RDF16S4.7KΩJ 4.7KΩ 1/6W) [R123,R124,R136,R137]
68 0AV2011533010 AA C Fixed carbon film resistor(RDF16S15KΩJ 15KΩ 1/6W) [R107]
69 0AV2990007000 AC C Metal film resistor(SN14K2C2.2KΩD 2.2KΩ 1/6W) [R109,R111]
70 0AV2014713010 AA C Fixed carbon film resistor(RDF16S470ΩJ 470Ω 1/6W) [R103,R105,R110,R112]
71 0AV2990082000 AC C Metal film resistor(SN14K2C12KΩD 12KΩ 1/6W) [R119]
72 0AV2990083000 AC C Metal film resistor(SN14K2C3.44KΩD 3.44KΩ 1/6W) [R120]
73 0AV2021023052 AC C Metal oxide film resistor(RSS2FB1KΩJ 1KΩ 2W) [R130]
74 0AV2014733010 AA C Flame proof fixed carbon film resistor(RDF16S47KΩJ 47KΩ 1/6W) [R131,R026]
75 0AV2012203010 AA C Flame proof fixed carbon film resistor(RDF16S22ΩJ 22Ω 1/6W) [R132]
76 0AV2013933030 AC C Flame proof fixed carbon film resistor(RDF50S390ΩJ 390KΩ 1/2W) [R27]
77 0AV4070062000 AF C Inductor(LF-4Z-E822) [L1,L002]
78 0AV4120002000 AC C Inductor(B-01-A) [L3,L101,L102,L103,L004]
79 0AV4080013000 AP C Inductor(SK-12M-74YR(080)) [L5,L007]
80 0AV4120013000 AC C Inductor(T3140P3206536HW) [L104]
81 0AV4070065000 AQ C Inductor(DRB25-16196A) [L6]
!82 0AV4000135411 BD B Transformer(N-T01-354-D11) [T1]
83 0AV3160034000 AQ B Triac(TM1661PL(L)LF113) [TR1]
– 29 –
XDC power supply PWB
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
RANK DESCRIPTION
84 0AV5140022000 AF B Power thermistor(M10010T3C) [TH1]
85 0AV5190009000 AL B Varistor(ENC471D-14A) [X1]
86 0AV3180000004 AL B Phototriac coupler(S21ME3Y) [PC1]
87 0AV3082561300 AF B Photo coupler(PS2561) [PC2,PC003]
88 0AV3090076000 AF B IC(MM1431ATT) [IC1,IC102]
89 0AV3090077000 AN B IC(FA3647P) [IC2]
90 0AV3090078000 AN B IC(PQ20RX11) [IC101]
91 0AV3090071000 AN B IC(PQ3RD23) [IC103]
92 0AV5030123000 AD B Connector(B02B-VT) [CN1]
93 0AV5030130000 AF B Connector(B04P-XL-R) [CN2]
94 0AV5030125000 AG B Connector(B16B-PHDSS-B) [CN101]
95 0AV5080010000 AQ B Relay(FTR-H1AA024V) [RL1]
96 0AV5190024000 AK B Arrestor(RA-102M-C6-Y) [Z1,Z002]
97 0AV5040012000 AM B Switch(SDDJE30501 10A 250V) [S1]
!98 0AV5060085000 AF A Fuse(215RB-10AA-SB 10A/250V) [F1,F003]
!99 0AV5060083000 AF A Fuse(215SB-3R15AA-SB 3.15A/250V) [F2]
100 0AV5050005000 AA C Fuse holder(PFC5000-0203)
101 0AV5130008000 AC C Terminal(TP00370-41)
102 0AV7100003000 AE C Insulation sheet(M-30AD-D-3)
103 0AV6114125811 AF C Heatsink(LM41258)
104 0AV8117730414 AB C Screw(NACPEW-B3×8ZF B3×8)
105 0AV8117730514 AB C Screw(NACPEW-B3×10ZF B3×10)
106 0AV7414141411 AD C Label(LV41414)
107 0AV5110012000 AB C Jumper wire(RJ-SKA-06 6mm) [RJ701,RJ718,RJ724]
108
0AV5110001000 AA C Jumper wire(RJ-SCA-06 10mm) [RJ709,RJ710,RJ712]
0AV5110001000 AA C Jumper wire(RJ-SCA-06 10mm) [RJ715,RJ719,RJ721]
0AV5110001000 AA C Jumper wire(RJ-SCA-06 10mm) [RJ724,RJ725,RJ741]
109
0AV5110006000 AA C Jumper wire(RJ-SDA-06 12.5mm) [RJ708,RJ714,RJ717]
0AV5110006000 AA C Jumper wire(RJ-SDA-06 12.5mm) [RJ718,RJ723,RJ726]
0AV5110006000 AA C Jumper wire(RJ-SDA-06 12.5mm) [RJ737,RJ739,RJ741]
110
0AV5110002000 AA C Jumper wire(RJ-SEA-06 15mm) [RJ701,RJ704,RJ705,RJ711]
0AV5110002000 AA C Jumper wire(RJ-SEA-06 15mm) [RJ727,RJ728,RJ729,RJ730]
0AV5110002000 AA C Jumper wire(RJ-SEA-06 15mm) [RJ731,RJ732,RJ733,RJ736]
0AV5110002000 AA C Jumper wire(RJ-SEA-06 15mm) [RJ738,RJ740]
111 0AV5110011000 AB C Jumper wire(RJ-SFA-06 17.5mm) [RJ735]
112 0AV5110004000 AA C Jumper wire(RJ-SGA-06 20mm) [RJ703,RJ706,RJ707]
0AV5110004000 AA C Jumper wire(RJ-SGA-06 20mm) [RJ716,RJ734]
(Unit)
!901 RDENC0006QS15 BN E DC power supply PWB (200V Series)
– 30 –
■Index
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
[C]
CBTN-0019QS02 6- 2 AF E
CBTN-0050QS01 6- 5 AE E
CCAB-0003QS22 1- 1 AS D
CCASP0001RS55 22- 901 BF E
CCLEZ0005RS51 16- 1 AQ A
"17- 1 AQ A
CCOVH0004RS54 2- 901 BF E
CDSKA0019TS46 24- 101 *N D
CFIX-0021QS11 1- 13 AH D
CFRM-0006RS53 18- 502 BB E
CFRM-0007RS54 18- 501 AX E
CFRM-0010RS54 19- 502 BG E
CFRM-0011RS58 3- 11 BF E
"5- 901 BF E
CFRM-0013RS59 3- 14 BM E
"4- 901 BM E
CGERH0011RS51 15- 9 AE E
CGERH0162QS01 8- 1 AN C
CHAI-0273RS51 20- 3 AN C
CHAI-0298RS51 20- 2 AL C
CHLDZ0010RS52 21- 901 AU E
"7- 18 AU E
CLEVP0016QS02 24- 17 AF C
CPLTM0023QS02 18- 5 AF C
CPLTM0023QS03 19- 25 AG C
CPLTM0024QS01 12- 24 AG C
CPLTM0042QS02 15- 20 AY C
CPLTM0042RS56 15- 901 BM E
CPLTM0288QS01 8- 2 BC C
CPLTM0291QS01 8- 3 AG C
CPLTM0294QS01 8- 4 AK C
CPLTM0298QS01 4- 40 AF C
CPLYZ0028QS01 8- 5 AM C
CPNLH0023QS0U 6- 1 AR N D
CPNLH0023QS0V 6- 1 AR N D
CPWBF0113QSG3 25- 901 BB N E
"6- 8 BB N E
CPWBF0114QSF1 13- 5 BA N E
"27- 901 BA N E
CPWBF0116RS54 18- 1 AP E
CPWBF0147QSE6 10- 4 AL E
CPWBF0147QSE7 12- 1 AL E
CPWBF0147QSE8 14- 13 AL E
CPWBF0155QSE1 5- 7 AM E
CPWBX0121QS4J 13- 4 CD N E
"26- 901 CD N E
CPWBX0121QS4K 13- 4 CD N E
"26- 901 CD N E
CSFTZ0068RS72 12- 20 AX C
CSOU-0002RS56 19- 501 AX E
CSOU-0035RS51 3- 501 AZ E
CSW-M0016RS51 16- 4 AG B
"17- 4 AG B
CTHM-0019DS52 14- 12 AT E
CTME-0229FC04 14- 11 AG C
[D]
DHAI-0267QSZZ 11- 18 AG C
DHAI-0268QSZ3 23- 2 AG C
"8- 40 AG C
DHAI-0269QSZZ 12- 27 AD C
DHAI-0270QSZZ 12- 39 AD C
DHAI-0271QSZZ 11- 27 AP C
"23- 9 AP C
DHAI-0276QSZZ 11- 24 AL C
"23- 8 AL C
DHAI-0280QSZ1 14- 16 AH C
"23- 10 AH C
DHAI-0282QSZZ 10- 14 AG C
"9- 2 AG C
DHAI-0283QSZ1 13- 7 AG C
"23- 1 AG C
DHAI-0285QSZZ 10- 10 AK C
"1- 7 AK C
"23- 4 AK C
DHAI-0287QSZZ 11- 23 AF C
"23- 7 AF C
DHAI-0290QSZ1 4- 9 AN C
DHAI-0291QSZZ 7- 12 AC C
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
DHAI-0292QSZZ 11- 19 AF C
DHAI-0293QSZZ 5- 8 AE C
DHAI-0294QSZZ 13- 40 AK C
"23- 3 AK C
DHAI-0295QSZZ 18- 2 AC C
"19- 22 AC C
DHAI-0296QSZZ 15- 27 AK C
"23- 5 AK C
DHAI-0303QSZZ 8- 37 AD C
DHAI-0305QSZ1 13- 41 AL C
DHAI-0310QSZZ 27- 1 AB C
DUNT-0404QSZZ 8- 6 BU C
DUNTK0013QS13 9- 4 BS E
DUNTW0285RS11 14- 901 BS E
DWIR-0466CSZZ 21- 8 BE B
[G]
GCAB-0004QSJ1 1- 18 AX D
GCAB-0007QSJ2 7- 1 AU D
GCAB-0008QSJZ 5- 1 AM D
GCAB-0026QSJ2 1- 18 AZ D
GCAB-0061QSZ1 1- 10 AK D
GCAB-0062QSZ2 1- 17 AN D
GCAB-0062QSZ3 1- 17 AL D
GCAB-0063QSZZ 6- 10 AT D
GCAB-0064QSZZ 6- 12 AN D
GCASP0001QSJ2 22- 19 AZ D
GCOV-0045QSZ6 1- 12 AK N D
GCOV-0045QSZ7 1- 12 AK N D
GCOVH0003QSJZ 2- 1 AL D
GCOVH0004QSJ1 2- 2 AX D
GDAI-0001QSJ1 12- 28 BE D
"13- 17 BE D
GLEGG0064FCZZ 13- 18 AC C
[J]
JBTN-0005QSZZ 6- 4 AC C
JBTN-0020QSZZ 6- 3 AC C
JBTN-0049QSZZ 6- 6 AF C
JKNBZ0001QSZZ 11- 22 AE C
JKNBZ0004QSZZ 4- 28 AD C
[L]
LBNDJ0013FCZ1 18- 3 AE C
"19- 21 AE C
"20- 9 AE C
"3- 15 AE C
"4- 10 AE C
"9- 3 AE C
LBNDJ0037FCZ1 14- 17 AA C
LBNDJ0043FCZZ 11- 6 AA C
LBOSZ0118QSZZ 19- 18 AE C
LBOSZ1031FCZZ 12- 15 AC C
LBOSZ1509FCZ1 19- 28 AD C
LBOSZ1851FCZZ 12- 13 AC C
"19- 15 AC C
"5- 19 AC C
LBRC-0055FCZZ 19- 10 AK C
LBSHZ0006QSZZ 5- 22 AC C
LBSHZ0303FCZZ 19- 9 AC C
"5- 20 AC C
LFIX-0004QSZZ 21- 15 AC C
LFRM-0002QSZ1 11- 21 AV D
LFRM-0003QSJ3 7- 9 AN D
LFRM-0004QSZ1 14- 7 AR D
LFRM-0005QSZ2 14- 30 AM D
LFRM-0006QSJZ 18- 13 AN D
LFRM-0007QSJ2 18- 25 AL D
LFRM-0010QSJZ 19- 35 AN D
LFRM-0011QSJ2 5- 35 AL D
LFRM-0012QSZZ 4- 20 AD D
LFRM-0013QSZZ 4- 12 AG D
LFRM-0062QSZZ 13- 30 AG D
LHLDW1226FCZZ 22- 3 AB C
"24- 12 AB C
LHLDZ0009QSAZ 20- 1 AF C
LHLDZ0010QSZ1 21- 14 AL C
LHLDZ0017QSZZ 12- 30 AD C
LHLDZ0018QSZZ 11- 13 AE C
LHLDZ0092QSZZ 13- 1 AP C
LHLDZ0093QSZZ 8- 7 AC C
LPINS0007QSZZ 11- 26 AC C
LPINS0019QSZZ 4- 17 AA C
LPLTM0016QSZZ 12- 42 AE C
– 31 –
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
LPLTM0020QSZZ 13- 21 AL C
LPLTM0022QSZ4 14- 29 AG C
LPLTM0046QSZZ 12- 25 AE C
LPLTM0096QSZ1 3- 30 AF C
LPLTM0132QSZZ 7- 5 AH C
LPLTM0133QSZ1 11- 31 AE C
LPLTM2642FCG2 22- 4 AD C
LPLTM5106FCZZ 22- 1 AR C
LPLTP0009QSZZ 14- 38 AS C
LPLTP0011QSJ2 3- 2 AH C
LPLTP0012QSJ2 3- 3 AH C
LPLTP0013QSZ1 4- 22 AC C
LPLTP0131QSZZ 8- 33 AD C
LPLTP5107FCZ1 22- 5 AG C
LPLTP5108FCZ1 22- 13 AG C
LRALP0001QSJ2 12- 34 AM C
LSOU-0001QSJZ 1- 2 AY D
LSOU-0002QSJ1 19- 48 AL D
LSOU-0003QSJ1 19- 49 AH D
LSOU-0005QSJ4 3- 33 BA D
LSOU-0008QSJZ 1- 4 AH D
LSOU-0035QSZZ 3- 1 AR D
LSTPF0013QSZZ 8- 8 AC C
LSTPP0001QSZ1 5- 5 AD C
LSTPP0116FCZZ 14- 18 AA C
LSTPP0161FCZ1 22- 18 AB C
LSTPP0300FCZZ 19- 37 AB C
LX-BZ0010QSZZ 14- 8 AB C
LX-BZ0011QSZZ 14- 42 AB C
LX-BZ0012QSZZ 4- 3 AC C
LX-BZ0016QSZZ 3- 31 AC C
LX-BZ0033QSZZ 8- 9 AB C
LX-BZ0735FCZZ 14- 36 AA C
LX-BZ3006SC0S 11- 28 AA C
LX-WZ0023FCZZ 12- 43 AA C
LX-WZ0313FCZZ 14- 26 AA C
LX-WZ2028SCZZ 22- 10 AA C
[M]
MARMP0001QSZZ 4- 5 AF C
MARMP0002QSZZ 5- 13 AD C
MARMP0003QSZ1 5- 4 AD C
MARMP0004QSZZ 5- 34 AF C
MARMP0173FCZ1 19- 4 AC C
MARMP0204FCZ1 19- 39 AF C
MARMP0205FCZZ 19- 38 AF C
MHNG-0002QSZ1 19- 40 AC C
MHNG-0017QSZZ 3- 21 AQ C
MLEVP0005QSZ2 10- 5 AC C
MLEVP0006QSZZ 12- 2 AD C
MLEVP0007QSZZ 18- 17 AD C
MLEVP0009QSZZ 5- 9 AD C
MLEVP0010QSZZ 5- 10 AE C
MLEVP0014QSZZ 14- 28 AF C
MLEVP0015QSZZ 14- 23 AF C
MLEVP0047QSE1 8- 34 AD C
MLOKZ0004QSZ1 8- 10 AD C
MSPRC0016QSZ1 20- 7 AC C
MSPRC0017QSZ1 20- 5 AC C
MSPRC0018QSZ1 20- 6 AC C
MSPRC0021QSZZ 10- 7 AB C
MSPRC0023QSZ1 15- 15 AC C
MSPRC0026QSZ1 12- 3 AB C
MSPRC0027QSZZ 21- 10 AC C
MSPRC0028QSZZ 21- 11 AC C
MSPRC0030QSZZ 7- 14 AC C
MSPRC0031QSZZ 7- 13 AB C
MSPRC0032QSZZ 7- 11 AB C
MSPRC0036QSZ1 18- 26 AB C
MSPRC0037QSZZ 12- 62 AB C
MSPRC0038QSZ1 18- 16 AC C
MSPRC0039QSZ1 18- 14 AC C
MSPRC0047QSZZ 12- 31 AA C
MSPRC0048QSZZ 19- 41 AB C
MSPRC0049QSZZ 19- 14 AC C
MSPRC0050QSZZ 7- 25 AB C
MSPRC0051QSZ1 21- 12 AA C
MSPRC0055QSZZ 14- 25 AC C
MSPRC0062QSZZ 4- 23 AC C
MSPRC0063QSZZ 4- 29 AB C
MSPRC0077QSZ1 12- 41 AB C
MSPRC0080QSZZ 18- 18 AB C
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
MSPRC0108QSZZ 22- 15 AC C
MSPRC0109QSZZ 18- 33 AC C
"19- 50 AC C
MSPRC0115QSZZ 5- 33 AB C
MSPRC0149QSZZ 3- 37 AC C
MSPRC0153QSZZ 8- 35 AB C
MSPRC0161QSZZ 12- 16 AF C
MSPRC0330QSZZ 11- 8 AC C
MSPRC1145FCZZ 22- 17 AA C
MSPRC1315FCZ1 19- 16 AD C
MSPRC1316FCZ1 12- 11 AE C
"19- 27 AE C
"5- 18 AE C
MSPRC1318FCZ1 15- 23 AA C
"19- 30 AA C
MSPRC1873FCZ1 22- 16 AB C
MSPRC2175FCZZ 19- 33 AA C
MSPRD0076QSZ1 7- 6 AD C
MSPRD0108QSZZ 18- 31 AC C
MSPRD0114QSZ1 5- 36 AD C
MSPRD0281QSZZ 10- 9 AD C
MSPRD0335QSZZ 14- 3 AD C
MSPRD0336QSZZ 14- 43 AD C
MSPRP0033QSZZ 14- 6 AD C
MSPRP0034QSZZ 14- 14 AE C
MSPRP0059QSZZ 3- 7 AD C
MSPRP0060QSZZ 3- 27 AD C
MSPRP0065QSZZ 4- 24 AD C
MSPRP0079QSZZ 18- 29 AD C
MSPRP0110QSZ1 16- 6 AD C
"17- 6 AD C
MSPRP0113QSZ1 3- 18 AD C
MSPRT0019QSZ1 9- 5 AB C
MSPRT0020QSZ1 10- 2 AB C
MSPRT0029QSZZ 7- 3 AC C
MSPRT0054QSZ1 14- 37 AB C
MSPRT0061QSZZ 3- 26 AC C
MSPRT0064QSZ1 4- 11 AC C
MSPRT0066QSZ1 5- 25 AC C
MSPRT0067QSZ1 5- 14 AB C
MSPRT0283QSZZ 8- 11 AC C
MSPRT0284QSZZ 8- 12 AC C
MSPRT0294QSZZ 4- 41 AC C
MSPRT0513FCZ1 21- 7 AA C
[N]
NBLTT0003QSZ1 4- 27 AF B
NBLTT0030QSZ1 8- 13 AH B
NBLTT0031QSZ1 8- 14 AF B
NBLTT0039QSZZ 11- 20 AE B
NBLTT0040QSZZ 11- 37 AE B
NBLTT0046QSZZ 4- 15 AE B
NBRGC0017QSZZ 4- 18 AC C
NBRGC0100FCZ1 12- 8 AC C
NBRGC0579FCZZ 11- 2 AE C
NBRGM0501FCZZ 4- 19 AB C
NBRGP0260FCZ1 14- 24 AD C
NBRGP0562FCZZ 12- 19 AD C
"18- 11 AD C
NBRGP0567FCZZ 14- 20 AG C
NCPL-0002QSZZ 11- 7 AC C
NFANP0005QSZ2 11- 12 AU B
NGERH0007QSZZ 15- 11 AH C
NGERH0008QSZ3 15- 16 AL C
NGERH0009QSZZ 15- 7 AD C
NGERH0010QSZZ 15- 6 AD C
NGERH0012QSZZ 15- 18 AE C
NGERH0013QSZZ 15- 19 AG C
NGERH0014QSZZ 15- 8 AD C
NGERH0015QSZZ 15- 10 AD C
NGERH0016QSZZ 15- 12 AD C
NGERH0017QSZZ 15- 17 AD C
NGERH0018QSZZ 15- 14 AC C
NGERH0019QSZZ 15- 13 AD C
NGERH0020QSZZ 12- 9 AG C
NGERH0021QSZZ 18- 27 AD C
"19- 46 AD C
NGERH0022QSZZ 12- 21 AC C
NGERH0025QSZZ 12- 23 AD C
NGERH0026QSZZ 12- 22 AD C
NGERH0047QSZZ 4- 16 AF C
NGERH0048QSZZ 7- 22 AE C
– 32 –
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
NGERH0051QSZZ 7- 23 AE C
NGERH0073QSZZ 5- 16 AE C
NGERH0161QSZZ 8- 15 AL C
NGERH0193FCZZ 22- 11 AB C
"3- 6 AB C
NGERH0540FCZ3 14- 19 AD C
NGERH0972FCZZ 18- 6 AB C
"19- 19 AB C
"4- 4 AB C
NGERH0990FCZZ 18- 9 AB C
"19- 7 AB C
"5- 28 AB C
NGERH0991FCZZ 19- 20 AC C
NGERH0992FCZZ 19- 3 AB C
"5- 30 AB C
NGERH1132FCZZ 12- 18 AH C
NGERR0377FCZZ 3- 4 AD C
NPLYZ0001QSZZ 11- 4 AE C
NPLYZ0010QSZZ 5- 23 AE C
NPLYZ0146FCZZ 4- 26 AB C
NROLI0014QSZ3 14- 21 BA C
NROLM0022QSZ1 4- 36 AL C
NROLM0023QSZ1 4- 32 AP C
NROLP0007QSZ1 11- 1 AQ C
NROLP0010QSZZ 3- 28 AD C
NROLP0011QSZZ 3- 23 AD C
NROLP0012QSZ2 11- 3 AL C
NROLP0024QSZ1 5- 27 AH C
NROLP0025QSZZ 7- 24 AM C
NROLP0046QSZZ 10- 1 AC C
NROLP1122FCZZ 10- 8 AF C
"18- 24 AF C
"7- 17 AF C
"7- 26 AF C
NROLR0013QSZZ 12- 7 AQ C
NROLR0016QSZZ 18- 12 AT C
NROLR0028QSZZ 14- 27 AZ C
NROLR0105QSZZ 19- 5 AR C
NROLR0922FCZ2 19- 1 AR C
"5- 31 AR C
NSFTZ0006QSZZ 7- 15 AG C
NSFTZ0007QSZZ 18- 23 AG C
NSFTZ0009QSZZ 3- 29 AE C
NSFTZ0010QSZZ 3- 25 AE C
NSFTZ0011QSZ2 5- 32 AF C
NSFTZ0012QSZZ 5- 21 AG C
NSFTZ0063QSZZ 8- 16 AK C
NSFTZ2311FCZZ 19- 8 AU C
[P]
PBRSR0002QSZ1 8- 17 AH B
PBRSR0002QSZ2 8- 17 AG B
PBRSR0003QSZ2 4- 33 AG B
PBRSR0004QSZ1 14- 4 AD B
PCAPH1001ACZZ 13- 42 AE D
PCASZ0002QSZZ 21- 16 AL D
PCOVP0007QSJZ 12- 38 AE D
PCOVP0008QSZZ 12- 60 AE D
PCOVP0009QSZZ 12- 61 AE D
PCOVP0010QSZ1 14- 5 AF D
PCOVP0011QSZ1 14- 15 AG D
PCOVP0012QSJ1 16- 3 AH D
PCOVP0013QSZZ 12- 32 AD D
PCOVP0019QSJ2 19- 44 AL D
PCOVP0023QSJ1 17- 3 AH D
PCOVP0037QSJZ 4- 37 AH D
PCOVP0038QSJ1 4- 38 AL D
PCOVP0040QSJZ 1- 16 AL D
PCUSS0024QSZZ 2- 3 AV D
PCUSS0025QSZ1 3- 34 AQ D
PDUC-0005QSZ2 8- 22 AD C
PFILZ0002QSZZ 1- 21 AL B
PGIDH0025QSZ1 21- 4 AG C
PGIDH0026QSZZ 14- 34 AE C
PGIDH0029QSZ1 4- 34 AL C
PGIDM0006QSZ3 10- 6 AM C
PGIDM0008QSZZ 7- 4 AD C
PGIDM0009QSZ2 11- 25 AG C
PGIDM0010QSZ1 12- 5 AG C
PGIDM0011QSZZ 21- 2 AE C
PGIDM0012QSJZ 18- 22 AF C
PGIDM0013QSJZ 18- 21 AF C
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
PGIDM0014QSJ1 18- 20 AF C
"19- 12 AF C
PGIDM0017QSJZ 19- 43 AF C
PGIDM0018QSJZ 19- 42 AF C
PGIDM0019QSJZ 8- 29 AH C
PGIDM0020QSJ1 8- 30 AH C
PGIDM0023QSZ2 14- 1 AN N C
PGIDM0024QSZ3 4- 30 AN C
PGIDM0042QSJZ 4- 1 AL C
PGIDM0099QSZ1 8- 18 AH C
PGLSP0007QSZZ 1- 14 AV B
PGLSP0008QSZZ 1- 23 AH B
PGSK-0034QSZZ 1- 33 AE C
PGUMS0004QSZZ 8- 19 AA C
PMLT-0024QSZZ 1- 20 AC C
PMLT-0067QSZZ 11- 39 AC C
PMLT-0068QSZZ 8- 47 AC C
PMLT-0069QSZZ 1- 27 AA C
PPIPP0003QSZZ 12- 17 AD C
PPIPP0008QSZZ 5- 17 AD C
PPIPP0009QSZZ 19- 26 AD C
PPIPP0109FCZ1 12- 10 AC C
"19- 17 AC C
PSHEP0019QSZ1 21- 3 AC C
PSHEP0020QSZZ 21- 13 AB C
PSHEP0021QSZZ 21- 6 AA C
PSHEP0023QSZZ 14- 35 AF C
PSHEP0044QSZZ 4- 35 AF C
PSHEP0047QSZZ 14- 40 AC C
PSHEP0063QSZZ 3- 17 AC C
PSHEP3029FCZZ 4- 14 AA C
PSHEZ0018QSZZ 21- 1 AF C
PSHEZ0045QSZ2 14- 33 AC C
PSHEZ0075QSZZ 17- 7 AC C
PSHEZ0102QSZZ 3- 35 AD C
PSHEZ0112QSZZ 3- 36 AE C
PSHEZ0155QSZ1 11- 38 AD C
PSHEZ0156QSZ1 11- 36 AE C
PSHEZ0181QSJZ 1- 24 AC C
PSHEZ0349QSZZ 8- 50 AC C
PSHEZ0350QSZZ 9- 6 AB C
PSHEZ0351QSZZ 9- 7 AB C
PSHEZ0367QSZ1 8- 21 AD C
PSHEZ0369QSZZ 1- 8 AE C
PSHEZ0377QSZZ 8- 24 AC C
PSHEZ0379QSZZ 3- 19 AD C
PSHEZ0383QSZZ 3- 45 AC C
PSHEZ0384QSZZ 3- 16 AD C
PSHEZ0386QSZZ 3- 38 AB D
PSHEZ0387QSZZ 3- 39 AB D
PSHEZ0388QSZZ 3- 40 AD C
PSHEZ0389QSZ1 8- 39 AK C
PSHEZ0402QSZZ 10- 16 AG C
PSHEZ0403QSZZ 8- 44 AG C
PSHEZ0404QSZZ 1- 28 AF C
PSHEZ0405QSZZ 13- 48 AE C
PSHEZ0445QSZZ 4- 21 AC C
PSHEZ2026FCZ1 12- 29 AB C
PSHEZ2174FCZZ 12- 36 AB C
"4- 25 AB C
PSHEZ4142FCZZ 22- 2 AC C
PSPAZ0017QSZZ 11- 32 AK C
PSPO-0001QSZZ 3- 24 AB C
PSPO-0002QSZZ 5- 2 AC C
PTME-0002QSZZ 15- 24 AD C
PTME-0003QSZ1 15- 26 AD C
PTME-0004QSZZ 7- 2 AG C
PTME-0019QSZZ 5- 26 AD C
PTME-0178FCZ1 19- 32 AC C
PTME-0179FCZZ 19- 31 AC C
PTME-0255FCZZ 22- 6 AG C
PTME-0256FCZZ 22- 14 AG C
PTPE-0010QSZZ 1- 25 AC C
PTPE-0041QSZZ 1- 6 AB C
PTPE-0044QSZZ 1- 22 AC C
PTPE-0045QSZZ 8- 43 AA C
PTPE-0047QSZZ 1- 29 AC C
PTPE-0048QSZZ 1- 30 AA C
PTPE-0049QSZZ 1- 31 AC C
PTPE-0059QSZZ 1- 15 AC C
PTPE-0060QSZZ 1- 32 AC C
– 33 –
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
[Q]
QACCBR623QCPZ 24- 3 AU B
QACCE7623QCPZ 24- 3 *N B
QACCV6621JHPZ 24- 3 *N B
QCNCM0079QSZZ 26- 33 AC C
QCNCM0861FCZZ 25- 1 AB C
QCNCM0923FC14 26- 1 AE C
QCNCM0923FC18 26- 31 AF C
QCNCM0923FC24 26- 2 AF C
QCNCM1005MCZZ 26- 32 AB C
QCNCM2401SC0C 26- 34 AB C
QCNCM2401SC0D 26- 35 AC C
QCNCM2401SC0E 26- 36 AC C
QCNCM7014SC0C 26- 3 AA C
"26- 37 AA C
QCNCM7014SC0D 26- 38 AB C
QCNCM7014SC0E 26- 39 AB C
QCNCM7014SC0F 26- 40 AB C
QCNCP0340QCZZ 26- 42 AC C
QCNCP0341QCZZ 26- 41 AC C
QCNCW0024QSZZ 26- 46 AF C
QCNCW0078QSZZ 26- 45 AF C
"27- 2 AF C
QCNCW0948FCZ5 26- 4 AC C
QCNCW1124LC0H 26- 43 AC C
QCNCW1124LC1H 26- 44 AD C
QCNCW1132LC1H 25- 2 AD C
QSLP-0005QSZZ 11- 16 AE C
QSLP-0006QSZZ 11- 14 AE C
QSLP-0007QSZZ 21- 9 AC C
QSOCN0002ESZZ 27- 3 AH C
QSOCN0005ESZZ 27- 4 AE C
QSOCZ0002QSZZ 26- 47 AD C
QSW-B0017QSZZ 12- 26 AF B
QSW-P0001ESZZ 25- 3 AC B
[R]
RCILZ0015QSZZ 26- 129 AD C
RCORF0018QSZZ 10- 15 AR C
"8- 32 AR C
RCORF0021QSZZ 13- 27 AK C
"9- 8 AK C
RCORF1028LCZZ 13- 31 AP C
RCRSP0016QSZZ 26- 28 AD B
RCRUB0013QSZ1 26- 30 AN B
RCRUB0016QSZZ 26- 29 AN B
RDENC0006QS15 13- 13 BN E
"28- 901 BN E
RDENC0007QSZZ 13- 6 BG E
RDTCT0004QSZZ 4- 31 AL B
RDTCT0128FCZZ 14- 9 AR B
RFILN0010QSZZ 27- 5 AB C
RFILN0043FCZZ 26- 125 AC C
RFILZ0004QSZZ 26- 124 AM C
RH-DX0001ESZZ 26- 21 AC B
"27- 6 AC B
RH-DZ0016FCZZ 26- 126 AB B
RH-IX0001QSZZ 26- 49 BD B
RH-IX0005ESZZ 26- 50 AE B
"27- 13 AE B
RH-IX7001XCZZ 26- 48 AQ B
RH-TX0003ESZZ 25- 23 AC B
RLMPU0011QSZZ 14- 22 BA B
RMOTD0009QSZZ 11- 9 AU B
RMOTP0013QSZZ 4- 7 BB B
RMOTP0036QSZZ 15- 2 BD B
RMOTS0038QSZZ 8- 25 BL B
RMOTS0048QSZZ 11- 35 BD B
RMPTW4100QCJJ 26- 65 AA B
RMPTW4102QCJJ 26- 7 AB B
RMPTW4103QCJJ 26- 8 AB B
RMPTW4330QCJJ 26- 66 AB B
RPLU-0002QSZZ 15- 25 AN B
RPLU-0003QSZZ 19- 29 AN B
RPLU-0004QSZ1 5- 11 AQ B
RPLU-0035QSZZ 15- 22 AL B
[S]
SPAKA0051RSZZ 24- 14 AC D
SPAKA0064RSZ1 24- 14 AC D
SPAKA0405QSZZ 24- 9 AN D
SPAKA0406QSZZ 24- 9 AS D
SPAKA0408QSZZ 24- 1 AN D
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
SPAKA0409QSZZ 24- 1 AR D
SPAKA0411QSZZ 24- 20 AE D
SPAKA0432QSZZ 24- 23 AC D
SPAKA5116FCZZ 24- 21 AB D
SPAKC0402TS41 24- 10 *N D
SPAKC0403TS26 24- 10 *N D
SSAKA2347QCZZ 24- 8 AB D
SSAKA5003CCZZ 24- 5 AA D
SSAKZ0002QSZZ 24- 6 AF D
[T]
TCAUH0007TSZZ 24- 22 *N D
TCAUH0017QSZ1 14- 32 AC D
TINSE1409TSZZ 24- 7 *N D
TINSF1410TSZZ 24- 7 *N D
TINSG1408TSZZ 24- 7 *N D
TINSH1411TSZZ 24- 7 *N D
TINSI1413TSZZ 24- 7 *N D
TINSW1412TSZZ 24- 7 *N D
TLABH0387TSZZ 1- 11 *N D
TLABZ0531TSZZ 1- 26 *N D
TLABZ3568GHZZ 22- 12 *N D
TLABZ4047FCZZ 22- 20 AC D
TLABZ4201FCZZ 26- 23 AC D
TTAG-0002QSZZ 24- 13 AB D
TTAG-0006QSZ1 24- 15 AD D
[U]
UBNDA0001FCZZ 24- 4 AA C
[V]
VCCCCY1HH101J 27- 7 AA C
VCCCCY1HH201J 25- 4 AA C
VCCCCY1HH331J 27- 8 AB C
VCCCCY1HH470J 26- 107 AA C
VCCCCZ1HH101J 26- 105 AA C
VCCCCZ1HH120J 26- 110 AA C
VCCCCZ1HH220J 26- 111 AA C
VCCCCZ1HH330J 26- 13 AA C
VCCCCZ1HH470J 26- 106 AA C
VCEAGA1CW105M 26- 117 AA C
VCEAGA1CW106M 26- 114 AA C
VCEAGA1CW226M 26- 115 AB C
VCEAGA1CW476M 26- 116 AB C
VCEAGA1EW476M 26- 118 AA C
VCEAGA1VW106M 26- 119 AA C
VCEAGA1VW476M 26- 120 AB C
VCEAGU1CW476M 27- 9 AB C
VCEAJU1CW476M 25- 5 AB C
VCKYCY1CB104K 25- 6 AB C
VCKYCY1CF104Z 27- 10 AA C
VCKYCY1HB102K 25- 7 AA C
VCKYCY1HB104K 26- 113 AA C
VCKYCY1HB223K 25- 8 AC C
VCKYCZ1CB223K 26- 109 AB C
VCKYCZ1CF104Z 26- 14 AB C
VCKYCZ1HB102K 26- 15 AA C
VCKYCZ1HB222K 26- 108 AA C
VCKYCZ1HB821K 26- 112 AC C
VHD1SS133++-1 25- 9 AA B
VHDDSS133//-1 26- 19 AA B
VHDKDS120++-1 26- 17 AC B
VHDKDS121++-1 26- 16 AC B
VHDKDS226++-1 26- 18 AC B
VHEMTZJ22B/-1 26- 20 AA B
VHEUDZS6.2B-1 27- 11 AC B
VHI28F4BVEB85 26- 24 AX B
VHI74HC151M-1 25- 11 AD B
"26- 5 AD B
VHI74LVX16128 27- 12 AP B
VHIBA6920FP-1 26- 58 AL B
VHID65001AF-1 26- 60 AG B
VHID65503F+-1 26- 59 AG B
VHIEES02L400P 26- 53 AG B
VHIH8S2321+-1 26- 26 AX B
VHIHG73C1191C 26- 27 BH B
VHIKA7805AP-1 26- 64 AE B
VHIKIA358F+-1 26- 52 AE B
VHIKIA393F+-1 26- 55 AE B
VHIL6219DS+-1 26- 57 AN B
VHILC7935//-1 25- 10 AN B
VHILCX244WM-1 26- 62 AG B
VHIM51957BFP1 26- 54 AH B
VHIMTD1361F-1 26- 56 AR B
– 34 –
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
VHINC7ST08M-1 26- 51 AD B
VHIP2010ASR-1 26- 61 AN B
VHITD62064AF/ 26- 6 AM B
VHIUSB11AMX-1 27- 14 AH B
VHIVHCT244M-1 26- 63 AG B
VHP1LHEE-002A 25- 12 AC B
VHP1LHLE-002A 25- 13 AC B
VHP3650AG2J-1 25- 14 AL B
VHPGP1A71A1-1 8- 36 AG B
VHVICPN38//-1 26- 22 AF B
VRD-HT2EY151J 26- 67 AA C
VRD-HT2EY391J 26- 68 AA C
VRD-HT2EY472J 26- 69 AA C
VRH-ST2HB157K 14- 2 AD C
VRN-VT3ATR68J 26- 70 AC C
VRS-CY1JD000J 27- 15 AA C
VRS-CY1JD101J 25- 15 AA C
VRS-CY1JD102J 25- 16 AA C
VRS-CY1JD103J 27- 16 AA C
VRS-CY1JD121J 25- 17 AA C
VRS-CY1JD151J 25- 18 AA C
VRS-CY1JD152J 25- 19 AA C
"27- 17 AA C
VRS-CY1JD220J 27- 18 AA C
VRS-CY1JD240J 27- 19 AA C
VRS-CY1JD332J 27- 20 AA C
VRS-CY1JD471J 25- 20 AA C
VRS-CY1JD472J 25- 21 AA C
VRS-CY1JD511J 25- 22 AA C
VRS-CZ1JD000J 26- 75 AA C
VRS-CZ1JD100J 26- 9 AA C
VRS-CZ1JD101J 26- 77 AA C
VRS-CZ1JD102F 26- 78 AA C
VRS-CZ1JD102J 26- 10 AA C
VRS-CZ1JD103F 26- 79 AA C
VRS-CZ1JD103J 26- 80 AA C
VRS-CZ1JD105F 26- 82 AA C
VRS-CZ1JD113F 26- 94 AA C
VRS-CZ1JD122F 26- 93 AA C
VRS-CZ1JD122J 26- 83 AA C
VRS-CZ1JD152J 26- 11 AA C
VRS-CZ1JD153J 26- 96 AA C
VRS-CZ1JD202J 26- 84 AA C
VRS-CZ1JD203J 26- 12 AA C
VRS-CZ1JD220J 26- 76 AA C
VRS-CZ1JD241J 26- 97 AA C
VRS-CZ1JD242J 26- 85 AA C
VRS-CZ1JD272J 26- 98 AA C
VRS-CZ1JD301J 26- 86 AA C
VRS-CZ1JD303J 26- 101 AA C
VRS-CZ1JD330J 26- 100 AA C
VRS-CZ1JD332J 26- 87 AA C
VRS-CZ1JD393J 26- 81 AA C
VRS-CZ1JD432F 26- 99 AA C
VRS-CZ1JD472J 26- 95 AA C
VRS-CZ1JD473J 26- 88 AA C
VRS-CZ1JD511J 26- 103 AA C
VRS-CZ1JD562J 26- 102 AA C
VRS-CZ1JD563J 26- 104 AA C
VRS-CZ1JD621J 26- 89 AA C
VRS-CZ1JD751J 26- 90 AA C
VRS-CZ1JD752F 26- 92 AA C
VRS-CZ1JD752J 26- 91 AA C
VRS-HT3DA101J 26- 74 AA C
VRS-HT3DA102J 26- 71 AA C
VRS-HT3DA1R0J 26- 72 AB C
VRS-HT3DAR22J 26- 73 AA C
VSKRA119S++-1 26- 122 AB B
VSKRC106S++-1 26- 123 AB B
VSKTA1281++-1 26- 127 AD B
VSKTA1505S+-1 26- 121 AC B
VSKTC3198++-1 26- 128 AB B
[X]
XBBS730P04000 15- 21 AA N C
XBBS730P06000 13- 14 AC C
XBBS730P08000 11- 29 AA N C
"1- 9 AA N C
"19- 34 AA N C
XBBS740P06000 15- 1 AA N C
XBBS740P08000 7- 28 AA N C
XBPS730P04KS0 7- 27 AB N C
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
XBPS730P05K00 4- 6 AA N C
XBPS730P06KS0 18- 15 AB N C
"19- 24 AB N C
"5- 12 AB N C
XBPS730P08KS0 12- 37 AB N C
XBPS730P10KS0 14- 10 AB N C
XBPSC30P06ES0 20- 4 AA C
XBPSC30P06K00 11- 17 AA C
XBPSN40P06K00 13- 25 AA C
XEBS730P06000 11- 15 AA N C
"18- 30 AA N C
"19- 13 AA N C
"21- 5 AA N C
"7- 8 AA N C
XEBS730P08000 1- 3 AC C
"14- 41 AC C
"16- 2 AC C
"17- 2 AC C
"18- 8 AC C
"19- 11 AC C
"20- 8 AC C
"22- 9 AC C
"3- 20 AC C
"5- 6 AC C
"6- 9 AC C
XEBS730P10000 11- 10 AC C
"11- 33 AC C
"12- 4 AC C
"12- 44 AC C
"13- 11 AC C
"4- 39 AC C
"6- 11 AC C
"7- 10 AC C
XEBS730P12000 12- 40 AC C
"14- 31 AC C
"4- 2 AC C
"9- 1 AC C
XEBS730P30000 11- 11 AC N C
XEBS740P10000 3- 13 AA N C
XEBS740P12000 11- 30 AA N C
"12- 35 AA N C
"13- 15 AA N C
"1- 5 AA N C
"18- 32 AA N C
"19- 36 AA N C
XEBS740P14000 3- 22 AB N C
XEPS720P10000 16- 5 AA N C
"17- 5 AA N C
XEPS730P06X00 18- 28 AA N C
XEPS730P08X00 3- 5 AA N C
"7- 21 AA N C
XHBS730P06000 11- 34 AC C
"13- 3 AC C
"18- 4 AC C
"19- 23 AC C
"7- 7 AC C
"8- 26 AC C
XHBS730P08000 8- 31 AB C
XPSSJ20-07000 12- 12 AA C
"18- 10 AA C
"19- 6 AA C
XPSSP20-07000 5- 29 AA C
XRESP30-04000 14- 39 AA C
XRESP30-06000 5- 24 AA C
"7- 16 AA C
XRESP40-06000 12- 14 AA C
"18- 7 AA C
"19- 2 AA C
"22- 7 AA C
"5- 15 AA C
XRESP50-06000 12- 6 AA C
"4- 13 AA C
"8- 27 AA C
XRESP70-08000 8- 28 AA C
[0]
0AV1390000107 28- 13 AC C
0AV1390000108 28- 15 AC C
0AV1390000138 28- 18 AF C
0AV1390000177 28- 16 AC C
0AV1390000179 28- 20 AC C
0AV1390000180 28- 22 AC C
– 35 –
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
0AV1390000181 28- 17 AE C
0AV1390000182 28- 19 AG C
0AV1390000183 28- 10 AQ C
0AV1390000184 28- 12 AC C
0AV1480000079 28- 9 AC C
0AV1480000083 28- 8 AC C
0AV1480000093 28- 6 AK C
0AV1480000094 28- 7 AL C
0AV1560000002 28- 4 AD C
0AV1610000091 28- 11 AC C
0AV1610000108 28- 14 AD C
0AV1610000109 28- 21 AC C
0AV1610000114 28- 23 AD C
0AV1610000115 28- 2 AC C
0AV1690000088 28- 3 AC C
0AV1690000106 28- 1 AD C
0AV1690000111 28- 5 AD C
0AV2011003020 28- 54 AA C
0AV2011013010 28- 59 AA C
0AV2011023010 28- 63 AA C
0AV2011033010 28- 57 AA C
0AV2011033030 28- 65 AB C
0AV2011043030 28- 50 AA C
0AV2011213030 28- 48 AB C
0AV2011533010 28- 68 AA C
0AV2012203010 28- 75 AA C
0AV2012233010 28- 52 AA C
0AV2012243010 28- 51 AA C
0AV2012243020 28- 64 AA C
0AV2012733010 28- 66 AA C
0AV2012743030 28- 46 AA C
0AV2013333010 28- 53 AA C
0AV2013933030 28- 76 AC C
0AV2014713010 28- 70 AA C
0AV2014723010 28- 67 AA C
0AV2014733010 28- 74 AA C
0AV2015633010 28- 62 AA C
0AV2016803030 28- 61 AA C
0AV2016833010 28- 58 AA C
0AV2021023052 28- 73 AC C
0AV2021043062 28- 60 AD C
0AV2041013020 28- 47 AC B
0AV2041213030 28- 49 AC B
0AV2044703010 28- 56 AB B
0AV2091083042 28- 55 AC C
0AV2990007000 28- 69 AC C
0AV2990082000 28- 71 AC C
0AV2990083000 28- 72 AC C
0AV3000143999 28- 45 AD B
0AV3001015090 28- 40 AD B
0AV3001020000 28- 44 AE B
0AV3020143999 28- 41 AD B
0AV3021815090 28- 43 AC B
0AV3040494000 28- 42 AP B
0AV3042605000 28- 39 AN B
0AV3050019000 28- 29 AF B
0AV3050036000 28- 28 AF B
0AV3050086000 28- 24 AB B
0AV3050097000 28- 32 AG B
0AV3050098000 28- 34 AG B
0AV3050099000 28- 33 AD B
0AV3060027000 28- 25 AH B
0AV3060043000 28- 26 AC B
0AV3070056000 28- 31 AD B
0AV3070057000 28- 36 AC B
0AV3070058000 28- 27 AC B
0AV3070061000 28- 35 AC B
0AV3070074000 28- 37 AC B
0AV3070081000 28- 38 AC B
0AV3070085000 28- 30 AC B
0AV3082561300 28- 87 AF B
0AV3090071000 28- 91 AN B
0AV3090076000 28- 88 AF B
0AV3090077000 28- 89 AN B
0AV3090078000 28- 90 AN B
0AV3160034000 28- 83 AQ B
0AV3180000004 28- 86 AL B
0AV4000135411 28- 82 BD B
0AV4070062000 28- 77 AF C
0AV4070065000 28- 81 AQ C
0AV4080013000 28- 79 AP C
PARTS CODE NO. PRICE
RANK NEW
MARK PART
RANK
0AV4120002000 28- 78 AC C
0AV4120013000 28- 80 AC C
0AV5030123000 28- 92 AD B
0AV5030125000 28- 94 AG B
0AV5030130000 28- 93 AF B
0AV5040012000 28- 97 AM B
0AV5050005000 28- 100 AA C
0AV5060083000 28- 99 AF A
0AV5060085000 28- 98 AF A
0AV5080010000 28- 95 AQ B
0AV5110001000 28- 108 AA C
0AV5110002000 28- 110 AA C
0AV5110004000 28- 112 AA C
0AV5110006000 28- 109 AA C
0AV5110011000 28- 111 AB C
0AV5110012000 28- 107 AB C
0AV5130008000 28- 101 AC C
0AV5140022000 28- 84 AF B
0AV5190009000 28- 85 AL B
0AV5190024000 28- 96 AK B
0AV6114125811 28- 103 AF C
0AV7100003000 28- 102 AE C
0AV7414141411 28- 106 AD C
0AV8117730414 28- 104 AB C
0AV8117730514 28- 105 AB C
CAUTION FOR BATTERY REPLACEMENT
(Danish) ADVARSEL !
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandoren.
(English) Caution !
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to manufacturer's instructions.
(Finnish) VAROITUS
Paristo voi räjähtää,jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
(French) ATTENTION
ll y a danger d'explosion s'il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
même type on d'un type équivalent recommandé par
le constructeur.
Mettre au rébut les batteries usagées conformément aux
instructions du fabricant.
(Swedish) VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent
typ som rekornmenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens
Instruktion.
(German) Achtung
Explosionsgefahr bei Verwendung inkorrekter Batterien.
Als Ersatzbatterien dürfen nur Batterien vom gleichen Typ oder
vom Hersteller empfohlene Batterien verwendet werden.
Entsorgung der gebrauchten Batterien nur nach den vom
Hersteller angegebenen Anwerisugen.
CAUTION FOR BATTERY DISPOSAL
(For USA,CANADA)
"BATTERY DISPOSAL"
THIS PRODUCT CONTAINS A LITHIUM PRIMARY
(MANGANESS DIOXIDE) MEMORY BACK-UP BATTERY
THAT MUST BE DISPOSED OF PROPERLY. REMOVE THE
BATTERY FROM THE PRODUCT AND CONTACT YOUR
LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION
ON RECYCLING AND DISPOSAL OPTIONS.
"TRAITEMENT DES PILES USAGÉES"
CE PRODUIT CONTIENT UNE PILE DE SAUVEGARDE DE
MÉMOIRE LITHIUM PRIMAIRE (DIOXYDE DE MANGANESE)
QUI DOIT ÊTRE TRAITÉE CORRECTEMENT. ENLEVEZ LA
PILE DU PRODUIT ET PRENEZ CONTACT AVEC VOTRE
AGENCE ENVIRONNEMENTALE LOCALE POUR DES
INFORMATIONS SUR LES MÉTHODES DE RECYCLAGE ET
DE TRAITEMENT.
q
SHARP CORPORATION
Digital Document Systems Group
Quality Enhancement Center
Yamatokoriyama, Nara 639-1186, Japan
2004 December Printed in Japan t
COPYRIGHT 2004 BY SHARP CORPORATION
All rights reserved.
Printed in Japan.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted.
In any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise,
without prior written permission of the publisher.

Navigation menu
