Alter Ego Vintage Echo V2 English manual 2014-09-20 1
Alter Ego Vintage Echo V2
English manual – 2014-09-20
Alter Ego Vintage Echo V2 English manual 2014-09-20 a
Table of contents
Important safety instructions 1
Caution 2
Service 2
Warning 2
EMC / EMI 2
Explanation of graphic symbols 3
Before you begin 4
About this manual 5
Getting support 5
About this pedal 6
Alter Ego Vintage Echo V2 7
True Bypass 7
TonePrint 8
What are TonePrints? 9
Transferring TonePrints to your pedal
using the TonePrint app 9
Editing TonePrints with TonePrint Editor 10
Setup 11
Ready… 12
Set… 12
Play! 12
Inputs, outputs and controls 13
Power / Switching the effect on and off 14
Footswitch 14
Audio in and out 15
Effect controls 15
Delay types 16
Using the looper 17
Maintenance 18
Updating the firmware 19
Changing the battery 19
Switching the pedal from true bypass to
buffered bypass mode 20
Kill-dry on/off 20
Frequently asked questions 21
Frequently asked questions about
TonePrint pedals 22
Links 23
TonePrint resources 24
Support resources 24
TC Electronic on… 24
Technical specifications 25
Important safety instructions
Alter Ego Vintage Echo V2 English manual 2014-09-20 1
Important safety instructions
Important safety instructions
Alter Ego Vintage Echo V2 English manual 2014-09-20 2
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. In-
stall in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that pro-
duce heat.
9. Do not defeat the safety purpose of the po-
larized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding-type plug has two
blades and a third grounding prong. The
wide blade or the third prong is provided for
your safety. If the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs, con-
venience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/accessories speci-
fied by the manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the ap-
paratus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service per-
sonnel. Servicing is required when the ap-
paratus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
Caution
You are cautioned that any change or modifi-
cations not expressly approved in this manual
could void your authority to operate this equip-
ment.
Service
All service must be performed by qualified per-
sonnel.
Warning
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture and
objects filled with liquids, such as vases, should
not be placed on this apparatus.
Do not install this device in a confined space.
EMC / EMI
Electromagnetic compatibility /
Electromagnetic interference
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in resi-
dential installations. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equip-
ment and receiver.
Connect the equipment into an outlet on a cir-
cuit different from that to which the receiver is
connected.
Consult the dealer or an experienced ra-
dio / TV technician for help.
Important safety instructions
Alter Ego Vintage Echo V2 English manual 2014-09-20 3
For customers in Canada
This Class B digital apparatus complies with Ca-
nadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Explanation of graphic symbols
The lightning bolt triangle is used to alert the
user to the presence of uninsulated “dangerous
voltages” within the unit’s chassis that may be of
sufficient magnitude to constitute a risk of elec-
tric shock to humans.
The exclamation point triangle is used to alert
the user to presence of important operating and
service instructions in the literature accompany-
ing the product.
Before you begin
Alter Ego Vintage Echo V2 English manual 2014-09-20 4
Before you begin
Before you begin
Alter Ego Vintage Echo V2 English manual 2014-09-20 5
About this manual
This manual will help you learn understanding
and operating your TC product.
To get the most from this manual, please read it
from start to finish, or you may miss important
information.
This manual is only available as a PDF download
from the TC Electronic website.
Of course, you can print this manual, but we en-
courage you to use the PDF version, which has
both internal and external hyperlinks. For ex-
ample, clicking the logo in the upper left corner
of each page will take you back to the table of
contents.
To download the most current version of this
manual, visit
tcelectronic.com/support/manuals/
Getting support
If you still have questions about the product af-
ter reading this manual, please get in touch with
TC Support:
tcelectronic.com/support/
Enjoy your TC product!
About this pedal
Alter Ego Vintage Echo V2 English manual 2014-09-20 6
About this pedal
About this pedal
Alter Ego Vintage Echo V2 English manual 2014-09-20 7
Thank you for spending your hard-earned mon-
ey on this TC Electronic product! We have done
our best to ensure that it will serve you for many
years to come, and we hope that you will enjoy
using it.

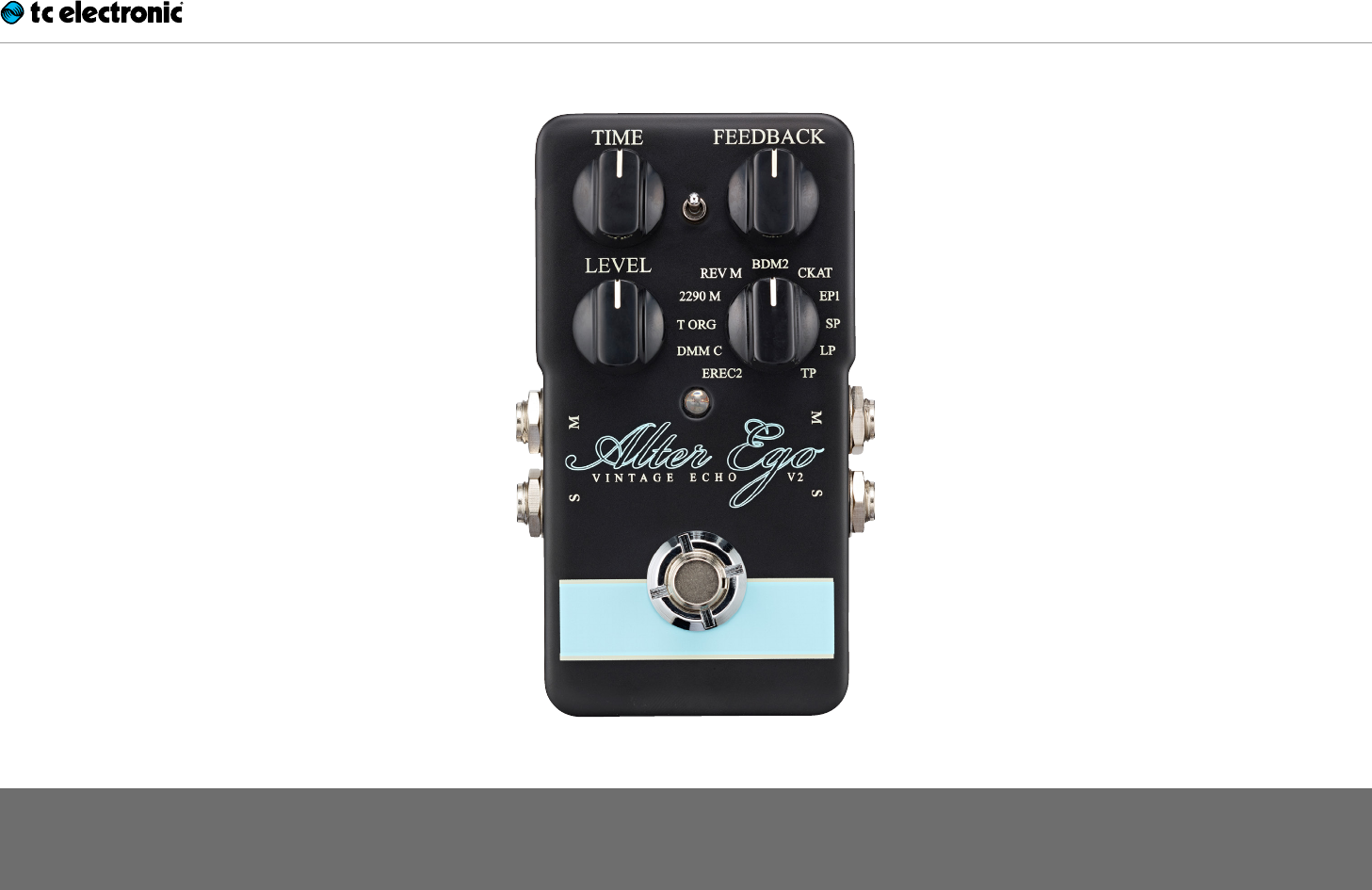

Alter Ego Vintage Echo V2
With Alter Ego 2 Vintage Echo, you get nine vin-
tage delay sounds carefully reproduced by the
echo experts at ProGuitarShop and TC Electron-
ic. Trust us, these guys know echo tone – and we
know you’ll agree once you hear it!
Alter Ego Vintage Echo V2 has it all: from sweet
saturated EchoPlex* repeats and the unique
magnetic drum delays of the legendary Echo-
rec* to an exclusive modulated take on TC’s
own 2290 delay unit and tons of other classic
echo tones. Heck, if we didn’t know any better,
we would be sure that this pedal contained real
moving parts.
Alter Ego Vintage Echo V2s features
9 exclusive Delay sounds, expertly crafted by
TC Electronic and ProGuitarShop
A true celebration of the best of the best in
tape, analog and digital delays
TonePrint-enabled – for a world of signature
effects.
True Bypass
Here at TC, we have a simple philosophy: When
you are using one of our products, you should
hear something great – and if you don’t, you
shouldn’t hear it at all. This is why this pedal
sports True Bypass. When it is bypassed, it is
really off and has zero influence on your tone, re-
sulting in optimum clarity and zero loss of high-
end.
You will also be delighted to hear (literally) that
this TC Electronic effect pedal will let your dry,
unprocessed sound pass without ever convert-
ing it to digital – keeping your original tone pure
and without any latency. This feature is called
analog dry-through.
Sometimes, it is advisable to switch an effect
pedal from True Bypass to Buffered Bypass
mode. For more information, see “Switching
the pedal from true bypass to buffered bypass
mode”.
TonePrint
Alter Ego Vintage Echo V2 English manual 2014-09-20 8
TonePrint
TonePrint
Alter Ego Vintage Echo V2 English manual 2014-09-20 9
This TC Electronic product supports TonePrints.
To learn more about TonePrints, go to
tcelectronic.com/toneprint/
What are TonePrints?
When you look at your TC Electronic effect ped-
al, you’ll only see a few knobs. Actually, for some
pedals, its just one knob. So – one knob, one
function, right?
Actually, there’s a lot more to it than meets the
eye.
Star-tweaked signature sounds
When TC Electronic builds an effect pedal, the
relationship between its controls and many pa-
rameters “under the hood” are defined by devel-
opers, musicians and product specialists who
live and breathe sound. This gives you an excel-
lent starting point: a great-sounding pedal with
well-balanced controls.
But wouldn’t it be cool to have world-famous
guitar players – guys like Paul Gilbert, Guthrie
Govan, John Petrucci or Steve Vai – virtually
rewire your reverb pedal, defining what should
happen “behind the scenes”?
And how about doing this yourself?
This is exactly what TonePrint allows you to do.
TC Electronic is working with top guitar players
who explore a pedal’s hidden tonal potential, re-
defining the controls and creating their personal
TonePrints. And we are making these custom
TonePrints available to you. Uploading them to
your pedal is really easy (see Transferring Tone-
Prints to your pedal using the TonePrint app”) –
and with the amazing TonePrint Editor, you can
even create your own signature pedal, tweaked
specifically to your liking.
You can change the TonePrint in your pedal as
often as you like, and the best part:
It’s totally free.
Transferring TonePrints to your
pedal using the TonePrint app
Being able to virtually rewire your TC Electronic
effect pedal wouldn’t be much use if you needed
a lot of extra equipment to do it. This is why we
created the TonePrint app. The TonePrint app is
free software for popular smartphones that al-
lows you to “beam” new TonePrints right into
your effect pedal whenever and wherever you
feel like it.
Obtaining the TonePrint app
If you own an iPhone, you can download the
TonePrint app from Apples App Store.
If you own an Android phone, you will find the
TonePrint app on Google Play.
Once you have the app, no additional downloads
or in-app purchases are required. You can ac-
cess all available TonePrints from within the app,
and all TonePrints are free.
TonePrint
Alter Ego Vintage Echo V2 English manual 2014-09-20 10
Transferring TonePrints to
your pedal – step by step
Launch the TonePrint app on your smart-
phone.
Find the TonePrint you want to use. You can
browse TonePrints by Artist or Product (i.e.,
pedal type). You will also find Featured Tone-
Prints.
Plug your guitar or bass into your TonePrint
pedal.
Turn your TonePrint pedal on.
Turn up the volume on your instrument and set
the pickup selector to one pickup.
Hold the speaker of your smartphone next to
the chosen pickup and touch “Beam to ped-
al”.
Editing TonePrints with
TonePrint Editor
The TonePrint app allows you to use TonePrints
created by your favorite guitar and bass players.
But this is only the start. Using TCs TonePrint
Editor, you can create your very own signature
pedal sounds.
TonePrint Editor features
Use TonePrint Editor to build your own custom
sounds.
Enjoy complete control over all effect param-
eters and effect behavior – it’s your vision,
your sound.
Customize knob function and knob range to
suit your needs and sounds.
Audition your sonic creations in real-time live
– make changes on the fly and listen to results
immediately.
Works with both PC and Mac.
Last but not least…
TonePrint Editor is absolutely free!
Obtaining TonePrint Editor
If you want to use TonePrint Editor for your Win-
dows or OSX computer, download it from
tcelectronic.com/toneprint-editor/
If you want to use TonePrint Editor on your Apple
iPad, download it from Apple’s App Store.
Please note that version 2.0 or higher of the
TonePrint Editor is required for working with TC
Electronic Mini pedals. Version 2.0 has a Library
function that allows you to access and use Tone-
Prints even without an Internet connection.
Obtaining the TonePrint Editor manual
Download the TonePrint Editor manual from
tcelectronic.com/toneprint-editor/support/
If you open the manual for TonePrint Editor in
Adobe Reader, you can click on interface sec-
tions to jump directly to the sections of the man-
ual you are interested in.
Setup
Alter Ego Vintage Echo V2 English manual 2014-09-20 11
Setup
Setup
Alter Ego Vintage Echo V2 English manual 2014-09-20 12
Ready…
Your TC Electronic effect pedal box should con-
tain the following items:
Your TC Electronic effect pedal
2 rubber feet for “non-velcro” pedalboard
mounting
1 TC Electronic sticker
1 leaflet about TC’s guitar FX product range
Inspect all items for signs of transit damage. In
the unlikely event of transit damage, inform the
carrier and supplier.
If damage has occurred, keep all packaging, as
it can be used as evidence of excessive handling
force.
Set…
Connect a 9 V power supply with the follow-
ing symbol to the DC input socket of your TC
Electronic effect pedal.
This product does not come with a power
supply. We recommend using TC Electronic
PowerPlug 9 (sold separately).
Plug the power supply into a power outlet.
Connect your instrument to the in jack on the
right side of the pedal using a ¼“ jack cable.
Connect the out jack on the left side of the
pedal to your amplifier using a ¼“ jack cable.
Play!
Inputs, outputs and controls
Alter Ego Vintage Echo V2 English manual 2014-09-20 13
Inputs, outputs and controls
Inputs, outputs and controls
Alter Ego Vintage Echo V2 English manual 2014-09-20 14
Alter Ego Vintage Echo V2
Power / Switching the
effect on and off
Power input
To power up your pedal, connect a power supply
to its power input socket.
The power input socket of your TC Electronic
effect pedal is a standard 5.5 / 2.1mm DC plug
(centre = negative).
Your TC Electronic effect pedal requires a 9 V
power supply providing 100 mA or more (not
supplied).
To minimize hum, use a power supply with iso-
lated outputs.
Footswitch
To turn the effect on, tap the footswitch.
To turn the effect off, tap the footswitch again.
Using the footswitch for tempo tapping
Hold down the footswitch for tempo tapping.
Of course, the delay time can be set using the
DELAY knob. However, for timing the delay re-
peats to the tempo of the song you are playing,
you can also tap in the tempo via audio.
To set the tempo:
Hold down the footswitch.
With the footswitch held down, play steady
short 1/4 notes on your instrument.
Please note that the output is always muted
during audio tapping.
Release the switch again.
Inputs, outputs and controls
Alter Ego Vintage Echo V2 English manual 2014-09-20 15
Audio in and out
Audio inputs (stereo)
The audio inputs on the right side of this pedal
are standard ¼” jacks (mono/TS).
If your signal source is mono, connect it to the
MONO in jack of the pedal.
If your signal source is stereo, connect the ca-
ble carrying the left signal component to the
MONO IN jack and the cable carrying the right
signal component to the STEREO IN jack.
Audio outputs (stereo)
The audio outputs on the left side of this pedal
are standard ¼” jacks (mono/TS).
If the next device in the signal chain has
a mono input (e.g. your amp), connect the
MONO OUT jack of TC Electronic effect pedal
to the other device’s input.
If the next device in the signal chain has ste-
reo inputs (e.g. another stereo effect pedal),
connect the MONO OUT jack of your TC Elec-
tronic effect pedal to the left input and the
STEREO OUT jack to the right input of the
other device.
USB port
Use the standard Mini-B USB port on your TC
Electronic effect pedal to connect your pedal to
a computer. This will allow you to load TonePrints
into the pedal or create your own TonePrint us-
ing TC’s TonePrint Editor. For more information,
see “TonePrint”.
If there should be firmware updates for this ped-
al, they can also be installed using the USB port
– see “Updating the firmware”.
Effect controls
Please note that the knob assignments on your
TC Electronic effect pedal are the default as-
signments. Using the TonePrint Editor, you can
rewire all knobs so they control one or several
parameters of your choice. For more information,
see the TonePrint Editor manual.
TIME knob – Delay time control
Use the TIME knob to control the delay time.
Almost all delay types have a delay range of
20ms to 7000ms (that’s seven seconds). Slap-
back (“SLP”) has a range from 20ms to 300ms.
FEEDBACK knob – Feedback control
Use the FEEDBACK knob to set the desired
numbers of delay repeats. Turning the FEED-
BACK knob to the right will give you more delay
repeats.
LEVEL knob – Effect level control
Use the LEVEL knob to control the level of the
delay repeats.
The direct, unprocessed signal is always passed
at the original level (unity gain). Only the level of
delay repeats is changed when turning the knob.
Inputs, outputs and controls
Alter Ego Vintage Echo V2 English manual 2014-09-20 16
Delay type selector
Use the Delay type selector to choose the type
of delay you want to work with.
The delay types are described in the section
“Delay types”.
Subdivision selector switch
Use this switch to choose the note intervals that
the delay repetitions are based on.
Top position: quarter notes
Middle position: dotted eighths
Bottom position: quarter notes and dotted
eighths.
Delay types
The Alter Ego Vintage Echo V2 offers a wide
range of vintage delays.
EREC 2: Binson Echorec 2*
DMMC: Electro-Harmonix Deluxe Memory-
Man Chorus*
T ORG: Tel Ray Organ Tone*
2290 M: TC Electronic 2290 Modulated
REV M: Reverse Modulated
BDM2: Boss DM-2*
CK AT: Watkins Copykat*
EP1: Maestro Echoplex 1*
SP: Roland Space Echo*
LP – Looper setting
Set the Delay type selector to LP to use the built-
in audio looper.
Using the looper is explained in “Using the loop-
er”.
TONEPRINT – TonePrint setting
Set the Delay type selector to TP to use the
TonePrint setting.
Using and editing TonePrints is explained in the
“TonePrint” section.
* All third party product names mentioned in the
context of this manual are trademarks of their
respective owners, which are in no way asso-
ciated or affiliated with TC Electronic. These
product names and descriptions are provided
for the sole purpose of identifying the prod-
ucts that were studied during product devel-
opment.
Inputs, outputs and controls
Alter Ego Vintage Echo V2 English manual 2014-09-20 17
Using the looper
With the looper built into your Alter Ego Vintage
Echo V2 Delay, you can record and play back
grooves and lines for playing along. You can
even overdub your recording an unlimited num-
ber of times.
The first round of recording always sets the
length of the loop. The duration of a loop can
be up to 40 seconds in mono and 20 seconds
in stereo, regardless of how many overdubs you
make.
If an overdub exceeds the length of the loop,
a third round of recording begins. This gives a
very natural, logic and musical feel when record-
ing loops.
The DELAY and knobs are inactive in Loop
mode.
Recording and playing loops
Set the Delay type selector to LP.
Make sure the pedal is in bypass mode (i.e.,
the LED should be off). Feel the groove and
prepare for recording. Then tap the pedal’s
footswitch to start your recording and play.
The pedal’s LED flashes red.
To stop recording, press the footswitch again.
The pedal immediately switches to playback
mode and starts playing the loop. In playback
mode, the LED is green.
To overdub your recording, press the switch
once more. The LED now blinks.
To delete all recordings, double-tap the foot-
switch.
Maintenance
Alter Ego Vintage Echo V2 English manual 2014-09-20 18
Maintenance
Maintenance
Alter Ego Vintage Echo V2 English manual 2014-09-20 19
Updating the firmware
TC may provide updates for the built-in software
of your pedal, the firmware. Updating your TC
pedal’s firmware requires…
a computer running Microsoft Windows or
OSX with a standard USB interface
the specified DC power supply for your pedal.
Preparing the firmware update
Download the newest firmware from the “Sup-
port” page for your TC pedal. There are up-
daters
for Microsoft Windows (these are ZIP ar-
chives containing the firmware installer) and
for OS X (these are disk image files contain-
ing the firmware installer).
Unplug all cables (including the power supply)
from your TC pedal.
Connect the pedal to your computer using a
USB cable.
Press and hold the footswitch on your TC
pedal. If your TC pedal has more than one
footswitch, press and hold the leftmost foot-
switch.
Insert the DC power supply plug.
The LED on your pedal should turn green. If
your TC pedal has more than one LED, the
leftmost LED should turn green. This indicates
that the pedal is ready to receive the software
update.
Release the footswitch.
Your TC pedal will now be recognized as an
updatable device.
Applying the firmware update
Quit all MIDI-related applications (e.g. your
DAW) on your computer and launch the firm-
ware updater you have downloaded in step1.
In the firmware updater app, select your TC
pedal from the drop-down list under the
“STEP 1” heading.
When the “Update” button under the “STEP 2”
heading turns green, click it.
The updated firmware will now be transferred to
your TC pedal. Wait for the progress bar to reach
100%. When the update procedure is complete,
the pedal will automatically restart.
Changing the battery
If you need to change the battery of your TC
Electronic effect pedal, proceed as follows:
Unscrew the thumb-screw on the back of the
pedal and detach the back-plate.
Unmount the old battery and attach the new
battery to the battery clip making sure the po-
larity is correct.
Remount the back-plate.
Notes regarding batteries
Batteries must never be heated, taken apart or
thrown into fire or water.
Only rechargeable batteries can be recharged.
Remove the battery when the pedal is not be-
ing used for a longer period of time to save
battery life.
Always dispose batteries according to local
laws and regulations.
Maintenance
Alter Ego Vintage Echo V2 English manual 2014-09-20 20
Switching the pedal from true
bypass to buffered bypass mode
True Bypass and Buffered
Bypass explained
True Bypass mode is a hard-wire bypass that
gives absolutely no coloration of tone when the
pedal is bypassed. This is the default mode for
your effect pedal.
Using True Bypass on all pedals is a perfect
choice in setups with a few pedals and relatively
short cables before and after the pedals.
If…
you use a long cable between your guitar and
the first pedal or
if you use many pedals on your board or
if you use a long cable from your board to the
amp,
then the best solution will most likely be to set
the first and the last pedal in the signal chain to
Buffered Bypass mode.
Can you hear the difference between a pedal in
True Bypass or Buffered Bypass mode?
Maybe, maybe not – many factors apply: active/
passive pick-ups, single coil/humbucker, cable
quality, amp impedance and more. We cannot
give a single ultimate answer. Use your ears and
find the best solution for your setup!
To set the bypass mode, proceed as follows:
Disconnect the pedal and turn it on its back.
Unscrew the back plate of the pedal and look
for the two small dip-switches in the upper
left corner.
The upper DIP switch (the one closer to the
power in jack), switches between True Bypass
mode (default) and Buffered Bypass mode.
Set the DIP switch to the desired position.
Remount the back-plate.
Kill-dry on/off
When you activate Kill-dry, the direct signal is
removed from the pedal’s output. Use this mode
when you place your TC Electronic effect pedal
in a parallel effects loop.
To set Kill-dry mode, proceed as follows:
Disconnect the pedal and turn it on its back.
Unscrew the back plate of the pedal and look
for the two small dip-switches in the upper
left corner.
The lower DIP switch (the one further away
from the power in jack), switches between Kill-
dry on and Kill-dry off mode.
You can only remove the dry signal from the sig-
nal path if you have selected Buffered Bypass
mode using the upper DIP switch – see “Switch-
ing the pedal from true bypass to buffered by-
pass mode”. Kill-dry is not available in True By-
pass mode.
True bypass
Buffered bypass
Kill-dry off
Kill-dry on
Frequently asked questions
Alter Ego Vintage Echo V2 English manual 2014-09-20 21
Frequently asked questions
Frequently asked questions
Alter Ego Vintage Echo V2 English manual 2014-09-20 22
Frequently asked questions
about TonePrint pedals
Are TonePrint pedals analog or digital?”
The dry signal of your guitar passes straight
through this effect pedal and is in no way digi-
tized. The “wet” signal is just added.
“Do the TonePrint pedals have balanced
or unbalanced inputs/outputs?”
TonePrint pedals have unbalanced inputs and
outputs. Use cables with TS jacks (i.e., standard
instrument cables).
“Is it possible to run this TonePrint pedal
in the effects loop of a tube amp?”
Yes. All TonePrint pedals have a very wide gain
range and are designed to run at both instru-
ment and line level. There are a few amps which
are capable of running much hotter than regu-
lar +4dBu line-level signals because of the way
their effect loops are designed. With these amps,
it might be possible to get the input to clip. But
for 99 % of all amps, the TonePrint pedals will
work just fine.
For additional information about your TC Elec-
tronic TonePrint effect pedal, please go to TC
Electronic Support:
tcelectronic.com/support/
Links
Alter Ego Vintage Echo V2 English manual 2014-09-20 23
Links
Links
Alter Ego Vintage Echo V2 English manual 2014-09-20 24
TonePrint resources
TonePrint:
tcelectronic.com/toneprint/
TonePrint products:
tcelectronic.com/toneprint/toneprint-prod-
ucts/
TonePrint app:
tcelectronic.com/toneprint-app/
TonePrint Editor:
tcelectronic.com/toneprint-editor/
TonePrint Editor manual:
tcelectronic.com/toneprint-editor/support/
Support resources
TC Electronic Support:
tcelectronic.com/support/
TC Electronic – product software:
tcelectronic.com/support/software/
TC Electronic – all product manuals:
tcelectronic.com/support/manuals/
TC Electronic user forum:
forum.tcelectronic.com/
TC Electronic on…
the web:
tcelectronic.com/
Facebook:
facebook.com/tcelectronic
Google Plus:
plus.google.com/+tcelectronic/
Twitter:
twitter.com/tcelectronic
YouTube:
youtube.com/user/tcelectronic
Technical specifications
Alter Ego Vintage Echo V2 English manual 2014-09-20 25
Technical specifications
Technical specifications
Alter Ego Vintage Echo V2 English manual 2014-09-20 26
Please note that due to continuous development, the following specifications are subject to change without further notice.
Bypass mode True Bypass (Buffered Bypass optional)
Signal circuitry Analog dry-through
Dimensions (width x depth x height) 72 x 122 x 50mm – 2.8 x 4.8 x 2.0”
Input connector 2 Standard ¼” jacks – mono/TS with automatic mono/stereo sensing
Output connector 2 Standard ¼” jacks – mono/TS with automatic mono/stereo sensing
Power input Standard 9V DC, centre negative >100mA (power supply not included)
Battery option Standard 9V (battery not included)
Input impedance 1
Output impedance 100Ω
USB port Mini USB connector for uploading and editing custom TonePrints and for software updates
Technical specifications
Alter Ego Vintage Echo V2 English manual 2014-09-20 27

Navigation menu
