Selling AMD FirePro™

Professional GPUs for

Workstations and Data

Center applications

A GPU (Graphics Processing Unit) is a powerful

processor designed to deliver static and moving

images to a display. This could be a web page, a

video, a 3D game or a 3D Computer Aided Design

(CAD) model of a building or a car.

y A modern GPU, also known as a graphics card, typically

features hundreds of individual processing cores and

dedicated memory. The processor is the ‘brain’ and performs

all of the calculations. The memory is important so data can

be stored close to the processor so it can be accessed quickly.

y In addition to traditional graphics tasks, the highly parallel

architecture of a GPU means it is very good at performing

compute-intensive calculations in areas such as engineering

simulation, visual effects, video editing, science and research.

y In a desktop computer or laptop, the GPU works alongside

the CPU (Central Processing Unit), which is used for general

processing operations. Some GPUs are built into the CPU but

these tend to be for ofﬁce or consumer PCs.

y GPUs that are designed for professional use in areas such

as 3D CAD (Computer Aided Design) or Digital Content Creation

(DCC) tend to be discrete PCI® Express (PCIe®) add-in boards

that slot into the motherboard of a workstation or server.

2. WHAT IS A GPU (GRAPHICS PROCESSING UNIT)?

AMD FireProTM professional GPUs have been designed, manufactured

and optimized speciﬁcally for professional users. They offer outstanding

graphics performance in 2D and 3D applications; ultra high-resolution

multi display capabilities and the ability to perform compute intensive

operations that have traditionally been carried out by CPUs.

Reliability

Reliability is of paramount importance and AMD FirePro professional GPUs are designed

for extremely demanding workloads. Some run 24/7. Every FirePro GPU is designed

exclusively by AMD, delivering consistent quality. Drivers are tested for stability and

undergo a minimum of 16 consecutive weeks of testing.

For customer peace of mind, AMD FirePro professional GPUs are backed up with a three-

year warranty and 24/7 support. Cards are given extended product life cycles to help

support customers that are working on long term projects.

Performance

Performance is a key tenet of AMD FirePro professional GPUs, including support for the

latest APIs (OpenGL® 4.4, Microsoft® DirectX® 12 and OpenCL™ 2.0) and the high-speed

PCIe 3.0 interface. In addition to offering exceptional performance and smooth handling of

complex 3D designs and visual effects in general, AMD optimizes its drivers for individual

applications. Several new FirePro professional graphics drivers are released each year which

include performance and feature improvements that are not supported by consumer GPUs.

Innovation

AMD FirePro GPUs innovate in several areas including the ability to perform simultaneous

render and compute on a single card, support for up to six 4K displays1 on a single card and

intelligent power technologies.

3. WHAT IS A PROFESSIONAL GPU?

FIREPRO FOR PROFESSIONALS

AMD FireProTM is a professional GPU. It is available for desktop

workstations, mobile workstations and servers (data centers).

y Desktop workstations: AMD FirePro W-Series u(page 7)

y Mobile workstations: AMD FirePro M-Series u(page 11)

y Data center servers: AMD FirePro S-Series u(page 13)

Increasingly, applications can use the GPU not only to

accelerate graphics but also for computationally-intensive

tasks, such as rendering and simulation, using OpenCLTM.

The latest generation of AMD FirePro GPUs with Graphics Core

Next (GCN) architecture have been speciﬁcally designed to

efﬁciently balance compute tasks with 3D workloads, enabling

multi-tasking that is designed to optimize utilization and

maximize performance, from a single card.

GRAPHICS CORE NEXT (GCN)

1 AMD Eyeﬁnity technology supports up to six DisplayPort monitors on an enabled graphics card. Supported display quantity, type and resolution vary by model and board design. Mixed monitors of different resolutions are supported by select AMD FirePro™ professional graphics cards. Conﬁrm speciﬁcations with manufacturer

before purchase. To enable more than two displays, or multiple displays from a single output, additional hardware such as DisplayPort™-ready monitors or DisplayPort 1.2 MST-enabled hubs may be required. A maximum of two active adapters is recommended for consumer systems. See www.amd.com/eyeﬁnityfaq for full details.

DESIGN

Product designers and industrial designers

visualize and interact with 3D models in

Computer Aided Design (CAD) software.

ENGINEERING

Engineers interact with complex 3D engineering

models in Computer Aided Design (CAD) software

and solve simulations with GPU compute.

ARCHITECTURE

Architects design and visualize complex building

designs in 3D Computer Aided Design (CAD) and

Building Information Modeling (BIM) software.

SCIENCE

Scientists visualize and simulate complex models

in areas of research such as molecular biology,

theoretical physics and molecular engineering.

MEDIA & ENTERTAINMENT

CGI artists visualize and animate hyper-realistic

3D models for ﬁlm, TV and games. Broadcast

professionals edit 4K footage in real time.

FINANCE

Financial and enterprise users need high-quality,

high-resolution, multi-display environments to

keep track of data from multiple data.

MEDICAL

Medical imaging demands high resolution and

color critical displays in areas such as radiology,

pathology, and dentistry.

OIL AND GAS

Petrochemical ﬁrms need high-resolution, color

critical displays for seismic imaging to help locate

underground oil and gas reservoirs.

4. WHERE ARE PROFESSIONAL GPUs NEEDED?

Design and Architecture Images courtesy of DEVELOP3D

FEATURE

CONSUMER GPU

(e.g. AMD RadeonTM, Nvidia® GeForce®,

Intel® HD Graphics 4600)

DISCRETE

PROFESSIONAL GPU

(AMD FirePro)

Certiﬁed for professional applications No

Certiﬁed for more than 100 professional applications. Tested against a battery of

simulations and real-world scenarios using rigorous certiﬁcation processes to ensure

readiness for demanding professional use

Optimized drivers for professional

CAD/CAM/CAE/DCC software No Drivers are tuned to deliver optimum performance

in professional 2D and 3D applications

Professional image quality Professional image quality features not supported Support for professional visualization features including realistic effects in 3D

applications such as enhanced materials, lighting, shadows and transparency*

Number of supported displays Up to 6 Up to 6

Discrete graphics card that can be upgraded Yes (Intel integrated GPU not upgradable on its own) Yes

Board Design Various AMD

Warranty Typical 12-36 month warranty Standard three year warranty and 24/7 support

Life Cycle Not guaranteed Extended product life cycles for long term projects

Compute Support for single precision operations (not optimized for double precision) uOptimized for single- and double-precision operations with ½-rate for

AMD FirePro W8100 and W9100 u and ECC memory u

Memory Up to 8GB / 12GB of non-ECC memory Up to 16GB of ECC memory for complex

models and compute

5. CONSUMER GPU vs PROFESSIONAL GPU

*Examples include SolidWorks RealView, Ambient Occlusion and Order Independent Transparency (OIT)

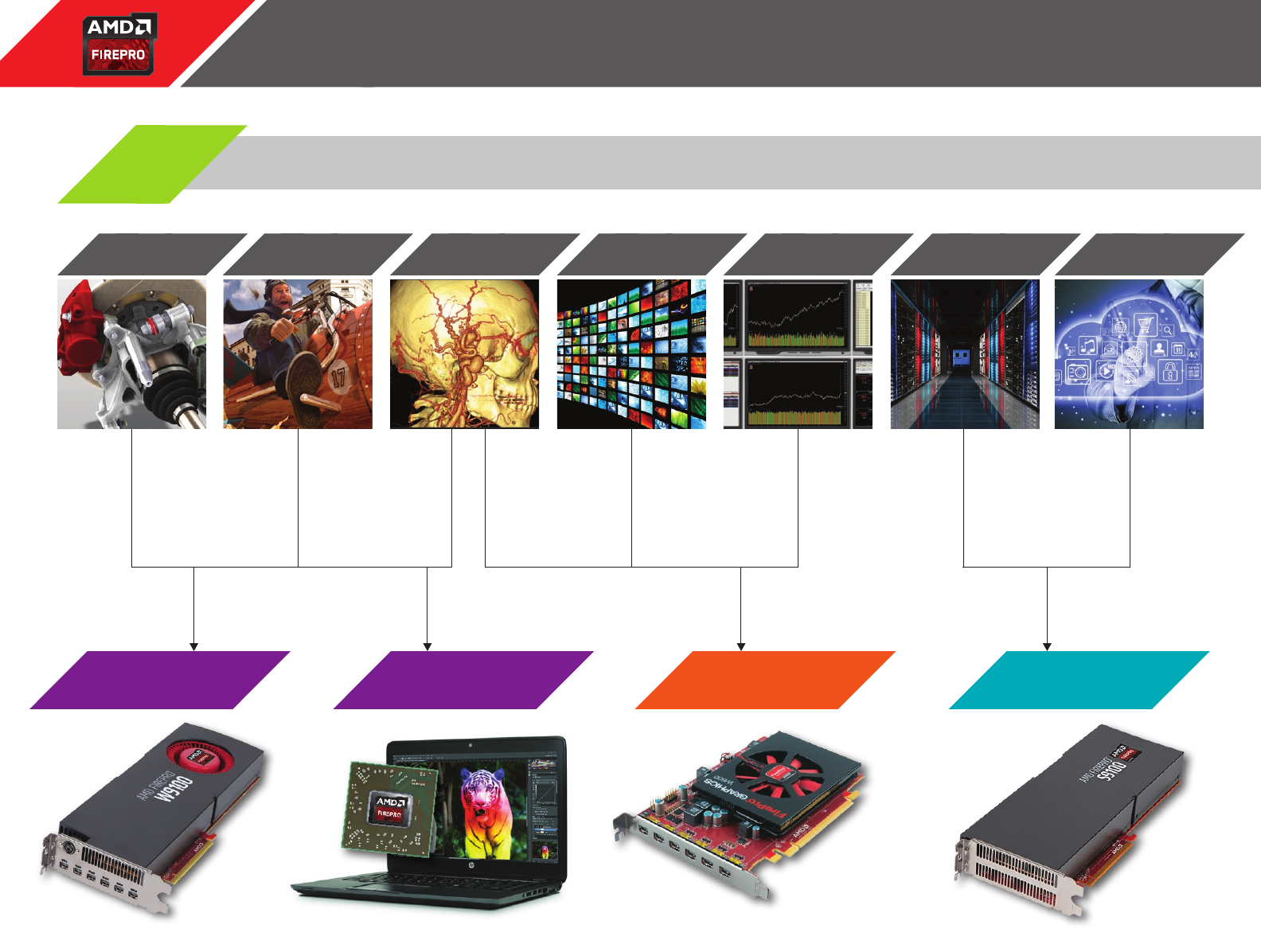

6. CHOOSING THE RIGHT GPU FOR YOUR CUSTOMER

WHAT DOES YOUR CUSTOMER DO? • Click buttons to navigate to the relevant page

DESIGN / ENGINEERING

(CAD/CAM/CAE)

MEDIA AND

ENTERTAINMENT

MEDICAL IMAGING

AND SCIENCE

DISPLAY WALLS

(SIGNAGE, VIDEO)

FINANCE

(TRADING FLOORS)

HIGH PERFORMANCE

COMPUTING (HPC)

VIRTUAL DESKTOP

INFRASTRUCTURE (VDI)

page 7

RECOMMEND SELECT

AMD FIREPROTM W-SERIES

GPUs FOR DESKTOPS page 12

RECOMMEND SELECT AMD

FIREPROTM 2XXX & W-SERIES

GPUS FOR DESKTOPS page 13

RECOMMEND AMD

FIREPROTM S- AND R-SERIES

GPUS FOR SERVERS

For 3D visualization

For 2D multi display

page 11

RECOMMEND SELECT

AMD FIREPROTM M-SERIES

GPUs FOR LAPTOPS

7. AMD FIREPRO W-SERIES FOR CAD + MEDIA AND ENTERTAINMENT

AMD FirePro W-Series professional GPUs are used in design,

engineering, architecture, animation, special effects, games

development and video editing.

y GPUs are optimized for 3D workﬂows to ensure ultra high geometry

performance and smooth handling of complex, visually rich models. This

helps support a much more ﬂuent design process in a realistic environment.

y AMD FirePro drivers are optimized for individual applications to boost

performance and tuned to support professional features such as SolidWorks

RealView for realistic models, Ambient Occlusion for realistic shadows

and Order Independent Transparency (OIT) for faster and more realistic

transparency effects.

y The Graphics Core Next (GCN) architecture efﬁciently balances compute

and 3D workloads, so one GPU can perform two roles at the same time.

y GPU compute u uses the GPU (or multiple GPUs) as a processor to

perform advanced calculations that help scientists and engineers get results

faster. Application areas include engineering simulation (structural analysis

(FEA) and computational ﬂuid dynamics (CFD)), ray trace rendering, video

editing and scientiﬁc research.1 An AMD FirePro Ultra Workstation can

support up to four AMD FirePro W9100 GPUs.

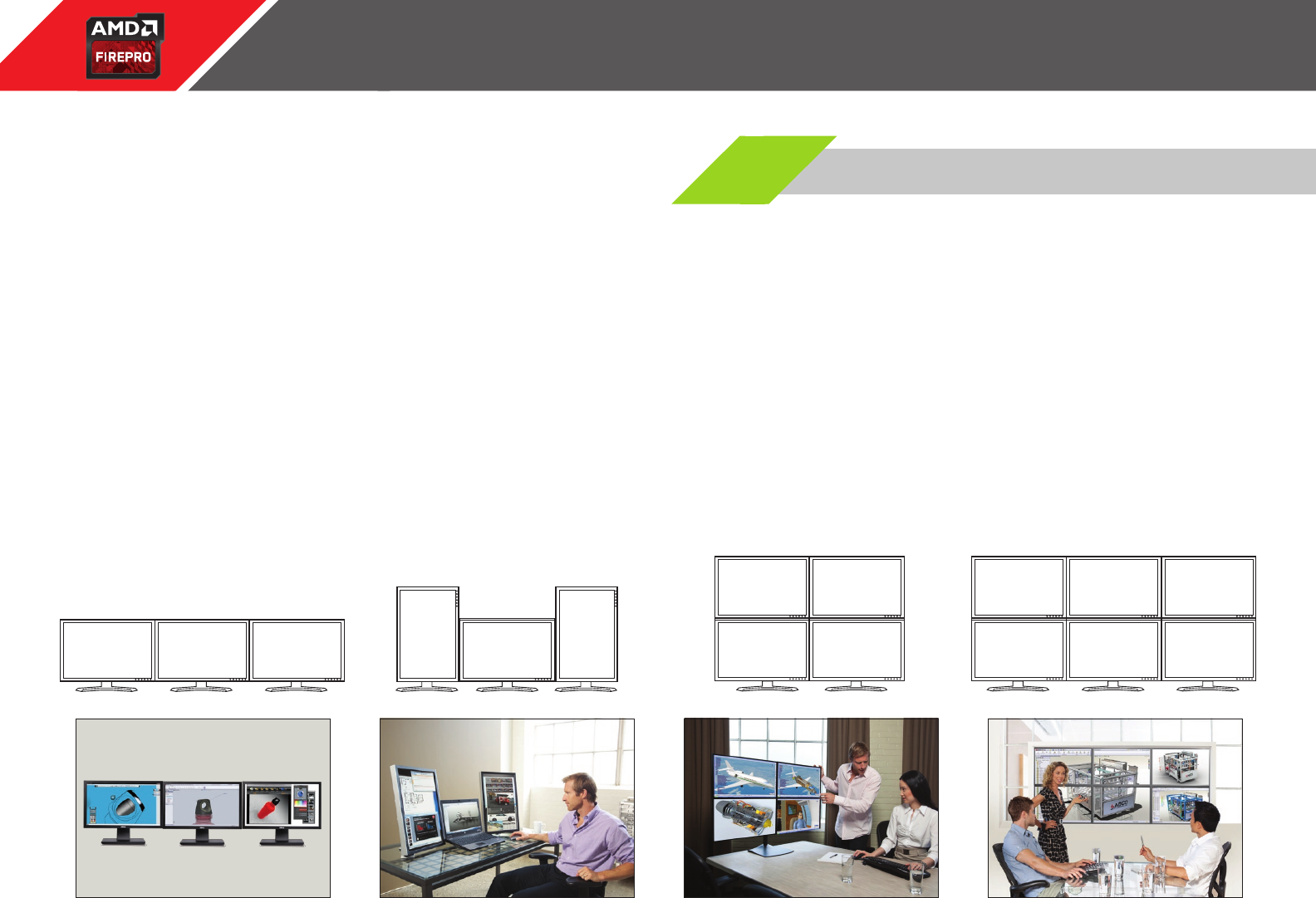

y AMD Eyeﬁnity technology2 u enables one graphics card to output

high-quality visuals on 3, 4 and even 6 displays from a single workstation.

This supports multi-tasking, where each dataset or application (CAD,

rendering, simulation, for example) has a dedicated display, or large scale

visualization for immersive presentations or collaborative design delivered

on a powerwall (an array of displays or projectors).

FEATURES AT A GLANCE

y Memory capacity is important so 3D datasets or 4K video ﬁles can be loaded

into GPU memory for fast access. The latest generation AMD FirePro W-series

graphics cards features twice the GPU memory compared to their predecessors,

with a minimum of 2GB in the AMD FirePro W2100 and a maximum of 16GB in

the AMD FirePro W9100.

y Memory bandwidth is important so data can be loaded in and out of GPU

memory quickly so the processor is not left waiting. It becomes even more

important as datasets grow in size.

y PCIe 3.0 supports CPU to GPU data transfer rates of up to 16GB/sec. Standard

on AMD FirePro W-Series GPUs. Particularly beneﬁcial for large datasets.

y ECC (Error Correcting Code) support is important for high-precision compute

operations, used in areas such as such as engineering simulation, as it helps

correct errors that are the result of naturally occurring background radiation.

y Stereo delivers interactive 3D images to dedicated 3D glasses. FirePro

provides support via DisplayPort 1.2 or dedicated stereoscopic 3-pin mini DIN.

y Framelock / Genlock helps ensure accurate and consistent video

synchronisation to external sources or multiple GPUs in different systems.

y DirectGMA is an AMD FirePro graphics technology that offers low latency

data transfer directly between multiple GPUs, instead of going via the CPU.

1 Applications must support OpenCL 2 AMD Eyeﬁnity technology supports up to six DisplayPort monitors on an enabled graphics card. Supported display quantity, type and resolution vary by model and board design. Mixed monitors of different resolutions are supported by select AMD FirePro™ professional graphics cards. Conﬁrm speciﬁcations with manufacturer before

purchase. To enable more than two displays, or multiple displays from a single output, additional hardware such as DisplayPort™-ready monitors or DisplayPort 1.2 MST-enabled hubs may be required. A maximum of two active adapters is recommended for consumer systems. See www.amd.com/eyeﬁnityfaq for full details.

8. AMD FIREPRO W-SERIES FOR CAD + MEDIA AND ENTERTAINMENT

Software developer Application Entry-level

(about 10% of users)

Mid-range

(about 80% of users)

High-end

(about 10% of users)

The following information is based on average application use and is intended as a guideline.

Individual workﬂows and application usage must be taken into consideration when

selecting a professional graphics card.

2D/Motion Media Design

3D Modeling & Animation

High-end 2D & VFX Design

Complex 3D Design

Hardware (GPU) Rendering

High-end VFX Design, Real-time 3D Design-

Viz, High-end 3D Animation and FX

Computational Design

Adobe

After Effects AMD FireProTM W5100 AMD FireProTM W7100 AMD FireProTM W8100

Photoshop CC AMD FirePro W5100 AMD FirePro W7100 AMD FireProTM W9100

Premiere Pro CC AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

Altair Engineering HyperWorks AMD FireProTM W4100 AMD FirePro W5100 AMD FirePro W8100

ANSYS

ANSYS Mechanical AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W8100

FLUENT AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W8100

Workbench AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W8100

Graphisoft ArchiCAD AMD FireProTM W2100 AMD FirePro W4100 AMD FirePro W5100

Assimilate Scratch AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

Autodesk

3ds Max AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

AutoCAD AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W8100

Inventor AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W9100

Maya AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

Moldﬂow AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

Revit AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

Vred AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

Bentley Systems MicroStation AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

Beta CAE Systems ANSA AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

Blackmagic Design eyeon Fusion AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

CEI Inc. EnSight AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W8100

CGTech Vericut AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

Chaos Group V-Ray AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

COMSOL COMSOL Multiphysics AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W8100

Dassault Systèmes

3DVIA Composer AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

CATIA AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

DELMIA AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

WHAT SOFTWARE DOES YOUR CUSTOMER USE? • Recommend a speciﬁc AMD FirePro GPU

9. AMD FIREPRO W-SERIES FOR CAD + MEDIA AND ENTERTAINMENT

Software developer Application Entry-level

(about 10% of users)

Mid-range

(about 80% of users)

High-end

(about 10% of users)

The following information is based on average application use and is intended as a guideline.

Individual workﬂows and application usage must be taken into consideration when

selecting a professional graphics card.

2D/Motion Media Design

3D Modeling & Animation

High-end 2D & VFX Design

Complex 3D Design

Hardware (GPU) Rendering

High-end VFX Design, Real-time 3D Design-

Vis, High-end 3D Animation and FX

Computational Design

Dassault Systèmes SIMULIA Abaqus AMD FireProTM W5100 AMD FireProTM W7100 AMD FireProTM W9100

SolidWorks AMD FireProTM W4100 AMD FirePro W5100 AMD FirePro W7100

Esri ArcGIS AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

IMSI/Design TurboCAD V19 AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

IronCAD IronCAD AMD FireProTM W2100 AMD FirePro W4100 AMD FirePro W7100

Missler Software TopSolid AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

MSC.Software Patran AMD FirePro W5100 AMD FirePro W7100 AMD FireProTM W8100

SimXpert AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W8100

Nemetschek Allplan AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

Maxon Cinema 4D AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

OPTIS THEIA-RT AMD FirePro W5100 AMD FirePro W7100 AMD FirePro W9100

PTC Creo AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

Robert McNeel & Assoc. Rhinoceros AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

Side Effects Houdini AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

SIEMENS PLM Software

Femap AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W9100

NX AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W9100

Solid Edge AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

Teamcenter (Visualization) AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

Tecnomatix AMD FirePro W2100 AMD FirePro W5100 AMD FirePro W7100

SpaceClaim SpaceClaim AMD FirePro W2100 AMD FirePro W4100 AMD FirePro W7100

The Foundry

Mari AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

modo AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

Nuke AMD FirePro W7100 AMD FirePro W8100 AMD FirePro W9100

Vero Software Edgecam AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

VISI AMD FirePro W4100 AMD FirePro W5100 AMD FirePro W7100

WHAT SOFTWARE DOES YOUR CUSTOMER USE? • Recommend a speciﬁc FirePro GPU

Feature Entry-level CAD Entry-level CAD Mid-range CAD Mid-range CAD. Entry

level CGI and compute

High-end (CAD,

design viz, CGI and

compute)

Ultra high-end (design

viz, CGI, compute

and powerwalls)

AMD FirePro W2100 uAMD FirePro W4100 uAMD FirePro W5100 uAMD FirePro W7100 uAMD FirePro W8100 uAMD FirePro W9100 u

GCN Stream Processors 320 512 768 1,792 2,560 2,816

Memory 2GB GDDR3 2GB GDDR5 4GB GDDR5 8GB GDDR5 8GB GDDR5 16GB GDDR5

Memory bus 128-bit 128-bit 128-bit 256-bit 512-bit 512-bit

Memory Bandwidth (GB/sec) 28.8 72 96 160 320 320

ECC No No No No Yes Yes

Max resolution per display output 4K (4,096 x 2,160) 4K (4,096 x 2,160) 4K (4,096 x 2,160) 4K (4,096 x 2,160) 4K (4,096 x 2,160) 4K (4,096 x 2,160)

Max # of displays (outputs) 2 (DisplayPort) 14 (Mini DisplayPort) 1 4 (DisplayPort) 1 4 (DisplayPort) 1 4 (DisplayPort) 1 6 (Mini DisplayPort) 1

Single Precision Compute Performance 0.40 TFLOPS 0.65 TFLOPS 1.43 TFLOPS 3.30 TFLOPS 4.20 TFLOPS 5.24 TFLOPS

Double Precision Compute Performance 0.025 TFLOPS 0.040 TFLOPS 0.089 TFLOPS 0.21 TFLOPS 2.10 TFLOPS 2.62 TFLOPS

OpenGL® 4.4 4.4 4.4 4.4 4.4 4.4

Microsoft® DirectX® 12 12 12 12 12 12

OpenCL™ 1.2 1.2 2.0 2.0 2.0 2.0

Operating System (32-bit & 64-bit) Windows 8.1, Windows 7, Linux Windows 8.1, Windows 7, Linux Windows 8.1, Windows 7, Linux Windows 8.1, Windows 7, Linux Windows 8.1, Windows 7, Linux Windows 8.1, Windows 7, Linux

3D Stereo No Yes (via DisplayPort) Yes (requires additional 3D Stereo

Connector Bracket)

Yes (requires additional 3D Stereo

Connector Bracket) Yes (via dedicated port) Yes (via dedicated port)

Framelock / Genlock No No No Yes (requires FirePro S400 module) Yes (requires FirePro S400 module) Yes (requires FirePro S400 module)

System interface PCIe 3.0, single slot PCIe 3.0, single slot PCIe 3.0, single slot PCIe 3.0, single slot PCIe 3.0, dual slot PCIe 3.0, dual slot

Aux power No No No 1 x 6-pin connector (2 x 6-pin connector) (1 x 6-pin & 1 x 8-pin connector)

Maximum Power 26w 50w <75w <150w 220w 275w

Warranty / lifecycle 3 year / planned ﬁve-year life cycle 3 year / planned ﬁve-year life cycle 3 year / planned three-year life cycle 3 year / planned three-year life cycle 3 year / planned three-year lifecycle 3 year / planned three-year lifecycle

Typical workstation HP Z440, Dell Precision Tower 5810 HP Z440, Dell Precision Tower 5810 HP Z440, Dell Precision Tower 5810 HP Z440, Dell Precision Tower 5810 HP Z640 HP Z840, BOXX Ultra Workstation

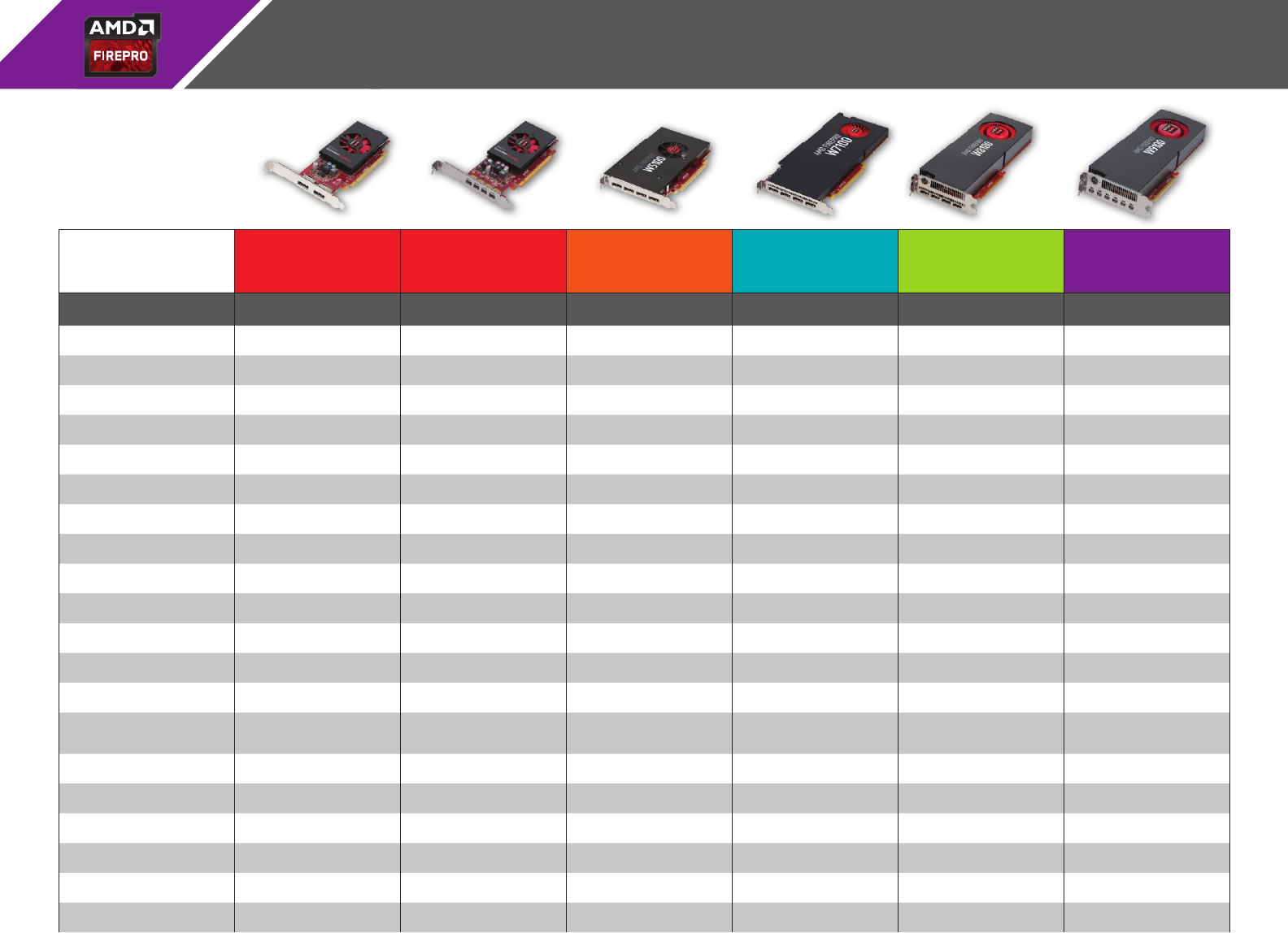

10. AMD FIREPRO W-SERIES (WORKSTATION) SPECIFICATIONS

1 DVI-D supported via adapter. HDMI and VGA supported by via additional adapters.

2 Requires Mini-DP to DP Adapter (sold separately).

3 Requires two physical connections and SLS mode enabled in Catalyst

HP ZBOOk 14 G2

WORKSTATION ULTRABOOK

14” dIAgONAL dISpLAy

HP ZBOOk 15u G2

WORKSTATION ULTRABOOK

15.6” dIAgONAL dISpLAy

HP ZBOOk 15 G2

pROdUcTIvITy ON The gO

15.6” dIAgONAL dISpLAy

HP ZBOOk 17 G2

expANd yOUR cReATIve

cApABILITIeS - 17.3” dISpLAy

DELL PRECISION M2800

AffORdABLe 15”

MOBILe WORKSTATION

DELL PRECISION M4800

‘WORLd’S MOST pOWeRfUL’

15” WORKSTATION

DELL PRECISION M6800

‘WORLd’S MOST pOWeRfUL’

17” WORKSTATION

PANASONIC TOUGHBOOk 54

‘ThINNeST ANd LIghTeST’

SeMI-RUgged LApTOp

Feature Entry-level CAD Entry-level CAD Mid-range CAD Mid-range CAD and

entry-level compute

AMD FireProTM M4150 uAMD FireProTM M41701 / W4170M2 uAMD FireProTM M5100 uAMD FireProTM M6100 u

Memory 1GB GDDR5 Up to 2GB GDDR5 2GB GDDR5 2GB GDDR5

Memory bus 128-bit 128-bit 128-bit 128-bit

Memory Bandwidth (GB/sec) Up to 64 GB/s Up to 72 GB/s Up to 72 GB/s Up to 96 GB/s

Single Precision Compute Performance Up to 549 GFLOPS Up to 691 GFLOPS Up to 992 GFLOPS Up to 1971 GFLOPS

Double Precision Compute Performance Up to 34 GFLOPS Up to 43 GFLOPS Up to 62 GFLOPS Up to 123.2 GFLOPS

OpenGL® 4.4 4.4 4.4 4.4

Microsoft® DirectX® 412 12 12 12

OpenCL™ 32.0 2.0 2.0 2.0

11. AMD FIREPRO M-SERIES (MOBILE) SPECIFICATIONS

1 AMD FirePro M4170 with 1GB GDDR5 memory, featured in the HP ZBook 15U G2.

2 AMD FirePro W4170M with 2GB GDDR5 memory, featured in the Dell Precision M2800

3 Support for OpenCL 1.2 enabled today; conformance expected. AMD plans to release OpenCL 2.0 drivers for enabled AMD FirePro W2100, W4100, W5100, W7100, W8100, and W9100 graphics cards in Q1 2015; conformance testing is planned at that time. Previous-generation AMD FirePro products may not support OpenCL 2.0.

4 Based on our review of the Microsoft DirectX(r) 12 speciﬁcation dated July 23, 2014, we are conﬁdent that devices based on our GCN architecture will be able to support DirectX(r) 12 graphics when available. We recommend that you check AMD.com prior to purchase to conﬁrm that a particular device will support DirectX(r) 12 graphics. Note however, any changes to the

DirectX(r) 12 speciﬁcation after this date could impact or completely eliminate this ability – and AMD disclaims all liability resulting therefrom.

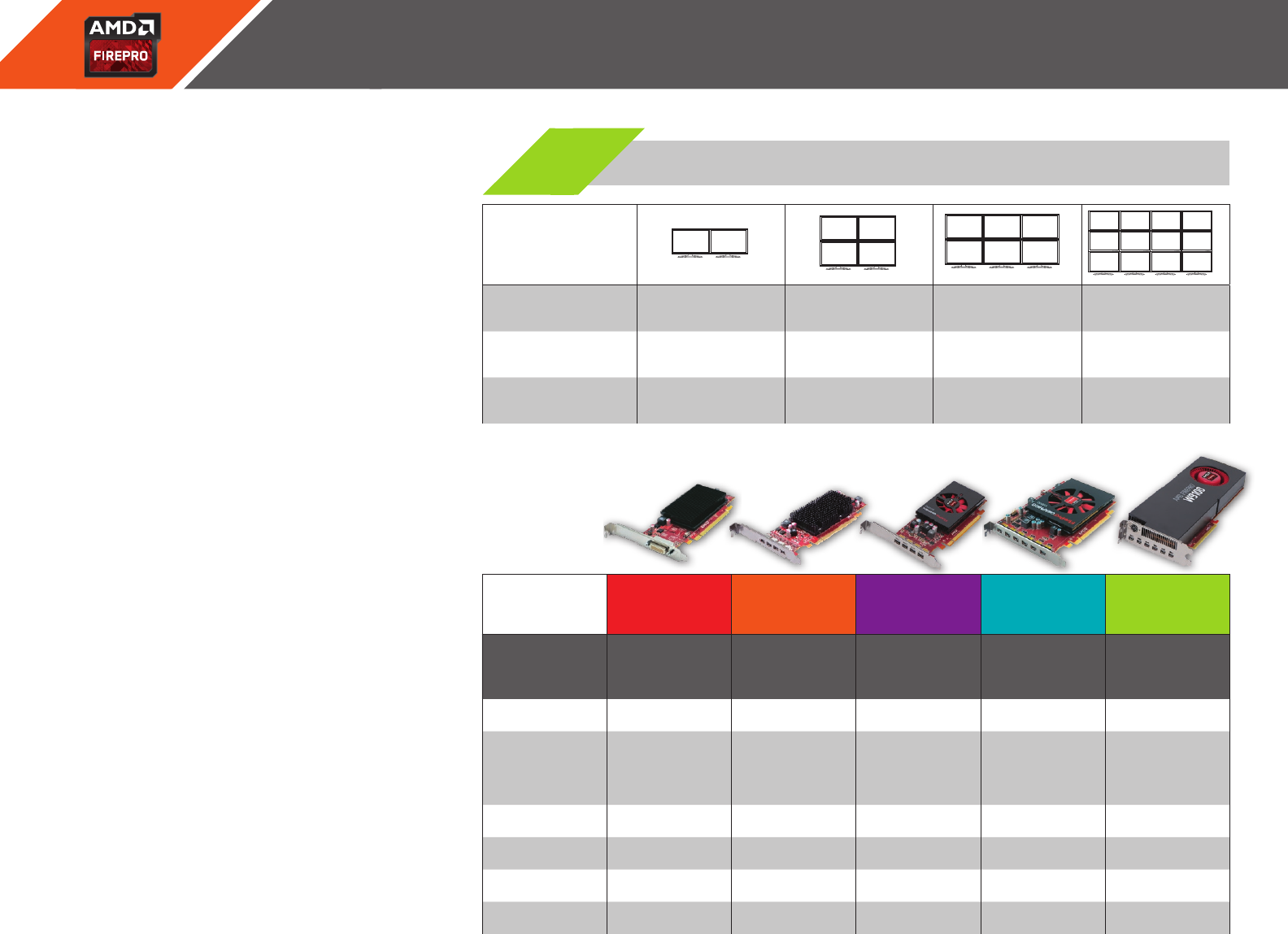

12. AMD FIREPRO W-SERIES FOR FINANCE AND DISPLAY WALLS

Feature AMD FirePro

2270 u

AMD FirePro

2460 u

AMD FirePro

W4100 u

AMD FirePro

W600 u

AMD FirePro

W9100 u

Dual output GPU

with support for all

types of monitors

Quad output GPU for

display walls

Quad output GPU with

performance for 3D

applications

Six output GPU

with multimedia

performance for

display walls

Six output GPU

with high-end 3D

performance for

display walls

No of displays 2 4 4 6 6

Display connectors

DMS-59 connector with

breakout cables for dual

DisplayPort, DVI

and VGA output

Four Mini DisplayPort

outputs (DVI adapter

included, DisplayPort

adapter sold separately)

Four Mini

DisplayPort outputs

Six Mini

DisplayPort outputs

Six Mini

DisplayPort outputs

Max resolution (per display) 2,560 x 1,600 2,560 x 1,600 4,096 x 2,160 (4k) 4,096 x 2,160 (4k) 4,096 x 2,160 (4k)

Max Power / cooling type 17W / passive 20W / passive 50W / active 75W / active 275w / active

Low proﬁle form factor Yes Yes Yes No No

Warranty 3 year warranty 3 year warranty 3 year warranty 3 year warranty 3 year warranty

AMD FirePro multi display solutions

deliver graphics and video on up to six

displays with a single card. Multiple

cards can also be combined in a single

system to create large display walls.

y Target industries include Financial

Services (trading), Healthcare (medical

imaging), Transportation (air trafﬁc control),

Digital Signage, Government (control centers),

Education and Hospitality (events).

y Select models are available in a space-

efﬁcient, low-proﬁle design so GPUs can be

deployed in a variety of form factors, from

small form factor desktops to towers and

mobile docking stations.

y Select models draw extremely low power

and are passively cooled for silent operation.

y Select models support multiple display

connectors such as DisplayPort, DVI and

VGA to make best use of existing display

technology investments. Adapters are

available for all other GPUs.

NUMBER OF DISPLAYS vs CUSTOMER REQUIREMENTS

Multiple 2D applications Recommend

AMD FireProTM 2270

Recommend

AMD FireProTM 2460

Recommend AMD FirePro W600

or 2 x AMD FirePro 2460

Recommend

2 x AMD FireProTM W600

Multimedia display wall Recommend

AMD FirePro W600

Recommend

AMD FirePro W600

Recommend

AMD FirePro W4100

Recommend

2 x AMD FirePro W600

Display wall with support

for 3D applications

Recommend

AMD FirePro W4100*

Recommend

AMD FirePro W4100*

Recommend

AMD FirePro W9100

Recommend

2 x AMD FirePro W9100

* For 3D applications that demand more performance, recommend a FirePro W5100, W7100, W8100 or W9100 (see page 10)

2 4 6 12

13. AMD FIREPRO S-SERIES FOR DATA CENTER (SERVERS)

Feature AMD FireProTM

R5000 u

AMD FireProTM

S7000 u

AMD FireProTM

S9050 u

AMD FireProTM

S9100 u

AMD FireProTM

S9150 u

Dedicated GPU for

each user. Up to four

users supported in a

1U server

Single-slot server

card for high density

VDI and compute

deployments

Powerful,

multifunctional card

for compute and VDI

High-performance

HPC for budget

conscious projects

Very high-

performance HPC

and exceptional

performance per watt

GCN Stream Processors N/A 1,280 Stream Processors 1,792 Stream Processors

(28 GCN compute units)

2,560 Stream Processors

(40 compute units)

2,816 Stream Processors

(44 GCN compute units)

Memory

(interface / bandwidth)

2GB GDDR5

(256-bit / up to 102GB/s)

4GB GDDR5

(256-bit / up to 154GB/s)

12GB GDDR5 (ECC)

(384-bit / up to 264GB/s)

12GB GDDR5 (ECC)

(512-bit / up to 320GB/s)

16GB GDDR5 (ECC)

(512-bit / up to 320GB/s)

Floating point compute

performance (TFLOPS) N/A 2.4 peak single-precision

0.152 peak double-precision

3.23 peak single-precision

0.81 peak double-precision

4.22 peak single-precision

2.11 peak double-precision

5.07 peak single-precision

2.53 peak double-precision

Max Power 150W 150W 225W 225W 235W

Interface /

cooling

PCIe 3.0 x16, Single Slot

Active heat sink

PCIe 3.0 x16, Single Slot

Passive heat sink

PCIe 3.0 x16, Dual Slot

Passive heat sink

PCIe 3.0 x16, Dual Slot

Passive heat sink

PCIe 3.0 x16, Dual Slot

Passive heat sink

Typical server BOXX XDI V4

TYAN FT77A-B7059 (4U)

Asus ESC4000 G3/G3S (2U)

Supermicro SYS-2027GR (2U)

TYAN FT77A-B7059 (4U)

Asus ESC4000 G2 (2U)

Gigabyte GS-R22PHL (2U)

TYAN FT77A-B7059 (4U)

Asus ESC4000 G2 (2U)

Gigabyte GS-R22PHL (2U)

TYAN FT77A-B7059 (4U)

Asus ESC4000 G2 (2U)

Gigabyte GS-R22PHL (2U)

The AMD FirePro S-Series GPUs are speciﬁcally designed

to be used inside a data center environment. The GPUs

are placed inside rack mounted servers to give cloud,

research and engineering ﬁrms powerful, scaleable

central processing resources for Virtual Desktop

Infrastructure (VDI) or compute deployments.

y Virtual Desktop Infrastructure (VDI) u allows a single

server to run dozens of “virtual” desktops simultaneously.

AMD FirePro S-Series GPUs provide the graphics for these

virtual desktops, supporting virtualization technologies

from Citrix®, Microsoft®, VMware® and Teradici®.

y PCoIP® u is a remoting protocol from Teradici®. A data

center solution typically uses a PCIe Teradici host card and

GPU for each user. The AMD FirePro R5000 combines both

Teradici technology and GPU on a single card so only one

PCIe slot is used, increasing user density in a rack server.

y OpenCL u is the enabling technology that allows AMD

FirePro GPUs to perform compute operations. It is an open

standard and runs on many different processors (cross-

platform).

y Single and Double Precision support is important for

compute performance. Single Precision is needed when

accuracy is not of paramount importance (e.g. for ray

trace rendering or processing video). Double precision is

important when accuracy is critical (e.g. for engineering

or physics-based simulations).

WHAT DOES YOUR CUSTOMER WANT TO DO?

RECOMMEND THE

FIREPRO S7000 OR

FIREPRO S9050 FOR VDI

DELIVER GRAPHICS FOR

HUNDREDS OF VIRTUAL

MACHINES IN A DATACENTER

RECOMMEND THE FIREPRO

S9100 OR FIREPRO S9150

FOR GPU COMPUTE

QUICKLY SOLVE ADVANCED

CALCULATIONS FOR SCIENCE,

ENGINEERING OR CGI

RECOMMEND THE FIREPRO

R5000 WITH BUILT IN

TERADICI PCoIP TECHNOLOGY

GIVE POWER USERS ACCESS

TO A DEDICATED GRAPHICS

CARD IN A VIRTUAL MACHINE

14. AMD EYEFINITY FOR MULTIPLE DISPLAYS

1 Three monitors: landscape (3 x 1)

One extended desktop to support multi application workﬂows.

Up to 12,228 x 2,160 resolution.

Supported on AMD FirePro W4100 and above.

2 Three monitors: one landscape, two portrait (3 x 1)

One landscape display ﬂanked by two portrait displays to

support multi application workﬂows.

Supported on AMD FirePro W4100 and above.

3 Four monitor array (2 x 2)

One extended desktop up to 8,192 x 4,320 resolution

for multi-application workﬂows or presentations.

Supported on AMD FirePro W4100 and above.

AMD FirePro professional graphics features AMD Eyeﬁnity1, a multi-display

technology which enables one graphics card to output high-quality visuals

on 3, 4 and even 6 displays from a single workstation or PC. Multiple

graphics cards also can be combined to create massive display walls.

y Conﬁgure various combinations of landscape and portrait orientations,

with independent display resolutions and refresh rates.

y Multi display AMD Eyeﬁnity ‘groups’ can be easily managed from the AMD

CatalystTM Control Center, which is installed alongside the AMD FirePro driver.

y Support for four or more displays is available on almost all FirePro GPUs,

apart from the entry-level AMD FirePro 2270 and AMD FirePro W2100, both

of which support two displays. For six displays an AMD FirePro W600 or AMD

FirePro W9100 is recommended.

1. Single-user Workstations

Gives more visual real estate to view large scale models and multiple applications at the

same time in a single, large workspace. 3, 4 and even 6 high-res displays can be operated

simultaneously and conﬁgured independently in landscape and portrait orientations.

2. Small Workgroups

With a 4 or 6 display array, teams can view documents in their entirety, giving a holistic view

of project data for effective collaboration. The use of thin bezel monitors and bezel correction

in the AMD Catalyst Control Center can help give the appearance of one continuous display.

3. Large Scale Display Walls

Digital signage solutions with 6 or more displays can be found in airports and retail stores

displaying compelling multimedia content. AMD FirePro graphics can also power large-scale

3D presentations with interactive controls or projection mapping.

HOW CAN MY CUSTOMER USE AMD EYEFINITY?

4 Six monitor array (3 x 2)

One big display wall up to 12,228 x 4,320 resolution for

presentations or collaborative meetings.

Supported on AMD FirePro W600 (2D) and W9100 (3D)

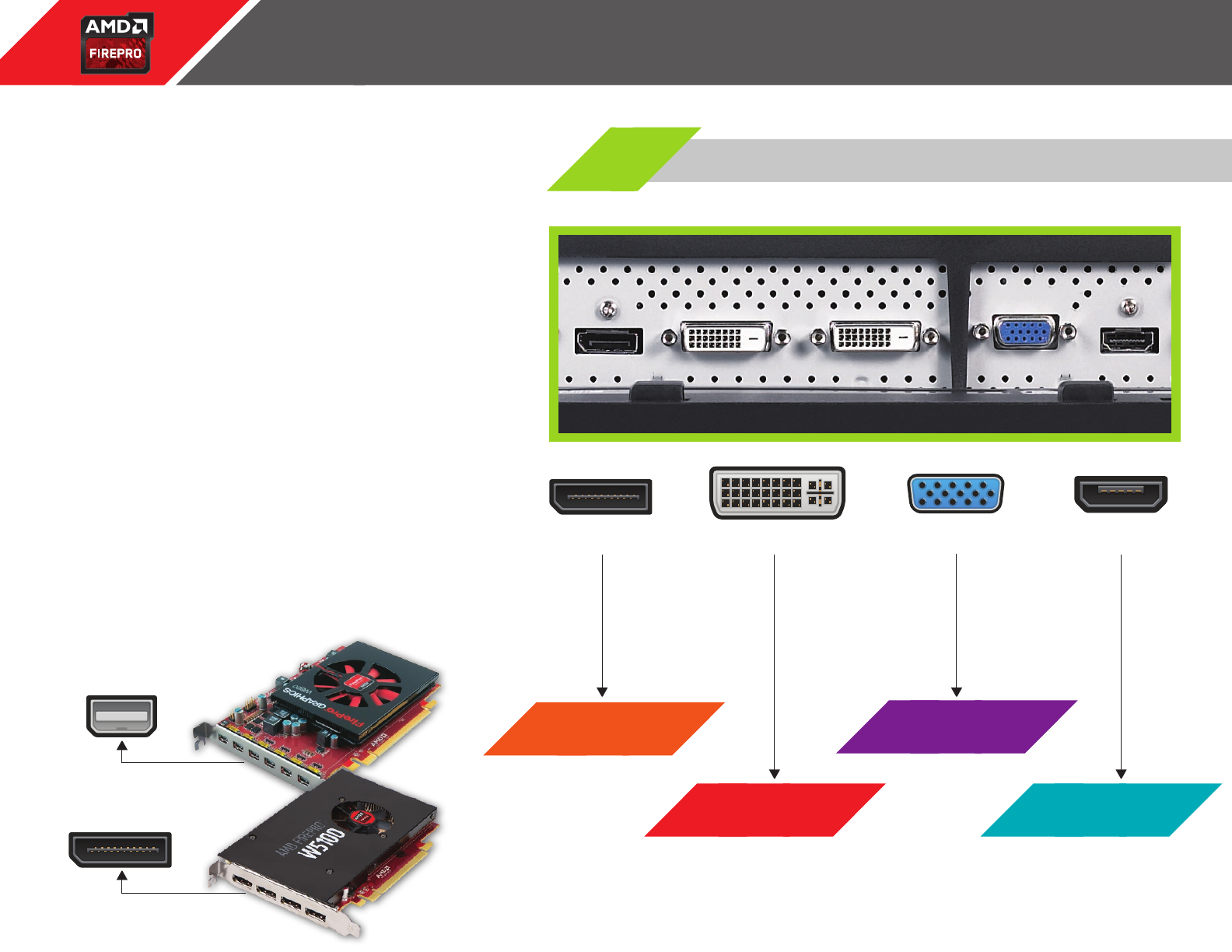

15. HOW TO CONNECT AN AMD FIREPRO GPU TO A MONITOR

WHICH MONITOR PORTS DOES YOUR CUSTOMER HAVE?

DisplayPort DVI VGA HDMI

USE STANDARD DISPLAYPORT

CABLE (WITH OPTIONAL MINI

DISPLAYPORT ADAPTER)

USE STANDARD DVI CABLE

WITH (MINI) DISPLAYPORT

TO DVI ADAPTER

USE STANDARD VGA CABLE

WITH ACTIVE (MINI)

DISPLAYPORT TO VGA ADAPTER

USE STANDARD HDMI CABLE

WITH (MINI) DISPLAYPORT

TO HDMI ADAPTER

All new generation AMD FirePro GPUs use the very latest

DisplayPort 1.2 u standard to connect the GPU to a

monitor or monitors. The digital display interface can

support resolutions up to 4K (4,096 x 2,160) per display.

y DisplayPort connectors come in two different sizes:

standard DisplayPort (a rectangular port with the bottom left

corner cut off) and Mini DisplayPort (a smaller rectangular

port with the bottom two corners cut off).

y Standard DisplayPort connectors are found on most AMD

FirePro GPUs with four outputs.

y Mini DisplayPort connectors are found on AMD FirePro

GPUs with six outputs and low proﬁle four output GPUs. A

Mini DisplayPort to DisplayPort adapter is usually included.

y DisplayPort can also support monitors with older display

standards (VGA, DVI and HDMI) through the use of active or

passive adapters. Some are included with the GPU.

Mini DisplayPort

(six port card)

Standard DisplayPort

(four port card)

16. FURTHER READING - WHITE PAPERS CLICK TO DOWNLOAD

AMD FireP ro W9100 AMD FireP ro W8100

AMD FireP ro W7100 A MD Fi rePro W51 00

AMD FireP ro W2100

AMD FirePro™Professional Graphics for

CAD & Engineering and Media & Entertainment

The new A MD Fir ePro W710 0 grap hics card d elive rs 8G B

of m emory, appl icati on per forman ce an d spe cial f eatur es

that medi a and enter tainm ent an d des ign a nd eng ineer ing

prof ession als n eed to take their proj ects to the next leve l.

In a clas s of i ts ow n, th e AMD FireP ro

W410 0 gra phics card is the best choi ce

for entry -leve l user s who need a boo st in

grap hics perfor mance to be tter a ddres s

thei r evo lving workﬂ ows.

Prof ession al gr aphics star ts wi th AMD

Fire Pro W 2100 graphi cs, d eliver ing

opti mized and c ertiﬁ ed pr ofessi onal

appl icati on per forman ce th at si milarl y-

pric ed co nsumer grap hics l ack.

The new A MD Fir ePro™ W510 0 grap hics card d elive rs op timize d

appl icati on and mult idisp lay pe rforma nce f or mid range users .

With 4GB of ult ra-fas t GDDR 5 mem ory, u sers can ta ckle moder ately

comp lex m odels , asse mblie s, dat a set s or advanc ed vi sual eects

with ease.

With 16GB GDDR5 memo ry an d the abil ity to supp ort u p to s ix 4K

disp lays via si x Min i Dis playPo rt ou tputs ,1the A MD Fi rePro W9100

grap hics card i s the ideal sing le-GP U sol ution for th e nex t gen eratio n

of u ltrah igh-re solut ion v isuali zatio n envi ronme nts.

The new AMD FirePro W8100 workstation graphics card is based on

the AMD Graphics Core Next (GCN) GPU architecture and packs up

to 4.2 TFLOPS of compute power to accelerate your projects beyond

just graphics.

Per formance at ever y price po int.

AMD FireP ro profe ssion al gr aphic s oe r bre akthr ough capabi litie s tha t can help maxi mize produ ctivi ty a nd he lp lo wer co st an d com plexi ty —

givi ng yo u the edge you need in yo ur bu sines s. Ou tstand ing g raphic s per forman ce, c ompute powe r and ultra high- resol ution multi displa y

capa bilit ies al lows broadc ast, desig n and engin eerin g pro fessio nals t o wor k at a whol e new level of d etail , spee d, re spons ivenes s and creat ivity.

AMD FireP ro W4100

AMD FIREPRO

PROFESSIONAL GRAPHICS

FAMILY BROCHURE

A Brief Introduction to

CAD, CAE, CPU, GPU,

API, SDI, BPP, MHz, GHz,

MXM, AFR, SFR, DMU,

DCC, ISV, GLSL, AADC,

GSX, SPEC and SMPTE.

SIMPLIFYING THE WORLD

OF PROFESSIONAL GRAPHICS

A reference for anyone interested in how graphics work and why they’re important, from the experts at AMD.

GRAPHICS 101 –

SIMPLIFYING THE WORLD OF

PROFESSIONAL GRAPHICS

AMD PROFESSIONAL GRAPHICS

INNOVATION IN SOFTWARE QUALITY

AMD CATALYST™ PRO DRIVER

ENGINEERED FOR

RELIABILITY & PERFORMANCE

White Paper | See More and Do More

with AMD Eyeﬁnity

Multi-Display Technology

Table of Contents

INTRODUCTION 2

What is AMD Eyeﬁnity Multi-Display Technology? 2

AMD Eyeﬁnity Multi-Display Technology Usage Scenarios 3

Display Combinations 5

Productivity 6

Commercial and Workstation 7

CAD and DCC Markets 7

Financial 8

Medical 9

Digital Signage 9

EcoSystem 10

Looking Forward 10

AMD EYEFINITY MULTI-

DISPLAY TECHNOLOGY

WHITE PAPER

White Paper | OpenCL™: The Future of Accelerated

Application Performance Is Now

Table of Contents

INTRODUCTION ...................................................................................................2

What Is OpenCL™? ......................................................................................2

Changing the Game .....................................................................................2

GPUs: Not Just for Graphics Anymore .........................................................2

THE “OPEN” ROAD .............................................................................................3

The Preferred Path to Performance ............................................................. 3

 6SHFL¿F3RWHQWLDO%HQH¿WVRIDQ2SHQ$SSURDFK ......................................... 3

OpenCL Has the Momentum ....................................................................... 4

HOW WE GOT HERE ...........................................................................................5

 7KH6WRU\8QWLO1RZ ..................................................................................... 5

OpenCL 1.1: The Turning Point .................................................................... 5

EXPLORING THE POSSIBILITIES ...................................................................... 5

 &$'&$0$(&DQG6FLHQFH$SSOLFDWLRQV ................................................... 5

 '&&0($SSOLFDWLRQV ................................................................................ 7

AMD: LEADING THE WAY ...................................................................................8

 6ROLG6XSSRUWIRU2SHQ&/DQG2SHQ&RPSXWLQJ ......................................... 8

 $0')86,21$38V)XO¿OOLQJWKH8OWLPDWH3URPLVHRI2SHQ&/ ................. 9

HOW TO LEARN MORE ....................................................................................... 9

OPENCL™ - THE FUTURE OF

ACCELERATED APPLICATION

PERFORMANCE

White Paper | DisplayPort™ 1.2 Technology

AMD FirePro™ V7900 and V5900

Professional Graphics

Table of Contents

INTRODUCTION 2

DISPLAYPORT™ 1.2 2

High Bit-rate 2 3

4k x 2k Resolution 4

Stereoscopic 3D 4

Multi-Stream Transport 4

Maximum AMD Eyeﬁ nity Multi-Display Technology Resolution 7

High Bit-rate Audio 7

AMD Advantage 8

SUMMARY 9

DISPLAYPORT 1.2

TECHNOLOGY WHITE PAPER

White Paper | AMD HD3D Pro Technology:

Stereoscopic 3D For Professionals

Table of Contents

INTRODUCTION 2

What is Stereoscopic 3D? 2

About this document 2

Professional Graphics applications of Stereo 3D 2

STEREOGRAPHIC 3D TERMS AND TECHNOLOGIES 3

Active and Passive Stereo 3D 3

Quad-buffer Stereo 3

Frame-Doubling and Frame-Multiplying 4

Stages of Stereo 3D presentation 4

Source 4

Preparation and Transmission 4

Presentation 6

Fitting the stages together 6

NEW STANDARDS FOR STEREO 3D 7

LCD panels and Stereo 3D 7

Standards-based Stereo 3D 8

Further Standardization 8

AMD HD3D PRO - PROFESSIONAL SOLUTIONS FOR STEREO 3D 9

Sources Supported 9

Preparation and Transmission Capabilities 10

Stereo 3D and Multi-GPU synchronization 10

SUMMARY 12

AMD HD3D PRO

TECHNOLOGY: STEREO 3D

FOR PROFESSIONALS

ǯͳͲǦ

Introduction

Display devices with a greater bit depth than the conventional 8-bits per color channel are rapidly

gaining popularity in application areas such as medical imaging, professional photography, graphics

design, movie production, and entertainment in general. What makes these devices attractive to a wide

array of fields is their ability to represent colors with a greater fidelity than it is possible with

conventional display devices. This means what we see in the real world more accurately matches what

we see on the screen, ensuring that design and diagnosis errors due to monitor limitations are

minimized.

In order to benefit from the increased bit depth of these display devices, graphics cards used to drive

them should be capable of outputting higher bit depth information as well. For example, if a display

device supports 10-bits per color channel input, its capacity will not be fully exploited unless the

graphics card outputs a matching bit depth. This is where AMD’s most recent series of workstation

graphics cards come into play by natively supporting the emerging standard for 10-bits per color channel

(or 30-bits per pixel) video output.

In this paper, we first emphasize the necessity of higher bit depths for color critical tasks followed by an

overview of the 10-bit monitors currently available. We then demonstrate how users can easily benefit

from this technology using AMD’s graphics cards capable of 10 bit output.

The Need for 10-bit Displays

Conventional display devices use 8-bits per color channel (or 24-bits per pixel) to display images and

video. Although this amounts to more than 16 million colors, it still corresponds to a fraction of the

colors we perceive in the real-world. This is illustrated in Figure 1, where the green triangle shows the

boundaries of the sRGB 1 color space on the CIE-xy chromaticity diagram. Conventional sRGB compliant

8-bits monitors can only represent the colors that lie in this triangle, while the human eye is capable of

perceiving all the colors in the entire chromaticity diagram. This discrepancy is further emphasized by

the fact that today’s most professional cameras and printers have a color gamut larger than that of sRGB

(such as Adobe RGB2 shown by the red triangle in Figure 1), creating a bottleneck on the display side.

Figure 2 demonstrates this problem where the blue areas in a photograph taken with the Adobe RGB

setting of a camera cannot be accurately represented on a conventional monitor.

To solve this problem, display devices can operate in a color space with a larger gamut than that of the

sRGB. This can be achieved by using purer (more saturated or monochromatic) primaries to stretch the

1 sRGB is a standard c olor space proposed by HP and Microsoft to allow for consistent color reproduction on typical

monitors, printers and the Internet. It has the same primary set as the HDTV also known as ITU-R BT. 709.

2 Adobe RGB is an RGB color space with a larger gamut than sRGB. It is develop ed by Adobe with the printing

industry in mind, as there were many colors that can be printed but not displayed by a smaller gamut color space.

10-BIT VIDEO OUTPUT

TECHNOLOGY

WHITE PAPER

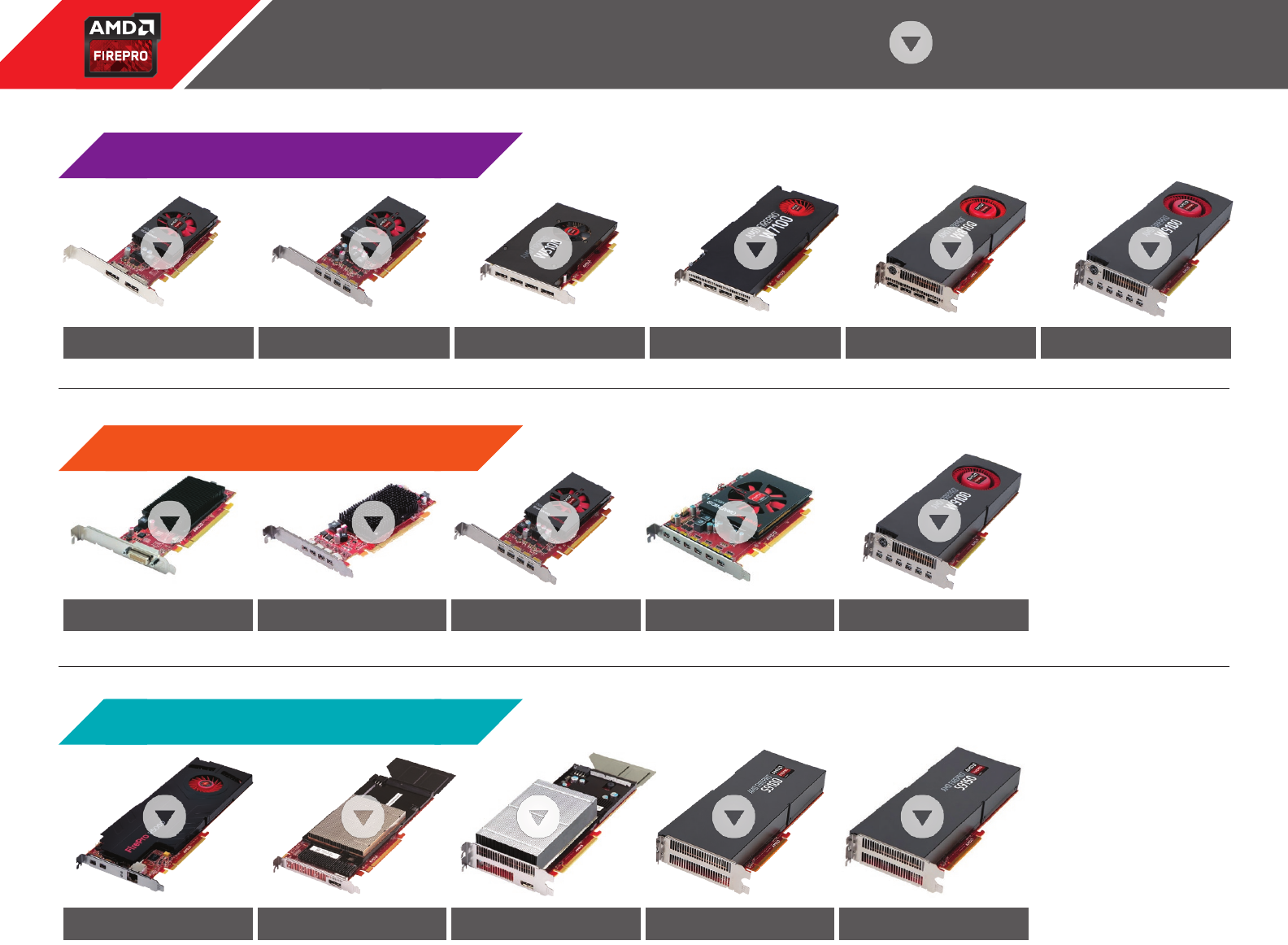

17. FURTHER READING - DATASHEETS CLICK TO DOWNLOAD

GPUs FOR DESKTOP WORKSTATIONS

AMD FirePro W2100 uAMD FirePro W4100 uAMD FirePro W5100 uAMD FirePro W7100 uAMD FirePro W8100 uAMD FirePro W9100 u

AMD FirePro 2270 uAMD FirePro 2460 uAMD FirePro W4100 uAMD FirePro W600 uAMD FirePro W9100 u

AMD FirePro R5000 uAMD FirePro S7000 uAMD FirePro S9050 uAMD FirePro S9100 uAMD FirePro S9150 u

GPUs FOR MULTIPLE DISPLAYS

GPUs FOR SERVERS (DATA CENTERS)

18. DISCLAIMERS AND ATTRIBUTIONS

The information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions and typographical errors.

The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and roadmap changes, component and motherboard version changes, new model and/or product

releases, product differences between differing manufacturers, software changes, BIOS ﬂashes, ﬁrmware upgrades, or the like. AMD assumes no obligation to update or otherwise correct or revise this information. However, AMD reserves the right to

revise this information and to make changes from time to time to the content hereof without obligation of AMD to notify any person of such revisions or changes.

AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION.

AMD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. IN NO EVENT WILL AMD BE LIABLE TO ANY PERSON FOR ANY DIRECT, INDIRECT, SPECIAL OR OTHER CONSEQUENTIAL

DAMAGES ARISING FROM THE USE OF ANY INFORMATION CONTAINED HEREIN, EVEN IF AMD IS EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

ATTRIBUTION

© 2015 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc. in the United States and/or other jurisdictions. Direct X, Microsoft and Windows are

registered trademarks of Microsoft Corporation in the US and other jurisdictions. OpenCL is a trademark of Apple Inc. used by permission by Khronos. PCI Express and PCIe are registered trademarks of PCI-SIG Corporation. Other names are for

informational purposes only and may be trademarks of their respective owners.

AMD Fire Pro SALES TOOL

Navigation menu

Versions of this User Manual:

Views

Navigation
