ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
1
Arctic
MANUFACTURING LTD.
Parts Catalogue
3323 Hart Highway, Prince George, B.C. V2K1M8
Phone (250) 962-9631 • Fax (250) 962-7500
Januay 31, 2018
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
2
Arctic Logging Trailers Suspensions 88
LT-20A-LT-22 Tandem Axle Pole Trailer 4, 5 Neway TA Spring Walking Beam 89
TA-26.1 Tri-Axle 6, 7 Arctic Single Axle Air Ride: JC9.1 / TA26.1 90
QD-33.4 Quad Axle Long Logger 8 Hendrickson Turner 91
LT-24TR Tridem Pole Trailer 9, 10 Ridewell 240 30K Overslung 92, 93
Arctic Mechanical Suspension / Walking Beams 11 - 18

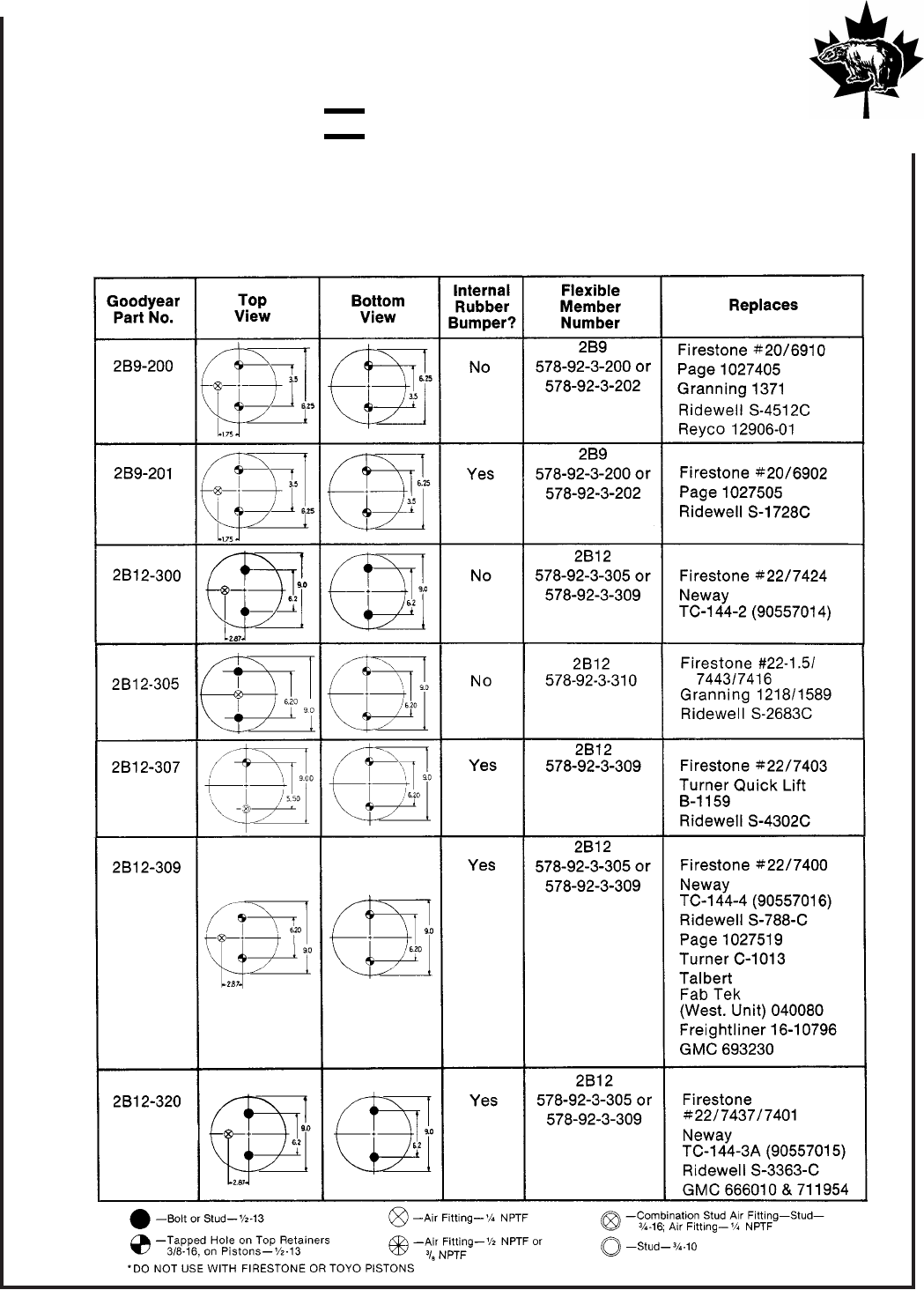

QD-32 Quad - Mech Short Logger 19 - 25 Air Bag Identication 95
JC-9.1 Single Axle Jeep 26
JC-17 Tandem Axle Jeep 27
On-Board Electronic Scale Systems 96
Arctic Logging Equipment 28 Vulcan / StressTek 97, 98
Stakes & Extensions 29 Vishay / SI 99
Stake Hardware 30
Bolster Hardware 30-31 SAF Holland 5th Wheel, King Pin, Landing Gear 100
Long Log Bunks 32 2500 Series 5th Wheel Head 101
Short Log Stakes, Drop-In Pocket 33 3500 Series 5th Wheel Head 102
Short Long Bunks, Drop-In Pocket 34 King Pins 103
Long Long Bunks: Non-Trip 35 - 36 Landing Gear 104
Bunk Hardware 37 - 38
Mudap & Fender 42 - 44 Turntables 105
Premier Manufacturing
Arctic Truck Equipment 45 Hitches 106
Cab-Guards, Tool Box & Tray 46 -48 Premier Pintle Hitches 107, 108
Cab-Guard Mount Hardware 50 Reach Hinges 109, 110
Buttery Bolster & Misc 51 - 54 Draw Bar Eyes 111, 112
Truck Bunks 55, 56
Wide Load Light, Load Pipes 57, 58
Sliders, Open Rail & Center Pin 60 - 63
Bunk Air Lock 64
Tail Aprons, Tail Light Boxes 65
Jack-Knife Stingers, Tail-Frame Caps, Hitch/Chain
Plates
66, 66
Stake Break, Extension Pull-Down 67
Low Bed Ramps 67
Arctic Logging Trailer Equipment 68
LT-22/25 Trailer Body 69
Trailer Hardware 70, 71, 72
Trailer Bunks 73, 74
Trailer Reach’s 75
Trailer Reach Parts 76, 77, 78, 79, 80
Trailer Suspension Parts 81, 82, 83
LT-22/25 Glider 84
Arctic Trailer Components 85
Trailer Hardware 87
Parts Book Index
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
3
Arcitc Mfg Ltd
Trailer Model / Sub Asembles
LT-20 Tandem Pole Trailer AML3600
LT-22 Tandem Pole Trailer AML360-1 AML3601-ABS
LT-22AB Alberta Tandem Pole Trailer AML3601-89-ABS
LT-24 BC Tridem Pole Trailer: all 77" track axles
Walking Beam Arctic AML7600 AML7600-ABS
Air-Ride Air-Ride (-2004) Hendrickson AML7600-A
Air-Ride Air-Ride (+2005) Ridewell AML7600-AL AML7600-AL-ABS
LT-24AB Alberta Tridem Pole Trailer (+2000)
Walking Beam (+2000) AML7606-ABS AML7606-ABS-89
Air-Ride (-2004) Hendrickson AML7606-AL-ABS
Air-Ride (+2005) Ridewell AML7606-AL-ABS
JC-9.1 Single Axle Log Jeep AML8650 AML8650-ABS
JC-17 Tandem Axle Log Jeep
Walking Beam - Arctic W/B AML9600B
Spring Beam Neway Susp AML9600B
Air-Ride (-2004) Henderickson AML9600B-ABS
Air-Ride (+2005) Ridewell AML9600C-ABS
JC-34 Tandem Jeep Reverse B
77" track axles +(1995) AML9606-B-ABS
89" track axles AML9602-A-ABS
TA-26.1
70" track axles (-1994) AML4600
77" track axles +(1995) AML4651B
77" track axles +(1995) AML4651D
AML4651D-ABS
AML4651D-AR
AML4651D-L-SL-ABS
QD-32 Quad Short Logger
Walking Beam AML6605WB-ABS
Air Ride AML605AR-ABS
QD-34 Quad Long Logger AML4700
AML4700-SL
TR-48 BC Tridem Hay-Rack (drop frame)
Air-Ride (-2004) Hendrickson
Air-Ride (+2005) Ridewell
TR-48AB Alberta Tridem Hay-Rack (straight frame)
Air-Ride (-2004) Hendrickson AML6602-ABS
Air-Ride (+2005) Ridewell AML6602-ABS
TB-48QD Alberta Quad Hay-Rack
Arctic Air-Ride on Lift Axle (-2015) AML6600Q-ABS
Ridewell Air-Ride on Lift Axle (+2015)
Ridewell Air-Ride rear Tridem Group AML6602-ABS
HR-48 BC Tridem Drop Frame Hay-Rack O/S Suspension AML6600-ABS
HR-51 BC Tridem Hay-Rack Drop-Frame U/S Suspnsion AML6604B-ABS
AML6604D-ABS
May 1995 77" Track Axles Manditory in BC
May 2000 ABS Manditory in Canada for trailers
May 2000 89" Track Axle Manditory in Alberto for Logging
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
4

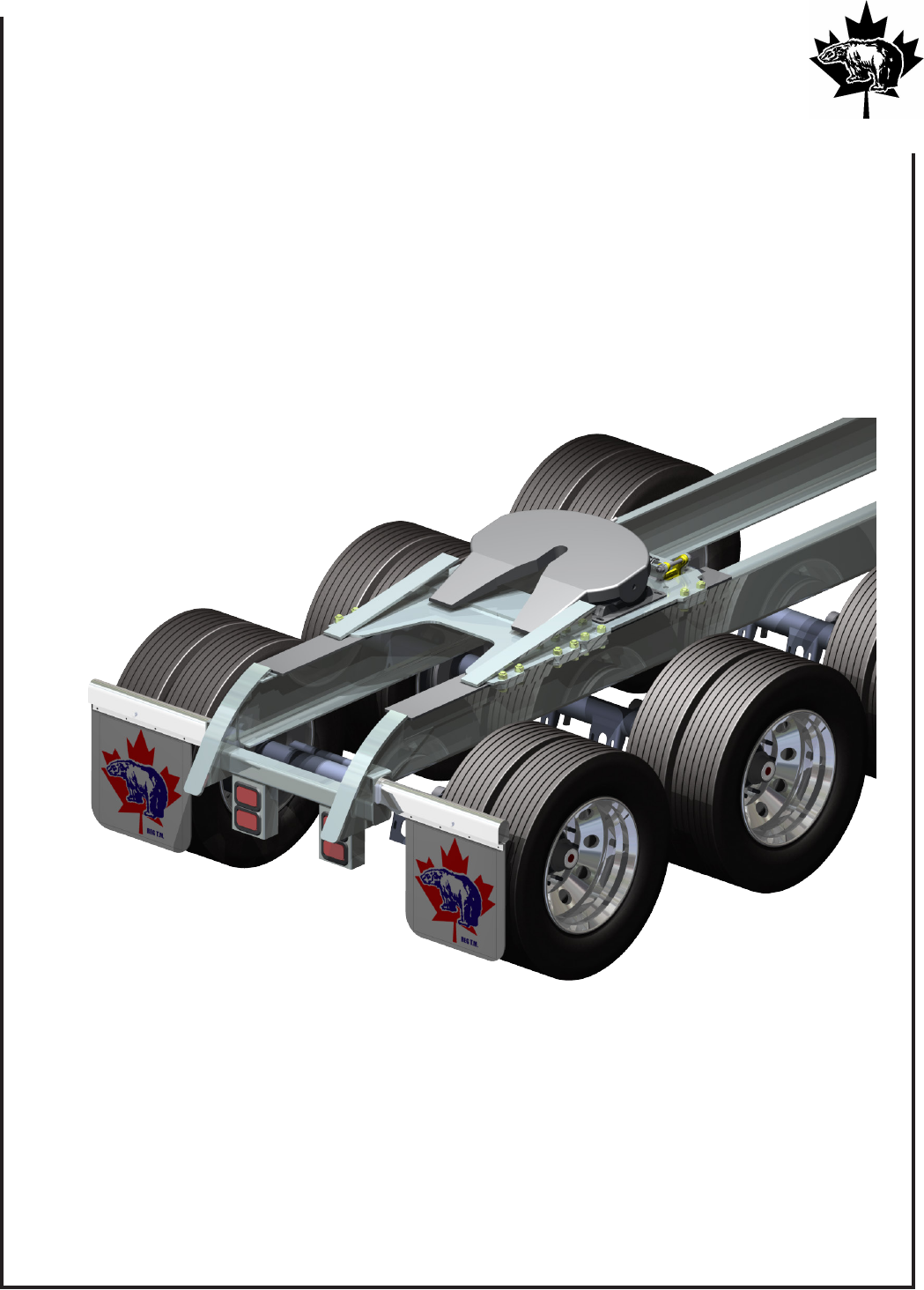

ARCTIC
LOGGING TRAILERS
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
5

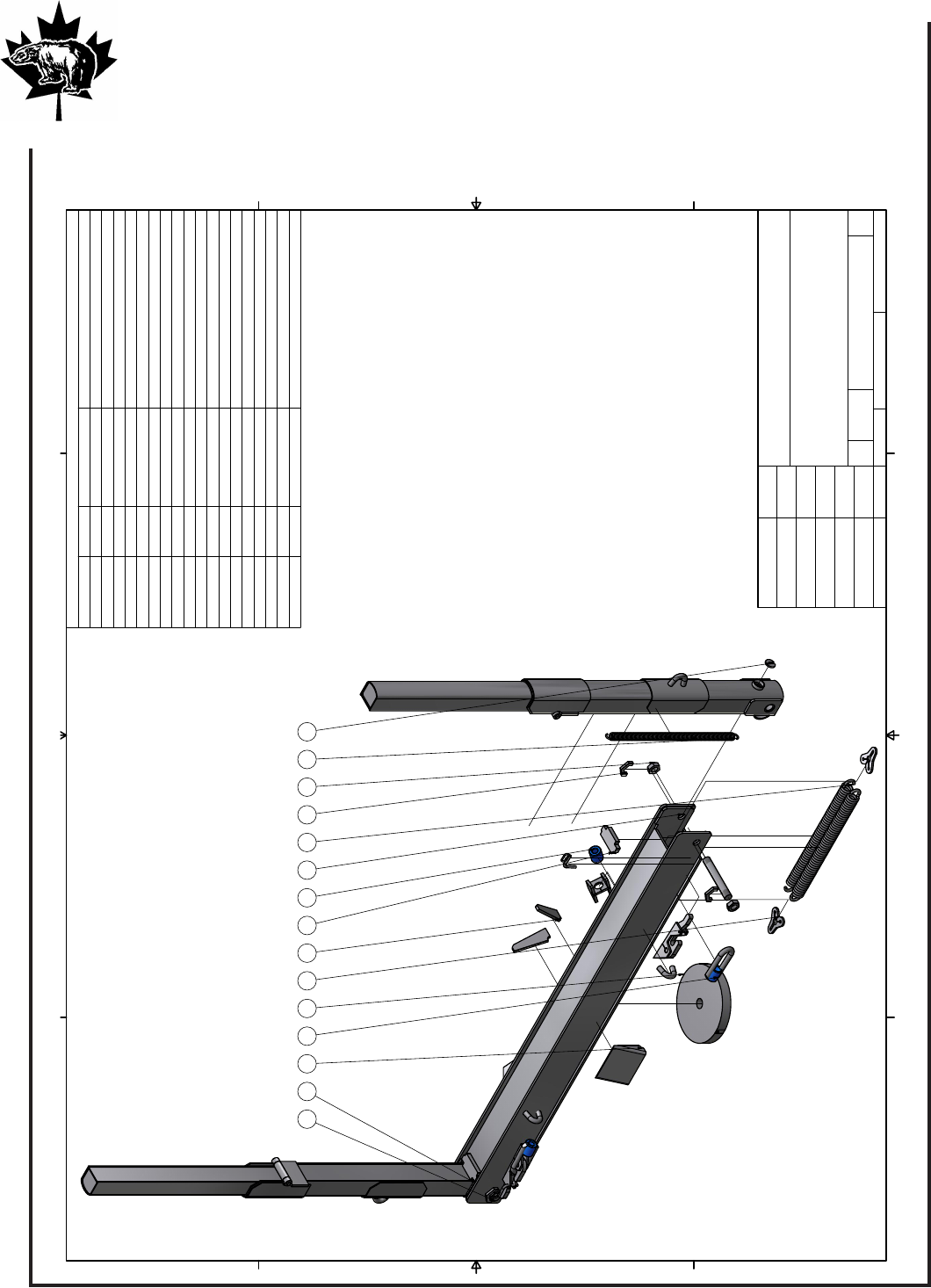

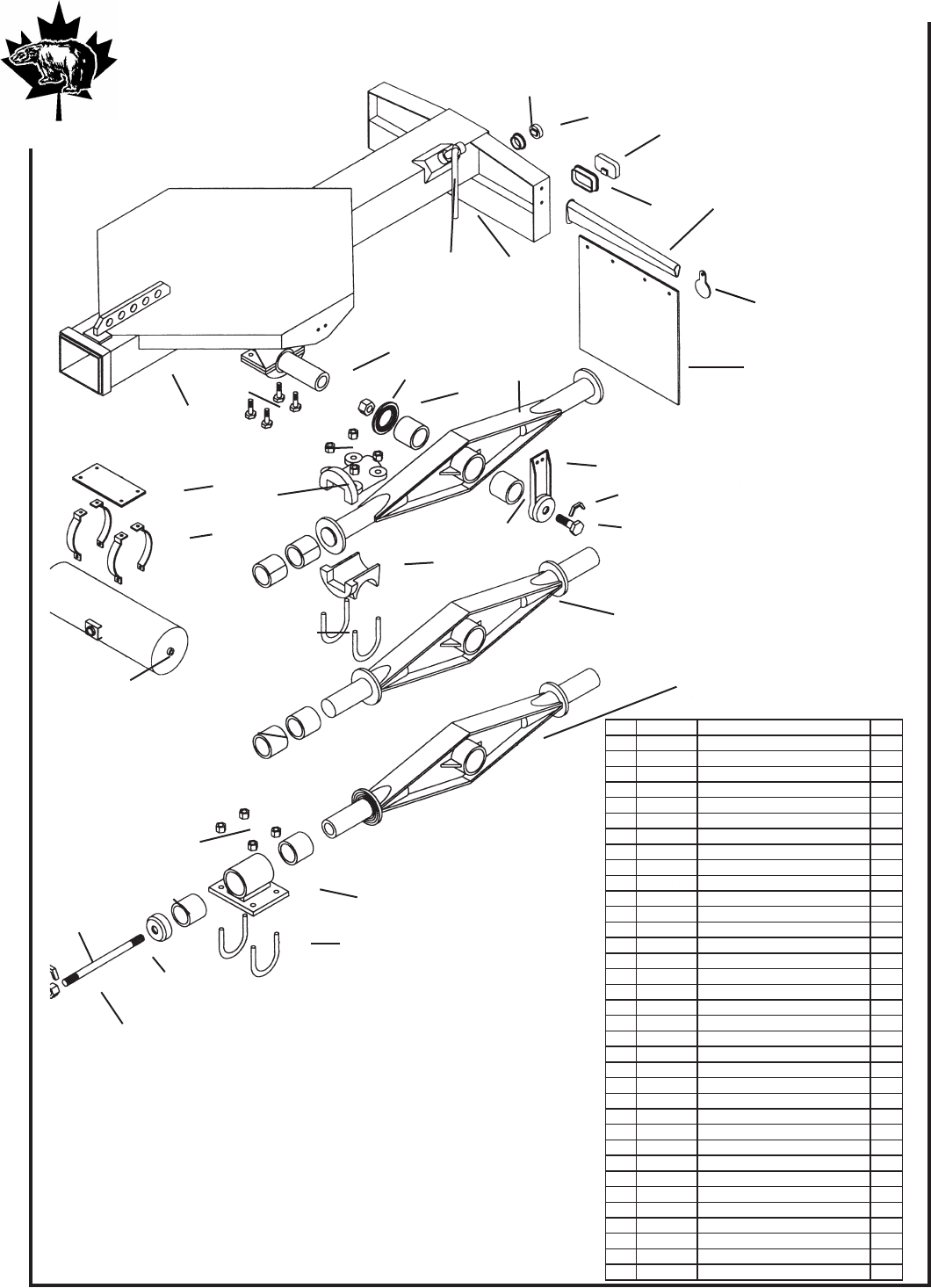

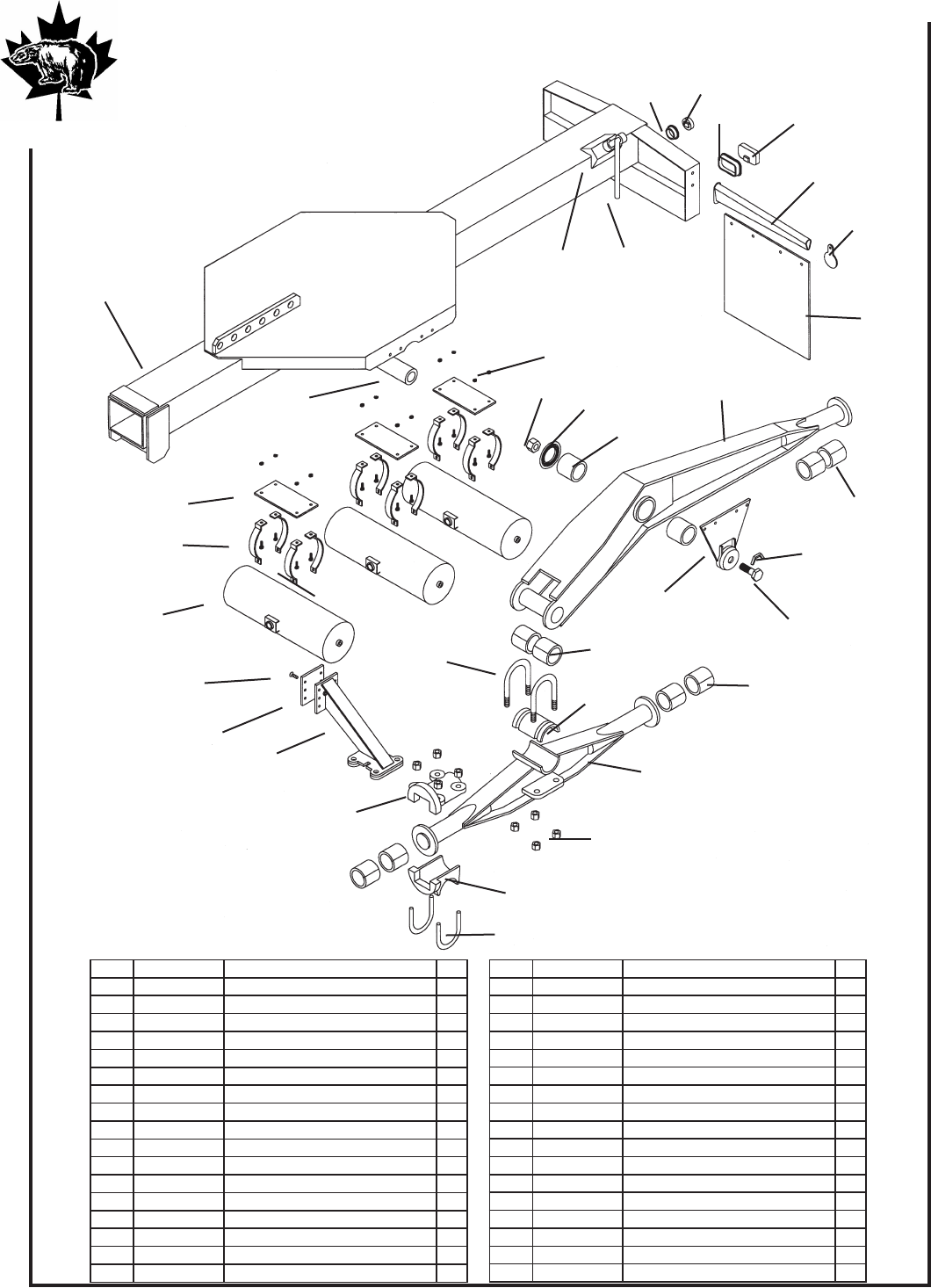

ARCTIC LT-20A & LT-22
ASSEMBLY
1
2
3
45
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
15
11
17 ITEM PART NUM PART DESCRIPTION QTY
1 DOM73-7807 2 1/2” GROMMET 3
2 DOM73-5055 2 1/2” RED SEALED BEAM 3
3 DOM73-5214 RECTANGULAR SEALED BEAM 4
4 DOM73-7862 RECTANGULAR GROMED 4
5 AML1400 SWIVEL KING 2
6 DOM71-6042 REFLECTOR 2
7 AML1410 MUD FLAP 2
8 AML3042 CORNER CLAMP HANDLE 1
9 AML3040 CAST CORNER REACH CLAMP ASSY. 1
10a AML3017 TRUNNION SHAFT 71” TRACK 1
10b AML3017L TRUNNION SHAFT 77” TRACK 1
11 AML3018 TRUNNION NUT 2
12 AML3524 STEP RING, 3 1/2” ID 2
13 AML3554C WALKING BEAM, 54” INVERTED CAP 2
14 AML3526 OUTBOARD LEG 2
15 AML3528 KEEPER 2
16 AML3525 TRUNNION BOLT 2
17 AML3520-80 BUSHING, 80 DURO, 3.5” ID 12
18 AML3534 WALKING BEAM AXLE ADAPTER 4
19 AML3548 ARCTIC W/BEAM “U” BOLT 8
20 AML3532 WALKING BEAM TOP END CAP 4
21 AML3541-2 DEEP NUT, 1” UNF8 8
22 BLT8C12-40 3/4 X 2 1/2” UNC8 BOLT 8
23a AML3002 TRAILER BODY - 71” TRACK 1
23b AML3003 TRAILER BODY - 77” TRACK 1
24 AMR3005-03 AIR TANK MOUNTING PLATE 2
25 AML3031-1 AIR TANK CLAMP BRACKETS 4
26 AML3030 AIR TANK, 26” X 9 1/8 2
27 AML3554BH WALKING BEAM 54” 2
28 AML3554 WALKING BEAM 54” 2
29 AML3541 DEEP NUT 3/4” 8
30 AML3530 WALKING BEAM END BEARING 4
31 AML3540 U BOLT 3/4” 8
32 AML3527 END COMPRESSION CAP 4
33 AML3564 COMPRESSION ROD 4
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
6

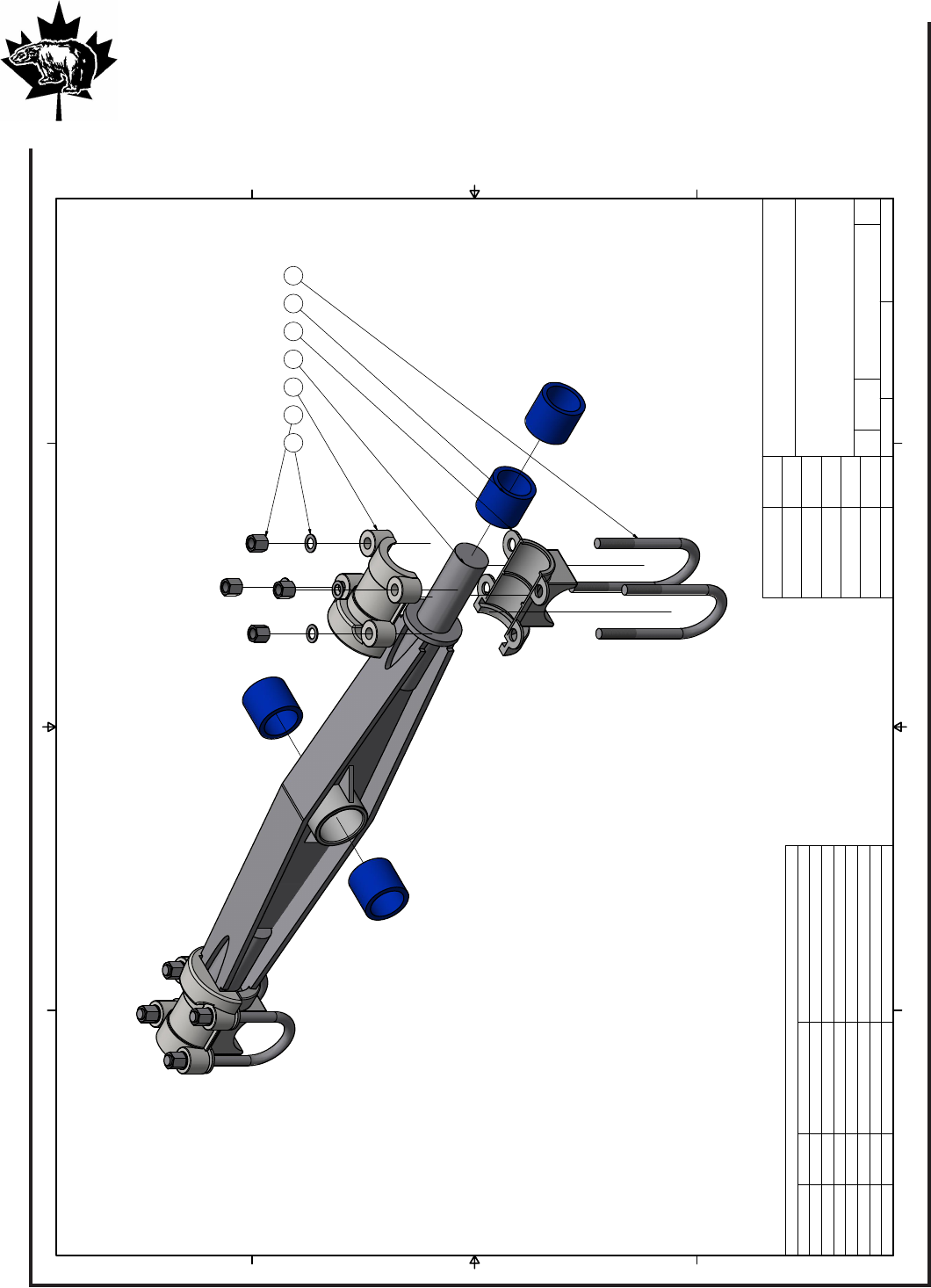

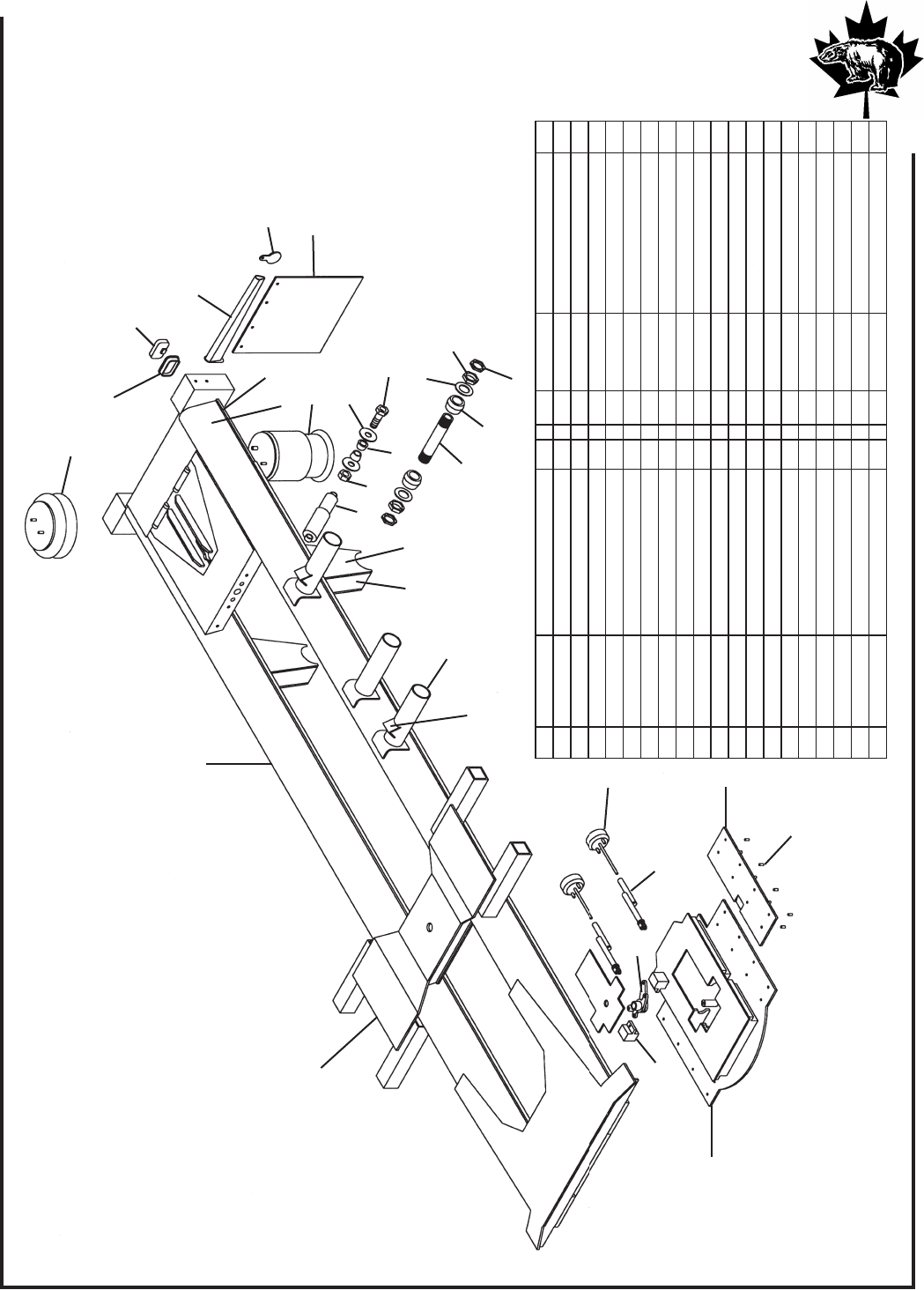

DETAIL A
SCALE 1 / 8
DETAIL B
SCALE 1 / 8
DETAIL C
SCALE 1 / 8
A
B
C
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 2
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair Stunder
Blair
09/02/2005
10/02/2005
10/02/2005
10/02/2005 DWG NO

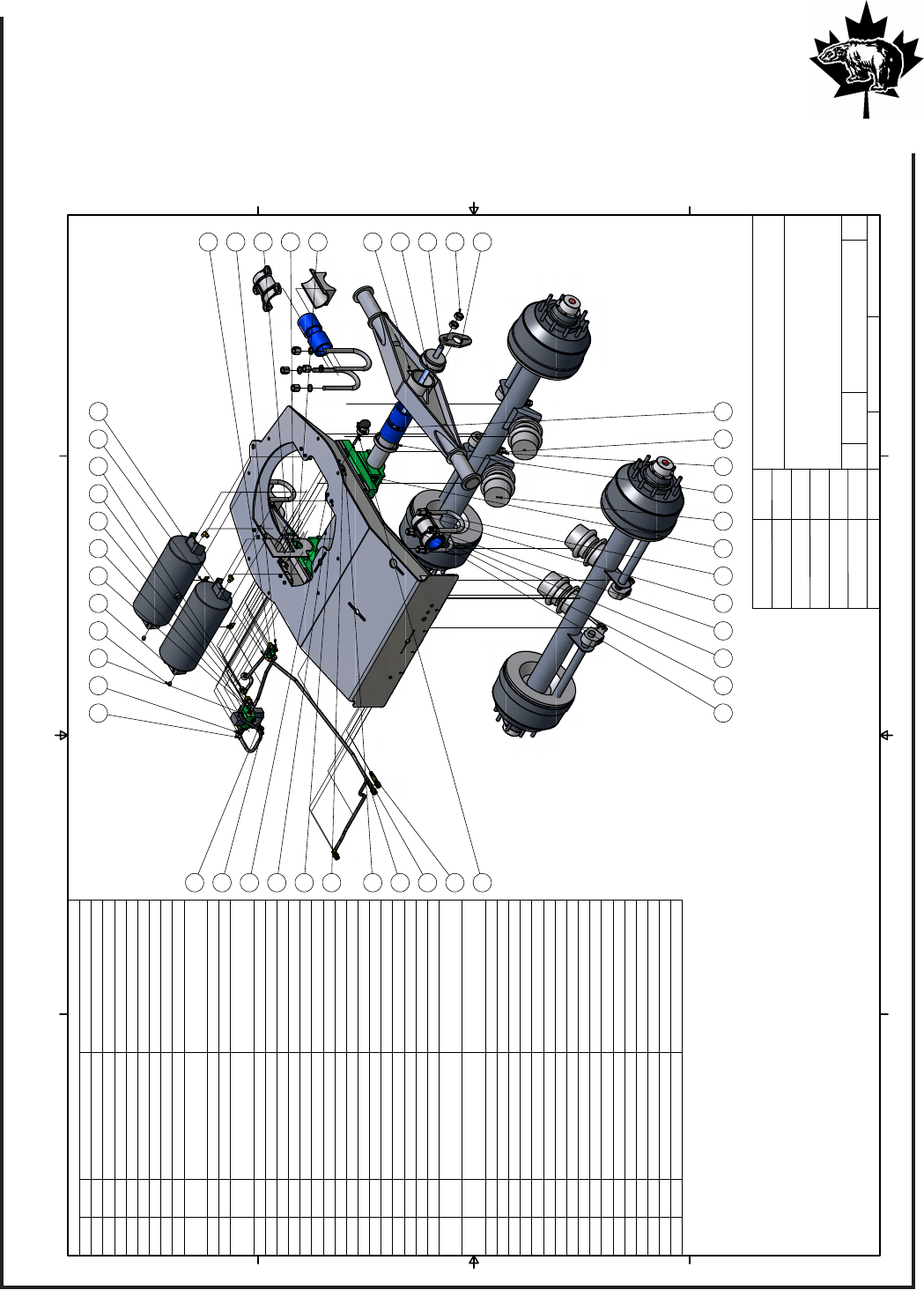

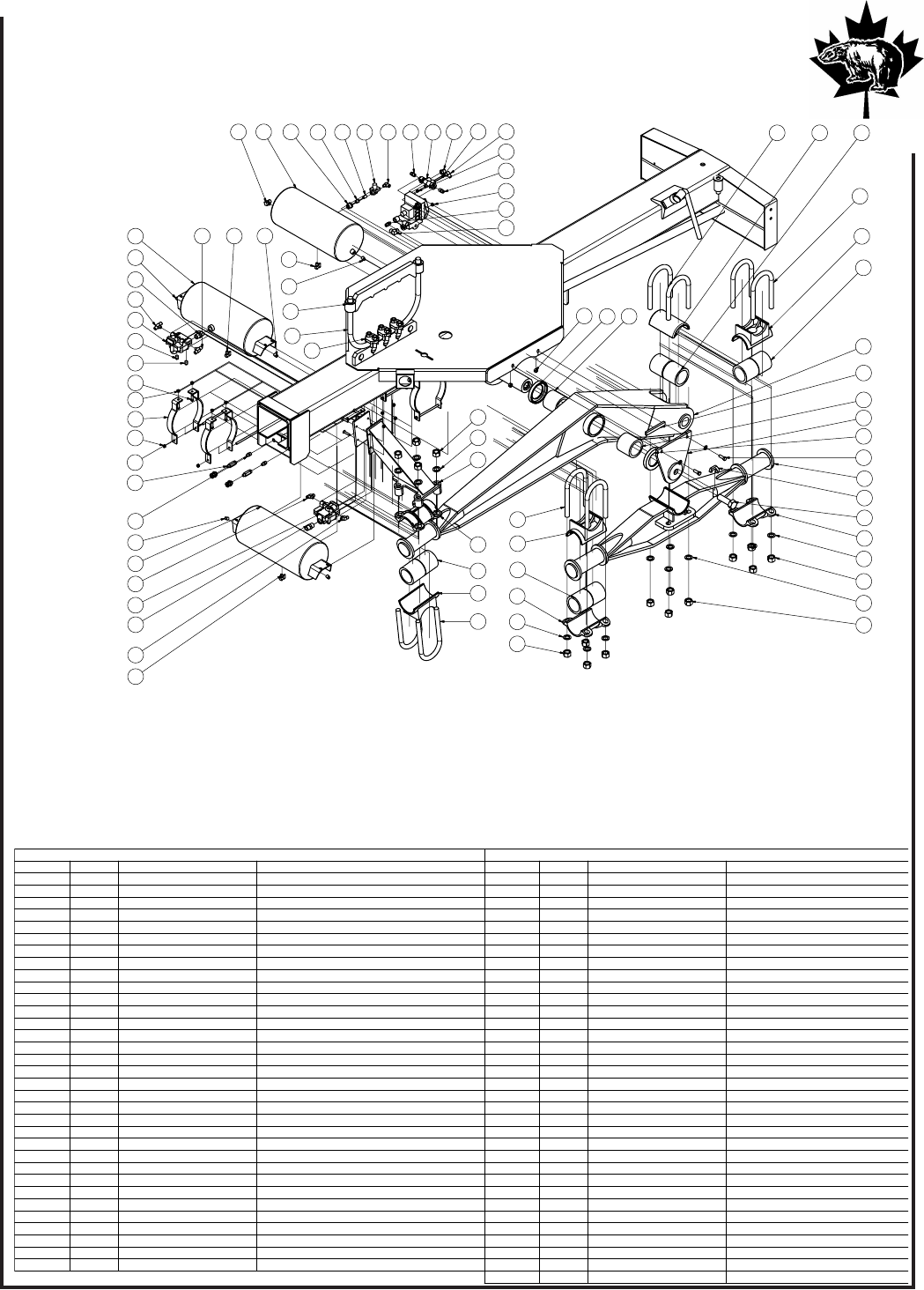

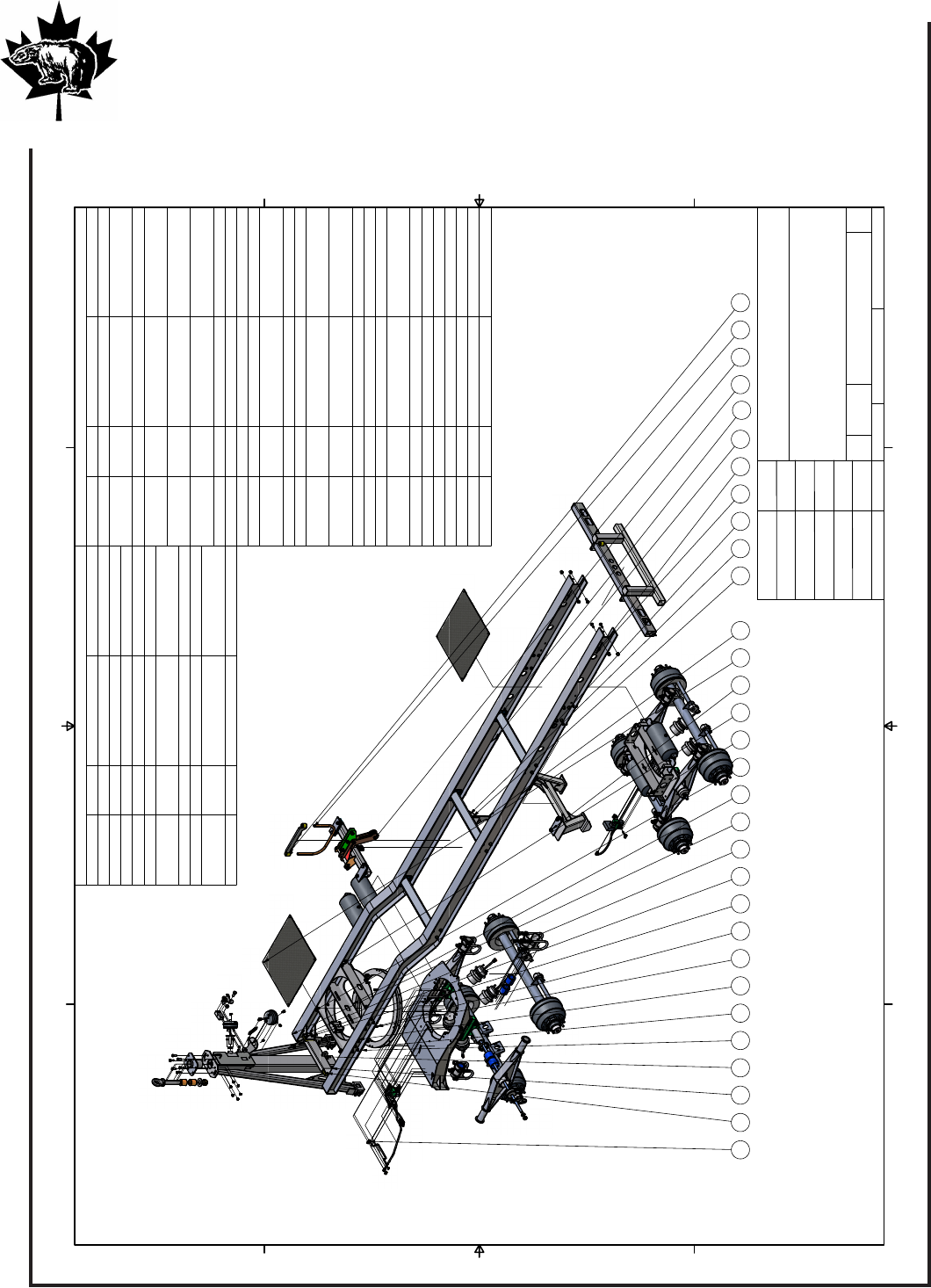

AML4651D-L-ABS-SL explosion
TITLE
TA-26.1 192" Tri-Axle Short-Logger with
Haldex 4S/2M ABS
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
21 44
41
46
47
43
38
7272
71
69
70
69
68
67
40
39
37 37 36 36 35
58
59
60
43
4360
58
59
3
1
16
7
18
19
17
8
19
20
30
19 48 55 62
17
25254 22 24
23
23
23
63 37 37
57
56 36 36
42 22 24 24
23
41
43
38
23 25 25 23
24
22
22
44
21
45
23
38
21
43
22
23
5
52
5149
10
10
30
19
14
13
34
15
6
12132766
29
34
11
13
15
14
19
30
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
7

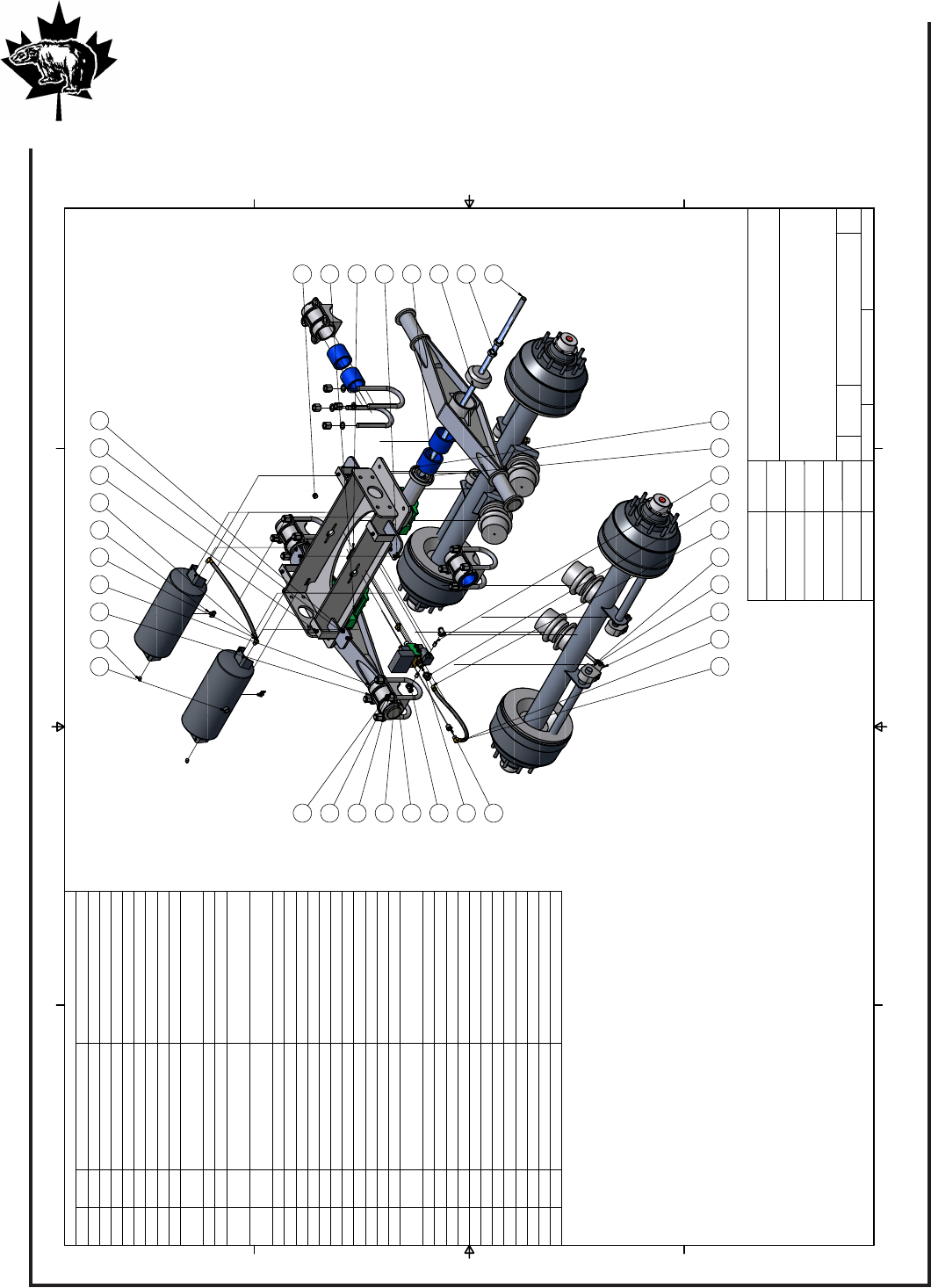

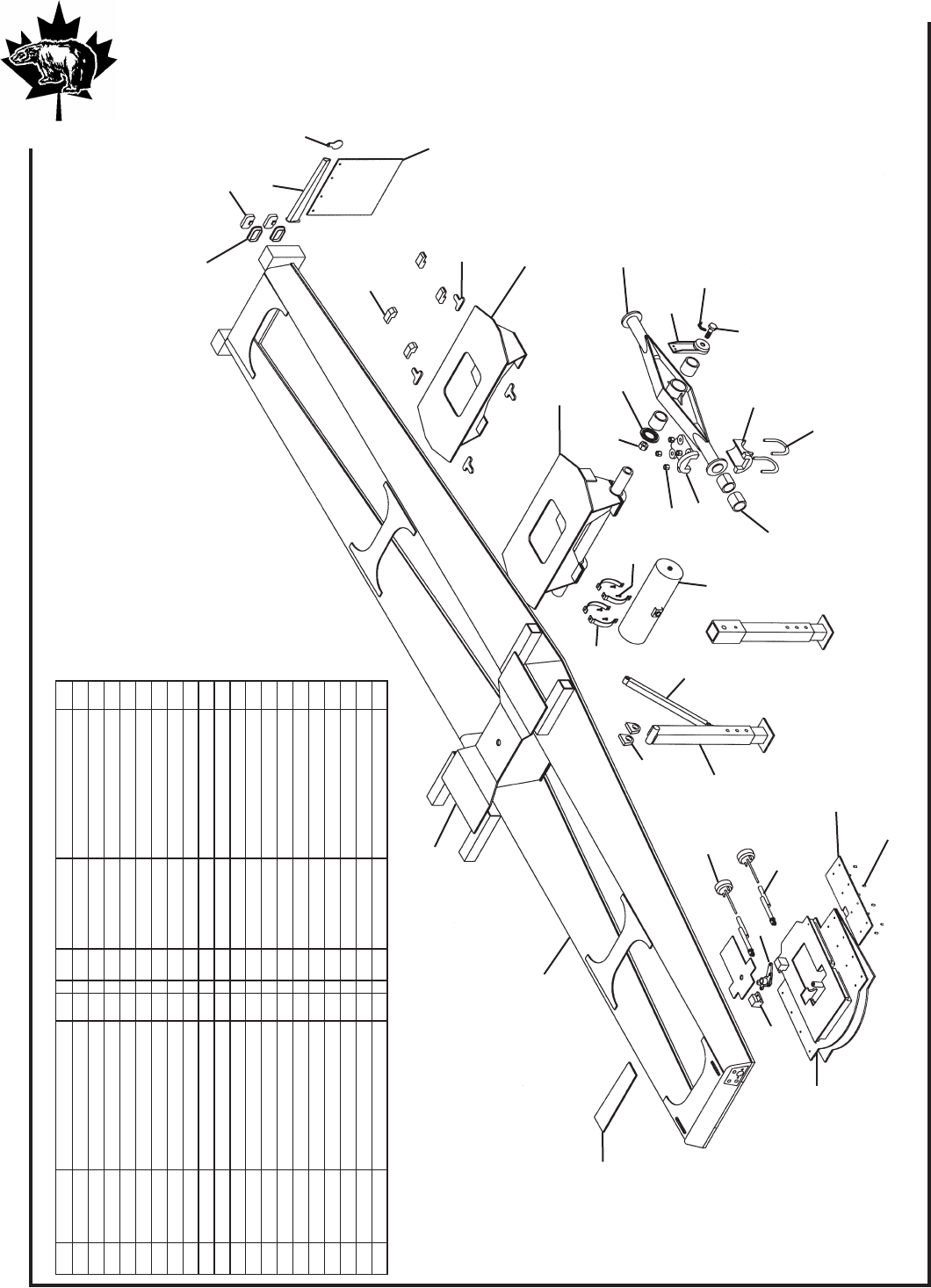

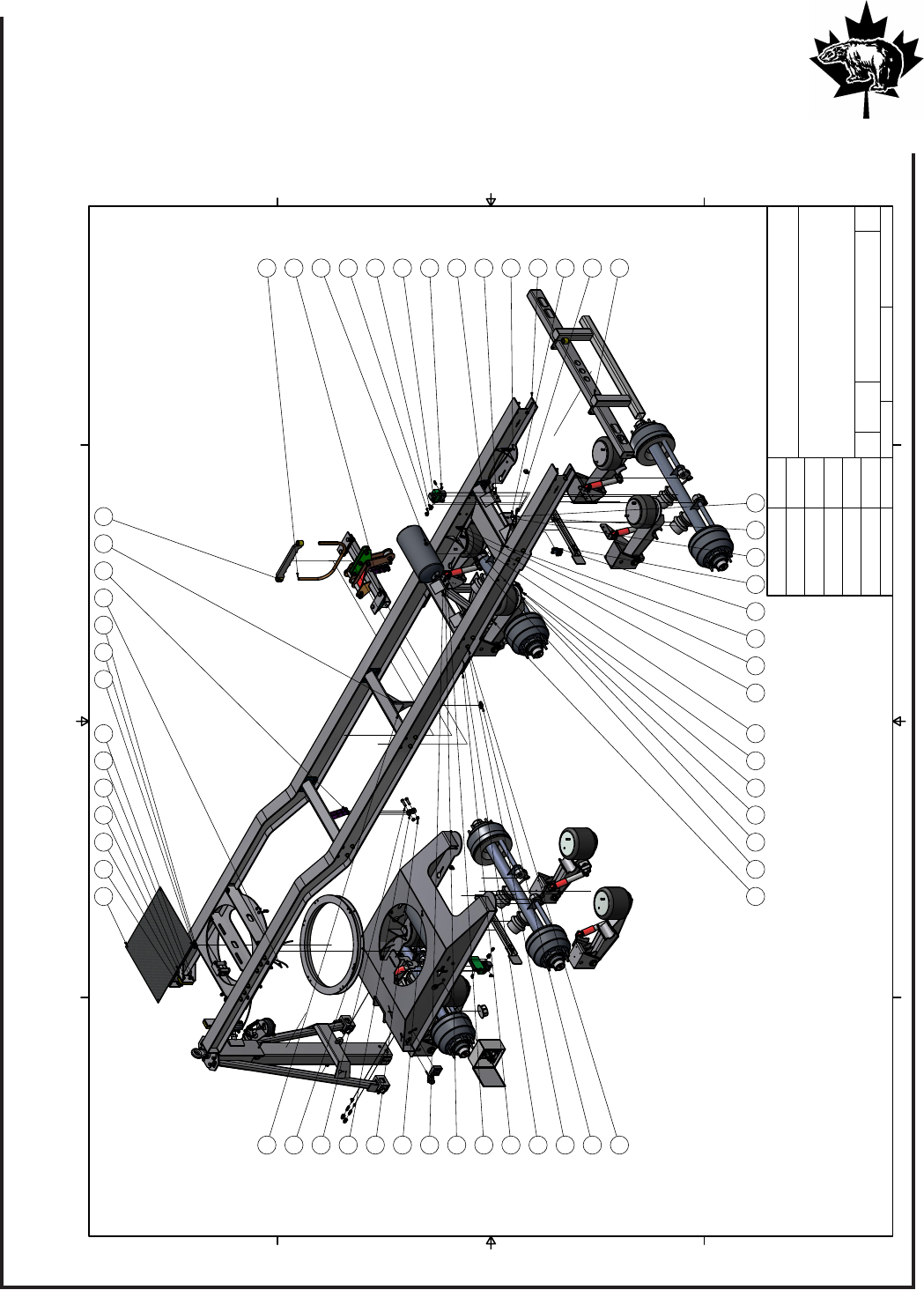

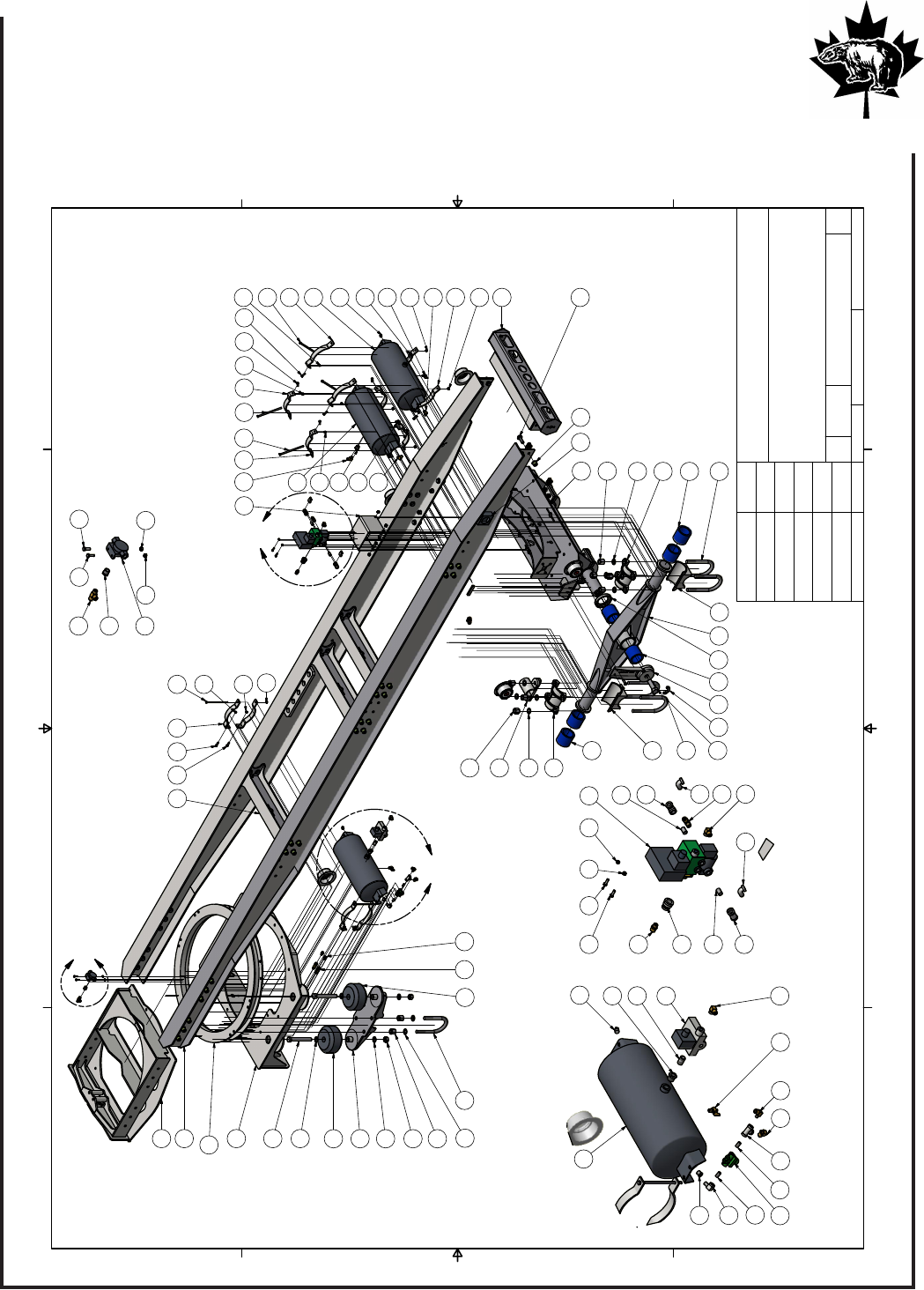

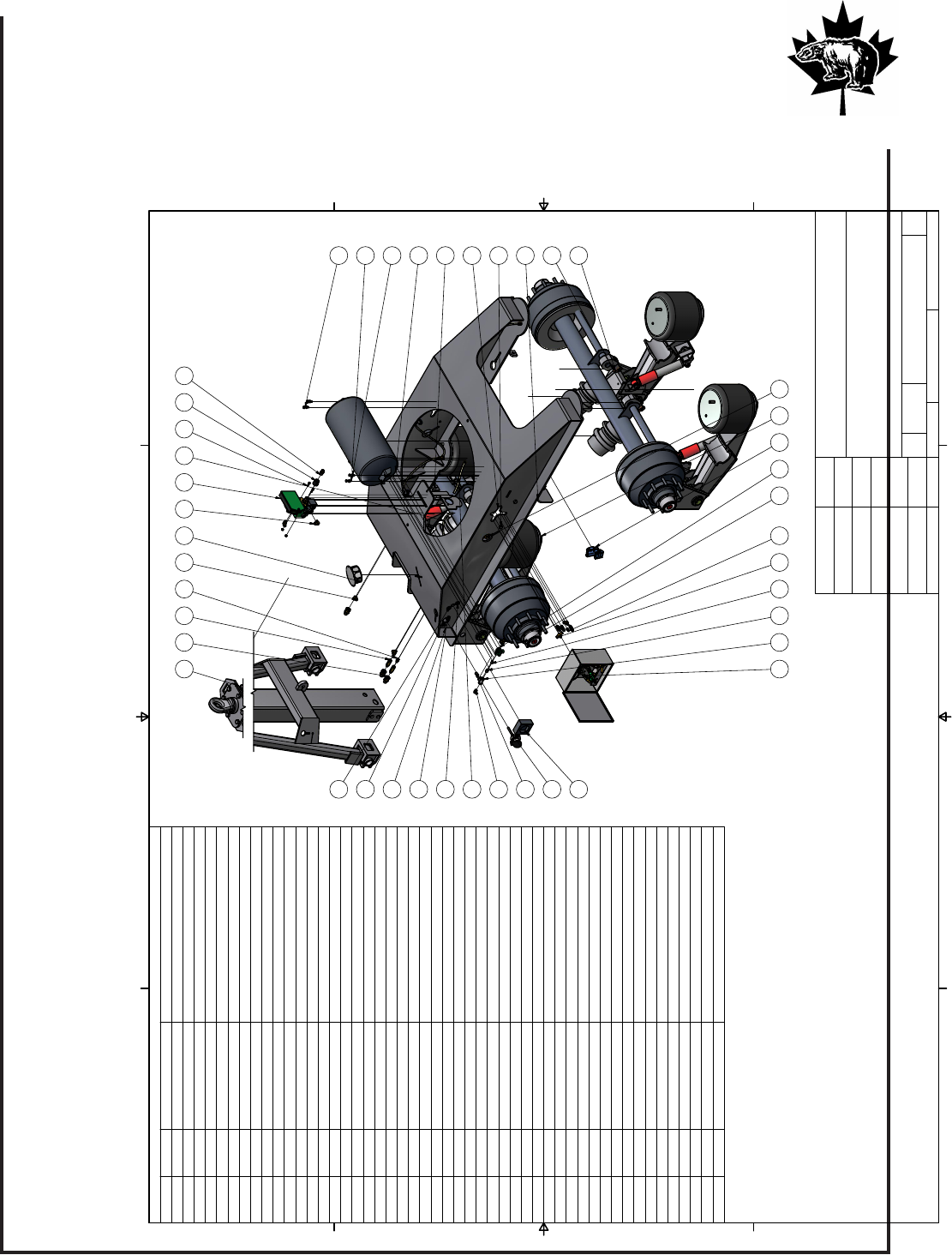

Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 1 AML4001D-L T/A Frame Rail (LH) 196" W/Base
21AML4001D-LR
31AML4101D Tri-Axle Front Cross Member
43 AML4040D T/A Cross-Member
5 1 AML4061B Tri-Axle Light Box, Bolt Mount
6 2 AML3554-D Walking Beam, 54" Dbl Ring
71 AML4230D T/A Lower T/Table Frame
8 2 AML4250D T/A Axle Adapter, R-Block Susp.
9 3 HDTD22FC167-WY710-775 Dana Axle 77.5" Track, 10 stud bud hubs
10 1 AML4500E Tri-Axle Inboard Leg: W/Beam
11 2 AML4520C Tri-Axle Limit Spacer, #2 Axle
12 2 AML3524B Step RIng, High Volume
13 12 AML3520-U Bushing: 3 1/2" id x 4 1/2" od x 4"
14 4 AML3533 Top Cap Casting, 3 1/2" Shaft
15 4 AML3535 Axle Adapter Casting, 3 1/2 Shaft, 5" Round Axle
16 1AML4239 Jost Turn-Table, 39", 22,000 lb Cap
17 4AML6520C Load Cushion, Single Height
18 4 BLT8F16-128 1 X 8 UNF8 Hex Bolt
19 28 BLT8FW16 1 SAE Gr 8 Flat Washer
20 4BLT8FLNT16 1 SAE Gr 8 Lock But
21 3 AML3030 Air Tank
22 12 AML3031 Tank Clamp Bracket
23 18 BLT8CLNT06 3/8 UNC8 Lock Nut
24 6 BLT8C06-128 3/8 X 8 UNC Gr 8 Cap Screw
25 12 BLT8C06-20 3/8 X 1 1/4 UNC 8 Hex Bolt
26 2 AML3548 Arctic Walking Beam U-Bolt
27 2 AML3526 Out-Board Leg
28 2 AML3505 Stopper: Out-Board Leg
29 2 AML3525 1 1/4" UNC8 Trunnion End Bolt
30 20 AML3541-2 1" UNF8 Deep Nut
31 4BLT8CLNT08 1/2 UNC8 Lock Nut
32 4BLT8C08-24 1/2 X 1.5
33 6 BER15431 30/30 Maxi Chamber
34 6 AML3548B U-Bolt 1" x 10 1/2 Leg x 5" Rnd Top
35 1BERN9000CB FFABS Valve, PLC-ECU
36 4BLT8CLNT05 5/16 UNC8 Lock Nut
Parts List
ITEM QTY PART NUMBER DESCRIPTION
37 6BLT8C05-16 5/16 X 1
38 3 BER12110 Drain Cock
39 1PIPRC12-08 Reducer Coupler, 3/4 - 1/2 NPT
40 1WHF1868X08 Male Connector: 1/2 - 3/8 MNPT
41 2 PIPRB12-08 Reducer Bushing, 3/4 - 1/2
42 1WHF1869X08 Male Elbow 90: 1/2 x 3/8 NPT
43 5WHF1869X06X6 Male Elbow 90: 3/8 - 3/8 NPT
44 3 PIPPP06 Pipe Plug, 3/8 MNPT
45 1 PIPPP12 Pipe Plug, 3/4" MNPT
46 1 PIPCN08 Close Nipple, 1/2" MNPT
47 1 BER364140112 ABS-Relay Valve 2 - Port
48 2 AML3547 Arctic Walking Beam U-Bolt
49 1MIS2463-P Poly Light Box, Single 2 1/2"
50 2 BLT8CNT05 5/16 Gr 5 Hex Nut
51 52 BLTHPCF-R24U 3/4" Huck Collar
52 52 BLTHP8F-DT24-112 Gr 8 Huck Bolt: 3/4 x 0.500" - 1.00"
53 4BLT8C12-32 3/4 X 2 UNC 8 Bolt
54 8 BLT8CLNT12 3/4 UNC Lock Nut
55 2 BER11480 In-Line Filter, 1/4 FMNPT - 1/4 MNPT
56 1 BER12310 Quick Release Valve
57 1 PIPRB08-06 Reducer Bushing, 3/8 - 1/4
58 2 PIPCN06 Close Nipple, 3/8 MNPT
59 2 PIPPT06 Pipe Tee, 3/8 FMNPT
60 2 PIPSE06X90 Street Elbow: 3/8" x 90
61 2 BLT8FW05 5/16 SAE Flat Washer
62 2 WHF1868X06 Male Connector: 3/8 - 1/4 MNPT
63 1 WHF1871X06X06 M/Branch Tee, 3/8 - 3/8 MNPT
64 1 WHF1872X06X06 Male Branch Tee: 3/8 - 3/8 NPT
65 1 WHF1870X06X6 FM Connector x 90: 3/8 - 3/8 NPT
66 2 AML3528 Lock Tab
67 1PIPRB06-04 Reducer Bushing, 3/8 MNPT - 1/4 FMNPT
68 1PIPSE04X90 Street Elbow, 1/4 x 90
69 2 PIPCN04 Close Nipple, 1/4 MNPT
70 1BERN15759DG Preasure Protection Valve, 70 PSI
71 1 PIPPT04 Pipe Tee, 1/4 FMNPT
72 2 WHF1869X06 Male Elbow 90, 3/8 - 1/4 MNPT
73 6 BER19105 CLEVIS KIT, 1/2" PIN X 5/8"UNF
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 2 OF 2
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair Stunder
Blair
09/02/2005
10/02/2005
10/02/2005
10/02/2005 DWG NO
AML4651D-L-ABS-SL explosion
TITLE
TA-26.1 192" Tri-Axle Short-Logger with
Haldex 4S/2M ABS
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
Not Show In Explosion:
4 pc: BER16324 3/8" x 24" Air Brake Hose
4 pc: BER16336 3/8" x 36" Air Brake Hose
8 pc: BER16348 3/8" x 48" Air Brake Hose
6 pc: BER15431 30/30 Spring Brakes
6 pc: HAL409-10675 Haldex Auto Slack
6 pc: HAL427-10557 Haldex Pin/Nut
12 pc: HAL920890 Sensor Wire Clip
1 pc: BER40900CA ECU Harness
2 pc: BER201198BB Sensor Extension Cable 1m
2 pc: BER201198BL Sensor Extension Cable 8m
1 pc: BER201198CF Jumper Cable 8m
1 pc: DOM52100-0120 ABS Power Cable
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
8
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
18
21
22
23
24
25
26
27
28
29
30
31
32
33
34 12
13
35
15
16
17
18
19
20
18
21
22

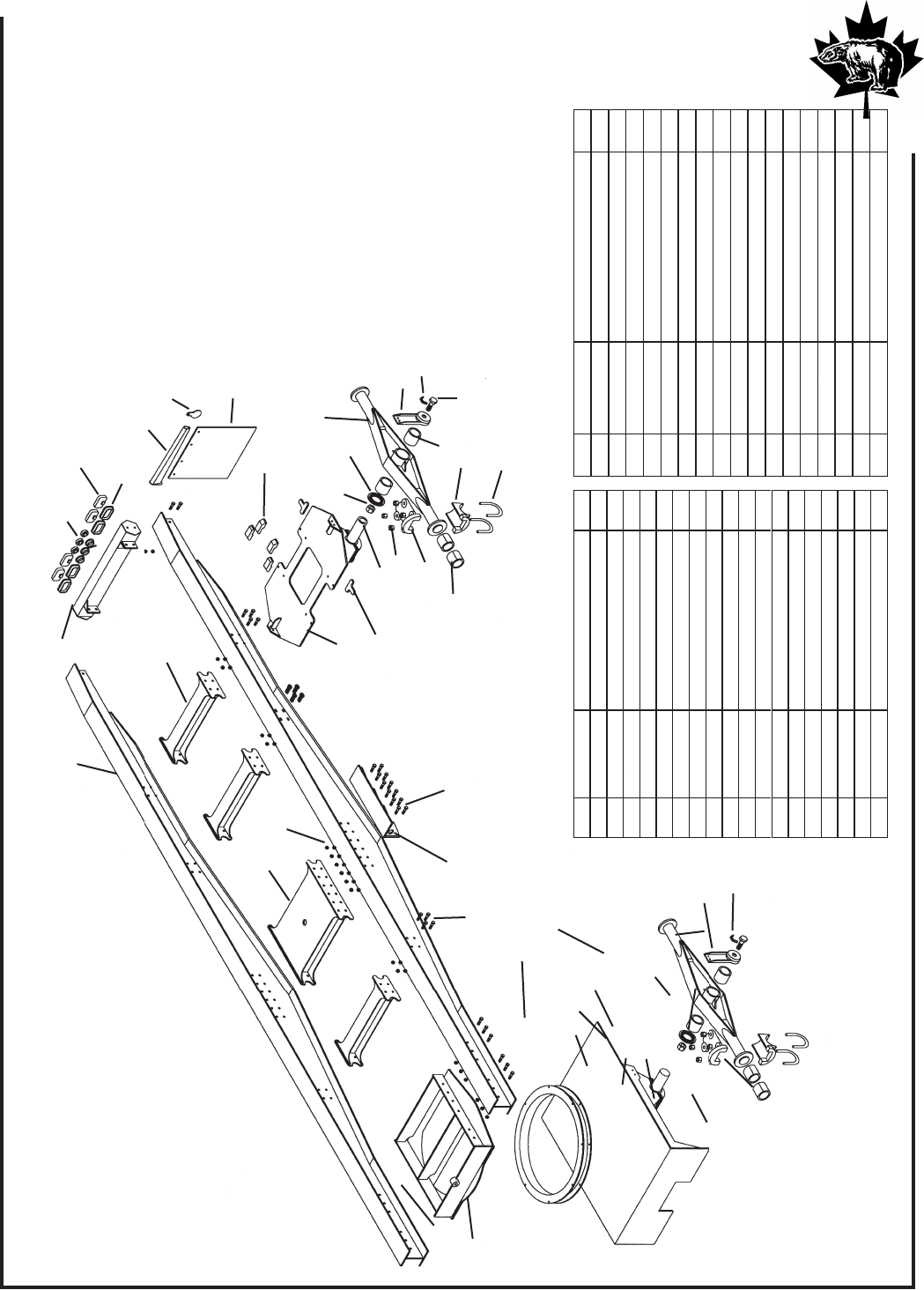

ITEM PART NUMBER PART DESCRIPTION QTY
1 AML4061B LIGHT BOX, BLT. FRAME, 77” TRACK 1
2 DOM73-7807 2 1/2” GROMMET 3
3 DOM73-5055 2 1/2” RED SEALED BEAM 3
4 DOM73-5214 RECTANGULAR SEALED BEAM 4
5 DOM73-7862 RECTANGULAR GROMED 4
6 AML1400 SWIVEL KING 2
7 DOM71-6042 REFLECTOR 2
8 AML1410 ARCTIC LOGO MUDFLAP 2
9 AML4001QD QUAD AXLE FRAME RAIL 2
10 AML4040D T/A BOLT-IN CROSS MEMBER 2
11 AML4510D T/A INBOARD LEG LOCK CLIPS 4
12 AML3018 TRUNNION NUT 2
13 AML3524 STEP RING, 3 1/2” ID 2
14 AML3554C WALKING BEAM, 54” INVERTED CAP 2
15 AML3526 OUTBOARD LEG 2
16 AML3528 KEEPER 2
17 AML3525 TRUNNION BOLT 2
18 AML3520-80 BUSHING, 80 DUO, 3.5” ID 12
ITEM PART NUMBER PART DESCRIPTION QTY
19 AML3534 WALKING BEAM AXLE ADAPTER 4
20 AML3548 ARCTIC W/BEAM “U” BOLT 8
21 AML3532 WALKING BEAM TOP END CAP 4
22 AML3541-2 DEEP NUT, 1” UNF8 16
23 AML3017L TRUNNION SHAFT, 77” TRACK 2
24 AML4520D IN-BOARD LEG LOCATOR PLATE 4
25 AML4500D T/A REAR INBOARD LEG ASSY 1
26 BLT8CLNT10 5/8” NC STOVER NUT 60
27 AML4100D T/A INFRAME BOLSTER 1
28 BLT8C10-40 5/8 X 2 1/2” UNC CAPSCREW 24
29 AML4145D T/A LOADCELL WIND, BOLT-ON 2
30 BLT8C10-32 5/8 X 2” UNC CAPSCREW 32
31 AML4101D T/A FRONT CROSS MEMBER 1
32 AML4239 TURNTABLE, 39.7” DIA, 22,000LB 1
33 AML4101QD Q/A FRONT LOWER FRAME ASSY 1
34 AML3017 TRUNNION SHAFT - 71” TRACK 1
35 AML3554C-OF 54” OFF CENTER WALING BEAM 2
QA-33.4
QUAD
AXLE
LOGGER
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
9
12
34
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
17
24
25
26
27
28
29
30
31
32
33
34
15
ITEM PART NUMBER PART DESCRIPTION QTY
1 DOM73-7807 GROMMET, 2 1/2” SEALED LAMP 3
2 DOM73-5055 LAMP, RED 2 1/2” SEALED BULB 3
3 DOM73-7862 GROMMET, RECTANGULAR SEALED BEAM 4
4 DOM73-5214 SEALED BEAM, RED, RECTANGULAR 4
5 AML1400 SWIVEL KING ASSY 2
6 DOM71-6042 REFLECTOR 2
7 AML1410 ARCTIC LOGO MUDFLAP 2
8 AML3042 REACH CORNER CLAMP HANDLE 1
9 AML3040 CORNER CLAMP ASSY 1
10 AML7002 TR-24 BODY 1
11 AML3017 TRUNNION SHAFT - 71” TRACK 1
12 BLT8CLNT06 3/8” NC STOVER NUT 18
13 AML3018 TRUNNION NUT, 1 1/4”UNC 2
14 AML3524 STEP RING, 3 1/2” ID 2
15 AML3520-U BUSHING, URETHANE, 3 1/2” ID 8
16 AML7599 TR-24 LONG WALKING BEAM 2
17 AML3520-80 BUSHING, 80 DURO, 3.5” ID 12
ITEM PART NUMBER PART DESCRIPTION QTY
18 AML3528 KEEPER 2
19 AML3525 TRUNNION BOLT 2
20 AML7526 TR-24 OUT-BOARD LEG 2
21 AML3549 ARCTIC WALKING BEAM “U” BOLT 4
22 NPN MACHINED TOP CAP 2
23 AML7554 TR-24 WALKING BEAM, 54” 2
24 AML3541-2 DEEP NUT, 1” UNF8 24
25 AML3534 WALKING BEAM AXLE ADAPTER 6
26 AML3548 ARCTIC W/BEAM “U” BOLT 8
27 AML3532 WALKING BEAM TOP END CAP 6
28 AML7580 TR-24 FRT REACH-W/B GUIDE 2
29 AML2170U UHMW NYLON 1
30 AML8157 3/8” UNC HEAD BOLT 24
31 BLT8C06-20 3/8” X 1 1/4” UNC CAPSCREW 12
32 AML3030 AIR TANK, 26” X 9 1/8” 3
33 AML3031-1 AIR TANK CLAMP BRACKETS 6
34 AMR3005-03 AIR TANK MOUNTING PLATE 3
LT-24TR TRIDEM
POLE TRAILER (-2003)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
10
51
61
26
51
51
50
151
2561
38
3
38
35
34
24
55
51
1
25
50
61
26
61
25
59
51
253 52 49 29 57 56 30 58
56
5833
37
42
56
60
4
5
14 22 7
16
12
7
21
6
7
18
19
87
39
8
10
9
11
45
13
45
13
16
12
7
11
45
13
7
12
15
13
45
20
11
36
46
For 77" track x 54" w/base:
4 pc BER16336 3/8" x 36" Hose for axle #1 and #2
from RE valve to service chambers
2 pc BER16324 3/8" x 24" Hose for axle #3 from
RE valve to service chambers
For 89" track x 60" w/base
19.) AML7560B 60" Tridem Short Beam
20.) AML7580B-89 Walking Beam Reach Guide
21.) AML7696B 60" Tridem Long-Beam, 60" w/b
RE valve to service chambers
4 pc BER16348 3/8" x 48" Hose for axle #1 and #2
from RE valve to service chambers
2 pc BER16336 3/8" x 36" Hose for axle #3 from
RE valve to service chambers

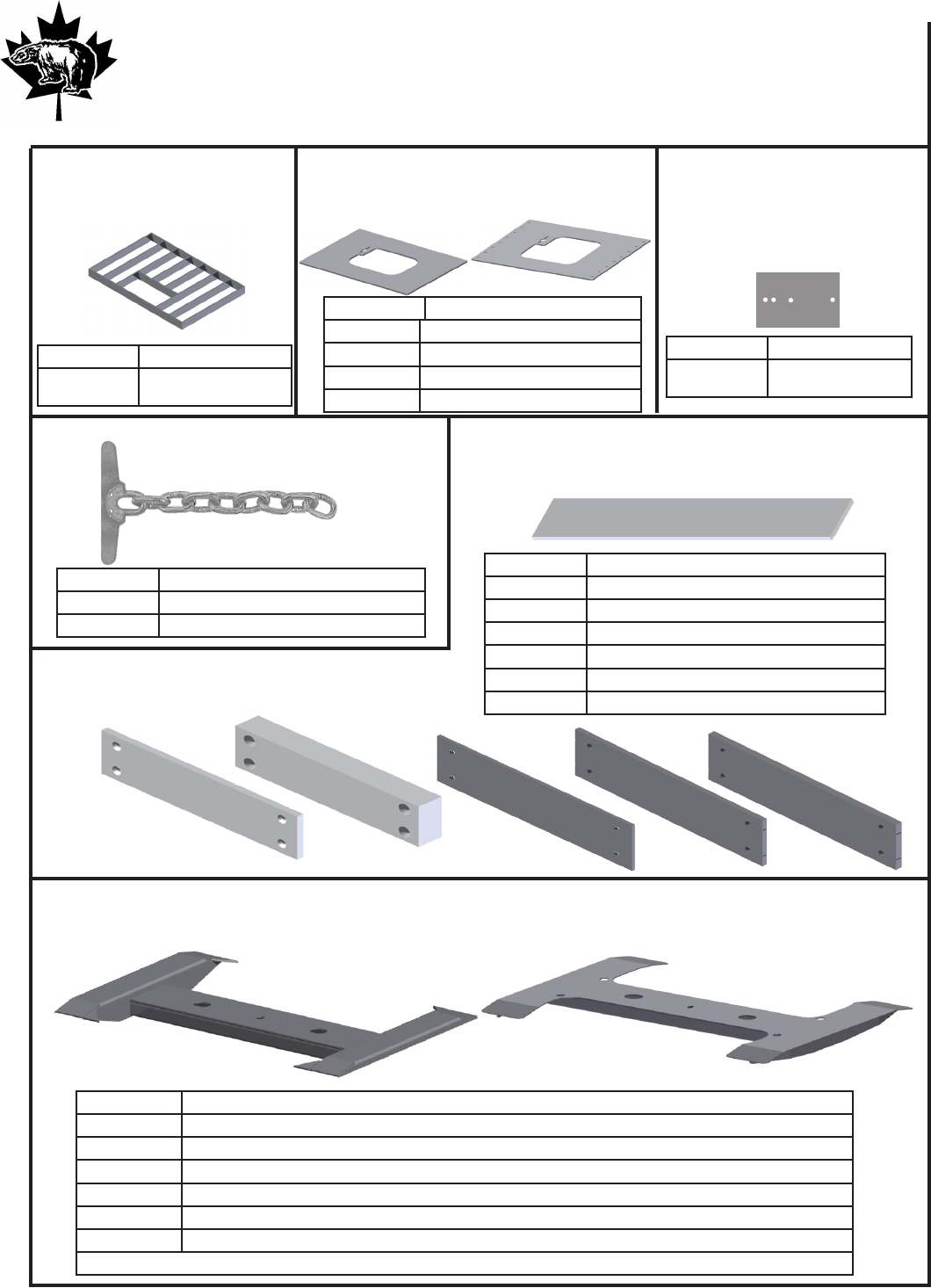

Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Air TankAML30302
1
Air Tank, Trimed End Brackets
AML3030N
1
2
Tank Clamp Bracket
AML3031123
Button Top Lift MollyAML3055
14
Button Top Lift Molly Cable: 1 1/8 x 60"
AML3056
15
Reach Stopper Bar, 6" Long
AML340526
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U207
Step RIng, High VolumeAML3524B
4
8
1 1/4" UNC8 Trunnion End Bolt
AML352529
Lock Tab
AML3528210
Top Cap Casting, 3 1/2" Shaft
AML3533611
Axle Adapter Casting, 3 1/2 Shaft, 5" Round Axle
AML3535
6
12
1" UNF8 Deep Nut
AML3541-23213
"U" Bolt, Tridem S/L Beam
AML3547-B
4
14
Arctic Walking Beam U-Bolt
AML3548415
U-Bolt 1" x 10 1/2 Leg x 5" Rnd TopAML3548B816
Body, Tridem Pole, Mech w/b-54"
AML7002-B
117
Out-Board Leg, Tridem Pole Trlr
AML7526218
54" W/B Tridem Short-Beam
AML7554B219
Walking Beam Reach GuideAML7580B220
Wear Plate, UHMW
AML7584
1
20.1
Wear Plate Mount
AMR7580-01120.2
Top Base Plate
AMR7580-04120.3
3/8 X 1.5 Plow-HeadAML8157
4
20.4
3/8 UNC8 Lock Nut
BLT8CLNT06
4
20.5
Reach Guide Spacer Plate
AMR7580B-03
4
20.6
Main Side Plate
AMR7580B-02220.7
Top FlangeAMR7580B-04
1
20.8
Tridem Long-Beam, 54" w/b
AML7599B221
Tridem Walking Beam 1/2 Boss
AMR7554-01222
In-Line Filter, 1/4 FMNPT - 1/4 MNPT
BER11480224
Drain CockBER12110325
Relay-Emergency Valve: N4301CB
BER12350226
CLEVIS KIT, 1/2" PIN X 5/8"UNF
BER19105627
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Type 30 Service ChamberBER19300628
Preasure Protection Valve, 70 PSI
BERN15759DG
1
29
Sealco Emergency Valve
BERN20416AA130
Mod Valve, ECU, 2-port, PLC, No HarnessBERN9001B
1
31
5/16 X 1BLT8C05-16232
5/16 X 2.5 UNC8 Hex Bolt
BLT8C05-40133
3/8 X 8 UNC Gr 8 Cap Screw
BLT8C06-128634
3/8 X 1 1/4 UNC 8 Hex BoltBLT8C06-201235
1/2 X 1.5
BLT8C08-24
4
36
5/16 UNC8 Lock Nut
BLT8CLNT05137
3/8 UNC8 Lock Nut
BLT8CLNT061838
1/2 UNC8 Lock NutBLT8CLNT08
4
39
5/16 Gr 5 Hex Nut
BLT8CNT05240
3/8 Fender Washer
BLT8FENDER-06241
3/8 UNF8 Lock Nut
BLT8FLNT06242
5/16 SAE Flat WasherBLT8FW05
1
43
1/2 SAE Flat Washer
BLT8FW08
444
1 SAE Gr 8 Flat Washer
BLT8FW1632
45
1" Crosby Cable Clamp
CBLG450-16346
Dana Axle 77.5" Track, 10 stud bud hubsHDTD22FC167-WY710-7753
47
Poly Light Box, Single 2 1/2"
MIS2463-P
1
48
Close Nipple, 1/4 MNPT
PIPCN04149
Heavy Hex Close Nipple, 3/4 MNPT
PIPCN12H250
Pipe Plug, 3/8 MNPTPIPPP069
51
Reducer Bushing, 3/8 MNPT - 1/4 FMNPT
PIPRB06-04
1
52
Reducer Bushing, 3/4 - 1/2
PIPRB12-06153
Male Connector: 3/8 - 1/4 MNPT
WHF1868X06255
Male Connector, 3/8 - 3/8 MNPTWHF1868X06X06356
Male Elbow 90, 3/8 - 1/4 MNPT
WHF1869X06
157
Male Elbow 90: 3/8 - 3/8 NPT
WHF1869X06X6258
Male Elbow 90: 1/2 x 3/8 NPT
WHF1869X08159
Male Elbow 90, 1/2 - 1/2 MNPTWHF1869X08X08
1
60
Male Branch Tee: 3/8 - 1/4 NPT
WHF1872X06
4
61
LT-24TR TRIDEM
POLE TRAILER
W/ ABS (+2004)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
11
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
BLAIR
Blair
04/04/2009
04/04/2009
04/04/2009
04/04/2009 DWG NO

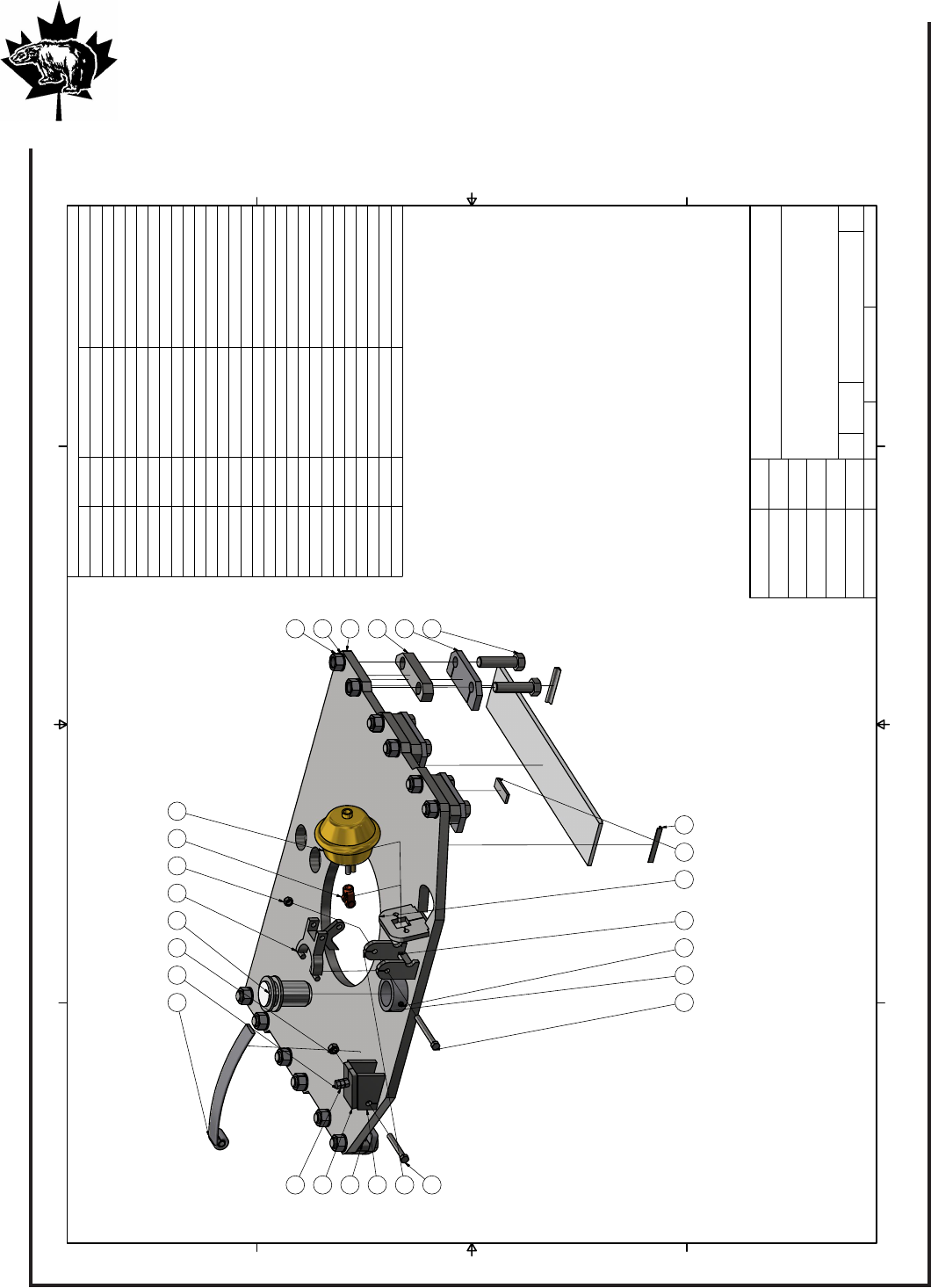

AML3514-assembly
TITLE

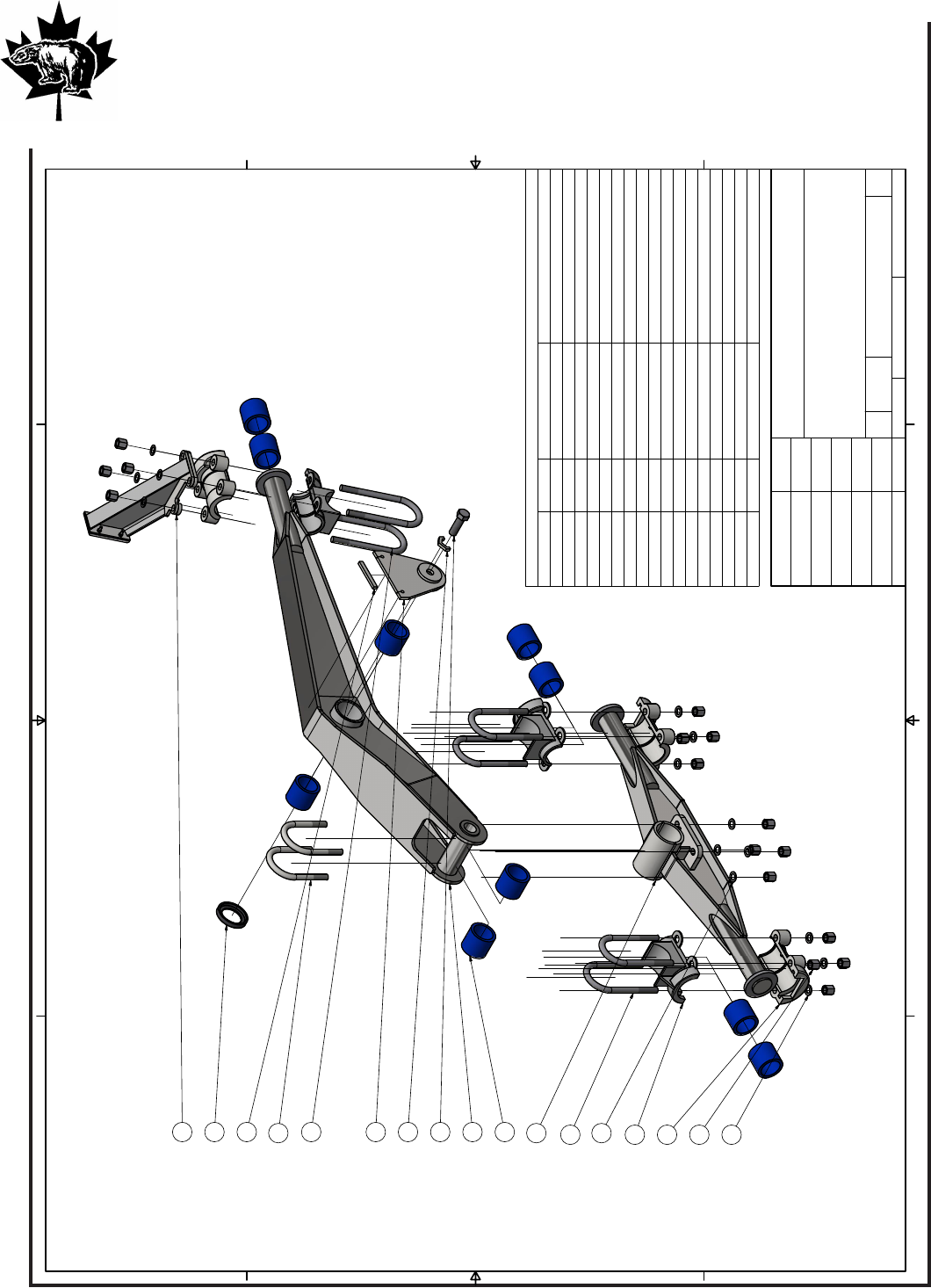

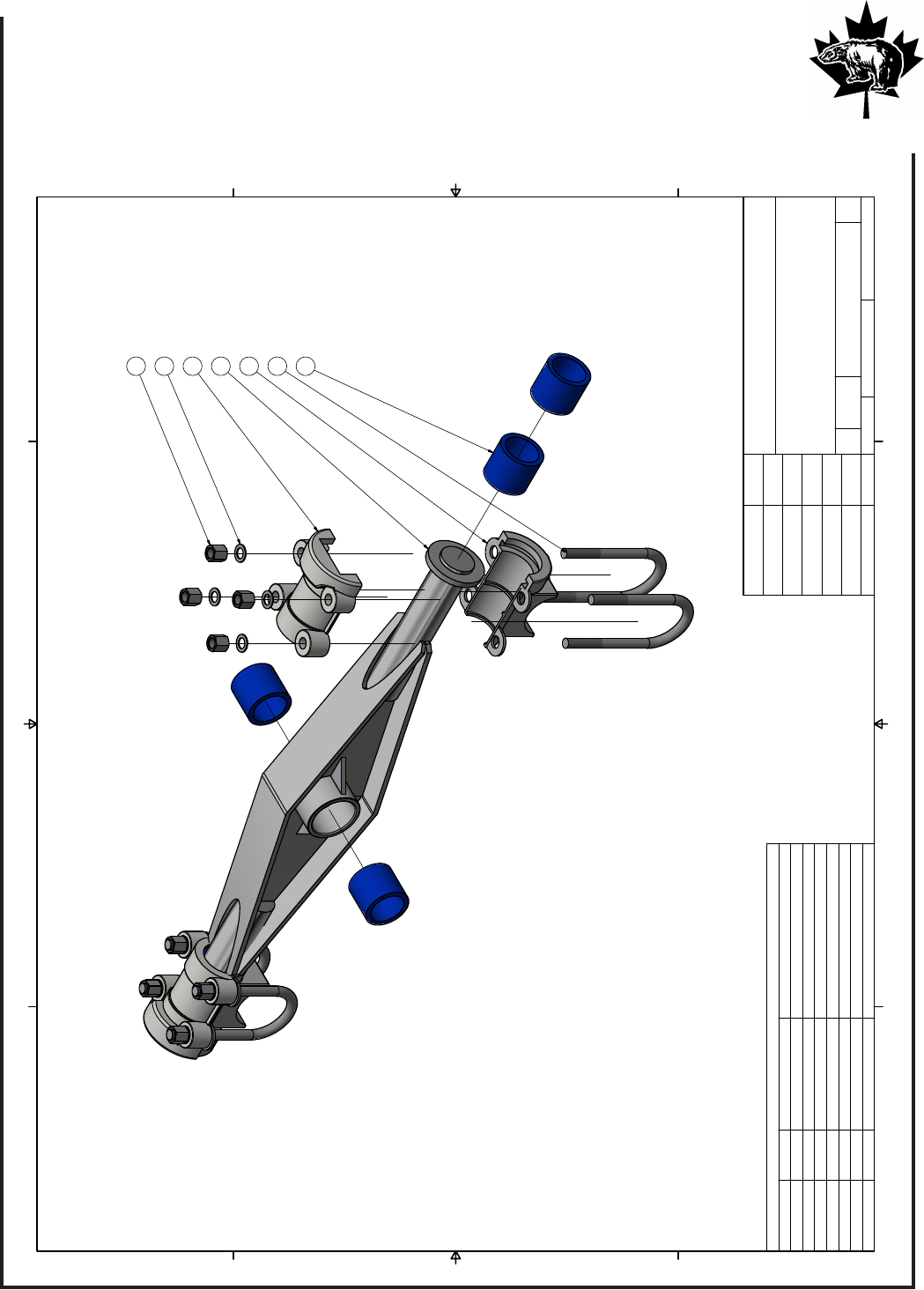

54" Walking Beam: Square Style, 1976-1977
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM

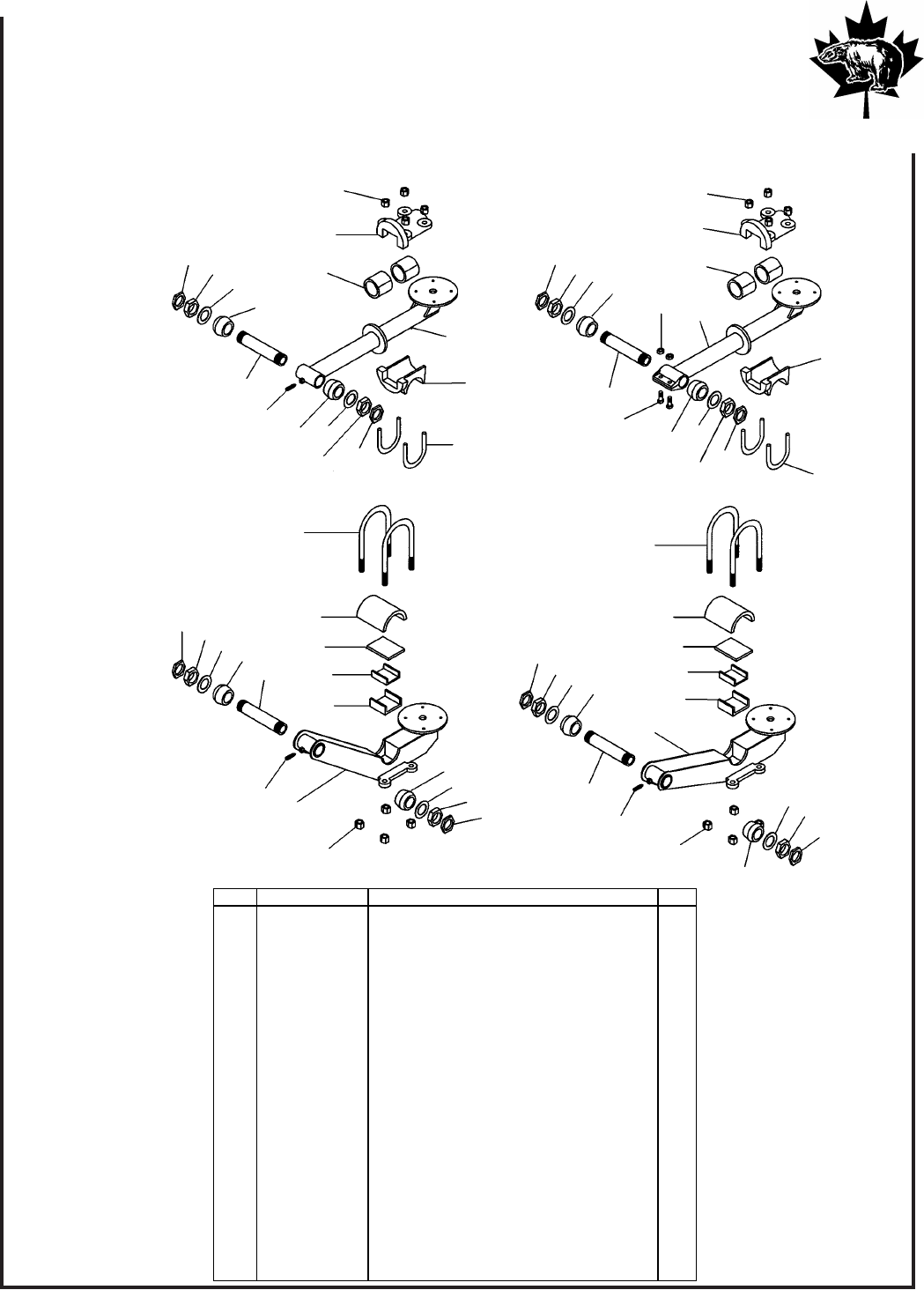

54" Walking Beam: Square
AML351411
Axle Adapter Assembly
AML351522
Walking Beam Saddle CapAML351623
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U24
Walking Beam Saddle BushingAML35212
5
Walking Beam Base Pad
AML352226
Step RingAML352317
1 1/4" UNC8 Trunnion End BoltAML3525
1
8
Out-Board Leg
AML352619
Lock TabAML3528
1
10
Arctic Walking Beam U-Bolt: 3/4"
AML3540
4
11
Deep Nut: 3/4" unf-8
AML3541612
3/4 SAE Flat WasherBLT8FW12613
10
8
9
4
1
6
7
11
3
2
13
12
5

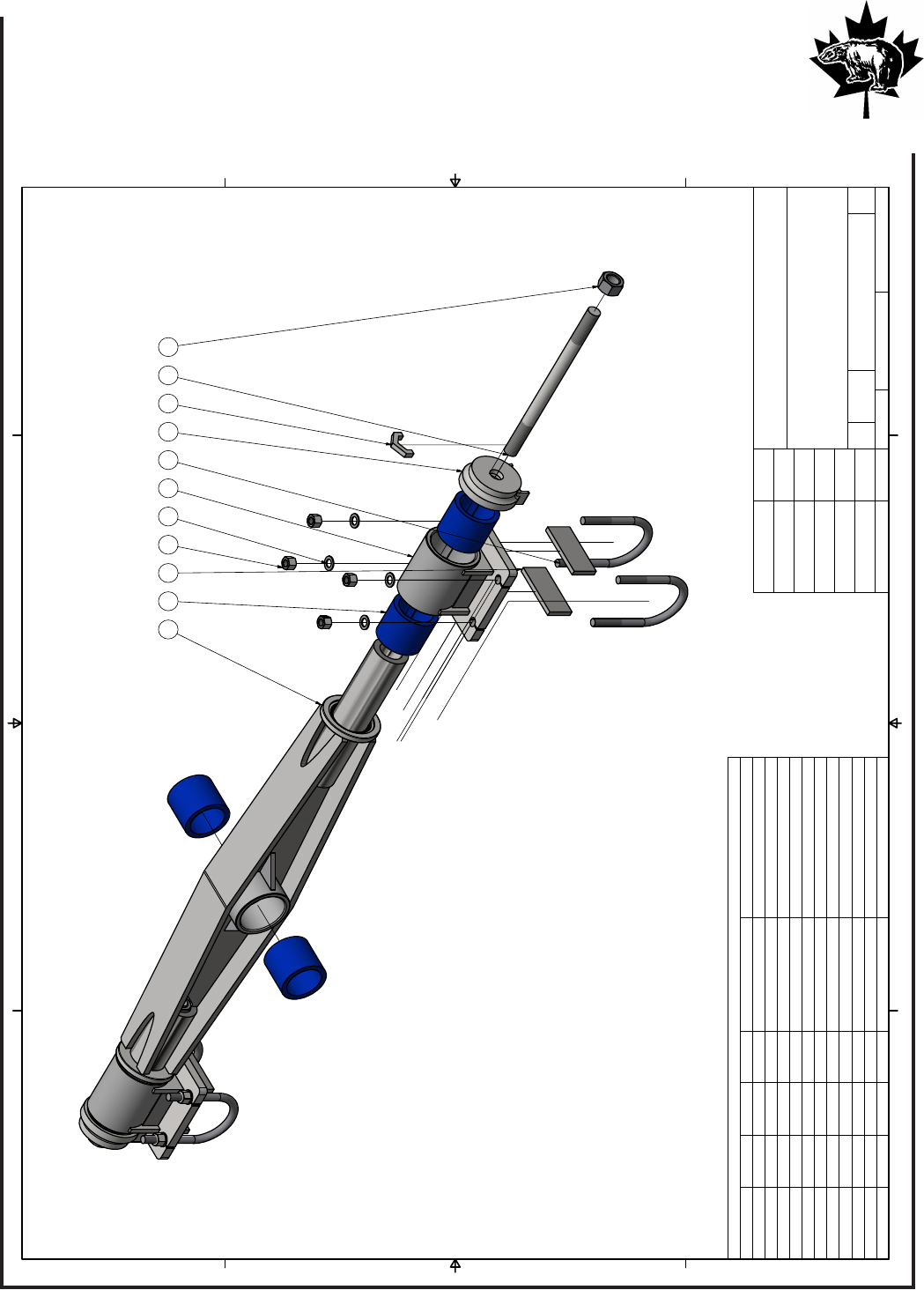

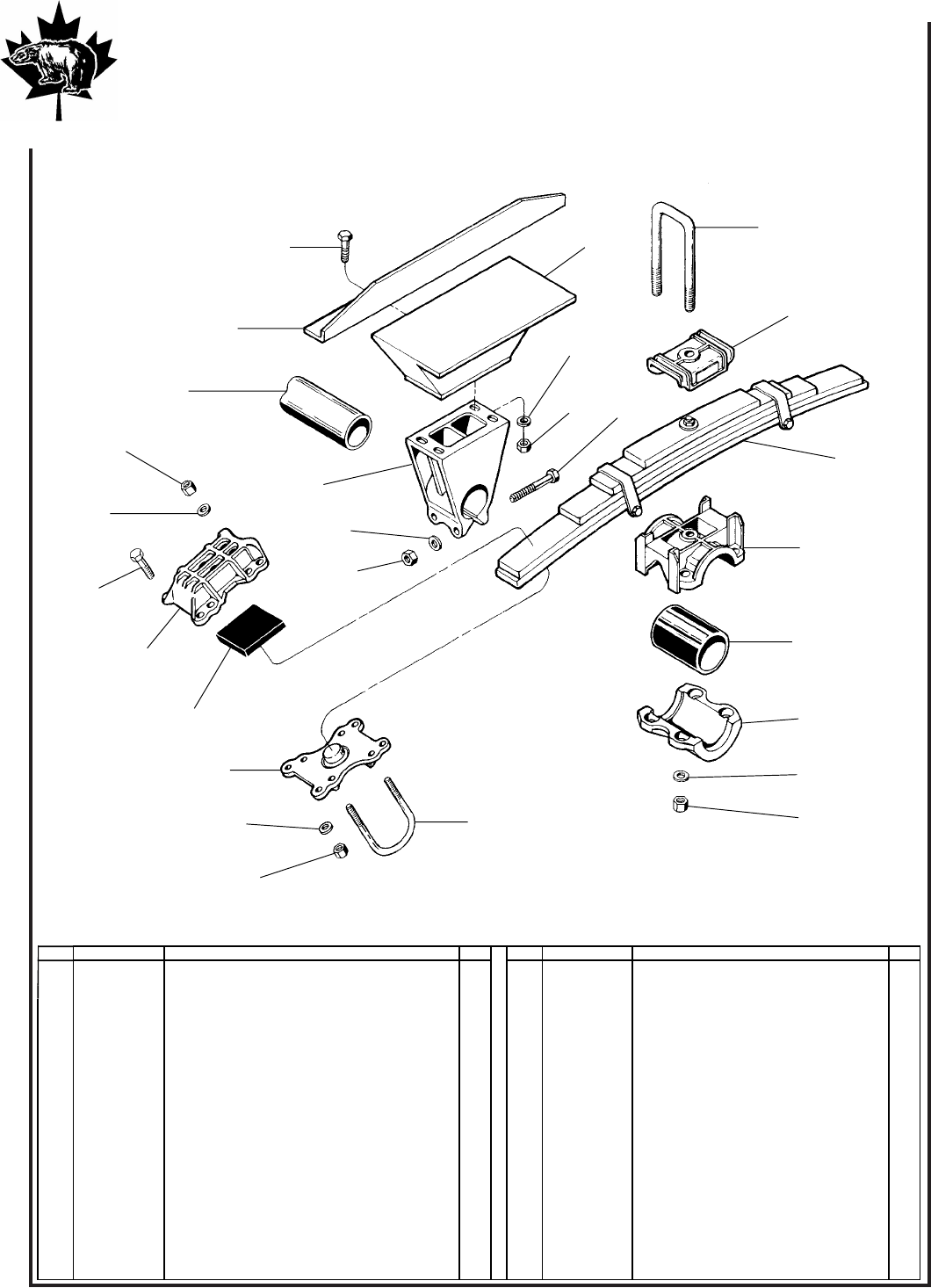

Tandem Walking Beam: 1976-1978
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
12
PARTS LIST
DESCRIPTIONPART NUMBERQTYBASE QTYITEM QTYITEM
Flat Bar SteelAISC - 2 1/2x1/2 - 624.000 in6.000 in
41
1 1/4 Trunnion Nut
AML30182122
Bushing: 3 1/2" id x 4 1/2" od x 4"AML3520-U6
1
63
End Cap
AML3527212
4
Lock Tab
AML35282125
End Bearing AssemblyAML35302
1
26
Arctic Walking Beam U-Bolt: 3/4"
AML35404147
Deep Nut: 3/4" unf-8AML35418
1
88
Walking Beam: 54"
AML35541119
Compression Rod, Walking Beam
AML356421210
3/4 SAE Flat WasherBLT8FW128
1
8
11
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET
1
OF
1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair
Blair
14/06/2016
15/06/2016
15/06/2016
15/06/2016
DWG NO
AML3554-Assembly
TITLE

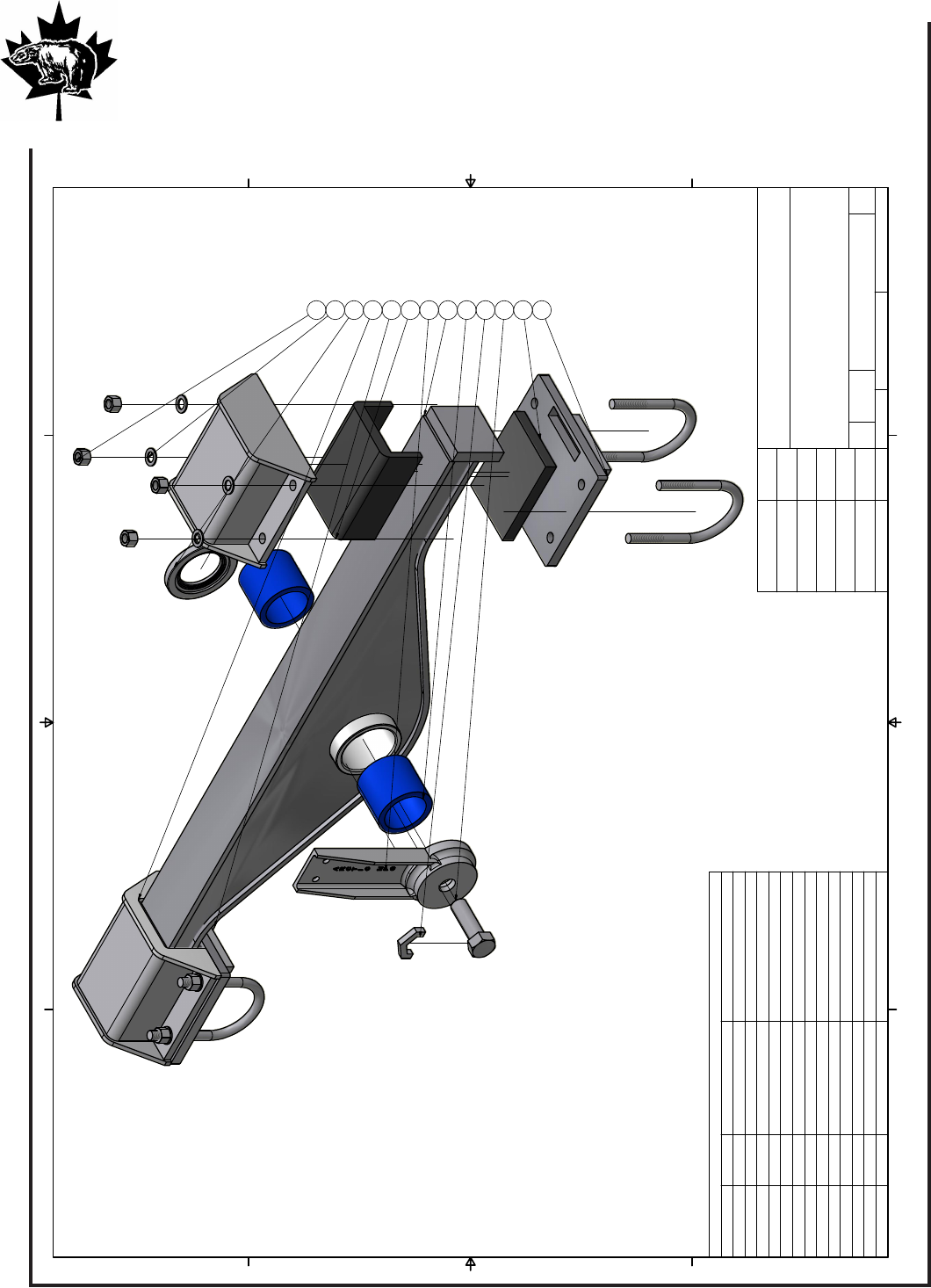

Walking Beam, 54" Assembly: 1978 -
1988/89
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
8 119 3 56 4 101 7 2
Tandem Walking Beam: 1978 - 1990
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
13
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U61
End Cap: Single Ring: -2003AML353222
Axle Adapter: Pre 2003
AML353423
1" UNF8 Deep NutAML3541-28
4
Arctic Walking Beam U-Bolt
AML3548
45
Walking Beam, 54" Solid End, 1990 - 1992/93
AML3554BH16
1 SAE Gr 8 Flat WasherBLT8FW168
7
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
2016-06-15
2016-06-15
2016-06-15
2016-06-15 DWG NO
AML3554BH-Assembly
TITLE
Walking Beam, 54" Solid End, 1990 -
1992/93
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
7 4 21
6 3 5
Tandem Walking Beam: 1989 - 1993
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
14

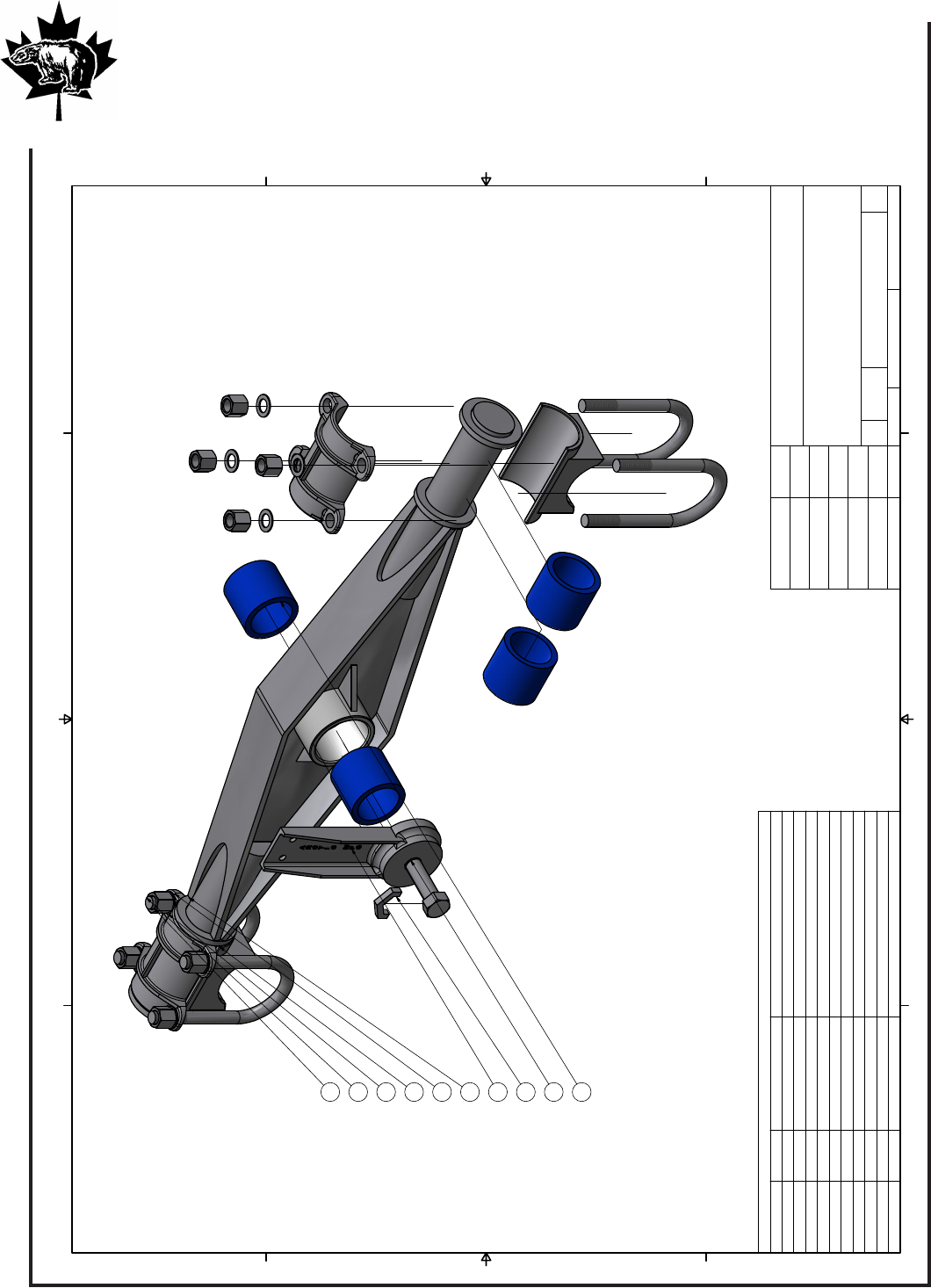

Tandem Walking Beam: 1993 - 2003
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U61
End Cap: Single Ring: -2003AML353222
Axle Adapter: Pre 2003
AML353423
1" UNF8 Deep NutAML3541-28
4
Arctic Walking Beam U-Bolt
AML3548
45
Walking Beam, Inverted Cap: 1993-2004
AML3554C16
1 SAE Gr 8 Flat WasherBLT8FW168
7
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET
1
OF
1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
2016-06-15
2016-06-15
2016-06-15
2016-06-15
DWG NO
AML3554C-Assembly
TITLE
Walking Beam, 54" Inverted Cap, 1994 -
2004
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
4
7
2
6
1
3
5
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
15
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U61
1 1/4" UNC8 Trunnion End BoltAML3525
1
2
Out-Board Leg
AML352613
Lock Tab
AML352814
Top Cap Casting, 3 1/2" Shaft
AML35332
5
Axle Adapter Casting, 3 1/2 Shaft, 5" Round Axle
AML353526
1" UNF8 Deep NutAML3541-28
7
U-Bolt 1" x 10 1/2 Leg x 5" Rnd Top
AML3548B
4
8
Walking Beam, 54" Dbl Ring
AML3554-D19
1 SAE Gr 8 Flat WasherBLT8FW16810
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET
1
OF
1
DRAWN
CHECKED
QA
MFG
APPROVED
blair 28/06/2011
DWG NO
AML3554-D-Assembly
TITLE
54" Walking Beam: Dbl Ring +2004
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
5
7
10
8
9
6
4
2
3
1

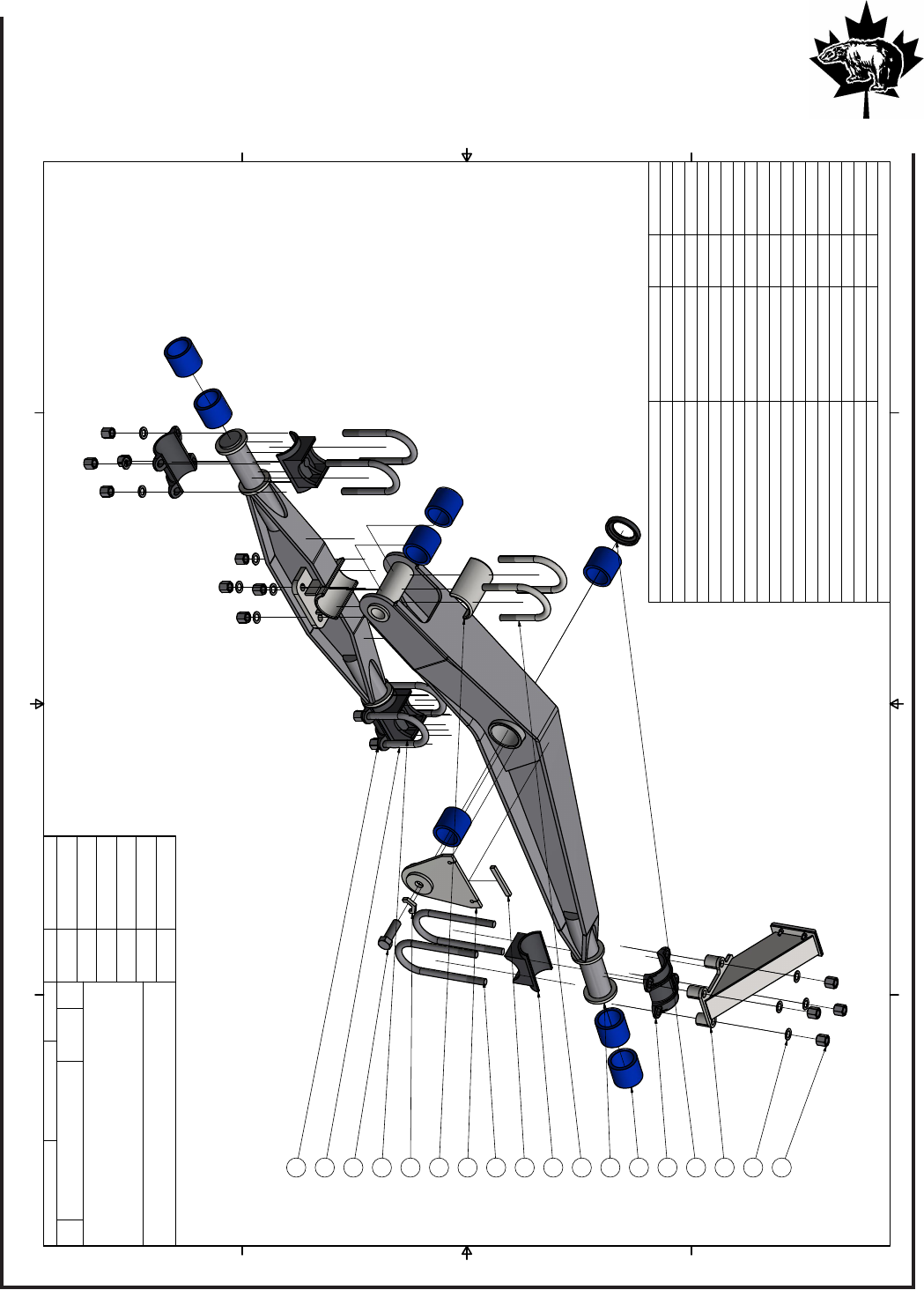

Tandem Walking Beam: +2004
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
16
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
17
Tridem Walking Beam: 1990 - 2003
Single Grip-Ring Type
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Reach Stopper Bar, 6" Long
AML340511
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U102
Step RIng, High VolumeAML3524B
1
3
1 1/4" UNC8 Trunnion End Bolt
AML352514
Lock TabAML3528
15
End Cap: Single Ring: -2003
AML353236
Axle Adapter: Pre 2003
AML353437
1" UNF8 Deep NutAML3541-2168
"U" Bolt, Tridem S/L Beam
AML3547-B29
Arctic Walking Beam U-BoltAML3548
4
10
U-Bolt: 1" x 13" x 5" R-Top
AML3549211
Out-Board Leg, Tridem Pole Trlr
AML7526112
S-Beam 54": Pre 2003
AML75541
13
Walking Beam Reach Guide
AML7580114
Tridem L-Beam (54"): -2003AML7599
115
1 SAE Gr 8 Flat Washer
BLT8FW16817
1 HD SAE Gr 8 Flat Washer
BLT8FW16H818
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
2016-06-16
2016-06-16
2016-06-16
2016-06-16 DWG NO
AML7554-Assembly
TITLE
Tridem Walking Beam Assembly. 54" w/b:
-2003
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
3
9
2
15
10
7
13
6
17
18
8
12
1
5
4
11
14
Note:
1. Updated to AML3547-B U-Bolts in 1999.
2. Older version used AML3547 U-Bolts, This can be identifed by the two grooves in the
AMR7554-01 Upper Cap.AMLPrior 2003.
3. AML3524 Multi-Step Washer Discontinued in 2003, Replaced with AML3524B Hi-Volume
Single Step Ring.
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
18
Tridem Walking Beam: +2004
Double Grip-Ring Type
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Reach Stopper Bar, 6" Long
AML340511
Bushing: 3 1/2" id x 4 1/2" od x 4"
AML3520-U102
Step RIng, High VolumeAML3524B
1
3
1 1/4" UNC8 Trunnion End Bolt
AML352514
Lock TabAML3528
15
End Cap Casting, 3 1/2" Shaft: Dbl Ring:+2004
AML353336
Axle Adapter Casting, 3 1/2 Shaft, 5" Round Axle
AML353537
1" UNF8 Deep NutAML3541-2168
"U" Bolt, Tridem S/L Beam
AML3547-B29
U-Bolt 1" x 10 1/2 Leg x 5" Rnd TopAML3548B
4
10
U-Bolt: 1" x 13" x 5" R-Top
AML3549211
Out-Board Leg, Tridem Pole Trlr
AML7526112
54" W/B Tridem Short-Beam
AML7554B1
13
Walking Beam Reach Guide
AML7580B114
Tridem Long-Beam, 54" w/bAML7599B
115
Tridem Walking Beam 1/2 Boss - Smooth
AMR7554-01116
1 SAE Gr 8 Flat WasherBLT8FW168
17
1 HD SAE Gr 8 Flat WasherBLT8FW16H818
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
2016-06-20
2016-06-20
2016-06-20
2016-06-20 DWG NO
AML7554B-Assembly
TITLE
Tridem Walking Beam Assembly: +2004
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
17
8
2
14
6
15
7
11
12
4
5
1
10
18
13
16
9
3
Note:
1. AMR7554-01 is part of AML7554B Walking Beam.
2. BLT8FW16H HD washers are used for all under-slung walking beam locations.
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
19
QD-32 Quad Axle - Mechanical Suspension
Main Components
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 4
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
BLAIR
Blair
7/5/2007
1/5/2005
1/5/2005
1/5/2005 DWG NO
AML6605-absWB-Explode
TITLE
QD-32 Quad Short Logger Sub
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Button Top Lift Molly
AML3055
11
Button Top Lift Molly Cable:
1 1/8 x 60"
AML3056
1
2
Quad Short Log Frame RailAML4001Q-SL23
Quad Front T/T Upper
Cross-Member
AML4102Q-SLB
14
Front Aluminium Cover:
Checker Plate 34.875" x 37"
AML4103Q25
Jost Turntable: 43.6" DIA,
26,400LB
AML4243
1
6
Full Quad Short-Log Reach
AML4451B-SL17
Quad Pivot Reach LiftAML6053
1
8
Quad Pedestal
AML6054
1
9
Frame Air/Elect Clip
AML62001110
Secondary Cross Member:
77" Track
AML6642HR311
Quad Light Box Assy
AML6660-Q
1
12
Gusset: 6 x 6 x .250wAMR2021-01213
Quad Frame Rail Front Cap
Plate
AMR4001Q-SL-06214
Quad Front Reach Block
Gusset
AMR4001Q-SL-07
415
Base Plate
AMR4001Q-SL-20216
Rear Flange c/w Bolt HolesAMR4001Q-SLWB-042
17
Reach Lift Cable Anchor
AMR6056-03
1
18
Quad Rear Lower Frame
Assy:
AMR6605-ABSWBR119
Quad Lower Front AssyAMR6605C-ABSWBF
1
20
Junction Box: 7 Pole
BER22010
1
21
5/16 X 1
BLT8C05-16222
3/8 X 1 1/4 UNC 8 Hex Bolt
BLT8C06-20423
5/8 X 1 3/4 UNC8 Hex BoltBLT8C10-281624
3/4 X 2 UNC 8 Bolt
BLT8C12-32
4
25
5/16 UNC8 Lock Nut
BLT8CLNT05226
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
3/8 UNC8 Lock NutBLT8CLNT06
4
27
5/8 UNC Gr8 Lock Nut
BLT8CLNT101628
3/4 UNC Gr 8 Hex Nut
BLT8CNT12429
3/8 Fender WasherBLT8FENDER-06
4
30
3/4 SAE Flat WasherBLT8FW12
4
31
Gr 8 Huck Bolt: 3/4 x
0.500" - 1.00"
BLTHP8F-DT24-1126432
3/4" Huck Collar BLTHPCF-R24U
56
33
1/2 Clevise Pin Shackle
CBL08SHACKLE
1
34
Urethane Bumper Block:
Bolt-On
MISR-5310236
GROMMET, 1 1/4 X 1 X 1/4PIC6124
11
37
28246 432 3033 3529725 2336 141520 16 19 109 834 18 17 11
2213 12 12
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
20
QD-32 Quad Axle - Mechanical Suspension
Front Suspension
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 2 OF 4
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
BLAIR
Blair
7/5/2007
1/5/2005
1/5/2005
1/5/2005 DWG NO
AML6605-absWB-Explode
TITLE
QD-32 Quad Short Logger Sub
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Trunnion Shaft: 53" x 4" OD x .500w
AML3017-OS
11
1 1/4 UNC Hex Jam Nut
AML3018-1
4
2
Air Tank
AML303023
Bushing: 3 1/2" id x 4 1/2" od x 4"AML3520-U8
4
Bushing: 5" od x 4" id x 4"AML3522-U
45
Step Washer: 4" Trunnion Shaft
AML3524-OS26
End Cap: 4" Trunnion
AML3527-OS27
Top Cap Casting, 3 1/2" ShaftAML3533
4
8
Axle Adapter Casting, 3 1/2 Shaft, 5"
Round Axle
AML3535
4
9
1" UNF8 Deep Nut
AML3541-21610
U-Bolt 1" x 10 1/2 Leg x 5" Rnd TopAML3548B8
11
Walking Beam: 4" Trunnion, 3 1/2"
End Tubes
AML3554-E212
Full Quad Lower T/Table Frame
AML6502B113
Quad Front Chain Anchor PlateAML6525
114
Comp Rod: 1 1/4" DIA. X 62.0"
AMR6502-10
115
In-Line Filter, 1/4 FMNPT - 1/4 MNPT
BER11480216
Drain Cock
BER12110217
30/30 Maxi ChamberBER15431
4
18
CLEVIS KIT, 1/2" PIN X 5/8"UNF
BER19105
4
19
FFABS Valve, Slave Valve, No ECU
BERAL430623120
5/16 X 3/4 UNC Gr 8
BLT8C05-12221
5/16 X 1BLT8C05-16222
3/8 X 2.25
BLT8C06-36823
5/16 UNC8 Lock Nut
BLT8CLNT05224
3/8 UNC8 Lock Nut
BLT8CLNT06825
5/16 Gr 5 Hex NutBLT8CNT05226
3/8 SAE Flat Washer
BLT8FW06827
1 SAE Gr 8 Flat Washer
BLT8FW161628
Bob-Tail 7-W Rect: Check BOM for
Correct Length
COHBTTR129
Dana Axle 77.5" Track, 10 stud bud
hubs
HDTD22FC167-WY710-775230
Vulcan Trunnion Load Cell Assy
L03231
GROMMET, 1 1/4 X 1 X 1/4PIC6124232
Close Nipple, 3/8 MNPT
PIPCN06233
Pipe Plug, 3/8 MNPT
PIPPP06234
Pipe Tee, 3/8 FMNPT
PIPPT06235
Reducer Bushing, 3/4 - 1/2PIPRB12-06
1
36
Reducer Bushing, 3/4 - 1/2
PIPRB12-08
1
37
Reducer Coupler, 3/4 - 1/2 NPT
PIPRC12-08138
Pipe Run 1139
Male Connector: 3/8 - 1/4 MNPTWHF1868X06
1
40
Male Connector, 3/8 - 3/8 MNPT
WHF1868X06X06
141
Male Elbow 90, 3/8 - 1/4 MNPT
WHF1869X06342
Male Elbow 90: 3/8 - 3/8 NPTWHF1869X06X6
443
Male Elbow 90, 1/2 - 1/2 MNPTWHF1869X08X082
44
M/Branch Tee, 3/8 - 1/4 MNPT
WHF1871X06X04
145
Male Branch Tee: 3/8 - 1/4 NPT
WHF1872X06146
Hostler Valve
WMA111913147
22
13
29
31
23
27
1
6
11
9
4
819301810 28
26
21
14
15
2
5
12
7
394120 43
35
33
3844 173637 463
42
47
34
25
16
40
45
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
21
QD-32 Quad Axle - Mechanical Suspension
Rear Suspension
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 3 OF 4
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
BLAIR
Blair
7/5/2007
1/5/2005
1/5/2005
1/5/2005 DWG NO
AML6605-absWB-Explode
TITLE
QD-32 Quad Short Logger Sub
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Trunnion Shaft: 53" x 4" OD x .500w
AML3017-OS
11
1 1/4 UNC Hex Jam Nut
AML3018-1
4
2
Air Tank
AML303023
Bushing: 3 1/2" id x 4 1/2" od x 4"AML3520-U8
4
Bushing: 5" od x 4" id x 4"AML3522-U
45
Step Washer: 4" Trunnion Shaft
AML3524-OS26
End Cap: 4" Trunnion, Machined
AML3527-OS27
Top Cap Casting, 3 1/2" ShaftAML3533
4
8
Axle Adapter Casting, 3 1/2 Shaft, 5"
Round Axle
AML3535
4
9
1" UNF8 Deep Nut
AML3541-21610
U-Bolt 1" x 10 1/2 Leg x 5" Rnd TopAML3548B8
11
Walking Beam: 4" Trunnion, 3 1/2"
End Tubes
AML3554-E212
Quad Rear Inboard Leg Assy: Trun
L-Cell
AML6500113
Comp Rod: 1 1/4" DIA. X 62.0"
AMR6502-10
114
Drain Cock
BER12110215
30/30 Maxi Chamber
BER15431416
CLEVIS KIT, 1/2" PIN X 5/8"UNFBER19105
417
FFABS Valve, PLC-ECU
BERN9000CB
1
18
5/16 X 3/4 UNC Gr 8
BLT8C05-12219
3/8 X 1 1/4 UNC 8 Hex Bolt
BLT8C06-201220
5/16 UNC8 Lock NutBLT8CLNT05221
3/8 UNC8 Lock Nut
BLT8CLNT061222
3/8 SAE Flat Washer
BLT8FW061223
1 SAE Gr 8 Flat Washer
BLT8FW161624
Dana Axle 77.5" Track, 10 stud bud
hubs
HDTD22FC167-WY710-775225

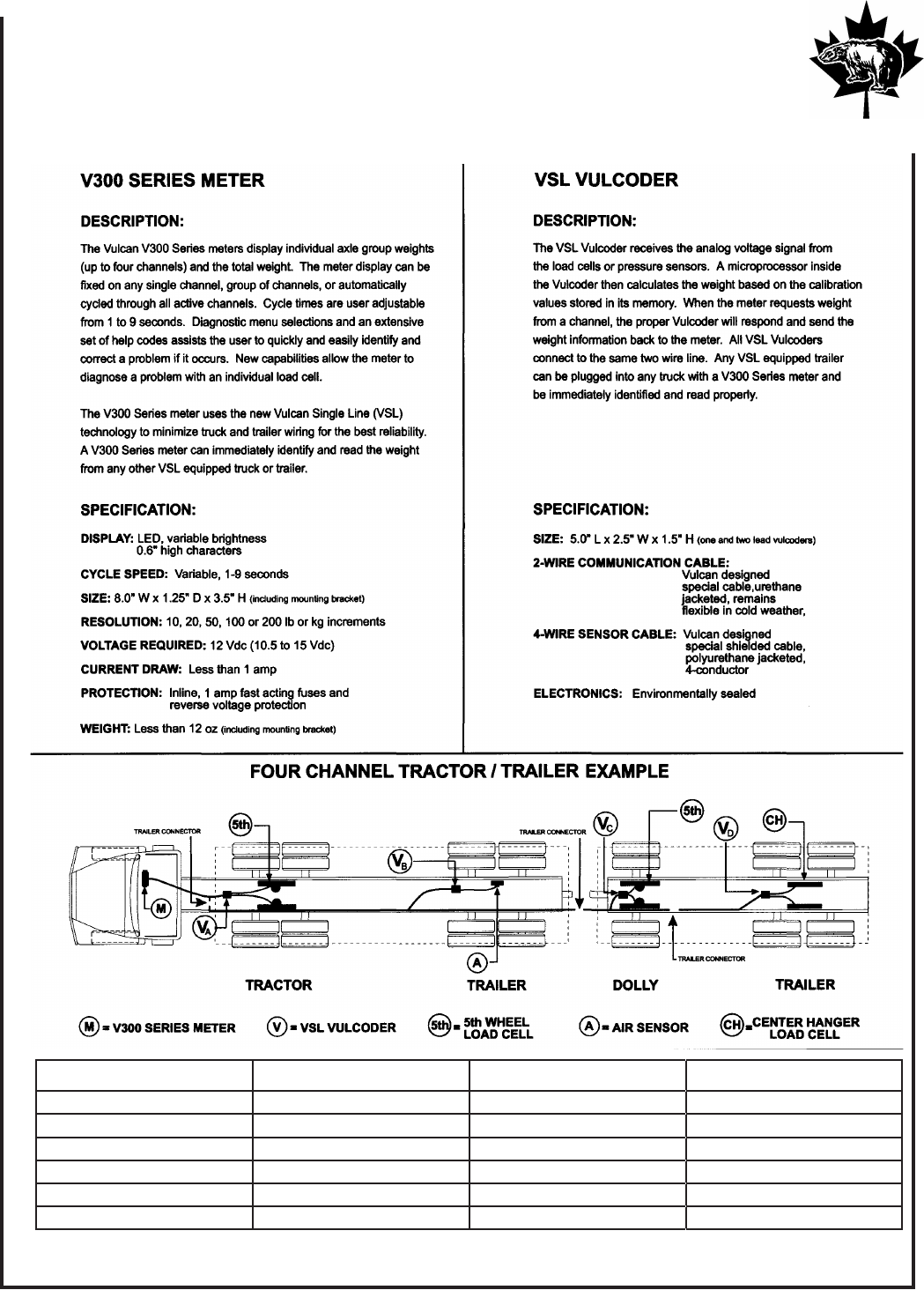

Vulcan Trunnion Load Cell Assy
L03226
Close Nipple, 3/8 MNPT
PIPCN06227
Pipe Plug, 3/8 MNPTPIPPP06228
Pipe Plug, 3/4" MNPT
PIPPP12
1
29
Pipe Tee, 3/8 FMNPT
PIPPT06230
Reducer Bushing, 3/4 - 1/2
PIPRB12-08131
Reducer Coupler, 3/4 - 1/2 NPTPIPRC12-08
1
32
Pipe Run 11
33
Pipe Run 2134
Male Connector, 1/2 - 1/2 MNPT
WHF1868X08X08135
Male Elbow 90: 3/8 - 3/8 NPTWHF1869X06X6
4
36
Male Elbow 90, 1/2 - 1/2 MNPT
WHF1869X08X08
1
37
201334 23
26
21
363
1
29
22
17
25 16
18
6
8
24
10
9
12
11
4
14
2
7
5
15
27
30
33
31
323537
28
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
22
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 2
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
28/06/2011
29/06/2011
29/06/2011
29/06/2011 DWG NO
AML6605-abs-AR-assembly
TITLE
Air-Ride Quad Short-Log
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
5464
12
13
52 1 9
20
49
3742
63
48
62
26
2527 33
5
11 24
21
2
68
50
55
60
32
34
16
231953 18 36 64538 4417 22
39
43
61
8
7
28
40
35
14
69
15
67
66
10
3
4

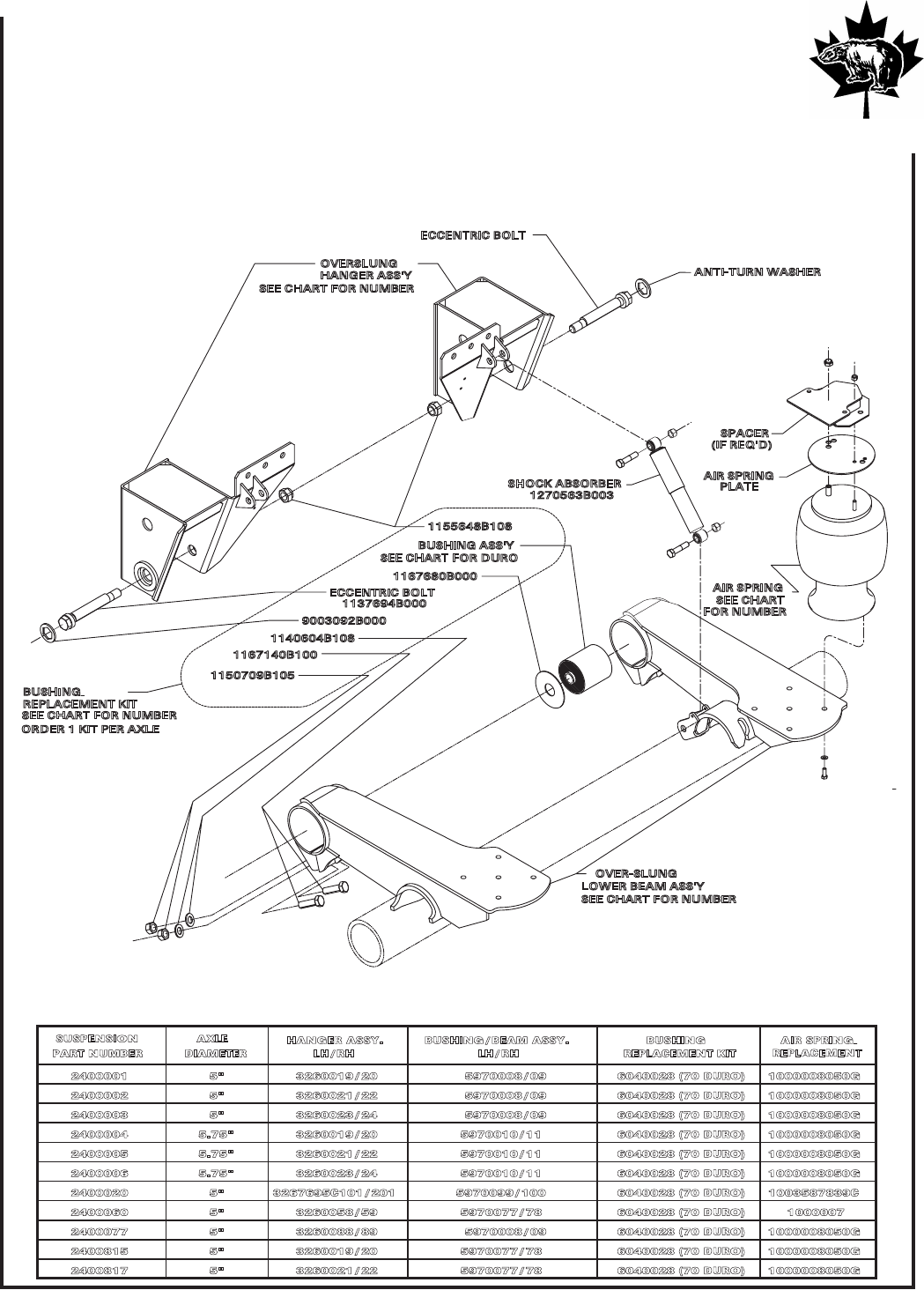

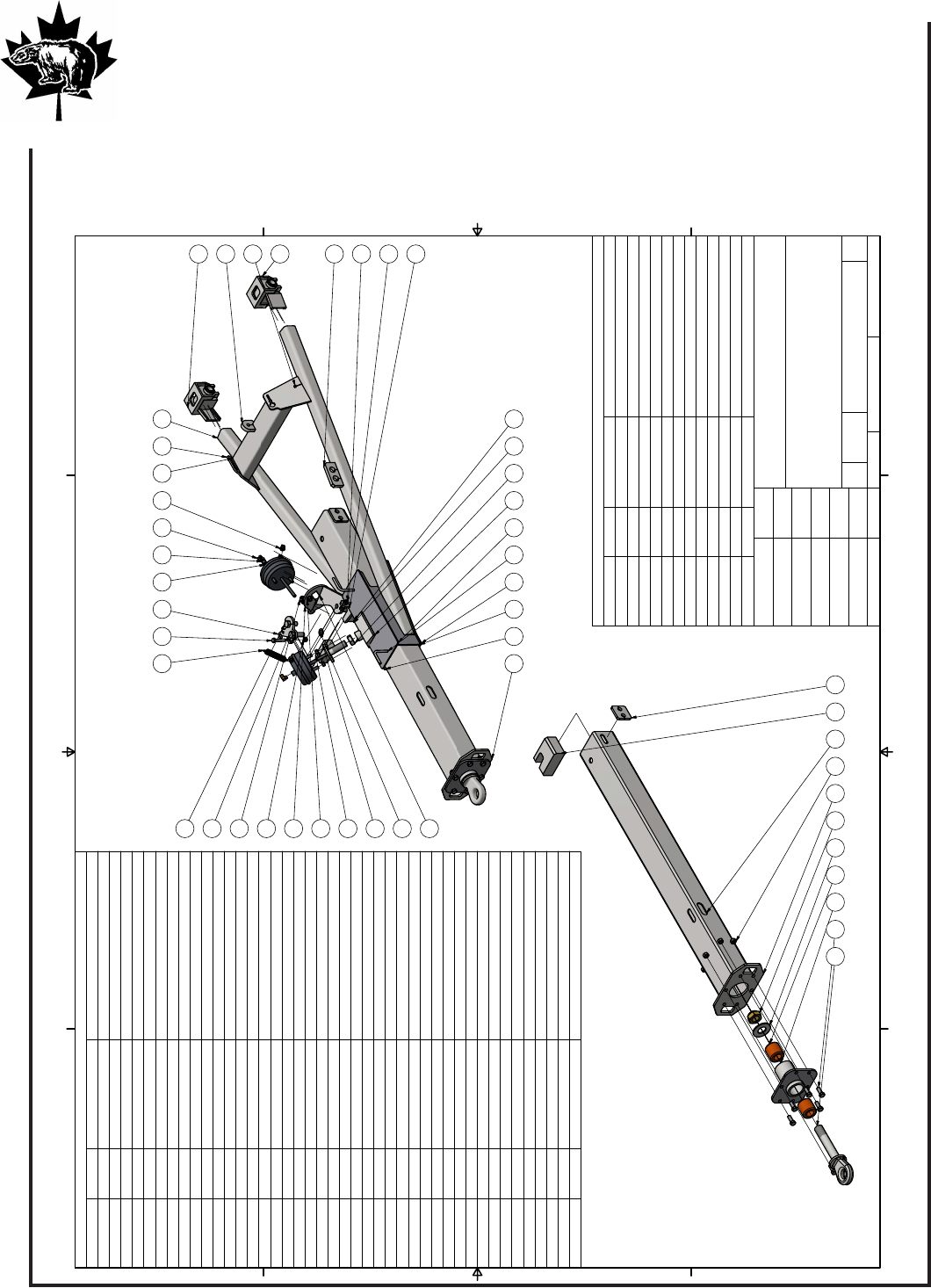

Air Suspensions:
Front Tandem: Ridewell 240 - 30K U/S 7.5": 2403177
Rear Tandem: Ridewell 240 - 30k O/S 15": 2400815
QD-32 Quad Axle - Air-RideSuspension
Main Components
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
23

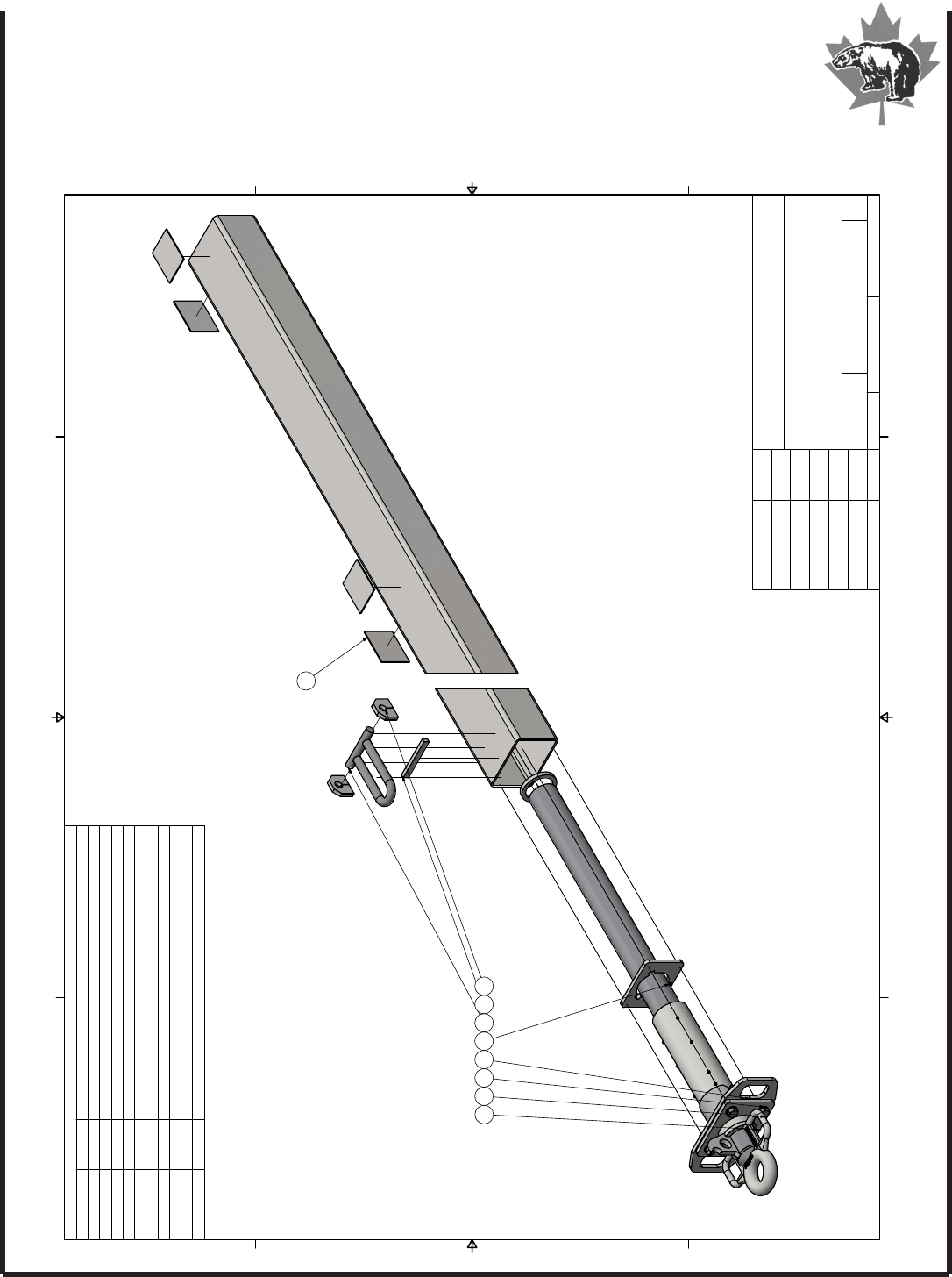

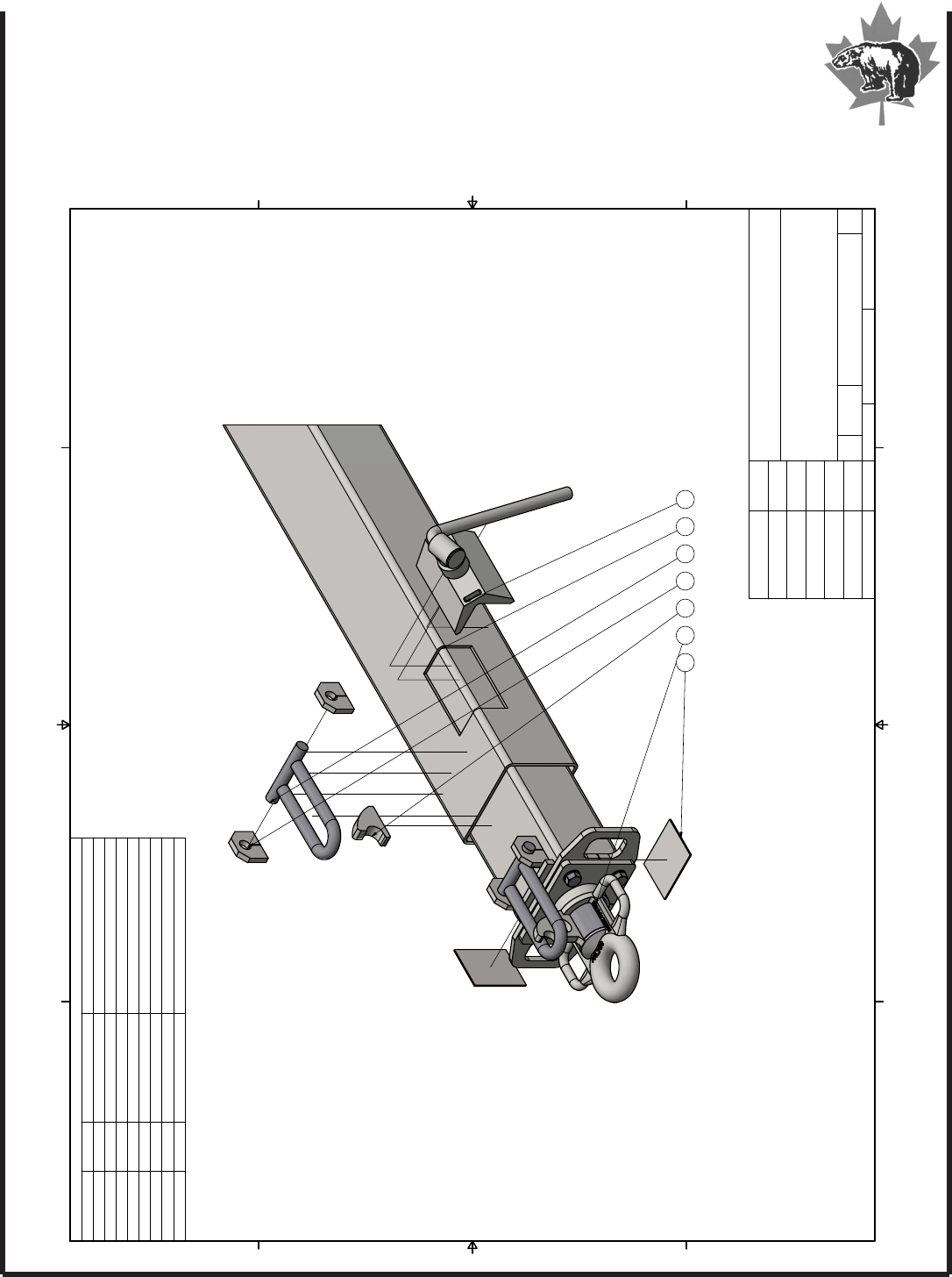

QD-32 Quad Axle - Mechanical Suspension

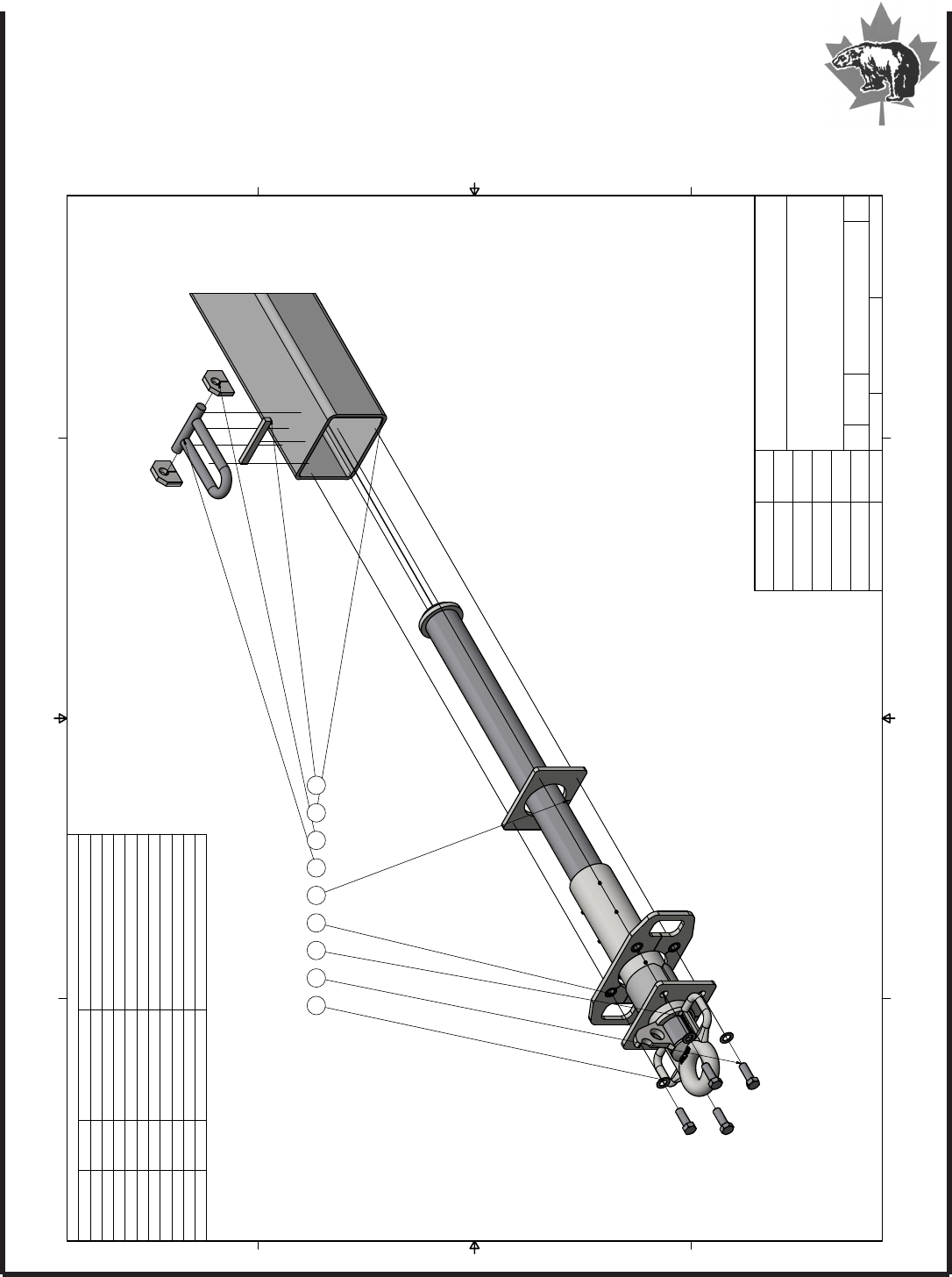

2-Stage Reach
Parts List
DESCRIPTIONPART NUMBERQTYITEM
Reach Stopper Bar, 6" Long
AML340511
Safety Stopper Block
AMR4451-SL-0522

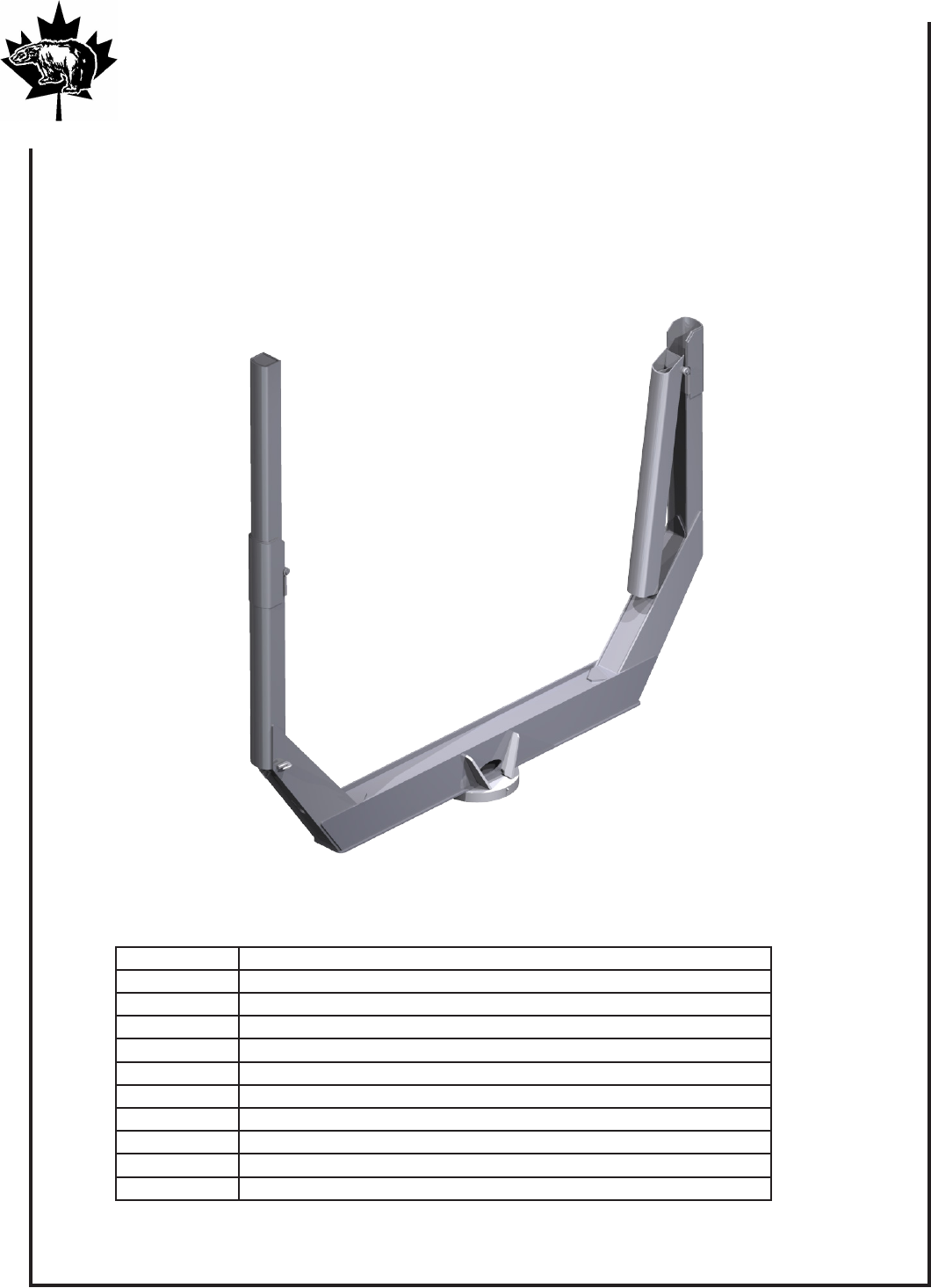

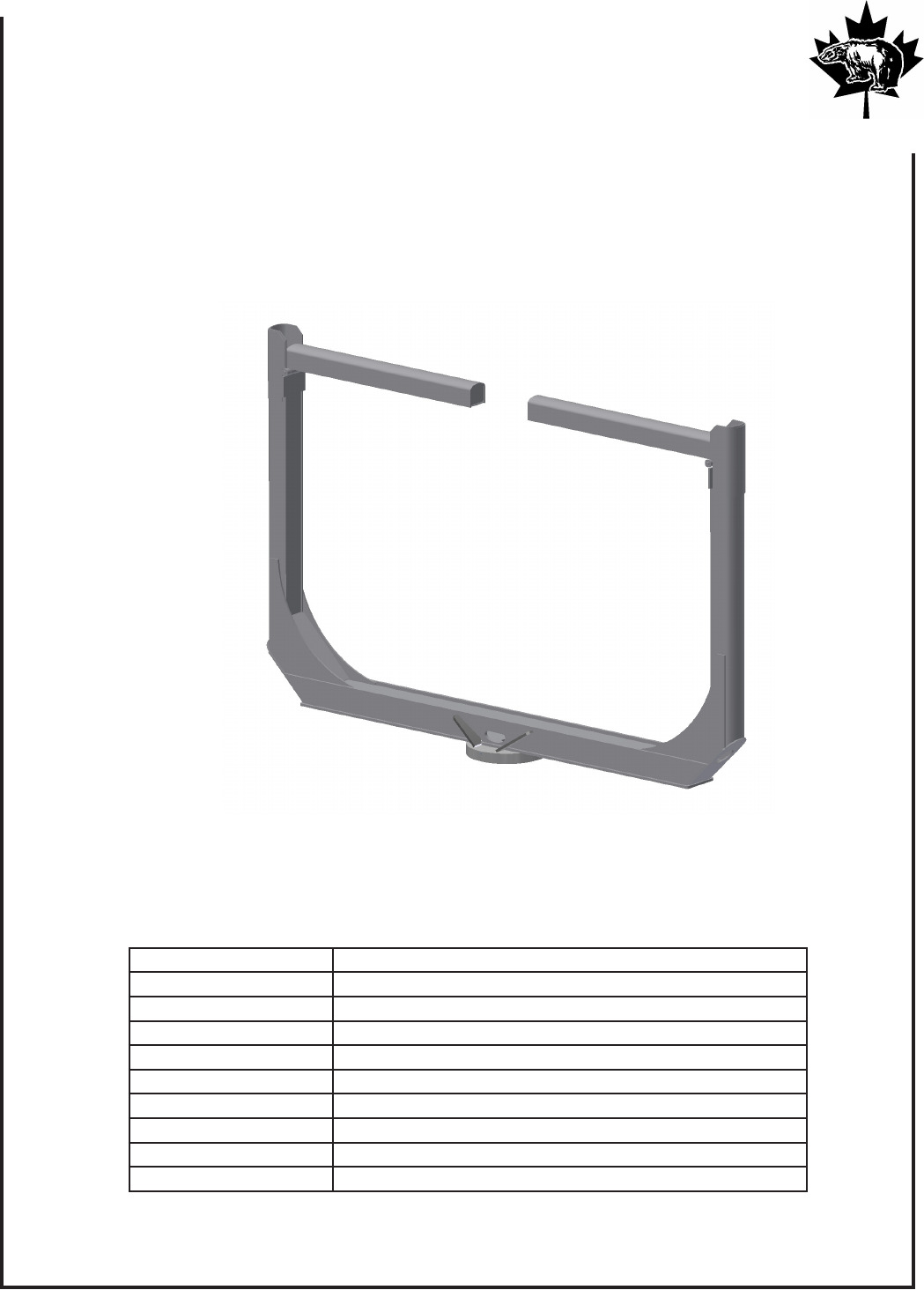

Quad Reach Main Tube
AMR4451-SL-1613
Quad Reach Insert End PlateAMR4451-SL-18
14
Quad Reach Swivel Housing Plate
AMR4451B-0225
Reach Lock Socket
AMR4452-SL-0726
3/4 X 2 UNC 8 BoltBLT8C12-326
7
3/4 UNC Lock Nut
BLT8CLNT1268

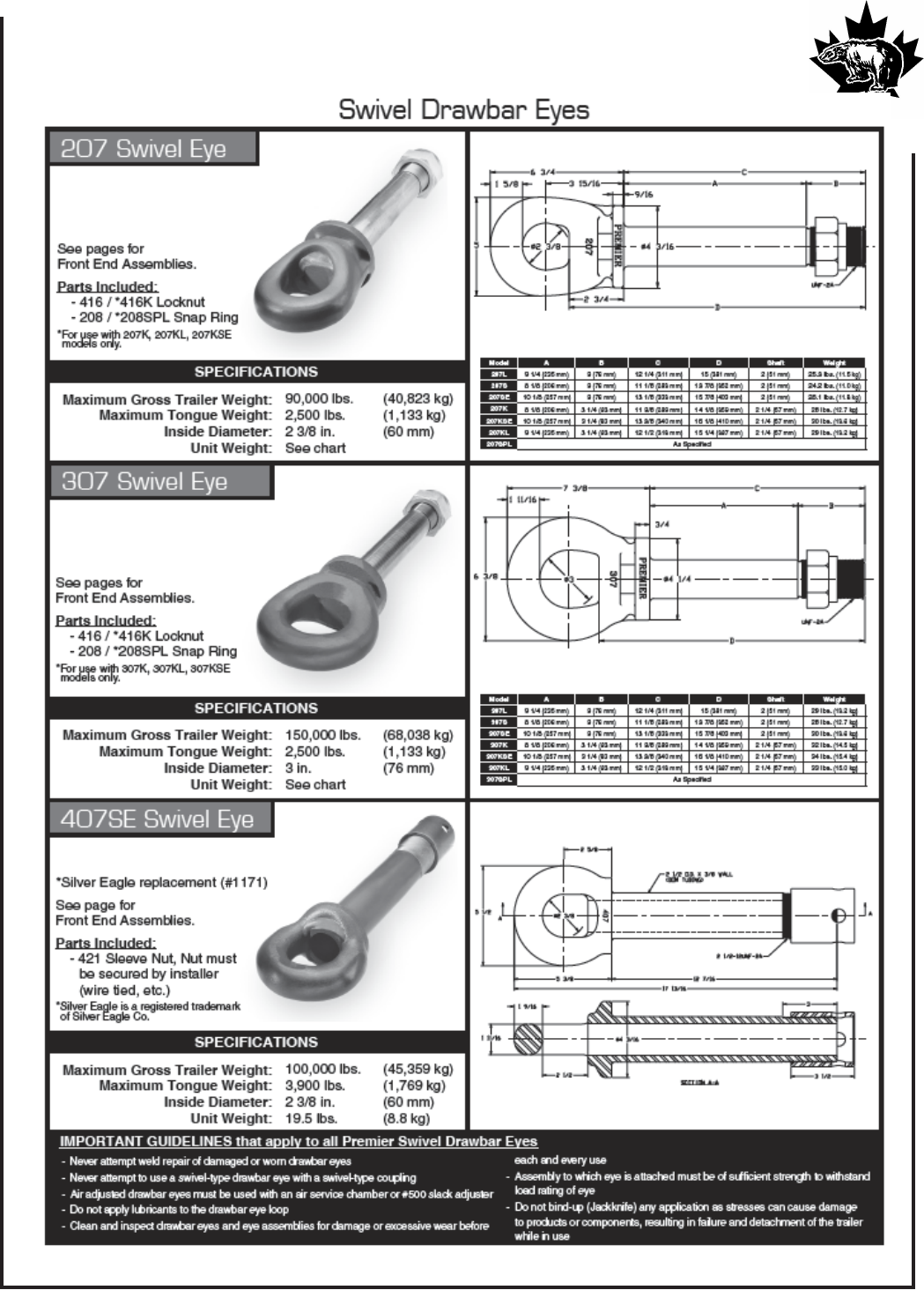

207 Swivel EyePRE207S
1
9
Premier Poly Bushing
PRE348A210
Washer
PRE349SE111
Hex Lock Nut 2"-12 UNFPRE416
1
12

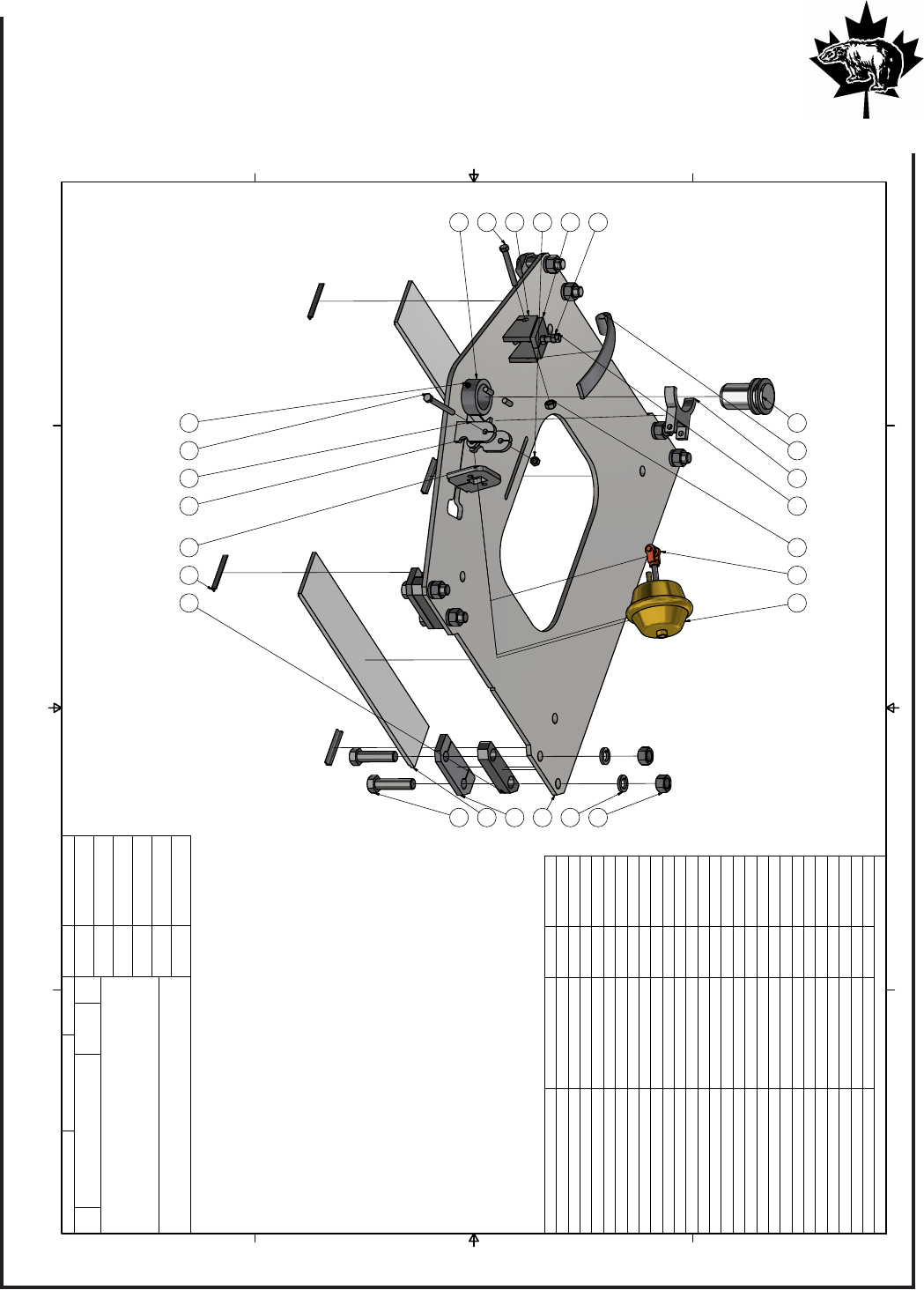

Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
TubeAISC - 6x3x3/16 - 26.46875
26.469 in1
Jam Nut, 1 1/2" UNC Hex
AML106212
C/Guard Hook, Axle/Shovel/WrapperAML201023
Corner Clamp Air-Pot Mount Bracket
AML304514
Lift Molly Bracket, 2HoleAML3049
15
Extension Spring AML445116
Limit Tab
AML528017
Cast Corner Reach Clamp, Body OnlyAMR3040-01
1
8
Main Body LH Side Plate
AMR4451-SL-1919
Main Body Rh Side PlateAMR4451-SL-20
1
10
Main Body Top Plate
AMR4451-SL-21111
Main Body Base Plate
AMR4451-SL-22112
Main Side Angle Tube: 3 x 3 x .375w HSSAMR4451-SL-23213
Full Quad Reach Insert Assy
AMR4451B-01114
Main Lock Mount Plate" Type 30AMR4451B-SL-22
115
Air Chamber Mount Plate: type 30
AMR4451B-SL-24116
Lift Cross Tube
AMR4451D-02217
Wedge-LockAMR4452-SL-08
1
18
Wedge Pocket Side Plate
AMR4452-SL-20219
Wedge Pocket Top PlateAMR4452-SL-21
1
20
Cam Plate
AMR4452-SL-23121
Reach Lift Lug
AMR4452-SL-25122
Drain Cock, 1/4" Male - 1/4" MaleBER12112
1
23
CLEVIS KIT, 1/2" PIN X 5/8"UNF
BER19105124
Type 30 Service ChamberBER19300225
5/16 X 1
BLT8C05-16226
5/8 X 2.5BLT8C10-40
1
27
5/8 X 3BLT8C10-48
1
28
1 X 2.25BLT8C16-36129
1 X 3 UNC G8 Cap ScrewBLT8C16-48
1
30
5/16 UNC8 Lock Nut
BLT8CLNT05231
5/8 UNC Gr8 Lock NutBLT8CLNT10
5
32
1" UNC8 Lock NutBLT8CLNT16133
5/8 UNC8 Lock Nut
BLT8CNT10234
5/8 SAE Flat WasherBLT8FW10235
1 SAE Gr 8 Flat Washer
BLT8FW16136
Clip; Insul; 1.5 Closed; 0.406 HoleInsulated Clamp 67
1
37
Clip; Insul; 1 Closed; 0.406 Hole
PIC7520138
Reducer Bushing, 1/2" MNPT to 1/4" FMNPT
PIPRB08-04139

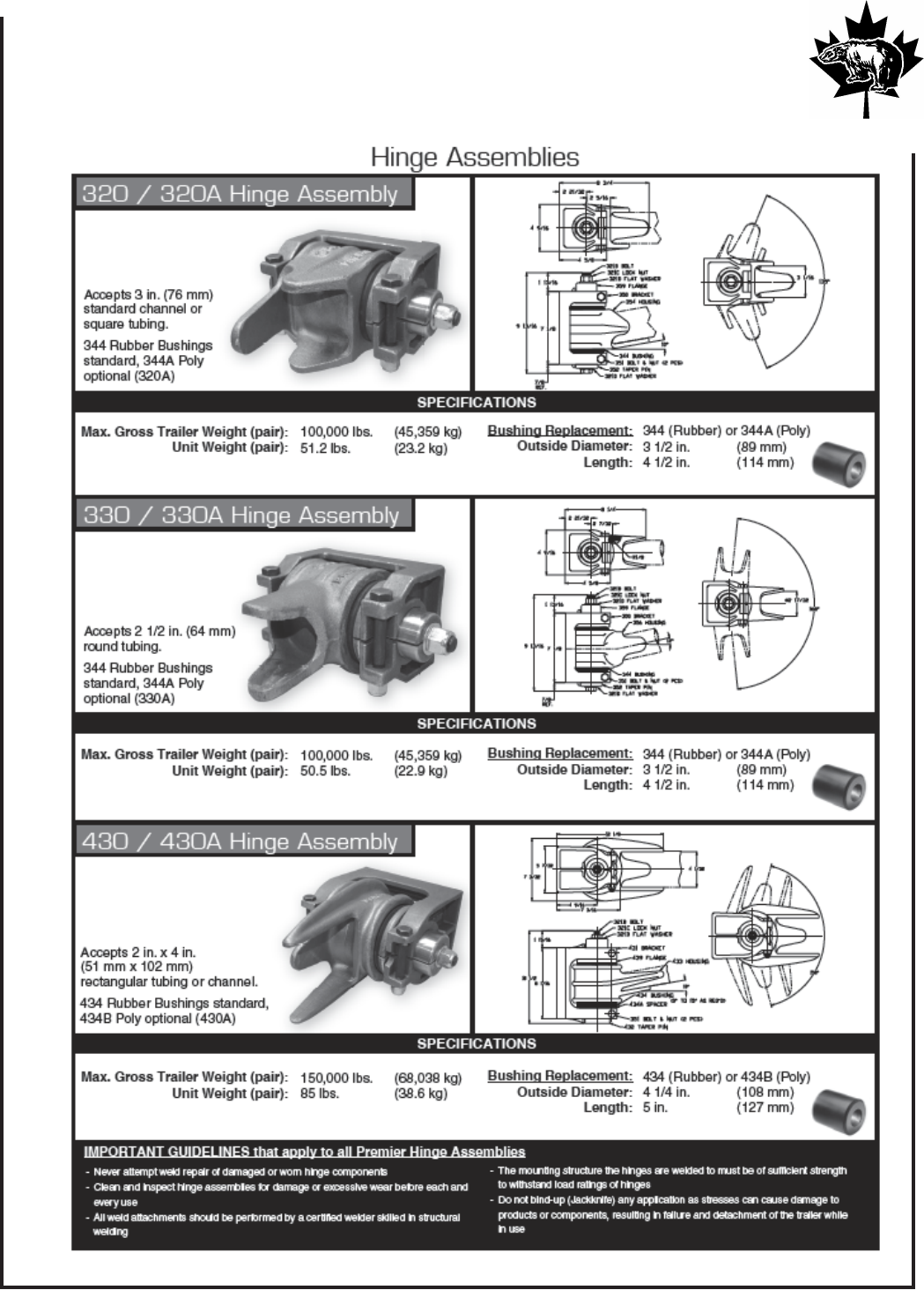

Premier Hinge Assy: LH
PRE440-L
1
40
Premier Hinge Assy: RHPRE440-R141
Male Elbow 90: 3/8 - 3/8 NPTWHF1869X06X6242
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 4 OF 4
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
BLAIR
Blair
7/5/2007
1/5/2005
1/5/2005
1/5/2005 DWG NO
AML6605-absWB-Explode
TITLE
QD-32 Quad Short Logger Sub
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
A1
48 312
11 2
10 6579
14
40
41
13
171
22
129
23396 2528
11
21 42
29
3
30
10
26
24
8
32
16
35
18
15
36
2 20 19
4
5
7
34
27
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
24

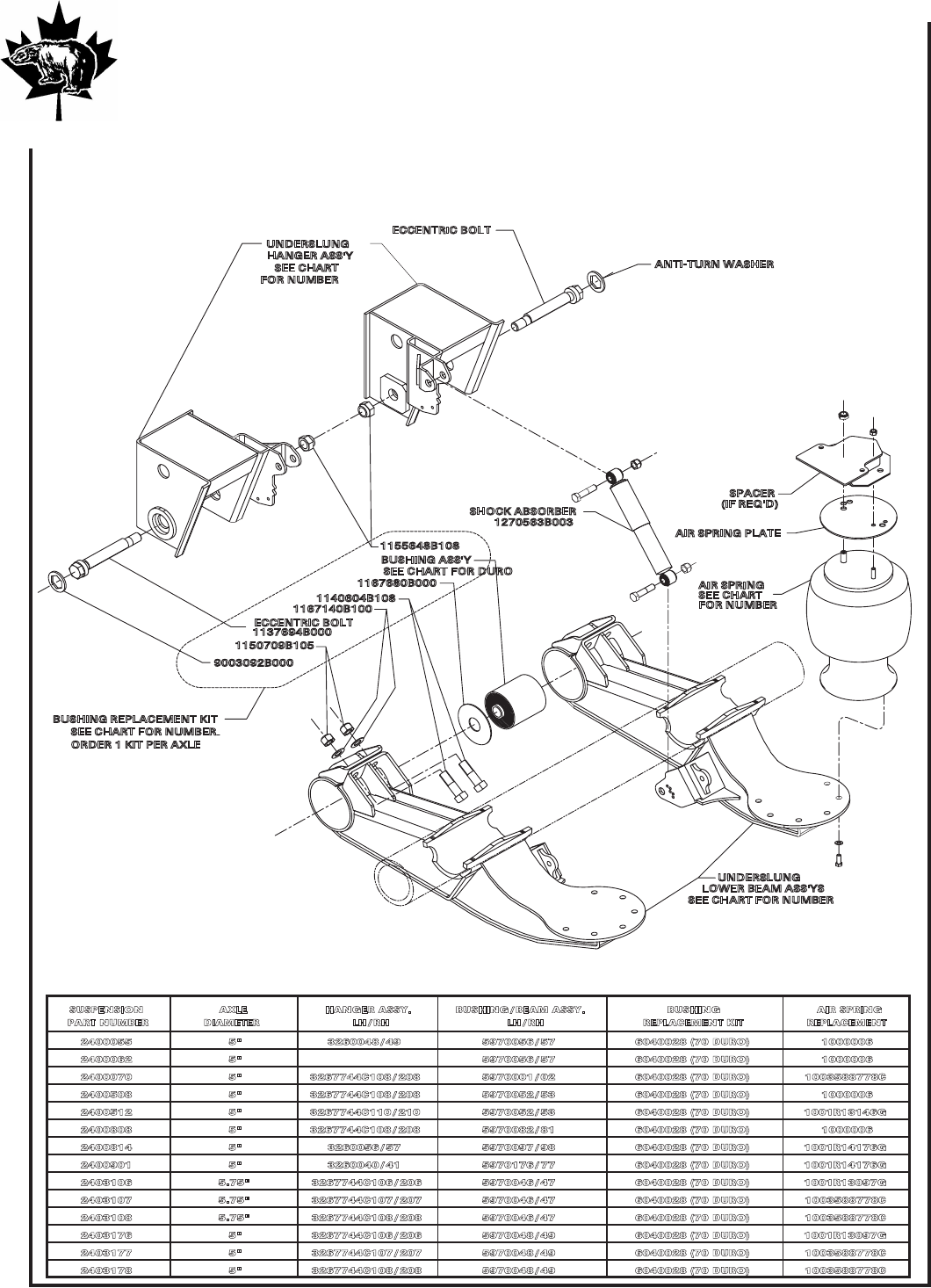

QD-32 Quad Axle - Air-Ride Suspension
Front Suspension
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Ridewell Extreme: HCV c/w Dump
620500211
Jumbo Air Tank
AML3030J12
SL Quad Reach: +69" Travel:AML4451D-SL
1
3
Limit Tab
AML528044
AML6502C
15
AML653016
Air-Ride Tower Cross-Member: 77" Track
AML665017
Gusset: 6 x 6 x .250wAMR2021-0128
Bulk-Head Fitting
BER1030039
In-Line Filter, 1/4 FMNPT - 1/4 MNPTBER11480210
Drain Cock
BER12110111
30/30 Maxi Chamber
BER15431412
CLEVIS KIT, 1/2" PIN X 5/8"UNFBER19105
4
13
Preasure Protection Valve, 70 PSI
BERN15759DG114
FFABS Valve, PLC-ECU 2s/1M No HarnessBERN9002BB
115
5/16 X 1
BLT8C05-16216
5/16 X 1 1/4 UNC8 Cap ScrewBLT8C05-20
417
3/8 X 1 1/2 UNC Gr 8 Cap ScrewBLT8C06-24
4
18
5/8 X 1 1/2 UNC8 Cap Screw
BLT8C10-24419
5/16 UNC8 Lock NutBLT8CLNT05620
3/8 UNC8 Lock Nut
BLT8CLNT06421
5/8 UNC8 Lock NutBLT8CNT10
422
3/8 Fender WasherBLT8FENDER-06223
5/16 SAE Flat Washer
BLT8FW05624
3/8 SAE Flat WasherBLT8FW06825
Bob-Tail 7-W Rect: Check BOM for Correct Length
COHBTTR126
Truck-Lite Surface Mount Junction BoxDOM50800
1
27
Dana Axle 77.5" Track, 10 stud bud hubsHDTD22FC167-WY710-775228
Poly Light Box, Single 2 1/2"
MIS2463-P129
Ridewell 240 30K-U/S 7.5" Suspension NEW240-30K-US-7.5-41230
GROMMET, 1 1/4 X 1 X 1/4
PIC6124931
Close Nipple, 1/4 MNPTPIPCN04
1
32
Close Nipple, 3/8 MNPTPIPCN06133
Pipe Plug, 3/8 MNPT
PIPPP06134
Pipe Tee, 3/8 FMNPTPIPPT06
1
35
Reducer Bushing, 3/8 MNPT - 1/4 FMNPT
PIPRB06-04136
Reducer Bushing, 3/4 - 1/2PIPRB12-08
1
37
Reducer Coupler, 3/4 - 1/2 NPT
PIPRC12-08138
Run01139
Run02
1
40
Run03141
Male Connector: 1/4 - 1/4 NPTWHF1868X04X04
1
42
Male Connector: 1/4 - 3/8 MNPT
WHF1868X04X06143
Male Connector: 3/8 - 1/4 MNPT
WHF1868X06244
Male Connector, 1/2 - 1/2 MNPTWHF1868X08X082
45
Male Elbow 90, 3/8 - 1/4 MNPT
WHF1869X06246
Male Elbow 90: 3/8 - 3/8 NPTWHF1869X06X62
47
M/Branch Tee, 3/8 - 1/4 MNPT
WHF1871X06X04848
Male Branch Tee: 3/8 - 1/4 NPT
WHF1872X06149
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
29/06/2011
29/06/2011
29/06/2011
29/06/2011 DWG NO
AMR6605A-ABSAR-assembly
TITLE
Air-Ride Quad S/Logger: Front Assembly
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
40
5
19
483028 1
49
39
41
12
44
17
23
24
20
27
7
3 1547 3816
4
2
18
21
45
25
109 46
426
26
29
14
35
33
36 32
43
13
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
25
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Switch Mount : Control Panel
AMR6530-0111
Button Head Small Solid RivetANSI B18.1.1 - 1/4 x 9/1632
Phillips ISO metric machine screws
AS 1427 - M4 x 20
4
3
Square Head PlugASME B16.11 Square Head Plug 1/8
14
Bulkhead Fitting, 1/4" FMNPTBER103066
5
Hand Operated On/Off Air Valve
BER1240016
Stainless Steel Empty HousingNEWRA001BSR
17
Street Elbow, 1/4 x 90
PIPSE04X9028
Male Connector: 1/4 - 1/8 NPT
WHF1868X04110
Male Connector: 1/4 - 1/4 NPTWHF1868X04X042
11
Male Elbow 90: 1/4 - 1/8 MNPT
WHF1869X04112
Male Elbow 90, 3/8 - 1/4 MNPTWHF1869X06
4
13
Male Run Tee, 1/4 - 1/4 MNPT
WHF1871X04X04114
Hostler Valve
WMA111913215
4" Air-Gauge: Liquid FilledWMAC000160-ZB216
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET
1
OF
4
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
20/05/2011
20/05/2011
20/05/2011
20/05/2011
DWG NO
AML6530
TITLE
Full Quad S/L Air-Ride Control Box
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
QD-32 Quad Axle - Air-Ride Suspension
Front Control Box
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
26
1
2
3
4
5
6
7
8
9
10
11
17
18
19
12
13
14
15
16
20
21
23
24
22
25
26c
26d
26b
26a
26
26e
26f
JC-9.1 SINGLE
AXLE JEEP
Item Part Number Description Qty Item Part Number Description Qty
1 NEW9055014 Air Bar, Double Convoluted 1 20 AML4258 JC Susp Hanger Plate 4
2 DOM73-7862 Grommet, Rectangular 4 21 AML4259 JC Susp Hanger Rib 4
3 DOM73-5214/L Rectangual Sealed Beam 4 22 AML8001B JC9-1 Frame Assy 1
4 AML1400 Swivel King Assy, 2 23 AML8410 Load Pipe Assy 4-6
5 DOM71-6042 Reector, Red 2 24 AML2405 Tire Guide 4
6 AML1410/B Mudap, rubber or poly 2 25 AML8200B In-Frame Bolster 1
7 AML8035 JC Hook Strap Assy 1 26 AML8101B King-Pin Assy: Break-Down 1
8 AML8016 JC Air Control Panel Assy 1 26a AMR8101B-01 Lock Block 2
9 NEW90054007 Air Bag, 25,000 Cap 2 26b AMR8101B-45 Rocker Assy 1
10 AML4294 Washer Kit, Shock Absorber 2 26c BER19160 Type 16 Air Chamber 2
11 BLT8F12-64 3/4 x 4 unf 8 Cap screw 4 26d AMR8101B-50 Push-Rod 2
12 REYT2103 Washer 4 26e AMR8101B-04 Nylon Wear Plate 2
13 AML4254 Trunnion Nut 4 26f AML8156 Drive Pin 16
14 HDH6994 Jam Nut 4
15 AML4252 Bushing, Link Arm Pivot 4
16 AML4253 Tube, Link Arm Pivot 2
17 AML42592 Sleeve Kit, Shock Absorber Mount 4
18 BLT8FLNT12 3/4” unf 8 Lock Nut 4
19 AML4290 Shock Absorber 2
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
27
1
2
3
4
5
6
7
8
9
10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30a
30b
30d
30c
30e
30f
JC-17 TANDEM
AXLE JEEP
Item Part Number Description Qty Item Part Number Description Qty
1 DOM73-7862 Rectangular Grommet 4 20 AML3541-2 Deep Nut, 1” 16
2 DOM73-5214 Rectangular Lamp 4 21 BLT8C06-20 3/8 x 1 1/4” UNC8 Capscrew 12
3 AML1400 Swivel King Assy 2 22 AML3031-1 Air Tank Clamp Bracket 8
4 DOM71-6042 Reector, Red 2 23 AML3030 Air Tank 2
5 AML1410 Mudlfap 2 24 AML9340 Support Prop, Swing Down Leg 1
6 AML9560 Suspension Mount Lug 4 25 AML9320 Hinge Plate, Swing Down Leg 2
7 AML4520D In-Board Leg Locator Plate 4 26 AML9300 Leg, Swing Down, Telescopic 1
8 AML9500 (or) Inboard Leg Assy, 71” Track 1 27 AMR8200B-01 Bolster Top Plate 1
8 AML9500A (or) Inboard Leg Assy, 77” Track 1 28 AML9001B Frame Assy 1
9 AML9500B (or) Inboard Leg Assy, W/Beams 1 29 AML2170U Wear Plate, UHMW 1
10 AML3018 Trunnion Bolt 2 30 AML9101B (or) King Pin Plate Assy: Air Pot Type 1
11 AML3524 Step Washer 2 30 AML9101C (or) King Pin Plate Assy: Cylinder Type 1
12 AML3554C Walking Beam, 54”, Inverted Cap 2 30a AML8101B-01 King Pin Lock Block 2
13 AML3526 Out Board Leg 2 30b AMR8101B-45 Rocker Assy 1
14 AML3528 Keeper 2 30c BER19160 Type 16 Chamber 2
15 AML3525 Trunnion Bolt 2 30d AMR8101B-50 Push-Rod 2
16 AML3534 Walking Beam Axle Adapter 4 30e AML8101B-04 Wear Plate 2
17 AML3548 Walking Beam U-Bolt 8 30f AML8156 Drive Pin 16
18 AML3520-U Bushing, 3 1/2 ID x 4 1/2 OD x 4 L 12
19 AML3532 Walking Beam Top Cap 4
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
28
ARCTIC
LOGGING EQUIPMENT
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
29

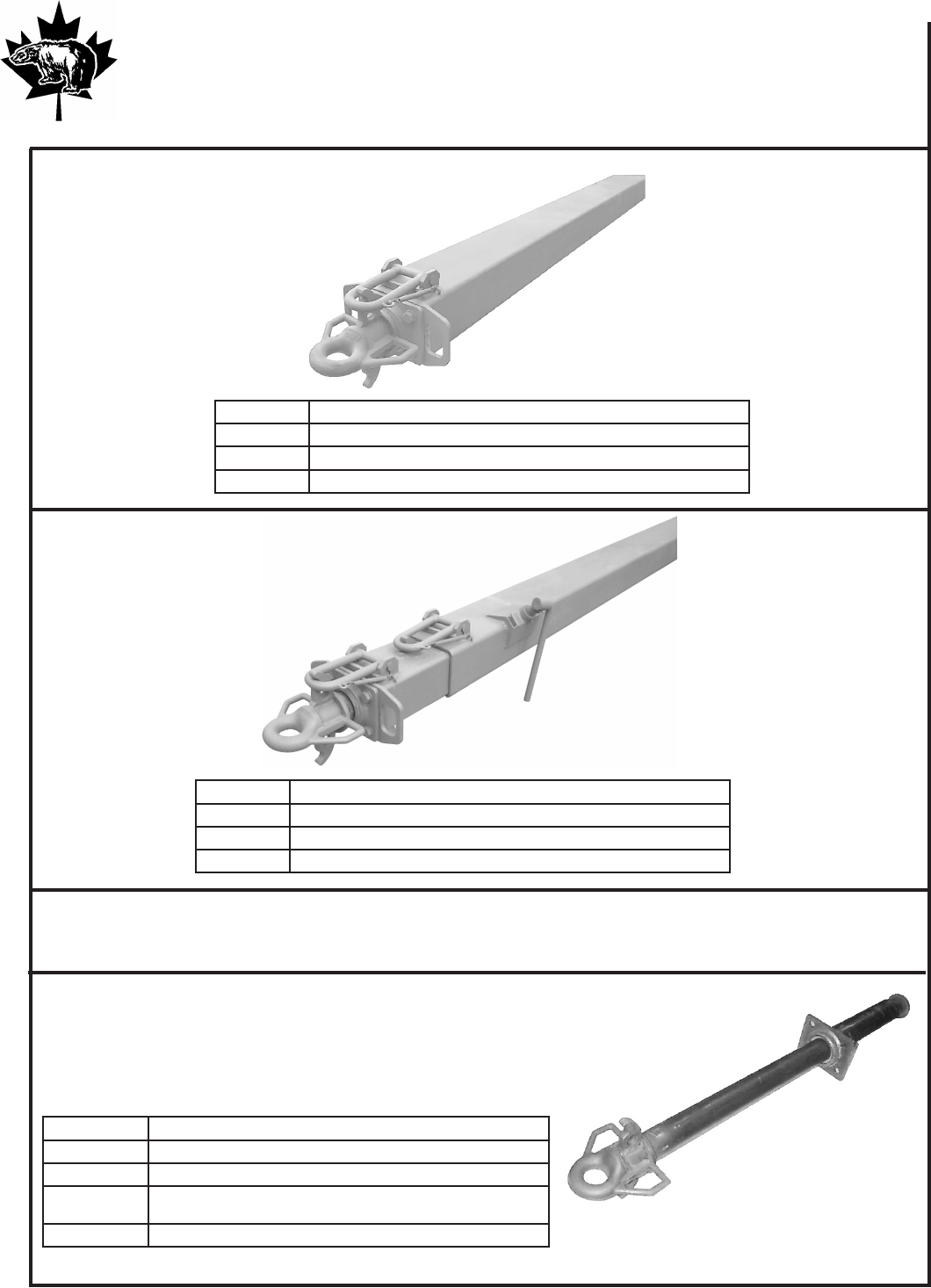

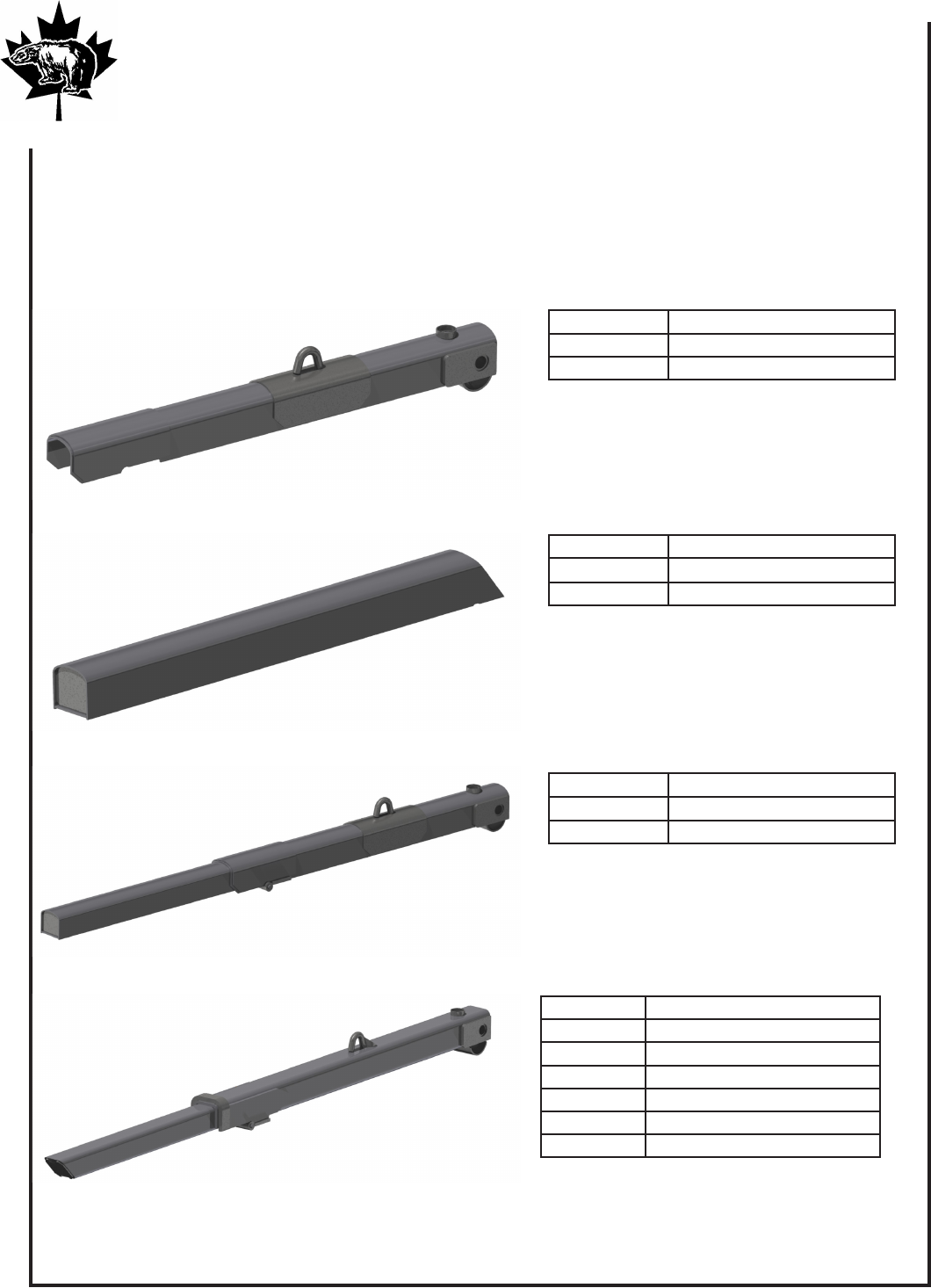

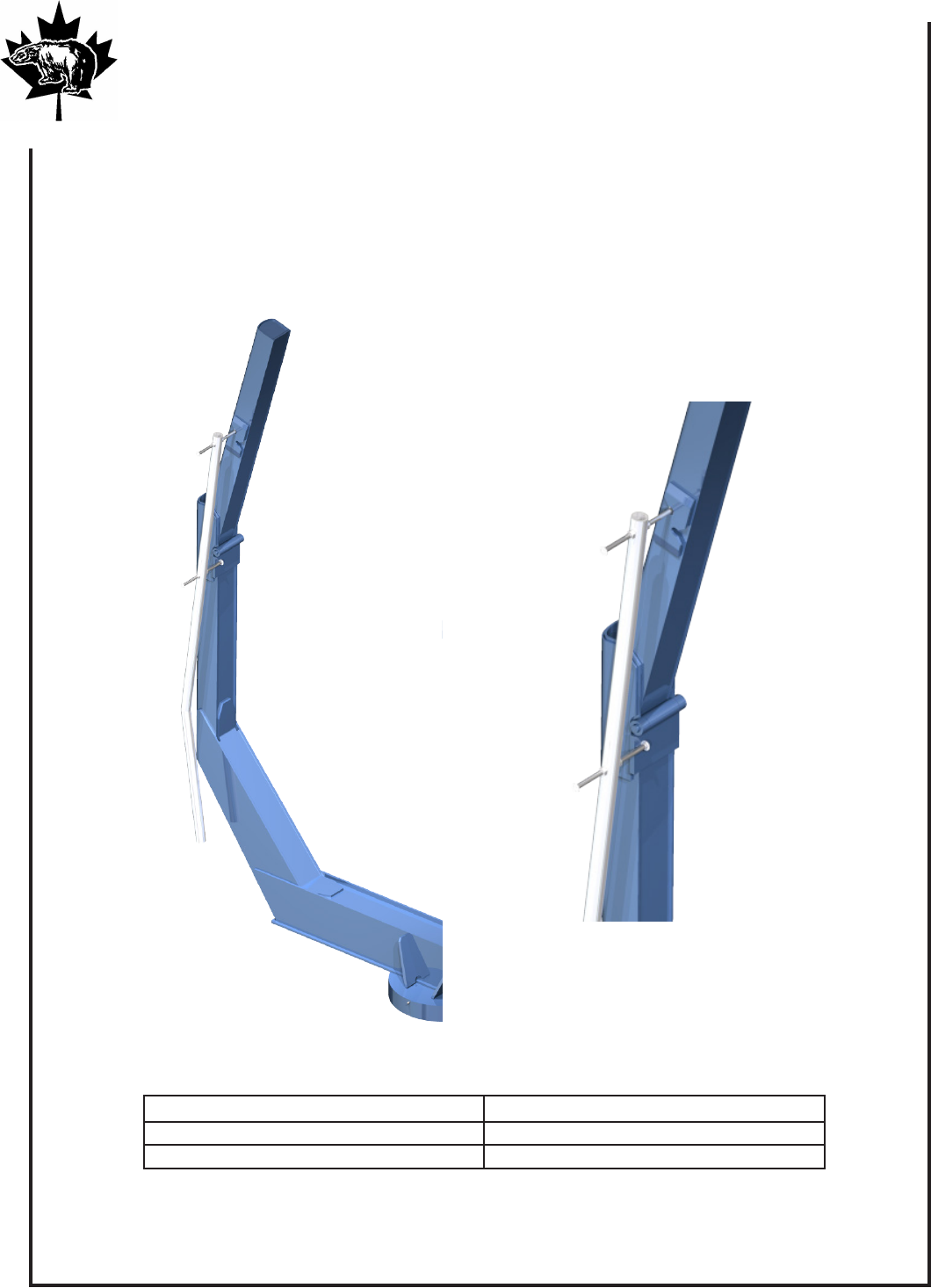

STAKES & EXTENSIONS
LONG LOG
PART NUMBER PART DESCRIPTION
AML1000 MAIN STAKE, 60”
AML1000L MAIN STAKE, 72”
PART NUMBER PART DESCRIPTION
AML1004 HD HINGED STAKE, 60” X 48”
AML1004L HD HINGED STAKE, 60 X 60”
AML1021 HD HINGED STAKE, 72 X 60”
AML1022 HD HINGED STAKE, 84 X 48”
AML1024 HD HINGED STAKE, 90 X 48”
AML1027 SOLID STAKE, 96””
PART NUMBER PART DESCRIPTION
AML1001 EXTENSION ,48”
AML1000L EXTENSION, 60”
PART NUMBER PART DESCRIPTION
AML1002 STAKE, 60” MAIN X 48” EXTENSION
AML1000L STAKE, 72” MAIN X 48” EXTENSION
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
30

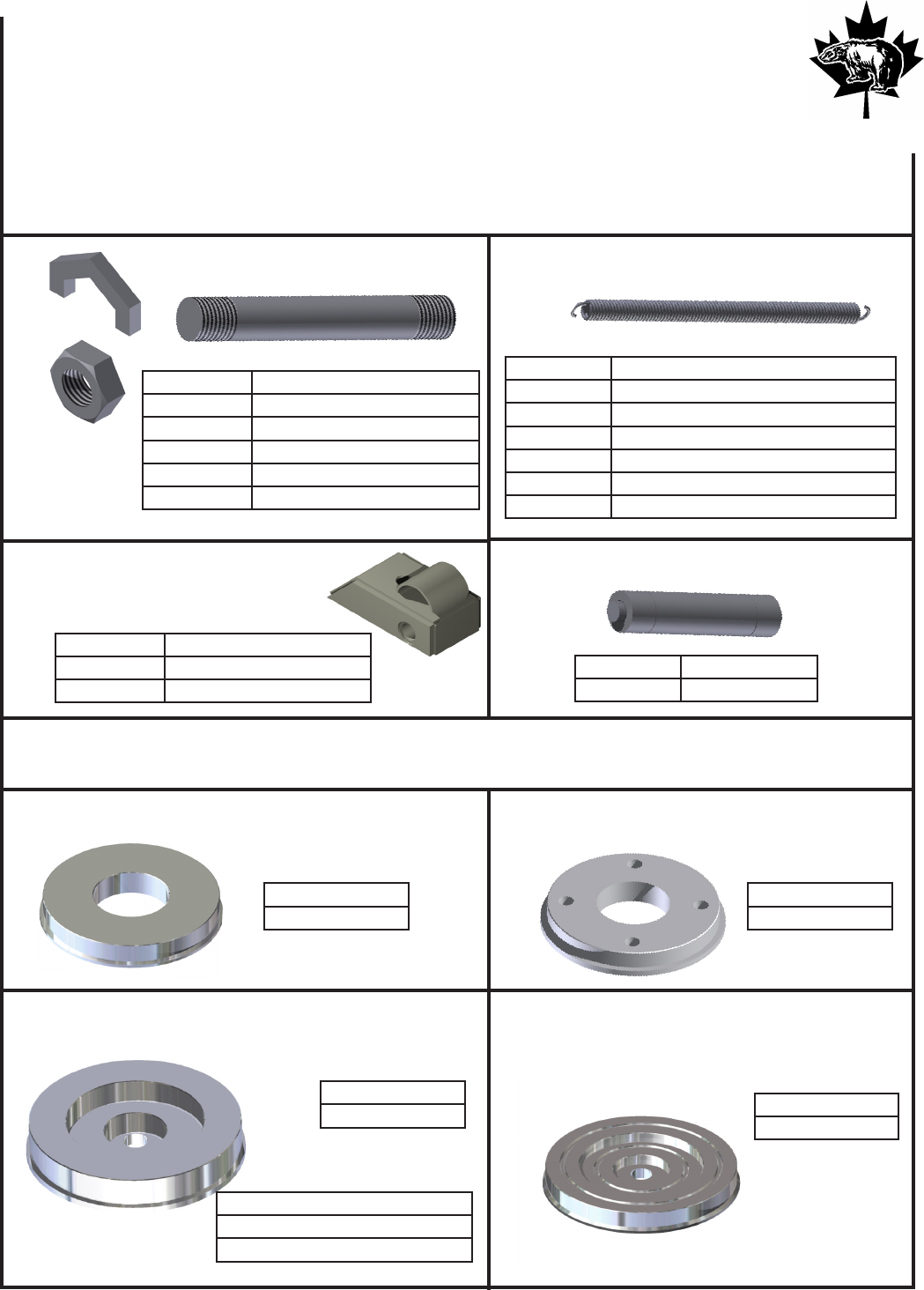

STAKE HARDWARE
1-1/2 PIN ASSY
PART NUMBER PART DESCRIPTION
AML1060 1-1/2” DIA STAKE PIN X 10 1/4”
AML1062 1-1/2” STAKE PIN JAM NUT
AML1355 STAKE PIN LICK TAB
AML1065 STAKE PIN, 1-3/4 X 10-1/4”
AML1352-1 JAM NUT, 1-3/4” UNC
EXTENSION SPRINGS
PART NUMBER PART DESCRIPTION
AML1015 EXTENSION SPRING, 24” X 1 1/2” OD
AML1016 EXTENSION SPRING, 30” X 1 1/2” OD
AML1017 HD EXTENSION SPRING, 30’ X 1 1/2” OD
AML1018 EX-HD EXTENSION SPRING, 36” X 1 1/2” OD
AML1019 EXTENSION SPRING 30” X 1 1/4” OD
AML1020 EXTENSION SPRING 36” X 1 3/4” OD
STAKE HINGE KIT
PART NUMBER PART DESCRIPTION
AML1003 STAKE HINGE KIT
DOGLEG
PART NUMBER PART DESCRIPTION
AML1091 3” DOGLEG WELD-ON ADAPTER
AML1096 6” DOGLEG WELD-ON ADAPTER

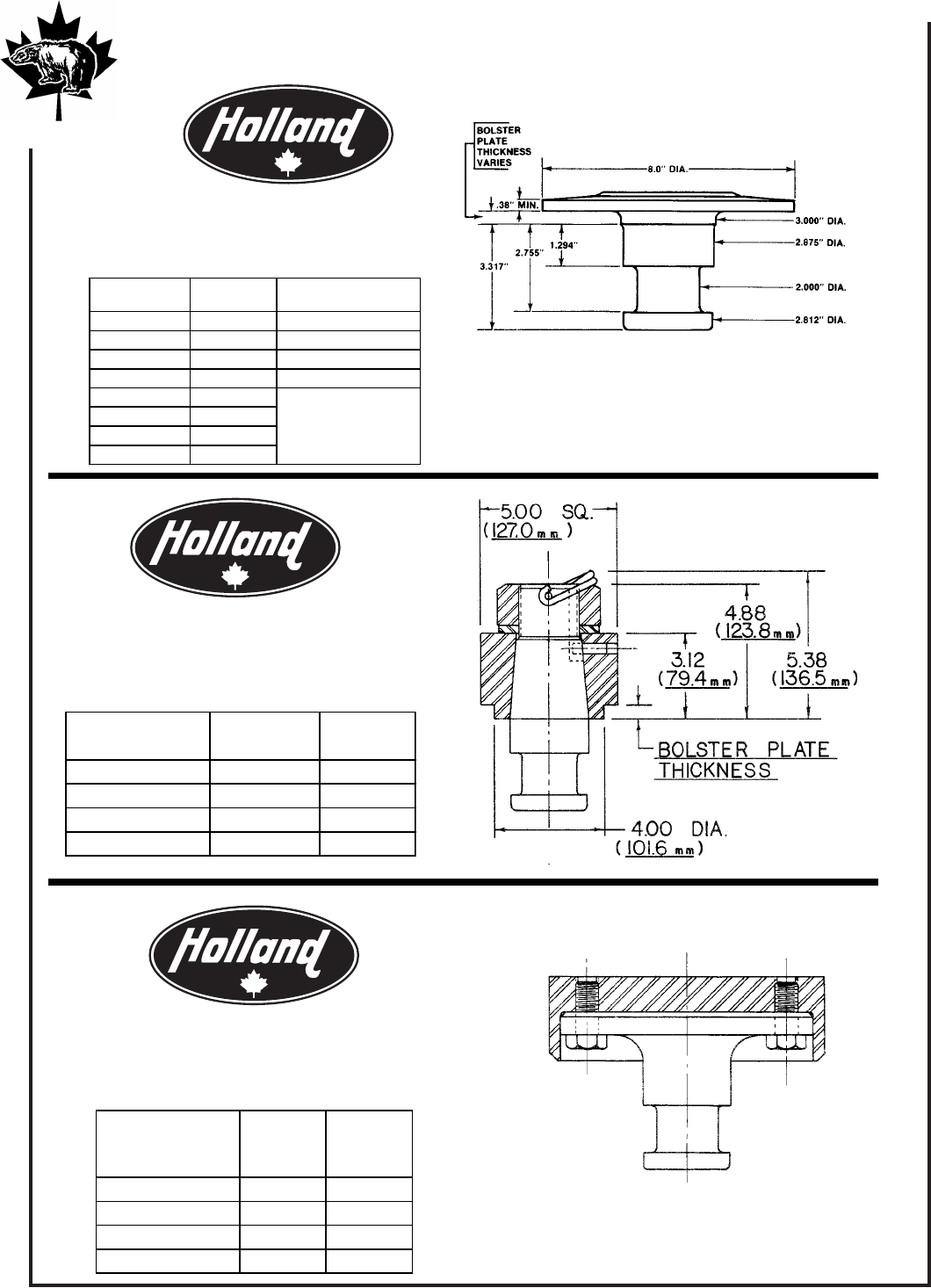

BOLSTER HARDWARE
14” HUB
PART NUMBER
AML1114
14” NYLON HUB
PART NUMBER
AML1114U
PART NUMBER
AML1117
17” HUB 17” LOW PROFILE HUB
PART NUMBER
AML1117
CONVERSION HUB - FITS OVER 14” HUB
PART NUMBER
AML1117-C
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
31

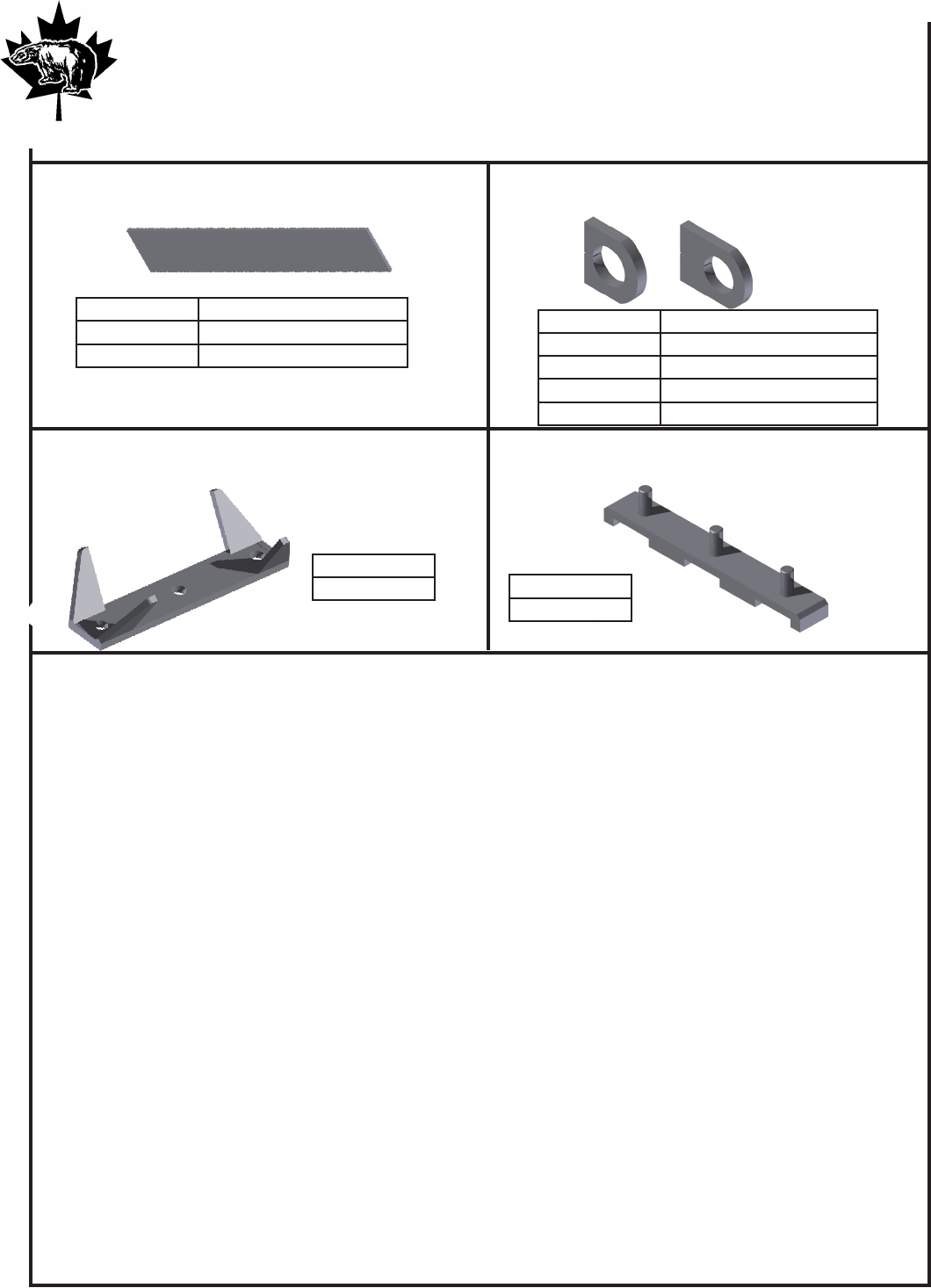

BOLSTER HARDWARE
WEAR PLATE
PART NUMBER PART DESCRIPTION
AML1141 3/16” WEAR PLATE. 4”X20”
AML1142 1/4” WEAR PLATE. 4”X20”
LOCK EYES
PART NUMBER PART DESCRIPTION
AML1150 CARROT PIN LOCK EYE
AML1152 CARROT PIN LOCK EYE, LONGER
AML1153 CARROT PIN EYE/LIFT EYE
AML1155 CARROT PIN EYE, LONGER, BENT
BOLSTER MOUNTING PLATE
PART NUMBER
AML1170
FALSE RISER BLOCKS
PART NUMBER
AML1182
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
32

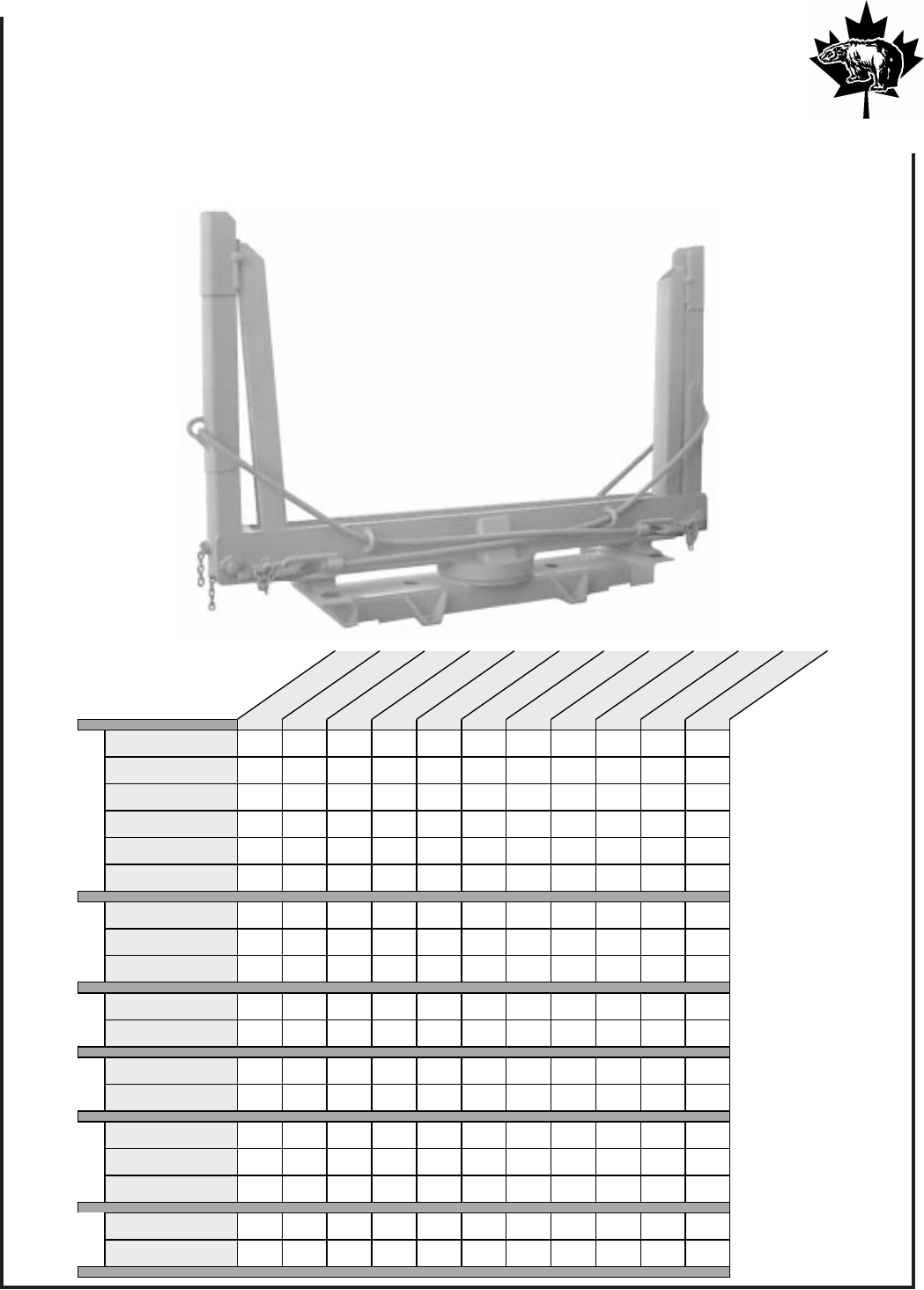

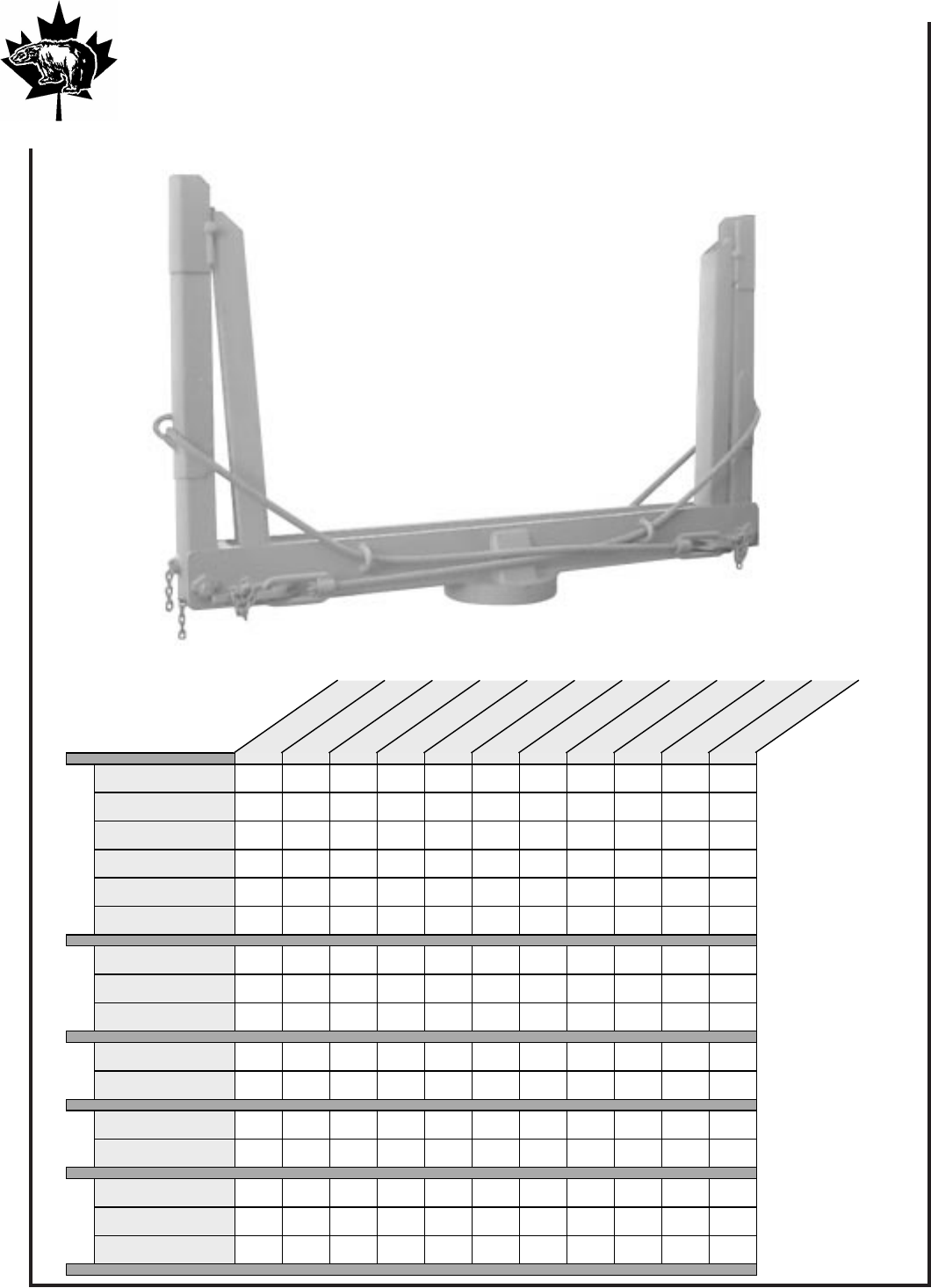

BUNKS - LONG LOG
Bare
PART NUMBER PART DESCRIPTION
AML1206 8’-6” BARE BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE-GUIDES
AML1206-1 8’-6” BUNK, C/W 14” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1206-2 8’-6” BUNK, C/W 17” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1206LP 8’-6” LOW PROFILE BARE BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1206LP-1 8’-6” LOW PROFILE BARE BUNK, C/W 14” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1207 9’ -6” BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1209 9’ BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1209-1 9’ BUNK, C/W 14” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1209-2 9’ BUNK, C/W 17” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1210 10’ BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1210-1 10’ BUNK, C/W 14” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1210-2 10’ BUNK, C/W 17” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1210-6 10’-6” BUNK, NO SAUCER, C/W HD TRIPS, CABLE GUIDES
AML1210-6LP 10’-6” L.P. BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1210LP 10’ L.P. BUNK, NO SAUCER, C/W ANCHORS, TRIPS CABLE GUIDES
AML1211 11’ BUNK, NO SAUCER, C/W ANCHORS, H.D. TRIPS, CABLE GUIDES
AML1212 12’ BUNK, NO SAUCER, C/W ANCHORS, TRIPS, CABLE GUIDES
AML1212-1 12’ BUNK, C/W 14” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1212-2 12’ BUNK, C/W 17” SAUCER, ANCHORS, TRIPS, CABLE GUIDES
AML1213 13’ BUNK, NO SAUCER, C/W H.D. TRIPS, 1-3/4” PIN HOLE, ANCHORS, CABLE GUIDES
AML1220 8’-6” to 10’-6” EXPANABLE BUNK, C/W ANCHORS, TRIPS CABLE GUIDES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
33

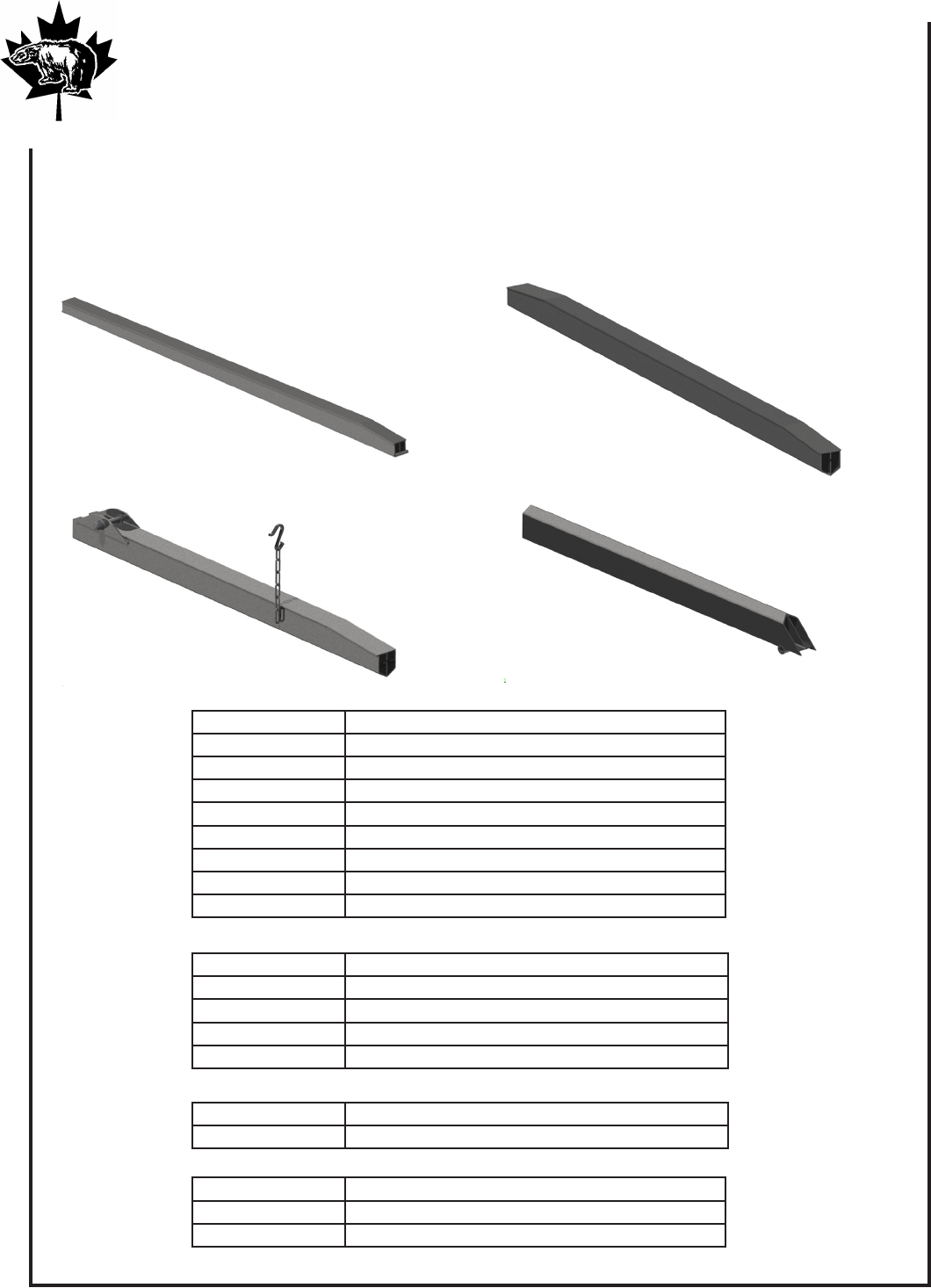

PART NUMBER PART DESCRIPTION
AML1008 8’ DROP-IN SOLID STAKE, S/L, SQUARE POCKET
AML1008-B 8’ DROP-IN SOLID STAKE, FORMED BACK, SQUARE POCKET
AML1008HD 8’ HD DROP-IN SOLID STAKE, S/L, SQUARE POCKET
AML1009 9 DROP-IN SOLID STAKE, S/L, SQUARE POCKET
AML1009-B 9’ DROP-IN SOLID STAKE, FORMED BACK, SQUARE POCKET
AML1009HD 9’ HD DROP-IN SOLID STAKE, S/L, SQUARE POCKET
AML1010-6 10’-6” DROP-IN SOLID STAKE, S/L, SQUARE POCKET
AML1010-6HD 10’-6” HD DROP-IN SOLID STAKE, S/L, SQUARE POCKET
SHORT LOG STAKE
(DROP IN STAKE)
A
C
B
D
A
PART NUMBER PART DESCRIPTION
AML1008BF 100” FORMED BACK DROP-IN SOLID STAKE, S/L
AML1009BF 114” FORMED BACK DROP-IN SOLID STAKE, S/L
AML1010 118” FORMED BACK DROP-IN SOLID STAKE, S/L
AML1010-6BF 10’-6” HD FORMED BACK DROP-IN SOLID STAKE, S/L
B
PART NUMBER PART DESCRIPTION
AML1013 72” MAIN STAKE, FORMED BACK
PART NUMBER PART DESCRIPTION
AML1014 42” EXTENSION, FORMED BACK, TAPERED END
AML1014L 60” EXTENSION, FORMED BACK, TAPERED END
C
D
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
34
PART NUMBER PART DESCRIPTION
AML1206S 8’ - 6” SHORT LOG BUNK, 4” POCKET - 14 ton, Square Pocket
AML1206SS 8’ - 6” SHORT LOG BUNK, 4” POCKET - 8 ton, Square Pocket
AML1206SSS 8’ - 6” SHORT LOGBUNK, 3” POCKET - 8 ton, Square Pocket
AML1207S 9’ - 6” SHORT LOG BUNK, 4” POCKET - 14 ton, Square Pocket
AML1210S 10’ SHORT LOG BUNK, 4” POCKET - 14 ton, Square Pocket
SHORT LOG BUNK
(DROP IN STAKE)
A B
C D
A
PART NUMBER PART DESCRIPTION
AML1220-6SE 8’ - 6” to 10`-6` EXPANDABLE SHORT LOG BUNK, 4” POCKET - 14 ton, Square Pocket
B
PART NUMBER PART DESCRIPTION
AML1206SF 8’ - 6” SHORT LOG BUNK, 4” FORMED BACK POCKET - 14 ton
AML12067SF 89 - 6” SHORT LOG BUNK, 4” FORMED BACK POCKET - 14 ton
AML1210SF 10” SHORT LOGBUNK, 4” FORMED BACK POCKET - 14 ton
C
PART NUMBER PART DESCRIPTION
AML1210-SEF 8’ - 6” to 10`-6` EXPANDABLE SHORT LOG BUNK, 4” FORMED BACKPOCKET - 14 ton
D
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
35

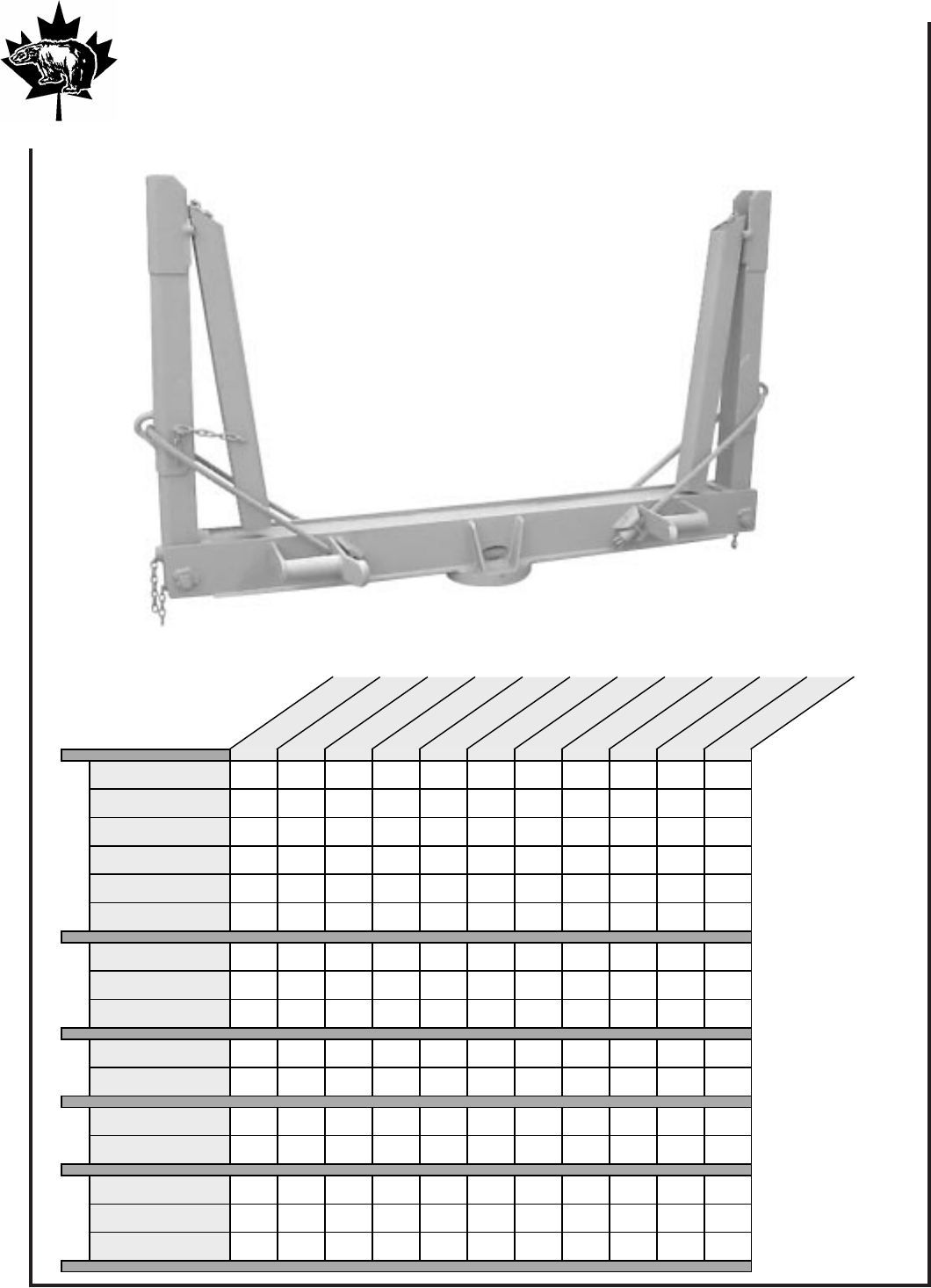

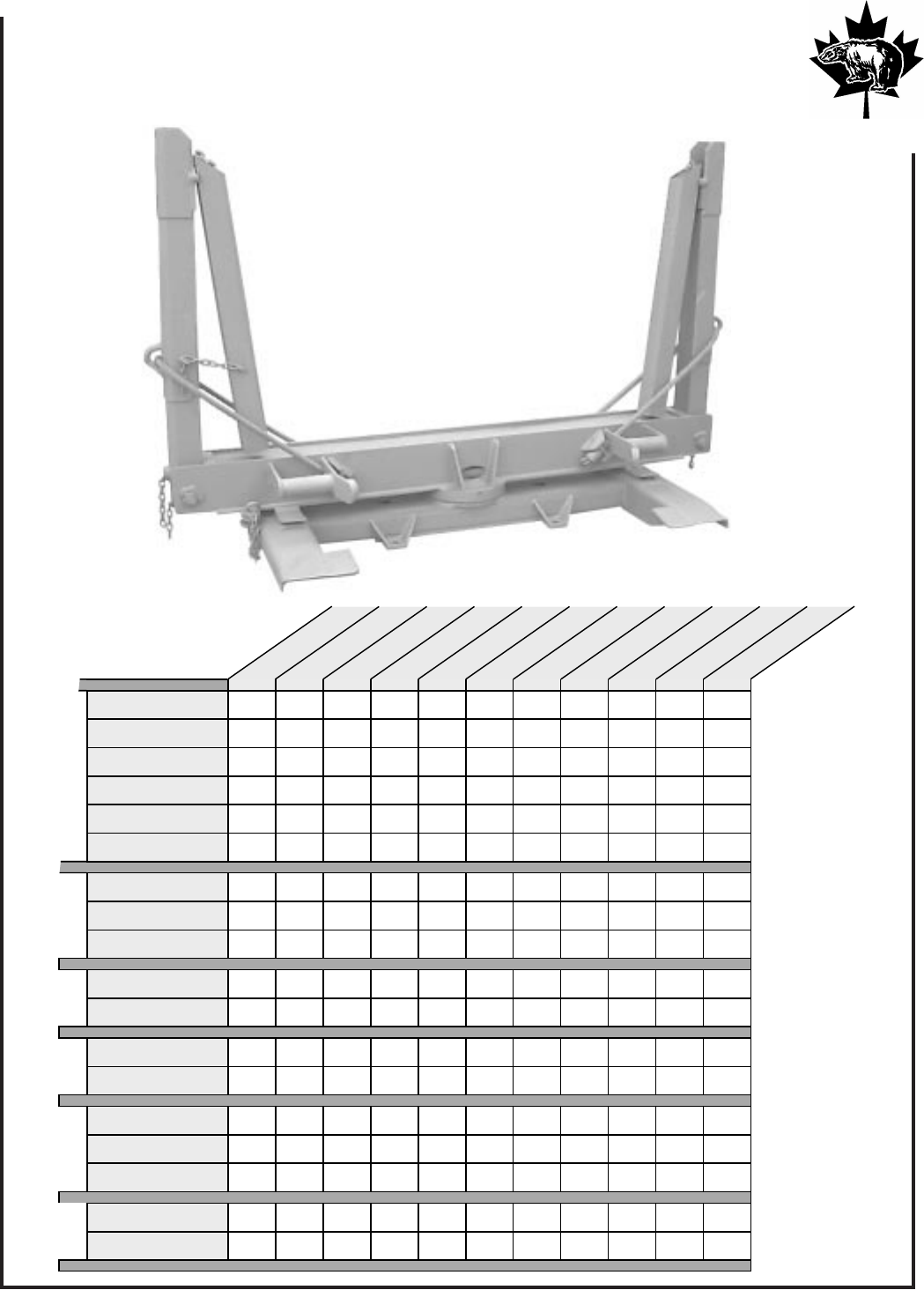

PART NUMBER PART DESCRIPTION
AML3209LW 8’ - 6” LIGHT WEIGHT “U” BUNK, 14’ SAUCER, 60”x60” SPRING LOADED EXTENSION
AML3209LW-02 8’ - 6” LIGHT WEIGHT “U” BUNK, 17’ SAUCER, 60”x60”” SPRING LOADED EXTENSION
AML3209LW-02L 8’ - 6” LIGHT WEIGHT “U” BUNK, 17’ SAUCER, 72”x48”” SPRING LOADED EXTENSION
AML3209LW-L 8’ - 6” LIGHT WEIGHT “U” BUNK, 14’ SAUCER, 72”x48”” SPRING LOADED EXTENSION
AML3210LW-05 10’ LIGHT WEIGHT “U” BUNK, 17” SAUCER, 72”x48” SPRING LOADED EXTENSION
AML3210LW-6L-05 10’-6” LIGHT WEIGHT LOW-PROFILE “U” BUNK, 17” SAUCER, 90”x48” SPG LDD EXT
AML3212LW 9’-6” LIGHT WEIGHT “U” BUNK, 14” SAUCER, 60”X60” SPG LDD EXT
AML3212LW-L 9’-6” LIGHT WEIGHT “U” BUNK, 14” SAUCER, 72”x48” SPG LDD EXT
AML3212LW-04 9’-6” LIGHT WEIGHT LOW-PROFILE “U” BUNK, 14” SAUCER, 60”x60” SPG LDD EXT
AML3212LW-05 9’-6” LIGHT WEIGHT LOW-PROFILE “U” BUNK, 17” SAUCER, 60”x60” SPG LDD EXT
LONG LOGGER BUNK
(LIGHT WEIGHT/NON TRIP)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
36
LONG LOGGER BUNK
(HIGH-VOLUME/NON TRIP)
PART NUMBER PART DESCRIPTION
AML3230 8’-6” LP NON-TRIP BUNK, c/w 72”x 48” STAKES, 14” SAUCER
AML3230-1 8’-6” LP NON-TRIP BUNK, c/w 60”x 60” STAKES, 14” SAUCER
AML3230-2 8’-6” LP NON-TRIP BUNK, c/w 72”x 48” STAKES, 17” SAUCER
AML3230-3 8’-6” LP NON-TRIP BUNK, c/w 60”x 60” STAKES, 17” SAUCER
AML3240 9`-6`LP NON-TRIP BUNK, c/w 72”x 48” STAKES, 14” SAUCER
AML3240-1 9’-6” LP NON-TRIP BUNK, c/w 60”x 60” STAKES, 14” SAUCER
AML3240-2 9`-6`LP NON-TRIP BUNK, c/w 72”x 48” STAKES, 17” SAUCER
AML3240-3 9’-6” LP NON-TRIP BUNK, c/w 60”x 60” STAKES, 17” SAUCER
AML3220 10’-6” LP NON-TRIP BUNK, c/w 90”x 48” HD STAKES, 17” SAUCER
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
37
PART NUMBER PART DESCRIPTION
AML3206 8’-6” QUAD BUNK, 67”x 52” STAKE, 18 ton
AML3206L 8’-6” QUAD BUNK, 67”x 62” STAKE, 18 ton
AML3207 9’-6” QUAD BUNK, 67”x 52” STAKE, 18 ton
AML3207L 9’-6” QUAD BUNK, 67”x 62” STAKE, 18 ton
SHORT LOG “QUAD”
(HIGH-VOLUME/NON TRIP)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
38

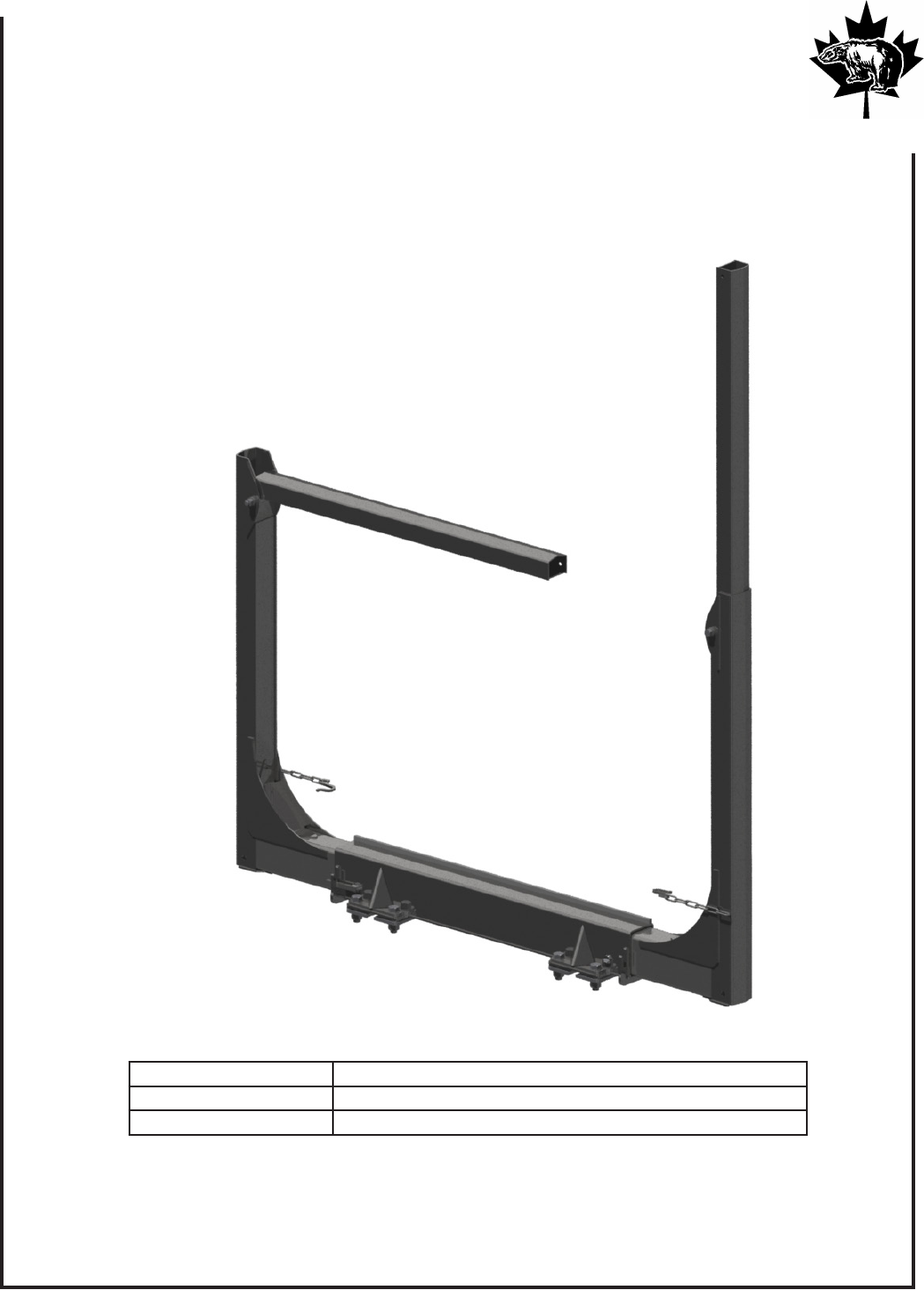

PART NUMBER PART DESCRIPTION
AML3206SE 8’-6” to 9’-6” EXPANDABLE QUAD BUNK, 67”x 52” STAKE, 18 ton
AML3206SE-L 8’-6” to 9’-6” EXPANDABLE QUAD BUNK, 67”x 62” STAKE, 18 ton
SHORT LOG “QUAD”
(EXPANDABLE HIGH-VOLUME/NON TRIP)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
39

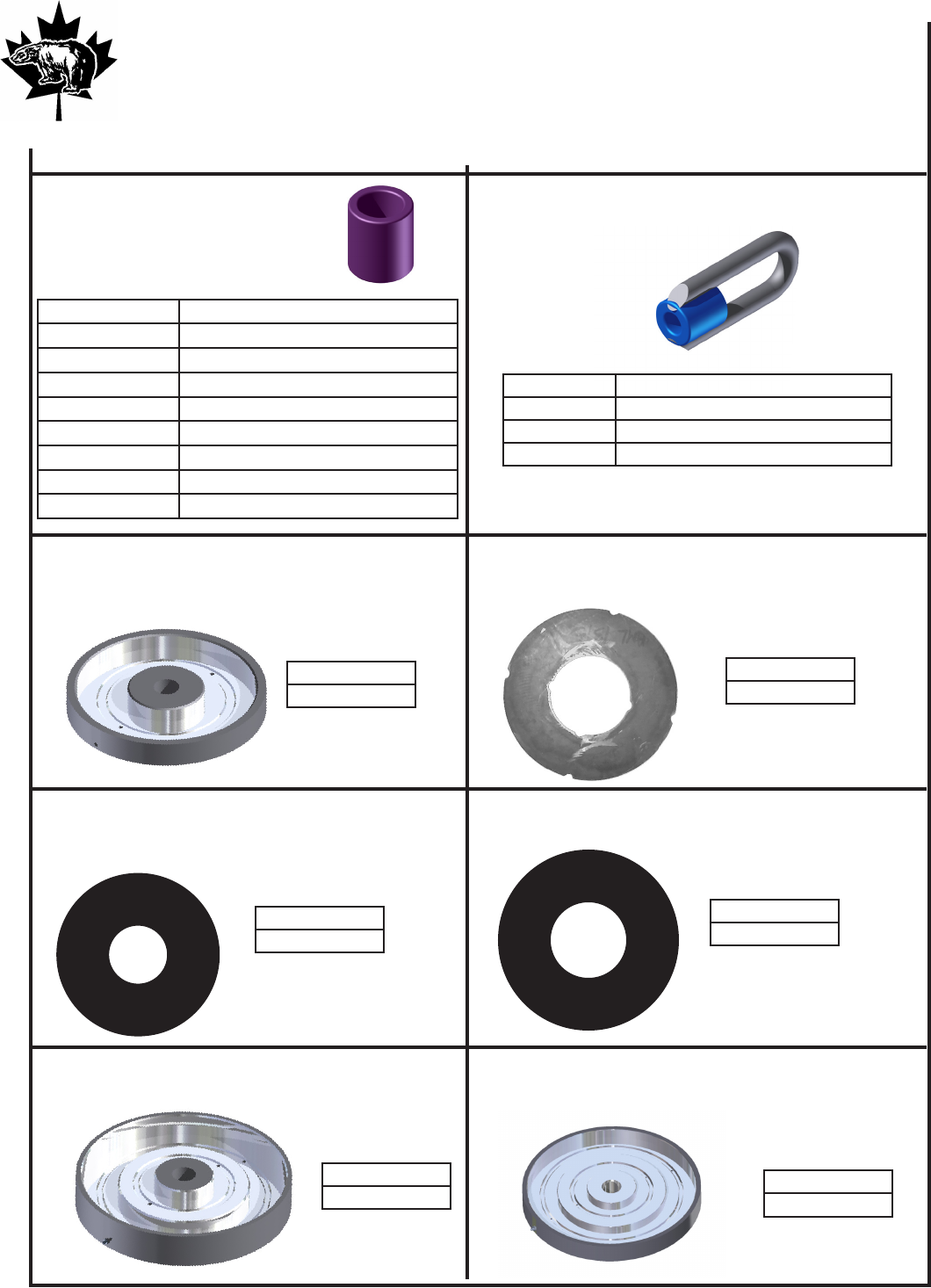

BUNK HARDWARE
QUICK FIX CABLE BELL
PART NUMBER PART DESCRIPTION
AML1303 CABLE BELL. 7/8”, C/W WEDGES
AML1304 CABLE BELL, 1”, C/W WEDGES
AML1305 CABLE BELL, 1-1/8”, C/W WEDGES
14” SAUCER 14” SHIM WEAR PLATE
PART NUMBER
AML1314
PART NUMBER
AML1315
14” WEAR DISC 17” WEAR DISC SET
PART NUMBER
AML1316
PART NUMBER
AML1316-1
17” SAUCER 17” LOW PROFILE
PART NUMBER
AML1317
PART NUMBER
AML1317-1
PART NUMBER PART DESCRIPTION
AML1298 5/8” QUICK FIX, C/W WEDGES
AML1299 1/2” QUICK FIX, C/W WEDGES
AML1300 7/8” QUICK FIX, C/W WEDGES
AML1300W WEDGES, FOR 7/8” QUICK FIX
AML1301 1” QUICK FIX, C/W WEDGES
AML1301W WEDGES, FOR 1” QUICK FIX
AML1302 1 1/8 QUICK FIX, C/W WEDGES
AML1302W WEDGES, FOR 1 1/8” QUICK FIX
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
40

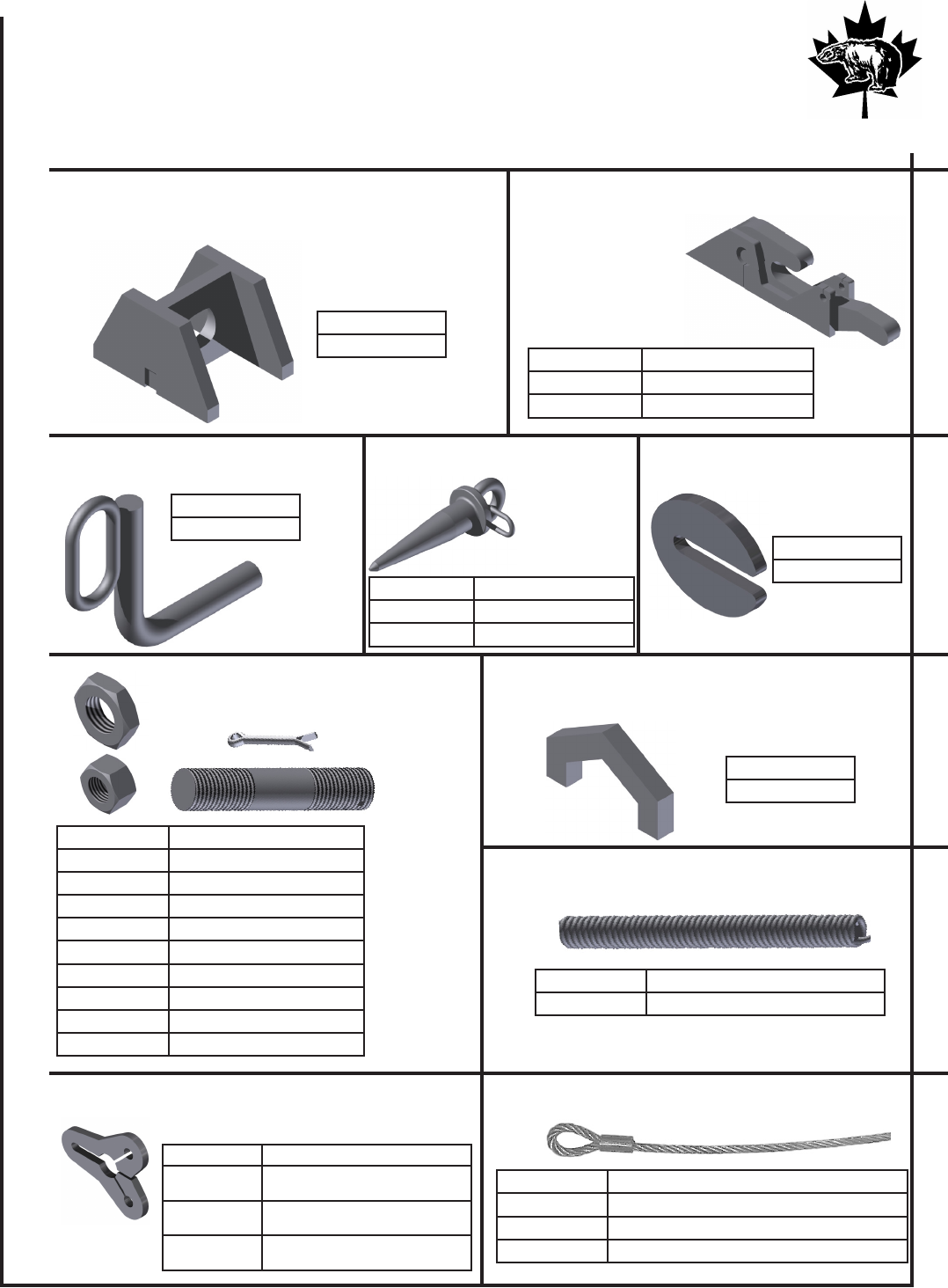

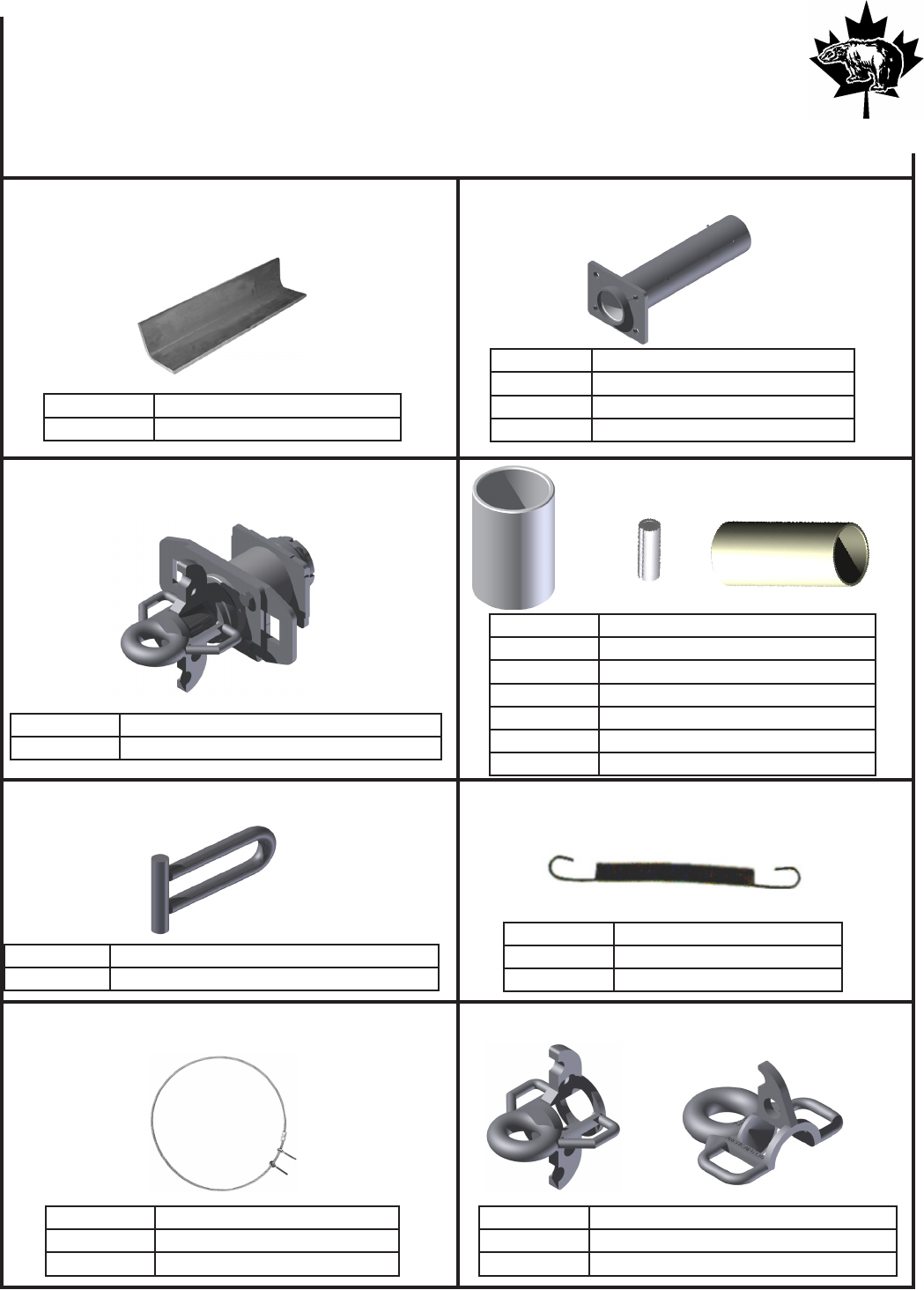

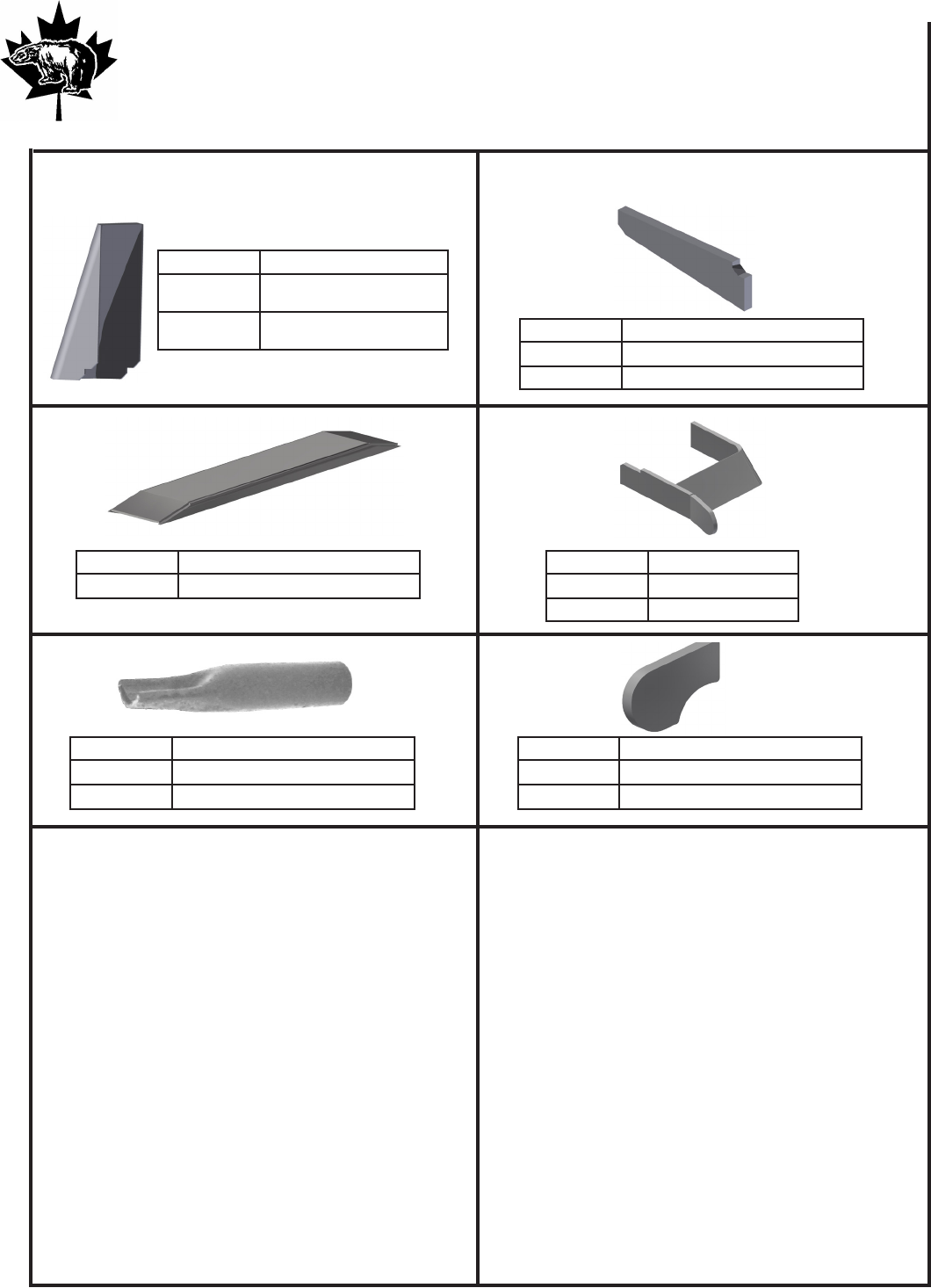

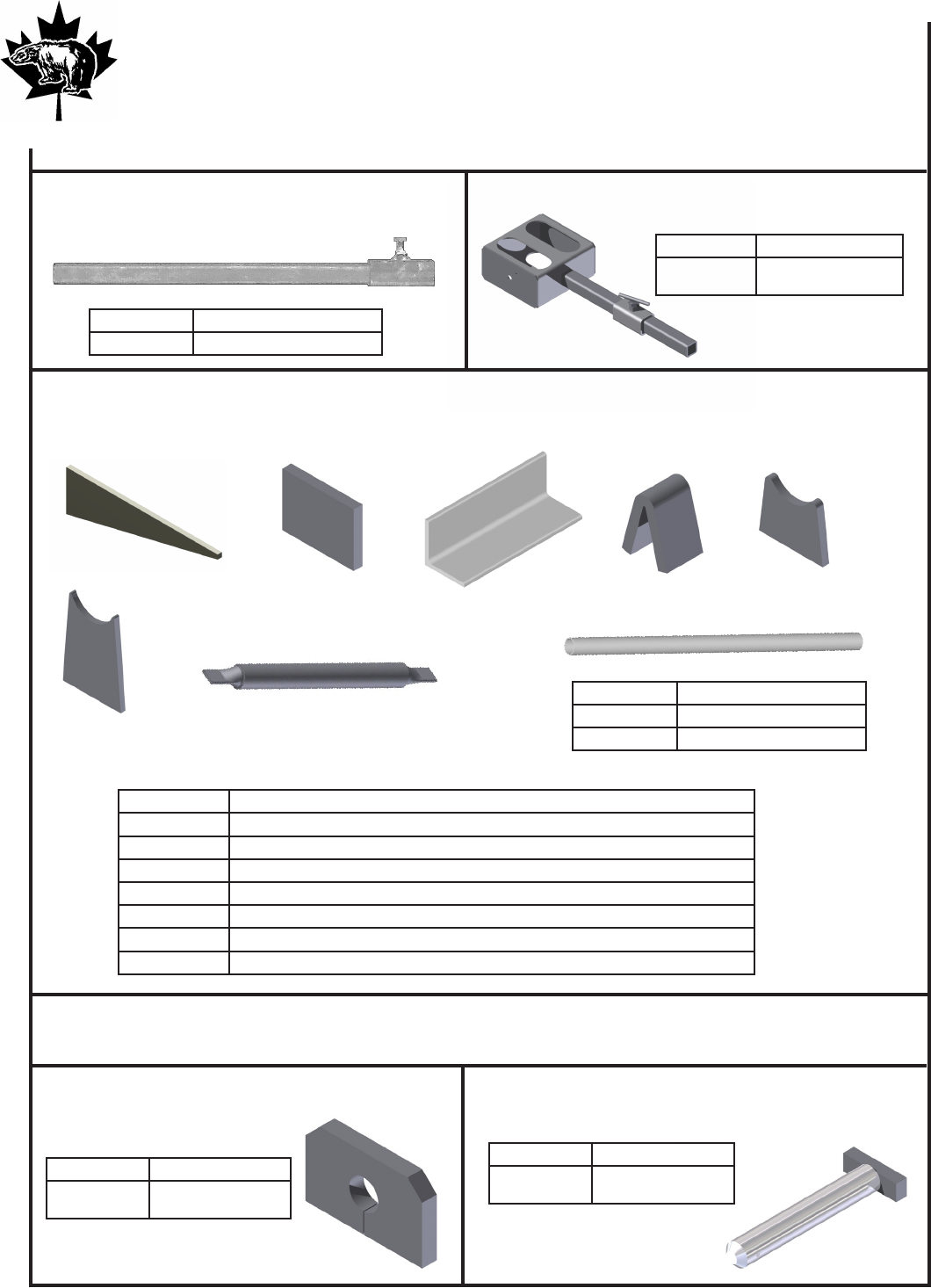

BUNK HARDWARE
CABLE ANCHOR TRIPS
PART NUMBER
AML1330
PART NUMBER PART DESCRIPTION
AML1335 BUNK TRIP ASSEMBLY
AML1335HD HD BUNK TRIP ASSEMBLY
PART NUMBER
AML1336
TRIP LOCK PIN CARROT PIN
PART NUMBER PART DESCRIPTION
AML1340 CARROT PIN ONLY
AML1341 CARROT PIN W/ CHAIN
LIVE BUNK CLIP
PART NUMBER
AML1345
BUNK PIN ASSY STAKE PIN LOCK TAB
PART NUMBER
AML1355
PART NUMBER PART DESCRIPTION
AML1349 BUNK PIN, 1 3/4 X 8 1/2”, UNC
AML1350 BUNK PIN, 1 3/4 X 10”, UNC
AML1350-1 BUNK PIN, 1 3/4 X 11”, UNC
AML1350-2 BUNK PIN, 1 3/4 X 12”, UNC
AML1351 BUNK PIN, 1 3/4 X 13”, UNC
AML1353 BUNK PIN, 1 3/4 X 14”, UNC
AML1352 NUT, BUNK PIN, 1 3/4” UNC
AML1352-1 JAM NUT, 1 3/4” UNC
AML1354 COTTER PIN, 1/4 X 3”
BUNK MAIN SPRING
PART NUMBER PART DESCRIPTION
AML1360 MAIN SPRING, 12” X 2 1/2” X 29” OAL
SPRING-LOAD CHAINS
PART NUMBER PART DESCRIPTION
AML1361 SPRINGLOAD CHAIN, FOR 8’ - 6”
BUNK
AML1362 SPRINGLOAD CHAIN, FOR 9/10
BUNK
AML1363 SPRINGLOAD CHAIN, FOR 11’ +
BUNKS
SPRING-LOAD CABLES
PART NUMBER PART DESCRIPTION
AML1365 SPRINGLOAD CABLE, 1/2” X 54”, W/EYE
AML1366 SPRINGLOAD CABLE, 1/2” X 70”, W/EYE
AML1367 SPRINGLOAD CABLE, 1/2” X 80”, W/EYE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
41

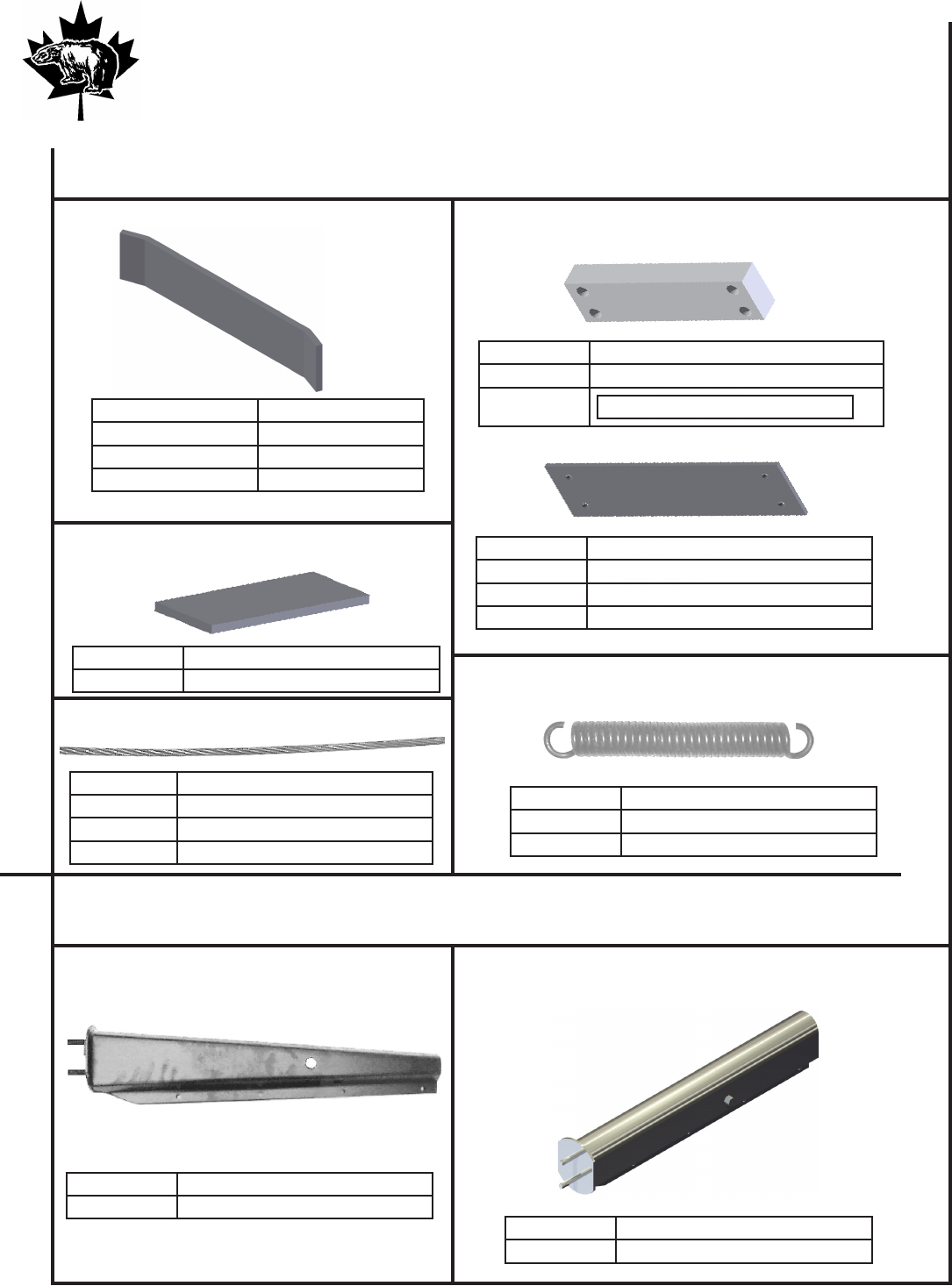

BUNK HARDWARE
RUB BAR
PART NUMBER PART DESCRIPTION
AML 1369 BUNK RUB BAR, 3/8”
AML1370 BUNK RUB BAR, 1/2”
AML1371 BUNK RUB BAR, 5/8”
WEAR & MOUNTING PLATE
PART NUMBER PART DESCRIPTION
AML1370U NYLON BUNK WEAR PLATE, BOLT-ON, 1/2”
AML1370U-H NYLON BUNK WEAR PLATE, BOLT-ON, 2”
PART NUMBER PART DESCRIPTION
AML1378 1/4” MNT, PLATE, FOR NYLON WEAR PLATE
AML1378H 3/8” MNT, PLATE, FOR NYLON WEAR PLATE
AML1378HH 1/2” MNT, PLATE, FOR NYLON WEAR PLATE
RUB BAR SPACER
BUNK SPRING
PART NUMBER PART DESCRIPTION
AML1374 RUB BAR SPACER, 1” X 3” X 10 1/2”
PART NUMBER PART DESCRIPTION
AML1360 STD BUNK, 1/2” x 2 1/2” x 29”
AML1380 EXPANDO BUNK, 1/2” X 2 1/2” 19”
BUNK CABLE
PART NUMBER PART DESCRIPTION
AML1395 1” X 11’-10”, FITS 8’-6” BUNKS
AML1396 1” X 12’-6”, FITS 8’-6” LOW PROF. BUNKS
AML1397FS 1 1/8” X 12’-10”, FITS 10’ BUNKS
SWIVEL KING - CHROME
PART NUMBER PART DESCRIPTION
AML1400C SWIVEL KING ASSEMBLY, CHROME
MUDFLAP & FENDER
SWIVEL KING - BLACK
PART NUMBER PART DESCRIPTION
AML1400 SWIVEL KING ASSEMBLY, BLACK
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
42

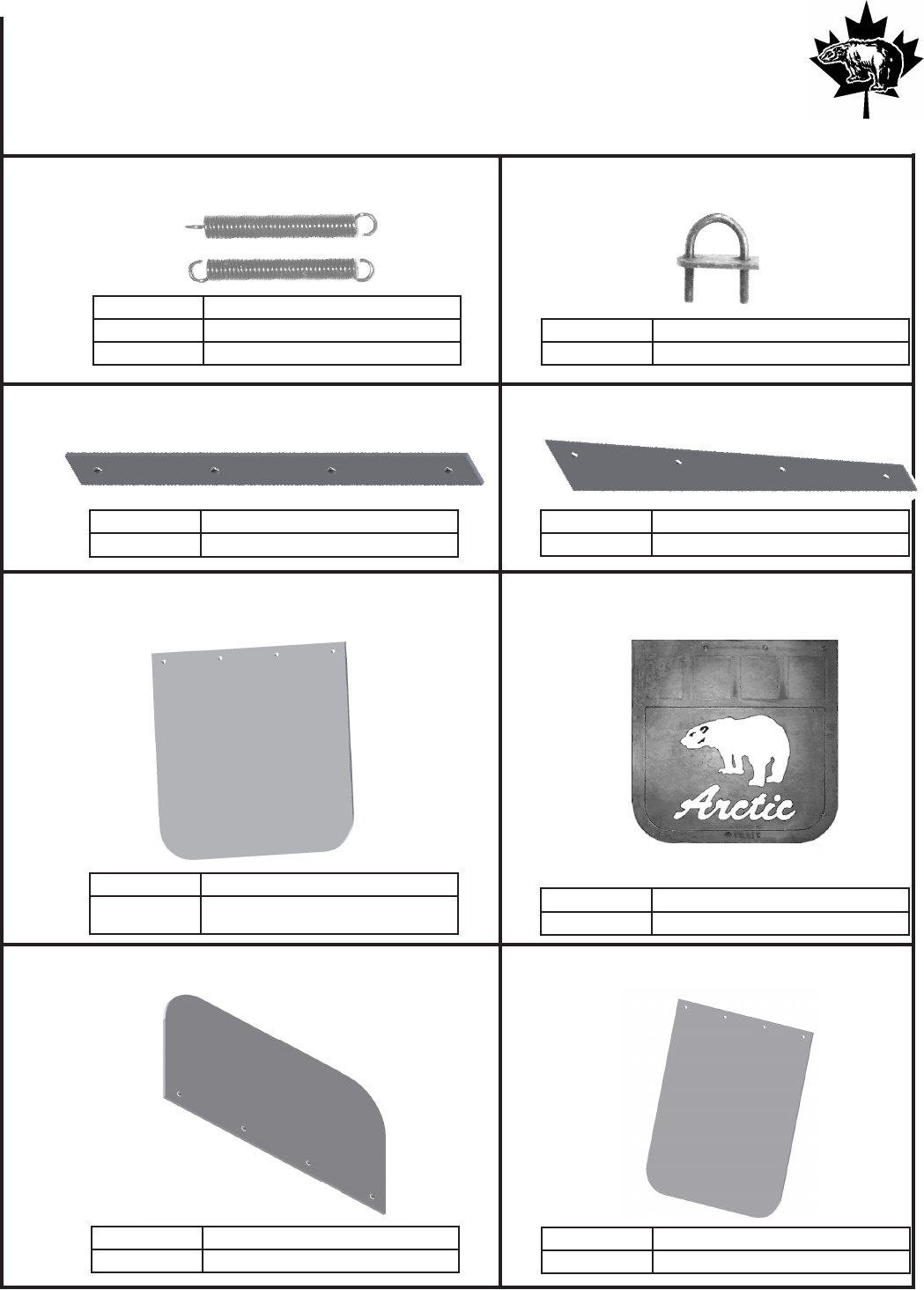

MUDFLAP & FENDER
MUDFLAP SPRING MOUNTING BRACKET
PART NUMBER PART DESCRIPTION
AML1401-S SPRING, LEE-WAY SWIVEL KING
AML1402 SPRING, GROEN SWIVEL KING
PART NUMBER PART DESCRIPTION
AML1403 MOUNTING BRACKET, GROEN S/KING
MOUNTING BAR UPPER MOUNTING BAR
PART NUMBER PART DESCRIPTION
AML1408 MUDFLAP MOUNTING BAR
PART NUMBER PART DESCRIPTION
AML1408 MUDFLAP MOUNTING BAR
ARCTIC MUDFLAP ARCTIC MUDFLAP
PART NUMBER PART DESCRIPTION
AML1410 WHITE - 24” X 24”, C/W BLUE/RED LOGO
& ANTI SAIL/SPRAY
PART NUMBER PART DESCRIPTION
AML1410B BLACK - 24” X 24”. C/W WHITE LOGO
ARCTIC MUDFLAP ARCTIC MUDFLAP
PART NUMBER PART DESCRIPTION
AML1412 BLACK - 12” X 24”. NO LOGO
PART NUMBER PART DESCRIPTION
AML1415 BLACK - 12” X 30”, C/W WHITE LOGO
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
43

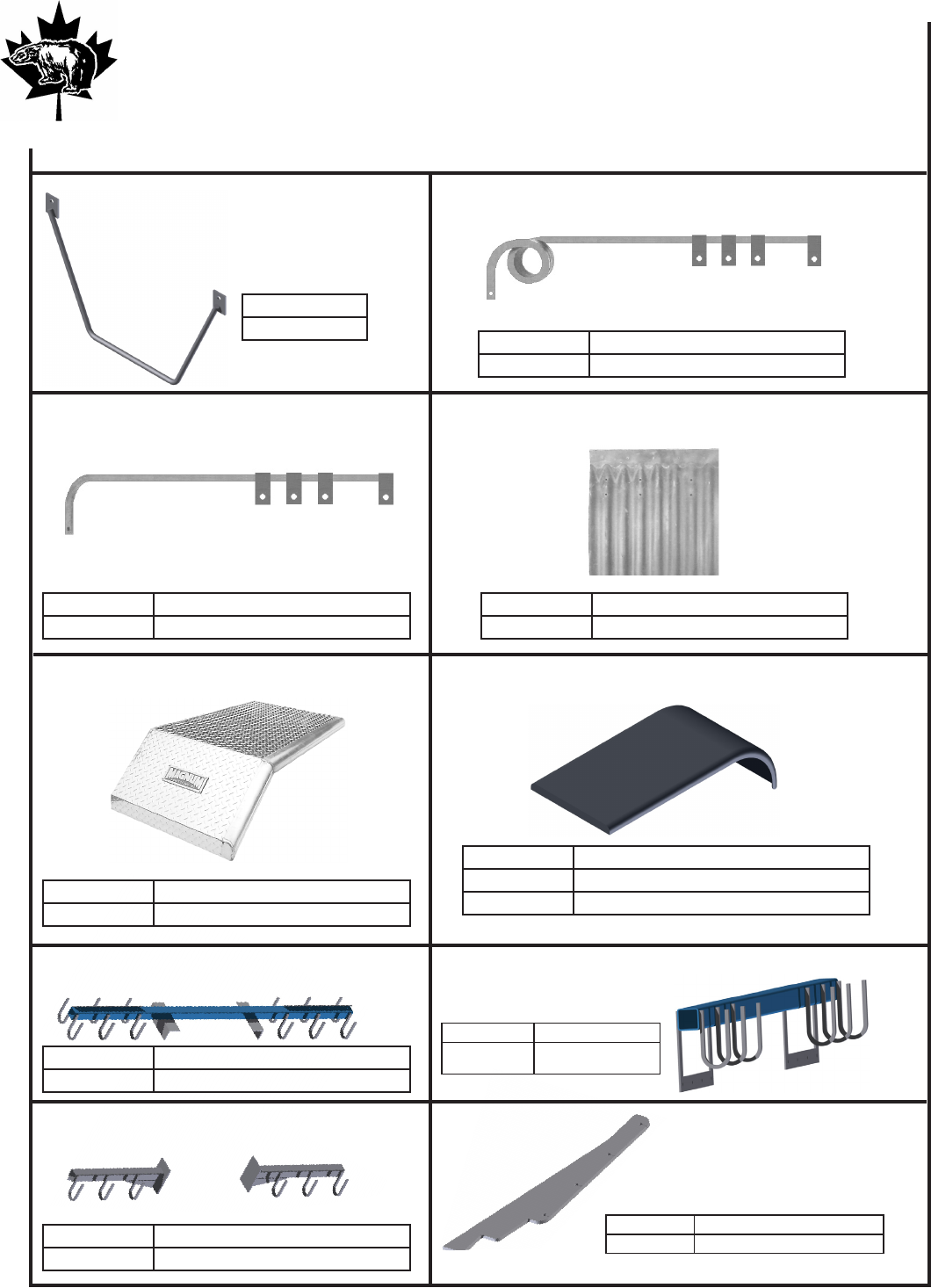

MUDFLAP & FENDER
SWIVEL KING - BLACK
PART NUMBER
AML1420
ARM
PART NUMBER PART DESCRIPTION
AML1423 BETTS TYPE MUDFLAP ARM, B23
ARM
PART NUMBER PART DESCRIPTION
AML1425 BETTS TYPE MUDFLAP ARM, B25
FENDER
PART NUMBER PART DESCRIPTION
AML1426 RUBBET CURVED QUARTER FENDER
FENDER FENDER
PART NUMBER PART DESCRIPTION
AML1448 MAGNUM ALUM. QUARTER FENDER
PART NUMBER PART DESCRIPTION
AML1450 STD CURVED POLY HALF FENDER “Polytech”
AML1470 HD ANGLED POLY HALF FENDER “Federco”
CHAIN HANGER CHAIN HANGER
PART NUMBER PART DESCRIPTION
AML1451 CHAIN HANGER FRONT CROSS TUBE
PART NUMBER PART DESCRIPTION
AML1452 POLY FENDER FRONT
CROSS TUBE
CHAIN HANGER
PART NUMBER PART DESCRIPTION
AML1453 POLY FENDER FRONT SIDE TUBE
PART NUMBER PART DESCRIPTION
AML1455 BRACKET, POLY 1/2 FENDER MNT
BRACKET
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
44

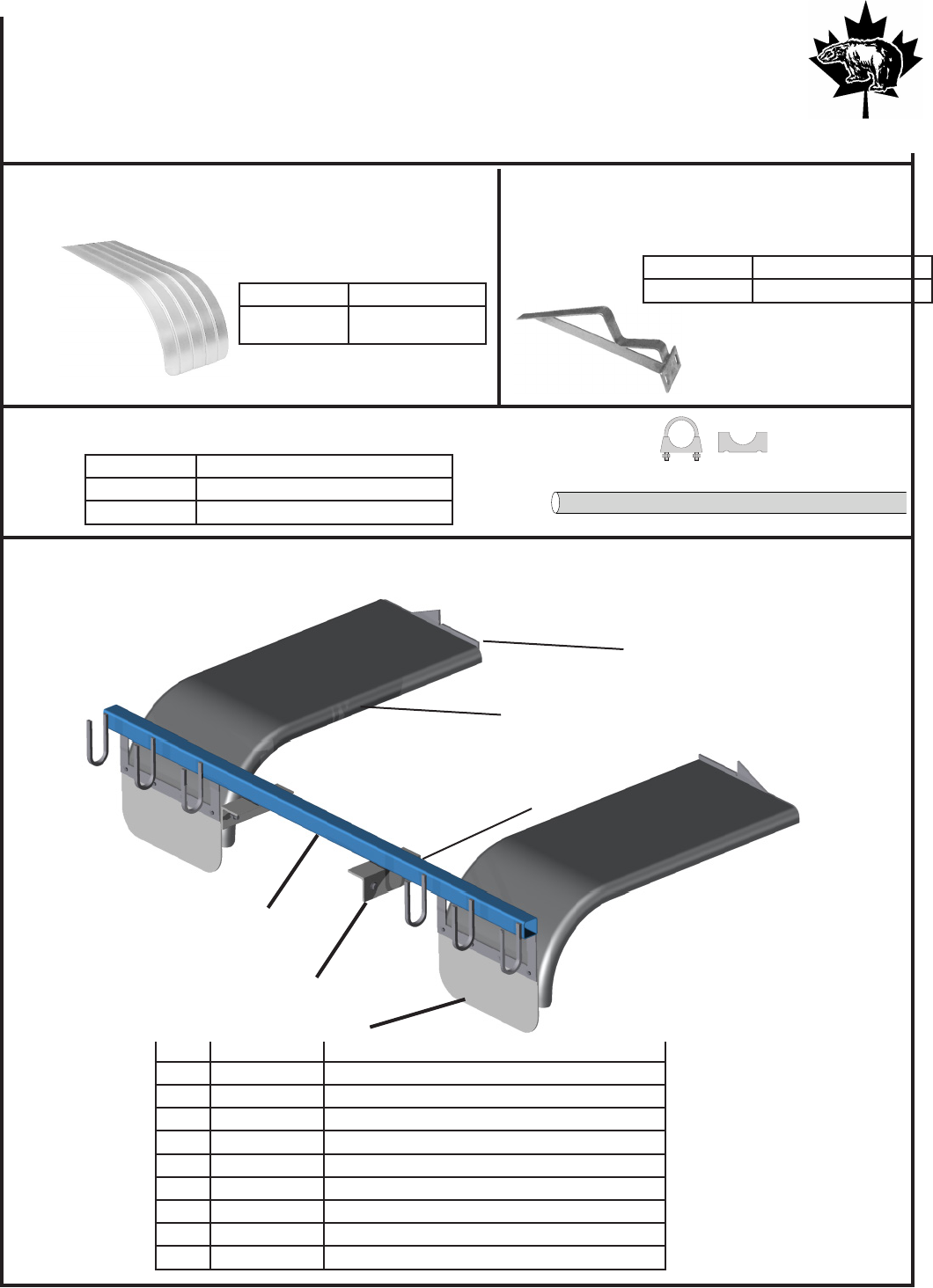

ITEM PART NUMBER
1 AML1412 BLACK - 12” X 24”, NO LOGO
2 AML1450 POLYTECH CURVED POLY 1/2 FENDER
2 AML1470 FENDERCO HD POLY 1/2 FENDER
3 AML1452 POLY FENDER FRONT CROSS TUBE
AML1354 END CAP PLUG: 3” SQ (not shown in picture)
4 AML1455 END MOUNT BRACKET TO FRAME ANGLE
4 AML1459 END MOUNT BRACKET TO BOLSTER
5 AML2401 GUSSET - not shown (Cross Tube to Frame Angle)
6 AML2403 FRAME ANGLE, 12” - 4X4X3/8 L
MUDFLAP & FENDER
FENDER FENDER BRACKET
PART NUMBER PART DESCRIPTION
AML1460 CURVED STEEL
HALF FENDER KIT
PART NUMBER PART DESCRIPTION
AML1461 half fender mounting bracket
FENDER PIPE
ARCTIC MANUFACTURING LTD.
Ph:(604)962-9631 Fax:(604)962-7500
19
MUDFLAP & FENDER
ANTI-SAIL BRACKET ARM
PART NUMBER
AML1420
ARM FENDER
FENDER FENDER
FENDER BRACKET FENDER PIPE
PART NUMBER PART DESCRIPTION
AML1426 RUBBER CURVED QUARTER FENDER
PART NUMBER PART DESCRIPTION
AML1423 BETTS TYPE MUDFLAP ARM, B23
PART NUMBER PART DESCRIPTION
AML1425 BETTS TYPE MUDFLAP ARM, B25
PART NUMBER PART DESCRIPTION
AML1448 MAGNUM ALUM. QUARTER FENDER
PART NUMBER PART DESCRIPTION
AML1460 CURVED STEEL HALF FENDER KIT
PART NUMBER PART DESCRIPTION
AML1461 HALF FENDER MOUNTING BRACKET
PART NUMBER PART DESCRIPTION
AML1462 CROSS PIPE KIT, HALF FENDERS
AML1463 PIPE, FENDER MOUNTING
PART NUMBER PART DESCRIPTION
AML1462 CROSS PIPE KIT, HALF FENDERS
AML1463 PIPE, FENDER MOUNTING
2
1
6
3
POLY 1/2 FENDER CHAIN HANGER KIT
4
5
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
45
ARCTIC
LOGGING TRUCK
EQUIPMENT
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
46

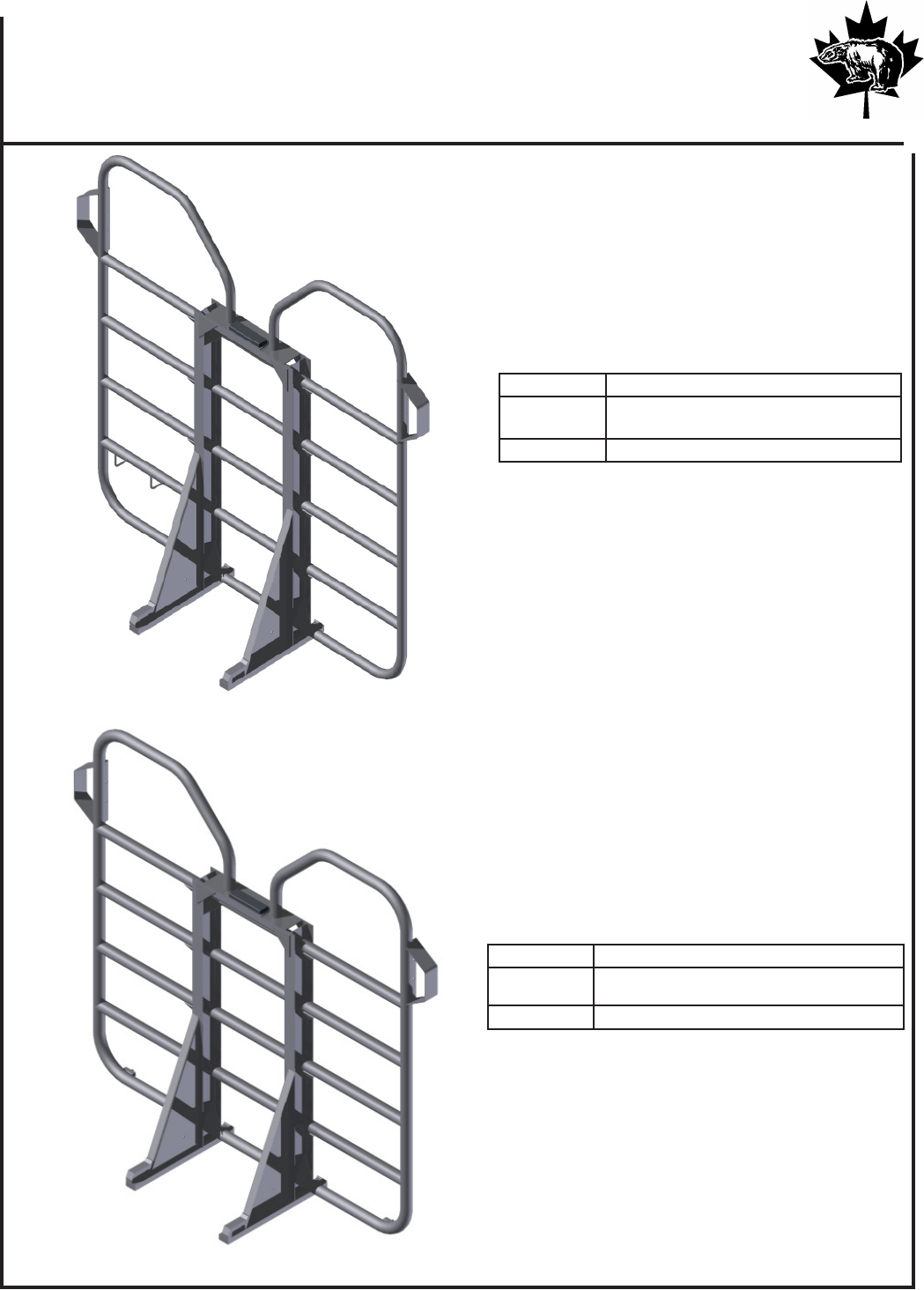

CABGUARDS
ITEM NUMBER ITEM DESCRIPTION
AML2021 CABGUARD 2 3/8” OD, C/W MAIN GUSSETS &
BASE RAILS - SCREEDED
AML2021-T CABGUARD 2 3/8” OD - TABS FOR ALUMINUM
ITEM NUMBER ITEM DESCRIPTION
AML2026EH CABGUARD, 2 7/8” OD, C/W BASE MNT RAILS &
MAIN GUSSETS - SCREENED
AML2026EH-T CABGUARD, 2 7/8” OD - TABS FOR AMUMINUM
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
47

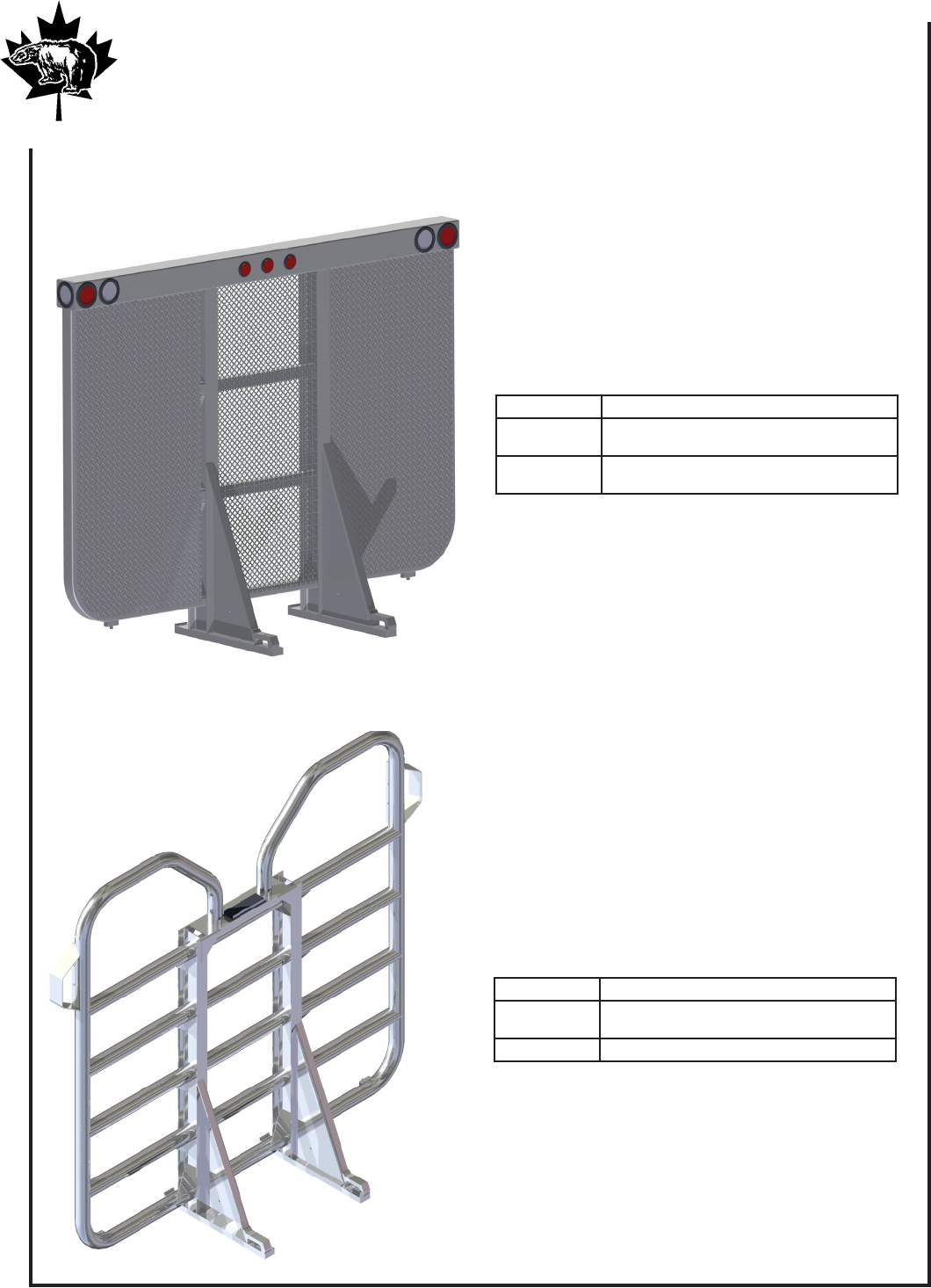

ITEM NUMBER ITEM DESCRIPTION
AML2029EH CABGUARD, 3 1/2 “ OD, C/W BASE
MNT RAILS & MAIN GUSSETS - SCREENED
AML2029EH-T CABGUARD, 3 1/2 “ OD - TABS FOR ALUMINUM
ITEM NUMBER ITEM DESCRIPTION
AML2026LB LOW-BED CABGUARD, C/W BASE MNT RAILS &
MAIN GUSSETS - SCREENED
AML2026LB-T LOW-BED CABGUARD, C/W BASE MNT RAILS &
MAIN GUSSETS - TABS for ALUMINUM
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
48

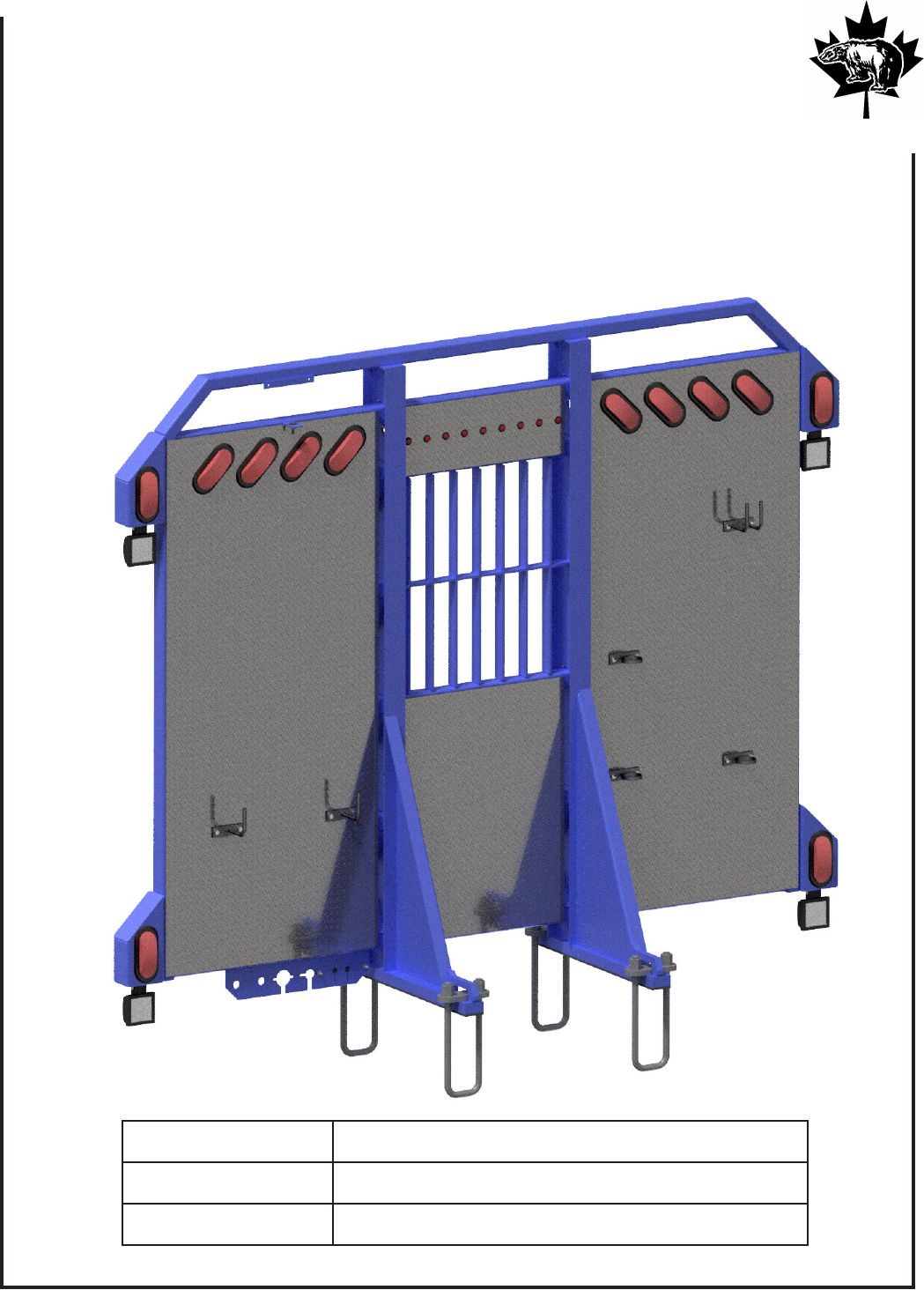

ITEM NUMBER ITEM DESCRIPTION
AML2027EH-T MAX Suare Tube Cab-Guard: No Lights, Alum Checker Plate or Mnt Kit,
in Primer.
AML2027EH-T C/G MAX Suare Tube Cab-Guard: c/w LED Lights, Alum Checker Plate , U-
Bolt Mnt Kit, Painted
Maxiumum Coverage Logging Approved Cab-Guard
102” wide x 88 1/2” Tall
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
49

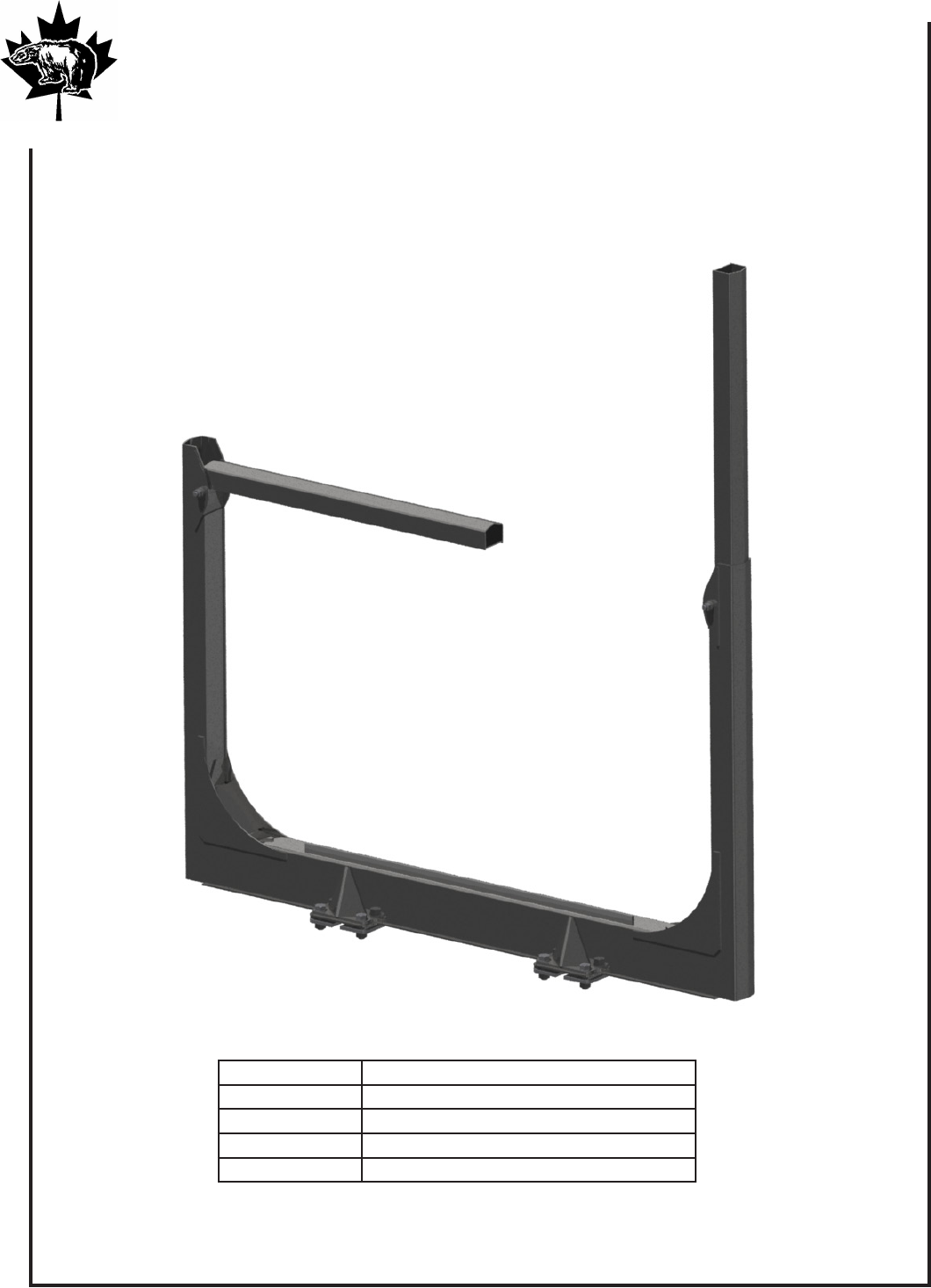

ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
50

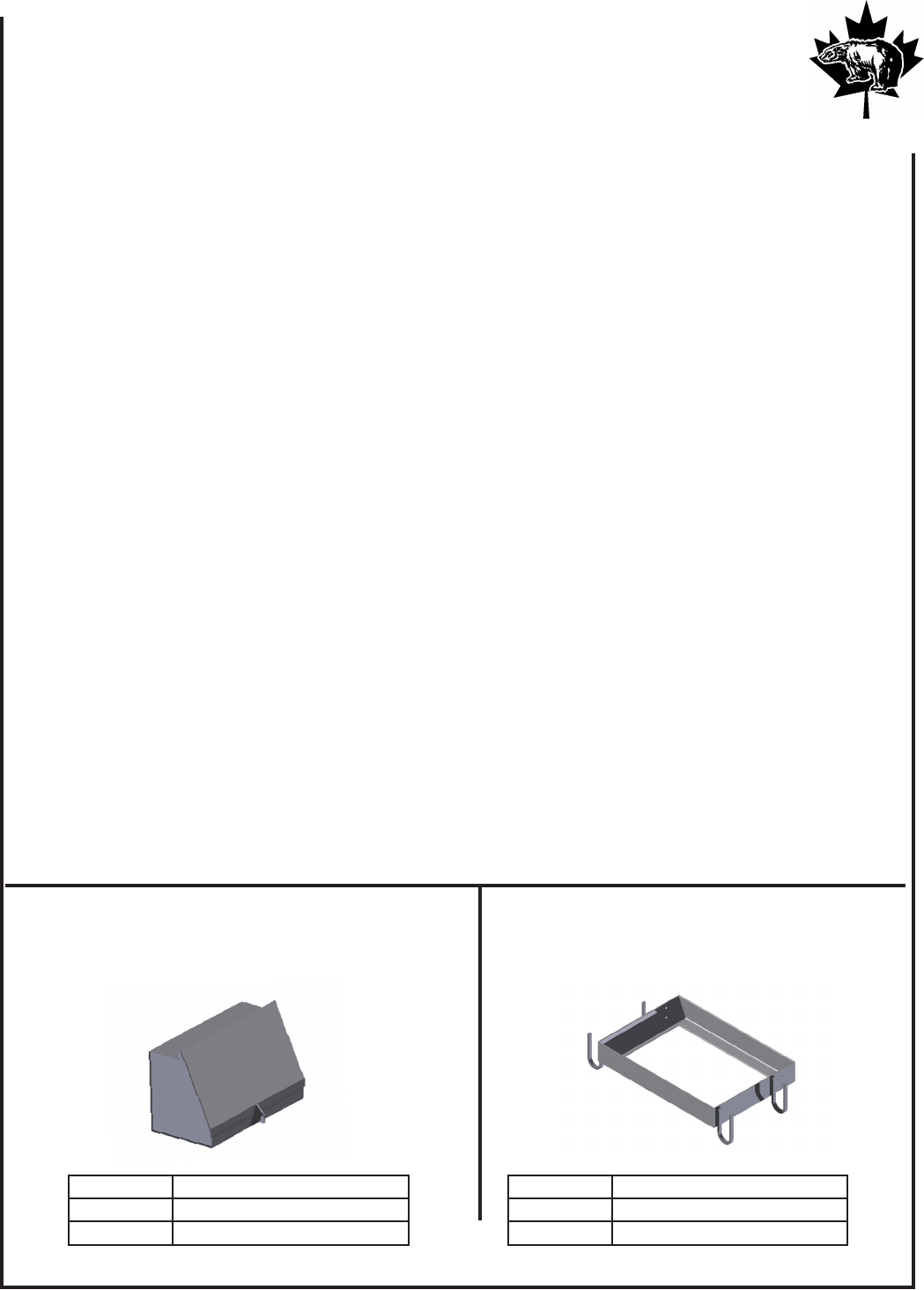

TOOL BOX TOOL TRAY
ITEM NUMBER ITEM DESCRIPTION
AML2030 TOOL BOX, STD 28” WIDTH
AML2030-N TOOL BOX, STD 24/3/4” WIDTH
ITEM NUMBER ITEM DESCRIPTION
AML2035 TOOL TRAY, 3’ LONG, CHAIN HOOKS
AML2035-L TOOL TRAY, 5’ LONG, CHAIN HOOKS
TRUCK HARDWARE
Cab-guards available with “Short-Log” Main Mounting Gussets
Cab-guards also available in “Extended” Height” Versions for Trucks with Integral Sleepers.
“Extended Height” Versions are +6” Taller
All Stock Height Cab-guards are 102” wide (Pipe Frame) and 102” Tall (Overal Height Base Rails - Top
of Wings)
Screen and Tabs Not Shown in Pictures
Weld-On Chain Trays/Tank Protector Available for all Cab-Guards.
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
51

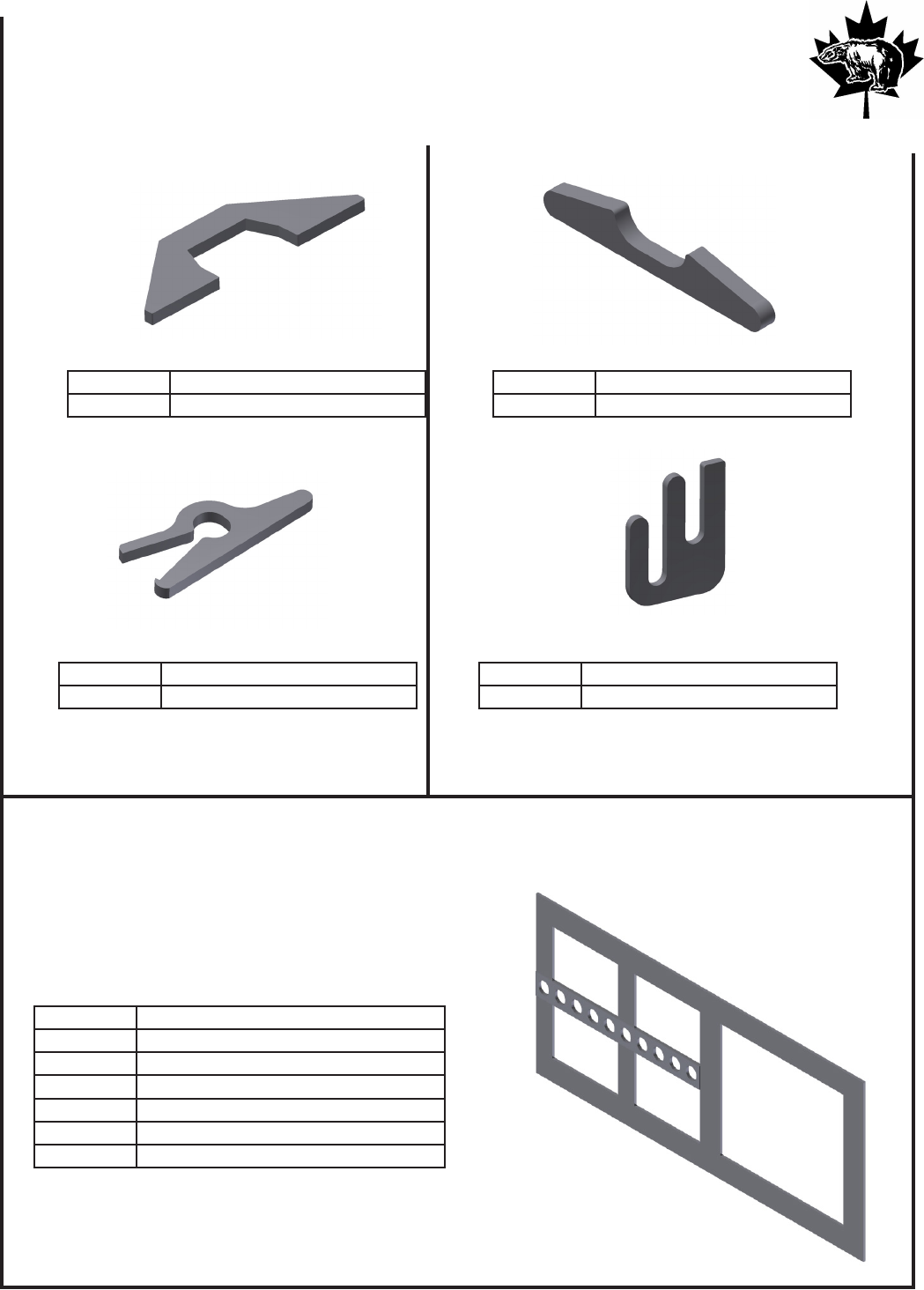

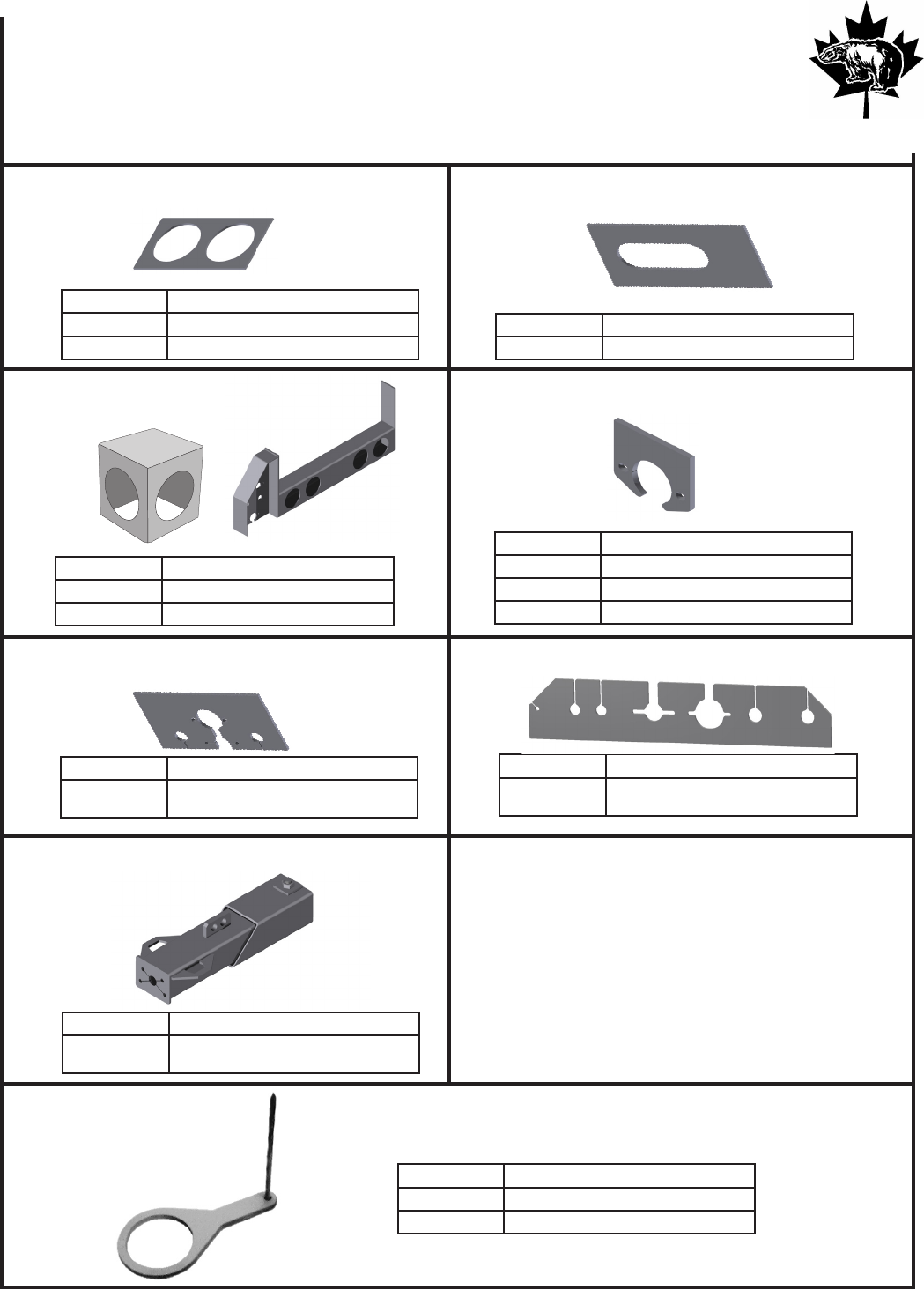

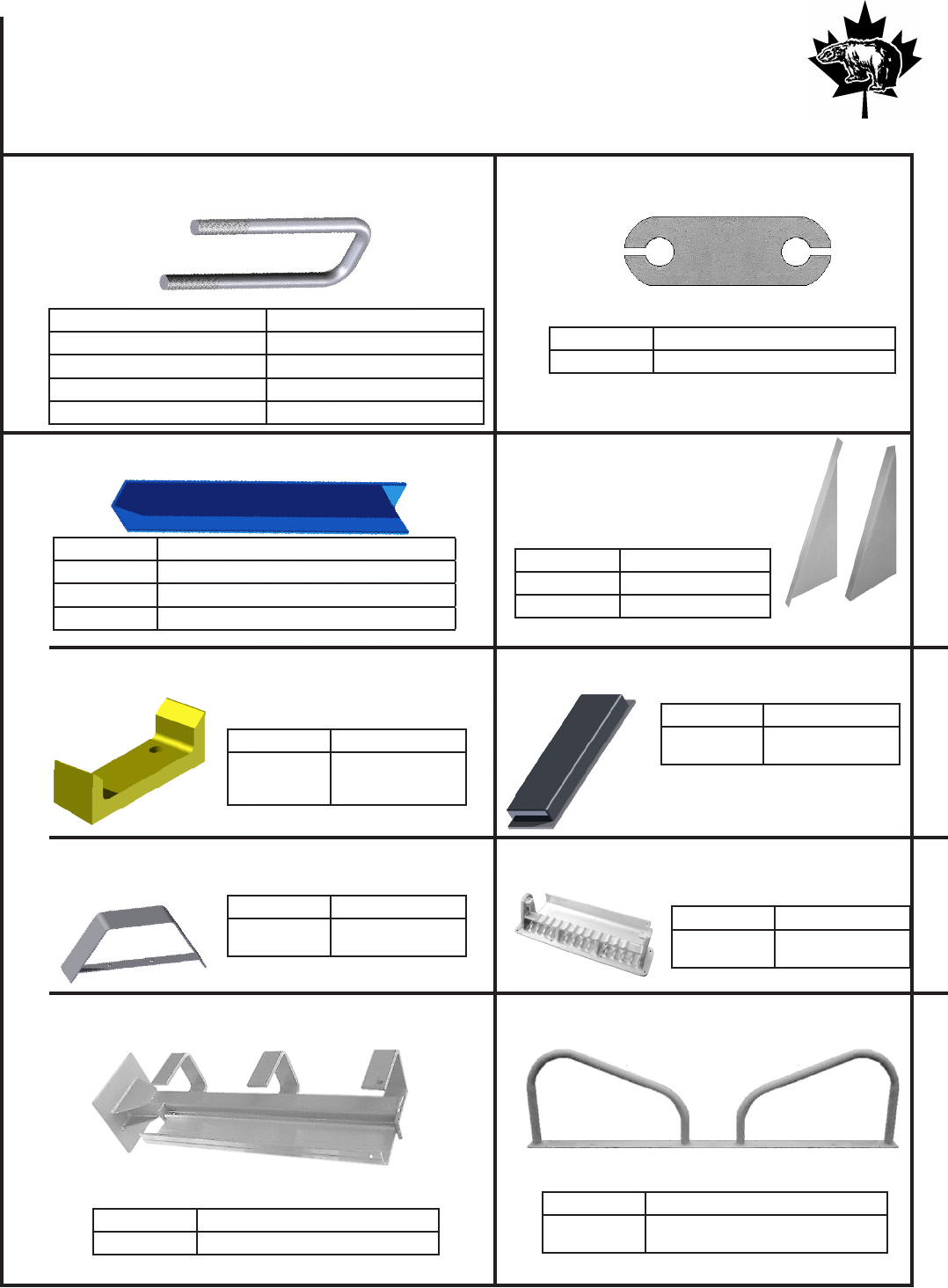

C/GUARD
BAR WINDOW
TRUCK HARDWARE
ITEM NUMBER ITEM DESCRIPTION
AML2038 C/GUARD BAR
WINDOW:S-LOG
SCALE MOUNTING
PLATE
ITEM DESCRIPTION
AML2045 SCALE PLATE
AML2047 POOR MAN’S SLIDER
AMR2047 5 x 5 x 1/2 Pre-Punched Angle x 60”
AMR2047L 4 x 4 x 3/8 Pre-Punched Angle x 60”
SCALE-AMP
MOUNTING
PLATE
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
23

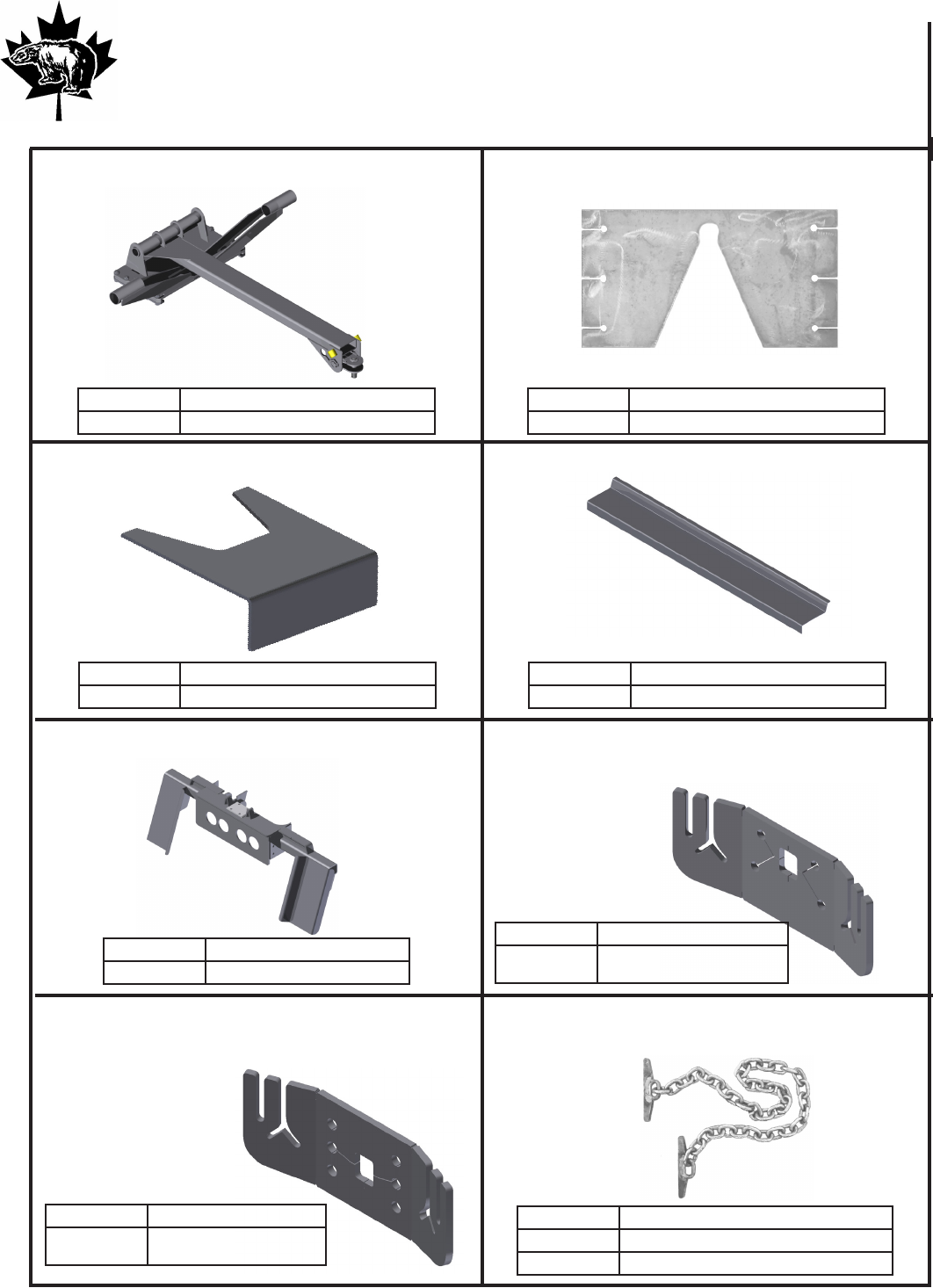

TRUCK HARDWARE
SCALE MOUNTING PLATE SCALE-AMP MOUNTING PLATE

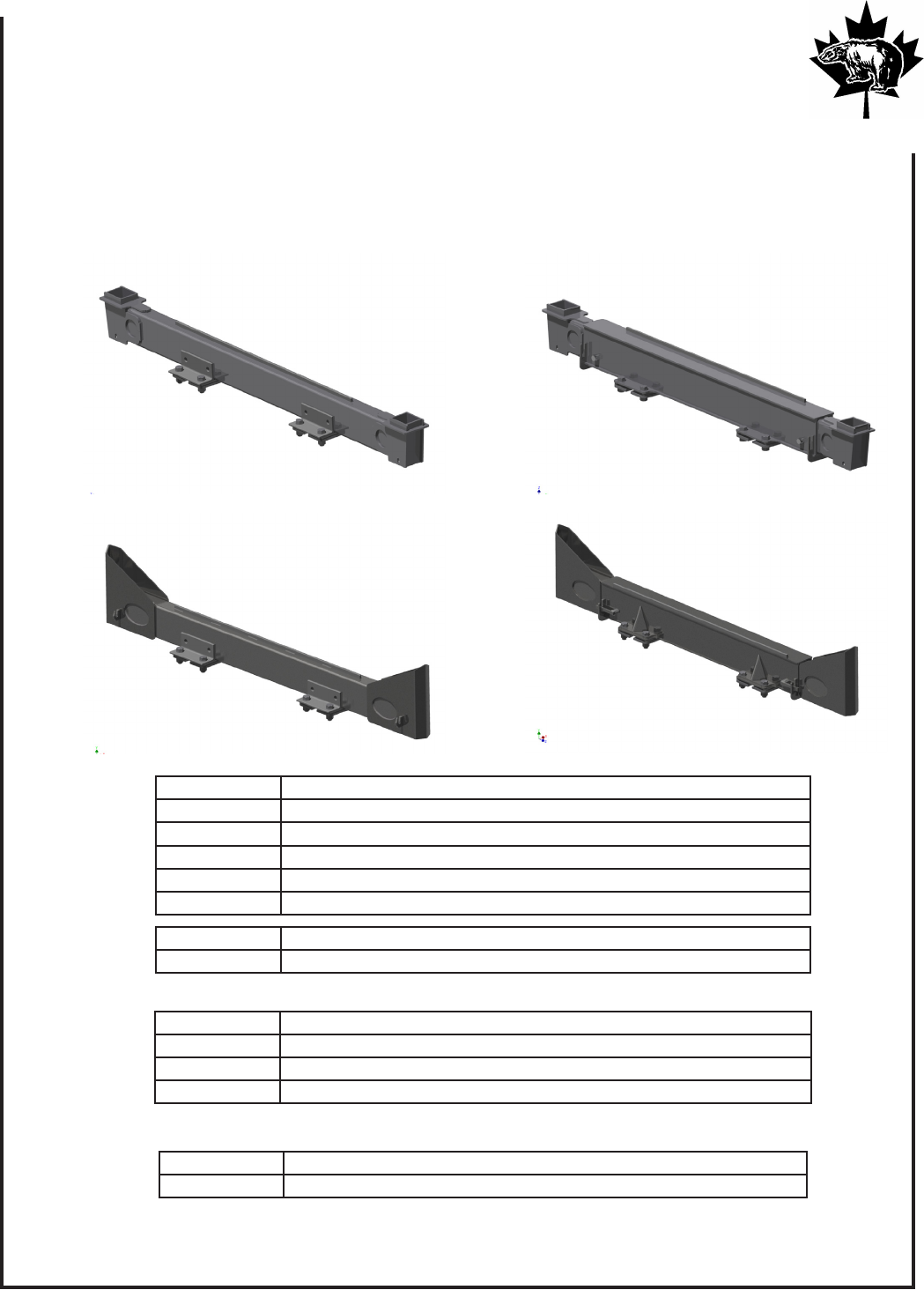

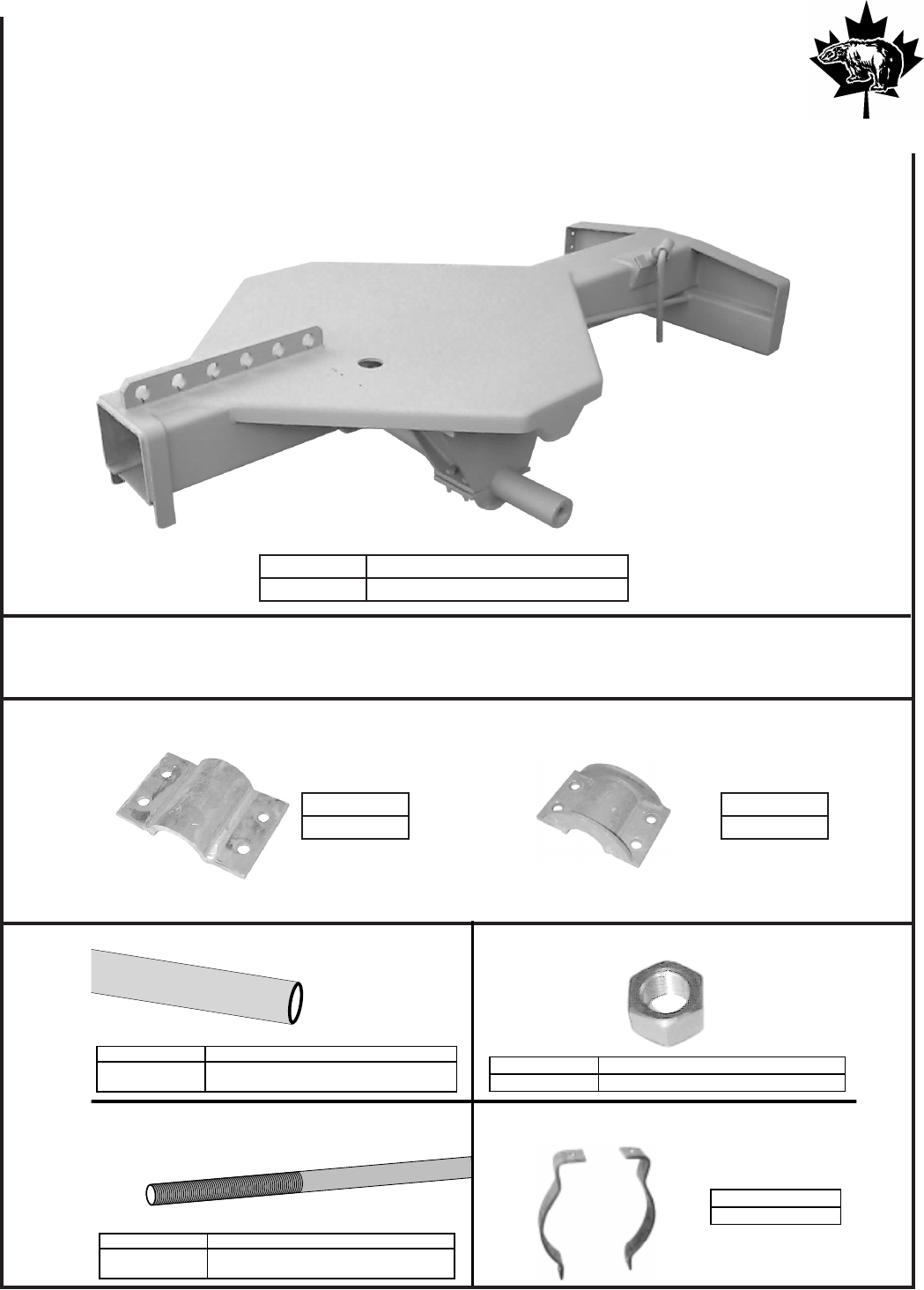

BOLSTER ASSEMBLIES
BOLSTER NYLON WEAR PLATESAFETY CHAIN
PART NUMBER PART DESCRIPTION
AML2045 LOAD-CELL MOUNTING PLATE
PART NUMBER PART DESCRIPTION
AML2050 SCALE-AMP MOUNTING PLATE
PART NUMBER PART DESCRIPTION
AML2060 SAFETY CHAIN, 3/8 X 12", C/W TOGGLE
PART NUMBER PART DESCRIPTION
AML2170U TRUCK BOLSTER NYLON WEAR PLATE
PART NUMBER PART DESCRIPTION
AML2114 4' BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, WITH OUT HUB
AML2115 5' BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, WITH OUT HUB
AML2124 4' BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 14" HUB
AML2124A 4' ALUMINUM BUTTERFLY BOLSTER, COMES WITH 14" NYLON HUB
AML2125 5' BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 14" HUB
AML2134 4' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, WITH OUT HUB
AML2135 5' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, WITH OUT HUB
AML2144 4' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 14" HUB
AML2145 5' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 14" HUB
AML2154 4' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 17" HUB
AML2155 5' H.D. BUTTERFLY BOLSTER, SET FOR 54" WIDE BASE, COMES WITH 17" HUB
ITEM NUMBER ITEM DESCRIPTION
AML2050 SCALE-AMP
MOUNTING PLATE
SAFETY CHAIN BOLSTER NYLON WEAR PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2060 SAFETY CHAIN, 3/8 X 12”, C/W TOGGLE
AML2062 SAFETY CHAIN, 1/2 X 20”, C/W TOGGLE
ITEM NUMBER ITEM DESCRIPTION
AML21700U TRUCK NYLON WEAR PLATE: 1/2” X 5” X 33 1/2”
AML1370U 1/2” UHMW BOLSTER BOLT-ON WEAR PLATE
AML1370U-H 2” UHMW HD BOLSTER BOLT-ON WEAR PLATE
AML1378 1/4” MOUNT PLATE
AML1378H 3/8” MOUNT PLATE
AML1378HH 1/2” MOUNT PLATE
BUTTERFLY BOLSTERS
ITEM NUMBER ITEM DESCRIPTION
AML2115 60” FORMED WING BUTTERFLY BOLSTER, SET FOR 54” x 77” W/BASE, NO HUB, NO MNTNG CASTING
AML2115-LW 76” LIGHTWEIGHT BUTTERFLY BOLSTER, SET FOR 54” x 77”-89” W/BASE, NO HUB, NO MNTNG CASTING
AML2125 76” LIGHTWEIGHT BUTTERFLY BOLSTER, SET FOR 54” x 77”-89” W/BASE, 14” HUB, NO MNTNG CASTING
AML2135 76” LIGHTWEIGHT-HD BUTTERFLY BOLSTER, SET FOR 54” x 77”-89” W/BASE, NO HUB, NO MNTNG CASTING
AML2145 76” LIGHTWEIGHT-HD BUTTERFLY BOLSTER, SET FOR 54” x 77”-89” W/BASE, 14” HUB, NO MNTNG CASTING
AML2155 76” LIGHTWEIGHT-HD BUTTERFLY BOLSTER, SET FOR 54” x 77”-89” W/BASE, 17” HUB, NO MNTNG CASTING
ALL BOLSTERS REQUIRE: 2 - AML1170 BOLSTER MOUNTING CASTINGS
AML2047
AML2045
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
52
U BOLT TIE PLATE
TRUCK HARDWARE
PART NUMBER PART DESCRIPTION
AML2002-4 U BOLT, 7/8 X 4 1/8 X 14” ST
AML2002-5 U BOLT, 7/8 X 4 1/8 X 16” ST
AML2002-6 U BOLT, 7/8 X 4 1/8 X 18” ST
AML2002-7 U BOLT, 7/8 X 4 1/8 X 20” ST
ITEM NUMBER ITEM DESCRIPTION
AML2003 TIE PLATE, 4” ID U BOLT
FRAME ANGLE CABGUARD MAIN
MOUNTING GUSSET
ITEM NUMBER ITEM DESCRIPTION
AML2004 FRAME ANGLE, 4X4X3/8”
AML2004L FRAME ANGLE, 5X5X3/8”
AML200HL FRAME ANGLE, 5X5X1/2”
ITEM NUMBER DESCRIPTION
AML2005 MAIN GUSSET L/LOG
AMR2005-SL MAIN GUSSET S/LOG
REACH PAD REACH PAD
ITEM NUMBER ITEM DESCRIPTION
AML2006 REACH PAD
BOLT-ON URE-
THANE
ITEM NUMBER ITEM DESCRIPTION
AML2007 CABGUARD REACH
PAD, WELD-ON
LIGHT BRACKET CHAIN HANGERS
ITEM NUMBER ITEM DESCRIPTION
AML2008 CABGUARD LIGHT
BRACKET, WELD ON
ITEM NUMBER ITEM DESCRIPTION
AML2014 CHAIN HANGERS
ALUMINUM
CHAIN HANGERS TOP WING SET
ITEM NUMBER ITEM DESCRIPTION
AML2016 TIRE CHAIN HANGERS, ALUMINUM
ITEM NUMBER ITEM DESCRIPTION
AML2022 TOP WING SET, ALUM CABGUARD
C/W WINGS, LIGHT BRKT & R-PAD
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
53
TRUCK HARDWARE
FRONT SAUCER GUSSET REAR SAUCER GUSSET
ITEM NUMBER ITEM DESCRIPTION
AMR1261 GUSSET, FRONT BUNK - 14”
SAUCER
AMR1261-01 GUSSET, FRONT BUNK - 17”
SAUCER ITEM NUMBER ITEM DESCRIPTION
AMR1262 GUSSET, BUNK REAR - 14” SAUCER
AMR1263 GUSSET, BUNK REAR - 17” SAUCER
ITEM NUMBER ITEM DESCRIPTION
AMR2214-L TIRE RIDE/GUIDE, LH
AMR2214-R TIRE RIDE/GUIDE. RH
ITEM NUMBER ITEM DESCRIPTION
AMR2220 FRONT RIDE PIPE, FLATTENED END
AMR2220-01 FRONT RIDE PIPE, OPEN END
ITEM NUMBER ITEM DESCRIPTION
AMR2100-02 FORMED BOLSTER WING: 48” long
ITEM NUMBER ITEM DESCRIPTION
AMR2220-02 FRONT RIDE END GUSSSET: 54” W/B
AMR2220-03 FRONT RIDE END GUSSET: 60: W/B
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
54

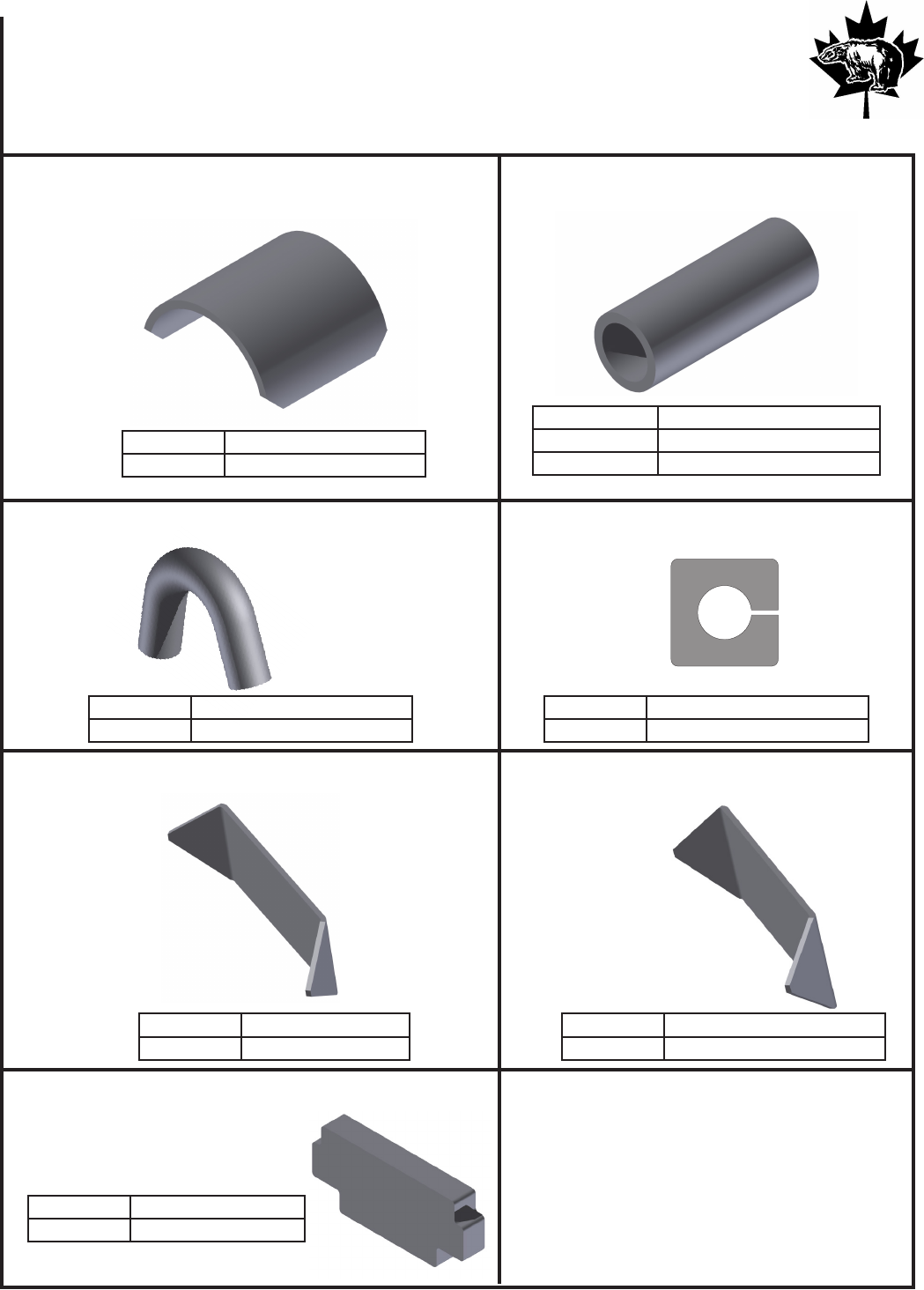

TRUCK HARDWARE
CAM BUSHING
ITEM NUMBER ITEM DESCRIPTION
AMR1000-06 CAM, MAIN STAKE CABLE CAM
ITEM NUMBER ITEM DESCRIPTION
AMR1000-07 BUSHING, STAKE PIN, 1 1/2” I.D.
AMR1000-07OB BUSHING, STAKE PIN, 1 3/4” I.D.
EYE
ITEM NUMBER ITEM DESCRIPTION
AMR1010-01 EYE, STAKE & BUNK CABLE GUIDE
RETAINER PLATE
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
42
TRAILER HARDWARE
RETAINER PLATE
TRAILER BOLSTER GUSSET TRUCK BOLSTER GUSSET
STOP PLATE
BUSHING
EYE
CAM BUSHING
14" SAUCER GUSSET
PART NUMBER - AMR1000-07
BUSHING, STAKE PIN, 1 1/2" I.D.
PART NUMBER - AMR1000-06
CAM, MAIN STAKE CABLE CAM
PART NUMBER - AMR1000-07OS
BUSHING, STAKE PIN, 1 3/4" I.D.
PART NUMBER PART DESCRIPTION
AMR1010-01 EYE, STAKE & BUNK CABLE GUIDE
PART NUMBER PART DESCRIPTION
AMR1124 BOLSTER NUT RETAINING PLATE
PART NUMBER PART DESCRIPTION
AMR1160 TRAILER BOLSTER EAR GUSSET
PART NUMBER PART DESCRIPTION
AMR1161 TRUCK BOLSTER EAR GUSSET
PART NUMBER PART DESCRIPTION
AMR1206-05 BUNK STAKE STOP PLATE
PART NUMBER PART DESCRIPTION
AMR1261 GUSSET, FRONT BUNK - 14" SAUCER
ITEM NUMBER ITEM DESCRIPTION
AMR1124 BOLSTER NUT RETAINING PLATE
TRAILER BOLSTER GUSSET TRUCK BOLSTER GUSSET
ITEM NUMBER ITEM DESCRIPTION
AMR1160 BOLSTER WING GUSSET
ITEM NUMBER ITEM DESCRIPTION
AMR1161 TRUCK BOLSTER EAR GUSSET
STOP PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR1206-05 BUNK STAKE STOP PLATE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
55
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
24
BUNK, STAKE ASSEMBLIES
NONE •• ••••••••
60" FOR. •••••••••••
72" FOR. •••••••••••
84" H.D. •• ••••••••
90" H.D. •• ••••••••
96" SOL. •• ••••••••
48" FOR. •••••••••••
60" FOR. •••••••••••
48" H.D. •• ••••••••
1" •••
1 1/8" •• ••••••••
STANDARD •••
HEAVY DUTY ••••••••
14" •• ••••••••
17" •• ••••••••
17" L.P.
EXTENTIONCABLE
STAKE
TRIPSSAUCER
8'-6" BUNK
8'-6" L.P. BUNK
8'-6" S.L. BUNK
9' BUNK
10' BUNK
10' L.P. BUNK
10'-6" BUNK
10'-6" L.P. BUNK
11' BUNK
12' BUNK
13' BUNK
L.P. = Low Profile
S.L. = Short Logger
FOR. = Formed
H.D. = Heavy Duty
SOL. = Solid
BUNK, STAKE ASSEMBLIES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
56
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
25
NONE •• ••••••••
60" FOR. •••••••••••
72" FOR. •••••••••••
84" H.D. •• ••••••••
90" H.D. •• ••••••••
96" SOL. •• ••••••••
48" FOR. •••••••••••
60" FOR. •••••••••••
48" H.D. •• ••••••••
1" •••
1 1/8" •• ••••••••
STANDARD •••
HEAVY DUTY ••••••••
14" •• ••••••••
17" •• ••••••••
17" L.P.
4' •• ••••••••
5' •• ••••••••
EXTENTIONCABLE
STAKE
TRIPSSAUCER
8'-6" BUNK
8'-6" L.P. BUNK
8'-6" S.L. BUNK
9' BUNK
10' BUNK
10' L.P. BUNK
10'-6" BUNK
10'-6" L.P. BUNK
11' BUNK
12' BUNK
13' BUNK
L.P. = Low Profile
S.L. = Short Logger
FOR. = Formed
H.D. = Heavy Duty
SOL. = Solid
BOL-
STER
BUNK/BOLSTER,
STAKE ASSEMBLIES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
57
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
60" X 48" Hinged Stake Assy
AML100221
72" x 48" Hinged Stake Assy
AML1002L22
Extension Spring 1.5 X 29AML101623
M-Stake Spring-Load Retainer Clip
AML105524
Stake Pin: 1 1/2 x 10 1/2" UNCAML10602
5
Jam Nut, 1 1/2" UNC Hex
AML106246
Bunk 8'-6", c/w anchors, trips & cable guides
AML120617
Quick-Fix: 1"AML130128
Cable Bell, 1" c/w wedges
AML130429
Saucer, 14" Standard InterchangeAML1314
1
10
Stake Pin Lock Tab
AML1355411
Extension Spring: 2 1/2 X 29
AML1360212
Bunk Cable: 1" x 11'-4" (Fits 60" Main Stake)AML1395213
Bunk Calbe: 1" x 12'-6" (Fits 72" Main Stake)
AML1396214
BUNK STAKE STOP PLATEAMR1206-052
15
GUSSET, FRT BUNK FORMEDAMR1261116
Rear Gusset 8'-6" bunk/14" Saucer
AMR1262217
SPRINGLOAD YOKE PLATEAMR1361218
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair
Blair
20/08/2010
24/08/2010
24/08/2010
24/08/2010 DWG NO
AML3209-Explosion
TITLE
AML3209 8'-6" Bunk c/w 14" Saucer
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
78 615 119 1716 105 1 18 12 3 4 Not Shown:
CBL05SPEC70 5/16" Spec 70 Chain for Main Bunk Spring-Loads
CBL04BBB 1/4" BBB Chain for Stake Extension Spring-Loads
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
58
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
59
AML2401
LIGHT BRKT & LOAD PIPE
LIGHT BRACKET LIGHT BRACKET
ITEM NUMBER ITEM DESCRIPTION
AML2400 WIDE LOAD LIGHT BRACKET
ITEM NUMBER ITEM DESCRIPTION
AML2400B WIDE LOAD LIGHT KIT
“ALBERTA”
LOAD PIPE HARDWARE
AML2402
AML2403 AML2405 AML2406
AML2406-1
ITEM NUMBER ITEM DESCRIPTION
AML2401 LOAD PIPE REINFORCEMENT GUSSET, TAPERED - 12”L X 4” ONE SIDE
AML2402 LOAD PIPE MOUNTING/REINFORCEMENT PLATE, 1/2 X 3 X 4” MSFB
AML2403 FRAME ANGLE, 12” - 4 X 4 X 3/8”
AML2405 LOAD PIPE TIRE GUIDE
AML2406 LOAD PIPE PEDESTAL, 6” HEIGH
AML2406-1 LOAD PIPE PEDESTAL, 8” HEIGH
AML2410 DOUBLE LOAD-PIPE GUIDE BAR - CONNECTS DOUBLE LOAD PIPES
LOAD PIPE HARDWARE
LOCK LUG LOCK PIN
ITEM NUMBER ITEM DESCRIPTION
AML2415 QUICK CHANGE
LOCK LUG
ITEM NUMBER ITEM DESCRIPTION
AML2418 QUICK CHANGE
LOCK PIN
ITEM NUMBER ITEM DESCRIPTION
AML2407 LOAD PIPE: 4” x 70”
AML2409 LOAD PIPE: 4” x 90”
AML2410
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
60

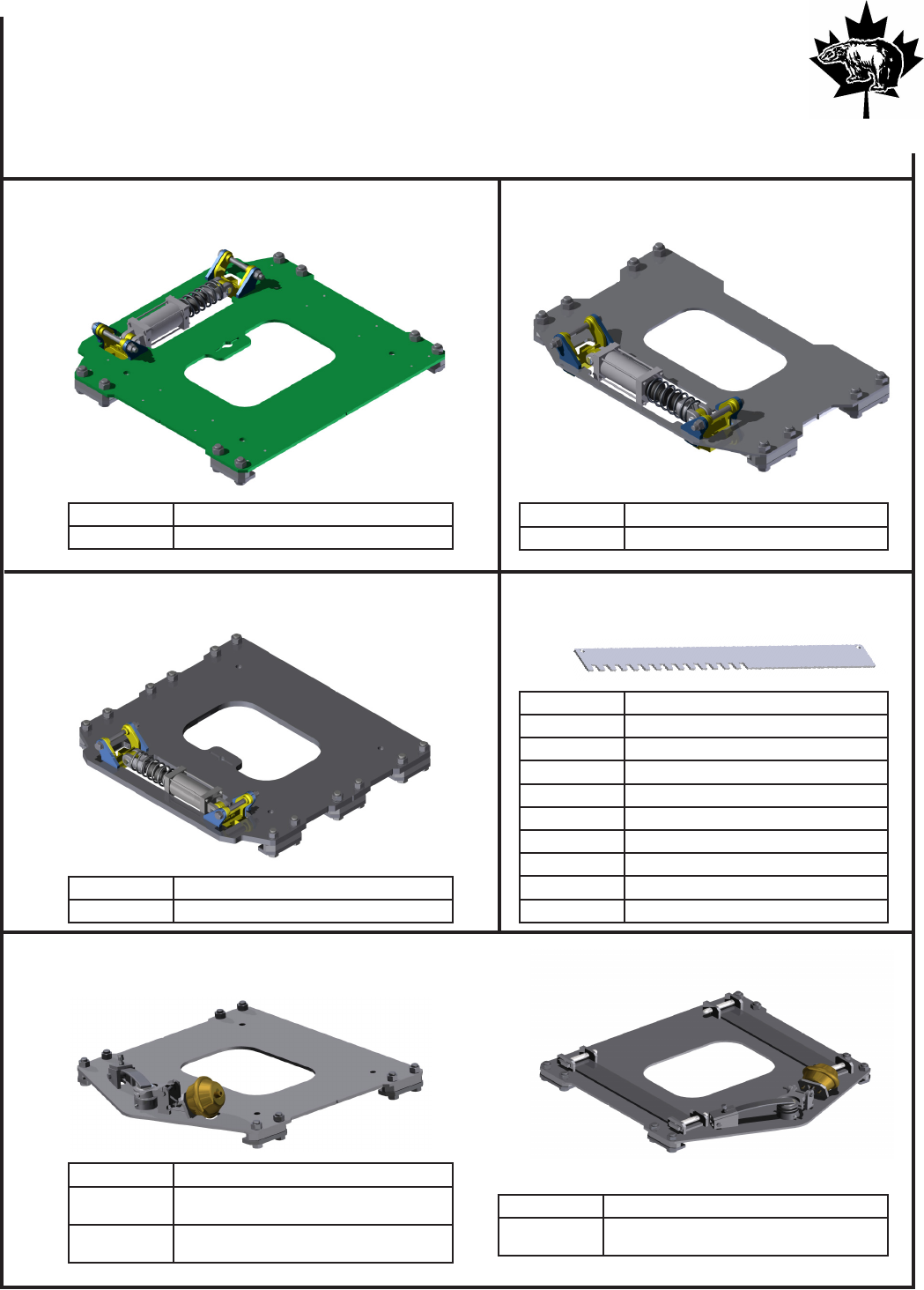

OPEN SLIDERS & CENTER PIN
TOP PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2420 O/RAIL TOP PLATE - LOGGER, 5/8” Plate
TOP PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2420H O/RAIL TOP PLATE - HI-WAY
SLIDE PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2421 TOP HD SLIDE PLATE, C/W AIR POT
& LOCK PIN, NYLON SLIDES
AML2421P TOP EX-HD SLIDE PLATE, C/W AIR POT
& LOCK PIN, NYLON SLIDES
ITEM NUMBER ITEM DESCRIPTION
AML2420P O/RAIL TOP PLATE - OIL-PATCH
CENTER PIN SLIDE PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2421Q TOP HD SLIDE PLATE, QUICK CHANGE C/W
AIR POT/LOCK & NYLON SLIDERS
ITEM NUMBER ITEM DESCRIPTION
AMR2500-24 24” OPEN SLIDE RAIL
AMR2500-36 36” OPEN SLIDE RAIL
AMR2500-48 48” OPEN SLIDE RAIL
AMR2500-54 54” OPEN SLIDE RAIL
AMR2500-60 60” OPEN SLIDE RAIL
AMR2500-72 72” OPEN SLIDE RAIL
AMR2500-84 84” OPEN SLIDE RAIL
AMR2500-96 96” OPEN SLIDE RAIL
AMR2500-120 120” OPEN SLIDE RAIL
SLIDE RAIL
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
61
SLIDE PLATE
Parts List
DESCRIPTIONPART NUMBERQTYITEM
Angle SteelAISC - L 1/2 x 1/2 x 1/8 - 416.000 inch1
Clevis Pin: 1" x 3"AML5418-0322
Pivot Guide/Thrust PlateAMR2420-0443
Slide Plate Spacer: 1 1/4"AMR2420-0744
1/4 x 1 msfb: 3"
AMR2420-0925
AIR-RAM 3.25" x 5.625" STROKEAMR2420-AR16
Clevis AssemblyAMR2420-CV
17
HD Cast Jaw, Open Rail SliderAMR2420-JH28
Open Slider Nylon Wear Plates: Logger/Patch
AMR2420-NW29
Extension SpringAMR2420-SP110
Arctic Open Rail HD Oil-Patch Top Plate
AMR2420P-02111
Slider Flange LockAMR2421-02412
3/4 X 8 UNC Gr 8 Cap ScrewBLT8C12-128
213
1 X 4 UNC Gr 8 BoltBLT8C16-64814
3/4 UNC Lock NutBLT8CLNT12
215
1 SAE Gr 8 Lock ButBLT8FLNT16816
3/4 SAE Flat Washer
BLT8FW12217
1 SAE Gr 8 Flat WasherBLT8FW16818
1
1
2
2
3
3
4
4
A A
B B
C C
D D
TITLE
SIZE DWG NO REV
SCALE SHEET OF
DRAWN
CHECKED
QA
MFG
APPROVED
Open Rail Oil-Patch Top Slider Plate
Assy
AML2420P
4 4
A2
C
Arctic Manufacturing Ltd.
Blair Stunder 27/05/2004
Blair 27/05/2004
Blair 26/07/2006
Blair 26/07/2006
11
14
16
18
12
4
9
1
8
3
15
6
17
13
2
10
7
Parts List: All Open-Rail Sliders
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
62
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Flat Bar SteelAISC - 3/4x1/2 - 2.75
2.750 in1
Angle SteelAISC - L 1/2 x 1/2 x 1/8 - 416.000 inch
2
Leaf Spring: 1 3/4" x 3/8"
AML2528
1
3
1/4 x 1 msfb: 3"
AMR2420-0924
Slider Flange LockAMR2420-FL
45
Slide Plate Spacer: 1 1/4"
AMR2420-SB46
Main Top Plate
AMR2421-0217
Air-Pot Mounting BracketAMR2421-04
1
8
Yoke Mount Bars
AMR2421-0529
Sping Mount Pivot Side PlateAMR2421-06210
Spring Pivot Top Plate
AMR2421-07111
Center-Pin Slider Nylon Wear Plates
AMR2421-NW212
CLEVIS KIT, 1/2" PIN X 5/8"UNFBER19105
1
13
Type 16 Air-Pot: 2.25" stroke
BER19160114
1/2 X 2 UNC8 Hex BoltBLT8C08-32
115
1/2 X 4
BLT8C09-64116
1 X 4 UNC Gr 8 BoltBLT8C16-648
17
1/2 UNC-8 Hex NutBLT8CNT08218
1 UNC 8 Hex NutBLT8CNT16819
1/2 X 5 UNF Gr 8 BoltBLT8F08-80
1
20
1/2 UNF Gr 8 Locknut
BLT8FLNT08121
9/16BLT8FLNT09
122
1 SAE Lock WasherBLT8LW16823
Yoke Assy: Slider Lock Lift
FONLS2031124
Lock Pin, Arctic HD SliderFONLS2033
1
25
Housing, Arctic Slider Lock Pin
FONLS2034126
ZERK FITTING: 1/8" NPTMISZERK-02
1
27
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET
1
OF
1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair
Blair
2018-01-17
2018-01-16
2018-01-16
DWG NO
AML2421-EXPLOSION
TITLE
AML2421 Center Pin Top SliderAssembly
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
5
16
7
2 6
17
19
23
25
12
3
10
11
24 15 14
18
13
26
27 20
22
91
21
8
Parts List: Center=Pin Sliders
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
63
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Flat Bar SteelAISC - 3/4x1/2 - 2.75
2.750 in1
Angle SteelAISC - L 1/2 x 1/2 x 1/8 - 416.000 inch
2
Leaf Spring: 1 3/4" x 3/8"
AML2528
1
3
1/4 x 1 msfb: 3"
AMR2420-0924
Slider Flange LockAMR2420-FL6
5
Slide Plate Spacer: 1 1/4"
AMR2420-SB66
Air-Pot Mounting Bracket
AMR2421-0417
Yoke Mount BarsAMR2421-0528
Sping Mount Pivot Side Plate
AMR2421-0629
Spring Pivot Top PlateAMR2421-07
1
10
Center-Pin Slider Nylon Wear Plates
AMR2421-NW211
Main Top Plate: O/P Pin Slide
AMR2421P-02112
CLEVIS KIT, 1/2" PIN X 5/8"UNFBER19105
1
13
Type 16 Air-Pot: 2.25" stroke
BER19160114
1/2 X 2 UNC8 Hex BoltBLT8C08-32
115
1/2 X 4
BLT8C09-64116
1 X 4 UNC Gr 8 BoltBLT8C16-64
1217
9/16" UNC LocknutBLT8CLNT09
1
18
1/2 UNC-8 Hex Nut
BLT8CNT08219
1/2 X 5 UNF Gr 8 BoltBLT8F08-80
1
20
1/2 UNF Gr 8 Locknut
BLT8FLNT08121
1 SAE Gr 8 Lock ButBLT8FLNT16
1222
1 SAE Gr 8 Flat WasherBLT8FW161223
Yoke Assy: Slider Lock Lift
FONLS2031124
Lock Pin, Arctic HD SliderFONLS2033
1
25
Housing, Arctic Slider Lock Pin
FONLS2034126
ZERK FITTING: 1/8" NPTMISZERK-02
1
27
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
Blair
Blair
2018-01-17
2018-01-16
2018-01-16
2018-01-16
DWG NO
AML2421P-Explosion
TITLE
AML2421P Oil-Patch Slider
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
5
16
12
2
6
17
23
22
3
11
9
10
2515
19
212418
20
14
4
13
26 27
8
71
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax:(250)962-7500
TRUCK HARDWARE
AIR LOCK BUNK PIN
ITEM NUMBER ITEM DESCRIPTION
AML2422 AIR LOCK BUNK PIN, 14” C/S SET
AML2422-1 AIR LOCK BUNK PIN, 17” C/S SET
BUNK AIR LOCK
ITEM NUMBER ITEM DESCRIPTION
AML2424 BUNK AIR LOCK, W/O AIR POT
SPARE TIRE RACK
ITEM NUMBER ITEM DESCRIPTION
AML2440 SPARE TIME RACK, SIDE MOUNT
QUICK CHANGE SCALE PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2425 QUICK CHANGE SCALE PLATE
C/W 2 SET MOUNTAIN PLATES
QUICK CHANGE MOUNT PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2425QHD QUICK CHANGE MOUNT PLATE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
65

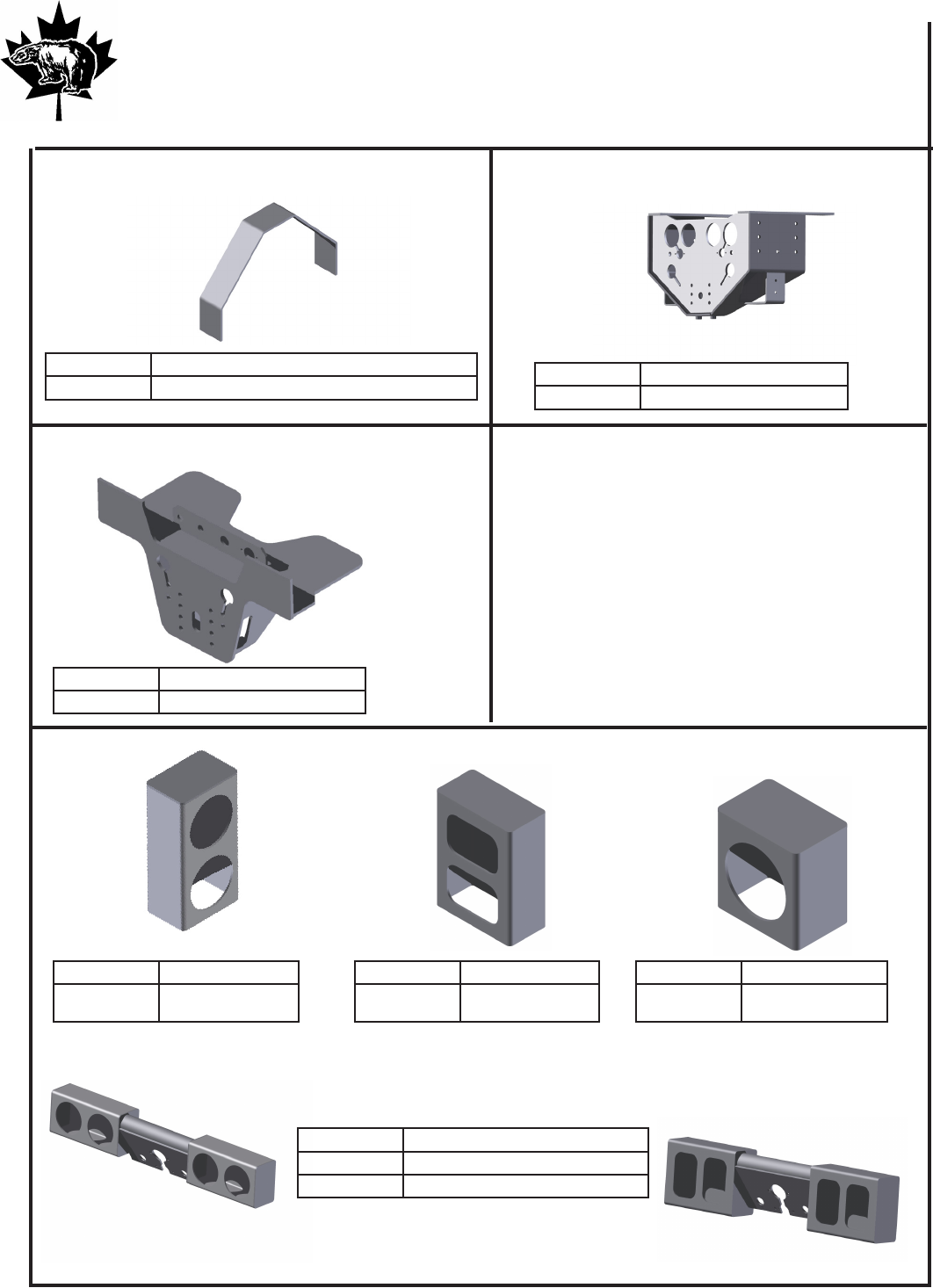

TRUCK HARDWARE
WISHBONE APRON HITCH ASSY
ITEM NUMBER ITEM DESCRIPTION
AML2450 WISHBONE, TRUCK TAIL-FRAME: UN-DRILLED
ITEM NUMBER ITEM DESCRIPTION
AML2452 QUAD APRON/HITCG ASSY
APRON - Wet Kit
ITEM NUMBER ITEM DESCRIPTION
AML2457 APRON/HITCH PLATE: AIR-RIDE
LIGHT BOX
ITEM NUMBER ITEM DESCRIPTION
AML2460 LIGHT BOX, DOUBLE
ROUND HOLE
ITEM NUMBER ITEM DESCRIPTION
AML2460R LIGHT BOX, DOUBLE
RECT. HOLE
ITEM NUMBER ITEM DESCRIPTION
AML2461 LIGHT BOX, 4” SIN-
GLE ROUND LIGHT
ITEM NUMBER ITEM DESCRIPTION
AML2462 TRUCK TAIL FRAME LIGHT BOX/ELEC
AML2462R TRUCK TAIL FRAME LIGHT BOX/ELEC
AML2462
AML2462R
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
66

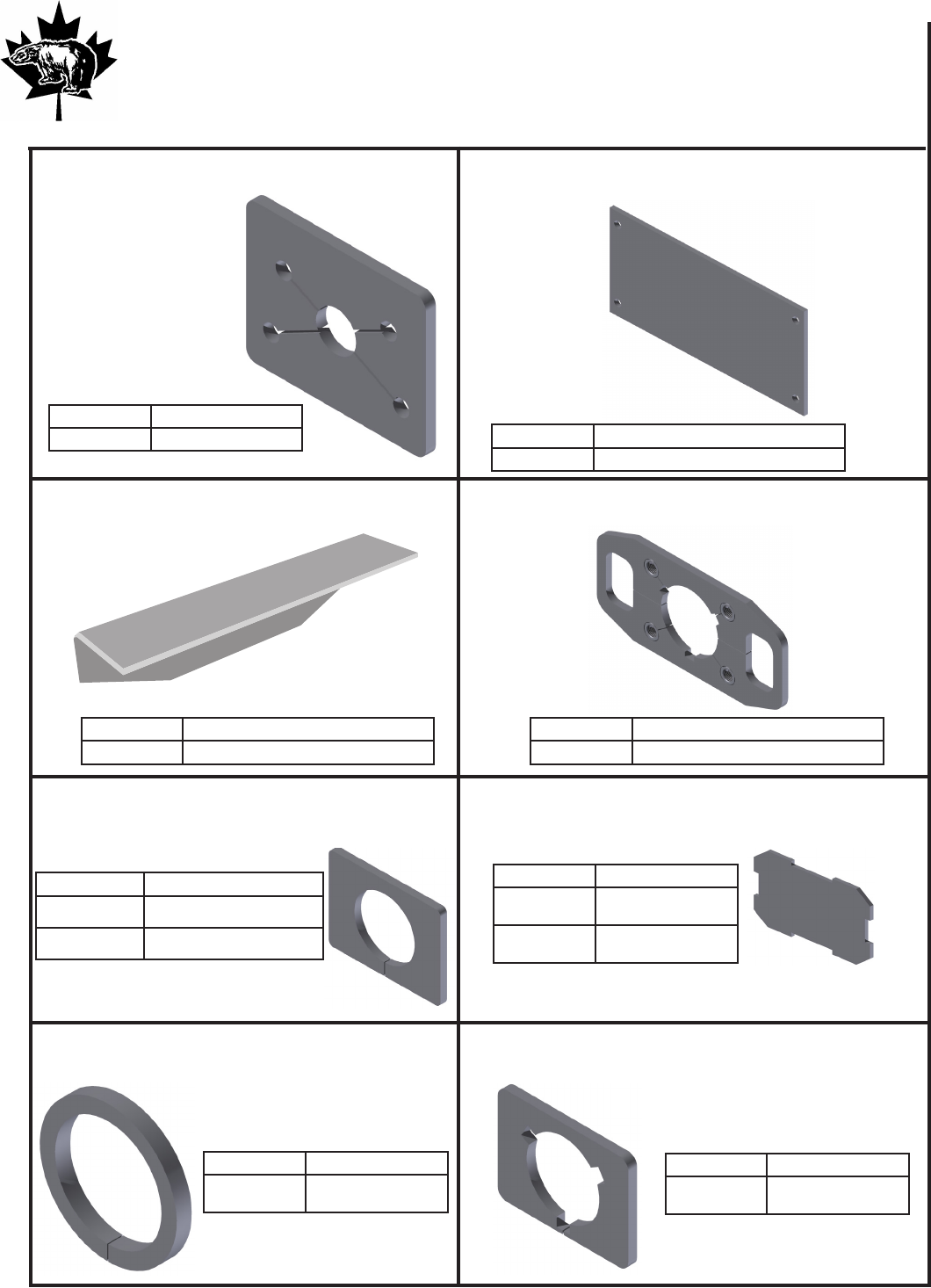

TRUCK HARDWARE
LIGHT PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2463 LIGHT PLATE, DOUBLE ROUND HOLE
AML2463R LIGHT PLATE, DOUBLE RECT. HOLE
LIGHT PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2463 LIGHT PLATE, SINGLE OVAL HOLE
LIGHT BOX
ITEM NUMBER ITEM DESCRIPTION
AML2465 LIGHT BOX, 2.5” DBL ROUND HOLE
AML2466 TRUCK TAIL-LIGHT BOX/ ELEC ASSY
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
28
WISHBONE
LIGHT BOX
TRUCK HARDWARE
LIGHT BOX
LIGHT BOX
LIGHT PLATE LIGHT PLATE
MOUNTING PLATELIGHT BOX
PART NUMBER PART DESCRIPTION
AML2461 LIGHT BOX, 4" SINGLE ROUND LIGHT
PART NUMBER PART DESCRIPTION
AML2463 LIGHT PLATE, DOUBLE ROUND HOLE
PART NUMBER PART DESCRIPTION
AML2464 LIGHT PLATE, SINGLE OVAL HOLE
PART NUMBER PART DESCRIPTION
AML2465 LIGHT BOX, 2.5" DBL ROUND HOLE
PART NUMBER PART DESCRIPTION
AML2467 M. PLATE, HOSLER/FLIPPER VALVE
PART DESCRIPTION
LIGHT BOX, DOUBLE ROUND HOLE
PART NUMBER
AML2460
PART NUMBER
AML2460R
PART DESCRIPTION
LIGHT BOX, DOUBLE RECT. HOLE
PART NUMBER PART DESCRIPTION
AML2450 WISHBONE, TRUCK TAIL-FRAME
- - - CUSTOM WISHBONES
AML2466
AML2465 MOUNTING PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2467 M. PLATE, HOSLER/FLIPPER VALVE
AML2469 MOUNTING PLATE, 4P RECEPTACLE
AML2471 MOUNT PLATE, 7 POLE RECEPTACLE
MOUNTING PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2468 MOUNT PLATE, AIRE/ELEC, FITS B/
HEADFTGS & 7P RECEPTACLES
STINGER
ITEM NUMBER ITEM DESCRIPTION
AML2470 TRUCK TAIL-FRAME STINGER, W/O
PINTLE HITCH
LIGHT BRACKET
ITEM NUMBER ITEM DESCRIPTION
AML2475 LONG LOAD LIGHT BRACKET
AML2476 L/L LIGHT KIT, C/W BRKT, GRT & WIRE
MOUNTING PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2468L LP MOUNT PLATE, AIRE/ELEC, FITS B/
HEADFTGS & 7P RECEPTACLES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
67
TRUCK HARDWARE
SCISSOR JACK-KNIFE
ITEM NUMBER ITEM DESCRIPTION
AML2479 SLIDER/SCISSOR JACK-KNIFE
JEEP LOCK PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2480 TRUCK TAIL FRAME JEEP LOCK PLATE
CAP PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2483 FORMED CAP PLATE, TRUCK T/FRAME
TIRE RAMP
ITEM NUMBER ITEM DESCRIPTION
AML2485 FORMED TIRE RAMP MATERIAL
TAIL FRAME
ITEM NUMBER ITEM DESCRIPTION
AML2489 TAIL-FRAME FOR S-JACK-KNIFE
SAFETY CHAIN
MOUNTING PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2490 HITCH/S-CHAIN MOUNT PL:
4 HOLE
SAFETY CHAIN KIT
ITEM NUMBER ITEM DESCRIPTION
AML2062 SAFETY CHAIN, 1/2” x 20”: Toggle @ 1-end
AML2495 SAFETY CHAIN, 1/2” x 60”: Toggle @ 1-end
SAFETY CHAIN
MOUNTING PLATE
ITEM NUMBER ITEM DESCRIPTION
AML2492 HITCH/S-CHAIN MOUNT PL:
6 HOLE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
68
SLIDE RAIL
“Center Pin Type”
For use with AML2421 & AML2421P
Top Slide Plates
ITEM NUMBER ITEM DESCRIPTION
AML2500 SLIDE RAIL, 36:, ARCTIC TYPE, 10 hole
AML2501 SLIDE RAIL, 48”, ARCTIC TYPE, 13 hole
AML2502 SLIDE RAIL, 60”, ARCTIC TYPE, 16 hole
AML2501P XHD SLIDE RAIL, 48”, ARCTIC TYPE, 13 hole
AML2503P XHD SLIDE RAIL, 72”, ARCTIC TYPE, 19 hole
AML2504P XHD SLIDE RAIL, 84”, ARCTIC TYPE, 22 hole
ITEM NUMBER ITEM DESCRIPTION
AMR2495-01 SAFETY CHAIN REACH TOGGLE EYE
ITEM NUMBER ITEM DESCRIPTION
AMR2495-02 CHAIN TOGGLE: WELD-ON
ITEM NUMBER ITEM DESCRIPTION
AMR2495-03 CHAIN TOGGLE: CRIMP-ON
ITEM NUMBER ITEM DESCRIPTION
AMR2495-04 SAFTEY CHAIN HANGER
SAFETY CHAIN HARDWARE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
69
STAKE - BREAK
PART NUMBER DESCRIPTION
AML1082 STAKE-BREAK POLE ASSEMBLY
AMR1082-03 EXTENSION PLATE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
70
MOVABLE LOW-BED
RAMPS (TRI-DRIVE)
•Rear Slider Extension (AML2822)•
•Bolts to Existing “Arctic” Top Slide Plate•
•Allows Upper Ramp Portion to Travel with•
•5th Wheel Slider•
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
71
ARCTIC
LOGGING TRAILER
EQUIPMENT
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
72
LT - 22/25 TRAILER BODY
ITEM NUMBER ITEM DESCRIPTION
AML3003 ARCTIC TRAILER BODY, LT-22 77” TRACK
TRAILER HARDWARE
UPPER TRUNNION CLAMP
ITEM NUMBER
AML3015
LOWER TRUNNION CLAMP
ITEM NUMBER
AML3016
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
31
LT - 22/25 TRAILER BODY
TRAILER HARDWARE
UPPER TRUNNION CLAMP LOWER TRUNNION CLAMP
TRUNNION SHAFT TREAD PLUG
TRUNNION COMPRESSION ROD AIR TANK CLAMP BRACKETS
PART NUMBER PART DESCRIPTION
AML3018 TREAD PLUG, 1 1/4" UNC
PART NUMBER
AML3015
PART NUMBER
AML3016
PART NUMBER
AML3031-1
PART NUMBER PART DESCRIPTION
AML3017 71" TRACK, 47" OAL, C/W THR. INSERTS
AML3017L 77" TRACK, 53" OAL, C/W THR. INSERTS
PART NUMBER PART DESCRIPTION
AML3019 T. COMP. ROD, 1 1/4" X 58" - UNF
AML3020 T. COMP. ROD, 1 1/4" X 70" - 4" UNF
PART NUMBER PART DESCRIPTION
AML3003 ARCTIC TRAILER BODY, LT-22 77" TRACK
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
73

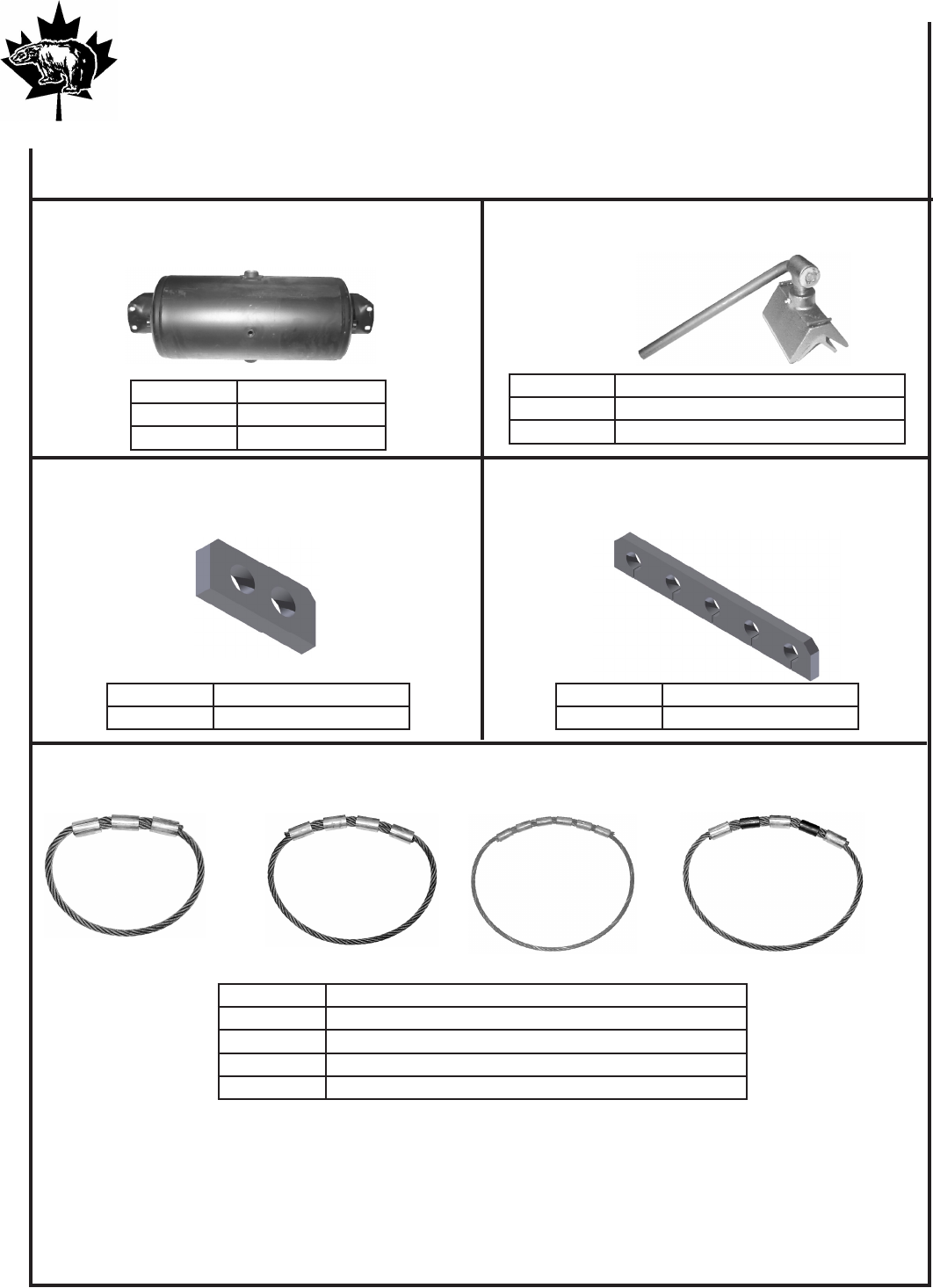

TRAILER HARDWARE
AIR TANK
ITEM NUMBER ITEM DESCRIPTION
AML3030 AIR TANK, 26” 9 1/8”
AML3030J AIR TANK, 29” X 12”
CORNER REACH CLAMP
ITEM NUMBER ITEM DESCRIPTION
AML3040 CAST CORNER REACH CLAMP ASSY
AML4042 HANDLE-ONLY, FITS CAST CORNER CLAMP
MOLLY BRACKET
ITEM NUMBER ITEM DESCRIPTION
AML3049 2 HOLE LIFT MOLLY BRACKET
MOLLY BRACKET
ITEM NUMBER ITEM DESCRIPTION
AML3050 5 HOLE LIFT MOLLY BRACKET
LIFT MOLLY
ITEM NUMBER ITEM DESCRIPTION
AML3051 LIFT MOLLY, 18” DIA, 3 ALUM. FITTINGS
AML3051-1 LIFT MOLLY, 24” DIA 4 ALUM. FITTINGS
AML3052 LIFT MOLLY, 32” DIA., 6 STEEL FITTINGS
AML3052-1 LIFT MOLLY, 26” DIA., 3 ALUM / 2 STEEL FITTINGS
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
74

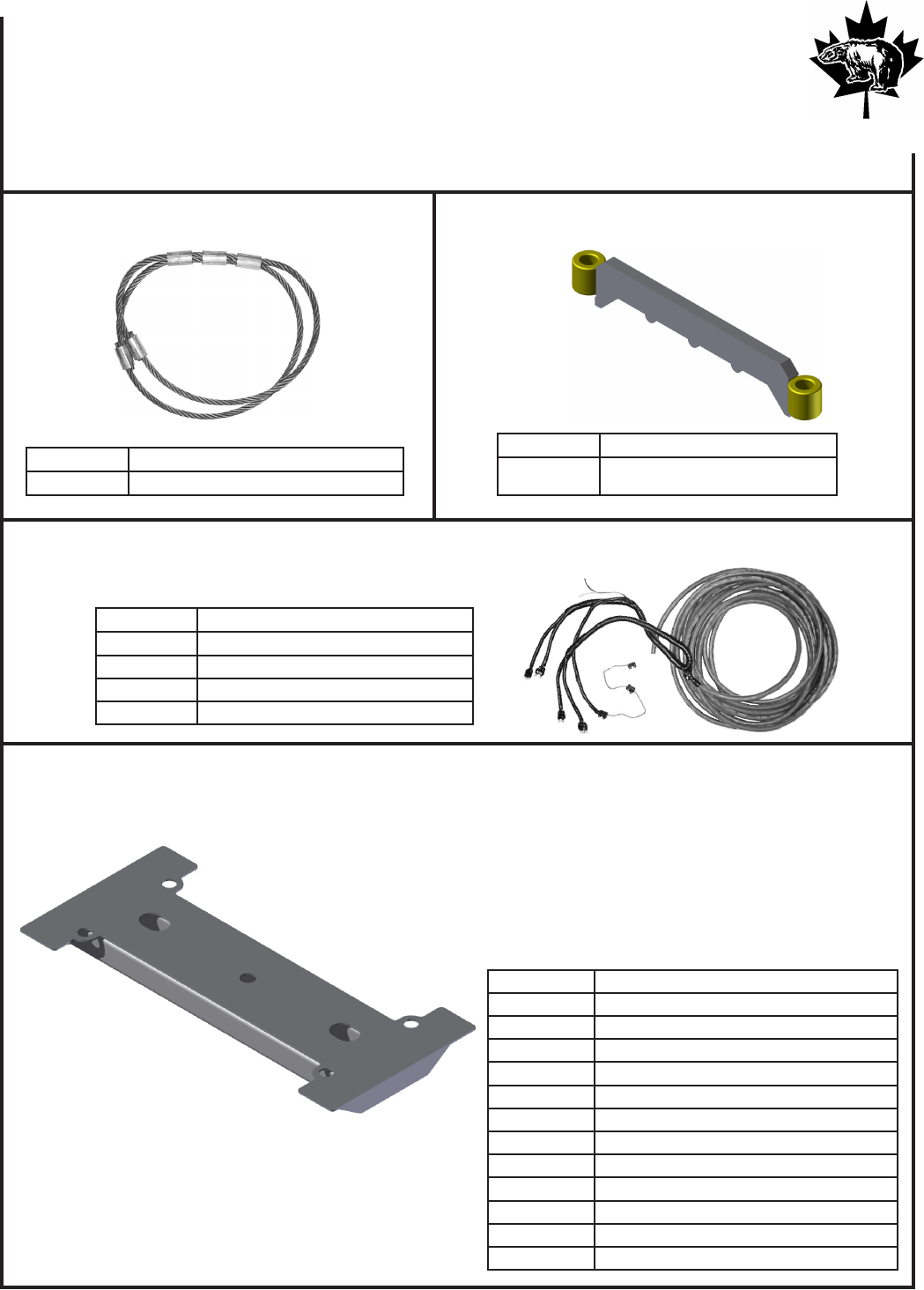

TRAILER HARDWARE
LIFT MOLLY - 32”
ITEM NUMBER ITEM DESCRIPTION
AML3053 LIFT MOLLY, 32” D., 2-ALUM. 4 STL FITTINGS
LIFT MOLLY BAR
ITEM NUMBER ITEM DESCRIPTION
AML3055 LIFT MOLLY BAR, BUTTON TOP TYPE
C/W 1” Q/F EACH END
ELECTRICAL HARNESS
ITEM NUMBER ITEM DESCRIPTION
AML3081 ELECTRICAL HARNESS, 52’
AML3081-1 ELECTRICAL HARNESS, 10’
AML3081-2 ELECTRICAL HARNESS, 4’, JC9/17
AML3081-3 ELECTRICAL HARNESS, 42’
TRAILER BOLSTER
ITEM NUMBER ITEM DESCRIPTION
AML3114 4’ TRAILER BOLSTER, W/O HUB
AML3114-LW 52” L/WTRLR BOLSTER, W/O HUB
AML3115 5’ TRAILER BOLSTER, W/O HUB
AML3124 4’ TRAILER BOLSTER, C/W 14” HUB
AML3124A 4’ ALUM. TRLR BLSTR, 14” NYLON HUB
AML3125 5’ TRLR BOLSTER, C/W 14” HUB
AML3134 4’ HD TRAILER BOLSTER, W/O HUB
AML3135 5’ HD TRAILER BOLSTER, W/O HUB
AML3144 4’ HD TRLR BOLSTER, C/W 14” HUB
AML3145 5’ HD TRLR BOLSTER, C/W 14” HUB
AML3154 4’ HD TRLR BOLSTER, C/W 17” HUB
AML3155 5’ HD TRLR BOLSTER, C/W 17” HUB
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
75
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
34
BUNK, STAKE ASSEMBLIES
NONE •• ••••••••
60" FOR. •••••••••••
72" FOR. •••••••••••
84" H.D. •• ••••••••
90" H.D. •• ••••••••
96" SOL. •• ••••••••
48" FOR. •••••••••••
60" FOR. •••••••••••
48" H.D. •• ••••••••
1" •••
1 1/8" •• ••••••••
STANDARD •••
HEAVY DUTY ••••••••
14" •• ••••••••
17" •• ••••••••
17" L.P.
EXTENTIONCABLE
STAKE
TRIPSSAUCER
8'-6" BUNK
8'-6" L.P. BUNK
8'-6" S.L. BUNK
9' BUNK
10' BUNK
10' L.P. BUNK
10'-6" BUNK
10'-6" L.P. BUNK
11' BUNK
12' BUNK
13' BUNK
L.P. = Low Profile
S.L. = Short Logge
r
FOR. = Formed
H.D. = Heavy Duty
SOL. = Solid
BUNK, STAKE ASSEMBLIES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
76
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
35
BUNK/BOLSTER,
STAKE ASSEMBLIES
NONE • • • • • • • • • •
60" FOR. • • • • • • • • • • •
72" FOR. • • • • • • • • • • •
84" H.D. • • • • • • • • • •
90" H.D. • • • • • • • • • •
96" SOL. • • • • • • • • • •
48" FOR. • • • • • • • • • • •
60" FOR. • • • • • • • • • • •
48" H.D. • • • • • • • • • •
1" • • •
1 1/8" • • • • • • • • • •
STANDARD • • •
HEAVY DUTY • • • • • • • •
14" • • • • • • • • • •
17" • • • • • • • • • •
17" L.P.
4' • • • • • • • • • •
5' • • • • • • • • • •
EXTENTIONCABLE
STAKE
TRIPSSAUCER
8'-6" BUNK
8'-6" L.P. BUNK
8'-6" S.L. BUNK
9' BUNK
10' BUNK
10' L.P. BUNK
10'-6" BUNK
10'-6" L.P. BUNK
11' BUNK
12' BUNK
13' BUNK
L.P. = Low Profile
S.L. = Short Logger
FOR. = Formed
H.D. = Heavy Duty
SOL. = Solid
BOL-
STER
BUNK/BOLSTER,
STAKE ASSEMBLIES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
77
TRAILER REACH
ITEM NAME ITEM DESCRIPTION
AML3400 REACH, 30’ - 1/4”W, C/W 60” NYLON BUSHED COMPANSATOR
AML3400H REACH, 30’ - 3/8”W, C/W 60” NYLON BUSHED COMPANSATOR
AML3400L REACH, 30’ LIGHT WEIGHT .188W, C/W NYLON BUSHED COMPANSATOR
ITEM NAME ITEM DESCRIPTION
AML3420 REACH, 30’ X 20’ - 1/4”W, NYLON BUSHED 60” COMP & C/CLAMP
AML3420H REAH, 30’ X 20’ - 3/8”M - 1/4”I NYLON BUSHED COMP, C/CLAMP
AML3420HH REACH, 30’X20’ - 3/8”M - 3/8”I NYLON BUSHED COMP, C/CLAMP
TRAILER HARDWARE
COMPANSATOR
ITEM NUMBER ITEM DESCRIPTION
AML3425 COMPANSATOR, 60” NYLON BUSHED, INNER/OUTER ASSEMBLY
AML3435 INNER COMPANSATOR, 60” TUBE C/W CAST EYE
AML3435-C HARD-CHROMED INNER COMPANSATOR, 60” TUBE C/W CAST
EYE
AML3436 INNER COMPANSATOR, 72” TUBE C/W CAST EYE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
78
TRAILER HARDWARE
REACH SPLICE
ITEM NUMBER ITEM DESCRIPTION
AML3410 R. SPLICE, FORMED ANGLE, 3”X3”X24”
OUTER COMPANSATOR
ITEM NUMBER ITEM DESCRIPTION
AML3441 OUTER COMPANSATOR, NYLON BUSHED
AML3441L OUTER COMP. FULL LENGTH BUSHING
PPI91240 OUTER COMP 4”,FULL LENGTH BUSHING
SWIVEL EYE
ITEM NUMBER ITEM DESCRIPTION
AML3445 SWIVEL EYE, SHORT LOGGER URETHANE BUSHED
Comp Bushings
ITEM NUMBER ITEM DESCRIPTION
AML3447 COMP., NYLON, 4” ODX3.53”IDX6”OAL
AML3447-L COMP., NYLON, 4” ODX3.53”IDX9 1/2”OAL
AML3447-LR COMP., REDCO, 4” ODX3.53”IDX9 1/2”OAL
AML3447-1 COMPENSATOR DRIVE PIN
AML3448 COMP., STEEL, 4”ODX3.53”IDX6”OAL
AML3448-L COMP, NYLON, 4.45”OD x 4.1”ID x 10” OAL
COMP LOCK
ITEM NUMBER ITEM DESCRIPTION
AML3450 COMPENSATOR CLEVIS LOCK KIT, C/W SIDE PLATES
LOCK SPRING
ITEM NUMBER ITEM DESCRIPTION
AML3451 CLEVIS LOCK HOLD DOWN SPRING
AML4451 REACH LOCK HOLD DOWN SPRING
REACH CADDIE COMPENSATOR EYE
ITEM NUMBER ITEM DESCRIPTION
AML3460 REACH CADDIE, CABLE TYPE
AML3460L REACH CADDIE-LARGE, CABLE TYPE
ITEM NUMBER ITEM DESCRIPTION
AML3470 COMP EYE, WELD-ON, DBLE HOOK (discontinued)
AML3472 COMPENSATOR EYE, WELD-ON, SINGLE HOOK
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
79
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Inner Compensator Assembly
AML343511
Compansator Housing c/w Bushings
AML3441L12
Compensator Tube Stop RingAMR3400-10
1
3
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
20/09/2011
20/09/2011
20/09/2011
20/09/2011 DWG NO
AML3425-EXPLOSION
TITLE
Compansator Assemby
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
12 3
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax:(250)962-7500
80
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Reach Stopper Bar, 6" Long
AML340511
Compansator Assembly 60" Nylon Bushed
AML342512
Compansator Lock AssyAML3450
1
3
Reach End Plate, c/w 3/4" UNC Nuts
AMR3400-0115
Compensator Guide Plate, 3/8" wallAMR3400-02H
1
6
End Cap Plate: 3/8" wall
AMR3400-0417
Comp Lock Hinge Side Plate
AMR3450-0328
3/4 X 2.25BLT8C12-36
4
9
3/4 SAE Flat Washer
BLT8FW12410
9" X 7" X 3/8" X 30'SST5202-725
1
12
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
20/09/2011
20/09/2011
20/09/2011
20/09/2011 DWG NO
AML3400H-EXPLOSION
TITLE
Reach 30' x 3/8w c/w Comp
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
210 9 581
3 126
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax:(250)962-7500
81
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Reach Shim/Stopper: 1/8"
AML340241
Reach Stopper Bar, 6" Long
AML340512
Compansator Assembly 60" Nylon BushedAML3425
1
3
Compansator Lock Assy
AML345014
Reach End Plate, c/w 3/4" UNC NutsAMR3400-01
15
Tele Reach Comp Guide Plate
AMR3420-0116
Insert: 8 x 6 x .250w HSS x 20'
AMR3420H-0217
Comp Lock Hinge Side PlateAMR3450-0328
3/4 X 2.25
BLT8C12-3649
3/4 SAE Flat WasherBLT8FW12
4
10
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
20/09/2011
20/09/2011
20/09/2011
20/09/2011 DWG NO
AML3421-EXPLOSION
TITLE
AML3421 Reach Insert
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
109
35 4 826
1
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax:(250)962-7500
82
PARTS LIST
DESCRIPTION
PART NUMBER
QTY
ITEM
Cast Corner Reach Clamp Assy
AML304011
Reach Shim/Stopper: 1/8"
AML340222
Telescopic Insert: 20' Insert, c/w 60" CompAML3421
1
3
Compansator Lock Assy
AML345014
Reach Rear Cap Plate: 1/4"w HSSAMR3400-03
15
Insert Lock Hook
AMR3450-0216
Comp Lock Hinge Side Plate
AMR3450-0327
Main Tube: 9 x 7 x .2502 HSSSST5202-715
1
8
1
1
2
2
3
3
4
4
A A
B B
C C
D D
SHEET 1 OF 1
DRAWN
CHECKED
QA
MFG
APPROVED
Blair
Blair
blair
Blair
20/09/2011
20/09/2011
20/09/2011
20/09/2011 DWG NO
AML3420-EXPLOSION
TITLE
Telescopic Reach: 30'x 20' - 1/4"wall
SIZE
C
SCALE
Arctic Manufacturing Ltd.
REV
3 82 6 147
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
83

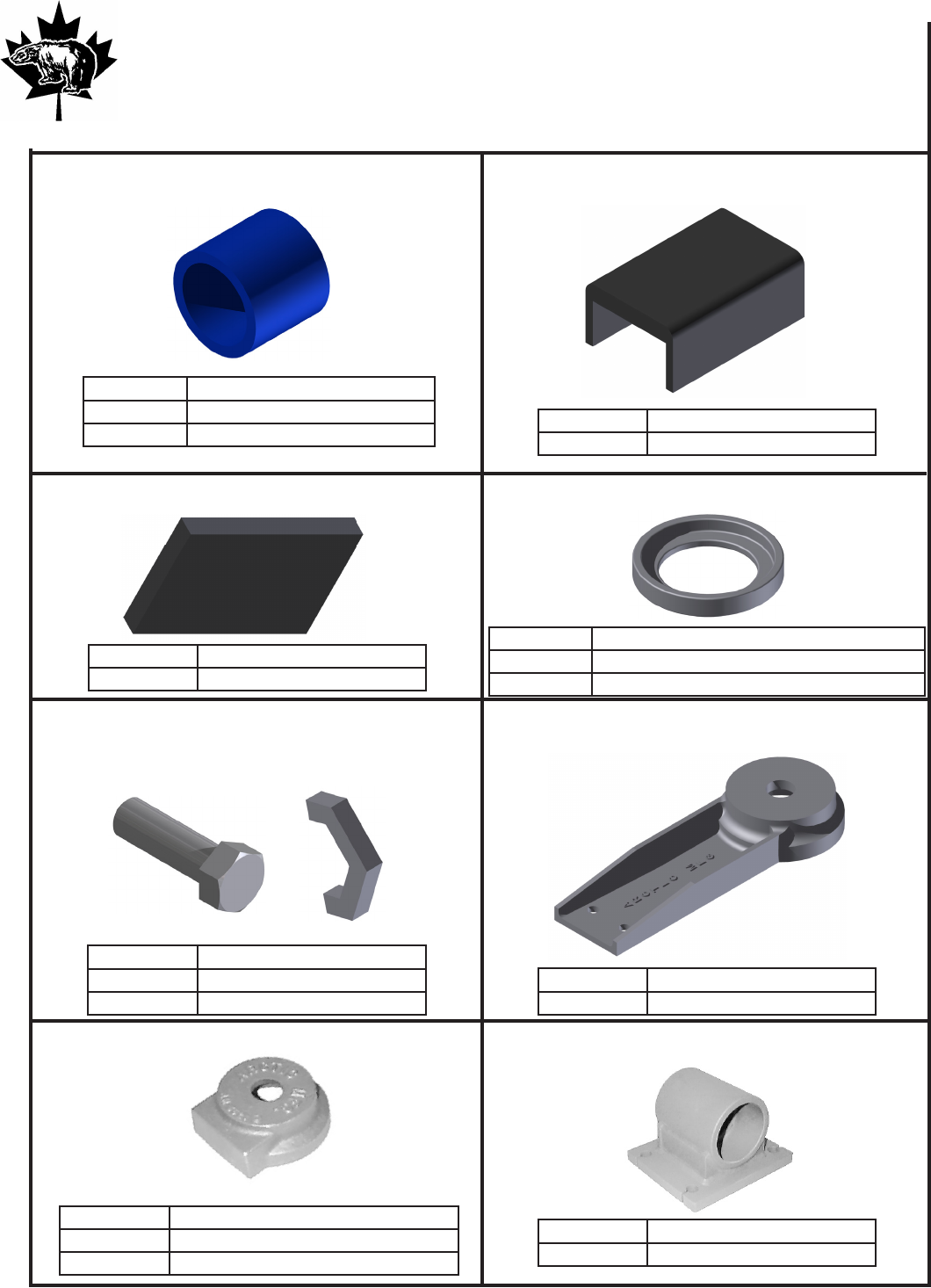

TRAILER HARDWARE
BUSHINGS SADDLE BUSHINGS
ITEM NUMBER ITEM DESCRIPTION
AML3520-U URETHANE, 3.5”ID X 4.5”OD X 4” OAL
AML3522-U URETHANE, 4”ID X 5”OD X 4” OAL
ITEM NUMBER ITEM DESCRIPTION
AML3521 WALKING BEAM SADDLE BUSHING
BASE PAD
ITEM NUMBER ITEM DESCRIPTION
AML3522 WALKING BEAM BASE PAD
STEP RING
ITEM NUMBER ITEM DESCRIPTION
AML3524 STEP RING, 3 1/2” ID - Replaces AML3523 MULTI-STEP
AML3524-OS STEP RING, 4” ID
TRUNNION BOLT
& LOCK RING
ITEM NUMBER ITEM DESCRIPTION
AML3525 TRUNNION BOLT, 1 1/4” UNC GR8
AML3528 LOCK RING, TRUNNION - W/BEAM
OUTBOARD LEG
ITEM NUMBER ITEM DESCRIPTION
AML3526 CAST OUTBOARD LEG
END CAP
ITEM NUMBER ITEM DESCRIPTION
AML3527 CAST END CAP 3 1/2” SHAFT(1978--1989/90)
AML3527-OS CAST END CAP 4” SHAFT
END BEARING ASSEMBLY
ITEM NUMBER ITEM DESCRIPTION
AML3530 END BEARING ASSY. (1978-1988/89)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
84

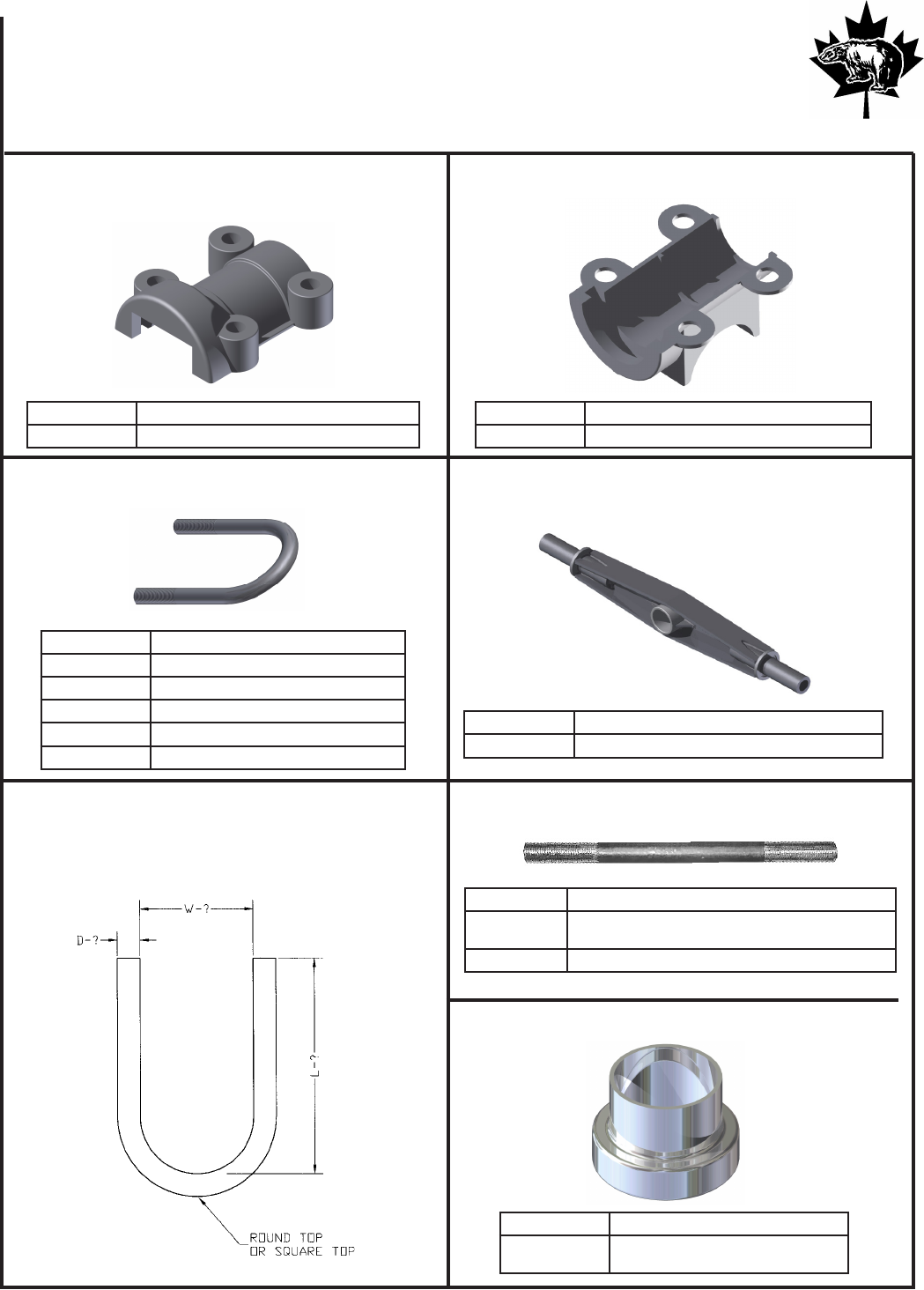

TRAILER HARDWARE
TOP END CAP AXLE ADAPTER
ITEM NUMBER ITEM DESCRIPTION
AML3532 WALKING BEAM END CAP (1989 - 2003)
ITEM NUMBER ITEM DESCRIPTION
AML3534 WALKING BEAM AXLE ADAPTER (1989 - 2003)
U - BOLTS WALKING BEAM
ITEM NUMBER ITEM DESCRIPTION
AML3540 W/BEAM, 3/4”X7-1/2”X5” R - TOP
AML3542K KNIGHT ENDCAP, 7/8” X11-1/2”X5” R-TOP
AML3547 TRIDEM S/L BEAM, 1”X9”X5” R-TOP
AML3548 ARCTIC W/BEAM, 1”X12”X5” R-TOP
AML3549 ARCTIC W/BEAM, 1”X13”X5” R-TOP
ITEM NUMBER ITEM DESCRIPTION
AML3554 W/BEAM, 54”, 1pc END CAP (1978-1988)
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
39
TRAILER HARDWARE
U - BOLTS
COMPRESSION ROD
TOP END CAP AXLE ADAPTER
CONVERSION KIT
WALKING BEAM
CUSTOM U - BOLTS
PART NUMBER PART DESCRIPTION
AML3532 WALKING BEAM TOP END CAP
PART NUMBER PART DESCRIPTION
AML3534 WALKING BEAM AXLE ADAPTER
PART NUMBER PART DESCRIPTION
AML3564 COMPRESSION ROD, W/BEAM
1 1/4" X 19", 4" UNC AT ENDS
PART NUMBER PART DESCRIPTION
AML3950 CONVERSION KIT, A19 - A22
INNER BEARING & PINNION SPACER
PART NUMBER PART DESCRIPTION
AML3540 W/BEAM, 3/4"X7-1/2"X5" R-TOP
AML3542K KNIGHT ENDCAP, 7/8"X11-1/2"X5" R-TOP
AML3547 TRIDEM S-L BEAM, 1"X9"X5" R-TOP
AML3548 ARCTIC W/BEAM, 1"X12"X5" R-TOP
AML3549 ARCTIC W/BEAM, 1"X13"X5" R-TOP
PART NUMBER PART DESCRIPTION
AML3554C W/BEAM, 54", INVERTED CAP (1993+)
CUSTOM U - BOLTS
COMPRESSION ROD
ITEM NUMBER ITEM DESCRIPTION
AML3564 COMPRESSION ROD, W/BEAM, 1 1/4” X 19”, 4” UNC
AT ENDS
AMR6502-10 QUAD COMPRESSION ROD: 1 1/4” X 59” UNC
A19-A22 CONVERSION SLEEVE
ITEM NUMBER ITEM DESCRIPTION
AML3950 COVERSION KIT, A19 - A22
INNER BEARING & PINNION SPACER
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
85

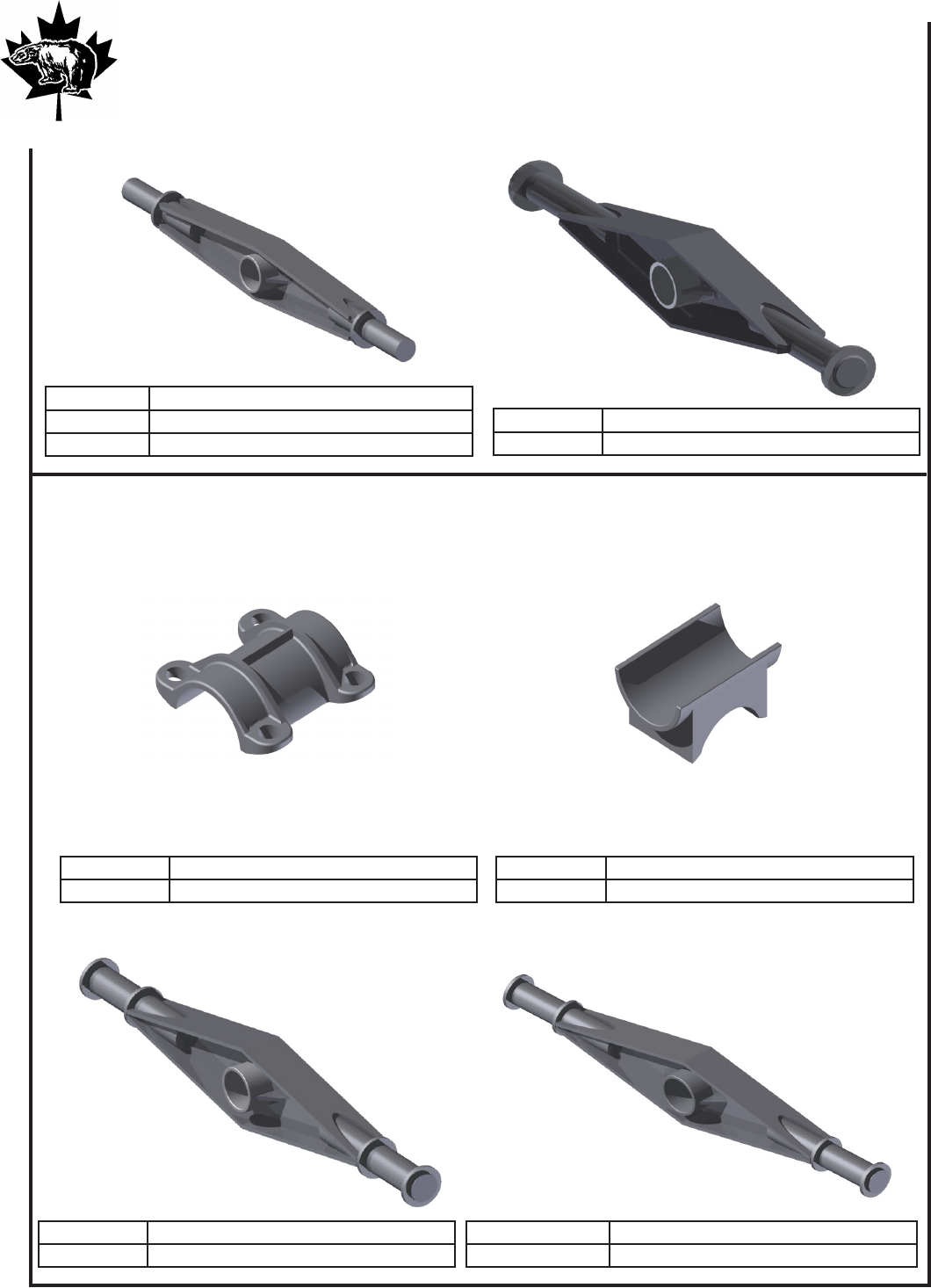

ITEM NUMBER ITEM DESCRIPTION
AML3554C W/BEAM, 54”, 2pc INVERTED END CAP (1993-2003)
ITEM NUMBER ITEM DESCRIPTION
AML3554BH W/BEAM, 54”, 2pc END CAP (1989-1993)
\AML3554B W.BEAM, 54”, 2pc END CAP , Hollow E-Tubes (1988)
ITEM NUMBER ITEM DESCRIPTION
AML3533 WALKING BEAM END CAP (2004+)
ITEM NUMBER ITEM DESCRIPTION
AML3535 WALKING AXLE ADAPTER (2004+)
ITEM NUMBER ITEM DESCRIPTION
AML3554-D W/BEAM, 54”, 2pc END CAP 3 1/2” Trunnion (2004+)
ITEM NUMBER ITEM DESCRIPTION
AML3554-E W/BEAM, 54”, 2pc END CAP 4” Trunnion (2005+)
Single Ring Walking Beams
Double Grip-Ring End Caps/Walking Beams
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
86
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
40

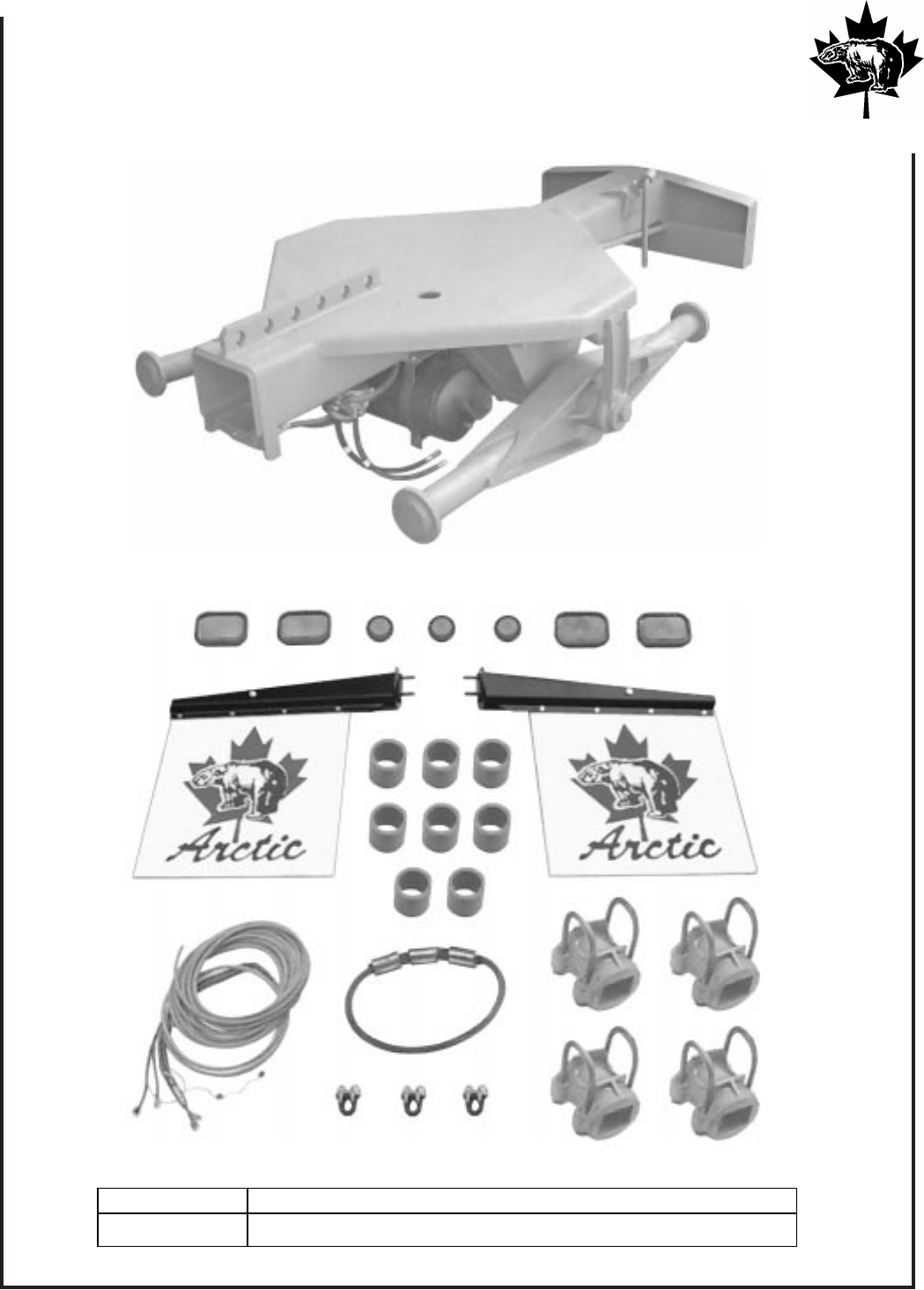

LT - 22/25 GLIDER KIT
PART NUMBER PART DESCRIPTION
AML3622 LT - 22/25 GLIDER KIT, 54" W/BASE REBUILD KIT, C/W W/BEAMS, TANKS,
VALVES, LIGHTS, ELECTRICAL HARNESS, MUDFLAPS & ARMS, PRIMED.
LT - 22/25 GLIDER KIT
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
87
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
88
ARCTIC
TRAILER
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
89
TRAILER HARDWARE
STINGER HITCH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR2470-04 STINGER HITCH PLATE
AIR TANK MOUNT PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3005-03 AIR TANK MOUNTING PLATE, 12X1/4X6”
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
44
TRAILER HARDWARE
REACH PLATE
REACH PLATE REACH PLATE
STOPPER RING
AIR TANK MOUNT PLATE
TRAILER BOLSTER WING
STINGER HITCH PLATE
REACH PLATE
PART NUMBER PART DESCRIPTION
AMR2470-04 STINGER HITCH PLATE
PART NUMBER PART DESCRIPTION
AMR3005-03 AIR TANK MOUNTING PLATE, 12X1/4X6"
PART NUMBER PART DESCRIPTION
AMR3100-02 TRAILER BOLSTER WING, 24" LONG
PART NUMBER PART DESCRIPTION
AMR3400-01 REACH END PLATE, C/W 3/4" NF NUTS
PART NUMBER PART DESCRIPTION
AMR3400-02 REACH, COMPENSATOR GUIDE PLATE
PART NUMBER PART DESCRIPTION
AMR3400-03 REACH (1/4" W.) END COVER PLATE
AMR3400-04 REACH (3/8" W.) END COVER PLATE
PART NUMBER PART DESCRIPTION
AMR3400-10 COMPENSATOR STOPPER RING
PART NUMBER PART DESCRIPTION
AMR3420-01 TELESCOPIC REACH COMP. G/PLATE
STINGER HITCH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3100-02 TRAILER BOLSTER WING, 24” LONG
REACH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3400-01 REACH END PLATE, C/W 3/4” NF NUTS
REACH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3400-02 COMP GUIDE PLATE, 1/4” W
AMR3400-02H COMP GUIDE PLATE, 3/8” W
REACH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3400-03 REACH (1/4”W) END
COVER PLATE
AMR3400-04 REACH (3/8”W) END
COVER PLATE
STOPPER RING
ITEM NUMBER ITEM DESCRIPTION
AMR3400-10 COMPENSATOR
STOPPER RING
REACH PLATE
ITEM NUMBER ITEM DESCRIPTION
AMR3420-01 TELESCOPIC REACH
COMP. G/PLATE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
90
SUSPENSIONS
ITEM NUMBER ITEM DESCRIPTION
AMR3420-01 TELESCOPIC REACH
COMP. G/PLATE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
91
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
46
NEWAY SUSPENSION
TS - 542-1
ITEM PART NUMBER PART DESCRIPTION QTY. ITEM PART NUMBER PART DESCRIPTION QTY.
1 915-57-014 Spring Assembly - TS-426 2 9 934-00-504 1 1/8" - 7 Lock Nut 8
915-57-015 Spring Assembly - TS-432 2 10 930-03-621 3/4" - 10x4 1/2" Cap Screw 4
915-57-016 Spring Assembly - TS-436 2 *11 934-00-492 3/4" - 10 Lock Nut 4
915-57-017 Spring Assembly - TS-442 2 *12 936-00-156 3/4" H.T. Washer 4
915-57-018 Spring Assembly - TS-536 2 *13 930-03-345 5/8" - 11x2" Cap Screw 24
915-57-019 Spring Assembly - TS-542 2 14 934-00-488 5/8" - 11 Lock Nut 40
2 910-38-003 Trunnion Tube - TS-432, TS-436, TS-536 1 15 936-00-174 1 1/8" H.T. Washer 8
910-38-004 Trunnion Tube - TS-442, TS-542 1 16 900-41-067 5/8" - 11 U-Bolt 5" Rd. Axle 8
3 910-10-040 Trunnion Rubber Cap Casting 2 900-42-061 5/8" - 11 U-Bolt 5 3/4" & 6" Rd. Axle 8
4 910-01-051 Trunnion Spring Seat Casting 2 17 939-00-025 5/8" H.T. Washer 40
*5 910-08-022 Trunnion Rubber Bushing 2 18 910-10-043 Spring End Cap Casting (2 Main Leaf Spring) 4
6 910-01-054 Trunnion Clamp Casting - 2 1/2" C Dim. (for - 1 Models) 2 910-10-038 Spring End Cap Casting (3 Main Leaf Spring) 4
910-01-055 Trunnion Clamp Casting - 4 1/2" C Dim. (for - 2 Models) 2 *19 910-28-089 Spring End Rubber Pad (TS - 426- A ONLY) 4
910-01-056 Trunnion Clamp Casting - 6 1/2" C Dim. (for - 3 Models) 2 * 910-28-013 Spring End Rubber Pad 4
910-01-058 Trunnion Clamp Casting - 8 1/2" C Dim. (for - 4 Models) 2 20 910-01-044 Spring End Pad Casting - 5" Rd. Axle 4
7 910-10-021 Spring Saddle Casting 2 910-01-047 Spring End Pad Casting - 5 3/4" & 6" Rd. Axle 4
8 900-41-689 1 1/8" - 7 Spring U-Bolt - TS-426-A,TS-432 4 21 910-18-008 Frame Bracket 2
900-41-691 1 1/8" - 7 Spring U-Bolt - TS-436, TS-536 4 22 910-23-057 Frame Support Angle 2
900-41-695 1 1/8" - 7 Spring U-Bolt - TS-442, TS-542 4
NOTE: Service Repair Kit (SRK) available
WHEN ORDERING PARTS, BE SURE TO SPECIFY
to service Axle and Trunnion connection.
ITEM NO., PART NO., SERIAL NO., & MODEL NO. * Indicates Revision
13
22
2
17
14 10
6
14
17
21
13
18
19
20
12
11
17 16
14
9
15
3
5
4
1
7
8
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
92
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
47
1
2
3
11
14
45
6
7
8
10
1
9
1
14
5415
4567
8
13
76
515
4
16
17
18
19
20
456
7
21
8
10
1
7
65
4
7
6
5
4
4
16
17
18
19
20
567
8
10 21
1
2
3
76
ITEM PART NUMBER PART DESCRIPTION QTY.
1 AML3541-2 1" UNF8 DEEP NUT 4
2 AML3532 WALKING BEAM TOP END CLAMP 1
3 AML3520-80 WALKING BEAM & TRUNNION BUSHING 2
4 HDH6994 NUT, END TUBE 2
5 AML4254 TRUNNION NUT, LINK ARM SUSP. 2
6 REYT2103 WASHER, COMPRESSION 2
7 AML4252 BUSHING, LINK ARM PIVOT TUBE 2
8 AML 4253 TUBE, LINK ARM TRUNNION TUBE 1
9 BLT8CNT12 3/4" UNC8 NUT 2
10 AML6560 5/8 x 2 1/4" SHAFT SET SCREW 1
11 OBSOLETE
12 AML4251 ROUND TUBE LINK ARM, C/W PAD BASE 1
13 BLT8C12-40 3/4 x 2 1/2" UNC CAP SCREW 2
14 AML3534 WALKING BEAMEND AXLE ADAPTER 1
15 AML3548 1" WALKING BEAM "U" BOLT 2
16 AML6540 SUSPENSION "U" BOLT 2
17 OBSOLETE
18 AML6523 TOP RUBBER CAP 1
19 SCH1403-105 4" CHANNEL 1
20 AML6522B "U" RUBBER BASE PAD 1
21 OBSOLETE
TA-26.1 & JC-9 LINK ARMS
12
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
93
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
48
9
10
15
14
12 11
3
67
8
1
2
54
13
HT 300
HT 230
TORQUE ITEM PART NUMBER PART DESCRIPTION QTY. TORQUE ITEM PART NUMBER PART DESCRIPTION QTY.
IN FOOT 1 A-20126 SHOCK ABSORBER 2 IN FOOT
POUNDS 2 C-20199-1 AIR SPRING SHOCK MOUNT 1 POUNDS 9 C-20016-3 AIR SPRING SPACER ASSY. 2
C-20199-2 AIR SPRING SHOCK MOUNT 1 10 C-20124 AIR SPRING 2
3 B-4771 AIR SPRING 2 475 11 A-3650 U-BOLT KIT 1
4 B-20701 AXLE SPACER 4 12 A-20002 SHOCK ABSORBER 2
475 5 A-20032 U-BOLT KIT 1 13 C-20335-1 BEAM & AXLE SEAT ASSY. 1
6 D-20186-1 BEAM ASSEMBLY 1 C-20335-2 BEAM & AXLE SEAT ASSY. 1
D-20186-2 BEAM ASSEMBLY 1 14 B-11613 WEAR PAD BUSHING 4
7 B-11613 WEAR PAD BUSHING 4 15 D-20323-1 FRAME BRACKET ASSY. 1
8 C-20196-1 FRAME BRACKET ASSY. 1 D-20323-2 FRAME BRACKET ASSY. 1
C-20196-2 FRAME BRACKET ASSY. 1
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
94

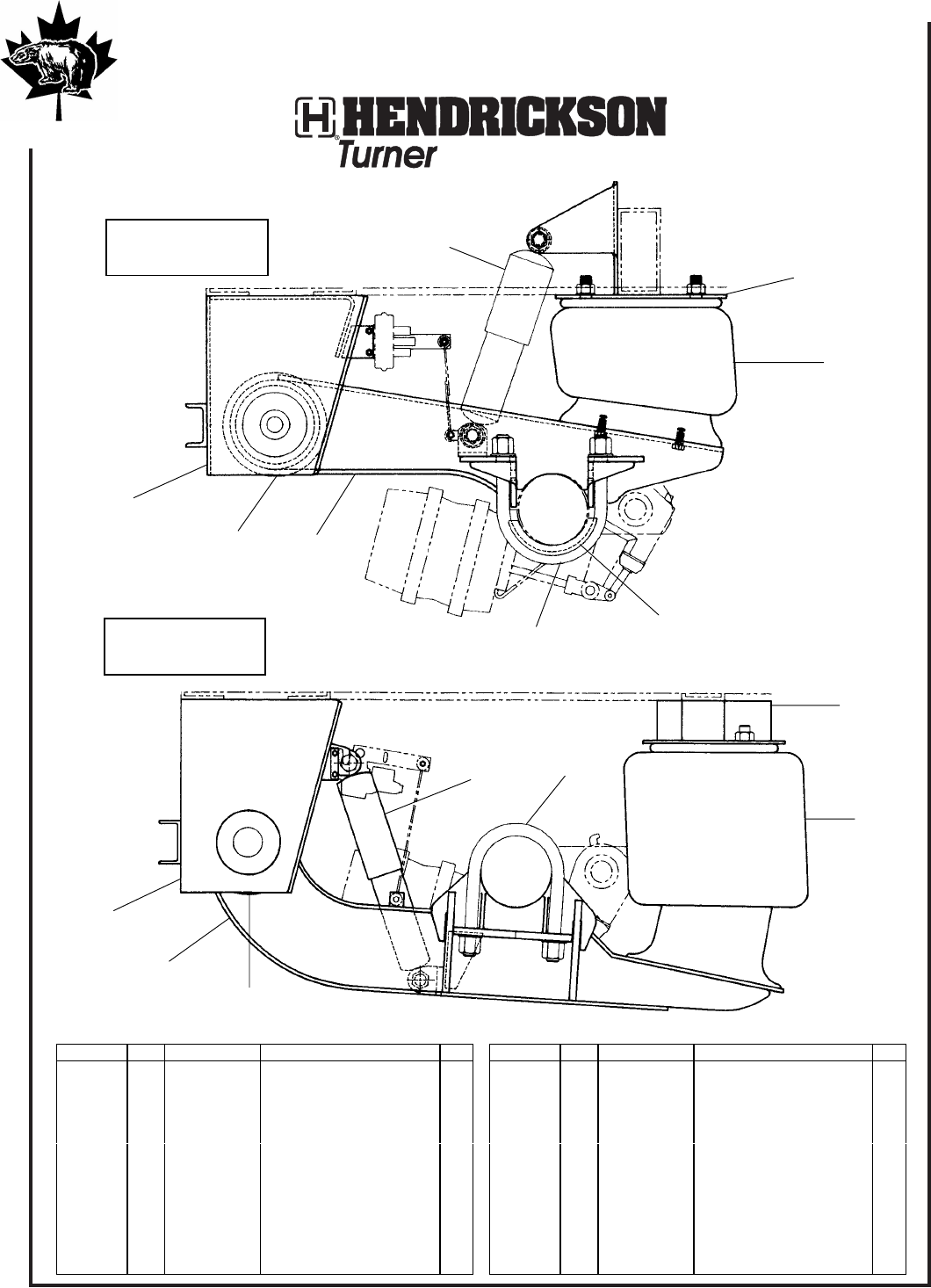

-16-
RAR
-
240 Ov
e
r
s
l
ung
-
30
,
000
l
b
.
c
a
p
.
SUS
P
E
NS
I
ON AX
L
E
HANG
E
R ASSY
.
B
USH
I
NG/
B
E
AM ASSY
.
B
USH
I
NG A
I
R S
P
R
I
NG
R
E
P
L
AC
E
M
E
N
T
P
AR
T
NUM
B
E
R D
I
AM
E
T
E
R
L
H/RH
L
H/RH R
E
P
L
AC
E
M
E
N
T
K
I
T
2400001 5
"
3260019 /20 5970008 /09 6040028
(
70 DURO
)
1000008050G
2400002 5
"
3260021 /22 5970008 /09 6040028
(
70 DURO
)
1000008050G
2400003 5
"
3260023 /24 5970008 /09 6040028
(
70 DURO
)
1000008050G
2400004 5
.
75
"
3260019 /20 5970010 /11 6040028
(
70 DURO
)
1000008050G
2400005 5
.
75
"
3260021 /22 5970010 /11 6040028
(
70 DURO
)
1000008050G
2400006 5
.
75
"
3260023 /24 5970010 /11 6040028
(
70 DURO
)
1000008050G
2400020 5
"
3267695C101 /201 5970099 /100 6040028
(
70 DURO
)
1003587839C
2400060 5
"
3260058 /59 5970077 /78 6040028
(
70 DURO
)
1000007
2400077 5
"
3260088 /89 5970008 /09 6040028
(
70 DURO
)
1000008050G
2400815 5
"
3260019 /20 5970077 /78 6040028
(
70 DURO
)
1000008050G
2400817 5
"
3260021 /22 5970077 /78 6040028
(
70 DURO
)
1000008050G
BU
S
HING A
SS
'
Y
1167680B000
S
EE CHA
R
T FO
R
DU
R
O
ECCENT
R
IC BOLT
9003092B000
1155648B108
1167140B100
1140604B108
1137694B000
BU
S
HING
R
EPLACEMENT KIT
ANTI-TU
R
N WA
S
HE
R
ECCENT
R
IC BOLT
HANGE
R
A
SS
'
Y
OVE
R
S
LUNG
1150709B105
AI
R
S
P
R
ING
S
PACE
R
LOWE
R
BEAM A
SS
'
Y
OVE
R
-
S
LUNG
AI
R
S
P
R
ING
S
EE CHA
R
T
FO
R
NUMBE
R
S
EE CHA
R
T FO
R
NUMBE
R
S
HOCK AB
S
O
R
BE
R
1270563B003
PLATE
(
IF
R
EQ
'
D
)
S
EE CHA
R
T FO
R
NUMBE
R
S
EE CHA
R
T FO
R
NUMBE
R
O
R
DE
R
1 KIT PE
R
AXLE
m
a
nu
f
a
c
t
ur
e
d
a
f
t
e
r 10
-
1
-
95
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
95
-17-
S
HOCK AB
S
O
R
BE
R
BU
S
HING A
SS
'
Y
1167680B000
S
EE CHA
R
T FO
R
DU
R
O
ECCENT
R
IC BOLT
9003092B000
1155648B108
1167140B100
1140604B108
1137694B000
BU
S
HING
R
EPLACEMENT KIT
ANTI-TU
R
N WA
S
HE
R
ECCENT
R
IC BOLT
HANGE
R
A
SS
'
Y
UNDE
R
S
LUNG
1150709B105
AI
R
S
P
R
ING PLATE
1270563B003
LOWE
R
BEAM A
SS
'
Y
S
UNDE
R
S
LUNG
AI
R
S
P
R
ING
S
EE CHA
R
T
FO
R
NUMBE
R
S
EE CHA
R
T FO
R
NUMBE
R
O
R
DE
R
1 KIT PE
R
AXLE
(
IF
R
EQ
'
D
)
S
PACE
R
S
EE CHA
R
T FO
R
NUMBE
R
S
EE CHA
R
T
FO
R
NUMBE
R
RAR
-
240 Und
e
r
s
l
ung
-
30
,
000
l
b
.
c
a
p
.
m
a
nu
f
a
c
t
ur
e
d
a
f
t
e
r 10
-
1
-
95
SUS
P
E
NS
I
ON AX
L
E
HANG
E
R ASSY
.
B
USH
I
NG/
B
E
AM ASSY
.
B
USH
I
NG A
I
R S
P
R
I
NG
P
AR
T
NUM
B
E
RD
I
AM
E
T
E
R
L
H/RH
L
H/RHR
E
P
L
AC
E
M
E
N
T
K
I
T
R
E
P
L
AC
E
M
E
N
T
2400055 5
"
3260048 /49 5970056 /57 6040028
(
70 DURO
)
1000006
2400062 5
"
N/
A
5970056 /57 6040028
(
70 DURO
)
1000006
2400070 5
"
3267744C108 /208 5970001 /02 6040028
(
70 DURO
)
1003588778C
2400508 5
"
3267744C108 /208 5970052 /53 6040028
(
70 DURO
)
1000006
2400512 5
"
3267744C110 /210 5970052 /53 6040028
(
70 DURO
)
1001R13146G
2400808 5
"
3267744C108 /208 5970082 /81 6040028
(
70 DURO
)
1000006
2400814 5
"
3260056 /57 5970097 /98 6040028
(
70 DURO
)
1001R14176G
2400901 5
"
3260040 /41 5970176 /77 6040028
(
70 DURO
)
1001R14176G
2403106 5
.
75
"
3267744C106 /206 5970046 /47 6040028
(
70 DURO
)
1001R13097G
2403107 5
.
75
"
3267744C107 /207 5970046 /47 6040028
(
70 DURO
)
1003588778C
2403108 5
.
75
"
3267744C108 /208 5970046 /47 6040028
(
70 DURO
)
1003588778C
2403176 5
"
3267744C106 /206 5970048 /49 6040028
(
70 DURO
)
1001R13097G
2403177 5
"
3267744C107 /207 5970048 /49 6040028
(
70 DURO
)
1003588778C
2403178 5
"
3267744C108 /208 5970048 /49 6040028
(
70 DURO
)
1003588778C
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
96
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
49
DOUBLE CONVOLUTION (2B DESIGN)
V AIR SPRING
IDENTIFICATION AND APPLICATION
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
97
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
50

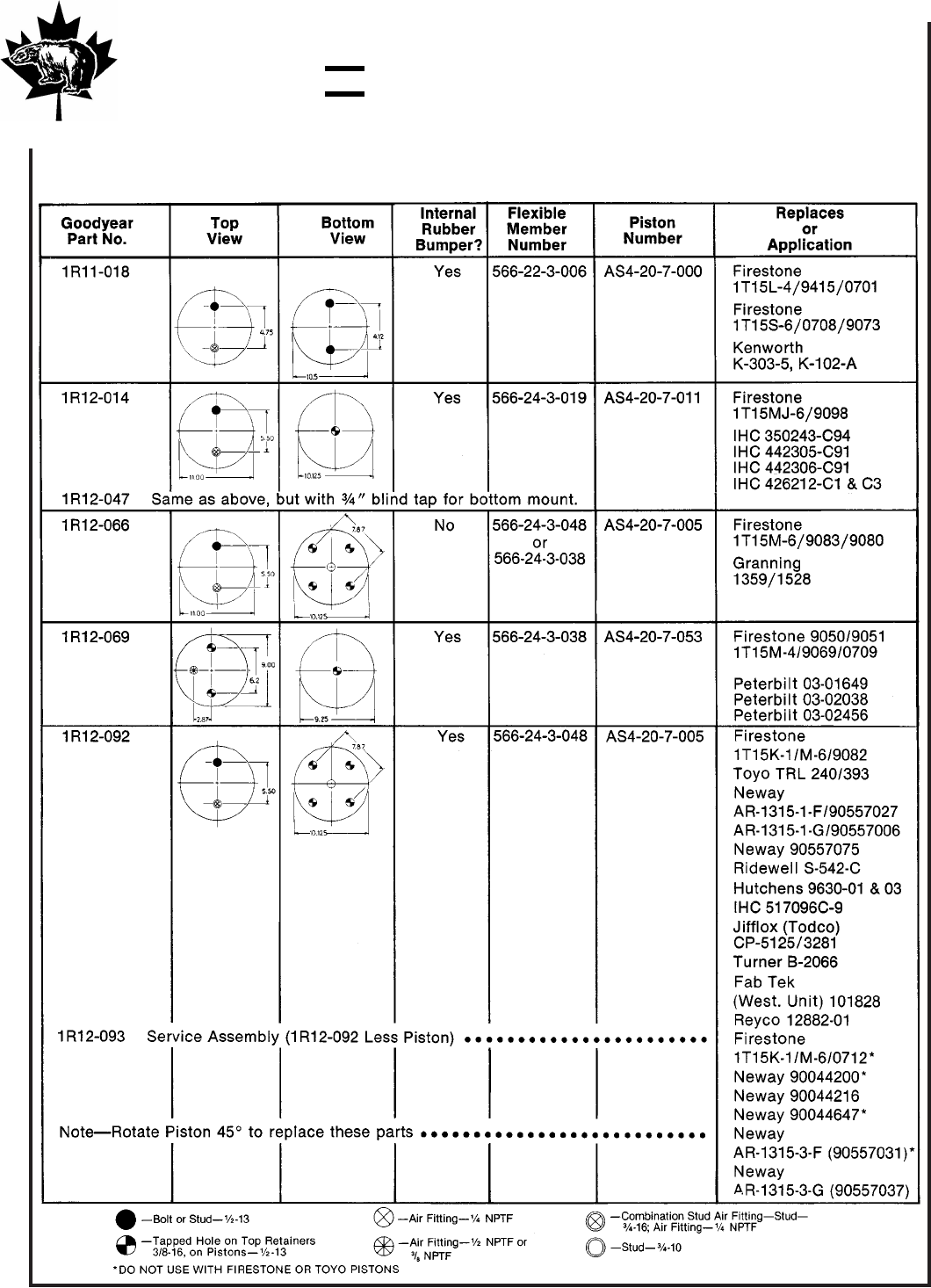

ROLLING LOBE (1R DESIGN)
V AIR SPRING
IDENTIFICATION AND APPLICATION
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
98
LOGGER SCALE
SYSTEMS
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
99
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
52

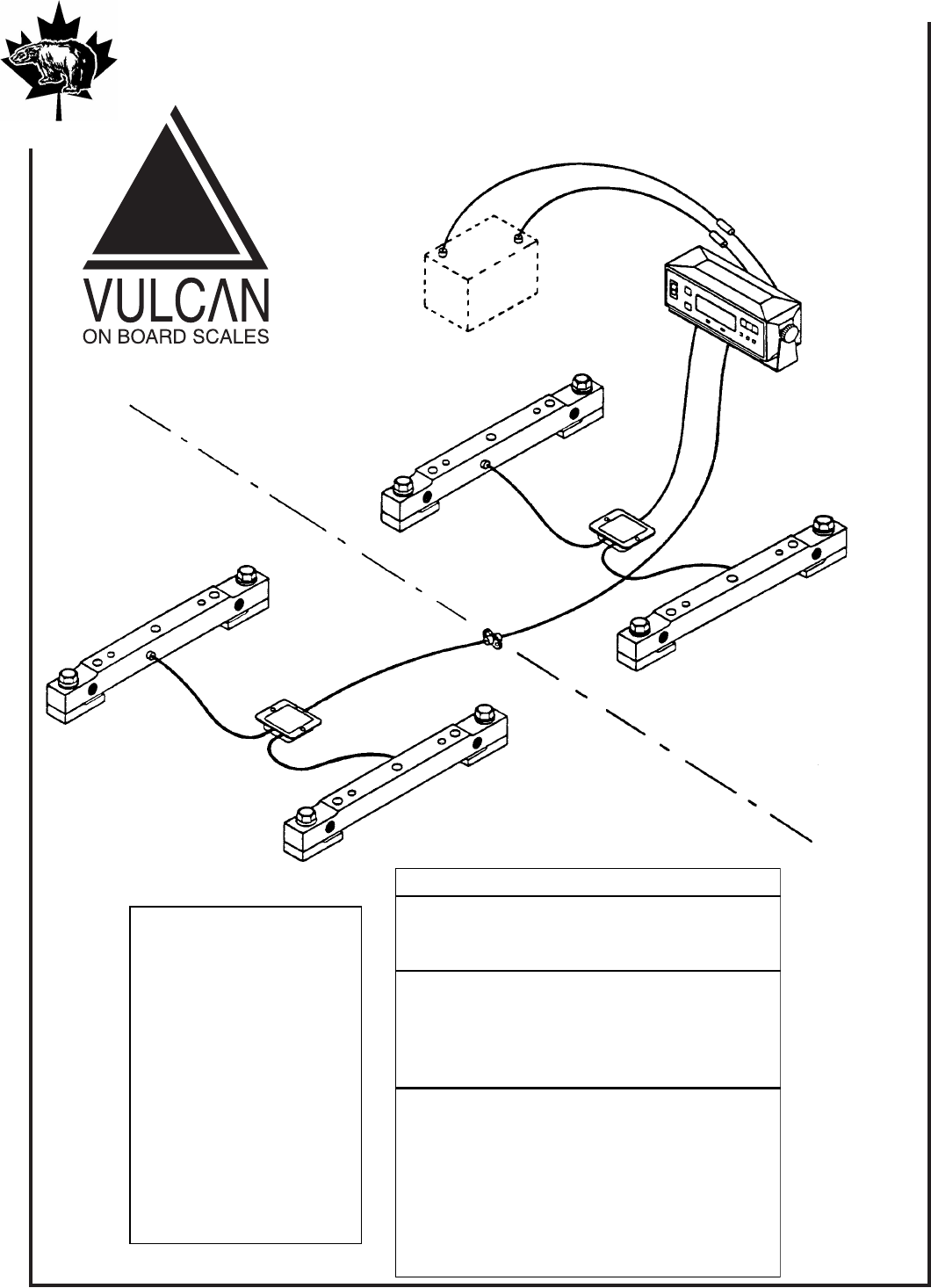

LOAD CELL LOAD CELL
LOAD CELL
VULCODER
VULCODER
METER
TRUCK TO
TRAILER
CABLE
METER POWER
CABLE
12 VOLT
BATTERY
(MIN. 11 VOLTS D.C.)
LOAD CELL
VULCAN was the first on-board scale
system to incorporate a complete 12-
volt, 2-wire electronic system. VULCAN
electronics have proven to be reliable in
even the harshest environments. The 2-
wire cabling is easy to repair and inex-
pensive to replace if damaged. Mainte-
nance time and cost are greatly reduced
compared with 4-wire systems.
The VULCAN meter is easy to use, with
simple push button adjustments to op-
erate the entire system. It is also
equipped with system self-diagnostics
to simplify troubleshooting should a
problem occur.
The patented VULCAN double-ended
shear beam load cells provide superior
accuracy and reliability. Their accuracy
and light weight, combined with high
strength, mean increased payloads.
COMPLETE SCALE SYSTEMS
20211-01 Complete Scale System for Log Trucks (10188-05 Load Cells)
20211-04 Complete Scale System for Log Trucks (10325-02 Load Cells)
20211-86 Complete Scale System for "Jeep" Log Trucks (10386-xx/10325-02 Load Cells)
ELECTRONIC SYSTEMS, COMPONENTS, PARTS . . .
20201-02 STD Electronic System for Lodec Replacement (7 pin)
20201-04 STD Electronic System (4 pin)
10123-04 STD Meter Assembly
10124-02 STD Vulcoder for Lodec Replacement (7 pin, 1mV/V, 2 leads)
10124-04 STD Vulcoder (4 pin, 2mV/V, 2 leads)
10124-05 STD Vulcoder (4 pin, 3mV/V, 1 lead)
20209-01 Two-conductor Cable (40 ft. length)
LOAD CELLS, MOUNTING KITS . . .
10188-05 STD Load Cell
10325-20 V400 Load Cell
10386-xx Fifth Wheel Load Cell
10408-xx Center Hanger Load Cell
10411-01 "Shorty" Load Cell
10446-01 Single Point Suspension Load Cell
10406-01 Slider Assembly for Holland (includes load cells, slide bracket
10391-01 Deflection Transducer
10409-01 Deflection Transducer & Mounting Kit
20197-02 Mounting Kit (for 10188-xx, 10325-xx, 10411-xx)
20197-04 Mounting Kit (for 10386-xx)
10412-01 Holland Slide Bracket
20397-01 Quick Change Bracket for Simplex (bolts to 10188-xx, 10325-xx)
20432-01 Quick Change Bracket for Holland (bolts to 10188-xx, 10325-xx)
10413-01 Transducer Mounting Kit
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
100
2-Channel: VSL 4-Channel: VSL 2-Channel V200
Power Cable: 53-20199-007 53-20199-007 53-20199-001
Meter: M32A M34A M01
Truck Cable C01
Truck-Trailer Cable C04 C04 C04
Vulcoder V23 V23 V03
Reach Cable C12 C12 C12
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
101
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
53

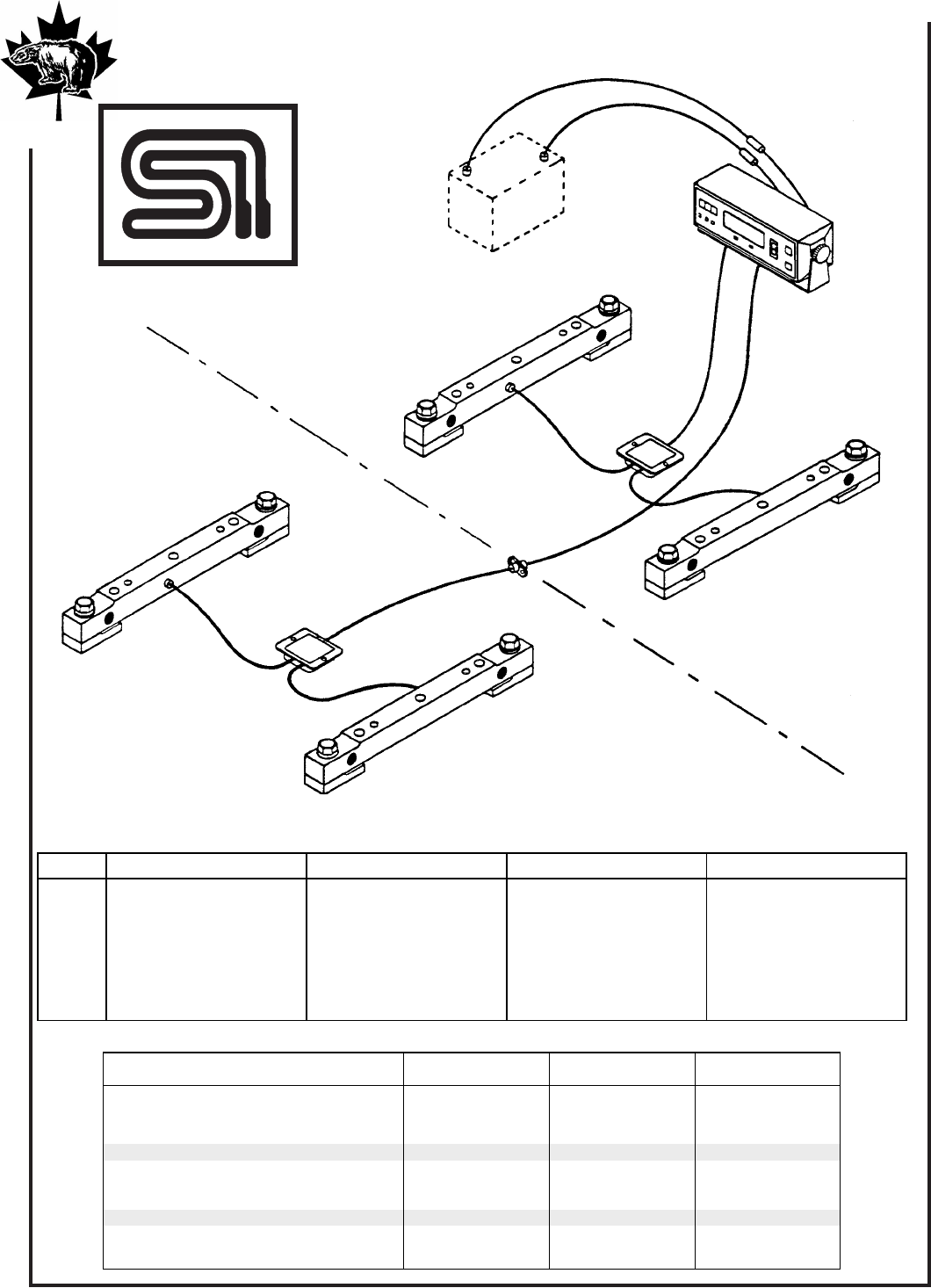

METER OPERATIONS
LOAD CELL OPERATIONS
HEAVY DUTY HEAVY DUTY HEAVY DUTY WELD ON FIFTH WHEEL
BENDING BEAM LOAD CELLS SHEAR BEAM LOAD CELLS LOAD CELLS LOAD CELLS
PART NO.: D00627-1 D00755-25 D00569-1 D00044-5
MATERIAL: SAE 4340 FOR LOAD CELLS; ASTM SAE 4340 FOR LOAD CELLS; ASTM
A-514 FOR BEARING PLATES A-514 FOR BEARING PLATES
WEIGHT: 21.8 kgs. (WITH BEARING PLATES & BOLTS) 20.9 kgs. (WITH BEARING PLATES & BOLTS)
48 lbs. (WITH BEARING PLATES & BOLTS) 46 lbs. (WITH BEARING PLATES & BOLTS)
SIZE: 711 mm. LONG 660 mm. LONG
28 INCHES LONG 26 INCHES LONG
OUTPUT: 1.59 mV/V @ 18,000 kgs. 1.75 mV/V @ 18,000 kgs.
1.59 mV/V @ 40,000 lbs. 1.75 mV/V @ 40,000 lbs.
IMPEDANCE: 350 Ohm ± 1.0 Ohm 350 Ohm ± 1.0 Ohm 350 Ohm ± 1.0 Ohm 350 Ohm ± 1.0 Ohm
METER MODEL METER MODEL METER MODEL
9100 100M 12 VOLT 100M
METER PART NUMBER: D00630-1 D00557-1 D00422-1
CHANNELS: TWO OR FOUR TWO TWO
POWER CABLE: B00276-1 B00276-1 B00276-1
TRUCK - TRANS/AMP PART NUMBER: C00152-1
TRUCK - CABLE PART NUMBER: B00451-1 D00387-1 D00387-1
TRUCK/TRAILER - CABLE PART NUMBER: B00450-1 B00450-1 B00270-1
TRAILER - TRANS/AMP PART NUMBER: C00152-1 D00573-5 D00386-8
TRAILER - CABLE PART NUMBER: B00503-50 B00503-50 B00277-1
LOAD CELL LOAD CELL
LOAD CELL
METER
TRUCK TO
TRAILER
CABLE
12 VOLT
BATTERY
(MIN. 11 VOLTS D.C.)
LOAD CELL
AMPLIFIER
AMPLIFIER
METER POWER CABLE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
102
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
54
• 5TH WHEEL
• KINGPIN
• LANDING GEAR
• TURN TABLE
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
103
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
55

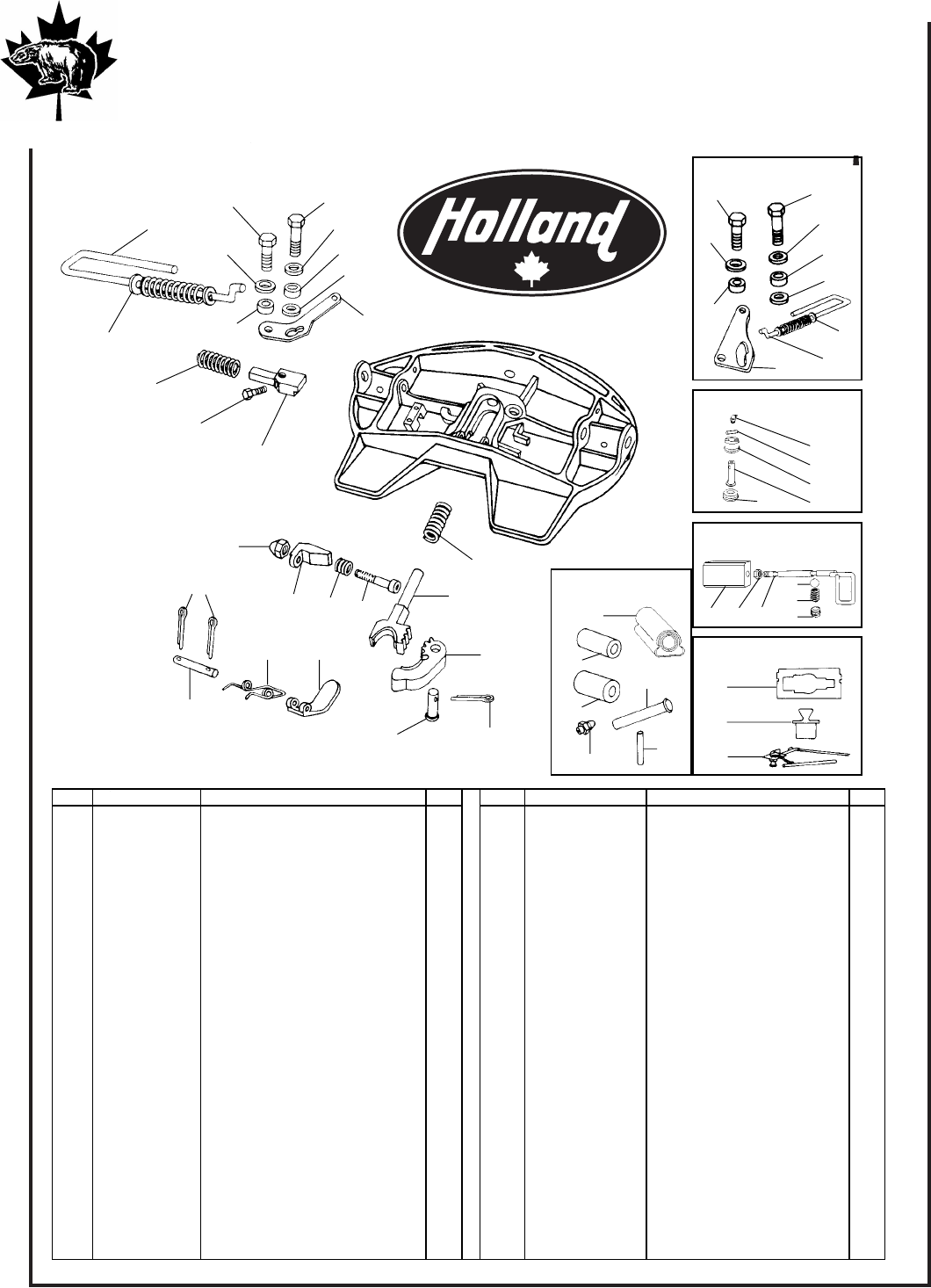

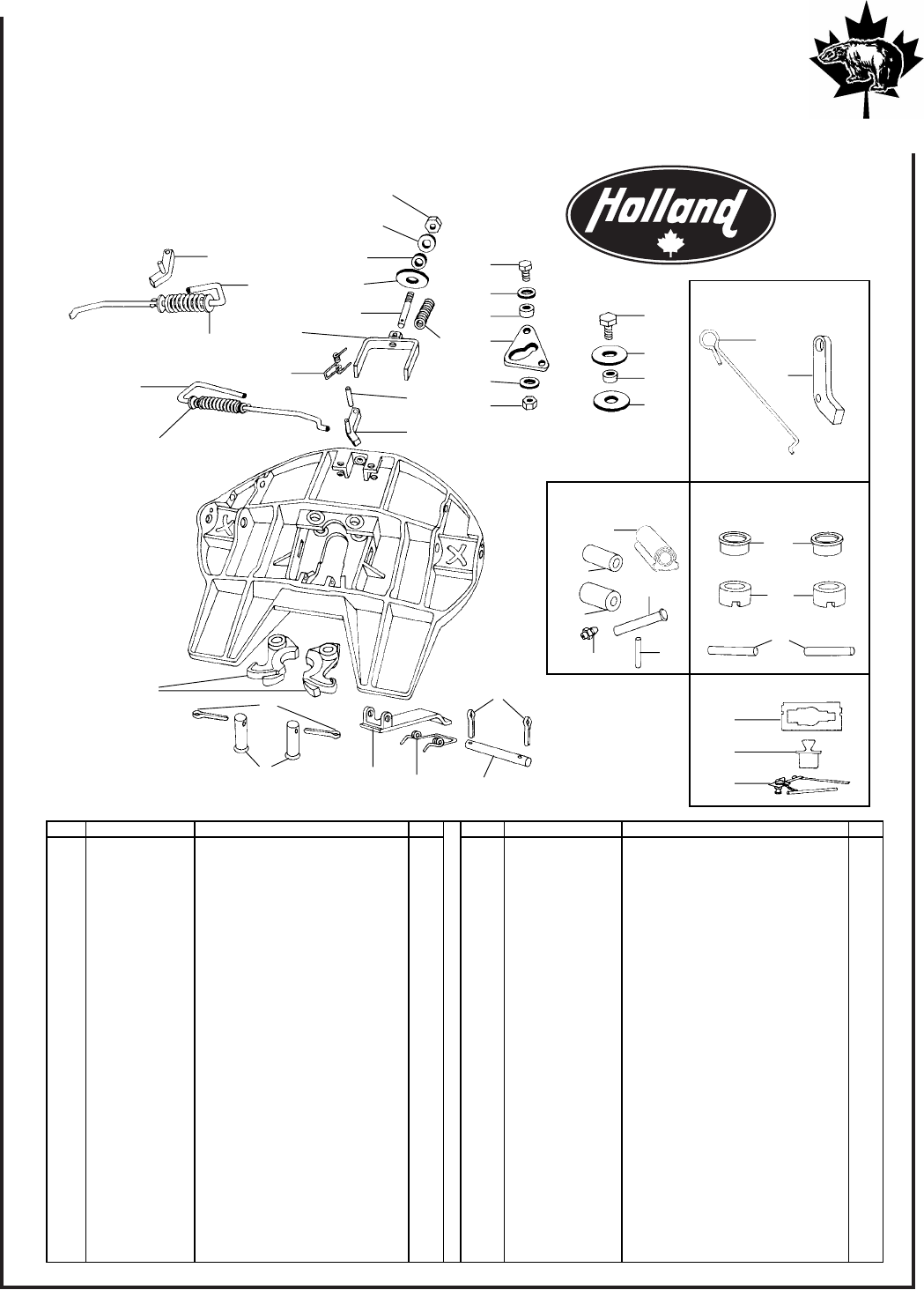

ITEM PART NUMBER PART DESCRIPTION QTY. ITEM PART NUMBER PART DESCRIPTION QTY.
1 XB-1007 (Red) COMP. SPRING 1 5/8" O.D. X 5" 1 19 XA-1621 LOCK GUARD 1
2 XA-1119 PLUNGER 1 20 XB-1044 TORSION SPRING 1
2 XB-15 SET SCREW 1 21 XA-1055 PIN 1
4 XB-T-49 PLAIN WASHER 1/2" 1 22 XB-16 COTTER PIN 1/8" X 1" 2
5L RK-1117-1L LEFT HAND RELEASE HANDLE 1 *23 XA-1668 SAFETY LOCK BLOCK 1
(Item No. (4) must be installed on *24 XB-NRJ-34-F JAM NUT 1
handle for complete assy). *25 XA-1674 SAFETY RELEASE ARM 1
5R RK-1117-1 RIGHT HAND RELEASE HANDLE 1 *26 XB-V-919 1/2" DIAMETER STEEL ARM 1
(Item No. (4) must be installed on *27 XB-V-932 COMPRESSION SPRING 1
handle for complete assy). *28 XB-V-1025 SET SCREW 5/8" - 18 1
6L XA-1118-2-L LEFT HAND CAM PLATE 1 **29 XB-767-C GREASE FITTING 1
6R XA-1118-1 RIGHT HAND CAM PLATE 1 **30 XB-21-S-250-1875 ROLL PIN 1
7 XA-1029 ROLLER 2 **31 XA-279 LOCK PIN BUSHING 1
8 XB-1030 (For right hand) WASHER 3 **32 XA-1016-C HINGED LOCK PIN 1
(For left hand) WASHER 1 **33 XA-278 LOCK PIN BUSHING 1
9 XB-2083 HEX HD. SCREW 1/2" - 20 X 1 3/4" 1 *34 HB-H-38 GREASE FITTING 2
WITH LOCKING PATCH. Packaged *35 XA-2016 BRACKET PIN 2
as RK-2083-K with 1 P/N (8). *36 XB-21-S-375-1750 ROLLPIN 2
10 XB-1031 1/2" - 20 X 2" HEX. HD. CAP SCREW 1 *37A XB-1604-5 RUBBER BUSHING (For Fifth 2
11 XB-403 SPRING 1 Wheels Mfd. Prior to 5/1/82).
12 XD-3123-1 LOCK ADJUSTING WEDGE 1 *37B XB-0011-1 RUBBER BUSHING (For Fifth 2
13 XB-2001 5/8" - 11 X 3 3/4" SOC. HD. SCREW 1 Wheels Mfd. After 5/1/82).
14 XB-HNH-58-C 5/8 - 11 LOCK NUT 1 *37C XB-0011-2 RUBBER BUSHING (For Fifth 2
15 XB-1006 (Green) COMP. SPRING 1 1/4" O.D. X 5" 1 Wheels Mfd. After 6/1/87).
16 XA-1102 LOCK SET 1 *38 TF-0110 KINGPIN GAGE 1
17 XA-1016 HINGED LOCK PIN 1 *39 TF-0237 2" PLUG 1
18 XB-5 COTTER PIN 1/4" X 2" 1 *40 TF-TLN-1000 KINGPIN LOCK TESTER 1
41 XB-02846 WASHER (left hand only) 2
FOR LEFT HAND REL.
MODELS EQUIPPED with
LOCK PIN
BUSHINGS
MODELS EQUIPPED with
SECONDARY LOCK
ACCESSORIES
NOT INCLUDED
IN REBUILD KIT
10
4
9
8
7
7
41
41
5L
6L
29
31
32
33
30
23 24
26
28
27
25
38
39
40
37C
37B
35
37A
36
34
16A
15
17
16B
19
13
11
20
22
21
18
12
14
2
7
9
8
7
3
1
4
5R
10
8
8
6R
TOP PLATES (XA-2009 SERIES)
* NOT INCLUDED IN BEBUILD KIT
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
104
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
56
MODELS EQUIPPED WITH
MANUAL SECONDARY LOCK
MODELS EQUIPPED WITH
LOCK PIN BUSHINGS
NOT INCLUDED
IN REBUILD KIT
ACCESSORIES
31
32
33
35C
36
37
38
35A
35B
27 34
30A
30B
28
29
19
17
18
17
10
9
8
7
6
4
21
22
20R
15
11
14
13
11
16
5
20L
12L
11
12R
11
NOTE: For LEFT HAND RELEASE.
1
326
24
23 25
2
* NOT INCLUDED IN BEBUILD KIT
ITEM PART NUMBER PART DESCRIPTION QTY. ITEM PART NUMBER PART DESCRIPTION QTY.
1 XA-1704 LOCK JAWS 1 20R XA-3542-R SECONDARY LOCK, RIGHT HAND 1
2 XA1313 LOCK PIN 2 21 XB-2149 TORSION SPRING 1
3 XB-5 COTTER PIN 1/4" X 2" 2 22 XB-21-S-500-2750 ROLLPIN 1
4 XA-1703 YOKE SUB-ASSY. 1 23 XA-3514 LOCK GUARD 1
5 XB-1505 SPRING 1 24 XB-1044 TORSION SPRING 1
6 XA-1706 YOKE SHAFT 1 25 XA-1055 PIN 1
7 XB-02312 LOCK ADJUSTMENT TAG 1 26 XB-16 COTTER PIN 1/8" X 1" 2
8 XB-1127 RUBBER BLOCK 1 *27 XB-H-38 GREASE ZERK 2
9 XB-PW-1316-112 WASHER 1/2" O.D. X 13/16" I.D. 1 28 XA-3542-M MAN. SECONDARY LOCK HANDLE 1
10 XB-HNH-34-F LOCK NUT 3/4" - 16 1 29 XA-3528 MANUAL SECONDARY LOCK 1
11 XB-T-49 WASHER 1 3/4" O.D. X 9/16" I.D. 3 30A XA-01241 LOCK PIN BUSHING (XA-3501) 2
12L RK-1707-M LEFT HAND RELEASE HANDLE 1 *30B XA-02594 LOCK PIN BUSHING (XA-3601) 2
SUB-ASSY. [Part No. (11) must be 31 XA-01242 LOCK PIN BUSHING 2
installed on handle for complete 32 XB-21-S-250-1875 ROLLPIN - MUST be used with Part 2
assembly]. No. (2) when fifth wheel is
12R RK-1707-6 RIGHT HAND RELEASE HANDLE 1 equipped with lock pin bushings
SUB-ASSY. [Part No. (11) must be *33 XA-2016 BRACKET PIN 2
installed on handle for complete *34 XB-21-S-375-1750 ROLLPIN 2
assembly]. *35A XB-1604-5 RUBBER BUSHING (For Fifth Wheels 2
13 XA-1705 CAM PLATE 1 Mfd. Prior to 5/1/82).
14 XA-1029 ROLLER 1 *35B XB-0011-1 RUBBER BUSHING (For Fifth Wheels 2
15 XB-2083 BOLT 1/2" - 20 X 1 3/4" 1 Mfd. After 5/1/82).
16 XB-T-69-A LOCK NUT 1/2" - 20 1 *35C XB-0011-2 RUBBER BUSHING (For Fifth Wheels 2
17 XB-1030-1 WASHER 2 Mfd. After 6/1/87).
18 XA-1507 ROLLER 1 *36 TF-0110 KINPIN GAGE 1
19 XB-CX-58-F-134 BOLT 5/8" - 18 X 1 3/4" 1 *37 TF-0237 2" PLUG 1
20L XA-3542-L SECONDARY LOCK, LEFT HAND 1 *38 TF-TLN-1000 KINPIN LOCK TESTER 1
TOP PLATES (XA-3501 & XA-3601 SERIES)
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
105
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
57
SAE 2.00 - (50.8 mm) KING PIN
REMOVEABLE
KINGPINS
REPLACEABLE
KINGPINS
2 INCH KINGPIN
WITH HOUSING
HOUSING
WITH PLUG
BOLSTER
PLATE
KP-0427 KP-0438 0.25"
KP-0428 KP-0439 0.31"
KP-0412 KP-0440 0.38"
KP-0429 KP-0441 0.50"
2 INCH KINGPIN
WITH HOUSING
B
BOLSTER
PLATE
A
COUNTER
BORE
KP-0880 1/4" 1-9/16"
KP-0881 5/16" 1-1/2"
KP-0882 3/8" 1-7/16"
KP-0883 1/2" 1-5/16"
MODEL BOLSTER PLT.
THICKNESS HOLES
KP-T-809-CF .25" NO
KP-T-809-EF .31" NO
KP-T-809-F .38" NO
KP-T-809-BF .50" NO
KP-T-809-C .25" 8 Equally Spaced
KP-T-809-E .31" .53" Holes on
KP-T-809 .38" 6.75" Diameter
KP-T-809-B .50"
FIFTH WHEEL
KINGPINS
KP - T - 809
2" SAE KINGPIN
HIGH STRENGTH 8630 STEEL
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
106
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
58

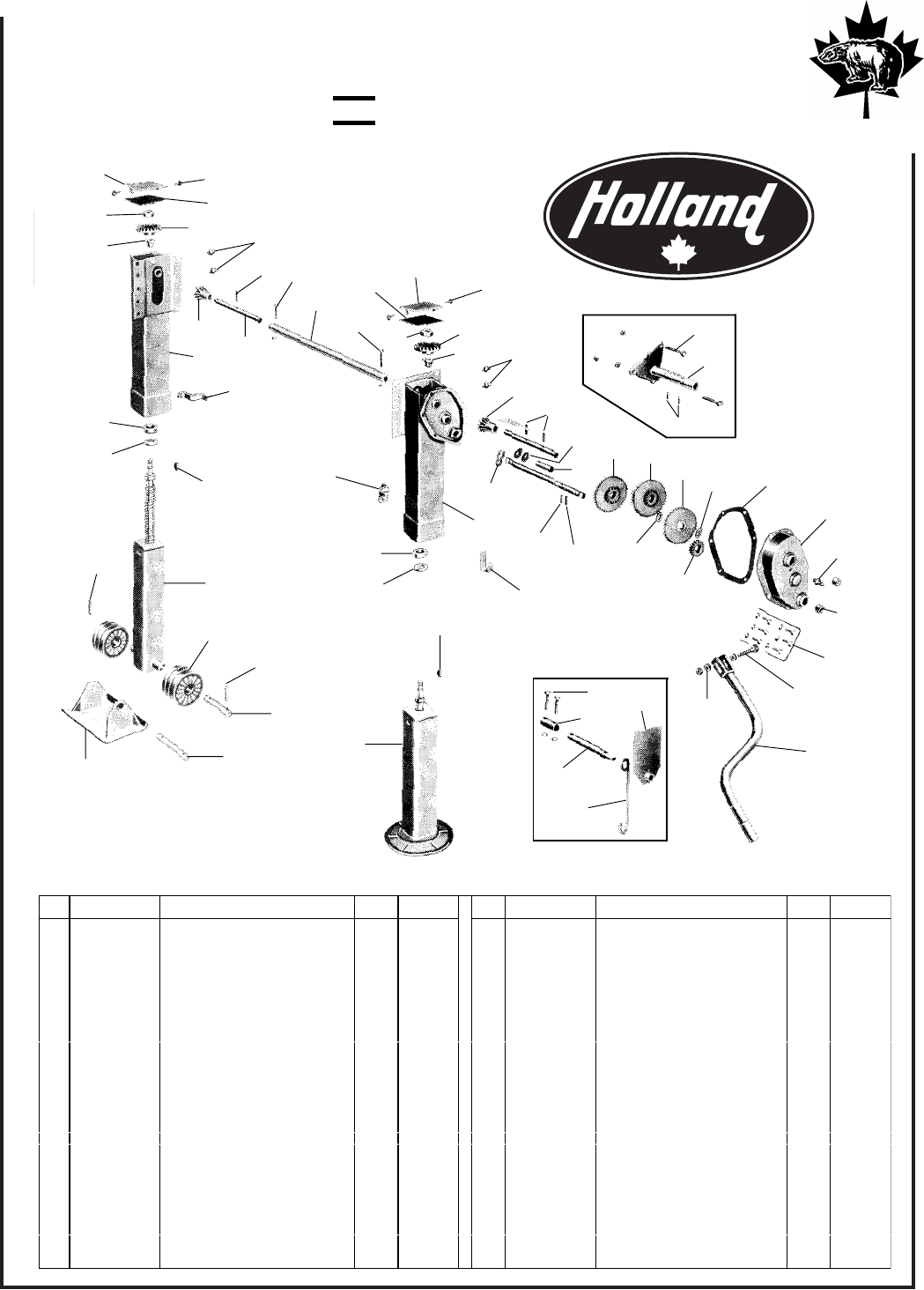

17
18
49
16
22
11 37
36
37
16
35 20
17
21
22
48
49
19
47
46
11
48 8
910
764
3
31
32
6
14
5
50
23
37
45
44
42
33
31
32
50
24
28
25
28
27
29
26
6
40
15
39
41
43
38
30
49
12
13
34
19
20 21
18
11
ITEM PART NUMBER PART DESCRIPTION 2-SPEED
SIDE
SINGLE
SPEED SIDE ITEM PART NUMBER PART DESCRIPTION 2-SPEED
SIDE
SINGLE
SPEED SIDE
1 V-1919 CRANKSHAFT 1 29 V-1901-1 AXLE (Skid Foot Models) 1 1
2 V-1918 DRIVE GEAR SHAFT (2 speed) 1 30 V-851 BUSHING 7 2
3 V-1920 GEAR BOX COVER ASSY. 1 31 V-647 THRUST BEARING 1 1
4 V-1926 GEAR BOX GASKET 1 32 V-1913 THRUST WASHER 1 1
5 3103 LOCKNUT 6 33 V-1925-0 thru -5 2-SPEED OUTER LEG 1
CX-14-28F-58 BOLT 6 34 V-1950-0 thru -5 SINGLE SPEED OUTER LEG 1
6 H-36 SHIMS 4 & up 35 V-1939 DRIVE GEAR SHAFT (Single Speed) 1
7 V-1927 IDLER GEAR 1 36 V-1910-TAB CROSS SHAFT (Specify Frame Width) 1
8 V-1957 IDLER GEAR SHAFT 1 37 V-444-1 HEX HD. BOLT 3/8" - 16 X 1 3/4" 1 1
9 V-1928-1 STEP GEAR (Undrilled) 1 338 HEX HD. JAM NUT 3/8" - 16 1 1
10 V-1928 STEP GEAR (Drilled) 1 38 V-90-0 TUBULAR CRANK (Std.) 1
11 21-S-375-1500 ROLLED PINS 3/8" X 1 1/2" (Spiral) 2 1 V-90-2 TUBULAR CRANK (Extra long) (Opt.) 1
12 21-S-218-1250 ROLLED PIN 7/32" X 1 1/4" (Spiral) 1 39 V-971 CRANKSHAFT BRACKET (Optional) 1
13 V-1949 SHIFTER SPRING 1 40 V-1914 CRANK HOLDER (Std.) 1
14 V-1929 SHIFTER GEAR 1 41 V-1915 CRANK HOLDER (Opt.) 1
15 CRP-V-1917 PIN 3/8" X 1 7/16" 1 42 V-1916 EXTENSION SHAFT (Long) (Opt.) 1
16 V-1966-2 METAL LEG COVER 1 1 V-1916-1 EXTERSION SHAFT (Short) (Opt.) 1
17 MSR-316-C-500 SELF TAPPING SCREW 2 2 43 V-630-2 CRANKSHAFT COUPLING (Opt.) 1
18 V-1966 GASKET 1 1 44 H-332 HEX HEAD BOLT 3/8" - 16 X 3" 1
19 V-1961 BEVEL PINION (11 teeth) 1 1 338 LOCKNUT 3/8" 16 1
20 FW-25 HEX JAM NUT 1" - 14 1 1 45 1108 WASHER 2
21 V-1962 BEVEL GEAR (22 teeth) 1 1 46 V-1912-1 EXTENSION BRACKET (Long) (Opt.) 1
22 V-643-A2 POLYETHYLINE BUSHING 1 1 V-1912-2 EXTERSION BRACKET (Short) (Opt.) 1
23 V-1960-A-0 thru -5 INNER LEG & SCREW ASSY.(001 Series) 1 1 47 140 HEX HD. BOLT 1/4" - 28 X 2 1/2" (Opt.) 3
24 V-1963-A-0 thru -5 INNER LEG & SCREW ASSY.(-103 & -105) 1 1 3103 LOCKNUT (Opt.) 3
25 V-747 WHEEL (3 1/2" X 9") 2 2 48 V-1938 BRACE BAR 1 1
26 V-796-B1 SKID FOOT (-105 Models) 1 1 49 767 GREASE FITTING 3 2
27 V-1901-2 AXLE (Wheel Models) 1 1 50 H-32-2 WOODRUFF KEY 1/4" X 1" (Heat Treated) 1 1
28 21-S-375-3000 ROLLED PIN 3/8" X 3" (Wheel Models) 2 2
MARK V - LANDING GEAR
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
107
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
59

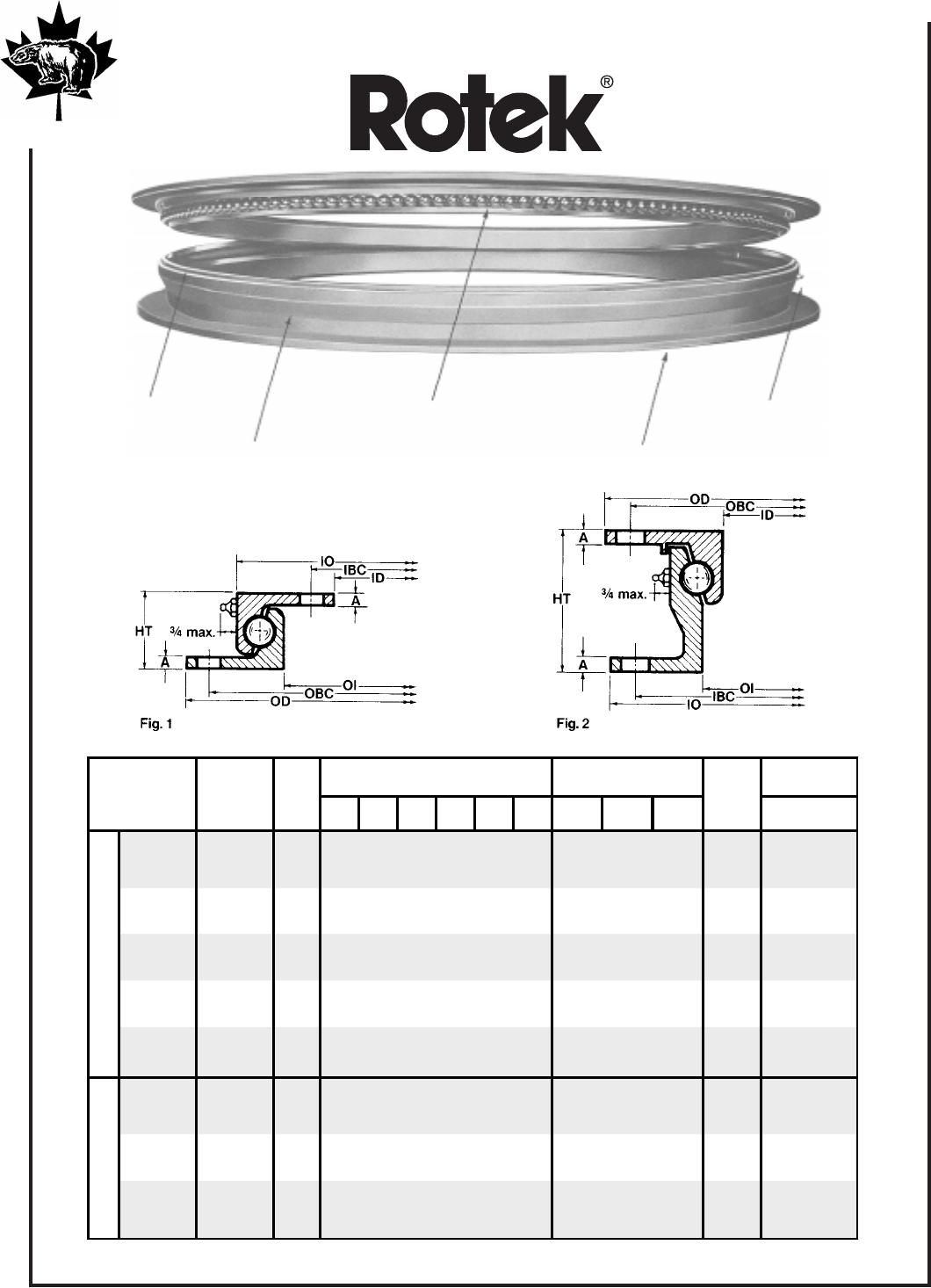

Model
No.
Model
No. Wt. No. of
Thrust
Capacity (lb.)
less mtg.
holes
with mtg.
holes
(lbs.) OD ID IO OI HT A OBC
(in.)
IBC
(in.)
DIA
(in.)
holes
per race Fifth
Wheel
M4-12P4 M4-12P4Z 24 15.9 9.3 13.6 11.6 1.65 .32 14.75 10.25 9/16 6 1,650
M4-16P4 M4-16P4Z 33 19.8 13.2 17.6 15.5 1.65 .32 18.63 14.13 9/16 6 1,980
M4-22P4 M4-22P4Z 44 25.7 19.1 23.5 21.4 1.65 .32 24.63 20.00 9/16 6 3,300
M4-26P4 M4-26P4Z 51 29.7 23.1 27.4 25.4 1.65 .32 28.50 24.00 9/16 8 3,960
M4-30P4 M4-30P4Z 60 33.6 27.0 31.3 29.3 1.65 .32 32.50 28.00 9/16 8 5,280
M4-34P4 M4-34P4Z 66 37.6 30.9 35.3 33.2 1.65 .32 36.38 31.88 9/16 8 6,600
M4-38P4 M4-38P4Z 75 41.5 34.9 39.2 37.2 1.65 .32 40.25 35.75 9/16 8 7,920
M5-16P1 M5-16P1Z 40 19.6 12.4 17.1 15.0 1.9 .32 18.50 13.50 9/16 8 3,960
M5-22P1 M5-22P1Z 50 25.6 18.3 23.0 20.9 1.9 .32 24.50 19.50 9/16 8 5,500
M5-26P1 M5-26P1Z 60 29.5 22.2 26.9 24.8 1.9 .32 28.38 23.50 9/16 8 6,600
M5-30P1 M5-30P1Z 70 33.5 26.2 30.9 28.8 1.9 .32 32.38 27.25 9/16 8 7,700
M5-34P1 M5-34P1Z 75 37.4 30.1 34.8 32.7 1.9 .32 36.25 31.13 9/16 8 8,800
M5-38P1 M5-38P1Z 85 41.3 34.1 38.7 36.7 1.9 .32 40.13 35.13 9/16 8 9,900
Tolerances +.313 +.125
-.200 -.313 ±.125 ±.080 ±.125 ±.063 ±.012 ±.012
M5-31P1 M5-31P1Z 95 35.2 30.0 34.6 30.8 3.2 .35 34.00 33.5 9/16 8 15,400
M5-36P1 M5-36P1Z 110 40.0 34.7 39.4 35.6 3.15 .35 38.75 38.25 9/16 8 18,000
M5-40P1 M5-40P1Z 125 43.5 38.3 42.9 39.1 3.2 .35 42.38 41.75 9/16 8 19,800
M6-35P1 M6-35P1Z 145 39.7 33.9 39.4 34.8 3.5 .39 38.38 38.00 9/16 8 22,000
M6-39P1 M6-39P1Z 165 43.6 37.8 43.3 38.8 3.5 .39 42.25 41.75 11/16 8 26,400
M7-39P1 M7-39P1Z 163 43.6 37.7 43.3 38.9 3.5 .39 42.25 41.75 11/16 12 30,800
M7-42P1 M7-42P1Z 174 47.6 41.6 47.2 42.8 3.5 .39 46.25 45.75 11/16 12 35,200
Tolerances +.313 0.31
-.125 ±.080 -.125 ±.080 ±.125 ±.063 ±.012 ±.012
* Note: Standard Series 1000 bearings furnished without mounting holes. For bearings complete with mounting holes, add suffix "Z" to model number. Example: Model
M4-12P4 complete with mounting holes becomes Model M4-12P4Z. There are 4 fittings, approximately equally spaced, that press-fit into a 1/4-inch diameter hole.
Figure 1Figure 2
Outline Dimensions (inches) Mounting Holes *
Flash-welded medium carbon-steel rings
Machined raceways Grease fitting
Mounting flanges
Full complement of chrome-alloy steel balls
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
108
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
60
HITCHES
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
109
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
61
LOAD CAPACITY: HORIZONTAL= 100,000 LBS VERTICAL= 60,000 LBS WEIGHT= 29.8 LBS
NOTE:
THIS COUPLING MUST BE OPERATED
WITH AN AIR SERVICE CHAMBER
LOAD CAPACITY: HORIZONTAL= 100,000 LBS VERTICAL= 60,000 LBS WEIGHT= 30.3 LBS
LOAD CAPACITY: HORIZONTAL= 90,000 LBS WEIGHT= 26 LBS USES 2 3/8" I.D. EYE
2072
2073B
2072B
2073
274A
2073A
3738
2072A
297*
271*
388 266*2742071*279*
2000PK PARTS KIT
* NOT INCLUDED IN PARTS KIT - AVAILABLE INDIVIDUALLY
NOTE:
THIS COUPLING MUST BE OPERATED
WITH AN AIR SERVICE CHAMBER
270 COUPLING
2300 COUPLING
2200 COUPLING
2072
2073B
2072B
2073
274A
2073A
3738
2072A
297*
271*
388 266*2742071*279*
2000PK PARTS KIT
* NOT INCLUDED IN PARTS KIT - AVAILABLE INDIVIDUALLY
270PK PARTS KIT
272
279* 274 271* 275 266*
273
275-50
274A 273A
* NOT INCLUDED IN PARTS KIT - AVAILABLE INDIVIDUALLY
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
110
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
62

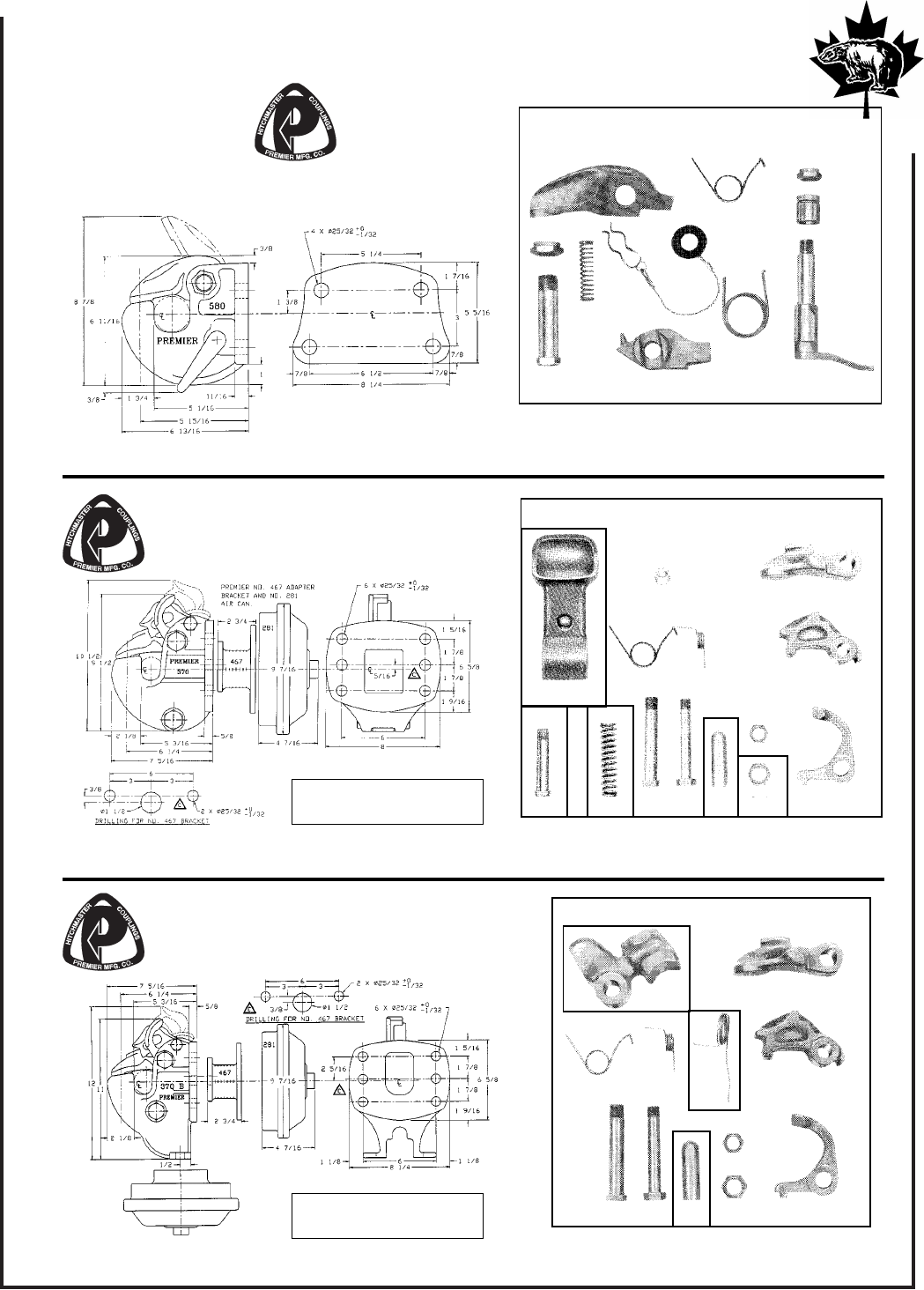

370B COUPLING
370 COUPLING
580 COUPLING
LOAD CAPACITY: HORIZONTAL= 70,000 LBS VERTICAL= 30,000 LBS WEIGHT= 21.3 LBS
580RK PARTS KIT
582 582A 581C
375A
581A
585
583
266
584
387 581BB
LOAD CAPACITY: HORIZONTAL= 90,000 LBS VERTICAL= 20,000 LBS WEIGHT= 26 LBS
* AVAILABLE INDIVIDUALLY - SPECIFY LEFT OR RIGHT HANDLE ASSY.
LOAD CAPACITY: HORIZONTAL= 90,000 LBS VERTICAL= 20,000 LBS WEIGHT= 31 LBS
NOTE:
THIS COUPLING MUST BE OPERATED
WITH AN AIR SERVICE CHAMBER
NOTE:
THIS COUPLING MUST BE OPERATED
WITH AN AIR SERVICE CHAMBER
* NOT INCLUDED IN PARTS KIT - AVAILABLE INDIVIDUALLY
279*
274* 266* 374 375 271* 274A 372B
373
472
373B
582A
375A
370PK PARTS KIT
373A
370PK PARTS KIT
* NOT INCLUDED IN PARTS KIT - AVAILABLE INDIVIDUALLY
472
373
372B
379*
375A
274A
271*375374
582A 373A
376*
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
111
ARCTIC MANUFACTURING LTD. Ph:(604)962-9631 Fax:(604)962-7500
63
653
445
442
441
POLY AVAILABLE
UPON REQUEST
448 (2pcs)
424L/424R
351
450
HINGE
ASSEMBLY
440
HINGE
ASSEMBLY
PH-16-B
DUPLEX HITCH
CAPACITY - PINTLE HOOK:
3,000 lbs. maximum Vertical Load
16,000 lbs. Maximum Gross Trailer Weight

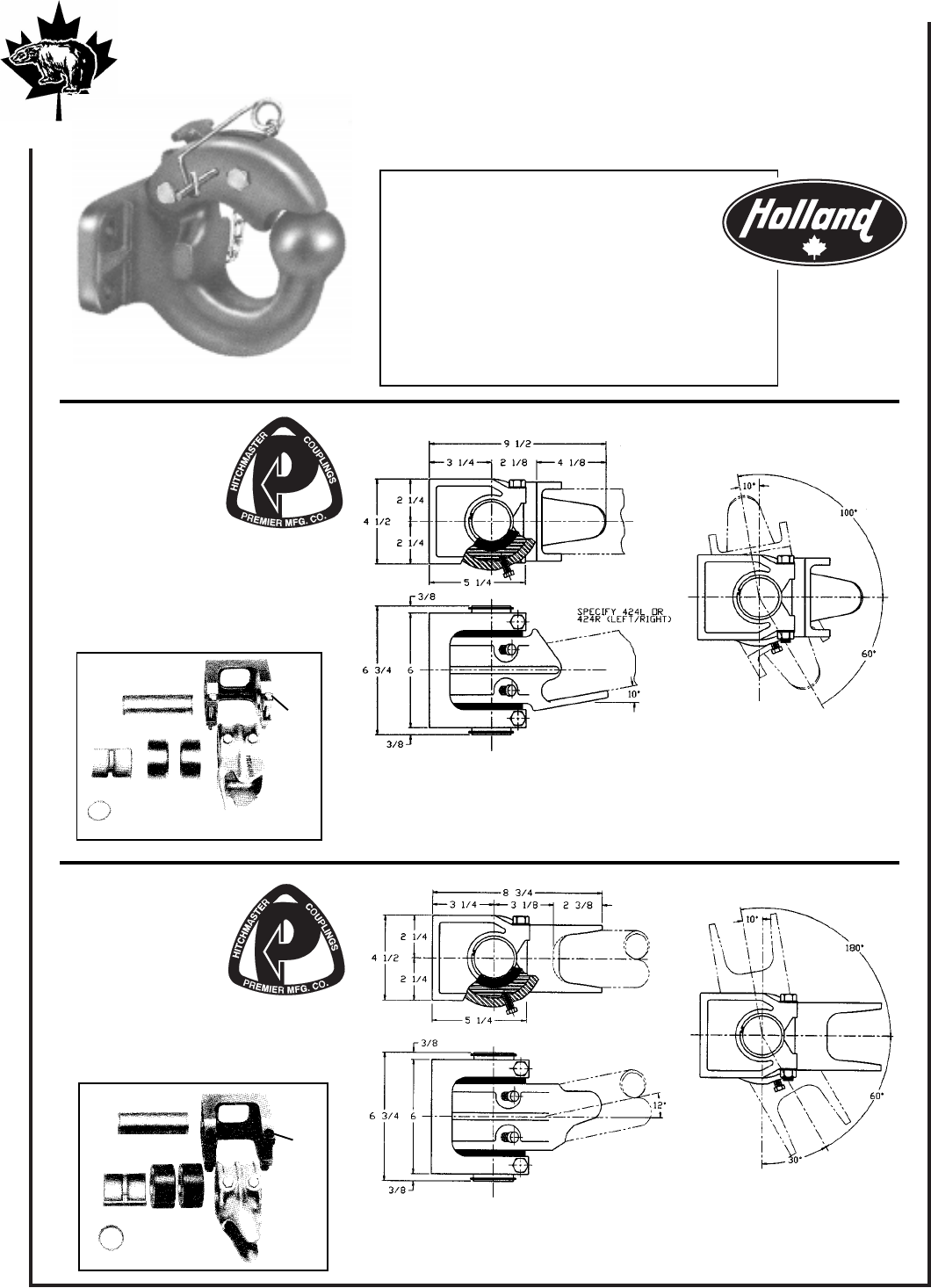

CAPACITY - 2" BALL HITCH:
10,000 lbs. Maximum Gross Trailer Weight
Meets SAE J684 Class 4 Standards in a 2" Ball
DESCRIPTION:
Rigid Type Pintle Hook/2" Ball Hitch. Wt. 10 lbs.
DRAWBAR EYE DIMENSIONS:
2" to 3" I.D. with 1 1/4" to 1 5/8" Diameter Section.
653
445 448 (2 pcs)
442 441 351
446L/
446R
POLY AVAILABLE
UPON REQUEST
Load Capacity = 100,000 lbs. per pair.
Weight = 50 lbs. per pair.
Polyurethane or Rubber Bushed for 3" channel or 3" square tubing.
Load Capacity = 100,000 lbs. per pair.
Weight = 45 lbs. per pair.
Polyurethane or Rubber Bushed for 2 1/2" O.D. tubing.
ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
112

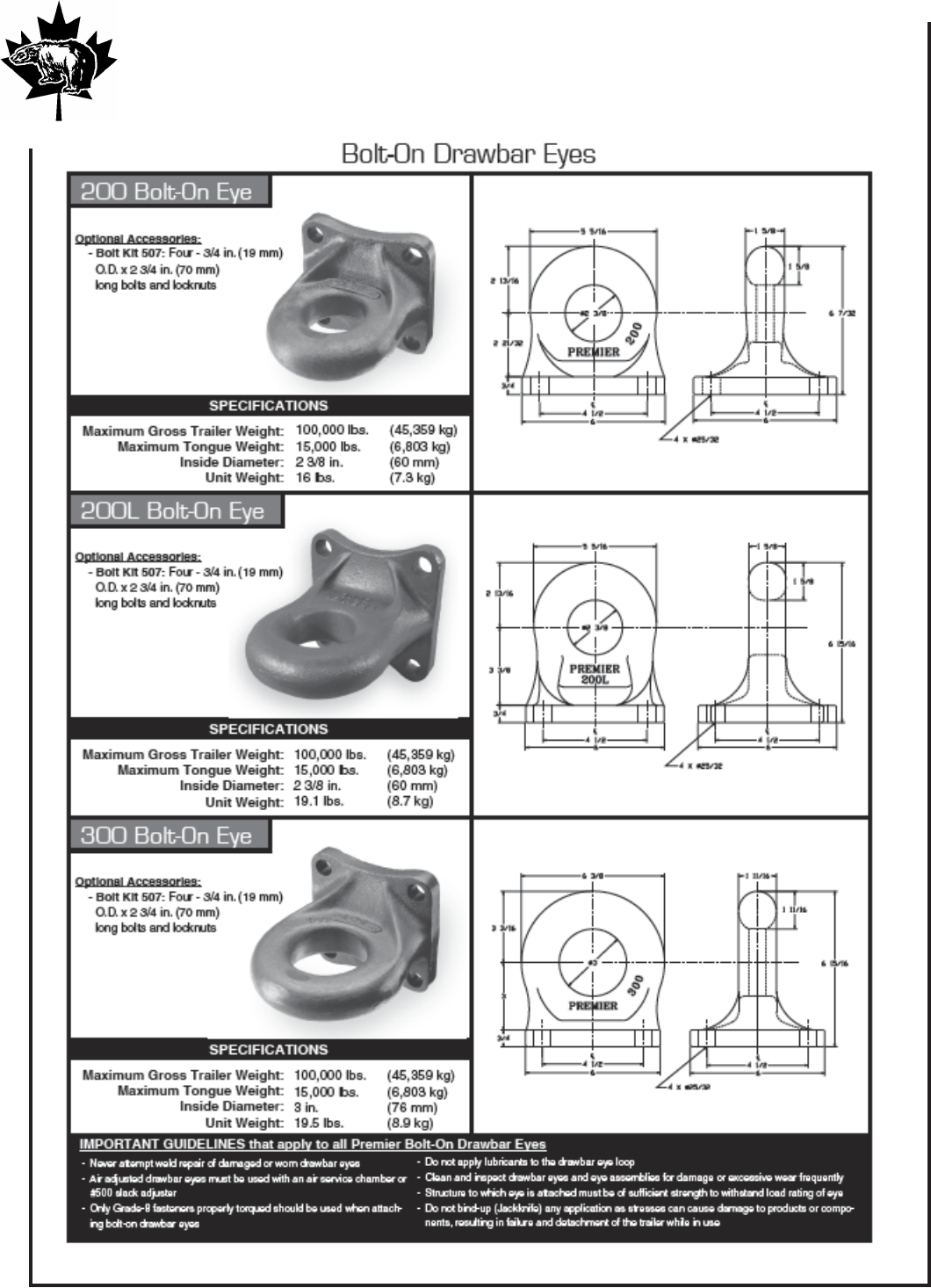

ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
113

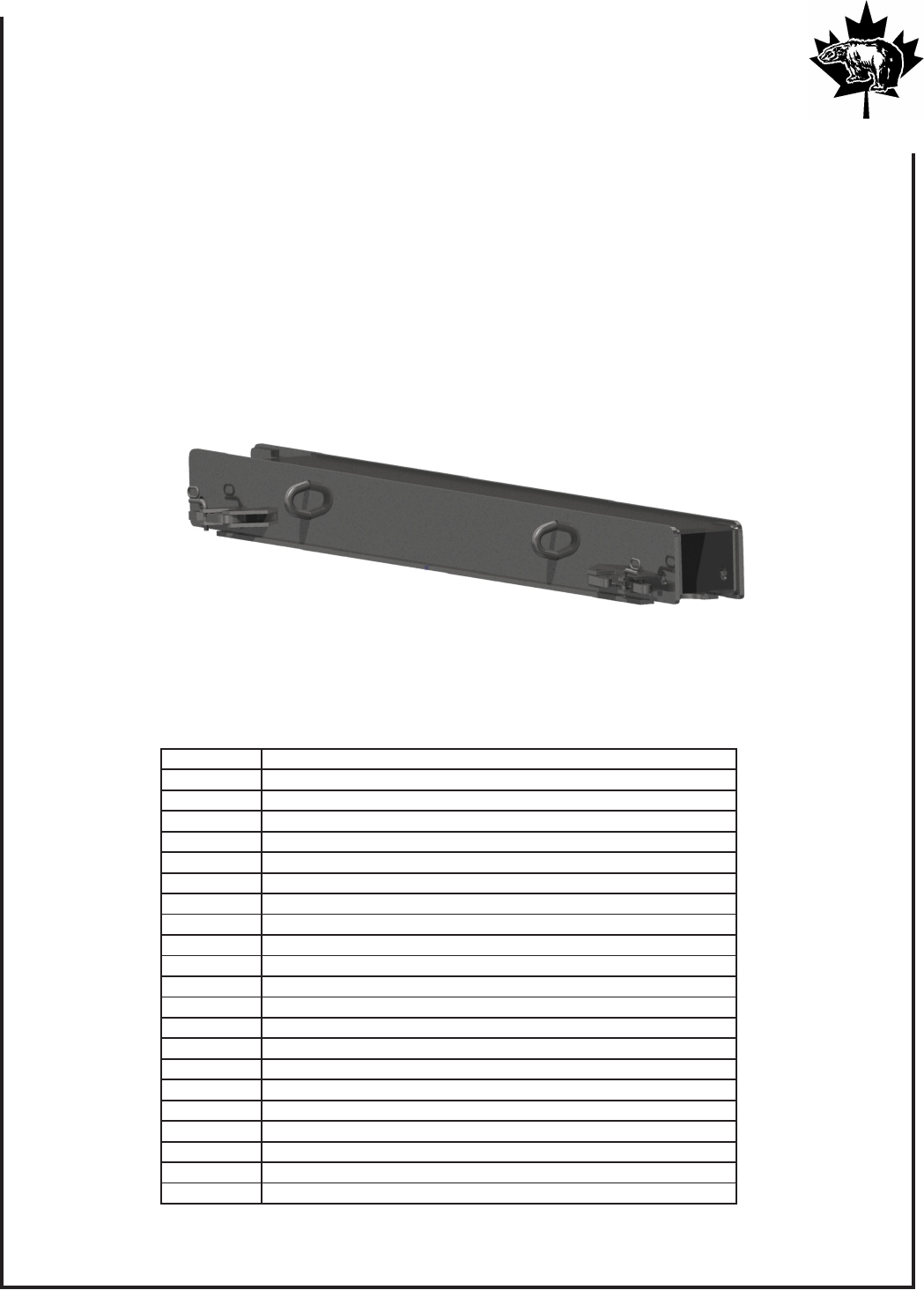

ARCTIC MANUFACTURING LTD.
www.arcticmfg.com
Ph:(250)962-9631 Fax (250)962-7500
114
