AT commands interface
This document is the property of WAVECOM, and is transferred to ______________________________ under
the conditions of the active Non-Disclosure Agreement dated __________. Use of this document is subject to the
terms of this NDA. This document will be returned to WAVECOM under request.
Version : 8.5
ATI Version : 58
Date : September 1th,2000
Reference : WCOM/GSM/SW/SII015.D87
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
i
DOCUMENT AMENDMENTS
Version Date STATUS AUTHOR COMMENTS
1.0 29-02-1996 P N. Higelin Creation
2.0 18-03-1996 P R. Madec Add of new commands
3.0 10-06-1996 P R. Madec Add of new commands
4.0 08-07-1996 P R. Madec Add of new commands
5.0 29-07-1996 P R. Madec Add of new commands
5.1 25-09-1996 P R. Madec Modification of commands
5.2 03-10-1996 P R. Madec Add of new commands
5.3 21-10-1996 P R. Madec Add of V25 ter commands
6.0 16-01-1997 P R. Madec Add of new commands
6.1 10-02-1997 P R. Madec Modifications of +CBST, +CRLP, +SIDET
7.0 29-05-1997 P R. Madec Add of new commands
7.1 24-07-1997 P R. Madec Modifications for error codes
7.2 16-10-1997 P F. Desnoues Network & SIM lock (+CLCK, +CPWD)
7.3
21-12-1997 P F. Desnoues SIM Phonebook management
(+CPBS, +CPBR, +CPBF, +CPBW)
FAX management document
7.4 10-02-1998 P F. Desnoues Advice Of Charge management (+CAOC,
+CACM, +CAMM, +CPUC)
7.5 31-03-1998 P F. Desnoues ATV and ATQ commands
7.6 30-04-1998 P F. Desnoues Cell Broadcast Msg management (+CSCB,
+WCBM) and Incoming bearer (+CICB)
7.7 30-06-1998 P O.Capron New commands +CPINC,+CCID,+CNUM,
+WAIP , +CPBP, +CPBN (phonebook)
7.8 29-10-1998 P O.Capron
F.Desnoues
R.Dorey
SMS commands (+CMGW, +CMSS)
New formats of Suppl Serv commands
(+CLCK,+CCWA,+CCFC)
Add comments pertaining to
+IPR,+CBST,+ICF and fax setup.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
ii
7.9 10-02-1999 P O.Capron
F.Desnoues New +CPIN2, +CIMI, +WIND, +CPOL,
+WOPN (Operator Name), +WLPR,
+WLPW, +WIOR, +WIOW (GPIO), AT&T
Extension: +CCED (RxLev auto), +CPBS
(Own Nb), +CLCK (FDN), ATD (Temporary
CLIR)
8.0 15-04-1999
04-05-1999 P
P F.Desnoues
C.Amiens New: +CHLD, +CLCC, +CSSN, +CUSD,
+WMGO, +WMSC
Extension: ATD, ATH, ATA, +CCWA,
+CLIP, +COLP, +WIND, +COPS
Modification: +VGR levels
New format of +ECHO?.command.
8.1 16-06-1999
21-06-1999
P
P
C.Foratier
C. Amiens
New: +CCUG, AT&V, ATI, +DOPT
Extension: ATD (Temporary CUG)
Modification:+CRLP, +ILRR, +FCLASS,
add fax class 1 commands,
New: %D, +VIP, +WAC.
8.3 27-09-1999
P
C.Foratier
New: +WTONE,+WDTMF,+CKPD
Extension: “EN” phonebook
Extension: ATD (GSM sequences)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
iii
8.4
18-11-1999
17-02-2000
07-03-2000
29-03-2000
30-03-2000
11-04-2000
13-04-2000
P
P
P
P
P
P
P
C. Amiens
J. Berdin
C. AMIENS
JP. BIOU
J. Berdin
J. Berdin
J. Berdin
Extension: +ECHO (Add Switch Attenuation
algo) compatible WISMO2C.
Extension +WIND (Add indications for
network service).
Extension AT&Vx and AT&F (Add Switch
Attenuation values).(WISMO2C only)
Add +WDWL command (Compatible
WISM02C only)
Add +WVR command (Compatible
WISM02C only)
Add +WDR command (Compatible
WISM02C only)
Add Data 14.4 commands (Compatible
WISM02C only)
Add Fax class 2 commands (Compatible
WISM02C only)
Add default values WISMO2C
Add SIM ToolKit commands.
New: +WHWV, +WDOP, +CNMA.
Modification: +CSMS.
New: +WVGS
Modification +VGT
New: +WSTR
New: +WSCAN
Modification : +CNMA
Add +CMS ERROR: 340
Add +CME ERROR: 500
Modification : +CNMA
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
iv
04-05-2000
10-05-2000
05-06-2000
09-06-2000
13-06-2000
14-06-2000
19-06-2000
P
P
P
P
P
P
P
JP. BIOU
JP. BIOU
C. AMIENS
JP. BIOU
J. BERDIN
J. BERDIN
J. BERDIN
New : +WRIM
Modification : +ADC
Modifications :
SIM TOOLKIT
+STSF (for Timeout )
+STGI (for GetInput)
UCS2 format supported
SMS
+CMGD : multiple deletion
UCS2 for phonebooks
+CPBW: Store a record with a UCS2 name
format
+CPBR: Read a record with a UCS2 name
format
+CPBF: Find records in UCS2 format.
+CPBP : Search
+CPBN : Move to a record in UCS2 format
UCS2 for call management
+CLCC, +CCWA,+COLP,+CLIP
Modification : +CHLD (Added Explicit Call
Transfer)
New : +CCLK, +CALA, +CSNS, %D2,
+CRMP, +CRSL.
New Phone-Books (LD,MC,RC,ME,MT,SN)
Modifications : +CSMP, +CPBS, +CPBW
Modifications : +CRMP, +CRSL, +COPS.
Modification : +CPBF.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
v
28-06-2000
P
J. BERDIN
Modifications : +CRMP, +CRSL, +WAIP.
06-07-2000 P C. AMIENS Modifications : +ECHO
13-07-2000 P J. BERDIN New : +W32K
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
vi
CONTENTS
1 INTRODUCTION........................................................................................................... 12
1.1 SCOPE OF THIS DOCUMENT ....................................................................................... 12
1.2 RELATED DOCUMENTS.............................................................................................. 12
1.3 ETSI
SECRETARIAT .................................................................................................. 13
1.4 DEFINITIONS............................................................................................................. 13
2 AT COMMANDS FEATURES....................................................................................... 14
2.1 WAVECOM LINE SETTINGS......................................................................................... 14
2.2 COMMAND LINE ........................................................................................................ 14
2.3 INFORMATION RESPONSES AND RESULT CODES.......................................................... 14
3 GENERAL BEHAVIORS .............................................................................................. 15
3.1 SIM INSERTION, SIM REMOVAL ................................................................................ 15
3.2 BACKGROUNG INITIALISATION................................................................................... 16
4 GENERAL COMMANDS .............................................................................................. 17
4.1 MANUFACTURER IDENTIFICATION +CGMI ................................................................. 17
4.2 REQUEST MODEL IDENTIFICATION +CGMM............................................................... 17
4.3 REQUEST REVISION IDENTIFICATION +CGMR............................................................ 18
4.4 PRODUCT SERIAL NUMBER +CGSN......................................................................... 18
4.5 SELECT TE CHARACTER SET +CSCS....................................................................... 19
4.6 REQUEST IMSI +CIMI ............................................................................................. 20
4.7 CARD IDENTIFICATION +CCID.................................................................................. 21
4.8 CAPABILITIES LIST +GCAP....................................................................................... 22
4.9 REPEAT LAST COMMAND A/ ..................................................................................... 22
4.10 POWER OFF +CPOF................................................................................................ 23
4.11 SET PHONE FUNCTIONALITY +CFUN......................................................................... 23
4.12 PHONE ACTIVITY STATUS +CPAS............................................................................. 25
4.13 REPORT MOBILE EQUIPEMENT ERRORS +CMEE....................................................... 25
4.14 KEYPAD CONTROL +CKPD...................................................................................... 26
4.15 CLOCK MANAGEMENT +CCLK................................................................................. 27
4.16 ALARM MANAGEMENT +CALA................................................................................. 27
4.17 RING MELODY PLAYBACK +CRMP........................................................................... 28
4.18 RINGER SOUND LEVEL +CRSL ................................................................................ 30
5 CALL CONTROL COMMANDS.................................................................................... 31
5.1 DIAL COMMAND D..................................................................................................... 31
5.2 HANG-UP COMMAND H ............................................................................................ 34
5.3 ANSWER A CALL A .................................................................................................. 35
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
vii
5.4 REMOTE DISCONNECTION ......................................................................................... 35
5.5 EXTENDED ERROR REPORT +CEER.......................................................................... 36
5.6 DTMF
SIGNALS +VTD, +VTS.................................................................................. 37
5.7 REDIAL LAST TELEPHONE NUMBER ATDL................................................................. 39
5.8 AUTOMATIC DIALING WITH DTR AT%DN................................................................. 39
5.9 AUTOMATIC ANSWER ATS0 ..................................................................................... 41
5.10 INCOMING CALL BEARER +CICB............................................................................. 41
5.11 SINGLE NUMBERING SCHEME +CSNS...................................................................... 43
5.12 GAIN CONTROL +VGR, +VGT.................................................................................. 44
5.13 MICROPHONE MUTE CONTROL +CMUT.................................................................... 46
5.14 SPEAKER & MICROPHONE SELECTION +SPEAKER .................................................. 47
5.15 ECHO CANCELLATION +ECHO................................................................................. 48
5.16 SIDETONE MODIFICATION +SIDET............................................................................ 50
5.17 INITIALIZE VOICE PARAMETERS +VIP....................................................................... 51
6 NETWORK SERVICE COMMANDS............................................................................. 52
6.1 SIGNAL QUALITY +CSQ........................................................................................... 52
6.2 OPERATOR SELECTION +COPS ............................................................................... 52
6.3 NETWORK REGISTRATION +CREG ............................................................................ 56
6.4 READ OPERATOR NAME +WOPN.............................................................................. 58
6.5 PREFERRED OPERATOR LIST +CPOL....................................................................... 59
7 SECURITY COMMANDS.............................................................................................. 62
7.1 ENTER PIN +CPIN.................................................................................................. 62
7.2 ENTER PIN2 +CPIN2............................................................................................... 65
7.3 PIN
REMAINING ATTEMPT NUMBER +CPINC ............................................................. 67
7.4 FACILITY LOCK +CLCK ........................................................................................... 68
7.5 CHANGE PASSWORD +CPWD.................................................................................. 70
8 PHONEBOOK COMMANDS ........................................................................................ 72
8.1 SELECT PHONEBOOK MEMORY STORAGE +CPBS ..................................................... 72
8.2 READ PHONEBOOK ENTRIES +CPBR........................................................................ 73
8.3 FIND PHONEBOOK ENTRIES +CPBF.......................................................................... 74
8.4 WRITE PHONEBOOK ENTRY +CPBW......................................................................... 75
8.5 PHONEBOOK PHONE SEARCH +CPBP ...................................................................... 77
8.6 MOVE ACTION IN PHONEBOOK +CPBN ..................................................................... 79
8.7 SUBSCRIBER NUMBER +CNUM ................................................................................ 82
8.8 AVOID PHONEBOOK INIT +WAIP............................................................................... 83
9 SHORT MESSAGES COMMANDS .............................................................................. 84
9.1 PARAMETERS DEFINITION.......................................................................................... 84
9.2 SELECT MESSAGE SERVICE +CSMS......................................................................... 85
9.3 NEW MESSAGE ACKNOWLEDGEMENT +CNMA ......................................................... 86
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
viii
9.4 PREFERRED MESSAGE STORAGE +CPMS ............................................................... 89
9.5 PREFERRED MESSAGE FORMAT +CMGF.................................................................. 91
9.6 SAVE SETTINGS +CSAS.......................................................................................... 93
9.7 RESTORE SETTINGS +CRES .................................................................................... 93
9.8 SHOW TEXT MODE PARAMETERS +CSDH.................................................................. 94
9.9 NEW MESSAGE INDICATION +CNMI........................................................................... 94
9.10 READ MESSAGE +CMGR......................................................................................... 97
9.11 LIST MESSAGE +CMGL ........................................................................................... 99
9.12 SEND MESSAGE +CMGS ....................................................................................... 100
9.13 WRITE MESSAGE TO MEMORY +CMGW ................................................................. 101
9.14 SEND MESSAGE FROM STORAGE +CMSS.............................................................. 102
9.15 SET TEXT MODE PARAMETERS +CSMP ................................................................. 103
9.16 DELETE MESSAGE +CMGD.................................................................................... 105
9.17 SERVICE CENTER ADDRESS +CSCA....................................................................... 107
9.18 SELECT CELL BROADCAST MESSAGE TYPES +CSCB............................................. 108
9.19 CELL BROADCAST MESSAGE IDENTIFIERS +WCBM................................................ 109
9.20 MESSAGE STATUS MODIFICATION +WMSC ............................................................. 110
9.21 MESSAGE OVERWRITING +WMGO ......................................................................... 110
10 SUPPLEMENTARY SERVICES COMMANDS..................................................... 112
10.1 CALL FORWARDING +CCFC................................................................................... 112
10.2 CALL BARRING +CLCK ......................................................................................... 113
10.3 MODIFY SS PASSWORD +CPWD............................................................................ 115
10.4 CALL WAITING +CCWA ......................................................................................... 115
10.5 CALLING LINE IDENTIFICATION RESTRICTION +CLIR................................................. 117
10.6 CALLING LINE IDENTIFICATION PRESENTATION +CLIP.............................................. 118
10.7 CONNECTED LINE IDENTIFICATION PRESENTATION +COLP ...................................... 120
10.8 ADVICE OF CHARGE +CAOC.................................................................................. 121
10.9 ACCUMULATED CALL METER +CACM..................................................................... 122
10.10 ACCUMULATED CALL METER MAXIMUM +CAMM ..................................................... 123
10.11 PRICE PER UNIT AND CURRENCY TABLE +CPUC...................................................... 124
10.12 CALL RELATED SUPPLEMENTARY SERVICES +CHLD ............................................... 125
10.13 LIST CURRENT CALLS +CLCC................................................................................. 126
10.14 SUPPLEMENTARY SERVICE NOTIFICATIONS +CSSN................................................. 127
10.15 UNSTRUCTURED SUPPLEMENTARY SERVICE DATA +CUSD ...................................... 129
10.16 CLOSED USER GROUP +CCUG............................................................................... 131
11 . DATA COMMANDS ........................................................................................... 133
11.1 BEARER TYPE SELECTION +CBST.......................................................................... 133
11.2 SELECT MODE +FCLASS ...................................................................................... 135
11.3 SERVICE REPORTING CONTROL +CR ...................................................................... 136
11.4 CELLULAR RESULT CODES +CRC........................................................................... 136
11.5 DTE-DCE
LOCAL RATE REPORTING +
++
+ILRR ............................................................ 137
11.6 RADIO LINK PROTOCOL PARAMETERS +CRLP......................................................... 138
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
ix
11.7 OTHERS RADIO LINK PARAMETERS +DOPT............................................................. 139
11.8 SELECT DATA COMPRESSION %C........................................................................... 140
11.9 V42
BIS DATA COMPRESSION +DS ......................................................................... 141
11.10 V42
BIS DATA COMPRESSION REPORT +DR ............................................................ 143
11.11 SELECT DATA ERROR CORRECTING MODE \N........................................................... 144
12 FAX COMMANDS ................................................................................................ 146
12.1 TRANSMIT SPEED +FTM......................................................................................... 146
12.2 RECEIVE SPEED +FRM .......................................................................................... 147
12.3 HDLC
TRANSMIT SPEED +FTH............................................................................... 148
12.4 HDLC
RECEIVE SPEED +FRH ................................................................................ 148
12.5 STOP TRANSMISSION AND WAIT +FTS..................................................................... 149
12.6 RECEIVE SILENCE +FRS........................................................................................ 150
12.7 SETTING UP THE PC FAX APPLICATION:................................................................... 151
13 FAX CLASS 2 COMMANDS ................................................................................ 152
13.1 TRANSMIT DATA +FDT .......................................................................................... 152
13.2 RECEIVE DATA +FDR............................................................................................ 152
13.3 TRANSMIT PAGE PUNCTUATION +FET..................................................................... 153
13.4 PAGE TRANSFER STATUS PARAMETERS +FPTS...................................................... 153
13.5 TERMINATE SESSION +FK...................................................................................... 154
13.6 PAGE TRANSFER BIT ORDER +FBOR...................................................................... 154
13.7 BUFFER SIZE REPORT +FBUF................................................................................ 155
13.8 COPY QUALITY CHECKING +FCQ............................................................................ 155
13.9 CAPABILITY TO RECEIVE +FCR .............................................................................. 156
13.10 CURRENT SESSIONS PARAMETERS +FDIS .............................................................. 156
13.11 DCE
CAPABILITIES PARAMETERS +FDCC .............................................................. 159
13.12 LOCAL ID STRING +FLID ....................................................................................... 160
13.13 PAGE TRANSFER TIMEOUT PARAMETER +FPHCTO ................................................. 161
13.14 FAX CLASS 2 INDICATION MESSAGES ...................................................................... 161
14 V24-V25 COMMANDS ......................................................................................... 163
14.1 FIXED DTE RATE +IPR .......................................................................................... 163
14.2 DTE-DCE
CHARACTER FRAMING +ICF................................................................... 164
14.3 DTE-DCE
LOCAL FLOW CONTROL +IFC................................................................ 165
14.4 SET DCD SIGNAL &C ............................................................................................ 167
14.5 SET DTR SIGNAL &D............................................................................................. 167
14.6 SET DSR SIGNAL &S............................................................................................. 168
14.7 BACK TO ONLINE MODE O ...................................................................................... 168
14.8 RESULT CODE SUPPRESSION Q .............................................................................. 169
14.9 DCE
RESPONSE FORMAT V................................................................................... 169
14.10 DEFAULT CONFIGURATION Z .................................................................................. 170
14.11 SAVE CONFIGURATION &W .................................................................................... 170
14.12 AUTO-TESTS &T.................................................................................................... 171
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
x
14.13 ECHO E................................................................................................................. 172
14.14 RESTORE FACTORY SETTINGS &F........................................................................... 172
14.15 DISPLAY CONFIGURATION &V................................................................................. 173
14.16 REQUEST IDENTIFICATION INFORMATION I ............................................................... 173
15 SPECIFIC AT COMMANDS ................................................................................. 176
15.1 CELL ENVIRONMENT DESCRIPTION +CCED............................................................. 176
15.2 AUTOMATIC RXLEV INDICATION +CCED................................................................. 177
15.3 GENERAL INDICATIONS +WIND.............................................................................. 178
15.4 ANALOG DIGITAL CONVERTERS MEASUREMENTS +ADC........................................... 180
15.5 MOBILE EQUIPMENT EVENT REPORTING +CMER..................................................... 181
15.6 READ LANGUAGE PREFERENCE +WLPR................................................................ 182
15.7 WRITE LANGUAGE PREFERENCE +WLPW.............................................................. 183
15.8 READ GPIO VALUE +WIOR................................................................................... 184
15.9 WRITE GPIO VALUE +WIOW................................................................................. 184
15.10 ABORT COMMAND +WAC ...................................................................................... 185
15.11 PLAY TONE +WTONE............................................................................................ 185
15.12 PLAY DTMF TONE +WDTMF................................................................................. 187
15.13 WAVECOM DOWNLOADING +WDWL....................................................................... 188
15.14 WAVECOM VOICE RATE +WVR .............................................................................. 189
15.15 DATA RATE +WDR............................................................................................... 191
15.16 HARDWARE VERSION +WHWV .............................................................................. 193
15.17 DATE OF PRODUCTION +WDOP............................................................................. 193
15.18 WAVECOM SELECT VOICE GAIN +WSVG ................................................................ 194
15.19 WAVECOM STATUS REQUEST +WSTR .................................................................... 195
15.20 WAVECOM SCAN +WSCAN.................................................................................... 196
15.21 WAVECOM RING INDICATOR MODE +WRIM ............................................................. 197
15.22 WAVECOM 32KHZ POWERDOWN MODE +W32K ...................................................... 198
16 SIM TOOLKIT....................................................................................................... 200
16.1 OVERVIEW OF SIM APPLICATION TOOLKIT .............................................................. 200
16.2 EXCHANGED MESSAGES DURING A SIM TOOLKIT OPERATION................................... 203
16.3 SIM TOOLKIT COMMANDS ................................................................................ 204
17 OTHER AT COMMANDS..................................................................................... 223
17.1 V.25
TER RECOMMANDATION .................................................................................. 223
17.2 GSM 07.05
RECOMMANDATION .............................................................................. 223
17.3 GSM 07.07
RECOMMANDATION .............................................................................. 223
18 APPENDICES ...................................................................................................... 224
18.1 ME
ERROR RESULT CODE : +CME ERROR: <ERROR>............................................ 224
18.2 MESSAGE SERVICE FAILURE RESULT CODE: +CMS ERROR : <ER>......................... 225
18.3 SPECIFIC ERROR RESULT CODES............................................................................. 226
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
xi
18.4 FAILURE CAUSE FROM GSM 04.08 RECOMMANDATION (+CEER)............................. 226
18.5 SPECIFIC FAILURE CAUSE FOR +CEER................................................................... 228
18.6 GSM 04.11 ANNEX E-2: MOBILE ORIGINATING SM-TRANSFER................................ 228
18.7 UNSOLICITED RESULT CODES.................................................................................. 231
18.8 FINAL RESULT CODES ............................................................................................. 232
18.9 INTERMEDIATE RESULT CODES ................................................................................ 232
18.10 PARAMETERS STORAGE.......................................................................................... 233
18.11 GSM
SEQUENCES LIST ........................................................................................... 235
18.12 OPERATOR NAMES ................................................................................................. 238
19 APPENDIX A (INFORMATIVE) ............................................................................ 245
19.1 INFORMATIVE EXAMPLE ABOUT THE PIN REQUIRED.................................................. 245
19.2 INFORMATIVE EXAMPLE ABOUT PHONEBOOKS.......................................................... 251
19.3 INFORMATIVE EXAMPLE ABOUT SHORT MESSAGES ................................................... 254
19.4 INFORMATIVE EXAMPLE ABOUT FAX CLASS 2 ........................................................... 255
20 APPENDIX B: SUPPORT OF SIM TOOLKIT BY THE M.E.................................. 259
21 APPENDIX C: STRUCTURE OF TERMINAL PROFILE....................................... 260
22 APPENDIX D: COMMAND TYPE AND NEXT ACTION INDICATOR................ 263
23 APPENDIX E: CODING OF ALPHA FIELDS IN THE SIM FOR UCS2................. 264
24 APPENDIX F: SPECIFICATION OF POWER DOWN CONTROL VIA RS232 ..... 267
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
12
1 Introduction
1.1 Scope of this document
This document describes the messages exchanged between an external application
module and the WAVECOM GSM mobile station, based on AT commands in order to control
incoming and outgoing calls.
This document presents the AT-commands implemented for the voice call teleservice,
the data teleservice and the short message teleservice.
1.2 Related documents
This interface specification is based on the following recommandations :
[1] ETSI GSM 07.05 : Digital cellular telecommunications system (Phase 2) ;
Use of DTE-DCE interface for Short Message Service (SMS) and Cell
Broadcast Service (CBS)
[2] ETSI GSM 07.07 : Digital cellular telecommunications system (phase 2) ;
AT command set for GSM Mobile Equipment (ME)
[3] ITU-T Recommandation V.25 ter : Serial asynchronous automatic dialling
and control
[4] ETSI GSM 03.40 : Digital cellular telecommunications system (phase 2) ;
Technical realization of the Short Message Service (SMS) Point-to-Point
(PP)
[5] ETSI GSM 03.38 : Digital cellular telecommunications system (phase 2) ;
Alphabets and language-specific information
[6] ETSI GSM 04.80 : Digital cellular telecommunications system (Phase 2):
Mobile radio interface layer 3, Supplementary services specification,
Formats and coding
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
13
1.3 ETSI secretariat
The following addresses can be useful to get the latest GSM recommendations.
Postal address : F-06921 Sophia Antipolis CEDEX – France
Office address : 650 Route des Lucioles – Sophia Antipolis – Valbonne – France
Internet : secretariat@etsi.fr
Tel : +33 4 92 94 42 00
Fax : +33 4 93 65 47 16
1.4 Definitions
In the GSM vocabulary, a call from GSM mobile to the PSTN is named “mobile
originated call” (MOC) or “outgoing call”, and a call from fixed network to a GSM mobile is
called “mobile terminated call” (MTC) or “incoming call”.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
14
2 AT commands features
2.1 Wavecom line settings
A serial link handler is set with these default values (factory settings) :
- autobaud, 8 bits data, 1 bit stop, no parity, RTS/CTS flow control.
Please use the commands +IPR, +IFC, +ICF to change these settings.
2.2 Command line
The commands always start with AT (means Attention !) and finish with a <CR>
character.
2.3 Information responses and result codes
Responses start and end with <CR><LF>, except with the ATV0 (DCE response
format) and ATQ1 (result code suppression) commands.
• If the syntax of the command is wrong, the string ERROR is sent.
• If the syntax command is correct but with some incorrect parameters,
the strings +CME ERROR : <Err> or +CMS ERROR : <SmsErr> are
sent with different error codes.
• If the command line has been performed successfully, the string OK is
sent.
In some cases like “AT+CPIN?”, “AT+EXPKEY?”, or incoming events (unsolicited) the
module does not send back the string OK as a response.
In the following examples <CR> and <CR><LF> will be intentionally omitted.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
15
3 General behaviors
3.1 SIM Insertion, SIM Removal
The SIM card Insertion and Removal procedures are supported. There are software
functions based on the reading of the hardware SIM presence pin. This pin state (open /
closed) is continuously watched.
When the SIM presence pin indicates a presence of a card in the SIM connector, the
module tries to set a logical SIM session. Depending on the fact that the detected card is a
SIM Card or not, the logical SIM session will be set or not. The AT+CPIN? Delivers the
following answers :
- If SIM presence pin indicates “nothing”, the answer to AT+CPIN? Is
“+CME ERROR 10” (SIM not inserted)
- If SIM presence pin indicates “something”, and the inserted Card is a
SIM Card, the answer to AT+CPIN? Is “+CPIN: xxx” depending on the
SIM PIN state.
- If SIM presence pin indicates “something”, and the inserted Card is
not a SIM Card, the answer to AT+CPIN? Is CME ERROR 10
- These last two status are not immediately available due to the
background initialisation. Between the hardware SIM presence pin
indication of “something” and the previous results the AT+CPIN?
Sends “+CME ERROR: 515” (Please wait, init in progress)
When the SIM presence pin indicates an absence, and if a SIM Card was previously
inserted, an IMSI detach procedure is done, and all the user data are removed from the
module (Phonebooks, SMS etc.). The module is then in emergency mode.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
16
3.2 Backgroung initialisation
After the PIN entry, some SIM user data files are loaded in the module (Phonebooks,
SMS status …), but it can take a long time for huge phonebooks reading. The AT+CPIN?
Command answers just after verification of the PIN. User Datas are loaded after the answer
in background.
This means, that some datas may not be available just after the OK from the PIN
Entry. The reading of phonebooks will then be refused by the following “+CME ERROR: 515”
or “+CMS ERROR: 515” meaning “please wait, service is not available, init in progress”.
That kind of answer may be sent by the module at several steps :
- When trying to execute another AT command before the end
(response) of the previous one.
- when swapping from (or to) ADN to (or from) FDN and trying to read
immediately the concerned phonebook ;
- when asking for +CPIN? Status just after a SIM insertion when the
module has not determined if the inserted card is a valid SIM Card.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
17
4 General commands
4.1 Manufacturer identification +CGMI
4.1.1 Description :
This command gives the manufacturer identification.
4.1.2 Syntax :
Command syntax : AT+CGMI
Command Possible responses
AT+CGMI
Note : Get manufacturer identification
WAVECOM MODEM
OK
Note : Command valid, Wavecom modem
4.2 Request model identification +CGMM
4.2.1 Description :
This command is used to get the supported bands (GSM 900, DCS 1800 or PCS
1900). The answer could be a combination of different bands when multiband modules.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
18
4.2.2 Syntax :
Command syntax : AT+CGMM
Command Possible responses
AT+CGMM
Note : Get hardware version
900P
OK
Note : GSM 900 MHz primary band, or “900E”
(extended band), “1800” (DCS), “1900” (PCS) or
“MULTIBAND”
4.3 Request revision identification +CGMR
4.3.1 Description :
This command is used to get the revised software version.
4.3.2 Syntax :
Command syntax : AT+CGMR
Command Possible responses
AT+CGMR
Note : Get software version
310_G250.51 806216 032199 17:04
OK
Note : Software release 3.10, revision 51
generated on the 21st March 1999
4.4 Product Serial Number +CGSN
4.4.1 Description :
This command allows the user application to know the IMEI (International Mobile
Equipment Identity) of the GSM module.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
19
4.4.2 Syntax :
Command syntax : AT+CGSN
Command Possible responses
AT+CGSN
Note : Request IMEI
135790248939
OK
Note : IMEI present in EEPROM
AT+CGSN
Note : Request IMEI
+CME ERROR: 22
Note : IMEI not found in EEPROM
4.5 Select TE character set +CSCS
4.5.1 Description :
This command informs the ME on which character set is used by the TE. ME is then
able to convert each character of entered or displayed string. This is used to send, read or
write short messages.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
20
4.5.2 Syntax :
Command syntax : AT+CSCS
Command Possible responses
AT+CSCS=”GSM”
Note : GSM default alphabet
OK
Note : Command valid
AT+CSCS=”PCCP437”
Note : PC character set code page 437
OK
Note : Command valid
4.6 Request IMSI +CIMI
4.6.1 Description :
This command is used to read and identify the IMSI (International Mobile Subscriber
Identity) of the SIM card. The PIN should be entered if needed before reading the IMSI.
4.6.2 Syntax
Command syntax : AT+CIMI
Command Possible responses
AT+CIMI
Note : Read the IMSI
208200120320598
Note : IMSI value (15 digits), starting with MCC
(3 digits) / MNC (2 digits, 3 for PCS 1900)
See appendice 18.12 for MCC / MNC description.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
21
4.7 Card Identification +CCID
4.7.1 Description :
This command orders the module to read the EF-CCID file on the SIM card.
4.7.2 Syntax :
Command syntax : AT+CCID
Command Possible responses
AT+CCID
Note : Get card id
+CCID : “123456789AB111213141”
Note : EF-CCID is present, hexadecimal format
AT+CCID ?
Note : Get current value
+CCID : “123456789AB111213141”
Note : Same result as +CCID
AT+CCID= ?
Note : Get possible value
OK
Note : No parameter but this command is valid
In case of absent EF-CCID file on the SIM, the +CCID will not be sent. But the OK will
be present.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
22
4.8 Capabilities list +GCAP
4.8.1 Description :
This command gives the complete capabilities list.
4.8.2 Syntax :
Command syntax : AT+GCAP
Command Possible responses
AT+GCAP
Note : Get capabilities list
+GCAP: +CGSM +FCLASS
OK
Note : Supports GSM commands and FAX
4.9 Repeat last command A/
4.9.1 Description :
Only A/ command can not be repeated. This command repeats the previous executed
command.
4.9.2 Syntax :
Command syntax : A/
Command Possible responses
A/
Note : Repeat last command
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
23
4.10 Power off +CPOF
4.10.1 Description :
This specific command stops the GSM software stack as well as the hardware layer.
The AT+CFUN=0 command is equivalent to +CPOF
4.10.2 Syntax :
Command syntax : AT+CPOF
Command Possible responses
AT+CPOF
Note : Stop GSM stack
OK
Note : Command valid
4.11 Set phone functionality +CFUN
4.11.1 Description :
This command selects the level of functionality in the mobile station.
• When the application wants to stop the module to power off, or if the
application wants to force the module to execute a IMSI DETACH
procedure, then it has to send :
AT+CFUN=0 (same as AT+CPOF)
This command executes a IMSI DETACH and makes a backup of some internal
parameters in the SIM and the EEPROM. Then no access to the SIM card is possible.
If the mobile is not powered off after this command, it shall receive another command
to re-start the whole GSM process.
If the mobile is turned off after this command, then the power on will automatically
execute the start of the whole GSM process.
When the application wants to re-start the module (after having done a AT+CFUN=0
command, and without having cut the power supply), it has to send :
AT+CFUN=1
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
24
This command starts again all the GSM stack and GSM functionality, a complete
software reset is done. All parameters are reset to their previous E2P value if AT&W was not
used.
If you write entries in phonebook (+CPBW) and then reset the module directly
(AT+CFUN=1, without any AT+CFUN=0 before), some entries may not be written (SIM task
does not have the time to write entries in SIM card)
Also, the OK response will be sent at the last defined baud rate defined by +IPR
command. With autobauding the response can be at a different baud rate, so it is better to
save the defined baud rate with AT&W before directly send the AT+CFUN=1 command.
4.11.2 Syntax :
Command syntax : AT+CFUN
Command Possible responses
AT+CFUN?
Note : Ask for current functionality level
+CFUN: 1
OK
Note : Full functionality
AT+CFUN=0
Note : Set minimum functionality, IMSI detach
procedure
OK
Note : Command valid
AT+CFUN=1
Note : Set the full functionality mode with a
complete software reset
OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
25
4.12 Phone activity status +CPAS
4.12.1 Description :
This command returns the activity status of the mobile equipment.
4.12.2 Syntax :
Command syntax : AT+CPAS
Command Possible responses
AT+CPAS
Note : Current activity status
+CPAS: <pas>
OK
4.12.3 Defined values :
<pas> 0 : ready (allow commands from TA/TE)
1 : unavailable (does not allow cmds)
2 : unknown
3 : ringing (ringer is active)
4 : call in progress
5 : asleep (low functionality)
4.13 Report Mobile Equipement errors +CMEE
4.13.1 Description :
This command disables or enables the use of result code “+CME ERROR : <xxx>” or
“+CMS ERROR :<xxx>” instead of simply “ERROR”. See appendice 18.1 for +CME ERROR
result codes description and appendice 18.2 for +CMS ERROR result codes.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
26
4.13.2 Syntax :
Command syntax : AT+CMEE
Command Possible responses
AT+CMEE=0
Note : Disable ME error reports, use only
« ERROR »
OK
AT+CMEE=1
Note : Enable «+CME ERROR: <xxx>» Or
«+CMS ERROR: <xxx>»
OK
4.14 Keypad control +CKPD
4.14.1 Description :
Execution command emulates ME keypad by giving each keystroke as a character in
a string <keys>.
The supported GSM sequences are listed in appendice 18.11.
If emulating fails in an ME error, +CME ERROR: <err> is returned.
If emulating succeeds, the result depends on the GSM sequence.<keys>: string of
following characters (0-9,*,#).
4.14.2 Syntax :
Command syntax : AT+CKPD
Command Possible responses
AT+CKPD=”*#21#”
Note : Check every call forwarding status
+CCFC: 0,7
AT+CKPD=”1234”
Note : Sequence not allowed
+CME ERROR 3
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
27
4.15 Clock Management +CCLK
4.15.1 Description :
This command is used to set or get the current date and time of the ME real-time clock.
String format of date/time is : “yy/MM/dd,hh:mm:ss”.
Valid years are 98 (for 1998) to 97 (for 2097). Seconds field is not mandatory.
Default date/time is “98/01/01,00:00:00” (January 1st, 1998 / midnight).
4.15.2 Syntax :
Command syntax : AT+CCLK
Command Possible responses
AT+CCLK=”00/06/09,17:33:00”
Note : set date to June 9th, 2000
and time to 5:33 pm
OK
Note : Date/Time stored
AT+CCLK=”00/13/13,12:00:00”
Note : Bad month is entered
+CME ERROR 3
AT+CCLK?
Note : get current date and time
+CCLK: “00/06/09,17:34:23”
Note : current date is June 9th, 2000
current time is 5:34:23 pm
4.16 Alarm Management +CALA
4.16.1 Description :
This command is used to set alarms date/time in the ME.
String format of alarm : “yy/MM/dd,hh:mm:ss” (refer +CCLK).
Maximum number of alarms is 16.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
28
4.16.2 Syntax :
Command syntax : AT+CALA
Command Possible responses
AT+CALA=”00/06/09,07:30”
Note : set an alarm for June 9th, 2000 at 7:30 am
OK
Note : Alarm stored
AT+CALA=”99/03/05,13:00:00”
Note : set an alarm for March 5th, 1999 at 1:00 pm
+CME ERROR 3
Note : Invalid alarm (date/time expired)
AT+CALA?
Note : list all alarms
+CALA: “00/06/08,15:25:00”,0
+CALA: “00/06/09,07:30:00”,1
Note : two alarms are set (index 0 and 1)
+CALA: “00/06/08,15:25:00”,0
Note : an alarm occur (index 0)
4.17 Ring Melody Playback +CRMP
4.17.1 Description :
This command allows to play a melody. All melodies are manufacturer defined.
For incomming voice, data or fax call, 10 manufacturer-defined melodies could be
playback (in loop).
For incomming short message, 2 manufacturer-defined sounds could be playback (one
time). Melody #1: short beep / Melody #2: long beep.
Note : loop melodies (for voice/data/fax call) must be stopped by +CRMP command with
<index> field set to 0 (example: +CRMP=0,,,0).
When <volume> parameter is given, this overwrites <sound level> value of +CRSL
command. If <volume> parameter is not given, <sound level> value of +CRSL is used as
default value.
4.17.2 Syntax :
Command syntax : AT+CRMP=<call type>[,<volume>,<type>,<index>]
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
29
Command Possible responses
AT+CRMP=0,7,0,2
Note : Play voice call melody index 2 with volume
level 7.
OK
Note : Melody Playback.
AT+CRMP=0,,,0
Note : Stop the melody.
OK
Note : The melody is stopped.
AT+CRMP=?
Note : supported parameters
+CRMP: (0-3),(0-15),0,(0-10)
OK
4.17.3 Defined values :
<call type> 0 : Incomming voice call
1 : Incomming data call
2 : Incomming fax call
3 : Incomming short message (SMS)
<volume> 0 : Min volume
…
6 : Default volume
…
15 : Max volume
<type> 0 : Manufacturer Defined (default)
<index> 0 : Stop Melody Playback
1-10 : Melody ID for voice/data/fax call type (default : 1)
1-2 : Melody ID for short message (default : 1)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
30
4.18 Ringer Sound Level +CRSL
4.18.1 Description :
This command allows to set/get the sound level.of the incomming call ringer.
Set command change <volume> default value of +CRMP command.
4.18.2 Syntax :
Command syntax : AT+CRSL=<sound level>
Command Possible responses
AT+CRSL=0
Note : Set volume to Min.
OK
Note : Current ring playing with Min. volume.
AT+CRSL=15
Note : Set volume to Max.
OK
Note : Current ring playing with Max. volume.
AT+CRSL?
Note : get current ringer sound level
+CRSL: 15
OK
Note : Current level is 15 (max.)
AT+CRSL=?
Note : supported parameters
+CRSL: (0-15)
OK
4.18.3 Defined values :
<sound level> 0 : Min volume
6 : Default volume (default)
15 : Max volume
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
31
5 Call Control commands
5.1 Dial command D
5.1.1 Description :
The ATD command is used to set a speech, data or fax call. According to GSM
02.30, dial command also controls supplementary services.
For a data or fax call, the application sends to the GSM module the following ASCII
string : (the bearer has to be previously selected with the +CBST command)
ATD<nb> where <nb> is the called phone number.
For a voice call, the application sends to the GSM module the following ASCII
string : (the bearer may be previously selected, if not a default bearer is used)
ATD<nb>; where <nb> is the called phone number.
Please, notice that in case of international number, the local international
prefix has not to be set (usually 00) but need to be replaced by the ‘+’
character.
Example : to establish a voice call to Wavecom from another country, the AT
command shall be : ATD+33146290800;
Notice that some country may have specific numbering rules for their GSM
handset numbering.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
32
The answer to the ATD command can be one of the following:
Verbose result code Numeric (V0 set) Description
OK 0 if the call succeeds, for voice call only
CONNECT <speed> 10,11,12,13,14,15 if the call succeeds, for data calls only, <speed>
takes the value negotiated by the GSM module.
BUSY 7 If the called party is already in communication
NO ANSWER 8 If no hang up is detected after a fixed network time-
out
NO CARRIER 3 Call setup failed or remote user release. Use the
AT+CEER command to know the failure cause
See paragraph 18.8 for the description of all numeric result codes (ATV0)
Direct dialling from a phonebook location (stored in SIM card) can be done with the
following command :
ATD> <index>; for calling <index> from the selected phonebook (by +CPBS command)
ATD> “BILL”; for calling “BILL” from the the selected phonebook
ATD> mem <index> (mem is “SM","LD","MC","ME","RC","MT" or "SN", see +CPBS
command) is a way to dial directly from a phonebook number. Don’t work with "ON" mem.
5.1.2 Syntax :
Command syntax : AT+CPBS
Command Possible responses
AT+CPBS?
Note : Which phonebook is selected ?
+CPBS:”FD”,5,10
Note : FDN phonebook is selected, 5 locations
are used and 10 locations are available
ATD>SM6;
Note : Call index 6 from ADN phonebook
OK
Note : Call succeeds
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
33
When FDN phonebook has been locked only the numbers beginning with the digits
of FDN phonebook entries can be called.
For example, if “014629” is written in the FDN phonebook all the phone numbers
beginning with these 6 digits can be called.
It is allowed to override the CLIR supplementary service subscription for this call
only.
“I” means “invocation” (restrict CLI presentation)
“i” means “suppression” (allow CLI presentation).
It’s allowed to control the CUG supplementary service information by “G” or “g” for
this call only. The index and info values set with command +CCUG are used.
An outgoing call attempt could be refused if the AOC service is active and the credit is
expired (NO CARRIER)
When trying to set an outgoing call while there is an active call, the active call is first
put on hold, then the call setup is made.
According to GSM 02.30, GSM sequences may be controlled using dial command.
These sequences can contain “*”, “#”. But “;” is forbidden.
If the sequence is not supported or fails, +CME ERROR: <err> is returned.
See paragraph 18.11 to have the list of supported sequences.
Command Possible responses
ATD*#21#
Note : Check any call forwarding status
+CCFC: 0,7
Note : No call forwarding
ATD**61*+33146290800**25#
Note : Register call forwarding on no reply, with no
reply timer fixed at 25 s.
OK
Note : done
ATD*2#
Note : Bad sequence
+CME ERROR 3
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
34
5.2 Hang-Up command H
5.2.1 Description :
The command ATH (or ATH0) is used by the application to disconnect the remote
user. In case of multiple calls, every calls are released (active, held and waiting calls).
The specific Wavecom command ATH1 has been appended to disconnect only the
outgoing call. It can be useful in case of multi communication.
5.2.2 Syntax :
Command syntax : ATH
Command Possible responses
ATH
Note : Ask for disconnection
OK
Note : Every calls, if any, are released
ATH1
Note : Ask for outgoing call disconnection
OK
Note : Outgoing call, if any, is released
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
35
5.3 Answer a call A
5.3.1 Description :
When the GSM module receives a call, it sets the RingInd signal and sends to the
application the ASCII string “RING” or “+CRING: <type>” if cellular result code (+CRC) is
enabled. Then it waits for the application to accept the call.
5.3.2 Syntax :
Command syntax : ATA
Command Possible responses
RING
Note : Incoming call
ATA
Note : Answer to this incoming call
OK
Note : Call accepted
ATH
Note : Disconnect call
NO CARRIER
Note : Call disconnected
5.4 Remote disconnection
This message is used by the GSM module to indicate to the application that an active
call has been released by the remote user.
The GSM module sends “NO CARRIER” to the application, and set the DCD signal.
Also, in AOC case, the module can stop the communication if the credit is over
(release cause 68 with +CEER command)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
36
5.5 Extended error report +CEER
5.5.1 Description :
This command gives the reason of the call release when the last call setup
(originating or answering) failed.
5.5.2 Syntax :
Command syntax : AT+CEER
Command Possible responses
ATD123456789 ;
Note : Outgoing voice call
NO CARRIER
Note : Call setup failure
AT+CEER
Note : Ask for reason of release
+CEER : Error <xxx>
OK
Note : <xxx>is the cause information element
values form GSM recommandation 04.08 or
specific Call accepted
The cause information element from GSM 04.08 is given below in chapter 18.4, or in
chapter 18.5 for specific failure causes.
The “NO CARRIER” indicates that the AT+CEER information is available for a failure
diagnostic.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
37
5.6 DTMF signals +VTD, +VTS
5.6.1 +VTD Description :
The GSM module offers the user application to send DTMF tones on the GSM
network. This command is used to define the length of the tones (default value is 300 ms).
To define this length, the application uses :
AT+VTD=<n> where <n>*100 gives the duration in ms.
If n < 4 the tone duration is 300 ms.
5.6.2 +VTD Syntax :
Command syntax : AT+VTD
Command Possible responses
AT+VTD=6
Note : To define 600 ms tone length
OK
Note : Command valid
AT+VTD=0
Note : To set the manufacturer default value
OK
5.6.3 +VTS Description :
The GSM module offers the user application to send DTMF tones on the GSM
network. This command allows the transmission of the tones.
To transmit DTMF tones (only when an active call exists), the application uses :
AT+VTS=<Tone> where <Tone> is in {0-9,*,#,A,B,C,D}
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
38
5.6.4 +VTS Syntax :
Command syntax : AT+VTS
Command Possible responses
AT+VTS=A
OK
Note : Command valid
AT+VTS=11
Note : To set the manufacturer default value
+CME ERROR: 4
Note : If the <Tone> is wrong
AT+VTS=4
+CME ERROR: 3
Note : If there is no communication
5.6.5 Informative example :
To send the Tone sequence 13#, the application shall send :
AT+VTS=1;+VTS=3;+VTS=#
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
39
5.7 Redial last telephone number ATDL
5.7.1 Description :
This command is used by the application to redial the last number used in the ATD
command. The last dialled number is displayed followed by “;” for speech calls only
5.7.2 Syntax :
Command syntax : ATDL
Command Possible responses
ATDL
Note : Redial last number
0146290800;
OK
Note : Last call was a speech call. Command
valid
5.8 Automatic dialing with DTR AT%Dn
5.8.1 Description :
This command allows to activate and deactivate :
the automatic dialing of the phone number stored in the first location of ADN phonebook
the automatic sending of the short message (SMS) stored in the first location of the SIM.
The number is dialed on DTR OFF to ON transition.
The short message is sent on DTR OFF to ON transition.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
40
5.8.2 Syntax :
Command syntax : AT%D<n>[ ;]
Command Possible responses
AT%D1;
Note : Activates DTR number dialing
OK
Note : Command has been executed
DTR is OFF
DTR switches ON
Note : The number in the first location of the ADN
is dialed automatically
DTR switches OFF
Note : The module goes on-hook
AT%D2
Note : Activates DTR sort message sending
OK
Note : Command has been executed
5.8.3 Defined values :
<n> (0-2) : for activate or deactivate the automatic message sending
or number dialing.
Informs the module that the number is a voice rather
than a fax or data number.
AT%D0 Deactivates automatic DTR number dialing / message
sending
AT%D1; Activates automatic DTR dialing if DTR switches from
OFF to ON; Dials the phone number in the first location
of ADN phonebook. Speech call.
AT%D1 Activates automatic DTR dialing if DTR switches from
OFF to ON; Dials the phone number in the first location
of ADN phonebook. Data or Fax call.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
41
AT%D2 Activates automatic DTR message sending if DTR
switches from OFF to ON
5.9 Automatic answer ATS0
5.9.1 Description :
This S0-parameter determines and controls the automatic answering feature of the mobile.
5.9.2 Syntax :
Command syntax : ATS0=<value>
Command Possible responses
ATS0=2
Note : Automatic answer after 2 rings
OK
ATS0?
Note : Current value
002
OK
Note : always 3 characters with leading zeros
ATS0=0
Note : No automatic answer
OK
Note : Command valid
All others S-parameters (S6,S7,S8 …) are not implemented.
5.10 Incoming Call Bearer +CICB
5.10.1 Description :
This specific command is used for incoming call type when no incoming bearer is
given (single numbering scheme, see +CSNS).
Note: set command +CICB affects +CSNS current value.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
42
5.10.2 Syntax :
Command syntax : AT+CICB
Command Possible responses
AT+CICB=1
Note : If no incoming bearer, force a fax call
OK
Note : Command accepted
AT+CICB=2
Note : If no incoming bearer, force a speech call
OK
Note : Command accepted
AT+CICB?
Note : Interrogate value
+CICB: 2
Note : Default incoming bearer: speech call
AT+CICB=?
Note : Test command
+CICB: (0-2)
Note : Speech, data or fax default incoming
bearer
5.10.3 Defined values :
<mode> 0 : Data
1 : Fax
2 : Speech
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
43
5.11 Single Numbering Scheme +CSNS
5.11.1 Description :
This command selects the bearer to be used when MT single numbering scheme call is
established (Incoming Call Bearer, see +CICB).
Note: set command +CSNS affects +CICB current value.
5.11.2 Syntax :
Command syntax : AT+CSNS
Command Possible responses
AT+CSNS=2
Note : force a fax call
OK
Note : Command accepted
AT+CSNS=2
Note : force a voice call
OK
Note : Command accepted
AT+CSNS?
Note : Interrogate value
+CSNS: 0
Note : Default incoming bearer: voice call
AT+CSNS=?
Note : Test command
+CSNS: (0,2,4)
Note : Voice, data or fax default incoming
bearer
5.11.3 Defined values :
<mode> 0 : Voice
2 : Fax
4 : Data
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
44
5.12 Gain control +VGR, +VGT
5.12.1 Description :
This command shall be used by the application to tune the receive gain of the
speaker and transmit gain of the microphone. The application shall send:
AT+VGR=<val> for the
receive
gain
AT+VGT=<val>
Controler 1
for the
transmit gain
controler 1
AT+VGT=<val>
Controler 2
for the
transmit gain
controler 2
0 to 15 +6 db 0 to 31 +30 db 0 0 db
16 to 31 +4 db 32 to 63 +33 db 1 0,5 db
32 to 47 +2 db 64 to 95 +36 db 2 1 db
48 to 63 +0 db 96 to 127 +39 db 3 1,5 db
64 to 79 -2 db 128 to 159 +42 db …
80 to 95 -4 db 160 to 191 +45 db 19 9,5 db
96 to 111 -6 db 192 to 223 +48 db 20 10 db
112 to 127 -8 db 224 to 255 +51 db 21 to 60 30 db
128 to 143 -10 db 61 30,5 db
144 to 159 -12 db 62 31 db
160 to 175 -14 db … …
176 to 191 -16 db 101 50,5 db
192 to 207 -18 db 102 to 127 51 db
208 to 223 -20 db 128 to 243 -6,5 db
224 to 239 -22 db 244 -6 db
240 to 255 -24 db 245 -5,5 db
246 -5 db
… …
255 -0,5 db
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
45
5.12.2 Syntax :
Command syntax : AT+VGR
AT+VGT
Command Possible responses
AT+VGR=25
OK
Note : Command valid
AT+VGT=45 OK
Note : Command valid
AT+VGR?
Note : Interrogate value
+VGR: 64
Note : Default receive gain
AT+VGR=?
Note : Test command
+VGR : (0-255)
Note : Possibles values
AT+VGT?
Note : Interrogate value
+VGT: 64
Note : Default transmit gain.l
AT+VGT=?
Note : Test command
+VGT : (0-255)
Note : Possibles values
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
46
5.13 Microphone Mute Control +CMUT
5.13.1 Description :
This command orders the module to set the microphone mute or not for the active
microphone (defined with+SPEAKER command). This command is only allowed during a
call.
5.13.2 Syntax :
Command syntax : AT+CMUT= <mode>
Command Possible responses
AT+CMUT=?
Note : Test command
+CMUT : (0,1)
OK
Note : Enable / disable mute
AT+CMUT?
Note : Ask for current value
+CMUT : 0
OK
Note : Current value is OFF
AT+CMUT=1
Note : Mute ON (call active)
OK
Note : Command valid
AT+CMUT?
Note : Ask for current value
+CMUT : 1
OK
Note : Mute is active (call active)
AT+CMUT=0
Note : Mute OFF (call not active)
+CME ERROR:3
Note : Command not valid
5.13.3 Defined values :
<mode> 0 : microphone mute off (default value).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
47
1 : microphone mute on.
5.14 Speaker & Microphone selection +SPEAKER
5.14.1 Description
This specific command is used to choose the speaker and the microphone.
5.14.2 Syntax :
Command syntax : AT+SPEAKER=<ActiveSpkMic>
Command Possible responses
AT+SPEAKER=0
Note : Speaker ONE and Micro ONE
OK
Note : Command valid
AT+SPEAKER?
+SPEAKER: 0
OK
Note : Speaker ONE and Micro ONE are active
5.14.3 Defined values :
<mode> 0 : SPEAKER ONE, MICRO ONE
1 : SPEAKER TWO, MICRO TWO
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
48
5.15 Echo Cancellation +ECHO
5.15.1 Description :
This specific command is used to activate, deactivate or configure the Echo
Cancellation functions (for voice calls, in small rooms, cars…)
5.15.2 Syntax :
Command syntax : AT+ECHO = <mode> [,<AlgoId>, <Param1>,<Param2>,
<Param3>,<Param4>,<Param5>,<Param6>]
Command Possible responses
AT+SPEAKER?
+ SPEAKER:0
OK
Note : Speaker ONE and Micro ONE are active
AT+ECHO?
Note : Read current settings
+ECHO: 0,1,0,3,10,7
OK
AT+ECHO=1,1,0,3,10,7
Note : Active Echo cancellation for Mic/Speak one.
OK
AT+ECHO?
Note : Read current settings
+ECHO: 1,1,0,3,10,7
OK
5.15.3 Defined values:
<mode> 0: Deactivate Echo
1: Activate Echo
<AlgoId> 1: Echo cancellation (switch attenuation)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
49
Echo cancellation (4 parameters) :
The parameter <Volout> specifies the maximum attenuation of the switch
<Volout> 0 : 31 db (default)
1 : 29 db
2 : 27 db
3 : 25 db
..: … …
14: 3 db
15: 1 db
The parameter <Step> specifies the attenuation step between attenuation and no
attenuation.
<Step> 0: 1 db
1: 2 db
2: 3 db
3: 4 db (default)
The parameter <PcmThRel> specifies the relative threshold between max and min
energy information.
The allowed range is [ 0 ; 31 ]. (10 default)
The parameter <PcmThMax > specifies threshold of max energy information.
The allowed range is [ 0 ; 31 ]. (7 default)
Read Command: AT+ECHO?
This command returns the current settings of the Echo cancelation.
Returns:+ECHO: <Status>,<AlgoId>, <Param1>,<Param2>, <Param3>,
<Param4>, <Param5>,<Param6>
<Status> 0 Echo Deactivated.
1 Echo Activated for Mic/Speak one.
2 Echo Activated for Mic/Speak two.
3 Reset the module.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
50
5.16 SideTone modification +SIDET
5.16.1 Description :
This specific command is used to get an echo of the voice in the speaker (to have a
microphone feedback in the speaker)
5.16.2 Syntax :
Command syntax : AT+SIDET=<val1>,<val2>
Command Possible responses
AT+SIDET=1,0
OK
Note : Command valid
AT+SIDET?
Note : Current value
+SIDET: 1,0
OK
Note : Command valid
5.16.3 Defined values :
<val1> 0: SideTone is disabled
1: SideTone is enabled
<val2> 0: 0 db
1: - 6 db
2: - 12 db
3: - 18 db
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
51
5.17 Initialize Voice Parameters +VIP
5.17.1 Description :
This command allows to restore the factory settings about the voice parameters from
EEPROM.
These voice parameters include :
• Gain control,
• Microphone mute control,
• Speaker & Microphone selection,
• Echo cancelation,
• Side tone modification.
5.17.2 Syntax :
Command syntax : AT+VIP=<n>
Command Syntax Return
AT+VIP=<n>
AT+VIP=? +VIP: 1
AT+VIP? +VIP: (1)
<n> 1 Restore all voice parameters.
Command Possible responses
AT+VIP? +VIP: 1
OK
AT+VIP=2
Note : Syntax error
+CME ERROR: 3
AT+VIP=1
Note : Restore the factory settings in EEPROM
OK
Note : The command has been executed
AT+VIP=1
Note : Restore the factory settings in EEPROM with
the current Echo cancellation algo different of the
default algo.
CME ERROR: 519
Note : Reset the module to accept the new algo.
AT+VIP=?
Note : List of supported <n>s +VIP: (1)
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
52
6 Network service commands
6.1 Signal Quality +CSQ
6.1.1 Description :
This command is used to know the received signal strength indication (<rssi>) and
the channel bit error rate (<ber>) with or without any SIM card inserted.
6.1.2 Syntax :
Command syntax : AT+CSQ
Command Possible responses
AT+CSQ
+CSQ: <rssi>,<ber>
OK
Note : <rssi> and <ber> as defined below
6.1.3 Defined values :
<rssi> : 0 : -113 dBm or less
1 : -111 dBm
2..30 : -109 to –53 dBm
31 : -51dBm or greater
99 : not known or not detectable
<ber> : 0…7 : as RXQUAL values in the table GSM 05.08
99 : not known or not detectable
6.2 Operator selection +COPS
6.2.1 Description :
To select the operator, three possibilities exist :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
53
1- The mobile enters the manual mode, and then tries to find an operator which is
indicated by the application. If it finds and registers correctly, then the mobile stays in idle
mode.
2- The mobile enters the automatic mode, and then tries to find the home operator. If
it finds and registers correctly, then the mobile stays in idle mode ; if not, the mobile searches
automatically another network.
3- The mobile enters the manual/automatic mode, and then tries to find an operator
which is indicated by the application (like in manual mode) . If this attempt fails the
automatic mode is entered. If this attempt is successful, the operator indicated by the
application is selected and registered, then the mobile enters the automatic mode.
Read command returns the current mode and the currently selected operator. Just
notice that in manual mode, this PLMN could not be the one the mobile has to register
(searching phase).
6.2.2 Syntax :
To force an attempt to select and register a network operator, the application must
send the following command :
Command syntax: AT+COPS=<mode>, [<format> [ , <oper> ] ]
Possible responses for AT+COPS=<mode>:
OK (Network is selected in full service)
+CME ERROR: 30 (No network service),
+CME ERROR: 32 (Network not allowed – emergency calls only)
+CME ERROR: 3
+CME ERROR: 4 (Wrong parameters)
Response syntax for AT+COPS?:
+COPS: <mode> [, <format>, <oper> ]
Response syntax for AT+COPS=?:
+COPS: [list of supported (<stat>, long alphanumeric <oper>, short
alphanumeric <oper>s, numeric <oper>) s]
If an incomming call occur during an ask plmn list, the operation is aborted
(+CME ERROR: 520) and the unsolicited RING appears.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
54
Command Possible responses
AT+COPS?
Note : Ask for current PLMN
+COPS: 0,2,20801
OK
Note : Home PLMN is France Telecom Itinéris
AT+COPS=?
Note : Ask for PLMN list
+COPS: (2,”F Itinéris”,”Itline”,”20801”), (3,”F
SFR”,”SFR”,”20810”)
OK
Note : Home PLMN is France Telecom SFR
network has been detected
AT+COPS=1,2,20810
Note : Ask for registration on SFR network
+CME ERROR: 32
Note : Network not allowed – emergency calls
only
AT+COPS=1,1,20810
Note : Ask for registration on SFR network
+CME ERROR: 3
Note : Operation not allowed
AT+COPS=0,2
Note : Ask for registration on home network
OK
Note : Succeeded
AT+COPS?
Note : Ask for current PLMN
+COPS: 0,0”F Itinéris”
OK
Note : Home PLMN is France Telecom Itinéris!
So the attempt to register on SFR Network has
failed but the automatic selection on Home
PLMN has succedeed
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
55
6.2.3 Defined values :
The parameters values are the following ones:
<mode> 0: automatic (default value)
1: manual
3: set only <format> (for read command AT+COPS?)
4: manual / automatic (<oper> shall be present), if manual
selection fails, automatic mode is entered.
<format>: format of <oper> field
<format> 0: long format alphanumeric <oper>
1: short format alphanumeric <oper>
2: numeric <oper> (default value)
<stat>: status of <oper>
<stat> 0: unknown
1: available
2: current
3: forbidden
<oper>: operator identifier (MCC/MNC in numeric format only for operator
selection).,
Long alphanumeric format can be up to 16 characters long (see appendice 18.12 for
operator names description, field is “Name”)
Short alphanumeric format can be up to 8 characters long.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
56
6.3 Network registration +CREG
6.3.1 Description
This command is used by the application to know the registration status of the mobile.
6.3.2 Syntax :
Command syntax : AT+CREG= <mode>
Response syntax : +CREG : <mode>, <stat> [ ,<lac>,<ci> ]
for AT+CREG? Command only
Command Possible responses
AT+CREG?
+CREG: <mode>,<stat>
OK
Note : As defined before
AT+CREG=0
Note : Disable network registration unsollicited
result code
OK
Note : Command valid
AT+CREG=1
Note : Enable network registration unsollicited
result code
OK
Note : Command valid
AT+CREG=2
Note : Enable network registration and location
information unsollicited result code
OK
Note : Command valid
AT+CREG=? +CREG: (0-2)
Note : 0,1,2 <mode> values are supported
6.3.3 Defined values :
<mode> 0: Disable network registration unsolicited result code (default)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
57
1: Enable network registration code result code +CREG : <stat>
2: Enable network registration and location information
unsolicited result code +CREG: <stat>,<lac>,<ci> if there is a change
of the network cell.
<stat> 0 : not registered, ME is not currently searching a new operator
1 : registered, home network
2 : not registered, ME currently searching a new operator to register to
3 : registration denied
4 : unknown
5 : registered, roaming
<lac>: string type; two byte location area code in hexadecimal format (e.g. “00C3”
equals 195 in decimal)
<ci>: string type; two byte cell ID in hexadecimal format
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
58
6.4 Read operator name +WOPN
6.4.1 Description :
This specific command returns the operator name in alphanumeric format when
given the numeric format.
6.4.2 Syntax :
Command syntax: AT+WOPN=<format>,<NumOper>
Response syntax: +WOPN: <format>,<AlphaOper>
Command Possible responses
AT+WOPN=?
Note : Test command
OK
AT+WOPN=0,20801
Note : Give an operator in numeric format
+WOPN : 0,”F Itinéris”
OK
Note : Alphanumeric answer
AT+WOPN=0,99999
Note : Give a wrong operator
+CME ERROR: 22
Note : Not found
6.4.3 Defined values :
<format> is the required format. Only long (0) and short (1) alphanumeric formats are
supported.
<NumOper> is the operator in numeric format.
<AlphaOper> is the operator in long or short alphanumeric format (see appendice
18.12 for operator names description)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
59
6.5 Preferred operator list +CPOL
6.5.1 Description :
This command is used to edit the SIM preferred list of networks.
6.5.2 6.5.2 Syntax :
Command syntax: AT+CPOL= [ <index> ][ , <format> [ , <oper> ] ]
The different possibilities are:
- AT+CPOL = <index> to delete an entry.
- AT+CPOL = , <format> to set the format used by the read
command (AT+CPOL?).
- AT+CPOL = , <format>, <oper> to put <oper> in the next free location.
- AT+CPOL = <index> , <format> , <oper> to write <oper> in the <format>
at the <index> .
The supported format are those of the +COPS command.
The length of this list is limited to 8 entries .
Command Possible responses
AT+CPOL?
Note : Ask for preferred list of networks
+CPOL:1,2,26201
+CPOL: 6,2,20810
OK
Note : Preferred list of networks in numeric
format
AT+CPOL=,0
Note : Select long alphanumeric format
OK
AT+CPOL?
Note : Give a wrong operator
+CPOL: 1,0,”D1-TELEKOM”
+CPOL: 6,0,”F SFR”
OK
Note : Preferred list of networks in long
alphanumeric format
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
60
AT+CPOL=7,2,20801
Note : Add a network to the list
OK
AT+CPOL?
Note : Give a wrong operator
+CPOL: 1,0,”D1-TELEKOM”
+CPOL: 6,0,”F SFR”
+CPOL: 7,0,”F Itinéris”
OK
Note : Preferred list of networks in long
alphanumeric format
AT+CPOL=7
Note : Delete 7th location
OK
AT+CPOL?
Note : Ask for preferred list of networks
+CPOL: 1,0,”D1-TELEKOM”
+CPOL: 6,0,”F SFR”
OK
Note : Preferred list of networks in long
alphanumeric format
AT+CPOL=8,2,77777
Note : Add an inexistent network to the list
OK
AT+CPOL?
Note : Ask for preferred list of networks
+CPOL: 1,0,”D1-TELEKOM”
+CPOL: 6,0,”F SFR”
+CPOL: 8,2,77777”
OK
Note : Preferred list of networks in long
alphanumeric format but 8th entry is unknown so
the module edits it in the numeric format
AT+CPOL=9,0,”F Itinéris”
Note : Add an inexistent network to the list format
text
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
61
AT+CPOL?
Note : Ask for preferred list of networks
+CPOL: 1,0,”D1-TELEKOM”
+CPOL: 6,0,”F SFR”
+CPOL: 8,2,77777”
+CPOL: 9,0,”F Itinértis”
OK
Note : Preferred list of networks in long
alphanumeric format
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
62
7 Security commands
7.1 Enter PIN +CPIN
7.1.1 Description :
This command is used to enter ME passwords (CHV1 / CHV2 / PUK1 / PUK2…)
which are needed before the use of any other ME functionality. The CHV1/CHV2 length is
between 4 and 8 digits, the PUK1/PUK2 length is 8 digits only.
If the user application tries to set an outgoing call before having validated the SIM PIN
code (CHV1), then the GSM module will refuse the “ATD” command with a
“+CME ERROR: 11” (SIM PIN required).
It’s up to the application to validate the PIN after each reset or power on if the PIN
was enabled
7.1.2 Syntax :
Command syntax : AT+CPIN=<pin>
Command Possible responses
AT+CPIN=1234
Note : Enter PIN
OK
Note : PIN code is correct
AT+CPIN=5678
Note : Enter PIN
+CME ERROR : 3
Note : Operation not allowed, PIN previously
entered
After 3 unsuccessful codes, the PUK will then be required. The PUK validation forces
the user to enter as a second parameter a new PIN code which will be the new PIN code if
the PUK validation succeeds. The CHV1 is then enabled if the PUK1 is correct. The
application shall therefore use the command :
AT+CPIN=<Puk>,<NewPin>
Command Possible responses
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
63
AT+CPIN=00000000,1234
Note : Enter PUK and new PIN
+CME ERROR: 16
Note : Incorrect PUK
AT+CPIN=12345678,1234
Note : Enter PUK and new PIN, 2nd attempt
OK
Note : PUK correct, new PIN stored
To know which code has to be entered (or not), the following interrogation command
can be used :
AT+CPIN?
The possible responses are :
+CPIN: READY ME is not pending for any password
+CPIN: SIM PIN CHV1 is required
+CPIN: SIM PUK PUK1 is required
+CPIN: SIM PIN2 CHV2 is required
+CPIN: SIM PUK2 PUK2 is required
+CPIN: PH-SIM PIN SIM lock (phone-to-SIM) is required
+CPIN: PH-NET PIN Network personnalisation is required
+CME ERROR: <err> SIM failure (13) absent (10) etc…
Please note that in this case the mobile does not finish its response with the OK string.
The response +CME ERROR : 13 (SIM failure) is returned after 10 unsuccessful PUK
presentations. The SIM card is then out of order and shall be replaced by a new one.
Example : 3 failed PIN validations + 1 successful PUK validation
AT+CPIN?
+CPIN: SIM PIN
Read the PIN status
The GSM module requires SIM PIN
AT+CPIN=1235
+CME ERROR: 16
First attempt to enter a SIM PIN
Bad PIN
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
64
AT+CPIN=1236
+CME ERROR: 16
Second attempt
Bad PIN
AT+CPIN=1237
+CME ERROR: 16
Third attempt
Bad PIN
AT+CPIN?
+CPIN: SIM PUK
Read PIN state
The GSM module requires PUK
AT+CPIN=99999999,5678
OK
The PUK is entered, the new PIN shall be 5678 PUK
validation is OK. New Pin is 5678
AT+CPIN?
+CPIN: READY
Read PIN state
GSM module is ready
If the user tries to do something which requires PIN2 (CHV2) the GSM module will
refuse his action with a “+CME ERROR: 17” (SIM PIN2 required). Then the GSM module is
waiting SIM PIN2 to be given.
Of course if SIM PIN2 is blocked , SIM PUK2 is required instead of SIM PIN2.
For instance, the GSM module needs PIN2 to write in the fixed dialling phonebook
(FDN) , so if SIM PIN2 authentification has not been done during the current cession the SIM
PIN2 is required:
Command Possible responses
AT+CPBS=”FD”
Note : Choose FDN
OK
AT+CPBW=5,”01290917”,129,”Jacky”
Note : Write in FDN at location 5
+CME ERROR: 17
Note : SIM PIN2 is required
AT+CPIN? SIM PIN2
Note : SIM PIN2 is required
AT+CPIN=5678 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
65
Note : Enter SIM PIN2
AT+CPBW=2,”01290917”,129,”Jacky”
Note : Write in FDN at location 5
OK
Note : Now writing in FDN is allowed
Please note that the GSM module only ask once PIN2 or PUK2, so if they aren’t
entered correctly, the next +CPIN? Command will return “+CPIN: READY”.
Remark
In the way Application to GSM, an “h” character shall be added before the PIN value if
cyphering mode (with D.E.S algorithm ) is on. See +EXPKEY command.
Same remark for +CLCK and +CPWD commands.
7.2 Enter PIN2 +CPIN2
7.2.1 Description :
This specific command is used to validate the PIN2 code (CHV2), or to validate the
PUK2 code (UNBLOCK CHV2) and to define a new PIN2 code.
Of course +CPIN command allows to validate PIN2 or PUK2 codes but only when the
last executed command resulted in PIN2 authentification failure.
The PIN2 length is between 4 and 8 digits, the PUK2 length is 8 digits only.
7.2.2 Syntax :
Command syntax : AT+CPIN2=<pin2>
Command Possible responses
AT+CPIN2=1234
Note : Enter PIN2
OK
Note : PIN2 code is correct
AT+CPIN2=5678
Note : Enter PIN2
+CME ERROR: 3
Note : Operation not allowed, PIN2 previously
entered
After 3 unsuccessful codes, the PUK2 will then be required. The PUK2 validation
forces the user to enter as a second parameter a new PIN2 code which will be the new PIN2
code if the PUK1 validation succeeds. The application shall therefore use the command :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
66
AT+CPIN2=<puk2>,<NewPin2>
Command Possible responses
AT+CPIN2=00000000,1234
Note : Enter PUK2 and new PIN2
+CME ERROR: 16
Note : Incorrect Password (PUK2)
AT+CPIN2=12345678,1234
Note : Enter PUK2 and new PIN2, 2nd attempt
OK
Note : PUK2 correct, new PIN2 stored
To know which code has to be entered (or not), the following interrogation
command can be used :
AT+CPIN2?
The possible responses are :
+CPIN2: READY No PIN2 is needed
+CPIN2: SIM PIN2 PIN2 is required
+CPIN2: SIM PUK2 PUK2 is required
+CME ERROR: <err> Absent (10) etc…
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
67
7.3 PIN remaining attempt number +CPINC
7.3.1 Description :
This specific command instructs the module to display the number of valid tries for
PIN1 (CHV1), PIN2 (CHV2), PUK1 (UNBLOCK CHV1) and PUK2 (UNBLOCK CHV2)
identifiers.
7.3.2 Syntax :
Command syntax : AT+CPINC
Response syntax : +CPINC : <n1>,<n2>,<k1>,<k2>
Command Possible responses
AT+CPINC
Note : Ask remaining tries
+CPINC : 2,3,10,10
Note : First CHV1 attempt was a failure
AT+CPINC?
Note : Ask current values
+CPINC : 2,3,10,10
Note : First attempt was a failure
AT+CPINC=?
Note : Ask possible values
OK
7.3.3 Defined values
<n1>, <n2> are the remaining tries of PIN1, PIN2 (0 = blocked, 3 max)
<k1>, <k2> are the remaining tries of PUK1, PUK2 (0 = blocked, 10 max)
To make it run, the card should be present at the initialisation time, in the opposite case, an
error will be sent (+CME ERROR : 10).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
68
7.4 Facility lock +CLCK
7.4.1 Description :
This command shall be used by the application to lock, unlock or interrogate a ME or
network facility <fac>.
7.4.2 Syntax :
Command syntax: AT+CLCK= <fac>,<mode>[,<passwd>[,<class>] ]
Response syntax: +CLCK: <status> [ ,<class1> ]<CR><LF>+CLCK: <status>,<class2>
[ … ] ]
Command Possible responses
AT+CLCK=”SC”,1,1234
Note : Enable PIN
OK
Note : PIN was right
AT+CLCK?
Note : Read PIN status
+CLCK: (“PS”, 0), (“PN,0),(“FD”,0)
OK
Note : PIN is enables, no SIM lock, no network
lock, no informatin on Call barring
(no longer supported in GSM 07.07)
AT+CLCK=”SC”,0,5555
Note : Disable PIN
+CME ERROR: 16
Note: PIN was wrong
AT+CPIN=1234
Note : Enter PIN
OK
Note : PIN was good
AT+CLCK=?
Note : Request supported facilities
+CLCK!“PS”,”SC”,”AO”,”OI”,”OX”,”AI”,”IR”,”AB”
,”AC”,”FD”,”PN”)
OK
Note : Supported facilities
AT+CLCK=”PN”,1,12345678 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
69
Note : Activate network lock Network lock activated
AR+CLCK=”AO”,1,1234,2
Note : Activate all outgoing calls barring for data
calls
OK
Note : Call barring is activate
AT+CLCK=”AO”,2
Note : Query BAOC status
<CR><LF> +CLCK : 1,2
OK
Note : BAOC activate for data calls only
7.4.3 Defined values :
The following <fac> values are supported:
“PS” : SIM lock facility with a 8 digits password.
« SC » : PIN enable (<mode> = 1) / disable (<mode> = 0)
“AO” : BAOC (Barr All Outgoing Calls)
“OI” : BOIC (Barr Outgoing International Calls)
“OX” : BOIC-exHC (Barr Outg. Internat Calls except to Home Country)
“AI” : BAIC (Barr All Incoming Calls)
“IR” : BIC-Roam (Barr Inc. When Roaming outside Home Country)
“AB” : All Barring services
“AG” : All outGoing barring services
“AC” : All inComing barring services
“PN” : Network lock with a 8 digits password (NCK).
“FD”: SIM Fixed Dialling Numbers (FDN) memory feature
(PIN2 is required as <password>)
<mode> 0 : unlock the facility
1 : lock the facility
2 : query status
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
70
<class> : A facility status can be changed for only one class, or for all classes (7 or omitted).
<class> 1 : Voice (telephony)
2 : Data (refer to all bearer services)
3 : Fax (facsimile services)
4 : Short Message service
5: equal to all classes (Default value)
Any attempt to combine different classes will result in activation / desactivation / interrogation
of all classes.
The password maximum length is given with the AT+CPWD=? Command.
7.5 Change password +CPWD
7.5.1 Description
This command shall be used by the application to change a password (PIN, call barring,
NCK…). The facility values (<fac>) are the same as for +CLCK command, with a “P2” facility
to manage SIM PIN2.
For the network lock (“PN”), the unlock is forbidden after 10 failed attempts to disable
(unlock) the network lock with an incorrect password.
7.5.2 Syntax :
Command syntax : AT+CPWD= <fac>, <oldpwd>, <newpwd>
Command Possible responses
AT+CPWD=?
Note : Possible values
+CPWD:
(“PS”,8),(“SC”,8),(“AO”,4),(“OI”,4),(“OX”,4),
(“AI”,4),(“IR,4),(“AB”,4),(“AG”,4),(“AC”,4),
(“P2”,8),(“FD”,8),(“PN”,8)
OK
Note : CHV1/CHV2 must be on 8 digits
maximum (4mn)
For call barring, on 4 digits maximum
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
71
AT+CPWD=”SC”,1234,5555
Note : Change PIN
OK
Note : PIN was good
AT+CPWD=”SC”,1234,5555
Note : Change PIN
+CME ERROR: 16
Note: PIN was wrong
AT+CPIN=5555
Note : Enter PIN
OK
Note : PIN was good
AT+CPWD=”PN”,12345678,00000000
Note : Change NCK
OK
Note : NCK changed for net lock
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
72
8 Phonebook commands
8.1 Select phonebook memory storage +CPBS
8.1.1 Description :
This command selects phonebook memory storage. The available phonebooks are:
“SM” : ADN (SIM phonebook)
“FD” : FDN (SIM fixdialling, restricted phonebook)
“ON” : MSISDN (SIM own numbers)
“EN” : EN (SIM emergency number)
“LD” : LND (combined ME and SIM last dialling phonebook)
“MC” : MSD (ME missed calls list)
“ME” : ME (ME phonebook)
“MT” : MT (combined ME and SIM phonebook)
“RC” : LIC (ME received calls list)
“SN” : SDN (Services dialling phonebook)
8.1.2 Syntax :
Command syntax : AT+CPBS
Command Possible responses
AT+CPBS=”SM”
Note : Select ADN phonebook
OK
Note : ADN phonebook is selected
AT+CPBS=?
Note : Possible values
+CPBS: ("SM","LD","MC","ON","ME","RC","MT",
"SN")
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
73
OK
Note : only “EN” phonebook is not supported
with this SIM card.
AT+CPBS?
Note : Status
+CPBS :”SM”,10,20
OK
Note: ADN phonebook selected, 10 used
locations, 20 locations available
The ADN phonebook could not be selected is FDN is active.
8.2 Read phonebook entries +CPBR
8.2.1 Description :
This command returns phonebook entries for a location range from the current
phonebook memory storage selected with +CPBS.
8.2.2 Syntax :
Command syntax : AT+CPBR
Command Possible responses
AT+CPBR=?
Note : Test command
+CPBR: (1-50),20,10
OK
Note : 50 locations (from 1 to 50), max length of
20 for phone, 10 charcters max for the
associated text
AT+CPBR=12,14
Note : Read entries from 12 to 14
+CPBR : 12,”112”,129,”Emergency”
+CPBR : 13,”+331290909”,145,”Fred”
+CPBR : 14,”0146290808”,129,”Zazi”
OK
Note : Dis
p
la
y
locations 12,13,14 with location,
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
74
number, type (TON/NPI), Text
AT+CPBR=10
Note : Read entry 10
+CPBR :10,”0146290921”,129,”Rob”
OK
Note: Display location 10
AT+CPBR=11
Note : Read entry 11 (UCS2 format)
+CPBR :11,”0146290921”,129,”8000010002FFFF”
OK
Note: Display location 11
AT+CPBR=52
Note : Read entry 52 (wrong)
+CME ERROR: 21
Note : Invalid index
8.3 Find phonebook entries +CPBF
8.3.1 Description :
This command returns phonebook entries which alphanumeric field starts with a given
string. The AT+CPBF= “” command can be used to display all phonebook entries sorted in
alphabetical order.
This command is not allowed for "LD", "RC", "MC", "SN" phonebooks and for “EN”
phonebook, which does not contain alphanumeric field.
8.3.2 Syntax :
Command syntax : AT+CPBF
Command Possible responses
AT+CPBF=?
Note : Test command
+CPBF: 20,10
OK
Note : Max length of 20 for phone, 10 characters
for the text
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
75
AT+CPBF= “E”
Note : Read entries with “E”
+CPBF : 12,”112”,129,”Emergency”
+CPBF : 15,”+331290101”,145,”Eric”
OK
Note : Display locations with text field starting
with “E”
AT+CPBF=”H”
Note : Read entries with “H”
+CME ERROR: 22
Note: Entry not found
AT+CPBF=”800001FFFF”
Note : Read entries with “800001” (UCS2 format)
+CPBF : 11, ”0146290921”,129,”8000010002FFFF”
OK
Note : Display locations with text field starting
with “800001”
8.4 Write phonebook entry +CPBW
8.4.1 Description :
This command writes phonebook entry in location number <index> in the current
phonebook memory storage.
This command is not allowed for “EN”, “LD”, “MC”, “RC”, “MT”, “SN” phonebooks,
which are not writable.
8.4.2 Syntax :
Command syntax : AT+CPBW=<index>[,<number>[,<type>[,<text>]]]
Command Possible responses
AT+CPBW=?
Note : Test command
+CPBW: (1-50),20,(129,145),10
OK
Note : 50 locations, phone length = 20, TON/NPI
of 129 or 145, text length = 10
AT+CPBW= 3
Note : Erase location 3
OK
Note : Location 3 erased
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
76
AT+CPBW=5,”112”,129,”SOS”
Note : Write at location 5
OK
Note: Location 5 written
AT+CPBW=5,”01290917”,129,”Jacky”
Note : Overwrite location 5
OK
Note : Location 5 overwritten
AT+CPBW=6,”01292349”,129,”8000410042”
Note : write location 6 (UCS2 format for the <text>
field)
OK
Note : Location 6 is written
AT+CPBW=,”+33145221100”,145,”SOS”
Note : Write at the first free location
OK
Note : Free location is written
AT+CPBW=,”0345221100”,129,”SOS”
Note : Write at the first free location
+CME ERROR: 20
Note : Phonebook full
AT+CPBW=57,”112”,129,”WM”
Note : Write at location 57 (wrong)
+CME ERROR: 21
Note : Invalid index
AT+CPBW=7,”012345678901234567890”,129,”W
AVE”
Note : Write at location 7 a long phone numbe (21
digits)
+CME ERROR: 26
Note : Phone too long
AT+CPBW=7,”0122334455”,129,”WAVECOM
TEL”
Note : Write at location 7 along text (11
characters)
+CME ERROR: 24
Note : Text too long
When the fixed dialling phonebook (FDN) is locked , this command is not allowed.
Moreover , when FDN is unlocked , PIN2 is required to write in the FDN phonebook.
But if PIN2 authentification has been done during the current cession , +CPBW
command with FDN is allowed .
Command Possible responses
AT+CPBS=”FD” OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
77
Note : Choose FDN
AT+CPBW=5,”01290917”,129,”Jacky”
Note : Write in FDN at location 5
+CME ERROR: 17
Note : SIM PIN2 is required
AT+CPIN?
SIM PIN2
Note: SIM PIN2 is required
AT+CPIN=5678
Note : Enter SIM PIN2
OK
AT+CPBW=5,”01290917”,129,”Jacky”
Note : Write in FDN at location 5
OK
Note : Now writing in FDN is allowed
8.4.3 Defines values :
<index> integer type value depend of capacity of phonebook memory.
<number> Phone number in ASCII format.
<type> TON/NPI (Type of address octet in integer format).
<text> string type.
REM: For the parameter <text> all string started by “80” , “81” or “81” are considered
in UCS2 format. See the APPENDIX E (Coding of Alpha fields in the SIM for UCS2).
The +CSCS (Select Character set) command not affect the format for the phonebook
entries.
8.5 Phonebook phone search +CPBP
8.5.1 Description :
This specific command orders the module to look in the phonebook for an item
having the same phone number that defined in parameter.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
78
8.5.2 Syntax :
Command syntax : AT+CPBP=<PhoneNumber>
<PhoneNumber> is coded like all phone numbers in GSM 07.07 or GSM 07.05 .
Command Possible responses
AT+CPBP=”+331290101”
Note : Read entries with this phone number
+CPBP : 15,”+331290101”,145,”Eric”
OK
Note : Display location with this phone number
AT+CPBP=”+331290101”
Note : Read entries with this phone number
+CPBP : 15,”+331290101”,145,”Eric”
OK
Note : Display location with this phone number
AT+CPBP=”+331290101”
Note : Read entries with this phone number
+CPBP : 15,”+331290101”,145,”Eric”
OK
Note : Display location with this phone number
AT+CPBP=”+331290101”
Note : Read entries with this phone number
+CPBP : 15,”+331290101”,145,”Eric”
OK
Note : Display location with this phone number
AT+CPBP=”+331288575”
Note : Read entries with this phone number
+CPBP : 15,”+331290101”,145,”8045682344FFFF”
(UCS2 format)
OK
Note : Display location with this phone number
AT+CPBP=”0129”
Note : Read entries with this phone number
+CME ERROR: 22
Note : Entry not found
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
79
8.6 Move action in phonebook +CPBN
8.6.1 Description
This specific command instructs the module to make a forward or a backward move
in the phonebook (in alphabetical order).
This command is not allowed for “EN” phonebook, which does not contain
alphanumeric field.
8.6.2 Syntax :
Command syntax : AT+CPBN = <mode>
Command Possible responses
AT+CPBN=?
Note : Test command
+CPBN: (0-3)
OK
Note : Possible modes
AT+CPBN=0
Note : Read the first location
+CPBN : 15,”+331290101”,145,”Eric”
OK
Note : Display the first location
AT+CPBN=2
Note : Read the next location
+CPBN : 5,”+33147658987”,145,”Frank”
OK
Note : Display the second location
AT+CPBN=2
Note : Read the next location
+CPBN : 6,”+331290302”,145,”Marc”
OK
Note : Display the third location
AT+CPBN=3
Note : Read the previous location
+CPBN : 5,”+33147658987”,145,”Frank”
OK
Note : Display the second location
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
80
AT+CPBN=1
Note : Read the last location
+CPBN : 6,”+331290302”,145,”Marc”
OK
Note : Display the last location
AT+CPBN=2
Note : Read the next location
+CPBP : 15,”+331290101”,145,”Eric”
OK
Note : Display the first location
Using mode 4 and 5 with +CPBF command and CPBW :
Command Possible responses
AT+CPBF=”Er”
Note : Find ”Er” in phonebook
+CPBF : 15,”+331290101”,145,”Eric”
OK
Note : Display this location
AT+CPBN=2
Note : Read the next location
+CPBN : 5,”+33147658987”,145,”Frank”
OK
Note : Display the following location
AT+CPBF=”Er”
Note : Find”Er” in phonebook
+CPBF : 15,”+331290101”,145,”Eric”
OK
Note : Display this location
AT+CPBN=4
Note : Read the last read location
+CPBF : 15,”+331290101”,145,”Eric”
OK
Note : Display the last read location
AT+CPBW=,”0146290800”,129,”WM”
Note : Write an item at the first free location
OK
Note : No information about this location
AT+CPBN=4 +CPBF : 15,”+331290101”,145,”Eric”
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
81
Note : Read the last read location OK
Note : Display the last read location
AT+CPBN=38,”0146290800,129,”WM”
Note : Display the last written item with its
location
AT+CPBN=4
Note : Read the last read item
AT+CPBN=38,”0146290800,129,”WM”
Note : Now the last read item is the last writen
item too
AT+CPBF=”800041FFFF”
Note : Find”800041” in phonebook
+CPBF : 15,”+3312345”,145,”8000414339FFFF”
OK
Note : Display this location
AT+CPBN=4
Note : Read the last read location
+CPBF : 15,”+3312345”,145,”8000414339FFFF”
OK
Note : Display the last read location
Please note that the AT+CPBN=5 command is useful after an AT+CPBW command
used without a location.
8.6.3 Defined values :
<mode> 0 : First item
1 : Last item
2 : Next valid item in alphabetical order
3 : Previous valid item in alphabetical order
4 : Last read item
5 : Last written item
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
82
8.7 Subscriber number +CNUM
8.7.1 Description :
This command returns the MSISDN(s) related to the subscriber.
If the subscriber has different MSISDNs for different services, each MSISDN is
returned in a separate line.
8.7.2 Syntax :
Command syntax : AT+CNUM
Response syntax : +CNUM : <alpha1>, <number1>, <type1>
<CR><LF> +CNUM : <alpha2>, <number2>, <type2> ….
Command Possible responses
AT+CNUM
Note : Get MSISDN(s)
+CNUM :”Phone”, “0612345678”,129
+CNUM :”Fax”, “0687654321”,129
+CNUM : “80001002FFFF”, “+0183773”, 145
(UCS2 format)
Note : MSISDNs
AT+CNUM=?
OK
8.7.3 Defined values :
<alphax> optional alphanumeric string associated with <numberx>
<numberx> string type phone number of format specified by <typex>
<typex> type of adress octet in integer format
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
83
8.8 Avoid phonebook init +WAIP
8.8.1 Description :
This specific command allows to inhibit the initialization of all phonebooks during the
next boots.
8.8.2 Syntax :
Command syntax : AT+WAIP=<mode>
Command Possible responses
AT+WAIP?
Note : Current values ?
+WAIP :0
OK
Note : Default value (init phonebooks)
AT+WAIP=?
Note : Possible values ?
+WAIP : (0,1)
OK
Note : Disable / enable
AT+WAIP =1
Note : Inhibit initialization of phonebooks (next
boot)
OK
Note : no answer
AT&W
Note : Save modifications in EEPROM
Be careful: The given value should be stored in EEPROM, so the command AT&W
must be used to save the new <mode> value.
Note: All phonebook commands are not allowed when “+WAIP=1” (after boot). If
phonebook command is entered, “+CME ERROR: 3” is return.
8.8.3 Defined values :
<mode> 0 : Normal initialization (with phonebooks)
1 : No phonebook initialization
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
84
9 Short Messages commands
9.1 Parameters definition
<da> Destination Address, coded like GSM 03.40 TP-DA
<dcs> Data Coding Scheme, coded like in document [5].
<dt> Discharge Time in string format : “yy/MM/dd,hh :mm :ss±zz”
(Year [00-99], Month [01-12], Day [01-31], Hour, Minute, Second and
Time Zone [quarters of an hour] )
<fo> First Octet, coded like SMS-SUBMIT first octet in document [4], default
value is 17 for SMS-SUBMIT
<index> Place of storage in memory.
<length> Text mode (+CMGF=1): number of characters
PDU mode (+CMGF=0): length of the TP data unit in octets
<mem1> Memory used to list, read and delete messages
(+CMGL, +CMGR and +CMGD).
<mem2> Memory used to write and send messages
(+CMGW, +CMSS).
<mid> CBM Message Identifier.
<mr> Message Reference.
<oa> Originator Address.
<pid> Protocol Identifier.
<pdu> For SMS : GSM 04.11 SC address followed by GSM 03.40 TPDU in
hexadecimal format, coded as specified in doc [4]
For CBS : GSM 03.41 TPDU in hexadecimal format
<ra> Recipient Address.
<sca> Service Center Address
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
85
<scts> Service Center Time Stamp in string format :
“yy/MM/dd,hh :mm :ss±zz”
(Year/Month/Day,Hour:Min:Seconds±TimeZone)
<sn> CBM Serial Number
<st> Status of a SMS-STATUS-REPORT
<stat> Status of message in memory.
<tooa> Type-of-Address of <oa>.
<tora> Type-of-Address of <ra>.
<tosca> Type-of-Address of <sca>.
<total1> Number of message locations in <mem1>.
<total2> Number of messages locations in <mem2.
<used1> Total number of messages locations in <mem1>.
<used2> Total number of messages locations in <mem2.
<vp> Validity Period of the short message, default value is 167
9.2 Select message service +CSMS
9.2.1 Description :
The supported services are GSM originated (SMS-MO) and terminated short
message (SMS-MT), Cell Broadcast Message (SMS-CB) services.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
86
9.2.2 Syntax :
Command syntax : AT+CSMS=<service>
Command Possible responses
AT+CSMS=0
Note : SMS AT command Phase 2 version 4.7.0
+CSMS: 1,1,1
OK
Note : SMS-MO, SMS-MT and SMS-CB
supported
AT+CSMS=1
Note : SMS AT command Phase 2 +
+CSMS: 1,1,1
Note : SMS-MO, SMS-MT and SMS-CB
supported
AT+CSMS?
Note : Current values ?
+CSMS: 0,1,1,1
OK
Note : GSM 03.40 and 03.41 (SMS AT
command Phase 2 version 4.7.0
AT+CSMS=?
Note : Possible services
+CSMS: (0,1)
OK
9.2.3 Defined values :
<service> 0 : SMS AT commands are compatible with GSM 07.05
Phase 2 version 4.7.0.
1 : SMS AT commands are compatible with GSM 07.05
Phase 2 + version .
9.3 New Message Acknowledgement +CNMA
9.3.1 Description :
This command allows to acknowledge the reception of a new message routed directly
to the TE.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
87
In TEXT mode, only positive acknowledgement to the network (RP-ACK) is possible.
In PDU mode, either positive (RP-ACK) or negative (RP-ERROR) acknowledgement
to the network is possible.
Acknowledge with +CNMA is possible only if +CSMS parameter is set to 1
(+CSMS=1) when a +CMT or +CDS indication is shown (see +CNMI command).
If no acknowledgement is given within the network-timeout, RP-ERROR is send to the
network, then <mt> and <ds> parameters of +CNMI command are reset to zero (don’t show
new message indication).
9.3.2 Syntax :
Command syntax in text mode :
AT+CNMA
Command syntax in PDU mode :
AT+CNMA [ = <n> [ , <length> [ <CR>
PDU is entered <ctrl-Z / ESC> ] ] ]
nota : PDU is entered using <ackpdu> format instead of <pdu> format (i.e. SMSC address
field is not present).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
88
Example to acknowledge a new message in TEXT mode
Command Possible responses
AT+CMGF=1
Note : TEXT message format
OK
Note : TEXT mode valid
AT+CNMI=2,2,0,0,0
Note : <mt>=2
OK
+CMT : “123456”,”98/10/01,12 :30 00+00”,129,4
,32,240, “15379”,129,5<CR><LF>
Received message
Note : message received
AT+CNMA
Note : acknowledge the message received
OK
Note : send positive acknowledgement to the
network
AT+CNMA
Note : try to acknowledge again
+CMS ERROR : 340
Note : no +CNMA acknowledgment expected
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
89
Example to acknowledge a new message in PDU mode
Command Possible responses
AT+CMGF=0
Note : PDU message format
OK
Note : PDU mode valid
+CMT: ,29
07913366003000F1240B913366920547F300000030
03419404800B506215D42ECFE7E17319
Note : message received
AT+CNMA=2,<length> <CR>
… Pdu message … <Ctrl-Z/ESC>
Note : negative acknowledgement for the
message.
OK
Note : send a negative acknowledgement to the
network (RP-ERROR) with PDU message
(<ackpdu> format).
9.3.3 Defined values :
<n> : Type of acknowledgement in PDU mode :
0 : send RP-ACK without PDU (same as TEXT mode)
1 : send RP-ACK with optional PDU message
2 : send RP-ERROR with optional PDU message
<length> : Length of the PDU message
9.4 Preferred Message Storage +CPMS
9.4.1 Description :
This command allows to define the message storage area to be used for reading,
writing…
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
90
9.4.2 Syntax :
Command syntax : AT+CPMS=<mem1>, [<mem2>]
Command Possible responses
AT+CPMS=?
Note : Possible message storages
+CPMS: ((“SM”,”BM”),(“SM”))
OK
Note : Read, list, delete: SMS or CBM
Write, send: SMS
AT+CPMS?
Note : Read it
+CPMS: “SM”,3, 10,”SM”,3,10
OK
Note : Read, write…SMS from/to SIM 3 SMS
are stored in SIM. 10 is the total available SIM
memory
AT+CPMS=”AM”
Note : Select false message storage
+CMS ERROR: 302
AT+CPMS=”BM”
Note : Select CBM message storage
+CPMS: 2,20,3,10
OK
Note : Read, list, delete CBM from RAM 2 CBM
are stored in RAM
AT+CPMS?
Note : Read it
+CPMS: “BM”,2,20,”SM”,3,10
OK
Note : Read list, delete CBM from RAM
Write SMS to SIM
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
91
9.4.3 Defined values :
<mem1>: Memory used to list, read and delete messages. It can be:
- “SM” : SMS message storage (in SIM) (default)
- “BM”: CBM message storage (in volatile memory).
<mem2>: Memory used to write and send messages
- “SM” : SMS message storage (in SIM) (default).
If the command is correct, the following indication message is sent:
+CPMS: <used1>,<total1>,<used2>,<total2>
When <mem1> is selected, all following +CMGL, +CMGR and +CMGD commands are
related to the type of SMS stored in this memory.
9.5 Preferred Message Format +CMGF
9.5.1 Description :
The formats implemented are the text mode and the PDU mode.
In PDU mode, a complete SMS Message including all header information is passed
as a binary string (in hexadecimal format, so only this set of characters is allowed :
{‘0’,’1’,’2’,’3’,’4’,’5’,’6’,’7’,’8’,’9’, ‘A’, ‘B’,’C’,’D’,’E’,’F’} ). Each pair or characters is converted to
a byte (ex : ‘41’ is converted to the ASCII character ‘A’, whoes ASCII code is 0x41 or 65).
In Text mode, every commands and responses are in ASCII characters.
The chosen format is stored in EEPROM by the command +CSAS.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
92
9.5.2 Syntax :
Command syntax : AT+CMGF
Command Possible responses
AT+CMGF ?
Note : Current message format
+CMGF: 1
OK
Note : Text mode
AT+CMGF=?
Note : Possible message format
+CMGF: (0-1)
OK
Note : Text or PDU modes are available
Example to send a SMS Message in PDU mode
Command Possible responses
AT+CMGF=0
Note : PDU message format
OK
Note : PDU mode valid
AT+CMGS=14<CR>
0001030691214365000004C9E9340B
Note : Send complete MSG in PDU mode, no SC
address
+CMGS: 4
OK
Note : MSG correctly sent, <mr> is returned
9.5.3 Defined values :
The message <pdu> is composed of the SC address (« 00 means no SC address
given, use default SC address read with +CSCA command) and the TPDU message.
The length of octets of the TPDU buffer is 14, coded as GSM 03.40
In this case the TPDU is : 0x01 0x03 0x06 0x91 0x21 0x43 0x65 0x00 0x00 0x04
0xC9 0xE9 0x34 0x0B, which means regarding GSM 03.40 :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
93
<fo> 0x01 (SMS-SUBMIT, no validity period)
<mr> (TP-MR) 0x03 (Message Reference)
<da> (TP-DA) 0x06 0x91 0x21 0x43 0x65
(destination address +123456)
<pid> (TP-PID) 0x00 (Protocol Identifier)
<dcs> (TP-DCS) 0x00 (Data Coding Scheme : 7 bits alphabet)
<length> (TP-UDL) 0x04 (User Data Length, 4 characters of text)
TP-UD 0xC9 0xE9 0x34 0x0B (User Data : ISSY)
TPDU in hexadecimal format must be converted into two ASCII characters, e.g. octet
with hexadecimal value 0x2A is presented to the mobile as two characters ‘2’ (ASCII 50) and
‘A’ (ASCII 65).
9.6 Save Settings +CSAS
9.6.1 Description :
All settings specified in command +CSCA and +CSMP are stored in EEPROM if the
SIM card is a phase 1 card or in the SIM card if it is phase 2.
9.6.2 Syntax :
Command syntax : AT+CSAS
Command Possible responses
AT+CSAS
Note : Store +CSAS and +CSMP parameters
OK
Note : Parameters are saved
9.7 Restore settings +CRES
9.7.1 Description :
All settings specified in command +CSCA and +CSMP are restored from EEPROM if
the SIM card is phase 1 or from the SIM card if it is a phase 2 SIM card.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
94
9.7.2 Syntax :
Command syntax : AT+CRES
Command Possible responses
AT+CRES
Note : Restore +CSAS and +CSMP parameters
OK
Note : Parameters are restored
9.8 Show text mode parameters +CSDH
9.8.1 Description :
This commands gives more informations in text mode result codes. These
informations are in brackets in commands +CMTI, +CMT, +CDS, +CMGR, +CMGL.
9.8.2 Syntax :
Command syntax : AT+CSDH
Command Possible responses
AT+CSDH?
Note : Current value
+CSDH: 0
OK
Note : Do not show header values
9.9 New message indication +CNMI
9.9.1 Description :
This command selects the procedure on how to receive the message from the
network. The application must send the following command :
9.9.2 Syntax :
Command syntax : AT+CNMI=<mode>,<mt>,<bm>,<ds>,<bfr>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
95
Command Possible responses
AT+CNMI=2,1,0,0,0
Note : <mt>=1
OK
AT+CMTI : “SM”,1
Note : message received
AT+CNMI=2,2,0,0,0
Note : <mt>=2
OK
+CMT : “123456”,”98/10/01,12 :30 00+00”,129,4
,32,240, “15379”,129,5<CR><LF>
Received message
Note : message received
AT+CNMI=2,0,0,1,0
Note : <ds>=1
OK
AT+CMGS=”+33146290800”<CR>
Message to send <ctrl-Z>
Note : Send a message in text mode
+CMGS : 7
OK
Note : Successful transmission
+CDS : 2, 116, ”+33146290800”, 145, “98/10/01,12
:30 :07+04”, “98/10/01 12 :30 :08+04”, 0
Note : message was correctly delivered
9.9.3 Defined values :
<mode> : controls the processing of unsolicited result codes
Only <mode>=2 is supported.
Any other value for <mode> (0,1 or 3) is accepted (return code will be OK), but the
processing of unsollicited result codes will be the same than for <mode>=2.
<mode> 0 : Buffer unsolicited result codes in the TA. If TA result
code buffer is full, indications can be buffered in some
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
96
other place or the oldest indications may be discarded
and replaced with the new received indications
1 : Discard indication and reject new received message
unsolicited result codes when TA-TE link is reserved.
Otherwise forward them directly to the TE
2 : Buffer unsolicited result codes in the TA when TA-TE
link is reserved and flush them to the TE after
reservation. Otherwise forward them directly to the TE
3 : Forward unsolicited result codes directly to the TE. TA-
TE link specific inband used to embed result codes and
data when TA is in on-line data mode
<mt> : sets the result code indication routing for SMS-DELIVERs. Default is 0.
<mt> 0 : No SMS-DELIVER indications are routed.
1 : SMS-DELIVERs are routed using unsolicited code :
+CMTI : « SM », <index>
2 : SMS-DELIVERs (except class 2 messages) are routed using
unsollicited code :
+CMT : [<alpha>,] <length> <CR> <LF> <pdu> (PDU mode)
or
+CMT : <oa>,[<alpha>,] <scts> [,<tooa>, <fo>, <pid>,
<dcs>, <sca>, <tosca>, <length>] <CR><LF><data>
(text mode)
3 : Class 3 SMS-DELIVERS are routed directly using code
in <mt>=2 ;
Message of other classes result in indication <mt>=1
<bm> : set the rules for storing received CBMs (Cell Broadcast Message) types depend on
its coding scheme, the setting of Select CBM Types (+CSCB command) and <bm>. Default
is 0.
<bm> 0 : No CBM indications are routed to the TE. The CBMs are stored.
1 : The CBM is stored and an indication of the memory
location is routed to the customer application using
unsolicited result code: +CBMI: “BM”, <index>
2 : New CBMs are routed directly to the TE using
unsolicited result code.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
97
+CBM : <length><CR><LF><pdu> (PDU mode)
or
+CBM :<sn>,<mid>,<dcs>,<page>,<pages>(Text mode)
<CR><LF> <data>
3 : Class 3 CBMs : as <bm>=2. Other classes CBMs : as <bm>=1.
<ds> for SMS-STATUS-REPORTs. Default is 0.
<ds> 0 : No SMS-STATUS-REPORTs are routed.
1 : SMS-STATUS-REPORTs are routed using unsolicited code :
+CDS : <length> <CR> <LF> <pdu> (PDU mode)
or
+CDS : <fo>,<mr>, [<ra>] , [<tora>], <scts>,<dt>,<st> (Text mode)
<bfr> Default is 0.
<bfr> 0 : TA buffer of unsolicited result codes defined within this command is
flushed to the TE when <mode> 1…3 is entered (OK response
shall be given before flushing the codes)
1 : TA buffer of unsolicited result codes defined within this command is
cleared when <mode> 1…3 is entered.
9.10 Read message +CMGR
9.10.1 Description :
This command allows the application to read stored messages.
9.10.2 Syntax :
Command syntax : AT+CMGR=<index>
Response syntax for text mode:
+CMGR :<stat>,<oa>,[<alpha>,] <scts> [,<tooa>,<fo>,
<pid>,<dcs>,<sca>,<tosca>,<length>] <CR><LF> <data>
(for SMS-DELIVER only)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
98
+CMGR : <stat>,<da>,[<alpha>,] [,<toda>,<fo>,<pid>,<dcs>, [<vp>], <sca>,
<tosca>,<length>]<CR><LF> <data>
(for SMS-SUBMIT only)
Response syntax for PDU mode :
+CMGR: <stat>, [<alpha>] ,<length> <CR><LF> <pdu>
A message read with status “REC UNREAD” will be updated in memory with the status “REC
READ” because it has been read.
Example :
Command Possible responses
AT+CMTI: “SM”,1
Note : New message received
AT+CMGR=1
Note : Read the message
+CMGR: “REC UNREAD”,”0146290800”,
”98/10/01,18 :22 :11+00”,<CR><LF>
ABCdefGHI
OK
AT+CMGR=1
Note : Read again the message
+CMGR: “REC UNREAD”,”0146290800”,
”98/10/01,18 :22 :11+00”,<CR><LF>
ABCdefGHI
OK
Note : Message is read now
AT+CMGR=2
Note : Read a bad index
+CMS ERROR: 321
Note : Error : invalid index
AT+CMGF=0 ;+CMGR=1
Note : In PDU mode
+CMGR: 2,,<length> <CR><LF><pdu>
OK
Note : Message is stored bunt unsent, no
<alpha>field
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
99
9.11 List message +CMGL
9.11.1 Description :
This command allows the application to read stored messages, by indicating the type
of the message to read.
9.11.2 Syntax :
Command syntax : AT+CMGL=<stat>
Response syntax for text mode:
+CMGL : <index>,<stat>,<da/oa>[,<alpha>], [<scts>, <tooa/toda>,
<length>] <CR><LF><data>
(for SMS-DELIVER and SMS-SUBMIT, may be followed by other
<CR><LF>+CMGL:<index>…)
Response syntax for PDU mode :
+CMGL : <index>,<stat>, [<alpha>], <length> <CR><LF> <pdu>
(for SMS-DELIVER and SMS-SUBMIT,
may be followed by other <CR><LF>+CMGL:<index>…)
Command Possible responses
AT+CMGL= “REC UNREAD”
Note : List unread messages in text mode
+CMGL: 1,”REC UNREAD”,”0146290800”,
<CR><LF> Unread message !
+CMGL: 3,”REC UNREAD”, “46290800”,
<CR><LF>
Another unread message !
OK
Note : 2 messages are unread, these messages
will then have their status changed to “REC
READ” (+CSDH:0)
AT+CMGL=”REC READ” +CMGL: 2,”REC READ”,”0146290800”,
<CR><LF>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
100
Note : List read messages in text mode Keep cool
OK
AT+CMGL=”STO SENT”
Note : Read , stored and sent messages
OK
Note : No message found
9.11.3 Defined values
<stat> possible values (status of message in memory) :
<stat> 0 : “REC UNREAD” ( received unread message )
1 : “REC READ” ( received read message )
2 : “STO UNSENT” ( stored unsent message )
3 : “STO SENT” ( stored sent message )
4 : “ALL” ( all messages )
9.12 Send message +CMGS
9.12.1 Description :
The <address> field is the address of the terminal network to whom the message is
sent. To send the message, simply type <ctrl-Z> character (ASCII 26). The text can contain
all existing character except <ctrl-Z> and <ESC> (ASCII 27).
This command is abortable using the <ESC> character when entering text.
In PDU mode, only hexadecimal characters are used (‘0’…’9’,’A’…’F’).
9.12.2 Syntax :
Command syntax in text mode :
AT+CMGS= <da> [ ,<toda> ] <CR>
text is entered <ctrl-Z / ESC >
Command syntax in PDU mode :
AT+CMGS= <length> <CR>
PDU is entered <ctrl-Z / ESC >
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
101
Command Possible responses
AT+CMGS=”+33146290800”<CR>
Please call me soon, Fred. <ctr-Z>
Note : Send a message in text mode
+CMGS: <mr>
OK
Note : Successful transmission
AT+CMGS=<length><CR><pdu><ctrl-Z>
Note : Send a message in PDU mode
+CMGS: <mr>
OK
Note : Successful transmission
The message reference <mr> which is returned back to the application is allocated by
the GSM module. This number begins with 0 and is incremented by one for each outgoing
message (successful and failure case) ; it is cyclic on one byte (0 follows 255).
Note : this number is not a storage number – outgoing messages are not stored.
9.13 Write Message to Memory +CMGW
9.13.1 Description :
This command stores a message to memory storage (either SMS-SUBMIT or SMS-
DELIVERS). The memory location <index> is returned (no choice possible as with
phonebooks +CPBW).
The entering of text or PDU is done similarly as specified in command Send Message
+CMGS (see 9.12).
9.13.2 Syntax :
Command syntax in text mode : (<index> is returned in both cases)
AT+CMGW= <oa/da> [,<tooa/toda> [,<stat> ] ] <CR>
enter text <ctrl-Z / ESC>
Command syntax in PDU mode :
AT+CMGW= <length> [,<stat>] <CR>
give PDU <ctrl-Z / ESC>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
102
Response syntax: +CMGW: <index>
or +CMS ERROR: <err> if writing fails
Command Possible responses
AT+CMGW=”+33146290800”<CR>
Hello haw are you ?<ctrl-Z>
Note : Write a message in text mode
+CMGW: 4
OK
Note : Message stored in index 4
AT+CMGW=<length><CR><pdu><ctrl-Z>
Note : Write a message in PDU mode
+CMGW: <index>
OK
Note : Message stored in <index>
9.13.3 Defined values :
Parameter Definition :
<oa/da> : Originating or Destination Adress Value in string format.
<tooa/toda> : Type of Originating / Destination Adress.
<stat> : Integer type in PDU mode (default 2 for +CMGW), or string type
in text mode (default “STO UNSENT” for +CMGW). It indicates
the status of message in memory. If <stat> is omitted , the
stored message is considered like a message to be send.
<stat> 0 : “REC UNREAD”
1 : “REC READ”
2 : “STO UNSENT”
3 : “STO SENT”
<length> : The length of the actual data unit in octets
9.14 Send Message From Storage +CMSS
9.14.1 Description :
This command sends message with location value <index> from storage to the
network.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
103
9.14.2 Syntax :
Command syntax: AT+CMSS=<index>[,<da> [,<toda>] ]
Response syntax: +CMSS : <mr>
or +CMS ERROR: <err> if sending fails
If new recipient address <da> is given, it will be used instead of the one stored with the
message.
Command Possible responses
AT+CMGW=0660123456<CR>
Today is my birthday
Note :
+CMGW : 5
OK
Note :Message stored in index 5
AT+CMSS=5, 0680654321
Note : Send the message 5 to a different GSM
AT+CMSS :<mr>
OK
Note : Successful transmission
AT+CMSS=5, 0680654321
Note : Send the message 5 to a different GSM
+CMSS :<mr>
OK
Note : Successful transmission
9.15 Set Text Mode Parameters +CSMP
9.15.1 Description :
This command shall be used to select value for the <vp>, <pid>, the <dcs>.
9.15.2 Syntax ;
Command syntax : AT+CSMP=<fo>, <vp>, <pid>,<dcs>
Command Possible responses
AT+CSMP? +CSMP: 0,0,0,0
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
104
Note : current values
OK
Note : No validity period
<dcs>= PCCP437 alphabet (8 bits
"
7 bits)
AT+CMPS=17,23,64,244
Note :<vp> = 23 (2 hours, relative format)
<dcs> = GSM 8 bits alphabet
OK
Note : Command correct
9.15.3 Defined values :

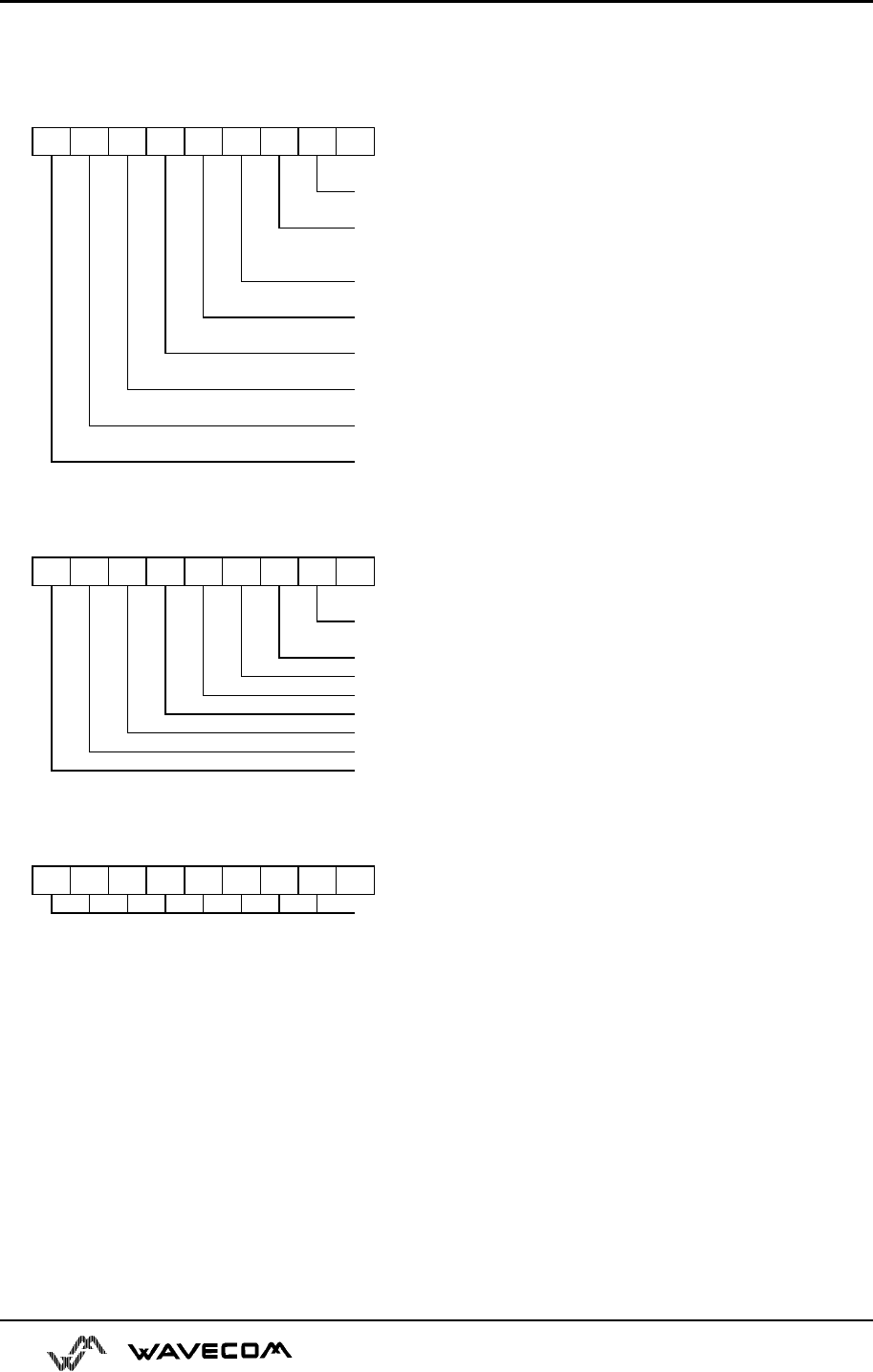

<fo> byte is composed of 6 differents fields :
b7 b6 B5 b4 b3 b2 b1 b0
RP UDHI SRR VPF RD MTI
RP : Reply Path, not used in text mode.
UDHI : User Data Header Information, b6=1 if the beginning of the User Data field contains a
Header in addition to the short message. This option is not supported in +CSMP command,
but can be used in PDU mode (+CMGS).
SRR : Status Report Request, b5=1 if a status report is requested. This mode is supported.
VPF : Validity Period Format
b4=0 & b3=0 -> <vp> field is not present
b4=1 & b3=0 -> <vp> field is present in relative format
Others formats (absolute & enhanced) are not supported.
RD : Reject Duplicates, b2=1 to instruct the SC to reject an SMS-SUBMIT for an SM still held
in the SC which has the same <mr> and the same <da> as the previously submitted SM from
the same <oa>.
MTI : Message Type Indicator
b1=0 & b0=0 -> SMS-DELIVER (in the direction SC to MS)
b1=0 & b0=1 -> SMS-SUBMIT (in the direction MS to SC)
In text mode <vp> is only coded in “relative” format. The default value is 167 (24 hours). This
means that one octet can describe different values :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
105
VP value Validity period value
0 to 143 (VP + 1) x 5 minutes (up to 12 hours)
144 to 167 12 hours + ( (VP – 143) x 30 minutes )
168 to 196 (VP – 166) x 1 day
197 to 255 (VP – 192) x 1 week
<pid> is used to indicate the higher layer protocol being used or indicates interworking with a
certain type of telematic device. For example, 0x22 is for group 3 telefax, 0x24 is for voice
telephone, 0x25 is for ERMES.
<dcs> is used to determine the way the information is encoded. Compressed text is not
supported. Only GSM default alphabet, 8 bit data and UCS2 alphabet are supported.
9.16 Delete message +CMGD
9.16.1 Description :
This command is used to delete one or several messages from prefered message storage
(“BM” SMS CB ‘RAM storage’ or “SM” SMSPP storage ‘SIM storage’).
9.16.2 Syntax :
Command syntax : AT+CMGD=<Index> [,<DelFalg>]
Command Possible responses
+CMTI:”SM”,3
Note : New message received
AT+CMGR=3
Note : Read it
+CMGR: “REC UNREAD”,”0146290800”,,
“98/10/01,18 :19 :20+00” <CR><LF>
Received Message !
Note : Unread message received from
0146290800 on the 01/10/1998 at 18H19m 20s
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
106
AT+CMGD=3
Note : Delete it
OK
Note : Message deleted
AT+CMGD=1,0 OK
Note : The message from the preferred
message storage at the location 1 is deleted
AT+CMGD=1,1 OK
Note : All READ messages from the preferred
message storage are deleted
AT+CMGD=1,2 OK
Note : All READ messages and SENT mobile
originated messages are deleted
AT+CMGD=1,3 OK
Note : All READ, SENT and UNSENT messages
are deleted
AT+CMGD=1,4 OK
Note : All messages are deleted
9.16.3 Defines values
<index> (1-20) When the preferred message storage is “BM”
Integer type values in the range of location numbers of SIM
Message memory when the preferred message storage is “SM”.
<DelFlag> 0 Delete the message at the location <index>.
1 Delete All READ messages
2 Delete All READ and SENT messages
3 Delete All READ, SENT and UNSENT messages
4 Delete All messages.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
107
9.17 Service center address +CSCA
9.17.1 Description
This command shall be used to indicate to which service center the message has to
be sent.
The GSM module has no default value for this address. If the application tries to send
a message without having indicated the service center address, an error will be generated.
So, the application has to indicate this address when initializing. This address is then
valid all the time. The application may change it if needed.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
108
9.17.2 Syntax :
Command syntax : AT+CSCA
Command Possible responses
AT+CMGS= “+33146290800”<CR>
Hello, how are you?<ctrl-Z>
Note : Send a message
+CMS ERROR: 330
Note : service center unknown
AT+CSCA=”0696741234”
Note : Service center initialization
OK
Note :
AT+CMGS=”+33146290800”<CR>
Happy Birthday ! <ctrl-Z>
Note :
+CMGS: 1
OK
Note : Successful transmission
9.18 Select Cell Broadcast Message Types +CSCB
9.18.1 Description :
Set command selects which types of CBMs are to be received by the ME, This
command is allowed in both PDU and text modes.
9.18.2 Syntax :
Command syntax : AT+CSCB= <mode>, [ <mids>, [ <dcss> ] ]
The <bm> parameter of +CNMI command controls the message indication.
Test read command (AT+CSCB ?) is not supported.
The activation of CBM reception (<mode>=0) can select only specific Message
Identifiers (list in <mids>) for specific Languages (list in <dcss>), but the deactivation stops
any reception of CBMs (only AT+CSCB=1 is allowed)
Message Identifiers (<mids> parameter) indicates which type of message identifiers
the ME should listen to.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
109
Supported languages (<dcss> parameter) are : 0 for German, 1 for English, 2 for
Italian, 3 for French, 4 for Spanish, 5 for Dutch, 6 for Swedish, 7 for Danish, 8 for Portugese,
9 for Finnish, 10 for Norwegian, 11 for Greek, 12 for Turkish, 13 for Hungarian, 14 for Polish
and 32 for Czech.
Command Possible responses
AT+CSCB=0,”15-17,50,86”,””
Note : Accept SMS-CB types, 15,16,17,50 and 86 in
any language
OK
Note : CBMs can be received
+CBM : 10<CR><LF>
00112233445566778899
Note : CBM length of a received Cell Broadcast
message (SMS-CB), CBM bytes in PDU mode
AT+CSCB=1
Note : Deactivate the reception of CBMs
AOK
Note : CBM reception is completely stopped
9.19 Cell Broadcast Message Identifiers +WCBM
9.19.1 Description :
This specific command is used to read the SIM file EF-CBMI.
This file is not used with +CSCB command, the application should read this file
(AT+WCBM ?) and combine the Message Identifiers with those required for the application.
9.19.2 Syntax :
Command syntax : AT+WCBM= <mids>
Command Possible responses
AT+WCMB=”10,100,1000,10000”
Note : Write 4 messages identifiers in EF-CBMI
OK
Note : CBMIs are stored in EF-CBMI
AT+WCBM?
Note : Read the CBMIs in EF-CBMI
+WCBM=”10,100,1000,100000”
Note : 4 CBMIs are stored in EF-CBMI
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
110
9.20 Message status modification +WMSC
9.20.1 Syntax :
Command syntax : AT+WMSC= <loc>, <status>
<loc> location number of the stored message (integer)
<status> new status to be stored, as for +CMGL command
Possible responses:
OK if the location is valid
+CMS ERROR: 321 if <loc> is invalid or free
+CMS ERROR: 302 if the new <status> and the previous one are
incompatible (1)
Note 1 : The accepted status changes are from READ to NOT READ and vice versa, and
from SENT to NOT SENT and vice versa.
If all the parameters are correct, the module overwrites the whole SMS in the SIM. Only the
first byte (Status byte) is changed.
9.21 Message overwriting +WMGO
9.21.1 Description :
The +CMGW writes a SMS to the first free location. To write a SMS to a specified
location, the +WMGO specific command forces the module to write a SMS (with +CMGW
command) to the location specified with +WMGO, but just for one +CMGW command.
9.21.2 Syntax :
Command syntax : AT+WMGO= <loc>
<loc> location number of the SIM record to write or overwrite
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
111
Possible responses:
OK if <loc> is a valid SMS location, for AT+WMGO=? And
for AT+WMGO?
+CMS ERROR: 321 if <loc> is out of the SIM capacity range.
+WMGO: <loc> for AT+WMGO?
Then on the next AT+CMGW command, the record number used will be the one
specifed by AT+WMGO command. The location is then forgotten, and in order to make a
second overwrting, the +WMGO has to be used again.
If the external application specifies a free location, and if an incoming message is
received before the AT+CMGW command, the module may store the incoming message in a
free location, which could be unfortunately the one specified by +WMGO (the module does
not prevent this case). Then if the user issues a AT+CMGW command, without changing the
AT+WMGO location, the new message will be overwritten !
Be aware that this location number is not kept over a software reset.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
112
10 Supplementary Services commands
10.1 Call forwarding +CCFC
10.1.1 Description :
This commands allows the control of the call forwarding supplementary service.
10.1.2 Syntax :
Command syntax :
AT+CCFC= <reason>, <mode> [, <number> [,<type> [,<class> [,<subaddr> [,
<satype> [,<time> ] ] ] ] ] ]
Response syntax:
+CCFC: <status>, <class1> [, <number>, <type> [,<subaddr>, <satype> [,<time> ] ] ]
[ <CR><LF>+CCFC: <status>, <class2> [, <number>, <type> [,<subaddr>,
<satype> [,<time> ] ] ] [ … ] ]
Command Possible responses
AT+CCFC=0,3,”0146290800”
Note : Register call forwarding unconditional
OK
Note : Command valid
AT+CCFC=0,2
Note : Interrogate call forwarding unconditional
+CCFC:1,1,”0146290800”,129
Note : Call forwarding active for voice
<CR><LF>+CCFC:1,2,”0146290802”,129
Note : Call forwarding active for data
<CR><LF>+CCFC:1,4,”0146290804”,129
OK
Note : Call forwarding active for fax
AT+CCFC=0,4
Note : Erase call forwarding unconditional OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
113
The +CCFC responses are not sorted depending of the <class> parameter, it only depends
of the order of the network response.
10.1.3 Defined values
<reason> 0 : Unconditional
1 : Mobile busy
2 : No reply
3: Not reachable
4: All call forwarding
5 : All conditional call forwarding
<mode> 0 :Disable
1 : Enable
2 : Interrogate
3: Registration
4: Erasure
<class> 1 :Voice
2 : Data
4: Fax
8 : Short Messages
7 : All classes
The combination of different classes in not supported, it will only result in the activation /
deactivation / status request of all classes (7).
<subaddr>, <satype> : not managed
<time> : For Call Forwarding on No Reply, time to wait (1 to 30) in
seconds before call is forwarded, default value is 20 seconds.
10.2 Call barring +CLCK
10.2.1 Description :
This commands allows the control of the call barring supplementary service.
Locking, unlocking or querying the status of a call barring is possible for all or a
specific class.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
114
10.2.2 Syntax :
Command Syntax : AT+CLCK= <fac>, <mode> [, <password> [, <class> ] ]
Response Syntax: (for <mode>=2 and command successful)
+CLCK: <status> [, <class1> [ <CR><LF>+CLCK: <status>, <class2> [ … ] ]
Command Possible responses
AT+CLCK=”AO”,1,1234
Note :
OK
Note : Command valid
AT+CLCK=”AO”,0,5555
Note :
+CME ERROR: 16
Note : Wrong password
AT+CLCK=”AO”,0,1234
Note :
OK
Note : Command valid
<fac> “AO”, “OI”, “OX” : for outgoing calls barring
“AI”, “IR” : for incoming calls barring
“AI”, “IR” : for incoming calls barring
“AG”, “AC”,”AB” : for all calls barring (<mode>=0 only)
<mode> 0 : Unlocks the facility
1 : Locks the facility
2 : Query status
<class> : see description for +CLCK command (Facility lock) or
+CCFC(Call forwarding).
The combination of different classes in not supported, it will only result in the
activation / deactivation / status request of all classes (7).
Password code must be on 4 digits maximum.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
115
10.3 Modify SS password +CPWD
10.3.1 Description :
This command shall be used by the application to change the supplementary service
password.
10.3.2 Syntax :
Command Syntax: AT+CPWD=<fac>,<OldPassword>, <NewPassword>
for <fac> see +CLCK command with only “P2” facility added (SIM PIN2).
Command Possible responses
AT+CPWD=”AO”,1234,5555
Note : Change Call Barring password
OK
Note : Password changed
AT+CPWD=”AO”,1234,5555
Note : Change password
+CME ERROR: 16
Note : Wrong password
AT+CPWD=”AO”,5555,1234
Note : Change password
OK
Note : Password changed
Whatever the facility, the change of password is performed for all calls barring.
10.4 Call waiting +CCWA
10.4.1 Description :
This command allows the control of the call waiting supplementary service.
The module will send an unsolicited result code +CCWA when call waiting service is
enabled.
10.4.2 Syntax :
Command Syntax : AT+CCWA=<n>, [ <mode> [, <class> ] ]
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
116
Response Syntax: (for <mode>=2 and command successful)
+CCWA: <status> [, <class1> [ <CR><LF>+CCWA: <status>, <class2>
[ … ] ]
Unsolicited result: +CCWA: <number>, <type>, <class> [ ,<alpha>] (when waiting
service is enabled)
Command Possible responses
AT+CCWA=1,1,1
Note : Enable call waiting for speech
OK
Note : Command valid
AT+CCWA=1,2
Note : Interrogate call waiting
+CCWA:1,1
OK
Note : Call waiting active for speech calls
+CCWA:”0146290800”,145,1,”FREDDY”
or
+CCWA:”0146290800”,145,1,”8023459678FFFF”
(UCS2 format)
Note : Number and name of the waiting voice call
Note :
AT+CCWA=1,0,7
Note : Erase call waiting
OK
Note : Command valid
+CCWA:,,1
Note : Waiting voice call without number
10.4.3 Defined values :
<n> : result code presentation status in the TA
<n> 0 : Disable
1 : Enable
<mode> 0 : Disable
1 : Enable
2 : Query status
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
117
<class> 1 : Voice
2 : Data
4: Fax
8 : Short Messages
7 : All classes
The combination of different classes is not supported, it will only result in the
activation / deactivation / status request of all classes (7).
<alpha> : optionnal string type alphanumeric representation of
<number> corresponding to the entry found in the ADN or
FDN phonebook.
10.5 Calling line identification restriction +CLIR
10.5.1 Description :
This command allows control of the calling line identification restriction supplementary
service.
10.5.2 Syntax :
Command syntax : AT+CLIR=<n>
Response syntax : +CLIR :<n>,<m> (for AT+CLIR ?)
Command Possible responses
AT+CLIR=2
Note :
OK
Note : Command valid
AT+CLIR ?
Note : Ask for current functionality
+CLIR :<n>,<m>
OK
Note : <n> and <m> defined as below
10.5.3 Defined values :
<n> : parameter sets the adjustment for outgoing calls
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
118
<n> 0 : Presentation indicator is used according to the subscription of the
CLIR service
1 : CLIR invocation
2 : CLIR suppression
<m> : parameter shows the subscriber CLIR status in the network
<m> 0 : CLIR not provisioned
1 : CLIR provisioned in permanent mode
2 : Unknown (no network…)
3 : CLIR temporary mode presentation restricted
4 : CLIR temporary mode presentation allowed
10.6 Calling line identification presentation +CLIP
10.6.1 Description :
This command allows the control of the calling line identification presentation
supplementary service. When the presentation of the CLI (Calling Line Identification) is
enabled (and calling subcriber allows), +CLIP response is returned after every RING (or
+CRING) result code.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
119
10.6.2 Syntax :
Command syntax : AT+CLIP=<n>
Response syntax : +CLIP: <n>,<m> for AT+CLIP?
+CLIP: <number>, <type>[ ,<subaddr>, <satype>, <alpha> ]
for an incoming call, after each RING or +CRING indication
Command Possible responses
AT+CLIP=1
Note : Enable CLIP
OK
Note : CLIP is enabled
AT+CLIP?
Note : Ask for current functionality
+CLIP:<n>,<m>
OK
Note : <n> and <m> defined as below
RING
Note : Incoming call
+CLIP: “0146290800”,129,1,,,”FRED”
or
+CLIP: “0146290800”,129,1,,,”8000204212FFFF”
(UCS2 format)
Note : Incoming call with number and name
presentation
AT+CLIP=0
Note : Disable CLIP presentation
OK
Note : Command valid
10.6.3 Defined values :
<n> : parameter sets/shows the result code presentation in the TA
<n> 0 : Disable
1 : Enable
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
120
<m> : parameter shows the subscriber CLIP service status in the network
<m> 0 : CLIP not provisioned
1 : CLIP provisioned
2 : Unknown (no network…)
10.7 Connected line identification presentation +COLP
10.7.1 Description :
This command allows control of the connected line identification presentation
supplementary service, useful in case of call forwarding of the connected line.
10.7.2 Syntax :
Command syntax : AT+COLP=<n>
Response syntax: +COLP: <n>,<m> for AT+COLP?
+COLP: <number>,<type> [ ,<subaddr>, <satype>, <alpha> ]
after ATD command, before OK or CONNECT <speed>
Command Possible responses
AT+COLP=1
Note : Activate COLP
OK
Note : Command valid
AT+COLP?
Note : Ask for current functionality
+COLP:1,1
OK
Note : COLP is enabled and provisioned
ATD146290928;
Note : Outgoing call
+COLP:”0146290928”,129,,,”JOE”
or
+COLP:“0146290800”,129,1,,,”8000204212FFFF”
(UCS2 format)
OK
Note : Connected outgoing line number and
name presentation
AT+COLP=0
Note : Desactivate COLP
OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
121
10.7.3 Defined values
<n> : parameter sets/shows the result code presentation status in the TA
<n> 0 : Disable
1 : Enable
<m> : parameter shows the subscriber COLP service status in the network
<m> 0 : COLP not provisioned
1 : COLP provisioned
2 : Unknown (no network)
10.8 Advice of charge +CAOC
10.8.1 Description :
This refers to Advice of Charge supplementary service (GSM 02.24 [] and
GSM 02.86 []) which enables the subscriber to get information about the calls cost. With
<mode>=0, the execute command returns the current call meter value (CCM) from the ME.
If AOC is supported, the command also includes the possibility to enable an
unsolicited event reporting of the CCM information.
The unsolicited result code +CCCM: <ccm> is sent when the CCM value changes.
Deactivation of the unsolicited event reporting is made with the same command.
If AOC is supported, the Read command indicates whether the unsolicited reporting is
activated or not.
10.8.2 Syntax :
Command syntax : AT+CAOC= <mode>
Command Possible responses
AT+CAOC=0
Note : Query CCM value
+CAOC: “000A08”
OK
Note : Display Current Call Meter value
(CCM=2568)
AT+CAOC=1 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
122
Note : Deactivate unsolicited report of CCM value Note : CCM report deactivated
AT+CAOC=2
Note : Activate unsolicited report of CCM value
OK
Note : CCM report activated
AT+CAOC ?
Note : Request mode
+CAOC :<mode>
OK
Note : Display unsolicited report mode (1 or 2)
AT+CAOC=?
Note : Request supported modes
+CAOC : (0-2)
OK
Note : 0,1,2 modes supported
10.8.3 Defined values :
<mode> 0 : query CCM value
1 : deactivate the unsolicited reporting of CCM value
2 : activate the unsolicited reporting of CCM value
<ccm> string type; three bytes of the current call meter value in hexadecimal
format.
(e.g. “00001E” indicates decimal value 30); value is in home units and
bytes are similarly coded as ACMmax value in the SIM
10.9 Accumulated call meter +CACM
10.9.1 Description :
Set command resets the Advice of Charge related accumulated call meter value in
SIM file EFACM. ACM contains the total number of home units for both the current and
preceding calls. SIM PIN2 is required to reset the value. If setting fails in an ME error, +CME
ERROR: <err> is returned.
Read command returns the current value of ACM.
Then ACM value (entered or displayed) is in hexadecimal format with 6 digits.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
123
10.9.2 Syntax :
Command syntax : AT+CACM
Command Possible responses
AT+CACM?
Note : Request ACM value
+CACM: “000400”
OK
Note : Display ACM value (ACM=1024)
AT+CACM= 1234
Note : Request ACM reset, real PIN2 is “1234”
OK
Note : ACM value is reset
AT+CACM= 0000
Note : Request ACM reset with wrong PIN2 value
+CME ERROR : 16
Note : Incorrect password
AT+CACM ?
Note : Request ACM value
+CACM: “000000”
OK
Note : Display ACM value (ACM = 0)
10.10 Accumulated call meter maximum +CAMM
10.10.1 Description :
Set command sets the Advice of Charge related accumulated call meter maximum
value in SIM file EFACMmax. ACMmax contains the maximum number of home units the
subscriber is allowed to consume. When ACM (refer +CACM) reaches ACMmax, then calls
are prohibited. SIM PIN2 is required to set the value. If setting fails in an ME error, +CME
ERROR: <err> is returned.
Read command returns the current value of ACMmax.
Then ACMmax value (entered or displayed) is in hexadecimal format with 6 digits.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
124
10.10.2 Syntax :
Command syntax : AT+CAMM
Command Possible responses
AT+CAMM=”000400”,1234
Note : Request ACMmax update, real PIN2 is
“1234”
OK
Note : ACMmax updated to 1024
AT+CAMM=”000400”,0000
Note : Request ACMmax update, real PIN2 is
“1234”
+CME ERROR : 16
Note : Incorrect password
AT+CAMM ?
Note : Request ACMmax value
+CAMM : “000400”
OK
Note : ACMmax = 1024
10.11 Price per unit and currency table +CPUC
10.11.1 Description :
Set command sets the parameters of Advice of Charge related price per unit and
currency table in SIM file EFPUCT. PUCT information can be used to convert the home units
(as used in +CAOC, +CACM and +CAMM) into currency units. SIM PIN2 is required to set
the parameters. If setting fails in an ME error, +CME ERROR: <err> is returned.
10.11.2 Syntax :
Command Possible responses
AT+CPUC=”FFR”,”0.82”,1234
Note : Request Currency and Price per unit
update
OK
Note :
AT+CPUC=”FFR”,”0.82”,1111
Note : Re
q
uest Currenc
y
and PPU u
p
date
(
wron
g
+ CME ERROR : 16
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
125
PIN2) Note : Incorrect password
AT+CPUC?
Note : Request Currency and Price
+CPUC:”FFR”,”0.82”
OK
Note : Currency= “FFR”
Price per unit= “0.82”
10.12 Call related supplementary services +CHLD
10.12.1 Description :
This command is used to manage call hold and multiparty conversation (conference call).
Calls can be put on hold, recovered, released or added to conversation.
10.12.2 Syntax :
Command syntax: AT+CHLD= < n >
Response syntax: +CHLD: (0-4, 11-17, 21-27) for AT+CHLD=?
10.12.3 Defined values
<n> 0 : Release all held calls or set User Determined User
Busy (UDUB) for a waiting call.
1 : Release all active calls (if any exist) and accepts the
other (held or waiting) call.
1X: Release a specific call X (active, held or waiting)
2 : Place all active calls (if any exist) on hold and accepts
the other (held or waiting) call.
2X : Place all active calls on hold except call X with which
communication is supported.
3: Adds a held call to the conversation.
4 : Connects the two calls and disconnects the subscriber
from both calls (Explicit Call Transfer).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
126
10.13 List current calls +CLCC
10.13.1 Description :
This command is used to return the list of current calls.
10.13.2 Syntax :
Command syntax : AT+CLCC
Response syntax: OK if no calls are available
+CLCC : <id1>, <dir>, <stat>, <mode>, <mpty>
[ ,<number>, <type> [ <alpha> ] ]
[ <CR><LF> +CLCC: <id2>, <dir>, <stat>, <mode>, <mpty>
[ ,<number>, <type> [ <alpha> ] ] [. . . ] ] ]
10.13.3 Defined values :
<idx> integer type, call identification as described in GSM 02.30
<dir> 0 : mobile originated (MO) call
1: mobile terminated (MT) call
<stat> (state of the call):
<stat> 0 : active
1 : held
2 : dialing (MO call)
3 : alerting (MO call)
4 : incoming (MT call)
5 : waiting (MT call)
<mode> (teleservice) :
<mode> 0 : voice
1 : data
2 : fax
9 : unknown
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
127
<mpty> 0 : call is not one of multiparty (conference) call parties
1 : call is one of multiparty (conference) call parties
<number> string type phone number in format specified by <type>
<type> type of address octet in integer format
<alpha> optional string type alphanumeric representation of <number>
corresponding to the entry found in phonebook. (for UCS2 format
see commands examples +CLIP, +CCWA or +COLP)
10.14 Supplementary service notifications +CSSN
10.14.1 Description :
This command refers to supplementary service related network initiated notifications.
When <n>=1 and a supplementary service notification is received after a mobile
originated call setup, intermediate result code +CSSI:<code1> is sent before any other MO
call setup result codes.
When <m>=1 and a supplementary service notification is received during a call,
unsolicited result code +CSSU:<code2> is sent.
10.14.2 Syntax :
Command syntax: AT+CSSN= <n>, <m>
Response syntax: +CSSN: <n>, <m> for AT+CSSN?
+CSSN: (0-1), (0-1) for AT+CSSN=?
10.14.3 Defined values
<n> (parameter sets/shows the +CSSI result code presentation status):
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
128
<n> 0 : disable
1 : enable
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
129
<m> (parameter sets/shows the +CSSU result code presentation status):
<m> 0 : disable
1 : enable
<code1> 5 : outgoing calls are barred
6 : incoming calls are barred
7 : CLIR suppresssion rejected
<code2> 2 : call has been put on hold (during a voice call)
3 : call has been retrieved (during a voice call)
4 : : multiparty call entered (during a voice call)
5 : call on hold has been released (during a voice call)
10.15 Unstructured supplementary service data +CUSD
10.15.1 Description :
The USSD supplementary service is described by the GSM 02.90.
It is based on digit sequences which may be entered by mobile user with a handset.
An entered sequence is sent to the network which answers back with a alphanumerical
string, only to display, or to display and to ask for a next sequence.
This command is used to :
- enable or disable the CUSD indication sent to the application by the module
when a incomming USSD is received
- send and receive USSD strings.
For the first behavior, the syntax is :
10.15.2 Syntax :
Command syntax : AT+CUSD = <n> [ ,<str> [ <dcs> ] ]
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
130
10.15.3 Defined values :
<n> 0 : Disable the result code presentation
1 : Enable the result code presentation
2 : Cancel session (not applicable to read command response)
In case of enabled presentation, a +CUSD (as direct answer to a send USSD) is then
indicated with :
+CUSD: <m> [,<str>,<dcs> ]
<m> 0 : no further user action required (network initiated
USSD-Notify, or no further information needed after
mobile initiated operation)
1 : further user action required (network initiated
USSD-Request, or further information needed after
mobile initiated operation)
2 : USSD terminated by network
4 : Operation not supported
<str> is network string, converted in the selected character set (HEX mode is not
supported).
<dcs> is the data coding sheme received (GSM TS 03.38).
10.15.4 Syntax To send and receive USSD :
Command syntax: AT+CUSD= <n> [,<str> [,<dcs>]]
Note : Please, be aware that the send command asks the user to re-enter the enable/disable
(<n>) parameter !
10.15.5 Defined values To send and receive USSD :
<str> is the USSD string to be sent.
<dcs> only the default alphabet value is supported (which is the default value when
the parameter is absent).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
131
When the module sends an USSD, an OK response is first returned. The intermediate
+CUSD indication comes after. In case of error, a +CUSD: 4 indication is returned back.
10.16 Closed user group +CCUG
10.16.1 Description :
The Closed User Group Supplementary Service enables subscribers to form closed
user groups to and from which access is restricted.
The CUG supplementary service is described by the GSM 02.85. This service shall
be provided after prior arrangement with the service provider. At provision subscription
options should be selected.
+CCUG command is used to :
- activate/deactivate the control of the CUG information for all following
outgoing calls.
- select a CUG index,
- suppress the outgoing access (OA). The OA allows a member of a
CUG to place calls outside the CUG.
- Suppress the preferential CUG. The preferential is the default CUG
used by the network when it does not receive explicit CUG index.
10.16.2 Syntax :
Command syntax: AT+CCUG = <n> [ ,<index> [ <info> ] ]
10.16.3 Defined values :
<n> 0 : Disable CUG mode (default)
1 : Enable CUG mode
<index> 0-9 : CUG index (0 default),
10 : Preferred CUG
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
132
<info> 0 : No information (default)
1 : Suppress OA
2 : Suppress preferential CUG
3 : Suppress OA and preferential CUG
To activate the control of the CUG information by call, add [G] or [g] to the ATD
command. Index and info values will be used.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
133
11 . Data commands
11.1 Bearer type selection +CBST
11.1.1 Description :
This command applies to both outgoing and incoming data calls but in a different
way. For outgoing call the two parameters (e.g. <speed> and <ce>) apply, whereas for
incoming call only the <ce> parameter applies.
Note 1) as far as incoming calls are concerned, if <ce> is set to T only and the network
proposes NT only or vice versa, then the call is released.
Note 2) former values 100 and 101 for <ce> are retained for compatibility purpose but shall
not be used anymore, values 2 and 3 shall be used instead.
11.1.2 Syntax :
Command syntax: AT+CBST= <speed>, <name>, <ce>
Command Possible responses
AT+CBST=?
Note : Test command
+CBST: (0-8,65,66,68,70,71),(0),(0-3)
OK
Note : Data 14,4 kbps not supported
AT+CBST=?
Note : Test command
+CBST: (0-8,12,14,65,66,68,70,71,75),(0),(0-3)
OK
Note : Data 14,4 kbps not supported
AT+CBST=7,0,1
Note : Ask for a bearer
OK
Note : Bearer supported
AT+CBST?
+CBST:7,0,1
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
134
Note : Current values Note : Command valid
AT+CBST=81,0,0
Note : Ask for a bearer
+CME ERROR : 4
Note : Bearer not supported
11.1.3 Defined values :
No data compression is provided and only asynchronous modem is supported (<name> = 0).
<speed> 0(default) : Autobauding (Modem type : none)
1 : 300 bps (Modem type : V.21)
2 : 1200 bps (Modem type V.22)
3: 1200/75 bps (Modem type : V.23)
4 : 2400 bps (Modem type : V.22bis)
5 : 2400 bps (Modem type : V.26ter)
6 : 4800 bps (Modem type : V.32)
7 : 9600 bps (Modem type : V.32)
8 : Specific
12(*) : 9600 bps (Modem type : V.34)
14(**) : 1400 bps (Modem type : V.34)
65 : 300 bps (Modem type : V.110)
66 : 1200 bps (Modem type : V.110)
68 : 2400 bps (Modem type : V.110)
70 : 4800 bps (Modem type : V.110)
71 : 9600 bps (Modem type : V.110)
75(*) : 14400 bps (Modem type V.110)
(*) Available for WISMO2C only
(**) Available for WISMO2C only. This speed configure the data and fax 14.4 kbps bearers.
<ce> : Connection element
<ce> 0 : Transparent only
1 (default) : Non transparent only
2 : Transparent preferred
3 : Non transparent preferred
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
135
11.2 Select mode +FCLASS
11.2.1 Description
This command puts the module into a particular mode of operation (data or fax).
11.2.2 Syntax :
Command syntax: AT+FCLASS= <n>
Command Possible responses
AT+FCLASS=?
Note : Test command
+FCLASS: (0,1)
OK
Note : Fax class 2 not supported
AT+FCLASS=?
Note : Test command
+FCLASS: (0,1,2)
OK
Note : Fax class 2 supported
AT+FCLASS=0
Note : Data mode asked
OK
Note : Command valid
AT+FCLASS=1
Note : Fax class 1 mode asked
OK
Note : Command valid
AT+FCLASS?
Note : Current value
+FCLASS: 1
OK
Note : Command valid
11.2.3 Defined values :
<n> 0 : Data
1 : Fax class 1
2(*) : Fax class 2
(*) Available for WISMO2C only
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
136
11.3 Service reporting control +CR
11.3.1 Description :
This command enables a more detailed service reporting, in case of data incoming
or outgoing call. Before sending the CONNECT response to the application, the GSM
module will precise the type of data connection that have been established.
These report types are :
+CR: ASYNC For asynchronous transparent
+CR: REL ASYNC For asynchronous non-transparent
11.3.2 Syntax :
Command syntax : AT+CR
Command Possible responses
AT+CR=0
Note : Extended reports disabled
OK
Note : Command valid
AT+CR=1
Note : Extended reports enabled
OK
Note : Command valid
11.4 Cellular result codes +CRC
11.4.1 Description :
This command enables a more detailed ring indication, in case of incoming call
(voice or data). Instead of the string “RING”, an extended string is used to indicate which
type of call is ringing (e.g. +CRING: VOICE).
These extended indications are :
+CRING: ASYNC for asynchronous transparent
+CRING: REL ASYNC for asynchronous non-transparent
+CRING: VOICE for normal speech.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
137
+CRING : FAX for fax calls
11.4.2 Syntax :
Command syntax : AT+CRC
Command Possible responses
AT+CRC=0
Note : Extended reports disabled
OK
Note : Command valid
AT+CRC=1
Note : Extended reports enabled
OK
Note : Command valid
11.5 DTE-DCE local rate reporting +
++
+ILRR
11.5.1 Description :
This parameter controls whether or not the extended-format “+ILRR:<rate>”
information text is transmitted from the DCE to the DTE. The <rate> reported shall represent
the current (negotiated or renegotiated) DTE-DCE rate.
If enabled, the intermediate result code is transmitted in a data incoming or
outgoing call, after any data compression report, and before any final result code
(CONNECT).
<rate> can take the following values: 300, 600, 1200, 2400, 4800, 9600, 19200,
38400, 57600, 115200.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
138
11.5.2 Syntax :
Command syntax : AT+ILRR
Command Possible responses
AT+ILRR=0
Note : Local port rate report disabled
OK
Note : Command valid
AT+ILRR=1
Note : Local port rate report enabled
OK
Note : Command valid
11.6 Radio link protocol parameters +CRLP
11.6.1 Description :
This command allows to change the radio link protocol parameters used for non
transparent data transmission.
11.6.2 Syntax :
Command syntax: AT+CRLP=<iws>,<mws>,<T1>,<N2>, <ver>
Command Possible responses
AT+CRLP=?
Note : Test command
+CRLP: (0-61),(0-61),(40-255),(1,255),(0)
OK
Note : V42bis not supported
AT+CRLP=?
Note : Test command
+CRLP: (0-61),(0-61),(40-255),(1,255),(0,1)
OK
Note : V42bis supported
AT+CRLP=61,61,48,6,0
Note : Set new parameters
OK
Note : Command valid
AT+CRLP?
Note : Current values
AT+CRLP: 61,61,48,6,0
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
139
11.6.3 Defined values :
This command accepts 5 parameters.
<iws> 0-61 Down window size, (default is 61),
<mws> 0-61 : Up window size, (default is 61),
<T1> 40-255 : Acknowledgement timer in units of 10ms, (default
is 48),
<N2> 1-255 : Retransmission attempts, (default is 6),
<ver> 0-1 : Version number.
If the V42bis is supported (Wismo2C) the
version is 1.
If the V42bis is not supported the version is 0
11.7 Others radio link parameters +DOPT
11.7.1 Description :
This Wavecom specific command allows to change some supplementary radio link
protocol parameters.
11.7.2 Syntax :
Command syntax: AT+DOPT=<reset_allowed>,<dtx_allowed>
Command Possible responses
AT+DOPT=?
Note : Test command
(0,1),(0)
OK
Note : DTX not supported (WISMO1B)
AT+DOPT=1,1
Note : Set new parameters
+CME ERROR : 3
Note : Command not valid
AT+DOPT=1
Note : Set new parameters
OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
140
AT+DOPT+?
Note : Test command
(0,1),(0,1)
OK
Note : DTX is supported (WISMO2C)
AT+DOPT=1,1
Note : Set new parameters
OK
Note : Command valid
AT+DOPT?
Note : Current values
1,1
OK
Note : Command valid
11.7.3 Defined values :
<reset_allowed> 0 : Data communication is hung up in case
of bad radio link.
1(default) : Data communication goes on in case of
bad radio link (possible loose of data)
The <dtx_allowed> parameter is used for WISMO2C only.
< dtx_allowed > 0 : Normal mode
1(default) : Economic battery mode (not supported by
all networks)
11.8 Select data compression %C
11.8.1 Description :
This command enables or disables data compression negotiation if this feature is
provided by the module. This command is available for WISMO2C only.
11.8.2 Syntax :
Command syntax : AT%C<n>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
141
Command Possible responses
AT%C0
Note : Command
OK
Note : Feature supported
AT%C2
Note : Command
OK
Note : V42bis supported
AT%C?
Note : Current value
2
OK
Note : Command valid
11.8.3 Defined values :
<n> 0(default) : no compression
2 : V42bis compression if supported
11.9 V42 bis data compression +DS
11.9.1 Description :
This command enables or disables V.42bis data compression if this feature is
provided by the module. This command is available for WISMO2C only.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
142
11.9.2 Syntax :
Command syntax : AT+DS=<dir>,<neg>,<P1>,<P2>
Command Possible responses
AT+DS=?
Note : Test command
+DS: (0-3),(0,1),(512-4096),(6-250)
OK
Note :
AT+DS=3,0,4096,250
Note : Set new parameters
OK
Note : Command valid
AT+DS?
Note : Current values
+DS: 3,0,4096,20
OK
Note : Command valid
11.9.3 Defined values :
It accepts four numeric subparameters:
<
< <
< dir >
> >
>:specifies the desired direction(s) of operation of the data compression function; from
the DTE point of view, (default is 3),
<dir> 0 : Negotiated … no compression
1 : Transmit only
2 : Receive only
3 : Both directions, accept any direction
<
< <
< neg >:
>: >:
>: specifies whether or not the DCE should continue to operate if the desired result is
not obtained, (default is 0),
< neg > 0 : Do not disconnect if V.42 bis is not negotiated by the remote DCE
as specified in <dir>
1 : Disconnect if V.42 bis is not negotiated by the remote DCE as
specified in <dir>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
143
<
P1 > 512-4096 : which specifies the maximum number of dictionary entries
which should be negotiated, (default is 4096),
< P2 > 6-250 : which specifies the maximum string length to be negotiated,
(default is 250),
11.10 V42 bis data compression report +DR
11.10.1 Description :
If this feature is provided by the module, this command determines whether or not the
use of V42bis is informed in a data incoming or outgoing call,.
The intermediate result code shall represent the current DCE-DCE data compression
type. The format of this result code is the following:
+DR: NONE Data compression is not in use
+DR: V42B Rec. V.42 bis is in use in both directions
+DR: V42B RD Rec. V.42 bis is in use in receive direction only
+DR: V42B TD Rec. V.42 bis is in use in transmit direction only
The +DR intermediate result code, if enabled, is issued before the final result
code,before the +ILRR intermediate report, and after the service report control +CR.
11.10.2 Syntax :
Command syntax : AT+DR
Command Possible responses
AT+DR=?
Note : Test command
+DR: (0-1)
OK
Note :
AT+DR=1 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
144
Note : Reporting enabled Note : Command valid
AT+DR?
Note : Current value
+DR: 1
OK
Note : Command valid
11.11 Select data error correcting mode \N
11.11.1 Description :
If this feature is provided by the module, this command controls the preferred error
correcting mode in a data connection. It can only be used for transparent data
transmission.
This command is available for WISMO2C only.
If V42 feature is provided, the module authorizes the LAPM error correction mode.
If MNP2 feature is provided, the module authorizes the MNP error correction mode.
11.11.2 Syntax :
Command syntax : AT\N<n>
Command Possible responses
AT\N0
Note : Command
OK
Note :
AT\N?
Note : Current value
0
OK
Note : Command valid
11.11.3 Defined values :
<n> 0(default) : Disables error correction mode
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
145
2 : Selects an auto reliable mode(LAPM connection,then
MNP connection)
4 : Selects LAPM error correction mode
5 : Selects MNP error correction mode
Note: +E prefixed commands of V.25 ter are not used.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
146
12 Fax commands
The fax service provided by the module is class 1 compatible. However only the core
commands defined by ITU T.31 are supported. It means that commands like AT+FAR,
+FCC,… are not supported.
Autobauding has to be enabled to set up the module for fax.
All set commands below return an ERROR response code if they are not issued during
the communication.
12.1 Transmit speed +FTM
12.1.1 Description :
This command sets the fax transmit speed.
12.1.2 Syntax :
Command syntax: AT+FTM=<speed>
Command Possible responses
AT+FTM=?
Note : Test command
(24,48,72,96)
OK
Note : Fax 14.4 kbps not supported (WISMO1B)
AT+FTM=?
Note : Test command
(24,48,72,73,74,96,97,98,121,122,145,146)
OK
Note : Fax 14.4 kbps supported (WISMO2C)
12.1.3 Defined values :
<speed> 24 : 2400 bps (Modem type : V.27ter)
48 : 4800 bps (Modem type : V.27ter)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
147
72 : 7200 bps (Modem type : V.29)
73(*) : 7200 bps (long) (Modem type : V.17)
74(*) : 7200 bps (short) (Modem type : V.17)
96 : 9600 bps (Modem type : V.29)
97(*) : 9600 bps (long) (Modem type : V.17)
98(*) : 9600 bps (short) (Modem type : V.17)
121(*) : 12000 bps (long) (Modem type : V.17)
122(*) : 12000 bps (short) (Modem type : V.17)
145(*) : 14400 bps (long) (Modem type : V.17)
146(*) : 14400 bps (short) (Modem type : V.17)
(*) Available for WISMO 2C only
12.2 Receive speed +FRM
12.2.1 Description :
This command sets the fax receive speed.
12.2.2 Syntax :
Command syntax: AT+FRM=<speed>
Command Possible responses
AT+FRM=?
Note : Test command
(24,48,72,96)
OK
Note : Fax 14.4 kbps not supported (WISMO1B)
AT+FRM=?
Note : Test command
(24,48,72,73,74,96,97,98,121,122,145,146)
OK
Note : Fax 14.4 kbps supported (WISMO2C)
12.2.3 Defined values :
The speed values are the same than these of +FTM command (see 12.1.3 Defined values).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
148
12.3 HDLC transmit speed +FTH
12.3.1 Description :
This command sets the fax transmit speed, using the HDLC protocol.
12.3.2 : Syntax
Command syntax: AT+FTH=<speed>
Command Possible responses
AT+FTH=?
Note : Test command
(3)
OK
Note :
12.3.3 Defined values :
<speed> can only take the value 3, which corresponds to V.21 channels 300 bps.
12.4 HDLC receive speed +FRH
12.4.1 Description :
This command sets the fax receive speed, using the HDLC protocol.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
149
12.4.2 Syntax :
Command syntax: AT+FRH=<speed>
Command Possible responses
AT+FRH=?
Note : Test command
(3)
OK
Note :
12.4.3 Defined values :
<speed> can only take the value 3, which corresponds to V.21 channels 300 bps.
12.5 Stop transmission and wait +FTS
12.5.1 Description :
This command stops the transmission for the specified period.
12.5.2 Syntax :
Command syntax: AT+FTS=<n>
Command Possible responses
AT+FTS=?
Note : Test command
(0-255)
OK
Note :
AT+FTS=50
Note : Stops transmission and waits 0.5 s
OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
150
12.5.3 Defined values :
<n> : silence period (units of 10 ms).
12.6 Receive silence +FRS
12.6.1 Description :
This command causes the modem to stop listening from the network and report back
to the DTE after the specified period.
It is aborted if any character is received from the application.
12.6.2 Syntax :
Command syntax: AT+FRS=<n>
Command Possible responses
AT+FRS=?
Note : Test command
(0-255)
OK
Note :
AT+FRS=50
Note : Stops transmission and waits 0.5 s
OK
Note : Command valid
12.6.3 Defined values :
<n> is in units of 10 ms.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
151
12.7 Setting up the PC fax application:
The recommended fax application is Delrina WinFax v8.0.
It should be configured as follows (menu Setup/Fax Modem Setup) :
♦ Port: any com
♦ Model: Generic Class 1 (hardware flow control). A generic class 1
with software flow control can also be selected.
♦ Init: default string is suitable for the module
♦ Reset: default string is suitable for the module
♦ Maximum Transmit Rate: 9600 baud (if higher then rate will be
automatically cut back to 9600 baud).
Others settings are of no relevance for the GSM unit: they can be modified.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
152
13 Fax class 2 commands
All commands below are available for WISMO2C only.
If the feature is present, the commands +FDT, +FDR, +FET, +FPTS and +FK have to
be used in communication only.
The other commands +FBOR, +FBUF, +FCQ, +FCR, +FDCC, +FDIS, +FLID and
+FPHCTO can not be used in communication.
13.1 Transmit Data +FDT
13.1.1 Description :
This command prefixes data transmission.
13.1.2 Syntax :
Command syntax: AT+FDT
13.2 Receive Data +FDR
13.2.1 Description :
This command initiates data reception.
13.2.2 Syntax :
Command syntax : AT+FDR
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
153
13.3 Transmit page punctuation +FET
13.3.1 Description :
This command punctuates page and document transmission after +FDT commands.
It indicates that the current page is complete, and whether or not there are additional pages
to be sent.
13.3.2 Syntax :
Command syntax: AT+FET=<ppm>
13.3.3 Defined values :
<ppm> 0 : Another page next, same document
1 : Another document next
2 : No more pages or documents
3 : Another partial page next
4 : Another page, procedure interrupt
5 : Another document, procedure interrrupt
6 : All done, procedure interrupt
The remote station should respond with +FPTS:<ppr>
13.4 Page transfer status parameters +FPTS
13.4.1 Description :
This command sets post page transfer response.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
154
13.4.2 Syntax :
Command syntax: AT+FPTS=<ppr>
13.4.3 Defined values :
<ppm> 1 : Page good
2 : Page bad ; retrain requested
3 : page good ; retrain requested
4 : Page bad ; interrupt requested
5 : Page good ; interrupt requested
13.5 Terminate Session +FK
13.5.1 Description :
This command causes the module to terminate the session.
13.5.2 Syntax :
Command syntax: AT+FK
13.6 Page transfer bit order +FBOR
13.6.1 Description :
This command sets the bit order for negociation and fax page transfer. The order is
related to the bit order or radio link.
13.6.2 Syntax :
Command syntax: AT+FBOR=<n>
Command Possible responses
AT+FBOR=?
Note : Test command
(0-3)
OK
Note :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
155
13.6.3 Defined values :
<n> Bit order for negociation Bit order for page transfer
0(default) Same Same
1 Same Reverse
2 Reverse Same
3 Reverse Reverse
13.7 Buffer size report +FBUF
13.7.1 Description :
This command request the size of the exchange buffer between the modem and the
fax application.
Only the read command is supported.
13.7.2 Syntax :
Command syntax : At+FBUF
Command Possible responses
AT+FBUF?
Note : Current value
1024
OK
Note : Command valid
13.8 Copy quality checking +FCQ
13.8.1 Description :
This command controls the Copy Quality checking for receiving faxs.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
156
13.8.2 Syntax :
Command syntax : AT+FCQ=<n>
Command Possible responses
AT+FCQ=?
Note : Test command
(0)
OK
Note :
13.9 Capability to receive +FCR
13.9.1 Description :
This commands controls the capability of the modem to accept incoming faxs.
13.9.2 Syntax :
Command syntax: AT+FCR=<n>
Command Possible responses
AT+FCR=?
Note : Test command
(0,1)
OK
Note :
13.9.3 Defined values :
<n> 0 : The modem will not accept incoming faxs.
1(default) : The modem will accept incoming faxs.
13.10 Current sessions parameters +FDIS
13.10.1 Description :
This command allows the DTE to parameter the capabilities used for the current session.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
157
13.10.2 Syntax :
Command syntax: AT+FDIS=<vr>,<br>,<wd>,<ln>,<df>,<ec>,<bf>,<st>
Command Possible responses
AT+FDIS=?
Note : Test command
(0,1),(0-5),(0-2),(0-2),(0,3),(0-2),(0),(0-7)
OK
Note : Fax ECM supported
Fax 14,4 kbps supported
AT+FDIS=?
Note :
(0,1),(0-5),(0-2),(0-2),(0,3),(0),(0),(0-7)
OK
Note : Fax ECM not supported
Fax 14,4 kbps supported
AT+FDIS=?
Note :
(0,1),(0-3),(0-2),(0-2),(0,3),(0-2),(0),(0-7)
OK
Note : Fax ECM supported
Fax 14,4 kbps not supported
(0,1),(0-3),(0-2),(0-2),(0,3),(0),(0),(0-7)
OK
Note : Fax ECM not supported
Fax 14,4 kbps not supported
13.10.3 Defined values :
This command accepts eight numeric parameters (of the T30 standard):
<vr> : Vertical Resolution,
< vr > 0(default) : Normal: 98 lpi
1 : Fine: 196 lpi
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
158
<br> : Bit Rate,
< br > 0 : 2400 bps (Modem type : V.27 ter)
1 : 4800 bps (Modem type : V.27 ter)
2 : 7200 bps (Modem type : V.29)
3 : 9600 bps (Modem type : V.29, V.17)
4(*) : 12000 bps (Modem type : V.33, V.17)
5(*) : 14400 bps (Modem type : V.33, V.17)
(*) Only when module supports 14,4 kbps data feature
If this feature is supported, default is 5, else default is 3.
<wd> : Page Width,
< wd > 0(default) : 1728 pixels in 215 mm
1 : 2048 pixels in 255 mm
2 : 2432 pixels in 303 mm
<ln> : Page Length,
< in > 0 : A4, 297 mm
1 : B4, 364 mm
2(default) : Unlimited
<df> : Data Compression Format,
< df > 0(default) : 1-D modified huffman
1 : 2-D modified read
2 : 2-D uncompressed mode
3 : 2-D modified modified read
<ec> : Error Correction,
< ec > 0 : Disable Fax ECM
1(*) : Enable Fax ECM, 64 bytes/frame
2(*) : Enable Fax ECM, 256 bytes/frame
(*) Only when module supports fax Error Correction Mode feature
If this feature is supported, default is 2, else default is 0.
<bf> : Binary File Transfer,
Only <bf> set to 0 is supported.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
159
<st> : Scan Time per line,
<st> Description <vr>=0 Description <vr>=1
0(default) 0 ms 0 ms
1 5 ms 5 ms
2 10 ms 5 ms
3 10 ms 10 ms
4 20 ms 10 ms
5 20 ms 20 ms
6 40 ms 20 ms
7 40 ms 40 ms
13.11 DCE capabilities parameters +FDCC
13.11.1 Description :
This command allows the DTE to parameter the capabilities used for anyl sessions.
13.11.2 Syntax :
Command syntax: AT+FDCC=<vr>,<br>,<wd>,<ln>,<df>,<ec>,<bf>,<st>
Command Possible responses
AT+ FDCC=?
Note : Test command
(0,1),(0-5),(0-2),(0-2),(0,3),(0-2),(0),(0-7)
OK
Note : Fax ECM supported
Fax 14,4 kbps supported
(0,1),(0-5),(0-2),(0-2),(0,3),(0),(0),(0-7)
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
160
Note : Fax ECM not supported
Fax 14,4 kbps supported
(0,1),(0-3),(0-2),(0-2),(0,3),(0-2),(0),(0-7)
OK
Note : Fax ECM supported
Fax 14,4 kbps not supported
(0,1),(0-3),(0-2),(0-2),(0,3),(0),(0),(0-7)
OK
Note : Fax ECM not supported
Fax 14,4 kbps not supported
13.11.3 Defined values :
The parameters and default values are the same as these of +FDIS command (see
13.10.3 Defined values).
13.12 Local ID string +FLID
13.12.1 Description :
This command allows to define the local ID string.
13.12.2 Syntax :
Command syntax: AT+FLID=”<string>”
The string has a limited size, and accepts any characters between 32 and 127.
Command Possible responses
AT+FLID=?
Note : Test command
(20),(32-127)
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
161
13.13 Page transfer timeout parameter +FPHCTO
13.13.1 Description :
This command sets the period the modem waits for another page before it assumes
there are no more pages and aborts.
13.13.2 Syntax :
Command syntax: AT+FPHCT0=<n> (default is 30)
Command Possible responses
AT+FPHCTO=?
Note : Test command
(0-255)
OK
13.14 Fax Class 2 indication messages
The following messages are used to indicate DCE Responses. They are used in
communication only.
+FCON:
This response indicates connexion with a fax machine.
+FDCS <vr>,<br>,<wd>,<ln>,<df>,<ec>,<bf>,<st>:
This response reports current session capabilities. The parameters are the same than those
of AT+FDIS command (see 13.10).
+FDIS <vr>,<br>,<wd>,<ln>,<df>,<ec>,<bf>,<st>:
This response reports remote capabilities. The parameters are the same than those of
AT+FDIS command (see 13.10).
+FCFR:
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
162
This response indicates confirmation to receive.
+FTSI “<string>”:
This response reports the received transmit station ID string.
+FCSI “<string>”:
This response reports the received called station ID string.
+FPTS <ppr>:
This response reports received page transfer status. The parameter is the same than the one
of AT+FPTS command (see 13.4).
+FET <ppm>:
This response reports post page message response. The parameter is the same than the
one of AT+FET command (see 13.3).
+FHNG <cause>:
This response reports the hangup cause. It indicates that the call has been terminated.
<cause> 0 : Normal end of connection.
10 : Unspecified transmit phase A error.
20 : Unspecified transmit phase B error.
40 : Unspecified transmit phase C error.
50 : Unspecified transmit phase D error.
70 : Unspecified receive phase B error.
90 : Unspecified receive phase C error.
100 : Unspecified receive phase D error.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
163
14 V24-V25 commands
14.1 Fixed DTE rate +IPR
14.1.1 Description :
This commands specifies the data rate at which the DCE will accept commands.
14.1.2 Syntax :
Command syntax : AT+IPR
Command Possible responses
AT+IPR?
Note :
+IPR: 9600
OK
Note : Current rate is 9600 bps
AT+IPR=?
Note :
+IPR!0,2400,4800,9600,19200),(300,600,1200,
38400,57600,115200)
OK
Note : Possible value (*)
AT+IPR=38400
Note :
OK
Note : Disable autobauding and set rate to
38400 bps
AT+IPR=0
Note :
OK
Note : Enable autobauding
Note (*) : first set of values indicates the range of autodetectable speeds. The second set of values indicates all
the possible speeds which can be used by DCE.
An autobauding is provided which operates from 2400 to 19200 baud. However some
constraints have to be dealt with :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
164
• any AT command issued by DTE must start with a capital ‘A’ and ‘T’
(or ‘\’). If not, DCE may send back some garbage characters and get
de-synchronized. Shoud it happen, DTE shall just issue once or twice
‘AT\r’ (at 2400 or 4800 baud) or just ‘AT’ (at 9600 baud) to get the
modem re-synchronized.
• the DTE shall wait for 1ms after receiving the last character of the AT
response (which is always ‘\n’ or 0x0A) to send a new AT command at
either the same rate or a new rate. Shoud this delay ignored, DCE can
get de-synchronised. Once again, sending once or twice ‘AT\r’ or just
‘AT’ causes the DCE to recover.
Be careful : when starting up if autobauding is enabled and no AT command has been
received yet, the module sends all unsolicited responses (like RING) at 9600 baud.
14.2 DTE-DCE character framing +ICF
14.2.1 Description :
This command is used to determine the local serial port start-stop (asynchronous)
character framing that the DCE shall use.
14.2.2 Syntax :
Command syntax: AT+ICF= <format>, <parity>
Command Possible responses
AT+ICF?
Note :
+ICF: 3,4
OK
Note : Current values
AT+ICF=?
Note :
+ICF: (1-6),(0-4)
OK
Note : Possible values
AT+IPR=38400
Note :
OK
Note : Disable autobauding and set rate to
38400 bps
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
165
AT+ICF=0,0
Note :
OK
Note : New values
14.2.3 Defined values :
<format> 0 : Autodetect (not supported)
1 : 8 Data 2 Stop (supported)
2 : 8 Data 1 Parity 1 Stop (supported)
3 : 8 Data 1 Stop (supported)
4 : 7 Data 2 Stop (supported)
5 : 7 Data 1 Parity 1 Stop (supported)
6 : 7 Data 1 Stop (supported)
<parity> 0 : Odd (supported)
1 : Even (supported)
2 : Mark (supported)
3 : Space (supported)
4 : None (supported)
Note 1) setting a character framing different from 8N1 will disable autobauding (in the case it
was activated). However setting it back to 8N1 will not re-enable autobaud.
Note 2) setting the framing to 8N1 will let the autobauding enabled, if it was already enabled
(implying framing was already 8N1).
14.3 DTE-DCE local flow control +IFC
14.3.1 Description :
This command is used to control the operation of local flow control between the DTE
and DCE.
14.3.2 Syntax :
Command syntax : AT+IFC=<DCE_by_DTE>,<DTE_by_DCE>
Command Possible responses
AT+IFC?
Note :
+IFC: 2,2
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
166
Note : Current values
AT+IFC=?
Note :
+ICF: (0,2),(0,2)
OK
Note : Possible values
AT+ICF=0,0
Note :
OK
Note : New values
14.3.3 Defined values :
< DCE_by_DTE > 0 : none (Supported)
1 : Xon/Xoff local circuit 103 (not supported)
2 : RTS (Supported)
3 : Xon/Xoff global on circuit 103 (not supported)
Important note : when this parameter is set to 2 (DTE invokes flow control through
RTS) the behavior of the DCE is the following :
If the DCE has never detected RTS in high (or ON) condition since startup then it
ignores RTS, assuming this signal is not connected.
As soon as DCE detects RTS high, then this signal acts upon it. Therefore
subsequent RTS transition to OFF will prevent DCE from sending any further data in online
and in offline as well.
This behavior allows the user to use the default settings (hardware flow control) and
let RTS disconnected. In the case RTS is connected and is high at least once then it acts
upon DCE.
< DTE_by_DCE > 0 : none (Supported)
1 : Xon/Xoff circuit 104 (not supported)
2 : CTS (Supported)
When this parameter is set to 0 (none) then CTS is kept high all the time.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
167
14.4 Set DCD signal &C
14.4.1 Description :
This commands controls the Data Carrier Detect (DCD) signal.
14.4.2 Syntax :
Command syntax : AT&C
Command Possible responses
AT&C0
Note : DCD always on
OK
Note : Command valid
AT&C1
Note : DCD matches state of the remote
modem’s data carrier
OK
Note : Command valid
14.5 Set DTR signal &D
14.5.1 Description :
This commands controls the Data Terminal Ready (DTR) signal.
14.5.2 Syntax :
Command syntax : AT&D
Command Possible responses
AT&D0
Note : The DTR signal is ignored
OK
Note : Command valid
AT&D1 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
168
Note : Modem switches from data to command
mode when DTR switches from ON to OFF Note : Command valid
AT&D2
Note : Upon DTR switch from ON to OFF, the call
is cleardown
OK
Note : Command valid
14.6 Set DSR signal &S
14.6.1 Description :
This commands controls the Data Set Ready (DSR) signal.
14.6.2 Syntax :
Command syntax : AT&S
Command Possible responses
AT&S0
Note : DSR always on
OK
Note : Command valid
AT&S1
Note : DSR off in command mode, DSR on in
data mode
OK
Note : Command valid
14.7 Back to online mode O
14.7.1 Description :
If you have established a connection and the mobile is in online command mode, this
command allows to return to online data mode.
14.7.2 Syntax :
Command syntax : ATO
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
169
Command Possible responses
ATO
Note :
OK
Note : Command valid
14.8 Result code suppression Q
14.8.1 Description :
This command determines whether the mobile sends result codes or not
14.8.2 Syntax :
Command syntax : ATQ
Command Possible responses
ATQ0
Note : DCE transmits result codes
OK
Note : Command valid
ATQ1
Note : Result codes are suppressed and not
transmitted
(none)
Note : No response
14.9 DCE response format V
14.9.1 Description :
This command determines the DCE response format, with or without header
characters <CR><LF>, and with the use of numeric result codes.
V0 V1
Information responses <text><CR><LF> <CR><LF>
<text><CR><LF>
Result codes <numeric code><CR> <CR><LF>
<verbose code><CR><LF>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
170
14.9.2 Syntax :
Command syntax : ATV
Command Possible responses
ATV0
Note : DCE transmits limited headers and trailers
and numueric result codes
0
Note : Command is valid (0 means OK)
ATV1
Note : DCE transmits full headers and trailers
and verbose response text
OK
Note : Command valid
14.10 Default configuration Z
14.10.1 Description :
This command restores the configuration profile. Any call is released.
14.10.2 Syntax :
Command syntax : ATZ
Command Possible responses
ATZ
Note :
Ok
Note : Command valid
14.11 Save configuration &W
14.11.1 Description :
This commands writes the active configuration to a non-volatile memory (EEPROM).
Description of the stored parameters is in appendice 18.10
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
171
14.11.2 Syntax :
Command syntax : AT&W
Command Possible responses
AT&W
Note : Writes current configuration to EEPROM
OK
Note : Command valid
14.12 Auto-tests &T
14.12.1 Description :
AT&T0 is used to perform auto-tests. The response will be OK if no software problem
is detected (EEPROM, RAM and ROM checksums), otherwise a simple ERROR response is
sent.
AT&T1 is used to close the audio loop, and AT&T2 is used to open the audio loop.
This is used to validate the audio loop (microphone to speaker).
14.12.2 Syntax :
Command syntax : AT&T
Command Possible responses
AT&T0
Note : Perform software auto-tests
OK
Note : No software problem detected, all
checksums are correct
AT&T1
Note : Do the audio loop test (close)
OK
Note : Command valid
AT&T2
Note : Stop the audio loop test (open)
OK
Note : Command valid
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
172
14.13 Echo E
14.13.1 Description :
This command is used to determines whether or not the modem echoes characters
received by an external application (DTE).
14.13.2 Syntax :
Command syntax : ATE
Command Possible responses
ATE0
Note : Characters are not echoed
OK
Note : Done
ATE1
Note : Characters are echoed
OK
Note : Done
14.14 Restore factory settings &F
14.14.1 Description :
This command is used to restore the factory settings from EEPROM.
The settings which are restored are listed in appendice 18.10.
14.14.2 Syntax :
Command syntax : AT&F
Command Possible responses
AT&F
Note : Ask for restoring the factory settings
OK
Note : Done
AT&F0
Note : Ask for retoring the factory settings
OK
Note : Done
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
173
14.15 Display configuration &V
14.15.1 Description
This command is used to display modem configuration
&V0 : Display the modem configuration in RAM.
&V1 : Display the modem configuration in EEPROM.
&V2 : Display the factory modem configuration.
The parameters which are displayed are the following:
Q, V, S0, S2, S3, S4, S5, +CR, +CRC, +CMEE, +CBST, +SPEAKER,+ECHO
14.15.2 Syntax :
Command syntax : AT&V
Command Possible responses
AT&V
Note : RAM modem parameters
Q:0 V:1 S0:000 S2:043 S3:013 S4:010 S5:008
+CR:0 +CRC:0 +CMEE:0 +CBST:0,0,1
+SPEAKER:0 +ECHO:0,0
OK
Note : Done
For Echo the first value corresponds to Echo
cancelation 1.
14.16 Request identification information I
14.16.1 Description :
This command causes the GSM module to transmit one or more lines of specific
information text.
I0 : Display the manufacturer followed by model identifications. This command is
equivalent to +CGMI and +CGMM.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
174
I3 : Display the revision identification (equivalent to +CGMR).
I4 : Display the modem configuration in RAM (equivalent to &V0).
I5 : Display the modem configuration in EEPROM (equivalent to &V1).
I6 : Display the modem data features. This command enumerates the supported
data rates, data modes, and fax classes.
I7 : Display the modem voice features.
If the value is different, an “OK” string will be sent back.
14.16.2 Syntax :
Command syntax : ATI
Command Possible responses
ATI0
Note : Manufacturer and model identifications
WAVECOM MODEM
900P
OK
Note : GSM 900 MHz primary band
ATI3
Note : Revision identification
310_G250.51 806216 032199 17:04
OK
Note : Software release 3.10 ,révision 51
generated on the 21st of March 1999
ATI6
Note : Modem data features
DATA RATES:
AUTOBAUD,300,1200,1200/75,2400,4800,9600
,14400
DATA MODES : T/NT,ASYNCHRONOUS
FAX CLASS 1,2
OK
Note : Done
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
175
ATI7
Note : Modem voice features
SPEECH CODINGS: FR,EFR,HR
OK
Note : Done
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
176
15 Specific AT commands
15.1 Cell environment description +CCED
15.1.1 Description :
This command can be used by the application to retrieve the cell parameters of the
main cell and of up to six neighbour cells.
Two ways may exist for the external application to know these cell parameters : on
request of the application, or automatically by the module every 5 seconds.
The automatic mode is not supported during communication or registration.
15.1.2 Syntax :
Command syntax: AT+CCED=<mode>[, <requested dump>]
15.1.3 Defined values :
<mode> 0 : One shot requested
1 : Automatic shots requested
2 : Stop automatic shots
<requested dump> 1 : Main Cell :
if the Cell Identity is available
MCC, MNC, LAC, CI, BSIC, BCCH Freq
(absolute), RxLev, RxLev Full, RxLev Sub,
RxQual, RxQual Full, RxQual Sub,Idle TS
if the Cell Identity is not available
MCC, MNC, LAC,, BSIC, BCCH Freq
(absolute), RxLev, RxLev Full, RxLev Sub,
RxQual, RxQual Full, RxQual Sub,Idle TS
2 : Neighbour1 to Neighbour6 :
if the Cell Identity is available
MCC, MNC, LAC, CI, BSIC, BCCH Freq
(absolute), RxLev
if the Cell Identity is not available
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
177
MCC, MNC, LAC,, BSIC, BCCH Freq
(absolute), RxLev
4 : Timing Advance
Combination (addition of the values) of the requested dumped are supported.
Notice that in idle mode, only RxLev measures (on the main cell and on the neighbour
cells) are done. The value of these RxLev is set in the RxLev Full field for the main cell.
The response will be :
+CCED :<value>, … , <value>
OK
Where <value> is the ASCII string of the values (in decimal except LAC and CI values
are in hexadecimal) of the parameters. If a field can not be measured – or has no sense –
the parameter is not filled (two consecutive commas are then found).
If the <requested dump> parameter is absent, this of the last +CCED command (or 15
by default) will be taken.
Values of MCC/MNC are set to 0 in case of “No service”
15.2 Automatic RxLev indication +CCED
15.2.1 Description :
The CCED command has been extended to indicate the received signal strength
indication (rssi) of the main cell. The principle of the command does not change :
15.2.2 Syntax :
Command Syntax: AT+CCED=<mode>[, <requested dump>]
15.2.3 Defined values :
<mode> 0 : One shot requested
1 : Automatic shots requested
2 : Stop automatic shots
<requested dump> 8 : Main cell RSSI indications (RxLev) from 0 to 31
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
178
The response will be a +CSQ answer and not a +CCED answer. The 07.07 format for
the +CSQ is respected. The <ber> is not evaluated by this command, so the <ber> value will
always be 99.
+CSQ :<rssi>, 99
OK
This +CSQ answer, when automatic shots are selected, is sent every time the <rssi>
measured by the module changes. This automatic shots are supported in idle mode and
during communication.
Combination (addition of the values) of the requested dumped (1,2,4,8) are supported
but the activation or deactivation of this flow (8) does not affect the other flows. Both answer
+CCED and +CSQ may be then generated.
If the <requested dump> parameter is absent, the last +CCED command parameter (or
15 by default) will be taken.
15.3 General Indications +WIND
15.3.1 Description :
Wavecom introduced a general mechanism to send unsollicited non standardized
indication to the customer application. The yet identified unsollicited non standardized
indications are :
- indication of a physical change on the SIM presence pin from
connector (meaning SIM inserted, SIM removed)
- indication during a mobile originated call establishement, that the
calling party is ringing.
- Indication of the availability of the module, after boot, to receive AT
commands
For each of these indications, a “bit flow” has to be indicated.
15.3.2 Syntax :
Command syntax: AT+WIND= <IndLevel >
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
179
15.3.3 Defined values :
<IndLevel> 1 (bit-0) : Hardware SIM Insert / Remove indications
(Rack open/close) or SIM presence after software reset
2 (bit-1) : Calling party alert indication
4 (bit-2) : Module is ready to treat AT commands (except
phonebooks, AOC, SMS), but still in emergency mode.
8 (bit-3) : Indication that the module is ready to treat all
AT commands, at the end of init or after swapping to
ADN in case of FDN configuration
16 (bit-4) : Indication that a new call identifier has been created
( after an ATD command, +CCWA indication)
32 (bit-5) : Indication that an active, held or waiting call has been
released by network or other party
64 (bit-6) : Network service available indication
128 (bit-7) : Network lost indication
If <IndLevel> is equal to 0 (default value), no unsolicited
“+WIND: <IndNb>” will occur.
Combination (addition of the values) shall be used to allow more than one indication
flow.
0 Ω
ΩΩ
Ω IndLevel Ω
ΩΩ
Ω 255
The answer is OK if the value are in the previous range.
The unsolicited answer will then be :
+WIND : <event> [ ,<idx> ]
<idx>: Call identifier, defined in +CLCC command.
The supported events are:
<event> 0 : The SIM presence pin has been detected as “SIM removed”
(depending from the 0 bit flow)
1 : The SIM presence pin has been detected as “SIM inserted”
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
180
2 : Calling party is alerting
3 : Module is ready to treat AT commands (except
phonebooks, AOC, SMS), at init or after AT+CFUN=1
4 : Module is ready to treat all AT commands, end of
phonebook init or swap (FDN to ADN)
5 : Call <idx> has been created (after ATD or +CCWA…)
6 : Call <idx> has been released, after a NO CARRIER, a
+CSSU: 5 indication, or after the release of a call waiting
7 : The network service is available for an emergency call.
8 : The network is lost.
AT+WIND? Command is supported and indicates the <allowed bit flows>. AT+WIND
is automatically stored in e2p. This means the &W command has not to be used. And the
selected flows are always activated after boot.
Default value is 0 : No flow activated. No indication.
AT+WIND=? Indicates the possibles values. (0-255)
15.4 Analog digital converters measurements +ADC
15.4.1 Description :
This command allows to get the (DC level * 1024) of ADC A and ADC B (those
voltages are coded on 10 bits, see hardware specifications) or the (DC level * 1024) of ADC
A, ADC B and ADC C (voltages coded on 10 bits) depending on the ADC mode.
For ADC A, the value returned includes the resistor bridge. Those values are updated every
10 seconds.
This command allows to set ADC mode. Mode 0 displays the values of the 2 first
converters on 10 bits, mode 1 displays the values of the 3 converters coded on 10 bits as
well.
15.4.2 Syntax :
Command syntax : AT+ADC
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
181
Command Possible responses
AT+ADC=<n>
AT+ADC=0
Note : Select 2 converters (mode 0)
OK
Note : 2 converters mode selected
AT+ADC=1
Note : Select 3 converters (mode 1)
OK
Note : 3 converters mode selected
AT+ADC=?
Note : Ask the list of possible values
+ADC: (0-1)
Note : possible values 0 or 1
AT+ADC?
Note : Ask the current values of converters in
mode 0
+ADC: 500,412
OK
Note : Adc A, Adc B on 10 bits
AT+ADC?
Note : Ask the current values of converters in
mode 1
+ADC: 712,698,997
OK
Note: Adc A, Adc B, Adc C on 10 bits
15.5 Mobile Equipment event reporting +CMER
15.5.1 Description :
This command enabled or disables sending of unsolicited result codes in the case of
key pressing.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
182
15.5.2 Syntax :
Command Syntax: AT+CMER=<mode>,<keyp>,<disp>,<ind>,<bfr>
The parameters <mode>, <disp>, <ind> and <bfr> are not handled.
15.5.3 Defined values :
<keyp> (keypad) : 0 : No keypad event reporting.
1 : Keypad event reporting are routed using unsolicited
code : +CKEV : <key>, <press>
<press> 1: key press
0: key release
<key> : Keyboard map is (5,5)
0 1 2 3 4
5 6 7 8 9
10 11 12 13 14
15 16 17 18 19
20 21 22 23 24
15.6 Read Language Preference +WLPR
15.6.1 Description :
Read a Language Preference value of EF-LP. The first indexes should have the
highest priority.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
183
15.6.2 Syntax :
Command syntax: AT+WLPR= <index >
Response syntax: +WLPR: <value>
Command Possible responses
AT+WLPR?
Note : Read command
+WLPR: 4
OK
Note : Four language preferences are available
in EF-LP
AT+WLPR=1
Note : Read first EF-LP index value
+WLPR: 5
OK
Note : Language preference is 5
15.7 Write Language Preference +WLPW
15.7.1 Description :
Write a Language Preference value in EF-LP
15.7.2 Syntax :
Command syntax: AT+WLPW=<index >,<value>
Response syntax: OK or +CME ERROR: <err>
Command Possible responses
AT+WLPW=1,5
Note : Write Lang Pref equal to 5 in EF-LP with
index 1
OK
Note : EF-LP correctly updated
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
184
15.8 Read GPIO value +WIOR
15.8.1 Description :
Set the I/O port as an input and read the I/O pin, 0 if the pin is reset, 1 if the pin is set.
Eight I/O ports are available, so the <index> value is between 0 and 7.
15.8.2 Syntax :
Command syntax: AT+WIOR=<index >
Response syntax: +WIOR: <value>
Command Possible responses
AT+WIOR=4
Note : Read I/O (number 4) value
+WIOR: 0
OK
Note : GPIO number 4 is reset
15.9 Write GPIO value +WIOW
15.9.1 Description :
Set the I/O port as an output with a I/O pin value, 0 for reset, 1 for set
15.9.2 Syntax :
Command syntax: AT+WIOW=<index >,<value>
Response syntax: OK
Command Possible responses
AT+WIOW=4,0
Note : Reset I/O (number 4)
OK
Note : GPIO value is written
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
185
15.10 Abort command +WAC
15.10.1 Description :
This specific command allows to abort SMS, SS and available PLMN .
15.10.2 Syntax :
Command syntax: AT+WAC
Command Syntax Return
AT+WAC
AT+WAC=? OK
AT+WAC? OK
Example :
Command Possible responses
AT+COPS=?
Note : Available PLMN
AT+WAC
Note : Abort the ask of PLMN list
OK
Note :
15.11 Play tone +WTONE
15.11.1 Description :
This specific command allows to play a tone on the current speaker or on the buzzer.
The frequency, gain and duration can be settled.
15.11.2 Syntax :
Command syntax: AT+WTONE=<mode>[,<dest>,<freq>,<gain>,<duration>]
Response syntax: OK or +CME ERROR: <err>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
186
Command Possible responses
AT+WTONE=1,1,300,9,50
Note : Play a tone
OK
Note : Done
AT+WTONE=0
Note : Stop playing
OK
Note : Done
AT+WTONE=?
Note : Test command
OK
Note : Done
AT+WTONE?
Note : Current value
ERROR
Note :
15.11.3 Defined values :
<mode> 0: Stop playing.
1: Play a tone
<dest> : This parameter settles the destination (mandatory if <mode>=1)
<dest> 1: Speaker
2: Buzzer
<freq> : This parameter settles the frequency (in Hz) of the tone (mandatory if
<mode>=1).
If <dest> is the speaker, the range is between 1Hz and 3999Hz. If
<dest> is the buzzer, the range is between 1Hz and 50000Hz.
<gain> (0-15) This parameter settles the gain of the tone. By default,
the value is 9.
<gain> Speaker (db) Buzzer (db)
0 0 -0.25
1 -0.5 -0.5
2 -1 -1
3 -1.5 -1.5
4 -2 -2
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
187
5 -3 -3
6 -6 -6
7 -9 -9
8 -12 -12
9 -15 -15
10 -18 -18
11 -24 -24
12 -30 -30
13 -36 -40
14 -42 -infinite
15 -infinite -infinite
<duration> (0-50) This parameter settles the duration of the tone (unit of
100 ms). When this parameter is equal to 0 (default
value), the duration is infinite, and the tone can be
stopped by AT+WTONE=0.
15.12 Play DTMF tone +WDTMF
15.12.1 Description :
This specific command allows to play a DTMF tone on the current speaker. The
DTMF, gain and duration can be settled.
This command is only used to play a DTMF tone. To send a DTMF on the GSM
network, use the command +VTS.
15.12.2 Syntax :
Command syntax: AT+WDTMF=<mode>[,<dtmf>,<gain>,<duration>]
Response syntax: OK or +CME ERROR: <err>
Command Possible responses
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
188
AT+WDTMF=1,"*",9,100
Note : Play a DTMF tone
OK
Note : Done
AT+WDTMF=0
Note : Stop playing
OK
Note : Done
AT+WDTMF=?
Note : Test command
+WDTMF: (0-1),(0-9,*,#,A,B,C,D),(0-15),(0-50)
OK
Note : Done
AT+WDTMF?
Note : Current value
ERROR
Note :
15.12.3 Defined values :
<mode> 0: Stop playing.
1: Play a DTMF tone
<dtmf> This parameter settles the DTMF to play in {0-9,*,#,A,B,C,D}
(mandatory if <mode>=1)
<gain> (0-15) This parameter settles the gain of the tone. The values
are the same as these of +WTONE (speaker) command.
By default, the value is 9.
<duration> (0-50) This parameter settles the duration of the tone (unit of
100 ms). When this parameter is equal to 0 (default
value), the duration is infinite, and the DTMF tone can
be stopped by AT+WDTMF=0.
15.13 Wavecom Downloading +WDWL
15.13.1 Description :
This specific command allows to switch the module in downloading mode.
The command is compatible with WISMO2C only.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
189
On WISMO 1B, ERROR is returned.
The doawloding is realized with the XMODEM protocol.
15.13.2 Syntax :
Command syntax: AT+WDWL
Command Possible responses
AT+WDWL
Note : Switch on downloading mode
+WDWL: 0
Note : Start of downloading
…
Note : Downloading in progress
AT+CFUN=1
Note : Reset the module at the end
OK
Note :
15.14 Wavecom Voice Rate +WVR
15.14.1 Description :
This specific command allows to configure the voice rate for the bearer voice.
(Available for outgoing call only)
15.14.2 Syntax :
Command syntax : AT+WR=<n>
Command Syntax Return
AT+WVR=<n>
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
190
AT+WVR=? If Half Rate available.
+WVR: (0,2,3)
If EFR available.
+WVR: (0,1)
If HR and EFR not available
+WVR: (0)
If HR and EFR available
+WVR: (0-5)
AT+WVR? +WVR: <n>
Command Possible responses
AT+WVR=1
Note : Configure voice type FR and EFR
OK
Note : Bearer is configured
AT+WVR=6
Syntax error
+CME ERROR: 3
Note :
AT+WVR?
Note : Ask the current value
+WVR: 1
OK
Note :
OK
Note :
15.14.3 Defined values :
<n> : Speech type.
<n> 0 : FR
1 : FR and EFR
2 : FR, HR with HR prefered
3 : HR, FR with FR prefered
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
191
4 : EFR,HR with HR prefered
5 : HR,EFR with EFR prefered.
15.15 Data Rate +WDR
15.15.1 Description :
This specific command allows to configure the data rate for the bearer data.
(Available for outgoing call only)
15.15.2 Syntax :
Command syntax : AT+WDR=<n>
Command Syntax Return
AT+WDR=<n>
AT+WDR=? If Half Rate available.
+WDR: (0-2)
Else
+WDR: (0)
AT+WDR? +WDR: <n>
Command Possible responses
AT+WDR=1
Note : Configure voice type FR,HR with HR
prefered.
OK
Note : Bearer is configured
AT+WDR=3
Syntax error
+CME ERROR: 3
Note :
AT+WDR?
Note : Ask the current value
+WDR: 1
OK
Note :
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
192
OK
Note :
15.15.3 Defined values :
<n> : Data type.
<n> 0 : FR
1 : FR, HR with HR prefered
2 : HR, FR with FR prefered
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
193
15.16 Hardware Version +WHWV
15.16.1 Description :
This specific command allows to show the hardware version.
15.16.2 Syntax :
Command syntax : AT+WHWV
Command Possible responses
AT+WHWV
Note : Request Hardware Version
Hardware Version 4.14
OK
Note : Hardware version present in EEPROM is
4.14
AT+WHWV
Note : Request Hardware Version
Hardware Version -.--
OK
Note : No hardware version present in
EEPROM
15.17 Date of Production +WDOP
15.17.1 Description :
This specific command allows to show the date of production. Format of the date is Week /
Year.
15.17.2 Syntax :
Command syntax : AT+WDOP
Command Possible responses
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
194
AT+WDOP
Note : Request Date of Production
Production date (W/Y): 01/2000
OK
Note : Date of production present in EEPROM
is WEEK: 01 / YEAR: 2000 (1st week of year
2000)
AT+WDOP
Note : Request Date of Production
Production date (W/Y): --/----
OK
Note : No date of production present in
EEPROM
15.18 Wavecom Select Voice Gain +WSVG
15.18.1 Description :
The module dispose of 2 voice gain controlers, this specific command allows to
select the microphone gain controler.
15.18.2 Syntax :
Command syntax : AT+WSVG = <n>
Command Possible responses
AT+WSVG=<n>
AT+WSVG=0
Note : Select the controler 1 (Default)
OK
Note : The controler 1 selected
AT+WSVG=1
Note : Select the controler 2 (Default)
OK
Note : The controler 2 selected
AT+WSVG=? +WSVG: (0-1)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
195
Note : Ask the list of possible values
Note : possible values 0 or 1
AT+WSVG?
Note : Ask the current value
+WSVG: 1
Note : Actually the controler 1 is selected
15.18.3 Defined values
<n> Controler 0 Controler 1 (Default)
1 Controler 2
15.19 Wavecom Status Request +WSTR
15.19.1 Description :
This specific command returns the state of a specified status. It has been created to
check the state of the initialisation sequence; the different return values are Not Started, On
Going, Finished.
15.19.2 Syntax :
Command syntax: AT+WSTR=<status>
Response syntax: +WSTR: <status>,<value>
Command Possible responses
AT+WSTR=<status> +WSTR :<status>,<value>
AT+WSTR=1
Note : Select the status 1 (INIT SEQUENCE)
+WSTR: 1,2
OK
Note : The controler 1 selected. Init finished
AT+WSTR=? +WSTR: (1)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
196
Note : Ask the list of possible values
Note : possible values : 1
15.19.3 Defined values
<status> 1 Initialisation sequence
<value> 0 Not started
1 On going
2 Finished
15.20 Wavecom Scan +WSCAN
15.20.1 Description :
This specific command allows to show the received signal strenght indication
(<rssi>) of a specified frequency (in absolute format).
15.20.2 Syntax :
Command syntax: AT+WSCAN=<absolute frequency>
Response syntax: +WSCAN: <rssi>
Command Possible responses
AT+WSCAN=50
Note : Request <rssi> of absolute frequency 50
+WSCAN: 23
OK
Note : <rssi> is 23.
AT+WSCAN=1025
Note : Request power of absolute frequency 1025
CME ERROR: 3
Note : 1025 is not a valid absolute frequency
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
197
15.20.3 Defined values
<absolute frequency> frenquency in absolute format
<rssi> 0 : -113 dBm or less
1 : -111 dBm
2...30 : -109 to -53 dBm
31 : -51dBm or greater
99 : not known or not detectable
15.21 Wavecom Ring Indicator Mode +WRIM
15.21.1 Description :
This specific command sets or returns the state of RI Mode.
In pulse RI mode, an electrical pulse is sent on the Ring Indicator wire just before sending
any unsolicited AT response in order not to loose these AT responses when client tasks are
in sleep state. Still in this RI mode, when receiving incoming calls, electrical pulses are sent
on the RI wire.
In up-down RI mode, no pulse are sent before unsolicited AT response, and up-down
signal are sent when receiving an incoming call.
15.21.2 Syntax :
Command syntax: AT+WRIM=<n>
Command Possible responses
AT+WRIM=<n>
AT+WRIM=0
Note : Select up-down RI mode
OK
Note : up-down RI mode selected
AT+WRIM=1 OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
198
Note : Select pulse RI mode
Note : pulse RI mode selected
AT+WRIM=?
Note : Ask the list of possible values
+WRIM: (0-1)
Note : possible values 0 or 1
AT+WRIM?
Note : Ask the current value
+WRIM: 1
Note : current RI mode is pulse RI.
15.21.3 Defined values
<n> 0 up-down RI mode
1 pulse RI mode
15.22 Wavecom 32kHz Powerdown Mode +W32K
15.22.1 Description :
This specific command allows to enable or disable the 32kHz powerdown mode.
When powerdown mode is entered, the Wismo module uses 32kHz internal clock
during inactivity stages.
For more information about powerdown mode, see Appendix F.
15.22.2 Syntax :
Command syntax : AT+W32K=<mode>
Command Possible responses
AT+W32K=1
Note : Enable 32kHz powerdown mode
OK
Note : 32kHz powerdown mode is enabled
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
199
AT+W32K=0
Note : Disable 32kHz powerdown mode
OK
Note : 32kHz powerdown mode is disabled
15.22.3 Defined values
<mode> 0 Disable 32kHz powerdown mode
1 Enable 32kHz powerdown mode
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
200
16 SIM TOOLKIT
16.1 Overview of SIM Application ToolKit
16.1.1 Summary
The SIM ToolKit, also known as ‘SIM Application ToolKit’ introduces new
functionalities, which open the way to a broad range of value added services.
The principle is to allow service providers to develop new applications (i.e. for
banking, travel, ticket booking …) for subscriber’s and to download them into the SIM.
This solution allows future services to be accessible to the user by adding new SIM-
based applications without modifying the handset.
16.1.2 Functionality
SIM Toolkit refers to the functionalities described in the GSM Technical specification
11.14.
It introduces about twenty five new commands for the SIM. Three classes of ToolKit
functionalities have been defined, with class 1 offering a subset of commands and class 3
offering the full range of commands (See the table in APPENDIX B).
The SIM Application Toolkit supports:
☞ profile download,
☞ proactive SIM,
☞ data download into the SIM.
☞ menu selection,
☞ call control by SIM.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
201
16.1.3 Profile download
The Profile Download instruction is sent by the customer application to the SIM as
part of the initialization. It is used to indicate which SIM Application Toolkit features the
customer application supports.
The AT command used for this feature is +STSF (SIM ToolKit Set Facilities).
16.1.4 Proactive SIM
A proactive SIM provides a mechanism whereby the SIM can ask the customer
application to perform certain actions.
These actions include:
• display menu,
• display given text,
• get user input,
• send a short message,
• play the requested tone,
• set up a call,
• provide location information.
This mechanism allows SIM applications to generate powerful menu-driven
sequences on the customer application and to use services available on the network.
The commands used for this feature are:
+STIN (SIM Toolkit Indication),
+STGI (SIM Toolkit Get Information),
+STGR (SIM Toolkit Give Response).
16.1.5 Data Download to SIM
Data downloading to the SIM allows data (SMS, phonebook…) or programs (Java
applets) received by SMS or by Cell Broadcast to be transferred directly to the SIM
Application.
This feature does not need any AT command. It is transparent to the customer application.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
202
16.1.6 Menu Selection
A set of menu items is supplied by the SIM Application ToolKit. The menu selection
command can then be used to inform the SIM Application on which menu item is selected.
The commands used for this feature are +STIN, +STGI and +STGR.
16.1.7 Call control by SIM
The call control mechanism allows the SIM to check all dialed numbers,
supplementary service control strings and USSD strings before connecting to the network.
This gives the SIM the ability to allow, bar or modify the string before the operation starts.
The commands used for this feature are :
+STCR (SIM Toolkit Control Response),
+STGR (SIM Toolkit Give Response).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
203
16.2 Exchanged messages during a SIM ToolKit operation.
The following scheme shows the SIM Toolkit functionnalities commands and
unsolicited results that will be implemented.
On the first step the customer application informs the WAVECOM module which
facilities are supported. This operation is performed with the +STSF (SIM ToolKit Set
Facilities) command, which also allows to activate or deactivate the SIM Toolkit functionality.
On the second step an unsolicited result +STIN (SIM ToolKit indication) is sent by the
module, in order to indicate the customer application which command type the SIM
Application Toolkit is running on the SIM card.
On the third step the customer application uses the +STGI (SIM ToolKit Get
Information) command to get all the information about the SIM ToolKit command, given by
+STIN.
On the fourth step the customer application uses the +STGR (SIM Toolkit Give
Response) to send its response (if any) to the SIM ToolKit Application.
WAVECOM
Module
Customer
Application
+STSF=X,XXXXXXXX
+STIN=X
+STGI=X
+STGI response
+STGR=X,XXXXXX
STEP 1: Configuration and Activation
STEP 2: SIM sends pro-active command
STEP 3: Customer application gets all the information.
Step 4: User response is sent to the SIM.
+STCR:X
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
204
The +STCR (SIM Toolkit Control response) indication is an unsolicited result sent by
the SIM when Call control functionality is activated and before the customer application has
performed any outgoing call,SMS, SS, or USSD.
16.3 SIM TOOLKIT COMMANDS
16.3.1 SIM ToolKit Set Facilities (+STSF)
16.3.1.1 Description
This command allows to activate, deactivate or configure the SIM ToolKit facilities.
16.3.1.2 Syntax
Command syntax : +STSF=<mode>[,<config>][,<Timeout>]
Command Possible responses
+STSF=<Mode>[,<Config>]
[,<Timeout>]
OK
+CME ERROR: <err>
+STSF? +STSF: <Mode>, <Config>,<Timeout>
+STSF=? +STSF: (0-2), (160060C0 - 5FFFFFF7),(1-255)
OK
16.3.1.3 Defined values
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
205
<mode> 0 Deactivate the SIM Toolkit functionalities.
1 Activate the SIM Toolkit functionalities.
2 Configure the SIM Toolkit functionalities.
<Config> (160060C0 – 5F9FFFF7) (hex format)
<Timeout> 1-255 Timeout for user reponses (muiltiple of 10 secondes).
The activation or deactivation of the SIM Toolkit functionalities requires the use of +CFUN
(Set phone functionality) command to reboot the module.
The <Config> parameter contains the coding of TERMINAL PROFILE, precisely the list of
SIM Application Toolkit facilities that are supported by customer application.
The <Timeout> parameter contains the time (multiple of 10 secondes) dispose the user to
anwer (for select an item, input a text …).
Note: Some bits concerns the WAVECOM module and not the customer application. The
WAVECOM module sets automatically these bits to either 0 or 1 whatever the user
enters with +STSF command. Those values are given in Appendix B.
Each facility is coded on 1 bit:
• bit = 1: facility supported by the customer application.
• bit = 0: facility not supported by the customer application.
Only the first four byte of TERMINAL PROFILE (Class 2) can be configured, the other
are set to 0. (See structure of TERMINAL PROFILE in APPENDIX C)
16.3.1.4 Error codes
+CME ERROR: 3 Operation not allowed. This error is
returned when a wrong parameter is
entered.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
206
16.3.1.5 Informative example
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+WIND=15 Ask of Wavecom indications
OK
AT+CPAS
Query ME Status
+CPAS: 0 ME is ready.
OK
AT+STSF=?
Test command SIM ToolKit Set Facilities
+STSF: (0-2), (160060C0 – 5F9FFFF7),(1-255)
OK
AT+STSF?
+STSF: 0,”160060C0”,3 No activation of SIM ToolKit functionality
OK
AT+STSF=2,”5F9FFFF7” Set all facilities SIM ToolKit (class 2).
OK
AT+STSF=3
Syntax Error
+CME ERROR: 3
AT+STSF=1
Activation of SIM ToolKit functionality
OK
AT+CFUN=1 Reboot
Software.
OK
AT+CPIN?
Is ME asking password?
+CPIN: SIM PIN Yes, SIM PIN required
AT+CPIN=0000
OK
PIN Ok
…
+WIND: 4 Init phase is complete
AT+STSF?
+STSF: 1,”5F9FFFF7”,3 SIM ToolKit functionality activated with
all
OK facilities.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
207
16.3.2 Unsolicited Result : SIM ToolKit Indication (+STIN)
In order to allow the customer application to identify the pro-active command sent by
the SIM ToolKit, a mechanism of unsolicited SIM ToolKit indications (+STIN) will be
implemented.
Syntax : +STIN: <CmdType>
Option : <CmdType> 0 Indicates that a ‘Setup Menu’ pro-active
command has been sent from the SIM.
1 Indicates that a ‘Display Text’ pro-active
command has been sent from the SIM.
2 Indicates that a ‘Get Inkey’ pro-active
command has been sent from the SIM.
3 Indicates that a ‘Get Input’ pro-active
command has been sent from the SIM.
4 Indicates that a ‘Setup Call’ pro-active
command has been sent from the SIM.
5 Indicates that a ‘Play Tone’ pro-active
command has been sent from the SIM.
6 Indicates that a ‘Sel Item’ pro-active
command has been sent from the SIM.
7 Indicates that a ‘Refresh’ pro-active
command has been sent from the SIM.
8 Indicates that a ‘Send SS’ pro-active
command has been sent from the SIM.
9 Indicates that a ‘Send SMS’ pro-active
command has been sent from the SIM.
98 Indicates the timeout when no response
from user.
99 Indicates that a End Session’ has been
sent from the SIM.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
208
16.3.3 SIM ToolKit Get Informations (+STGI)
16.3.3.1 Description
This command allows to get the information (text to display, Menu information,
priorities…) of a pro-active command sent from the SIM.
The information is returned only after receiving a SIM Toolkit indication (+STIN).
16.3.3.2 Syntax
Command syntax : +STGI=<CmdType>
Command Possible responses
+STGI=<CmdType> See Table 1
+CME ERROR: <err>
+STGI=? +STGI: (0-10)
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
209
Table 1
Cmd
Type Description Possible responses
0 Get information about
‘Setup Menu’ pro-active
command.
+STGI: <Alpha Identifier menu>
+STGI: <Id1>,<NbItems>,<Alpha Id1 Label>,<Help Info>[,<NextActionId>]<CR><LF>
+STGI: <Id2>,<NbItems>,<Alpha Id2 Label>,<Help Info>[,<NextActionId>]<CR><LF>
[…]]
No action expected from SIM.
1 Get information about
‘Display text’ pro-active
command.
+STGI: <Prior>,<Text>,<ClearMode>
No action expected from SIM.
2 Get information about ‘Get
Inkey’ pro-active command.
+STGI: <Format>,<HelpInfo>[,<TextInfo>]
SIM expects key pressed (+STGR).
3 Get information about ‘Get
Input’ pro-active command.
+STGI: <Format>,<EchoMode>,<SizeMin>,<SizeMax>,
<HelpInfo>[,<TextInfo>]
SIM expects key input (+STGR).
4 Get information about
‘Setupt call’ pro-active
command.
+STGI: <Type>,<CalledNb>,<SubAddress>,<Class>
SIM expects user authorization (+STGR).
5 Get information about ‘Play
Tone’ pro-active command.
+STGI: <ToneType>[,<TimeUnit>,<TimeInterval>,<TextInfo>]
No action.
6 Get information about ‘Sel
Item’ pro-active command.
+STGI: <DefaultItem>, <Alpha Identifier menu><CR><LF>
+STGI: <Id1>,<NbItems>,<Alpha Id1 Label>,<Help Info>[,<NextActionId>]<CR><LF>
+STGI: <Id2>,<NbItems>,<Alpha Id2 Label>,<Help Info>[,<NextActionId>]<CR><LF>
[…]]
SIM expects an item choice (+STGR).
7 Get information about
‘Refresh’ pro-active
command.
+STGI: <RefreshType>
No action (Refresh done automatically by module).
8 Get information about ‘Send
SS’ pro-active command.
+STGI:<TextInfo>
No action (Send SS done automatically by module).
9 Get information about ‘Send
SMS’ pro-active command.
+STGI: <TextInfo>
No action (Send SMS done automatically by module).
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
210
16.3.3.3 Defined values
♦ Values when CmdType=0 (Setup menu)
<Alpha Idenitifer menu> Alpha identifier of the main menu.
<Idx> (1-255) Menu item Identifier.
<NbItems> (1-255) Number of items in the main menu.
<Alpha Idx Label> Alpha identifier label of items in ASCII
format.
<HelpInfo> 0 No help information available.
1 Help information available.
<NextActionId> Contains a pro-active command identifier.
(see the table in APPENDIX D)
Compared to other commands the customer application can always get information
about setup menu after having received the +STIN:0 indication.
♦ Values when CmdType=1 (Display text)
<Prior> 0 Normal priority of display.
1 High priority of display.
<Text> Text to display in ASCII format.
<ClearMode> 0 Clear message after a delay (3 seconds)
1 Wait for user to clear message.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
211
♦ Values when CmdType=2 (Get Inkey)
<Format> 0 Digit (0-9, *, #,and +)
1 SMS alphabet default.
2 UCS2
<HelpInfo> 0 No help information available.
1 Help information available.
<TextInfo> Text information in ASCII format.
♦ Values when CmdType=3 (Get Input)
<Format> 0 Digit (0-9, *, #,and +)
1 SMS alphabet default.
2 UCS2
3 Unpacked format.
4 Packed format.
<EchoMode> 0 Echo off.
1 Echo on.
<SizeMin> (1-255) Minimum length of input.
<SizeMax> (1-255) Maximum length of input.
<HelpInfo> 0 No help information available.
1 Help information available.
<TextInfo> Text information in ASCII format.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
212
♦ Values when CmdType=4 (Setup Call)
<Type> 0 Set up call but only if not currently busy on another
call.
1 Set up call, putting all other calls (if any) on hold.
2 Set up call, disconnecting all other calls (if any).
<CalledNb> Called party number in ASCII format.
<SubAdress> Called party sub-address in ASCII format.
<Class> 0 Voice call.
1 Data call.
2 Fax call
♦ Values when CmdType=5 (Play tone)
<ToneType> 0 Tone Dial.
1 Tone Busy.
2 Tone Congestion.
3 Tone Radio ack
4 Tone Dropped.
5 Tone Error.
6 Tone Call waiting.
7 Tone Ringing.
8 Tone General beep.
9 Tone Positive beep.
10 Tone Negative beep.
<TimeUnit> 0 Time unit used is minutes.
1 Time unit used is seconds.
2 Time unit used is tenths of seconds.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
213
<TimeInterval> (1-255) Time required expressed in units.
<TextInfo> Text information in ASCII format.
♦ Values when CmdType=6 (Sel Item)
<DefaultItem> (1-255) Default Item Identifier.
<Alpha Idenitifer menu> Alpha identifier of the main menu.
<Idx> (1-255) Identifier items.
<NbItems> (1-255) Number of items in the menu.
<Alpha Idx Label> Alpha identifier label of items in ASCII
format.
<HelpInfo> 0 No help information available.
1 Help information available.
<NextActionId> Contains a pro-active command identifier.
(see the table in APPENDIX D)
♦ Values when CmdType=7 (Refresh)
<RefreshType> 0 SlM initialization and full file change notification.
1 File change notification.
2 SIM initialization and file change notification.
3 SIM initialization.
4 SIM reset.
♦ Values when CmdType=8 (Send SS)
<TextInfo> Text information in ASCII format.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
214
♦ Values when CmdType=9 (Send SMS)
<TextInfo> Text information in ASCII format.
Rem : For UCS2 format the texts are displayed in Hexa Ascii format.
Example : When the SIM send a TextString contains 0x00 0x41
the text displayed is “0041”.
16.3.3.4 Error codes
+ CME ERROR: 3 Operation not allowed. This error is
returned when a wrong parameter is
detected.
+CME ERROR: 4 Operation not supported. This error is
returned when the user wants to get
information about a SIM ToolKit pro-active
command.(With SIM ToolKit functionality
not activated.)
+CME ERROR: 518 SIM ToolKit indication not received.
This error is returned when the SIM
Toolkit indication (+STIN) has not been
received.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
215
16.3.3.5 Informative example
At the beginning, all facilities are activated, the PIN is not required and SIM toolkit
functionality is activated.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+WIND=15 Ask of Wavecom indications
OK
AT+STSF?
+STSF: 1,”5F9FFFF7”,3 SIM ToolKit functionality activated with all
facilities.
OK
+STIN:0 The main menu has been sent from the SIM.
AT+STGI=0 Get information about the main menu
+STGI: ”SIM TOOLKIT MAIN MENU” Main menu contains 3 items.
+STGI: 1,3,”BANK”,0
+STGI: 2,3,”QUIZ”,0
+STGI: 3,3,”WEATHER”,0
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
216
16.3.4 Unsolicited Result : SIM ToolKit Control Response (+STCR)
when the customer application makes an outgoing call or an outgoing SMS, if the call
control facility is activated, CALL CONTROL and SMS CONTROL responses can be
identified. It is also applicable to SS calls.
Syntax : +STCR: <Result>[,<Number>,<MODestAddr>,<TextInfo>]
Option : <Result> 0 Control response not allowed.
1 Control response with modification.
<Number> Called number, Service Center Address
or SS String in ASCII format.
<MODestAddr> MO destination address in ASCII format.
<TextInfo> Text information in ASCII format.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
217
16.3.5 SIM ToolKit Give Response (+STGR)
16.3.5.1 Description
This command allows the application/user to answer the following proactive commands:
• GET_INKEY Key pressed from the user.
• GET_INPUT Message entered by the user.
• SELECT_ITEM Selected item.
• SETUP-CALL User confirmation.
• DISP_TEXT User confirmation to clear the message.
• END_SESSION User abort.
Or to select an item in the main menu.
16.3.5.2 Syntax
Command syntax : +STGR=<CmdType>[,<Result>,<Data>]
Command Possible responses
+STGR=<CmdType>[,<Result>,<Data>] OK
+CME ERROR: <err>
For GetInput with <Result>=1:
+STGR=3,1<CR>
<Data><Ctrl Z>
OK
+CME ERROR: <err>
For Getinkey with <Result>=1
+STGR=2,1,”<Data>”
OK
+CME ERROR: <err>
+STGR=? OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
218
16.3.5.3 Defined values
<CmdType> 0 Item selection in the main menu.
1 User confirmation to clear a ‘Disp Text’
2 Response for a ‘Get Inkey’.
3 Response for a ‘Get Input’.
4 Response for a ‘Setup call’.
6 Response for a ‘Sel Item’.
99 User abort.
♦ Values when CmdType=0 (Select an item from the main menu)
<Result> 1 Item selected by the user.
2 Help information required by user.
<Data> Contains the item identifier of the item selected by the
user.
♦ Values when CmdType=1 (Confirm the display text clearing)
♦ Values when CmdType=2 (Get Inkey)
<Result> 0 Session ended by user.
1 Response given by the user.
2 Help information required by user.
<Data> Contains the key pressed by the user.
♦ Values when CmdType=3 (Get Input)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
219
<Result> 0 Session ended by user.
1 Given response given by the user.
2 Help information required by user.
<Data> Contains the string of characters entered by the user.
♦ Values when CmdType=4 (Setup call)
<Result> 0 User refuse the call.
1 User accept call.
♦ Values when CmdType=6 (Sel Item)
<Result> 0 Session terminated by user.
1 Item selected by the user.
2 Help information required by user.
3 Return to the back item.
<Data> Contains the item identifier of the item selected by the
user.
♦ Values when CmdType=99 (SIM Toolkit Sesssion aborting by the user)
Rem : For Inputs in UCS2 format. The datas are entered in ASCII format.
Example : For “8000410042FFFF” entered the SIM received
0x80 0x00 0x41 0x00 0x42 0xFF 0xFF.
(See the Appendix E about the different UCS2 syntaxes).
16.3.5.4 Possible error codes
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
220
+ CME ERROR: 3 Operation not allowed. his error is
returned when a wrong parameter is
detected.
+CME ERROR: 4 Operation not supported. This error is
returned when the user give a response
with SIM ToolKit functionality not
activated. Or if the SIM Toolkit indication
(+STIN) has not been received.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
221
16.3.5.5 Informative example
At the beginning all facilities are activated, the PIN is not required and SIM toolkit
functionality is activated.
+STIN: 0 The main menu has been sent from the SIM.
AT+STGI=0 Get information about the main menu
+STGI: 1,3,”BANK”,0 The main menu contains 3 items.
+STGI: 2,3,”QUIZ”,0
+STGI: 3,3,”WEATHER”,0
OK
AT+STGR=0,1,1 The item 2 of the main menu has been selected.
OK
+STIN: 6 The Sel item menu has been sent from the SIM.
AT+STGI=6 Get information about the BANK menu
+STGI: 1,”BANK” The BANK menu contains two items.
+STGI: 1,2,”PERSONAL ACCOUNT ENQUIRY”,1
+STGI: 2,2,”NEWS”,0
OK
AT+STGR=6,1,1 Select Item 1.
OK
+STIN: 3 User
request to enter Password
sent.
AT+STGI=3 Get information about this request.
+STGI: 0,0,4,4,0,”Enter Account Password:’
OK
AT+STGR=3,1<CR> The user Enters the Password.
>0000<Ctrl Z>
OK
+STIN:1 A text info has been sent from the SIM.
AT+STGI=1 Get information about this text.
+STGI: 0,”Password correct, please wait for response”,0
OK
+STIN: 9 SIM requests for bank account update from bank
via network (SEND SMS)
AT+STGI=9 Get all information about the SEND SMS
+STGI: ”Send account balance of user, authorization ok”
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
222
********* After a short period of time. ********
+STIN: 5 Transaction is complete: BEEP
+STGI=5 Get information about the Tone
+STGI: 9,1,1
+STIN: 1 Display text indication
AT+STGI=1
+STGI: 0,”Your account balance is 1000 $”,0
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
223
17 Other AT commands
17.1 V.25 ter recommandation
Other remaining basic commands are not implemented, so an "ERROR" string will be
sent back.
All commands about modulation control, error control and data compression are not
recognized. An "ERROR" string will be sent back.
17.2 GSM 07.05 recommandation
All the remaining commands are not implemented, so an "ERROR" string will be sent back.
17.3 GSM 07.07 recommandation
All the remaining commands are not implemented, so an "ERROR" string will be sent back.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
224
18 Appendices
18.1 ME error result code : +CME ERROR: <error>
<error> Meaning Resulting from the following commands
3 Operation not allowed All GSM 07.07 commands (+CME ERROR: 3)
4 Operation not supported All GSM 07.07 commands (+CME ERROR: 4)
5 PH-SIM PIN required (SIM lock) All GSM 07.07 commands (+CME ERROR: 5)
10 SIM not inserted All GSM 07.07 commands (+CME ERROR: 10)
11 SIM PIN required All GSM 07.07 commands (+CME ERROR: 11)
12 SIM PUK required All GSM 07.07 commands (+CME ERROR: 12)
13 SIM failure All GSM 07.07 commands (+CME ERROR: 13)
16 Incorrect password +CACM, +CAMM, +CPUC, +CLCK, +CPWD, +CPIN,
+CPIN2 (+CME ERROR: 16)
17 SIM PIN2 required +CPBW (FDN), +CLCK (FDN),
18 SIM PUK2 required +CACM, +CAMM, +CPUC, +CPBW (FDN), +CPIN,
+CPIN2, +CLCK (FDN), +CPWD
20 Memory full +CPBW
21 Invalid index +CPBR, +CPBW, ATD>index, +WMGO
22 Not found +CPBF, +CPBP, +CPBN, +CGSN, +WOPN
24 Text string too long +CPBW, +CPIN, +CPIN2, +CLCK, +CPWD, +
26 Dial string too long +CPBW, ATD, +CCFC
30 No network service +VTS, +COPS=?, +CLCK, +CCFC, +CCWA
32 Network not allowed – emergency
calls only
+COPS
40 Network personalisation PIN
required (Network lock) All GSM 07.07 commands (+CME ERROR: 40)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
225
required (Network lock)
18.2 Message service failure result code: +CMS ERROR : <er>
<er> is defined as below :
<er> Meaning Resulting from the following commands
1 to
127 Error cause values from the
GSM recommendation 04.11
Annex E-2
+CMGS, +CMSS
301 SMS service of ME reserved +CSMS (with +CMS: ERROR 301)
302 Operation not allowed All SMS commands (+CMSS, +CMGL, +CPMS,
+CSMP…
303 Operation not supported All SMS commands
304 Invalid PDU mode
parameter +CMGS, +CMGW
305 Invalid text mode parameter +CMGS, +CMGW, +CMSS
310 SIM not inserted All SMS commands
311 SIM PIN required All SMS commands
312 PH-SIM PIN required All SMS commands
313 SIM failure All SMS commands
316 SIM PUK required All SMS commands
317 SIM PIN2 required All SMS commands
318 SIM PUK2 required All SMS commands
321 Invalid memory index +CMGR, +CMSS, +CMGD
322 SIM memory full +CMGW
330 SC address unknown +CSCA?, +CMSS, +CMGS
340 no +CNMA acknowledgement
ex
p
ected +CNMA
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
226
expected
18.3 Specific error result codes
<error> Meaning Resulting from the following commands
500 unknown error All commands
512 MM establishment failure
(for SMS) +CMGS, +CMSS (+CMS ERROR: 512)
513 Lower layer failure (for SMS) +CMGS, +CMSS
514 CP error (for SMS) +CMGS, +CMSS
515 Please wait, init or command
processing in progress All commands ( “+CME ERROR: 515” or “+CMS
ERROR: 515”)
517 Facility Sim Toolkit not
supported +STGI
518 Sim Toolkit indication not
received +STG
519 Reset the module to activate
or change a new echo
cancellation algo
+ECHO, +VIP
520 Automatic abort about get
plmn list for an incomming
call.
+COPS=?
18.4 Failure Cause from GSM 04.08 recommandation (+CEER)
Cause value
Diagnostic
1 Unassi
g
ned
(
unallocated
)
number
3 No route to destination
6 Channel unacce
p
table
8 O
p
erator determined barrin
g
16 Normal call clearin
g
17 User bus
y
18 No user res
p
ondin
g
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
227
19
User alerting no answer
21 Call re
j
ected
22 Number chan
g
ed
26 Non selected user clearin
g
27 Destination out of order
28
e
r format
(
incom
p
lete number
)
29
t
ed
30 STATUS EN
Q
UIRY
31
p
ecified
34
a
nnel available
38
o
f order
41
a
ilure
42
u
i
p
ment con
g
estion
43
m
ation discarded
44 rcuit/channel not available
47
n
available
,
uns
p
ecified
49
r
vice unavailable
50
a
cilit
y
not subscribed
55 s barred with in the CUG
57
b
ilit
y
not authorized
58
b
ilit
y
not
p
resentl
y
available
63
p
tion not available
,
uns
p
ecified
65
c
e not im
p
lemented
68
o
or
g
reater than ACMmax
69
a
cilit
y
not im
p
lemented
70 Onl
y
restricted di
g
ital information bearer ca
p
abilit
y
is
79 Service or o
p
tion not im
p
lemented
,
uns
p
ecified
81 Invalid transaction identifier value
87 User not member of CUG
88 Incom
p
atible destination
91 Invalid transit network selection
95 Semanticall
y
incorrect messa
g
e
96 Invalid mandator
y
information
97 Messa
g
e t
yp
e non-existent or not im
p
lemented
98 Messa
g
e t
yp
e not com
p
atible with
p
rotocol state
99 Information element non-existent or not im
p
lemented
100 Conditional IE error
101 Messa
g
e not com
p
atible with
p
rotocol state
102 Recover
y
on timer ex
p
ir
y
111 Protocol error
,
uns
p
ecified
127 Interworkin
g,
uns
p
ecified
All other values in the range 0 to 31 shall be treated as cause 31.
All other values in the range 32 to 47 shall be treated as cause 47.
All other values in the range 48 to 63 shall be treated as cause 63.
All other values in the range 64 to 79 shall be treated as cause 79.
All other values in the range 80 to 95 shall be treated as cause 95.
All other values in the range 96 to 111 shall be treated as cause 111.
All other values in the range 112 to 127 shall be treated as cause 127.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
228
18.5 Specific Failure Cause for +CEER
240
FDN is active and number is not in FDN
241 Call o
p
eration not allowed
252 Call barrin
g
on out
g
oin
g
calls
253 Call barrin
g
on incomin
g
calls
254 Call im
p
ossible
255 Lower la
y
er failure
18.6 GSM 04.11 Annex E-2: Mobile originating SM-transfer
These error causes could appear for SMS commands (+CMGS, +CMSS, +CMGD…)
Cause no 1: "Unassigned (unallocated) number"
This cause indicates that the destination requested by the Mobile Station cannot be
reached because, although the number is in a valid format, it is not currently assigned
(allocated).
Cause no 8: "Operator determined barring"
This cause indicates that the MS has tried to send a mobile originating short message
when the MS's network operator or service provider has forbidden such transactions.
Cause no 10: "Call barred"
This cause indicates that the outgoing call barred service applies to the short
message service for the called destination.
Cause no 21: "Short message transfer rejected"
This cause indicates that the equipment sending this cause does not wish to accept
this short message, although it could have accepted the short message since the equipment
sending this cause is neither busy nor incompatible.
Cause no 27: "Destination out of service"
This cause indicates that the destination indicated by the Mobile Station cannot be
reached because the interface to the destination is not functioning correctly. The term "not
functioning correctly" indicates that a signalling message was unable to be delivered to the
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
229
remote user; e.g., a physical layer or data link layer failure at the remote user, user
equipment off-line, etc.
Cause no 28: "Unidentified subscriber"
This cause indicates that the subscriber is not registered in the PLMN (i.e. IMSI not
known)
Cause no 29: "Facility rejected"
This cause indicates that the facility requested by the Mobile Station is not supported
by the PLMN.
Cause no 30: "Unknown subscriber"
This cause indicates that the subscriber is not registered in the HLR (i.e. IMSI or
directory number is not allocated to a subscriber).
Cause no 38: "Network out of order"
This cause indicates that the network is not functioning correctly and that the
condition is likely to last a relatively long period of time; e.g., immediately reattempting the
short message transfer is not likely to be successful.
Cause no 41: "Temporary failure"
This cause indicates that the network is not functioning correctly and that the
condition is not likely to last a long period of time; e.g., the Mobile Station may wish to try
another short message transfer attempt almost immediately.
Cause no 42: "Congestion"
This cause indicates that the short message service cannot be serviced because of
high traffic.
Cause no 47: "Resources unavailable, unspecified"
This cause is used to report a resource unavailable event only when no other cause
applies.
Cause no 69: "Requested facility not implemented"
This cause indicates that the network is unable to provide the requested short
message service.
Cause no 81: "Invalid short message transfer reference value"
This cause indicates that the equipment sending this cause has received a message
with a short message reference which is not currently in use on the MS-network interface.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
230
Cause no 95: "Invalid message, unspecified"
This cause is used to report an invalid message event only when no other cause in
the invalid message class applies.
Cause no 96: "Invalid mandatory information"
This cause indicates that the equipment sending this cause has received a message
where a mandatory information element is missing and/or has a content error (the two cases
are undistinguishable).
Cause no 97: "Message type non-existent or not implemented"
This cause indicates that the equipment sending this cause has received a message
with a message type it does not recognize either because this is a message not defined or
defined but not implemented by the equipment sending this cause.
Cause no 98: "Message not compatible with short message protocol state"
This cause indicates that the equipment sending this cause has received a message
such that the procedures do not indicate that this is a permissible message to receive while
in the short message transfer state.
Cause no 99: "Information element non-existent or not implemented"
This cause indicates that the equipment sending this cause has received a message
which includes information elements not recognized because the information element
identifier is not defined or it is defined but not implemented by the equipment sending the
cause.
However, the information element is not required to be present in the message in
order for the equipment sending the cause to process the message.
Cause no 111: "Protocol error, unspecified"
This cause is used to report a protocol error event only when no other cause applies.
Cause no 127: "Interworking, unspecified"
This cause indicates that there has been interworking with a network which does not
provide causes for actions it takes; thus, the precise cause for a message which is being
send cannot be ascertained.
All values other than specified should be treated as error Cause No 41
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
231
18.7 Unsolicited result codes
Verbose result code Numeric (V0 set) Description
RING 2 Incoming call signal from network
+CMTI: <mem>,<index> as verbose Incoming message stored in
<mem> (“SM”) at location <index>
+CMT: <oa>… (text mode)
or +CMT: [<alpha>,]… (PDU)
as verbose Incoming message directly
displayed
+CDS: <fo>, <mr>… (text mode)
or +CDS: <length>,… (PDU)
As verbose SMS status report after sending a
SMS
+CCCM : <ccm> As verbose Current Call Meter value
+CKEV: <keynb> As verbose Key press or release
+CCWA :<number>,<type>,
<class> [,<alpha>] As verbose Call Waiting number
+CLIP : <number>, <type>
[,,,<alpha>] As verbose Incoming Call Presentation
+CREG : <stat> [,<lac>,<ci>] As verbose Network registration indication
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
232
+CRING : <type> As verbose Incoming call type (VOICE, FAX ...)
+WIND: <IndicationNb> [,<CallId>] As verbose
(specific)
Specific unsolicited indication (SIM
Insert/Remove, End of init, Reset,
Alerting, Call creation/release)
+CSQ: <RxLev>,99 As verbose
(specific)
Automatic RxLev indication with
AT+CCED=1,8 command
+CSSI: <code1> As verbose
(specific)
Supplementary service notification
during a call setup
18.8 Final result codes
Verbose result code Numeric (V0 set) Description
+CME ERROR: <err> As verbose Error from GSM 07.05 commands
+CMS ERROR: <err> As verbose Error from SMS commands (07.07)
BUSY 7 Busy signal detected
ERROR 4 Command not accepted
NO ANSWER 8 Connection completion timeout
NO CARRIER 3 Connection terminated
OK 0 Acknowledges correct execution of
a command line
RING 2 Incoming call signal from network
18.9 Intermediate result codes
Verbose result code Numeric (V0 set) Description
+COLP :<number>,<type> as verbose Outgoing Call Presentation
+CR : <type> as verbose Outgoing Call report control
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
233
+ILRR: <rate> as verbose Local TA-TE data rate
CONNECT 300 10 Data connection at 300 bauds
CONNECT 1200 11 Data connection at 1200 bauds
CONNECT 1200/75 12 Data connection at 1200/75 bauds
CONNECT 2400 13 Data connection at 2400 bauds
CONNECT 4800 14 Data connection at 4800 bauds
CONNECT 9600 15 Data connection at 9600 bauds
CONNECT 14400 16 Data connection at 14400 bauds
+CSSU: <code2> as verbose
(specific)
Supplementary service notification
during a call
18.10 Parameters storage
Command AT&W
(E2P)
AT+CSAS AT&F
(SIM E2P)
Initial values
WISMO1B
Initial values
WISMO2C
+CMEE X X 0 0
+CSCS X X “PCCP437” “PCCP437”
ATS0 X X 0 (no auto-answer) 0 (no auto-answer)
+CICB X X 2 (speech) 2 (speech)
+VGR X X 64 (all speakers) 64 (all speakers)
+VGT X X 64 (all microphones) 64 (all microphones)
+SPEAKER X X 0 (Spk 0 & Mic 0) 0 (Spk 0 & Mic 0)
+SIDET X X 1,1 1,1
+CREG X X 0 0
+WAIP X X 0 0
+CMGF X X 1 (text) 1 (text)
+CSDH X X 0 0
+CNMI X X 0,1,0, 0, 0 0,1,0, 0, 0
+CSMP X X 1, 167, 0, 0 1, 167, 0, 0
+CSCA X SIM dependant
(phase 2) SIM dependant
(phase 2)
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
234
+CCWA X X 0 0
+CLIP X X 0 0
+COLP X X 0 0
+CBST X X 0, 0, 1 0, 0, 1
+CRLP X X 61, 61, 48, 6, 0 61, 61, 48, 6, 1
+CR X X 0 0
+CRC X X 0 0
+IPR X 0 (autobaud) 9600
+IFC X 2,2 2,2
+ICF X 3,4 3,4
E X 1 1
&C X 1 1
&D X 1 1
&S X 1 1
Q X X 0 0
V X X 1 1
+DOPT X X 1,0 1,1
%C X X 2
\N X X 0
+DS X X 3,0,4096,20
+DR X X 0
+FDCC,+FIDS X X 0,5,0,0,2,0,0,0,0
+FCQ X X 0
+FCR X X 1
+FPHCTO X X 30
+FBOR X X 0
+ECHO Comma
nd X 0,255,1000,5,500,63
0,1,0,3,10,7
(Echo cancel)
+WIND Comma X 0 0
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
235
18.11 GSM sequences list
In accordance with GSM 02.30, the module implements the following GSM sequences,
which can be acceded by the ATD and the +CKPD commands.
18.11.1 Security
**04*OLDPIN*NEWPIN*NEWPIN# Change PIN code
**042*OLDPIN2*NEWPIN2*NEWPIN2# Change PIN2 code
**05*PUK*NEWPIN*NEWPIN# Unlock PIN code
**052*PUK2*NEWPIN2*NEWPIN2# Unlock PIN2 code
*#06# Show the IMEI number
18.11.2 Call forwarding
*SC# Activate
**SC*PhoneNumber# or Register and activate
**SC*PhoneNumber*BS# or
**SC*PhoneNumber*[BS]*T#
*#SC# or *#SC**BS# Check status
#SC# Deactivate
##SC# or ##SC**BS# Unregister and deactivate
The Service codes (SC) are the followings:
002 all call forwarding
004 all conditional call forwarding
21 call forwarding unconditional
61 call forwarding on no answer
62 call forwarding on not reachable
67 call busy
The Network service codes (BS) are the followings:
No
d
All tele and bearer services
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
236
10 All teleservices
11 Telephony
12 All data teleservices
13 Fax services
16 Short Message Services
19 All teleservices except SMS
20 All bearer services
21 All asynchronous services
22 All synchronous services
24 All data circuit synchronous
25 All data circuit asynchronous
26 All dedicated packet access
27 All dedicated PAD access
The no reply condition timer (T), is only used for SC=61.
18.11.3 Call barring
*SC*Password# or *SC*Password*BS# Activate
*#SC# or *#SC**BS# Check status
#SC*Password# or #SC*Password*BS# Deactivate
**03*330*OLDPWD*NEWPWD*NEWPWD# Change password for call barring
**03**OLDPWD*NEWPWD*NEWPWD#
*03*330*OLDPWD*NEWPWD*NEWPWD#
*03**OLDPWD*NEWPWD*NEWPWD#
The Service codes (SC) are the followings:
33 call barring of outgoing call
330 all barring service
331 call barring of outgoing international call
332 call barring of outgoing international calls except to HPLMN
333 all outgoing barring service
35 call barring of incoming calls
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
237
351 call barring of incoming calls if roaming
353 all incoming barring service
The Network service codes (BS) are the same as these of the call forwarding sequences.
18.11.4 Call waiting
*43# Activate
*#43# Check status
#43# Deactivate
18.11.5 Number presentation
*#30# CLIP check status
*#31# CLIR check status
*31#PhoneNumber Invoke CLIR for a voice call
#31#PhoneNumber Suppress CLIR for a voice call
*#76# COLP check status
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
238
18.12 Operator names
Country
Initials MCC MNC Preferred Presentation of
Country Initials and Mobile
Network Name
Abbreviated
Mobile Network
Name
Type of
network
A 232 01 AUSTRALIA A1. A1 GSM900
A 232 03 A max. max. GSM900
AL 276 01 AMC - AL A M C GSM900
ALG 603 01 ALGERIAN MOBILE NETWORK AMN GSM900
AND 213 03 STA-MOBILAND M-AND GSM900
AUS 505 01 Telstra MobileNet Telstra GSM900
AUS 505 02 YES OPTUS AUS Optus GSM900
AUS 505 03 VODAFONE AUS VFONE GSM900
AZE 400 01 AZE - AZERCELL GSM ACELL GSM900
AZE 400 02 BAKCELL GSM 2000 BKCELL GSM900
B 206 10 B mobistar mobi* GSM900
BD 470 03 BD ShebaWorld SHEBA GSM900
BEL 206 01 BEL PROXIMUS PROXI GSM900
BG 284 01 M-TEL GSM BG M-TEL GSM900
BGD 470 01 BGD-GP GP GSM900
BHR 426 01 BHR MOBILE PLUS M.PLUS GSM900
BIH 218 90 PTT-GSMBIH BHGSM GSM900
BRU 528 11 BRU-DSTCom DSTCom GSM900
CAN 302 037 CAN-MCELL MCELL PCS1900
CH 228 01 SWISS GSM SWISS GSM900
CH 228 01 SWISS GSM SWISS GSM1800
CH 228 02 diAx Swiss diAx GSM900
CH 228 03 orange CH orange GSM1800
CHN 460 00 CHINA TELECOM CT-GSM GSM900
CHN 460 01 CHN-CUGSM CU-GSM GSM900
CI 612 03 CI Ivoiris Ivoir GSM900
CI 612 05 TELECEL-CI TELCEL GSM900
CL 730 001 CL ENTEL PCS ENTEL GSM900
CL 730 010 CL ENTEL PCS ENTEL PCS1900
CPV 625 01 CPV MOVEL CMOVEL GSM900
CY 280 01 CY CYTAGSM CY-GSM GSM900
CZ 230 01 PAEGAS- CZ PAEGAS GSM900
CZ 230 02 EUROTEL - CZ ET - CZ GSM900
D 262 01 D1-TELEKOM D1 GSM900
D 262 02 D2 PRIVAT D2 GSM900
D 262 03 E-Plus E-Plus GSM1800
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
239
D 262 07 D Interkom Ik GSM1800
DK 238 01 DK TDK-MOBIL TD MOB GSM900
DK 238 02 DK SONOFON SONO GSM900
DK 238 20 TELIA DK TELIA GSM1800
DK 238 30 DK mobilix #mbix GSM1800
E 214 01 E AIRTEL AIRTL GSM900
E 214 03 E AMENA AMENA GSM1800
E 214 07 MOVISTAR MSTAR GSM900
EE 248 01 EE EMT GSM EMT GSM900
EE 248 02 EE RLE RLE GSM900
EE 248 03 EE Q GSM Q GSM GSM900
EGY 602 01 EGY MobiNiL MobiNiL GSM900
EGY 602 02 EGY CLICK GSM CLICK GSM900
ETH 636 01 ETH-MTN ET-MTN GSM900
F 208 01 F Itineris Itine GSM900
F 208 10 F SFR SFR GSM900
F 208 20 F - BOUYGUES TELECOM BYTEL GSM1800
F 340 01 F AMERIS AMERIS GSM900
F 547 20 F-VINI VINI GSM900
F 647 10 SFR REUNION SFR RU GSM900
FI 244 03 FI TELIA TELIA GSM1800
FI 244 05 FI RADIOLINJA RL GSM900
FI 244 09 FI FINNET FINNET GSM1800
FI 244 91 FI SONERA SONERA GSM900
FIJ 542 01 VODAFONE FIJ VODAFJ GSM900
GEO 282 01 GEO-GEOCELL GCELL GSM900
GEO 282 02 MAGTI-GSM-GEO MAGTI GSM900
GH 620 01 GH SPACEFON SPACE GSM900
GIB 266 01 GIBTEL GSM GIBTEL GSM900
GN 611 02 GN LAGUI LAGUI GSM900
GR 202 01 GR COSMOTE C-OTE GSM1800
GR 202 05 GR PANAFON PAN GSM900
GR 202 10 GR TELESTET TLSTET GSM900
H 216 01 H PANNON GSM PANNON GSM900
H 216 30 H-WESTEL 900 W-900 GSM900
HK 454 00 HK TELECOM TELCO GSM900
HK 454 04 HK HTCLGSM HTCL GSM900
HK 454 06 HK SMARTONE HKSMC GSM900
HK 454 10 HK NEW WORLD NWPCS GSM1800
HK 454 12 HK PEOPLES PTC GSM1800
HK 454 16 HK SUNDAY SUNDAY GSM1800
HR 219 01 HR - CRONET CRON GSM900
HR 219 10 HR-VIPNET VIP GSM900
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
240
I 222 01 I TELECOM TIM GSM900
I 222 10 I -OMNITEL OMNI GSM900
I 222 88 I WIND I WIND GSM900
I 222 88 I WIND I WIND GSM1800
IL 425 01 IL ORANGE ORANGE GSM900
INA 404 01 INA ESSAR CELLPHONE ESSARH GSM900
INA 404 07 INA - TATA CELLULAR TATA GSM900
INA 404 10 INA-AIRTL AIRTL GSM900
INA 404 11 INA ESSAR CELLPHONE ESSAR GSM900
INA 404 12 INA - ESCOTEL ESCOTL GSM900
INA 404 14 MODICOM INA MODICO GSM900
INA 404 15 INA ESSAR CELLPHONE ESSARU GSM900
INA 404 20 INA MaxTouch MAXTCH GSM900
INA 404 21 BPL MOBILE BPL MOBILE GSM900
INA 404 27 BPL MOBILE BPL MOBILE GSM900
INA 404 30 INA COMMAND COMMND GSM900
INA 404 41 INA RPG RPG GSM900
INA 404 42 INA AIRCEL AIRCEL GSM900
INA 404 43 BPL MOBILE BPL MOB GSM900
INA 404 46 BPL MOBILE BPL MOB GSM900
INA 404 60 INA ESSAR CELLPHONE ESSARR GSM900
IND 510 01 IND SATELINDOCEL SAT-C GSM900
IND 510 10 IND TELKOMSEL T-SEL GSM900
IND 510 11 IND GSM-XL EXCEL GSM900
IRL 272 01 IRL Eircell Eircell GSM900
IRL 272 02 IRL DIGIFONE DIGI GSM900
IS 274 01 IS SIMINN SIMINN GSM900
IS 274 02 IS TAL TAL GSM900
JOR 416 01 Fastlink FSTLNK GSM900
KGZ 437 01 BITEL KGZ BITEL GSM900
KHM 456 01 MOBITEL - KHM MT-KHM GSM900
KHM 456 02 KHM-SAMART-GSM KHM-SM GSM900
KSA 420 01 ALJAWWAL KSA GSM900
KSA 420 07 EAE-ALJAWWAL EAE GSM900
KT 419 02 KT MTCNet MTC GSM900
KZ 401 01 KZ K-MOBILE K-MOBILE GSM900
L 270 01 L LUXGSM LUXGSM GSM900
L 270 77 L TANGO TANGO GSM900
L 270 77 L TANGO TANGO GSM1800
LBR 618 01 LBR OMEGA OMEGA GSM900
LSO 651 01 VCL COMMS VCLCOM GSM900
LT 246 02 LT BITE GSM BITE GSM900
LTU 246 01 OMNITEL LT OMT GSM900
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
241
LV 247 01 LV LMT GSM LMT GSM900
LV 247 02 LV BALTCOM B-COM GSM900
M 278 01 VODAFONE MLA VODA M GSM900
MAC 455 01 MAC-CTMGSM CTMGSM GSM900
MD 259 01 MD VOXTEL VOXTEL GSM900
MDG 642 02 MDG ANTARIS ANTARI GSM900
MKD 294 01 MKD-MOBIMAK MOBI-M GSM900
MOR 604 01 MOR IAM IAM GSM900
MOZ 643 01 MOZ - mCel mCel GSM900
MRU 617 01 CELLPLUS-MRU CELL + GSM900
MW 650 01 MW CP 900 CP 900 GSM900
MY 502 12 MY maxis mobile maxis GSM900
MY 502 13 MY EMARTEL MRTEL GSM1800
MY 502 16 MY DIGI 1800 MT18 GSM1800
MY 502 17 MY - ADAM 017 ADAM GSM1800
MY 502 19 MY CELCOM GSM CELCOM GSM900
N 242 01 N Telenor TELENOR GSM900
N 242 02 N NetCom GSM N COM GSM900
NCL 546 01 NCL MOBILIS MOBNCL GSM900
NL 204 04 NL LIBERTEL LIBTEL GSM900
NL 204 08 NL KPN TELECOM NL KPN GSM900
NL 204 12 NL TELFORT TELFORT GSM1800
NL 204 16 Ben NL Ben NL GSM900
NL 204 20 dutchtone Dtone GSM900
NZ 530 01 VODAFONE NZ VODA GSM900
OMN 422 02 OMAN MOBILE OMAN GSM900
P 268 01 P TELECEL TLCL GSM900
P 268 03 P OPTIMUS OPTIM GSM900
P 268 06 P TMN TMN GSM900
PGY 744 01 HOLA PARAGUAY S.A. HPGYSA GSM900
PH 515 01 ISLACOM ISLA GSM900
PH 515 02 Globe Telecom-PH GLOBE GSM900
PH 515 03 PH SMART SMART GSM900
PH 515 03 PH SMART SMART GSM1800
PL 260 01 PL-PLUS PLUS GSM900
PL 260 02 PL-ERA GSM ERAGSM GSM900
PL 260 03 PL IDEA IDEA GSM1800
QAT 427 01 QAT-QATARNET Q-NET GSM900
R 635 10 R-CELL RCELL GSM900
RA 283 01 RA-ARMGSM ARMMO1 GSM900
RL 415 01 RL Cellis CLLIS GSM900
RL 415 03 RL LibanCell LibCL GSM900
RO 226 01 RO CONNEX CONNEX GSM900
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
242
RO 226 10 RO dialog dialog GSM900
ROC 466 92 ROC LDTA GSM LDGSM GSM900
RUS 250 01 MTS-RUS MTS GSM900
RUS 250 02 North-West GSM RUS NWGSM GSM900
RUS 250 05 SCS RUS SCS GSM900
RUS 250 07 RUS BMT BMT GSM900
RUS 250 07 RUS SMARTS SMARTS GSM900
RUS 250 12 Far East RUS FEast GSM900
RUS 250 13 Kuban-GSM RUS KUGSM GSM900
RUS 250 28 EXTEL RUS EXTEL GSM900
RUS 250 39 Uraltel UTL GSM900
RUS 250 44 RUS North Caucasian GSM NC-GSM GSM900
S 240 01 TELIA S TELIA GSM900
S 240 07 S COMVIQ IQ GSM900
S 240 08 S EUROPOLITAN EURO GSM900
SA 655 01 VodaCom-SA VODA GSM900
SA 655 10 MTN-SA MTN GSM900
SDN 634 01 SDN MobiTel SD-MOB GSM900
SEZ 633 01 SEZ CELLULAR SERVICES SEYCEL GSM900
SEZ 633 10 SEZ AIRTEL AIRTEL GSM900
SGP 525 01 ST-GSM-SGP STGSM GSM900
SGP 525 02 ST-GSM1800-SGP GSM1800 GSM1800
SGP 525 03 M1-GSM-SGP M1-GSM GSM900
SGP 525 05 STARHUB-SGP STARHUB GSM900
SI 293 40 SI.MOBIL SI.MOBIL GSM900
SI 293 41 SI MOBITEL GSM SI-GSM GSM900
SK 231 01 SVK GT SVK GT GSM900
SK 231 02 EUROTEL-SK ET-SK GSM900
SN 608 01 SN ALIZE ALIZE GSM900
SRI 413 02 SRI DIALOG DALOG GSM900
SYR 417 09 SYR MOBILE SYR MOBILE GSM900
TG 615 01 TG-TOGO CELL TGCELL GSM900
TH 520 01 TH AIS GSM TH AIS GSM900
TH 520 10 TH WCS TH WCS GSM1800
TH 520 23 TH-HELLO HELLO GSM1800
TR 286 01 TR PTT/TURKCELL GSM TCELL GSM900
TR 286 02 TR TELSIM TELSIM GSM900
TWN 466 01 Far EasTone FET GSM900
TWN 466 06 TWN Tuntex GSM 1800 TUNTEX GSM1900
TWN 466 88 KGT-Online KGT GSM1900
TWN 466 93 TWN MOBITAI TW MOB GSM900
TWN 466 97 TWN GSM 1800 PCC GSM1900
TZ 640 01 Tritel - TZ TRITEL GSM900
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
243
UA 255 01 UA UMC UMC GSM900
UA 255 03 UA-KYIVSTAR UA-KS GSM900
UA 255 05 UA - GOLDEN TELECOM GT-BCS GSM1800
UAE 424 02 UAE ETISALAT ETSLT GSM900
UG 641 01 UG CelTel CELTEL GSM900
UG 641 10 MTN-UGANDA MTN-UG GSM900
UK 234 10 UK CELLNET CLNET GSM900
UK 234 15 UK VODAFONE VODA GSM900
UK 234 30 ONE 2 ONE ONE2ONE GSM1800
UK 234 33 ORANGE ORANGE GSM1800
UK 234 50 JERSEY TELECOMS GSM UK JT GSM GSM900
UK 234 55 GUERNSEY TEL UK GSY-TEL GSM900
UK 234 58 MANX TELECOM PRONTO GSM MANX GSM900
UKR 255 02 FLASH-UKR FLASH GSM900
USA 310 010 USA MCI PCS1900
USA 310 011 USA WTTCKy PCS1900
USA 310 012 USA D&E Com PCS1900
USA 310 013 USA MobileTel PCS1900
USA 310 020 USA Sprint PCS1900
USA 310 030 USA PCS PRIME PCS1900
USA 310 031 USA-AERIAL PCS1900
USA 310 040 USA PCS PRIME PCS1900
USA 310 050 USA PCS PRIME PCS1900
USA 310 060 USA PCS PRIME PCS1900
USA 310 070 USA PCS PRIME PCS1900
USA 310 080 USA PCS PRIME PCS1900
USA 310 090 USA PCS PRIME PCS1900
USA 310 100 USA PCS PRIME PCS1900
USA 310 110 USA PCS PRIME PCS1900
USA 310 120 USA PCS PRIME PCS1900
USA 310 130 USA PCS PRIME PCS1900
USA 310 140 USA PCS PRIME PCS1900
USA 310 150 USA BellSouth BSMDCS PCS1900
USA 310 160 USA OMNIPOINT PCS1900
USA 310 170 USA PAC BELL PCS1900
USA 310 180 USA PAC BELL PCS1900
USA 310 190 USA COX PCS1900
USA 310 200 Voice STREAM USA WWC PCS1900
USA 310 210 Voice STREAM USA WWC PCS1900
USA 310 220 Voice STREAM USA WWC PCS1900
USA 310 230 Voice STREAM USA WWC PCS1900
USA 310 240 Voice STREAM USA WWC PCS1900
USA 310 250 Voice STREAM USA WWC PCS1900
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
244
USA 310 260 Voice STREAM USA WWC PCS1900
USA 310 270 USA PowerTel USA 27 PCS1900
USA 310 280 USA PowerTel PCS1900
USA 310 290 USA PowerTel PCS1900
USA 310 300 USA Aerial PCS1900
USA 310 310 USA-AERIAL AERIAL PCS1900
USA 310 320 USA Aerial PCS1900
USA 310 330 USA Aerial PCS1900
USA 310 340 USA Aerial PCS1900
USA 310 350 USA Aerial PCS1900
USA 310 380 USA Pocket PCS1900
USA 310 390 USA Pocket PCS1900
USA 310 400 USA Pocket PCS1900
USA 310 410 USA Pocket PCS1900
USA 310 420 USA Pocket PCS1900
USA 310 430 USA Pocket PCS1900
USA 310 440 USA Pocket PCS1900
USA 310 450 USA Pocket PCS1900
USA 310 460 USA OMNIPOINT PCS1900
USA 310 470 USA OMNIPOINT PCS1900
USA 310 480 USA OMNIPOINT PCS1900
USA 310 490 USA OMNIPOINT PCS1900
USA 310 500 USA OMNIPOINT PCS1900
USA 310 510 USA OMNIPOINT PCS1900
USA 310 520 USA OMNIPOINT PCS1900
USA 310 530 USA OMNIPOINT PCS1900
USA 310 540 USA OMNIPOINT PCS1900
USA 310 550 USA OMNIPOINT PCS1900
USA 310 560 USA OMNIPOINT PCS1900
USA 310 570 USA OMNIPOINT PCS1900
USA 310 580 USA OMNIPOINT PCS1900
USA 310 610 USA OMNIPOINT PCS1900
USA 310 620 USA OMNIPOINT PCS1900
USA 310 630 USA OMNIPOINT PCS1900
USA 310 640 USA Einstein PCS1900
USA 310 660 USA DiGiPH PCS1900
USA 310 670 USA WTTCKy PCS1900
USA 310 680 USA NPI PCS1900
USA 310 690 USA Conestoga PCS1900
VZ 734 01 VZ INFO INFONT
YU 220 01 YU MOBTEL MOBTEL
ZW 648 01 ZW NET*ONE NET*1
ZW 648 03 TELECEL ZW TELECEL
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
245
19 APPENDIX A (informative)
This chapter illustrates informative examples about the general AT commands used for a
communication.
19.1 Informative example about the PIN required
Example 1 : when the ME is powered off.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+CREG=1
Report registration
OK
AT+CPAS
Query ME Status
+CPAS: 5 (ME is asleep)
OK
AT+CFUN=1
Set ME to full functionality
OK
AT+COPS=0
Ask for automatic operator selection and registration.
+CME ERROR: 11 SIM PIN required.
AT+CPIN=1234 User entered a wrong PIN
+CME ERROR: 16 Incorrect password.
AT+CPIN=0000
OK
PIN Ok
AT+COPS=0
Ask for automatic operator selection and registration.
OK
+CREG:1
Registered in the network
AT+COPS=3,0 Select the long name format alphanumeric.
OK
AT+COPS? Get the operator name
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
246
+COPS: 0,0,”I OMNITEL”
OK
Example 2: When the ME has already been powered on.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+CPAS
Query ME Status
+CPAS: 0 ME is already to receive commands
OK
AT+CPIN?
Is ME asking password?
+CPIN: SIM PIN Yes, SIM PIN required
AT+CPIN=0000
OK
PIN Ok
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
247
19.1.1 Informative example where a voice call is originated.
Example 3 : When the ME is powered on and the SIM PIN has been entered.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+WIND=63 Ask to display the general indications.
OK
AT+CPIN?
Is ME asking password?
+CPIN: READY GSM module is ready
ATD0607103543; Originate a voice call
+WIND: 5,1 Indication about a call creation.
+WIND: 2
Remote party is ringing.
OK
Call setup was successful
Conversation…
ATH
Release the call
OK
When a voice call is attempted from a phonebook :
ATD>”John Pamborn”;
+CME ERROR: 22 Entry “John Pamborn” is not found.
ATD>”Joel Guerry”;
+WIND: 5,1 Indication about a of call creation.
+WIND: 2
Remote party is ringing.
OK
Call setup was successful
Conversation…
ATH
Release the call
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
248
19.1.2 Informative example about an incoming call.
When the ME is powered on and the SIM PIN has been entered.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+WIND=63 Ask to display the general indications.
OK
AT+CLIP=1
Enable the calling line identification presentation.
OK
AT+CRC=1
Enable extended format of incoming indication.
OK
AT+CNUM
Query own number (voice number) or MSISDN.
+CNUM: “Speech”,”+33608971019”,145
OK
Originate the number on another ME.
+WIND: 5, 1 Indication about a call creation. (Ring)
+CRING: VOICE Type of call is VOICE.
+CLIP: "+33607103543",145,,,"John Panborn" Identification about the remote user.
+CRING: VOICE
ATA
Answer the call.
OK
…Conversation…
NO CARRIER The call has been released by the remote user.
+WIND: 6,1 Indication about call release.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
249
19.1.3 Informative example about a call forwarding
When the ME is powered on and the SIM PIN has been entered.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+CFCC=1,3,”0607492638” Registered a call forwarding when mobile is busy.
OK
AT+CCFC=2,3,”0149293031”,129 Registered a call forwarding when it does answer.
+CME ERROR: 30 No network service
AT+CCFC=1,2 Interrogate
+CCFC: 1,1,”+33607492638”,145 Call forwarding active for a voice call.
AT+CFCC=1,4 Delete call forwarding Mobile busy
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
250
19.1.4 Informative example about a multiparty
When the ME is powered on and the SIM PIN has been entered.
AT+CMEE=1
Enable the report mobile equipment errors
OK
AT+WIND=63 Ask to display the general indications.
OK
AT+CCWA=1,1 Enable call waiting.
OK
ATD>”John Panborn”;
+WIND: 5,1 Indication about a of call creation.
+WIND: 2
Remote ring.
OK
Call setup was successful
…Conversation…
+WIND: 5,2
Indication about another call creation.
+CCWA: “+33595984834”,145,”Dolores Claiborne” Another call is waiting.
AT+CHLD=2
Put first call on hold and answer the second one.
OK
…Conversation…
AT+CHLD=3
Every calls are into a multiparty.
OK
AT+CHLD=11 Release the first call (with John Panborn) and recover
the second call (with Dolores Claiborne)
…Conversation …
ATH
Release the second call.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
251
19.2 Informative example about phonebooks
For each example illustrates in this section: in the start the ME is powered on and the
SIM PIN has been entered.
19.2.1 Example 1 : The whole phonebook of the ME is read
AT+CPBS=?
Query supported phonebook memories
+CPBS: (“SM”,”FD”,”ON”) ADN, FDN, and MSISDN phonebooks supported.
AT+CPBS=”SM” Select ADN phonebook..
OK
AT+CPBR=?
Read index range and element lengths.
+CPBR: (1-80),20,14 80 locations (from 1 to 80), max length of 20
for phone 14 characters max for associated text.
AT+CPBR=1,80 Read all entries but only the ones set are returned.
+CPBR: 1,“0346572834”,129,”Dolores Claiborne”
+CPBR: 2,”1284374523”,129,”Thad Beaumont”
+CPBR: 3, “1243657845”,129,”John Panborn”
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
252
19.2.2 Example 2 : Erase or Write a phonebook entry
AT+CPBW=? Query version of the write phonebook entry.
+CPBW: (1-80),20,(129,145),14 80 locations, max length of 20 for phone,
TON/NPI of 129 or 145 and 14 characteers max
For length of text.
AT+CPBW=3 Erase location 3
OK
AT+CPBW=3,”4356729012”,129,”Carry” Write at location 3.
Ok
AT+CPBR=1,80 Read all entries but only the ones set are returned.
+CPBR: 1,“0346572834”,129,”Dolores Claiborne”
+CPBR: 2,”1284374523”,129,”Thad Beaumont”
+CPBR: 3,”4356729012”,129,”Carry”
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
253
19.2.3 Example 3 : Find phonebook entries
AT+CPBF=?
Query version of the write phonebook entry.
+CPBF: 20,14 Max length of 20 for phone,
10 characters for the text.
AT+CPBF=”D” Read entry with “D”.
+CPBF: 1,“0346572834”,129,”Dolores Claiborne”
OK
AT+CPBF=”W” Read entrie with “D”.
+CME ERROR: 22 Entry not found.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
254
19.3 Informative example about short messages
19.3.1 Example 4 : Send a short message
AT+CNMI=0,1,1,1,0 SMS-DELIVERs are directly stored, SMS-STATUS-REPORTs are displayed
OK
AT+CSMP=17,169,0,0 ” SMS-SUBMIT message with a validity period (one day)
OK
AT+CMGF=1 ” ” Text mode to send a Short Message
OK
AT+CSCA=”+33608080706” Set Service Center Address to +33608080706
OK
AT+CMGS=0601290800 Send a SMS-SUBMIT to mobile phone
#$ Module sends a 4 characters sequence: 0x0D 0x0A 0x3E 0x20
This is the first text line Edit first line and press carriage return (<CR>, 0x0D)
This is the last text line Edit last line and send message by pressing <ctrl-Z> (0x1A)
+CMGS: 5 Success: message reference 5 is returned from the SMS Service Center
+CDS: 2,5,”0601290800”,129,”99/05/01 14:15:10+04
” ” ” ” Success: report of successful message delivery received
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
255
19.3.2 Example 5: Read short messages
AT+CMGF=1 Text mode to read Short Messages
AT+CMGL=”ALL” List all stored messages
+CMGL: 1,”REC READ”,”+336290918”,,”99/05/01 14:15:10+04”
This is the first message
+CMGL: 2,”REC UNREAD”,”+336290918”,,”99/05/01 14:19:44+04”
This is the second message
OK
AT+CMGR=1 ” ” Read the first message
+CMGR: ”REC READ”,”+336290918”,,”99/05/01 14:19:44+04”
OK
19.4 Informative example about Fax class 2
The normal characters are DTE generated. The bold characters are modem generated.
19.4.1 Example 1 : Send a fax class 2
AT+FCLASS=2 Select fax class 2
OK
AT+FLID="LocalFax"
OK
ATD0601234567 Call establishement
+FCON Connexion OK
[+FCSI:"RemoteFax"]
+FDIS:0,3,0,2,0,0,0,0
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
256
OK
AT+FDT Begin of data
+FDCS:0,3,0,2,0,0,0,0
CONNECT
<0x11h> Send carrier
First page data terminated by
<0x10h><0x03h>
OK Page transmitted
AT+FET=0 Send another page
+FPTS:1 First page acquitted
OK
AT+FDT
CONNECT
<0x11h> Send carrier
Second page data terminated by
<0x10h><0x03h>
OK Page transmitted
AT+FET=2 No more page
+FPTS:1 First page acquitted
+FHNG:0 Normal end of connection
OK
19.4.2 Example 2: Receive a fax class 2
AT+FCR=1
OK
AT+FLID="LocalFax"
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
257
RING Incoming call
ATA Off hook
+FCON Connexion OK
[+FTSI:"RemoteFax"]
+FDCS:0,3,0,2,0,0,0,0
OK
AT+FDR
+FCFR
+FDCS:0,3,0,2,0,0,0,0
CONNECT
<0x12h> Receive page carrier
First page data terminated by
<0x10h><0x03h>
OK Page received
+FPTS:1 First page acquitted
+FET:0 To receive another page
OK
AT+FDR
+FDCS:0,3,0,2,0,0,0,0
CONNECT
<0x12h> Receive page carrier
Second page data terminated by
<0x10h><0x03h>
OK Page received
+FPTS:1 First page acquitted
+FET:2 No more page to receive
OK
AT+FDR
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
258
+FHNG:0 Normal end of connection
OK
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
259
20 APPENDIX B: Support of SIM ToolKit by The
M.E.
This has been extracted from the 11.14. Classes
Command description 1 2 3
CALL CONTROL X X
CELL BROADCAST DOWNLOAD X X
DISPLAY TEXT X X
EVENT DOWNLOAD
- MT call X
- Call connected X
- Call disconnected X
- Location status X
- User activity X
- Idle screen available X
GET INKEY X X
GET INPUT X X
GET READER STATUS $(MultipleCard)$ Lc
MENU SELECTION X X
MO SHORT MESSAGE CONTROL X
MORE TIME X X
PERFORM CARD APDU $(MultipleCard)$ Lc
PLAY TONE X X
POLLING OFF X X
POLL INTERVAL X X
POWER ON CARD $(MultipleCard)$ Lc
POWER OFF CARD $(MultipleCard)$ Lc
PROVIDE LOCAL INFORMATION X X
REFRESH X X X
RUN AT COMMAND $(AT$) Lc
SELECT ITEM X X
SEND SHORT MESSAGE X X
SEND SS X X
SEND USSD X
SET UP CALL X X
SET UP EVENT LIST X
SET UP IDLE MODE TEXT $(IdleModeText)$ X
SET UP MENU X X
SMS-PP DOWNLOAD X X X
TIMER MANAGEMENT $(Timer)$ Lc
TIMER EXPIRATION $(Timer)$ Lc
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
260
21 APPENDIX C: Structure of TERMINAL PROFILE
First byte (Download):
b8 b7 b6 b5 b4 b3 b2 b1
Profile download User choice
SMS-PP data download Force by WM module to 1
Cell Broadcast data download Force by WM module to 1
Menu selection User choice
'9E XX' response code for SIM data download
error
Force by WM module to 1
Timer expiration Force by WM module to 0
USSD string data object supported in Call
Control
User choice
RFU, bit=0
Second byte (Other):
b8 b7 b6 b5 b4 b3 b2 b1
Command result User choice
Call Control by SIM User choice
Cell identity included in Call Control by
SIM
User choice
MO short message control by SIM User choice
Handling of the alpha identifier according
to subclause 9.1.3
User choice
UCS2 Entry supported User choice
UCS2 Display supported User choice
Display of the extension text User choice
Third byte (Proactive SIM):
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: DISPLAY TEXT User choice
Proactive SIM: GET INKEY User choice
Proactive SIM: GET INPUT User choice
Proactive SIM: MORE TIME User choice
Proactive SIM: PLAY TONE User choice
Proactive SIM: POLL INTERVAL Force by WM module to 1
Proactive SIM: POLLING OFF Force by WM module to 1
Proactive SIM: REFRESH User choice
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
261
Fourth byte (Proactive SIM):
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: SELECT ITEM User choice
Proactive SIM: SEND SHORT MESSAGE User choice
Proactive SIM: SEND SS User choice
Proactive SIM: SEND USSD Force by WM module to 0
Proactive SIM: SET UP CALL User choice
Proactive SIM: SET UP MENU User choice
Proactive SIM: PROVIDE LOCAL INFORMATION
(MCC, MNC, LAC, Cell ID & IMEI)
Force by WM module to 1
Proactive SIM: PROVIDE LOCAL INFORMATION
(NMR)
Force by WM module to 1
Fifth byte (Event driven information):
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: SET UP EVENT LIST Force by WM module to 0
Event: MT call Force by WM module to 0
Event: Call connected Force by WM module to 0
Event: Call disconnected Force by WM module to 0
Event: Location status Force by WM module to 0
Event: User activity Force by WM module to 0
Event: Idle screen available Force by WM module to 0
Event: Card reader status Force by WM module to 0
Sixth byte: (reserved for Event driven information extensions)
b8 b7 b6 b5 b4 b3 b2 b1
RFU, bit = 0
Seventh byte (Multiple card proactive commands) for class "a"
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: POWER ON CARD Force by WM module to 0
Proactive SIM: POWER OFF CARD Force by WM module to 0
Proactive SIM: PERFORM CARD APDU Force by WM module to 0
Proactive SIM: GET READER STATUS Force by WM module to 0
RFU, bit = 0 Force by WM module to 0
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
262
Eighth byte (Proactive SIM):
b8 b7 b6 b5 b4 b3 b2 b1
Proactive SIM: TIMER MANAGEMENT
(start, stop)
Force by WM module to
0
Proactive SIM: TIMER MANAGEMENT
(get current value)
Force by WM module to
0
Proactive SIM: PROVIDE LOCAL
INFORMATION (date, time and time
zone)
Force by WM module to
0
Binary choice in GET INKEY Force by WM module to
0
SET UP IDLE MODE TEXT Force by WM module to
0
RUN AT COMMAND (i.e. class "b"
is supported)
Force by WM module to
0
2nd alpha identifier in SET UP
CALL
Force by WM module to
0
2nd capability configuration
parameter (see 9.1.6)
Force by WM module to
0
Ninth byte:
b8 b7 b6 b5 b4 b3 b2 b1
Sustained DISPLAY TEXT (see
6.4.1)
Force by WM module
to 0
SEND DTMF command (see 6.4.24) Force by WM module
to 0
RFU, bit = 0
RFU, bit = 0
RFU, bit = 0
RFU, bit = 0
RFU, bit = 0
RFU, bit = 0
Subsequent bytes:
b8 b7 b6 b5 b4 b3 b2 b1
RFU, bit = 0
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
263
22 APPENDIX D: Command Type and Next Action
Indicator.
This has been extracted from the 11.14.
Value Name used for Type of
Command coding used for Next
Action Indicator
coding
'00' - -
'01' REFRESH X
'02' MORE TIME X
'03' POLL INTERVAL X
'04' POLLING OFF X
'05' SET UP EVENT LIST X
'10' SET UP CALL X X
'11' SEND SS X X
'12' SEND USSD X X
'13' SEND SHORT MESSAGE X X
'14' SEND DTMF X
'20' PLAY TONE X X
'21' DISPLAY TEXT X X
'22' GET INKEY X X
'23' GET INPUT X X
'24' SELECT ITEM X X
'25' SET UP MENU X X
'26' PROVIDE LOCAL INFORMATION X
'27' TIMER MANAGEMENT X
'28' SET UP IDLE MODEL TEXT X X
'30' PERFORM CARD APDU class "a" only X X
'31' POWER ON CARD class "a" only X X
'32' POWER OFF CARD class "a" only X X
'33' GET READER STATUS class "a" only X X
'34' RUN AT COMMAND class "b" only X
'81' End of the proactive session not applicable X
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
264
23 APPENDIX E: Coding of Alpha fields in the SIM
for UCS2
The coding can take one of three forms. If the ME supports UCS2 coding of alpha fields
in the SIM, the ME shall support all three coding schemes for character sets containing 128
characters or less; for character sets containing more than 128 characters, the ME shall at
least support the first coding scheme. If the alpha field record contains GSM default alphabet
characters only, then none of these schemes shall be used in that record. Within a record,
only one coding scheme, either GSM default alphabet, or one of the three described below,
shall be used.
1) If the first octet in the alpha string is '80', then the remaining octets are 16 bit UCS2
characters, with the more significant octet (MSO) of the UCS2 character coded in the
lower numbered octet of the alpha field, and the less significant octet (LSO) of the
UCS2 character is coded in the higher numbered alpha field octet, i.e. octet 2 of the
alpha field contains the more significant octet (MSO) of the first UCS2 character, and
octet 3 of the alpha field contains the less significant octet (LSO) of the first UCS2
character (as shown below). Unused octets shall be set to 'FF', and if the alpha field is
an even number of octets in length, then the last (unusable) octet shall be set to 'FF'.
Example 1
Octet 1 Octet 2 Octet 3 Octet 4 Octet 5 Octet 6 Octet 7 Octet 8 Octet 9
'80' Ch1MSO Ch1LSO Ch2MSO Ch2LSO Ch3MSO Ch3LSO 'FF' 'FF'
2) If the first octet of the alpha string is set to '81', then the second octet contains a
value indicating the number of characters in the string, and the third octet contains an 8
bit number which defines bits 15 to 8 of a 16 bit base pointer, where bit 16 is set to
zero, and bits 7 to 1 are also set to zero. These sixteen bits constitute a base pointer to
a "half-page" in the UCS2 code space, to be used with some or all of the remaining
octets in the string. The fourth and subsequent octets in the string contain codings as
follows; if bit 8 of the octet is set to zero, the remaining 7 bits of the octet contain a
GSM Default Alphabet character, whereas if bit 8 of the octet is set to one, then the
remaining seven bits are an offset value added to the 16 bit base pointer defined
earlier, and the resultant 16 bit value is a UCS2 code point, and completely defines a
UCS2 character.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
265
Example 2
Octet 1 Octet 2 Octet 3 Octet 4 Octet 5 Octet 6 Octet 7 Octet 8 Octet 9
'81' '05' '13' '53' '95' 'A6' 'XX' 'FF' 'FF'
In the above example;
- Octet 2 indicates there 5 characters in the string
- Octet 3 indicates bits 15 to 8 of the base pointer, and indicates a bit pattern of 0hhh
hhhh h000 0000 as the 16 bit base pointer number. Bengali characters for example
start at code position 0980 (0000 1001 1000 0000), which is indicated by the coding
'13' in octet 3 (shown by the italicised digits).
- Octet 4 indicates GSM Default Alphabet character ‘53’, i.e. "S".
- Octet 5 indicates a UCS2 character offset to the base pointer of '15', expressed in
binary as follows 001 0101, which, when added to the base pointer value results in a
sixteen bit value of 0000 1001 1001 0101, i.e. '0995', which is the Bengali letter KA.
Octet 8 contains the value 'FF', but as the string length is 5, this a valid character in
the string, where the bit pattern 111 1111 is added to the base pointer, yielding a
sixteen bit value of 0000 1001 1111 1111 for the UCS2 character (i.e. '09FF').
3) If the first octet of the alpha string is set to '82', then the second octet contains a
value indicating the number of characters in the string, and the third and fourth octets
contain a 16 bit number which defines the complete 16 bit base pointer to a "half-
page" in the UCS2 code space, for use with some or all of the remaining octets in the
string. The fifth and subsequent octets in the string contain codings as follows; if bit 8
of the octet is set to zero, the remaining 7 bits of the octet contain a GSM Default
Alphabet character, whereas if bit 8 of the octet is set to one, the remaining seven bits
are an offset value added to the base pointer defined in octets three and four, and the
resultant 16 bit value is a UCS2 code point, and defines a UCS2 character.
Example 3
Octet 1 Octet 2 Octet 3 Octet 4 Octet 5 Octet 6 Octet 7 Octet 8 Octet 9
'82' '05' '05' '30' '2D' '82' 'D3' '2D' '31'
In the above example
- Octet 2 indicates there are 5 characters in the string
- Octets 3 and 4 contain a sixteen bit base pointer number of '0530', pointing to the
first character of the Armenian character set.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
266
- Octet 5 contains a GSM Default Alphabet character of '2D', which is a dash "-".
- Octet 6 contains a value '82', which indicates it is an offset of '02' added to the base
pointer, resulting in a UCS2 character code of '0532', which represents Armenian
character Capital BEN.
- Octet 7 contains a value 'D3', an offset of '53', which when added to the base pointer
results in a UCS2 code point of '0583', representing Armenian Character small
PIWR.
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
267
24 APPENDIX F: Specification of Power Down
Control via RS232
This appendix aims at describing how the power down mode of the Wismo can be activated
and disactivated via the RS232 serial link.
In this document, the term “DTE” refers to the customer device driving the Wismo, which is
referred to as the “DCE”.
The terms referring to the RS232 signals and levels are used according to recommendations
V.24 and V.28. However they are worth remembering:
DTR is the circuit 108/2, TX is the circuit 103, RX is the circuit 102 and CTS is the circuit 106.
The logical level “HIGH or ON” corresponds to the electrical level of 12 V, whereas the level
“LOW or OFF” corresponds to –12 V.
Basically the activation and disactivation is always initiated from the DTE and is carried out
through the handshaking of DTR and CTS.
The power down mode can be entered only when the DCE is idle, i.e. when no connection to
the network is in progress.
Into the details :
Whenever the DTE requests the DCE to enter the power down mode, the DTE drops (ON-to-
OFF transition) DTR. From this time on, the DTE must not send any more characters on the
TX line i.e. even the TX FIFO must be empty.
The DCE acknowledges entry in the power down mode by dropping CTS, which can occur at
maximum 5s after the DTR drop. However during that latency period the DTE is prohibited
from sending any more AT commands.
AT responses can be sent back to the DTE even if the DCE is in power down mode (actually
the DCE exits the power down mode, sends the AT response and enters back the power
down mode). Therefore the DTE can drop DTR just after having sent an AT command and
before receiving the AT response.
The DCE is made to exit the power down mode by raising the DTR. DCE is not ready to
receive further AT commands until it raises in turn CTS, which can take up to 2s from the
DTR raise.
Herebelow is a diagram depicting the handshaking:
AT commands interface
This confidential document is the property of WAVECOM and may not be copied or circulated without permission
268
Description of the stages:
1: the DTE sends an AT command
2: the DTE drops DTR to make the DCE enter the power down mode. Warning: this mode
will not really entered until CTS is dropped (stage 4). The DTE could also have dropped DTR
after receiving the AT response (stage 3).
3: the DCE sends back the AT response (if any)
4: the DCE drops CTS and does enter the power down mode.
5: the DCE sends back an unsolicited response (for instance a RING or +SMTI (incoming
SMS indication))
6: the DTE wants to reply to that unsolicited response so it causes the DCE to exit the power
down mode by raising its DTR.
7: in turn the DCE acknowledges the exit of the power donw mode by raising CTS.
8) & 9) exchange of AT commands/responses.
Note 1): The DTE must not send any AT commands from stage 2 on up to stage 7.
Note 2): During the latency period (between stages 2 and 4) should the DTE want to abort
the power down mode, it raises DTR and should wait for 150us before assessing CTS. If
CTS is still high than the DCE has aborted the power down mode and is ready to receive AT
commands.
The 150us wait should get around the race condition between DTR raise and CTS drop.
DTR
CTS
T
X
RX
XXXX
XXXX XXXX XXXX
XXXX
2
4
5
6
7
8
9
1
3
