AV8000 Installation Manual MM701G

User Manual: MM701G

Open the PDF directly: View PDF PDF.
Page Count: 252 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Avidia
Avidia
Catalog Number
AVD4574I4 Issue 4
AV8000 Installation Manual
ii AV8000 Installation Manual
C
opyr
i
g
ht
June 2001
©Copyright 2001 ADC DSL Systems, Inc. All Rights Reserved.
Trademark Information
ADC is a registered trademark of ADC Telecommunications, Inc.
Avidia and Megabit Modem are registered trademarks and StarGazer and SwitchWare are trademarks of PairGain
Technologies, Inc. No right, license, or interest to such trademarks is granted hereunder, and you agree that no such
right, license, or interest shall be asserted by you with respect to such trademark.
Other product names mentioned in this practice are used for identification purposes only and may be trademarks or
registered trademarks of their respective companies.
Disclaimer of Liability
Information contained in this document is company private to ADC DSL Systems, Inc., and shall not be modified, used,
copied, reproduced or disclosed in whole or in part without the written consent of ADC.
Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior
notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and
ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This
disclaimer of liability applies to all products, publications and services during and after the warranty period.
About this Installation Manual
AV8000 Installation Manual iii
ABOUT THIS INSTALLATION MANUAL
Use this manual to install the Avidia®8000 23-inch Central Office integrated access
concentrator and to:
•learn about the system
•complete wiring for power, grounding, alarms, and clock
•complete cabling for network interface and subscriber interface
•install management, network, and subscriber cards

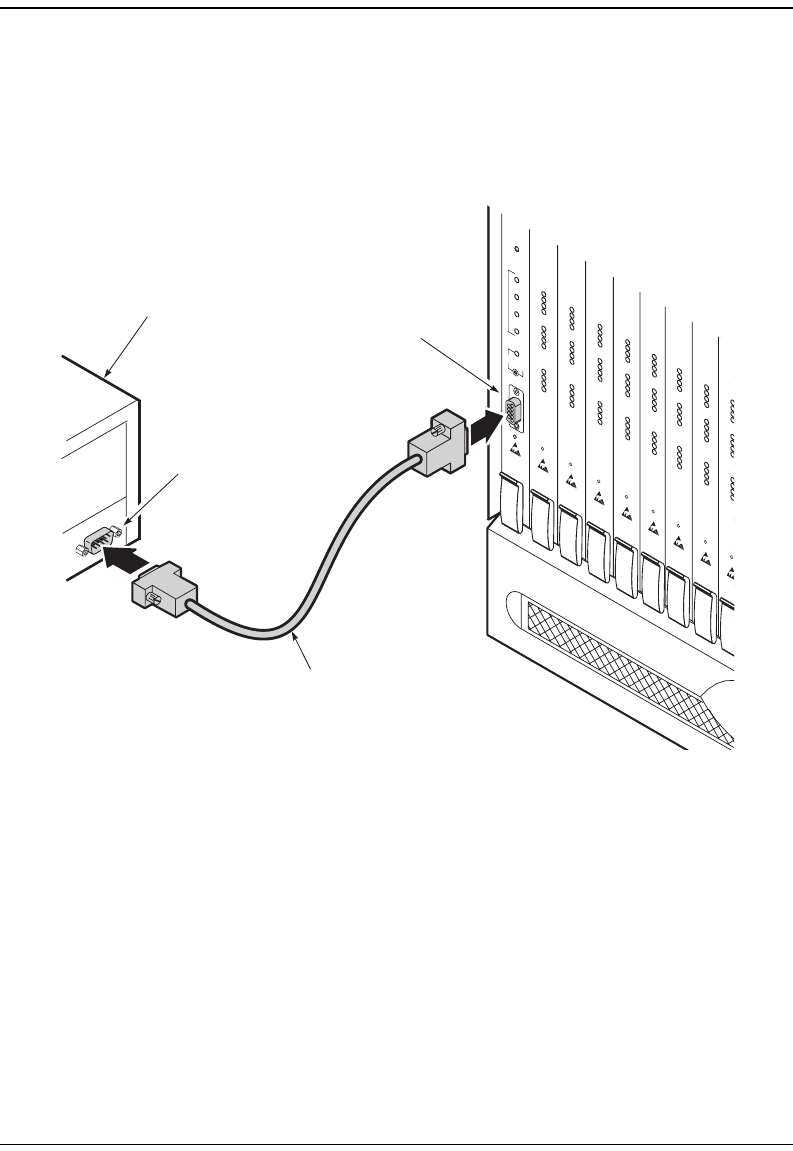

•connect a PC or network interface for system management
•set up for special applications
•maintain the system
•contact ADC for assistance
The user must read and observe general safety precautions described in Chapter 1,“Prepare for
Installation” on page 1 when installing the Avidia system. Follow installation procedures in the
order they are given. Appendix D provides a glossary of the terms and abbreviations used in
this manual.
About Related Documents
iv AV8000 Installation Manual
ABOUT RELATED DOCUMENTS
This document is part of a set of documents that assist you in planning, installing, configuring,
and using an Avidia system. Other documents in the set are described below.
Document Title Catalog Number Description
Documents about Chassis and Cards
AVIDIA 2200
Installation Manual AVD4503IxProvides installation instructions for the ADC Avidia 2200 integrated
access concentrator Also includes a description of and installation
for the Avidia 8xT1 and 8xE1 (providing network uplink and
management), ADSL subscriber, and POTS splitter cards.
AVIDIA 3000
Installation Manual AVD4575IxProvides installation instructions for the ADC Avidia 3000 integrated
access concentrator and the AV8100 ADSL voice shelf. Also
includes a description of and installation for all Avidia cards.
AVIDIA 6000
Installation Manual AVD4560IxProvides installation instructions for the ADC Avidia 6000 integrated
access concentrator. Also includes a description of and installation
for all Avidia cards.
Documents about System Configuration
AVIDIA MuxWare
System
Configuration and
Management User
Manual
Provides instruction for configuring an Avidia system and remote
devices such as ADC modems or other Avidia concentrators using
either a Command-Line Interface or an HTML graphic user interface
(GUI).
AVIDIA SwitchWare
System
Documentation Set
AVD4624IxFive-volume documentation set which provides instruction for
configuring an Avidia system and remote devices such as ADC
modems or other Avidia concentrators using either a
Command-Line Interface or an HTML graphic user interface (GUI).
Volumes include: Getting Started; Command Line Interface; Web
Interface; technology and Applications; and Glossary.
StarGazer™ Element
Management
System
Documentation Set
AVD4601IxSeven-volume documentation set which provides instruction on
how to use the StarGazer network management application. This
application provides a suite of features used to manage and
fine-tune Avidia and Campus systems. These features include:
configuration, performance (port, ATM, and internetworking
statistics), faults, events, and system maintenance. Volumes
include: Getting Started; Avidia Configuration; Avidia Management;
Campus; Network Management; Technology and Applications; and
Glossary.
About Related Documents
AV8000 Installation Manual v
Documents about Megabit Modems
Megabit Modem
500L, 600F, 700F
Installation Guide
MMD4068IxProvides quick installation instructions for the Megabit Modem®
500L, 600F, and 700F. These modems are managed through the
10/100 Base-T ports using a Web browser or through the console
port. The 600F and 700F modems provide full-rate service over a
single-pair telephone line and have a downstream Asymmetric
Digital Subscriber Line (ADSL) transmission up to 7.552 Mbps. The
upstream ADSL transmission is up to 928 kbps. The 500L, 600F,
and 700F modems G.lite rates are 1.5 Mbps downstream and 512
kbps upstream.
Megabit Modem
400F, 500L, 600F,
700F User Guide
MMD4090IxProvides instruction on the installation, access requirements, and
configuration for the 400F, 500L, 600F, and 700F. Installation
covers the physical setup of the modem such as where to place the
unit and how to connect the cables. Access requirements guide the
user in how to access the modem by Web browsing to the modem.
Configuration instructs the reader how to use a Web browser to
configure the different modem models as well as monitor statistics.
Megabit Modem
300S Installation
Guide
425-001-100-xx Provides installation instructions for this SDSL modem. The modem
does not require configuration.
Skyrocket USB
200L-B Installation
Guide
MMD4094IxProvides quick installation instructions for the Megabit Modem®
Skyrocket™ 200L-B. This modem is connected to a USB port on a
computer running Microsoft Windows 98, Microsoft Windows
2000, and Microsoft Windows Millennium Edition. The 200L-B
modem provides G.lite service over a single-pair telephone line with
downstream Asymmetric Digital Subscriber Line (ADSL)
transmission up to 1.5 Mbps. The upstream ADSL transmission is
up to 512 kbps.
Skyrocket USB
200F-M Installation
Guide
MMD4098IxProvides instruction for installing and configuring the Megabit
Modem® Skyrocket™ 200F-M. This modem is connected to a USB
port on a computer running Microsoft Windows 98, Microsoft
Windows 2000, and Microsoft Windows Millennium Edition. The
200F-M provides G.lite, DMT, or T1.413. service. In addition, it
supports routing, bridging, and PPP Over ATM.
Megabit Modem
701G User Guide MMD4099IxProvides instruction on installing and configuring the Ethernet
modem through the command-line (console port and telnet
session) and Web-based Interface. The MM701G employs G.SHDSL
technology for symmetric, fixed-rate or rate-adaptive connection to
a DSLAM or another MM701G while supporting PPP Over ATM,
bridging, and routing sessions.
Document Title Catalog Number Description
Document Conventions
vi AV8000 Installation Manual
DOCUMENT CONVENTIONS
Special messages, identified by the icons, appear in the text. Their meanings are as follows:
FCC CLASS ACOMPLIANCE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
Notes contain information about special circumstance. Follow the appropriate
warnings and cautions when performing the tasks specified in this manual.
You must connect the specified cables and wires only as indicated in the
installation instructions. Additionally, read and understand all installation
procedures before beginning each procedure.
.
Cautions indicate the possibility of equipment damage or the possibility of
personal injury. Observe the appropriate ESD (electrostatic discharge)
precautions when installing the Avidia system.
ESD Susceptibility indicates that a device or assembly is susceptible to
damage from electrostatic discharge.
Table of Contents
AV8000 Installation Manual vii
TABLE OF CONTENTS
Chapter 1: Prepare for Installation _______________________________________________1
Observing Safety Precautions..............................................................................................2
Observing ESD Precautions ................................................................................................2
Planning the Avidia System ................................................................................................3
Compatibility.........................................................................................................3
Card Placement .....................................................................................................4
Adding to an Existing System...............................................................................5
Installation Site Requirements.............................................................................................6
Chassis Installation Requirements ........................................................................6
Power Requirements .............................................................................................6
Alarm Requirements .............................................................................................6
Clocking Requirements.........................................................................................7
Clocking Systems..................................................................................................7
Typical Clock Source Configuration ....................................................................8
Clock Priority and Redundancy ............................................................................8
Clocking the IDSL Card........................................................................................9
Environmental Requirements................................................................................9
Provisioning System Cabling ............................................................................................10
Network Cabling .................................................................................................10
Subscriber Cabling..............................................................................................12
Verifying Installation Tools ..............................................................................................12
Unpacking and Inspecting the Avidia Systems.................................................................13
AV8000 System ..................................................................................................13
AV8000 Cards.....................................................................................................13
What To Do Next ..............................................................................................................14
Table of Contents
viii AV8000 Installation Manual
Chapter 2: Install the Chassis ___________________________________________________15
Attaching an ESD Wrist Strap to Chassis..........................................................................16
Installing the AV8000 Chassis ..........................................................................................17
Install the Chassis Into the Rack .........................................................................17
Connect the Chassis Ground ...............................................................................18

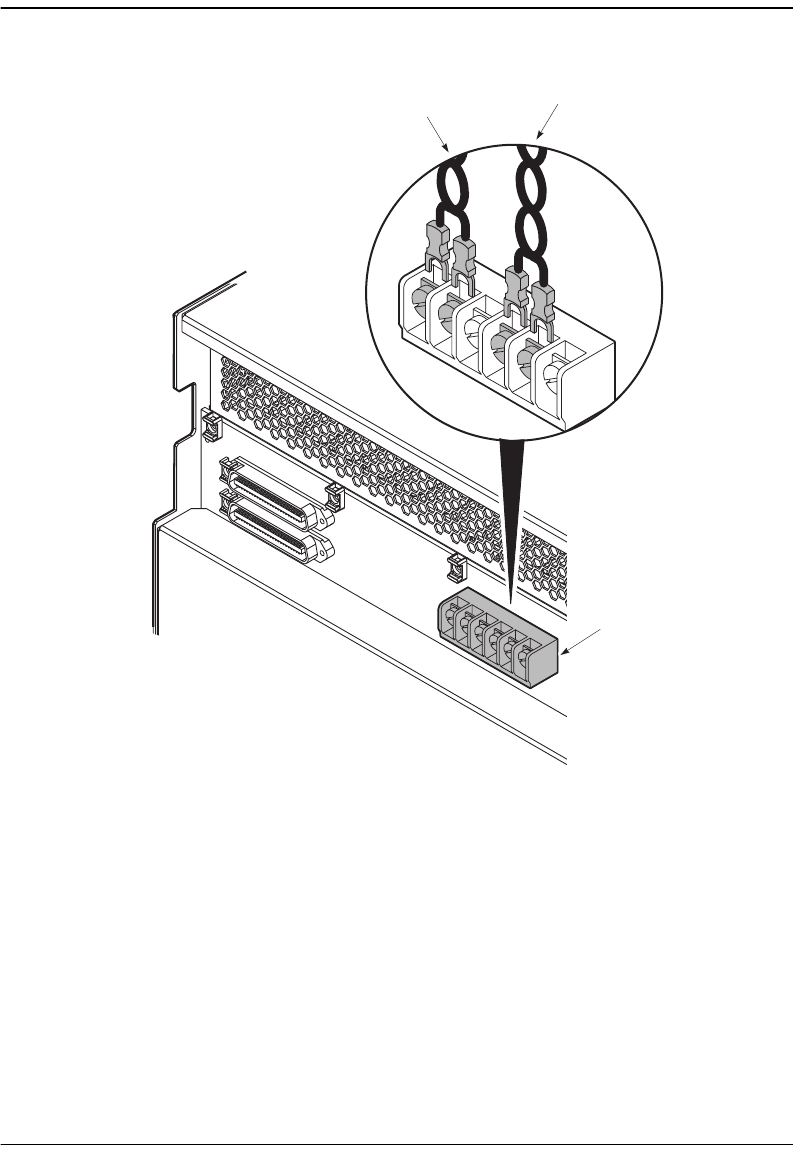

Connect the Battery............................................................................................19
Connect Alarms..................................................................................................23
Connect an External BITS Clock ........................................................................27
What To Do Next...............................................................................................................29
Chapter 3: Install the Network Interface__________________________________________31

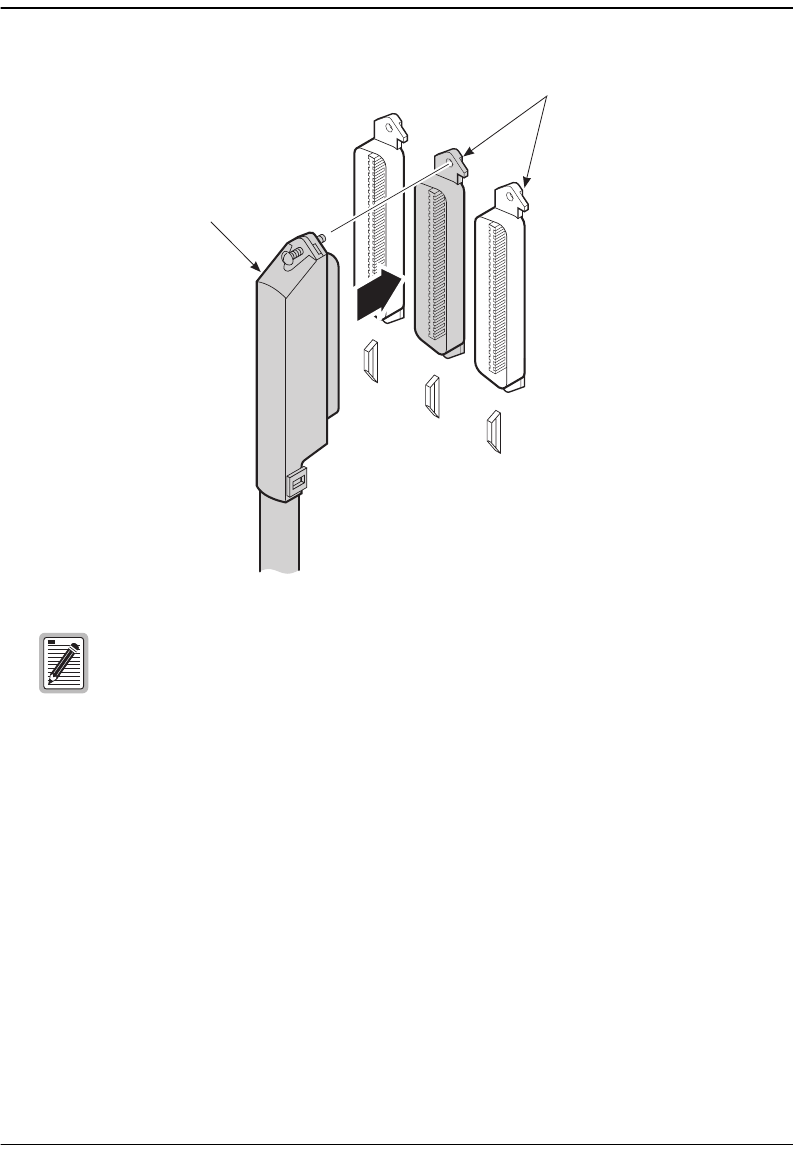

DS3 Interface Cables .........................................................................................................33
8xDSX-1 Interface Cables.................................................................................................36
8xDS1 Interface Cables .....................................................................................................38
8xE1 interface Cables........................................................................................................41
OC3 Fiber-Optic Cable Routing........................................................................................42
What To Do Next...............................................................................................................43
Chapter 4: Connect Subscriber Lines ____________________________________________45

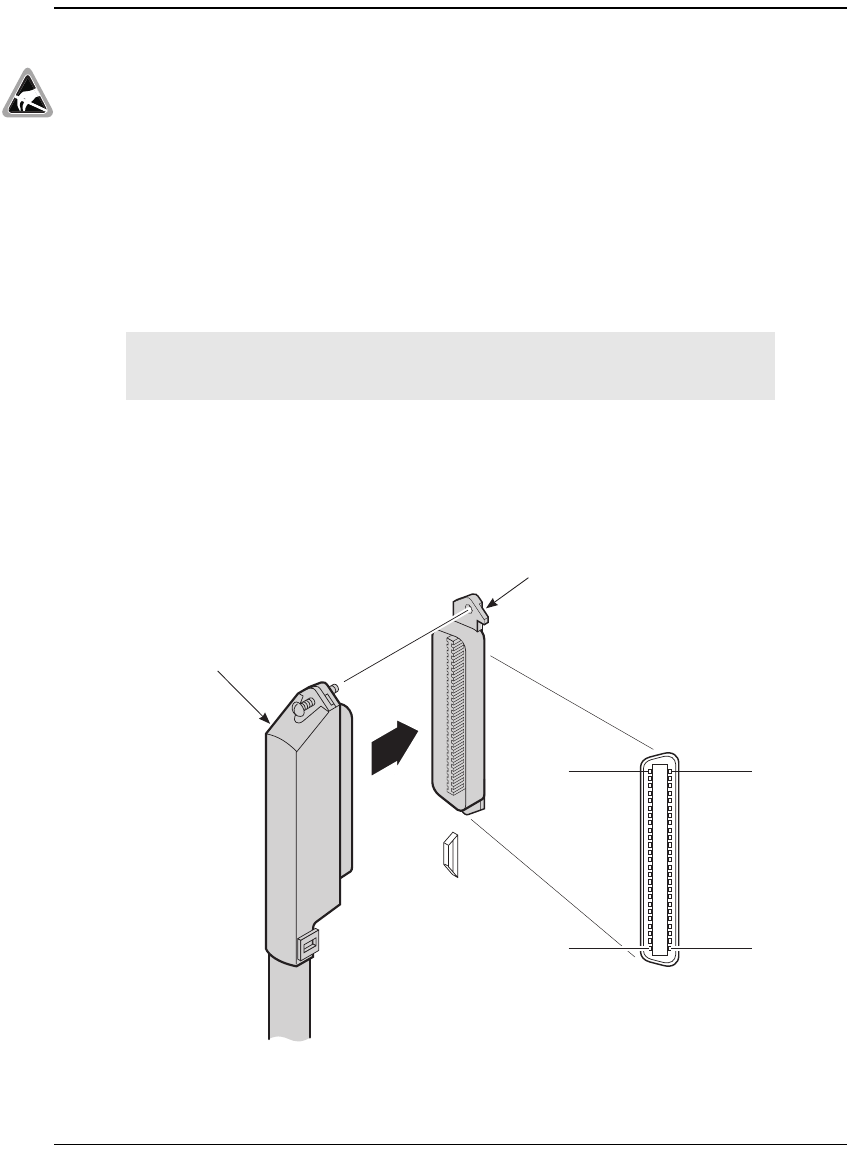

Subscriber Connector Pinout .............................................................................................46
Connect AV8000 xDSL to the MDF (No POTS)..............................................................47
What To Do Next...............................................................................................................49
Chapter 5: Power Up the System ________________________________________________51
Select a Fuse Size and Power Up AV8000........................................................................52
What To Do Next...............................................................................................................52
Table of Contents
AV8000 Installation Manual ix
Chapter 6: Install Cards _______________________________________________________53

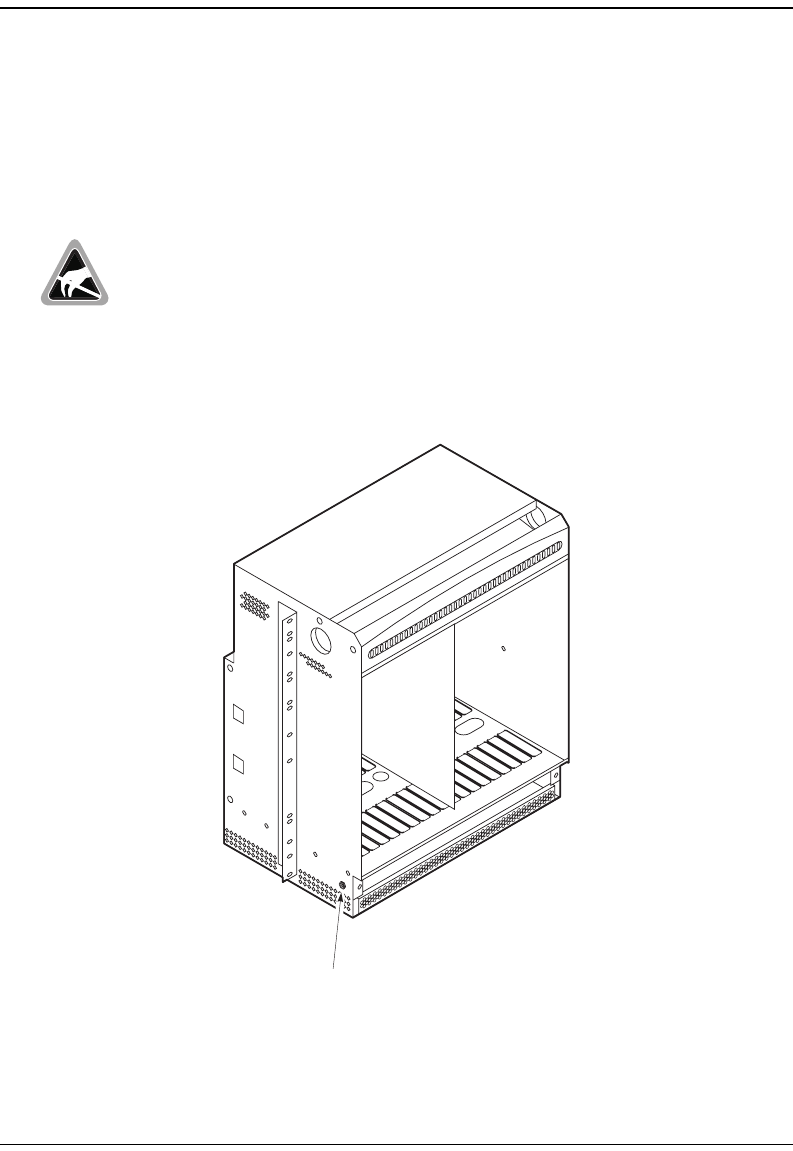

Attaching ESD Wrist Strap to Chassis ..............................................................................54

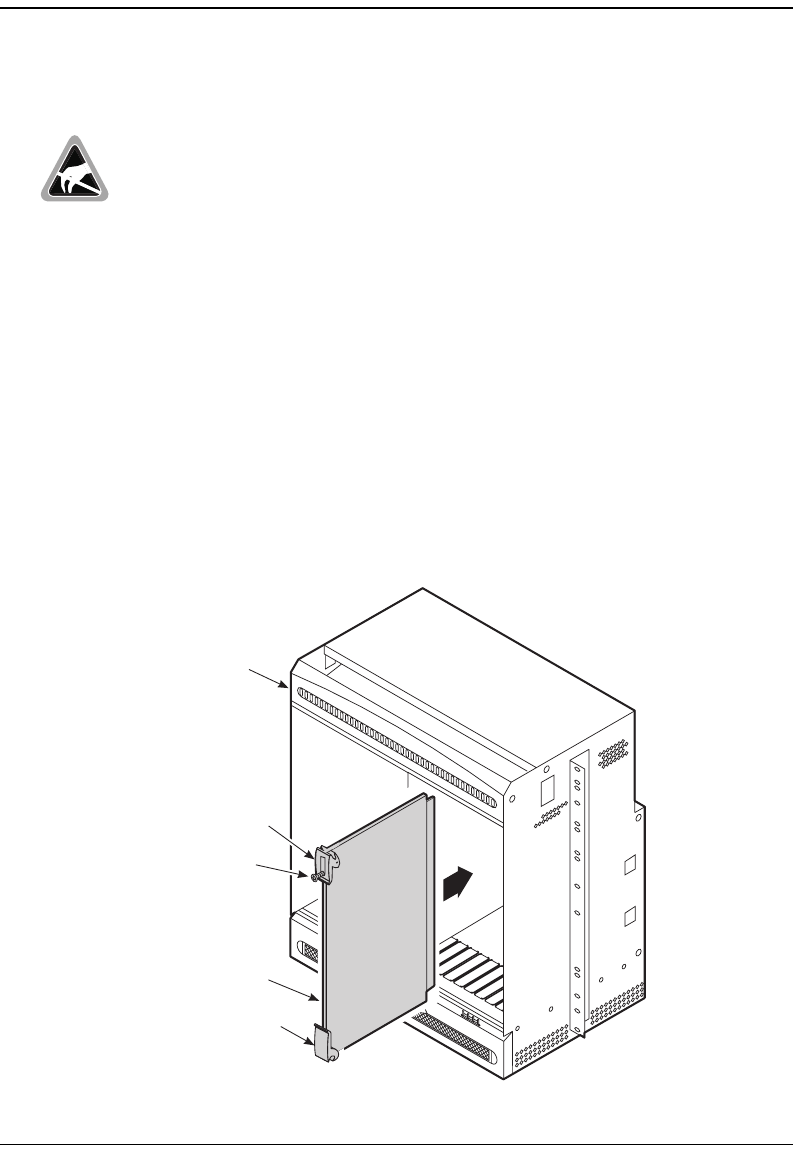

Installing Cards into the AV8000......................................................................................55
Install Management Card ....................................................................................56
Install Network Cards .........................................................................................56
Install Subscriber Cards ......................................................................................60

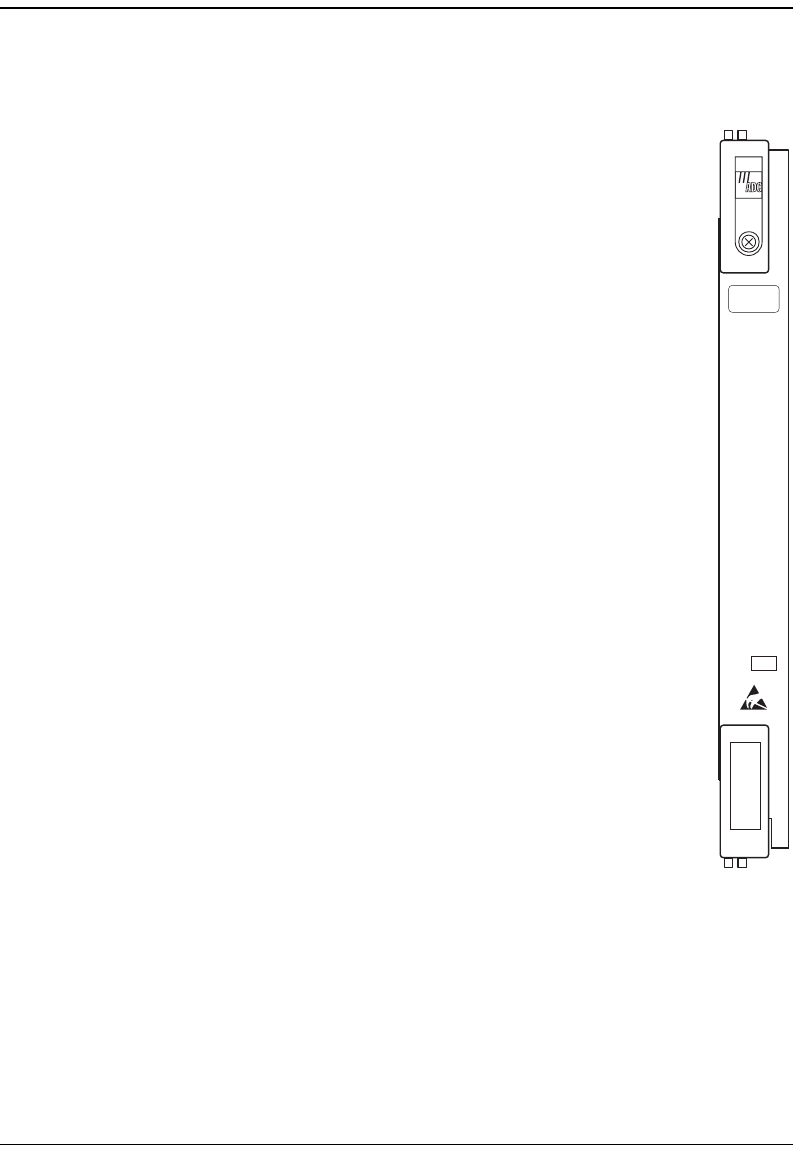

Install Blank Faceplates in Unused AV8000 Card Slots ....................................62
What To Do Next ..............................................................................................................62
Chapter 7: Connect a Management Interface______________________________________63
Connecting to the Craft Port..............................................................................................63
Select the Craft Port Interface and Cable............................................................64
Connect to the Craft Port.....................................................................................66
Connecting to the Ethernet Port ........................................................................................68
Select the Ethernet Interface Cable.....................................................................69
Connect to the Ethernet Port ...............................................................................71
What To Do Next ..............................................................................................................71
Chapter 8: System Configuration for Special Applications___________________________73
System Configuration Examples .......................................................................................74
Redundancy .......................................................................................................................77
Dual Homing.......................................................................................................78

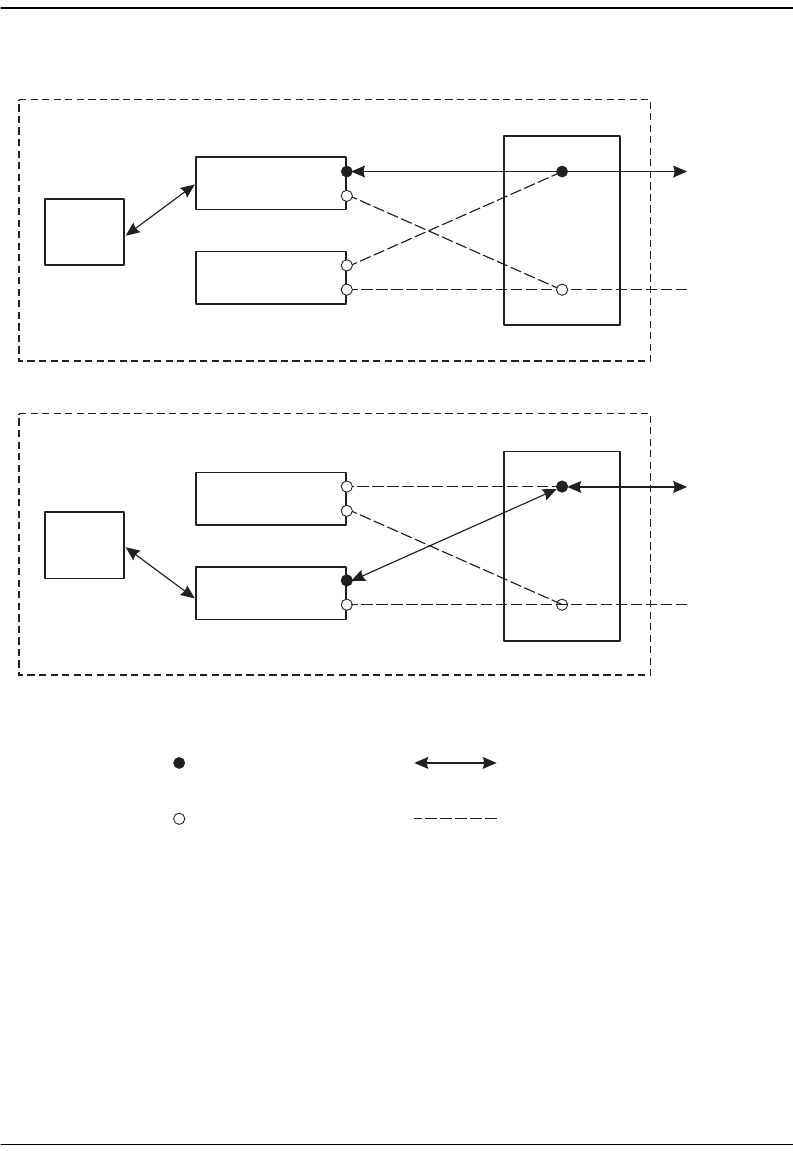

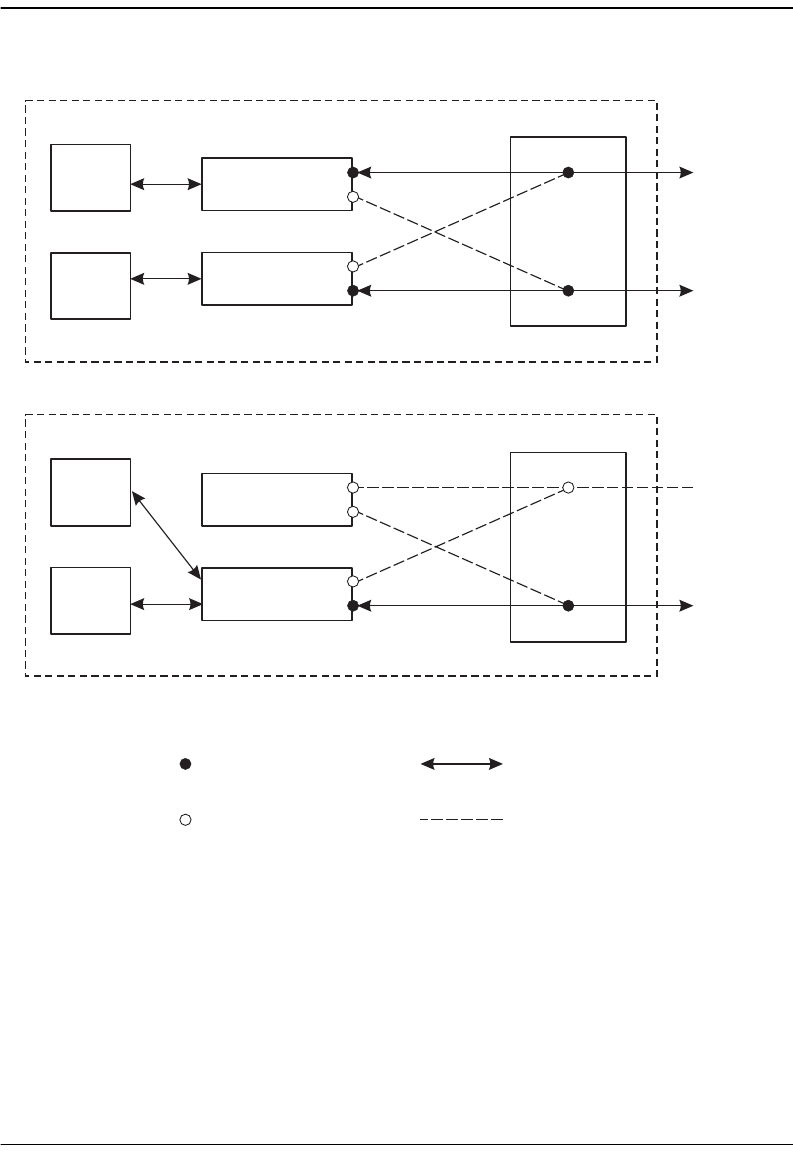

Network Card Redundancy.................................................................................79
OC3 Automatic Protection Switching.................................................................80
DS3 Dual Port Redundancy ................................................................................81

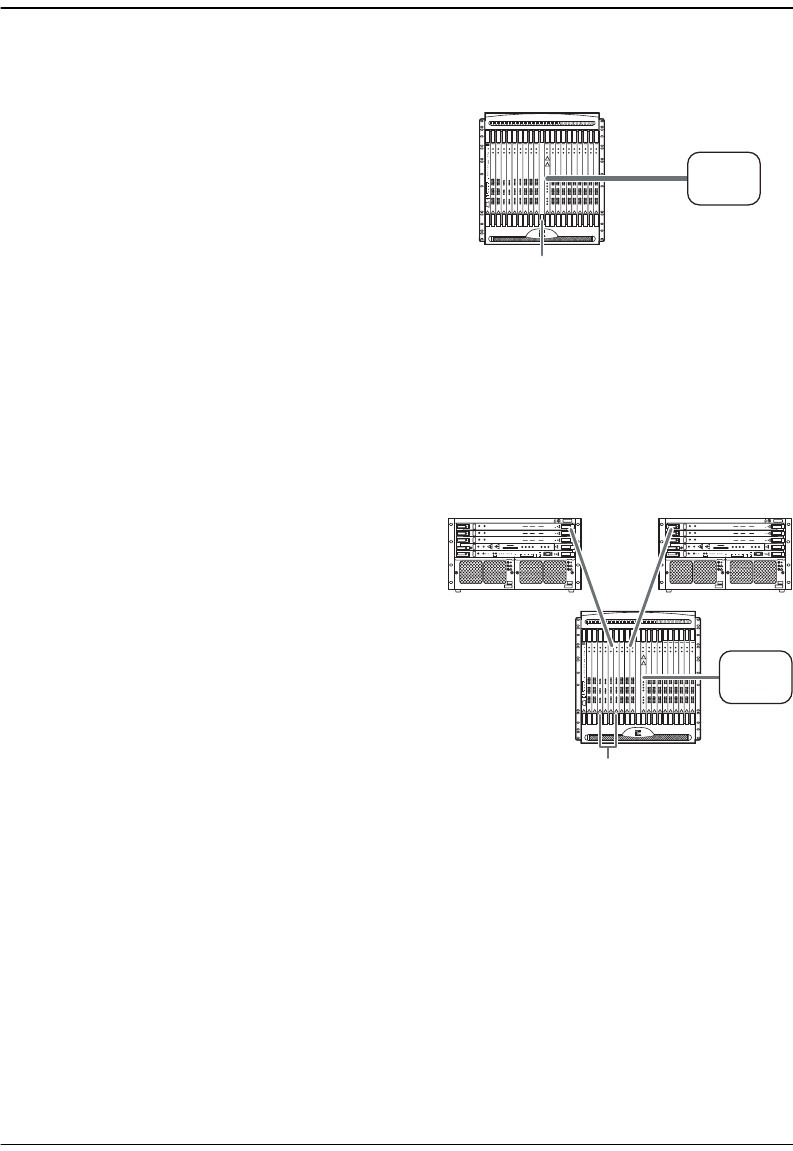

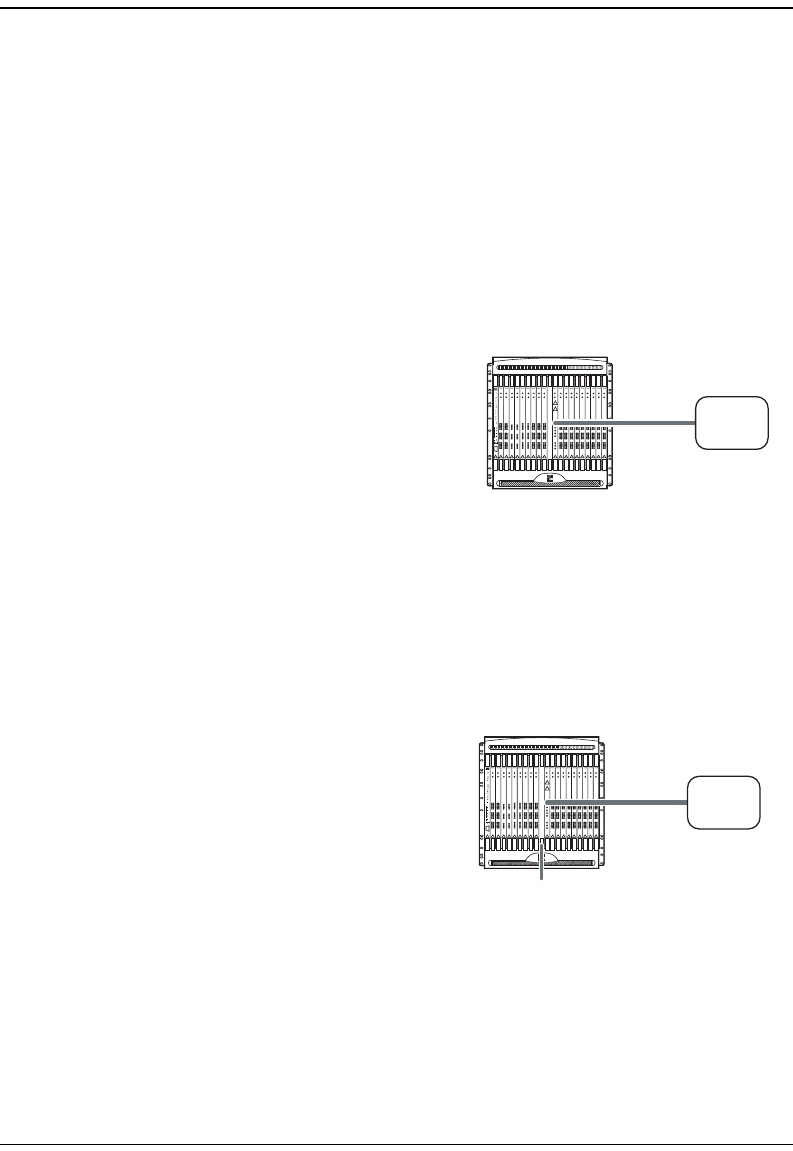

Subtending Multiple Systems............................................................................................86
Star Management ................................................................................................89

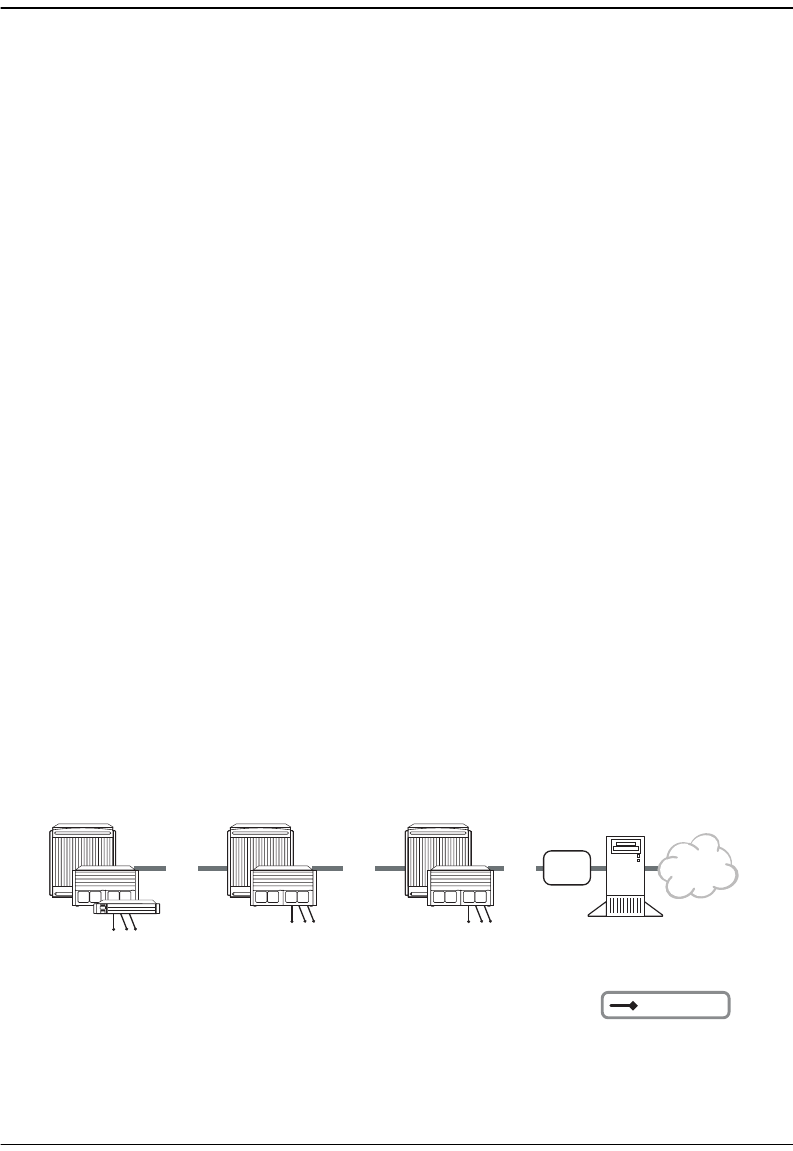

Daisy Chain Management...................................................................................93
Table of Contents
xAV8000 Installation Manual
Chapter 9: Maintenance _______________________________________________________97
Removing and Replacing a Card .......................................................................................98
Remove and Replace a Management or a Subscriber Card ................................99
Remove and Replace a Network Card ................................................................99

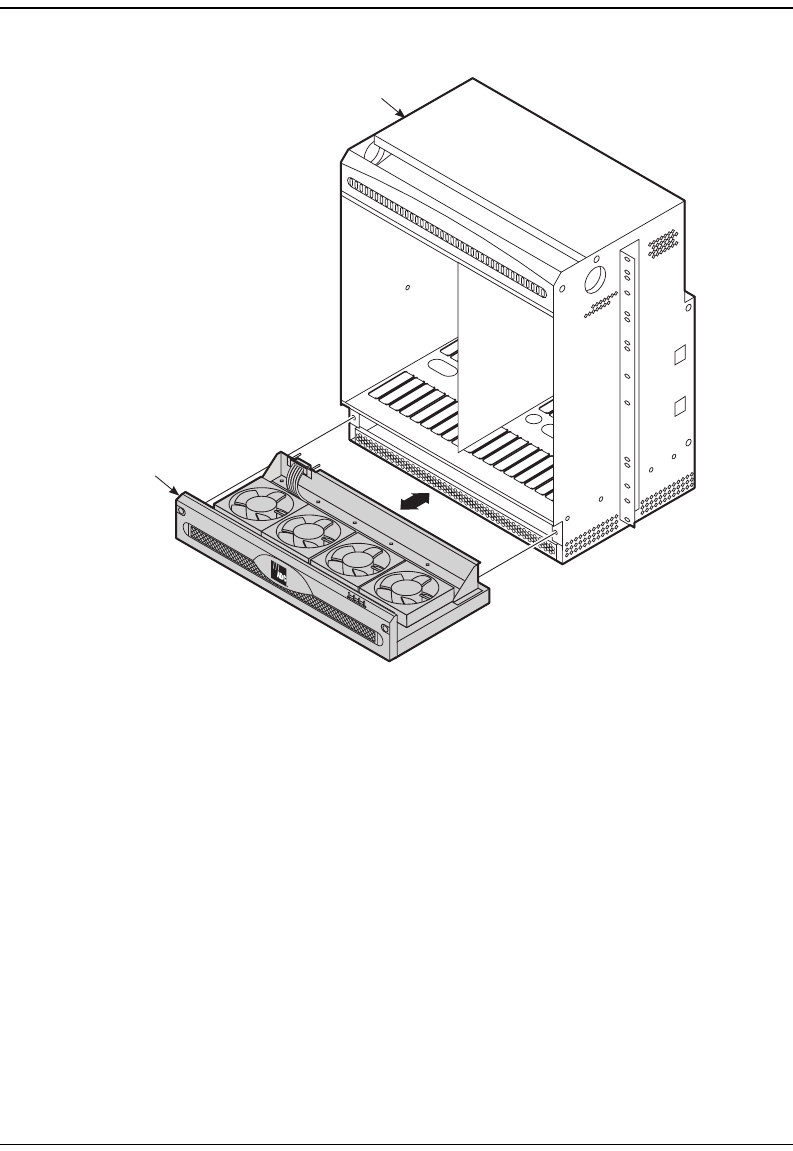

Removing and Replacing the Fan Tray ...........................................................................103

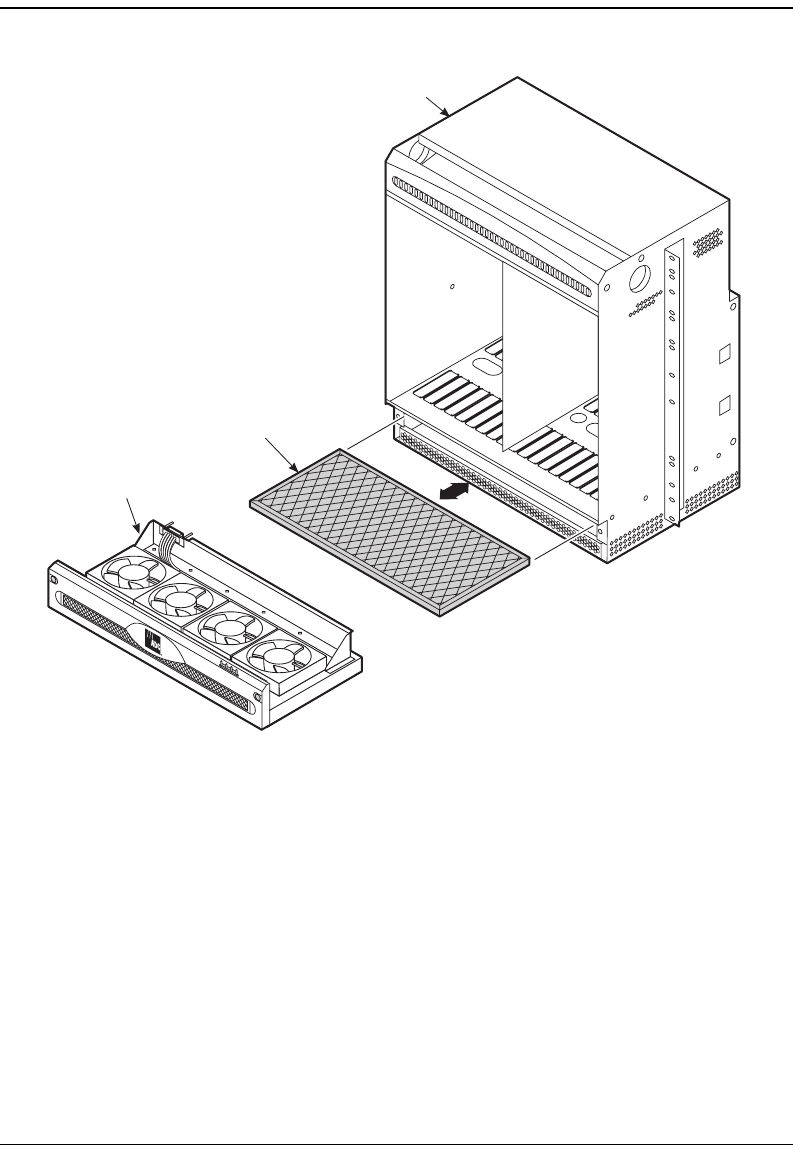

Removing and Replacing the Air Filter...........................................................................105
Chapter 10: ADSL Voice Shelves and POTS Splitters______________________________107
Adding Voice Shelf Capability to the AV8000...............................................................107
ADC BroadWire ADSL Voice Shelf Products................................................................108
The BroadWire120 ADSL Splitter....................................................................108
The BroadWire 240 ADSL Splitter...................................................................109
The BroadWire 528 ADSL Splitter...................................................................109
The BroadWire 288 ADSL Splitter...................................................................109
The Avidia AV8100 Voice Shelf.....................................................................................111
Unpacking and Inspecting the Avidia AV8100 ADSL Voice Shelf.................112

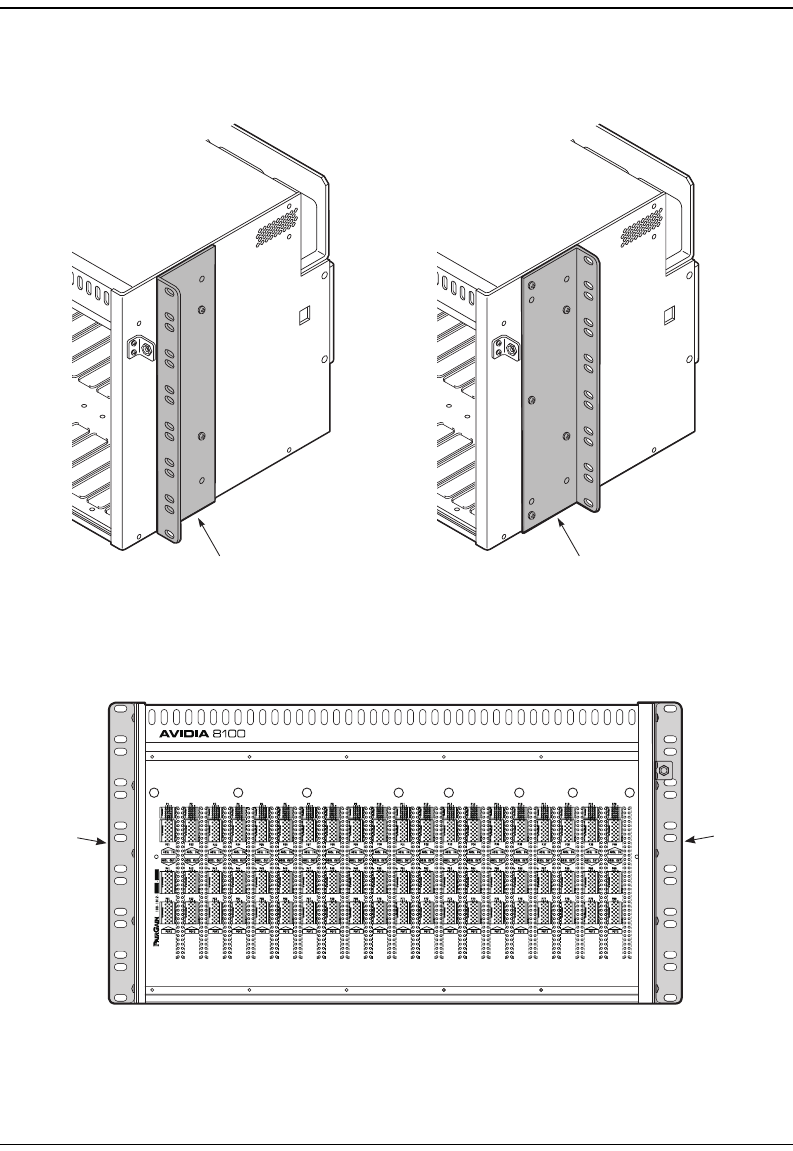

Installing the Avidia 8100 ADSL Voice Shelf..................................................112

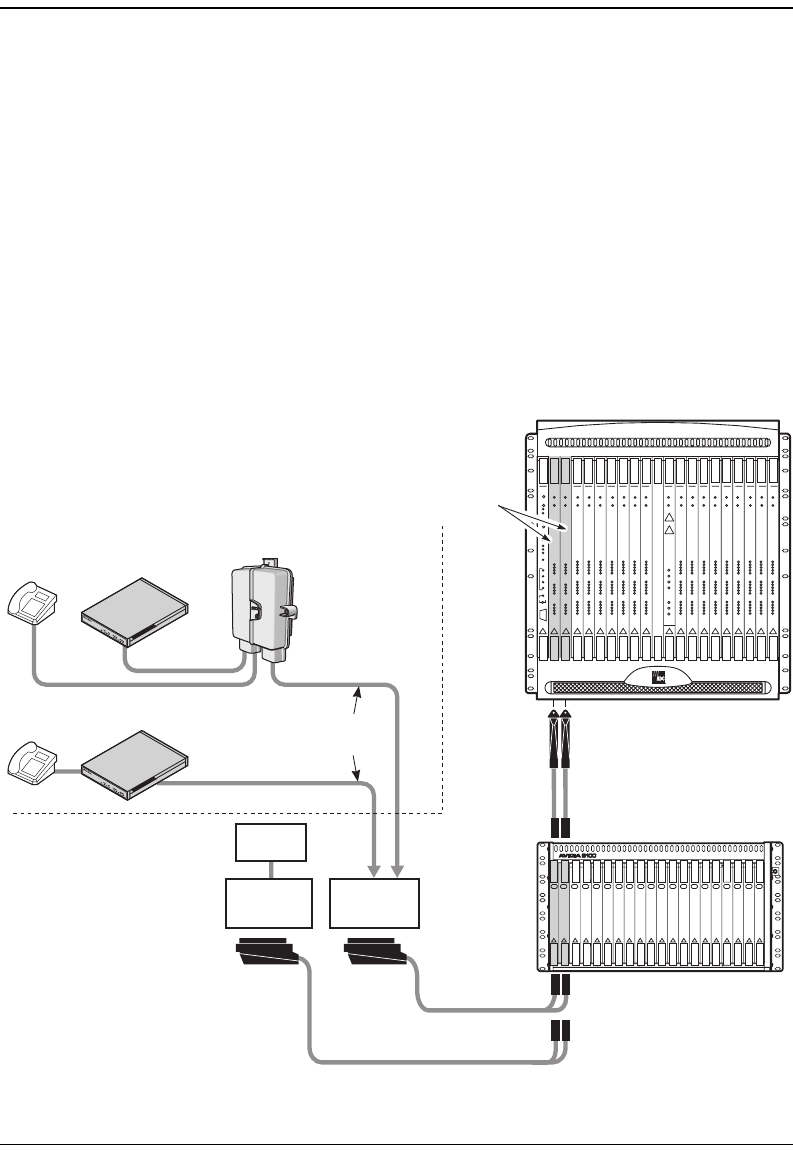

Connect ADSL For Data and POTS..................................................................116
Installing Cards into the AV8100......................................................................126
AV8100 System Specifications .......................................................................................127
ADSL Voice Shelf Specifications ...................................................................................127

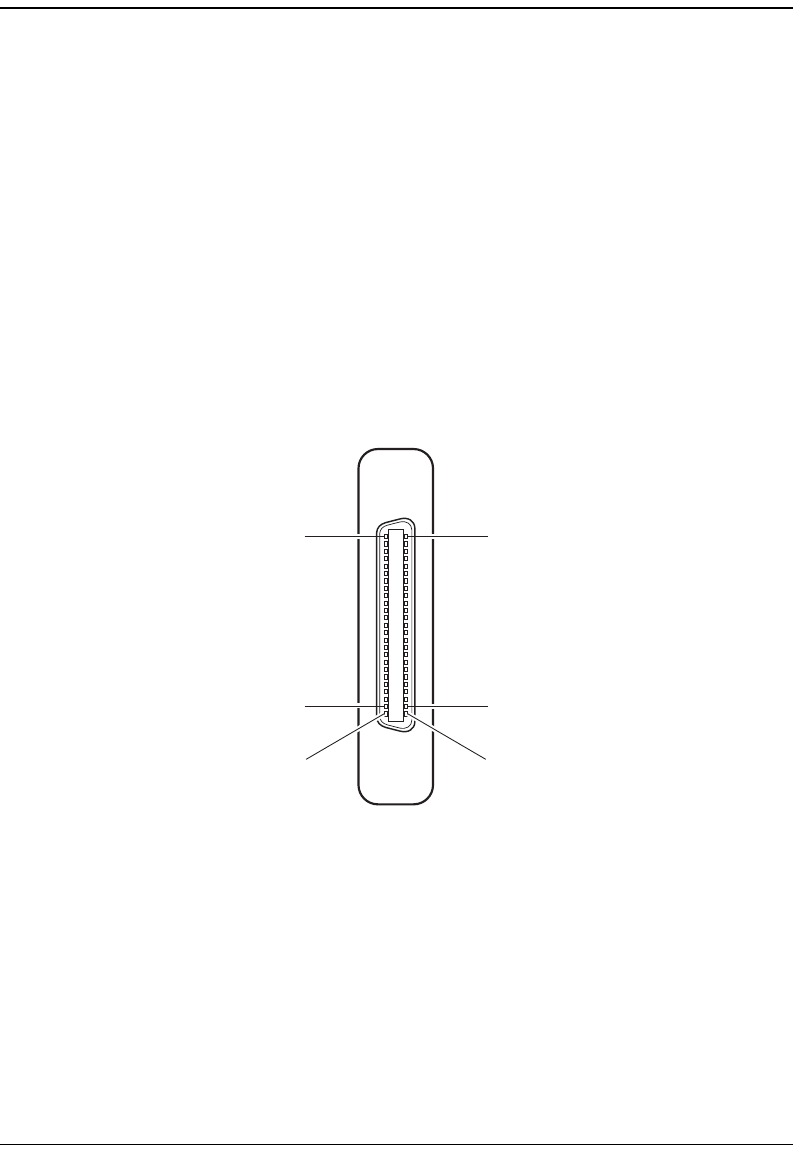

AV8100 Connector Pinouts...............................................................................128

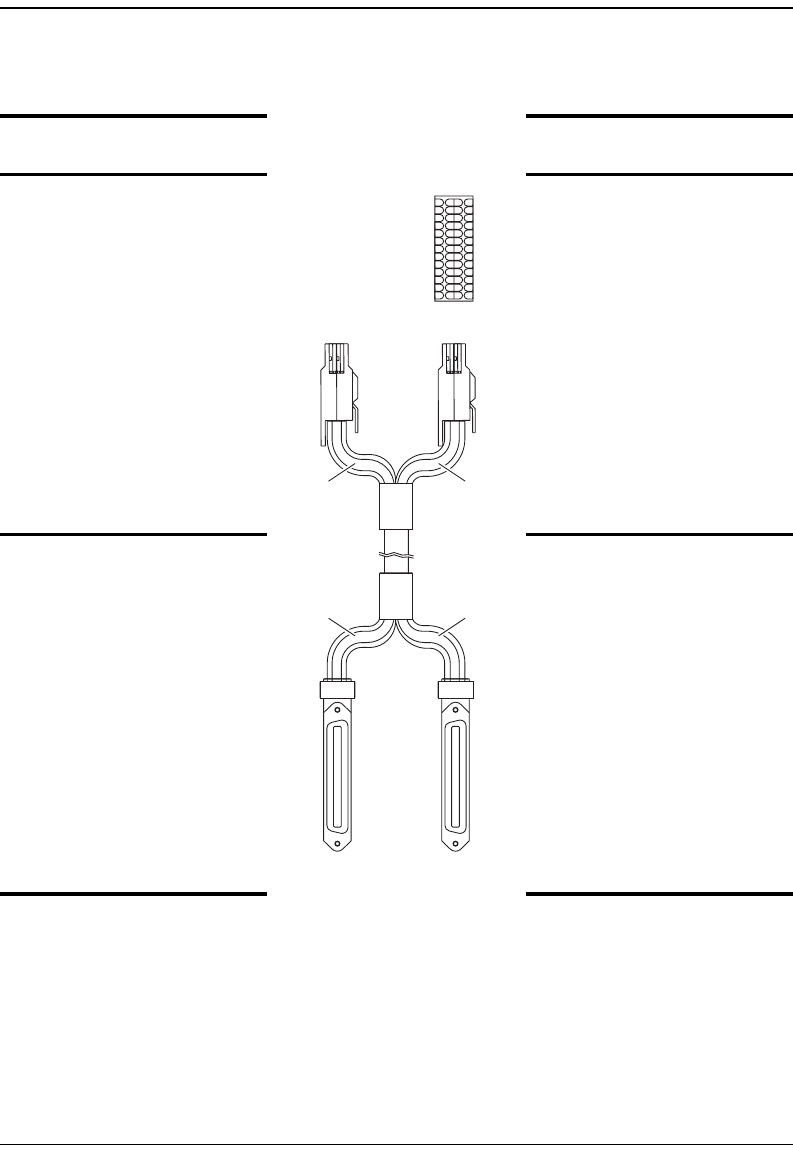

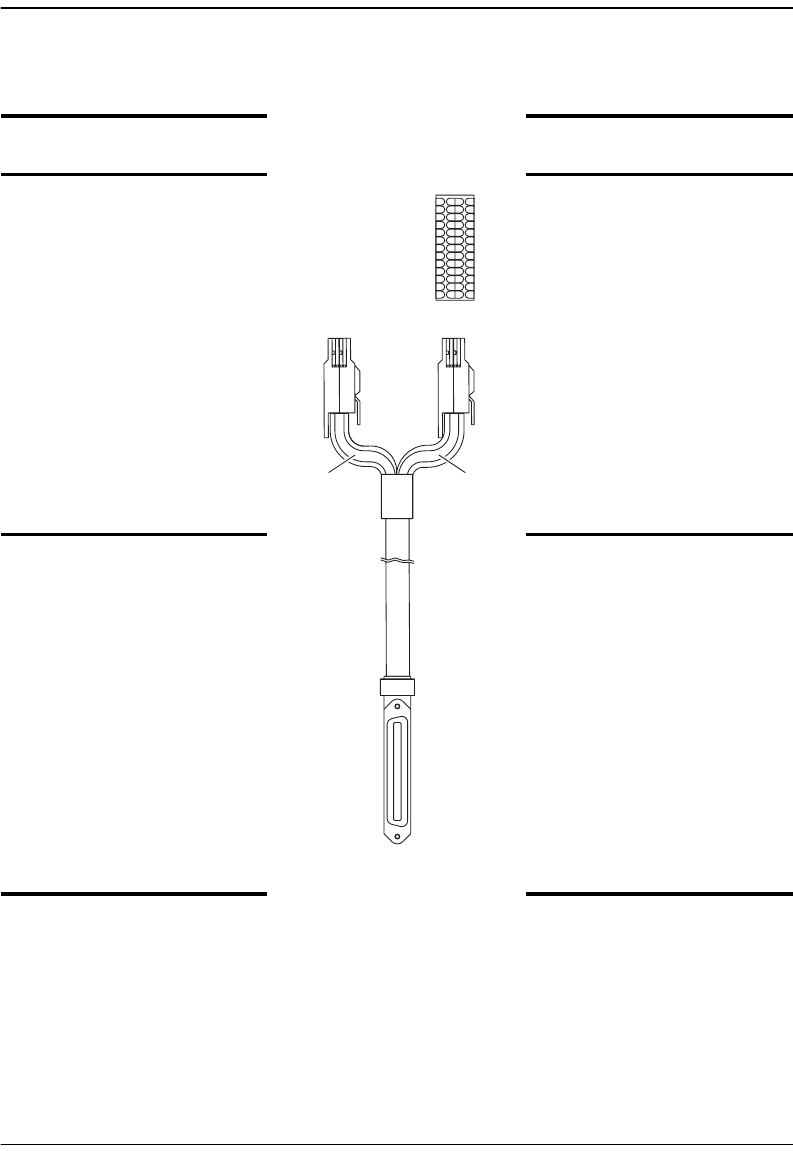

AV8100 Subscriber Interface Cables................................................................135
ADSL POTS Splitter Card...............................................................................................138
ADSL POTS Splitter Card Specifications.........................................................138
Table of Contents
AV8000 Installation Manual xi
Appendix A: System Specifications______________________________________________139

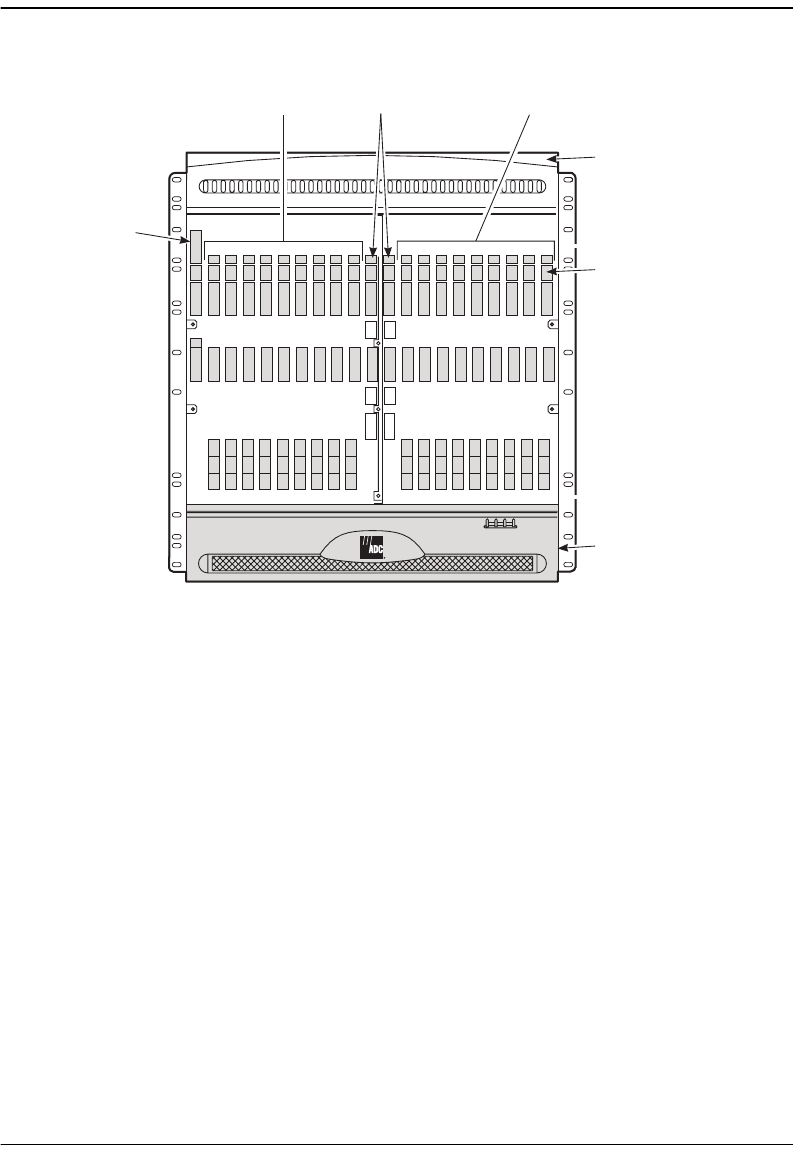

AV8000 Chassis ..............................................................................................................140
Chassis Specifications .....................................................................................................141
Power.................................................................................................................141
Physical .............................................................................................................141
Environmental...................................................................................................142
Avidia Cards and Chassis Power Requirements .............................................................144
Avidia Management Card................................................................................................146

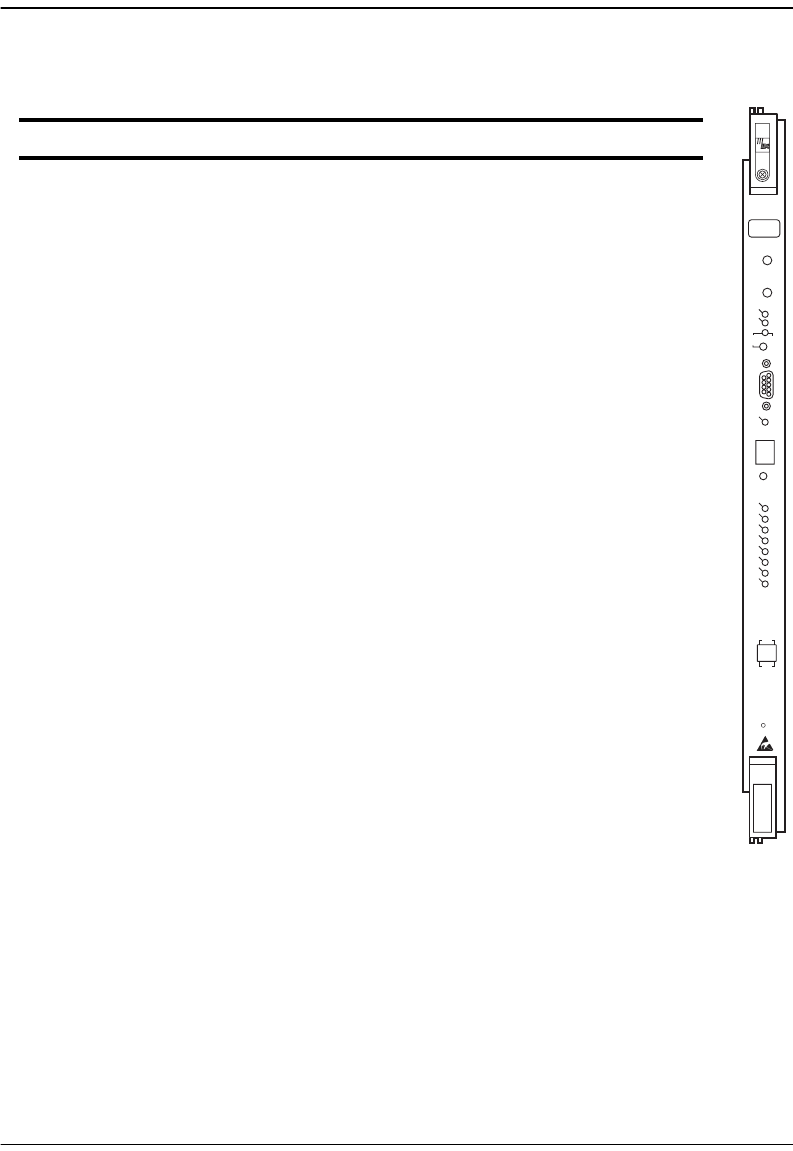

Management Card Front Panel..........................................................................147
Management Card Specifications .....................................................................149
Avidia Network Cards.....................................................................................................151
OC3 Network Card ...........................................................................................153
OC3 Card Front Panel.......................................................................................154
OC3 Card Specifications...................................................................................155
DS3 Network Card............................................................................................157
DS3 Card Front Panel .......................................................................................158
DS3 Card Specifications ...................................................................................159
8xDS1 Network Card........................................................................................161
8xDS1 Card Front Panel ...................................................................................162
8xDS1 Card Specification.................................................................................163
8xE1 Network Card...........................................................................................166
8xE1 Card Front Panel......................................................................................167
8xE1 Card Specifications..................................................................................169
8xDSX-1 Network Card....................................................................................170
8xDSX-1 Card Front Panel...............................................................................171
8x-DSX-1 Card Specifications..........................................................................172
Avidia Subscriber Cards..................................................................................................175
ADSL Subscriber Card .....................................................................................176

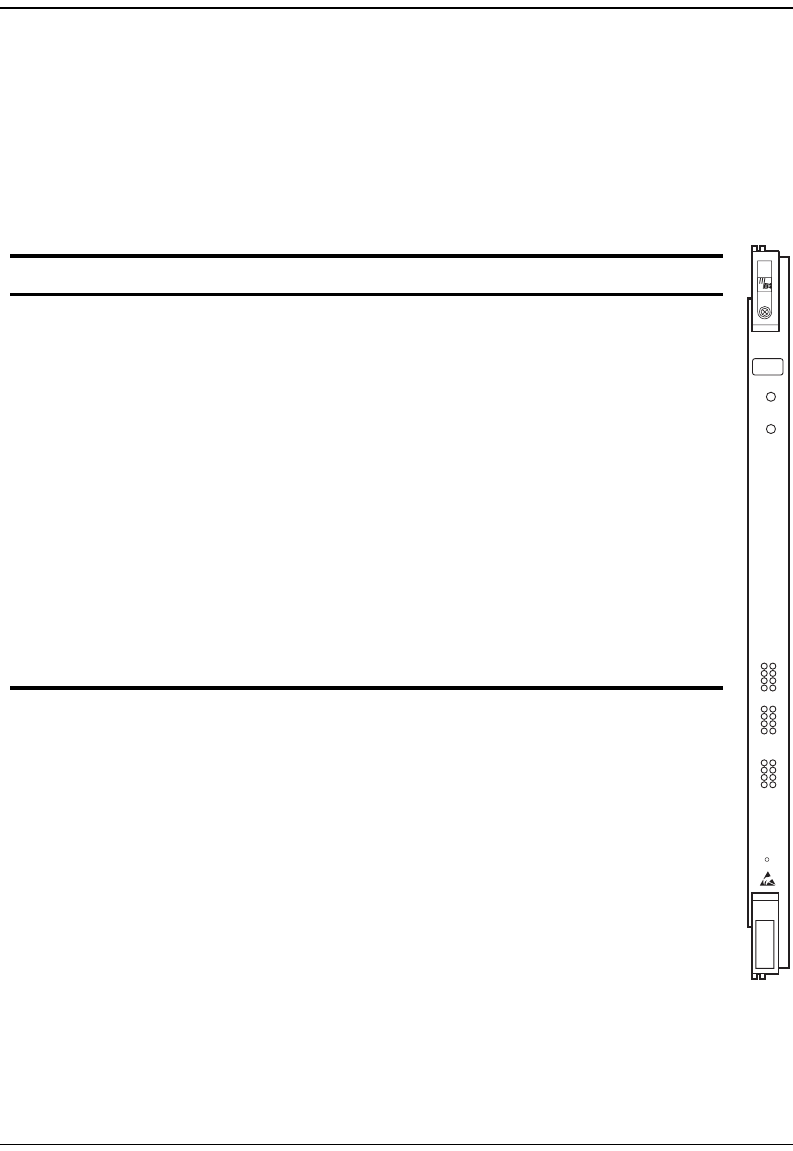

ADSL Card Front Panel....................................................................................177
Table of Contents
xii AV8000 Installation Manual
ADSL Card Specifications ................................................................................178
Cell-Based SDSL Subscriber Card....................................................................180
SDSL Cell Card Front Panel .............................................................................180
Cell-Based SDSL Card Specifications..............................................................181
Frame-Based SDSL Subscriber Card................................................................183
SDSL Frame Card front Panel...........................................................................183
Frame-Based SDSL Card Specifications ..........................................................184
IDSL Subscriber Card .......................................................................................186
IDSL Card Front Panel......................................................................................186
IDSL Card Specifications..................................................................................187
Avidia Card Interfaces.....................................................................................................189
Appendix B: Metrics__________________________________________________________193
International Wire Gauge.................................................................................................193
Appendix C: Technical Assistance ______________________________________________195
Technical Support............................................................................................................195
World Wide Web.............................................................................................................195
Advance Replacement .....................................................................................................196
Billing ..............................................................................................................................196
Returns.............................................................................................................................197
Appendix D: Glossary_________________________________________________________199
AV8000 Installation Manual 1
1
PREPARE FOR INSTALLATION
This chapter describes preparation and prerequisites for installing an AV8000 system. Before
you begin the installation in Chapter 2, complete the following steps in this chapter.
For information about: Go to page:
Observing Safety Precautions 2
Observing ESD Precautions 2
Planning the Avidia System 3
Chassis Installation Requirements 6
Power Requirements 6
Alarm Requirements 6
Clocking Requirements 7
Environmental Requirements 9
Installation Site Requirements 6
Provisioning System Cabling 10
Verifying Installation Tools 12
Unpacking and Inspecting the Avidia Systems 13
What To Do Next 14
Observing Safety Precautions
2AV8000 Installation Manual
OBSERVING SAFETY PRECAUTIONS
Follow the appropriate warnings and cautions when performing the tasks specified in this
manual. You must connect the specified cables and wires only in the order listed and as
indicated in the installation instructions. Additionally, read and understand all installation
procedures before beginning.
OBSERVING ESD PRECAUTIONS
Observe these electrostatic discharge (ESD) precautions when installing the AV8000 system.
Follow installation procedures in the order that they are given.
•Follow local grounding practice to ensure a good frame ground connection
to the AV8000 chassis. The frame ground is required for secondary voltage
protection.
•Electrical and mechanical shock hazards are present throughout the
system; be aware of this possibility when power is applied to the chassis.
Only qualified personnel should service the system.
•Do not connect the AV8000 chassis battery wires to a live power source.
Ensure that you remove fuses from the CO equipment bay for each circuit
you will use.
•The equipment must be connected to a protective ground in accordance
with the instructions provided in this manual. Improper grounding may
result in an electrical shock.
•The minimum bend radius for a fiber-optic cable is 1.5 inches (38.10 mm).
Do not use a bend radius of less than 1.5 inches when looping the
fiber-optic cable in the cable tray.
•Do not look directly at the fiber-optic ports on the front of the OC3 network
card or into the end of any fiber-optic cable.
This symbol placed next to a paragraph title or within a paragraph indicates
that the entire procedure involves equipment sensitive to electrostatic

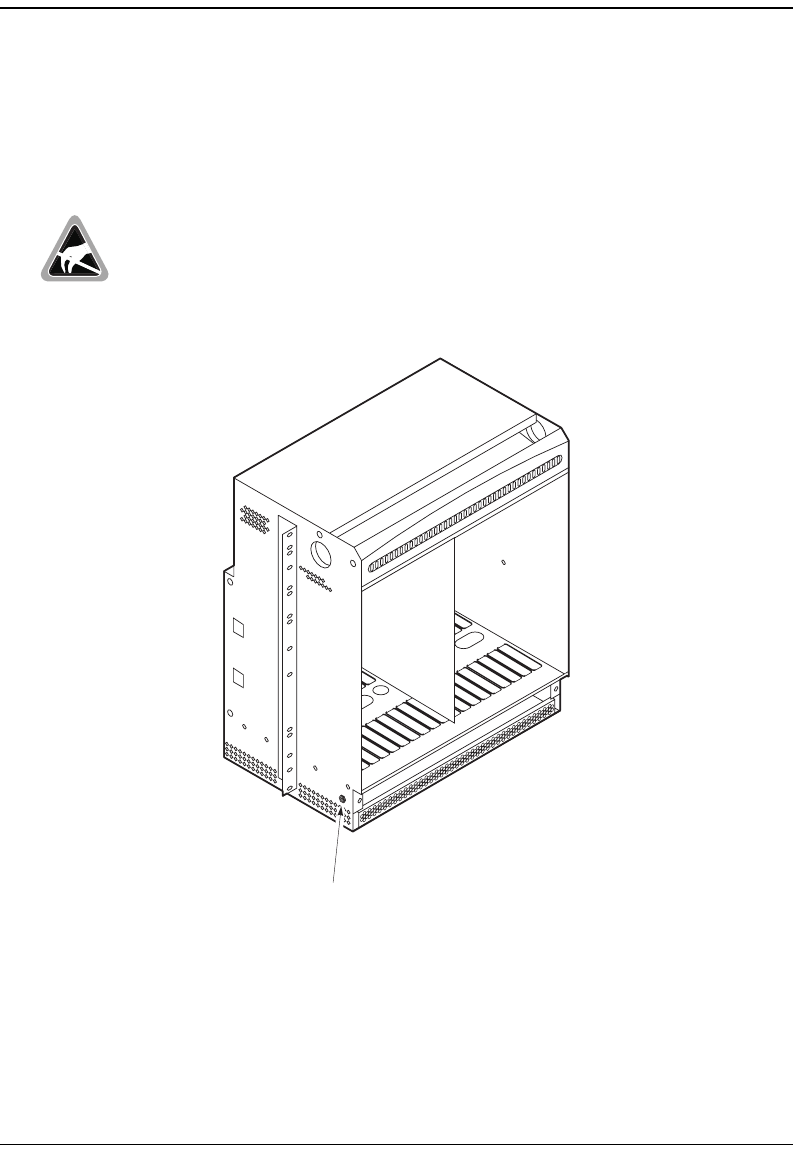

discharge. You must wear an antistatic wrist strap connected to the ESD jack
on the AV8000 chassis to perform the installation procedures. You must also
observe normal ESD precautions when handling electronic equipment. Do not
hold electronic plugs by their edge. Do not touch components or circuitry.
Chapter 1: Prepare for Installation
AV8000 Installation Manual 3

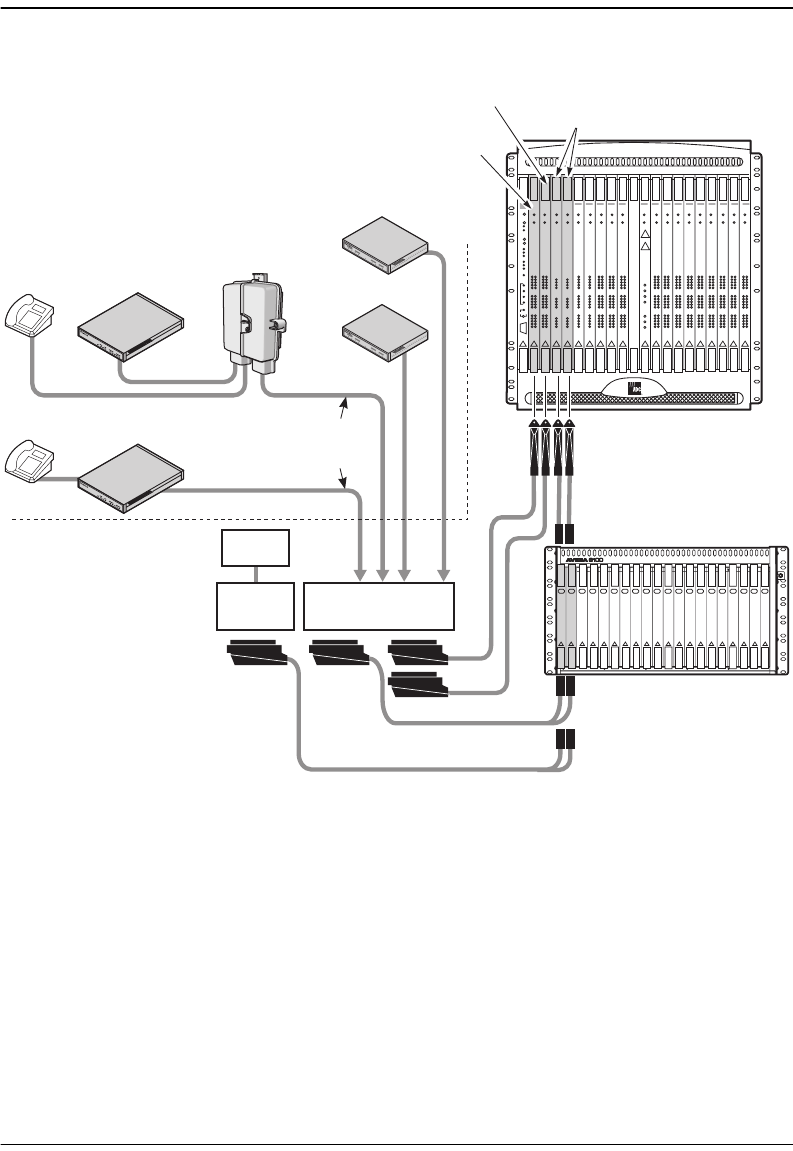

PLANNING THE AVIDIA SYSTEM
Use the following sections to select components for the Avidia system. Allow for future
expansion when you select and place components.
Compatibility
Select components for your system that are compatible:
•network card(s) to meet the network interface requirement, as well as the bandwidth and
traffic needs of your network (see “Adding to an Existing System”on page 5 for other uses
of network cards)
•subscriber cardsto meet the network, transmission,and distance needs for your subscribers,
for example:
–Does symmetric (frame SDSL, IDSL) or asymmetric (ADSL) transmission best meet
the applications needs for the subscriber?
–Which transmission type provides service to a subscriber who is distant from the CO?
–Which transmission type provides the appropriate rate for the reach?
•for POTS, use ADSL subscriber cards AV541 (without line protection) and connect to a
VOICE shelf to multiplex voice and data
•Customer Premises Equipment (CPE) must be compatible with transmission type of the
subscriber card, for example:
–for ADSL subscriber cards, use Megabit Modem 700F, 600F, 500L, 400F or other
DMT ADSL modems
–for frame SDSL subscriber cards, use Megabit Modem 300S or other SDSL modems
–for IDSL subscriber cards, use modems recommended as a result of compatibility
testing and listed on the ADC.com Web site
–for cell SDSL subscriber cards, use modems recommended as a result of compatibility
testing and listed on the ADC.com Web site
If selecting an ADSL subscriber card, use the Avidia Model AV541-LP (with line
protection) to connect directly to an MDF. Use the Avidia Model AV541 to
connect to a voice shelf.
Planning the Avidia System
4AV8000 Installation Manual

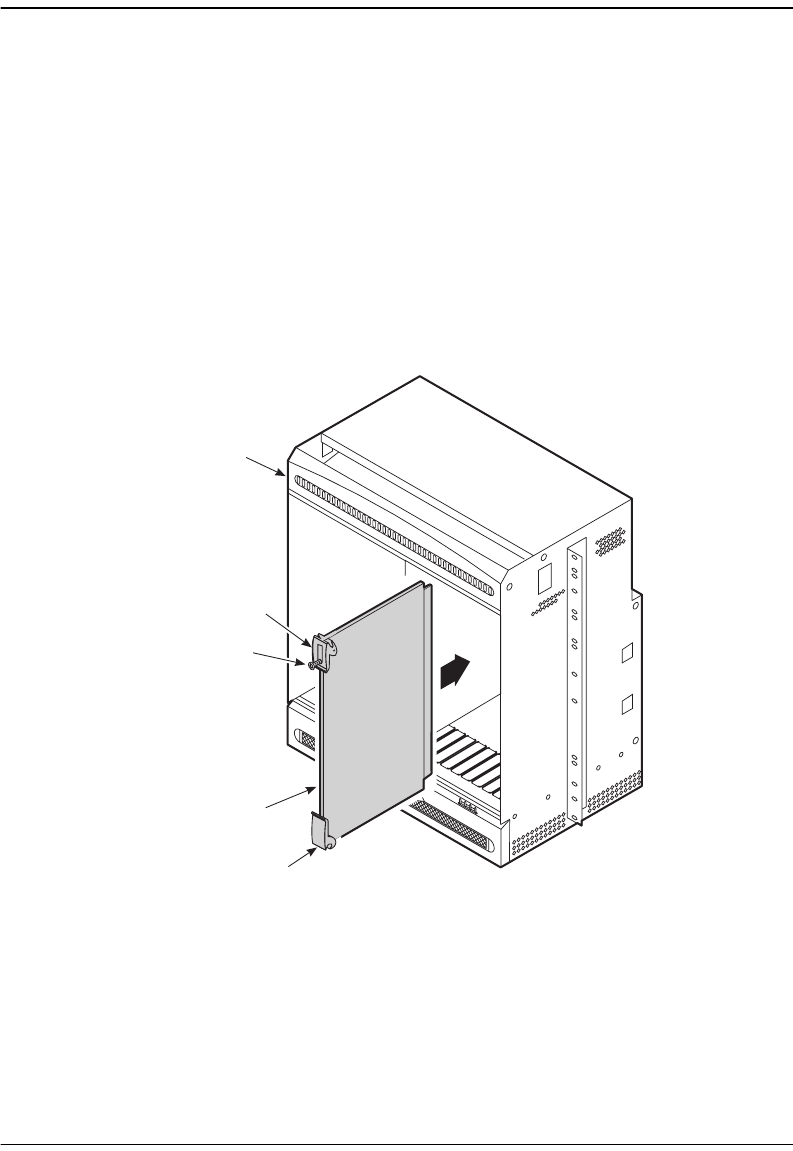

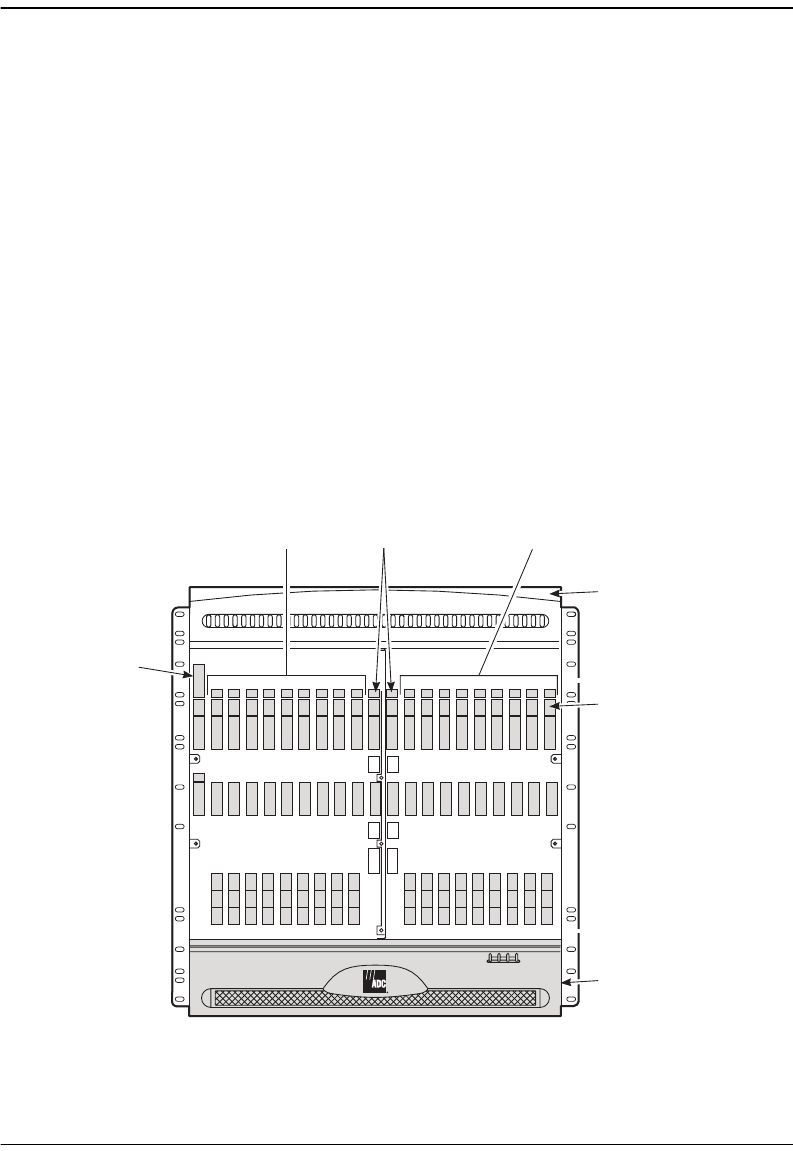

Card Placement
You may want to strategically leave slots available for expansion (see “Adding to an Existing
System”on page 5). Install cards in these AV8000 chassis slots:
•management card in slot 1
•OC3, DS3, and DSX-1 network cards in slots 11 and 12 (OC3 card can be used in a
subscriber slot for special applications such as subtending, see Chapter 8); typically, use
slot 12 as the primary network card slot
•8xDS1and 8xE1 network card in any subscriber card slot (S2 through S10 and
S13 through S21)
•ADSL, cell SDSL, frame SDSL, and IDSL subscriber cards in any subscriber card slot
S2 through S10 and S13 through S21, in any combination (it is efficient to place ADSL
cards in adjacent slots for cabling purposes when you connect to a Voice shelf to combine
voice and data)
•Empty card slots should be filled with one or more of the blank faceplates provided with
the AV8000. This not only reduces the levels of electromagnetic radiation emanating from
the chassis, but also aids in maintaining optimum cooling for the cards installed in the
system.
Chapter 1: Prepare for Installation
AV8000 Installation Manual 5
Adding to an Existing System
When selecting system components, consider future expansion to your Avidia system, with
theseaspossibleoptions:
If you want to add a: Then:
AV8000 Chassis Consider installing the first chassis in the top position in a 7-foot
Telco rack to allow further expansion in the middle and bottom
positions. Remember, you can have a maximum of three AV8000
chassis per rack, when a fuse panel is not installed in the same rack.
Network card for:
Redundancy Add a second network card, of the same type, in slot 11 to have a
backup connection to the same network uplink source.
Second network connection Add a second network card, of the same or of a different type, in slot
11 to connect to a separate or second network uplink source.

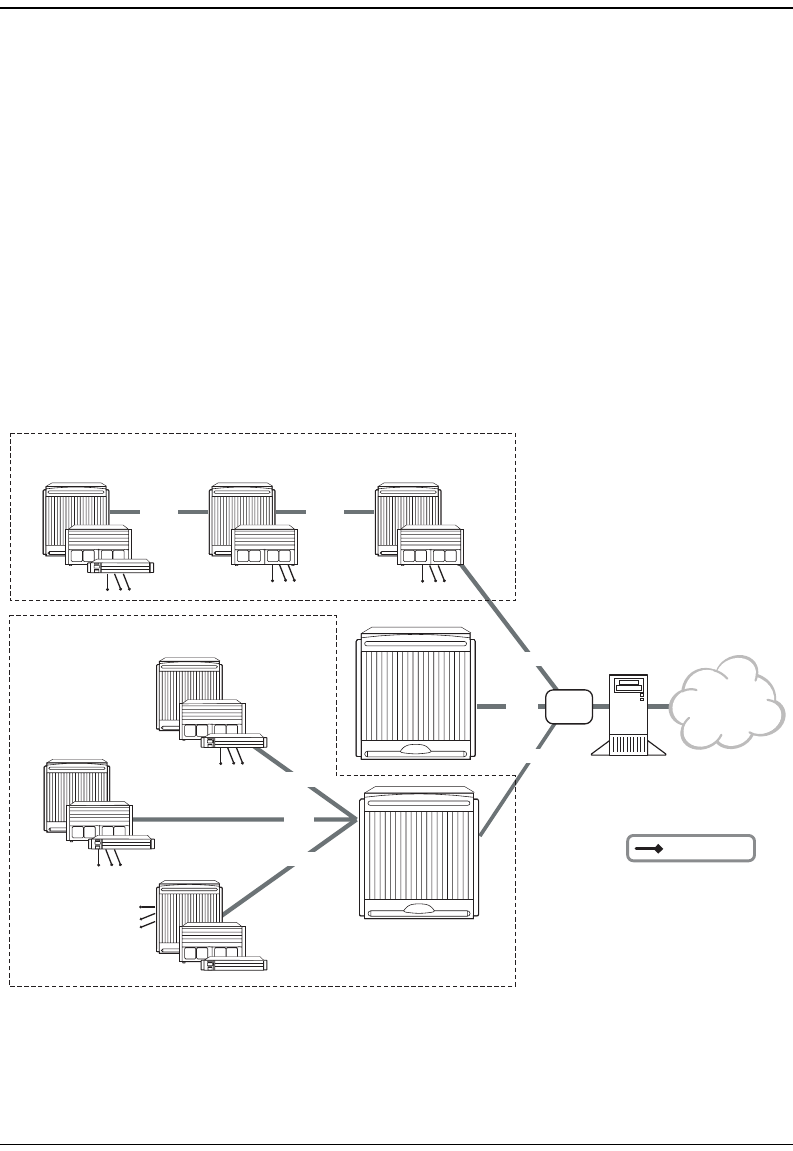

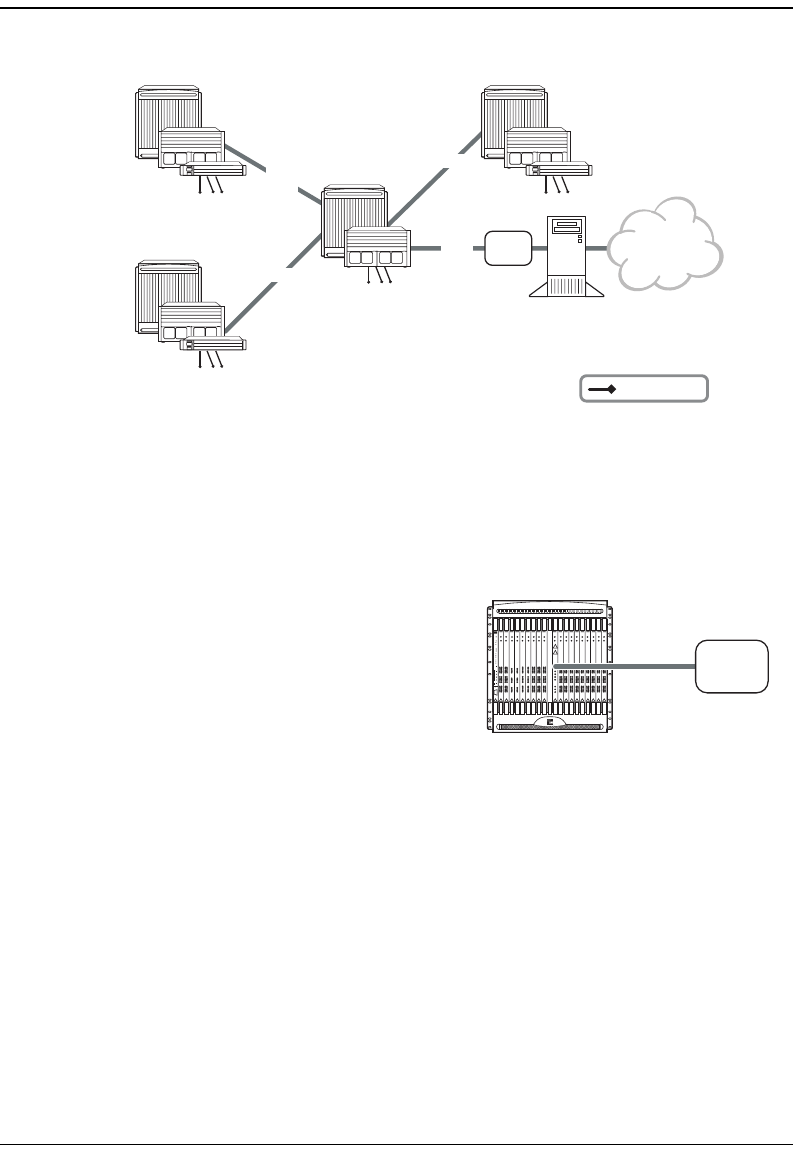

Subtending Add a one or more additional network cards to subtend other Avidia
chassis that are downstream from the subtending chassis. This card
can be:
•another DS3 card in slot 11
•another OC3 card in slot 11 or any subscriber slot (2-10 or 13-21)
•8xDS1 card in any subscriber slot (2-10 or 13-21)
•8xE1 card in any subscriber slot (2-10 or 13-21)
Subscriber card Leave subscriber slots (2-10 or 13-21) open to accommodate
expansion of subscriber services. You may want to group cards in
the chassis for ease of cabling. There is no technology limitation,
however, for card placement. Available xDSL cards are:
•12-port ADSL (two 12-port ADSL cards are available (AV541 and
AV541-LP). Use the AV541-LP card when connecting the ADSL
subscriber line directly to the MDF for data transmission that
does not include POTS. Use the AV541-LP card when you
connect the subscriber line to a voice shelf to multiplex data with
POTS. The voice shelf provides the line protection required for the
ADSL card.
•24-port cell SDSL
•24-port frame SDSL
•24-port IDSL

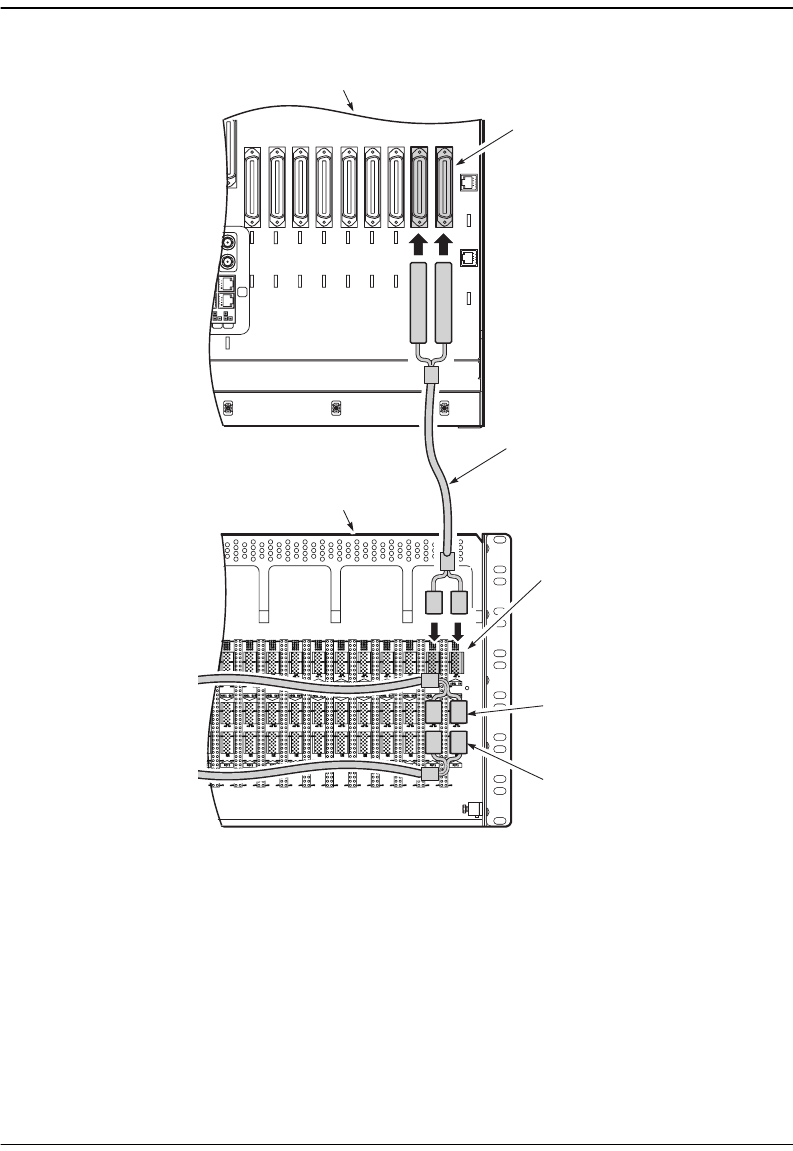

POTS with ADSL Leave space in the CO rack for co-locating a voice shelf. Also, when
you combine a voice shelf with an AV8000 chassis for implementing
data and POTS, select the ADSL card without line protection. The
voice shelf provides line protection for the ADSL card.
Installation Site Requirements
6AV8000 Installation Manual
INSTALLATION SITE REQUIREMENTS

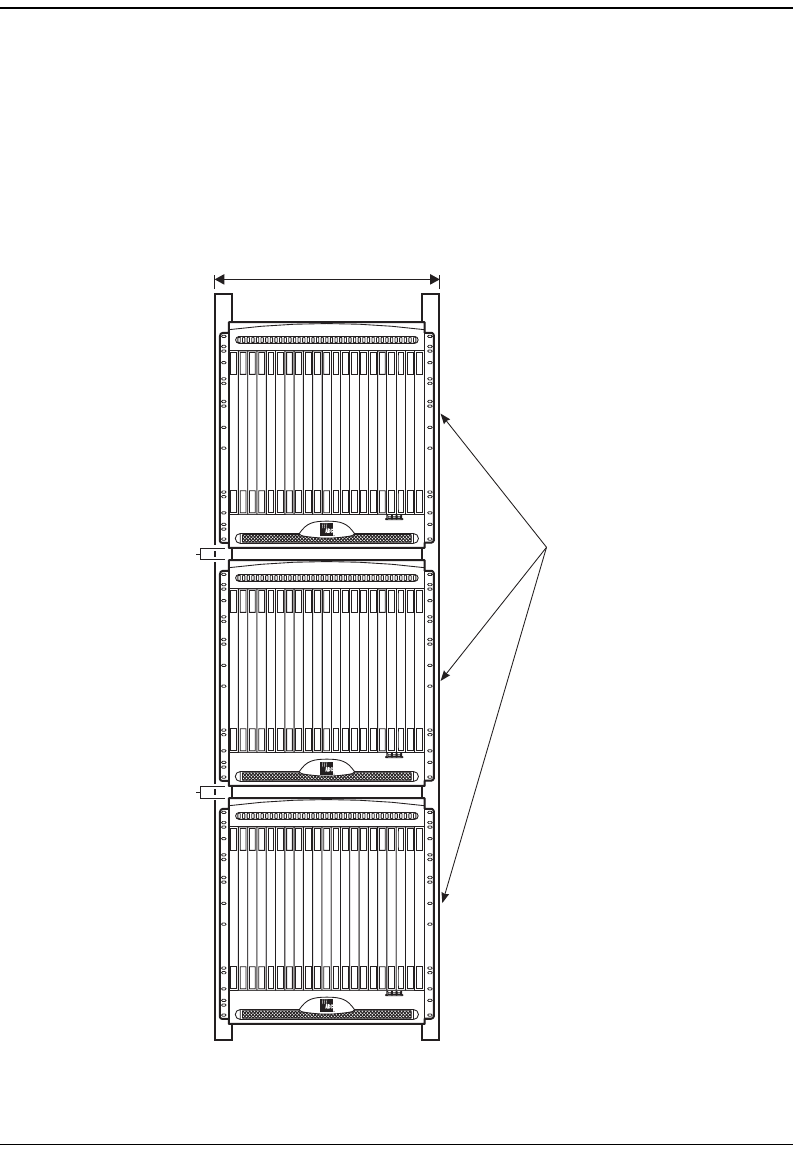

Chassis Installation Requirements
The AV8000 mounts in a 23-inch, 7-foot or 71/2-foot CO Telco rack. You can install up to three
chassis in one rack. Allow adequate space for ventilation and cabling. The table below shows
chassis dimensions and minimum clearances for installation.
Power Requirements
Verify that the power source where you will connect the Avidia system is properly grounded
and falls within the recommended voltage range of -42.5 Vdc to -56.5 Vdc, with a minimum of
30 Amps.

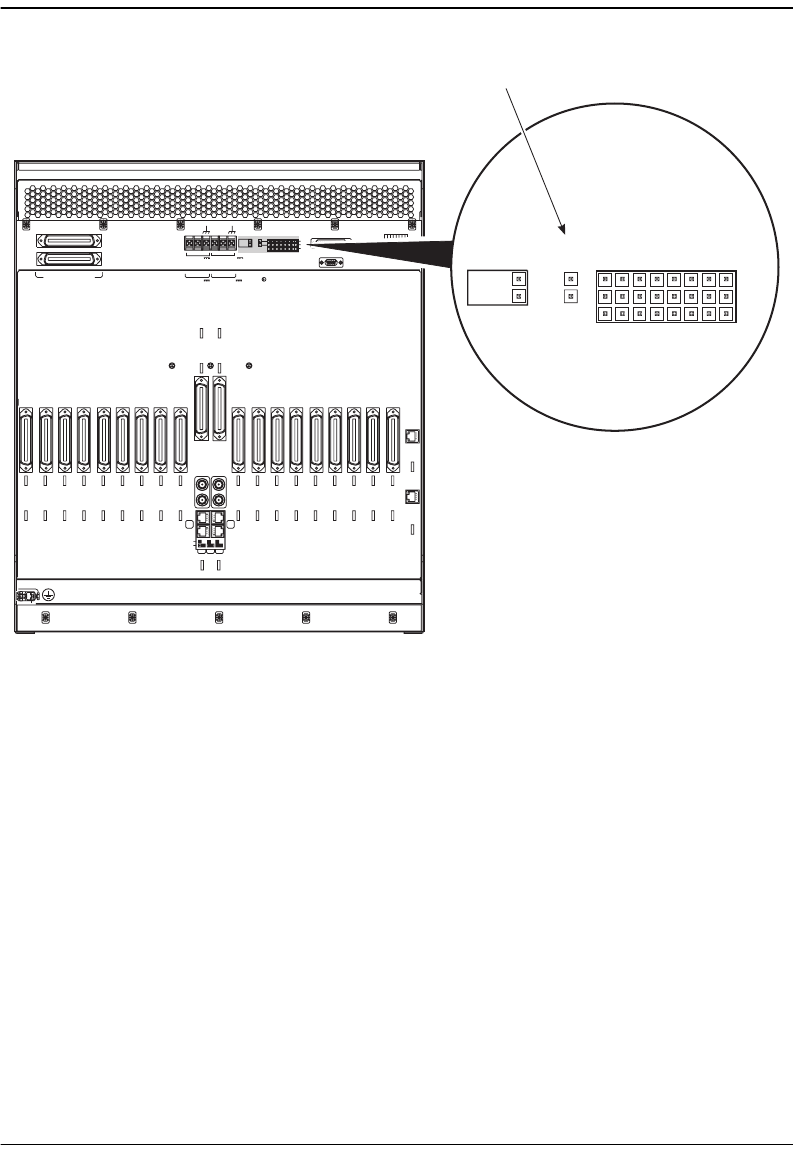

Each AV8000 system provides a terminal block with connection points for two -48 Vdc Telco
supplied battery sources. Only one battery connection is required, with the second connection
provided for redundancy. The system also requires an external fuse panel with separate fusing
for each battery source used.
Alarm Requirements
The AV8000 system monitors alarm conditions, including alarms occurring at the remote end.
Connect alarm pins, when required by local practice, to indicate the alarm conditions such as
audible alarms, visual alarms, or power relay alarms. You can connect an Alarm Cut Off (ACO)
pushbutton to disable audible alarm output remotely.
Weight 67 lbs (30.39 kg) for chassis without cards
Height 24.47 inches (621.54 mm)
(requires 14U space—1U = 1.75" of usable internal
rack space)
Depth 12.00 inches (304.80 mm)
Width 23.17 inches (588.52 mm) with mounting brackets
21.17 inches (537.72 mm) without mounting brackets
Clearance
between chassis 0.50 inches (12.70 mm) minimum
(this clearance applies to the bottom of the chassis only
and is required for fan air flow)
Chapter 1: Prepare for Installation
AV8000 Installation Manual 7
Clocking Requirements
Avidia system clocking provides the capability to synchronize all data transmissions with a
common timing source within the Avidia System. Redundancy is provided, through the priority
ranking of clock sources, in order to achieve fault tolerance and timing recovery in the case of
a clock source failure. User configuration provides for selection and ranking of clock sources.
A clock source is selected for individual cards in a system. At this time, only the following
subscriber cards support the system clock (Sysref Clock) feature:
•AMC
•DS3
•OC3
•DSI/E1
•IDSL
Clocking Systems
There are four related clocking systems associated with an Avidia chassis. These are discussed
in the following sections.
BITS OUT Clock
The first clocking system for the Avidia chassis is the BITS clock. A clock source is selected
that will serve as the BITS OUT clock. Potential BITS OUT clock sources are BITS IN 1, BITS
IN 2, or none. The BITS OUT clock source is selected by the user, through configuration
software, and routed by the primary network card to the BITS OUT wire wrap pins on the back
of the Avidia chassis.
Network Card Clock/System Reference Clock
The second clocking system is the System Reference clock (Sysref). Cards in the network card
slots, slots 11 and 12, are user configured to select the Sysref clock source. Both network card
slots can drive Sysref clock, but not at the same time. Normally, one network card (primary)
provides Sysref to the Avidia backplane and the other network card (secondary) uses the Sysref
clock off the backplane. The Sysref clock signal is also made available to all of the subscriber
cards from the backplane as well. Sysref clock sources are BITS IN 1, BITS IN 2, a network
card’sports’recovered receive clock, or the network card’s local oscillator. Sysref clock is
monitored by the network card for failure.
Installation Site Requirements
8AV8000 Installation Manual
Subscriber Card Clock
The third clocking system provides clocking for the subscriber card. Subscriber card clock
sources are Sysref, subscriber card’sports’recovered receive clock, or subscriber card local
oscillator.
Port Clock
The fourth clocking system provides clocking for the subscriber card port. This clock is protocol
dependent. Potential port clock sources are:
•Local (uses the card clock source that was selected for the subscriber card)
•Loop (clock received at the port is recovered and used to transmit data).
If you do not configure a clock source for a card, configuration defaults to the card’s local
oscillator.
Typical Clock Source Configuration
Typically, the primary network card receives the master clock from a BITS clock such as a
Stratum 1 clock, through the chassis backplane inputs BITS IN 1 or BITS IN 2. The primary
network card outputs the clock signal BITS OUT, to the backplane wire wrap pins, and Sysref
to the Sysref backplane bus. The BITS OUT clock daisy chains the master clock (BITS out to
BITS in) through network cards from one Avidia shelf to the next in a central office rack. The
Sysref clock is distributed on the Backplane of the Avidia shelf for use by the subscriber cards
and the secondary network card not currently configured to supply this clock signal.
On the subscriber cards, the Sysref clock can be used to synchronize data transmissions. Or, the
user can configure the subscriber card to utilize the recovered received clock from a port for
transmitting data.
Clock Priority and Redundancy
Clock sources for the network cards and the subscriber cards are configured and ranked by the
user. Ranking allows you to indicate the priorities for each clocking source, through
configuration software, so that if the present clocking source should fail, the next lower ranked
clock source would take its place providing redundancy for the failed clocking source.
Clock sources are constantly monitored by Avidia software; therefore, when a failed clock
becomes available once again, the system automatically switches to this recovered higher
ranking clock source.
Chapter 1: Prepare for Installation
AV8000 Installation Manual 9
Clocking the IDSL Card
The IDSL subscriber card requires special clocking consideration. Normally, the BITS IN clock
is used for locally clocking the IDSL frame-based card. In this case, the BITS clock must be:
•T1 signal, either framed or unframed
•DSX-1 signal, either framed or unframed
•minimum of one clock pulse per 8 bits time frame
•Alarm Indicator Signal (AIS) acceptable
•only bipolar violation accepted is B8ZS
Environmental Requirements
The AV8000 system is approved for operation in the environment described below when
installed according to the instructions in this installation manual.
See Appendix A for additional specifications for the AV8000.
Ambient Operating
Temperature +32 °F to +122 °F (0 °C to +50 °C)
Relative Humidity 10% to 80% (non-condensing)
Operating Altitude up to 10,000 feet (3048 m)
Ambient Storage
Temperature -40 °F to +158 °F (-40 °C to +70 °C)
5% to 95% relative humidity
Storage Altitude -1000 to +30,000 feet (-305 m to +9144 m)
Environment Space Controlled (indoor)
Provisioning System Cabling
10 AV8000 Installation Manual
PROVISIONING SYSTEM CABLING

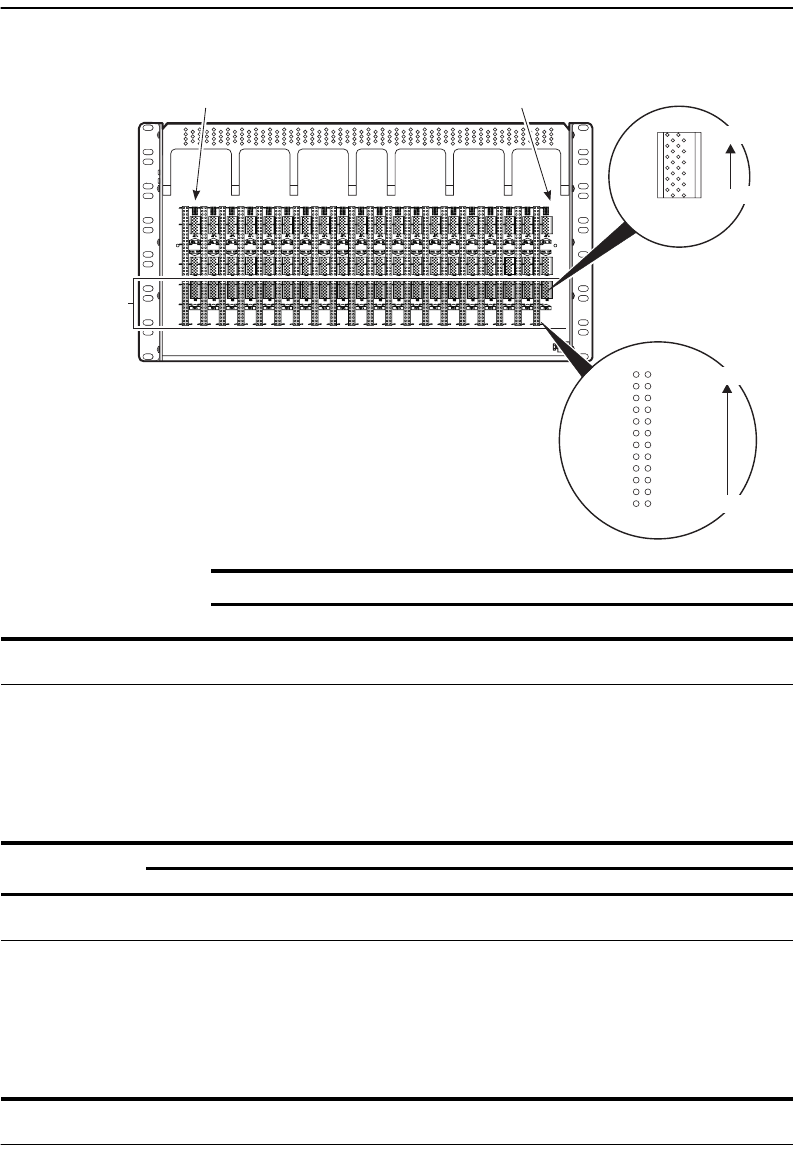

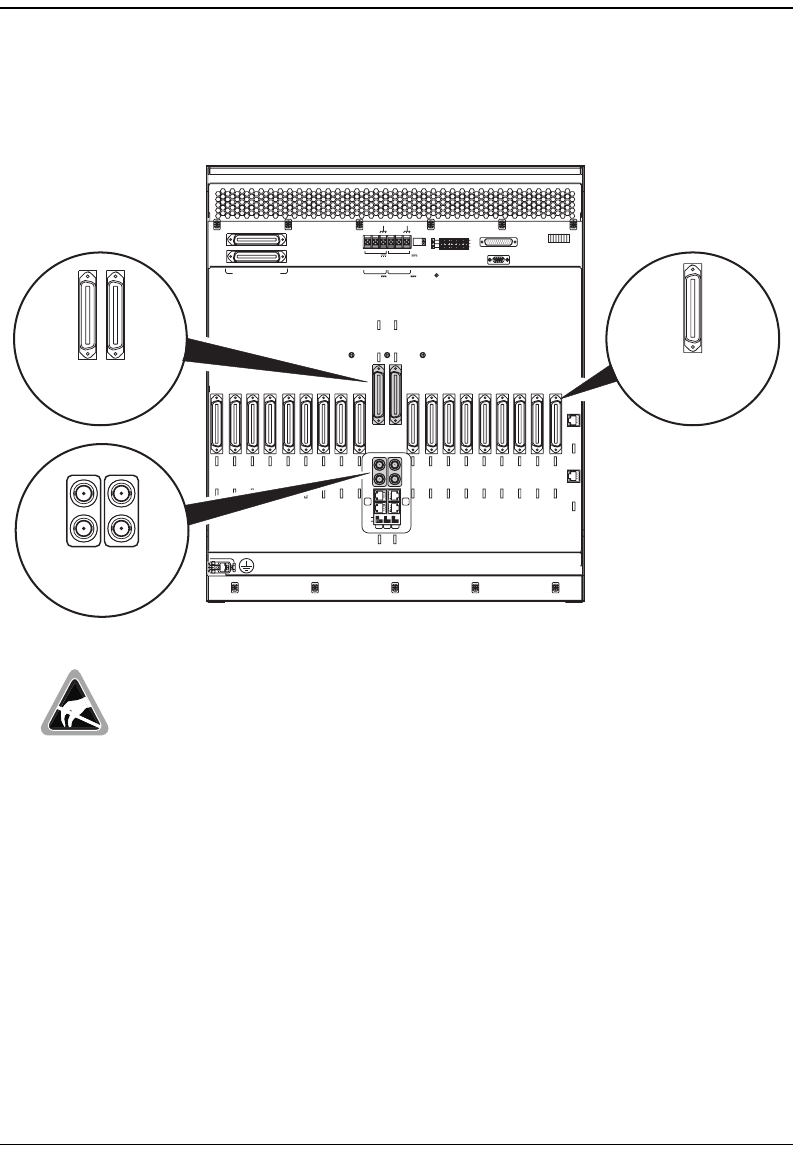

Network Cabling
Network connectors interface the AV8000, through network card(s), to an ATM backbone
network, a LAN, or a WAN. Each of the following network cards has its own connector, either
on the card or on the AV8000 chassis backplane, for each network interface:
•DS3 (this page)
•8xDSX-1, 8xDS1, or 8xE1 (this page)
•OC3 network interface (page 11)

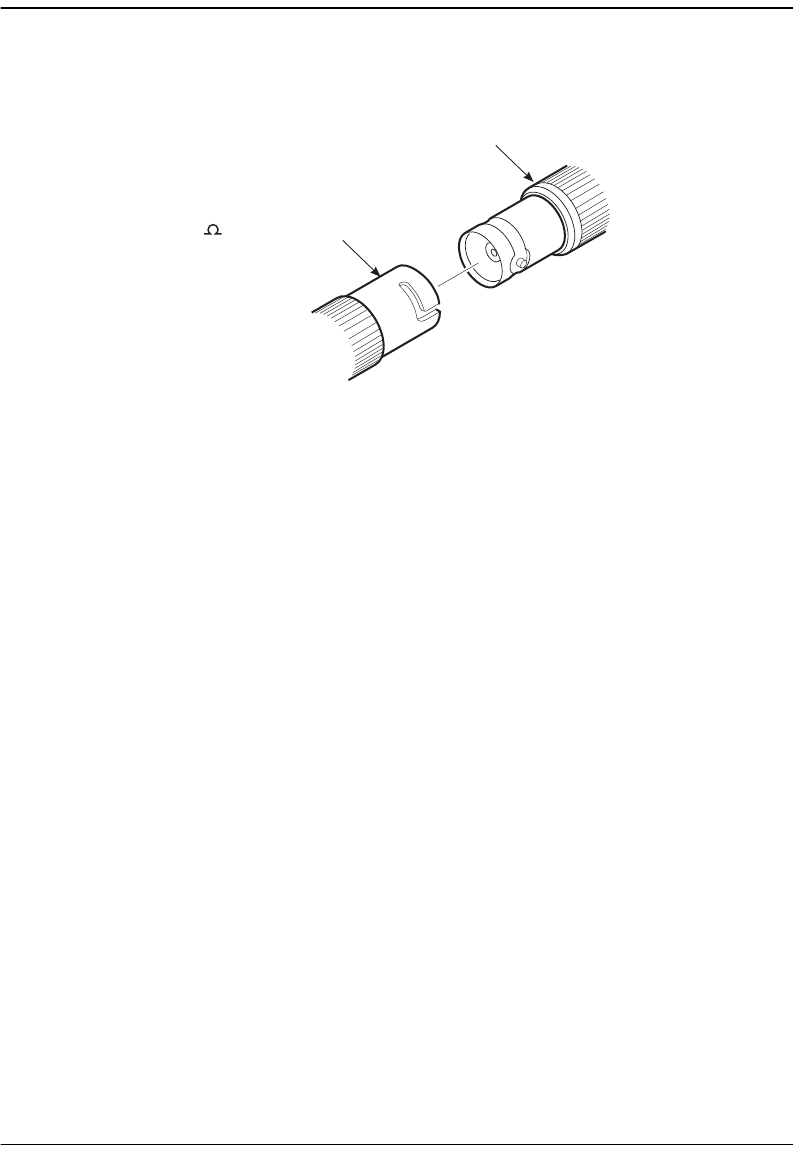

DS3
For recommended cabling, use a 75 Ωcoaxial cable with 75 ΩBNC connectors. Ground the
cable shield at one end only. Otherwise, use your local practice to determine cabling. The
maximum length for this network cable is 450 feet (137 m).
DSX-1, DS1, E1
For recommended cabling for these network interfaces, use 24 AWG twisted-pair copper wire.
Otherwise, use your local practice to determine cabling. The maximum lengths for these
network cables are:
•DSX-1: 655 feet (199 m)
•DS1: 6 kilofeet (1,829 m)
•E1: 4.8 kilofeet (1463 m)
Chapter 1: Prepare for Installation
AV8000 Installation Manual 11

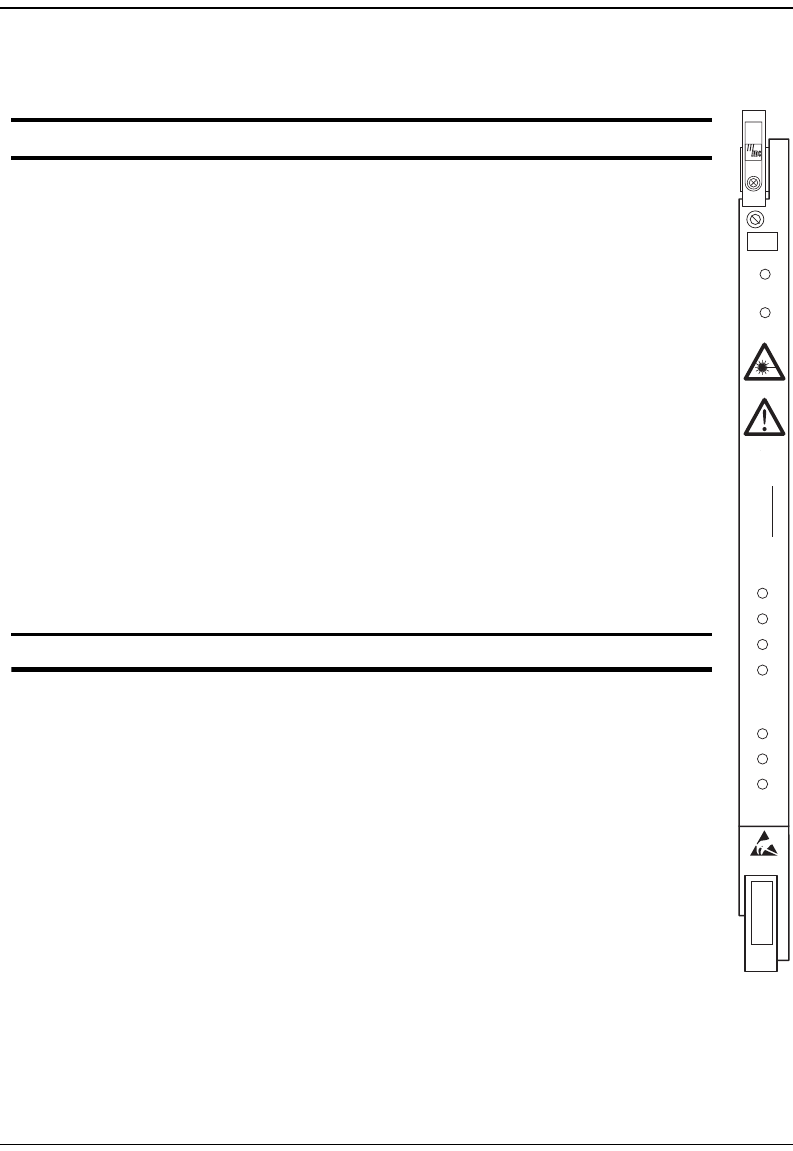

OC3
An OC3 network card has dual-PHY (two physical) connectors on the card front, behind the
safety cover. One interface provides the primary network uplink connection. The second
interface provides Automatic Protection Switching (APS), which is a redundant connection.
When implementing APS, provide cables and connectors for two physical ports. If not
implementing APS, provide a cable and connector for only one physical port. Select the fiber
and connector as follows, from the table below:
•For an AV311 OC3 network card, use multimode fiber with SC fiber connectors.
•For an AV312 OC3 intermediate-range (IR) network card, use single mode fiber with
SC fiber connectors.
•For an AV313 OC3 long-range (LR) network card, use single mode fiber with SC fiber
connectors.
The minimum bend radius for the fiber-optic cable is 1.5 inches (38.10 mm).
The diameter of the core/cladding is 62.5/125.5 µm (micrometers).
Use This
Fiber
With This
OC3
Network
Card
Maximum
Output
Power
(dBm)
Minimum
Output
Power
(dBm)
Wavelength
(NM)
Minimum
Input
Power
(dBm)
Maximum
Input
Power
(dBm)
Maximum Cable
Length
Multimode AV311 -14.0 -19.0 1310 -30.0 -14.0 6,561 feet
(2 km)
Single
Mode IR AV312 -8.0 -15.0 1310 -29.0 -8.0 49,212 feet
(15 km)
Single
Mode LR AV313 0.0 -5.0 1310 -32.0 -3.0 131,233 feet
(40 km)
Verifying Installation Tools
12 AV8000 Installation Manual

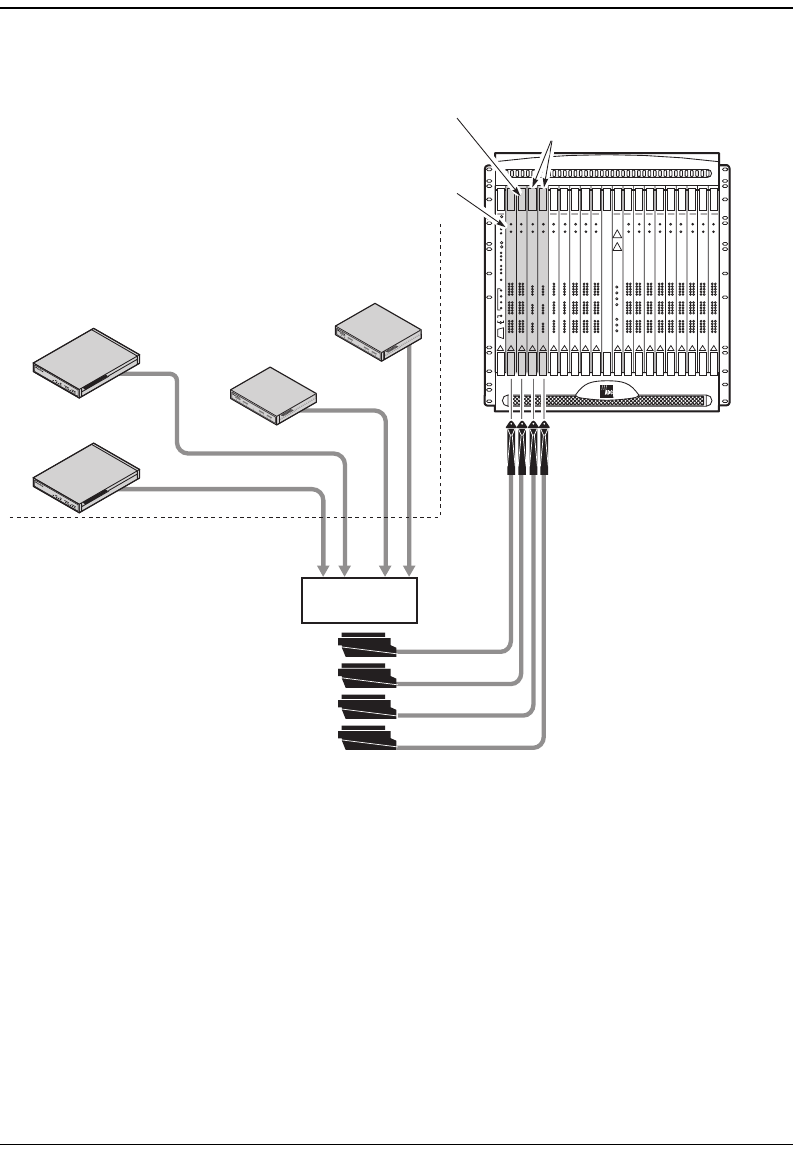

Subscriber Cabling
For the subscriber interface, connect the AV8000 system in one of these ways:
•With ADSL Network Cards and ADSL POTS, the AV8000 chassis connects to the
Avidia 8100 ADSL voice shelf.
•Without POTS, the AV8000 chassis connects directly to the MDF.
For information about selecting the appropriate ADSL Subscriber Card, see “Install Subscriber
Cards”on page 60.
VERIFYING INSTALLATION TOOLS
To install the AV8000, use the following tools:
•hand lift for moving and lifting the AV8000
•#2 Phillips screwdriver
•flat-blade screwdriver (3.5 mm by 0.5 mm blade)
•wire-wrap tool
•insulated handle wire cutters
Chapter 1: Prepare for Installation
AV8000 Installation Manual 13
UNPACKING AND INSPECTING THE AVIDIA SYSTEMS
AV8000 System
Each AV8000 ships in a protective carton. The management card, network cards, and Network
Cards ship separately from the chassis. Upon receipt of the system components, verify the
contents and the condition.
1Open each carton and remove all enclosed packing materials. Save the packing materials
in case you need to repack the chassis later.
2Visually inspect the chassis for signs of damage. If the equipment has been damaged in
transit, immediately report the extent of the damage to the transportation company and to
your sales representative. Order replacement equipment if necessary.
3Check the contents of each shipping carton against the packing list. Ensure a complete and
accurate shipment. If the shipment is short or irregular, contact your sales representative. If
you must store the equipment for a prolonged period, store the equipment in its original
protective shipping carton.
In addition to this manual, the shipping carton contains eight panhead mounting screws,
measuring 12-24 x 1/2inch. These are used to install the AV8000 into a 23-inch Telco rack using
a Phillips screwdriver.
AV8000 Cards
Each management, network, or subscriber card ships in a protective carton separately from the
AV8000. Upon receipt of the system components, verify contents and condition:
1Open each carton and remove all enclosed packing materials. Save the packing materials
in case you need to repack the card later.
2Visually inspect the card for signs of damage. If the equipment has been damaged in transit,
immediately report the extent of the damage to the transportation company and to your
sales representative. Order replacement equipment if necessary.
3Check the contents of each shipping carton against the packing list. Ensure a complete and
accurate shipment. If the shipment is short or irregular, contact your sales representative. If
you must store the equipment for a prolonged period, store the equipment in its original
protective shipping carton.
What To Do Next
14 AV8000 Installation Manual
WHAT TODONEXT
Go to Chapter 2,“Install the Chassis”to install the AV8000 chassis.
AV8000 Installation Manual 15
2
INSTALL THE CHASSIS
This chapter describes how to install an AV8000 chassis in a standard 23-inch Telco rack. Refer
to the following sections:
For information about: Go to page:
Attaching an ESD Wrist Strap to Chassis 16
Installing the AV8000 Chassis 17
Install the Chassis Into the Rack 17
Connect the Chassis Ground 18
Connect the Battery 19
Connect Alarms 23
Connect an External BITS Clock 27
What To Do Next 29
Attaching an ESD Wrist Strap to Chassis
16 AV8000 Installation Manual
ATTACHING AN ESD WRIST STRAP TO CHASSIS

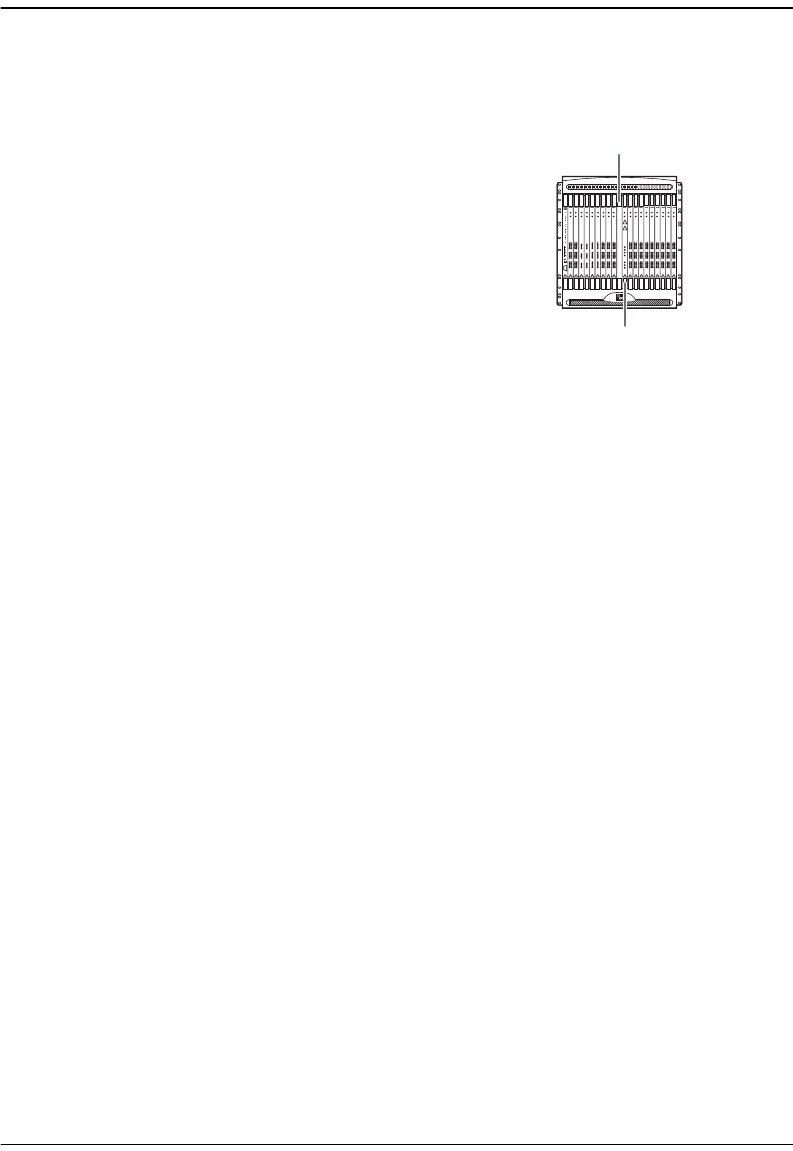

Procedures marked with the ESD symbol require you to use an antistatic wrist strap attached to
the ESD ground jack on the AV8000 chassis. See the following illustration to locate the ground
jack on each chassis.
You must wear an antistatic wrist strap connected to the ESD jack on the
AV8000 chassis to perform the installation procedures. You must also observe
normal ESD precautions when handling electronic equipment. Do not hold
electronic plugs by their edge. Do not touch components or circuitry.
Avidia 8000
ESD ground jack
Chapter 2: Install the Chassis
AV8000 Installation Manual 17
INSTALLING THE AV8000 CHASSIS
Install the AV8000 by following these procedures in the order given:
•Install the chassis into the rack (see below).
•Connect the chassis ground (page 18).
•Connect the battery (page 19).
•Connect alarms (page 23).
•Connect BITS clock (page 27).
Install the Chassis Into the Rack
Install the chassis into a standard 23-inch, 7-foot Telco rack:
1Ensure that the mounting brackets are securely attached to each side of the chassis.
1234
Backplane
Fiber optic tray
(behind access door)
Management
card slot 1
Channel card
slots 2 thru 10 Channel card
slots 13 thru 21
Line card
slots 11 and 12
Fan tray
Installing the AV8000 Chassis
18 AV8000 Installation Manual
2Position the chassis in the rack using a hand lift, if required. Allow a minimum of 0.5-inch
(12.70-mm) clearance between the bottom of the chassis and the top of the next chassis.
3Align the Telco rack vertical mounting holes with the chassis mounting bracket holes.
4Secure each mounting bracket by inserting eight 12-24 x 1/2inch panhead screws and using
a Phillips screwdriver.
Connect the Chassis Ground
1Using wire cutters with insulated handles, strip 0.5 inch (13 mm) of insulation from both
ends of the ground wire.
2Insert one end of the ground wire into the chassis ground lug, and tighten the screw. Ensure
that the ground wire has a secure connection.
Recommendation: A minimum 6 AWG (American Wire Gauge) stranded
copper with a maximum length of 5 feet (1.52 m).h
Follow local grounding practice to ensure a good frame ground connection to
the AV8000. The frame ground is required for secondary voltage protection.
Improper grounding may result in an electrical shock.
Chapter 2: Install the Chassis
AV8000 Installation Manual 19
3Connect the other end of the ground wire to the CO ground termination point or building
earth ground. Ensure that the ground wire has a secure connection.
Connect the Battery
The AV8000 chassis requires connection to one -48 Vdc Telco supplied battery source.
A second battery source can be used for power that is redundant but isolated. The system also
requires an external fuse panel with separate fusing for each battery source used (primary and
secondary when used).

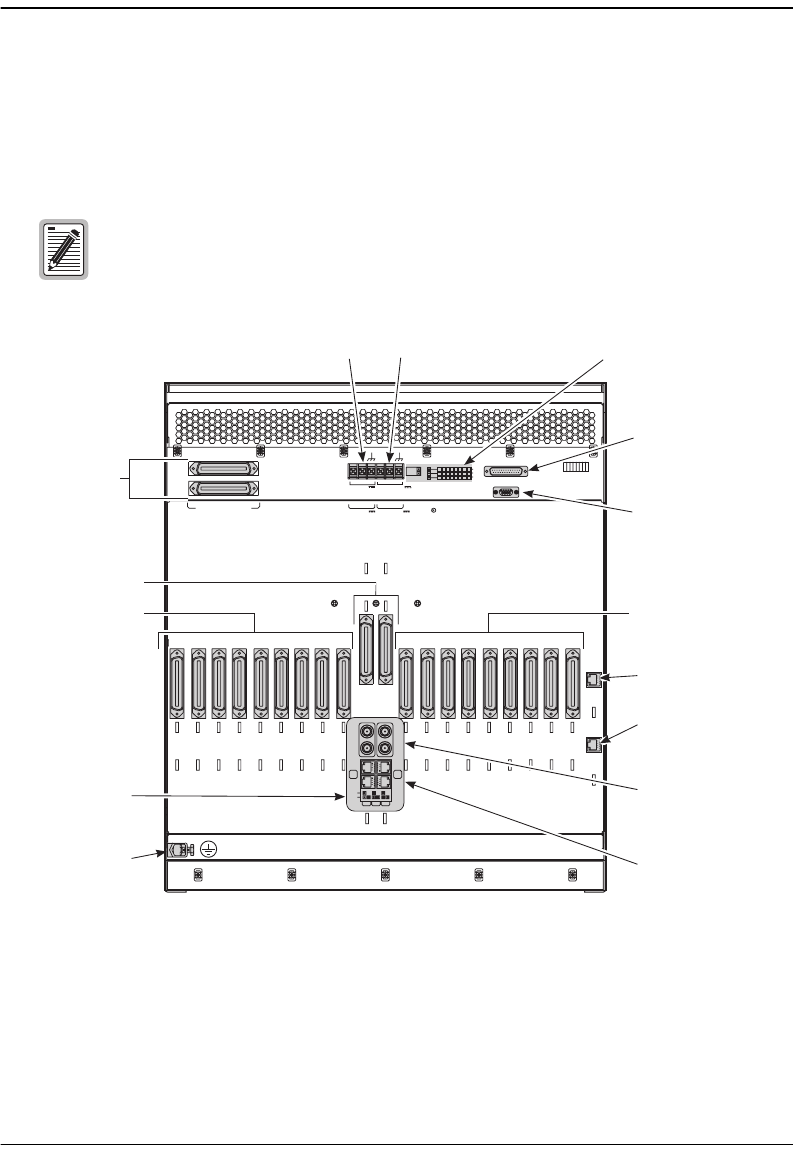

Ground
To CO ground
termination point
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
TO VOICE SHELF 60V MAX
CONNECTED TO EARTH
AND WHICH IS RELIABLY
FROM THE AC SOURCE
ELECTRICALLY ISOLATED
SOURCE WHICH IS
CONNECT TO 48 VDC
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
-42.5V...-56.5V
30A MAX30A MAX
-42.5V...-56.5V
BA
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
S13S15 S14S17S19 S18 S16 S5S20S21
DSX1-TX
DSX1-RX
J182
J181
P1
BACKPLANE ID
ID2
ID1
ID4
ID5
ID3
ID0
ID7
ID6
CO ALARMS
EXT.
0V
-48V
ALARMS
0V
-48V
NO
NC
COM
P2
756312 4 8
COM
NO
NC
ACO2
ACO1
B
-42.5V...-56.5V
30A MAX
A
J145
30A MAX
-42.5V...-56.5V CRAFT RS-232 DCE
MANAGEMENT
MGMT.NMARS-232 DTE
LINE ALINE B
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
Installing the AV8000 Chassis
20 AV8000 Installation Manual
1Remove the fuses from the CO equipment bay fuse panel for each circuit where you will
terminate AV8000 chassis battery wires.
2Using wire cutters with an insulated handle, strip 0.5 inch (12.7 mm) of insulation from
both ends of each battery wire.
3Attach battery wires to the AV8000 chassis backplane:
aAttach a wire to each A-side and B-side -48V terminal.
bAttach a wire to each A-side and B-side 0V terminal for battery return.
cTwist the A-side -48 Vdc and 0 Vdc wires to reduce magnetic interference. Use
approximately 6 to 12 twists per foot, or follow local practice.
dTwist the B-side -48 Vdc and 0 Vdc wires to reduce magnetic interference.
Use approximately 6 to 12 twists per foot, or follow local practice.
Recommendation: 10 AWG (2.99 mm diameter) stranded copper.
For conductor wires to connect the battery, use the color determined to be
appropriate by your local practice, standards, or codes. These colors are a
recommendation only:
•black conductor wire connected to the -48 Vdc (negative terminal)
•red conductor wire to the 0V battery return (positive terminal)
Electrical and mechanical shock hazards are present throughout the system;
be aware of this possibility when power is applied to the chassis. Only qualified
personnel should service the system.
Do not connect the AV8000 chassis battery wires to a live power source.
Remove fuses from the CO equipment bay for each circuit you will use for a
battery connection to the AV8000 chassis.
When required by local practice, add a lug to the end of each battery wire for
ease of installation to the AV8000 chassis battery terminals.
Chapter 2: Install the Chassis
AV8000 Installation Manual 21
-48V
To Battery 1
(A-side)
To Battery 2
(B-side)
-48V
-0V
-0V
Battery terminal
Installing the AV8000 Chassis
22 AV8000 Installation Manual
4Connect the battery wires, previously installed in Step 3 on page page 20, from the AV8000
chassis to the CO battery fuse panel:
aConnect the A-side 0V return wire from the chassis to the CO battery return
(positive terminal) termination point.
bConnect the B-side 0V return wire from the chassis to the CO battery return
(positive terminal) termination point.
cConnect the A-side -48V wire from the chassis to the equipment bay fuse panel
(negative terminal) termination point.
dConnect the B-side -48V wire from the chassis to the equipment bay fuse panel
(negative terminal) termination point.
Do not install the fuses in the equipment bay fuse panel at this time. Also, do
not install cards at this time. You will install the fuses when you “Power Up the
System”in Chapter 5. You will install cards into the AV8000 chassis in
Chapter 6.
Chapter 2: Install the Chassis
AV8000 Installation Manual 23
Connect Alarms
The AV8000 monitors alarm conditions, including alarms that occur at the remote end. Connect
alarm pins to the CO alarm system to provide audible alarms, visual alarms, or power relay
alarms according to local practice (see procedures below). Also, connect an Alarm Cut Off
(ACO) pushbutton to remotely disable audible alarm output (page 26).
Connecting Audible and Visual Remote Alarms
1Using wire cutters with an insulated handle, strip 1.5 inches (38 mm) of insulation from the
end of all required wires.
Recommendation: A22to24AWG(0.32to0.2squaremm)solidcopper
wire. Relay contacts positions are: NO is normally open, COM is common,
NC is normally closed
Installing the AV8000 Chassis
24 AV8000 Installation Manual
2Locate the appropriate pins, described in the table below, for the alarm connection shown
in the figure on page 25.
3Using the wire-wrap tool, attach the stripped end of the wire to the appropriate
CO ALARM chassis pin as described in the table on page 24.
4Attach the other end of the wire to the appropriate indicator in the CO alarm system.
Alarm Condition Pin
Column Description
MNR_VISUAL 1 Indicates a minor visual alarm. Connect this alarm to the minor alarm visual
indicator of the CO alarm system. You cannot disable this alarm from the
AV8000.
CRITICAL_VISUAL 2 Indicates a critical visual alarm. Connect this alarm to the critical alarm visual
indicator of the CO alarm system. You cannot disable this alarm from the
AV8000.
MNR _AUDIO 3 Indicates a minor audible alarm. Connect this alarm to the minor alarm audible
indicator of the CO alarm system. Disable this alarm by pressing the ACO
pushbutton on the management card front panel or by using the remote ACO.
CRITICAL_AUDIO 4 Indicates a critical audible alarm. Connect this alarm to the critical alarm
audible indicator of the CO alarm system. You can disable this alarm by
pressing the ACO pushbutton on the management card front panel or by using
the remote ACO.
MAJ_VISUAL 5 Indicates a major visual alarm. Connect this alarm to the major alarm visual
indicator of the CO alarm system. You cannot disable this alarm from the
AV8000.
MAJ_AUDIO 6 Indicates a major audible alarm. Connect this alarm to the major alarm audible
indicator of the CO alarm system. Disable this alarm by pressing the ACO
pushbutton on the management card front panel or by using the remote ACO.
SYS_ID 7 Indicates that a critical, major, or minor alarm is active for the system.
POWER_MNR 8 Indicates loss of power and fuse alarms. This alarm condition clears only when
the cause of the alarm is eliminated or repaired.
Chapter 2: Install the Chassis
AV8000 Installation Manual 25
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
TO VOICE SHELF 60V MAX
CONNECTED TO EARTH
AND WHICH IS RELIABLY
FROM THE AC SOURCE
ELECTRICALLYISOLATED
SOURCE WHICH IS
CONNECT TO 48 VDC
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
-42.5V...-56.5V
30A MAX30A MAX
-42.5V...-56.5V
BA
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
S13S15 S14S17S19 S18 S16 S5S20S21
DSX1-TX
DSX1-RX
J182
J181
P1
BACKPLANE ID
ID2
ID1
ID4
ID5
ID3
ID0
ID7
ID6
CO ALARMS
EXT.
0V
-48V
ALARMS
0V
-48V
NO
NC
COM
P2
756312 4 8
COM
NO
ACO2
ACO1
B
-42.5V...-56.5V
30A MAX
A
J145
30A MAX
-42.5V...-56.5V CRAFT RS-232 DCE
MANAGEMENT
MGMT.NMARS-232 DTE
LINE ALINE B
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
MNR_VISUAL
NO
NC
COM
756312 4 8
2
1
ACO2
ACO1
Reserved
CRIT_VISUAL
MNR_AUDIO
CRIT_AUDIO
MJR_VISUAL
MJR_AUDIO
SYS_ID
PWR_MNR
EXT
CO ALARMS
Installing the AV8000 Chassis
26 AV8000 Installation Manual
Connecting a Remote Alarm Cutoff
Two ways to silence audible alarms are:
•using the ACO pushbutton on the Avidia management card front panel
•connecting to a remote alarm cutoff function (as described in the following procedure)
To connect a remote alarm, do the following:
1Locate the ACO1 and ACO2 pins (page 25).
2Using wire cutters with insulated handles, strip 1.5 inches (38 mm) of insulation from the
end of both wires.
3Using the wire-wrap tool, attach the stripped end of each wire to the appropriate ACO pin.
4Attach the other end of each wire to the CO alarm system.
Recommendation: A22to24AWG(0.32to0.2squaremm)solidcopper
wire.
Connect the ACO1 and ACO2 pins through a normally open (NO) contact
switch. External contact closure of at least 0.5 seconds between the two pins
indicates alarm input. Wire the relay contacts according to your local practice.
Chapter 2: Install the Chassis
AV8000 Installation Manual 27
Connect an External BITS Clock
The AV8000 accepts external BITS clock input to manage device timing. See “Clocking
Requirements”on page 7 for a list of valid BITS clock sources you can use for an AV8000
system. See the Avidia System Configuration and Management User Manual for more
information about selecting and configuring clocking sources for an Avidia system.
You can connect both a primary and a secondary BITS clocking source to the chassis backplane
using the BITS CLOCK IN1 (input 1) and BITS CLOCK IN2 (input 2) pins. You can cascade
the BITS clock to other Avidia chassis using the BITS CLOCK OUT pins.
1Locate the pins, described in the table below, for connecting the BITS CLOCK.
2Using insulated handled wire cutters, strip 1.5 inches (38 mm) of insulation from both ends
of each clock wire.
3Using a wire-wrap tool, connect the primary BITS CLOCK (page 28):
aOn the AV8000 chassis, attach a wire to the IN1 T pin for Tip and a wire to the IN1 R
pin for Ring.
bAttach the IN1 Tip and the IN1 Ring wires to Tip and Ring at the CO secondary master
clock source and ground the cable shield.
cOn the AV8000 chassis, attach the shielding of the BITS CLOCK IN2 wire to the IN2
CHASSIS GND pin.
Recommendation: A24to26AWG(0.205to0.128squaremm)solid,
shielded, twisted-pair copper wire
Function Pin Numbers Description
Primary BITS
CLOCK IN1 Tip - T IN1
Ring - R IN1
Provides primary BITS clock source from a master clock source in the
CO to the AV8000.
Secondary BITS
CLOCK IN2 Tip - T IN2
Ring - R IN2
Provides secondary BITS clock source from a master clock source in
the CO to the AV8000.
Secondary BITS
CLOCK OUT Tip - T OUT
Ring - R OUT
Cascades the BITS clock to another AV8000 chassis. When cascading
the clocking signal, do not terminate the BITS OUT pins on the last
chassis in the cascade.
Installing the AV8000 Chassis
28 AV8000 Installation Manual
4Using a wire-wrap tool, connect the secondary BITS CLOCK (page 28):
aOn the AV8000 chassis, attach a wire to the IN2 T pin for Tip and a wire to the IN2 R
pin for Ring.
bAttach the IN2 Tip and the IN2 Ring wires to Tip and Ring at the CO primary master
clock source and ground the cable shield.
cOn the AV8000 chassis, attach the shielding of the BITS CLOCK wire to the
IN1CHASSIS GND pin.
5Using a wire-wrap tool, cascade the IBITS CLOCK to other AV8000 chassis if applicable:
aAttach a wire from the OUT T pin for Tip to the BITS CLOCK IN1 T pin for Tip on
the next chassis in the cascade.
bAttach a wire from OUT R pin for Ring to the BITS CLOCK IN1 R pin for Ring on
the next chassis in the cascade.
cOn both AV8000 chassis, attach the shielding of the BITS CLOCK wire to the OUT
CHASSIS GND pin the IN1 CHASSIS GND pin, respectively.
6Do not terminate the BITS OUT pins on the last chassis in the cascade. Repeat Step 5 if
there is a third chassis in the cascade.
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
TO VOICE SHELF 60V MAX
CONNECTED TO EARTH
AND WHICH IS RELIABLY
FROM THE AC SOURCE
ELECTRICALLYISOLATED
SOURCE WHICH IS
CONNECT TO 48 VDC
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
-42.5V...-56.5V
30A MAX30A MAX
-42.5V...-56.5V
BA
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
S13S15 S14S17S19 S18 S16 S5S20S21
DSX1-TX
DSX1-RX
J182
J181
P1
BACKPLANE ID
ID2
ID1
ID4
ID5
ID3
ID0
ID7
ID6
CO ALARMS
EXT.
0V
-48V
ALARMS
0V
-48V
NO
NC
COM
P2
756312 4 8
COM
NO
NC
ACO2
ACO1
B
-42.5V...-56.5V
30A MAX
A
J145
30A MAX
-42.5V...-56.5V CRAFT RS-232 DCE
MANAGEMENT
MGMT.NMARS-232 DTE
LINE ALINEB
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
CHASS
CLOCK RT RT RT
BITS
GND
IN1 OUT IN2
Chapter 2: Install the Chassis
AV8000 Installation Manual 29
WHAT TODONEXT
Go to Chapter 3,“Install the Network Interface”to cable the chassis for an uplink network
connection.
What To Do Next
30 AV8000 Installation Manual
AV8000 Installation Manual 31
3
INSTALL THE
NETWORK INTERFACE
Connect the AV8000 system, through a network card interface, to an ATM backbone network,
WAN, or LAN for a network uplink. Also, connect network card interfaces for applications such
as subtending, redundancy, or dual homing where these cards may provide a subscriber-side
function. See Chapter 8,“System Configuration for Special Applications”on page 73 for more
information about card selection and set up for these applications. Refer to one of the
following sections to install cables for the network card you have selected:
See“Avidia Network Cards”on page 151 in Appendix A for more information about each
network card you can use in an Avidia system.
For information about: Go to page:
DS3 Interface Cables 33
8xDSX-1 Interface Cables 36
8xDS1 Interface Cables 38
8xE1 interface Cables 41
OC3 Fiber-Optic Cable Routing 42
What To Do Next 43
32 AV8000 Installation Manual

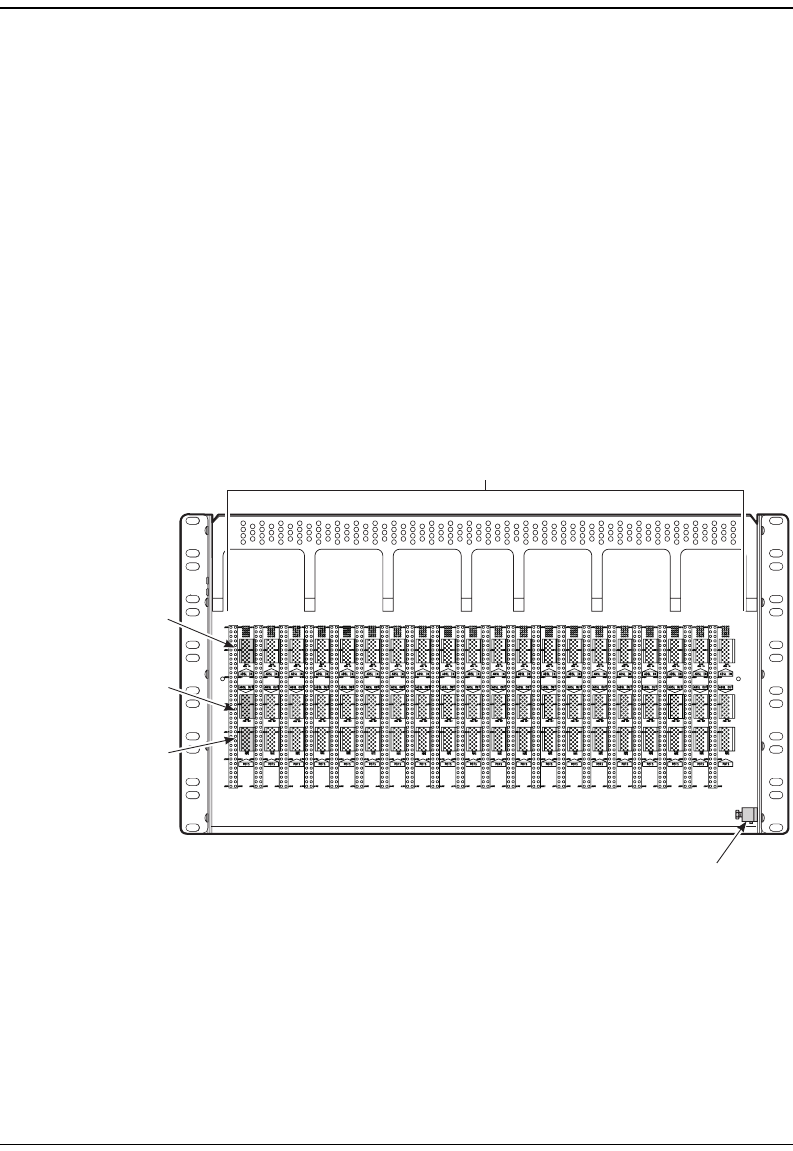

The figure below shows the location of the network interface connectors for DS3, 8xDSX-1,
8xDS1, and 8xE1on the chassis. The connector for the OC3 interface is located on the front
panel of the OC3 card.
You must wear an antistatic wrist strap connected to the ESD jack on the
AV8000 chassis to perform the cabling procedures for the network card. You
must also observe normal ESD precautions when handling electronic
equipment. Do not hold electronic plugs by their edge. Do not touch
components or circuitry.
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
TO VOICE SHELF 60V MAX
CONNECTED TO EARTH
AND WHICH IS RELIABLY
FROM THE AC SOURCE
ELECTRICALLYISOLATED
SOURCE WHICH IS
CONNECT TO 48 VDC
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
-42.5V...-56.5V
30A MAX30A MAX
-42.5V...-56.5V
BA
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
S13S15 S14S17S19 S18 S16 S5S20S21
DSX1-TX
DSX1-RX
J182
J181
P1
BACKPLANE ID
ID2
ID1
ID4
ID5
ID3
ID0
ID7
ID6
CO ALARMS
EXT.
0V
-48V
ALARMS
0V
-48V
NO
NC
COM
P2
756312 4 8
COM
NO
NC
ACO2
ACO1
B
-42.5V...-56.5V
30A MAX
A
J145
30A MAX
-42.5V...-56.5V CRAFT RS-232 DCE
MANAGEMENT
MGMT.NMARS-232 DTE
LINE ALINEB
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
8xDSX-1
Amphenol
connectors
25
50
1
26
25
50
1
26
25
50
1
26
DS3
BNC connectors
TX
RXRX
TX
DS3-1DS3-2
LINE ALINE B
For 8xDS1 or 8xE1,
use connectors S2-S10
and S13-S21
Chapter 3: Install the Network Interface
AV8000 Installation Manual 33
DS3 INTERFACE CABLES
The DS3 network card provides an interface between the AV8000 system and an ATM
backbone network. The interface to a DS3 network card in slot 11 or 12 is made to a pair of
BNC connectors on the AV8000 backplane (page 32). Use the BNC connector pair as follows:
•DS3-1 for the network card in slot 12
•DS3-2 for the network card in slot 11
For each BNC connector pair, the connectors are labeled:
•TX BNC for the transmit signal from the Avidia network card to the network
•RX BNC for the receive signal from the network to the Avidia network card

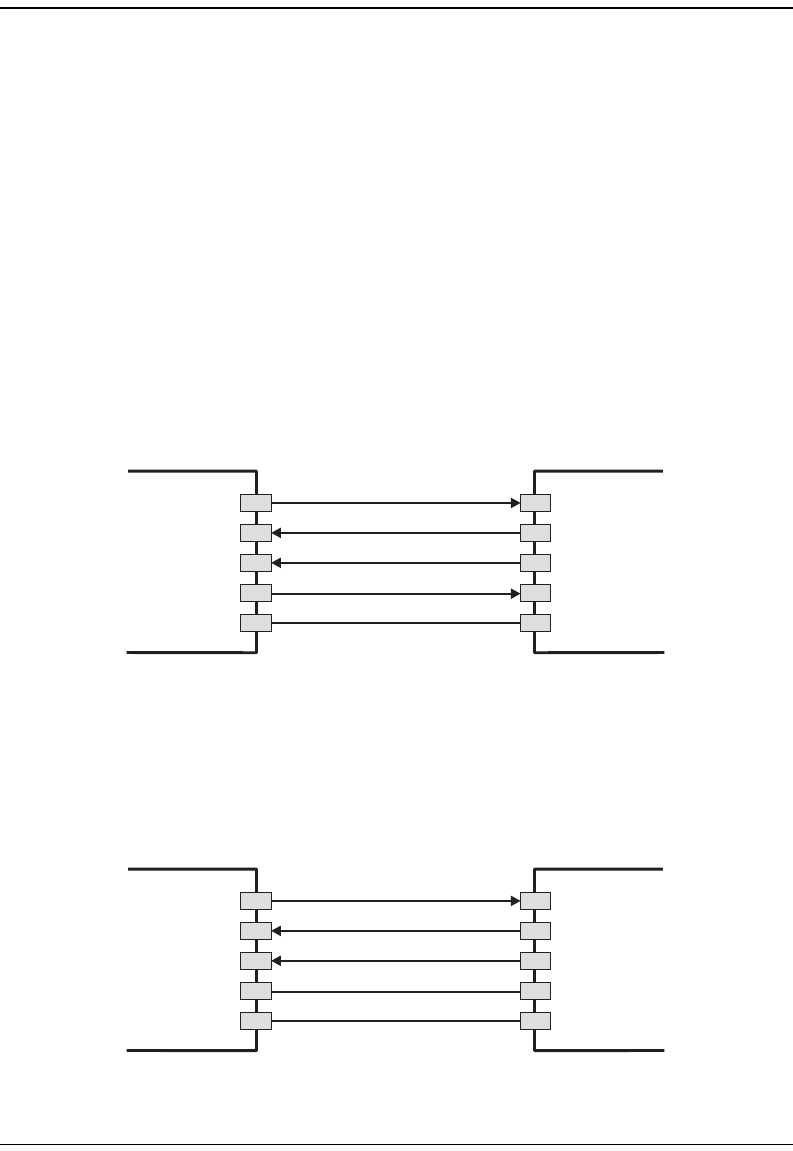

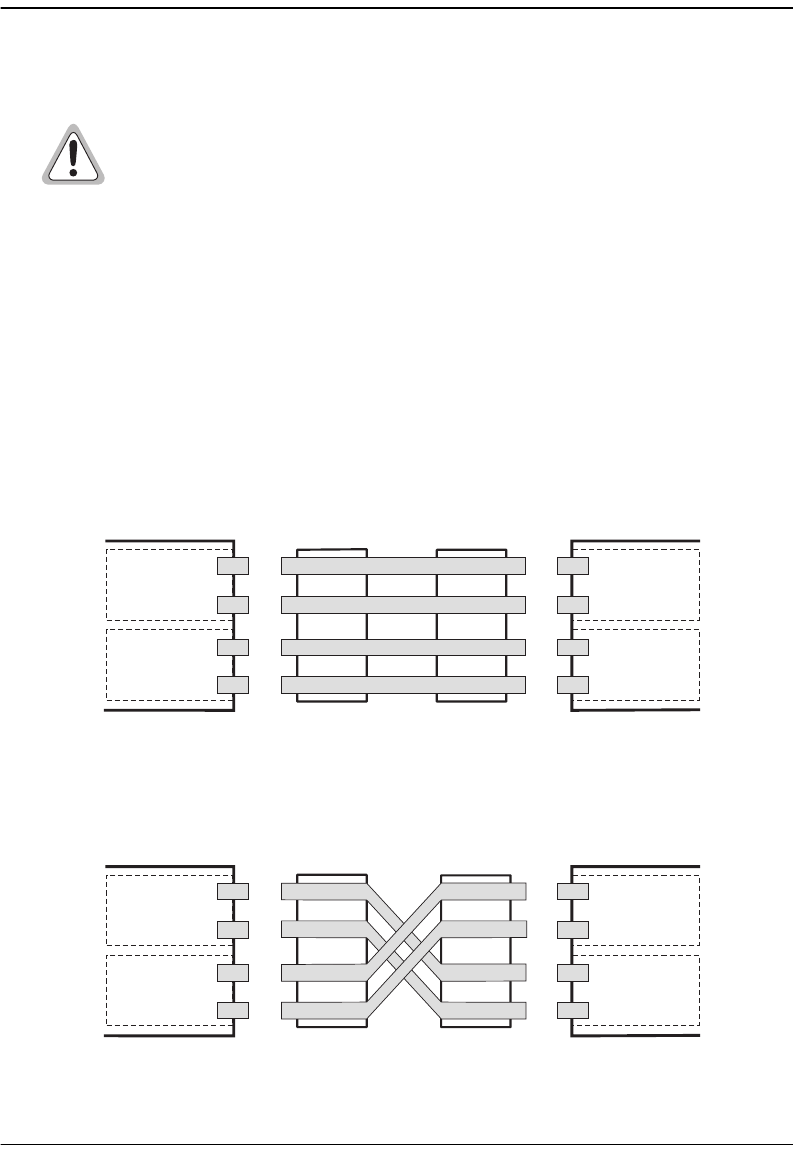

When you use two DS3 cards in an AV8000 system, connect the cables (steps on page 35)for
one of the following modes (shown in the figure below):
•single physical link mode (one network connection)
•dual physical link mode (two network connections)
•subtending (one network upstream connection, one network downstream connection)
Either DS3 network card can be configured to connect to either set of DS3 BNC
connectors on the AV8000 back plane. During initialization however, the
software assigns the DS3-1 connector to slot 12 and the DS3-2 connector to
slot 11.
Recommendation: Usea75Ωcoaxial cable with 75 ΩBNC connectors and
a maximum length of 450 feet (137.16 m). Ground the cable shield at one end
only.
DS3 Interface Cables
34 AV8000 Installation Manual
Single physical link mode Subtending
TX
RXRX
TX
DS3-1DS3-2
LINE ALINE B
No
connection
(For Slot 11) (For Slot 12)
Connect to
single network
source
Dual physical link mode
TX
RXRX
TX
DS3-1DS3-2
LINE ALINE B
Connect to
a network
source
(For Slot 11) (For Slot 12)
Connect to
a network
source
TX
RXRX
TX
DS3-1DS3-2
LINE ALINE B
Downstream
connection
for Subtending
(For Slot 11) (For Slot 12)
Upstream
connection
to Subtending
or network
source
Chapter 3: Install the Network Interface
AV8000 Installation Manual 35
1Install the cable for the DS3 network card in slot 12 using the BNC connectors
marked DS3-1:
aFor the transmit signal, install the coaxial cable connector on the TX BNC connector.
bFor the receive signal, install the coaxial cable connector on the RX BNC connector.
2Use tie wraps to secure the cables to the tie points located below the connectors.
3Connect the uplink (network) end of the transmit and receive connectors to the appropriate
ATM backbone interface connectors at the network source.
4Repeat Step 1 through Step 3 for a network card in slot 11, using the BNC connectors
marked DS3-2.
75 BNC connector
BNC connector
8xDSX-1 Interface Cables
36 AV8000 Installation Manual
8XDSX-1 INTERFACE CABLES
The 8xDSX-1 network card provides a connection for a short-haul DSX-1 interface. The
interface to each 8xDSX-1 network card is made using two 25-pair champ connectors (page 32)
as follows:
•DSX-1 RX connector: receives the transmitted signal from the network to the network card
and provides eight Tip and Ring receive pin pairs for each network card in slots 11 and 12
•DSX-1 TX connector: sends the transmitted signal from the network card to the network
and provides eight Tip and Ring transmit pin pairs for the network card in slot 11 or 12

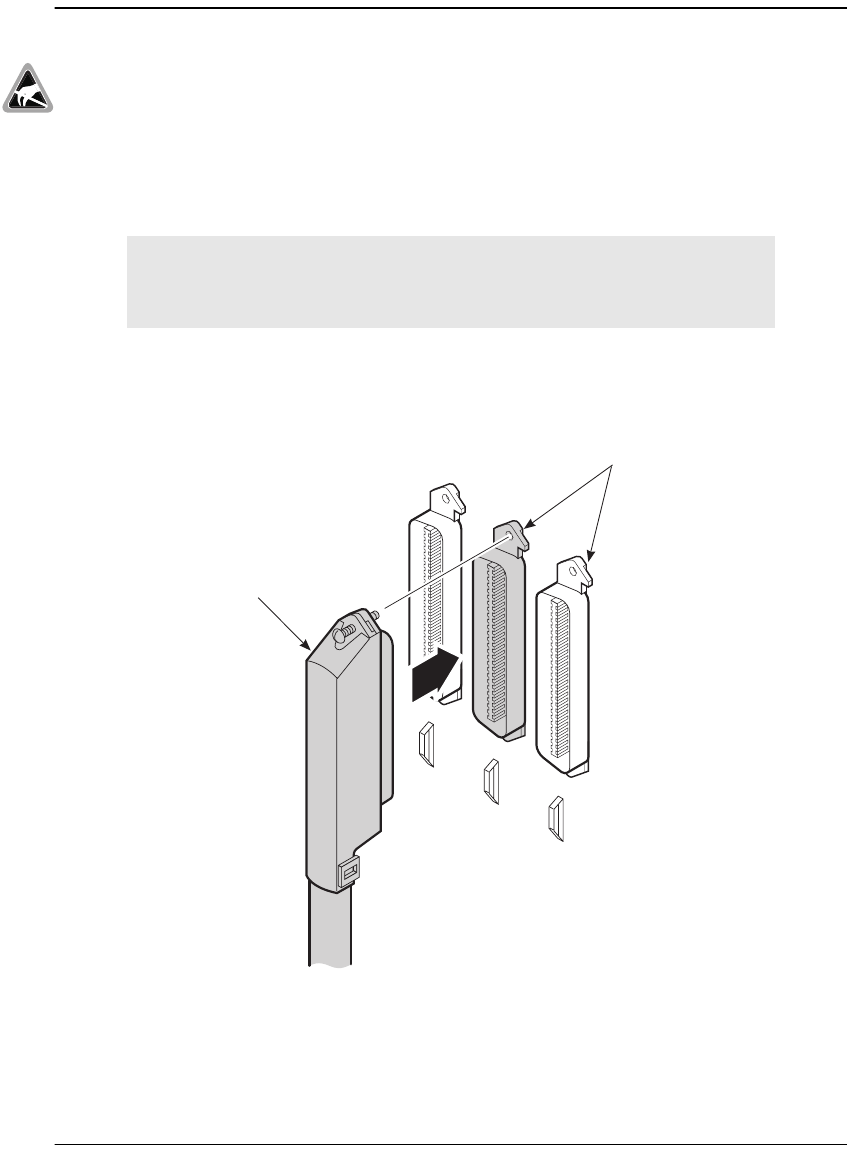

1Install a 25-pair champ connector into the port marked DSX-1 RX (see figure below) for
the receive signals either to one or both network cards in slots 11 or 12. See the table on
page 37 for connector pinouts and wire colors.
2Install a 25-pair champ connector into the port marked DSX-1 TX (see figure below) for
the transmit signals either to one or both network cards in slots 11 or 12. See the table on
page 37 for connector pinouts and wire colors.
Recommendation: A 24 AWG twisted-pair copper wire with a 25-pair
champ connector(s). The cable maximum length is 6 kilofeet (1,829 m).

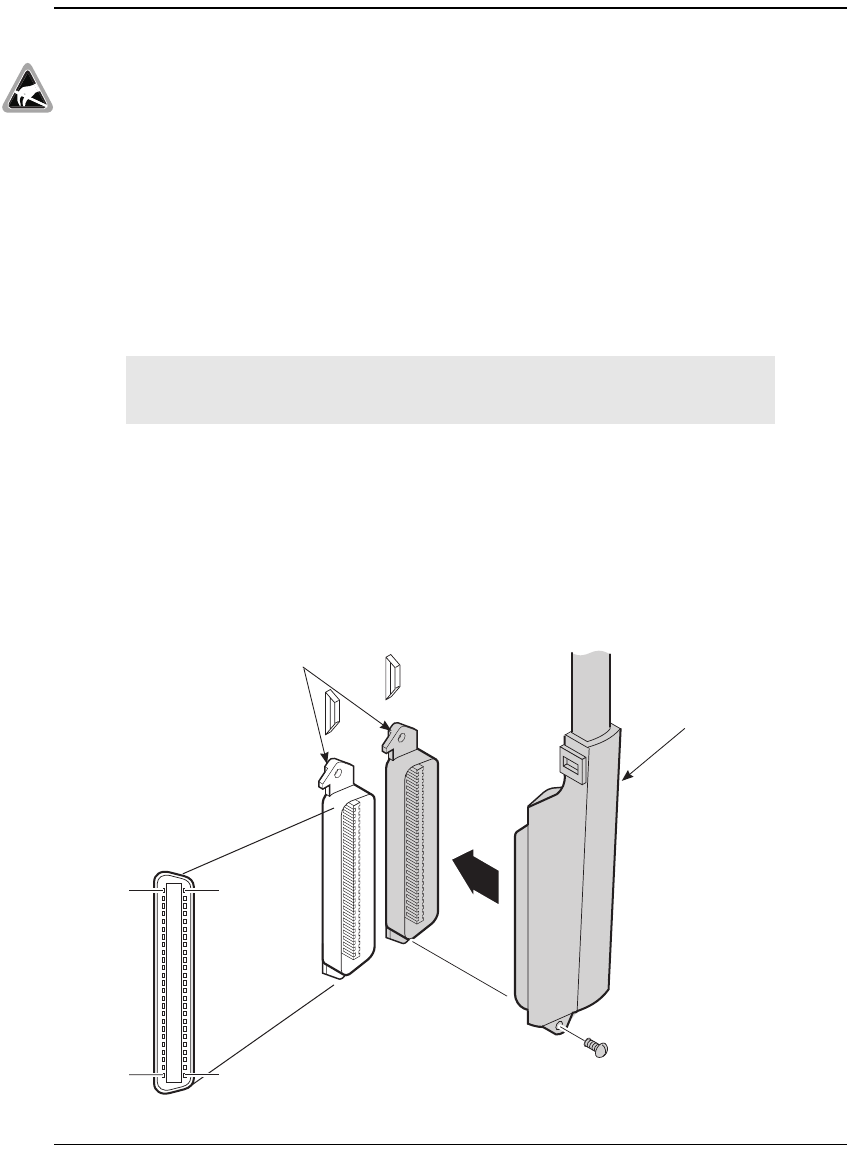

Champ connector
8xDSX-1 connector
DSX-1
TX
(SL12 & SL11)
DSX-1
RX
Ring Tip
Pin 1
Pin 25
Pin 26
Pin 50
Chapter 3: Install the Network Interface
AV8000 Installation Manual 37
The table below shows the 8xDSX-1 network card Tip and Ring pinouts for both the DSX-1 RX
and DSX-1 TX connectors and the associated wire colors for the champ connectors.
‘
3Use tie wraps to secure the cables to the tie points located above the connectors, using
tie wraps.
4Connect the uplink (network) end of the transmit and receive connectors to the appropriate
DSX-1 interface connectors on the network source.
Card Slot and Port
Number (a)
(a) These pinouts are for both connectors DSX-1 RX and DSX-1 TX.
Champ Connector Tip Pin
Number and Wire Color Champ Connector Ring Pin
Number and Wire Color
Slot 11, Port 1 26 (WH/BL) 1 (BL/WH)
Slot 11, Port 2 27 (WH/OR) 2 (OR/WH)
Slot 11, Port 3 28 (WH/GN) 3 (GN/WH)
Slot 11, Port 4 29 (WH/BN) 4 (BN/WH)
Slot 11, Port 5 30 (WH/SL) 5 (SL/WH)
Slot 11, Port 6 31 (RD/BL) 6 (BL/RD)
Slot 11, Port 7 32 (RD/OR) 7 (OR/RD)
Slot 11, Port 8 33 (RD/GN) 8 (GN/RD)
Slot 12, Port 1 34 (RD/BN) 9 (BN/RD)
Slot 12, Port 2 35 (RD/SL) 10 (SL/RD)
Slot 12, Port 3 36 (BK/BL) 11 (BL/BK)
Slot 12, Port 4 37 (BK/OR) 12 (OR/BK)
Slot 12, Port 5 38 (BK/GN) 13 (GN/BK)
Slot 12, Port 6 39 (BK/BN) 14 (BN/BK)
Slot 12, Port 7 40 (BK/SL) 15 (SL/BK)
Slot 12, Port 8 41 (YL/BL) 16 (BL/YL)
No connection 42 (YL/OR) 17 (OR/YL)
No connection 43 (YL/GN) 18 (GN/YL)
No connection 44 (YL/BN) 19 (BN/YL)
No connection 45 (YL/SL) 20 (SL/YL)
No connection 46 (VI/BL) 21 (BL/VI)
No connection 47 (VI/OR) 22 (OR/VI)
No connection 48 (VI/GN) 23 (GN/VI)
No connection 49 (VI/BN) 24 (BN/VI)
ground 50 25
8xDS1 Interface Cables
38 AV8000 Installation Manual
8XDS1 INTERFACE CABLES
The 8xDS1 network card provides a connection for a long-haul DS1 interface. The interface to
each 8xDS1 network card is made using one 25-pair champ connector (page 32) as follows:
•slots labeled S2 through S10 or S13 through S21, support both transmit and receive signals
for the 8xDS1 card in the corresponding card slot
•transmit signal is from the 8xDS1 network card to the network, and the receive signal is
from the network to the 8xDS1 network card

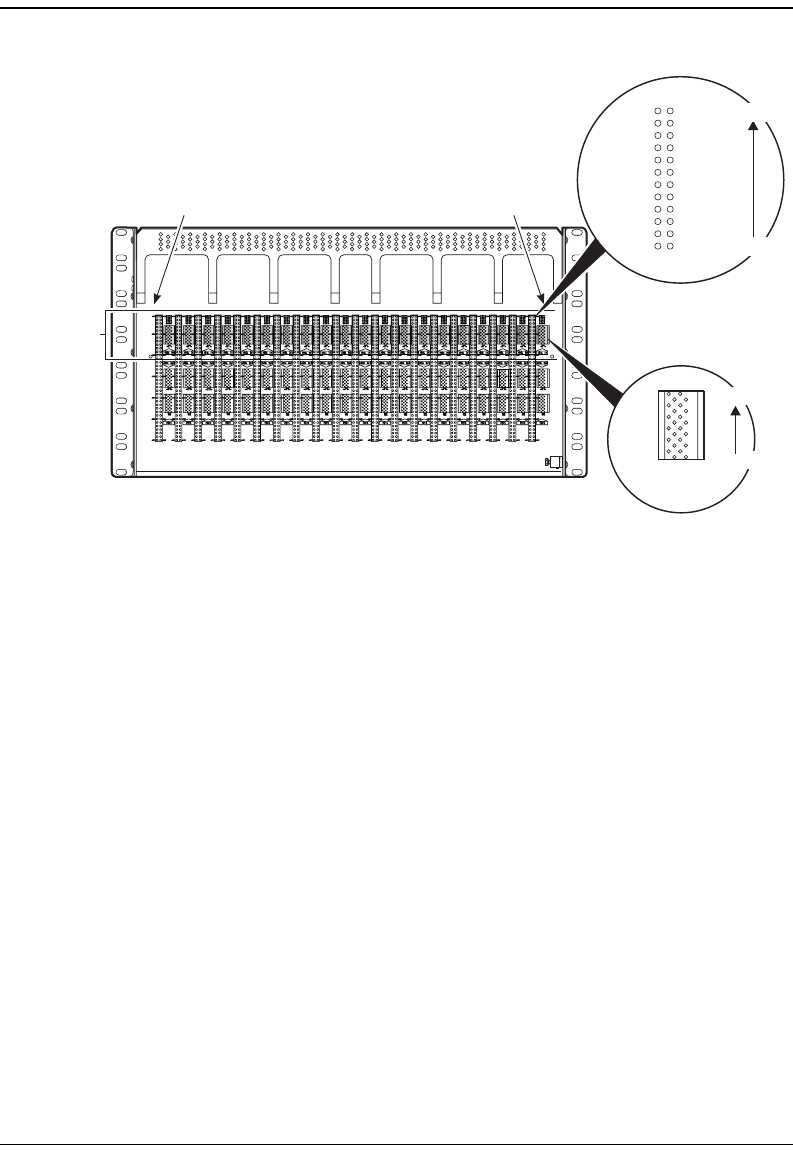

1Install a 25-pair champ connector into the appropriate connector marked S2 through S10 or
S13 through S21 (see figure below) for transmit and receive signals to the 8xDS1 card
installed in the corresponding card slot. See the table on page 39 for connector pinouts
and wire colors.
Recommendation: A 24 AWG twisted-pair copper wire with a 25-pair
champ connector(s). The cable maximum length is 6 kilofeet (1,829 m).
Ring
Tip
Pin 26
Pin 50
Pin 1
Pin 25
Champ connector
Champ connector for
subscriber interface
SL6
Chapter 3: Install the Network Interface
AV8000 Installation Manual 39
The table below shows the 8xDS1 network card Tip and Ring pinouts for the DS1 receive and
transmit signals and the associated wire colors for the champ connectors.
‘
Tip Signal and Port Champ Connector
Tip Pin Number and
Wire Color
Champ Connector
Ring Pin Number and
Wire Color Ring Signal and Port
T1_RX_TIP1 26 (WH/BL) 1 (BL/WH) T1_RX_RING1
T1_RX_TIP2 27 (WH/OR) 2 (OR/WH) T1_RX_RING2
T1_RX_TIP3 28 (WH/GN) 3 (GN/WH) T1_RX_RING3
T1_RX_TIP4 29 (WH/BN) 4 (BN/WH) T1_RX_RING4
T1_RX_TIP5 30 (WH/SL) 5 (SL/WH) T1_RX_RING5
T1_RX_TIP6 31 (RD/BL) 6 (BL/RD) T1_RX_RING6
T1_RX_TIP7 32 (RD/OR) 7 (OR/RD) T1_RX_RING7
T1_RX_TIP8 33 (RD/GN) 8 (GN/RD) T1_RX_RING8
No connection 34 (RD/BN) 9 (BN/RD) No connection
No connection 35 (RD/SL) 10 (SL/RD) No connection
No connection 36 (BK/BL) 11 (BL/BK) No connection
No connection 37 (BK/OR) 12 (OR/BK) No connection
No connection 38 (BK/GN) 13 (GN/BK) No connection
No connection 39 (BK/BN) 14 (BN/BK) No connection
No connection 40 (BK/SL) 15 (SL/BK) No connection
No connection 41 (YL/BL) 16 (BL/YL) No connection
T1_TX_TIP1 42 (YL/OR) 17 (OR/YL) T1_TX_RING1
T1_TX_TIP2 43 (YL/GN) 18 (GN/YL) T1_TX_RING2
T1_TX_TIP3 44 (YL/BN) 19 (BN/YL) T1_TX_RING3
T1_TX_TIP4 45 (YL/SL) 20 (SL/YL) T1_TX_RING4
T1_TX_TIP5 46 (VI/BL) 21 (BL/VI) T1_TX_RING5
T1_TX_TIP6 47 (VI/OR) 22 (OR/VI) T1_TX_RING6
T1_TX_TIP7 48 (VI/GN) 23 (GN/VI) T1_TX_RING7
T1_TX_TIP8 49 (VI/BN) 24 (BN/VI) T1_TX_RING8
ground 50 25 ground
8xDS1 Interface Cables
40 AV8000 Installation Manual
2Secure the cables to the tie points located below the connectors, using tie wraps.
3Connect the uplink (network) end of the connectors to the appropriate DS1 interface
connectors on the network source.
4Pins 25 and 50 of the Champ connector are connected to chassis ground and can be used to
terminate the cable shields if required by local wiring practice.
Chapter 3: Install the Network Interface
AV8000 Installation Manual 41
8XE1 INTERFACE CABLES
The 8xE1 network card provides a connection for a long-haul E1 interface. The interface to each
8xE1 network card is made using one 25-pair champ connector (page 32) as follows:
•slots labeled S2 through S10 or S13 through S21, supports both transmit and receive signals
for the 8xE1 card in the corresponding card slot
•transmit signal is from the 8xE1 network card to the network, and the receive signal is from
the network to the 8xE1 network card
1For connection to the 8xE1 network card(s), install a 25-pair champ connector into the
appropriate connector marked S2 through S10 or S13 through S21 (figure on page 38). See
the table on page 39 for connector pinouts and wire colors.
2Use tie wraps to secure the cables to the tie points located below the connectors.
3Connect the uplink (network) end of the connectors to the appropriate 8xE1 interface
connectors on the network source.
Recommendation: A 24 AWG twisted-pair copper wire with a 25-pair
champ connector(s). The cable maximum length is 4.8 kilofeet (1463 m).
OC3 Fiber-Optic Cable Routing
42 AV8000 Installation Manual

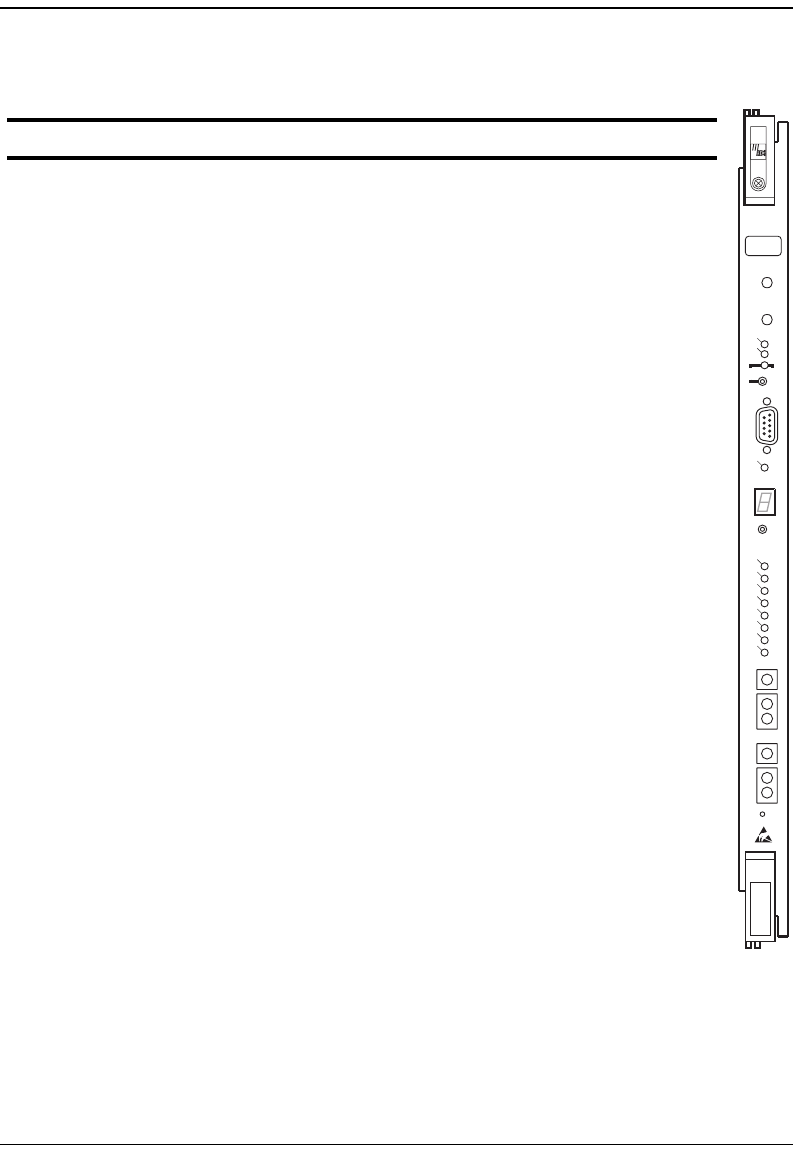

OC3 FIBER-OPTIC CABLE ROUTING
The OC3 network card provides a connection from the AV8000 to the ATM backbone network
as a SONET-based fiber-optic User Network Interface (UNI). The OC3 network card has two
physical SONET interfaces on the front. The first interface provides the network connection.
The second interface provides Automatic Protection Switching (APS), which is a redundant
connection for the primary.
Route the fiber-optic cable:

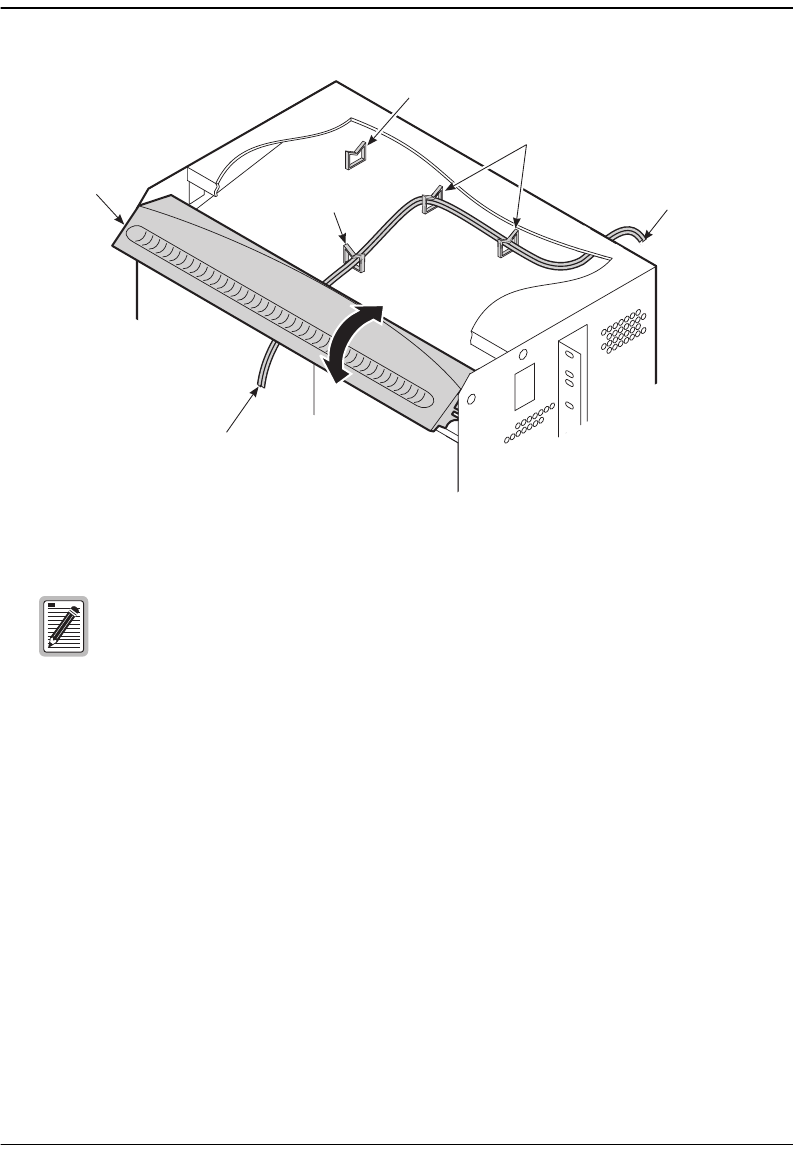

1Open the front access door to the cable tray as shown in the figure on page 43.
2Route the fiber-optic cable through the back of the AV8000 chassis and the open front
access door. Leave enough cable in the front to connect to the front panel connectors of the
OC3 network card.
3If you implement APS, route a second fiber-optic cable through the back of the AV8000
chassis and the open front access door. Leave enough cable in the front to connect to the
front panel connectors of the OC3 network card.
Do not look directly at the fiber-optic ports on the front of the OC3 network card
or into the end of any fiber-optic cable.
The minimum bend radius for a fiber-optic cable is 1.5 inches (38.10 mm). Do
not use a bend radius of less than 1.5 inches when looping the fiber-optic cable
in the cable tray.
Chapter 3: Install the Network Interface
AV8000 Installation Manual 43
4Secure the cable into the front and rear cable clamps as required (see figure above).
.
WHAT TODONEXT
Go to Chapter 4,“Connect Subscriber Lines”to set up the interface between the AV8000
chassis and the MDF to connect subscribers.
Y
You will connect the fiber-optic cable(s) to the OC3 network card when you
“Install Cards” on page 53 in a later chapter
Access door
Alternate cable clamp
Cable clamps
Cable clamp To ATM network
To OC3 line card
What To Do Next
44 AV8000 Installation Manual
AV8000 Installation Manual 45
4
CONNECT SUBSCRIBER LINES
Avidia subscriber cards connect, through the CO Main Distribution Frame (MDF), to Customer
Premises Equipment (CPE) such as modems. Refer to the following sections to install cables for
the subscriber interface:
For these subscriber card transmission types, use these procedures:
•IDSL, frame SDSL, cell SDSL, and ADSL where POTS is not supplied to the customer
with the xDSL transmission, use “Connect AV8000 xDSL to the MDF (No POTS)”
•ADSL where POTS is supplied to the customer with the xDSL transmission, use “Connect
ADSL For Data and POTS”
See “Avidia Subscriber Cards”on page 175 in Appendix A for more information about each
subscriber card you can use in an Avidia system.
For information about: Go to page:
Subscriber Connector Pinout 46
Connect AV8000 xDSL to the MDF (No POTS) 47
What To Do Next 49
Subscriber Connector Pinout
46 AV8000 Installation Manual
SUBSCRIBER CONNECTOR PINOUT
Use champ connectors S2 through S10 and S13 through S21 on the AV8000 backplane for
interface with the xDSL subscriber cards. Each champ connector corresponds to one subscriber
card slot in the AV8000 chassis (for example, S2 is slot 2 in the chassis).
Each pin pair on the champ connector provides a Tip and Ring connection for one
subscriber line and corresponds to one port and LED on an xDSL subscriber card.
For example a:
•12-port subscriber card uses the first 12 pin pairs on the champ connector and the remaining
pin pairs are unused.
•24-port subscriber card uses 24 pin pairs on the champ connector and the pin pair 25 and 50
are unused (as shown in the figure below).
Ring
Tip
Pin 26
(Port 1 on subscriber card)
Pin 49
ubscriber(Port 24 on s card)
Pin 50
(ground)
Pin 1 ubscriber(Port 1 on s card)
Pin 24 ubscriber(Port 24 on s card)
Pin 25
(ground)
Chapter 4: Connect Subscriber Lines
AV8000 Installation Manual 47
CONNECT AV8000 XDSL TO THE MDF (NOPOTS)
To interface xDSL subscriber cards to the CO MDF, use the champ connectors S2 through S10
and S13 through S21 on the AV8000 chassis backplane. If selecting an ADSL subscriber card,
use the AV541-LP (ADSL card with line protection) to connect directly to an MDF.
1Attach the champ connector to an xDSL subscriber card connector (S2 through S10 and
S13 through S21) on the AV8000 backplane as shown below.
2Use a tie wrap to secure the cable for each champ connector to the tie points located below
the connectors.
Recommendation: A category 3 or category 5 cable. Use a 25-pair Amp PN
229913-1 champ connector (or equivalent) on the interface cable for
connection to the AV8000.
Champ connector
Champ connector for
subscriber interface
S2
S3
S4
Connect AV8000 xDSL to the MDF (No POTS)
48 AV8000 Installation Manual
3Connect the other end of each cable to the facility MDF using a standard punch panel,
another champ connector, or other suitable means according to your local practice. See the
figure on page 46 and the table below for connector pinouts.
Pins 25 and 50 of the Champ connector are connected to chassis ground and can be used to
terminate the cable shields if required by local wiring practice.
xDSL Port Number Champ
Connector Pin
Number for Tip
Champ
Connector Pin
Number for Ring MDF Tip MDF Ring
1 26 1 WH/BL BL/WH
2 27 2 WH/OR OR/WH
3 28 3 WH/GN GN/WH
4 29 4 WH/BN BN/WH
5 30 5 WH/SL SL/WH
6 31 6 RD/BL BL/RD
7 32 7 RD/OR OR/RD
8 33 8 RD/GN GN/RD
9 34 9 RD/BN BN/RD
10 35 10 RD/SL SL/RD
11 36 11 BK/BL BL/BK
12 37 12 BK/OR OR/BK
13 38 13 BK/GN GN/BK
14 39 14 BK/BN BN/BK
15 40 15 BK/SL SL/BK
16 41 16 YL/BL BL/YL
17 42 17 YL/OR OR/YL
18 43 18 YL/GN GN/YL
19 44 19 YL/BN BN/YL
20 45 20 YL/SL SL/YL
21 46 21 VI/BL BL/VI
22 47 22 VI/OR OR/VI
23 48 23 VI/GN GN/VI
24 49 24 VI/BN BN/VI
ground 50 25 - -
Chapter 4: Connect Subscriber Lines
AV8000 Installation Manual 49
WHAT TODONEXT
Go to Chapter 5,“Power Up the System”to install fuses into the CO equipment bay where the
AV8000 battery wires are terminated and to verify voltages.
What To Do Next
50 AV8000 Installation Manual
AV8000 Installation Manual 51
5
POWER UPTHESYSTEM
Power up the AV8000 chassis and verify system voltage as described in the following section.
Complete this verification prior to installing cards in the AV8000 chassis.
For information about: Go to page:
Select a Fuse Size and Power Up AV8000 52
What To Do Next 52
Electrical and mechanical shock hazards are present throughout the system;
be aware of this possibility when power is applied to the chassis. Only qualified
personnel should service the system.
Connect to a -48 Vdc source that is electrically isolated from the AC source and
reliably connected to earth ground.
Select a Fuse Size and Power Up AV8000
52 AV8000 Installation Manual
SELECT A FUSE SIZE AND POWER UPAV8000
Use a 30 amp slo-blo fuse for each circuit where you previously terminated AV8000
battery wires.
Verify system voltage:
1Install the appropriately sized fuse in the equipment bay fuse panel for each circuit where
you previously terminated AV8000 battery wires.
2Verify that a voltage ranging between -42.5 Vdc and -56.5 Vdc exists between the A-side
-48V terminal and the A-side 0V battery return terminal.
3Verify that a voltage ranging between -42.5 Vdc -56.5 Vdc exists between the B-side -48V
terminal and the B-side 0V battery return terminal.
4Verify that all backplane cabling is securely terminated.
5Verify that LEDs for all four fans are not illuminated, indicating that the four fans are
receiving power and are fully operational. When a fan LED lights red, at least one fan is
not operational.
WHAT TODONEXT
Go to Chapter 6,“Install Cards”to place cards into the AV8000 chassis.
AV8000 Installation Manual 53
6
INSTALL CARDS
Install cards into the AV8000 chassis You applied voltage to the AV8000 chassis in Chapter 5,
so each card will begin its boot-up sequence when installed.
For information about: Go to page:
Attaching ESD Wrist Strap to Chassis 54
Installing Cards into the AV8000 55
Install Management Card 56
Install Network Cards 56
Install Subscriber Cards 60
Install Blank Faceplates in Unused AV8000 Card
Slots 62
What To Do Next 62
Attaching ESD Wrist Strap to Chassis
54 AV8000 Installation Manual
ATTACHING ESD WRIST STRAP TO CHASSIS
Observe the following caution for all paragraphs marked with the ESD symbol. Attach your
antistatic wrist strap to the ESD ground jack on the AV8000 as shown in the figure below.
You must wear an antistatic wrist strap connected to the ESD jack on the
AV8000 chassis to perform the installation procedures. You must also observe
normal ESD precautions when handling electronic equipment. Do not hold
electronic plugs by their edge. Do not touch components or circuitry.
Avidia 8000
ESD ground jack
Chapter 6: Install Cards
AV8000 Installation Manual 55
INSTALLING CARDS INTO THE AV8000
Ensure that you received the cards you ordered, with the minimum being one management card,
one network card, and one subscriber card. The figure below shows the proper way to install
any card into the AV8000 chassis. Procedures to install specific types of cards are on the
following pages:
•management card on page 56
•network cards on page 56
•subscriber cards on page 60
If you have slots where cards are not installed, you must install blank faceplates using the
procedures on page 62.
1234
Card
Avidia 8000
chassis
PairGain
Retaining latch
Retaining latch
Captive screw
Installing Cards into the AV8000
56 AV8000 Installation Manual
Install Management Card
Install the management card (page 55) into the chassis:
1Ensure that the retaining latches are lifted open, and then slide the management card into
slot 1, using the guide rails.
2Push the card in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.

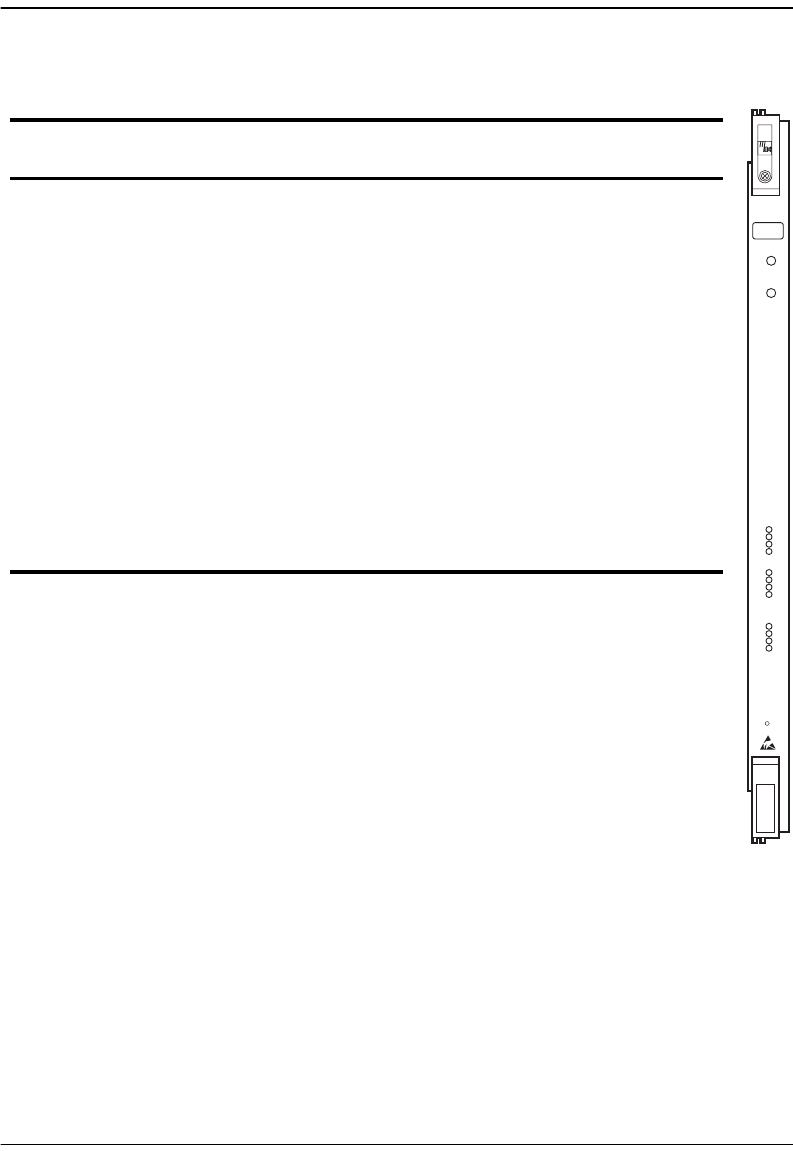

Install Network Cards
Network cards provide an uplink interface to an ATM network. They supply both ATM traffic
management and physical layer functionality. Only one network card is required to provide a
link between the subscriber and the ATM backbone, but you can install a second network card
for redundancy or for dual homing. See “” on page 76 for more information about redundancy
and dual homing configurations. Network cards are typically placed in network card slots 11
and 12; however, 8xDS1 and 8xE1 cards must be placed in subscriber card slots 2-10 or 13-21.
Network cards can also provide a subscriber-side connection when used for subtending.
Subscriber-side means that the cards do not provide an uplink network connection, but provide
a connection downstream to another Avidia chassis that is being subtended. See “Subtending
Multiple Systems”on page 86 for more information about how to select and place network
cards for this application. For this type of application, the OC3 card can be placed in subscriber
card slots 2-10 or 13-21
The startup 10/100BASE-T LED indication will light green.
Chapter 6: Install Cards
AV8000 Installation Manual 57
The table below lists network cards that are available for use in the AV8000 chassis and the page
where they are described in this section.
The DS3, 8xDSX-1, and OC3 network cards function in slots 11 and 12. You must install at
least one network card in the AV8000 chassis in slot 12 to derive a system clock. The 8xDS1
network card functions in any subscriber card slot. You can install the OC3 card in a subscriber
card slot for some special applications (see Chapter 8,“System Configuration for Special
Applications”on page 73).
Use the following procedure to install your network cards:
1Slide the network card (page 55) into slot 12 using the guide rails. Ensure the retaining
latches are lifted open.
2Push the card in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.

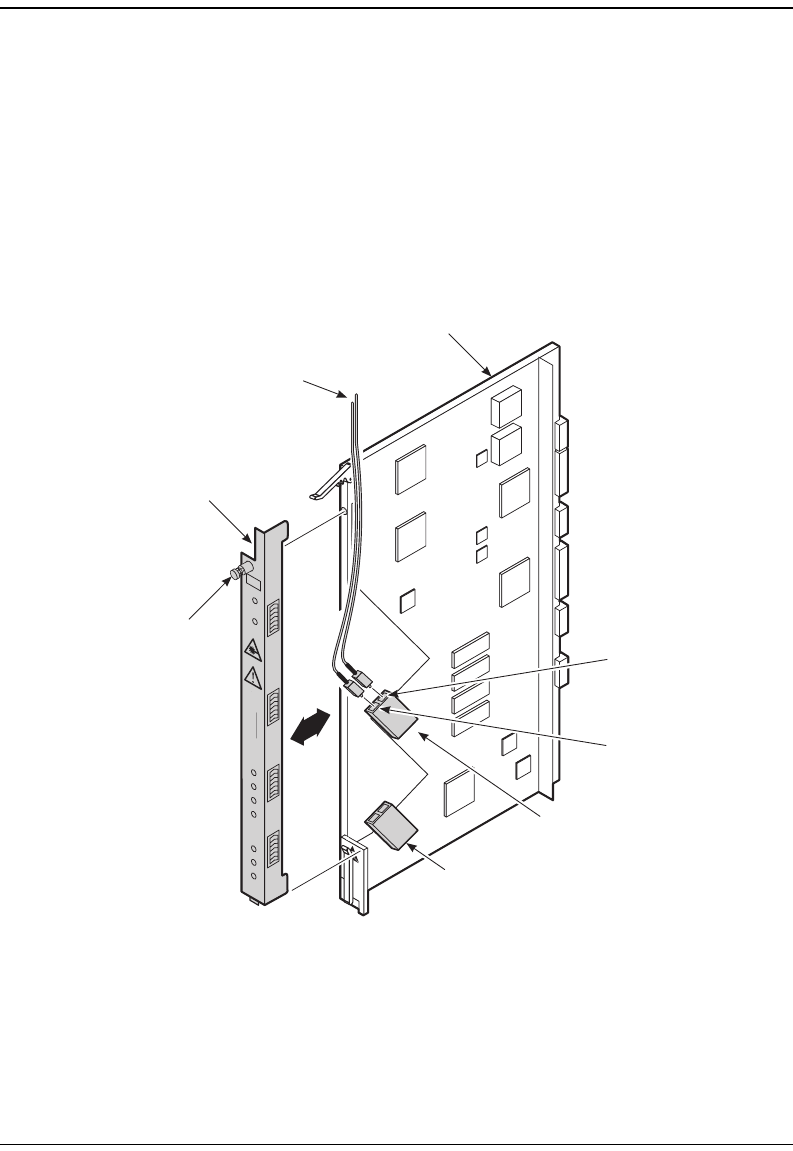

5When installing an OC3 network card:
aLoosen the OC3 network card safety cover captive screw and remove the safety cover
(see figure on page 58).
Type Avidia
Model
Transmission
Format Transmission
Speed (Mbps) Interface
OC3-c
Multimode AV311 ATM 155.520 dual-PHY SONET
Single Mode intermediate range AV312 ATM 155.520 dual-PHY SONET
Single Mode long range AV313 ATM 155.520 dual-PHY SONET
DS3 ATM AV323 ATM 44.736 WAN
8xDS1 CSU/DSU Management AV351 ATM 8 x 1.544 DS1
8xE1 CSU/DSU Management AV352 ATM 8 x 2.048 E1
8xDSX-1 DSU Management AV353 ATM 8 x 1.544 DSX-1
Do not look directly at the fiber-optic ports on the front of the OC3 network card
or into the end of any fiber-optic cable. Ensure that you selected the
appropriate fiber-optic cable for either a multimode or single mode transceiver.
Installing Cards into the AV8000
58 AV8000 Installation Manual
bInstall the fiber-optic cable connectors into the primary SC fiber connector as shown
below. On each SC connector, the top port is for the transmit (Tx) signal and the
bottom port is for the receive (Rx) signal. The secondary SC fiber connector is reserved
for future use.
cWhen implementing APS (Automatic Protection Switching), install the fiber-optic
cable into the secondary SC fiber connectors.
dRoute the cable along the side of the card.
eReinstall the OC3 network card safety cover, and tighten the captive screw.
OC3 line card
Safety cover
Captive screw
Tx
Secondary SC connector
Primary SC connector
Rx
FAULT
APS
TX1
RX1
SYNC1
TX2
RX2
SYNC2
POWER
Fiber-optic cable
(To ATM network)
WARNING:
REINSTALL THIS SAFETY
COVER AFTER SERVICING
Chapter 6: Install Cards
AV8000 Installation Manual 59
The front panel LED indicator status corresponding to a successful boot-up for each network
card is shown in Appendix A on page 139 for the following network cards
•OC3 on page 154
•DS3 on page 158
•8xDS1 on page 162
•8xDSX-1 on page 171
•8xE1 on page 167
Installing Cards into the AV8000
60 AV8000 Installation Manual
Install Subscriber Cards
Avidia subscriber cards provide two-way data communication with the subscribers.
Subscriber cards are currently available in several transmission technologies: ADSL,
cell SDSL, frame SDSL, and IDSL. You must select subscriber cards for the AV8000 that are
compatible with the subscriber-end equipment:
•Select cell DMT ADSL subscriber cards to connect to cell-based DMT ADSL modems.
•Select frame SDSL subscriber cards to connect to frame SDSL modems.
Cell subscriber cards operate with a data stream of fixed length. The advantage of this format is
that the network does not have to handle different sizes of packets or frames. This broadband
technology transmits data quickly and efficiently. There are three cell subscriber cards: AV541,
AV541-LP, and AV522.
Frame-based cards operate with a data stream of variable length. By using only a few bytes of
overhead, the frame format makes efficient use of each frame. This means that more of the
frame bandwidth is used for sending user data and less for overhead. Two Avidia cards are
available for frame-based data: AV421 and AV412.
The table below lists all the subscriber cards available for the AV8000 system.
You can install up to 18 xDSL subscriber cards, 8xDS1 network card(s), and 8xE1 network
cards in chassis slots S2 through S10 and S13 through S21. Install the subscriber cards (page 55)
into the chassis:
Avidia
Model xDSL
Format Type Number of
Ports
Cell Subscriber Cards
AV541 ADSL Rate-adaptive and rate-selective DMT cell-based 12
AV541-LP ADSL Identical to AV541 but with line protection 12
AV522 SDSL Rate-selective, cell-based 24
Frame Subscriber Cards
AV421 SDSL Rate-selective, frame-based 24
AV412 IDSL Rate-selective, frame-based 24
Chapter 6: Install Cards
AV8000 Installation Manual 61

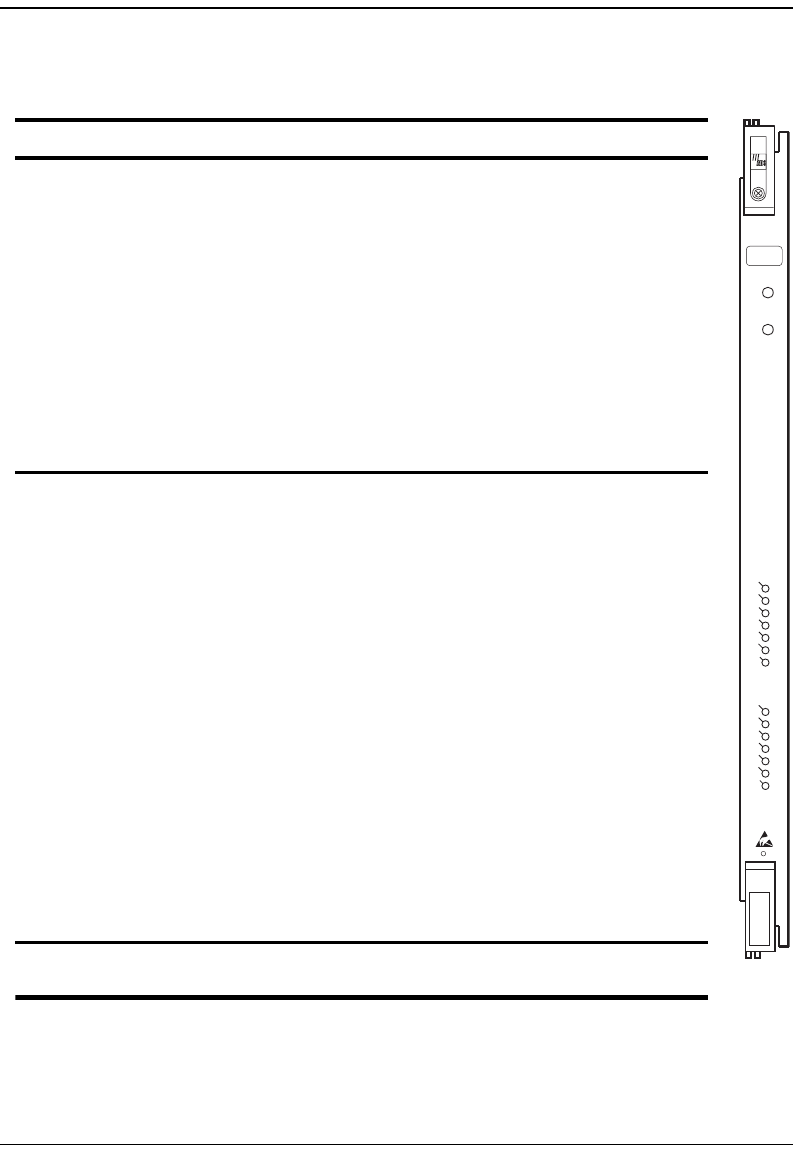

1Slide the card into a subscriber card slot (2 through 10 or 13 through 21). Ensure that the
retaining latches are lifted open.
2Push the card in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.
5Repeat Step 1 through Step 4 to install additional subscriber cards. Use any of the
remaining slots (2 through 10 and 13 through 21) for other cards.
The front panel LED indicator status corresponding to a successful boot-up for each subscriber
card is shown in Appendix A on page 139 for the following network cards
•ADSL on page 177
•cell SDSL on page 180
•frame SDSL on page 183
•IDSL on page 186
How your Avidia system is configured determines which ADSL subscriber

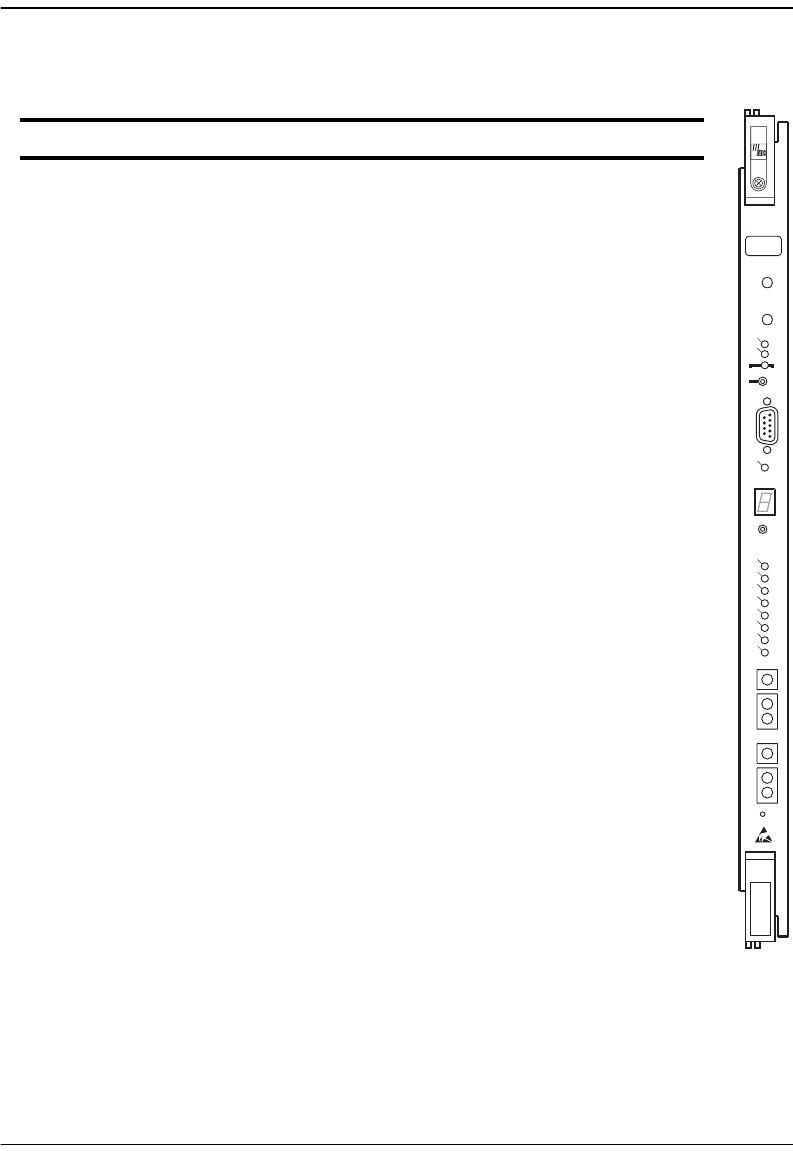

card to use in the AV8000. Use the Avidia Model 541 (AV541) to connect to the
Avidia 8100. Use the Avidia Model 541-LP (AV541-LP) with network protection
to connect directly to an MDF.
What To Do Next
62 AV8000 Installation Manual
Install Blank Faceplates in Unused AV8000 Card Slots
To install the required faceplates in your chassis, follow the procedure below:
1Slide the blank faceplate into empty slot. Ensure the retaining latches are lifted.
2Push the blank faceplate in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place
4Tighten the captive screw on the top retaining latch.
WHAT TODONEXT
Go to Chapter 7,“Connect a Management Interface”to connect the AV8000 to an ASCII
terminal or a PC for configuration and SNMP management.
Install blank faceplates in the AV8000 to cover unused slots. Unused slots
must be covered to prevent personnel contact with backplane connectors
under power and to maintain proper airflow within the chassis.
Select blank faceplates:
•For a one-slot blank faceplate, use PN AVX121.
•For a two-slot blank faceplate, use PN AVX122.
•For a five-slot blank faceplate, use PN AVX125.
AV8000 Installation Manual 63
7
CONNECT A
MANAGEMENT INTERFACE
Connect an ASCII terminal or a PC (running terminal emulation software) to the craft port on
the management card in the AV8000 chassis (slot 1). Through this RS-232 serial interface, you
can manage the AV8000 system using the command-line interface. You can also execute install
scripts to other cards in the AV8000 chassis through this craft port.
For remote system management, connect a PC or workstation through a LAN or Ethernet hub
to the management Ethernet port (labeled MGMT 10/100BASE-T) on the chassis backplane.
Through this Ethernet interface, you can configure and manage the AV8000 system using
Telnet, the Avidia Web-based interface software, or StarGazer network management software.
You can download software to additional cards in the AV8000 system through theEthernet port.
Connect to the craft port and to the Ethernet port by using the following procedures:
CONNECTING TO THE CRAFT PORT
The craft port is a DCE, DB-9 (9-pin) female connector. This connector provides an RS-232
interface with an ASCII terminal or PC (running terminal emulation software) for full-duplex
serial communication. The interface has a standard ASCII character set. Refer to “Select the
Craft Port Interface and Cable”on page 64 before connecting the craft port.
For information about: Go to page:
Connecting to the Craft Port 63
Select the Craft Port Interface and Cable 64
Connect to the Craft Port 64
Connecting to the Ethernet Port 68
Select the Ethernet Interface Cable 69
Connect to the Ethernet Port 71
What To Do Next 71
Connecting to the Craft Port
64 AV8000 Installation Manual
Select the Craft Port Interface and Cable
The following illustrations show pinouts for both the management card and backplane Avidia
craft ports. The craft port craft port connects to either a DTE device such as a terminal or a PC
or to another DCE device such as a modem.
•When connecting the DCE craft port to a DTE device, use a straight-through cable as
shown in the two figures on this page.
•When connecting the DCE craft port to another DCE device, use a cross-over cable as
shown in the two figures on page 65.

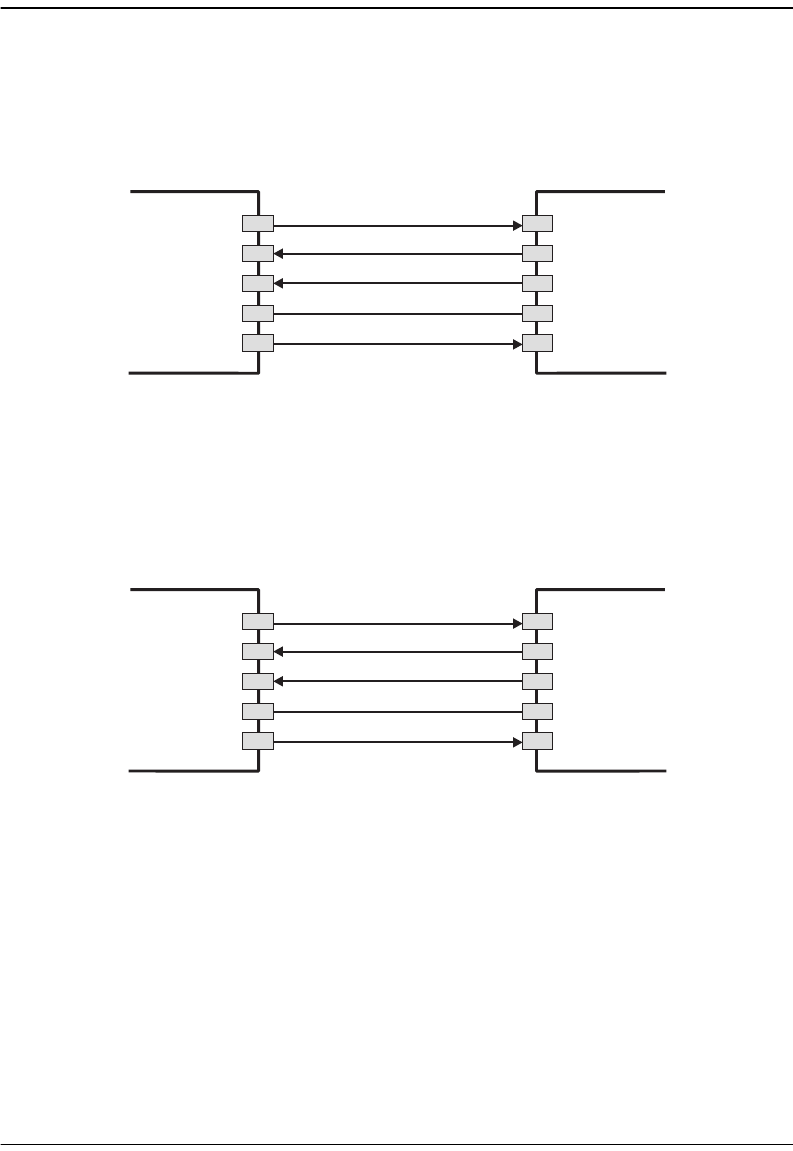

DB-9 (DCE) to a DB-9 (DTE)
DB-9 (DCE) to a DB-25 (DTE)
RD (Receive Data)
TD (Transmit Data)
DTR (Data Terminal Ready)
GND (Ground)
DSR (Data Set Ready)
Requires a straight-through cable
2
3
4
5
66
2
3
4
5
Avidia
craft port
DB-9
(DCE)
Terminal
DB-9
(DTE)
Avidia
craft port
DB-9
(DCE)
Terminal
DB-25
(DTE)
RD (Receive Data)
TD (Transmit Data)
DTR (Data Terminal Ready)
GND (Ground)
DSR (Data Set Ready)
2
3
4
5
66
3
2
20
7
Requires a straight-through cable
Chapter 7: Connect a Management Interface
AV8000 Installation Manual 65
DB-9 (DCE) to a DB-9 (DCE)
DB-9 (DCE) to a DB-25 (DCE)
RD (Receive Data)
RD (Receive Data)
TD (Transmit Data)
TD (Transmit Data)
DTR (Data Terminal Ready)
DTR (Data Terminal Ready)
GND (Ground) GND (Ground)
DSR (Data Set Ready)
DSR (Data Set Ready)
2
3
4
5
64
3
2
6
5
Requires a cross-over cable
Avidia
craft port
DB-9
(DCE)
Modem
DB-9
(DCE)
RD (Receive Data)
RD (Receive Data)
TD (Transmit Data)
TD (Transmit Data)
DTR (Data Terminal Ready)
DTR (Data Terminal Ready)
GND (Ground) GND (Ground)
DSR (Data Set Ready)
DSR (Data Set Ready)
2
3
4
5
620
2
3
6
7
Requires a cross-over cable
Avidia
craft port
DB-9
(DCE)
Modem
DB-25
(DCE)
Connecting to the Craft Port
66 AV8000 Installation Manual
Connect to the Craft Port
1Connect a standard 9-pin serial terminal cable to the craft port on the management card
front panel.
2Connect the other end of the cable to the craft port on an ASCII terminal, PC, modem, or
other device. (As an example, the figure above shows a 9-pin COM port on an
ASCII terminal.)
CRAFT
SPD
ABN
ALARM
MAJ
CRT
MIN
MIN
PWR
TEST
LED
ACO
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATU S
1
PORT
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATUS
1
PORT
12
9
8
5
4
STATU
1
PO
FAU
Craft port cable
ASCII terminal
Craft port
9-pin COM
port
Chapter 7: Connect a Management Interface
AV8000 Installation Manual 67
3Configure the terminal for the following communication settings:
•ANSI terminal emulation
•Bits per second: 9600 bps
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow control: None
See the Avidia System Configuration and Management User Manual for instructions on how to
configure the AV8000 system using the command-line interface. You must configure the
management card IP address using the command-line interface before using the Web-based
Interface or the command-line interface to complete any other configuration.
Connecting to the Ethernet Port
68 AV8000 Installation Manual
CONNECTING TO THE ETHERNET PORT
The AV8000 system backplane has one RJ-45 jack for Ethernet management interface. The port
is an autosensing 10/100BASE-T. Use the management Ethernet port labeled
MGMT. 10/100BASE-T for:
•LAN connections
•higher speed Ethernet connections such as an Ethernet hub
•connection to a device such as a modem for remote management
Go to the following sections to connect to the MGMT. 10/100BASE-T port:
•Select the cable dependent on the device you will connect to the MGMT. 10/100BASE-T
port in “Select the Ethernet Interface Cable”on page 69.
•Connect the device to the MGMT. 10/100BASE-T port in “Connect to the Ethernet Port”
on page 71.
System requirements to connect to the MGMT. 10/100BASE-T port on the AV8000 chassis
include:
•To connect a PC directly to the MGMT. 10/100BASE-T port, you must have a PC with
an Ethernet card installed and configured correctly. Additionally, you must have a
TCP/IP protocol stack configured correctly for communication.
•To perform AV8000 system configuration using Telnet, the Avidia Web-based
Interface, or StarGazer network management software, the PC must also have a
Web browser installed. Use version 4.0 or later of Netscape or Windows Explorer
Web browsers.
Chapter 7: Connect a Management Interface
AV8000 Installation Manual 69
Select the Ethernet Interface Cable
The AV8000 backplane MGMT. 10/100BASE-T port is MDI. Use one of the following cables
(see the figure below and the table on page 70):
•straight-through cable to connect to a device with an MDI-X port such as a hub, repeater,
bridge, or router
•cross-over cable to connect to a device that also has an MDI port such as a PC with an
Ethernet Network Interface Card (NIC)
Use a shielded 10/100BASE-T cable in which the cable’s shield will make a
reliable electrical connection to the shell of the 10/100BASE-T connector on
the AV8000 chassis and in which the shield at the other end of the cable is
reliably connected to earth ground.
Cable jack
Cable jack
Cable jack
Cable jack
Receive
ReceiveTransmit
Transmit Transmit
Transmit
Straight-through cable
Cross-over cable
3
6
3
6
3
6
3
6
1
2
1
2
1
2
1
2
MDI-X port
(data network device)
MDI port
(data network device)
MDI port
(Avidia backplane)
MDI port
(Avidia backplane)
3
6
1
2
3
6
1
2
3
6
1
2
3
6
1
2
Receive Receive
Connecting to the Ethernet Port
70 AV8000 Installation Manual
The table below lists 10/100BASE-T Ethernet interface control signals for both an MDI and an
MDI-X port.
MDI MDI-X Signal Description
1 3 TX+ Transmit Data (+)
2 6 TX- Transmit Data (-)
3 1 RX+ Receive Data (+)
4 4 - No connection
5 5 - No connection
6 2 RX- Receive Data (-)
7 7 - No connection
8 8 - No connection
The MDI column shows pinouts for the
AV8000 MDI Ethernet ports.
Chapter 7: Connect a Management Interface
AV8000 Installation Manual 71
Connect to the Ethernet Port
1Plug the RJ-45 connector of the Ethernet cable into the MGMT. 10/100BASE-T port on the
chassis backplane.
2Connect the other end of the cable into the Ethernet port on the PC or hub (or other
Ethernet device).
3Verify that a link indicator illuminates on either the PC Ethernet adapter or the Ethernet
hub. This occurs if the Ethernet cable is properly connected. See the appropriate user
documentation for the Ethernet adapter or hub.
WHAT TODONEXT
Once you verify that you have a management connection to the AV8000 chassis, use the Avidia
System Management and Configuration User Manual to perform system configuration and
maintenance.
Use a shielded 10/100BASE-T cable in which the cable’s shield will make a
reliable electrical connection to the shell of the 10/100BASE-T connector on
the AV8000 chassis and in which the shield at the other end of the cable is
reliably connected to earthed ground.
MGMT. 10/100BASE-T
port
Ethernet cable
Ethernet device
What To Do Next
72 AV8000 Installation Manual
AV8000 Installation Manual 73
8
SYSTEM CONFIGURATION FOR
SPECIAL APPLICATIONS
This chapter describes applications for systems with two network cards installed.
For information about: Go to page:
Redundancy 77
Dual Homing 78
Network Card Redundancy 79
OC3 Automatic Protection Switching 80
DS3 Dual Port Redundancy 81
Subtending Multiple Systems 86
System Configuration Examples
74 AV8000 Installation Manual
SYSTEM CONFIGURATION EXAMPLES
You can configure your Avidia system with or without POTS. See the figures on the pages listed
below for a system view of these types of connections:
•When deploying transmission that include POTS and ADSL only, see the figure below.
•When deploying transmission that includes POTS and xDSL, see the figure on page 75.
•When deploying only xDSL transmission without POTS, see the figure on page 75.
For information about selecting the appropriate ADSL subscriber card, see “Compatibility”on
page 3.
ADSL modem without
POTS splitter S1 NID
ADSL modem with
POTS splitter
Subscriber
Central Office
POTS
ADSL data out
ADSL data in
ADSL datastream
(multiplexed ADSL
data and POTS)
To CU1
through
CU18
Voice
Switch
MDF MDF
J3 J3
J
1
J
3J
4
J
2
J
1
J
1
J
2
J
2
Avidia 8000
(ADSL channel cards)
Avidia 8100
ADSL Voice Shelf
ADSL channel cards
without line protection (LP)
LANADSL
PWR LINKTXRX SYNCTX RX MAR OH
MEGABIT MODEM 700F
LAN ADSL
PWRLINK TX RX SYNCTX RX MAR OH
MEGABIT MODEM 700F
AVCU20
AVCU20
AVCU19
AVCU19
AVCU 18
AVCU 18
AVCU 17
AVCU 17
AVCU16
AVCU 16
AVCU 15
AVCU 15
AVCU14
AVCU 14
AVCU 13
AVCU 13
AVCU12
AVCU 12
AVCU 11
AVCU 11
AVCU 10
AVCU 10
AVCU9
AVCU 9
AVCU 8
AVCU 8
AVCU 7
AVCU 7
AVCU 6
AVCU 6
AVCU5
AVCU 5
AVCU4
AVCU4
AVCU 3
AVCU 3
AVCU 2
AVCU 2
AVCU 1
AVCU 1
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 75
ADSL modem without
POTS splitter S1 NID
ADSL modem with
POTS splitter
Subscriber
Central Office
POTS
IDSL or frame-based
SDSL (no POTS)
IDSL or frame-based
SDSL (no POTS)
ADSL out
ADSL datastream
(multiplexed ADSL
data and POTS)
Avidia 8000
(ADSL, IDSL,
cell-based SDSL,
and frame-based SDSL
channel cards)
Avidia 8100
ADSL Voice Shelf
CU1 CU3
CU2 CU4
ADSL data in
ADSL channel cards
without line protection (LP)
SDSL
(cell-based card)
Voice
Switch
Frame-based SDSL
MDF MDF
J3 J3
AVCU20
AVCU20
AVCU19
AVCU19
AVCU18
AVCU18
AVCU17
AVCU17
AVCU16
AVCU16
AVCU15
AVCU15
AVCU14
AVCU14
AVCU13
AVCU13
AVCU12
AVCU12
AVCU11
AVCU11
AVCU 10
AVCU 10
AVCU9
AVCU9
AVCU8
AVCU8
AVCU7
AVCU7
AVCU6
AVCU6
AVCU5
AVCU5
AVCU4
AVCU4
AVCU3
AVCU3
AVCU 2
AVCU 2
AVCU1
AVCU1
J
1J
2
J
4
J
3
J
1
J
1
J
2
J
2
LANADSL
PWRLINKTXRX SYNC TX RX MAR OH
MEGABIT MODEM 700F
LAN ADSL
PWR LINK TX RX SYNCTX RX MAR OH
MEGABIT MODEM 700F
LAN SDSL
MEGABITMODEM300S
LINK TX RX COL PWR SYNC TX RXMAR
LANSDSL
MEGABITMODEM300S
LINKTX RXCOL PWRSYNC TX RX MAR
IDSL or SDSL
(frame-based card)
Cell-based SDSL
Cell-based SDSL
Cell-based SDSL
System Configuration Examples
76 AV8000 Installation Manual
ADSL modem
ADSL modem
Subscriber
Central Office
(no POTS)
SDSL (cell-based)
Avidia 8000
(ADSL, IDSL, cell-based SDSL,
and frame-based SDSL
channel cards)
ADSL channel cards
with line protection (LP)
IDSL or
SDSL
(frame-based)
card
IDSL or SDSL
(frame-based)
SDSL
(cell-based)
MDF
LAN ADSL
PWR LINK TX RXSYNCTX RX MAROH
MEGABIT MODEM 700F
LANADSL
PWR LINK TX RX SYNC TX RX MAROH
MEGABIT MODEM 700F
LAN SDSL
MEGABITMODEM300S
LINK TX RX COL PWR SYNCTXRX MAR
LAN SDSL
MEGABITMODEM300S
LINK TX RX COL PWR SYNC TX RX MAR
ADSL
IDSL or SDSL
(frame-based)
SDSL
(cell-based)
card
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 77
REDUNDANCY
Redundancy is a feature of the Avidia system. Redundancy includes:
•dual homing, which provides redundancy at a VPC or VCC level (dual homing also
provides static load sharing) as described on page 78.
•card redundancy, where a primary network card can switch to a secondary network card if
the primary card were to fail as described on page 79.
•automatic protection switching (APS) for the OC3 network card with dual-PHY
connectors, where the primary physical port switches to the secondary physical port if the
primary port were to fail as described on page 80.
•DS3 dual port redundancy, which provides both single and dual physical link port
redundancy, as described on page 81
Redundancy
78 AV8000 Installation Manual
Dual Homing
Through dual homing, a second network interface (DS3 or OC3 network card) is used in the
Avidia system and provides support that includes:
•backup or redundant PVCs with the same destination.
•static load sharing where traffic is directed separately to a primary and to a secondary
network card, increasing the amount of traffic that you can send through the system
(see page 79).
See the Avidia System Configuration and Management User Manual for information about
applying Quality of Service (QoS) to traffic that is assigned to dual homing configurations.
When setting up a system for dual homing, one network card is a primary network card and the
second network card is a secondary or backup network card. In an AV8000 system, you can
install the network cards into slot 11 and slot 12. The two network card slots are essentially
symmetric. At any point, only one of the two network cards will provide cell-bus clocking.
Configure ATM VPCs and VCCs to the network card that you choose as primary and configure
the backup VPCs and VCCs to the second network card.
In an Avidia 3000 system, you can install the network cards into slot 2 and slot 3. The network
card in slot 2 provides cell-bus clocking and must be in the slot when an Avidia 3000 system
is initialized (booted). When there is a failure of the network card in slot two, cell-bus clocking
switches to slot 1. Configure ATM PVPCs and PVCCs to the network card that you choose as
primary and configure the backup PVPCs and PVCCs to the second network card.
Redundancy is another feature of Avidia systems that uses two network cards. Redundancy
provides backup at a card level where dual homing provides backup at a PVC level (PVPCs and
PVCCs). See page 79 for more information about redundancy. You can implement both
redundancy and dual homing concurrently in an Avidia system. You must, however, carefully
plan traffic management and QoS to efficiently run the network. See the Avidia System
Configuration and Management User Manual for information about traffic management.
Backup ATM Connections
ATM service requires the configuration of ATM connections which comprise PVPCs and
PVCCs. PVPCs and PVCCs are the logical connections over which ATM cells are transmitted;
these are referred to as the primary PVPCs and PVCCs. You can create backup PVPCs and
PVCCs to which the system can automatically switch in the event that primary PVPCs or
PVCCs fail. These are referred to as secondary PVPCs and PVCCs. The secondary PVPCs and
PVCCs are configured to the second (redundant) network card in the Avidia system.
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 79
Static Load Sharing
The dual homing feature of static load sharing allows you to increase the amount of traffic that
you can send through the system by allowing you to direct traffic to two separate network cards.
The uplink for both network cards (DS3 and OC3) is from the same ATM source, but the
information that is transmitted may be directed either to the same or to different destination
devices. The network cards can be of the same type (both OC3, for example) or they can be of
different types (an OC3 and a DS3, for example).
Through StarGazer or the Avidia command-line or Web interfaces, you can direct some Avidia
system ATM cross-connections to one of the network cards and then direct other ATM
cross-connections to the second network card. If you also implement card-level redundancy and
backup or secondary PVCCs and PVPCs, you need to carefully balance loads and manage
traffic and QoS to efficiently use the network and the bandwidth available for each network
card.
If one network card fails, the second network card takes over the functionality of the failed
network card, and re-establishes all the connections. This can result in too heavy a traffic load
on the second network card. To handle this, you can configure the recovery priority by traffic
type (for example, CBR first, rt-VBR second).
Network Card Redundancy
The Avidia system network cards provide two types of ATM connection redundancy:
•connection redundancy between the network card and the destination ATM end system
•network card redundancy, should a network card fail
Connection Redundancy—NetworkCardtoATMEndSystem
When a connection goes down between the network card and the destination ATM end system,
the network card detects the failure and attempts to re-establish the connection by automatically
retrying or re-routing it, using signaling. This requires that the network card and the destination
ATM end system both support signaling.
To enable connection redundancy between the network card and the destination ATM end
system, you configure an end-to-end connection using SPVCs.
SPVCs comprise:
•a cross-connect (PVCC or PVPC) from a cell-based subscriber card to a network card
•an SPVC from the Avidia network card across the ATM network to an ATM end system
Redundancy
80 AV8000 Installation Manual
Network Card Redundancy
If a network card fails, and you have a second network card installed, the second network card
detects the failure, takes over all of the functionality of the failed network card, and
re-establishes all of the connections. This requires two ATM network cards to be installed in the
Avidia system, and at least two uplinks from the Avidia system to the ATM network.
Network card redundancy requires configuring static routes in the ATM Routing Table. When
a network card fails, the system uses the ATM Routing Table information to re-route SPVCs to
a specified slot and port on the secondary network card, based on the destination ATM address.
See the Avidia System Configuration and Management User Manual for information about
configuring static routes.
Managing Traffic for Redundancy
You can configure the Avidia system for static load sharing, using two installed network cards.
However, if one network card fails, the second network card takes over the functionality of the
failed network card, and re-establishes all the connections. This can result in too heavy a traffic
load on the second network card. To handle this, you can configure the recovery priority by
traffic type (for example, CBR first, rt-VBR second). If you do not configure recovery priorities,
the connections are recovered sequentially until no further resources are available. After that
point, the remaining connections are dropped. See “Static Load Sharing”on page 79 for more
information about static load sharing and traffic management.
When an initial call request is unsuccessful, or an existing connection fails, and the call has been
retried the maximum configured number of times, the call request is re-routed using the other
network card.
OC3 Automatic Protection Switching
OC3 network cards have two physical SONET interfaces, each with a transmit and receive port.
Under normal operation, all traffic is carried through the first interface; the second is not used.
Automatic Protection Switching (APS) uses the second interface to provide a backup to the first.
Avidia uses 1+1 unidirectional APS. In this version of APS, the primary interface is defined as
the working channel. The second interface is defined as the protection channel. Transmitted data
is sent over both channels. Data is normally received through the working channel. However, if
the working channel fails, received data automatically switches to the protection channel.
By default, APS is disabled on Avidia systems. You must enable APS for automatic switching
to occur. See the Avidia System Configuration and Management User Manual to enable and
configure APS.
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 81
DS3 Dual Port Redundancy
When you use two DS3 cards in an AV8000 system, connect the cables as described in the
section “DS3 Interface Cables”on page 33 for one of the following modes:
•single physical link mode (see figure on page 84)
•dual physical link mode (dual homing) (see figure on page 82)
Dual Physical Link Network Card Redundancy
If a network card fails, and you have a second network card installed, the second network card
detects the failure, takes over all of the functionality of the failed network card, and
re-establishes all of the connections. This requires two ATM network cards to be installed in the
Avidia system, and at least two uplinks from the Avidia system to the ATM network.This
redundancy method is known as Dual Physical Link Port redundancy and is the default
redundancy mode.
Network card redundancy requires configuring static routes in the ATM Routing Table. When
a network card fails, the system uses the ATM Routing Table information to re-route SPVCs to
a specified slot and port on the secondary network card, based on the destination ATM address.
Implementing DS3 Port Redundancy
StarGazer allows network port redundancy to be implemented in either a Dual Physical Link
mode or a Single Physical Link mode.
Dual Physical Link Mode. In the Dual Physical Link mode, a DS3 card positioned in slot 11
of the AV8000 default to port 2 as the primary active link and a DS3 card placed in slot 12 of
the AV8000 defaults to port 1 as the primary active link. This default configuration allows both
cards to be activated simultaneously and carry network traffic over separate physical networks
links. In this mode, however, different active port numbers must be used for each DS3 network
card and both port 1 and port 2, on either card, must not be activated simultaneously.
If both DS3 cards and network links are active, then redundancy is provided by switching xDSL
traffic from the failed DS3 card or network link, to the remaining active DS3 card and its
associated network link. If only one DS3 card and link is active and the other DS3 card and
network link are idle, reserved for backup, then redundancy is provided by activating the idle
DS3cardandlinkandswitchingxDSLtrafficfromthefailedDS3cardtothenowactivebackup
DS3 card and its associated network link. In Dual Physical Link mode, the two network cards
are not required to be of the same media type—a DS3 card may be mixed with an OC3 card with
no reduction in functionality.
Redundancy
82 AV8000 Installation Manual
Dual Physical Link mode is the default port redundancy configuration, and is automatically
selected if Single Physical Link mode redundancy is turned-off during configuration of the DS3
cards. Redundancy of either type is a chassis-wide system configuration parameter involving all
of the installed network cards in a chassis.
Single Physical Link Mode. In the Single Physical Link mode, port redundancy requires
two DS3 cards—a DS3 card may not be mixed with an OC3 card, nor can two OC3 cards be
utilized in place of DS3 cards. However, if mixed OC3/DS3 cards must be used, then port
redundancy may only be configured for Dual Physical Link mode. As in earlier versions, use of
a single DS3 network card is allowed, although no port redundancy is possible under this
configuration.
Whereas the Dual Physical Link mode automatically activates port 2 for slot 11 and port 1 for
slot 12, by default, Single Physical Link mode selects the active port and slot through an internal
algorithm, that is in part, based on the user designation of either port 1 or port 2 as the
redundancy port during configuration.
The DS3 network card is configured for Single Physical Link mode redundancy through the
Web, command line or StarGazer interface. If Single Physical Link mode is turned-off, then
Dual Physical Link mode is assumed. Configuration procedures for setting up port redundancy
can be found in the DS3 Configuration sections of the Avidia software manuals.
The remainder of this section will describe the operation of dual port redundancy under both the
Dual Physical Link mode and the Single Physical Link mode configurations. The network
configuration will be examined both before and after a failure-induced automatic switch-over
of network traffic. If you decide to employ port redundancy in your system, you must pay
careful attention to your configuration and cabling.
DS3 Card Switch-Over—Dual Physical Link Mode
In Dual Physical Link mode, failure of one of the DS3 network cards (primary), or its associated
network link, will cause all xDSL traffic through that interface to be automatically switched to
the remaining DS3 network card (secondary) and routed over the alternate physical network
link. If the secondary physical network link is currently active, the traffic diverted from the
failed primary network card will be combined with the original traffic through the secondary
network card and its overall traffic load will be increased. This load increase is an important
consideration when selecting this port redundancy mode.
The following figure shows the before and after configuration of the network interface
following a failure in the DS3 card in slot 12 (primary) or a failure in the network link associated
with this card, where both the primary and secondary physical network links are active. Initially,
traffic is flowing through port 1 of the DS3 card in slot 12 (primary) to network link 1 and
through port 2 of the DS3 card in slot 11 (secondary) to network link 2. This is the initial default
configuration when operating in Dual Physical Link mode.
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 83
After switch-over has occurred, all ADSL traffic is diverted from the DS3 network card in slot
12, port 1 to the DS3 network card in slot 11, port 2. Traffic originally directed through network
link 1, is now be diverted and added to the network traffic through link 2.
As mentioned earlier, although the secondary physical network link may be active, it may also
be maintained in standby mode and reserved strictly for backup purposes. In this case there will
be no increase in traffic load to the network after switch-over.
FAILED
DS3 Card
DS3 Card
DS3 Card
DS3 Card
ADSL
Card
ADSL
Card
Slot 12
Slot 11
Slot 12
Slot 11
ADSL
Card
ADSL
Card
Backplane
Backplane
Before Switch-over
After Switch-over
Port 1 (Active)
Link 1
(Active)
Link 2
(Active)
Link 2
(Inactive)
Link 1
Port 2
Port 1
Port 2
Port 1
Port 2
Port 1
Port 2
Active port
(connection)
Inactive port
(connection) Inactive (no traffic)
Active (traffic)
Tx/Rx
Tx/Rx
Redundancy
84 AV8000 Installation Manual
Although two DS3 network cards are shown in the preceding figure, Dual Physical Link mode
allows a configuration based on an OC3/DS3 network card combination. This is not the case
with Single Physical Link mode.
DS3 Card Switch-Over—Single Physical Link Mode
In Single Physical Link mode, failure of one of the DS3 network cards (primary) will cause all
xDSL traffic through that interface to be automatically switched to the backup DS3 network
card (secondary) and routed over the same physical network link. Since traffic diverted from
the failed primary network card will continue to be directed through the same physical network
link, any failure at the network level can not be corrected by using the Single Physical Link
mode—only DS3 card-level failures can be addressed and corrected by this method.
The figure below shows the before and after configuration of the network interface following a
failure in the DS3 card in slot 12 (primary). Initially, traffic is flowing through port 1 of the DS3
cardinslot12tonetworklink1andthereisnotrafficthroughport2oftheDS3cardinslot11
(secondary). Notice that in this case, the DS3 card in slot 11 is idle and that network link 2
connected to port 2 is not active. This is the normal dual network card configuration when
operating in Single Physical Link mode with port 1 selected for port redundancy. The software
port selection algorithm will reverse this active/idle card configuration if port 2 instead of port
1 is designated as the redundancy port.
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 85
After switch-over has occurred, all ADSL traffic is diverted from the DS3 network card in slot
12, port 1, to the DS3 network card in slot 11, port 1. Traffic originally directed through network
link 1 is still directed through this same network link and there is no increase in network traffic
load.
Two DS3 network cards are shown in the figure above—this is the only configuration possible.
Single Physical Link mode requires that two DS3 cards be used in the network interface
configuration and does not permit an OC3/DS3 network card combination. If an OC3/DS3
network card combination is required, then the network interface must be configured as a Dual
Physical Link.
FAILED
DS3 Card
DS3 Card
DS3 Card
DS3 Card
ADSL
Card
Slot 12
Slot 11
Slot 12
Slot 11
ADSL
Card
Backplane
Backplane
Before Switch-over
After Switch-over
Port 1 (Active)
Link 1
(Active)
Link 2
no network
connection
(Active)
Link 2
no network
connection
(Inactive)
Link 1
Port 2
Port 1
Port 2
Port 1
Port 2
Port 1
Port 2
Active port
(connection)
Inactive port
(connection) Inactive (no traffic)
Active (traffic)
Tx/Rx
Tx/Rx
Subtending Multiple Systems
86 AV8000 Installation Manual
SUBTENDING MULTIPLE SYSTEMS
Multiple systems can be implemented, viewed, and managed as if they were one system.
This type of management is known as subtending. To subtend, connect and configure Avidia
systems in one of two ways: a star configuration or a daisy chain configuration.
In either implementation, multiple systems connect to one system that aggregates the
transmission of all the attached systems and provides one network uplink. The aggregating
system is known as the subtending or source system and each of the systems connected to it are
known as the subtended or destination systems.
See the figure below for a representation of both daisy chained and star configured systems. In
the figure, the subtending systems in each configuration aggregate the transmissions of the
subtended systems and provide a network uplink via OC3 to the ATM Switch.
DS1
Daisy Chain Configuration
Star Configuration
DS1
DS1
ATM
Switch
Integrated
Access
Server
Internet
OC3
OC3
OC3
= Subscribers
DS1
DS1
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 87
In the deployment of xDSL services, subtending helps the service provider satisfy the
customer’s demand for bandwidth against the WAN trunk capacities. Subtending helps
to expand the availability of service more cost effectively and expand to the more remote
subscribers. Subtending services, offered by Avidia, are complemented by its ATM features and
provide benefits such as:
•optimizing the use of the more expensive WAN transmissions, such as DS1, DS3, and OC3,
by using only as much of the bandwidth as required
•incrementally adding bandwidth without changing the hardware (for example, 8xDS1 and
8xDSX-1 cards have eight separately configurable DS1 ports)
•using an Avidia system at the edge of the network (aggregates and provides uplink) rather
than using a third party switch
•concentrating data efficiently
•organizing the network through the use of VPCs and VCCs
•selecting ATM QoS classes to effectively groom traffic within the network
Set up subtending using AV8000, AV3000 and AV2200 systems. AV8000 and AV3000
systems can both subtend and be subtended while the AV2200 is typically a subtended system
and does not subtend other systems. Then, within these Avidia systems, use the cards listed in
the following table to set up the appropriate subtending or subtended interfaces. To subtend,
connect a subscriber-side interface of the subtending system to the network-side interface of the
subtended system. A network-side interface must be in slot 11 or 12 of an AV8000, in slot 2 or
3 of an AV3000 or in slot 1 of an AV2200 to provide a cell bus clock and cell bus arbiter clock
for the Avidia system. The network-side interface also provides either the network uplink
interface to the subtending system or the network interface from the subtended to the subtending
system.
Subtending Multiple Systems
88 AV8000 Installation Manual
Interface card Use interface cards in these Avidia systems: Maximum
number for
subtending
AV8000 AV6000 AV3000 AV2200
OC3
(AV311,
AV312,
AV313)
Slot 11 or 12 as a
network interface
Slots 2 - 10, 11 or 12
(slot that was not
used for the network
interface), or 13 - 21
as a subscriber
interface
Slot 9 or 10 as a
network interface
Slots 2 - 8, 9 or 10
(slot that was not
used for the network
interface), or 11-17
as a subscriber
interface
Slot 2 as a network
interface
Slots 3 - 5 as a
subscriber interface
N/A 3
DS3 (AV323) Slot 11 or 12 as a
network interface
Slot 11 or 12 (slot
that was not used for
the network
interface) as a
subscriber interface
Slot 9 or 10 as a
network interface
Slot 9 or 10 (slot that
was not used for the
network interface) as
a subscriber interface
Slot 2 as a network
interface
Slot 3 as a
subscriber interface
N/A 1
DS1 (AV351) Slots 2 - 10 or 13 - 21
as a subscriber
interface only
Slots 2 - 8 or 11-17as
a subscriber interface
only
Slot 2 as a network
interface
Slots 3 - 5 as a
subscriber interface
N/A 18
(AV8000)
3
AV3000)
14
(AV6000)
DSX-1
(AV353) Slot 11 or 12 as a
network interface
Slot 11 or 12
(whichever was not
the network
interface) as a
subscriber interface
N/A N/A N/A 1
DS1 network
management
card (AV351)
N/A N/A N/A Slot 1 as
a
network
interface
1
E1 Slots 2-9 and 13-21
Subscriber slots only
Slots 2-8 and 11-17
as a subscriber card
Slots 9 or 10 as a
network interface
Slot 2 as a network
interface
Slots 3-5 as a
subscriber interface
N/A 18
(AV8000)
4
AV3000)
16
(AV6000)
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 89
The implementation of subtending is described in these sections:
•“Star Management”on page 89
•“Daisy Chain Management”on page 93
Each section provides both the features of and the limitations for implementing each subtending
approach. You can also combine the star and daisy chain approaches to effectively implement
subtending.
Star Management
In a star configuration, you can attach up to three systems (subtended systems) directly to the
one system that connects on the edge of the network (subtending system). The subtending
system aggregates the traffic from the subtended systems, switches all the traffic (its own and
that of the subtended systems), and provides the network uplink. Features of this management
approach include:
•shorter segment costs rather than the longer length cost of a daisy chain
•more cost effective than running fiber optic cable to new areas or to areas with a small
number of subscribers
Each system, whether subtending or subtended, can connect to and manage subscriber traffic
(modems).
“Star Physical Implementation”on page 89 shows how to set up a star configuration using
Avidia systems. “Star Configuration”on page 92 shows how to configure the system to
implement the appropriate connections.
Star Physical Implementation
The relationship of subtending in a star configuration is shown in the following figure.
The example shows an OC3 interface as the network uplink for the entire subtended system. An
AV8000 or AV3000 is the subtending system. Three chassis are subtended and are at three
separate physical locations (sites). The subtending connection is through a DS1 link.
It is important to note that you cannot use the same card to subtend and be
subtended. For example, a DS1 card has eight ports; you cannot use one port
to subtend another port on the same card.
Subtending Multiple Systems
90 AV8000 Installation Manual
The following sections describe how to select cards for the various subtending connections. The
figures use the sample system shown above as an example.
Select the uplink card. Install one card for the
network uplink, such as the ATM switch shown to
the right, in the subtending system. The card must
reside in slot 11 or 12 for an AV8000 or slot 2 for an
AV3000. Select either a DS3, an OC3, or a
DS1/DSX-1 for an AV3000 or AV8000 system.
Select a card that accommodates the required
network uplink bandwidth for all the systems that are
aggregated by the subtending system. Ensure the
subtending system’s network uplink card is not a
bottleneck for traffic. For example, use an OC3 or
DS3 card for larger systems since these cards
provide greater bandwidth. Use a DS1/DSX-1 card for an initial implementation where Avidia
systems have only a few cards with the intention of expanding service in the future.
ATM
Switch
Integrated
Access
Server
Internet
OC3
DS1
Site B
Site C
DS1
DS1
Site A
= Subscribers
Network Uplink Connection
Subtending System
ATM
Switch
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 91
Select the subtending subscriber cards.
Install a card in the subscriber-side of the
subtending system for each system that will be
subtended, up to the maximum allowed number of
cards (see the table on page 88):
•DS1 that can be installed in any subscriber
card slot
•DSX-1 that can be installed in the second
network card slot
•DS3 that can be installed in the second
network card slot
•OC3 that can be installed in the second network card slot and in any two subscriber cards
slots
Select the subtended network cards.
Install a card in the network-side of the subtended
system (see the table on page 88)thatis
compatible with the card you selected in “Select
the subtending subscriber cards”above. For
example, if you select a DS1 card for subtending,
then use one of the following:
•8xDS1 card in slot 2 of a subtended AV3000
system
•DSX-1cardinslot11or12ofasubtended
AV8000 system
•8xDS1 network/management card in slot 1 of
a 2200
The network-side interface provides the network interface to the subtending system.
Card for subtending
Subtending System
ATM
Switch
To
Subtending
Cards
Subtending System
ATM
Switch
Subtended System Subtended System
12
AVIDIA3000
12
AVIDIA3000
Subtending Multiple Systems
92 AV8000 Installation Manual
Star Configuration
The following steps provide an overview of the required software configuration. See the Avidia
System Configuration and Management User Manual for configuration instructions.
1Create ATM profiles, if required, for the service you will supply.
2Configure service for each card that is subtending or subtended.
3Configure the required ATM connections.
4Configure UPC policing.
5If you are subtending systems using DS1/DSX-1 cards, set up the subtending relationships
using the command-line interface.
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 93
Daisy Chain Management
A daisy chain is a serial link (or cascaded link) of up to three systems that has one network
uplink connection and is viewed as one integrated system. A daisy chain is an approach for
managing systems to support subscribers who are physically separated by distance. The daisy
chain comprises:
•one system functioning on the edge of the network to aggregate and switch ATM
transmissions and provide the network uplink
•up to two systems functioning as access devices
Each system, whether subtending or subtended, can connect to and manage subscriber traffic
(modems).
“Daisy Chain Physical Implementation”on page 93 shows how to set up the daisy chain using
Avidia systems. “Daisy Chain Configuration”on page 95, shows how to configure the system
to implement the appropriate connections.
Daisy Chain Physical Implementation
The relationship of subtending in a daisy chain configuration is shown in the following figure.
Use two cards per system to connect a daisy chain. One card, used as a network-side interface,
connects to the next system upstream in the chain. Upstream connects toward the network
interface. The second card, used as a subscriber-side interface, connects to the next system
downstream in the chain.
The example shows an OC3 interface as the network uplink for the entire subtended system. An
AV8000 or AV3000 is the subtending system. The two chassis are subtended and are at two
separate physical locations (sites). The subtending connection is through a DS3 link.
OC3 ATM
Switch
Integrated
Access
Server
Internet
DS3 DS3
= Subscribers
Subtending Multiple Systems
94 AV8000 Installation Manual
Plan your daisy chain system considering these factors:
•Plan an alternate or second path (such as a SONET ring) to re-route traffic in the event of
afailureofanylinkinthedaisychain.
•Connect a maximum of three systems in the daisy chain, considering the maximum
distance allowed between system based on type of transmission.
The following sections describe how to select cards for the various subtending connections.
The figures show selection examples using the same system shown on page 93.
Select the uplink card. Install one card for the
network uplink in the subtending system. The card
must reside in slot 11 or 12 for an AV8000 or slot 2
for an AV3000. Select either a DS3, an OC3, or a
DS1/DSX-1 for an AV3000 or AV8000 system.
Select a card that accommodates the required
network uplink bandwidth for all the systems that are
aggregated by the subtending system. Ensure that the
subtending system’s network uplink card is not a
bottleneck for traffic. For example, use an OC3 or
DS3 card for larger systems since these cards
provide greater bandwidth. Use a DS1/DSX-1 card
for an initial implementation where Avidia systems have only a few cards with the intention of
expanding service in the future.
Select the subtending subscriber card.
Install a card in the subscriber-side of each of the
first two systems that are subtending the
downstream system, up to the maximum allowed
number of cards (see the table on page 88):
•DS1 that can be installed in any subscriber
card slot
•DSX-1 that can be installed in the second
network card slot
•DS3 that can be installed in the second
network card slot
•OC3 that can be installed in the second network card slot and in any two subscriber cards
slots
Network Uplink Connection
Subtending System
ATM
Switch
Card for subtending
Subtending System
ATM
Switch
Chapter 8: System Configuration for Special Applications
AV8000 Installation Manual 95
Select the subtended network cards.
Install a card in the network-side of the two
subtended systems (see the table on page 88)that
is compatible with the card you selected in “Select
the subtending subscriber card”on page 94.For
example, if you select a DS1 card for subtending,
then use one of the following:
•8xDS1 card in slot 3 of a subtended AV3000
system
•DSX-1cardinslot11or12ofasubtended
AV8000 system
•8xDS1 network/management card in slot 1 of
a subtended 2200.
The network-side interface provides the network interface to the subtending system.
Daisy Chain Configuration
The following steps provide an overview of the required software configuration. See the Avidia
System Configuration and Management User Manual for configuration instructions.
1Create ATM profiles, if required, for the service you will supply.
2Configure service for each card that is subtending or subtended.
3Configure the required ATM connections.
4Configure UPC policing.
5If you are subtending systems using DS1/DSX-1 cards, set up the subtending relationships
using the command-line interface.
Subtending Channel-Side Card
Subtending Line-Side Card
Subtending Multiple Systems
96 AV8000 Installation Manual
AV8000 Installation Manual 97
9
MAINTENANCE
This chapter provides maintenance procedures for removing and replacing system components.
You can remove and replace any card, the fan tray, and the air filter on the AV8000 system
while the system is under power (hot swap). This means that the AV8000 is still in service when
you remove and replace any of these modules.
See these sections for maintenance procedures:
•removing and replacing cards, as described on page 98
•removing and replacing the fan tray, as described on page 103
•removing and replacing the air filter, as described on page 105
Never attempt to repair parts or modules yourself. Return all defective modules
to ADC for repair. See “Technical Assistance”on page 195
Always wear an antistatic wrist strap when removing and replacing
components in the AV8000. Refer to the section “Attaching an ESD Wrist Strap
to Chassis”on page 16.
NEVER power-up a fully loaded chassis. In all cases, remove all cards,
power-up the chassis, and then insert the cards one at a time.
Removing and Replacing a Card
98 AV8000 Installation Manual
REMOVING AND REPLACING A CARD
Use the following procedures to remove and replace the following:
•management or subscriber card (page 99)
•network card (page 99)
After installing the new card, refer to the Avidia System Configuration and Management User
Manual. If you are replacing the card with an identical card, see information on system
maintenance and administration for downloading the appropriate image file to the new card.
If you are replacing the card with a different card, see information on how to configure the new
card by using either the Command-Line Interface or the Web Interface. You can also perform
these functions using the StarGazer EMS software.
The figure below shows an example of removal and replacement of any card.
You must wear an antistatic wrist strap connected to the ESD jack on the
AV8000 chassis to perform the installation procedures. You must also observe
normal ESD precautions when handling electronic equipment. Do not hold
electronic plugs by their edge. Do not touch components or circuitry.
1234
Card
Avidia 8000
chassis
PairGain
Retaining latch
Retaining latch
Captive screw
Chapter 9: Maintenance
AV8000 Installation Manual 99
Remove and Replace a Management or a Subscriber Card
The management card resides in slot 1 of the AV8000 chassis. The xDSL subscriber cards
resideinslots2through10and13through21oftheAV8000chassis.
Remove a management or subscriber card:
1Loosen the captive screw on the top retaining latch.
2Lift open the top and bottom retaining latches.
3Grasp the card by the front panel.
4Carefully slide the card out of the slot.
Replace a management or subscriber card:
1Slide the card into the appropriate slot, using the guide rails. (See Chapter 6 on page 53 for
slot assignments.) Ensure the retaining latches are lifted open.
2Push the card into the slot until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.
Remove and Replace a Network Card
Network cards reside in slots 11 and 12. The 8xDS1 network cards function only in subscriber
card slots.
Removing and Replacing a Card
100 AV8000 Installation Manual
Network Cards Except OC3 Network Cards
Remove a network card that is not an OC3 card:
1Loosen the captive screw on the top retaining latch.
2Lift open the top and bottom retaining latches.
3Grasp the card by the front panel, and carefully slide the card out of the slot.
Replace a network card that is not an OC3 card:
1Slide the card into the appropriate slot, using the guide rails. (See Chapter 6 on page 53 for
slot assignments.) Ensure the retaining latches are lifted open.
2Push the card in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.
OC3 Network Cards
Remove an OC3 network card:
1Disconnect the fiber-optic cable:
aLoosen the OC3 network card safety cover captive screw and remove the safety cover.
bRemove the fiber-optic cable connectors from the primary SC fiber connector as
shown in the figure on page 102.
cLift the cable(s) away from components on the side of the card.
dReinstall the OC3 network card safety cover, and tighten the captive screw.
2Loosen the captive screw on the top retaining latch.
3Lift open the top and bottom retaining latches.
4Grasp the card by the safety cover.
5Slide the card out of the slot carefully.
Install an OC3 network card:
Do not look directly at the fiber-optic ports on the front of the OC3 network card
or into the end of any fiber-optic cable. Ensure you select the appropriate
fiber-optic cable for either a multimode or single mode transceiver.
Chapter 9: Maintenance
AV8000 Installation Manual 101
1Slide the network card into the slot (11 or12), using the guide rails. Ensure that the retaining
latches are lifted open.
2Push the card in until the retaining latches touch the AV8000 chassis.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.
5Install fiber-optic cable:
aLoosen the OC3 network card safety cover captive screw, and remove the safety cover.
bInstall the fiber-optic cable connectors into the primary SC fiber connector as shown
below. On each SC connector, the top port is for the transmit (Tx) signal and the
bottom port is for the receive (Rx) signal.
cRoute the cable(s) along the side of the card.
dReinstall the OC3 network card safety cover and tighten the captive screw.
Do not look directly at the fiber-optic ports on the front of the OC3 network card
or into the end of any fiber-optic cable. Ensure that you select the appropriate
fiber-optic cable for either a multimode or single mode transceiver.
Removing and Replacing a Card
102 AV8000 Installation Manual
OC3 line card
Safety cover
Captive screw
Tx
Secondary SC connector
(reserved)
Primary SC connector
Rx
FAULT
APS
TX1
RX1
SYNC1
TX2
RX2
SYNC2
POWER
Fiber optic cable
(To ATM network)
WARNING:
REINSTALL THIS SAFETY
COVER AFTER SERVICING
Chapter 9: Maintenance
AV8000 Installation Manual 103
REMOVING AND REPLACING THE FAN TRAY
You can replace the fan tray with a spare fan tray (PN 150-1999-xx) while the AV8000 chassis
is under power. The unit can operate for short periods of time without the fan tray.
Remove the fan tray:
1Use a Phillips screwdriver to loosen the two captive screws on the right and left edges of
the fan tray front bezel.
2Grasp the edges of the front bezel, and pull the fan tray from the chassis. This disconnects
the power connector for the fan tray from the backplane.
Remove the defective fan tray. If you remove a defective fan tray, you should
insert a replacement fan tray immediately. Otherwise the AV8000 could
overheat.
Do not place your fingers near the fan blades when removing the fan tray.
Removing and Replacing the Fan Tray
104 AV8000 Installation Manual
Replace the fan tray:
1Push the fan tray front bezel toward the chassis to install the fan tray. This connects the
power connector for the fan tray to the backplane.
2Use a Phillips screwdriver to tighten the two captive screws on the right and left edges of
the front bezel.
Chassis
Fan tray
1234
Chapter 9: Maintenance
AV8000 Installation Manual 105
REMOVING AND REPLACING THE AIR FILTER
The air filter should be periodically changed to maintain proper air flow in the AV8000 chassis.
It is recommended that you change the air filter every six months or more often if necessary.
Access the filter through the fan tray.
Remove the air filter:
1Use a Phillips screwdriver to loosen the two captive screws on the right and left edges of
the fan tray front bezel.
2Grasp the edges of the front bezel, and pull the fan tray from the chassis. This disconnects
the power connector for the fan tray from the backplane.
3Grasp the edge of the air filter and pull it from the chassis.
Replace the air filter and reinstall the fan tray immediately after removing them.
Do not place your fingers near the fan blades when removing the fan tray.
Removing and Replacing the Air Filter
106 AV8000 Installation Manual
Replace the air filter:
1Insert the air filter into the chassis using the guide rails.
2Push the fan tray front bezel toward the chassis to install the fan tray. This connects the
power connector for the fan tray to the backplane.
3Use a Phillips screwdriver to tighten the two captive screws on the right and left edges of
the fan tray front bezel.
Chassis
Fan tray
Filter
1234
AV8000 Installation Manual 107
10
ADSL VOICE SHELVES AND
POTS SPLITTERS
ADDING VOICE SHELF CAPABILITY TO THE AV8000
ADSL Voice Shelf capabilities may be added to the AV8000 chassis. Although the AV8100 is
described in detail in the following sections, ADC also manufactures a number of other voice
shelves and POTS splitter cards which may also be connected to the AV8000 to provide voice
capabilities.
For information about: Go to page:
ADC BroadWire ADSL Voice Shelf Products 108
Unpacking and Inspecting the Avidia AV8100 ADSL Voice Shelf 112
Installing the Avidia 8100 ADSL Voice Shelf 112
Install the ADSL voice shelf Into the Rack 113
Connect ADSL For Data and POTS 116
Connect AV8000 to the AV8100 Voice Shelf 118
Connect AV8100 Voice Shelf to Voice Switch 122
Connect AV8100 Voice Shelf to the MDF (POTS and Data) 124
The Avidia AV8100 Voice Shelf 111
Installing Cards into the AV8100 126
AV8100 System Specifications 127
ADC BroadWire ADSL Voice Shelf Products
108 AV8000 Installation Manual
ADC BROADWIRE ADSL VOICE SHELF PRODUCTS
ADC manufactures a number of ADSL Voice Shelves for use in North America and throughout
the world. Please contact ADC for detailed information regarding any of these products.
Effective ADSL deployment challenges service providers to maximize valuable floor space and
maintain network integrity. High circuit density and sound cable management is vital, as is the
ability to accommodate varying voice and data frequency specifications. A patent-pending
cable management design and high circuit density allows the BroadWire line of splitters to fully
satisfy these requirements, preparing service providers for equipment co-location and line
sharing mandated by industry deregulation.
The BroadWire120 ADSL Splitter
The BroadWire120 ADSL splitter is a high-density splitter platform designed for 300 mm.ETSI
cabinets, supporting up to 120 circuits in a compact footprint. The BroadWire 120 splitter
enables service providers to broaden the use of existing copper infrastructure, providing
high-speed ADSL and telephony services over a single twisted pair of copper wires. The
BroadWire120 also supports ADSL over ISDN splitting with custom filter designs for 2B1Q
and 4B3T line encoding techniques.
Features:
•High-density splitter platform manages up to 120 circuits per chassis
•Front-facing platform integrates in standard 300 mm ETSI equipment cabinets
•Holds CE Mark and UL1950 certification, optimized for international deployment
•POTS (T1.413) or ADSL over ISDN (2B1Q) and custom billing tone/network impedance
filter designs available
Worldwide North America
•BroadWire 240 Chassis • BroadWire 528 Chassis
•BroadWire 120 Chassis • BroadWire 288 Chassis
•BroadWire 24 MDU Chassis •BroadWire 24 MDU Chassis
••Avidia AV8100 Chassis
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 109
The BroadWire 240 ADSL Splitter
The BroadWire240 ADSL splitter is a high density ETSI-compatible splitter platform,
supporting up to 240 circuits in a compact footprint. The BroadWire 240 splitter enables service
providers to broaden the use of existing copper infrastructure, providing high-speed ADSL and
telephony services over a single twisted pair of copper wires. The BroadWire 240 also supports
ADSL over ISDN splitting with a custom filter design for 2B1Qand 4B3T line encoding.
Features:
•High-density splitter platform manages 240 circuits per chassis
•Front-facing platform integrates in standard ETSI equipment racks
•Holds CE Mark and UL1950 certification, optimized for international deployment
•POTS (1.413) or ADSL over ISDN (2B1Q) and custom billing tone/network impedance
filter designs available
The BroadWire 528 ADSL Splitter
The BroadWire 528 ADSL splitter is a high density splitter platform, supporting 528 circuits in
a compact footprint. The BroadWire 528 splitter enables service providers to broaden the use of
existing copper infrastructure, providing high-speed ADSL and telephony services over a single
twisted pair of copper wires. The BroadWire 528 also supports ADSL over ISDN with a custom
2B1Q filter design.
Features:
•High-density splitter platform manages up to 528 circuits per chassis
•Rear-cabled platform integrates in standard 23" EIA/WECO equipment racks
•NEBS Level 3, Type 1 and UL 1950 certified and optimized for North American
deployment
•POTS (T1.413) or ADSL over ISDN (2B1Q) filter designs available
The BroadWire 288 ADSL Splitter
The BroadWire 288 ADSL splitter is a high density splitter platform, supporting 288 circuits in
a compact footprint. The BroadWire 288 splitter enables service providers to broaden use of
existing copper infrastructure, providing high-speed ADSL and telephony services over a single
twisted pair of copper wires. The BroadWire 288 also supports ISDN splitting, with custom
filter designs for 2B1Q and 4B3T line encoding techniques.
Features:
ADC BroadWire ADSL Voice Shelf Products
110 AV8000 Installation Manual
•High density splitter platform manages up to 288 lines per chassis
•Front-facing platform integrates in standard 23" EIA/WECO equipment racks
•NEBS certified and optimized for domestic deployment
•T1.413, 2B1Q or 4B3T ISDN filter designs available
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 111
THE AVIDIA AV8100 VOICE SHELF
The Avidia AV8100 Voice Shelf is described in detail in the sections that follow. Although a
full installation procedure is provided, this should ne be construed to indicate that this is the only
voice shelf that may be used with the AV8000. Any of the ADC voice shelves described above
may be used with this product. Please contact your ADC representative for more information
regarding these products.
The POTS splitter card in the AV8100 voice shelf combines the incoming ADSL data from the
AV8000 integrated access concentrator with the analog voice signal (POTS) from a voice
switch. This multiplexed ADSL data stream is sent to the subscriber.
From the subscriber, the POTS splitter card receives multiplexed ADSL data from the
subscriber. This data stream is split into two signals: ADSL digital data and POTS voice signals.
The POTS splitter card sends the voice signal to the voice switch and the ADSL data to the
AV8000 integrated access concentrator
Some features of the AV8100 voice shelf are:
•20 card slots
•protection ground
•interfaces for ADSL data in, POTS, and ADSL data stream out
•12 ADSL ports per POTS splitter card—240 ports total
The AV8100 voice shelf mounts in a 23-inch, 7-foot Telco rack. You can install up to seven
POTS splitter shelves in a Telco rack. Allow adequate space for cabling
The Avidia AV8100 Voice Shelf
112 AV8000 Installation Manual
Unpacking and Inspecting the Avidia AV8100 ADSL Voice Shelf
Each Avidia 8100 ADSL voice shelf ships in a protective carton. The voice Network Cards ship
separately from the chassis. Upon receipt of the system components, verify the contents and the
condition:
1Open each carton and remove all enclosed packing materials. Save the packing materials
in case you need to repack the card later.
2Visually inspect the chassis for signs of damage. If the equipment has been damaged in
transit, immediately report the extent of the damage to the transportation company and to
your sales representative. Order replacement equipment if necessary.
3Check the contents of each shipping carton against the packing list. Ensure a complete and
accurate shipment. If the shipment is short or irregular, contact your sales representative.
If you must store the equipment for a prolonged period, store the equipment in its original
protective shipping carton.
The shipping carton contains six panhead mounting screws (12-24 x 1/2inch) for installing the
voice shelf into a 23-inch Telco rack using a Phillips screwdriver.
Installing the Avidia 8100 ADSL Voice Shelf
The AV8100 ADSL voice shelf mounts in a 23-inch, 7-foot Telco rack. You can install up to
seven voice shelves in a Telco rack. Or, you can install the AV8100 ADSL voice shelf in the
same rack as the AV8000 chassis. Allow adequate space for cabling. The table below shows
chassis dimensions and minimum clearances when installing multiple AV8100 ADSL
voice shelves.
When you install a voice shelf in the same 7-foot Telco rack with an AV8000
shelf, ensure that you provide 0.5-inch (12.70-mm) required minimum clearance
between the bottom of the AV8000 chassis and the AV8100 ADSL voice shelf.
Weight 21 lbs (9.53 kg)
Height 10.60 inches (269.24 mm)
(requires 7U space)
Depth 11.75 inches (298.45 mm)
Width 23.00 inches (584.2 mm)
Clearance between
chassis None required (zero clearance)
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 113
Two versions of the AV8100 ADSL voice shelf backplane are available:
•the 150-1912-01 version of the backplane has FutureBus interface connectors
•the 150-1912-02 version of the backplane has wire-wrap pins.
Install the Avidia 8100 ADSL voice shelf following the procedures in the order given.
•Install the ADSL voice shelf as described on this page.
•Connect the Frame Ground to the ADSL voice shelf, as described on page 115.
Installation Kit
The AV8100 installation kit contains six 12-24 x 1/2inch panhead Phillips screws for installing
the voice shelf into a 23-inch Telco rack.
Install the ADSL voice shelf Into the Rack
Install the shelf into a standard 23-inch, 7-foot Telco rack. You can install up to seven voice
shelves in a 7-foot Telco rack, or you can install the voice shelf in the same rack as the AV8000
chassis. The ADSL voice shelf has the rack adapters attached to the shelf for a mid-mount in the
rack (where the front of the chassis extends in front of the rack). You can change the position
of the rack adapters to front-mount the chassis in the rack (where the front of the chassis is flush
with the rack).
Install the AV8100 voice shelf into the Telco rack:
1If you choose to move the rack adapter for a front-mount of the AV8100 voice shelf:
aRemove the rack adapter from the voice shelf.
bRotate the rack adapter 180 degrees, so that the mounting tab is in the position
shown on page 114 for a front mount.
cInstall five 8-32 x 1/4inch panhead SEMS screws and tighten, using a Phillips
screwdriver.
dRepeat Step a through Step c for the second rack adapter.
The Avidia AV8100 Voice Shelf
114 AV8000 Installation Manual
2Ensure that the rack adapters are securely attached to each side of the voice shelf.
3Position the voice shelf in the rack.
Rack adapter
(mid-mount)
Avidia 8100 (side view)
Rack adapter
(front-mount)
Rack
adapter Rack
adapter
AVCC 20AVCC 19AVCC 18AVCC 1 7AV CC 1 6AVCC 15AVC C 14AVCC 13AV CC 12AVC C 11AVCC 1 0AVCC 9AVCC 8AV CC 7AVCC 6AVCC 5AVCC 4AVCC 3AVCC 2AVCC 1
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 115
4Align the voice shelf rack adapter holes with the Telco rack vertical mounting holes.
5Secure the rack adapter by inserting six 12-24 x 1/2inch panhead screws and tighten by
using a Phillips screwdriver.
Connect the Frame Ground
Connect the voice shelf frame ground:
1Using wire cutters with insulated handle, strip 0.5 inch (13 mm) of insulation from both
ends of the ground wire.
2Insert one end of the frame ground wire into the voice shelf frame GND lug, and tighten
the screw. Ensure that the ground wire has a secure connection.
3Connect the other end of the frame ground wire to the CO ground termination point or
building frame ground. Ensure that the ground wire has a secure connection.
Follow local grounding practice to ensure a good frame ground connection to
the AV8100 voice shelf. The frame ground is required for secondary voltage
protection.
Recommendation: Aminimum6AWG(4.75mmindiameter)stranded
copper wire with a maximum wire length of 5 feet (1.52 m).
Electrical and mechanical shock hazards are present throughout the system.
Only qualified personnel should service the system.
Do not install cards in the AV8100 voice shelf at this time. You will install cards
into the voice shelf in Chapter 6.
The Avidia AV8100 Voice Shelf
116 AV8000 Installation Manual
Connect ADSL For Data and POTS
The table below describes the interchassis connection cables used for connecting the AV8000
chassis to the AV8100 ADSL voice shelf. See “AV8100 Subscriber Interface Cables”on
page 135 in Appendix B for more information.
The figure below shows an overview of how to connect ADSL subscriber lines that carry both
data and POTS. To accomplish this, connect the ADSL subscriber card (AV541 without line
protection) interface on the AV8000 to the AV8100 voice shelf. Connect the AV8100 voice
shelf to a voice switch. The data from the AV8000 ADSL card and POTS from the voice switch
are multiplexed by the POTS splitter card. Finally, connect the AV8100 voice shelf to the MDF
for a combined transmission of data and POTS to the customer.
Item Description Used For
Cable assembly
(ADC
PN 120-1233-xx)
Cable assembly, with two 25-pair
champ connectors on one end
and two 48-position FutureBus
connectors on the other end
Connects two Network Card 25-pair champ
connectors on the AV8000 chassis backplane to two
voice Network Card FutureBus connectors (ADSL_IN)
on the voice shelf backplane.
Cable assembly
(ADC
PN 120-1227-xx)
Cable assembly, with one 25-pair
champ connector on one end and
two 48-position FutureBus
connectors on the other end
Connects two ADSL voice shelf Network Cards using
the FutureBus connectors to the CO MDF using the
25-pair champ connector for ADSL_OUT.
Also, connects two ADSL voice shelf Network Cards
using the FutureBus connectors to a voice switch
using the 25-pair champ connector for POTS.
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 117
Avidia 8000
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
3S5
LINE ALINE B
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25 1
25
50
1
26
25
50
1
26
25
50
1
26
Cable PN 120-1233-
xx
ADSL data in from Avidia 8000
to voice shelf connectors
Subscriber ADSL connectors
to MDF
POTS connectors
to MDF voice switch
xDSL interface
connectors
Avidia 8100
Cable PN 120-1227-
ADSL to MDF for
subscriber interface
xx
Cable PN 120-1227-
POTS to voice switch
xx
The Avidia AV8100 Voice Shelf
118 AV8000 Installation Manual
Connect AV8000 to the AV8100 Voice Shelf
Connect the ADSL subscriber card (AV541 without line protection) in the AV8000 chassis to
the AV8100 voice shelf using the following procedure and your local practice.
1Connect the 25-pair champ connector on the cable to the appropriate ADSL subscriber card
interface (S2 through S10 and S13 through S21) on the AV8000 backplane.
2Use a tie wrap to secure the cable for each champ connector to the tie points located below
the connectors.
Recommendation:
•For an AV8100 with FutureBus connectors (PN 150-1912-01), use ADC
PN 120-1233-xx cable (or equivalent) to connect an AV8000 ADSL
interface (champ connector) to the AV8100 (FutureBus connector). See
page 136 for cable details.
•For an AV8100 with wire-wrap pins (PN 150-1912-02), use a category 3
or 5 interface cable with a 25-pair Amp PN 229913-1 champ connector
(or equivalent) for connection to the AV8000 and wire with insulation
stripped 1.5 inches (38 mm) for connection to the AV8100.
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 119
3Connect the other end of the cable (either FutureBus connector or stripped wire) to
ADSL_IN on the AV8100 ADSL voice shelf backplane, as shown in the figure below and
the table on page 121.
4Repeat Step 1 through Step 3 to connect all other ADSL subscriber cards in the AV8000
chassis to corresponding ADSL_IN interfaces for ADSL POTS splitter cards in the voice
shelf.
See “AV8100 Connector Pinouts”on page 128 for a detailed list of pinouts.
Also, see the diagram and table on page 136 for details of the PN 120-1233-xx
cable.
Champ connector
Champ connector for
subscriber interface
S2
S3
S4
The Avidia AV8100 Voice Shelf
120 AV8000 Installation Manual
Voice channel unit
slot 20 (PX40) Voice channel unit
slot 1 (PX21)
PX21
ADSL IN
ADSL
Data In (from
Avidia 8000
CU1-CU18)
T
J0101 J0102
J0123 J0124
RPort 12
Port 1
Port 12
Port 1
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 121
ADSL_IN from AV8000 AV8100 Voice shelf slot
12345678910
FutureBus
connector PX21 PX22 PX23 PX24 PX25 PX26 PX27 PX28 PX29 PX30
Wire-wrap pins
Tip
(left pin) J0101
to
J0123
J0201
to
J0223
J0301
to
J0323
J0401
to
J0423
J0501
to
J0523
J0601
to
J0623
J0701
to
J0723
J0801
to
J0823
J0901
to
J0923
J1001
to
J1023
Ring
(right pin) J0102
to
J0124
J0202
to
J0224
J0302
to
J0324
J0402
to
J0424
J0502
to
J0524
J0602
to
J0624
J0702
to
J0724
J0802
to
J0824
J0902
to
J0924
J1002
to
J1024
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX31 PX32 PX33 PX34 PX35 PX36 PX37 PX38 PX39 PX40
Wire-wrap pins
Tip
(left pin) J1101
to
J1123
J1201
to
J1223
J1301
to
J1323
J1401
to
J1423
J1501
to
J1523
J1601
to
J1623
J1701
to
J1723
J1801
to
J1823
J1901
to
J1923
J2001
to
J2023
Ring
(right pin) J1102
to
J1124
J1202
to
J1224
J1302
to
J1324
J1402
to
J1424
J1502
to
J1524
J1602
to
J1624
J1702
to
J1724
J1802
to
J1824
J1902
to
J1924
J2002
to
J2024
The Avidia AV8100 Voice Shelf
122 AV8000 Installation Manual
Connect AV8100 Voice Shelf to Voice Switch
Connect the AV8100 voice shelf to the MDF for voice switching using the following procedure
and your local practice.
1Connect either the FutureBus connector or stripped wire on the cable to the AV8100 ADSL
voice shelf backplane POTS connectors (see the figure and table on page 123).
2Connect the other end of each cable to the CO MDF for voice switching using a standard
punch panel, a champ connector, or other suitable means.
3Repeat Step 1 and Step 2 to connect all other ADSL POTS splitter cards in the AV8100
voice shelf to the CO MDF.
Recommendation:
•For an AV8100 with FutureBus connectors (PN 150-1912-01), use ADC
PN 120-1227-xx cable (or equivalent) to connect an AV8100 (FutureBus
connector) the voice switch (champ connector). See page 136 for cable
details.
•For an AV8100 with wire-wrap pins (PN 150-1912-02), use a category 3
or 5 interface cable with a 25-pair Amp PN 229913-1 champ connector (r
equivalent connector, wire, or other local practice) for connection to the
voice switch and wire with insulation stripped 1.5 inches (38 mm) for
connection to the AV8100.
See “AV8100 Connector Pinouts”on page 128 for a detailed list of pinouts and
the diagram and table on page 136 for details of the PN 120-1227-xx cable.
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 123
ADSL POTS to voice switch AV8100 Voice shelf slot
12345678910
FutureBus
connector PX61 PX62 PX63 PX64 PX65 PX66 PX67 PX68 PX69 PX70
Wire-wrap pins
Tip
(left pin) J0149
to
J0171
J0249
to
J0271
J0349
to
J0371
J0449
to
J0471
J0549
to
J0571
J0649
to
J0671
J0749
to
J0771
J0849
to
J0871
J0949
to
J0971
J1049
to
J1071
Ring
(right pin) J0150
to
J0172
J0250
to
J0272
J0350
to
J0372
J0450
to
J0472
J0550
to
J0572
J0650
to
J0672
J0750
to
J0772
J0850
to
J0872
J0950
to
J0972
J1050
to
J1072
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX71 PX72 PX73 PX74 PX75 PX76 PX77 PX78 PX79 PX80
Wire-wrap pins
Tip
(left pin) J1149
to
J1171
J1249
to
J1271
J1349
to
J1371
J1449
to
J1471
J1549
to
J1571
J1649
to
J1671
J1749
to
J1771
J1849
to
J1871
J1949
to
J1971
J2049
to
J2071
Ring
(right pin) J1150
to
J1172
J1250
to
J1272
J1350
to
J1372
J1450
to
J1472
J1550
to
J1572
J1650
to
J1672
J1750
to
J1772
J1850
to
J1872
J1950
to
J1972
J2050
to
J2072
Voice channel unit
slot 20 (PX80) Voice channel unit
slot 1 (PX61)
POTS
(to MDF voice
switch)
PX61
POTS
T
J0149 J0150
J0171 J0172
RPort 12
Port 1
Port 12
Port 1
The Avidia AV8100 Voice Shelf
124 AV8000 Installation Manual
Connect AV8100 Voice Shelf to the MDF (POTS and Data)
Connect the AV8100 voice shelf to the MDF for transmitting combined data and POTS to the
customer using the following procedure and your local practice.
1Connect either the FutureBus connector or stripped wire on the cable to the AV8100 ADSL
voice shelf backplane ADSL_OUT connectors (see the figure and table on page 125).
2Connect the other end of each cable to the CO MDF for ADSL using a standard punch
panel, a champ connector, or other suitable means.
3Repeat Step 1 and Step 2 to connect all other ADSL POTS splitter cards in the AV8100
voice shelf to the MDF.
Recommendation:
•For an AV8100 with FutureBus connectors (PN 150-1912-01), use ADC
PN 120-1227-xx cable (or equivalent) to connect an AV8100 (FutureBus
connector to MDF (champ connector). See page 136 for cable details.
•For an AV8100 with wire-wrap pins (PN 150-1912-02), use a category 3
or 5 interface cable with a 25-pair Amp PN 229913-1 champ connector
(equivalent connector, wire, other local practice) for connection to the
MDF and wire with insulation stripped 1.5 inches (38 mm) for connection
to the AV8100.
See “AV8100 Connector Pinouts”on page 128 for a detailed list of pinouts and
the diagram and table on page 137 for details of the PN 120-1227-xx cable.
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 125
ADSL_OUT to subscriber AV8100 Voice shelf slot
12345678910
FutureBus
connector PX41 PX42 PX43 PX44 PX45 PX46 PX47 PX48 PX49 PX50
Wire-wrap pins
Tip
(left pin) J0125
to
J0147
J0225
to
J0247
J0325
to
J0347
J0425
to
J0447
J0525
to
J0547
J0625
to
J0647
J0725
to
J0747
J0825
to
J0847
J0925
to
J0947
J1025
to
J1047
Ring
(right pin) J0126
to
J0148
J0226
to
J0248
J0326
to
J0348
J0426
to
J0448
J0526
to
J0548
J0626
to
J0648
J0726
to
J0748
J0826
to
J0848
J0926
to
J0948
2
J1026
to
J1048
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX51 PX52 PX53 PX54 PX55 PX56 PX57 PX58 PX59 PX60
Wire-wrap pins
Tip
(left pin) J1125
to
J1147
J1225
to
J1247
J1325
to
J1347
J1425
to
J1447
J1525
to
J1547
J1625
to
J1647
J1725
to
J1747
J1825
to
J1847
J1925
to
J1947
J2025
to
J2047
Ring
(right pin) J1126
to
J1148
J1226
to
J1248
J1326
to
J1348
J1426
to
J1448
J1526
to
J1548
J1626
to
J1648
J1726
to
J1748
J1826
to
J1848
J1926
to
J1948
J2026
to
J2048
Subscriber
ADSL
Datastream
(to MDF)
Voice channel unit
slot 20 (PX60) Voice channel unit
slot 1 (PX41)
PX41
ADSL OUT
T
J0125 J0126
J0147 J0148
RPort 12
Port 1
Port 12
Port 1
The Avidia AV8100 Voice Shelf
126 AV8000 Installation Manual
Installing Cards into the AV8100
Install up to 20 ADSL POTS splitter cards in the AV8100 voice shelf, as described below in
“Installing Cards into the AV8100.”
Install the ADSL POTS splitter cards into any slot in the AV8100 voice shelf:
1Slide the ADSLPOTS splitter card into a chassis slot. Ensure the retaining latches are lifted
open.
2Push the card in until the retaining latches touch the AV8100 voice shelf.
3Gently close the retaining latches until they snap in place.
4Tighten the captive screw on the top retaining latch.
5Repeat Step 1 through Step 4 to install other ADSL POTS splitter cards.
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 127
AV8100 SYSTEM SPECIFICATIONS
The AV8100 voice shelf fits into a standard 23-inch Telco rack and comprises two parts:
•voice shelf chassis with:
–20 card slots
–protection ground
–interfaces for ADSL data in, POTS, and ADSL data stream out
•up to 20 ADSL POTS splitter cards
The POTS splitter card, in the AV8100 voice, combines the incoming ADSL data from the
AV8000 integrated access concentrator with the analog voice signal (POTS) from a voice
switch. This multiplexed ADSL data stream is sent to the subscriber.
From the subscriber, the POTS splitter card receives multiplexed ADSL data from the
subscriber. This data stream is split into two signals: ADSL digital data and POTS voice signals.
The POTS splitter card sends the voice signal to the voice switch and the ADSL data to the
AV8000 integrated access concentrator.
ADSL VOICE SHELF SPECIFICATIONS
The AV8100 voice shelf mounts in a 23-inch, 7-foot Telco rack. You can install up to seven
POTS splitter shelves in a Telco rack. Allow adequate space for cabling.
The following table shows chassis dimensions.
ADSL data IN and POTS are intra-building lines and do not connect to outside
metallic tip and ring lines.
Power None (Passive Device)
Size
Height 12.22 inches (310.39 mm)
Width (with mounting brackets) 23.00 inches (584.20 mm)
Width (without mounting brackets) 21.03 inches (534.16 mm)
Depth 11.75 inches (298.45 mm)
ADSL Voice Shelf Specifications
128 AV8000 Installation Manual
An AV8100 voice shelf can accommodate up to 20 POTS splitter cards. A POTS delivery is
provided through the AV8100 voice shelf. The figure below shows the interfaces on the voice
shelf chassis backplane. Two versions of the AV8100 voice shelf are available:
•The 150-1912-01 version of the backplane has Future Bus interface connectors.
•The 150-1912-02 version of the backplane has wire-wrap pins.
AV8100 Connector Pinouts
The following tables show detailed pinouts for connection between:
•AV8000 and AV8100 (ADSL_IN), shown on this page
•AV8100 to MDF voice switch for POTS (ADSL_POTS), shown on page 131
Weight 21 lbs (9.53 kg)
Ambient Operating Temperature +32 °F to +122 °F (0 °C to +50 °C)
Relative Humidity 10% to 85% (non-condensing)
5% to 90% (non-condensing) short term
(period not exceeding 96 consecutive hours
and a total of 15 days in one year)
ADSL voice channel units
(1-20)
Frame GND
POTS from MDF
voice switch
Subscriber ADSL
data out (multiplexed
ADSL data and POTS)
ADSL data in
from Avidia 8000
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 129
•AV8100 to MDF for transmission to subscriber (ADSL_OUT), shown on page 133
ADSL_IN from AV8000 AV8100 voice shelf slot
12345678910
FutureBus
connector PX21 PX22 PX23 PX24 PX25 PX26 PX27 PX28 PX29 PX30
Wire-wrap pins
Tip
(left pin) J0101
J0103
J0105
J0107
J0109
J0111
J0113
J0115
J0117
J0119
J0121
J0123
J0201
J0203
J0205
J0207
J0209
J0211
J0213
J0215
J0217
J0219
J0221
J0223
J0301
J0303
J0305
J0307
J0309
J0311
J0313
J0315
J0317
J0319
J0321
J0323
J0401
J0403
J0405
J0407
J0409
J0411
J0413
J0415
J0417
J0419
J0421
J0423
J0501
J0503
J0505
J0507
J0509
J0511
J0513
J0515
J0517
J0519
J0521
J0523
J0601
J0603
J0605
J0607
J0609
J0611
J0613
J0615
J0617
J0619
J0621
J0623
J0701
J0703
J0705
J0707
J0709
J0711
J0713
J0715
J0717
J0719
J0721
J0723
J0801
J0803
J0805
J0807
J0809
J0811
J0813
J0815
J0817
J0819
J0821
J0823
J0901
J0903
J0905
J0907
J0909
J0911
J0913
J0915
J0917
J0919
J0921
J0923
J1001
J1003
J1005
J1007
J1009
J1011
J1013
J1015
J1017
J1019
J1021
J1023
Ring
(right pin) J0102
J0104
J0106
J0108
J0110
J0112
J0114
J0116
J0118
J0120
J0122
J0124
J0202
J0204
J0206
J0208
J0210
J0212
J0214
J0216
J0218
J0220
J0222
J0224
J0302
J0304
J0306
J0308
J0310
J0312
J0314
J0316
J0318
J0320
J0322
J0324
J0402
J0404
J0406
J0408
J0410
J0412
J0414
J0416
J0418
J0420
J0422
J0424
J0502
J0504
J0506
J0508
J0510
J0512
J0514
J0516
J0518
J0520
J0522
J0524
J0602
J0604
J0606
J0608
J0610
J0612
J0614
J0616
J0618
J0620
J0622
J0624
J0702
J0704
J0706
J0708
J0710
J0712
J0714
J0716
J0718
J0720
J0722
J0724
J0802
J0804
J0806
J0808
J0810
J0812
J0814
J0816
J0818
J0820
J0822
J0824
J0902
J0904
J0906
J0508
J0910
J0912
J0914
J0916
J0918
J0920
J0922
J0924
J1002
J1004
J1006
J1008
J1010
J1012
J1014
J1016
J1018
J1020
J1022
J1024
ADSL Voice Shelf Specifications
130 AV8000 Installation Manual
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX31 PX32 PX33 PX34 PX35 PX36 PX37 PX38 PX39 PX40
Wire-wrap pins
Tip
(left pin) J1101
J1103
J1105
J1107
J1109
J1111
J1113
J1115
J1117
J1119
J1121
J1123
J1201
J1203
J1205
J1207
J1209
J1211
J1213
J1215
J1217
J1219
J1221
J1223
J1301
J1303
J1305
J1307
J1309
J1311
J1313
J1315
J1317
J1319
J1321
J1323
J1401
J1403
J1405
J1407
J1409
J1411
J1413
J1415
J1417
J1419
J1421
J1423
J1501
J1503
J1505
J1507
J1509
J1511
J1513
J1515
J1517
J1519
J1521
J1523
J1601
J1603
J1605
J1607
J1609
J1611
J1613
J1615
J1617
J1619
J1621
J1623
J1701
J1703
J1705
J1707
J1709
J1711
J1713
J1715
J1717
J1719
J1721
J1723
J1801
J1803
J1805
J1807
J1809
J1811
J1813
J1815
J1817
J1819
J1821
J1823
J1901
J1903
J1905
J1907
J1909
J1911
J1913
J1915
J1917
J1919
J1921
J1923
J2001
J2003
J2005
J2007
J2009
J2011
J2013
J2015
J2017
J2019
J2021
J2023
Ring
(right pin) J1102
J1104
J1106
J1108
J1110
J1112
J1114
J1116
J1118
J1120
J1122
J1124
J1202
J1204
J1206
J1208
J1210
J1212
J1214
J1216
J1218
J1220
J1222
J1224
J1302
J1304
J1306
J1308
J1310
J1312
J1314
J1316
J1318
J1320
J1322
J1324
J1402
J1404
J1406
J1408
J1410
J1412
J1414
J1416
J1418
J1420
J1422
J1424
J1502
J1504
J1506
J1508
J1510
J1512
J1514
J1516
J1518
J1520
J1522
J1524
J1602
J1604
J1606
J1608
J1610
J1612
J1614
J1616
J1618
J1620
J1622
J1624
J1702
J1704
J1706
J1708
J1710
J1712
J1714
J1716
J1718
J1720
J1722
J1724
J1802
J1804
J1806
J1808
J1810
J1812
J1814
J1816
J1818
J1820
J1822
J1824
J1902
J1904
J1906
J1908
J1910
J1912
J1914
J1916
J1918
J1920
J1922
J1924
J2002
J2004
J2006
J2008
J2010
J2012
J2014
J2016
J2018
J2020
J2022
J2024
ADSL_IN from AV8000 AV8100 voice shelf slot
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 131
ADSL POTS to voice switch AV8100 voice shelf slot
12345678910
FutureBus
connector PX61 PX62 PX63 PX64 PX65 PX66 PX67 PX68 PX69 PX70
Wire-wrap pins
Tip
(left pin) J0149
J0151
J0153
J0155
J0157
J0159
J0161
J0163
J0165
J0167
J0169
J0171
J0249
J0251
J0253
J0255
J0257
J0259
J0261
J0263
J0265
J0267
J0269
J0271
J0349
J0351
J0353
J0355
J0357
J0359
J0361
J0363
J0365
J0367
J0369
J0371
J0449
J0451
J0453
J0455
J0457
J0459
J0461
J0463
J0465
J0467
J0469
J0471
J0549
J0551
J0553
J0555
J0557
J0559
J0561
J0563
J0565
J0567
J0569
J0571
J0649
J0651
J0653
J0655
J0657
J0659
J0661
J0663
J0665
J0667
J0669
J0671
J0749
J0751
J0753
J0755
J0757
J0759
J0761
J0763
J0765
J0767
J0769
J0771
J0849
J0851
J0853
J0855
J0857
J0859
J0861
J0863
J0865
J0867
J0869
J0871
J0949
J0951
J0953
J0955
J0957
J0959
J0961
J0963
J0965
J0967
J0969
J0971
J1049
J1051
J1053
J1055
J1057
J1059
J1061
J1063
J1065
J1067
J1069
J1071
Ring
(right pin) J0150
J0152
J0154
J0156
J0158
J0160
J0162
J0164
J0166
J0168
J0170
J0172
J0250
J0252
J0254
J0256
J0258
J0260
J0262
J0264
J0266
J0268
J0270
J0272
J0350
J0352
J0354
J0356
J0358
J0360
J0362
J0364
J0366
J0368
J0370
J0372
J0450
J0452
J0454
J0456
J0458
J0460
J0462
J0464
J0466
J0468
J0470
J0472
J0550
J0552
J0554
J0556
J0558
J0560
J0562
J0564
J0566
J0568
J0570
J0572
J0650
J0652
J0654
J0656
J0658
J0660
J0662
J0664
J0666
J0668
J0670
J0672
J0750
J0752
J0754
J0756
J0758
J0760
J0762
J0764
J0766
J0768
J0770
J0772
J0850
J0852
J0854
J0856
J0858
J0860
J0862
J0864
J0866
J0868
J0870
J0872
J0950
J0952
J0954
J0956
J0958
J0960
J0962
J0964
J0966
J0968
J0970
J0972
J1050
J1052
J1054
J1056
J1058
J1060
J1062
J1064
J1066
J1068
J1070
J1072
ADSL Voice Shelf Specifications
132 AV8000 Installation Manual
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX71 PX72 PX73 PX74 PX75 PX76 PX77 PX78 PX79 PX80
Wire-wrap pins
Tip
(left pin) J1149
J1151
J1153
J1155
J1157
J1159
J1161
J1163
J1165
J1167
J1169
J1171
J1249
J1251
J1253
J1255
J1257
J1259
J1261
J1263
J1265
J1267
J1269
J1271
J1349
J1351
J1353
J1355
J1357
J1359
J1361
J1363
J1365
J1367
J1369
J1371
J1449
J1451
J1453
J1455
J1457
J1459
J1461
J1463
J1465
J1467
J1469
J1471
J1549
J1551
J1553
J1555
J1557
J1559
J1561
J1563
J1565
J1567
J1569
J1571
J1649
J1651
J1653
J1655
J1657
J1659
J1661
J1663
J1665
J1667
J1669
J1671
J1749
J1751
J1753
J1755
J1757
J1759
J1761
J1763
J1765
J1767
J1769
J1771
J1849
J1851
J1853
J1855
J1857
J1859
J1861
J1863
J1865
J1867
J1869
J1871
J1949
J1951
J1953
J1955
J1957
J1959
J1961
J1963
J1965
J1967
J1969
J1971
J2049
J2051
J2053
J2055
J2057
J2059
J2061
J2063
J2065
J2067
J2069
J2071
Ring
(right pin) J1150
J1152
J1154
J1156
J1158
J1160
J1162
J1164
J1166
J1168
J1170
J1172
J1250
J1252
J1254
J1256
J1258
J1260
J1262
J1264
J1266
J1268
J1270
J1272
J1350
J1352
J1354
J1356
J1358
J1360
J1362
J1364
J1366
J1368
J1370
J1372
J1450
J1452
J1454
J1456
J1458
J1460
J1462
J1464
J1466
J1468
J1470
J1472
J1550
J1552
J1554
J1556
J1558
J1560
J1562
J1564
J1566
J1568
J1570
J1572
J1650
J1652
J1654
J1656
J1658
J1660
J1662
J1664
J1666
J1668
J1670
J1672
J1750
J1752
J1754
J1756
J1758
J1760
J1762
J1764
J1766
J1768
J1770
J1772
J1850
J1852
J1854
J1856
J1858
J1860
J1862
J1864
J1866
J1868
J1870
J1872
J1950
J1952
J1954
J1956
J1958
J1960
J1962
J1964
J1966
J1968
J1970
J1972
J2050
J2052
J2054
J2056
J2058
J2060
J2062
J2064
J2066
J2068
J2070
J2072
ADSL POTS to voice switch AV8100 voice shelf slot
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 133
ADSL_OUT to subscriber AV8100 voice shelf slot
12345678910
FutureBus
connector PX41 PX42 PX43 PX44 PX45 PX46 PX47 PX48 PX49 PX50
Wire-wrap pins
Tip
(left pin) J0125
J0127
J0129
J0131
J0133
J0135
J0137
J0139
J0141
J0143
J0145
J0147
J0225
J0227
J0229
J0231
J0233
J0235
J0237
J0239
J0241
J0243
J0245
J0247
J0325
J0327
J0329
J0331
J0333
J0335
J0337
J0339
J0341
J0343
J0345
J0347
J0425
J0427
J0429
J0431
J0433
J0435
J0437
J0439
J0441
J0443
J0445
J0447
J0525
J0527
J0529
J0531
J0533
J0535
J0537
J0539
J0541
J0543
J0545
J0547
J0625
J0627
J0629
J0631
J0633
J0635
J0637
J0639
J0641
J0643
J0645
J0647
J0725
J0727
J0729
J0731
J0733
J0735
J0737
J0739
J0741
J0743
J0745
J0747
J0825
J0827
J0829
J0831
J0833
J0835
J0837
J0839
J0841
J0843
J0845
J0847
J0925
J0927
J0929
J0931
J0933
J0935
J0937
J0939
J0941
J0943
J0945
J0947
J1025
J1027
J1029
J1031
J1033
J1035
J1037
J1039
J1041
J1043
J1045
J1047
Ring
(right pin) J0126
J0128
J0130
J0132
J0134
J0136
J0138
J0140
J0142
J0144
J0146
J0148
J0226
J0228
J0230
J0232
J0234
J0236
J0238
J0240
J0242
J0244
J0246
J0248
J0326
J0328
J0330
J0332
J0334
J0336
J0338
J0340
J0342
J0344
J0346
J0348
J0426
J0428
J0430
J0432
J0434
J0436
J0438
J0440
J0442
J0444
J0446
J0448
J0526
J0528
J0530
J0532
J0534
J0536
J0538
J0540
J0542
J0544
J0546
J0548
J0626
J0628
J0630
J0632
J0634
J0636
J0638
J0640
J0642
J0644
J0646
J0648
J0726
J0728
J0730
J0732
J0734
J0736
J0738
J0740
J0742
J0744
J0746
J0748
J0826
J0828
J0830
J0832
J0834
J0836
J0838
J0840
J0842
J0844
J0846
J0848
J0926
J0928
J0930
J0932
J0934
J0936
J0938
J0940
J0942
J0944
J0946
J0948
J1026
J1028
J1030
J1032
J1034
J1036
J1038
J1040
J1042
J1044
J1046
J1048
ADSL Voice Shelf Specifications
134 AV8000 Installation Manual
11 12 13 14 15 16 17 18 19 20
FutureBus
connector PX51 PX52 PX53 PX54 PX55 PX56 PX57 PX58 PX59 PX60
Wire-wrap pins
Tip
(left pin) J1125
J1127
J1129
J1131
J1133
J1135
J1137
J1139
J1141
J1143
J1145
J1147
J1225
J1227
J1229
J1231
J1233
J1235
J1237
J1239
J1241
J1243
J1245
J1247
J1325
J1327
J1329
J1331
J1333
J1335
J1337
J1339
J1341
J1343
J1345
J1347
J1425
J1427
J1429
J1431
J1433
J1435
J1437
J1439
J1441
J1443
J1445
J1447
J1525
J1527
J1529
J1531
J1533
J1535
J1537
J1539
J1541
J1543
J1545
J1547
J1625
J1627
J1629
J1631
J1633
J1635
J1637
J1639
J1641
J1643
J1645
J1647
J1725
J1727
J1729
J1731
J1733
J1735
J1737
J1739
J1741
J1743
J1745
J1747
J1825
J1827
J1829
J1831
J1833
J1835
J1837
J1839
J1841
J1843
J1845
J1847
J1925
J1927
J1929
J1931
J1933
J1935
J1937
J1939
J1941
J1943
J1945
J1947
J2025
J2027
J2029
J2031
J2033
J2035
J2037
J2039
J2041
J2043
J2045
J2047
Ring
(right pin) J1126
J1128
J1130
J1132
J1134
J1136
J1138
J1140
J1142
J1144
J1146
J1148
J1226
J1228
J1230
J1232
J1234
J1236
J1238
J1240
J1242
J1244
J1246
J1248
J1326
J1328
J1330
J1332
J1334
J1336
J1338
J1340
J1342
J1344
J1346
J1348
J1426
J1428
J1430
J1432
J1434
J1436
J1438
J1440
J1442
J1444
J1446
J1448
J1526
J1528
J1530
J1532
J1534
J1536
J1538
J1540
J1542
J1544
J1546
J1548
J1626
J1628
J1630
J1632
J1634
J1636
J1638
J1640
J1642
J1644
J1646
J1648
J1726
J1728
J1730
J1732
J1734
J1736
J1738
J1740
J1742
J1744
J1746
J1748
J1826
J1828
J1830
J1832
J1834
J1836
J1838
J1840
J1842
J1844
J1846
J1848
J1926
J1928
J1930
J1932
J1934
J1936
J1938
J1940
J1942
J1944
J1946
J1948
J2026
J2028
J2030
J2032
J2034
J2036
J2038
J2040
J2042
J2044
J2046
J2048
ADSL_OUT to subscriber AV8100 voice shelf slot
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 135
AV8100 Subscriber Interface Cables
The cable assemblies listed in the table below and in the pinout tables with illustrations on
page 136 and page 137 are used to connect the AV8000 to the Avidia 8100 (PN 120-1233-xx)
and to connect the AV8100 to both a voice switch and the MDF (PN 120-1227-xx). The cable
assemblies are used in the section “Connect ADSL For Data and POTS”on page 116.
Item Description Used For
Cable assembly
(ADC
PN 120-1233-xx)
Cable assembly, with two 25-pair
champ connectors on one end
and two 48-position FutureBus
connectors on the other end
Connects two Network Card 25-pair champ
connectors on the AV8000 chassis backplane to two
voice Network Card FutureBus connectors (ADSL_IN)
on the voice shelf backplane.
Cable assembly
(ADC
PN 120-1227-xx)
Cable assembly, with one 25-pair
champ connector on one end and
two 48-position FutureBus
connectors on the other end
Connects two POTS splitter cards in the AV8100 voice
shelf using the FutureBus connectors to the CO MDF
using the 25-pair champ connector for ADSL_OUT.
Also, connects two POTS splitter cards in the AV8100
voice shelf using the FutureBus connectors to a voice
switch using the 25-pair champ connector for POTS.
ADSL Voice Shelf Specifications
136 AV8000 Installation Manual
See below for pinout assignments and a diagram for cable assembly PN 120-1233-xx:
J4
Pin # J2
Pin # Signal J3
Pin # J1
Pin # Signal
1 A12 xDSL_1_RING_2 1 A12 xDSL_1_RING_1
2 B11 xDSL_2_RING_2 2 B11 xDSL_2_RING_1
3 A10 xDSL_3_RING_2 3 A10 xDSL_3_RING_1
4 B9 xDSL_4_RING_2 4 B9 xDSL_4_RING_1
5 A8 xDSL_5_RING_2 5 A8 xDSL_5_RING_1
6 B7 xDSL_6_RING_2 6 B7 xDSL_6_RING_1
7 A6 xDSL_7_RING_2 7 A6 xDSL_7_RING_1
8 B5 xDSL_8_RING_2 8 B5 xDSL_8_RING_1
9 A4 xDSL_9_RING_2 9 A4 xDSL_9_RING_1
10 B3 xDSL_10_RING_2 10 B3 xDSL_10_RING_1
11 A2 xDSL_11_RING_2 11 A2 xDSL_11_RING_1
12 B1 xDSL_12_RING_2 12 B1 xDSL_12_RING_1
26 C12 xDSL_1_TIP_2 26 C12 xDSL_1_TIP_1
27 D11 xDSL_2_TIP_2 27 D11 xDSL_2_TIP_1
28 C10 xDSL_3_TIP_2 28 C10 xDSL_3_TIP_1
29 D9 xDSL_4_TIP_2 29 D9 xDSL_4_TIP_1
30 C8 xDSL_5_TIP_2 30 C8 xDSL_5_TIP_1
31 D7 xDSL_6_TIP_2 31 D7 xDSL_6_TIP_1
32 C6 xDSL_7_TIP_2 32 C6 xDSL_7_TIP_1
33 D5 xDSL_8_TIP_2 33 D5 xDSL_8_TIP_1
34 C4 xDSL_9_TIP_2 34 C4 xDSL_9_TIP_1
35 D3 xDSL_10_TIP_2 35 D3 xDSL_10_TIP_1
36 C2 xDSL_11_TIP_2 36 C2 xDSL_11_TIP_1
37 D1 xDSL_12_TIP_2 37 D1 xDSL_12_TIP_1
1
2650
25
1
2650
25
FutureBus
connectors
Top View
Champ
connectors
J2
J4
50
26
25
1
J1
1DCBA
12
J3
White
White
Blac
k
Blac
k
Chapter 10: ADSL Voice Shelves and POTS Splitters
AV8000 Installation Manual 137
See below for pinout assignments and a diagram for cable assembly PN 120-1227-xx:
J3
Pin # J2
Pin # Signal J3
Pin # J1
Pin # Signal
13 A12 xDSL_1_RING_2 1 A12 xDSL_1_RING_1
14 B11 xDSL_2_RING_2 2 B11 xDSL_2_RING_1
15 A10 xDSL_3_RING_2 3 A10 xDSL_3_RING_1
16 B9 xDSL_4_RING_2 4 B9 xDSL_4_RING_1
175 A8 xDSL_5_RING_2 5 A8 xDSL_5_RING_1
18 B7 xDSL_6_RING_2 6 B7 xDSL_6_RING_1
19 A6 xDSL_7_RING_2 7 A6 xDSL_7_RING_1
20 B5 xDSL_8_RING_2 8 B5 xDSL_8_RING_1
21 A4 xDSL_9_RING_2 9 A4 xDSL_9_RING_1
22 B3 xDSL_10_RING_2 10 B3 xDSL_10_RING_1
23 A2 xDSL_11_RING_2 11 A2 xDSL_11_RING_1
24 B1 xDSL_12_RING_2 12 B1 xDSL_12_RING_1
38 C12 xDSL_1_TIP_2 26 C12 xDSL_1_TIP_1
39 D11 xDSL_2_TIP_2 27 D11 xDSL_2_TIP_1
40 C10 xDSL_3_TIP_2 28 C10 xDSL_3_TIP_1
41 D9 xDSL_4_TIP_2 29 D9 xDSL_4_TIP_1
42 C8 xDSL_5_TIP_2 30 C8 xDSL_5_TIP_1
43 D7 xDSL_6_TIP_2 31 D7 xDSL_6_TIP_1
44 C6 xDSL_7_TIP_2 32 C6 xDSL_7_TIP_1
45 D5 xDSL_8_TIP_2 33 D5 xDSL_8_TIP_1
46 C4 xDSL_9_TIP_2 34 C4 xDSL_9_TIP_1
47 D3 xDSL_10_TIP_2 35 D3 xDSL_10_TIP_1
48 C2 xDSL_11_TIP_2 36 C2 xDSL_11_TIP_1
49 D1 xDSL_12_TIP_2 37 D1 xDSL_12_TIP_1
1
2650
25
FutureBus
connectors
Champ
connector
50
26
25
1
J3
J1J2
White Black
Top View
1DCBA
12
ADSL POTS Splitter Card
138 AV8000 Installation Manual
ADSL POTS SPLITTER CARD
Each Avidia Model 670 (AV670) POTS splitter card in the AV8100 voice shelf can
interface to 12 full-duplex ADSL lines (12 individual ADSL modems, for example).
The POTS splitter card provides filtering and protection for ADSL lines in addition
to providing POTS splitter functions and mounts into an Avidia 8100 voice shelf.
The table below provides power and physical specifications for the AV670 voice
Network Card. Note that the AV670 does not contain LED indicators.
ADSL POTS Splitter Card Specifications
Physical
Functional
The POTS splitter cards contain the features described in the table below.
Each Avidia Model 670 (AV670) voice Network Card, in the AV8100 voice shelf, can interface
with 12 full-duplex ADSL lines (for example, 12 individual ADSL modems). The POTS splitter
card provides filtering and line protection for ADSL lines in addition to providing POTS splitter
functions.
Power None (Passive Device)
Size
Height 9.78 inches (248.41 mm)
Width 0.7 inches (17.78 mm)
Depth 9.50 inches (241.30 mm)
Weight 1.8 lbs (0.82 kg)
Product Features •provides secondary filtering and protection for ADSL lines
•provides concurrent support of analog POTS through an embedded
POTS splitter; POTS will not be interrupted if ADSL transceivers are
turned off or if power is lost
•provides life line bypass using passive splitter design
CO Port POTS Splitter
Specifications Tested over all ANSI T1.413-1998 compliant test loops.
LIST
AV670
12-ADSL VOICE
AV8000 Installation Manual 139
A
SYSTEM SPECIFICATIONS
An AV8000 system is comprised of three major components: chassis, cards, and card interfaces.
You can attach the AV8000 system to an AV8100 voice shelf, or other ADC voice shelf product
to combine ADSL data with voice that can be transmitted to a customer. See “Adding Voice
Shelf Capability to the AV8000”on page 107 for more information regarding this topic.The
following sections provide detailed descriptions and specifications for each system component.
The AV8000 system is an ATM switching platform that supports standard ATM quality of
service (QoS), in-band management, and layers 2 and 3 internetworking services. The AV8000
system can handle both frame-based and cell-based customer traffic, as well as transparent LAN
services. The ADSL, SDSL, DS1 (T1), and E1 transmission technologies support network
interfaces (layers 2 and 3 internetworking services) such as ATM, Frame Relay, TDM (IDSL
and frame SDSL), and Ethernet in a single, integrated platform.
Features of the AV8000 system include:
•capability to remove and replace (hot swap) components under power, including the
management card, network card, subscriber card, and fan tray
•integrated cell, packet, and circuit emulation for access (subscriber side) and network
(uplink side) interfaces
•integrated switching
•redundancy
For information about: Go to page:
AV8000 Chassis 140
Avidia Cards and Chassis Power Requirements 144
Avidia Card Interfaces 189
AV8000 Chassis
140 AV8000 Installation Manual
AV8000 CHASSIS
The AV8000 chassis mounts in a 23-inch, 7-foot Telco rack. Three chassis are the maximum
number that fit into one rack, when a fuse panel is not installed in the same rack. Adequate
clearance must be allowed between the chassis for ventilation and cabling, and must comply
with IEC 297-2 and ANSI/EIA-RS-310-C standards.
1234
1234
1234
0.5-inch (12.77-mm)
clearance minimum
0.5-inch (12.77-mm)
clearance minimum
23-inch, 7-foot Telco rack
Three Avidia 8000 chassis
maximum per rack
• 432 xDSL ports
maximum per chassis
• 1296 xDSL ports
maximum per rack
Appendix A: System Specifications
AV8000 Installation Manual 141
With all Network Card slots occupied, one AV8000 chassis supports up to 432 xDSL ports.
Installation of up to three AV8000 chassis in a Telco rack provides up to a maximum of
1296 xDSL ports.
Specifications for the AV8000 chassis are summarized below. The figure on page 143 shows
the location of chassis components.
CHASSIS SPECIFICATIONS
Power
Physical
-48 Vdc -42.5 to -56.5 Vdc, 30 Amps minimum
Fan tray 15 W (typical)
Card slots (21 total):
1
11 and 12
2-10 and 13-21
one management card
one or two network cards (OC3, DS3, or DSX-1)
up to eighteen xDSL subscriber cards or other subscriber-side cards
(8xDS1 or 8xE1 network cards, for example)
Backplane Contains the interfaces for connecting power, network and subscriber
lines, and a management interface.
Fiber-optic cable tray Provides a space to coil fiber-optic cables for the OC-3 network card
interface on top of the chassis.
Chassis Power and Grounding Requires input from one -48 Vdc CO power source. Input from a second
-48 Vdc CO power source is for redundant, but isolated, power.
Ground lug provides grounding from chassis to facility (earth) ground
point. Ground terminals on both A-side and B-side -48 Vdc of the power
terminal block are electrically tied to the Frame GND lug.
Fan tray A fan tray located at the bottom of the chassis is removable and
replaceable under power. The fans provide chassis cooling. LEDs
indicate status for the fan tray:
•off indicates normal operation
•lighted red indicates a non-operational fan
Chassis Specifications
142 AV8000 Installation Manual
Environmental
Chassis size
Height
Width (with mounting brackets)
Width (without mounting brackets)
Depth
Weight
24.47 inches (621.54 mm)
23.17 inches (588.52 mm)
21.17 inches (537.72 mm)
12.00 inches (304.80 mm)
67 lbs (30.39 kg)
Ambient Operating Temperature +32 °F to +122 °F (0 °C to +50 °C)
Relative Humidity 10% to 80% (non-condensing)
Operating Altitude Up to 10,000 feet (3048 m)
Ambient Storage Temperature -40 °F to +158 °F (-40 °C to +70 °C)
5% to 95% relative humidity
Storage Altitude -1000 to +30,000 feet (-305 m to +9144 m)
Environment Space Controlled (indoor)
Appendix A: System Specifications
AV8000 Installation Manual 143
1234
Backplane
Fiber optic tray
(behind access door)
Management
card slot 1
Channel card
slots 2 thru 10 Channel card
slots 13 thru 21
Line card
slots 11 and 12
Fan tray
Avidia Cards and Chassis Power Requirements
144 AV8000 Installation Manual
AVIDIA CARDS AND CHASSIS POWER
REQUIREMENTS
Three types of cards are used in an AV8000 chassis:
•management (page 146)
•network (page 151)
•subscriber (page 175)
A basic (minimal) AV8000 chassis, consists of:
•one AMC management card—17 W
•one DS3 network card—22 W or one OC3 network card—24 W
•the cooling fan tray—18 W
The basic configuration above, having one OC3 card, will typically require 59 W.
If an additional DS3 network card or an OC3 network card is installed, then the typical power
requirements will increase to approximately 83 W.
Each 12-port ADSL subscriber card requires a maximum of 52 W when operational.
The IDSL (frame-based), SDSL (frame-based and cell-based) subscriber cards each require
29 W when operational.
The T1, E1, DS1and the DSX-1 cards each require 22 W when operational.
A typical loaded Avidia chassis, might consists of:
•one AMC management card—17 W
•two DS3 network cards—42 W or two OC3 network cards—48 W
•the cooling fan tray—18 W
•18 operational ADSL subscriber cards—52 W (each)
The configuration described above, having two OC3 cards, will typically require 1019 W.
Appendix A: System Specifications
AV8000 Installation Manual 145
The following table summarizes the operational power requirements for Avidia cards.
Avidia Card Component Operational Power (Watts)
Avidia Management Card (AMC) 17 W
DS3 Network Card 22W
OC3 Network Card 24W
8xE1/8xDS1 Network Card 22 W
8xDSX-1 Card 22 w
ADSL 12-Port Subscriber Card 52 W
IDSL (frame) Subscriber Card 29 W
SDSL 24-Port Subscriber Card (cell/frame) 31W
Minimal Power consumption figure represents card powered up; all ports
turned off; no modems connected.
Operational Power consumption figure represents card powered up; all ports
turned on; no modems connected.
Maximum Power consumption figure represents card powered up: all ports
turned on; all modems connected and turned on.
Avidia Management Card
146 AV8000 Installation Manual
AVIDIA MANAGEMENT CARD
The Avidia 210 (AV210) management card, functioning as a Network Element (NE), provides
configuration and management communication for all interconnected network cards, subscriber
cards, and remote devices. Configuration and management for the AV8000 system occurs using
one of these interfaces:
•command-line (on the management card)
•Web (on the management card)
•StarGazer Element Management System (a separate Avidia EMS software)
•other SNMP-based management platforms
Always place the management card in slot 1 of an AV8000 chassis.
Master Agent SNMP Function
In the Simple Network Management Protocol (SNMP) master agent/subagent architecture, the
management card performs the master agent functions for other cards or devices in the Avidia
system that implement the subagent function (for example, subscriber cards).
The management card communicates with the StarGazer management system or other
SNMP-based management systems. For information about the MIBs that the management card
supports, see the Avidia System Configuration and Management User Manual.
Appendix A: System Specifications
AV8000 Installation Manual 147
Management Card Front Panel
LED Mode Color Management (AV210) Card Status Indication
POWER On Green Indicates the management card has power and its power supply
is functioning properly.
Off None Indicates one of the following:
•The management card is not receiving power.
•The management card power supply is not functioning
properly.
FAULT On Red Indicates a fault occurred.
Off None Indicates no management card fault exists.
F1 and F2 On Red Reserved.
Off None Reserved.
INPUT POWER On Green Indicates the power supply has -48 Vdc power present.
1 and 2 Off None Indicates the power supply does not have -48 Vdc power present.
10/100BT Indicates Ethernet management interface activity for each of two ports:
LINK On Green Ethernet link is good at either 10 or 100 Mbps.
Off None Ethernet link is not available at either 10 or 100 Mbps.
ACT On Green Data is being transmitted or received on the link.
Off None No data is being transmitted or received on the link.
SPD On Green Speed of transmission is 100 Mbps.
Off None Speed of transmission is 10 Mbps.
ABN On Yellow Reserved.
Off None Reserved.
ALARM Indicates alarm activity:
CRT On Red Critical alarm condition exists.
Off None No critical alarm condition exists.
MAJ On Red Major alarm condition exists.
Off None No major alarm condition exists.
MIN On Yellow Minor alarm condition exists.
Off None No minor alarm condition exists.
PWR MIN On Yellow Reserved.
Off None Reserved.
AV210
MGT-10/100BT
PG
air ain
FAULT
POWER
CRAFT
10/100BT
10/100BT
SPD
SPD
ACT
ACT
LINK
LINK
F1
F2
POWER1
INPUT
2
ABN
ALARM
MAJ
CRT
MIN
MIN
PWR
TEST
LED
ACO
Avidia Management Card
148 AV8000 Installation Manual
ACO/LED TEST On Green Indicates one of the following:
•An alarm condition exists for which the audible alarm
was disabled.
•The front panel ACO pushbutton is currently pressed.
Off None Indicates that no audible alarm is masked, or the ACO pushbutton
is not currently pressed.
LED Mode Color Management (AV210) Card Status Indication
Appendix A: System Specifications
AV8000 Installation Manual 149
Management Card Specifications
Specifications for the management card are provided below.
Physical
Functional
Power -48 Vdc, 17 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.2 lbs (1.0 kg)
SNMP •SNMP agent
•standard and proprietary support for ATM, xDSL, chassis, agent, and
MIB-II attributes
E2A Alarms •critical, major, and minor alarms
•power alarm for each battery input (A-side and B-side) indicating whether
power sources are supplying -48 Vdc
See the Avidia System Configuration and Management User Manual for data
about faults that cause the alarm conditions.
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 1 VPIs per port
•VPI range of 0; VCI range of 1024-4095
•1 VPIs can carry 3072 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
Configuration
Management Trivial File Transfer Protocol (TFTP) used for file transfer with minimum
overhead. The management card provides device configuration and system
image download functions.
Avidia Management Card
150 AV8000 Installation Manual
Maintenance
Reporting The management card provides maintenance records for subscriber cards and
network cards residing in its same chassis on:
•15-minute performance
•24-hour performance
•current statistics tables
•test results
•alarms and alarm history
•network interface errors as reported by the network cards
•ATM failures monitored and reported by ATM-based network cards and cell
xDSL subscriber cards
•ATM level performance as monitored and reported by ATM-based network
cards and cell xDSL subscriber cards
•AAL (all versions) level performance as monitored and reported by network
cards or cell-based xDSL subscriber cards
•congestion level performance as monitored and reported by network cards
or cell-based xDSL subscriber cards
Appendix A: System Specifications
AV8000 Installation Manual 151
AVIDIA NETWORK CARDS
Network cards provide an uplink interface to an ATM network. They supply both ATM traffic
management and physical layer functionality. Only one network card is required to provide a
link between the subscriber and the ATM backbone, but you can install a second network card
for redundancy or for dual homing. See “Redundancy”on page 77 for more information about
redundancy and dual homing configurations. Network cards are typically placed in network
card slots 11 and 12; however, 8xDS1 and 8xE1 cards must be placed in subscriber card slots
2-10 or 13-21.
Network cards can also provide a subscriber-side connection when used for subtending.
Subscriber-side means that the cards do not provide an uplink network connection, but provide
a connection downstream to another Avidia chassis that is being subtended. See “Subtending
Multiple Systems”on page 86 for more information about how to select and place network
cards for this application. For this type of application, the OC3 card can be placed in subscriber
card slots 2-10 or 13-21
Avidia Network Cards
152 AV8000 Installation Manual
The table below lists network cards that are available for use in the AV8000 chassis and the page
where they are described in this section.
Select network cards for the AV8000 that are compatible with the network equipment:
•OC3 network cards connect to a SONET network.
•DS3 network cards connect to the ATM backbone network.
•8xDS1 network cards connect to DS1 links.
•8xDSX-1 network cards connect to DSX-1 links.
•8xE1 network card connects to E1 links.
Type Avidia
Model
Transmission
Format Transmission
Speed (Mbps) Interface Page
OC3-c 153
Multimode AV311 ATM 155.520 dual-PHY SONET
Single Mode intermediate range AV312 ATM 155.520 dual-PHY SONET
Single Mode long range AV313 ATM 155.520 dual-PHY SONET
DS3 ATM AV323 ATM 44.736 WAN 157
8xDS1 CSU/DSU Management AV351 ATM 8 x 1.544 DS1 161
8xE1 CSU/DSU Management AV352 ATM 8 x 2.048 E1 166
8xDSX-1 DSU Management AV353 ATM 8 x 1.544 DSX-1 170
Appendix A: System Specifications
AV8000 Installation Manual 153
OC3 Network Card
The OC3 network card provides uplink transmission at a rate of 155.52 Mbps and provides
connection to the ATM backbone network as a SONET-based fiber-optic User Network
Interface (UNI). It has two physical (dual-PHY) SONET interfaces, each with a transmit and
receive port. Under normal operation, all traffic is carried through the first interface; the second
is not used. For Automatic Protection Switching (APS), use the second interface to provide
backup to the first.
Three versions of the OC3 network card are available:
•The AV311 OC3 network card provides a multi-mode, long-haul SONET connection.
•The AV312 OC3 network card provides a single-mode, intermediate-range SONET
connection.
•The AV313 OC3 network card provides a single-mode, long-range SONET connection.
Cabling
With an AV311 OC3 network card, use multimode fiber with SC fiber connectors. With an
AV312 OC3 intermediate-range (IR) network card or an AV313 OC3 long-range (LR) network
card, use single mode fiber with SC fiber connectors. Select an appropriate fiber-optic cable to
connect to your OC3 network card by using the following table.
For information about running loopback tests on this network card, see the Avidia System
Configuration and Management manual.
Use This
Fiber-Optic
Cable
With This
OC3
Network
Card
Maximum
Output
Power
(dBm)
Minimum
Output
Power
(dBm)
Wavelength
(NM)
Minimum
Input
Power
(dBm)
Maximum
Input
Power
(dBm)
Maximum Cable
Length
Multimode AV311 -14.0 -19.0 1310 -30.0 -14.0 6,561 feet
(2 km)
Single
Mode IR AV312 -8.0 -15.0 1310 -29.0 -8.0 49,212 feet
(15 km)
Single
Mode LR AV313 0.0 -5.0 1310 -32.0 -3.0 131,233 feet
(40 km)
Avidia Network Cards
154 AV8000 Installation Manual
OC3 Card Front Panel
LED (a)
(a) Tx1,Rx1,andSYNC1refertoOC3port1.Tx2,Rx2,andSYNC2refertoOC3port2.
Mode Color OC3 (AV311, AV312, AV313) Network Card Status Indication
POWER On Green Indicates the OC3 network card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•The OC3 network card is not receiving power.
•The OC3 network card power supply is not functioning
properly.
FAULT On Red Indicates a fault in the functionality of the OC3 network card.
Off None Indicates no fault in the OC3 network card.
APS On Yellow Reserved.
Off None Reserved.
Tx1 and On Green Indicates the OC3 port is transmitting user data.
Tx2 Off None Indicates the OC3 port is not transmitting user data.
Rx1 and On Green Indicates the OC3 port is receiving user data.
Rx2 Off None Indicates the OC3 port is not receiving user data.
SYNC1 and On Green Indicates the OC3 network is synchronized with the distant end.
SYNC2 Off None Indicates the OC3 network is not synchronized with the
distant end.
FAULT
APS
Tx1
Rx1
SYNC1
Tx2
Rx2
SYNC2
POWER
WARNING:
REINSTALL THIS SAFETY
COVER AFTER SERVICING
Appendix A: System Specifications
AV8000 Installation Manual 155
OC3 Card Specifications
Features for all the OC3 network cards are described below
Physical
Functional
Power -48 Vdc, 24W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.2 lbs (1.0 kg)
Product Features •multi-processor architecture, providing Permanent Virtual Circuit (PVC)
•ATM Operation, Administration, and Management (OAM) generation and
termination functions
•Automatic Protection Switching (APS)
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 4096 VPIs per port
•VPI range of 0-255; VCI range of 32-1023
•16 VPIs can carry 992 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
ATM Traffic
Types The OC3 network card supports these ATM traffic types:
•Constant Bit Rate (CBR) for digital information requiring continuous bit
streams
•Unspecified Bit Rate (UBR) for LAN traffic
•Real-time Variable Bit Rate (rt-VBR) for packetized voice or video that is
not transmitted at a fixed rate.
•Non-Real-Time Variable Bit Rate (nrt-VBR) for interactive transaction type
transmissions that are bursty and demand significant bandwidth only for
short periods of time.
Avidia Network Cards
156 AV8000 Installation Manual
Loopback •Local loopback with signal being looped back within the network card at
the transceiver
•Line loopback with signal received at the network interface and looped
back through the transmitter
Automatic
Protection
Switching
•OC3 network cards have two physical SONET interfaces, each with a
transmit and receive port
•Under normal operation, all traffic carried through first interface
•APS uses the second interface as backup to the first interface
•By default, APS is disabled and must be activated using any interface for
Avidia.
Appendix A: System Specifications
AV8000 Installation Manual 157
DS3 Network Card
The Avidia 323 (AV323) ATM DS3 network card provides the connection to an
ATM backbone network at a rate of 44.736 Mbps.
The use of two DS3 cards in an AV8000 system supports these modes:
•a single physical link mode
•dual physical link mode
•subtending
When using two cards for a single physical link mode (port redundancy with one network uplink
connection), connect the coaxial cables from the ATM backbone network to the pair of BNC
connectors marked DS3-2. When using two cards for a dual physical link mode (connection to
two separate uplink networks), connect the coaxial cables from one ATM backbone network to
the pair of BNC connectors marked DS3-2 and the coaxial cables from the second ATM
backbone network to the pair of BNC connectors marked DS3-1.
See Chapter 8,“System Configuration for Special Applications”on page 73 for more
information about this type of redundancy).
Cabling
The maximum lengths for the coaxial DS3 network cable is 450 feet (137 m).
Avidia Network Cards
158 AV8000 Installation Manual
DS3 Card Front Panel
LED Mode Color DS3 (AV323) Network Card Status Indication (a)
(a) There are separate Tx, Rx, LOS, LOF, AIS, RAI, and loopback LEDs for port 1 and port 2. Only
the severest alarm condition is activated at any instant.
POWER On Green Indicates the DS3 network card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the functionality of the DS3 network card.
Off None Indicates no fault in the DS3 network card.
Port 1 (top cluster) and Port 2 (bottom cluster) indicators:
Tx On Green Indicates the DS3 port is transmitting user data.
Off None Indicates the DS3 port is not transmitting user data.
Rx On Green Indicates the DS3 port is receiving user data.
Off None Indicates the DS3 port is not receiving user data.
LOS On Red Indicates the port has lost the DS3 signal from the distant end.
Off None Indicates the port has not lost the DS3 signal from the distant
end.
LOF On Red Indicates the port is receiving a red alarm signal from the
distant end.
Off None Indicates the port is not receiving a red alarm signal from the
distant end.
AIS On Red Indicates the port is receiving an Alarm Indication Signal (AIS)
indicated by an all ones signal from the distant end.
Off None Indicates the port is not receiving an all ones signal from the
distant end.
RAI On Yellow Indicates the port is receiving a Remote Alarm Indication (RAI)
signal from the distant end.
Off None Indicates the port is not receiving an RAI signal from the distant
end.
LPBK On Yellow Reserved.
Off None Reserved.
LPBK
LOF
LPBK
RAI
AIS
LOS
Tx
Rx
Tx
LOF
AIS
RAI
LOS
Rx
FAULT
POWER
PG
air ain
AV323
DS3 ATM
Appendix A: System Specifications
AV8000 Installation Manual 159
DS3 Card Specifications
Features of the DS3 network card are described below.
Physical
Functional
Power -48 Vdc, 22 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.0 lbs (0.91 kg)
Product Features •multi-processor architecture, providing Permanent Virtual Circuit (PVC)
•ATM Operation, Administration, and Management (OAM) generation and
termination functions
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 4096 VPIs per port
•VPI range of 0-255; VCI range of 32-1023
•16 VPIs can carry 992 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
ATM Traffic
Types The DS3 network card supports these ATM traffic types:
•Constant Bit Rate (CBR) for digital information requiring continuous bit
streams
•Unspecified Bit Rate (UBR) for LAN traffic
•Real-time Variable Bit Rate (rt-VBR) for packetized voice or video that is not
transmitted at a fixed rate.
•Non-Real-Time Variable Bit Rate (nrt-VBR) for interactive transaction type
transmissions that are bursty and demand significant bandwidth only for
short periods of time.
Avidia Network Cards
160 AV8000 Installation Manual
Loopback •Local loopback with signal being looped back within the network card at the
transceiver
•Line loopback with signal received at the network interface and looped back
through the transmitter
•Remote loopback with the signal sent to the far end, where it is looped back
•For information about running loopback tests on this network card, see the
Avidia System Configuration and Management manual.
Appendix A: System Specifications
AV8000 Installation Manual 161
8xDS1 Network Card
The Avidia 351 (AV351) 8xDS1 network card provides eight individual DS1 uplinks to
transmit ATM cells to the ATM backbone network at a rate of 1.544 Mbps for each of the eight
ports. The 8xDS1 network card provides eight short-haul or eight long-haul DS1 ports, each
with a built-in Subscriber Service Unit (CSU). Install 8xDS1 network cards in subscriber
card slots 2-10 and 13-21 only.
Cabling
The maximum lengths for the DS1 network cable is 6 kft (1,829 m) using copper twisted pair
wire of 26 AWG.
8xDS1 network card management functionality is available only when
the card is used as a combination management card and DS1 uplink
interface in the Avidia 2200. The following 8xDS1 network card
components labeled on the front panel are therefore not operational
in the AV8000: ACO functionality, the RS-232 CRAFT port; and the
MAJOR and MINOR LEDs.
Avidia Network Cards
162 AV8000 Installation Manual
8xDS1 Card Front Panel
LED Mode Color 8xDS1 (AV351) Network Card Status Indication
POWER On Green Indicates the 8xDS1 network card is receiving power and its power
supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the functionality of the 8xDS1 network card.
Off None Indicates no fault in the 8xDS1 network card.
MAJOR —None Not applicable. (a)
MINOR —None Not applicable. (a)
ACO/
LED TEST —None Not applicable. (a)
T1 ALARM On Red One or more of the eight ports has an alarm condition.
Off None None of the eight ports has an alarm condition.
For the T1 port selected using the T1 Port Select pushbutton:
ACT On Green Indicates the DS1 port is enabled to carry user traffic.
Off None Indicates the DS1 port is in test mode.
Tx On Green Indicates the DS1 port is transmitting user data.
Off None Indicates the DS1 port is not transmitting user data.
Rx On Green Indicates the DS1 port is receiving user data.
Off None Indicates the DS1 port is not receiving user data.
LOS On Red Indicates the port has lost the DS1 signal from the distant end.
Off None Indicates the port has not lost the DS1 signal from the distant end.
AIS On Red Indicates the port is receiving an Alarm Indication Signal (AIS)
indicated by an all ones signal from the distant end.
Off None Indicates the port is not receiving an all ones signal from the
distant end.
RED On Red Indicates the port is receiving a red alarm signal from the
distant end.
Off None Indicates the port is not receiving a red alarm signal from the
distant end.
Tx
IN
IN
OUT
MON
OUT
RED
AIS
LOS
LPBK
RAI
MON
LINEEQUIPMENT
Rx
SELECT
T1 PORT
ALARM
ACT
MAJOR
MINOR
ACO
T1
CRAFT
TEST
LED
POWER
FAULT
PG
air ain
AV351
8xT1 IMA-UNI
Appendix A: System Specifications
AV8000 Installation Manual 163
8xDS1 Card Specification
Features of the 8xDS1 network card are described below.
Physical
Functional
RAI On Yellow Indicates the port is receiving a Remote Alarm Indication (RAI)
signal from the distant end.
Off None Indicates the port is not receiving an RAI signal from the distant end.
LPBK On Yellow Reserved.
Off None Reserved.
(a) 8xDS1 network card management functionality is only applicable when the card is used as a
combination management card and DS1 uplink interface in the Avidia 2200.
Power -48 Vdc, 22 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.7 lbs (1.22 kg)
Product Features •multi-processor architecture, providing Permanent Virtual Circuit (PVC)
•ATM Operation, Administration, and Management (OAM) generation and
termination functions
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 256 VPIs per port
•VPI range of 0-255; VCI range of 32-1023
•3 VPIs can carry 992 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
LED Mode Color 8xDS1 (AV351) Network Card Status Indication
Avidia Network Cards
164 AV8000 Installation Manual
ATM Traffic
Types The 8xDS1 network card supports these ATM traffic types:
•Constant Bit Rate (CBR) for digital information requiring continuous bit
streams.
•Unspecified Bit Rate (UBR) for LAN traffic.
•Real-time Variable Bit Rate (rt-VBR) for packetized voice or video that is not
transmitted at a fixed rate.
•Non-Real-Time Variable Bit Rate (nrt-VBR) for interactive transaction type
transmissions that are bursty and demand significant bandwidth only for
short periods of time.
Loopback •Local loopback with signal being looped back within the network card at the
transceiver.
•Network loopback with signal received at the network interface and looped
back through the transmitter.
•Payload loopback with the card looping back to the payload (192 bits)
through the receive section (including the framer) and to the transmit
section, returning the payload and the newly-generated ESF framing.
•Remote loopback with the signal sent to the far end, where it is looped back.
Appendix A: System Specifications
AV8000 Installation Manual 165
In addition to the status LEDs, the front panel displays the following components:
•T1 PORT SELECT pushbutton, when pressed, selects a port (1 through 8). Selection of any
port performs two functions: lights the corresponding LED and activates the associated
Bantam test jacks. When a port is deselected (no port), the port LED does not light, and the
Bantam test jacks remain inactive.
•Bantam test jacks provide monitoring and direct access to the transmit and receive paths for
each T1 port (each with Tip and Ring signals):
–The Equipment IN and OUT jacks provide direct access to the transmit and receive
signals of the active T1 port. The Equipment OUT jack supplies the transmitted output
signal from the active T1 port; the Equipment IN jack feeds the received input to the
active T1 port. A jumper cable connected between Equipment IN and OUT jacks
provides loopback to test the card functionality and to isolate malfunctions of the T1
card for the active port.
–The Line IN and OUT jacks provide direct access to the transmit and receive line
signals from the active remote port. The Line OUT jack monitors the transmitted line
signal from the active remote T1 network interface port; the Line IN jack monitors the
received line signal to the remote T1 network interface port. A jumper cable connected
between Line IN and OUT jacks bypasses the T1 card, allowing isolation of a
malfunction of the network line function for the active port
–The Equipment MON and Line MON jacks provide high impedance test points to be
used for monitoring (example, T1 test equipment). The Equipment MON jack provides
access to the T1 output. The Line MON jack provides access to the external line.
For information about running loopback tests on this network card, see the Avidia System
Configuration and Management manual.
Avidia Network Cards
166 AV8000 Installation Manual
8xE1 Network Card
The Avidia 352 (AV352) 8xE1 network card provides eight individual E1 uplinks to transport
subscriber traffic as ATM cell over each of the E1 links at a rate of 2.048 Mbps for each of the
eight ports. Install 8xE1 network cards in subscriber card slots 2-10 and 13-21 only.
Cabling
The maximum lengths for the E1 network cable is 4.8 kft (1460 m) using copper twisted pair
wire of 26 AWG.
For future use, 8xE1 network card management functionality is only applicable
when the card is used as a combination management card and E1 uplink
interface in the Avidia 2200. Therefore, the following 8xE1 network card
components labeled on the front panel are not operational in the AV8000: ACO
functionality, the RS-232 CRAFT port, and the MAJOR and MINOR LEDs.
Appendix A: System Specifications
AV8000 Installation Manual 167
8xE1 Card Front Panel
LED Mode Color 8xE1 (AV352) Network Card Status Indication
POWER On Green Indicates the 8xE1 network card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the functionality of the 8xE1 network card.
Off None Indicates no fault in the 8xE1 network card.
MAJOR —None Not applicable. (a)
MINOR —None Not applicable. (a)
ACO/
LED TEST —None Not applicable. (a)
E1 ALARM On Red One or more of the eight ports has an alarm condition.
Off None None of the eight ports has an alarm condition.
For the 8xE1 port selected using the E1 Port Select pushbutton:
ACT On Green Indicates the 8xE1 port is enabled to carry user traffic.
Off None Indicates the 8xE1 port is in test mode.
Tx On Green Indicates the 8xE1 port is transmitting user data.
Off None Indicates the 8xE1 port is not transmitting user data.
Rx On Green Indicates the 8xE1 port is receiving user data.
Off None Indicates the 8xE1 port is not receiving user data.
LOS On Red Indicates the port has lost the 8xE1 signal from the distant end.
Off None Indicates the port has not lost the 8xE1 signal from the distant
end.
AIS On Red Indicates the port is receiving an Alarm Indication Signal (AIS)
indicated by an all ones signal from the distant end.
Off None Indicates the port is not receiving an all ones signal from the
distant end.
LOF On Red Indicates the port is receiving a red alarm signal from the
distant end.
Off None Indicates the port is not receiving a red alarm signal from the
distant end.
Tx
Rx
LOS
RAI
LPBK
LOF
AIS
Rx
Tx
ACT
SELECT
E1 PORT
POWER
TEST
FAULT
MINOR
ALARM
E1
ACO
MAJOR
CRAFT
LED
PG
air ain
Avidia Network Cards
168 AV8000 Installation Manual
RAI On Yellow Indicates the port is receiving a Remote Alarm Indication (RAI)
signal from the distant end.
Off None Indicates the port is not receiving an RAI signal from the distant
end.
LPBK On Yellow Indicates a loopback is currently active on the port.
Off None Indicates no loopback is active on the port.
(a) 8xDSX-1 network card management functionality is only applicable when the card is used as
a combination management card and DS1 uplink interface in the Avidia 2200.
LED Mode Color 8xE1 (AV352) Network Card Status Indication
Appendix A: System Specifications
AV8000 Installation Manual 169
8xE1 Card Specifications
Physical
Functional
Features of the 8xE1 network card are described blow.
Power -48 Vdc, 22 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.7 lbs (1.22 kg)
Product Features •multi-processor architecture, providing Permanent Virtual Circuit (PVC)
•ATM Operation, Administration, and Management (OAM) generation and
termination functions
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 256 VPIs per port
•VPI range of 0-255; VCI range of 32-1023
•3 VPIs can carry 992 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
ATM Traffic
Types The E1 network card supports these ATM traffic types:
•Constant Bit Rate (CBR) for digital information requiring continuous bit
streams
•Unspecified Bit Rate (UBR) for LAN traffic
•Real-time Variable Bit Rate (rt-VBR) for packetized voice or video that is not
transmitted at a fixed rate.
•Non-Real-Time Variable Bit Rate (nrt-VBR) for interactive transaction type
transmissions that are bursty and demand significant bandwidth only for
short periods of time.
Avidia Network Cards
170 AV8000 Installation Manual
8xDSX-1 Network Card
The Avidia 353 (AV353) 8xDSX-1 network card provides eight individual DSX-1 uplinks to
transport subscriber traffic as ATM cell over each of the T1 links at a rate of 1.544 Mbps for
each of the eight ports. The DSX-1 card is intended for connections that originate and terminate
within the same building.
Cabling
The maximum lengths for the DSX-1 network cable is 655 feet (199 m).
Loopback •Local loopback with signal being looped back within the network card at the
transceiver.
•Line loopback with signal received at the network interface and looped back
through the transmitter.
Appendix A: System Specifications
AV8000 Installation Manual 171
8xDSX-1 Card Front Panel
.
LED Mode Color 8xDSX-1 (AV353) Network Card Status Indication
POWER On Green Indicates the DSX-1 network card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the functionality of the DSX-1 network card.
Off None Indicates no fault in the DSX-1 network card.
MAJOR —None Not applicable. (a)
MINOR —None Not applicable. (a)
ACO/
LED TEST —None Not applicable. (a)
T1 ALARM On Red One or more of the eight ports has an alarm condition.
Off None None of the eight ports has an alarm condition.
For the DSX-1 port selected using the T1 Port Select pushbutton:
ACT On Green Indicates the DSX-1 port is enabled to carry user traffic.
Off None Indicates the DSX-1 port is in test mode.
Tx On Green Indicates the DSX-1 port is transmitting user data.
Off None Indicates the DSX-1 port is not transmitting user data.
Rx On Green Indicates the DSX-1 port is receiving user data.
Off None Indicates the DSX-1 port is not receiving user data.
LOS On Red Indicates the port has lost the DSX-1 signal from the distant
end.
Off None Indicates the port has not lost the DSX-1 signal from the distant
end.
AIS On Red Indicates the port is receiving an Alarm Indication Signal (AIS)
indicated by an all ones signal from the distant end.
Off None Indicates the port is not receiving an all ones signal from the
distant end.
RED On Red Indicates the port is receiving a red alarm signal from the
distant end.
Off None Indicates the port is not receiving a red alarm signal from the
distant end.
Tx
IN
IN
OUT
MON
OUT
RED
AIS
LOS
LPBK
RAI
MON
LINEEQUIPMENT
Rx
SELECT
T1 PORT
ALARM
ACT
MAJOR
MINOR
ACO
T1
CRAFT
TEST
LED
POWER
FAULT
PG
air ain
AV353
8xDSX1 IMA-UNI
Avidia Network Cards
172 AV8000 Installation Manual
8x-DSX-1 Card Specifications
Features of the 8xDSX-1 network card are described below.
Physical
RAI On Yellow Indicates the port is receiving a Remote Alarm Indication (RAI)
signal from the distant end.
Off None Indicates the port is not receiving an RAI signal from the distant
end.
LPBK On Yellow Reserved.
Off None Reserved.
(a) 8xDSX-1 network card management functionality is only applicable when the card is used as
a combination management card and DSX-1 uplink interface in the Avidia 2200.
Power -48 Vdc, 22 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.7 lbs (1.22 kg)
LED Mode Color 8xDSX-1 (AV353) Network Card Status Indication
Appendix A: System Specifications
AV8000 Installation Manual 173
Functional
The Avidia 353 (AV353) 8xDSX-1 network card provides eight DSX-1 uplinks to transmit
ATM cells to the ATM backbone network. The uplink transmission rate is 1.544 Mbps for
each of the eight ports. Install DSX-1 network cards in network card slots (11 and 12).
Product Features •multi-processor architecture, providing Permanent Virtual Circuit (PVC)
•ATM Operation, Administration, and Management (OAM) generation and
termination functions
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 256 VPIs per port
•VPI range of 0-255; VCI range of 32-1023
•3 VPIs can carry 992 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
ATM Traffic
Types The DSX-1 network card supports these ATM traffic types:
•Constant Bit Rate (CBR) for digital information requiring continuous bit
streams.
•Unspecified Bit Rate (UBR) for LAN traffic.
•Real-time Variable Bit Rate (rt-VBR) for packetized voice or video that is not
transmitted at a fixed rate.
•Non-Real-Time Variable Bit Rate (nrt-VBR) for interactive transaction type
transmissions that are bursty and demand significant bandwidth only for
short periods of time.
Loopback •Line loopback with signal received at the network interface and looped back
through the transmitter.
•Payload loopback with the card looping back the payload (192 bits) through
the receive section (including the framer) and to the transmit section,
returning the payload and the newly-generated ESF framing.
•Remote loopback with the signal sent to the far end, where it is looped back
8xDSX-1 network card management functionality is only applicable when the
card is used as a combination management card and DS1 uplink interface in
the Avidia 2200. The following 8xDSX-1 network card components labeled on
the front panel are therefore not operational in the AV8000: ACO functionality,
the RS-232 CRAFT port, and the MAJOR and MINOR LEDs.
Avidia Network Cards
174 AV8000 Installation Manual
In addition to the status LEDs, the front panel has the following components:
•T1 PORT SELECT button selects a DSX-1 port (1 through 8). Port selection lights the
corresponding port LED and activates the associated Bantam test jacks. When a port is
deselected, the port LED does not light and the Bantam test jacks for that port are inactive.
•Bantam test jacks provide monitoring (MON jack) and direct access (IN and OUT jacks)
to the transmit and receive paths for each active DSX-1 port:
–The Equipment IN and OUT jacks provide direct access to the transmit and receive
signals for the active DSX-1 port. The Equipment OUT jack supplies the transmitted
output signal from the active DSX-1 port; the Equipment IN jack feeds the received
input to the active DSX-1 port. A jumper cable connected between Equipment IN and
OUT jacks provides a loopback test to isolate a malfunction of the DSX-1 card for the
active port.
–The Line IN and OUT jacks provide direct access to the transmit and receive signals
relating to the remote end. The Line OUT jack monitors the transmitted line signal
from the active remote source; the Line IN jack supplies the received line signal to that
remote unit. A jumper cable connected between Line IN and Line OUT jacks bypasses
the DSX-1 card, allowing isolation of a malfunction of the network line function for
the active port.
–The Equipment MON and Line MON jacks provide high impedance test points to be
used for monitoring (example, test equipment). The Equipment MON jack provides
access to the output of the DSX-1 card; the Line MON jack provides access to the
external line.
For information about running loopback tests on this card, see the Avidia System Configuration
and Management manual.
Appendix A: System Specifications
AV8000 Installation Manual 175
AVIDIA SUBSCRIBER CARDS
Avidia subscriber cards provide two-way data communication with the subscribers.
Subscriber cards are currently available in several transmission technologies: ADSL,
cell SDSL, frame SDSL, and IDSL. You must select subscriber cards for the AV8000 that are
compatible with the subscriber-end equipment:
•Select cell DMT ADSL subscriber cards to connect to cell-based DMT ADSL modems.
•Select frame SDSL subscriber cards to connect to frame SDSL modems.
Cell subscriber cards operate with a data stream of fixed length. The advantage of this format is
that the network does not have to handle different sizes of packets or frames. This broadband
technology transmits data quickly and efficiently. There are three cell subscriber cards: AV541,
AV541-LP, and AV522.
Frame-based cards operate with a data stream of variable length. By using only a few bytes of
overhead, the frame format makes efficient use of each frame. This means that more of the
frame bandwidth is used for sending user data and less for overhead. Two Avidia cards are
available for frame-based data: AV421 and AV412.
The table below lists all the subscriber cards available for the AV8000 system.
Avidia
Model xDSL
Format Type Number of
Ports Page
Cell Subscriber Cards
AV541 ADSL Rate-adaptive and rate-selective DMT cell-based 12 176
AV541-LP ADSL Identical to AV541 but with line protection 12 176
AV522 SDSL Rate-selective, cell-based 24 180
Frame Subscriber Cards
AV421 SDSL Rate-selective, frame-based 24 183
AV412 IDSL Rate-selective, frame-based 24 186
Avidia Subscriber Cards
176 AV8000 Installation Manual
ADSL Subscriber Card
The Avidia 541 (AV541) and Avidia Model 541-LP (AV541-LP) with line protection ADSL
subscriber cards are cell-mode DMT ADSL subscriber cards. Each has 12 ports that provide
interfaces for up to 12 subscribers. The selection of ADSL subscriber cards depends upon your
Avidia system configuration:
•Use an Avidia 541 ADSL subscriber card to connect to an Avidia 8100.
•Use an Avidia 541-LP ADSL subscriber card with line protection to connect directly to a
CO MDF.
Appendix A: System Specifications
AV8000 Installation Manual 177
ADSLCardFrontPanel
LED Mode Color ADSL (AV541 and AV541-LP) Subscriber Card Status
Indication
POWER On Green Indicates the subscriber card is receiving power and its power
supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the subscriber card.
Off None Indicates no fault in the subscriber card.
PORT
STATUS On Green Indicates the ADSL port (loop) link is up and linked to the
remote unit.
(one
indicator
for each of
12 ports)
Flashing Green Indicates the ADSL port (loop) link is administratively up, and
a modem is attempting to come up and is in training mode.
On Yellow Indicates the ADSL port (loop) link is administratively up, and
a modem is not connected.
Off None Indicates the ADSL port (loop) link is administratively down
whether or not a modem is attached.
AV541
12-ADSL CELL
12
9
8
5
4
STATUS
1
PORT
FAULT
POWER
PG
air ain
Avidia Subscriber Cards
178 AV8000 Installation Manual
ADSL Card Specifications
Physical
Functional
The Avidia ADSL subscriber card features are described below.
Power -48 Vdc, 52 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight AV541 - 2.4 lbs (1.09 kg)
AV541-LP - 2.5 lbs (1.13 kg)
Data
Transmission Provides transport of ADSL data at a BER of 10-7. The margin used is 6 dB for
the reach and BER specified.
The subscriber card supports two data rate configurations: fixed data rate
and adaptive data rate. The fixed data rate supports the exact data rate specified
by the user. The adaptive data rate automatically adapts to different line
conditions such as loop length, bridge taps, and noise level, to select the
highest data rate possible, up to the maximum you specified when configuring.
The rate-adaptive transmission range is:
•600 kbps to 7 Mbps for downstream data (to subscriber)
•64 kbps to 1 Mbps for upstream data (from subscriber)
The data rate resolution is 32 kbps both upstream and downstream.
Product Features •allows a subscriber to subscribe to multiple Internet access providers or
multiple private IP networks
•allows mechanism to provide subscribers simultaneous access to multiple
networks
Appendix A: System Specifications
AV8000 Installation Manual 179
The Avidia 541 (AV541) and Avidia 541-LP (AV541-LP) subscriber cards are cell-based,
DMT ADSL, rate-adaptive units, each with twelve independent ports. The AV541-LP version
has line protection for subscriber traffic. Selection of the proper ADSL subscriber card depends
upon your individual Avidia system application:
•Use an Avidia 541 ADSL subscriber card to connect to an AV8100 voice shelf
•Use an Avidia 541-LP ADSL card to connect directly to a Central Office (CO) Main
Distribution Frame (MDF)
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 256 VPIs per port
•VPI range of 0-255; VCI range of 32-255
•4 VPIs can carry 224 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Additional ATM features:
•virtual path tunneling
•Connection Admission Control (CAC)
Alarm History Provides alarm history for the following:
•first LLOS timestamp
•last LLOS timestamp
•current LLOS state
•total LLOS count
•first LOSW timestamp
•last LOSW timestamp
•current LOSW count
•first ES threshold exceeded timestamp
•last ES threshold exceeded timestamp
•current ES threshold exceeded state
•total ES threshold exceeded count
•first margin (SNR) threshold exceeded timestamp
•last margin threshold exceeded timestamp
•current margin value
•first power open timestamp
•last power open timestamp
•current power open state
Avidia Subscriber Cards
180 AV8000 Installation Manual
Cell-Based SDSL Subscriber Card
The Avidia 522 (AV522) SDSL Subscriber Card is cell-based and rate-adaptive. It has 24 ports
that provide interfaces for up to 24 subscribers.
SDSL Cell Card Front Panel
LED Mode Color Cell SDSL (AV522) Subscriber Card Status Indication
POWER On Green Indicates the subscriber card is receiving power and its power
supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the subscriber card.
Off None Indicates no fault in the subscriber card.
PORT
STATUS On Green Indicates the SDSL port (loop) link is up and linked to the
remote unit.
(one
indicator
for each of
24 ports)
Flashing Green Indicates the SDSL port (loop) link is administratively up, and
a modem is attempting to come up and is in training mode.
On Yellow Indicates the SDSL port (loop) link is administratively up, and
a modem is not connected.
Off None Indicates the SDSL port (loop) link is administratively down
whether or not a modem is attached.
AV522
24-SDSL
FAULT
POWER
PG
air ain
12
9
8
5
4
STATUS
1
PORT
13
16
17
20
21
24
Appendix A: System Specifications
AV8000 Installation Manual 181
Cell-Based SDSL Card Specifications
The cell SDSL subscriber card features are described below.
Physical
Functional
Power -48 Vdc, 31 W (Operational)
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.5 lbs (1.13 kg)
Data
Transmission Provides transport of SDSL, directly-mapped, ATM cell subscriber card
connectivity to the Avidia system via a single-pair wire at a BER of 10-7 or less
The symmetric rate-selective transmission range is 144 kbps to 2320 kbps in
8 kbps increments
Product Features •allows a subscriber to subscribe to multiple Internet access providers or
multiple private IP networks
•allows mechanism to provide subscribers simultaneous access to multiple
networks
•supports industry standard SDSL cell-based CPE devices
Alarm History Provides alarm manager support for the following:
•Loss-of-signal. LOSS counts will be incremented for each second that a port
is out of SDSL synchronization.
•Loss-of-cell-delineation. LOCD counts will be incremented each second that
a port has one or more LOCD events
•Severe loss-of-cell-delineation. SLOCD counts will be incremented when
more than 50% of the cells cause LOCD events in a given second
•Signal-to-noise ratio (SNR)
Avidia Subscriber Cards
182 AV8000 Installation Manual
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 128 VPIs per port (24 ports)
•VPI range of 0-127; VCI range of 32-127
•2 VPIs can carry 96 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs per port (VPC+VCC)
•Connection Admission Control (CAC)
Appendix A: System Specifications
AV8000 Installation Manual 183
Frame-Based SDSL Subscriber Card
The Avidia 421 (AV421) SDSL Subscriber Card is a frame-mode subscriber card. It has
24 ports that provide interfaces for up to 24 subscribers.
SDSL Frame Card front Panel
LED Mode Color Frame SDSL (AV421) Subscriber Card Status Indication
POWER On Green Indicates the subscriber card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the subscriber card.
Off None Indicates no fault in the subscriber card.
PORT
STATUS On Green Indicates the SDSL port (loop) link is up and linked to the
remote unit.
(one
indicator
for each of
24 ports)
Flashing Green Indicates the SDSL port (loop) link is administratively up,
and a modem is attempting to come up and is in training
mode.
On Yellow Indicates the SDSL port (loop) link is administratively up,
and a modem is not connected.
Off None Indicates the SDSL port (loop) link is administratively down
whether or not a modem is attached.
12
9
8
5
4
STATUS
1
PORT
FAULT
POWER
13
16
17
20
21
24
AV421
24-SDSL
PG
air ain
Avidia Subscriber Cards
184 AV8000 Installation Manual
Frame-BasedSDSLCardSpecifications
The frame SDSL subscriber card features are described below.
Physical
Functional
Power
Height
Width
Depth
Weight
-48 Vdc, 31 W (Operational)
16.51 inches (419.35 mm)
1.00 inch (25.40 mm)
9.50 inches (241.30 mm)
2.5 lbs (1.13 kg)
Data
Transmission Provides transport of SDSL data over single-pair wire at a BER of 10-7. The
margin used is 6 dB for the reach and BER specified.
The symmetric rate-selective transmission range is 128 kbps to 2048 kbps in
64 kbps.
Product
Features Supports MAC+LLC over ATM.
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 1 VPIs per port
•VPI range of 0; VCI range of 1024-4095
•1 VPIs can carry 3072 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Appendix A: System Specifications
AV8000 Installation Manual 185
Alarm History Provides alarm history for the following:
•first unavailable seconds (UAS) threshold exceeded timestamp
•last UAS threshold exceeded timestamp
•UAS threshold exceeded count
•current UAS threshold state
•first errored seconds (ES) threshold exceeded timestamp
•last ES threshold exceeded timestamp
•ES threshold exceeded count
•current ES threshold exceeded state
•first margin (SNR) threshold exceeded timestamp
•last margin threshold exceeded timestamp
•margin threshold exceeded count
•current margin threshold state
•first loss of synch word (LOSW) timestamp
•last LOSW timestamp
•LOSW count
•current LOSW state
Avidia Subscriber Cards
186 AV8000 Installation Manual
IDSL Subscriber Card
The Avidia 412 (AV412) frame-based IDSL subscriber card is frame-based and is
rate-selectable. It provides 24 ports for IDSL subscriber traffic with interfaces for up to 24
subscribers.
IDSL Card Front Panel
LED Mode Color IDSL (AV412) Subscriber Card Status Indication
POWER On Green Indicates the subscriber card is receiving power and its
power supply is functioning properly.
Off None Indicates one of the following faults:
•Card is not receiving power.
•Card power supply is not functioning properly.
FAULT On Red Indicates a fault in the subscriber card.
Off None Indicates no fault in the subscriber card.
PORT
STATUS On Green Indicates the IDSL port (loop) link is up and linked to the
remote unit.
(one
indicator
for each of
24 ports)
Flashing Green Indicates the IDSL port (loop) link is administratively up,
and a modem is attempting to come up and is in training
mode.
On Yellow Indicates the IDSL port (loop) link is administratively up,
and a modem is not connected.
Off None Indicates the IDSL port (loop) link is administratively down
whether or not a modem is attached.
12
9
8
5
4
STATUS
1
PORT
FAULT
POWER
13
16
17
20
21
24
AV412
24-IDSL
PG
air ain
Appendix A: System Specifications
AV8000 Installation Manual 187
IDSL Card Specifications
This IDSL subscriber card has the features described below.
Physical
Functional
Power -48 Vdc, 29 W (Operational
Height 16.51 inches (419.35 mm)
Width 1.00 inch (25.40 mm)
Depth 9.50 inches (241.30 mm)
Weight 2.5 lbs (1.13 kg)
Data
Transmission Provides transport of IDSL data over single-pair wire. The symmetric
rate-selective transmission rates are as follows: 64 kbps, 128 kbps, and 144
kbps.
Product
Features •frame relay compatible with FRF.5 and FRF.8 internetworking standards;
supports bridging and routing sessions
•supports RFC 1490 to RFC 1483 encapsulation
ATM Features ATM connections (PVCs) comprise Virtual Path Connections (VPCs) and
Virtual Subscriber Connections (VCCs), including:
•maximum of 1 VPIs per port
•VPI range of 0; VCI range of 1024-4095
•1 VPIs can carry 3072 VCIs each per port (VCCs)
•system limit—up to 4,096 PVCs (VPC+VCC)
Avidia Subscriber Cards
188 AV8000 Installation Manual
Alarm History Provides alarm history for the following:
•Performance monitoring (PM) data:
–path or segmented statistics
–current 1-hour BE counts (each direction)
–current 1-hour ES counts (each direction)
–current 1- hour SES counts (each direction)
–previous 8 one-hour BE counts (each direction)
–previous 8 one-hour ES counts (each direction)
–previous 8 one-hour SES counts (each direction)
–current 24-hour ES counts (each direction)
–current 24-hour SES counts (each direction)
–previous 24-hour ES counts (each direction)
–previous 24-hour SES counts (each direction)
Alarms •Alarms:
–ISDN loss of signal
–ISDN PM alarms
•hourly ES threshold
•hourly SES threshold
•daily ES threshold
•daily SES threshold
Appendix A: System Specifications
AV8000 Installation Manual 189
AVIDIA CARD INTERFACES
The figure below shows the location of the card interfaces on the chassis backplane. The table
on page 190 provides a description for each interface.
The subscriber xDSL subscriber card connectors S2 through S10 and S13
through S21 also serve as the interface connectors for 8xDS1 network cards.
10/100BASE-T line
card connectors
(reserved)
Management
Ethernet
connector
Reserved
Ground
DS1 BITS
clock pins
DS3 line card
connectors
ENET 2
ENET 1
CHASS
CLOCK
TX
RXRX
TX
DS3-1DS3-2
ENET 1
ENET 2
RT RT RT
BITS
GND
IN1 OUT IN2
LINE
BA
LINE
TO VOICE SHELF 60VMAX
CONNECTED TO EARTH
AND WHICH IS RELIABLY
FROM THE AC SOURCE
ELECTRICALLY ISOLATED
SOURCE WHICH IS
CONNECT TO 48 VDC
MGMT.
10/100
BASE-T
BASE-T
(RESERVED)
10/100
MGMT.
-42.5V...-56.5V
30A MAX30AMAX
-42.5V...-56.5V
BA
(AMC)
S1S3 S2S4S6S8 S7S10 S9
RXTX
DSX-1 DSX-1
(SL12 & SL11)
S13S15 S14S17S19 S18 S16 S5S20S21
DSX1-TX
DSX1-RX
J182
J181
P1
BACKPLANE ID
ID2
ID1
ID4
ID5
ID3
ID0
ID7
ID6
CO ALARMS
EXT.
0V
-48V
ALARMS
0V
-48V
NO
NC
COM
P2
756312 4 8
COM
NO
NC
ACO2
ACO1
B
-42.5V...-56.5V
30A MAX
A
J145
30A MAX
-42.5V...-56.5V CRAFT RS-232 DCE
MANAGEMENT
MGMT.NMARS-232 DTE
LINE ALINE B
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
25
50
1
26
A-side battery and return B-side battery and return
Management
RS-232 craft port
(reserved)
Alarms pins
Unused
Unused
Subscriber xDSL
channel card
connectors
(S13-S21)
Subscriber xDSL
channel card
connectors
(S2-S10)
8xDSX-1 line
card connectors
(SL11-SL12)
25
50
1
26
25
50
1
26
Avidia Card Interfaces
190 AV8000 Installation Manual
Interface Location Description
Configuration and Management Interface
Management
RS-232 Craft Port Management
card (slot 1)and
backplane
(reserved)
Provides a serial connection for an ASCII terminal or a PC running a
terminal emulation application. The interface is a DB-9 female
connector, configured DCE. Through this interface, you can use the
Command-Line Interface to configure and manage the Avidia system.
Management
Ethernet Chassis
backplane Provides an RJ-45 Ethernet port for remote management. The interface
provides 10/100BASE-T Ethernet service. Through the connector
labeled MGMT. 10/100BASE-T, you can use the Command-Line
Interface with Telnet, Web-Based Interface software, or StarGazer
software for system configuration and management.
The other connector is reserved for future use.
Subscriber Interface
Subscriber xDSL
(S2 through S10
and
S13 through S21)
Chassis
backplane Provides 18 backplane connections for subscriber lines to interface to
subscriber cards. The connection is made using 25-pair champ
connectors labeled S2 through S10 and S13 through S21. Connectors
support all xDSL subscriber transmission, with up to 24 subscribers
interfacing to one subscriber card through the champ connector (one
subscriber card equates to one chassis slot). The backplane supports
up to 432 xDSL ports.
Also, provides a backplane connection for an 8xDS1 or an 8xE1 network
card that can be placed only in a subscriber card slot (limited by
backplane connector).
Network Interface
DS3 Chassis
backplane Provides two DS3 interfaces between the AV8000 and the ATM
backbone network. For each network card interface, one BNC connector
is used to transmit, and the other connector is used to receive over
coaxial cable. Each set of interface connectors is shared between
network card slot 11 and network card slot 12.
The DS3 card provides one primary port and one redundant DS3 port
per card. Only one DS3 port can be active on the card at a time. The DS3
cards in slots 11 and 12 can be configured in redundant mode, where a
failure on one card causes switchover to the other card.
10/100BASE-T Chassis
backplane Provides 10/100BASE-T interface between the AV8000 and a
frame-based Ethernet WAN backbone network using RJ-45 connectors.
Two interfaces are provided for each of the two network card slots. Each
interface has one RJ-45 jack.
The 10/100BASE-T connectors are reserved for future use.
Appendix A: System Specifications
AV8000 Installation Manual 191
Network Interface (continued)
8xDSX-1 Network Card
Chassis
backplane
(SL11 and SL12)
Provides a short-haul DSX-1 connection for interface to 8xDSX-1
network cards installed in slots 11 and 12. The connection is made
using 25-pair champ connectors, SL11 and SL12. One connector is
for the transmit (Tx) signal for both network card slots; the other
connector is for the receive (Rx) signal for both network card slots. Use
both the SL11 and SL12 champ connectors for transmit and receive for
the network cards in slots 11 and 12.
8xDS1 Chassis
backplane
(Slots S2 through
S10 and S13
through S21)
Provides a long-haul DS1 connection for interface to 8xDS1 network
cards. The connection is made by using 25-pair champ connectors
labeled S2 through S10 and S13 through S21. This network card
functions in any subscriber card slot (slots 2 through 10, and 13
through 21).
8xE1 Chassis
backplane
(Slots S2 through
S10 and S13
through S21)
Provides a long-haul E1 connection for interface to 8xE1 network cards.
The connection is made by using 25-pair champ connectors labeled
S2 through S10 and S13 through S21. This network card functions in
any subscriber card slot (slots 2 through 10, and 13 through 21).
OC3
(not shown in
figure)
OC3 network
card front Provides a dual-PHY SONET interface between the AV8000 system and
the ATM backbone network. Dependent on which OC3 network card you
selected, the connection is made using either an SC single mode fiber
connector or an SC multimode fiber connector that is located on the
front of the OC3 network card. The primary SC interface is for the
primary fiber-optic line; the secondary SC connector is for the
secondary (redundant) fiber-optic line.
If the OC3 is the sole network card in the AV8000, it must be installed
in slot 12. In a subtended system or when using either load sharing or
redundant network cards, a second network card is installed in slot 11.
Added line or subtending OC3 cards can also be installed in any
subscriber card slot.
Battery and Ground
A- and B-side
battery and return Chassis
backplane Provides connection for -48V battery and 0V return from two battery
sources. The second battery is redundant.
Ground Chassis
backplane Provides secondary voltage protection through connection to
earth ground.
Clock and Alarms
Alarm pins Chassis
backplane Indicates AV8000 alarm conditions as audible, visual, or power relay by
connecting to the CO alarm system. Provides connection for external
alarm input into the AV8000 and for remote Alarm Cut Off (ACO)
control. The external alarm functions are reserved for future use.
DS1 BITS
clock pins Chassis
backplane The BITS (Building Integrated Timing System) clock pins provide
external clock to the network cards to manage device timing. The cell
bus clock signal and arbiter clock are available to network cards in slots
11 and 12.
Interface Location Description
Avidia Card Interfaces
192 AV8000 Installation Manual
AV8000 Installation Manual 193
B
METRICS
INTERNATIONAL WIRE GAUGE
The following tables show metric equivalents for wire gauges used in the AV8000. The first
table shows metric equivalents for solid copper wire used in local loops (smaller gauges) and
chassis ground (larger gauges). The second table shows metric equivalents for stranded copper
wire used to ground the chassis.
AWG Diameter of solid
copper wire (mm)
Cross-Sectional
Area (in square
millimeters)
Cross-Sectional
Area (in circular
mils)
SWG
British
Standard
(nearest)
IEC Metric Size
(diameter mm)
Standard
NS=Non-standard
6 4.115 13.302 26,240 8 4.115 NS
10 2.588 5.269 10,380 12 2.588 NS
14 1.628 2.081 4,110 16 1.628 NS
18 1.024 0.820 1,620 19 1.023 NS
20 0.813 0.517 1,020 21 0.813 NS
22 0.643 0.324 640 23 0.643 NS
24 0.511 0.205 404 25 0.510 NS
26 0.404 0.128 253 27 0.404 NS
27 0.3607 0.102 202 28 0.360 NS
28 0.320 0.081 159 30 0.320 NS
International Wire Gauge
194 AV8000 Installation Manual
AWG Stranding
(#strands/AWG)
Diameter of
stranded copper
wire (mm)
Cross-Sectional
Area (in square
millimeters)
Cross-Sectional
Area (in circular
mils)
6 133/27 4.674 17.158 26,866
10 49/27 2.946 6.813 9,898
14 19/27 1.854 2,672 3,838
AV8000 Installation Manual 195
C
TECHNICAL ASSISTANCE
This chapter describes how to contact ADC for technical support and warranty service.
TECHNICAL SUPPORT
Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical
Assistance Center (TAC) at one of the following numbers:
•Telephone: 800.638.0031
714.730.3222
•Fax: 714.832.9924
•E-mail wsd_support@adc.com
A Customer Service Engineer answers technical assistance calls Monday through Friday
between 7:30 AM and 5:30 PM, Pacific Time, excluding holidays. At all other times, an on-duty
Customer Service Engineer returns technical assistance calls within 30 minutes.
WORLD WIDE WEB
Avidia product information can be found at http://www.adc.com using any Web browser.
Advance Replacement
196 AV8000 Installation Manual
ADVANCE REPLACEMENT
Any product determined by ADC not to comply with the applicable warranty within 30 calendar
days from the date of shipment to the Buyer, or as otherwise authorized, are eligible for advance
replacement free of charge. A replacement product will be shipped to the Buyer within 24 hours
of ADC's receipt of notification from the Buyer.
If products returned to ADC for advance replacement are not received by ADC within 30
calendar days of shipment of the replacement product or if no trouble is found (NTF) as
determined by ADC, the Buyer will be responsible for payment of the cost of the replacement
product. Advance Replacement service outside the warranty period is chargeable at ADC’s
prevailing rates.
BILLING
ADC’s repair of products returned for repair, replacement, or credit, whether in warranty or out
of warranty, which are found to be damaged due to customer negligence or which have had parts
removed will be billed at prevailing time and material rates.
In the event that the returned equipment is not covered by warranty, ADC will contact the
customer with estimated repair or replacement charges and obtain customer disposition of the
product if a purchase order has not been provided.
Equipment returned for repair or replacement is subject to a $250 per unit no trouble found
(NTF) charge in the event that diagnostic evaluation reveals no evidence of functional failure
or physical defects.
Appendix C: Technical Assistance
AV8000 Installation Manual 197
RETURNS
To return equipment to ADC:
1Locate the purchase order number under which the equipment was purchased. You will
need to provide this number to ADC Customer Service to obtain a return authorization.
2Call ADC Customer Service to ask for a Return Material Authorization (RMA) number and
instructions before returning products. Use the telephone number, fax number, or e-mail
address listed below:
•Telephone: 800.366.3891 ext. 63748 or 952.946.3748
The 800 line is toll-free in the U.S. and Canada.
•Fax: 952.946.3237
•E-mail Address: repair&return@adc.com
3Be prepared to provide the following information:
•Company name, address, telephone number, and the name of a person Customer
Service can contact regarding this equipment.
•A description of the equipment as well as the number of units that you are returning.
Be sure to include the model and part number of each unit.
•The shipping address to which Customer Service should return the repaired equipment.
•The reason for the return.
Returns
198 AV8000 Installation Manual
AV8000 Installation Manual 199
D
GLOSSARY
Numeric
10/100BASE-T The Institute of Electrical and Electronic Engineers (IEEE) 802.3
specification for Ethernet over thin coaxial cable.
2B1Q Two Binary, One Quarternary. A line encoding technique used by
ISDN BRI, HSDL and SHDSL. 2B1Q is a four-level PAM (Pulse
Amplitude Modulation) technique which maps two bits of data to
one quaternary symbol, with each symbol comprising one of four
variations in amplitude and phase. Essentially, this technique
transmits data at around twice the frequency of the signal.One of
three modulatio techniques used to support xDSL.
A
AAL1 ATM Adaption Layer 1. Used for time-dependent traffic that is
intolerant to delay. It is used to carry any transmission that
requires a constant bit rate (CBR).
AAL2 ATM Adaptation Layer 2. Used for compressed voice and video
that is intolerant of delay. This layer is used by G.shdsl xDSL
technology.
AAL5 ATM Adaptation Layer 5. AAL5 has been adopted by the ATM
Forum fro a Class of Service called High Speed Data transfer. It
typically supports all types of data traffic. Originally designed to
support TCP/IP.
access method The method by which networked stations determine when they
can transmit data on a shared transmission medium
access provider Organization providing and maintaining network services for
subscribers. Example: Internet Service Provider (ISP); ATM
Service provider (ASP)
200 AV8000 Installation Manual
access rate The transmission speed, in bits per second (bps) of the physical
access circuit between the end user and the network.
ACO The Alarm Cut Off button on the management card front panel is
used to silence audible alarms.
ADSL Asymmetric Digital Subscriber Line is a technology in which data
is transferred asymmetrically from the service provider to the
subscriber at up to 7.552 Mbps, and from the subscriber to
service provider at up to 928 Kbps. ADSL operates over single
twisted-pair copper media. ADSL is the implementation of the
physical layer for transmission of data.
AN Access Node. Usually formed by the presence of a router and
user access equipment. May also refer to points on the edge of a
large network providing the means whereby users on a smaller
network may gain access to the larger network. Example: ATM
edge switches: Digital Loop Carrier systems
ANSI American National Standards Institute. Accredits and
implements standards developed by other organizations.
member of ISO.
APS Automatic Protection Switching. When the error rate or failure of
a primary switching device (line card) is detected, data
transmission automatically shifts from the failed device to a
standby secondary device.
ASP ATM Network Provider
asymmetric
transmission Transmission in which a channel sends and receives data at
different signaling rates. Usually the received data has a higher
stream rate than does the transmitted data. See ADSL
ATM Asynchronous Transfer Mode is a high bandwidth, low delay,
connection-oriented, packet-like switching and multiplexing
technique that uses 53-byte fixed-size cells to transmit voice,
video and data over a network. ATM layers define how cells are
formatted and provide the transport of the fixed length cells
between the modem and the service provider (or endpoints of
the virtual connection).
ATM Forum An industry organization comprised of more than 800 members
whose focus is aimed at speeding the development,
standardization and deployment of ATM products and the ATM
network.
attenuation The dissipation of the power of a transmitted signal as it travels
over copper wire, measured in decibels (dB).
Appendix D: Glossary
AV8000 Installation Manual 201
ATU ADSL Transceiver Unit. ADSL Forum terminology for xDSL
equipment based on the ADSL model. The xDSL endpoint is
known as the ATU-R and the CO unit is known as the ATU-C.
ATU-C ATU-Central Office. ATU equipment placed in a carrier’s central
office in support of xDSL based services.
ATU-R ATU-Remote. Equipment placed in customer’s locations in
support of xDSL based services.
authentication Security feature offered through PAP and CHAP with PPP
sessions.
AWG American Wire Gauge is the standard used to describe wire size.
The diameter of the wire increases as the gauge decreases. 26
gauge is 0.0159 inches (0.405 mm) in diameter, 24 gauge is
0.0201 inches (0.511 mm), etc.
B
B-Channel in ISDN, a full duplex, 64kbps channel for sending data.
backbone Equipment that provides connectivity for users of distributed
networks and includes all of the network infrastructure required
to provide connectivity between the network edge devices.
backbone network The main artery or link for a private or public network. This
network is capable of carrying a high-bandwidth load and is the
network to which smaller networks are linked.
bandwidth A term used to describe the capacity or amount t of traffic that a
certain communications line is capable of
accommodating—measured in Hertz, Kilohertz, or Megahertz.
bseband Transmission scheme in which the entire bandwidth of a medium
is used to carry a single digital signal between multiple users.
BER Bit Error Rate is a measure of transmission quality. It is the ratio
of error bits to the total number of bits transmitted. Also refers
to the Basic Encoding Rate. These represent rules for encoding
data units as described in ANS.1.
Bit A bit is the smallest unit of data that a computer or other digital
equipment is able to process. It can have only one of two states
A “1” indicates one state and a “0” represents the other. The
significance of either depends on the equipment and the software
operating on that equipment.
202 AV8000 Installation Manual
BITS clock Building Integrated Timing Supply clock. This is the master
reference clock source used by switching equipment at the CO
and is generally obtained from.
bit error When a bit unintentionally changes state during transmission
from one point in a circuit to another, this is considered a
transmission error condition, or a bit error.
bit-per-second (bps) Bits-per-second is the number of bits transferred during each
second of data transmission. Commonly known as the bit-rate.
BRI (Basic Rate
Interface) An ISDN interface that provides each user with two 64k kbps
bearer channels and one 16 kbps data channel (2B+D).
bridge A data communications device that is able to connect two or
more networks running different protocols. The bridge forwards
data packets between these networks. Bridges operate at the
Layer 2, data layer of the OSI model. Bridges simply read, filter,
and direct data packets between networks.
bridge/router A device that can provide the functions of a bridge, router or both
concurrently. Bridge/Routers can route one or more protocols,
such as TCP/IP, and bridge all other traffic.
C
cable bInder In the telephone network, multiple insulated copper pairs are
bundled together into a cable called a cable binder.
CAC Connection Admission Control determines whether a connection
request can be accepted or should be rejected. A feature of Qos
call setup This is the process of creating a connection between two or more
devices on a network. it may be applied to either analog (voice)
or digital (data) networks. This process, like call teardown, is
protocol driven and involves the negotiation of various
parameters.
call teardown The opposite of call setup. In this case, the connection is
systematically dissolved. This process, like call setup, is protocol
driven and involves the negotiation of various parameters.
campus area network A network which encompasses interconnectivity between floors
of a building and/or buildings in a confined geographic area such
as a campus or industrial park.
Appendix D: Glossary
AV8000 Installation Manual 203
CAP Carrierless Amplitude & Phase modulation. A transmission
technology for implementing a DSL network, supporting ADSL,
HDSL, SDSL, and RADSL line coding. Less effective than DMT,
it is one of three modulation techniques used to support xDSL.
CAP Competitive Access Provider. Alternative provided to Local
Exchange Carrier (LEC). See also CLEC
CAT5 Category 5. Specifications from EIA/TIA-507 refer to CAT5 and
grade UTP5 unshieilded twisted pair wiring.
CBR Constant Bit Rate is a traffic class that carries a guaranteed
constant bandwidth. It is best suited for applications that require
fixed bandwidth, such as uncompressed voice, video, and circuit
emulation. CBR is a Quality of Service class defined by the ATM
Forum for ATM networks.
CCITT Consultative Committee for International Telegraph and
Telephone—now known as ITU-T. Develops standards for
communications. Example: Recommendation X.25.
cell A fixed-length packet. Also, the unit of data transmission used in
ATM. Each ATM cell contains a fixed-size frame (53 bytes)
consisting of a five-byte header and a 48-byte payload.
cell relay A form of packet switching which uses fixed-length data packets.
Each cell 53 octets in length—48 bytes of data “payload” and 5
bytes of address. Cell relay is capable of supporting very high
speed data transmissions of both digital and audio information.
channel A communications path. Multiple channels can be multiplexed
over a single cable in certain environments.
CO Central Office is the building containing the telephone company
equipment.
CoS Class of Service. a classification of xDSL traffic flows into certain
categories to which a specific quality of service (QoS) is then
applied.
circuit-switched
network A network that establishes a temporary physical circuit, until it
receives a disconnect signal.
circuit switching Switching system in which a dedicated physical circuit path must
exist between sender and receiver for the duration of the “call.”
Used heavily in the phone industry within their communications
network structure. Often contrasted with message and packet
switching as a switching technique.
204 AV8000 Installation Manual
CLEC Competitive Local Exchange Carrier. Alternative provider to a
Local Exchange Carrier (LEC). See also CAP.
client Clients are network devices and systems that request shared
resources such as files, printers, and e-mail form a network
server.
coaxial cable A type of wire or conductor having a fixed characteristic
impedance, structured so that a central solid or stranded
conductor is maintained at a fixed distance from an outer foil or
braided conductor by a solid dielectric medium (an insulator). An
outer protective jacket is then moulded over the entire
assembly.Coaxial cables provide high noise immunity and low
power loss.
compression Reducing the size of a data set to lower the bandwidth or space
required for transmission or storage.
concentrator A device that serves as a wiring hub in a star-topology network.
Sometimes refers to a device containing multiple modules of
network equipment.
CPE Customer Premises Equipment. Terminating equipment supplied
by the phone company or the customer, installed at a customer
site, and connected to the phone company network. Example:
terminals, phones, routers, modems.
CRC Cyclic Redundancy Check is an algorithmic method used to
verify the integrity of data transmission.
crosstalk Line interference occurring between wire pairs within the same
bundle that are used for separate transmissions.
CSU/DSU Channel Service Unit/Data service Unit. A digital interface unit
that connects end-user equipment to the local digital telephone
loop.
Appendix D: Glossary
AV8000 Installation Manual 205
D
D-Channel Full Duplex 16 kbps (basic rate) or 64 kbps (primary rate) ISDN
channel.
DACS Digital Access & Cross-Connect System. A digital cross-connect
device for routing lines among multiple ports. Connections are
typically set up in advance of the call.
DCE Data Circuit-terminating Equipment. Equipment that resides at
the customer end of a transmission link and provides all
necessary termination functions for that link.
DCE Data Communications Equipment. The devices and connections
of a communications network that connect the communications
circuit with the end device (Data Terminal Equipment). Example:
a modem
DDS Digital Data Service. Private line digital data service.
decibel (db) A ratio of either power, voltage, current or acoustic wave signals
measured in units called decibels This system is commonly used
to describe the gain or loss in signal strength between to
measured points.
dedicated line A transmission circuit installed between two sites of a private
network and then “open” or available at all times.
demarcation point The point of intersection at a customer site which divides the
wiring, and its maintenance responsibility, between the customer
and the service provider. It is usually marked by some type of
network interface device (NID).
demultiplexing The counter part to multiplexing. In this case, multiplexed signals
or channels are processed so as to separate them into their
original individual form.
deMUX Demultiplexer.
(1) A technique that enables a single physical media (line)
containing several multiplexed (combined) data streams to be
separated into the original individual signals.
(2) A device for disassembling several channels being carried by
one physical line or fiber optic cable into the original constituent
signals.
DHCP Dynamic Host Control Protocol. A TCP/IP protocol.
dial-up A type of communications that is established by a
switched-circuit connection using the telephone network.
206 AV8000 Installation Manual
DLC Digital Loop Carrier is equipment that bundles multiple individual
phone line signals into a single multiplexing digital signal for
signals between a central office and a customer. Network
transmission equipment used to provide a pair-gain function,
consisting of a CO terminal and a remote terminal.
DMT Discrete Multi-Tone. A modulation technique used for coding an
ADSL transmission. In DMT, a large number (256) of low-rate
carrier frequencies are QAM-modulated at a low rate in order to
transmit a single high-rate data stream. This technique
essentially adds a layer of multiplexing to the data stream. Data
transmission can be isolated from poor quality sub-channels and
transferred to high quality sub-channels, automatically. DMT is
the official ANSI, ETSI and ITU-T standard for ADSL. One of three
modulation techniques used for ADSL.
downstream traffic Communications from a service provider to the service user.
DS-0 Digital Signal Level 0 is the worldwide standard for transmission
at 64 kbps for PCM digitized voice channels. 24 DS-0’s exist in
each DS-1 (T1) signal
DS-1 Digital Signal, level 1 carries information at the rate of 1.544
Mbps in North America. Supports 24 simultaneous DS-0 signals.
Generally synonymous with TI transmission rates.
DS-3 Digital Signal, level 3 carries information at 44.736 Mbps in
North American and Japan. Supports 28 simultaneous DS-1
signals.
DSL Digital Subscriber Line is a generic name for a family of digital
services to be provided by local telephone companies to their
local subscribers. The DSL can carry voice, video, and other data
signals in both directions at the same time, as well as the
signaling date used for call information and customer data.
DSLAM Digital Subscriber Line Access multiplexer. Provides high-speed
Internet or Intranet access over traditional twisted-pair telephone
through the use of xDSL technology. provides simultaneous
high-speed digital data access and POTS analog service over the
same twisted-pair telephone line. Installed at the CO or at an ISP
site adjacent to the CO.
DSU Digital Service Unit. Digital loop device residing on customer
premises and providing an interface to the customer’s DTE.
DSX-1 Digital Signal Cross-connect, level 1 is the set of parameters for
cross-connecting DS-1 signals, generally employed at the CO for
interconnecting plant equipment.
Appendix D: Glossary
AV8000 Installation Manual 207
DTE Data Terminal Equipment. That part of a data station that serves
as a data source, destination or both, and that provides for the
data communications control function according to protocol.
DTE includes computers, protocol translators, and multiplexers.
duplex A data transmission mode that may take one of two forms:
full-duplex, allowing simultaneous transmission of data in both
directions, and half-duplex, permitting only transmissions in one
direction or the other to occur at any one point in time.
E
E1 The European version of T-1. This digital facility is used for
transmitting data over a telephone network at 2.048Mbps.
E3 The hi8ghesttransmission rate generally available in European
digital infrastructure, transmitting data at 34 Mbps.
echo cancellation A process by which a transmitter/receiver cancels out the
transmitted signal in a full-duplex loop, so as to hear the received
signal without interference.
encapsulation A technique used by layered protocols in which one layer adds
header information to the PDU (Protocol Data Unit) from another
layer—essentially embedding the frames or cells of one protocol
as the data payload in another protocol. Example: IP over ATM,
or PPP over ATM. This technique enables successful data
transmission between different protocol networks.
EIA/TIA Electronic Industries Association/Telecommunication Industry
Association. This organization provides standards for the data
communication industry to ensure the uniformity if the interface
between DTEs and DCEs.
EMI ElecrtoMagnetic Interference. Leakage of radiation from a
transmission medium due to high frequency energy.This leakage
may adversely affect other equipment and services if sufficient
power from these signals should escape the enclosure or
transmission media. The FCC regulates the levels of EMI and RFI
that may be emitted by an enclosed electronic switching device.
EMS Element Management System. A management system that
provides functions at the network element management layer
enterprise network A larger corporate network under the auspices of one
organization.
208 AV8000 Installation Manual
ethernet A baseband LAN specification invented by Xerox Corporation and
developed jointly by Xerox, Intel, and Digital Equipment
Corporation. Ethernet allows networks to operate at a transfer
rate either 10 or 100 Mbps, depending on the media, quality, and
rating of the interface.
ETSI European Telecommunications Standards Institute. Proposes
standards for integrating European telecommunications
throughout the entire European Community (EC).
EU European Union
exchange Sometimes used to refer to a telephone switching center—a
Central Office—a physical room or building. Outside of north
America, a telephone central office is often referred to as a
“Public Exchange.”
F
FCC Federal Communications Commission. The United States federal
regulatory agency responsible for regulation interstate and
international communications.
FDDI A LAN Token Ring standard using fiber optic cable
FDI Feeder Distribution Interfaces. Points where cable bundles from
the telephone switch connect to individual drop lines leading to
the service end-users.
FDM Frequency Division Multiplexing
FEXT Crosstalk that travels along a circuit in the same direction as the
desired signal. The terminals of the offending channel and the
offended channel are usually remote from each other.
fiber optics A transmission medium that uses glass or plastic fibers, rather
than copper wire, to transport data and voice signals. The signal
is imposed on to the fiber via modulated pulses of light from a
small specially designed laser or a light-emitting diode (LED).
Due to its high bandwidth and lack of susceptibility to
interference, fiber-optic cable is used in long-haul or noisy
applications.
fractional T1 A WAN communications service that provides the user with
some portion of a T1circuit which has been divided into 24
separate 64 Kbps channels.
Appendix D: Glossary
AV8000 Installation Manual 209
frame relay This is a high-speed data communications protocol for
transmitting packet-mode data. Frame relay supports
variable-length packets; therefore, a fame relay network can
support many different native protocols and payload lengths.
FRAD Frame Relay Access Device
FTP File Transfer protocol. Internet protocol used for accessing files
linked to the Internet
G
G.lite Special version of ADSL known as ADSL.lite. G.lite has a
downstream data rate of 1.5 Mbps or less. It has a reach similar
to full-rate ADSL (G.dmt). G.lite is ideal for consumer use
because of its ease of installation and no need for a line splitter
or wiring modifications at the customers site.
G.dmt Full-rate ADSL.
Gbps Gigabits per Second. 1,000,000,000 bits per second. A
measurement of data transmission speed.
GUI Graphical User Interface
H
HDSL High-bit-rate Digital Subscriber Line). Designed to be a
cost-effective method of delivering T1/E1 over unconditioned
copper cable—without the use of repeaters.
HDSL2 Similar to HDSL but HDSL2 supports full T1/E1 over a single
twisted pair—it is interoperable with many vendors and it is ANSI
standards based.
Hertz Frequency measurement, 1 Hertz = 1 cycle per second.
HTU-C HDSL Transceiver Unit-Central Office
HTU-R HDSL Transceiver Unit-Remote
210 AV8000 Installation Manual
I
IAD Integrated Access Device. A device which supports voice, data
and video information streams over a single high-capacity
circuit. The IAD serves as the ATU-R device at the service user’s
location supporting SHDSL ATM transmissions.
IDSL IDSN based DSL using 2B1Q modulation line code.
IEEE Institute of Electrical and Electronic Engineers. Professional
organization that, among other activities, defines network
standards. These standards constitute the predominant LAN
standards body today.
ILEC Incumbent Local Exchange Carrier. This refers to the primary
existing carrier, as distinguished from the newer competitive
carriers, following deregulation.
interoperability The ability of equipment from multiple vendors to communicate
with one another using standardized protocols.
interface (1) The point at which two systems or pieces of equipment are
connected.
(2) A connection between two systems or devices. A shared
boundary defined by common physical interconnection
characteristics, signal characteristics, and meanings of
interchanged signals.
intranet A private network that uses Internet software and standards.
IP Internet Protocol. A standard describing software that keeps
track of the Internetwork addresses for different nodes, routes
outgoing messages, and recognizes incoming messages.
IP address A 32-bit address used in IP routing. The address consists of four
octets separated by decimals. The octets comprise a network
section, a subnet section (optional) and a host section.
IPX Internetwork Packet Exchange. LAN communications protocol
used to move data between server and/or workstation programs
running on different network nodes.
ISA Industry Standard Architecture. A personal computer bus
architecture.
ISDN Integrated Services Digital Network. ACCITT networking
standard devised to provide end-to-end, simultaneous handling
of digitized voice and data traffic on the same link.
Appendix D: Glossary
AV8000 Installation Manual 211
ISO International Standards organization. Founded in 1946 to
facilitate the development of industrial standards.
ISP Internet Service Provider
ITU International Telecommunications Union. Standards body that
produces standards for all internationally controlled aspects of
analog and digital communications. Formerly known as CCITT.
IXC IntereXchange Carrier.
(1) A long-distance telephone carrier offering circuit-switched,
leased-line or packet-switched service or some combination of
these.
(2) Any individual, partnership, association, joint-stock
company, trust, government entity or corporation engaged for
hire in interstate or foreign communications by wire, or radio,
between two or more exchanges.
J
K
Kbps Kilobits per second. 1,000 bits per second. A measure of data
transmission speed.
L
L2TP Layer 2 Tunneling Protocol.
LAN Local Area Network. The mean by which a local community of
users and workgroups can share information and resources
electronically. Many communications protocols are used to
accomplish this; the most prevalent of which are Ethernet and
Token Ring.
LANE LAN Emulation. Typically used in LANE over ATM.
212 AV8000 Installation Manual
LATA Local Access and Transport Area.
(1) A geographic area established for the provision and
administration of communications services. It encompasses one
or more designated exchanges, which are grouped to serve
common social, economic, or other common purposes.
(2) Contiguous local exchange areas that include every point
served by a LEC within an existing community of interest and that
serve as the dividing line for the allocation of assets and liabilities
between the IXC and the LEC.
(3) A telephone company term that defines a geographic area;
sometimes corresponds to an area code, though not always.
last mile A reference to the “Local Loop,” the distance between a local
telco office and the subscriber; a distance actually less than three
miles (0 to 4 kilometers).
layer OSI Reference model. Each layer performs certain tasks
necessary in order to move information from the sender to the
receiver. Protocols within each layer of the OSI model, define the
set of tasks required of the network but not the method of
accomplishing these tasks.
leased line A transmission line reserved by a communications carrier for the
private use of a customer.
LEC Local Exchange Carrier. LECs provide local telephone, voice and
data, services to the end-user.
lifeline POTS A minimum telephone service designed to extend a “lifeline” to
the telephone system in the event of an emergency, particularly
when electric power is lost.
lIne code Any method of converting digital information to analog form for
transmission on a telephone line. Example: 2B1Q, DMT, and CAP
are all line codes.
link The physical connection between two nodes in a network. It can
consist of a data communication circuit or a direct channel
(cable) connection. Also an LED signal at the card or system level
that indicates that a connection or connections has been
established
local loop This refers to the physical copper wire pair or “loop” of wire from
the Central Office (CO) to the end-user or subscriber.
LOF Loss Of Frame is an error indicating that the receiving equipment
has lost a frame.
LOS Loss Of Signal is an error indicating that the receiving equipment
has lost the signal.
Appendix D: Glossary
AV8000 Installation Manual 213
M
MAC Media Access Control. A method of controlling access to a
transmission medium. Example: Ethernet, Token Ring, FDDI
MAC address The address for a device on a network, located at the Media
Access Layer (MAC) in the network architecture.
MAN metropolitan Area network. A data communications network
covering the geographic area of a city. often used by a CAP to
carry backbone traffic in the area served by the network.
margin The noise margin in decibels that the modem must achieve with
a BER of 10 -7 or better to successfully complete initialization.
Mbps Megabits per second. 1,000,000 bits per second.
MDF Main Distribution Frame. A central point where all local loops
terminate within the Central Office (CO).
MDI Medium Dependent Interface devices communicate with MDI-X
devices using a straight-through cable. X means that you have
crossed the transmit and receive lines. MDI devices
communicate with other MDI devices using a crossover cable
(the cable crosses the transmit and receive lines).
message packet A unit of information used in network communication. Messages
sent between devices are formed into packets by the source
device, sent through the network, and then reassembled at the
receiving end by the receiving device. An individual packet
consists of a header and a data payload. At the receiving end the
headers are stripped off and the data (message) recovered. Large
messages are distributed as multiple message packets which are
sequenced at the source and re-sequenced into the proper
ordered at the receiver—regardless of the order in which they
were actually received.
MIB Management Information dataBase. A set of variables that define
the configuration and status parameters for network
management. Network management stations can retrieve
information from and write information to an MIB. The Internet
Engineering Task Force (IETF) specifies standard MIBS for
certain types of devices, ensuring any NMS can manage the
devices. Vendors can specify proprietary MIBs for their devices
to fit specific needs.
214 AV8000 Installation Manual
NMS Network Management System communicates with SNMP agents
in managed devices to:
•set configuration.
•get configuration.
•get status.
modem An electronic device designed to perform two primary functions:
modulations and demodulation of a carrier signal. At the
transmitting end, a carrier waveform is modulated by a data
signal; at the receiving end, the carrier is demodulated and the
original signal is recovered.
modulation Process by which a carrier’s characteristics are transformed to
convey information (the data signal). Types of modulation
include: frequency modulation (FM), pulse amplitude modulation
(PAM), discrete multitone (DMT), phase modulation (PM), Pulse
Code Modulation (PCM), and many other forms.
multiplexer The counterpart to demultiplexing. In this case, individual
channels or signals are combined so as to form one aggregate
signal for transmission.
MUX Multiplexer.
(1) A technique that enables several data streams to be sent over
a single physical media (line). It is also a function by which one
connection from a layer is used to support more than one
connection to the next higher layer.
(2) A device for combining several channels to be carried by one
physical line or fiber optic cable. The signals are then recovered
through de-multiplexing and a demultiplexer at the receiving end
of the connection.
N
NAP Network Access Provider. The NAP provides a transit network
service that permits the connection of service subscribers to
NSPs (Network Service Providers). The NAP is typically the
network provider that has access to the copper twisted pairs over
which the xDSL-based service operates.
NDIS Network Design Interface Specification. Used for all
communications with network adapters. These work primarily
with LAN managers and allow multiple protocol stacks to share
a single NIC.
Appendix D: Glossary
AV8000 Installation Manual 215
NEBS Network Equipment Building Standard. NEBS defines a rigid and
extensive set of performance, quality, environmental, and safety
requirements developed by Bellcore, the R&D and standards
organization owned by the seven Regional Bell Operating
Companies (RBOC). NEBS compliance is often required by
telecommunications service providers and IECs (Interexchange
Carriers) for equipment installed in their switching offices.
NEXT Near End crosstalk. Crosstalk in which the interfering signal is
traveling in the opposite direction with respect to the desired
signal.
NIC Network Interface Card. The circuit board installed in a PC that
provides the interface between a communicating PC and the
network.
NID Network Interface Device. An electronic device that connects the
telephone line and the POTS splitter to the local loop.
NMS Network management System. A system responsible for
managing at least a part of a network. MNSs communicate with
agents, which reside in the managed nodes, to help keep track of
network statistics and responses. NMS usually employ MIBS,
public and private, to carry out their tasks, and utilize a network
management protocol.
NNI Network to Network Interface. The interface between two public
pieces of network equipment.
node A node on a network is usually formed by the presence of a router
and user assess equipment. Often, several leased lines are joined
together at a network node.
NSN Network Service Node.
NSP Network Service Provider. This can include a local telephone
company LEC, ISP, ASP or CLE.C
NTU Network Termination Unit. Equipment at the customer premises
which terminates a network access interface.
216 AV8000 Installation Manual
O
OAM Operations, Administration and Maintenance is a major part of
ATM-layer management. ATM-layer management is concerned
with the general functions of monitoring the network behavior
and status, detection and analysis of troubles, and system
protection and repair.
OC3 Optical Carrier 3 carries information at the rate of 155.52 million
bits per second on SONET channels.
octet An eight-bit byte. octets are always 8-bits in length as opposed
to bytes which can sometimes vary in length with applications or
technologies.
OCn Optical Carrier Level-N signal. The fundamental transmission
rate for SONET. Example: OC3 operates at 1.55 Mbps.
optical fiber A special mono filament made of plastic or glass that is used to
guide light waves from one point to another. Optical cables form
the backbone of the SONET network. The advantages of optical
fiber over copper include: high immunity to electromagnetic
interference, very low transmission losses, bandwidth that is
wider than any other known transmission medium, it does not
radiate, and can be formed into a multi-filament structure which
is able to carry a great deal of information within one bundle
—without harmful interference between the fibers.
OSI model Open Systems Interconnection This is the only internationally
accepted framework (model) of standards for communications
between different systems made by different vendors. Most of
the more dominant protocols used today have a structure based
on the OSI model. The OSI model organizes the communications
process into seven distinct sequenced layers. These deal with the
complete, end-to-end, communications between the messaging
source and the messaging destination, as well as the actual
physical and logical network access itself.
Appendix D: Glossary
AV8000 Installation Manual 217
P
packet (1) A logical grouping of information that includes a header and
usually a data payload.
(2) A continuous sequence of binary digits of information
switched through a network as an integral unit of data.
packet switching
network A network in which data is transmitted in units called packets.The
packets can be routed individually over the best available
network connection and reassembled to form the complete,
original, message at its destination. Data is assembled into small
data packets by the PAD (Packet Assembler/Disassembler) sent
through the network and then disassembled by the PAD at the
destination node restoring the complete message.
PBX Private Branch Exchange
POP Point of Presence. A POP refer to a node of an ISP or other NSP.
A POP is usually a network node.
port The physical or logical point where access to a network may be
gained. May also apply to devices and computers in general.
Ports are usually associated with port numbers.
POTS Plain Old Telephone Service. The basic service supplying
standard single line telephones, telephone lines, and access to
the public switched network.
POTS splitter A device that rejects the xDSL signal and allows the POTS signal,
voice frequencies, to pass through unimpeded.
PPP Point-to-Point Protocol. A protocol that allows a PC to connect
to the Internet using a dial-up connection and a high speed
modem. PPP is the most common means of carrying IP frames
over a circuit. This protocol features error detection and data
compression.
PPPoA PPP over ATM. The transport of PPP frames over ATM.
PPPoE PPP over Ethernet. The transport of PPP frames over Ethernet.
PSC Public Service Commission
PSTN Public Switched Telephone Network. The generic term for the
collection of networks which provide public telephone switching
service.
218 AV8000 Installation Manual
PVC Permanent Virtual Circuit is a logical connection comprising a
predefined static route across a packet-switched network that is
always in place and always available. The end-points in a PVC
circuit are pre-defined and fixed by the network manager.
PVCC Permanent Virtual Channel Connection. A Virtual Channel
Connection (VCC) is an ATM connection in which switching is
performed on VPI/VCI fields of each ATM cell. A PVCC
connection is normally provisioned by some network
management function and left in place indefinitely.
PVPC Permanent Virtual Path Connection. A virtual Path Connection
(VPC) is an ATM connection in which switching is performed on
only the VPI field of the ATM cell. A PVPC connection is normally
provisioned by some network management function and left in
place indefinitely.
Q
QAM Quadrature Amplified Modulation. A two-dimensional
modulation scheme used for ADSL. CAP is a special case of
QAM. In QAM, a single carrier frequency is modulated in both
sine and cosine components.
QoS Quality of Service. QoS is an equal function of both transmission
performance and service availability. Term for a set of categories
and their parameter values which determine the overall
performance of a given virtual circuit. These configured traffic
parameters are assigned to a specific virtual circuit and specify
how swiftly and how accurately data is transferred from the
sender to the receiver. The ATM Forum has defined QoS
parameters that define various levels of performance for the User
Network Interface (UNI).
QoS categories There are five basic service categories supported by ATM traffic
management: Constant Bit Rate (CBTR), Real-Time Variable Bit
Rate (rt-VBR), Non-Real-Time Variable Bit Rate (nrt-VBR),
Available Bit Rate (ABR), and Unspecified Bit Rate (UBR). Each
of these categories service clearly defined applications, and have
their own data types, and QoS parameters.
QoS service
parameters A set of parameters that characterize the performance of an ATM
connection. These include: Peak-to-peak Cell delay Variation
(p-pCDV), Maximum cell transfer delay (max CTD), Cell Loss
Ratio (CLR)
Appendix D: Glossary
AV8000 Installation Manual 219
QoS traffic parameters A set of parameters that describe the traffic characteristics of the
source and the connection. These include: Peak Cell Rate (PCR),
Cell delay Variation Tolerance (CDVT), Sustainable Cell Rate
(SCR), Maximum Burst Size (MBS), and Minimum Cell Rate
(expected) (MCR).
R
RADSL Rate Adaptive DSL. An extension of DSL which encompasses a
wide variety of data rates. These rates are dependent upon the
condition of a given transmission line and its signal capabilities.
rate adaptation A system that is rate adaptive is capable of assessing the
conditions of the line (local loop), determining the maximum
allowable bit rate that can be implemented, and then configuring
the transmission to realize the maximum bit rate possible under
the present conditions. Rate Adaptation is a feature of DMT used
with ADSL.
RBOC Regional Bell Operating Companies. The seven LEC telephone
companies created after AT&T divestiture.
remote LAN access Data communications within a corporate or campus environment
in which the computer networks can be accessed remotely via
public telecommunications networks.
repeater An electronic device used to regenerate digital signals and
restore signal quality over a certain distance. This is only
possible with digital signals—analog signals may not be
regenerated. Repeaters may be used to boost and amplify analog
signals that have deteriorated in strength and quality over
distance—but they may not “regenerate” them.
RFC Request For Comment is a series of notes that contain surveys,
measurements, ideas, techniques, and observations, as well as
proposed and accepted TCP/IP protocol standards. RFCs are
available on the Internet.
RFI Radio Frequency Interference. Radio frequencies are defined for
the electromagnetic spectrum between 3 KHz and 300 GHz.
These are unwanted emissions from electronic switching circuits
that must be minimized in accordance with FCC regulations.
220 AV8000 Installation Manual
router A device that interconnects LANs and can automatically route
traffic at the Layer 3 network level of the OSI model. Routers are
either protocol dependent, relying on LAN based computers for
the address of the destination computer, or protocol
independent, relying on their own routing tables for routing
information and destination addresses. Routers provide more
functionality than do bridges, providing network management
capabilities as well as some troubleshooting tools.
RT Remote Terminal. The local loop terminates at Remote terminal
intermediate points closer to the service user to improve service
reliability.
RTU Remote Termination Unit. A device installed at the service user’s
site that connects to the local loop to provide high-speed
connectivity. Also referred to as an ATU-R
S
SDH Synchronous Digital Hierarchy. An international standard for
data transmission using SONET.
SDSL frame Symmetrical Digital Subscriber Line Frame is a technology in
which data frames are transferred between the service provider
and the subscriber at up to 1.544 Mbps each direction.
SDSL cell Symmetric Digital Subscriber Line Cell is a technology in which
ATM cells are transferred between the service provider and the
subscriber at up to 2048 kbps in each direction.
server A LAN network device which permits shared access to file
systems, printers, common file areas, shared resources, and
e-mail, by acting as the distribution center for these resources.
Selected clients on a network share one or more common
servers.
SHDSL Single Pair, high speed, multirate, symmetric DSL. SHDSL
Provides data rates from 192 Kbps to 2.304 Mbps over a single
twisted pair. Range is as much as 18, 000 feet. SHDSL operates
with pure digital voice and data providing more than 16 voice
lines in addition to data over a single two-wire copper interface.
SEF Severely Errored Frames is an incoming signal that has at least
four consecutive errored framing patterns.
Appendix D: Glossary
AV8000 Installation Manual 221
service provider An organization that provides telecommunication services and
systems and arranges and manages user connections to a
network system. A service provider may supply access to the
Internet, an ATM network or other type of Wide Area Network
(WAN).
SES Severely Errored Seconds are seconds during which more than
2,500 bipolar errors are detected on the line.
session The time during which two computers maintain a communication
connection.
simplex A unidirectional data transmission mode. See duplex.
SNMP Simple Network Management Protocol is a protocol that
specifies how to send information between a NMS and managed
devices on a network. Initially, SNMP was established in order to
allow milt-vendor networking devices to be managed more easily
with a common management tool. The managed devices run a
program called an agent. The agent interprets SNMP request and
responds to them. SNMP is used to set device configurations,
read device configurations, read the device status, and aggregate
statistics.
SOHO Small Office / Home Office
SONET Synchronous Optical Network. A recently emerging networking
standard that utilizes fiber optics to create backbone networks,
capable of transmitting at extremely high data rates and
accommodating gigabit-level bandwidth.
spanning tree An algorithm used to prevent bridging loops by creating a
spanning tree. The algorithm is now documented in the
IEEE802.1d specification.
STRATUM Clock The telephone industry has agreed on a standard for classifying
timing (clock) oscillators. Highly stable external clock sources
are used to synchronize digital transmissions on a network.
Stratum 1 is considered the external clock source with the
highest accuracy and maximum stability of 1 x 10-1seconds per
day. Less accurate Stratum sources are assigned higher
numbers, progressively. Stratum 4, for example, has an accuracy
of 3.2 x 10-5 seconds per day.
STS-1 Synchronous Transport Signal 1. A SONET standard for
transmission over OC-1 optical fiber at 51.84 Mbps.
STS-3 Synchronous Transport Signal 3. A SONET standard for
transmission over OC-3 optical fiber at 155 Mbps.
222 AV8000 Installation Manual
SVC Switched Virtual Circuit. A virtual circuit connection which is
established across a network on an as-needed basis. This circuit
exists only for the duration of the data transfer, and then it is
destroyed. The user defines the end-points when the call is
initiated—the connection is broken at the termination of the call.
Unlike a PVC, the end-points of the communication are not
established and fixed by the network manager but by the call
itself.
subscriber A subscriber is usually an individual end-user or group of
individual end-users of a telecommunications service or
equipment provided by a service provider (phone company, ISP,
ASP).
SVCC Switched Virtual Channel Connection. A switched VCC circuit is
one which is created and then destroyed, dynamically, through
control signaling. LIke a PVCC connection, the ATM connection
is performed using both the VPI and VCI fields of the AYTM cell.
switch A switch is a system or device which interconnects circuit paths
by opening certain connections and closing others in order to
create a temporary path from a specific source device to a
designated destination device.
symmetric
transmission Transmission in which a channel sends and receives data with
the same signaling rate.
T
T1 Digital transmission facility operating with a nominal bandwidth
of 1.544 Mbps. Also known as Digital Signal Level 1 (DS1). DS!
consists of 24 DS-0 channels in many cases. The T1 digital
transmission system is the primary digital communications
system in north America. In Europe, the nearest equivalent
transmission facility is the E1.
T3 A digital facility operating at 45 Mbps bandwidth. The T# or
equivalent DS-3 signal is composed of 28 DS-1 channels in many
cases.
TCP/IP Transmission Control Protocol is a connection-oriented protocol
in which datagrams are divided when sent and reassembled
when received. This allows the different components of the
message to be routed differently to increase the speed of
transmission. TCP is a full-duplex, connection-oriented
end-to-end transport protocol running on top of IP
Appendix D: Glossary
AV8000 Installation Manual 223
TCP/IP Transmission Control Protocol/Internet Protocols a protocol
used for communications between computers over networks and
the internet.
TDM Time Division Multiplexing. A technique where data from
multiple channels is allocated bandwidth on a single wire pair
based on time slot assignment
Telnet A program that allows you to connect to other computers over
the Internet.
TM Traffic Management. TM allows voice, video, and data to co-exist
on the same ATM network. Traffic Management methodology
permits the ATM network to provide different levels of QoS for
different customers and data types. TM also has the
responsibility for preventing congestion in the network and
thereby maximizing the network’s operating efficiency.
TFTP Trivial File Transfer Protocol is a protocol used to download card
images or other files from an external TFTP server to the NVRAM
of any installed cards, or to upload files from an installed card to
an external TFTP server.
transparent LAN
service Service offered by a provider that is used to connect LANs at
geographically separated sites. “Transparent” means that the
connection is invisible to the user and typically runs at the same
speed as the LAN.
twisted pair Cable consisting of two 18 to 24 AWG (American Wire Gauge)
solid copper strands twisted around each other. The twisting
provides a measure of protection from electromagnetic and
radio-frequency interference.
U
UAS Unavailable Seconds is the number of seconds during which the
line is unavailable.
UBR Unspecified Bit Rate is a best-effort class of traffic, best suited
for Local Area Networks. When network congestion occurs, the
data is stored in a buffer until it can be sent.
UDP User Datagram Protocol is a protocol in which datagrams are
sent whole and in the correct order.
224 AV8000 Installation Manual
UNI User Network Interface. A standard defined by the ATM Forum
for access to public and private networks. A UNI connects an
ATM end system (such as a router) and an ATM switch. This is
also used for frame-relay. A UNI is the actual physical, electrical,
and functional demarcation point between the public network
service provider and the end user.
URL Universal Resource Locator. Used with the World Wide Web as
an address.
upstream traffic Communications from a user to a service provider.
UTP Unshielded Twisted Pair. See CAT5.
V
VC or VCC A Virtual Channel or Virtual Circuit Connection is a logical
connection in the ATM network over which ATM cells are
transmitted. Requires both VPI and VCI to identify a particular
cell traveling over this path.
VDSL Very High Bit Rate DSL. Generally, this refers to 52 Mbps DSL
transmissions in one direction and 2 Mbps in the other
(asymmetric) over short distances. Typically, at around 1 Km,
speed is around 26 Mbps.
VP or VPC A Virtual Path or Virtual Path Connection is a group of VCs
carried between two points. The VP/VPC provides a means of
bundling traffic traveling in the same direction. VPs and VPCs are
defined by a unique VPI value. Requires only a VPI to identify a
particular cell traveling over this path.
VPI Virtual Path Identifier. An 8-bit field in the ATM cell header that is
used to identify a specific virtual path over which the cell is
traveling. It identifies a particular VP link.
Appendix D: Glossary
AV8000 Installation Manual 225
W
WAN Wide Area Network is a network consisting of nodes located
across a large geographical area.
X,Y,Z
xDSL Digital Subscriber Line. Refers to a set of similar technologies
that provide high bandwidth over the copper twisted pair local
loop cable, without amplifiers or repeaters along the route. It is
compatible with existing services such as POTS, IDSN, and DDS
and will function over most of the current existing copper
infrastructure.
226 AV8000 Installation Manual
AV8000 Installation Manual 227
INDEX
A
ADC BroadWire voice shelf products 108
ADC technical support 195
adding voice shelf capability to AV8000 107
ADSL
cables 116
front panel image 177
installation 177
line protection 61
pots splitter card (AV8100) 126
specifications 176
status indicators 177
advance replacement 196
air filter
removing 105
replacing 105
alarm conditions 24
alarm cutoff, remote, connecting 26
alarms
audible 23
visual 23
alarms, connection (AV8000) 23,191
APS, OC3 card 11,42,80,153
ATM backbone 153
automatic protection switching (APS), OC3 11,42,
153
AV8000
battery wires 52
card installation, overview 53
chassis ground 18
fuse size 52
installation 17
voltage range 52
AV8100
ADSL with POTS 116
cable assemblies, overview 135
cables, recommended 118,122,124
card installation, overview 53
chassis ground 115
connecting AV8000 to AV8100, ADSL 118
future bus 118,122,124
installation 112
installation kit 113
subscriber cabling 12
wire-wrap pins 118,122,124
AV8100, connector pinouts
AV8000 to AV8100 (ADSL) 129
AV8100 to MDF (ADSL) 133
AV8100 to MDF (POTS) 131
AV8100, subscriber interface cables
AV8000 to AV8100 (ADSL) 136
AV8100 to MDF (POTS) and MDF (ADSL)
137
Avidia AV8100 voice shelf 111
Avidia card placement, backplane (illustration) 189
Avidia documentation, related iv
Index
228 AV8000 Installation Manual
Avidia system, planning 3
AWG wire gauge conversion, table 193
B
backplane, Avidia card placement (illustration) 189
backup ATM connections 78
bantam test jacks
equipment IN and OUT 165,174
equipment MON 165,174
line IN and OUT 165,174
line MON 165,174
battery
A-side, B-side 191
connection (AV8000) 19
billing 196
BITS clock
Avidia clocking requirements 7
external, connecting 27
IN1/IN2 27
OUT 27
OUT, cascading 28
OUT, terminating 28
pins, description 27,191
wiring diagram 28
blank faceplates
AV8000 62
required 55
BroadWire
120 ADSL voice shelf 108
240 ADSL voice shelf 109
288 ADSL voice shelf 109
528 ADSL voice shelf 109
C
cable routing, OC3 43
cable shields, Champ, grounding 48
cabling, AV8100
AV8000 to AV8100 (ADSL) 136
AV8100 to MDF (POTS) and MDF (ADSL)
137
cabling, network card
DS1 10,38
DS3 10,35
DSX-1 10
E1 10,41
OC3 11,42
card installation
AV8000, overview 53
AV8100, overview 53
card placement, strategic 4
cards, unpacking and inspection 13
cell subscriber cards 60,175
champ connector
connector image 46
DSL interface 46
tip and ring pin pairs 46
xDSL subscriber card 46
chassis
AV8000, installation 17
AV8100, installation 112
chassis installation requirements 6
clocking
IDSL card, special 9
Index
AV8000 Installation Manual 229
levels 7
requirements 7
signal priority 8
command-line interface, AV8000 management 63
compatibility, CPE (customer premises equipment) 3
compliance, FCC Class A vi
components, selecting Avidia
network cards 3
POTS cards 3
subscriber cards 3
connecting
AV8000 (ADSL) to AV8100 (voice and data)
118
AV8000 (ADSL) to AV8100 (voice and data),
illustration 117
AV8000 (xDSL) to MDF (no POTS) 47
AV8100 to CO MDF (voice switch) 122
AV8100 to MDF (POTS and data) 124
connection redundancy, signaling 79
connector pin pairs
12-port subscriber card 46
24-port subscriber card 46
connector pinouts
AV8000 to AV8100 (ADSL-IN) 129
AV8000 xDSL to CO MDF 48
AV8100 to MDF (ADSL) 133
AV8100 to MDF (POTS) 131
xDSL subscriber interface 46
conventions, document vi
CPE (customer premises equipment) 45
CPE, compatibility 3
craft port
configuration, communications 67
connecting terminal or PC 63
connection procedure 66
cross-over cable 65
DB-9 (9-pin) connector (F) 63
DB-9 (DCE) to DB-25 (DCE) 65
DB-9 (DCE) to DB-25 (DTE) 64
DB-9 (DCE) to DB-9 (DCE) 65
DB-9 (DCE) to DB-9 (DTE) 64
interface cable, selection 64
RS232 interface 63
straight-through cable 64
D
daisy chain management, subtending
overview 93
physical implementation 93
software configuration 95
subtended network card selection 95
subtending subscriber card selection 94
uplink card selection 94
defective Avidia cards 97
document conventions vi
documentation, related iv
DS1
cables 38
front panel image 162
installation 57,162
network card interface 38
specifications 161
Index
230 AV8000 Installation Manual
status indicators 162
tip and ring, pinouts 39
DS3
BNC connector pair 33
cables 35
dual port redundancy 77
front panel image 158
installation 57,158
network card interface 33
specifications 157
status indicators 158
subtending 33
DSX-1
front panel image 171
installation 57,171
network card interface 36
specifications 170
status indicators 171
tip and ring, pinouts 37
dual homing 78
dual port redundancy
DS3 81
DS3 card switch-over, dual physical links 82
DS3 card switch-over, single physical links 84
overview 81
E
E1
cables 41
front panel image 167
installation 167
network card interface 41
specifications 166
status indicators 167
ESD, precautions 2
Ethernet port
connection procedure 71
control signals, MDI, MDI-X 70
cross-over cable 69
Ethernet hub connection 68
interface cable 69
LAN connection 68
MDI to MDI 69
MDI-X to MDI 69
modem connection 68
straight-through cable 69
system requirements 68
expansion, system 5
F
faceplates
blank (AV8000) 62
required 55
fan tray
removing 103
replacing 103
FCC Class A, compliance vi
fiber-optic ports, caution 100
frame subscriber cards 60,175
front-mount, AV8100 installation
See also, mid-mount
fuse size, AV8000 52
Index
AV8000 Installation Manual 231
FutureBus, AV8100 118,122,124
G
ground
cable shields, Champ 48
chassis (AV8000) 18,191
chassis, voice shelf (AV8100) 115
I
IDSL
front panel image 186
installation 186
specifications 186
status indicators 186
installation
ADSL, subscriber card 177
AV8000 chassis 17
AV8100 voice shelf 112
DS1, network card 162
DS3, network card 158
DSX-1, network card 171
E1, network card 167
IDSL, subscriber card 186
management card 56
network cards, overview 56
OC3, network card 154
pots splitter card (AV8100) 126
SDSL (cell), subscriber card 180
SDSL (frame), subscriber card 183
subscriber cards, overview 60
installation, preparing for 1
interface, network card
DS1 38
DS3 33
DSX-1 36
E1 41
OC3 42
overview 31
interface, subscriber card
ADSL, (voice and data), illustration 117
AV8100 ADSL interface, illustration 120
AV8100 ADSL interface, pin table 121
cables, AV8000 to AV8100, recommended
118,122,124
champ connector pinout, tip and ring 46
overview 45
punch panel, MDF interface pinouts 48
xDSL champ connector mating 47
xDSL champ connector pinout, tip and ring 48
L
line protection
ADSL subscriber cards 61
load sharing, static 79
M
main distribution frame (MDF) 45
management card (AMC)
front panel image 147
specifications 149
startup LED 56
status indicators 147
management interface, local
installing scripts 63
Index
232 AV8000 Installation Manual
RS-232 craft port 63,190
management interface, remote
Avidia web-based interface software 63
downloading software 63
Ethernet port, (10/100 Base-T) 63,190
StarGazer network management software 63
managing traffic, redundancy 80
master agent SNMP 146
MDF (main distribution frame) 45
mid-mount, AV8100 installation
See also, front-mount
N
network card redundancy 79
network cards
allowed slot placement 88
DS1 card slots 191
DS3 card slots 190
DSX-1 card slots 191
E1 card slots 191
installation, overview 56
interface, overview 31
OC3 card slots 191
specifications 56,151
network element (NE) 146
no trouble found (NTF) charge 196
O
OC3
APS 42,80
cable clamps, front and rear 43
cable, fiber-optic, routing 42
front panel image 154
installation 57,154
interface connectors 32
intermediate-range (IR), single-mode 11
long-range (IR), single-mode 11
network card interface 42
short range (IR), multi-mode 11
SONET interface 42
specifications 153
status indicators 154
overheating, without fan tray 103
P
physical link mode, DS3
dual 33,81
single 33,82
POTS
mixed xDSL 75
with ADSL (only) 74
with subscriber interface 45
xDSL without POTS 75
pots splitter card (AV8100)
front panel image 126
installation 126
power-up
AV8000 51
fully loaded chassis (AV8000) 97
precautions
ESD 2
safety 2
preparing for installation 1
Index
AV8000 Installation Manual 233
punch panel, AV8000 xDSL to CO MDF interface,
pinouts 48
R
redundancy
DS3 network card, physical link 33
OC3 network card, APS 42
removing Avidia cards
management cards 98,99
network cards 98,99
OC3 network cards 99,100
overview 98
subscriber cards 98,99
replacing Avidia cards
management cards 98,99
network cards 98,99
OC3 network cards 99,100
overview 98
subscriber cards 98,99
requirements, installation site
alarm 6
chassis 6
clocking 7
environmental 9
power 6
tools 12
Returns 197
S
safety precautions 2
SDSL (cell)
front panel image 180
installation 180
specifications 180
status indicators 180
SDSL (frame)
front panel image 183
installation 183
specifications 183
status indicators 183
shock hazards 51
signaling 79
simple network management protocol (SNMP) 146
SONET interface 42
special applications, configuration
backup ATM connections 78
connection redundancy, signaling 79
dual homing 78
dual port redundancy 81
network card redundancy 79,80
POTS and ADSL (only) 74
POTS and mixed xDSL 75
static load sharing 79
xDSL without POTS 75
specifications, AV8000 chassis
alarm pins 191
backplane image 143,189
battery connections 191
BITS clock pins 191
DS1 card slots 191
DS3 card slots 190
DSX-1 card slots 191
E1 card slots 191
Index
234 AV8000 Installation Manual
Ethernet port, (10/100 Base-T) 190
general 140
ground 191
management card slot 190
management craft port (RS-232) 190
OC3 card slots 191
overview 139
specification table 140
subscriber card slots 190
Telco rack mounting 140
typical power requirements 144
xDSL card slots 190
specifications, AV8100 POTS chassis
backplane image 128
environment 128
FutureBus interface version 128
outside metallic tip and ring lines 127
overview 127
power 127
wire-wrap pin version 128
specifications, Avidia cards (general)
network cards, overview 56,151
operational power requirements 145
overview 144
subscriber cards, overview 60,175
specifications, Avidia cards, ADSL
(AV541), no line protection 176
(AV541-LP), line protection 176
alarm history 179
ATM features 179
card status indicators 177
data transmission 178
power 178
product features 178
specifications, Avidia cards, ADSL POTS splitter
(AV670) 138
CO port POTS splitter compliance 138
line protection 138
physical 138
power 138
product features 138
specifications, Avidia cards, DS1
(AV351) 161
ATM features 163
ATM traffic types 164
bantam test jacks 165
cabling 161
card status indicators 162
loopback 164
port select pushbutton 165
power 163,169
product features 163
specifications, Avidia cards, DS3
(AV323) 157
ATM features 159
ATM traffic types 159
cabling 157
card status indicators 158
loopback 160
port redundancy 157
power 159
product features 159
Index
AV8000 Installation Manual 235
specifications, Avidia cards, DSX-1
(AV353) 170
ATM features 173
ATM traffic types 173
bantam test jack 174
cabling 170
card status indicators 171
loopback 173
management functionality 173
power 172
product features 173
T1 port select 174
specifications, Avidia cards, E1
(AV352) 166
ATM features 169
ATM traffic types 169
cabling 166
card status indicators 167
loopback 170
product features 169
specifications, Avidia cards, IDSL
(AV412) 186
alarm history 188
alarms 188
ATM features 187
card status indicators 186
data transmission 187
power 187
product features 187
specifications, Avidia cards, management (AMC)
(AV210) 146
ATM features 149
card status indicators 147
configuration management 149
E2A alarms 149
maintenance reporting 150
power requirements 149
specifications, Avidia cards, OC3
(AV311, AV312, AV313) 153
APS 156
ATM features 155
ATM traffic types 155
cabling 153
card status indicators 154
fiber-optic cable selection 153
loopback 156
product features 155
versions 153
specifications, Avidia cards, SDSL (cell)
(AV522) 180
alarm history 181
ATM features 182
card status indicators 180
data transmission 181
power 181
product features 181
specifications, Avidia cards, SDSL (frame)
(AV421) 183
alarm history 185
ATM features 184
card status indicators 183
data transmission 184
Index
236 AV8000 Installation Manual
power 184
product features 184
star management, subtending
overview 89
physical implementation 89
software configuration 92
subtended network card selection 91
subtending subscriber card selections 91
uplink card selection 90
static load sharing 79
status indicators
ADSL 177
AMC (management card) 147
DS1 162
DS3 158
DSX-1 171
E1 167
IDSL 186
OC3 154
SDSL (cell) 180
SDSL (frame) 183
subscriber cards
installation, overview 60
interface, overview 45
specifications 60,175
xDSL card slots (AV8000) 190
subscriber service unit (CSU) 161
subtending
configuring Avidia systems 87
daisy chain configuration 86,93
daisy chain, software configuration 95
interface card selection 88
multiple systems 86
overview 87
star configuration 86,89
star, software configuration 92
system cabling, overview (illustration) 117
system expansion 5
T
tools, installation 12
U
unpacking
AV8000 system 13
AV8100 voice shelf 112
Avidia cards 13
user network interface (UNI) 153
V
voice shelf
BroadWire 120, description 108
BroadWire 240, description 109
BroadWire 288, description 109
BroadWire 528, description 109
voice shelf, AV8100
description 111
installation 112
voltage range, AV8000 52
Index
AV8000 Installation Manual 237
W
wire 128
wire-wrap pins, AV8100 118,122,124
wrist strap, attaching 16
wrist strap, card installation 54
X
xDSL, cables 47
Index
238 AV8000 Installation Manual
