AVC-A1XV

SERVICE MANUAL

AV SURROUND AMPLIFIER

MODEL AVC-A1XV

For Europe model

TOKYO JAPAN

X0219-3V.01 DE/CDM 0411

Some illustrations using in this service manual are

slightly different from the actual set.

●

Please use this service manual with referring to the

operating instructions without fail.

●

For purposes of improvement, specifications and

design are subject to change without notice.

●

本文中に使用しているイラストは、説明の都合上現物

と多少異なる場合があります。

●

修理の際は、必ず取扱説明書を参照の上、作業を行っ

てください。

サービスをおこなう前に、このサービスマニュアルを

必ずお読みください。本機は、火災、感電、けがなど

に対する安全性を確保するために、さまざまな配慮を

おこなっており、また法的には「電気用品安全法」に

もとづき、所定の許可を得て製造されております。

従ってサービスをおこなう際は、これらの安全性が維

持されるよう、このサービスマニュアルに記載されて

いる注意事項を必ずお守りください。

●

本機の仕様は性能改良のため、予告なく変更すること

があります。

●

補修用性能部品の保有期間は、製造打切後8年です。

注意

Ver. 1

AVR-5805/AVC-A1XV

SAFETY PRECAUTIONS

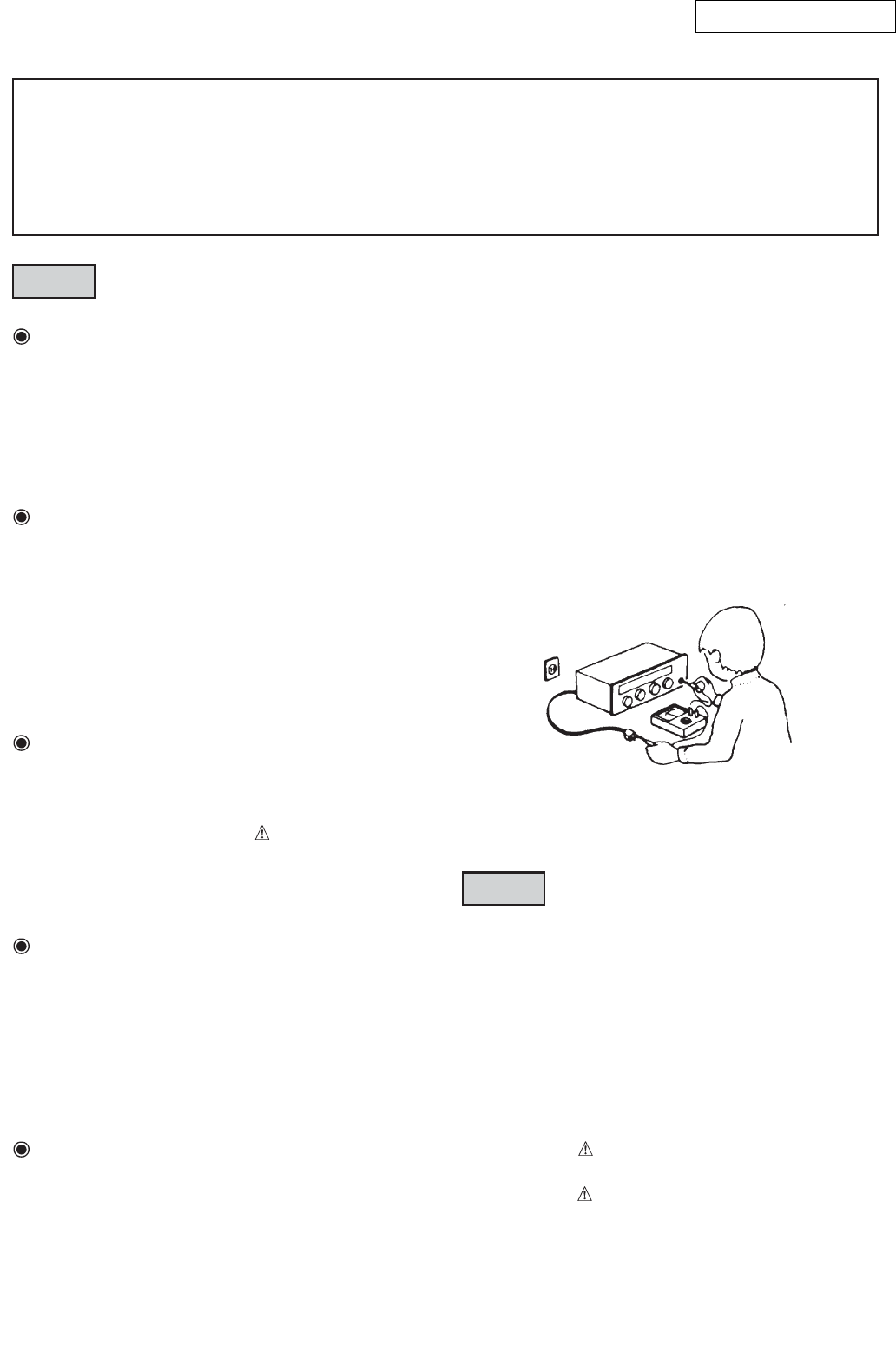

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis

resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the

power cord is less than 460 kohms, the unit is defective.

注意

注意事項をお守りください！

サービスのとき特に注意を必要とする個所について

は、キャビネット、部品、シャーシなどにラベルや

捺印で、注意事項を表示しています。これらの注意

書きおよび取扱説明書などの注意事項を必ずお守り

ください。

感電に注意！

(1) このセットは、交流電圧が印加されていますの

で、通電時に内部金属部に触れると感電するこ

とがあります。従って通電サービス時には、絶

縁トランスの使用や手袋の着用、部品交換に

は、電源プラグを抜くなどして、感電にご注意

ください。

(2) 内部には、高電圧の部分がありますので、通電

時の取扱には、十分ご注意ください。

指定部品の使用！

セットの部品は難燃性や耐電圧など安全上の特性を

持ったものとなっています。従って交換部品は、使

用されていたものと同じ特性の部品を使用してくだ

さい。特に配線図、部品表に印で指定されている

安全上重要な部品は必ず指定のものをご使用くださ

い。

部品の取付けや配線の引きまわしは、元どおりに！

安全上、テープやチューブなどの絶縁材料を使用し

たり、プリント基板から浮かして取付けた部品があ

ります。また内部配線は引きまわしやクランパーに

よって発熱部品や高圧部品に接近しないように配慮

されていますので、これらは必ず元どおりにしてく

ださい。

サービス後は安全点検を！

サービスのために取り外したねじ、部品、配線など

が元どおりになっているか、またサービスした個所

の周辺を劣化させてしまったところがないかなどを

点検し、外部金属端子部と、電源プラグの刃の間の

絶縁チェックをおこなうなど、安全性が確保されて

いることを確認してください。

サービス、点検時には次のことにご注意願います。

注意

安全上重要な部品について

（絶縁チェックの方法）

電源コンセントから電源プラグを抜き、アンテナ

や、プラグなどを外し、電源スイッチを入れま

す。500Ｖ絶縁抵抗計を用いて、電源プラグのそれ

ぞれの端子と、外部露出金属部〔アンテナ端子、

ヘッドホン端子、マイク端子、入力端子など〕と

の間で、絶縁抵抗値が1ＭΩ以上であること、この

値以下のときは、セットの点検修理が必要です。

本機に使用している多くの電気部品、および機構部品

は安全上、特別な特性を持っています。この特性はほ

とんどの場合、外観では判別つきにくく、また、もと

の部品より高い定格（定格電力、耐圧）を持ったもの

を使用しても安全性が維持されるとは、限りません。

安全上の特性を持った部品は、このサービスマニュア

ルの配線図、部品表につぎのように表示していますの

で、必ず指定されている部品番号のものを使用願いま

す。

(1) 配線図…

(2) 部品表… マークで表示しています。

マークで表示しています。

指定された部品と異なるものを使用し

た場合には、感電、火災などの危険を

生じる恐れがあります。

注意

安全上重要な部品について

AVR-5805/AVC-A1XV

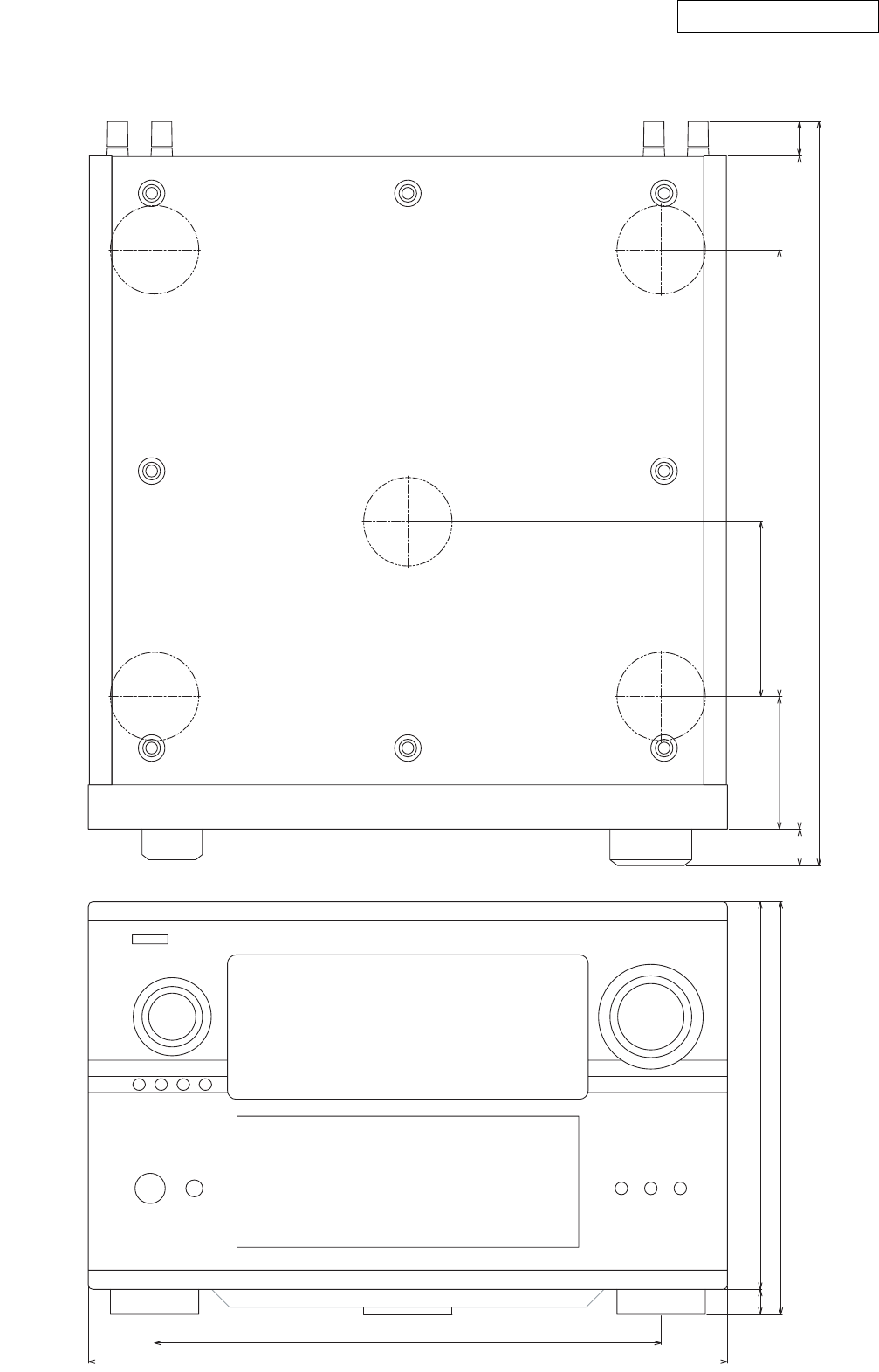

DIMENSION

118.6

280

17 263

344

434

505

23.2

457

24.8

303.2

AVR-5805/AVC-A1XV

WIRE ARRANGEMENT

If wire bundles are untied or moved to perform adjustment or

parts replacement etc.,be sure to rearrange them neatly as

they were originally bundled or placed afterward.

Otherwise, incorrect arrangement can be a cause of noise

generation.

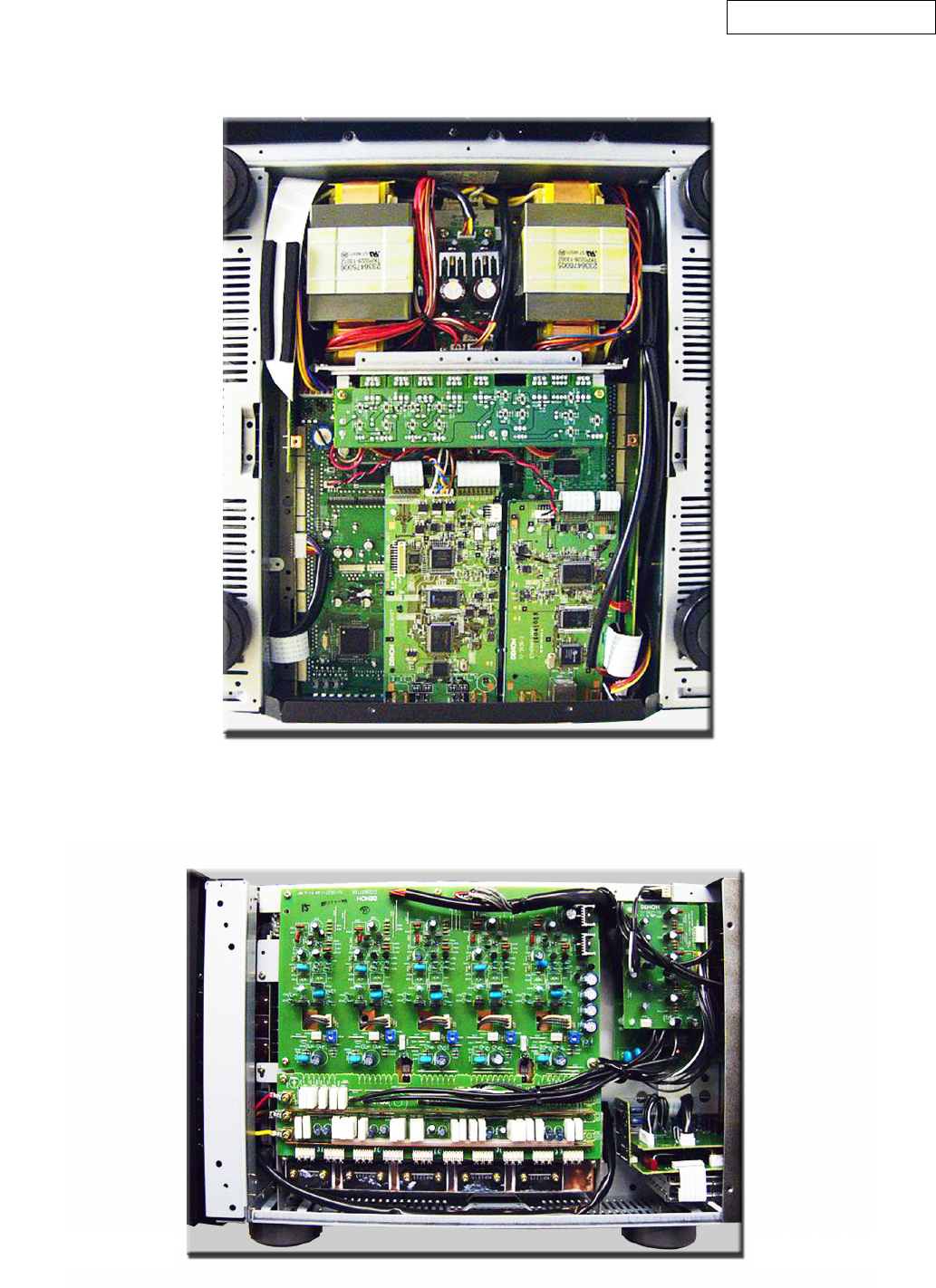

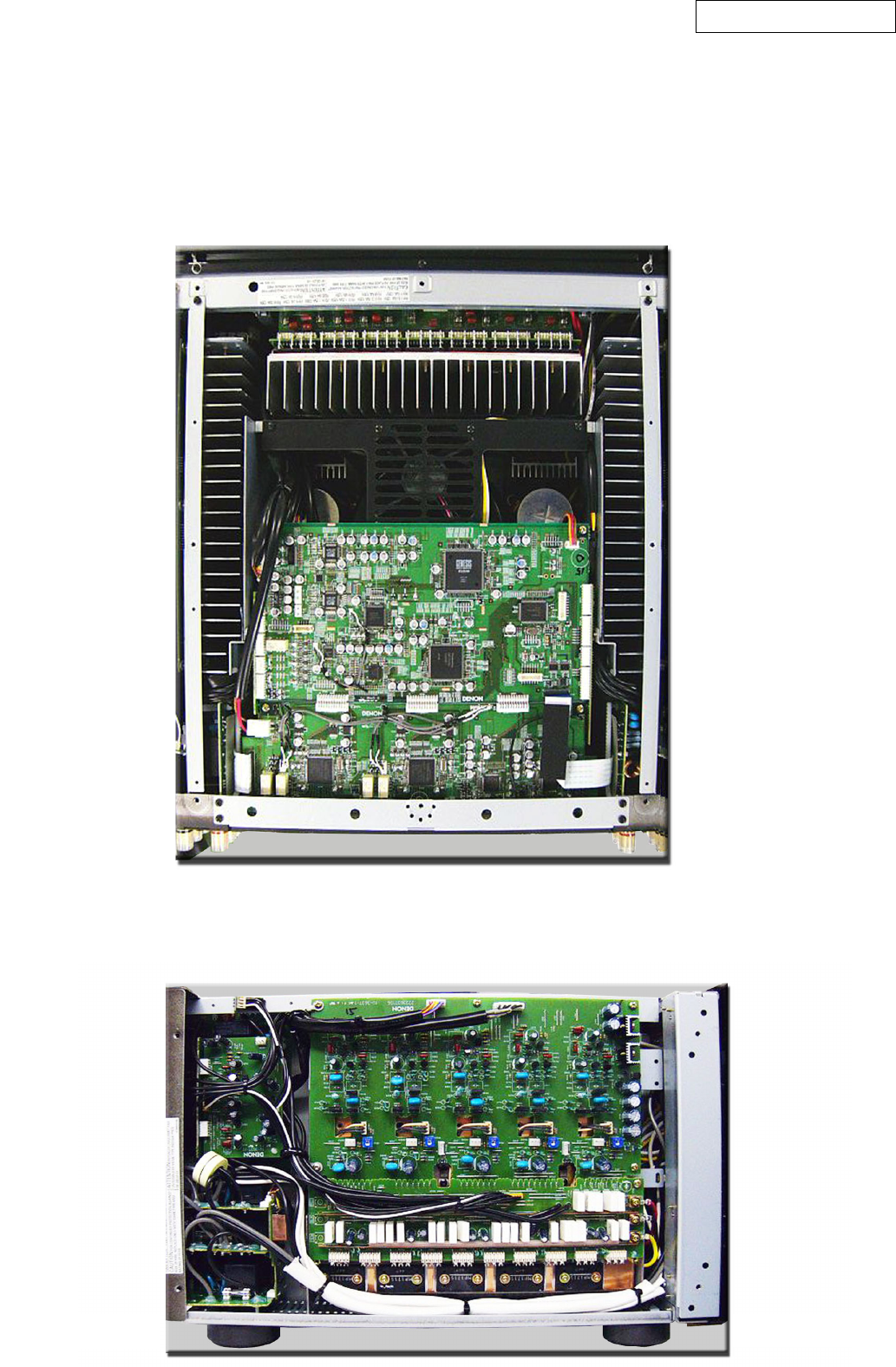

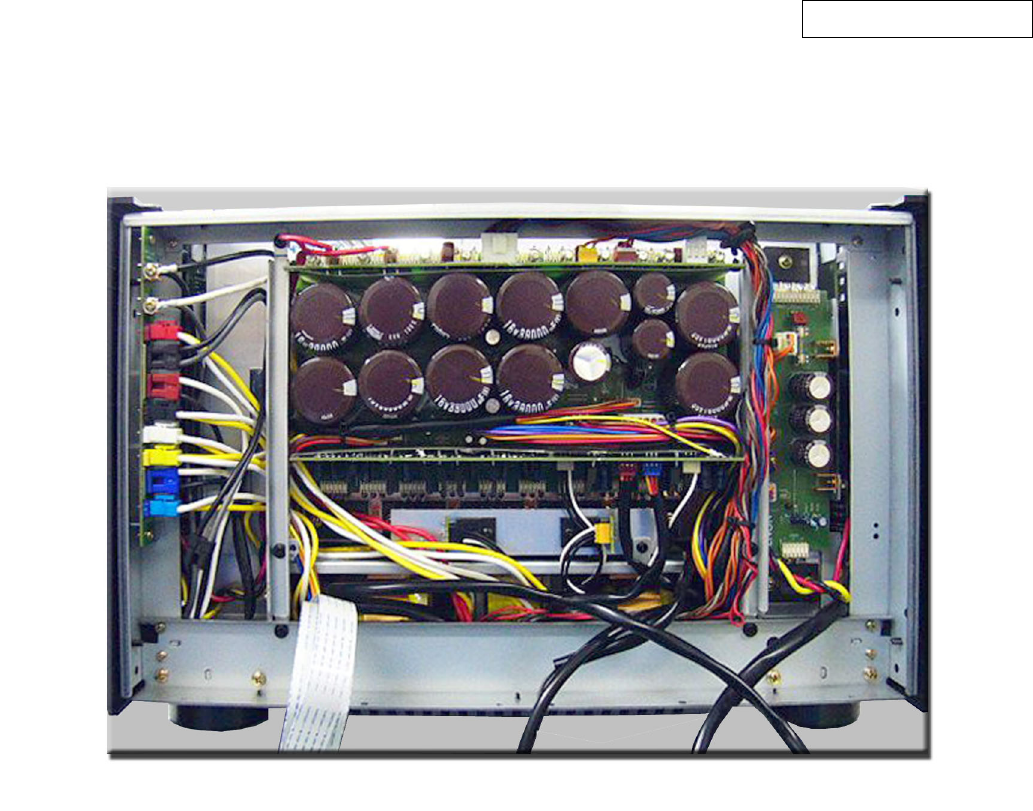

Wire arrangement viewed from the top

ワイヤー整形図

調整や部品の交換等により、ワイヤー類の結束をはずしたり

移動させた場合には、それらの作業が完了した時点でワイ

ヤーの整形をおこなってください。正しく整形されていない

とノイズ発生の原因となることがあります。

上面からみたワイヤー整形

Wire arrangement viewed from the side (left) 側面（左側）からみたワイヤー整形

Front Panel side

Back Panel side

Front Panel side

Back Panel side

AVR-5805/AVC-A1XV

Wire arrangement viewed from the bottom 下面からみたワイヤー整形

Wire arrangement viewed from the side (right) 側面（右側）からみたワイヤー整形

Front Panel side

Back Panel side

Front Panel side Back Panel side

AVR-5805/AVC-A1XV

Wire arrangement viewed from the Front

(without the Front Panel)

正面からみたワイヤー整形

（前面パネルをはずした状態）

AVR-5805/AVC-A1XV

CAUTION IN SERVICING

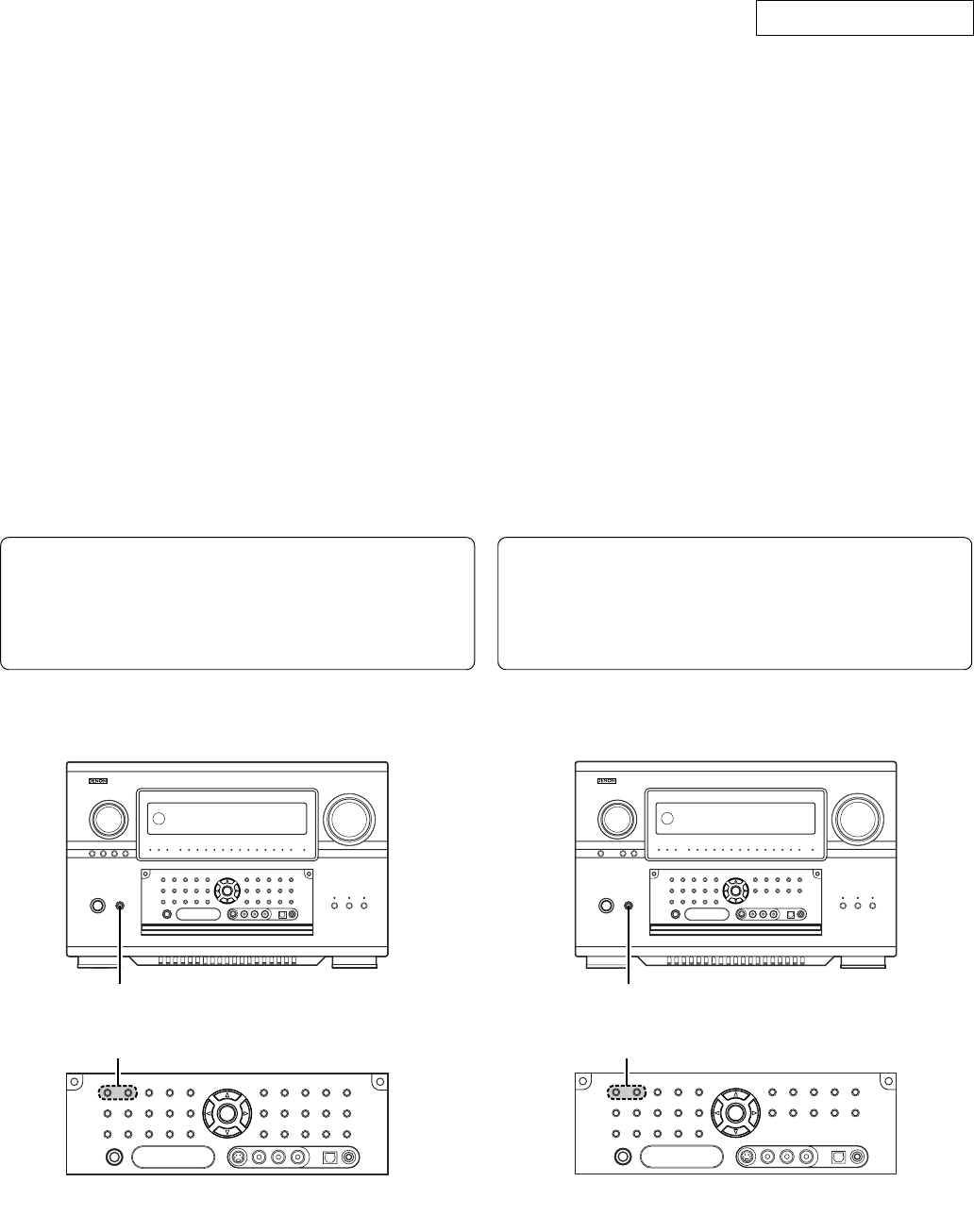

Initializing AV SURROUND RECEIVER

/AMPLIFIER

AV SURROUND RECEIVER/AMPLIFIER initialization should be

performed when the µcom, peripheral parts of µcom, and Digital

P.W.B. are replaced.

1. Switch off the unit using the Main unit’s power operation

switch.

2. Hold the following STANDARD button and HOME THX

CINEMA button, and turn the Main unit’s power operation

switch on.

3. Check that the entire display is flashing with an interval of

about 1 second, and release your fingers from the 2 buttons

and the microprocessor will be initialized.

Note:・If step 3 does not work, start over from step 1.

・ All user settings will be lost and this factory setting will

be recovered when this initialization mode.

So make sure to memorize your setting for restoring

after the initialization.

1, 2

サービス時の注意事項

AV サラウンドアンプ / レシーバーの初期化に

ついて

マイコンやマイコン周辺部品、Digital 基板等を交換した場合

は、AV サラウンドアンプの初期化を行って下さい。

1. 電源スイッチを OFF にします。

2. ホーム THX シネマボタンとスタンダードボタンを同時に押

しながら、電源スイッチを ON にします。

3. ディスプレイ表示が約 1 秒間隔で点滅するのを確認後、2

つのボタンから指を離します。

＊マイコンが初期化されます。

注意 :・上記 3 の状態にならない場合は、もう一度操作 1 か

らやり直してください。

・初期化を行うとお客様が設定した内容が工場出荷状

態に戻りますので、あらかじめ設定内容を控えてお

き初期化後再設定してください。

1, 2

AVR-5805/AVC-A1XV

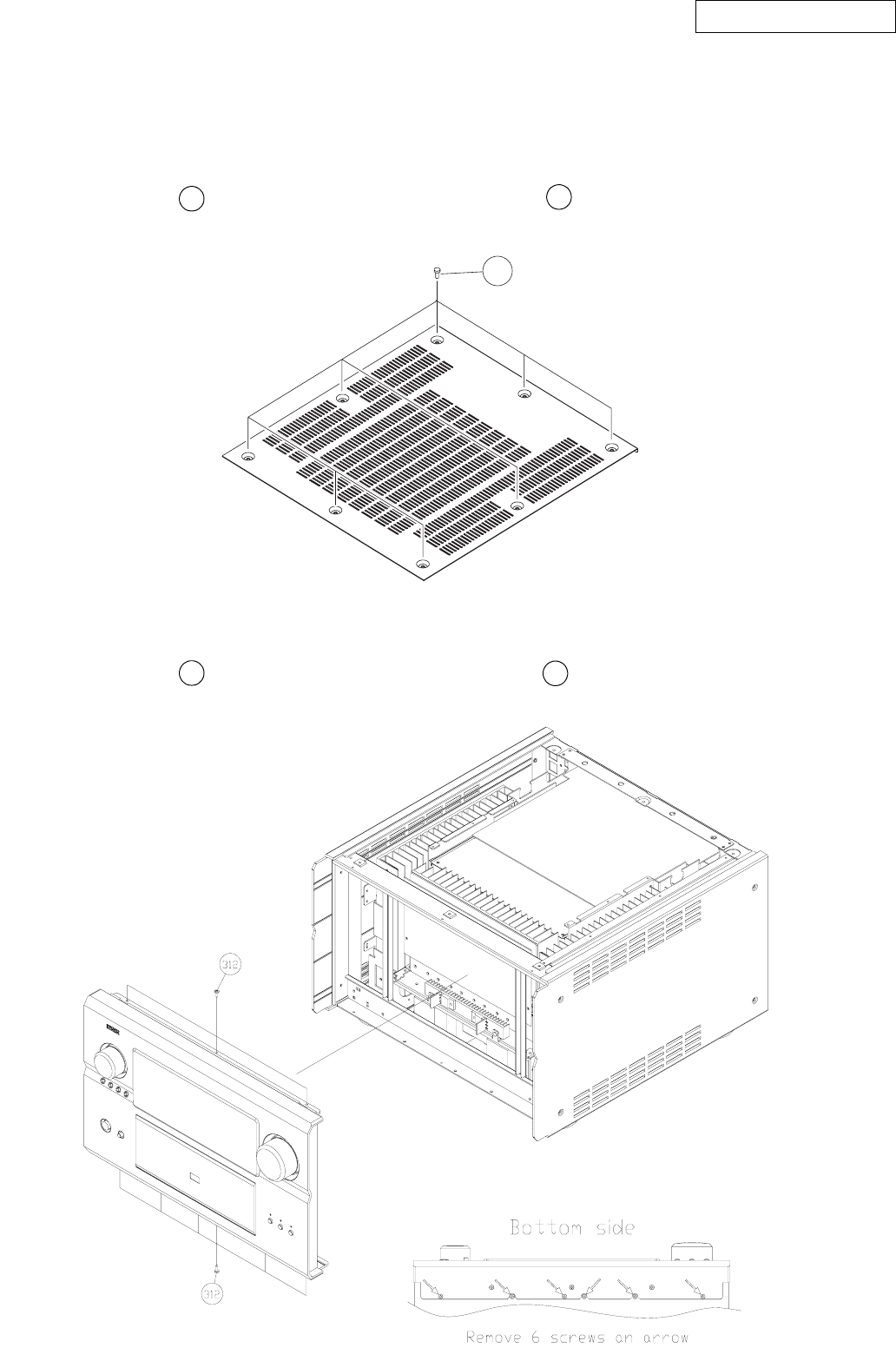

DISASSEMBLY

(Follow the procedure below in reverse order when reassem-

bling.)

1. Top Cover

(1) Remove 8 screws on the top.

2. Front Panel

(1) Remove 9 screws .

303

312

各部のはずしかた

（組み立てるときは、逆の順序で行ってください。）

1. Top Cover

(1) ねじを 8 本はずします。

2. Front Panel

(1) ねじを 9 本はずします。

303

312

AVR-5805/AVC-A1XV

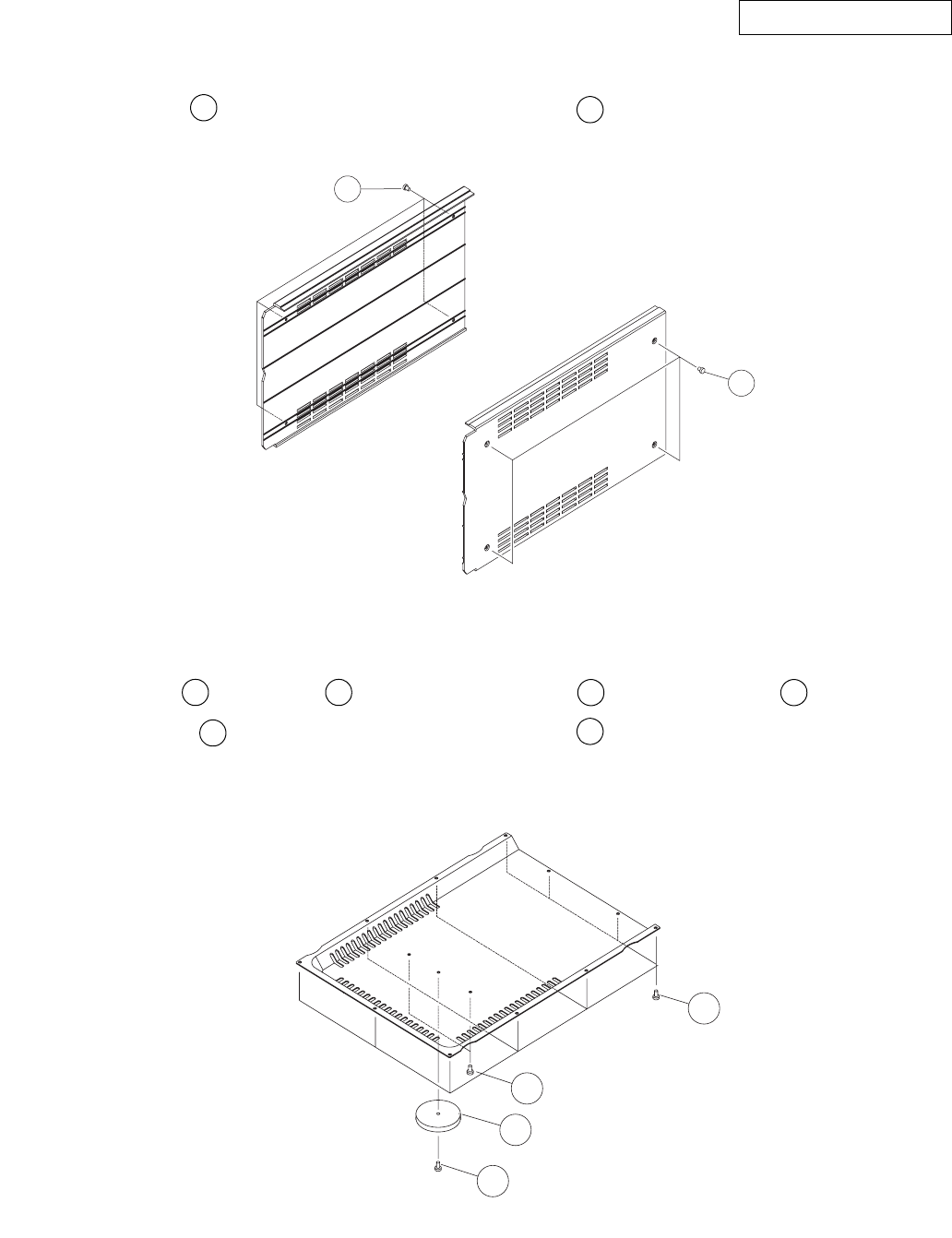

3. Side Cover

(1) Remove 8 screws .

4. Bottom Cover

(1) Remove 1 screw fixing the Foot .

(2) Remove 13 screws .

302

312 120

311

120

3. Side Cover

(1) ねじを各 4 本、計 8 本はずします。

4. Bottom Cover

(1) Foot を取り付けているねじをはずします。

(2) ねじを 13 本はずします。

302

120 312

311

AVR-5805/AVC-A1XV

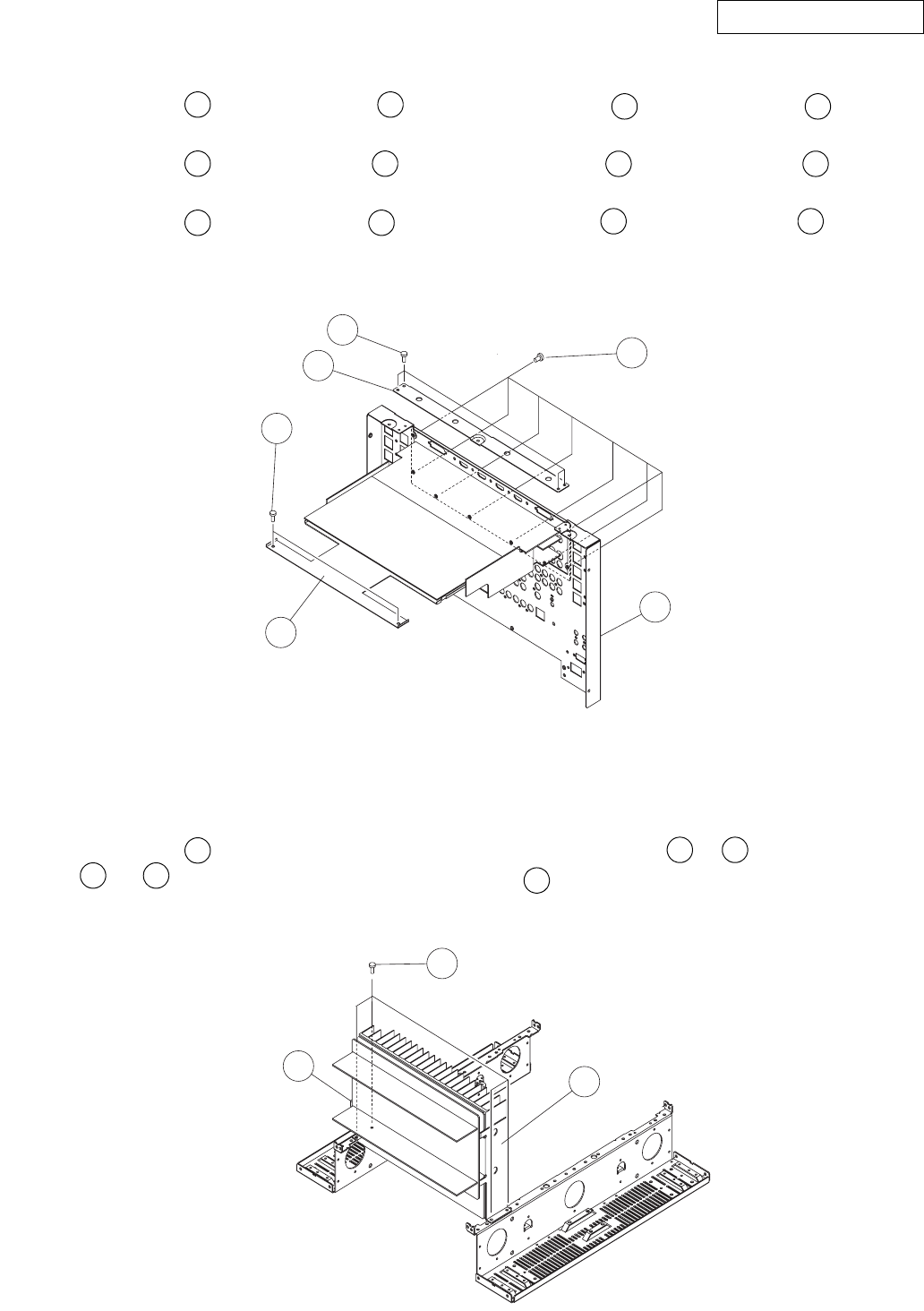

5. Video unit

(1) Remove 2 screws fixing the Shield Plate .

(2) Remove 4 screws fixing the Rear Angle .

(3) Remove 8 screws fixing the Back Plate .

6. Regulator Unit

(1) Remove 4 screws fixing the Radiator Bracket L/R.

(L : , R : )

311 65

311 141

311 70

311

141

311

327

54 55

327

5. Video Unit

(1) Shield Plate を取り付けているねじを 2 本はず

します。

(2) Rear Angle を取り付けているねじを 4 本はず

します。

(3) Back Plate を取り付けているねじを 8 本はず

します。

6. Regulator Unit

(1) Radiator Bracket (L) (R) を取り付けているねじ

を 4 本はずします。

65 311

141 311

70 311

54 55

327

AVR-5805/AVC-A1XV

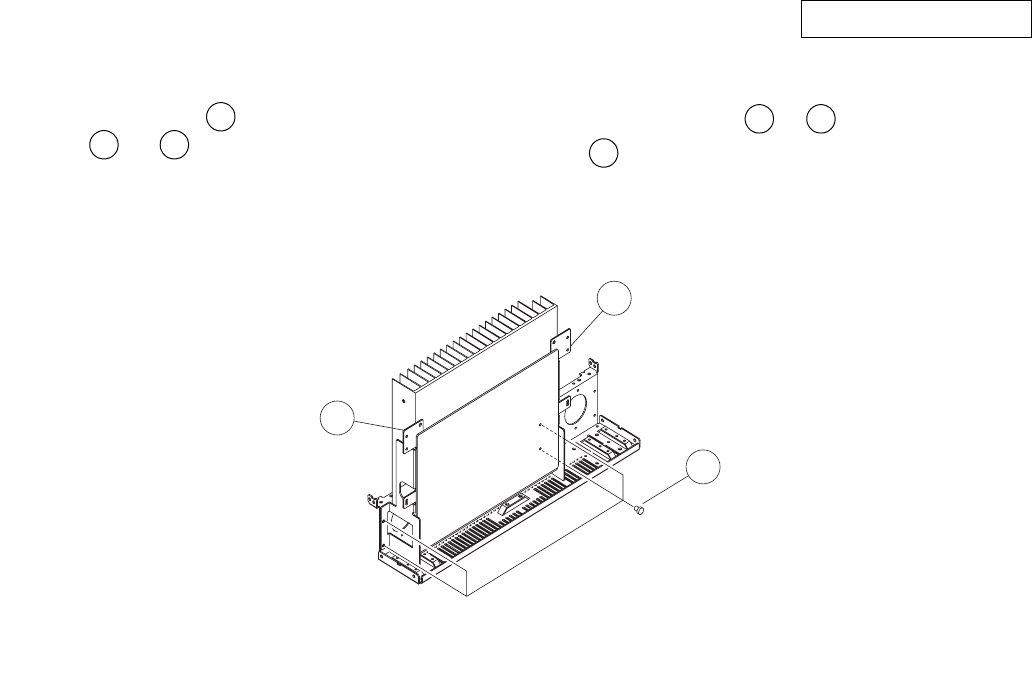

7. Power Amp Unit L/R

(1) Remove 4 screws fixing the Radiator Bracket L/R.

(L : , R : )

※Right side is same.

319

133 134

319

133

134

(Left side)

7. Power Amp Unit L/R

(1) Radiator Bracket (L) (R) を取り付けているねじ

を 4 本はずします。

※ (R) 側も同様

133 134

319

AVR-5805/AVC-A1XV

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK

Clock Flow

ADVANCED AL24

ZONE-1/ZONE-2 SELECT

IC101

EP1C12Q240C6

256fs_1 SCK

DENON LINK 64fs_1 BCK

EXT1 RMCK 256fsDIR1 (256fs) LVDS1 LVDS1 fs_1 LRCK

EXT2 RBCK 64fsDIR1 DADATA_1 DATA

EXT3 DIRIN1 RX2 RLRCK fsDIR1 (64fs) LVDS2 LVDS2

ACK SBCK SBCK1

SLRCK SLRCK1 (fs) LVDS3 LVDS3

INPUT RDATA DATADIR1

COAXIAL1 ADIN (FL/FR) LVDS4 LVDS4

COAXIAL2

COAXIAL3 (SLA/SRA) LVDS5 LVDS5

COAXIAL4 DIRIN2

COAXIAL5 DIRIN3 (C/SW) LVDS6 LVDS6

COAXIAL6 DIRIN4

DIRIN5 (SBL/SBR) LVDS7 LVDS7

OPTICAL1 DIRIN6

OPTICAL2 DIRIN7 (SLB/SRB) LVDS8 LVDS8

OPTICAL3

OPTICAL4 (ZONE-2 SL/SR) LVDS9 LVDS9

OPTICAL5

(ZONE-2 C/SW) LVDS10 LVDS10

REC OUT RMCK 256fsDIR8

OPTICAL3 DIRIN8 RX2 RBCK 64fsDIR8 (ZONE-2 FL/FR) LVDS11 LVDS11

OPTICAL4 RLRCK fsDIR8

OPTICAL5 SBCK SBCK8 (ZONE-2 256fs) LVDS12 LVDS12

SLRCK SLRCK8

RDATA DATADIR8 (ZONE-2 64fs) LVDS13 LVDS13 256fs_8 SCK

ADIN 64fs_8 BCK

(ZONE-2 fs) LVDS14 LVDS14 fs_8 LRCK

DADATA_8 DATA

SYSCK

BCK

LRCK

DATA

IC312

ADSP-21266SKBC

SYSCK ZONE-2 DSP

BCK

LRCK

DATA

IC121

EPM3128ATC100-10

IC103

LC89057W-VF4A-E

IC106

IC107

IC108

IC109

INPUT SELECTOR

A/D

IC308

IC312

LC89057W-VF4A-E

IC304

PCM1804

DIR

IC103

IC104

IC416

PCM1804

IC602

TMS320DA610

IC316

IC404

IC408

IC412

IC105

IC201

EP1C4F400C8

ZONE-1 DSP

DSP1 DSP2

IC702

TMS320DA610

PCM1792

IC501

DSP3

IC201

PCM1792

D/A

IC802

TMS320DA610

IC402

IC502

IC202

IC203

IC204

IC401

DSPIN64fs1

DSPINfs1

DSPINF1,C1,S1,

SB1,EX1,SW1

DSPOUT64fs1

DSPOUTfs1

DSPOUTF1,C1,S1,

SB1,EX1,SW1

DSPIN64fs2

DSPINfs2

DSPINF2,C2,S2,

SB2,EX2,SW2

DSPOUT64fs2

DSPOUTfs2

DSPOUTF2,C2,S2,

SB2,EX2,SW2

DSPIN64fs3

DSPINfs3

DSPINF3,C3,S3,

SB3,EX3,SW3

DSPOUT64fs3

DSPOUTfs3

DSPOUTF3,C3,S3,

SB3,EX3,SW3

DSPIN64fs

DSPINfs

DSPINF,C,S,

SB,EX,SW

DSPOUT64fs

DSPOUTfs

DSPOUTF,C,S,

SB,EX,SW

DSPIN64fs

DSPINfs

DSPINF,C,S,

SB,EX,SW

DSPOUT64fs

DSPOUTfs

DSPOUTF,C,S,

SB,EX,SW

DSPIN64fs

DSPINfs

DSPINF,C,S,

SB,EX,SW

DSPOUT64fs

DSPOUTfs

DSPOUTF,C,S,

SB,EX,SW

DSPI/O 15

DSPI/O 16

DSPI/O 17

DSPI/O 18

DSPI/O 19

DSPI/O 20

DSPI/O 21

DSPI/O 22

DSPI/O 23

DSPI/O 24

DSPI/O 25

DSPI/O 26

(64fsIN) SCL K0/1

(fsIN) SFS0/1

(fsOUT) SFS2/3

(64fsOUT) SCL K2/3

(SBL/SBR OUT) SD 3B

(SL/SR OUT) SD 3A

(C/SW OUT) SD2B

(FL/FR OUT) SD 2A

(SBL/SBR IN) SD1B

(SL/SR IN) SD1A

(C/SW IN) SD0B

(FL/FR IN) SD0A

ZONE-1

ZONE-2

ZONE-1

ZONE-2

①

②

③

AVR-5805/AVC-A1XV

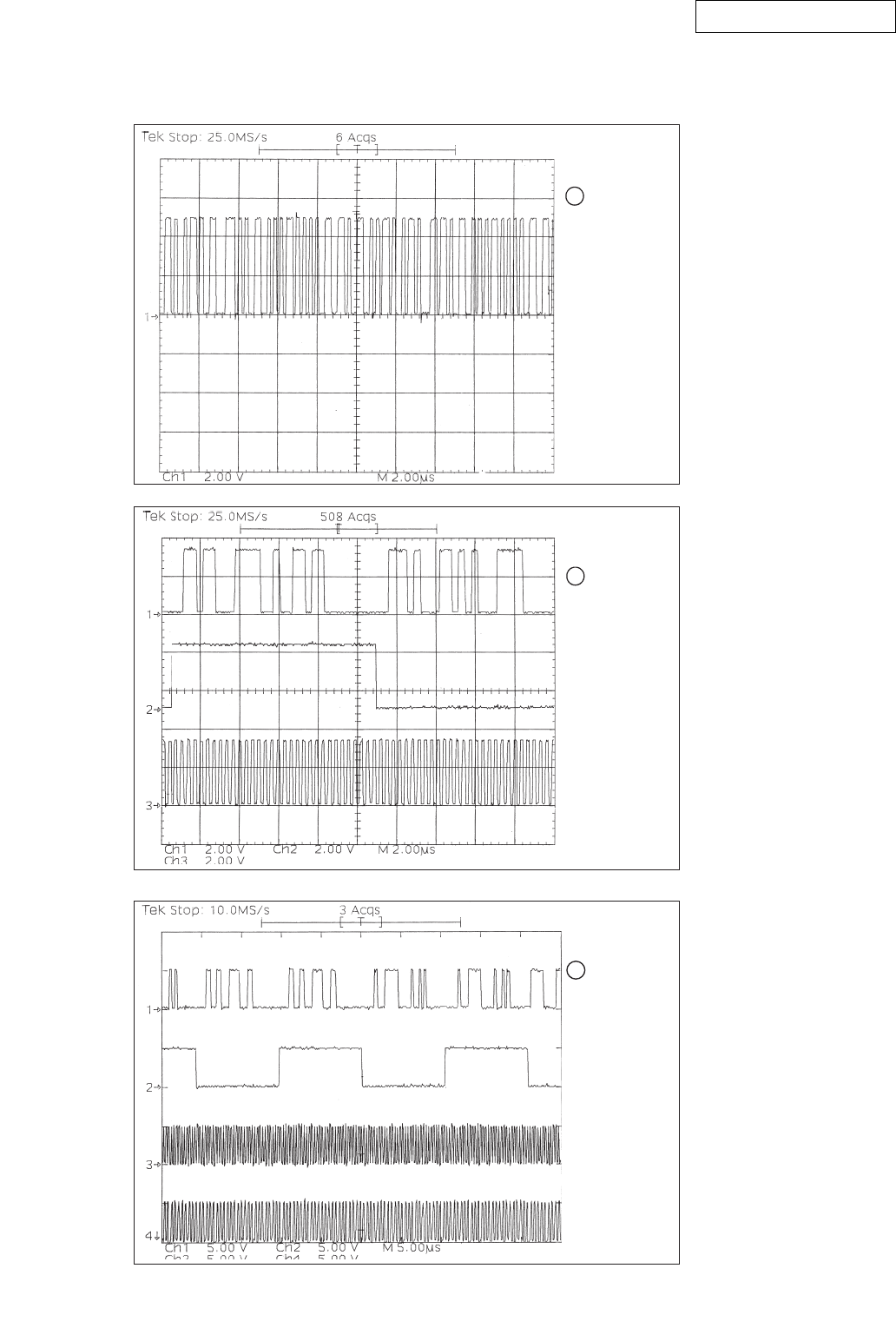

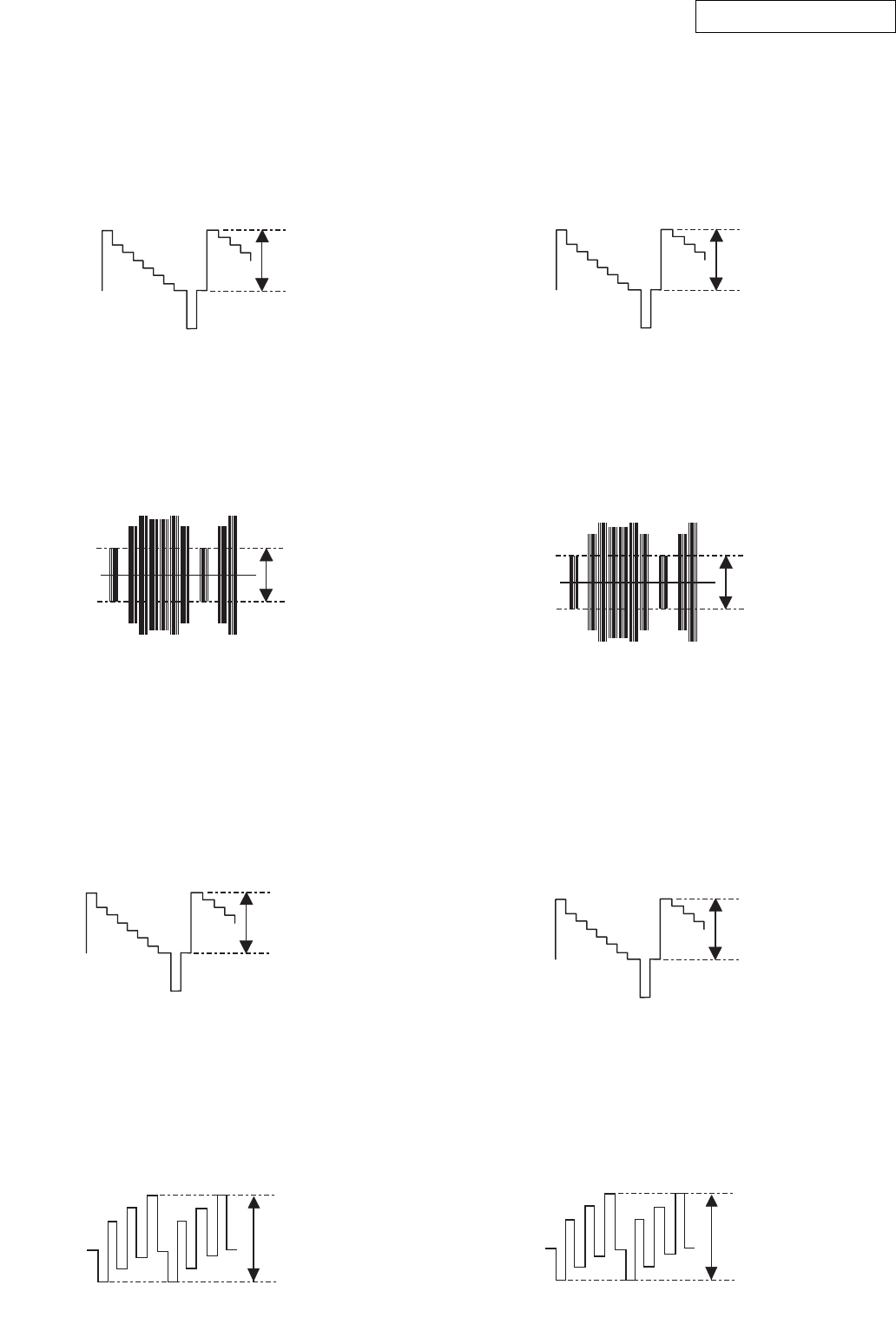

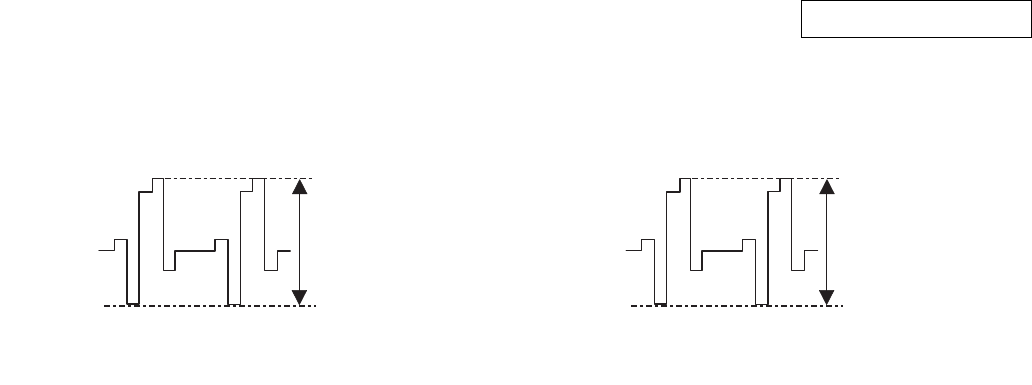

Wave form

CH1: D-DATA

CH1: DATA

CH2: fs

CH3: 64fs

CH4: 256fs

CH1: DATA

CH2: fs

CH3: 64fs

AVR-5805/AVC-A1XV

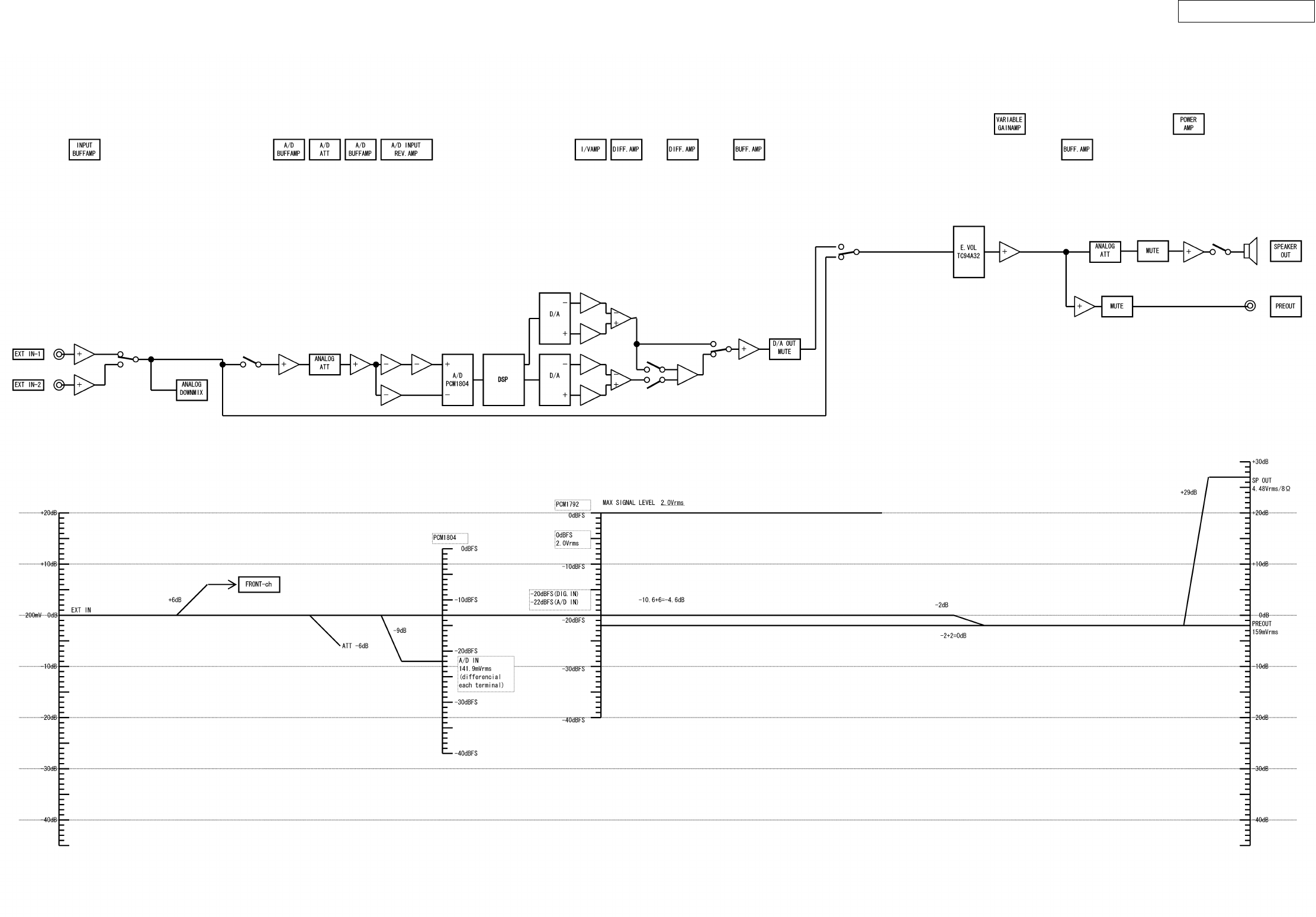

FRONT ch

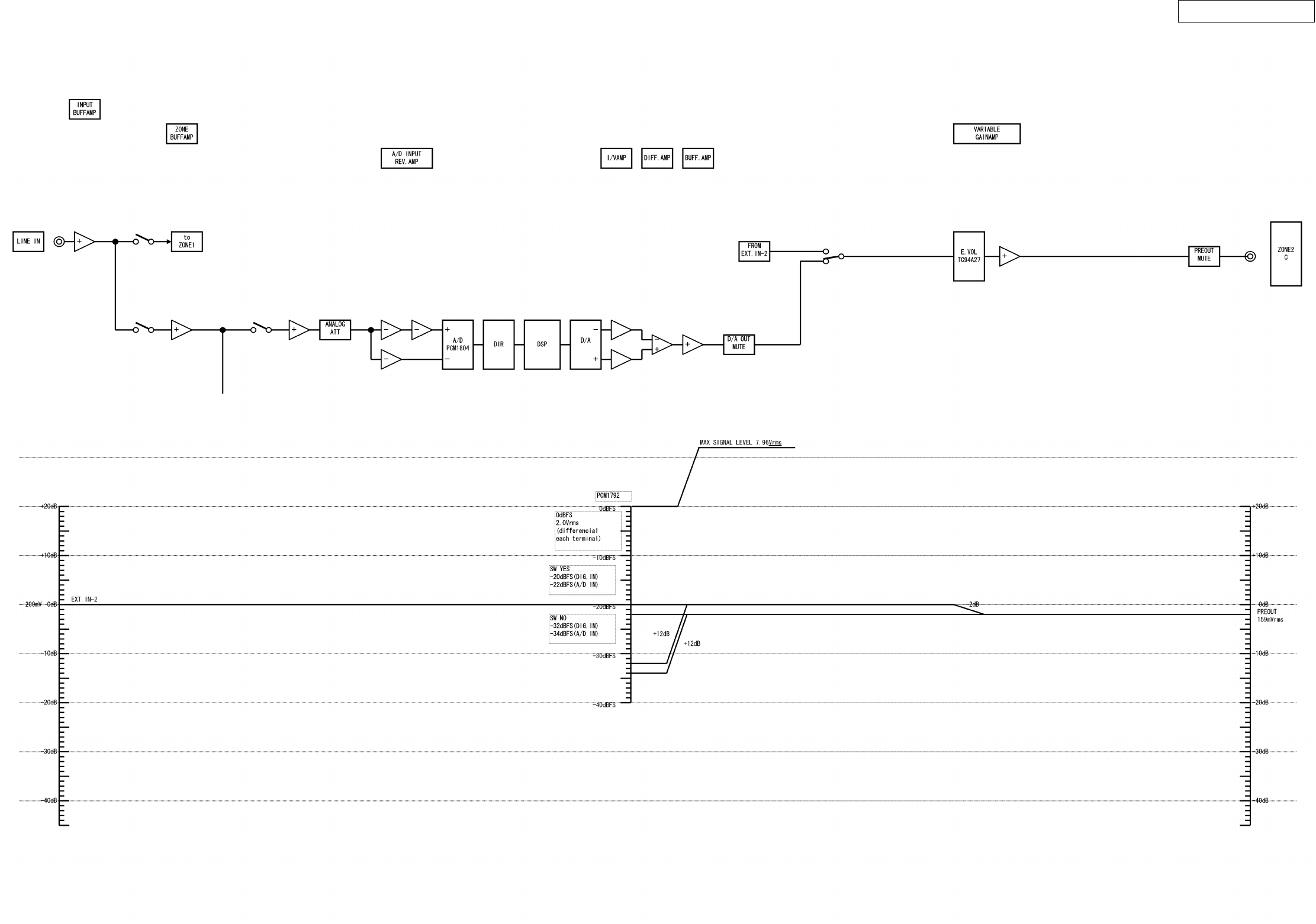

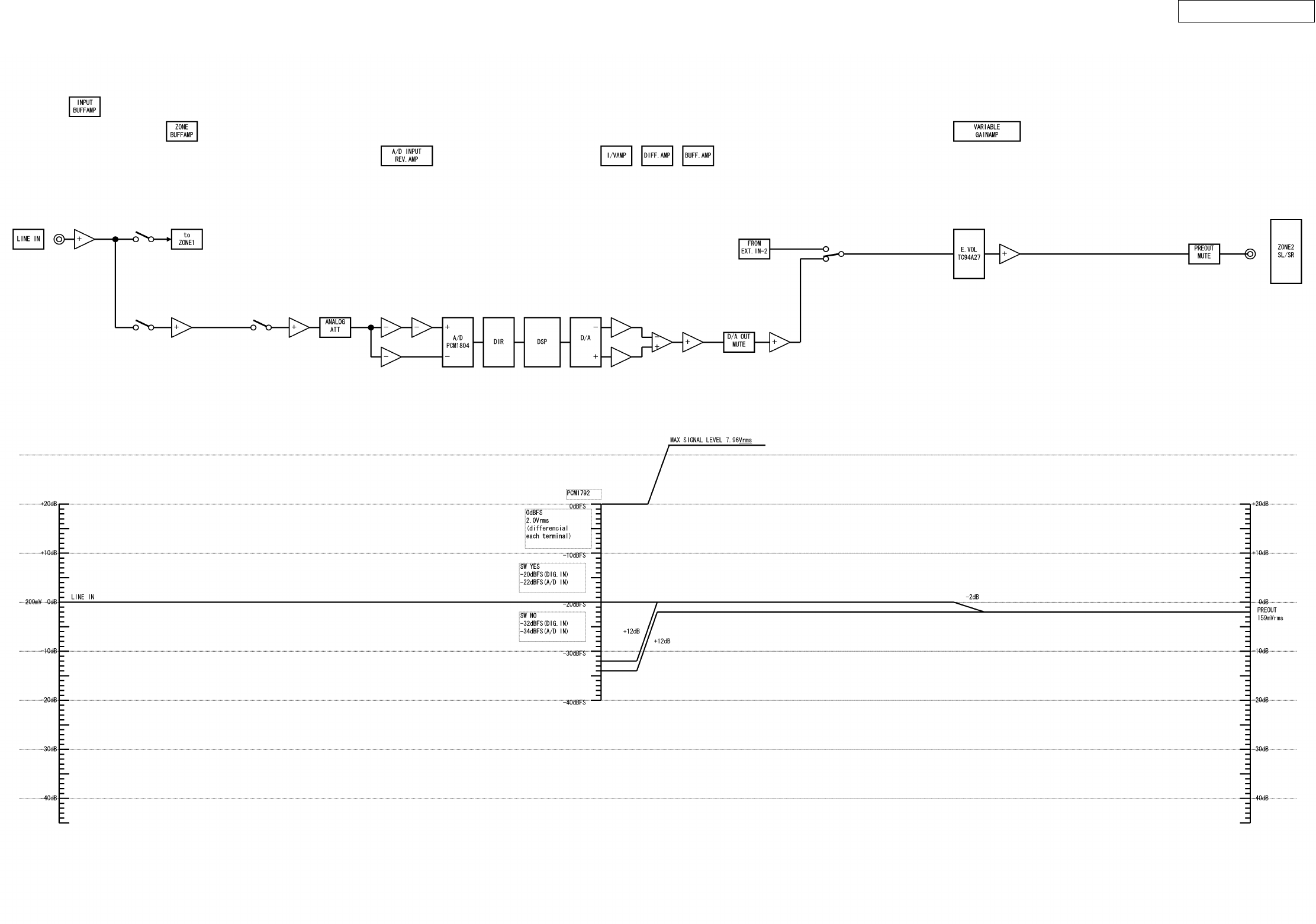

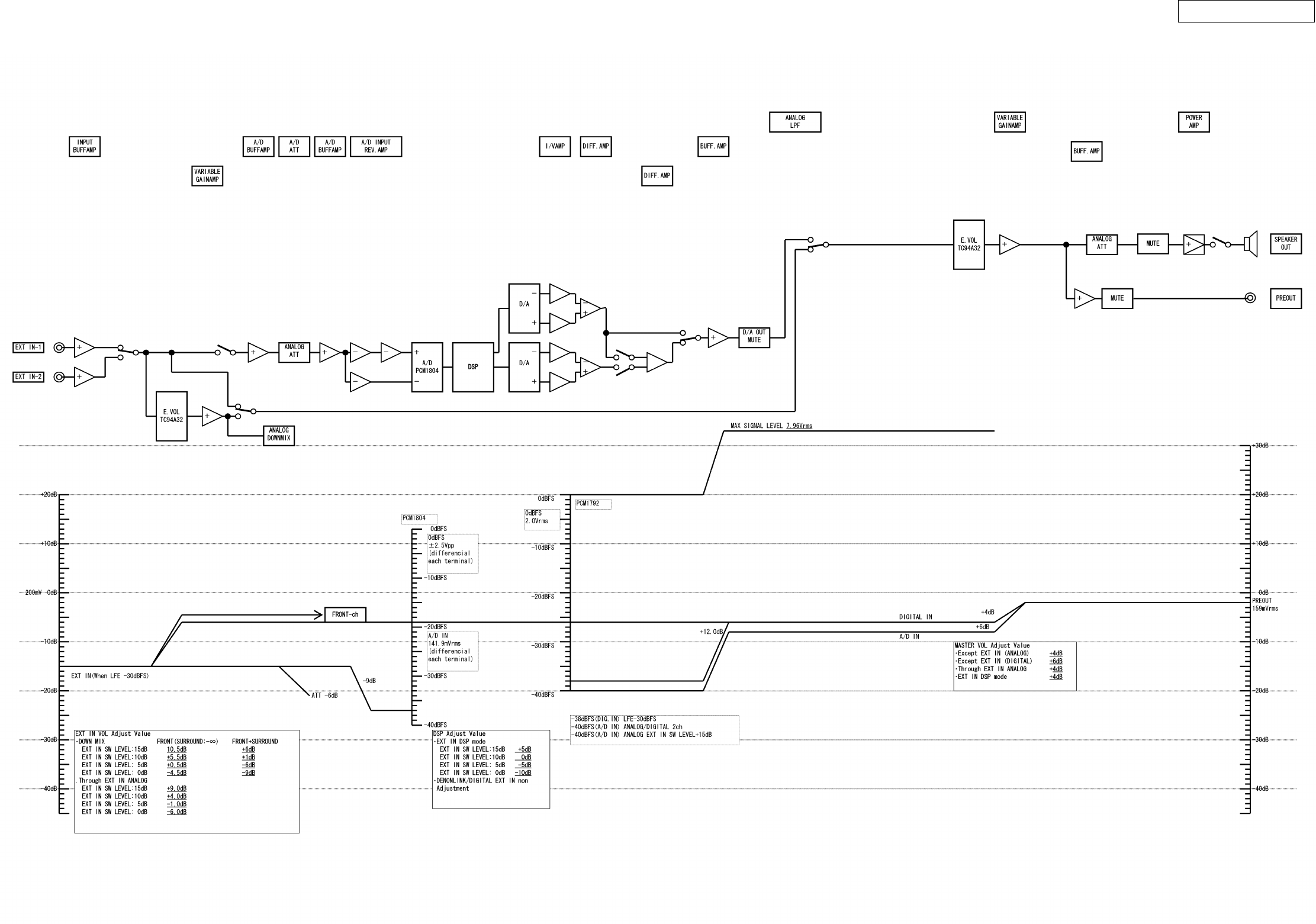

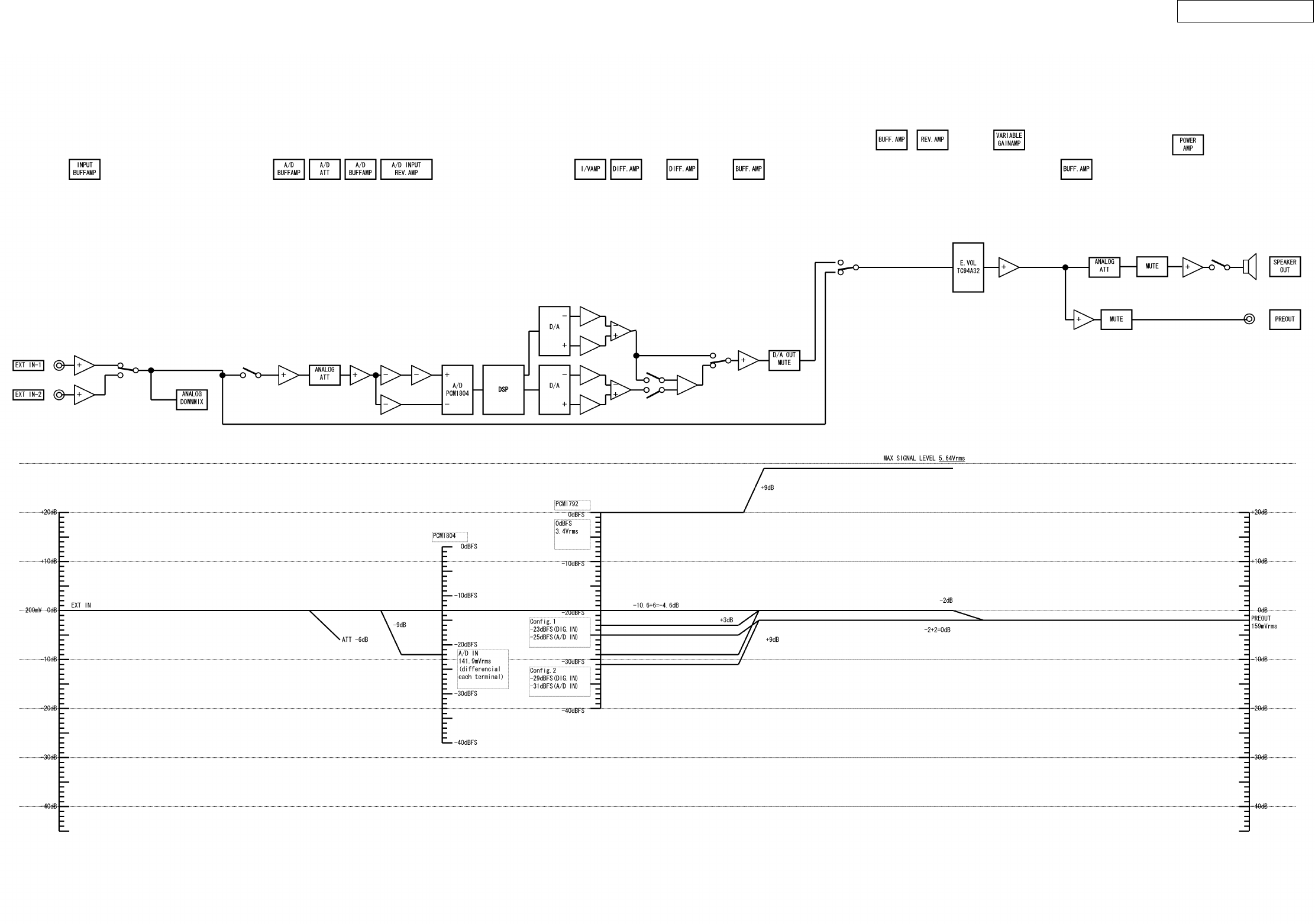

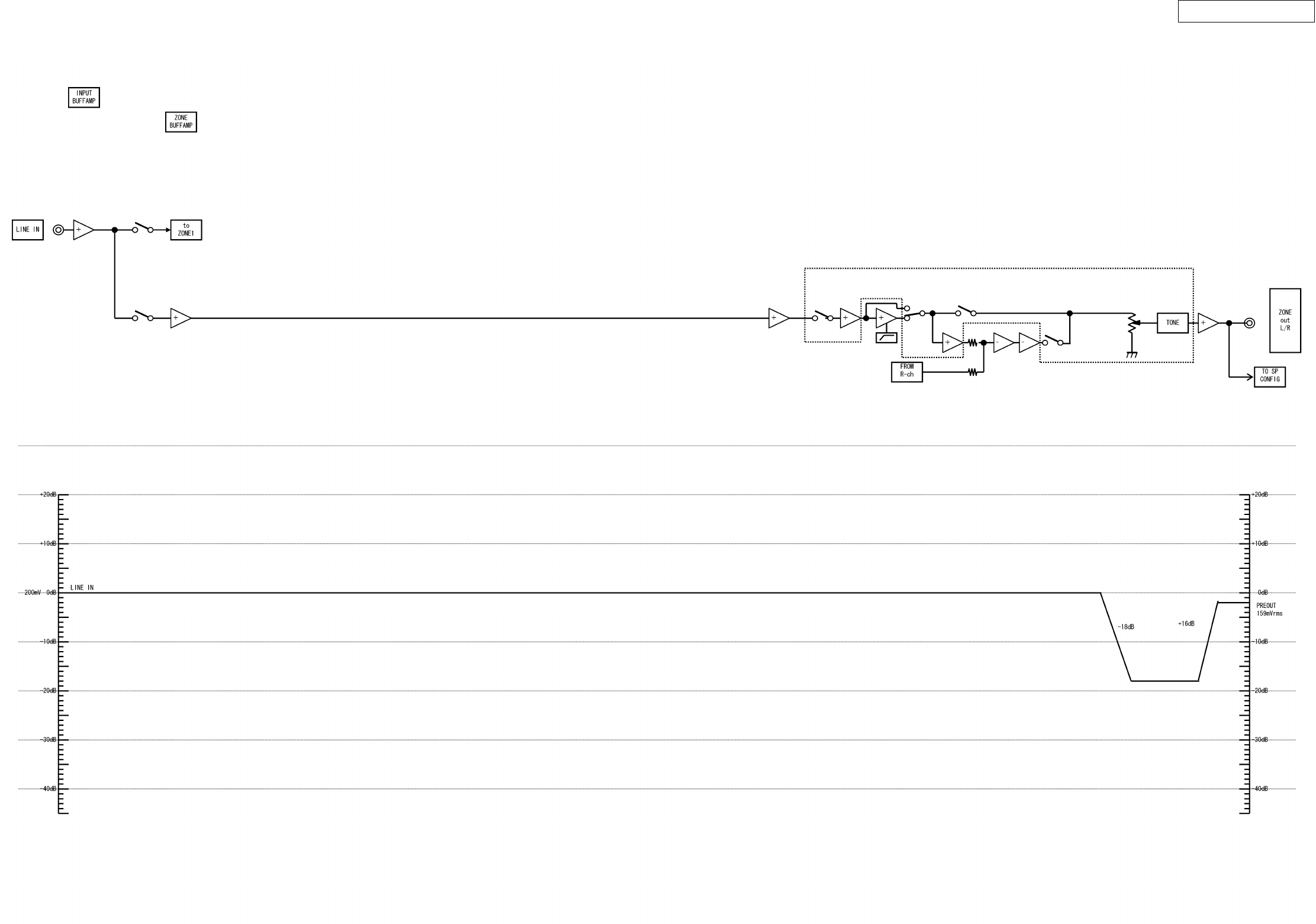

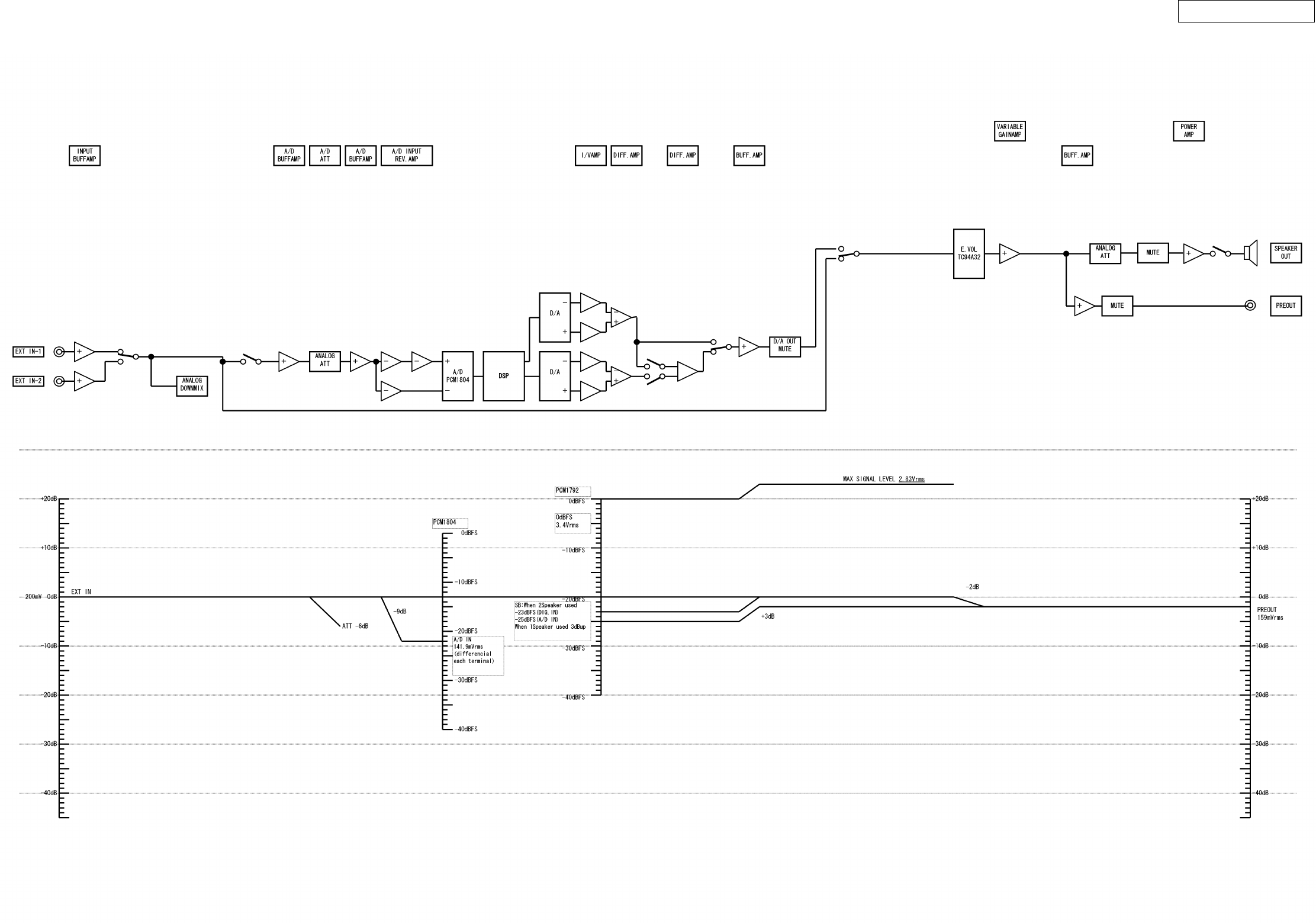

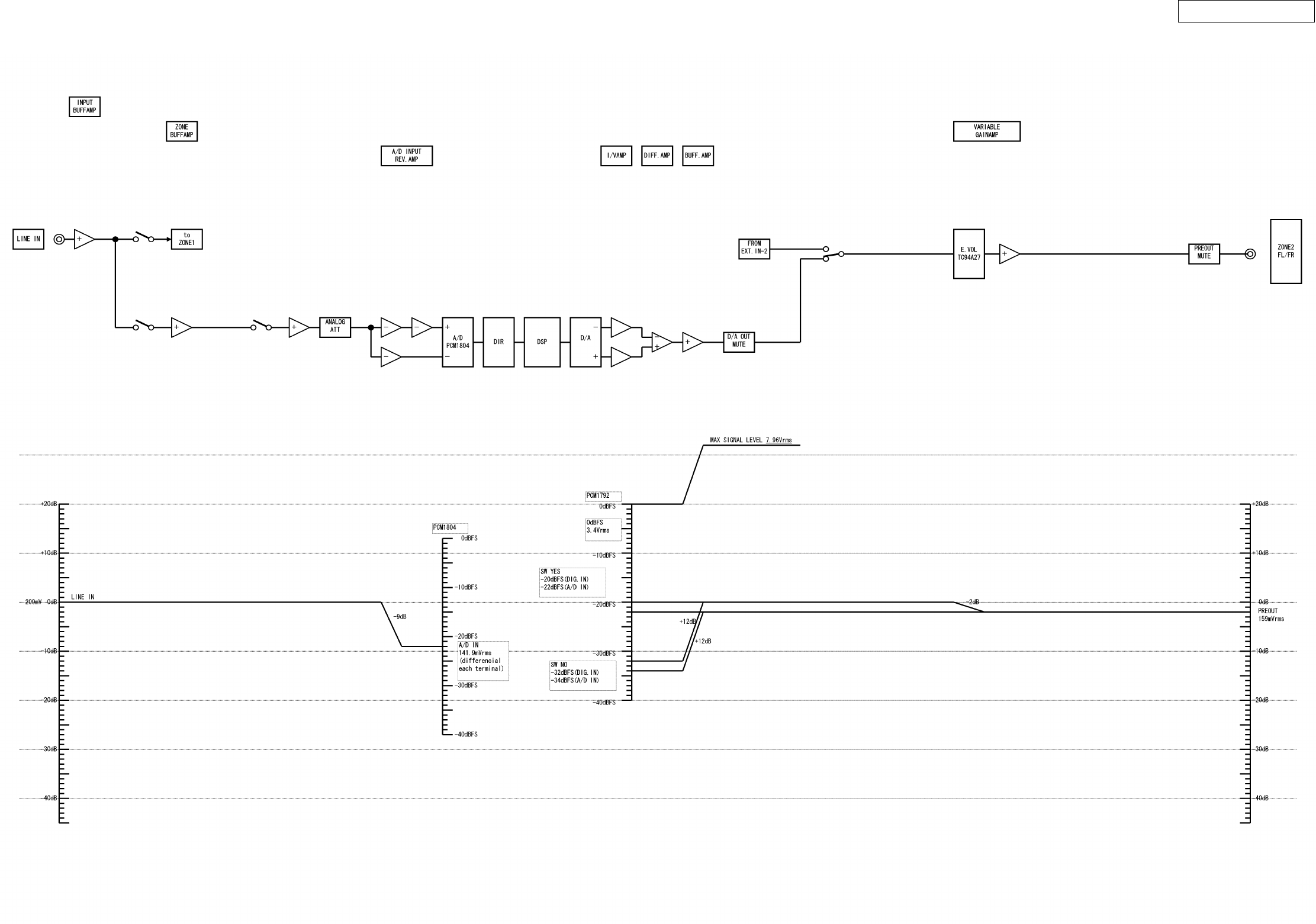

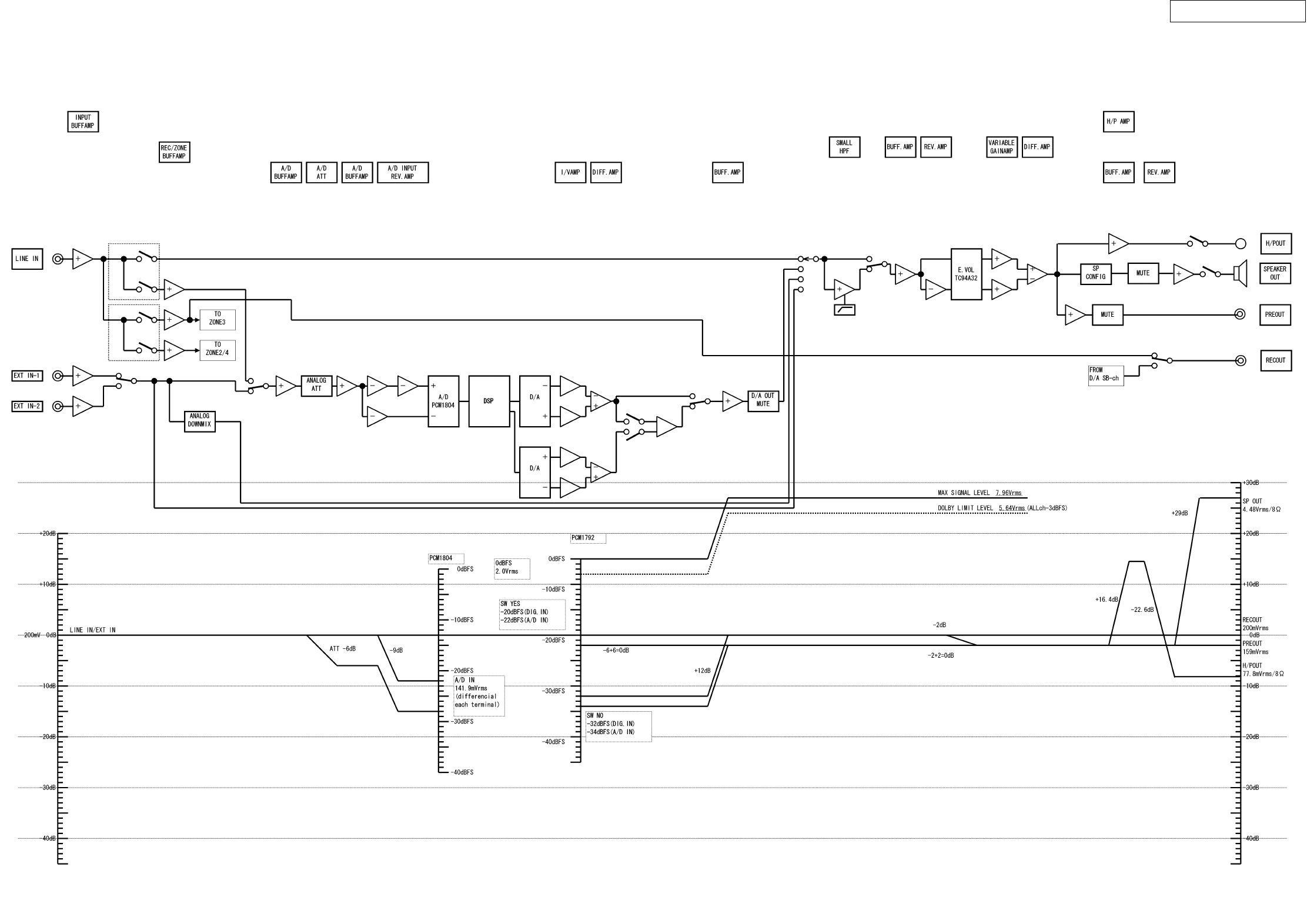

LEVEL DIAGRAMS

AVR-5805/AVC-A1XV

CENTER ch

AVR-5805/AVC-A1XV

SUBWOOFER ch

AVR-5805/AVC-A1XV

SURROUND ch

AVR-5805/AVC-A1XV

SURROUND BACK ch

AVR-5805/AVC-A1XV

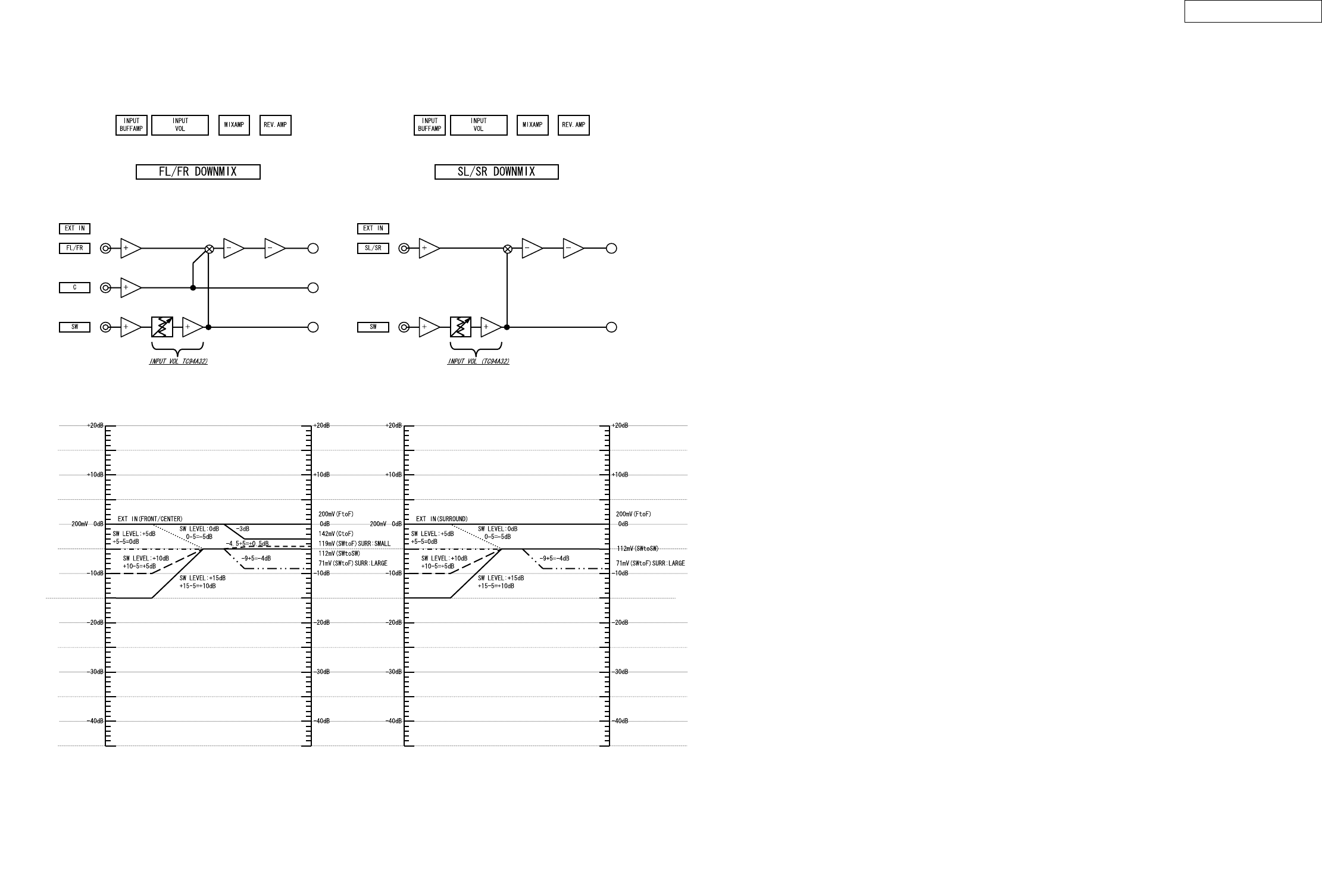

EXT IN ANALOG DOWNMIX

AVR-5805/AVC-A1XV

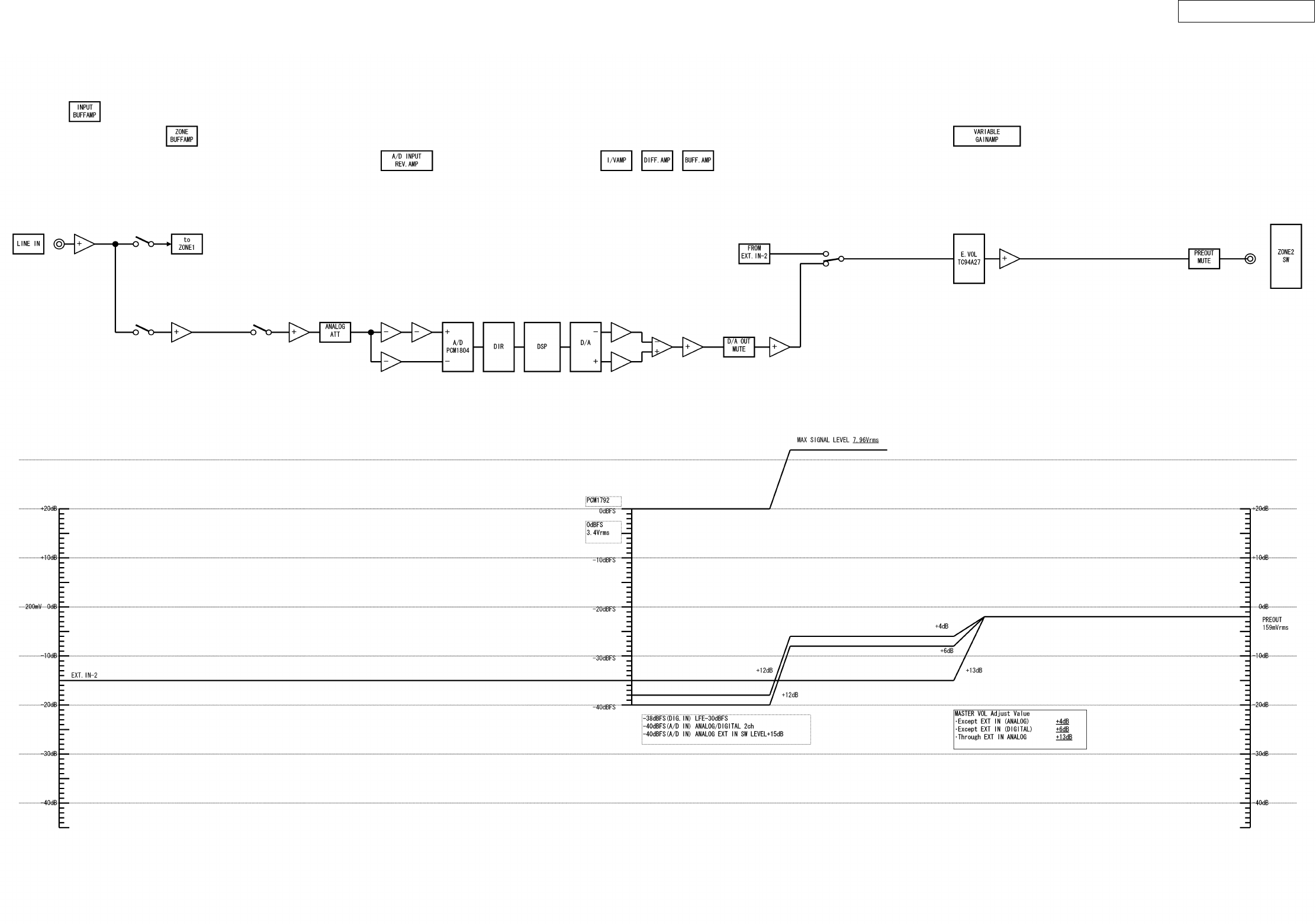

ZONE2 FL/FR ch

AVR-5805/AVC-A1XV

ZONE2 C ch

AVR-5805/AVC-A1XV

ZONE2 SW ch

AVR-5805/AVC-A1XV

ZONE2 SL/SR ch

AVR-5805/AVC-A1XV

ZONE2/ 3/4 L/R

AVR-5805/AVC-A1XV

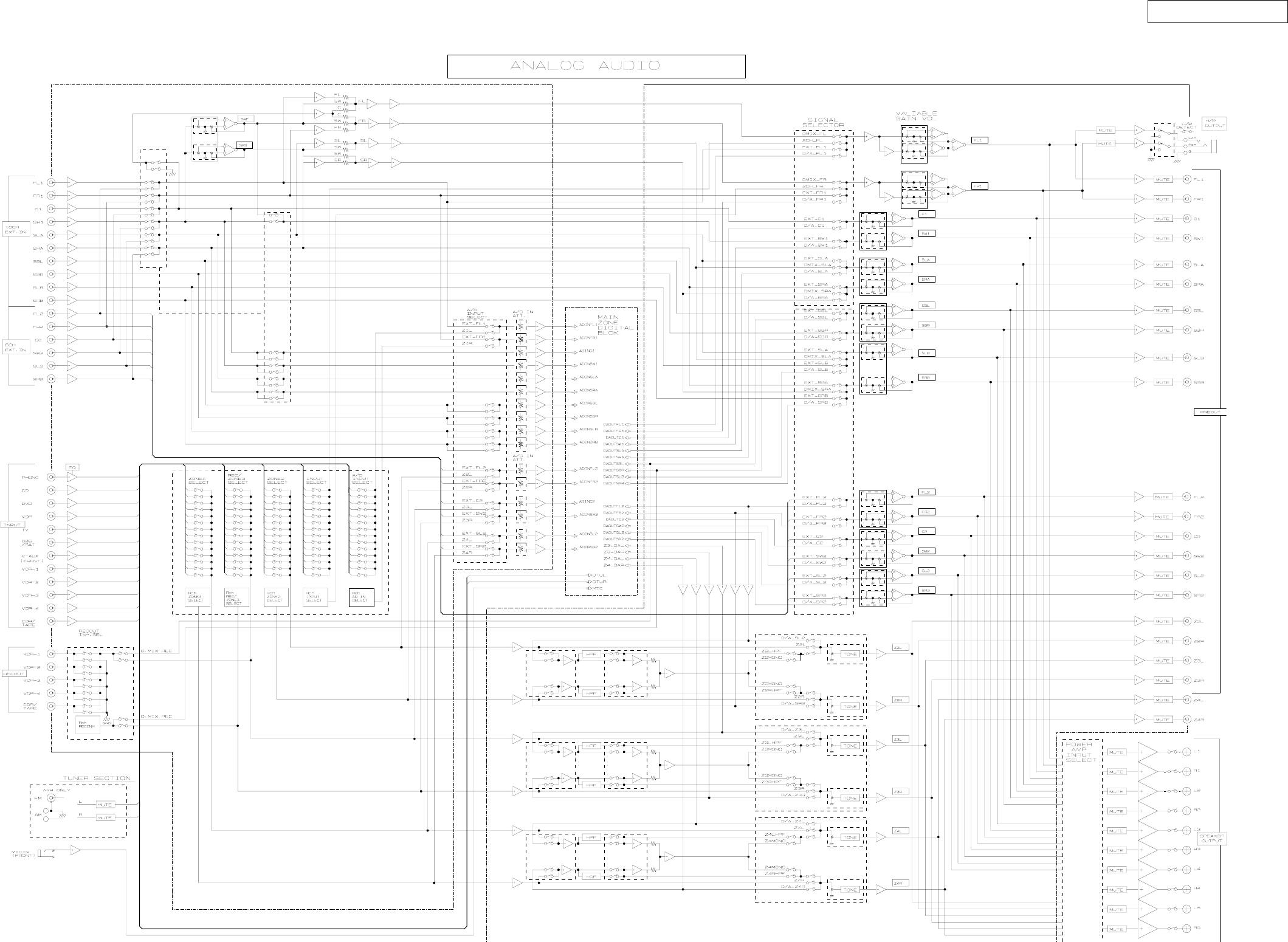

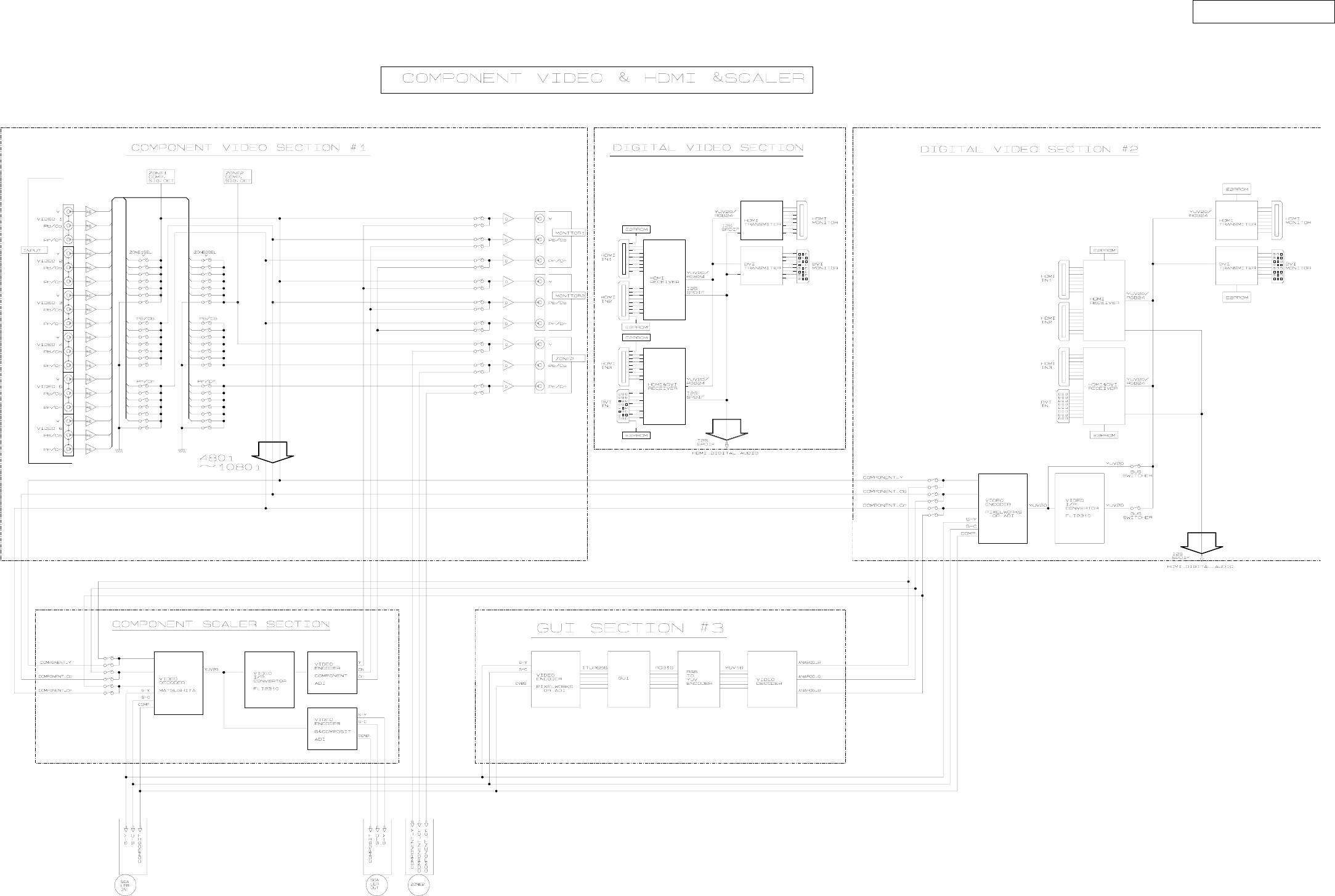

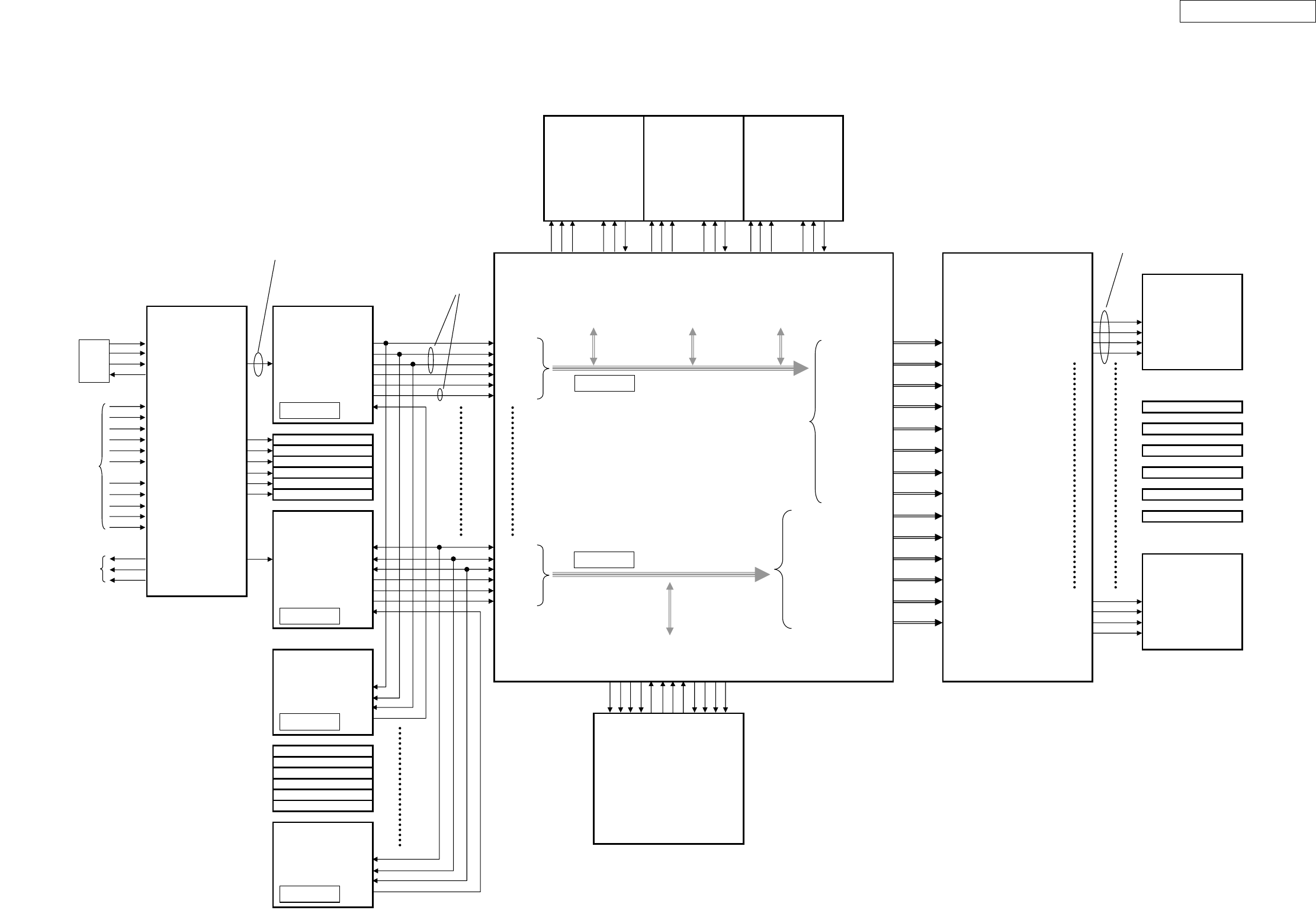

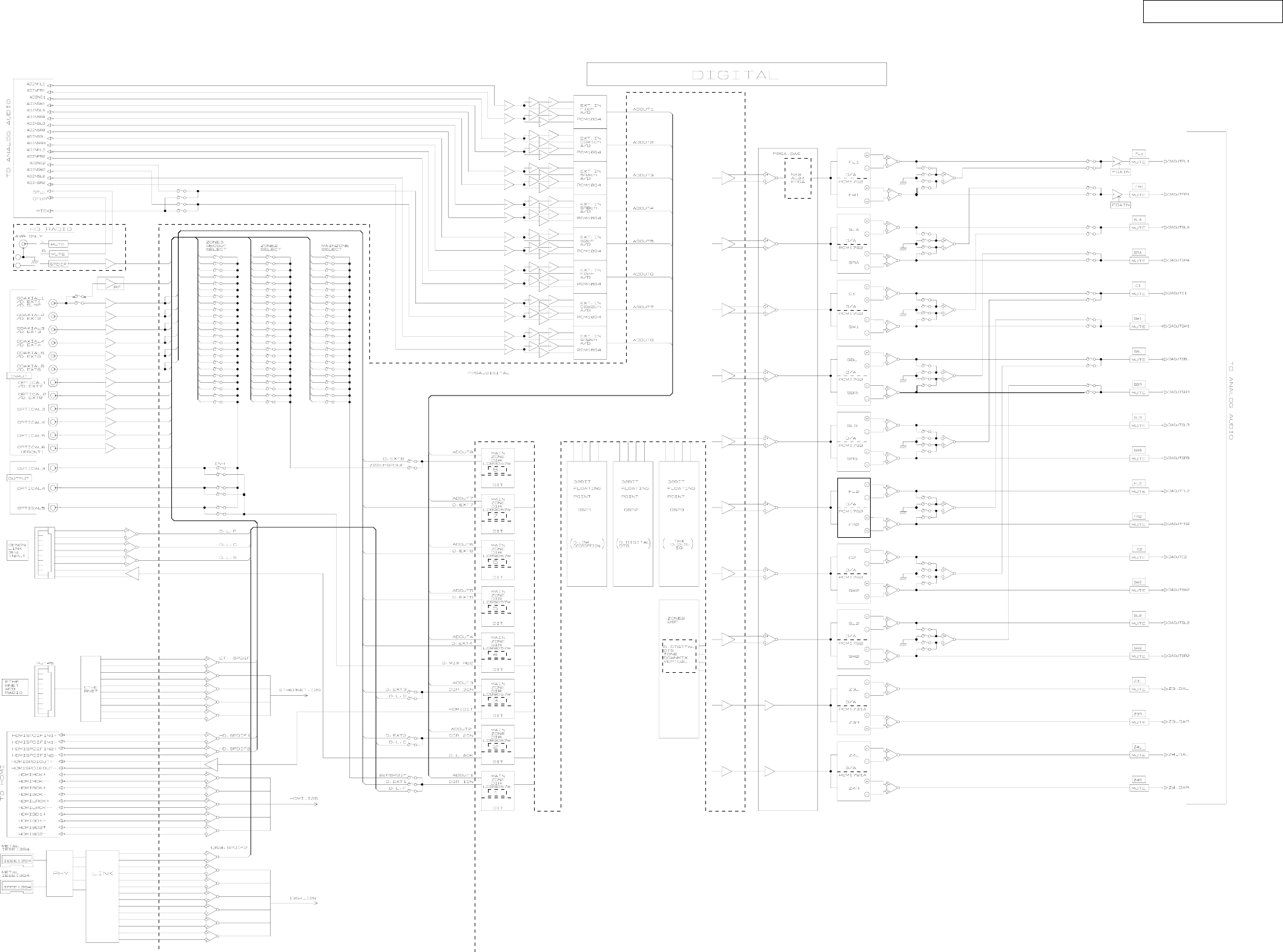

BLOCK DIAGRAMS

AVR-5805/AVC-A1XV

ADJUSTMENT

AUDIO Section

IDLING CURRENT (1U-3637-1)

Required measurement equipment: DC Voltmeter

1. PREPARATION

(1) Avoid direct blow from an air conditioner or an electric

fan, and adjust the unit at normal room temperature 15 °C

~ 30 °C (59 °F ~ 86 °F).

(2) Presetting

• POWER (Power source switch) OFF

• SPEAKER (Speaker terminal) No load

(Do not connect speaker, dummy resistor, etc.)

2. ADJUSTMENT

(1) Remove side cover and set VR101, VR201, VR301,

VR401, VR501 on 1U-3637-1 (Power Unit) at fully coun-

terclockwise ( ).

(2) Connect DC Voltmeter to test points (CN103, CN203,

CN303, CN403, CN503 ① ③pin).

(3) Connect power cord to AC Line, and turn power switch

"ON".

(4) Turn power switch "ON" with pressing [GAME] and

[SRROUND BACK] buttons in the door of front panel.

(5) Presetting.

MASTER VOLUME : "---" counterclockwise ( min.)

MODE : 9CH STEREO

FUNCTION : CD

(6) Allow 2 minutes, and turn VR101 clockwise ( ) to ad-

just the TEST POINT voltage to 3.5 mV ± 0.2 mV DC.

(7) After 10 minutes from preset, turn VR101 to set the volt-

age to 4.0 mV ± 0.2 mV DC.

(8) Adjust the Variable Resistors of other channels in the

same way.

(9) After 5 minutes from (7), turn VR101 to set the voltage to

4.0 m ± 0.2 mV DC.

(10) Adjust the Variable Resistors of other channels in the

same way.

調整

オーディオセクション

アイドリング電流の調整 (1U-3637-1)

調整に必要な測定器 : DC Voltmeter

1. 準備

(1) セットをクーラ、扇風機のそばなど風通しの良い場所

を避け、通常の使用状態に置きます。セットの周囲温

度は 15 ∼ 30 ℃、湿度は常湿とします。

(2) プリセット

・電源スイッチ OFF

・スピーカー端子無負荷

( スピーカー・ダミー抵抗器などを接続しない。)

2. 調整

(1) サイドカバーをはずし、1U-3637-1（パワーユニット）

の VR101, VR201, VR301, VR401, VR501 を反時計方向

( ) に回し切った状態にセットします。

(2) テストポイント (CN103, CN203, CN303, CN403, CN503

の① ③ pin) に DC Voltmeter を接続します。

(3) 電源コードを AC ライン（95 ∼ 105V の範囲であること）

に接続し、電源スイッチを "ON" にします。

(4) フロントパネルのドア内にある「GAME」ボタンと

「SURROUND BACK」ボタンを押しながら電源スイッチ

を "ON" にします。

(5) ON 後、次のようにセットします。

・MASTER VOLUME（音量調節つまみ）→反時計方向

( ) に回す、最小の状態にする。

・SPEAKER（スピーカー端子）→無負荷（スピーカー、

ダミー抵抗器などを接続しない。）

MODE : 9CH STEREO

FUNCTION : CD

(6) 2 分以内に VR101 を時計方向 ( ) に回しテストポイ

ントの電圧を次のように調整します。

3.5mV ± 0.2mV DC

(7) 予備調整から 10 分後 VR101 を回し、次のように電圧を

設定します。

4.0mV ± 0.2mV DC

(8) 同じ方法で各チャネルの可変抵抗を調整します。

(9) (7) 項設定から 5 分後 VR101 を回し、次のように電圧を

設定します。

4.0mV ± 0.2mV DC

(10) 同じ方法で各チャネルの可変抵抗を調整します。

AVR-5805/AVC-A1XV

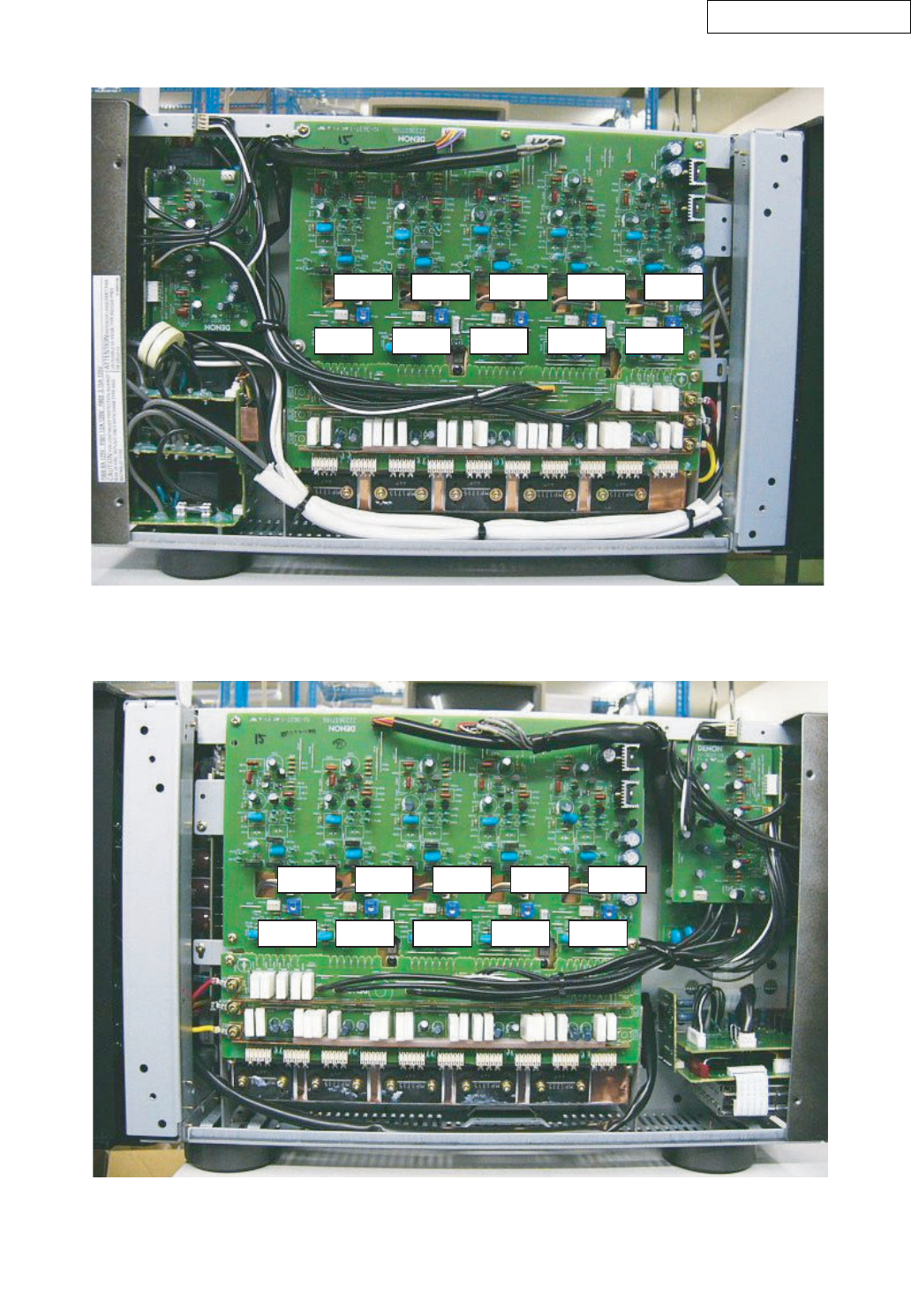

VR10 1 VR20 1 VR30 1 VR40 1 VR50 1

CN103 CN203 CN303 CN403 CN503

VR10 1 VR20 1 VR30 1 VR40 1 VR50 1

CN103 CN203 CN303 CN403 CN503

Audio Section

AVR-5805/AVC-A1XV

VIDEO Section

I. MAIN ZONE

1. SETTING

(1) Connect the oscilloscope to the Y-signal and C-signal of

S MONITOR OUT terminal and each terminate at 75

Ohms.

(2) Connect the oscilloscope to the Y-signal, PB-signal and

CB-signal, PR-signal and CR-signal of COMPONENT

MONITOR OUT2 terminal and each terminate at 75

Ohms.

※ Use the 75 Ohms resistance must be 1%

(3) DVD test disc : DVDT-S01

(4) COMPONENT VIDEO OUT of DVD player is connected

to COMPONENT IN-5.

2. BEFORE ADJUSTMENT

2.1. Setting the Oscilloscope as below.

(1) PB/CB, PR/CR, C

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 100mV

(Use the probe : x10 )

(2) Y

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 200mV

(Use the probe : x10 )

Power on. Power Supply

USA & Canada : 120V

Europe : 230V

Japan : 100V

China & Korea : 220V

2.2. Setup the DVD player and confirmation of the

stators

(1) Set to "INTERLACED" mode at the COMPONENT OUT.

(2) Confirm the DVD player’s out put level is equal as the

item 2.4. in following.

2.3. Preparation

(1) Push [POWER] button with pressing [GAME] and [SUR-

ROUND BACK] buttons.

(2) Confirm "0.0dB" appearing on the FL display.

(3) Turn the FUNCTION knob to select "VCR-1" input.

(4) Push [VIDEO ON/OFF] button twice to select "VIDEO

OFF". (It becomes Adjustment mode.)

(5) Push [OPEN/CLOSE] button of DVD player, then open

the Disc Tray.

Set DVD test disc (DVDT-S01) on the Disc Tray, and

then push [CLOSE] button.

(6) DVD player FL display appear "STOP", push [PLAY] but-

ton to playback DVD.

(7) Push the [DISPLAY] button of remote control of DVD

player unit and then appear the ON-Screen Display (GUI)

on the monitor TV.

(8) Push the [+10] and [2] button, select Title 12 of DVD.

(9) Push the [ENTER] button, playback Title 12.

(color bar 75%)

ビデオセクション

I. MAIN ZONE

1. セッティング手順

(1) セットの S MONITOR OUT 端子から Y 信号と C 信号を

それぞれオシロスコープ（終端抵抗：75Ω）に接続し

ます。

(2) セットの COMPONENT MONITOR OUT2 の端子（Y,

PB/CB, PR/CR ）をそれぞれオシロスコープ（終端抵抗：

75Ω）に接続します。

※ 75Ω 抵抗は 1％品を使用する事。

(3) DVD テストディスク：DVDT-S01 を用意します。

(4) DVD プレーヤーの COMPONENT VIDEO OUT を

COMPONENT IN-5 に接続します。

2. 調整のまえに

2.1. オシロスコープを下記に設定

(1) PB/CB, PR/CR, C

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 100mV

（プローブ x10 使用）

(2) Y

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 200mV

（プローブ x10 使用）

電源電圧： 100V

2.2. DVD プレーヤの設定と確認

(1) COMPONENT OUT の設定を " インターレース " にしま

す。

(2) DVD プレーヤーの出力が以下 2.4. に合っていることを

確認します。

2.3. 準備手順

(1) セットの AC コードをコンセントへ挿入し、「GAME」

と「SURROUND BACK」ボタンを押しながらセットの電

源を "ON" にします。

(2) FL 表示右上の VOL 表示が "0.0dB" になっていることを

確認します。

(3) FUNCTION ノブを回し、入力を "VCR-1" に切り替えます。

(4) 「VIDEO ON/OFF」ボタンを 2 回押し、"VIDEO OFF" に

します。（調整モードになります）

(5) DVD プレーヤーの「OPEN/CLOSE」ボタンを押しトレ

イを開き、トレイ上に DVD テストディスク（DVDT-

S01）をセット後、「CLOSE」ボタンを押します。

(6) DVD プレーヤーの表示管上に "STOP" が表示されてか

ら、「PLAY」ボタンを押し、ディスクを再生します。

(7) DVD プレーヤーのリモコンの「DISPLAY」ボタンを押

しグラフィカル・ユーザー・インターフェイス (GUI) 画

面を出します。

(8) 番号ボタンの｢ +10 ｣ , ｢ 2 ｣ボタンを押し、Title 12 を選択

します。

(9) 「ENTER」ボタンを押し、Title 12 を再生します。

（75％カラーバー信号）

AVR-5805/AVC-A1XV

2.4. Procedure

(1) Adjust the signal of S MONITOR OUT by the wave of os-

cilloscope.

(a) Target, Y-signal

Point : 1U-3645-2 VR802

Adjustment Value : 714 ±14mV

Waveform

(b) Target, C-signal

Point : 1U-3645-2 VR803

Adjustment Value : 286 ±5mV

Waveform

(2) Adjust the signal of COMPONENT OUT by the wave of

oscilloscope.

(a) Target, Y-signal

Point : 1U-3645-2 VR702

Adjustment Value : 714 ±14mV

Waveform

(b) Target, PB/CB-signal

Point : 1U-3645-2 VR703

Adjustment Value : *525 ±10mV

Waveform

Y-signal of S MONITOR OUT

C-signal of S-MONITOR

Y-signal COMPONENT OUT

PB/CB-signal COMPONENT OUT

PB/CB

2.4. 手順

(1) セットの S MONITOR OUT の信号レベルをオシロスコー

プ上の波高値で調整します。

(a) Y 信号レベル

調整個所： 1U-3645-2 VR802

調整値： 714 ± 14mV

波形

(b) C 信号レベル

調整個所： 1U-3645-2 VR803

調整値： 286 ± 5ｍV

波形

(2) COMPONENT OUT の信号レベルをオシロスコープ上の

波高値で調整します。

(a) Y 信号レベル

調整個所： 1U-3645-2 VR702

調整値： 714 ± 14ｍV

波形

(b) PB/CB信号レベル

調整個所： 1U-3645-2 VR703

調整値： 525 ± 10ｍV

波形

S MONITOR OUT の Y 信号レベル

S MONITOR の C 信号レベル

COMPONENT OUT の Y 信号レベル

PB/CB

COMPONENT OUT の PB/CB信号レベル

AVR-5805/AVC-A1XV

Point : 1U-3645-2 VR704

Adjustment Value : *525 ± 10mV

Waveform

* : 486 ±10mV for U.S.A. & Canada model

PR/CR-signal COMPONENT OUT

PR/CR

調整個所： 1U-3645-2 VR704

調整値： 525 ± 10ｍV

波形

PR/CR

COMPONENT OUT の PR/CR信号レベル

AVR-5805/AVC-A1XV

II . ZONE2

1. SETTING

(1) Connect the oscilloscope to the Y-signal, PB-signal and

CB-signal, PR-signal and CR-signal of ZONE2 COMPO-

NENT OUT terminal and each terminate at 75 Ohms.

※ Use the 75 Ohms resistance must be 1%

(2) DVD test disc : DVDT-S01

(3) S OUT of DVD player is connected to VCR-1 S IN.

2. Before Adjustment

2.1. Setting the Oscilloscope as below.

(1) PB/CB, PR/CR

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 100mV

(Use the probe : x10 )

(2) Y

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 200mV

(Use the probe : x10 )

Power on. Power Supply

USA & Canada : 120V

Europe : 230V

Japan : 100V

China & Korea : 220V

2.2. Setup the DVD player and confirmation of the

stators

(1) Set to "INTERLACED" mode at the COMPONENT OUT.

(2) Confirm the DVD player’s out put level is equal as the

item 2.4. in following.

2.3. Preparation

(1) Push [POWER] button with pressing [GAME] and [SUR-

ROUND BACK] buttons.

(2) Confirm "0.0dB" appearing on the FL display.

(3) Turn the FUNCTION knob to select "VCR-1" input.

(4) Push [VIDEO ON/OFF] button twice to select "VIDEO

OFF". (It becomes Adjustment mode.)

(5) Push [OPEN/CLOSE] button of DVD player, then open

the Disc Tray.

Set DVD test disc (DVDT-S01) on the Disc Tray, and

then push [CLOSE] button.

(6) DVD player FL display appear "STOP", push [PLAY] but-

ton to playback DVD.

(7) Push the [DISPLAY] button of remote control of DVD

player unit and then appear the ON-Screen Display (GUI)

on the monitor TV.

(8) Push the [+10] and [2] button, select Title 12 of DVD.

(9) Push the [ENTER] button, playback Title 12.

(color bar 75%)

II . ZONE2

1. セッティング手順

(1) セットの ZONE2 COMPONENT OUT の端子（Y, PB/CB,

PR/CR ）をそれぞれオシロスコープ（終端抵抗：75Ω）

に接続します。

※ 75Ω 抵抗は 1％品を使用する事。

(2) DVD テストディスク：DVDT-S01 を用意します。

(3) DVD プレーヤーの S OUT を VCR-1 S IN に接続します。

2. 調整のまえに

2.1. オシロスコープを下記に設定

(1) PB/CB, PR/CR

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 100mV

（プローブ x10 使用）

(2) Y

(a) TIME/DIV : 10μs

(b) VOLT/DIV : 200mV

（プローブ x10 使用）

電源電圧： 100V

2.2. DVD プレーヤの設定と確認

(1) COMPONENT OUT の設定を " インターレース " にしま

す。

(2) DVD プレーヤーの出力が以下 2.4. に合っていることを

確認します。

2.3. 準備手順

(1) セットの AC コードをコンセントへ挿入し、「GAME」

と「SURROUND BACK」ボタンを押しながらセットの電

源を "ON" にします。

(2) FL 表示右上の VOL 表示が "0.0dB" になっていることを

確認します。

(3) FUNCTION ノブを回し、入力を "VCR-1" に切り替えます。

(4) 「VIDEO ON/OFF」ボタンを 2 回押し、"VIDEO OFF" に

します。（調整モードになります）

(5) DVD プレーヤーの「OPEN/CLOSE」ボタンを押しトレイ

を開き、トレイ上に DVD テストディスク（DVDT-S01）

をセット後、「CLOSE」ボタンを押します。

(6) DVD プレーヤーの表示管上に "STOP" が表示されてか

ら、「PLAY」ボタンを押し、ディスクを再生します。

(7) DVD プレーヤーのリモコンの「DISPLAY」ボタンを押

しグラフィカル・ユーザー・インターフェイス (GUI) 画

面を出します。

(8) 番号ボタンの｢ +10 ｣ , ｢ 2 ｣ボタンを押し、Title 12 を選択

します。

(9) 「ENTER」ボタンを押し、Title 12 を再生します。

（75％カラーバー信号）。

AVR-5805/AVC-A1XV

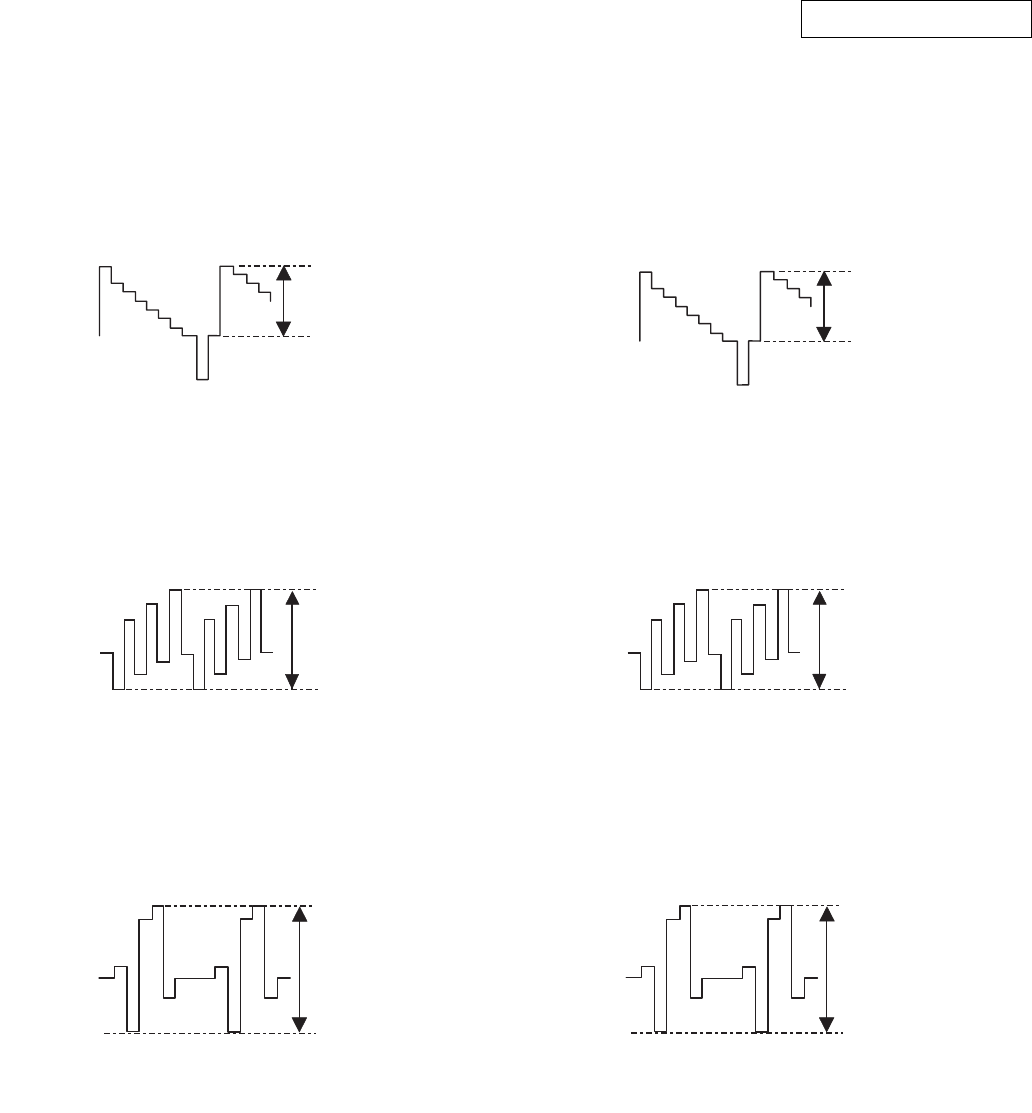

2.4. Procedure

(1) Adjust the signal of COMPONENT OUT by the wave of

oscilloscope.

(a) Target, Y-signal

Point : 1U-3646-1 VR601

Adjustment Value : 714 ±14mV

Waveform

(b) Target, PB/CB-signal

Point : 1U-3646-1 VR602

Adjustment Value : *525 ±10mV

Waveform

Point : 1U-3646-1 VR603

Adjustment Value : *525 ± 10mV

Waveform

* : 486 ±10mV for U.S.A. & Canada model

Y-signal COMPONENT OUT

PB/CB-signal COMPONENT OUT

PR/CR-signal COMPONENT OUT

PR/CR

2.4. 手順

(1) COMPONENT OUT の信号レベルをオシロスコープ上の

波高値で調整します。

(a) Y 信号レベル

調整個所： 1U-3646-1 VR601

調整値： 714 ± 14ｍV

波形

(b) PB/CB信号レベル

調整個所： 1U-3646-1 VR602

調整値： 525 ± 10ｍV

波形

調整個所： 1U-3646-1 VR603

調整値： 525 ± 10ｍV

波形

COMPONENT OUT の Y 信号レベル

PB/CB

COMPONENT OUT の PB/CB信号レベル

PR/CR

COMPONENT OUT の PR/CR信号レベル

AVR-5805/AVC-A1XV

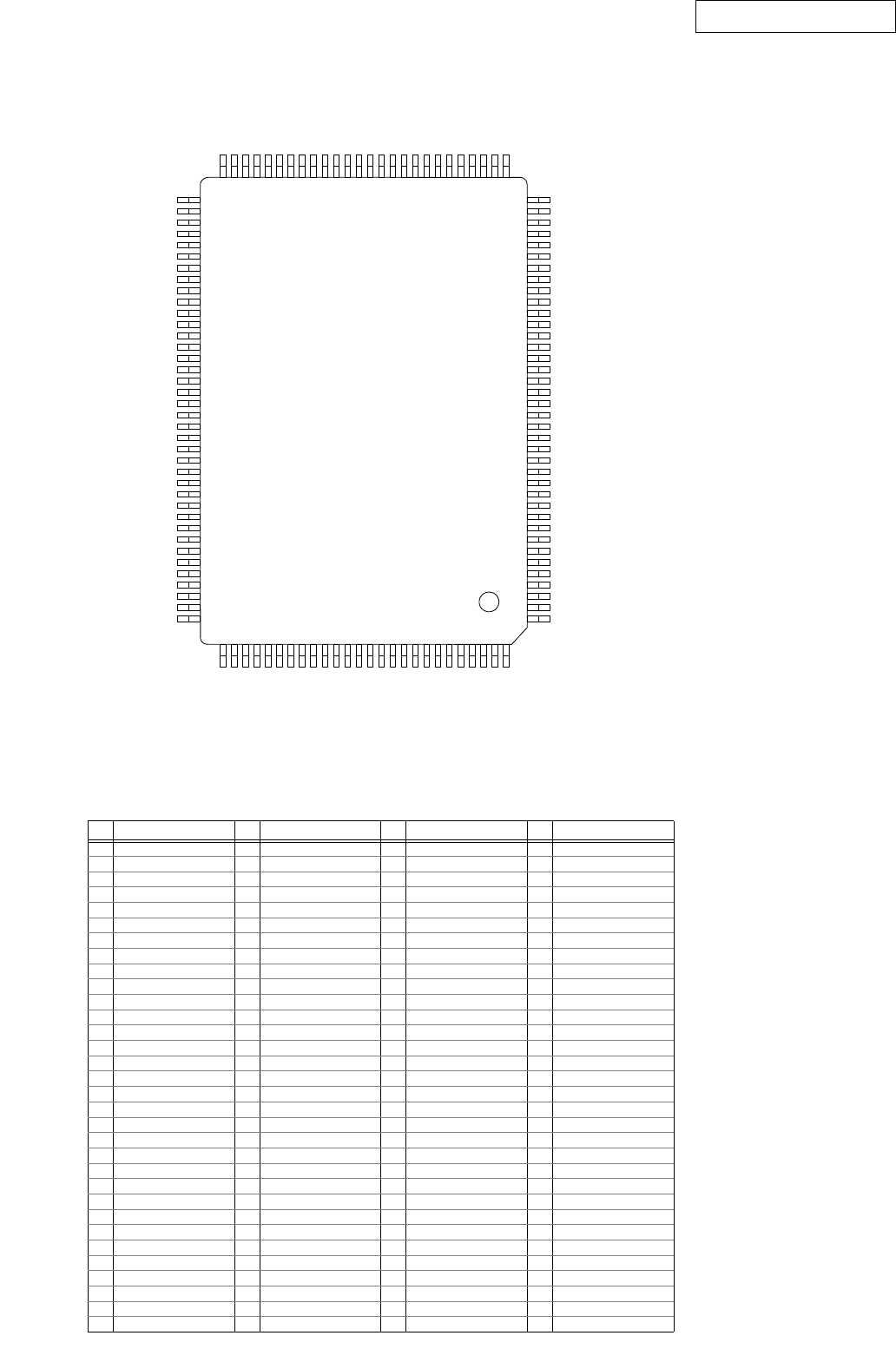

SEMICONDUCTORS

Only major semiconductors are shown, general semiconductors etc. are omitted to list.

主な半導体を記載しています。汎用の半導体は記載を省略しています。

1. IC’s

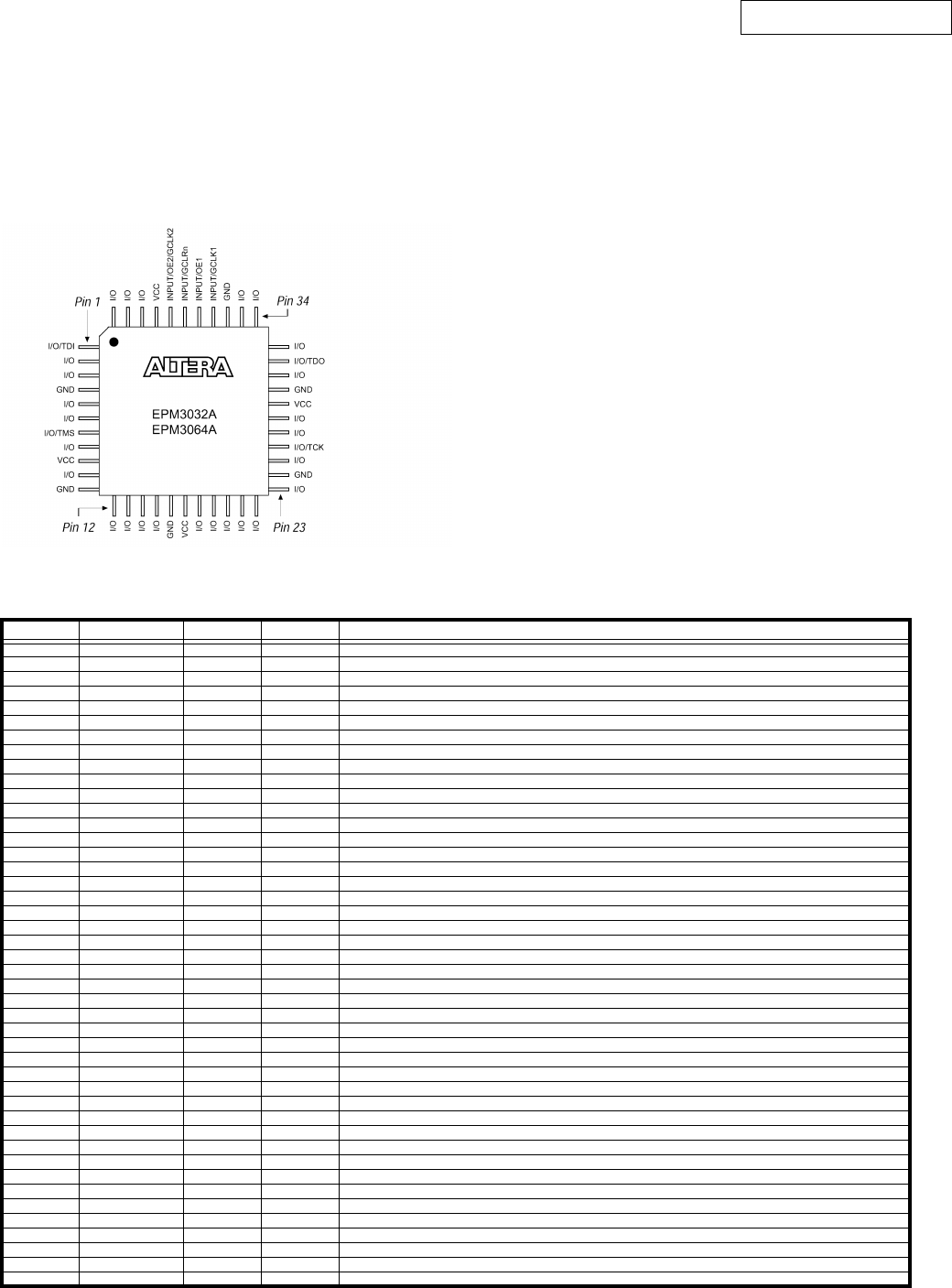

EPM3032ATC44-10 (IC518) AD P.W.B

EPM3032ATC44-10 Terminal Function

Pin No. Pin Name Dir. I/O Standard FUNCTION

1 +TDI input LVTTL JTAG DATA INPUT

2 GND* N.C.

3 GND* N.C.

4 GND gnd GND

5 GND* N.C.

6 RCHLIMITO output LVTTL Rch LIMITER ON/OFF H:ON,L:OFF

7 +TMS input LVTTL JTAG TMS INPUT

8 L1SIGDET input LVTTL L1ch SIGNAL DETECTION INPUT L:DETECTION

9 VCCIO power +3.3V

10 L2SIGDET input LVTTL L2ch SIGNAL DETECTION INPUT

11 GND gnd GND

12 L3SIGDET input LVTTL L3ch SIGNAL DETECTION INPUT L:DETECTION

13 L4SIGDET input LVTTL L4ch SIGNAL DETECTION INPUT L:DETECTION

14 L5SIGDET input LVTTL L5ch SIGNAL DETECTION INPUT L:DETECTION

15 L6SIGDET input LVTTL L6ch SIGNAL DETECTION INPUT L:DETECTION

16 GND gnd GND

17 VCCINT power +3.3V

18 R6SIGDET input LVTTL R6ch SIGNAL DETECTION INPUT L:DETECTION

19 R5SIGDET input LVTTL R5ch SIGNAL DETECTION INPUT L:DETECTION

20 R4SIGDET input LVTTL R4ch SIGNAL DETECTION INPUT L:DETECTION

21 R3SIGDET input LVTTL R3ch SIGNAL DETECTION INPUT L:DETECTION

22 R2SIGDET input LVTTL R2ch SIGNAL DETECTION INPUT L:DETECTION

23 R1SIGDET input LVTTL R1ch SIGNAL DETECTION INPUT L:DETECTION

24 GND gnd GND

25 LCHLIMITO output LVTTL Lch LIMITER ON/OFF H:ON,L:OFF

26 +TCK input LVTTL JTAG CLK INPUT

27 ASIGDET output LVTTL SIGNAL DETECTION OUTPUT H:DETECTION

28 GND* N.C.

29 VCCIO power +3.3V

30 GND gnd GND

31 GND* N.C.

32 *TDO output LVTTL JTAG DATA OUTPUT

33 GND* N.C.

34 GND* N.C.

35 GND* N.C.

36 GND gnd GND

37 GND+ N.C.

38 GND+ N.C.

39 GND+ N.C.

40 GND+ N.C.

41 VCCINT power +3.3V

42 GND* N.C.

43 GND* N.C.

44 GND* N.C.

AVR-5805/AVC-A1XV

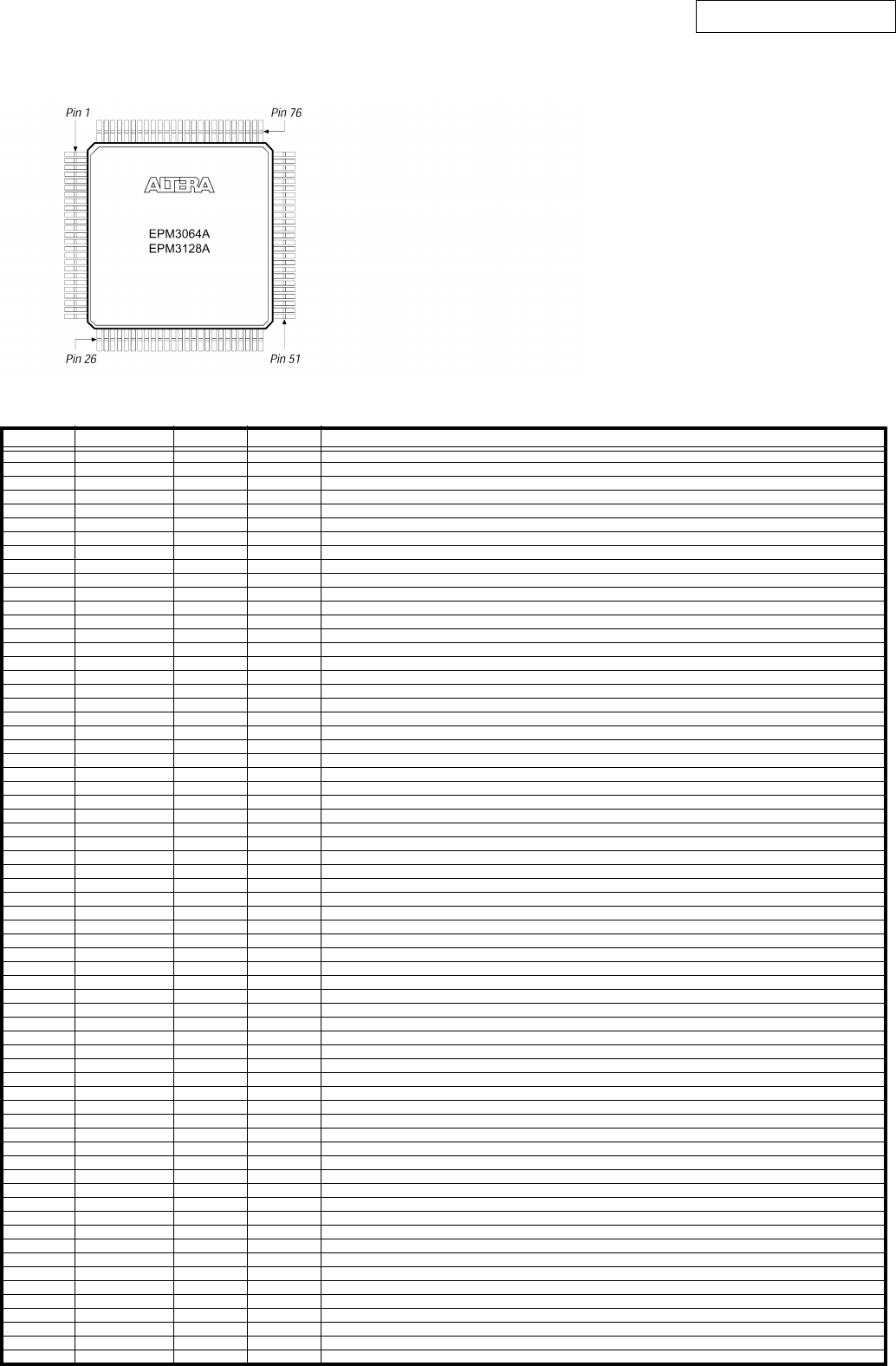

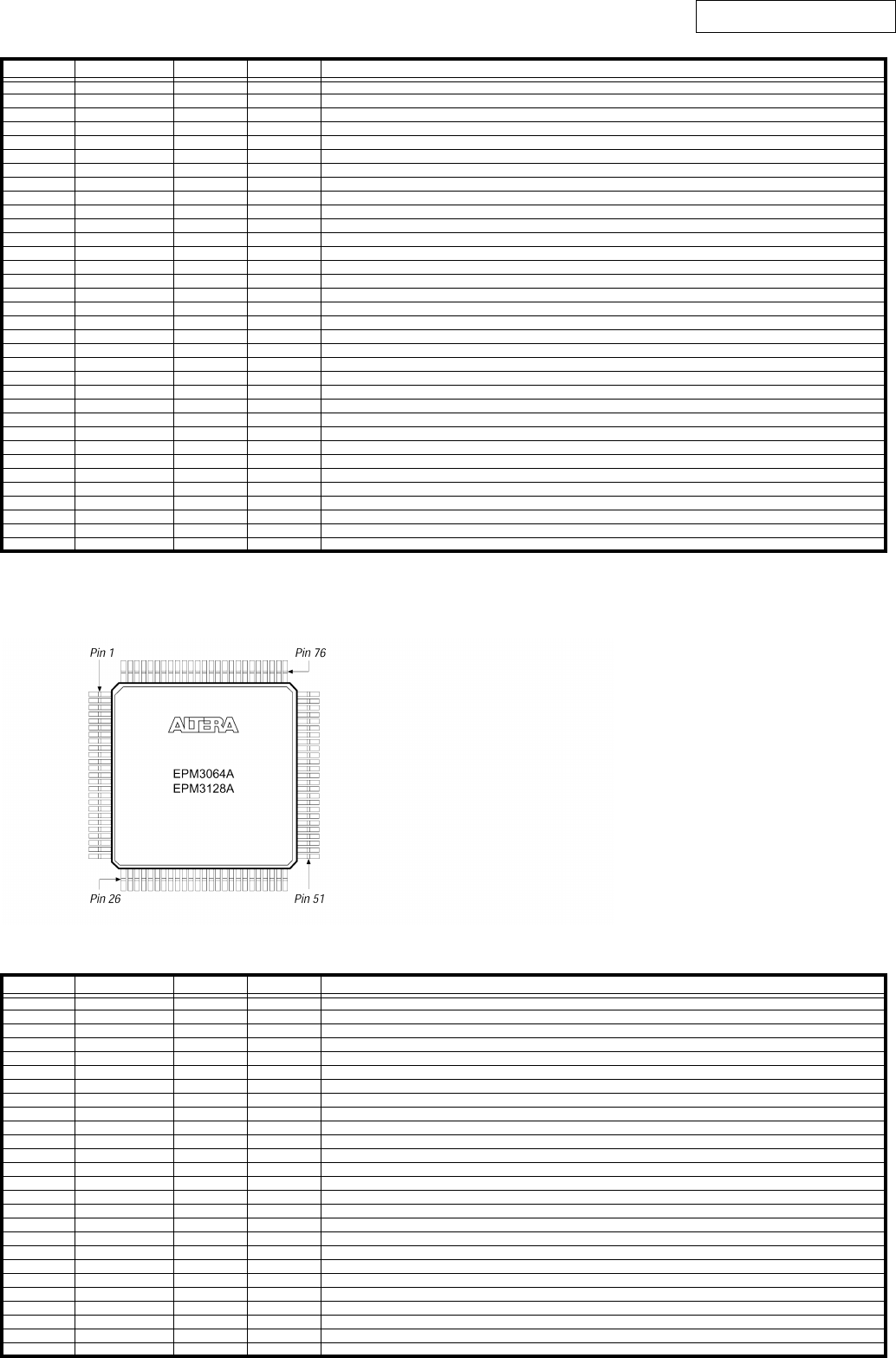

EPM3064ATC100-10 (IC301) 1394 P.W.B.

EPM3064ATC100-10 Terminal Function

Pin No. Pin Name Dir. I/O Standard FUNCTION

1NC N.C.

2NC N.C.

3 VCCIO power +3.3V

4 +TDI input LVCMOS JTAG DATA INPUT

5NC N.C.

6 CLKPLD input LVCMOS u-COM CLOCK INPUT

7NC N.C.

8 MOSIPLD input LVCMOS u-COM DATA INPUT

9 RSV input LVCMOS RESERVED

10 22MON input LVCMOS

11 GND gnd GND

12 VCO44/48ON output LVCMOS VCO 44kHz/48kHz ON/OFF H:OFF,L:ON

13 VCXO48ON output LVCMOS VCXO 48kHz ON/OFF H:OFF,L:ON

14 VCXO44ON output LVCMOS VCXO 44kHz ON/OFF H:OFF,L:ON

15 +TMS input LVCMOS JTAG TMS INPUT

16 CBRC44ON output LVCMOS CBRC 44kHz ON/OFF H:ON,L:OFF

17 CBRC48ON output LVCMOS CBRC 48kHz ON/OFF H:ON,L:OFF

18 VCCIO power +3.3V

19 44/48VCO input LVCMOS VCO CLOCK INPUT

20 48VCXO input LVCMOS VCXO 48kHz INPUT (24.576MHz)

21 44VCXO input LVCMOS VCXO 44kHz INPUT (22.5792MHz)

22 NC N.C.

23 44CBRC input LVCMOS OSC 44kHz INPUT (22.5792MHz)

24 NC N.C.

25 48CBRC input LVCMOS OSC 48kHz INPUT (24.576MHz)

26 GND gnd GND

27 NC N.C.

28 NC N.C.

29 INIT output LVCMOS SM5819A INIT H:ON,L:OFF

30 PCLKDET input LVCMOS TSB41AB2 PCLK DETECT

31 PCLKOUT output LVCMOS PLCK OUTPUT

32 PCLKIN input LVCMOS TSB41AB2 PCLK INPUT

33 GND gnd GND

34 VCCIO power +3.3V

35 ON output LVCMOS SM5819A ON H:ON,L:OFF

36 MUTE output LVCMOS DM1000 MUTE OUTPUT

37 S/PDIF/SRch output LVCMOS S/PDIF / SRch OUTPUT

38 GND gnd GND

39 VCCINT power +3.3V

40 S/SLch output LVCMOS S / SLch OUTPUT

41 C/Cch output LVCMOS Cch OUTPUT

42 -/FRch output LVCMOS FRch OUTPUT

43 GND gnd GND

44 F/FLch output LVCMOS F / FLch OUTPUT

45 fs/SWch output LVCMOS fs / SWch OUTPUT

46 64fs/BCK output LVCMOS 64fs OUTPUT

47 256fs output LVCMOS 256fs OUTPUT

48 DSBCK output LVCMOS SM5819A DSBCK OUTPUT

49 NC N.C.

50 NC N.C.

51 VCCIO power +3.3V

52 SEL4FS output LVCMOS SM5819A 4fs MODE SELECT H:ON,L:OFF

53 GND gnd GND

54 SEL1FS output LVCMOS SM5819A 1fs MODE SELECT H:ON,L:OFF

55 NC N.C.

56 POSLR input LVCMOS SM5819A Sch INPUT

57 POFLR input LVCMOS SM5819A Fch INPUT

58 POCSW input LVCMOS SM5819A Cch INPUT

59 GND gnd GND

60 PLRCK input LVCMOS SM5819A fs INPUT

61 PBCK input LVCMOS SM5819A 64fs INPUT

62 +TCK input LVCMOS JTAG CLOCK INPUT

63 MCK output LVCMOS SM5819A MCK OUTPUT

64 DSISW output LVCMOS SM5819A SWch OUTPUT

65 GND gnd GND

66 VCCIO power +3.3V

AVR-5805/AVC-A1XV

EPM3128ATC100-10 (IC121) AD P.W.B.

EPM3128ATC100-10 Terminal Function

67 DSISR output LVCMOS SM5819A SRch OUTPUT

68 DSISL output LVCMOS SM5819A SLch OUTPUT

69 DSIFR output LVCMOS SM5819A FRch OUTPUT

70 NC N.C.

71 DSIFL output LVCMOS SM5819A FLch OUTPUT

72 NC N.C.

73 *TDO output LVCMOS JTAG DATA OUTPUT

74 GND gnd GND

75 DSICT output LVCMOS SM5819A Cch OUTPUT

76 AV1DATA0 input LVCMOS DM1000 FLch INPUT

77 NC N.C.

78 GND gnd GND

79 AV1DATA1 input LVCMOS DM1000 FRch INPUT

80 AV1DATA2 input LVCMOS DM1000 Cch INPUT

81 AV1DATA3 input LVCMOS DM1000 SWch INPUT

82 VCCIO power +3.3V

83 AV1DATA4 input LVCMOS DM1000 SLch INPUT

84 AV1DATA5 input LVCMOS DM1000 SRch INPUT

85 AV1DATA7 input LVCMOS DM1000 MUTE INPUT

86 GND gnd GND

87 AV1CTRL1 input LVCMOS DM1000 256fs INPUT

88 AV1CLK input LVCMOS DM1000 64fs INPUT

89 AV2DATA0 input LVCMOS DM1000 IFULL INPUT

90 AV1CTRL0 input LVCMOS DM1000 fs INPUT

91 VCCINT power +3.3V

92 AV2DATA1 input LVCMOS DM1000 IEMPTY INPUT

93 AV2DATA2 input LVCMOS DM1000 48/n44 INPUT

94 AV2DATA4 input LVCMOS DM1000 VCO Enable INPUT

95 GND gnd GND

96 AV2DATA6 input LVCMOS DM1000 S/PDIF INPUT

97 RESERVED RESERVED

98 VCOIN output LVCMOS DM1000 VCOIN OUTPUT

99 RESERVED RESERVED

100 CSPLD input LVCMOS u-COM CS INPUT

Pin No. Pin Name Dir. I/O Standard FUNCTION

1 HDRADIO input LVTTL HDRADIO SPDIF INPUT

2 DINPLDOSI output LVTTL PLD DATA OUTPUT

3 VCCIO power +3.3V

4 +TDI input LVTTL JTAG DATA INPUT

5 DINPLDREQ output LVTTL PLD REQUEST OUTPUT

6 ADOVERL1 input LVTTL ADC L1ch OVER INPUT

7 ADOVERR1 input LVTTL ADC R1ch OVER INPUT

8 ADOVERL2 input LVTTL ADC L2ch OVER INPUT

9 ADOVERR2 input LVTTL ADC R2ch OVER INPUT

10 ADOVERL3 input LVTTL ADC L3ch OVER INPUT

11 GND gnd GND

12 ADOVERR3 input LVTTL ADC R3ch OVER INPUT

13 ADOVERL4 input LVTTL ADC L4ch OVER INPUT

14 ADOVERR4 input LVTTL ADC R4ch OVER INPUT

15 +TMS input LVTTL JTAG TMS INPUT

16 ADOVERL5 input LVTTL ADC L5ch OVER INPUT

17 ADOVERR5 input LVTTL ADC R5ch OVER INPUT

18 VCCIO power +3.3V

19 ADOVERL6 input LVTTL ADC L6ch OVER INPUT

20 ADOVERR6 input LVTTL ADC R6ch OVER INPUT

21 ADOVERL7 input LVTTL ADC L7ch OVER INPUT

22 ADOVERR7 input LVTTL ADC R7ch OVER INPUT

23 ADOVERL8 input LVTTL ADC L8ch OVER INPUT

24 ADOVERR8 input LVTTL ADC R8ch OVER INPUT

25 MIC_IN output LVTTL MIC SELECT OUTPUT H:MIC

26 GND gnd GND

Pin No. Pin Name Dir. I/O Standard FUNCTION

AVR-5805/AVC-A1XV

27 OSR8-1 output LVTTL ADC Z2Fch OSR1 OUTPUT

28 OSR8-0 output LVTTL ADC Z2Fch OSR0 OUTPUT

29 OSR7-1 output LVTTL ADC Z2Cch OSR1 OUTPUT

30 OSR7-0 output LVTTL ADC Z2Cch OSR0 OUTPUT

31 OSR6-1 output LVTTL ADC Z2SRch OSR1 OUTPUT

32 OSR6-0 output LVTTL ADC Z2SRch OSR0 OUTPUT

33 GND gnd GND

34 VCCIO power +3.3V

35 OSR1-1 output LVTTL ADC Z1ch OSR1 OUTPUT

36 OSR1-0 output LVTTL ADC Z1ch OSR0 OUTPUT

37 ADC-RST8 output LVTTL Z2Fch ADC RESET OUTPUT

38 GND gnd GND

39 VCCINT power +3.3V

40 ADC-RST7 output LVTTL Z2Cch ADC RESET OUTPUT

41 ADC-RST6 output LVTTL Z2SRch ADC RESET OUTPUT

42 ADC-RST1 output LVTTL Z1ch ADC RESET OUTPUT

43 GND gnd GND

44 GND* N.C.

45 GND* N.C.

46 HDSPDIFO input LVTTL HDMI SPDIF INPUT

47 IESPDIFO input LVTTL IEEE1394 SPDIF INPUT

48 SPDIF output LVTTL SPDIF OUTPUT

49 ACKDIT input LVTTL ACK DIT SPDIF INPUT

50 RECDIT input LVTTL REC DIT SPDIF INPUT

51 VCCIO power +3.3V

52 DIRIN8 output LVTTL DIR8 SPDIF OUTPUT

53 GND gnd GND

54 DIRIN7 output LVTTL DIR7 SPDIF OUTPUT

55 DIRIN6 output LVTTL DIR6 SPDIF OUTPUT

56 DIRIN5 output LVTTL DIR5 SPDIF OUTPUT

57 DIRIN4 output LVTTL DIR4 SPDIF OUTPUT

58 DIRIN3 output LVTTL DIR3 SPDIF OUTPUT

59 GND gnd GND

60 DIRIN2 output LVTTL DIR2 SPDIF OUTPUT

61 DIRIN1 output LVTTL DIR1 SPDIF OUTPUT

62 +TCK input LVTTL JTAG CLOCK INPUT

63 AC3RFDET input LVTTL AC3RF DETECTION INPUT

64 DEMOD_ON output LVTTL DEMODURATION ON

65 GND gnd GND

66 VCCIO power +3.3V

67 DEMOD_RST output LVTTL DEMODURATION RESET

68 C1RL output LVTTL COAXIAL1 INPUT SELECT

69 DLINK_ON output LVTTL DENON LINK ON/OFF

70 DLINKACK output LVTTL DENON LINK ACK ON/OFF

71 EXT3 input LVTTL DENON LINK SPDIF3 INPUT

72 EXT2 input LVTTL DENON LINK SPDIF2 INPUT

73 *TDO output LVTTL JTAG DATA OUTPUT

74 GND gnd GND

75 EXT1 input LVTTL DENON LINK SPDIF1 INPUT

76 DDRF input LVTTL DDRF SPDIF INPUT

77 C1 input LVTTL COAXIAL1 SPDIF INPUT

78 GND gnd GND

79 C2 input LVTTL COAXIAL2 SPDIF INPUT

80 C3 input LVTTL COAXIAL3 SPDIF INPUT

81 C4 input LVTTL COAXIAL4 SPDIF INPUT

82 VCCIO power +3.3V

83 C5 input LVTTL COAXIAL5 SPDIF INPUT

84 C6 input LVTTL COAXIAL6 SPDIF INPUT

85 O1 input LVTTL OPTICAL1 SPDIF INPUT

86 GND gnd GND

87 DINPLDCLK input LVTTL PLD CLOCK INPUT

88 DINPLDCS input LVTTL PLD CS INPUT

89 DINPLDISO input LVTTL PLD DATA INPUT

90 GND+

91 VCCINT power +3.3V

92 O2 input LVTTL OPTICAL2 SPDIF INPUT

93 O3 input LVTTL OPTICAL3 SPDIF INPUT

94 O4 input LVTTL OPTICAL4 SPDIF INPUT

95 GND gnd GND

96 O5 input LVTTL OPTICAL5 SPDIF INPUT

97 O6 input LVTTL OPTICAL6 SPDIF INPUT

98 OPT3REC output LVTTL OPTICAL3 REC SPDIF OUTPUT

99 OPT4REC output LVTTL OPTICAL4 REC SPDIF OUTPUT

100 OPT5REC output LVTTL OPTICAL5 REC SPDIF OUTPUT

Pin No. Pin Name Dir. I/O Standard FUNCTION

AVR-5805/AVC-A1XV

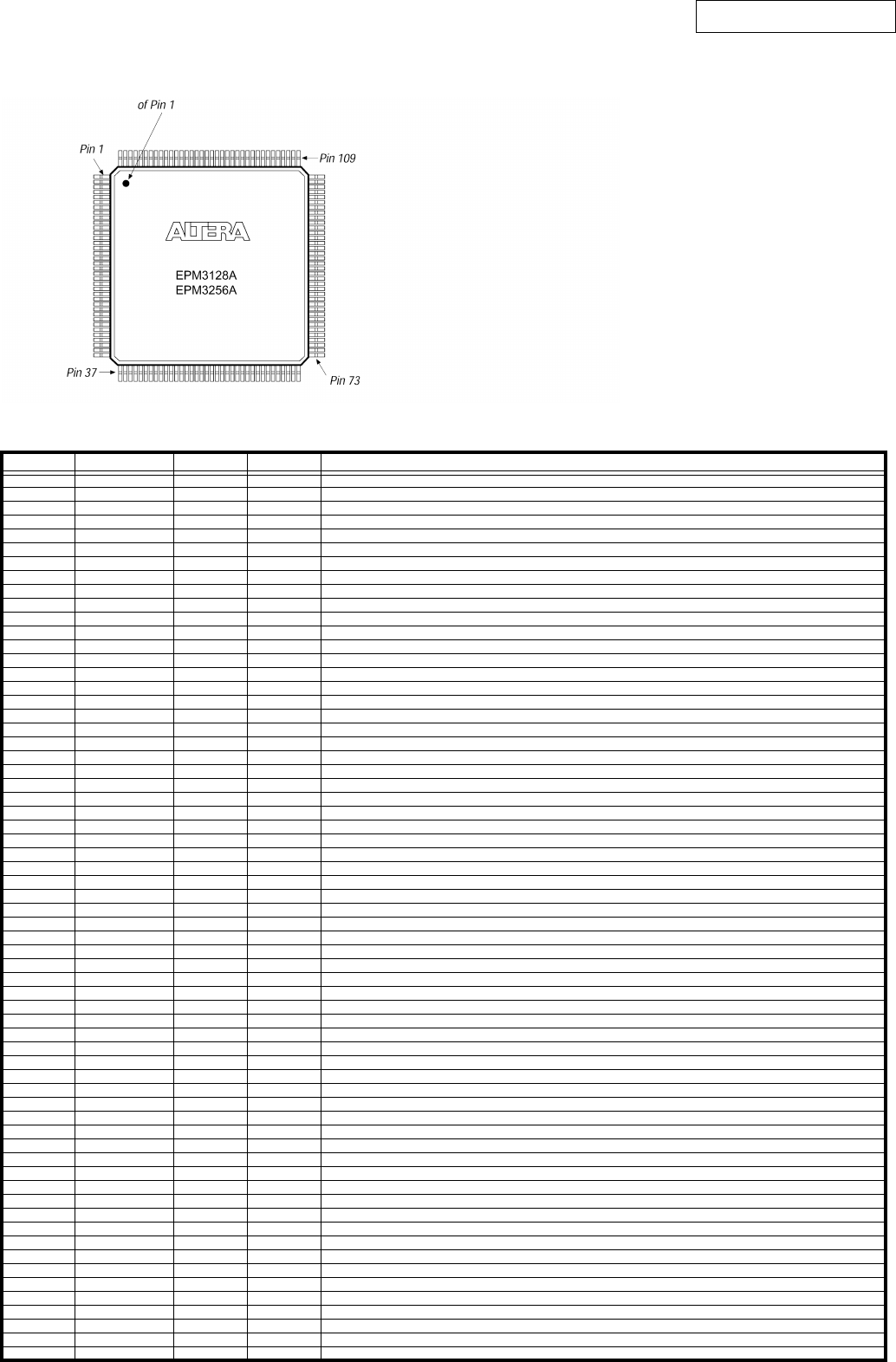

EPM3128ATC144-10 (IC904) DIGITAL P.W.B.

EPM3128ATC144-10 Terminal Function

Pin No. Pin Name Dir. I/O Standard FUNCTION

1NC

2NC

3 GND gnd

4 +TDI input LVTTL JTAG DATA INPUT

5 DSPISO1 output LVTTL DSP1-HOST DATA OUTPUT

6 DSPOSI1 input LVTTL DSP1-HOST DATA INTPUT

7 DSPCLK1 output LVTTL DSP1-HOST CLOCK OUTTPUT

8 DSPCS1 output LVTTL DSP1-HOST CS OUTPUT

9 DSPREADY1 input LVTTL DSP1-HOST READY INPUT

10 DSPROMRST1 output LVTTL DSP1 ROM RESET OUTPUT

11 DSPRST1 output LVTTL DSP1 RESET OUTPUT

12 NC

13 GND gnd

14 DSPISO2 output LVTTL DSP2-HOST DATA OUTPUT

15 DSPOSI2 input LVTTL DSP2-HOST DATA INTPUT

16 DSPCLK2 output LVTTL DSP2-HOST CLOCK OUTTPUT

17 GND gnd

18 DSPCS2 output LVTTL DSP2-HOST CS OUTPUT

19 NC

20 +TMS input LVTTL JTAG TMS INPUT

21 DSPREADY2 input LVTTL DSP2-HOST READY INPUT

22 DSPROMRST2 output LVTTL DSP2 ROM RESET OUTPUT

23 DSPRST2 output LVTTL DSP2 RESET OUTPUT

24 VCCIO power

25 DSPISO3 output LVTTL DSP3-HOST DATA OUTPUT

26 GND gnd

27 DSPOSI3 input LVTTL DSP3-HOST DATA INPUT

28 DSPCLK3 output LVTTL DSP3-HOST CLOCK OUTTPUT

29 DSPCS3 output LVTTL DSP3-HOST CS OUTPUT

30 DSPREADY3 input LVTTL DSP3-HOST READY INPUT

31 DSPROMRST3 output LVTTL DSP3 ROM RESET OUTPUT

32 DSPRST3 output LVTTL DSP3 RESET OUTPUT

33 GND gnd

34 NC

35 NC

36 NC

37 DIRCLK6 output LVTTL DIR6/7 CLOCK OUTPUT

38 DIRDIN6 output LVTTL DIR6/7 DATA OUTPUT

39 DIRCE6 output LVTTL DIR6/7 CE OUTPUT

40 DIRRST6 output LVTTL DIR6/7 RESET OUTPUT

41 DIRCLK8 output LVTTL DIR8 CLOCK OUTPUT

42 DIRDIN8 output LVTTL DIR8 DATA OUTPUT

43 NC

44 DIRCE8 output LVTTL DIR8 CE OUTPUT

45 DIRRST8 output LVTTL DIR8 RESET OUTPUT

46 NC

47 NC

48 NC

49 NC

50 VCCIO power

51 VCCINT power

52 GND gnd

53 DIR6CPUS input LVTTL DIR6/7 ZONE SELECT H:Z-2/3/4,L:Z1

54 DIR8CPUS input LVTTL DIR8 ZONE SELECT H:Z-2/3/4,L:Z1

55 HOSTRSV2 input LVTTL

56 HOSTRSV1 input LVTTL

57 GND gnd

58 VCCINT power

59 GND gnd

60 DSPROMRSTS input LVTTL SUB uCOM-DSP ROM RESET INPUT

61 DSPIOPS input LVTTL SUB uCOM-DSP I/O INPUT

62 DSPOSCONS input LVTTL SUB uCOM-DSP OSC ON/OFF INPUT

63 DSPOSI output LVTTL SUB uCOM-DSP DATA OUTPUT

64 GND gnd

AVR-5805/AVC-A1XV

65 DSPISO input LVTTL SUB uCOM-DSP DATA INPUT

66 NC

67 DSPCSS input LVTTL SUB uCOM-DSP CS INPUT

68 DSPA0S input LVTTL SUB uCOM-DSP A0 INPUT

69 DSPA1S input LVTTL SUB uCOM-DSP A1 INPUT

70 DSPA2S input LVTTL SUB uCOM-DSP A2 INPUT

71 DSPREQ1S output LVTTL SUB uCOM-DSP1 REQEST OUTPUT

72 DSPREQ2S output LVTTL SUB uCOM-DSP2 REQEST OUTPUT

73 VCCIO power

74 DSPREQ3S output LVTTL SUB uCOM-DSP3 REQEST OUTPUT

75 NC

76 VCCIO power

77 GND gnd

78 DSPREQ4S output LVTTL SUB uCOM-DSP4 REQEST OUTPUT

79 DSPREQ5S output LVTTL SUB uCOM-DSP5 REQEST OUTPUT

80 DSPREQ6S output LVTTL SUB uCOM-DSP6 REQEST OUTPUT

81 HOSTRSV4 input LVTTL

82 HOSTRSV3 input LVTTL

83 DIRRST1 input LVTTL DIR1 RESET INPUT

84 DIRCE5 input LVTTL DIR5 CE INPUT

85 GND gnd

86 DIRDIN1 input LVTTL DIR1 DATA INPUT

87 DIRCLK1 input LVTTL DIR1 CLOCK INPUT

88 DIRRST8Z input LVTTL ZONE uCOM- DIR8 RESET INPUT

89 +TCK input LVTTL JTAG CLOCK INPUT

90 NC

91 DIRCE8Z input LVTTL ZONE uCOM- DIR8 CE INPUT

92 DIRDIN8Z input LVTTL ZONE uCOM- DIR8 DATA INPUT

93 DIRCLK8Z input LVTTL ZONE uCOM- DIR8 CLOCK INPUT

94 GND gnd

95 VCCIO power

96 DSPROMRSTZ input LVTTL ZONE uCOM- DSP ROM RESET INPUT

97 DSPIOPZ input LVTTL ZONE uCOM- DSP I/O INPUT

98 DSPOSCONZ input LVTTL ZONE uCOM- DSP OSC ON/OFF INPUT

99 DSPOZI output LVTTL ZONE uCOM-DSP DATA OUTPUT

100 DSPIZO input LVTTL ZONE uCOM-DSP DATA INPUT

101 DSPCSZ input LVTTL ZONE uCOM-DSP CS INPUT

102 DSPA0Z input LVTTL ZONE uCOM-DSP A0 INPUT

103 NC

104 *TDO output LVTTL JTAG DATA OUTPUT

105 GND gnd

106 DSPA1Z input LVTTL ZONE uCOM-DSP A1 INPUT

107 DSPA2Z input LVTTL ZONE uCOM-DSP A2 INPUT

108 NC

109 DSPREQ1Z output LVTTL ZONE uCOM-DSP1 REQEST OUTPUT

110 DSPREQ2Z output LVTTL ZONE uCOM-DSP2 REQEST OUTPUT

111 DSPREQ3Z output LVTTL ZONE uCOM-DSP3 REQEST OUTPUT

112 DSPREQ4Z output LVTTL ZONE uCOM-DSP4 REQEST OUTPUT

113 DSPREQ5Z output LVTTL ZONE uCOM-DSP5 REQEST OUTPUT

114 GND gnd

115 VCCIO power

116 DSPREQ6Z output LVTTL ZONE uCOM-DSP6 REQEST OUTPUT

117 ROMRST4 output LVTTL ADI DSP ROM RESET

118 DSPIOPOWER4 output LVTTL ADI DSP IO POWER ON/OFF OUTPUT

119 DSPOSCON4 output LVTTL ADI DSP OSC ON/OFF OUTPUT

120 NC

121 NC

122 NC

123 VCCINT power

124 GND gnd

125 DSPCLKS input LVTTL SUB uCOM-DSP CLOCK INPUT

126 DSPRSTZ input LVTTL ZONE uCOM-DSP RESET INPUT

127 DSPRSTS input LVTTL SUB uCOM-DSP RESET INPUT

128 DSPCLKZ input LVTTL ZONE uCOM-DSP CLOCK INPUT

129 GND gnd

130 VCCINT power

131 DSPCLK4 output LVTTL ADI DSP CLOCK OUTPUT

132 DSPIPLDO4 output LVTTL ADI DSP DATA OUTPUT

133 DSPOPLDI4 input LVTTL ADI DSP DATA INPUT

134 DSPRST4 output LVTTL ADI DSP RESET OUTPUT

135 GND gnd

136 DSPCS4 output LVTTL ADI DSP CS4 OUTPUT

137 DSPCS5 input LVTTL ADI DSP CS5 INPUT

138 DSPCS6 output LVTTL ADI DSP CS6 OUTPUT

139 DSPCS7 output LVTTL ADI DSP CS7 OUTPUT

140 FLAG0 input LVTTL ADI DSP FLAG0 INPUT

141 FLAG1 input LVTTL ADI DSP FLAG1 INPUT

142 FLAG2 input LVTTL ADI DSP FLAG2 INPUT

143 FLAG3 input LVTTL ADI DSP FLAG3 INPUT

144 VCCIO power

Pin No. Pin Name Dir. I/O Standard FUNCTION

AVR-5805/AVC-A1XV

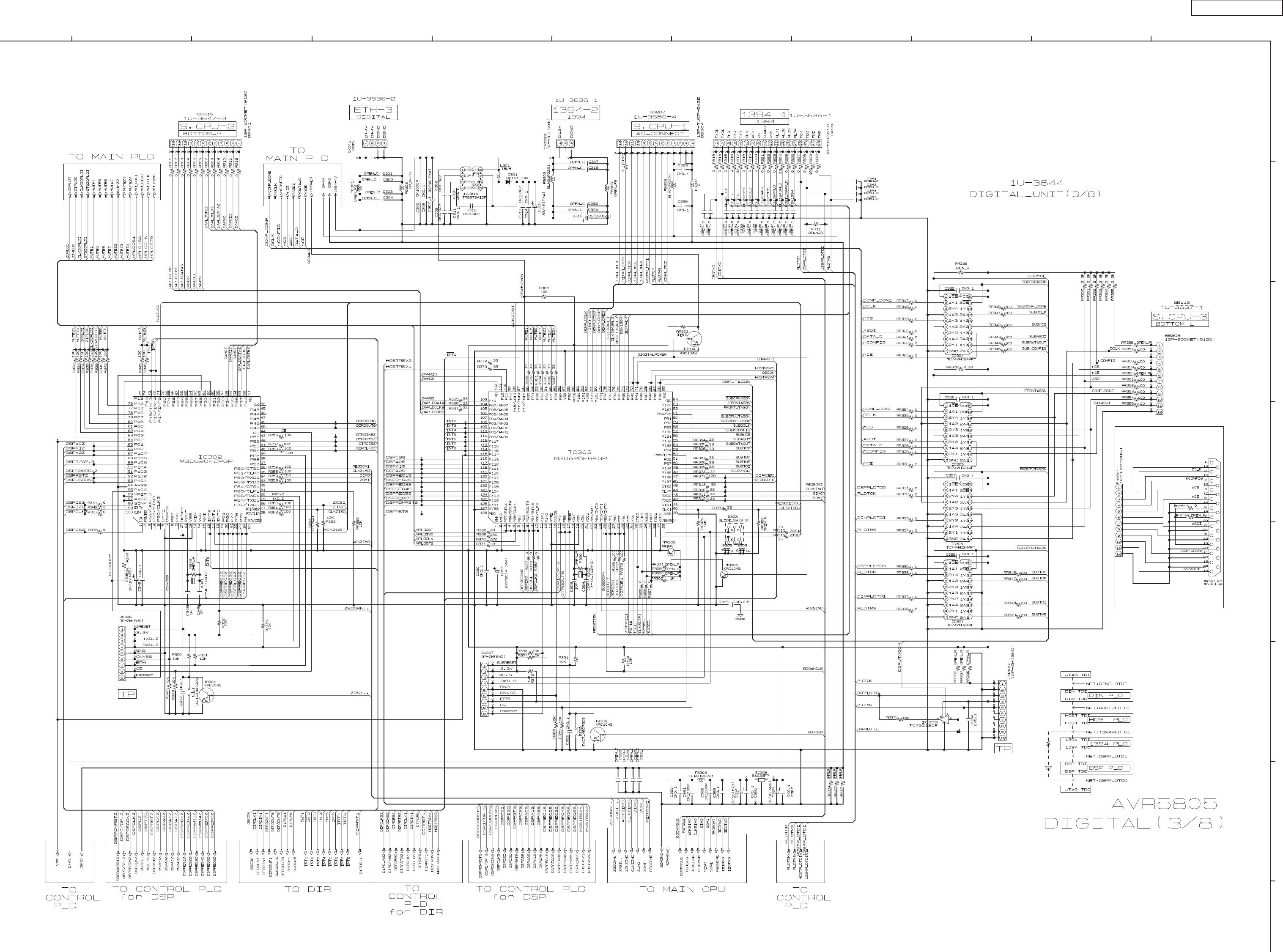

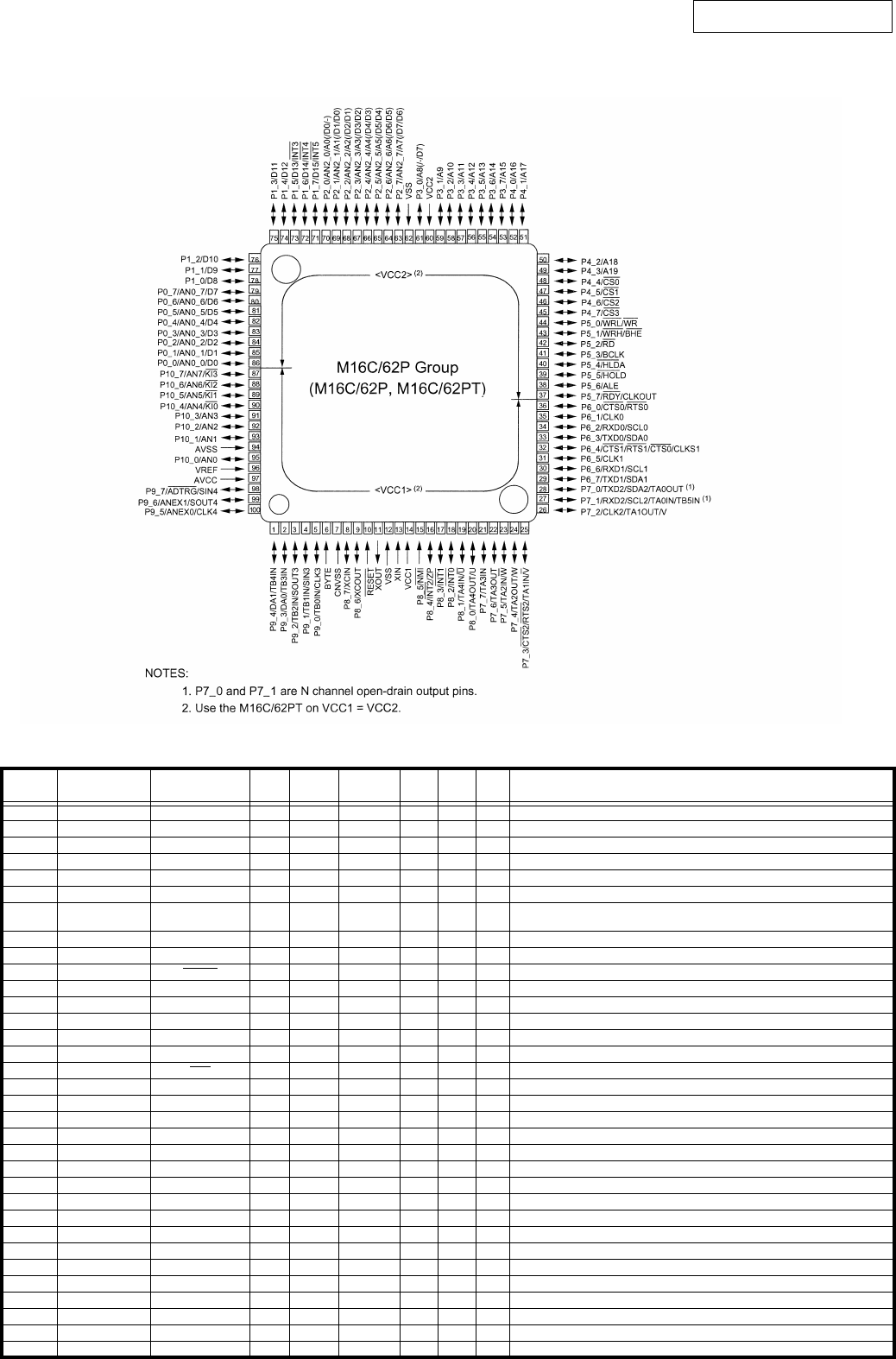

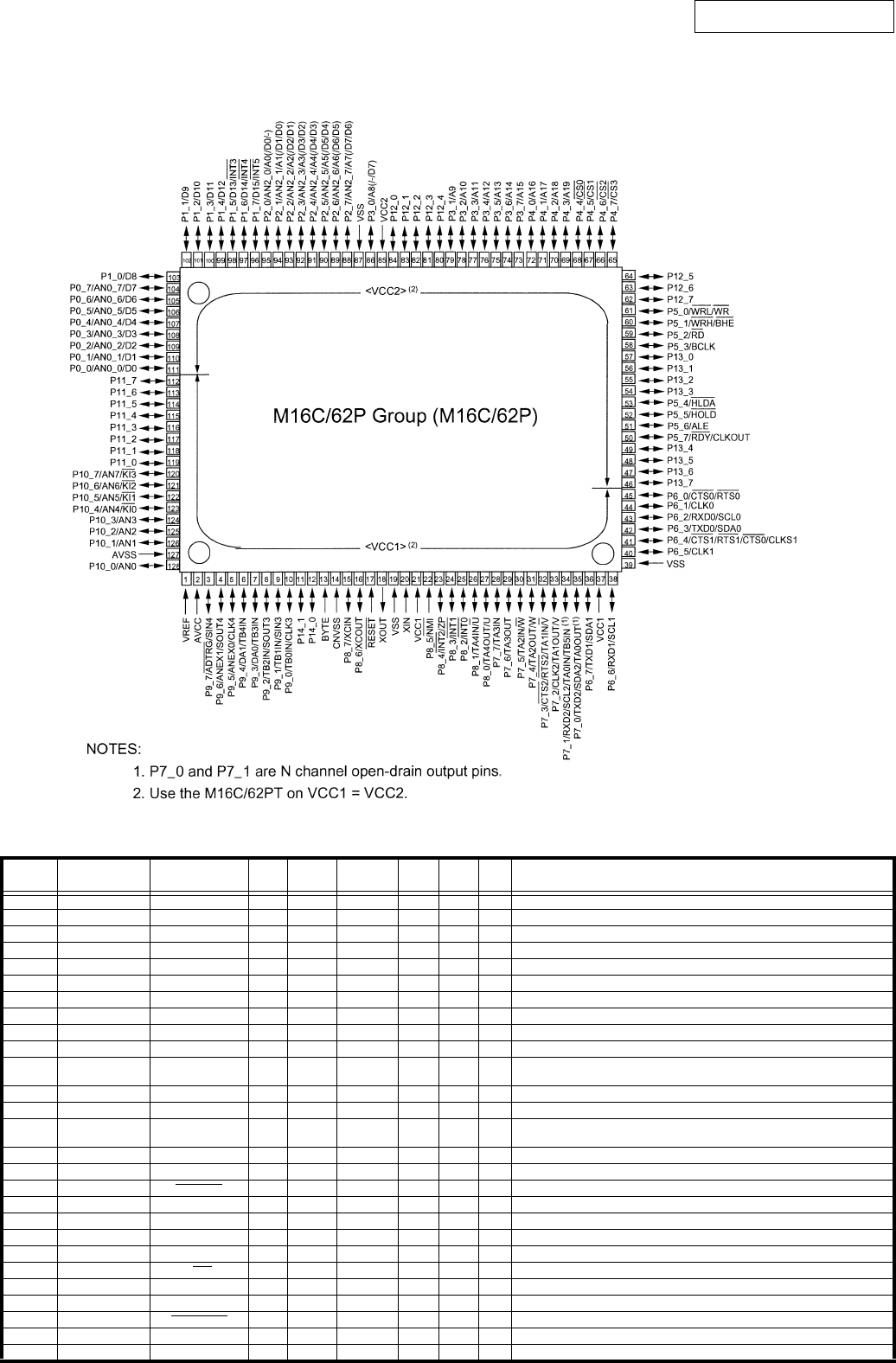

M30620FCPGP (IC302) DIGITAL P.W.B.

M30620FCPGP Terminal Function

PIn PIn Name Symbol I/O Type Det Op

(Int.)

(Ext.) Res FUNCTION

1 P94/TB4 DSP CSZ O C - - - Z PLD control for DSP chIp select

2 P93/TB3 NC O C - - - Z Not used

3 P92/SOUT3 NC O C - - - Z Not used

4 P91/SIN3 NC O C - - - Z Not used

5 P90/CLK3 NC O C - - - Z Not used

6 BYTE BYTE - - - - - - GND (Ext. data bus bIt wIdth swItchIng, 16bIt: L)

7 CNVCS CNVSS - - - - Ed - "SIngle-chIp/MIcro-processor mode swItchIng

(Normal sIngle-chIp: L, RewrIte boot program start:H Input set)"

8 P87 NC O C - - - Z Not used

9 P86 NC O C - - - Z Not used

10 RESET ZRESET I - - - Eu L Reset Input (Reset: L)

11 XOUT X1 O - - - - - OscIllator connectIon

12 VSS VSS - - - - - - GND

13 XIN X2 I - - - - - OscIllator connectIon

14 VCC VCC - - - - - - +5V

15 P85/NMI _NMI I - - - - - Not used (FIxed to H)

16 P84/INT2 INT8 I - E ↓ &L - Eu Z DIR8 control pIn (LC89057W-E) ( ※ "Z"set: Operated from SUBμcom)

17 P83/INT1 ACKZIMO I - E ↓ &L - Ed Z MAIN-ZONEμcom comm. control pIn

18 P82/INT0 ZB.DOWN I - Lv - Eu Z Power down detect (Power down: L)

19 P81 NC I - - - - Z Not used

20 P80 NC I - - - - Z Not used

21 P77 NC I - - - - Z Not used

22 P76 DSPREQ4Z I - - - - Z PLD control for DSP(use wIth DSP READY)

23 P75 NC I - - - - Z Not used

24 P74 NC I - - - - Z Not used

25 P73/CTS2 NC O C - - - Z Not used

26 P72/CLK2 NC I C - - - Z Not used

27 P71/RXD2 NC I N - - Eu Z Not used

28 P70/TXD2 NC O N - - Eu Z Not used

29 P67/TXD1 TxD.Z O C - - Ed Z Data transfer output to outsIde

30 P66/RXD1 RxD.Z I - Lv - Ed Z Data receIve Input from outsIde

31 P65/CLK1 NC I - - - Ed Z Not used

32 P64/CTS1 NC O C - - - Z Not used

33 P63/TXD0 ZOMI O C - - Ed Z MAIN-ZONEμcom comm. control pIn

AVR-5805/AVC-A1XV

34 P62/RXD0 ZIMO I - - - Ed Z MAIN-ZONEμcom comm. control pIn

35 P61/CLK0 CLKZIMO I - - - Ed Z MAIN-ZONEμcom comm. control pIn

36 P60/CTS0/RTS0 REQZOMI O C - - Ed Z MAIN-ZONEμcom comm. control pIn

37 P57 NC O C - - - Z Not used

38 P56 NC O C - - - Z Not used

39 P55/EPM FRASH EPM I - Lv - Eu Z RewrIte boot start: L

40 P54 DIRCLK8Z O C - - - Z DIR8 control pIn (LC89057W-E), control clock output ( ※ used as DIR for ZONE2)

41 P53 DIR CE8Z O C - - - Z DIR8 control pIn (LC89057W-E), chIp enable output ( ※ used as DIR for ZONE2)

42 P52 DIR_RST8Z O C - - Ed Z DIR control output (LC89057W-E) Reset: L ( ※ used as DIR for ZONE2)

43 P51 DIRDIN8Z O C - - Eu Z DIR8 control pIn (LC89057W-E), control data output ( ※ used as DIR for

ZONE2)

44 P50/CE FRASH CE I - - - Ed Z RewrIte boot program start: H Input set

45 P47 DIRDOUT8 I - - - Eu Z DIR8 control Input pIn (LC89057W-E), control data Input ( ※ "Z"set: Operated

from SUBμcom)

46 P46 NC I - - - - Z Not used

47 P45 NC O C - - - Z Not used

48 P44 NC O C - - - Z Not used

49 P43 NC O C - - - Z Not used

50 P42 NC O C - - - Z Not used

51 P41 DAPLDSTBZ O C - - - Z FPGA control for DAC

52 P40 DAPLDCLKZ O C - - - Z FPGA control for DAC

53 P37 DAPLDDATAZ O C - - - Z FPGA control for DAC

54 P36 DAMSZ O C - - - Z FPGA control for DAC

55 P35 DAMDIZ O C - - - Z FPGA control for DAC

56 P34 DAMCZ O C - - - Z FPGA control for DAC

57 P33 NC O C - - - Z Not used

58 P32 NC O C - - - Z Not used

59 P31 NC O C - - - Z Not used

60 VCC VCC - - - - - - +5V

61 P30 NC O C - - - Z Not used

62 VSS VSS - - - - - - GND

63 P27 NC O C - - - Z Not used

64 P26 NC O C - - - Z Not used

65 P25 NC O C - - - Z Not used

66 P24 NC O C - - - Z Not used

67 P23 NC O C - - - Z Not used

68 P22 NC O C - - - Z Not used

69 P21 NC O C - - - Z Not used

70 P20 NC O C - - - Z Not used

71 P17/INT5 NC I - - - - Z Not used

72 P16/INT4 INT6 I - E ↓ &L - - Z DIR6 control pIn (LC89057W-E) ( ※ "Z"set: Operated from SUBμcom)

73 P15/INT3 INT7 I - E ↓ &L - - Z DIR7 control pIn (LC89057W-E) ( ※ "Z"set: Operated from SUBμcom)

74 P14/D12 MUTEZ2 O C - - - Z Mute control for DAC output ( ※ "Z"set: Operated from SUBμcom)

75 P13/D11 NC I - - - - Z Not used

76 P12/D10 NC I - - - - Z Not used

77 P11/D9 NC I - - - - Z Not used

78 P10/D8 STBZOPLDI O C - - - Z MAIN FPGA control pIn

79 P07/D7 CLKZOPLDI O C - - - Z MAIN FPGA control pIn

80 P06/D6 ZIPLDO I - - - - Z MAIN FPGA control pIn

81 P05/D5 ZOPLDI O C - - - Z MAIN FPGA control pIn

82 P04/D4 MUTEZ4 O C - - - Z Mute control for DAC output ( ※ "Z"set: Operated from SUBμcom)

83 P03/D3 MUTEZ3 O C - - - Z Mute control for DAC output ( ※ "Z"set: Operated from SUBμcom)

84 P02/D2 VPPZ I - - - - Z Normal: H WrItIng flash ROM for DSP: L

85 P01/D1 DSPA0Z O - - - - Z PLD control for DSP (3-bIt address for target selectIon of RST/CS)

86 P00/D0 DSPA1Z O - - - - Z PLD control for DSP (3-bIt address for target selectIon of RST/CS)

87 P107/AN7 DSPA2Z O - - - - Z PLD control for DSP (3-bIt address for target selectIon of RST/CS)

88 P106/AN6 NC O - - - - Z Not used

89 P105/AN5 DSPIOPOWERZ O C - - - Z DSP POWER ON="L" (After 10ms from DIGITAL POWER ON)

90 P104/AN4 NC O C - - - Z Not used

91 P103/AN3 DSPROMRSTZ O C - - - Z Not used

92 P102/AN2 DSPRSTZ O C - - - Z PLD control for DSP reset(Reset: L)

93 P101/AN1 DSPOSCONZ O C - - - Z ON="H"(After 20ms from DIGITAL POWER ON)

94 AVSS AVSS - - - - - - AD GND

95 P100/AN0 DSPBOOT I - - - Eu Z DSP rewrIte boot program (DSP rewrIte: L Input)

96 VREF VREF - - - - - - AD ref. +5V

97 AVCC AVCC - - - - - - AD +5V

98 P97/SIN4 DSPOZI I - - - - Z PLD control pIn for DSP

99 P96/SOUT4 DSPIZO O C - - - Z PLD control pIn for DSP

100 P95/CLK4 DSPCLKZ O C - - - Z PLD control pIn for DSP

PIn PIn Name Symbol I/O Type Det Op

(Int.)

(Ext.) Res FUNCTION

AVR-5805/AVC-A1XV

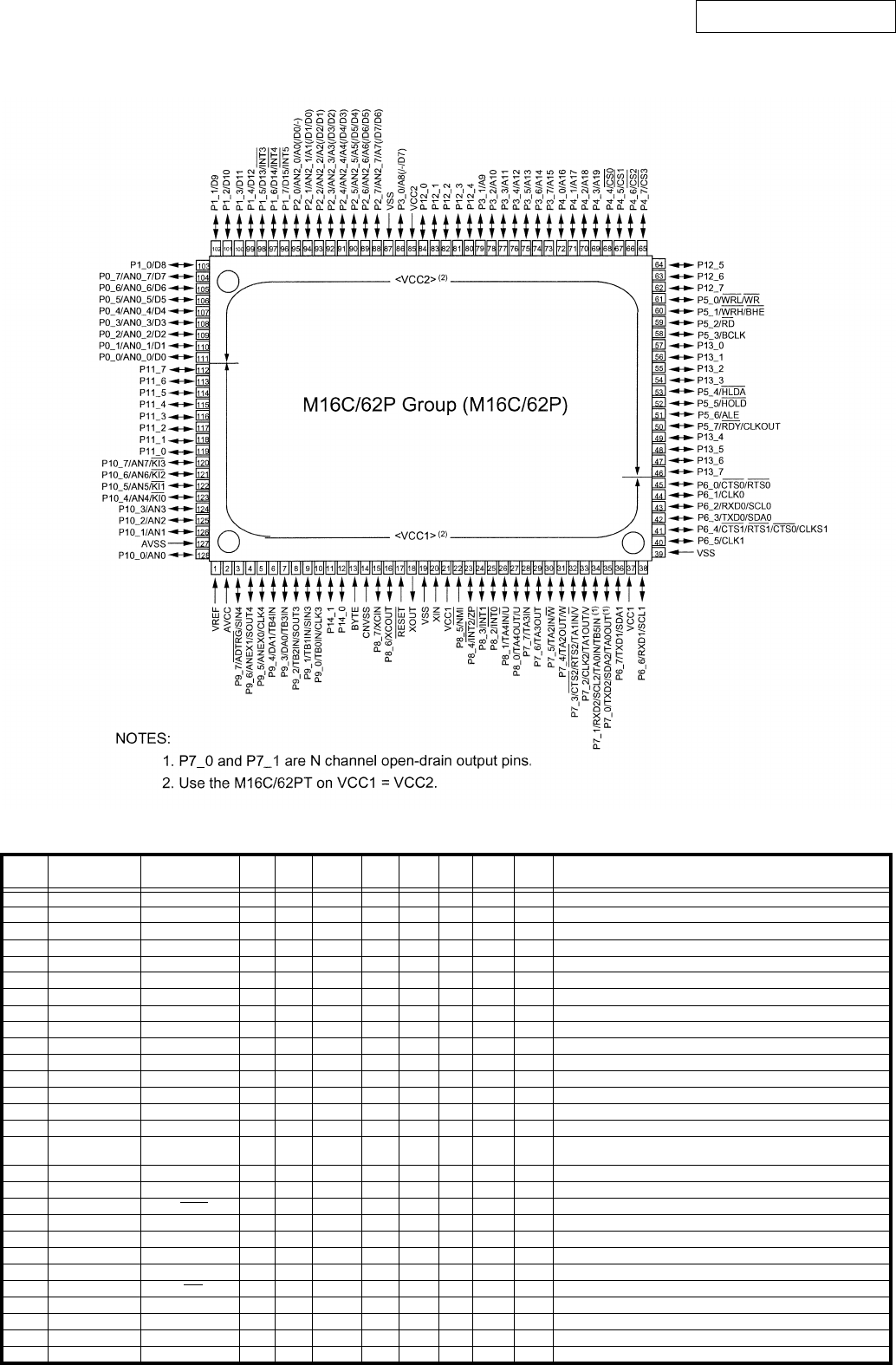

M30625FGPGP (IC303) DIGITAL P.W.B.

M30625FGPGP Terminal Function

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.) Res FUNCTION

1 VREF VREF - - - - - - AD ref. +5V

2 AVCC AVCC - - - - - - AD +3.3V

3 P97/SIN4 MPLDOSI I - Lv - - Z MAIN FPGA control pin

4 P96/SOUT4 MPLDISO O C - - Ed Z MAIN FPGA control pin

5 P95/CLK4 MPLDCLK O C - - Ed Z MAIN FPGA control pin

6 P94 MPLDSTB O C - - Ed Z MAIN FPGA control pin

7 P93 DSPOSCONS O C - - - Z ON="H"(After 20ms from DIGITAL POWER ON)

8 P92/SOUT3 DSPISOS O C - - Ed Z PLD control pin for DSP

9 P91/SIN3 DSPOSIS I - - - Eu Z PLD control pin for DSP

10 P90/CLK3 DSPCLKS O C - - Ed Z PLD control pin for DSP

11 P141 DSPBOOT I - - - Eu Z "DSP rewrite boot program (DSP rewrite: L input) /(DLINK ID writing mode start:

L input set)"

12 P140 NC I - - - Eu Z Not used

13 BYTE BYTE - - - - - - GND (Ext. data bus bit width switching, 16bit: L)

14 CNVCS CNVSS - - - - Ed - "Single-chip/Micro-processor mode switching (Normal single-chip: L, Rewrite

boot program start:H input set)"

15 P87 DSPIOPOWERS O C - - Eu Z DSP POWER ON="L" (After 10ms from DIGITAL POWER ON)

16 P86 NC I - - - - Z Not used

17 RESET SUBRESET I - Lv - Eu L Reset input (Reset: L)

18 XOUT X1 O - - - - - Oscillator connection

19 VSS VSS - - - - - - GND

20 XIN X2 I - - - - - Oscillator connection

21 VCC1 VCC1 - - - - - - +3.3V

22 P85/NMI _NMI I - - - - - Not used (Fixed to H)

23 P84/INT2 REQSIIEO I - E ↓ &L - - Z 1394 control pin

24 P83/INT1 ACKSIMO I - E ↓ &L - Ed Z MAIN-SUB μcom comm. control pin

25 P82/INT0 SUBBDOWN I - E ↓ &L Eu Z Power down detect (Power down: L)

26 P81 DIRDOUT1 I - - - Eu Z DIR1 control input pin (LC89057W-E), control data input

27 P80 DIRDIN1 O C - - Z DIR1 control pin (LC89057W-E), control data output

AVR-5805/AVC-A1XV

28 P77 DIRCLK1 O C - - - Z DIR1 control pin (LC89057W-E), control clock output

29 P76 DIRCE1 O C - - - Z DIR1 control pin (LC89057W-E), chip enable output

30 P75 ACKSIIEO I - - - Ed Z ETHERNET control pin

31 P74 RSTIE O C - - Eu Z ETHERNET reset output, Reset=”L”（Reset release="H" after 80msec from

IEPOWER ON)

32 P73/CTS2 CSIE O C - - Eu Z ETHERNET control pin

33 P72/CLK2 CLKSOIEI O C - - Eu Z ETHERNET control pin

34 P71/RXD2 SIIEO I N - - Eu Z ETHERNET control pin

35 P70/TXD2 SOIEI O N - - Eu Z ETHERNET control pin

36 P67/TXD1 TXD.S/（ZISO） O C - - - Z Data transfer output to outside /(ZONE-SUB μcom comm. control pin)

37 VCC1 VCC1 - - - - - Z +3.3V

38 P66/RXD1 RXD.S/（ZOSI） I - - - - Z Data receive input from outside /(ZONE-SUB μcom comm. control pin)

39 VSS VSS - - - - - Z GND

40 P65/CLK1 NC I - - - Ed Z Not used

41 P64/CTS1 NC O C - - Ed Z Not used

42 P63/TXD0 SOMI O C - - - Z MAIN-SUB μcom comm. control pin

43 P62/RXD0 SIMO I - - - - Z MAIN-SUB μcom comm. control pin

44 P61/CLK0 CLKSIMO I - - - - Z MAIN-SUB μcom comm. control pin

45 P60/CTS0 REQSOMI O C - - - Z MAIN-SUB μcom comm. control pin

46 P137 DIRDOUT8 I - - - Eu Z DIR8 control input pin (LC89057W-E), control data input ( ※ "Z"set: operated

from ZONE μcom)

47 P136 DIRCE5 O C - - - Z DIR5 control pin (LC89057W-E), chip enable output

48 P135 SUBnCE O C - - - Z FPGA rewrite control pin

49 P134 SUBTDI O - - - - Z PLD rewrite control pin(JTAG)

50 P57 SUBTMS O - - - - Z PLD rewrite control pin(JTAG)

51 P56 SUBTDO I - - - - Z PLD rewrite control pin(JTAG)

52 P55/EPM FRASH EPM I - Lv - Eu Z Rewrite boot program start: L

53 P54 SUBTCK O C - - - Z PLD rewrite control pin(JTAG)

54 P133 SUBDATAOUT I - - - - Z FPGA rewrite control pin

55 P132 SUBASDI O C - - - Z FPGA rewrite control pin

56 P131 SUBnCS O C - - - Z FPGA rewrite control pin

57 P130 SUBｎCONFIG O C - - - Z FPGA rewrite control pin

58 P53 SUBDCLK O C - - - Z FPGA rewrite control pin

59 P52 SUBCONF_DONE I - - - - Z FPGA rewrite control pin

60 P51 SUBCPUJTAGON O C - - - Z JTAG (PLD rewrite from SUB-μcom:L) ※ default → D.POWER OFF： H

61 P50/CE FRASH CE I - - - Ed Z Rewrite boot program start: H

62 P127 FRONTJTAGON O C - - - Z JTAG (PLD rewrite from FRONT:L) ※ default → D.POWER OFF： H

63 P126 FRONTASON O C - - - Z Active Serial on(FPGA rewrite from FRONT:L) ※ default → D.POWER OFF： H

64 P125 SUBCPUASON O C - - - Z Active Serial on(FPGA rewrite from SUB-μCOM:L) ※ default → D.POWER OFF：

65 P47 DSPJTAGON O C - - - Z Fixed to L

66 P46 NC O C - - - Z Not used

67 P45 OSCON O C - - - Z Oscillator for DIR CLK(Osc. Stop:L)

68 P44 NC O C - - - Z Not used

69 P43 NC O C - - - Z Not used

70 P42 NC O C - - - Z Not used

71 P41 DIRRST1 O C - - - Z DIR1 ∼ 5 control output (LC89057W-E) Reset: L

72 P40 DPOWER O C - - Ed Z DIGITAL power on/off switching(ON:H)

73 P37 IEPOWER O C - - Ed Z ETHERNET power control（ON:H)

74 P36 RSV1394 O C - - - Z 1394 control pin

75 P35 MOSI1394PLD O C - - - Z 1394 control pin

76 P34 CLK1394PLD O C - - - Z 1394 control pin

77 P33 CS1394PLD O C - - - Z 1394 control pin

78 P32 DINPLDREQ I - - - - Z PLD control for DIGITAL INPUT

79 P31 DINPLDOSI I - - - - Z PLD control for DIGITAL INPUT

80 P124 DINPLDISO O C - - - Z PLD control for DIGITAL INPUT

81 P123 DINPLDCS O C - - - Z PLD control for DIGITAL INPUT

82 P122 DINPLDCLK O C - - - Z PLD control for DIGITAL INPUT

83 P121 NC O C - - - Z Not used

84 P120 NC O C - - - Z Not used

85 VCC2 VCC2 - - - - - - +3.3V

86 P30 NC O C - - - Z Not used

87 VSS VSS - - - - - - GND

88 P27 NC O C - - - Z Not used

89 P26 NC I - - - Eu Z Not used

90 P25 NC I - - - Eu Z Not used

91 P24 NC I - - - Eu Z Not used

92 P23 NC I - - - Eu Z Not used

93 P22 NC I - - - Eu Z Not used

94 P21 NC I - - - Eu Z Not used

95 P20 MUTE1 O C - - - Z Mute control for DAC output

96 P17/INT5 1394+12VON O C - - Eu Z 1394 +12V ON:H （TPS67341） ※ same logic as IEPOWER

97 P16/INT4 INT1 I - E ↓ &L - Eu Z DIR1 control pin (LC89057W-E)

98 P15/INT3 NC I - - - - Z Not used

99 P14 NC I - - - Eu Z Not used

100 P13 NC I - - - Eu Z Not used

101 P12 DAMDIS O C - - - Z FPGA control for DAC

102 P11 DAMCS O C - - - Z FPGA control for DAC

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.) Res FUNCTION

AVR-5805/AVC-A1XV

103 P10 DAMSS O C - - - Z FPGA control for DAC

104 P07/AN07 DAPLDDATAS O C - - - Z FPGA control for DAC

105 P06/AN06 DAPLDCLKS O C - - - Z FPGA control for DAC

106 P05/AN05 DAPLDSTBS O C - - - Z FPGA control for DAC

107 P04/AN04 NC O C - - - Z Not used

108 P03/AN03 INT2 I - E ↓ &L - Ed Z DIR2 control pin (LC89057W-E)

109 P02/AN02 INT3 I - E ↓ &L - Ed Z DIR3 control pin (LC89057W-E)

110 P01/AN01 INT4 I - E ↓ &L - Ed Z DIR4 control pin (LC89057W-E)

111 P00/AN00 INT5 I - E ↓ &L - Ed Z DIR5 control pin (LC89057W-E)

112 P117 INT6 I - E ↓ &L - Eu Z DIR6 control pin (LC89057W-E) ( ※ "Z"set: Operated from ZONE μcom)

113 P116 INT7 I - E ↓ &L - Eu Z DIR7 control pin (LC89057W-E) ( ※ "Z"set: Operated from ZONE μcom)

114 P115 INT8 I - E ↓ &L - Eu Z DIR8 control pin (LC89057W-E) ( ※ "Z"set: Operated from ZONE μcom)

115 P114 NC Ｉ - - - - Z Not used

116 P113 DSPCSS O C - - Eu Z PLD control for DSP chip select

117 P112 DSPA0S O C - - - Z PLD control for DSP （3-bit address for target selection of RST/CS)

118 P111 DSPA1S O C - - - Z PLD control for DSP （3-bit address for target selection of RST/CS)

119 P110 DSPA2S O C - - - Z PLD control for DSP （3-bit address for target selection of RST/CS)

120 P107/AN7 DSPREQ1S I - - - - Z PLD control for DSP(use with DSP READY)

121 P106/AN6 DSPREQ2S I - - - - Z PLD control for DSP(use with DSP READY)

122 P105/AN5 DSPREQ3S I - - - - Z PLD control for DSP(use with DSP READY)

123 P104/AN4 NC I - - - - Z Not used

124 P103/AN3 NC I - - - - Z Not used

125 P102/AN2 NC I - - - - Z Not used

126 P101/AN1 DSPROMRSTS O C - - Ed Z PLD control for DSP memory reset（Reset: L)

127 AVSS AVSS - - - - - - AD GND

128 P100/AN0 DSPRSTS O C - - Ed Z PLD control for DSP reset（Reset: L)

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.) Res FUNCTION

AVR-5805/AVC-A1XV

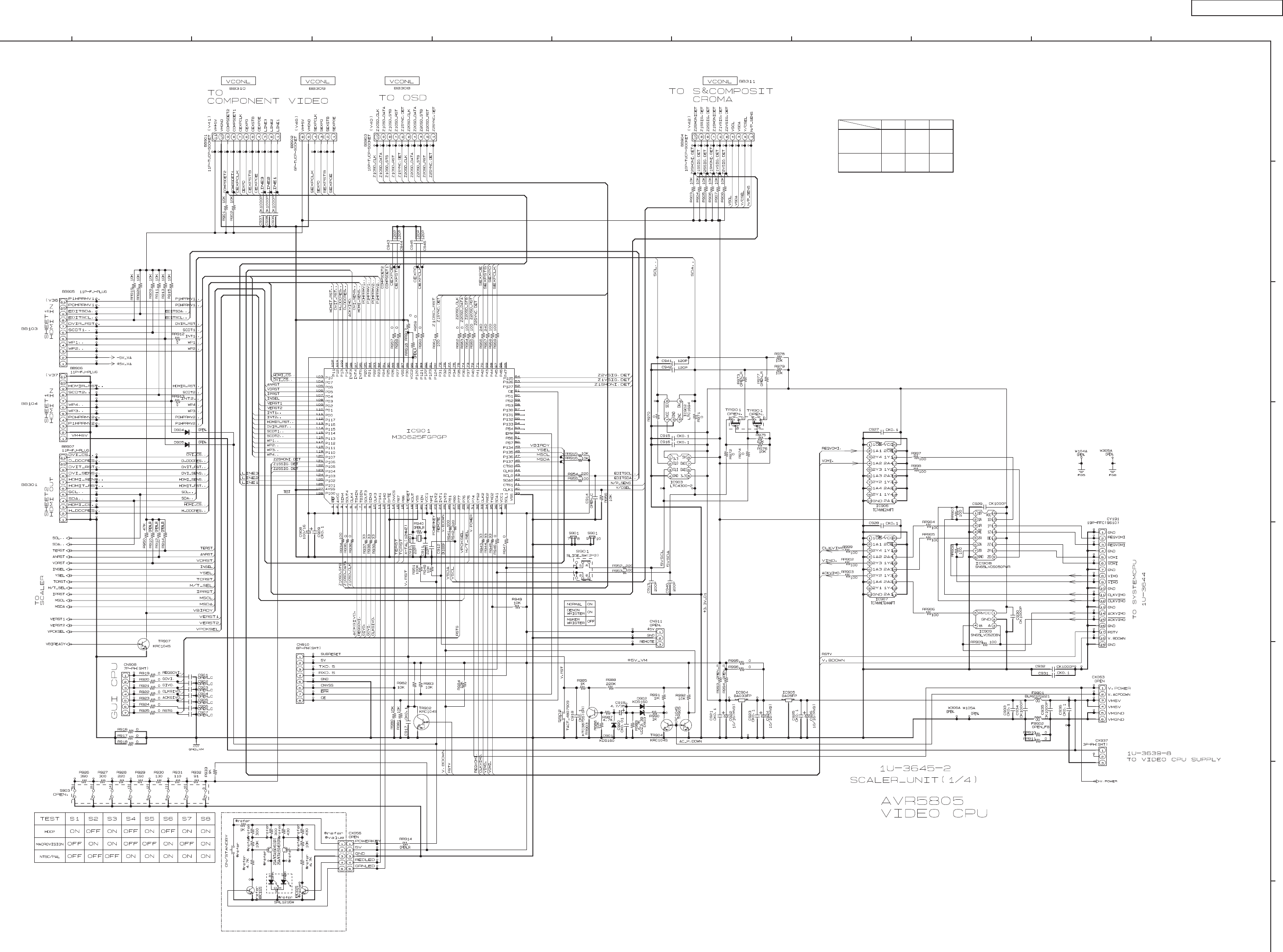

M30625FGPGP (IC901) D.VIDEO P.W.B.

M30625FGPGP Terminal Function

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.)

Res STBY stop FUNCTION

1 VREF VREF - - - - - - - - AD ref. +5V

2 AVCC AVCC - - - - - - - - AD +5V

3 P97/SIN4 Z1 OSD STB O C - - - Z O/L O/L OSD control for MAINZONE (M35015)

4 P96/SOUT4 Z1 OSD DATA O C - - - Z O/L O/L OSD control for MAINZONE (M35015)

5 P95/CLK4 Z1 OSD CLK O C - - - Z O/L O/L OSD control for MAINZONE (M35015)

6 P94 NC O C - - - Z O/L O/L Not used

7 P93 NC O C - - - Z O/L O/L Not used

8 P92/SOUT3 NC O C - - - Z O/L O/L Not used

9 P91/SIN3 NC O C - - - Z O/L O/L Not used

10 P90/CLK3 NC O C - - - Z O/L O/L Not used

11 P141 NC O C - - - Z O/L O/L Not used

12 P140 NC O C - - - Z O/L O/L Not used

13 BYTE BYTE - - - - - - - - GND (Ext. data bus bit width switching, 16bit: L)

14 CNVCS CNVSS - - - - Ed - - - "Single-chip/Micro-processor mode switching (Normal single-chip: L,

Rewrite boot program start:H input set)"

15 P87 TE RST O C - - - Z O/L O/L COMPONENT FORMAT DETECTOR reset (TE8200PF)

16 P86 TC RST O C - - - Z O/L O/L DETECTOR reset for color distinction (TC90101)

17 RESET _RESET I - Lv - Eu L I I Reset input (Reset: L)

18 XOUT X1 O - - - - - - - Oscillator connection

19 VSS VSS - - - - - - - - GND

20 XIN X2 I - - - - - I I Oscillator connection

21 VCC1 VCC1 - - - - - - - - + ５ V

22 P85/NMI _NMI I - - - - - - - Not used (Fixed to H)

23 P84/INT2 INT I - E ↓ &L - Ed Z I I HDMI RX interruption

24 P83/INT1 NC I - E ↑ &L - Ed Z I I Not used

25 P82/INT0 V.B.DOWN I - E ↑ &L - Ed Z I I Power down detect (Power down: L)

26 P81 VSDA I/O C - - - Z O/L O/L VIDEO I2C (Chroma decoder, 3D Y/C) control pin

AVR-5805/AVC-A1XV

27 P80 VSCL I/O C - - - Z O/L O/L VIDEO I2C (Chroma decoder, 3D Y/C) control pin

28 P77 NC O C - - - Z O/L O/L Not used

29 P76 VPCKSEL O C - - - Z O/L O/L CLK select for ENCODER(ADV7310)

30 P75 M/T SEL O C - - - Z O/L O/L IC switching control pin (MN673747:H, TC90101:L)

31 P74 VIDEO POWER O C - - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

32 P73/CTS2 REQ VOMI O C - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

33 P72/CLK2 CLK VIMO I - Lv - Eu Z I O/L MAIN-VIDEO μcom comm. control pin

34 P71/RXD2 VIMO I - Lv - Eu Z I O/L MAIN-VIDEO μcom comm. control pin

35 P70/TXD2 VOMI O N - - （Eu) Z O/L O/L MAIN-VIDEO μcom comm. control pin

36 P67/TXD1/SDA1 5V SDA/TxD I/O C - - - Z O/L O/L HDMI IC control/Data transfer pin to outside(MAKER BOOT)

37 VCC1 VCC - - - - - - - - + ５ V

38 P66/RXD1/SCL1 5V SCL/RxD I/O C - - - Z O/L O/L HDMI IC control/Data transfer pin from outside(MAKER BOOT)

39 VSS VSS - - - - - - - - GND

40 P65/CLK1 Z2 Y/C SEL O C - - Ed Z O/L O/L Chroma decoder selector for ZONE2

41 P64/CTS1 NC I - Lv - Eu Z I O/L Not used

42 P63/TXD0/SDA0 EDIT SDA I/O C - - - Z O/L O/L HDMI/DVI EDIT(E2PROM) control pin

43 P62/RXD0/SCL0 EDIT SCL I/O C - - - Z O/L O/L HDMI/DVI EDIT(E2PROM) control pin

44 P61/CLK0 NC O C - - - Z O/L O/L Not used

45 P60/CTS0 NC O C - - - Z O/L O/L Not used

46 P137 MSDA I/O C - - - Z O/L O/L VIDEO I2C (AN13310) control pin

47 P136 MSCL I/O C - - - Z O/L O/L VIDEO I2C (AN13310) control pin

48 P135 YSEL O C - - - Z O/L O/L COMPONENT Y/S-Video switching control (TC90101) （COMPONENT

Y :H， S-Video Y:L）

49 P134 NC O C - - - Z O/L O/L Not used

50 P57 NC O C - - - Z O/L O/L Not used

51 P56 NC O C - - - Z O/L O/L Not used

52 P55/EPM FRASH EPM I - Lv - Eu Z I I Rewrite boot program start: L input set

53 P54 NC O C - - - Z O/L O/L Not used

54 P133 NC O C - - - Z O/L O/L Not used

55 P132 NC O C - - - Z O/L O/L Not used

56 P131 NC O C - - - Z O/L O/L Not used

57 P130 NC O C - - - Z O/L O/L Not used

58 P53 NC O C - - - Z O/L O/L Not used

59 P52 NC O C - - - Z O/L O/L Not used

60 P51 NC O C - - - Z O/L O/L Not used

61 P50/CE FRASH CE I - - - Ed Z I I Rewrite boot program start: H input set

62 P127 Z1 SMONIDET I - - - - Z I O/L MAINZONE's S-monitor connection detect input (Connected:L )

63 P126 Z1 VSIG DET I - Lv - Eu Z I O/L MAIN ZONE's VIDEO signal detect port （Detected:H)

64 P125 Z2 VSIG DET I - Lv - Eu Z I O/L ZONE2's VIDEO signal detect port （Detected:H)

65 P47 NC O C - - - Z O/L O/L Not used

66 P46 NC O C - - - Z O/L O/L Not used

67 P45 S EXP CLK O C - - - Z O/L O/L CLK output for video switching expander control(BU4094B)

68 P44 S EXP DATA O C - - - Z O/L O/L DATA output for video switching expander control(BU4094B)

69 P43 S EXP STB O C - - - Z O/L O/L STB output for video switching expander control(BU4094B)

70 P42 S EXP OE O C - - Ed Z O/L O/L OE output for video switching expander control(BU4094B)

71 P41 Z2 SYNC DET I - Lv - Eu Z I I Sync. detect input for ZONE2 (H: Ext. synchronized)

72 P40 Z2 OSD RST O C - - - Z O/L O/L OSD control for ZONE2 (M35015)

73 P37 Z2 OSD STB O C - - - Z O/L O/L OSD control for ZONE2 (M35015)

74 P36 Z2 OSD DATA O C - - - Z O/L O/L OSD control for ZONE2 (M35015)

75 P35 Z2 OSD CLK O C - - - Z O/L O/L OSD control for ZONE2 (M35015)

76 P34 NC O C - - - Z O/L O/L Not used

77 P33 NC O C - - - Z O/L O/L Not used

78 P32 NC O C - - - Z O/L O/L Not used

79 P31 Z1 SYNC DET I - Lv - Eu Z I I Sync. detect input for MAINZONE (H: Ext. synchronized)

80 P124 Z1 OSD RST O C - - - Z O/L O/L OSD control for MAINZONE (M35015)

81 P123 NC O C - - - Z O/L O/L Not used

82 P122 NC O C - - - Z O/L O/L Not used

83 P121 C EXP CLK O C - - - Z O/L O/L CLK output for component video switching expander con-

trol(BU4094B)

84 P120 C EXP DATA O C - - - Z O/L O/L DATA output for component video switching expander con-

trol(BU4094B)

85 VCC2 VCC2 - - - - - - - - + ５ V

86 P30 PAL ENA. I - Lv - Eu Z I O/L PAL DECODE correspondence/ non-correspondence detect (non-

correspondence:Ｌ)

87 VSS VSS - - - - - - - - GND

88 P27 C EXP STB O C - - - Z O/L O/L STB output for component video switching expander con-

trol(BU4094B)

89 P26 C EXP OE O C - - Ed Z O/L O/L OE output for component video switching expander con-

trol(BU4094B)

90 P25 COMP SDET1 I - Lv - Eu Z I O/L MAIN ZONE's COMPONENT signal detect input

91 P24 COMP SDET2 I - Lv - Eu Z I O/L ZONE2's COMPONENT signal detect input

92 P23 P1HPRMV2 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN3 terminal

93 P22 POHPRMV2 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN2 terminal

94 P21 P1HPRMV1 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN1 terminal

95 P20 P0HPRMV1 O C - - - Z O/L O/L HP(hot-plug) detect input for DVI IN terminal

96 P17/INT5 HDMI SENS I - E ↓ &L - Ed Z I O/L HDMI signal detect input

97 P16/INT4 DVI SENS I - E ↓ &L - Ed Z I O/L DVI signal detect input

98 P15/INT3 ACK VIMO I - E ↓ &L - Ed Z I O/L MAIN-VIDEO μcom comm. control pin

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.)

Res STBY stop FUNCTION

AVR-5805/AVC-A1XV

99 P14 NC O C - - Ed Z O/L O/L Not used

100 P13 NC O C - - Ed Z O/L O/L Not used

101 P12 DVI T RST O C - - - Z O/L O/L DVI TRANSMITTER reset (Si I9030)

102 P11 HDMI T RST O C - - - Z O/L O/L HDMI TRANSMITTER reset (Si I9030)

103 P10 HDMI CS O - - - - Z O/L O/L HDMI TRANSMITTER chip select (Si I9030)

104 P07/AN07 DVI CS O - - - - Z O/L O/L DVI TRANSMITTER chip select (Si I9030)

105 P06/AN06 AN RST O - - - - Z O/L O/L VIDEO SELECTER_A/D reset (AN13310B)

106 P05/AN05 VD RST O - - - - Z O/L O/L VIDEO DECODER reset (MN67374)

107 P04/AN04 IP RST O - - - - Z O/L O/L IP CONVERTER reset(FLI2310)

108 P03/AN03 IN SEL O - - - - Z O/L O/L VIDEO DECODER input select

109 P02/AN02 VE RST1 O - - - - Z O/L O/L VIDEO ENCODER reset (ADV7310)

110 P01/AN01 VE RST2 O - - - - Z O/L O/L VIDEO ENCODER reset (ADV7300)

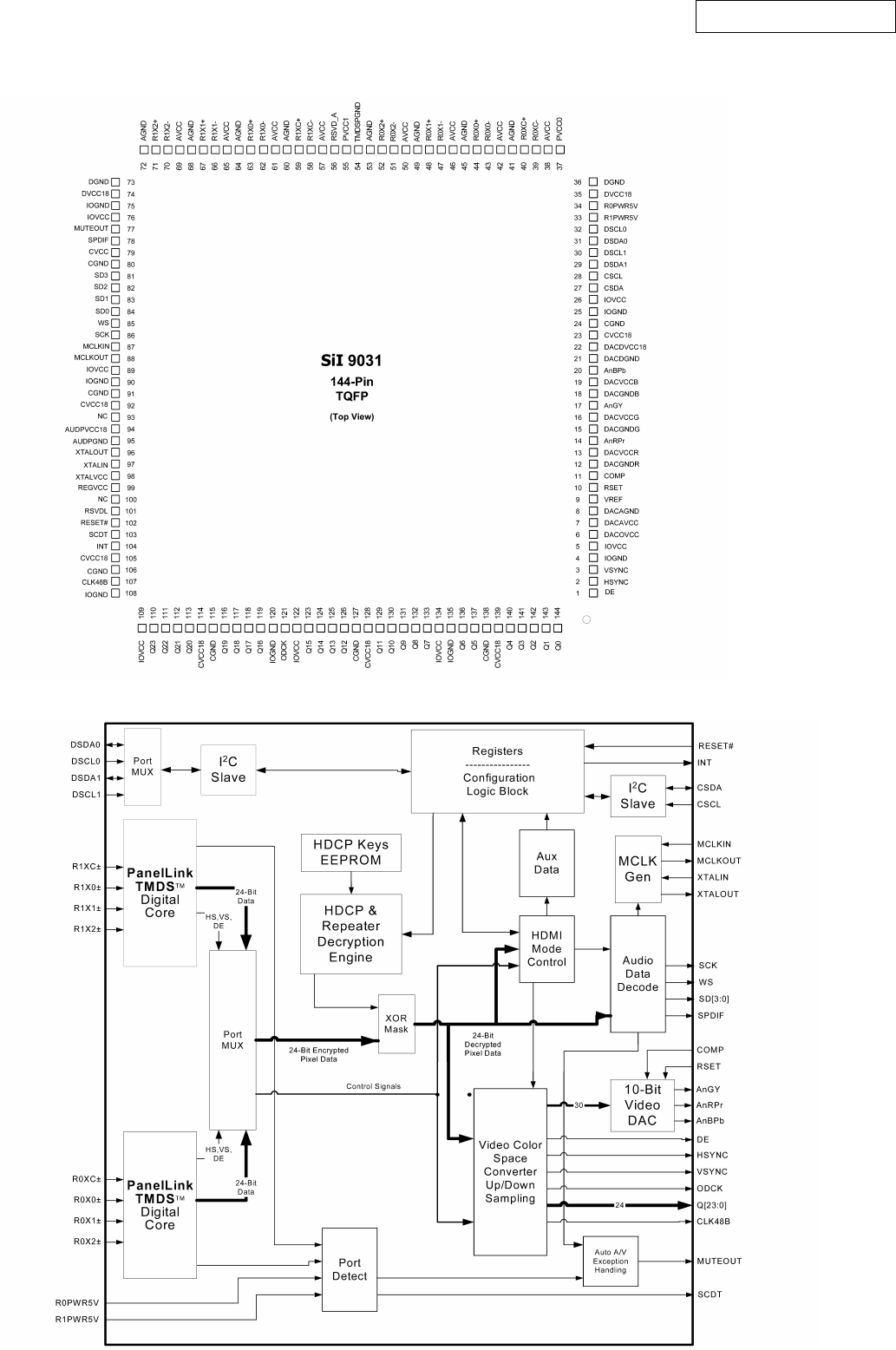

111 P00/AN00 INT1 I - - - - Z I O/L HDMI RECEIVER(Si I9031)INT output (DVI IN1/HDMI IN1)

112 P117 INT2 I - - - - Z I O/L HDMI RECEIVER(Si I9031)INT output (HDMI IN2/IN3)

113 P116 HDMI R RST O C - - - Z O/L O/L HDMI RECEIVER reset (Si I9031) (HDMI IN2/IN3)

114 P115 DVI R RST O C - - - Z O/L O/L HDMI RECEIVER reset (Si I9031) (DVI IN1/HDMI IN1)

115 P114 SCDT1 I - - - - Z I O/L HDMI RECEIVER(Si I9031)SCDT output (DVI IN1/HDMI IN1)

116 P113 SCDT2 I - - - - Z I O/L HDMI RECEIVER(Si I9031)SCDT output(HDMI IN2/IN3)

117 P112 WP1 O C - - - Z O/L O/L HDMI IN1 EDIT(24LC02) 用 WRITE PROTECT

118 P111 WP2 O C - - - Z O/L O/L HDMI IN2 EDIT(24LC02) 用 WRITE PROTECT

119 P110 WP3 O C - - - Z O/L O/L HDMI IN3 EDIT(24LC02) 用 WRITE PROTECT

120 P107/AN7 WP4 O C - - - Z O/L O/L HDMI IN4 EDIT(24LC02) 用 WRITE PROTECT

121 P106/AN6 SMONIDET2 I - - - - Z I O/L ZONE2's S-monitor connection detect input ( Connected:L)

122 P105/AN5 Z1 S SIG DET I - - - - Z I O/L MAIN ZONE's S-signal detect input (H: S-signal inputted)

123 P104/AN4 Z2 S SIG DET I - - - - Z I O/L ZONE2's S-signal detect input (H: S-signal inputted)

124 P103/AN3 LINE3 I - - - - Z I O/L LINE3 level detection (distinguishes by AD voltage)

125 P102/AN2 LINE2 I - - - - Z I O/L LINE2 level detection (distinguishes by AD voltage)

126 P101/AN1 LINE1 I - - - - Z I O/L LINE1 level detection (distinguishes by AD voltage)

127 AVSS AVSS - - - - - - - - AD GND

128 P100/AN0 NC I - Lv - Eu Z I O/L Not used

Pin Pin Name Symbol I/O Type Det Op

(Int.)

(Ext.)

Res STBY stop FUNCTION

AVR-5805/AVC-A1XV

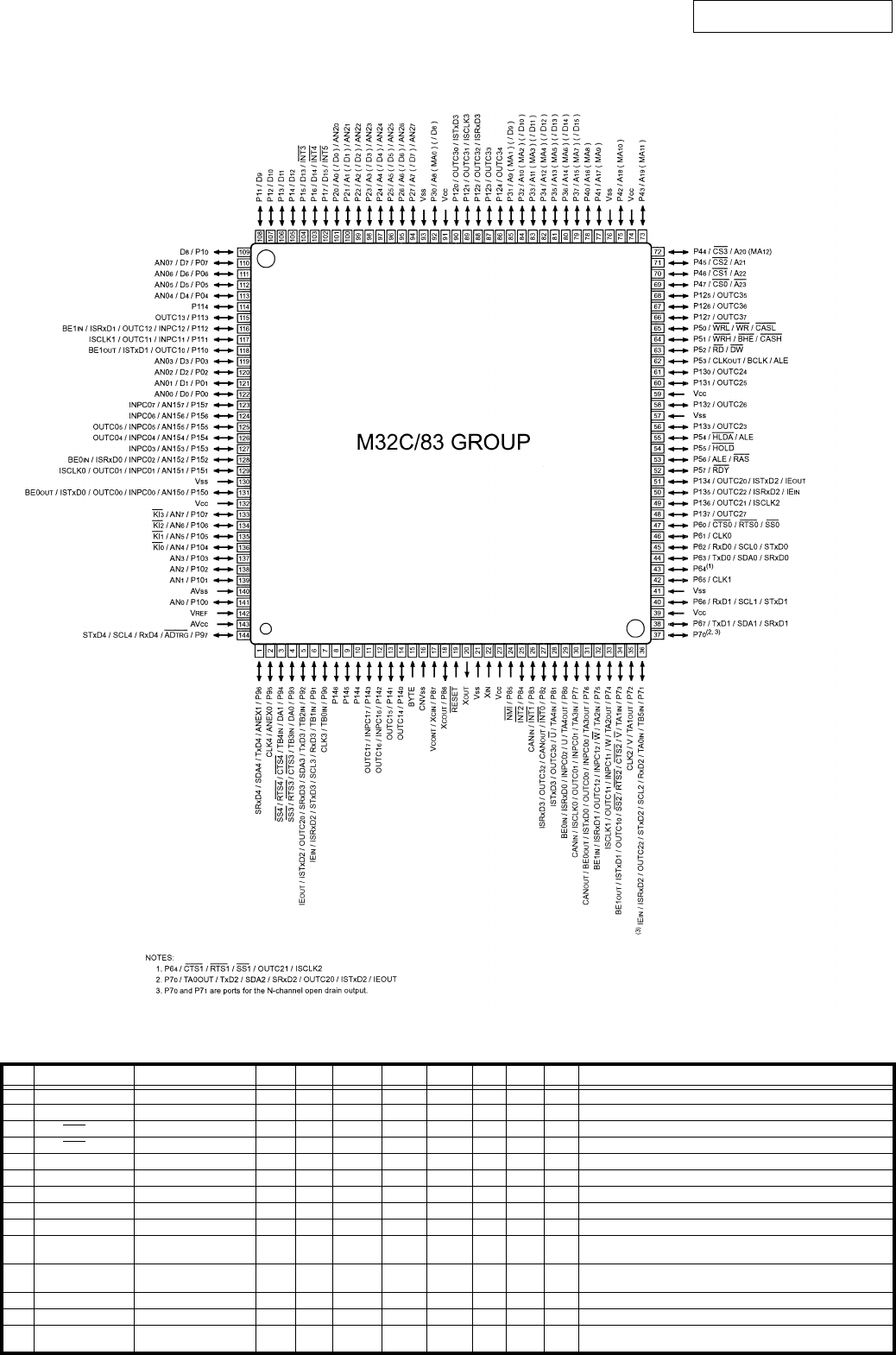

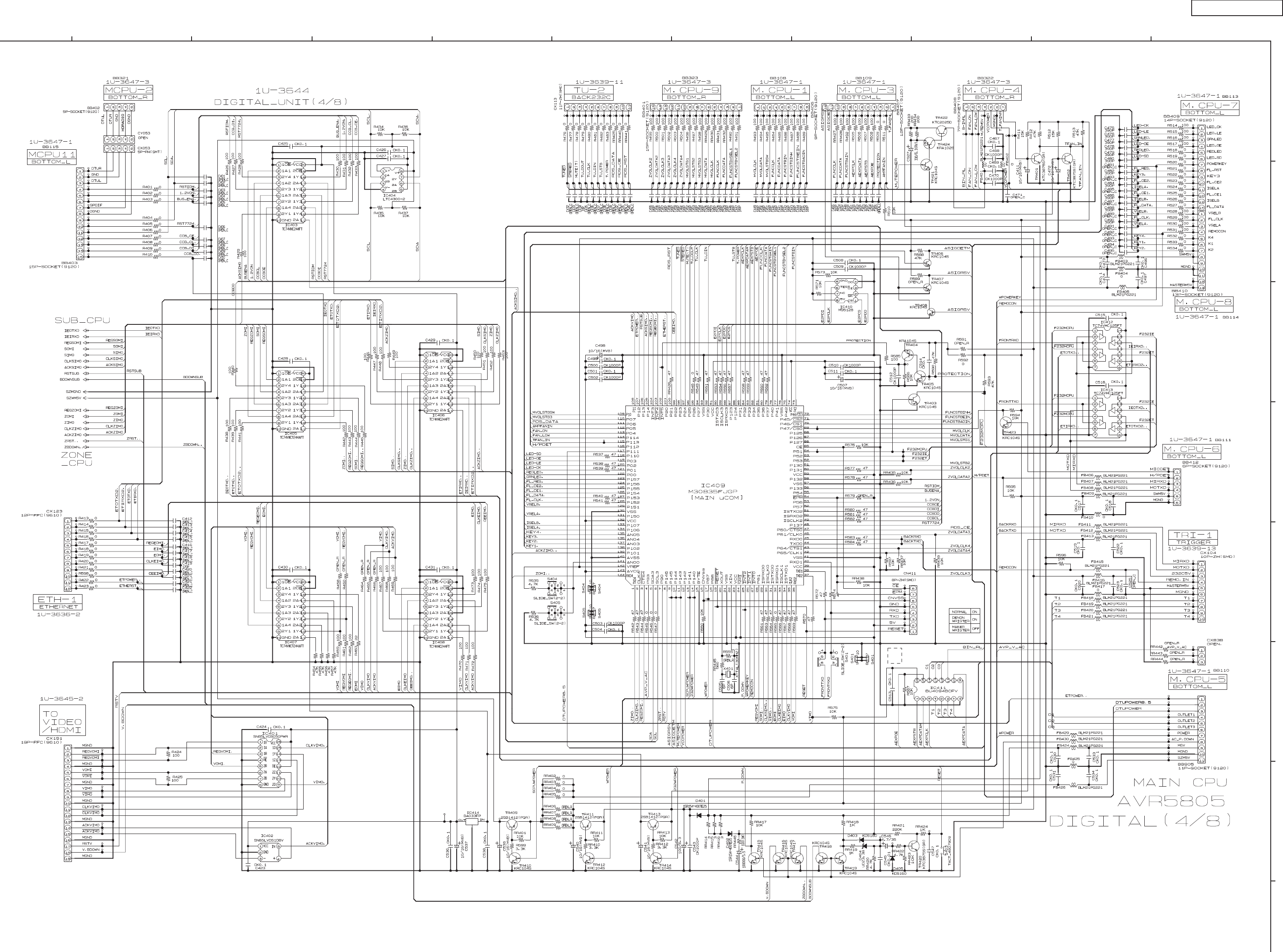

M30835FJGP (IC409) DIGITAL P.W.B.

M30835FJGP Terminal Function

Pin Pin Name Symbol I/O Type Det Op(Int.) Op(Ext.) Res STBY stop FUNCTION

1 P96/TXD4 ZIMO O C - - - Z O/L O/L MAIN-ZONE μcom comm. control pin

2 P95/CLK4 CLK ZIMO O C - - - Z O/L O/L MAIN-ZONE μcom comm. control pin

3 P94/CTS4 REQ ZOMI I - Lv - - Z I O/L MAIN-ZONE μcom comm. control pin

4 P93/CTS3 NC O C - - - Z O/L O/L Not used

5 P92/TXD3/SDA3 NC I/O C - - - Z O/L O/L Not used

6 P91/RXD3/SCL3 NC I/O C - - - Z O/L O/L Not used

7 P90/CLK3 Z.RST O C - - Z O/L O/L ZONE-μcom reset output

8 P146 RSTV O C - - - Z O/L O/L VIDEO-μcom reset output

9 P145 NC O C - - - Z O/L O/L Not used

10 P144 A SIG DET M I - Lv - - Z I O/L AMP current limiter control (When "H" → BINRL(EXP8)is con-

trolled to "H")

11 P143 MUTE POWER O C - - - Z O/L O/L Muting ON:"H" (30msec before POWER ON), OFF:"L"(Same timing

as POWER OFF）

12 P142 VCC POWER O C - - - Z O/L O/L ZONE +B control POWER ON=H(After 15ms from POWER ON)

13 P141 SCPU POWER O C - - - Z O/L O/L SUB-μcom power on/off switching(ON：H)

14 P140 232POWER(ETHER) O C - - - Z O/H O/L LOGIC +VCC on/off switching for ETHER control(SAVING OFF/

STANDBY:H)

AVR-5805/AVC-A1XV

15 BYTE BYTE - - - - - - - - GND(Ext. data bus bit width switching, 16bit:"L")

16 CNVss CNVSS I - - - Ed - - - "Single-chip/Micro-processor mode switching (Normal single-

chip:L, Rewrite boot program start:H input set)"

17 P87/XCIN POWER O C - - - Z O/L O/L POWER relay control output (H:ON)

18 P86/XCOUT NC O C - - - Z O/L O/L Not used

19 RESET RESET I - Lv - Eu L I I Reset input

20 XOUT X2 O - - - - - - - Oscillator connection

21 VSS VSS - - - - - - - - GND

22 XIN X1 I - - - - - I I Oscillator connection

23 VCC VCC - - - - - - - - + ５ V

24 P85/NMI _NMI I - - - - - - - Not used(Fixed to H)

25 P84/INT2 B.DOWN I - E ↓ &L - Eu Z I I Power down detect(Power down:L)

26 P83/INT1 POWER KEY I - E ↓ &L - Eu I O/L Interrupt port for WAIT mode cancel

27 P82/INT0 REMOCON I - E ↑ &L - Ed Z I I Remote control signal input

28 P81/ REQ VOMI I - Lv - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

29 P80/ISRXD0 SOMI I - Lv - - Z O/L O/L MAIN-SUB μcom comm. control pin

30 P77/ISCLK0 CLK SIMO O C - - Z O/L O/L MAIN-SUB μcom comm. control pin

31 P76/ISTXD0 SIMO O C - - Z O/L O/L MAIN-SUB μcom comm. control pin

32 P75/ISRXD1 EOMI I - Lv - - Z O/L O/L ETHERNET control pin

33 P74/ISCLK1 CLK EIMO O C - - Z O/L O/L ETHERNET control pin

34 P73/CTS2/ISTXD1 EIMO O C - - Z O/L O/L ETHERNET control pin

35 P72/CLK2 CLK VIMO O C - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

36 P71/RXD2/ VOMI I - Lv - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

37 P70/TXD2/ VIMO O N - - Eu Z O/L O/L MAIN-VIDEO μcom comm. control pin

38 P67/TXD1 FRONT TxD O C - - - Z O/L O/L Data transfer pin to outside(MAKER BOOT)

39 VCC VCC - - - - - - - - + ５ V

40 P66/RXD1 FRONT RxD I - Lv - - Z I O/L Data transfer pin from outside(MAKER BOOT)

41 VSS VSS - - - - - - - - GND

42 P65/CLK1 ZVOL DATA4 O C - - - Z O/L O/L E-VR control output for ZONE4(BD3811K1)

43 P64/CTS1 ZVOL CLK4 O C - - - Z O/L O/L E-VR control output for ZONE4(BD3811K1)

44 P63/TXD0 BACK TxD O C - - Ed Z O/L O/L Data transfer pin to outside(AMX)

45 P62/RXD0 BACK RxD I - Lv - Ed Z I O/L Data transfer pin from outside(MAKER BOOT)

46 P61/CLK0 ZVOL DATA3 O C - - - Z O/L O/L E-VR control output for ZONE3(BD3811K1)

47 P60/CTS0 RDS CE O C - - - Z O/L O/L RDS data output(LC72720)

48 P137 NC O C - - - Z O/L O/L Not used

49 P136/ISCLK2 NC O C - - - Z O/L O/L Not used

50 P135/ISRXD2 NC I - - - - Z O/L O/L Not used

51 P134/ISTXD2 NC O C - - - Z O/L O/L Not used

52 P57 NC O C - - - Z O/L O/L Not used

53 P56 NC O C - - - Z O/L O/L Not used

54 P55/EPM ZVOL CLK3/FRASH EPM O C - - - Z O/L O/L E-VR control output for ZONE3(BD3811K1) /Rewrite boot pro-

gram start:L input set

55 P54 NC O C - - - Z O/L O/L Not used

56 P133 NC O C - - Ed Z O/L O/L Not used

57 VSS VSS - - - - - - - - GND

58 P132 ZVOL DATA2 O C - - - Z O/L O/L E-VR control output for ZONE2(BD3811K1)

59 VCC VCC - - - - - - - - + ５ V

60 P131 ZVOL CLK2 O C - - - Z O/L O/L E-VR control output for ZONE2(BD3811K1)

61 P130 E.VOL STB2 O C - - - Z O/L O/L E-VR control output for MAIN ZONE(TC94A32FG)

62 P53 F232ET O C - - - Z O/L O/L FRONT232 → ETHERNET pass control pin

63 P52 F232IE O C - - - Z O/L O/L FRONT232 → IEEE1394 pass control pin

64 P51 F232MCPU O C - - - Z O/L O/L FRONT232 → MAIN pass control pin

65 P50/CE FRASH CE I - - - Ed Z I I Rewrite boot program start:H input set

66 P127 E.VOL STB1 O C - - - Z O/L O/L E-VR control output for MAIN ZONE(TC94A32FG)

67 P126 E.VOL DATA O C - - - Z O/L O/L E-VR control output for MAIN ZONE(TC94A32FG)

68 P125 E.VOL CLK O C - - - Z O/L O/L E-VR control output for MAIN ZONE(TC94A32FG)

69 P47/CS0/A23 MIC DET I - Lv - - Z O/L O/L Microphone detect input(Detected:L)

70 P46/CS1/A22 FUNC STB ADIN O C - - - Z O/L O/L STB output for function switching control(A/D IN) (TC9274F-022)

71 P45/CS2/A21 FUNC STB EIN O C - - - Z O/L O/L STB output for function switching control (EXT.IN DOWN-

MIX)(TC9274F-022)

72 P44/CS3/A20 FUC STB INH O C - - - Z O/L O/L STB output for function switching control (REC INH)(TC9274F-

022)

73 P43/A19 FUC STB IN O C - - - Z O/L O/L STB output for function switching control (ANALOG

SW)(TC94A46FGX2)

74 VCC VCC - - - - - - - - + ５ V

75 P42/A18 FUNC STB VSEL2 O C - - - Z O/L O/L STB output for function switching control (VOL IN)(TC9274F-022)

76 VSS VSS - - - - - - - - GND

77 P41/A17 FUNC STB VSEL1 O C - - - Z O/L O/L STB output for function switching control (VOL IN)(TC9274F-022)

78 P40/A16 FUC STB AIN O C - - - Z O/L O/L STB output for function switching control (POWER AMP

ASSIGN)(TC94A46FG)(TC94A46FG × 4)

79 P37/D15 FUNC DATA O C - - - Z O/L O/L DATA output for function switching control(TC94A46FG/

TC9274F)

80 P36/D14 FUNC CLK O C - - - Z O/L O/L CLK output for function switching control(TC94A46FG/TC9274F)

81 P35/D13 AEXP OE O C - - - Z O/L O/L OE output for expander control(BU4094B)

82 P34/D12 AEXP STB O C - - - Z O/L O/L STB output for expander control(BU4095B)

83 P33/A11 AEXP DATA O C - - - Z O/L O/L DATA output for expander control(BU4094B)

84 P32/D10 AEXP CLK O C - - - Z O/L O/L CLK output for expander control(BU4094B)

85 P31/D9 TUNER POWER O C - - - Z O/L O/L TUNER power on/off switching (ON:H)

86 P124 TU STB O C - - - Z O/L O/L PLL control pin(LC72131)

Pin Pin Name Symbol I/O Type Det Op(Int.) Op(Ext.) Res STBY stop FUNCTION

AVR-5805/AVC-A1XV

87 P123 E2P CS O C - - - Z O/L O/L E2PROM control pin

88 P122/ISRXD3 E2P DO I - Lv - - Z O/L O/L E2PROM control pin

89 P121/ISCLK3 E2P CLK O C - - - Z O/L O/L E2PROM control pin

90 P120/ISTXD3 E2P DI O C - - - Z O/L O/L E2PROM control pin

91 VCC VCC - - - - - - - - + ５ V

92 P30/D8 TU/RDS DIN O C - - - Z O/L O/L PLL & RDS control pin (LC72131 & LC72720)

93 VSS VSS - - - - - - - - GND

94 P27/AN27/D7 TU/RDS CLK O C - - - Z O/L O/L PLL & RDS control pin (LC72131 & LC72720)

95 P26/AN26/D6 TU DOUT I - Lv - - Z I O/L PLL control pin (LC72131)

96 P25/AN25/D5 MUTE(T) O C - - - Z O/L O/L TUNER muting control(MUTE:L)

97 P24/AN24/D4 STEREO I - Lv - Eu Z I O/L When TUNER FM stereo receive: L

98 P23/AN23/D3 TUNED I - Lv - Eu Z I O/L TUNER turned detect (Detected:L)

99 P22/AN22/D2 ACK EIMO O C - - - Z O/L O/L ETHERNET control pin

100 P21/AN21/D1 RDS RESET O C - - - Z O/L O/L RDS reset output(LC72720)

101 P20/AN20/D0 ETHER RST O C - - - Z O/L O/L ETHERNET control pin

102 P17/INT5/D15 PROTECTION I - E ↓ &L - - I I Protection detect input(Detected:L)

103 P16/INT4/D14 REQ EOMI I - E ↓ &L - - I O/L ETHERNET control pin

104 P15/INT3/D13 REQ SOMI I - E ↓ &L - - I O/L MAIN-SUB μcom comm. control pin

105 P14/D12 ACK SIMO O C - - - Z O/L O/L MAIN-SUB μcom comm. control pin

106 P13/D11 RST SUB(RESET2) O C - - - Z O/L O/L SUB-μcom reset output

107 P12/D10 ETHER POWER O C - - - Z O/L O/L ETHERNET POWER ON/OFF switching(ON:H)

108 P11/D9 ACK VIMO O C - - - Z O/L O/L MAIN-VIDEO μcom comm. control pin

109 P10/D8 E.VOL STB SW O C - - - Z O/L O/L E-VR control output for EXT.IN SW(TC94A32FG)

110 P07/AN07/D7 E.VOL STB3 O C - - - Z O/L O/L E-VR control output for MAIN ZONE(TC94A32FG)

111 P06/AN06/D6 RDS DATAOUT I - E ↓ &L - - I O/L RDS data input(LC72720)

112 P05/AN05/D5 AMPFANIN I - Lv - - Z O/L O/L AMP temperature detect(Detected:L)

113 P04/AN04/D4 FAN ON O C - - - Z O/L O/L FAN control(Operation:H)

114 P114 FAN LOW O C - - - Z O/L O/L FAN control(Low-speed operation:H)

115 P113 TFAN IN I - Lv - - Z O/L O/L TRANS temperature detect(Detected:L)

116 P112/ H/P DET I - - - - Z O/L O/L H/P detect input(Detected:H)

117 P111/ NC O C - - - Z O/L O/L Not used

118 P110/ LED SD O C - - - Z O/L O/L LED driver control pin(M66313FP)

119 P03/AN03/D3 LED OE O C - - - Z I I LED driver control pin(M66313FP) *This port is set as an input

during STANDBY.

120 P02/AN02/D2 LED LE O C - - - Z O/L O/L LED driver control pin(M66313FP)

121 P01/AN01/D1 LED CK O C - - - Z O/L O/L LED driver control pin(M66313FP)

122 P00/AN00/D0 REDLED O C - - - Z O/L O/L POWER/STANDBY LED control pin

123 P157/AN157 GRNLED O C - - - Z O/L O/L POWER/STANDBY LED control pin

124 P156/AN156 FL RST O C - - - Z O/L O/L FL tube control pin(LC75721E)

125 P155/AN155 FL CE2 O C - - - Z O/L O/L FL tube control pin(LC75721E)

126 P154/AN154 FL CE1 O C - - - Z O/L O/L FL tube control pin(LC75721E)

127 P153/AN153 FL DATA O C - - - Z O/L O/L FL tube control pin(LC75721E)

128 P152/AN152/ FL CLK O C - - - Z O/L O/L FL tube control pin(LC75721E)

129 P151/AN151/ VSEL B I - Lv - Eu Z O/L O/L Master VR rotation detect input（Rotary encoder）

130 VSS VSS - - - - - - - - GND

131 P150/AN150/ VSEL A I - Lv - Eu Z O/L O/L Master VR rotation detect input（Rotary encoder）

132 VCC VCC - - - - - - - - + ５ V

133 P107/AN7 ISEL B I - Lv - Eu Z O/L O/L Input selector rotation detect input（Rotary encoder）

134 P106/AN6 ISEL A I - Lv - Eu Z O/L O/L Input selector rotation detect input（Rotary encoder）

135 P105/AN5 KEY4 I - Lv - Eu Z O/L O/L Button input4

136 P104/AN4 KEY3 I - Lv - Eu Z O/L O/L Button input3

137 P103/AN3 KEY2 I - Lv - Eu Z O/L O/L Button input2

138 P102/AN2 KEY1 I - Lv - Eu Z O/L O/L Button input1

139 P101/AN1 ACK ZIMO O C - - - Z O/L O/L MAIN-ZONE μcom comm. control pin

140 AVSS AVSS - - - - - - - - AD GND

141 P100/AN0 MODE I - Lv - - Z O/L O/L Destination switching input

142 VREF VREF - - - - - - - - AD ref. + ５ V

143 AVCC AVCC - - - - - - - - AD + ５ V

144 P97/ADTRG/RXD4 ZOMI I - Lv - Ed Z I O/L MAIN-ZONE μcom comm. control pin

Pin Pin Name Symbol I/O Type Det Op(Int.) Op(Ext.) Res STBY stop FUNCTION

AVR-5805/AVC-A1XV

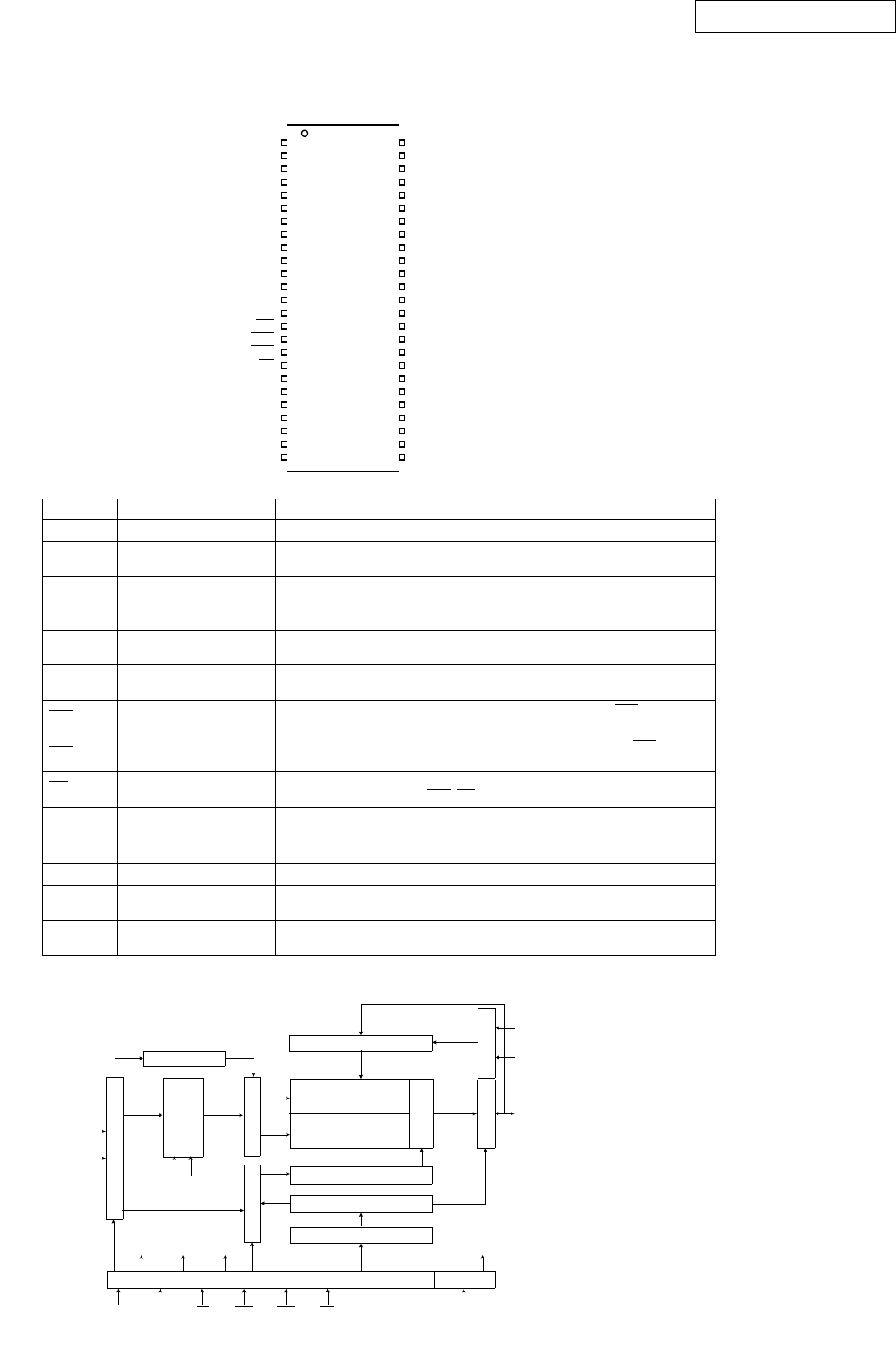

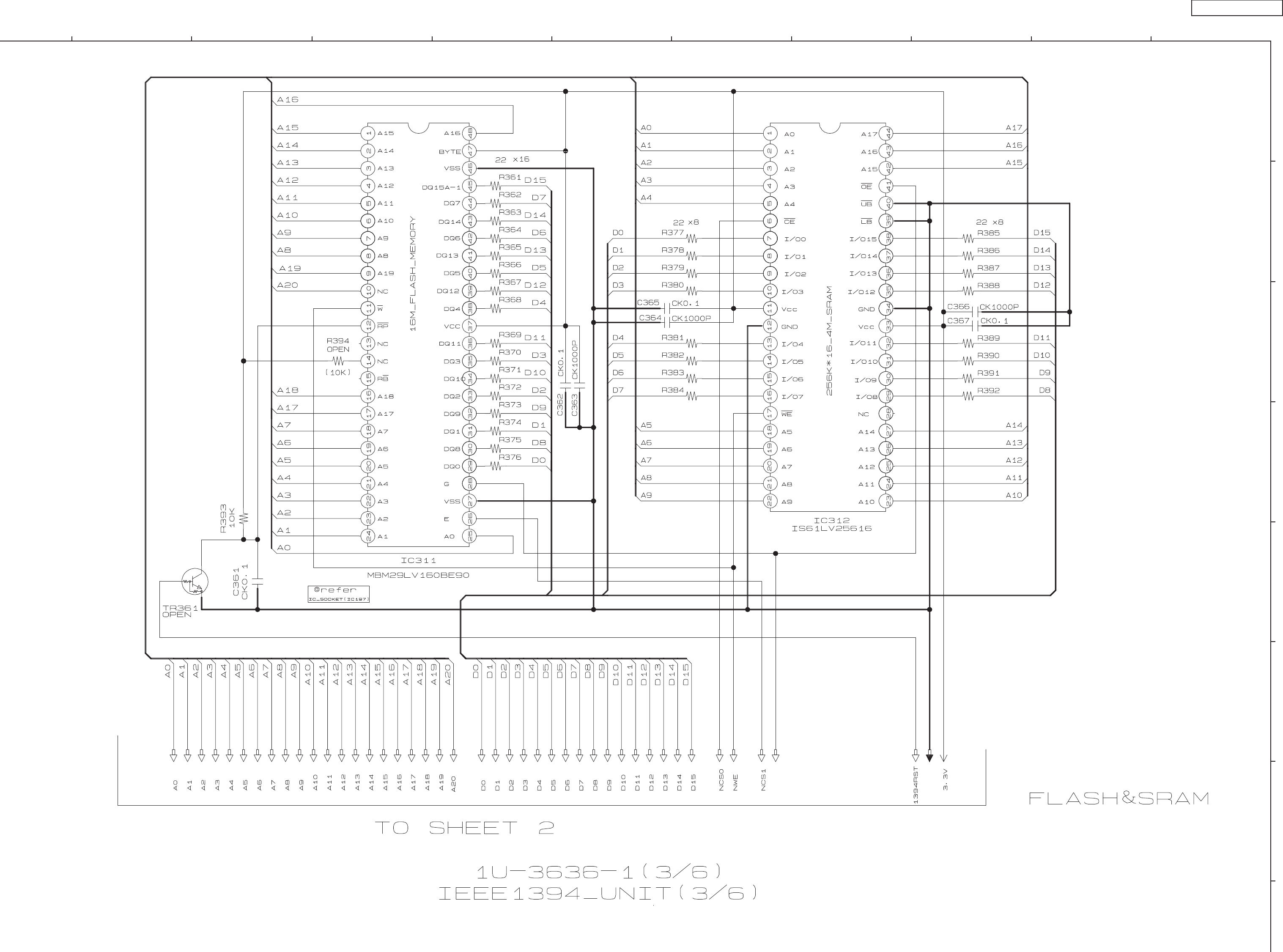

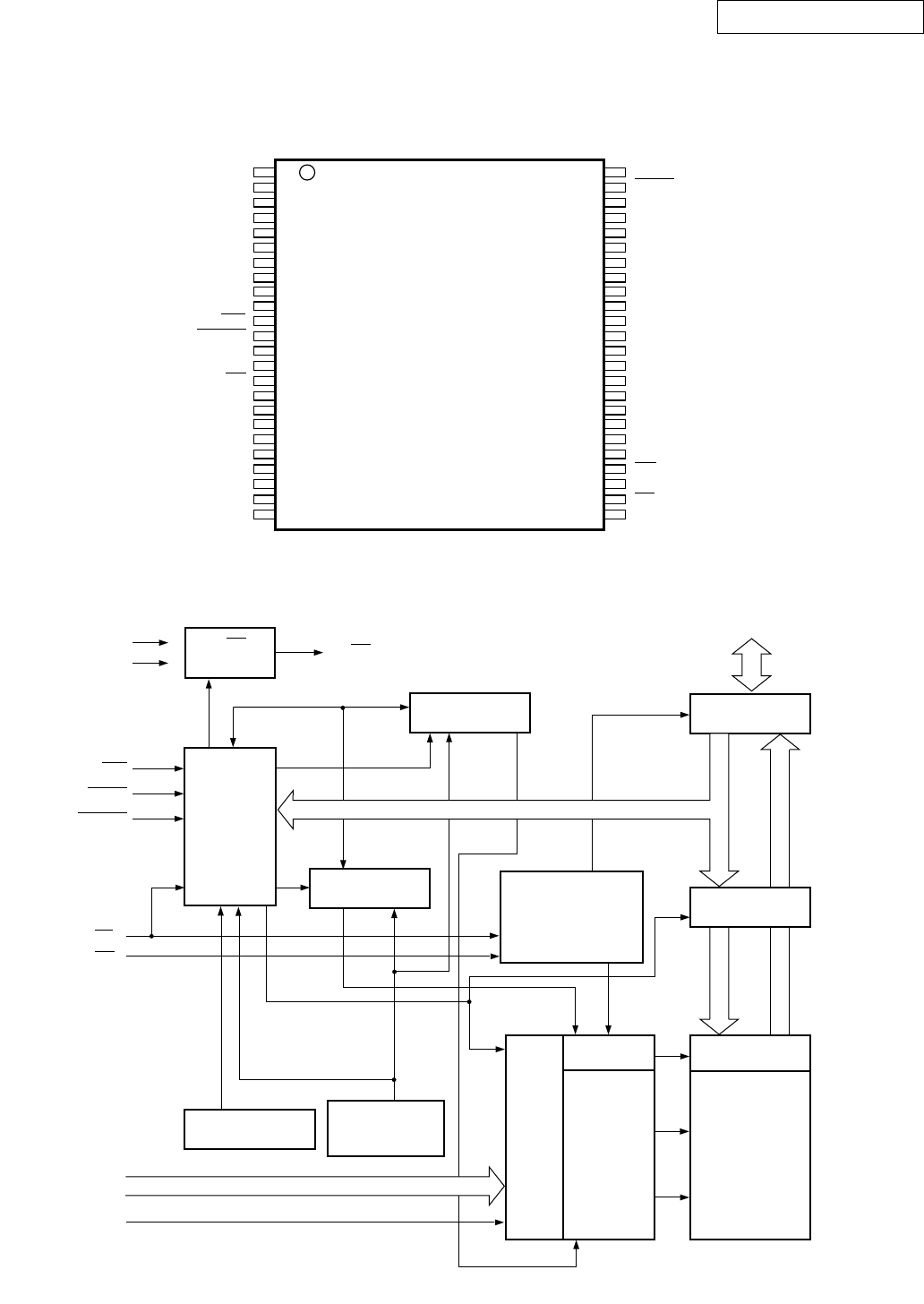

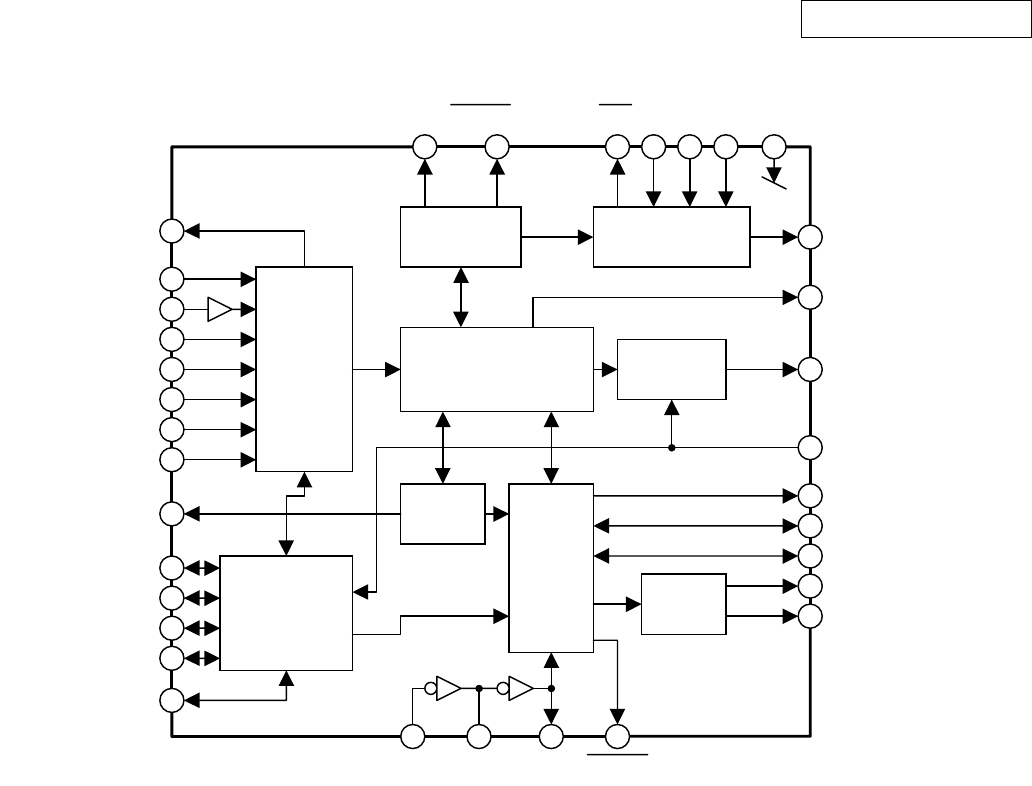

MBM29LV160BE90TN (IC313) 1394 P.W.B.

MBM29LV160BE90TN (IC605,704,804) DIGITAL P.W.B.

N.C.

RESET

N.C.

RY/BY

BYTE

-1

Standard Pinout

TSOP(I)

(Marking Side)

A-1

VSS

VCC

A0 to A19

State

Control

Command

Erase Voltage

Generator

Input/Output

Buffer

Y-Decoder

X-Decoder

Y-Gating

Cell Matrix

DQ0 to DQ15

Low VCC Detector

Program Voltage

Generator

Timer for

Program/Erase

Chip Enable

Output Enable

Logic

Data Latch

BYTE

RESET

RY/BY

Buffer RY/BY

STB

Address

Latch

AVR-5805/AVC-A1XV

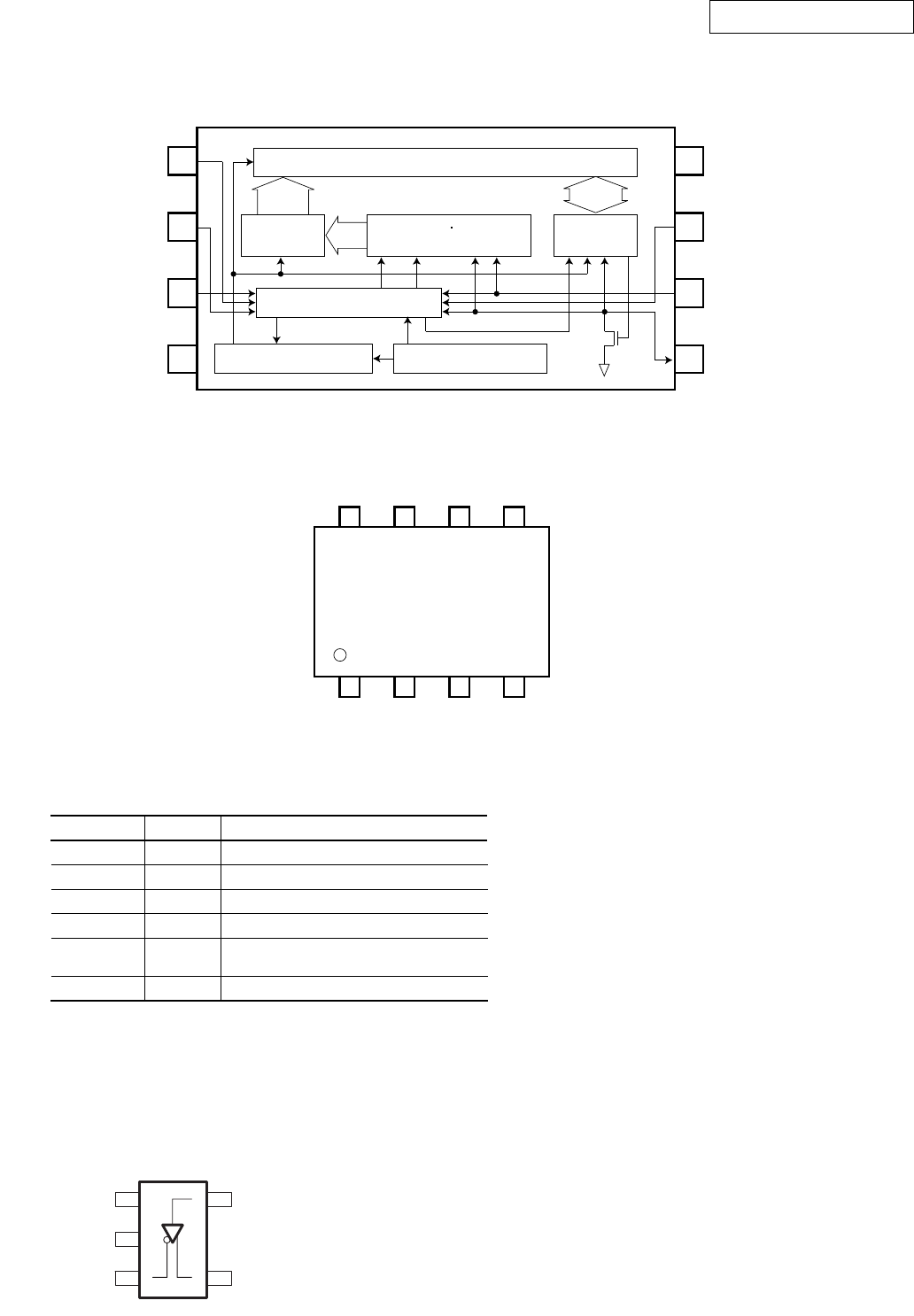

BR24L02F-WE2 (IC101,102,201,202) D,VIDEO P.W.B.

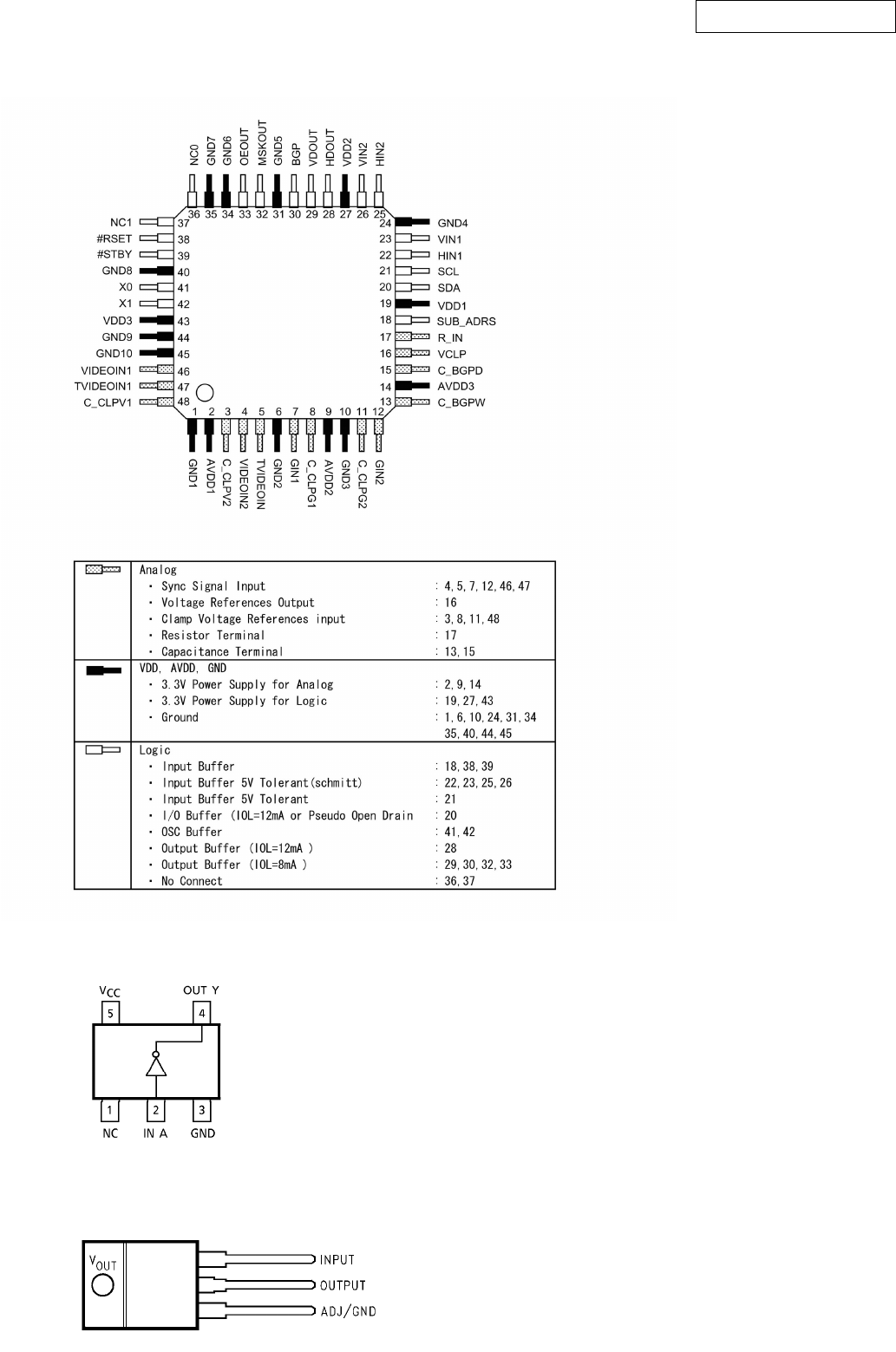

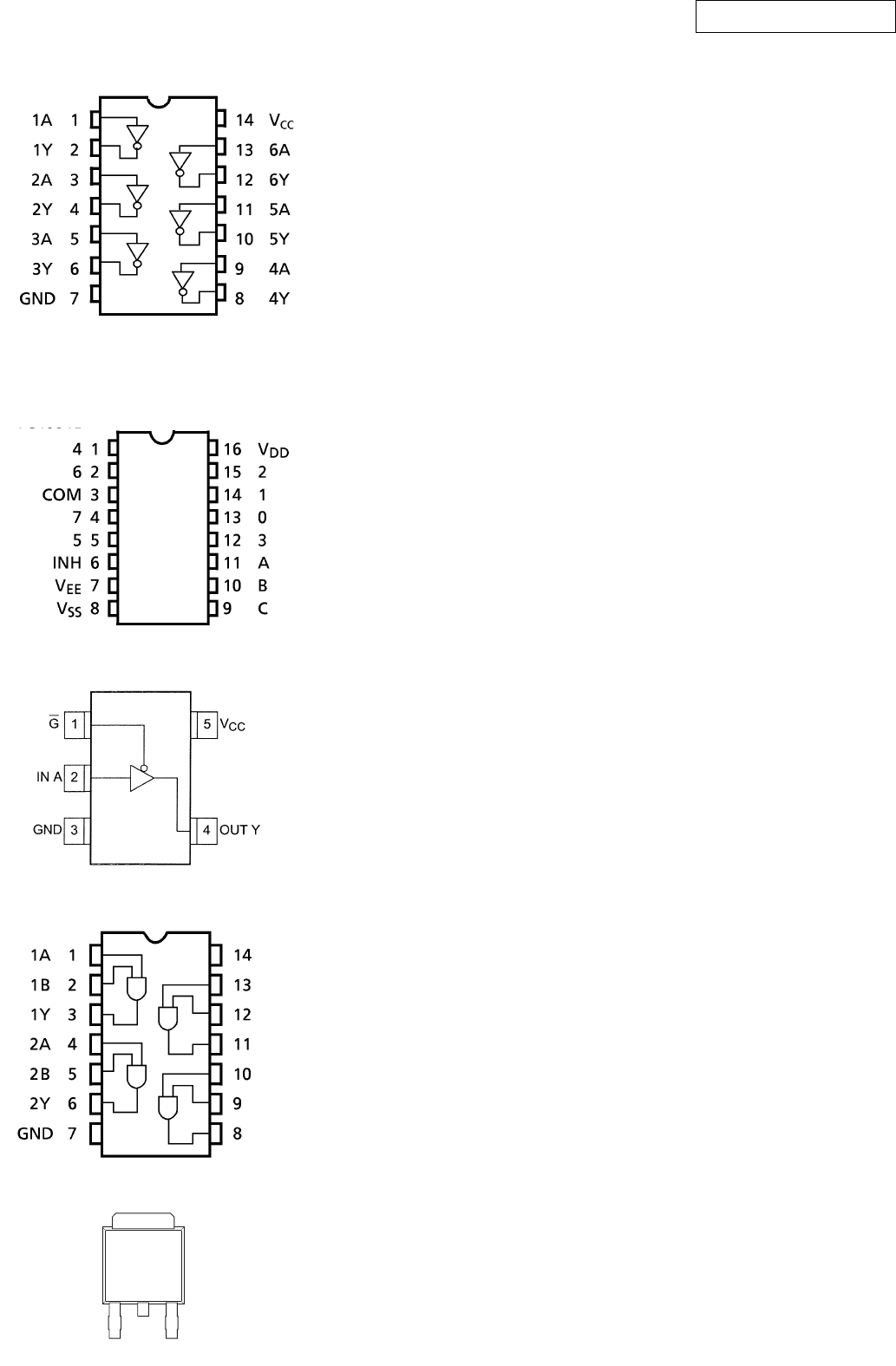

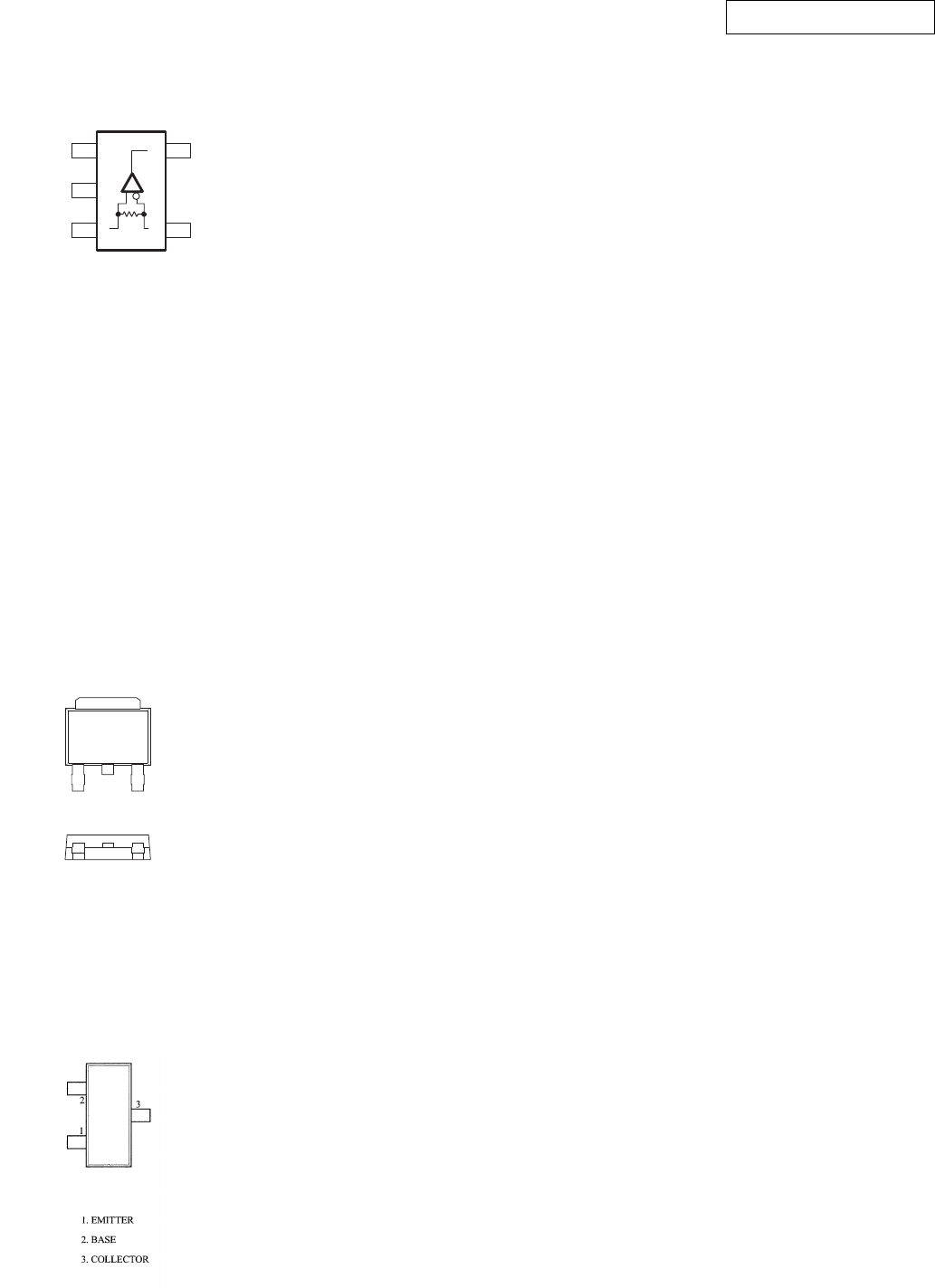

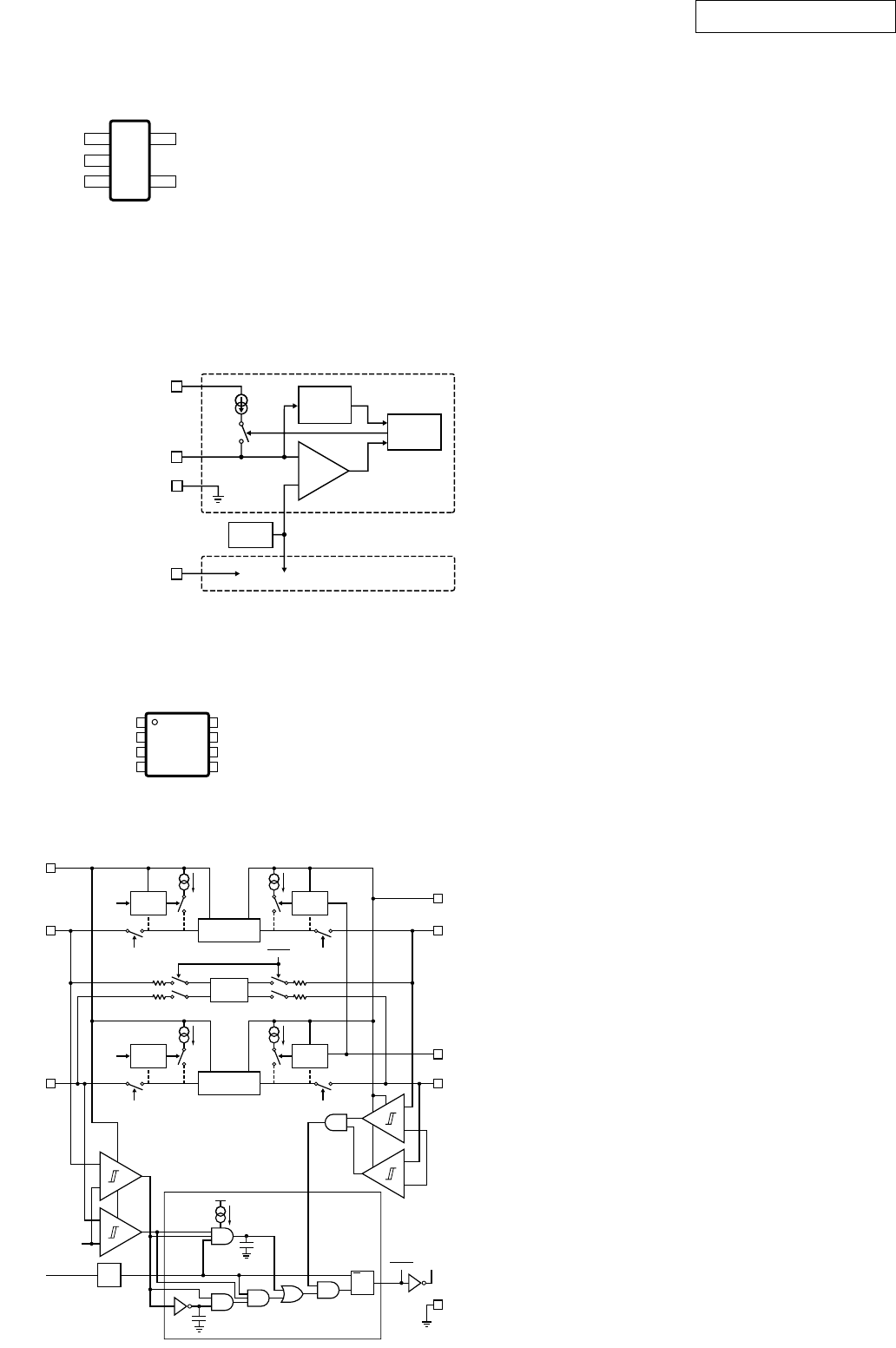

SN65LVDS1DBVR (IC102) AD P.W.B.

SN65LVDS1DBVR (IC108) D.VIDEO P.W.B.

SN65LVDS1DBVR (IC402) DIGITAL P.W.B

Block diagram

A1 2

A2 3

GND 4

WP7

6 SCL

SDA5

2kbit EEPROM array

Control logic

High voltage generator Vcc level detect

8bit

ACK

STOPSTART

Address

decoder

Slave word

address register

8bits Data

Pin configuration

SCL

SDA

GND

1234

5678

Pin name

Write protect input

Power supply

Function

Ground (0V)

Slave address set

Serial clock input

SDA

A0, A1, A2

Pin name

GND

SCL

I / O

IN / OUT

Slave and word address,

serial data input, serial data output

1 An open drain output requires a pull-up resistor.

(TOP VIEW)

VCC

GND

AVR-5805/AVC-A1XV

SII9031 (IC103,203) D.VIDEO P.W.B.

Functional Block Diagram

AVR-5805/AVC-A1XV

LC89057W-VF4-E (IC103-110) DIGITAL P.W.B.

LC89057W-VF4-E Terminal Function

RERR

SLRCK

SDIN

LC89057W-VF4-E

DGND

XMODE

TMCK/ PIO0

DVDD

TLRCK/PIO2

TBCK/PIO1

TXO/PIOE

TDATA/PIO3

INT

CKST

AUDIO/VO

33 32 31

DVDD

XIN

EMPHA/UO

DGND

28 27

DVDD

DGND

XOUT

XMCK

RDATA

SBCK

DVDD

RLRCK

RBCK

DGND

AGND

RMCK

LPF

AVDD

710

912

*: Pull-down resistor internal

RXOUT

* RX0

RX1

* RX2

* RX3

DGND

DVDD

* RX4

* RX5/VI

* RX6/UI

DVDD

DGND

No. Pin I/O Function

1 RXOUT O Input bi-phase selection data output pin

2RX0I

5TTL-compatible digital data input pin

3 RX1 I Coaxial-compatible digital data input pin with built-in amplifier

4RX2I

5TTL-compatible digital data input pin

5RX3I

5TTL-compatible digital data input pin

6 DGND Digital GND

7 DVDD Digital power supply

8RX4I

5TTL-compatible digital data input pin

9RX5/VII

5TTL-compatible digital data || Validity flag input pin for modulation

10 RX6/UI I5TTL-compatible digital data || User data input pin for modulation

11 DVDD PLL digital power supply

12 DGND PLL digital GND

13 LPF O PLL loop filter connection pin

14 ACDD PLL analog power supply

15 AGND PLL analog GND

16 RMCK O R system clock output pin (256fs, 512fs, XIN, VCO)

17 RBCK O/I R bit clock input/output pin (64fs)

18 DGND Digital GND

19 DVDD Digital power supply

20 RLRCK O/I R LR clock input/output pin (fs)

21 RDATA O Serial audio data input pin

22 SBCK O S bit clock output pin (32fs, 64fs, 128fs)

23 SLRCK O S LR clock output pin (fs/2, fs, 2fs)

24 SDIN I5Serial audio data input pin

25 DGND Digital GND

26 DVDD Digital power supply

27 XMCK O Oscillation amplifier output pin

28 XOUT O Crystal resonator connection output pin

29 XIN I Crystal resonator connection, external supply clock input pin (24.576 MHz or 12.288 MHz)

30 DVDD Digital power supply

31 DGND Digital GND

32 EMPHA/UO I/O Emphasis information || U data output || Chip address setting pin

33 AUDIO/VO I/O Non-PCM output || V flag output || Chip address setting pin

34 CKST I/O Clock switch transition period signal || Demodulation master or slave function switch pin

35 INT I/O Microcontroller interrupt output || Modulation or general-purpose I/O switch pin

36 RERR O PLL clock error, data error flag output

37 DO O Microcontroller I/F read data output pin (3-state)

38 DI I5Microcontroller I/F write data input pin

39 CE I5Microcontroller I/F chip enable input pin

40 CL I5Microcontroller I/F clock input pin

41 XMODE I5System reset input pin

42 DGND Digital GND

43 DVDD Digital power supply

44 TMCK/PIO0 I/O Modulation 256fs system clock input || General-purpose I/O input/output pin

45 TMCK/PIO1 I/O Modulation 64fs bit clock input || General-purpose I/O input/output pin

46 TLRCK/PIO2 I/O Modulation fs clock input || General-purpose I/O input/output pin

47 TLRCK/PIO3 I/O Modulation serial audio data input || General-purpose I/O input/output pin

48 TXO/PIOEN O/I Modulation data output || General-purpose I/O enable input pin

AVR-5805/AVC-A1XV

LC89057W-VF4-E BLOCK DIAGRAM

XMCKXIN XOUT

XMODECICECLINTAUDIO/ VOEMPHA/UO

RXOUT

CKST

1/N

PLL

RX0

RX1

RX2

RX3

RX4

RX5/VI

TBCK/PIO1

TMCK/PIO0

RMCK

RBCK

SDIN

RDATA

RERR

LPF

RX6/UI

32 35 48 39 38 41

29 28 27 34

TXO/PIOEN

TDATA/PIO3

TLRCK/PIO2

RLRCK

SBCK

SLRCK

Input

Selector

Demodulation

Lock detect

Microcontroller

I/F

Data

Selector

Cbit, Ubit

Clock

Selector

Modulation

Parallel Port

AVR-5805/AVC-A1XV

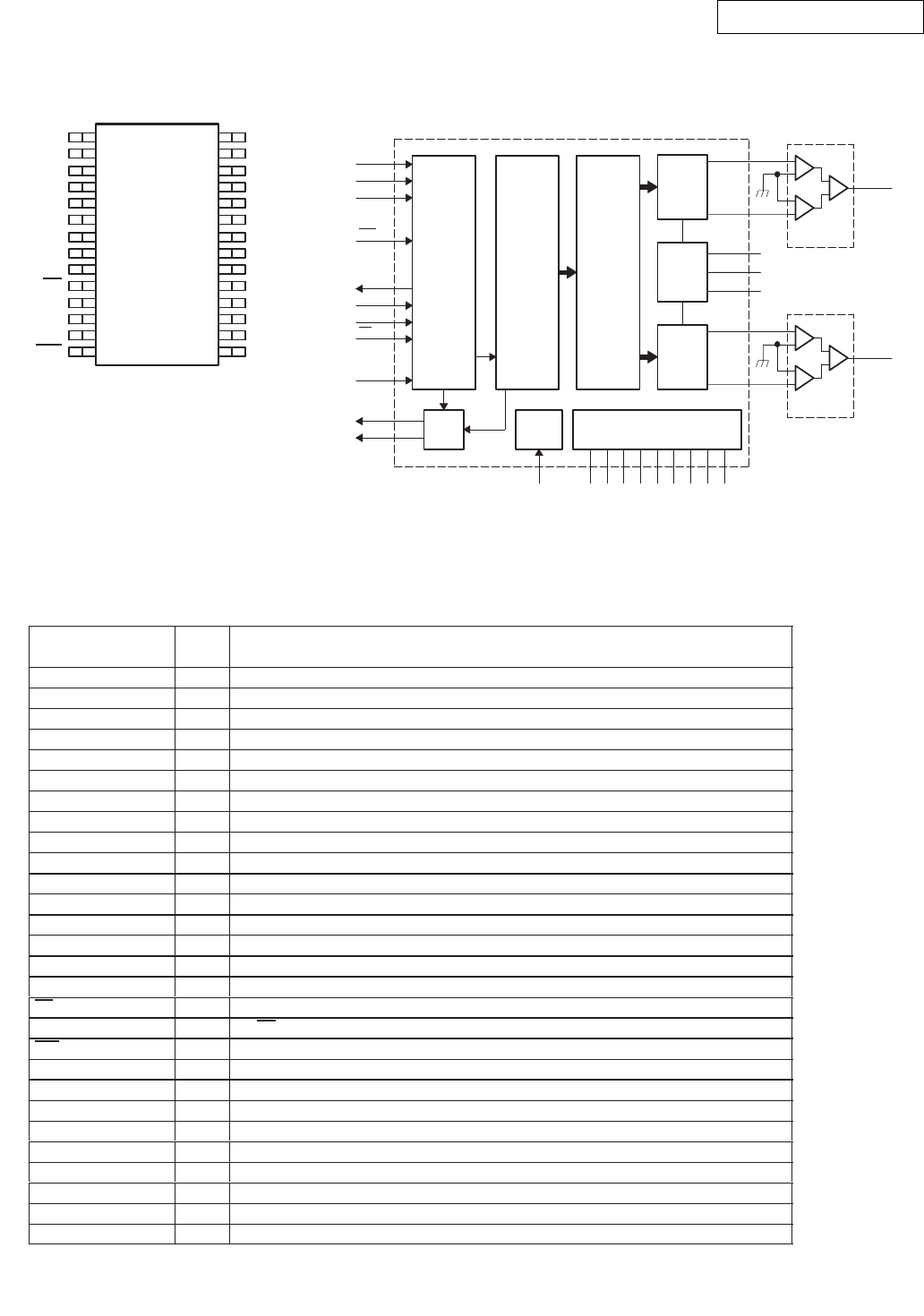

PCM1792DBR (IC201-204,401,402,501,502) DAC P.W.B.

ZEROL

ZEROR

MSEL

LRCK

DATA

BCK

SCK

DGND

VDD

MDI

MDO

RST

VCC2L

AGND3L

IOUTL−

IOUTL+

AGND2

VCC1

VCOML

VCOMR

IREF

AGND1

IOUTR−

IOUTR+

AGND3R

VCC2R

(TOP VIEW)

FUNCTIONAL BLOCK DIAGRAM

Power Supply

RST

SCK

Advanced

Segment

DAC

Modulator

IOUTL+

IOUTL−

IOUTR−

Current

Segment

DAC

IOUTR+

Bias

and

Vref

VCOML

VCOMR

AGND2

VDD

VCC1

VCC2L

VCC2R

AGND1

I/V and Filter

Oversampling

Digital

Filter

and

Function

Control

Audio

Data Input

I/F

LRCK

BCK

DATA

MDO

MDI

AGND3L

AGND3R

DGND

Current

Segment

DAC

IREF

VOUT

I/V and Filter

VOUT

Function

Control

I/F

MSEL

Zero

Detect

ZEROL

ZEROR

System

Clock

Manager

Terminal Functions

TERMINAL

I/O

DESCRIPTIONS

NAME PIN I/O DESCRIPTIONS

AGND1 19 −Analog ground (internal bias)

AGND2 24 −Analog ground (internal bias)

AGND3L 27 −Analog ground (L-channel DACFF)

AGND3R 16 −Analog ground (R-channel DACFF)

BCK 6 I Bit clock input(1)

DATA 5 I Serial audio data input for normal operation(1)

DGND 8−Digital ground

IOUTL+ 25 OL-channel analog current output+

IOUTL– 26 OL-channel analog current output–

IOUTR+ 17 OR-channel analog current output+

IOUTR– 18 OR-channel analog current output–

IREF 20 −Output current reference bias pin

LRCK 4 I Left and right clock (fS) input for normal operation(1)

MC 12 IMode control clock input(1)

MDI 11 IMode control data input(1)

MDO 13 I/O Mode control readback data output(3)

MS 10 I/O Mode control chip-select input(2)

MSEL 3 I I2C/SPI select(1)

RST 14 IReset(1)

SCK 7 I System clock input(1)

VCC123 −Analog power supply, 5 V

VCC2L 28 −Analog power supply (L-channel DACFF), 5 V

VCC2R 15 −Analog power supply (R-channel DACFF), 5 V

VCOML22 −L-channel internal bias decoupling pin

VCOMR21 −R-channel internal bias decoupling pin

VDD 9−Digital power supply, 3.3 V

ZEROL 1I/O Zero flag for L-channel(2)

ZEROR 2I/O Zero flag for R-channel(2)

(1) Schmitt-trigger input, 5-V tolerant

(2) Schmitt-trigger input and output. 5-V tolerant input and CMOS output

(3) Schmitt-trigger input and output. 5-V tolerant input. In I2C mode, this pin becomes an open-drain 3-state output; otherwise, this pin is a CMOS

output.

AVR-5805/AVC-A1XV

DM1000 (IC201) 1394 P.W.B.

100

101

102

DM1000

IEEE1394 a/b

Interface Processor

128-pin QFP

SWMATRIX[6] *)

SWMATRIX[5] *)

SWMATRIX[4] *)

SWMATRIX[3] *)

AV2CLK

AV2CTRL[1] / NCS2

VSSIO

AV2CTRL[0] / A[20]

VDDIO

AV2DATA[7]

VSS

AV2DATA[6]

VDD

AV2DATA[5]

AV2DATA[4]

AV2DATA[3]

AV2DATA[2]

AV2DATA[1]

AV2DATA[0]

AV1CLK

AV1CTRL[1]

AV1CTRL[0]

VSS

VDD

AV1DATA[7]

VDDIO

AV1DATA[6]

VSSIO

AV1DATA[5]

AV1DATA[4]

AV1DATA[3]

AV1DATA[2]

AV1DATA[1]

AV1DATA[0]

NTEST1

NRESET

TEST2

PINT

NWE

NOE

NCS0

VSS

NCS1

VDD

A[10]

A[11]

VSSIO

VDDIO

A[12]

VSS

A[13]

VDD

A[14]

A[15]

A[16]

A[17]

*) SWMATRIX[0]

*) SWMATRIX[1]

*) SWMATRIX[2]

VSS

EXTCLK

VDD

VCOIN

VSSIO

PDOUT

VDDIO

*) SWMATRIX[8]

*) SWMATRIX[7]

113

104

105

106

107

108

109

110

111

112

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

103

A[0]

A[1]

VSSIO

VDDIO

A[2]

A[3]

A[4]

A[5]

A[6]

A[7]

A[8]

A[9]

D[13]

D[14]

D[15]

D[0]

D[1]

D[2]

D[3]

D[4]

D[5]

D[6]

D[7]

D[8]

D[9]

D[10]

VSS

D[11]

VDD

D[12]

VDDIO

VSSIO

PHYCLK

VSS

PHYD[7]

VDD

PHYD[6]

PHYD[5]

PHYD[4]

VSSIO

PHYD[3]

VDDIO

PHYD[2]

PHYD[1]

VSS

PHYD[0]

VDD

TEST3

LINKCLK

VSSIO

CTRL[1]

CTRL[0]

LREQ

VDDIO

LPS

VSSIO

LINKON

A[18]

A[19]

*) refer to chapter 4 fo r th e Switch-M atrix descrip tio n

Pin Assignment by Pin Number

Pi n Nam e Pi n Nam e Pi n Nam e Pi n Nam e

1 SWM ATRIX[6] *) 33 AV1DATA[1] 65 D[0] 97 A[4]

2 SWM ATRIX[5] *) 34 AV1DATA[7] 66 D[1] 98 A[5]

3 SWM ATRIX[4] *) 35 NTEST1 67 D[2] 99 A[ 6]

4 SWM ATRIX[3] *) 36 NRESET 68 D[3] 100 A[7]

5 AV2CLK 37 TEST2 69 D[4] 101 A[8]

6 AV2CTRL[1] / NCS[2] 38 PINT 70 D[5] 102 A[9]

7 VSSIO 39 VDDIO 71 D[6] 103 A[ 10]

8 AV2CTRL[0] / A[20] 40 LPS 72 D[7] 104 A[ 11]

9 VDDIO 41 VSSIO 73 D[8] 105 VSSIO

10 AV2DATA[7] 42 LINKON 74 D[9] 106 VDDIO

11 VSS 43 PHYCLK 75 D[10] 107 A[ 12]

12 AV2DATA[6] 44 VSS 76 VSS 108 VSS

13 VDD 45 PHYD[7] 77 D[11] 109 A[ 13]

14 AV2DATA[5] 46 VDD 78 VDD 11 0 VDD

15 AV2DATA[4] 47 PHYD[6] 79 D[12] 111 A[ 14]

16 AV2DATA[3] 48 PHYD[5] 80 VDDIO 11 2 A[ 15]

17 AV2DATA[2] 49 PHYD[4] 81 VSSIO 11 3 A[16]

18 AV2DATA[1] 50 VSSIO 82 D[13] 11 4 A[ 17]

19 AV2DATA[0] 51 PHYD[3] 83 D[14] 11 5 A[ 18]

20 AV1CLK 52 VDDIO 84 D[15] 11 6 A[19]

21 AV1CTRL[1] 53 PHYD[2] 85 NWE 11 7 SWMATRIX[0] *)

22 VSS 54 PHYD[1] 86 NOE 11 8 VSS

23 AV1CTRL[0] 55 VSS 87 NCS[0] 119 EXTCLK

24 VDD 56 PHYD[0] 88 VSS 120 VDD

25 AV1DATA[7] 57 VDD 89 NCS[1] 121 VCOIN

26 VDDIO 58 TEST3 90 VDD 122 VSSIO

27 AV1DATA[6] 59 LINKCLK 91 A[ 0] 123 PDOUT

28 VSSIO 60 VSSIO 92 A[ 1] 124 VDDIO

29 AV1DATA[5] 61 CTRL[1] 93 VSSIO 125 SWM ATRIX[1] *)

30 AV1DATA[4] 62 CTRL[0] 94 VDDIO 126 SWM ATRIX[2] *)

31 AV1DATA[3] 63 LREQ 95 A[2] 127 SWMATRIX[8] *)

32 AV1DATA[2] 64 VDDIO 96 A[3] 128 SWM ATRIX[7] *)

AVR-5805/AVC-A1XV

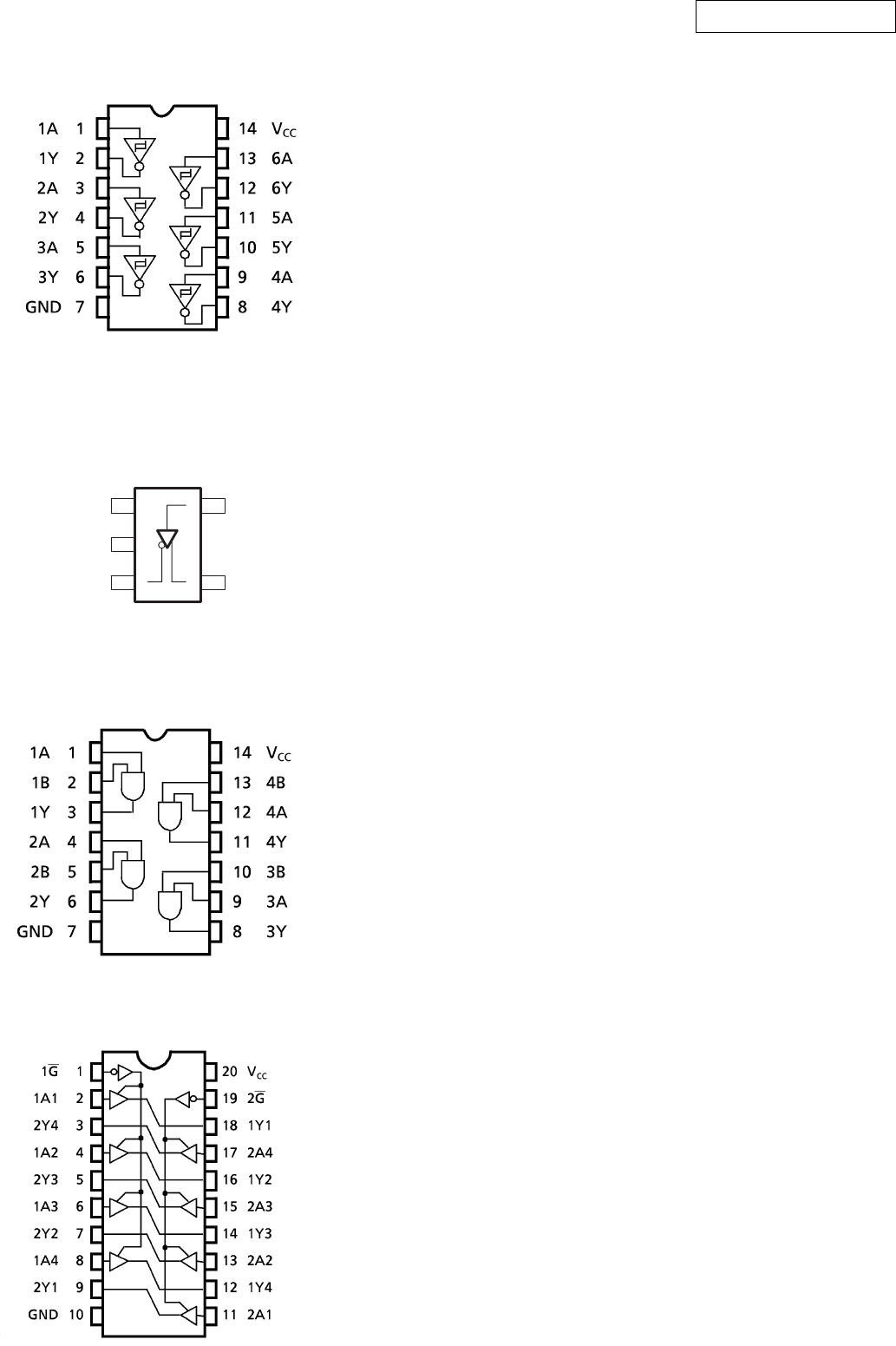

TC74VHC14FT (IC104,114) AD P.W.B.

SN65LVDS1DBVR (IC108) D.VIDEO P.W.B.

(IC102) AD P.W.B.

(IC402) DIGITAL P.W.B.

TC74VHC08FT (IC111) DIGITAL P.W.B.

(IC319,321) AD P.W.B.

TC74VHC244FT (IC112,304-307,403,406,408,603,906) DIGITAL P.W.B.

(TOP VIEW)

VCC

GND

AVR-5805/AVC-A1XV

TC74VHC04FT (IC113) DIGITAL P.W.B.

TC4051BFT (IC121-123,125-127,129-131) A.VIDEO P.W.B.

TC4052BFT (IC116-119,810,811) A.VIDEO P.W.B.

TC4051BFT (IC112-115,124,128,132) A.VIDEO P.W.B.

TC7SZ125F (IC308) DIGITAL P.W.B.

TC74VHCT08AFT (IC306) D.VIDEO P.W.B.

KIA7912F-RTF (IC303,508) DIGITAL P.W.B.

123

1. GND

2. INPUT

3. OUTPUT

AVR-5805/AVC-A1XV

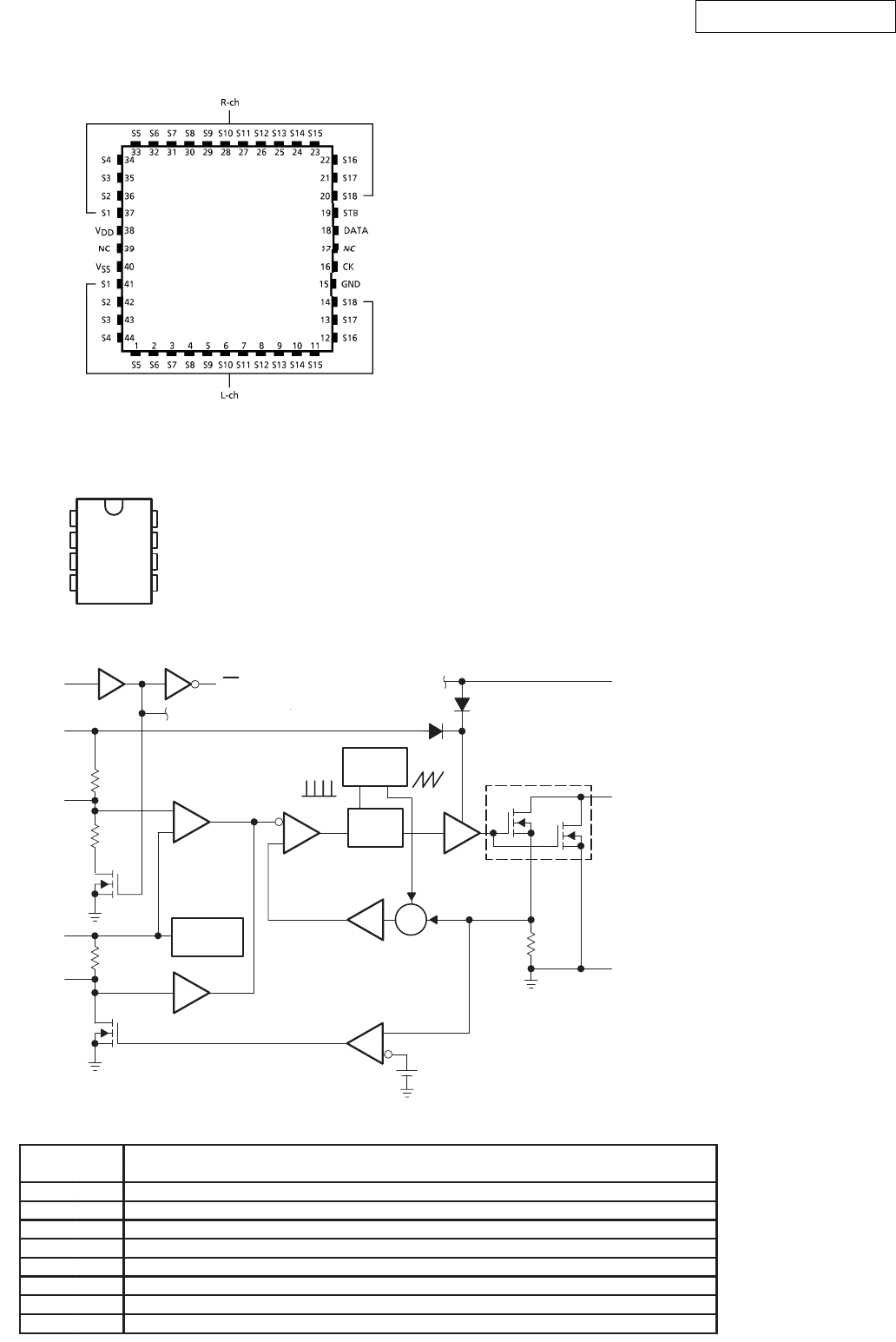

TC9274F-022 (IC120,213,214,401,402) AUDIO P.W.B.

TPS6734IDR (IC301) DIGITAL P.W.B.

REF

COMP

OUT

GND

functional block diagram

COMP

Voltage

Reference

x3.5

Clamp

Error

Amplifier PWM

Comparator

170-kHz

Oscillator

VCC

Power Switch

Drive Latch

REF

Current

Sense Amplifier

Overcurrent

Comparator

Driver

VCC

OUT

GND

1 MΩ

–

Terminal Functions

TERMINAL

DESCRIPTION

NAME NO.

DESCRIPTION

EN 1 Enable. EN ≥2 V turns on the TPS6734. EN ≤ 0.4 V turns it off and reduces the supply current to 3 µA max.

REF 21.22-V reference voltage output. REF can source 100 µA for external loads.

SS 3 Soft Start. A capacitor between SS and GND brings the output voltage up slowly at power-up.

COMP 4 Compensation connection. A 0.001-µF capacitor between COMP and FB stabilizes the feedback loop.

GND 5 Ground

OUT 6 N-channel MOSFET drain connection

FB 7Feedback voltage. FB is connected to the converter output for the feedback loop.

VCC 8Supply voltage input

AVR-5805/AVC-A1XV

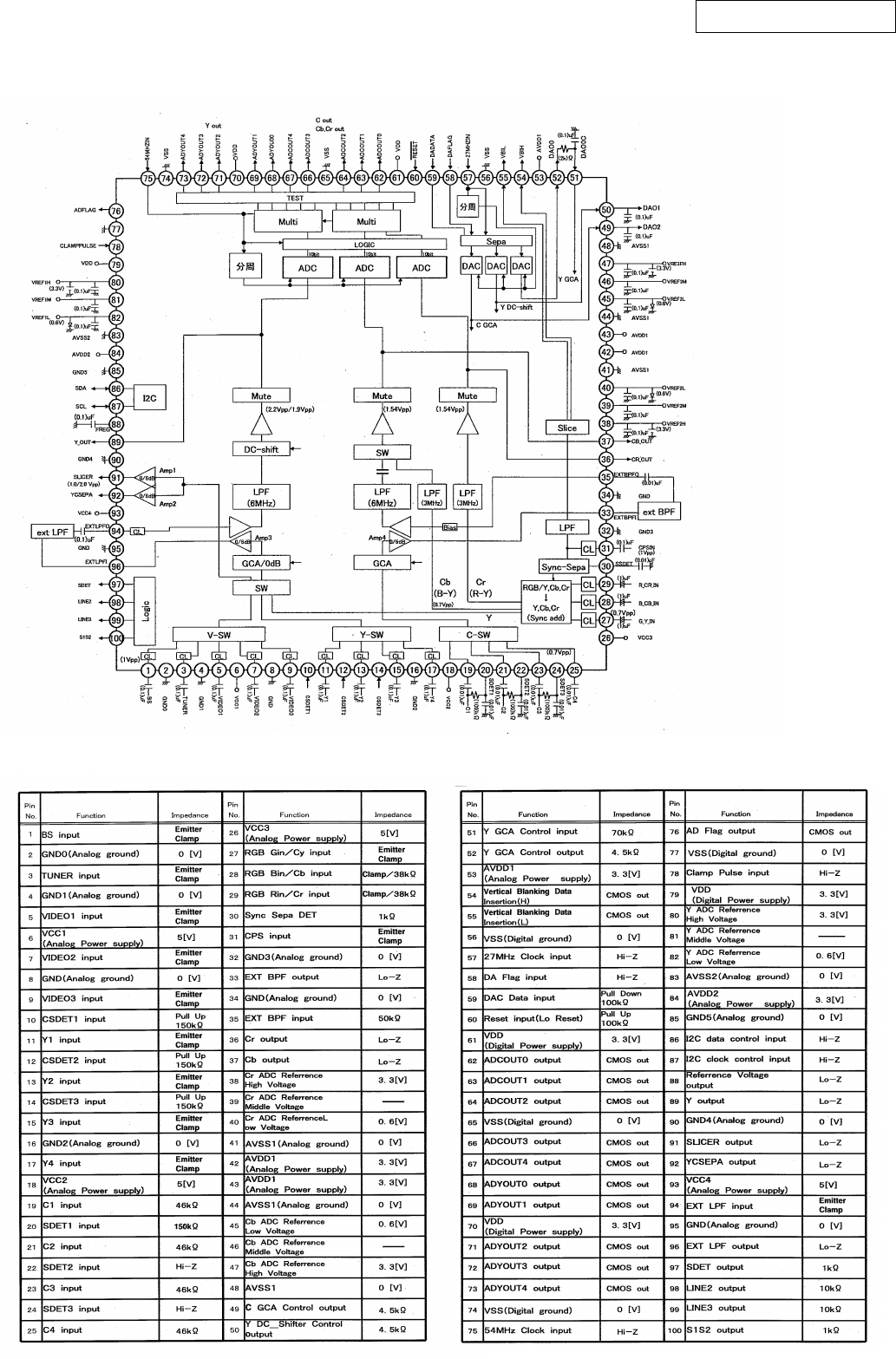

AN13310BA (IC406) D.VIDEO P.W.B.

AN13310BA Terminal Function

AVR-5805/AVC-A1XV

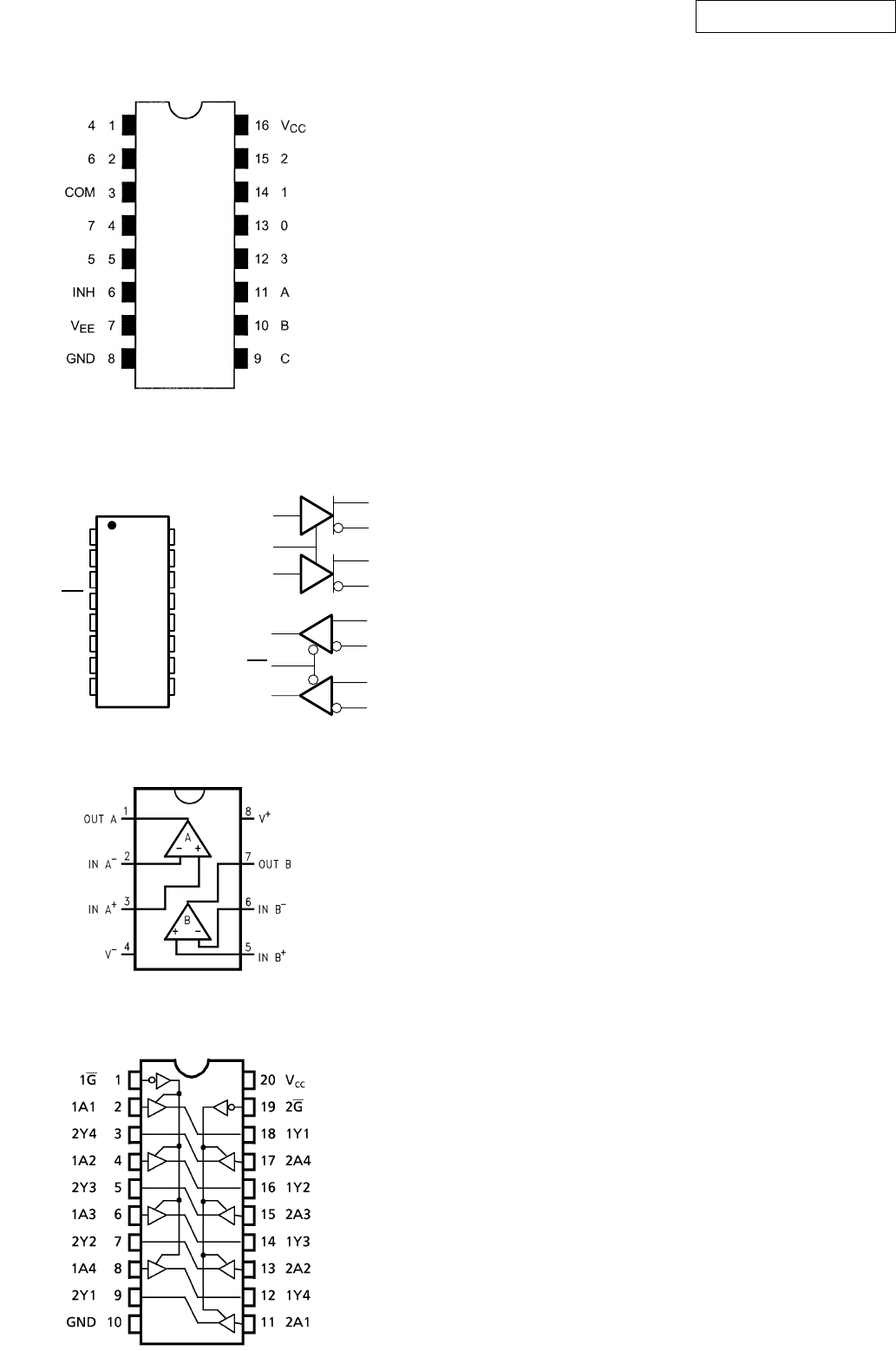

TC74LVX4051FT (IC401,408) 1394 P.W.B.

SN65LVDS050PWR(IC401) DIGITAL P.W.B.

(IC908) D.VIDEO P.W.B.

LMC6772AIM (IC403) 1394 P.W.B.

TC74VHCT244AFT (IC405,407) DIGITAL P.W.B.

(IC907) D.VIDEO P.W.B.

1D 1Y

1R 1A

GND

(TOP VIEW)

AVR-5805/AVC-A1XV

MN673747HL (IC410) D.VIDEO P.W.B.

MN673747HL Terminal Function

No. Symbol I/O Function

1 FIELD O Field discrimination signal output terminal

2 VDD3 - 3.3V

3 VSS - GND

4 APCE O Phase error 2fsc output terminal

5 GCP O Clamp Plus output (Sync-Tip)

6 DAOUT O DAC data output terminal

7 DAFLG O DAC select control terminal

8 VDD - 1.5V

9 VDD3 - 3.3V

10 YIN0 I Y/CPS ADC input terminal (LSB)

11 YIN1 I Y/CPS ADC input terminal

12 YIN2 I Y/CPS ADC input terminal

13 YIN3 I Y/CPS ADC input terminal

14 YIN4 I Y/CPS ADC input terminal (MSB)

15 VSS - GND

16 VDD3 - 3.3V

17 CIN0 I C/Cr/Cb ADC input terminal (LSB）

18 CIN1 I C/Cr/Cb ADC input terminal

19 CIN2 I C/Cr/Cb ADC input terminal

20 CIN3 I C/Cr/Cb ADC input terminal

21 CIN4 I C/Cr/Cb ADC input terminal (MSB）

22 VDD - 1.5V

23 N.C. - Non-Connect

24 CLK54I I ADC clock input terminal

25 VSS - GND

26 CLK54O O ADC clock input terminal

27 VDD3 - 3.3V

28 ADFLG I ADC control

29 VBIH I VBI Input terminal(Data)

30 VBIL I VBI Input terminal (Sync.)

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

CSYNC

VSS

CLK27I

VDD

R656IN0

R656IN1

R656IN2

R656IN3

R656IN4

R656IN5

R656IN6

R656IN7

VDD3

VSS

CLK27O

VSS

R656OUT0

R656OUT1

R656OUT2

R656OUT3

VDD3

VSS

N.C.

R656OUT4

R656OUT5

R656OUT6

R656OUT7

VDD3

RST

VSS

CLK27XI

CLK27XO

VDD3

VDD

M0AD0

M0AD1

VSS

M0AD2

M0AD3

VDD3

VSS

M0AD4

M0AD5

VSS

FIELD

M0AD6

132

VDD3

M0AD7

131

VSS

VDD3

130

APCE

M0AD8

129

GCP

M0AD9

128

DAOUT

VSS

127

DAFLG

M0AP

126

VDD

M0BA

125

VDD3

124

YIN0

VDD

123

YIN1

M0DT0

122

YIN2

M0DT1

121

YIN3

VSS

120

YIN4

M0DT2

119

VSS

M0DT3

118

VDD3

117

CIN0

M0DT4

116

CIN1

M0DT5

115

CIN2

VSS

114

CIN3

M0DT6

113

CIN4

M0DT7

112

VDD

111

N.C.

VDD3

110

CLK54I

VSS

109

VSS

M0DT8

108

CLK54O

M0DT9

107

VDD3

VSS

106

ADFLG

M0DT10

105

VBIH

M0DT11

104

VBIL

VDD3

103

SDARST

M0DT12

102

SDA

M0DT13

101

VSS

100

MICOMSEL1

M0DT14

MICOMSEL

M0DT15

MICOMMOD

VDD

MICOMRWW

VDD3

MICOMRWR

SDRCLKIN

VDD3

VSS

MCSALE

SDRCLK

M䌎RE

SDRPOWUP

M䌎WEN B W

VDD3

MAD6

M0WE

MAD5

M0CAS

VSS

MAD4

MAD3

MAD2

MAD1

MAD0

VDD3

VDD

MDA15

MDA14

MDA13

MDA12

VSS

MDA11

MDA10

MDA9

MDA8

VDD3

VSS

MDA7

MDA6

N.C.

MDA5

MDA4

VSS

MDA3

MDA2

MDA1

MDA0

AVSS

TCPOUT

AVDD

MINTEST

SCANEN

TST2

TST1

TST0

VDD3

M0CS

M0RAS

VSS

VDD

MN673747HL

LQFP176-P-2424B

AVR-5805/AVC-A1XV

31 SDARST I I2C reset signal input terminal(Not used VSS)

32 SDA I/O I2C data in/output terminal (Not used VSS)

33 VSS - GND

34 MICOMSEL1 I μcom I/F select input terminal

35 MICOMSEL I μcom I/F select input terminal

36 MICOMMOD I μcom mode select input terminal

37 MICOMRWW O μcom encroachingus(WRITE)synchronous signal output terminal

38 MICOMRWR O μcom encroachingus(READ)synchronous signal output terminal

39 VDD3 - 3.3V

40 MCSALE I μcom I/F chip select input terminal

41 MNRE I μcom I/F read input terminal

42 MNWENBW I μcom I/F write input terminal

43 MAD6 I μcom I/F data/address input terminal (MSB)

44 MAD5 I μcom I/F data/address input terminal

45 VSS - GND

46 MAD4 I μcom I/F data/address input terminal

47 MAD3 I μcom I/F data/address input terminal

48 MAD2 I μcom I/F data/address input terminal

49 MAD1 I μcom I/F data/address input terminal

50 MAD0 I μcom I/F data/address input terminal (LSB)

51 VDD3 - 3.3V

52 VDD - 1.5V

53 MDA15 I/O μcom I/F data/address in/output terminal(MSB)

54 MDA14 I/O μcom I/F data/address in/output terminal

55 MDA13 I/O μcom I/F data/address in/output terminal

56 MDA12 I/O μcom I/F data/address in/output terminal

57 VSS - GND

58 MDA11 I/O μcom I/F data/address in/output terminal

59 MDA10 I/O μcom I/F data/address in/output terminal

60 MDA9 I/O μcom I/F data/address in/output terminal

61 MDA8 I/O μcom I/F data/address in/output terminal

62 VDD3 - 3.3V

63 VSS - GND

64 MDA7 I/O μcom I/F data/address in/output terminal

65 MDA6 I/O μcom I/F data/address in/output terminal

66 N.C. - Non-Connect

67 N.C. - Non-Connect

68 N.C. - Non-Connect

69 MDA5 I/O μcom I/F data/address in/output terminal

70 MDA4 I/O μcom I/F data/address in/output terminal

71 VSS - GND

72 MDA3 I/O μcom I/F data/address in/output terminal

73 MDA2 I/O μcom I/F data/address in/output terminal

74 MDA1 I/O μcom I/F data/address in/output terminal

75 MDA0 I/O μcom I/F data/address in/output terminal (LSB)

76 AVSS - PLL GND

77 TCPOUT I/O PLL TEST(OPEN)

78 AVDD - 3.3V PLL

79 MINTEST I Test (OPEN or VSS)

80 SCANEN I Test (OPEN or VSS)

81 TST2 I Test (OPEN or VSS)

82 TST1 I Test (OPEN or VSS)

83 TST0 I Test (OPEN or VSS)

84 VDD3 - 3.3V

85 M0CS O SDRAM CS output terminal

86 M0RAS O SDRAM RAS output terminal

87 VSS - GND

88 VDD - 1.5V

89 M0CAS O SDRAM CAS output terminal

90 M0WE O SDRAM WE output terminal

91 VDD3 - 3.3V

92 SDRPOWUP I Test (OPEN or VSS)

93 SDRCLK O SDRAM clock output terminal SDRAM

94 VSS - GND

95 SDRCLKIN I SDRAM clock input terminal

96 VDD3 - 3.3V

97 VDD - 1.5V

98 M0DT15 I/O SDRAM data in/output terminal(MSB)

99 M0DT14 I/O SDRAM data in/output terminal

100 VSS - GND

101 M0DT13 I/O SDRAM data in/output terminal

102 M0DT12 I/O SDRAM data in/output terminal

103 VDD3 - 3.3V

104 M0DT11 I/O SDRAM data in/output terminal

105 M0DT10 I/O SDRAM data in/output terminal

106 VSS - GND

107 M0DT9 I/O SDRAM data in/output terminal

No. Symbol I/O Function

AVR-5805/AVC-A1XV

108 M0DT8 I/O SDRAM data in/output terminal

109 VSS - GND

110 VDD3 - 3.3V

111 N.C. - Non-Connect

112 M0DT7 I/O SDRAM data in/output terminal

113 M0DT6 I/O SDRAM data in/output terminal

114 VSS - GND

115 M0DT5 I/O SDRAM data in/output terminal

116 M0DT4 I/O SDRAM data in/output terminal

117 VDD3 - 3.3V

118 M0DT3 I/O SDRAM data in/output terminal

119 M0DT2 I/O SDRAM data in/output terminal

120 VSS - GND

121 M0DT1 I/O SDRAM data in/output terminal

122 M0DT0 I/O SDRAM data in/output terminal (LSB)

123 VDD - 1.5V

124 VDD3 - 3.3V

125 M0BA O SDRAM address output terminal(MSB)

126 M0AP O SDRAM address output terminal

127 VSS - GND

128 M0AD9 O SDRAM address output terminal

129 M0AD8 O SDRAM address output terminal

130 VDD3 - 3.3V

131 M0AD7 O SDRAM address output terminal

132 M0AD6 O SDRAM address output terminal

133 VSS - GND

134 M0AD5 O SDRAM address output terminal

135 M0AD4 O SDRAM address output terminal

136 VSS - GND

137 VDD3 - 3.3V

138 M0AD3 O SDRAM address output terminal

139 M0AD2 O SDRAM address output terminal

140 VSS - GND

141 M0AD1 O SDRAM address output terminal

142 M0AD0 O SDRAM address output terminal(LSB)

143 VDD - 1.5V

144 VDD3 - 3.3V

145 CLK27XO - clock 27 MHz output terminal(X'tal)

146 CLK27XI - clock 27 MHz input terminal(X'tal)

147 VSS - GND

148 RST I reset input terminal

149 VDD3 - 3.3V

150 R656OUT7 O Rec.656 output terminal(MSB)

151 R656OUT6 O Rec.656 output terminal

152 R656OUT5 O Rec.656 output terminal

153 R656OUT4 O Rec.656 output terminal

154 N.C. - Non-Connect

155 VSS - GND

156 VDD3 - 3.3V

157 R656OUT3 O Rec.656 output terminal

158 R656OUT2 O Rec.656 output terminal

159 R656OUT1 O Rec.656 output terminal

160 R656OUT0 O Rec.656 output terminal(LSB)

161 VSS - GND

162 CLK27O O clock 27 MHz output terminal

163 VSS - GND

164 VDD3 - 3.3V

165 R656IN7 I Rec.656 input terminal (MSB) (Not used Open or VSS)

166 R656IN6 I Rec.656 input terminal (Not used Open or VSS)

167 R656IN5 I Rec.656 input terminal (Not used Open or VSS)

168 R656IN4 I Rec.656 input terminal (Not used Open or VSS)

169 R656IN3 I Rec.656 input terminal (Not used Open or VSS)

170 R656IN2 I Rec.656 input terminal (Not used Open or VSS)

171 R656IN1 I Rec.656 input terminal (Not used Open or VSS)

172 R656IN0 I Rec.656 input terminal (LSB) (Not used Open or VSS)

173 VDD - 1.5V

174 CLK27I I Clock 27 MHz input terminal

175 VSS - GND

176 CSYNC I/O Composite Sync. in/output terminal

No. Symbol I/O Function

AVR-5805/AVC-A1XV

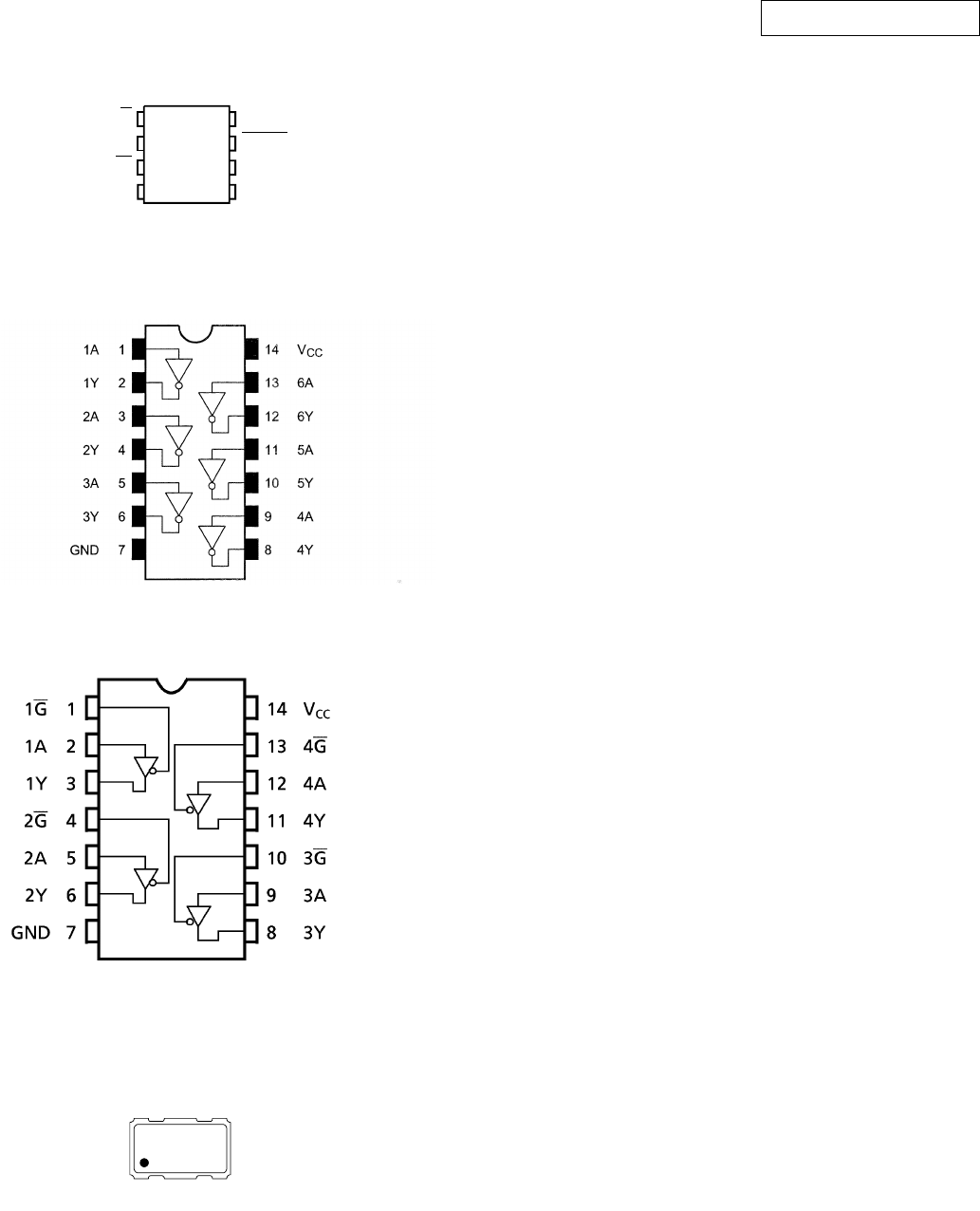

M95128-WMN6T (IC410) DIGITAL P.W.B.

TC74VCX04FT (IC411) D.VIDEO P.W.B.

TC74VHC125FT (IC412,413) DIGITAL P.W.B.

FCXO-03L(27.000MHz) (IC412) D.VIDEO P.W.B.

FCXO-03L(27.5792MHz) (IC420) 1394 P.W.B.

DVSS

HOLDQ

AI01790D

V OUT

STANDBY GND

AVR-5805/AVC-A1XV

K4S161622H-TC60 (IC413) D.VIDEO P.W.B.

VDD

DQ0

DQ1

VSSQ

DQ2

DQ3

VDDQ

DQ4

DQ5

VSSQ

DQ6

DQ7

VDDQ

LDQM

CAS

RAS

A10/AP

VDD

PIN CONFIGURATION (TOP VIEW)

VSS

DQ15

DQ14

VSSQ

DQ13

DQ12

VDDQ

DQ11

DQ10

VSSQ

DQ9

DQ8

VDDQ

N.C/RFU

UDQM

CLK

CKE

N.C

VSS

50PIN TSOP (II)

(400mil x 825mil)

(0.8 mm PIN PITCH)

PIN FUNCTION DESCRIPTION

Pin Name Input Function

CLK System Clock Active on the positive going edge to sample all inputs.

CS Chip Select Disables or enables device operation by masking or enabling all inputs except

CLK, CKE and L(U)DQM

CKE Clock Enable

Masks system clock to freeze operation from the next clock cycle.

CKE should be enabled at least one cycle prior to new command.

Disable input buffers for power down in standby.

A0~A10/AP Address Row / column addresses are multiplexed on the same pins.

Row address : RA0~RA10, column address : CA0~CA7

BA Bank Select Address Selects bank to be activated during row address latch time.

Selects bank for read/write during column address latch time.

RAS Row Address Strobe Latches row addresses on the positive going edge of the CLK with RAS low.

Enables row access & precharge.

CAS Column Address Strobe Latches column addresses on the positive going edge of the CLK with CAS low.

Enables column access.

WE Write Enable Enables write operation and row precharge.

Latches data in starting from CAS,WEactive.

L(U)DQM Data Input/Output Mask Makes data output Hi-Z, tSHZ after the clock and masks the output.

Blocks data input when L(U)DQM active.

DQ0~15 Data Input/Output Data inputs/outputs are multiplexed on the same pins.

VDD/VSS Power Supply/Ground Power and ground for the input buffers and the core logic.

VDDQ/VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffers to provide improved noise

immunity.

N.C/RFU No Connection/

Reserved for Future Use This pin is recommended to be left No Connection on the device.

FUNCTIONAL BLOCK DIAGRAM

* Samsung Electronics reserves the right to change products or specification without notice.

Bank Select

Data Input Register

512K x 16

Sense AMP

Output BufferI/O Control

Column Decoder

Latency & Burst Length

Programming Register

Address Register

Row Buffer

Refresh Counter

Row Decoder Col. Buffer

LRAS

LCBR

LCKE

LRAS LCBR LWE LDQM

CLK CKE CS RAS CAS WE L(U)DQM

LWE

LDQM

DQi

CLK

ADD

LCAS LWCBR

Timing Register

AVR-5805/AVC-A1XV

TE8200PF (IC414) D.VIDEO P.W.B.

TC7SZU04F (IC423-426,957,958) 1394 P.W.B.

LMS1587CT-ADJ (IC502,503,505,506,508,509) REG2 P.W.B.

AVR-5805/AVC-A1XV

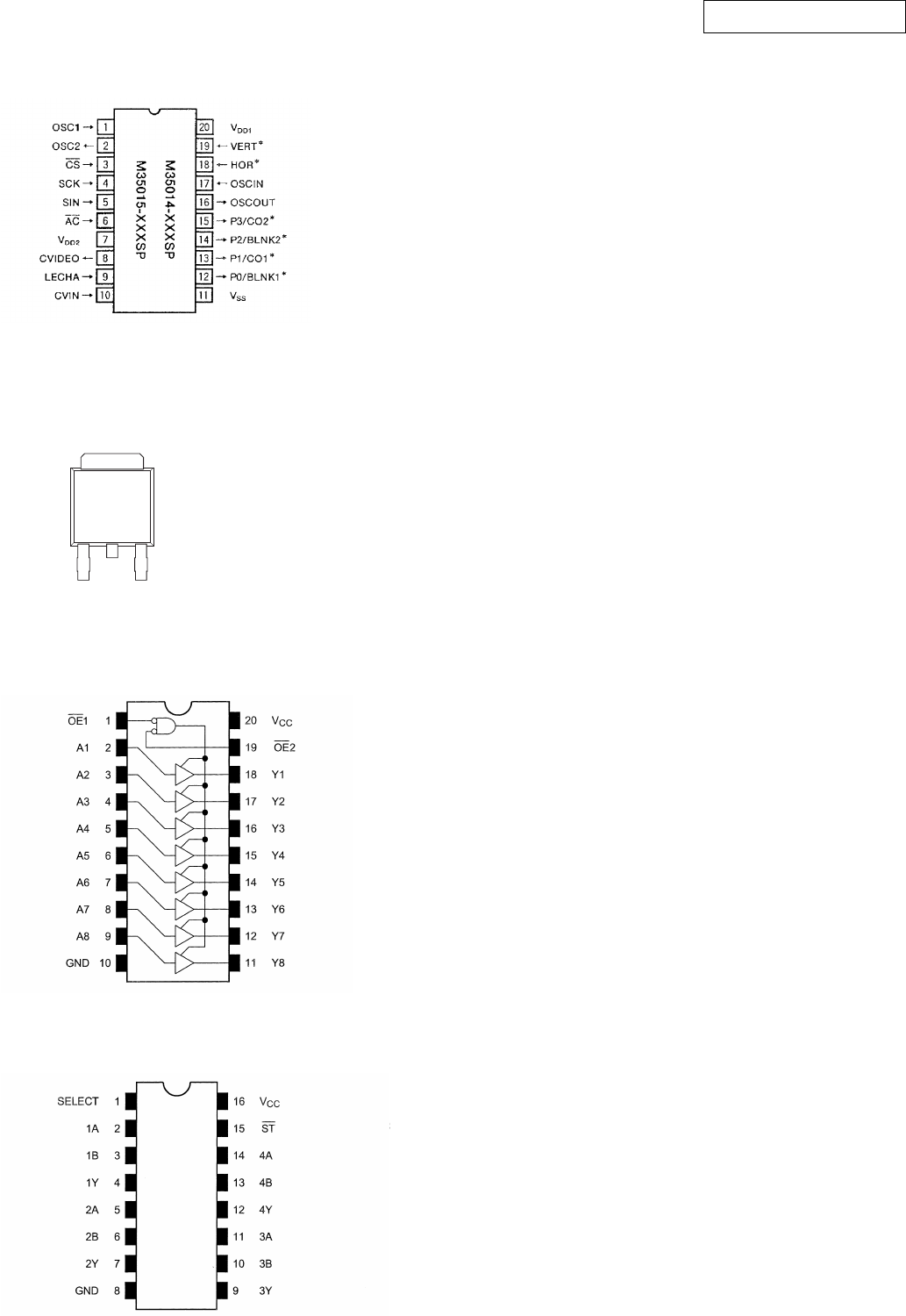

M35014 (IC503)

KIA7812AF-RTF (IC101,602)

KIA7812AF-RTF (IC302,504)

KIA7805AF (IC601)

TC74LCX541F (IC614-617) D.VIDEO P.W.B.

TC74LCX157F (IC704)

123

1. INPUT

2. COMMON

3. OUTPUT

AVR-5805/AVC-A1XV

LTC1694CS5 (IC902) D.VIDEO P.W.B.

LTC4300-2CMS8 (IC903) D.VIDEO P.W.B.

GND 2

NC 3

5 SMBus1

4 SMBus2

TOP VIEW

(Pin 1): Power Supply Input. V

can range from 2.7V

to 6V and requires a 0.1

F bypass capacitor to GND.

Supply current is typically 45

A when the SMBus or I

lines are inactive (SCL and SDA are a logic high level).

GND (Pin 2):Ground.

NC (Pin 3):No Connection.

SMBus2 (Pin 4):Active Pull-Up for SMBus.

SMBus1 (Pin 5):Active Pull-Up for SMBus.

BLOCK DIAGRA

SLEW RATE

DETECTOR

CONTROL

LOGIC

0.65V

REF

VOLTAGE

COMP

2.2mA

CHANNEL ONE

CHANNEL TWO

(DUPLICATE OF CHANNEL ONE)

1694-1 BD

SMBus1

SMBus2

GND

ENABLE/V

CC2

SCLOUT

SCLIN

GND

SDAOUT

SDAIN

READY/ACC

TOP VIEW

BLOCK DIAGRAM

100k

RCH1

100k

RCH3

0.5pF

UVLO

3SCLIN

4300-2 BD

CONNECT CONNECT

STOP BIT AND BUS IDLE

GND

20pF

0.5 A

0.55VCC /

0.45VCC

0.55V CC2 /

0.45V CC2

2mA

95 s

DELAY

BACKPLANE-TO-CARD

CONNECTION

CONNECTCONNECT

2SCLOUT

6SDAIN

8VCC

BACKPLANE-TO-CARD

CONNECTION

CONNECT CONNECT

7SDAOUT

1VCC2

5ACC

PRECHARGE

100k

RCH2

100k

RCH4

CONNECT

SLEW RATE

DECTECTOR

2mA

SLEW RATE

DECTECTOR

2mA

SLEW RATE

DECTECTOR

ACC

2mA

SLEW RATE

DECTECTOR

2-Wire Bus Buffer and Hot Swap Controller

AVR-5805/AVC-A1XV

SN65LVDS2DBVR (IC909) D.VIDEO P.W.B.

2. TR’s

KTC2025D-RTF (TR422) DIGITAL P.W.B.

KTC3911S-RTK (TR111,211,311,411,511) AMP(L) P.W.B.

(TR112,212,312,412,512) AMP(R) P.D.F.

(TR513,515-518,520,521) AD P.W.B.

(TOP VIEW)

VCC

GND

110-Ω Resistor for LVDT Only

123

1. BASE

2. COLLECTOR

3. EMITTER

AVR-5805/AVC-A1XV

3. FL DISPLAY

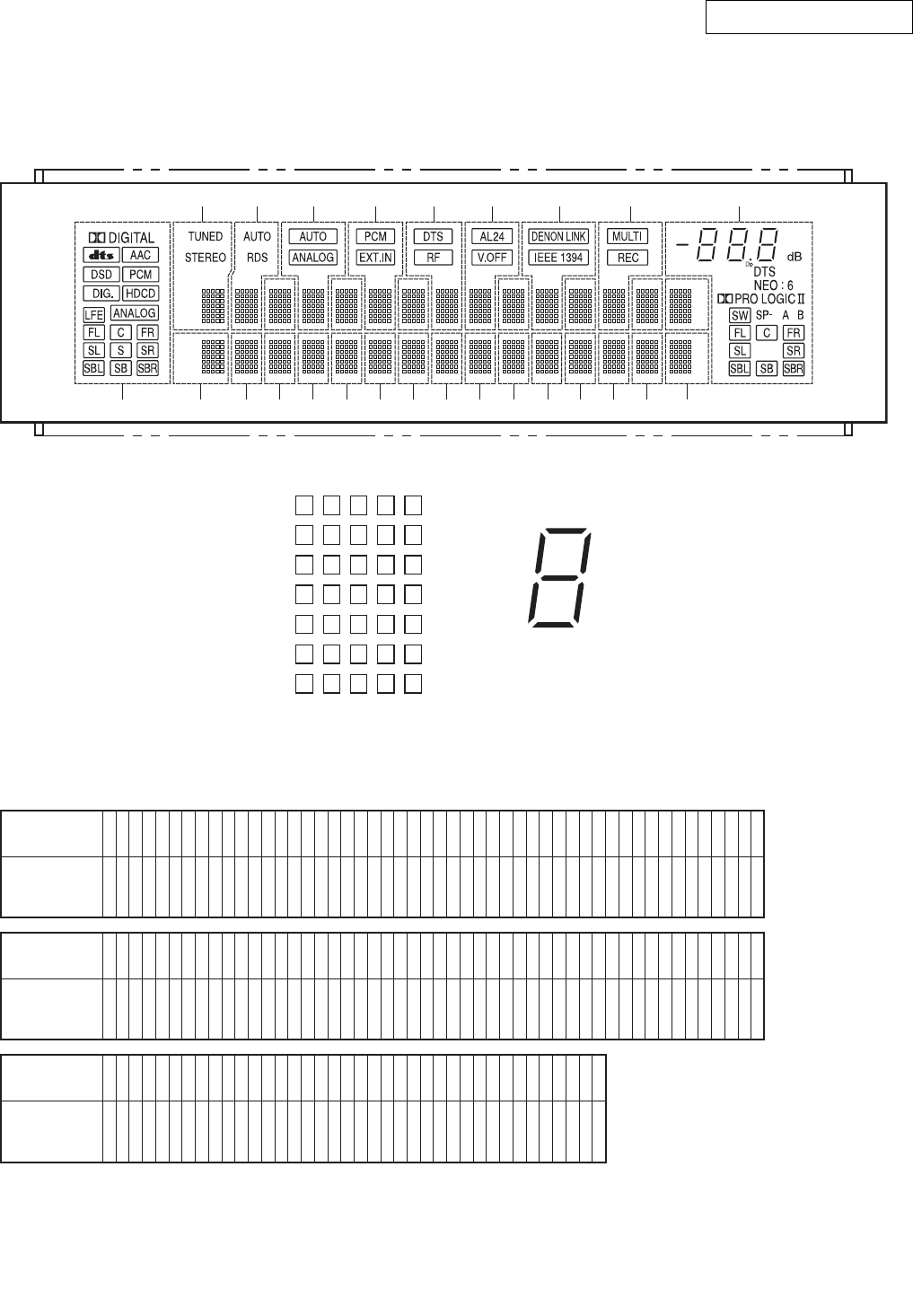

FLD(32-BT-10GN) (VI:FL701)

2GA3GA5GA7GA10GA12GA14GA

8GA 6GA 4GA 1GA

1GB2GB3GB4GB5GB6GB7GB

3a 2a 1a

16GA 15GA 13GA 11GA 9GA

8GB9GB

10GB11GB12GB13GB

1-1 2-1 3-1 4-1 5-1

1-2 2-2 3-2 4-2 5-2 a

1-3 2-3 3-3 4-3 5-3

1-4 2-4 3-4 4-4 5-4

1-5 2-5 3-5 4-5 5-5

1-6 2-6 3-6 4-6 5-6

1-7

[ 15GB ~ 1GB, 16GA ~ 2GA ]

[ 1GA ]

2-7 3-7 4-7 5-7

14GB15GB

16GB

138 70

691

Connection

NOTE 1) F1,F2 : Filament

2) NP : No pin

3) NC : No connection

(NC pin should be electrically open on the PC board)

4) DL : Datum Line

5) 1GA~16GA, 1GB~16GB : Grid

6) IC : Internal connection

(IC pin should be electrically open on the PC board)

Pin connection

Pin No.

Connection

Pin No.

Connection

Pin No.

AVR-5805/AVC-A1XV

ANODE CONNECTION

16GB

15GB 14GB 13GB 12GB 11GB 10GB 9GB 8GB 7GB

2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1

1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1

P1B

P2B

P8B

P9B

P10B

P11B

P12B

P13B

P14B

P15B

P16B

P17B

P18B

P19B

P20B

P21B

P22B

P23B

P24B

P26B

P27B

P28B

P29B

P30B

P31B

P32B

P33B

P34B

P35B

P36B

P37B

P38B

P7B

P6B

P5B

P4B

P3B 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1

4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1

5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1

2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2

1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2

3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2

4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2

5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2

2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3

1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3

3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3

4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3

5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3

2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4

1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4

3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4

4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4

5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4

2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5

1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5

3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5

4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5

P25B 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5

2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6

1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6

3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6

4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6

5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6

2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7

1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7

3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7

4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7

5-7 5-7

5-7 5-7 5-7 5-7 5-7 5-7 5-7

6GB

2-1

1-1

3-1

4-1

5-1

2-2

1-2

3-2

4-2

5-2

2-3

1-3

3-3

4-3

5-3

2-4

1-4

3-4

4-4

5-4

2-5

1-5

3-5

4-5

5-5

2-6

1-6

3-6

4-6

5-6

2-7

1-7

3-7

4-7

5-7

5GB 4GB 3GB 2GB

1-1

2-1 2-1 2-1 2-1

3-1 3-1 3-1 3-1

4-1 4-1 4-1 4-1

5-1 5-1 5-1 5-1

1-1 1-1 1-1

1-2

2-2 2-2 2-2 2-2

3-2 3-2 3-2 3-2

4-2 4-2 4-2 4-2

5-2 5-2 5-2 5-2

1-2 1-2 1-2

1-3

2-3 2-3 2-3 2-3

3-3 3-3 3-3 3-3

4-3 4-3 4-3 4-3

5-3 5-3 5-3 5-3

1-3 1-3 1-3

1-4

2-4 2-4 2-4 2-4

3-4 3-4 3-4 3-4

4-4 4-4 4-4 4-4

5-4 5-4 5-4 5-4

1-4 1-4 1-4

1-5

2-5 2-5 2-5 2-5

3-5 3-5 3-5 3-5

4-5 4-5 4-5 4-5

1-5 1-5 1-5

5-5 5-5 5-5 5-5

1-6

2-6 2-6 2-6 2-6

3-6 3-6 3-6 3-6

4-6 4-6 4-6 4-6

5-6 5-6 5-6 5-6

1-6 1-6 1-6

1-7

2-7 2-7 2-7 2-7

3-7 3-7 3-7 3-7

4-7 4-7 4-7 4-7

5-7 5-7 5-7 5-7

1-7 1-7 1-7

1GB

2-1

3-1

4-1

5-1

1-1

2-2

3-2

4-2

5-2

1-2

2-3

3-3

4-3

5-3

1-3

2-4

3-4

4-4

5-4

1-4

2-5

3-5

4-5

1-5

5-5

2-6

3-6

4-6

5-6

1-6

2-7

3-7

4-7

5-7

1-7

16GA 15GA 14GA 13GA 12GA 11GA 10GA 9GA 8GA 7GA 6GA 1GA

5GA 4GA 3GA 2GA

1-1

2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1

1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1

P1A

P2A

P8A

P9A

P10A

P11A

P12A

P13A

P14A

P15A

P16A

P17A

P18A

P19A

P20A

P21A

P22A

P23A

P24A

P26A

P25A

P27A

P28A

P29A

P30A

P31A

P32A

P33A

P34A

P35A

P36A

P37A

P38A

P7A

P6A

P5A

P4A

P3A

1-1

2-1

1-1

2-1 2-1 2-1 2-1

3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1

4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1

5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1

1-1 1-1 1-1

1-2

2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2

1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2

2-2

1-2

2-2 2-2 2-2 2-2

3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2

4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2

5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2

1-2 1-2 1-2

1-3

2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3

1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3

2-3

1-3

2-3 2-3 2-3 2-3

3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3

4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3

5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3

1-3 1-3 1-3

1-4

2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4

1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4

2-4

1-4

2-4 2-4 2-4 2-4

3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4

4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4

5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4

1-4 1-4 1-4

1-5

2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5

1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5

2-5

1-5

2-5 2-5 2-5 2-5

3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5

4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5

5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-55-55-5

1-5 1-5 1-5

1-6

2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6

1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6

2-6

1-6

2-6 2-6 2-6 2-6

3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6

4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6

5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6

1-6 1-6 1-6

1-7

2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7

1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7

2-7

1-7

2-7 2-7 2-7 2-7

3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7

4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7

5-7 5-7 5-7

- - ------

5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7

1-7 1-7 1-7

AVR-5805/AVC-A1XV

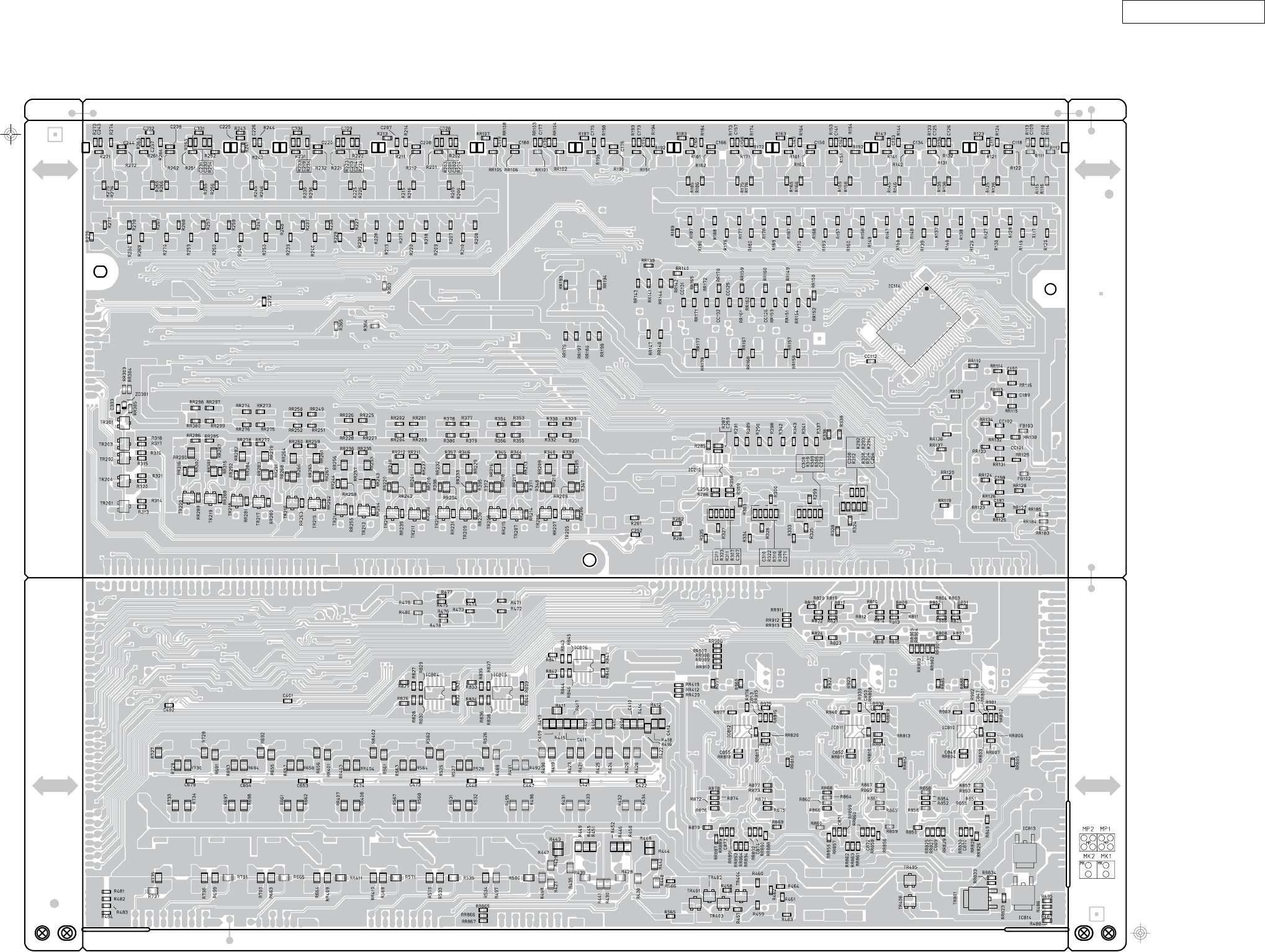

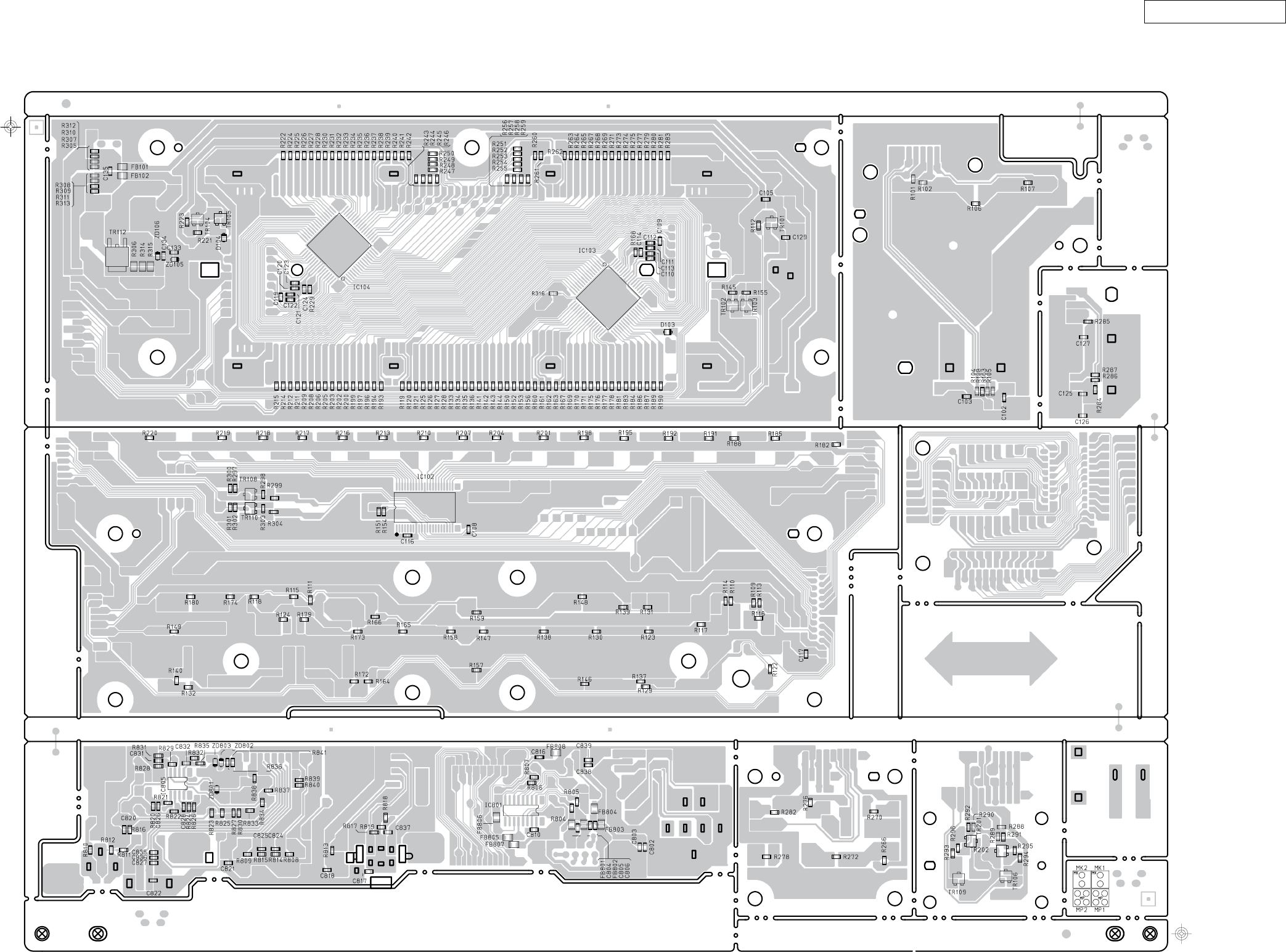

PRINTED WIRING BOARDS

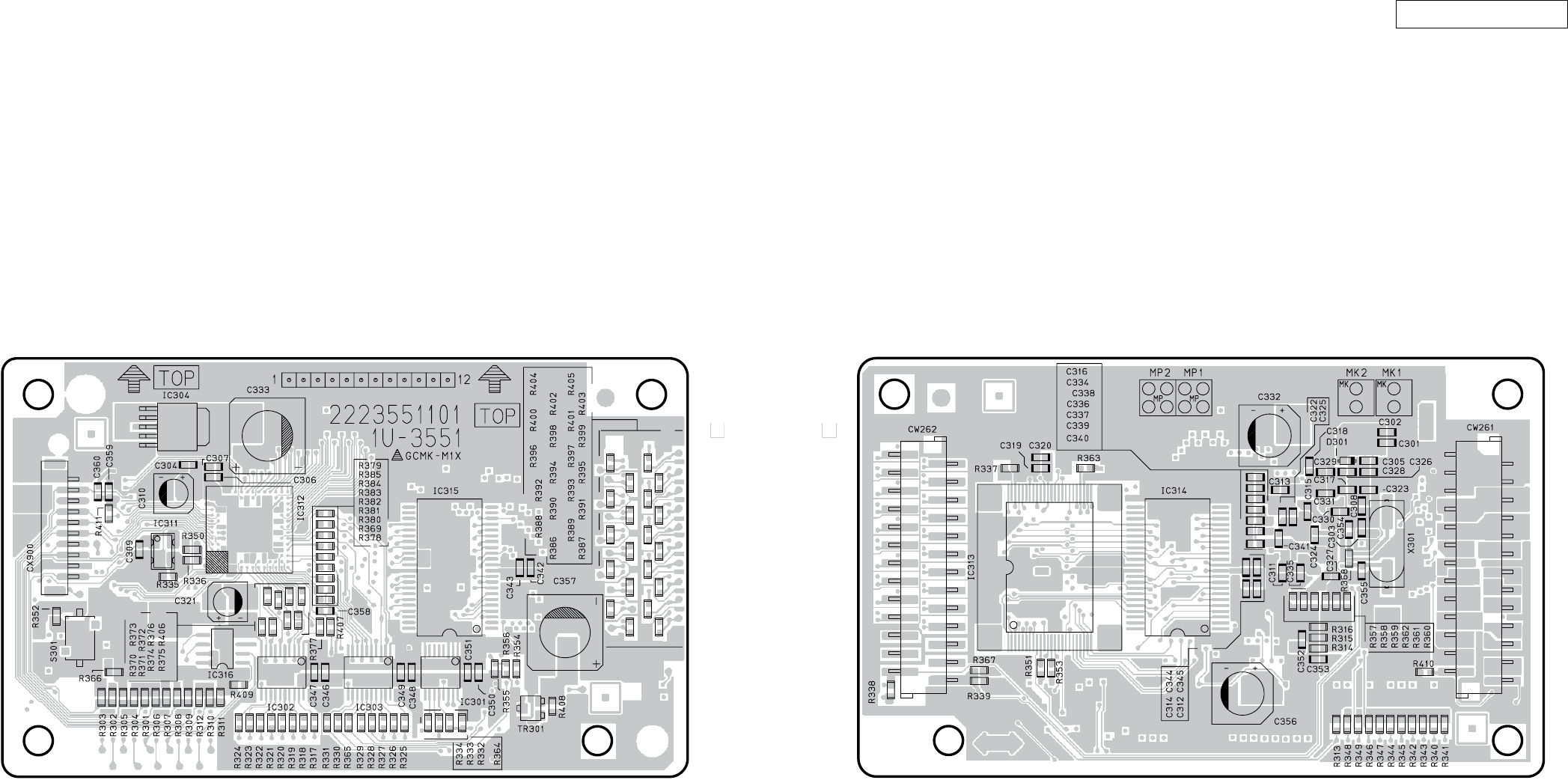

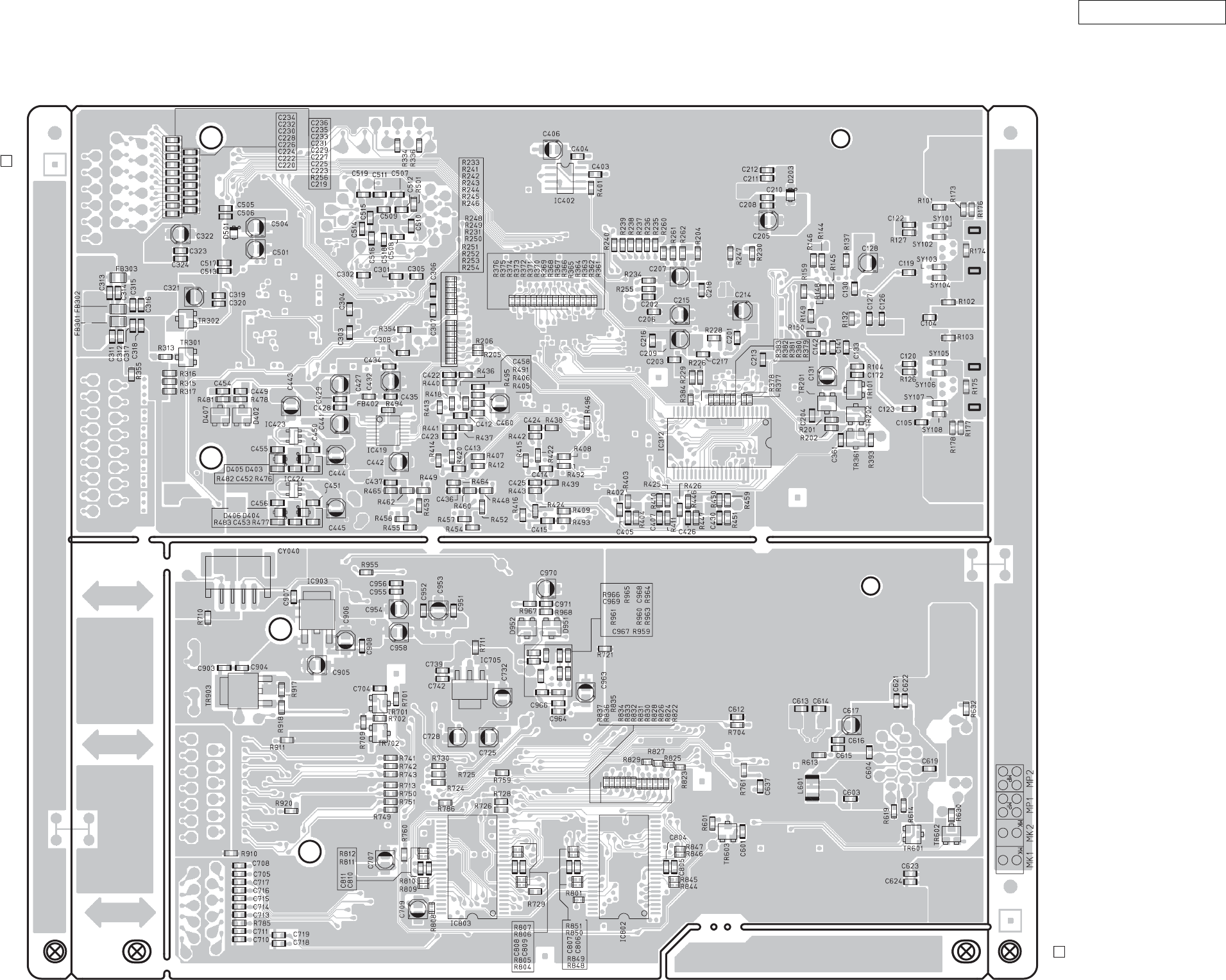

1U-3551 DSP ADI EX P.W.B. UNIT

COMPONENT SIDE FOIL SIDE

AVR-5805/AVC-A1XV

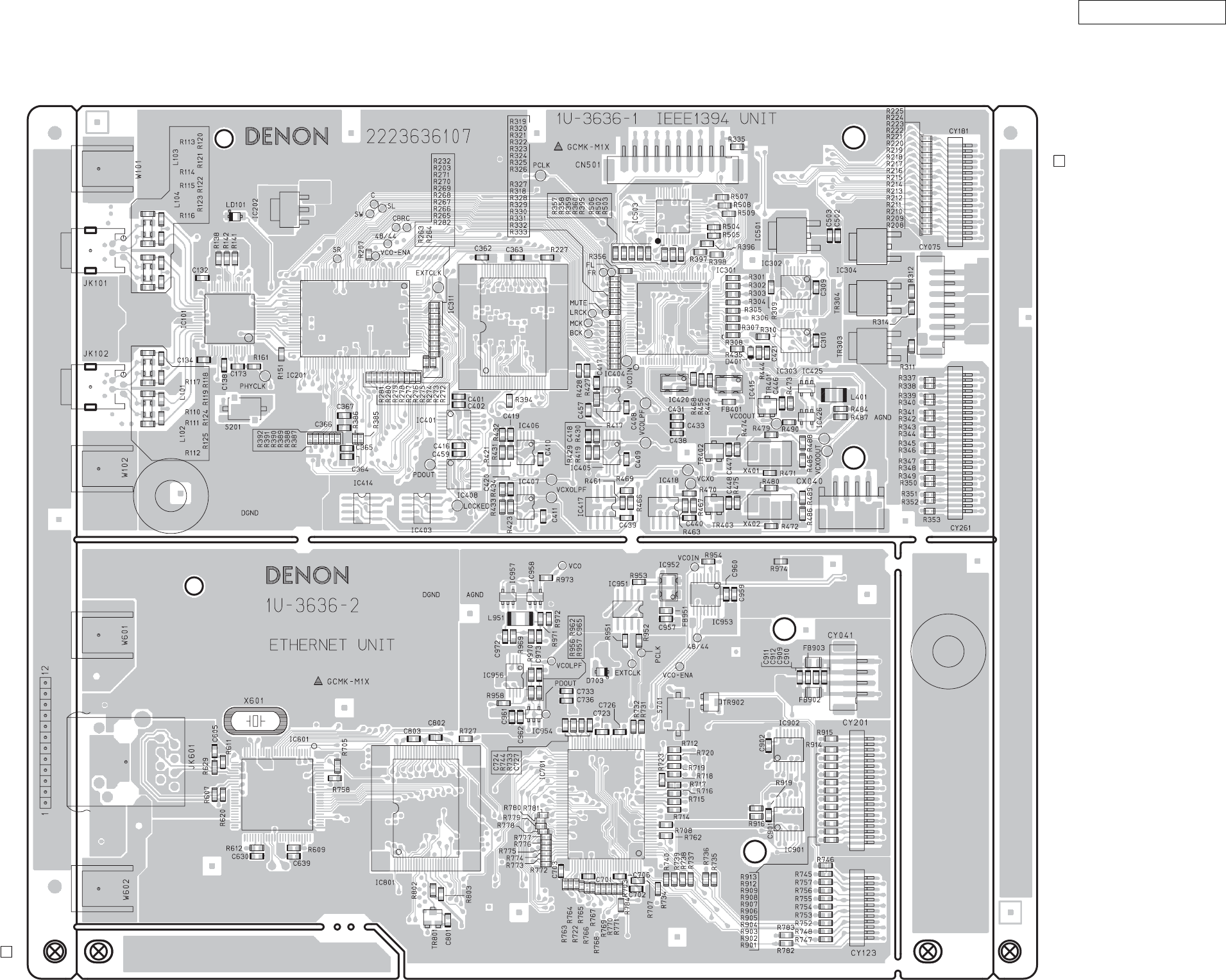

1U-3636 1394 P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

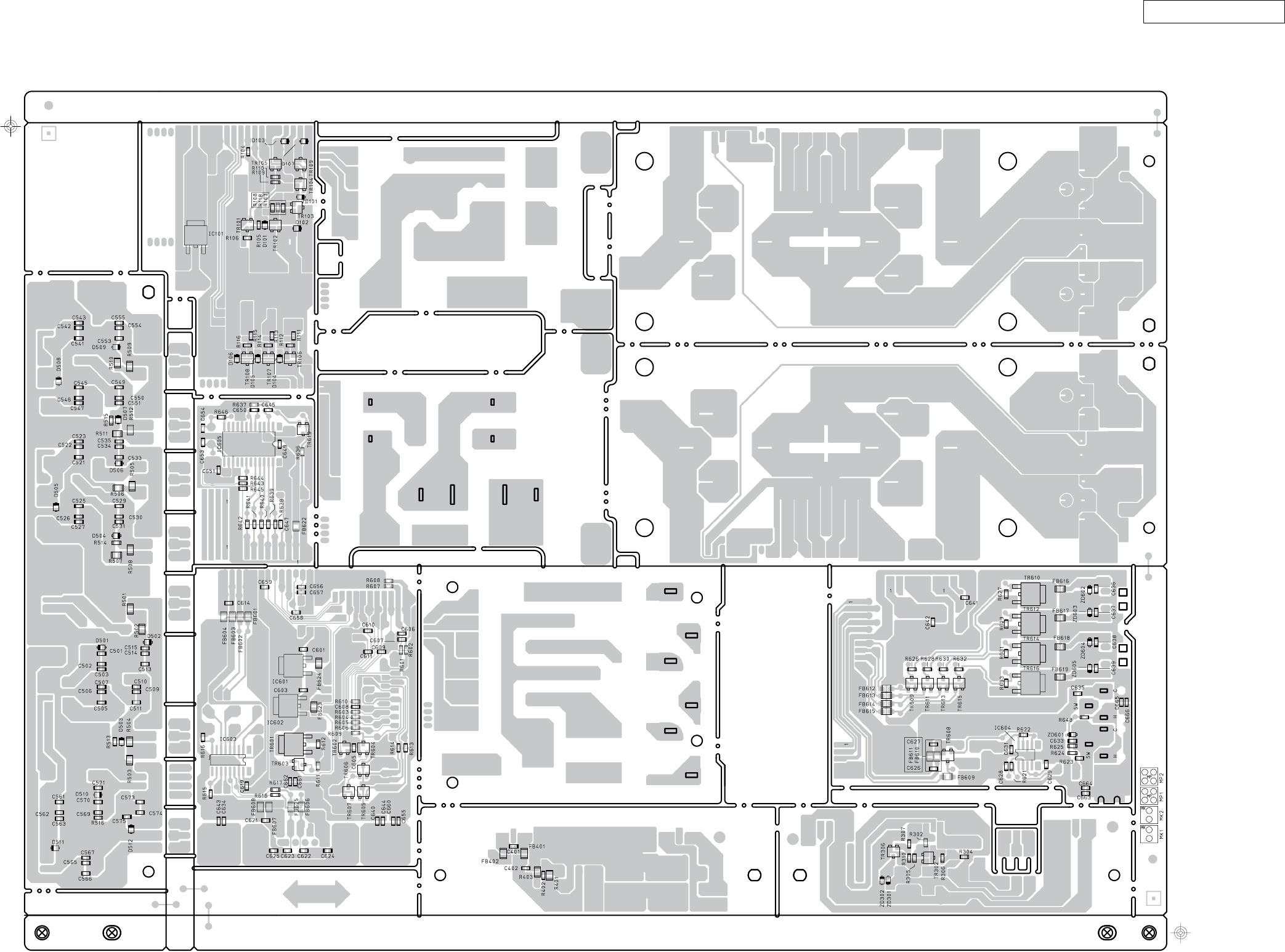

1U-3637 AMP P.W.B. UNIT

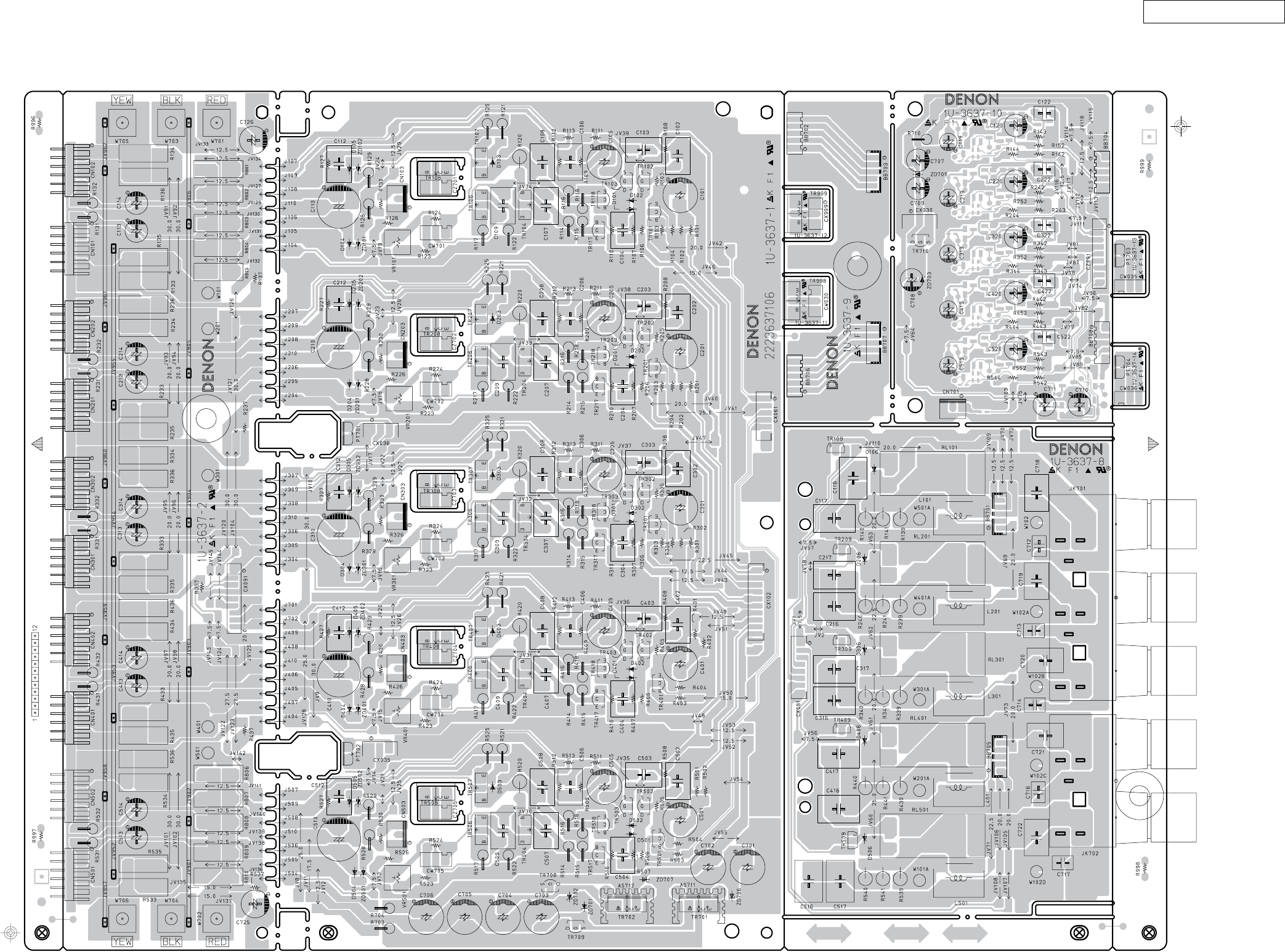

COMPONENT SIDE

AVR-5805/AVC-A1XV

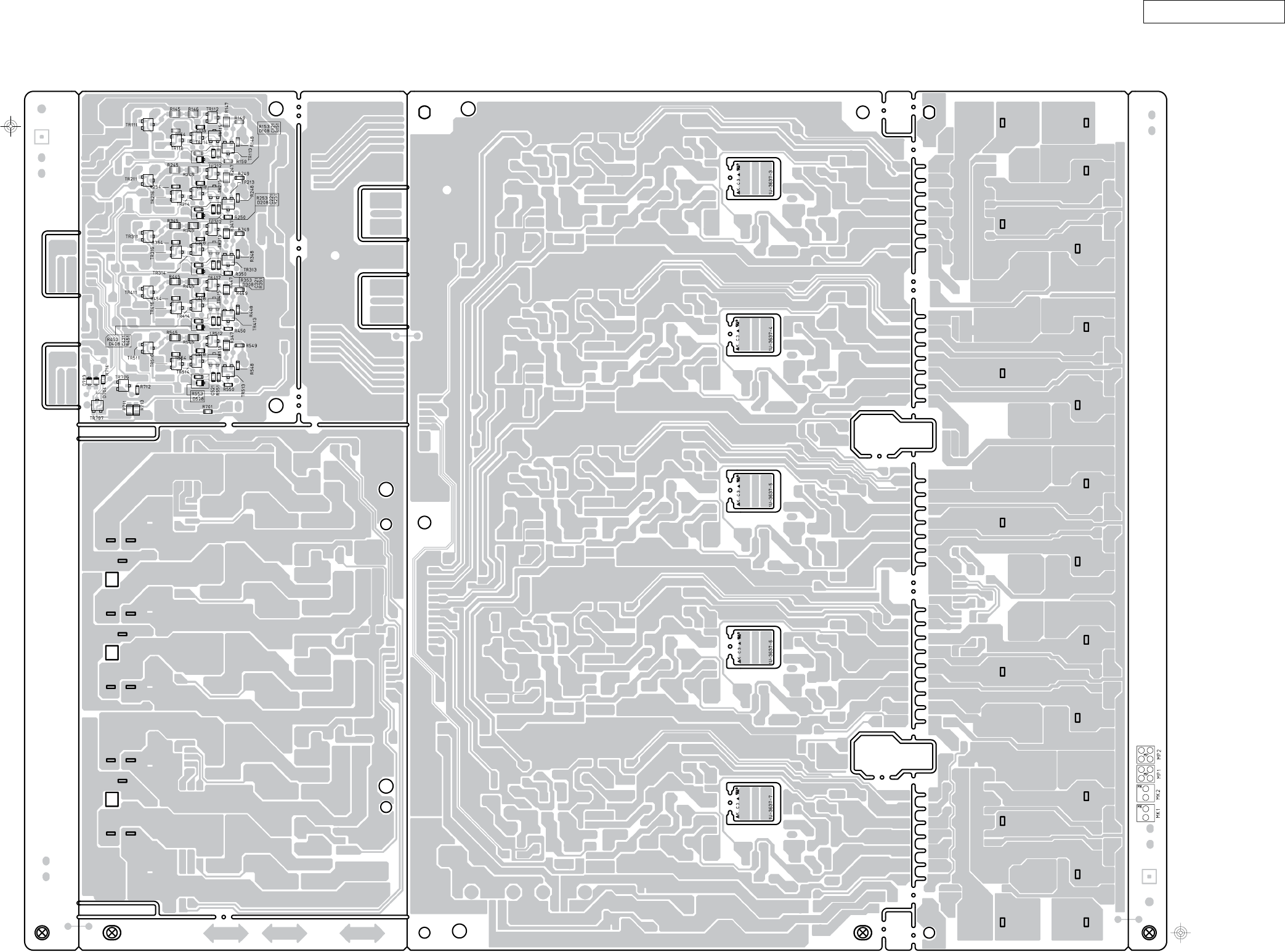

FOIL SIDE

AVR-5805/AVC-A1XV

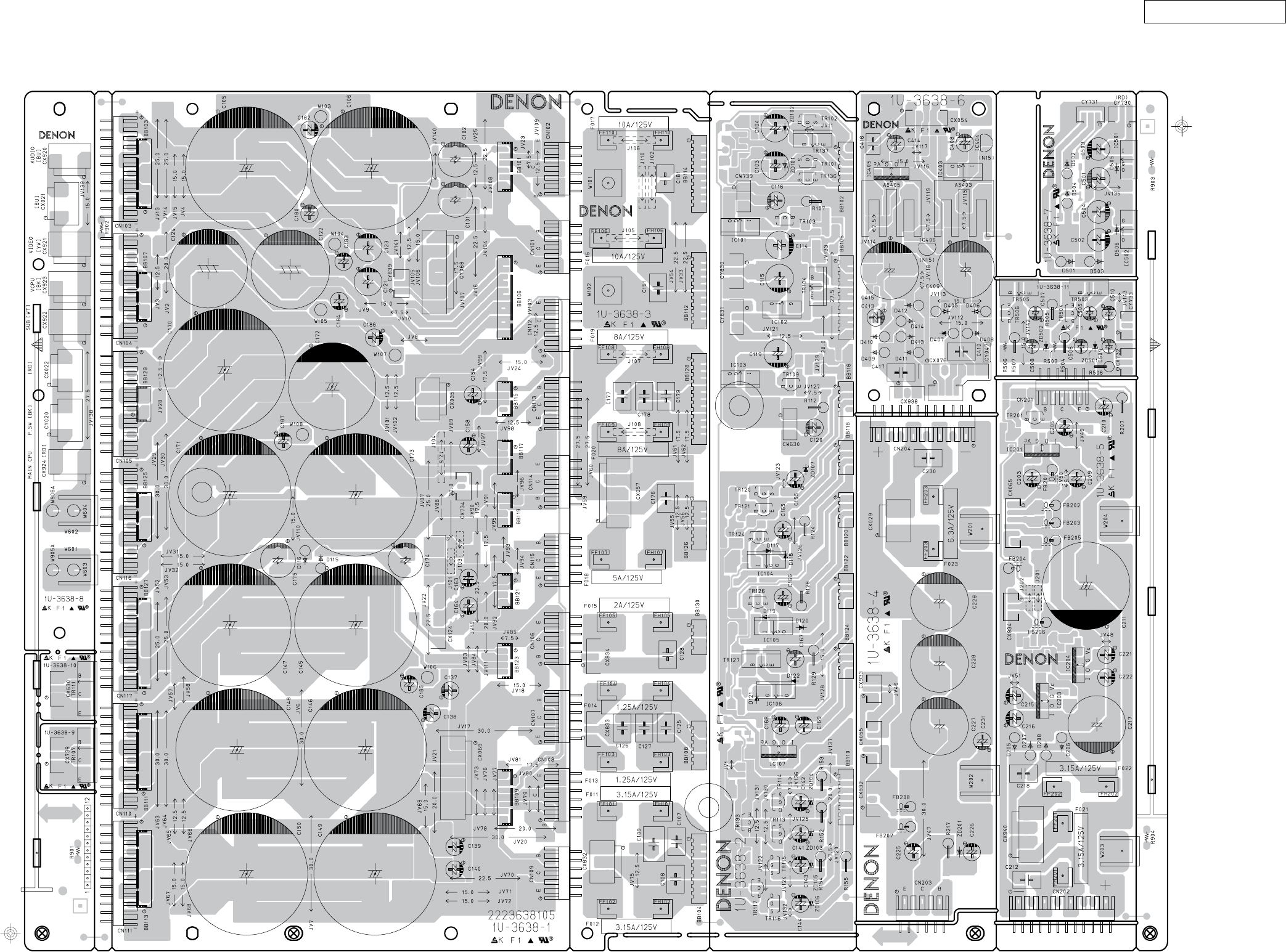

1U-3638 REG P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

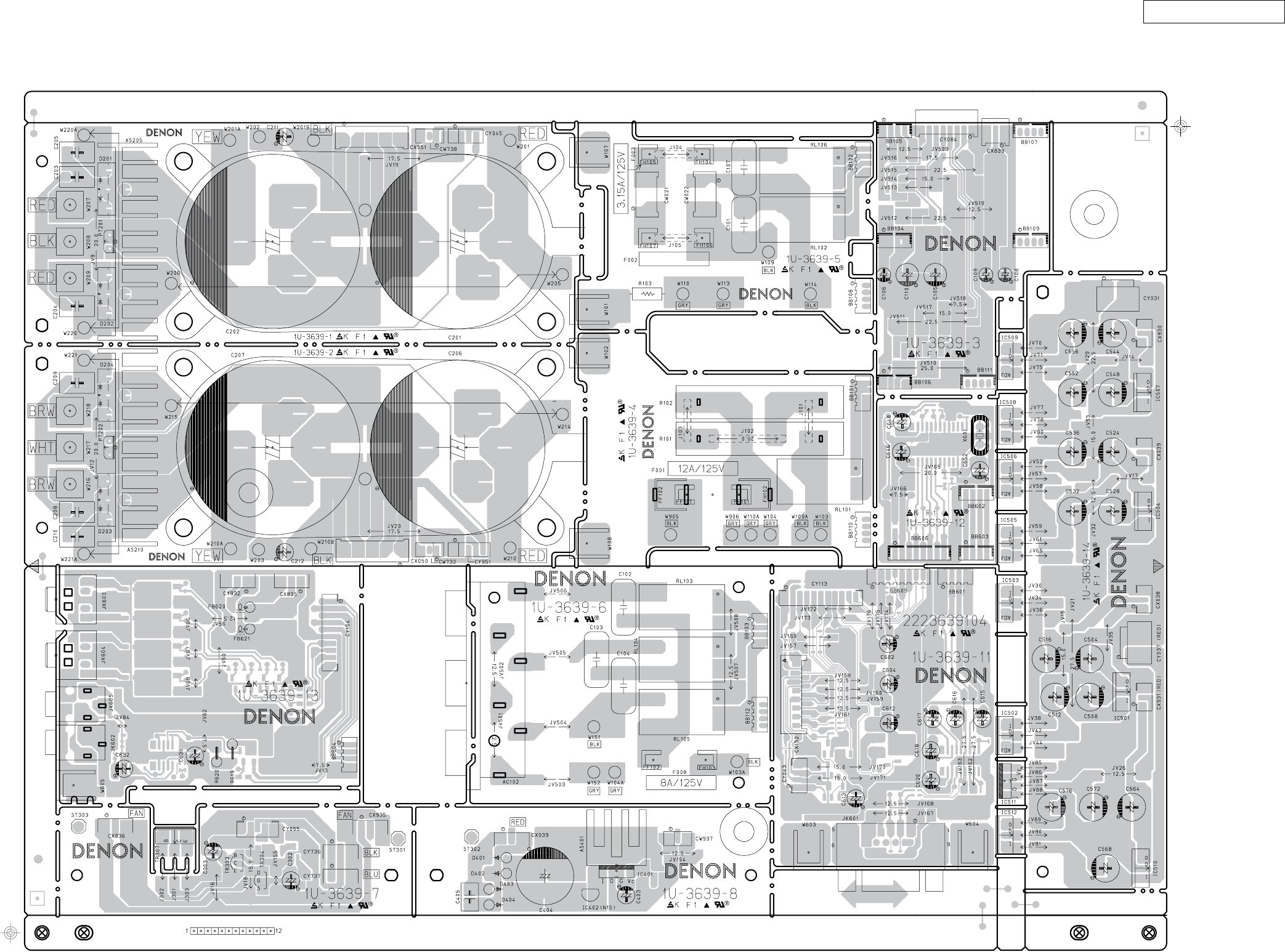

1U-3639 REG2 P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

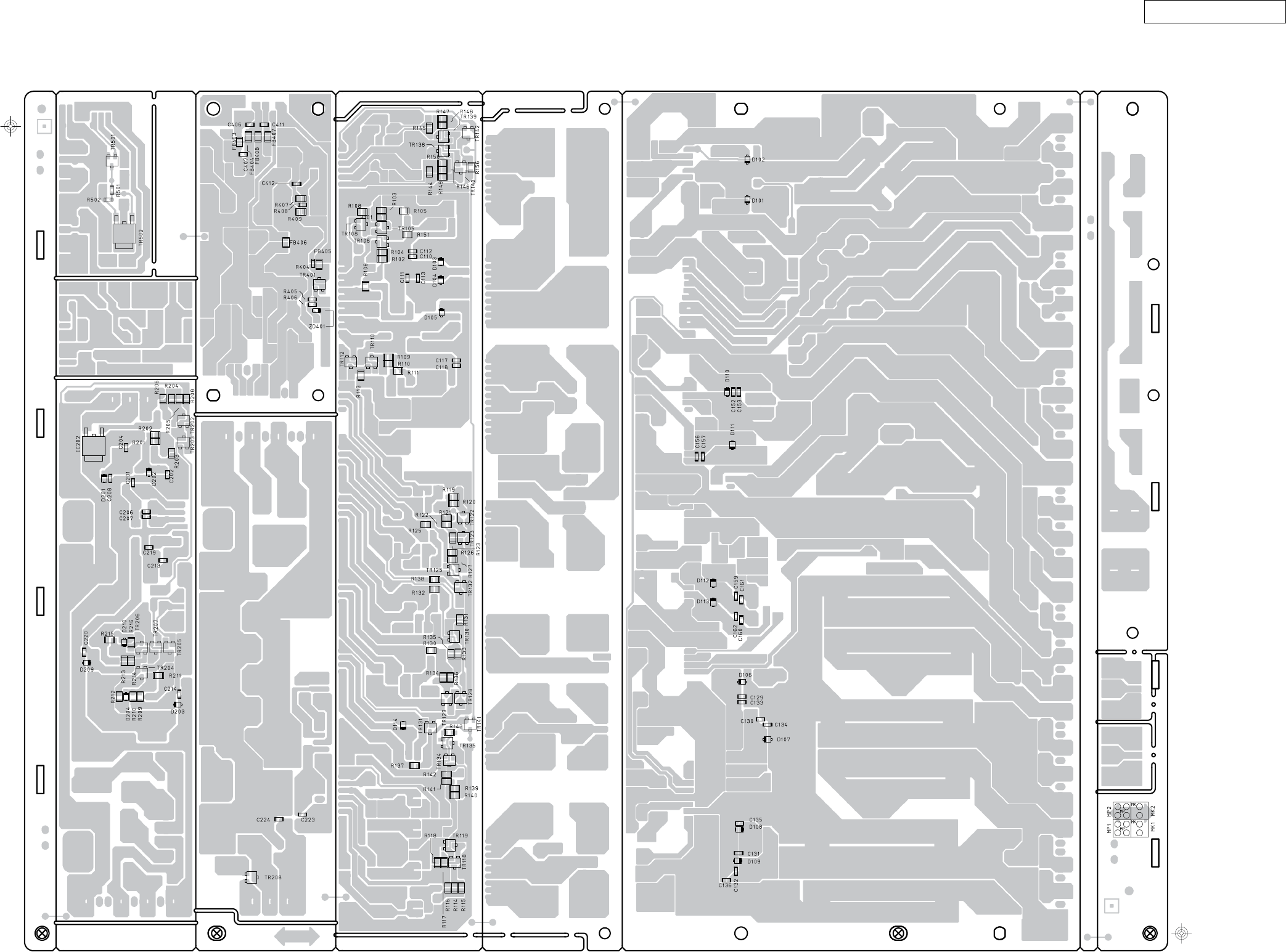

FOIL SIDE

AVR-5805/AVC-A1XV

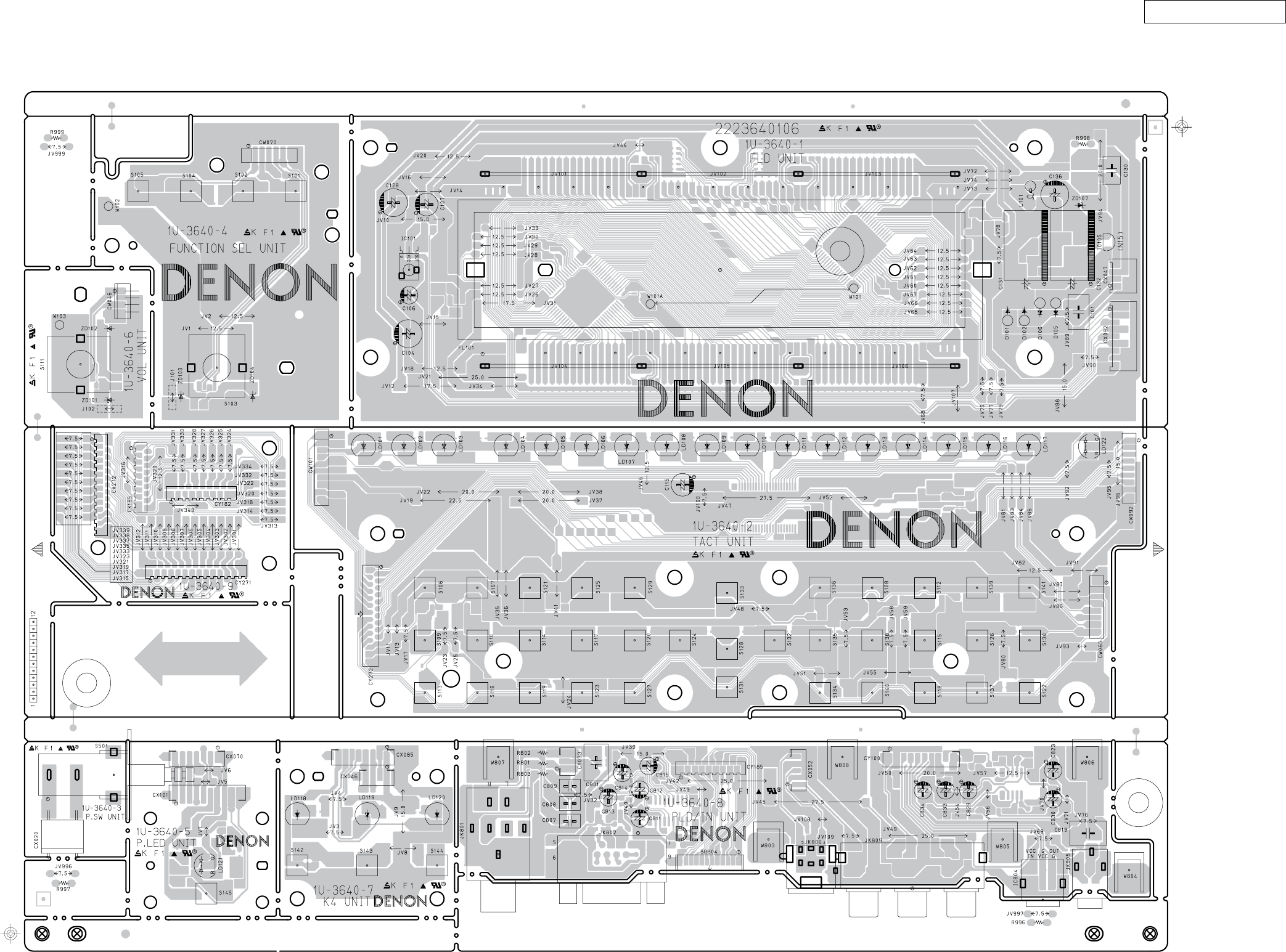

1U-3640 FRONT P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

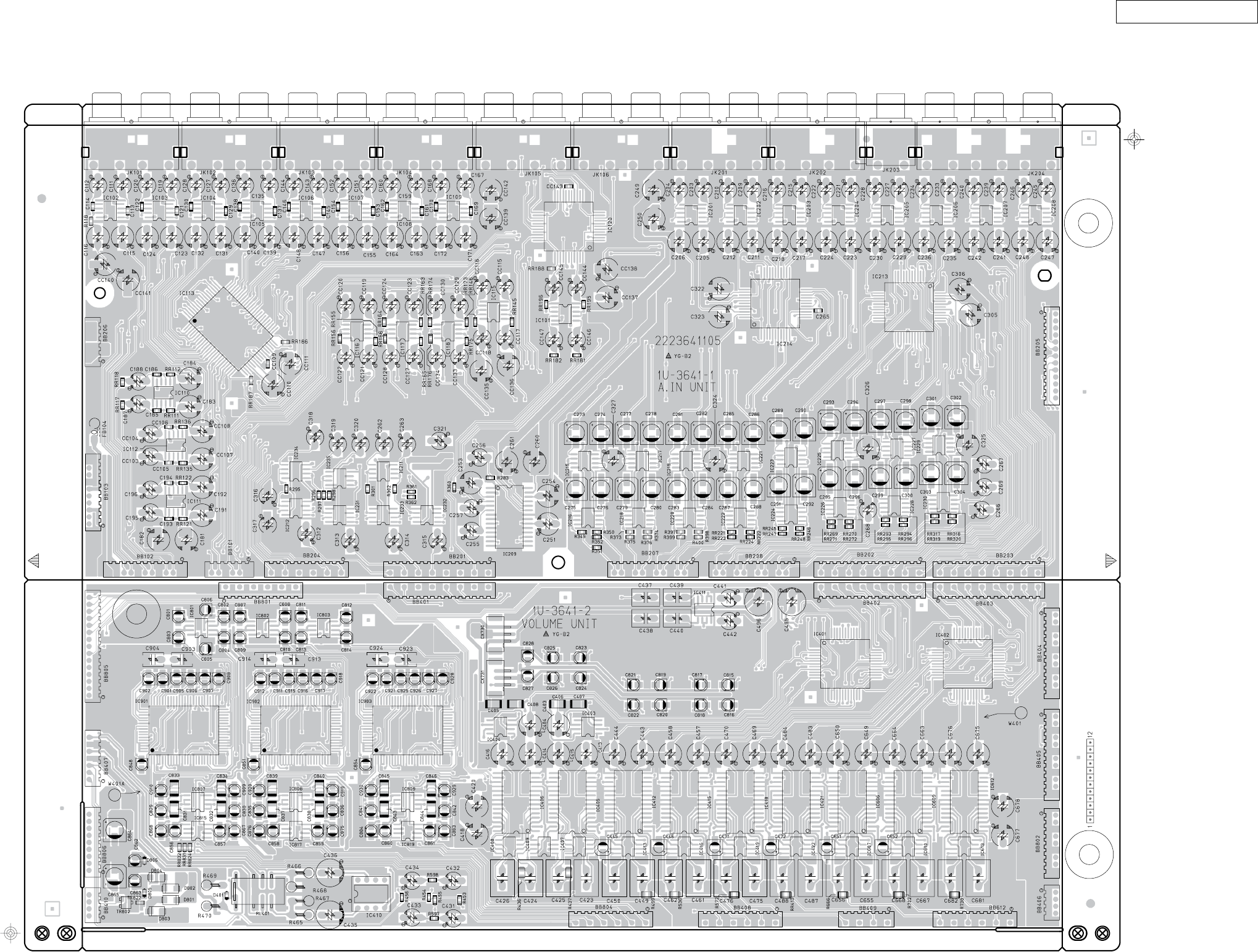

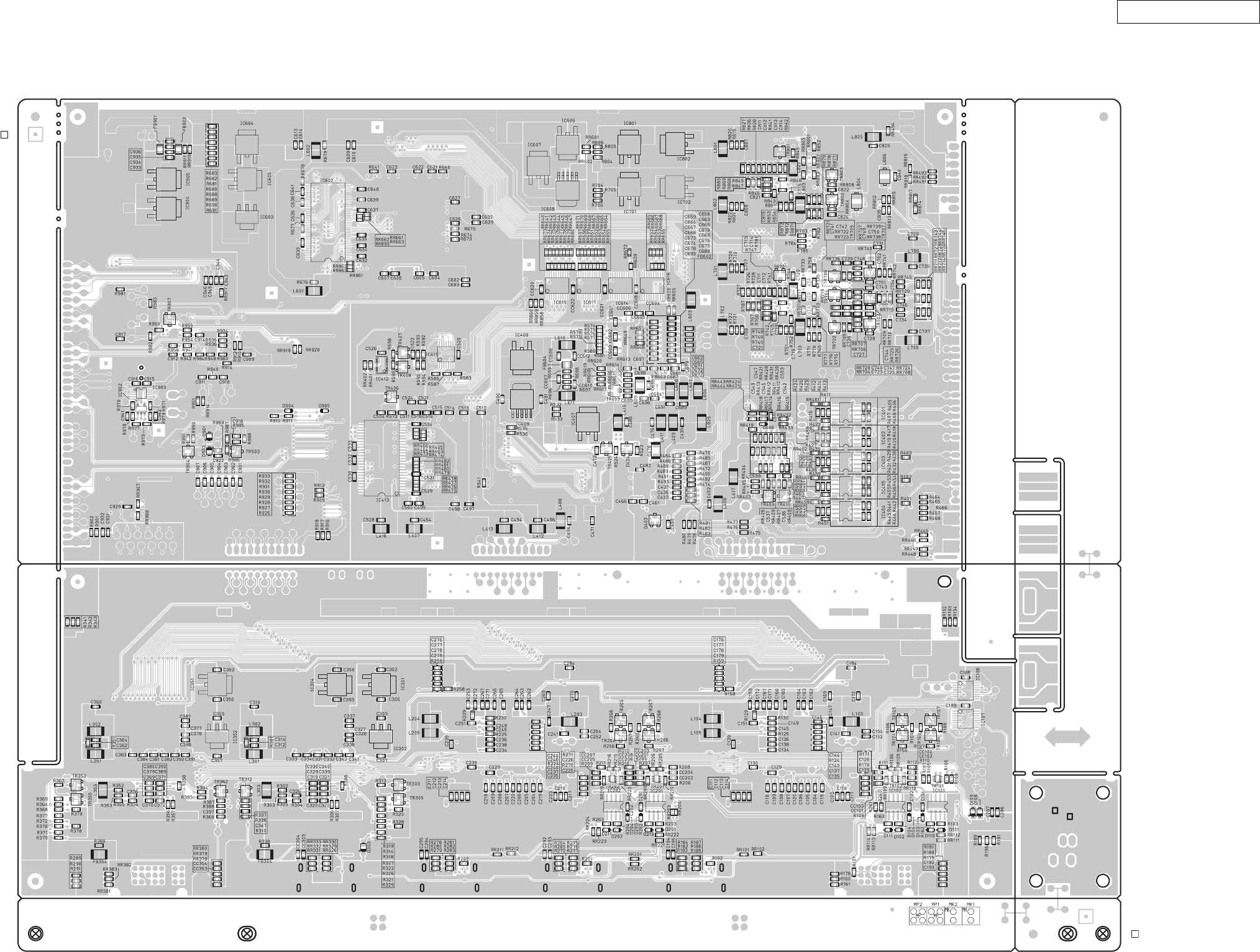

1U-3641 AUDIO P.W.B. UNIT

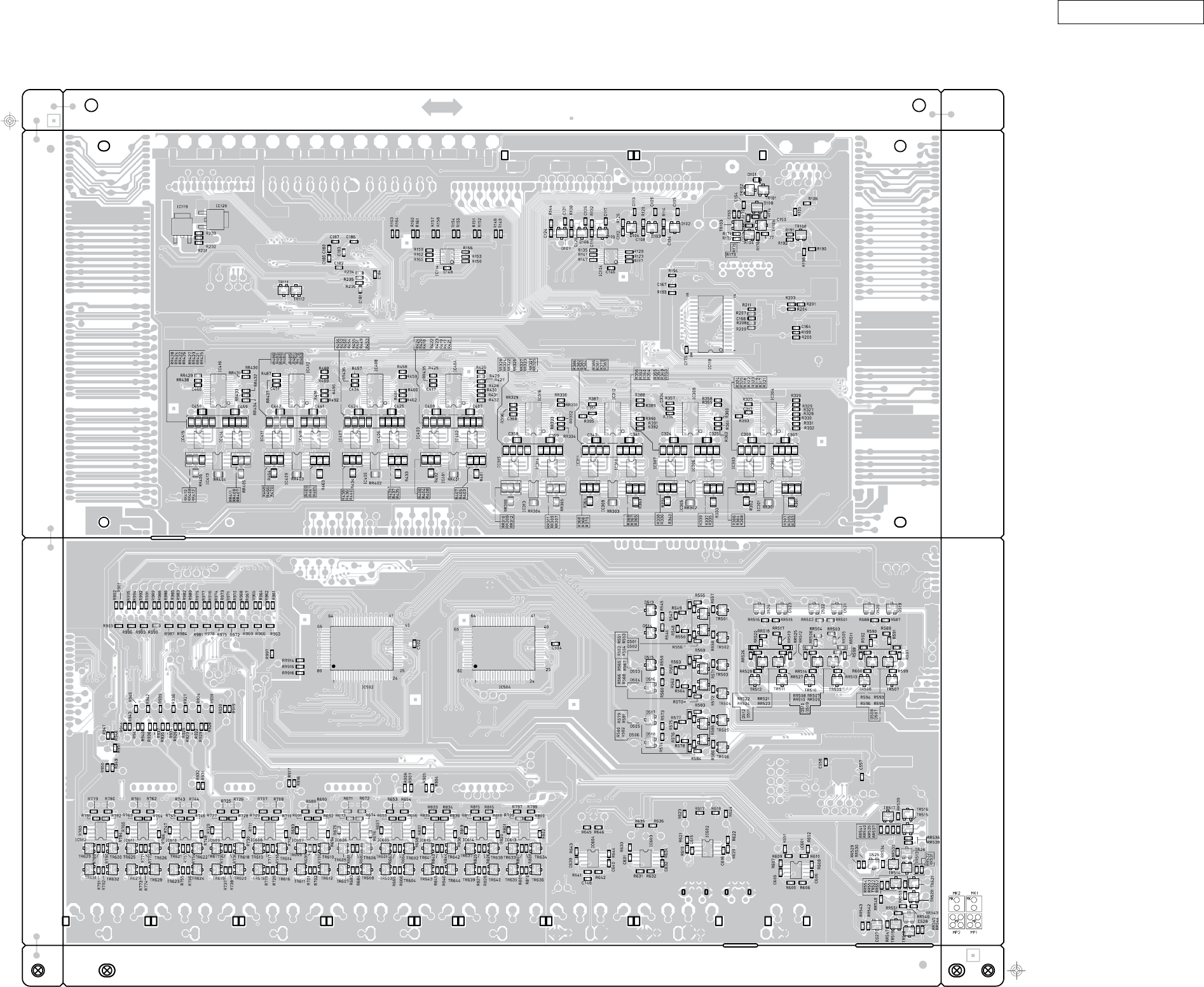

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

1U-3642 DAC P.W.B. UNIT

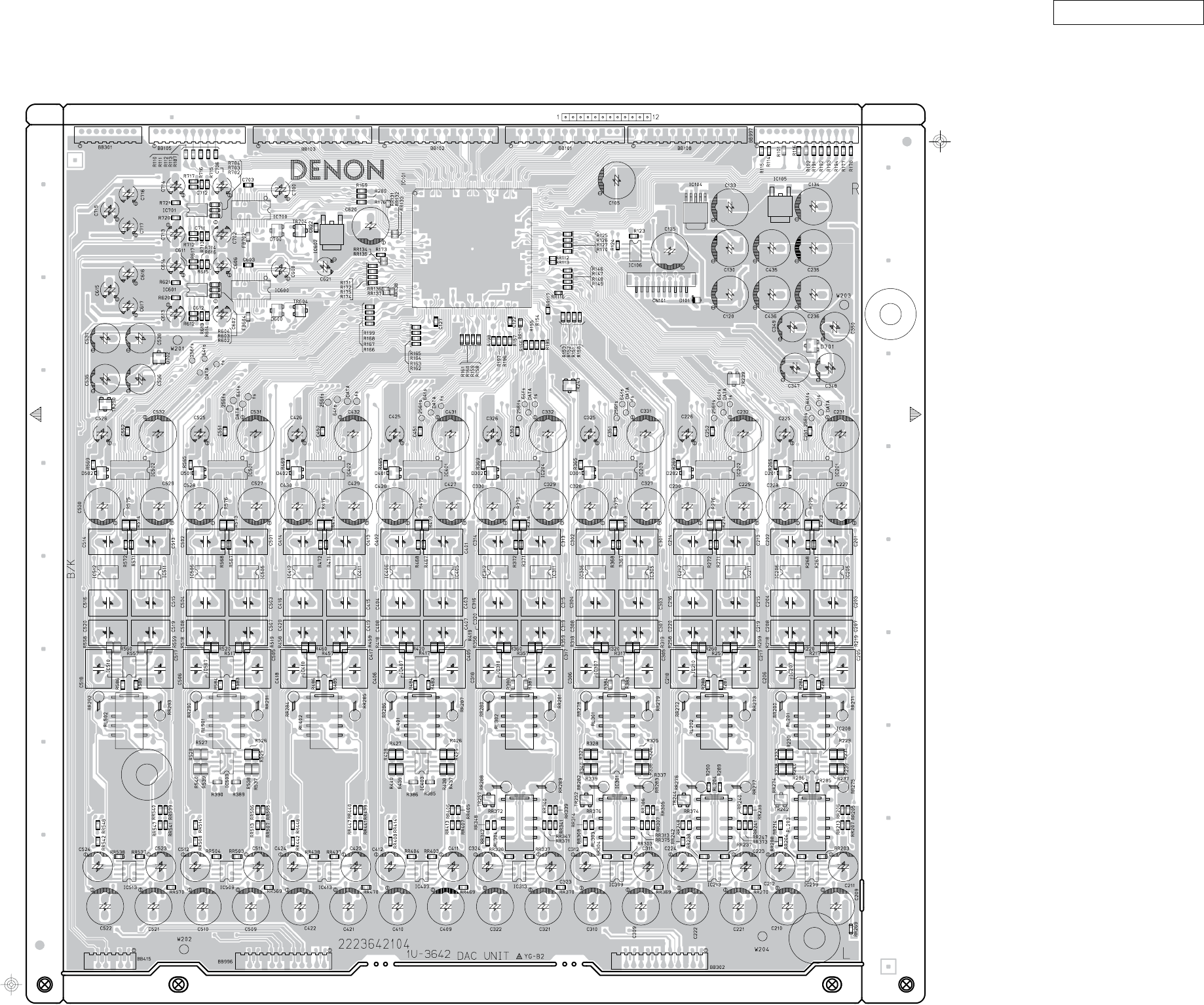

COMPONENT SIDE

AVR-5805/AVC-A1XV

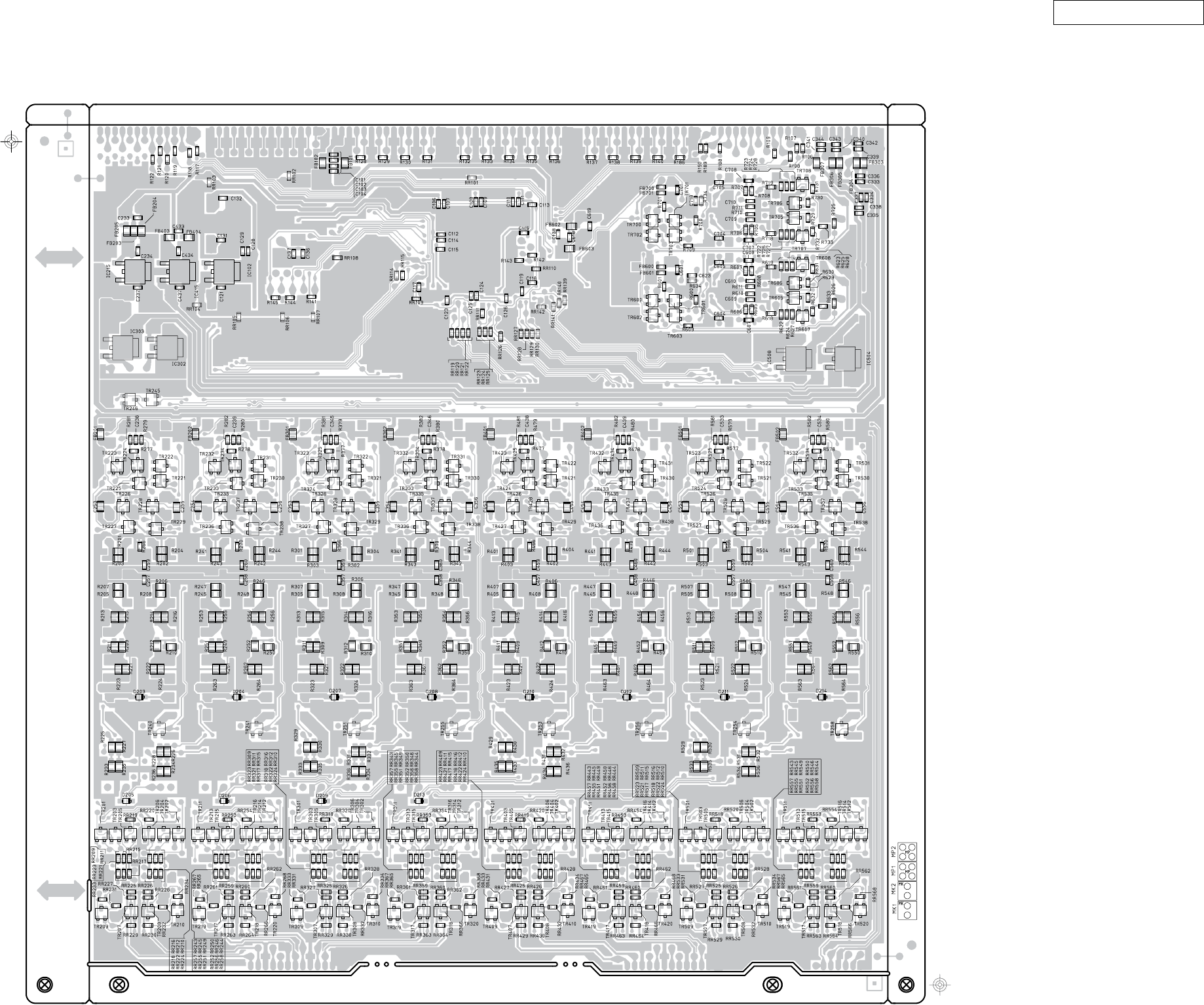

FOIL SIDE

AVR-5805/AVC-A1XV

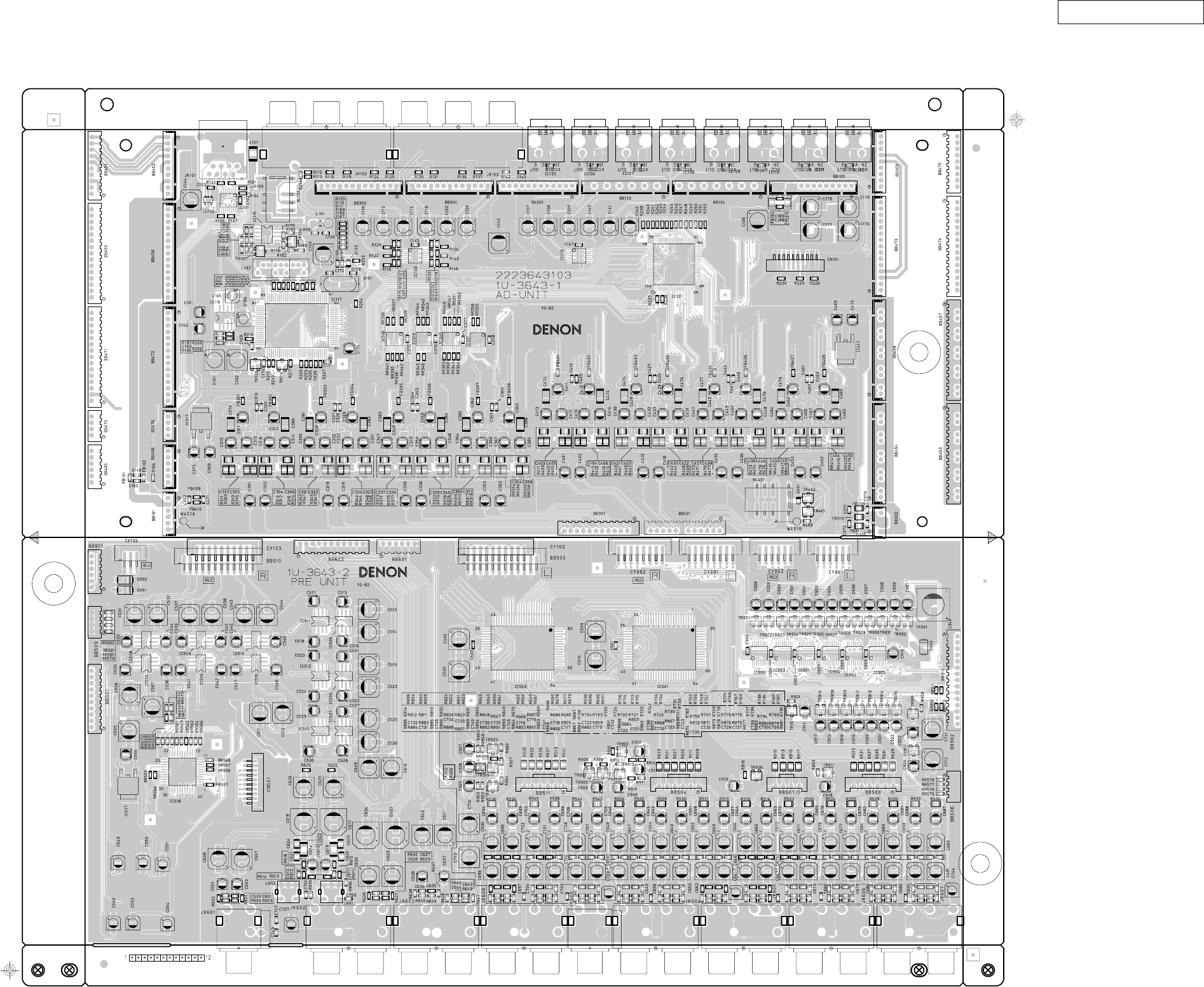

1U-3643 AD P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

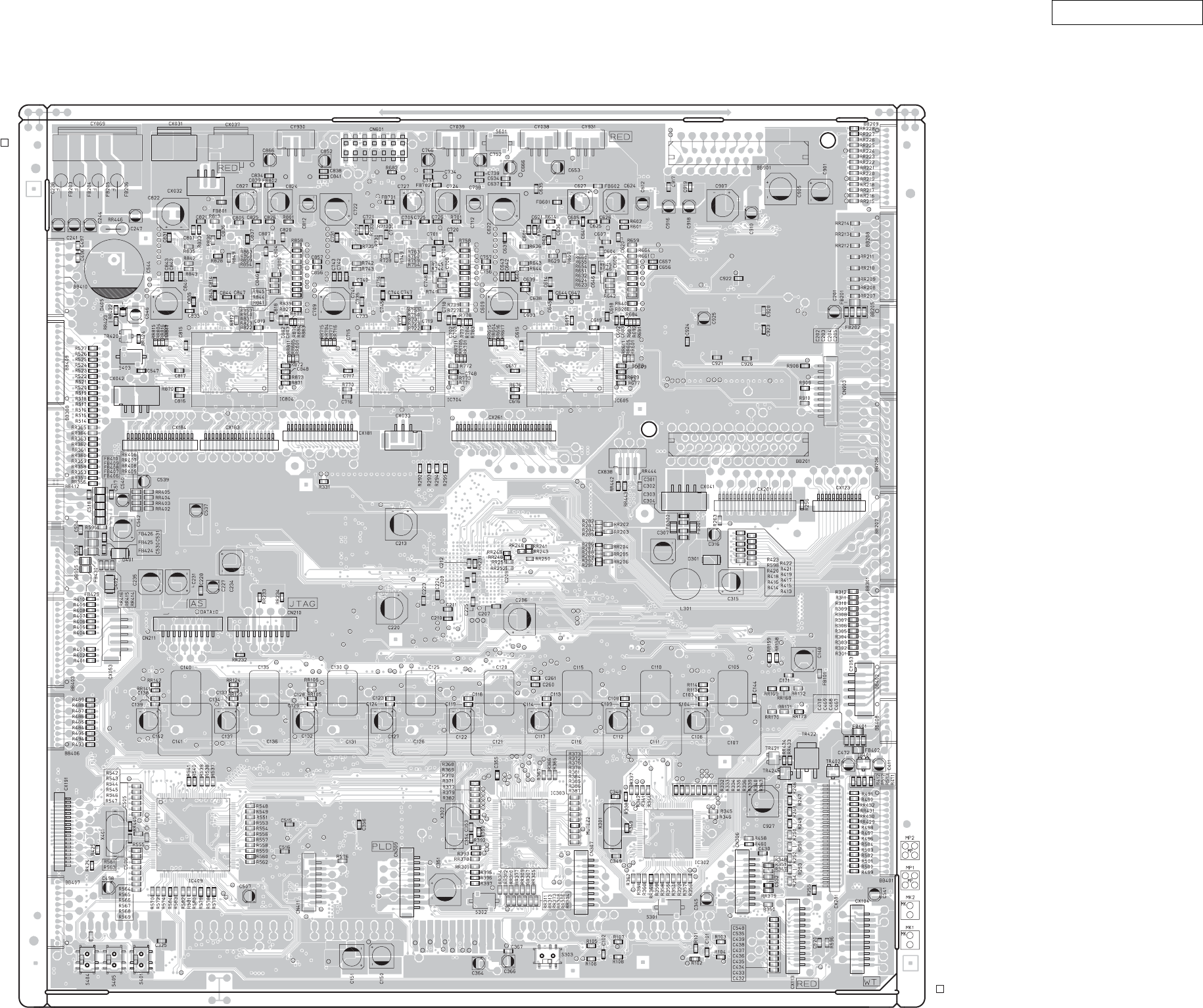

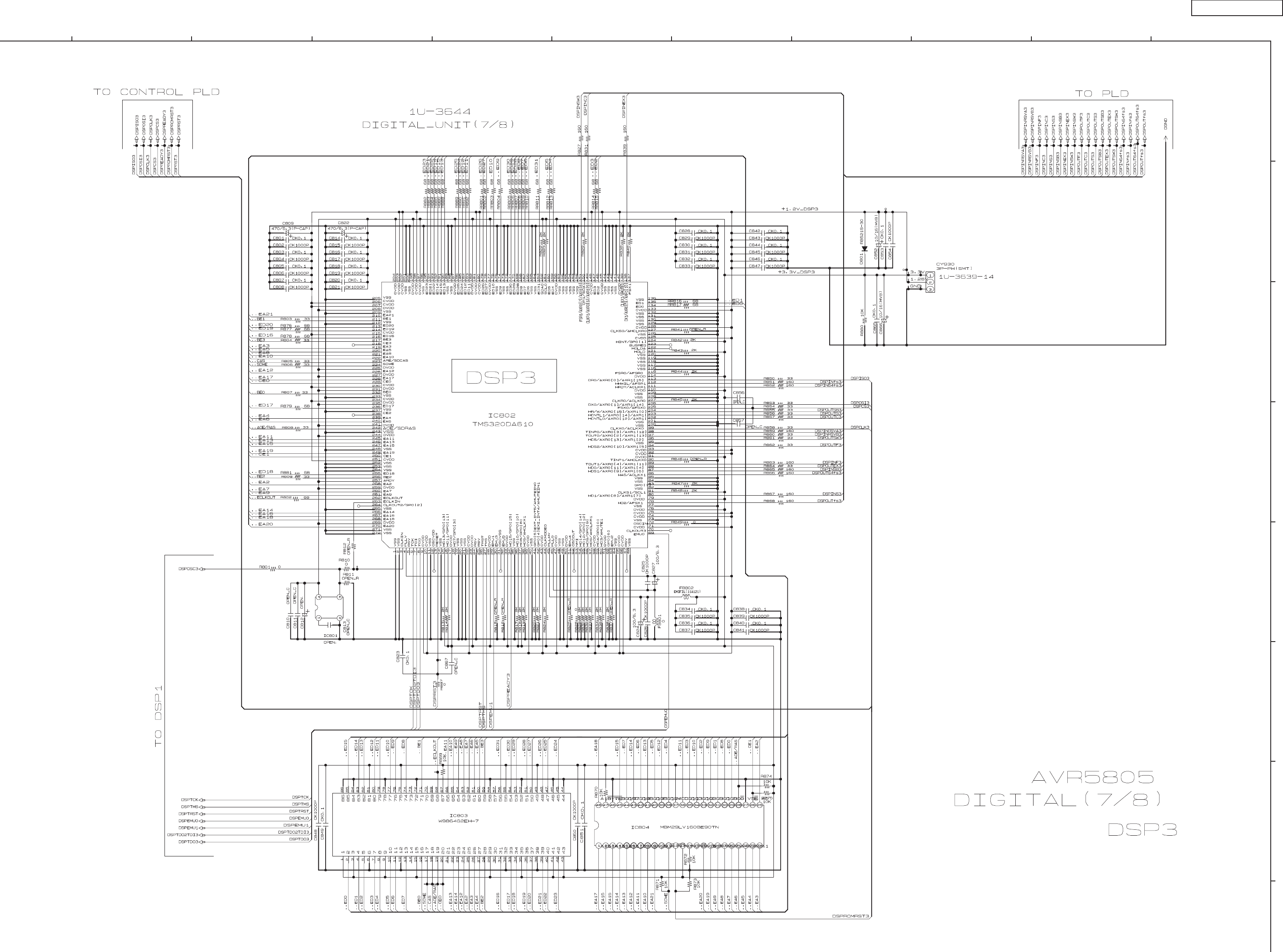

1U-3644 DIGITAL P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

AVR-5805/AVC-A1XV

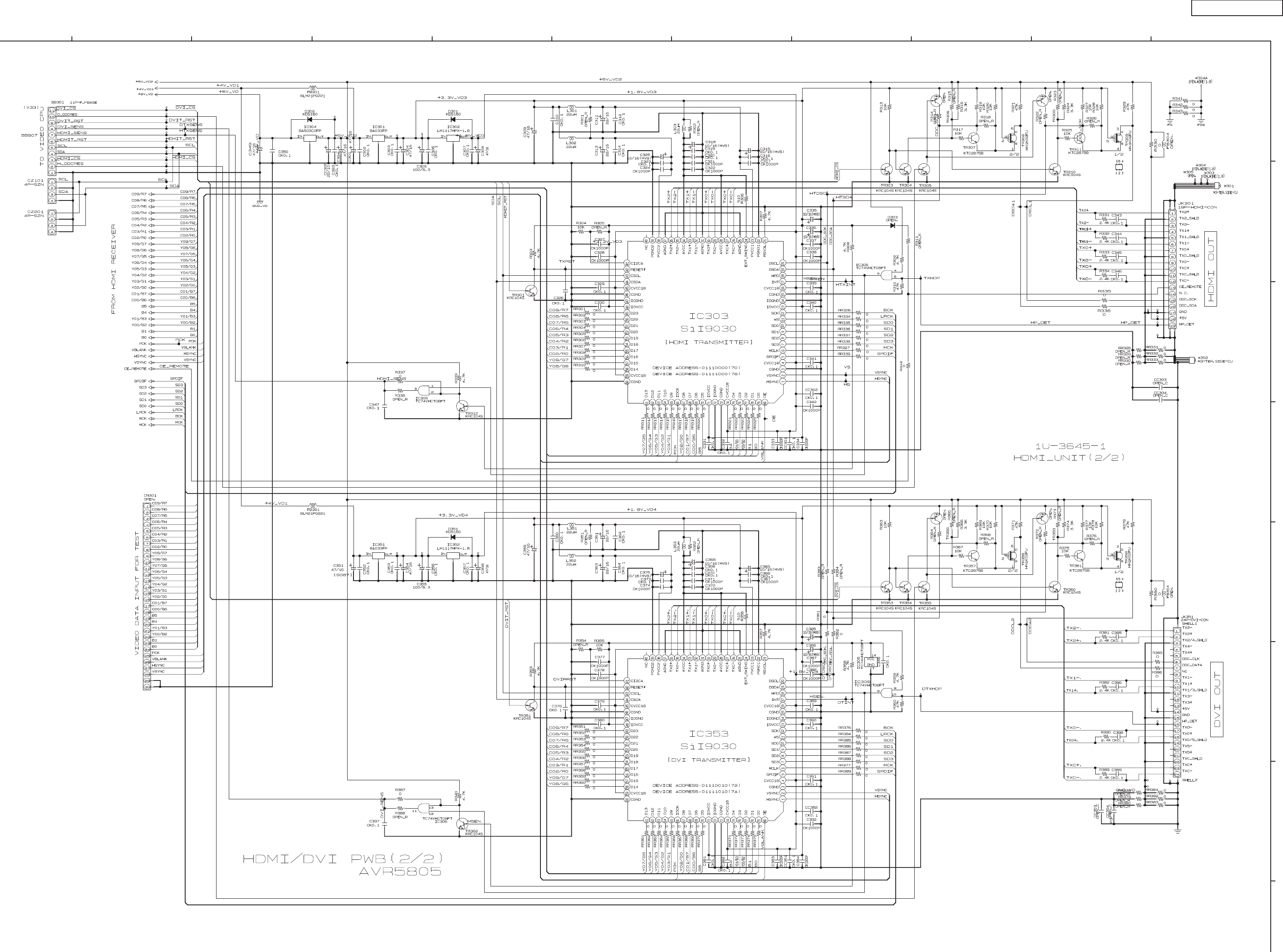

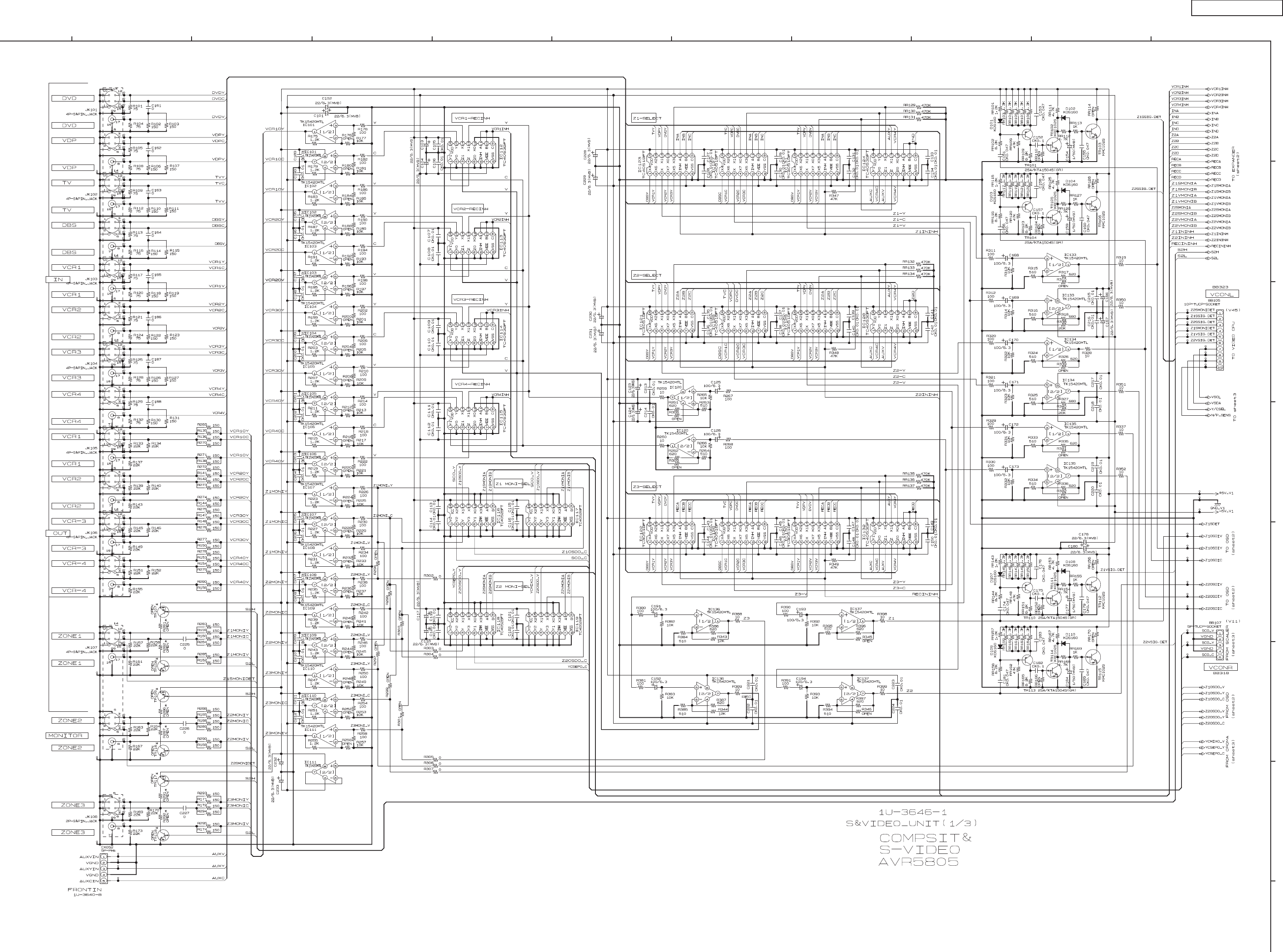

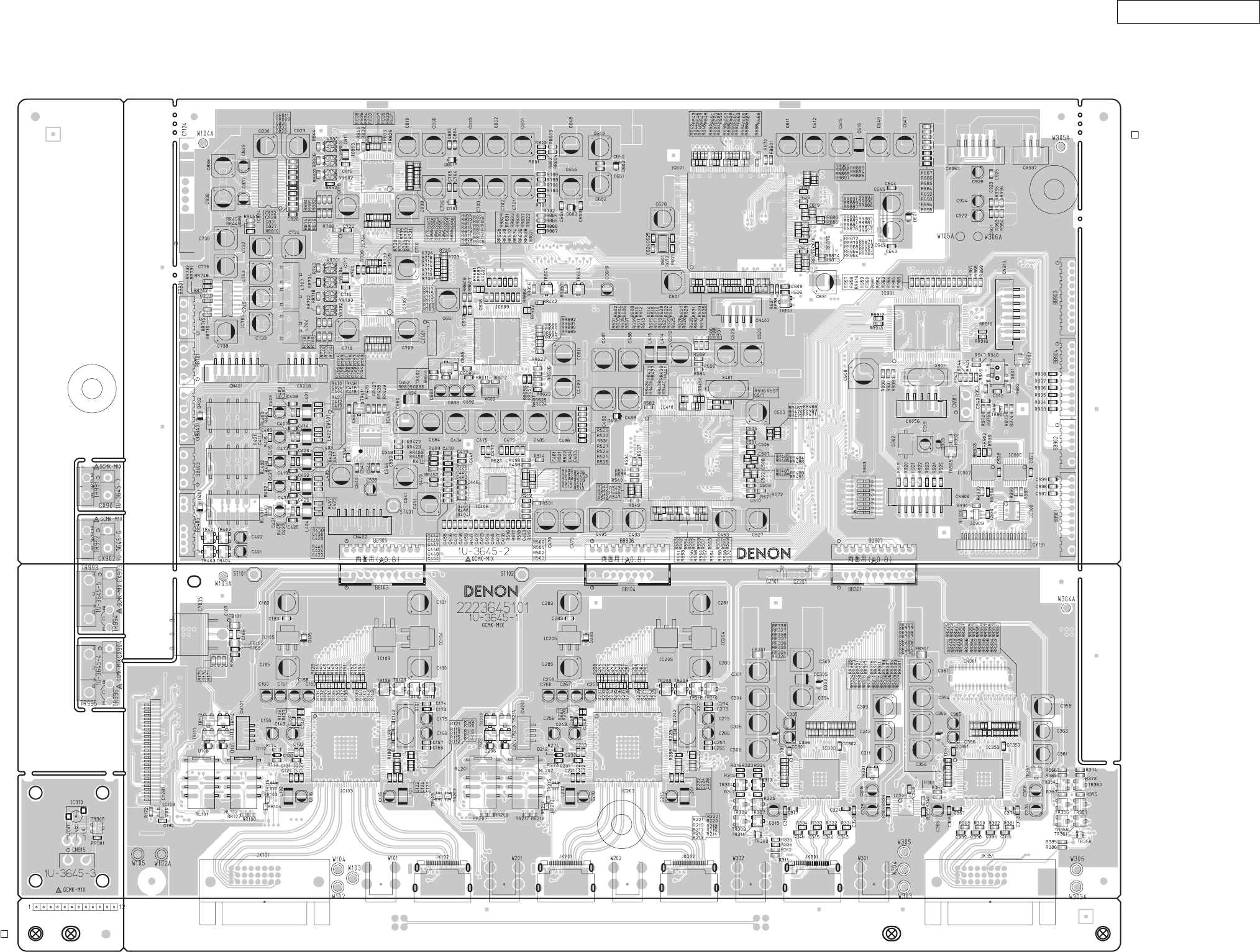

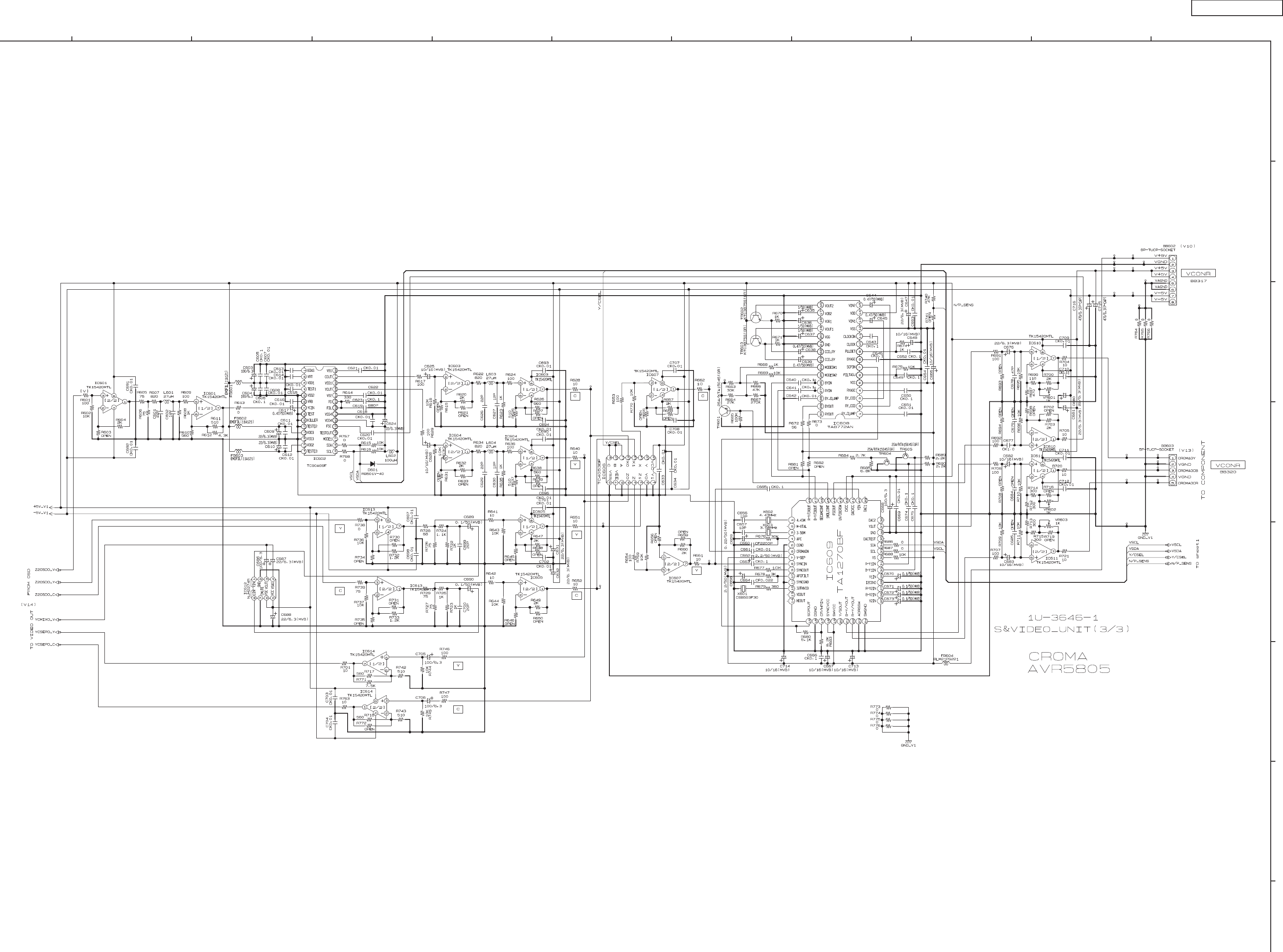

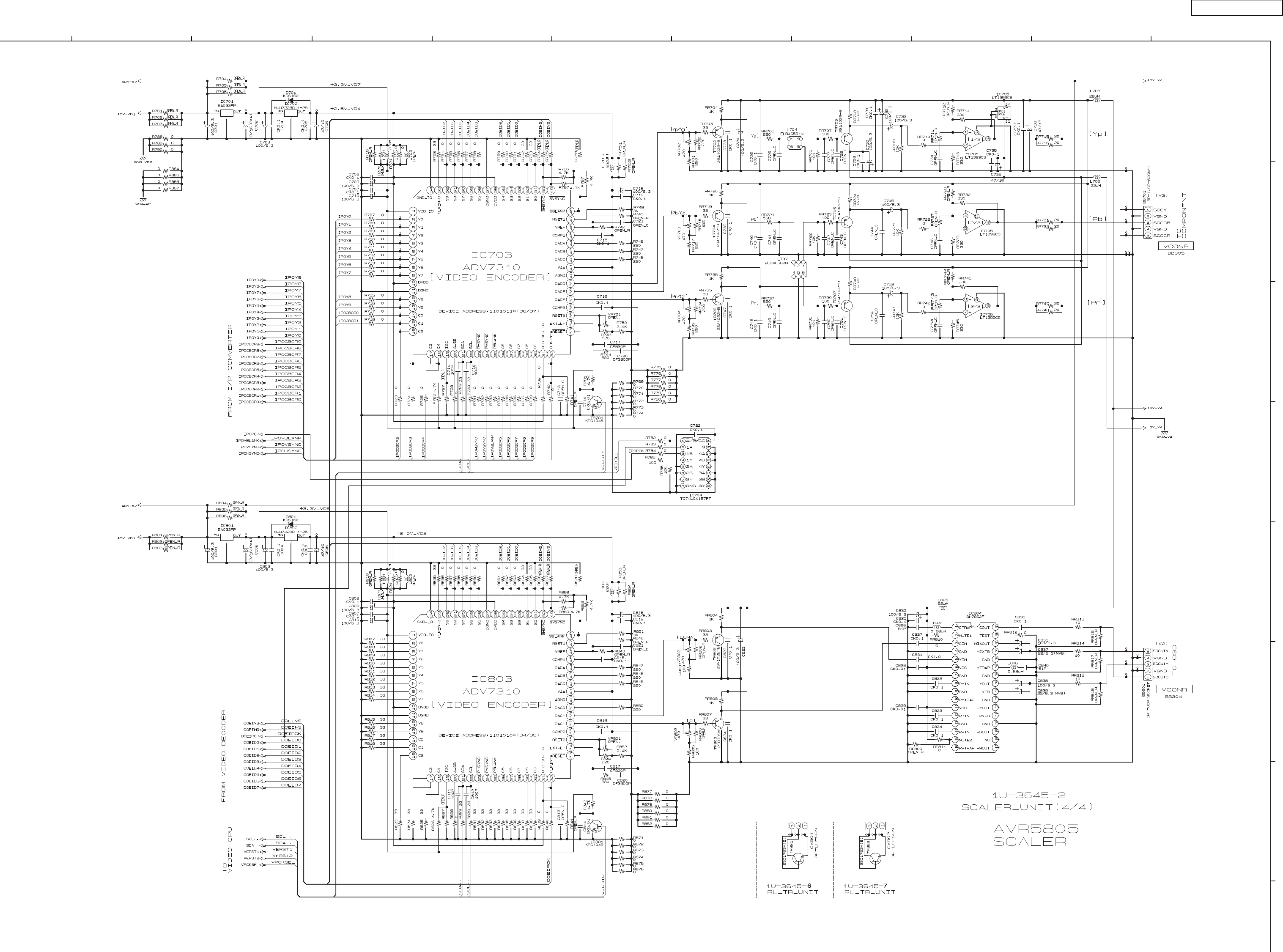

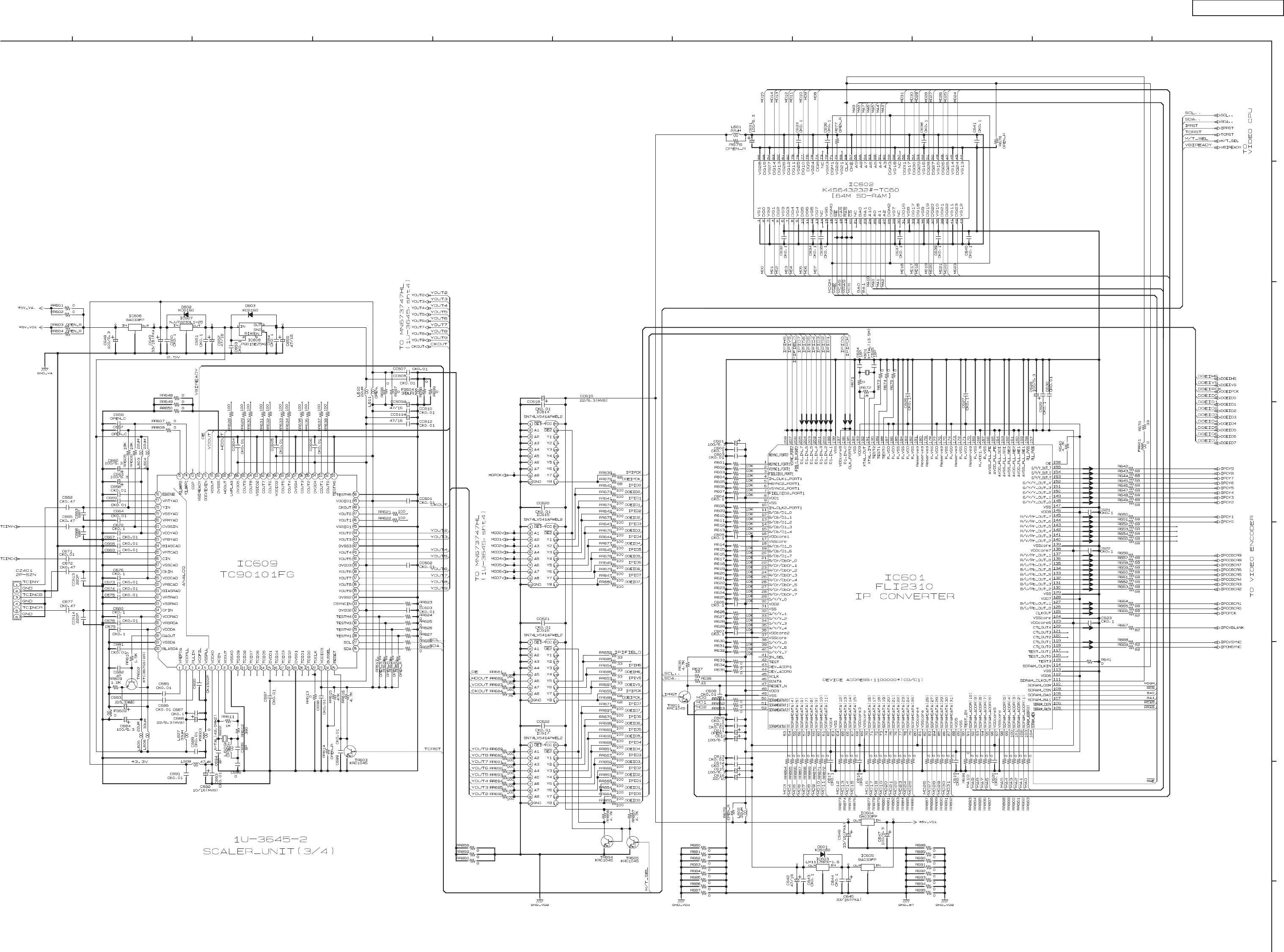

1U-3645 D. VIDEO P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

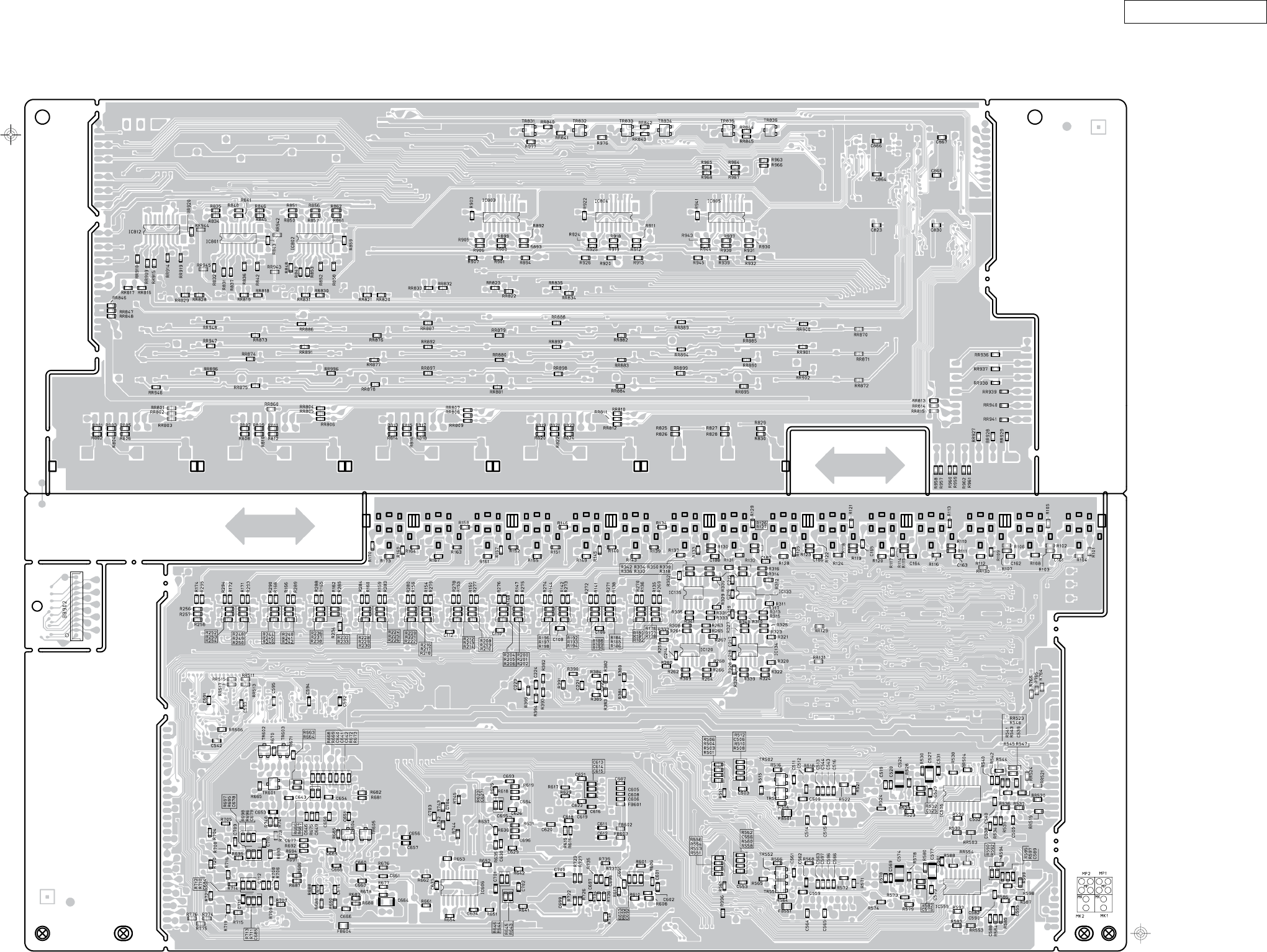

FOIL SIDE

AVR-5805/AVC-A1XV

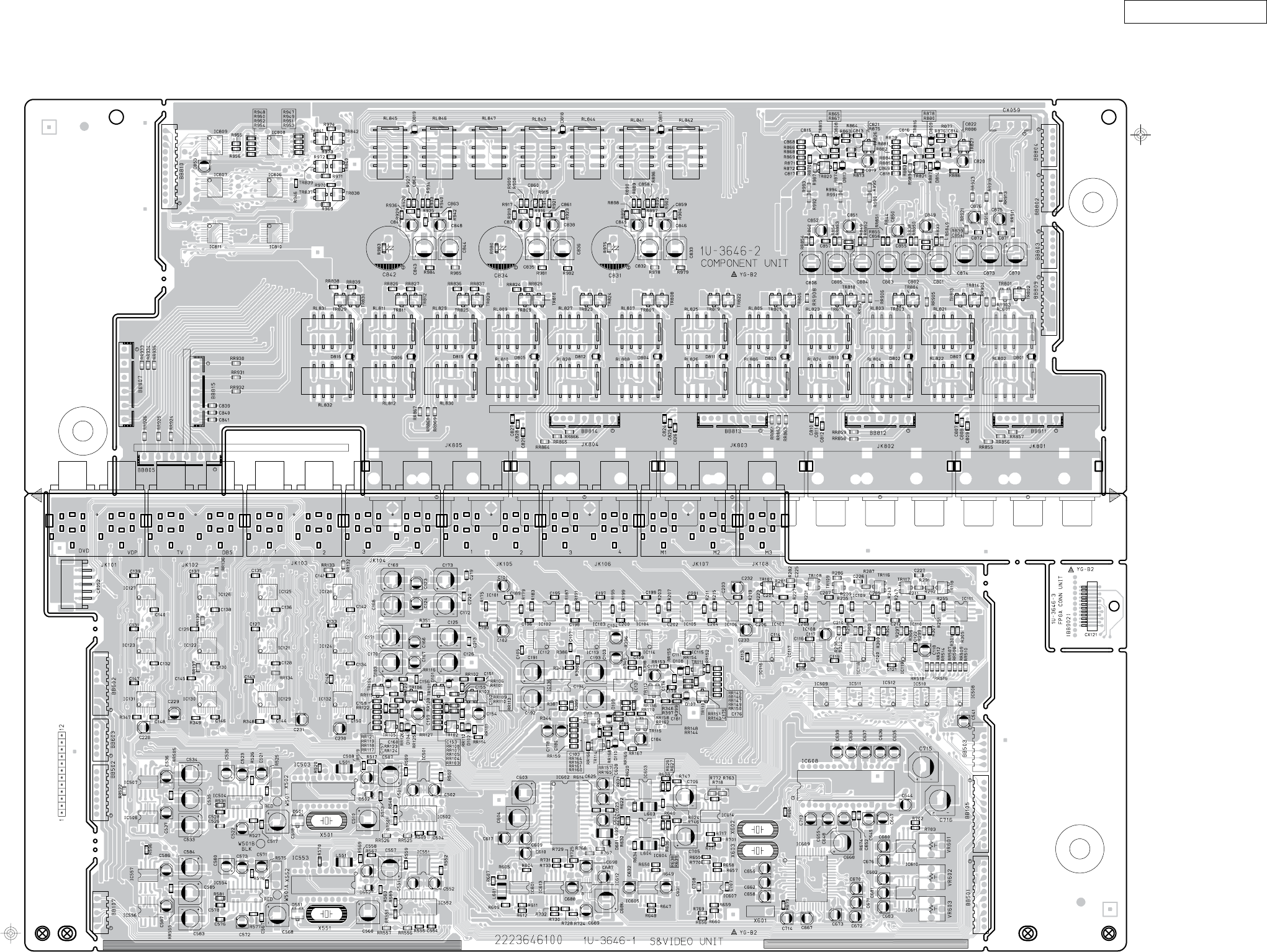

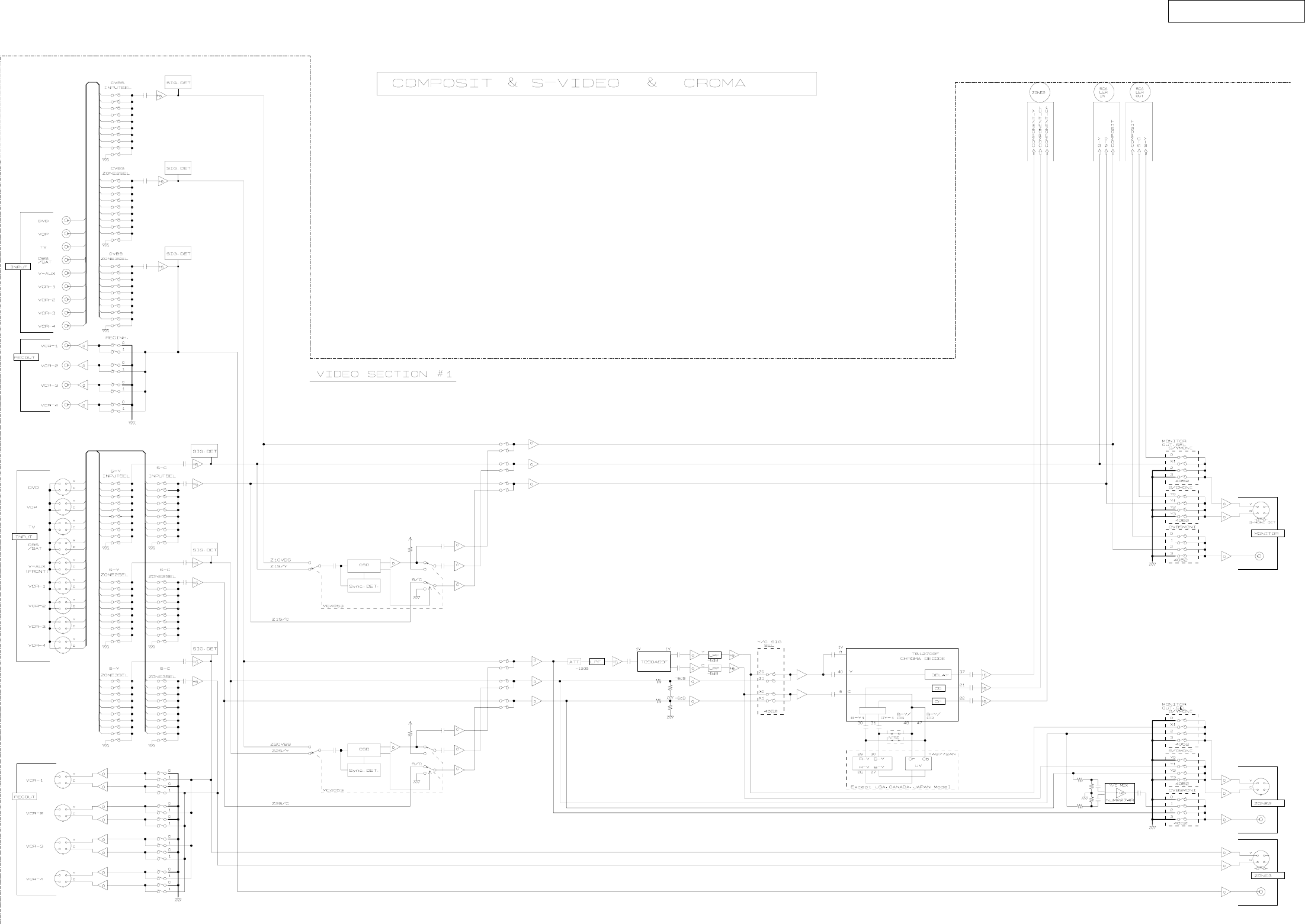

1U-3646 A. VIDEO P.W.B. UNIT

COMPONENT SIDE

AVR-5805/AVC-A1XV

FOIL SIDE

100

AVR-5805/AVC-A1XV

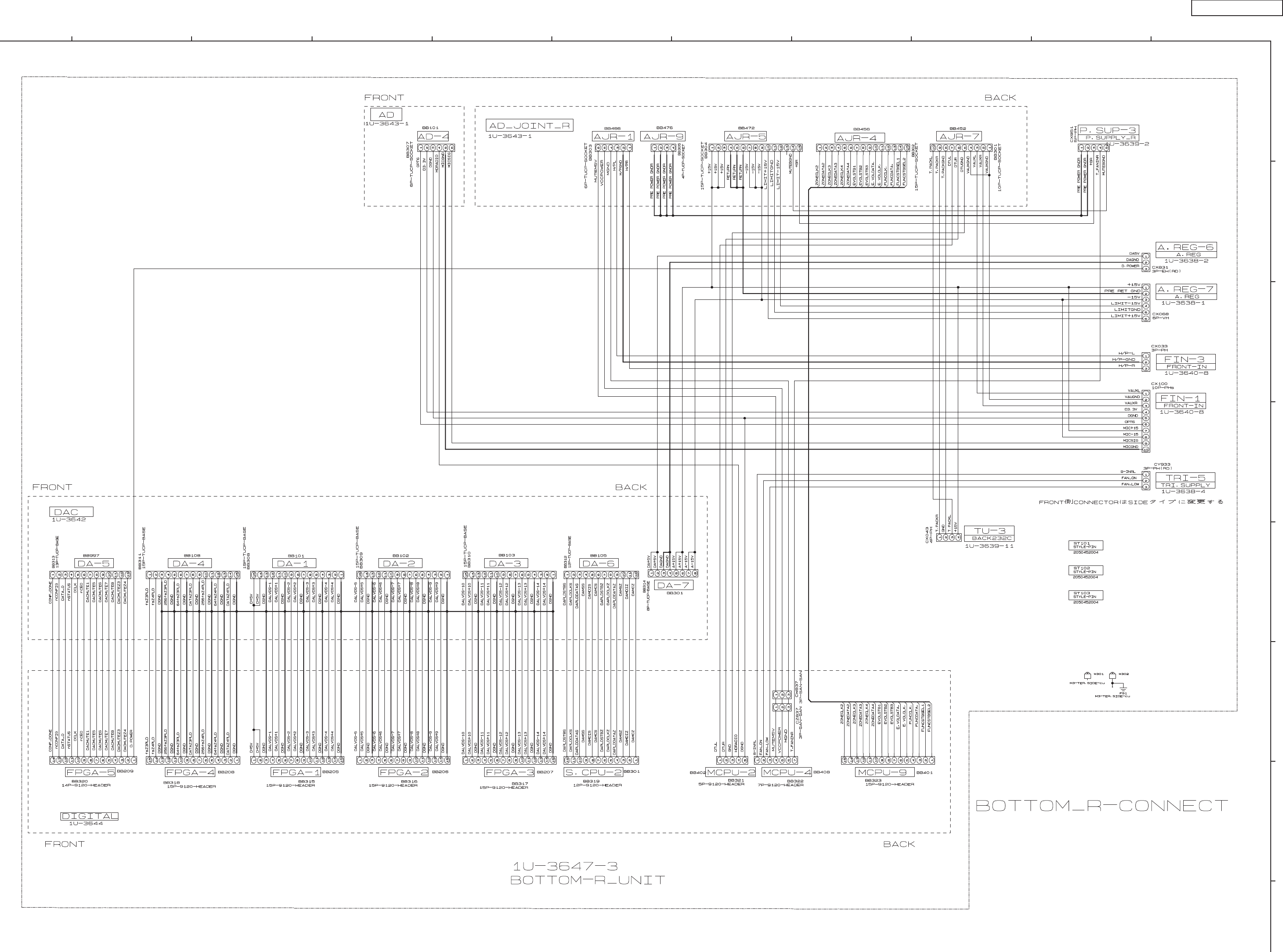

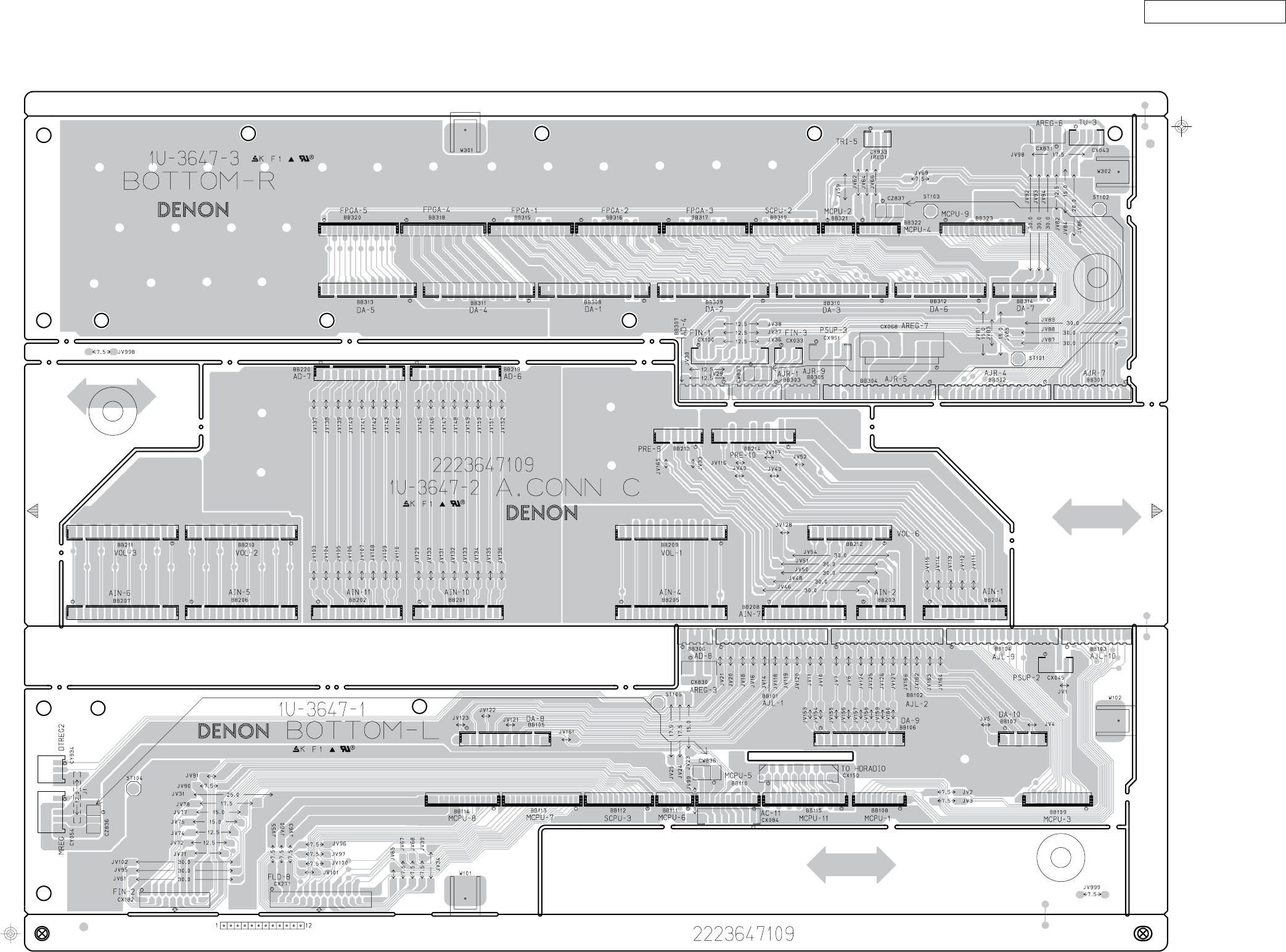

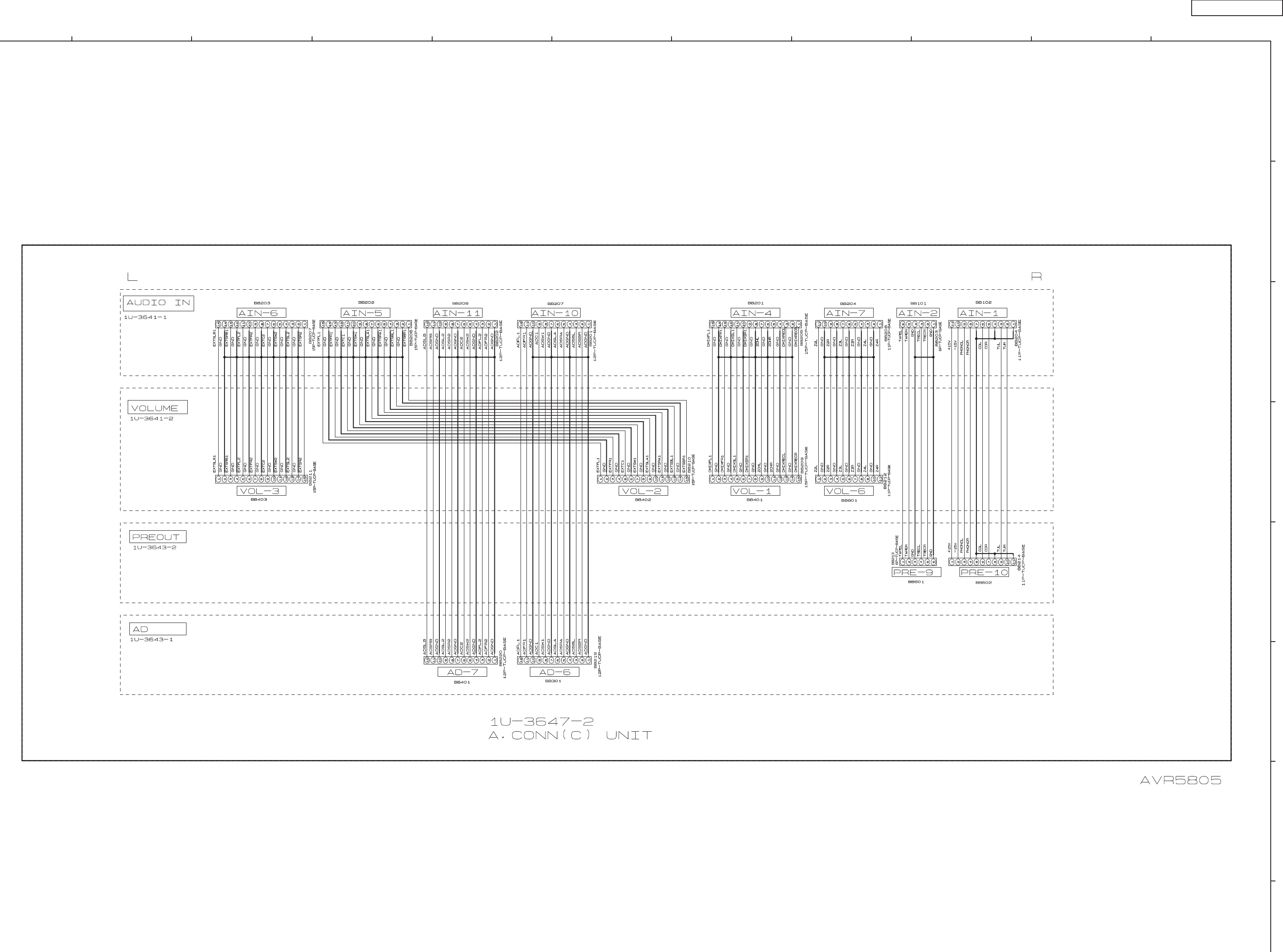

1U-3647 CONNECT-1 P.W.B. UNIT

COMPONENT SIDE

101

AVR-5805/AVC-A1XV

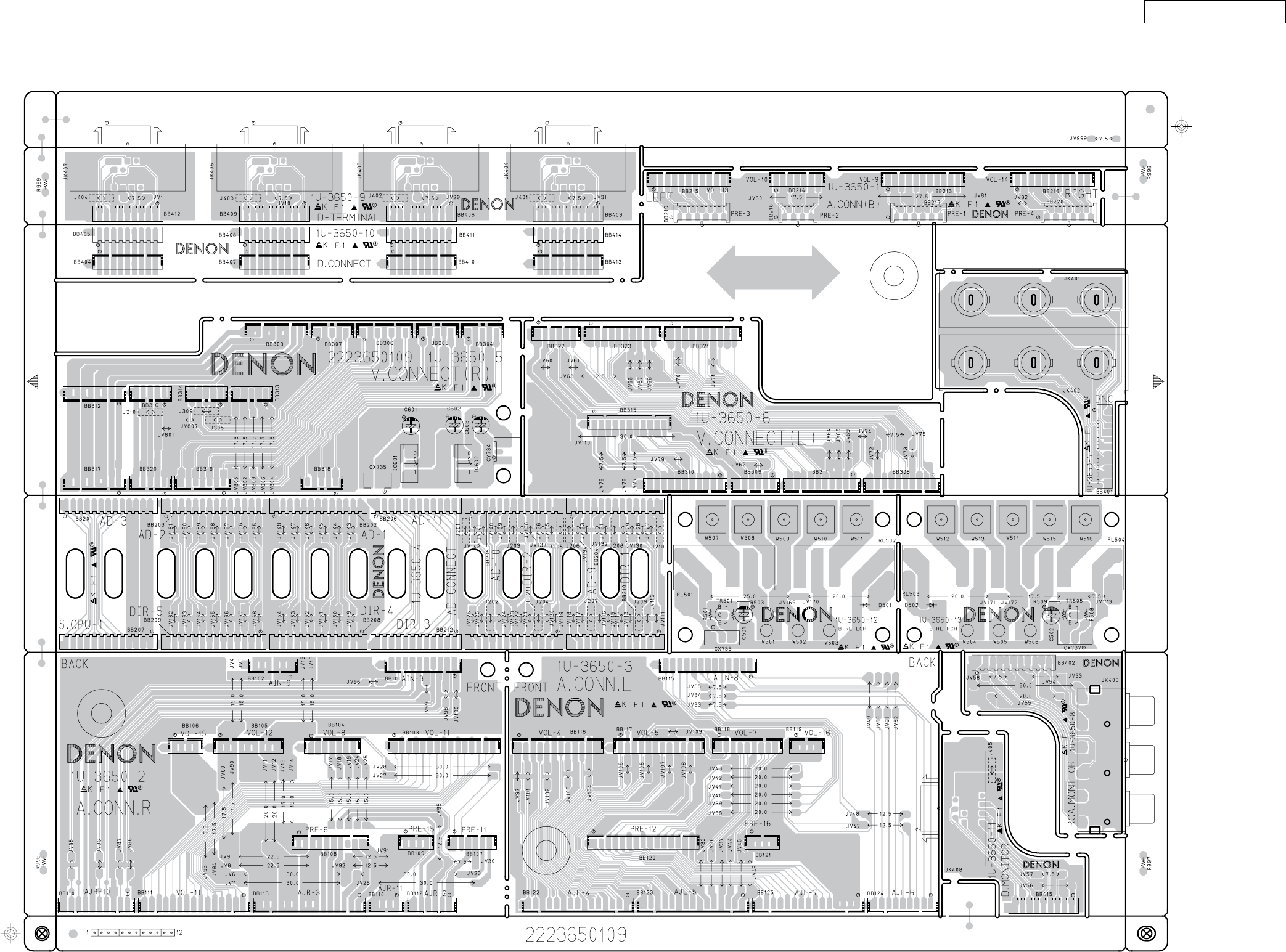

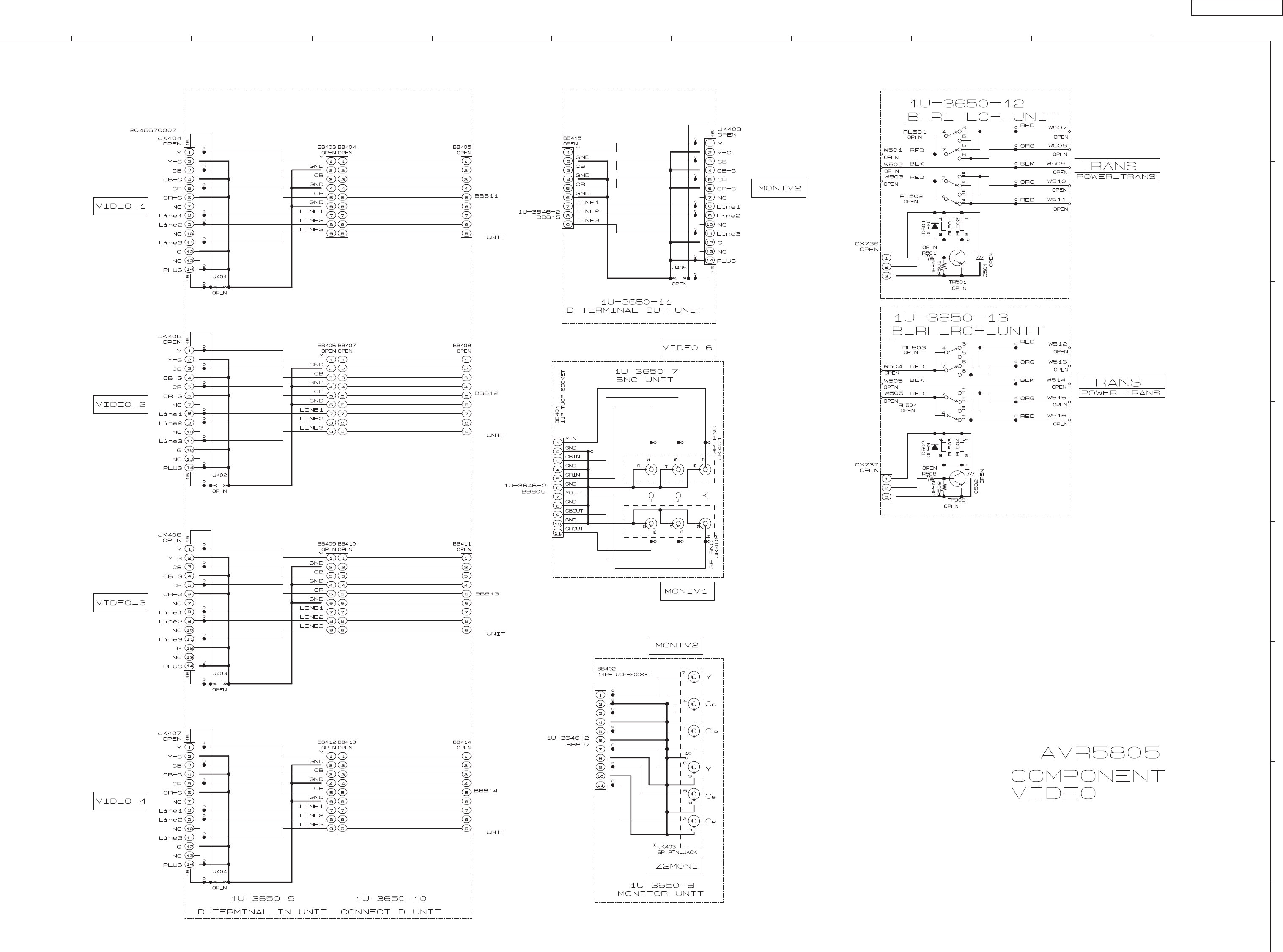

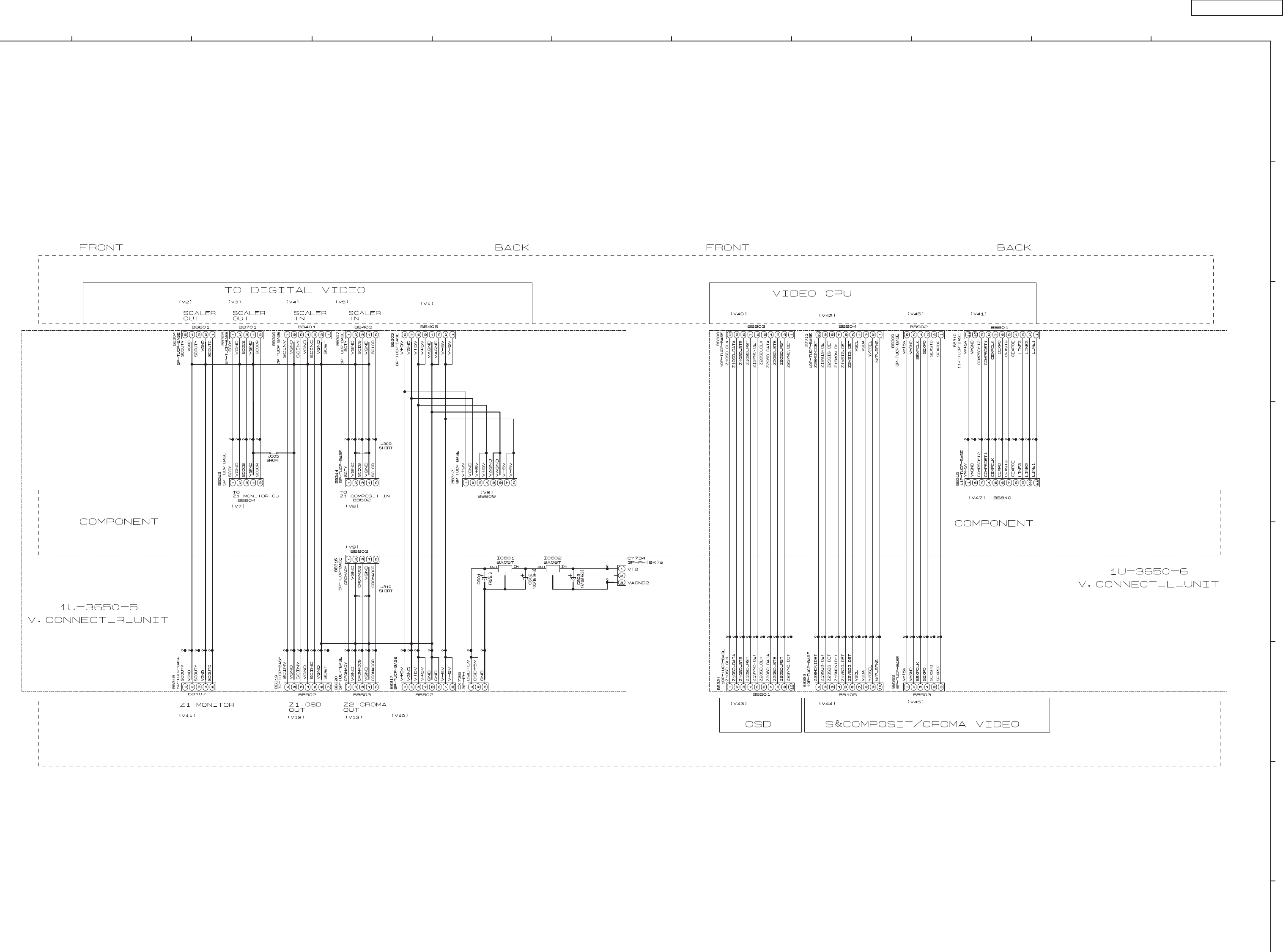

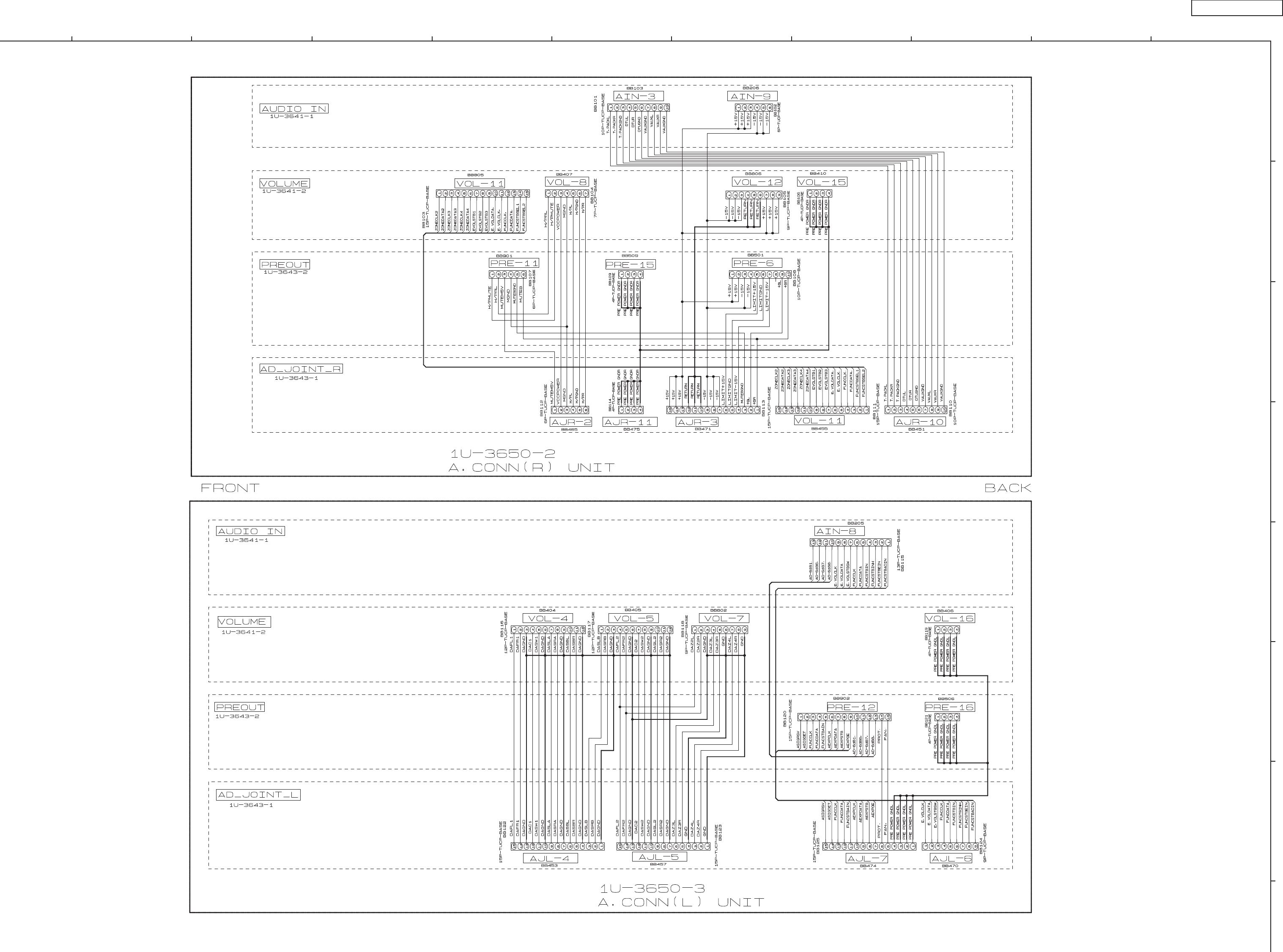

1U-3650 CONNECT-2 P.W.B. UNIT

COMPONENT SIDE

102

AVR-5805/AVC-A1XV

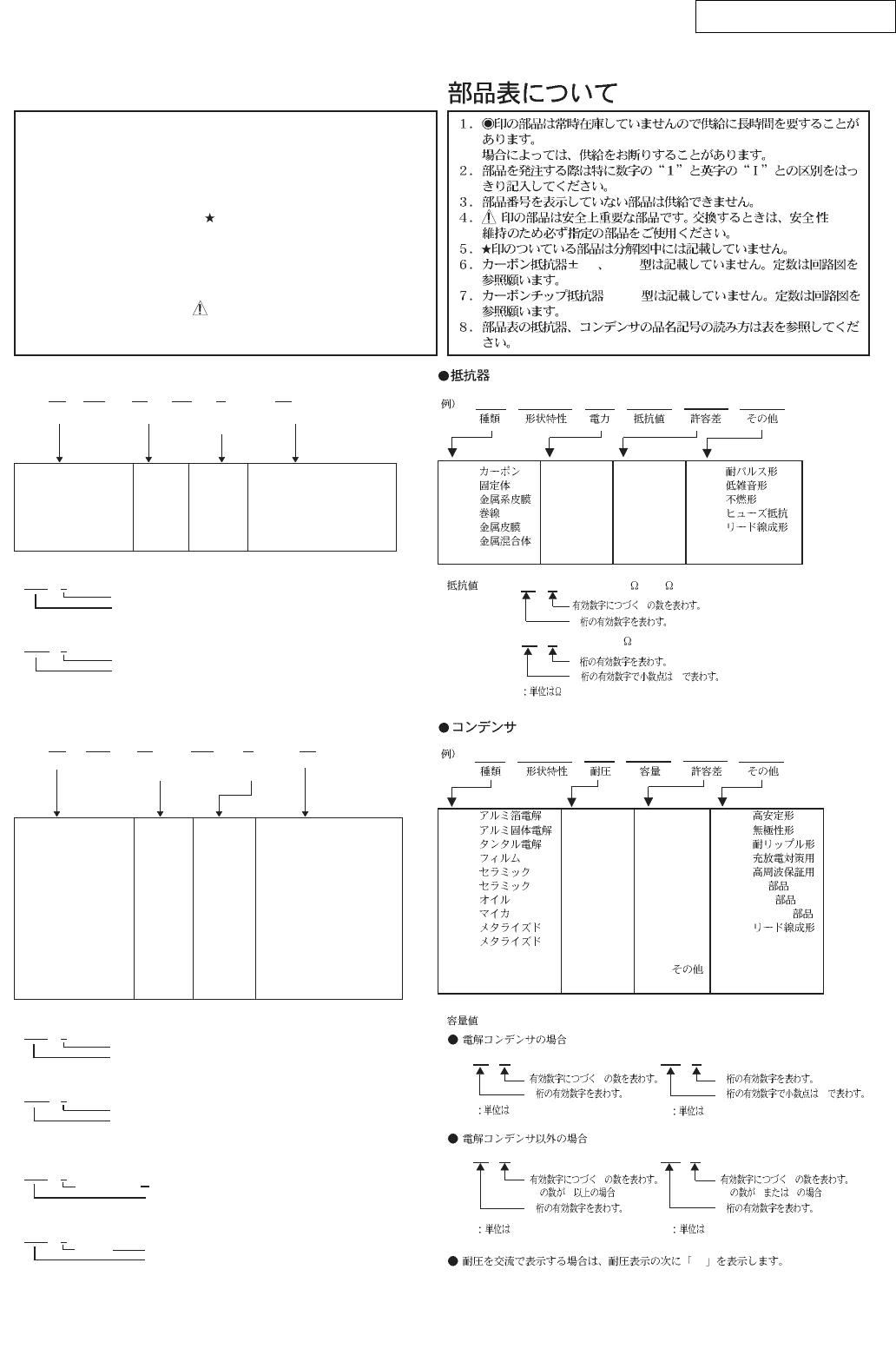

NOTE FOR PARTS LIST

5% 1/4W

1/16W

RD : 2B : 1/8 W F : ±1% P :

RC : 2E : 1/4 W G : ±2% NL :

RS : 2H : 1/2 W J : ±5% NB :

RW : 3A : 1 W K : ±10% FR :

RN : 3D : 2 W M : ±20% F :

RK : 3F : 3 W

3H : 5 W

RN 14K 2E 182 G FR

∗18 2 Ö1800 =1.8k

1R 2 Ö1.2

2 R

CE 04W 1H 2R2 M BP

CE : 0J : 6.3 V F : ±1% HS :

CA : 1A : 10 V G : ±2% BP :

CS : 1C : 16 V J : ±5% HR :

CQ : 1E : 25 V K : ±10% DL :

CK : 1V : 35 V M : ±20% HF :

CC : 1H : 50 V Z : +80% U : UL

CP : 2A : 100 V −20% C : CSA

CM : 2B : 125 V P : +100% W : UL-CSA

CF : 2C : 160 V − 0% F :

CH : 2D : 200 V C : ±0.25pF

2E : 250 V D : ±0.5pF

2H : 500 V = :

2J : 630 V

∗

22 2 Ö2200µF

µF

22 2 Ö2200pF=0.0022µF

pFpF

22 1 Ö220pF

(0 2 )

(0 0 1 )

2R 2 Ö2.2µF

2 R

µF

RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type

RC : Composition 2E : 1/4W G : ±2% NL : Low noise type

RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type

RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor

RN : Metal film 3D : 2W M : ±20% F : Lead wire forming

RK : Metal mixture 3F : 3W

3H : 5W

CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type

electrolytic

CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type

electrolytic

CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type

CQ : Film 1E : 25V K : ±10% DL : For change and discharge

CK : Ceramic 1V : 35V M : ±20% HF : For assuring high

requency

CC : Ceramic 1H : 50V Z : +80% U : UL part

CP : Oil 2A : 100V –20% C : CSA part

CM : Mica 2B : 125V P : +100% W : UL-CSA type

CF : Metallized 2C : 160V –0% F : Lead wire forming

CH : Metallized 2D : 200V C : ±0.25pF

2E : 250V D : ±0.5pF

2H : 500V = : Others

2J : 630V

lPart indicated with the mark "" are not always in stock and possibly to

take a long period of time for supplying, or in some case supplying of

part may be refused.

lWhen ordering of part, clearly indicate "1" and "I" (i) to avoid mis-

supplying.

lOrdering part without stating its part number can not be supplied.

lPart indicated with the mark " " is not illustrated in the exploded view.

lNot including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board

parts list. (Refer to the Schematic Diagram for those parts.)

lNot including Carbon Chip Resister 1/16W Type in the P.W.Board parts

list. (Refer to the Schematic Diagram for those parts.)

WARNING:

Parts marked with this symbol have critical characteristics.

Use ONLY replacement parts recommended by the manufacturer.

lResistors

Ex.:RN 14K 2E 182 GFR

Type Shape Power Resist- Allowable Others

and per- ance error

formance

]Resistance

1 8 2⇒1800 ohm = 1.8 kohm

Indicates number of zeros after effective number.

2-digit effective number.

• Units: ohm

1 R 2⇒1.2 ohm

1-digit effective number.

2-digit effective number, decimal point indicated by R.

• Units: ohm

lCapacitors

Ex.:CE 04W 1H 2R2 M BP

Type Shape Dielectric Capacity Allowable Others

and per- strength error

formance

]Capacity (electrolyte only)

2 2 2⇒2200µF

Indicates number of zeros after effective number.

2-digit effective number.

• Units: µF.

2 R 2⇒2.2µF

1-digit effective number.

2-digit effective number, decimal point indicated by R.

• Units: µF.

]Capacity (except electrolyte)

2 2 2⇒2200pF=0.0022µF

(More than 2) Indicates number of zeros after effective number.

2-digit effective number.

• Units: pF.

2 2 1⇒220pF

(0 or 1) Indicates number of zeros after effective number.

2-digit effective number.

• Units: pF.

• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric

strength value.

103

AVR-5805/AVC-A1XV

PARTS LIST OF P.W.B. UNIT ASS’Y

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。

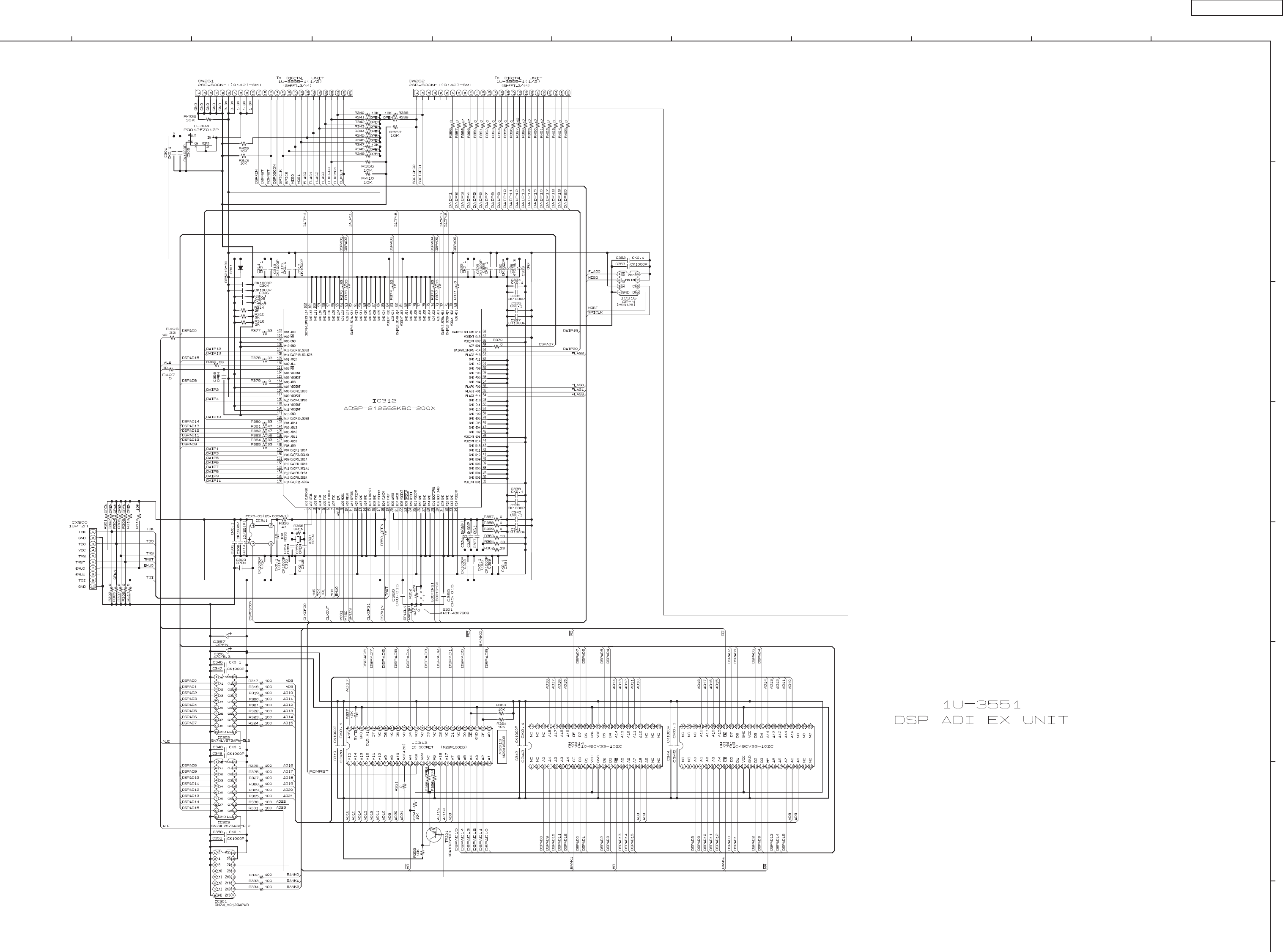

00D1U-3551A DSP ADI EX P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC301 00D 262 3339 907 SN74LVC139APWR +REF

IC302,303 00D 262 2642 909 SN74LV573APW-EL2 +REF

IC304 00D 263 1205 900 PQ012FZ01ZP +C

IC311 00D 262 3292 905 FCX0-03(25.000M/L) +REF

IC312 00D 262 3340 006 ADSP-21266SKBCZ-2B +REF

IC313 00D GEN 6800 DSP SUB ASS'Y LH28F160BJE-BTL90 +C

IC314,315 00D 262 3341 005 CY7C1049CV33-10ZC +REF

TR301 00D 269 0184 907 KRA102S-RTK +C

D301 00D 276 0750 902 RB521S-30TE61 +REF

CAPACITORS GROUP

C301 00D 257 0516 954 CK73B1E104KT +1608

C302 00D 257 0509 929 CK73B1H102KT +1608

C303 00D 257 0516 954 CK73B1E104KT +1608

C304 00D 257 0509 929 CK73B1H102KT +1608

C305 00D 257 0516 954 CK73B1E104KT +1608

C306 00D 257 0509 929 CK73B1H102KT +1608

C307 00D 257 0516 954 CK73B1E104KT +1608

C308 00D 257 0509 929 CK73B1H102KT +1608

C310 00D 254 4603 916 CE67W1E100MT(P.CAP) +REF

C311 00D 257 0516 954 CK73B1E104KT +1608

C312,313 00D 257 0509 929 CK73B1H102KT +1608

C314,315 00D 257 0516 954 CK73B1E104KT +1608

C316,317 00D 257 0509 929 CK73B1H102KT +1608

C318 00D 257 0516 954 CK73B1E104KT +1608

C319 00D 257 0509 929 CK73B1H102KT +1608

C320 00D 257 0516 954 CK73B1E104KT +1608

C321 00D 254 4603 916 CE67W1E100MT(P.CAP) +REF

C322 00D 257 0516 954 CK73B1E104KT +1608

C323-325 00D 257 0509 929 CK73B1H102KT +1608

C326-328 00D 257 0516 954 CK73B1E104KT +1608

C329,330 00D 257 0509 929 CK73B1H102KT +1608

C331 00D 257 0516 954 CK73B1E104KT +1608

C332 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C334 00D 257 0516 954 CK73B1E104KT +1608

C335 00D 257 0509 929 CK73B1H102KT +1608

C336 00D 257 0516 954 CK73B1E104KT +1608

C337 00D 257 0509 929 CK73B1H102KT +1608

C338 00D 257 0516 954 CK73B1E104KT +1608

C339 00D 257 0509 929 CK73B1H102KT +1608

C340 00D 257 0516 954 CK73B1E104KT +1608

C341,342 00D 257 0509 929 CK73B1H102KT +1608

C343 00D 257 0516 954 CK73B1E104KT +1608

C344 00D 257 0509 929 CK73B1H102KT +1608

C345,346 00D 257 0516 954 CK73B1E104KT +1608

C347 00D 257 0509 929 CK73B1H102KT +1608

C348 00D 257 0516 954 CK73B1E104KT +1608

C349 00D 257 0509 929 CK73B1H102KT +1608

C350 00D 257 0516 954 CK73B1E104KT +1608

C351 00D 257 0509 929 CK73B1H102KT +1608

C352 00D 257 0516 954 CK73B1E104KT +1608

C353 00D 257 0509 929 CK73B1H102KT +1608

C356 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C359,360 00D 257 0501 927 CK73B1H153KT +1608

OTHERS PARTS GROUP

CW261,262 00D 205 1247 917 26P SOCKET(9142)-SMT +REF

104

AVR-5805/AVC-A1XV

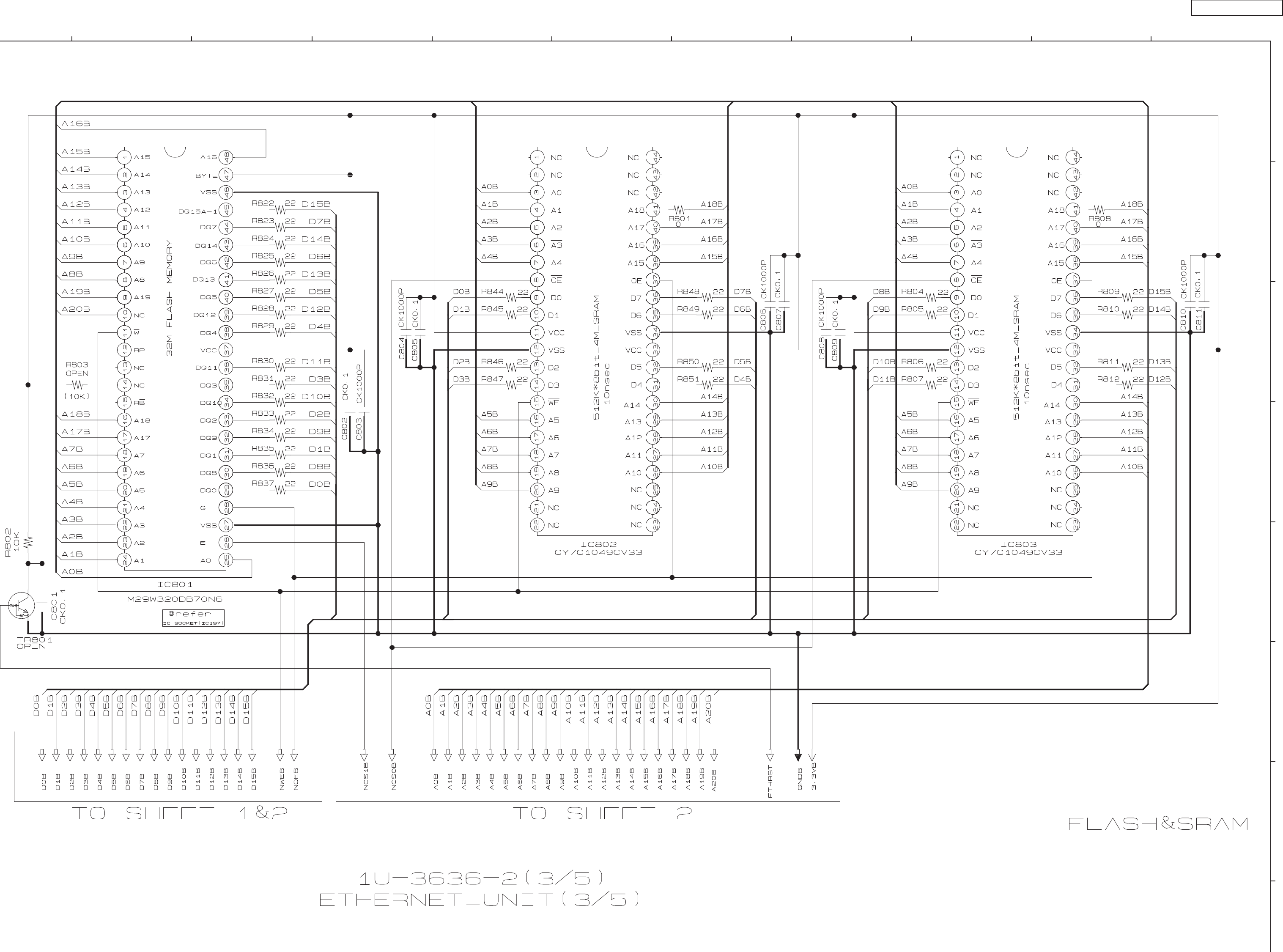

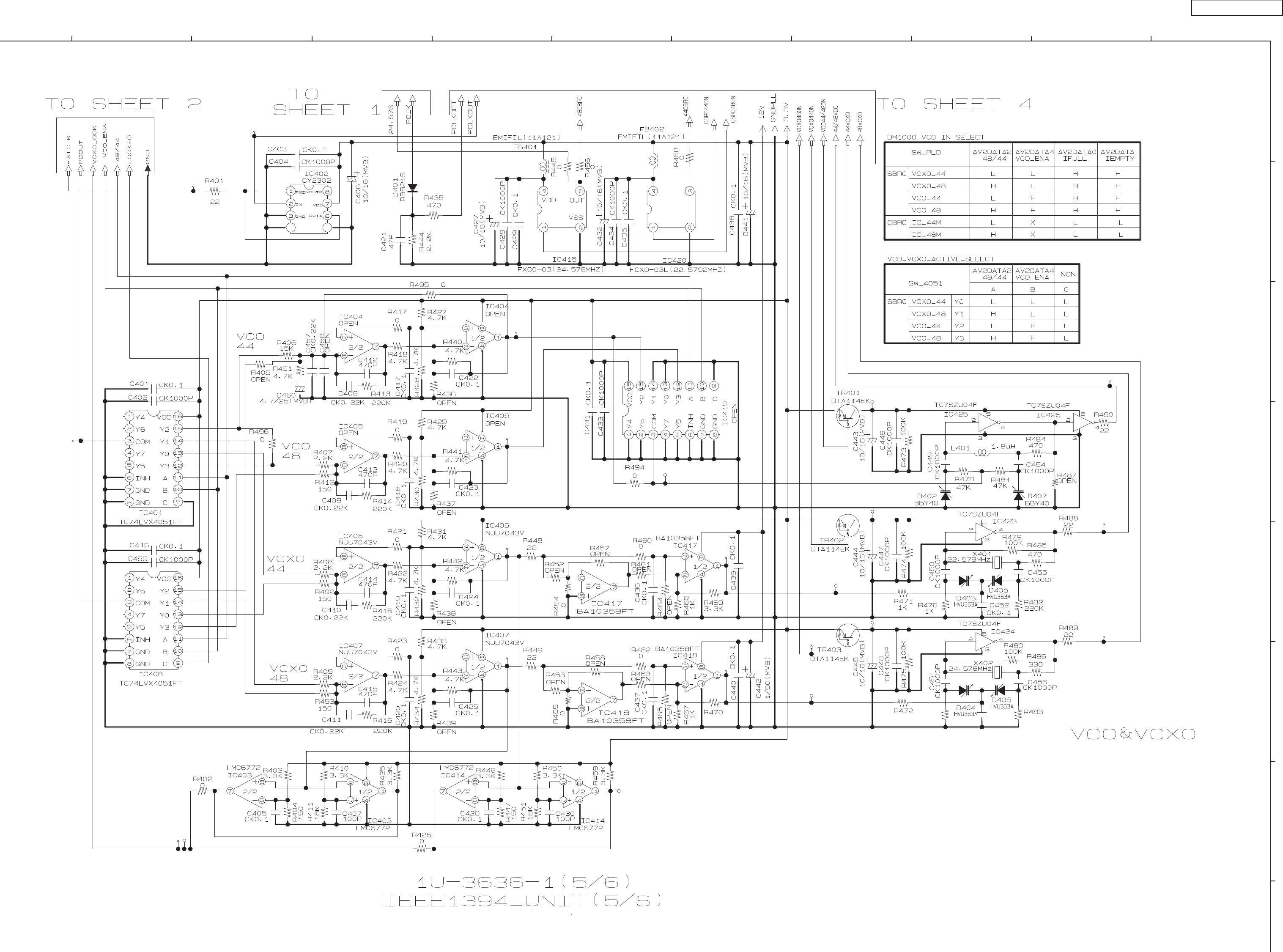

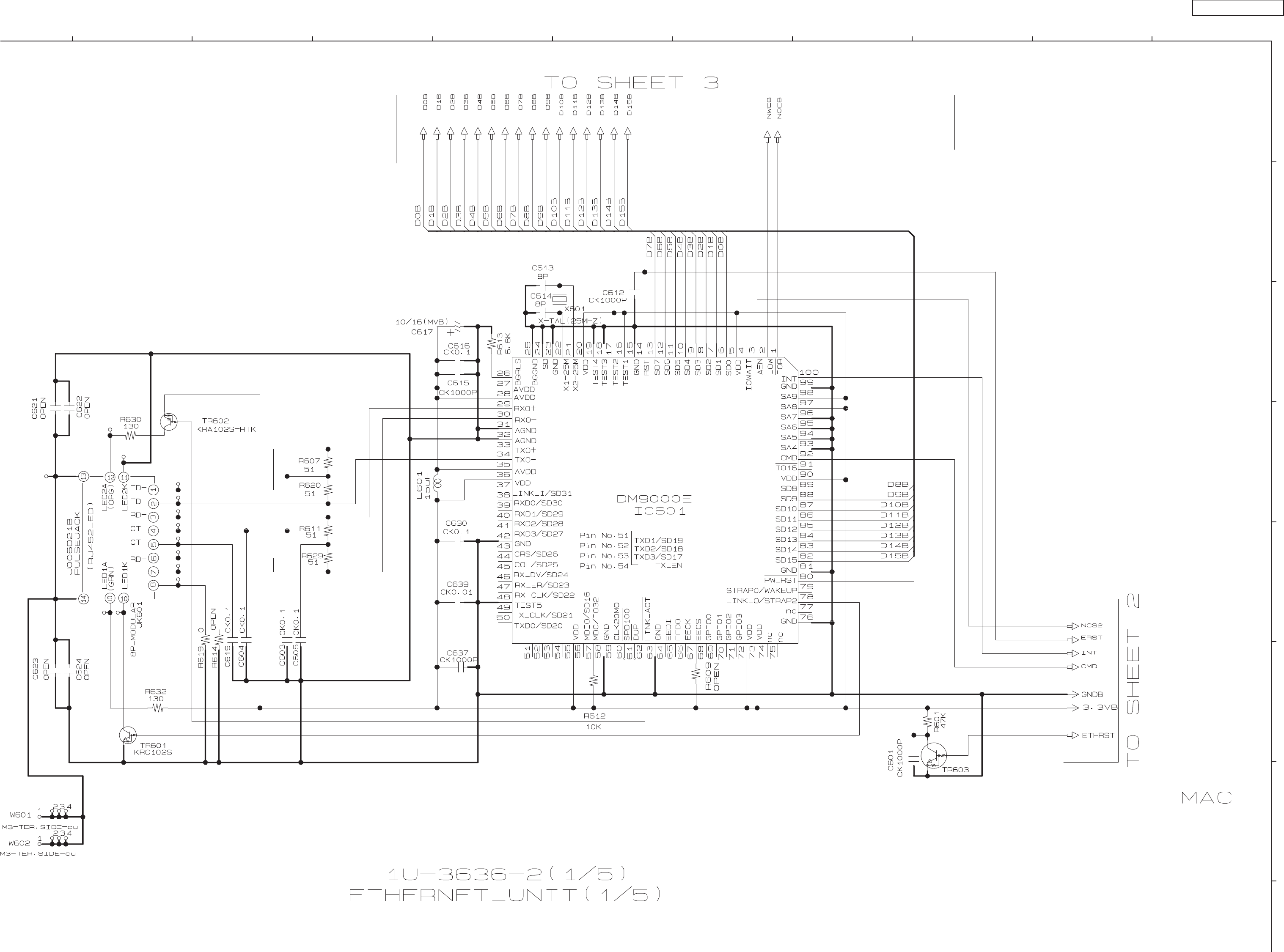

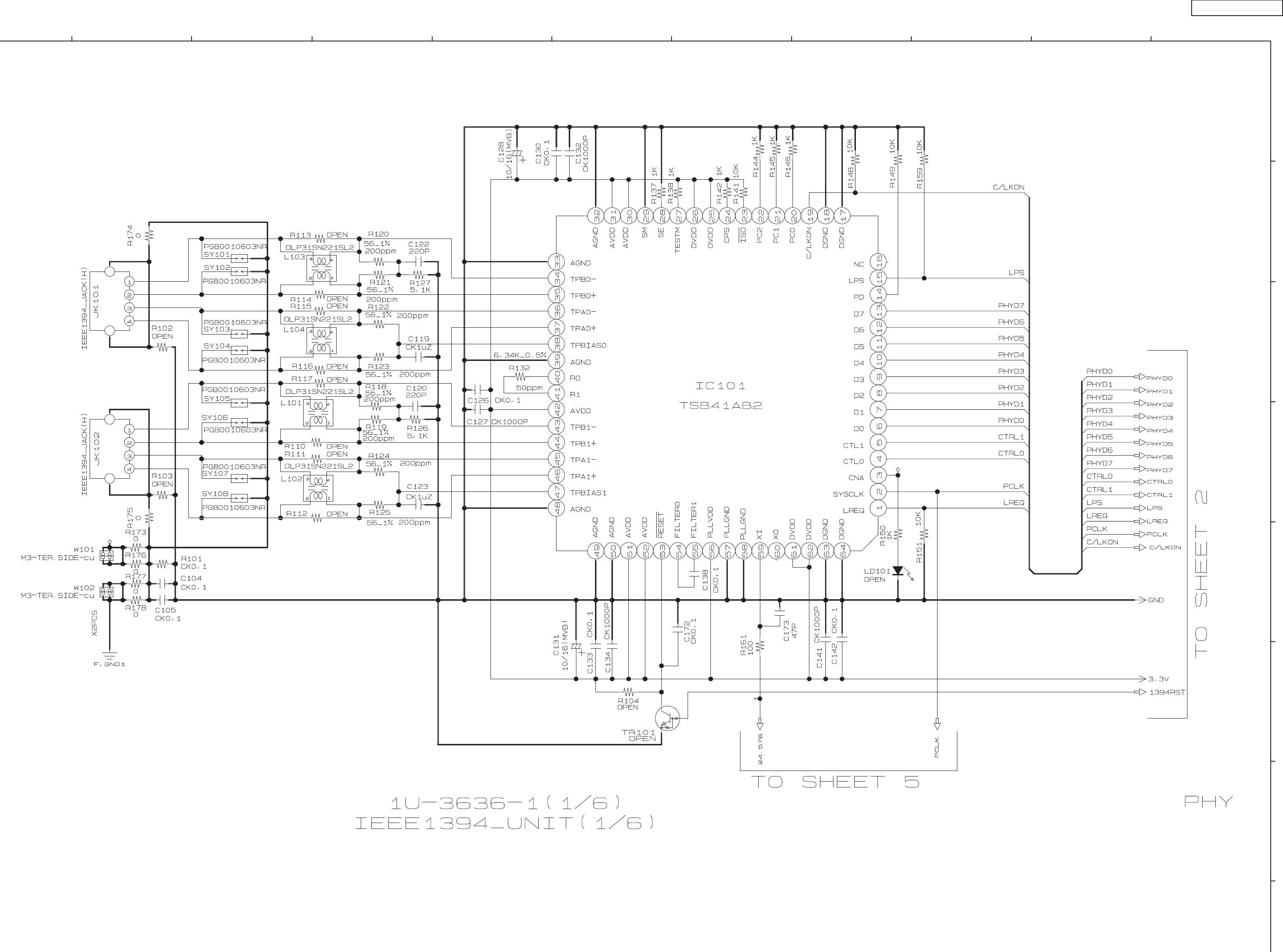

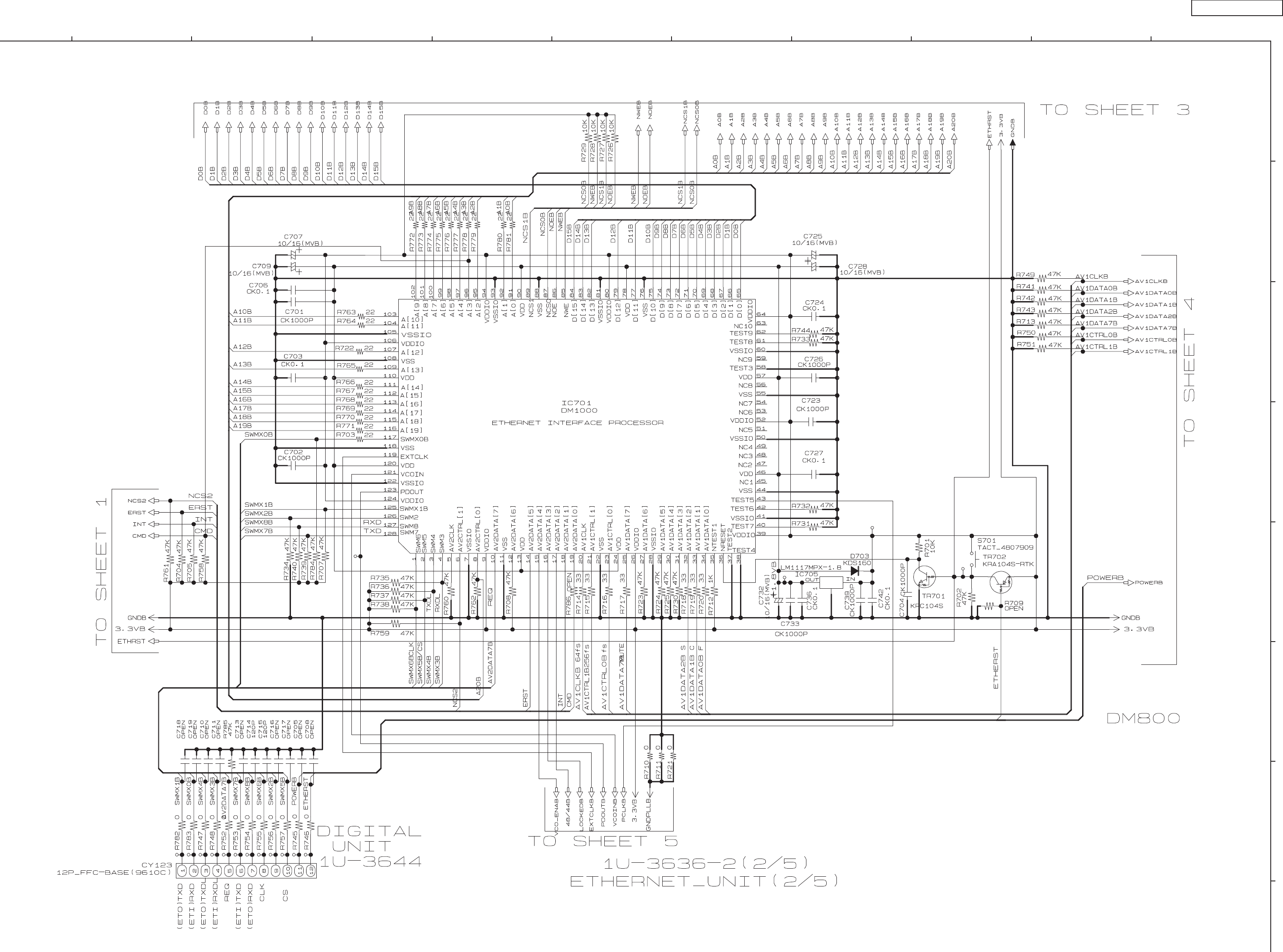

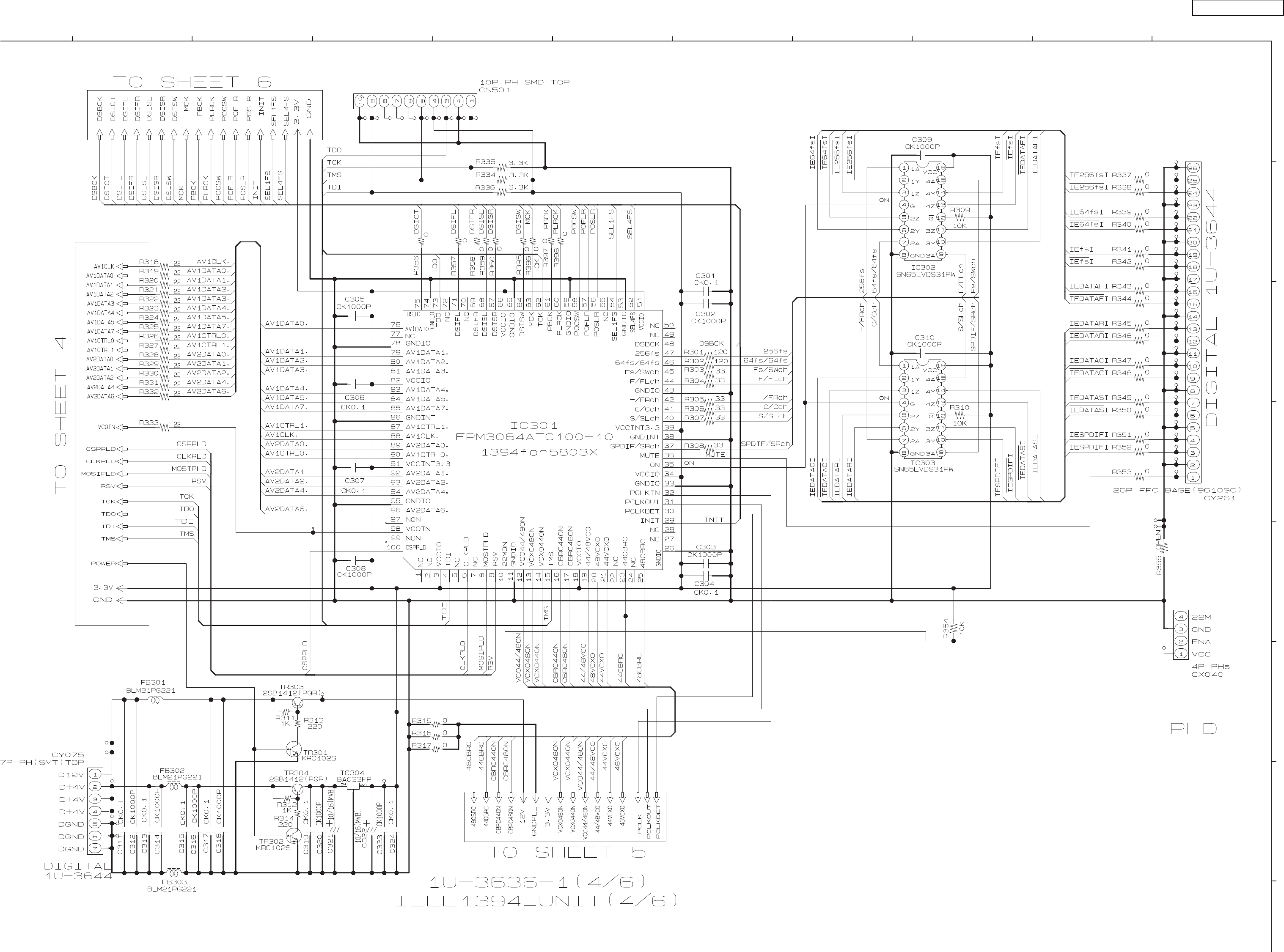

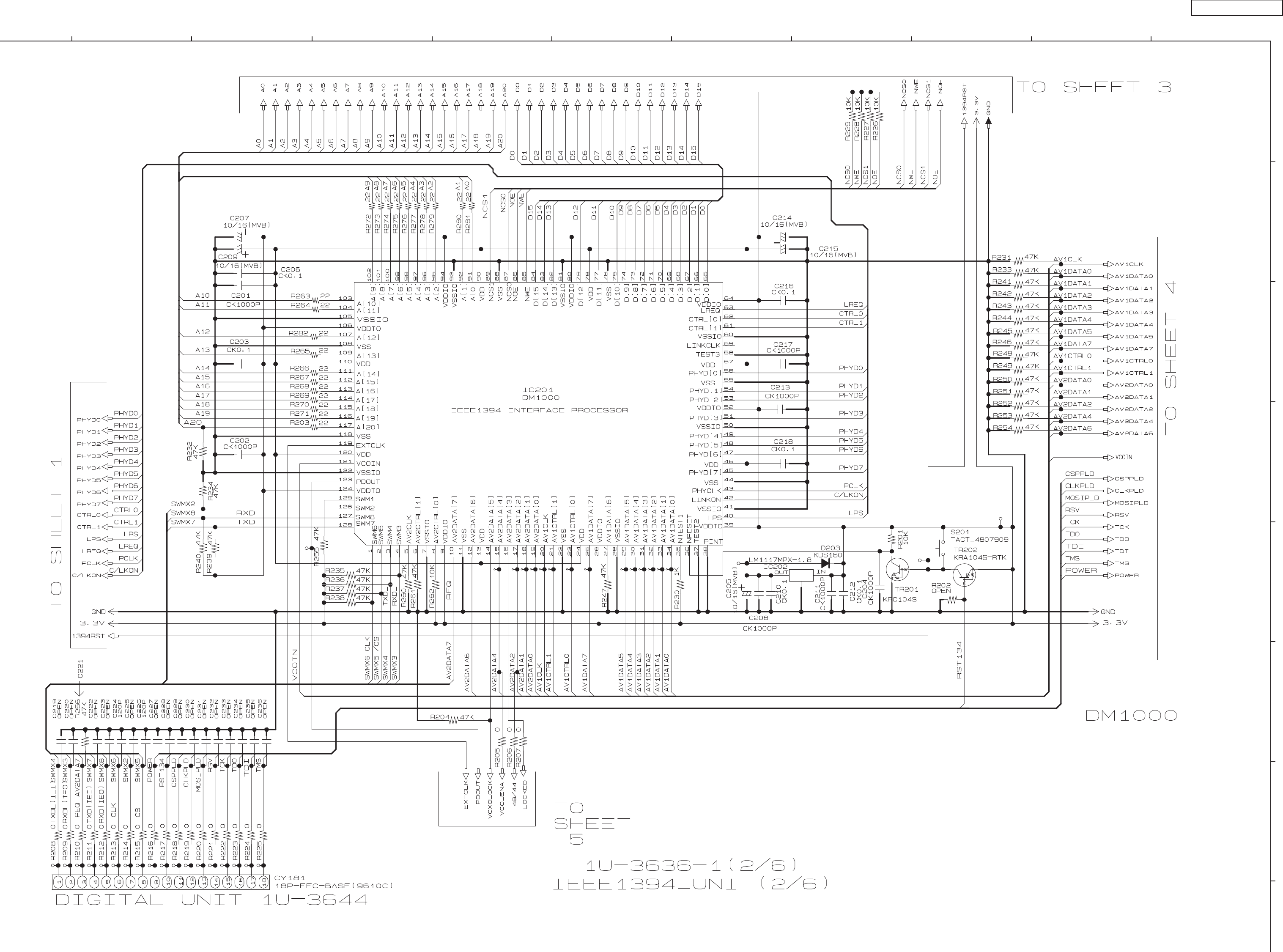

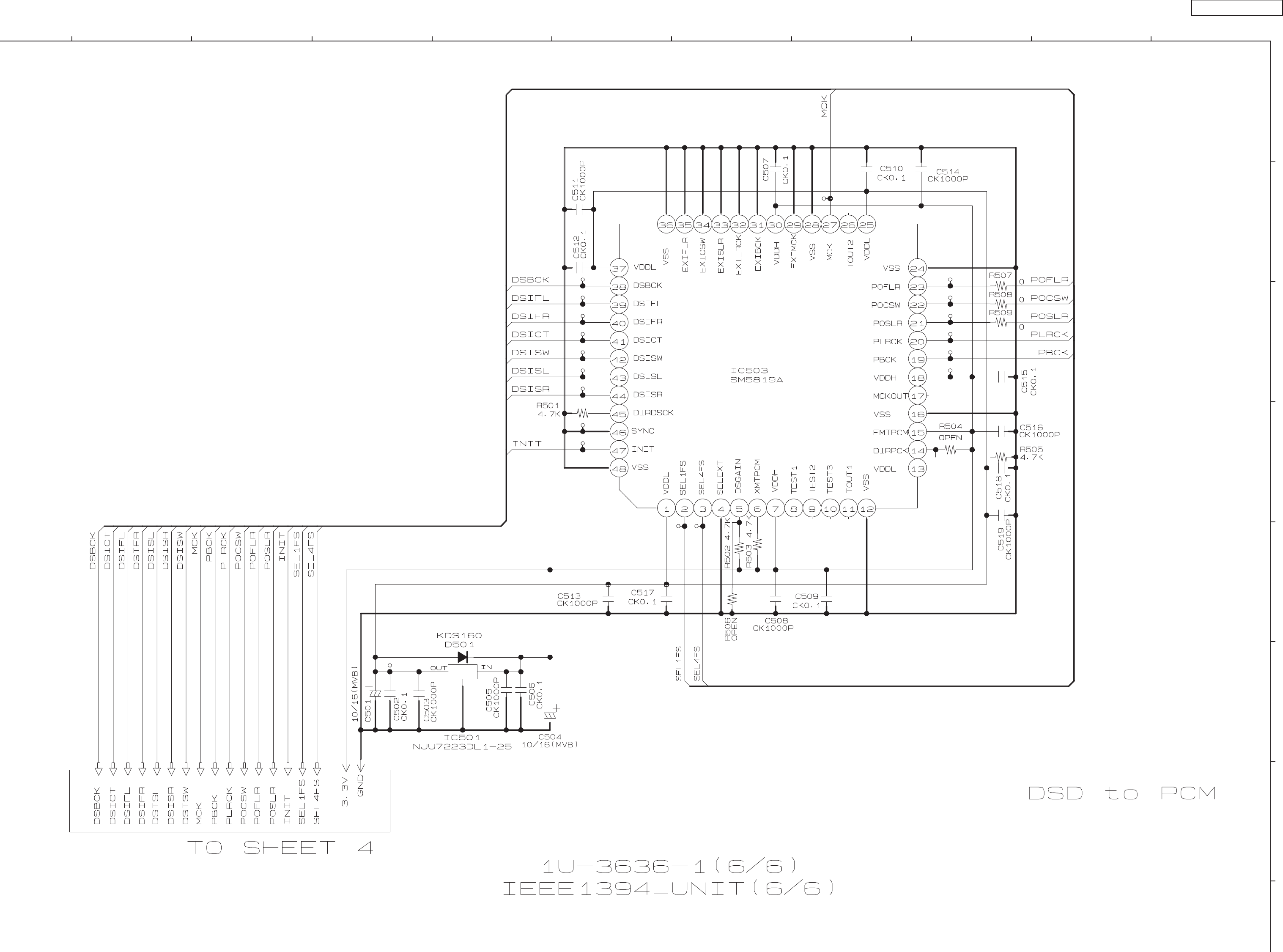

00D1U-3636 1394 P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 262 3274 004 TSB41AB2 +REF

IC201 00D 262 3262 003 DM1000

IC202 00D 262 3265 903 LM1117MPX-1.8 +C

IC301 00D GEN 6803 CPLD SUB ASS'Y EPM3064ATC100-10

IC302,303 00D 262 3120 909 SN65LVDS31PW +REF

IC304 00D 263 1079 903 BA033FP +C

IC311 00D GEN 6802 DM1000 ROM SUB ASS'Y MBM29LV160BE90TN

IC312 00D 262 3266 009 IC61LV25616-10T

IC401 00D 262 3413 904 TC74LVX4051FT

IC402 00D 262 3261 907 CY2302 +REF

IC403 00D 262 3423 907 LMC6772AIM

IC406,407 00D 263 1192 903 NJU7043V +REF

IC408 00D 262 3413 904 TC74LVX4051FT

IC414 00D 262 3423 907 LMC6772AIM

IC415 00D 262 3062 902 FCX0-03(24.576MHZ) +REF

IC417,418 00D 263 0686 902 BA10358FT

IC420 00D 262 3422 908 FCXO-03L(22.5792MHZ)

IC423-426 00D 262 3415 902 TC7SZU04F

IC501 00D 263 1183 909 NJU7223DL1-25 +C

IC503 00D 262 3291 003 SM5819A +C

IC601 00D 262 3395 006 DM9000EP(PB FREE)

IC701 00D 262 3262 003 DM1000

IC705 00D 262 3265 903 LM1117MPX-1.8 +C

IC801 00D GEN 6801 DM1000 ROM SUB ASS'Y M29W320BD70N6

IC802,803 00D 262 3341 005 CY7C1049CV33-10ZC +REF

IC901,902 00D 262 3120 909 SN65LVDS31PW +REF

IC903 00D 263 1079 903 BA033FP +C

IC951 00D 262 3261 907 CY2302 +REF

IC952 00D 262 3062 902 FCX0-03(24.576MHZ) +REF

IC953 00D 262 2944 908 SN74HC151APW-EL2 +REF

IC957,958 00D 262 3415 902 TC7SZU04F

TR201 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR202 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR301,302 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR303,304 00D 272 0161 900 2SB1412TL(PQR) +C

TR401-403 00D 269 0083 901 DTA114EKT96 +C

TR601 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR602 00D 269 0184 907 KRA102S-RTK +C

TR603 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR701 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR702 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR902 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR903 00D 272 0161 900 2SB1412TL(PQR) +C

D203 00D 276 0794 900 KDS160 +2125

D401 00D 276 0750 902 RB521S-30TE61 +REF

D402 00D 276 0793 901 BBY40 +C

D403-406 00D 276 0795 909 HVU363A +C

D407 00D 276 0793 901 BBY40 +C

D501 00D 276 0794 900 KDS160 +2125

D703 00D 276 0794 900 KDS160 +2125

D951,952 00D 276 0793 901 BBY40 +C

RESISTORS GROUP

R101 00D 257 0516 954 CK73B1E104KT +1608

CAPACITORS GROUP

C104,105 00D 257 0516 954 CK73B1E104KT +1608

C119 00D 257 0513 902 CK73F1A105ZT +1608

C120 00D 257 0507 934 CC73CH1H221JT +1608

C122 00D 257 0507 934 CC73CH1H221JT +1608

C123 00D 257 0513 902 CK73F1A105ZT +1608

C126 00D 257 0516 954 CK73B1E104KT +1608

105

AVR-5805/AVC-A1XV

C127 00D 257 0509 929 CK73B1H102KT +1608

C128 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C130 00D 257 0516 954 CK73B1E104KT +1608

C131 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C132 00D 257 0509 929 CK73B1H102KT +1608

C133 00D 257 0516 954 CK73B1E104KT +1608

C134 00D 257 0509 929 CK73B1H102KT +1608

C138 00D 257 0516 954 CK73B1E104KT +1608

C141 00D 257 0509 929 CK73B1H102KT +1608

C142 00D 257 0516 954 CK73B1E104KT +1608

C172 00D 257 0516 954 CK73B1E104KT +1608

C173 00D 257 0504 982 CC73CH1H470JT +1608

C201,202 00D 257 0509 929 CK73B1H102KT +1608

C203 00D 257 0516 954 CK73B1E104KT +1608

C204 00D 257 0509 929 CK73B1H102KT +1608

C205 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C206 00D 257 0516 954 CK73B1E104KT +1608

C207 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C208 00D 257 0509 929 CK73B1H102KT +1608

C209 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C210 00D 257 0516 954 CK73B1E104KT +1608

C211 00D 257 0509 929 CK73B1H102KT +1608

C212 00D 257 0516 954 CK73B1E104KT +1608

C213 00D 257 0509 929 CK73B1H102KT +1608

C214,215 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C216 00D 257 0516 954 CK73B1E104KT +1608

C217 00D 257 0509 929 CK73B1H102KT +1608

C218 00D 257 0516 954 CK73B1E104KT +1608

C224 00D 257 0506 977 CC73CH1H121JT +1608

C226 00D 257 0506 977 CC73CH1H121JT +1608

C301 00D 257 0516 954 CK73B1E104KT +1608

C302,303 00D 257 0509 929 CK73B1H102KT +1608

C304 00D 257 0516 954 CK73B1E104KT +1608

C305 00D 257 0509 929 CK73B1H102KT +1608

C306,307 00D 257 0516 954 CK73B1E104KT +1608

C308-310 00D 257 0509 929 CK73B1H102KT +1608

C311 00D 257 0516 954 CK73B1E104KT +1608

C312 00D 257 0509 929 CK73B1H102KT +1608

C313 00D 257 0516 954 CK73B1E104KT +1608

C314 00D 257 0509 929 CK73B1H102KT +1608

C315 00D 257 0516 954 CK73B1E104KT +1608

C316 00D 257 0509 929 CK73B1H102KT +1608

C317 00D 257 0516 954 CK73B1E104KT +1608

C318 00D 257 0509 929 CK73B1H102KT +1608

C319 00D 257 0516 954 CK73B1E104KT +1608

C320 00D 257 0509 929 CK73B1H102KT +1608

C321,322 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C323 00D 257 0509 929 CK73B1H102KT +1608

C324 00D 257 0516 954 CK73B1E104KT +1608

C361,362 00D 257 0516 954 CK73B1E104KT +1608

C363,364 00D 257 0509 929 CK73B1H102KT +1608

C365 00D 257 0516 954 CK73B1E104KT +1608

C366 00D 257 0509 929 CK73B1H102KT +1608

C367 00D 257 0516 954 CK73B1E104KT +1608

C401 00D 257 0516 954 CK73B1E104KT +1608

C402 00D 257 0509 929 CK73B1H102KT +1608

C403 00D 257 0516 954 CK73B1E104KT +1608

C404 00D 257 0509 929 CK73B1H102KT +1608

C405 00D 257 0516 954 CK73B1E104KT +1608

C406 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C407 00D 257 0506 951 CC73CH1H101JT +1608

C408-411 00D 257 0520 911 CK73B1A224KT +1608

C412-415 00D 257 0508 917 CC73CH1H471JT +1608

C416-420 00D 257 0516 954 CK73B1E104KT +1608

C421 00D 257 0504 982 CC73CH1H470JT +1608

C422-426 00D 257 0516 954 CK73B1E104KT +1608

C427 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

106

AVR-5805/AVC-A1XV

C428 00D 257 0509 929 CK73B1H102KT +1608

C429 00D 257 0516 954 CK73B1E104KT +1608

C430 00D 257 0506 951 CC73CH1H101JT +1608

C431 00D 257 0516 954 CK73B1E104KT +1608

C432 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C433,434 00D 257 0509 929 CK73B1H102KT +1608

C435-440 00D 257 0516 954 CK73B1E104KT +1608

C441 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C442 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C443-445 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C446-451 00D 257 0509 929 CK73B1H102KT +1608

C452,453 00D 257 0516 954 CK73B1E104KT +1608

C454-456 00D 257 0509 929 CK73B1H102KT +1608

C457 00D 257 0520 911 CK73B1A224KT +1608

C459 00D 257 0509 929 CK73B1H102KT +1608

C460 00D 257 4016 900 CE67C1E4R7MT(MV-B)

C501 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C502 00D 257 0516 954 CK73B1E104KT +1608

C503 00D 257 0509 929 CK73B1H102KT +1608

C504 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C505 00D 257 0509 929 CK73B1H102KT +1608

C506,507 00D 257 0516 954 CK73B1E104KT +1608

C508 00D 257 0509 929 CK73B1H102KT +1608

C509,510 00D 257 0516 954 CK73B1E104KT +1608

C511 00D 257 0509 929 CK73B1H102KT +1608

C512 00D 257 0516 954 CK73B1E104KT +1608

C513,514 00D 257 0509 929 CK73B1H102KT +1608

C515 00D 257 0516 954 CK73B1E104KT +1608

C516 00D 257 0509 929 CK73B1H102KT +1608

C517,518 00D 257 0516 954 CK73B1E104KT +1608

C519 00D 257 0509 929 CK73B1H102KT +1608

C601 00D 257 0509 929 CK73B1H102KT +1608

C603-605 00D 257 0516 954 CK73B1E104KT +1608

C612 00D 257 0509 929 CK73B1H102KT +1608

C613,614 00D 257 0503 909 CC73CH1H8R0DT +1608

C615 00D 257 0509 929 CK73B1H102KT +1608

C616 00D 257 0516 954 CK73B1E104KT +1608

C617 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C619 00D 257 0516 954 CK73B1E104KT +1608

C630 00D 257 0516 954 CK73B1E104KT +1608

C637 00D 257 0509 929 CK73B1H102KT +1608

C639 00D 257 0501 901 CK73B1H103KT (1608) +1608

C701,702 00D 257 0509 929 CK73B1H102KT +1608

C703 00D 257 0516 954 CK73B1E104KT +1608

C704 00D 257 0509 929 CK73B1H102KT +1608

C706 00D 257 0516 954 CK73B1E104KT +1608

C707 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C709 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C714,715 00D 257 0506 977 CC73CH1H121JT +1608

C723 00D 257 0509 929 CK73B1H102KT +1608

C724 00D 257 0516 954 CK73B1E104KT +1608

C725 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C726 00D 257 0509 929 CK73B1H102KT +1608

C727 00D 257 0516 954 CK73B1E104KT +1608

C728 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C732 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C733 00D 257 0509 929 CK73B1H102KT +1608

C736 00D 257 0516 954 CK73B1E104KT +1608

C739 00D 257 0509 929 CK73B1H102KT +1608

C742 00D 257 0516 954 CK73B1E104KT +1608

C801,802 00D 257 0516 954 CK73B1E104KT +1608

C803,804 00D 257 0509 929 CK73B1H102KT +1608

C805 00D 257 0516 954 CK73B1E104KT +1608

C806 00D 257 0509 929 CK73B1H102KT +1608

C807 00D 257 0516 954 CK73B1E104KT +1608

C808 00D 257 0509 929 CK73B1H102KT +1608

C809 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

107

AVR-5805/AVC-A1XV

C810 00D 257 0509 929 CK73B1H102KT +1608

C811 00D 257 0516 954 CK73B1E104KT +1608

C901,902 00D 257 0509 929 CK73B1H102KT +1608

C903 00D 257 0516 954 CK73B1E104KT +1608

C904 00D 257 0509 929 CK73B1H102KT +1608

C905,906 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C907 00D 257 0509 929 CK73B1H102KT +1608

C908,909 00D 257 0516 954 CK73B1E104KT +1608

C910 00D 257 0509 929 CK73B1H102KT +1608

C911 00D 257 0516 954 CK73B1E104KT +1608

C912 00D 257 0509 929 CK73B1H102KT +1608

C951 00D 257 0516 954 CK73B1E104KT +1608

C952 00D 257 0509 929 CK73B1H102KT +1608

C953,954 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C955 00D 257 0509 929 CK73B1H102KT +1608

C956,957 00D 257 0516 954 CK73B1E104KT +1608

C958 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C959 00D 257 0516 954 CK73B1E104KT +1608

C960 00D 257 0509 929 CK73B1H102KT +1608

C963 00D 257 4016 900 CE67C1E4R7MT(MV-B)

C964 00D 257 0520 911 CK73B1A224KT +1608

C970 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C971-973 00D 257 0509 929 CK73B1H102KT +1608

OTHERS PARTS GROUP

CN501 00D 205 1072 933 10PPH CON BASE(TAPE) +REF

CX040 00D 205 0863 949 4P PH CON.BASE(L) +REF

CY040 00D 205 0863 949 4P PH CON.BASE(L) +REF

CY041 00D 205 1072 917 4P PH CON BASE(TAPE) +REF

CY075 00D 205 1072 959 7P PH CON.BASE +REF

CY123 00D 205 1313 935 12P FFC BASE(9610SC)

CY181 00D 205 1313 948 18P FFC BASE(9610SC)

CY201 00D 205 1313 964 20P FFC BASE(9610SC)

CY261 00D 205 1313 977 26P FFC BASE(9610SC)

FB301-303 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB401,402 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB902,903 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB951 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

JK101,102 00D 205 1269 005 4P IEEE1394 JACK(H)

JK601 00D 205 1333 009 8P MODULAR

L101-104 00D 235 0168 904 DLP31SN221SL2 +C

L401 00D 235 0150 983 LQH32MN1R8K23L

L601 00D 235 0150 909 LQH32MN150J23L

L951 00D 235 0150 983 LQH32MN1R8K23L

S201 00D 212 4807 909 TACT SW(SKQDAA) +REF

S701 00D 212 4807 909 TACT SW(SKQDAA) +REF

SY101-108 00D 276 0797 907 PGB0010603NR +C

W101,102 00D 205 1034 023 M3 SCREW TERMINAL

W601,602 00D 205 1034 023 M3 SCREW TERMINAL

X401 00D 399 0972 902 FCX-02(22.579MHZ)

X402 00D 399 0973 901 FCX-02(24.576MHZ)

X601 00D 399 0776 001 X'TAL(25MHZ)

Ref. No. Part No. Part Name Remarks Q'ty New

108

AVR-5805/AVC-A1XV

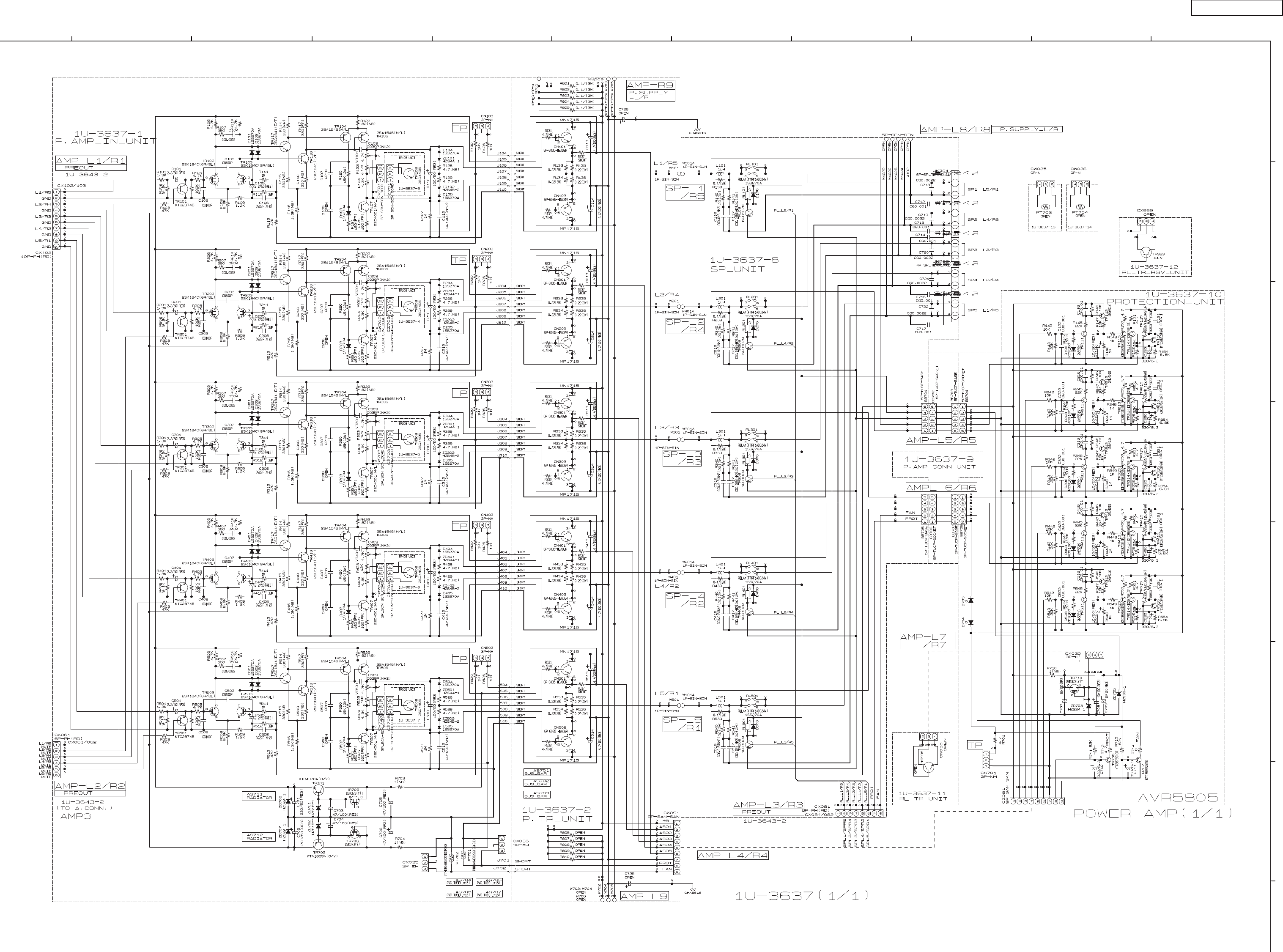

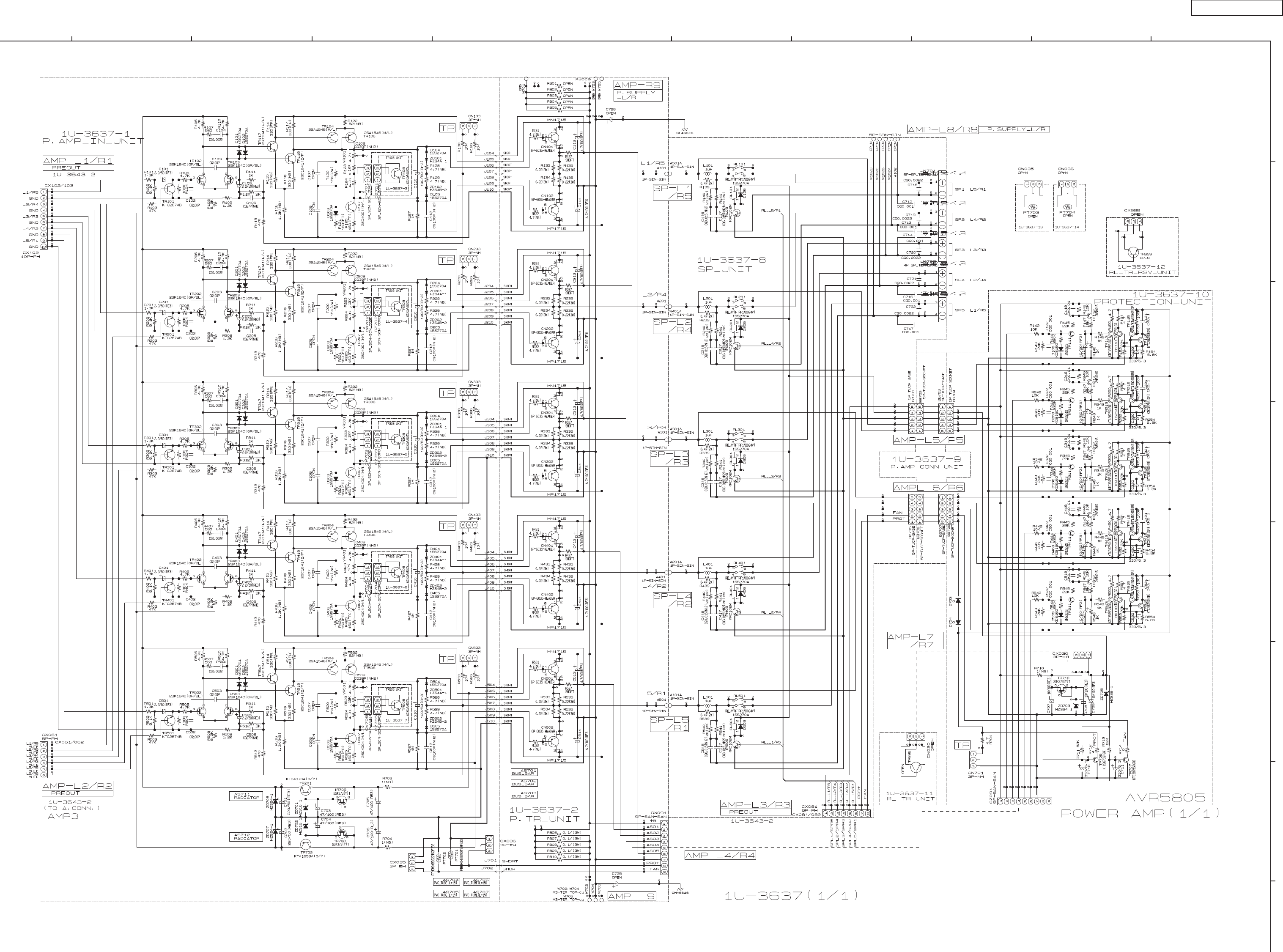

00D1U-3637B AMP(L) P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

TR101 00D 273 0459 903 KTC2874B-AT

TR102,103 00D 275 0055 015 2SK184C (GR)/(BL)

TR104 00D 271 0304 007 2SA1546(M/L)

TR106 00D 271 0304 007 2SA1546(M/L)

TR107 00D 273 0453 006 2SC4001(M/L)

TR108 00D 273 0445 001 2SC4495

TR109 00D 269 0206 908 KRC102M-AT(10K-10K)

TR111 00D 273 0479 909 2N5551S-RTK

TR112 00D 271 0318 909 2N5401S-RTK

TR113,114 00D 273 0464 901 KTC3875SGR-RTK +C

TR115 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR116 00D 273 0464 901 KTC3875SGR-RTK +C

TR117,118 00D 273 0235 923 2SC1841-T(E/F)

TR201 00D 273 0459 903 KTC2874B-AT

TR202,203 00D 275 0055 015 2SK184C (GR)/(BL)

TR204 00D 271 0304 007 2SA1546(M/L)

TR206 00D 271 0304 007 2SA1546(M/L)

TR207 00D 273 0453 006 2SC4001(M/L)

TR208 00D 273 0445 001 2SC4495

TR209 00D 269 0206 908 KRC102M-AT(10K-10K)

TR211 00D 273 0479 909 2N5551S-RTK

TR212 00D 271 0318 909 2N5401S-RTK

TR213,214 00D 273 0464 901 KTC3875SGR-RTK +C

TR215 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR216 00D 273 0464 901 KTC3875SGR-RTK +C

TR217,218 00D 273 0235 923 2SC1841-T(E/F)

TR301 00D 273 0459 903 KTC2874B-AT

TR302,303 00D 275 0055 015 2SK184C (GR)/(BL)

TR304 00D 271 0304 007 2SA1546(M/L)

TR306 00D 271 0304 007 2SA1546(M/L)

TR307 00D 273 0453 006 2SC4001(M/L)

TR308 00D 273 0445 001 2SC4495

TR309 00D 269 0206 908 KRC102M-AT(10K-10K)

TR311 00D 273 0479 909 2N5551S-RTK

TR312 00D 271 0318 909 2N5401S-RTK

TR313,314 00D 273 0464 901 KTC3875SGR-RTK +C

TR315 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR316 00D 273 0464 901 KTC3875SGR-RTK +C

TR317,318 00D 273 0235 923 2SC1841-T(E/F)

TR401 00D 273 0459 903 KTC2874B-AT

TR402,403 00D 275 0055 015 2SK184C (GR)/(BL)

TR404 00D 271 0304 007 2SA1546(M/L)

TR406 00D 271 0304 007 2SA1546(M/L)

TR407 00D 273 0453 006 2SC4001(M/L)

TR408 00D 273 0445 001 2SC4495

TR409 00D 269 0206 908 KRC102M-AT(10K-10K)

TR411 00D 273 0479 909 2N5551S-RTK

TR412 00D 271 0318 909 2N5401S-RTK

TR413,414 00D 273 0464 901 KTC3875SGR-RTK +C

TR415 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR416 00D 273 0464 901 KTC3875SGR-RTK +C

TR417,418 00D 273 0235 923 2SC1841-T(E/F)

TR501 00D 273 0459 903 KTC2874B-AT

TR502,503 00D 275 0055 015 2SK184C (GR)/(BL)

TR504 00D 271 0304 007 2SA1546(M/L)

TR506 00D 271 0304 007 2SA1546(M/L)

TR507 00D 273 0453 006 2SC4001(M/L)

TR508 00D 273 0445 001 2SC4495

TR509 00D 269 0206 908 KRC102M-AT(10K-10K)

TR511 00D 273 0479 909 2N5551S-RTK

TR512 00D 271 0318 909 2N5401S-RTK

TR513,514 00D 273 0464 901 KTC3875SGR-RTK +C

TR515 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR516 00D 273 0464 901 KTC3875SGR-RTK +C

109

AVR-5805/AVC-A1XV

TR517,518 00D 273 0235 923 2SC1841-T(E/F)

TR701 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR702 00D 271 0302 009 2SA/KTA1659A(O/Y)

TR706,707 00D 273 0464 901 KTC3875SGR-RTK +C

TR708-710 00D 275 0042 905 2SK373(Y)TPE2

D101-106 00D 276 0432 903 1SS270A TE (TAPE)

D108 00D 276 0794 900 KDS160 +2125

D201-206 00D 276 0432 903 1SS270A TE (TAPE)

D208 00D 276 0794 900 KDS160 +2125

D301-306 00D 276 0432 903 1SS270A TE (TAPE)

D308 00D 276 0794 900 KDS160 +2125

D401-406 00D 276 0432 903 1SS270A TE (TAPE)

D408 00D 276 0794 900 KDS160 +2125

D501-506 00D 276 0432 903 1SS270A TE (TAPE)

D508 00D 276 0794 900 KDS160 +2125

D703,704 00D 247 0018 905 RM73B--0R0KT +2125

ZD101 00D 276 0455 906 HZS4A-1TD

ZD102 00D 276 0456 918 HZS4B-2TD

ZD201 00D 276 0455 906 HZS4A-1TD

ZD202 00D 276 0456 918 HZS4B-2TD

ZD301 00D 276 0455 906 HZS4A-1TD

ZD302 00D 276 0456 918 HZS4B-2TD

ZD401 00D 276 0455 906 HZS4A-1TD

ZD402 00D 276 0456 918 HZS4B-2TD

ZD501 00D 276 0455 906 HZS4A-1TD

ZD502 00D 276 0456 918 HZS4B-2TD

ZD701,702 00D 276 0477 900 HZS16-1 TD(TAPE)

ZD703 00D 276 0481 909 HZS24-1TD

ZD705 00D 276 0485 905 HZS36-1TD

ZD706,707 00D 276 0481 909 HZS24-1TD

PT701 00D 279 0034 067 PTH9M04BB222TS2F333

PT702 00D 279 0034 041 PTH9M04BD222TS2F333

RESISTORS GROUP

R114 00D 241 2315 983 RD14B2E331GFRST

R115 00D 241 2378 962 RD14B2E331JNBST

R116 00D 241 2380 918 RD14B2E132JNBST

R117 00D 241 2315 983 RD14B2E331GFRST

R118 00D 241 2378 962 RD14B2E331JNBST

R120 00D 244 2671 914 RS14B3D153JNBST(S)

R121 00D 241 2371 930 RD14B2E161GFRST

R122 00D 241 2377 921 RD14B2E820JNBST

R125 00D 241 2371 930 RD14B2E161GFRST

R128,129 00D 241 2387 940 RD14B2E4R7JNBST

R131,132 00D 241 2387 940 RD14B2E4R7JNBST

R133-136 00D 243 2096 017 RW99=3FR22J

R139 00D 244 2671 956 RS14B3DR47JNBST(S)

R140,141 00D 244 2671 930 RS14B3D200JNBST(S)

R214 00D 241 2315 983 RD14B2E331GFRST

R215 00D 241 2378 962 RD14B2E331JNBST

R216 00D 241 2380 918 RD14B2E132JNBST

R217 00D 241 2315 983 RD14B2E331GFRST

R218 00D 241 2378 962 RD14B2E331JNBST

R220 00D 244 2671 914 RS14B3D153JNBST(S)

R221 00D 241 2371 930 RD14B2E161GFRST

R222 00D 241 2377 921 RD14B2E820JNBST

R225 00D 241 2371 930 RD14B2E161GFRST

R228,229 00D 241 2387 940 RD14B2E4R7JNBST

R231,232 00D 241 2387 940 RD14B2E4R7JNBST

R233-236 00D 243 2096 017 RW99=3FR22J

R239 00D 244 2671 956 RS14B3DR47JNBST(S)

R240,241 00D 244 2671 930 RS14B3D200JNBST(S)

R314 00D 241 2315 983 RD14B2E331GFRST

R315 00D 241 2378 962 RD14B2E331JNBST

Ref. No. Part No. Part Name Remarks Q'ty New

110

AVR-5805/AVC-A1XV

R316 00D 241 2380 918 RD14B2E132JNBST

R317 00D 241 2315 983 RD14B2E331GFRST

R318 00D 241 2378 962 RD14B2E331JNBST

R320 00D 244 2671 914 RS14B3D153JNBST(S)

R321 00D 241 2371 930 RD14B2E161GFRST

R322 00D 241 2377 921 RD14B2E820JNBST

R325 00D 241 2371 930 RD14B2E161GFRST

R328,329 00D 241 2387 940 RD14B2E4R7JNBST

R331,332 00D 241 2387 940 RD14B2E4R7JNBST

R333-336 00D 243 2096 017 RW99=3FR22J

R339 00D 244 2671 956 RS14B3DR47JNBST(S)

R340,341 00D 244 2671 930 RS14B3D200JNBST(S)

R414 00D 241 2315 983 RD14B2E331GFRST

R415 00D 241 2378 962 RD14B2E331JNBST

R416 00D 241 2380 918 RD14B2E132JNBST

R417 00D 241 2315 983 RD14B2E331GFRST

R418 00D 241 2378 962 RD14B2E331JNBST

R420 00D 244 2671 914 RS14B3D153JNBST(S)

R421 00D 241 2371 930 RD14B2E161GFRST

R422 00D 241 2377 921 RD14B2E820JNBST

R425 00D 241 2371 930 RD14B2E161GFRST

R428,429 00D 241 2387 940 RD14B2E4R7JNBST

R431,432 00D 241 2387 940 RD14B2E4R7JNBST

R433-436 00D 243 2096 017 RW99=3FR22J

R439 00D 244 2671 956 RS14B3DR47JNBST(S)

R440,441 00D 244 2671 930 RS14B3D200JNBST(S)

R514 00D 241 2315 983 RD14B2E331GFRST

R515 00D 241 2378 962 RD14B2E331JNBST

R516 00D 241 2380 918 RD14B2E132JNBST

R517 00D 241 2315 983 RD14B2E331GFRST

R518 00D 241 2378 962 RD14B2E331JNBST

R520 00D 244 2671 914 RS14B3D153JNBST(S)

R521 00D 241 2371 930 RD14B2E161GFRST

R522 00D 241 2377 921 RD14B2E820JNBST

R525 00D 241 2371 930 RD14B2E161GFRST

R528,529 00D 241 2387 940 RD14B2E4R7JNBST

R531,532 00D 241 2387 940 RD14B2E4R7JNBST

R533-536 00D 243 2096 017 RW99=3FR22J

R539 00D 244 2671 956 RS14B3DR47JNBST(S)

R540,541 00D 244 2671 930 RS14B3D200JNBST(S)

R703,704 00D 241 2387 908 RD14B2E010JNBST

R710 00D 241 2387 908 RD14B2E010JNBST

R806-810 00D 243 2096 004 RW99=3FR10J

VR101 00D 211 6075 024 V06PB472 (CERMET)

VR201 00D 211 6075 024 V06PB472 (CERMET)

VR301 00D 211 6075 024 V06PB472 (CERMET)

VR401 00D 211 6075 024 V06PB472 (CERMET)

VR501 00D 211 6075 024 V06PB472 (CERMET)

CAPACITORS GROUP

C101 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C102,103 00D 255 4251 976 CQ93P2A101JT(NH2)

C104 00D 255 4254 999 CQ93P2A222JT(NH2)

C105 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C106 00D 255 4250 951 CQ93P2A270JT(NH2)

C109 00D 255 4250 977 CQ93P2A390JT(NH2)

C110 00D 254 4558 702 CE04W1H101MC(RFS)

C112 00D 255 4251 976 CQ93P2A101JT(NH2)

C113,114 00D 254 4581 928 CE04W2A4R7MT(ROB)

C116,117 00D 255 4256 997 CQ93P2A153JT(NH2)

C118 00D 257 0501 901 CK73B1H103KT (1608) +1608

C119 00D 254 4573 981 CE04W1H100MT(RE3)

C120 00D 254 4480 906 CE04W0J331MT(ASF)

C121 00D 257 0516 954 CK73B1E104KT +1608

C122 00D 255 4254 915 CQ93P2A102JT(NH2)

C201 00D 254 4347 751 CE04W1H2R2MC(ARSA)

Ref. No. Part No. Part Name Remarks Q'ty New

111

AVR-5805/AVC-A1XV

C202,203 00D 255 4251 976 CQ93P2A101JT(NH2)

C204 00D 255 4254 999 CQ93P2A222JT(NH2)

C205 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C206 00D 255 4250 951 CQ93P2A270JT(NH2)

C209 00D 255 4250 977 CQ93P2A390JT(NH2)

C210 00D 254 4558 702 CE04W1H101MC(RFS)

C212 00D 255 4251 976 CQ93P2A101JT(NH2)

C213,214 00D 254 4581 928 CE04W2A4R7MT(ROB)

C216,217 00D 255 4256 997 CQ93P2A153JT(NH2)

C218 00D 257 0501 901 CK73B1H103KT (1608) +1608

C219 00D 254 4573 981 CE04W1H100MT(RE3)

C220 00D 254 4480 906 CE04W0J331MT(ASF)

C221 00D 257 0516 954 CK73B1E104KT +1608

C222 00D 255 4254 915 CQ93P2A102JT(NH2)

C301 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C302,303 00D 255 4251 976 CQ93P2A101JT(NH2)

C304 00D 255 4254 999 CQ93P2A222JT(NH2)

C305 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C306 00D 255 4250 951 CQ93P2A270JT(NH2)

C309 00D 255 4250 977 CQ93P2A390JT(NH2)

C310 00D 254 4558 702 CE04W1H101MC(RFS)

C312 00D 255 4251 976 CQ93P2A101JT(NH2)

C313,314 00D 254 4581 928 CE04W2A4R7MT(ROB)

C316,317 00D 255 4256 997 CQ93P2A153JT(NH2)

C318 00D 257 0501 901 CK73B1H103KT (1608) +1608

C319 00D 254 4573 981 CE04W1H100MT(RE3)

C320 00D 254 4480 906 CE04W0J331MT(ASF)

C321 00D 257 0516 954 CK73B1E104KT +1608

C322 00D 255 4254 915 CQ93P2A102JT(NH2)

C401 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C402,403 00D 255 4251 976 CQ93P2A101JT(NH2)

C404 00D 255 4254 999 CQ93P2A222JT(NH2)

C405 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C406 00D 255 4250 951 CQ93P2A270JT(NH2)

C409 00D 255 4250 977 CQ93P2A390JT(NH2)

C410 00D 254 4558 702 CE04W1H101MC(RFS)

C412 00D 255 4251 976 CQ93P2A101JT(NH2)

C413,414 00D 254 4581 928 CE04W2A4R7MT(ROB)

C416,417 00D 255 4256 997 CQ93P2A153JT(NH2)

C418 00D 257 0501 901 CK73B1H103KT (1608) +1608

C419 00D 254 4573 981 CE04W1H100MT(RE3)

C420 00D 254 4480 906 CE04W0J331MT(ASF)

C421 00D 257 0516 954 CK73B1E104KT +1608

C422 00D 255 4254 915 CQ93P2A102JT(NH2)

C501 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C502,503 00D 255 4251 976 CQ93P2A101JT(NH2)

C504 00D 255 4254 999 CQ93P2A222JT(NH2)

C505 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C506 00D 255 4250 951 CQ93P2A270JT(NH2)

C509 00D 255 4250 977 CQ93P2A390JT(NH2)

C510 00D 254 4558 702 CE04W1H101MC(RFS)

C512 00D 255 4251 976 CQ93P2A101JT(NH2)

C513,514 00D 254 4581 928 CE04W2A4R7MT(ROB)

C516,517 00D 255 4256 997 CQ93P2A153JT(NH2)

C518 00D 257 0501 901 CK73B1H103KT (1608) +1608

C519 00D 254 4573 981 CE04W1H100MT(RE3)

C520 00D 254 4480 906 CE04W0J331MT(ASF)

C521 00D 257 0516 954 CK73B1E104KT +1608

C522 00D 255 4254 915 CQ93P2A102JT(NH2)

C701-706 00D 254 4581 737 CE04W2A470MC(ROB)

C707-709 00D 254 4581 915 CE04W2A100MT(ROB)

C710,711 00D 254 4533 947 CE04W0J331MT SMG/RE3

C712-714 00D 255 1264 908 CQ93M1H102JT(B)

C716,717 00D 255 1264 908 CQ93M1H102JT(B)

C718-722 00D 255 4254 999 CQ93P2A222JT(NH2)

Ref. No. Part No. Part Name Remarks Q'ty New

112

AVR-5805/AVC-A1XV

OTHERS PARTS GROUP

AS701 00D 412 5186 009 BUS BAR

AS702 00D 412 5186 012 BUS BAR

AS703 00D 412 5187 008 BUS BAR

BB701 00D 205 0884 009 5P CON.BASE TUC-P

BB702 00D 205 0885 008 5P CON.SOCKET TUC-P

BB703 00D 205 0884 009 5P CON.BASE TUC-P

BB704 00D 205 0885 008 5P CON.SOCKET TUC-P

BB705 00D 205 0884 009 5P CON.BASE TUC-P

BB706 00D 205 0885 008 5P CON.SOCKET TUC-P

BB707 00D 205 0884 009 5P CON.BASE TUC-P

BB708 00D 205 0885 008 5P CON.SOCKET TUC-P

CN101,102 00D 205 1230 063 6P PIN HEADER(6035)

CN103 00D 205 0190 036 3P NH CONNECTOR BASE

CN201,202 00D 205 1230 063 6P PIN HEADER(6035)

CN203 00D 205 0190 036 3P NH CONNECTOR BASE

CN301,302 00D 205 1230 063 6P PIN HEADER(6035)

CN303 00D 205 0190 036 3P NH CONNECTOR BASE

CN401,402 00D 205 1230 063 6P PIN HEADER(6035)

CN403 00D 205 0190 036 3P NH CONNECTOR BASE

CN501,502 00D 205 1230 063 6P PIN HEADER(6035)

CN503 00D 205 0190 036 3P NH CONNECTOR BASE

CN701 00D 205 0190 036 3P NH CONNECTOR BASE

CW701-705 00D 203 5350 008 3P SCN-SCN CON.CORD

CX030 00D 205 0233 032 3P EH CONNECTOR BASE

CX035,036 00D 205 0233 032 3P EH CONNECTOR BASE

CX061 00D 205 0343 061 6P CONN.BASE(KR-PH)

CX081 00D 205 0343 087 8P CONN.BASE(KR-PH)

CX091 00D 204 2974 008 9P SAN-SAN CON.CORD

CX102 00D 205 0375 000 10P CON.BASE(KR-PH)

JK701 00D 205 1336 006 6P SP TERMINAL

JK702 00D 205 1335 007 4P SP TERMINAL

L101 00D 235 0068 004 INDUCTOR(1MH)

L201 00D 235 0068 004 INDUCTOR(1MH)

L301 00D 235 0068 004 INDUCTOR(1MH)

L401 00D 235 0068 004 INDUCTOR(1MH)

L501 00D 235 0068 004 INDUCTOR(1MH)

RL101 00D 214 0209 002 RELAY FTR-F1AD024V

RL201 00D 214 0209 002 RELAY FTR-F1AD024V

RL301 00D 214 0209 002 RELAY FTR-F1AD024V

RL401 00D 214 0209 002 RELAY FTR-F1AD024V

RL501 00D 214 0209 002 RELAY FTR-F1AD024V

W101 00D 203 0738 023 1P SIN-SIN WIRE

W201 00D 203 0738 023 1P SIN-SIN WIRE

W301 00D 203 0738 010 1P SIN-SIN WIRE

W401 00D 203 0738 007 1P SIN-SIN WIRE

W501 00D 203 0738 007 1P SIN-SIN WIRE

W702 00D 205 0864 003 M3 SCREW TERMINAL

W704 00D 205 0864 003 M3 SCREW TERMINAL

W706 00D 205 0864 003 M3 SCREW TERMINAL

00D 449 0080 092 EDGING CE-012S(L=180) BUS BAR

00D 415 0309 000 PVC TUBE(L=15)

00D 417 0668 006 RADIATOR

00D 473 7002 018 3X8 CBTS (S)-Z

Ref. No. Part No. Part Name Remarks Q'ty New

113

AVR-5805/AVC-A1XV

00D1U-3637C AMP(R) P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

TR101 00D 273 0459 903 KTC2874B-AT

TR102,103 00D 275 0055 015 2SK184C (GR)/(BL)

TR104 00D 271 0304 007 2SA1546(M/L)

TR106 00D 271 0304 007 2SA1546(M/L)

TR107 00D 273 0453 006 2SC4001(M/L)

TR108 00D 273 0445 001 2SC4495

TR109 00D 269 0206 908 KRC102M-AT(10K-10K)

TR111 00D 273 0479 909 2N5551S-RTK

TR112 00D 271 0318 909 2N5401S-RTK

TR113,114 00D 273 0464 901 KTC3875SGR-RTK +C

TR115 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR116 00D 273 0464 901 KTC3875SGR-RTK +C

TR117,118 00D 273 0235 923 2SC1841-T(E/F)

TR201 00D 273 0459 903 KTC2874B-AT

TR202,203 00D 275 0055 015 2SK184C (GR)/(BL)

TR204 00D 271 0304 007 2SA1546(M/L)

TR206 00D 271 0304 007 2SA1546(M/L)

TR207 00D 273 0453 006 2SC4001(M/L)

TR208 00D 273 0445 001 2SC4495

TR209 00D 269 0206 908 KRC102M-AT(10K-10K)

TR211 00D 273 0479 909 2N5551S-RTK

TR212 00D 271 0318 909 2N5401S-RTK

TR213,214 00D 273 0464 901 KTC3875SGR-RTK +C

TR215 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR216 00D 273 0464 901 KTC3875SGR-RTK +C

TR217,218 00D 273 0235 923 2SC1841-T(E/F)

TR301 00D 273 0459 903 KTC2874B-AT

TR302,303 00D 275 0055 015 2SK184C (GR)/(BL)

TR304 00D 271 0304 007 2SA1546(M/L)

TR306 00D 271 0304 007 2SA1546(M/L)

TR307 00D 273 0453 006 2SC4001(M/L)

TR308 00D 273 0445 001 2SC4495

TR309 00D 269 0206 908 KRC102M-AT(10K-10K)

TR311 00D 273 0479 909 2N5551S-RTK

TR312 00D 271 0318 909 2N5401S-RTK

TR313,314 00D 273 0464 901 KTC3875SGR-RTK +C

TR315 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR316 00D 273 0464 901 KTC3875SGR-RTK +C

TR317,318 00D 273 0235 923 2SC1841-T(E/F)

TR401 00D 273 0459 903 KTC2874B-AT

TR402,403 00D 275 0055 015 2SK184C (GR)/(BL)

TR404 00D 271 0304 007 2SA1546(M/L)

TR406 00D 271 0304 007 2SA1546(M/L)

TR407 00D 273 0453 006 2SC4001(M/L)

TR408 00D 273 0445 001 2SC4495

TR409 00D 269 0206 908 KRC102M-AT(10K-10K)

TR411 00D 273 0479 909 2N5551S-RTK

TR412 00D 271 0318 909 2N5401S-RTK

TR413,414 00D 273 0464 901 KTC3875SGR-RTK +C

TR415 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR416 00D 273 0464 901 KTC3875SGR-RTK +C

TR417,418 00D 273 0235 923 2SC1841-T(E/F)

TR501 00D 273 0459 903 KTC2874B-AT

TR502,503 00D 275 0055 015 2SK184C (GR)/(BL)

TR504 00D 271 0304 007 2SA1546(M/L)

TR506 00D 271 0304 007 2SA1546(M/L)

TR507 00D 273 0453 006 2SC4001(M/L)

TR508 00D 273 0445 001 2SC4495

TR509 00D 269 0206 908 KRC102M-AT(10K-10K)

TR511 00D 273 0479 909 2N5551S-RTK

TR512 00D 271 0318 909 2N5401S-RTK

TR513,514 00D 273 0464 901 KTC3875SGR-RTK +C

TR515 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR516 00D 273 0464 901 KTC3875SGR-RTK +C

114

AVR-5805/AVC-A1XV

TR517,518 00D 273 0235 923 2SC1841-T(E/F)

TR702 00D 271 0302 009 2SA/KTA1659A(O/Y)

TR701 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR706,707 00D 273 0464 901 KTC3875SGR-RTK +C

TR708-710 00D 275 0042 905 2SK373(Y)TPE2

D101-106 00D 276 0432 903 1SS270A TE (TAPE)

D108 00D 276 0794 900 KDS160 +2125

D201-206 00D 276 0432 903 1SS270A TE (TAPE)

D208 00D 276 0794 900 KDS160 +2125

D301-306 00D 276 0432 903 1SS270A TE (TAPE)

D308 00D 276 0794 900 KDS160 +2125

D401-406 00D 276 0432 903 1SS270A TE (TAPE)

D408 00D 276 0794 900 KDS160 +2125

D501-506 00D 276 0432 903 1SS270A TE (TAPE)

D508 00D 276 0794 900 KDS160 +2125

D703,704 00D 247 0018 905 RM73B--0R0KT +2125

ZD101 00D 276 0455 906 HZS4A-1TD

ZD102 00D 276 0456 918 HZS4B-2TD

ZD201 00D 276 0455 906 HZS4A-1TD

ZD202 00D 276 0456 918 HZS4B-2TD

ZD301 00D 276 0455 906 HZS4A-1TD

ZD302 00D 276 0456 918 HZS4B-2TD

ZD401 00D 276 0455 906 HZS4A-1TD

ZD402 00D 276 0456 918 HZS4B-2TD

ZD501 00D 276 0455 906 HZS4A-1TD

ZD502 00D 276 0456 918 HZS4B-2TD

ZD701,702 00D 276 0477 900 HZS16-1 TD(TAPE)

ZD703 00D 276 0481 909 HZS24-1TD

ZD705 00D 276 0485 905 HZS36-1TD

ZD706,707 00D 276 0481 909 HZS24-1TD

PT701 00D 279 0034 067 PTH9M04BB222TS2F333

PT702 00D 279 0034 041 PTH9M04BD222TS2F333

RESISTORS GROUP

R114 00D 241 2315 983 RD14B2E331GFRST

R115 00D 241 2378 962 RD14B2E331JNBST

R116 00D 241 2380 918 RD14B2E132JNBST

R117 00D 241 2315 983 RD14B2E331GFRST

R118 00D 241 2378 962 RD14B2E331JNBST

R120 00D 244 2671 914 RS14B3D153JNBST(S)

R121 00D 241 2371 930 RD14B2E161GFRST

R122 00D 241 2377 921 RD14B2E820JNBST

R125 00D 241 2371 930 RD14B2E161GFRST

R128,129 00D 241 2387 940 RD14B2E4R7JNBST

R131,132 00D 241 2387 940 RD14B2E4R7JNBST

R133-136 00D 243 2096 017 RW99=3FR22J

R139 00D 244 2671 956 RS14B3DR47JNBST(S)

R140,141 00D 244 2671 930 RS14B3D200JNBST(S)

R214 00D 241 2315 983 RD14B2E331GFRST

R215 00D 241 2378 962 RD14B2E331JNBST

R216 00D 241 2380 918 RD14B2E132JNBST

R217 00D 241 2315 983 RD14B2E331GFRST

R218 00D 241 2378 962 RD14B2E331JNBST

R220 00D 244 2671 914 RS14B3D153JNBST(S)

R221 00D 241 2371 930 RD14B2E161GFRST

R222 00D 241 2377 921 RD14B2E820JNBST

R225 00D 241 2371 930 RD14B2E161GFRST

R228,229 00D 241 2387 940 RD14B2E4R7JNBST

R231,232 00D 241 2387 940 RD14B2E4R7JNBST

R233-236 00D 243 2096 017 RW99=3FR22J

R239 00D 244 2671 956 RS14B3DR47JNBST(S)

R240,241 00D 244 2671 930 RS14B3D200JNBST(S)

R314 00D 241 2315 983 RD14B2E331GFRST

R315 00D 241 2378 962 RD14B2E331JNBST

Ref. No. Part No. Part Name Remarks Q'ty New

115

AVR-5805/AVC-A1XV

R316 00D 241 2380 918 RD14B2E132JNBST

R317 00D 241 2315 983 RD14B2E331GFRST

R318 00D 241 2378 962 RD14B2E331JNBST

R320 00D 244 2671 914 RS14B3D153JNBST(S)

R321 00D 241 2371 930 RD14B2E161GFRST

R322 00D 241 2377 921 RD14B2E820JNBST

R325 00D 241 2371 930 RD14B2E161GFRST

R328,329 00D 241 2387 940 RD14B2E4R7JNBST

R331,332 00D 241 2387 940 RD14B2E4R7JNBST

R333-336 00D 243 2096 017 RW99=3FR22J

R339 00D 244 2671 956 RS14B3DR47JNBST(S)

R340,341 00D 244 2671 930 RS14B3D200JNBST(S)

R414 00D 241 2315 983 RD14B2E331GFRST

R415 00D 241 2378 962 RD14B2E331JNBST

R416 00D 241 2380 918 RD14B2E132JNBST

R417 00D 241 2315 983 RD14B2E331GFRST

R418 00D 241 2378 962 RD14B2E331JNBST

R420 00D 244 2671 914 RS14B3D153JNBST(S)

R421 00D 241 2371 930 RD14B2E161GFRST

R422 00D 241 2377 921 RD14B2E820JNBST

R425 00D 241 2371 930 RD14B2E161GFRST

R428,429 00D 241 2387 940 RD14B2E4R7JNBST

R431,432 00D 241 2387 940 RD14B2E4R7JNBST

R433-436 00D 243 2096 017 RW99=3FR22J

R439 00D 244 2671 956 RS14B3DR47JNBST(S)

R440,441 00D 244 2671 930 RS14B3D200JNBST(S)

R514 00D 241 2315 983 RD14B2E331GFRST

R515 00D 241 2378 962 RD14B2E331JNBST

R516 00D 241 2380 918 RD14B2E132JNBST

R517 00D 241 2315 983 RD14B2E331GFRST

R518 00D 241 2378 962 RD14B2E331JNBST

R520 00D 244 2671 914 RS14B3D153JNBST(S)

R521 00D 241 2371 930 RD14B2E161GFRST

R522 00D 241 2377 921 RD14B2E820JNBST

R525 00D 241 2371 930 RD14B2E161GFRST

R528,529 00D 241 2387 940 RD14B2E4R7JNBST

R531,532 00D 241 2387 940 RD14B2E4R7JNBST

R533-536 00D 243 2096 017 RW99=3FR22J

R539 00D 244 2671 956 RS14B3DR47JNBST(S)

R540,541 00D 244 2671 930 RS14B3D200JNBST(S)

R703,704 00D 241 2387 908 RD14B2E010JNBST

R710 00D 241 2387 908 RD14B2E010JNBST

R801-805 00D 243 2096 004 RW99=3FR10J

VR101 00D 211 6075 024 V06PB472 (CERMET)

VR201 00D 211 6075 024 V06PB472 (CERMET)

VR301 00D 211 6075 024 V06PB472 (CERMET)

VR401 00D 211 6075 024 V06PB472 (CERMET)

VR501 00D 211 6075 024 V06PB472 (CERMET)

CAPACITORS GROUP

C101 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C102,103 00D 255 4251 976 CQ93P2A101JT(NH2)

C104 00D 255 4254 999 CQ93P2A222JT(NH2)

C105 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C106 00D 255 4250 951 CQ93P2A270JT(NH2)

C109 00D 255 4250 977 CQ93P2A390JT(NH2)

C110 00D 254 4558 702 CE04W1H101MC(RFS)

C112 00D 255 4251 976 CQ93P2A101JT(NH2)

C113,114 00D 254 4581 928 CE04W2A4R7MT(ROB)

C116,117 00D 255 4256 997 CQ93P2A153JT(NH2)

C118 00D 257 0501 901 CK73B1H103KT (1608) +1608

C119 00D 254 4573 981 CE04W1H100MT(RE3)

C120 00D 254 4480 906 CE04W0J331MT(ASF)

C121 00D 257 0516 954 CK73B1E104KT +1608

C122 00D 255 4254 915 CQ93P2A102JT(NH2)

C201 00D 254 4347 751 CE04W1H2R2MC(ARSA)

Ref. No. Part No. Part Name Remarks Q'ty New

116

AVR-5805/AVC-A1XV

C202,203 00D 255 4251 976 CQ93P2A101JT(NH2)

C204 00D 255 4254 999 CQ93P2A222JT(NH2)

C205 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C206 00D 255 4250 951 CQ93P2A270JT(NH2)

C209 00D 255 4250 977 CQ93P2A390JT(NH2)

C210 00D 254 4558 702 CE04W1H101MC(RFS)

C212 00D 255 4251 976 CQ93P2A101JT(NH2)

C213,214 00D 254 4581 928 CE04W2A4R7MT(ROB)

C216,217 00D 255 4256 997 CQ93P2A153JT(NH2)

C218 00D 257 0501 901 CK73B1H103KT (1608) +1608

C219 00D 254 4573 981 CE04W1H100MT(RE3)

C220 00D 254 4480 906 CE04W0J331MT(ASF)

C221 00D 257 0516 954 CK73B1E104KT +1608

C222 00D 255 4254 915 CQ93P2A102JT(NH2)

C301 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C302,303 00D 255 4251 976 CQ93P2A101JT(NH2)

C304 00D 255 4254 999 CQ93P2A222JT(NH2)

C305 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C306 00D 255 4250 951 CQ93P2A270JT(NH2)

C309 00D 255 4250 977 CQ93P2A390JT(NH2)

C310 00D 254 4558 702 CE04W1H101MC(RFS)

C312 00D 255 4251 976 CQ93P2A101JT(NH2)

C313,314 00D 254 4581 928 CE04W2A4R7MT(ROB)

C316,317 00D 255 4256 997 CQ93P2A153JT(NH2)

C318 00D 257 0501 901 CK73B1H103KT (1608) +1608

C319 00D 254 4573 981 CE04W1H100MT(RE3)

C320 00D 254 4480 906 CE04W0J331MT(ASF)

C321 00D 257 0516 954 CK73B1E104KT +1608

C322 00D 255 4254 915 CQ93P2A102JT(NH2)

C401 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C402,403 00D 255 4251 976 CQ93P2A101JT(NH2)

C404 00D 255 4254 999 CQ93P2A222JT(NH2)

C405 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C406 00D 255 4250 951 CQ93P2A270JT(NH2)

C409 00D 255 4250 977 CQ93P2A390JT(NH2)

C410 00D 254 4558 702 CE04W1H101MC(RFS)

C412 00D 255 4251 976 CQ93P2A101JT(NH2)

C413,414 00D 254 4581 928 CE04W2A4R7MT(ROB)

C416,417 00D 255 4256 997 CQ93P2A153JT(NH2)

C418 00D 257 0501 901 CK73B1H103KT (1608) +1608

C419 00D 254 4573 981 CE04W1H100MT(RE3)

C420 00D 254 4480 906 CE04W0J331MT(ASF)

C421 00D 257 0516 954 CK73B1E104KT +1608

C422 00D 255 4254 915 CQ93P2A102JT(NH2)

C501 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C502,503 00D 255 4251 976 CQ93P2A101JT(NH2)

C504 00D 255 4254 999 CQ93P2A222JT(NH2)

C505 00D 254 4347 751 CE04W1H2R2MC(ARSA)

C506 00D 255 4250 951 CQ93P2A270JT(NH2)

C509 00D 255 4250 977 CQ93P2A390JT(NH2)

C510 00D 254 4558 702 CE04W1H101MC(RFS)

C512 00D 255 4251 976 CQ93P2A101JT(NH2)

C513,514 00D 254 4581 928 CE04W2A4R7MT(ROB)

C516,517 00D 255 4256 997 CQ93P2A153JT(NH2)

C518 00D 257 0501 901 CK73B1H103KT (1608) +1608

C519 00D 254 4573 981 CE04W1H100MT(RE3)

C520 00D 254 4480 906 CE04W0J331MT(ASF)

C521 00D 257 0516 954 CK73B1E104KT +1608

C522 00D 255 4254 915 CQ93P2A102JT(NH2)

C701-706 00D 254 4581 737 CE04W2A470MC(ROB)

C707-709 00D 254 4581 915 CE04W2A100MT(ROB)

C710,711 00D 254 4533 947 CE04W0J331MT SMG/RE3

C712-714 00D 255 1264 908 CQ93M1H102JT(B)

C716,717 00D 255 1264 908 CQ93M1H102JT(B)

C718-722 00D 255 4254 999 CQ93P2A222JT(NH2)

Ref. No. Part No. Part Name Remarks Q'ty New

117

AVR-5805/AVC-A1XV

OTHERS PARTS GROUP

AS701 00D 412 5186 009 BUS BAR

AS702 00D 412 5186 012 BUS BAR

AS703 00D 412 5187 008 BUS BAR

BB701 00D 205 0884 009 5P CON.BASE TUC-P

BB702 00D 205 0885 008 5P CON.SOCKET TUC-P

BB703 00D 205 0884 009 5P CON.BASE TUC-P

BB704 00D 205 0885 008 5P CON.SOCKET TUC-P

BB705 00D 205 0884 009 5P CON.BASE TUC-P

BB706 00D 205 0885 008 5P CON.SOCKET TUC-P

BB707 00D 205 0884 009 5P CON.BASE TUC-P

BB708 00D 205 0885 008 5P CON.SOCKET TUC-P

CN101,102 00D 205 1230 063 6P PIN HEADER(6035)

CN103 00D 205 0190 036 3P NH CONNECTOR BASE

CN201,202 00D 205 1230 063 6P PIN HEADER(6035)

CN203 00D 205 0190 036 3P NH CONNECTOR BASE

CN301,302 00D 205 1230 063 6P PIN HEADER(6035)

CN303 00D 205 0190 036 3P NH CONNECTOR BASE

CN401,402 00D 205 1230 063 6P PIN HEADER(6035)

CN403 00D 205 0190 036 3P NH CONNECTOR BASE

CN501,502 00D 205 1230 063 6P PIN HEADER(6035)

CN503 00D 205 0190 036 3P NH CONNECTOR BASE

CN701 00D 205 0190 036 3P NH CONNECTOR BASE

CW701-705 00D 203 5350 008 3P SCN-SCN CON.CORD

CX030 00D 205 0233 032 3P EH CONNECTOR BASE

CX035,036 00D 205 0233 032 3P EH CONNECTOR BASE

CX061 00D 205 0321 067 6P CONNE.BASE (RED)

CX081 00D 205 0321 083 8P CONNE.BASE (RED)

CX091 00D 204 2974 008 9P SAN-SAN CON.CORD

CX102 00D 205 0321 009 10P CON. BASE(RED)

JK701 00D 205 1336 006 6P SP TERMINAL

JK702 00D 205 1335 007 4P SP TERMINAL

L101 00D 235 0068 004 INDUCTOR(1MH)

L201 00D 235 0068 004 INDUCTOR(1MH)

L301 00D 235 0068 004 INDUCTOR(1MH)

L401 00D 235 0068 004 INDUCTOR(1MH)

L501 00D 235 0068 004 INDUCTOR(1MH)

RL101 00D 214 0209 002 RELAY FTR-F1AD024V

RL201 00D 214 0209 002 RELAY FTR-F1AD024V

RL301 00D 214 0209 002 RELAY FTR-F1AD024V

RL401 00D 214 0209 002 RELAY FTR-F1AD024V

RL501 00D 214 0209 002 RELAY FTR-F1AD024V

W101 00D 203 0738 023 1P SIN-SIN WIRE

W201 00D 203 0738 023 1P SIN-SIN WIRE

W301 00D 203 0738 010 1P SIN-SIN WIRE

W401 00D 203 0738 007 1P SIN-SIN WIRE

W501 00D 203 0738 007 1P SIN-SIN WIRE

W701 00D 205 0864 003 M3 SCREW TERMINAL

W703 00D 205 0864 003 M3 SCREW TERMINAL

W705 00D 205 0864 003 M3 SCREW TERMINAL

00D 449 0080 092 EDGING CE-012S(L=180) BUS BAR

00D 415 0309 000 PVC TUBE(L=15)

00D 417 0668 006 RADIATOR

00D 473 7002 018 3X8 CBTS (S)-Z

Ref. No. Part No. Part Name Remarks Q'ty New

118

AVR-5805/AVC-A1XV

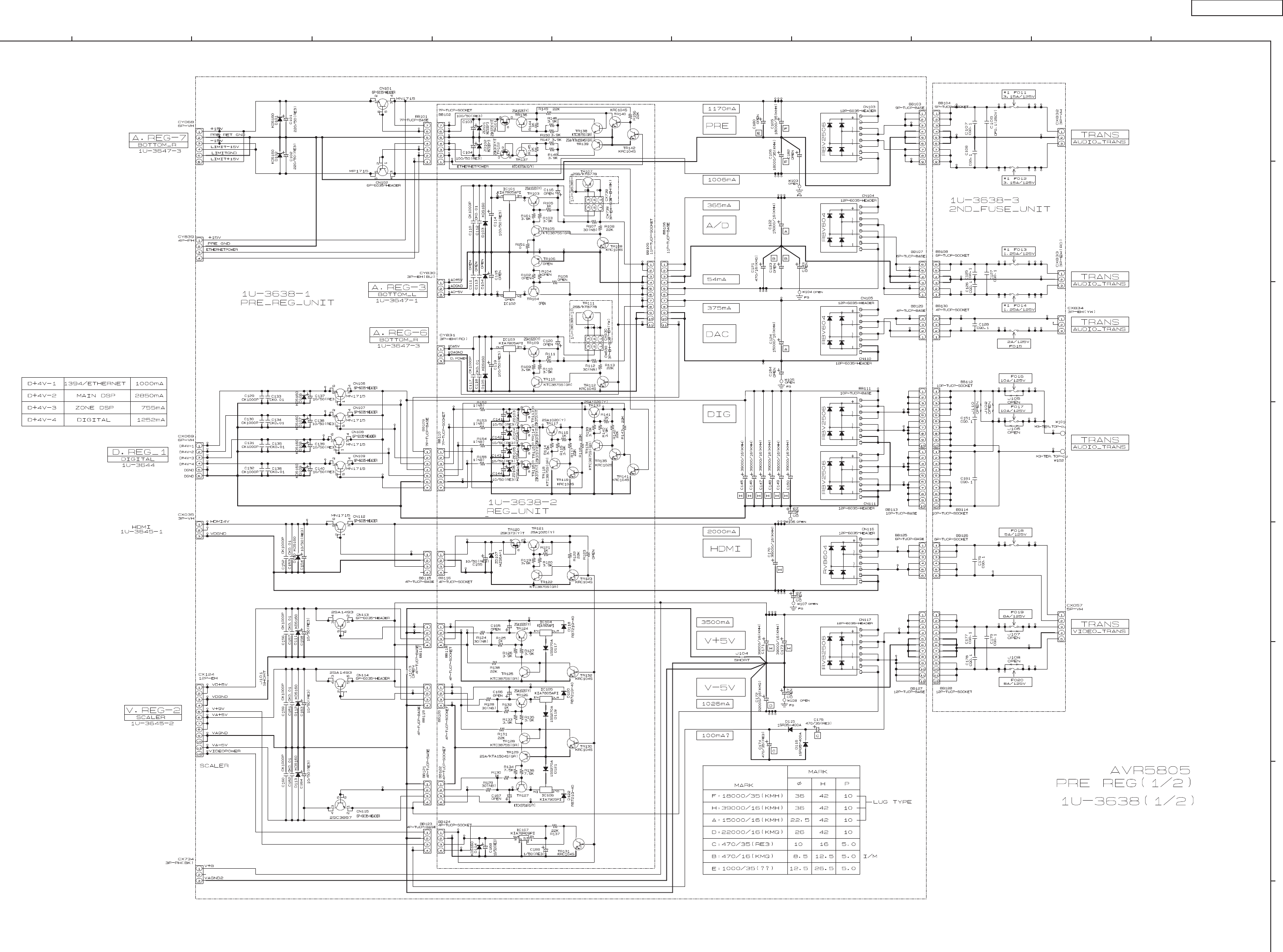

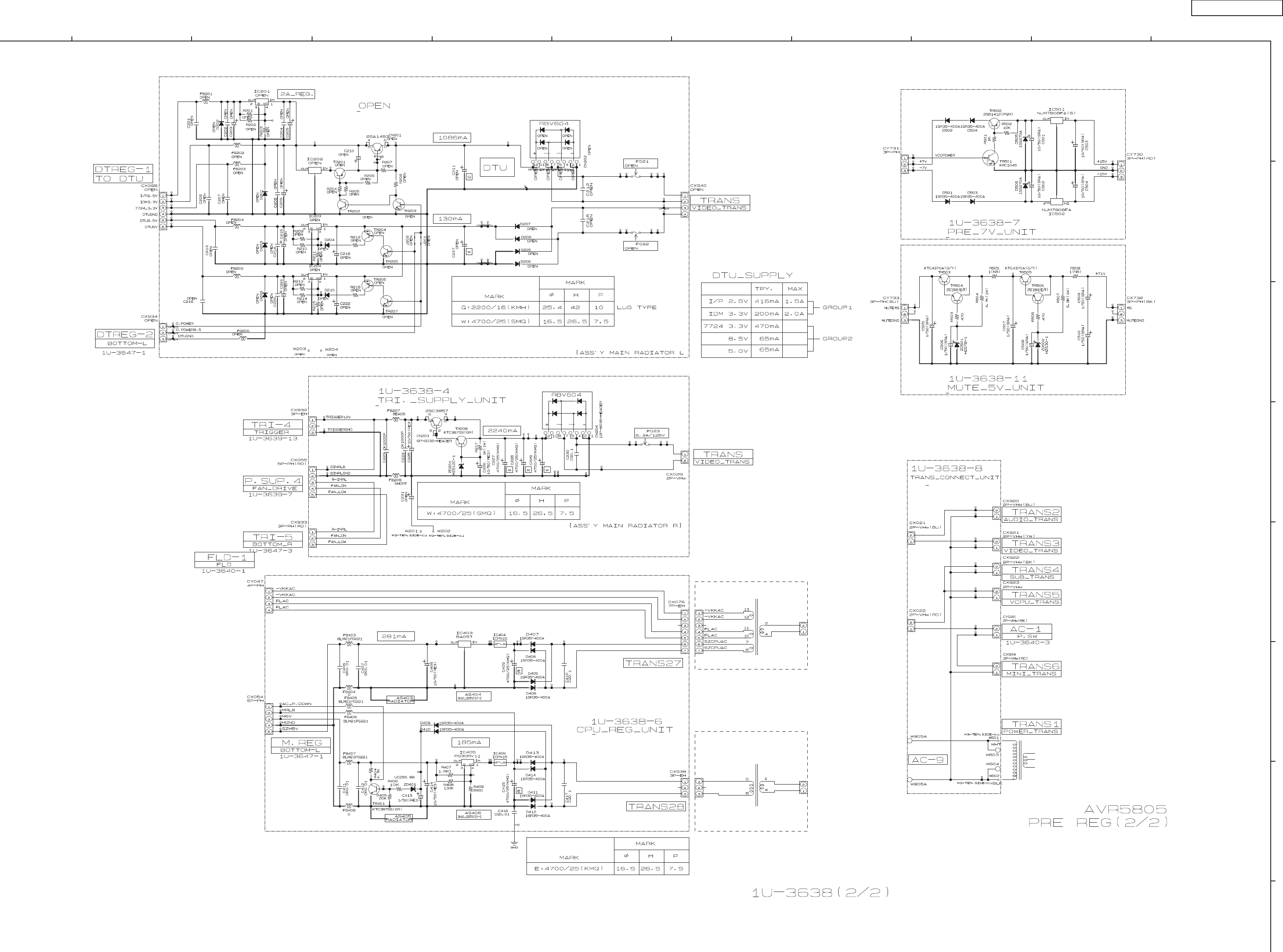

00D1U-3638B REG P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 263 1100 005 KIA7805API

IC103-105 00D 263 1100 005 KIA7805API

IC106 00D 263 1099 006 KIA7905PI

IC107 00D 263 1163 000 KIA78R09PI

IC403 00D 263 1092 003 BA05T

IC404 00D 268 0073 905 ICP-N15T

IC405 00D 263 1035 002 PQ30RV11

IC406 00D 268 0073 905 ICP-N15T

IC501 00D 263 0810 008 NJM7808FA(S)

IC502 00D 263 0503 001 NJM7908FA

TR101,102 00D 275 0042 905 2SK373(Y)TPE2

TR103 00D 271 0117 906 2SA1020(Y)TPE6

TR105 00D 273 0464 901 KTC3875SGR-RTK +C

TR107 00D 272 0158 007 2SB/KTB778(R/O)

TR108 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR109 00D 271 0117 906 2SA1020(Y)TPE6

TR110 00D 273 0464 901 KTC3875SGR-RTK +C

TR111 00D 272 0158 007 2SB/KTB778(R/O)

TR112 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR113-116 00D 275 0042 905 2SK373(Y)TPE2

TR117 00D 271 0117 906 2SA1020(Y)TPE6

TR118 00D 273 0464 901 KTC3875SGR-RTK +C

TR119 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR120 00D 275 0042 905 2SK373(Y)TPE2

TR121 00D 271 0117 906 2SA1020(Y)TPE6

TR122 00D 273 0464 901 KTC3875SGR-RTK +C

TR123 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR124 00D 271 0117 906 2SA1020(Y)TPE6

TR125 00D 273 0464 901 KTC3875SGR-RTK +C

TR126 00D 271 0117 906 2SA1020(Y)TPE6

TR127 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR128 00D 273 0464 901 KTC3875SGR-RTK +C

TR129 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR130-132 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR133 00D 271 0117 906 2SA1020(Y)TPE6

TR134 00D 273 0464 901 KTC3875SGR-RTK +C

TR135 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR136 00D 271 0117 906 2SA1020(Y)TPE6

TR137 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR138 00D 273 0464 901 KTC3875SGR-RTK +C

TR139 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR140-142 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR208 00D 273 0464 901 KTC3875SGR-RTK +C

TR401 00D 273 0464 901 KTC3875SGR-RTK +C

TR501 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR502 00D 272 0161 900 2SB1412TL(PQR) +C

TR503 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR504 00D 273 0235 923 2SC1841-T(E/F)

TR505 00D 273 0461 001 2SC/KTC4370A(O/Y)

TR506 00D 273 0235 923 2SC1841-T(E/F)

D101-103 00D 276 0794 900 KDS160 +2125

D105-114 00D 276 0794 900 KDS160 +2125

D115,116 00D 276 0704 903 1SR35-400A(T93X)

D117 00D 276 0432 903 1SS270A TE (TAPE)

D118 00D 276 0723 900 RB721Q-40

D119 00D 276 0432 903 1SS270A TE (TAPE)

D120 00D 276 0723 900 RB721Q-40

D121 00D 276 0432 903 1SS270A TE (TAPE)

D122 00D 276 0723 900 RB721Q-40

D405-414 00D 276 0704 903 1SR35-400A(T93X)

D501-504 00D 276 0704 903 1SR35-400A(T93X)

D505,506 00D 276 0432 903 1SS270A TE (TAPE)

119

AVR-5805/AVC-A1XV

ZD101,102 00D 276 0477 926 HZS16-3TD

ZD103-107 00D 276 0461 903 HZS6A-1TD

ZD201 00D 276 0475 902 HZS12C-1TD

ZD401 00D 276 0683 901 UDZS5.6B-TE17 +C

ZD501 00D 276 0465 909 HZS7B-1TD

ZD502 00D 276 0483 907 HZS30-1TD

RESISTORS GROUP

R107 00D 241 2376 919 RD14B2E300JNBST

R112 00D 241 2376 919 RD14B2E300JNBST

R124 00D 241 2376 919 RD14B2E300JNBST

R128,129 00D 241 2376 919 RD14B2E300JNBST

R152-155 00D 241 2387 908 RD14B2E010JNBST

R217 00D 244 2051 974 RS14B3A102JNBST(S)

R504 00D 244 2051 990 RS14B3A472JNBST(S)

R505 00D 241 2387 908 RD14B2E010JNBST

R507 00D 244 2050 991 RS14B3A682JNBST(S)

R508 00D 241 2387 908 RD14B2E010JNBST

CAPACITORS GROUP

C101,102 00D 254 4313 798 CE04W1H221MC(ASF)

C103,104 00D 254 4313 950 CE04W1H101MT(ASF)

C105,106 00D 254 6245 000 CE68W1V183M (KMH)

C107,108 00D 255 1279 951 CQ93M1H104JT(B)

C109 00D 256 1042 903 CF93A2E104KT

C110 00D 257 0509 929 CK73B1H102KT +1608

C112 00D 257 0501 901 CK73B1H103KT (1608) +1608

C114 00D 254 4313 950 CE04W1H101MT(ASF)

C117 00D 257 0509 929 CK73B1H102KT +1608

C118 00D 257 0501 901 CK73B1H103KT (1608) +1608

C119 00D 254 4313 950 CE04W1H101MT(ASF)

C121 00D 254 4669 905 CE04W1C471MT (KMQ)

C122 00D 254 6244 001 CE68W1C153M (KMH)

C124 00D 254 6244 001 CE68W1C153M (KMH)

C125-128 00D 255 1279 951 CQ93M1H104JT(B)

C129-132 00D 257 0509 929 CK73B1H102KT +1608

C133-136 00D 257 0501 901 CK73B1H103KT (1608) +1608

C137-144 00D 254 4313 918 CE04W1H100MT(ASF)

C145-150 00D 254 6244 014 CE68W1C393M (KMH)

C151 00D 255 1279 951 CQ93M1H104JT(B)

C152 00D 257 0509 929 CK73B1H102KT +1608

C153 00D 257 0501 901 CK73B1H103KT (1608) +1608

C154,155 00D 254 4573 981 CE04W1H100MT(RE3)

C156 00D 257 0509 929 CK73B1H102KT +1608

C157 00D 257 0501 901 CK73B1H103KT (1608) +1608

C158 00D 254 4573 981 CE04W1H100MT(RE3)

C159,160 00D 257 0509 929 CK73B1H102KT +1608

C161,162 00D 257 0501 901 CK73B1H103KT (1608) +1608

C163,164 00D 254 4573 981 CE04W1H100MT(RE3)

C168 00D 254 4573 981 CE04W1H100MT(RE3)

C169 00D 254 4573 949 CE04W1H010MT(RE3)

C170,171 00D 254 6244 014 CE68W1C393M (KMH)

C172 00D 254 4669 714 CE04W1C223MC (KMQ)

C173 00D 254 6244 014 CE68W1C393M (KMH)

C174,175 00D 254 4665 912 CE04W1V471MT(RE3)

C176-179 00D 255 1279 951 CQ93M1H104JT(B)

C181 00D 255 1279 951 CQ93M1H104JT(B)

C223,224 00D 257 0509 929 CK73B1H102KT +1608

C225,226 00D 254 4573 981 CE04W1H100MT(RE3)

C227-229 00D 254 4670 703 CE04W1E472MC (KMQ)

C230 00D 255 1279 951 CQ93M1H104JT(B)

C406,407 00D 257 0501 901 CK73B1H103KT (1608) +1608

C408 00D 254 4313 918 CE04W1H100MT(ASF)

C409 00D 254 4670 703 CE04W1E472MC (KMQ)

C410 00D 255 1279 951 CQ93M1H104JT(B)

C411,412 00D 257 0501 901 CK73B1H103KT (1608) +1608

C413 00D 254 4573 949 CE04W1H010MT(RE3)

Ref. No. Part No. Part Name Remarks Q'ty New

120

AVR-5805/AVC-A1XV

C414 00D 254 4313 918 CE04W1H100MT(ASF)

C415 00D 254 4670 703 CE04W1E472MC (KMQ)

C416 00D 255 1265 936 CQ93M1H103JT(B)

C417 00D 255 1279 951 CQ93M1H104JT(B)

C501-504 00D 254 4196 986 CE04W1H100MT (SRA)

C505-510 00D 254 4196 944 CE04W1H010MT (SRA)

OTHERS PARTS GROUP

BB101 00D 205 0943 018 6P CON.BASE(TUC-P)

BB102 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB103 00D 205 0884 038 9P CON.BASE TUC-P

BB104 00D 205 0885 037 9P CON.SOCKET TUC-P

BB105 00D 205 0885 066 11P CON.SOCKET TUC-P

BB106 00D 205 0884 067 11P CON.BASE TUC-P

BB107 00D 205 0943 018 6P CON.BASE(TUC-P)

BB108 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB109 00D 205 0943 021 7P CON.BASE(TUC-P)

BB110 00D 205 0942 022 7P CON.SOCKET(TUC-P

BB111 00D 205 0884 054 10P CON.BASE TUC-P

BB112 00D 205 0885 053 10P CON.SOCKET TUC-P

BB113 00D 205 0884 054 10P CON.BASE TUC-P

BB114 00D 205 0885 053 10P CON.SOCKET TUC-P

BB115 00D 205 0884 083 4P CON.BASE(TUC-P)

BB116 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB117 00D 205 0884 083 4P CON.BASE(TUC-P)

BB118 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB119 00D 205 0884 083 4P CON.BASE(TUC-P)

BB120 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB121 00D 205 0884 083 4P CON.BASE(TUC-P)

BB122 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB123 00D 205 0884 083 4P CON.BASE(TUC-P)

BB124 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB125 00D 205 0943 018 6P CON.BASE(TUC-P)

BB126 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB127 00D 205 0884 070 12P CON.BASE TUC-P

BB128 00D 205 0885 079 12P CON.SOCKET TUC-P

BB129 00D 205 0884 083 4P CON.BASE(TUC-P)

BB130 00D 205 0885 082 4P CON.SOCKET(TUC-P)

CN101,102 00D 205 1230 063 6P PIN HEADER(6035)

CN103-105 00D 205 1230 021 12P PIN HEADER(6035)

CN106-109 00D 205 1230 063 6P PIN HEADER(6035)

CN110,111 00D 205 1230 021 12P PIN HEADER(6035)

CN112-115 00D 205 1230 063 6P PIN HEADER(6035)

CN116,117 00D 205 1230 021 12P PIN HEADER(6035)

CN203 00D 205 1230 063 6P PIN HEADER(6035)

CN204 00D 205 1230 021 12P PIN HEADER(6035)

CW630 00D 203 5345 026 3P EH-SCN CON.CORD

CW739 00D 203 5345 013 PD EH-SCN CON.CORD

CX021 00D 205 0581 085 2P VH CONNECTOR BASE

CX022 00D 205 0581 069 2P VH-VH CON BASE

CX029 00D 205 0581 001 2P VH CONNECTOR BASE

CX035 00D 205 0653 036 3P VH CON.BASE

CX054 00D 205 0343 058 5P CONN.BASE(KR-PH)

CX055 00D 205 0321 054 5P CONNE.BASE (RED)

CX057 00D 205 0653 052 5P VH CONNECTOR BASE

CX069 00D 205 0653 065 6P VH CONNECTOR BASE

CX076 00D 205 0233 074 7P EH CONNECTOR BASE

CX124 00D 205 0275 029 12P EH CON.BASE

CX630 00D 205 0296 037 3P EH CON BASE (YW)

CX732 00D 205 0323 036 3P CONNE.BASE(BLK)

CX734 00D 205 0323 036 3P CONNE.BASE(BLK)

CX739 00D 205 0278 039 3P EH CON BASE (BK)

CX832 00D 205 0653 036 3P VH CON.BASE

CX833 00D 205 0277 030 3P EH CON BASE (RD)

Ref. No. Part No. Part Name Remarks Q'ty New

121

AVR-5805/AVC-A1XV

CX834 00D 205 0296 037 3P EH CON BASE (YW)

CX920 00D 205 0581 085 2P VH CONNECTOR BASE

CX921 00D 205 1093 006 2P VH CONNECTOR BASA

CX922 00D 205 0581 056 2P VH CONNECTOR BASE

CX923 00D 205 0581 001 2P VH CONNECTOR BASE

CX924 00D 205 0581 069 2P VH-VH CON BASE

CX932 00D 205 0233 032 3P EH CONNECTOR BASE

CX933 00D 205 0321 038 3P CONNE.BASE(RED)

CX938 00D 205 0233 032 3P EH CONNECTOR BASE

CY020 00D 205 0581 056 2P VH CONNECTOR BASE

CY047 00D 205 0343 045 4P CONN.BASE(KR-PH)

CY068 00D 205 0653 065 6P VH CONNECTOR BASE

CY730 00D 205 0321 038 3P CONNE.BASE(RED)

CY731 00D 205 0343 032 3P CONN.BASE(KR-PH)

CY733 00D 205 0406 034 3P CON BASE(KR-PH)

CY830 00D 205 0276 031 3P EH CON BASE (BU)

CY831 00D 205 0277 030 3P EH CON BASE (RD)

CY839 00D 205 0343 032 3P CONN.BASE(KR-PH)

! F011,012 00D 206 1015 074 FUSE 3.15A

! F013,014 00D 206 1015 016 FUSE (1.25A)

! F015 00D 206 1015 061 FUSE 2A

! F018 00D 206 1015 090 FUSE (5A)

! F023 00D 206 1036 011 FUSE (6.3A)

FB207 00D 235 0049 900 BEADS INDUCTOR TAPE

FB403 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB404 00D 247 0018 905 RM73B--0R0KT +2125

FB405-407 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB408 00D 247 0018 905 RM73B--0R0KT +2125

FF101-105 00D 202 0040 909 FUSE CLIP(TAPE)

FF107 00D 202 0040 909 FUSE CLIP(TAPE)

FF203 00D 202 0040 909 FUSE CLIP(TAPE)

FH101-105 00D 202 0040 909 FUSE CLIP(TAPE)

FH107 00D 202 0040 909 FUSE CLIP(TAPE)

FH203 00D 202 0040 909 FUSE CLIP(TAPE)

W101,102 00D 205 0864 003 M3 SCREW TERMINAL

W201,202 00D 205 1034 023 M3 SCREW TERMINAL

W601,602 00D 205 1034 023 M3 SCREW TERMINAL

00D 001 0249 000 VINYL WIRE

00D 001 0249 013 VINYL WIRE

00D 417 0476 007 RADIATOR

00D 473 7005 002 3X10 CBTS (S)-Z

Ref. No. Part No. Part Name Remarks Q'ty New

122

AVR-5805/AVC-A1XV

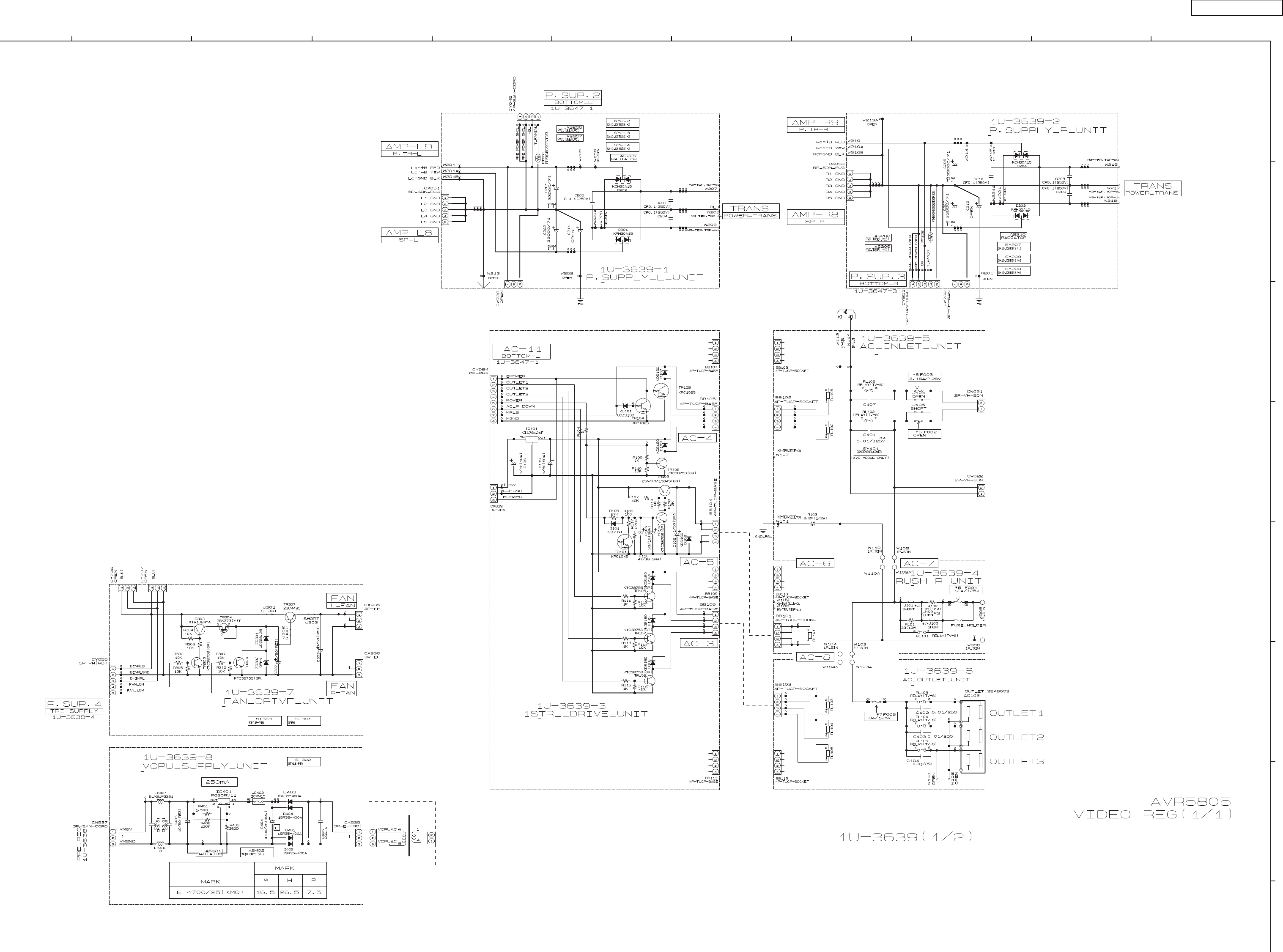

00D1U-3639B REG2 P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 263 1214 904 KIA7812AF-RTF

IC401 00D 263 1035 002 PQ30RV11

IC501 00D 263 1048 002 BA033T

IC502,503 00D 263 1217 008

IC504 00D 263 1048 002 BA033T

IC505,506 00D 263 1217 008 LMS1587CT-ADJ

IC507 00D 263 1048 002 BA033T

IC508,509 00D 263 1217 008 LMS1587CT-ADJ

IC510 00D 263 1048 002 BA033T

IC511 00D 263 1164 009 PQ018EF01SZ

IC512 00D 263 1048 002 BA033T

IC603 00D 262 3351 901 LMS202IMX +C

IC604 00D 262 2580 906 CXA1511M +C

TR101 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR102 00D 273 0464 901 KTC3875SGR-RTK +C

TR103 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR104 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR105-108 00D 273 0464 901 KTC3875SGR-RTK +C

TR109 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR302 00D 273 0464 901 KTC3875SGR-RTK +C

TR303 00D 271 0314 903 KTA1024Y-AT

TR304 00D 275 0042 905 2SK373(Y)TPE2

TR306 00D 273 0464 901 KTC3875SGR-RTK +C

TR307 00D 273 0445 001 2SC4495

TR608 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR609 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR610 00D 272 0161 900 2SB1412TL(PQR) +C

TR611 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR612 00D 272 0161 900 2SB1412TL(PQR) +C

TR613 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR614 00D 272 0161 900 2SB1412TL(PQR) +C

TR615 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR616 00D 272 0161 900 2SB1412TL(PQR) +C

D101-107 00D 276 0794 900 KDS160 +2125

D401-404 00D 276 0704 903 1SR35-400A(T93X)

D501-512 00D 276 0794 900 KDS160 +2125

ZD101 00D 276 0798 922 UDZS18B-TE17

ZD301 00D 276 0798 948 UDZS8.2B-TE17

ZD601 00D 276 0798 919 UDZS6.8B-TE17

ZD602-605 00D 276 0683 998 UDZS16B-TE17 +C

PT201,202 00D 279 0034 012 PTH9M04BG222TS2F333

RESISTORS GROUP

R101,102 00D 243 2091 009 RW78A4A330J=(UL)

R619,620 00D 241 2375 981 RD14B2E220JNBST

CAPACITORS GROUP

! C101 00D 253 8022 707 CK45F2EAC103MC

! C104 00D 253 8022 707 CK45F2EAC103MC

C105 00D 254 4193 921 CE04W1C330M (SRA)

C106 00D 254 4196 944 CE04W1H010MT (SRA)

! C107 00D 253 8022 707 CK45F2EAC103MC

C108,109 00D 254 4196 944 CE04W1H010MT (SRA)

C110 00D 254 4193 934 CE04W1C470MT (SRA)

C203-205 00D 256 1042 903 CF93A2E104KT

C208-210 00D 256 1042 903 CF93A2E104KT

C302 00D 254 4573 981 CE04W1H100MT(RE3)

C303 00D 254 4313 918 CE04W1H100MT(ASF)

C401,402 00D 257 0501 901 CK73B1H103KT (1608) +1608

C403 00D 254 4313 918 CE04W1H100MT(ASF)

123

AVR-5805/AVC-A1XV

C404 00D 254 4670 703 CE04W1E472MC (KMQ)

C405 00D 255 1279 951 CQ93M1H104JT(B)

C501 00D 257 0509 929 CK73B1H102KT +1608

C502 00D 257 0501 901 CK73B1H103KT (1608) +1608

C503 00D 257 0516 954 CK73B1E104KT +1608

C504 00D 254 4313 950 CE04W1H101MT(ASF)

C505 00D 257 0509 929 CK73B1H102KT +1608

C506 00D 257 0501 901 CK73B1H103KT (1608) +1608

C507 00D 257 0516 954 CK73B1E104KT +1608

C508 00D 254 4313 950 CE04W1H101MT(ASF)

C509 00D 257 0509 929 CK73B1H102KT +1608

C510 00D 257 0501 901 CK73B1H103KT (1608) +1608

C511 00D 257 0516 954 CK73B1E104KT +1608

C512 00D 254 4313 950 CE04W1H101MT(ASF)

C513 00D 257 0509 929 CK73B1H102KT +1608

C514 00D 257 0501 901 CK73B1H103KT (1608) +1608

C515 00D 257 0516 954 CK73B1E104KT +1608

C516 00D 254 4313 950 CE04W1H101MT(ASF)

C521 00D 257 0509 929 CK73B1H102KT +1608

C522 00D 257 0501 901 CK73B1H103KT (1608) +1608

C523 00D 257 0516 954 CK73B1E104KT +1608

C524 00D 254 4313 950 CE04W1H101MT(ASF)

C525 00D 257 0509 929 CK73B1H102KT +1608

C526 00D 257 0501 901 CK73B1H103KT (1608) +1608

C527 00D 257 0516 954 CK73B1E104KT +1608

C528 00D 254 4313 950 CE04W1H101MT(ASF)

C529 00D 257 0509 929 CK73B1H102KT +1608

C530 00D 257 0501 901 CK73B1H103KT (1608) +1608

C531 00D 257 0516 954 CK73B1E104KT +1608

C532 00D 254 4313 950 CE04W1H101MT(ASF)

C533 00D 257 0509 929 CK73B1H102KT +1608

C534 00D 257 0501 901 CK73B1H103KT (1608) +1608

C535 00D 257 0516 954 CK73B1E104KT +1608

C536 00D 254 4313 950 CE04W1H101MT(ASF)

C541 00D 257 0509 929 CK73B1H102KT +1608

C542 00D 257 0501 901 CK73B1H103KT (1608) +1608

C543 00D 257 0516 954 CK73B1E104KT +1608

C544 00D 254 4313 950 CE04W1H101MT(ASF)

C545 00D 257 0509 929 CK73B1H102KT +1608

C546 00D 257 0501 901 CK73B1H103KT (1608) +1608

C547 00D 257 0516 954 CK73B1E104KT +1608

C548 00D 254 4313 950 CE04W1H101MT(ASF)

C549 00D 257 0509 929 CK73B1H102KT +1608

C550 00D 257 0501 901 CK73B1H103KT (1608) +1608

C551 00D 257 0516 954 CK73B1E104KT +1608

C552 00D 254 4313 950 CE04W1H101MT(ASF)

C553 00D 257 0509 929 CK73B1H102KT +1608

C554 00D 257 0501 901 CK73B1H103KT (1608) +1608

C555 00D 257 0516 954 CK73B1E104KT +1608

C556 00D 254 4313 950 CE04W1H101MT(ASF)

C561 00D 257 0509 929 CK73B1H102KT +1608

C562 00D 257 0501 901 CK73B1H103KT (1608) +1608

C563 00D 257 0516 954 CK73B1E104KT +1608

C564 00D 254 4313 950 CE04W1H101MT(ASF)

C565 00D 257 0509 929 CK73B1H102KT +1608

C566 00D 257 0501 901 CK73B1H103KT (1608) +1608

C567 00D 257 0516 954 CK73B1E104KT +1608

C568 00D 254 4313 950 CE04W1H101MT(ASF)

C569 00D 257 0509 929 CK73B1H102KT +1608

C570 00D 257 0501 901 CK73B1H103KT (1608) +1608

C571 00D 257 0516 954 CK73B1E104KT +1608

C572 00D 254 4313 950 CE04W1H101MT(ASF)

C573 00D 257 0509 929 CK73B1H102KT +1608

C574 00D 257 0501 901 CK73B1H103KT (1608) +1608

C575 00D 257 0516 954 CK73B1E104KT +1608

C576 00D 254 4313 950 CE04W1H101MT(ASF)

C614 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

124

AVR-5805/AVC-A1XV

C615-618 00D 254 4573 907 CE04W1H0R1MT(RE3)

C619 00D 257 0516 954 CK73B1E104KT +1608

C620 00D 254 4313 918 CE04W1H100MT(ASF)

C621-623 00D 257 0506 951 CC73CH1H101JT +1608

C624-627 00D 257 0516 954 CK73B1E104KT +1608

C628 00D 257 0506 951 CC73CH1H101JT +1608

C629 00D 257 0501 901 CK73B1H103KT (1608) +1608

C630 00D 254 4313 918 CE04W1H100MT(ASF)

C631 00D 257 0501 901 CK73B1H103KT (1608) +1608

C632 00D 254 4573 949 CE04W1H010MT(RE3)

C633 00D 257 0501 901 CK73B1H103KT (1608) +1608

C635-639 00D 257 0516 954 CK73B1E104KT +1608

C641-644 00D 257 0516 954 CK73B1E104KT +1608

C663-666 00D 257 0509 929 CK73B1H102KT +1608

OTHERS PARTS GROUP

BB101-103 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB104-107 00D 205 0884 083 4P CON.BASE(TUC-P)

BB108 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB109 00D 205 0884 083 4P CON.BASE(TUC-P)

BB110 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB111 00D 205 0884 083 4P CON.BASE(TUC-P)

BB112 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB601 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB602,603 00D 205 0884 083 4P CON.BASE(TUC-P)

BB604 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB605 00D 205 0885 095 8P CON.SOCKET(TUC-P)

BB606 00D 205 0884 096 8P CON BASE(TUC-P)

CW021 00D 203 2433 009 2P VH-SDN CON.CORD

CW022 00D 203 2433 012 2P VH-SDN CON.CORD

CW732 00D 203 5347 011 3P PH-SAN CON.CORD

CW937 00D 203 5347 008 3P PH-SAN CON.CORD

CX038,039 00D 205 0343 032 3P CONN.BASE(KR-PH)

CX050 00D 203 8551 008 5P SDN-SIN CON.CORD

CX051 00D 203 8551 008 5P SDN-SIN CON.CORD

CX839 00D 205 0355 033 3P KR CON BASE(L)

CX930 00D 205 0343 032 3P CONN.BASE(KR-PH)

CX931 00D 205 0321 038 3P CONNE.BASE(RED)

CX935,936 00D 205 0233 032 3P EH CONNECTOR BASE

CX939 00D 205 0277 030 3P EH CON BASE (RD)

CY031 00D 205 0581 001 2P VH CONNECTOR BASE

CY037 00D 205 0581 069 2P VH-VH CON BASE

CY045 00D 203 6614 002 4P SM-SAN CON.CORD

CY055 00D 205 0321 054 5P CONNE.BASE (RED)

CY084 00D 205 0355 088 8P KR CON BASE(L)

CY104 00D 205 0375 000 10P CON.BASE(KR-PH)

CY736 00D 205 0278 039 3P EH CON BASE (BK)

CY737 00D 205 0276 031 3P EH CON BASE (BU)

CY932 00D 205 0233 032 3P EH CONNECTOR BASE

CY951 00D 203 8552 007 5P SM-SAN CON.CORD

! F001 00D 206 1036 011 FUSE (6.3A)

! F002 00D 206 1015 029 FUSE 1A T

! F003 00D 206 1015 016 FUSE (1.25A)

! F008 00D 206 1015 032 FUSE (2.5A)

! 00D 206 1015 029 FUSE 1A T WAKARANAI?

FB401 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB402 00D 247 0018 905 RM73B--0R0KT +2125

FB601-619 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB620,621 00D 235 0049 900 BEADS INDUCTOR TAPE

FF101 00D 202 0040 909 FUSE CLIP(TAPE)

FF103 00D 202 0040 909 FUSE CLIP(TAPE)

Ref. No. Part No. Part Name Remarks Q'ty New

125

AVR-5805/AVC-A1XV

FH101 00D 202 0040 909 FUSE CLIP(TAPE)

FH103-107 00D 202 0040 909 FUSE CLIP(TAPE)

JK601 00D 205 1305 008 9P D-SUB CONNECTOR

JK602 00D 204 8260 004 MINI JACK

JK603,604 00D 204 8338 004 2P MINI JACK

JK605 00D 204 8260 004 MINI JACK

RL101,102 00D 214 0212 002 RELAY TV-8 (DLS1U)

RL105,106 00D 214 0212 002 RELAY TV-8 (DLS1U)

ST302,303 00D 205 0452 017 STYLE PIN

W101,102 00D 205 1034 023 M3 SCREW TERMINAL

W103 00D 203 0739 006 1P SIN-SIN WIRE

W104 00D 203 0739 019 1P SIN-SIN WIRE

W107,108 00D 205 1034 023 M3 SCREW TERMINAL

W109 00D 203 0739 006 1P SIN-SIN WIRE

W110 00D 203 0739 019 1P SIN-SIN WIRE

W113 00D 203 0740 008 1P SIN WIRE

W114 00D 203 0740 011 1P SIN WIRE

W151 00D 203 0741 007 1P WIRE

W152 00D 203 0740 024 1P SIN WIRE

W201 00D 203 5346 009 3C WIRE ASS'Y

W205 00D 203 0738 036 1P SIN-SIN WIRE

W207-209 00D 205 0864 003 M3 SCREW TERMINAL

W210 00D 203 5346 009 3C WIRE ASS'Y

W214 00D 203 0738 036 1P SIN-SIN WIRE

W216-218 00D 205 0864 003 M3 SCREW TERMINAL

W220,221 00D 203 0738 049 1P SIN-SIN WIRE

W603-605 00D 205 1034 023 M3 SCREW TERMINAL

W905 00D 203 0739 022 1P SIN-SIN WIRE

W906 00D 203 0739 035 1P SIN-SIN WIRE

00D 461 0415 007 RUBBER SHEET for R117

00D 001 0248 001 VINYL WIRE

00D 415 0309 026 P.V.C. TUBE(L=20)

00D 417 0476 007 RADIATOR

00D 473 7005 002 3X10 CBTS (S)-Z

Ref. No. Part No. Part Name Remarks Q'ty New

126

AVR-5805/AVC-A1XV

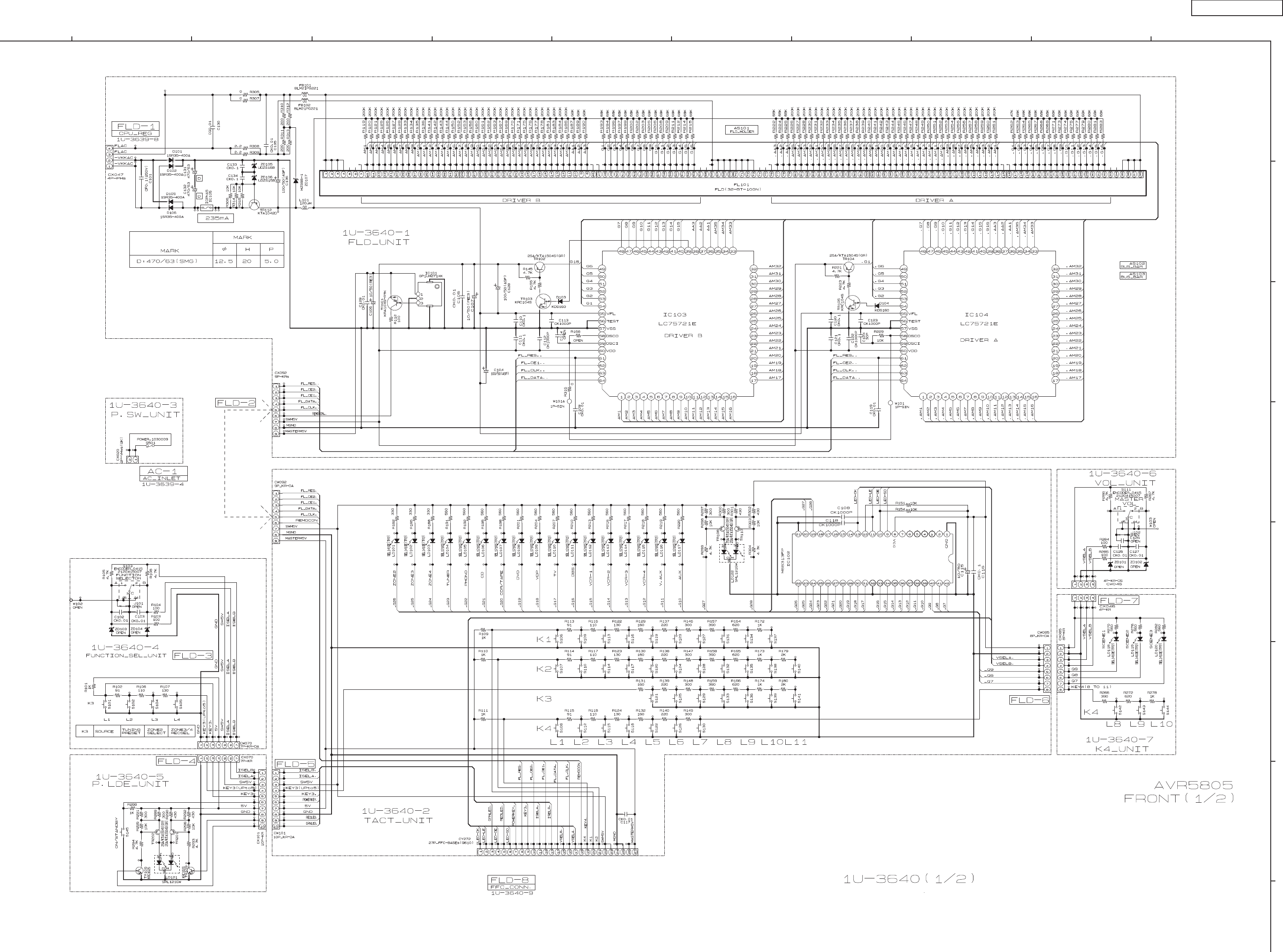

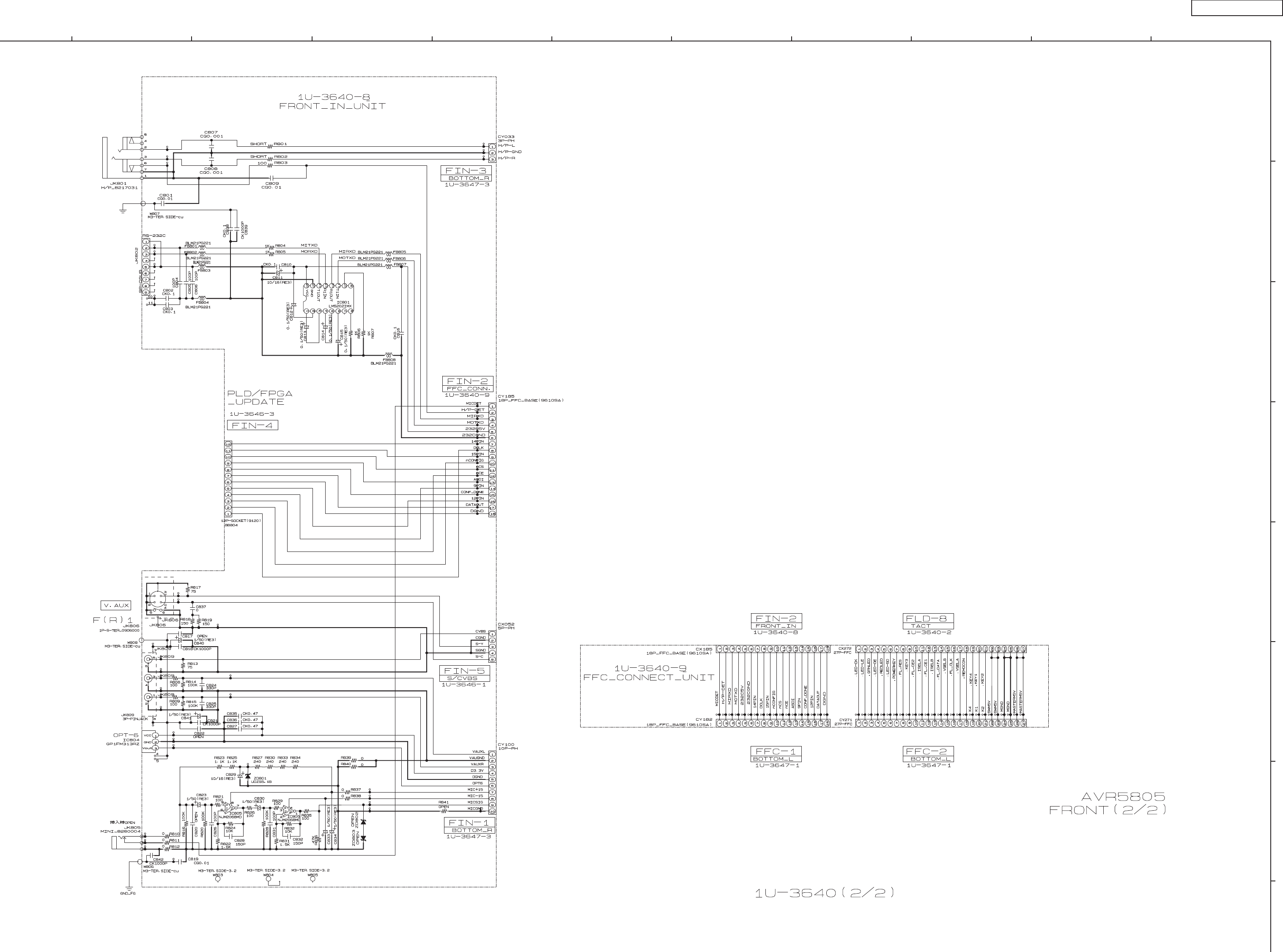

00D1U-3640 FRONT P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 499 0303 004 GP1UM271XK

IC102 00D 262 1911 903 M66313FP-T1 +C

IC103,104 00D 262 2549 002 LC75721E +C

IC105 00D 268 0073 905 ICP-N15T

IC801 00D 262 3351 901 LMS202IMX +C

IC804 00D 269 0221 006 GP1FM313RZ

IC805 00D 263 0896 909 NJM2068MD-TE1 +C

TR101 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR102 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR103 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR104 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR105 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR108 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR109 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR110 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR112 00D 271 0316 901 KTA1042D +C

TR201,202 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

D101,102 00D 276 0704 903 1SR35-400A(T93X)

D103,104 00D 276 0794 900 KDS160 +2125

D105,106 00D 276 0704 903 1SR35-400A(T93X)

ZD105 00D 276 0683 998 UDZS16B-TE17 +C

ZD106 00D 276 0683 956 UDZS15B-TE17 +C

ZD107 00D 276 0468 906 HZS9B-1TD

ZD801 00D 276 0683 930 UDZS5.1B-TE17 +C

LD101-103 00D 393 9452 904 SEL1410E(TP2)

LD104-117 00D 393 9434 906 SEL1210S(TP2)

LD118-120 00D 393 9452 904 SEL1410E(TP2)

LD121,122 00D 393 9645 009 SML1216W(D)

FL101 00D 393 8073 009 FLD(32-BT-10GN)

CAPACITORS GROUP

C101 00D 256 1042 903 CF93A2E104KT

C102,103 00D 257 0501 901 CK73B1H103KT (1608) +1608

C104 00D 254 4313 950 CE04W1H101MT(ASF)

C105 00D 257 0501 901 CK73B1H103KT (1608) +1608

C106,107 00D 254 4573 981 CE04W1H100MT(RE3)

C108 00D 257 0509 929 CK73B1H102KT +1608

C109 00D 257 0501 901 CK73B1H103KT (1608) +1608

C110,111 00D 257 0516 954 CK73B1E104KT +1608

C112,113 00D 257 0509 929 CK73B1H102KT +1608

C115 00D 254 4306 925 CE04W1H100MT(SRE)

C116 00D 257 0516 954 CK73B1E104KT +1608

C117 00D 257 0501 901 CK73B1H103KT (1608) +1608

C118 00D 253 1180 921 CK45B1H102KT(DD-3)

C119 00D 257 0501 901 CK73B1H103KT (1608) +1608

C120,121 00D 257 0516 954 CK73B1E104KT +1608

C122,123 00D 257 0509 929 CK73B1H102KT +1608

C124 00D 257 0504 937 CC73CH1H300JT +1608

C125 00D 257 0501 901 CK73B1H103KT (1608) +1608

C127 00D 257 0501 901 CK73B1H103KT (1608) +1608

C128 00D 254 4313 950 CE04W1H101MT(ASF)

C129 00D 257 0501 901 CK73B1H103KT (1608) +1608

C130 00D 255 1265 936 CQ93M1H103JT(B)

C131,132 00D 254 4540 011 CE04W1J471M(SMG)

C133,134 00D 257 0516 954 CK73B1E104KT +1608

C135 00D 257 0501 901 CK73B1H103KT (1608) +1608

C136 00D 254 4313 950 CE04W1H101MT(ASF)

C801 00D 255 1265 936 CQ93M1H103JT(B)

127

AVR-5805/AVC-A1XV

C802,803 00D 257 0516 954 CK73B1E104KT +1608

C804-806 00D 257 0506 951 CC73CH1H101JT +1608

C807,808 00D 255 1264 908 CQ93M1H102JT(B)

C809 00D 255 1265 936 CQ93M1H103JT(B)

C810 00D 257 0516 954 CK73B1E104KT +1608

C811 00D 254 4577 903 CE04W1C100MT(RE3)

C812-815 00D 254 4573 907 CE04W1H0R1MT(RE3)

C816 00D 257 0516 954 CK73B1E104KT +1608

C818 00D 257 0509 929 CK73B1H102KT +1608

C819 00D 255 1265 936 CQ93M1H103JT(B)

C821 00D 257 0509 929 CK73B1H102KT +1608

C823 00D 254 4573 949 CE04W1H010MT(RE3)

C824,825 00D 257 0507 976 CC73CH1H331JT +1608

C826 00D 257 0506 951 CC73CH1H101JT +1608

C827 00D 257 0521 949 CK73B1A474KT

C828 00D 257 0506 993 CC73CH1H151JT +1608

C829 00D 254 4577 903 CE04W1C100MT(RE3)

C830 00D 254 4573 949 CE04W1H010MT(RE3)

C831 00D 257 0506 951 CC73CH1H101JT +1608

C832 00D 257 0506 993 CC73CH1H151JT +1608

C833,834 00D 254 4573 949 CE04W1H010MT(RE3)

C835,836 00D 257 0521 949 CK73B1A474KT

C837 00D 247 2018 903 RM73B--0R0KT +1608

C838 00D 257 0516 954 CK73B1E104KT +1608

C839 00D 257 0509 929 CK73B1H102KT +1608

C840,841 00D 254 4573 949 CE04W1H010MT(RE3)

C842 00D 253 1180 921 CK45B1H102KT(DD-3)

OTHERS PARTS GROUP

AS101 00D 146 2348 008 FLD HOLDER

AS102,103 00D 412 5186 025 BUS BAR

BB804 00D 205 1326 029 12P SOCKET(9120)

CW046 00D 203 6615 001 4P KR-DS CON.CORD

CW070 00D 204 2975 007 7P KR-DA CON.CORD

CW085 00D 204 2930 013 8P KR-DA CON.CORD

CW092 00D 204 2976 006 9P KR-DA CON.CORD

CW101 00D 204 2845 014 10P KR-DA CON.CORD

CX020 00D 205 0453 016 2P VH CONN BASE(L)

CX046 00D 205 0343 045 4P CONN.BASE(KR-PH)

CX047 00D 205 0355 046 4P KR CON BASE(L)

CX052 00D 205 0343 058 5P CONN.BASE(KR-PH)

CX070 00D 205 0343 074 7P CONN.BASE(KR-PH)

CX085 00D 205 0343 087 8P CONN.BASE(KR-PH)

CX092 00D 205 0355 091 9P KR CON BASE(L)

CX101 00D 205 0375 000 10P CON.BASE(KR-PH)

CX185 00D 205 0892 017 18P FFC BASE(P=1)

CX272 00D 205 1100 083 27P FFC BASE (P=1)

CY033 00D 205 0343 032 3P CONN.BASE(KR-PH)

CY100 00D 205 0375 000 10P CON.BASE(KR-PH)

CY182 00D 205 0892 017 18P FFC BASE(P=1)

CY185 00D 205 0892 017 18P FFC BASE(P=1)

CY271 00D 205 1100 083 27P FFC BASE (P=1)

CY272 00D 205 1329 000 27P FFC BASE(9610SB)

FB101,102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB801-808 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

JK801 00D 204 8217 031 H/P JACK (BK(AU))

JK802 00D 205 1305 008 9P D-SUB CONNECTOR

JK805 00D 204 8260 004 MINI JACK

JK806 00D 205 0906 000 1P S-TERMINAL(AU.SW)

JK809 00D 204 8693 008 3P PINJACK(BK/AU)

Ref. No. Part No. Part Name Remarks Q'ty New

128

AVR-5805/AVC-A1XV

L101 00D 235 0060 989 INDUCTOR(121)ST

S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)

S103 00D 212 0415 007 ROT.ENCODER(EC16B36)

S104-110 00D 212 5611 903 TACT SWITCH(TAPE H5)

S111 00D 212 0415 007 ROT.ENCODER(EC16B36)

S112-145 00D 212 5611 903 TACT SWITCH(TAPE H5)

S501 00D 212 1030 009 POWER SWITCH (TV-5)

W101 00D 001 0247 015 1P WIRE

W803-805 00D 205 1034 010 M3 SCREW TERMINAL

W806-808 00D 205 1034 023 M3 SCREW TERMINAL

00D 461 0415 007 RUBBER SHEET for C118, C840-842

00D 203 0744 004 1P RUG WIRE

Ref. No. Part No. Part Name Remarks Q'ty New

129

AVR-5805/AVC-A1XV

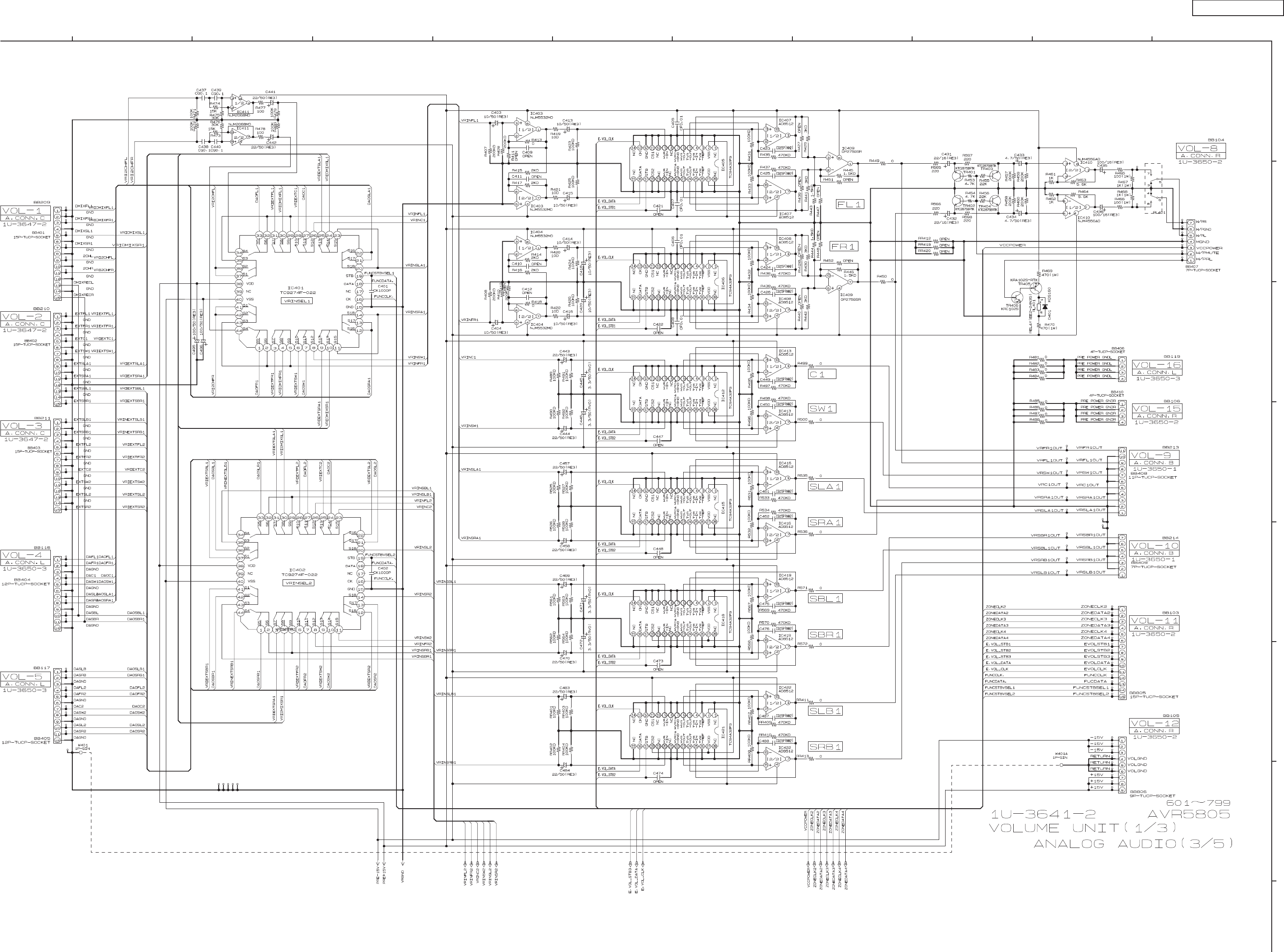

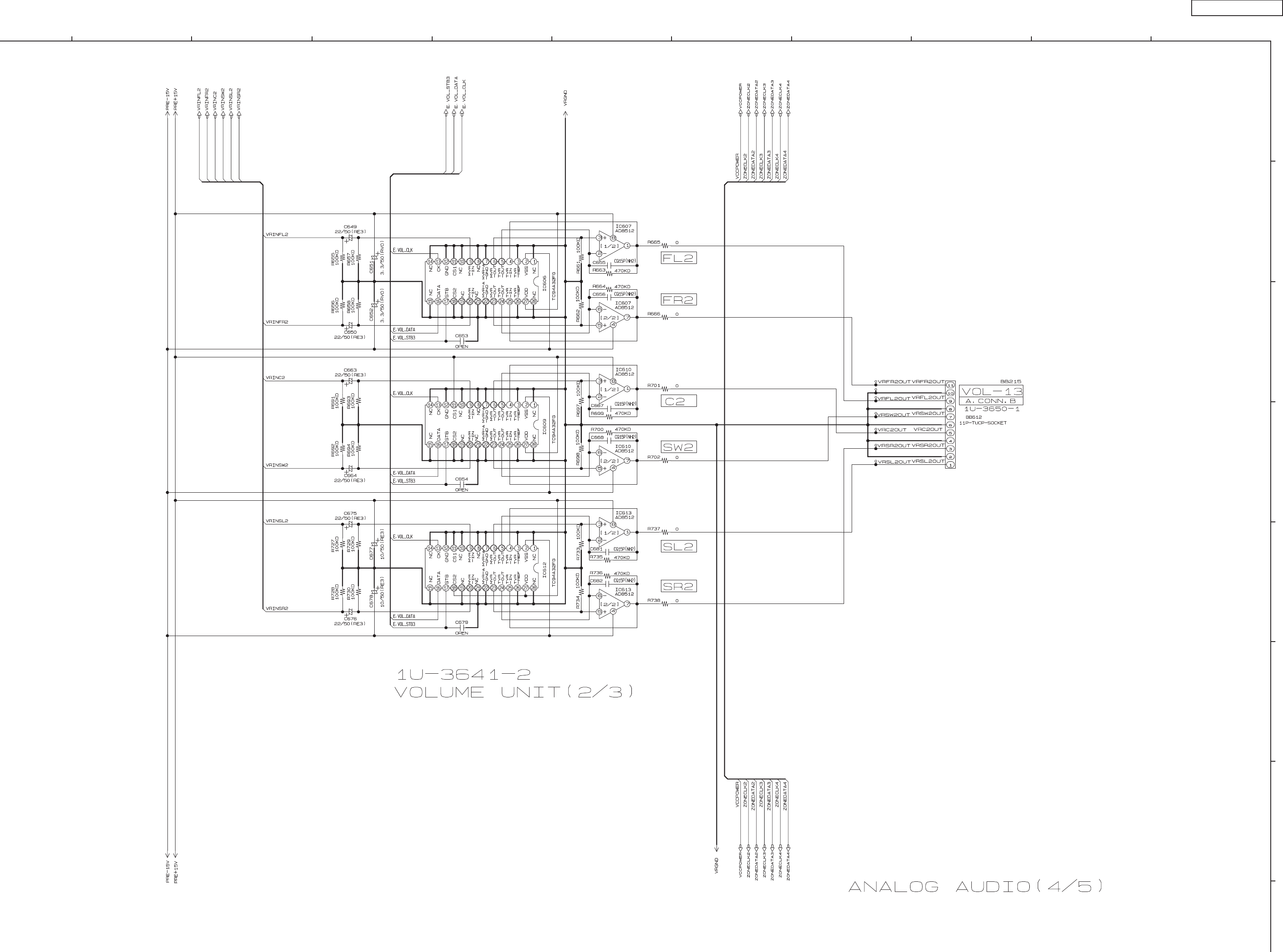

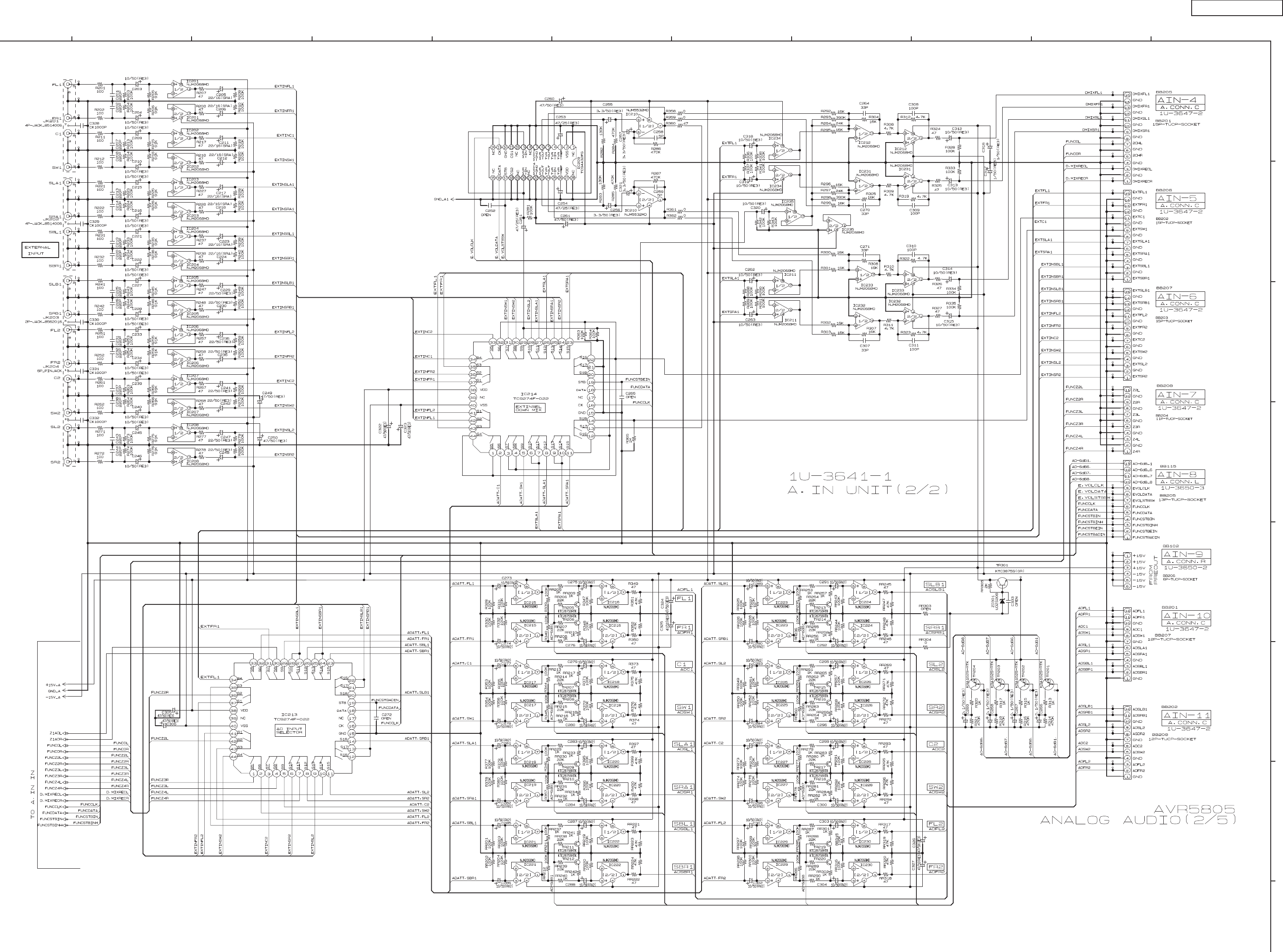

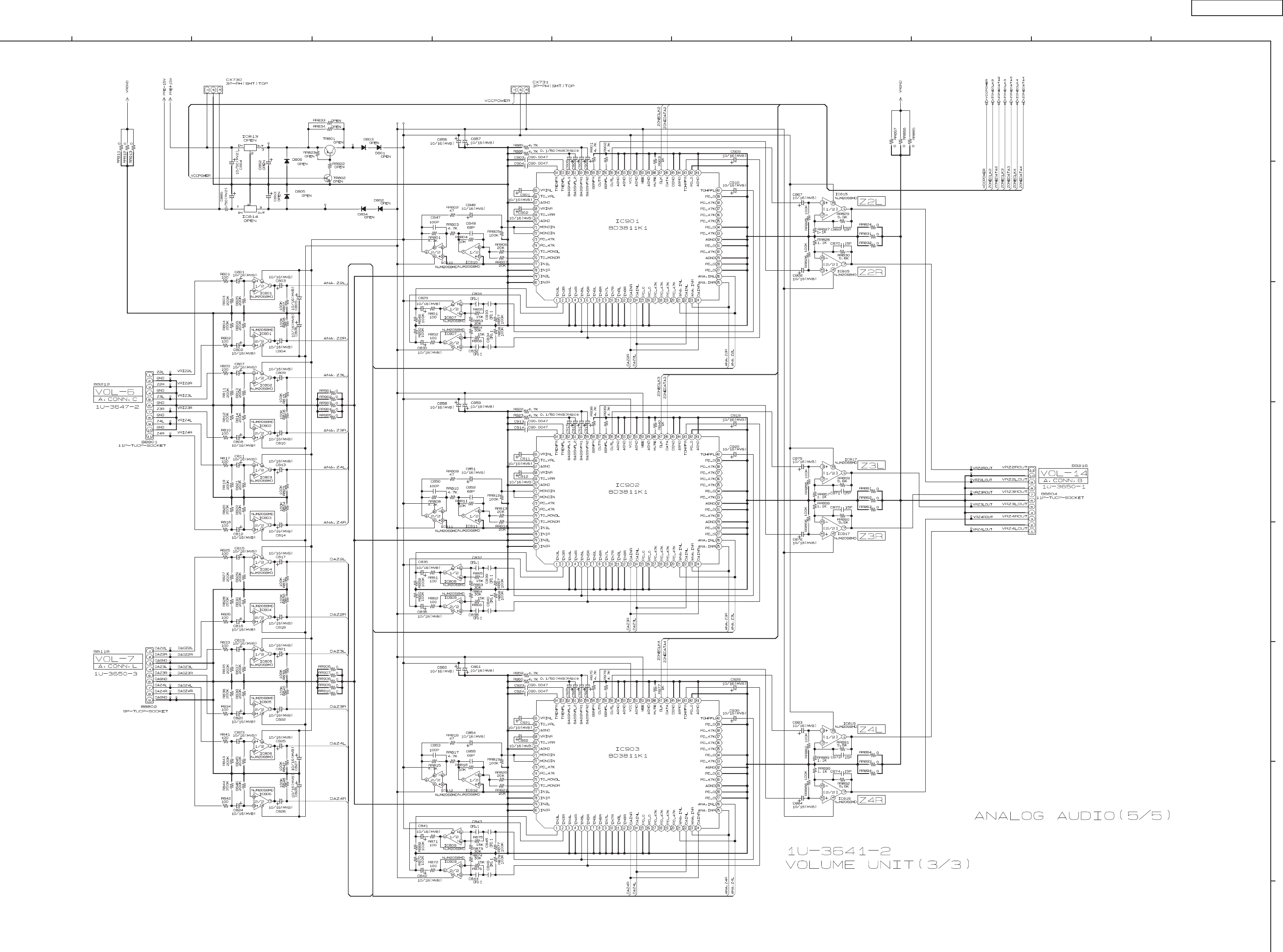

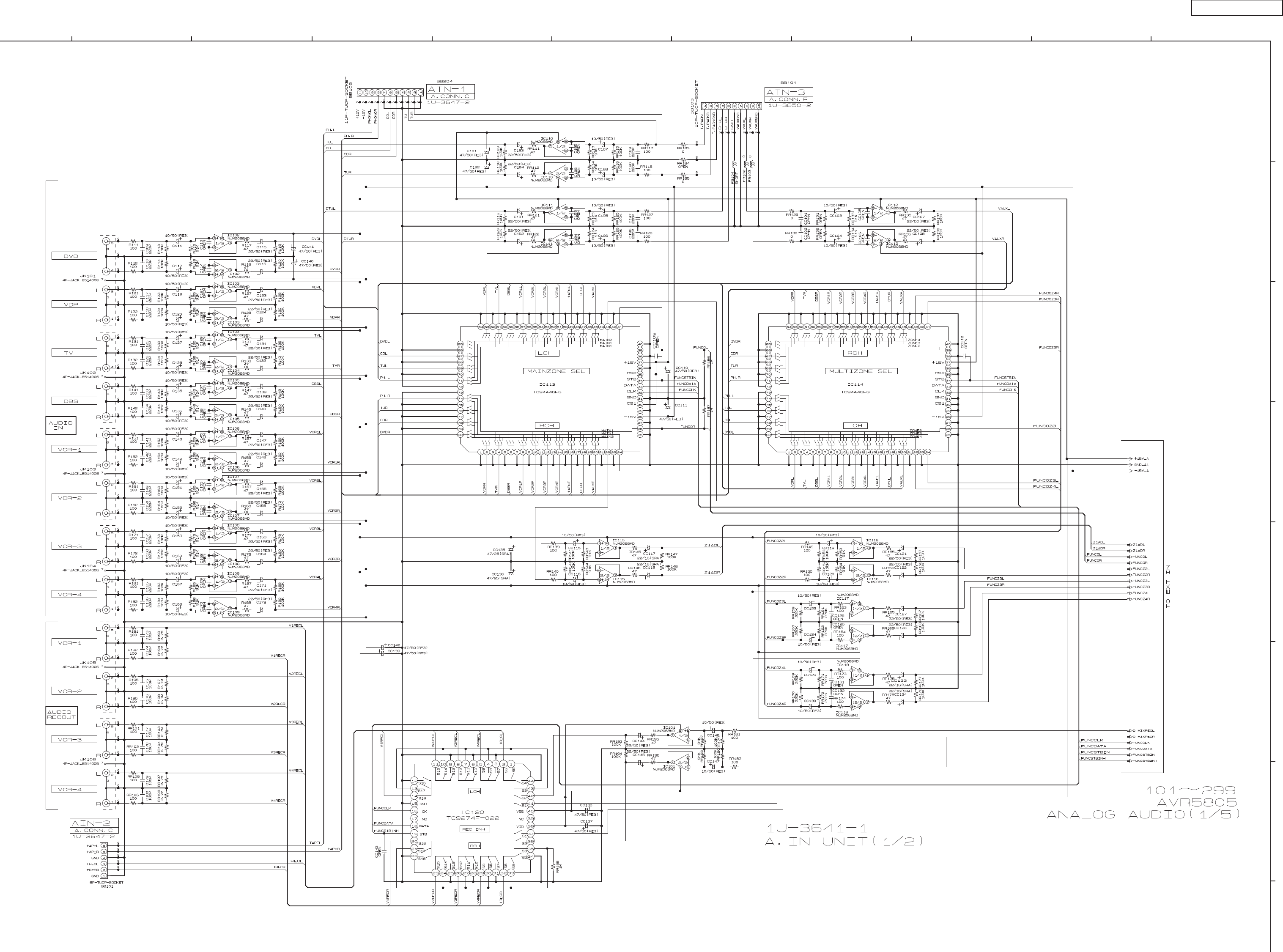

00D1U-3641B AUDIO P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 263 0896 909 NJM2068MD-TE1 +C

IC102 00D 263 1074 908 OP275GSR +C

IC103-112 00D 263 0896 909 NJM2068MD-TE1 +C

IC113,114 00D 262 3347 009 TC94A46FG +C

IC115-118 00D 263 0896 909 NJM2068MD-TE1 +C

IC120 00D 262 3439 001 TC9274F-022

IC201-208 00D 263 0896 909 NJM2068MD-TE1 +C

IC209 00D 262 3168 903 TC94A32F +C

IC210 00D 263 0898 907 NJM5532MD-TE1 +C

IC211,212 00D 263 0896 909 NJM2068MD-TE1 +C

IC213,214 00D 262 3439 001 TC9274F-022

IC215-235 00D 263 0896 909 NJM2068MD-TE1 +C

IC401,402 00D 262 3439 001 TC9274F-022

IC403,404 00D 263 1074 908 OP275GSR +C

IC405,406 00D 262 3168 903 TC94A32F +C

IC407,408 00D 263 1207 908 AD8512AR REEL

IC409 00D 263 1074 908 OP275GSR +C

IC410 00D 263 0995 004 NJM4556AD +T

IC411 00D 263 0896 909 NJM2068MD-TE1 +C

IC412 00D 262 3168 903 TC94A32F +C

IC413 00D 263 1207 908 AD8512AR REEL

IC415 00D 262 3168 903 TC94A32F +C

IC416 00D 263 1207 908 AD8512AR REEL

IC418 00D 262 3168 903 TC94A32F +C

IC419 00D 263 1207 908 AD8512AR REEL

IC421 00D 262 3168 903 TC94A32F +C

IC422 00D 263 1207 908 AD8512AR REEL

IC606 00D 262 3168 903 TC94A32F +C

IC607 00D 263 1207 908 AD8512AR REEL

IC609 00D 262 3168 903 TC94A32F +C

IC610 00D 263 1207 908 AD8512AR REEL

IC612 00D 262 3168 903 TC94A32F +C

IC613 00D 263 1207 908 AD8512AR REEL

IC801-812 00D 263 0896 909 NJM2068MD-TE1 +C

IC815 00D 263 0896 909 NJM2068MD-TE1 +C

IC817 00D 263 0896 909 NJM2068MD-TE1 +C

IC819 00D 263 0896 909 NJM2068MD-TE1 +C

IC901-903 00D 263 1156 004 BD3811K1 +C

TR201-204 00D 269 0184 907 KRA102S-RTK +C

TR205-220 00D 273 0460 905 KTC2875B-RTK +C

TR301 00D 273 0464 901 KTC3875SGR-RTK +C

TR401-404 00D 273 0460 905 KTC2875B-RTK +C

TR405 00D 269 0184 907 KRA102S-RTK +C

TR406 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

D401 00D 276 0794 900 KDS160 +2125

ZD301 00D 276 0798 935 UDZS20B-TE17

RESISTORS GROUP

R465,466 00D 244 2051 961 RS14B3A101JNBST(S)

R467,468 00D 244 2051 974 RS14B3A102JNBST(S)

R469,470 00D 244 2043 953 RS14B3A471JNBST(S)

CAPACITORS GROUP

C109,110 00D 257 0507 934 CC73CH1H221JT +1608

C111,112 00D 254 4313 918 CE04W1H100MT(ASF)

C115,116 00D 254 4313 921 CE04W1H220MT(ASF)

C117,118 00D 257 0507 934 CC73CH1H221JT +1608

C119,120 00D 254 4573 981 CE04W1H100MT(RE3)

C123,124 00D 254 4573 994 CE04W1H220MT(RE3)

C125,126 00D 257 0507 934 CC73CH1H221JT +1608

C127,128 00D 254 4573 981 CE04W1H100MT(RE3)

130

AVR-5805/AVC-A1XV

C131,132 00D 254 4573 994 CE04W1H220MT(RE3)

C133,134 00D 257 0507 934 CC73CH1H221JT +1608

C135,136 00D 254 4573 981 CE04W1H100MT(RE3)

C139,140 00D 254 4573 994 CE04W1H220MT(RE3)

C141,142 00D 257 0507 934 CC73CH1H221JT +1608

C143,144 00D 254 4573 981 CE04W1H100MT(RE3)

C147,148 00D 254 4573 994 CE04W1H220MT(RE3)

C149,150 00D 257 0507 934 CC73CH1H221JT +1608

C151,152 00D 254 4573 981 CE04W1H100MT(RE3)

C155,156 00D 254 4573 994 CE04W1H220MT(RE3)

C157,158 00D 257 0507 934 CC73CH1H221JT +1608

C159,160 00D 254 4573 981 CE04W1H100MT(RE3)

C163,164 00D 254 4573 994 CE04W1H220MT(RE3)

C165,166 00D 257 0507 934 CC73CH1H221JT +1608

C167,168 00D 254 4573 981 CE04W1H100MT(RE3)

C171,172 00D 254 4573 994 CE04W1H220MT(RE3)

C173-180 00D 257 0506 951 CC73CH1H101JT +1608

C181,182 00D 254 4313 934 CE04W1H470MT(ASF)

C183,184 00D 254 4573 994 CE04W1H220MT(RE3)

C187,188 00D 254 4573 981 CE04W1H100MT(RE3)

C189,190 00D 257 0507 934 CC73CH1H221JT +1608

C191,192 00D 254 4573 994 CE04W1H220MT(RE3)

C195,196 00D 254 4573 981 CE04W1H100MT(RE3)

C197,198 00D 257 0507 934 CC73CH1H221JT +1608

C201,202 00D 257 0507 934 CC73CH1H221JT +1608

C203,204 00D 254 4573 981 CE04W1H100MT(RE3)

C205,206 00D 254 4193 918 CE04W1C220MT (SRA)

C207,208 00D 257 0507 934 CC73CH1H221JT +1608

C209,210 00D 254 4573 981 CE04W1H100MT(RE3)

C211,212 00D 254 4193 918 CE04W1C220MT (SRA)

C213,214 00D 257 0507 934 CC73CH1H221JT +1608

C215,216 00D 254 4573 981 CE04W1H100MT(RE3)

C217,218 00D 254 4193 918 CE04W1C220MT (SRA)

C219,220 00D 257 0507 934 CC73CH1H221JT +1608

C221,222 00D 254 4573 981 CE04W1H100MT(RE3)

C223,224 00D 254 4193 918 CE04W1C220MT (SRA)

C225,226 00D 257 0507 934 CC73CH1H221JT +1608

C227,228 00D 254 4573 981 CE04W1H100MT(RE3)

C229,230 00D 254 4193 918 CE04W1C220MT (SRA)

C231,232 00D 257 0507 934 CC73CH1H221JT +1608

C233,234 00D 254 4573 981 CE04W1H100MT(RE3)

C235,236 00D 254 4193 918 CE04W1C220MT (SRA)

C237,238 00D 257 0507 934 CC73CH1H221JT +1608

C239,240 00D 254 4573 981 CE04W1H100MT(RE3)

C241,242 00D 254 4193 918 CE04W1C220MT (SRA)

C243,244 00D 257 0507 934 CC73CH1H221JT +1608

C245,246 00D 254 4573 981 CE04W1H100MT(RE3)

C247,248 00D 254 4193 918 CE04W1C220MT (SRA)

C249,250 00D 254 4313 934 CE04W1H470MT(ASF)

C251 00D 254 4569 911 CE04W1E470MT(RE3)

C253,254 00D 254 4569 911 CE04W1E470MT(RE3)

C255-257 00D 254 4573 965 CE04W1H3R3MT(RE3)

C258,259 00D 257 0502 971 CC73CH1H5R0CT +1608

C260,261 00D 254 4574 919 CE04W1H470MT(RE3)

C262,263 00D 254 4573 981 CE04W1H100MT(RE3)

C264 00D 257 0504 940 CC73CH1H330JT +1608

C266-269 00D 254 4573 907 CE04W1H0R1MT(RE3)

C270,271 00D 257 0504 940 CC73CH1H330JT +1608

C273-304 00D 254 4661 932 CE67C1H100MT (RV2)

C305,306 00D 254 4313 934 CE04W1H470MT(ASF)

C307 00D 257 0504 940 CC73CH1H330JT +1608

C308-311 00D 257 0506 951 CC73CH1H101JT +1608

C312-315 00D 254 4573 981 CE04W1H100MT(RE3)

C316,317 00D 254 4313 963 CE04W1H010MT(ASF)

C318-320 00D 254 4573 981 CE04W1H100MT(RE3)

C321 00D 254 4573 965 CE04W1H3R3MT(RE3)

C322-327 00D 254 4313 934 CE04W1H470MT(ASF)

Ref. No. Part No. Part Name Remarks Q'ty New

131

AVR-5805/AVC-A1XV

C328-332 00D 257 0509 929 CK73B1H102KT +1608

C401,402 00D 257 0509 929 CK73B1H102KT +1608

C403,404 00D 254 4583 942 CE04W1H100MT(ROB)

C405-408 00D 257 3012 921 CF73=1H103JT(ECHUB5)+3216

C413-416 00D 254 4583 942 CE04W1H100MT(ROB)

C418 00D 254 4313 918 CE04W1H100MT(ASF)

C420 00D 254 4313 918 CE04W1H100MT(ASF)

C423-426 00D 255 4250 922 CQ93P2A150JT(NH2)

C431,432 00D 254 4577 916 CE04W1C220MT(RE3)

C433,434 00D 254 4573 978 CE04W1H4R7MT(RE3)

C435,436 00D 254 4577 945 CE04W1C101MT(RE3)

C437-440 00D 255 1279 951 CQ93M1H104JT(B)

C441,442 00D 254 4573 994 CE04W1H220MT(RE3)

C443,444 00D 254 4583 942 CE04W1H100MT(ROB)

C445,446 00D 254 4604 960 CE67W1H3R3MT(P.CAP)

C449,450 00D 255 4250 922 CQ93P2A150JT(NH2)

C457,458 00D 254 4583 942 CE04W1H100MT(ROB)

C461,462 00D 255 4250 922 CQ93P2A150JT(NH2)

C469,470 00D 254 4583 942 CE04W1H100MT(ROB)

C471,472 00D 254 4604 960 CE67W1H3R3MT(P.CAP)

C475,476 00D 255 4250 922 CQ93P2A150JT(NH2)

C483,484 00D 254 4583 942 CE04W1H100MT(ROB)

C487,488 00D 255 4250 922 CQ93P2A150JT(NH2)

C495,496 00D 254 4313 950 CE04W1H101MT(ASF)

C649,650 00D 254 4583 942 CE04W1H100MT(ROB)

C651,652 00D 254 4604 960 CE67W1H3R3MT(P.CAP)

C655,656 00D 255 4250 922 CQ93P2A150JT(NH2)

C663,664 00D 254 4583 942 CE04W1H100MT(ROB)

C667,668 00D 255 4250 922 CQ93P2A150JT(NH2)

C675,676 00D 254 4583 942 CE04W1H100MT(ROB)

C677,678 00D 254 4313 918 CE04W1H100MT(ASF)

C681,682 00D 255 4250 922 CQ93P2A150JT(NH2)

C801-830 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C831-834 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225

C835,836 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C837-840 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225

C841,842 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C843-846 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225

C847 00D 257 0506 951 CC73CH1H101JT +1608

C848 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C849 00D 257 0506 919 CC73CH1H680JT +1608

C850 00D 257 0506 951 CC73CH1H101JT +1608

C851 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C852 00D 257 0506 919 CC73CH1H680JT +1608

C853 00D 257 0506 951 CC73CH1H101JT +1608

C854 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C855 00D 257 0506 919 CC73CH1H680JT +1608

C856-861 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C864,865 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C867,868 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C869-874 00D 257 0503 967 CC73CH1H150JT +1608

C875,876 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C883,884 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C901,902 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C903,904 00D 255 1264 982 CQ93M1H472JT(B)

C905-908 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C909-912 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C913,914 00D 255 1264 982 CQ93M1H472JT(B)

C915-918 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C919-922 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C923,924 00D 255 1264 982 CQ93M1H472JT(B)

C925-928 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C929,930 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

CC103,104 00D 254 4573 981 CE04W1H100MT(RE3)

CC107,108 00D 254 4573 994 CE04W1H220MT(RE3)

CC110,111 00D 254 4313 934 CE04W1H470MT(ASF)

Ref. No. Part No. Part Name Remarks Q'ty New

132

AVR-5805/AVC-A1XV

CC115,116 00D 254 4573 981 CE04W1H100MT(RE3)

CC117,118 00D 254 4193 918 CE04W1C220MT (SRA)

CC119,120 00D 254 4573 981 CE04W1H100MT(RE3)

CC121,122 00D 254 4573 994 CE04W1H220MT(RE3)

CC123,124 00D 254 4573 981 CE04W1H100MT(RE3)

CC127,128 00D 254 4573 994 CE04W1H220MT(RE3)

CC129,130 00D 254 4573 981 CE04W1H100MT(RE3)

CC133,134 00D 254 4193 918 CE04W1C220MT (SRA)

CC135,136 00D 254 4194 946 CE04W1E470MT (SRA)

CC137-142 00D 254 4313 934 CE04W1H470MT(ASF)

CC144,145 00D 254 4573 994 CE04W1H220MT(RE3)

CC146,147 00D 254 4573 981 CE04W1H100MT(RE3)

OTHERS PARTS GROUP

BB101 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB102 00D 205 0885 066 11P CON.SOCKET TUC-P

BB103 00D 205 0885 053 10P CON.SOCKET TUC-P

BB201-203 00D 205 0885 040 15P CON.SOCKET TUC-P

BB204 00D 205 0885 066 11P CON.SOCKET TUC-P

BB205 00D 205 0942 006 13P CON.SOCKET(TUC-P

BB206 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB207,208 00D 205 0885 079 12P CON.SOCKET TUC-P

BB401-403 00D 205 0885 040 15P CON.SOCKET TUC-P

BB404,405 00D 205 0885 079 12P CON.SOCKET TUC-P

BB406 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB407 00D 205 0942 022 7P CON.SOCKET(TUC-P

BB408 00D 205 0885 066 11P CON.SOCKET TUC-P

BB409 00D 205 0942 022 7P CON.SOCKET(TUC-P

BB410 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB612 00D 205 0885 066 11P CON.SOCKET TUC-P

BB801 00D 205 0885 066 11P CON.SOCKET TUC-P

BB802 00D 205 0885 037 9P CON.SOCKET TUC-P

BB804 00D 205 0885 066 11P CON.SOCKET TUC-P

BB805 00D 205 0885 040 15P CON.SOCKET TUC-P

BB806 00D 205 0885 037 9P CON.SOCKET TUC-P

CX730,731 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

FB102,103 00D 247 2018 903 RM73B--0R0KT +1608

FB104 00D 209 0008 146 JUMPER (L=5)

JK101-106 00D 204 8514 006 4P PIN JACK(S-GND)

JK201,202 00D 204 8514 006 4P PIN JACK(S-GND)

JK203 00D 204 8562 016 2P PIN JACK(S-GND)

JK204 00D 204 8707 004 6P PIN JACK(AU,BK)

RL401 00D 214 0222 908 RELAY(EE2-24N35) +REF

W401 00D 203 0742 006 1P SIN-SIN WIRE

Ref. No. Part No. Part Name Remarks Q'ty New

133

AVR-5805/AVC-A1XV

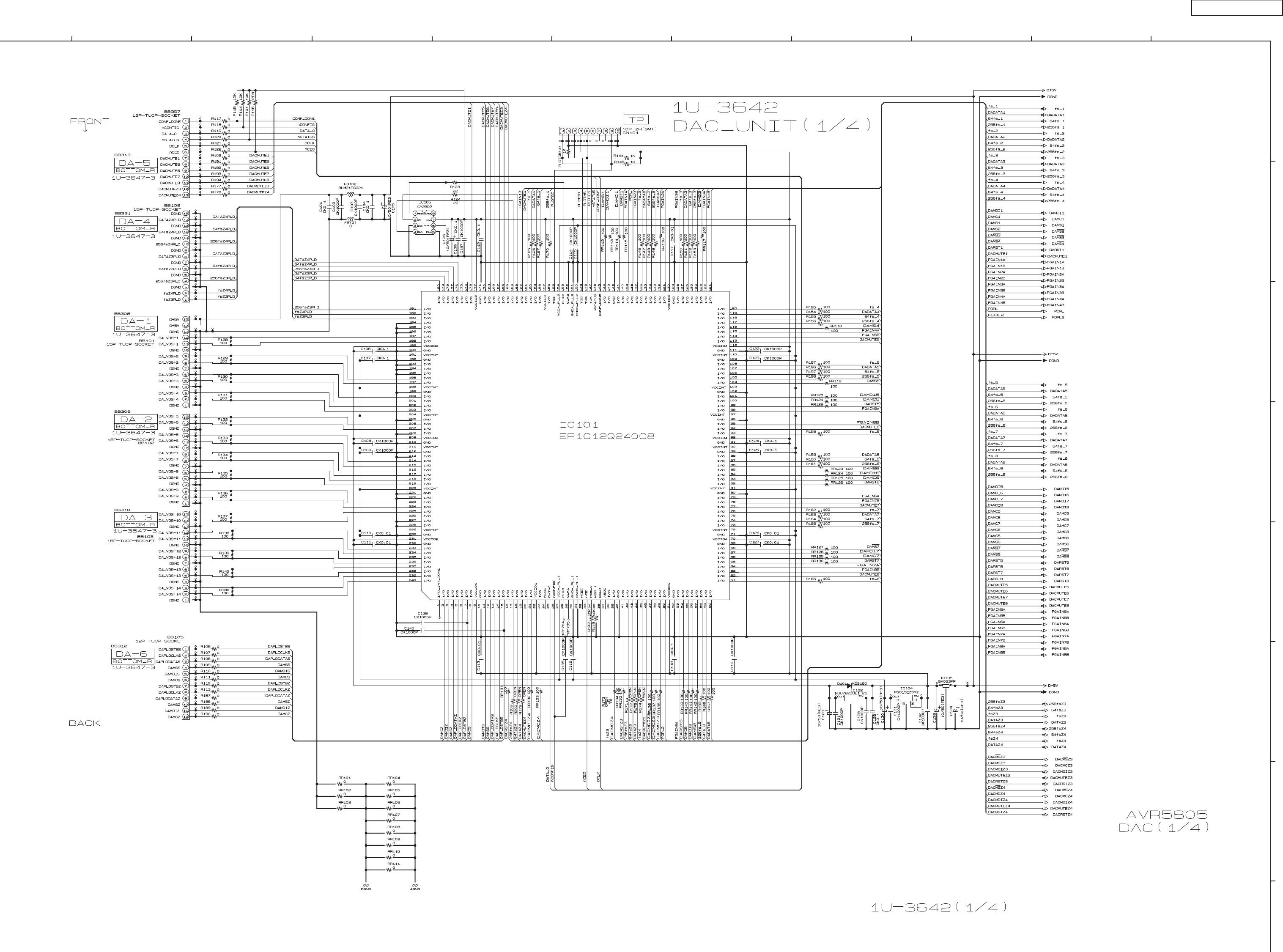

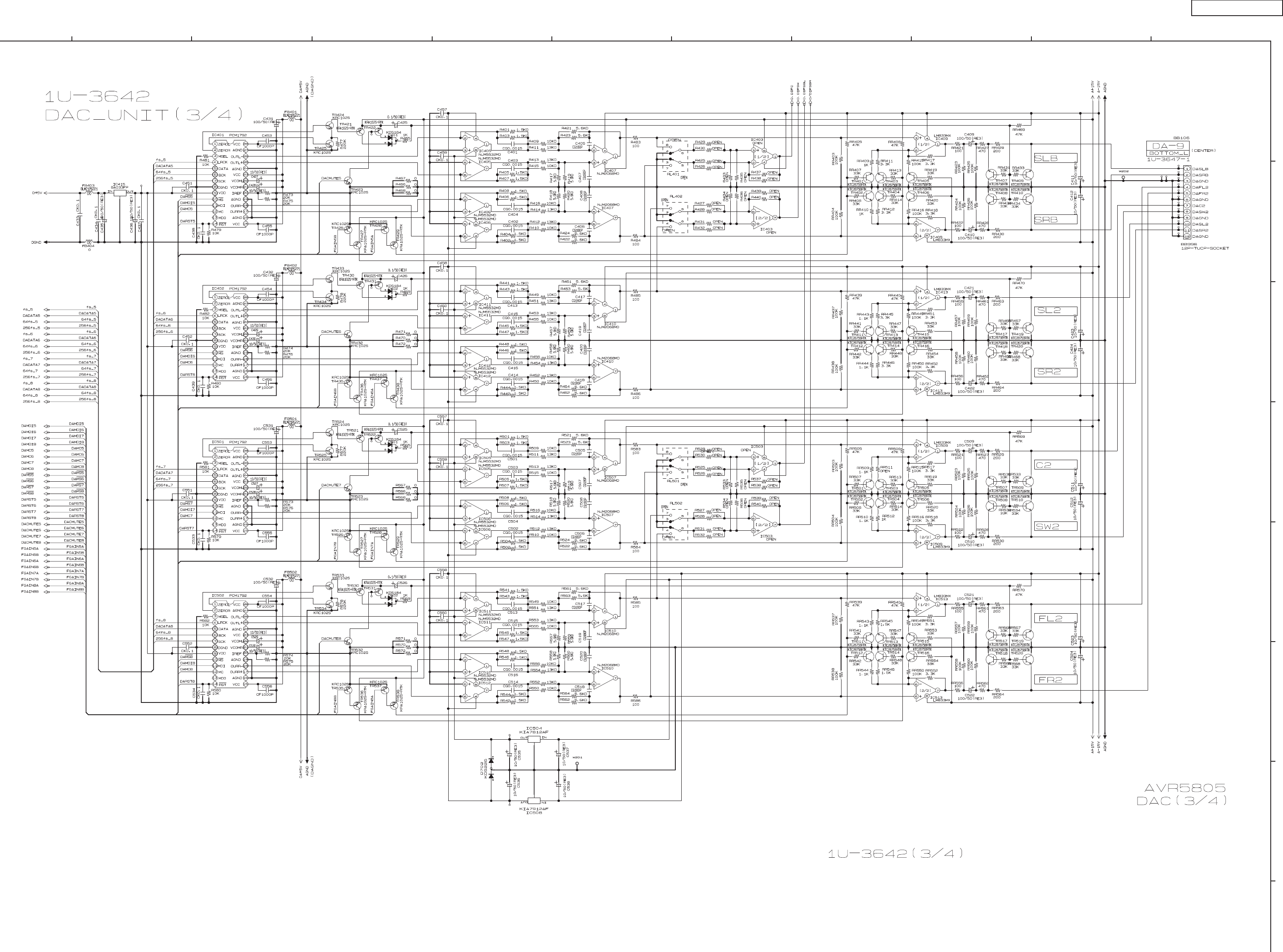

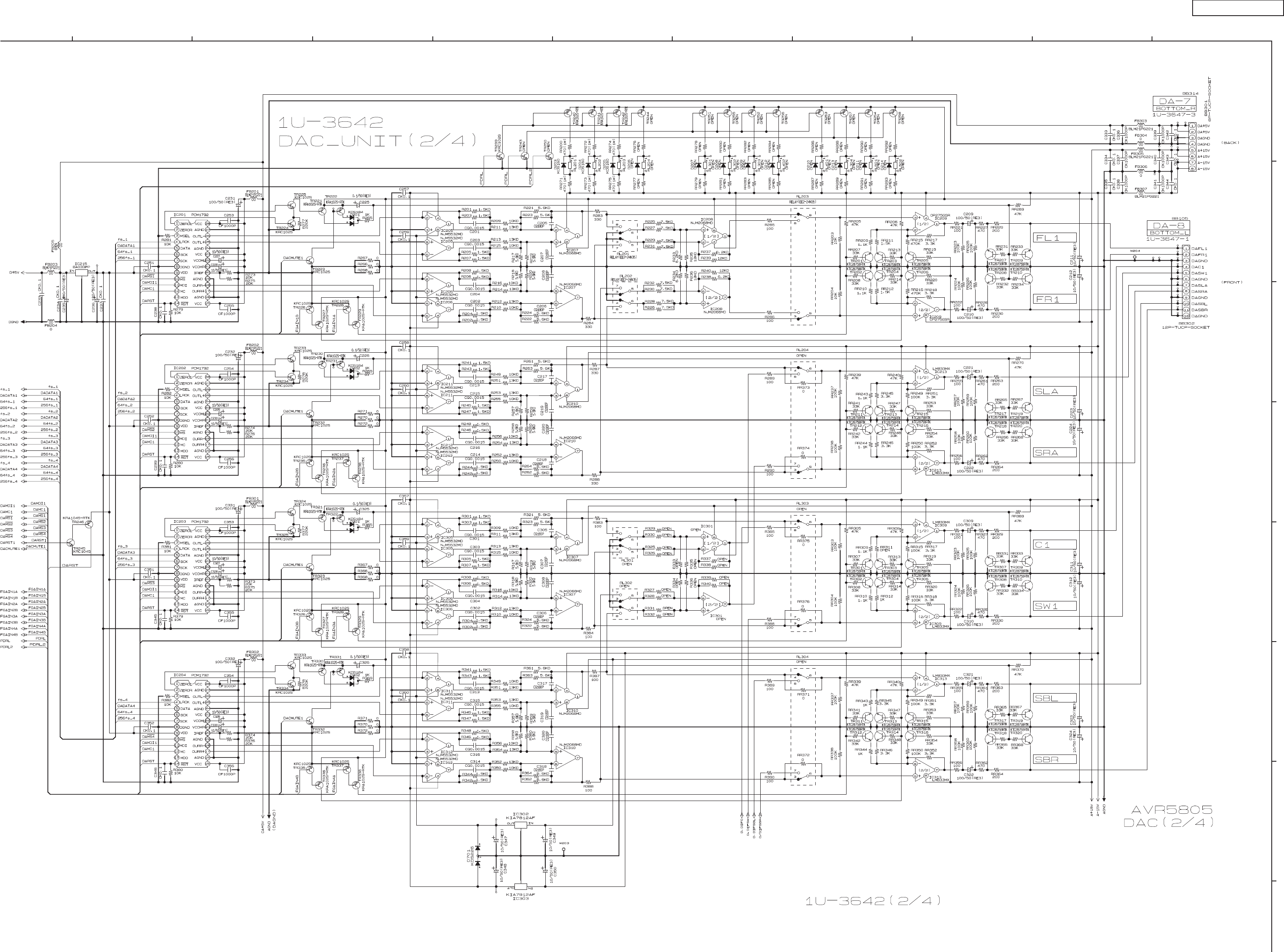

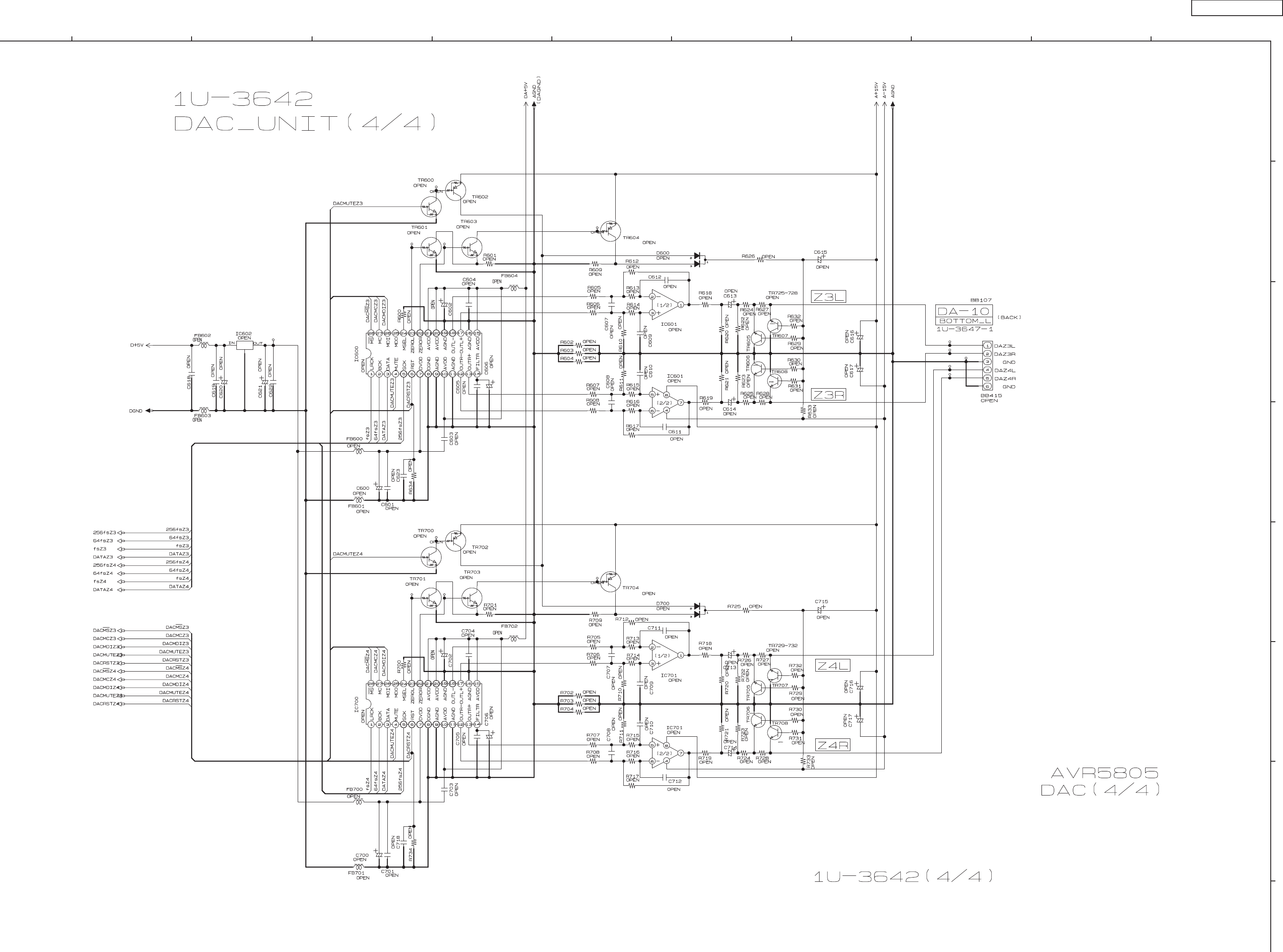

00D1U-3642B DAC P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 262 3391 000 EP1C12Q240C6

IC102 00D 263 1183 909 NJU7223DL1-25 +C

IC104 00D 262 3290 907 PQ015EZ5MZ +REF

IC105 00D 263 1079 903 BA033FP +C

IC106 00D 262 3261 907 CY2302 +REF

IC201-204 00D 262 3430 903 PCM1792DBR

IC205-212 00D 263 1074 908 OP275GSR +C

IC213 00D 263 1098 900 LM833MX +C

IC215 00D 263 1079 903 BA033FP +C

IC302 00D 263 1214 904 KIA7812AF-RTF

IC303 00D 263 1218 900 KIA7912F-RTF

IC305,306 00D 263 0898 907 NJM5532MD-TE1 +C

IC307 00D 263 0896 909 NJM2068MD-TE1 +C

IC309 00D 263 1098 900 LM833MX +C

IC310 00D 263 0896 909 NJM2068MD-TE1 +C

IC311,312 00D 263 0898 907 NJM5532MD-TE1 +C

IC313 00D 263 1098 900 LM833MX +C

IC401,402 00D 262 3430 903 PCM1792DBR

IC405,406 00D 263 0898 907 NJM5532MD-TE1 +C

IC407 00D 263 0896 909 NJM2068MD-TE1 +C

IC409 00D 263 1098 900 LM833MX +C

IC410 00D 263 0896 909 NJM2068MD-TE1 +C

IC411,412 00D 263 0898 907 NJM5532MD-TE1 +C

IC413 00D 263 1098 900 LM833MX +C

IC415 00D 263 1079 903 BA033FP +C

IC501,502 00D 262 3430 903 PCM1792DBR

IC504 00D 263 1214 904 KIA7812AF-RTF

IC505,506 00D 263 0898 907 NJM5532MD-TE1 +C

IC507 00D 263 0896 909 NJM2068MD-TE1 +C

IC508 00D 263 1218 900 KIA7912F-RTF

IC509 00D 263 1098 900 LM833MX +C

IC510 00D 263 0896 909 NJM2068MD-TE1 +C

IC511,512 00D 263 0898 907 NJM5532MD-TE1 +C

IC513 00D 263 1098 900 LM833MX +C

TR201-220 00D 273 0460 905 KTC2875B-RTK +C

TR221,222 00D 269 0184 907 KRA102S-RTK +C

TR223-226 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR227 00D 269 0184 907 KRA102S-RTK +C

TR228 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR229-231 00D 269 0184 907 KRA102S-RTK +C

TR232-235 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR236 00D 269 0184 907 KRA102S-RTK +C

TR237 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR238 00D 269 0184 907 KRA102S-RTK +C

TR239 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR240-242 00D 269 0184 907 KRA102S-RTK +C

TR245 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR246 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR301-320 00D 273 0460 905 KTC2875B-RTK +C

TR321,322 00D 269 0184 907 KRA102S-RTK +C

TR323-326 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR327 00D 269 0184 907 KRA102S-RTK +C

TR328 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR329-331 00D 269 0184 907 KRA102S-RTK +C

TR332-335 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR336 00D 269 0184 907 KRA102S-RTK +C

TR337 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR338 00D 269 0184 907 KRA102S-RTK +C

TR401-420 00D 273 0460 905 KTC2875B-RTK +C

TR421,422 00D 269 0184 907 KRA102S-RTK +C

TR423-426 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR427 00D 269 0184 907 KRA102S-RTK +C

TR428 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

134

AVR-5805/AVC-A1XV

TR429-431 00D 269 0184 907 KRA102S-RTK +C

TR432-435 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR436 00D 269 0184 907 KRA102S-RTK +C

TR437 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR438 00D 269 0184 907 KRA102S-RTK +C

TR501-520 00D 273 0460 905 KTC2875B-RTK +C

TR521,522 00D 269 0184 907 KRA102S-RTK +C

TR523-526 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR527 00D 269 0184 907 KRA102S-RTK +C

TR528 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR529-531 00D 269 0184 907 KRA102S-RTK +C

TR532-535 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR536 00D 269 0184 907 KRA102S-RTK +C

TR537 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR538 00D 269 0184 907 KRA102S-RTK +C

D101 00D 276 0794 900 KDS160 +2125

D201,202 00D 276 0740 909 KDS184-RTK(K-COM) +C

D203-205 00D 276 0794 900 KDS160 +2125

D301,302 00D 276 0740 909 KDS184-RTK(K-COM) +C

D401,402 00D 276 0740 909 KDS184-RTK(K-COM) +C

D501,502 00D 276 0740 909 KDS184-RTK(K-COM) +C

D701,702 00D 276 0738 908 KDS226-RTK(A-K) +C

RESISTORS GROUP

RR200 00D 244 2043 953 RS14B3A471JNBST(S)

RR271-275 00D 244 2043 953 RS14B3A471JNBST(S)

CAPACITORS GROUP

C101 00D 257 0516 954 CK73B1E104KT +1608

C102,103 00D 257 0509 929 CK73B1H102KT +1608

C104 00D 257 0516 954 CK73B1E104KT +1608

C105 00D 254 4347 748 CE04W1H010MC(ARSA)

C106,107 00D 257 0516 954 CK73B1E104KT +1608

C108,109 00D 257 0509 929 CK73B1H102KT +1608

C110,111 00D 257 0501 901 CK73B1H103KT (1608) +1608

C112 00D 257 0516 954 CK73B1E104KT +1608

C113 00D 257 0501 901 CK73B1H103KT (1608) +1608

C114-116 00D 257 0509 929 CK73B1H102KT +1608

C117 00D 257 0501 901 CK73B1H103KT (1608) +1608

C118 00D 257 0516 954 CK73B1E104KT +1608

C119 00D 257 0509 929 CK73B1H102KT +1608

C120 00D 254 4347 748 CE04W1H010MC(ARSA)

C121-123 00D 257 0509 929 CK73B1H102KT +1608

C124,125 00D 257 0516 954 CK73B1E104KT +1608

C126,127 00D 257 0501 901 CK73B1H103KT (1608) +1608

C128 00D 257 0509 929 CK73B1H102KT +1608

C129 00D 257 0516 954 CK73B1E104KT +1608

C130 00D 254 4347 748 CE04W1H010MC(ARSA)

C131,132 00D 257 0509 929 CK73B1H102KT +1608

C133-135 00D 254 4347 748 CE04W1H010MC(ARSA)

C136 00D 257 0516 954 CK73B1E104KT +1608

C137,138 00D 257 0509 929 CK73B1H102KT +1608

C139,140 00D 253 1180 921 CK45B1H102KT(DD-3)

C201-204 00D 255 4254 957 CQ93P2A152JT(NH2)

C205-208 00D 255 4252 933 CQ93P2A181JT(NH2)

C209,210 00D 254 4557 952 CE04W1H470MT(RFS)

C211,212 00D 254 4562 743 CE04W2A100MC(RFS)

C213-216 00D 255 4254 957 CQ93P2A152JT(NH2)

C217-220 00D 255 4252 933 CQ93P2A181JT(NH2)

C221,222 00D 254 4557 952 CE04W1H470MT(RFS)

C223,224 00D 254 4562 743 CE04W2A100MC(RFS)

C225,226 00D 255 1279 951 CQ93M1H104JT(B)

C227-230 00D 254 4562 743 CE04W2A100MC(RFS)

C231,232 00D 254 4557 952 CE04W1H470MT(RFS)

C233,234 00D 257 0516 954 CK73B1E104KT +1608

C235,236 00D 254 4347 748 CE04W1H010MC(ARSA)

Ref. No. Part No. Part Name Remarks Q'ty New

135

AVR-5805/AVC-A1XV

C237-239 00D 257 0516 954 CK73B1E104KT +1608

C251,252 00D 257 0516 954 CK73B1E104KT +1608

C253-256 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C257-260 00D 257 0516 954 CK73B1E104KT +1608

C301-304 00D 255 4254 957 CQ93P2A152JT(NH2)

C305-308 00D 255 4252 933 CQ93P2A181JT(NH2)

C309,310 00D 254 4557 952 CE04W1H470MT(RFS)

C311,312 00D 254 4562 743 CE04W2A100MC(RFS)

C313-316 00D 255 4254 957 CQ93P2A152JT(NH2)

C317-320 00D 255 4252 933 CQ93P2A181JT(NH2)

C321,322 00D 254 4557 952 CE04W1H470MT(RFS)

C323,324 00D 254 4562 743 CE04W2A100MC(RFS)

C325,326 00D 255 1279 951 CQ93M1H104JT(B)

C327-330 00D 254 4562 743 CE04W2A100MC(RFS)

C331,332 00D 254 4557 952 CE04W1H470MT(RFS)

C333-335 00D 257 0516 954 CK73B1E104KT +1608

C336-341 00D 257 0509 929 CK73B1H102KT +1608

C342-346 00D 257 0516 954 CK73B1E104KT +1608

C347-350 00D 254 4557 936 CE04W1H100MT(RFS)

C351,352 00D 257 0516 954 CK73B1E104KT +1608

C353-356 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C357-360 00D 257 0516 954 CK73B1E104KT +1608

C401-404 00D 255 4254 957 CQ93P2A152JT(NH2)

C405-408 00D 255 4252 933 CQ93P2A181JT(NH2)

C409,410 00D 254 4557 952 CE04W1H470MT(RFS)

C411,412 00D 254 4562 743 CE04W2A100MC(RFS)

C413-416 00D 255 4254 957 CQ93P2A152JT(NH2)

C417-420 00D 255 4252 933 CQ93P2A181JT(NH2)

C421,422 00D 254 4557 952 CE04W1H470MT(RFS)

C423,424 00D 254 4562 743 CE04W2A100MC(RFS)

C425,426 00D 255 1279 951 CQ93M1H104JT(B)

C427-430 00D 254 4562 743 CE04W2A100MC(RFS)

C431,432 00D 254 4557 952 CE04W1H470MT(RFS)

C433,434 00D 257 0516 954 CK73B1E104KT +1608

C435,436 00D 254 4347 748 CE04W1H010MC(ARSA)

C437-439 00D 257 0516 954 CK73B1E104KT +1608

C451,452 00D 257 0516 954 CK73B1E104KT +1608

C453-456 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C457-460 00D 257 0516 954 CK73B1E104KT +1608

C501-504 00D 255 4254 957 CQ93P2A152JT(NH2)

C505-508 00D 255 4252 933 CQ93P2A181JT(NH2)

C509,510 00D 254 4557 952 CE04W1H470MT(RFS)

C511,512 00D 254 4562 743 CE04W2A100MC(RFS)

C513-516 00D 255 4254 957 CQ93P2A152JT(NH2)

C517-520 00D 255 4252 933 CQ93P2A181JT(NH2)

C521,522 00D 254 4557 952 CE04W1H470MT(RFS)

C523,524 00D 254 4562 743 CE04W2A100MC(RFS)

C525,526 00D 255 1279 951 CQ93M1H104JT(B)

C527-530 00D 254 4562 743 CE04W2A100MC(RFS)

C531,532 00D 254 4557 952 CE04W1H470MT(RFS)

C533,534 00D 257 0516 954 CK73B1E104KT +1608

C535-538 00D 254 4557 936 CE04W1H100MT(RFS)

C551,552 00D 257 0516 954 CK73B1E104KT +1608

C553-556 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C557-560 00D 257 0516 954 CK73B1E104KT +1608

OTHERS PARTS GROUP

BB101-103 00D 205 0885 040 15P CON.SOCKET TUC-P

BB105 00D 205 0885 079 12P CON.SOCKET TUC-P

BB108 00D 205 0885 040 15P CON.SOCKET TUC-P

BB301 00D 205 0885 095 8P CON.SOCKET(TUC-P)

BB302 00D 205 0885 079 12P CON.SOCKET TUC-P

BB996 00D 205 0885 079 12P CON.SOCKET TUC-P

BB997 00D 205 0942 006 13P CON.SOCKET(TUC-P

CN101 00D 205 1154 903 10P ZH-ZR CON.BASE-T

Ref. No. Part No. Part Name Remarks Q'ty New

136

AVR-5805/AVC-A1XV

FB101 00D 247 0018 905 RM73B--0R0KT +2125

FB102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB201-203 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB204 00D 247 0018 905 RM73B--0R0KT +2125

FB301-303 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB304 00D 247 0018 905 RM73B--0R0KT +2125

FB305 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB306 00D 247 0018 905 RM73B--0R0KT +2125

FB307 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB401-403 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB404 00D 247 0018 905 RM73B--0R0KT +2125

FB501,502 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

RL201-203 00D 214 0222 908 RELAY(EE2-24N35) +REF

W201 00D 203 0743 005 1P SIN-SIN WIRE

W203 00D 203 0743 005 1P SIN-SIN WIRE

00D 461 0415 007 RUBBER SHEET for C139, 140

Ref. No. Part No. Part Name Remarks Q'ty New

137

AVR-5805/AVC-A1XV

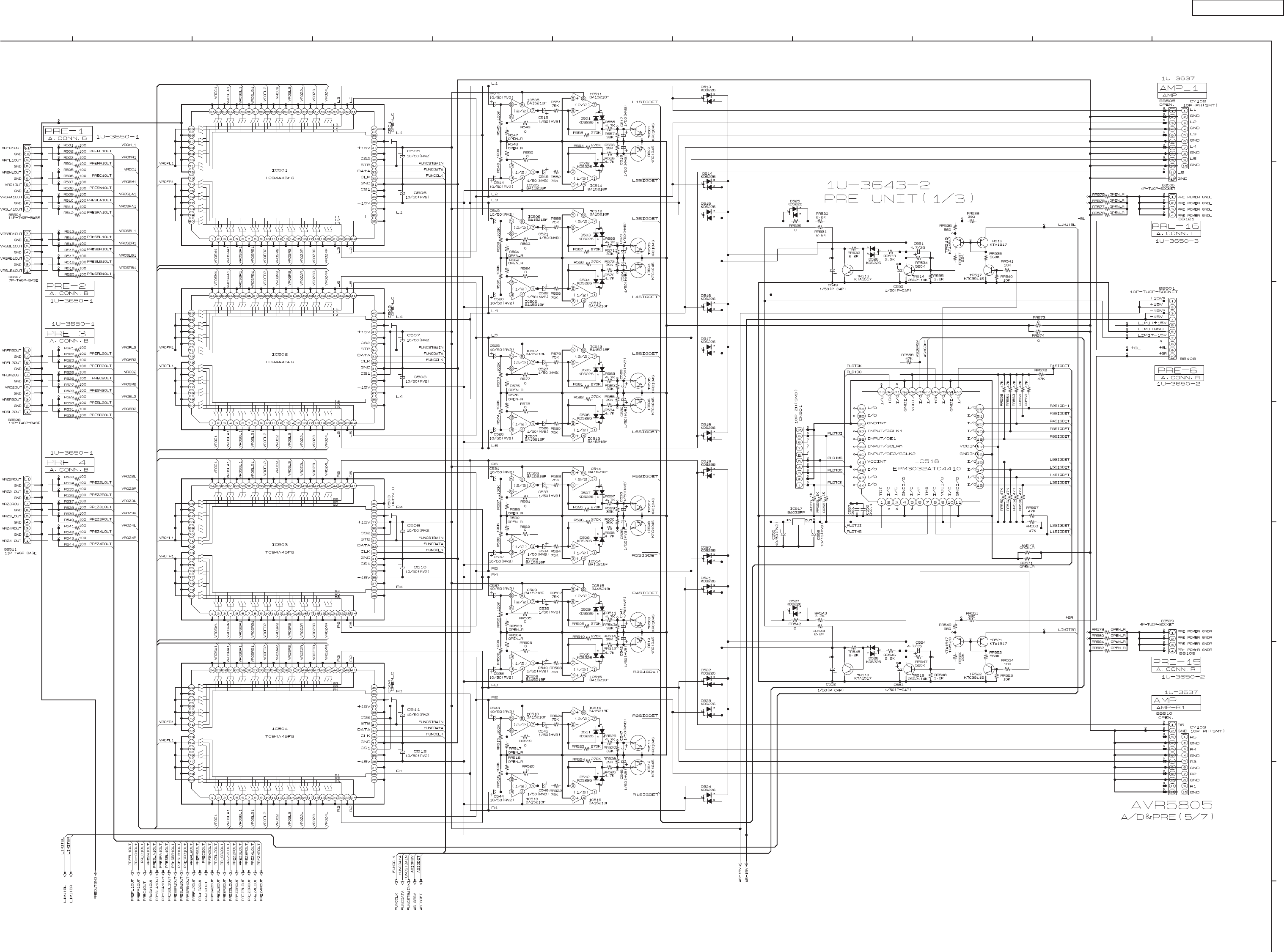

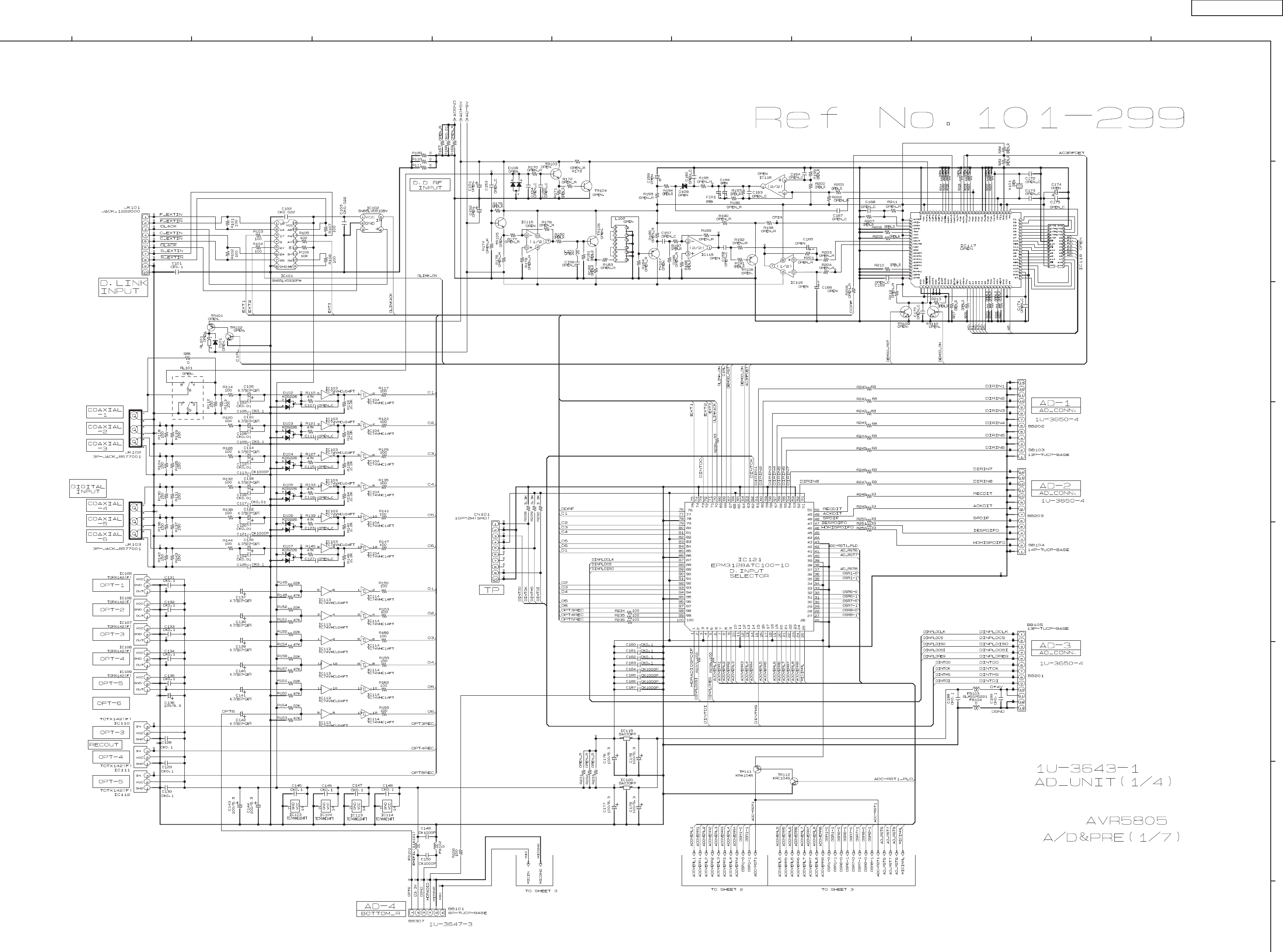

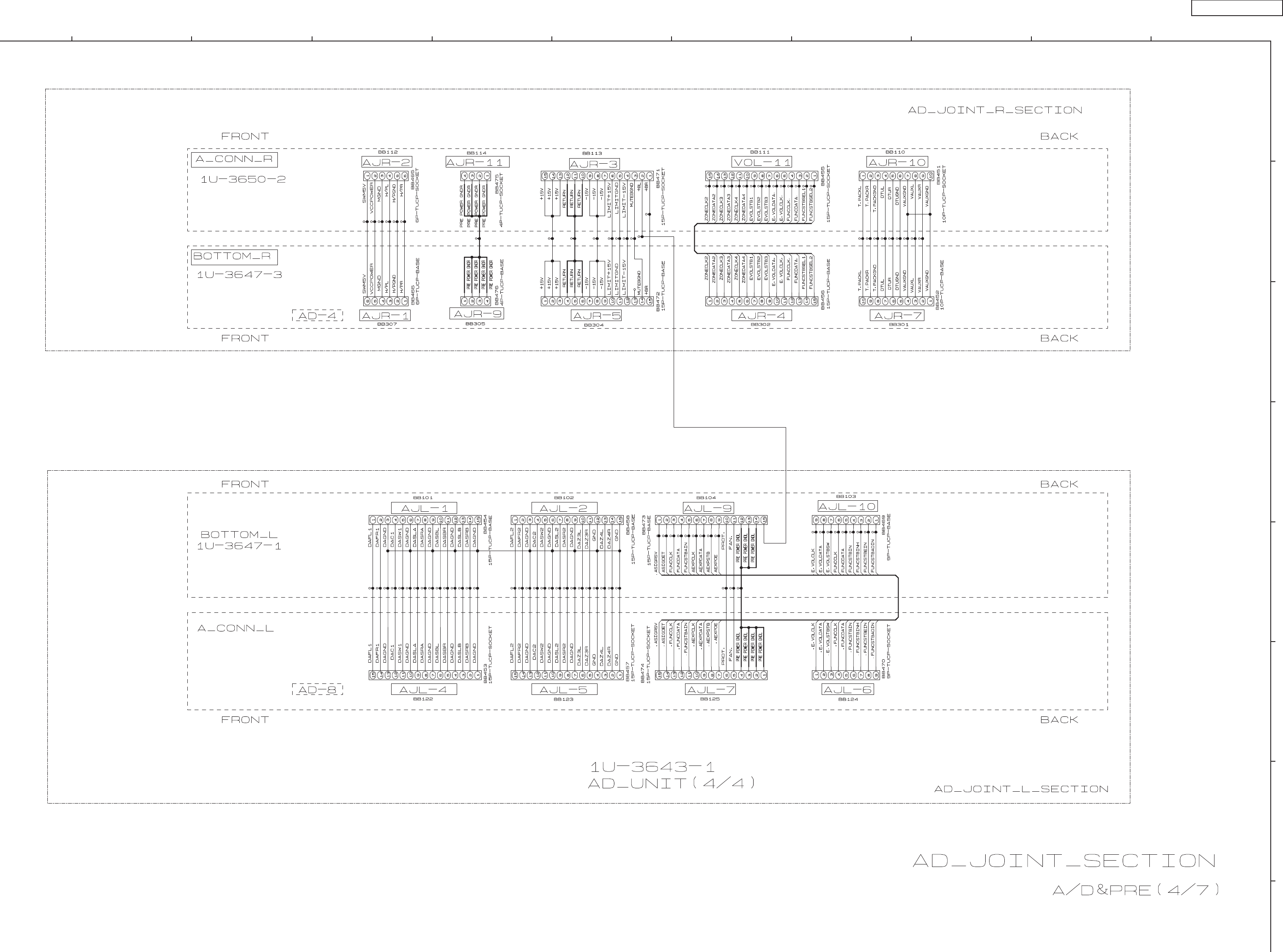

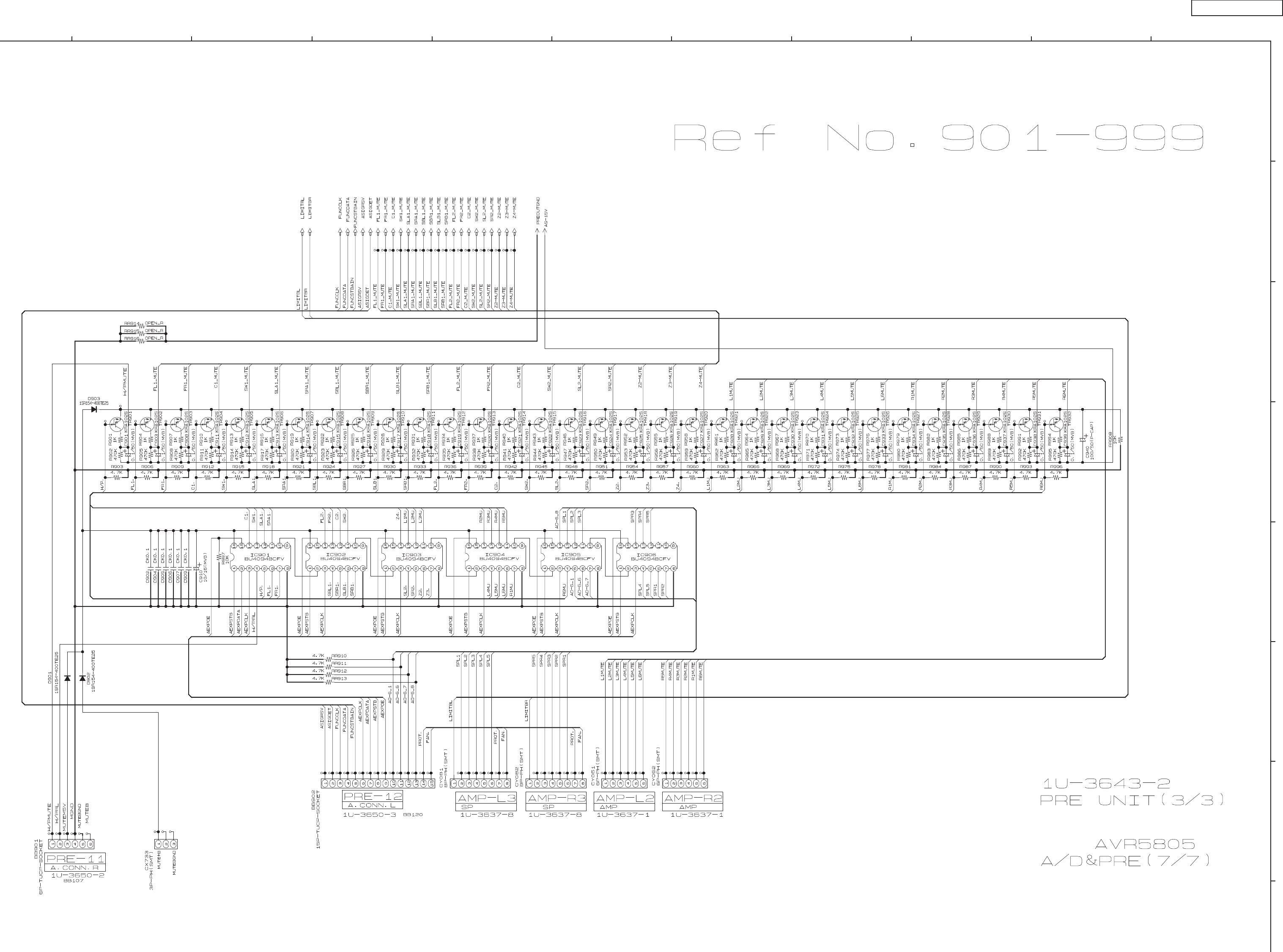

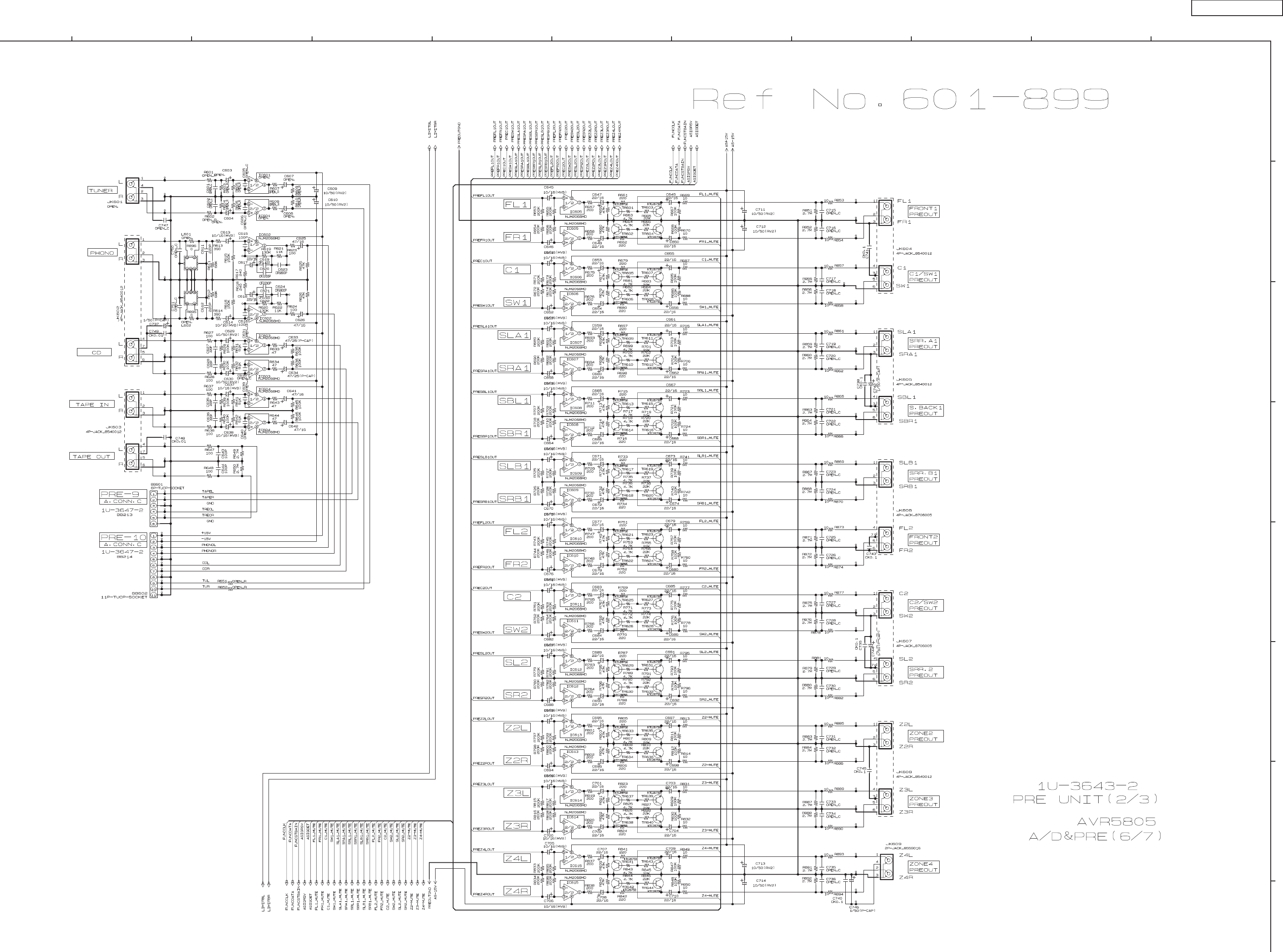

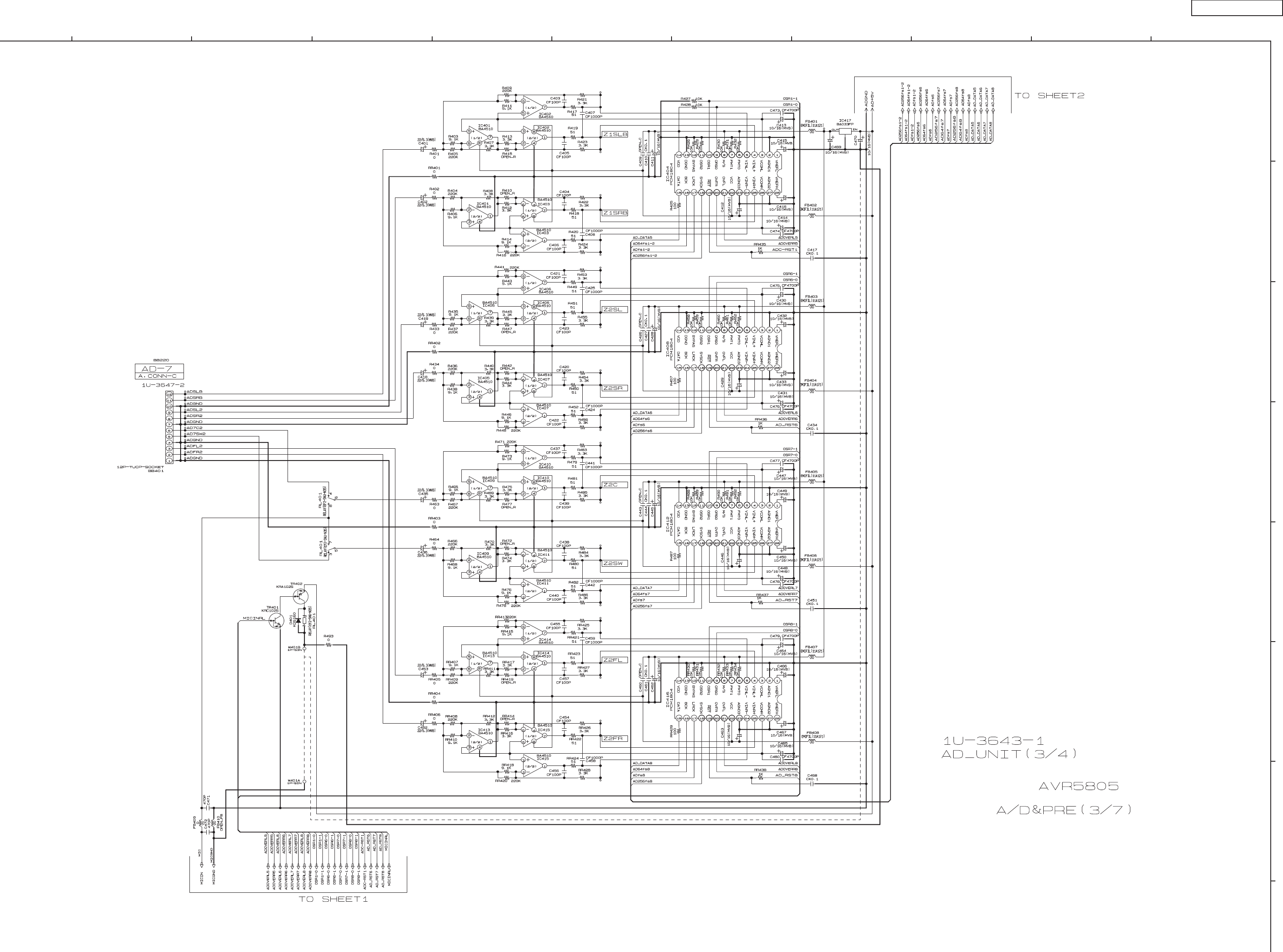

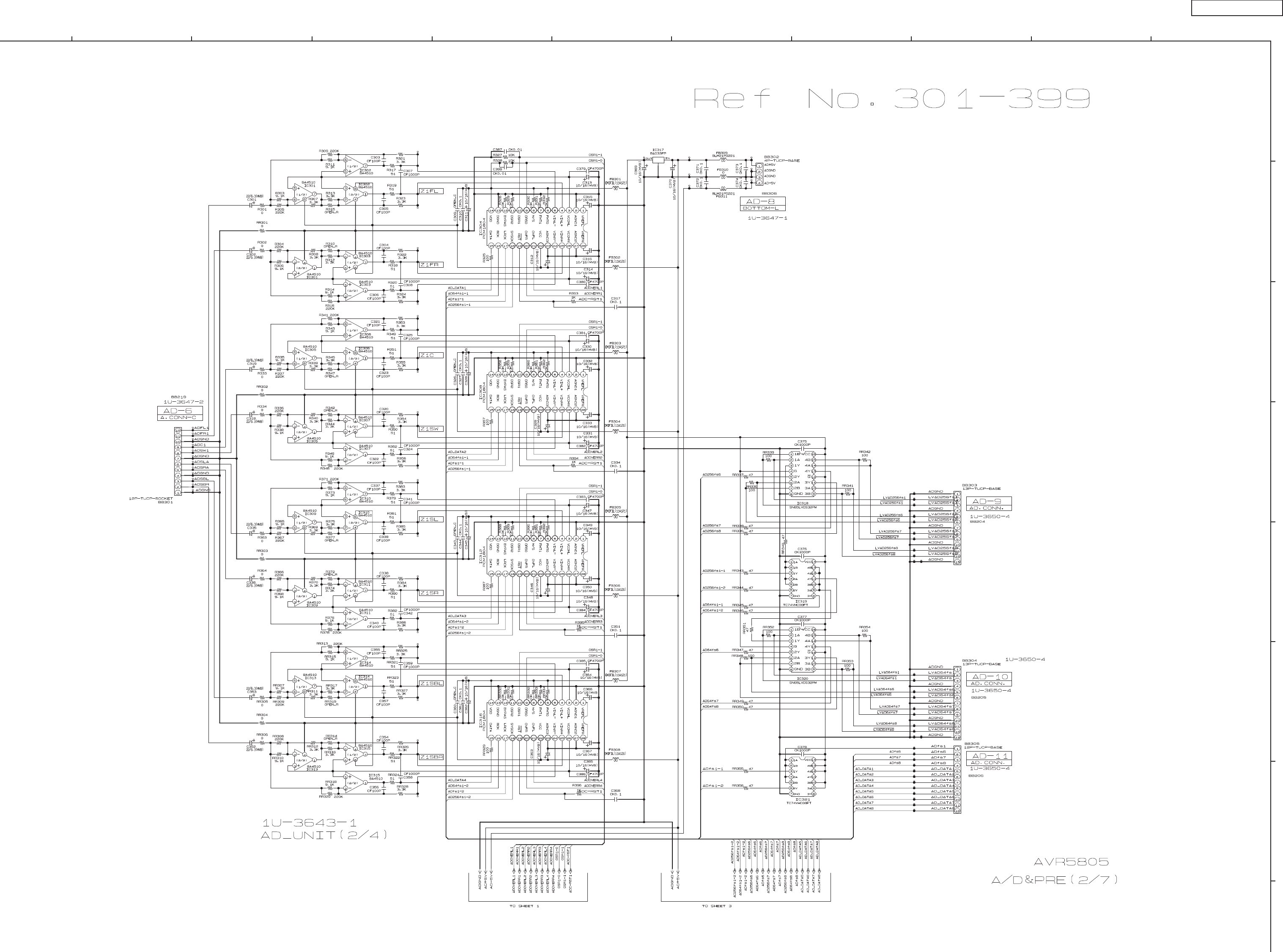

00D1U-3643B AD P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101 00D 262 3106 907 SN65LVDS32PW +REF

IC102 00D 262 3432 901 SN65LVDS1DBVR

IC103 00D 262 3077 900 TC74VHCU04FT +REF

IC104 00D 262 3412 905 TC74VHC14FT

IC105-109 00D 262 3387 001 TORX142(F)

IC110-112 00D 262 3386 002 TOTX142(F)

IC113 00D 262 3077 900 TC74VHCU04FT +REF

IC114 00D 262 3412 905 TC74VHC14FT

IC119,120 00D 263 1079 903 BA033FP +C

IC121 00D GEN 6804 CPLD SUB ASS'Y EPM3128ATC100-10 +REF

IC301-303 00D 263 0934 900 BA4510F-E2 +C

IC304 00D 262 3069 905 PCM1804 +REF

IC305-307 00D 263 0934 900 BA4510F-E2 +C

IC308 00D 262 3069 905 PCM1804 +REF

IC309-311 00D 263 0934 900 BA4510F-E2 +C

IC312 00D 262 3069 905 PCM1804 +REF

IC313-315 00D 263 0934 900 BA4510F-E2 +C

IC316 00D 262 3069 905 PCM1804 +REF

IC317 00D 263 1079 903 BA033FP +C

IC318 00D 262 3106 907 SN65LVDS32PW +REF

IC319 00D 262 3444 902 TC74VHC08FT

IC320 00D 262 3106 907 SN65LVDS32PW +REF

IC321 00D 262 3444 902 TC74VHC08FT

IC401-403 00D 263 0934 900 BA4510F-E2 +C

IC404 00D 262 3069 905 PCM1804 +REF

IC405-407 00D 263 0934 900 BA4510F-E2 +C

IC408 00D 262 3069 905 PCM1804 +REF

IC409-411 00D 263 0934 900 BA4510F-E2 +C

IC412 00D 262 3069 905 PCM1804 +REF

IC413-415 00D 263 0934 900 BA4510F-E2 +C

IC416 00D 262 3069 905 PCM1804 +REF

IC417 00D 263 1079 903 BA033FP +C

IC501-504 00D 262 3347 009 TC94A46FG +C

IC505-516 00D 263 0615 902 BA15218F-DXE2 +C

IC517 00D 263 1079 903 BA033FP +C

IC518 00D GEN 6805 CPLD SUB ASS'Y EPM3032ATC44-10 +REF

IC601,602 00D 263 0896 909 NJM2068MD-TE1 +C

IC603 00D 263 1074 908 OP275GSR +C

IC604 00D 263 0896 909 NJM2068MD-TE1 +C

IC605,606 00D 263 0898 907 NJM5532MD-TE1 +C

IC607-615 00D 263 0896 909 NJM2068MD-TE1 +C

IC901-906 00D 263 1197 908 BU4094BCFV-E2

TR111 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR112 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR401 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR402 00D 269 0184 907 KRA102S-RTK +C

TR501-512 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR513 00D 271 0320 900 KTA1517-RTK

TR514 00D 274 0195 901 2SD2114KT196 +C

TR515,516 00D 271 0320 900 KTA1517-RTK

TR517 00D 273 0481 900 KTC3911S-RTK

TR518 00D 271 0320 900 KTA1517-RTK

TR519 00D 274 0195 901 2SD2114KT196 +C

TR520,521 00D 271 0320 900 KTA1517-RTK

TR522 00D 273 0481 900 KTC3911S-RTK

TR601-644 00D 273 0460 905 KTC2875B-RTK +C

TR901-932 00D 269 0184 907 KRA102S-RTK +C

D102-107 00D 276 0738 908 KDS226-RTK(A-K) +C

D401 00D 276 0794 900 KDS160 +2125

D501-528 00D 276 0738 908 KDS226-RTK(A-K) +C

D901-903 00D 276 0751 901 1SR154-400TE25 +REF

138

AVR-5805/AVC-A1XV

CAPACITORS GROUP

C101 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225

C102,103 00D 257 0516 909 CK73B1E223KT +1608

C104 00D 257 0501 901 CK73B1H103KT (1608) +1608

C105 00D 257 0516 954 CK73B1E104KT +1608

C106 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C108 00D 257 0501 901 CK73B1H103KT (1608) +1608

C109 00D 257 0516 954 CK73B1E104KT +1608

C110 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C112 00D 257 0501 901 CK73B1H103KT (1608) +1608

C113 00D 257 0509 929 CK73B1H102KT +1608

C114 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C116,117 00D 257 0501 901 CK73B1H103KT (1608) +1608

C118 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C120 00D 257 0501 901 CK73B1H103KT (1608) +1608

C121 00D 257 0509 929 CK73B1H102KT +1608

C122 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C124 00D 257 0501 901 CK73B1H103KT (1608) +1608

C125 00D 257 0516 954 CK73B1E104KT +1608

C126 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C128-135 00D 257 0516 954 CK73B1E104KT +1608

C136 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C137-142 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF

C143,144 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C145-148 00D 257 0516 954 CK73B1E104KT +1608

C149,150 00D 257 0509 929 CK73B1H102KT +1608

C168 00D 257 0501 901 CK73B1H103KT (1608) +1608

C176-179 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C180-183 00D 257 0516 954 CK73B1E104KT +1608

C184-187 00D 257 0509 929 CK73B1H102KT +1608

C188,189 00D 257 0516 954 CK73B1E104KT +1608

C301,302 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C303-306 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C307,308 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C310 00D 257 0516 954 CK73B1E104KT +1608

C311-316 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C317 00D 257 0516 954 CK73B1E104KT +1608

C318,319 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C320-323 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C324,325 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C327 00D 257 0516 954 CK73B1E104KT +1608

C328-333 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C334 00D 257 0516 954 CK73B1E104KT +1608

C335,336 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C337-340 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C341,342 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C344 00D 257 0516 954 CK73B1E104KT +1608

C345-350 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C351 00D 257 0516 954 CK73B1E104KT +1608

C352,353 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C354-357 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C358,359 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C361 00D 257 0516 954 CK73B1E104KT +1608

C362-367 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C368 00D 257 0516 954 CK73B1E104KT +1608

C369,370 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C371-374 00D 257 0516 954 CK73B1E104KT +1608

C375-378 00D 257 0509 929 CK73B1H102KT +1608

C379-386 00D 257 3011 980 CF73=1H472JT(ECHUB5)

C387,388 00D 257 0501 901 CK73B1H103KT (1608) +1608

C401,402 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C403-406 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C407,408 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C410 00D 257 0516 954 CK73B1E104KT +1608

C411-416 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C417 00D 257 0516 954 CK73B1E104KT +1608

C418,419 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

139

AVR-5805/AVC-A1XV

C420-423 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C424,425 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C427 00D 257 0516 954 CK73B1E104KT +1608

C428-433 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C434 00D 257 0516 954 CK73B1E104KT +1608

C435,436 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C437-440 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C441,442 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C444 00D 257 0516 954 CK73B1E104KT +1608

C445-450 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C451 00D 257 0516 954 CK73B1E104KT +1608

C452,453 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C454-457 00D 257 3010 907 CF73=1H101JT(ECHUB5)+2125

C458,459 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125

C461 00D 257 0516 954 CK73B1E104KT +1608

C462-467 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C468 00D 257 0516 954 CK73B1E104KT +1608

C469,470 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C471,472 00D 257 0508 917 CC73CH1H471JT +1608

C473-480 00D 257 3011 980 CF73=1H472JT(ECHUB5)

C505-512 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C513,514 00D 254 4661 932 CE67C1H100MT (RV2)

C515-518 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C519,520 00D 254 4661 932 CE67C1H100MT (RV2)

C521-524 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C525,526 00D 254 4661 932 CE67C1H100MT (RV2)

C527-530 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C531,532 00D 254 4661 932 CE67C1H100MT (RV2)

C533-536 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C537,538 00D 254 4661 932 CE67C1H100MT (RV2)

C539-542 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C543,544 00D 254 4661 932 CE67C1H100MT (RV2)

C545-548 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C549,550 00D 254 4604 944 CE67W1H010MT(P.CAP)

C551 00D 254 4471 902 CE67C1V4R7MT +REF

C552,553 00D 254 4604 944 CE67W1H010MT(P.CAP)

C554 00D 254 4471 902 CE67C1V4R7MT +REF

C555 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C556 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C557,558 00D 257 0516 954 CK73B1E104KT +1608

C601,602 00D 257 0507 934 CC73CH1H221JT +1608

C603,604 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C607,608 00D 254 4465 918 CE67C1C470MT +REF

C609,610 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C611,612 00D 257 0507 934 CC73CH1H221JT +1608

C613,614 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C615,616 00D 257 0506 951 CC73CH1H101JT +1608

C617,618 00D 254 4465 934 CE67C1C221MT +REF

C619 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216

C620,621 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125

C622 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216

C623,624 00D 257 3006 908 CF73=1C682JT(ECHUB5)+2125

C625,626 00D 254 4465 918 CE67C1C470MT +REF

C627,628 00D 257 0507 934 CC73CH1H221JT +1608

C629,630 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C633,634 00D 254 4603 945 CE67W1E470MT(P.CAP)

C635,636 00D 257 0507 934 CC73CH1H221JT +1608

C637,638 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C641,642 00D 254 4465 918 CE67C1C470MT +REF

C643,644 00D 257 0506 951 CC73CH1H101JT +1608

C645,646 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C647-650 00D 254 4674 903 CE67W1C220MT(P.CAP)

C651,652 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C653-656 00D 254 4465 905 CE67C1C220MT +REF

C657,658 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C659-662 00D 254 4465 905 CE67C1C220MT +REF

C663,664 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

140

AVR-5805/AVC-A1XV

C665-668 00D 254 4465 905 CE67C1C220MT +REF

C669,670 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C671-674 00D 254 4465 905 CE67C1C220MT +REF

C675,676 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C677-680 00D 254 4465 905 CE67C1C220MT +REF

C681,682 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C683-686 00D 254 4465 905 CE67C1C220MT +REF

C687,688 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C689-692 00D 254 4465 905 CE67C1C220MT +REF

C693,694 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C695-698 00D 254 4465 905 CE67C1C220MT +REF

C699,700 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C701-704 00D 254 4465 905 CE67C1C220MT +REF

C705,706 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C707-710 00D 254 4465 905 CE67C1C220MT +REF

C711-714 00D 254 4604 986 CE67W1H100MT(P.CAP) +REF

C715-736 00D 257 0506 951 CC73CH1H101JT +1608

C737 00D 254 4604 944 CE67W1H010MT(P.CAP)

C738-741 00D 257 0516 954 CK73B1E104KT +1608

C742 00D 254 4604 944 CE67W1H010MT(P.CAP)

C743 00D 257 0516 954 CK73B1E104KT +1608

C744 00D 254 4604 944 CE67W1H010MT(P.CAP)

C745 00D 257 0516 954 CK73B1E104KT +1608

C746 00D 254 4604 944 CE67W1H010MT(P.CAP)

C748,749 00D 257 0501 901 CK73B1H103KT (1608) +1608

C901 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C902 00D 257 0516 954 CK73B1E104KT +1608

C903 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C904-907 00D 257 0516 954 CK73B1E104KT +1608

C908 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C909 00D 257 0516 954 CK73B1E104KT +1608

C910 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C911-939 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C940 00D 254 4605 927 CE67W1H101MT(P.CAP)

OTHERS PARTS GROUP

BB101 00D 205 0943 018 6P CON.BASE(TUC-P)

BB103 00D 205 0943 005 13P CON.BASE(TUC-P)

BB104 00D 205 0884 012 14P CON.BASE TUC-P

BB105 00D 205 0943 005 13P CON.BASE(TUC-P)

BB301 00D 205 0885 079 12P CON.SOCKET TUC-P

BB302 00D 205 0884 083 4P CON.BASE(TUC-P)

BB303,304 00D 205 0943 005 13P CON.BASE(TUC-P)

BB305 00D 205 0884 070 12P CON.BASE TUC-P

BB401 00D 205 0885 079 12P CON.SOCKET TUC-P

BB451 00D 205 0885 053 10P CON.SOCKET TUC-P

BB452 00D 205 0884 054 10P CON.BASE TUC-P

BB453 00D 205 0885 040 15P CON.SOCKET TUC-P

BB454 00D 205 0884 041 15P CON.BASE TUC-P

BB455 00D 205 0885 040 15P CON.SOCKET TUC-P

BB456 00D 205 0884 041 15P CON.BASE TUC-P

BB457 00D 205 0885 040 15P CON.SOCKET TUC-P

BB458 00D 205 0884 041 15P CON.BASE TUC-P

BB465 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB466 00D 205 0943 018 6P CON.BASE(TUC-P)

BB469 00D 205 0884 038 9P CON.BASE TUC-P

BB470 00D 205 0885 037 9P CON.SOCKET TUC-P

BB471 00D 205 0885 040 15P CON.SOCKET TUC-P

BB472,473 00D 205 0884 041 15P CON.BASE TUC-P

BB474 00D 205 0885 040 15P CON.SOCKET TUC-P

BB475 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB476 00D 205 0884 083 4P CON.BASE(TUC-P)

BB501 00D 205 0885 053 10P CON.SOCKET TUC-P

BB504 00D 205 1091 024 11P CON BASE TWG-P

BB506 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB507 00D 205 1091 011 7P CON BASE TWG-P

BB508 00D 205 1091 024 11P CON BASE TWG-P

Ref. No. Part No. Part Name Remarks Q'ty New

141

AVR-5805/AVC-A1XV

BB509 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB511 00D 205 1091 024 11P CON BASE TWG-P

BB601 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB602 00D 205 0885 066 11P CON.SOCKET TUC-P

BB901 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB902 00D 205 0885 040 15P CON.SOCKET TUC-P

CN101 00D 205 1154 903 10P ZH-ZR CON.BASE-T

CN501 00D 205 1154 903 10P ZH-ZR CON.BASE-T

CX733 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

CY061,062 00D 205 1072 946 6P PH CON.BASE +REF

CY081,082 00D 205 1072 962 8P PH CON.BASE(TAPE)

CY102,103 00D 205 1072 933 10PPH CON BASE(TAPE) +REF

FB101 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB102 00D 247 2018 903 RM73B--0R0KT +1608

FB103 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB104 00D 247 0018 905 RM73B--0R0KT +2125

FB301-308 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB309 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB310 00D 247 0018 905 RM73B--0R0KT +2125

FB311 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB401-408 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB409 00D 247 2018 903 RM73B--0R0KT +1608

JK101 00D 205 1222 000 RJ-45 JACK(GND)

JK102,103 00D 204 8577 001 3P PIN JACK(F-GND)

JK601 00D 204 8559 016 2P PIN JACK(S-GND)

JK602-605 00D 204 8540 012 4P PIN JACK

JK606,607 00D 204 8706 005 4P PIN JACK(AU,BK)

JK608 00D 204 8540 012 4P PIN JACK

JK609 00D 204 8559 016 2P PIN JACK(S-GND)

L601,602 00D 235 9003 002 FTZ CHOKE COIL

RL401 00D 214 0236 907 RELAY (EF2-5NU-N35)

Ref. No. Part No. Part Name Remarks Q'ty New

142

AVR-5805/AVC-A1XV

00D1U-3644B DIGITAL P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101,102 00D 262 3120 909 SN65LVDS31PW +REF

IC103-110 00D 262 3449 004 LC89057W-VF4A

IC111 00D 262 3444 902 TC74VHC08FT

IC112 00D 262 3436 907 TC74VHC244FT

IC113 00D 262 3411 906 TC74VHC04FT

IC114 00D 262 3062 902 FCX0-03(24.576MHZ) +REF

IC115 00D 263 1079 903 BA033FP +C

IC201 00D 262 3419 005 EP1C4F400C8

IC202 00D 263 1183 909 NJU7223DL1-25 +C

IC203 00D 262 3290 907 PQ015EZ5MZ +REF

IC204 00D 263 1079 903 BA033FP +C

IC205 00D GEN 6807 CONFIG ROM SUB ASS'Y EPCS4S18

IC301 00D 262 3442 904 TPS6734IDR

IC302 00D GEN 6808 ZONE CPU SUB ASS'Y M30620FCPGP(3805-S) +REF

IC303 00D GEN 6809 SUB CPU SUB ASS'Y M30625FGPGP

IC304-307 00D 262 3436 907 TC74VHC244FT

IC308 00D 262 3434 909 TC7SZ125F

IC309 00D 263 1079 903 BA033FP +C

IC401 00D 262 3443 903 SN65LVDS050PWR

IC402 00D 262 3432 901 SN65LVDS1DBVR

IC403 00D 262 3436 907 TC74VHC244FT

IC404 00D 262 3425 905 LTC4300-2CMS8

IC405 00D 262 3437 906 TC74VHCT244AFT

IC406 00D 262 3436 907 TC74VHC244FT

IC407 00D 262 3437 906 TC74VHCT244AFT

IC408 00D 262 3436 907 TC74VHC244FT

IC409 00D GEN 6810 MAIN CPU SUB ASS'Y M30835FJGP

IC410 00D 262 3428 902 M95128-WMN6T

IC411 00D 263 1197 908 BU4094BCFV-E2

IC412,413 00D 262 3448 908 TC74VHC125FT

IC414 00D 263 1079 903 BA033FP +C

IC601 00D 262 3063 901 FCX0-03(25.000MHZ) +REF

IC602 00D 262 3441 002 TMS320DA610

IC603 00D 262 3436 907 TC74VHC244FT

IC604 00D 262 3457 009 W9864G2EH-7

IC605 00D GEN 6820 TI DSP SUB ASS'Y MBM29LV160BE90TN

IC702 00D 262 3441 002 TMS320DA610

IC703 00D 262 3457 009 W9864G2EH-7

IC704 00D GEN 6821 TI DSP SUB ASS'Y MBM29LV160BE90TN

IC802 00D 262 3441 002 TMS320DA610

IC803 00D 262 3457 009 W9864G2EH-7

IC804 00D GEN 6822 TI DSP SUB ASS'Y MBM29LV160BE90TN

IC903 00D 263 1079 903 BA033FP +C

IC904 00D GEN 6806 CPLD SUB ASS'Y EPM3128ATC144-10 +REF

TR101 00D 269 0184 907 KRA102S-RTK +C

TR102 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR103 00D 269 0184 907 KRA102S-RTK +C

TR105 00D 269 0184 907 KRA102S-RTK +C

TR106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR108 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR301,302 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR303 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR304,305 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR401,402 00D 273 0464 901 KTC3875SGR-RTK +C

TR403 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR404 00D 269 0191 903 KRA104S-RTK(47K-47K) +C

TR405-408 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR409 00D 272 0161 900 2SB1412TL(PQR) +C

TR410 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR411 00D 272 0161 900 2SB1412TL(PQR) +C

TR412 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR413 00D 272 0161 900 2SB1412TL(PQR) +C

TR414-419 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

143

AVR-5805/AVC-A1XV

TR420 00D 273 0464 901 KTC3875SGR-RTK +C

TR421 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR422 00D 273 0480 901 KTC2025D-RTF

TR423 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR424 00D 269 0184 907 KRA102S-RTK +C

TR901 00D 272 0161 900 2SB1412TL(PQR) +C

TR902 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR903 00D 269 0184 907 KRA102S-RTK +C

D201 00D 276 0794 900 KDS160 +2125

D301 00D 276 0737 909 RB161L-40 (TAPE) +C

D401,402 00D 276 0751 901 1SR154-400TE25 +REF

D403 00D 276 0794 900 KDS160 +2125

D404 00D 276 0686 908 UDZ3.3B-TE17

D405 00D 276 0794 900 KDS160 +2125

D601 00D 276 0750 902 RB521S-30TE61 +REF

D701 00D 276 0750 902 RB521S-30TE61 +REF

D801 00D 276 0750 902 RB521S-30TE61 +REF

RESISTORS GROUP

RR446 00D 244 2051 961 RS14B3A101JNBST(S)

CAPACITORS GROUP

C101,102 00D 257 0509 929 CK73B1H102KT +1608

C103,104 00D 257 0516 954 CK73B1E104KT +1608

C105 00D 255 4257 938 CQ93P2A223JT(NH2)

C106 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C107 00D 255 1279 951 CQ93M1H104JT(B)

C108,109 00D 257 0516 954 CK73B1E104KT +1608

C110 00D 255 4257 938 CQ93P2A223JT(NH2)

C111 00D 255 1279 951 CQ93M1H104JT(B)

C112 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C113,114 00D 257 0516 954 CK73B1E104KT +1608

C115 00D 255 4257 938 CQ93P2A223JT(NH2)

C116 00D 255 1279 951 CQ93M1H104JT(B)

C117 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C118,119 00D 257 0516 954 CK73B1E104KT +1608

C120 00D 255 4257 938 CQ93P2A223JT(NH2)

C121 00D 255 1279 951 CQ93M1H104JT(B)

C122 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C123,124 00D 257 0516 954 CK73B1E104KT +1608

C125 00D 255 4257 938 CQ93P2A223JT(NH2)

C126 00D 255 1279 951 CQ93M1H104JT(B)

C127 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C128,129 00D 257 0516 954 CK73B1E104KT +1608

C130 00D 255 4257 938 CQ93P2A223JT(NH2)

C131 00D 255 1279 951 CQ93M1H104JT(B)

C132 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C133,134 00D 257 0516 954 CK73B1E104KT +1608

C135 00D 255 4257 938 CQ93P2A223JT(NH2)

C136 00D 255 1279 951 CQ93M1H104JT(B)

C137 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C138,139 00D 257 0516 954 CK73B1E104KT +1608

C140 00D 255 4257 938 CQ93P2A223JT(NH2)

C141 00D 255 1279 951 CQ93M1H104JT(B)

C142 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C143 00D 257 0509 929 CK73B1H102KT +1608

C144 00D 257 0516 954 CK73B1E104KT +1608

C145,146 00D 257 0509 929 CK73B1H102KT +1608

C147 00D 257 0516 954 CK73B1E104KT +1608

C148 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C149 00D 257 0516 954 CK73B1E104KT +1608

C150,151 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C152 00D 257 0516 954 CK73B1E104KT +1608

C153 00D 253 1180 921 CK45B1H102KT(DD-3)

C154 00D 257 0516 954 CK73B1E104KT +1608

C201 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

144

AVR-5805/AVC-A1XV

C202 00D 257 0516 954 CK73B1E104KT +1608

C203,204 00D 257 0509 929 CK73B1H102KT +1608

C205 00D 257 0516 954 CK73B1E104KT +1608

C206 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C207 00D 257 0509 929 CK73B1H102KT +1608

C208 00D 257 0501 901 CK73B1H103KT (1608) +1608

C209 00D 257 0516 954 CK73B1E104KT +1608

C210 00D 257 0509 929 CK73B1H102KT +1608

C211 00D 257 0501 901 CK73B1H103KT (1608) +1608

C212 00D 257 0516 954 CK73B1E104KT +1608

C213 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C214 00D 257 0509 929 CK73B1H102KT +1608

C215 00D 257 0501 901 CK73B1H103KT (1608) +1608

C216 00D 257 0516 954 CK73B1E104KT +1608

C217 00D 257 0509 929 CK73B1H102KT +1608

C218 00D 257 0501 901 CK73B1H103KT (1608) +1608

C219 00D 257 0516 954 CK73B1E104KT +1608

C220 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C221 00D 257 0509 929 CK73B1H102KT +1608

C222 00D 257 0501 901 CK73B1H103KT (1608) +1608

C223 00D 257 0516 954 CK73B1E104KT +1608

C224 00D 257 0509 929 CK73B1H102KT +1608

C225 00D 257 0501 901 CK73B1H103KT (1608) +1608

C226 00D 257 0516 954 CK73B1E104KT +1608

C227 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C228,229 00D 257 0509 929 CK73B1H102KT +1608

C230 00D 257 0516 954 CK73B1E104KT +1608

C231 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C232,233 00D 257 0509 929 CK73B1H102KT +1608

C234,235 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C236 00D 257 0516 954 CK73B1E104KT +1608

C237 00D 257 0509 929 CK73B1H102KT +1608

C238 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C239 00D 257 0516 954 CK73B1E104KT +1608

C240 00D 257 0509 929 CK73B1H102KT +1608

C241 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C242 00D 257 0516 954 CK73B1E104KT +1608

C243 00D 257 0509 929 CK73B1H102KT +1608

C244 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C245 00D 257 0516 954 CK73B1E104KT +1608

C246 00D 257 0509 929 CK73B1H102KT +1608

C247 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C248 00D 257 0516 954 CK73B1E104KT +1608

C249,250 00D 257 0509 929 CK73B1H102KT +1608

C251 00D 257 0516 954 CK73B1E104KT +1608

C252 00D 257 0509 929 CK73B1H102KT +1608

C253 00D 257 0516 954 CK73B1E104KT +1608

C254 00D 257 0509 929 CK73B1H102KT +1608

C255 00D 257 0516 954 CK73B1E104KT +1608

C256 00D 257 0509 929 CK73B1H102KT +1608

C257 00D 257 0516 954 CK73B1E104KT +1608

C262 00D 257 0501 901 CK73B1H103KT (1608) +1608

C305 00D 257 0509 929 CK73B1H102KT +1608

C306 00D 257 0516 954 CK73B1E104KT +1608

C307 00D 257 4015 901 CE67C1C330MT(PXA)

C308,309 00D 257 0516 909 CK73B1E223KT +1608

C310,311 00D 257 0516 954 CK73B1E104KT +1608

C312,313 00D 257 0509 929 CK73B1H102KT +1608

C314 00D 257 0516 954 CK73B1E104KT +1608

C315 00D 257 4015 901 CE67C1C330MT(PXA)

C316 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C319 00D 253 9035 939 CK45=1E393KT

C325,326 00D 257 0516 954 CK73B1E104KT +1608

C332 00D 257 0506 977 CC73CH1H121JT +1608

C334 00D 257 0506 977 CC73CH1H121JT +1608

C345 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C346,347 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

145

AVR-5805/AVC-A1XV

C348,349 00D 257 0503 912 CC73CH1H9R0DT +1608

C350 00D 257 0516 954 CK73B1E104KT +1608

C351 00D 254 4603 958 CE67W1E101MT(P.CAP) +REF

C352 00D 257 0516 954 CK73B1E104KT +1608

C353,354 00D 257 0503 925 CC73CH1H100DT +1608

C355-360 00D 257 0516 954 CK73B1E104KT +1608

C361,362 00D 257 0509 929 CK73B1H102KT +1608

C363 00D 257 0516 954 CK73B1E104KT +1608

C364 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C365 00D 257 0516 954 CK73B1E104KT +1608

C366 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C367 00D 257 0516 954 CK73B1E104KT +1608

C411 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C419 00D 257 0506 977 CC73CH1H121JT +1608

C423-431 00D 257 0516 954 CK73B1E104KT +1608

C434 00D 257 0504 940 CC73CH1H330JT +1608

C440-464 00D 257 0507 918 CC73CH1H181JT +1608

C466 00D 257 0507 918 CC73CH1H181JT +1608

C467 00D 257 0516 954 CK73B1E104KT +1608

C468 00D 257 0509 929 CK73B1H102KT +1608

C469 00D 257 0516 954 CK73B1E104KT +1608

C470 00D 257 0509 929 CK73B1H102KT +1608

C472 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C473,474 00D 257 0516 954 CK73B1E104KT +1608

C475-480 00D 257 0507 992 CC73CH1H391JT +1608

C482 00D 257 0507 992 CC73CH1H391JT +1608

C484 00D 257 0507 992 CC73CH1H391JT +1608

C486 00D 257 0507 992 CC73CH1H391JT +1608

C488 00D 257 0507 992 CC73CH1H391JT +1608

C490 00D 257 0507 992 CC73CH1H391JT +1608

C496,497 00D 257 0516 954 CK73B1E104KT +1608

C498 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C499 00D 257 0516 954 CK73B1E104KT +1608

C500 00D 257 0509 929 CK73B1H102KT +1608

C501 00D 257 0516 954 CK73B1E104KT +1608

C502,503 00D 257 0509 929 CK73B1H102KT +1608

C504 00D 257 0516 954 CK73B1E104KT +1608

C505,506 00D 257 0502 984 CC73CH1H6R0DT +1608

C507 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C508 00D 257 0516 954 CK73B1E104KT +1608

C509,510 00D 257 0509 929 CK73B1H102KT +1608

C511 00D 257 0516 954 CK73B1E104KT +1608

C512 00D 257 0509 929 CK73B1H102KT +1608

C513-520 00D 257 0516 954 CK73B1E104KT +1608

C522,523 00D 257 0516 954 CK73B1E104KT +1608

C524 00D 257 0507 918 CC73CH1H181JT +1608

C526-529 00D 257 0507 918 CC73CH1H181JT +1608

C530,531 00D 257 0516 954 CK73B1E104KT +1608

C533,534 00D 257 0516 954 CK73B1E104KT +1608

C536 00D 257 0516 954 CK73B1E104KT +1608

C537 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C538 00D 257 0516 954 CK73B1E104KT +1608

C539-541 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C542 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C543 00D 257 0509 929 CK73B1H102KT +1608

C544 00D 254 4666 005 CE04W0H105ZC(FG)

C545 00D 257 0501 901 CK73B1H103KT (1608) +1608

C546 00D 254 4471 902 CE67C1V4R7MT +REF

C547 00D 257 0516 954 CK73B1E104KT +1608

C601 00D 257 0516 954 CK73B1E104KT +1608

C602 00D 257 0509 929 CK73B1H102KT +1608

C603 00D 257 0516 954 CK73B1E104KT +1608

C604 00D 257 0509 929 CK73B1H102KT +1608

C605 00D 257 0516 954 CK73B1E104KT +1608

C606 00D 257 0509 929 CK73B1H102KT +1608

C607 00D 257 0516 954 CK73B1E104KT +1608

C608 00D 257 0509 929 CK73B1H102KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

146

AVR-5805/AVC-A1XV

C609 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C610 00D 257 0516 954 CK73B1E104KT +1608

C611 00D 257 0509 929 CK73B1H102KT +1608

C612 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C614 00D 257 0516 954 CK73B1E104KT +1608

C615 00D 257 0509 929 CK73B1H102KT +1608

C616 00D 257 0516 954 CK73B1E104KT +1608

C617 00D 257 0509 929 CK73B1H102KT +1608

C618 00D 257 0516 954 CK73B1E104KT +1608

C619 00D 257 0509 929 CK73B1H102KT +1608

C620 00D 257 0516 954 CK73B1E104KT +1608

C621 00D 257 0509 929 CK73B1H102KT +1608

C622 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C623 00D 257 0516 954 CK73B1E104KT +1608

C624 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C625,626 00D 257 0509 929 CK73B1H102KT +1608

C627 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C628 00D 257 0516 954 CK73B1E104KT +1608

C629 00D 257 0509 929 CK73B1H102KT +1608

C630 00D 257 0516 954 CK73B1E104KT +1608

C631 00D 257 0509 929 CK73B1H102KT +1608

C632 00D 257 0516 954 CK73B1E104KT +1608

C633 00D 257 0509 929 CK73B1H102KT +1608

C634 00D 257 0516 954 CK73B1E104KT +1608

C635 00D 257 0509 929 CK73B1H102KT +1608

C636 00D 257 0516 954 CK73B1E104KT +1608

C637 00D 257 0509 929 CK73B1H102KT +1608

C638 00D 257 0516 954 CK73B1E104KT +1608

C639 00D 257 0509 929 CK73B1H102KT +1608

C640 00D 257 0516 954 CK73B1E104KT +1608

C641 00D 257 0509 929 CK73B1H102KT +1608

C642 00D 257 0516 954 CK73B1E104KT +1608

C643 00D 257 0509 929 CK73B1H102KT +1608

C644 00D 257 0516 954 CK73B1E104KT +1608

C645 00D 257 0509 929 CK73B1H102KT +1608

C646 00D 257 0516 954 CK73B1E104KT +1608

C647 00D 257 0509 929 CK73B1H102KT +1608

C648 00D 257 0516 954 CK73B1E104KT +1608

C649 00D 257 0509 929 CK73B1H102KT +1608

C650 00D 257 0516 954 CK73B1E104KT +1608

C651 00D 257 0509 929 CK73B1H102KT +1608

C652 00D 257 0516 954 CK73B1E104KT +1608

C653 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C654 00D 257 0516 954 CK73B1E104KT +1608

C655 00D 257 0509 929 CK73B1H102KT +1608

C665 00D 257 0516 954 CK73B1E104KT +1608

C666 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C701 00D 257 0516 954 CK73B1E104KT +1608

C702 00D 257 0509 929 CK73B1H102KT +1608

C703 00D 257 0516 954 CK73B1E104KT +1608

C704 00D 257 0509 929 CK73B1H102KT +1608

C705 00D 257 0516 954 CK73B1E104KT +1608

C706 00D 257 0509 929 CK73B1H102KT +1608

C707 00D 257 0516 954 CK73B1E104KT +1608

C708 00D 257 0509 929 CK73B1H102KT +1608

C709 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C714 00D 257 0516 954 CK73B1E104KT +1608

C715 00D 257 0509 929 CK73B1H102KT +1608

C716 00D 257 0516 954 CK73B1E104KT +1608

C717 00D 257 0509 929 CK73B1H102KT +1608

C718 00D 257 0516 954 CK73B1E104KT +1608

C719 00D 257 0509 929 CK73B1H102KT +1608

C720 00D 257 0516 954 CK73B1E104KT +1608

C721 00D 257 0509 929 CK73B1H102KT +1608

C722 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C723 00D 257 0516 954 CK73B1E104KT +1608

C724 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

147

AVR-5805/AVC-A1XV

C725,726 00D 257 0509 929 CK73B1H102KT +1608

C727 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C728 00D 257 0516 954 CK73B1E104KT +1608

C729 00D 257 0509 929 CK73B1H102KT +1608

C730 00D 257 0516 954 CK73B1E104KT +1608

C731 00D 257 0509 929 CK73B1H102KT +1608

C732 00D 257 0516 954 CK73B1E104KT +1608

C733 00D 257 0509 929 CK73B1H102KT +1608

C734 00D 257 0516 954 CK73B1E104KT +1608

C735 00D 257 0509 929 CK73B1H102KT +1608

C736 00D 257 0516 954 CK73B1E104KT +1608

C737 00D 257 0509 929 CK73B1H102KT +1608

C738 00D 257 0516 954 CK73B1E104KT +1608

C739 00D 257 0509 929 CK73B1H102KT +1608

C740 00D 257 0516 954 CK73B1E104KT +1608

C741 00D 257 0509 929 CK73B1H102KT +1608

C742 00D 257 0516 954 CK73B1E104KT +1608

C743 00D 257 0509 929 CK73B1H102KT +1608

C744 00D 257 0516 954 CK73B1E104KT +1608

C745 00D 257 0509 929 CK73B1H102KT +1608

C746 00D 257 0516 954 CK73B1E104KT +1608

C747,748 00D 257 0509 929 CK73B1H102KT +1608

C749 00D 257 0516 954 CK73B1E104KT +1608

C750 00D 257 0509 929 CK73B1H102KT +1608

C751 00D 257 0516 954 CK73B1E104KT +1608

C752 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C753 00D 257 0516 954 CK73B1E104KT +1608

C754 00D 257 0509 929 CK73B1H102KT +1608

C765 00D 257 0516 954 CK73B1E104KT +1608

C766 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C801 00D 257 0516 954 CK73B1E104KT +1608

C802 00D 257 0509 929 CK73B1H102KT +1608

C803 00D 257 0516 954 CK73B1E104KT +1608

C804 00D 257 0509 929 CK73B1H102KT +1608

C805 00D 257 0516 954 CK73B1E104KT +1608

C806 00D 257 0509 929 CK73B1H102KT +1608

C807 00D 257 0516 954 CK73B1E104KT +1608

C808 00D 257 0509 929 CK73B1H102KT +1608

C809 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C814 00D 257 0516 954 CK73B1E104KT +1608

C815 00D 257 0509 929 CK73B1H102KT +1608

C816 00D 257 0516 954 CK73B1E104KT +1608

C817 00D 257 0509 929 CK73B1H102KT +1608

C818 00D 257 0516 954 CK73B1E104KT +1608

C819 00D 257 0509 929 CK73B1H102KT +1608

C820 00D 257 0516 954 CK73B1E104KT +1608

C821 00D 257 0509 929 CK73B1H102KT +1608

C822 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C823 00D 257 0516 954 CK73B1E104KT +1608

C824 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C825,826 00D 257 0509 929 CK73B1H102KT +1608

C827 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C828 00D 257 0516 954 CK73B1E104KT +1608

C829 00D 257 0509 929 CK73B1H102KT +1608

C830 00D 257 0516 954 CK73B1E104KT +1608

C831 00D 257 0509 929 CK73B1H102KT +1608

C832 00D 257 0516 954 CK73B1E104KT +1608

C833 00D 257 0509 929 CK73B1H102KT +1608

C834 00D 257 0516 954 CK73B1E104KT +1608

C835 00D 257 0509 929 CK73B1H102KT +1608

C836 00D 257 0516 954 CK73B1E104KT +1608

C837 00D 257 0509 929 CK73B1H102KT +1608

C838 00D 257 0516 954 CK73B1E104KT +1608

C839 00D 257 0509 929 CK73B1H102KT +1608

C840 00D 257 0516 954 CK73B1E104KT +1608

C841 00D 257 0509 929 CK73B1H102KT +1608

C842 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

148

AVR-5805/AVC-A1XV

C843 00D 257 0509 929 CK73B1H102KT +1608

C844 00D 257 0516 954 CK73B1E104KT +1608

C845 00D 257 0509 929 CK73B1H102KT +1608

C846 00D 257 0516 954 CK73B1E104KT +1608

C847,848 00D 257 0509 929 CK73B1H102KT +1608

C849 00D 257 0516 954 CK73B1E104KT +1608

C850 00D 257 0509 929 CK73B1H102KT +1608

C851 00D 257 0516 954 CK73B1E104KT +1608

C852 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C853 00D 257 0516 954 CK73B1E104KT +1608

C854 00D 257 0509 929 CK73B1H102KT +1608

C865 00D 257 0516 954 CK73B1E104KT +1608

C866 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C901 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF

C902 00D 257 0509 929 CK73B1H102KT +1608

C904 00D 257 0501 901 CK73B1H103KT (1608) +1608

C905 00D 254 4464 919 CE67C0J471MT +REF

C906 00D 257 0516 954 CK73B1E104KT +1608

C907 00D 254 4464 919 CE67C0J471MT +REF

C909 00D 257 0509 929 CK73B1H102KT +1608

C910 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C916 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C917 00D 257 0509 929 CK73B1H102KT +1608

C918 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C919 00D 257 0509 929 CK73B1H102KT +1608

C920 00D 257 0516 954 CK73B1E104KT +1608

C921-923 00D 257 0509 929 CK73B1H102KT +1608

C924 00D 257 0516 954 CK73B1E104KT +1608

C925 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C926 00D 257 0516 954 CK73B1E104KT +1608

C927 00D 254 4655 951 CE67C0J331MT (RV) +REF

OTHERS PARTS GROUP

BB101,102 00D 205 0943 005 13P CON.BASE(TUC-P)

BB103 00D 205 0884 070 12P CON.BASE TUC-P

BB104 00D 205 0943 005 13P CON.BASE(TUC-P)

BB105 00D 205 0884 012 14P CON.BASE TUC-P

BB201 00D 205 1246 015 26P PIN HEADER(9142)

BB205-208 00D 205 1326 058 15P SOCKET(9120)

BB209 00D 205 1326 045 14P SOCKET(9120)

BB301 00D 205 1326 029 12P SOCKET(9120)

BB304 00D 205 0943 005 13P CON.BASE(TUC-P)

BB308 00D 205 1326 029 12P SOCKET(9120)

BB401 00D 205 1326 058 15P SOCKET(9120)

BB402 00D 205 1325 059 5P SOCKET(9120)

BB403 00D 205 1326 058 15P SOCKET(9120)

BB406 00D 205 1325 091 9P SOCKET(9120)

BB407 00D 205 1326 029 12P SOCKET(9120)

BB408 00D 205 1325 075 7P SOCKET(9120)

BB409 00D 205 1326 045 14P SOCKET(9120)

BB410 00D 205 1326 032 13P SOCKET(9120)

BB412 00D 205 1325 062 6P SOCKET(9120)

BB901 00D 205 1246 015 26P PIN HEADER(9142)

BB905 00D 205 1326 016 11P SOCKET(9120)

CN210,211 00D 205 1154 903 10P ZH-ZR CON.BASE-T

CN306,307 00D 205 1154 990 9P ZH-ZR CON.BASE-T

CN309 00D 205 1154 903 10P ZH-ZR CON.BASE-T

CN411 00D 205 1154 987 8P ZH-ZR CON.BASE(T) +REF

CN903 00D 205 1154 903 10P ZH-ZR CON.BASE-T

CX031 00D 205 0581 001 2P VH CONNECTOR BASE

CX032,033 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

CX037 00D 205 0581 069 2P VH-VH CON BASE

CX042 00D 205 1072 917 4P PH CON BASE(TAPE) +REF

CX053 00D 205 1072 920 5P PH CON BASE(TAPE) +REF

CX104 00D 205 1154 903 10P ZH-ZR CON.BASE-T

Ref. No. Part No. Part Name Remarks Q'ty New

149

AVR-5805/AVC-A1XV

CX113 00D 205 1154 916 11P ZH-ZR CON.BASE-T

CX123 00D 205 1313 935 12P FFC BASE(9610SC)

CX181 00D 205 1313 948 18P FFC BASE(9610SC)

CX183 00D 205 1313 951 19P FFC BASE(9610SC)

CX184 00D 205 1313 948 18P FFC BASE(9610SC)

CX191 00D 205 1313 951 19P FFC BASE(9610SC)

CX201 00D 205 1313 964 20P FFC BASE(9610SC)

CX261 00D 205 1313 977 26P FFC BASE(9610SC)

CX281 00D 205 1313 980 28P FFC BASE(9610SC)

CY038,039 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

CY069 00D 205 0653 065 6P VH CONNECTOR BASE

CY930,931 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

FB101 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB201 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB202 00D 247 0018 905 RM73B--0R0KT +2125

FB203-206 00D 235 0049 900 BEADS INDUCTOR TAPE

FB303 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB306 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB307 00D 247 0018 905 RM73B--0R0KT +2125

FB308 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB401 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB402 00D 247 0018 905 RM73B--0R0KT +2125

FB403 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB404 00D 247 0018 905 RM73B--0R0KT +2125

FB405-409 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB410 00D 247 0018 905 RM73B--0R0KT +2125

FB411-413 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB415,416 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB417 00D 247 0018 905 RM73B--0R0KT +2125

FB418-421 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB424 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB425 00D 247 0018 905 RM73B--0R0KT +2125

FB426 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB429,430 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB601 00D 247 2018 903 RM73B--0R0KT +1608

FB602 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB701 00D 247 2018 903 RM73B--0R0KT +1608

FB702 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB801 00D 247 2018 903 RM73B--0R0KT +1608

FB802 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

L301 00D 235 0142 030 COIL LHL08NB180K

S301,302 00D 212 4807 909 TACT SW(SKQDAA) +REF

S303 00D 212 1204 903 SLIDE SW(SSSS820201)

S401 00D 212 1204 903 SLIDE SW(SSSS820201)

S403 00D 212 4807 909 TACT SW(SKQDAA) +REF

S404,405 00D 212 1204 903 SLIDE SW(SSSS820201)

S601 00D 212 4807 909 TACT SW(SKQDAA) +REF

X301,302 00D 399 0974 900 X-TAL(12MHZ)

X401 00D 399 0975 909 X-TAL(30MHZ)

00D 461 0415 007 RUBBER SHEET for C153, 319

00D 001 0250 002 VINYL WIRE

00D 222 3644 102 P.W.BOARD

00D 253 4452 902 CC45SL1H471JT

Ref. No. Part No. Part Name Remarks Q'ty New

150

AVR-5805/AVC-A1XV

00D1U-3645B D.VIDEO P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101,102 00D 262 3416 901 BR24L02F-WE2

IC103 00D 262 3431 009 SII9031

IC104 00D 263 1079 903 BA033FP +C

IC105 00D 262 3265 903 LM1117MPX-1.8 +C

IC106,107 00D 262 3120 909 SN65LVDS31PW +REF

IC108 00D 262 3432 901 SN65LVDS1DBVR

IC109 00D 263 1079 903 BA033FP +C

IC201,202 00D 262 3416 901 BR24L02F-WE2

IC203 00D 262 3431 009 SII9031

IC204 00D 263 1079 903 BA033FP +C

IC205 00D 262 3265 903 LM1117MPX-1.8 +C

IC209 00D 263 1079 903 BA033FP +C

IC301 00D 263 1079 903 BA033FP +C

IC302 00D 262 3265 903 LM1117MPX-1.8 +C

IC303 00D 262 3364 008 SII9030

IC304 00D 262 2977 933 BA50BC0FP-E2

IC306 00D 262 3410 907 TC74VHCT08AFT

IC351 00D 263 1079 903 BA033FP +C

IC352 00D 262 3265 903 LM1117MPX-1.8 +C

IC353 00D 262 3364 008 SII9030

IC401-405 00D 263 1082 903 TK15420MTL +C

IC406 00D 262 3417 007 AN13310BA

IC407,408 00D 263 1079 903 BA033FP +C

IC409 00D 262 3290 907 PQ015EZ5MZ +REF

IC410 00D 262 3429 008 MN673747HL

IC411 00D 262 3454 905 TC74VCX04FT

IC412 00D 262 3421 909 FCXO-03L(27.000MHz)

IC413 00D 262 3452 004 K4S161622H-TC60

IC414 00D 262 3440 003 TE8200PF

IC601 00D 262 3239 007 FLI2310-BC/BD +C

IC602 00D 262 3303 001 K4S643232#-TC60 +REF

IC603 00D 262 3265 903 LM1117MPX-1.8 +C

IC604-606 00D 263 1079 903 BA033FP +C

IC607 00D 263 1183 909 NJU7223DL1-25 +C

IC608 00D 262 3290 907 PQ015EZ5MZ +REF

IC609 00D 262 3438 002 TC90101FG

IC614-617 00D 262 2641 900 SN74LV541APW-EL2 +C

IC701 00D 263 1079 903 BA033FP +C

IC702 00D 263 1183 909 NJU7223DL1-25 +C

IC703 00D 262 3478 004 ADV7320

IC704 00D 262 3414 903 TC74LCX157FT

IC705 00D 263 1198 907 LT1399CS +REF

IC801 00D 263 1079 903 BA033FP +C

IC802 00D 263 1183 909 NJU7223DL1-25 +C

IC803 00D 262 3478 004 ADV7320

IC804 00D 263 1158 905 BH7862F +C

IC901 00D GEN 6811 VIDEO CPU SUB ASS'Y M30625FGPGP

IC902 00D 262 3424 906 LTC1694CS5

IC903 00D 262 3425 905 LTC4300-2CMS8

IC904 00D 263 1079 903 BA033FP +C

IC905 00D 263 1078 904 BA05FP +C

IC906 00D 262 3436 907 TC74VHC244FT

IC907 00D 262 3437 906 TC74VHCT244AFT

IC908 00D 262 3443 903 SN65LVDS050PWR

IC909 00D 262 3433 900 SN65LVDS2DBVR

TR101-103 00D 275 0110 905 HN1K02FU-TE85L

TR105 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR107-110 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR111 00D 269 0184 907 KRA102S-RTK +C

TR112 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR113 00D 269 0184 907 KRA102S-RTK +C

TR114 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR115 00D 275 0110 905 HN1K02FU-TE85L

151

AVR-5805/AVC-A1XV

TR116 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR201-203 00D 275 0110 905 HN1K02FU-TE85L

TR205 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR207-210 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR211 00D 269 0184 907 KRA102S-RTK +C

TR212 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR213 00D 269 0184 907 KRA102S-RTK +C

TR214 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR215 00D 275 0110 905 HN1K02FU-TE85L

TR216 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR301 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR303-305 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR307 00D 273 0460 905 KTC2875B-RTK +C

TR308 00D 275 0110 905 HN1K02FU-TE85L

TR310 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR311 00D 273 0460 905 KTC2875B-RTK +C

TR312 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR351 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR353-355 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR357 00D 273 0460 905 KTC2875B-RTK +C

TR358 00D 275 0110 905 HN1K02FU-TE85L

TR360 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR361 00D 273 0460 905 KTC2875B-RTK +C

TR362 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR401 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR403 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR404-406 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR409,410 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR411 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR601 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR602 00D 273 0464 901 KTC3875SGR-RTK +C

TR603-605 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR701 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR702-707 00D 271 0293 901 2SA1022-B +C

TR801 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR802 00D 271 0293 901 2SA1022-B +C

TR803 00D 272 0125 904 2SB709A +C

TR902 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR903 00D 273 0464 901 KTC3875SGR-RTK +C

TR904,905 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR907 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR991,992 00D 274 0158 016 2SD1763A(E)

D101-104 00D 276 0750 902 RB521S-30TE61 +REF

D105-109 00D 276 0794 900 KDS160 +2125

D201-204 00D 276 0750 902 RB521S-30TE61 +REF

D205-207 00D 276 0794 900 KDS160 +2125

D301,302 00D 276 0794 900 KDS160 +2125

D351 00D 276 0794 900 KDS160 +2125

D402 00D 276 0794 900 KDS160 +2125

D403,404 00D 276 0740 909 KDS184-RTK(K-COM) +C

D405 00D 276 0794 900 KDS160 +2125

D406 00D 276 0750 902 RB521S-30TE61 +REF

D601-603 00D 276 0794 900 KDS160 +2125

D701 00D 276 0794 900 KDS160 +2125

D801 00D 276 0794 900 KDS160 +2125

D901,902 00D 276 0794 900 KDS160 +2125

D903 00D 276 0686 908 UDZ3.3B-TE17

RESISTORS GROUP

VR702-704 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF

VR802,803 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF

CAPACITORS GROUP

C101,102 00D 257 0516 954 CK73B1E104KT +1608

C103-110 00D 257 0509 929 CK73B1H102KT +1608

C111-114 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

152

AVR-5805/AVC-A1XV

C115,116 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C117,118 00D 257 0516 954 CK73B1E104KT +1608

C119,120 00D 257 0509 929 CK73B1H102KT +1608

C121-124 00D 257 0516 954 CK73B1E104KT +1608

C125,126 00D 257 0501 901 CK73B1H103KT (1608) +1608

C127-132 00D 257 0509 929 CK73B1H102KT +1608

C133 00D 257 0516 954 CK73B1E104KT +1608

C134-138 00D 257 0509 929 CK73B1H102KT +1608

C139 00D 257 0503 967 CC73CH1H150JT +1608

C140,141 00D 257 0509 929 CK73B1H102KT +1608

C142 00D 257 0503 967 CC73CH1H150JT +1608

C143 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C144-146 00D 257 0509 929 CK73B1H102KT +1608

C147 00D 257 0516 954 CK73B1E104KT +1608

C148,149 00D 257 0509 929 CK73B1H102KT +1608

C150-154 00D 257 0516 954 CK73B1E104KT +1608

C155 00D 257 0509 929 CK73B1H102KT +1608

C156 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C157 00D 257 0516 954 CK73B1E104KT +1608

C158-161 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C162-166 00D 257 0516 954 CK73B1E104KT +1608

C167 00D 257 0509 929 CK73B1H102KT +1608

C168 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C169-172 00D 257 0516 954 CK73B1E104KT +1608

C173 00D 257 0509 929 CK73B1H102KT +1608

C174 00D 257 0516 954 CK73B1E104KT +1608

C175 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C176-179 00D 257 0509 929 CK73B1H102KT +1608

C180,181 00D 254 4464 906 CE67C0J101MT +REF

C182 00D 254 4465 918 CE67C1C470MT +REF

C183,184 00D 257 0516 954 CK73B1E104KT +1608

C185 00D 254 4464 906 CE67C0J101MT +REF

C186,187 00D 257 0501 901 CK73B1H103KT (1608) +1608

C188-190 00D 257 0509 929 CK73B1H102KT +1608

C201,202 00D 257 0516 954 CK73B1E104KT +1608

C203-210 00D 257 0509 929 CK73B1H102KT +1608

C211-214 00D 257 0516 954 CK73B1E104KT +1608

C215,216 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C217,218 00D 257 0516 954 CK73B1E104KT +1608

C219,220 00D 257 0509 929 CK73B1H102KT +1608

C221-224 00D 257 0516 954 CK73B1E104KT +1608

C225,226 00D 257 0501 901 CK73B1H103KT (1608) +1608

C227-232 00D 257 0509 929 CK73B1H102KT +1608

C233 00D 257 0516 954 CK73B1E104KT +1608

C234-238 00D 257 0509 929 CK73B1H102KT +1608

C239 00D 257 0503 967 CC73CH1H150JT +1608

C240,241 00D 257 0509 929 CK73B1H102KT +1608

C242 00D 257 0503 967 CC73CH1H150JT +1608

C243 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C244-246 00D 257 0509 929 CK73B1H102KT +1608

C247 00D 257 0516 954 CK73B1E104KT +1608

C248,249 00D 257 0509 929 CK73B1H102KT +1608

C250-254 00D 257 0516 954 CK73B1E104KT +1608

C255 00D 257 0509 929 CK73B1H102KT +1608

C256 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C257 00D 257 0516 954 CK73B1E104KT +1608

C258-261 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C262-266 00D 257 0516 954 CK73B1E104KT +1608

C267 00D 257 0509 929 CK73B1H102KT +1608

C268 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C269-272 00D 257 0516 954 CK73B1E104KT +1608

C273 00D 257 0509 929 CK73B1H102KT +1608

C274 00D 257 0516 954 CK73B1E104KT +1608

C275 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C276-279 00D 257 0509 929 CK73B1H102KT +1608

C280,281 00D 254 4464 906 CE67C0J101MT +REF

C282 00D 254 4465 918 CE67C1C470MT +REF

Ref. No. Part No. Part Name Remarks Q'ty New

153

AVR-5805/AVC-A1XV

C283,284 00D 257 0516 954 CK73B1E104KT +1608

C285 00D 254 4464 906 CE67C0J101MT +REF

C286 00D 257 0516 954 CK73B1E104KT +1608

C287 00D 257 0501 901 CK73B1H103KT (1608) +1608

C301 00D 254 4465 918 CE67C1C470MT +REF

C302,303 00D 257 0516 954 CK73B1E104KT +1608

C304 00D 254 4465 918 CE67C1C470MT +REF

C305 00D 254 4464 906 CE67C0J101MT +REF

C306,307 00D 257 0516 954 CK73B1E104KT +1608

C308,309 00D 254 4465 918 CE67C1C470MT +REF

C310 00D 257 0516 954 CK73B1E104KT +1608

C311 00D 254 4465 905 CE67C1C220MT +REF

C312 00D 257 0516 954 CK73B1E104KT +1608

C313 00D 254 4465 905 CE67C1C220MT +REF

C314 00D 257 0516 954 CK73B1E104KT +1608

C315 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C316 00D 257 0516 954 CK73B1E104KT +1608

C317 00D 257 0509 929 CK73B1H102KT +1608

C318 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C319,320 00D 257 0516 954 CK73B1E104KT +1608

C321,322 00D 257 0509 929 CK73B1H102KT +1608

C323 00D 257 0516 954 CK73B1E104KT +1608

C324 00D 257 0509 929 CK73B1H102KT +1608

C325 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C326 00D 257 0516 954 CK73B1E104KT +1608

C327,328 00D 257 0509 929 CK73B1H102KT +1608

C329-332 00D 257 0516 954 CK73B1E104KT +1608

C333,334 00D 257 0509 929 CK73B1H102KT +1608

C335,336 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C337,338 00D 257 0509 929 CK73B1H102KT +1608

C339-341 00D 257 0516 954 CK73B1E104KT +1608

C342 00D 257 0509 929 CK73B1H102KT +1608

C343-348 00D 257 0516 954 CK73B1E104KT +1608

C349 00D 254 4465 918 CE67C1C470MT +REF

C350 00D 257 0516 954 CK73B1E104KT +1608

C351 00D 254 4465 918 CE67C1C470MT +REF

C352,353 00D 257 0516 954 CK73B1E104KT +1608

C354 00D 254 4465 918 CE67C1C470MT +REF

C355 00D 254 4464 906 CE67C0J101MT +REF

C356,357 00D 257 0516 954 CK73B1E104KT +1608

C358,359 00D 254 4465 918 CE67C1C470MT +REF

C360 00D 257 0516 954 CK73B1E104KT +1608

C361 00D 254 4465 905 CE67C1C220MT +REF

C362 00D 257 0516 954 CK73B1E104KT +1608

C363 00D 254 4465 905 CE67C1C220MT +REF

C364 00D 257 0516 954 CK73B1E104KT +1608

C365 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C366 00D 257 0516 954 CK73B1E104KT +1608

C367 00D 257 0509 929 CK73B1H102KT +1608

C368 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C369,370 00D 257 0516 954 CK73B1E104KT +1608

C371,372 00D 257 0509 929 CK73B1H102KT +1608

C373 00D 257 0516 954 CK73B1E104KT +1608

C374 00D 257 0509 929 CK73B1H102KT +1608

C375 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C376 00D 257 0516 954 CK73B1E104KT +1608

C377,378 00D 257 0509 929 CK73B1H102KT +1608

C379-382 00D 257 0516 954 CK73B1E104KT +1608

C383,384 00D 257 0509 929 CK73B1H102KT +1608

C385,386 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C387,388 00D 257 0509 929 CK73B1H102KT +1608

C389-391 00D 257 0516 954 CK73B1E104KT +1608

C392 00D 257 0509 929 CK73B1H102KT +1608

C393 00D 257 0516 954 CK73B1E104KT +1608

C394 00D 254 4465 918 CE67C1C470MT +REF

C395-399 00D 257 0516 954 CK73B1E104KT +1608

C401-403 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

Ref. No. Part No. Part Name Remarks Q'ty New

154

AVR-5805/AVC-A1XV

C404 00D 257 0503 941 CC73CH1H120JT +1608

C405 00D 257 0503 967 CC73CH1H150JT +1608

C406 00D 257 0504 924 CC73CH1H270JT +1608

C407,408 00D 257 0501 901 CK73B1H103KT (1608) +1608

C409 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C410 00D 257 0503 941 CC73CH1H120JT +1608

C411 00D 257 0503 967 CC73CH1H150JT +1608

C412 00D 257 0504 924 CC73CH1H270JT +1608

C413,414 00D 257 0501 901 CK73B1H103KT (1608) +1608

C415 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C416 00D 257 0503 941 CC73CH1H120JT +1608

C417 00D 257 0503 967 CC73CH1H150JT +1608

C418 00D 257 0504 924 CC73CH1H270JT +1608

C419,420 00D 257 0501 901 CK73B1H103KT (1608) +1608

C421 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C422 00D 257 0503 941 CC73CH1H120JT +1608

C423 00D 257 0503 967 CC73CH1H150JT +1608

C424 00D 257 0504 924 CC73CH1H270JT +1608

C425,426 00D 257 0501 901 CK73B1H103KT (1608) +1608

C427 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C428 00D 257 0503 941 CC73CH1H120JT +1608

C429 00D 257 0503 967 CC73CH1H150JT +1608

C430 00D 257 0504 924 CC73CH1H270JT +1608

C431-433 00D 257 0501 901 CK73B1H103KT (1608) +1608

C434 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C435 00D 257 0516 954 CK73B1E104KT +1608

C436-450 00D 257 0501 901 CK73B1H103KT (1608) +1608

C451 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C452 00D 257 0516 954 CK73B1E104KT +1608

C453 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C454 00D 257 0516 954 CK73B1E104KT +1608

C455-457 00D 257 0521 907 CK73B1A105KT +1608

C458-460 00D 257 0501 901 CK73B1H103KT (1608) +1608

C461-469 00D 257 0516 954 CK73B1E104KT +1608

C470 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C471 00D 257 0516 954 CK73B1E104KT +1608

C472 00D 257 0501 901 CK73B1H103KT (1608) +1608

C473 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C474 00D 257 0516 954 CK73B1E104KT +1608

C475 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C476 00D 257 0516 954 CK73B1E104KT +1608

C477 00D 257 0504 908 CC73CH1H220JT +1608

C478 00D 257 3012 921 CF73=1H103JT(ECHUB5)+3216

C479 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C480 00D 257 0516 954 CK73B1E104KT +1608

C481 00D 257 0501 901 CK73B1H103KT (1608) +1608

C482-484 00D 257 0516 954 CK73B1E104KT +1608

C485 00D 257 4015 901 CE67C1C330MT(PXA)

C486,487 00D 254 4464 906 CE67C0J101MT +REF

C488 00D 257 4015 901 CE67C1C330MT(PXA)

C489 00D 254 4464 906 CE67C0J101MT +REF

C490,491 00D 257 0516 954 CK73B1E104KT +1608

C492 00D 254 4465 918 CE67C1C470MT +REF

C493 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C494 00D 257 0516 954 CK73B1E104KT +1608

C495 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C496-502 00D 257 0516 954 CK73B1E104KT +1608

C503 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C504-510 00D 257 0516 954 CK73B1E104KT +1608

C511 00D 257 0501 901 CK73B1H103KT (1608) +1608

C512-518 00D 257 0516 954 CK73B1E104KT +1608

C519 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C520 00D 257 0516 954 CK73B1E104KT +1608

C525 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C526 00D 257 0516 954 CK73B1E104KT +1608

C527 00D 254 4645 903 CE67C0J221MT(MVA) +REF

C528-534 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

155

AVR-5805/AVC-A1XV

C535 00D 254 4571 925 CE67C1H2R2MT(MV-B) +REF

C536,537 00D 257 0504 982 CC73CH1H470JT +1608

C538,539 00D 257 0501 901 CK73B1H103KT (1608) +1608

C540,541 00D 254 4464 906 CE67C0J101MT +REF

C542 00D 257 0516 954 CK73B1E104KT +1608

C543,544 00D 257 0521 907 CK73B1A105KT +1608

C545 00D 257 0516 954 CK73B1E104KT +1608

C546 00D 257 0521 907 CK73B1A105KT +1608

C547 00D 257 0516 954 CK73B1E104KT +1608

C548 00D 257 0504 940 CC73CH1H330JT +1608

C549 00D 257 0516 954 CK73B1E104KT +1608

C550 00D 257 0504 940 CC73CH1H330JT +1608

C551 00D 257 0516 954 CK73B1E104KT +1608

C552 00D 257 0501 901 CK73B1H103KT (1608) +1608

C553 00D 257 0516 954 CK73B1E104KT +1608

C554 00D 257 0521 907 CK73B1A105KT +1608

C601 00D 254 4464 906 CE67C0J101MT +REF

C602 00D 257 0516 954 CK73B1E104KT +1608

C603 00D 257 0501 901 CK73B1H103KT (1608) +1608

C604-607 00D 257 0516 954 CK73B1E104KT +1608

C608 00D 257 0501 901 CK73B1H103KT (1608) +1608

C609 00D 257 0516 954 CK73B1E104KT +1608

C610 00D 257 0501 901 CK73B1H103KT (1608) +1608

C612 00D 254 4464 906 CE67C0J101MT +REF

C613 00D 257 0501 901 CK73B1H103KT (1608) +1608

C614 00D 257 0516 954 CK73B1E104KT +1608

C615 00D 254 4464 906 CE67C0J101MT +REF

C616 00D 257 2010 937 CS77B1A220MT +C

C617-623 00D 257 0516 954 CK73B1E104KT +1608

C624,625 00D 257 0503 983 CC73CH1H180JT +1608

C626,627 00D 257 0516 954 CK73B1E104KT +1608

C628 00D 254 4464 906 CE67C0J101MT +REF

C629 00D 257 0516 954 CK73B1E104KT +1608

C630 00D 257 0501 901 CK73B1H103KT (1608) +1608

C631 00D 254 4464 906 CE67C0J101MT +REF

C632-641 00D 257 0516 954 CK73B1E104KT +1608

C642 00D 254 4465 918 CE67C1C470MT +REF

C643,644 00D 257 0516 954 CK73B1E104KT +1608

C645,646 00D 257 4015 901 CE67C1C330MT(PXA)

C647,648 00D 254 4464 906 CE67C0J101MT +REF

C649 00D 257 4015 901 CE67C1C330MT(PXA)

C650,651 00D 257 0516 954 CK73B1E104KT +1608

C652 00D 254 4465 918 CE67C1C470MT +REF

C653,654 00D 257 0516 954 CK73B1E104KT +1608

C655 00D 254 4465 918 CE67C1C470MT +REF

C658,659 00D 257 0501 901 CK73B1H103KT (1608) +1608

C660,661 00D 254 4464 906 CE67C0J101MT +REF

C662 00D 257 0521 949 CK73B1A474KT

C663 00D 257 0506 919 CC73CH1H680JT +1608

C664 00D 257 0501 901 CK73B1H103KT (1608) +1608

C665 00D 257 0521 949 CK73B1A474KT

C666 00D 257 0506 919 CC73CH1H680JT +1608

C667-669 00D 257 0501 901 CK73B1H103KT (1608) +1608

C670 00D 257 0516 954 CK73B1E104KT +1608

C671 00D 257 0501 901 CK73B1H103KT (1608) +1608

C672 00D 257 0521 949 CK73B1A474KT

C673-675 00D 257 0501 901 CK73B1H103KT (1608) +1608

C676 00D 257 0516 954 CK73B1E104KT +1608

C677 00D 257 0521 949 CK73B1A474KT

C678 00D 257 0501 901 CK73B1H103KT (1608) +1608

C679,680 00D 257 0516 954 CK73B1E104KT +1608

C681 00D 257 0501 901 CK73B1H103KT (1608) +1608

C682 00D 257 0502 968 CC73CH1H4R0CT

C683 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C684 00D 254 4464 906 CE67C0J101MT +REF

C685,686 00D 257 0501 901 CK73B1H103KT (1608) +1608

C687 00D 257 0516 954 CK73B1E104KT +1608

Ref. No. Part No. Part Name Remarks Q'ty New

156

AVR-5805/AVC-A1XV

C688 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C689 00D 257 0501 901 CK73B1H103KT (1608) +1608

C690 00D 257 0509 961 CK73B1H152KT +1608

C691 00D 257 0501 901 CK73B1H103KT (1608) +1608

C692 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C693 00D 257 0501 901 CK73B1H103KT (1608) +1608

C694,695 00D 257 0503 909 CC73CH1H8R0DT +1608

C696 00D 247 2018 903 RM73B--0R0KT +1608

C697-699 00D 257 0501 901 CK73B1H103KT (1608) +1608

C701 00D 254 4464 906 CE67C0J101MT +REF

C702 00D 257 4015 901 CE67C1C330MT(PXA)

C703 00D 254 4464 906 CE67C0J101MT +REF

C704,705 00D 257 0516 954 CK73B1E104KT +1608

C706 00D 254 4465 918 CE67C1C470MT +REF

C707,708 00D 257 0516 954 CK73B1E104KT +1608

C709,710 00D 254 4464 906 CE67C0J101MT +REF

C711,712 00D 257 0506 951 CC73CH1H101JT +1608

C714 00D 257 0501 901 CK73B1H103KT (1608) +1608

C715,716 00D 257 0516 954 CK73B1E104KT +1608

C717 00D 257 3011 906 CF73=1H821JT(ECHUB5)+2125

C718 00D 254 4464 906 CE67C0J101MT +REF

C719 00D 257 0516 954 CK73B1E104KT +1608

C720 00D 257 3011 977 CF73=1H392JT(ECHUB5)+2125

C722,723 00D 257 0516 954 CK73B1E104KT +1608

C724 00D 254 4464 906 CE67C0J101MT +REF

C725 00D 257 0516 954 CK73B1E104KT +1608

C729 00D 257 0516 954 CK73B1E104KT +1608

C730 00D 254 4464 906 CE67C0J101MT +REF

C731 00D 257 0516 954 CK73B1E104KT +1608

C732,733 00D 254 4464 906 CE67C0J101MT +REF

C735 00D 257 0516 954 CK73B1E104KT +1608

C736 00D 254 4465 918 CE67C1C470MT +REF

C737 00D 257 0516 954 CK73B1E104KT +1608

C738 00D 254 4465 918 CE67C1C470MT +REF

C739,740 00D 257 0516 954 CK73B1E104KT +1608

C745 00D 254 4464 906 CE67C0J101MT +REF

C747,748 00D 257 0516 954 CK73B1E104KT +1608

C753 00D 254 4464 906 CE67C0J101MT +REF

C801 00D 254 4464 906 CE67C0J101MT +REF

C802 00D 257 4015 901 CE67C1C330MT(PXA)

C803 00D 254 4464 906 CE67C0J101MT +REF

C804,805 00D 257 0516 954 CK73B1E104KT +1608

C806 00D 254 4465 918 CE67C1C470MT +REF

C807,808 00D 257 0516 954 CK73B1E104KT +1608

C809,810 00D 254 4464 906 CE67C0J101MT +REF

C811,812 00D 257 0506 951 CC73CH1H101JT +1608

C814 00D 257 0501 901 CK73B1H103KT (1608) +1608

C815,816 00D 257 0516 954 CK73B1E104KT +1608

C817 00D 257 3011 906 CF73=1H821JT(ECHUB5)+2125

C818 00D 254 4464 906 CE67C0J101MT +REF

C819 00D 257 0516 954 CK73B1E104KT +1608

C820 00D 257 3011 977 CF73=1H392JT(ECHUB5)+2125

C822 00D 257 0516 954 CK73B1E104KT +1608

C823 00D 254 4464 906 CE67C0J101MT +REF

C824,825 00D 257 0516 954 CK73B1E104KT +1608

C826 00D 257 0504 995 CC73CH1H510JT +1608

C827 00D 257 0516 954 CK73B1E104KT +1608

C828,829 00D 257 0501 901 CK73B1H103KT (1608) +1608

C830 00D 254 4464 906 CE67C0J101MT +REF

C831 00D 257 0521 907 CK73B1A105KT +1608

C832-835 00D 257 0516 954 CK73B1E104KT +1608

C836 00D 254 4464 906 CE67C0J101MT +REF

C837 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C838 00D 254 4464 906 CE67C0J101MT +REF

C839 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C840 00D 257 0504 995 CC73CH1H510JT +1608

C908 00D 257 4010 906 CE67C1C101MT +REF

Ref. No. Part No. Part Name Remarks Q'ty New

157

AVR-5805/AVC-A1XV

C909 00D 257 0516 954 CK73B1E104KT +1608

C910,911 00D 257 0504 908 CC73CH1H220JT +1608

C912 00D 257 0509 929 CK73B1H102KT +1608

C913 00D 257 0507 921 CC73CH1H201JT +1608

C915-918 00D 257 0516 954 CK73B1E104KT +1608

C919 00D 254 4471 902 CE67C1V4R7MT +REF

C920 00D 257 0501 901 CK73B1H103KT (1608) +1608

C921 00D 257 0516 954 CK73B1E104KT +1608

C922 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C923 00D 257 0516 954 CK73B1E104KT +1608

C924 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C925 00D 257 0516 954 CK73B1E104KT +1608

C926 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C927,928 00D 257 0516 954 CK73B1E104KT +1608

C929,930 00D 257 0509 929 CK73B1H102KT +1608

C931 00D 257 0516 954 CK73B1E104KT +1608

C932 00D 257 0509 929 CK73B1H102KT +1608

C933 00D 257 0516 954 CK73B1E104KT +1608

C934,935 00D 257 0509 929 CK73B1H102KT +1608

C936 00D 257 0516 954 CK73B1E104KT +1608

C937-939 00D 257 0509 929 CK73B1H102KT +1608

C940 00D 257 0507 921 CC73CH1H201JT +1608

C941-946 00D 257 0506 977 CC73CH1H121JT +1608

CC103,104 00D 257 0504 908 CC73CH1H220JT +1608

CC203,204 00D 257 0504 908 CC73CH1H220JT +1608

CC207,208 00D 257 0504 908 CC73CH1H220JT +1608

CC301,302 00D 257 0516 954 CK73B1E104KT +1608

CC305 00D 257 2010 937 CS77B1A220MT +C

CC351,352 00D 257 0516 954 CK73B1E104KT +1608

CC601-608 00D 257 0501 901 CK73B1H103KT (1608) +1608

CC609 00D 254 4465 918 CE67C1C470MT +REF

CC610 00D 257 0501 901 CK73B1H103KT (1608) +1608

CC611 00D 254 4465 918 CE67C1C470MT +REF

CC612 00D 257 0501 901 CK73B1H103KT (1608) +1608

CC613,614 00D 253 4444 907 CC45SL1H221JT

CC618 00D 257 0501 901 CK73B1H103KT (1608) +1608

CC619 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

CC620-622 00D 257 0501 901 CK73B1H103KT (1608) +1608

OTHERS PARTS GROUP

BB103,104 00D 205 1228 017 11P FJ CONN.BASE

BB301 00D 205 1228 017 11P FJ CONN.BASE

BB401 00D 205 0942 022 7P CON.SOCKET(TUC-P

BB403 00D 205 0885 008 5P CON.SOCKET TUC-P

BB405 00D 205 0885 095 8P CON.SOCKET(TUC-P)

BB701 00D 205 0885 008 5P CON.SOCKET TUC-P

BB801 00D 205 0885 008 5P CON.SOCKET TUC-P

BB901 00D 205 0885 066 11P CON.SOCKET TUC-P

BB902 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB903,904 00D 205 0885 053 10P CON.SOCKET TUC-P

BB905-907 00D 205 1229 016 11P FJ CONN.PLUG

CN908 00D 205 1072 959 7P PH CON.BASE +REF

CN910 00D 205 1072 962 8P PH CON.BASE(TAPE)

CW101 00D 205 1154 945 4P ZH-ZR CON.BASE-T

CW201 00D 205 1154 945 4P ZH-ZR CON.BASE-T

CW401 00D 203 2435 007 2P SZN-SZN CON.CORD

CX058 00D 205 1072 920 5P PH CON BASE(TAPE) +REF

CX901,902 00D 203 5345 000 3P EH-SCN CON.CORD

CX937 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF

CY035 00D 205 0449 033 3P VH CONNECTOR BASE

CY124 00D 205 0275 029 12P EH CON.BASE

CY191 00D 205 1313 951 19P FFC BASE(9610SC)

Ref. No. Part No. Part Name Remarks Q'ty New

158

AVR-5805/AVC-A1XV

CY281 00D 205 1313 980 28P FFC BASE(9610SC)

CZ101 00D 203 6616 000 4P ZH-SZN CON.CORD

CZ201 00D 203 6616 013 4P ZH-SZN CON.CORD

FB101 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB301 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB351 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB601-603 00D 247 2018 903 RM73B--0R0KT +1608

FB901 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

JK101 00D 205 1303 000 24P DVI CONNECTOR

JK102 00D 205 1331 904 19P HDMI CONNECTOR

JK201,202 00D 205 1331 904 19P HDMI CONNECTOR

JK301 00D 205 1331 904 19P HDMI CONNECTOR

JK351 00D 205 1303 000 24P DVI CONNECTOR

L101-105 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L201-205 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L301-303 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L351-353 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L401-405 00D 235 0150 909 LQH32MN150J23L

L406-417 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L601-605 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L606,607 00D 235 0150 941 LQH32MN330J23L

L608 00D 235 0150 970 LQH32MN470J23L

L610 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L701 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L703 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L704 00D 261 0163 908 ELB4B591N +REF

L705,706 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L707 00D 261 0162 909 ELB4C582N +REF

L801 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L803 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L804 00D 235 0107 910 LEM4532TR68M +C

L805 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216

L806 00D 235 0107 910 LEM4532TR68M +C

RL101,102 00D 214 0228 902 RELAY(EE2-12N35) +REF

RL201,202 00D 214 0228 902 RELAY(EE2-12N35) +REF

RL403 00D 214 0228 902 RELAY(EE2-12N35) +REF

S901 00D 212 1204 903 SLIDE SW(SSSS820201)

S902 00D 212 4807 909 TACT SW(SKQDAA) +REF

ST101,102 00D 205 0452 004 STYLE PIN

ST401 00D 205 0452 004 STYLE PIN

W101 00D 205 1034 023 M3 SCREW TERMINAL

W102 00D 203 0742 019 1P SIN-SIN WIRE

W103 00D 203 0742 022 1P SIN-SIN WIRE

W201,202 00D 205 1034 023 M3 SCREW TERMINAL

W301,302 00D 205 1034 023 M3 SCREW TERMINAL

W303 00D 203 0742 019 1P SIN-SIN WIRE

W304 00D 203 0742 022 1P SIN-SIN WIRE

X101 00D 399 0976 908 X-TAL(28.322M)

X201 00D 399 0976 908 X-TAL(28.322M)

X601 00D 399 0864 900 X'TAL(13.5MHZ) +REF

X602 00D 399 0977 907 X-TAL(42.0MHZ FCX03)

X901 00D 399 0974 900 X-TAL(12MHZ)

00D 461 0415 007 RUBBER SHEET for C613, 614

00D 004 0012 003 SHIELD WIRE

00D 004 0012 016 SHIELD WIRE

Ref. No. Part No. Part Name Remarks Q'ty New

159

AVR-5805/AVC-A1XV

00D1U-3646 A.VIDEO P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC101-111 00D 263 1082 903 TK15420MTL +C

IC112-115 00D 262 3447 909 TC4053BFT

IC116-119 00D 262 3446 900 TC4052BFT

IC120 00D 263 1082 903 TK15420MTL +C

IC121-123 00D 262 3445 901 TC4051BFT

IC124 00D 262 3447 909 TC4053BFT

IC125-127 00D 262 3445 901 TC4051BFT

IC128 00D 262 3447 909 TC4053BFT

IC129-131 00D 262 3445 901 TC4051BFT

IC132 00D 262 3447 909 TC4053BFT

IC133-137 00D 263 1082 903 TK15420MTL +C

IC501 00D 263 1082 903 TK15420MTL +C

IC502 00D 262 2827 902 MM74HC4053SJ +C

IC503 00D 262 3450 006 M35015-***SP

IC504 00D 262 1671 900 NJM2229M-TE1

IC505 00D 262 0707 901 TC4053BF (TAPE) +C

IC506,507 00D 263 1082 903 TK15420MTL +C

IC508-512 00D 263 1197 908 BU4094BCFV-E2

IC551 00D 263 1082 903 TK15420MTL +C

IC552 00D 262 2827 902 MM74HC4053SJ +C

IC553 00D 262 3450 006 M35015-***SP

IC554 00D 262 1671 900 NJM2229M-TE1

IC555 00D 262 0707 901 TC4053BF (TAPE) +C

IC556,557 00D 263 1082 903 TK15420MTL +C

IC601 00D 263 1082 903 TK15420MTL +C

IC602 00D 262 3110 906 TC90A69F +REF

IC603-605 00D 263 1082 903 TK15420MTL +C

IC606 00D 262 0707 901 TC4053BF (TAPE) +C

IC607 00D 263 1082 903 TK15420MTL +C

IC608 00D 263 1167 006 TA8772AN

IC609 00D 262 3108 002 TA1270BF +REF

IC610,611 00D 263 1082 903 TK15420MTL +C

IC612 00D 263 1165 901 NJM2274R +C

IC613,614 00D 263 1082 903 TK15420MTL +C

IC801-805 00D 263 1198 907 LT1399CS +REF

IC806-809 00D 263 1197 908 BU4094BCFV-E2

IC812 00D 263 1198 907 LT1399CS +REF

TR101 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR102,103 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR104 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR105,106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR110 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR111,112 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR113 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR114,115 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR501,502 00D 273 0464 901 KTC3875SGR-RTK +C

TR551,552 00D 273 0464 901 KTC3875SGR-RTK +C

TR601 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR602,603 00D 273 0464 901 KTC3875SGR-RTK +C

TR604,605 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR801 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR802 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR803 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR804 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR805 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR806 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR807 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR808 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR809 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR810 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR811 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR812 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR813 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

160

AVR-5805/AVC-A1XV

TR814 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR815-817 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR818 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR819 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR820,821 00D 269 0144 905 DTC114YK-T146 +C

TR822 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR823 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR824 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR825 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR826,827 00D 269 0192 902 KRC102S-RTK(10K-10K) +C

TR828 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR829 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR830 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR831 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR832 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR833 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR834 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

TR835 00D 271 0312 905 2SA/KTA1504SGR-RTK +C

TR836 00D 269 0193 901 KRC104S-RTK(47K-47K) +C

D101-104 00D 276 0794 900 KDS160 +2125

D107-110 00D 276 0794 900 KDS160 +2125

D501 00D 276 0740 909 KDS184-RTK(K-COM) +C

D502 00D 276 0794 900 KDS160 +2125

D551 00D 276 0740 909 KDS184-RTK(K-COM) +C

D552 00D 276 0794 900 KDS160 +2125

D601 00D 276 0773 905 RB501V-40 +2125

D801-819 00D 276 0794 900 KDS160 +2125

RESISTORS GROUP

VR601-603 00D 211 6131 968 V06PB102T

CAPACITORS GROUP

C101-104 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C105-116 00D 257 0501 901 CK73B1H103KT (1608) +1608

C117,118 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C119-122 00D 257 0501 901 CK73B1H103KT (1608) +1608

C123,124 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C125,126 00D 254 4464 906 CE67C0J101MT +REF

C127-150 00D 257 0501 901 CK73B1H103KT (1608) +1608

C151 00D 257 0516 941 CK73B1E473KT +1608

C152 00D 257 0516 954 CK73B1E104KT +1608

C153 00D 257 0516 941 CK73B1E473KT +1608

C154 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C155,156 00D 257 0516 941 CK73B1E473KT +1608

C157 00D 257 0516 954 CK73B1E104KT +1608

C158 00D 257 0516 941 CK73B1E473KT +1608

C159 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C160 00D 257 0516 941 CK73B1E473KT +1608

C161-165 00D 247 2018 903 RM73B--0R0KT +1608

C166,167 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C168-173 00D 254 4464 906 CE67C0J101MT +REF

C174 00D 257 0516 941 CK73B1E473KT +1608

C175 00D 257 0516 954 CK73B1E104KT +1608

C176 00D 257 0516 941 CK73B1E473KT +1608

C177 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C178 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C179 00D 257 0516 941 CK73B1E473KT +1608

C180 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C181 00D 257 0516 941 CK73B1E473KT +1608

C182 00D 257 0516 954 CK73B1E104KT +1608

C183 00D 257 0516 941 CK73B1E473KT +1608

C184 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C185 00D 257 0516 941 CK73B1E473KT +1608

C186-188 00D 247 2018 903 RM73B--0R0KT +1608

C189,190 00D 257 0501 901 CK73B1H103KT (1608) +1608

C191-194 00D 254 4464 906 CE67C0J101MT +REF

Ref. No. Part No. Part Name Remarks Q'ty New

161

AVR-5805/AVC-A1XV

C195-224 00D 257 0501 901 CK73B1H103KT (1608) +1608

C225-227 00D 247 2018 903 RM73B--0R0KT +1608

C228-233 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C501,502 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C503,504 00D 257 0516 954 CK73B1E104KT +1608

C505 00D 257 0501 901 CK73B1H103KT (1608) +1608

C507 00D 254 4464 906 CE67C0J101MT +REF

C508 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C509 00D 257 0501 901 CK73B1H103KT (1608) +1608

C510 00D 254 4464 906 CE67C0J101MT +REF

C511,512 00D 257 0504 940 CC73CH1H330JT +1608

C513 00D 257 0506 977 CC73CH1H121JT +1608

C514,515 00D 257 0503 925 CC73CH1H100DT +1608

C516,517 00D 257 0501 901 CK73B1H103KT (1608) +1608

C518 00D 257 4015 901 CE67C1C330MT(PXA)

C519 00D 257 0508 917 CC73CH1H471JT +1608

C520 00D 257 0510 918 CK73B1H332KT +1608

C521 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C522 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C523 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C524 00D 257 3015 944 CF73=1C683JT(ECHUB5)+3225

C525 00D 257 0506 993 CC73CH1H151JT +1608

C526 00D 257 0509 929 CK73B1H102KT +1608

C527 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216

C528 00D 257 0509 945 CK73B1H122KT +1608

C529 00D 257 0506 951 CC73CH1H101JT +1608

C530 00D 254 4471 902 CE67C1V4R7MT +REF

C531,532 00D 257 0501 901 CK73B1H103KT (1608) +1608

C533-535 00D 254 4464 906 CE67C0J101MT +REF

C536,537 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C538-540 00D 257 0501 901 CK73B1H103KT (1608) +1608

C541 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C543,544 00D 257 0506 977 CC73CH1H121JT +1608

C551,552 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C553,554 00D 257 0516 954 CK73B1E104KT +1608

C555 00D 257 0501 901 CK73B1H103KT (1608) +1608

C557 00D 254 4464 906 CE67C0J101MT +REF

C558 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C559 00D 257 0501 901 CK73B1H103KT (1608) +1608

C560 00D 254 4464 906 CE67C0J101MT +REF

C561,562 00D 257 0504 940 CC73CH1H330JT +1608

C563 00D 257 0506 977 CC73CH1H121JT +1608

C564,565 00D 257 0503 925 CC73CH1H100DT +1608

C566,567 00D 257 0501 901 CK73B1H103KT (1608) +1608

C568 00D 257 4015 901 CE67C1C330MT(PXA)

C569 00D 257 0508 917 CC73CH1H471JT +1608

C570 00D 257 0510 918 CK73B1H332KT +1608

C571 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C572 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C573 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C574 00D 257 3015 944 CF73=1C683JT(ECHUB5)+3225

C575 00D 257 0506 993 CC73CH1H151JT +1608

C576 00D 257 0509 929 CK73B1H102KT +1608

C577 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216

C578 00D 257 0509 945 CK73B1H122KT +1608

C579 00D 257 0506 951 CC73CH1H101JT +1608

C580 00D 254 4471 902 CE67C1V4R7MT +REF

C581,582 00D 257 0501 901 CK73B1H103KT (1608) +1608

C583-585 00D 254 4464 906 CE67C0J101MT +REF

C586,587 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C588-590 00D 257 0501 901 CK73B1H103KT (1608) +1608

C596,597 00D 257 0506 977 CC73CH1H121JT +1608

C601 00D 257 0504 908 CC73CH1H220JT +1608

C602 00D 257 0503 941 CC73CH1H120JT +1608

C603,604 00D 254 4464 906 CE67C0J101MT +REF

C605,606 00D 257 0516 954 CK73B1E104KT +1608

C607,608 00D 257 0501 901 CK73B1H103KT (1608) +1608

Ref. No. Part No. Part Name Remarks Q'ty New

162

AVR-5805/AVC-A1XV

C609,610 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C611-616 00D 257 0501 901 CK73B1H103KT (1608) +1608

C617 00D 254 4571 938 CE67C1HR47MT(MV-B) +REF

C618 00D 257 0501 901 CK73B1H103KT (1608) +1608

C619 00D 257 0508 959 CC73CH1E681JT +1608

C620-622 00D 257 0501 901 CK73B1H103KT (1608) +1608

C623 00D 257 0516 954 CK73B1E104KT +1608

C624 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C625 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C626 00D 257 0504 908 CC73CH1H220JT +1608

C627 00D 257 0503 941 CC73CH1H120JT +1608

C628 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C629 00D 257 0504 908 CC73CH1H220JT +1608

C630 00D 257 0503 941 CC73CH1H120JT +1608

C631,632 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C633,634 00D 257 0501 901 CK73B1H103KT (1608) +1608

C635-637 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C638,639 00D 254 4571 938 CE67C1HR47MT(MV-B) +REF

C640,641 00D 257 0516 954 CK73B1E104KT +1608

C642 00D 257 0501 901 CK73B1H103KT (1608) +1608

C643 00D 257 0516 954 CK73B1E104KT +1608

C644,645 00D 254 4571 938 CE67C1HR47MT(MV-B) +REF

C646 00D 257 0516 954 CK73B1E104KT +1608

C647 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C648 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C649,650 00D 257 0516 954 CK73B1E104KT +1608

C651 00D 257 0501 901 CK73B1H103KT (1608) +1608

C652 00D 257 0516 954 CK73B1E104KT +1608

C653,654 00D 257 0501 901 CK73B1H103KT (1608) +1608

C655 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C656,657 00D 257 0503 941 CC73CH1H120JT +1608

C658 00D 254 4571 925 CE67C1H2R2MT(MV-B) +REF

C659 00D 254 4571 909 CE67C1HR22MT(MV-B) +REF

C660 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125

C661 00D 257 0501 901 CK73B1H103KT (1608) +1608

C662 00D 254 4571 925 CE67C1H2R2MT(MV-B) +REF

C663 00D 257 0516 954 CK73B1E104KT +1608

C664 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216

C665,666 00D 257 0516 954 CK73B1E104KT +1608

C667 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C668 00D 254 4464 906 CE67C0J101MT +REF

C669 00D 257 0501 901 CK73B1H103KT (1608) +1608

C670-673 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C674,675 00D 257 0516 954 CK73B1E104KT +1608

C676 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C677 00D 257 0521 907 CK73B1A105KT +1608

C678 00D 257 0504 982 CC73CH1H470JT +1608

C680,681 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C682,683 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C686 00D 254 4464 906 CE67C0J101MT +REF

C687,688 00D 254 4464 951 CE67C0J220MT(MV-B) +REF

C689,690 00D 254 4571 941 CE67C1H0R1MT(MV-B)

C691-698 00D 257 0501 901 CK73B1H103KT (1608) +1608

C699,700 00D 257 0503 996 CC73CH1H200JT +1608

C701-704 00D 257 0501 901 CK73B1H103KT (1608) +1608

C705,706 00D 254 4464 906 CE67C0J101MT +REF

C707-712 00D 257 0501 901 CK73B1H103KT (1608) +1608

C713,714 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C715,716 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF

C801-806 00D 254 4464 906 CE67C0J101MT +REF

C807-812 00D 257 0506 951 CC73CH1H101JT +1608

C813,814 00D 257 0516 941 CK73B1E473KT +1608

C815,816 00D 257 0501 901 CK73B1H103KT (1608) +1608

C817,818 00D 257 0516 941 CK73B1E473KT +1608

C819,820 00D 254 4571 912 CE67C1H010MT(MV-B) +REF

C821,822 00D 257 0516 941 CK73B1E473KT +1608

C823 00D 257 0501 901 CK73B1H103KT (1608) +1608

Ref. No. Part No. Part Name Remarks Q'ty New

163

AVR-5805/AVC-A1XV

C824-829 00D 257 0506 951 CC73CH1H101JT +1608

C830 00D 257 0501 901 CK73B1H103KT (1608) +1608

C837,838 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C839-841 00D 257 0506 951 CC73CH1H101JT +1608

C845-853 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

C854-867 00D 257 0501 901 CK73B1H103KT (1608) +1608

C868,869 00D 257 0507 934 CC73CH1H221JT +1608

C870 00D 254 4464 906 CE67C0J101MT +REF

C871,872 00D 257 0501 901 CK73B1H103KT (1608) +1608

C873,874 00D 254 4464 906 CE67C0J101MT +REF

C875,876 00D 254 4572 908 CE67C1C100MT(MV-B) +REF

R764-766 00D 247 2018 903 RM73B--0R0KT +1608

R987 00D 257 0507 934 CC73CH1H221JT +1608

R989 00D 257 0507 934 CC73CH1H221JT +1608

OTHERS PARTS GROUP

BB105 00D 205 0885 053 10P CON.SOCKET TUC-P

BB107 00D 205 0885 008 5P CON.SOCKET TUC-P

BB501 00D 205 0885 053 10P CON.SOCKET TUC-P

BB502 00D 205 0942 022 7P CON.SOCKET(TUC-P

BB503 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB602 00D 205 0885 095 8P CON.SOCKET(TUC-P)

BB603 00D 205 0885 008 5P CON.SOCKET TUC-P

BB802-804 00D 205 0885 008 5P CON.SOCKET TUC-P

BB805 00D 205 0884 067 11P CON.BASE TUC-P

BB807 00D 205 0884 067 11P CON.BASE TUC-P

BB809 00D 205 0885 095 8P CON.SOCKET(TUC-P)

BB810 00D 205 0885 066 11P CON.SOCKET TUC-P

BB811-815 00D 205 0884 038 9P CON.BASE TUC-P

BB902 00D 205 1324 021 12P PIN HEADER(9120)

CX052 00D 205 0863 952 5P PH CON.BASE(L) +REF

CX121 00D 205 1313 935 12P FFC BASE(9610SC)

FB501 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB551 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

FB601-603 00D 235 0130 903 CHIP EMIFIL(11A121) +1608

FB604 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125

JK101-107 00D 204 8705 006 4P S&PIN JACK(AU)

JK108 00D 204 8704 007 2P S&PIN JACK(AU)

JK801-805 00D 204 8578 000 3P PIN JACK(S-GND)

L501 00D 235 0150 909 LQH32MN150J23L

L551 00D 235 0150 909 LQH32MN150J23L

L601 00D 235 0150 938 LQH32MN270J23L +C

L602 00D 235 0150 954 LQH32MN101J23L +C

L603,604 00D 235 0150 938 LQH32MN270J23L +C

RL801-812 00D 214 0228 902 RELAY(EE2-12N35) +REF

RL821-832 00D 214 0228 902 RELAY(EE2-12N35) +REF

RL841-846 00D 214 0228 902 RELAY(EE2-12N35) +REF

W501 00D 203 5348 007 3P PH-SIN CON.CORD

X501 00D 399 0739 006 X'TAL(14.32M-RIBER)

X502 00D 399 0105 009 CSB503F2

X551 00D 399 0739 006 X'TAL(14.32M-RIBER)

X552 00D 399 0105 009 CSB503F2

X601 00D 399 0810 006 CSB503F30

X602 00D 399 0809 004 X'TAL(4.43MHZ)

X603 00D 399 0802 001 X'TAL(3.58MHZ)

Ref. No. Part No. Part Name Remarks Q'ty New

164

AVR-5805/AVC-A1XV

00D1U-3647 CONNECT-1 P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

OTHERS PARTS GROUP

BB101,102 00D 205 0885 040 15P CON.SOCKET TUC-P

BB103 00D 205 0885 037 9P CON.SOCKET TUC-P

BB104 00D 205 0885 040 15P CON.SOCKET TUC-P

BB105,106 00D 205 0884 070 12P CON.BASE TUC-P

BB108 00D 205 1323 093 9P PIN HEADER(9120)

BB109 00D 205 1324 021 12P PIN HEADER(9120)

BB110 00D 205 1324 018 11P PIN HEADER(9120)

BB111 00D 205 1323 064 6P PIN HEADER(9120)

BB112 00D 205 1324 021 12P PIN HEADER(9120)

BB113 00D 205 1324 047 14P PIN HEADER(9120)

BB114 00D 205 1324 034 13P PIN HEADER(9120)

BB115 00D 205 1324 050 15P PIN HEADER(9120)

BB201,202 00D 205 0884 070 12P CON.BASE TUC-P

BB203 00D 205 0943 018 6P CON.BASE(TUC-P)

BB204 00D 205 0884 067 11P CON.BASE TUC-P

BB205-207 00D 205 0884 041 15P CON.BASE TUC-P

BB208 00D 205 0884 067 11P CON.BASE TUC-P

BB209-211 00D 205 0884 041 15P CON.BASE TUC-P

BB212 00D 205 0884 067 11P CON.BASE TUC-P

BB213 00D 205 0943 018 6P CON.BASE(TUC-P)

BB214 00D 205 0884 067 11P CON.BASE TUC-P

BB219,220 00D 205 0884 070 12P CON.BASE TUC-P

BB301 00D 205 0885 053 10P CON.SOCKET TUC-P

BB302 00D 205 0885 040 15P CON.SOCKET TUC-P

BB303 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB304 00D 205 0885 040 15P CON.SOCKET TUC-P

BB305,306 00D 205 0885 082 4P CON.SOCKET(TUC-P)

BB307 00D 205 0942 019 6P CON.SOCKET(TUC-P

BB308-311 00D 205 0884 041 15P CON.BASE TUC-P

BB312 00D 205 0884 070 12P CON.BASE TUC-P

BB313 00D 205 0943 005 13P CON.BASE(TUC-P)

BB314 00D 205 0884 096 8P CON BASE(TUC-P)

BB315-318 00D 205 1324 050 15P PIN HEADER(9120)

BB319 00D 205 1324 021 12P PIN HEADER(9120)

BB320 00D 205 1324 047 14P PIN HEADER(9120)

BB321 00D 205 1323 051 5P PIN HEADER(9120)

BB322 00D 205 1323 077 7P PIN HEADER(9120)

BB323 00D 205 1324 050 15P PIN HEADER(9120)

CW836,837 00D 203 5349 006 3P SAN-SAN CON.CORD

CX033 00D 205 0343 032 3P CONN.BASE(KR-PH)

CX043 00D 205 0343 045 4P CONN.BASE(KR-PH)

CX045 00D 205 0343 045 4P CONN.BASE(KR-PH)

CX068 00D 205 0653 065 6P VH CONNECTOR BASE

CX084 00D 205 0343 087 8P CONN.BASE(KR-PH)

CX100 00D 205 0480 005 10P KR CON BASE(L)

CX182 00D 205 1329 013 18P FFC BASE(9610SB)

CX271 00D 205 1329 000 27P FFC BASE(9610SB)

CX830 00D 205 0276 031 3P EH CON BASE (BU)

CX831 00D 205 0277 030 3P EH CON BASE (RD)

CX951 00D 205 0343 058 5P CONN.BASE(KR-PH)

CY054 00D 205 0355 059 5P KR CON BASE(L)

CY933 00D 205 0321 038 3P CONNE.BASE(RED)

ST101-105 00D 205 0452 004 STYLE PIN

W101,102 00D 205 1034 023 M3 SCREW TERMINAL

W301,302 00D 205 1034 023 M3 SCREW TERMINAL

165

AVR-5805/AVC-A1XV

00D1U-3650B CONNECT-2 P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty New

SEMICONDUCTORS GROUP

IC601 00D 263 1092 003 BA05T

IC602 00D 263 1104 001 BA08T

TR501 00D 273 0468 907 2SC/KTC3199GR-AT

TR505 00D 273 0468 907 2SC/KTC3199GR-AT

D501,502 00D 276 0432 903 1SS270A TE (TAPE)

CAPACITORS GROUP

C501,502 00D 254 4573 949 CE04W1H010MT(RE3)

C601 00D 254 4533 950 CE04W0J471MT SMG/RE3

C601,602 00D 254 4577 945 CE04W1C101MT(RE3)

C603 00D 254 4577 932 CE04W1C470MT(RE3)

OTHERS PARTS GROUP

BB101 00D 205 0884 054 10P CON.BASE TUC-P

BB102 00D 205 0943 018 6P CON.BASE(TUC-P)

BB103 00D 205 0884 041 15P CON.BASE TUC-P

BB104 00D 205 0943 021 7P CON.BASE(TUC-P)

BB105 00D 205 0884 038 9P CON.BASE TUC-P

BB106 00D 205 0884 083 4P CON.BASE(TUC-P)

BB107 00D 205 0943 018 6P CON.BASE(TUC-P)

BB108 00D 205 0884 054 10P CON.BASE TUC-P

BB109 00D 205 0884 083 4P CON.BASE(TUC-P)

BB110 00D 205 0884 054 10P CON.BASE TUC-P

BB111 00D 205 0884 041 15P CON.BASE TUC-P

BB112 00D 205 0943 018 6P CON.BASE(TUC-P)

BB113 00D 205 0884 041 15P CON.BASE TUC-P

BB114 00D 205 0884 083 4P CON.BASE(TUC-P)

BB115 00D 205 0943 005 13P CON.BASE(TUC-P)

BB116,117 00D 205 0884 070 12P CON.BASE TUC-P

BB118 00D 205 0884 038 9P CON.BASE TUC-P

BB119 00D 205 0884 083 4P CON.BASE(TUC-P)

BB120 00D 205 0884 041 15P CON.BASE TUC-P

BB121 00D 205 0884 083 4P CON.BASE(TUC-P)

BB122,123 00D 205 0884 041 15P CON.BASE TUC-P

BB124 00D 205 0884 038 9P CON.BASE TUC-P

BB125 00D 205 0884 041 15P CON.BASE TUC-P

BB201,202 00D 205 0942 006 13P CON.SOCKET(TUC-P

BB203 00D 205 0885 011 14P CON.SOCKET TUC-P

BB204,205 00D 205 0942 006 13P CON.SOCKET(TUC-P

BB206 00D 205 0885 079 12P CON.SOCKET TUC-P

BB207,208 00D 205 0942 006 13P CON.SOCKET(TUC-P

BB209 00D 205 0885 011 14P CON.SOCKET TUC-P

BB210,211 00D 205 0942 006 13P CON.SOCKET(TUC-P

BB212 00D 205 0885 079 12P CON.SOCKET TUC-P

BB213 00D 205 0884 067 11P CON.BASE TUC-P

BB214 00D 205 0943 021 7P CON.BASE(TUC-P)

BB215,216 00D 205 0884 067 11P CON.BASE TUC-P

BB217 00D 205 1092 023 11P CON PLUG TWG-P

BB218 00D 205 1092 010 7P CON PLUG TWG-P

BB219,220 00D 205 1092 023 11P CON PLUG TWG-P

BB303 00D 205 0884 096 8P CON BASE(TUC-P)

BB304,305 00D 205 0884 009 5P CON.BASE TUC-P

BB306 00D 205 0943 021 7P CON.BASE(TUC-P)

BB307 00D 205 0884 009 5P CON.BASE TUC-P

BB308 00D 205 0884 054 10P CON.BASE TUC-P

BB309 00D 205 0943 018 6P CON.BASE(TUC-P)

BB310 00D 205 0884 067 11P CON.BASE TUC-P

BB311 00D 205 0884 054 10P CON.BASE TUC-P

BB312 00D 205 0884 096 8P CON BASE(TUC-P)

BB313,314 00D 205 0884 009 5P CON.BASE TUC-P

BB315 00D 205 0884 067 11P CON.BASE TUC-P

BB316 00D 205 0884 009 5P CON.BASE TUC-P

166

AVR-5805/AVC-A1XV

BB317 00D 205 0884 096 8P CON BASE(TUC-P)

BB318 00D 205 0884 009 5P CON.BASE TUC-P

BB319 00D 205 0943 021 7P CON.BASE(TUC-P)

BB320 00D 205 0884 009 5P CON.BASE TUC-P

BB321 00D 205 0884 054 10P CON.BASE TUC-P

BB322 00D 205 0943 018 6P CON.BASE(TUC-P)

BB323 00D 205 0884 054 10P CON.BASE TUC-P

BB401,402 00D 205 0885 066 11P CON.SOCKET TUC-P

CX735 00D 205 0343 032 3P CONN.BASE(KR-PH)

CX736 00D 205 0278 039 3P EH CON BASE (BK)

CX737 00D 205 0276 031 3P EH CON BASE (BU)

CY734 00D 205 0685 033 3P CON.BASE(BLK)L

J201-205 00D 253 4452 902 CC45SL1H471JT

J207-210 00D 253 4452 902 CC45SL1H471JT

JK401,402 00D 205 1332 000 3P BNC CONNECTOR(AU)

JK403 00D 204 8709 002 6P PIN JACK(AU,RBG)

RL501-504 00D 214 0235 005 RELAY(VSB-12STB)

W501 00D 203 5346 012 3C WIRE ASS'Y

W504 00D 203 5346 012 3C WIRE ASS'Y

W507-516 00D 205 0864 003 M3 SCREW TERMINAL

Ref. No. Part No. Part Name Remarks Q'ty New

167

AVR-5805/AVC-A1XV

(FRONT Section)

149

148

77 91

100

101

102

104

154

153

103

7-4

7-5

7-3

7-8

7-9

-1

-6

-7

-2

Parts List

Parts marked with this symbol have critical

characteristics.

Use ONLY replacement parts recommended by

the manufacturer.

WARNING:

印の部分は安全を維持するために重要

な部品です。従って交換時は必ず指定の

部品を使用してください。

EXPLODED VIEWS

168

AVR-5805/AVC-A1XV

Parts marked with this symbol have critical

characteristics.

Use ONLY replacement parts recommended by

the manufacturer.

WARNING:

印の部分は安全を維持するために重要

な部品です。従って交換時は必ず指定の

部品を使用してください。

Parts List

169

AVR-5805/AVC-A1XV

PARTS LIST OF EXPLODED VIEW

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。

Ref. No. Part No. Part Name Remarks Q'ty New

1 00D1U-3551A DSP ADI EX UNIT ASS'Y 1

2 00D1U-3636 1394 UNIT ASS'Y 1 *

2-1 IEEE1394 UNIT

2-2 ETHERNET UNIT

3 00D1U-3637B AMP(L) UNIT ASS'Y 1 *

3-1 POWER AMP UNIT

3-2 POWER TR. UNIT

3-3 TR108 UNIT

3-4 TR208 UNIT

3-5 TR308 UNIT

3-6 TR408 UNIT

3-7 TR508 UNIT

3-8 SP UNIT

3-9 POWER AMP CONN. UNIT

3-10 PROTECTION UNIT

3-11 RL TR UNIT

4 00D1U-3637C AMP(R) UNIT ASS'Y 1 *

4-1 POWER AMP UNIT

4-2 POWER TR. UNIT

4-3 TR108 UNIT

4-4 TR208 UNIT

4-5 TR308 UNIT

4-6 TR408 UNIT

4-7 TR508 UNIT

4-8 SP UNIT

4-9 POWER AMP CONN. UNIT

4-10 PROTECTION UNIT

4-11 RL TR UNIT

5 00D1U-3638B REG1 UNIT ASS'Y 1 *

5-1 PRE REG UNIT

5-2 REG UNIT

5-3 2ND FUSE UNIT

5-4 TRI. SUPPLY UNIT

5-6 CPU REG UNIT

5-7 PRE 7V UNIT

5-8 TRANS CONNECT UNIT

5-11 MUTE 5V UNIT

6 00D1U-3639B REG2 UNIT ASS'Y 1 *

6-1 P. SUPPLY-L UNIT

6-2 P. SUPPLY-R UNIT

6-3 1STRL DRIVE UNIT

6-4 RUSH R UNIT

6-5 AC INLET UNIT

6-6 AC OUTLET UNIT

6-7 FAN DRIVE UNIT

6-8 VCPU SUPPLY UNIT

6-11 BACK 232C UNIT

6-12 232C CONN. UNIT

6-13 TRIGGER UNIT

6-14 DSP REG UNIT

170

AVR-5805/AVC-A1XV

7 00D1U-3640 FRONT UNIT ASS'Y 1 *

7-1 FLD UNIT

7-2 TACT UNIT

7-3 P. SW UNIT

7-4 FUNCTION SEL UNIT

7-5 POWER LED UNIT

7-6 VOLUME UNIT

7-7 K4 UNIT

7-8 FRONT IN UNIT

7-9 FFC CONNECT UNIT

8 00D1U-3641B AUDIO UNIT ASS'Y 1 *

8-1 AUDIO IN UNIT

8-2 VOLUME UNIT

9 00D1U-3642B DAC UNIT ASS'Y 1 *

10 00D1U-3643B AD UNIT ASS'Y 1 *

10-1 AD UNIT

10-2 PREOUT UNIT

11 00D1U-3644B DIGITAL UNIT ASS'Y 1 *

12 00D1U-3645B D.VIDEO UNIT ASS'Y

12-1 HDMI UNIT

12-2 SCALER UNIT

13 00D1U-3646 A. VIDEO UNIT ASS'Y 1 *

13-1 S&VIDEO UNIT

13-2 COMPONENT UNIT

13-3 FPGA CONN UNIT

14 00D1U-3647 CONNECT-1 UNIT ASS'Y 1 *

14-1 BOTTOM-L UNIT

14-2 A. CONN-C UNIT

14-3 BOTTOM-R UNIT

15 00D1U-3650B CONNECT-2 UNIT ASS'Y 1 *

15-1 A. CONN-B UNIT

15-2 A. CONN-R UNIT

15-3 A. CONN-L UNIT

15-4 AD CONNECT UNIT

15-5 V. CONNECT-R UNIT

15-6 V. CONNECT-L UNIT

15-7 BNC UNIT

15-8 MONITOR UNIT

15-9 D-TERMINAL IN UNIT

15-10 CONNECT D UNIT

15-11 D-TERMINAL OUT UNIT

15-12 B RL LCH UNIT

15-13 B RL RCH UNIT

16 00D 411 2062 110 FRONT CHASSIS 1 *

17 00D 411 2070 115 SIDE ANGLE (L) 1 *

18 00D 411 2071 114 SIDE ANGLE (R) 1 *

19 00D 411 2069 210 FRONT ANGLE 207 1 *

20 00D 412 5192 019 FRAME 2*

24 00D 411 2072 016 SIDE CHASSIS 2 *

25 00D 415 0469 063 FLEXIBLE BUSH 4 *

26 00D 449 0202 061 LOCKING CARD SPACER 2

27 00D 105 1466 210 BACK PANEL 1 *

29 00D 411 2060 112 TRANS CHASSIS 1 *

30 00D 449 0114 078 EDGING (CE-016) L=180 2 *

33 00D 411 2061 108 SHIELD PLATE (A) 1 *

34 00D 412 2814 028 CARD SPACER(L=10) 2

Ref. No. Part No. Part Name Remarks Q'ty New

171

AVR-5805/AVC-A1XV

35 00D 412 5168 001 SHIELD PLATE (B) 1 *

 36 00D 412 2814 031 CARD SPACER (L=4) 3

37 00D 412 5165 114 SIDE FRAME (L) 1 *

38 00D 449 0114 065 EDGING (CE-016) L=130 4

39 00D 412 4825 002 RADIATOR BRACKET(L) 4

40 00D 414 1007 117 SIDE PLATE (L) 1 *

41 00D 415 0952 101 SAFETY SHEET 2 *

42 00D 479 0003 025 PUSH RIVET 8

43 00D 412 5166 113 SIDE FRAME (R) 1 *

44 00D 414 1008 116 SIDE PLATE (R) 1 *

45 00D 414 1003 205 SHIELD PLATE 1 *

46 00D 412 5180 018 SUPPORT BRACKET 1 *

47 00D 254 6243 701 CE68W--333MC(***) 4 *

48 00D 415 0860 002 SPACER 2

49 00D 412 4715 002 C. HOLDER 2

 50 00D 443 1598 006 COLLAR L=4 2

 51 00D 475 6006 008 3N 2

52 00D 417 0664 217 RADIATOR 1*

53 00D 412 5176 103 CU PLATE 3*

54 00D 412 5181 017 RADIATOR BRACKET (L) 1 *

55 00D 412 5182 016 RADIATOR BRACKET (R) 1 *

 56 00D 276 0804 007 RBV-2506 4

 57 00D 276 0584 000 RBV-604 4

 58 00D 272 0159 006 MP1715(O/P/Y)LF(202) 10

 58-1 00D 272 0159 019 MP1715(O/P/Y)LF(202) 1

 59 00D 274 0199 004 MN1715(O/P/Y)LF(202) 10

 59-1 00D 274 0199 017 MN1715(O/P/Y)LF(202) 6

 60 00D 271 0220 000 2SA1493(O)/(Y) 2

 61 00D 273 0354 008 2SC3857(O)/(Y) 2

62 00D 415 0953 100 INSULATING SHEET 1

63 00D 479 0003 038 PUSH RIVET 4

! 64 00D 233 6481 003 MAIN TRANS(E2) 1 *

65 00D 414 1004 204 SHIELD PLATE 1 *

66 00D 421 0829 006 FAN(80X80)12V 1 *

! 69 00D 233 6482 002 MINI TRANS(V/E2) 1 *

70 00D 105 1467 112 BACK PLATE 1*

71 00D 412 2814 015 CARD SPACER (L=14) 4

! 72 00D 203 3970 008 AC INLET 1

 73 00D 445 8004 007 WIRE CLAMPER 1

75 00D 144 2912 315 FRONT PANEL 1 *

76 00D 143 0991 102 LENS 3

77 00D 146 2388 110 KNOB GUIDE 1 *

78 00D 146 2386 112 KNOB BASE(R) 1 *

79 00D 146 2387 111 KNOB BASE(L) 1 *

80 00D 113 2012 017 KNOB CAP (USER) 3 *

81 00D 131 0158 010 DENON BADGE 1

82 00D 146 2389 009 FLD FRAME 1*

83 00D 143 1209 107 DISPLAY SHEET 1 *

84 00D 143 1210 015 WINDOW 1*

85 00D 146 2390 014 DOOR FRAME 1 *

86 00D 143 1211 111 DOOR SHEET 1 *

87 00D 461 1065 016 DOOR STOPPER 2

88 00D 412 5179 003 SUPPORT BRACKET 2 *

89 00D 113 2009 211 CURSOR KNOB 1 *

90 00D 412 4177 006 VR BRACKET 2

91 00D 113 2011 115 TACT KNOB ASS'Y 1 *

Ref. No. Part No. Part Name Remarks Q'ty New

172

AVR-5805/AVC-A1XV

92 00D 143 1189 007 POWER LENS 1

93 00D 113 1992 138 P.KNOB ASS'Y(SUB) 1

94 00D 113 1994 149 P.KNOB ASS'Y(MAIN) 1

95 00D 341 0051 002 CLAMP MAGNET 2

96 00D 144 2921 212 DOOR ASS'Y 1 *

97 00D 401 0198 102 HINGE (L) 1*

98 00D 441 1994 206 CATCH PLATE (L) 1 *

99 00D 401 0199 101 HINGE (R) 1*

100 00D 441 1995 205 CATCH PLATE (R) 1 *

101 00D 443 1595 009 HOLDER 2*

102 00D 421 0763 007 GEAR DAMPER 2

103 00D 146 2391 107 DOOR COVER 1 *

104 00D 461 1182 009 RUBBER SHEET 2

105 00D 412 5170 015 TRANS SUPPORT 1 *

107 00D 412 5195 003 PLATE 1*

108 00D 415 0956 000 INSULATOR(YC40B) 6

109 00D 415 0669 009 INSULATING SHEET 220 6

110 00D 412 5169 110 TRANS BRACKET 1 *

! 111 00D 233 6486 008 SUB TRANS(E2) 1 *

! 112 00D 233 6483 001 AUDIO TRANS(E2) 1 *

! 113 00D 233 6484 000 VIDEO TRANS(E2) 1 *

! 114 00D 233 6485 009 MINI TRANS(M/E2) 1 *

115 00D 417 0672 005 RADIATOR 1*

116 00D 105 1468 111 BACK PLATE 1*

117 00D 449 0223 011 PWB HOLDER (H=18) 4

118 00D 105 1377 134 BOTTOM COVER 1 *

119 00D 146 2088 122 FOOT ASS'Y 4*

120 00D 104 0345 009 FOOT ASS'Y 1*

123 00D GEN 6737 H1 LICENSE SUB ASS'Y 1 *

125 00D 417 0661 113 RADIATOR 1*

126 00D 412 5171 137 RADIATOR BRACKET (L) 1 *

127 00D 412 5172 123 RADIATOR BRACKET (R) 1 *

 128 00D 412 4127 014 PWB BRACKET(B) 6

 129 00D 443 1596 008 SCREW POST 4 *

 130 00D 443 1596 011 SCREW POST 8 *

131 00D 412 5196 015 TR BRACKET 2 *

132 00D 417 0663 111 RADIATOR 1*

133 00D 412 5171 124 RADIATOR BRACKET (L) 1 *

134 00D 412 5172 136 RADIATOR BRACKET (R) 1 *

136 00D 449 0223 008 PWB HOLDER (H=23) 4

137 00D 412 2814 044 CARD SPACER (L=6) 4

138 00D 412 5184 111 RADIATOR SUPPORT (L) 1 *

139 00D 412 5185 110 RADIATOR SUPPORT (R) 1 *

140 00D 205 1116 006 TERMINAL ASS 1

141 00D 411 2068 017 REAR ANGLE 1 *

142 00D 102 0632 130 TOP COVER 1*

143 00D 403 0062 001 TOP PLATE 1*

144 00D 461 0957 044 RUBBER FOAM 50X10X2 3

145 00D 461 0550 085 RUBBER PAD 35X8X1 10

146 00D 144 2913 217 SIDE COVER (L) 1 *

147 00D 144 2915 215 SIDE COVER (R) 1 *

148 00D 112 0946 014 KNOB (V) ASS'Y 1 *

149 00D 112 0948 012 KNOB (S) ASS'Y 1 *

150 00D 146 2392 009 SCREW COVER 2 *

151 00D 513 1581 011 SERIAL NO. SHEET 1

152 00D 113 1945 004 RJ45 DUST COVER 2

Ref. No. Part No. Part Name Remarks Q'ty New

173

AVR-5805/AVC-A1XV

153 00D 441 1999 007 EARTH BRACKET 3 *

154 00D 414 1012 005 HINGE COVER 2 *

 161 00D 203 2434 008 2P VA-VA CON.CORD CY020 1

 162 00D 412 5199 009 PWB BRACKET 2

 163 00D 414 1016 001 SHIELD SHEET (C) 1

 164 00D 414 1016 014 SHIELD SHEET (C) 1

 165 00D 204 0590 002 6P PH-PH CON.CORD CY061 1

 166 00D 204 0590 015 6P PH-PH CON.CORD CY062 1

 167 00D 204 2978 004 8P PH-PH CON.CORD CY081 1

 168 00D 204 2978 017 8P PH-PH CON.CORD CY082 1

 169 00D 204 2977 005 10P PH-PH CON.CORD CY102 1

 170 00D 204 2977 018 10P PH-PH CON.CORD CY103 1

 171 00D 203 5351 052 3P PH-PH CON.CORD CX733 1

 172 00D 203 5351 078 3P PH-PH CON.CORD CX730 1

 173 00D 203 5351 065 3P PH-PH CON.CORD CX731 1

 174 00D 203 6618 008 4P PH-SM CON.CORD CX045 1

 175 00D 203 5352 019 3P EH-EH CON.CORD CX830 1

 176 00D 203 8553 019 5P PH-PH CON.CORD CY054 1

 177 00D 204 2978 020 8P PH-PH CON.CORD CX084 1

 178 00D 203 5351 023 3P PH-PH CON.CORD CX033 1

 179 00D 204 2980 005 10P PH-PH CON.CORD CX100 1

 180 00D 203 6617 009 4P PH-PH CON.CORD CX043 1

 181 00D 203 5352 022 3P EH-EH CON.CORD CX831,CY933 2

 182 00D 204 0591 001 6P VH-VH CON.CORD CX068 1

 183 00D 203 8554 005 5P PH-SM CON.CORD CX951 1

 184 00D 461 1186 018 SPACER 60X10X0.3 2

 185 00D 414 1015 015 SHIELD SHEET (B) 1

 186 00D 414 1015 002 SHIELD SHEET (B) 1

 187 00D 449 0114 023 EDGING (CE-016) L=100 2

 188 00D 125 0075 004 CHUKOH TAPE 25X230X0.16 2

 189 00D 276 0814 000 KCH30A15 D-202,204 2

 190 00D 276 0815 009 KRH30A15 D-201,203 2

 191 00D 417 0665 009 RADIATOR 2

 192 00D 461 1214 003 R/BRACKET PLATE 40X11X3 2

 193 00D 125 0092 016 BUTYL TAPE (W=25) 3

 194 00D 125 0096 012 NITOFLON TAPE(W25) 3

 195 00D 445 0048 003 CORD HOLDER (L76) 5

 196 00D 412 5205 003 FAN BRACKET 2

 197 00D 461 1055 000 SPACER 16X7X4 2

 198 00D 203 8555 004 5P PH-PH CON.CORD CX052 1

 199 00D 203 5354 004 3P VH-VH CON.CORD CY035 1

 200 00D 204 6779 005 12P EH-EH CON.CORD CY124 1

 201 00D 203 5351 049 3P PH-PH CON.CORD CY734 1

 202 00D 203 8553 006 5P PH-PH CON.CORD CY055 1

 203 00D 203 5355 003 3P PH-PH CON.CORD CX839 1

 204 00D 417 0681 009 HEAT SINK 1

 205 00D 461 1215 002 SPACER 1

 206 00D 342 0030 000 FERRITE CORE 1

 207 00D 203 5352 006 3P EH-EH CON.CORD CY932 1

 208 00D 009 0258 024 18P FFC(1.0) CY185 1

 209 00D 009 0258 066 27P FFC(1.0) CY272 1

 210 00D 203 0745 003 1P CONTACT ASS'Y 2

 211 00D 203 0746 002 1P CONTACT ASS'Y 2

 212 00D 449 0070 002 LOCKING CARD SPACER KGLS-5RT 2

 213 00D 449 0033 007 LOCKING CARD SPACER KGLS-16S 1

 214 00D 461 0938 005 RUBBER SPACER 12X10X10 1

Ref. No. Part No. Part Name Remarks Q'ty New

174

AVR-5805/AVC-A1XV

 215 00D 203 5351 007 3P PH-PH CON.CORD CY038,039,930 3

 216 00D 203 5351 010 3P PH-PH CON.CORD CY931 1

 217 00D 203 5354 017 3P VH-VH CON.CORD CX031 1

 218 00D 203 5354 020 3P VH-VH CON.CORD CX037 1

 219 00D 204 0591 014 6P VH-VH CON.CORD CY069 1

 220 00D 204 2979 003 7P PH-PH CON.CORD CX032,033 1

 221 00D 203 6619 007 4P PH-PH CON.CORD CX042 1

 222 00D 009 0258 011 18P FFC(1.0) CX181 1

 223 00D 009 0258 053 26P FFC(1.0) CX261 1

 224 00D 009 0258 040 20P FFC(1.0) CX201 1

 225 00D 009 0258 008 12P FFC(1.0) CX123 1

 226 00D 009 0258 037 19P FFC(1.0) CX191 1

 227 00D 009 0258 079 28P FFC(1.0) CX281 1

 228 00D 204 2981 004 10P ZH-PH CON.CORD CX104 1

 230 00D 009 0259 007 18P FFC(1.0) CX182 1

 231 00D 009 0259 010 27P FFC(1.0) CX271 1

 232 00D 414 1014 003 SHIELD SHEET (A) 2

 233 00D 414 1014 016 SHIELD SHEET (A) 2

 234 00D 412 4858 008 L BRACKET 4

 235 00D 414 1017 000 SHIELD SHEET (D) 4

 236 00D 203 6617 012 4P PH-PH CON.CORD CY047 1

 237 00D 461 0997 046 RUBBER SHEET 80X8X5 FFC 1

 238 00D 461 0756 083 RUBBER SHEET FFC 1

 239 00D 461 0315 068 CUSHION SHEET 4

 241 00D 412 5209 009 BRACKET L 2

 242 00D 415 0959 007 INSULATING SHEET(A) 1

 243 00D 412 5210 001 PWB BRACKET 1

 244 00D 412 2741 010 P.W.B.HOLDER (H=6) 8

 245 00D 415 0957 009 GLASS TUBE 1

! 246 00D 203 3981 000 AC OUTLET (E2) 1

 247 00D 144 2939 013 D-SUB COVER 1

 248 00D 443 1605 009 LOCK WASHER 2

 249 00D 415 0845 001 SP RIVET 20

SCREWS

301 00D 470 0009 022 3X6 CPS (SW.W) ZNP 14

302 00D 471 9058 006 SPECIAL SCREW 8

303 00D 471 9058 022 SPECIAL SCREW L=6 8

304 00D 473 7002 005 3X6 CBTS(S)-Z 81

305 00D 473 7002 018 3X8 CBTS (S)-Z 21

306 00D 473 7003 017 3X8 CFTS (S)-B 2

307 00D 473 7004 016 4X6 CBTS (S)-Z 28

308 00D 473 7005 073 3X5 CBTS(S)Z 6

309 00D 473 7005 086 3X4 CBTS (S)-Z 4

310 00D 473 7007 000 4X8 CBTS (S)-B 4

311 00D 473 7015 005 3X6 CBTS(S)-B 66

312 00D 473 7015 018 3X8 CBTS (S)-B 17

314 00D 473 7500 015 3X8 CBTS (P)-Z 62

315 00D 473 7500 028 3X8 CFTS (P)-Z 2

316 00D 473 7505 010 2.6X6 CBTS (P)-Z 9

317 00D 473 7506 019 2X6 CBTS (P)-Z 4

318 00D 473 8007 009 3X12 CUP SCREW 3

319 00D 473 8007 025 3X8 CUP SCREW 8

320 00D 473 8007 038 3X14 CUP SCREW 2

Ref. No. Part No. Part Name Remarks Q'ty New

175

AVR-5805/AVC-A1XV

321 00D 473 8007 083 3X8 CUP SCREW 12

322 00D 473 8034 098 3X10 CBTS(B)-B 42

323 00D 477 0064 107 FIXING SCREW 65

324 00D 477 0153 018 3X16 CPTS(B) SW W 67

325 00D 477 0262 019 SPECIAL SCREW 2

326 00D 477 0263 005 3P. SWELLING SCREW 6

 327 00D 473 7006 027 3X10 CBTS(B)-B 5

 328 00D 471 9062 018 SPECIAL SCREW 2

 329 00D 473 7002 021 3X8 CBTS (S)-B 8

 330 00D 473 7005 002 3X10 CBTS (S)-Z 4

 331 00D 473 7508 017 3X10 CBTS (P)-B 6

 332 00D 473 8088 002 3X4 CBTS (B)-Z 2

Ref. No. Part No. Part Name Remarks Q'ty New

176

AVR-5805/AVC-A1XV

PACKING VIEW

PARTS LIST OF PACKING & ACCESSORIES

Note: The symbols in the column "Remarks" indicate the following destinations.

Ref. No. Part No. Part Name Remarks Q'ty New

401 00D 504 0192 122 CABINET SHEET 1

402 00D 501 2102 072 CARTON CASE 1

403 00D 501 2270 001 SPACER 2

404 00D 509 0188 005 SHEET 1

405 00D 502 1098 009 PAD 1

406 00D 503 1361 111 CUSHION ASS'Y 1

407 00D 501 2262 006 PAD 1

408 00D 505 8006 019 ENVELOPE 1

409 00D 511 4276 000 INST. MANUAL (E2) 1

410 00D 511 4289 000 INST.MANUAL(E2/CDROM) 1

411 00D 511 4254 006 PRESET CODE SHEET 1

412 00D 515 0921 306 S.S.LIST(EX) 1

! 413 00D 206 2215 006 AC CORD-E1/10A/INLET 1

414 00D 399 0982 002 RC-995 1

415 00D 513 9111 030 COLOR LABEL P.SILVER 2

★ 416 - BAR CODE LABEL 1

★ 417 - CONT.CARD(L) 1

405

407

401

415

402

412408

413

406

404

414

403

177

AVR-5805/AVC-A1XV

NOTE FOR SCHEMATIC DIAGRAM

WARNING:

Parts marked with this symbol have critical characteristics.

Use ONLY replacement parts recommended by the manufactur-

er.

CAUTION:

Before returning the unit to the customer, make sure you make

either (1) a leakage current check or (2) a line to chassis resis-

tance check. If the leakage current exceeds 0.5 milliamps, or if

the resistance from chassis to either side of the power cord is

less than 460 kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is lo-

cated and corrected.

NOTICE:

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM

M=1,000,000 OHM

ALL CAPACITANCE VALUES IN MICRO FARAD.

P=MICRO-MICRO FARAD

EACH VOLTAGE AND CURRENT ARE MEASURED AT

NO SIGNAL INPUT CONDITION.

CIRCUIT AND PARTS ARE SUBJECT TO CHANGE

WITHOUT PRIOR NOTICE.

配線図について

印の部品は安全を維持するために重要な部品です。

従って交換時は必ず指定の部品を使用してください。

注）

(1) 指定なき抵抗値は Ω、ｋはｋΩ、M は MΩ を示す。

(2) 指定なきコンデンサーの値は µF、ｐはｐF を示す。

(3) 各部の電圧は無信号の値を示す。

(4) この配線図は基本配線図です。改良等のため変更する

ことがありますのでご了承ください。

178

AVR-5805/AVC-A1XV

DIFFERENCE TABLE OF SCHEMATIC DIAGRAM

EU : U.S.A. model EC : Canada model E2 : Europe model

E1C : China model EUT : Taiwan R.O.C. model JP : Japan model

00D1U-3637 AMP(L),(R) UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

00D1U-3637 00D1U-3637A

AVCA1XVSPJP

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3637B 00D1U-3637C

C101 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C102 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C103 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C104 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C105 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C110 100/50(RE3) 100/50(RE3) 100/50(RFS) 100/50(RFS)

C113 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C114 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C120 330/6.3 330/6.3 330/6.3(ASF) 330/6.3(ASF)

C122 CQ0.001 CQ0.001 CQ1000P(NH2) CQ1000P(NH2)

C201 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C202 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C203 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C204 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C205 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C210 100/50(RE3) 100/50(RE3) 100/50(RFS) 100/50(RFS)

C213 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C214 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C220 330/6.3 330/6.3 330/6.3(ASF) 330/6.3(ASF)

C222 CQ0.001 CQ0.001 CQ1000P(NH2) CQ1000P(NH2)

C301 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C302 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C303 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C304 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C305 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C310 100/50(RE3) 100/50(RE3) 100/50(RFS) 100/50(RFS)

C313 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C314 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C320 330/6.3 330/6.3 330/6.3(ASF) 330/6.3(ASF)

C322 CQ0.001 CQ0.001 CQ1000P(NH2) CQ1000P(NH2)

C401 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C402 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C403 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C404 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C405 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C410 100/50(RE3) 100/50(RE3) 100/50(RFS) 100/50(RFS)

C413 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C414 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C420 330/6.3 330/6.3 330/6.3(ASF) 330/6.3(ASF)

C422 CQ0.001 CQ0.001 CQ1000P(NH2) CQ1000P(NH2)

C501 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C502 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C503 CQ100P CQ100P CQ100P(NH2) CQ100P(NH2)

C504 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C505 2.2/50(RE3) 2.2/50(RE3) 2.2/50(ARSA) 2.2/50(ARSA)

C510 100/50(RE3) 100/50(RE3) 100/50(RFS) 100/50(RFS)

C513 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

C514 4.7/100(RE3) 4.7/100(RE3) 4.7/100(ROB) 4.7/100(ROB)

179

AVR-5805/AVC-A1XV

C520 330/6.3 330/6.3 330/6.3(ASF) 330/6.3(ASF)

C522 CQ0.001 CQ0.001 CQ1000P(NH2) CQ1000P(NH2)

C701 220/50(RE3) 220/50(RE3) 47/100(ROB) 47/100(ROB)

C702 220/50(RE3) 220/50(RE3) 47/100(ROB) 47/100(ROB)

C703 47/100(RE3) 47/100(RE3) 47/100(ROB) 47/100(ROB)

C704 47/100(RE3) 47/100(RE3) 47/100(ROB) 47/100(ROB)

C705 47/100(RE3) 47/100(RE3) 47/100(ROB) 47/100(ROB)

C706 47/100(RE3) 47/100(RE3) 47/100(ROB) 47/100(ROB)

C707 10/100(RE3) 10/100(RE3) 10/100(ROB) 10/100(ROB)

C708 10/100(RE3) 10/100(RE3) 10/100(ROB) 10/100(ROB)

C709 10/100(RE3) 10/100(RE3) 10/100(ROB) 10/100(ROB)

C718 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C719 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C720 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C721 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

C722 CQ0.0022 CQ0.0022 CQ2200P(NH2) CQ2200P(NH2)

R801 OPEN 0.1/(3W) OPEN 0.1/(3W)

R802 OPEN 0.1/(3W) OPEN 0.1/(3W)

R803 OPEN 0.1/(3W) OPEN 0.1/(3W)

R804 OPEN 0.1/(3W) OPEN 0.1/(3W)

R805 OPEN 0.1/(3W) OPEN 0.1/(3W)

R806 0.1/(3W) OPEN 0.1/(3W) OPEN

R807 0.1/(3W) OPEN 0.1/(3W) OPEN

R808 0.1/(3W) OPEN 0.1/(3W) OPEN

R809 0.1/(3W) OPEN 0.1/(3W) OPEN

R810 0.1/(3W) OPEN 0.1/(3W) OPEN

CX061 6P-PH 6P-PH(RD) 6P-PH 6P-PH(RD)

CX081 8P-PH 8P-PH(RD) 8P-PH 8P-PH(RD)

CX102 10P-PH 10P-PH(RD) 10P-PH 10P-PH(RD)

W101 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN

W201 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN

W401 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN

W501 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN 1P-SIN-SIN

W701 OPEN M3-TER.TOP-cu OPEN M3-TER.TOP-cu

W702 M3-TER.TOP-cu OPEN M3-TER.TOP-cu OPEN

W703 OPEN M3-TER.TOP-cu OPEN M3-TER.TOP-cu

W704 M3-TER.TOP-cu OPEN M3-TER.TOP-cu OPEN

W705 OPEN M3-TER.TOP-cu OPEN M3-TER.TOP-cu

W706 M3-TER.TOP-cu OPEN M3-TER.TOP-cu OPEN

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

00D1U-3637 00D1U-3637A

AVCA1XVSPJP

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3637B 00D1U-3637C

180

AVR-5805/AVC-A1XV

00D1U-3638 REG1 UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3638

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3638B

AVCA1XVSPJP

00D1U-3638D

C101 220/50(RE3) 220/50(ASF) 220/50(ASF)

C102 220/50(RE3) 220/50(ASF) 220/50(ASF)

C103 100/50(RE3) 100/50(ASF) 100/50(ASF)

C104 100/50(RE3) 100/50(ASF) 100/50(ASF)

C114 100/50(RE3) 100/50(ASF) 100/50(ASF)

C119 100/50(RE3) 100/50(ASF) 100/50(ASF)

C137 10/50(RE3) 10/50(ASF) 10/50(ASF)

C138 10/50(RE3) 10/50(ASF) 10/50(ASF)

C139 10/50(RE3) 10/50(ASF) 10/50(ASF)

C140 10/50(RE3) 10/50(ASF) 10/50(ASF)

C141 10/50(RE3) 10/50(ASF) 10/50(ASF)

C142 10/50(RE3) 10/50(ASF) 10/50(ASF)

C143 10/50(RE3) 10/50(ASF) 10/50(ASF)

C144 10/50(RE3) 10/50(ASF) 10/50(ASF)

C408 10/50(RE3) 10/50(ASF) 10/50(ASF)

C414 10/50(RE3) 10/50(ASF) 10/50(ASF)

J105 OPEN SHORT OPEN

J106 OPEN SHORT OPEN

J107 OPEN SHORT OPEN

J108 OPEN SHORT OPEN

F011 3.15A/125V 3.15A/250V 3.15A/125V

F012 3.15A/125V 3.15A/250V 3.15A/125V

F013 1.25A/125V 1.25A/250V 1.25A/125V

F014 1.25A/125V 1.25A/250V 1.25A/125V

F015 2A/125V 2A/250V 2A/125V

F016 10A/125V OPEN 10A/125V

F017 10A/125V OPEN 10A/125V

F018 5A/125V 5A/250V 5A/125V

F019 8A/125V OPEN 8A/125V

F020 8A/125V OPEN 8A/125V

F023 6.3A/125V 6.3A/250V 6.3A/125V

FF106 FUSE_CLIP OPEN FUSE_CLIP

FF108 FUSE_CLIP OPEN FUSE_CLIP

FF109 FUSE_CLIP OPEN FUSE_CLIP

FF110 FUSE_CLIP OPEN FUSE_CLIP

FH106 FUSE_CLIP OPEN FUSE_CLIP

FH108 FUSE_CLIP OPEN FUSE_CLIP

FH109 FUSE_CLIP OPEN FUSE_CLIP

FH110 FUSE_CLIP OPEN FUSE_CLIP

C154 10/50(RE3) 10/50(RE3) 10/50(RE3)

C155 10/50(RE3) 10/50(RE3) 10/50(RE3)

C158 10/50(RE3) 10/50(RE3) 10/50(RE3)

C163 10/50(RE3) 10/50(RE3) 10/50(RE3)

C164 10/50(RE3) 10/50(RE3) 10/50(RE3)

181

AVR-5805/AVC-A1XV

00D1U-3639 REG2 UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3639

AVCA1XVSPE2

00D1U-3639B

AVCA1XVSPJP

00D1U-3639D

AVCA1XVSPE1C

00D1U-3639E

C102 0.01/250 OPEN 0.01/250 OPEN

C103 0.01/250 OPEN 0.01/250 OPEN

C303 10/50(RE3) 10/50(ASF) 10/50(ASF) 10/50(ASF)

C403 10/50(RE3) 10/50(ASF) 10/50(ASF) 10/50(ASF)

C504 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C508 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C512 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C516 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C524 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C528 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C532 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C536 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C544 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C548 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C552 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C556 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C564 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C568 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C572 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C576 100/50(RE3) 100/50(ASF) 100/50(ASF) 100/50(ASF)

C601 CK1000P OPEN OPEN OPEN

C602 1/50(RE3) OPEN OPEN OPEN

C603 CK1000P OPEN OPEN OPEN

C604 10/16(RE3) OPEN OPEN OPEN

C605 CK1000P OPEN OPEN OPEN

C606 CK1000P OPEN OPEN OPEN

C607 CK1000P OPEN OPEN OPEN

C608 OPEN OPEN OPEN OPEN

C609 CK1200P OPEN OPEN OPEN

C610 CK1200P OPEN OPEN OPEN

C611 CK1200P OPEN OPEN OPEN

C612 10/16(RE3) OPEN OPEN OPEN

C613 10/16(RE3) OPEN OPEN OPEN

C620 10/16(RE3) 10/50(ASF) 10/50(ASF) 10/50(ASF)

C630 10/16(RE3) 10/50(ASF) 10/50(ASF) 10/50(ASF)

C645 330P OPEN OPEN OPEN

C646 1/50(RE3) OPEN OPEN OPEN

C648 10/50(RE3) OPEN OPEN OPEN

C649 CK0.022 OPEN OPEN OPEN

C650 560P OPEN OPEN OPEN

C651 OPEN OPEN OPEN OPEN

C652 1/50(RE3) OPEN OPEN OPEN

C653 27P OPEN OPEN OPEN

C654 27P OPEN OPEN OPEN

C659 680P OPEN OPEN OPEN

C657 680P OPEN OPEN OPEN

C658 CK1200P OPEN OPEN OPEN

IC601 KIA7805AF OPEN OPEN OPEN

IC602 KIA7812AF OPEN OPEN OPEN

IC605 LC72722PM OPEN OPEN OPEN

182

AVR-5805/AVC-A1XV

R103 2.2M(1/2W) OPEN OPEN OPEN

R601 100 OPEN OPEN OPEN

R602 100 OPEN OPEN OPEN

R603 0 OPEN OPEN OPEN

R604 0 OPEN OPEN OPEN

R605 0 OPEN OPEN OPEN

R606 0 OPEN OPEN OPEN

R607 10K OPEN OPEN OPEN

R608 10K OPEN OPEN OPEN

R609 2K OPEN OPEN OPEN

R610 100K OPEN OPEN OPEN

R611 4.7K OPEN OPEN OPEN

R612 10K OPEN OPEN OPEN

R613 1K OPEN OPEN OPEN

R614 1K OPEN OPEN OPEN

R636 10K OPEN OPEN OPEN

R637 4.7K OPEN OPEN OPEN

R638 0 OPEN OPEN OPEN

R639 0 OPEN OPEN OPEN

R640 0 OPEN OPEN OPEN

R641 0 OPEN OPEN OPEN

R642 0 OPEN OPEN OPEN

R643 10K OPEN OPEN OPEN

R644 10K OPEN OPEN OPEN

R645 OPEN OPEN OPEN OPEN

R646 220 OPEN OPEN OPEN

J101 SHORT OPEN SHORT OPEN

J102 OPEN SHORT OPEN SHORT

J103 SHORT OPEN SHORT OPEN

J105 SHORT OPEN SHORT OPEN

X601 X-TAL(4.332MHZ) OPEN OPEN OPEN

AC102 OUTLET_3946003 OPEN OUTLET_3946003 OPEN

CX152 15P-FFCs OPEN OPEN OPEN

CY043 4P-PH OPEN OPEN OPEN

CY113 11P-PH(RD) OPEN OPEN OPEN

CY736 OPEN 3P-EH(BK) OPEN 3P-EH(BK)

CY737 OPEN 3P-EH(BU) OPEN 3P-EH(BU)

F001 12A/125V 6.3A/250V 15A/125V 6.3A/250V

F002 OPEN 1A/250V OPEN 1A/250V

F003 3.15A/125V 1.25A/250V 3.15A/125V 1.25A/250V

F008 8A/125V 2.5A/250V 8A/125V 2.5A/250V

FB622 BLM21PG221 OPEN OPEN OPEN

FB623 0 OPEN OPEN OPEN

FB624 0 OPEN OPEN OPEN

FF101 OPEN FUSE_CLIP OPEN FUSE_CLIP

FF102 FUSE_HOLDER OPEN FUSE_HOLDER OPEN

FH101 OPEN FUSE_CLIP OPEN FUSE_CLIP

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3639

AVCA1XVSPE2

00D1U-3639B

AVCA1XVSPJP

00D1U-3639D

AVCA1XVSPE1C

00D1U-3639E

183

AVR-5805/AVC-A1XV

FH102 FUSE_HOLDER OPEN FUSE_HOLDER OPEN

FH106 OPEN FUSE_CLIP OPEN FUSE_CLIP

FH107 OPEN FUSE_CLIP OPEN FUSE_CLIP

RL103 RELAY(TV-8) OPEN RELAY(TV-8) OPEN

RL104 RELAY(TV-8) OPEN RELAY(TV-8) OPEN

TR601 2SB1412(PQR) OPEN OPEN OPEN

TR602 KRC102S OPEN OPEN OPEN

TR603 KRC102S OPEN OPEN OPEN

TR604 KRC102S OPEN OPEN OPEN

TR605 DTC323TK OPEN OPEN OPEN

TR606 DTC323TK OPEN OPEN OPEN

TR607 DTA114TK OPEN OPEN OPEN

TR619 KTC3875S(GR) OPEN OPEN OPEN

W151 OPEN 1P-SIN OPEN OPEN

W152 OPEN 1P-SIN OPEN OPEN

C647 OPEN OPEN OPEN OPEN

C661 OPEN OPEN OPEN OPEN

C662 OPEN OPEN OPEN OPEN

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3639

AVCA1XVSPE2

00D1U-3639B

AVCA1XVSPJP

00D1U-3639D

AVCA1XVSPE1C

00D1U-3639E

184

AVR-5805/AVC-A1XV

00D1U-3641 AUDIO UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3641

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3641B

AVCA1XVSPJP

00D1U-3641D

C109 220P 220P OPEN

C110 220P 220P OPEN

C111 10/50(RE3) 10/50(ASF) 10/50(ASF)

C112 10/50(RE3) 10/50(ASF) 10/50(ASF)

C115 22/50(RE3) 22/50(ASF) 22/50(ASF)

C116 22/50(RE3) 22/50(ASF) 22/50(ASF)

C117 220P 220P OPEN

C118 220P 220P OPEN

C125 220P 220P OPEN

C126 220P 220P OPEN

C133 220P 220P OPEN

C134 220P 220P OPEN

C141 220P 220P OPEN

C142 220P 220P OPEN

C149 220P 220P OPEN

C150 220P 220P OPEN

C157 220P 220P OPEN

C158 220P 220P OPEN

C165 220P 220P OPEN

C166 220P 220P OPEN

C173 100P 100P OPEN

C174 100P 100P OPEN

C175 100P 100P OPEN

C176 100P 100P OPEN

C177 100P 100P OPEN

C178 100P 100P OPEN

C179 100P 100P OPEN

C180 100P 100P OPEN

C181 47/50(RE3) 47/50(ASF) 47/50(ASF)

C182 47/50(RE3) 47/50(ASF) 47/50(ASF)

C229 22/50(RE3) 22/16(SRA) 22/16(SRA)

C230 22/50(RE3) 22/16(SRA) 22/16(SRA)

C235 22/50(RE3) 22/16(SRA) 22/16(SRA)

C236 22/50(RE3) 22/16(SRA) 22/16(SRA)

C241 22/50(RE3) 22/16(SRA) 22/16(SRA)

C242 22/50(RE3) 22/16(SRA) 22/16(SRA)

C247 22/50(RE3) 22/16(SRA) 22/16(SRA)

C248 22/50(RE3) 22/16(SRA) 22/16(SRA)

C249 47/50(RE3) 47/50(ASF) 47/50(ASF)

C250 47/50(RE3) 47/50(ASF) 47/50(ASF)

C305 47/50(RE3) 47/50(ASF) 47/50(ASF)

C306 47/50(RE3) 47/50(ASF) 47/50(ASF)

C316 1/50(RE3) 1/50(ASF) 1/50(ASF)

C317 1/50(RE3) 1/50(ASF) 1/50(ASF)

C322 47/50(RE3) 47/50(ASF) 47/50(ASF)

C323 47/50(RE3) 47/50(ASF) 47/50(ASF)

C324 47/50(RE3) 47/50(ASF) 47/50(ASF)

C325 47/50(RE3) 47/50(ASF) 47/50(ASF)

C326 47/50(RE3) 47/50(ASF) 47/50(ASF)

C327 47/50(RE3) 47/50(ASF) 47/50(ASF)

C403 10/50(RE3) 10/50(ROB) 10/50(ROB)

C404 10/50(RE3) 10/50(ROB) 10/50(ROB)

185

AVR-5805/AVC-A1XV

C413 10/50(RE3) 10/50(ROB) 10/50(ROB)

C414 10/50(RE3) 10/50(ROB) 10/50(ROB)

C415 10/50(RE3) 10/50(ROB) 10/50(ROB)

C416 10/50(RE3) 10/50(ROB) 10/50(ROB)

C418 10/50(RE3) 10/50(ASF) 10/50(ASF)

C420 10/50(RE3) 10/50(ASF) 10/50(ASF)

C443 22/50(RE3) 10/50(ROB) 10/50(ROB)

C444 22/50(RE3) 10/50(ROB) 10/50(ROB)

C457 22/50(RE3) 10/50(ROB) 10/50(ROB)

C458 22/50(RE3) 10/50(ROB) 10/50(ROB)

C469 22/50(RE3) 10/50(ROB) 10/50(ROB)

C470 22/50(RE3) 10/50(ROB) 10/50(ROB)

C483 22/50(RE3) 10/50(ROB) 10/50(ROB)

C484 22/50(RE3) 10/50(ROB) 10/50(ROB)

C495 100/50(RE3) 100/50(ASF) 100/50(ASF)

C496 100/50(RE3) 100/50(ASF) 100/50(ASF)

C649 22/50(RE3) 10/50(ROB) 10/50(ROB)

C650 22/50(RE3) 10/50(ROB) 10/50(ROB)

C663 22/50(RE3) 10/50(ROB) 10/50(ROB)

C664 22/50(RE3) 10/50(ROB) 10/50(ROB)

C675 22/50(RE3) 10/50(ROB) 10/50(ROB)

C676 22/50(RE3) 10/50(ROB) 10/50(ROB)

C677 10/50(RE3) 10/50(ASF) 10/50(ASF)

C678 10/50(RE3) 10/50(ASF) 10/50(ASF)

C864 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP)

C865 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP)

IC102 NJM2068MD OP275GSR OP275GSR

IC403 NJM5532MD OP275GSR OP275GSR

IC404 NJM5532MD OP275GSR OP275GSR

CC110 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC111 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC137 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC138 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC139 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC140 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC141 47/50(RE3) 47/50(ASF) 47/50(ASF)

CC142 47/50(RE3) 47/50(ASF) 47/50(ASF)

AVR5805BKEU

AVR5805BKEC

AVCA1XVEUT

00D1U-3641

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3641B

AVCA1XVSPJP

00D1U-3641D

186

AVR-5805/AVC-A1XV

00D1U-3642 DAC UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

1U-3642

AVCA1XVSPJP

AVCA1XVSPE2

AVCA1XVSPE1C

1U-3642B

C105 10/50(RE3) 1/50(ARSA)

C120 10/50(RE3) 1/50(ARSA)

C130 10/50(RE3) 1/50(ARSA)

C133 10/50(RE3) 1/50(ARSA)

C134 10/50(RE3) 1/50(ARSA)

C135 10/50(RE3) 1/50(ARSA)

C201 CQ0.0015 CQ1500P(NH2)

C202 CQ0.0015 CQ1500P(NH2)

C203 CQ0.0015 CQ1500P(NH2)

C204 CQ0.0015 CQ1500P(NH2)

C205 CQ180P CQ180P(NH2)

C206 CQ180P CQ180P(NH2)

C207 CQ180P CQ180P(NH2)

C208 CQ180P CQ180P(NH2)

C209 100/50(RE3) 47/50(RFS)

C210 100/50(RE3) 47/50(RFS)

C211 10/50(RE3) 10/100(RFS)

C212 10/50(RE3) 10/100(RFS)

C213 CQ0.0015 CQ1500P(NH2)

C214 CQ0.0015 CQ1500P(NH2)

C215 CQ0.0015 CQ1500P(NH2)

C216 CQ0.0015 CQ1500P(NH2)

C217 CQ180P CQ180P(NH2)

C218 CQ180P CQ180P(NH2)

C219 CQ180P CQ180P(NH2)

C220 CQ180P CQ180P(NH2)

C221 100/50(RE3) 47/50(RFS)

C222 100/50(RE3) 47/50(RFS)

C223 10/50(RE3) 10/100(RFS)

C224 10/50(RE3) 10/100(RFS)

C225 0.1/50(RE3) CQ0.1J

C226 0.1/50(RE3) CQ0.1J

C227 10/50(RE3) 10/100(RFS)

C228 10/50(RE3) 10/100(RFS)

C229 10/50(RE3) 10/100(RFS)

C230 10/50(RE3) 10/100(RFS)

C231 100/50(RE3) 47/50(RFS)

C232 100/50(RE3) 47/50(RFS)

C235 100/50(RE3) 1/50(ARSA)

C236 100/50(RE3) 1/50(ARSA)

C301 CQ0.0015 CQ1500P(NH2)

C302 CQ0.0015 CQ1500P(NH2)

C303 CQ0.0015 CQ1500P(NH2)

C304 CQ0.0015 CQ1500P(NH2)

C305 CQ180P CQ180P(NH2)

C306 CQ180P CQ180P(NH2)

C307 CQ180P CQ180P(NH2)

C308 CQ180P CQ180P(NH2)

C309 100/50(RE3) 47/50(RFS)

C310 100/50(RE3) 47/50(RFS)

C311 10/50(RE3) 10/100(RFS)

C312 10/50(RE3) 10/100(RFS)

187

AVR-5805/AVC-A1XV

C313 CQ0.0015 CQ1500P(NH2)

C314 CQ0.0015 CQ1500P(NH2)

C315 CQ0.0015 CQ1500P(NH2)

C316 CQ0.0015 CQ1500P(NH2)

C317 CQ180P CQ180P(NH2)

C318 CQ180P CQ180P(NH2)

C319 CQ180P CQ180P(NH2)

C320 CQ180P CQ180P(NH2)

C321 100/50(RE3) 47/50(RFS)

C322 100/50(RE3) 47/50(RFS)

C323 10/50(RE3) 10/100(RFS)

C324 10/50(RE3) 10/100(RFS)

C325 0.1/50(RE3) CQ0.1J

C326 0.1/50(RE3) CQ0.1J

C327 10/50(RE3) 10/100(RFS)

C328 10/50(RE3) 10/100(RFS)

C329 10/50(RE3) 10/100(RFS)

C330 10/50(RE3) 10/100(RFS)

C331 100/50(RE3) 47/50(RFS)

C332 100/50(RE3) 47/50(RFS)

C347 10/50(RE3) 10/50(RFS)

C348 10/50(RE3) 10/50(RFS)

C349 10/50(RE3) 10/50(RFS)

C350 10/50(RE3) 10/50(RFS)

C401 CQ0.0015 CQ1500P(NH2)

C402 CQ0.0015 CQ1500P(NH2)

C403 CQ0.0015 CQ1500P(NH2)

C404 CQ0.0015 CQ1500P(NH2)

C405 CQ180P CQ180P(NH2)

C406 CQ180P CQ180P(NH2)

C407 CQ180P CQ180P(NH2)

C408 CQ180P CQ180P(NH2)

C409 100/50(RE3) 47/50(RFS)

C410 100/50(RE3) 47/50(RFS)

C411 10/50(RE3) 10/100(RFS)

C412 10/50(RE3) 10/100(RFS)

C413 CQ0.0015 CQ1500P(NH2)

C414 CQ0.0015 CQ1500P(NH2)

C415 CQ0.0015 CQ1500P(NH2)

C416 CQ0.0015 CQ1500P(NH2)

C417 CQ180P CQ180P(NH2)

C418 CQ180P CQ180P(NH2)

C419 CQ180P CQ180P(NH2)

C420 CQ180P CQ180P(NH2)

C421 100/50(RE3) 47/50(RFS)

C422 100/50(RE3) 47/50(RFS)

C423 10/50(RE3) 10/100(RFS)

C424 10/50(RE3) 10/100(RFS)

C425 0.1/50(RE3) CQ0.1J

C426 0.1/50(RE3) CQ0.1J

C427 10/50(RE3) 10/100(RFS)

C428 10/50(RE3) 10/100(RFS)

C429 10/50(RE3) 10/100(RFS)

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

1U-3642

AVCA1XVSPJP

AVCA1XVSPE2

AVCA1XVSPE1C

1U-3642B

188

AVR-5805/AVC-A1XV

C430 10/50(RE3) 10/100(RFS)

C431 100/50(RE3) 47/50(RFS)

C432 100/50(RE3) 47/50(RFS)

C435 100/50(RE3) 1/50(ARSA)

C436 100/50(RE3) 1/50(ARSA)

C501 CQ0.0015 CQ1500P(NH2)

C502 CQ0.0015 CQ1500P(NH2)

C503 CQ0.0015 CQ1500P(NH2)

C504 CQ0.0015 CQ1500P(NH2)

C505 CQ180P CQ180P(NH2)

C506 CQ180P CQ180P(NH2)

C507 CQ180P CQ180P(NH2)

C508 CQ180P CQ180P(NH2)

C509 100/50(RE3) 47/50(RFS)

C510 100/50(RE3) 47/50(RFS)

C511 10/50(RE3) 10/100(RFS)

C512 10/50(RE3) 10/100(RFS)

C513 CQ0.0015 CQ1500P(NH2)

C514 CQ0.0015 CQ1500P(NH2)

C515 CQ0.0015 CQ1500P(NH2)

C516 CQ0.0015 CQ1500P(NH2)

C517 CQ180P CQ180P(NH2)

C518 CQ180P CQ180P(NH2)

C519 CQ180P CQ180P(NH2)

C520 CQ180P CQ180P(NH2)

C521 100/50(RE3) 47/50(RFS)

C522 100/50(RE3) 47/50(RFS)

C523 10/50(RE3) 10/100(RFS)

C524 10/50(RE3) 10/100(RFS)

C525 0.1/50(RE3) CQ0.1J

C526 0.1/50(RE3) CQ0.1J

C527 10/50(RE3) 10/100(RFS)

C528 10/50(RE3) 10/100(RFS)

C529 10/50(RE3) 10/100(RFS)

C530 10/50(RE3) 10/100(RFS)

C531 100/50(RE3) 47/50(RFS)

C532 100/50(RE3) 47/50(RFS)

C535 10/50(RE3) 10/50(RFS)

C536 10/50(RE3) 10/50(RFS)

C537 10/50(RE3) 10/50(RFS)

C538 10/50(RE3) 10/50(RFS)

IC205 NJM5532MD OP275GSR

IC206 NJM5532MD OP275GSR

IC207 NJM2068MD OP275GSR

IC208 NJM2068MD OP275GSR

IC209 OP275GSR OP275GSR

IC210 NJM2068MD OP275GSR

IC211 NJM5532MD OP275GSR

IC212 NJM5532MD OP275GSR

IC213 LM833MX LM833MX

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

1U-3642

AVCA1XVSPJP

AVCA1XVSPE2

AVCA1XVSPE1C

1U-3642B

189

AVR-5805/AVC-A1XV

00D1U-3643 AD UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

00D1U-3643

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3643B

AVCA1XVSPJP

00D1U-3643D

AVCA1XVSPEUT

00D1U-3643F

C136 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C143 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C144 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C176 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C177 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C178 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C179 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C505 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C506 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C507 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C508 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C509 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C510 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C511 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C512 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C555 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C601 OPEN_C 220P OPEN_C 220P

C602 OPEN_C 220P OPEN_C 220P

C603 OPEN. 10/16 10/16 10/16

C604 OPEN. 10/16 10/16 10/16

C607 OPEN. 47/16 47/16 47/16

C608 OPEN. 47/16 47/16 47/16

C609 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C610 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C627 220P 220P OPEN_C 220P

C628 220P 220P OPEN_C 220P

C629 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C630 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C635 220P 220P OPEN_C 220P

C636 220P 220P OPEN_C 220P

C643 100P 100P OPEN_C 100P

C644 100P 100P OPEN_C 100P

C647 22/16 22/16(P.CAP) 22/16(P.CAP) 22/16

C648 22/16 22/16(P.CAP) 22/16(P.CAP) 22/16

C649 22/16 22/16(P.CAP) 22/16(P.CAP) 22/16

C650 22/16 22/16(P.CAP) 22/16(P.CAP) 22/16

C711 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C712 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C713 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C714 10/50(RV2) 10/50(P.CAP) 10/50(P.CAP) 10/50(RV2)

C715 OPEN_C 100P OPEN_C OPEN_C

C716 OPEN_C 100P OPEN_C OPEN_C

C717 OPEN_C 100P OPEN_C OPEN_C

C718 OPEN_C 100P OPEN_C OPEN_C

C719 OPEN_C 100P OPEN_C OPEN_C

C720 OPEN_C 100P OPEN_C OPEN_C

C721 OPEN_C 100P OPEN_C OPEN_C

C722 OPEN_C 100P OPEN_C OPEN_C

C723 OPEN_C 100P OPEN_C OPEN_C

C724 OPEN_C 100P OPEN_C OPEN_C

C725 OPEN_C 100P OPEN_C OPEN_C

C726 OPEN_C 100P OPEN_C OPEN_C

190

AVR-5805/AVC-A1XV

C727 OPEN_C 100P OPEN_C OPEN_C

C728 OPEN_C 100P OPEN_C OPEN_C

C729 OPEN_C 100P OPEN_C OPEN_C

C730 OPEN_C 100P OPEN_C OPEN_C

C731 OPEN_C 100P OPEN_C OPEN_C

C732 OPEN_C 100P OPEN_C OPEN_C

C733 OPEN_C 100P OPEN_C OPEN_C

C734 OPEN_C 100P OPEN_C OPEN_C

C735 OPEN_C 100P OPEN_C OPEN_C

C736 OPEN_C 100P OPEN_C OPEN_C

C747 OPEN_C CK0.01 CK0.01 OPEN_C

L601 OPEN. FTZ_CHOKE_COIL OPEN OPEN.

L602 OPEN. FTZ_CHOKE_COIL OPEN OPEN.

IC601 OPEN. NJM2068MD NJM2068MD NJM2068MD

IC603 NJM2068MD OP275GSR OP275GSR NJM2068MD

IC605 NJM2068MD NJM5532MD NJM5532MD NJM2068MD

IC606 NJM2068MD NJM5532MD NJM5532MD NJM2068MD

R601 OPEN_R 100 100 100

R602 OPEN_R 100 100 100

R603 OPEN_R 100K 100K 100K

R604 OPEN_R 100K 100K 100K

R605 OPEN_R 91K 91K 91K

R606 OPEN_R 91K 91K 91K

R607 OPEN_R 47 47 47

R608 OPEN_R 47 47 47

R609 OPEN_R 100K 100K 100K

R610 OPEN_R 100K 100K 100K

R895 0 4.7K 0 0

R896 0 4.7K 0 0

JK601 OPEN. 2P-JACK_8559016 2P-JACK_8559016 2P-JACK_8559016

AVR5805BKEU

AVR5805BKEC

00D1U-3643

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3643B

AVCA1XVSPJP

00D1U-3643D

AVCA1XVSPEUT

00D1U-3643F

191

AVR-5805/AVC-A1XV

00D1U-3644 DIGITAL UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

1U-3644

AVCA1XVSPJP

AVCA1XVSPE2

1U-3644B

AVCA1XVSPE1C

1U-3644E

AVCA1XVSPEUT

1U-3644F

C105 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C107 OPEN CQ0.1 CQ0.1 OPEN

C110 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C111 OPEN CQ0.1 CQ0.1 OPEN

C115 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C116 OPEN CQ0.1 CQ0.1 OPEN

C120 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C121 OPEN CQ0.1 CQ0.1 OPEN

C125 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C126 OPEN CQ0.1 CQ0.1 OPEN

C130 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C131 OPEN CQ0.1 CQ0.1 OPEN

C135 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C136 OPEN CQ0.1 CQ0.1 OPEN

C140 OPEN CQ0.022(NH2) CQ0.022(NH2) OPEN

C141 OPEN CQ0.1 CQ0.1 OPEN

C150 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C151 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C155 CF0.022 OPEN OPEN CF0.022

C156 CF0.022 OPEN OPEN CF0.022

C157 CF0.1 OPEN OPEN CF0.1

C158 CF0.1 OPEN OPEN CF0.1

C159 CF0.022 OPEN OPEN CF0.022

C160 CF0.022 OPEN OPEN CF0.022

C161 CF0.1 OPEN OPEN CF0.1

C162 CF0.1 OPEN OPEN CF0.1

C163 CF0.022 OPEN OPEN CF0.022

C164 CF0.022 OPEN OPEN CF0.022

C165 CF0.1 OPEN OPEN CF0.1

C166 CF0.1 OPEN OPEN CF0.1

C167 CF0.022 OPEN OPEN CF0.022

C168 CF0.022 OPEN OPEN CF0.022

C169 CF0.1 OPEN OPEN CF0.1

C170 CF0.1 OPEN OPEN CF0.1

C231 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C234 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C235 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C542 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C624 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C627 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C724 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C727 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C824 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

C827 100/6.3 100/6.3(P-CAP) 100/6.3(P-CAP) 100/6.3

R536 4.7K 4.7K 910 24K

192

AVR-5805/AVC-A1XV

00D1U-3650 CONNECT-2 UNIT ASS’Y

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

00D1U-3650

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3650B

AVCA1XVSPJP

00D1U-3650D

C501 OPEN 1/50(RE3) OPEN

C502 OPEN 1/50(RE3) OPEN

D501 OPEN 1SS270A OPEN

D502 OPEN 1SS270A OPEN

R501 OPEN 1K OPEN

R503 OPEN 10K OPEN

R508 OPEN 1K OPEN

R509 OPEN 10K OPEN

J401 OPEN OPEN SHORT

J402 OPEN OPEN SHORT

J403 OPEN OPEN SHORT

J404 OPEN OPEN SHORT

J405 OPEN OPEN SHORT

BB403 OPEN OPEN 9P-TUCP-SOCKET

BB404 OPEN OPEN 9P-TUCP-BASE

BB405 OPEN OPEN 9P-TUCP-SOCKET

BB406 OPEN OPEN 9P-TUCP-SOCKET

BB407 OPEN OPEN 9P-TUCP-BASE

BB408 OPEN OPEN 9P-TUCP-SOCKET

BB409 OPEN OPEN 9P-TUCP-SOCKET

BB410 OPEN OPEN 9P-TUCP-BASE

BB411 OPEN OPEN 9P-TUCP-SOCKET

BB412 OPEN OPEN 9P-TUCP-SOCKET

BB413 OPEN OPEN 9P-TUCP-BASE

BB414 OPEN OPEN 9P-TUCP-SOCKET

BB415 OPEN OPEN 9P-TUCP-SOCKET

CX736 OPEN 3P-EH(BK) OPEN

CX737 OPEN 3P-EH(BU) OPEN

JK403 6P-PIN_JACK 6P-PIN_JACK 3P-PIN_JACK

JK404 OPEN OPEN D_DCONNECTOR

JK405 OPEN OPEN D_DCONNECTOR

JK406 OPEN OPEN D_DCONNECTOR

JK407 OPEN OPEN D_DCONNECTOR

JK408 OPEN OPEN D_DCONNECTOR

RL501 OPEN VSB-12STB OPEN

RL502 OPEN VSB-12STB OPEN

RL503 OPEN VSB-12STB OPEN

RL504 OPEN VSB-12STB OPEN

TR501 OPEN 2SC/KTC3199(GR) OPEN

TR505 OPEN 2SC/KTC3199(GR) OPEN

W501 OPEN 3C WIRE ASS'Y OPEN

W502 OPEN 3C WIRE ASS'Y OPEN

W503 OPEN 3C WIRE ASS'Y OPEN

W504 OPEN 3C WIRE ASS'Y OPEN

193

AVR-5805/AVC-A1XV

W505 OPEN 3C WIRE ASS'Y OPEN

W506 OPEN 3C WIRE ASS'Y OPEN

W507 OPEN M3-TER.TOP-cu OPEN

W508 OPEN M3-TER.TOP-cu OPEN

W509 OPEN M3-TER.TOP-cu OPEN

W510 OPEN M3-TER.TOP-cu OPEN

W511 OPEN M3-TER.TOP-cu OPEN

W512 OPEN M3-TER.TOP-cu OPEN

W513 OPEN M3-TER.TOP-cu OPEN

W514 OPEN M3-TER.TOP-cu OPEN

W515 OPEN M3-TER.TOP-cu OPEN

W516 OPEN M3-TER.TOP-cu OPEN

AVR5805BKEU

AVR5805BKEC

AVCA1XVSPEUT

00D1U-3650

AVCA1XVSPE2

AVCA1XVSPE1C

00D1U-3650B

AVCA1XVSPJP

00D1U-3650D

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (1/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (1/61)

1U-3551 DSP ADI EX UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (2/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (2/61)

1U-3636-1 IEEE1394 UNIT(1/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (3/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (3/61)

1U-3636-1 IEEE1394 UNIT(2/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (4/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (4/61)

1U-3636-1 IEEE1394 UNIT(3/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (5/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (5/61)

1U-3636-1 IEEE1394 UNIT(4/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (6/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (6/61)

1U-3636-1 IEEE1394 UNIT(5/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (7/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (7/61)

1U-3636-1 IEEE1394 UNIT(6/6)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (8/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (8/61)

1U-3636-2 ETHERNET UNIT(1/5)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (9/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (9/61)

1U-3636-2 ETHERNET UNIT(2/5)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (10/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (10/61)

1U-3636-2 ETHERNET UNIT(3/5)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (11/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (11/61)

1U-3636-2 ETHERNET UNIT(4/5)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (12/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (12/61)

1U-3636-2 ETHERNET UNIT(5/5)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (13/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (13/61)

1U-3637-7 TR508 (L) UNIT

1U-3637-8 SP (L) UNIT

1U-3637-9 POWER AMP CONN (L) UNIT

1U-3637-10 PROTECTION (L) UNIT

1U-3637-11 RL TR (L) UNIT

1U-3637-1 POWER (L) UNIT

1U-3637-2 POWER TR (L) UNIT

1U-3637-3 TR108 (L) UNIT

1U-3637-4 TR208 (L) UNIT

1U-3637-5 TR308 (L) UNIT

1U-3637-6 TR408 (L) UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (14/64) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (14/64)

1U-3637-7 TR508 (R) UNIT

1U-3637-8 SP (R) UNIT

1U-3637-9 POWER AMP CONN (R) UNIT

1U-3637-10 PROTECTION (R) UNIT

1U-3637-11 RL TR (R) UNIT

1U-3637-1 POWER AMP (R) UNIT

1U-3637-2 POWER TR (R) UNIT

1U-3637-3 TR108 (R) UNIT

1U-3637-4 TR208 (R) UNIT

1U-3637-5 TR308 (R) UNIT

1U-3637-6 TR408 (R) UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (15/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (15/61)

1U-3638-1 PRE REG UNIT

1U-3638-2 REG UNIT

1U-3638-3 2ND FUSE UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (16/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (16/61)

1U-3638-4 TRI.SUPPLY UNIT

1U-3638-6 CPU REG UNIT

1U-3638-7 PRE 7V UNIT

1U-3638-8 TRANS CONNECT UNIT

1U-3638-11 MUTE 5V UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (17/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (17/61)

1U-3639-6 AC OUTLET UNIT

1U-3639-7 FAN DRVE UNIT

1U-3639-8 VCPU SUPPLY UNIT

1U-3639-1 P.SUPPLY L UNIT

1U-3639-2 P.SUPPLY R UNIT

1U-3639-3 1STRL DRIVE UNIT

1U-3639-4 RUSH R UNIT

1U-3639-5 AC INLET UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (18/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (18/61)

1U-3639-11 BACK 232C UNIT

1U-3639-12 232C CONN UNIT

1U-3639-13 TRIGGER UNIT

1U-3639-14 DSP REG UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (19/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (19/61)

1U-3640-1 FLD UNIT

1U-3640-2 TACT UNIT

1U-3640-3 P.SW UNIT

1U-3640-4 FUNCTION SEL UNIT

1U-3640-5 P.LED UNIT

1U-3640-6 VOL UNIT

1U-3640-7 K4 UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (20/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (20/61)

1U-3640-8 FRONT IN UNIT

1U-3640-9 FFC CONNECT UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (21/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (21/61)

1U-3641-1 AUDIO IN UNIT(1/2)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (22/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (22/61)

1U-3641-1 AUDIO IN UNIT(2/2)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (23/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (23/61)

1U-3641-2 VOLME UNIT(1/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (24/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (24/61)

1U-3641-2 VOLME UNIT(2/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (25/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (25/61)

1U-3641-2 VOLME UNIT(3/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (26/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (26/61)

1U-3642 DAC UNIT(1/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (27/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (27/61)

1U-3642 DAC UNIT(2/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (28/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (28/61)

1U-3642 DAC UNIT(3/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (29/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (29/61)

1U-3642 DAC UNIT(4/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (30/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (30/61)

1U-3643-1 AD UNIT(1/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (31/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (31/61)

1U-3643-1 AD UNIT(2/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (32/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (32/61)

1U-3643-1 AD UNIT(3/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (33/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (33/61)

1U-3643-1 AD UNIT(4/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (34/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (34/61)

1U-3643-2 PRE UNIT(1/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (35/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (35/61)

1U-3643-2 PRE UNIT(2/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (36/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (36/61)

1U-3643-2 PRE UNIT(3/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (37/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (37/61)

1U-3644 DIGITAL UNIT(1/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (38/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (38/61)

1U-3644 DIGITAL UNIT(2/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (39/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (39/61)

1U-3644 DIGITAL UNIT(3/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (40/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (40/61)

1U-3644 DIGITAL UNIT(4/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (41/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (41/61)

1U-3644 DIGITAL UNIT(5/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (42/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (42/61)

1U-3644 DIGITAL UNIT(6/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (43/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (43/61)

1U-3644 DIGITAL UNIT(7/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (44/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (44/61)

1U-3644 DIGITAL UNIT(8/8)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (45/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (45/61)

1U-3645-1 HDMI UNIT(1/2)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (46/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (46/61)

1U-3645-1 HDMI UNIT(2/2)

AVR5805BKEU/EC

AVCA1XVSPJP

AVCA1XVSPEUT

(00D1U-3645)

ADV7310

ADV7320

AVCA1XVSPE2

AVCA1XVSPE1C

(00D1U-3645B)

IC703

OPEN

RR917

OPEN

RR918

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (47/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (47/61)

1U-3645-2 SCALER UNIT(1/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (48/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (48/61)

1U-3645-2 SCALER UNIT(2/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (49/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (49/61)

1U-3645-2 SCALER UNIT(3/4)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (50/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (50/61)

1U-3645-2 SCALER UNIT(4/4)

1U-3645-6 RL TR UNIT

1U-3645-7 RL TR UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (51/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (51/61)

1U-3646-1 S&VIDEO UNIT(1/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (52/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (52/61)

1U-3646-1 S&VIDEO UNIT(2/3)

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (53/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (53/61)

1U-3646-1 S&VIDEO UNIT(3/3)

AVR5805BKEU/EC

AVCA1XVSPE2

AVCA1XVSPEUT

AVCA1XVSPE1C

(00D1U-3646)

OPEN

TC4052BFT

3P-PIN_JACK

KRC104SKRC104SKRC104S KRA104S-RTKKRA104S-RTKKRA104S-RTKRELAY(EE2-12N35)

AVCA1XVSPJP

(00D1U-3646D)

IC810,811 JK801~804 RL847 TR837 TR841TR839TR838 TR842TR840R969

OPEN 0 0OPEN OPEN OPENOPENOPEN OPENOPENOPENOPENOPENOPENOPEN

12K 12K 12K 10K10K10K OPENOPENOPEN

R970 R977R976R974R973R972R971

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (54/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (54/61)

1U-3646-2 COMPONENT UNIT

1U-3646-3 FPGA CONN UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (55/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (55/61)

1U-3647-1 BOTTOM L UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (56/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (56/61)

1U-3647-2 A.CONN C UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (57/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (57/61)

1U-3647-3 BOTTOM R UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (58/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (58/61)

1U-3650-2 A.CONN R UNIT

1U-3650-3 A.CONN L UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (59/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (59/61)

1U-3650-1 A.CONN B UNIT

1U-3650-4 AD CONNECT UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (60/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (60/61)

1U-3650-5 V CONNECT R UNIT

1U-3650-6 V CONNECT L UNIT

1 2 3 4 5 6 7 8 9 10 11

SCHEMATIC DIAGRAMS (61/61) AVR-5805/AVC-A1XV

SCHEMATIC DIAGRAMS (61/61)

1U-3650-7 BNC UNIT

1U-3650-8 MONITOR UNIT

1U-3650-9 D TERMINAL IN UNIT

1U-3650-10 CONNECT D UNIT

1U-3650-11 D TERMINAL OUT UNIT

1U-3650-12 B RL LCH UNIT

1U-3650-13 B RL RCH UNIT

AVCA1XV

Navigation menu

Versions of this User Manual:

Views

Navigation
