SERVICE MANUAL
AV SURROUND RECEIVER
MODEL
AVR-1707
AVR-1507
AVR-687
AVR-587
AVR-487
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0282V.01 DE/CDM 0605
Some illustrations using in this service manual are
slightly different from the actual set.
●
Please use this service manual with referring to the
operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
●
 
本文中に使用しているイラストは、説明の都合上現物
 
 
と多少異なる場合があります。
●
 
修理の際は、必ず取扱説明書を参照の上、作業を行っ
 
 
てください。
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
●
 
本機の仕様は性能改良のため、予告なく変更すること
 
 
があります。
●
 
補修用性能部品の保有期間は、製造打切後8年です。
注 意
For U.S.A. , Canada, Europe,
& Taiwan R.O.C. model
Ver. 1
2
AVR-1707/1507/687/587/487
Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎
Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.
◎Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the ! mark.
(2) Parts lists ... Indicated by the ! mark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に ! 印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子マイク端子、入力端子など］との
間で、絶縁抵抗値が１ MΩ 以上であること、この値以下の
ときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図… ! マークで表示しています。
(2) 部品表… ! マークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意
3
AVR-1707/1507/687/587/487

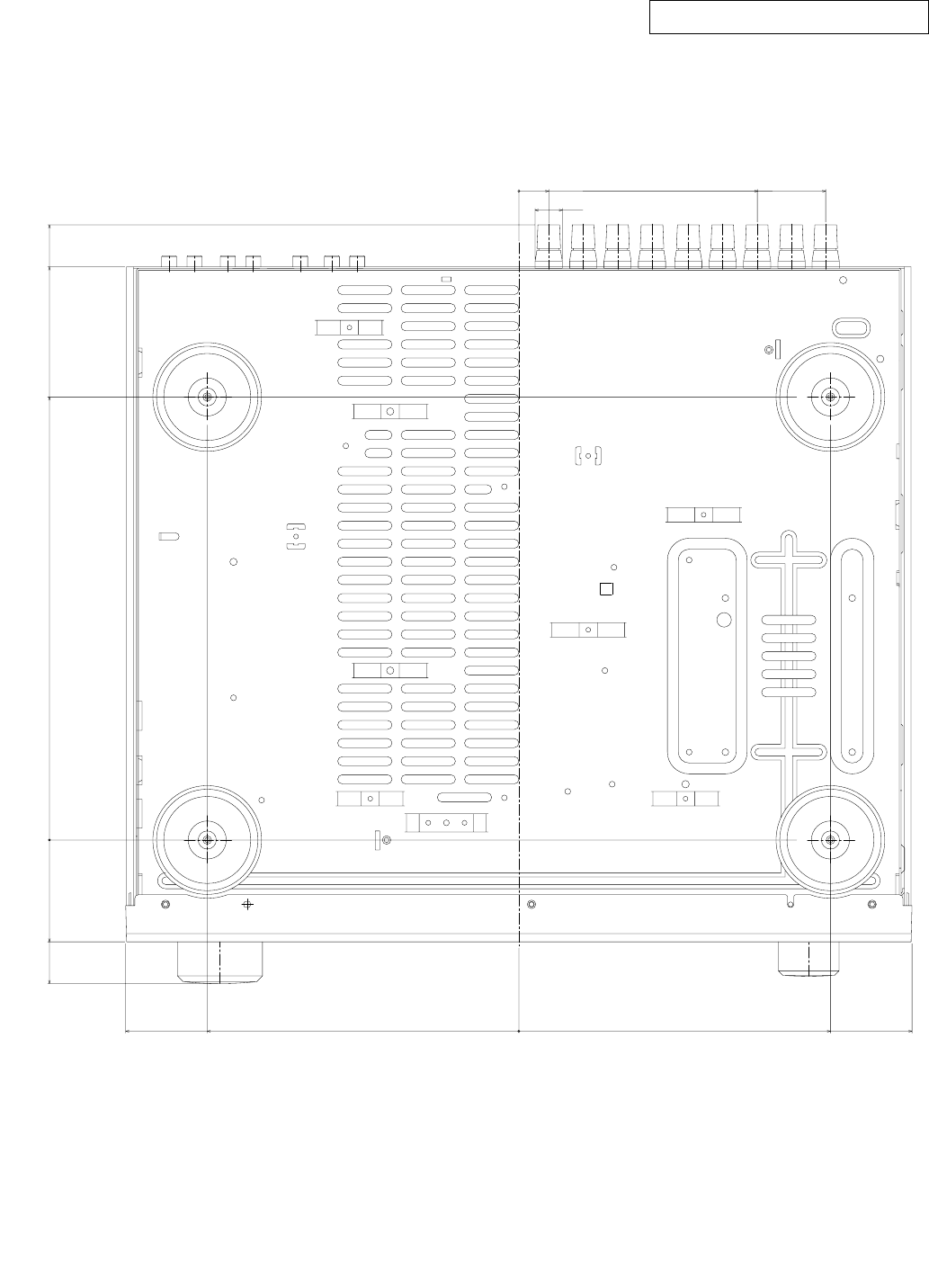

DIMENSION
217
172
79.3
56.2
0
0
244.5
339.5
316.3
16.5
0
172
217
15
131.5
170.5
4
AVR-1707/1507/687/587/487
CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed
when the µcom, peripheral parts of µcom, and Digital P.W.B. are
replaced.
1. Switch off the unit.
2. Hold the following SPEAKERS-A button and SPEAKERS-B
button, and switch on the unit.
3. Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 buttons
and the microprocessor will be initialized.
Note:・If step 3 does not work, start over from step 1.
・ All user settings will be lost and this factory setting will
be recovered when this initialization mode.
So make sure to memorize your setting for restoring
after the initialization.
サービス時の注意事項
AV サラウンドアンプの初期化について
マイコンやマイコン周辺部品、Digital 基板等を交換した場合
は、AV サラウンドアンプの初期化を行って下さい。
1. オン／オフボタンを OFF にします。
2. SPEAKERS-A ボタンと SPEAKERS-B ボタンを同時に押しな
がら、オン／オフボタンを押して ON にします。
3. ディスプレイ表示が約 1 秒間隔で点滅するのを確認後、2
つのボタンから指を離します。
＊マイコンが初期化されます。
注意 :・上記 3 の状態にならない場合は、もう一度操作 1 か
らやり直してください。
・初期化を行うとお客様が設定した内容が工場出荷状
態に戻りますので、あらかじめ設定内容を控えてお
き初期化後再設定してください。
5
AVR-1707/1507/687/587/487
ADJUSTMENT
Audio Section

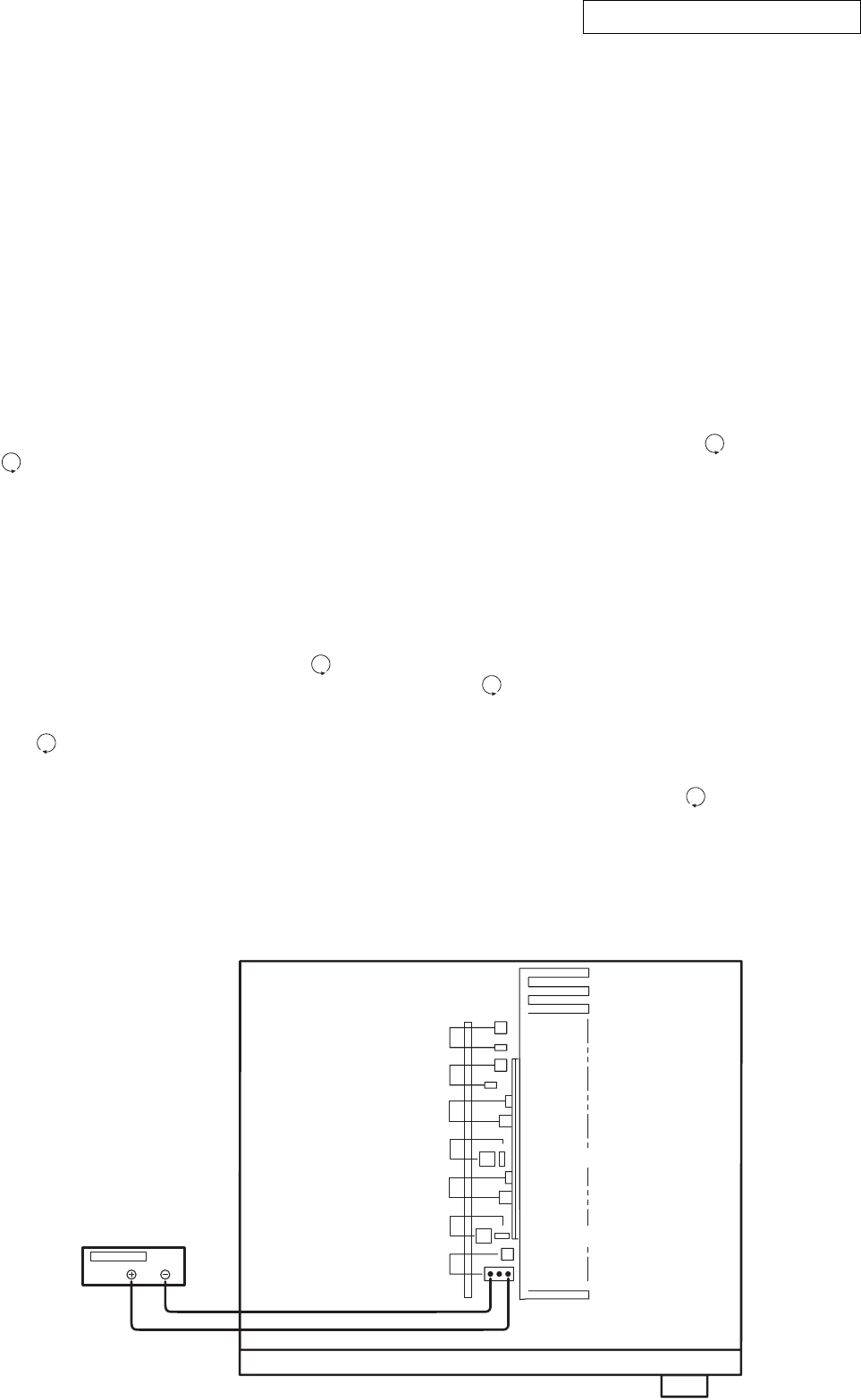

Idling Current
Required measurement equipment: DC Voltmeter
1. Preparation
(1) Avoid direct blow from an air conditioner or an electric
fan, and adjust the unit at normal room temperature 15 °C
~ 30 °C (59 °F ~ 86 °F).
(2) Presetting
• POWER (Power source switch) OFF
• SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)
2. Adjustment
(1) Remove top cover and set VR101, VR102, VR103,
VR104, VR105, on Amp. Unit, VR107SBL,107SBR on
SURR.-BACK ch Amp. Unit at fully counterclockwise
( ) position.
(2) Connect DC Voltmeter to test points (FRONT-Lch:
TP104, FRONT-Rch: TP105, CENTER ch: TP103, SUR-
ROUND-Lch: TP101, SURROUND-Rch: TP102, SUR-
ROUND-BACK Lch: TP106, SURROUND-BACK Rch:
TP107).
(3) Connect power cord to AC Line, and turn power switch
"ON".
(4) Presetting.
MASTER VOLUME : "---" counterclockwise ( min.)
MODE : 7CH STEREO
FUNCTION : CD
(5) Within 2 minutes after the power on, turn VR101 clock-
wise ( ) to adjust the TEST POINT voltage to 1.5 mV
± 0.5 mV DC.
(6) After 10 minutes from the preset above, turn VR101 to
set the voltage to 2.0 mV ± 0.5 mV DC.
(7) Adjust the Variable Resistors of other channels in the
same way.
VR104
TP104
VR101
TP101
VR102,TP102
TP107
VR107
VR103,TP103
VR105
TP105
F Lch
S Lch
S Back Rch
TP106
VR106
S Back Lch
C ch
S Rch
F Rch
DC Voltmeter
調整
オーディオセクション
アイドリング電流の調整
調整に必要な測定器 : DC Voltmeter
1. 準備
(1) セットをクーラ、扇風機のそばなど風通しの良い場所
を避け、通常の使用状態に置きます。セットの周囲温
度は 15 ∼ 30 ℃、湿度は常湿とします。
(2) プリセット
・電源スイッチ OFF
・スピーカ端子 無負荷
( スピーカ・ダミー抵抗器などを接続しない。)
2. 調整
(1) 上カバーをはずし、パワーアンプ基板の VR101, VR102,
VR103, VR104, VR105 及び SURR.-BACK アンプ基板の
VR107SBL,107SBR を反時計方向 ( ) に回し切った状
態にセットします。
(2) テストポイント (FRONT-Lch: TP104, FRONT- Rch:
TP105, CENTER ch: TP103, SURROUND-Lch: TP101,
SURROUND-Rch: TP102, SURROUND-BACK Lch: TP106,
SURROUND-BACK Rch: TP107) に DC Voltmeter を接続
します。
(3) 電源コードを AC100V（95 ∼ 105V の範囲でも可）に接
続し、電源スイッチを "ON" にします。
(4) ON 後、次のようにセットします。
・MASTER VOLUME（音量調節つまみ）→反時計方向
( ) に回す、最小の状態にする。
・SPEAKER（スピーカ端子）→無負荷（スピーカ、
ダミー抵抗器などを接続しない。）
MODE : 7CH STEREO 
FUNCTION : CD
(5) 2 分以内に VR101 を時計方向 ( ) に回しテストポイ
ントの電圧を次のように調整します。
1.5mV ± 0.5mV DC
(6) 予備調整から 10 分後 VR101 を回し、次のように電圧を
設定します。
2.0mV ± 0.5mV DC
(7) 同じ方法で各チャネルの可変抵抗を調整します。
6
AVR-1707/1507/687/587/487

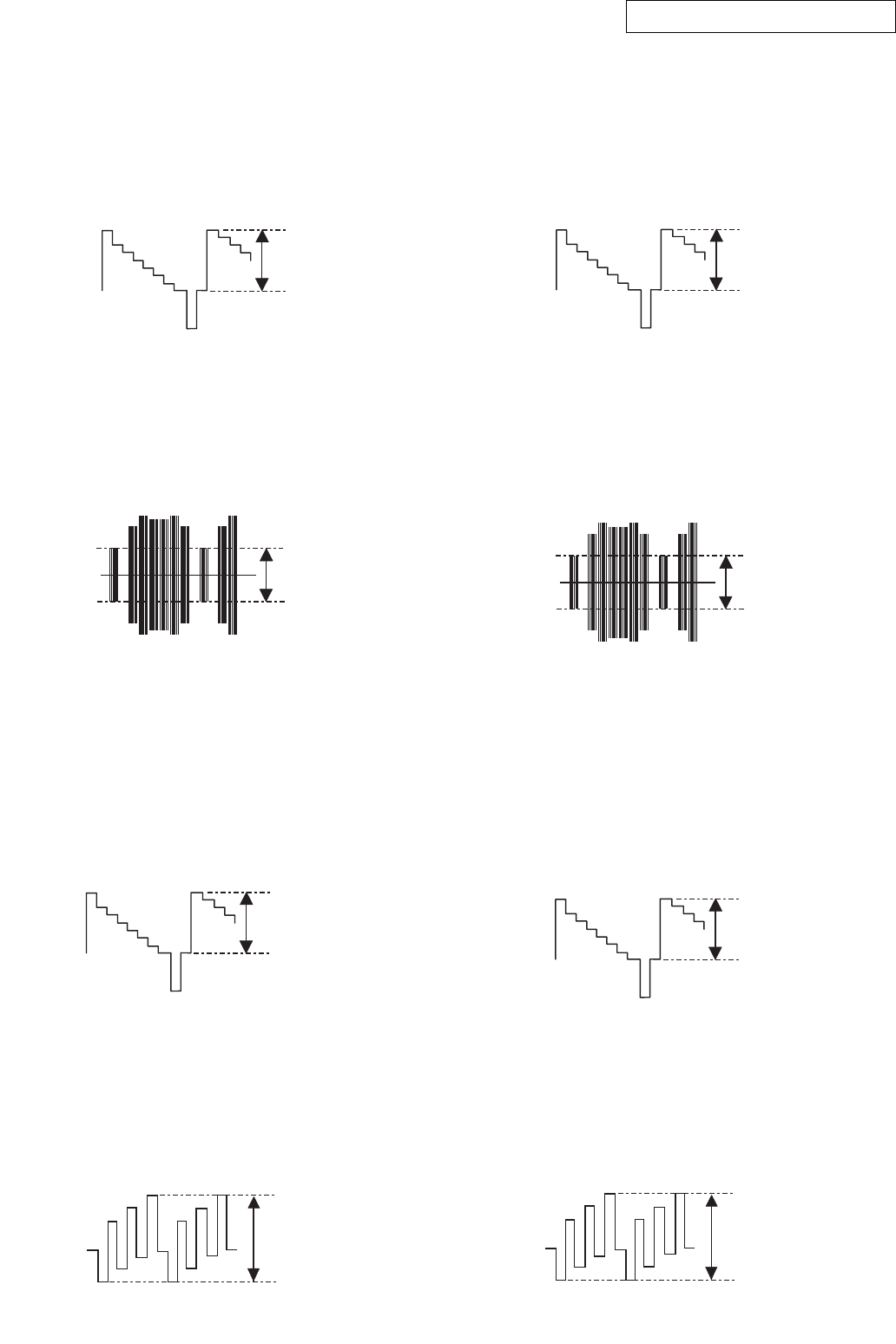

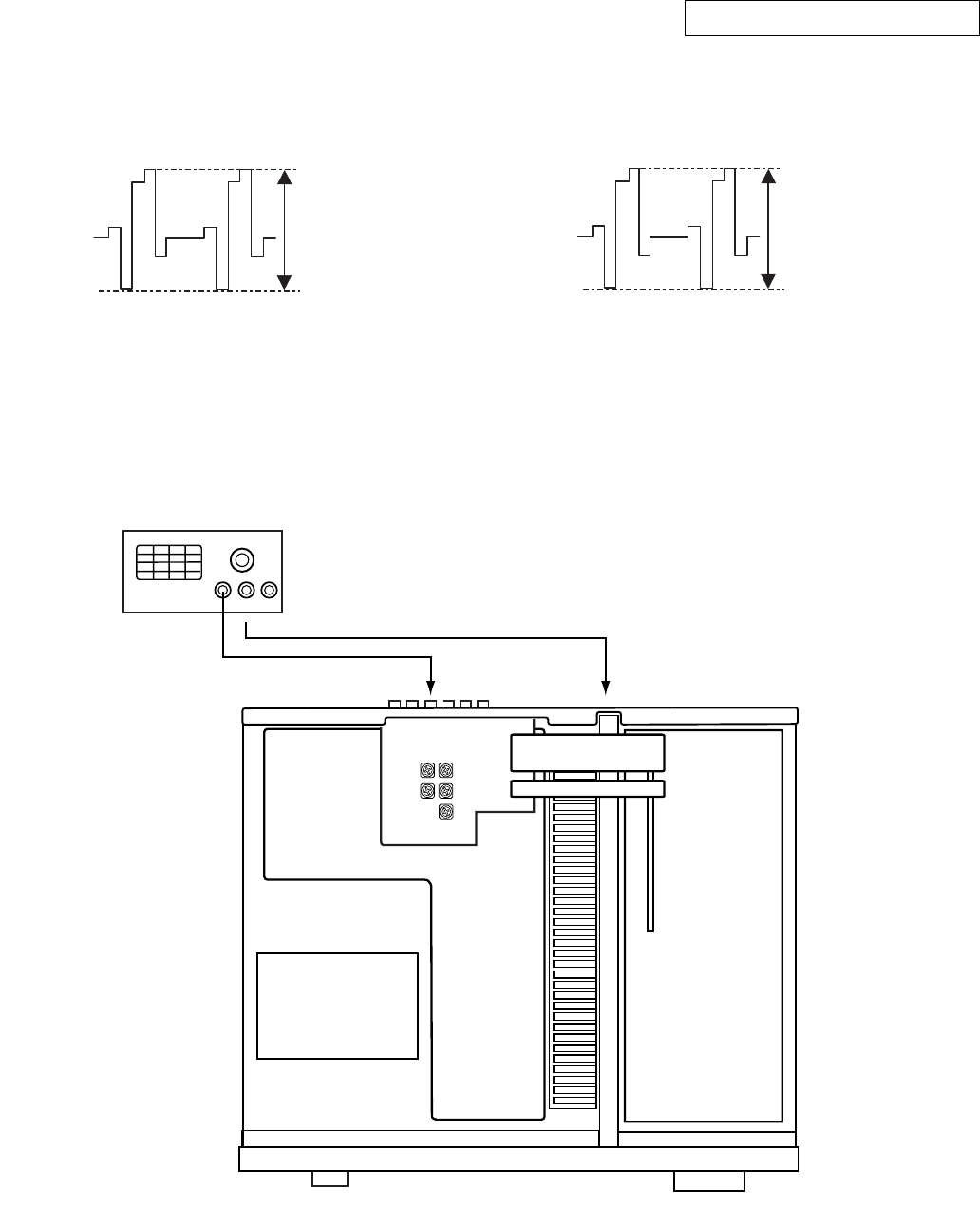

VIDEO Section (AVR-1707/687 ONLY)
1. SETTING
(1) Connect the oscilloscope to the Y-signal and C-signal of
S MONITOR OUT terminal and each terminate at 75
Ohms.
(2) Connect the oscilloscope to the Y-signal, PB-signal and
CB-signal, PR-signal and CR-signal of COMPONENT
MONITOR OUT terminal and each terminate at 75
Ohms.
※ Use the 75 Ohms resistance must be 1%
(3) DVD test disc : DVDT-S01
(4) COMPOSITE VIDEO OUT of DVD player is connected
to COMPOSITE : DVD.
2. BEFORE ADJUSTMENT
2.1. Setting the Oscilloscope as below.
(1) PB/CB, PR/CR, C
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 100mV
(Use the probe : x10 )
(2) Y (Py)
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 200mV
(Use the probe : x10 )
Power on. Power Supply
U.S.A. , Canada & Taiwan R.O.C. : 120V
Europe : 230V
Japan : 100V
China & Korea : 220V
2.2. Setup the DVD player and confirmation of the
stators
(1) Set to "INTERLACED" mode at the COMPONENT OUT.
(2) Confirm the DVD player’s out put level is equal as the
item 2.4. in following.
2.3. Preparation
(1) Turn the FUNCTION knob to select "DVD" input.
(2) Push [OPEN/CLOSE] button of DVD player, then open
the Disc Tray.
Set DVD test disc (DVDT-S01) on the Disc Tray, and
then push [CLOSE] button.
(3) DVD player FL display appear "STOP", push [PLAY] but-
ton to playback DVD.
(4) Push the [DISPLAY] button of remote control of DVD
player unit and then appear the ON-Screen Display (GUI)
on the monitor TV.
(5) Push the [+10] and [2] button, select Title 12 of DVD.
(6) Push the [ENTER] button, playback Title 12.
(color bar 75%)
ビデオセクション (AVR-1707/687 のみ )
1. セッティング手順
(1) セットの S MONITOR OUT 端子から Y 信号と C 信号を
それぞれオシロスコープ（終端抵抗：75Ω）に接続し
ます。
(2) セットの COMPONENT MONITOR OUT の端子
（Y,PB/CB, PR/CR ）をそれぞれオシロスコープ
（終端抵抗：75Ω）に接続します。
※ 75Ω 抵抗は 1％品を使用する事。
(3) DVD テストディスク：DVDT-S01 を用意します。
(4) DVD プレーヤーの COMPOSITE VIDEO OUT を
COMPOSITE : DVD に接続します。
(5)
2. 調整のまえに
2.1. オシロスコープを下記に設定
(1) PB/CB, PR/CR, C
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 100mV
（プローブ x10 使用）
(2) Y (Py)
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 200mV
（プローブ x10 使用）
電源電圧
U.S.A. , Canada & Taiwan R.O.C. : 120V
Europe : 230V
Japan : 100V
China & Korea : 220V
2.2. DVD プレーヤの設定と確認
(1) COMPONENT OUT の設定を " インターレース " にしま
す。
(2) DVD プレーヤーの出力が以下 2.4. に合っていることを
確認します。
2.3. 準備手順
(1) FUNCTION ノブを回し、入力を "DVD" に切り替えます。
(2) DVD プレーヤーの「OPEN/CLOSE」ボタンを押しトレ
イを開き、トレイ上に DVD テストディスク（DVDT-
S01）をセット後、「CLOSE」ボタンを押します。
(3) DVD プレーヤーの表示管上に "STOP" が表示されてか
ら、「PLAY」ボタンを押し、ディスクを再生します。
(4) DVD プレーヤーのリモコンの「DISPLAY」ボタンを押
しグラフィカル・ユーザー・インターフェイス (GUI) 画
面を出します。
(5) 番号ボタンの ｢ +10 ｣ , ｢ 2 ｣ボタンを押し、Title 12 を選択
します。
(6) 「ENTER」ボタンを押し、Title 12 を再生します。
（75％カラーバー信号）
7
AVR-1707/1507/687/587/487
2.4. Procedure
(1) Adjust the signal of S MONITOR OUT by the wave of os-
cilloscope.
(a) Target, Y-signal
Point : C-S VIDEO 1 VR604
Adjustment Value : 714 ±14mV
Waveform
(b) Target, C-signal
Point : C-S VIDEO 1 VR605
Adjustment Value : 286 ±5mV
Waveform
(2) Adjust the signal of COMPONENT OUT by the wave of
oscilloscope.
(a) Target, Y-signal
Point : C-S VIDEO 1 VR601
Adjustment Value : 714 ±14mV
Waveform
(b) Target, PB/CB-signal
Point : C-S VIDEO 1 VR602
Adjustment Value : *525 ±10mV
Waveform
* : 486 ±10mV for U.S.A. & Canada model
Y-signal of S MONITOR OUT
Y
C
C-signal of S-MONITOR OUT
Y
Y-signal COMPONENT OUT
PB/CB-signal COMPONENT OUT
PB/CB
2.4. 手順
(1) セットの S MONITOR OUT の信号レベルをオシロスコー
プ上の波高値で調整します。
(a) Y 信号レベル
調整個所 ： C-S VIDEO 1 VR604
調整値 ： 714 ± 14mV
波形
(b) C 信号レベル
調整個所 ： C-S VIDEO 1 VR605
調整値 ： 286 ± 5ｍV
波形
(2) COMPONENT OUT の信号レベルをオシロスコープ上の
波高値で調整します。
(a) Y 信号レベル
調整個所 ： C-S VIDEO 1 VR601
調整値 ： 714 ± 14ｍV
波形
(b) PB/CB信号レベル
調整個所 ： C-S VIDEO 1 VR602
調整値 ： 525 ± 10ｍV
波形
S MONITOR OUT の Y 信号レベル
Y
C
S-MONITOR OUT の C 信号レベル
Y
COMPONENT OUT の Y 信号レベル
PB/CB
COMPONENT OUT の PB/CB信号レベル
8
AVR-1707/1507/687/587/487
(c) PR/CR信号レベル
調整個所 ： C-S VIDEO 1 VR603
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENT OUT の PR/CR信号レベル
(c) Target, PR/CR-signal
Point : C-S VIDEO 1 VR603
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ±10mV for U.S.A. & Canada model
C-S VIDEO 1 UNIT
PR/CR-signal COMPONENT OUT
PR/CR
Oscilloscope
COMPONENT VIDEO
MONITOR OUT
(Y,P
B
/C
B
,P
R
/C
R
)
S-VIDEO
MONITOR OUT
(Y,C)
Video Section
VR603
VR604
VR605
VR602
VR601
Pb Pr
Py Y
C
9
AVR-1707/1507/687/587/487
BLOCK DIAGRAM
10
AVR-1707/1507/687/587/487
LEVEL DIAGRAMS (1/2)
11
AVR-1707/1507/687/587/487
LEVEL DIAGRAMS (2/2)
12
AVR-1707/1507/687/587/487

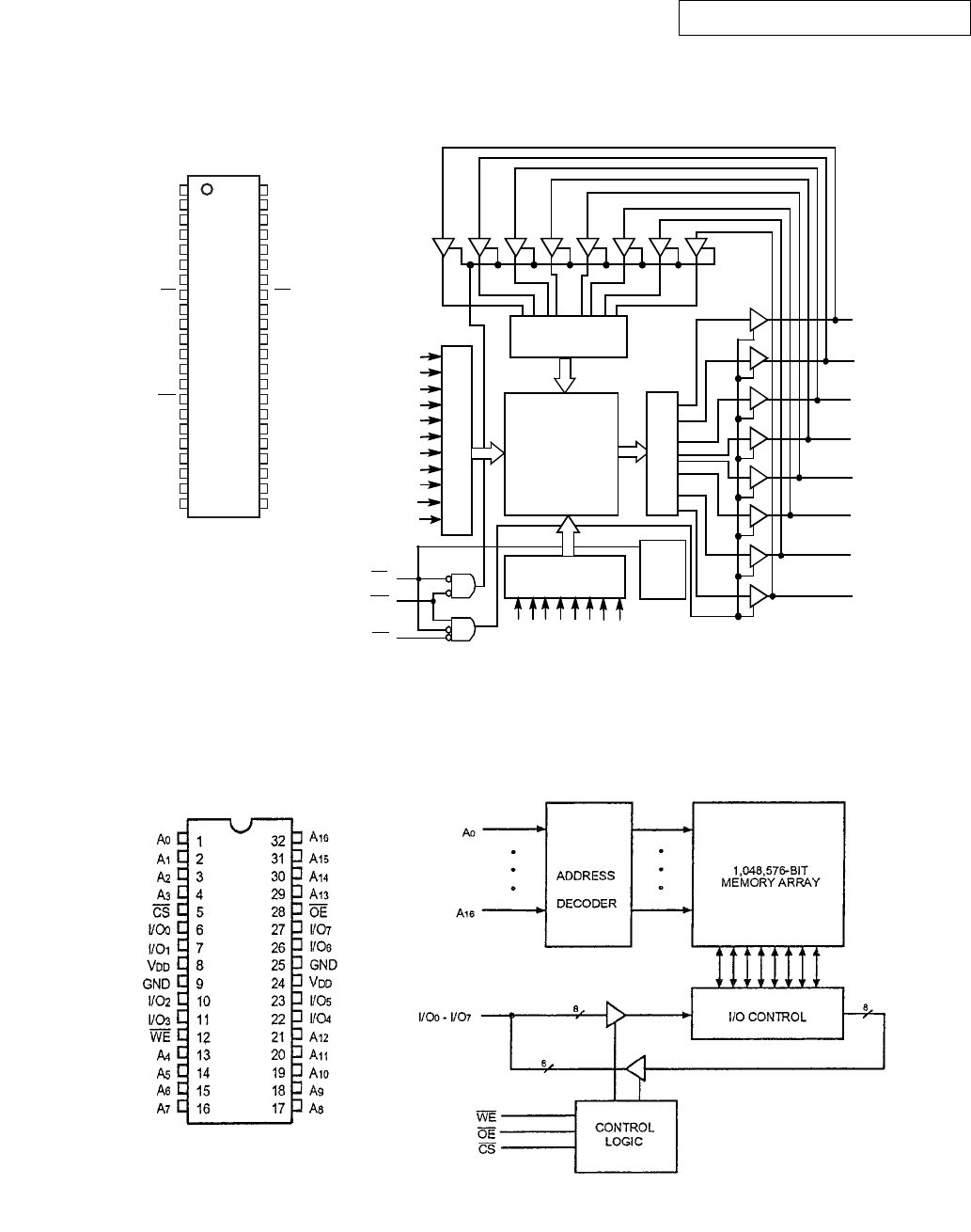

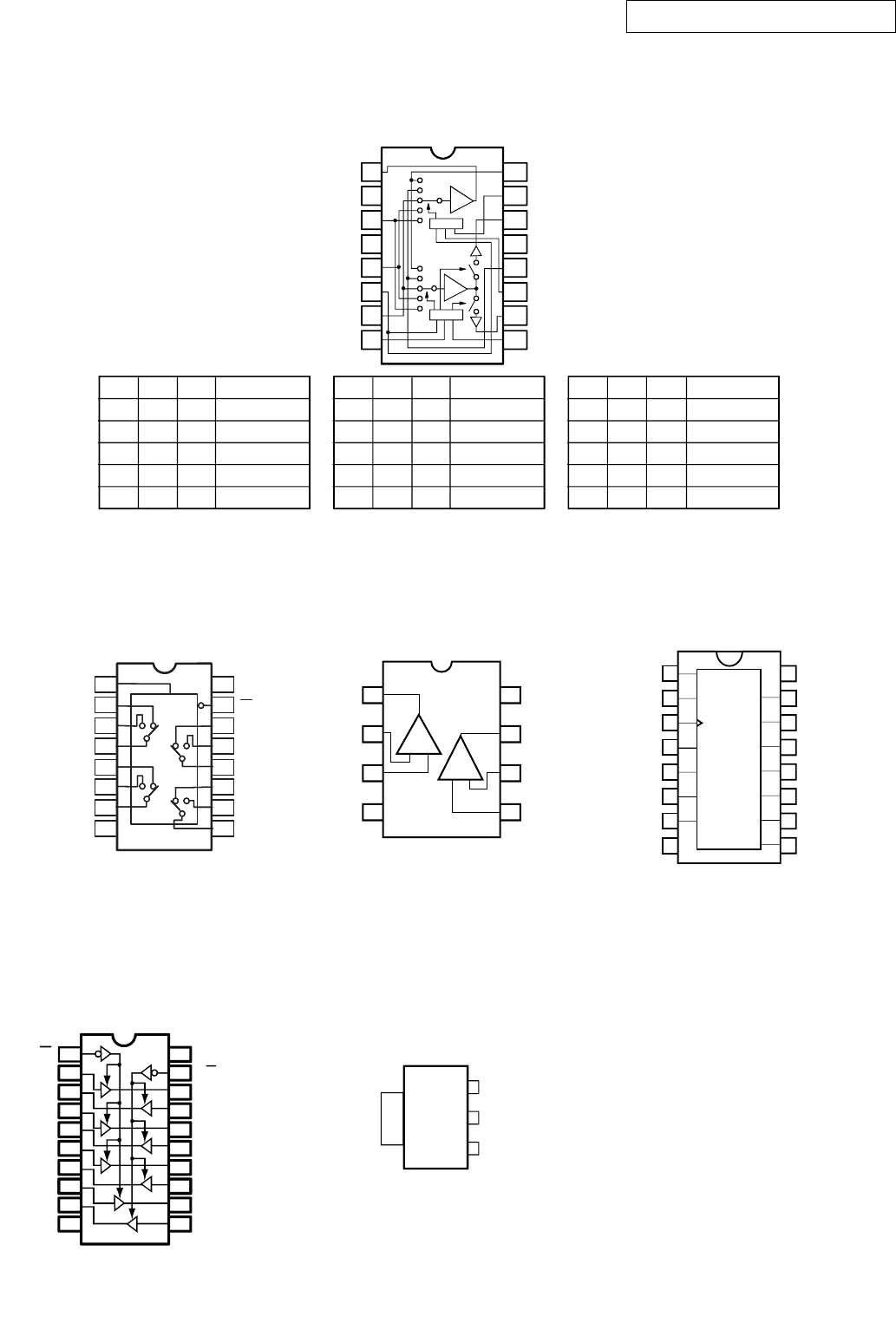

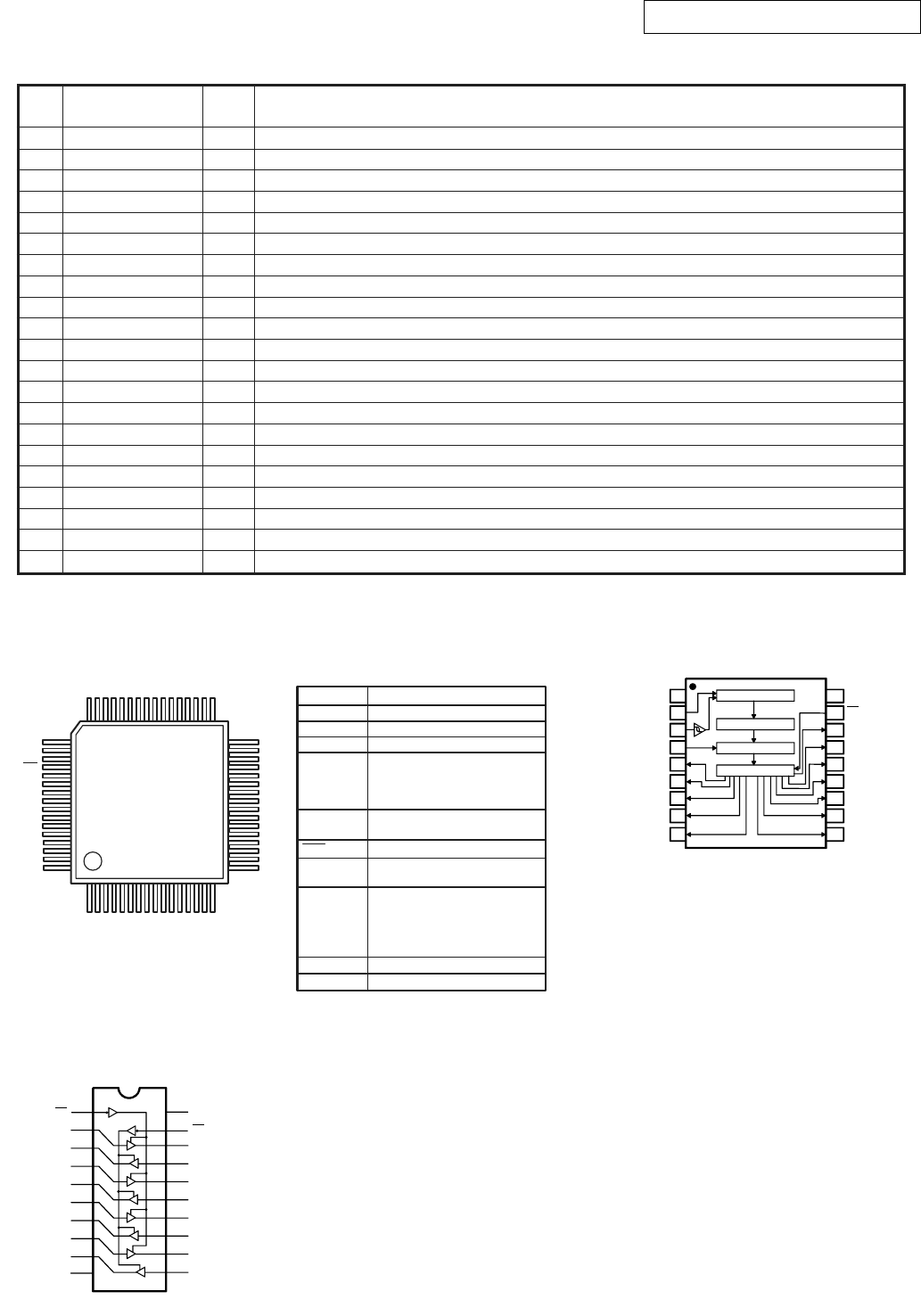

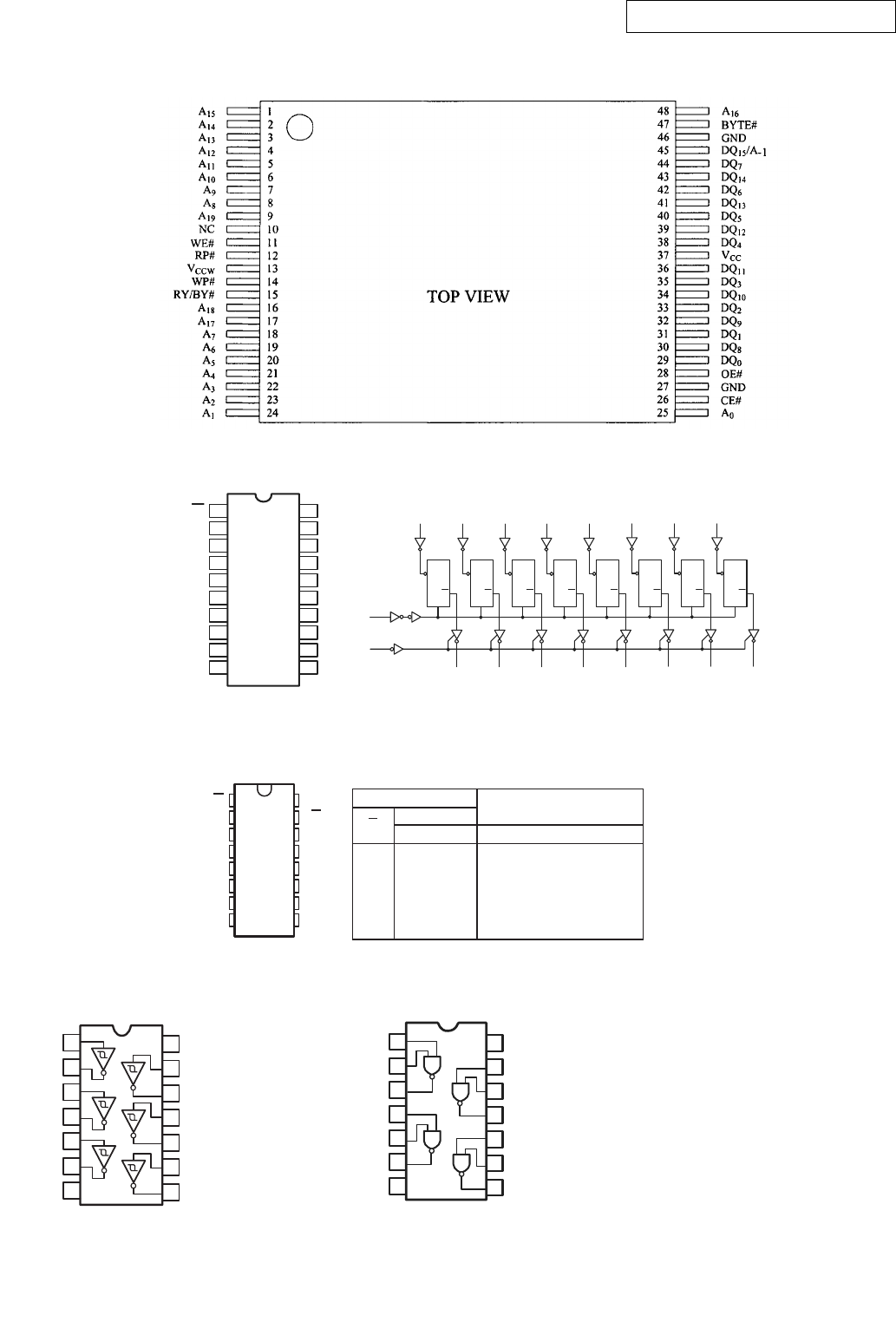

SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s

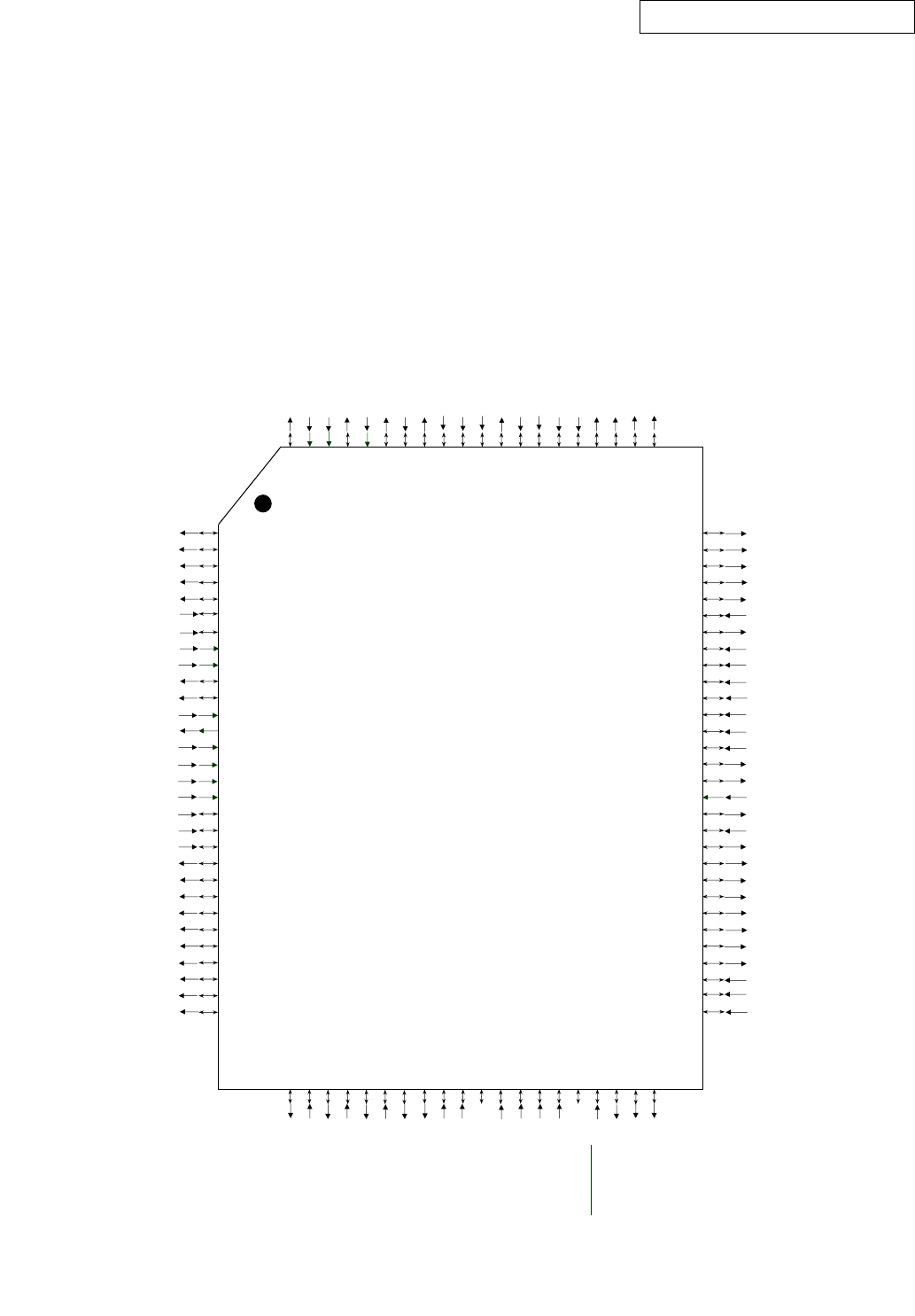

M30622MEP (IC201)
LC74781_CS
AVCC(+5V)
Vref(+5V)
XM_DAC_MDI
AVSS
NC
BAND_OPTION
SEL_OPTION
KEY_IN3
KEY_IN2
KEY_IN1
PWR_DOWN
S-VIDEO_DET
C_VIDEO_DET
COMP_VIDEO_DET
S-MONITOR_DET/J
BU4094_STB(MUTE)
BU4094_STB(RELAY&MUTE)
BU4094_STB(RLY)
MUTE_POWER
100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81
P9_7
AVCC
Vref
P10_0
AVSS
(AN1) P10_1
(AN2) P10_2
(AN3) P10_3
(KI0) P10_4
(KI1) P10_5
(KI2) P10_6
(KI3) P10_7
P0_0
P0_1
P0_2
P0_3
P0_4
P0_5
P0_6
P0_7
SW_SUM 1 P9_6 P1_0 80 NJW1197_DATA
I-POD_DET 2 P9_5 P1_1 79 NJW1197_CLK
2090_CLK(VIDEO)/SEL2/G 3 P9_4 P1_2 78 NJW1197_LATCH
2090_DATA/SEL1/F 4 P9_3 P1_3 77 STBY_RED(LED)
2090_DATA2/VIDEO_MUTE 5 P9_2 P1_4 76 POWER_RELAY
REMOCON 6 P9_1(TB1IN) (INT3)P1_5 75 MIC_DETECT
AD1837_SDIN(OverLoad) 7 P9_0 (INT4) P1_6 74 BU4094_STB(XM)
BYTE 8 BYTE (INT5)P1_7 73 RDS_CLK
CNVSS 9 CNVSS (UP_GRADE) P2_0 72 FUNC_DOWN
BU4094_BU2090_Data(Front) 10 P8_7 P2_1 71 FUNC_UP
FLD_RESET_BU4094_ENABLE 11 P8_6 P2_2 70 H/P_DET
RESET 12 RESET P2_3 69 FLAG1
XOUT 13 XOUT P2_4 68 FLAG2
VSS 14 VSS P2_5 67 FLAG3
XIN 15 XIN P2_6 66 AD1837_CE
VCC1(+5V) 16 VCC1 P2_7 65 SHARC_RESET
NMI 17 P8_5 VSS 64 VSS
FLAG0 18 P8_4(INT2) P3_0 63 SHARC_SCLK
LC89057_INT 19 P8_3(INT1) VCC2 62 VCC2(+5V)
PROTECTION 20 P8_2(INT0) P3_1 61 AD1837_RESET
FLD_BU2090_CLK 21 P8_1 P3_2 60 LC89057W_AD1837_SCLK
FLD_DATA 22 P8_0 P3_3 59 LC89057W_AD1837_SDOUT
FLD_CE 23 P7_7 P3_4 58 LC89057W_CE
I-POD 24 P7_6 P3_5 57 SHARC_SDOUT
7180/7172_DATA 25 P7_5 P3_6 56 SHARC_CE
9164_CLK 26 P7_4 P3_7 55 LC89057W_RESET
7180/7172_CLK 27 P7_3 P4_0 54 EEPROM_RESET
NC 28 P7_2 P4_1 53 LC89057W_SDIN
I-POD_RX 29 P7_1
(RXD)
P4_2 52 SHARC_SDIN
I-POD_TX 30 P7_0
(TXD)
P4_3 51 LC89057_EMPHASIS
P6_7
(UP_GR)
P6_6
(UP_GR)
P6_5
P6_4
P6_3
P6_2
P6_1
P6_0
P5_7
P5_6
P5_5 (UP_GR)
P5_4
P5_3
P5_2
P5_1
P5_0 (UP_GR)
P4-7
P4-6
P4-5
P4-4
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
RS232C_TX(Crestron)
RS232C_RX(Crestron)
PLL_IF_COUNT
PLL_DATA_OUT/XM_DAC_D
A
XM_UART_TX
XM_UART_RX
PLL/XM/4094_CLK
PLL_CE
TUNED
STEREO
EPM(UP_GRADE)
VOL_ENCODER_UP
VOL_ENCODER_DOWN
SEL_UP
SEL_DOWN
CE(UP_GRADE)
RS232C_SW
RDS_DATA
ERR_MUTE
BSE
(Flash =M30624FGPFP)
M30622MxP-xxxFP
13
AVR-1707/1507/687/587/487
M30622MEP Terminal Function
Pin No. Pin Name I/O/T Pin Function
1 P9_6 O SW_SUM
2 P9_5 O I-POD DET
3 P9_4 O BU209CLK(VIDEO)/SEL2/G
4 P9_3 O BU2090Data/SEL1/F
5 P9_2 O BU2090DATA2/VIDEO_MUTE
6 P9_1(TB1IN) I REMOCON
7 P9_0 I AD1837_SDIN(OverLoad)
8 BYTE I BYTE
9 CNVSS(UP_GRADE) I CNVSS
10 P8_7 O BU4094_BU2090_Data(Front)
11 P8_6 O FLD_RESET_BU4094_ENABLE
12 RESET I RESET
13 XOUT O XOUT
14 VSS I VSS
15 XIN I XIN
16 VCC1 I VCC1(+5V)
17 P8_5 I NMI
18 P8_4(INT2) I FLAG0
19 P8_3(INT1) I LC89057_INT
20 P8_2(INT0) I PROTECTION
21 P8_1 O FLD_BU2090_CLK
22 P8_0 O FLD_DATA
23 P7_7 O FLD_CE
24 P7_6 O I-POD ??PIN
25 P7_5 O 7180/7172_DATA
26 P7_4 O TC9273/9164_CLK
27 P7_3 O 7180/7172_CLK
28 P7_2 O NC
29 P7_1(RXD) I I-POD RX
30 P7_0(TXD) O I-POD TX
31 P6_7(UP_GRADE) O RS232C_TX(Crestron)
32 P6_6(UP_GRADE) I RS232C_RX(Crestron)
33 P6_5 I PLL_IF_COUNT
34 P6_4 O PLL_DATA OUT/XM_DAC_DATA
35 P6_3 O XM_UART_TX
36 P6_2 I XM_UART_RX
37 P6_1 O PLL_CLK/XM_DAC_CLK/BU4094_CLK
38 P6_0 O PLL_CE
39 P5_7 I TUNED
40 P5_6 I STEREO
41 P5_5(UP_GRADE)
42 P5_4 I VOL_ENCODER_UP
43 P5_3 I VOL_ENCODER_DOWN
44 P5_2 I SEL_UP
45 P5_1 I SEL_DOWN
46 P5_0(UP_GRADE)
47 P4-7 O RS232C_SW
48 P4-6 I RDS_DATA
49 P4-5 O ERR_MUTE
50 P4-4 O BSE
51 P4_3 I LC89057_EMPHASIS
52 P4_2 I SHARC_SDIN
53 P4_1 I LC89057W_SDIN
54 P4_0 O EEPROM_RESET
55 P3_7 O LC89057W_RESET
14
AVR-1707/1507/687/587/487
56 P3_6 O SHARC_CE
57 P3_5 O SHARC_SDOUT
58 P3_4 O LC89057W_CE
59 P3_3 O LC89057W_AD1837_SDOUT
60 P3_2 O LC89057W_AD1837_SCLK
61 P3_1 O AD1837_RESET
62 VCC2 I VCC2(+5V)
63 P3_0 O SHARC_SCLK
64 VSS I VSS
65 P2_7 O SHARC_RESET
66 P2_6 O AD1837_CE
67 P2_5 I FLAG3
68 P2_4 I FLAG2
69 P2_3 I FLAG1
70 P2_2 I H/P_DET
71 P2_1 I FUNC_ENCODER_UP
72 P2_0 I FUNC_ENCODER_DOWN
73 (INT5)P1_7 I RDS_CLOCK
74 (INT4)P1_6 O 4094_STB(XM)
75 (INT3)P1_5 I MIC_DETECT
76 P1_4 O POWER_RELAY
77 P1_3 O STBY_RED_LED
78 P1_2 O 1197_LATCH
79 P1_1 O 1197_CLK
80 P1_0 O 1197_DATA
81 P0_7 O MUTE_POWER
82 P0_6 O 4094_STB(RLY)
83 P0_5 O 4094_STB(RLY/MUTE)
84 P0_4 O 4094_STB(MUTE)
85 P0_3 I S-MONITOR_DET
86 P0_2 I COMPONENT_DET
87 P0_1 I COMPOSITE_DET
88 P0_0 I S-VIDEO_DET
89 (KI3)P10_7 I POWER_DOWN
90 (KI2)P10_6 I KEY_IN1
91 (KI1)P10_5 I KEY_IN2
92 (KI0)P10_4 I KEY_IN3
93 (AN3)P10_3 I SET_OPTION
94 (AN2)P10_2 I BAND_OPTION
95 (AN1)P10_1 O NC
96 AVSS I AVSS
97 P10_0 O XM_DAC_MDI
98 Vref I Vref(+5V)
99 AVCC I AVCC(+5V)
100 P9_7 O 74781_CS
Pin No. Pin Name I/O/T Pin Function
15
AVR-1707/1507/687/587/487

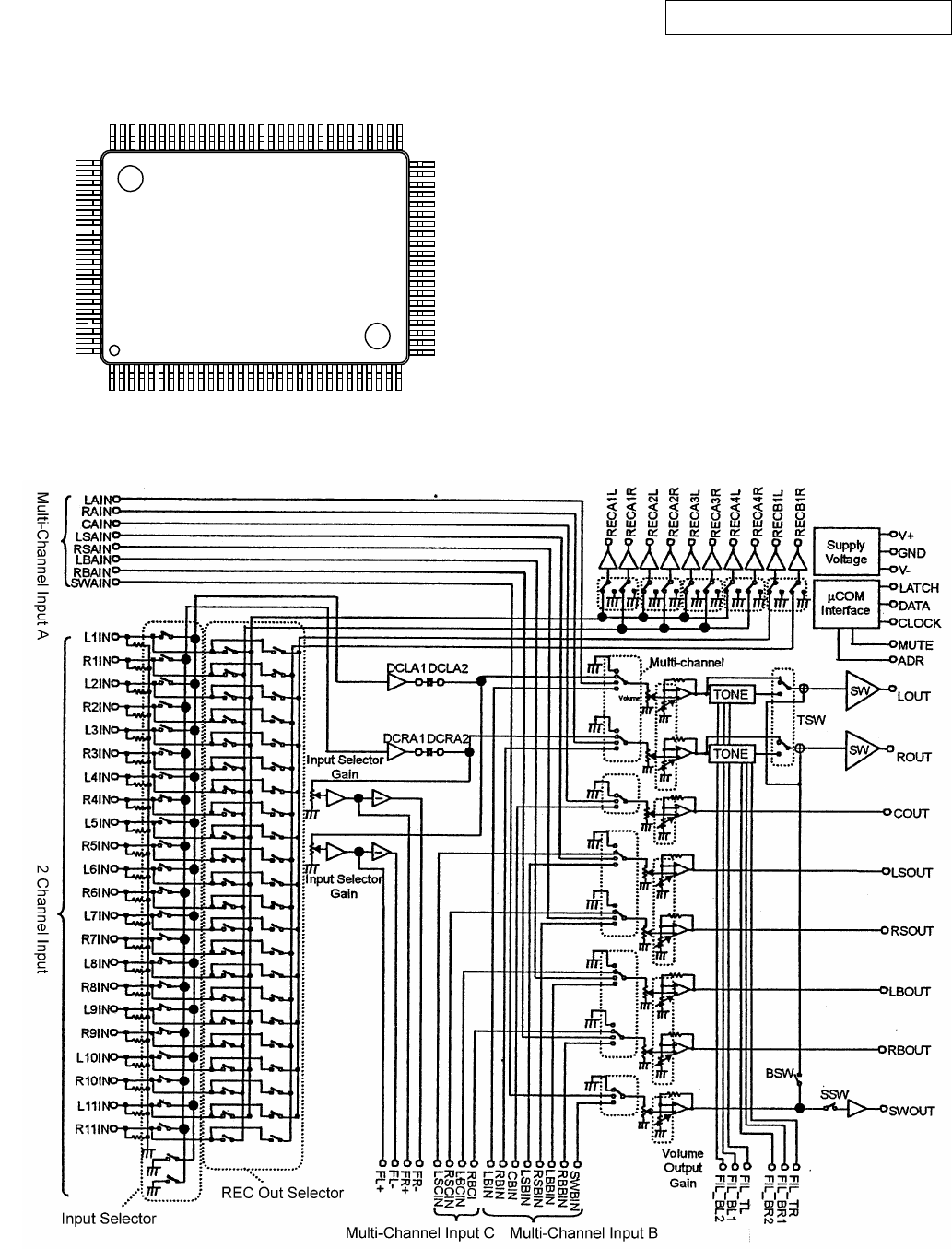

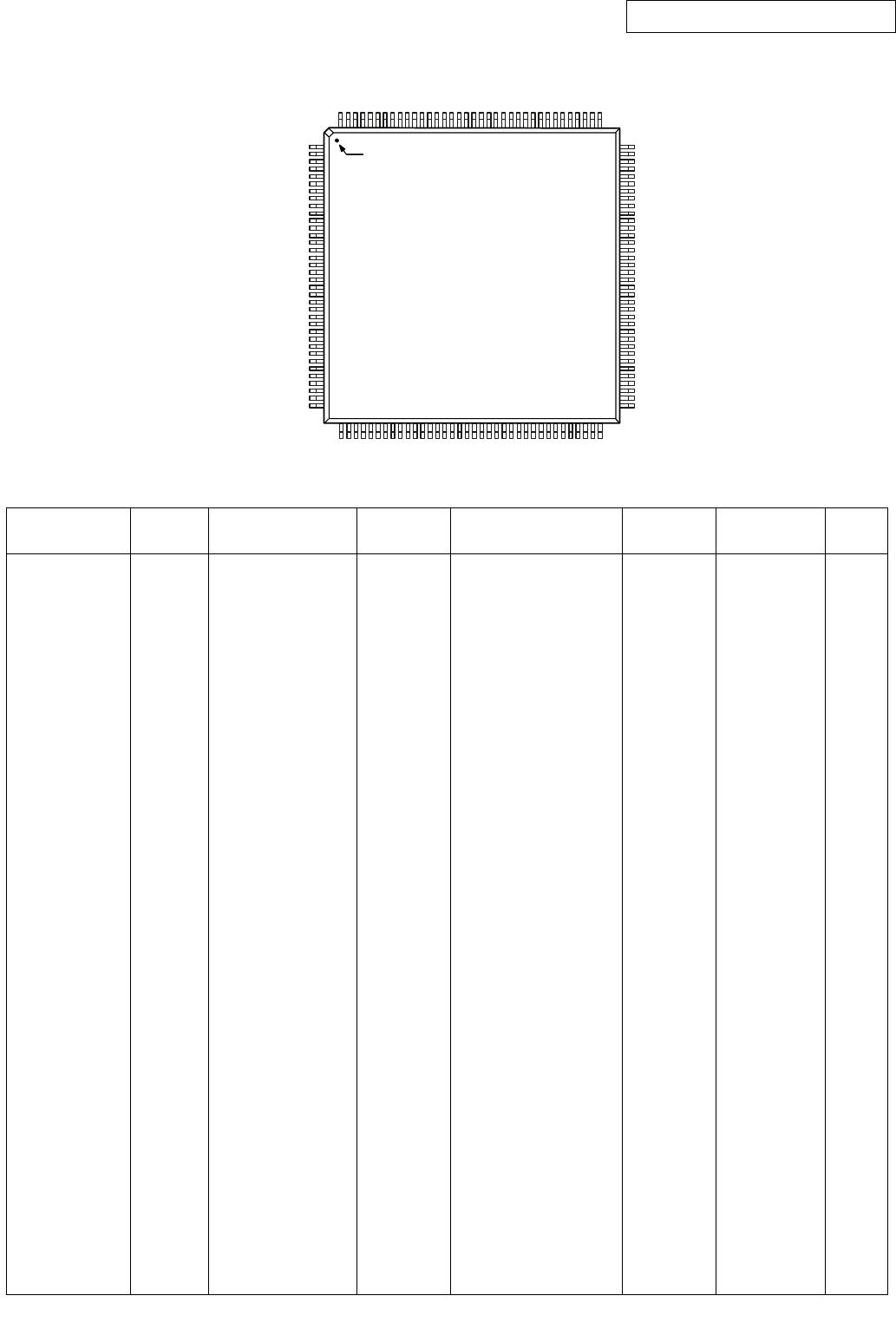

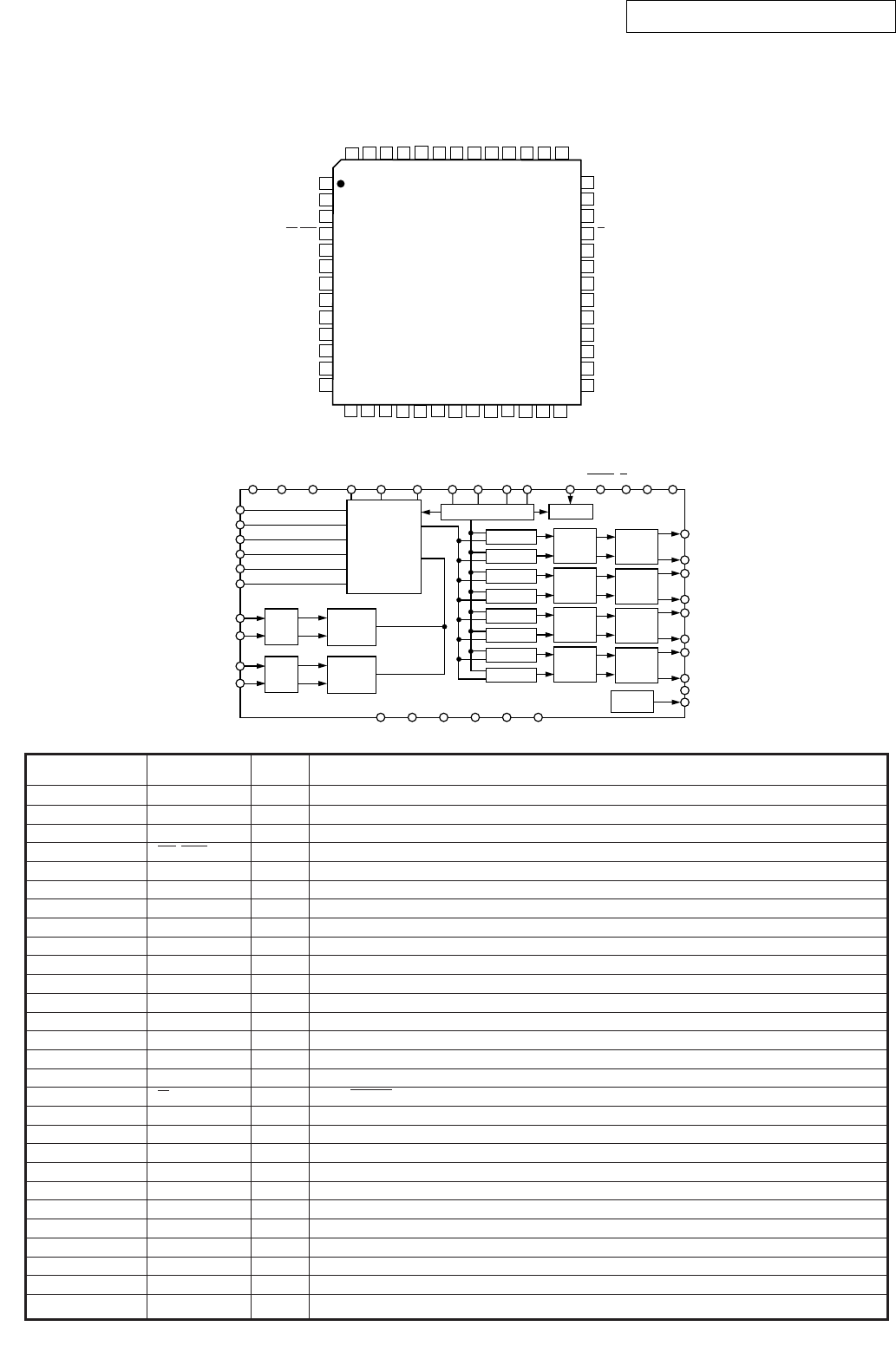

NJW1197 (IC701)
130
31
50
80
81
100
51
16
AVR-1707/1507/687/587/487
NJW1197 Terminal Function
No. SYMBOL FUNCTION No. SYMBOL FUNCTION
1 ROUT Rch output 51 DCR_IN Multi-channel selector Rch input
2 COUT Cch output 52 DCR_OUT Input selector Rch output
3 LSOUT LSch output 53 GND Ground
4 RSOUT RSch output 54 DCL_IN Multi-channel selector Lch input
5 LBOUT LBch output 55 DCL_OUT Input selector Lch output
6 RBOUT RBch output 56 GND Ground
7 SWOUT SWch output 57 REC_B1R Input selector Rch REC output B1
8 GND Ground 58 REC_B1L Input selector Lch REC output B1
9 FIL_BL2 Lch Bass filter terminal 2 59 REC_A4R Input selector Rch REC output A4
10 FIL_BL1 Lch Bass filter terminal 1 60 REC_A4L Input selector Lch REC output A4
11 FIL_TL Lch Treble filter terminal 61 REC_A3R Input selector Rch REC output A3
12 TCAP Switching noise rejection capacitor 62 REC_A3L Input selector Lch REC output A3
13 FIL_BR2 Rch Bass filter terminal 2 63 REC_A2R Input selector Rch REC output A2
14 FIL_BR1 Rch Bass filter terminal 1 64 REC_A2L Input selector Lch REC output A2
15 FIL_TR Rch Treble filter terminal 65 REC_A1R Input selector Rch REC output A1
16 V+ + Power supply voltage input 66 REC_A1L Input selector Lch REC output A1
17 ADR Chip address select input 67 VDDOUT Internal Digital +Power Supply Output
18 V- - Power supply voltage input 68 DATA Control data signal input
19 L1IN Input selector Lch input 1 69 CLOCK Clock signal input
20 DCCAP_SW Switching noise rejection capacitor 70 LATCH Latch signal input
21 R1IN Input selector Rch input 1 71 MUTE External Mute control
22 DCCAP_RB Switching noise rejection capacitor 72 FL+ Input selector gain control Lch no-inverted output
23 L2IN Input selector Lch input 2 73 FL- Input selector gain control Lch inverted output
24 DCCAP_LB Switching noise rejection capacitor 74 FR+ Input selector gain control Rch no-inverted output
25 R2IN Input selector Rch input 2 75 FR- Input selector gain control Rch inverted output
26 DCCAP_RS Switching noise rejection capacitor 76 GND Ground
27 L3IN Input selector Lch input 3 77 LSCIN Multi-channel LSch input C
28 DCCAP_LS Switching noise rejection capacitor 78 RSCIN Multi-channel RSch input C
29 R3IN Input selector Rch input 3 79 LBCIN Multi-channel LBch input C
30 DCCAP_C Switching noise rejection capacitor 80 RBCIN Multi-channel RBch input C
31 L4IN Input selector Lch input 4 81 GND Ground
32 DCCAP_R Switching noise rejection capacitor 82 LAIN Multi-channel Lch input A
33 R4IN Input selector Rch input 4 83 RAIN Multi-channel Rch input A
34 DCCAP_L Switching noise rejection capacitor 84 CAIN Multi-channel Cch input A
35 L5IN Input selector Lch input 5 85 LSAIN Multi-channel LSch input A
36 GND Ground 86 RSAIN Multi-channel RSch input A
37 R5IN Input selector Rch input 5 87 LBAIN Multi-channel LBch input A
38 GND Ground 88 RBAIN Multi-channel RBch input A
39 L6IN Input selector Lch input 6 89 SWAIN Multi-channel SWch input A
40 L9IN Input selector Lch input 9 90 GND Ground
41 R6IN Input selector Rch input 6 91 LBIN Multi-channel Lch input B
42 R9IN Input selector Rch input 9 92 RBIN Multi-channel Rch input B
43 L7IN Input selector Lch input 7 93 CBIN Multi-channel Cch input B
44 L10IN Input selector Lch input 10 94 LSBIN Multi-channel LSch input B
45 R7IN Input selector Rch input 7 95 RSBIN Multi-channel RSch input B
46 R10IN Input selector Rch input 10 96 LBBIN Multi-channel LBch input B
47 L8IN Input selector Lch input 8 97 RBBIN Multi-channel RBch input B
48 L11IN Input selector Lch input 11 98 SWBIN Multi-channel SWch input B
49 R8IN Input selector Rch input 8 99 GND Ground
50 R11IN Input selector Rch input 11 100 LOUT Lch output
17
AVR-1707/1507/687/587/487
ADSP21266SKSTZ-1B (IC804)
ADSP21266SKSTZ-1B Terminal Function
1
36
37
73
72
108
144 109
TOP VIEW
PIN 1 INDICATOR
Pin Name
LQFP
Pin # Pin Name
LQFP
Pin # Pin Name
LQFP
Pin # Pin Name
LQFP
Pin #
V
DDINT
1V
DDINT
37 V
DDEXT
73 GND 109
CLKCFG0 2 GND 38 GND 74 V
DDINT
110
CLKCFG1 3 RD 39 V
DDINT
75 GND 111
BOOTCFG0 4 ALE 40 GND 76 V
DDINT
112
BOOTCFG1 5 AD15 41 DAI_P10 (SD2B) 77 GND 113
GND 6 AD14 42 DAI_P11 (SD3A) 78 V
DDINT
114
V
DDEXT
7 AD13 43 DAI_P12 (SD3B) 79 GND 115
GND 8 GND 44 DAI_P13 (SCLK23) 80 V
DDEXT
116
V
DDINT
9V
DDEXT
45 DAI_P14 (SFS23) 81 GND 117
GND 10 AD12 46 DAI_P15 (SD4A) 82 V
DDINT
118
V
DDINT
11 V
DDINT
47 V
DDINT
83 GND 119
GND 12 GND 48 GND 84 V
DDINT
120
V
DDINT
13 AD11 49 GND 85 RESET 121
GND 14 AD10 50 DAI_P16 (SD4B) 86 SPIDS 122
FLAG0 15 AD9 51 DAI_P17 (SD5A) 87 GND 123
FLAG1 16 AD8 52 DAI_P18 (SD5B) 88 V
DDINT
124
AD7 17 DAI_P1 (SD0A) 53 DAI_P19 (SCLK45) 89 SPICLK 125
GND 18 V
DDINT
54 V
DDINT
90 MISO 126
V
DDINT
19 GND 55 GND 91 MOSI 127
GND 20 DAI_P2 (SD0B) 56 GND 92 GND 128
V
DDEXT
21 DAI_P3 (SCLK0) 57 V
DDEXT
93 V
DDINT
129
GND 22 GND 58 DAI_P20 (SFS45) 94 V
DDEXT
130
V
DDINT
23 V
DDEXT
59 GND 95 A
VDD
131
AD6 24 V
DDINT
60 V
DDINT
96 A
VSS
132
AD5 25 GND 61 FLAG2 97 GND 133
AD4 26 DAI_P4 (SFS0) 62 FLAG3 98 CLKOUT 134
V
DDINT
27 DAI_P5 (SD1A) 63 V
DDINT
99 EMU 135
GND 28 DAI_P6 (SD1B) 64 GND 100 TDO 136
AD3 29 DAI_P7 (SCLK1) 65 V
DDINT
101 TDI 137
AD2 30 V
DDINT
66 GND 102 TRST 138
V
DDEXT
31 GND 67 V
DDINT
103 TCK 139
GND 32 V
DDINT
68 GND 104 TMS 140
AD1 33 GND 69 V
DDINT
105 GND 141
AD0 34 DAI_P8 (SFS1) 70 GND 106 CLKIN 142
WR 35 DAI_P9 (SD2A) 71 V
DDINT
107 XTAL 143
V
DDINT
36 V
DDINT
72 V
DDINT
108 V
DDEXT
144
18
AVR-1707/1507/687/587/487

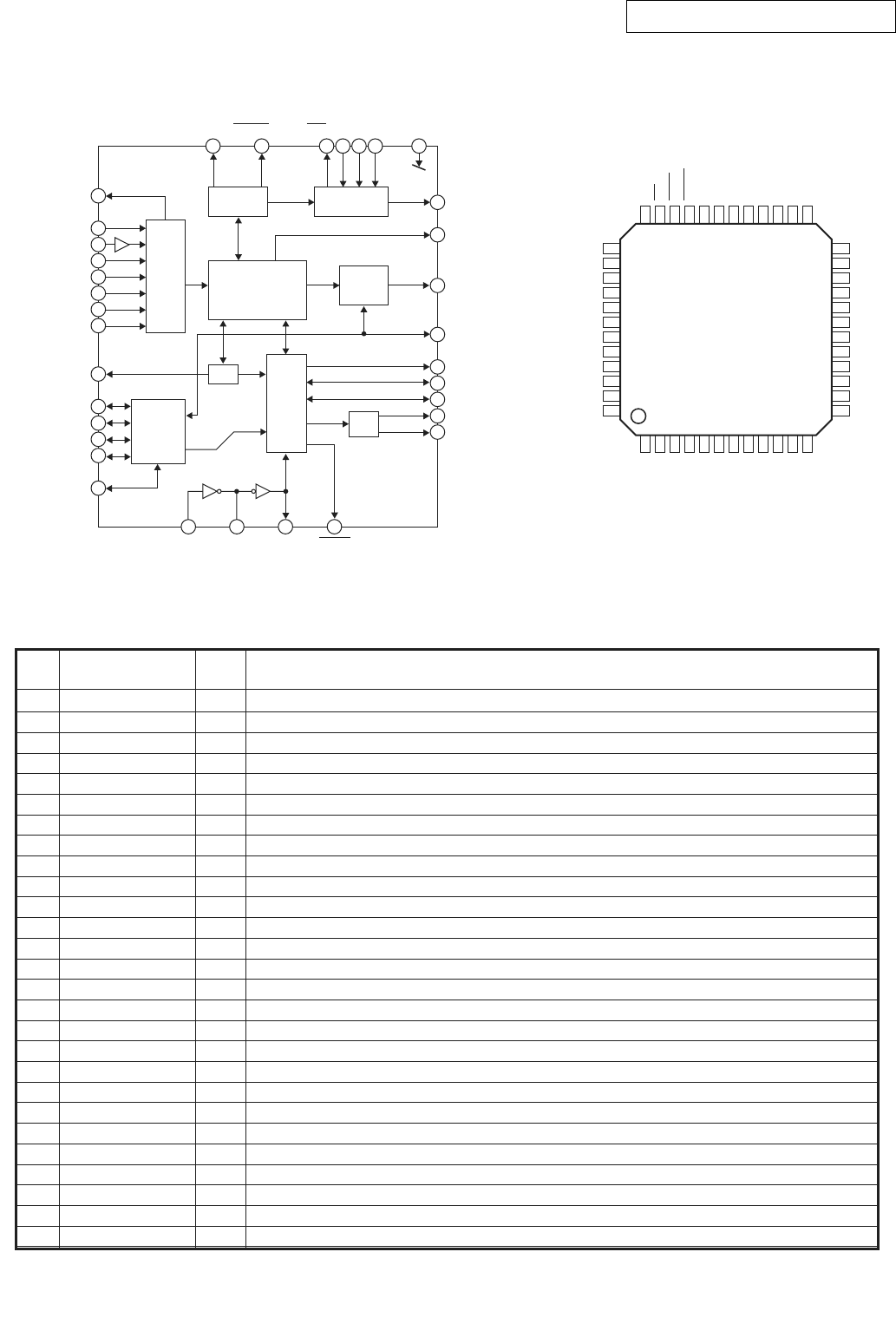

LC89057W (IC807)
LC89057W Terminal Function
Function
Pin
No. Pin Name
1 RXOUT O Input bi-phase select data output terminal
2 RX0 I TTL compatible digital data input terminal
3 RX1 I Coaxial compatible amp built-in digital data input terminal
4 RX2 I TTL compatible digital data input terminal
5 RX3 I TTL compatible digital data input terminal
6 DGND — Digital GND
7 DVDD — Digital power
8 RX4 I TTL compatible digital data input terminal
9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation
10 RX6/UI I TTL compatible digital data/User data input terminal for modulation
11 DVDD — Digital power for PLL
12 DGND — Digital GND for PLL
13 LPF O PLL loop filter connecting terminal
14 AVDD — Analog power for PLL
15 AGND — Analog GND for PLL
16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO)
17 RBCK O/I RBCK clock in/output terminal (64fs)
18 DGND — Digital GND
19 DVDD — Digital power
20 RLRCK O/I RLRCK clock in/output terminal (fs)
21 RDATA O Serial audio data output terminal
22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs)
23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs)
24 SDIN I Serial audio data input terminal
25 DGND — Digital GND
26 DVDD — Digital power
27 XMCK O Osc. amp output terminal
I/O
36 RERR1RXOUT
35 INT2RX0
34 CKST3RX1
33 AUDIO/VO4RX2
32 EMPHA/UO5RX3
31 DGND6DGND
30 DVDD7DVDD
29 XIN8RX4
28 XOUT9RX5/VI
27 XMCK10RX6/UI
26 DVDD11DVDD
25 DGND12DGND
24 SDIN37DO
23 SLRCK38DI
22 SBCK39CE
21 RDATA40CL
20 RLRCK41XMODE
19 DVDD42DGND
18 DGND43DVDD
17 RBCK44TMCK/PIO0
16 RMCK45TBCK/PIO1
15 AGND46TLRCK/PIO2
14 AVDD47TDATA/PIO3
13 LPF48TXO/PIOEN
TOP VIEW
1
RXOUT
32
EMPHA/UO
33
AUDIO/VO
35
INT
40
CL
39
CE
38
DI
28
XOUT
29
XIN
27
XMCK
34
CKST
41
XMODE
Input
Selector
2
RX0
3
RX1
4
RX2
5
RX3
8
RX4
9
RX5/VI
10
RX6/UI
37
DO
36
RERR
21
RDATA
24
SDIN
16
RMCK
17
RBCK
20
RLRCK
22
SBCK
23
SLRCK
13
LPF
44
TMCK/PIO0
45
TBCK/PIO1
46
TLRCK/PIO2
47
TDATA/PIO3
48
TXO/PIOEN
Clock
Selector
C bit, U bit
PLL
Demodulation
&
Lock Detect
Microcontroller
I/F
Data
Selector
I/N
Modulation
or
Parallel Port
19
AVR-1707/1507/687/587/487
LC75721E (IC301) BU2090F (IC302,1005,1008)
MM74LCX244 (IC809-811)
Function
Pin
No. Pin Name I/O
* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.
28 XOUT O X’tal osc. connecting output terminal
29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz)
30 DVDD — Digital power
31 DGND — Digital GND
32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal
33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal
34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal
35 INT I/O Interrupt output for µcom (Interrupt factor selectable)/Modulation or general I/O switching terminal
36 RERR O PLL lock error, data error flag output
37 DO O µcom I/F, read out data output terminal (3-state)
38 DI I µcom I/F, write data input terminal
39 CE I µcom I/F, chip enable input terminal
40 CL I µcom I/F, clock input terminal
41 XMODE I System reset input terminal
42 DGND — Digital GND
43 DVDD — Digital power
44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal
45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal
46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal
47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal
48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal
64
49
48 33
32
17
161
AM 1
AM 2
AM 3
AM 4
AM 5
AM 6
AM 7
AM 8
AM 9
AM 10
AM 11
AM 12
AM 13
AM 14
AM 15
AM 16
AM 17
AM 18
AM 19
AM 20
AM 21
AM 22
AM 23
AM 24
AM 25
AM 26
AM 27
AM 28
AM 29
AM 30
AM 31
AM 32
G7
G8
G9
G10
G11
AA8/G12
AA7/G13
AA6/G14
AA5/G15
AA4/G16
AA3
AA2
AA1
AM35
AM34
AM33
DI
CL
CE
RES
V
DD
OSCI
OSCO
Vss
TEST
V
FL
G1
G2
G3
G4
G5
G6
Symbol
V
DD
Vss
Power terminal +5V
Power terminal GND
V
FL
Power terminal FL drive
DI
CL
CE
Serial data transfer terminal
DI: Data
CL: Clock
CE: Chip enable
OSCI
OSCO External CR connecting terminal
RES System reset terminal
AM1~AM35
AA1~AA3 Anode output terminal
AA4/G16
AA5/G15
AA6/G14
AA7/G13
AA8/G12
Anode/Grid output terminal
G1~G11 Grid output terminal
TEST LSI test terminal
Function
LC75721E Terminal Function
1
2
3
4
5
6
7
8
20
19
18
16
15
14
13
I3
VCC
OE2
O2
I5
O0
I4
O1
I6
OE
I0
O4
I1
O5
I2
O6
912
O7 O3
10 11
GND I7
TOP VIEW
17
1
2
3
4
5
6
7
8
18
17
16
15
14
13
12
11Q3
VDD
OE
Q7
Q8
Q11
Q10
Q9
Q6
VSS
DATA
CLOCK
LCK
Q0
Q1
Q2
910
Q4 Q5
CONTROL CIRCUIT
12-bit SHIFT REGISTER
12- bi t STRAGE REGI STER
OUTPUT BUFFER ( OPEN DRA I N)
20
AVR-1707/1507/687/587/487
AD1837AAS (IC808)
AD1837 Terminal Function
DescriptionPin No. Pin Name Input/
Output
1,39 DVDD Digital Power Supply. Connect to digital 5V supply.
2 CLATCH I Latch Input for Control Data
33 CIN I Serial Control Input
4 PD/RST I Power-Down/Reset
5,10,16,24,30,35 AGND Analog Ground
6,12,25,31 NC Not connected
7,13,26,32 OUTLx O DACx Left Channel Output
8,14,27,33 NC Not connected
9,15,28,34 OUTRx O DACx Right Channel Output
11,19,29 AVDD Analog Power Supply. Connect to analog 5V supply.
17 FILTD Filter Capacitor Connection. Recommend 10µF/100nF.
18 FILTR Reference Filter Capacitor Connection. Recommended 10µF/100nF.
20 ADCLN I ADC Left Channel Negative Input
21 ADCLP I ADC Left Channel Positive Input
22 ADCRN I ADC Right Channel Negative Input
23 ADCRP I ADC Right Channel Positive Input
36 M/S I ADC Master/Slave Select
37 DLRCLK I/O DAC LR Clock
38 DBCLK I/O DAC Bit Clock
40,52 DGND Digital Ground
41-44 DSDATAx I DACx Input Data (Left and Right Supply)
45 ABCLK I/O ADC Bit Clock
46 ALRCLK I/O ADC LR Clock
47 MCLK I Master Clock Input
48 ADVDD Digital Output Driver Power Supply
49 ASDATA O ADC Serial Data Output
50 COUT O Output for Control Data
51 CCLK I Control Clock Input for Control Data
1
2
3
4
5
6
7
8
9
10
11
12
13
AGND
AVDD
OUTR2
NC
OUTL2
NC
OUTR1
NC
OUTL1
NC
PD/RST
CIN
CLATCH
DVDD
NC
OUTL3
NC
OUTR3
NC
OUTL4
NC
OUTR4
AGND
DLRCLK
DBCLK
DGND
14 15 16 17 18 19 20 21 22 23 24 25 26
27
28
29
30
31
32
33
34
35
36
37
38
39
52 51 50 49 48 47 46 45 44 43 42 41 40
FILTD
FILTR
AGND
M/S
AGND
AVDD
ADCLN
ADCLP
ADCRN
ADCRP
AGND
AGND
DGND
CCLK
COUT
ASDATA
ODVDD
MCLK
ALRCLK
ABCLK
DSDATA4
DSDATA3
DSDATA2
DSDATA1
DVDD
AVDD
TOP VIEW
OUTL1
CONTROL PORT CLOCK
FILTD
FILTR
ADCLP
ADCLN
ADCRP
ADCRN
DLRCLK
DBCLK
DSDATA1
DSDATA2
DSDATA3
DSDATA4
MCLKASDATAABCLKALRCLKODVDDDVDD DVDD
DGND AGND AGND AGND AGNDDGND
CINCLATCHCCLK COUT
DIGITAL
FILTER
PD/RST M/S AVDD AVDD
VOLUME
OUTR1
OUTL2
OUTR2
OUTL3
OUTR3
OUTL4
OUTR4
AD1837
DIGITAL
FILTER
SERIAL DATA
I/O PORT VOLUME
VOLUME
VOLUME
VOLUME
VOLUME
VOLUME
VOLUME
DIGITAL
FILTER
DIGITAL
FILTER
DIGITAL
FILTER
DIGITAL
FILTER
VREF
Σ-∆
ADC
Σ-∆
ADC
Σ-∆
DAC
Σ-∆
DAC
Σ-∆
DAC
Σ-∆
DAC
21
AVR-1707/1507/687/587/487
BA7626 (IC1004,1016,1019 : for AVR1707/687 model)
(IC652,653 : for AVR1507/487 model)
BA7625 (IC651 : for AVR1507/487 model)
74LVX157MTC (IC816) BA4510F (IC815A,816A) BU4094BCF (IC551,552)
MM74HCT244 (IC812) FAN1117-1.2 (IC824)
RC1117-33 (IC823)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Monitor OUT
GND
IN5
GND
IN4
CTL E
IN3
CTL D
IN1
CTL A
V OUT1
Vcc
IN2
CTL B
V OUT2
CTL C
6dB
6dB
LOGIC
LOGIC
ABE
MONITOR OUT C D E V OUT 1 C D E V OUT 2
LL* IN 1 LL* ⎯LL* IN 1
H L * IN 2 H L * IN 2 H L * ⎯
L H * IN 3 L H * IN 3 L H * IN 3
H H L IN 4 H H L IN 4 H H L IN 4
HHH IN 5 HHH IN 5 HHH IN 5
Note 1: * mark means that feasible for either H or L.
Note 2: Each input terminal is provided with sink chip clamp (BA7625).
Each input terminal takes 20kohm at the end (BA7626).
1A
1B
1Y
2A
2B
2Y
GND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Vcc
ST
4A
4B
4Y
3A
3B
3Y
SELECT
5
SEL
+
+
1
2
3
4
8
7
6
5
OUT1
– IN1
+ IN1
VEE
VCC
OUT2
– IN2
+ IN2
1ch
2ch
–
–
2
SERIAL
IN
STROBE
Q1
Q2
Q3
Q4
CLOCK 3
4
5
6
7
8
15
14
13
12
11
10
9
VSS
1
OUTPUT
ENABLE
VDD
Q6
Q7
Q8
Q'S
Q5
QS
16
1
2
3
2
ADJ/GND
OUT
IN
VOUT
FRONT VIEW
20 1
19 2
18 3
17 4
16 5
15 6
14 7
13 8
12 9
11 10
1G
2G
1A0
2A0
2A3
2Y01Y0
1Y3
1A1
2Y1
1A2
2Y2
1Y1
2A1
1Y2
2A2
1A3
2Y3
GND
V
CC
22
AVR-1707/1507/687/587/487
LH28F800BJE (IC805)
SN74LV573APWR (IC818,819)
SN74LVC139APWR (IC820)
SN74LV14APWR (IC829) MM74HCT00MTCX (IC814,815)
1
2
3
4
5
6
7
8
10
9
20
19
18
17
16
15
14
13
12
11
OE
D0
D1
D2
D3
D4
D5
D6
D7
GND
Vcc
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
LE
D
Q
L
D
Q
L
D
Q
L
D
Q
L
D
Q
L
D
Q
L
D
Q
L
D
Q
L
D0 D1 D2 D3 D4 D5 D6 D7
L
E
OE 1
234 567
89
11
12131415
16
17
1819
Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
1G
1A
1B
1Y0
1Y1
1Y2
1Y3
GND
V
CC
2G
2A
2B
2Y0
2Y1
2Y2
2Y3
FUNCTION TABLE
(each decoder/demultiplexer)
INPUTS OUTPUTS
GSELECT OUTPUTS
GB A Y3 Y2 Y1 Y0
L L L H H H L
L L HHHLH
L H LHLHH
L H HLHHH
H X X H H H H
1A
1B
1Y
2A
2B
2Y
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Vcc
4B
4A
4Y
3B
3A
3Y
GND
1A
1Y
2A
2Y
3A
3Y
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
Vcc
6A
6Y
5A
5Y
4A
4Y
23
AVR-1707/1507/687/587/487
AS7C34096A-10TCN (IC806,817 : for AVR-1707/687 model)
(IC817 : for AVR-1507 E2 model)
IC63LV1024-10T (IC817 : for AVR1507/587/487 E3 model)
14
15
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
COLUMN
DECODER
ROW DECODER
SENSE AMPS
INPUT BUFFER
DOWN
WE
OE
I/O
0
I/O
1
I/O
2
I/O
3
512K x 8
ARRAY
I/O
7
I/O
6
I/O
5
I/O
4
A
0
A11
A13
A12
A
CE
A
A16
A17
A
9
A18
A
10
Top View
A1
A2
A3
A4
A5
A6
A7
A8
WE
VCC
VSS
A18
A15
A12
A14
I/O5
I/O4
A9
A0
I/O0
I/O1
I/O2
I/O3
OE
A17
A16
A13
CE
NC
NC
NC
NC
I/O7
I/O6
VCC
VSS
A10
A11
NC
NC
NC
NC
NC
NC
1
2
3
4
5
6
7
837
40
39
38
41
44
43
42
9
10
11
14 31
32
36
35
34
33
12
13
16
15
29
30
18
19
20
21
22
17
27
26
25
24
23
28
POWER
24
AVR-1707/1507/687/587/487

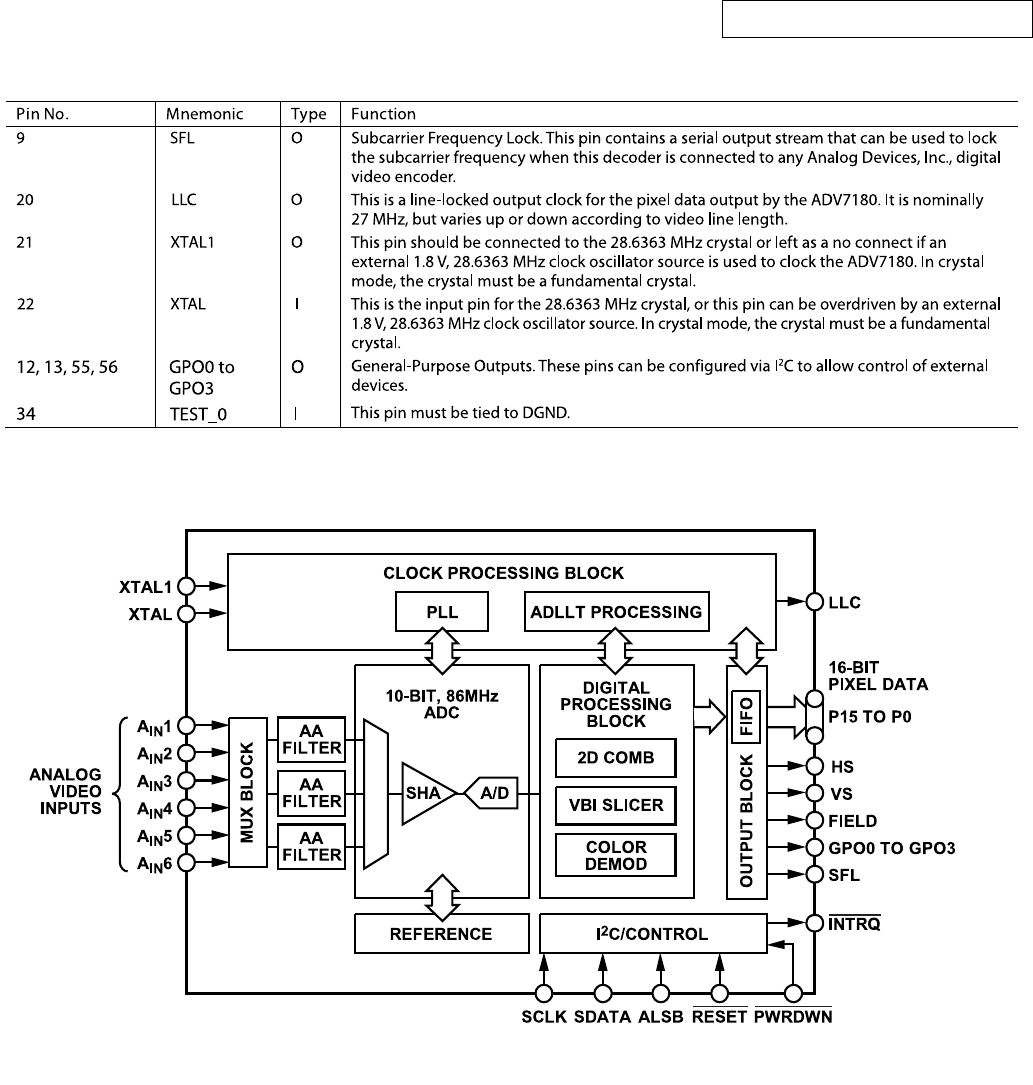

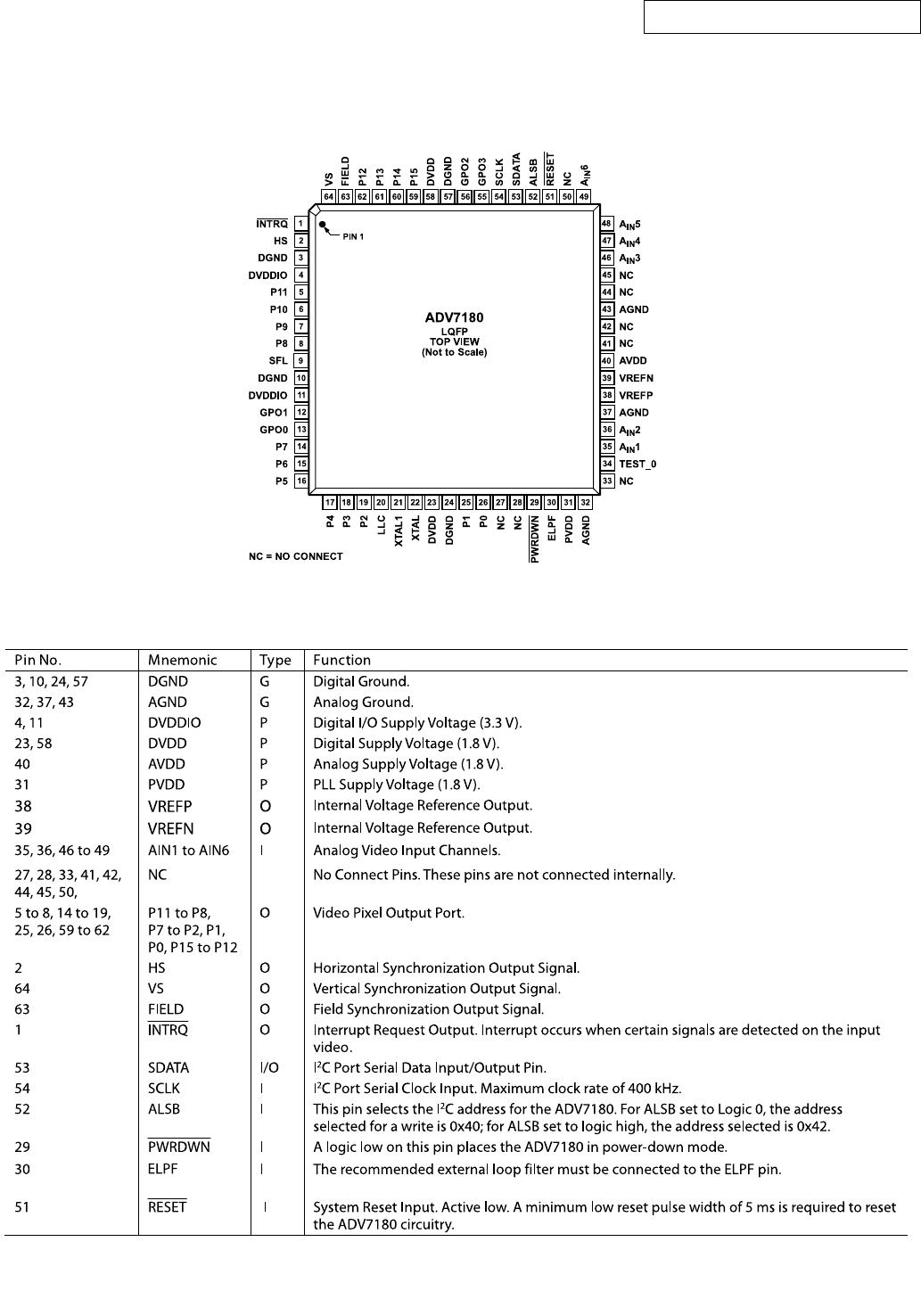

ADV7180BSTZ (IC601 : for AVR1707/687 model)
25
AVR-1707/1507/687/587/487
26
AVR-1707/1507/687/587/487

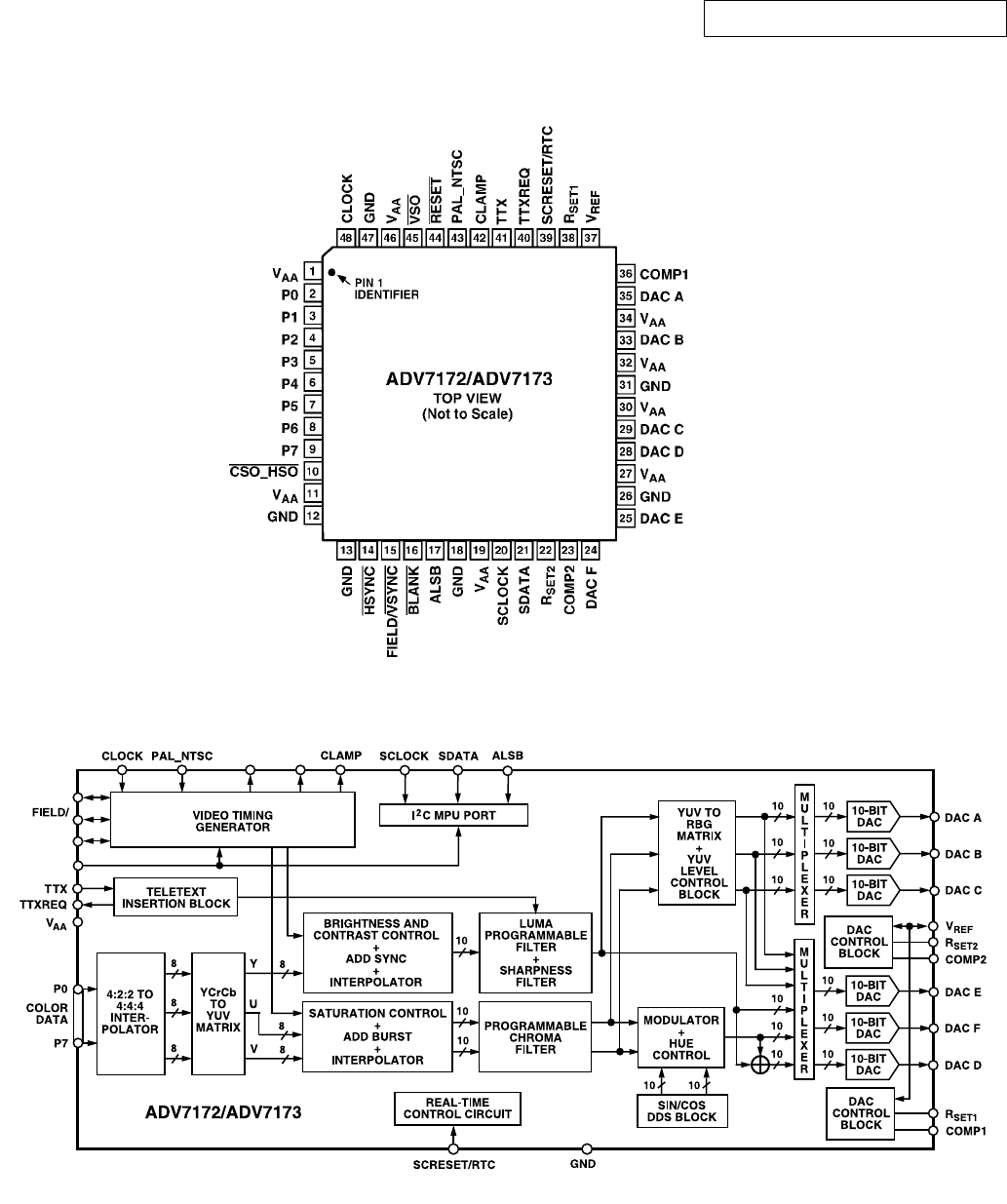

ADV7172KSTZ (IC602 : for AVR1707/687 model)
27
AVR-1707/1507/687/587/487

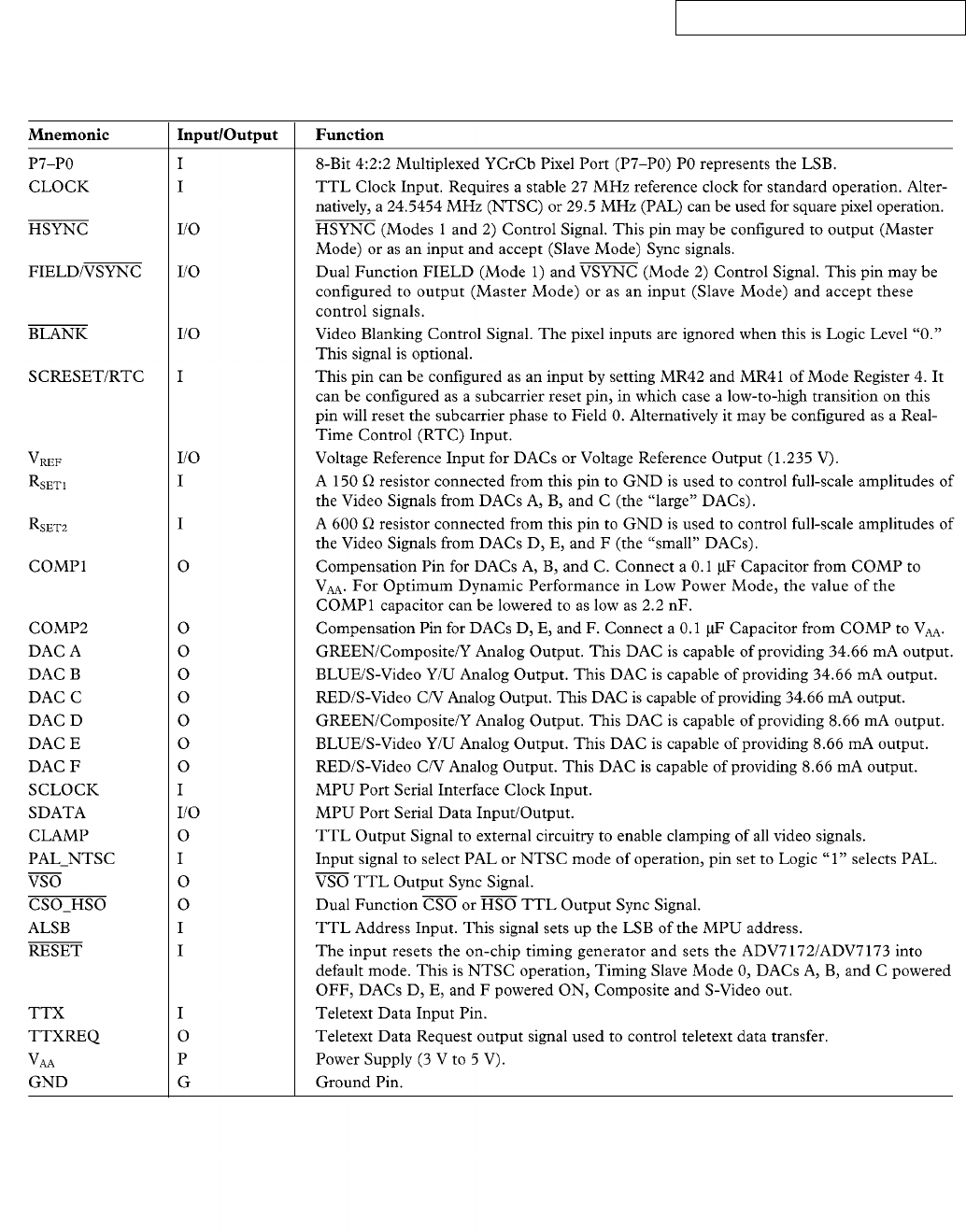

PIN FUNCTION DESCRIPTION
28
AVR-1707/1507/687/587/487

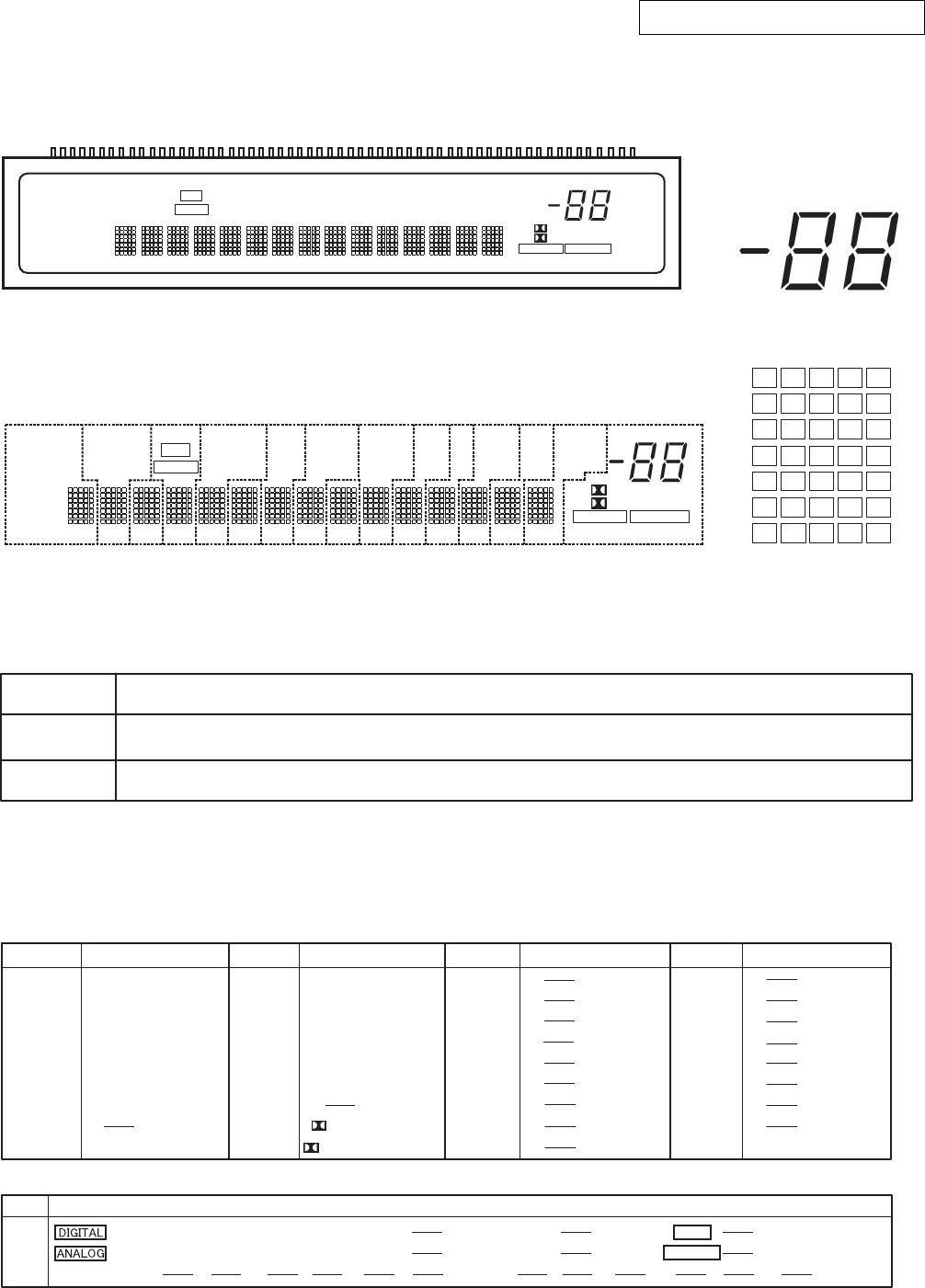

2. FL DISPLAY
HNA-16SM13T (FL301)
S38 S14
S9 S1
S
2
S3
S4
S5
S12
S13
S7
S15 S6
S10
S11
G1
G1
G2
G3
G4
G5
G6
G7
G16 G15 G13 G12 G10 G9
59 1
G14 G11 G8
G2~G16
12345
6
7 8 9 10 11 12 13 14 15 16 17 18 19
23 24 25
26
27 28 29 30 31 32 33 34
F1 F1 S1 S2 S3
S4
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17
20
21 22 35 36 37 38 39 40
41 42 43 44 45
46
47 48 49 50 51 52 53 54 55 56 57
NP
S18 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S3
7
S38 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 G1 F2 F2
58 59
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 G14 G15 G16
S38
S36
S37
S38
-
2
DBS
TV
-
1
VDP
TAPE
//(DVD)
/(CDR)
AUXDVD
CDR
V.AUX
TUNER
-
2
-
3
CD
-
1
PHONO
VCR
REC
ZONE2
STEREO
AUTO
TUNED
RDS
CH
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S1
S2
S3
S4
S5
S6
S7
S9
S10
S11
S12
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S13
S14
S15 S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
G2~G16
G1
G2~G16
G1
G2~G16
G1
G2~G16
G1
DIGITAL
S1
S6
S11
S16
S21
S26
S31
S2
S7
S12
S17
S22
S27
S32
S3
S8
S13
S18
S23
S28
S33
S4
S9
S14
S19
S24
S29
S34
S5
S10
S15
S20
S25
S30
S35
TUNED
RDS STEREO
AUTO REC
ZONE2
PHONO
VCR CD
-
1TUNER
-
2
-
3 V.AUX
AUX CDR
DVD /
/TAPE
VDP TV
-
1
-
2
/DBS
DIGITAL
DIGITAL
ANALOG
TUNED
RDS STEREO
AUTO
REC
ZONE2
PHONO
VCR CD
-
1TUNER
-
2
-
3V.AUX
AUX CDR
DVD /
/TAPE
VDP TV
-
1
-
2
/DBS
CH
CH
DIGITAL
DIGITAL
ANALOG
P
in Assignment
F1, F2 : Filamen
t
G1~G16 : Grid
S1~S38 : Anode
PIN NO.
CONNECTION
PIN NO.
CONNECTION
PIN NO.
CONNECTION
A
node & Grid Assignment
PRO LOGICII
PRO LOGIC
II
PRO LOGICII
29
AVR-1707/1507/687/587/487

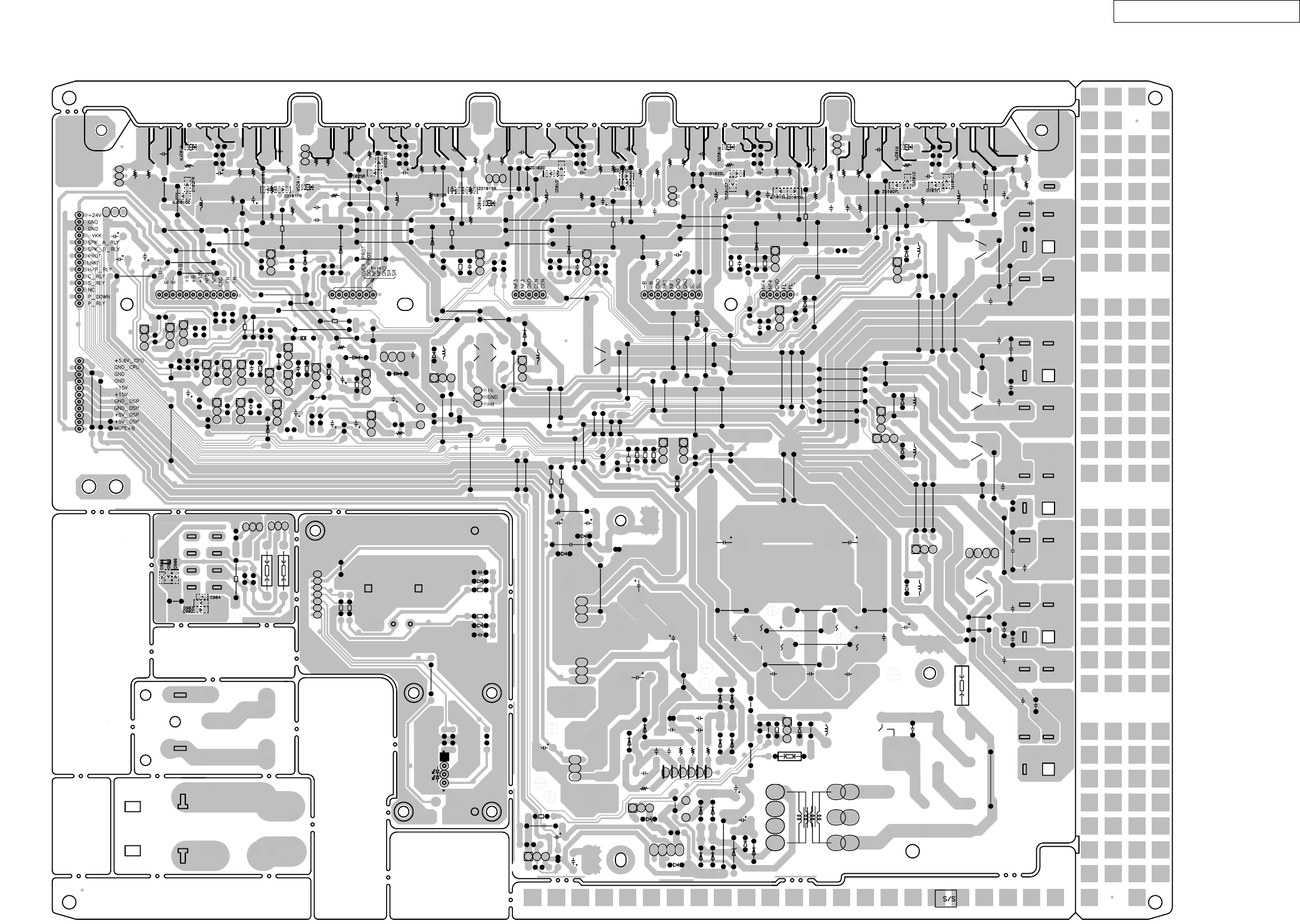

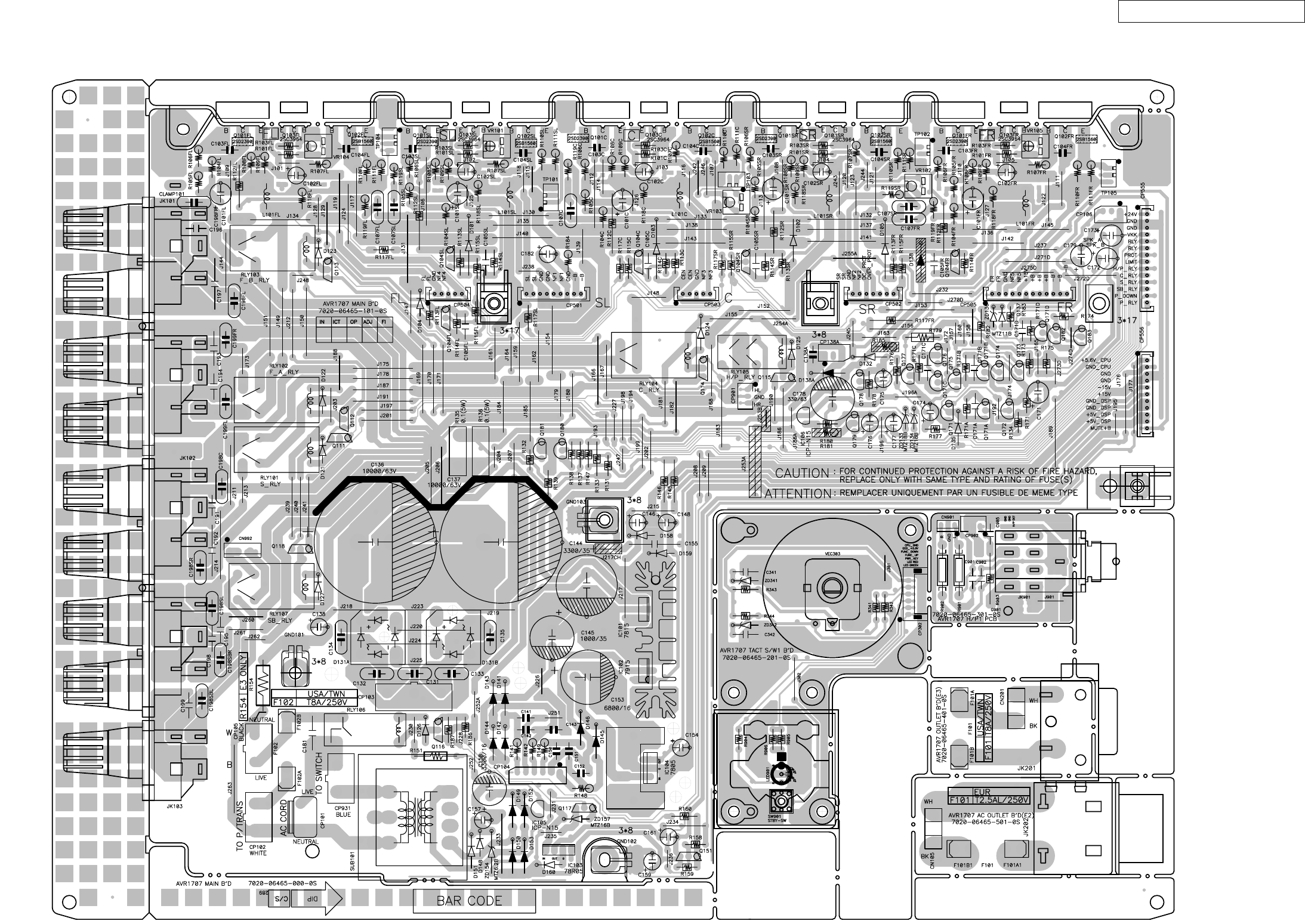

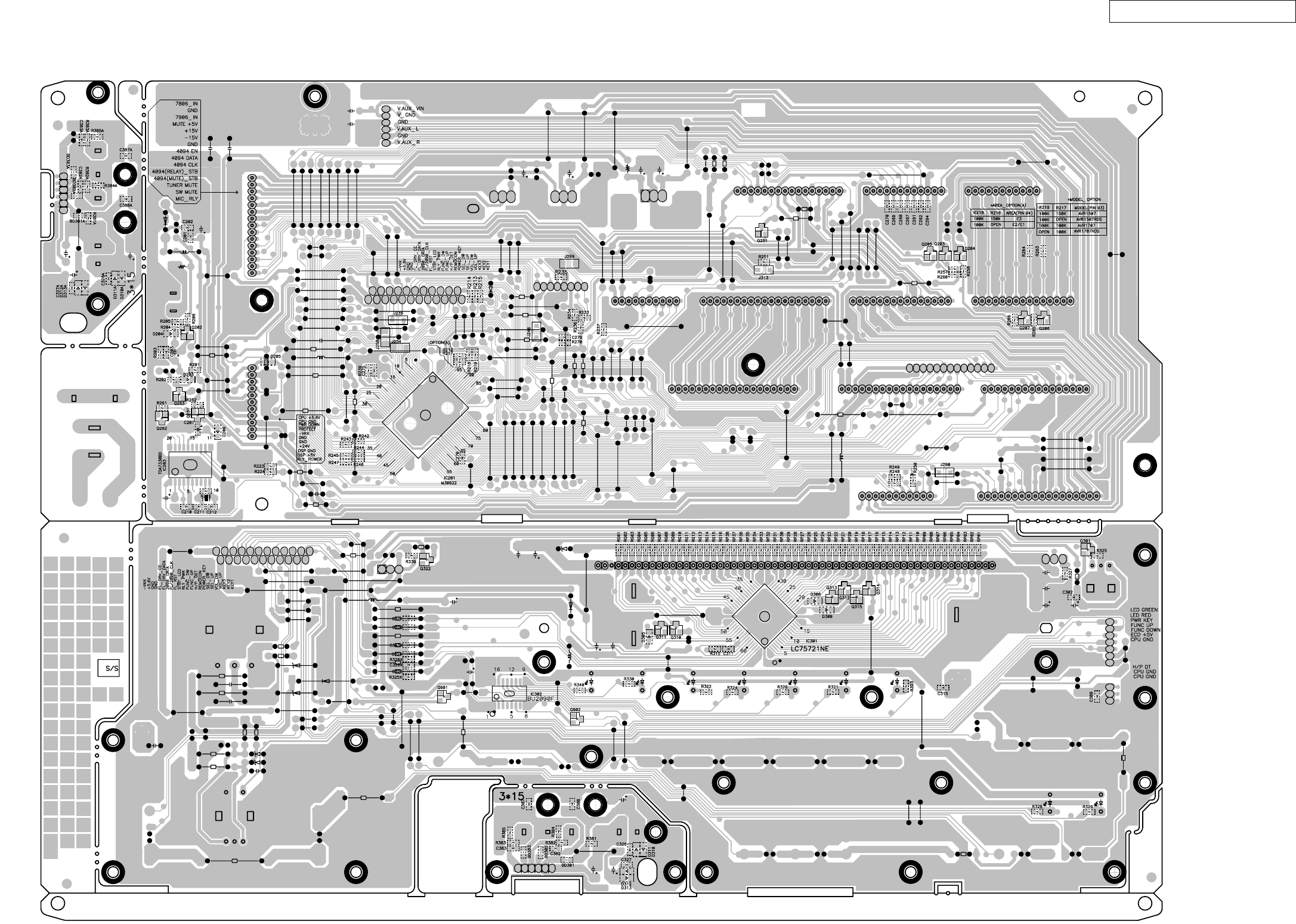

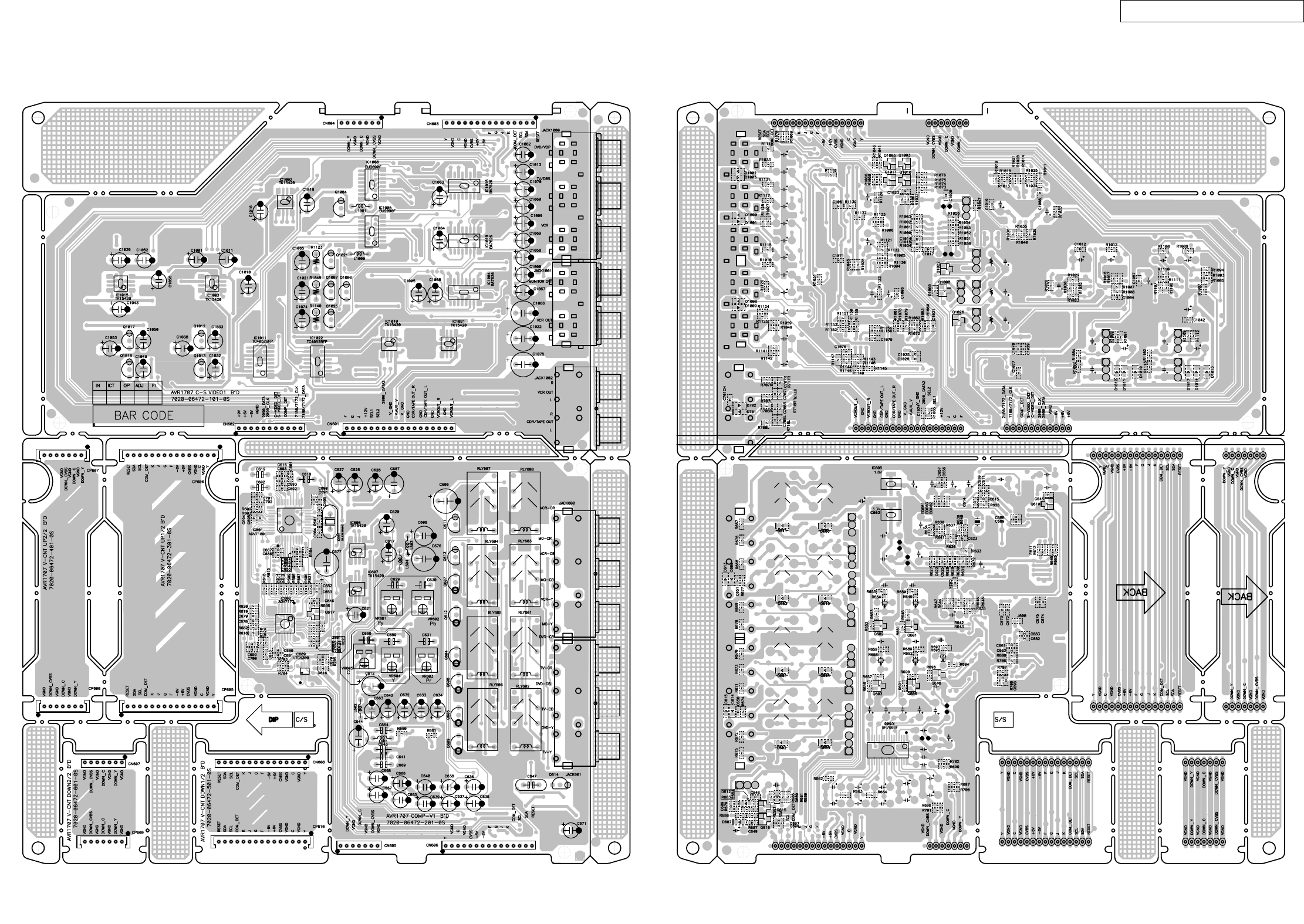

PRINTED WIRING BOARDS

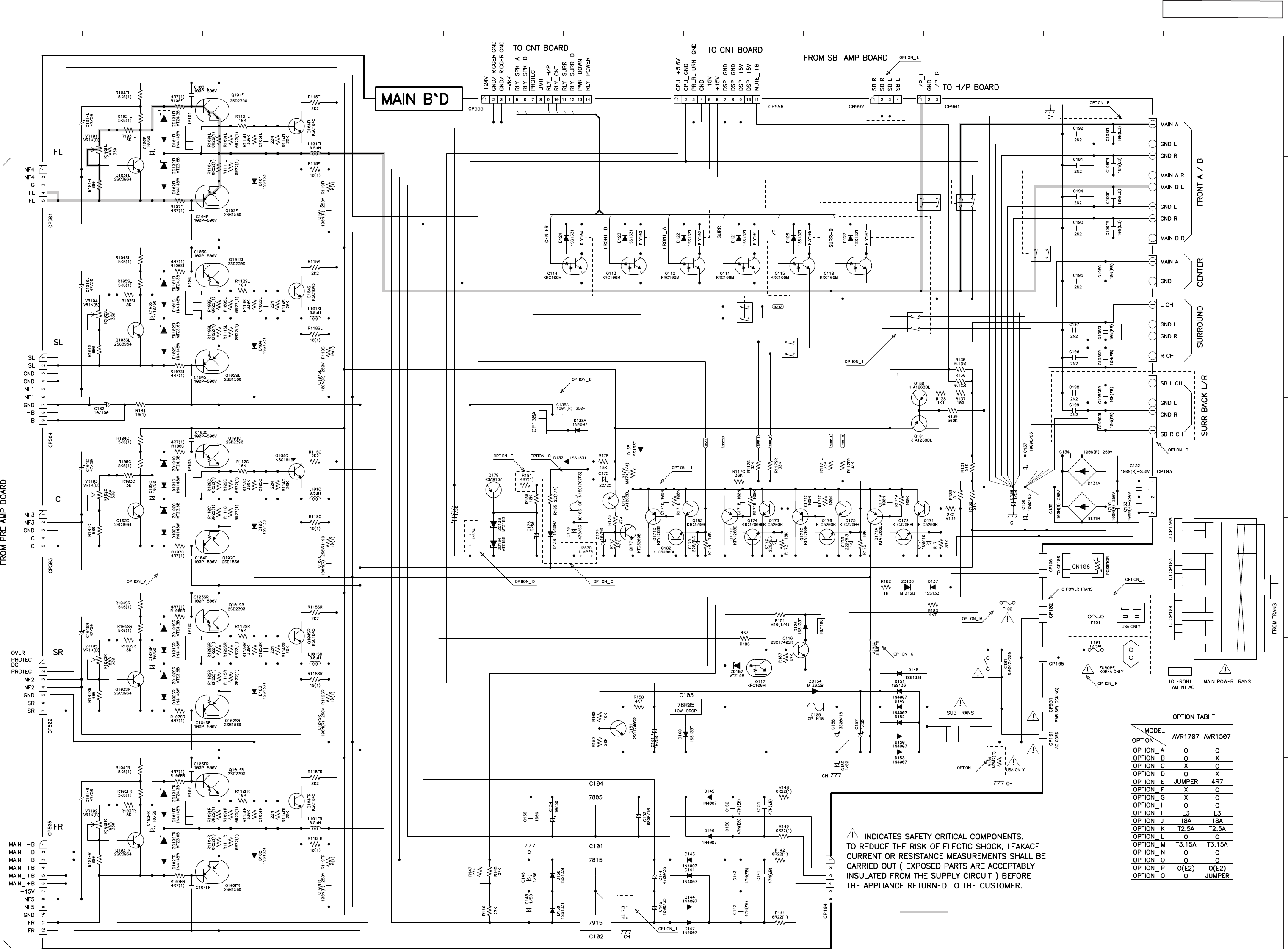

MAIN P.W.B. UNIT (1/2)
DENON
DENON
DENON
DENON
DENON
COMPONENT SIDE
30
AVR-1707/1507/687/587/487
PRINTED WIRING BOARDS
MAIN P.W.B. UNIT (2/2)
FOIL SIDE
31
AVR-1707/1507/687/587/487

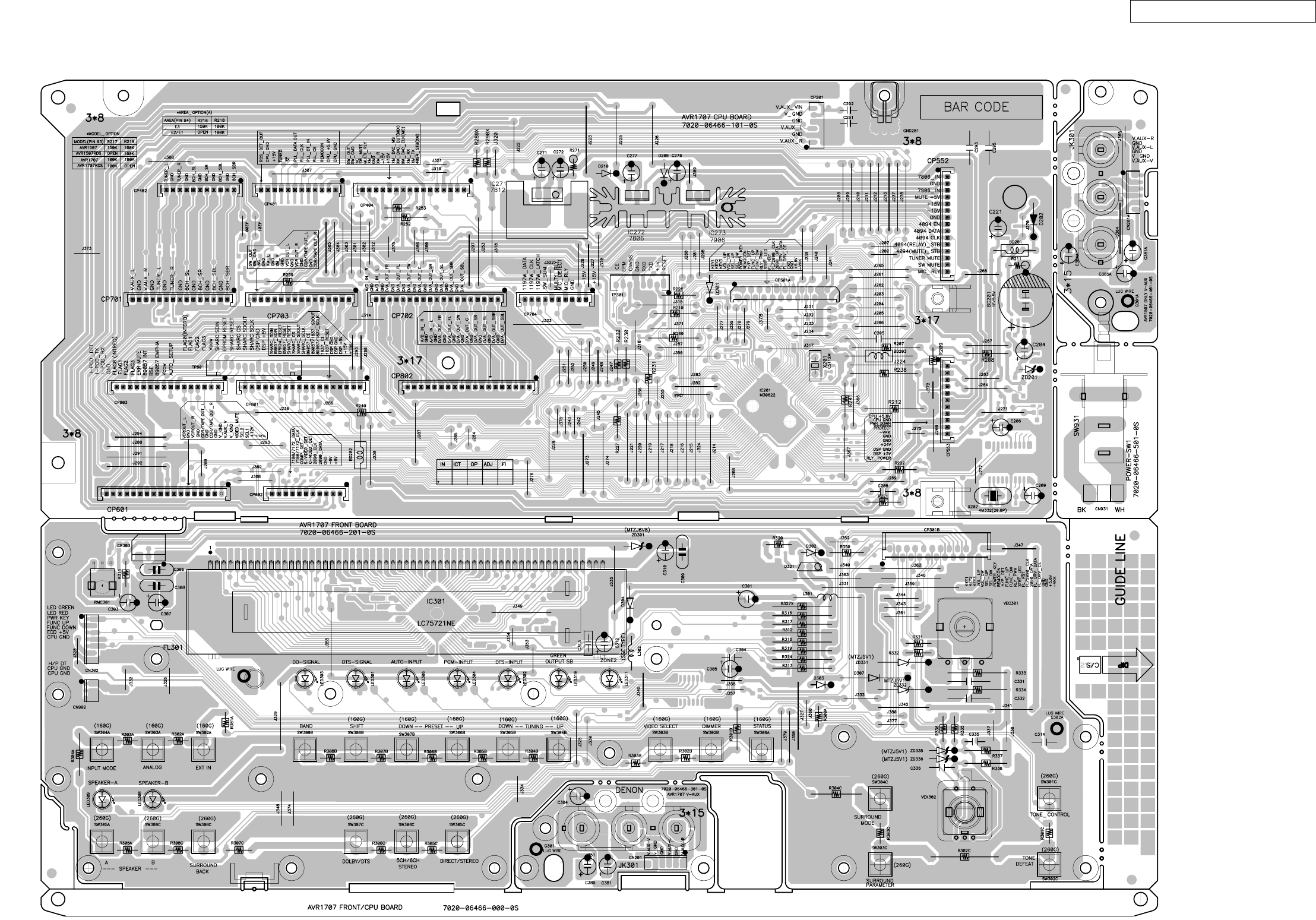

CPU P.W.B. UNIT (1/2)
COMPONENT SIDE
DENON
DENON
DENON
DENON
32
AVR-1707/1507/687/587/487
CPU P.W.B. UNIT (2/2)
FOIL SIDE
33
AVR-1707/1507/687/587/487

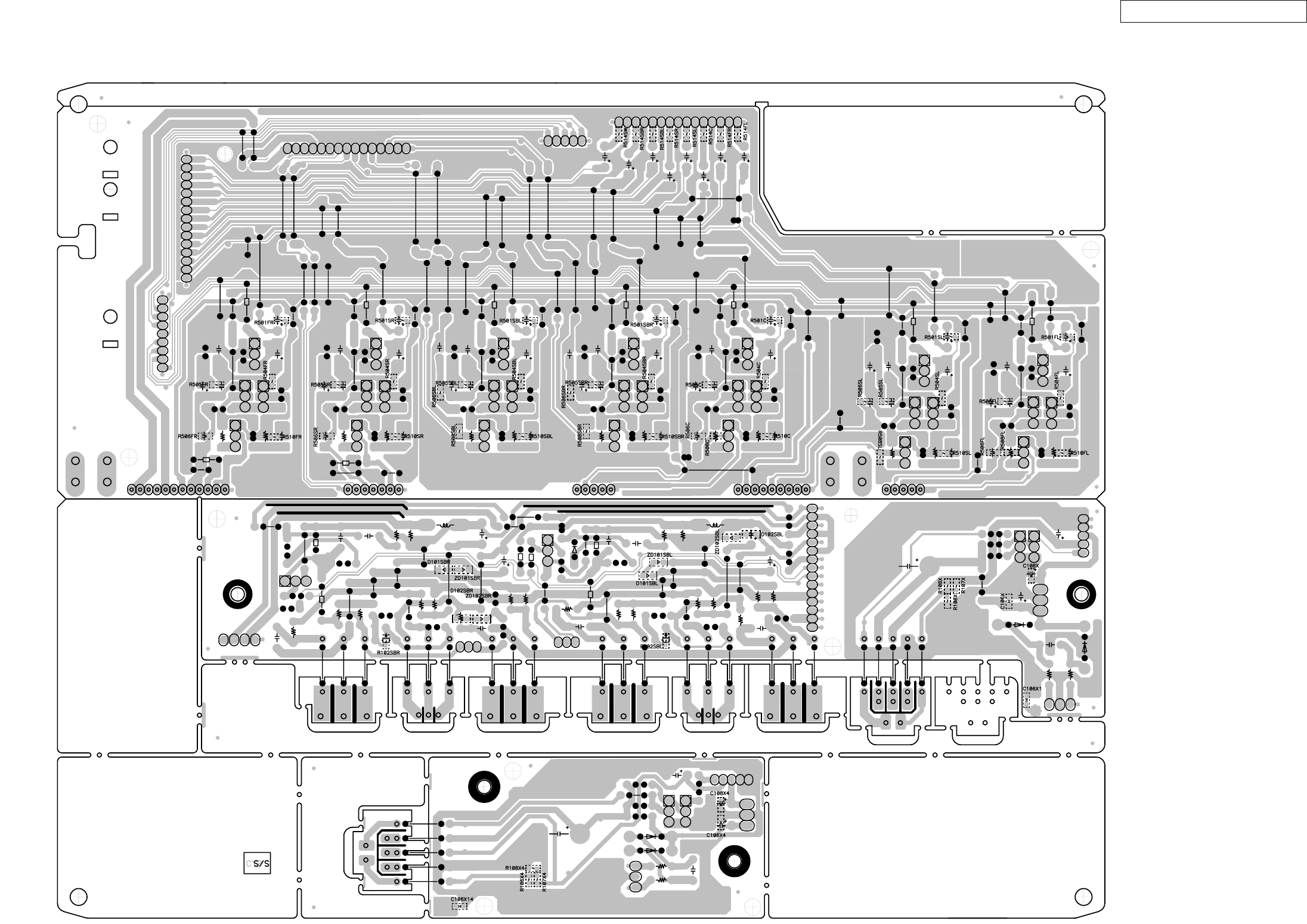

PRE-AMP P.W.B. UNIT (1/2)
DENON
DENON
DENON
COMPONENT SIDE
34
AVR-1707/1507/687/587/487
PRE-AMP P.W.B. UNIT (2/2)
FOIL SIDE
35
AVR-1707/1507/687/587/487

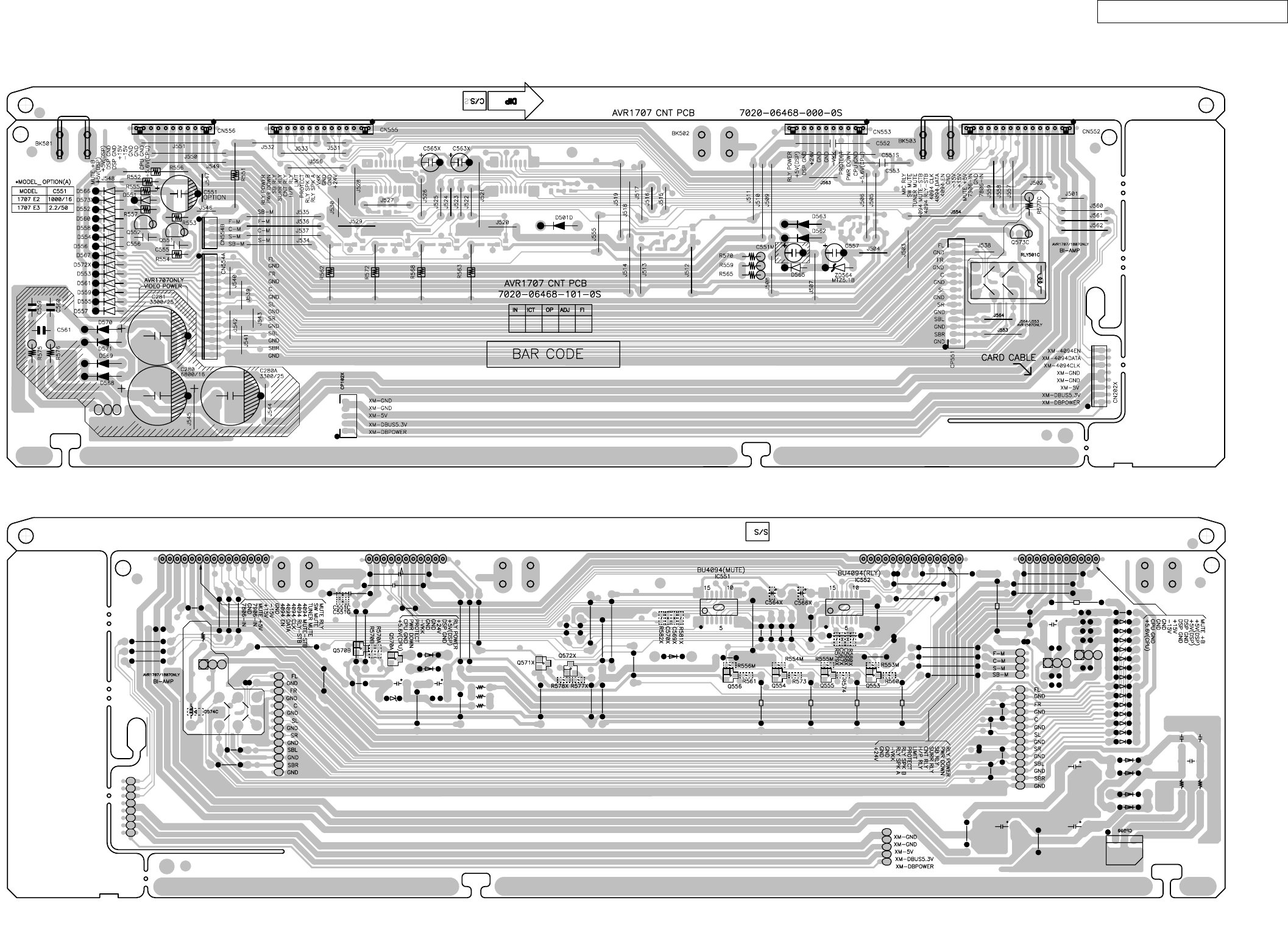

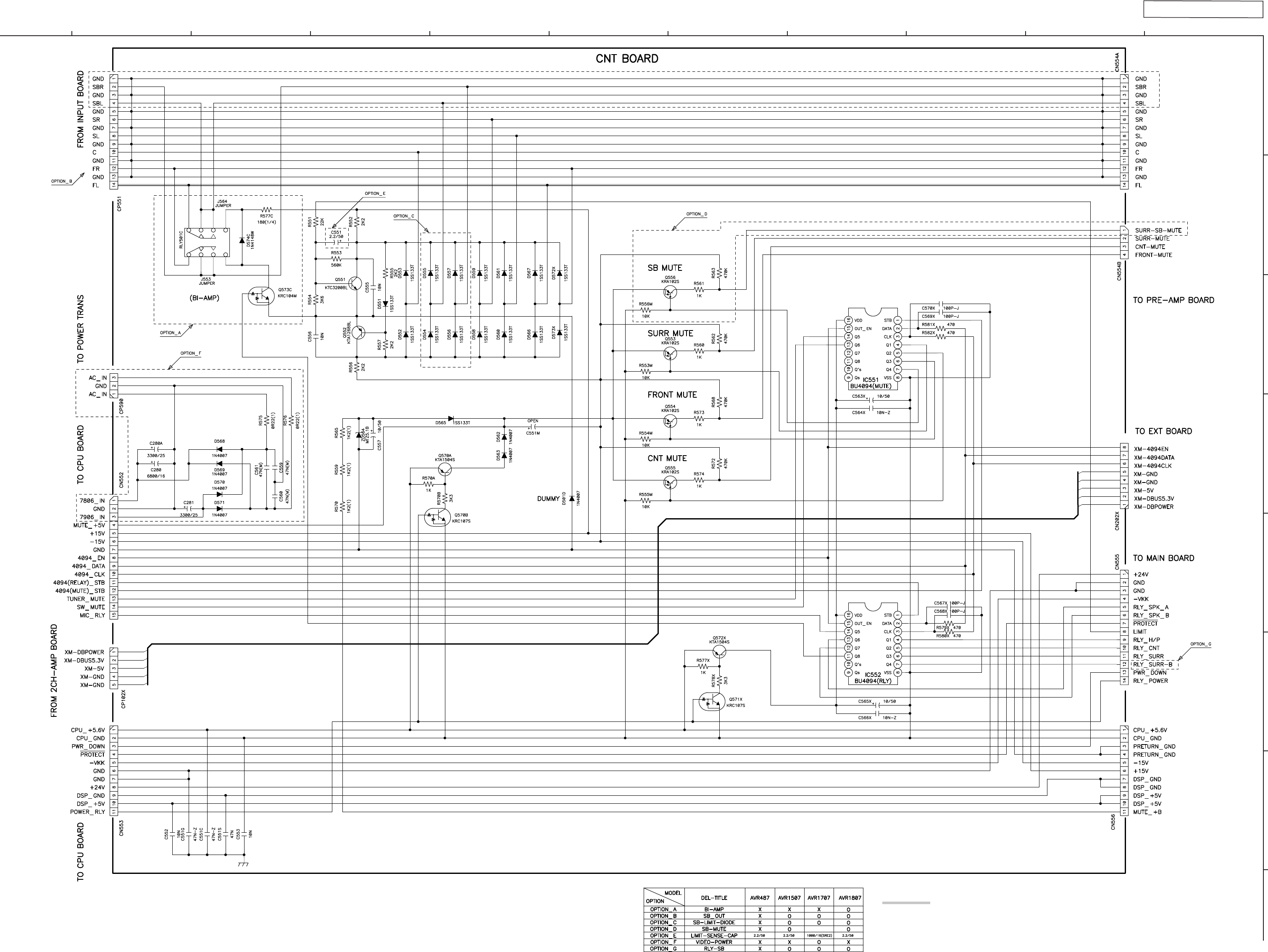

CNT P.W.B. UNIT
DENON
FOIL SIDE
COMPONENT SIDE
36
AVR-1707/1507/687/587/487

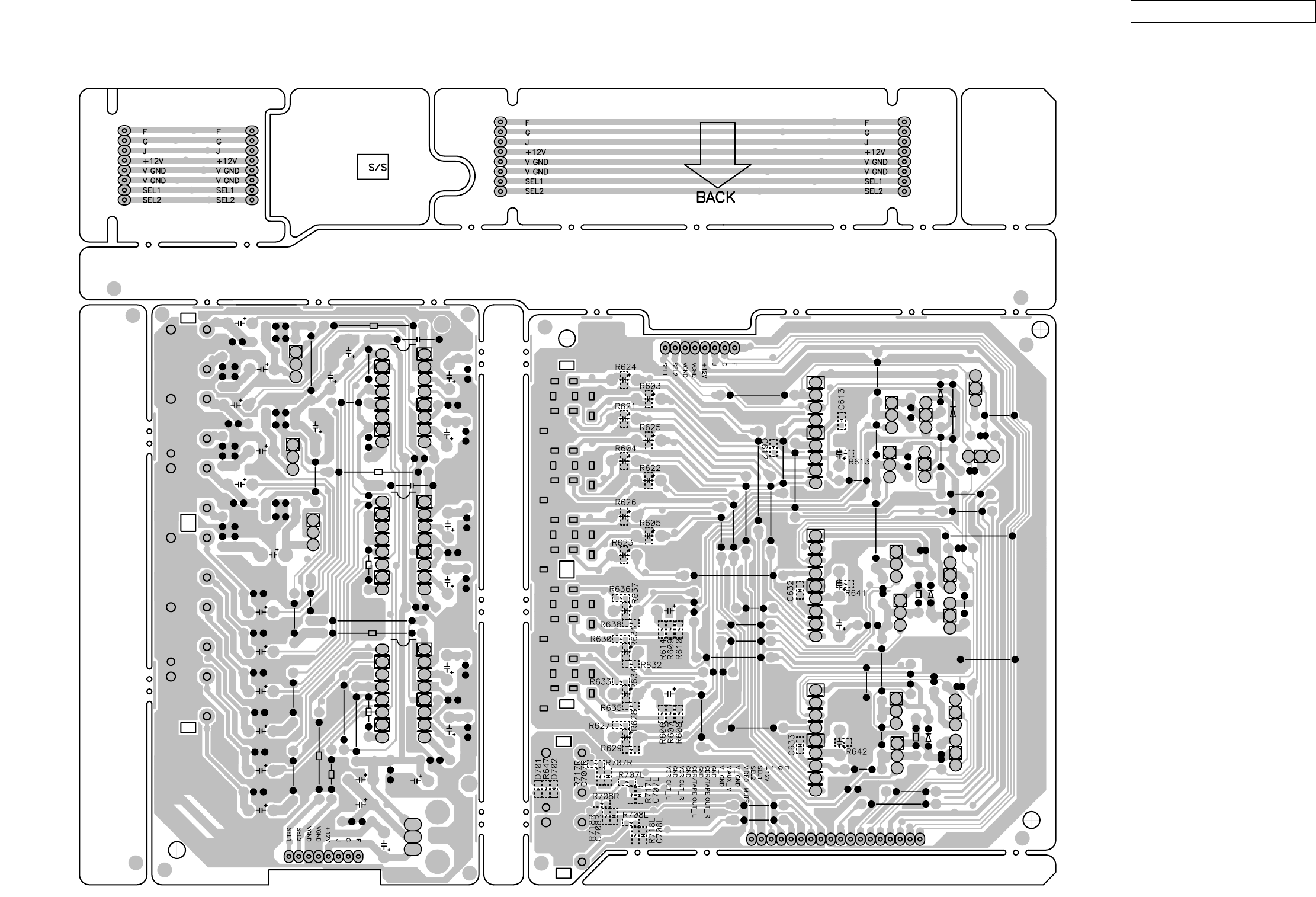

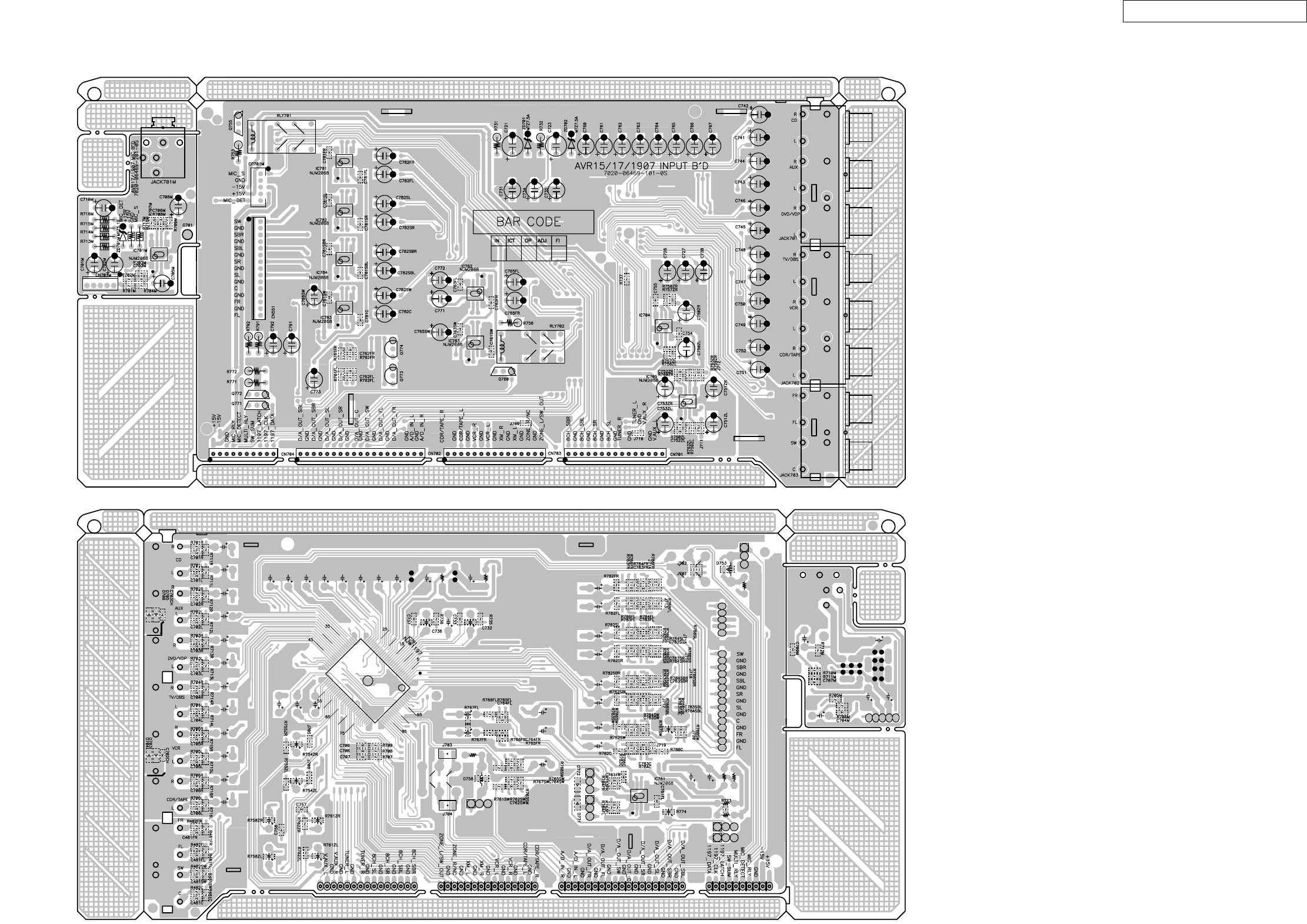

INPUT P.W.B. UNIT
DENON
DENON
COMPONENT SIDE
FOIL SIDE
37
AVR-1707/1507/687/587/487

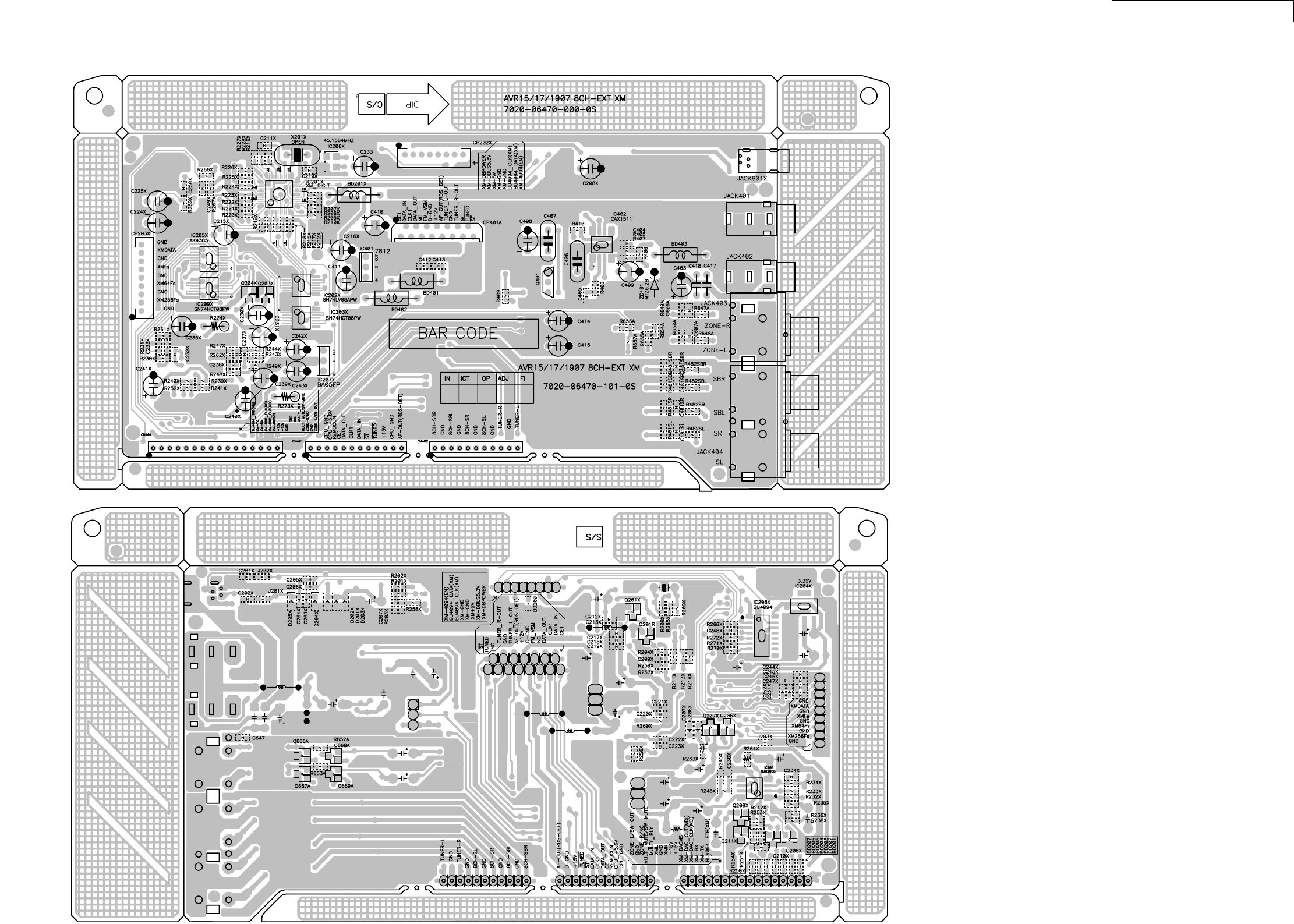

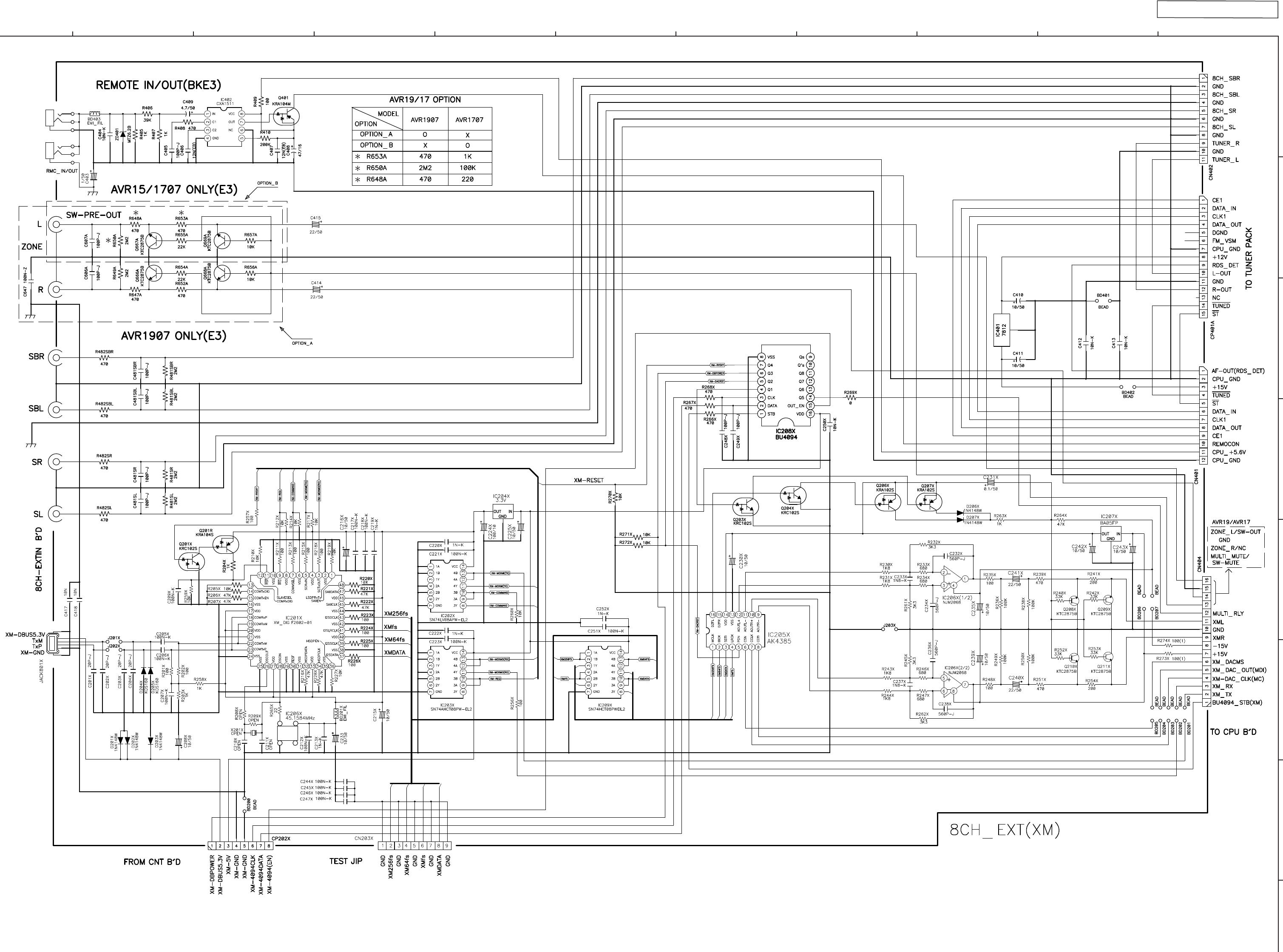

8CH-EXT (XM) P.W.B. UNIT (for AVR-1707/1507/687/587/487 E3 model)
DENON
COMPONENT SIDE
FOIL SIDE
38
AVR-1707/1507/687/587/487

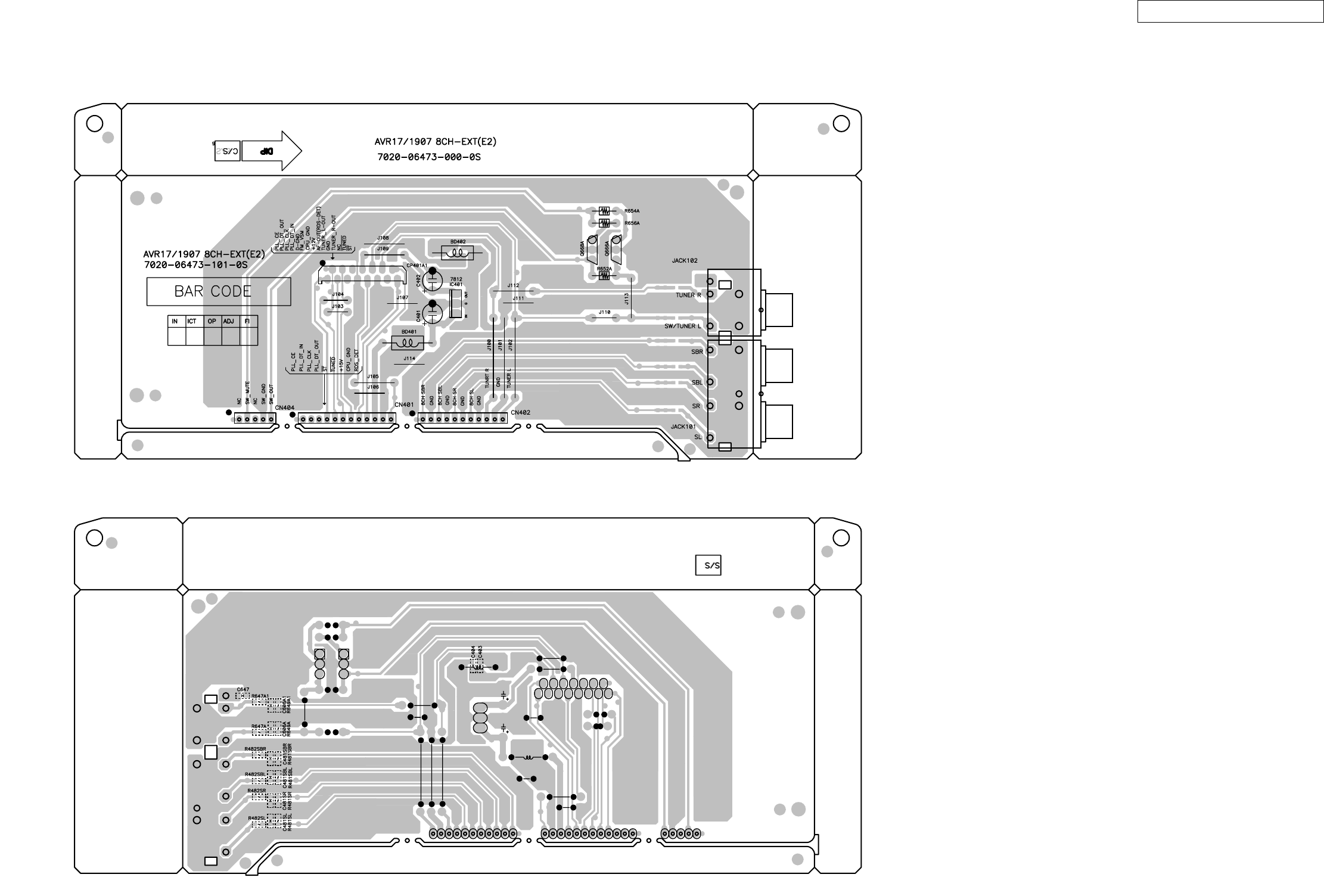

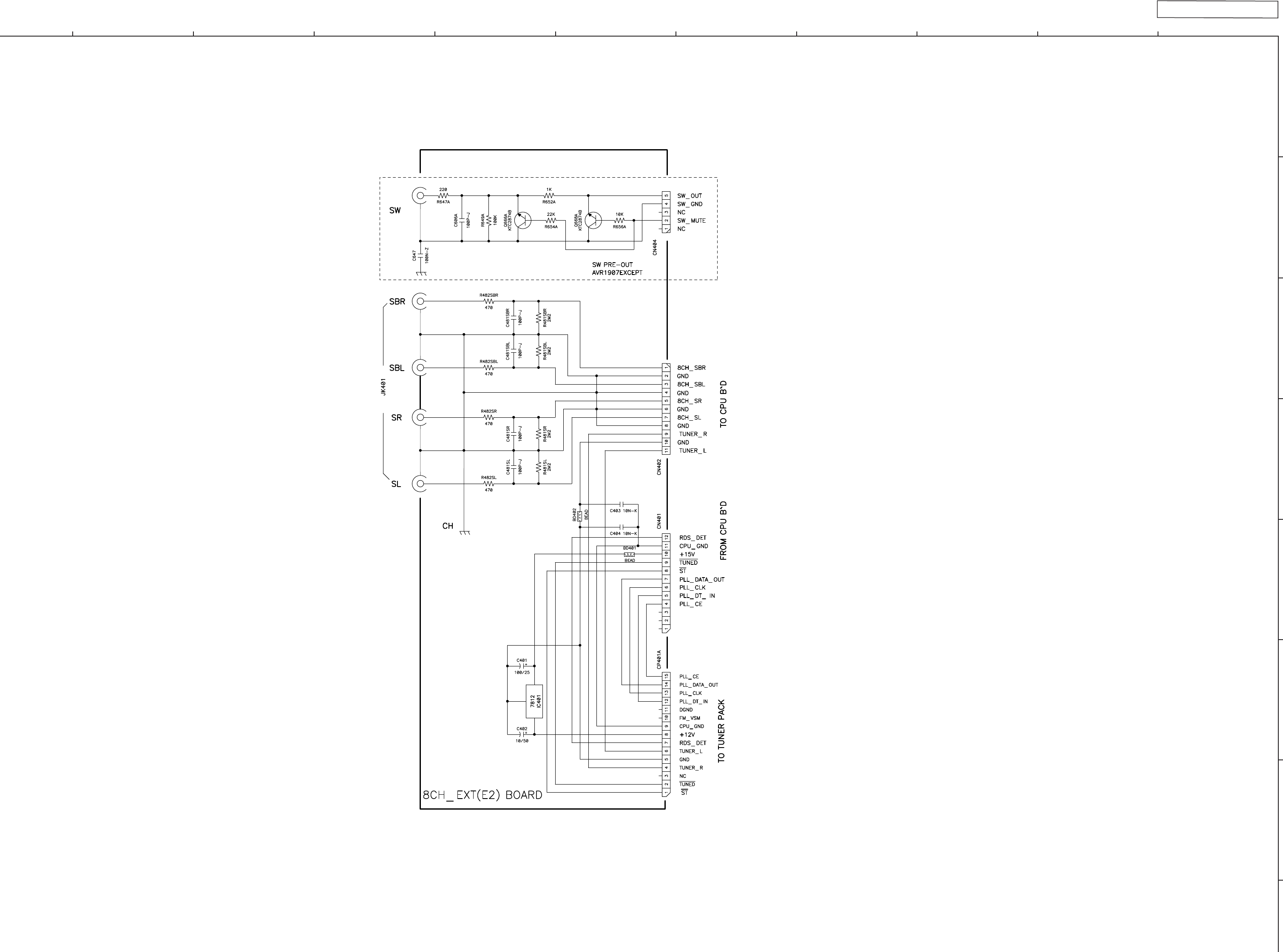

8CH-EXT (E2) P.W.B. UNIT (for AVR-1707E2,EUT, AVR-1507E2 model)
DENON
COMPONENT SIDE
FOIL SIDE
39
AVR-1707/1507/687/587/487

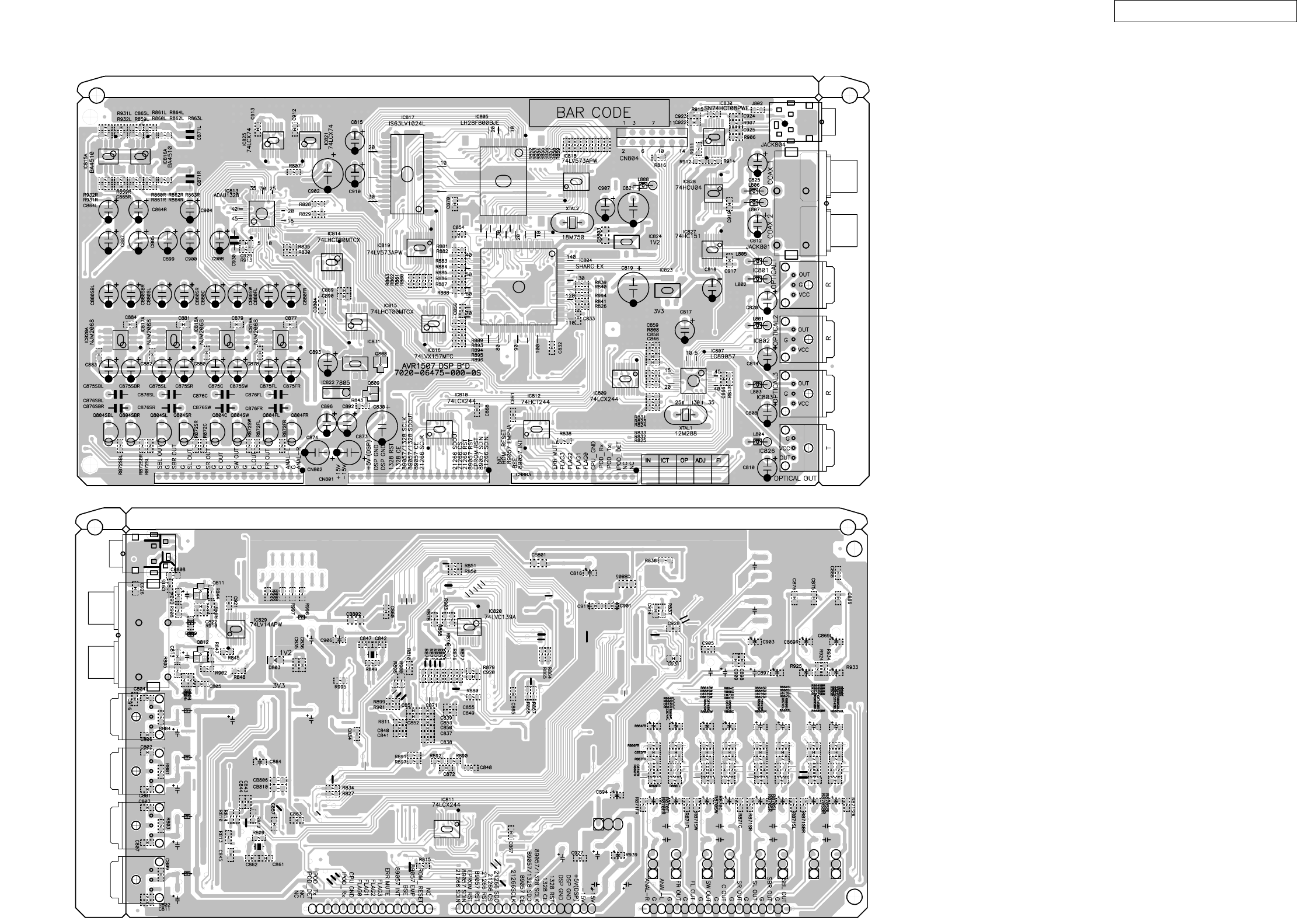

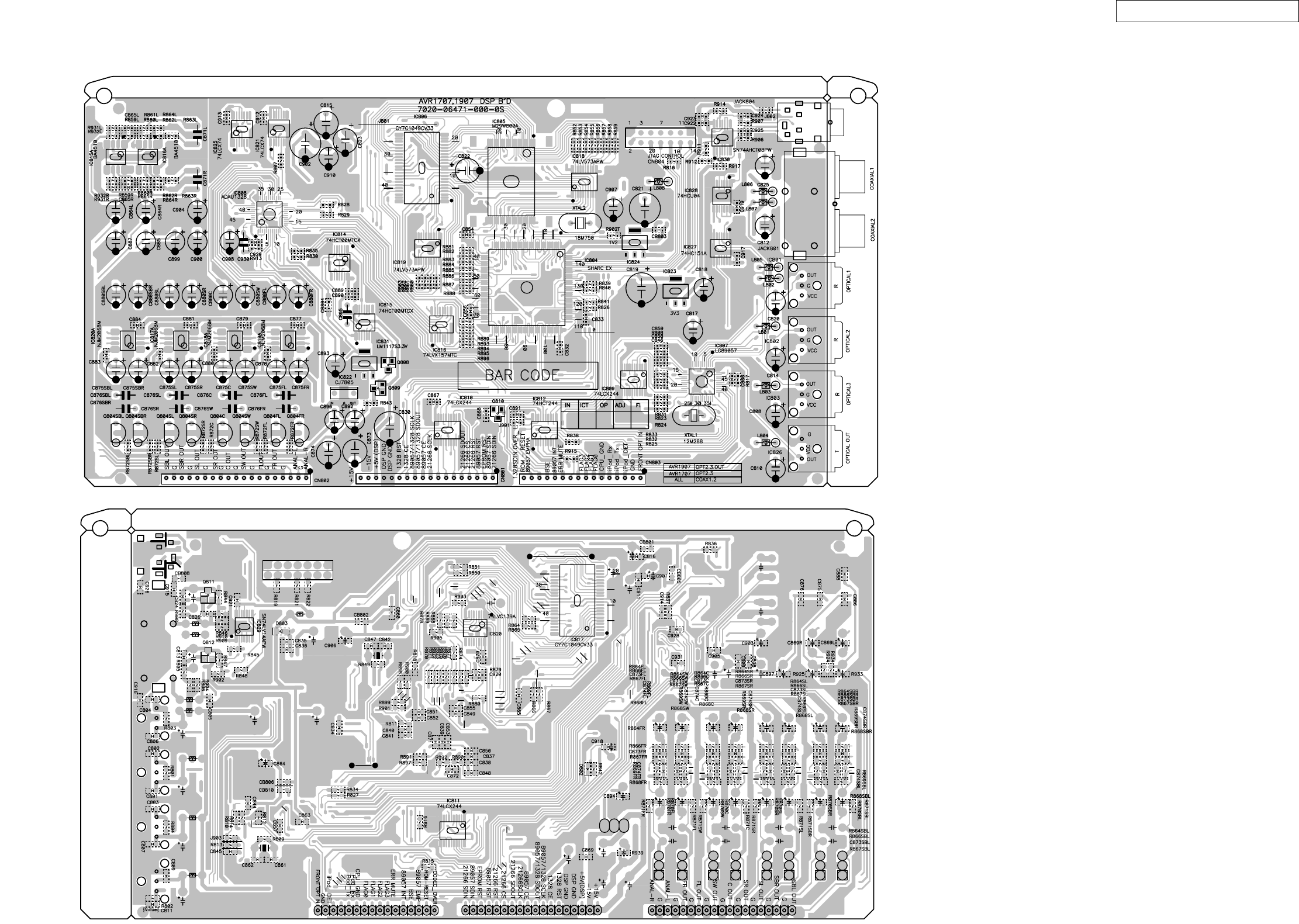

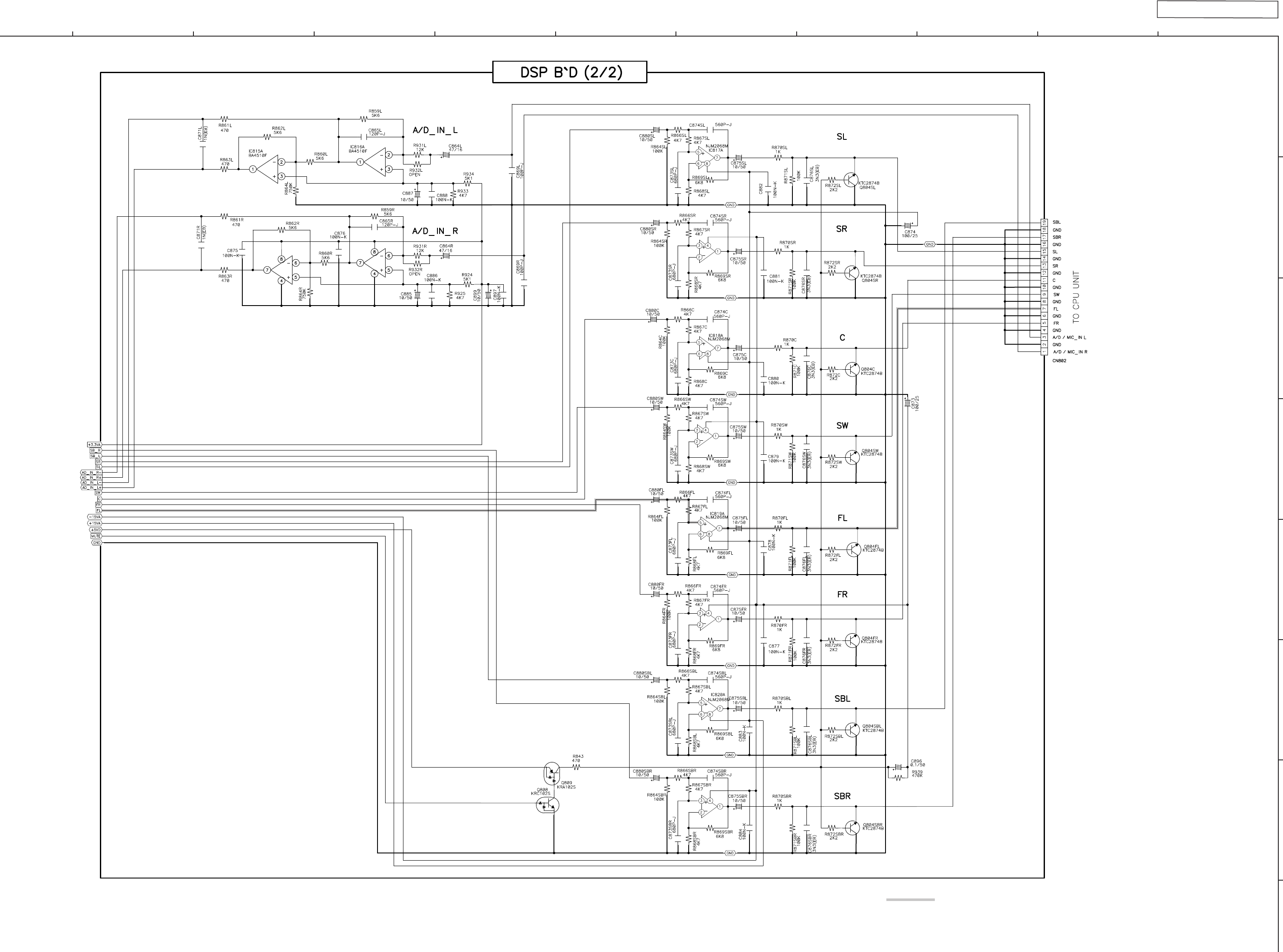

DSP1 P.W.B. UNIT (for AVR-1707/687,AVR-1507 E2 model)
DENON
COMPONENT SIDE
FOIL SIDE
40
AVR-1707/1507/687/587/487
DSP2 P.W.B. UNIT (for AVR-1507/587/487 E3 model)
DENON
COMPONENT SIDE
FOIL SIDE
41
AVR-1707/1507/687/587/487
C-S VIDEO1 P.W.B. UNIT (for AVR-1707/687 model)
DENON
DENON
DENON
DENON
DENON
DENON
AVR1707 C-S VIDEO1 B'D
7020-06472-000-0S
COMPONENT SIDE FOIL SIDE
42
AVR-1707/1507/687/587/487

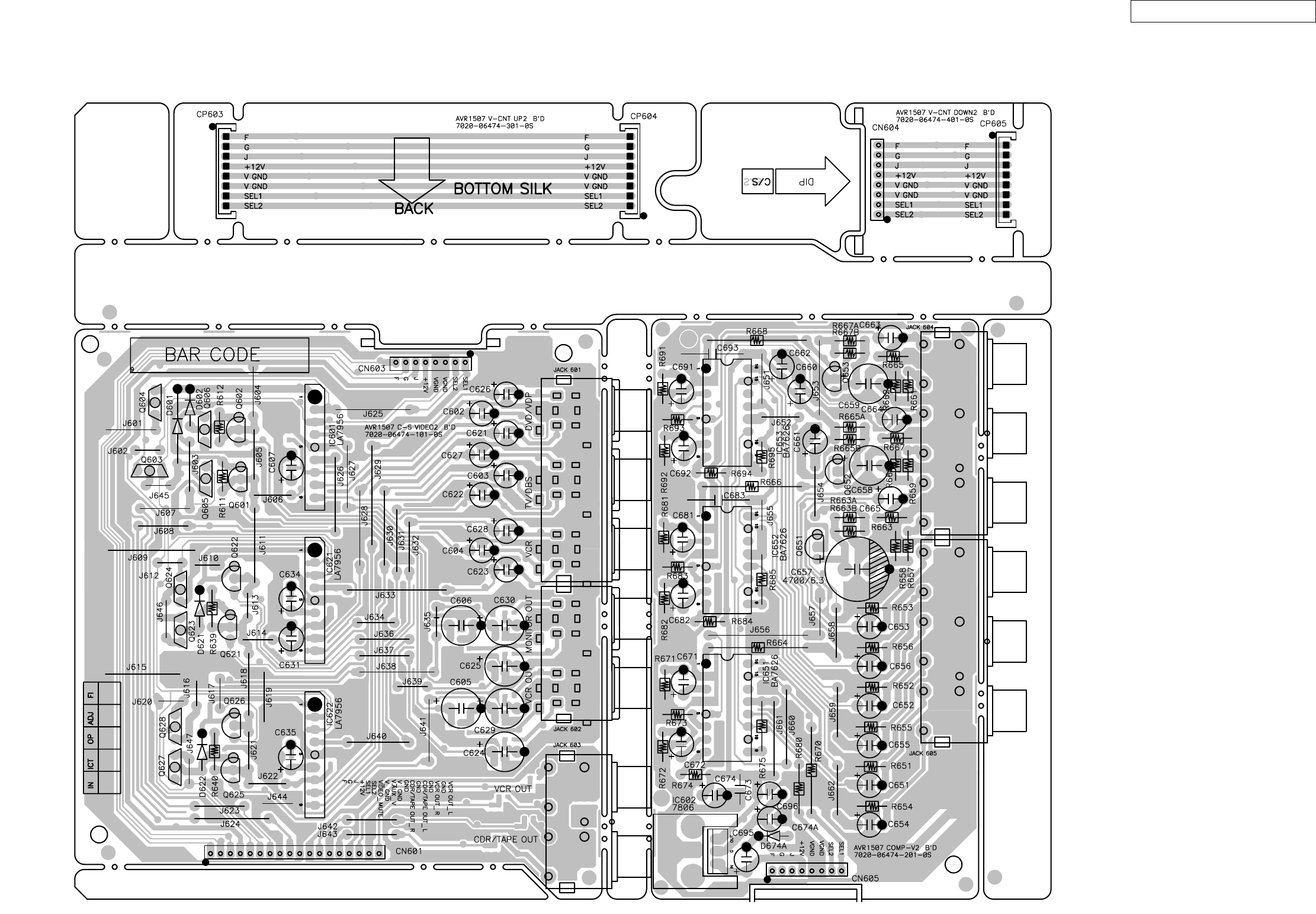

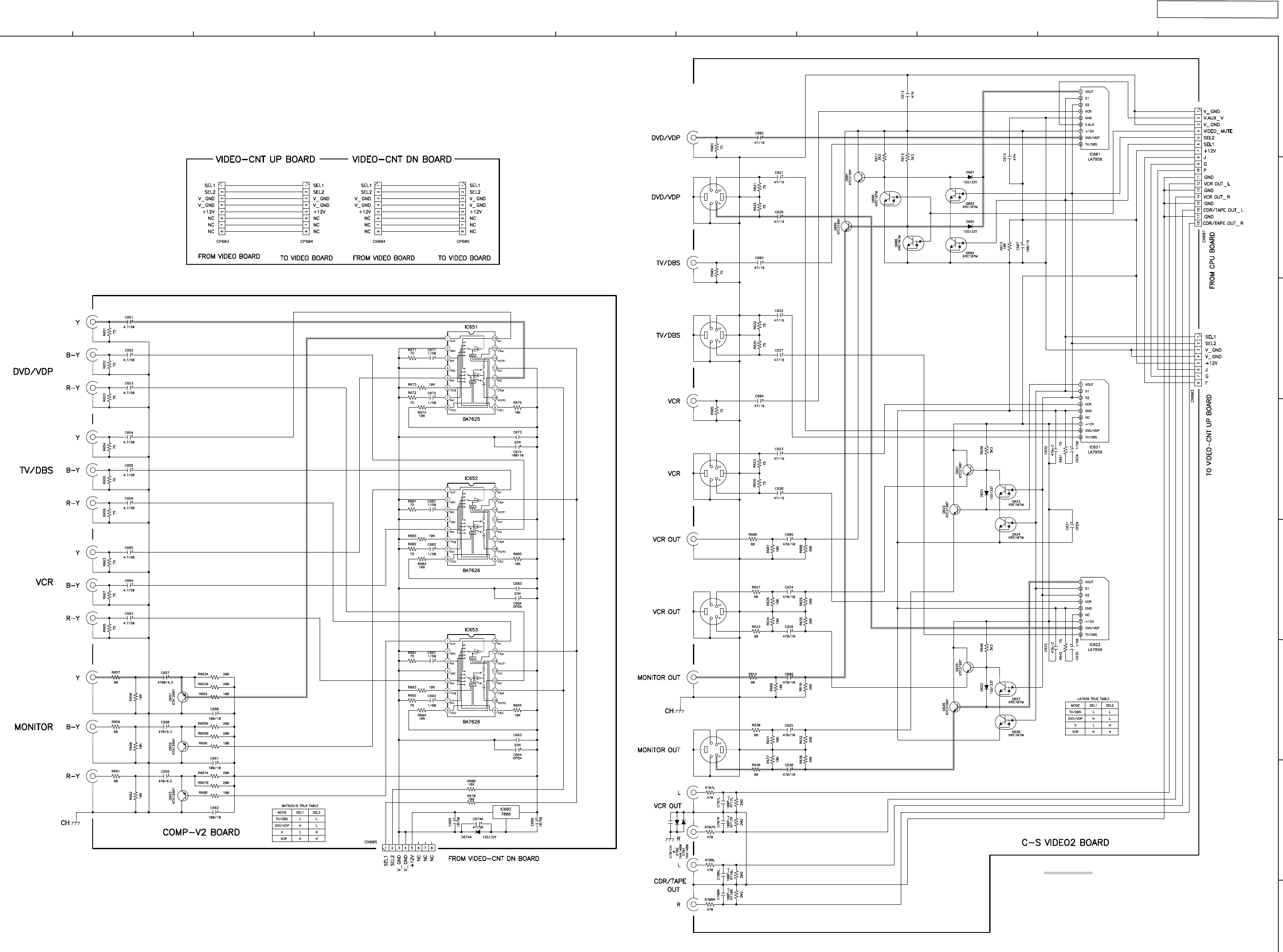

C-S VIDEO2 P.W.B. UNIT (1/2) (for AVR-1507/587/487 model)
7020-06474-000-0S
DENON
DENON
DENON
DENON
AVR1507 C-S VIDEO2 B'D
COMPONENT SIDE
43
AVR-1707/1507/687/587/487
C-S VIDEO2 P.W.B. UNIT (2/2) (for AVR-1507/587/487 model)
FOIL SIDE
44
AVR-1707/1507/687/587/487
NOTE FOR PARTS LIST
• Part indicated with the mark "nsp" are not always in stock and possibly to
take a long period of time for supplying, or in some case supplying of part
may be refused.
• When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
• Ordering part without stating its part number can not be supplied.

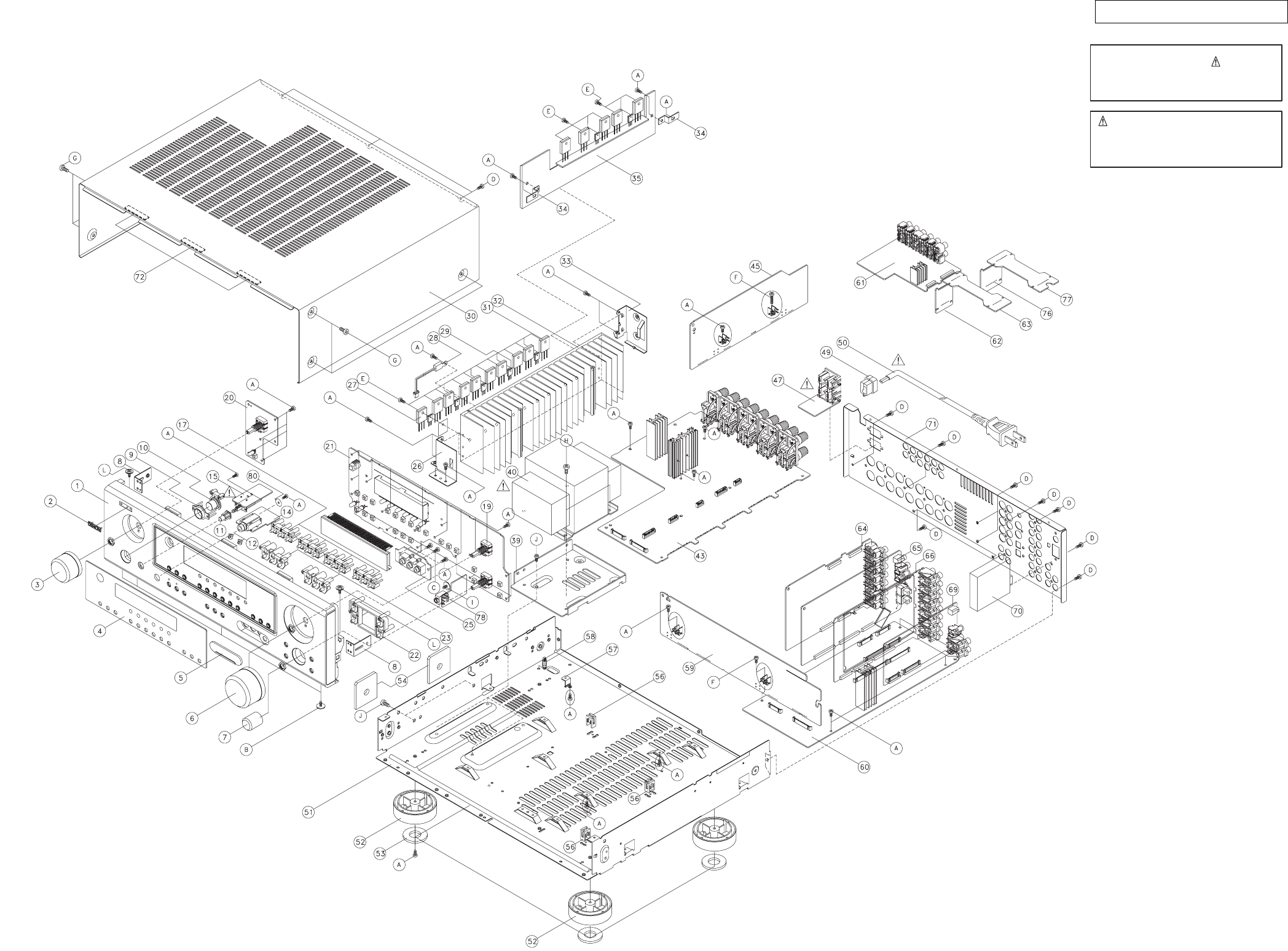

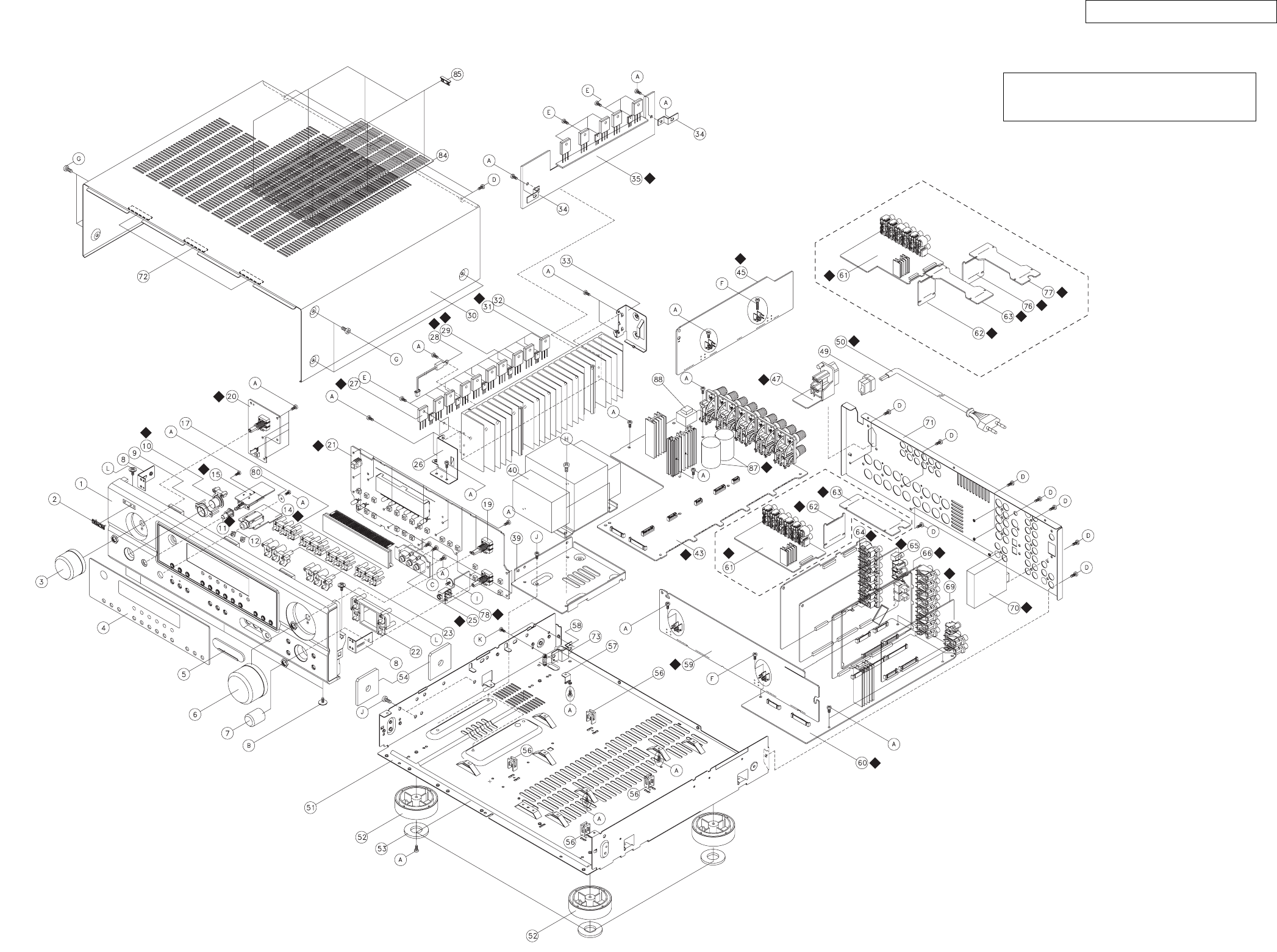

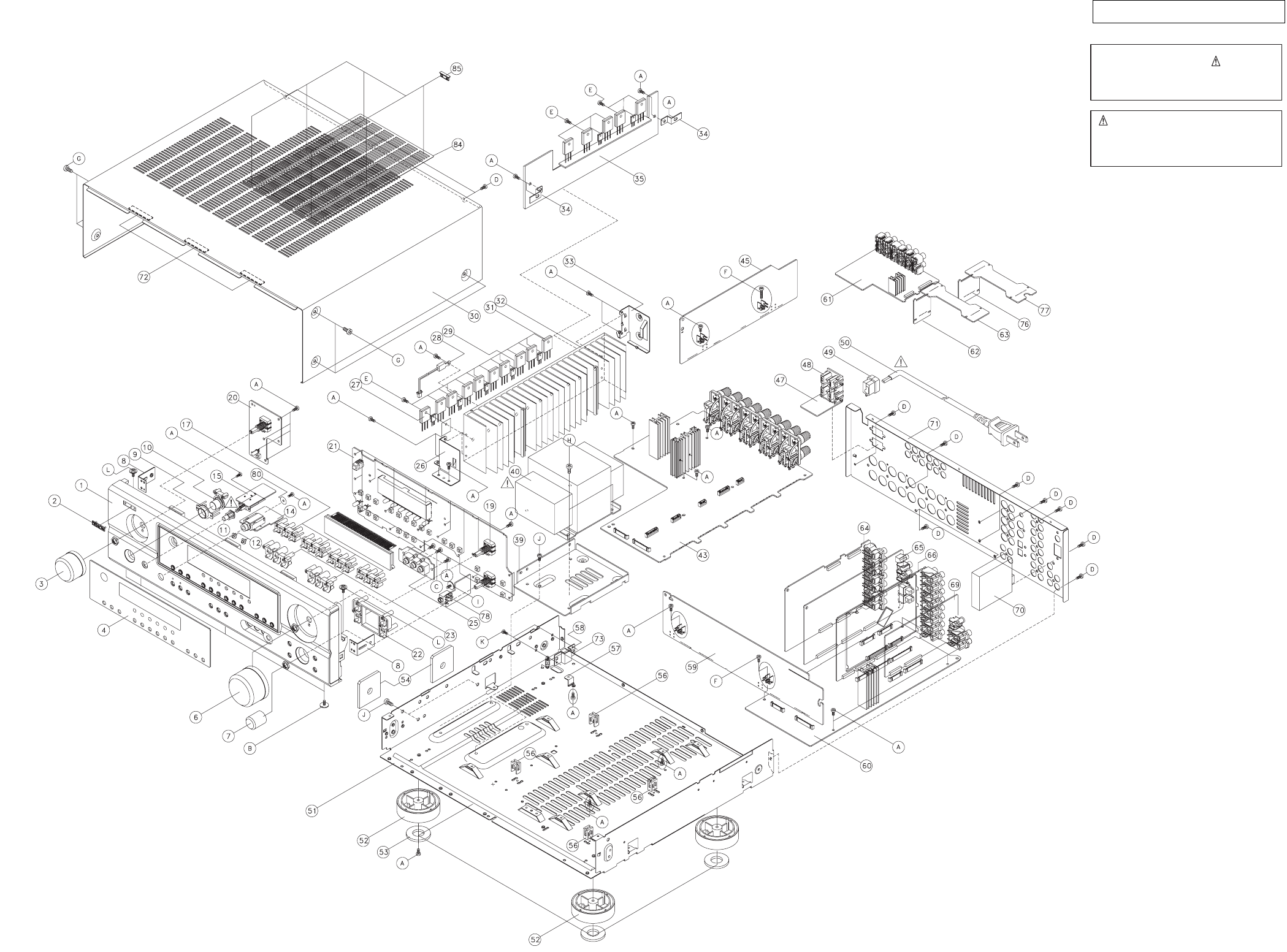

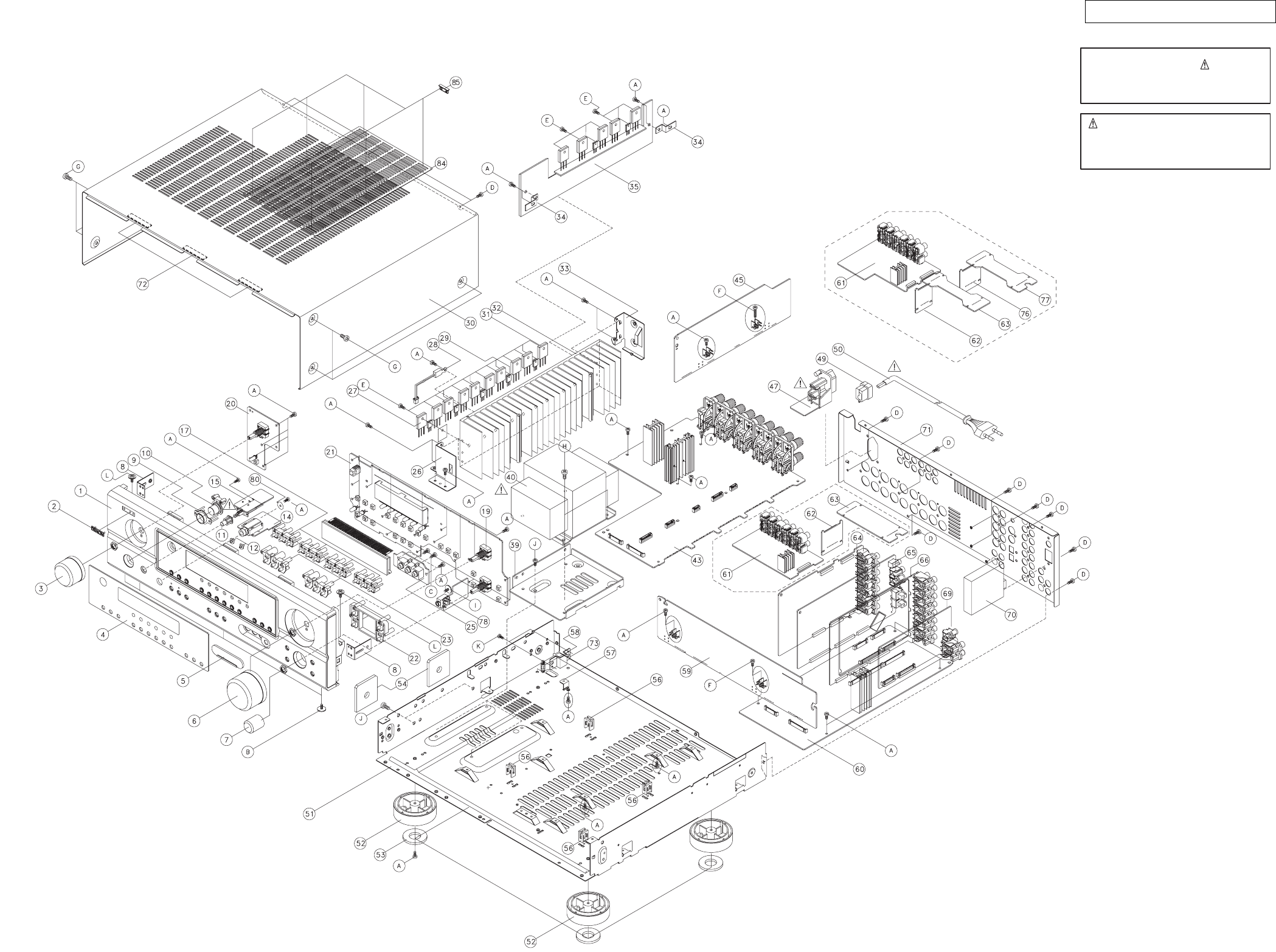

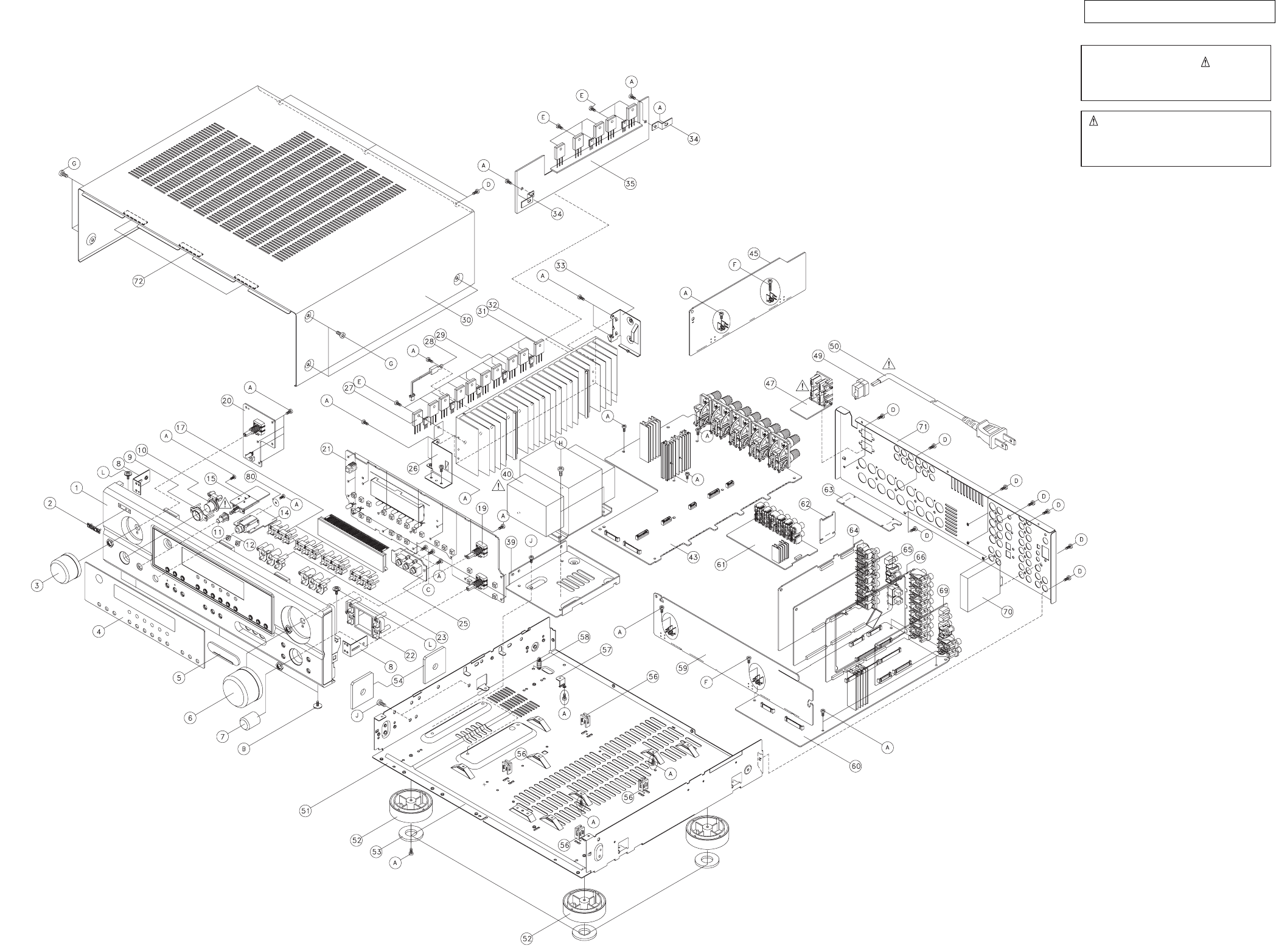

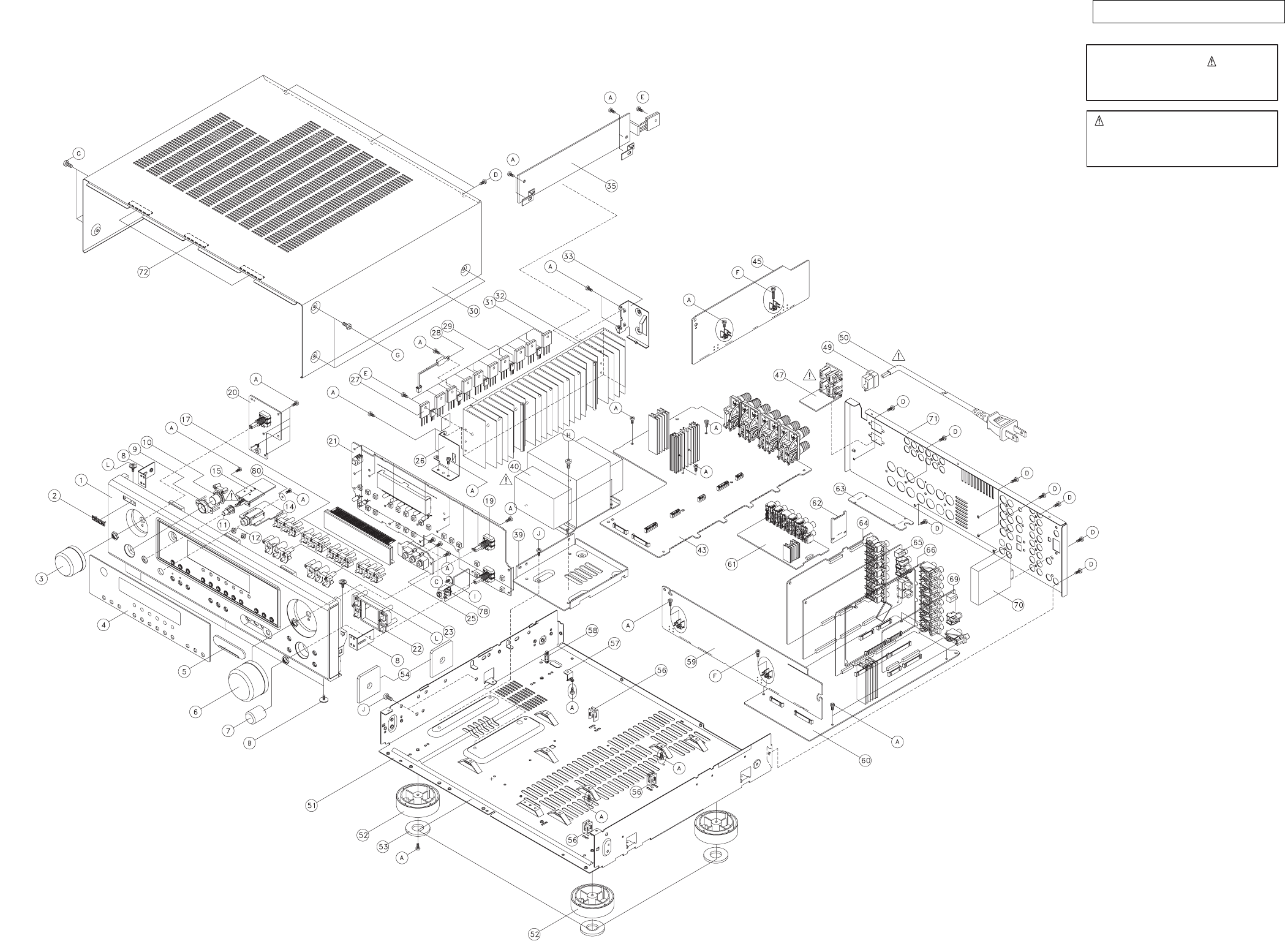

• Part indicated with the mark " ★" is not illustrated in the exploded view.
• Not including General-purpose Carbon Film Resistor in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
• Not including General-purpose Carbon Chip Resistor in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
s
s
s
s
ss
ss
s
s
s
s
RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W
3H : 5 W
RN 14K 2E 182 G FR
∗18 2 Ö1800 =1.8k
0
2
1R 2 Ö1.2
1
2 R
CE 04W 1H 2R2 M BP
CE : 0J : 6.3 V F : ±1% HS :
CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V − 0% F :
CH : 2D : 200 V C : ±0.25pF
2E : 250 V D : ±0.5pF
2H : 500 V = :
2J : 630 V
∗
22 2 Ö2200µF
0
2
µF
22 2 Ö2200pF=0.0022µF
0
2
pFpF
22 1 Ö220pF
2
(0 2 )
0
(0 0 1 )
2R 2 Ö2.2µF
1
2 R
µF
AC
RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W
3H : 5W
CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type
electrolytic
CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type
electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high
requency
CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF
2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V
ll
ll
lResistors
Ex.:RN 14K 2E 182 GFR
Type Shape Power Resist- Allowable Others
and per- ance error
formance
]Resistance
1 8 2⇒1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1 R 2⇒1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
ll
ll
lCapacitors
Ex.:CE 04W 1H 2R2 M BP
Type Shape Dielectric Capacity Allowable Others
and per- strength error
formance
]Capacity (electrolyte only)
2 2 2⇒2200µF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: µF.
2 R 2⇒2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: µF.
]Capacity (except electrolyte)
2 2 2⇒2200pF=0.0022µF
(More than 2) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2 2 1⇒220pF
(0 or 1) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.
部品表について
１．nsp 印の部品は常時在庫していませんので供給に長時間を要すること
があります。
場合によっては、供給をお断りすることがあります。
２．部品を発注する際は特に数字の " １ " と英字の "Ｉ" との区別をはっき
り記入してください。
３．部品番号を表示していない部品は供給できません。
４． ! 印の部品は安全上重要な部品です。交換するときは、安全および性
能維持のため必ず指定の部品をご使用ください。
５．★印のついている部品は分解図中には記載していません。
６．汎用カーボン抵抗器は記載していません。定数は回路図を参照願いま
す。
７．汎用カーボンチップ抵抗器は記載していません。定数は回路図を参照
願います。
８．部品表の抵抗器、コンデンサの品名記号の読み方は表を参照してくだ
さい。
45
AVR-1707/1507/687/587/487
PARTS LIST OF P.W.B. UNIT(for AVR-1707/687 model)
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
1707E3 : U.S.A. & Canada model 1707E2 : Europe model 1707EUT : Taiwan R.O.C. model
687E3 : U.S.A. & Canada model (AVR-687)
MAIN P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 963 0219 408 IC CJ7815 J126781500090S
IC102 00D 963 0219 505 IC CJ7915F J126791500070S
IC103 00D 963 0057 806 IC KIA78R05PI J126780500370S
IC104 00D 963 0219 204 IC CJ7805 J126780500430S
! IC105,106 00D 960 0195 808 IC ICP-N15 J120001500030S
Q104C 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104FL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104FR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104SL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104SR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q111-115 00D 963 0121 208 TR KRC107M J6020107M0010S
Q116 00D 960 0196 409 TR 2SC1740SR J5021740S0010S
Q117,118 00D 963 0121 208 TR KRC107M J6020107M0010S
Q151 00D 960 0196 409 TR 2SC1740SR J5021740S0010S
Q171 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q171A 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171B 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171C 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171D 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q172-177 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q178 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q179 00D 960 0133 103 TR KSA916Y J5000916Y0050P
Q180,181 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q182,183 00D 960 0196 700 TR KTC3200BL J5023200B0050S
D101 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D101C 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101FL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101FR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101SL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101SR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D102C 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102FL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102FR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D103-105 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D121-127 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D131A 00D 960 0197 107 D,RECTIFIER BRIDGE
KBPC604
K047604000020P
D131B 00D 960 0197 107 D,RECTIFIER BRIDGE
KBPC604
K047604000020P
D132 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D135 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D137 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D138A 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D141-146 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D148 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D149,150 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D151 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
46
AVR-1707/1507/687/587/487
D152,153 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D158-160 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
ZD101C 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD101FL 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD101FR 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD101SL 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD101SR 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD102C 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD102FL 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD102FR 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD102SL 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD102SR 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD133,134 00D 963 0046 202 D,ZENER MTZJ18B K06018R044520S
ZD136 00D 963 0058 601 D,ZENER MTZJ12B K06012R044520S
ZD154 00D 960 0095 704 D,ZENER MTZJ6.2B K06006R244520S
ZD157 00D 963 0219 903 D,ZENER MTZJ16B K06016R044520S
ZD341,342 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
LED901 00D 963 0148 605 LED SML1216W RED/GREEN K500052600030
RESISTORS GROUP
R104C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R106C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R108C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R118C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
Ref. No. nsp Part No. Part Name Remarks Q'ty New
47
AVR-1707/1507/687/587/487
R118FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R135,136 00D 963 0144 502 R,CEMENT 0.1-J 5W C141R10069000S
R141,142 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S
R148,149 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S
R151 00D 963 0232 809 R,METAL FILM 10-J,1/4W C060010063520S
R154 00D 963 0244 305 R,METAL FILM 2.2M 0.5W 1707E3,687E3,1707EUT C060022564520S
R179 00D 963 0232 906 R,METAL FILM 47K-F,1/4W C060047343530S
R184 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R901,902 00D 960 9009 270 R,METAL FILM 470-J,2W C060047166520S
VR101-105 00D 960 0091 601 VR,SEMI CERMET 1KB C544102015130P
CAPACITORS GROUP
C101C 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101FL 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101FR 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101SL 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101SR 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C102C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C103C 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C103FL 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C103FR 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C103SL 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C103SR 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C104C 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C104FL 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C104FR 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C104SL 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C104SR 00D 963 9003 084 C,CERAMIC100PF-K/500V D00410106D050S
C105C 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105FL 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105FR 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105SL 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105SR 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C107C 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107FL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107FR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107SL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107SR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C131-135 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C136,137 00D 963 0149 400 CAP.E.GENERIC 10000UF/63V N211210388110F
C138 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C138A 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C141-143 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C144 00D 963 0217 109 C,ELECT 3300UF-M/35V D040332085010F
C145 00D 963 9003 123 C,ELECT 1000UF-M/35V D040102085040F
C146 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C148 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C150-152 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C153 00D 963 0021 104 C,ELECT 6800UF-M/16V D040682083000F
C154 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
Ref. No. nsp Part No. Part Name Remarks Q'ty New
48
AVR-1707/1507/687/587/487
C155 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C157 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C158 00D 963 0217 002 C,ELECT 3300UF-M/16V D040332083010F
C159 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C161 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C171 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C171A 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171B 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171C 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171D 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C172,173 00D 963 9005 833 C,ELECT 220UF-M/6.3V D040221081230F
C174 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C175 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C176,177 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C178 00D 963 9003 149 C,ELECT 330UF-M/63V D040331088230F
C179 00D 963 9005 833 C,ELECT 220UF-M/6.3V D040221081230F
! C181 00D 963 9006 191 C,CERAMIC AC(SAFETY)
AC13F472MDOA
D00847208K070S
C182 00D 963 0234 302 C,ELECT 10UF-M/100V D04010008C050F
C191-198 00D 963 0233 400 C,CERAMIC 2200PF-K/16V 1707E2 D005222773530S
C198C 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198FL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198FR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198SBL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198SBR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198SL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C198SR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C199 00D 963 0233 400 C,CERAMIC 2200PF-K/16V 1707E2 D005222773530S
C199FL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C199FR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1707E2 D02010306C060P
C341,342 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C901,902 00D 963 0233 206 C,CERAMIC 0.001UF-K/50V D005102177530S
C903 00D 963 0233 109 C,CERAMIC 0.01UF-Z/50V D004103097060S
C904 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C905 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
OTHERS PARTS GROUP
CLAMP101 nsp 00D 960 0260 005 CLAMP WIRE 4330000120000S
CN201 nsp 00D 963 0148 702 CN,WIRE 120MM/2P L000121020120P
CN901 00D 963 0184 601 CN,WIRE 260MM/3P L000261030070P
CN992 nsp 00D 963 0235 602 CN,WIRE 270MM/4P L000271040030P
CP101 00D 963 0267 803 CN.WAFER 2P L108202000220F
CP102 nsp 00D 960 0123 304 CN.WAFER 2P L104353280200S
CP103 nsp 00D 963 0066 208 CN.WAFER 3P L104353280300S
CP104 nsp 00D 960 0128 804 CN.WAFER 6P L102526700600S
CP105 nsp 00D 963 0149 109 CN.WAFER (BLACK) 2P L104353280201S
CP106 nsp 00D 960 0123 207 CN.WAFER 3P L102526700300S
CP138A nsp 00D 960 0123 207 CN.WAFER 3P L102526700300S
CP302 00D 963 0257 800 CN.WAFER 07P L101220070010S
CP501 nsp 00D 963 0206 301 CN.WAFER 5P L101100040510S
CP502 nsp 00D 963 0206 408 CN.WAFER 7P L101100040710S
CP503 nsp 00D 963 0206 301 CN.WAFER 5P L101100040510S
CP504 nsp 00D 963 0206 505 CN.WAFER 9P L101100040910S
CP505 nsp 00D 963 0235 709 CN.WAFER 12P L101100041210S
CP555 nsp 00D 963 0111 108 CN.WAFER 14P L101100041410S
CP556 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP901,902 nsp 00D 963 0235 806 CN.WAFER 3P L101220030000S
CP931 nsp 00D 963 0149 206 CN.WAFER 2P L104353280203S
! F101 00D 963 0236 106 FUSE T8A/250V 1707E3,687E3,1707EUT N751228001110S
! F101 00D 963 0104 704 FUSE T2.5A/250V 1707E2 N751222501110S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
49
AVR-1707/1507/687/587/487
! F102 00D 963 0236 106 FUSE T8A/250V 1707E3,687E3,1707EUT N751228001110S
! F102 00D 963 0104 704 FUSE T3.15A/250V 1707E2 N751223151110S
F101A nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F101B nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F102A nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F102B nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
G901 00D 963 0257 907 CN,WIRE 160MM/1P N602141610310F
GND101-103 - TERMINAL EARTH 3790040886000S
L101C nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
L101FL nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
L101FR nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
L101SL nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
L101SR nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
RLY101-104 00D 960 0181 702 RELAY G5PA-28 24V 5A G680240502020S
RLY105 00D 963 0218 506 RELAY BC3-24 24V 2A G680240202040F
RLY106 00D 963 0218 205 RELAY G5PA-1 DC9V 250V/5A G680090102010F
RLY107 00D 960 0181 702 RELAY G5PA-28 24V 5A G680240502020S
SW901 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
TP101-105 nsp 00D 960 0161 405 CN.WAFER 3P L101530140310S
VEC303 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S
- HEAT SINK 2120043538050S
- HEAT SINK 2120044308010S
! 00D 963 0232 100 STAND BY TRANS 120V/60HZ 1707E3,687E3,1707EUT 8200350150200S
! 00D 963 0215 606 STAND BY TRANS 230V/50HZ 1707E2 8200350150210S
nsp 00D 963 0018 007 SCREW, 3*8 B-TYPE ZNY/BH B020030081B10S
00D 963 0158 608 2P TER, SP G611201A0200YS
00D 963 0119 906 8P TER, SP G614801A0200YS
00D 963 0294 708 JACK,D6.5 PHONE G402PJ612AG0YS
! 00D 960 0181 508 AC OUTLET(E3) 1707E3,687E3,1707EUT G435204004010S
! 00D 960 0143 203 AC OUTLET(E2) 1707E2 G435040110000S
00D 963 0247 001 LABEL, FUSE (F102) 1707E2 5527200040030S
- COVER CAPACITOR 1707E2 4310002640010S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
50
AVR-1707/1507/687/587/487
CPU P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC201 00D 262 3651 009 M3062LFGPFP
IC202 00D 963 0057 602 IC TDA7330BD 1707E2 J080733000010F
IC272 00D 963 0219 301 IC CJ7806 J126780600190S
IC273 00D 963 0235 107 IC CJ7906F J126790600040S
IC301 00D 262 2549 002 LC75721E +C
IC302 00D 963 0074 504 IC BU2090F J044209000010P
Q202 00D 963 0121 509 TR KTC3875S J522038750210S
Q203,204 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q205 00D 963 0120 704 TR KRA102S J520010200210S
Q206,207 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q251 00D 963 0120 704 TR KRA102S J520010200210S
Q261 00D 963 0148 508 TR KTA1504S 1707E2 J520015040150S
Q262 00D 960 0111 808 TR KRC107S 1707E2 J5020107S0050S
Q263 00D 960 0285 006 TR KRC104S J522104S00210S
Q301 00D 963 0120 704 TR KRA102S J520010200210S
Q310 00D 963 0120 704 TR KRA102S J520010200210S
Q311 00D 963 0120 801 TR KRC102S J522010200210S
Q312 00D 963 0120 704 TR KRA102S J520010200210S
Q313 00D 963 0120 801 TR KRC102S J522010200210S
Q314 00D 963 0120 704 TR KRA102S J520010200210S
Q315 00D 963 0120 801 TR KRC102S J522010200210S
Q321 00D 963 0102 803 TR 2SA933S J5000933S0050S
Q322 00D 960 0111 808 TR KRC107S J5020107S0050S
Q901,902 00D 963 0120 704 TR KRA102S J520010200210S
D201 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D202 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D203-205 00D 963 0219 709 D,SWITCHING 1N4148W 1707E3,687E3,1707EUT K005041480020S
D203-206 00D 963 0219 709 D,SWITCHING 1N4148W 1707E2 K005041480020S
D209,210 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D302-304 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D305 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D307 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D308,309 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD201 00D 963 0047 502 D,ZENER MTZJ3.3B K06003R344520S
ZD301 00D 960 0095 801 D,ZENER MTZJ6.8B K06006R844520S
ZD331,332 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
ZD335,336 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
LED301-304 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
LED306 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
LED308-311 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
FL301 00D 963 0257 305 DISPLAY,FLT HNA-16SM13T K530161300020S
RESISTORS GROUP
R211 00D 960 9003 807 R,METAL FILM 100-J,1/4W C060010163050S
CAPACITORS GROUP
C201 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C202 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C203 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C204 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C205 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C206 00D 963 9005 862 C,ELECT 47UF-M/16V 1707E2 D040470083080F
C207 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E2 D011103777160S
51
AVR-1707/1507/687/587/487
C208 00D 963 0223 708 C,CERAMIC 270PF-J/50V 1707E2 D010271167160S
C209 00D 963 0234 205 C,ELECT 10UF-M/50V 1707E2 D040100087070F
C210 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E2 D011103777160S
C211,212 00D 963 9004 614 C,CERAMIC 27PF-J/50V 1707E2 D010270167160S
C221 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C261,262 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C267-270 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C275 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C276,277 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C278 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C279 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C291,292 00D 963 9004 517 C,CERAMIC 0.022UF-Z/50V D004223597050S
C293 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C294 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C295 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C301 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C302 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C303 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C304 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C305 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C306 00D 963 0216 401 C,FILM 0.1UF-J/100V D02010406C060P
C307 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C308,309 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C310 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C311 nsp 00D 963 0233 701 C,CERAMIC 30PF-J/50V D010300167160S
C312 00D 963 9005 859 C,ELECT 47UF-M/16V D040470083060F
C313 - C,FILM 0.047UF-J/100V D02047306C070S
C321 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C322 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C324,325 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C326X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C331,332 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C335,336 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C343X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C381 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C382,383 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C384,385 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C386 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C387,388 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
BC201 00D 254 4666 005 CE04W0H105ZC(FG)
OTHERS PARTS GROUP
BD201-203 nsp 00D 963 0154 602 BEAD,COIL 3580-AX 7610010030000S
BD301-303 nsp 00D 963 0234 603 BEAD,COIL MB-160808 D340160800060S
CN201 00D 963 0245 906 CN,WIRE 240MM/6P L000241060020F
CN302 00D 963 0159 209 CN,WIRE 100MM/7P L000101070080P
CN902 00D 963 0246 002 CN,WIRE 80MM/3P L000800030110P
CN931 nsp 00D 963 0148 809 CN,WIRE 350MM/2P L000351020100P
CP201 nsp 00D 963 0097 604 CN.WAFER 6P L101220060000S
CP301A nsp 00D 963 0161 103 CN.FPC 23P L131112300010F
CP301B nsp 00D 963 0161 006 CN.FPC 23P L131102300010F
CP303 nsp 00D 963 0236 009 CN.WAFER 3P L102526803010S
CP401 nsp 00D 963 0235 709 CN.WAFER 12P L101100041210S
CP402 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP404 nsp 00D 963 0087 407 CN.WAFER 16P L101100041610S
CP552 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP553 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP601 nsp 00D 963 0087 601 CN.WAFER 18P L101100041810S
CP602 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP701 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
52
AVR-1707/1507/687/587/487
CP702 nsp 00D 963 0087 504 CN.WAFER 19P L101100041910S
CP703 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP704 00D 963 0256 908 CN.WAFER 10P L101100041010S
CP801 nsp 00D 963 0087 601 CN.WAFER 18P L101100041810S
CP802 nsp 00D 963 0087 504 CN.WAFER 19P L101100041910S
CP803 nsp 00D 963 0087 407 CN.WAFER 16P L101100041610S
G301 00D 963 0257 509 RING,TER WIRE 80MM/1P 8410800010100F
GND201 - TERMINAL EARTH 3790040886000S
L301 nsp 00D 960 0128 008 COIL,INDUCTOR 100UH D330101001020S
L302 nsp 00D 960 0010 307 COIL,INDUCTOR 10UH D330100700520S
RMC301 00D 963 0217 808 MODULE,REMOCON
NJL34H380A
E940343800010P
SW301C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW302A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW302B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW302C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW303A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW303B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW303C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW304A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW304B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW304C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW305A 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW305B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW305C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW306A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW306B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW306C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW307B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW307C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW308B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW308C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW309B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW309C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
!SW931 00D 963 0145 802 SW,PUSH SDDL-005-S(C-UL) G000122006060F
TP301 nsp 00D 963 0060 709 CN.WAFER 8P L101220080000S
TP601 00D 960 0123 605 CN.WAFER 13P L101530141310S
VEC301,302 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S
X201 00D 963 0217 701 RESONATOR,CERAMIC
ZTT12.00MT
E830120000060P
X202 00D 963 0217 604 CRYSTAL 4.332MHZ, 1707E2 E800433200100
- HEAT SINK 2120043538050S
nsp 00D 963 0018 007 SCREW, 3*8 B-TYPE ZNY/BH B020030081B10S
nsp 00D 960 0184 408 HOLDER FLT 4320200026000S
00D 963 0146 403 TER,RCA 3PIN G606308HG110YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
53
AVR-1707/1507/687/587/487

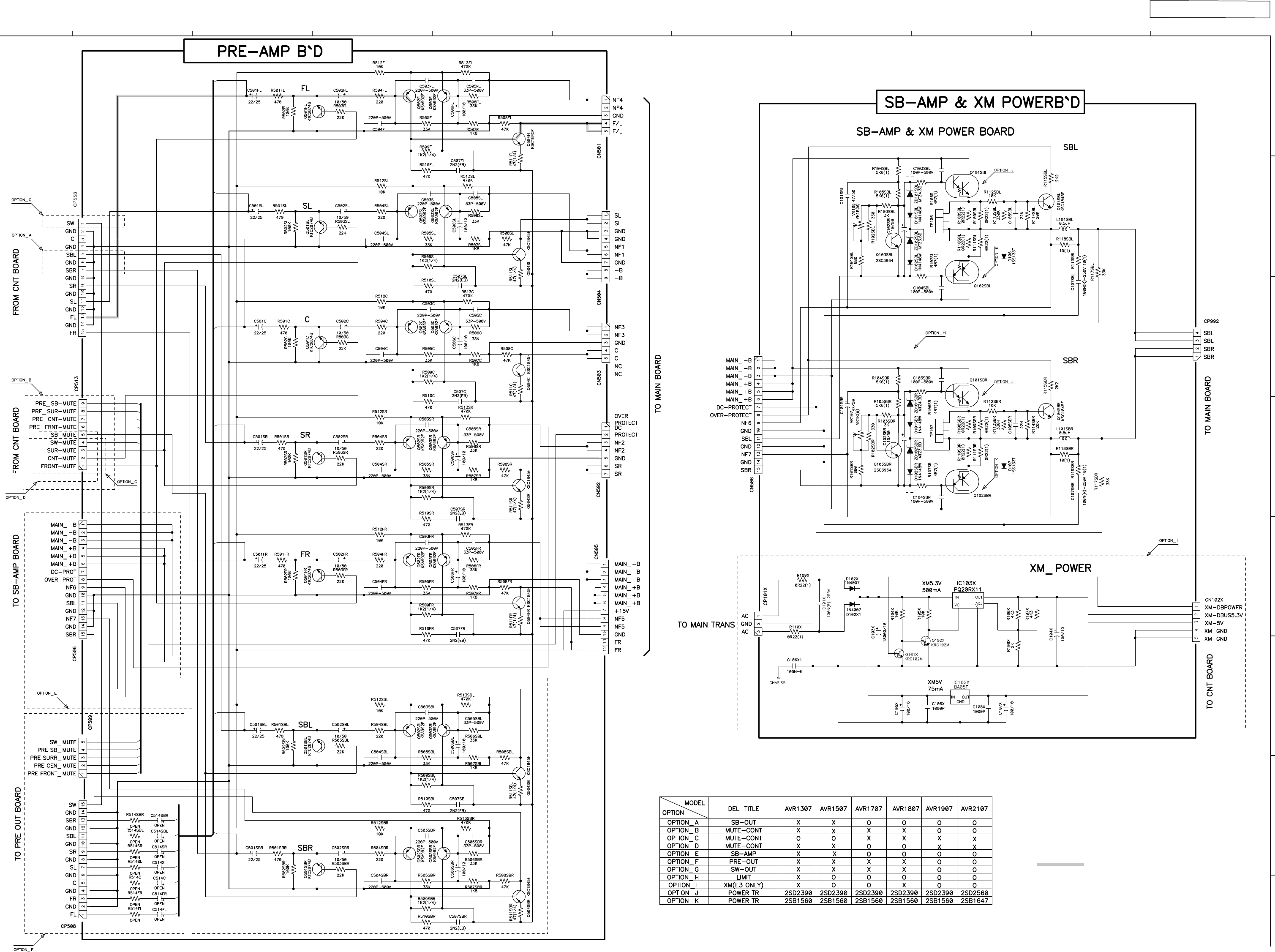

PRE-AMP P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC102X 00D 263 1092 003 BA05T 1707E3,687E3
IC103X 00D 263 1223 005 PQ20RX11J00H 1707E3,687E3
Q101SBL 00D 963 0044 204 TR 2SD2390-Y J5032390Y0000P
Q101SBR 00D 963 0044 204 TR 2SD2390-Y J5032390Y0000P
Q101X 00D 960 0097 304 TR KRC102M 1707E3,687E3 J6020102M0010S
Q102SBL 00D 963 0044 107 TR2SB1560-Y J5011560Y0000P
Q102SBR 00D 963 0044 107 TR2SB1560-Y J5011560Y0000P
Q102X 00D 960 0097 304 TR KRC102M 1707E3,687E3 J6020102M0010S
Q103SBL 00D 963 0280 107 TR 2SC3964 J502396400000S
Q103SBR 00D 963 0280 107 TR 2SC3964 J502396400000S
Q104SBL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104SBR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q501C 00D 960 0196 603 TR KTC2874B J502287400010S
Q501FL 00D 960 0196 603 TR KTC2874B J502287400010S
Q501FR 00D 960 0196 603 TR KTC2874B J502287400010S
Q501SL 00D 960 0196 603 TR KTC2874B J502287400010S
Q501SR 00D 960 0196 603 TR KTC2874B J502287400010S
Q502C 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502FL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502FR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SBL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SBR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503C 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503FL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503FR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SBL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SBR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q504C 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504FL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504FR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504SBL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504SBR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504SL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q504SR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q506SBL 00D 960 0196 603 TR KTC2874B J502287400010S
Q506SBR 00D 960 0196 603 TR KTC2874B J502287400010S
D101SBL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101SBR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SBL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SBR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102X 00D 963 0058 407 D,SWITCHING IN4007 1707E3,687E3 K000400700520S
D102X1 00D 963 0058 407 D,SWITCHING IN4007 1707E3,687E3 K000400700520S
D106,107 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
ZD101SBL 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD101SBR 00D 963 0279 804 D,ZENER 0.2W 4.3V UDZ S K06604R34P410S
ZD102SBL 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
ZD102SBR 00D 963 0295 503 D,ZENER 0.2W 3.6V UDZ S K06603R64P400S
RESISTORS GROUP
R104SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
54
AVR-1707/1507/687/587/487
R106SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R108SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109X 00D 963 0216 003 R,METAL FILM 0.22-J,1W 1707E3,687E3 C060R22065050S
R110SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110X 00D 963 0216 003 R,METAL FILM 0.22-J,1W 1707E3,687E3 C060R22065050S
R111SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R118SBL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118SBR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SBL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SBR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R509C 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509FL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509FR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SBL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SBR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R511C 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511FL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511FR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SBL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SBR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
VR106,107 00D 963 0105 208 VR,SEMI CERMET 1KB C544102015140P
CAPACITORS GROUP
C101SBL 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101SBR 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101X 00D 963 9003 097 C,FILM 0.1UF-K/250V 1707E3,687E3 D02010407H080S
C102SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C103SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103X 00D 963 0255 501 C,ELECT 18000UF-M/16V 1707E3,687E3 D040183083000S
C104SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104X 00D 963 0293 709 C,ELECT 100UF-M/10V 1707E3,687E3 D040101082070F
C105SBL 00D 960 9008 640 C,FILM 0.022UF-J/100V D02022306C060P
C105SBR 00D 960 9008 640 C,FILM 0.022UF-J/100V D02022306C060P
C105X 00D 963 0293 709 C,ELECT 100UF-M/10V 1707E3,687E3 D040101082070F
C106X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 1707E3,687E3 D011102777160S
C106X1 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V 1707E3,687E3 D011104577160S
C107SBL 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107SBR 00D 963 9003 097 C,FILM 0.1UF-K/250V D02010407H080S
C107X 00D 963 0293 709 C,ELECT 100UF-M/10V 1707E3,687E3 D040101082070F
C108X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 1707E3,687E3 D011102777160S
C501C 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501FL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501FR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SBL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SBR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C502C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
Ref. No. nsp Part No. Part Name Remarks Q'ty New
55
AVR-1707/1507/687/587/487
C502FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C503C 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503FL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503FR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SBL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SBR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504C 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504FL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504FR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SBL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SBR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C505C 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505FL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505FR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SBL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SBR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C506C 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506FL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506FR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SBL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SBR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C507C 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507FL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507FR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SBL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SBR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
OTHERS PARTS GROUP
BKT501 nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
BKT503 nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
CN102X nsp 00D 963 0256 306 CN,WIRE 90MM/5P 1707E3,687E3 L000900050030F
CN501 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CN502 nsp 00D 963 0086 505 CN.WAFER 7P L101100030710S
CN503 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CN504 nsp 00D 963 0085 506 CN.WAFER 9P L101100030910S
CN505 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN506T nsp 00D 963 0245 401 CN,WIRE 140MM/15P 1707E3,687E3 L000141150030F
CN506T 00D 963 0159 704 CN,WIRE 140MM/15P 1707EUT L000141150020P
CP101X nsp 00D 960 0123 207 CN.WAFER 3P 1707E3,687E3 L102526700300S
CP506 nsp 00D 963 0060 703 CN.WAFER 15P L101220150000S
CP513 nsp 00D 963 0066 101 CN.WAFER 5P L101220050000S
CP558 00D 963 0253 406 CN.WAFER 14P L101220140000S
CP992 nsp 00D 960 0217 553 CN.WAFER 4P L102526700400S
L101SBL nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
L101SBR nsp 00D 963 0049 005 COIL INDUCTOR 0.5UH D330R50000000F
TP106,107 nsp 00D 963 0207 203 CN.WAFER 3P L101530150310S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
56
AVR-1707/1507/687/587/487
CNT P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC551,552 00D 963 0218 807 IC BU4094BCF J040140940030P
Q551 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q552 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q553-556 00D 963 0120 704 TR KRA102S J520010200210S
Q570A 00D 963 0148 508 TR KTA1504S J520015040150S
Q570B 00D 963 0121 606 TR KRC107S J522107S00210S
Q571X 00D 963 0121 606 TR KRC107S J522107S00210S
Q572X 00D 963 0148 508 TR KTA1504S J520015040150S
Q573C 00D 963 0121 004 TR KRC104M J502104000010S
D501D 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D551-561 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D562,563 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D565-567 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D568-571 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D572X 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D573X 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D574C 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD564 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
RESISTORS GROUP
R559 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
R565 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
R570 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
R575,576 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S
R577C 00D 963 0236 203 R,METAL FILM 180-J,1/4W C060018163050S
CAPACITORS GROUP
C280 00D 963 0021 104 C,ELECT 6800UF-M/16V D040682083000F
C280A 00D 963 0224 804 C,ELECT 3300UF-M/25V D040332084010F
C281 00D 963 0224 804 C,ELECT 3300UF-M/25V D040332084010F
C551 00D 963 0294 106 C,ELECT 2.2UF-M/50V (Pb Free) 1707E3,687E3,1707EUT D0402R2087160F
C551 00D 960 9009 940 C,ELECT 1000UF-M/16V 1707E2 D040102083030F
C551C nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C551G nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C551S 00D 963 0225 609 C,CERAMIC 0.047UF-Z/50V D005473597520S
C555,556 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C557 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C559-561 00D 963 0145 006 C,FILM 0.047UF-J/50V D020473167050P
C563X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C564X nsp 00D 960 9010 094 C,CERAMIC 0.01UF-Z/50V D011103597160S
C565X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C566X nsp 00D 960 9010 094 C,CERAMIC 0.01UF-Z/50V D011103597160S
C567X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C568X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C569X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C570X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
OTHERS PARTS GROUP
CN202X nsp 00D 963 0256 005 CN,WIRE 350MM/8P 1707E3,687E3 L000351080010F
CN552 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN553 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN554A 00D 963 0184 805 CN,WIRE 80MM/14P L000800140060P
CN554B 00D 963 0184 708 CN,WIRE 80MM/4P L000800040110P
CN555 nsp 00D 963 0110 701 CN.WAFER 14P L101100031410S
57
AVR-1707/1507/687/587/487
CN556 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CP102X nsp 00D 963 0066 101 CN.WAFER 5P 1707E3,687E3 L101220050000S
CP551 00D 963 0253 406 CN.WAFER 14P L101220140000S
CP590 nsp 00D 963 0236 009 CN.WAFER 3P L102526803010S
RLY501C 00D 963 0218 409 RELAY BC3-12 24V 2A G680240202030F
nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
58
AVR-1707/1507/687/587/487

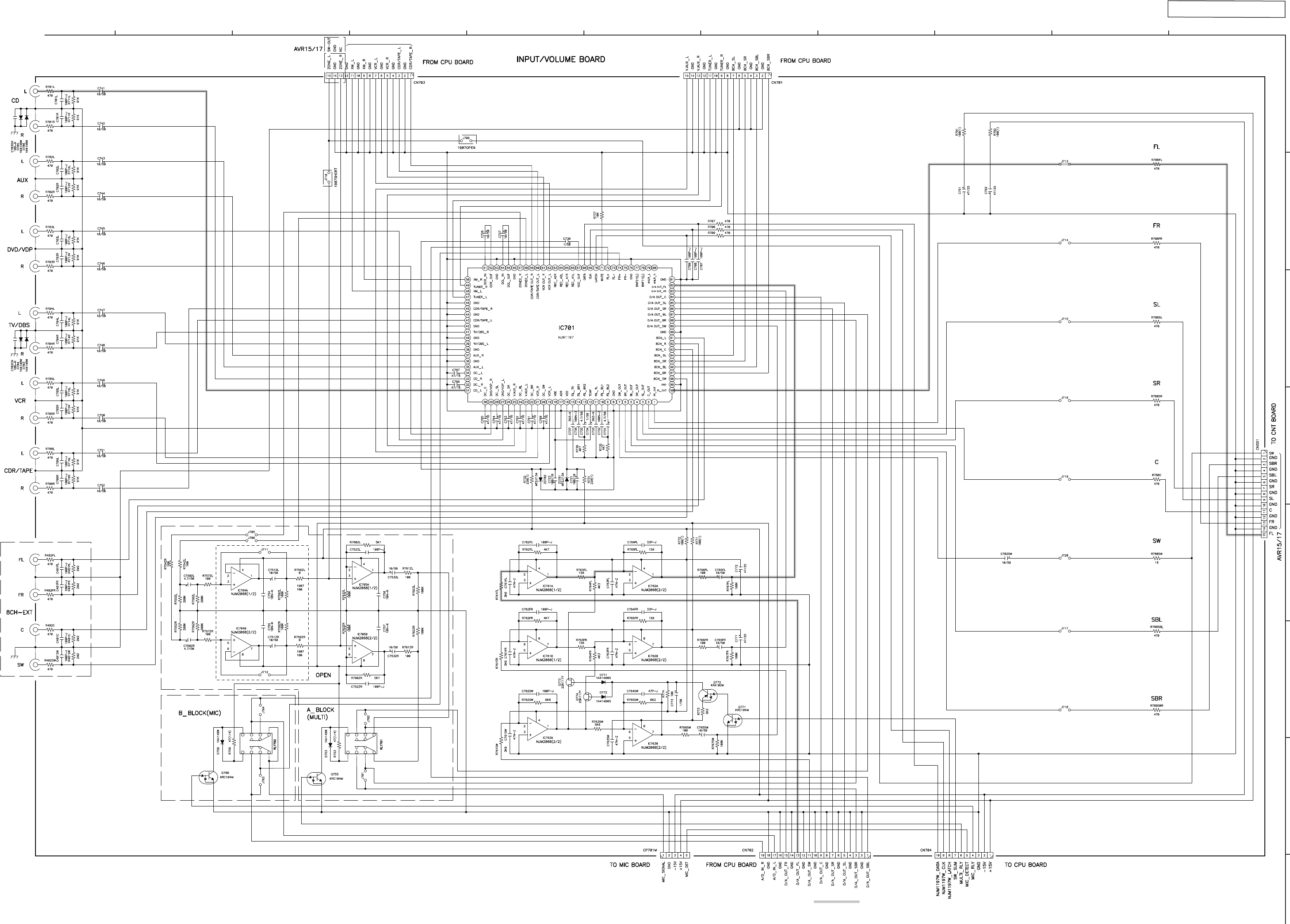

INPUT P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 963 0295 202 IC NJW1197 J084119700010
IC701M 00D 963 0202 305 IC NJM2068M J121206800020S
IC705 00D 963 0202 305 IC NJM2068M 1707E3,687E3 J121206800020S
IC761-763 00D 963 0202 305 IC NJM2068M J121206800020S
Q755 00D 963 0121 004 TR KRC104M 1707E3,687E3 J502104000010S
Q760 00D 963 0121 004 TR KRC104M J502104000010S
Q771 00D 963 0121 004 TR KRC104M J502104000010S
Q772 00D 960 0097 207 TR KRA102M J6002202M0010S
Q773,774 00D 960 0196 807 TR 2SK117Y J5441170Y0050
D703-706 00D 963 0219 709 D,SWITCHING 1N4148W 1707E3,687E3 K005041480020S
D753 00D 963 0219 709 D,SWITCHING 1N4148W 1707E3,687E3 K005041480020S
D756 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D771,772 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD701 00D 960 0222 603 D,ZENER MTZJ7.5A K06007R544530S
ZD701M 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
ZD702 00D 960 0222 603 D,ZENER MTZJ7.5A K06007R544530S
RESISTORS GROUP
R709M - R,CHIP 1.6K-J,1/10W C200016260200F
R731,732 00D 963 9005 668 R,METAL FILM 220-J,1W C060022165050S
R753 00D 960 9004 301 R,METAL FILM 47-J,1/4W 1707E3,687E3 C060047063050S
R756 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R771,772 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R791,792 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
CAPACITORS GROUP
C481C nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481FL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481FR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SW nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C701L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C701M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C701R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C702CH nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E3,687E3 D011103777160S
C702L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C702M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C702R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C703CH nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E3,687E3 D011103777160S
C703L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C703M nsp 00D 963 0157 609 C,CERAMIC 150PF-J/50V D010151167160S
C703R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C704L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C704M nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C704R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C705L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C705M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C705R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C706L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C706M nsp 00D 963 0157 609 C,CERAMIC 150PF-J/50V D010151167160S
C706R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C707 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C707M nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C709 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C709M nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C710M 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
59
AVR-1707/1507/687/587/487
C721 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C723 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C726,727 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C731 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C732 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C733 00D 963 0276 108 C,CERAMIC 3300PF-K/50V D011332777160S
C734 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C735 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C736 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C737 00D 963 0276 108 C,CERAMIC 3300PF-K/50V D011332777160S
C738 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C741-750 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C750ZL 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1707E3,687E3 D0404R7087250F
C750ZR 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1707E3,687E3 D0404R7087250F
C751,752 00D 963 0234 205 C,ELECT 10UF-M/50V 1707E3,687E3 D040100087070F
C752ZL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1707E3,687E3 D010101167160S
C752ZR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1707E3,687E3 D010101167160S
C753ZL 00D 963 0234 205 C,ELECT 10UF-M/50V 1707E3,687E3 D040100087070F
C753ZR 00D 963 0234 205 C,ELECT 10UF-M/50V 1707E3,687E3 D040100087070F
C756,757 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E3,687E3 D011103777160S
C760,761 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C761FL nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C761FR nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C761SW nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C762 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C762FL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C762FR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C762SW nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C763 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C763FL nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C763FR nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C763SW nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C764 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C764FL nsp 00D 963 0223 805 C,CERAMIC 33PF-J/50V D010330167160S
C764FR nsp 00D 963 0223 805 C,CERAMIC 33PF-J/50V D010330167160S
C764SW nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V D010470167160S
C765 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C765FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C765FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C765SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C766,767 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C771,772 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070F
C773 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C791,792 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070F
OTHERS PARTS GROUP
CN551 00D 963 0184 407 CN,WIRE 160/14P L000161140050P
CN701 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN701M 00D 963 0253 309 CN,WIRE 230MM/5P L000231050030F
CN702 nsp 00D 963 0086 204 CN.WAFER 19P L101100031910S
CN703 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN704 00D 963 0256 801 CN.WAFER 10P L101100031010S
CP701M nsp 00D 963 0066 101 CN.WAFER 5P L101220050000S
RLY701,702 00D 963 0218 409 RELAY BC3-12 24V 2A 1707E3,687E3 G680240202030F
RLY702 00D 963 0218 409 RELAY BC3-12 24V 2A 1707E2,1707EUT G680240202030F
00D 963 0094 005 CUSHION INPUT 4050210715000S
00D 963 0293 505 PLATE INPUT 4470210926000S
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
00D 960 0268 803 TER,RCA 6PIN G603603B09000S
00D 963 0158 200 JACK,D3.5 (MIC) G40132340000YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
60
AVR-1707/1507/687/587/487
8CH-EXT XM P.W.B. UNIT ASSY (for AVR-1707/687 E3 model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC201X 00D 262 3517 907 F2602-01-TR
IC202X 00D 262 2517 908 SN74LV08APW-EL2 +REF
IC203X 00D 262 2813 903 SN74AHCT08PW-EL2 +C
IC204X 00D 963 0295 309 IC LM1117S J126111733030S
IC205X 00D 963 0294 902 IC AK4385 J042438500010S
IC206 00D 963 0202 305 IC NJM2068M J121206800020S
IC206X 00D 399 1055 909 FCX-02(45.1584MHz)
IC207X 00D 263 1092 003 BA05T
IC208X 00D 963 0218 807 IC BU4094BCF J040140940030P
IC209X 00D 262 2813 903 SN74AHCT08PW-EL2 +C
IC401 00D 960 0296 105 IC CJ7812F J126781200220S
IC402 00D 960 0174 104 IC CXA1511M 1707E3 J030151100010S
Q201R 00D 963 0121 402 TR KRA104S J520010400210S
Q201X 00D 963 0120 801 TR KRC102S J522010200210S
Q203X 00D 963 0120 801 TR KRC102S J522010200210S
Q204X 00D 963 0120 801 TR KRC102S J522010200210S
Q206X 00D 963 0120 704 TR KRA102S J520010200210S
Q207X 00D 963 0120 704 TR KRA102S J520010200210S
Q208X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q209X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q210X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q211X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q401 00D 960 0097 003 TR KRA104M 1707E3 J6000104M0010S
Q666A 00D 963 0044 301 TR KTC2875B 1707E3 J5222875B0010S
Q667A 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q668A 00D 963 0044 301 TR KTC2875B 1707E3 J5222875B0010S
Q669A 00D 963 0044 301 TR KTC2875B J5222875B0010S
D201X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D202X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D203X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D204X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D205X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D206X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D207X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD401 00D 960 0095 704 D,ZENER MTZJ6.2B 1707E3 K06006R244520S
RESISTORS GROUP
R273X 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R274X 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
CAPACITORS GROUP
C201X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C202X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C203X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C204X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C205X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C206X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C207X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C208X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C209X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C212X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C213X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C215X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C216X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C217X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C218X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C219X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
61
AVR-1707/1507/687/587/487
C220X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C221X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C222X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C223X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C224X 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C225X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C230X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C231X 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) D040R10087080F
C232X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C233 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C233X nsp 00D 960 9009 843 C,CERAMIC 1800PF-K/50V D011182777160S
C234X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C235X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C236X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C237X nsp 00D 960 9009 843 C,CERAMIC 1800PF-K/50V D011182777160S
C238X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C239X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C240X 00D 963 0224 503 C,ELECT 22UF-M/50V D040220087060F
C241X 00D 963 0224 503 C,ELECT 22UF-M/50V D040220087060F
C242X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C243X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C244X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C245X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C246X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C247X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C248X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C249X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C250X nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C251X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C252X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C403 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) 1707E3 D040010087150F
C404 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1707E3 D011103777160S
C405 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1707E3 D010101167160S
C406,407 00D 960 9008 653 C,FILM 0.012UF-J/100V-5RE 1707E3 D02012306C060P
C408 00D 963 9005 862 C,ELECT 47UF-M/16V 1707E3 D040470083080F
C409 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1707E3 D0404R7087250F
C410,411 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C412,413 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C481SBL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SBR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C606A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1707E3 D010101167160S
C607A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C647 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
OTHERS PARTS GROUP
BD201X nsp 00D 963 0154 602 COIL,BEAD 7610010030000S
BD401,402 nsp 00D 963 0154 602 COIL,BEAD 687E3 7610010030000S
BD401-403 nsp 00D 963 0154 602 COIL,BEAD 1707E3 7610010030000S
CN401 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN402 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN404 nsp 00D 963 0086 107 CN.WAFER 16P L101100031610S
CP202X nsp 00D 963 0060 709 CN.WAFER 8P L101220080000S
CP203X nsp 00D 963 0068 303 CN.WAFER 9P L101220090000S
CP401A 00D 963 0149 303 CN.FPC 15P L131111500010F
JACK801X 00D 205 1362 009 XM/DT BUS CONNECTOR
00D 963 0244 703 JACK,D3.5 EARPHONE 1707E3 G40130802000YS
00D 963 0146 005 TER,RCA 1PIN G600107A0000YS
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
62
AVR-1707/1507/687/587/487
8CH-EXT (E2) P.W.B. UNIT ASSY (for AVR-1707 E2/EUT model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC401 00D 960 0296 105 IC CJ7812F J126781200220S
Q666A 00D 960 0196 603 TR KTC2874B J502287400010S
Q668A 00D 960 0196 603 TR KTC2874B J502287400010S
CAPACITORS GROUP
C401 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C402 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C403,404 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C481SBL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SBR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C606A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C647 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
OTHERS PARTS GROUP
BD401,402 nsp 00D 963 0154 602 COIL,BEAD 7610010030000S
CN401 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN402 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN404 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CP401A 00D 963 0149 303 CN.FPC 15P L131111500010F
00D 963 0146 005 TER,RCA 1PIN G600107A0000YS
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
63
AVR-1707/1507/687/587/487

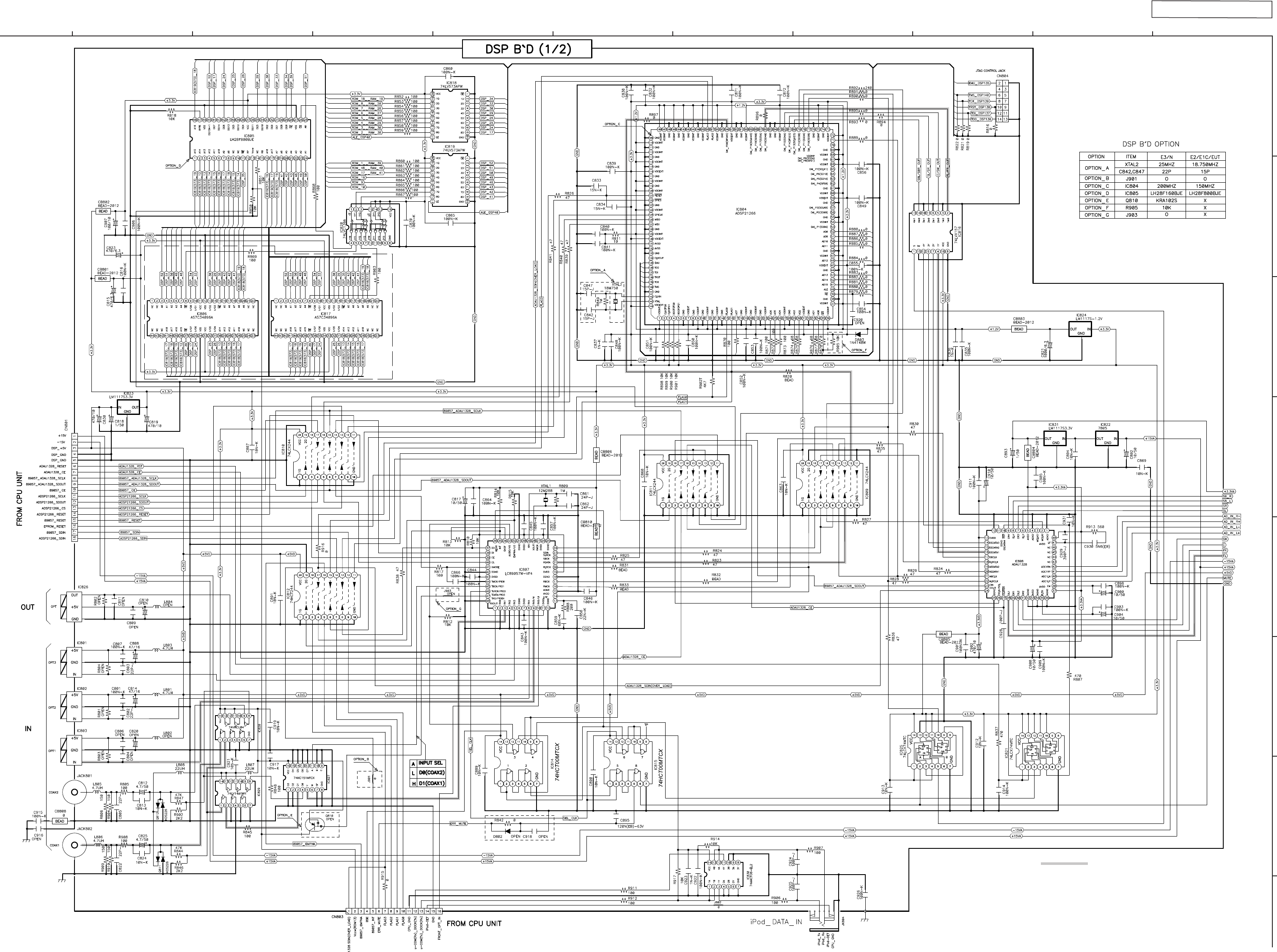

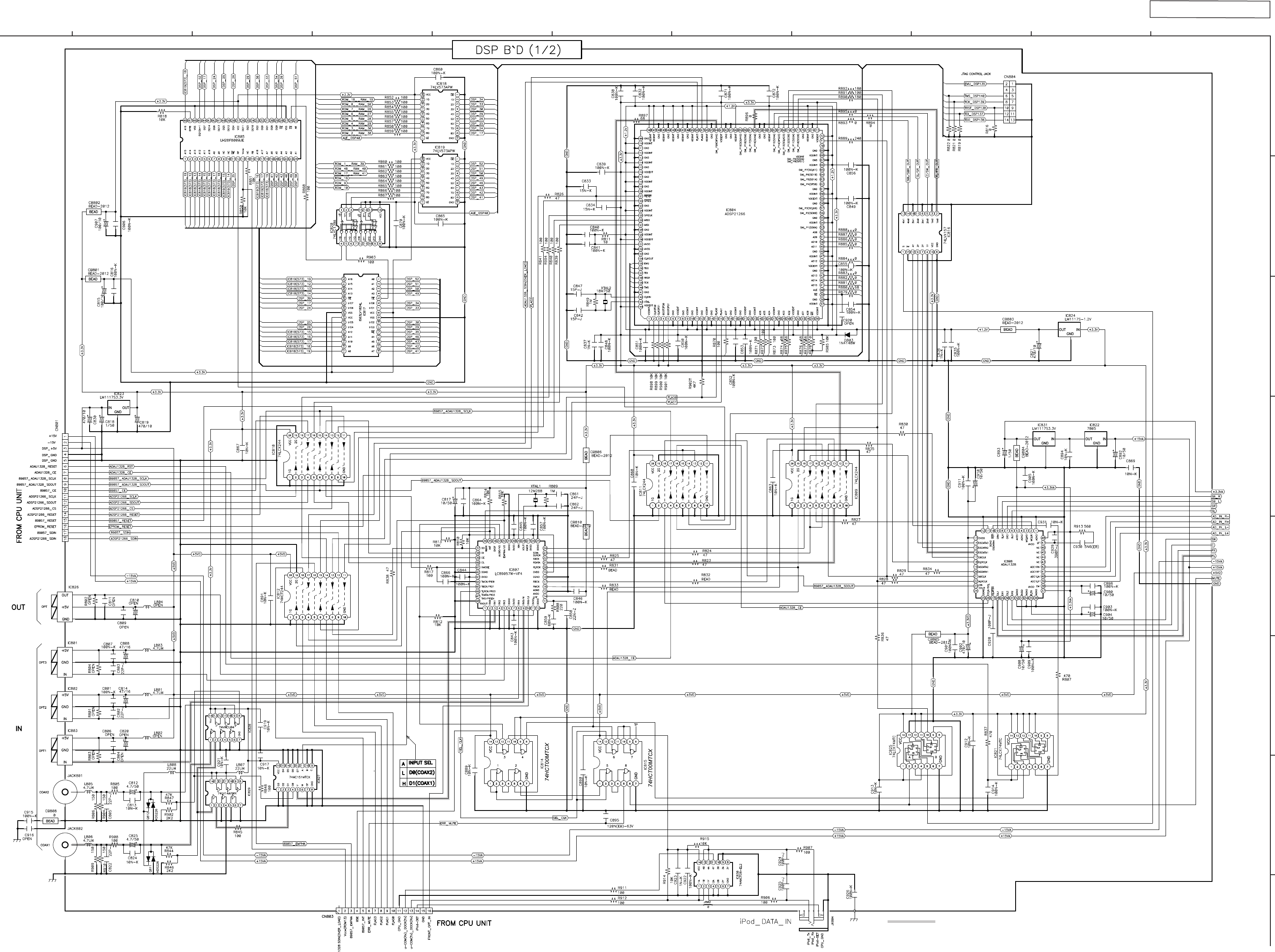

DSP 1 P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC802,803 00D 963 0237 503 JSR1165-C /OPTICAL E100116500040S
IC804 00D 262 3662 001 ADSP21266SKSTZ-1B-AC
IC805 00D 262 3652 008 LH28F800BJE(1707)
IC806 00D 262 3536 001 AS7C34096A-10TCN
IC807 00D 262 3066 102 LC89057W-VF4-E(AC) +REF
IC808 00D 262 3645 002 IC ADAU1328BSTZ
IC809-811 00D 960 0266 805 IC MM74LCX244 J040742440180P
IC812 00D 960 0266 902 IC MM74HCT244 J040742440190P
IC814,815 00D 963 0218 904 IC MM74HCT00MTCX J040740000200P
IC815A 00D 963 0043 807 IC BA4510F J121451000010P
IC816 00D 262 2870 904 74LVX157MTC +C
IC816A 00D 963 0043 807 IC BA4510F J121451000010P
IC817 00D 262 3536 001 AS7C34096A-10TCN
IC817A 00D 963 0202 305 IC NJM2068M J121206800020S
IC818 00D 262 2642 909 SN74LV573APWR +REF
IC818A 00D 963 0202 305 IC NJM2068M J121206800020S
IC819 00D 262 2642 909 SN74LV573APWR +REF
IC819A 00D 963 0202 305 IC NJM2068M J121206800020S
IC820 00D 262 3339 907 SN74LVC139APWR +REF
IC820A 00D 963 0202 305 IC NJM2068M J121206800020S
IC821 00D 262 2870 904 IC 74LCX74MTC
IC822 00D 960 0296 008 IC CJ7805F J126780500400S
IC823 00D 963 0295 309 IC RC1117-33 J126111733020F
IC824 00D 963 0147 509 IC FAN1112-1.2 J126111712010F
IC825 00D 262 2870 904 IC 74LCX74MTC
IC827 00D 963 0219 107 IC MM74HC151MTCX J040741510050P
IC828 00D 963 0219 000 IC 74VHCU04 J040740400270P
IC829 00D 963 0244 907 IC SN74LV14APWR J040741400180P
IC830 00D 262 2813 903 IC SN74AHCTO8
Q804C 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SW 00D 960 0196 603 TR KTC2874B J502287400010S
Q808 00D 963 0120 801 TR KRC102S J522010200210S
Q809 00D 963 0120 704 TR KRA102S J520010200210S
Q811,812 00D 963 0245 100 D,SWITCHING KDS226ST1 K005022600020S
D803 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
RESISTORS GROUP
R831-833 nsp 00D 963 0234 603 COIL,BEAD D340160800060S
CAPACITORS GROUP
C801 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C802,803 nsp 00D 963 9004 591 C,CERAMIC 22PF-J/50V D010220167160S
C807 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C808 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C812 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C813 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C814 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C815 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C816 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C817 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C818 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C819 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
64
AVR-1707/1507/687/587/487
C821 00D 963 0216 906 C,ELECT 1000UF-M/6.3V D040102081060F
C823 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C824 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C825 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C830 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
C832 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C833,834 nsp 00D 963 0233 905 C,CERAMIC 0.015UF-K/50V D011153777160S
C835 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C836,837 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C838-841 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C842 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C844-846 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C847 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C848-857 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C858 nsp 00D 963 0224 202 C,CERAMIC 0.022UF-K/25V D011223777160S
C859 nsp 00D 963 0246 507 C,CERAMIC 0.068UF-K/50V D010683777160S
C860 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C861,862 nsp 00D 963 9005 998 C,CERAMIC 24PF-J/50V D010240167160S
C863 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C864 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C864L 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C864R 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C865 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C865L nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C865R nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C866-869 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C869L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C869R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C870,871 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C871L 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C871R 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C872 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C873 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C873C nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SW nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C874 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C874C nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SW nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C875 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C875C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C876 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C876C 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SBL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
Ref. No. nsp Part No. Part Name Remarks Q'ty New
65
AVR-1707/1507/687/587/487
C876SBR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SW 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C877-880 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C880C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C881-884 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C885 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C886 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C887 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C888 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C889-891 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C892 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C893 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C894 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C895 00D 963 0216 508 C,FILM 0.12UF-J/63V D020124078060S
C896 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb Free) D040R10087080F
C897,898 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C899,900 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C901 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C902 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
C903 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C904 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C905,906 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C907 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C908 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C909 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C910 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C911 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C912,913 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C914,915 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C917 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C919 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C921 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C922 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C923 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C924,925 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
OTHERS PARTS GROUP
CB801-806 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CB808 nsp 00D 963 0223 009 R,CHIP 0-J,1/16W C20000006M160F
CB810 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CN801 nsp 00D 963 0086 301 CN.WAFER 18P L101100031810S
CN802 nsp 00D 963 0086 204 CN.WAFER 19P L101100031910S
CN803 nsp 00D 963 0086 107 CN.WAFER 16P L101100031610S
L801 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
L803 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
XTAL1 00D 963 0217 303 CRYSTAL 12.288MHZ E80012R288090S
XTAL2 00D 963 0217 507 CRYSTAL 18.750MHZ E80018R750010S
00D 963 0294 601 JACK,D3.5 EARPHONE G40100350000YS
00D 963 0217 905 TER,RCA 2PIN G601206A0200YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
66
AVR-1707/1507/687/587/487

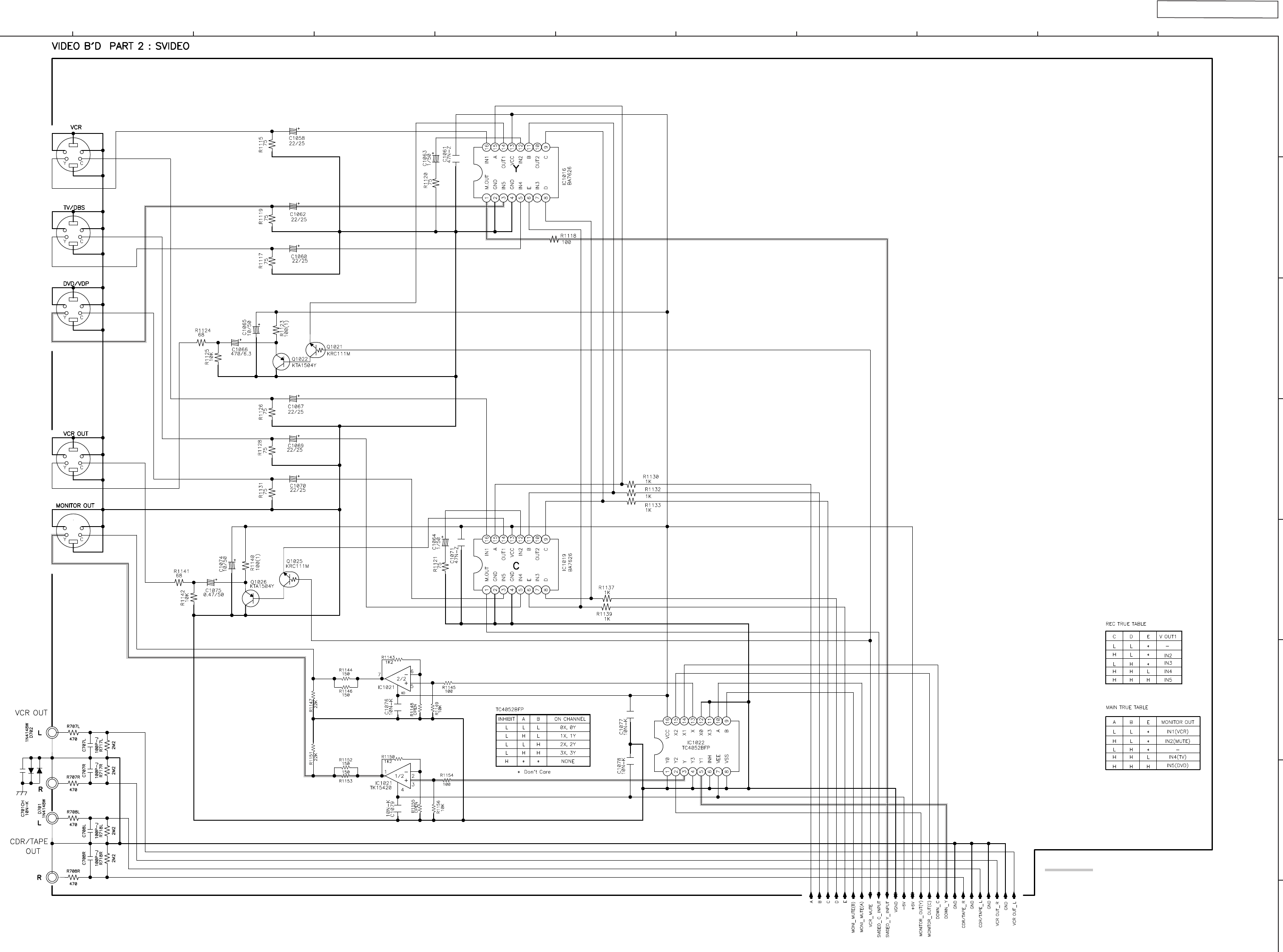

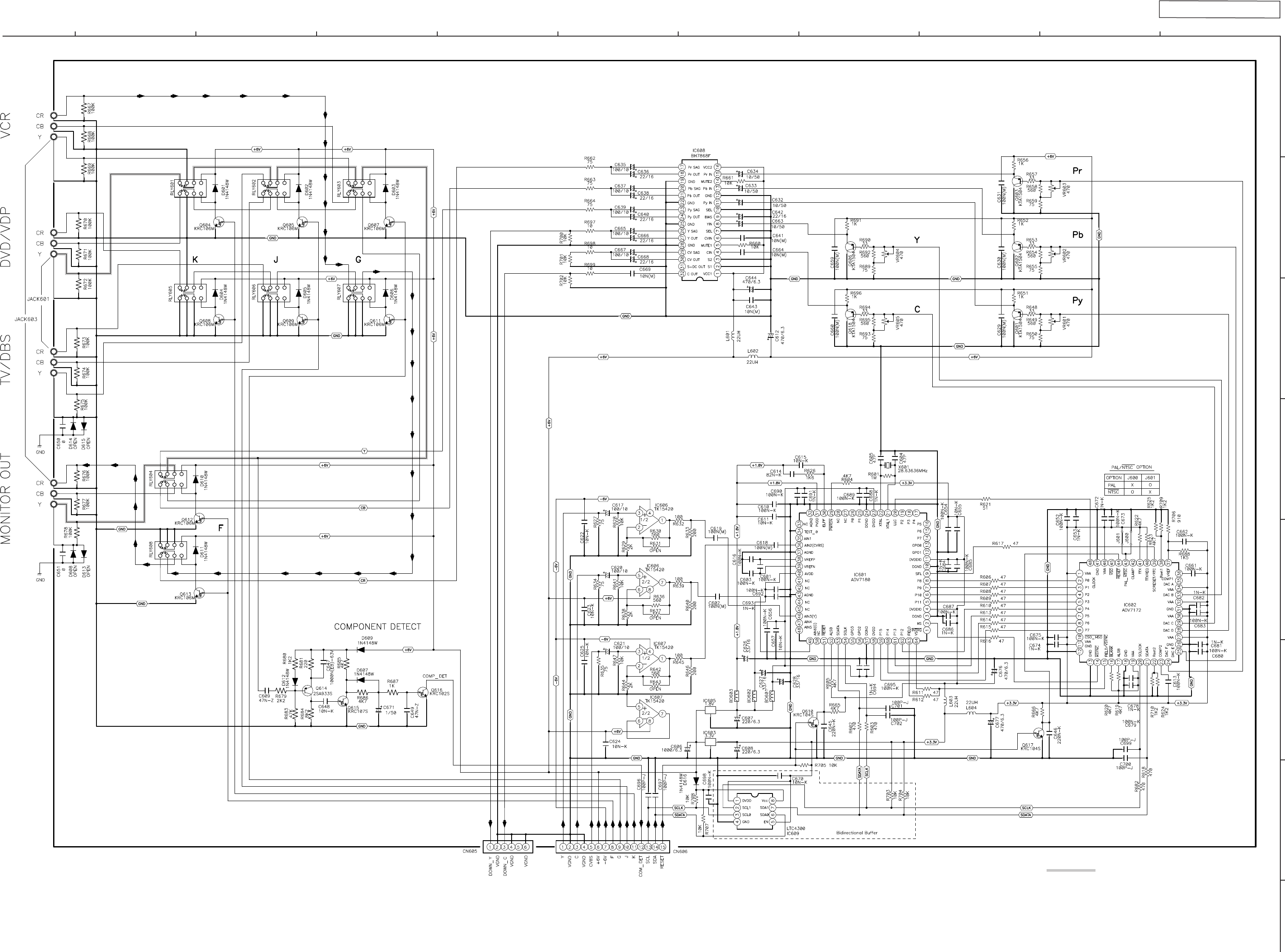

C/S VIDEO 1 P.W.B. UNIT ASSY
Ref. No. nsp Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC601 00D 262 3643 004 ADV7180BSTZ
IC602 00D 262 3644 003 ADV7172KSTZ
IC603 00D 963 0295 309 IC LM1117S J126111733030S
IC605 00D 963 0295 309 IC LM1117S J126111718020S
IC606,607 00D 263 1082 903 TK15420MTL +C
IC608 00D 963 0295 406 IC BH7868FS J127786800000S
IC609 00D 963 0294 805 IC LTC4300 J040430000000S
IC1002,1003 00D 263 1082 903 TK15420MTL +C
IC1004 00D 963 0083 304 IC BA7626F J171762600010S
IC1005 00D 963 0074 504 IC BU2090F J044209000010P
IC1008 00D 963 0074 504 IC BU2090F J044209000010P
IC1010 00D 263 1082 903 TK15420MTL +C
IC1011 00D 963 0068 002 IC BU4052BCF J040405200060P
IC1015 00D 963 0147 907 IC TK15420MT J127154200010
IC1016 00D 963 0083 304 IC BA7626F J171762600010S
IC1019 00D 963 0083 304 IC BA7626F J171762600010S
IC1021 00D 263 1082 903 TK15420MTL +C
IC1022 00D 963 0068 002 IC BU4052BCF J040405200060P
Q601-603 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
Q604,605 00D 963 0219 602 TR KRC106M J6020106M0010S
Q606 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
Q607-609 00D 963 0219 602 TR KRC106M J6020106M0010S
Q610 00D 960 0285 006 TR KRC104S J522104S00210S
Q611-613 00D 963 0219 602 TR KRC106M J6020106M0010S
Q614 00D 963 0102 803 TR 2SA933S J5000933S0050S
Q615 00D 960 0111 808 TR KRC107S J5020107S0050S
Q616 00D 963 0120 801 TR KRC102S J522010200210S
Q617 00D 960 0285 006 TR KRC104S J522104S00210S
Q618 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
Q1003 00D 963 0121 402 TR KRA104S J520010400210S
Q1004 00D 960 0097 207 TR KRA102M J6002202M0010S
Q1005 00D 963 0121 402 TR KRA104S J520010400210S
Q1006 00D 960 0097 508 TR KRC111M J6020111M0010S
Q1007 00D 960 0097 207 TR KRA102M J6002202M0010S
Q1008 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
Q1010,1011 00D 963 0121 402 TR KRA104S J520010400210S
Q1012 00D 963 0102 803 TR 2SA933S J5000933S0050S
Q1013 00D 963 0253 008 TR KRA107M J601107M00050S
Q1017 00D 963 0102 803 TR 2SA933S J5000933S0050S
Q1018 00D 963 0253 008 TR KRA107M J601107M00050S
Q1021 00D 960 0097 508 TR KRC111M J6020111M0010S
Q1022 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
Q1025 00D 960 0097 508 TR KRC111M J6020111M0010S
Q1026 00D 960 0068 207 TR KTA1504Y J5201504Y0210S
D601-607 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D609-612 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D616 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D701,702 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D1000,1001 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D1010-1014 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D1017 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
RESISTORS GROUP
R1048 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R1123 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R1140 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
67
AVR-1707/1507/687/587/487
CAPACITORS GROUP
C601 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C602 00D 963 0234 108 C,FILM 0.1UF-J/50V D020104167050P
C603 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C604,605 nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V D010470167160S
C606 00D 963 0293 903 C,ELECT 1000UF-M/6.3V D040102081070F
C607,608 00D 963 9006 557 C,ELECT 220UF-M/6.3V D040221081060F
C609 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C610 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C611 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C612 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C613 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C614 - C,CERAMIC 0.082UF-K/50V D010823777160
C615 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C616 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C617 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C618,619 00D 963 0234 108 C,FILM 0.1UF-J/50V D020104167050P
C620,621 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C622-625 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C626-628 00D 963 0294 203 C,ELECT 33UF-M/16V D040330083050F
C629-631 00D 963 0234 108 C,FILM 0.1UF-J/50V D020104167050P
C632-634 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C635 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C636 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C637 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C638 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C639 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C640 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C641 00D 963 0144 706 C,FILM 0.01UF-J/50V D020103167050P
C642 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C643 00D 963 0144 706 C,FILM 0.01UF-J/50V D020103167050P
C644 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C645,646 00D 960 9010 188 C,CERAMIC 0.22UF-Z/16V D011224593160S
C647 00D 963 0199 308 C,FILM 1UF-J/63V D020100068050S
C648 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C649 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C650,651 nsp 00D 963 0223 009 R,CHIP THICK 0-J,1/16W C20000006M160F
C652 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C653 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C654 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C655 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C656 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C657 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C659,660 00D 963 0234 108 C,FILM 0.1UF-J/50V D020104167050P
C661,662 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C663 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C664 00D 963 0144 706 C,FILM 0.01UF-J/50V D020103167050P
C665 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C666 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C667 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C668 00D 963 0294 009 C,ELECT 22UF-M/16V D040220083070F
C669 00D 963 0144 706 C,FILM 0.01UF-J/50V D020103167050P
C670 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C671 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C672 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C673 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C674 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C675 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C676,677 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C678 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C679,680 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C681,682 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C683 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
Ref. No. nsp Part Name Remarks Q'ty New
68
AVR-1707/1507/687/587/487
C684 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C685 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C686 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C687 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C688 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C689,690 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C691 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C692 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C693,694 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C695 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C701CH nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C707L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C707R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C1000 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1001 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1004 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1005 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1006 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C1008 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1009 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1010 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1011 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1012 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1013 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1014,1015 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C1016 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1018 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1019 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1021 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C1022 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C1024 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C1025,1026 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1029 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1031 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1032,1033 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C1038 00D 963 0294 106 C,ELECT 2.2UF-M/50V (Pb
Free)
D0402R2087160F
C1039 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1042 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1043 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1049,1050 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C1052 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C1053 00D 963 0294 106 C,ELECT 2.2UF-M/50V (Pb
Free)
D0402R2087160F
C1056 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1057 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C1058 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1060 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1061 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C1062 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1063,1064 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C1065 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C1066 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C1067 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1068 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C1069,1070 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C1071 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C1074 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C1075 00D 960 9010 023 C,ELECT 0.47UF-M/50V D040R47087050F
C1076-1079 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
Ref. No. nsp Part Name Remarks Q'ty New
69
AVR-1707/1507/687/587/487
OTHERS PARTS GROUP
BD601-603 nsp 00D 963 0234 603 COIL,BEAD D340160800060S
CN601 nsp 00D 963 0086 301 CN.WAFER 18P L101100031810S
CN602 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN603 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN603 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN604 nsp 00D 963 0086 505 CN.WAFER 7P L101100030710S
CN604 nsp 00D 963 0086 505 CN.WAFER 7P L101100030710S
CN610 nsp 00D 963 0086 505 CN.WAFER 7P L101100030710S
CN612 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CP605,606 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP607-609 nsp 00D 963 0206 408 CN.WAFER 7P L101100040710S
CP611 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
L601-604 00D 963 0294 300 COIL,INDUCTOR 22UH D330220001020
RLY601-608 00D 963 0218 302 RELAY BC3-6 24V 2A G680240202020F
X601 00D 963 0294 407 CRYSTAL 28.63636MHZ E80028R636010S
00D 963 0218 001 TER,RCA 2PIN G60122001000YS
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
00D 963 0218 108 TER,RCA 3PIN G60630401000YS
00D 963 0146 306 TER,RCA 6PIN G603603B2600YS
Ref. No. nsp Part Name Remarks Q'ty New
70
AVR-1707/1507/687/587/487
PARTS LIST OF P.W.B. UNIT(for AVR-1507/587/487 model)
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
1507E3 : U.S.A. & Canada model 587E3 : U.S.A. & Canada model (AVR-587) 487E3 : U.S.A. & Canada model (AVR-487)
1507E2 : Europe model
MAIN P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 963 0219 408 IC CJ7815 J126781500090S
IC102 00D 963 0219 505 IC CJ7915F J126791500070S
IC103 00D 963 0057 806 IC KIA78R05PI J126780500370S
IC104 00D 963 0219 204 IC CJ7805 J126780500430S
!IC105 00D 960 0195 808 IC ICP-N15 1507E2 J120001500030S
!IC105,106 00D 960 0195 808 IC ICP-N15 1507E3,587E3 J120001500030S
Q104C 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104FL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104FR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104SL 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q104SR 00D 960 0196 506 TR KSC1845F J5021845F0000P
Q111-115 00D 963 0121 208 TR KRC107M J6020107M0010S
Q116 00D 960 0196 409 TR 2SC1740SR J5021740S0010S
Q117,118 00D 963 0121 208 TR KRC107M J6020107M0010S
Q151 00D 960 0196 409 TR 2SC1740SR J5021740S0010S
Q171 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q171A 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171B 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171C 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q171D 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q172-177 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q178 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q179 00D 960 0133 103 TR KSA916Y J5000916Y0050P
Q180,181 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q182,183 00D 960 0196 700 TR KTC3200BL J5023200B0050S
D101 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D101C 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101FL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101FR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101SL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D101SR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D102C 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102FL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102FR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SL 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D102SR 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D103-105 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D121-127 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D131A 00D 960 0197 107 D,RECTIFIER BRIDGE
KBPC604 6A
K047604000020P
D131B 00D 960 0197 107 D,RECTIFIER BRIDGE
KBPC604 6A
K047604000020P
D132 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D135 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D137 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D138 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D141-146 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D148 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
71
AVR-1707/1507/687/587/487
D149,150 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D151 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D152,153 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D158-160 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
ZD101C 00D 963 0279 804 D,ZENER UDZS4.3B K06604R34P410S
ZD101FL 00D 963 0279 804 D,ZENER UDZS4.3B K06604R34P410S
ZD101FR 00D 963 0279 804 D,ZENER UDZS4.3B K06604R34P410S
ZD101SL 00D 963 0279 804 D,ZENER UDZS4.3B K06604R34P410S
ZD101SR 00D 963 0279 804 D,ZENER UDZS4.3B K06604R34P410S
ZD102C 00D 963 0295 503 D,ZENER UDZS3.6B K06603R64P400S
ZD102FL 00D 963 0295 503 D,ZENER UDZS3.6B K06603R64P400S
ZD102FR 00D 963 0295 503 D,ZENER UDZS3.6B K06603R64P400S
ZD102SL 00D 963 0295 503 D,ZENER UDZS3.6B K06603R64P400S
ZD102SR 00D 963 0295 503 D,ZENER UDZS3.6B K06603R64P400S
ZD133,134 00D 963 0046 202 D,ZENER MTZJ18B K06018R044520S
ZD136 00D 963 0058 601 D,ZENER MTZJ12B K06012R044520S
ZD154 00D 960 0095 704 D,ZENER MTZJ6.2B K06006R244520S
ZD157 00D 963 0219 903 D,ZENER MTZJ16B K06016R044520S
ZD341,342 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
LED901 00D 963 0148 605 LED SML1216W (RED/GREEN) K500052600030
RESISTORS GROUP
R104C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R104SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105C 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105FL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105FR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SL 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R105SR 00D 963 9006 285 R,FIXED 1WJ-5.6K N113135656220F
R106C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R106SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107C 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107FL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107FR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SL 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R107SR 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
R108C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R108SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R109SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R110SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111C 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111FL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111FR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R111SL 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
72
AVR-1707/1507/687/587/487
R111SR 00D 963 9006 269 R,FIXED 1WJ-0.22 N113135622820F
R118C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R118SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119C 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119FL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119FR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SL 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R119SR 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R135,136 00D 963 0144 502 R,CEMENT 0.1-J 5W C141R10069000S
R141,142 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S
R148,149 00D 963 0216 003 R,METAL FILM 0.22-J,1W C060R22065050S
R151 00D 963 0232 809 R,METAL FILM 10-J,1/4W C060010063520S
R154 00D 963 0244 305 R,METAL FILM 2.2M 0.5W 1507E3,587E3,487E3 C060022564520S
R179 00D 963 0232 906 R,METAL FILM 47K-F,1/4W C060047343530S
R181 00D 963 0215 907 R,METAL FILM 4.7-J,1W 1507E2 C0604R7065050S
R184 00D 963 9006 256 R,FIXED 1WJ-10 N113135610020F
R185 00D 963 9005 655 R,METAL FILM 22-J,1/4W C060022063050S
R901,902 00D 960 9009 270 R,METAL FILM 470-J,2W C060047166520S
VR101-105 00D 960 0091 601 VR,SEMI CERMET 1KB C544102015130P
CAPACITORS GROUP
C101C 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101FL 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101FR 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101SL 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C101SR 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C102C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C102SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C103C 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103SL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C103SR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104C 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104FL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104FR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104SL 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C104SR 00D 963 9003 084 C,CERAMIC 100PF-K/500V D00410106D050S
C105C 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105FL 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105FR 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105SL 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C105SR 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C107C 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C107FL 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C107FR 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C107SL 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C107SR 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C131-135 00D 963 9003 097 C,FILM -0.1UF-K/250V D02010407H080S
C136,137 00D 963 0149 400 CAP.E.GENERIC 10000UF/63V(M) N211210388110F
C138 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C141-143 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C144 00D 963 0217 109 C,ELECT 3300UF-M/35V D040332085010F
C145 00D 963 9003 123 C,ELECT 1000UF-M/35V D040102085040F
C146 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C148 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
73
AVR-1707/1507/687/587/487
C150-152 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C153 00D 963 0021 104 C,ELECT 6800UF-M/16V D040682083000F
C154 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C155 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C157 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C158 00D 963 0217 002 C,ELECT 3300UF-M/16V D040332083010F
C159 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C161 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C171 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C171A 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171B 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171C 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C171D 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C172,173 00D 963 9005 833 C,ELECT 220UF-M/6.3V D040221081230F
C174 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C175 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C176,177 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C178 00D 963 9003 149 C,ELECT 330UF-M/63V D040331088230F
C179 00D 963 9005 833 C,ELECT 220UF-M/6.3V D040221081230F
!C181 00D 963 9006 191 C,CERAMIC AC13F472MDOA D00847208K070S
C182 00D 963 0234 302 C,ELECT 10UF-M/100V D04010008C050F
C191-198 00D 963 0233 400 C,CERAMIC 2200PF-K/16V 1507E2 D005222773530S
C198C 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198FL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198FR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198SBL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198SBR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198SL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C198SR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C199 00D 963 0233 400 C,CERAMIC 2200PF-K/16V 1507E2 D005222773530S
C199FL 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C199FR 00D 963 0024 703 C,FILM 0.01UF-J/100V 1507E2 D02010306C060P
C341,342 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C901,902 00D 963 0233 206 C,CERAMIC 0.001UF-K/50V D005102177530S
C903 00D 963 0233 109 C,CERAMIC 0.01UF-Z/50V D004103097060S
C904 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C905 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
OTHERS PARTS GROUP
CLAMP101 nsp 00D 960 0260 005 CLAMP /WIRE 4330000120000S
CN201 nsp 00D 963 0148 702 CN,WIRE 120MM/2P L000121020120P
CN901 00D 963 0184 601 CN,WIRE 260MM/3P L000261030070P
CN992 nsp 00D 963 0235 602 CN,WIRE 270MM/4P L000271040030P
CP101 00D 963 0267 803 CN.WAFER 2P L108202000220F
CP102 nsp 00D 960 0123 304 CN.WAFER 2P L104353280200S
CP103 nsp 00D 963 0066 208 CN.WAFER 3P L104353280300S
CP104 nsp 00D 960 0128 804 CN.WAFER 6P L102526700600S
CP105 nsp 00D 963 0149 109 CN.WAFER 2P(BLACK) L104353280201S
CP106 nsp 00D 960 0123 207 CN.WAFER 3P L102526700300S
CP302 00D 963 0257 800 CN.WAFER 7P L101220070010S
CP501 nsp 00D 963 0206 301 CN.WAFER 5P L101100040510S
CP502 nsp 00D 963 0206 408 CN.WAFER 7P L101100040710S
CP503 nsp 00D 963 0206 301 CN.WAFER 5P L101100040510S
CP504 nsp 00D 963 0206 505 CN.WAFER 9P L101100040910S
CP505 nsp 00D 963 0235 709 CN.WAFER 12P L101100041210S
CP555 nsp 00D 963 0111 108 CN.WAFER 14P L101100041410S
CP556 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP901,902 nsp 00D 963 0235 806 CN.WAFER 3P L101220030000S
CP931 nsp 00D 963 0149 206 CN.WAFER 2P L104353280203S
!F101 00D 963 0236 106 FUSE T8A/250V- 1507E3,587E3,487E3 N751228001110S
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
74
AVR-1707/1507/687/587/487
!F101 00D 963 0104 704 FUSE T2.5A/250V 1507E2 N751222501110S
!F102 00D 963 0236 106 FUSE T8A/250V 1507E3,587E3,487E3 N751228001110S
!F102 00D 963 0104 704 FUSE T3.15A/250V 1507E2 N751223151110S
F101A nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F101B nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F102A nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
F102B nsp 00D 960 0005 804 HOLDER,FUSE CLIP G645000050010
G901 00D 963 0257 907 CN,WIRE 160MM/1P N602141610310F
GND101-103 - TERMINAL EARTH 3790040886000S
L101C nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH D330R50000000F
L101FL nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH D330R50000000F
L101FR nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH D330R50000000F
L101SL nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH D330R50000000F
L101SR nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH D330R50000000F
RLY101-104 00D 960 0181 702 RELAY G5PA-28 24V 5A G680240502020S
RLY105 00D 963 0218 506 RELAY BC3-24 24V 2A G680240202040F
RLY106 00D 963 0218 205 RELAY G5PA-1 DC9V 250V/5A G680090102010F
RLY107 00D 960 0181 702 RELAY G5PA-28 24V 5A G680240502020S
SW901 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
TP101-105 nsp 00D 960 0161 405 CN.WAFER 3P L101530140310S
VEC303 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S
- HEAT SINK 2120043538050S
- HEAT SINK 2120044308010S
!00D 963 0232 100 STAND BY TRANS 120V/60HZ 1507E3,587E3,487E3 8200350150200S
!00D 963 0215 606 STAND BY TRANS 230V/50HZ 1507E2 8200350150210S
nsp 00D 963 0018 007 SCREW, 3*8 B-TYPE ZNY/BH B020030081B10S
00D 963 0158 608 2P TER, SP G611201A0200YS
00D 963 0119 906 8P TER, SP G614801A0200YS
00D 963 0294 708 JACK,D6.5 PHONE G402PJ612AG0YS
!00D 960 0181 508 AC OUTLET(E3) 1507E3,587E3,487E3 G435204004010S
!00D 960 0143 203 AC OUTLET(E2) 1507E2 G435040110000S
- COVER, CAPACITOR 1507E2 4310002640010S
00D 963 0247 001 LABEL, FUSE (F102) 1507E2 5527200040030S
00D 963 0257 208 4P TER, SP 487E3 G612405E0200YS
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
75
AVR-1707/1507/687/587/487

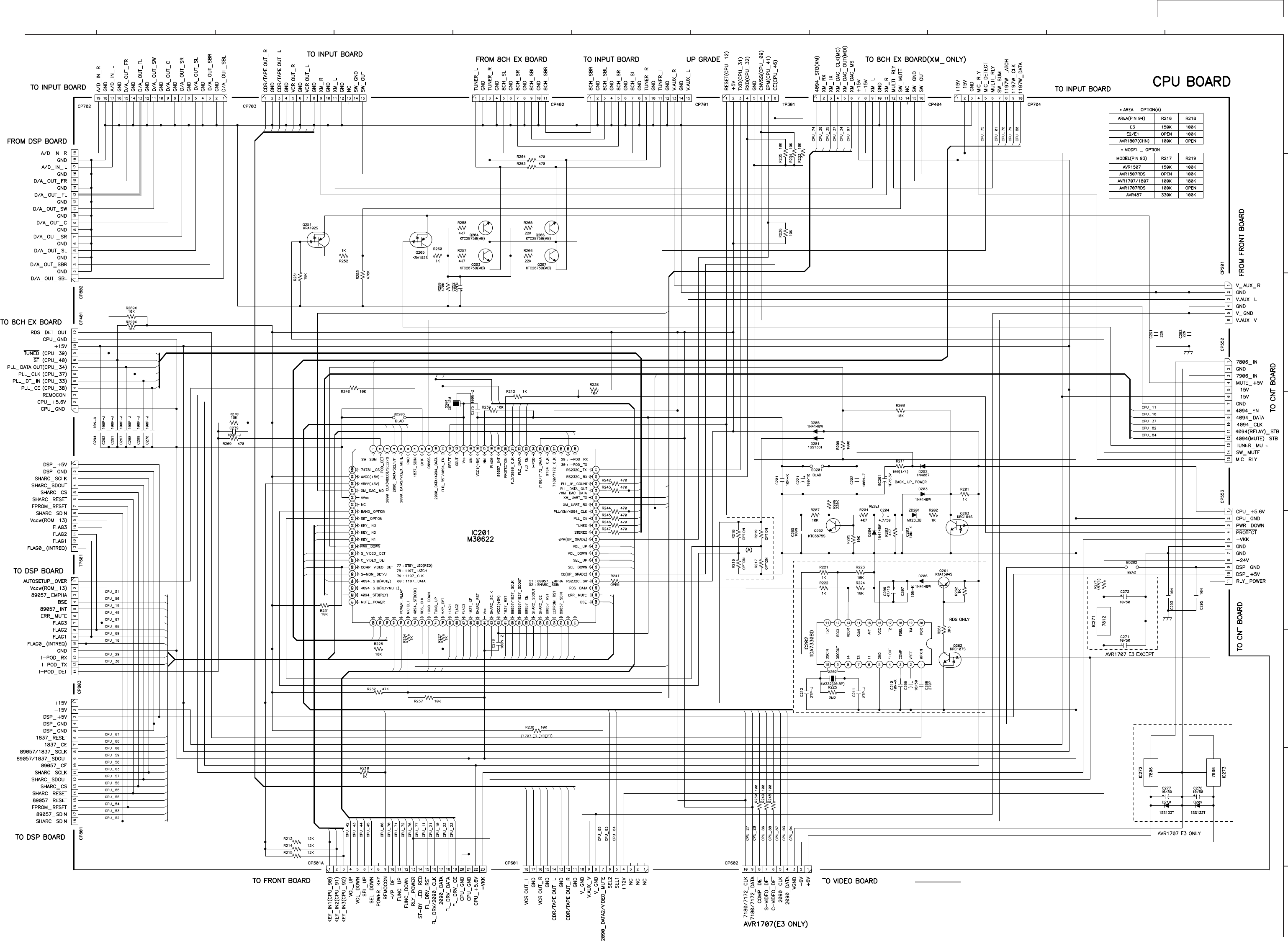

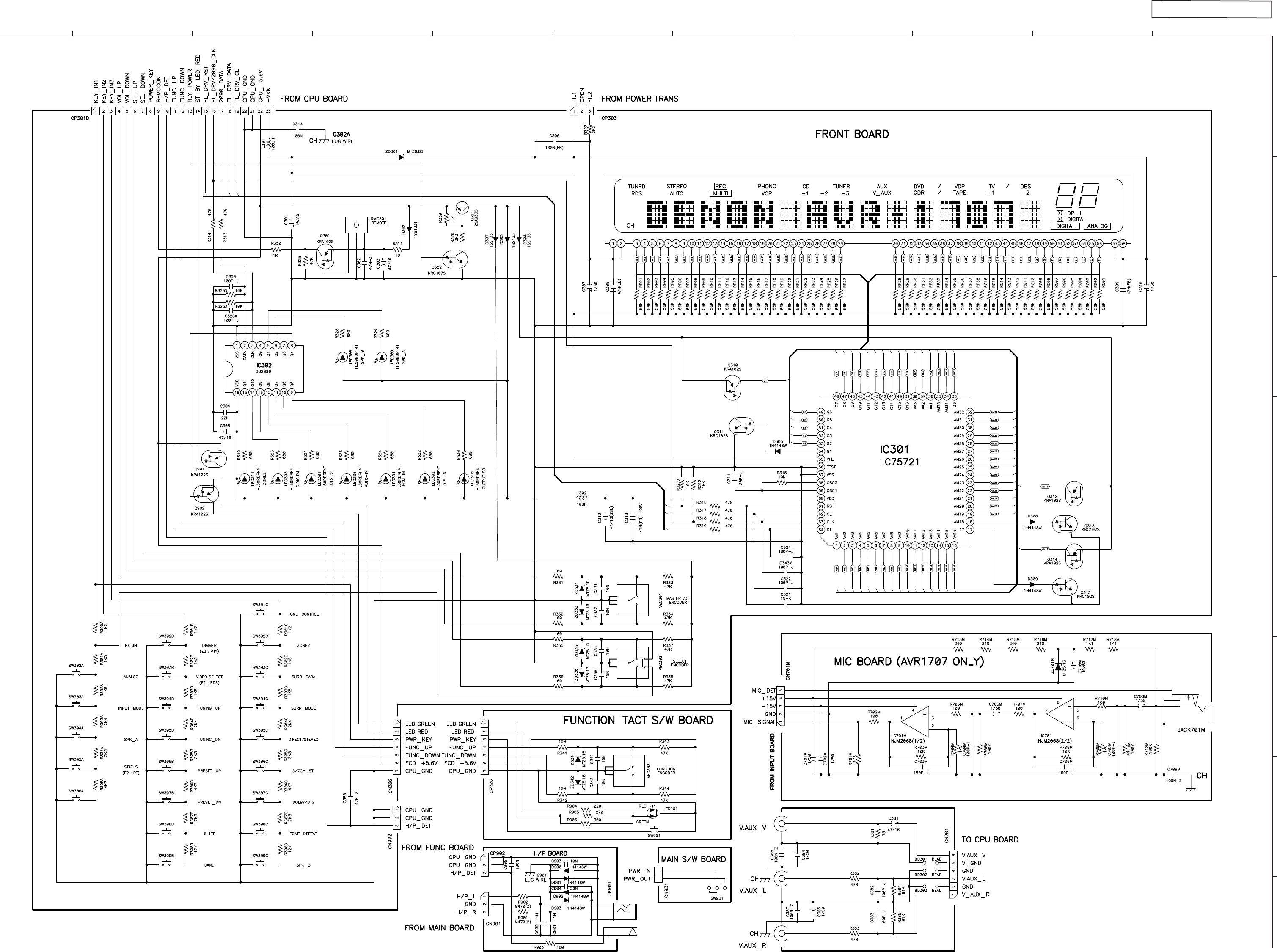

CPU P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC201 00D 262 3651 009 M3062LFGPFP
IC202 00D 963 0057 602 IC TDA7330BD 1507E2 J080733000010F
IC271 00D 963 0252 902 IC CJ7812 J126781200230S
IC301 00D 262 2549 002 LC75721E +C
IC302 00D 963 0074 504 IC BU2090F J044209000010P
Q202 00D 963 0121 509 TR KTC3875S J522038750210S
Q203,204 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q205 00D 963 0120 704 TR KRA102S J520010200210S
Q206,207 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q251 00D 963 0120 704 TR KRA102S J520010200210S
Q261 00D 963 0148 508 TR KTA1504S 1507E2 J520015040150S
Q262 00D 960 0111 808 TR KRC107S 1507E2 J5020107S0050S
Q263 00D 960 0285 006 TR KRC104S J522104S00210S
Q301 00D 963 0120 704 TR KRA102S J520010200210S
Q310 00D 963 0120 704 TR KRA102S J520010200210S
Q311 00D 963 0120 801 TR KRC102S J522010200210S
Q312 00D 963 0120 704 TR KRA102S J520010200210S
Q313 00D 963 0120 801 TR KRC102S J522010200210S
Q314 00D 963 0120 704 TR KRA102S J520010200210S
Q315 00D 963 0120 801 TR KRC102S J522010200210S
Q321 00D 963 0102 803 TR 2SA933S J5000933S0050S
Q322 00D 960 0111 808 TR KRC107S J5020107S0050S
Q901,902 00D 963 0120 704 TR KRA102S J520010200210S
D201 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D202 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D203-205 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D302-304 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D305 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D307 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D308,309 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD201 00D 963 0047 502 D,ZENER MTZJ3.3B K06003R344520S
ZD301 00D 960 0095 801 D,ZENER MTZJ6.8B K06006R844520S
ZD331,332 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
ZD335,336 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
LED301-304 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
LED306 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
LED308-311 00D 960 0197 204 LED PI5-RD/HL50RDRF4T K500052015010S
FL301 00D 963 0257 305 DISPLAY,FLT HNA-16SM13T K530161300020S
RESISTORS GROUP
R211 00D 960 9003 807 R,METAL FILM 100-J,1/4W C060010163050S
R271 00D 963 0215 907 R,METAL FILM 4.7-J,1W C0604R7065050S
CAPACITORS GROUP
C201 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C202 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C203 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C204 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C205 00D 963 0020 202 C,CERAMIC 0.1UF-Z/50V D005104597530S
C206 00D 963 9005 862 C,ELECT 47UF-M/16V 1507E2 D040470083080F
C207 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1507E2 D011103777160S
C208 00D 963 0223 708 C,CERAMIC 270PF-J/50V 1507E2 D010271167160S
C209 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E2 D040100087070F
76
AVR-1707/1507/687/587/487
C210 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1507E2 D011103777160S
C211,212 00D 963 9004 614 C,CERAMIC 27PF-J/50V 1507E2 D010270167160S
C221 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C261,262 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C267-270 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C271,272 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C275 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C278 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C279 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C291,292 00D 963 9004 517 C,CERAMIC 0.022UF-Z/50V D004223597050S
C293 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C294 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C295 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C301 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C302 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C303 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C304 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C305 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C306 00D 963 0216 401 C,FILM 0.1UF-J/100V D02010406C060P
C307 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C308,309 00D 963 0021 900 C,FILM 0.047UF-J/100V D02047306C060P
C310 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C311 nsp 00D 963 0233 701 C,CERAMIC 30PF-J/50V D010300167160S
C312 00D 963 9005 859 C,ELECT 47UF-M/16V D040470083060F
C313 - C,FILM 0.047UF-J/100V D02047306C070S
C321 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C322 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C324,325 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C326X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C331,332 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C335,336 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C343X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C381 00D 963 9005 862 C,ELECT 47UF-M/16V 1507E2 D040470083080F
C381A 00D 963 9005 862 C,ELECT 47UF-M/16V 1507E3,587E3,487E3 D040470083080F
C382,383 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C382A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3,487E3 D010101167160S
C383A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3,487E3 D010101167160S
C384,385 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) 1507E2 D040010087150F
C384A 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) 1507E3,587E3,487E3 D040010087150F
C385A 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) 1507E3,587E3,487E3 D040010087150F
C386 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C387,388 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V 1507E2 D011104597160S
C387A nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V 1507E3,587E3,487E3 D011104597160S
C388A nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V 1507E3,587E3,487E3 D011104597160S
BC201 00D 254 4666 005 CE04W0H105ZC(FG)
OTHERS PARTS GROUP
BD201-203 nsp 00D 963 0154 602 BEAD,COIL 7610010030000S
BD301-303 nsp 00D 963 0234 603 COIL,BEAD MB-160808 1507E2 D340160800060S
BD301A nsp 00D 963 0234 603 COIL,BEAD MB-160808 1507E3,587E3,487E3 D340160800060S
BD302A nsp 00D 963 0234 603 COIL,BEAD MB-160808 1507E3,587E3,487E3 D340160800060S
BD303A nsp 00D 963 0234 603 COIL,BEAD MB-160808 1507E3,587E3,487E3 D340160800060S
CN201 00D 963 0245 906 CN,WIRE 240MM/6P 1507E2 L000241060020F
CN201A 00D 963 0245 906 CN,WIRE 240MM/6P 1507E3,587E3,487E3 L000241060020F
CN302 00D 963 0159 209 CN,WIRE 100MM/7P L000101070080P
CN902 00D 963 0246 002 CN,WIRE 80MM/3P L000800030110P
CN931 nsp 00D 963 0148 809 CN,WIRE 350MM/2P L000351020100P
CP201 nsp 00D 963 0097 604 CN.WAFER 6P L101220060000S
CP301A nsp 00D 963 0161 103 CN.FPC 23P L131112300010F
CP301B nsp 00D 963 0161 006 CN.FPC 23P L131102300010F
Ref. No. nsp Part No. Part Name Remarks Q'ty New
77
AVR-1707/1507/687/587/487
CP303 nsp 00D 963 0236 009 CN.WAFER 3P L102526803010S
CP401 nsp 00D 963 0235 709 CN.WAFER 12P L101100041210S
CP402 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP404 nsp 00D 963 0087 407 CN.WAFER 16P L101100041610S
CP552 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP553 nsp 00D 963 0087 805 CN.WAFER 11P L101100041110S
CP601 nsp 00D 963 0087 601 CN.WAFER 18P L101100041810S
CP701 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP702 nsp 00D 963 0087 504 CN.WAFER 19P L101100041910S
CP703 nsp 00D 963 0097 507 CN.WAFER 15P L101100041510S
CP704 00D 963 0256 908 CN.WAFER 10P L101100041010S
CP801 nsp 00D 963 0087 601 CN.WAFER 18P L101100041810S
CP802 nsp 00D 963 0087 504 CN.WAFER 19P L101100041910S
CP803 nsp 00D 963 0111 108 CN.WAFER 14P L101100041410S
G301 00D 963 0257 509 RING,TER WIRE 80MM/1P 1507E2 8410800010100F
G301A 00D 963 0257 509 RING,TER WIRE 80MM/1P 1507E3,587E3,487E3 8410800010100F
GND201 - TERMINAL EARTH 3790040886000S
L301 nsp 00D 960 0128 008 COIL,INDUCTOR 100UH D330101001020S
L302 nsp 00D 960 0010 307 COIL,INDUCTOR 10UH D330100700520S
RMC301 00D 963 0217 808 MODULE,REMOCON
NJL34H380A
E940343800010P
SW301C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW302A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW302B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW302C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW303A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW303B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW303C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW304A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW304B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW304C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW305A 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW305B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW305C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW306A 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW306B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW306C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW307B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW307C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW308B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW308C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
SW309B 00D 963 0095 305 SW,TACT SKHV10910D01 G180040500010S
SW309C 00D 963 0200 103 SW,TACT SKHV10920A G180000270010S
!SW931 00D 963 0145 802 SW,PUSH SDDL-005-S(C-UL) G000122006060F
TP301 nsp 00D 963 0060 709 CN.WAFER 8P L101220080000S
TP601 00D 960 0123 605 CN.WAFER 13P L101530141310S
VEC301,302 00D 963 0095 208 SW,ENCODER EC16B24SA G121162400040S
X201 00D 963 0217 701 RESONATOR,CERAMIC
ZTT12.00MT
E830120000060P
X202 00D 963 0217 604 CRYSTAL 4.332MHZ 1507E2 E800433200100
- HEAT SINK 1507E2 2120043538050S
- HEAT SINK 1507E3,587E3,487E3 2120044308010S
nsp 00D 963 0018 007 SCREW, 3*8 B-TYPE ZNY/BH B020030081B10S
nsp 00D 960 0184 408 HOLDER, FLT 4320200026000S
00D 963 0146 403 TER,RCA 3PIN G606308HG110YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
78
AVR-1707/1507/687/587/487
PRE-AMP P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC102X 00D 263 1092 003 IC BA05T 1507E3,587E3
IC102X4 00D 263 1092 003 IC BA05T 487E3
IC103X 00D 263 1223 005 IC PQ20RX11 1507E3,587E3
IC103X4 00D 263 1223 005 IC PQ20RX11 487E3
Q101SBL 00D 963 0044 204 TR 2SD2390-Y 1507E3,587E3,1507E2 J5032390Y0000P
Q101SBR 00D 963 0044 204 TR 2SD2390-Y 1507E3,587E3,1507E2 J5032390Y0000P
Q101X 00D 960 0097 304 TR KRC102M 1507E3,587E3 J6020102M0010S
Q101X4 00D 960 0097 304 TR KRC102M 487E3 J6020102M0010S
Q102SBL 00D 963 0044 107 TR 2SB1560-Y 1507E3,587E3,1507E2 J5011560Y0000P
Q102SBR 00D 963 0044 107 TR 2SB1560-Y 1507E3,587E3,1507E2 J5011560Y0000P
Q102X 00D 960 0097 304 TR KRC102M 1507E3,587E3 J6020102M0010S
Q102X4 00D 960 0097 304 TR KRC102M 487E3 J6020102M0010S
Q103SBL 00D 963 0280 107 TR 2SC3964 1507E3,587E3,1507E2 J502396400000S
Q103SBR 00D 963 0280 107 TR 2SC3964 1507E3,587E3,1507E2 J502396400000S
Q104SBL 00D 960 0196 506 TR KSC1845F 1507E3,587E3,1507E2 J5021845F0000P
Q104SBR 00D 960 0196 506 TR KSC1845F 1507E3,587E3,1507E2 J5021845F0000P
Q501C 00D 960 0196 603 TR KTC2874B J502287400010S
Q501FL 00D 960 0196 603 TR KTC2874B J502287400010S
Q501FR 00D 960 0196 603 TR KTC2874B J502287400010S
Q501SL 00D 960 0196 603 TR KTC2874B J502287400010S
Q501SR 00D 960 0196 603 TR KTC2874B J502287400010S
Q502C 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502FL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502FR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SBL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SBR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q502SR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503C 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503FL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503FR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SBL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SBR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SL 00D 960 0196 205 TR KSA992F J5000992F0050P
Q503SR 00D 960 0196 205 TR KSA992F J5000992F0050P
Q504C 00D 960 0196 506 KSC1845F J5021845F0000P
Q504FL 00D 960 0196 506 KSC1845F J5021845F0000P
Q504FR 00D 960 0196 506 KSC1845F J5021845F0000P
Q504SBL 00D 960 0196 506 KSC1845F J5021845F0000P
Q504SBR 00D 960 0196 506 KSC1845F J5021845F0000P
Q504SL 00D 960 0196 506 KSC1845F J5021845F0000P
Q504SR 00D 960 0196 506 KSC1845F J5021845F0000P
Q506SBL 00D 960 0196 603 KTC2874B J502287400010S
Q506SBR 00D 960 0196 603 KTC2874B J502287400010S
D101SBL 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3,1507E2 K005041480020S
D101SBR 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3,1507E2 K005041480020S
D102SBL 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3,1507E2 K005041480020S
D102SBR 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3,1507E2 K005041480020S
D102X 00D 963 0058 407 D,SWITCHING IN4007 1507E3,587E3 K000400700520S
D102X1 00D 963 0058 407 D,SWITCHING IN4007 1507E3,587E3 K000400700520S
D102X14 00D 963 0058 407 D,SWITCHING IN4007 487E3 K000400700520S
D102X4 00D 963 0058 407 D,SWITCHING IN4007 487E3 K000400700520S
D106,107 00D 963 0020 309 D,SWITCHING 1SS133T 1507E3,587E3,1507E2 K000013300520S
ZD101SBL 00D 963 0279 804 D,ZENER UDZS4.3B 1507E3,587E3,1507E2 K06604R34P410S
ZD101SBR 00D 963 0279 804 D,ZENER UDZS4.3B 1507E3,587E3,1507E2 K06604R34P410S
ZD102SBL 00D 963 0295 503 D,ZENER UDZS3.6B 1507E3,587E3,1507E2 K06603R64P400S
ZD102SBR 00D 963 0295 503 D,ZENER UDZS3.6B 1507E3,587E3,1507E2 K06603R64P400S
79
AVR-1707/1507/687/587/487
RESISTORS GROUP
R104SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K 1507E3,587E3,1507E2 N113135656220F
R104SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K 1507E3,587E3,1507E2 N113135656220F
R105SBL 00D 963 9006 285 R,FIXED 1WJ-5.6K 1507E3,587E3,1507E2 N113135656220F
R105SBR 00D 963 9006 285 R,FIXED 1WJ-5.6K 1507E3,587E3,1507E2 N113135656220F
R106SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W 1507E3,587E3,1507E2 C0604R7065050S
R106SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W 1507E3,587E3,1507E2 C0604R7065050S
R107SBL 00D 963 0215 907 R,METAL FILM 4.7-J,1W 1507E3,587E3,1507E2 C0604R7065050S
R107SBR 00D 963 0215 907 R,METAL FILM 4.7-J,1W 1507E3,587E3,1507E2 C0604R7065050S
R108SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R108SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R109SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R109SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R109X 00D 963 0216 003 R,METAL FILM 0.22-J,1W 1507E3,587E3 C060R22065050S
R109X4 00D 963 0216 003 R,METAL FILM 0.22-J,1W 487E3 C060R22065050S
R110SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R110SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R110X 00D 963 0216 003 R,METAL FILM 0.22-J,1W 1507E3,587E3 C060R22065050S
R110X4 00D 963 0216 003 R,METAL FILM 0.22-J,1W 487E3 C060R22065050S
R111SBL 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R111SBR 00D 963 9006 269 R,FIXED 1WJ-0.22 1507E3,587E3,1507E2 N113135622820F
R118SBL 00D 963 9006 256 R,FIXED 1WJ-10 1507E3,587E3,1507E2 N113135610020F
R118SBR 00D 963 9006 256 R,FIXED 1WJ-10 1507E3,587E3,1507E2 N113135610020F
R119SBL 00D 963 9006 256 R,FIXED 1WJ-10 1507E3,587E3,1507E2 N113135610020F
R119SBR 00D 963 9006 256 R,FIXED 1WJ-10 1507E3,587E3,1507E2 N113135610020F
R509C 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509FL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509FR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SBL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SBR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SL 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R509SR 00D 960 9005 902 R,METAL FILM 1.2K-J,1/4W C060012263050S
R511C 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511FL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511FR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SBL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SBR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SL 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
R511SR 00D 960 9004 301 R,METAL FILM 47-J,1/4W C060047063050S
VR106,107 00D 963 0105 208 VR,SEMI CERMET 1KB 1507E3,587E3,1507E2 C544102015140P
CAPACITORS GROUP
C101SBL 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) 1507E3,587E3,1507E2 D040470087070F
C101SBR 00D 963 0234 506 C,ELECT 47UF-M/50V (Pb Free) 1507E3,587E3,1507E2 D040470087070F
C101X 00D 963 9003 097 C,FILM 0.1UF-K/250V 1507E3,587E3 D02010407H080S
C101X4 00D 963 9003 097 C,FILM 0.1UF-K/250V 487E3 D02010407H080S
C102SBL 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E3,587E3,1507E2 D040100087070F
C102SBR 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E3,587E3,1507E2 D040100087070F
C103SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V 1507E3,587E3,1507E2 D00410106D050S
C103SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V 1507E3,587E3,1507E2 D00410106D050S
C103X 00D 963 0255 501 C,ELECT 18000UF-M/16V 1507E3,587E3 D040183083000S
C103X4 00D 963 0255 501 C,ELECT 18000UF-M/16V 487E3 D040183083000S
C104SBL 00D 963 9003 084 C,CERAMIC 100PF-K/500V 1507E3,587E3,1507E2 D00410106D050S
C104SBR 00D 963 9003 084 C,CERAMIC 100PF-K/500V 1507E3,587E3,1507E2 D00410106D050S
C104X 00D 963 0293 709 C,ELECT 100UF-M/10V 1507E3,587E3 D040101082070F
C104X4 00D 963 0293 709 C,ELECT 100UF-M/10V 487E3 D040101082070F
C105SBL 00D 960 9008 640 C,FILM 0.022UF-J/100V 1507E3,587E3,1507E2 D02022306C060P
C105SBR 00D 960 9008 640 C,FILM 0.022UF-J/100V 1507E3,587E3,1507E2 D02022306C060P
C105X 00D 963 0293 709 C,ELECT 100UF-M/10V 1507E3,587E3 D040101082070F
C105X4 00D 963 0293 709 C,ELECT 100UF-M/10V 487E3 D040101082070F
Ref. No. nsp Part No. Part Name Remarks Q'ty New
80
AVR-1707/1507/687/587/487
C106X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 1507E3,587E3 D011102777160S
C106X1 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V 1507E3,587E3 D011104577160S
C106X14 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V 487E3 D011104577160S
C106X4 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 487E3 D011102777160S
C107SBL 00D 963 9003 097 C,FILM 0.1UF-K/250V 1507E3,587E3,1507E2 D02010407H080S
C107SBR 00D 963 9003 097 C,FILM 0.1UF-K/250V 1507E3,587E3,1507E2 D02010407H080S
C107X 00D 963 0293 709 C,ELECT 100UF-M/10V 1507E3,587E3 D040101082070F
C107X4 00D 963 0293 709 C,ELECT 100UF-M/10V 487E3 D040101082070F
C108X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 1507E3,587E3 D011102777160S
C108X4 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V 487E3 D011102777160S
C501C 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501FL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501FR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SBL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SBR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SL 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C501SR 00D 963 9006 544 C,ELECT 22UF-M/25V D040220084050F
C502C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C502SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C503C 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503FL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503FR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SBL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SBR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C503SR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504C 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504FL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504FR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SBL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SBR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SL 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C504SR 00D 963 0216 207 C,CERAMIC 220PF 500V D009092212500S
C505C 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505FL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505FR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SBL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SBR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SL 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C505SR 00D 963 0216 100 C,CERAMIC 33PF-J/500V D00033006D050S
C506C 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506FL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506FR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SBL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SBR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SL 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C506SR 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C507C 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507FL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507FR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SBL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SBR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SL 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
C507SR 00D 963 9003 194 C,FILM 0.0022UF-J/100V D02022206C060P
OTHERS PARTS GROUP
BKT501 nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
BKT503 nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
81
AVR-1707/1507/687/587/487
CN102X nsp 00D 963 0256 306 CN,WIRE 90MM/5P 1507E3,587E3 L000900050030F
CN102X4 nsp 00D 963 0256 306 CN,WIRE 90MM/5P 487E3 L000900050030F
CN501 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CN502 nsp 00D 963 0086 505 CN.WAFER 7P L101100030710S
CN503 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CN504 nsp 00D 963 0085 506 CN.WAFER 9P L101100030910S
CN505 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN506T nsp 00D 963 0245 401 CN,WIRE 140MM/15P 1507E3,587E3 L000141150030F
CN506T 00D 963 0159 704 CN,WIRE 140MM/15P 1507E2 L000141150020P
CP101X nsp 00D 960 0123 207 CN.WAFER 3P 1507E3,587E3 L102526700300S
CP101X4 nsp 00D 960 0123 207 CN.WAFER 3P 487E3 L102526700300S
CP506 nsp 00D 963 0060 703 CN.WAFER 15P L101220150000S
CP513 nsp 00D 963 0066 101 CN.WAFER 5P L101220050000S
CP558 00D 963 0253 406 CN.WAFER 14P L101220140000S
CP992 nsp 00D 960 0217 553 CN.WAFER 4P 1507E3,587E3,1507E2 L102526700400S
L101SBL nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH 1507E3,587E3,1507E2 D330R50000000F
L101SBR nsp 00D 963 0049 005 COIL,INDUCTOR 0.5UH 1507E3,587E3,1507E2 D330R50000000F
TP106,107 nsp 00D 963 0207 203 CN.WAFER 3P 1507E3,587E3,1507E2 L101530150310S
Ref. No. nsp Part No. Part Name Remarks Q'ty New
82
AVR-1707/1507/687/587/487
CNT P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC551,552 00D 963 0218 807 IC BU4094BCF J040140940030P
Q551 00D 960 0196 700 TR KTC3200BL J5023200B0050S
Q552 00D 960 0196 302 TR KTA1268BL J5001268B0050S
Q553-556 00D 963 0120 704 TR KRA102S J520010200210S
Q570A 00D 963 0148 508 TR KTA1504S J520015040150S
Q570B 00D 963 0121 606 TR KRC107S J522107S00210S
Q571X 00D 963 0121 606 TR KRC107S J522107S00210S
Q572X 00D 963 0148 508 TR KTA1504S J520015040150S
D501D 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D551-561 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D562,563 00D 963 0058 407 D,SWITCHING IN4007 K000400700520S
D565-567 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D572X 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D573X 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D574C 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3 K005041480020S
ZD564 00D 960 0095 500 D,ZENER MTZJ5.1B K06005R144520S
RESISTORS GROUP
R559 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
R565 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
R570 00D 960 9005 642 R,METAL FILM 1.2K-J,1W C060012265050S
CAPACITORS GROUP
C551 00D 963 0294 106 C,ELECT 2.2UF-M/50V (Pb
Free)
1507E3,587E3,487E3 D0402R2087160F
C551 00D 960 9009 940 C,ELECT 1000UF-M/16V 1507E2 D040102083030F
C551C nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C551G nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C551S 00D 963 0225 609 C,CERAMIC 0.047UF-Z/50V D005473597520S
C555,556 00D 963 0233 303 C,CERAMIC 0.01UF-M/16V D005103773530S
C557 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C563X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C564X nsp 00D 960 9010 094 C,CERAMIC 0.01UF-Z/50V D011103597160S
C565X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C566X nsp 00D 960 9010 094 C,CERAMIC 0.01UF-Z/50V D011103597160S
C567X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C568X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C569X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C570X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
OTHERS PARTS GROUP
CN202X nsp 00D 963 0256 005 CN,WIRE 350MM/8P 1507E3,587E3,487E3 L000351080010F
CN552 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN553 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN554A 00D 963 0184 805 CN,WIRE 80MM/14P L000800140060P
CN554B 00D 963 0184 708 CN,WIRE 80MM/4P L000800040110P
CN555 nsp 00D 963 0110 701 CN.WAFER 14P L101100031410S
CN556 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CP102X nsp 00D 963 0066 101 CN.WAFER 5P 1507E3,587E3,487E3 L101220050000S
CP551 00D 963 0253 406 CN.WAFER 14P L101220140000S
nsp 00D 960 0184 000 BRACKET SCREW 4010210196000S
83
AVR-1707/1507/687/587/487
INPUT P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 963 0295 202 IC NJW1197 J084119700010
IC701M 00D 963 0202 305 IC NJM2068M 1507E2 J121206800020S
IC705 00D 963 0202 305 IC NJM2068M 1507E3,587E3 J121206800020S
IC761-763 00D 963 0202 305 IC NJM2068M J121206800020S
Q755 00D 963 0121 004 TR KRC104M 1507E3,587E3 J502104000010S
Q760 00D 963 0121 004 TR KRC104M 1507E2 J502104000010S
Q771 00D 963 0121 004 TR KRC104M J502104000010S
Q772 00D 960 0097 207 TR KRA102M J6002202M0010S
Q773,774 00D 960 0196 807 TR 2SK117Y J5441170Y0050
D753 00D 963 0219 709 D,SWITCHING 1N4148W 1507E3,587E3 K005041480020S
D756 00D 963 0219 709 D,SWITCHING 1N4148W 1507E2 K005041480020S
D771,772 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD701 00D 960 0222 603 D,ZENER MTZJ7.5A 1507E2 K06007R544530S
ZD701M 00D 960 0095 500 D,ZENER MTZJ5.1B 1507E2 K06005R144520S
ZD702 00D 960 0222 603 D,ZENER MTZJ7.5A 1507E2 K06007R544530S
ZD701,702 00D 960 0222 603 D,ZENER MTZJ7.5A 1507E3,587E3,487E3 K06007R544530S
RESISTORS GROUP
R731,732 00D 963 9005 668 R,METAL FILM 220-J,1W C060022165050S
R753 00D 960 9004 301 R,METAL FILM 47-J,1/4W 1507E3,587E3 C060047063050S
R756 00D 960 9004 301 R,METAL FILM 47-J,1/4W 1507E2 C060047063050S
R771,772 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R791,792 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
CAPACITORS GROUP
C481C nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481FL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481FR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SW nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C701L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C701M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) 1507E2 D040010087150F
C701R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C702CH nsp 00D 963 0223 009 R,THICK 0-J,1/16W 1507E3,587E3 C20000006M160F
C702L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C702M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) 1507E2 D040010087150F
C702R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C703CH nsp 00D 963 0223 009 R,THICK 0-J,1/16W 1507E3,587E3 C20000006M160F
C703L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C703M nsp 00D 963 0157 609 C,CERAMIC 150PF-J/50V 1507E2 D010151167160S
C703R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C704L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C704M nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C704R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C705L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C705M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) 1507E2 D040010087150F
C705R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C706L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C706M nsp 00D 963 0157 609 C,CERAMIC 150PF-J/50V 1507E2 D010151167160S
C706R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C707 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C707-709 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3,487E3 D010101167160S
C707M nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C708 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C708M 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) 1507E2 D040010087150F
C709 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E2 D010101167160S
C709M nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V 1507E2 D011104597160S
C710M 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E2 D040100087070F
84
AVR-1707/1507/687/587/487
C721 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C723 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C726,727 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C731 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C732 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C733 00D 963 0276 108 C,CERAMIC 3300PF-K/50V D011332777160S
C734 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C735 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C736 nsp 00D 963 9004 711 C,CERAMIC 0.1UF-Z/50V D011104597160S
C737 00D 963 0276 108 C,CERAMIC 3300PF-K/50V D011332777160S
C738 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C741-750 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C750ZL 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1507E3,587E3 D0404R7087250F
C750ZR 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1507E3,587E3 D0404R7087250F
C751,752 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E3,587E3 D040100087070F
C752ZL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3 D010101167160S
C752ZR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3 D010101167160S
C753ZL 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E3,587E3 D040100087070F
C753ZR 00D 963 0234 205 C,ELECT 10UF-M/50V 1507E3,587E3 D040100087070F
C756,757 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1507E3,587E3 D011103777160S
C760,761 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C761FL nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C761FR nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C761SW nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C762 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C762FL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C762FR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C762SW nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C763 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C763FL nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C763FR nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C763SW nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C764 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C764FL nsp 00D 963 0223 805 C,CERAMIC 33PF-J/50V D010330167160S
C764FR nsp 00D 963 0223 805 C,CERAMIC 33PF-J/50V D010330167160S
C764SW nsp 00D 963 0233 808 C,CERAMIC 47PF-J/50V D010470167160S
C765 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C765FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C765FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C765SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C766,767 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C771,772 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070F
C773 00D 963 0293 602 C,ELECT 1UF-M/50V(Pb Free) D040010087150F
C791,792 00D 963 9005 875 C,ELECT 47UF-M/25V D040470084070F
OTHERS PARTS GROUP
CN551 00D 963 0184 407 CN,WIRE 160MM/14P L000161140050P
CN701 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN701M 00D 963 0253 309 CN,WIRE 230MM/5P 1507E2 L000231050030F
CN702 nsp 00D 963 0086 204 CN.WAFER 19P L101100031910S
CN703 nsp 00D 963 0097 303 CN.WAFER 15P L101100031510S
CN704 00D 963 0256 801 CN.WAFER 10P L101100031010S
CP701M nsp 00D 963 0066 101 CN.WAFER 5P 1507E2 L101220050000S
RLY701 00D 963 0218 409 RELAY BC3-12 24V 2A 1507E3,587E3 G680240202030F
RLY702 00D 963 0218 409 RELAY BC3-12 24V 2A 1507E2 G680240202030F
00D 963 0094 005 CUSHION INPUT 4050210715000S
00D 963 0293 505 PLATE INPUT 4470210926000S
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
00D 960 0268 803 TER,RCA 6PIN G603603B09000S
00D 963 0158 200 JACK,D3.5 EARPHONE 1507E2 G40132340000YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
85
AVR-1707/1507/687/587/487
8CH-EXT XM P.W.B. UNIT ASSY (for AVR-1507E3/587E3/487E3 model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC201X 00D 262 3517 907 F2602-01-TR
IC202X 00D 262 2517 908 SN74LV08APW-EL2 +REF
IC203X 00D 262 2813 903 SN74AHCT08PW-EL2 +C
IC204X 00D 963 0295 309 IC LM1117S J126111733030S
IC205X 00D 963 0294 902 IC AK4385 J042438500010S
IC206 00D 963 0202 305 IC NJM2068M J121206800020S
IC206X 00D 399 1055 909 FCX-02(45.1584MHz)
IC207X 00D 263 1092 003 BA05T
IC208X 00D 963 0218 807 IC BU4094BCF J040140940030P
IC209X 00D 262 2813 903 IC SN74AHCTO8
IC401 00D 960 0296 105 IC CJ7812F J126781200220S
IC402 00D 960 0174 104 IC CXA1511M 1507E3 J030151100010S
Q201R 00D 963 0121 402 TR KRA104S J520010400210S
Q201X 00D 963 0120 801 TR KRC102S J522010200210S
Q203X 00D 963 0120 801 TR KRC102S J522010200210S
Q204X 00D 963 0120 801 TR KRC102S J522010200210S
Q206X 00D 963 0120 704 TR KRA102S J520010200210S
Q207X 00D 963 0120 704 TR KRA102S J520010200210S
Q208X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q209X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q210X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q211X 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q401 00D 960 0097 003 TR KRA104M 1507E3 J6000104M0010S
Q666A 00D 963 0044 301 TR KTC2875B 1507E3 J5222875B0010S
Q667A 00D 963 0044 301 TR KTC2875B J5222875B0010S
Q668A 00D 963 0044 301 TR KTC2875B 1507E3 J5222875B0010S
Q669A 00D 963 0044 301 TR KTC2875B J5222875B0010S
D201X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D202X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D203X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D204X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D205X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D206X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
D207X 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
ZD401 00D 960 0095 704 D,ZENER MTZJ6.2B 1507E3 K06006R244520S
RESISTORS GROUP
R273X 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
R274X 00D 963 9005 639 R,METAL FILM 100-J,1W C060010165060S
CAPACITORS GROUP
C201X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C202X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C203X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C204X nsp 00D 963 9006 528 C,CERAMIC 20PF-J/50V D010200167160S
C205X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C206X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C207X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C208X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C209X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C212X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C213X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C215X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C216X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C217X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
86
AVR-1707/1507/687/587/487
C218X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C219X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C220X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C221X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C222X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C223X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C224X 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C225X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C230X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C231X 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb
Free)
D040R10087080F
C232X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C233 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C233X nsp 00D 960 9009 843 C,CERAMIC 1800PF-K/50V D011182777160S
C234X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C235X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C236X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C237X nsp 00D 960 9009 843 C,CERAMIC 1800PF-K/50V D011182777160S
C238X nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C239X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C240X 00D 963 0224 503 C,ELECT 22UF-M/50V D040220087060F
C241X 00D 963 0224 503 C,ELECT 22UF-M/50V D040220087060F
C242X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C243X 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C244X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C245X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C246X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C247X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C248X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C249X nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C250X nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C251X nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C252X nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C403 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) 1507E3 D040010087150F
C404 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V 1507E3 D011103777160S
C405 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3 D010101167160S
C406,407 00D 960 9008 653 C,FILM 0.012UF-J/100V-5RE 1507E3 D02012306C060P
C408 00D 963 9005 862 C,ELECT 47UF-M/16V 1507E3 D040470083080F
C409 00D 960 9010 010 C,ELECT 4.7UF-M/50V 1507E3 D0404R7087250F
C410,411 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C412,413 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C481SBL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3 D010101167160S
C481SBR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3,587E3 D010101167160S
C481SL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C606A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V 1507E3 D010101167160S
C607A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C647 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
OTHERS PARTS GROUP
BD201X nsp 00D 963 0154 602 COIL,BEAD 7610010030000S
BD401-403 nsp 00D 963 0154 602 COIL,BEAD 1507E3 7610010030000S
BD401,402 nsp 00D 963 0154 602 COIL,BEAD 587E3,487E3 7610010030000S
CN401 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN402 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN404 nsp 00D 963 0086 107 CN.WAFER 16P L101100031610S
CP202X nsp 00D 963 0060 709 CN.WAFER 8P L101220080000S
CP203X nsp 00D 963 0068 303 CN.WAFER 9P L101220090000S
CP401A 00D 963 0149 303 CN.FPC 15P L131111500010F
JACK801X 00D 205 1362 009 XM/DT BUS CONNECTOR
Ref. No. nsp Part No. Part Name Remarks Q'ty New
87
AVR-1707/1507/687/587/487
00D 963 0244 703 JACK,D3.5 EARPHONE 1507E3 G40130802000YS
00D 963 0146 005 TER,RCA 1PIN G600107A0000YS
00D 963 0146 209 TER,RCA 4PIN 1507E3,587E3 G602405B01000S
00D 963 0158 501 TER,RCA 2PIN 487E3 G601207AE010YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
88
AVR-1707/1507/687/587/487
8CH-EXT(E2) P.W.B. UNIT ASSY (for AVR-1507E2 model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC401 00D 960 0296 105 IC CJ7812F J126781200220S
Q666A 00D 960 0196 603 TR KTC2874B J502287400010S
Q668A 00D 960 0196 603 TR KTC2874B J502287400010S
CAPACITORS GROUP
C401 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C402 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C403,404 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C481SBL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SBR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SL nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C481SR nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C606A nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C647 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
OTHERS PARTS GROUP
BD401,402 nsp 00D 963 0154 602 COIL,BEAD 7610010030000S
CN401 nsp 00D 963 0236 902 CN.WAFER 12P L101100031210S
CN402 nsp 00D 963 0086 709 CN.WAFER 11P L101100031110S
CN404 nsp 00D 963 0205 700 CN.WAFER 5P L101100030510S
CP401A 00D 963 0149 303 CN.FPC 15P L131111500010F
00D 963 0146 005 TER,RCA 1PIN G600107A0000YS
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
89
AVR-1707/1507/687/587/487
DSP1 P.W.B. UNIT ASSY (for AVR-1507E2 model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC802,803 00D 963 0237 503 JSR1165-C /OPTICAL E100116500040S
IC804 00D 262 3662 001 ADSP21266SKSTZ-1B-AC
IC805 00D 262 3652 008 LH28F800BJE(1707)
IC806 00D 262 3536 001 AS7C34096A-10TCN
IC807 00D 262 3066 102 LC89057W-VF4-E(AC) +REF
IC808 00D 262 3645 002 IC ADAU1328BSTZ
IC809-811 00D 960 0266 805 IC MM74LCX244 J040742440180P
IC812 00D 960 0266 902 IC MM74HCT244 J040742440190P
IC814,815 00D 963 0218 904 IC MM74HCT00MTCX J040740000200P
IC815A 00D 963 0043 807 IC BA4510F J121451000010P
IC816 00D 262 2870 904 74LVX157MTC +C
IC816A 00D 963 0043 807 IC BA4510F J121451000010P
IC817 00D 262 3536 001 AS7C34096A-10TCN
IC817A 00D 963 0202 305 IC NJM2068M J121206800020S
IC818 00D 262 2642 909 SN74LV573APWR +REF
IC818A 00D 963 0202 305 IC NJM2068M J121206800020S
IC819 00D 262 2642 909 SN74LV573APWR +REF
IC819A 00D 963 0202 305 IC NJM2068M J121206800020S
IC820 00D 262 3339 907 SN74LVC139APWR +REF
IC820A 00D 963 0202 305 IC NJM2068M J121206800020S
IC821 00D 262 2870 904 IC 74LCX74MTC
IC822 00D 960 0296 008 IC CJ7805F J126780500400S
IC823 00D 963 0295 309 IC RC1117-33 J126111733020F
IC824 00D 963 0147 509 IC FAN1112-1.2 J126111712010F
IC825 00D 262 2870 904 IC 74LCX74MTC
IC827 00D 963 0219 107 IC MM74HC151MTCX J040741510050P
IC828 00D 963 0219 000 IC 74VHCU04 J040740400270P
IC829 00D 963 0244 907 IC SN74LV14APWR J040741400180P
IC830 00D 262 2813 903 IC SN74AHCTO8
Q804C 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SW 00D 960 0196 603 TR KTC2874B J502287400010S
Q808 00D 963 0120 801 TR KRC102S J522010200210S
Q809 00D 963 0120 704 TR KRA102S J520010200210S
Q811,812 00D 963 0245 100 D,SWITCHING KDS226ST1 K005022600020S
D803 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
RESISTORS GROUP
R831-833 nsp 00D 963 0234 603 COIL,BEAD D340160800060S
CAPACITORS GROUP
C801 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C802,803 nsp 00D 963 9004 591 C,CERAMIC 22PF-J/50V D010220167160S
C807 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C808 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C812 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C813 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C814 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C815 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C816 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C817 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C818 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C819 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
90
AVR-1707/1507/687/587/487
C821 00D 963 0216 906 C,ELECT 1000UF-M/6.3V D040102081060F
C823 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C824 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C825 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C830 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
C832 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C833,834 nsp 00D 963 0233 905 C,CERAMIC 0.015UF-K/50V D011153777160S
C835 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C836,837 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C838-841 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C842 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C844-846 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C847 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C848-857 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C858 nsp 00D 963 0224 202 C,CERAMIC 0.022UF-K/25V D011223777160S
C859 nsp 00D 963 0246 507 C,CERAMIC 0.068UF-K/50V D010683777160S
C860 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C861,862 nsp 00D 963 9005 998 C,CERAMIC 24PF-J/50V D010240167160S
C863 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C864 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C864L 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C864R 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C865 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C865L nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C865R nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C866-869 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C869L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C869R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C870,871 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C871L 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C871R 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C872 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C873 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C873C nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SW nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C874 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C874C nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SW nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C875 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C875C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C876 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C876C 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SBL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
Ref. No. nsp Part No. Part Name Remarks Q'ty New
91
AVR-1707/1507/687/587/487
C876SBR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SW 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C877-880 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C880C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C881-884 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C885 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C886 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C887 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C888 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C889-891 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C892 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C893 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C894 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C895 00D 963 0216 508 C,FILM 0.12UF-J/63V D020124078060S
C896 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb
Free)
D040R10087080F
C897,898 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C899,900 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C901 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C902 00D 963 9005 901 C,ELECT 470UF-M/10V, D040471082060F
C903 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C904 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C905,906 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C907 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C908 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C909 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C910 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C911 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C912,913 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C914,915 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C917 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C919 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C921 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C922 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C923 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C924,925 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
OTHERS PARTS GROUP
CB801-806 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CB808 nsp 00D 963 0223 009 R,CHIP 0-J,1/16W C20000006M160F
CB810 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CN801 nsp 00D 963 0086 301 CN.WAFER 18P L101100031810S
CN802 nsp 00D 963 0086 204 CN.WAFER 19P L101100031910S
CN803 nsp 00D 963 0086 107 CN.WAFER 16P L101100031610S
L801 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
L803 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
XTAL1 00D 963 0217 303 CRYSTAL 12.288MHZ E80012R288090S
XTAL2 00D 963 0217 507 CRYSTAL 18.750MHZ E80018R750010S
00D 963 0294 601 JACK,D3.5 EARPHONE G40100350000YS
00D 963 0217 905 TER,RCA 2PIN G601206A0200YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
92
AVR-1707/1507/687/587/487
DSP2 P.W.B. UNIT ASSY (for AVR-1507E3/587E3/487E3 model)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC802,803 00D 963 0237 503 JSR1165-C /OPTICAL E100116500040S
IC804 00D 262 3663 000 ADSP21266SKSTZ-1B-C
IC805 00D 262 3652 008 LH28F800BJE(1707)
IC807 00D 262 3066 102 LC89057W-VF4-E(AC) +REF
IC808 00D 262 3645 002 IC ADAU1325BSTZ
IC809-811 00D 960 0266 805 IC MM74LCX244 J040742440180P
IC812 00D 960 0266 902 IC MM74HCT244 J040742440190P
IC814,815 00D 963 0218 904 IC MM74HCT00MTCX J040740000200P
IC815A 00D 963 0043 807 IC BA4510F J121451000010P
IC816 00D 262 2870 904 74LVX157MTC +C
IC816A 00D 963 0043 807 IC BA4510F J121451000010P
IC817 00D 262 3648 009 IS63LV1024L-10TL
IC817A 00D 963 0202 305 IC NJM2068M J121206800020S
IC818 00D 262 2642 909 SN74LV573APWR +REF
IC818A 00D 963 0202 305 IC NJM2068M J121206800020S
IC819 00D 262 2642 909 SN74LV573APWR +REF
IC819A 00D 963 0202 305 IC NJM2068M J121206800020S
IC820 00D 262 3339 907 SN74LVC139APWR +REF
IC820A 00D 963 0202 305 IC NJM2068M J121206800020S
IC821 00D 262 2870 904 IC 74LCX74MTC
IC822 00D 960 0296 008 IC CJ7805F J126780500400S
IC823 00D 963 0295 309 IC RC1117-33 J126111733020F
IC824 00D 963 0147 509 IC FAN1112-1.2 J126111712010F
IC825 00D 262 2870 904 IC 74LCX74MTC
IC827 00D 963 0219 107 IC MM74HC151MTCX J040741510050P
IC828 00D 963 0219 000 IC 74VHCU04 J040740400270P
IC829 00D 963 0244 907 IC SN74LV14APWR J040741400180P
IC830 00D 262 2813 903 IC SN74AHCTO8
Q804C 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804FR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SBR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SL 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SR 00D 960 0196 603 TR KTC2874B J502287400010S
Q804SW 00D 960 0196 603 TR KTC2874B J502287400010S
Q808 00D 963 0120 801 TR KRC102S J522010200210S
Q809 00D 963 0120 704 TR KRA102S J520010200210S
Q811,812 00D 963 0245 100 D,SWITCHING KDS226ST1 K005022600020S
D803 00D 963 0219 709 D,SWITCHING 1N4148W K005041480020S
RESISTORS GROUP
R831-833 nsp 00D 963 0234 603 COIL,BEAD D340160800060S
CAPACITORS GROUP
C801 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C802,803 nsp 00D 963 9004 591 C,CERAMIC 22PF-J/50V D010220167160S
C807 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C808 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C812 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C813 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C814 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C815 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C816 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C817 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C818 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C819 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C821 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
93
AVR-1707/1507/687/587/487
C824 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C825 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C830 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C832 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C833,834 nsp 00D 963 0233 905 C,CERAMIC 0.015UF-K/50V D011153777160S
C835 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C836,837 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C838-841 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C842 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C843-846 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C847 00D 963 0129 608 C,CERAMIC 15PF-J/50V D010150167160S
C848-857 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C858 00D 960 9009 856 C,CERAMIC 0.022UF-Z/50V D011223597160S
C859 nsp 00D 963 0246 507 C,CERAMIC 0.068UF-K/50V D010683777160S
C860 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C861,862 nsp 00D 963 9005 998 C,CERAMIC 24PF-J/50V D010240167160S
C863 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C864 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C864L 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C864R 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C865 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C865L nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C865R nsp 00D 963 9005 723 C,CERAMIC 120PF-J/50V D010121167160S
C866-868 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C869L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C869R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C870,871 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C871L 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C871R 00D 963 0216 304 C,FILM 0.001UF-J/100V D02010206C060P
C872 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C873 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C873C nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873FR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SBR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SL nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SR nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C873SW nsp 00D 963 9004 672 C,CERAMIC 680pF-J 50V D010681167160S
C874 00D 963 9005 804 C,ELECT 100UF-M/25V D040101084060F
C874C nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874FR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SBR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SL nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SR nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C874SW nsp 00D 963 9006 146 C,CERAMIC 560PF-J/50V D010561167160S
C875 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C875C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C875SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C876 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C876C 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876FR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SBL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SBR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SL 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
Ref. No. nsp Part No. Part Name Remarks Q'ty New
94
AVR-1707/1507/687/587/487
C876SR 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C876SW 00D 960 9008 611 C,FILM 0.0033UF-J/100V D02033206C060P
C877-880 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C880C 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880FR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SBR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SL 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SR 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C880SW 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C881-884 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C885 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C886 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C887 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C888 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C889-891 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C892 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C893 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C894 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C896 00D 963 0244 606 C,ELECT 0.1UF-M/50V (Pb
Free)
D040R10087080F
C897,898 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C899,900 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C901 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C902 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C903 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C904 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C905,906 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C907 00D 963 0293 709 C,ELECT 100UF-M/10V D040101082070F
C908 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C909 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C910 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C911 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C912,913 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C914,915 nsp 00D 963 9004 708 C,CERAMIC 0.1UF-K/50V D011104577160S
C917 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C919 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C921 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
C923 nsp 00D 963 0224 105 C,CERAMIC 1000PF-K/50V D011102777160S
C924,925 nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C927 nsp 00D 963 9004 698 C,CERAMIC 0.01UF-K/50V D011103777160S
OTHERS PARTS GROUP
CB801-806 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CB808 00D 963 9003 372 R,CHIP 0-J,1/16W C20000006M160S
CB810 nsp 00D 963 0220 002 BEAD,COIL 121JT 7611010000020S
CN801 nsp 00D 963 0086 301 CN.WAFER 18P L101100031810S
CN802 nsp 00D 963 0086 204 CN.WAFER 19P L101100031910S
CN803 nsp 00D 963 0110 701 CN.WAFER 16P L101100031410S
L801 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
L803 nsp 00D 963 0050 803 COIL,INDUCTOR 4.7UH D3304R7000150S
XTAL1 00D 963 0217 303 CRYSTAL 12.288MHZ E80012R288090S
XTAL2 00D 963 0217 507 CRYSTAL 18.750MHZ E80018R750010S
00D 963 0294 601 JACK,D3.5 EARPHONE G40100350000YS
00D 963 0217 905 TER,RCA 2PIN G601206A0200YS
Ref. No. nsp Part No. Part Name Remarks Q'ty New
95
AVR-1707/1507/687/587/487
C/S VIDEO 2 P.W.B. UNIT ASSY
Ref. No. nsp Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC601 00D 963 0148 401 IC LA7956 J171795600010S
IC602 00D 963 0219 301 IC CJ7806 J126780600190S
IC621,622 00D 963 0148 401 IC LA7956 J171795600010S
IC651 00D 960 0175 200 IC BA7625 J171762500000P
IC652,653 00D 963 0083 304 IC BA7626 J171762600000P
Q601,602 00D 960 0005 202 TR KTC3198Y J5023198Y0000S
Q603-606 00D 963 0121 208 TR KRC107M J6020107M0010S
Q621,622 00D 960 0005 202 TR KTC3198Y J5023198Y0000S
Q623,624 00D 963 0121 208 TR KRC107M J6020107M0010S
Q625,626 00D 960 0005 202 TR KTC3198Y J5023198Y0000S
Q627,628 00D 963 0121 208 TR KRC107M J6020107M0010S
Q651-653 00D 960 0005 105 TR KTA1266Y J5001266Y0050S
D601,602 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D621,622 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
D674A 00D 963 0020 309 D,SWITCHING 1SS133T K000013300520S
CAPACITORS GROUP
C602-604 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C605,606 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C607 00D 960 9009 924 C,ELECT 100UF-M/16V D040101083070F
C612,613 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C621-623 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C624,625 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C626-628 00D 963 9005 862 C,ELECT 47UF-M/16V D040470083080F
C629,630 00D 963 9005 901 C,ELECT 470UF-M/10V D040471082060F
C632,633 nsp 00D 963 0234 001 C,CERAMIC 0.047UF-Z/50V D011473597160S
C634,635 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C651-656 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C657 00D 963 9005 969 C,ELECT 4700UF-M/6.3V D040472081000F
C658,659 00D 960 0298 802 C,ELECT 470UF-M/6.3V D040471081070F
C660-662 00D 963 0293 806 C,ELECT 100UF-M/10V(Pb
Free)
D040101082090F
C663-665 00D 960 9010 010 C,ELECT 4.7UF-M/50V D0404R7087250F
C671,672 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C673 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C674 00D 963 0293 806 C,ELECT 100UF-M/10V(Pb
Free)
D040101082090F
C674A 00D 963 0234 506 C,ELECT 47UF-M/50V(Pb Free) D040470087070F
C681,682 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C683 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C691,692 00D 963 0293 602 C,ELECT 1UF-M/50V (Pb Free) D040010087150F
C693 00D 960 9003 108 C,CERAMIC 0.022UF-Z/25V D005223594520S
C695,696 00D 963 0234 205 C,ELECT 10UF-M/50V D040100087070F
C707L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C707R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708L nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
C708R nsp 00D 963 0223 601 C,CERAMIC 100PF-J/50V D010101167160S
OTHERS PARTS GROUP
CN601 nsp 00D 963 0086 301 CN.WAFER 18P L101100031810S
CN603-605 nsp 00D 963 0097 206 CN.WAFER 8P L101100030810S
CP603-605 nsp 00D 963 0097 400 CN.WAFER 8P L101100040810S
00D 963 0218 001 TER,RCA 2PIN G60122001000YS
00D 963 0146 209 TER,RCA 4PIN G602405B01000S
00D 963 0218 108 TER,RCA 3PIN G60630401000YS
- HEAT SINK 2120044338010S
00D 963 0146 306 TER,RCA 6PIN G603603B2600YS
96
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-1707 U.S.A. & Canada model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
97
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-1707,AVR-1507 Europe model)
AVR-1707 model
AVR-1507 model
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
98
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-1707 Taiwan R.O.C. model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
99
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-1507 U.S.A. & Canada model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
100
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-687,AVR-587 U.S.A. & Canada model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
101
AVR-1707/1507/687/587/487
EXPLODED VIEW (for AVR-487 U.S.A. & Canada model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
102
AVR-1707/1507/687/587/487
PARTS LIST OF EXPLODED VIEW
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
1707E3 : U.S.A. & Canada model 1707E2 : Europe model 1707EUT : Taiwan R.O.C. model
687E3 : U.S.A. & Canada model (AVR686)
1507E3 : U.S.A. & Canada model 1507E2 : Europe model
587E3 : U.S.A. & Canada model (AVR586) 487E3 : U.S.A. & Canada model (AVR486)
Black : Black model
Premium Silver : Premium Silver model
Silver : Silver model
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
43A nsp 00D 963 0286 509 MAIN P.W.B. Assy 1707E3,687E3 7025HK0511010 1 *
43A nsp 00D 963 0286 606 MAIN P.W.B. Assy 1707E2 7025HK0511020 1 *
43A nsp 00D 963 0286 703 MAIN P.W.B. Assy 1707EUT 7025HK0511030 1 *
43A nsp 00D 963 0286 800 MAIN P.W.B. Assy 1507E3,587E3 7025HK0510010 1 *
43A nsp 00D 963 0286 907 MAIN P.W.B. Assy 1507E2 7025HK0510020 1 *
43A nsp 00D 963 0287 003 MAIN P.W.B. Assy 487E3 7025HK0510060 1 *
14 HEADPHONE P.W.B.
20 TACT SW P.W.B.
43 MAIN P.W.B.
!47 AC OUTLET P.W.B.
60A nsp 00D 963 0287 100 CPU P.W.B. Assy 1707E3,687E3 7025HK0511011 1 *
60A nsp 00D 963 0287 207 CPU P.W.B. Assy 1707E2 7025HK0511021 1 *
60A nsp 00D 963 0287 304 CPU P.W.B. Assy 1707EUT 7025HK0511031 1 *
60A nsp 00D 963 0287 401 CPU P.W.B. Assy 1507E3,587E3 7025HK0510011 1 *
60A nsp 00D 963 0287 508 CPU P.W.B. Assy 1507E2 7025HK0510021 1 *
60A nsp 00D 963 0287 605 CPU P.W.B. Assy 487E3 7025HK0510061 1 *
! 15 POWER SW P.W.B.
21 FRONT P.W.B.
25 V-AUX P.W.B.
60 CPU P.W.B.
59A nsp 00D 963 0287 702 CNT P.W.B. Assy 1707E3,687E3 7025HK0511013 1 *
59A nsp 00D 963 0287 809 CNT P.W.B. Assy 1707E2 7025HK0511023 1 *
59A nsp 00D 963 0287 906 CNT P.W.B. Assy 1707EUT 7025HK0511033 1 *
59A nsp 00D 963 0288 002 CNT P.W.B. Assy 1507E3,587E3 7025HK0510013 1 *
59A nsp 00D 963 0288 109 CNT P.W.B. Assy 1507E2 7025HK0510023 1 *
59A nsp 00D 963 0288 206 CNT P.W.B. Assy 487E3 7025HK0510063 1 *
59 CNT P.W.B.
69A nsp 00D 963 0288 303 8CH-EXT XM P.W.B. Assy 1707E3 7025HK0511015 1 *
69A nsp 00D 963 0288 400 8CH-EXT XM P.W.B. Assy 687E3 7025HK0511065 1 *
69A nsp 00D 963 0288 507 8CH-EXT XM P.W.B. Assy 1507E3 7025HK0510015 1 *
69A nsp 00D 963 0288 604 8CH-EXT XM P.W.B. Assy 587E3 7025HK0510055 1 *
69A nsp 00D 963 0289 001 8CH-EXT XM P.W.B. Assy 487E3 7025HK0510065 1 *
69 8CH-EXT XM P.W.B.
69A nsp 00D 963 0288 701 8CH-EXT P.W.B. Assy 1707E2 7025HK0511028 1 *
69A nsp 00D 963 0288 808 8CH-EXT P.W.B. Assy 1707EUT 7025HK0511038 1 *
69A nsp 00D 963 0288 905 8CH-EXT P.W.B. Assy 1507E2 7025HK0510028 1 *
69 8CH-EXT P.W.B.
103
AVR-1707/1507/687/587/487
45A nsp 00D 963 0289 108 PRE AMP P.W.B. Assy 1707E3,687E3 7025HK0511012 1 *
45A nsp 00D 963 0289 205 PRE AMP P.W.B. Assy 1707E2 7025HK0511022 1 *
45A nsp 00D 963 0289 302 PRE AMP P.W.B. Assy 1707EUT 7025HK0511032 1 *
45A nsp 00D 963 0289 409 PRE AMP P.W.B. Assy 1507E3,587E3 7025HK0510012 1 *
45A nsp 00D 963 0289 506 PRE AMP P.W.B. Assy 1507E2 7025HK0510022 1 *
45A nsp 00D 963 0289 603 PRE AMP P.W.B. Assy 487E3 7025HK0510062 1 *
35 2CH-AMP P.W.B.
45 PRE AMP P.W.B.
66A nsp 00D 963 0289 700 INPUT P.W.B. Assy 1707E3,687E3 7025HK0511064 1 *
66A nsp 00D 963 0289 807 INPUT P.W.B. Assy 1707E2 7025HK0511024 1 *
66A nsp 00D 963 0289 904 INPUT P.W.B. Assy 1707EUT 7025HK0511034 1 *
66A nsp 00D 963 0290 003 INPUT P.W.B. Assy 1507E3,587E3 7025HK0510014 1 *
66A nsp 00D 963 0290 100 INPUT P.W.B. Assy 1507E2 7025HK0510024 1 *
66A nsp 00D 963 0290 207 INPUT P.W.B. Assy 487E3 7025HK0510064 1 *
66 INPUT P.W.B.
78 MIC P.W.B.
64A nsp 00D 963 0290 304 C-S VIDEO 1 P.W.B. Assy 1707E3,687E3 7025HK0511017 1 *
64A nsp 00D 963 0290 401 C-S VIDEO 1 P.W.B. Assy 1707E2 7025HK0511027 1 *
64A nsp 00D 963 0290 508 C-S VIDEO 1 P.W.B. Assy 1707EUT 7025HK0511037 1 *
64A nsp 00D 963 0290 605 C-S VIDEO 2 P.W.B. Assy 1507E3,587E3 7025HK0510019 1 *
64A nsp 00D 963 0290 702 C-S VIDEO 2 P.W.B. Assy 1507E2 7025HK0510029 1 *
64A nsp 00D 963 0290 809 C-S VIDEO 2 P.W.B. Assy 487E3 7025HK0510069 1 *
61 COMP-V1 P.W.B.
62 V-CNT DOWN 1/2 P.W.B.
63 V-CNT UP 1/2 P.W.B.
64 C-S VIDEO1 P.W.B.
76 V-CNT DOWN 2/2 P.W.B. Except for 1507E3,487E3
77 V-CNT UP 2/2 P.W.B. Except for 1507E3,487E3
65A 00D 963 0290 906 DSP1 P.W.B. Assy 1707E3,687E3,1707E2,
1707EUT,1507E2 7025HK0511066 1 *
65A 00D 963 0290 906 DSP2 P.W.B. Assy 1507E3,587E3 7025HK0511066 1 *
65A 00D 963 0291 002 DSP2 P.W.B. Assy 487E3 7025HK051006A 1 *
65 DSP1 P.W.B. *
65 DSP2 P.W.B.
1 00D 963 0291 109 PANEL FRONT 1707E3 3067212191200S 1 *
1 00D 963 0291 206 PANEL FRONT 687E3 3067212201200S 1 *
1 00D 963 0291 303 PANEL FRONT 587E3 3067212201310S 1 *
1 00D 963 0291 400 PANEL FRONT 1707EUT 3067212191310S 1 *
1 00D 963 0291 507 PANEL FRONT 1707E2 3067212191300S 1 *
1 00D 963 0291 604 PANEL FRONT 1507E2 3067212191320S 1 *
1 00D 963 0291 701 PANEL FRONT 1507E3 3067211751400S 1 *
1 00D 963 0291 808 PANEL FRONT 487E3 3067212201300S 1 *
2 00D 963 0051 501 BADGE Black 5630210028000S 1
2 00D 963 0051 514 BADGE Premium Silver 5630210028100S 1
2 00D 963 0051 527 BADGE Silver 5630210028200S 1
3 00D 963 0138 301 KNOB INPUT Black 5087210961000S 1
3 00D 963 0240 202 KNOB INPUT Premium Silver 5087210961110S 1
3 00D 963 0141 505 KNOB INPUT Silver 5087210961100S 1
4 00D 963 0291 905 WINDOW DISPLAY 1707E3,687E3 50772119220E0S 1 *
4 00D 963 0237 309 WINDOW DISPLAY 1707EUT 50772119220A0S 1
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
104
AVR-1707/1507/687/587/487
4 00D 963 0214 704 WINDOW DISPLAY 1707E2,1507E2 5077211922090S 1
4 00D 963 0292 001 WINDOW DISPLAY 1507E3,587E3 50772119220B0S 1 *
4 00D 963 0292 108 WINDOW DISPLAY 487E3 50772119220C0S 1 *
5 00D 963 0190 200 COVER RCA 1707E3,687E3 4317211701000S 1
5 00D 963 0190 307 COVER RCA 1707E2,1507E2 4317211701100S 1
5 00D 963 0138 107 COVER RCA 1507E3,587E3,487E3 4317211691000S 1
6 00D 963 0138 806 KNOB VOLUME Black 5087210981000S 1
6 00D 963 0240 406 KNOB VOLUME Premium Silver 5087210981110S 1
6 00D 963 0138 903 KNOB VOLUME Silver 5087210981100S 1
7 00D 963 0138 505 KNOB SELECT Black 5087210971000S 1
7 00D 963 0240 309 KNOB SELECT Premium Silver 5087210971110S 1
7 00D 963 0138 602 KNOB SELECT Silver 5087210971100S 1
8 nsp 00D 963 0138 000 BRACKET SIDE L/R 4010211986000S 2
9 00D 963 0137 807 LENS STANDBY 3710210503000S 1
10 00D 963 0184 106 BUTTON STANDBY Black 5097212368000SZ 1
10 00D 963 0221 904 BUTTON STANDBY Premium Silver 5097212368030SZ 1
10 00D 963 0190 501 BUTTON STANDBY Silver 5097212368010SZ 1
11 00D 963 0184 009 BUTTON POWER Black 5097212358000SZ 1
11 00D 963 0230 005 BUTTON POWER Premium Silver 5097212358300SZ 1
11 00D 963 0194 002 BUTTON POWER Silver 5097212358100SZ 1
12 00D 960 0191 417 LENS LED 3710210043001S 2
17 00D 963 0094 801 BUTTON 3KEY(A) 5090211741000S 4
22 00D 963 0139 407 BUTTON 4KEY Black 5097212341000S 1
22 00D 963 0249 009 BUTTON 4KEY Premium Silver 5097212341110S 1
22 00D 963 0139 504 BUTTON 4KEY Silver 5097212341100S 1
23 00D 963 0139 106 BUTTON 3KEY Black 5097212331000S 2
23 00D 963 0248 903 BUTTON 3KEY Premium Silver 5097212331110S 2
23 00D 963 0139 203 BUTTON 3KEY Silver 5097212331100S 2
26 nsp 00D 960 0184 301 BRACKET HEAT SINK-F 4010210396000S 1
27 00D 963 0044 107 TR PNP 2SB1560-Y Q102C Q102FL Q102FR
Q102SL Q102SR
J5011560Y0000P 5
28 00D 960 0187 900 POSISTOR P43T7D330BW16 F320161001020S 1
29 00D 963 0280 107 TR NPN 2SC3964 Q103C Q103FL Q103FR
Q103SL Q103SR
J502396400000S 5
30 00D 963 0247 108 CABINET TOP Black 3000210096400S 1
30 00D 963 0247 205 CABINET TOP Silver,Premium Silver 3000210096500S 1
31 00D 963 0044 204 TR NPN 2SD2390-Y Q101C Q101FL Q101FR
Q101SL Q101SR
J5032390Y0000P 5
32 nsp - HEAT SINK MAIN 2120210928000S 1
33 nsp 00D 960 0184 204 BRACKET HEAT SINK-B 4010210386000S 1
34 nsp 00D 963 0101 600 BRACKET PCB 4010210186000S 2
39 nsp 00D 963 0092 609 BRACKET TRANS 4010210466002S 1
! 40 00D 963 0301 206 POWER TRANS 1707E3,687E3 8200960660140S 1 *
! 40 00D 963 0301 303 POWER TRANS 1707E2 8200960660020S 1 *
! 40 00D 963 0301 400 POWER TRANS 1707EUT 8200960660050S 1 *
! 40 00D 963 0301 507 POWER TRANS 1507E3,587E3,487E3 8200960660160S 1 *
! 40 00D 963 0301 604 POWER TRANS 1507E2 8200960660060S 1 *
49 nsp 00D 960 0192 403 STOPPER CORD AC 4380210002000S 1
! 50 00D 963 0292 205 AC CORD 1507E3,587E3,487E3 L068125100020S 1 *
! 50 00D 963 0292 302 AC CORD 1707EUT L068125110000S 1 *
! 50 00D 963 0292 409 AC CORD 1707E2,1507E2 L068250250040S 1 *
51 nsp 00D 963 0292 506 CHASSIS MAIN 3200210146305S 1 *
52 nsp 00D 963 0137 904 FOOT 4007210261000S 4
53 nsp 00D 963 0214 607 CUSHION FOOT 4050211295000S 4
54 nsp 00D 963 0191 403 CUSHION SIDE 4050211095000S 2
56 nsp 00D 960 0003 301 SUPPORTER PCB 4070001601010S 4
57 nsp 00D 960 0184 107 BRACKET SUPPORTER 4010210206000S 1
58 nsp - SUPPORTER P.C. 4070210192000S 1
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
105
AVR-1707/1507/687/587/487
70 00D 963 0145 608 TUNER PACK 1507E3,587E3,487E3 E903014000020F 1
70 00D 216 0125 001 TUNER PACK 1707EUT 1
70 00D 216 0125 001 TUNER PACK 1707E2,1507E2 1
71 nsp 00D 963 0292 506 CHASSIS BACK 1707E3 3207211826000S 1 *
71 nsp 00D 963 0292 603 CHASSIS BACK 687E3 3207211826300S 1 *
71 nsp 00D 963 0292 700 CHASSIS BACK 587E3 3207211826310S 1 *
71 nsp 00D 963 0292 807 CHASSIS BACK 1707EUT 3207211826200S 1 *
71 nsp 00D 963 0292 904 CHASSIS BACK 1707E2 3207211826100S 1 *
71 nsp 00D 963 0293 000 CHASSIS BACK 1507E2 3207211826110S 1 *
71 nsp 00D 963 0293 107 CHASSIS BACK 1507E3 3207211826010S 1 *
71 nsp 00D 963 0293 204 CHASSIS BACK 487E3 3207211826A00S 1 *
72 nsp 00D 963 0293 301 SHEET CABINET 1210210235000S 1
73 nsp 00D 963 0120 306 BRACKET SIDE 1707E2,1507E2,1707EUT 4010210686000S 1
80 nsp - WASHER B300035161P10S 1 *
82 nsp - CUSHION PWB TOP 1507E3 4050211085000S 1 *
84 nsp 00D 963 0192 703 COVER SAFETY 1707E2,1507E2,1707EUT 4310212122000S 1
85 nsp 00D 449 0139 105 COVER HOLDER 1707E2,1507E2,1707EUT 6
★nsp - LICENSE LABEL(DOLBY/DTS) 1507E3,587E3,487E3,1707EUT 5507030000311S 1
★nsp - LABEL ORIGIN (BACK CHASSIS) 1707EUT 5507003020021S 1
★nsp - LABEL RATING 1707EUT 5507030000480S 1 *
★nsp 00D 513 3333 005 LABEL (TRANS) 1 *
★nsp 00D 963 0193 003 CABLE,FLAT CARD 1.25MM N712151544811S 1
★nsp 00D 963 0161 501 CABLE,FLAT CARD 1.25MM N712232034810S 1
SCREWS
A nsp 00D 963 0018 007 SCREW(3X8 B-TYPE ZNY/BH) B020030081B10S 63
B nsp 00D 960 9008 420 SCREW(3X8 ZnY WASHER PI12) 1500001456010S 4
C nsp 00D 963 9004 054 SCREW(3X15 B-TYPE ZNY/BH) B020030151B10S 2
D nsp 00D 960 0108 701 SCREW(3X10 B-TYPE(DOT) BK/BH) B020030103B11S 36
E nsp 00D 963 9006 175 SCREW(3X14 P+S-WASHER ZNY/HH) B018230141H11S 22
F nsp 00D 963 0018 104 SCREW(3X17 B-TYPE ZNY/BH) B020030171B10S 3
G 00D 963 0048 307 SCREW(4X8 B-TYPE(DOT) BK/BH) Black 1500040083B10S 6
G 00D 963 9004 012 SCREW(4X8 B-TYPE(DOT) NI/BH) Silver,Premium Silver 1500040084B10S 6
H nsp 00D 960 9009 610 SCREW(4X10 P+S-WASHER ZNY/BH) B028940101B10S 1
I nsp 00D 963 0136 701 SCREW(3X8 BK WASHER PI12) 1500001456020S 1
J nsp 00D 963 0232 702 SCREW(4X6 S-TYPE ZNY/BH) B020740061B10S 6
K nsp 00D 963 0232 605 SCREW(3X5 B-TYPE ZNY/BH) B020030051B10S 2
L nsp 00D 963 0136 507 SCREW(3X8 PI9.5 B-TYPE ZNY) 1500001206010S 2
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
106
AVR-1707/1507/687/587/487
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES (for AVR-1707/687 model)
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
1707E3 : U.S.A. & Canada model (AVR-1707) E2 : Europe model (AVR-1707) EUT : Taiwan R.O.C. model (AVR-1707)
687E3 : U.S.A. & Canada model (AVR-687)
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
1 00D 513 4107 007 XM SHEET E3,687E3 1
2 00D 963 0285 306 INSTRUCTION MANUAL E3 5707210130050S 1 *
2 00D 963 0285 306 INSTRUCTION MANUAL 687E3 5707210130050S 1 *
2 00D 963 0285 403 INSTRUCTION MANUAL E2 5707210130060S 1 *
2 00D 963 0285 500 INSTRUCTION MANUAL EUT 5707210130070S 1 *
3 00D 231 0089 007 AM LOOP ANTENNA 1
4 00D 963 0158 006 FM ANTENNA WIRE E605010070001S 1
5 00D 963 0286 208 REMOTE CONTROL RC-1048 E3,687E3 8300010480010S 1 *
5 00D 963 0286 305 REMOTE CONTROL RC-1049 E2,EUT 8300010490010S 1 *
6 nsp 00D 963 0045 106 POLY BAG 6330000240000S 1
7 00D 963 0193 101 CUSHION,SNOW 6230210154001S 1
8 00D 963 0285 908 BOX GIFT E3 6007210310620S 1 *
8 00D 963 0301 701 BOX,GIFT E2 6007210310700S 1 *
8 00D 963 0286 004 BOX,GIFT 687E3 6007210310630S 1 *
8 00D 963 0286 101 BOX,GIFT EUT 6007210310640S 1 *
9 - WARRANTY CARD E3,687E3 5777001610035S 1
AVR-1707/1507/687/587/487 E3 model AVR-1707/1507 E2 model
AVR-1707 EUT model
107
AVR-1707/1507/687/587/487
PARTS LIST OF PACKING & ACCESSORIES (for AVR-1507/587/487 model)
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
1507E3 : U.S.A. & Canada model (AVR-1507) 587E3 : U.S.A. & Canada model (AVR-587) 487E3 : U.S.A. & Canada model (AVR-487)
E2 : Europe model (AVR-1507)
10 - S.S LIST 5777001620018S 1
11 - BATTERY DRY G670001R50190 2
12 - UPC LABEL E3 5507002360050S 1 *
12 - UPC LABEL E2 5507002360060S 1 *
12 - UPC LABEL 687E3 5507002360070S 1 *
13 - CONTROL CARD 5500014920010S 1
14 nsp 00D 963 0241 405 PE,SHEET 6327040059000S 1
15 00D 321 0038 005 MIC CONDENSER DM-S205 1
16 00D 963 0268 006 POLY BAG 6330210222000S 1
20 00D 963 0110 303 COLOR LABEL(SILVER) E2 5507020170340S 2
20 00D 963 0230 209 COLOR LABEL(PREMIUM SILVER) EUT 5507020170680S 2
21 - LABEL KORIN (BOX) EUT 5507030000470S 1
22 - LABEL ORIGIN (BOX) EUT 5507003010040S 1
23 - LABEL ORIGIN (BOX) EUT 5507003010031S 1
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
1 00D 513 4107 007 XM SHEET 1507E3,587E3,487E3 1
2 00D 963 0285 005 INSTRUCTION MANUAL 1507E3 5707210130010S 1 *
2 00D 963 0285 005 INSTRUCTION MANUAL 487E3 5707210130010S 1 *
2 00D 963 0285 102 INSTRUCTION MANUAL 1507E2 5707210130020S 1 *
2 00D 963 0285 209 INSTRUCTION MANUAL 587E3 5707210130040S 1 *
3 00D 231 0089 007 AM LOOP ANTENNA 1
4 00D 963 0158 006 FM ANTENNA WIRE E605010070001S 1
4 - BATTERY DRY G670001R50190 2
5 00D 963 0286 208 REMOTE CONTROL RC-1048 1507E3,587E3 8300010480010S 1 *
5 00D 963 0286 305 REMOTE CONTROL RC-1049 1507E2 8300010490010S 1 *
5 00D 963 0286 402 REMOTE CONTROL RC-1050 487E3 8300010500010S 1 *
6 nsp 00D 963 0045 106 POLY BAG 6330000240000S 1
7 00D 963 0193 101 CUSHION,SNOW 6230210154001S 1
8 00D 963 0285 607 BOX GIFT 1507E3 6007210310570S 1 *
8 00D 963 0301 808 BOX GIFT 1507E2 6007210310690S 1 *
8 00D 963 0285 704 BOX GIFT 587E3 6007210310600S 1 *
8 00D 963 0285 801 BOX GIFT 487E3 6007210310610S 1 *
9 - WARRANTY CARD 1507E3,587E3,487E3 5777001610035S 1
10 - S.S LIST 5777001620018S 1
12 - UPC LABEL 1507E3 5507002360010S 1 *
12 - UPC LABEL 1507E2 5507002360020S 1 *
12 - UPC LABEL 587E3 5507002360030S 1 *
12 - UPC LABEL 587E2 5507002360040S 1 *
13 - CONTROL CARD 5500014920010S 1
14 nsp 00D 963 0241 405 PE,SHEET 6327040059000S 1
15 00D 321 0038 005 MIC CONDENSER DM-S205 1507E2 1
16 00D 963 0268 006 POLY BAG 6330210222000S 1
20 00D 963 0110 303 COLOR LABEL(SILVER) 1507E2 5507020170340S 1
Ref. No. nsp Part No. Part Name Remarks ETRO Q'ty New
108
AVR-1707/1507/687/587/487
WIRING DIAGRAM
109
AVR-1707/1507/687/587/487
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufactur-
er.
CAUTION:
Before returning the unit to the customer, make sure you make
either (1) a leakage current check or (2) a line to chassis resis-
tance check. If the leakage current exceeds 0.5 milliamps, or if
the resistance from chassis to either side of the power cord is
less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is lo-
cated and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
配線図について
! 印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。
注）
(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。
(2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。
(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変更する
ことがありますのでご了承ください。
SIGNAL LINE SCHEMATIC DIAGRAMS (1/17)
CPU UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (1/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (2/17)
MAIN UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (2/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (3/17)
CNT UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (3/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SCHEMATIC DIAGRAMS (4/17)
FRONT UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (4/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (5/17)
INPUT UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (5/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (6/17)
PRE-AMP UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (6/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE SCHEMATIC DIAGRAMS (7/17)
C-S VIDEO 1 UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (7/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (8/17)
C-S VIDEO 1 UNIT (S-VIDEO)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (8/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (9/17)
COMP VIDEO 1 UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (9/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (10/17)
C-S VIDEO 2 UNIT (S-VIDEO)
(For AVR-1507 MODEL)
SCHEMATIC DIAGRAMS (10/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (11/17)
DSP 1 UNIT (1/2)
(For AVR-1707 MODEL)
SCHEMATIC DIAGRAMS (11/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE SCHEMATIC DIAGRAMS (12/17)
DSP 1 UNIT (2/2)
(For AVR-1707 MODEL)
SCHEMATIC DIAGRAMS (12/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE
SCHEMATIC DIAGRAMS (13/17)
DSP 2 UNIT (1/2)
(For AVR-1507 MODEL)
SCHEMATIC DIAGRAMS (13/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SIGNAL LINE SCHEMATIC DIAGRAMS (14/17)
DSP 2 UNIT (2/2)
(For AVR-1507 MODEL)
SCHEMATIC DIAGRAMS (14/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SCHEMATIC DIAGRAMS (15/17)
8CH-EXT(XM) UNIT
(For AVR-1707/1507 E3 MODEL)
SCHEMATIC DIAGRAMS (15/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
OPEN
1
4
2
3
SCHEMATIC DIAGRAMS (16/17)
8CH-EXT(E2) UNIT
(For AVR-1707/1507 E2 MODEL)
SCHEMATIC DIAGRAMS (16/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
SCHEMATIC DIAGRAMS (17/17)
TUNER UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (17/17)
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
AVR-1707/1507/687/587/487
127
AVR-1707/1507/687/587/487
DOCUMENTS FOR WEEE
Details of Recycle parts
＊You have to remove the parts that marked “WEEE Mark ◆“ when the recycling processing. (Europe model only)
Ref. No. WEEE
Mark Part Name Material Q'ty
1 PANEL FRONT ABS 1
2 BADGE Aluminum 1
3 KNOB INPUT ABS 1
4 WINDOW DISPLAY PVC 1
5 COVER RCA ABS 1
6 KNOB VOLUME ABS 1
7 KNOB SELECT ABS 1
8 BRACKET SIDE L/R Steel 2
9 LENS STANDBY PMMA 1
10 ◆BUTTON STANDBY Aluminum+ABS 1
11 ◆BUTTON POWER Aluminum+ABS 1
12 LENS LED PMMA 1
14 ◆HEADPHONE P.W.B. Complex 1
15 ◆POWER SW P.W.B. Complex 1
17 BUTTON 3KEY(A) ABS 1
20 ◆TACT SW P.W.B. Complex 1
21 ◆FRONT P.W.B. Complex 1
22 BUTTON 4KEY ABS 1
23 BUTTON 3KEY ABS 1
25 ◆V-AUX P.W.B. Complex 1
26 BRACKET HEAT SINK-F Steel 1
27 TR PNP 2SB1560-Y Complex 5
28 POSISTOR P43T7D330BW16 Complex 1
29 TR NPN 2SC3964 Complex 5
30 CABINET TOP PVC+Steel 1
31 TR NPN 2SD2390-Y Complex 5
32 HEAT SINK MAIN Aluminum 1
33 BRACKET HEAT SINK-B Steel 1
34 BRACKET PCB Steel 2
35 ◆2CH-AMP P.W.B. Complex 1
39 BRACKET TRANS Steel 1
40 POWER TRANS Complex 1
43 ◆MAIN P.W.B. Complex 1
45 ◆PRE AMP P.W.B. Complex 1
47 ◆AC OUTLET P.W.B. Complex 1
49 STOPPER CORD AC PA 1
50 ◆AC CORD Complex 1
51 CHASSIS MAIN Steel 1
52 FOOT ABS 4
53 CUSHION FOOT Rubber 4
54 CUSHION SIDE Rubber 2
56 SUPPORTER PCB PA 3
57 BRACKET SUPPORTER Steel 1
58 SUPPORTER P.C. PA 1
59 ◆CNT P.W.B. Complex 1
60 ◆CPU P.W.B. Complex 1
61 ◆COMP-V1 P.W.B. Complex 1
62 ◆V-CNT DOWN 1/2 P.W.B. Complex 1
63 ◆V-CNT UP 1/2 P.W.B. Complex 1
64 ◆C-S VIDEO1 P.W.B. Complex 1
128
AVR-1707/1507/687/587/487
65 ◆DSP1 P.W.B. Complex 1
66 ◆INPUT P.W.B. Complex 1
69 ◆8CH-EXT P.W.B. Complex 1
70 ◆TUNER PACK Complex 1
71 CHASSIS BACK Steel 1
72 SHEET CABINET Rubber 1
73 BRACKET SIDE Steel 1
76 ◆V-CNT DOWN 2/2 P.W.B. Complex 1
77 ◆V-CNT UP 2/2 P.W.B. Complex 1
78 ◆MIC P.W.B. Complex 1
80 WASHER Steel 1
84 COVER SAFETY PC 1
85 COVER HOLDER POM 6
87 ◆CE68W1J103M(DL) Complex 2
88 POWER TRANS(Sub) Complex 1
A SCREW(3X8 B-TYPE ZNY/BH) Steel 63
B SCREW(3X8 ZnY WASHER PI12) Steel 4
C SCREW(3X15 B-TYPE ZNY/BH) Steel 2
D SCREW(3X10 B-TYPE(DOT) BK/BH) Steel 36
E SCREW(3X14 P+S-WASHER ZNY/HH) Steel 22
F SCREW(3X17 B-TYPE ZNY/BH) Steel 3
G SCREW(4X8 B-TYPE(DOT) BK/BH) Steel 6
H SCREW(4X10 P+S-WASHER ZNY/BH) Steel 1
I SCREW(3X8 BK WASHER PI12) Steel 1
J SCREW(4X6 S-TYPE ZNY/BH) Steel 6
K SCREW(3X5 B-TYPE ZNY/BH) Steel 2
L SCREW(3X8 PI9.5 B-TYPE ZNY) Steel 2
Ref. No. WEEE
Mark Part Name Material Q'ty
129
AVR-1707/1507/687/587/487
Exploded view for AVR-1707,AVR-1507 unit
AVR-1707 model
AVR-1507 model
You have to remove the parts that marked
“WEEE Mark ◆“ when the recycling processing.
(Europe model only)
130
AVR-1707/1507/687/587/487
Details of Recycle parts for main transformer
NO. MATERIAL
1 Silicon Steel Sheet
2 Steel
3 Polyethylene Terephtalate / Polybuthylene Terephtalate
4 Polyurethane Enameled Copper Wire
5 Polyurethane Enameled Copper Wire
6 PVC Insulated Copper Wire
7 PVC Insulated Copper Wire
8 Thermal Fuse
9 Copper
10 Silicon Steel
11 Silicon Rubber Tube
12 Polyester Tape
13 Polyester Tape / Press Board or Polyester Film
14 Press Board / polyester film or Polyester Tape
15 Press Board
16 Polyester Tape
17 Polyester Tape / Press Board or Polyester Film
18 Polyester Tape
19 Polyester Non-woven Insulating Tape
131
AVR-1707/1507/687/587/487
Details of Recycle parts for sub transformer
NO. MATERIAL
1 Silicon Steel Sheet
2 Polyethylene Terephtalate
3PA66
4 Polyurethane Enameled Copper Wire
5 Polyurethane Enameled Copper Wire
6 Copper Alloy
7 Copper Alloy
8 Polyester Tape
9 Press Board or Polyester Film
10 Polyester Tape

Navigation menu
