TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
●For purposes of improvement, specifications and
design are subject to change without notice.
●Please use this service manual with referring to the
operating instructions without fail.
●Some illustrations using in this service manual are
slightly different from the actual set.
注 意
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
●本機の仕様は性能改良のため、予告なく変更すること
があります。
●補修用性能部品の保有期間は、製造打切後 8 年です。
●修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。
●本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
X0358 V.03 DE/CDM 0708
SERVICE MANUAL
AV SURROUND RECEIVER
AV SURROUND AMPLIFIER
MODEL JP E3 E2 EK E2A E1C EUT
AVR-2308CI
3
AVR-888
3
AVR-2308
33
AVC-2308
3
Ver. 3
2
2
Please refer to the
MODIFICATION NOTICE.
2
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎
Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.
◎Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the ! mark.
(2) Parts lists ... Indicated by the ! mark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に ! 印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子、マイク端子、入力端子など］と
の間で、絶縁抵抗値が１ MΩ 以上であることを確認してく
ださい。この値以下のときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図… ! マークで表示しています。
(2) 部品表… ! マークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意
3
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

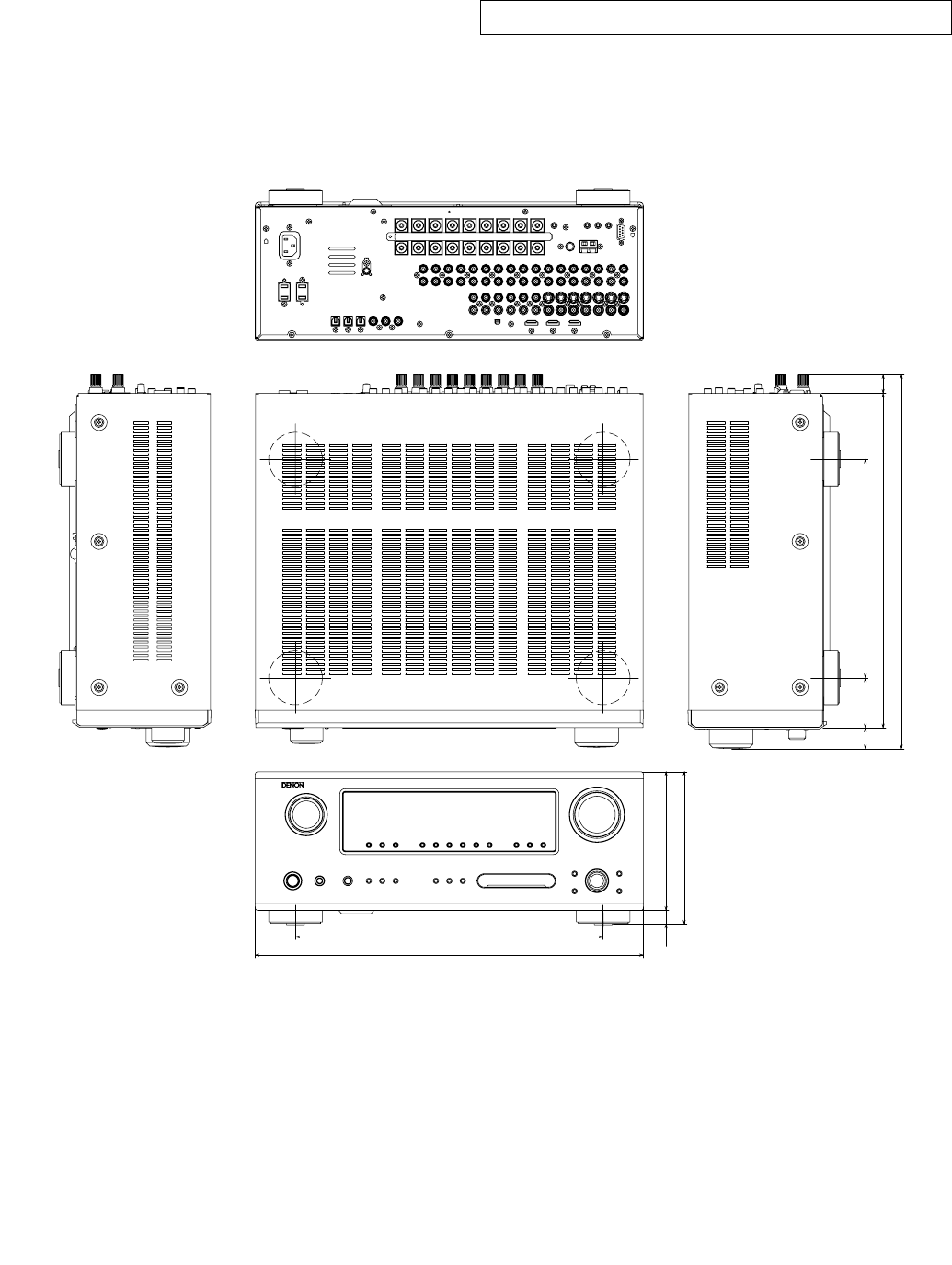

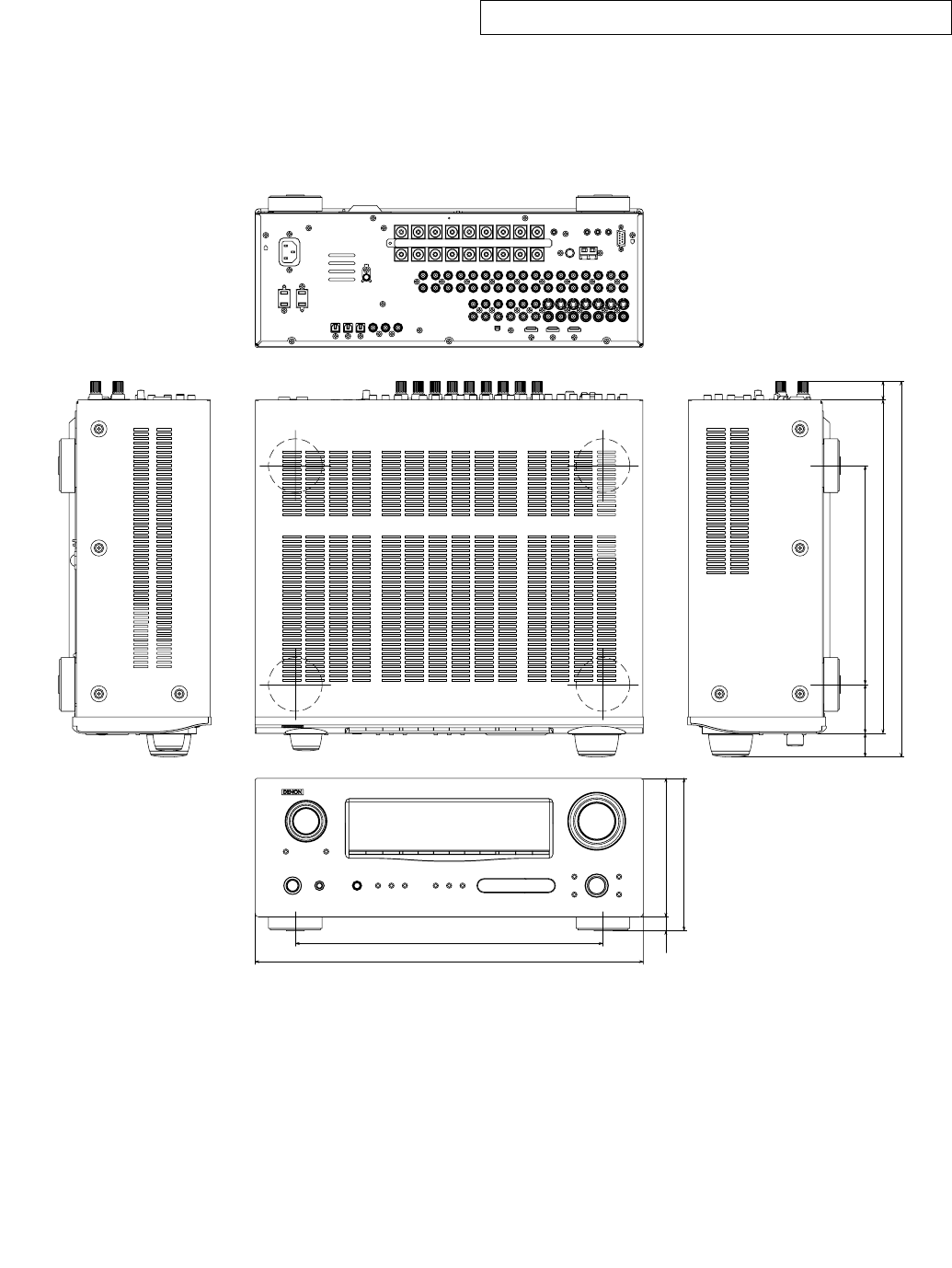

DIMENSION
AVR-2308CI / AVR-2308 / AVC-2308 model
26.4 54.7
372.8
244.5
420
20.8
170.5
15.5 155
434
344
4
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
AVR-888 model
22.4 56.2
372.8
244.5
420
20.8
170.5
15.5 155
434
344
5
AVR-2308CI / AVR-888
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.
Wire arrangement viewed from the top
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずしたり移
動させた場合には、それらの作業が完了した時点でワイヤーの
整形をおこなってください。正しく整形されてないとノイズ発
生の原因となることがあります。
上面からみたワイヤー整形
Back Panel side
Front Panel side
6
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER/AM-
PLIFIER
AV SURROUND RECEIVER/AMPLIFIER initialization should be
performed when the µcom, peripheral parts of µcom, and Digital
P.W.B. are replaced.
1. Switch off the unit.
2. Hold the following SPEAKERS-A button and SPEAKERS-B
button, and switch on the unit.
3. Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 buttons
and the microprocessor will be initialized.
Note:・If step 3 does not work, start over from step 1.
・ All user settings will be lost and this factory setting will
be recovered when this initialization mode.
So make sure to memorize your setting for restoring
after the initialization.
JIG to use for servicing
When you repair the printing board, you can use the following
JIG (Extention cable kit). Please order to Denon Official Service
Distributor in your region if necessary.
00D SPK- 561 EXTENSION UNIT KIT : 1 Set
00D SPK- 562 TUCP CONN. JOINT KIT : 1 Set
サービス時の注意事項
AV サラウンドレシーバー / アンプの初期化に
ついて
マイコンやマイコン周辺部品、Digital 基板等を交換した場合
は、AV サラウンドレシーバー / アンプの初期化を行って下さ
い。
1. on/off ボタンを OFF にします。
2. SPEAKERS-A ボタンと SPEAKERS-B ボタンを同時に押しな
がら、on/off ボタンを押して ON にします。
3. ディスプレイ表示が約 1 秒間隔で点滅するのを確認後、2
つのボタンから指を離します。
＊マイコンが初期化されます。
注意 :・上記 3 の状態にならない場合は、もう一度操作 1 か
らやり直してください。
・初期化を行うとお客様が設定した内容が工場出荷状
態に戻りますので、あらかじめ設定内容を控えてお
き初期化後再設定してください。
サービス時に使用する治具について
基板を修理する際、使用する治具 ( 延長ケーブルキット）は 
下記のとおりです。
必要に応じて販社サービスへ注文下さい。
00D SPK- 561 EXTENSION UNIT KIT : 1 式
00D SPK- 562 TUCP CONN. JOINT KIT : 1 式
1,2 2,3
7
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
CHECK WITH TEST MODE
µcom/DSP Error Display Mode
1. Operation Spec
µcom version display mode:
When the following conditions are satisfied at its starting state, error information is displayed before version information.
Starting method (same as µcom version display):
E3,JP model
While pressing 2 buttons, "STATUS " and "DIMMER ", turn on on/off button.
Then, press "STATUS" button to display the following information on the FL Display.
E2,E2A model
While pressing 2 buttons, "RT " and "PTY ", turn on on/off button.
Then, press "PTY" button to display the following information on the FL Display.
2. Display Order
Error information → Destination information → Main-µcom version information → Sub-µcom version information
→ DSP version information
3. Display
Any one of the following list is displayed, in the priority of ①②③④ .
Condition State Display
①Sub-µcom NG No response from Sub-µcom " □ ＳＵＢ □□ ＥＲＲＯＲ □０１□ "
②DIR NG No response from DIR " □ ＤＩＲ □□ ＥＲＲＯＲ □０１□ "
③DSP1 NG When DSP boot, executing DSP reset makes no change to BUSY port "L". " □ ＤＳＰ1□ ＥＲＲＯＲ □０１□ "
No change to BUSY port "L" before issuing DSP command. " □ ＤＳＰ1□ ＥＲＲＯＲ □０２□ "
When DSP data read, executing WRITE="L" makes no change to ACK="H". " □ ＤＳＰ1□ ＥＲＲＯＲ □０３□ "
When DSP data read, executing REQ="L" makes no change to ACK="L". " □ ＤＳＰ1□ ＥＲＲＯＲ □０４□ "
When DSP data write, executing WRITE="H" makes no change to ACK="H".
" □ ＤＳＰ1□ ＥＲＲＯＲ □０５□ "
When DSP data write, executing REQ="L" makes no change to ACK="L". " □ ＤＳＰ1□ ＥＲＲＯＲ □０６□ "
When DSP special code boot, executing DSP reset makes no change to
BUSY port "L". " □ ＤＳＰ1□ ＥＲＲＯＲ □１１□ "
No change to BUSY port "L" before issuing DSP special read command. " □ ＤＳＰ1□ ＥＲＲＯＲ □１２□ "
No change to BUSY port "L" before DSP version read. " □ ＤＳＰ1□ ＥＲＲＯＲ □１３□ "
④
Both SUB/DSP OK
(No error display, version display only)
on/off button STATUS
DIMMER
E3,JP model
on/off button RT
PTY
E2,E2A model
テストモードによるチェック方法
マイコン・DSP エラー表示モード
1. 動作仕様
マイコンバージョン表示モード :
起動状態にて下記の条件に該当した場合は、バージョン情報表示の前にエラー情報を表示します。
起動方法 ( マイコンバージョン表示と同様 ):
● E3,JP モデル
"STATUS", "DIMMER" の 2 つのボタンを押した状態で、on/off ボタンを押して電源を入れます。
その後、"STATUS" ボタンを押すと下表の内容が FL Display に表示されます。
● E2,E2A モデル
"RT", "PTY" の 2 つのボタンを押した状態で、on/off ボタンを押して電源を入れます。
その後、"PTY" ボタンを押すと下表の内容が FL Display に表示されます。
2. 表示順序
エラー情報 → 仕向地表示 → メインマイコンバージョン情報 → サブマイコンバージョン情報 → DSP バージョン情報
3. 表示条件
下表のいずれかを表示します。表示の優先順は、①②③④ 。
条件 状態 表示内容
① SUB マイコンが NG
SUB マイコンからの応答がない "□ＳＵＢ□ □ ＥＲＲＯＲ □０１□ "
② DIR が NG DIR からの応答がない "□ＤＩＲ□ □ ＥＲＲＯＲ □０１□ "
③DSP 1 がNG
DSP コードブート時、DSP リセットを実行しても BUSY ポートが "L" にならない
"□ＤＳＰ1□ ＥＲＲＯＲ □０１□ "
DSP コマンド発行前に、BUSY ポートが "L" にならない "□ＤＳＰ1□ ＥＲＲＯＲ □０２□ "
DSP データリード時、WRITE="L" としても ACK="H" とならない "□ＤＳＰ1□ ＥＲＲＯＲ □０３□ "
DSP データリード時、REQ="L" としても ACK="L" とならない "□ＤＳＰ1□ ＥＲＲＯＲ □０４□ "
DSP データライト時、WRITE="H" としても ACK="H" とならない "□ＤＳＰ1□ ＥＲＲＯＲ □０５□ "
DSP データライト時、REQ="L" としても ACK="L" とにならない "□ＤＳＰ1□ ＥＲＲＯＲ □０６□ "
DSP スペシャルコードブート時、DSP リセットを実行しても
BUSY ポートが "L" にならない "□ＤＳＰ1□ ＥＲＲＯＲ □１１□ "
DSP スペシャルリードコマンド発行前に、BUSY ポートが "L" にならない "□ＤＳＰ1□ ＥＲＲＯＲ □１２□ "
DSP バージョンリード前に、BUSY ポートが "L" にならない "□ＤＳＰ1□ ＥＲＲＯＲ □１３□ "
④SUB/DSP共にOK (表示せずにバージョン表示を行う )
on/off button STATUS
DIMMER
E3,JP model
on/off button RT
PTY
E2,E2A model
8
AVR-2308CI / AVR-888 / AVR-2308 AVC-2308
ADJUSTMENT
Audio Section
Idling Current (1U-3854-1)
Required measurement equipment: DC Voltmeter
Preparation
(1) Avoid direct blow from an air conditioner or an electric
fan, and adjust the unit at normal room tempereture 15°C
~ 30°C (59°F ~ 86°F).
(2) Presetting
POWER (Power sourse switch) OFF
SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)
Adjustment
(1) Remove top cover and set VR401, VR402, VR403,
VR404, VR405, VR406, VR407, on 1U-3854-1 (Power
Amp Unit) at fully counterclockwise ( ).
(2) Connect DC Voltmeter to test points (FRONT-Lch:
CX063 ③ ④ pin, FRONT-Rch: CX063 ① ② pin,
CENTER ch: CX063 ⑤ ⑥ pin, SURROUND-Lch: TP102
③ ④ pin, SURROUND-Rch: CX082 ① ② pin,
SURROUND BACK-Lch: CX082 ⑦ ⑧pin, SURROUND
BACK-Rch: CX082 ⑤ ⑥ pin).
(3) Connect power cord to AC Line, and turn power switch
"ON".
(4) Presetting.
MASTER VOLUME : "---" counterclockwise ( min.)
MODE : 7CH STEREO
FUNCTION : CD
(5) Allow 2 minutes, and turn VR401 clockwise ( ) to
adjust the TEST POINT voltage to 6.5 mV ±0.5 mV DC.
(6) After 10 minutes from preset, turn VR401 to set the
voltage to 8 mV ±0.5 mV DC.
(7) Adjust the Variable Resistors of other channels in the
same way.
(8) After 5 minutes from (6), turn VR401 to set the voltage to
8 mV ±0.5 mV DC.
(9) Adjust the Variable Resistors of other channels in the
same way.
調整
オーディオセクション
アイドリング電流の調整（1U-3854-1）
調整に必要な測定器：DC Voltmeter
準備
(1) セットをクーラ、扇風機のそばなど風通しの良い場所を
避け、通常の使用状態に置きます。セットの周囲温度は
15 ∼ 30 ℃、湿度は常湿とします。
(2) プリセット
電源スイッチ OFF
スピーカ端子 無負荷
（スピーカ・ダミー抵抗器などを接続しない。）
調整
(1) 上カバーをはずし、1U-3854-1（パワーアンプユニット）
のVR401、VR402、VR403、VR404、VR405、VR406、VR407
を反時計方向（ ）に回し切った状態にセットします。
(2) テストポイント（FRONT-Lch: CX063 ③ ④ pin、 FRONT-
Rch: CX063 ① ② pin、CENTER ch: CX063 ⑤ ⑥ pin、
SURROUND-Lch: CX082 ③ ④ pin、SURROUND-Rch:
CX082 ① ② pin、SURROUND BACK-Lch: CX082 ⑦ ⑧
pin、SURROUND BACK-Rch: CX082 ⑤ ⑥ pin）に DC
Voltmeter を接続します。
(3) 電源コードを AC 電源に接続し、電源スイッチを“ON”
にします。
(4) ON 後、次のようにセットします。
MASTER VOLUME（音量調節つまみ）→反時計方向
（ ）に回す、最小の状態にします。
SPEAKER（スピーカ端子）→無負荷（スピーカ、
ダミー抵抗器などを接続しない。）
MODE ： 7CH STEREO
FUNCTION ： CD
(5) 2 分以内に VR401 を時計方向（ ）に回しテストポイ
ントの電圧を次のように調整します。
6.5 mV ± 0.5 mV DC
(6) 予備調整から 10 分後に VR401 を回し、次のように電圧
を設定します。
8 mV ± 0.5 mV DC
(7) 同じ方法で各チャンネルの可変抵抗を調整します。
(8) (6) 項設定から 5 分後 VR401 を回し、次のように電圧を
設定します。
8 mV ± 0.5 mV DC
(9) 同じ方法で各チャンネルの可変抵抗を調整します。
9
AVR-2308CI / AVR-888 / AVR-2308 AVC-2308

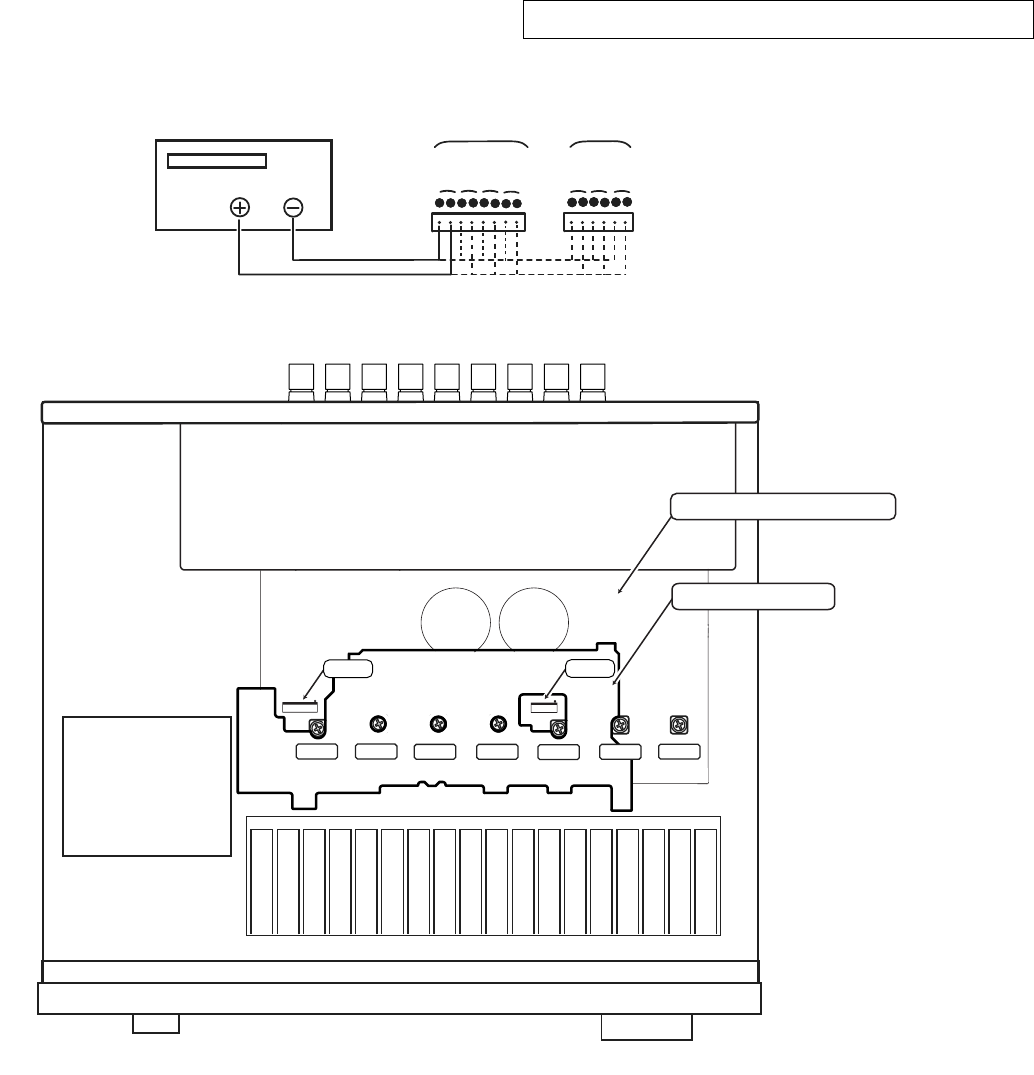

The adjustment volume and connection terminal of 1U-3854-1
(POWER AMP Unit)P.W.B. under 1U-3841-1 (REG Unit)P.W.B..
Insert an adjustment driver / connection terminal from an adjust-
ment aperture of 1U-3841-1 (REG Unit)P.W.B..
SL ch
FR ch
FL ch
SR ch
CX063
Cch
SBR ch
SBL ch
CX082
Audio Section
DC Voltmeter
VR406
SBR ch
SBL ch
VR403
FR ch
SR ch
VR401
VR405
SL ch Cch
VR404
FL ch
VR407 VR402
CX063
CX082

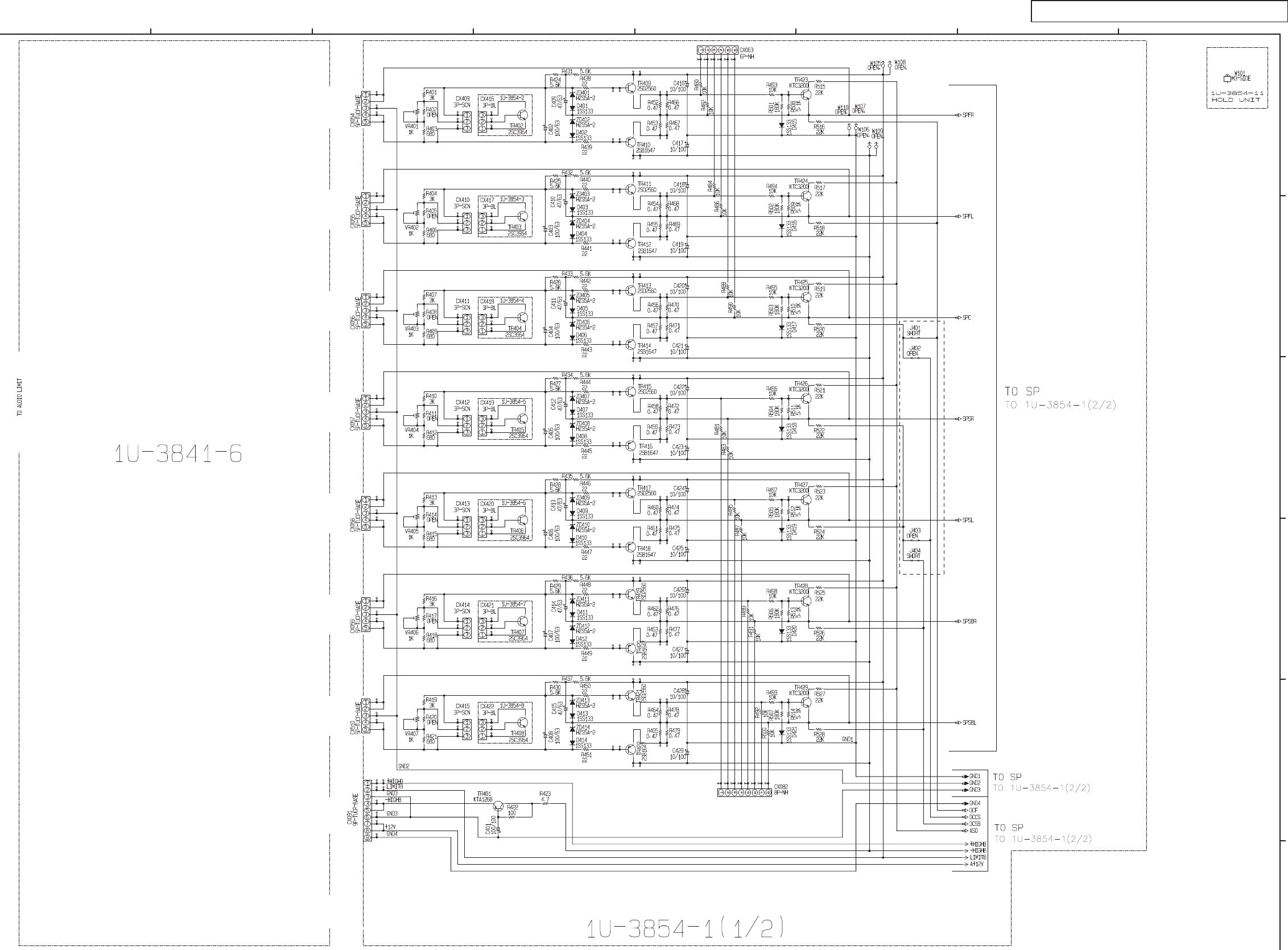

1U-3854-1 POWER AMP Unit
1U-3841-1 REG Unit
1U-3854-1(POWER AMP Unit) 基板の調整ボリュームと接続端
子は 1U-3841-1(REG Unit) 基板の下に有ります。
1U-3841-1(REG Unit) 基板の調整孔から調整ﾄﾞﾗｲﾊﾞｰ / 接続端子
を挿入してください。
10
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
TROUBLE SHOOTING
1. POWER
1.1. Power not turn on
1.2. Fuse is blown
Power not turn on
YES
Is the ON/STANDBY indicator
on the front panel flashing red?
YES
Are there any incomplete con-
nections in the connectors con-
necting between the various
circuit boards?
NO
Is there a short circuit between
the speaker terminals and the
ground?
YES
Correct the short circuit
between the speaker and the
ground.
YES NO
NO
Connect the connectors prop-
erly.
Check for damage in the power
amplifier circuitry parts and
replace any defective parts.
Is the fuse blown?
NO
Refer to Fuse is blown
YES
Does the power turn on when
the POWER switch is turned off
then back on?
NO
Is a DC 6V voltage being sup-
plied from the 1U-3857-3 board
(CX126 pins 7 and 8) to the
microprocessor?
NO
Is a DC 6V voltage output when
the connector supplying the
power from the 1U-3857-3
board to the microprocessor
(CX126) is unplugged?
NO
Check the parts from IC501 to
the primary circuitry and
replace any defective parts.
YES YES YES
Check the primary circuitry
parts including the POWER
switch (for poor contacts, etc.),
and replace any defective
parts.
Check the 1U-3857-1 board's
microprocessor periphery cir-
cuitry and replace any defec-
tive parts.
Check the circuitry and parts
from CX126 on the 1U-3857-3
board to the microprocessor for
damage and short-circuits, and
replace any defective parts.
Fuse is blown
YES YES YES
Check for leaks or short circuits
in the primary side parts, and
replace any defective parts.
Check for short circuits in the
rectifier diodes and circuitry of
the secondary side rectifying
circuits, and replace any defec-
tive parts.
Check for short circuits in the
power stabilizer unit's regula-
tor output terminal and the
ground, and replace any defec-
tive parts.
YES YES YES
After repairing, also replace the fuse.
トラブルシューティング
1. 電源
1.1. 電源が入らない
1.2. ヒューズが断線している
電源が入らない
YES
フロントパネルの
ＯＮ/ＳＴＡＮＤＢＹ インジ
ケータが赤色点滅しています
か？
YES
各基板間を接続しているコネ
クターに不完全な接続部分は
ありますか？
NO
SP 端子と GND 間が短絡してい
ますか？
YES
SP 端子と GND 間の短絡を取り
除いてください。
YES NO
NO
コネクターを正しく接続して
ください。
POWER AMP 回路の部品の破損
を確認し、不良部品を交換して
ください。
ヒューズは断線していません
か？
NO
ヒューズが断線しているを参
照してください。
YES
POWER SW を OFF にして、再
度 POWER SW を ON にすると
電源が入りますか？
NO
1U-3857-3 基板（CX126 の 7、
8 番ピン）からマイコンに DC6V
が供給されていますか？
NO
1U-3857-3 基板からマイコンヘ
電源を供給しているコネクタ
（CＸ126）を抜いて DC6V が出
力されていますか？
NO
IC501 ∼ 1 次回路までの部品を
確認し、不良部品を交換してく
ださい。
YES YES YES
POWER SW等を含む1次回路部
品 ( 接触不良等 ) を確認し、不
良部品を交換してください。
1U-3857-1 のマイコン周辺回路
を確認し、不良部品を交換して
ください。
1U-3857-3 基板の CＸ126 以降
からマイコン電源までの回路
および部品の破損や短絡を確
認し、不良部品を交換してく
ださい
ヒューズが断線している
YES YES YES
1 次側の部品にリークまたは短
絡を確認し、不良部品を交換し
てください。
2 次側のそれぞれの整流回路
で、整流ﾀﾞｲｵｰﾄﾞおよび回路の
短絡を確認し、不良部品を交換
してください。
電源安定化部のレギュレータ
の出力端子と GND の短絡を確
認し、短絡している場合は、不
良部品を交換してくだい。
YES YES YES
修理後、FUSE も交換してください。
11
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2. Analog video
2.1. MONITOR OUT (CVBS) Output NG
MONITOR OUT (CVBS) Output NG ※When checking operation, select
DVD for the function.
(COMPONENT1 input)
Checking the video convert ON/OFF settings
Video convert ON Video convert OFF
Input
CVBS
Input
S
Input
COMPONENT
Input
CVBS
Input
S
I n p u t
COMPONENT
AB
Interlace
o r
Progressive
D No output No output
Interlace
C
Progressive
no output
2. アナログビデオ
2.1. MONITOR OUT (CVBS) 出力 NG
MONITOR OUT (CVBS) 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
(COMPONENT1 入力 )
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON/OFF の設定確認
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ OFF
入力
CVBS
入力
S
入 力
COMPONENT
入 力
CVBS
入力
S
入 力
COMPONENT
Aへ Bへ ｲﾝﾀｰﾚｰｽ
or
ﾌﾟﾛｸﾞﾚｯｼﾌﾞ
D へ 出力されません 出力されません
ｲﾝﾀｰﾚｰｽ
Cへ
ﾌﾟﾛｸﾞﾚｯｼﾌﾞ
出力されません
12
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

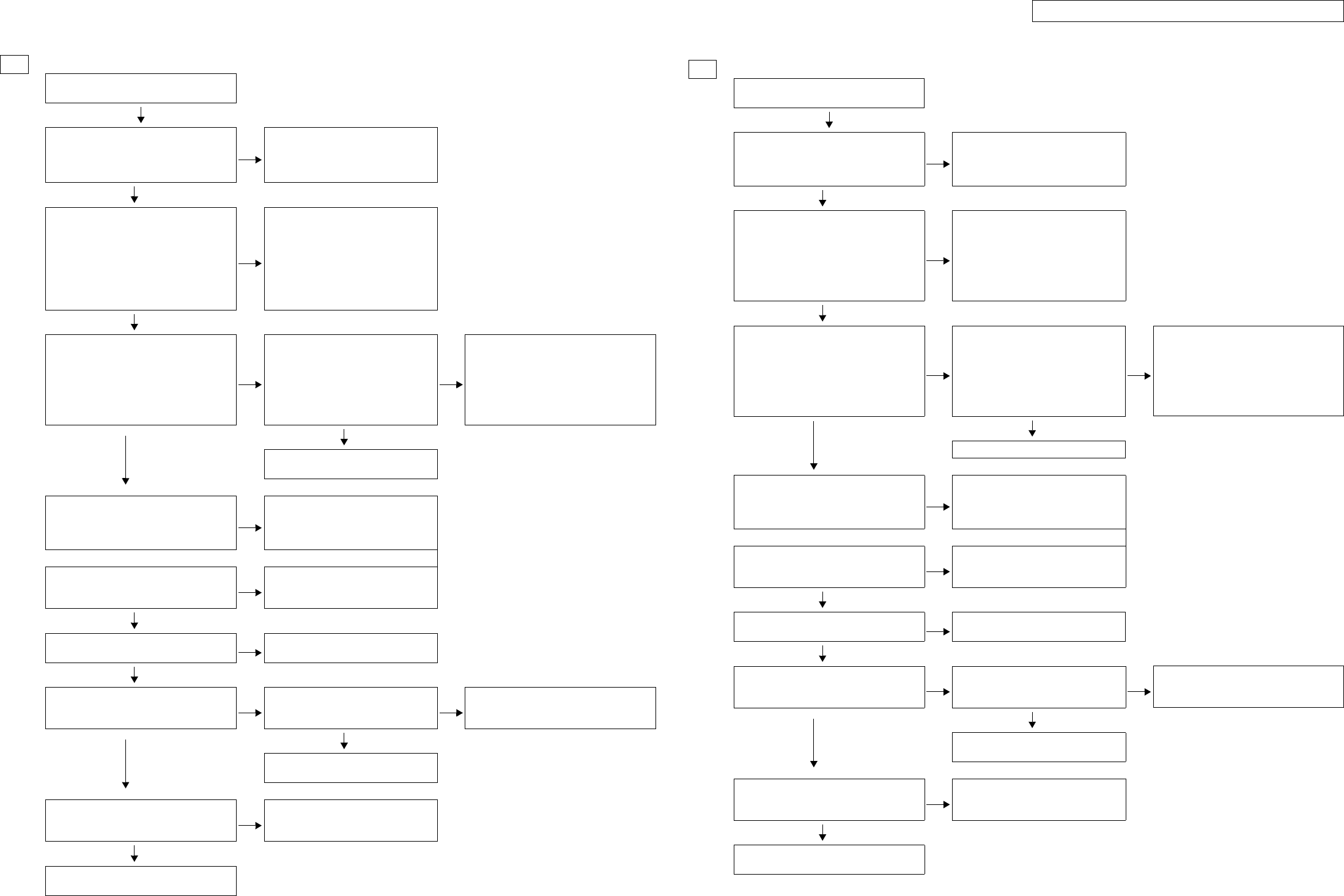

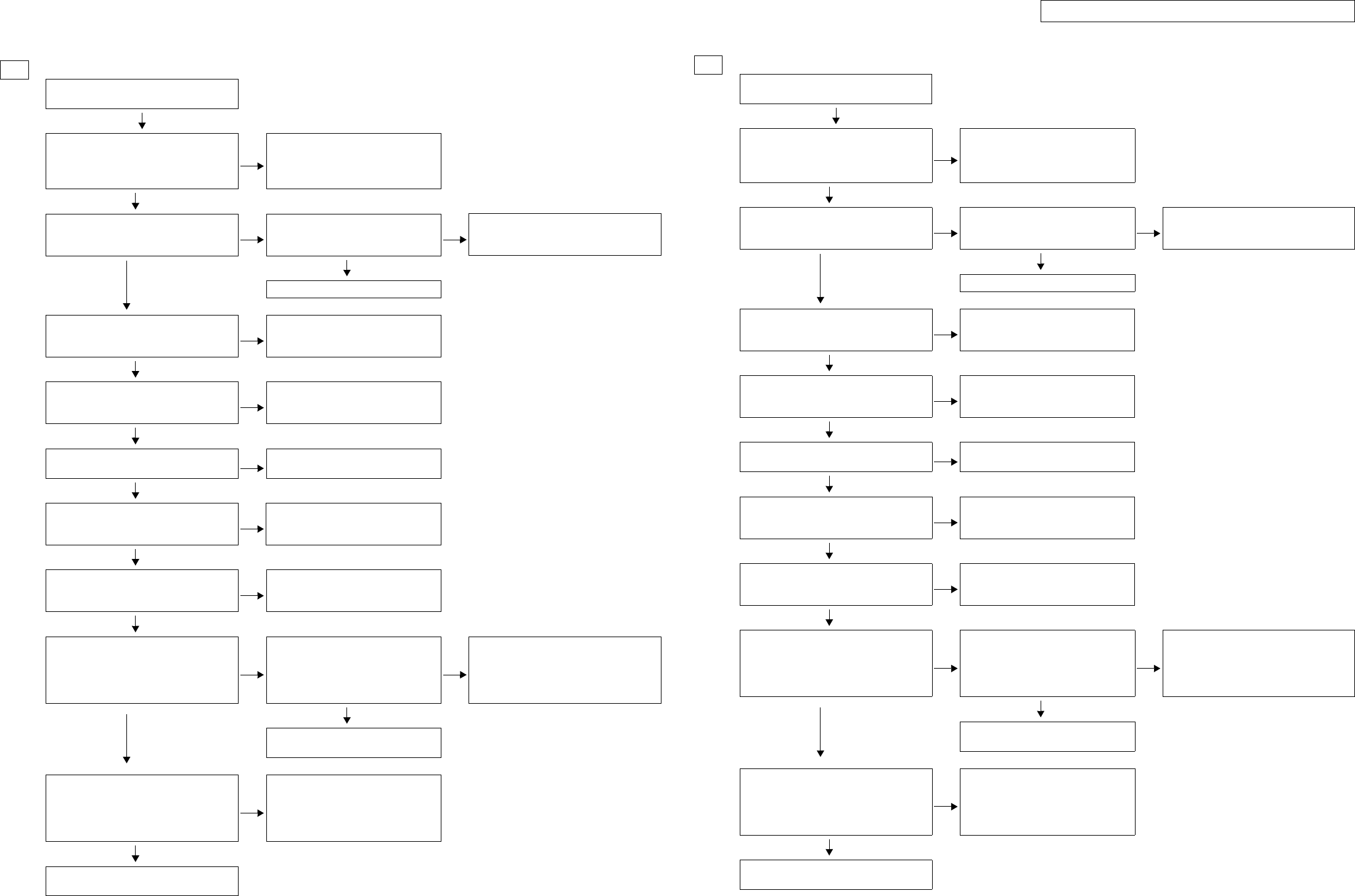

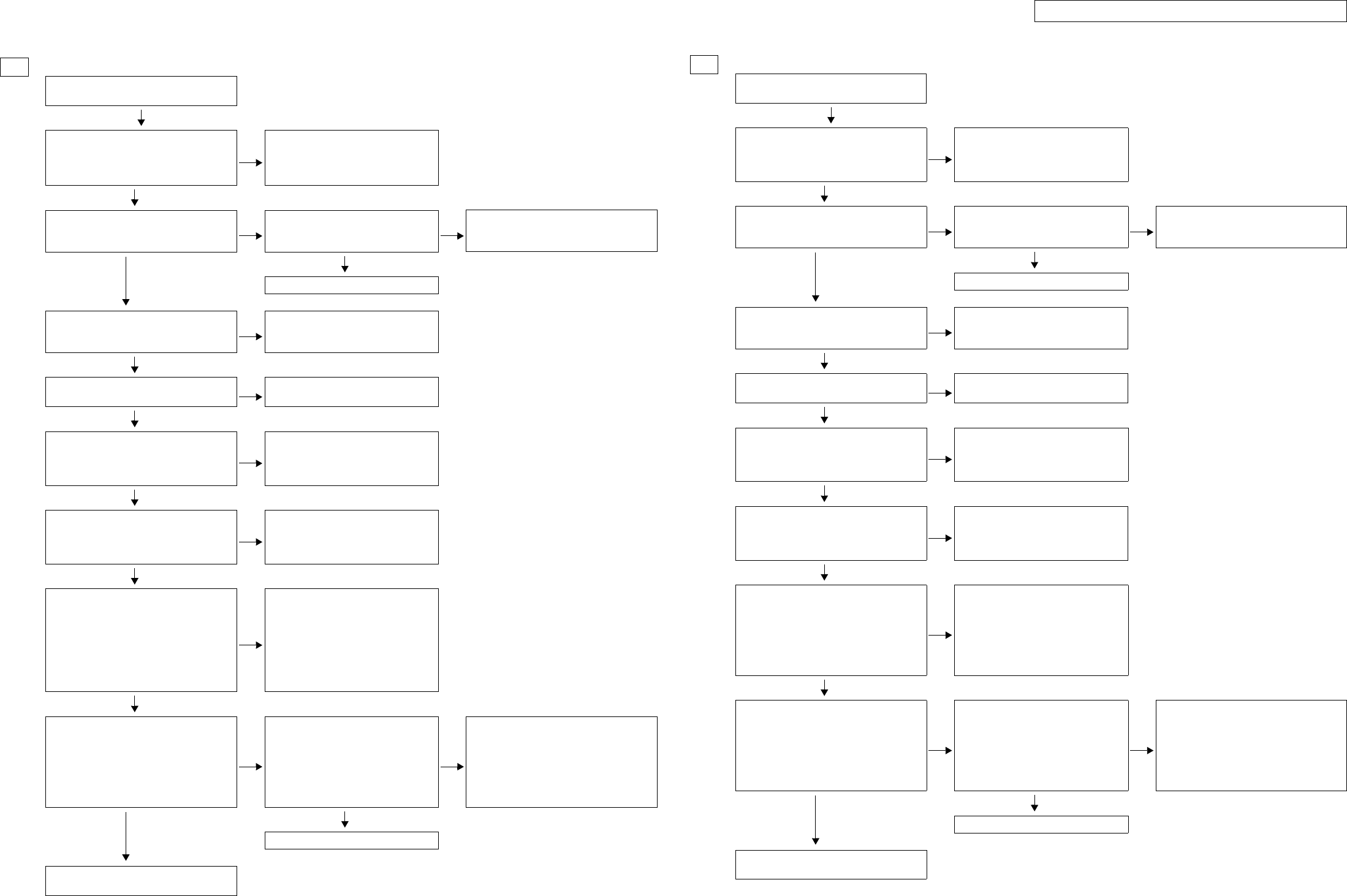

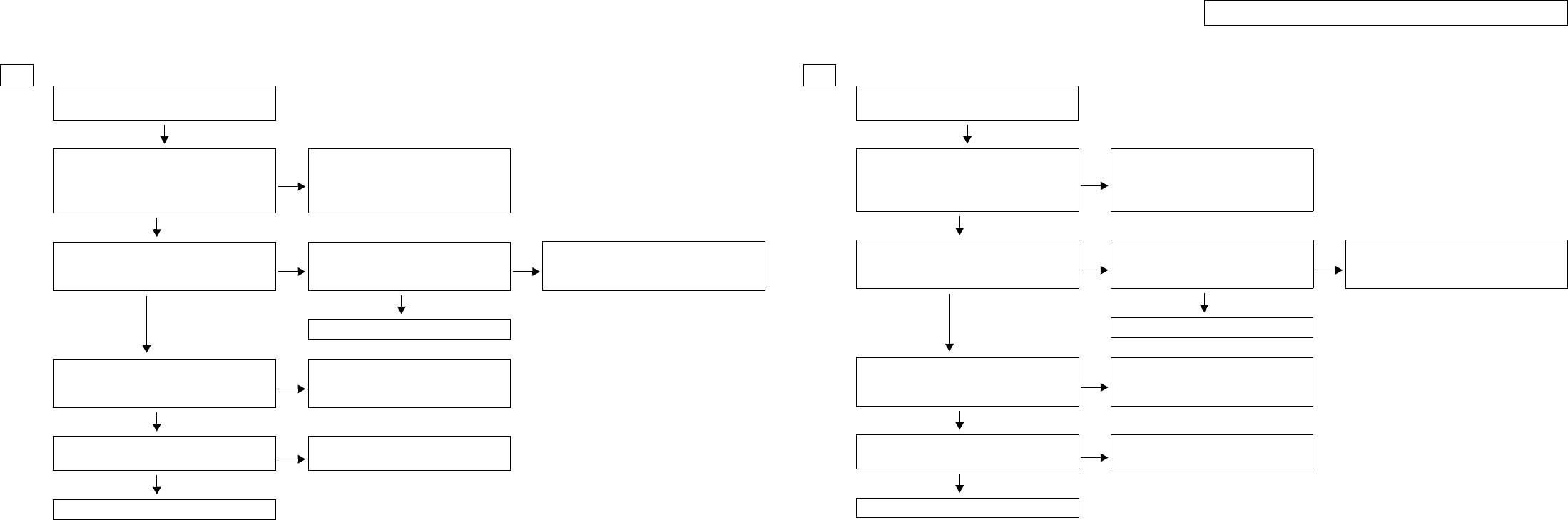

※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
A
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
1U-3853-1 A.VIDEO UNIT
Check input/output of analog SW.
Input : IC109-13pin
Output : IC109-3pin
NG
Check analog SW settings.
IC109-9,10,11pin : L(0V)
IC109-6pi : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC109.
Check input/output of AMP.
Input : IC115-5pin
Output : IC115-7pin
NG
Check soldering of IC115 and
surrounding parts.
OK
Check input/output of AMP.
Input : IC309-3pin
Output : IC309-1pin
NG
Check soldering of IC309 and
surrounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output V : CX113-5pin
NG
Check soldering of CX113.
OK
Check input of video driver.
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output V : IC305-36pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input : IC108-14pin
Output : IC108-13pin
NG
Check analog SW settings.
IC108-10pin : H(+5V)
IC108-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC108.
Check input/output of AMP.
Input : IC112-5pin
Output : IC112-7pin
NG
Check soldering of IC112.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
A
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
1U-3853-1 A.VIDEO UNIT
ｱﾅﾛｸﾞ SW の 入出力確認
入力 : IC109-13pin
出力 : IC109-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC109-9,10,11pin : Ｌ(0V)
IC109-6pi : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC109 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-5pin
出力 : IC115-7pin
NG
IC115 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 : IC309-3pin
出力 : IC309-1pin
NG
IC309 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 V : CX113-5pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4pin
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 V : IC305-36pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC108-14pin
出力 : IC108-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC108-10pin : H(+5V)
IC108-9pin : Ｌ(0V)
NG
IC301,CＸ073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC108 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 : IC112-5pin
出力 : IC112-7pin
NG
IC112 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
13
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
B
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
1U-3853-1 A.VIDEO UNIT
Check input/output of analog SW.
Input Y : IC102-13pin
Input C : IC106-13pin
Output Y : IC102-3pin
Output C : IC106-3pin
NG
Check analog SW settings.
IC102-9,10,11pin : L(0V)
IC102-6pin : L(0V)
IC106-9,10,11pin : L(0V)
IC106-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC102 and IC106.
Check input/output of AMP.
Input Y : IC113-5pin
Input C : IC114-5pin
Output Y : IC113-7pin
Output C : IC114-7pin
NG
Check soldering of IC113, IC114 and
surrounding parts.
OK
Check input/output of AMP.
Input Y : IC308-3pin
Input C : IC308-5pin
Output Y : IC308-1pin
Output C : IC308-7pin
NG
Check soldering of IC308 and sur-
rounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX113-3pin
Output C : CX113-1pin
NG
Check soldering of CX113.
OK
Check input of video driver
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output V : IC305-36pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input : IC108-14pin
Output : IC108-13pin
NG
Check analog SW settings.
IC108-10pin : H(+5V)
IC108-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC108.
Check input/output of AMP.
Input : IC112-5pin
Output : IC112-7pin
NG
Check soldering of IC112.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
B
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
1U-3853-1 A.VIDEO UNIT
ｱﾅﾛｸﾞ SW の 入出力確認
入力 Y : IC102-13pin
入力 C : IC106-13pin
出力 Y : IC102-3pin
出力 C : IC106-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC102-9,10,11pin : Ｌ(0V)
IC102-6pin : Ｌ(0V)
IC106-9,10,11pin : Ｌ(0V)
IC106-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC102, IC106 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-5pin
入力 C : IC114-5pin
出力 Y : IC113-7pin
出力 C : IC114-7pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 Y : IC308-3pin
入力 C : IC308-5pin
出力 Y : IC308-1pin
出力 C : IC308-7pin
NG
IC308 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX113-3pin
出力 C : CX113-1pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4in
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 V : IC305-36pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC108-14pin
出力 : IC108-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC108-10pin : H(+5V)
IC108-9pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC108 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 : IC112-5pin
出力 : IC112-7pin
NG
IC112 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
14
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
C
Input
COMPONENT
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-48pin
Input Cb : IC501-2pin
Input Cr : IC501-4pin
Output Y : IC501-34pin
Output Cb : IC501-32pin
Output Cr : IC501-30pin
NG
Check IC501,CX112 and CX155
soldering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC503-1pin
Input Cb : IC503-3pin
Input Cr : IC503-5pin
Output Y : IC503-13pin
Output Cb : IC503-11pin
Output Cr : IC503-9pin
NG
Check AMP settings.
IC503-7pin : H(5V)
NG
CX155 soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC503 and
surrounding parts.
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX112-3pin
Output Cb : CX112-1pin
Output Cr : CX112-5pin
NG
Check soldering of CX112.
Check input of video driver
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX112 soldering,
or DIGITAL UNIT flaw.
OK
Check output of video driver.
Output V : IC305-36pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input : IC108-14pin
Output : IC108-13pin
NG
Check analog SW settings.
IC108-10pin : H(+5V)
IC108-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC108.
Check input/output of AMP.
Input : IC112-5pin
Output : IC112-7pin
NG
Check soldering of IC112.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
C
入力
COMPONENT
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-48pin
入力 Cb : IC501-2pin
入力 Cr : IC501-4pin
出力 Y : IC501-34pin
出力 Cb : IC501-32pin
出力 Cr : IC501-30pin
NG
IC501,CX112,CX155 の ﾊﾝﾀﾞ付け確認
もしくは、DIGITAL UNIT の不具合
OK
AMP の 入出力確認
入力 Y : IC503-1pin
入力 Cb : IC503-3pin
入力 Cr : IC503-5pin
出力 Y : IC503-13pin
出力 Cb : IC503-11pin
出力 Cr : IC503-9pin
NG
AMP の設定確認
IC503-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC503 及び周辺部品のﾊﾝﾀﾞ付け確認
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX112-3pin
出力 Cb : CX112-1pin
出力 Cr : CX112-5pin
NG
CX112 のﾊﾝﾀﾞ付け確認
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4pin
NG
CX112 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 V : IC305-36pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC108-14pin
出力 : IC108-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC108-10pin : H(+5V)
IC108-9pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC108 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 : IC112-5pin
出力 : IC112-7pin
NG
IC112 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
15
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
D
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input : IC109-13pin
Output : IC109-3pin
NG
Check analog SW settings.
IC109-9,10,11pin : L(0V)
IC109-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC109.
Check input/output of AMP.
Input : IC115-5pin
Output : IC115-7pin
NG
Check soldering of IC115.
OK
Check input/output of AMP.
Input : IC309-3pin
Output : IC309-1pin
NG
Check soldering of IC309 and
surrounding parts.
OK
Check input/output of analog SW.
Input : IC108-14pin
Output : IC108-13pin
NG
Check analog SW settings.
IC108-10pin : L(0V)
IC108-9pin : H(+5V)
NG
Check soldering of IC301 and CX073.
OK
OK
Check soldering of IC108.
Check input/output of AMP.
Input : IC112-5pin
Output : IC112-7pin
NG
Check soldering of IC112.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
D
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC109-13pin
出力 : IC109-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC109-9,10,11pin : Ｌ(0V)
IC109-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC109 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-5pin
出力 : IC115-7pin
NG
IC115 のﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 : IC309-3pin
出力 : IC309-1pin
NG
IC309 及び周辺部品のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC108-14pin
出力 : IC108-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC108-10pin : Ｌ(0V)
IC108-9pin : H(+5V)
NG
IC301, CX073 のﾊﾝﾀﾞ付け確認
OK
OK
IC108 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 : IC112-5pin
出力 : IC112-7pin
NG
IC112 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
16
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2.2. VCR/DVR MONITOR OUT(CVBS) Output NG
VCR/DVR MONITOR OUT(CVBS) Output NG.
※When checking operation, select
DVD for the function.
I n p u t
CVBS
Input
S
Input
COMPONENT
VCR : E
DVR : F
No output No output
2.2. VCR/DVR MONITOR OUT(CVBS) 出力 NG
VCR/DVR MONITOR OUT(CVBS) 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
入 力
CVBS
入力
S
入 力
COMPONENT
VCR : E
DVR : F
出力されません 出力されません
17
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
E
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA .
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input : IC110-13pin
Output : IC110-3pin
NG
Check analog SW settings.
IC110-9,10,11pin : L(0V)
IC110-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC110.
Check input/output of AMP.
Input : IC115-3pin
Output : IC115-1pin
NG
Check soldering of IC115.
OK
Check input/output of video driver.
Input : IC101-12pin
Output : IC101-24pin
NG
Check video driver settings.
IC101-16pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC101.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
E
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC110-13pin
出力 : IC110-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC110-9,10,11pin : Ｌ(0V)
IC110-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC110 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-3pin
出力 : IC115-1pin
NG
IC115 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入出力確認
入力 : IC101-12pin
出力 : IC101-24pin
NG
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの設定確認
IC101-16pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC101 のﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
18
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
F
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input : IC110-13pin
Output : IC110-3pin
NG
Check analog SW settings.
IC110-9,10,11pin : L(0V)
IC110-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC110.
Check input/output of AMP.
Input : IC115-3pin
Output : IC115-1pin
NG
Check soldering of IC115.
OK

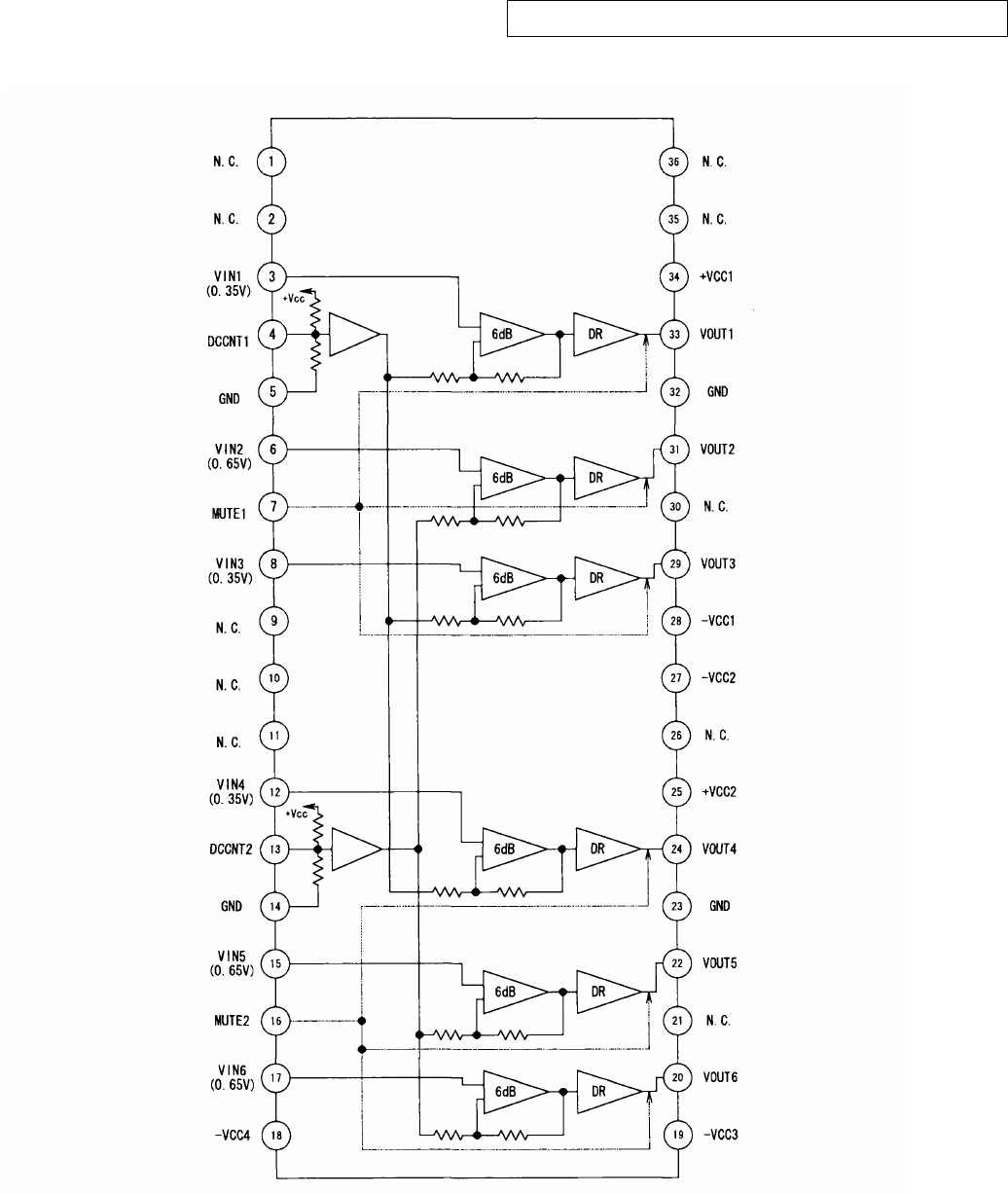

Check input/output of video driver.
Input : IC101-3pin
Output : IC101-33pin
NG
Check analog video driver.
IC101-7pin : H(5V)
NG
CX155 soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC101.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
F
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC110-13pin
出力 : IC110-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC110-9,10,11pin : Ｌ(0V)
IC110-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC110 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-3pin
出力 : IC115-1pin
NG
IC115 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入出力確認
入力 : IC101-3pin
出力 : IC101-33pin
NG
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの設定確認
IC101-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC101 のﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
19
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2.3. MONITOR OUT (S) Output NG
MONITOR OUT (S) Output NG ※When checking operation, select
DVD for the function.
(COMPONENT1 Input)
Checking the video convert ON/OFF settings
Video convert ON Video convert OFF
Input
CVBS
Input
S
Input
COMPONENT
Input
CVBS
Input
S
I n p u t
COMPONENT
GH
Interlace
o r
Progressive
No output J No output
Interlace
I
Progressive
No output
2.3. MONITOR OUT (S) 出力 NG
MONITOR OUT (S) 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
(COMPONENT1 入力 )
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON/OFF の設定確認
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ OFF
入力
CVBS
入力
S
入 力
COMPONENT
入 力
CVBS
入力
S
入 力
COMPONENT
Gへ Hへ ｲﾝﾀｰﾚｰｽ
or
ﾌﾟﾛｸﾞﾚｯｼﾌﾞ
出力されません J へ 出力されません
ｲﾝﾀｰﾚｰｽ
Iへ
ﾌﾟﾛｸﾞﾚｯｼﾌﾞ
出力されません
20
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
G
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input : IC109-13pin
Output : IC109-3pin
NG
Check analog SW settings.
IC109-9,10,11pin : L(0V)
IC109-6pi : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC109.
Check input/output of AMP.
Input : IC115-5pin
Output : IC115-7pin
NG
Check soldering of IC115 and
surrounding parts.
OK
Check input/output of AMP.
Input : IC309-3pin
Output : IC309-1pin
NG
Check soldering of IC309 and
surrounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output V : CX113-5pin
NG
Check soldering of CX113.
OK
Check input of video driver.
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output Y : IC305-34pin
Output C : IC305-32pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input Y : IC104-5pin
Input C : IC104-14pin
Output Y : IC104-3pin
Output C : IC104-13pin
NG
Check analog SW settings.
IC104-10pin : H(+5V)
IC104-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC104.
Check input/output of AMP.
Input Y: IC111-3pin
Input C: IC111-5pin
Output Y : IC111-1pin
Output C : IC111-7pin
NG
Check soldering of IC111.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
G
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の 入出力確認
入力 : IC109-13pin
出力 : IC109-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC109-9,10,11pin : Ｌ(0V)
IC109-6pi : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC109 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-5pin
出力 : IC115-7pin
NG
IC115 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 : IC309-3pin
出力 : IC309-1pin
NG
IC309 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 V : CX113-5pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4pin
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 Y : IC305-34pin
出力 C : IC305-32pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC104-5pin
入力 C : IC104-14pin
出力 Y : IC104-3pin
出力 C : IC104-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC104-10pin : H(+5V)
IC104-9pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC104 の ﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 Y : IC111-3pin
入力 C : IC111-5pin
出力 Y : IC111-1pin
出力 C : IC111-7pin
NG
IC111 の ﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
21
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
H
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC102-13pin
Input C : IC106-13pin
Output Y : IC102-3pin
Output C : IC106-3pin
NG
Check analog SW settings.
IC102-9,10,11pin : L(0V)
IC102-6pin : L0V)
IC106-9,10,11pin : L(0V)
IC106-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC102 and IC106.
Check input/output of AMP.
Input Y : IC113-5pin
Input C : IC114-5pin
Output Y : IC113-7pin
Output C : IC114-7pin
NG
Check soldering of IC113,IC114 and
surrounding parts.
OK
Check input/output of AMP.
Input Y : IC308-3pin
Input C : IC308-5pin
Output Y : IC308-1pin
Output C : IC308-7pin
NG
Check soldering of IC308 and sur-
rounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX113-3pin
Output C : CX113-1pin
NG
Check soldering of CX113.
OK
Check input of video driver
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output Y : IC305-34pin
Output C : IC305-32pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input Y : IC104-5pin
Input C : IC104-14pin
Output Y : IC104-3pin
Output C : IC104-13pin
NG
Check analog SW settings.
IC104-10pin : H(+5V)
IC104-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC104.
Check input/output of AMP.
Input Y : IC111-3pin
Input C : IC111-5pin
Output Y : IC111-1pin
Output C : IC111-7pin
NG
Check soldering of IC111.
OK
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
H
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の 入出力確認
入力 Y : IC102-13pin
入力 C : IC106-13pin
出力 Y : IC102-3pin
出力 C : IC106-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC102-9,10,11pin : Ｌ(0V)
IC102-6pin : Ｌ(0V)
IC106-9,10,11pin : Ｌ(0V)
IC106-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC102,IC106 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-5pin
入力 C : IC114-5pin
出力 Y : IC113-7pin
出力 C : IC114-7pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 Y : IC308-3pin
入力 C : IC308-5pin
出力 Y : IC308-1pin
出力 C : IC308-7pin
NG
IC308 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX113-3pin
出力 C : CX113-1pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4pin
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 Y : IC305-34pin
出力 C : IC305-32pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC104-5pin
入力 C : IC104-14pin
出力 Y : IC104-3pin
出力 C : IC104-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC104-10pin : H(+5V)
IC104-9pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC104 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 Y : IC111-3pin
入力 C : IC111-5pin
出力 Y : IC111-1pin
出力 C : IC111-7pin
NG
IC111 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
22
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
I
Input
COMPONENT
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-48pin
Input Cb : IC501-2pin
Input Cr : IC501-4pin
Output Y : IC501-34pin
Output Cb : IC501-32pin
Output Cr : IC501-30pin
NG
Check IC501,CX112 and CX155 sol-
dering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC503-1pin
Input Cb : IC503-3pin
Input Cr : IC503-5pin
Output Y : IC503-13pin
Output Cb : IC503-11pin
Output Cr : IC503-9pin
NG
Check AMP settings.
IC503-7pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC503 and
surrounding parts.
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX112-3pin
Output Cb : CX112-1pin
Output Cr : CX112-5pin
NG
Check soldering of CX112.
OK
Check input of video driver
Input Y : IC305-2pin
Input C : IC305-4pin
NG
Check CX112 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output Y : IC305-34pin
Output C : IC305-32pin
NG
Check soldering of IC305.
OK
Check input/output of analog SW.
Input Y : IC104-5pin
Input C : IC104-14pin
Output Y : IC104-3pin
Output C : IC104-13pin
NG
Check analog SW settings.
IC104-10pin : H(+5V)
IC104-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC104.
Check input/output of AMP.
Input Y : IC111-3pin
Input C : IC111-5pin
Output Y : IC111-1pin
Output C : IC111-7pin
NG
Check soldering of IC111.
OK
Check cable between main unit and
monitor or Check monitor . ※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
I
入力
COMPONENT
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-48pin
入力 Cb : IC501-2pin
入力 Cr : IC501-4pin
出力 Y : IC501-34pin
出力 Cb : IC501-32pin
出力 Cr : IC501-30pin
NG
IC501,CX112,CX155 の ﾊﾝﾀﾞ付け確認
もしくは、DIGITAL UNIT の不具合
OK
AMP の 入出力確認
入力 Y : IC503-1pin
入力 Cb : IC503-3pin
入力 Cr : IC503-5pin
出力 Y : IC503-13pin
出力 Cb : IC503-11pin
出力 Cr : IC503-9pin
NG
AMP の設定確認
IC503-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC503 及び周辺部品のﾊﾝﾀﾞ付け確認
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX112-3pin
出力 Cb : CX112-1pin
出力 Cr : CX112-5pin
NG
CX112 の ﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-2pin
入力 C : IC305-4pin
NG
CX112 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 Y : IC305-34pin
出力 C : IC305-32pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC104-5pin
入力 C : IC104-14pin
出力 Y : IC104-3pin
出力 C : IC104-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC104-10pin : H(+5V)
IC104-9pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC104 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 Y : IC111-3pin
入力 C : IC111-5pin
出力 Y : IC111-1pin
出力 C : IC111-7pin
NG
IC111 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
23
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
J
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA .
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC102-13pin
Input C : IC106-13pin
Output Y : IC102-3pin
Output C : IC106-3pin
NG
Check analog SW settings.
IC102-9,10,11pin : L(0V)
IC102-6pin : L(0V)
IC106-9,10,11pin : L(0V)
IC106-6pin : L0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC102and IC106.
Check input/output of AMP.
Input Y : IC113-5pin
Input C : IC114-5pin
Output Y : IC113-7pin
Output C : IC114-7pin
NG
Check soldering of IC113, IC114 and
surrounding parts.
OK
Check input/output of AMP.
Input Y : IC308-3pin
Input C : IC308-5pin
Output Y : IC308-1pin
Output C : IC308-7pin
NG
Check soldering of IC308 and sur-
rounding parts.
OK
Check input/output of analog SW.
Input Y : IC104-5pin
Input C : IC104-14pin
Output Y : IC104-3pin
Output C : IC104-13pin
NG
Check analog SW settings.
IC104-10pin : H(+5V)
IC104-9pin : L(0V)
NG
Check IC301 and CX073 soldering, or
DIGITAL UNIT flaw.
OK
OK
Check soldering of IC104.
Check input/output of AMP.
Input Y : IC111-3pin
Input C : IC111-5pin
Output Y : IC111-1pin
Output C : IC111-7pin
NG
Check soldering of IC111.
OK
Check cable between main unit and
monitor or Check monitor .
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
J
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC102-13pin
入力 C : IC106-13pin
出力 Y : IC102-3pin
出力 C : IC106-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC102-9,10,11pin : Ｌ(0V)
IC102-6pin : Ｌ(0V)
IC106-9,10,11pin : Ｌ(0V)
IC106-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC102,IC106 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-5pin
入力 C : IC114-5pin
出力 Y : IC113-7pin
出力 C : IC114-7pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
AMP の 入出力確認
入力 Y : IC308-3pin
入力 C : IC308-5pin
出力 Y : IC308-1pin
出力 C : IC308-7pin
NG
IC308 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC104-5pin
入力 C : IC104-14pin
出力 Y : IC104-3pin
出力 C : IC104-13pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC104-10pin : H(+5V)
IC104-9pin : Ｌ(0V
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC104 のﾊﾝﾀﾞ付け確認
AMP の入出力確認
入力 Y : IC111-3pin
入力 C : IC111-5pin
出力 Y : IC111-1pin
出力 C : IC111-7pin
NG
IC111 のﾊﾝﾀﾞ付け確認
OK
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
24
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2.4. VCR/DVR MONITOR OUT(S) Output NG
VCR/DVR MONITOR OUT(S) Output NG. ※When checking operation, select
DVD for the function.
I n p u t
CVBS
Input
S
Input
COMPONENT
No output VCR : K
DVR : L
No output
2.4. VCR/DVR MONITOR OUT(S) 出力 NG
VCR/DVR MONITOR OUT(S) 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
入 力
CVBS
入力
S
入 力
COMPONENT
出力されません VCR : K
DVR : L
出力されません
25
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
K
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC103-13pin
Input C : IC107-13pin
Output Y : IC103-3pin
Output C : IC107-3pin
NG
Check analog SW settings.
IC103-9,10,11pin : L(0V)
IC103-6pin : L(0V)
IC107-9,10,11pin : L(0V)
IC107-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC103 and IC107.
Check input/output of AMP.
Input Y : IC113-3pin
Input C : IC114-3pin
Output Y : IC113-1pin
Output C : IC114-1pin
NG
Check soldering of IC113, IC114 and
surrounding parts.
OK
Check input/output of video driver.
Input Y : IC101-17pin
Input C : IC101-15pin
Output Y : IC101-20pin
Output C : IC101-22pin
NG
Check video driver settings.
IC101-16pin : H(+5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC101.
Check cable between main unit and
monitor or Check monitor .
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
K
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC103-13pin
入力 C : IC107-13pin
出力 Y : IC103-3pin
出力 C : IC107-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC103-9,10,11pin : Ｌ(0V)
IC103-6pin : Ｌ(0V)
IC107-9,10,11pin : Ｌ(0V)
IC107-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC103,IC107 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-3pin
入力 C : IC114-3pin
出力 Y : IC113-1pin
出力 C : IC114-1pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入出力確認
入力 Y : IC101-17pin
入力 C : IC101-15pin
出力 Y : IC101-20pin
出力 C : IC101-22pin
NG
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの設定確認
IC101-16pin : H(+5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC101 ﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
26
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
L
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA .
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC103-13pin
Input C : IC107-13pin
Output Y : IC103-3pin
Output C : IC107-3pin
NG
Check analog SW settings.
IC103-9,10,11pin : L(0V)
IC103-6pin : L(0V)
IC107-9,10,11pin : L(0V)
IC107-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC103 and IC107.
Check input/output of AMP.
Input Y : IC113-3pin
Input C : IC114-3pin
Output Y : IC113-1pin
Output C : IC114-1pin
NG
Check soldering of IC113, IC114 and
surrounding parts.
OK
Check input/output of video driver.
Input Y : IC101-8pin
Input C : IC101-6pin
Output Y : IC101-29pin
Output C : IC101-31pin
NG
Check video driver settings.
IC101-7pin : H(+5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC101.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
L
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC103-13pin
入力 C : IC107-13pin
出力 Y : IC103-3pin
出力 C : IC107-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC103-9,10,11pin : Ｌ(0V)
IC103-6pin : Ｌ(0V)
IC107-9,10,11pin : Ｌ(0V)
IC107-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC103,IC107 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-3pin
入力 C : IC114-3pin
出力 Y : IC113-1pin
出力 C : IC114-1pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入出力確認
入力 Y : IC101-8pin
入力 C : IC101-6pin
出力 Y : IC101-29pin
出力 C : IC101-31pin
NG
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの設定確認
IC101-7pin : H(+5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC101 ﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
27
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2.5. COMPONENT OUT 1,2 Output NG
COMPONENT OUT 1,2 Output NG. ※When checking operation, select
DVD for the function.
(COMPONENT1 Input)
Checking the video convert ON/OFF settings.
Video convert ON Video convert OFF
Input
CVBS
Input
S
Input
COMPONENT
Input
CVBS
Input
S
I n p u t
COMPONENT
M N No output No output No output O
2.5. COMPONENT OUT 1,2 出力 NG
COMPONENT OUT 1,2 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
(COMPONENT1 入力 )
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON/OFF の設定確認
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ OFF
入力
CVBS
入力
S
入 力
COMPONENT
入 力
CVBS
入力
S
入 力
COMPONENT
M へ N へ 出力されません 出力されません 出力されません O へ
28
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
M
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC109-13pin
Output C : IC109-3pin
NG
Check analog SW settings.
IC109-9,10,11pin : L(0V)
IC109-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC109.
Check input/output of AMP.
Input : IC115-5pin
Output : IC115-7pin
NG
Check soldering of IC115 and
surrounding parts.
OK
Check output to1U-3852 DIGITAL UNIT.
Output V : CX113-5pin
NG
Check soldering of CX113.
OK
Check input of video driver
Input Y : IC305-15pin
Input Cb : IC305-17pin
Input Cr : IC305-13pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output Y : IC305-22pin
Output Cb : IC305-20pin
Output Cr : IC305-24pin
NG
Check soldering of IC305.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-6pin
Input Cb : IC501-8pin
Input Cr : IC501-10pin
Output Y : IC501-27pin
Output Cb : IC501-24pin
Output Cr : IC501-21pin
NG
Check IC501,CX112 and CX155 sol-
dering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC504-1pin
Input Cb : IC504-3pin
Input Cr : IC504-5pin
Output Y : IC504-13pin
Output Cb : IC504-11pin
Output Cr : IC504-9pin
NG
Check AMP settings.
IC504-7pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC504.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
M
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の 入出力確認
入力 Y : IC109-13pin
出力 C : IC109-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC109-9,10,11pin : Ｌ(0V)
IC109-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC109 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-5pin
出力 : IC115-7pin
NG
IC115 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 V : CX113-5pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-15in
入力 Cb : IC305-17pin
入力 Cr : IC305-13pin
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 Y : IC305-22pin
出力 Cb : IC305-20pin
出力 Cr : IC305-24pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-6pin
入力 Cb : IC501-8pin
入力 Cr : IC501-10pin
出力 Y : IC501-27pin
出力 Cb : IC501-24pin
出力 Cr : IC501-21pin
NG
IC501,CX112,CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
AMP の入出力確認
入力 Y : IC504-1pin
入力 Cb : IC504-3pin
入力 Cr : IC504-5pin
出力 Y : IC504-13pin
出力 Cb : IC504-11pin
出力 Cr : IC504-9pin
NG
AMP の設定確認
IC504-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC504 のﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
29
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
N
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC102-13pin
Input C : IC106-13pin
Output Y : IC102-3pin
Output C : IC106-3pin
NG
Check analog SW settings.
IC102-9,10,11pin : L(0V)
IC102-6pin : L(0V)
IC106-9,10,11pin : L(0V)
IC106-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC102 and IC106.
Check input/output of AMP.
Input Y : IC113-5pin
Input C : IC114-5pin
Output Y : IC113-7pin
Output C : IC114-7pin
NG
Check soldering of IC113, IC114 and
surrounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX113-3pin
Output C : CX113-1pin
NG
Check soldering of CX113.
OK
Check input of video driver.
Input Y : IC305-15in
Input Cb : IC305-17pin
Input Cr : IC305-13pin
NG
Check CX113 soldering, or DIGITAL
UNIT flaw.
OK
Check output of video driver.
Output Y : IC305-22pin
Output Cb : IC305-20pin
Output Cr : IC305-24pin
NG
Check soldering of IC305.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-6pin
Input Cb : IC501-8pin
Input Cr : IC501-10pin
Output Y : IC501-27pin
Output Cb : IC501-24pin
Output Cr : IC501-21pin
NG
Check IC501,CX112 and CX155 sol-
dering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC504-1pin
Input Cb : IC504-3pin
Input Cr : IC504-5pin
Output Y : IC504-13pin
Output Cb : IC504-11pin
Output Cr : IC504-9pin
NG
Check AMP settings.
IC504-7pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC504.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
N
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の 入出力確認
入力 Y : IC102-13pin
入力 C : IC106-13pin
出力 Y : IC102-3pin
出力 C : IC106-3pin
NG
ｱﾅﾛｸﾞ SW の 設定確認
IC102-9,10,11pin : Ｌ(0V)
IC102-6pin : Ｌ(0V)
IC106-9,10,11pin : Ｌ(0V)
IC106-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC102,IC106 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-5pin
入力 C : IC114-5pin
出力 Y : IC113-7pin
出力 C : IC114-7pin
NG
IC113,IC114 及び周辺部品の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX113-3pin
出力 C : CX113-1pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの入力確認
入力 Y : IC305-15in
入力 Cb : IC305-17pin
入力 Cr : IC305-13pin
NG
CX113 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
ﾋﾞﾃﾞｵﾄﾞﾗｲﾊﾞの出力確認
出力 Y : IC305-22pin
出力 Cb : IC305-20pin
出力 Cr : IC305-24pin
NG
IC305 のﾊﾝﾀﾞ付け確認
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-6pin
入力 Cb : IC501-8pin
入力 Cr : IC501-10pin
出力 Y : IC501-27pin
出力 Cb : IC501-24pin
出力 Cr : IC501-21pin
NG
IC501,CX112,CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
AMP の入出力確認
入力 Y : IC504-1pin
入力 Cb : IC504-3pin
入力 Cr : IC504-5pin
出力 Y : IC504-13pin
出力 Cb : IC504-11pin
出力 Cr : IC504-9pin
NG
AMP の設定確認
IC504-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC504 のﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
30
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
O
Input
COMPONENT
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-48pin
Input Cb : IC501-2pin
Input Cr : IC501-4pin
Output Y : IC501-27pin
Output Cb : IC501-24pin
Output Cr : IC501-21pin
NG
Check IC501,CX112 and CX155
soldering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC504-1pin
Input Cb : IC504-3pin
Input Cr : IC504-5pin
Output Y : IC504-13pin
Output Cb : IC504-11pin
Output Cr : IC504-9pin
NG
Check AMP settings.
IC504-7pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC504 and sur-
rounding parts.
Check cable between main unit and
monitor or Check monitor.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
O
入力
COMPONENT
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-48pin
入力 Cb : IC501-2pin
入力 Cr : IC501-4pin
出力 Y : IC501-27pin
出力 Cb : IC501-24pin
出力 Cr : IC501-21pin
NG
IC501,CX112,CX155 のﾊﾝﾀﾞ付け確認
もしくは、DIGITAL UNIT の不具合
OK
AMP の入出力確認
入力 Y : IC504-1pin
入力 Cb : IC504-3pin
入力 Cr : IC504-5pin
出力 Y : IC504-13pin
出力 Cb : IC504-11pin
出力 Cr : IC504-9pin
NG
AMP の設定確認
IC504-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC504 及び周辺部品の
ﾊﾝﾀﾞ付け確認
本体 -MONITOR 間のｹｰﾌﾞﾙ
もしくは MONITOR の確認
31
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2.6. HDMI OUT 1,2 Output NG
HDMI OUT 1,2 Output NG. ※When checking operation, select
DVD for the function.
(COMPONENT1 Input)
Checking the video convert ON/OFF settings.
Video convert ON Video convert OFF
Input
CVBS
Input
S
Input
COMPONENT
Input
HDMI
I n p u t
CVBS
I n p u t
S
Input
COMPONENT
Input
HDMI
P Q No output
To troubleshooting 3.HDMI/DVI.
1080p Input?
YES
No output
R
2.6. HDMI OUT 1,2 出力 NG
HDMI OUT 1,2 出力 NG ※ 動作を確認する時はファンクショ
ンを DVD に選択してください。
(COMPONENT1 入力 )
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON/OFF の設定確認
ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ ON ﾋﾞﾃﾞｵｺﾝﾊﾞｰﾄ OFF
入 力
CVBS
入 力
S
入 力
COMPONENT
入 力
HDMI
入 力
CVBS
入 力
S
入 力
COMPONENT
入 力
HDMI
P へ Q へ 出力されません
3. HDMI/DVI のﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
1080p 入力？
YES
出力されません
Rへ
32
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
P
Input
CVBS
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input : IC109-13pin
Output : IC109-3pin
NG
Check analog SW settings.
IC109-9,10,11pin : L(0V)
IC109-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC109.
Check input/output of AMP.
Input : IC115-5pin
Output : IC115-7pin
NG
Check soldering of IC115 and
surrounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output V : CX113-5pin
NG
Check soldering of CX113.
OK
To troubleshooting 3.HDMI/DVI.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
P
入力
CVBS
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 : IC109-13pin
出力 : IC109-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC109-9,10,11pin : Ｌ(0V)
IC109-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC109 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 : IC115-5pin
出力 : IC115-7pin
NG
I C 115 及び 周 辺部 品 の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 V : CX113-5pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
3.HDMI/DVI のﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
33
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
Q
Input
S
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of analog SW.
Input Y : IC102-13pin
Input C : IC106-13pin
Output Y : IC102-3pin
Output C : IC106-3pin
NG
Check analog SW settings.
IC102-9,10,11pin : L(0V)
IC102-6pin : L(0V)
IC106-9,10,11pin : L(0V)
IC106-6pin : L(0V)
NG
Check IC301 and CX073
soldering, or DIGITAL UNIT flaw.
OK
OK
Check soldering of IC102 and IC106.
Check input/output of AMP.
Input Y : IC113-5pin
Input C : IC114-5pin
Output Y : IC113-7pin
Output C : IC114-7pin
NG
Check soldering of IC113,IC114 and
surrounding parts.
OK
Check output to 1U-3852 DIGITAL UNIT.
Output Y : CX113-3pin
Output C : CX113-1pin
NG
Check soldering of CX113.
OK
To troubleshooting 3.HDMI/DVI.
※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
Q
入力
S
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
ｱﾅﾛｸﾞ SW の入出力確認
入力 Y : IC102-13pin
入力 C : IC106-13pin
出力 Y : IC102-3pin
出力 C : IC106-3pin
NG
ｱﾅﾛｸﾞ SW の設定確認
IC102-9,10,11pin : Ｌ(0V)
IC102-6pin : Ｌ(0V)
IC106-9,10,11pin : Ｌ(0V)
IC106-6pin : Ｌ(0V)
NG
IC301,CX073 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC102,IC106 のﾊﾝﾀﾞ付け確認
AMP の 入出力確認
入力 Y : IC113-5pin
入力 C : IC114-5pin
出力 Y : IC113-7pin
出力 C : IC114-7pin
NG
I C 11 3 , I C 114 及 び 周 辺 部品 の
ﾊﾝﾀﾞ付け確認
OK
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX113-3pin
出力 C : CX113-1pin
NG
CX113 のﾊﾝﾀﾞ付け確認
OK
3.HDMI/DVI のﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
34
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
※Unless specified, 1U-3853-1 A.VIDEO UNIT part.
R
Input
COMPONENT
1U-3853-1 A.VIDEO UNIT
Check ±5VA.
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
To troubleshooting 1.1 Power not turn
on.
OK
Check input/output of COMPONENT
selector.
Input Y : IC501-48pin
Input Cb : IC501-2pin
Input Cr : IC501-4pin
Output Y : IC501-34pin
Output Cb : IC501-32pin
Output Cr : IC501-30pin
NG
Check IC501,CX112 and CX155
soldering, or DIGITAL UNIT flaw.
OK
Check input/output of AMP.
Input Y : IC503-1pin
Input Cb : IC503-3pin
Input Cr : IC503-5pin
Output Y : IC503-13pin
Output Cb : IC503-11pin
Output Cr : IC503-9pin
NG
Check AMP settings.
IC503-7pin : H(5V)
NG
Check CX155 soldering, or DIGITAL
UNIT flaw.
OK
OK
Check soldering of IC503 and
surrounding parts.
Check output to1U-3852 DIGITAL UNIT.
Output Y : CX112-3pin
Output Cb : CX112-1pin
Output Cr : CX112-5pin
NG
Check soldering of CX112.
OK
To troubleshooting 3.HDMI/DVI. ※ 特に記載がない場合は 1U-3853-1 A.VIDEO UNIT の部品です。
R
入力
COMPONENT
1U-3853-1 A.VIDEO UNIT
± 5VA の確認
+5VA : CX077-3,4pin
-5VA : CX077-5pin
NG
1.1 電源が入らないのﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
OK
COMPONENT ｾﾚｸﾀの入出力確認
入力 Y : IC501-48pin
入力 Cb : IC501-2pin
入力 Cr : IC501-4pin
出力 Y : IC501-34pin
出力 Cb : IC501-32pin
出力 Cr : IC501-30pin
NG
IC501,CX112,CX155 の ﾊﾝﾀﾞ付け確認
もしくは、DIGITAL UNIT の不具合
OK
AMP の 入出力確認
入力 Y : IC503-1pin
入力 Cb : IC503-3pin
入力 Cr : IC503-5pin
出力 Y : IC503-13pin
出力 Cb : IC503-11pin
出力 Cr : IC503-9pin
NG
AMP の設定確認
IC503-7pin : H(5V)
NG
CX155 のﾊﾝﾀﾞ付け確認
もしくは DIGITAL UNIT の不具合
OK
OK
IC503 及び周辺部品のﾊﾝﾀﾞ付け確認
1U-3852 DIGITAL UNIT への出力確認
出力 Y : CX112-3pin
出力 Cb : CX112-1pin
出力 Cr : CX112-5pin
NG
CX112 のﾊﾝﾀﾞ付け確認
OK
3. HDMI/DVI のﾄﾗﾌﾞﾙｼｭｰﾃｨﾝｸﾞへ
35
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
3. HDMI/DVI
3.1. No picture or sound is output
No picture or sound is output
YES
Check the HDMI/DVI cable connection
YES
Is the HDMI/DVI cable properly
connected?
NO
There may be a problem with the HDMI/
DVI cable. Check the connection.
YES
Are you using an HDMI/DVI selector,
repeater or a device for improving picture
quality?
YES
Disconnect everything and connect only
the HDMI/DVI cable to check.
NO
Are you using a certified HDMI cable (one
with the HDMI stamp)?
NO
Use a certified HDMI cable (one with the
HDMI stamp).
YES
Are you using an HDMI/DVI cable less
than 5 meters in length?
NO
Replace the HDMI/DVI cable with one
that is less than 5 meters in length (2
meters recommended) to check.
YES
Are the picture and sound output when
another HDMI/DVI cable is used?
YES
The HDMI/DVI cable is defective.
NO
Checking the DVD player
YES
Is the DVD player's HDMI output setting
correct?
YES
Check the HDMI output setting, referring
to the DVD player's operating
instructions.
YES
When using a DENON DVD player, is the fluorescent display tube's
"HDMI" indicator lit?
If using a non-DENON DVD player, proceed to "YES".
YES
NO
Are the picture and sound output when
the DVD player's resolution is changed?
YES
Set the DVD player's output resolution
to a resolution with which the TV is
compatible.
NO
Is sound output from the set's speaker terminals when the TV's power is
turned off or the connection cable between the TV and the set is
disconnected?
YES
The DVD player may not be compatible
with HDCP repeaters. Ask the DVD
player's manufacturer.
NO
Are the picture and sound output when a
different DVD player is used?
YES
The DVD player is defective.
NO
3. HDMI/DVI
3.1. 映像と音声が出力されない
映像と音声が出力されない
YES
HDMI/DVIケーブルの接続を確認する
YES
HDMI/DVI ケーブルは正しく接続され
ていますか？
NO
HDMI/DVI ケーブルは勘合がよくない
ことがあります。接続を確認してくだ
さい。
YES
HDMI/DVI セレクター、リピーターや
画質改善装置を使用していますか？
YES
すべて取り外して HDMI/DVIケーブル
のみを接続して確認してください。
NO
HDMI 認証品（HDMI 刻印がある）の
HDMI ケーブルを使用していますか？
NO
HDMI ケーブルは HDMI 認証品（HDMI
刻印がある）を使用してください。
YES
HDMI/DVI ケーブルは 5m 以下のもの
を使用していますか？
NO
HDMI/DVI ケーブルを 5m 以下 ( 推奨
は２ ｍ) に交換して確認してくださ
い。
YES
別のHDMI/DVIケーブルに交換すると
画像と音声が出力されますか？
YES
HDMI/DVI ケーブルが不良です。
NO
DVD プレーヤーを確認する
YES
DVD プレーヤーの HDMI 出力設定は
正しいですか？
NO
DVD プレーヤーの取扱説明書を見て
HDMI 出力を正しく設定してくださ
い。
YES
DENON の DVD プレーヤーを使用している場合、FL 管の "HDMI" インジ
ケータが点灯していますか？
他社の DVD プレーヤーを使用している場合は "YES" に進んでください。
YES
NO
DVD プレーヤーの解像度を変えて画
像と音声が出力されますか？
YES
DVD プレーヤーの出力解像度を、TV
の対応可能な解像度に設定してくだ
さい。
NO
TV の電源を切った時や TV と本機間の接続ケーブルをはずした時に、本機
のスピーカー端子から音声を出力しますか？
YES
DVD プレーヤーが HDCP リピーター
に対応していない可能性があります。
DVD プレーヤーのメーカーに確認し
てください。
NO
別の DVD プレーヤーに交換すると画
像と音声が出力されますか？
YES
DVD プレーヤーが不良です。
NO
36
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
Check the TV
Is the TV HDCP-compatible?
NO
Use an HDCP-compatible TV. PC TVs
cannot be used.
YES
Is the TV compatible with resolutions of 1080P?
NO
If the TV is not compatible with
resolutions of 1080P, no picture will be
output, even if the DVD player's
resolution is set to 1080P.
YES
Is the TV's input set to HDMI?
NO
Check the TV's input setting, referring to
the TV's operating instructions.
YES
Are the picture and sound output when a different TV is used?
NO
The TV is defective.
YES
Check the set
Is the set's input set to HDMI?
NO
Check the set's input setting, referring to
the set's operating instructions.
YES YES
Is the TV information
properly displayed on
the "Monitor info."
display menu?
NO
The set does not recognize the TV.
Is IC702 pin 51 "H" (3V-5V)? With the TV
connected, check the voltage of the IC on
the side on which the TV is connected.
NO
The pattern and circuit from the HDMI
connector (JK701) to the IC (IC702) is
defective.
YES YES
Does the set's wallpaper image appear on the TV when the HDMI/DVI
cable between the DVD player and the set is disconnected?
NO
Are the picture and sound output from
other Monitor Out terminals (VIDEO out,
S-VIDEO out or Component out)?
YES
The HDMI output
circuitry is
defective.
(IC702/IC601 and
surrounding
circuitry)
YES YES NO
When using a
DENON DVD player,
is the fluorescent
display tube's "HDMI"
indicator lit?
If using a non-
DENON DVD player,
proceed to "NO".
NO
The DVD player does not recognize the
connection with the set.
Is the HDMI connector (JK503/JK551) pin
19 "H" (5V)? With the DVD player
connected, check the voltage of the HDMI
connector for the input on the side on
which the DVD player is connected.
NO
The pattern and circuit from the HDMI
connector (JK503 andJ K551) to the
IC951 is defective.
YES YES
The HDMI output circuitry is defective.
(IC554/IC601 and surrounding circuitry)
TV を確認する
TV は HDCP に対応していますか？
NO
HDCP に対応している TV を使用して
ください。PC 用の TV は使用できませ
ん。
YES
TV は 1080P に対応していますか？
NO
TV が 1080P に対応していない場合、
DVD プレーヤーを 1080P に設定して
も、画像は出力されません。
YES
TV の入力設定が HDMI 入力になっていますか？
NO
TV の取扱説明書を見て入力設定を確
認してください。
YES
別の TV に交換すると画像と音声が出力されますか？
NO
TV が不良です。
YES
本機を確認する
本機の入力設定が HDMI 入力になっていますか？
NO
本機の取扱説明書を見て入力設定を
確認してください。
YES
Monitor info. 表示メニュー
で TV の情報が正しく表示さ
れていますか？
NO
本機が TV を認識していません
IC702 の 51pin が "H"(3V-5V) となって
いますか？
TV を接続している状態で、TV を接続
している側の IC の電圧を確認してく
ださい。
NO
HDMI コネクター (JK701) から
IC(IC702) までのパターンおよび回路
が不良です。
YES YES
DVD プレーヤーと本機間の HDMI/DVI ケーブルを取り外した時、TV に本
機の壁紙の画像が表示されますか？
NO
他の Monitor Out(VIDEO out/S-VIDEO
out/Component out) からは出力され
ますか？
YES
HDMI出力系の回路が
不良です。
(IC702/IC601 周辺回
路)
YES NO
DENON の DVD プレーヤー
を使用している場合、FL 管
の"HDMI"インジケータが点
灯していますか？
他社の DVD プレーヤーを使
用している場合は "NO" に進
んでください。
NO
DVD プレーヤーが本機との接続を認
識していません
HDMI コネクター (JK503/JK551) の
19pin が "H"(5V) となっていますか？
DVD プレーヤーを接続している状態
で、DVD プレーヤーを接続している
入力の HDMI コネクターの電圧を確
認してください。
NO
HDMI コネクター (JK503/JK551) から
IC951までのパターンおよび回路が不
良です。
YES YES
HDMI 入力系の回路が不良です。
(IC554/IC601 周辺回路 )
37
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
BLOCK DIAGRAMS (1/2)

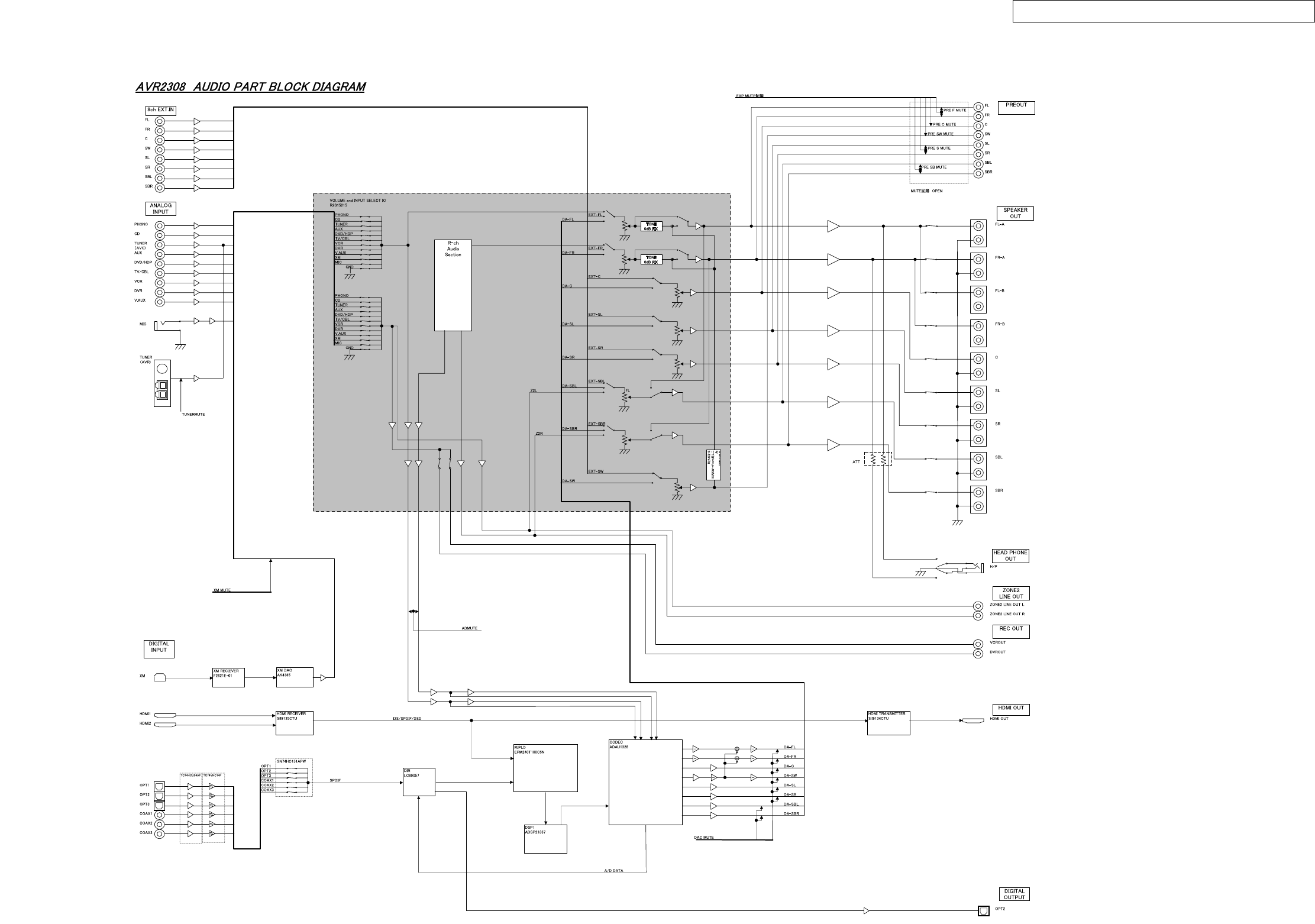

AUDIO BLOCK DIAGRAM
38
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

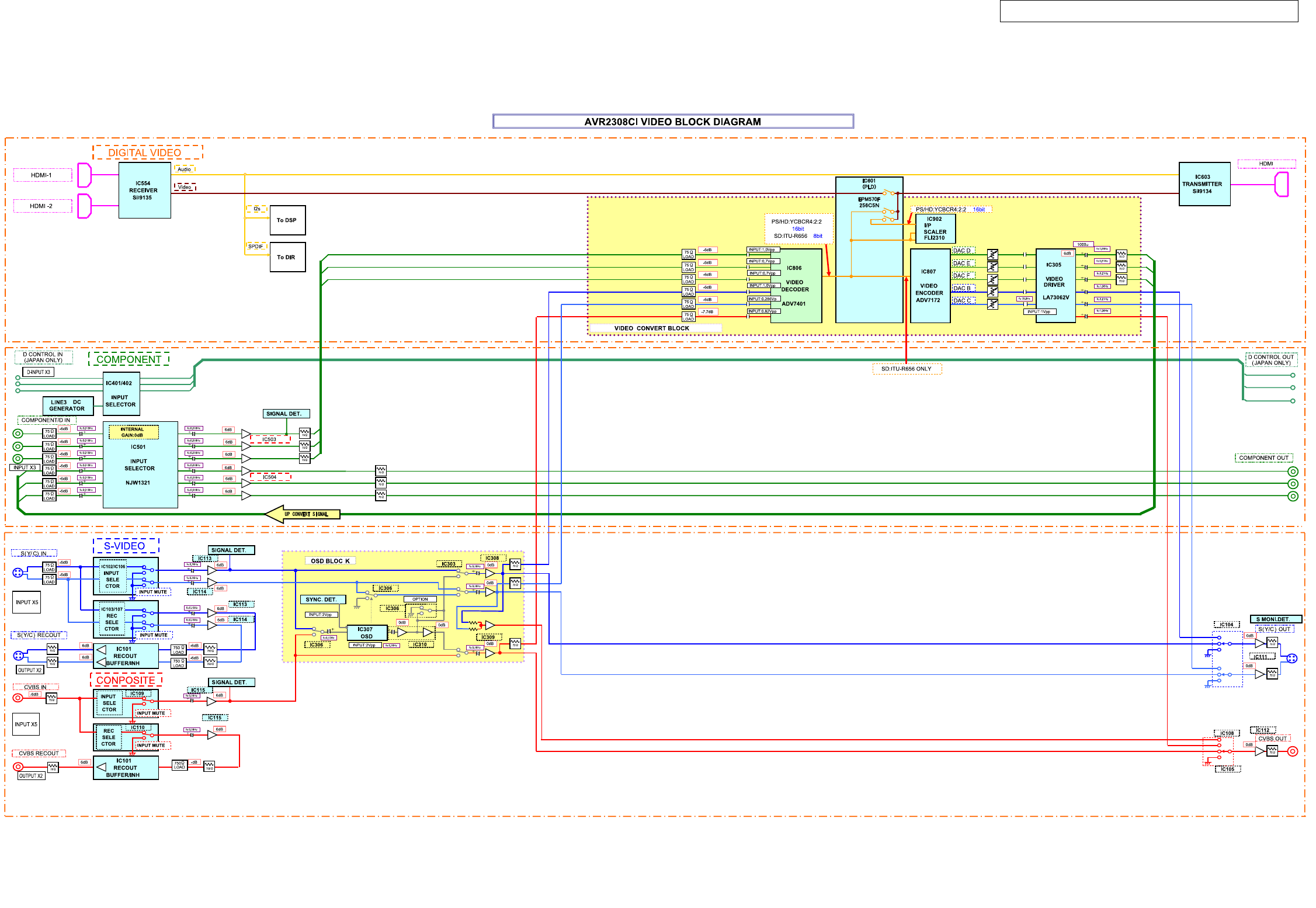

BLOCK DIAGRAMS (2/2)
VIDEO BLOCK DIAGRAM
39
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

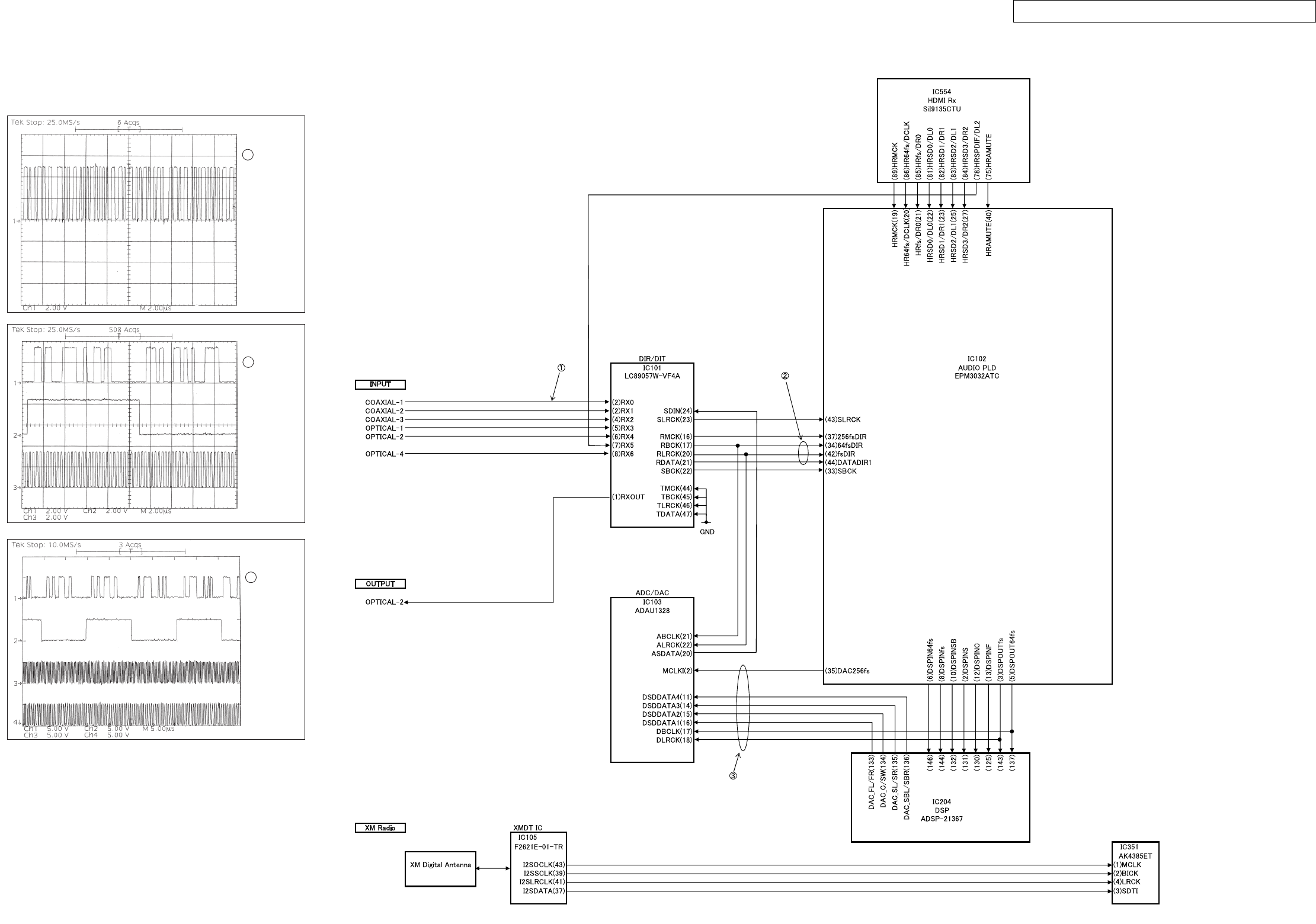

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
CH1: D-DATA
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: fs
CH3: 64fs
2
Wave form
40
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
LEVEL DIAGRAMS (1/5)
41
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
LEVEL DIAGRAMS (2/5)
42
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

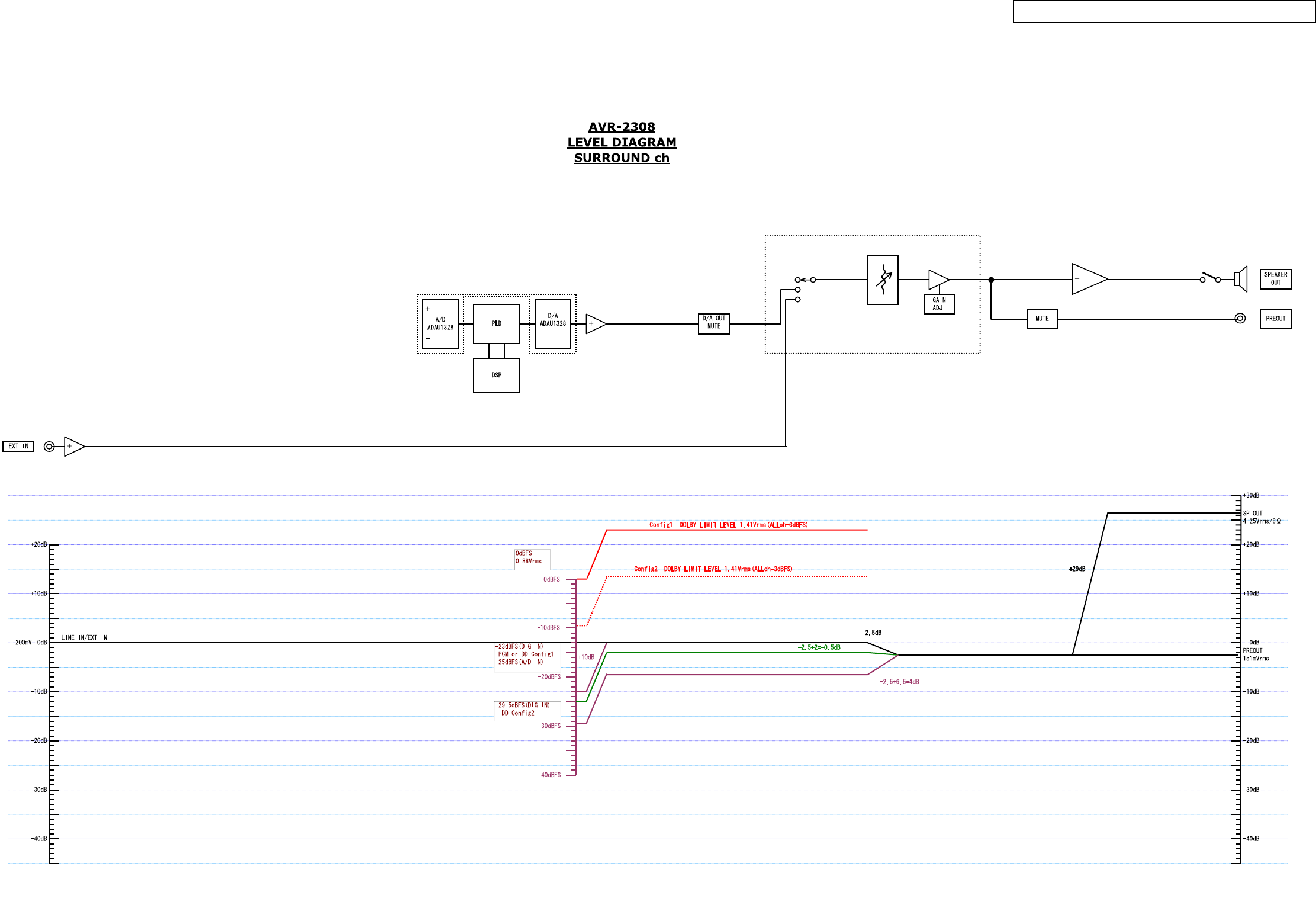

LEVEL DIAGRAMS (3/5)
43
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

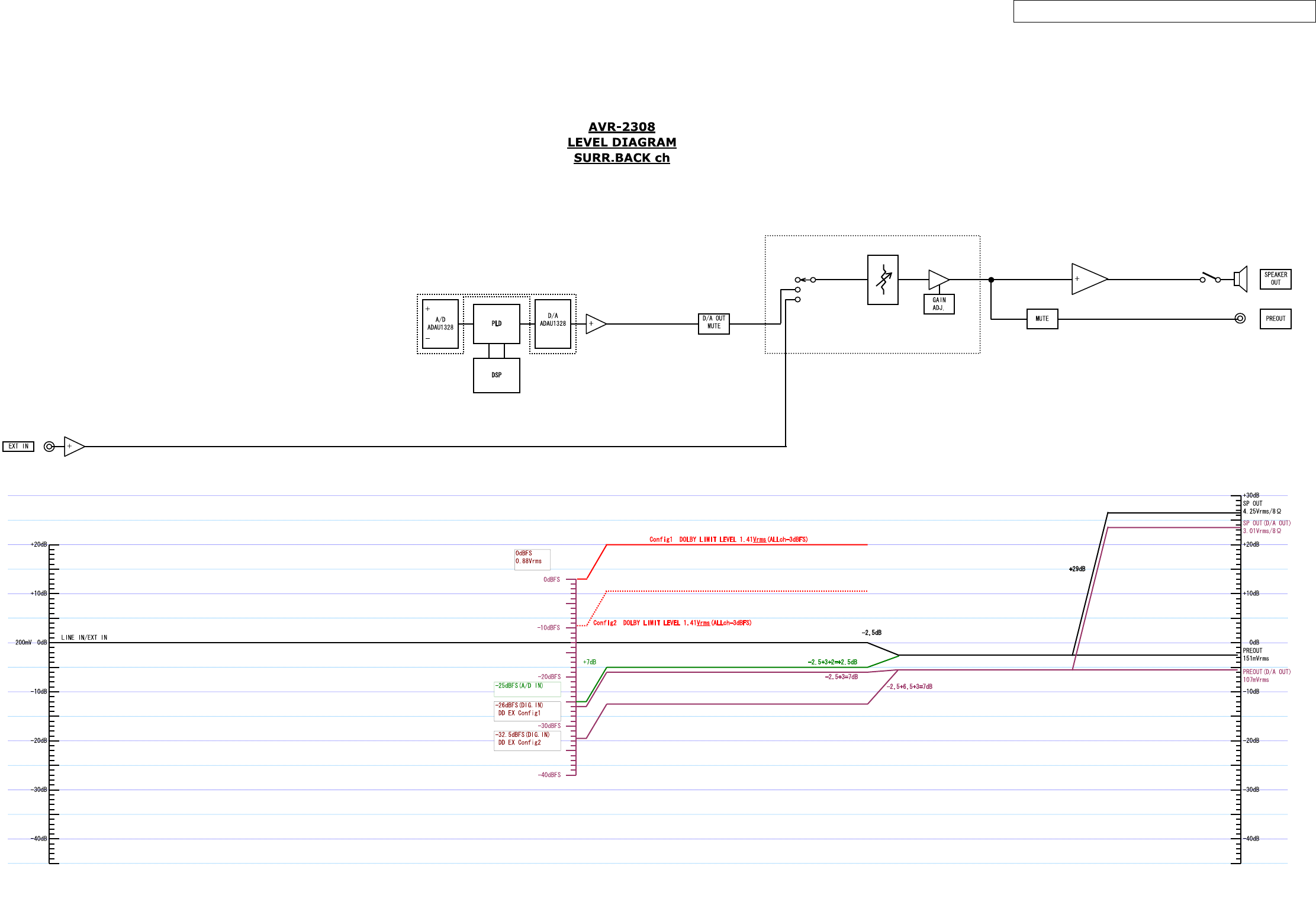

LEVEL DIAGRAMS (4/5)
44
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

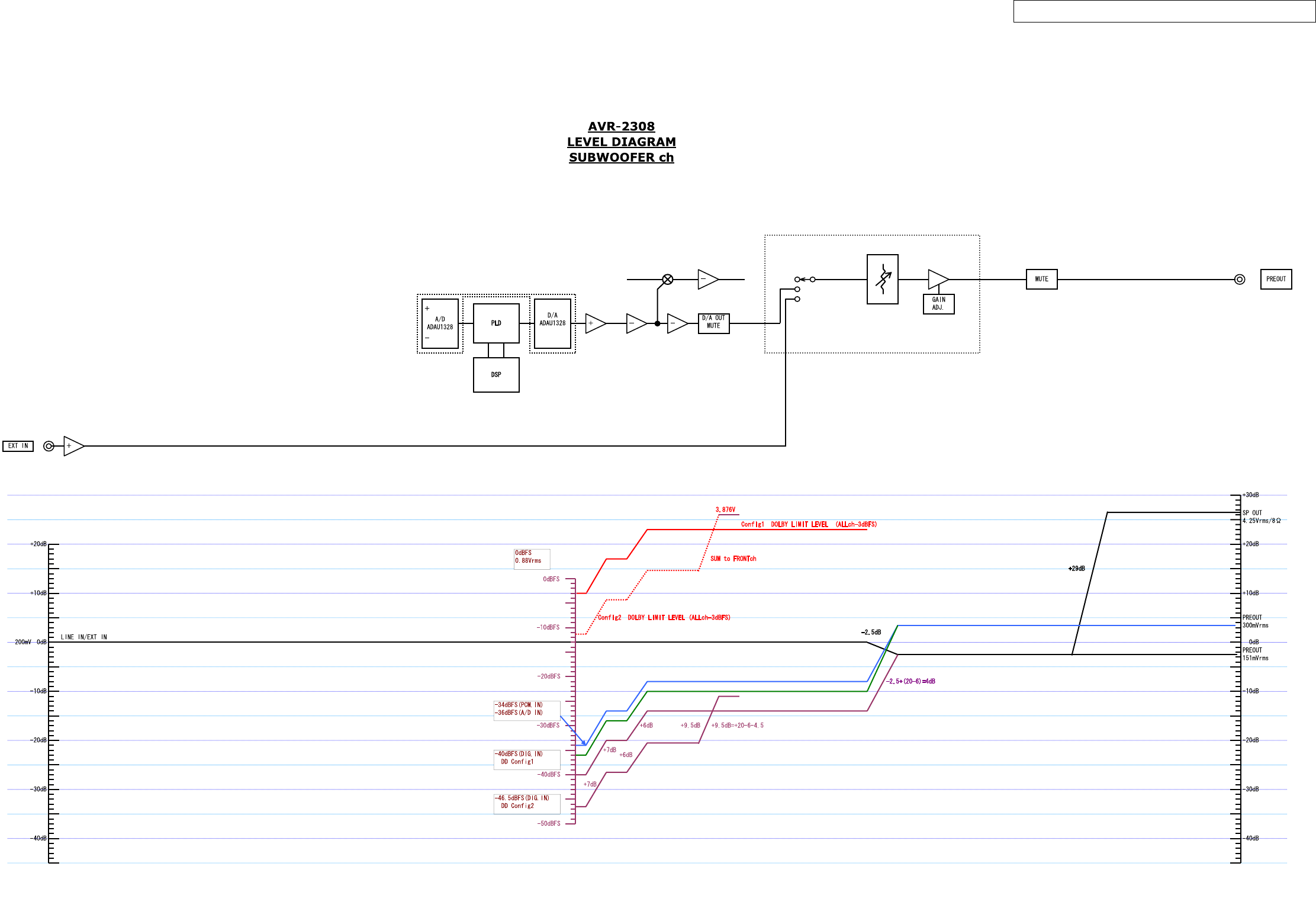

LEVEL DIAGRAMS (5/5)
45
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
The semiconductor which described a detailed drawing in a schematic diagram are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
回路図の中に詳細図がある半導体は記載を省略しています。
1. IC’s
Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc.
注 ) : IC No. の前の記号は、基板の名称を表します。
DI : DIGITAL P.W.B. FR : FRONT P.W.B.
AV : AUDIO VIDEO P.W.B. MC : MAIN CPU P.W.B.
PA : POWER AMP P.W.B. PR : POWER REG. P.W.B.
M30879FLBFP (MC: IC105)
M30879FLBFP Terminal Function
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Stby Stop Function
1 P96/SOUT4 RSTSUB O C - - Ed Z O/L O/L Sub μcom Reset control pin
2 P95/CLK4 MICDET I - Lv - Eu Z O/L O/L Microphone detect input (Detected : H)
3 P94/TB4 H/PDET I - Lv - Eu Z O/L O/L HEADPHONE detect input (Detected : H)
4 P93/TB3 FL_DATA O C - - Z O/L O/L FLD DRIVER control pin
5 P92/SOUT3 MOSI O C - - Ed Z O/L O/L MAIN-SUB μcom comm. control pin
6 P91/SIN3 SOMIm I - Lv - - Z I O/L MAIN-SUB μcom comm. control pin
7 P90/CLK3 CLKMO O C - - Ed Z O/L O/L MAIN-SUB μcom comm. control pin
8 BYTE BYTE I - - - - - - - MAIN-SUB μcom comm. control pin
9 CNVCS CNVSS I - - - Ed Z I I UP GRADE PIN
10 P87 FL_RST O C - - Z O/L O/L FLD DRIVER Reset control pin
11 P86 GRNLED O C - - - Z O/L O/L STBYLED GREEN control pin
12 RESET RESET I - Lv - Eu L I I u-COM RESET SIGNAL INPUT
13 XOUT XOUT O - - - - - O/L O/L OSILATOR CONNECTION
14 VSS VSS - - - - - - - - GND
15 XIN XIN I - - - - - I I OSILATOR CONNECTION
46
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
16 VCC VCC - - - - - - - - POWER 5V
17 P85/NMI NMI I - - - - - - - 5V
18 P84/INT2 PROTECTION I - E ↓ &L - Eu Z I I PROTECTION SIGNAL INPUT
19 P83/INT1 POWERKEY I - Lv - Eu Z I I MAIN POWER relay control output
20 P82/INT0 REMOTEDET I - Lv - Ed - O/L O/L ROOM TO ROOM Signal detect pin (Detected : H)
21 P81 ISELB I - - - Eu Z O/L O/L Input selector rotation detect input (Rotary encoder)
22 P80 VSELA I - - - Eu Z O/L O/L Master Volume rotation detect input (Rotary encoder)
23 P77 SSELA I - - - - Z O/L O/L Selector rotation detect input (Rotary encoder)
24 P76 - O C - - - Z O/L O/L Not used
25 P75 - O C - - - Z O/L O/L Not used
26 P74 SSELB I - - - - Z O/L O/L Selector rotation detect input (Rotary encoder)
27 P73/CTS2 VOLDATA O C - - - Z O/L O/L Volume control pin
28 P72/CLK2 VOLCLK O C - - - Z O/L O/L Volume control pin
29 P71/RXD2 RXDMIXO I - - - Ed Z I O/L XM RADIO control pin
30 P70/TXD2 TXDMOXMI O N - - Eu Z O/L O/L XM RADIO control pin
31 P67/TXD1 MO232CI O C - - - Z O/L O/L RS232C SIGNAL OUTPUT
32 P66/RXD1 MI232CO I - - - Ed Z I O/L RS232C SIGNAL INPUT
33 P65/CLK1 EXPCLK O C - - - Z O/L O/L Extended IC control pin
34 P64/CTS1 EXPDATA O C - - - Z O/L O/L Extended IC control pin
35 P63/TXD0 MOIPI O C - - - Z O/L O/L iPod control pin
36 P62/RXD0 MIIPO I - - - Ed Z I O/L iPod control pin
37 P61/CLK0 VSELB I - - - Eu Z O/L O/L Master Volume rotation detect input (Rotary encoder)
38 P60/CTS0 ISELA I - - - Eu Z O/L O/L Input selector rotation detect input (Rotary encoder)
39 P57 REDLED O C - - - Z O/H O/L STBY LED RED CONTROL
40 P56 FL_CE1 O C - - Z O/L O/L FLD DRIVER control pin
41 P55/EPM FRASH CE/FL_CLK O C - - - Z O/L O/L Rewrite boot program start : L input set
/FLD DRIVER control pin
42 P54 M232CPOWER O C - - Ed Z O/L O/L RS232C POWER control pin (STANDBY:H)
43 P53 - O - - - ー Z O/L O/L -
44 P52 - O - - - ー Z O/L O/L -
45 P51 TRIGGER1 O C - - - - O/L O/L TRIGGER OUT 1 control pin
46 P50/CE FRASH CE/TRIGGER2 O C - - - Z O/L O/L Rewrite boot program start : H input set/TRIGGER OUT 2
control pin
47 P47 RDSDOUT I - - - Eu Z O/L O/L RDS DETECT IN control pin
48 P46 TURDSCLK(CKTU) O C - - - Z O/L O/L TUNER/RDS CLOCK OUT
49 P45 TURDSDATA
（DATATU)
O C - - - Z O/L O/L RDS DATA OUT control pin
50 P44 RDSCE O C - - - Z O/L O/L TUNER MUTE control (MUTE : L)
51 P43 RDSRST O C - - - Z O/L O/L RDS reset output
52 P42 THERMAL I - - - Ed Z O/L O/L Temperature detect
53 P41 EXPOE O C - - - Z O/L O/L Extended IC control pin
54 P40 EXPSTB O C - - - - O/L O/L Extended IC control pin
55 P37 TUDOUT(DATAOUT) I - Lv - Ed - O/L O/L TUNING DATA INPUT control pin
56 P36 TUSTB O C - - - Z O/L O/L MUTE CONTROL
57 P35 STEREO I - Lv - Eu - O/L O/L When TUNER FM stereo receive : L
58 P34 TUNED I - Lv - Eu - O/L O/L TUNER turned detect (Detected : L)
59 P33 IPDET I - Lv - Eu Z O/L O/L MINI JACK connected detection pin for DOCK connection
(H:DETECTIVE)
60 P32 REMOTEPOWER O - - - - - O/L O/L REMOTE POWER control pin (ON : H)
61 P31 TRIGPROTECT Ｏ/L - - - Eu Z O/L O/L TRIGGER PROTECTION detect port (Not used)
62 VCC VCC - - - - - - - - +5V
63 P30 VOLPROTECT I - E ↑ &H - Eu Z O/L O/L Voltage detection control pin
64 VSS VSS - - - - - - - - GND
65 P27 B.D.CONTORL O C - - - Z O/L O/L B.DOWN detect value change control pin (from CPU/E
POWER ON after 15ms ON)
66 P26 SCPUPOWER O C - - - Z O/L O/L SUB CPU POWER ON/OFF switcing (H : ON)
67 P25 XMPOWER O C - - - Z O/L O/L XM RADIO POWER control pin
68 P24 POWER O C - - Ed Z O/L O/L MAIN POWER relay control output (ON : H)
69 P23 CPU/EPOWER O C - - Ed Z O/L O/L MAIN CPU POWER control pin (POWER ON : H)
70 P22 LIMIT O C - - - Z O/L O/L LIMIT control
71 P21 - O C - - - Z O/L O/L Not used
72 P20 7CHLIMIT O C - - - Z I I Not used
73 P17/INT5 REMOCOM I - E ↑ &H - Ed Z I I Remote control signal input
74 P16/INT4 REQSOMIm I - E ↓ &L - Ed Z I O/L MAIN-SUB μcom comm. control pin
75 P15/INT3 B.DOWN I - E ↓ &L - Eu Z I I Power down detect (Power down : L)
76 P14/D12 - O - - - - Z O/L O/L Not used
77 P13/D11 LIMITDET I - Lv - Eu Z O/L O/L Signal detect input (Detected : H)
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Stby Stop Function
47
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
78 P12/D10 - O C - - Ed I I Not used
79 P11/D9 - O C - - - - I I Not used
80 P10/D8 VOLMUTE O C - - - Z I O/L VOLUME MUTE control pin
81 P07/D7 MUTEPOWER O C - - - Z O/L O/L For MUTE +B control pin
82 P06/D6 SYNCDET I - Lv - Ed Z O/L O/L Sync. detect input for MAIN(H: Ext. synchronized)
83 P05/D5 OSDMUTE O C - - - Z O/L O/L OSD control pin
84 P04/D4 - O C - - - Z O/L O/L Not used
85 P03/D3 OSDRST O C - - - Z O/L O/L OSD control pin
86 P02/D2 OSDSTR O C - - - Z O/L O/L OSD control pin
87 P01/D1 OSDCLK O C - - - Z O/L O/L OSD control pin
88 P00/D0 OSDDATA O C - - - Z O/L O/L OSD control pin
89 P107/AN7 XMOLINKACTIVE I - - - Ed Z O/L O/L XM RADIO control pin
90 P106/AN6 XMOANTREV I - E ↓ &L - Ed Z O/L O/L XM RADIO control pin
91 P105/AN5 XMIRESET O C - - - Z O/L O/L XM RADIO RESET control pin
92 P104/AN4 ACKSUB O C - - Ed Z O/L O/L MAIN-SUB μcom comm. control pin
93 P103/AN3 KEY1 I - Lv - Eu Z O/L O/L KEY1 SIGNAL INPUT
94 P102/AN2 KEY2 I - Lv - Eu Z O/L O/L KEY2 SIGNAL INPUT
95 P101/AN1 KEY3 I - Lv - Eu Z O/L O/L KEY3 SIGNAL INPUT
96 AVSS AVSS - - - - - - - - GND
97 P100/AN0 SET_OPTION I - Lv - - Z O/L O/L SET OPTION SELECT
98 VREF VREF - - - - - - - - VREF
99 AVCC AVCC - - - - - - - - POWER 5V
100 P97/SIN4 - O - - - Ed Z O/L O/L Not used
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Stby Stop Function
Note: Pin No. : Terminal number of microcomputer.
Port Name : The name entered in the data sheet of microcomputer.
Symbol : Symbolized interface function.
I/O : Input or out of part.
“I” = Input port
“O” = Output port
Type : Composition of port in case of output port.
“C” = CMOS output
“N” = NMOS open drain output
“P” = PMOS open drain output
Op : Pull up/Pull down selection information.
“Iu” = Inner microcomputer pull up
“Id” = Inner microcomputer pull down
“Eu” = External microcomputer pull up
“Ed” = External microcomputer pull down
Det : Indicates judging state of input port. Level detection is “LV”; Edge detection is “Ed”; Detection by both shifting is “E&L”;
Serial data detection is “S” (Serial data output is also “S”).
Res : State at reset.
“H” = Outputs High Level at reset
“L” = Outputs Low Level at reset
“Z” = Becomes High impedance mode at reset
STBY : State of port when STANDBY mode.
“O/L” = Output port and “L”
“I” = Input port
Stop : State of port when Stop mode.
“O/L” = Output port and “L”
“I” = Input port
48
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

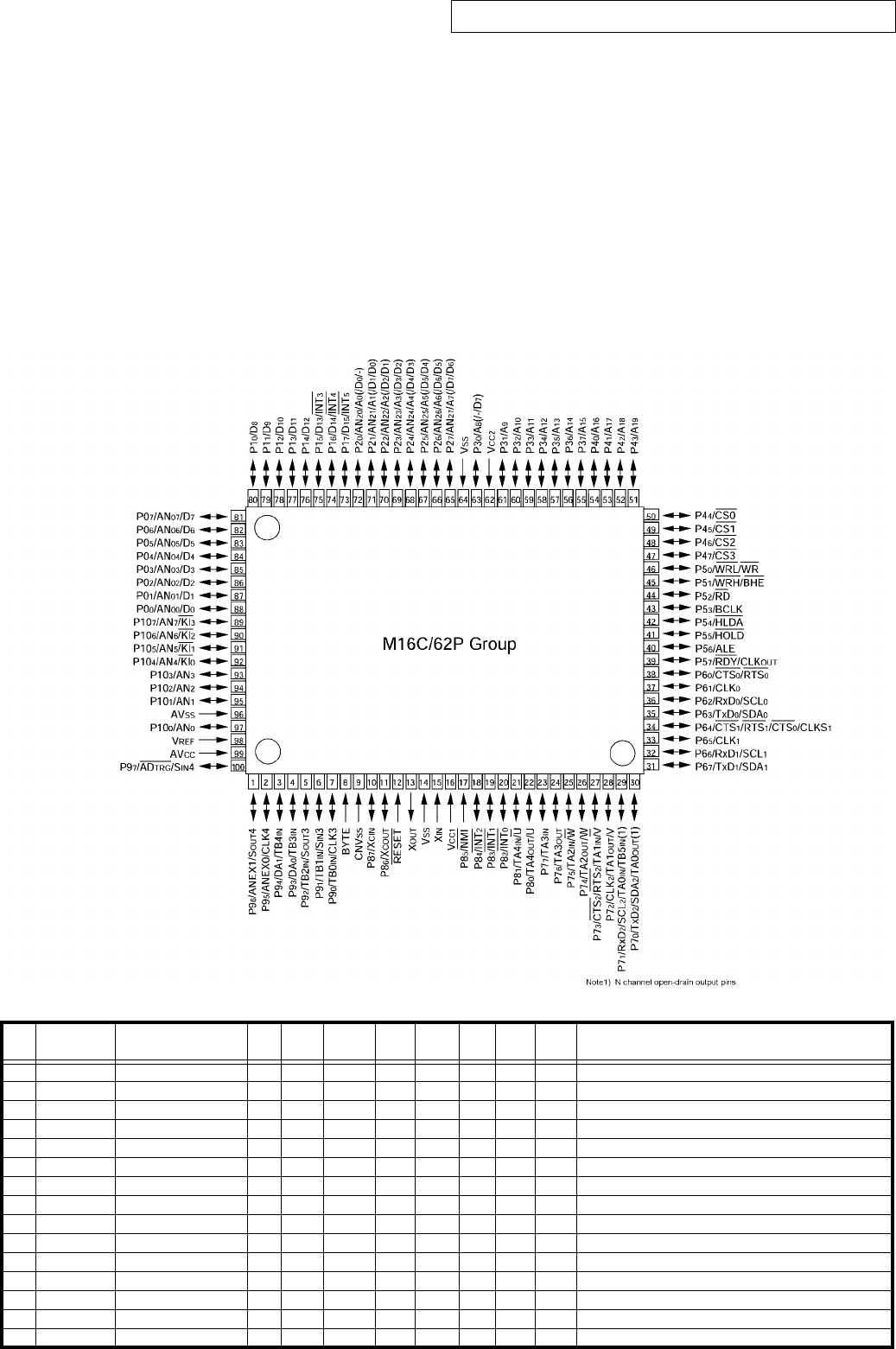

M3062LFGPGP (DI: IC951)
M3062LFGPGP Terminal Function
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Function
1 P94/TB4 VPLD DATA O C - - - Z Video PLD control pin
2 P93/TB3 DIR CE O C - - - Z DIR control pin (LC89057W-VF4A)
3 P92/SOUT3 DIR DIN O C - - - Z DIR control pin (LC89057W-VF4A)
4 P91/SIN3 DIR DOUT I - Lv - Eu Z DIR control pin (LC89057W-VF4A)
5 P90/CLK3 DIR CLK O C - - - Z DIR control pin (LC89057W-VF4A)
6 BYTE BYTE - - - - - - GND (Ext. data bus bit width switching, 16bit: L)
7 CNVCS CNVSS - - - - - - Single-chip/Micro-processor mode switching (Normal single-chip: L,
Rewrite boot program start:H input set)
8 P87 VERST O C - - Eu Z Video encoder reset (ADV7172)
9 P86 VDRST O C - - Eu Z Video decoder reset (ADV7401)
10 RESET SUBRESET I - Lv - Eu L Reset input
11 XOUT X1 O - - - - - Oscillator connection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillator connection
14 VCC VCC - - - - - - +3.3V
15 P85/NMI NMI I - - - - - Not used (Fixed to H)
16 P84/INT2 CEC-I I - - - - Z CEC-D signal input pin (reserve)
17 P83/INT1 ACKSIMO I - E ↓ &L - Ed Z MAIN-SUB μcom comm. Control input pin
18 P82/INT0 SUB BDOWN I - E ↓ &L Eu Z Power down detect (Power down : L)
19 P81 IP RST O C - - - Z IP CONV (FLI2310) reset
20 P80 NC I - - - Ed Z Not used
21 P77 SICODECO I - - - - Z CODEC control pin (ADAU1328)
22 P76 CPU_MUTE/TMS O C - - - Z MAIN PLD DAC MUTE control pin/PLD rewrite control (JTAG)
23 P75 APLDSEL/TDI O C - - - Z MAIN FPGA (PLD) control pin/PLD rewrite control (JTAG)
24 P74 MTCK O C - - - Z PLD rewrite control (JTAG)
25 P73/CTS2 VIDEO_POWER O C - - - Z VIDEO POWER control output (H : ON)
49
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
26 P72/CLK2 DAC_POWER O C - - Ed Z DIGITAL POWER control output (H : ON)
27 P71/RXD2 VSCL I/O N - - Eu Z VIDEO I2C- IP CONV(FLI2310)/V_ENCODER(ADV7172)/
V_DECODER(ADV7401)/COMPONENT SELECT IC(NJW1321FP1)control
pin
28 P70/TXD2 VSDA I/O N - - Eu Z VIDEO I2C- IP CONV(FLI2310)/V_ENCODER(ADV7172)/
V_DECODER(ADV7401)/COMPONENT SELECT IC(NJW1321FP1)control
pin
29 P67/TXD1 TXD O C - - Eu Z Data transmission output to outside
30 P66/RXD1 RXD I - Lv - Eu Z Data transmission output to outside
31 P65/CLK1 SW SUM O C - - - Z Additional instructions to FRONT of an SW signal.(H:ON)
32 P64/CTS1 HDMIPOWER O C - - Z HDMI POWER control pin (H : ON)
33 P63/TXD0 SOMI O C - - - Z MAIN-SUB μcom comm. control pin
34 P62/RXD0 SIMO I - - - Ed Z MAIN-SUB μcom comm. control pin
35 P61/CLK0 CLKSIMO I - - - Ed Z MAIN-SUB μcom comm. control pin
36 P60/CTS0 REQSOMI O C - - Ed Z MAIN-SUB μcom comm. control pin
37 P57 NC O C - - - Z Not used
38 P56 HDP2 O C - - - Z HD DET control pin
39 P55/EPM ADPDOWN/AUTH O C - - Ed Z Rewrite boot program start : L input set
40 P54 - O C - - - Z Not used
41 P53 MONIDIS O C - - Z COMPONENT MONITOR OUT output control pin
42 P52 VCR2INH O C - - - Z VCR2OUT output INH control （L:MUTE）
43 P51 VCR1INH O C - - - Z VCR1OUT output INH control （L:MUTE)
44 P50/CE WP2/(AVMUTE) O/I - - - Eu Z Write Protect control / Rewrite boot program start:H input set
45 P47 WP1 O C - - Ed Z WRITE PROTECT control pin
46 P46 DSPPWR O C - - Ed Z H:DSP Power ON(Not used)
47 P45 HDP1 O C - - Ed Z HP DET1 control pin
48 P44 P.SAVE O C - - Ed Z COMPONENT CONVERT output control pin
49 P43 HRINT I - E ↓ &L - - Z HDMI RECEIVER (SiI9031) INT output
50 P42 HSCL/EDID SCL I/O C - - Eu Z VIDEO I2C / HDMI EDIT (E2PROM) control pin
51 P41 HSDA/EDID SDA I/O C - - Eu Z VIDEO I2C / HDMI EDIT (E2PROM) control pin
52 P40 Z1SMONIA O C - - Z Z1 SMONITOR Select
53 P37 HDMIR_RST O C - - Eu Z HDMI RECEIVER (SiI9135) reset
54 P36 1HTRST O C - - Eu Z HDMI TRANSMITTER1 (SiI9134) reset
55 P35 Z1SMONIB O C - - Z Z1 SMONITOR Select
56 P34 1HTINT I - Lv - . Z HDMI OUT signal detect input (HDMI TRANS1 SiI9134)
57 P33 PAL/NTSC O - - - Ed Z PAL/NTSC control pin (ADV7172)
58 P32 SOCODECI O C - - - Z CODEC control pin（ADAU1328)
59 P31 CLKCODEC O C - - - Z CODEC control pin（ADAU1328)
60 VCC VCC - - - - - - +3.3V
61 P30 CECODEC O C - - - Z CODEC control pin（ADAU1328)
62 VSS VSS - - - - - - GND
63 P27 CODECRST O C - - - Z CODEC control pin（ADAU1328)
64 P26 XMDACRST O C - - - Z XMDAC control pin (AK4385)
65 P25 XMDACCS O C - - - Z XMDAC control pin (AK4385)
66 P24 XMDACMC O C - - - Z XMDAC control pin (AK4385)
67 P23 XMDACMDI O C - - - Z XMDAC control pin (AK4385)
68 P22 VEXPSTB O C - - - Z STB output for video expander control (BU4094BCFV)
69 P21 VEXPOE O C - - Ed Z OE output for video expander control (BU4094BCFV)
70 P20 VEXPCLK O C - - - Z CLK output for video expander control (BU4094BCFV)
71 P17/INT5 VEXPDIN O C - - - Z DATA output for video expander control ( BU4094BCFV)
72 P16/INT4 COMPSDET I - Lv - Eu Z MAIN ZONE's COMPONENT signal detect input
73 P15/INT3 Z1VSIG.DET I - Lv - Eu Z MAIN ZONE's VIDEO signal detect input (Detected : H)
74 P14/D12 Z1SMONIDET I - - - Eu Z MAIN ZONE's S-monitor connection detect input (Connected : L )
75 P13/D11 Z1SSIGDET I - - - Eu Z MAIN ZONE's S-signal detect input (H : S-signal inputted)
76 P12/D10 SYNCDET I - Lv - - Z SyncDet pin
77 P11/D9 CPUCONT O C - - - - A.PLD Control Bit
78 P10/D8 D.POWER O C - - Ed Z DIGITAL POWER control output (H : ON)
79 P07/D7 PLDWRITE O C - - - Z PLD JTAGLINE ON/OFF control
80 P06/D6 VPLDCE/TDO O/I - - - Ed Z VIDEO PLD control pin/ PLD rewrite control (JTAG)
81 P05/D5 NC O C - - - Z Not used
82 P04/D4 NC O C - - - Z Not used
83 P03/D3 INT1 I - Lv - Eu Z DIR1 control pin
84 P02/D2 INT2 O C - - - Z Not used
85 P01/D1 DIRRST2 O C - - - Z Not used
86 P00/D0 DIRRST1 O C - - - Z DIR1 control pin
87 P107/AN7 DSPRST O C - - - Z DSP (ADSP-21367) reset output pin (reset : L)
88 P106/AN6 NC O C - - Ed Z Not used
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Function
50
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
89 P105/AN5 DSPROMRST O C - - Ed Z DSP memory reset (reset : L)
90 P104/AN4 NC O C - - - Z Not used
91 P103/AN3 DSPFLAG0 I - Lv - Ed Z DSP control pin (ADSP-21367)
92 P102/AN2 DSPICS O C - Eu Z DSP control pin (ADSP-21367)
93 P101/AN1 NC O C - - - Z Not used
94 AVSS AVSS - - - - - - AD GND
95 P100/AN0 VPLDCLK O - - - - Z VIDEO PLD control pin
96 VREF VREF - - - - - - AD ref. +3.3V
97 AVCC AVCC - - - - - - AD +3.3V
98 P97/SIN4 DSPMISO I - Lv - Eu Z DSP control pin (ADSP-21367)
99 P96/SOUT4 DSPMOSI O C - - Eu Z DSP control pin (ADSP-21367)
100 P95/CLK4 DSPICLK O C - - Eu Z DSP control pin (ADSP-21367)
Pin Pin Name Symbol I/O Type Det Op
(Int.)
Op
(Ext.) Res Function
Note: Pin No. : Terminal number of microcomputer.
Port Name : The name entered in the data sheet of microcomputer.
Symbol : Symbolized interface function.
I/O : Input or out of part.
“I” = Input port
“O” = Output port
Type : Composition of port in case of output port.
“C” = CMOS output
“N” = NMOS open drain output
“P” = PMOS open drain output
Op : Pull up/Pull down selection information.
“Iu” = Inner microcomputer pull up
“Id” = Inner microcomputer pull down
“Eu” = External microcomputer pull up
“Ed” = External microcomputer pull down
Det : Indicates judging state of input port. Level detection is “LV”; Edge detection is “Ed”; Detection by both shifting is “E&L”;
Serial data detection is “S” (Serial data output is also “S”).
Res : State at reset.
“H” = Outputs High Level at reset
“L” = Outputs Low Level at reset
“Z” = Becomes High impedance mode at reset
STBY : State of port when STANDBY mode.
“O/L” = Output port and “L”
“I” = Input port
Stop : State of port when Stop mode.
“O/L” = Output port and “L”
“I” = Input port
51
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

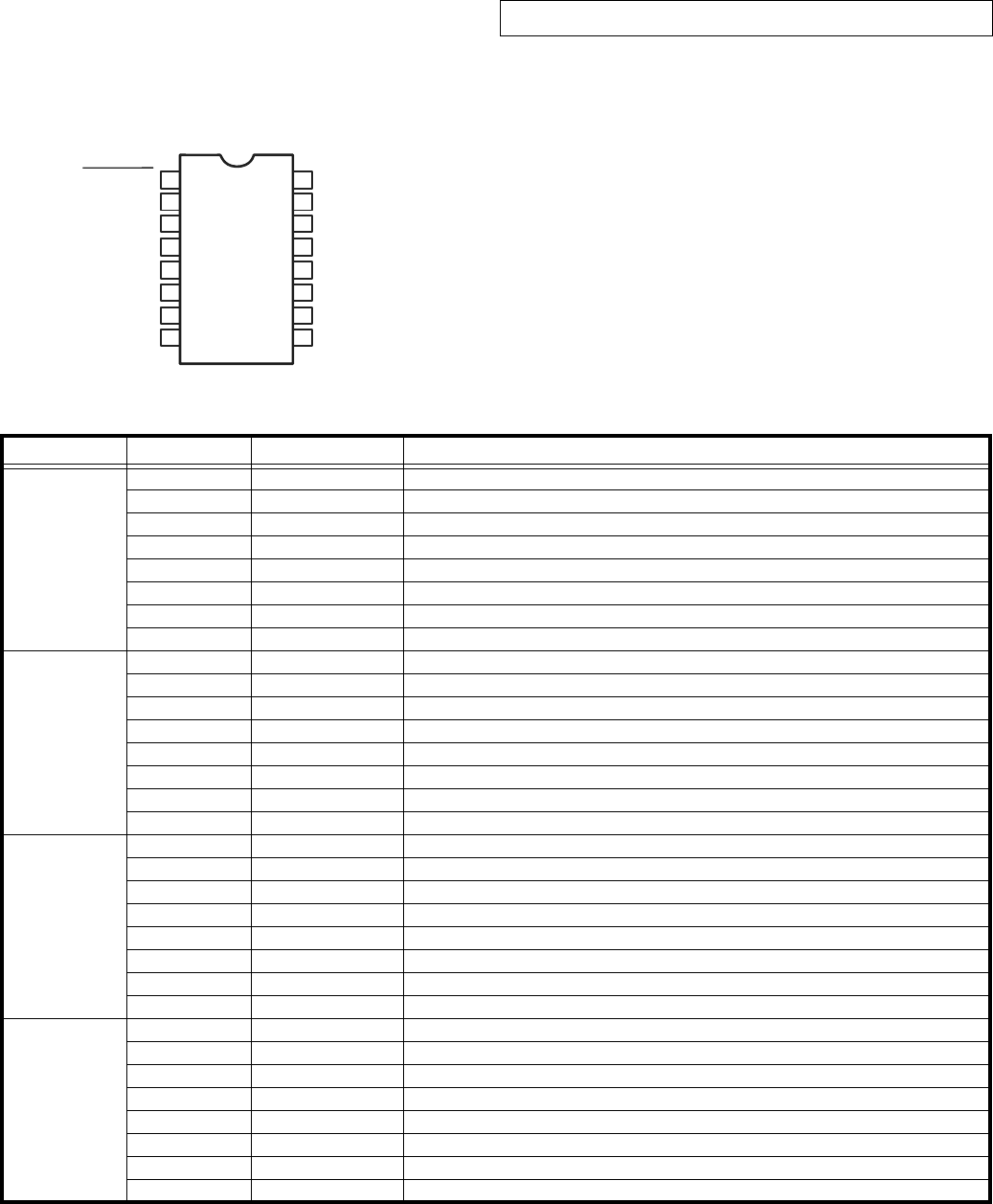

BU4094BCFV-E2 (AV: IC301)
TC4094BF (MC: IC106,107)
BU4094BCFV-E2 Terminal Function
Device Pin Name Symbol Function
DI :
IC107
EXP1 DINA MAIN ZONE Digital input switching
EXP2 DINB MAIN ZONE Digital input switching
EXP3 DINC MAIN ZONE Digital input switching
EXP4 DZ2A ZONE2 Digital input switching
EXP5 DZ2B ZONE2 Digital input switching
EXP6 DZ2C ZONE2 Digital input switching
EXP7 NC
EXP8 NC
AV :
IC301
EXP9 INA MAIN ZONE VIDEO(V/S) input switching
EXP10 INB MAIN ZONE VIDEO(V/S) input switching
EXP11 INC MAIN ZONE VIDEO(V/S) input switching
EXP12 Z2A ZONE2 VIDEO(V/S) input switching
EXP13 Z2B MAIN ZONE VIDEO(V/S) input switching
EXP14 Z2C MAIN ZONE VIDEO(V/S) input switching
EXP15 Z1MONIA MAIN ZONE VMONITOR output switching
EXP16 Z1MONIB MAIN ZONE VMONITOR output switching
AV :
IC302
EXP17 Z2MONIA ZONE2 MONITOR output switching
EXP18 Z2MONIB ZONE2 MONITOR output switching
EXP19 NC
EXP20 NC
EXP21 NC
EXP22 NC
EXP23 NC
EXP24 NC
AV :
IC304
EXP25 ASPECT_H ASPECT ratio level control (JP-model only)
EXP26 ASPECT_L ASPECT ratio level control (JP-model only)
EXP27 LINE A D pin LINE A control pin (JP -model only)
EXP28 LINE B D pin LINE B control pin (JP-model only)
EXP29 INH LINE D pin LINE control pin (JP-model only)
EXP30
EXP31
EXP32
STROBE 1
2
3
4
5
6
7
8
9
10
11
16
15
14
13
12
DATA
CLOCK
Q1
Q2
Q3
Q4
V
SS
V
DD
OE
Q5
Q6
Q7
Q8
Q’
S
Q
S
52
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
TC4094BF Terminal Function
Device Pin Name Symbol Function
MC :
IC106
EXP1 T.MUTE TUNER MUTE CONTROL L:MUTE
EXP2 PREFMUTE PREOUT FRONT MUTE CONTROL L:MUTE
EXP3 PRECMUTE PREOUT CENTER MUTE CONTROL L:MUTE
EXP4 PRESWMUTE PREOUT SUBWOOFER MUTE CONTROL L:MUTE
EXP5 PRESMUTE PREOUT SURROUND MUTE CONTROL L:MUTE
EXP6 PRESBMUTE PREOUT SURROND BACK MUTE CONTROL L:MUTE
EXP7 PREZ2MUTE ZONE2 PREOUT MUTE CONTROL L:MUTE0
EXP8 PREZ3MUTE ZONE3 PREOUT MUTE CONTROL L:MUTE
MC :
IC107
EXP9 HPRLY HEAD PHONE RELAY CONTROL H:HEAD PHONE ON
EXP10 FRL FRONT A SPEAKER RELAY CONTROL H:Front A Speaker ON
EXP11 CRL CENTER SPEAKER RELAY CONTROL H:Center Speaker ON
EXP12 NC -
EXP13 SRL SURROUND SPEAKER RELAY CONTROL H:Surround Speaker ON
EXP14 SBRL SURROUND BACK SPEAKER RELAY CONTROL H:Surround Back Speaker ON
EXP15 FBRL FRONT B SPEAKER RELAY CONTROL H:Front B Speaker ON
EXP16 NC -

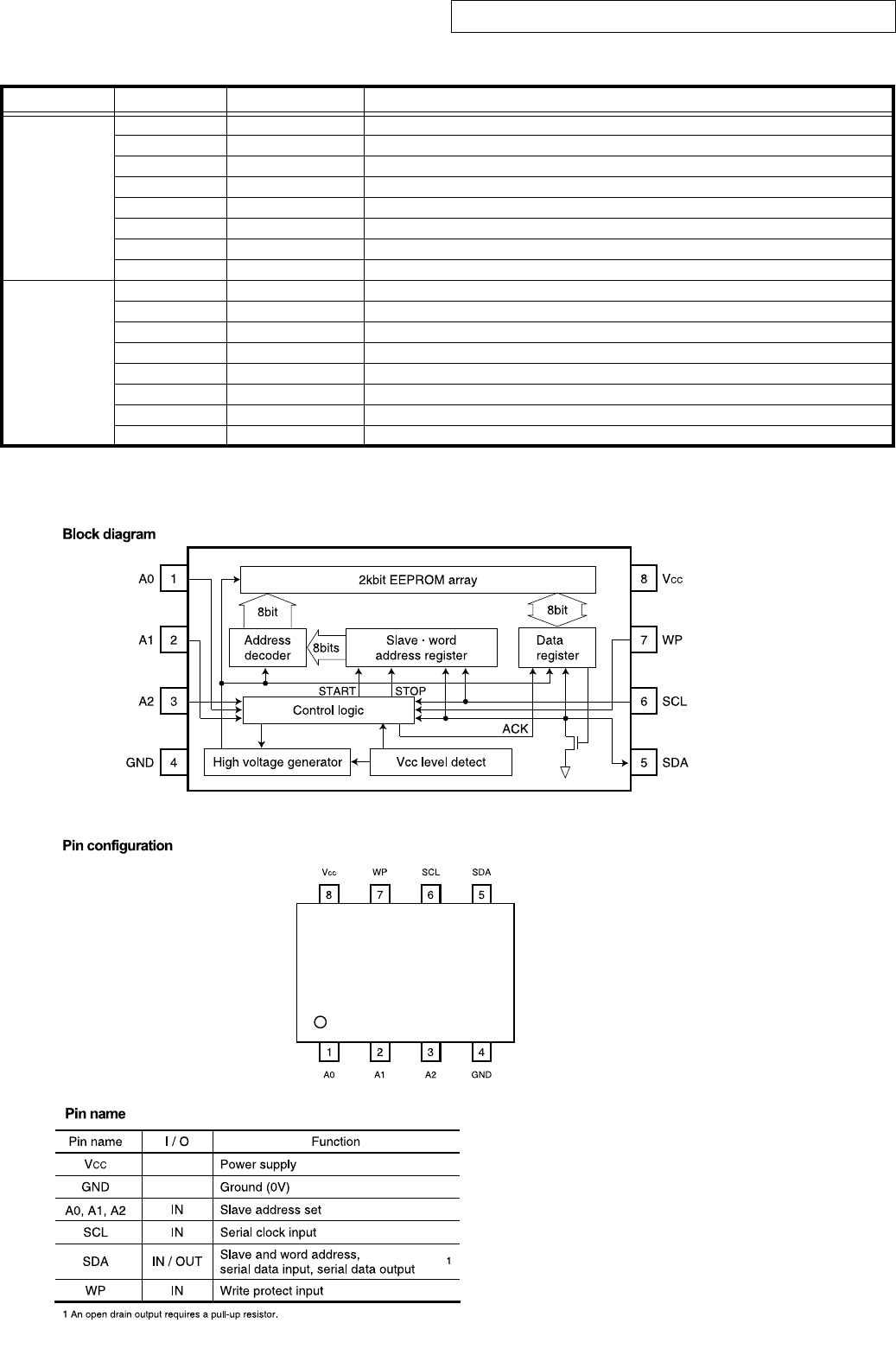

BR24L02FV-W (DI: IC551,556)
53
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

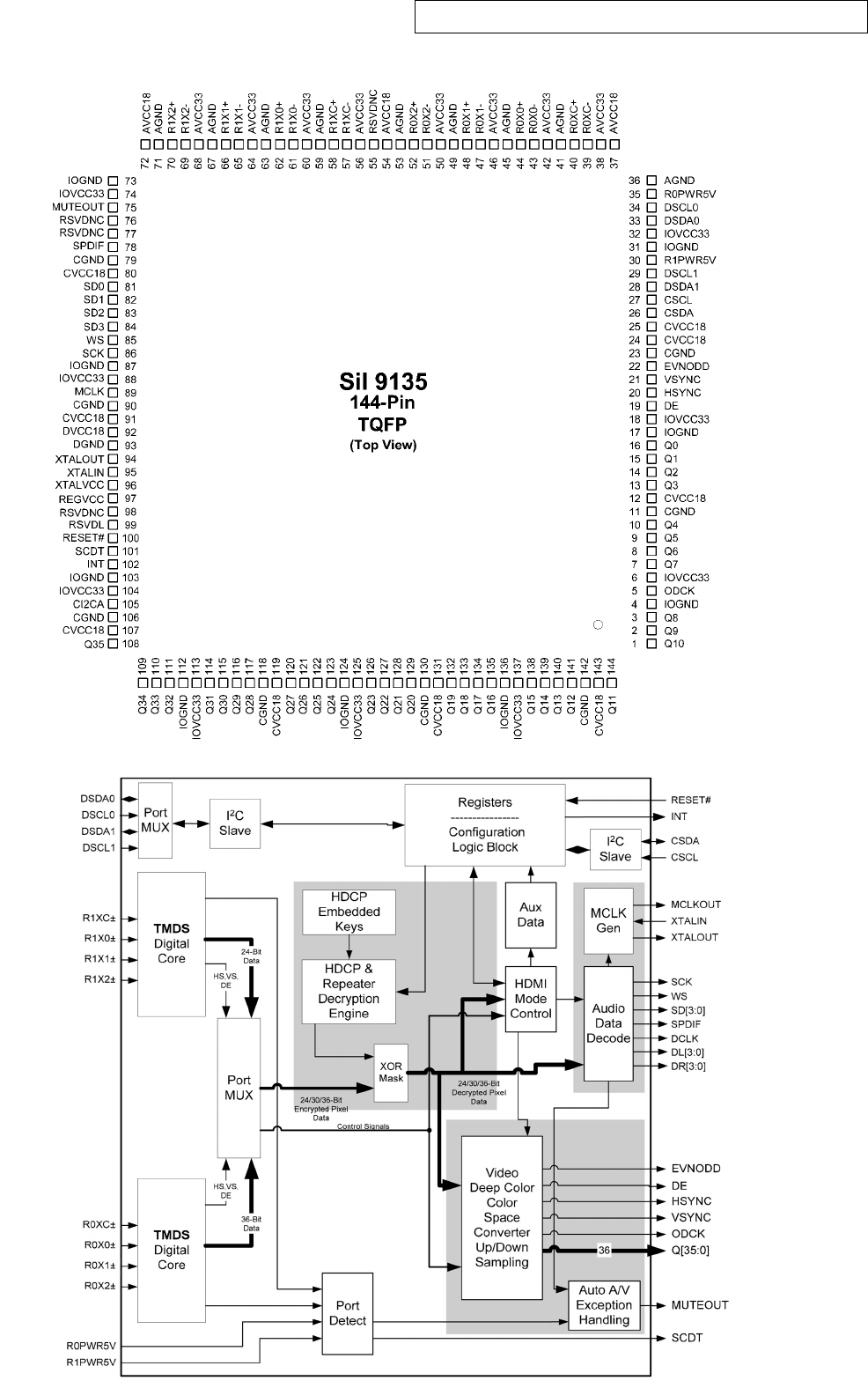

Sil9135CTU (DI : IC554)
Functional Block Diagram
54
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

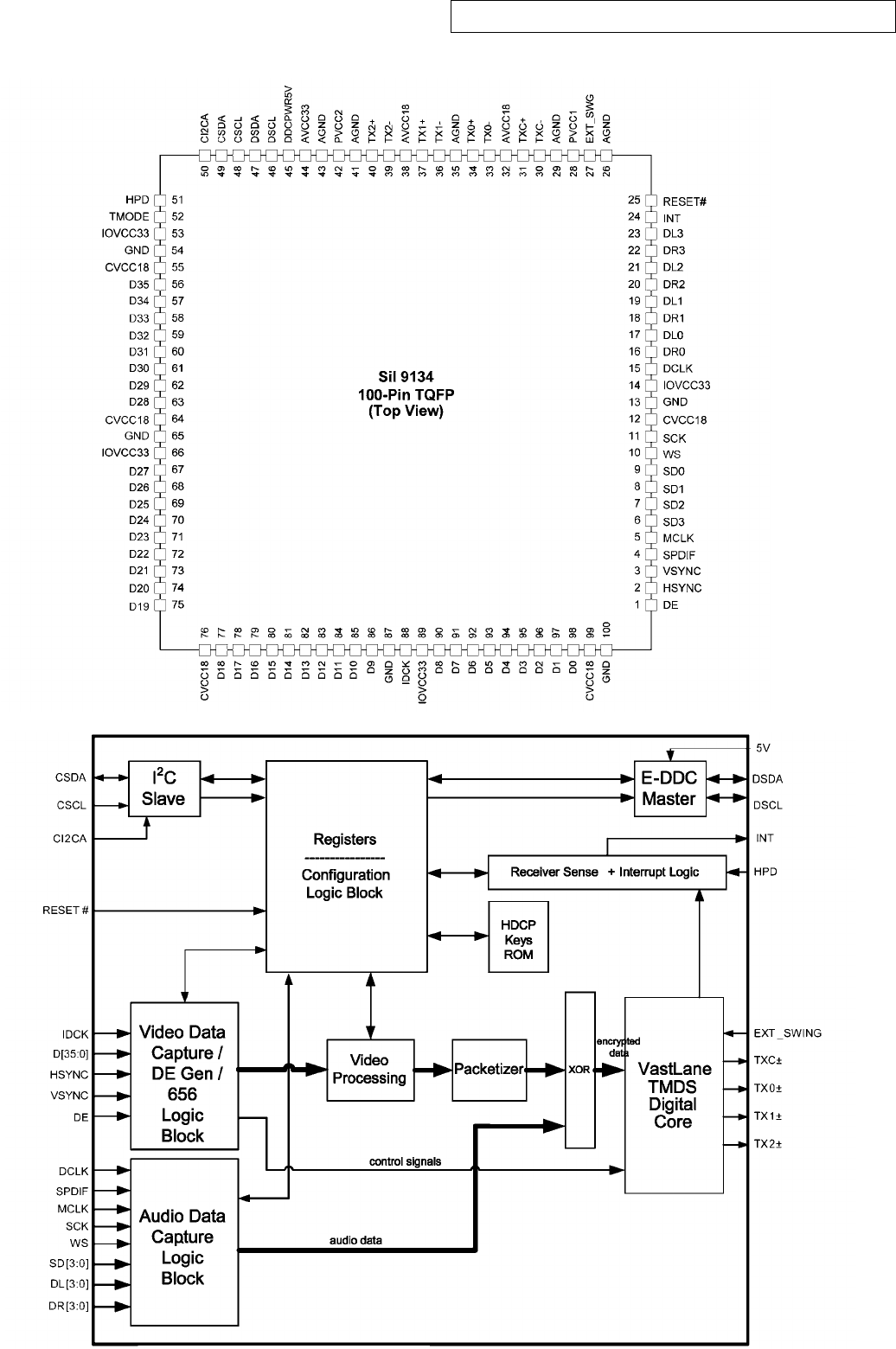

Sil9134CTU (DI : IC702)
Functional Block Diagram
55
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

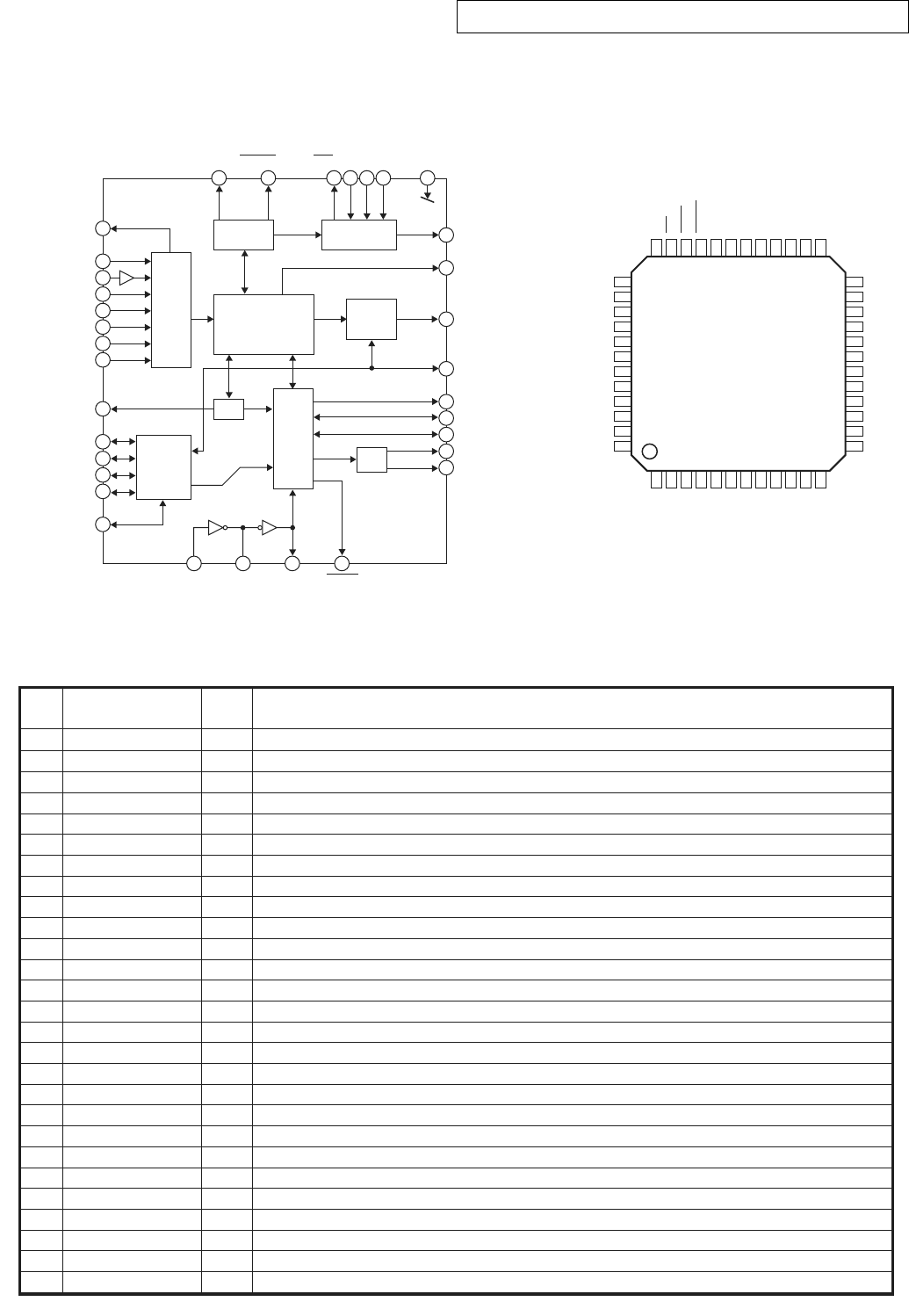

LC89057W-VF4A (DI: IC101)
LC89057W Terminal Function
Function
Pin
No. Pin Name
1 RXOUT O Input bi-phase select data output terminal
2 RX0 I TTL compatible digital data input terminal
3 RX1 I Coaxial compatible amp built-in digital data input terminal
4 RX2 I TTL compatible digital data input terminal
5 RX3 I TTL compatible digital data input terminal
6 DGND „ Digital GND
7 DVDD „ Digital power
8 RX4 I TTL compatible digital data input terminal
9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation
10 RX6/UI I TTL compatible digital data/User data input terminal for modulation
11 DVDD „ Digital power for PLL
12 DGND „ Digital GND for PLL
13 LPF O PLL loop filter connecting terminal
14 AVDD „ Analog power for PLL
15 AGND „ Analog GND for PLL
16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO)
17 RBCK O/I RBCK clock in/output terminal (64fs)
18 DGND „ Digital GND
19 DVDD „ Digital power
20 RLRCK O/I RLRCK clock in/output terminal (fs)
21 RDATA O Serial audio data output terminal
22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs)
23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs)
24 SDIN I Serial audio data input terminal
25 DGND „ Digital GND
26 DVDD „ Digital power
27 XMCK O Osc. amp output terminal
I/O
36 RERR1RXOUT
35 INT2RX0
34 CKST3RX1
33 AUDIO/VO4RX2
32 EMPHA/UO5RX3
31 DGND6DGND
30 DVDD7DVDD
29 XIN8RX4
28 XOUT9RX5/VI
27 XMCK10RX6/UI
26 DVDD11DVDD
25 DGND12DGND
24 SDIN37DO
23 SLRCK38DI
22 SBCK39CE
21 RDATA40CL
20 RLRCK41XMODE
19 DVDD42DGND
18 DGND43DVDD
17 RBCK44TMCK/PIO0
16 RMCK45TBCK/PIO1
15 AGND46TLRCK/PIO2
14 AVDD47TDATA/PIO3
13 LPF48TXO/PIOEN
TOP VIEW
1
RXOUT
32
EMPHA/UO
33
AUDIO/VO
35
INT
40
CL
39
CE
38
DI
28
XOUT
29
XIN
27
XMCK
34
CKST
41
XMODE
Input
Selector
2
RX0
3
RX1
4
RX2
5
RX3
8
RX4
9
RX5/VI
10
RX6/UI
37
DO
36
RERR
21
RDATA
24
SDIN
16
RMCK
17
RBCK
20
RLRCK
22
SBCK
23
SLRCK
13
LPF
44
TMCK/PIO0
45
TBCK/PIO1
46
TLRCK/PIO2
47
TDATA/PIO3
48
TXO/PIOEN
Clock
Selector
C bit, U bit
PLL
Demodulation
&
Lock Detect
Microcontroller
I/F
Data
Selector
I/N
Modulation
or
Parallel Port
56
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

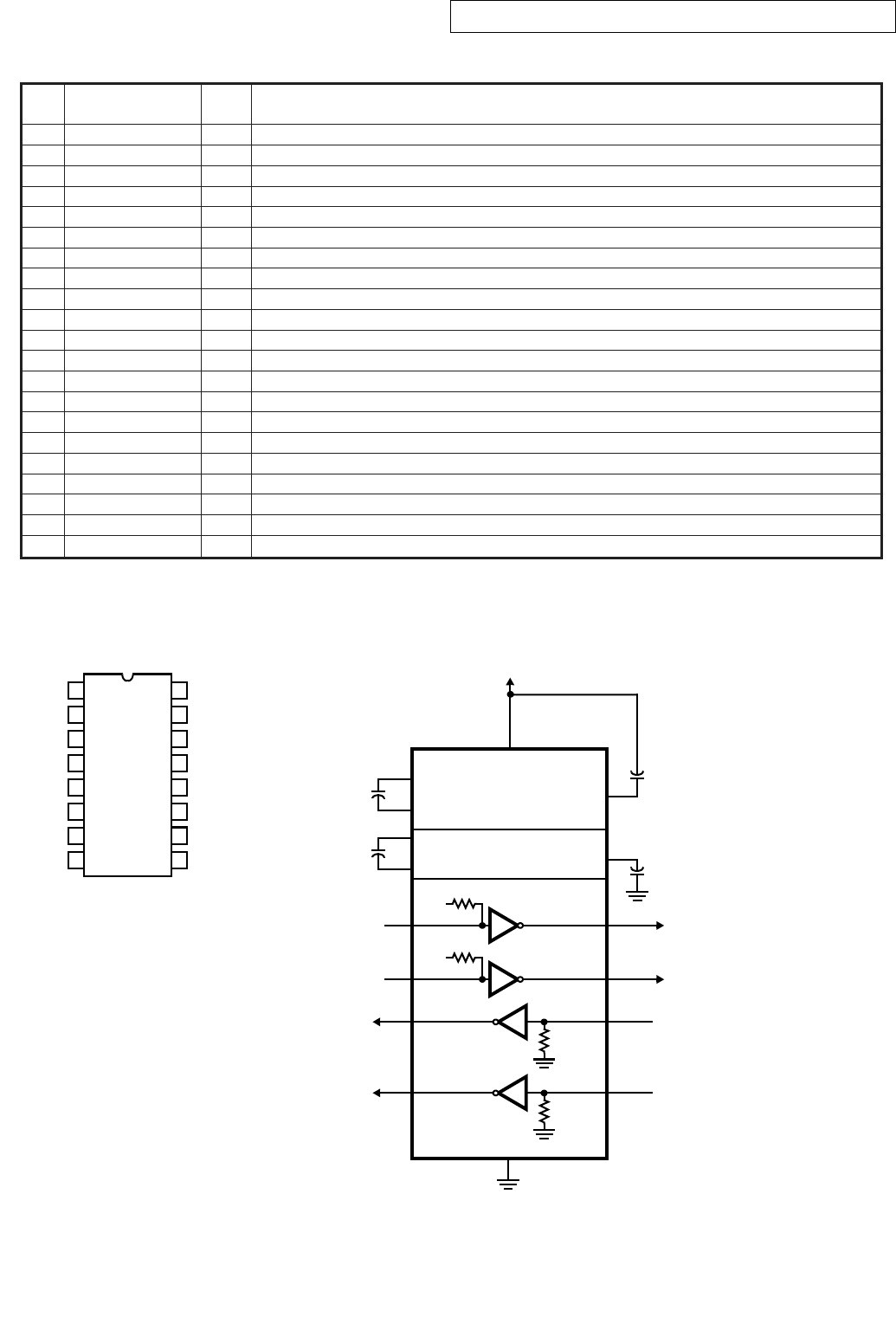

HIN202EIBNZ-T (MC:IC104)
Function
Pin
No. Pin Name I/O
* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.
28 XOUT O X tal osc. connecting output terminal
29 XIN I X tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz)
30 DVDD „ Digital power
31 DGND „ Digital GND
32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal
33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal
34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal
35 INT I/O Interrupt output for ∝com (Interrupt factor selectable)/Modulation or general I/O switching terminal
36 RERR O PLL lock error, data error flag output
37 DO O ∝com I/F, read out data output terminal (3-state)
38 DI I ∝com I/F, write data input terminal
39 CE I ∝com I/F, chip enable input terminal
40 CL I ∝com I/F, clock input terminal
41 XMODE I System reset input terminal
42 DGND „ Digital GND
43 DVDD „ Digital power
44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal
45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal
46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal
47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal
48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal
14
15
16
9
13
12
11
10
1
2
3
4
5
7
6
8
C1+
V+
C1-
C2+
C2-
R2IN
T2OUT
VCC
T1OUT
R1IN
R1OUT
T1IN
T2IN
R2OUT
GND
V-
VCC
+5V
2
V+
16
T1OUT
T2OUT
T1IN
T2IN
T1
T2
11
10
14
7
+5V
400k
+5V
400k
R1OUT R1IN
R1
1312
5k
R2OUT R2IN
R2
89
5k
+10V TO -10V
VOLTAGE INVERTER 0.1 F
6
V-
C2+
C2-
+
0.1 F
4
5
+5V TO 10V
VOLTAGE INVERTER
C1+
C1-
+
0.1 F
1
3
+0.1 F
+
GND
57
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

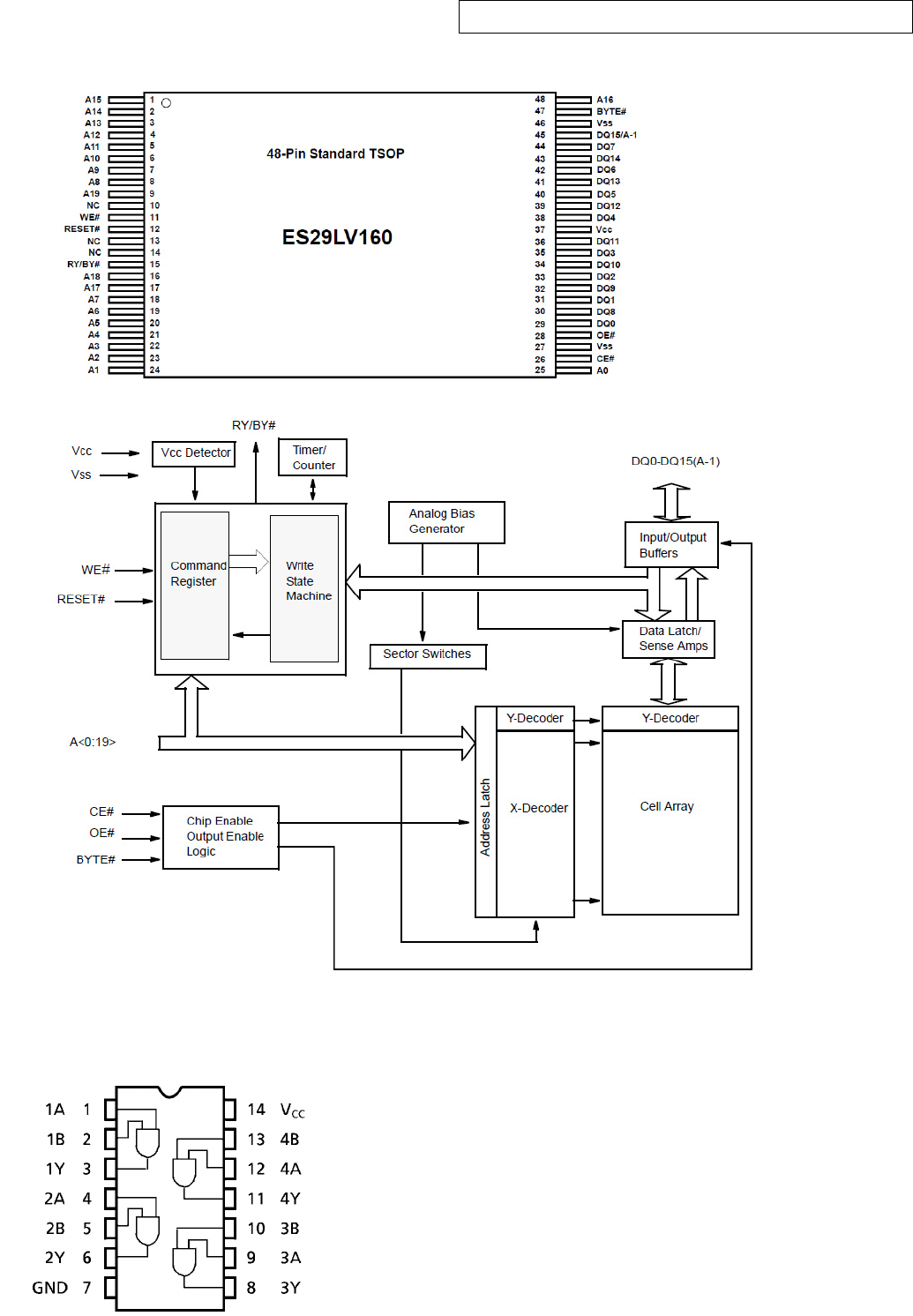

ES29LV160EB-70TGI-M (DI : IC205)
TC74VHCT08AFT (DI: IC305,956,957)
58
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

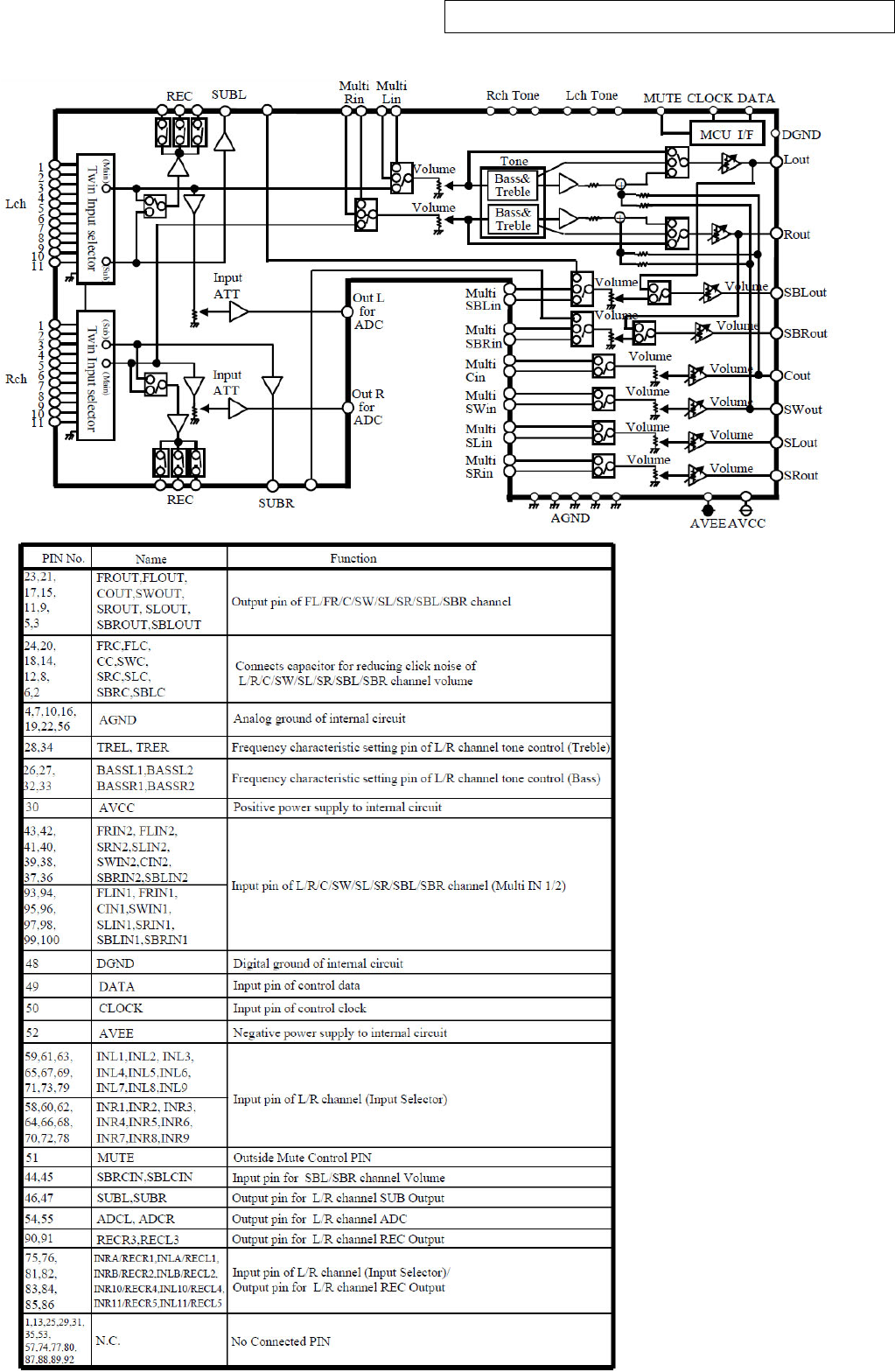

R2A15215 (AV : IC612)
59
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

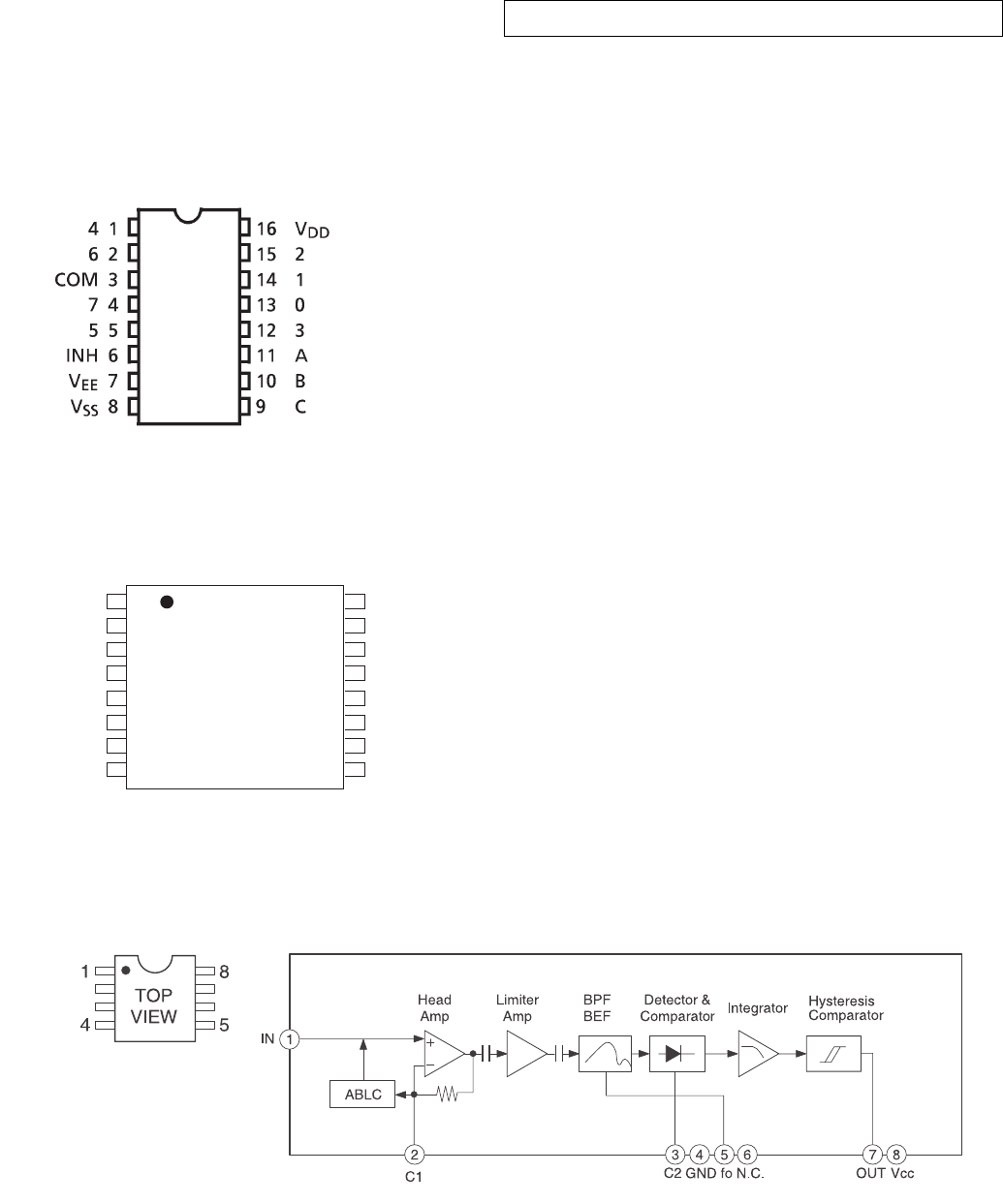

TC4051BFT (AV: IC102,103,106,107,109,110)
TC4052BFT (AV: IC104,108)
TC4053BFT (AV: IC303)
AK4385ET (DI: IC302)
1
5
2
6
3
7
4
8
16
15
14
13
12
11
10
9
BICK
MCLK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
DZFR
DZFL
VDD
VSS
AOUTL+
AOUTL-
AOUTR+
AOUTR-
CXA1511M (FR: IC602)
60
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

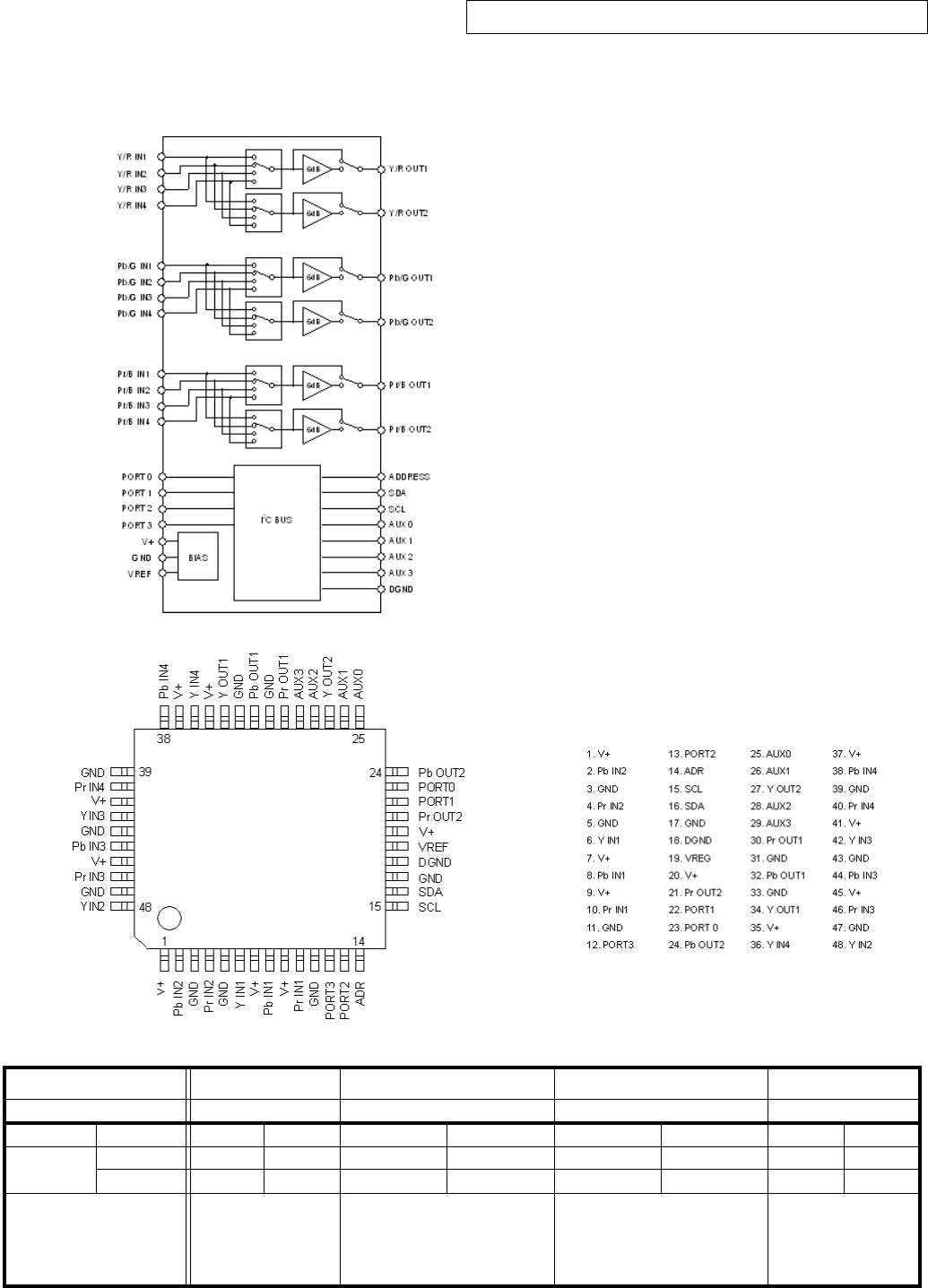

Control Pin Sub VSCL (27pin) VSDA (28pin)
Pin Name AUX0 AUX1 AUX2 AUX3
Signal Name OSD V/Y Z1OSDV Z1OSDY -
Output D7 D6 D5 D4 D3 D2 D1 D0
DATA2L setup 000 0 0 0 00
H setup111 1 1 1 11
Function Superimpose MAIN ZONE MAIN ZONE Not used
Signal select CVBS signal channel select S signal channel select
L : S L : Through channel select L : Through channel select
H : CVBS H : OSD channel select H : OSD channel select
NJW1321FP1 (AV: IC501)
61
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

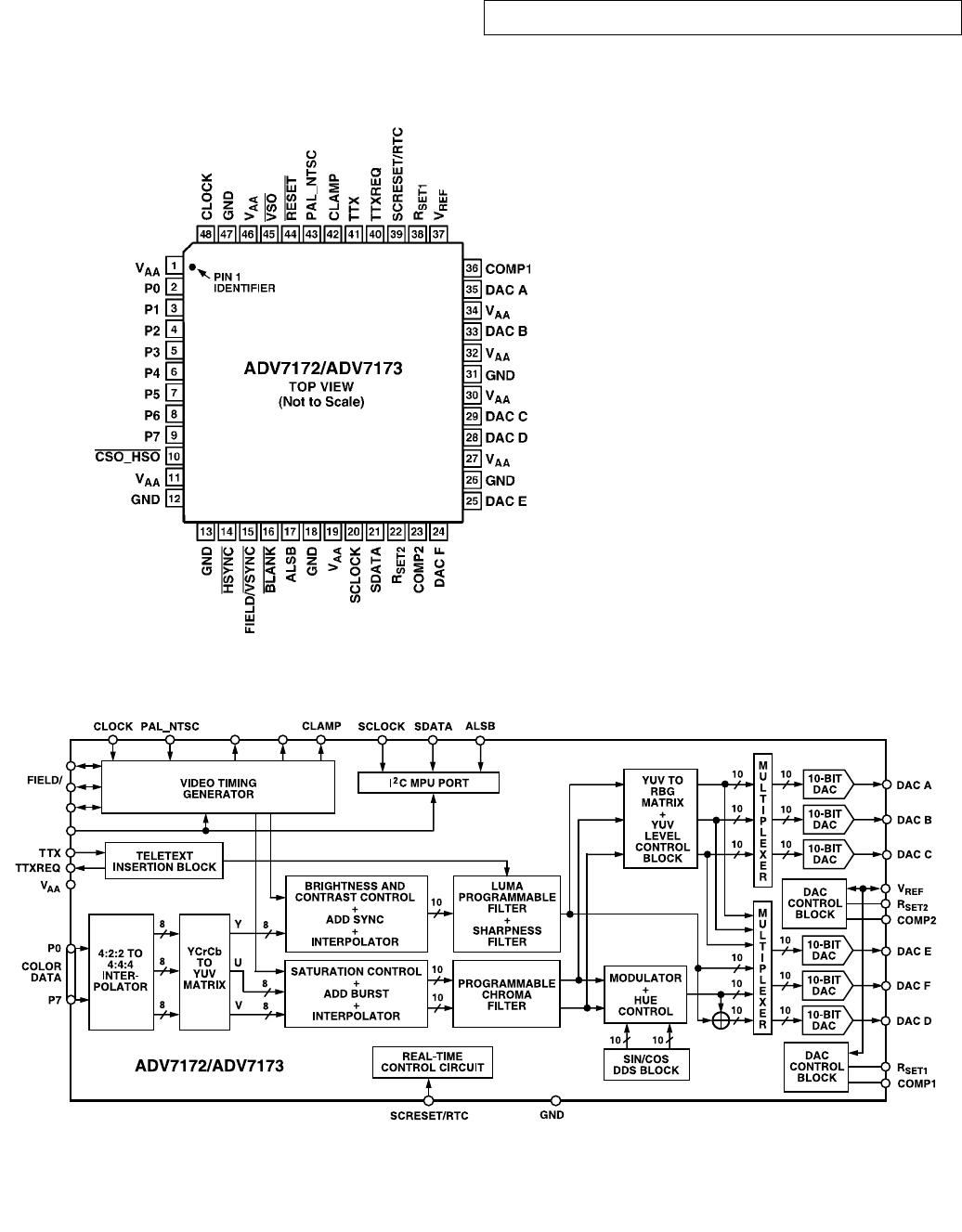

ADV7172 (DI : IC805)
PIN CONFIGURATION
BLOCK DIAGRAM
62
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

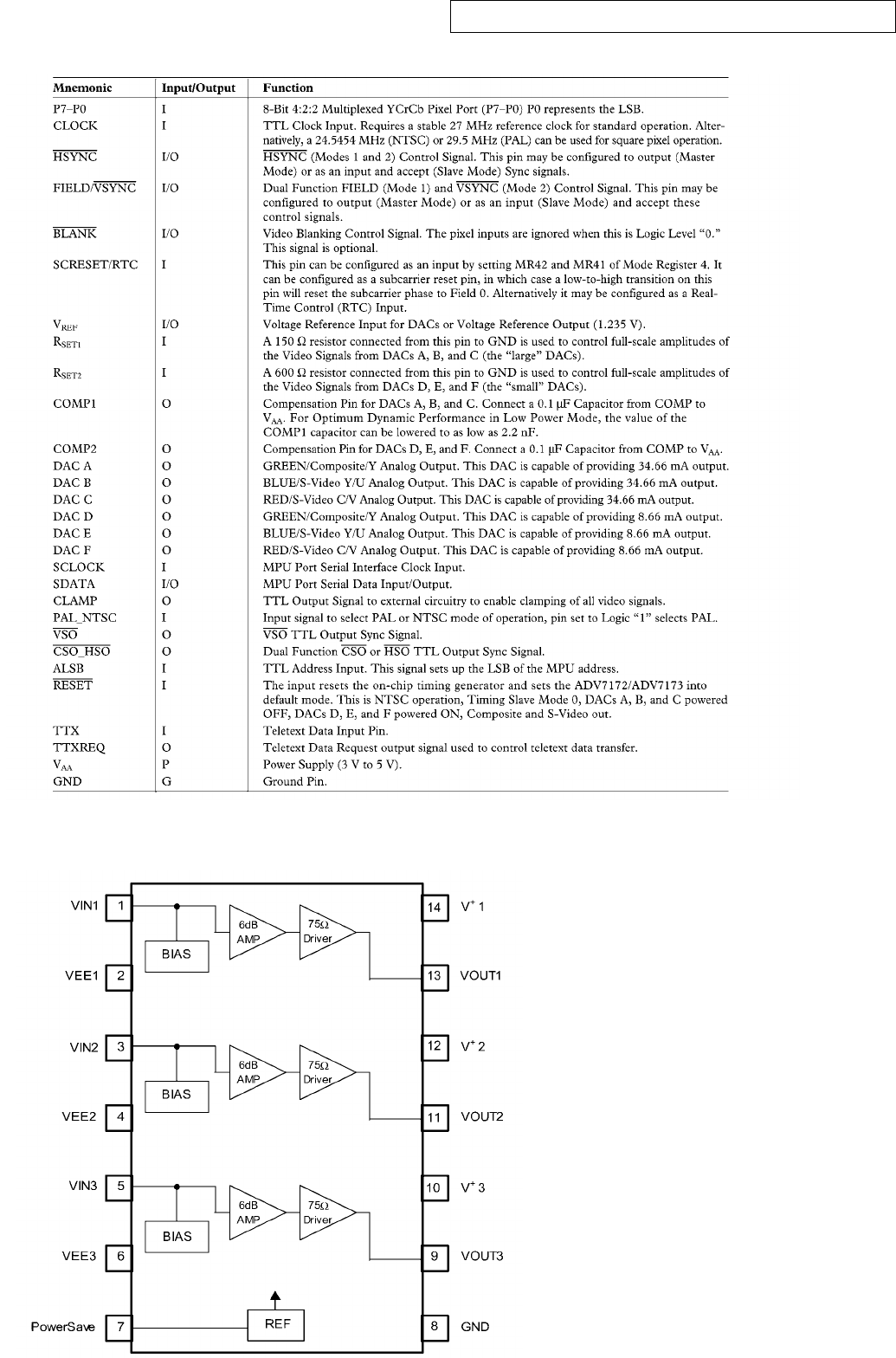

PIN FUNCTION DESCRIPTION
NJM2581M-TE1 (AV : IC503,504)
63
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
LA73053 (AV : IC101)
64
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
LA73062V (AV : IC305)
65
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

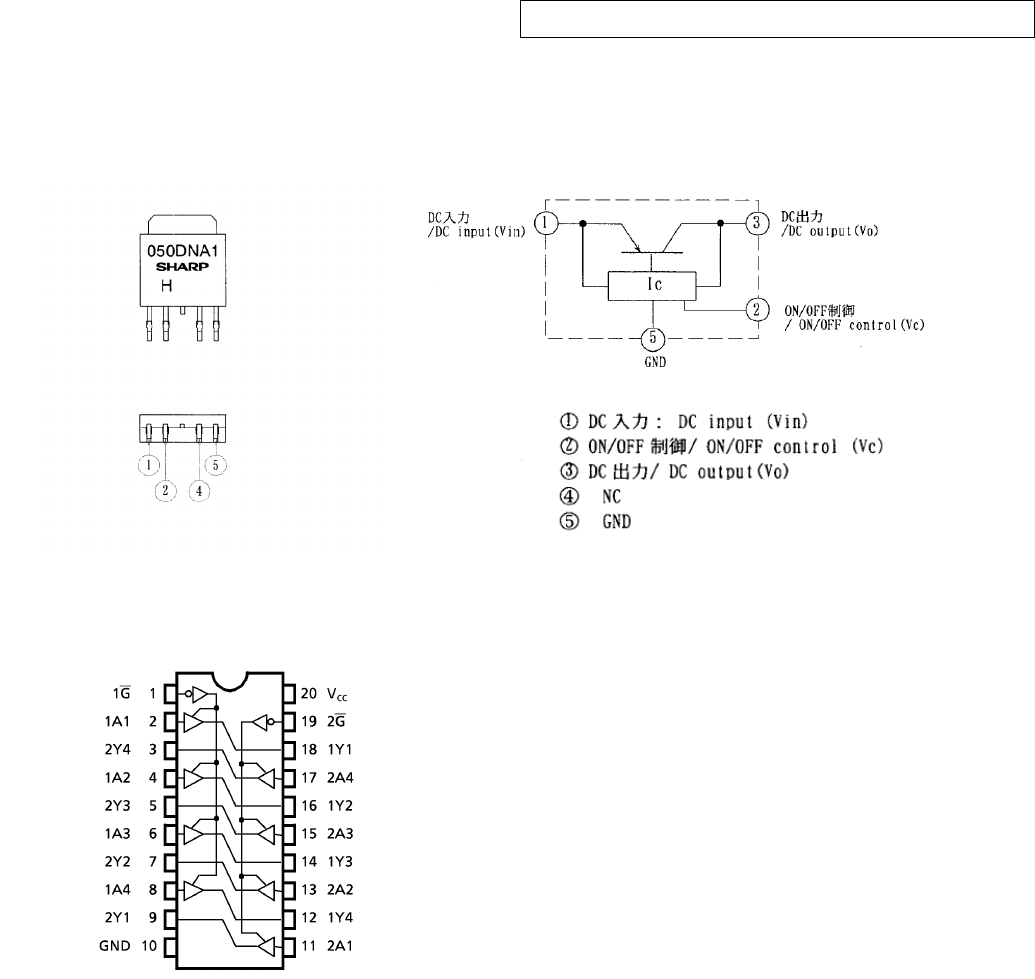

PQ050DNA1ZPH (DI: IC312) (MC: IC505,IC506)
PQ090DNA1ZPH (AV: IC502)
PQ120DNA1ZPH (MC: IC101,IC102,IC103)
TC74VHC244FT (DI: IC112)
66
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
2. OTHERS

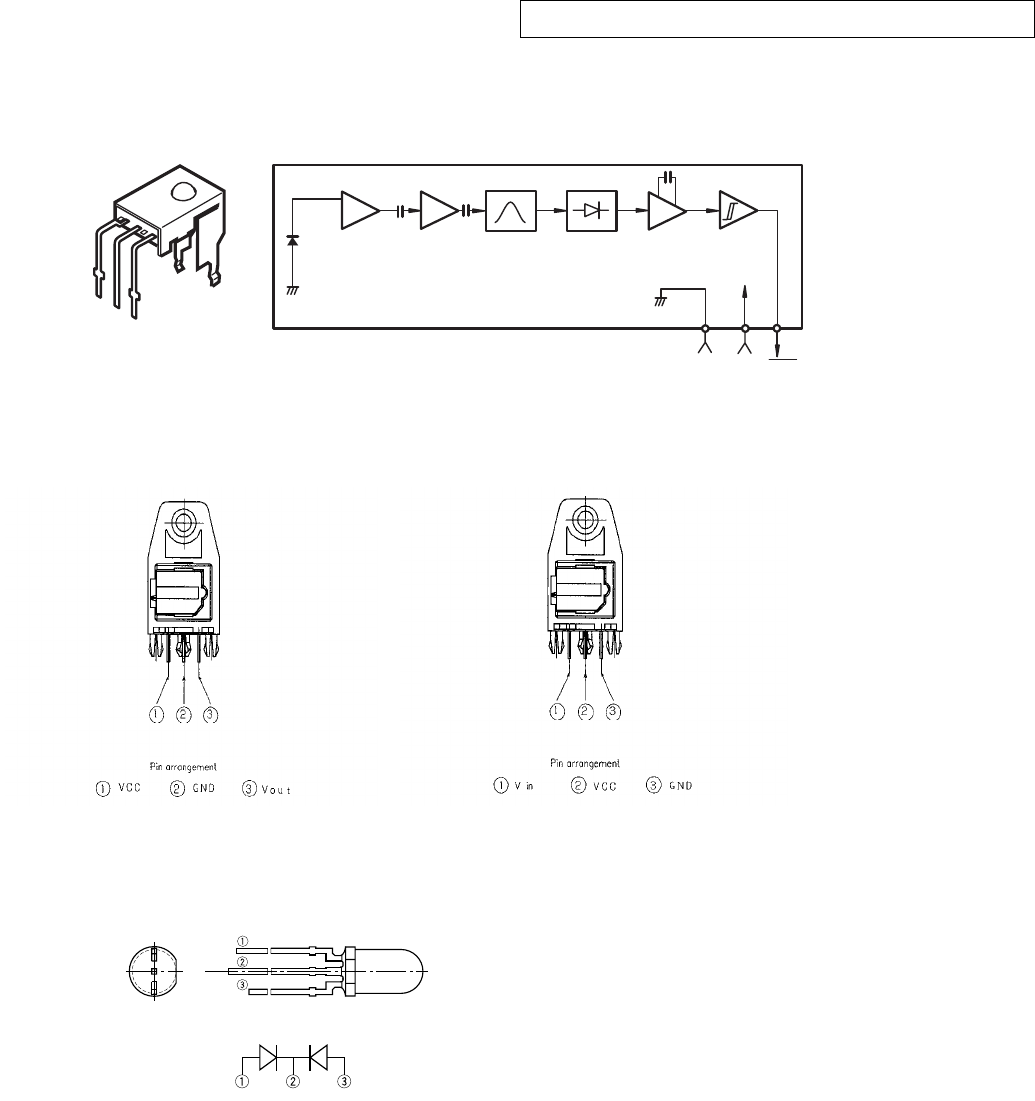

GP1UM271XK (Remote Control Sensor) (FR: IC103)
3. OPTICAL
GP1FAV31RK0F (FR: IC201,202,701) GP1FAV31TK0F (FR: IC204)
4. LED
SMLU12416W-S (LED) (FR: LD101)
GND
Vcc
Vout
GND
VOUT
Vcc
Head
Amp
Limiter
Amp BPF
Detector &
Comparator
Integrator Hysteresis
Comparator
RED GREEN
67
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
5. FL DISPLAY

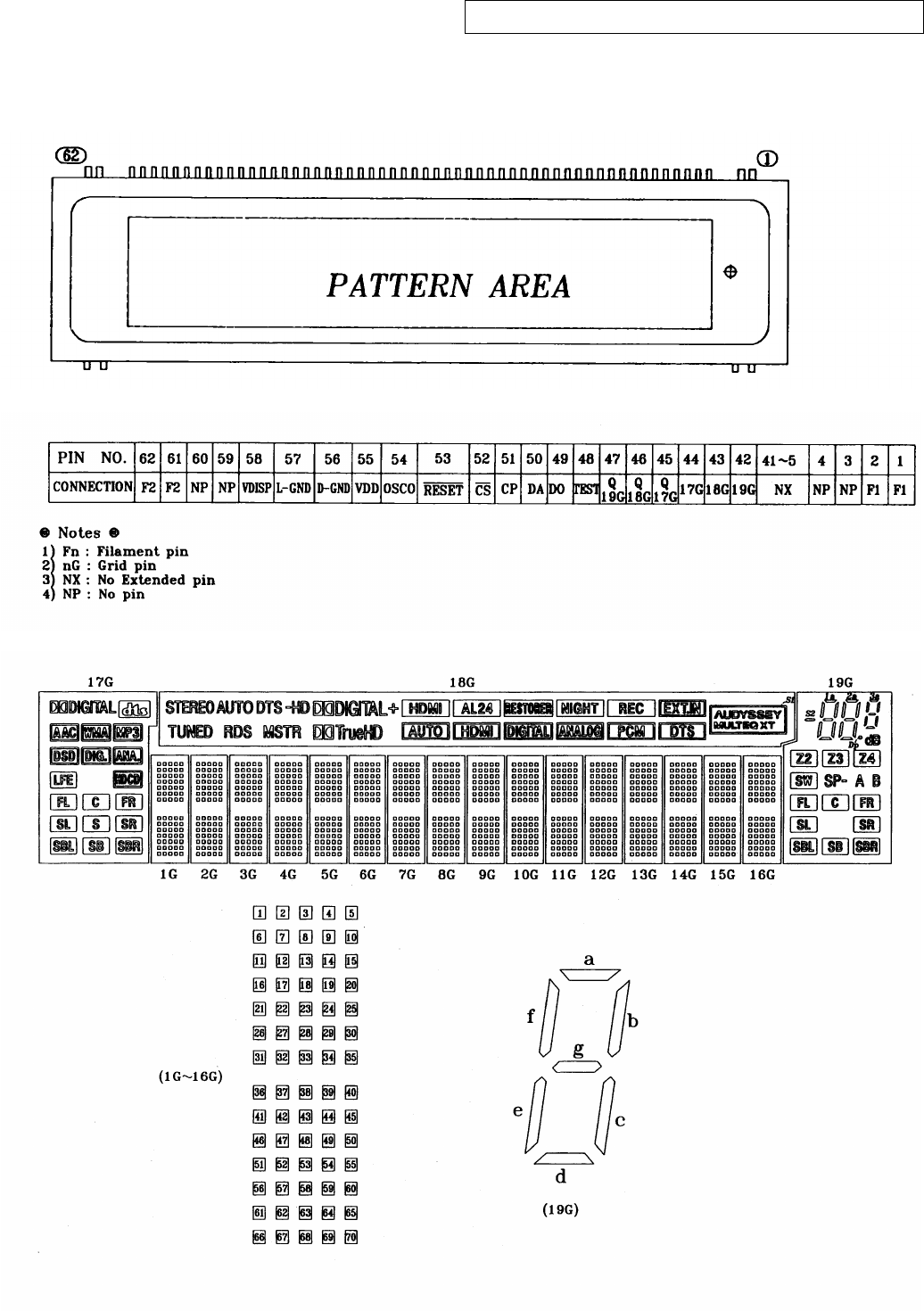

FLD (HCA-19MM02T) (FR: FL101)
PIN CONNECTION
GRID ASSIGNMENT
68
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

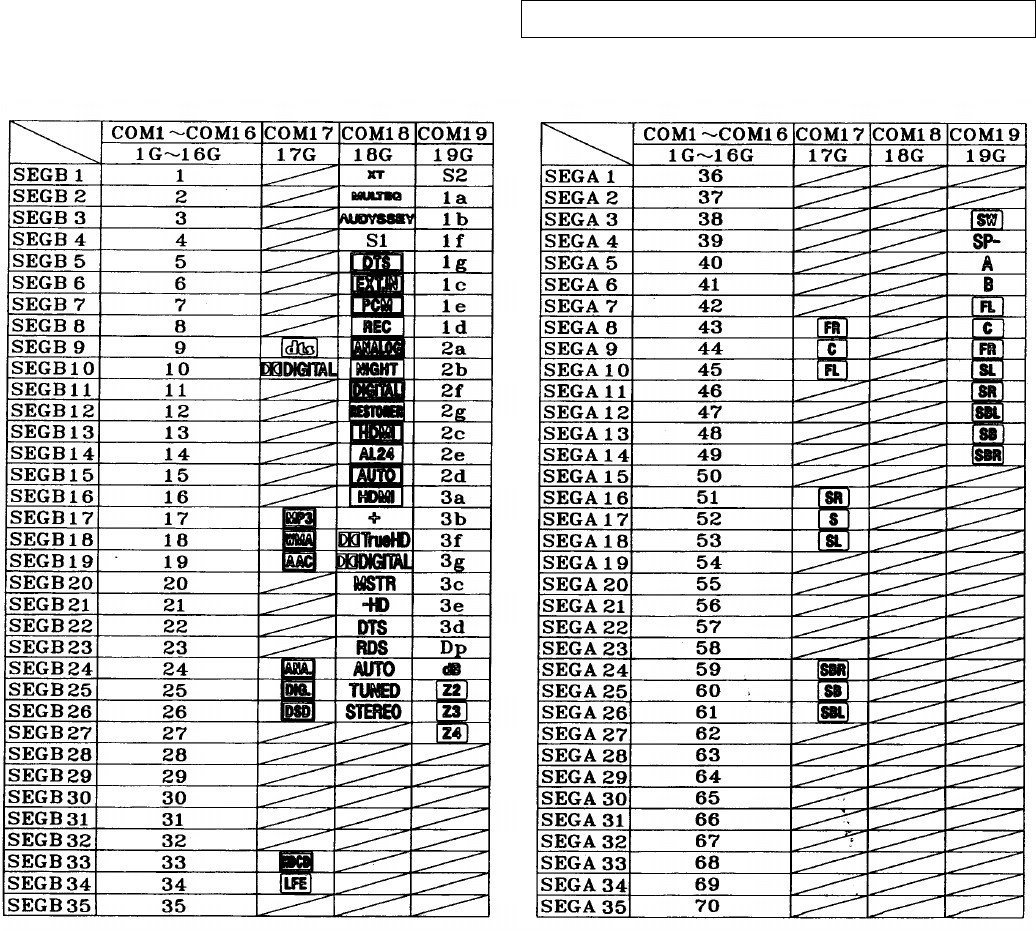

ANODE CONNECTION
69
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
PRINTED WIRING BOARDS

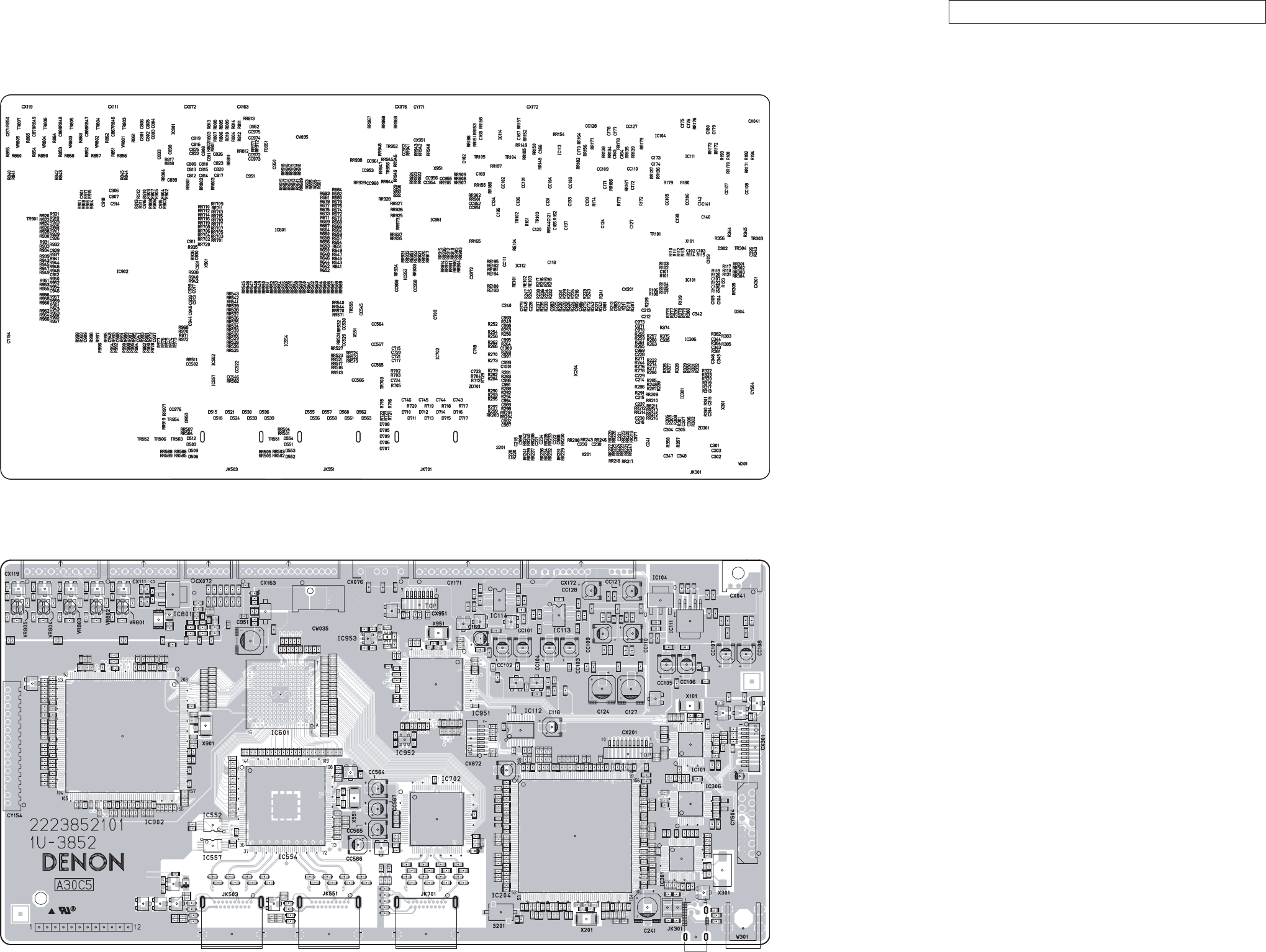

1U-3852 DIGITAL P.W.B. UNIT (1/2)
COMPONENT SIDE
70
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

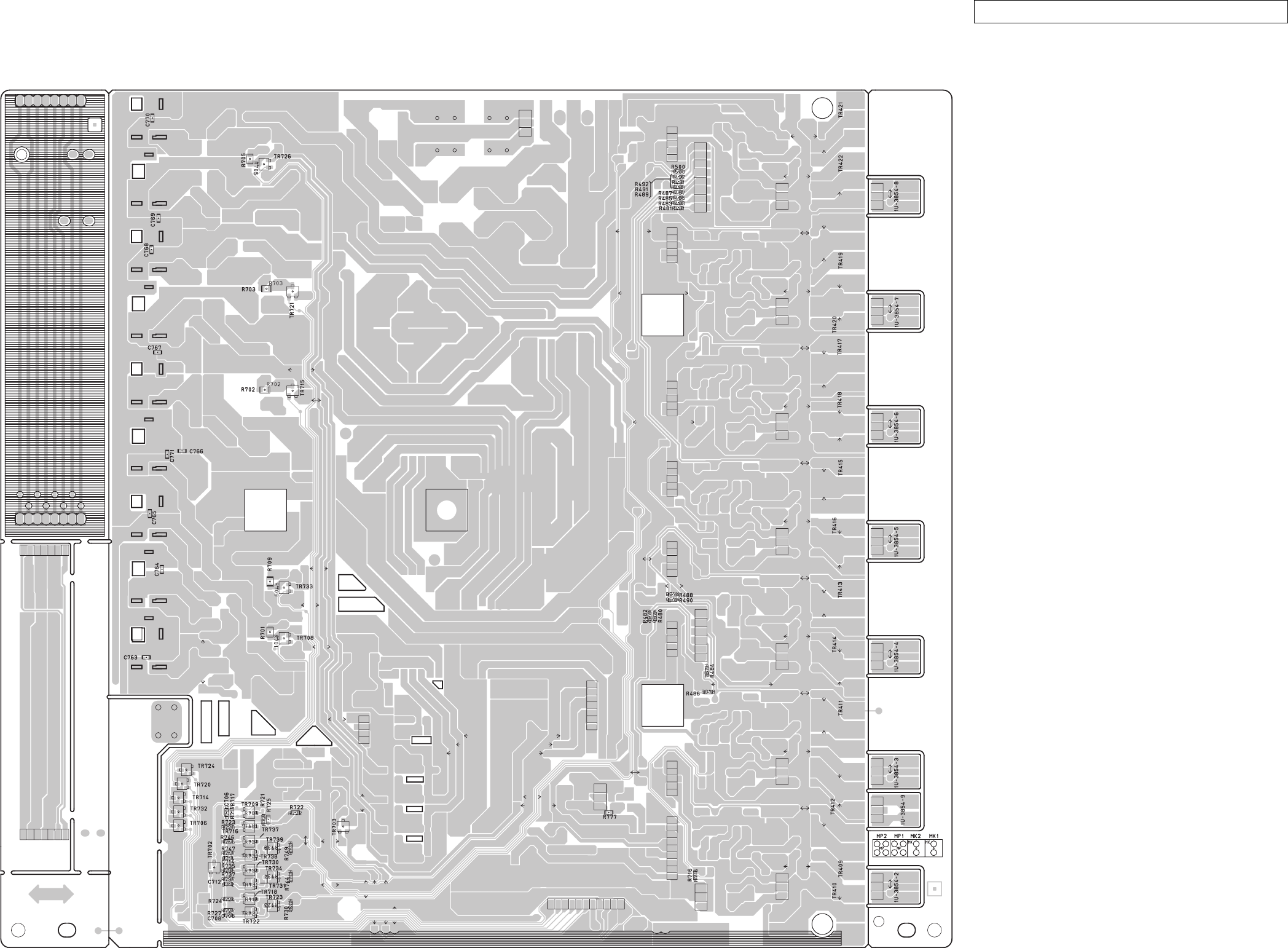

1U-3852 DIGITAL P.W.B. UNIT (2/2)
FOIL SIDE
71
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

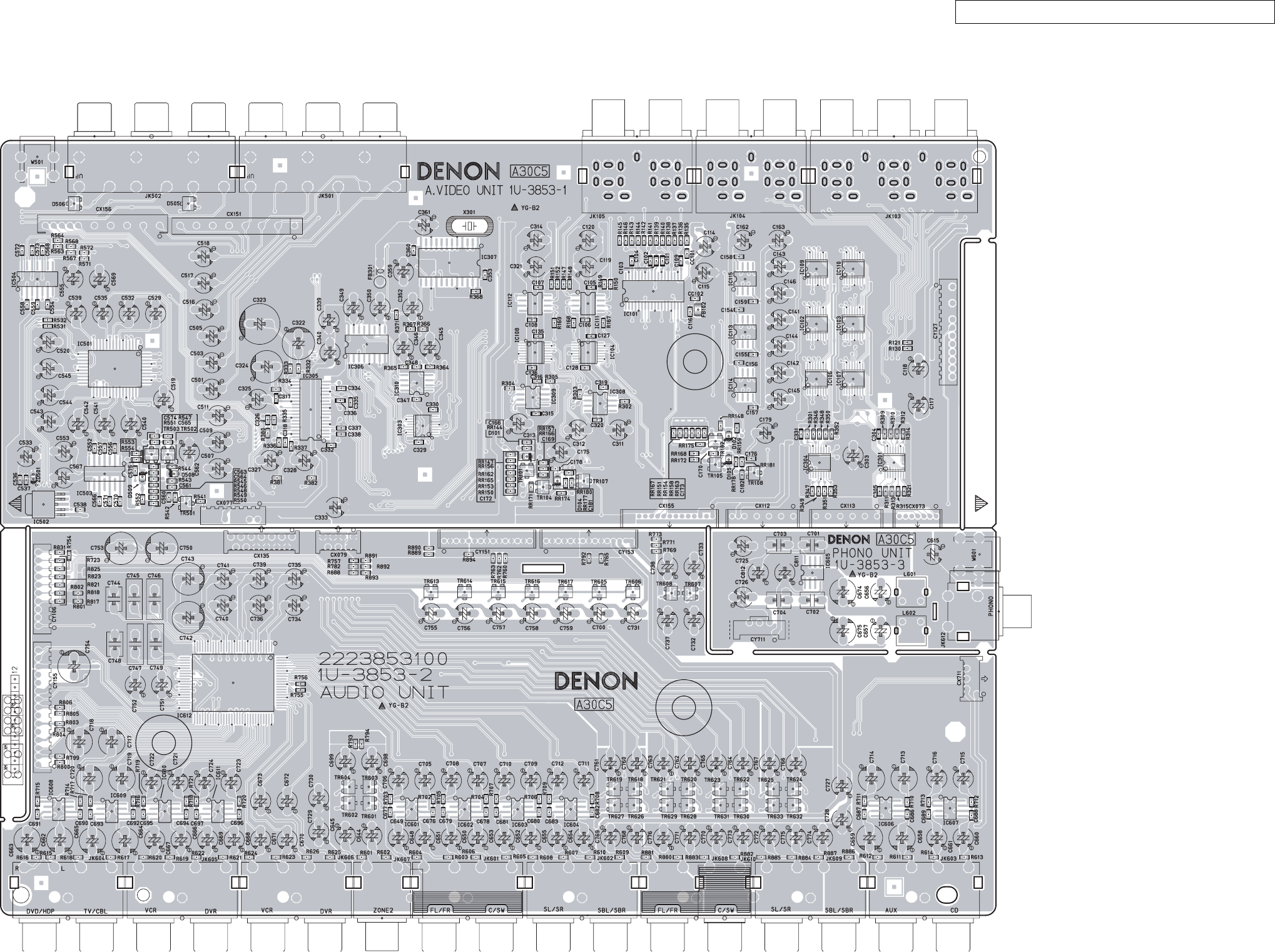

1U-3853 A.AUDIO/VIDEO P.W.B. UNIT (1/2)
COMPONENT SIDE
72
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

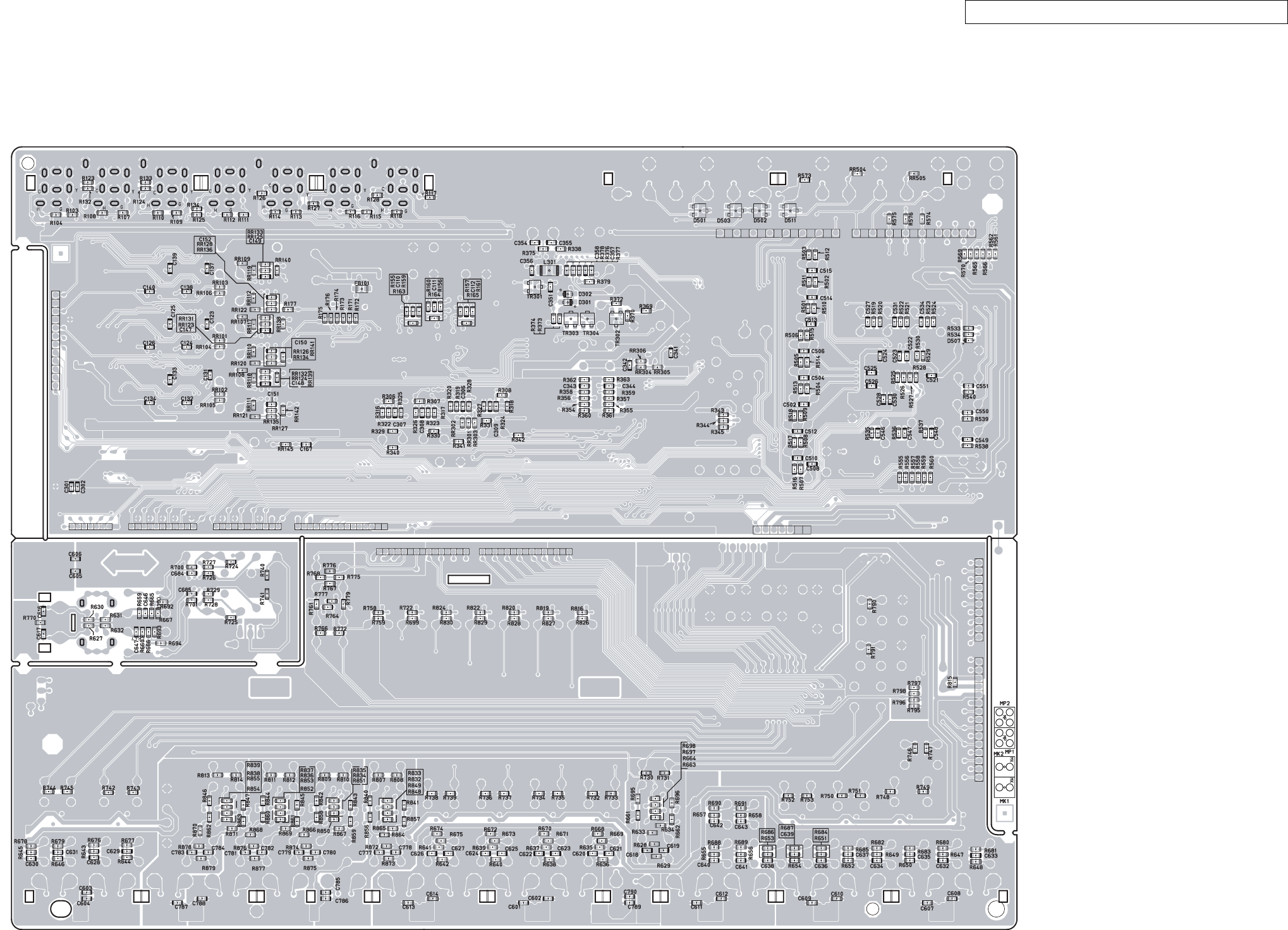

1U-3853 A.AUDIO/VIDEO P.W.B. UNIT (2/2)
FOIL SIDE
73
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

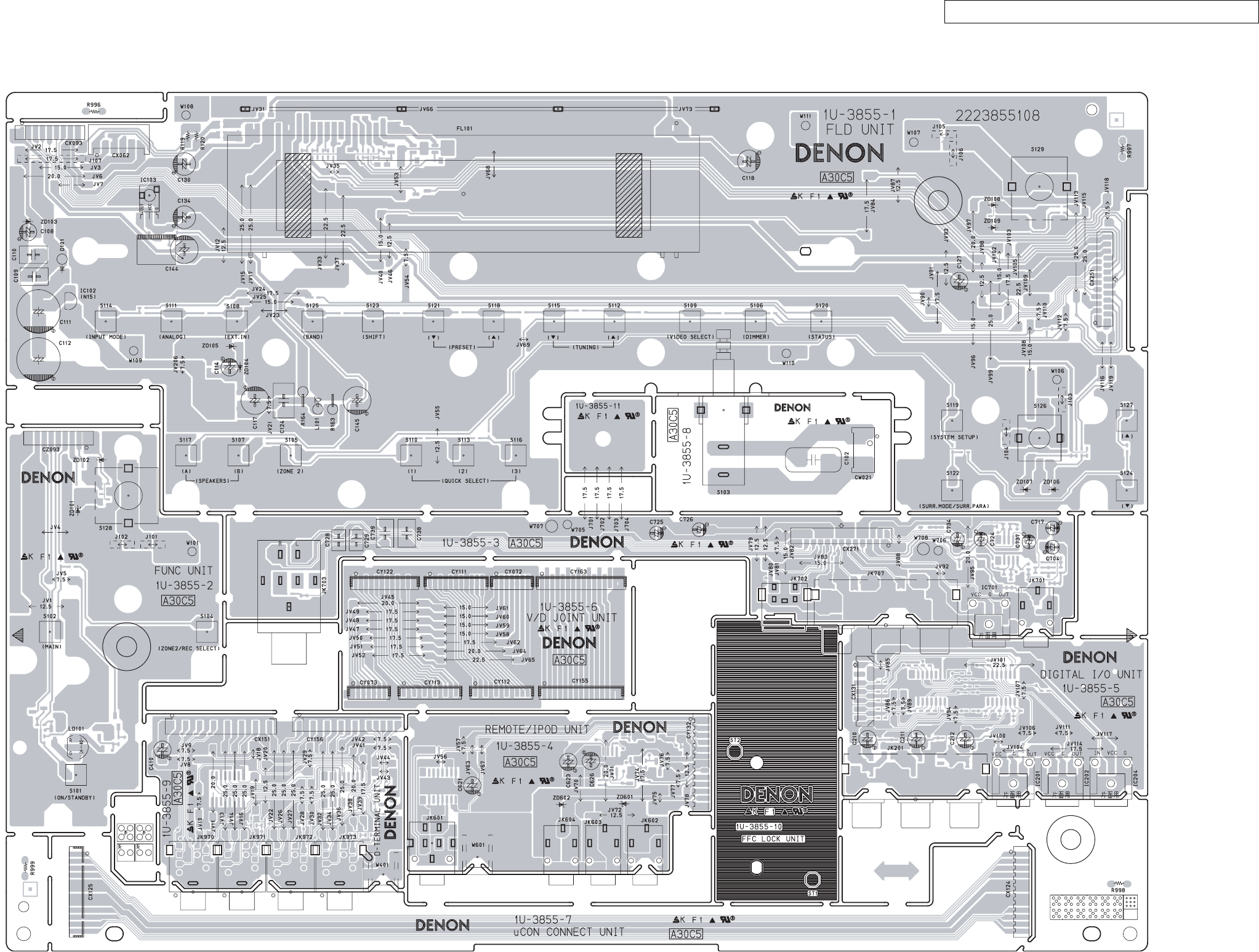

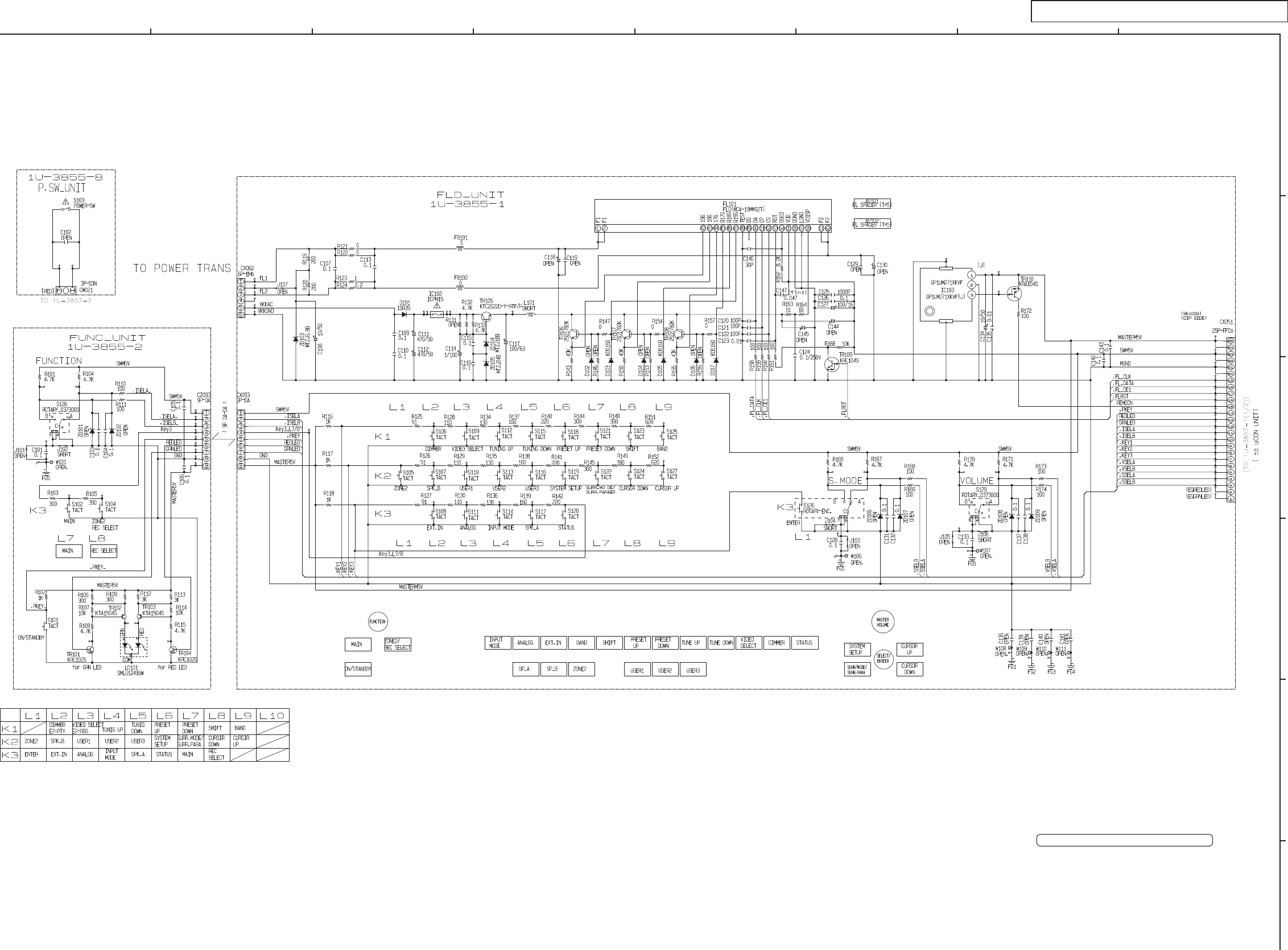

1U-3855 FRONT P.W.B. UNIT (1/2) AVR-2308CI,AVR-2308 & AVC-2308 model
COMPONENT SIDE
74
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
1U-3840 FRONT P.W.B. UNIT (2/2) AVR-2308CI,AVR-2308 & AVC-2308 model
FOIL SIDE
75
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

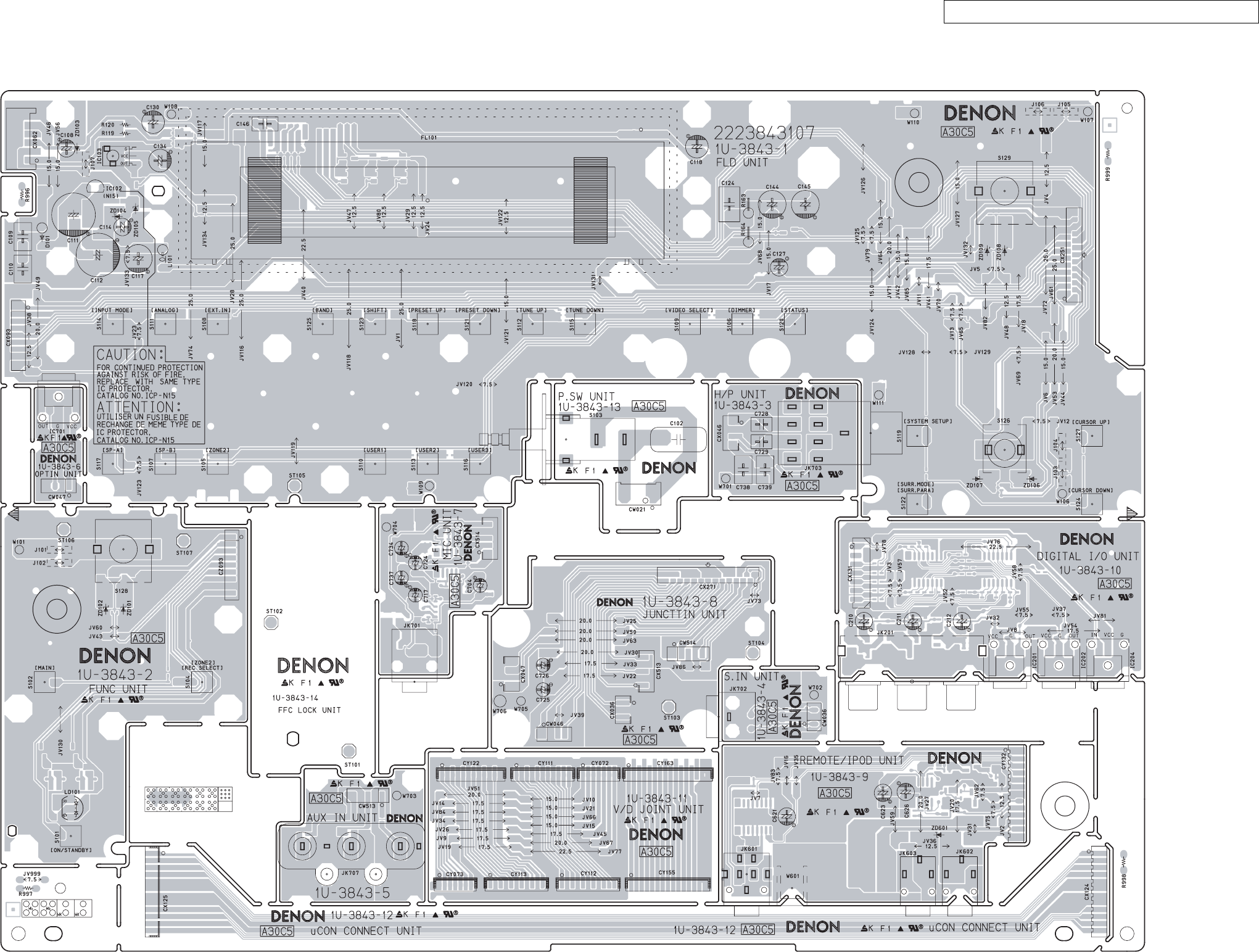

1U-3843 FRONT P.W.B. UNIT (1/2) AVR-888 model
COMPONENT SIDE
76
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
1U-3843 FRONT P.W.B. UNIT (2/2) AVR-888 model
FOIL SIDE
77
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
1U-3841 POWER REG. P.W.B. UNIT (1/2)
COMPONENT SIDE
78
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

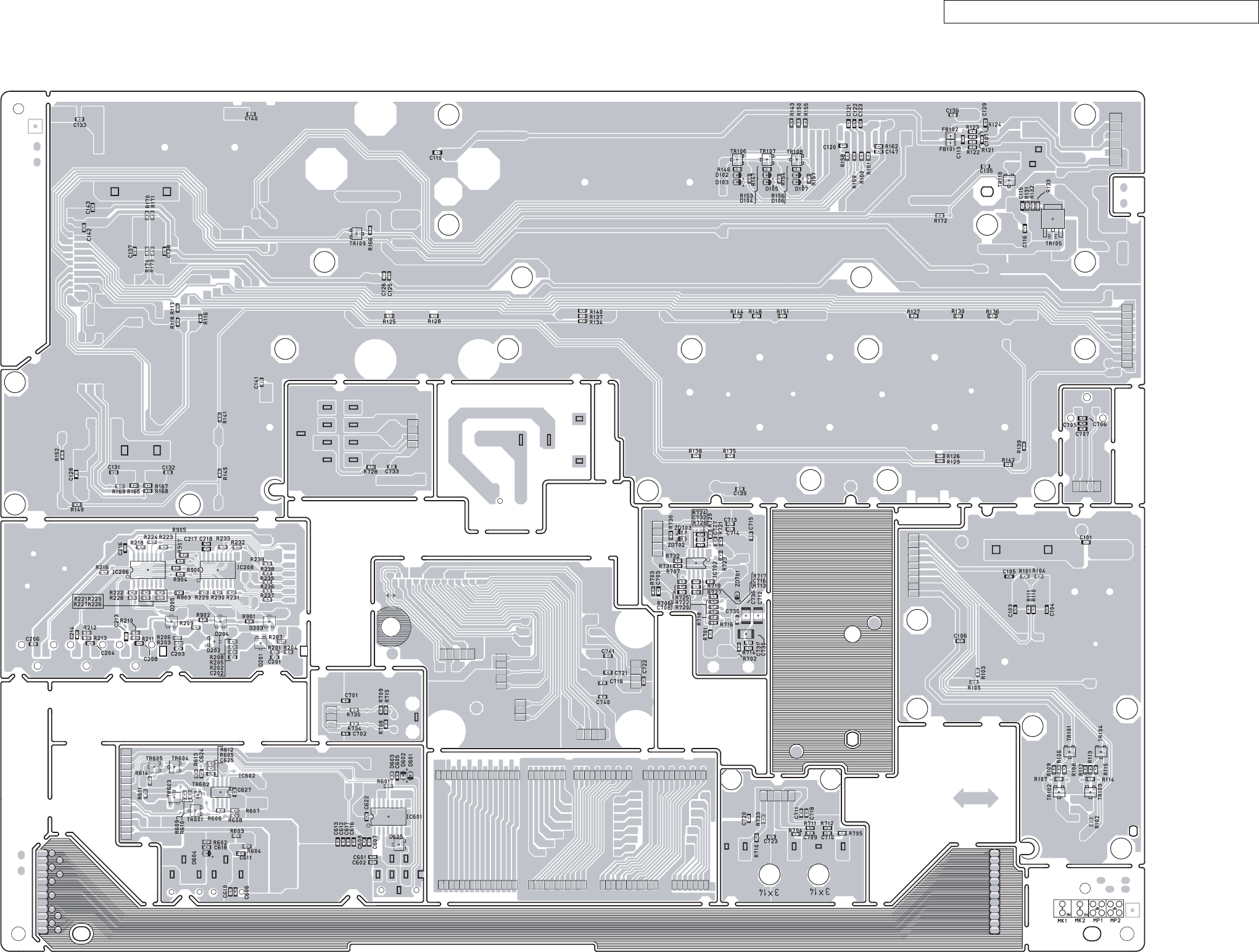

1U-3841 POWER REG. P.W.B. UNIT (2/2)
FOIL SIDE
79
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

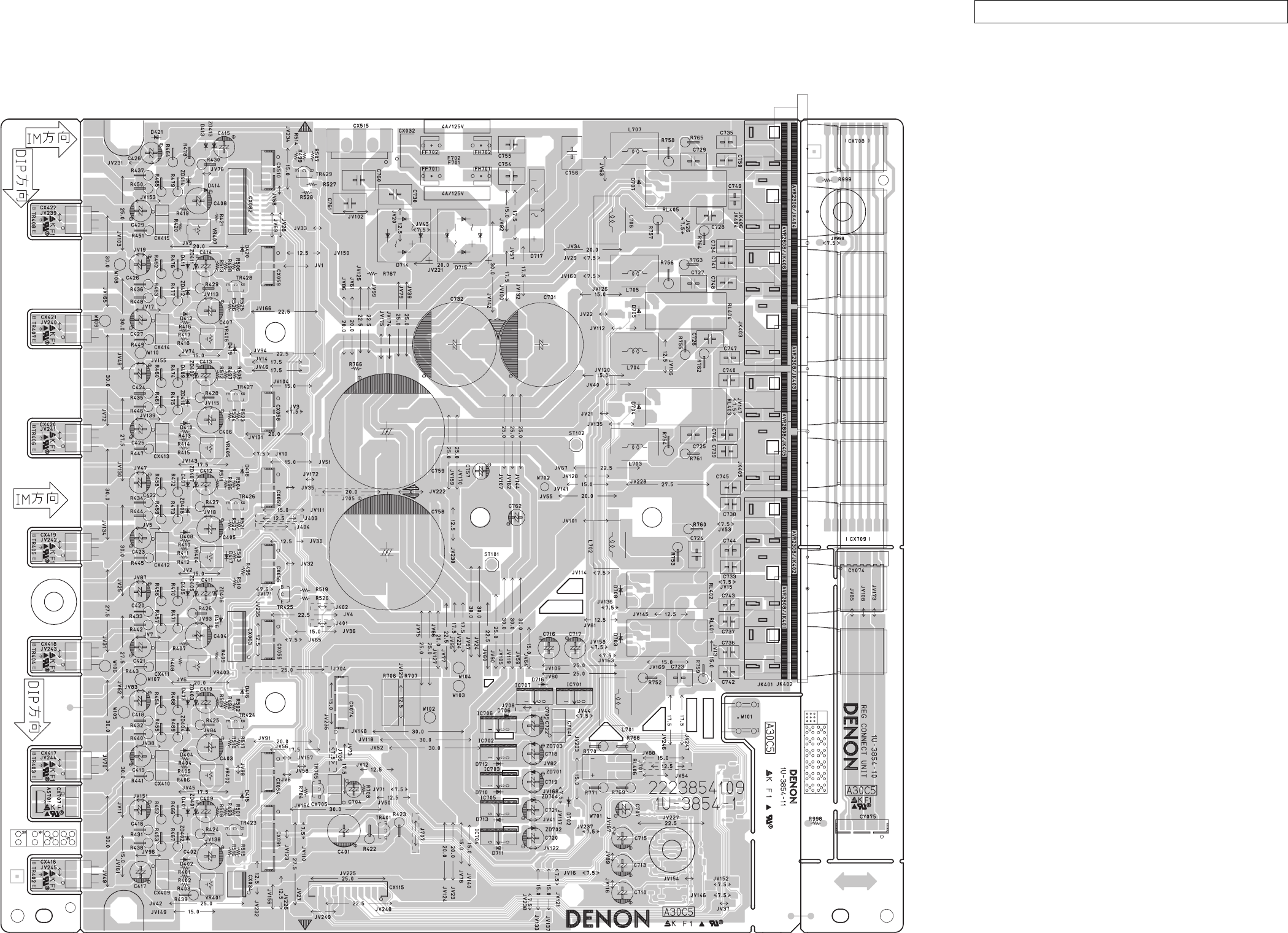

1U-3854 POWER AMP P.W.B. UNIT (1/2)
COMPONENT SIDE
80
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

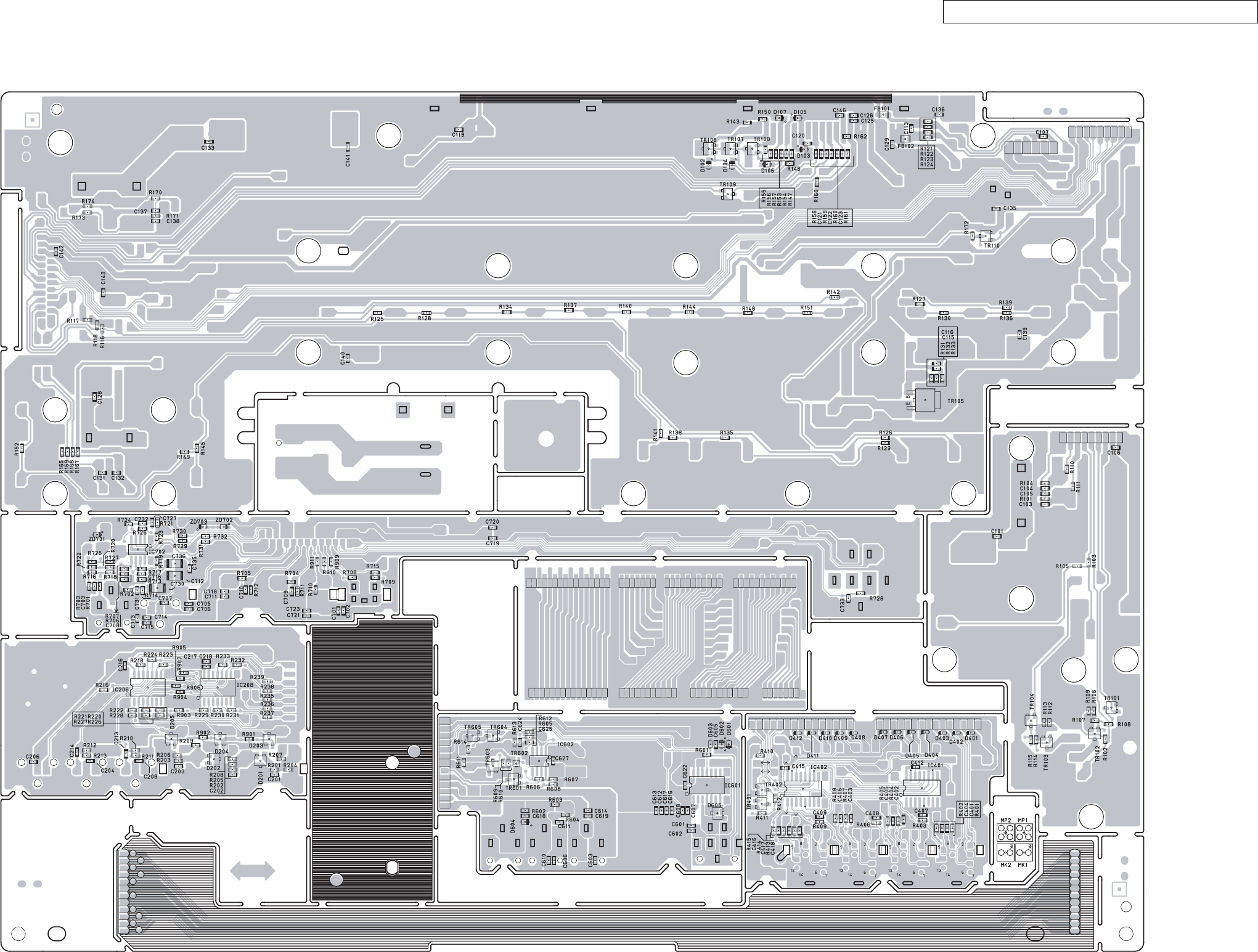

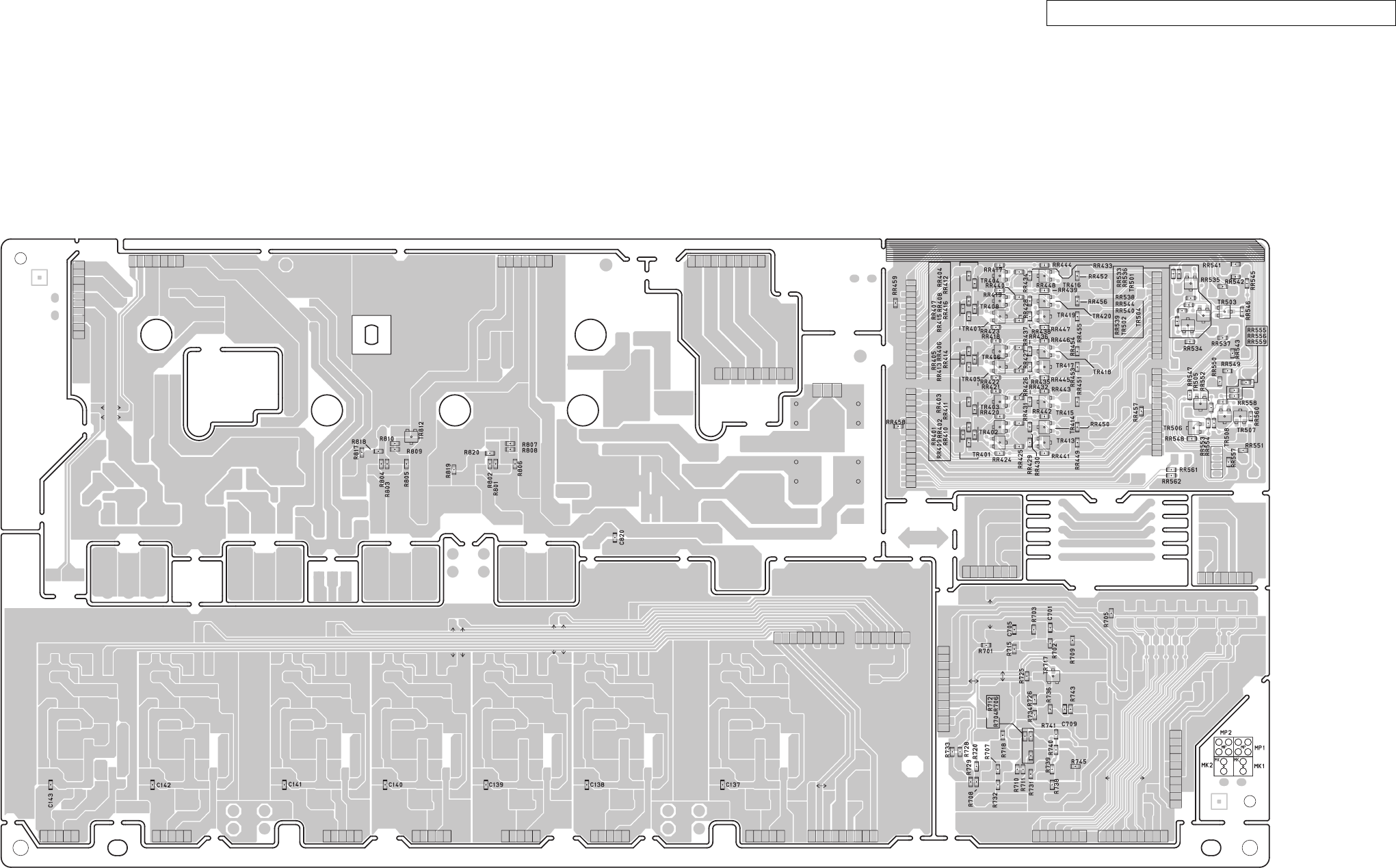

1U-3854 POWER AMP P.W.B. UNIT (2/2)
FOIL SIDE
81
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

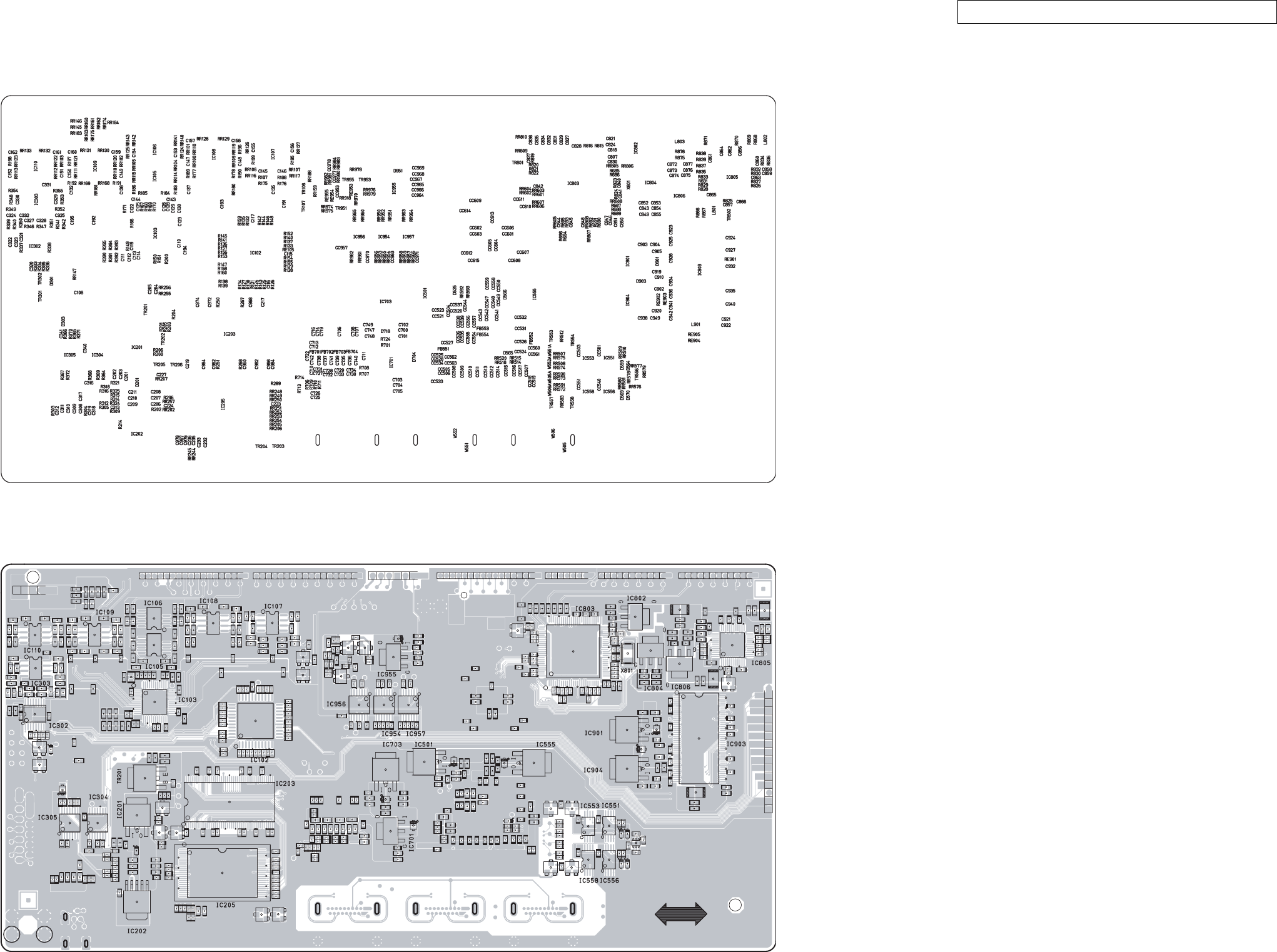

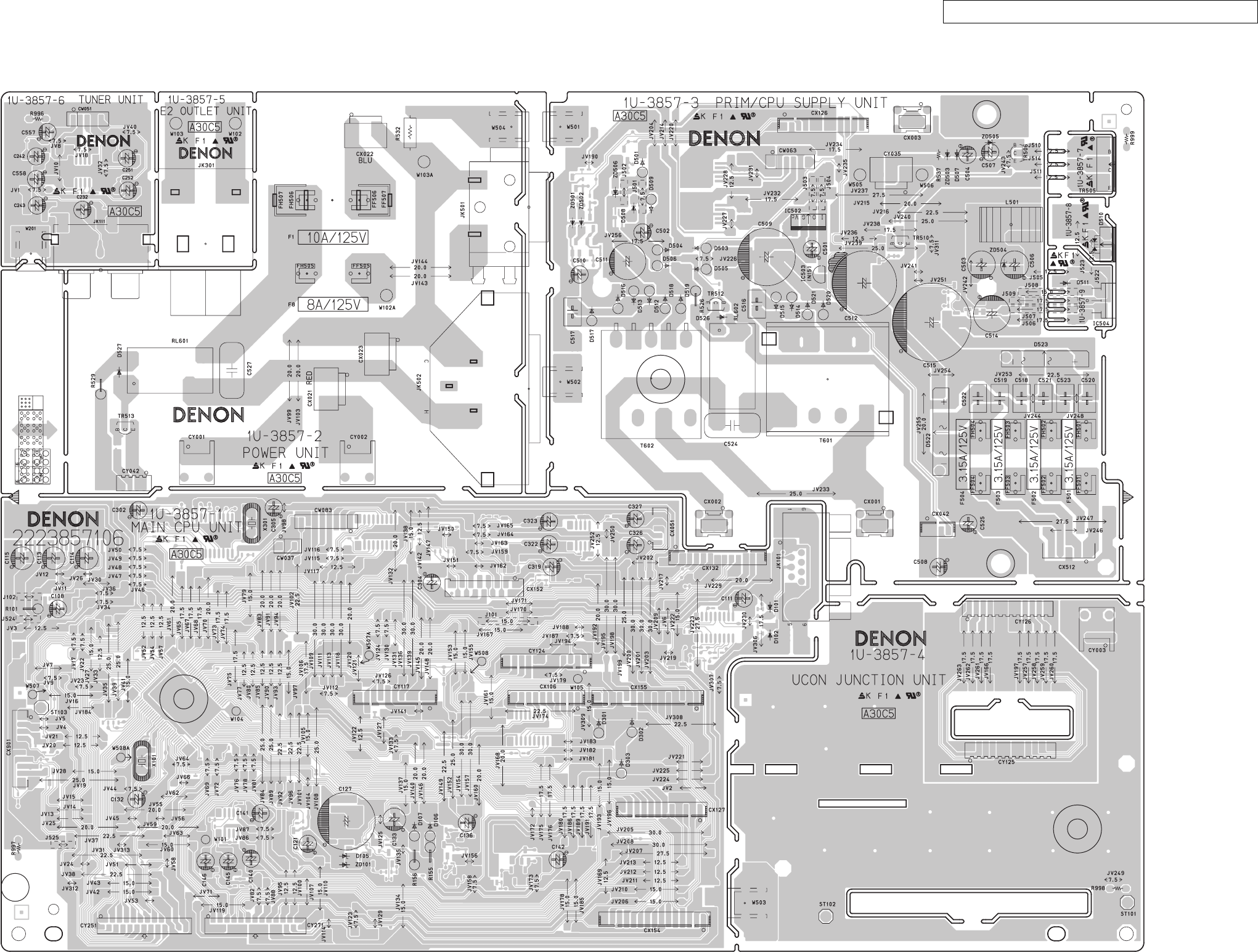

1U-3857 MAIN CPU P.W.B. UNIT (1/2)
COMPONENT SIDE
82
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

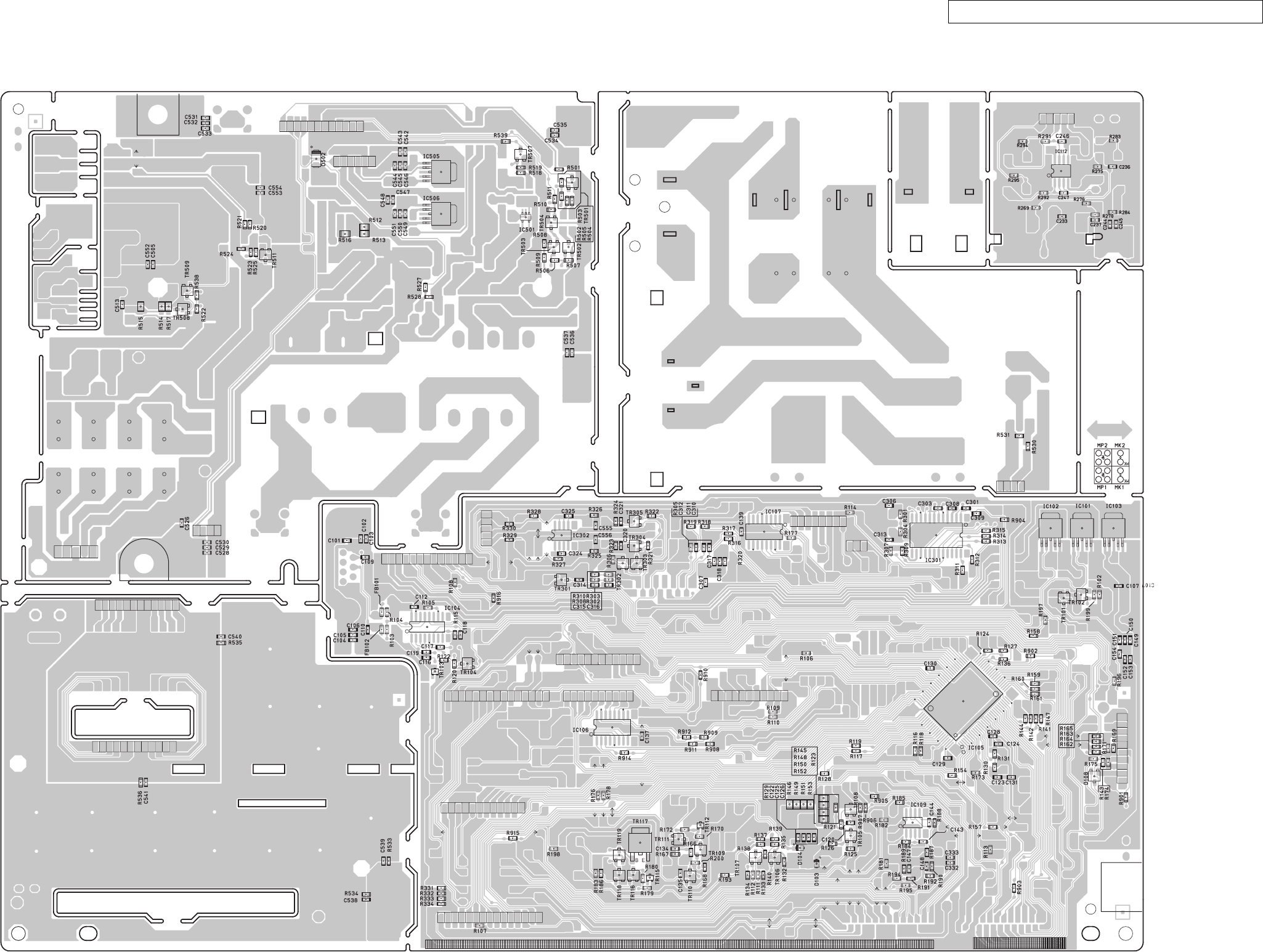

1U-3857 MAIN CPU P.W.B. UNIT (2/2)
FOIL SIDE
83
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308

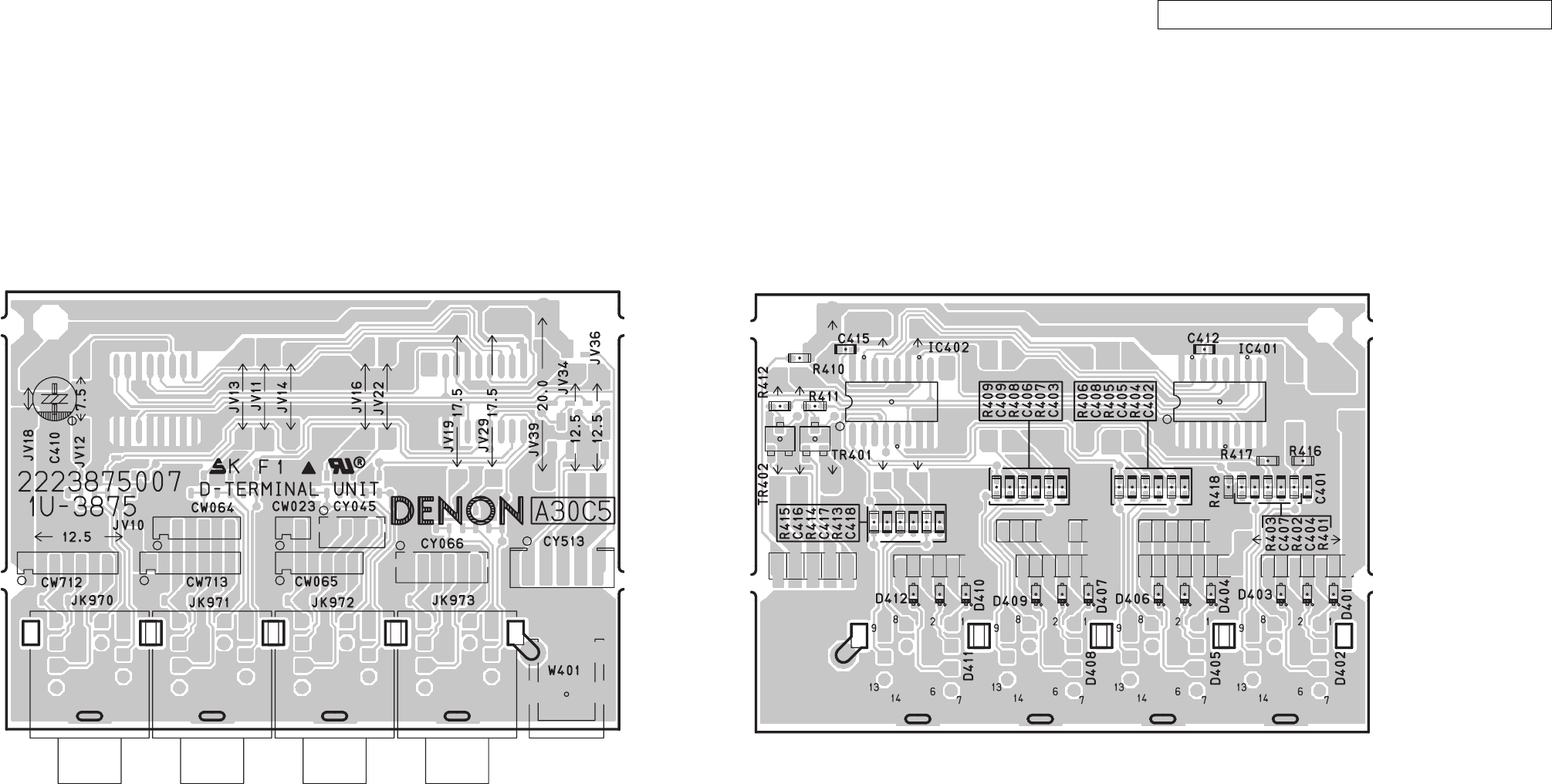

1U-3875 D-TERMINAL P.W.B. UNIT
FOIL SIDE
COMPONENT SIDE
84
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
NOTE FOR PARTS LIST
• Parts for which "nsp" is indicated on this table cannot be supplied.
• When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
• Ordering part without stating its part number can not be supplied.
• Part indicated with the mark " ★" is not illustrated in the exploded view.
• Not including General-purpose Carbon Film Resistor in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
• Not including General-purpose Carbon Chip Resistor in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
s
s
s
s
ss
ss
s
s
s
s
RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W
3H : 5 W
RN 14K 2E 182 G FR
∗18 2 Ö1800 =1.8k
0
2
1R 2 Ö1.2
1
2 R
CE 04W 1H 2R2 M BP
CE : 0J : 6.3 V F : ±1% HS :
CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V − 0% F :
CH : 2D : 200 V C : ±0.25pF
2E : 250 V D : ±0.5pF
2H : 500 V = :
2J : 630 V
∗
22 2 Ö2200µF
0
2
µF
22 2 Ö2200pF=0.0022µF
0
2
pFpF
22 1 Ö220pF
2
(0 2 )
0
(0 0 1 )
2R 2 Ö2.2µF
1
2 R
µF
AC
RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W
3H : 5W
CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type
electrolytic
CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type
electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high
requency
CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF
2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V
ll
ll
lResistors
Ex.:RN 14K 2E 182 GFR
Type Shape Power Resist- Allowable Others
and per- ance error
formance
]Resistance
1 8 2⇒1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1 R 2⇒1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
ll
ll
lCapacitors
Ex.:CE 04W 1H 2R2 M BP
Type Shape Dielectric Capacity Allowable Others
and per- strength error
formance
]Capacity (electrolyte only)
2 2 2⇒2200µF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: µF.
2 R 2⇒2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: µF.
]Capacity (except electrolyte)
2 2 2⇒2200pF=0.0022µF
(More than 2) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2 2 1⇒220pF
(0 or 1) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.
部品表について
１．部品表に "nsp" と記載されている部品は供給できません。
２．部品を発注する際は特に数字の " １ " と英字の "Ｉ" との区別をはっき
り記入してください。
３．部品番号を表示していない部品は供給できません。
４． ! 印の部品は安全上重要な部品です。交換するときは、安全および性
能維持のため必ず指定の部品をご使用ください。
５．★印のついている部品は分解図中には記載していません。
６．汎用カーボン抵抗器は記載していません。定数は回路図を参照願いま
す。
７．汎用カーボンチップ抵抗器は記載していません。定数は回路図を参照
願います。
８．部品表の抵抗器、コンデンサの品名記号の読み方は表を参照してくだ
さい。
85
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
PARTS LIST OF P.W.B. UNIT (AVR-2308CI/AVR-888 E3 model)
＊ 本表に "nsp" と記載されている部品は供給できません。
＊Parts for which "nsp" is indicated on this table cannot be supplied.
＊ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
1U-3852 DIGITAL P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 nsp LC89057W-VF4A
IC102 nsp EPM3032ATC44-10N
IC103 nsp ADAU1328BSTZ1136
IC104 nsp AZ1117H-3.3TRE1
IC105,106 nsp NJM2115M-TE1 +C
IC107-110 nsp AZ4580MTR-E1
IC111 nsp PQ050DNA1ZPH
IC112 nsp TC74VHC244FT
IC113,114 nsp AZ4580MTR-E1
IC201 nsp UPC2925BT1D-E1-AT
IC202 nsp PQ012GN01ZPH
IC203 nsp W9864G2GH-7
IC204 nsp ADSP21367KSZ1A1136
IC205 nsp DSP ROM SUB ASSY ES29LV160EB-70TGI-M:GEN 8609
IC301 nsp F2621E-01
IC302 nsp AK4385ET
IC303 nsp AZ4580MTR-E1
IC304 nsp TC74VHC08FT
IC305 nsp TC74VHCT08AFT
IC551 nsp BR24L02FV-W
IC552,553 nsp SN74CBT3306PWG4
IC554 nsp SII9135CTU
IC555 nsp UPC2918BT1D-E1-AT
IC556 nsp BR24L02FV-W
IC557,558 nsp SN74CBT3306PWG4
IC601 nsp EPM570F256C5N
IC701 nsp AZ1117H-1.8TRE1
IC702 nsp SII9134CTU
IC801 nsp AZ1117H-3.3TRE1
IC802 nsp AZ1117H-1.8TRE1
IC803 nsp ADV7401BSTZ-110
IC804 nsp AZ1117H-1.8TRE1
IC805 nsp ADV7172KSTZ
IC901 nsp UPC2918BT1D-E1-AT
IC902 nsp FLI2310-LF-CF
IC903 nsp K4S643232H-UC60
IC951 nsp SUB CPU SUB ASSY M3062LFGPGP:GEN 8608
IC954 nsp TC74VHC08FT
IC955 nsp AZ1117H-3.3TRE1
IC956,957 nsp TC74VHCT08AFT
TR101,102 nsp KRC102S-RTK/P (10K-10K)
TR103 nsp KRA102S-RTK/P (10K-10K)
TR104,105 nsp 2SK771-5-TB
TR106 nsp KRA104S-RTK/P (47K-47K)
TR107 nsp KRC104S-RTK/P (47K-47K)
TR203 nsp KRC102S-RTK/P (10K-10K)
TR204,205 nsp KRA102S-RTK/P (10K-10K)
TR206 nsp KRC102S-RTK/P (10K-10K)
TR301 nsp KRC102S-RTK/P (10K-10K)
TR302 nsp KRA102S-RTK/P (10K-10K)
TR303 nsp KRC102S-RTK/P (10K-10K)
TR304 nsp KRA102S-RTK/P (10K-10K)
TR503 nsp KRC102S-RTK/P (10K-10K)
TR506 nsp KRC104S-RTK/P (47K-47K)
TR551 nsp KRC102S-RTK/P (10K-10K)
TR552-555 nsp KRC104S-RTK/P (47K-47K)
TR556 nsp HN1K02FU-TE85L
86
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
TR557,558 nsp KRC104S-RTK/P (47K-47K)
TR703 nsp KRC104S-RTK/P (47K-47K)
TR801,802 nsp KRC104S-RTK/P (47K-47K)
TR803-807 nsp 2SA1022-B +C
TR901 nsp KRC104S-RTK/P (47K-47K)
TR951 nsp KTC3875S-GR-RTK/P
TR952 nsp KRC104S-RTK/P (47K-47K)
TR953 nsp 2SC2412KT96(S) +C
TR954 nsp 2SC3326(A/B) +C
TR955 nsp 2SC2412KT96(S) +C
TR956 nsp HN1K02FU-TE85L
D102 nsp KDS184-RTK/P (K-COM)
D201 nsp RB521S-30TE61 +REF
D302 nsp KDS184-RTK/P (K-COM)
D303 nsp KDS160-RTK/P
D503 nsp ESD PROTECTOR(6802)
D506 nsp ESD PROTECTOR(6802)
D509 nsp ESD PROTECTOR(6802)
D512 nsp ESD PROTECTOR(6802)
D515 nsp ESD PROTECTOR(6802)
D518 nsp ESD PROTECTOR(6802)
D521 nsp ESD PROTECTOR(6802)
D524 nsp ESD PROTECTOR(6802)
D530 nsp ESD PROTECTOR(6802)
D533 nsp ESD PROTECTOR(6802)
D536 nsp ESD PROTECTOR(6802)
D539 nsp ESD PROTECTOR(6802)
D551-558 nsp ESD PROTECTOR(6802)
D559 nsp RB521S-30TE61 +REF
D560-563 nsp ESD PROTECTOR(6802)
D564 nsp RB521S-30TE61 +REF
D569,570 nsp RB521S-30TE61 +REF
D705-717 nsp ESD PROTECTOR(6802)
D953 nsp KDS160-RTK/P
ZD301 nsp NSAD500F-T1B-A
ZD701 nsp UDZS5.1B-TE17 +C
RESISTORS GROUP
R357,358 nsp RM73B20R0KT +3216
R803,804 nsp RM73B--151FT_1608
R805,806 nsp RM73B--121FT +1608
R807-814 nsp RM73B--151FT_1608
R834,835 nsp RM73B--182FT_1608
R851-855 nsp RM73B--271FT_1608
CAPACITORS GROUP
C101 nsp CK73B1A104KT +1005
C102,103 nsp CC73CH1H6R0DT +1005
C104 nsp CK73B1E104KT +1608
C105 nsp CK73B1E223KT +1608
C106 nsp CK73B1H102KT +1005
C107 nsp CC73CH1H101JT +1005
C108 nsp CK73B0J475KT(P) +1608
C110 nsp CK73B1H102KT +1005
C111,112 nsp CK73B0J475KT(P) +1608
C113 nsp CK73B1A104KT +1005
C114 nsp CC73CH1H101JT +1005
C115 nsp CK73B1H102KT +1005
C116 nsp CC73CH1H101JT +1005
C117 nsp CK73B0J475KT(P) +1608
C118 nsp CE67C1C100MT(RV2)
C119 nsp CK73B1H102KT +1005
Ref. No. Part No. Part Name Remarks Q'ty New
87
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C120 nsp CK73B1E104KT +1608
C121 nsp CK73B0J475KT(P) +1608
C122 nsp CF73=1C562JT(ECHUX)
C123 nsp CK73B1E104KT +1608
C124 nsp CE67W1C470MT(P.CAP)
C125 nsp CK73B1H391KT +1005
C126 nsp CK73B1A104KT +1005
C127 nsp CE67W1H100MT(P.CAP) +REF
C128 nsp CK73B1A104KT +1005
C129,130 nsp CK73B0J475KT(P) +1608
C131-142 nsp RM73B--0R0KT+1005
C143,144 nsp CC73CH1H102JT +1608
C145,146 nsp CC73CH1H271JT +1608
C147,148 nsp CC73CH1H391JT +1608
C149,150 nsp CC73CH1H331JT +1608
C151,152 nsp CC73CH1H391JT +1608
C153,154 nsp CC73CH1H121JT +1608
C155,156 nsp CC73CH1H390JT +1608
C157,158 nsp CC73CH1H471JT +1608
C159,160 nsp CC73CH1H271JT +1608
C161,162 nsp CC73CH1H471JT +1608
C163,164 nsp CK73B1A104KT +1005
C165 nsp CK73B0J475KT(P) +1608
C166 nsp CK73B1H103KT (1608) +1608
C167,168 nsp CC73CH1H101JT +1608
C169 nsp CE67C1H010MT (RV2B55 +REF
C170 nsp CC73CH1H101JT +1608
C174,175 nsp CK73B0J475KT(P) +1608
C180 nsp CK73B1E104KT +1608
C191-198 nsp CK73B1H102KT +1608
C203 nsp CK73B1E104KT +1608
C206 nsp CK73B0J475KT(P) +1608
C209 nsp CK73B0J475KT(P) +1608
C212,213 nsp CK73B0J475KT(P) +1608
C214-216 nsp CC73CH1H101JT +1005
C218-222 nsp CK73B1A104KT +1005
C224 nsp CK73B1A104KT +1005
C227 nsp CK73B1A104KT +1005
C230,231 nsp CK73B1A104KT +1005
C232,233 nsp CK73B0J475KT(P) +1608
C234 nsp CK73B1A104KT +1005
C236,237 nsp CK73B1A104KT +1005
C238,239 nsp CC73CH1H7R0DT +1005
C241 nsp CE67C0J101MT (RV2) +REF
C301 nsp CK73B1H102KT +1005
C302,303 nsp CK73B0J475KT(P) +1608
C304,305 nsp CC73CH1H200JT +1005
C306,307 nsp CK73B1A104KT +1005
C308-311 nsp CK73B0J475KT(P) +1608
C312,313 nsp CK73B1A104KT +1005
C314,315 nsp CC73CH1H5R0CT +1005
C317 nsp CK73B0J475KT(P) +1608
C318 nsp CK73B1A104KT +1005
C319 nsp CK73B1H102KT +1005
C320,321 nsp CK73B1A104KT +1005
C322,323 nsp CK73B0J475KT(P) +1608
C324,325 nsp CK73B1H332KT +1608
C326 nsp CK73B1A104KT +1005
C327-330 nsp CC73CH1H471JT +1608
C331,332 nsp CK73B1A104KT +1005
C340,341 nsp CK73B1A104KT +1005
C347,348 nsp CC73CH1H200JT +1005
C702 nsp CK73B1A104KT +1005
C704 nsp CK73B0J475KT(P) +1608
C706,707 nsp CK73B1H102KT +1005
C708-710 nsp CK73B1A104KT +1005
Ref. No. Part No. Part Name Remarks Q'ty New
88
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C711-717 nsp CK73B1H102KT +1005
C718-723 nsp CK73B1A104KT +1005
C724,725 nsp CK73B1H102KT +1005
C726 nsp CK73B1A104KT +1005
C727-730 nsp CK73B1H102KT +1005
C731-734 nsp CK73B1A104KT +1005
C735-738 nsp CK73B0J475KT(P) +1608
C746 nsp CK73B1E104KT +1608
C803 nsp CK73B1H102KT +1005
C805 nsp CK73B0J475KT(P) +1608
C807 nsp CK73B1H102KT +1005
C808-811 nsp CK73B1A104KT +1005
C812-817 nsp CK73B0J475KT(P) +1608
C819-821 nsp CK73B0J475KT(P) +1608
C822,823 nsp CK73B1A104KT +1005
C825,826 nsp CK73B1E103KT(1005)
C827 nsp CK73B1E104KT +1608
C828 nsp CK73B1A104KT +1005
C829 nsp CK73B1E104KT +1608
C830 nsp CK73B1A104KT +1005
C831,832 nsp CK73B1E104KT +1608
C833 nsp CF73=1C823JT(ECHUX)
C834,835 nsp CK73B1E104KT +1608
C836 nsp CK73B1H102KT +1608
C837 nsp CK73B1E103KT(1005)
C838 nsp CF73=1C103JT(ECHUX)
C839 nsp CK73B1A104KT +1005
C840,841 nsp CC73CH1H120JT +1005
C842 nsp CK73B1A104KT +1005
C844-848 nsp CK73B1A104KT +1005
C849,850 nsp CK73B0J475KT(P) +1608
C853 nsp CK73B1H102KT +1005
C856 nsp CK73B1A104KT +1005
C857 nsp CK73B1E103KT(1005)
C858,859 nsp CC73CH1H101JT +1005
C860-864 nsp CK73B1A104KT +1005
C865,866 nsp CK73B0J475KT(P) +1608
C867-871 nsp CK73B1A104KT +1005
C874 nsp CK73B1H102KT +1005
C876 nsp CK73B0J475KT(P) +1608
C901 nsp CK73B1E103KT(1005)
C904 nsp CK73B0J475KT(P) +1608
C907 nsp CK73B0J475KT(P) +1608
C908 nsp CK73B1A104KT +1005
C909 nsp CK73B1E103KT(1005)
C911 nsp CK73B1E103KT(1005)
C912,913 nsp CK73B1A104KT +1005
C914 nsp CK73B1E103KT(1005)
C915-919 nsp CK73B1A104KT +1005
C922 nsp CK73B0J475KT(P) +1608
C923-929 nsp CK73B1A104KT +1005
C930,931 nsp CC73CH1H180JT +1005
C932-937 nsp CK73B1A104KT +1005
C939-944 nsp CK73B1A104KT +1005
C945 nsp CK73B1E103KT(1005)
C946-948 nsp CK73B1A104KT +1005
C950 nsp CK73B0J475KT(P) +1608
C951 nsp CE67C1C101MT (RV2) +REF
CC101,102 nsp CE67C1C100MT(RV2)
CC103-108 nsp CE67C1H010MT(RV2)
CC109,110 nsp CE67C1C100MT(RV2)
CC111 nsp CK73B1A104KT +1005
CC127,128 nsp CE67C1C100MT(RV2)
CC501-503 nsp CK73B1A104KT +1005
CC505 nsp CK73B1A104KT +1005
Ref. No. Part No. Part Name Remarks Q'ty New
89
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CC506 nsp CK73B1H102KT +1005
CC507-517 nsp CK73B1A104KT +1005
CC518 nsp CK73B1H102KT +1005
CC519 nsp CK73B1A104KT +1005
CC521-528 nsp CK73B1A104KT +1005
CC529,530 nsp CC73CH1H150JT +1005
CC531-534 nsp CK73B1A104KT +1005
CC535 nsp CK73B1H102KT +1005
CC536 nsp CK73B1A104KT +1005
CC538 nsp CK73B1H102KT +1005
CC539-544 nsp CK73B1A104KT +1005
CC545 nsp CK73B1H102KT +1005
CC546 nsp CK73B1A104KT +1005
CC548 nsp CK73B0J475KT(P) +1608
CC550,551 nsp CK73B1A104KT +1005
CC554-557 nsp CK73B0J475KT(P) +1608
CC560,561 nsp CK73B0J475KT(P) +1608
CC563 nsp CK73B0J475KT(P) +1608
CC564-567 nsp CE67C1C100MT(RV2)
CC604-606 nsp CK73B0J475KT(P) +1608
CC607-609 nsp CK73B1A104KT +1005
CC610-612 nsp CK73B1H102KT +1005
CC951 nsp CK73B1E103KT(1005)
CC952 nsp CK73B1H102KT +1005
CC953 nsp CK73B0J475KT(P) +1608
CC954 nsp CC73CH1H101JT +1005
CC955,956 nsp CC73CH1H100DT +1005
CC957 nsp CK73B0J475KT(P) +1608
CC962,963 nsp CK73B1A104KT +1005
CC965 nsp CK73B0J475KT(P) +1608
CC967 nsp CK73B1A104KT +1005
CC970,971 nsp CK73B1A104KT +1005
CC972 nsp CK73B1H102KT +1005
CC976 nsp CK73B1H331KT +1005
CC977 nsp CK73B1H221KT +1005
CC978 nsp CK73B1E104KT +1608
OTHERS PARTS GROUP
CW035 nsp 3P SDN-VH CON.CORD
CX041 nsp 4P KR CON BASE(L)
CX072 nsp 7P SOCKET(9120)
CX076 nsp 6P CONN.BASE(KR-PH)
CX111 nsp 11P SOCKET(9120)
CX119 nsp 12P SOCKET(9120)
CX163 nsp 16P SOCKT(9120)
CX172 nsp 17P SOCKT(9120)
CY154 nsp 15P CON.SOCKET TUC-P
CY171 nsp 17P SOCKT(9120)
CY504 nsp 13P FFC CON.BASE
FB551 nsp CHIP EMIFIL(11A121) +1608
FB552 nsp CHIP BEADS(18PG121) +1608
FB553,554 nsp CHIP EMIFIL(11A121) +1608
FB701-704 nsp CHIP EMIFIL(11A121) +1608
FB951 nsp ZBFS5105-PT
JK301 00D 205 1362 009 XM/DT BUS CONNECTOR
JK503 00D 205 1447 005 19P-HDMI-CONNECTOR
JK551 00D 205 1447 005 19P-HDMI-CONNECTOR
JK701 00D 205 1447 005 19P-HDMI-CONNECTOR
W301 nsp M3 SCREW TERMINAL
Ref. No. Part No. Part Name Remarks Q'ty New
90
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
X101 nsp FCX-03(24.576MHz)
X201 nsp FCX-03(16.660MHz)
X301 nsp FCX-02(45.1584MHz)
X551 nsp FCX-03(28.322MHZ)
X801 nsp FCX-03(28.6363MHz)
X901 nsp XTAL(13.5MHZ) +REF
X951 nsp FCX-03(12MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
91
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
1U-3853 A.VIDEO/VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 262 3756 904 LA73053-TLM-E
IC102,103 00D 262 3445 901 TC4051BFT
IC104 00D 262 3446 900 TC4052BFT
IC106,107 00D 262 3445 901 TC4051BFT
IC108 00D 262 3446 900 TC4052BFT
IC109,110 00D 262 3445 901 TC4051BFT
IC111-115 00D 263 1082 903 TK15420MTL +C
IC301 00D 263 1197 908 BU4094BCFV-E2
IC303 00D 262 3447 909 TC4053BFT
IC305 00D 262 3755 905 LA73062V-TLM-E
IC306 00D 262 2827 902 MM74HC4053SJ +C
IC307 00D 262 3749 908 LC74782M
IC308-310 00D 263 1082 903 TK15420MTL +C
IC501 00D 262 3551 002 NJW1321FP1
IC502 00D 263 1287 902 PQ090DNA1ZPH
IC503,504 00D 263 1225 906 NJM2581M-TE1
IC601-604 00D 263 1289 900 AZ4580MTR-E1
IC605 00D 263 0896 909 NJM2068MD-TE1 +C
IC606-611 00D 263 1289 900 AZ4580MTR-E1
IC612 00D 263 1291 008 R2A15215
TR101,102 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104,105 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR107,108 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR302 00D 271 0312 905 KTA1504S-GR-RTK/P
TR303,304 00D 273 0464 901 KTC3875S-GR-RTK/P
TR501 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR502 00D 269 0144 905 DTC114YKA-T146 +C
TR503 00D 271 0312 905 KTA1504S-GR-RTK/P
TR601-604 00D 273 0460 905 KTC2875-B-RTK/P
TR605,606 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR607,608 00D 273 0460 905 KTC2875-B-RTK/P
TR615 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR621 00D 273 0460 905 KTC2875-B-RTK/P
TR629 00D 273 0460 905 KTC2875-B-RTK/P
D101,102 00D 276 0794 900 KDS160-RTK/P
D104,105 00D 276 0794 900 KDS160-RTK/P
D301,302 00D 276 0794 900 KDS160-RTK/P
D508,509 00D 276 0794 900 KDS160-RTK/P
RESISTORS GROUP
R103,104 00D 247 2019 928 RM73B--750FT
R107-112 00D 247 2019 928 RM73B--750FT
R121 00D 247 2019 928 RM73B--750FT
R123-125 00D 247 2019 928 RM73B--750FT
R147-152 00D 247 2045 918 RM73B--151FT_1608
R302-304 00D 247 2019 928 RM73B--750FT
R332-334 00D 247 2019 928 RM73B--750FT
R501-509 00D 247 2019 928 RM73B--750FT
R519-524 00D 247 2045 918 RM73B--151FT_1608
R555 00D 247 2045 921 RM73B--161FT_1608
R556 00D 247 2045 918 RM73B--151FT_1608
R557 00D 247 2045 921 RM73B--161FT_1608
R558 00D 247 2045 918 RM73B--151FT_1608
R559 00D 247 2045 921 RM73B--161FT_1608
R560 00D 247 2045 918 RM73B--151FT_1608
R561 00D 247 2045 921 RM73B--161FT_1608
R562 00D 247 2045 918 RM73B--151FT_1608
R565 00D 247 2045 921 RM73B--161FT_1608
R566 00D 247 2045 918 RM73B--151FT_1608
92
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
R569 00D 247 2045 921 RM73B--161FT_1608
R570 00D 247 2045 918 RM73B--151FT_1608
RR117-119 00D 247 2019 957 RM73B--681FT +1608
RR123-125 00D 247 2025 909 RM73B--821FT
RR131 00D 247 2045 992 RM73B--273FT_1608
RR133 00D 247 2045 992 RM73B--273FT_1608
CAPACITORS GROUP
C101-109 nsp CK73B1H103KT (1608) +1608
C114,115 00D 254 4717 925 CE04W1A101MT(GR)
C116 nsp CK73B1H103KT (1608) +1608
C117-120 00D 254 4718 924 CE04W1C330MT(GR)
C123-128 nsp CK73B1H103KT (1608) +1608
C131-140 nsp CK73B1H103KT (1608) +1608
C141-146 00D 254 4717 925 CE04W1A101MT(GR)
C154-159 nsp CK73B1H103KT (1608) +1608
C162,163 00D 254 4522 932 CE04W1V330MT SMG/RE3
C166,167 nsp CK73B1E473KT +1608
C169,170 nsp CK73B1E104KT +1608
C172,173 nsp CK73B1E473KT +1608
C176 nsp CK73B1A105KT +1608
C178 nsp CK73B1A105KT +1608
C181,182 nsp CK73B1E473KT +1608
C301,302 nsp CK73B1E104KT +1608
C303 00D 254 4718 924 CE04W1C330MT(GR)
C304 nsp CK73B1H103KT (1608) +1608
C311-313 00D 254 4717 925 CE04W1A101MT(GR)
C314 00D 254 4718 924 CE04W1C330MT(GR)
C315-320 nsp CK73B1H103KT (1608) +1608
C321 00D 254 4718 924 CE04W1C330MT(GR)
C322 00D 254 4716 926 CE04W0J331MT(GR)
C323 00D 254 4716 942 CE04W0J102MT(GR)
C324 00D 254 4716 926 CE04W0J331MT(GR)
C325 00D 254 4718 937 CE04W1C470MT(GR)
C326 nsp CK73B1E104KT +1608
C327,328 00D 254 4717 925 CE04W1A101MT(GR)
C329,330 nsp CK73B1H103KT (1608) +1608
C332 nsp CK73B1E104KT +1608
C333 00D 254 4536 928 CE04W1A101MT SMG/RE3
C334-338 nsp CK73B1E104KT +1608
C339,340 00D 254 4718 924 CE04W1C330MT(GR)
C341,342 nsp CK73B1H103KT (1608) +1608
C345,346 00D 254 4722 981 CE04W1H100MT(GR)
C347,348 nsp CK73B1H103KT (1608) +1608
C349 00D 254 4717 925 CE04W1A101MT(GR)
C350 00D 254 4718 924 CE04W1C330MT(GR)
C351 nsp CK73B1E104KT +1608
C352 00D 254 4722 981 CE04W1H100MT(GR)
C353 nsp CK73B1H103KT (1608) +1608
C354,355 nsp CC73CH1H6R0DT +1608
C356 00D 257 0504 911 CC73CH1H240JT
C357 nsp CK73B1H122KT +1608
C358 00D 257 0504 911 CC73CH1H240JT
C359 00D 254 4524 943 CE04W1H010MT SMG/RE3
C360 nsp CK73B1E104KT +1608
C361 00D 254 4718 924 CE04W1C330MT(GR)
C501 00D 254 4722 981 CE04W1H100MT(GR)
C503 00D 254 4722 981 CE04W1H100MT(GR)
C505 00D 254 4722 981 CE04W1H100MT(GR)
C507 00D 254 4722 981 CE04W1H100MT(GR)
C509 00D 254 4722 981 CE04W1H100MT(GR)
C511 00D 254 4722 981 CE04W1H100MT(GR)
C516-518 00D 254 4722 981 CE04W1H100MT(GR)
C519,520 00D 254 4718 940 CE04W1C101MT(GR)
Ref. No. Part No. Part Name Remarks Q'ty New
93
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C521-526 nsp CK73B1E104KT +1608
C528 nsp CK73B1E104KT +1608
C529 00D 254 4722 981 CE04W1H100MT(GR)
C530 nsp CK73B1E104KT +1608
C532 00D 254 4722 981 CE04W1H100MT(GR)
C533 00D 254 4718 924 CE04W1C330MT(GR)
C535 00D 254 4722 981 CE04W1H100MT(GR)
C536,537 nsp CK73B1A105KT +1608
C538 nsp CK73B1E104KT +1608
C539 00D 254 4722 949 CE04W1H010MT(GR)
C540-545 00D 254 4536 928 CE04W1A101MT SMG/RE3
C552 nsp CK73B1H103KT (1608) +1608
C553 00D 254 4522 932 CE04W1V330MT SMG/RE3
C554 nsp CK73B1H103KT (1608) +1608
C555 00D 254 4522 932 CE04W1V330MT SMG/RE3
C556-559 nsp CK73B1H103KT (1608) +1608
C560 nsp CK73B1E473KT +1608
C561 nsp CK73B1A105KT +1608
C563 nsp CK73B1E473KT +1608
C565 nsp CC73CH1H221JT +1608
C566 nsp CK73B1H103KT (1608) +1608
C567 00D 254 4522 932 CE04W1V330MT SMG/RE3
C568 nsp CK73B1H103KT (1608) +1608
C569 00D 254 4522 932 CE04W1V330MT SMG/RE3
C570-574 nsp CK73B1H103KT (1608) +1608
C575 nsp CK73B1E473KT +1608
C601-606 nsp CK73B1H103KT (1608) +1608
C607-612 nsp RM73B--0R0KT +1608
C613,614 nsp CK73B1H103KT (1608) +1608
C615 00D 254 4722 949 CE04W1H010MT(GR)
C618-639 nsp CC73CH1H331JT +1608
C640-643 nsp CC73CH1H101JT +1608
C644,645 00D 254 4524 998 CE04W1H220MT SMG/RE3
C646,647 nsp CC73CH1H221JT +1608
C648-657 00D 254 4722 981 CE04W1H100MT(GR)
C658,659 00D 254 4802 911 CE04W1J100MT(RA3)
C660,661 00D 254 4524 985 CE04W1H100MT SMG/RE3
C662,663 00D 254 4802 911 CE04W1J100MT(RA3)
C664-673 00D 254 4722 981 CE04W1H100MT(GR)
C674,675 00D 254 4577 958 CE04W1C221MT(RA3)
C684,685 nsp CC73CH1H101JT +1608
C698,699 00D 254 4524 998 CE04W1H220MT SMG/RE3
C700 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C701,702 00D 255 1265 978 CQ93M1H223JT(B)
C703,704 00D 255 1265 907 CQ93M1H682JT(B)
C705-712 00D 254 4524 985 CE04W1H100MT SMG/RE3
C713,714 00D 254 4802 911 CE04W1J100MT(RA3)
C715,716 00D 254 4524 985 CE04W1H100MT SMG/RE3
C717,718 00D 254 4802 911 CE04W1J100MT(RA3)
C719-726 00D 254 4524 985 CE04W1H100MT SMG/RE3
C727-730 00D 254 4722 981 CE04W1H100MT(GR)
C732,733 00D 254 4524 998 CE04W1H220MT SMG/RE3
C734-736 00D 254 4538 942 CE04W1C101MT SMG/RE3
C737,738 00D 254 4524 998 CE04W1H220MT SMG/RE3
C739-741 00D 254 4538 942 CE04W1C101MT SMG/RE3
C742,743 00D 254 4525 926 CE04W1H101MT SMG/RE3
C750 00D 254 4525 926 CE04W1H101MT SMG/RE3
C751,752 00D 254 4524 998 CE04W1H220MT SMG/RE3
C753 00D 254 4525 926 CE04W1H101MT SMG/RE3
C754 00D 254 4723 922 CE04W1H101MT(GR)
C757 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C763 00D 254 4524 998 CE04W1H220MT SMG/RE3
C771 00D 254 4524 998 CE04W1H220MT SMG/RE3
C780 nsp CC73CH1H331JT +1608
C789,790 nsp CK73B1H103KT (1608) +1608
C811,812 00D 254 4722 981 CE04W1H100MT(GR)
Ref. No. Part No. Part Name Remarks Q'ty New
94
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CC101,102 nsp CK73B1E104KT +1608
OTHERS PARTS GROUP
CX073 nsp 7P SOCKET(9120)
CX077 nsp 7P CON.SOCKET(TUC-P
CX079 nsp 7P CON PLUG TWG-P
CX112,113 nsp 11P SOCKET(9120)
CX135 nsp 13P CON PLUG TWG-P
CX155 nsp 15P SOCKET(9120)
CX711 nsp 7P CON PLUG TWG-P
CY106 nsp 10P CON.SOCKET TUC-P
CY127 nsp 12P CON.SOCKET TUC-P
CY151 nsp 15P SOCKET(9120)
CY153 nsp 15P SOCKET(9120)
CY155 nsp 15P CON.SOCKET TUC-P
CY711 nsp 7P CON BASE TWG-P
FB101,102 nsp RM73B--0R0KT +2125
FB301 00D 235 0049 900 BEADS INDUCTOR TAPE
JK103 00D 204 8745 011 6P S&PIN JACK(NI)
JK104,105 00D 204 8750 006 4P S&PIN JACK(NI)
JK501,502 00D 204 8756 000 6P PIN JACK(MSD-246V)-NI-GBR
JK601 00D 204 8753 016 4P PIN JACK(MSP-244V4)-NI-SW/B
JK602-606 00D 204 8753 003 4P PIN JACK(MSP-244V4)-NI-W/R
JK607 00D 204 8752 004 2P PIN JACK(MSP-242V3)-NI-W/R
JK610 00D 204 8642 004 1P PIN JACK BK
JK612 00D 204 8752 004 2P PIN JACK(MSP-242V3)-NI-W/R
L301 00D 235 0150 941 LQH32MN330J23L
W601 nsp M3 SCREW TERMINAL
X301 00D 399 0739 019 X'TAL(14.32M-RIBER)
Ref. No. Part No. Part Name Remarks Q'ty New
95
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
1U-3855 FRONT P.W.B. UNIT ASS'Y (AVR-2308CI E3 model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
!IC102 00D 268 0073 905 ICP-N15T
IC103 00D 499 0318 002 GP1UM271XKVF
IC201,202 00D 269 0231 009 GP1FAV31RK0F
IC204 00D 269 0230 000 GP1FAV31TK0F
IC206 00D 262 1205 907 TC74HCU04AF(TP1) +C
IC208 00D 262 3561 908 TC74VHC14F
IC601 00D 262 3676 903 TC74VHCT08AF(E,K,F)
IC602 00D 262 2580 906 CXA1511M +C
IC701 00D 269 0231 009 GP1FAV31RK0F
IC702 00D 263 0615 902 BA15218F-DXE2 +C
TR101 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR102,103 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105 00D 273 0494 900 KTC2022D-Y-RTF/P
TR106-108 00D 274 0212 907 2SD1782KT146
TR109 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR110 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR601 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR602 00D 271 0326 904 2SA1954(B)-TE85L
TR603 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR604 00D 273 0464 901 KTC3875S-GR-RTK/P
TR605 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
D101 00D 276 0704 903 1SR35-400A(T93X)
D103 00D 276 0794 900 KDS160-RTK/P
D105 00D 276 0794 900 KDS160-RTK/P
D107 00D 276 0794 900 KDS160-RTK/P
D203-205 00D 276 0738 908 KDS226-RTK/P (A-K)
D601,602 00D 276 0794 900 KDS160-RTK/P
D603 00D 276 0833 900 ESD PROTECTOR(6802)
D604 00D 276 0794 900 KDS160-RTK/P
D605 00D 276 0837 906 NSAD500F-T1B-A
ZD103 00D 276 0760 976 MTZJ6.8B T77
ZD104 00D 276 0761 975 MTZJ18B T77
ZD105 00D 276 0762 903 MTZJ24B T77
ZD601 00D 276 0760 963 MTZJ6.2B T77
ZD701-703 00D 276 0683 930 UDZS5.1B-TE17 +C
LD101 00D 393 9671 002 SMLU12416W-S
FL101 00D 393 8097 001 FLD(HCA-19MM02T)
RESISTORS GROUP
R163,164 00D 244 2043 937 RS14B3A100JNBST(S)
CAPACITORS
GROUP
C101 nsp CK73B1E104KT +1608
C103-107 nsp CK73B1E104KT +1608
C108 00D 254 4524 985 CE04W1H100MT SMG/RE3
C109,110 00D 255 1279 951 CQ93M1H104JT(B)
C111,112 00D 254 4812 707 CE04W1H471MC(SRG/K15)
C113 nsp CK73B1E104KT +1608
C114 00D 254 4527 940 CE04W2A010MT SMG/RE3
C115,116 nsp CK73B1E104KT +1608
C117 00D 254 4802 908 CE04W1J101MT(RA3)
C120-122 nsp CC73CH1H101JT +1608
C123 nsp CK73B1H103KT (1608) +1608
C124 00D 256 1042 903 CF93A2E104KT
C125 nsp CK73B1H102KT +1608
96
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C126 nsp CK73B1E104KT +1608
C127 00D 254 4538 942 CE04W1C101MT SMG/RE3
C128 nsp CK73B1E104KT +1608
C131-133 nsp CK73B1E104KT +1608
C134 00D 254 4196 986 CE04W1H100MT (SRA)
C135 nsp CK73B1H103KT (1608) +1608
C137,138 nsp CK73B1E104KT +1608
C142,143 nsp CK73B1E104KT +1608
C146 nsp CC73CH1H300JT +1608
C147 00D 255 1279 919 CQ93M1H473JT(B)
C204 nsp CK73B1E104KT +1608
C206 nsp CK73B1E104KT +1608
C208 nsp CK73B1E104KT +1608
C210-212 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C213,214 nsp CK73B1H103KT (1608) +1608
C216-218 nsp CK73B1E104KT +1608
C603 nsp CK73B1E104KT +1608
C605 nsp CK73B1E104KT +1608
C608 nsp CK73B1E104KT +1608
C610-612 nsp CK73B1E104KT +1608
C614 nsp CC73CH1H221JT +1608
C618 nsp CK73B1H102KT +1608
C619 nsp CK73B1E104KT +1608
C621 00D 254 4524 985 CE04W1H100MT SMG/RE3
C622 nsp CK73B1H102KT +1608
C623 00D 254 4524 943 CE04W1H010MT SMG/RE3
C624 nsp CC73CH1H101JT +1608
C625 nsp CK73B1H103KT (1608) +1608
C626 00D 254 4522 932 CE04W1V330MT SMG/RE3
C627 nsp CK73B1H103KT (1608) +1608
C704 00D 254 4305 968 CE04W1H010MT(SRE)
C707 nsp CK73B1A105KT +1608
C708 nsp CC73CH1H101JT +1608
C709,710 nsp CC73CH1H221JT +1608
C713 nsp CK73B1E104KT +1608
C716 nsp CC73CH1H151JT +1608
C717 00D 254 4305 968 CE04W1H010MT(SRE)
C724 00D 254 4305 968 CE04W1H010MT(SRE)
C725,726 00D 254 4196 944 CE04W1H010MT (SRA)
C727 nsp CC73CH1H101JT +1608
C728,729 00D 255 1264 908 CQ93M1H102JT(B)
C731 nsp CK73B1E104KT +1608
C732 nsp CC73CH1H151JT +1608
C734 00D 254 4305 968 CE04W1H010MT(SRE)
C735 nsp CK73B1E104KT +1608
C737 00D 254 4305 968 CE04W1H010MT(SRE)
C738,739 00D 255 1279 951 CQ93M1H104JT(B)
OTHERS PARTS GROUP
AS101,102 nsp FL SPACER (T=5)
CW021 nsp 2P VA-3P SDN CON.CORD
CX062 nsp 6P CONN BASE
CX124 nsp 12P CON.SOCKET TUC-P
CX125 nsp 12P CON.BASE TUC-P
CX131 00D 205 0668 063 13P FFC CON.BASE
CX251 00D 205 1316 000 25P FFC BASE(9610S)Y
CX271 00D 205 1329 000 27P FFC BASE(9610SB)
CY072,073 nsp 7P PIN HEADER(9120)
CY111-113 nsp 11P PIN HEADER(9120)
CY122 nsp 12P PIN HEADER(9120)
CY132 nsp 13P CON.SOCKET(TUC-P
CY155 nsp 15P PIN HEADER(9120)
Ref. No. Part No. Part Name Remarks Q'ty New
97
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CY163 nsp 16P PIN HEADER(9120)
FB101,102 nsp RM73B--0R0KT +2125
JK201 00D 204 8755 001 3P PIN JACK(MSD-253V)-NI-O3
JK601 00D 204 8758 008 MINI JACK(MSJ-035-10A)-SW
JK602,603 00D 204 8260 004 MINI JACK
JK604 00D 204 8649 007 MINI JACK (RD)
JK701 00D 204 8260 004 MINI JACK
JK702 00D 204 8757 009 1P PIN S-JACK(MDC-074V)-AU
JK703 00D 204 8217 031 H/P JACK (BK(AU))
JK707 00D 204 8754 002 3P PIN JACK(MSP-253V)-AU-B3
S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)
!S103 00D 212 1030 009 POWER SWITCH (TV-5)
S104-125 00D 212 5611 903 TACT SWITCH(TAPE H5)
S126 00D 212 0512 007 ROTARY ENCODER
S127 00D 212 5611 903 TACT SWITCH(TAPE H5)
S128,129 00D 212 0373 000 ROT.ENCODER-EC16B
ST001,002 nsp STYLE PIN
W601 nsp M3 SCREW TERMINAL
CZ093 nsp 9P DA-DA CON.CORD
nsp RUBBER SHEET
Ref. No. Part No. Part Name Remarks Q'ty New
98
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model

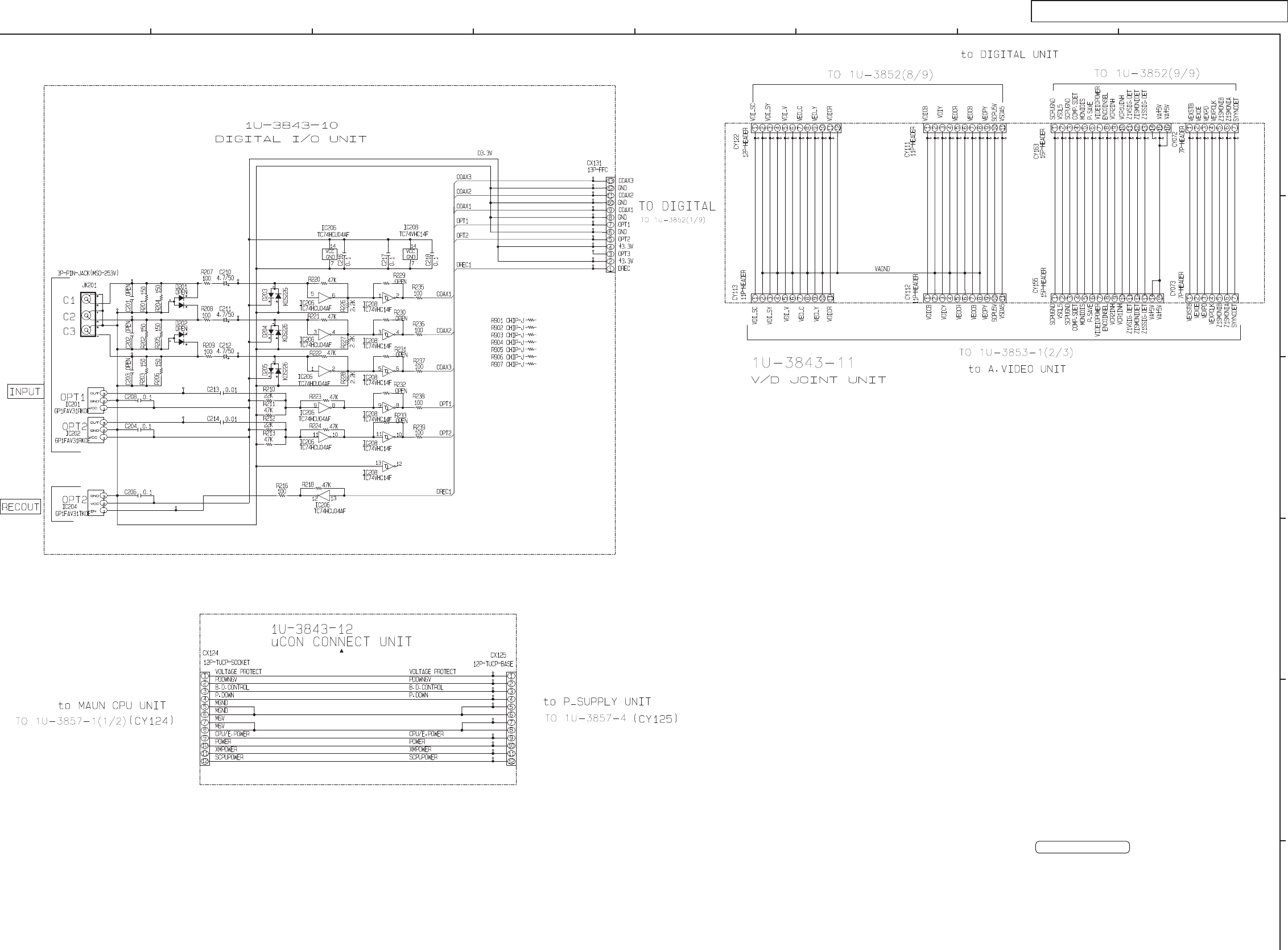

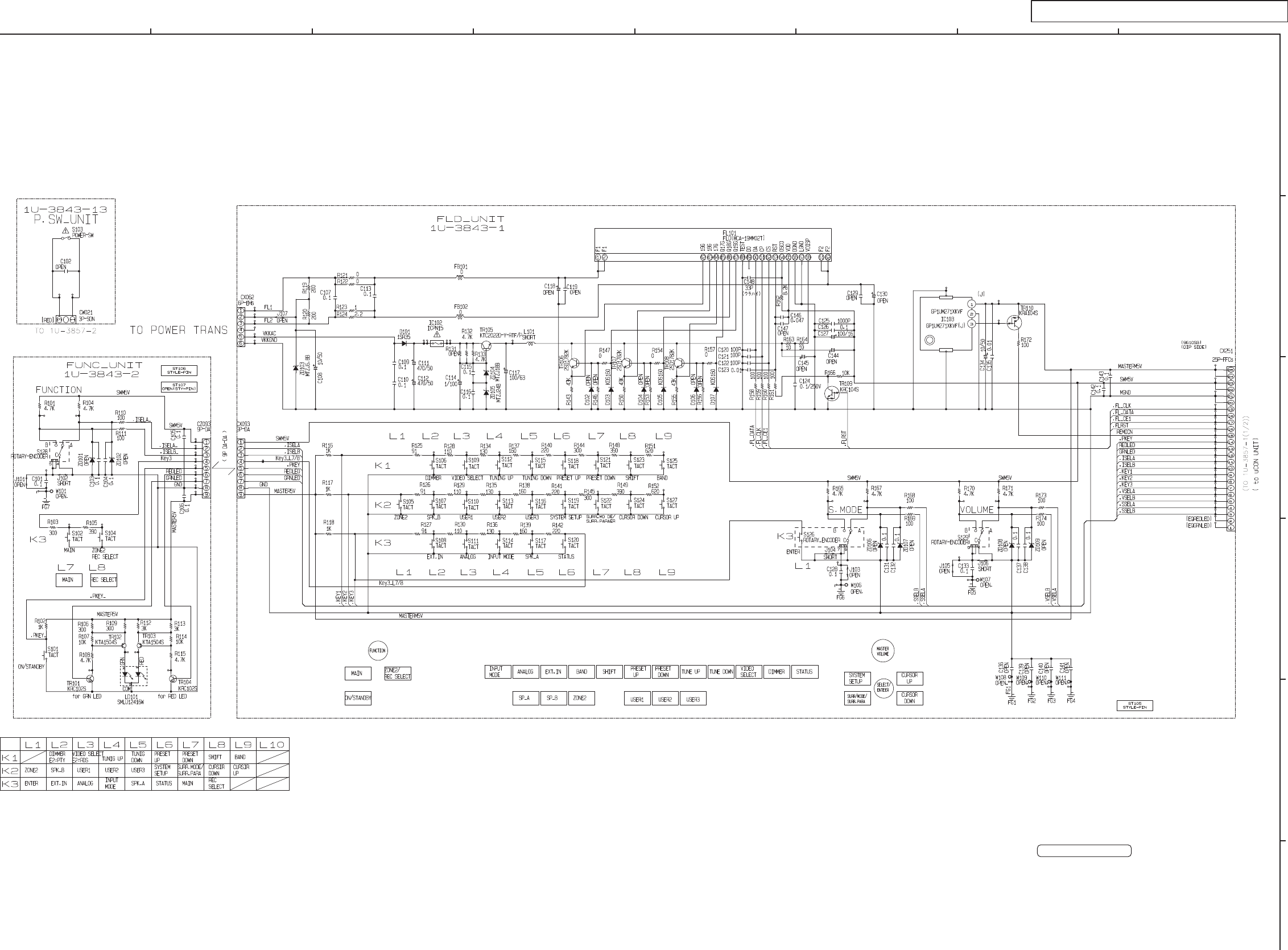

1U-3843 FRONT P.W.B. UNIT ASS'Y (AVR-888 E3 model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
!IC102 00D 268 0073 905 ICP-N15T
IC103 00D 499 0318 002 GP1UM271XKVF
IC201,202 00D 269 0231 009 GP1FAV31RK0F
IC204 00D 269 0230 000 GP1FAV31TK0F
IC206 00D 262 1205 907 TC74HCU04AF(TP1) +C
IC208 00D 262 3561 908 TC74VHC14F
IC601 00D 262 3676 903 TC74VHCT08AF(E,K,F)
IC602 00D 262 2580 906 CXA1511M +C
IC701 00D 269 0247 006 OPTMODULE(JSR1165-C)
IC702 00D 263 0615 902 BA15218F-DXE2 +C
TR101 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR102,103 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105 00D 273 0494 900 KTC2022D-Y-RTF/P
TR106-108 00D 274 0212 907 2SD1782KT146
TR109 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR110 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR601 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR602 00D 271 0326 904 2SA1954(B)-TE85L
TR603 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR604 00D 273 0464 901 KTC3875S-GR-RTK/P
TR605 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
D101 00D 276 0704 903 1SR35-400A(T93X)
D103 00D 276 0794 900 KDS160-RTK/P
D105 00D 276 0794 900 KDS160-RTK/P
D107 00D 276 0794 900 KDS160-RTK/P
D203-205 00D 276 0738 908 KDS226-RTK/P (A-K)
D601,602 00D 276 0794 900 KDS160-RTK/P
D603 00D 276 0833 900 ESD PROTECTOR(6802)
D604 00D 276 0794 900 KDS160-RTK/P
D605 00D 276 0837 906 NSAD500F-T1B-A
ZD103 00D 276 0760 976 MTZJ6.8B T77
ZD104 00D 276 0761 975 MTZJ18B T77
ZD105 00D 276 0762 903 MTZJ24B T77
ZD601 00D 276 0760 963 MTZJ6.2B T77
ZD701-703 00D 276 0683 930 UDZS5.1B-TE17 +C
LD101 00D 393 9671 002 SMLU12416W-S
FL101 00D 393 8097 001 FLD(HCA-19MM02T)
RESISTORS GROUP
R163,164 00D 244 2043 937 RS14B3A100JNBST(S)
CAPACITORS GROUP
C101 nsp CK73B1E104KT +1608
C103-107 nsp CK73B1E104KT +1608
C108 00D 254 4524 985 CE04W1H100MT SMG/RE3
C109,110 00D 255 1279 951 CQ93M1H104JT(B)
C111,112 00D 254 4812 707 CE04W1H471MC(SRG/K15)
C113 nsp CK73B1E104KT +1608
C114 00D 254 4527 940 CE04W2A010MT SMG/RE3
C115,116 nsp CK73B1E104KT +1608
C117 00D 254 4802 908 CE04W1J101MT(RA3)
C120-122 nsp CC73CH1H101JT +1608
C123 nsp CK73B1H103KT (1608) +1608
C124 00D 256 1042 903 CF93A2E104KT
C125 nsp CK73B1H102KT +1608
99
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C126 nsp CK73B1E104KT +1608
C127 00D 254 4538 942 CE04W1C101MT SMG/RE3
C128 nsp CK73B1E104KT +1608
C131-133 nsp CK73B1E104KT +1608
C134 00D 254 4196 986 CE04W1H100MT (SRA)
C135 nsp CK73B1H103KT (1608) +1608
C137,138 nsp CK73B1E104KT +1608
C142,143 nsp CK73B1E104KT +1608
C146 00D 255 1279 919 CQ93M1H473JT(B)
C204 nsp CK73B1E104KT +1608
C206 nsp CK73B1E104KT +1608
C208 nsp CK73B1E104KT +1608
C210-212 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C213,214 nsp CK73B1H103KT (1608) +1608
C216-218 nsp CK73B1E104KT +1608
C605 nsp CK73B1E104KT +1608
C608 nsp CK73B1E104KT +1608
C610-612 nsp CK73B1E104KT +1608
C618 nsp CK73B1H102KT +1608
C621 00D 254 4524 985 CE04W1H100MT SMG/RE3
C622 nsp CK73B1H102KT +1608
C623 00D 254 4524 943 CE04W1H010MT SMG/RE3
C624 nsp CC73CH1H101JT +1608
C625 nsp CK73B1H103KT (1608) +1608
C626 00D 254 4522 932 CE04W1V330MT SMG/RE3
C627 nsp CK73B1H103KT (1608) +1608
C704 00D 254 4305 968 CE04W1H010MT(SRE)
C707 nsp CK73B1A105KT +1608
C708 nsp CC73CH1H101JT +1608
C709,710 nsp CC73CH1H221JT +1608
C713 nsp CK73B1E104KT +1608
C716 nsp CC73CH1H151JT +1608
C717 00D 254 4305 968 CE04W1H010MT(SRE)
C724 00D 254 4305 968 CE04W1H010MT(SRE)
C725,726 00D 254 4196 944 CE04W1H010MT (SRA)
C727 nsp CC73CH1H101JT +1608
C728,729 00D 255 1264 908 CQ93M1H102JT(B)
C731 nsp CK73B1E104KT +1608
C732 nsp CC73CH1H151JT +1608
C734 00D 254 4305 968 CE04W1H010MT(SRE)
C735 nsp CK73B1E104KT +1608
C737 00D 254 4305 968 CE04W1H010MT(SRE)
C738,739 00D 255 1279 951 CQ93M1H104JT(B)
OTHERS PARTS GROUP
AS101,102 nsp FL SPACER (T=5)
CW021 nsp 2P VA-3P SDN CON.CORD
CW036 nsp 3P PH-SAN CON.CORD
CW046 nsp 4P PH-SAN CON.CORD
CW047 nsp 4P PH-SAN CON.CORD
CW513 nsp 5P PH-SAN CORD(SHIEL
CW514 nsp 5P PH-SAN CON.CORD
CX036 nsp 3P CONN.BASE(KR-PH)
CX046,047 nsp 4P CONN.BASE(KR-PH)
CX062 nsp 6P CONN BASE
CX124 nsp 12P CON.SOCKET TUC-P
CX125 nsp 12P CON.BASE TUC-P
CX131 00D 205 0668 063 13P FFC CON.BASE
CX251 00D 205 1316 000 25P FFC BASE(9610S)Y
CX271 00D 205 1329 000 27P FFC BASE(9610SB)
CX513,514 nsp 5P CONN.BASE(KR-PH)
CY072,073 nsp 7P PIN HEADER(9120)
Ref. No. Part No. Part Name Remarks Q'ty New
100
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CY111-113 nsp 11P PIN HEADER(9120)
CY122 nsp 12P PIN HEADER(9120)
CY132 nsp 13P CON.SOCKET(TUC-P
CY155 nsp 15P PIN HEADER(9120)
CY163 nsp 16P PIN HEADER(9120)
FB101,102 nsp RM73B--0R0KT +2125
JK201 00D 204 8755 001 3P PIN JACK(MSD-253V)-NI-O3
JK601 00D 204 8758 008 MINI JACK(MSJ-035-10A)-SW
JK602,603 00D 204 8260 004 MINI JACK
JK701 00D 204 8762 007 MINI JACK(PJ-323-4)
JK702 00D 204 8763 006 1P PIN S-JACK(DIN-416G)-AU
JK703 00D 204 8761 008 H/P JACK(PJ-612AG)-AU
JK707 00D 204 8766 003 3P PIN JACK (RCA-308HG-11)
S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)
!S103 00D 212 0532 003 POWER SW(SDDL-005-S)
S104-125 00D 212 5611 903 TACT SWITCH(TAPE H5)
S126 00D 212 0531 004 ROTARY ENCODER(EC11B20C2)
S127 00D 212 5611 903 TACT SWITCH(TAPE H5)
S128,129 00D 212 0530 005 ROTARY ENCODER(EC16B24SA)
ST101-106 nsp STYLE PIN
W601 nsp M3 SCREW TERMINAL
CZ093 nsp 9P DA-DA CON.CORD
nsp RUBBER SHEET
00D 253 4537 924 CC45SL1H330JT(DD-3)
Ref. No. Part No. Part Name Remarks Q'ty New
101
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model

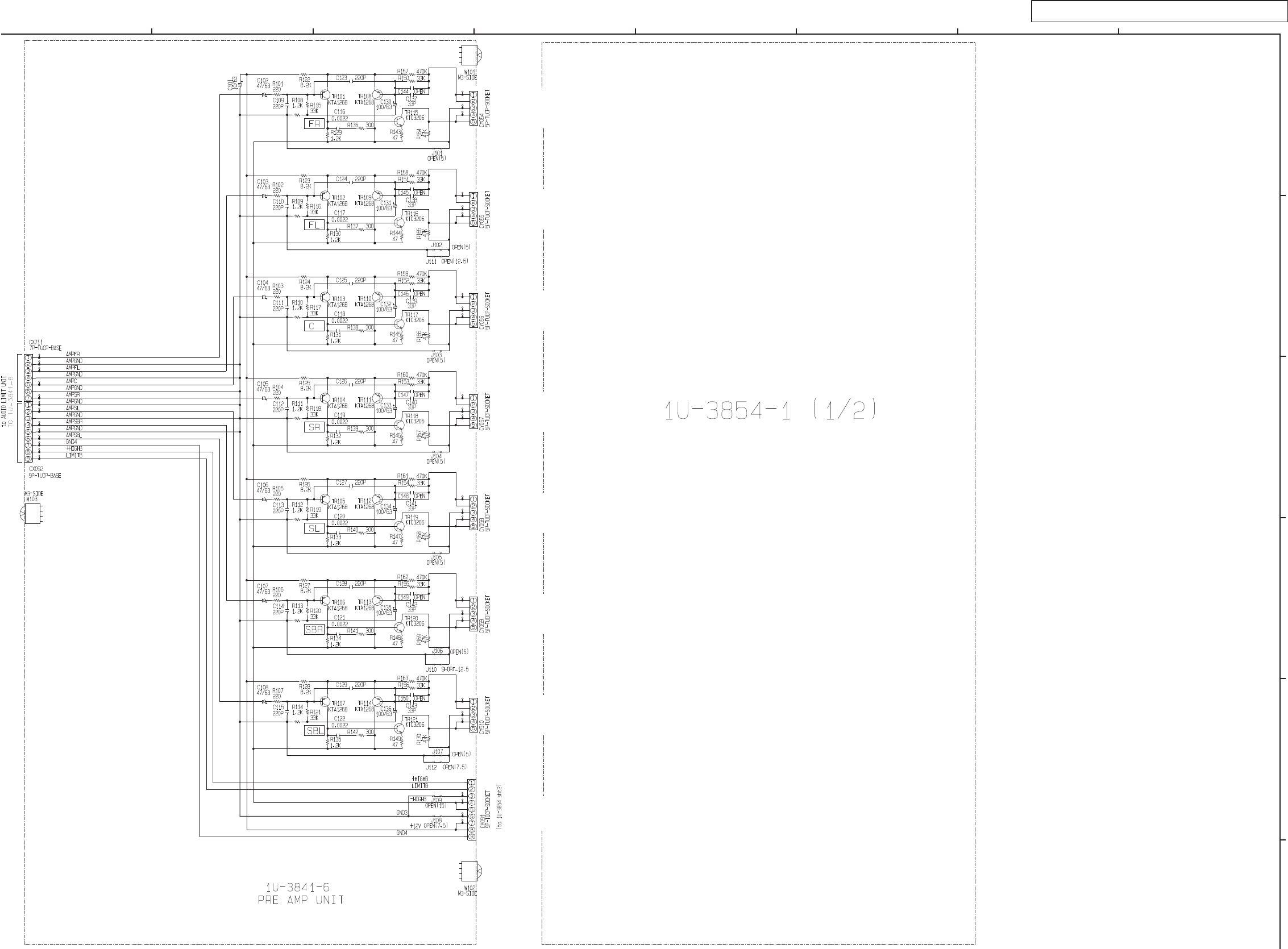

1U-3841F POWER REG. P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 279 0034 067 PTH9M04BB222TS2F333
IC801 00D 263 1100 034 KIA7815API-U/P
IC803 00D 263 1100 034 KIA7815API-U/P
TR101-114 00D 271 0301 903 KTA1268-BL-AT/P
TR115-121 00D 273 0471 907 KTC3206-Y-AT/P
TR401-408 00D 273 0460 905 KTC2875-B-RTK/P
TR413-420 00D 273 0460 905 KTC2875-B-RTK/P
TR505-508 00D 273 0460 905 KTC2875-B-RTK/P
TR701 00D 271 0301 903 KTA1268-BL-AT/P
TR704 00D 274 0160 907 2SD2144STPU
TR707 00D 271 0301 903 KTA1268-BL-AT/P
TR710 00D 273 0458 904 KTC3200-BL-AT/P
TR712,713 00D 271 0301 903 KTA1268-BL-AT/P
TR717 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR719 00D 271 0301 903 KTA1268-BL-AT/P
TR729 00D 274 0160 907 2SD2144STPU
TR735,736 00D 271 0301 903 KTA1268-BL-AT/P
TR801 00D 274 0198 005 KTD998-O-U/P
TR802 00D 272 0158 007 KTB778-O-U/P
TR803 00D 273 0468 907 KTC3199-GR-AT/P
TR804 00D 271 0311 906 KTA1267-GR-AT/P
TR805 00D 272 0158 007 KTB778-O-U/P
TR806 00D 274 0198 005 KTD998-O-U/P
TR807 00D 273 0469 906 KTC3209-Y-AT/P
TR808 00D 271 0313 904 KTA1281-Y-AT/P
TR809 00D 273 0468 907 KTC3199-GR-AT/P
TR810,811 00D 271 0311 906 KTA1267-GR-AT/P
TR812 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
D101-114 00D 276 0401 905 1SS133T77 (TAPE)
D701 00D 276 0401 905 1SS133T77 (TAPE)
D706 00D 276 0401 905 1SS133T77 (TAPE)
D709 00D 276 0460 904 HZS5C-1TD
D806 00D 276 0855 001 D3SB20-7103
D807,808 00D 276 0704 903 1SR35-400A(T93X)
ZD806,807 00D 276 0464 900 HZS7A-1TD
ZD808,809 00D 276 0468 906 HZS9B-1TD
RESISTORS GROUP
R129-135 00D 241 2380 905 RD14B2E122JNBST
R143-149 00D 241 2376 964 RD14B2E470JNBST
R714 00D 241 2383 902 RD14B2E223JNBST
R742 00D 241 2383 902 RD14B2E223JNBST
R748 00D 244 2055 996 RS14B3A122JNBST(S)
R750,751 00D 244 2055 996 RS14B3A122JNBST(S)
R813,814 00D 244 2050 988 RS14B3A202JNBST(S)
CAPACITORS GROUP
C101 00D 254 4802 911 CE04W1J100MT(RA3)
C102-108 00D 254 4802 924 CE04W1J470MT(RA3)
C109-115 00D 255 1273 944 CQ93M1H221KT(B)
C116-122 00D 255 1264 940 CQ93M1H222JT(B)
C123-129 00D 255 1273 944 CQ93M1H221KT(B)
C130-136 00D 254 4802 908 CE04W1J101MT(RA3)
C137-143 nsp CC73CH2A330JT +1608
C401-408 00D 254 4586 936 CE04W2A4R7MT(RA3)
C409-416 00D 254 4802 911 CE04W1J100MT(RA3)
C701 nsp CK73B1H103KT (1608) +1608
C702 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
102
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C703 00D 254 4524 956 CE04W1H2R2MT SMG/RE3
C705 nsp CK73B1H103KT (1608) +1608
C709 nsp CK73B1H103KT (1608) +1608
C711 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C716 00D 254 4722 981 CE04W1H100MT(GR)
C801-803 00D 254 4722 994 CE04W1H220MT(GR)
C805,806 00D 254 4802 908 CE04W1J101MT(RA3)
C807,808 00D 254 4524 985 CE04W1H100MT SMG/RE3
C809,810 00D 254 4802 911 CE04W1J100MT(RA3)
C811 00D 254 4722 994 CE04W1H220MT(GR)
C812 00D 254 4768 709 CE04W1C103MC(SMQ)
C813 00D 254 4761 735 CE04W1C472MC(SMQ)
C814,815 00D 254 4522 796 CE04W1V102MC SMG/RE3
C816-818 00D 255 1279 951 CQ93M1H104JT(B)
C819 00D 254 4722 949 CE04W1H010MT(GR)
CC517 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
CC518 00D 254 4524 985 CE04W1H100MT SMG/RE3
CC519 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
CC520 00D 254 4524 985 CE04W1H100MT SMG/RE3
OTHERS PARTS GROUP
CX031 nsp 3P EH CON BASE (BU)
CX044 nsp 4P CON.BASE(TUC-P)
CX075 nsp 7P CON.SOCKET(TUC-P
CX077 nsp 7P CON.SOCKET(TUC-P
CX092 nsp 9P CON.BASE TUC-P
CX104 nsp 10P CON.SOCKET TUC-P
CX105 nsp 10P CON.BASE TUC-P
CX117 nsp 11P CON.SOCKET TUC-P
CX151 nsp 15P PIN HEADER(9120)
CX153 nsp 15P PIN HEADER(9120)
CX171 nsp 17P PIN HEADER(9120)
CX711 nsp 7P CON.BASE(TUC-P)
CY054-059 nsp 5P CON.SOCKET TUC-P
CY077,078 nsp 7P CON.BASE(TUC-P)
CY079 nsp 7P CON BASE TWG-P
CY091,092 nsp 9P CON.SOCKET TUC-P
CY104 nsp 10P CON.BASE TUC-P
CY105 nsp 10P CON.SOCKET TUC-P
CY135 nsp 13P CON BASE TWG-P
CY172 nsp 17P PIN HEADER(9120)
CY510 nsp 5P CON.SOCKET TUC-P
CY711 nsp 7P CON.SOCKET(TUC-P
!F801,802 00D 206 1039 063 FUSE 2.0A T
FF801,802 nsp FUSE CLIP(TAPE)
FH801,802 nsp FUSE CLIP(TAPE)
ST101-103 nsp STYLE PIN
W101,102 nsp M3 SCREW TERMINAL
W103 nsp M3 SCREW TERMINAL
W801 nsp M3 SCREW TERMINAL
nsp UL TUBE IC701
Ref. No. Part No. Part Name Remarks Q'ty New
103
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
1U-3854F POWER AMP P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 263 1100 063 KIA7809API-U/P
IC702,703 00D 263 1100 021 KIA7812API-U/P
IC704,705 00D 263 1099 022 KIA7912PI-U/P
IC706 00D 263 1293 006 KIA7818API-U/P
IC707 00D 263 1100 034 KIA7815API-U/P
TR401 00D 271 0301 903 KTA1268-BL-AT/P
TR402-408 00D 273 0495 006 2SC3964
TR423-429 00D 273 0458 904 KTC3200-BL-AT/P
TR702 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR703 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR705 00D 273 0458 904 KTC3200-BL-AT/P
TR706 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR708 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR709 00D 271 0312 905 KTA1504S-GR-RTK/P
TR714 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR715 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR716 00D 273 0464 901 KTC3875S-GR-RTK/P
TR718 00D 273 0464 901 KTC3875S-GR-RTK/P
TR720 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR721 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR722 00D 271 0312 905 KTA1504S-GR-RTK/P
TR723 00D 273 0464 901 KTC3875S-GR-RTK/P
TR724 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR726 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR732 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR733 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR737 00D 273 0464 901 KTC3875S-GR-RTK/P
TR738 00D 271 0312 905 KTA1504S-GR-RTK/P
TR739 00D 273 0464 901 KTC3875S-GR-RTK/P
D401-421 00D 276 0401 905 1SS133T77 (TAPE)
D702-705 00D 276 0401 905 1SS133T77 (TAPE)
D707,708 00D 276 0401 905 1SS133T77 (TAPE)
D710-713 00D 276 0401 905 1SS133T77 (TAPE)
D714,715 00D 276 0338 007 S4VB20F
D717 00D 276 0855 001 D3SB20-7103
ZD401-414 00D 276 0458 916 HZS5A-2TD
RESISTORS GROUP
R422 00D 244 2051 961 RS14B3A101JNBST(S)
R423 00D 241 2387 940 RD14B2E4R7JNBST
R424-437 00D 244 2052 957 RS14B3A562JNBST(S)
R438-451 00D 241 2375 981 RD14B2E220JNBST
R452-479 00D 244 2671 956 RS14B3DR47JNBST(S)
R706,707 00D 243 2039 032 RW99=3H0R1K
R752-765 00D 244 2671 901 RS14B3D100JNBST(S)
R768-771 00D 244 2052 960 RS14B3A221JNBST(S)
VR401-407 00D 211 6159 908 V06PB102T(3318F-1-102A)
CAPACITORS GROUP
C401 00D 254 4804 906 CE04W2A101MT(RA3)
C402-408 00D 254 4802 908 CE04W1J101MT(RA3)
C409-415 00D 254 4802 924 CE04W1J470MT(RA3)
C416-429 00D 254 4586 949 CE04W2A100MT(RA3)
C704 00D 254 4524 985 CE04W1H100MT SMG/RE3
C706 nsp CK73B1H103KT (1608) +1608
C707 00D 254 4538 939 CE04W1C470MT SMG/RE3
C708 nsp CK73B1E104KT +1608
104
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C710 00D 254 4533 947 CE04W0J331MT SMG/RE3
C714 nsp CK73B1E104KT +1608
C715 00D 254 4533 947 CE04W0J331MT SMG/RE3
C716-722 00D 254 4722 981 CE04W1H100MT(GR)
C723-729 00D 255 1279 951 CQ93M1H104JT(B)
C730 00D 256 1042 903 CF93A2E104KT
C731,732 00D 254 6258 000 CE68W1V822M
C733-741 00D 255 1264 908 CQ93M1H102JT(B)
C742-750 00D 255 1279 919 CQ93M1H473JT(B)
C754,755 00D 255 1279 951 CQ93M1H104JT(B)
C756 00D 256 1042 903 CF93A2E104KT
C757 00D 254 4722 949 CE04W1H010MT(GR)
C758,759 00D 254 6276 008 CE68W==123M(DL)
C760,761 00D 256 1042 903 CF93A2E104KT
C762 00D 254 4722 949 CE04W1H010MT(GR)
OTHERS PARTS GROUP
CX032 nsp 3P EH CONNECTOR BASE
CX034 nsp 3P NH CONNECTOR BASE
CX054-059 nsp 5P CON.BASE TUC-P
CX063 nsp 6P NH CONNECTOR BASE
CX074 nsp 7P CON.BASE(TUC-P)
CX082 nsp 8P NH CONNECTOR BASE
CX091 nsp 9P CON.BASE TUC-P
CX115 nsp 11P CON.BASE(KR-PH)
CX409-415 nsp 3P BL-SCN CON.CORD
CX510 nsp 5P CON.BASE TUC-P
CX515 nsp 5P VH CONNECTOR BASE
CY041 nsp 4P PH-SAN CON.CORD
CY074 nsp 7P CON.SOCKET(TUC-P
CY075 nsp 7P CON.BASE(TUC-P)
!F701,702 00D 206 1039 092 FUSE 4.0AT
FF701,702 nsp FUSE CLIP(TAPE)
FH701,702 nsp FUSE CLIP(TAPE)
JK402 00D 205 1450 021 8P SP TERMINAL(MST-108V1-01)
JK403 00D 205 1450 018 4P SP TERMINAL(MST-104V1-01)
JK404 00D 205 1450 005 6P SP TERMINAL(MST-106V1-01)
L701-707 00D 235 0191 007 INDUCTOR(1MH)
RL401-405 00D 214 0213 001 RELAY(FTR-F4)
RL406 00D 214 0208 003 RELAY(NA24W-K)
ST102 nsp STYLE PIN
W101 nsp M3 SCREW TERMINAL
Ref. No. Part No. Part Name Remarks Q'ty New
105
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model

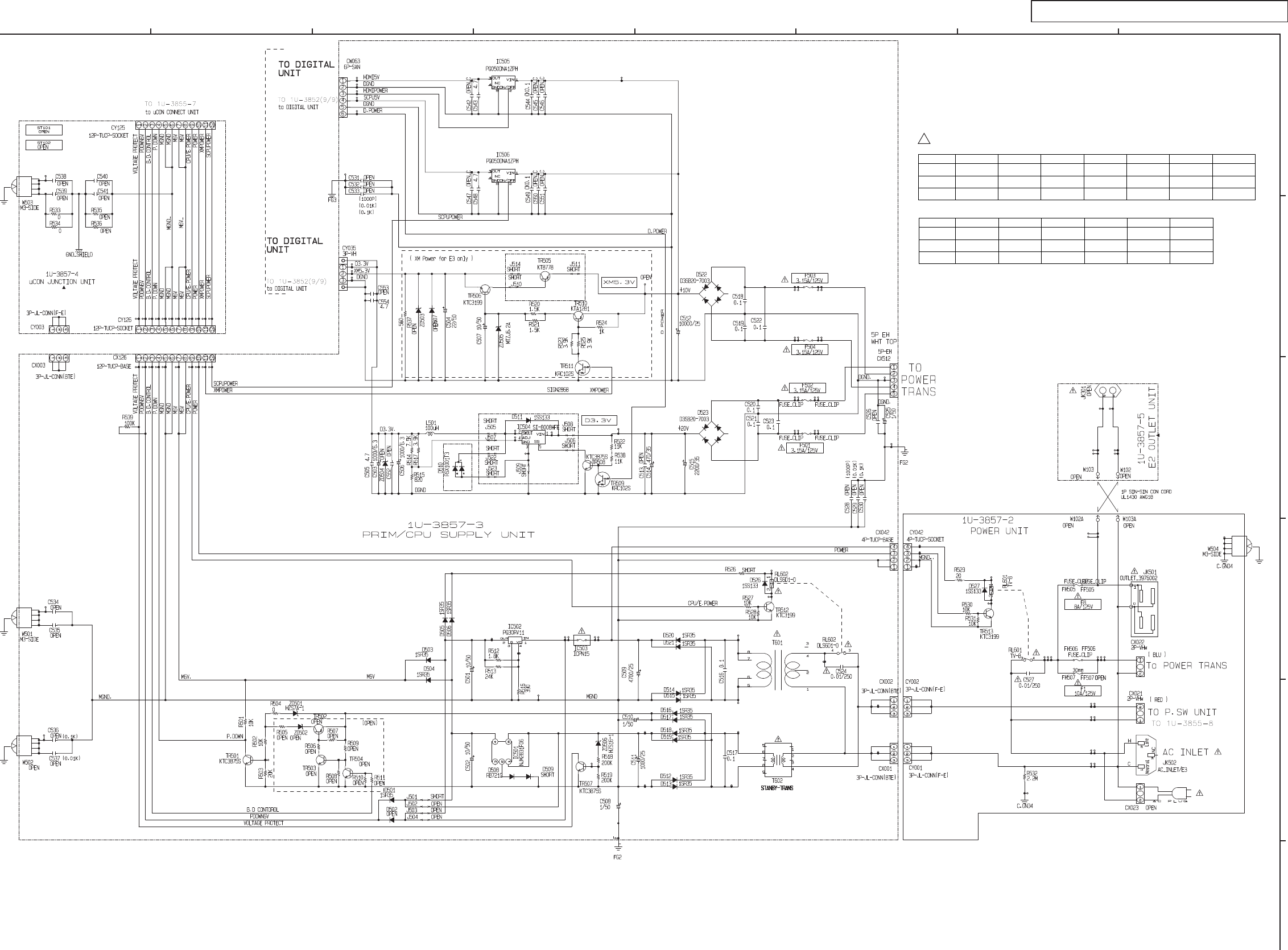

1U-3857F MAIN CPU P.W.B. UNIT ASS'Y (AVR-2308CI E3 model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 263 1286 903 PQ120DNA1ZPH
IC103 00D 263 1286 903 PQ120DNA1ZPH
IC104 00D 262 3571 901 HIN202EIBNZ-T
IC105 00D GEN 8610 MAIN CPU SUB ASSY M30879FLBFP
IC106,107 00D 262 2375 904 IC, TC4094BF(TP1) +C
IC109 00D 263 1289 900 AZ4580MTR-E1
IC302 00D 263 1289 900 AZ4580MTR-E1
IC501 00D 263 1242 918 NJM2831F06
IC502 00D 263 1035 002 PQ30RV11
IC503 00D 268 0073 905 ICP-N15T
IC504 00D 263 1280 006 SI-8008HFE
IC505,506 00D 263 1288 901 PQ050DNA1ZPH
TR103 00D 271 0326 904 2SA1954(B)-TE85L
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105-107 00D 273 0464 901 KTC3875S-GR-RTK/P
TR108 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR109 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR110 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR111 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR112 00D 271 0326 904 2SA1954(B)-TE85L
TR115 00D 271 0326 904 2SA1954(B)-TE85L
TR116 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301,302 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR303 00D 269 0086 908 DTA114TKT96 +C
TR304,305 00D 269 0066 902 DTC323TKT96 +C
TR501 00D 273 0464 901 KTC3875S-GR-RTK/P
TR505 00D 272 0158 007 KTB778-O-U/P
TR506 00D 273 0468 907 KTC3199-GR-AT/P
TR507,508 00D 273 0464 901 KTC3875S-GR-RTK/P
TR509 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR510 00D 271 0313 904 KTA1281-Y-AT/P
TR511 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR512,513 00D 273 0468 907 KTC3199-GR-AT/P
D103,104 00D 276 0794 900 KDS160-RTK/P
D106,107 00D 276 0704 903 1SR35-400A(T93X)
D108 00D 276 0740 909 KDS184-RTK/P (K-COM)
D301-303 00D 276 0704 903 1SR35-400A(T93X)
D501 00D 276 0704 903 1SR35-400A(T93X)
D503-506 00D 276 0704 903 1SR35-400A(T93X)
D508 00D 276 0723 900 RB721Q-40
D510 00D 276 0850 705 RSX1001T3
D511 00D 276 0401 905 1SS133T77 (TAPE)
D512-521 00D 276 0704 903 1SR35-400A(T93X)
D522,523 00D 276 0855 001 D3SB20-7103
D526,527 00D 276 0401 905 1SS133T77 (TAPE)
ZD101 00D 276 0459 915 HZS5B-2TD
ZD501 00D 276 0464 900 HZS7A-1TD
ZD505 00D 276 0637 902 MTZJ6.2AT77
ZD506 00D 276 0477 900 HZS16-1 TD(TAPE)
RESISTORS GROUP
R155,156 00D 241 2387 908 RD14B2E010JNBST
R512 00D 247 0046 948 RM73B--182DT
R514 00D 247 0047 992 RM73B--752DT
R515 00D 247 0045 965 RM73B--821DT
R516 00D 247 0044 982 RM73B--391DT
R517 00D 247 0047 921 RM73B--392DT
R529 00D 244 2671 930 RS14B3D200JNBST(S)
R532 00D 242 2009 001 RC1/2 225K B(UL)
106
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CAPACITORS GROUP
C106,107 nsp CK73B1E104KT +1608
C109,110 nsp CC73CH1H101JT +1608
C111 00D 254 4722 981 CE04W1H100MT(GR)
C112 nsp CK73B1E104KT +1608
C113 00D 254 4193 921 CE04W1C330M (SRA)
C115 00D 254 4193 921 CE04W1C330M (SRA)
C116-120 nsp CK73B1E104KT +1608
C121 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C122 nsp CK73B1H103KT (1608) +1608
C123,124 nsp CC73CH1H100DT +1608
C125 nsp CK73B1H103KT (1608) +1608
C126 nsp CK73B1H102KT +1608
C127 00D 254 4666 005 CE04W0H105ZC(FG)
C128-131 nsp CK73B1E104KT +1608
C132 00D 254 4536 928 CE04W1A101MT SMG/RE3
C133 00D 254 4716 913 CE04W0J221MT(GR)
C134 nsp CK73B1H102KT +1608
C137 nsp CK73B1E104KT +1608
C139 nsp CK73B1E104KT +1608
C140,141 00D 254 4524 985 CE04W1H100MT SMG/RE3
C145,146 00D 254 4722 981 CE04W1H100MT(GR)
C154 nsp CK73B1E104KT +1608
C304 00D 254 4722 981 CE04W1H100MT(GR)
C307 nsp CK73B1H102KT +1608
C312 nsp CC73CH1H101JT +1608
C314-316 nsp CK73B1H102KT +1608
C319 00D 254 4722 981 CE04W1H100MT(GR)
C322,323 00D 254 4524 985 CE04W1H100MT SMG/RE3
C326,327 00D 254 4524 985 CE04W1H100MT SMG/RE3
C332,333 nsp CK73B1H102KT +1608
C501 00D 254 4722 981 CE04W1H100MT(GR)
C502 00D 254 4524 985 CE04W1H100MT SMG/RE3
C503 00D 254 4651 913 CE04W0J102MT H15(KY)
C504 00D 254 4722 994 CE04W1H220MT(GR)
C505 nsp CK73B0J475KT +1608
C506 00D 254 4651 913 CE04W0J102MT H15(KY)
C507 00D 254 4524 985 CE04W1H100MT SMG/RE3
C508 00D 254 4722 949 CE04W1H010MT(GR)
C509 00D 254 4803 703 CE04W1E472MC(SMQL25S
C510 00D 254 4524 943 CE04W1H010MT SMG/RE3
C511 00D 254 4760 749 CE04W1E102MC(SMQ)
C512 00D 254 4760 707 CE04W1E103MC(SMQ)
C514 00D 254 4708 701 CE04W1V471MC J20(KY)
C515 00D 254 4428 706 CE04W1V222MC (SMG)
C516-523 00D 255 1279 951 CQ93M1H104JT(B)
C524 00D 253 8022 707 CK45F2EAC103MC
C525 00D 254 4722 949 CE04W1H010MT(GR)
C527 00D 253 8022 707 CK45F2EAC103MC
C543 nsp CK73B0J475KT +1608
C544 nsp CK73B1E104KT +1608
C548 nsp CK73B0J475KT +1608
C549 nsp CK73B1E104KT +1608
C554 nsp CK73B0J475KT +1608
OTHERS PARTS GROUP
CW037 nsp 11P 8P/3P PH-SAN CORD
CW063 nsp 6P PH-SAN CON.CORD
CW083 nsp 11P 8P/3P PH-SAN CORD
CX001-003 nsp JL CONNECTOR(BT-E)
CX021 nsp 2P VH CON BASE (Red)
CX022 nsp 2P VH CON BASE (Blue)
Ref. No. Part No. Part Name Remarks Q'ty New
107
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CX042 nsp 4P CON.BASE(TUC-P)
CX106 nsp 10P CON.BASE TUC-P
CX126,127 nsp 12P CON.BASE TUC-P
CX132 nsp 13P CON.BASE(TUC-P)
CX152 00D 205 0736 076 15P FFC CON.BASE
CX154,155 nsp 15P CON.BASE TUC-P
CX512 nsp 5P EH CONNECTOR BASE
CX901 nsp 10P CON.BASE(KR-PH)
CY001-003 nsp JL CONNECTOR(F-E)
CY035 nsp 3P VH CON.BASE
CY042 nsp 4P CON.SOCKET(TUC-P)
CY117 nsp 11P CON.BASE TUC-P
CY124 nsp 12P CON.BASE TUC-P
CY125,126 nsp 12P CON.SOCKET TUC-P
CY251 00D 205 1316 000 25P FFC BASE(9610S)Y
CY271 00D 205 1329 000 27P FFC BASE(9610SB)
!F001 00D 206 1046 043 FUSE (10A)
!F008 00D 206 1046 014 FUSE 8A
!F501-504 00D 206 1039 089 FUSE 3.15A
FB101,102 nsp RM73B--0R0KT +1608
FF501-506 nsp FUSE CLIP(TAPE)
FH501-506 nsp FUSE CLIP(TAPE)
JK101 00D 205 1305 008 9P D-SUB CONNECTOR
!JK501 00D 203 3976 002 AC OUTLET(2P)
!JK502 00D 203 3958 004 AC_INLET/E3-DIP
L501 00D 232 0200 009 COIL(C3B-A0542)
RL601 00D 214 0221 006 RELAY TV-8
RL602 00D 214 0241 002 RELAY DL1SU TV-8
!T601 00D 233 6524 009 MINI TRANS(3806E3)
!T602 00D 233 6576 109 STANDBY TRANS(43E3)
W501 nsp M3 SCREW TERMINAL
W503,504 nsp M3 SCREW TERMINAL
W508 nsp 1P SIN CON CORD
X101 00D 399 0594 005 X'TAL(30MHZ)
nsp RUBBER SHEET
00D 255 1273 986 CQ93M1H471JT(B)
Ref. No. Part No. Part Name Remarks Q'ty New
108
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model

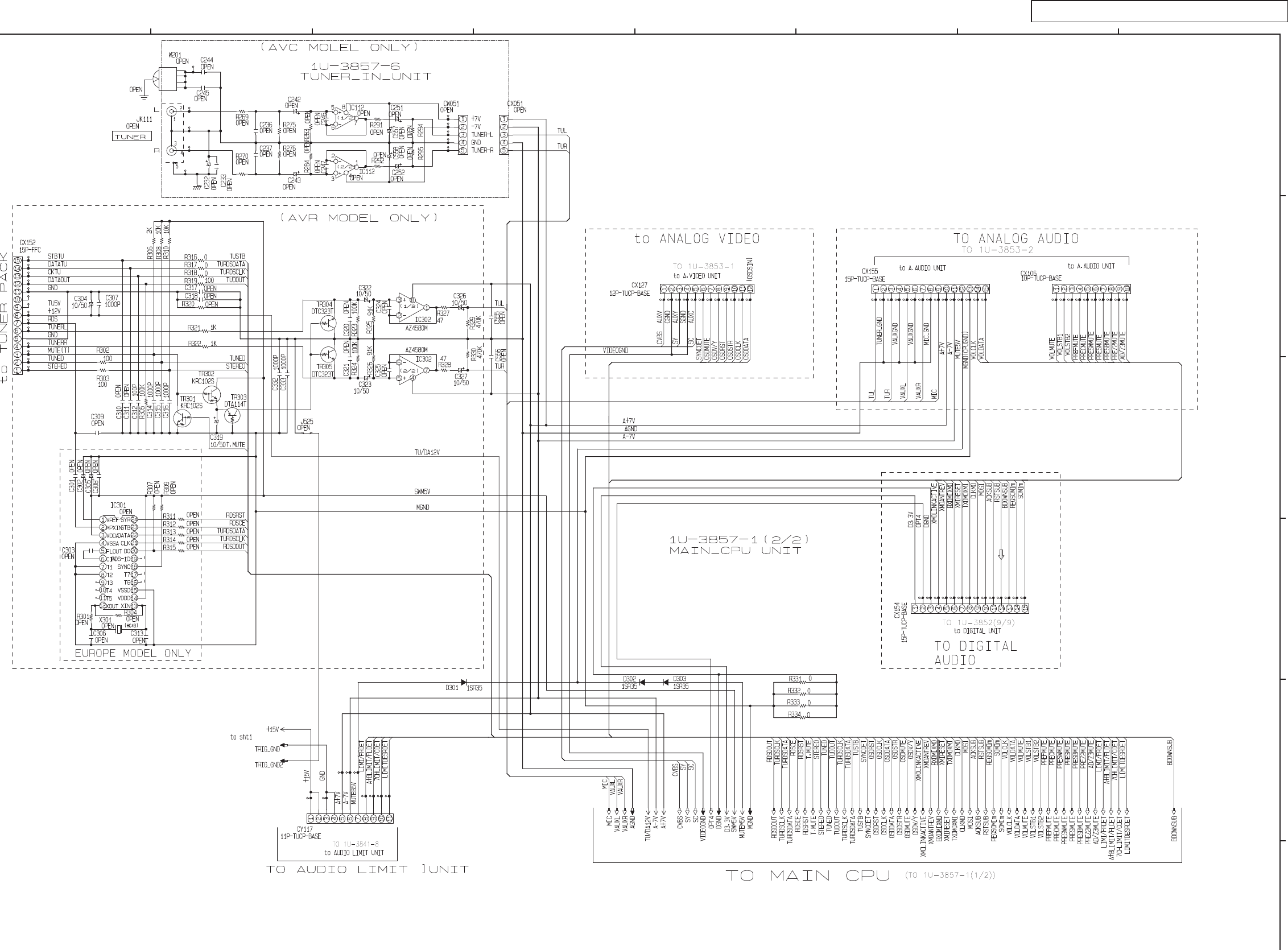

1U-3857I MAIN CPU P.W.B. UNIT ASS'Y (AVR-888 E3 model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC103 00D 263 1286 903 PQ120DNA1ZPH
IC105 00D GEN 8610 MAIN CPU SUB ASSY M30879FLBFP:GEN 8610
IC106,107 00D 262 2375 904 IC, TC4094BF(TP1) +C
IC109 00D 263 1289 900 AZ4580MTR-E1
IC302 00D 263 1289 900 AZ4580MTR-E1
IC501 00D 263 1242 918 NJM2831F06
IC502 00D 263 1035 002 PQ30RV11
IC503 00D 268 0073 905 ICP-N15T
IC504 00D 263 1280 006 SI-8008HFE
IC505,506 00D 263 1288 901 PQ050DNA1ZPH
TR105-107 00D 273 0464 901 KTC3875S-GR-RTK/P
TR108 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR109 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR110 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR111 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR112 00D 271 0326 904 2SA1954(B)-TE85L
TR115 00D 271 0326 904 2SA1954(B)-TE85L
TR116 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301,302 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR303 00D 269 0086 908 DTA114TKT96 +C
TR304,305 00D 269 0066 902 DTC323TKT96 +C
TR501 00D 273 0464 901 KTC3875S-GR-RTK/P
TR505 00D 272 0158 007 KTB778-O-U/P
TR506 00D 273 0468 907 KTC3199-GR-AT/P
TR507,508 00D 273 0464 901 KTC3875S-GR-RTK/P
TR509 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR510 00D 271 0313 904 KTA1281-Y-AT/P
TR511 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR512,513 00D 273 0468 907 KTC3199-GR-AT/P
D103,104 00D 276 0794 900 KDS160-RTK/P
D106,107 00D 276 0704 903 1SR35-400A(T93X)
D108 00D 276 0740 909 KDS184-RTK/P (K-COM)
D301-303 00D 276 0704 903 1SR35-400A(T93X)
D501 00D 276 0704 903 1SR35-400A(T93X)
D503-506 00D 276 0704 903 1SR35-400A(T93X)
D508 00D 276 0723 900 RB721Q-40
D510 00D 276 0850 705 RSX1001T3
D511 00D 276 0401 905 1SS133T77 (TAPE)
D512-521 00D 276 0704 903 1SR35-400A(T93X)
D522,523 00D 276 0855 001 D3SB20-7103
D526,527 00D 276 0401 905 1SS133T77 (TAPE)
ZD101 00D 276 0459 915 HZS5B-2TD
ZD501 00D 276 0464 900 HZS7A-1TD
ZD505 00D 276 0637 902 MTZJ6.2AT77
ZD506 00D 276 0477 900 HZS16-1 TD(TAPE)
RESISTORS GROUP
R155,156 00D 241 2387 908 RD14B2E010JNBST
R512 00D 247 0046 948 RM73B--182DT
R514 00D 247 0047 992 RM73B--752DT
R515 00D 247 0045 965 RM73B--821DT
R516 00D 247 0044 982 RM73B--391DT
R517 00D 247 0047 921 RM73B--392DT
R529 00D 244 2671 930 RS14B3D200JNBST(S)
R532 00D 242 2009 001 RC1/2 225K B(UL)
CAPACITORS GROUP
C107 nsp CK73B1E104KT +1608
109
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
C115 00D 254 4193 921 CE04W1C330M (SRA)
C120 nsp CK73B1E104KT +1608
C121 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C122 nsp CK73B1H103KT (1608) +1608
C123,124 nsp CC73CH1H100DT +1608
C125 nsp CK73B1H103KT (1608) +1608
C126 nsp CK73B1H102KT +1608
C127 00D 254 4666 005 CE04W0H105ZC(FG)
C128-131 nsp CK73B1E104KT +1608
C132 00D 254 4536 928 CE04W1A101MT SMG/RE3
C133 00D 254 4716 913 CE04W0J221MT(GR)
C134 nsp CK73B1H102KT +1608
C137 nsp CK73B1E104KT +1608
C139 nsp CK73B1E104KT +1608
C140,141 00D 254 4524 985 CE04W1H100MT SMG/RE3
C145,146 00D 254 4722 981 CE04W1H100MT(GR)
C154 nsp CK73B1E104KT +1608
C304 00D 254 4722 981 CE04W1H100MT(GR)
C307 nsp CK73B1H102KT +1608
C312 nsp CC73CH1H101JT +1608
C314-316 nsp CK73B1H102KT +1608
C319 00D 254 4722 981 CE04W1H100MT(GR)
C322,323 00D 254 4524 985 CE04W1H100MT SMG/RE3
C326,327 00D 254 4524 985 CE04W1H100MT SMG/RE3
C332,333 nsp CK73B1H102KT +1608
C501 00D 254 4722 981 CE04W1H100MT(GR)
C502 00D 254 4524 985 CE04W1H100MT SMG/RE3
C503 00D 254 4651 913 CE04W0J102MT H15(KY)
C504 00D 254 4722 994 CE04W1H220MT(GR)
C505 nsp CK73B0J475KT +1608
C506 00D 254 4651 913 CE04W0J102MT H15(KY)
C507 00D 254 4524 985 CE04W1H100MT SMG/RE3
C508 00D 254 4722 949 CE04W1H010MT(GR)
C509 00D 254 4803 703 CE04W1E472MC(SMQL25S
C510 00D 254 4524 943 CE04W1H010MT SMG/RE3
C511 00D 254 4760 749 CE04W1E102MC(SMQ)
C512 00D 254 4760 707 CE04W1E103MC(SMQ)
C514 00D 254 4708 701 CE04W1V471MC J20(KY)
C515 00D 254 4428 706 CE04W1V222MC (SMG)
C516-523 00D 255 1279 951 CQ93M1H104JT(B)
C524 00D 253 8022 707 CK45F2EAC103MC
C525 00D 254 4722 949 CE04W1H010MT(GR)
C527 00D 253 8022 707 CK45F2EAC103MC
C543 nsp CK73B0J475KT +1608
C544 nsp CK73B1E104KT +1608
C548 nsp CK73B0J475KT +1608
C549 nsp CK73B1E104KT +1608
C554 nsp CK73B0J475KT +1608
OTHERS PARTS GROUP
CW037 nsp 11P 8P/3P PH-SAN CORD
CW063 nsp 6P PH-SAN CON.CORD
CW083 nsp 11P 8P/3P PH-SAN CORD
CX001-003 nsp JL CONNECTOR(BT-E)
CX021 nsp 2P VH CON BASE (Red)
CX022 nsp 2P VH CON BASE (Blue)
CX023 nsp 2P VH CON BASE (White)
CX042 nsp 4P CON.BASE(TUC-P)
CX106 nsp 10P CON.BASE TUC-P
CX126,127 nsp 12P CON.BASE TUC-P
CX132 nsp 13P CON.BASE(TUC-P)
CX152 00D 205 0736 076 15P FFC CON.BASE
CX154,155 nsp 15P CON.BASE TUC-P
CX512 nsp 5P EH CONNECTOR BASE
Ref. No. Part No. Part Name Remarks Q'ty New
110
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308CI/AVR-888 E3 model
CX901 nsp 10P CON.BASE(KR-PH)
CY001-003 nsp JL CONNECTOR(F-E)
CY035 nsp 3P VH CON.BASE
CY042 nsp 4P CON.SOCKET(TUC-P)
CY117 nsp 11P CON.BASE TUC-P
CY124 nsp 12P CON.BASE TUC-P
CY125,126 nsp 12P CON.SOCKET TUC-P
CY251 00D 205 1316 000 25P FFC BASE(9610S)Y
CY271 00D 205 1329 000 27P FFC BASE(9610SB)
!F001 00D 206 1046 043 FUSE (10A)
!F008 00D 206 1046 014 FUSE 8A
!F501-504 00D 206 1039 089 FUSE 3.15A
FF501-506 nsp FUSE CLIP(TAPE)
FH501-506 nsp FUSE CLIP(TAPE)
!JK501 00D 203 3976 002 AC OUTLET(2P)
L501 00D 232 0200 009 COIL(C3B-A0542)
RL601 00D 214 0221 006 RELAY TV-8
RL602 00D 214 0241 002 RELAY DL1SU TV-8
!T601 00D 233 6524 009 MINI TRANS(3806E3)
!T602 00D 233 6576 109 STANDBY TRANS(43E3)
W501 nsp M3 SCREW TERMINAL
W503,504 nsp M3 SCREW TERMINAL
W508 nsp 1P SIN CON CORD
X101 00D 399 0594 005 X'TAL(30MHZ)
nsp RUBBER SHEET
00D 255 1273 986 CQ93M1H471JT(B)
Ref. No. Part No. Part Name Remarks Q'ty New
111
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
PARTS LIST OF P.W.B. UNIT (AVR-2308 E2/E2A model)
＊ 本表に "nsp" と記載されている部品は供給できません。
＊Parts for which "nsp" is indicated on this table cannot be supplied.
＊ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

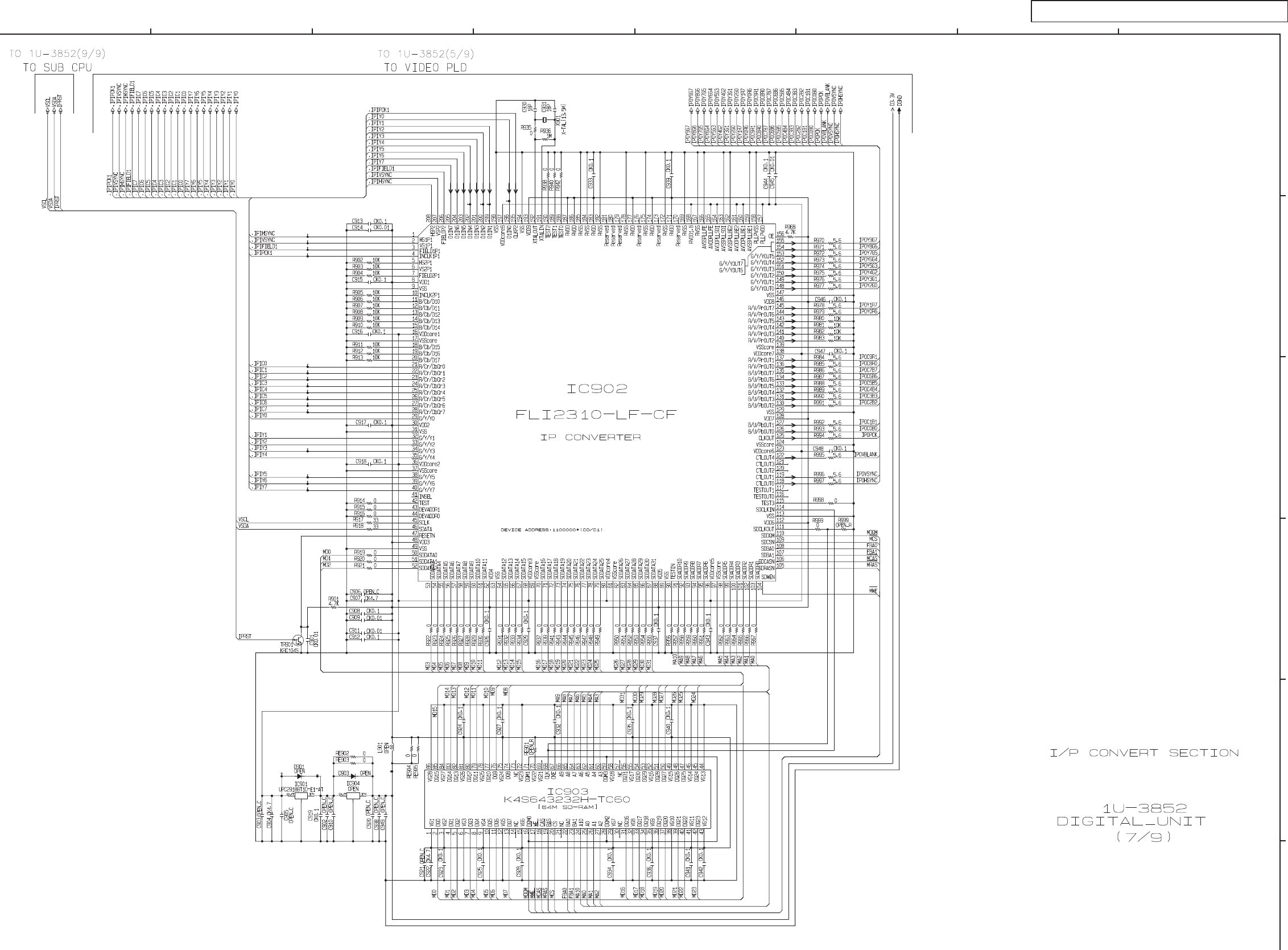

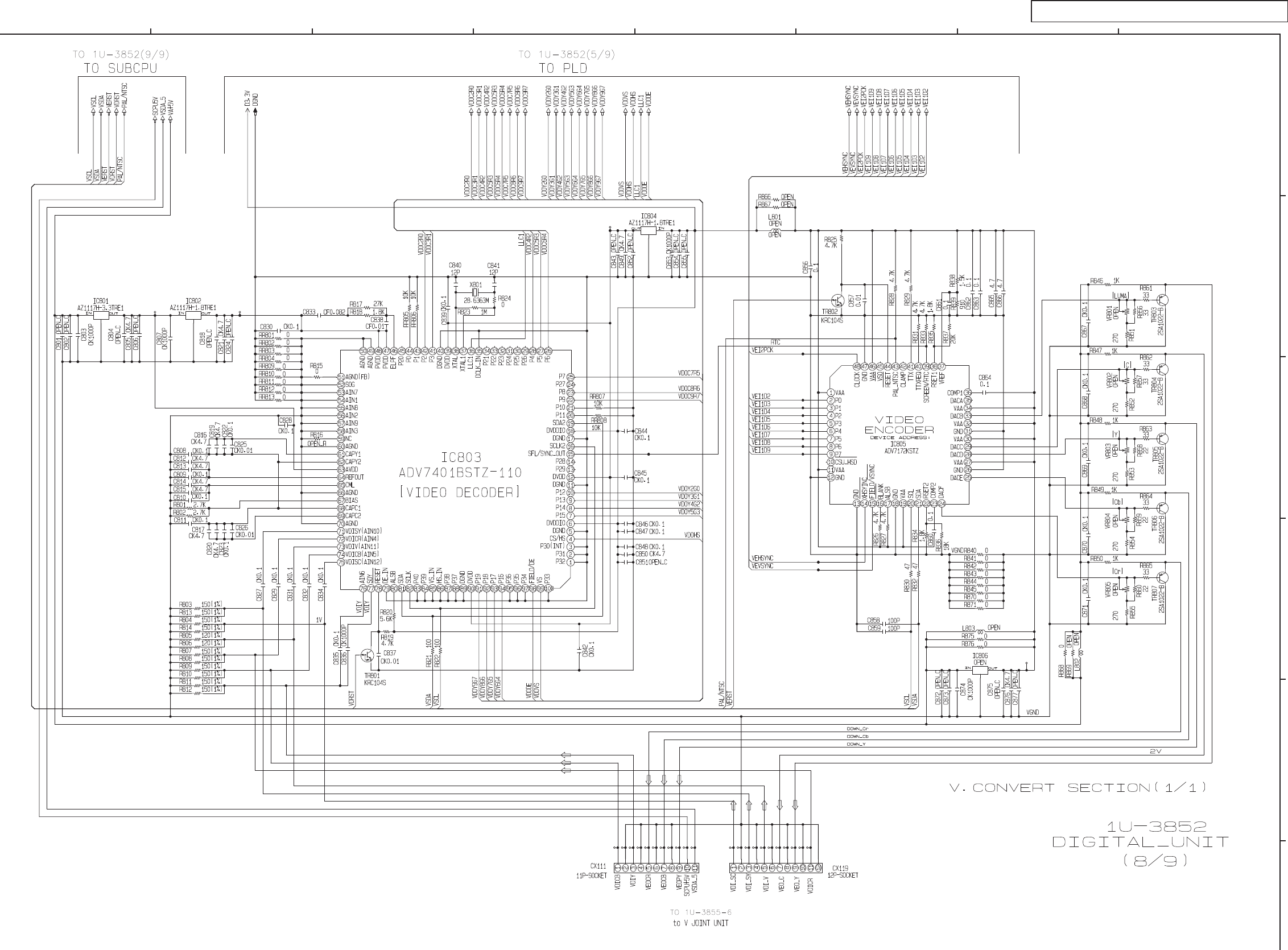

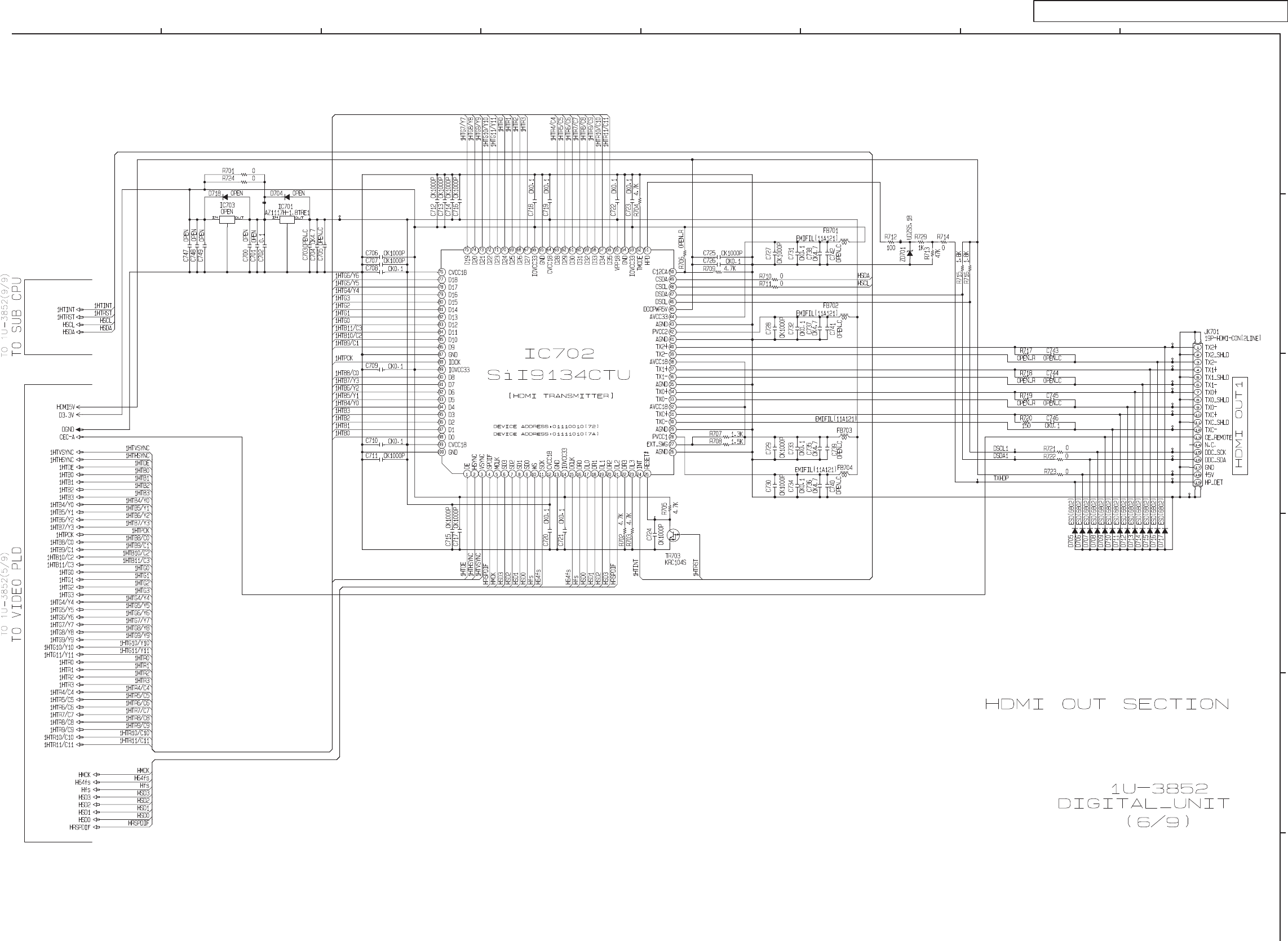

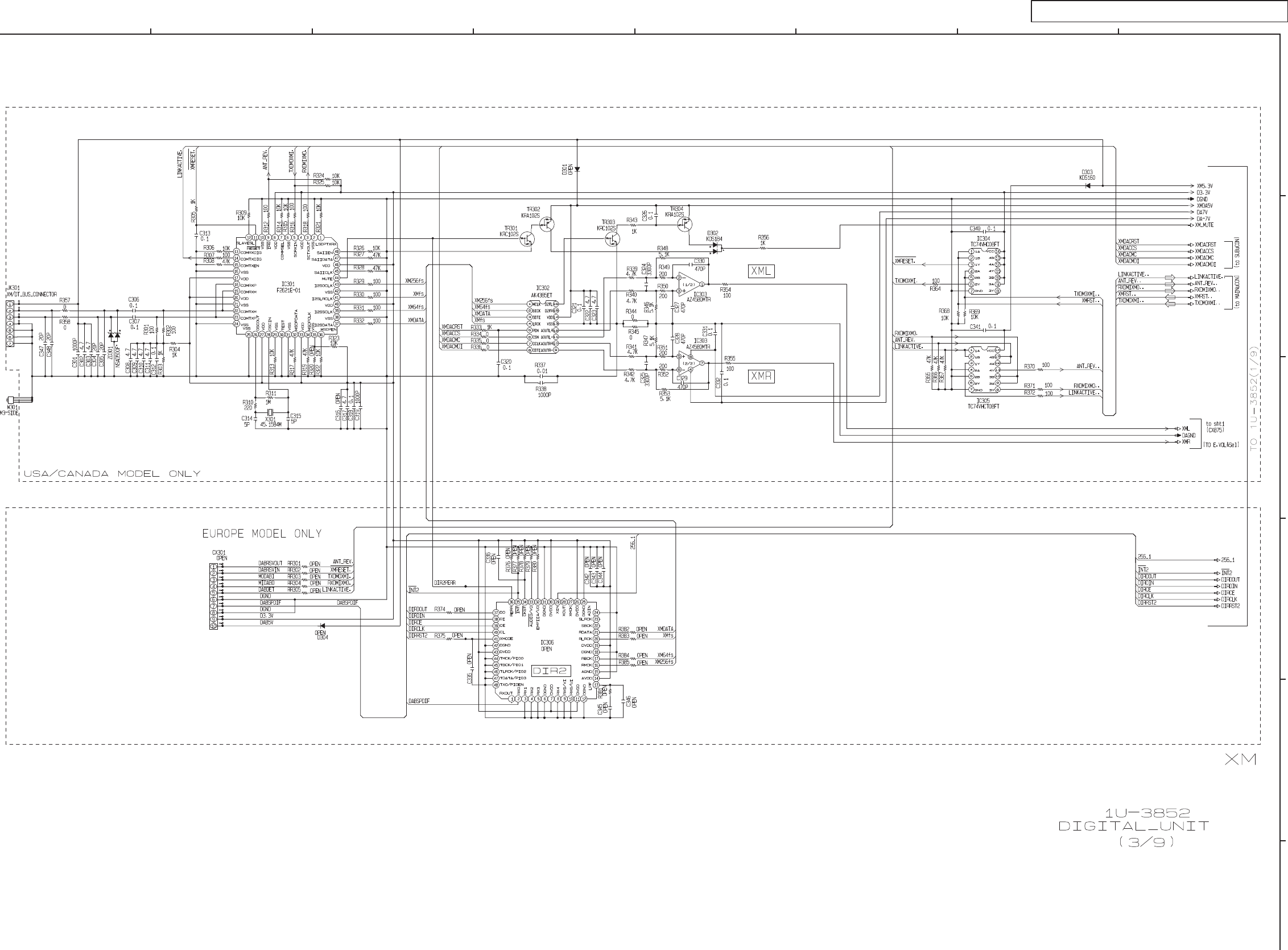

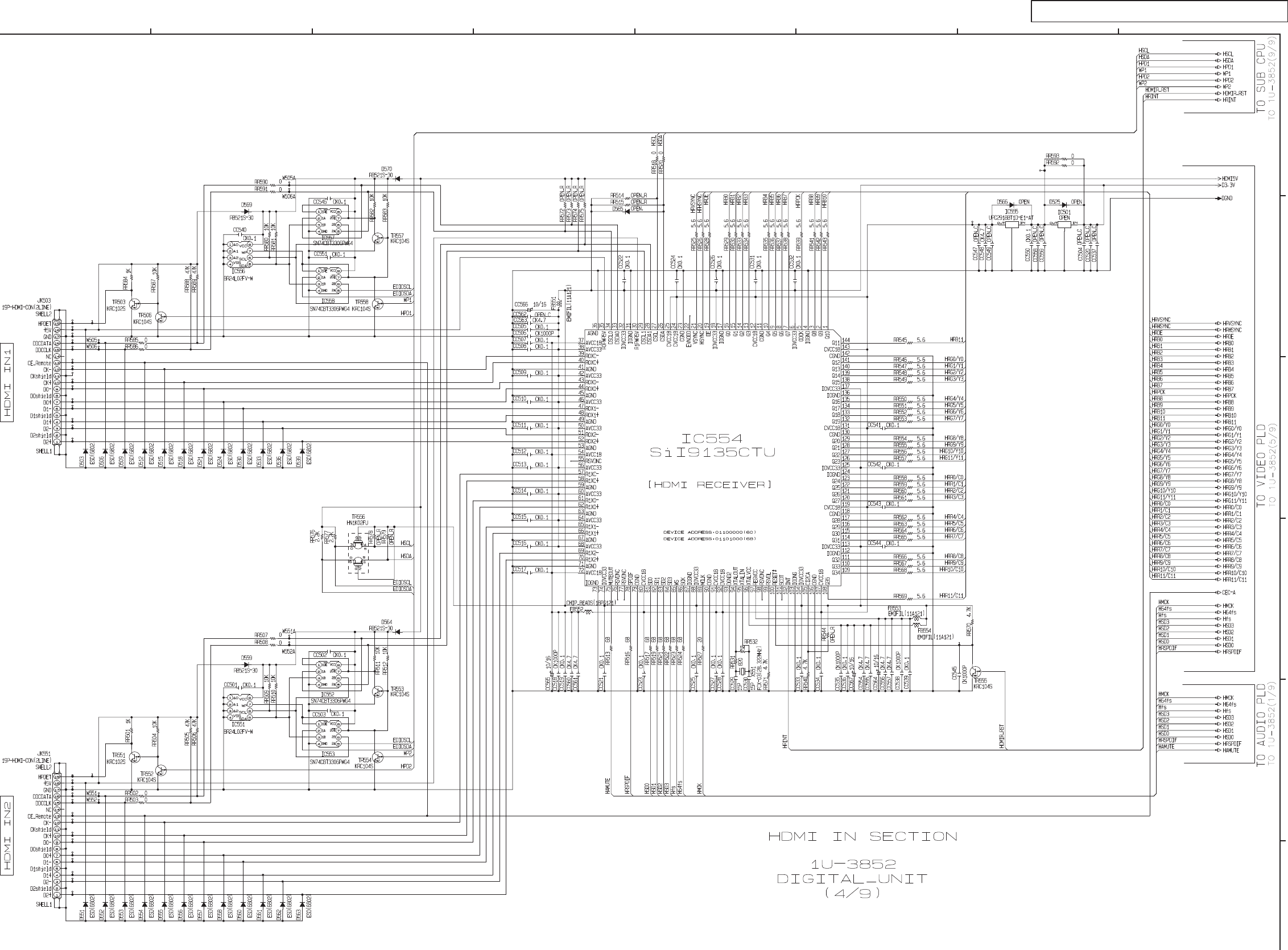

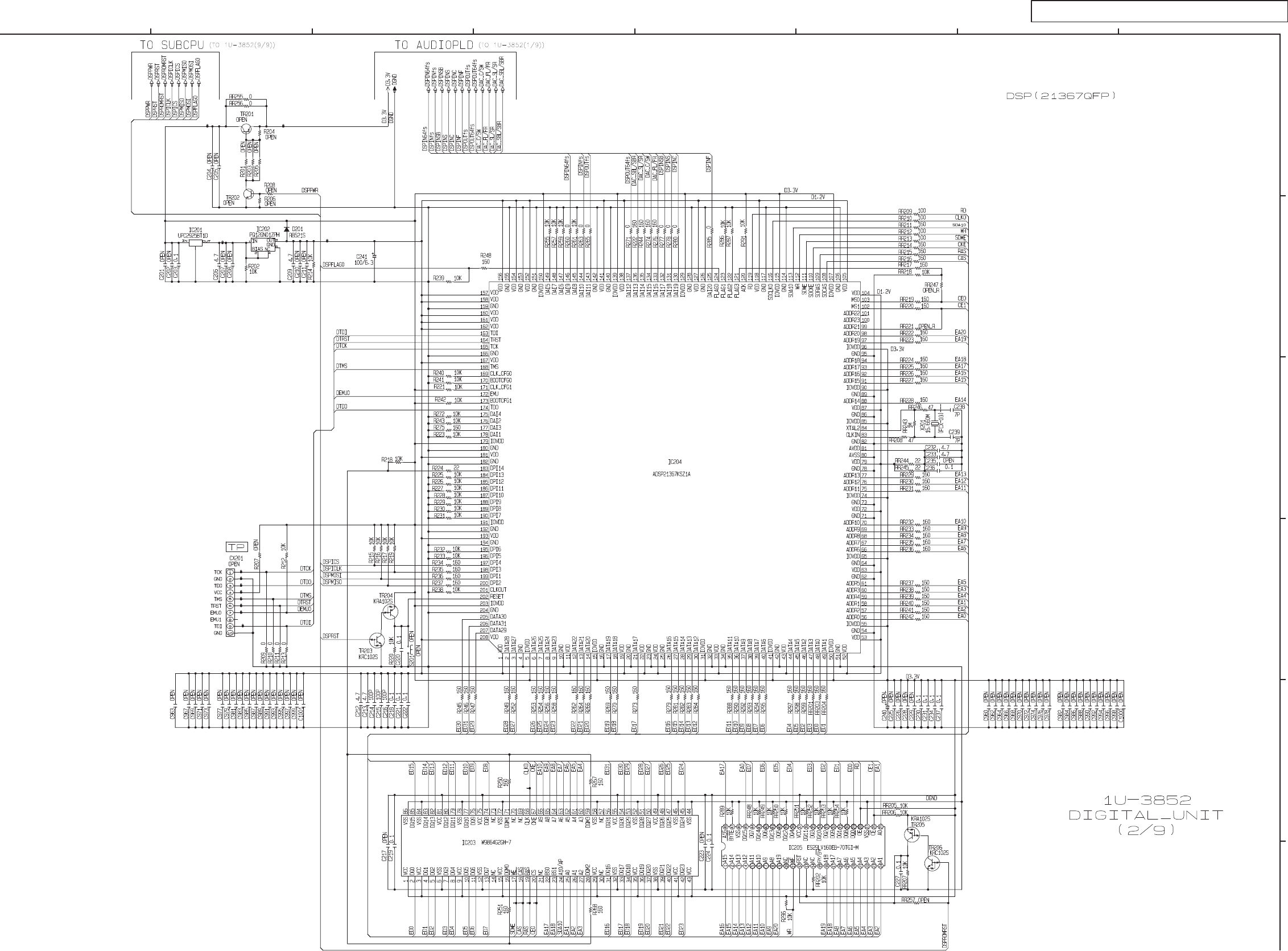

1U-3852A DIGITAL P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 nsp LC89057W-VF4A
IC102 nsp EPM3032ATC44-10N
IC103 nsp ADAU1328BSTZ1136
IC104 nsp AZ1117H-3.3TRE1
IC105,106 nsp NJM2115M-TE1 +C
IC107-110 nsp AZ4580MTR-E1
IC111 nsp PQ050DNA1ZPH
IC112 nsp TC74VHC244FT
IC113,114 nsp AZ4580MTR-E1
IC201 nsp UPC2925BT1D-E1-AT
IC202 nsp PQ012GN01ZPH
IC203 nsp W9864G2GH-7
IC204 nsp ADSP21367KSZ1A1136
IC205 nsp DSP ROM SUB ASSY ES29LV160EB-70TGI-M
IC551 nsp BR24L02FV-W
IC552,553 nsp SN74CBT3306PWG4
IC554 nsp SII9135CTU
IC555 nsp UPC2918BT1D-E1-AT
IC556 nsp BR24L02FV-W
IC557,558 nsp SN74CBT3306PWG4
IC601 nsp EPM570F256C5N
IC701 nsp AZ1117H-1.8TRE1
IC702 nsp SII9134CTU
IC801 nsp AZ1117H-3.3TRE1
IC802 nsp AZ1117H-1.8TRE1
IC803 nsp ADV7401BSTZ-110
IC804 nsp AZ1117H-1.8TRE1
IC805 nsp ADV7172KSTZ
IC901 nsp UPC2918BT1D-E1-AT
IC902 nsp FLI2310-LF-CF
IC903 nsp K4S643232H-UC60
IC951 nsp SUB CPU SUB ASSY M3062LFGPGP
IC954 nsp TC74VHC08FT
IC955 nsp AZ1117H-3.3TRE1
IC956,957 nsp TC74VHCT08AFT
TR101,102 nsp KRC102S-RTK/P (10K-10K)
TR103 nsp KRA102S-RTK/P (10K-10K)
TR104,105 nsp 2SK771-5-TB
TR106 nsp KRA104S-RTK/P (47K-47K)
TR107 nsp KRC104S-RTK/P (47K-47K)
TR203 nsp KRC102S-RTK/P (10K-10K)
TR204,205 nsp KRA102S-RTK/P (10K-10K)
TR206 nsp KRC102S-RTK/P (10K-10K)
TR503 nsp KRC102S-RTK/P (10K-10K)
TR506 nsp KRC104S-RTK/P (47K-47K)
TR551 nsp KRC102S-RTK/P (10K-10K)
TR552-555 nsp KRC104S-RTK/P (47K-47K)
TR556 nsp HN1K02FU-TE85L
TR557,558 nsp KRC104S-RTK/P (47K-47K)
TR703 nsp KRC104S-RTK/P (47K-47K)
TR801,802 nsp KRC104S-RTK/P (47K-47K)
TR803-807 nsp 2SA1022-B +C
TR901 nsp KRC104S-RTK/P (47K-47K)
TR951 nsp KTC3875S-GR-RTK/P
TR952 nsp KRC104S-RTK/P (47K-47K)
TR953 nsp 2SC2412KT96(S) +C
TR954 nsp 2SC3326(A/B) +C
112
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
TR955 nsp 2SC2412KT96(S) +C
TR956 nsp HN1K02FU-TE85L
D102 nsp KDS184-RTK/P (K-COM)
D201 nsp RB521S-30TE61 +REF
D503 nsp ESD PROTECTOR(6802)
D506 nsp ESD PROTECTOR(6802)
D509 nsp ESD PROTECTOR(6802)
D512 nsp ESD PROTECTOR(6802)
D515 nsp ESD PROTECTOR(6802)
D518 nsp ESD PROTECTOR(6802)
D521 nsp ESD PROTECTOR(6802)
D524 nsp ESD PROTECTOR(6802)
D530 nsp ESD PROTECTOR(6802)
D533 nsp ESD PROTECTOR(6802)
D536 nsp ESD PROTECTOR(6802)
D539 nsp ESD PROTECTOR(6802)
D551-558 nsp ESD PROTECTOR(6802)
D559 nsp RB521S-30TE61 +REF
D560-563 nsp ESD PROTECTOR(6802)
D564 nsp RB521S-30TE61 +REF
D569,570 nsp RB521S-30TE61 +REF
D705-717 nsp ESD PROTECTOR(6802)
D953 nsp KDS160-RTK/P
ZD701 nsp UDZS5.1B-TE17 +C
RESISTORS GROUP
R803,804 nsp RM73B--151FT_1608
R805,806 nsp RM73B--121FT +1608
R807-814 nsp RM73B--151FT_1608
R834,835 nsp RM73B--182FT_1608
R851-855 nsp RM73B--271FT_1608
CAPACITORS GROUP
C101 nsp CK73B1A104KT +1005
C102,103 nsp CC73CH1H6R0DT +1005
C104 nsp CK73B1E104KT +1608
C105 nsp CK73B1E223KT +1608
C106 nsp CK73B1H102KT +1005
C107 nsp CC73CH1H101JT +1005
C108 nsp CK73B0J475KT(P) +1608
C110 nsp CK73B1H102KT +1005
C111,112 nsp CK73B0J475KT(P) +1608
C113 nsp CK73B1A104KT +1005
C114 nsp CC73CH1H101JT +1005
C115 nsp CK73B1H102KT +1005
C116 nsp CC73CH1H101JT +1005
C117 nsp CK73B0J475KT(P) +1608
C118 nsp CE67C1C100MT(RV2)
C119 nsp CK73B1H102KT +1005
C120 nsp CK73B1E104KT +1608
C121 nsp CK73B0J475KT(P) +1608
C122 nsp CF73=1C562JT(ECHUX)
C123 nsp CK73B1E104KT +1608
C124 nsp CE67W1C470MT(P.CAP)
C125 nsp CK73B1H391KT +1005
C126 nsp CK73B1A104KT +1005
C127 nsp CE67W1H100MT(P.CAP) +REF
C128 nsp CK73B1A104KT +1005
C129,130 nsp CK73B0J475KT(P) +1608
C131-142 nsp RM73B--0R0KT+1005
C143,144 nsp CC73CH1H102JT +1608
C145,146 nsp CC73CH1H271JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
113
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C147,148 nsp CC73CH1H391JT +1608
C149,150 nsp CC73CH1H331JT +1608
C151,152 nsp CC73CH1H391JT +1608
C153,154 nsp CC73CH1H121JT +1608
C155,156 nsp CC73CH1H390JT +1608
C157,158 nsp CC73CH1H471JT +1608
C159,160 nsp CC73CH1H271JT +1608
C161,162 nsp CC73CH1H471JT +1608
C163,164 nsp CK73B1A104KT +1005
C165 nsp CK73B0J475KT(P) +1608
C166 nsp CK73B1H103KT (1608) +1608
C167,168 nsp CC73CH1H101JT +1608
C169 nsp CE67C1H010MT (RV2B55 +REF
C170 nsp CC73CH1H101JT +1608
C174,175 nsp CK73B0J475KT(P) +1608
C180 nsp CK73B1E104KT +1608
C191-198 nsp CK73B1H102KT +1608
C203 nsp CK73B1E104KT +1608
C206 nsp CK73B0J475KT(P) +1608
C209 nsp CK73B0J475KT(P) +1608
C212,213 nsp CK73B0J475KT(P) +1608
C214-216 nsp CC73CH1H101JT +1005
C218-222 nsp CK73B1A104KT +1005
C224 nsp CK73B1A104KT +1005
C227 nsp CK73B1A104KT +1005
C230,231 nsp CK73B1A104KT +1005
C232,233 nsp CK73B0J475KT(P) +1608
C234 nsp CK73B1A104KT +1005
C236,237 nsp CK73B1A104KT +1005
C238,239 nsp CC73CH1H7R0DT +1005
C241 nsp CE67C0J101MT (RV2) +REF
C702 nsp CK73B1A104KT +1005
C704 nsp CK73B0J475KT(P) +1608
C706,707 nsp CK73B1H102KT +1005
C708-710 nsp CK73B1A104KT +1005
C711-717 nsp CK73B1H102KT +1005
C718-723 nsp CK73B1A104KT +1005
C724,725 nsp CK73B1H102KT +1005
C726 nsp CK73B1A104KT +1005
C727-730 nsp CK73B1H102KT +1005
C731-734 nsp CK73B1A104KT +1005
C735-738 nsp CK73B0J475KT(P) +1608
C746 nsp CK73B1E104KT +1608
C803 nsp CK73B1H102KT +1005
C805 nsp CK73B0J475KT(P) +1608
C807 nsp CK73B1H102KT +1005
C808-811 nsp CK73B1A104KT +1005
C812-817 nsp CK73B0J475KT(P) +1608
C819-821 nsp CK73B0J475KT(P) +1608
C822,823 nsp CK73B1A104KT +1005
C825,826 nsp CK73B1E103KT(1005)
C827 nsp CK73B1E104KT +1608
C828 nsp CK73B1A104KT +1005
C829 nsp CK73B1E104KT +1608
C830 nsp CK73B1A104KT +1005
C831,832 nsp CK73B1E104KT +1608
C833 nsp CF73=1C823JT(ECHUX)
C834,835 nsp CK73B1E104KT +1608
C836 nsp CK73B1H102KT +1608
C837 nsp CK73B1E103KT(1005)
C838 nsp CF73=1C103JT(ECHUX)
C839 nsp CK73B1A104KT +1005
C840,841 nsp CC73CH1H120JT +1005
C842 nsp CK73B1A104KT +1005
C844-848 nsp CK73B1A104KT +1005
C849,850 nsp CK73B0J475KT(P) +1608
Ref. No. Part No. Part Name Remarks Q'ty New
114
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C853 nsp CK73B1H102KT +1005
C856 nsp CK73B1A104KT +1005
C857 nsp CK73B1E103KT(1005)
C858,859 nsp CC73CH1H101JT +1005
C860-864 nsp CK73B1A104KT +1005
C865,866 nsp CK73B0J475KT(P) +1608
C867-871 nsp CK73B1A104KT +1005
C874 nsp CK73B1H102KT +1005
C876 nsp CK73B0J475KT(P) +1608
C901 nsp CK73B1E103KT(1005)
C904 nsp CK73B0J475KT(P) +1608
C907 nsp CK73B0J475KT(P) +1608
C908 nsp CK73B1A104KT +1005
C909 nsp CK73B1E103KT(1005)
C911 nsp CK73B1E103KT(1005)
C912,913 nsp CK73B1A104KT +1005
C914 nsp CK73B1E103KT(1005)
C915-919 nsp CK73B1A104KT +1005
C922 nsp CK73B0J475KT(P) +1608
C923-929 nsp CK73B1A104KT +1005
C930,931 nsp CC73CH1H180JT +1005
C932-937 nsp CK73B1A104KT +1005
C939-944 nsp CK73B1A104KT +1005
C945 nsp CK73B1E103KT(1005)
C946-948 nsp CK73B1A104KT +1005
C950 nsp CK73B0J475KT(P) +1608
C951 nsp CE67C1C101MT (RV2) +REF
CC101,102 nsp CE67C1C100MT(RV2)
CC103-108 nsp CE67C1H010MT(RV2)
CC109,110 nsp CE67C1C100MT(RV2)
CC111 nsp CK73B1A104KT +1005
CC127,128 nsp CE67C1C100MT(RV2)
CC501-503 nsp CK73B1A104KT +1005
CC505 nsp CK73B1A104KT +1005
CC506 nsp CK73B1H102KT +1005
CC507-517 nsp CK73B1A104KT +1005
CC518 nsp CK73B1H102KT +1005
CC519 nsp CK73B1A104KT +1005
CC521-528 nsp CK73B1A104KT +1005
CC529,530 nsp CC73CH1H150JT +1005
CC531-534 nsp CK73B1A104KT +1005
CC535 nsp CK73B1H102KT +1005
CC536 nsp CK73B1A104KT +1005
CC538 nsp CK73B1H102KT +1005
CC539-544 nsp CK73B1A104KT +1005
CC545 nsp CK73B1H102KT +1005
CC546 nsp CK73B1A104KT +1005
CC548 nsp CK73B0J475KT(P) +1608
CC550,551 nsp CK73B1A104KT +1005
CC554-557 nsp CK73B0J475KT(P) +1608
CC560,561 nsp CK73B0J475KT(P) +1608
CC563 nsp CK73B0J475KT(P) +1608
CC564-567 nsp CE67C1C100MT(RV2)
CC604-606 nsp CK73B0J475KT(P) +1608
CC607-609 nsp CK73B1A104KT +1005
CC610-612 nsp CK73B1H102KT +1005
CC951 nsp CK73B1E103KT(1005)
CC952 nsp CK73B1H102KT +1005
CC953 nsp CK73B0J475KT(P) +1608
CC954 nsp CC73CH1H101JT +1005
CC955,956 nsp CC73CH1H100DT +1005
CC957 nsp CK73B0J475KT(P) +1608
CC962,963 nsp CK73B1A104KT +1005
CC965 nsp CK73B0J475KT(P) +1608
CC967 nsp CK73B1A104KT +1005
Ref. No. Part No. Part Name Remarks Q'ty New
115
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
CC970,971 nsp CK73B1A104KT +1005
CC972 nsp CK73B1H102KT +1005
CC976 nsp CK73B1H331KT +1005
CC977 nsp CK73B1H221KT +1005
CC978 nsp CK73B1E104KT +1608
OTHERS PARTS GROUP
CW035 nsp 3P SDN-VH CON.CORD
CX041 nsp 4P KR CON BASE(L)
CX072 nsp 7P SOCKET(9120)
CX076 nsp 6P CONN.BASE(KR-PH)
CX111 nsp 11P SOCKET(9120)
CX119 nsp 12P SOCKET(9120)
CX163 nsp 16P SOCKT(9120)
CX172 nsp 17P SOCKT(9120)
CY154 nsp 15P CON.SOCKET TUC-P
CY171 nsp 17P SOCKT(9120)
CY504 nsp 13P FFC CON.BASE
FB551 nsp CHIP EMIFIL(11A121) +1608
FB552 nsp CHIP BEADS(18PG121) +1608
FB553,554 nsp CHIP EMIFIL(11A121) +1608
FB701-704 nsp CHIP EMIFIL(11A121) +1608
FB951 nsp ZBFS5105-PT
JK503 00D 205 1447 005 19P-HDMI-CONNECTOR
JK551 00D 205 1447 005 19P-HDMI-CONNECTOR
JK701 00D 205 1447 005 19P-HDMI-CONNECTOR
W301 nsp M3 SCREW TERMINAL
X101 nsp FCX-03(24.576MHz)
X201 nsp FCX-03(16.660MHz)
X551 nsp FCX-03(28.322MHZ)
X801 nsp FCX-03(28.6363MHz)
X901 nsp XTAL(13.5MHZ) +REF
X951 nsp FCX-03(12MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
116
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model

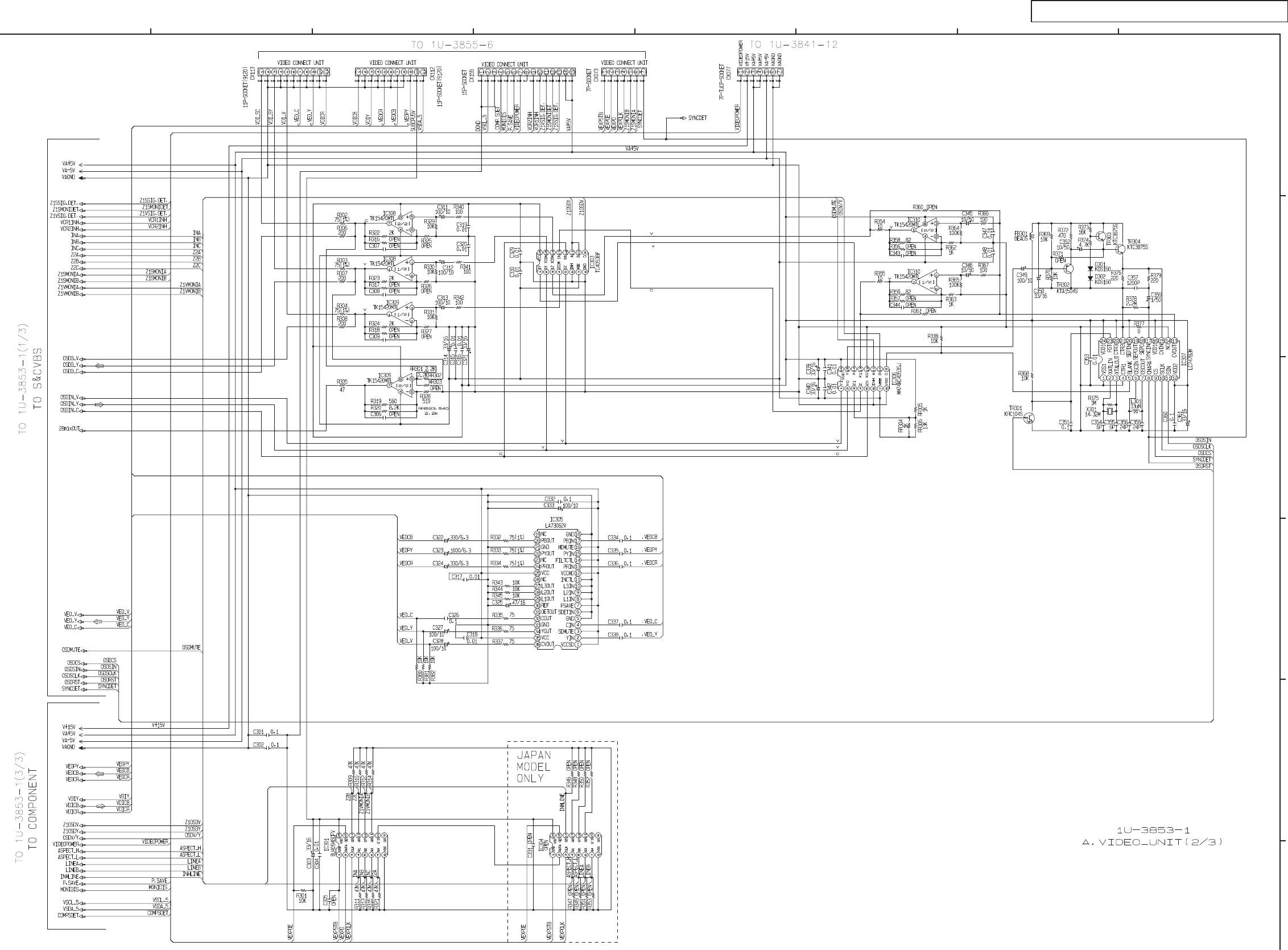

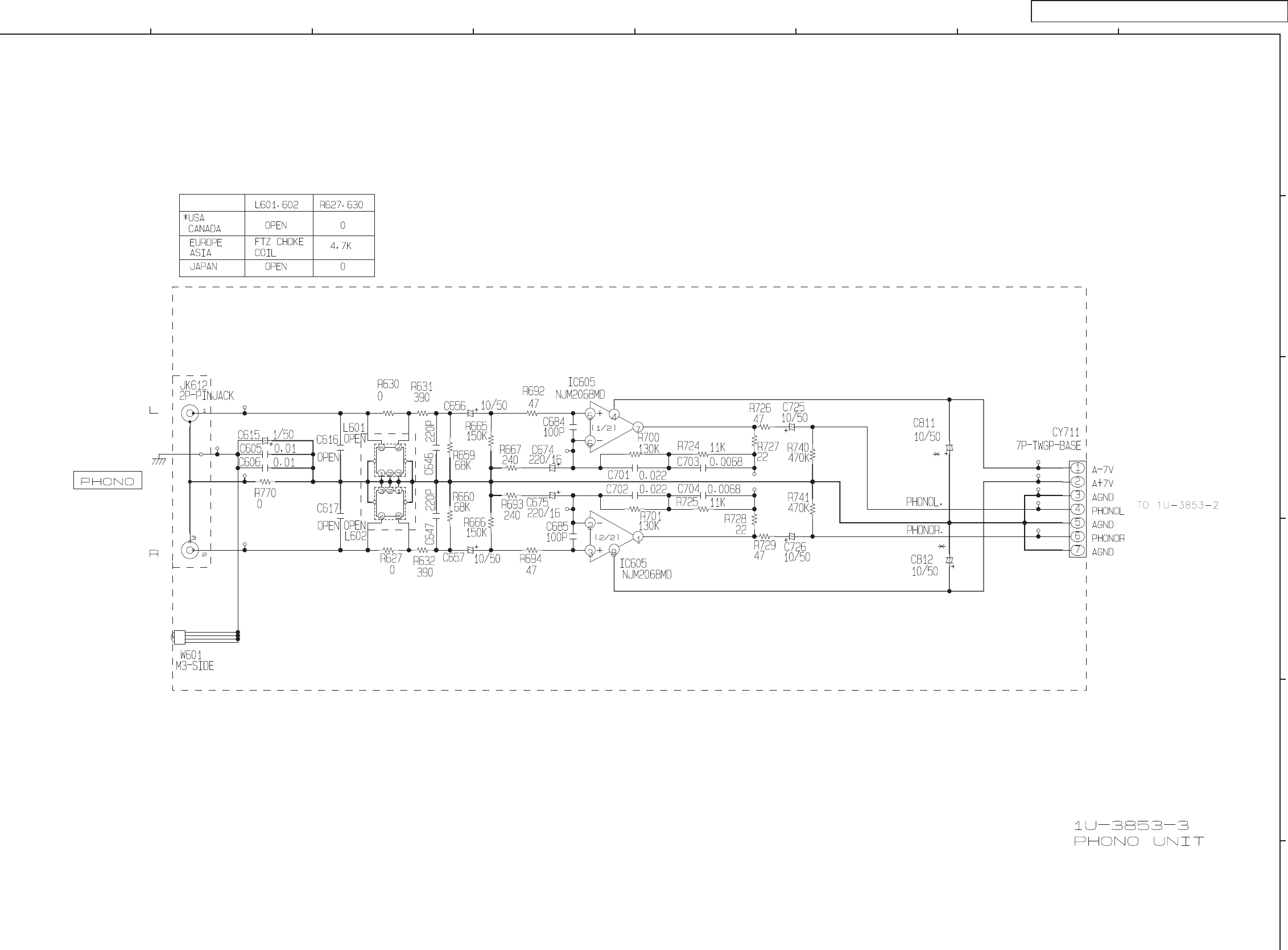

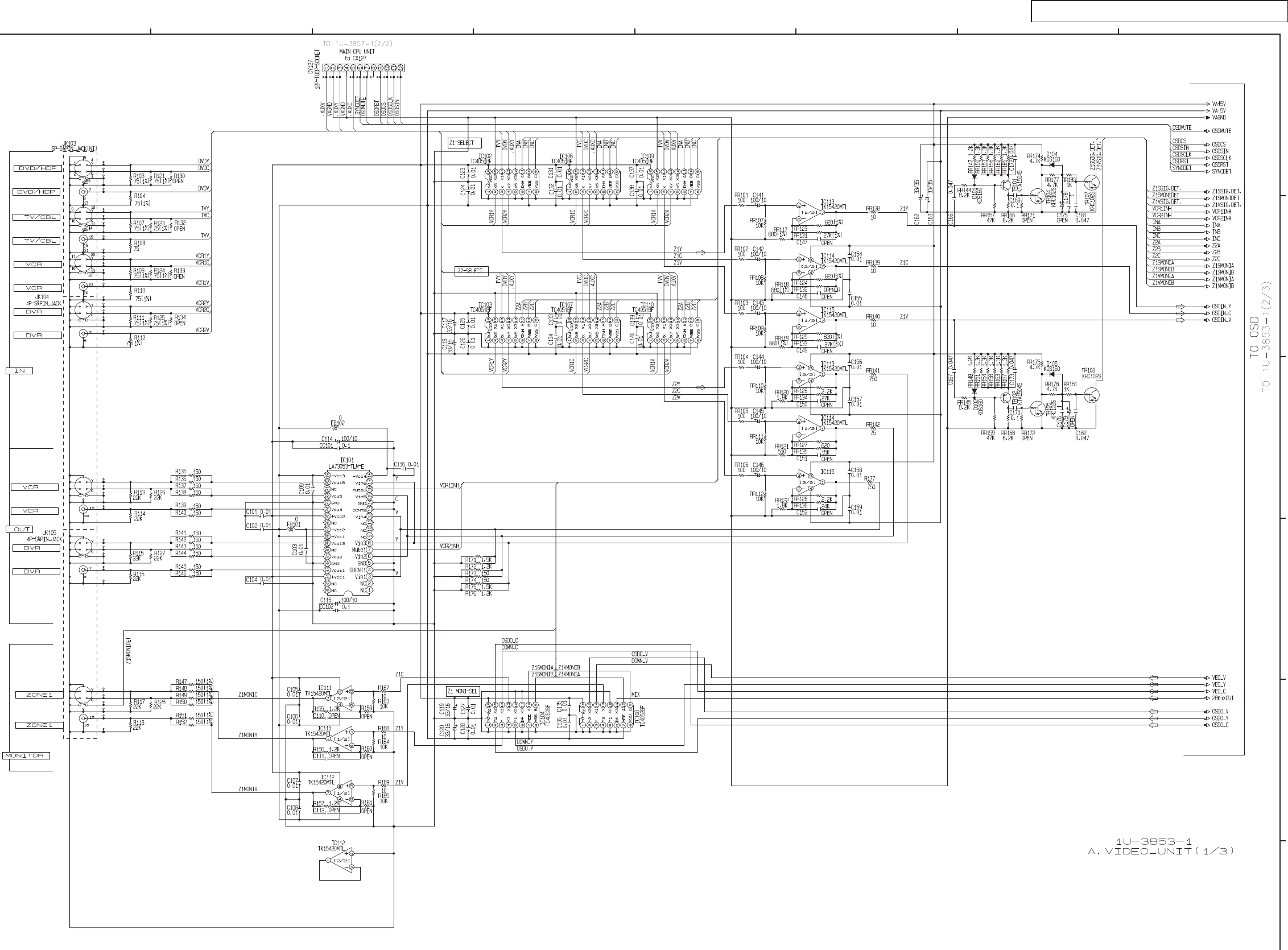

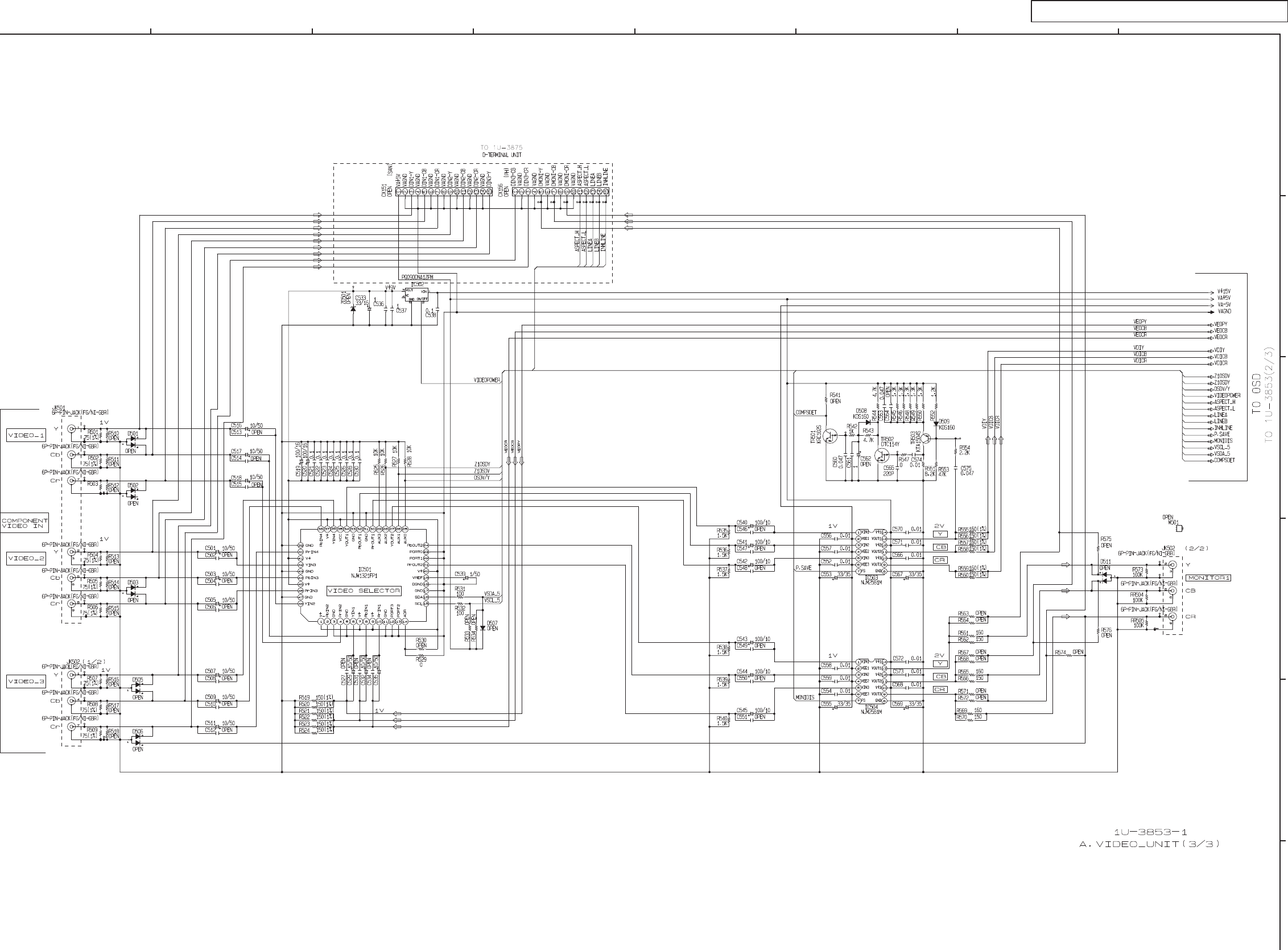

1U-3853A A.VIDEO/VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 262 3756 904 LA73053-TLM-E
IC102,103 00D 262 3445 901 TC4051BFT
IC104 00D 262 3446 900 TC4052BFT
IC106,107 00D 262 3445 901 TC4051BFT
IC108 00D 262 3446 900 TC4052BFT
IC109,110 00D 262 3445 901 TC4051BFT
IC111-115 00D 263 1082 903 TK15420MTL +C
IC301 00D 263 1197 908 BU4094BCFV-E2
IC303 00D 262 3447 909 TC4053BFT
IC305 00D 262 3755 905 LA73062V-TLM-E
IC306 00D 262 2827 902 MM74HC4053SJ +C
IC307 00D 262 3749 908 LC74782M
IC308-310 00D 263 1082 903 TK15420MTL +C
IC501 00D 262 3551 002 NJW1321FP1
IC502 00D 263 1287 902 PQ090DNA1ZPH
IC503,504 00D 263 1225 906 NJM2581M-TE1
IC601-604 00D 263 1289 900 AZ4580MTR-E1
IC605 00D 263 0896 909 NJM2068MD-TE1 +C
IC606-611 00D 263 1289 900 AZ4580MTR-E1
IC612 00D 263 1291 008 R2A15215
TR101,102 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104,105 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR107,108 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR302 00D 271 0312 905 KTA1504S-GR-RTK/P
TR303,304 00D 273 0464 901 KTC3875S-GR-RTK/P
TR501 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR502 00D 269 0144 905 DTC114YKA-T146 +C
TR503 00D 271 0312 905 KTA1504S-GR-RTK/P
TR601-604 00D 273 0460 905 KTC2875-B-RTK/P
TR605,606 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR607,608 00D 273 0460 905 KTC2875-B-RTK/P
TR613-617 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR618-633 00D 273 0460 905 KTC2875-B-RTK/P
D101,102 00D 276 0794 900 KDS160-RTK/P
D104,105 00D 276 0794 900 KDS160-RTK/P
D301,302 00D 276 0794 900 KDS160-RTK/P
D508,509 00D 276 0794 900 KDS160-RTK/P
RESISTORS GROUP
R103,104 00D 247 2019 928 RM73B--750FT
R107-112 00D 247 2019 928 RM73B--750FT
R121 00D 247 2019 928 RM73B--750FT
R123-125 00D 247 2019 928 RM73B--750FT
R147-152 00D 247 2045 918 RM73B--151FT_1608
R302-304 00D 247 2019 928 RM73B--750FT
R332-334 00D 247 2019 928 RM73B--750FT
R501-509 00D 247 2019 928 RM73B--750FT
R519-524 00D 247 2045 918 RM73B--151FT_1608
R555 00D 247 2045 921 RM73B--161FT_1608
R556 00D 247 2045 918 RM73B--151FT_1608
R557 00D 247 2045 921 RM73B--161FT_1608
R558 00D 247 2045 918 RM73B--151FT_1608
R559 00D 247 2045 921 RM73B--161FT_1608
R560 00D 247 2045 918 RM73B--151FT_1608
R561 00D 247 2045 921 RM73B--161FT_1608
R562 00D 247 2045 918 RM73B--151FT_1608
R565 00D 247 2045 921 RM73B--161FT_1608
R566 00D 247 2045 918 RM73B--151FT_1608
R569 00D 247 2045 921 RM73B--161FT_1608
117
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
R570 00D 247 2045 918 RM73B--151FT_1608
RR117-119 00D 247 2019 957 RM73B--681FT +1608
RR123-125 00D 247 2025 909 RM73B--821FT
RR131 00D 247 2045 992 RM73B--273FT_1608
RR133 00D 247 2045 992 RM73B--273FT_1608
CAPACITORS GROUP
C101-109 nsp CK73B1H103KT (1608) +1608
C114,115 00D 254 4717 925 CE04W1A101MT(GR)
C116 nsp CK73B1H103KT (1608) +1608
C117-120 00D 254 4718 924 CE04W1C330MT(GR)
C123-128 nsp CK73B1H103KT (1608) +1608
C131-140 nsp CK73B1H103KT (1608) +1608
C141-146 00D 254 4717 925 CE04W1A101MT(GR)
C154-159 nsp CK73B1H103KT (1608) +1608
C162,163 00D 254 4522 932 CE04W1V330MT SMG/RE3
C166,167 nsp CK73B1E473KT +1608
C169,170 nsp CK73B1E104KT +1608
C172,173 nsp CK73B1E473KT +1608
C176 nsp CK73B1A105KT +1608
C178 nsp CK73B1A105KT +1608
C181,182 nsp CK73B1E473KT +1608
C301,302 nsp CK73B1E104KT +1608
C303 00D 254 4718 924 CE04W1C330MT(GR)
C304 nsp CK73B1H103KT (1608) +1608
C311-313 00D 254 4717 925 CE04W1A101MT(GR)
C314 00D 254 4718 924 CE04W1C330MT(GR)
C315-320 nsp CK73B1H103KT (1608) +1608
C321 00D 254 4718 924 CE04W1C330MT(GR)
C322 00D 254 4716 926 CE04W0J331MT(GR)
C323 00D 254 4716 942 CE04W0J102MT(GR)
C324 00D 254 4716 926 CE04W0J331MT(GR)
C325 00D 254 4718 937 CE04W1C470MT(GR)
C326 nsp CK73B1E104KT +1608
C327,328 00D 254 4717 925 CE04W1A101MT(GR)
C329,330 nsp CK73B1H103KT (1608) +1608
C332 nsp CK73B1E104KT +1608
C333 00D 254 4536 928 CE04W1A101MT SMG/RE3
C334-338 nsp CK73B1E104KT +1608
C339,340 00D 254 4718 924 CE04W1C330MT(GR)
C341,342 nsp CK73B1H103KT (1608) +1608
C345,346 00D 254 4722 981 CE04W1H100MT(GR)
C347,348 nsp CK73B1H103KT (1608) +1608
C349 00D 254 4717 925 CE04W1A101MT(GR)
C350 00D 254 4718 924 CE04W1C330MT(GR)
C351 nsp CK73B1E104KT +1608
C352 00D 254 4722 981 CE04W1H100MT(GR)
C353 nsp CK73B1H103KT (1608) +1608
C354,355 nsp CC73CH1H6R0DT +1608
C356 00D 257 0504 911 CC73CH1H240JT
C357 nsp CK73B1H122KT +1608
C358 00D 257 0504 911 CC73CH1H240JT
C359 00D 254 4524 943 CE04W1H010MT SMG/RE3
C360 nsp CK73B1E104KT +1608
C361 00D 254 4718 924 CE04W1C330MT(GR)
C501 00D 254 4722 981 CE04W1H100MT(GR)
C503 00D 254 4722 981 CE04W1H100MT(GR)
C505 00D 254 4722 981 CE04W1H100MT(GR)
C507 00D 254 4722 981 CE04W1H100MT(GR)
C509 00D 254 4722 981 CE04W1H100MT(GR)
C511 00D 254 4722 981 CE04W1H100MT(GR)
C516-518 00D 254 4722 981 CE04W1H100MT(GR)
C519,520 00D 254 4718 940 CE04W1C101MT(GR)
C521-526 nsp CK73B1E104KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
118
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C528 nsp CK73B1E104KT +1608
C529 00D 254 4722 981 CE04W1H100MT(GR)
C530 nsp CK73B1E104KT +1608
C532 00D 254 4722 981 CE04W1H100MT(GR)
C533 00D 254 4718 924 CE04W1C330MT(GR)
C535 00D 254 4722 981 CE04W1H100MT(GR)
C536,537 nsp CK73B1A105KT +1608
C538 nsp CK73B1E104KT +1608
C539 00D 254 4722 949 CE04W1H010MT(GR)
C540-545 00D 254 4536 928 CE04W1A101MT SMG/RE3
C552 nsp CK73B1H103KT (1608) +1608
C553 00D 254 4522 932 CE04W1V330MT SMG/RE3
C554 nsp CK73B1H103KT (1608) +1608
C555 00D 254 4522 932 CE04W1V330MT SMG/RE3
C556-559 nsp CK73B1H103KT (1608) +1608
C560 nsp CK73B1E473KT +1608
C561 nsp CK73B1A105KT +1608
C563 nsp CK73B1E473KT +1608
C565 nsp CC73CH1H221JT +1608
C566 nsp CK73B1H103KT (1608) +1608
C567 00D 254 4522 932 CE04W1V330MT SMG/RE3
C568 nsp CK73B1H103KT (1608) +1608
C569 00D 254 4522 932 CE04W1V330MT SMG/RE3
C570-574 nsp CK73B1H103KT (1608) +1608
C575 nsp CK73B1E473KT +1608
C601-606 nsp CK73B1H103KT (1608) +1608
C607-612 nsp RM73B--0R0KT +1608
C613,614 nsp CK73B1H103KT (1608) +1608
C615 00D 254 4722 949 CE04W1H010MT(GR)
C618-639 nsp CC73CH1H331JT +1608
C640-643 nsp CC73CH1H101JT +1608
C644,645 00D 254 4524 998 CE04W1H220MT SMG/RE3
C646,647 nsp CC73CH1H221JT +1608
C648-657 00D 254 4722 981 CE04W1H100MT(GR)
C658,659 00D 254 4802 911 CE04W1J100MT(RA3)
C660,661 00D 254 4524 985 CE04W1H100MT SMG/RE3
C662,663 00D 254 4802 911 CE04W1J100MT(RA3)
C664-673 00D 254 4722 981 CE04W1H100MT(GR)
C674,675 00D 254 4577 958 CE04W1C221MT(RA3)
C684,685 nsp CC73CH1H101JT +1608
C698,699 00D 254 4524 998 CE04W1H220MT SMG/RE3
C700 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C701,702 00D 255 1265 978 CQ93M1H223JT(B)
C703,704 00D 255 1265 907 CQ93M1H682JT(B)
C705-712 00D 254 4524 985 CE04W1H100MT SMG/RE3
C713,714 00D 254 4802 911 CE04W1J100MT(RA3)
C715,716 00D 254 4524 985 CE04W1H100MT SMG/RE3
C717,718 00D 254 4802 911 CE04W1J100MT(RA3)
C719-726 00D 254 4524 985 CE04W1H100MT SMG/RE3
C727-730 00D 254 4722 981 CE04W1H100MT(GR)
C732,733 00D 254 4524 998 CE04W1H220MT SMG/RE3
C734-736 00D 254 4538 942 CE04W1C101MT SMG/RE3
C737,738 00D 254 4524 998 CE04W1H220MT SMG/RE3
C739-741 00D 254 4538 942 CE04W1C101MT SMG/RE3
C742,743 00D 254 4802 908 CE04W1J101MT(RA3)
C750 00D 254 4802 908 CE04W1J101MT(RA3)
C751,752 00D 254 4524 998 CE04W1H220MT SMG/RE3
C753 00D 254 4802 908 CE04W1J101MT(RA3)
C754 00D 254 4723 922 CE04W1H101MT(GR)
C755-759 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C760-775 00D 254 4524 998 CE04W1H220MT SMG/RE3
C776 00D 254 4586 978 CE04W2A010MT(RA3)
C777-784 nsp CC73CH1H331JT +1608
C785-790 nsp CK73B1H103KT (1608) +1608
C811,812 00D 254 4722 981 CE04W1H100MT(GR)
Ref. No. Part No. Part Name Remarks Q'ty New
119
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
CC101,102 nsp CK73B1E104KT +1608
OTHERS
PARTS GROUP
CX073 nsp 7P SOCKET(9120)
CX077 nsp 7P CON.SOCKET(TUC-P
CX079 nsp 7P CON PLUG TWG-P
CX112,113 nsp 11P SOCKET(9120)
CX135 nsp 13P CON PLUG TWG-P
CX155 nsp 15P SOCKET(9120)
CX711 nsp 7P CON PLUG TWG-P
CY106 nsp 10P CON.SOCKET TUC-P
CY127 nsp 12P CON.SOCKET TUC-P
CY151 nsp 15P SOCKET(9120)
CY153 nsp 15P SOCKET(9120)
CY155 nsp 15P CON.SOCKET TUC-P
CY711 nsp 7P CON BASE TWG-P
FB101,102 nsp RM73B--0R0KT +2125
FB301 00D 235 0049 900 BEADS INDUCTOR TAPE
JK103 00D 204 8745 011 6P S&PIN JACK(NI)
JK104,105 00D 204 8750 006 4P S&PIN JACK(NI)
JK501,502 00D 204 8756 000 6P PIN JACK(MSD-246V)-NI-GBR
JK601 00D 204 8753 016 4P PIN JACK(MSP-244V4)-NI-SW/B
JK602-606 00D 204 8753 003 4P PIN JACK(MSP-244V4)-NI-W/R
JK607 00D 204 8752 004 2P PIN JACK(MSP-242V3)-NI-W/R
JK608 00D 204 8753 016 4P PIN JACK(MSP-244V4)-NI-SW/B
JK609 00D 204 8753 003 4P PIN JACK(MSP-244V4)-NI-W/R
JK612 00D 204 8752 004 2P PIN JACK(MSP-242V3)-NI-W/R
L301 00D 235 0150 941 LQH32MN330J23L
L601,602 00D 235 9003 002 FTZ CHOKE COIL
W601 nsp M3 SCREW TERMINAL
X301 00D 399 0739 019 X'TAL(14.32M-RIBER)
Ref. No. Part No. Part Name Remarks Q'ty New
120
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model

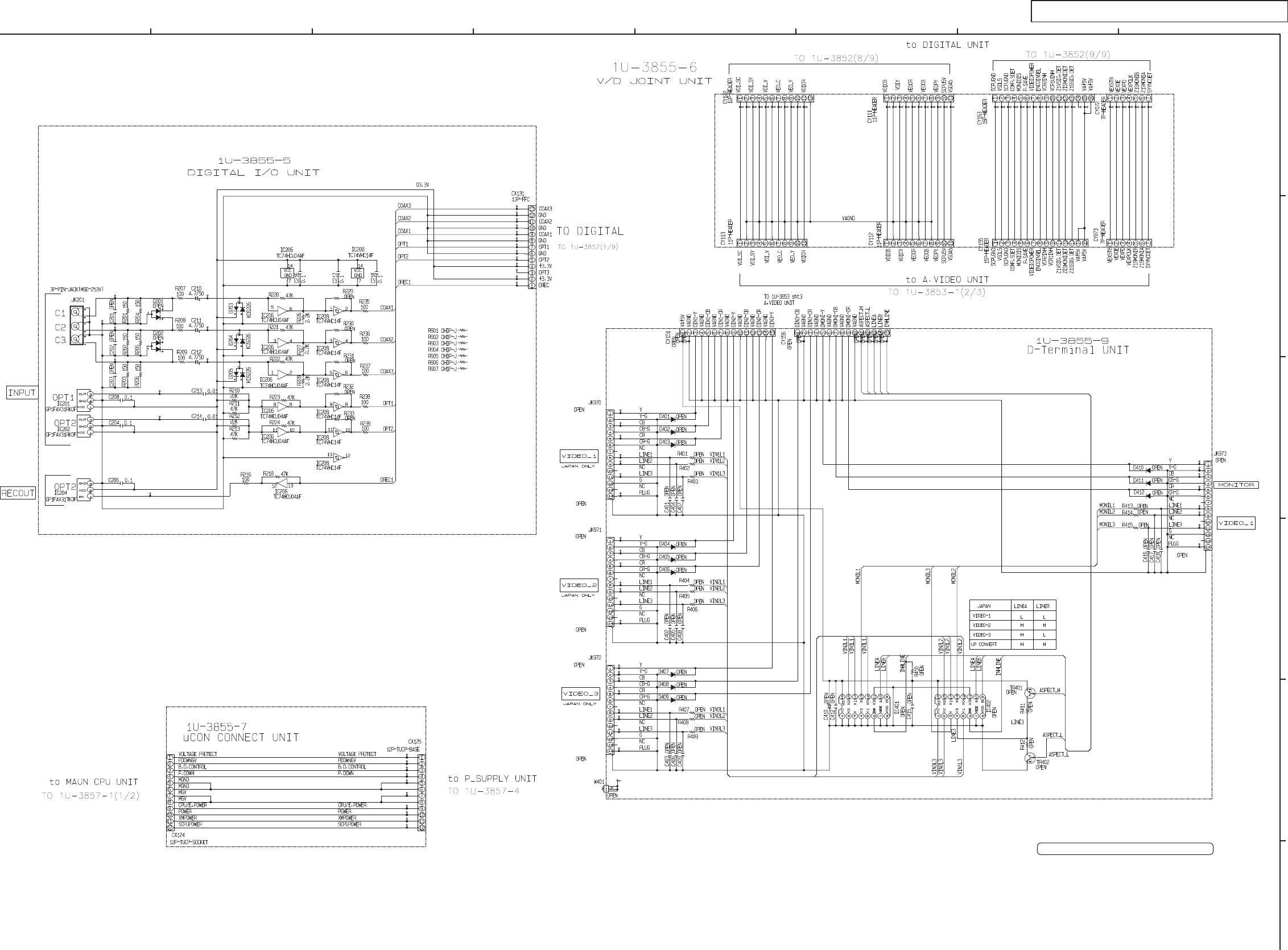

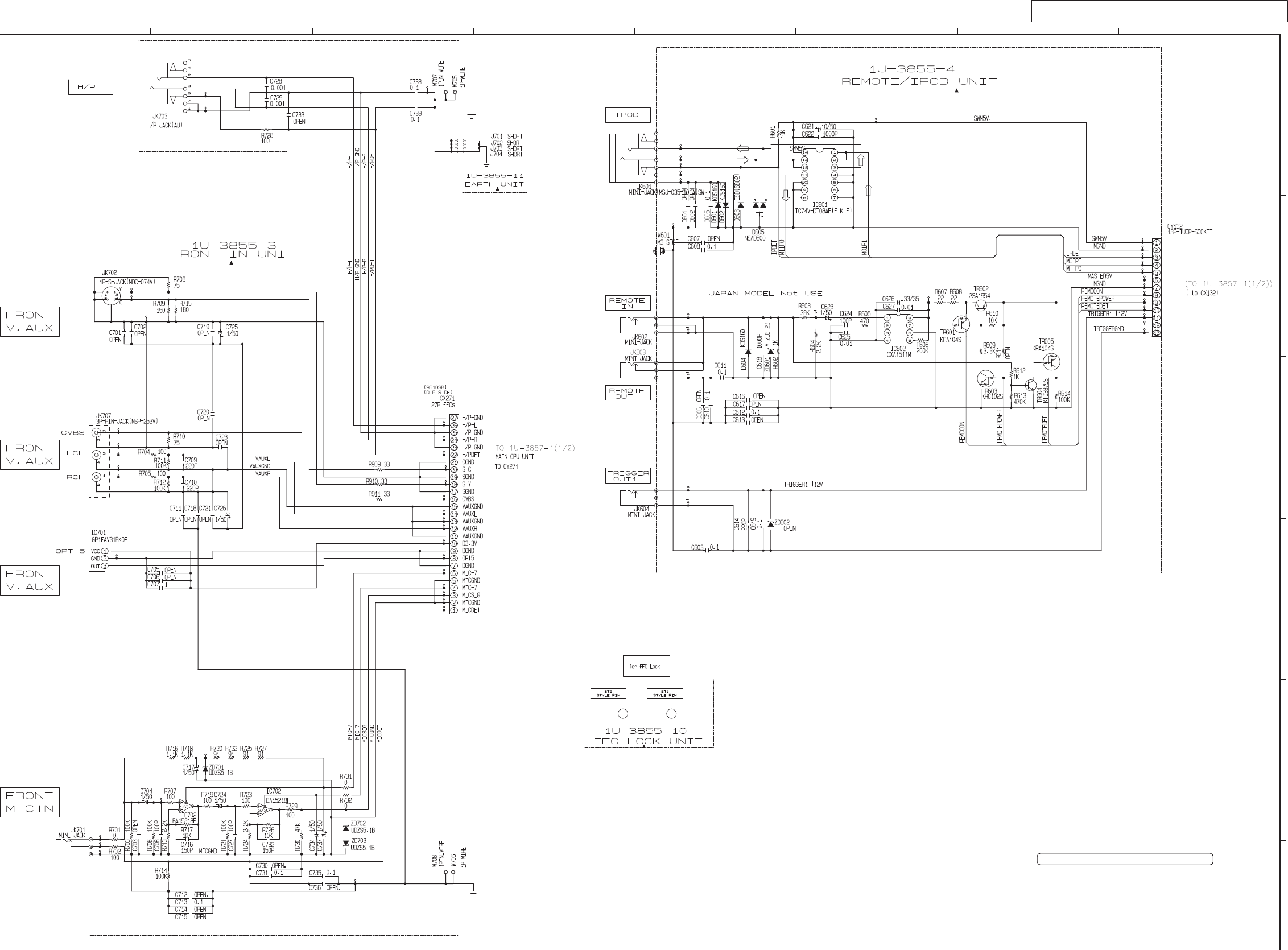

1U-3855 FRONT P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
!IC102 00D 268 0073 905 ICP-N15T
IC103 00D 499 0318 002 GP1UM271XKVF
IC201,202 00D 269 0231 009 GP1FAV31RK0F
IC204 00D 269 0230 000 GP1FAV31TK0F
IC206 00D 262 1205 907 TC74HCU04AF(TP1) +C
IC208 00D 262 3561 908 TC74VHC14F
IC601 00D 262 3676 903 TC74VHCT08AF(E,K,F)
IC602 00D 262 2580 906 CXA1511M +C
IC701 00D 269 0231 009 GP1FAV31RK0F
IC702 00D 263 0615 902 BA15218F-DXE2 +C
TR101 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR102,103 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105 00D 273 0494 900 KTC2022D-Y-RTF/P
TR106-108 00D 274 0212 907 2SD1782KT146
TR109 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR110 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR601 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR602 00D 271 0326 904 2SA1954(B)-TE85L
TR603 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR604 00D 273 0464 901 KTC3875S-GR-RTK/P
TR605 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
D101 00D 276 0704 903 1SR35-400A(T93X)
D103 00D 276 0794 900 KDS160-RTK/P
D105 00D 276 0794 900 KDS160-RTK/P
D107 00D 276 0794 900 KDS160-RTK/P
D203-205 00D 276 0738 908 KDS226-RTK/P (A-K)
D601,602 00D 276 0794 900 KDS160-RTK/P
D603 00D 276 0833 900 ESD PROTECTOR(6802)
D604 00D 276 0794 900 KDS160-RTK/P
D605 00D 276 0837 906 NSAD500F-T1B-A
ZD103 00D 276 0760 976 MTZJ6.8B T77
ZD104 00D 276 0761 975 MTZJ18B T77
ZD105 00D 276 0762 903 MTZJ24B T77
ZD601 00D 276 0760 963 MTZJ6.2B T77
ZD701-703 00D 276 0683 930 UDZS5.1B-TE17 +C
LD101 00D 393 9671 002 SMLU12416W-S
FL101 00D 393 8097 001 FLD(HCA-19MM02T)
RESISTORS GROUP
R163,164 00D 244 2043 937 RS14B3A100JNBST(S)
CAPACITORS GROUP
C101 nsp CK73B1E104KT +1608
C103-107 nsp CK73B1E104KT +1608
C108 00D 254 4524 985 CE04W1H100MT SMG/RE3
C109,110 00D 255 1279 951 CQ93M1H104JT(B)
C111,112 00D 254 4812 707 CE04W1H471MC(SRG/K15)
C113 nsp CK73B1E104KT +1608
C114 00D 254 4527 940 CE04W2A010MT SMG/RE3
C115,116 nsp CK73B1E104KT +1608
C117 00D 254 4802 908 CE04W1J101MT(RA3)
C120-122 nsp CC73CH1H101JT +1608
C123 nsp CK73B1H103KT (1608) +1608
C124 00D 256 1042 903 CF93A2E104KT
121
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C125 nsp CK73B1H102KT +1608
C126 nsp CK73B1E104KT +1608
C127 00D 254 4538 942 CE04W1C101MT SMG/RE3
C128 nsp CK73B1E104KT +1608
C131-133 nsp CK73B1E104KT +1608
C134 00D 254 4196 986 CE04W1H100MT (SRA)
C135 nsp CK73B1H103KT (1608) +1608
C137,138 nsp CK73B1E104KT +1608
C142,143 nsp CK73B1E104KT +1608
C146 nsp CC73CH1H300JT +1608
C204 nsp CK73B1E104KT +1608
C206 nsp CK73B1E104KT +1608
C208 nsp CK73B1E104KT +1608
C210-212 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C213,214 nsp CK73B1H103KT (1608) +1608
C216-218 nsp CK73B1E104KT +1608
C603 nsp CK73B1E104KT +1608
C605 nsp CK73B1E104KT +1608
C608 nsp CK73B1E104KT +1608
C610-612 nsp CK73B1E104KT +1608
C614 nsp CC73CH1H221JT +1608
C618 nsp CK73B1H102KT +1608
C619 nsp CK73B1E104KT +1608
C621 00D 254 4524 985 CE04W1H100MT SMG/RE3
C622 nsp CK73B1H102KT +1608
C623 00D 254 4524 943 CE04W1H010MT SMG/RE3
C624 nsp CC73CH1H101JT +1608
C625 nsp CK73B1H103KT (1608) +1608
C626 00D 254 4522 932 CE04W1V330MT SMG/RE3
C627 nsp CK73B1H103KT (1608) +1608
C704 00D 254 4305 968 CE04W1H010MT(SRE)
C707 nsp CK73B1A105KT +1608
C708 nsp CC73CH1H101JT +1608
C709,710 nsp CC73CH1H221JT +1608
C713 nsp CK73B1E104KT +1608
C716 nsp CC73CH1H151JT +1608
C717 00D 254 4305 968 CE04W1H010MT(SRE)
C724 00D 254 4305 968 CE04W1H010MT(SRE)
C725,726 00D 254 4196 944 CE04W1H010MT (SRA)
C727 nsp CC73CH1H101JT +1608
C728,729 00D 255 1264 908 CQ93M1H102JT(B)
C731 nsp CK73B1E104KT +1608
C732 nsp CC73CH1H151JT +1608
C734 00D 254 4305 968 CE04W1H010MT(SRE)
C735 nsp CK73B1E104KT +1608
C737 00D 254 4305 968 CE04W1H010MT(SRE)
C738,739 00D 255 1279 951 CQ93M1H104JT(B)
OTHERS PARTS GROUP
AS101,102 00D 461 0862 045 FL SPACER (T=5)
CW021 nsp 2P VA-3P SDN CON.CORD
CX062 nsp 6P CONN BASE
CX124 nsp 12P CON.SOCKET TUC-P
CX125 nsp 12P CON.BASE TUC-P
CX131 00D 205 0668 063 13P FFC CON.BASE
CX251 00D 205 1316 000 25P FFC BASE(9610S)Y
CX271 00D 205 1329 000 27P FFC BASE(9610SB)
CY072,073 nsp 7P PIN HEADER(9120)
CY111-113 nsp 11P PIN HEADER(9120)
CY122 nsp 12P PIN HEADER(9120)
CY132 nsp 13P CON.SOCKET(TUC-P
CY155 nsp 15P PIN HEADER(9120)
Ref. No. Part No. Part Name Remarks Q'ty New
122
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
CY163 nsp 16P PIN HEADER(9120)
FB101,102 nsp RM73B--0R0KT +2125
JK201 00D 204 8755 001 3P PIN JACK(MSD-253V)-NI-O3
JK601 00D 204 8758 008 MINI JACK(MSJ-035-10A)-SW
JK602,603 00D 204 8260 004 MINI JACK
JK604 00D 204 8649 007 MINI JACK (RD)
JK701 00D 204 8260 004 MINI JACK
JK702 00D 204 8757 009 1P PIN S-JACK(MDC-074V)-AU
JK703 00D 204 8217 031 H/P JACK (BK(AU))
JK707 00D 204 8754 002 3P PIN JACK(MSP-253V)-AU-B3
S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)
!S103 00D 212 1030 009 POWER SWITCH (TV-5)
S104-125 00D 212 5611 903 TACT SWITCH(TAPE H5)
S126 00D 212 0512 007 ROTARY ENCODER
S127 00D 212 5611 903 TACT SWITCH(TAPE H5)
S128,129 00D 212 0373 000 ROT.ENCODER-EC16B
ST001,002 nsp STYLE PIN
W601 nsp M3 SCREW TERMINAL
C147 00D 255 1279 919 CQ93M1H473JT(B)
CZ093 nsp 9P DA-DA CON.CORD
nsp RUBBER SHEET C147
Ref. No. Part No. Part Name Remarks Q'ty New
123
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
1U-3841G POWER REG. P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 125 9006 090 UL TUBE
IC701 00D 279 0034 054 PTH9M04BC222TS2F333
IC801 00D 263 1100 034 KIA7815API-U/P
IC803 00D 263 1100 034 KIA7815API-U/P
TR101-114 00D 271 0301 903 KTA1268-BL-AT/P
TR115-121 00D 273 0471 907 KTC3206-Y-AT/P
TR401-408 00D 273 0460 905 KTC2875-B-RTK/P
TR413-420 00D 273 0460 905 KTC2875-B-RTK/P
TR701 00D 271 0301 903 KTA1268-BL-AT/P
TR704 00D 274 0160 907 2SD2144STPU
TR707 00D 271 0301 903 KTA1268-BL-AT/P
TR710 00D 273 0458 904 KTC3200-BL-AT/P
TR712,713 00D 271 0301 903 KTA1268-BL-AT/P
TR717 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR719 00D 271 0301 903 KTA1268-BL-AT/P
TR729 00D 274 0160 907 2SD2144STPU
TR735,736 00D 271 0301 903 KTA1268-BL-AT/P
TR801 00D 274 0198 005 KTD998-O-U/P
TR802 00D 272 0158 007 KTB778-O-U/P
TR803 00D 273 0468 907 KTC3199-GR-AT/P
TR804 00D 271 0311 906 KTA1267-GR-AT/P
TR805 00D 272 0158 007 KTB778-O-U/P
TR806 00D 274 0198 005 KTD998-O-U/P
TR807 00D 273 0469 906 KTC3209-Y-AT/P
TR808 00D 271 0313 904 KTA1281-Y-AT/P
TR809 00D 273 0468 907 KTC3199-GR-AT/P
TR810,811 00D 271 0311 906 KTA1267-GR-AT/P
TR812 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
D101-114 00D 276 0401 905 1SS133T77 (TAPE)
D701 00D 276 0401 905 1SS133T77 (TAPE)
D706 00D 276 0401 905 1SS133T77 (TAPE)
D709 00D 276 0460 904 HZS5C-1TD
D806 00D 276 0855 001 D3SB20-7103
D807,808 00D 276 0704 903 1SR35-400A(T93X)
ZD806,807 00D 276 0464 900 HZS7A-1TD
ZD808,809 00D 276 0468 906 HZS9B-1TD
RESISTORS GROUP
R129-135 00D 241 2380 905 RD14B2E122JNBST
R143-149 00D 241 2376 964 RD14B2E470JNBST
R714 00D 241 2383 902 RD14B2E223JNBST
R742 00D 241 2383 902 RD14B2E223JNBST
R748 00D 244 2055 996 RS14B3A122JNBST(S)
R750,751 00D 244 2055 996 RS14B3A122JNBST(S)
R813,814 00D 244 2050 988 RS14B3A202JNBST(S)
CAPACITORS GROUP
C101 00D 254 4802 911 CE04W1J100MT(RA3)
C102-108 00D 254 4802 924 CE04W1J470MT(RA3)
C109-115 00D 255 1273 944 CQ93M1H221KT(B)
C116-122 00D 255 1264 940 CQ93M1H222JT(B)
C123-129 00D 255 1273 944 CQ93M1H221KT(B)
C130-136 00D 254 4802 908 CE04W1J101MT(RA3)
C137-143 nsp CC73CH2A330JT +1608
C401-408 00D 254 4586 936 CE04W2A4R7MT(RA3)
C409-416 00D 254 4802 911 CE04W1J100MT(RA3)
C701 nsp CK73B1H103KT (1608) +1608
C702 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
124
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C703 00D 254 4524 956 CE04W1H2R2MT SMG/RE3
C705 nsp CK73B1H103KT (1608) +1608
C709 nsp CK73B1H103KT (1608) +1608
C711 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C716 00D 254 4722 981 CE04W1H100MT(GR)
C801-803 00D 254 4722 994 CE04W1H220MT(GR)
C805,806 00D 254 4569 937 CE04W1E221MT(RA3)
C807,808 00D 254 4524 985 CE04W1H100MT SMG/RE3
C809,810 00D 254 4802 911 CE04W1J100MT(RA3)
C811 00D 254 4722 994 CE04W1H220MT(GR)
C812 00D 254 4768 709 CE04W1C103MC(SMQ)
C813 00D 254 4761 735 CE04W1C472MC(SMQ)
C814,815 00D 254 4522 796 CE04W1V102MC SMG/RE3
C816-818 00D 255 1279 951 CQ93M1H104JT(B)
C819 00D 254 4722 949 CE04W1H010MT(GR)
OTHERS PARTS GROUP
CX031 nsp 3P EH CON BASE (BU)
CX044 nsp 4P CON.BASE(TUC-P)
CX075 nsp 7P CON.SOCKET(TUC-P
CX077 nsp 7P CON.SOCKET(TUC-P
CX092 nsp 9P CON.BASE TUC-P
CX104 nsp 10P CON.SOCKET TUC-P
CX105 nsp 10P CON.BASE TUC-P
CX117 nsp 11P CON.SOCKET TUC-P
CX151 nsp 15P PIN HEADER(9120)
CX153 nsp 15P PIN HEADER(9120)
CX171 nsp 17P PIN HEADER(9120)
CX711 nsp 7P CON.BASE(TUC-P)
CY054-059 nsp 5P CON.SOCKET TUC-P
CY077,078 nsp 7P CON.BASE(TUC-P)
CY079 nsp 7P CON BASE TWG-P
CY091,092 nsp 9P CON.SOCKET TUC-P
CY104 nsp 10P CON.BASE TUC-P
CY105 nsp 10P CON.SOCKET TUC-P
CY135 nsp 13P CON BASE TWG-P
CY172 nsp 17P PIN HEADER(9120)
CY510 nsp 5P CON.SOCKET TUC-P
CY711 nsp 7P CON.SOCKET(TUC-P
!F801 00D 206 1015 061 FUSE 2A
F801 nsp FUSE LABEL(T2AL)
!F802 00D 206 1015 061 FUSE 2A
F802 nsp FUSE LABEL(T2AL)
FF801,802 nsp FUSE CLIP(TAPE)
FH801,802 nsp FUSE CLIP(TAPE)
ST101-103 nsp STYLE PIN
W101,102 nsp M3 SCREW TERMINAL
W103 nsp M3 SCREW TERMINAL
W801 nsp M3 SCREW TERMINAL
Ref. No. Part No. Part Name Remarks Q'ty New
125
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
1U-3854G POWER AMP P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 263 1100 063 KIA7809API-U/P
IC702,703 00D 263 1100 021 KIA7812API-U/P
IC704,705 00D 263 1099 022 KIA7912PI-U/P
IC706 00D 263 1293 006 KIA7818API-U/P
IC707 00D 263 1100 034 KIA7815API-U/P
TR401 00D 271 0301 903 KTA1268-BL-AT/P
TR402-408 00D 273 0495 006 2SC3964
TR423-429 00D 273 0458 904 KTC3200-BL-AT/P
TR702 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR703 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR705 00D 273 0458 904 KTC3200-BL-AT/P
TR706 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR708 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR709 00D 271 0312 905 KTA1504S-GR-RTK/P
TR714 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR715 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR716 00D 273 0464 901 KTC3875S-GR-RTK/P
TR718 00D 273 0464 901 KTC3875S-GR-RTK/P
TR720 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR721 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR722 00D 271 0312 905 KTA1504S-GR-RTK/P
TR723 00D 273 0464 901 KTC3875S-GR-RTK/P
TR724 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR726 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR732 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR733 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR737 00D 273 0464 901 KTC3875S-GR-RTK/P
TR738 00D 271 0312 905 KTA1504S-GR-RTK/P
TR739 00D 273 0464 901 KTC3875S-GR-RTK/P
D401-421 00D 276 0401 905 1SS133T77 (TAPE)
D702-705 00D 276 0401 905 1SS133T77 (TAPE)
D707,708 00D 276 0401 905 1SS133T77 (TAPE)
D710-713 00D 276 0401 905 1SS133T77 (TAPE)
D714,715 00D 276 0338 007 S4VB20F
D717 00D 276 0855 001 D3SB20-7103
ZD401-414 00D 276 0458 916 HZS5A-2TD
RESISTORS GROUP
R422 00D 244 2051 961 RS14B3A101JNBST(S)
R423 00D 241 2387 940 RD14B2E4R7JNBST
R424-437 00D 244 2052 957 RS14B3A562JNBST(S)
R438-451 00D 241 2375 981 RD14B2E220JNBST
R452-479 00D 244 2671 956 RS14B3DR47JNBST(S)
R706,707 00D 243 2039 032 RW99=3H0R1K
R752-765 00D 244 2671 901 RS14B3D100JNBST(S)
R768-771 00D 244 2052 960 RS14B3A221JNBST(S)
VR401-407 00D 211 6159 908 V06PB102T(3318F-1-102A)
CAPACITORS GROUP
C401 00D 254 4804 906 CE04W2A101MT(RA3)
C402-408 00D 254 4802 908 CE04W1J101MT(RA3)
C409-415 00D 254 4802 924 CE04W1J470MT(RA3)
C416-429 00D 254 4586 949 CE04W2A100MT(RA3)
C704 00D 254 4524 985 CE04W1H100MT SMG/RE3
C706 nsp CK73B1H103KT (1608) +1608
C707 00D 254 4538 939 CE04W1C470MT SMG/RE3
C708 nsp CK73B1E104KT +1608
126
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C710 00D 254 4533 947 CE04W0J331MT SMG/RE3
C714 nsp CK73B1E104KT +1608
C715 00D 254 4533 947 CE04W0J331MT SMG/RE3
C716-722 00D 254 4722 981 CE04W1H100MT(GR)
C723-729 00D 255 1279 951 CQ93M1H104JT(B)
C730 00D 256 1042 903 CF93A2E104KT
C731,732 00D 254 6277 007 CE68W1E822M(DL)
C733-741 00D 255 1264 908 CQ93M1H102JT(B)
C742-750 00D 255 1279 919 CQ93M1H473JT(B)
C754,755 00D 255 1279 951 CQ93M1H104JT(B)
C756 00D 256 1042 903 CF93A2E104KT
C757 00D 254 4722 949 CE04W1H010MT(GR)
C758,759 00D 254 6276 008 CE68W==123M(DL)
C760,761 00D 256 1042 903 CF93A2E104KT
C762 00D 254 4722 949 CE04W1H010MT(GR)
OTHERS PARTS GROUP
CX032 nsp 3P EH CONNECTOR BASE
CX034 nsp 3P NH CONNECTOR BASE
CX054-059 nsp 5P CON.BASE TUC-P
CX063 nsp 6P NH CONNECTOR BASE
CX074 nsp 7P CON.BASE(TUC-P)
CX082 nsp 8P NH CONNECTOR BASE
CX091 nsp 9P CON.BASE TUC-P
CX115 nsp 11P CON.BASE(KR-PH)
CX409-415 nsp 3P BL-SCN CON.CORD
CX510 nsp 5P CON.BASE TUC-P
CX515 nsp 5P VH CONNECTOR BASE
CY041 nsp 4P PH-SAN CON.CORD
CY074 nsp 7P CON.SOCKET(TUC-P
CY075 nsp 7P CON.BASE(TUC-P)
!F701 00D 206 1015 087 FUSE (4.0A)
F701 nsp FUSE LABEL(T4AL)
!F702 00D 206 1015 087 FUSE (4.0A)
F702 nsp FUSE LABEL(T4AL)
FF701,702 nsp FUSE CLIP(TAPE)
FH701,702 nsp FUSE CLIP(TAPE)
JK402 00D 205 1450 021 8P SP TERMINAL(MST-108V1-01)
JK403 00D 205 1450 018 4P SP TERMINAL(MST-104V1-01)
JK404 00D 205 1450 005 6P SP TERMINAL(MST-106V1-01)
L701-707 00D 235 0191 007 INDUCTOR(1MH)
RL401-405 00D 214 0213 001 RELAY(FTR-F4)
RL406 00D 214 0208 003 RELAY(NA24W-K)
ST102 nsp STYLE PIN
W101 nsp M3 SCREW TERMINAL
Ref. No. Part No. Part Name Remarks Q'ty New
127
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
1U-3857G MAIN CPU P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 263 1286 903 PQ120DNA1ZPH
IC103 00D 263 1286 903 PQ120DNA1ZPH
IC104 00D 262 3571 901 HIN202EIBNZ-T
IC105 00D GEN 8610 MAIN CPU SUB ASSY M30879FLBFP
IC106,107 00D 262 2375 904 IC, TC4094BF(TP1) +C
IC109 00D 263 1289 900 AZ4580MTR-E1
IC301 00D 262 3360 905 LC72722PM-TLM
IC302 00D 263 1289 900 AZ4580MTR-E1
IC501 00D 263 1242 918 NJM2831F06
IC502 00D 263 1035 002 PQ30RV11
!IC503 00D 268 0073 905 ICP-N15T
IC504 00D 263 1280 006 SI-8008HFE
IC505,506 00D 263 1288 901 PQ050DNA1ZPH
TR103 00D 271 0326 904 2SA1954(B)-TE85L
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105-107 00D 273 0464 901 KTC3875S-GR-RTK/P
TR108 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR109 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR110 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR111 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR112 00D 271 0326 904 2SA1954(B)-TE85L
TR115 00D 271 0326 904 2SA1954(B)-TE85L
TR116 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301,302 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR303 00D 269 0086 908 DTA114TKT96 +C
TR304,305 00D 269 0066 902 DTC323TKT96 +C
TR501 00D 273 0464 901 KTC3875S-GR-RTK/P
TR507,508 00D 273 0464 901 KTC3875S-GR-RTK/P
TR509 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR512,513 00D 273 0468 907 KTC3199-GR-AT/P
D103,104 00D 276 0794 900 KDS160-RTK/P
D106,107 00D 276 0704 903 1SR35-400A(T93X)
D108 00D 276 0740 909 KDS184-RTK/P (K-COM)
D301-303 00D 276 0704 903 1SR35-400A(T93X)
D501 00D 276 0704 903 1SR35-400A(T93X)
D503-506 00D 276 0704 903 1SR35-400A(T93X)
D508 00D 276 0723 900 RB721Q-40
D510 00D 276 0850 705 RSX1001T3
D511 00D 276 0401 905 1SS133T77 (TAPE)
D512-521 00D 276 0704 903 1SR35-400A(T93X)
D522,523 00D 276 0855 001 D3SB20-7103
D526,527 00D 276 0401 905 1SS133T77 (TAPE)
ZD101 00D 276 0459 915 HZS5B-2TD
ZD501 00D 276 0464 900 HZS7A-1TD
ZD506 00D 276 0477 900 HZS16-1 TD(TAPE)
RESISTORS GROUP
R155,156 00D 241 2387 908 RD14B2E010JNBST
R512 00D 247 0046 948 RM73B--182DT
R514 00D 247 0047 992 RM73B--752DT
R515 00D 247 0045 965 RM73B--821DT
R516 00D 247 0044 982 RM73B--391DT
R517 00D 247 0047 921 RM73B--392DT
R529 00D 244 2671 930 RS14B3D200JNBST(S)
CAPACITORS GROUP
C106,107 nsp CK73B1E104KT +1608
C109,110 nsp CC73CH1H101JT +1608
128
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
C111 00D 254 4722 981 CE04W1H100MT(GR)
C112 nsp CK73B1E104KT +1608
C113 00D 254 4193 921 CE04W1C330M (SRA)
C115 00D 254 4193 921 CE04W1C330M (SRA)
C116-120 nsp CK73B1E104KT +1608
C121 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C122 nsp CK73B1H103KT (1608) +1608
C123,124 nsp CC73CH1H100DT +1608
C125 nsp CK73B1H103KT (1608) +1608
C126 nsp CK73B1H102KT +1608
C127 00D 254 4666 005 CE04W0H105ZC(FG)
C128-131 nsp CK73B1E104KT +1608
C132 00D 254 4536 928 CE04W1A101MT SMG/RE3
C133 00D 254 4716 913 CE04W0J221MT(GR)
C134 nsp CK73B1H102KT +1608
C137 nsp CK73B1E104KT +1608
C139 nsp CK73B1E104KT +1608
C140,141 00D 254 4524 985 CE04W1H100MT SMG/RE3
C145,146 00D 254 4722 981 CE04W1H100MT(GR)
C154 nsp CK73B1E104KT +1608
C301 nsp CC73CH1H331JT +1608
C302 00D 254 4524 985 CE04W1H100MT SMG/RE3
C303 nsp CC73CH1H561JT +1608
C304 00D 254 4722 981 CE04W1H100MT(GR)
C305 00D 254 4524 985 CE04W1H100MT SMG/RE3
C306 nsp CC73CH1H220JT +1608
C307 nsp CK73B1H102KT +1608
C308 nsp CK73B1E104KT +1608
C312 nsp CC73CH1H101JT +1608
C313 nsp CC73CH1H220JT +1608
C314-316 nsp CK73B1H102KT +1608
C319 00D 254 4722 981 CE04W1H100MT(GR)
C322,323 00D 254 4524 985 CE04W1H100MT SMG/RE3
C326,327 00D 254 4524 985 CE04W1H100MT SMG/RE3
C332,333 nsp CK73B1H102KT +1608
C501 00D 254 4722 981 CE04W1H100MT(GR)
C502 00D 254 4524 985 CE04W1H100MT SMG/RE3
C503 00D 254 4651 913 CE04W0J102MT H15(KY)
C505 nsp CK73B0J475KT +1608
C506 00D 254 4651 913 CE04W0J102MT H15(KY)
C508 00D 254 4722 949 CE04W1H010MT(GR)
C509 00D 254 4803 703 CE04W1E472MC(SMQL25S
C510 00D 254 4524 943 CE04W1H010MT SMG/RE3
C511 00D 254 4760 749 CE04W1E102MC(SMQ)
C512 00D 254 4760 707 CE04W1E103MC(SMQ)
C514 00D 254 4708 701 CE04W1V471MC J20(KY)
C515 00D 254 4428 706 CE04W1V222MC (SMG)
C516-523 00D 255 1279 951 CQ93M1H104JT(B)
C524 00D 253 8022 707 CK45F2EAC103MC
C525 00D 254 4722 949 CE04W1H010MT(GR)
C527 00D 253 8022 707 CK45F2EAC103MC
C543 nsp CK73B0J475KT +1608
C544 nsp CK73B1E104KT +1608
C548 nsp CK73B0J475KT +1608
C549 nsp CK73B1E104KT +1608
C554 nsp CK73B0J475KT +1608
OTHERS PARTS GROUP
CW037 nsp 11P 8P/3P PH-SAN CORD
CW063 nsp 6P PH-SAN CON.CORD
CW083 nsp 11P 8P/3P PH-SAN CORD
CX001-003 nsp JL CONNECTOR(BT-E)
CX021 nsp 2P VH CON BASE (Red)
CX022 nsp 2P VH CON BASE (Blue)
Ref. No. Part No. Part Name Remarks Q'ty New
129
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVR-2308 E2/E2A model
CX023 nsp 2P VH CON BASE (White)
CX042 nsp 4P CON.BASE(TUC-P)
CX106 nsp 10P CON.BASE TUC-P
CX126,127 nsp 12P CON.BASE TUC-P
CX132 nsp 13P CON.BASE(TUC-P)
CX152 00D 205 0736 076 15P FFC CON.BASE
CX154,155 nsp 15P CON.BASE TUC-P
CX512 nsp 5P EH CONNECTOR BASE
CX901 nsp 10P CON.BASE(KR-PH)
CY001-003 nsp JL CONNECTOR(F-E)
CY035 nsp 3P VH CON.BASE
CY042 nsp 4P CON.SOCKET(TUC-P)
CY117 nsp 11P CON.BASE TUC-P
CY124 nsp 12P CON.BASE TUC-P
CY125,126 nsp 12P CON.SOCKET TUC-P
CY251 00D 205 1316 000 25P FFC BASE(9610S)Y
CY271 00D 205 1329 000 27P FFC BASE(9610SB)
!F001 00D 206 1015 087 FUSE (4.0A)
F001 nsp FUSE LABEL(T4AL)
!F008 00D 206 1015 032 FUSE (2.5A)
F008 nsp FUSE LABEL(T2.5AL)
!F501 00D 206 1015 074 FUSE 3.15A
F501 nsp FUSE LABEL(T3.15AL)
!F502 00D 206 1015 074 FUSE 3.15A
F502 nsp FUSE LABEL(T3.15AL)
!F503 00D 206 1015 074 FUSE 3.15A
F503 nsp FUSE LABEL(T3.15AL)
!F504 00D 206 1015 074 FUSE 3.15A
F504 nsp FUSE LABEL(T3.15AL)
FB101,102 nsp RM73B--0R0KT +1608
FF501-506 nsp FUSE CLIP(TAPE)
FH501-506 nsp FUSE CLIP(TAPE)
JK101 00D 205 1305 008 9P D-SUB CONNECTOR
!JK301 00D 203 3961 004 1P AC OUTLET(E2)
L501 00D 232 0200 009 COIL(C3B-A0542)
RL601 00D 214 0221 006 RELAY TV-8
RL602 00D 214 0241 002 RELAY DL1SU TV-8
!T601 00D 233 6526 007 MINI TRANS(3806E2)
!T602 00D 233 6606 105 STANDBY TRANS(43E2)
W102,103 nsp 1P SIN-SIN WIRE
W501 nsp M3 SCREW TERMINAL
W503,504 nsp M3 SCREW TERMINAL
W508 nsp 1P SIN CON CORD
X101 00D 399 0594 005 X'TAL(30MHZ)
X301 00D 399 0151 008 X-TAL(4.332MHZ)
00D 255 1273 986 CQ93M1H471JT(B)
nsp RUBBER SHEET
Ref. No. Part No. Part Name Remarks Q'ty New
130
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
PARTS LIST OF P.W.B. UNIT (AVC-2308 JP model)
＊ 本表に "nsp" と記載されている部品は供給できません。
＊Parts for which "nsp" is indicated on this table cannot be supplied.
＊ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
1U-3852D DIGITAL P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 nsp LC89057W-VF4A
IC102 nsp EPM3032ATC44-10N
IC103 nsp ADAU1328BSTZ1136
IC104 nsp AZ1117H-3.3TRE1
IC105,106 nsp NJM2115M-TE1 +C
IC107-110 nsp AZ4580MTR-E1
IC111 nsp PQ050DNA1ZPH
IC112 nsp TC74VHC244FT
IC113,114 nsp AZ4580MTR-E1
IC201 nsp UPC2925BT1D-E1-AT
IC202 nsp PQ012GN01ZPH
IC203 nsp W9864G2GH-7
IC204 nsp ADSP21367KSZ1A1136
IC205 nsp DSP ROM SUB ASSY ES29LV160EB-70TGI-M
IC551 nsp BR24L02FV-W
IC552,553 nsp SN74CBT3306PWG4
IC554 nsp SII9135CTU
IC555 nsp UPC2918BT1D-E1-AT
IC556 nsp BR24L02FV-W
IC557,558 nsp SN74CBT3306PWG4
IC601 nsp EPM570F256C5N
IC701 nsp AZ1117H-1.8TRE1
IC702 nsp SII9134CTU
IC801 nsp AZ1117H-3.3TRE1
IC802 nsp AZ1117H-1.8TRE1
IC803 nsp ADV7401BSTZ-110
IC804 nsp AZ1117H-1.8TRE1
IC805 nsp ADV7172KSTZ
IC901 nsp UPC2918BT1D-E1-AT
IC902 nsp FLI2310-LF-CF
IC903 nsp K4S643232H-UC60
IC951 nsp SUB CPU SUB ASSY M3062LFGPGP
IC954 nsp TC74VHC08FT
IC955 nsp AZ1117H-3.3TRE1
IC956,957 nsp TC74VHCT08AFT
TR101,102 nsp KRC102S-RTK/P (10K-10K)
TR103 nsp KRA102S-RTK/P (10K-10K)
TR104,105 nsp 2SK771-5-TB
TR106 nsp KRA104S-RTK/P (47K-47K)
TR107 nsp KRC104S-RTK/P (47K-47K)
TR203 nsp KRC102S-RTK/P (10K-10K)
TR204,205 nsp KRA102S-RTK/P (10K-10K)
TR206 nsp KRC102S-RTK/P (10K-10K)
TR503 nsp KRC102S-RTK/P (10K-10K)
TR506 nsp KRC104S-RTK/P (47K-47K)
TR551 nsp KRC102S-RTK/P (10K-10K)
TR552-555 nsp KRC104S-RTK/P (47K-47K)
TR556 nsp HN1K02FU-TE85L
TR557,558 nsp KRC104S-RTK/P (47K-47K)
TR703 nsp KRC104S-RTK/P (47K-47K)
TR801,802 nsp KRC104S-RTK/P (47K-47K)
TR803-807 nsp 2SA1022-B +C
TR901 nsp KRC104S-RTK/P (47K-47K)
TR951 nsp KTC3875S-GR-RTK/P
TR952 nsp KRC104S-RTK/P (47K-47K)
TR953 nsp 2SC2412KT96(S) +C
TR954 nsp 2SC3326(A/B) +C
131
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
TR955 nsp 2SC2412KT96(S) +C
TR956 nsp HN1K02FU-TE85L
D102 nsp KDS184-RTK/P (K-COM)
D201 nsp RB521S-30TE61 +REF
D503 nsp ESD PROTECTOR(6802)
D506 nsp ESD PROTECTOR(6802)
D509 nsp ESD PROTECTOR(6802)
D512 nsp ESD PROTECTOR(6802)
D515 nsp ESD PROTECTOR(6802)
D518 nsp ESD PROTECTOR(6802)
D521 nsp ESD PROTECTOR(6802)
D524 nsp ESD PROTECTOR(6802)
D530 nsp ESD PROTECTOR(6802)
D533 nsp ESD PROTECTOR(6802)
D536 nsp ESD PROTECTOR(6802)
D539 nsp ESD PROTECTOR(6802)
D551-558 nsp ESD PROTECTOR(6802)
D559 nsp RB521S-30TE61 +REF
D560-563 nsp ESD PROTECTOR(6802)
D564 nsp RB521S-30TE61 +REF
D569,570 nsp RB521S-30TE61 +REF
D705-717 nsp ESD PROTECTOR(6802)
D953 nsp KDS160-RTK/P
ZD701 nsp UDZS5.1B-TE17 +C
RESISTORS GROUP
R803,804 nsp RM73B--151FT_1608
R805,806 nsp RM73B--121FT +1608
R807-814 nsp RM73B--151FT_1608
R834,835 nsp RM73B--182FT_1608
R851-855 nsp RM73B--271FT_1608
CAPACITORS GROUP
C101 nsp CK73B1A104KT +1005
C102,103 nsp CC73CH1H6R0DT +1005
C104 nsp CK73B1E104KT +1608
C105 nsp CK73B1E223KT +1608
C106 nsp CK73B1H102KT +1005
C107 nsp CC73CH1H101JT +1005
C108 nsp CK73B0J475KT(P) +1608
C110 nsp CK73B1H102KT +1005
C111,112 nsp CK73B0J475KT(P) +1608
C113 nsp CK73B1A104KT +1005
C114 nsp CC73CH1H101JT +1005
C115 nsp CK73B1H102KT +1005
C116 nsp CC73CH1H101JT +1005
C117 nsp CK73B0J475KT(P) +1608
C118 nsp CE67C1C100MT(RV2)
C119 nsp CK73B1H102KT +1005
C120 nsp CK73B1E104KT +1608
C121 nsp CK73B0J475KT(P) +1608
C122 nsp CF73=1C562JT(ECHUX)
C123 nsp CK73B1E104KT +1608
C124 nsp CE67W1C470MT(P.CAP)
C125 nsp CK73B1H391KT +1005
C126 nsp CK73B1A104KT +1005
C127 nsp CE67W1H100MT(P.CAP) +REF
C128 nsp CK73B1A104KT +1005
C129,130 nsp CK73B0J475KT(P) +1608
C131-142 nsp RM73B--0R0KT+1005
C143,144 nsp CC73CH1H102JT +1608
C145,146 nsp CC73CH1H271JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
132
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C147,148 nsp CC73CH1H391JT +1608
C149,150 nsp CC73CH1H331JT +1608
C151,152 nsp CC73CH1H391JT +1608
C153,154 nsp CC73CH1H121JT +1608
C155,156 nsp CC73CH1H390JT +1608
C157,158 nsp CC73CH1H471JT +1608
C159,160 nsp CC73CH1H271JT +1608
C161,162 nsp CC73CH1H471JT +1608
C163,164 nsp CK73B1A104KT +1005
C165 nsp CK73B0J475KT(P) +1608
C166 nsp CK73B1H103KT (1608) +1608
C167,168 nsp CC73CH1H101JT +1608
C169 nsp CE67C1H010MT (RV2B55 +REF
C170 nsp CC73CH1H101JT +1608
C174,175 nsp CK73B0J475KT(P) +1608
C180 nsp CK73B1E104KT +1608
C191-198 nsp CK73B1H102KT +1608
C203 nsp CK73B1E104KT +1608
C206 nsp CK73B0J475KT(P) +1608
C209 nsp CK73B0J475KT(P) +1608
C212,213 nsp CK73B0J475KT(P) +1608
C214-216 nsp CC73CH1H101JT +1005
C218-222 nsp CK73B1A104KT +1005
C224 nsp CK73B1A104KT +1005
C227 nsp CK73B1A104KT +1005
C230,231 nsp CK73B1A104KT +1005
C232,233 nsp CK73B0J475KT(P) +1608
C234 nsp CK73B1A104KT +1005
C236,237 nsp CK73B1A104KT +1005
C238,239 nsp CC73CH1H7R0DT +1005
C241 nsp CE67C0J101MT (RV2) +REF
C702 nsp CK73B1A104KT +1005
C704 nsp CK73B0J475KT(P) +1608
C706,707 nsp CK73B1H102KT +1005
C708-710 nsp CK73B1A104KT +1005
C711-717 nsp CK73B1H102KT +1005
C718-723 nsp CK73B1A104KT +1005
C724,725 nsp CK73B1H102KT +1005
C726 nsp CK73B1A104KT +1005
C727-730 nsp CK73B1H102KT +1005
C731-734 nsp CK73B1A104KT +1005
C735-738 nsp CK73B0J475KT(P) +1608
C746 nsp CK73B1E104KT +1608
C803 nsp CK73B1H102KT +1005
C805 nsp CK73B0J475KT(P) +1608
C807 nsp CK73B1H102KT +1005
C808-811 nsp CK73B1A104KT +1005
C812-817 nsp CK73B0J475KT(P) +1608
C819-821 nsp CK73B0J475KT(P) +1608
C822,823 nsp CK73B1A104KT +1005
C825,826 nsp CK73B1E103KT(1005)
C827 nsp CK73B1E104KT +1608
C828 nsp CK73B1A104KT +1005
C829 nsp CK73B1E104KT +1608
C830 nsp CK73B1A104KT +1005
C831,832 nsp CK73B1E104KT +1608
C833 nsp CF73=1C823JT(ECHUX)
C834,835 nsp CK73B1E104KT +1608
C836 nsp CK73B1H102KT +1608
C837 nsp CK73B1E103KT(1005)
C838 nsp CF73=1C103JT(ECHUX)
C839 nsp CK73B1A104KT +1005
C840,841 nsp CC73CH1H120JT +1005
C842 nsp CK73B1A104KT +1005
C844-848 nsp CK73B1A104KT +1005
C849,850 nsp CK73B0J475KT(P) +1608
Ref. No. Part No. Part Name Remarks Q'ty New
133
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C853 nsp CK73B1H102KT +1005
C856 nsp CK73B1A104KT +1005
C857 nsp CK73B1E103KT(1005)
C858,859 nsp CC73CH1H101JT +1005
C860-864 nsp CK73B1A104KT +1005
C865,866 nsp CK73B0J475KT(P) +1608
C867-871 nsp CK73B1A104KT +1005
C874 nsp CK73B1H102KT +1005
C876 nsp CK73B0J475KT(P) +1608
C901 nsp CK73B1E103KT(1005)
C904 nsp CK73B0J475KT(P) +1608
C907 nsp CK73B0J475KT(P) +1608
C908 nsp CK73B1A104KT +1005
C909 nsp CK73B1E103KT(1005)
C911 nsp CK73B1E103KT(1005)
C912,913 nsp CK73B1A104KT +1005
C914 nsp CK73B1E103KT(1005)
C915-919 nsp CK73B1A104KT +1005
C922 nsp CK73B0J475KT(P) +1608
C923-929 nsp CK73B1A104KT +1005
C930,931 nsp CC73CH1H180JT +1005
C932-937 nsp CK73B1A104KT +1005
C939-944 nsp CK73B1A104KT +1005
C945 nsp CK73B1E103KT(1005)
C946-948 nsp CK73B1A104KT +1005
C950 nsp CK73B0J475KT(P) +1608
C951 nsp CE67C1C101MT (RV2) +REF
CC101,102 nsp CE67C1C100MT(RV2)
CC103-108 nsp CE67C1H010MT(RV2)
CC109,110 nsp CE67C1C100MT(RV2)
CC111 nsp CK73B1A104KT +1005
CC127,128 nsp CE67C1C100MT(RV2)
CC501-503 nsp CK73B1A104KT +1005
CC505 nsp CK73B1A104KT +1005
CC506 nsp CK73B1H102KT +1005
CC507-517 nsp CK73B1A104KT +1005
CC518 nsp CK73B1H102KT +1005
CC519 nsp CK73B1A104KT +1005
CC521-528 nsp CK73B1A104KT +1005
CC529,530 nsp CC73CH1H150JT +1005
CC531-534 nsp CK73B1A104KT +1005
CC535 nsp CK73B1H102KT +1005
CC536 nsp CK73B1A104KT +1005
CC538 nsp CK73B1H102KT +1005
CC539-544 nsp CK73B1A104KT +1005
CC545 nsp CK73B1H102KT +1005
CC546 nsp CK73B1A104KT +1005
CC548 nsp CK73B0J475KT(P) +1608
CC550,551 nsp CK73B1A104KT +1005
CC554-557 nsp CK73B0J475KT(P) +1608
CC560,561 nsp CK73B0J475KT(P) +1608
CC563 nsp CK73B0J475KT(P) +1608
CC564-567 nsp CE67C1C100MT(RV2)
CC604-606 nsp CK73B0J475KT(P) +1608
CC607-609 nsp CK73B1A104KT +1005
CC610-612 nsp CK73B1H102KT +1005
CC951 nsp CK73B1E103KT(1005)
CC952 nsp CK73B1H102KT +1005
CC953 nsp CK73B0J475KT(P) +1608
CC954 nsp CC73CH1H101JT +1005
CC955,956 nsp CC73CH1H100DT +1005
CC957 nsp CK73B0J475KT(P) +1608
CC962,963 nsp CK73B1A104KT +1005
CC965 nsp CK73B0J475KT(P) +1608
CC967 nsp CK73B1A104KT +1005
Ref. No. Part No. Part Name Remarks Q'ty New
134
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
CC970,971 nsp CK73B1A104KT +1005
CC972 nsp CK73B1H102KT +1005
CC976 nsp CK73B1H331KT +1005
CC977 nsp CK73B1H221KT +1005
CC978 nsp CK73B1E104KT +1608
OTHERS PARTS GROUP
CW035 nsp 3P SDN-VH CON.CORD
CX041 nsp 4P KR CON BASE(L)
CX072 nsp 7P SOCKET(9120)
CX076 nsp 6P CONN.BASE(KR-PH)
CX111 nsp 11P SOCKET(9120)
CX119 nsp 12P SOCKET(9120)
CX163 nsp 16P SOCKT(9120)
CX172 nsp 17P SOCKT(9120)
CY154 nsp 15P CON.SOCKET TUC-P
CY171 nsp 17P SOCKT(9120)
CY504 nsp 13P FFC CON.BASE
FB551 nsp CHIP EMIFIL(11A121) +1608
FB552 nsp CHIP BEADS(18PG121) +1608
FB553,554 nsp CHIP EMIFIL(11A121) +1608
FB701-704 nsp CHIP EMIFIL(11A121) +1608
FB951 nsp ZBFS5105-PT
JK503 00D 205 1447 005 19P-HDMI-CONNECTOR
JK551 00D 205 1447 005 19P-HDMI-CONNECTOR
JK701 00D 205 1447 005 19P-HDMI-CONNECTOR
W301 nsp M3 SCREW TERMINAL
X101 nsp FCX-03(24.576MHz)
X201 nsp FCX-03(16.660MHz)
X551 nsp FCX-03(28.322MHZ)
X801 nsp FCX-03(28.6363MHz)
X901 nsp XTAL(13.5MHZ) +REF
X951 nsp FCX-03(12MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
135
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3853D A.VIDEO/VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 262 3756 904 LA73053-TLM-E
IC102,103 00D 262 3445 901 TC4051BFT
IC104 00D 262 3446 900 TC4052BFT
IC106,107 00D 262 3445 901 TC4051BFT
IC108 00D 262 3446 900 TC4052BFT
IC109,110 00D 262 3445 901 TC4051BFT
IC111-115 00D 263 1082 903 TK15420MTL +C
IC301 00D 263 1197 908 BU4094BCFV-E2
IC303 00D 262 3447 909 TC4053BFT
IC304 00D 263 1197 908 BU4094BCFV-E2
IC305 00D 262 3755 905 LA73062V-TLM-E
IC306 00D 262 2827 902 MM74HC4053SJ +C
IC307 00D 262 3749 908 LC74782M
IC308-310 00D 263 1082 903 TK15420MTL +C
IC501 00D 262 3551 002 NJW1321FP1
IC502 00D 263 1287 902 PQ090DNA1ZPH
IC503,504 00D 263 1225 906 NJM2581M-TE1
IC601-604 00D 263 1289 900 AZ4580MTR-E1
IC605 00D 263 0896 909 NJM2068MD-TE1 +C
IC606-611 00D 263 1289 900 AZ4580MTR-E1
IC612 00D 263 1291 008 R2A15215
TR101,102 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104,105 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR107,108 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR301 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR302 00D 271 0312 905 KTA1504S-GR-RTK/P
TR303,304 00D 273 0464 901 KTC3875S-GR-RTK/P
TR501 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR502 00D 269 0144 905 DTC114YKA-T146 +C
TR503 00D 271 0312 905 KTA1504S-GR-RTK/P
TR606 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR607,608 00D 273 0460 905 KTC2875-B-RTK/P
TR615 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR621 00D 273 0460 905 KTC2875-B-RTK/P
TR629 00D 273 0460 905 KTC2875-B-RTK/P
D101,102 00D 276 0794 900 KDS160-RTK/P
D104,105 00D 276 0794 900 KDS160-RTK/P
D301,302 00D 276 0794 900 KDS160-RTK/P
D508,509 00D 276 0794 900 KDS160-RTK/P
RESISTORS GROUP
R103,104 00D 247 2019 928 RM73B--750FT
R107-112 00D 247 2019 928 RM73B--750FT
R121 00D 247 2019 928 RM73B--750FT
R123-125 00D 247 2019 928 RM73B--750FT
R147-152 00D 247 2045 918 RM73B--151FT_1608
R302-304 00D 247 2019 928 RM73B--750FT
R332-334 00D 247 2019 928 RM73B--750FT
R501-509 00D 247 2019 928 RM73B--750FT
R519-524 00D 247 2045 918 RM73B--151FT_1608
R555 00D 247 2045 921 RM73B--161FT_1608
R556 00D 247 2045 918 RM73B--151FT_1608
R557 00D 247 2045 921 RM73B--161FT_1608
R558 00D 247 2045 918 RM73B--151FT_1608
R559 00D 247 2045 921 RM73B--161FT_1608
R560 00D 247 2045 918 RM73B--151FT_1608
R563 00D 247 2045 921 RM73B--161FT_1608
R564 00D 247 2045 918 RM73B--151FT_1608
R567 00D 247 2045 921 RM73B--161FT_1608
R568 00D 247 2045 918 RM73B--151FT_1608
136
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
R571 00D 247 2045 921 RM73B--161FT_1608
R572 00D 247 2045 918 RM73B--151FT_1608
RR117-119 00D 247 2019 957 RM73B--681FT +1608
RR123-125 00D 247 2025 909 RM73B--821FT
RR131 00D 247 2045 992 RM73B--273FT_1608
RR133 00D 247 2045 992 RM73B--273FT_1608
CAPACITORS GROUP
C101-109 nsp CK73B1H103KT (1608) +1608
C114,115 00D 254 4717 925 CE04W1A101MT(GR)
C116 nsp CK73B1H103KT (1608) +1608
C117-120 00D 254 4718 924 CE04W1C330MT(GR)
C123-128 nsp CK73B1H103KT (1608) +1608
C131-140 nsp CK73B1H103KT (1608) +1608
C141-146 00D 254 4717 925 CE04W1A101MT(GR)
C154-159 nsp CK73B1H103KT (1608) +1608
C162,163 00D 254 4522 932 CE04W1V330MT SMG/RE3
C166,167 nsp CK73B1E473KT +1608
C169,170 nsp CK73B1E104KT +1608
C172,173 nsp CK73B1E473KT +1608
C176 nsp CK73B1A105KT +1608
C178 nsp CK73B1A105KT +1608
C181,182 nsp CK73B1E473KT +1608
C301,302 nsp CK73B1E104KT +1608
C303 00D 254 4718 924 CE04W1C330MT(GR)
C304 nsp CK73B1H103KT (1608) +1608
C311-313 00D 254 4717 925 CE04W1A101MT(GR)
C314 00D 254 4718 924 CE04W1C330MT(GR)
C315-320 nsp CK73B1H103KT (1608) +1608
C321 00D 254 4718 924 CE04W1C330MT(GR)
C322 00D 254 4716 926 CE04W0J331MT(GR)
C323 00D 254 4716 942 CE04W0J102MT(GR)
C324 00D 254 4716 926 CE04W0J331MT(GR)
C325 00D 254 4718 937 CE04W1C470MT(GR)
C326 nsp CK73B1E104KT +1608
C327,328 00D 254 4717 925 CE04W1A101MT(GR)
C329-331 nsp CK73B1H103KT (1608) +1608
C332 nsp CK73B1E104KT +1608
C333 00D 254 4536 928 CE04W1A101MT SMG/RE3
C334-338 nsp CK73B1E104KT +1608
C339,340 00D 254 4718 924 CE04W1C330MT(GR)
C341,342 nsp CK73B1H103KT (1608) +1608
C345,346 00D 254 4722 981 CE04W1H100MT(GR)
C347,348 nsp CK73B1H103KT (1608) +1608
C349 00D 254 4717 925 CE04W1A101MT(GR)
C350 00D 254 4718 924 CE04W1C330MT(GR)
C351 nsp CK73B1E104KT +1608
C352 00D 254 4722 981 CE04W1H100MT(GR)
C353 nsp CK73B1H103KT (1608) +1608
C354,355 nsp CC73CH1H6R0DT +1608
C356 00D 257 0504 911 CC73CH1H240JT
C357 nsp CK73B1H122KT +1608
C358 00D 257 0504 911 CC73CH1H240JT
C359 00D 254 4524 943 CE04W1H010MT SMG/RE3
C360 nsp CK73B1E104KT +1608
C361 00D 254 4718 924 CE04W1C330MT(GR)
C501 00D 254 4722 981 CE04W1H100MT(GR)
C503 00D 254 4722 981 CE04W1H100MT(GR)
C505 00D 254 4722 981 CE04W1H100MT(GR)
C507 00D 254 4722 981 CE04W1H100MT(GR)
C509 00D 254 4722 981 CE04W1H100MT(GR)
C511 00D 254 4722 981 CE04W1H100MT(GR)
C516-518 00D 254 4722 981 CE04W1H100MT(GR)
C519,520 00D 254 4718 940 CE04W1C101MT(GR)
Ref. No. Part No. Part Name Remarks Q'ty New
137
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C521-526 nsp CK73B1E104KT +1608
C528 nsp CK73B1E104KT +1608
C529 00D 254 4722 981 CE04W1H100MT(GR)
C530 nsp CK73B1E104KT +1608
C532 00D 254 4722 981 CE04W1H100MT(GR)
C533 00D 254 4718 924 CE04W1C330MT(GR)
C535 00D 254 4722 981 CE04W1H100MT(GR)
C536,537 nsp CK73B1A105KT +1608
C538 nsp CK73B1E104KT +1608
C539 00D 254 4722 949 CE04W1H010MT(GR)
C540-545 00D 254 4536 928 CE04W1A101MT SMG/RE3
C552 nsp CK73B1H103KT (1608) +1608
C553 00D 254 4522 932 CE04W1V330MT SMG/RE3
C554 nsp CK73B1H103KT (1608) +1608
C555 00D 254 4522 932 CE04W1V330MT SMG/RE3
C556-559 nsp CK73B1H103KT (1608) +1608
C560 nsp CK73B1E473KT +1608
C561 nsp CK73B1A105KT +1608
C563 nsp CK73B1E473KT +1608
C565 nsp CC73CH1H221JT +1608
C566 nsp CK73B1H103KT (1608) +1608
C567 00D 254 4522 932 CE04W1V330MT SMG/RE3
C568 nsp CK73B1H103KT (1608) +1608
C569 00D 254 4522 932 CE04W1V330MT SMG/RE3
C570-574 nsp CK73B1H103KT (1608) +1608
C575 nsp CK73B1E473KT +1608
C601-606 nsp CK73B1H103KT (1608) +1608
C607-612 nsp RM73B--0R0KT +1608
C613,614 nsp CK73B1H103KT (1608) +1608
C615 00D 254 4722 949 CE04W1H010MT(GR)
C620-639 nsp CC73CH1H331JT +1608
C640-643 nsp CC73CH1H101JT +1608
C646,647 nsp CC73CH1H221JT +1608
C648-657 00D 254 4722 981 CE04W1H100MT(GR)
C658,659 00D 254 4802 911 CE04W1J100MT(RA3)
C660,661 00D 254 4524 985 CE04W1H100MT SMG/RE3
C662,663 00D 254 4802 911 CE04W1J100MT(RA3)
C664-673 00D 254 4722 981 CE04W1H100MT(GR)
C674,675 00D 254 4577 958 CE04W1C221MT(RA3)
C684,685 nsp CC73CH1H101JT +1608
C701,702 00D 255 1265 978 CQ93M1H223JT(B)
C703,704 00D 255 1265 907 CQ93M1H682JT(B)
C705-712 00D 254 4524 985 CE04W1H100MT SMG/RE3
C713,714 00D 254 4802 911 CE04W1J100MT(RA3)
C715,716 00D 254 4524 985 CE04W1H100MT SMG/RE3
C717,718 00D 254 4802 911 CE04W1J100MT(RA3)
C719-726 00D 254 4524 985 CE04W1H100MT SMG/RE3
C727-730 00D 254 4722 981 CE04W1H100MT(GR)
C732,733 00D 254 4524 998 CE04W1H220MT SMG/RE3
C734-736 00D 254 4538 942 CE04W1C101MT SMG/RE3
C737,738 00D 254 4524 998 CE04W1H220MT SMG/RE3
C739-741 00D 254 4538 942 CE04W1C101MT SMG/RE3
C742,743 00D 254 4802 908 CE04W1J101MT(RA3)
C750 00D 254 4802 908 CE04W1J101MT(RA3)
C751,752 00D 254 4524 998 CE04W1H220MT SMG/RE3
C753 00D 254 4802 908 CE04W1J101MT(RA3)
C754 00D 254 4723 922 CE04W1H101MT(GR)
C757 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C763 00D 254 4524 998 CE04W1H220MT SMG/RE3
C771 00D 254 4524 998 CE04W1H220MT SMG/RE3
C780 nsp CC73CH1H331JT +1608
C811,812 00D 254 4722 981 CE04W1H100MT(GR)
CC101,102 nsp CK73B1E104KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
138
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
OTHERS PARTS GROUP
CX073 nsp 7P SOCKET(9120)
CX077 nsp 7P CON.SOCKET(TUC-P
CX079 nsp 7P CON PLUG TWG-P
CX112,113 nsp 11P SOCKET(9120)
CX135 nsp 13P CON PLUG TWG-P
CX151 nsp 15P CONN.BASE(KR-PH)
CX155 nsp 15P SOCKET(9120)
CX156 nsp 4P/6P/5P-15P SAN CORD
CX711 nsp 7P CON PLUG TWG-P
CY106 nsp 10P CON.SOCKET TUC-P
CY127 nsp 12P CON.SOCKET TUC-P
CY151 nsp 15P SOCKET(9120)
CY153 nsp 15P SOCKET(9120)
CY155 nsp 15P CON.SOCKET TUC-P
CY711 nsp 7P CON BASE TWG-P
FB101,102 nsp RM73B--0R0KT +2125
FB301 00D 235 0049 900 BEADS INDUCTOR TAPE
JK103 00D 204 8745 011 6P S&PIN JACK(NI)
JK104,105 00D 204 8750 006 4P S&PIN JACK(NI)
JK601 00D 204 8753 016 4P PIN JACK(MSP-244V4)-NI-SW/B
JK602-606 00D 204 8753 003 4P PIN JACK(MSP-244V4)-NI-W/R
JK610 00D 204 8642 004 1P PIN JACK BK
JK612 00D 204 8752 004 2P PIN JACK(MSP-242V3)-NI-W/R
L301 00D 235 0150 941 LQH32MN330J23L
W501 nsp M3 SCREW TERMINAL
W601 nsp M3 SCREW TERMINAL
X301 00D 399 0739 019 X'TAL(14.32M-RIBER)
Ref. No. Part No. Part Name Remarks Q'ty New
139
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3855D FRONT P.W.B. UNIT ASS'Y (AVR-2308CI E3 model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
!IC102 00D 268 0073 905 ICP-N15T
IC103 00D 499 0318 002 GP1UM271XKVF
IC201,202 00D 269 0231 009 GP1FAV31RK0F
IC204 00D 269 0230 000 GP1FAV31TK0F
IC206 00D 262 1205 907 TC74HCU04AF(TP1) +C
IC208 00D 262 3561 908 TC74VHC14F
IC601 00D 262 3676 903 TC74VHCT08AF(E,K,F)
IC701 00D 269 0231 009 GP1FAV31RK0F
IC702 00D 263 0615 902 BA15218F-DXE2 +C
TR101 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR102,103 00D 271 0312 905 KTA1504S-GR-RTK/P
TR104 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR105 00D 273 0494 900 KTC2022D-Y-RTF/P
TR106-108 00D 274 0212 907 2SD1782KT146
TR109 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR110 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
D101 00D 276 0704 903 1SR35-400A(T93X)
D103 00D 276 0794 900 KDS160-RTK/P
D105 00D 276 0794 900 KDS160-RTK/P
D107 00D 276 0794 900 KDS160-RTK/P
D203-205 00D 276 0738 908 KDS226-RTK/P (A-K)
D601,602 00D 276 0794 900 KDS160-RTK/P
D603 00D 276 0833 900 ESD PROTECTOR(6802)
D605 00D 276 0837 906 NSAD500F-T1B-A
ZD103 00D 276 0760 976 MTZJ6.8B T77
ZD104 00D 276 0761 975 MTZJ18B T77
ZD105 00D 276 0762 903 MTZJ24B T77
ZD701-703 00D 276 0683 930 UDZS5.1B-TE17 +C
LD101 00D 393 9671 002 SMLU12416W-S
FL101 00D 393 8097 001 FLD(HCA-19MM02T)
RESISTORS GROUP
R163,164 00D 244 2043 937 RS14B3A100JNBST(S)
CAPACITORS GROUP
C101 nsp CK73B1E104KT +1608
C103-107 nsp CK73B1E104KT +1608
C108 00D 254 4524 985 CE04W1H100MT SMG/RE3
C109,110 00D 255 1279 951 CQ93M1H104JT(B)
C111,112 00D 254 4812 707 CE04W1H471MC(SRG/K15)
C113 nsp CK73B1E104KT +1608
C114 00D 254 4527 940 CE04W2A010MT SMG/RE3
C115,116 nsp CK73B1E104KT +1608
C117 00D 254 4802 908 CE04W1J101MT(RA3)
C120-122 nsp CC73CH1H101JT +1608
C123 nsp CK73B1H103KT (1608) +1608
C124 00D 256 1042 903 CF93A2E104KT
C125 nsp CK73B1H102KT +1608
C126 nsp CK73B1E104KT +1608
C127 00D 254 4538 942 CE04W1C101MT SMG/RE3
C128 nsp CK73B1E104KT +1608
C131-133 nsp CK73B1E104KT +1608
C134 00D 254 4196 986 CE04W1H100MT (SRA)
C135 nsp CK73B1H103KT (1608) +1608
C137,138 nsp CK73B1E104KT +1608
C142,143 nsp CK73B1E104KT +1608
140
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C146 nsp CC73CH1H300JT +1608
C204 nsp CK73B1E104KT +1608
C206 nsp CK73B1E104KT +1608
C208 nsp CK73B1E104KT +1608
C210-212 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C213,214 nsp CK73B1H103KT (1608) +1608
C216-218 nsp CK73B1E104KT +1608
C605 nsp CK73B1E104KT +1608
C608 nsp CK73B1E104KT +1608
C621 00D 254 4524 985 CE04W1H100MT SMG/RE3
C622 nsp CK73B1H102KT +1608
C704 00D 254 4305 968 CE04W1H010MT(SRE)
C707 nsp CK73B1A105KT +1608
C708 nsp CC73CH1H101JT +1608
C709,710 nsp CC73CH1H221JT +1608
C713 nsp CK73B1E104KT +1608
C716 nsp CC73CH1H151JT +1608
C717 00D 254 4305 968 CE04W1H010MT(SRE)
C724 00D 254 4305 968 CE04W1H010MT(SRE)
C725,726 00D 254 4196 944 CE04W1H010MT (SRA)
C727 nsp CC73CH1H101JT +1608
C728,729 00D 255 1264 908 CQ93M1H102JT(B)
C731 nsp CK73B1E104KT +1608
C732 nsp CC73CH1H151JT +1608
C734 00D 254 4305 968 CE04W1H010MT(SRE)
C735 nsp CK73B1E104KT +1608
C737 00D 254 4305 968 CE04W1H010MT(SRE)
C738,739 00D 255 1279 951 CQ93M1H104JT(B)
OTHERS PARTS GROUP
AS101,102 00D 461 0862 045 FL SPACER (T=5)
CW021 nsp 2P VA-3P SDN CON.CORD
CX062 nsp 6P CONN BASE
CX124 nsp 12P CON.SOCKET TUC-P
CX125 nsp 12P CON.BASE TUC-P
CX131 00D 205 0668 063 13P FFC CON.BASE
CX251 00D 205 1316 000 25P FFC BASE(9610S)Y
CX271 00D 205 1329 000 27P FFC BASE(9610SB)
CY072,073 nsp 7P PIN HEADER(9120)
CY111-113 nsp 11P PIN HEADER(9120)
CY122 nsp 12P PIN HEADER(9120)
CY132 nsp 13P CON.SOCKET(TUC-P
CY155 nsp 15P PIN HEADER(9120)
CY163 nsp 16P PIN HEADER(9120)
FB101,102 nsp RM73B--0R0KT +2125
JK201 00D 204 8755 001 3P PIN JACK(MSD-253V)-NI-O3
JK601 00D 204 8758 008 MINI JACK(MSJ-035-10A)-SW
JK701 00D 204 8260 004 MINI JACK
JK702 00D 204 8757 009 1P PIN S-JACK(MDC-074V)-AU
JK703 00D 204 8217 031 H/P JACK (BK(AU))
JK707 00D 204 8754 002 3P PIN JACK(MSP-253V)-AU-B3
S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)
!S103 00D 212 1030 009 POWER SWITCH (TV-5)
S104-111 00D 212 5611 903 TACT SWITCH(TAPE H5)
S113,114 00D 212 5611 903 TACT SWITCH(TAPE H5)
S116,117 00D 212 5611 903 TACT SWITCH(TAPE H5)
S119,120 00D 212 5611 903 TACT SWITCH(TAPE H5)
S122 00D 212 5611 903 TACT SWITCH(TAPE H5)
S124 00D 212 5611 903 TACT SWITCH(TAPE H5)
Ref. No. Part No. Part Name Remarks Q'ty New
141
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
S126 00D 212 0512 007 ROTARY ENCODER
S127 00D 212 5611 903 TACT SWITCH(TAPE H5)
S128,129 00D 212 0373 000 ROT.ENCODER-EC16B
ST001,002 nsp STYLE PIN
W601 nsp M3 SCREW TERMINAL
C147 00D 255 1279 919 CQ93M1H473JT(B)
CZ093 nsp 9P DA-DA CON.CORD
nsp RUBBER SHEET C147
Ref. No. Part No. Part Name Remarks Q'ty New
142
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3841H POWER REG. P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 125 9006 090 UL TUBE
IC701 00D 279 0034 067 PTH9M04BB222TS2F333
IC801 00D 263 1100 034 KIA7815API-U/P
IC803 00D 263 1100 034 KIA7815API-U/P
TR101-114 00D 271 0301 903 KTA1268-BL-AT/P
TR115-121 00D 273 0471 907 KTC3206-Y-AT/P
TR401-408 00D 273 0460 905 KTC2875-B-RTK/P
TR413-420 00D 273 0460 905 KTC2875-B-RTK/P
TR701 00D 271 0301 903 KTA1268-BL-AT/P
TR704 00D 274 0160 907 2SD2144STPU
TR707 00D 271 0301 903 KTA1268-BL-AT/P
TR710 00D 273 0458 904 KTC3200-BL-AT/P
TR712,713 00D 271 0301 903 KTA1268-BL-AT/P
TR717 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR719 00D 271 0301 903 KTA1268-BL-AT/P
TR729 00D 274 0160 907 2SD2144STPU
TR735,736 00D 271 0301 903 KTA1268-BL-AT/P
TR801 00D 274 0198 005 KTD998-O-U/P
TR802 00D 272 0158 007 KTB778-O-U/P
TR803 00D 273 0468 907 KTC3199-GR-AT/P
TR804 00D 271 0311 906 KTA1267-GR-AT/P
TR805 00D 272 0158 007 KTB778-O-U/P
TR806 00D 274 0198 005 KTD998-O-U/P
TR807 00D 273 0469 906 KTC3209-Y-AT/P
TR808 00D 271 0313 904 KTA1281-Y-AT/P
TR809 00D 273 0468 907 KTC3199-GR-AT/P
TR810,811 00D 271 0311 906 KTA1267-GR-AT/P
TR812 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
D101-114 00D 276 0401 905 1SS133T77 (TAPE)
D701 00D 276 0401 905 1SS133T77 (TAPE)
D706 00D 276 0401 905 1SS133T77 (TAPE)
D709 00D 276 0460 904 HZS5C-1TD
D806 00D 276 0855 001 D3SB20-7103
D807,808 00D 276 0704 903 1SR35-400A(T93X)
ZD806,807 00D 276 0464 900 HZS7A-1TD
ZD808,809 00D 276 0468 906 HZS9B-1TD
RESISTORS GROUP
R129-135 00D 241 2380 905 RD14B2E122JNBST
R143-149 00D 241 2376 964 RD14B2E470JNBST
R714 00D 241 2383 902 RD14B2E223JNBST
R742 00D 241 2383 902 RD14B2E223JNBST
R748 00D 244 2055 996 RS14B3A122JNBST(S)
R750,751 00D 244 2055 996 RS14B3A122JNBST(S)
R813,814 00D 244 2050 988 RS14B3A202JNBST(S)
CAPACITORS GROUP
C101 00D 254 4802 911 CE04W1J100MT(RA3)
C102-108 00D 254 4802 924 CE04W1J470MT(RA3)
C109-115 00D 255 1273 944 CQ93M1H221KT(B)
C116-122 00D 255 1264 940 CQ93M1H222JT(B)
C123-129 00D 255 1273 944 CQ93M1H221KT(B)
C130-136 00D 254 4802 908 CE04W1J101MT(RA3)
C137-143 nsp CC73CH2A330JT +1608
C401-408 00D 254 4586 936 CE04W2A4R7MT(RA3)
C409-416 00D 254 4802 911 CE04W1J100MT(RA3)
C701 nsp CK73B1H103KT (1608) +1608
C702 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
143
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C703 00D 254 4524 956 CE04W1H2R2MT SMG/RE3
C705 nsp CK73B1H103KT (1608) +1608
C709 nsp CK73B1H103KT (1608) +1608
C711 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C716 00D 254 4722 981 CE04W1H100MT(GR)
C801-803 00D 254 4722 994 CE04W1H220MT(GR)
C805,806 00D 254 4569 937 CE04W1E221MT(RA3)
C807,808 00D 254 4524 985 CE04W1H100MT SMG/RE3
C809,810 00D 254 4802 911 CE04W1J100MT(RA3)
C811 00D 254 4722 994 CE04W1H220MT(GR)
C812 00D 254 4768 709 CE04W1C103MC(SMQ)
C813 00D 254 4761 735 CE04W1C472MC(SMQ)
C814,815 00D 254 4522 796 CE04W1V102MC SMG/RE3
C816-818 00D 255 1279 951 CQ93M1H104JT(B)
C819 00D 254 4722 949 CE04W1H010MT(GR)
OTHERS PARTS GROUP
CX031 nsp 3P EH CON BASE (BU)
CX044 nsp 4P CON.BASE(TUC-P)
CX075 nsp 7P CON.SOCKET(TUC-P
CX077 nsp 7P CON.SOCKET(TUC-P
CX092 nsp 9P CON.BASE TUC-P
CX104 nsp 10P CON.SOCKET TUC-P
CX105 nsp 10P CON.BASE TUC-P
CX117 nsp 11P CON.SOCKET TUC-P
CX151 nsp 15P PIN HEADER(9120)
CX153 nsp 15P PIN HEADER(9120)
CX171 nsp 17P PIN HEADER(9120)
CX711 nsp 7P CON.BASE(TUC-P)
CY054-059 nsp 5P CON.SOCKET TUC-P
CY077,078 nsp 7P CON.BASE(TUC-P)
CY079 nsp 7P CON BASE TWG-P
CY091,092 nsp 9P CON.SOCKET TUC-P
CY104 nsp 10P CON.BASE TUC-P
CY105 nsp 10P CON.SOCKET TUC-P
CY135 nsp 13P CON BASE TWG-P
CY172 nsp 17P PIN HEADER(9120)
CY510 nsp 5P CON.SOCKET TUC-P
CY711 nsp 7P CON.SOCKET(TUC-P
!F801,802 00D 206 1035 041 FUSE 2.0A (T)
FF801,802 nsp FUSE CLIP(TAPE)
FH801,802 nsp FUSE CLIP(TAPE)
ST101-103 nsp STYLE PIN
W101,102 nsp M3 SCREW TERMINAL
W103 nsp M3 SCREW TERMINAL
W801 nsp M3 SCREW TERMINAL
nsp FUSE LABEL
Ref. No. Part No. Part Name Remarks Q'ty New
144
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3854H POWER AMP P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC701 00D 263 1100 063 KIA7809API-U/P
IC702,703 00D 263 1100 021 KIA7812API-U/P
IC704,705 00D 263 1099 022 KIA7912PI-U/P
IC706 00D 263 1293 006 KIA7818API-U/P
IC707 00D 263 1100 034 KIA7815API-U/P
TR401 00D 271 0301 903 KTA1268-BL-AT/P
TR402-408 00D 273 0495 006 2SC3964
TR423-429 00D 273 0458 904 KTC3200-BL-AT/P
TR702 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR703 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR705 00D 273 0458 904 KTC3200-BL-AT/P
TR706 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR708 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR709 00D 271 0312 905 KTA1504S-GR-RTK/P
TR714 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR715 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR716 00D 273 0464 901 KTC3875S-GR-RTK/P
TR718 00D 273 0464 901 KTC3875S-GR-RTK/P
TR720 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR721 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR722 00D 271 0312 905 KTA1504S-GR-RTK/P
TR723 00D 273 0464 901 KTC3875S-GR-RTK/P
TR724 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR726 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR732 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR733 00D 269 0184 907 KRA102S-RTK/P (10K-10K)
TR737 00D 273 0464 901 KTC3875S-GR-RTK/P
TR738 00D 271 0312 905 KTA1504S-GR-RTK/P
TR739 00D 273 0464 901 KTC3875S-GR-RTK/P
D401-421 00D 276 0401 905 1SS133T77 (TAPE)
D702-705 00D 276 0401 905 1SS133T77 (TAPE)
D707,708 00D 276 0401 905 1SS133T77 (TAPE)
D710-713 00D 276 0401 905 1SS133T77 (TAPE)
D714,715 00D 276 0338 007 S4VB20F
D717 00D 276 0855 001 D3SB20-7103
ZD401-414 00D 276 0458 916 HZS5A-2TD
RESISTORS GROUP
R422 00D 244 2051 961 RS14B3A101JNBST(S)
R423 00D 241 2387 940 RD14B2E4R7JNBST
R424-437 00D 244 2052 957 RS14B3A562JNBST(S)
R438-451 00D 241 2375 981 RD14B2E220JNBST
R452-479 00D 244 2671 956 RS14B3DR47JNBST(S)
R706,707 00D 243 2039 032 RW99=3H0R1K
R752-765 00D 244 2671 901 RS14B3D100JNBST(S)
R768-771 00D 244 2052 960 RS14B3A221JNBST(S)
VR401-407 00D 211 6159 908 V06PB102T(3318F-1-102A)
CAPACITORS GROUP
C401 00D 254 4804 906 CE04W2A101MT(RA3)
C402-408 00D 254 4802 908 CE04W1J101MT(RA3)
C409-415 00D 254 4802 924 CE04W1J470MT(RA3)
C416-429 00D 254 4586 949 CE04W2A100MT(RA3)
C704 00D 254 4524 985 CE04W1H100MT SMG/RE3
C706 nsp CK73B1H103KT (1608) +1608
C707 00D 254 4538 939 CE04W1C470MT SMG/RE3
C708 nsp CK73B1E104KT +1608
145
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C710 00D 254 4533 947 CE04W0J331MT SMG/RE3
C714 nsp CK73B1E104KT +1608
C715 00D 254 4533 947 CE04W0J331MT SMG/RE3
C716-722 00D 254 4722 981 CE04W1H100MT(GR)
C723-729 00D 255 1279 951 CQ93M1H104JT(B)
C730 00D 256 1042 903 CF93A2E104KT
C731,732 00D 254 6277 007 CE68W1E822M(DL)
C733-741 00D 255 1264 908 CQ93M1H102JT(B)
C742-750 00D 255 1264 982 CQ93M1H472JT(B)
C754,755 00D 255 1279 951 CQ93M1H104JT(B)
C756 00D 256 1042 903 CF93A2E104KT
C757 00D 254 4722 949 CE04W1H010MT(GR)
C758,759 00D 254 6276 008 CE68W==123M(DL)
C760,761 00D 256 1042 903 CF93A2E104KT
C762 00D 254 4722 949 CE04W1H010MT(GR)
OTHERS PARTS GROUP
CX032 nsp 3P EH CONNECTOR BASE
CX034 nsp 3P NH CONNECTOR BASE
CX054-059 nsp 5P CON.BASE TUC-P
CX063 nsp 6P NH CONNECTOR BASE
CX074 nsp 7P CON.BASE(TUC-P)
CX082 nsp 8P NH CONNECTOR BASE
CX091 nsp 9P CON.BASE TUC-P
CX115 nsp 11P CON.BASE(KR-PH)
CX409-415 nsp 3P BL-SCN CON.CORD
CX510 nsp 5P CON.BASE TUC-P
CX515 nsp 5P VH CONNECTOR BASE
CY041 nsp 4P PH-SAN CON.CORD
CY074 nsp 7P CON.SOCKET(TUC-P
CY075 nsp 7P CON.BASE(TUC-P)
!F701,702 00D 206 1035 070 FUSE 4.0A (T)
FF701,702 nsp FUSE CLIP(TAPE)
FH701,702 nsp FUSE CLIP(TAPE)
JK402 00D 205 1450 021 8P SP TERMINAL(MST-108V1-01)
JK403 00D 205 1450 018 4P SP TERMINAL(MST-104V1-01)
JK404 00D 205 1450 005 6P SP TERMINAL(MST-106V1-01)
L701-707 00D 235 0191 007 INDUCTOR(1MH)
RL401-405 00D 214 0213 001 RELAY(FTR-F4)
RL406 00D 214 0208 003 RELAY(NA24W-K)
ST102 nsp STYLE PIN
W101 nsp M3 SCREW TERMINAL
nsp FUSE LABEL
Ref. No. Part No. Part Name Remarks Q'ty New
146
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3857H MAIN CPU P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC105 00D GEN 8610 MAIN CPU SUB ASSY M30879FLBFP
IC106,107 00D 262 2375 904 IC, TC4094BF(TP1) +C
IC109 00D 263 1289 900 AZ4580MTR-E1
IC112 00D 263 1289 900 AZ4580MTR-E1
IC501 00D 263 1242 918 NJM2831F06
IC502 00D 263 1035 002 PQ30RV11
!IC503 00D 268 0073 905 ICP-N15T
IC504 00D 263 1280 006 SI-8008HFE
IC505,506 00D 263 1288 901 PQ050DNA1ZPH
TR105-107 00D 273 0464 901 KTC3875S-GR-RTK/P
TR108 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR109 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR110 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
TR111 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR112 00D 271 0326 904 2SA1954(B)-TE85L
TR115 00D 271 0326 904 2SA1954(B)-TE85L
TR116 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR501 00D 273 0464 901 KTC3875S-GR-RTK/P
TR507,508 00D 273 0464 901 KTC3875S-GR-RTK/P
TR509 00D 269 0192 902 KRC102S-RTK/P (10K-10K)
TR512,513 00D 273 0468 907 KTC3199-GR-AT/P
D103,104 00D 276 0794 900 KDS160-RTK/P
D106,107 00D 276 0704 903 1SR35-400A(T93X)
D108 00D 276 0740 909 KDS184-RTK/P (K-COM)
D301-303 00D 276 0704 903 1SR35-400A(T93X)
D501 00D 276 0704 903 1SR35-400A(T93X)
D503-506 00D 276 0704 903 1SR35-400A(T93X)
D508 00D 276 0723 900 RB721Q-40
D510 00D 276 0850 705 RSX1001T3
D511 00D 276 0401 905 1SS133T77 (TAPE)
D512-521 00D 276 0704 903 1SR35-400A(T93X)
D522,523 00D 276 0855 001 D3SB20-7103
D526,527 00D 276 0401 905 1SS133T77 (TAPE)
ZD101 00D 276 0459 915 HZS5B-2TD
ZD501 00D 276 0464 900 HZS7A-1TD
ZD506 00D 276 0477 900 HZS16-1 TD(TAPE)
RESISTORS GROUP
R155,156 00D 241 2387 908 RD14B2E010JNBST
R512 00D 247 0046 948 RM73B--182DT
R514 00D 247 0047 992 RM73B--752DT
R515 00D 247 0045 965 RM73B--821DT
R516 00D 247 0044 982 RM73B--391DT
R517 00D 247 0047 921 RM73B--392DT
R529 00D 244 2671 930 RS14B3D200JNBST(S)
CAPACITORS GROUP
C107 nsp CK73B1E104KT +1608
C120 nsp CK73B1E104KT +1608
C121 00D 254 4524 972 CE04W1H4R7MT SMG/RE3
C122 nsp CK73B1H103KT (1608) +1608
C123,124 nsp CC73CH1H100DT +1608
C125 nsp CK73B1H103KT (1608) +1608
C126 nsp CK73B1H102KT +1608
C127 00D 254 4666 005 CE04W0H105ZC(FG)
C128-131 nsp CK73B1E104KT +1608
C132 00D 254 4536 928 CE04W1A101MT SMG/RE3
C133 00D 254 4716 913 CE04W0J221MT(GR)
147
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
C134 nsp CK73B1H102KT +1608
C137 nsp CK73B1E104KT +1608
C139 nsp CK73B1E104KT +1608
C140,141 00D 254 4524 985 CE04W1H100MT SMG/RE3
C145,146 00D 254 4722 981 CE04W1H100MT(GR)
C154 nsp CK73B1E104KT +1608
C232 00D 254 4586 978 CE04W2A010MT(RA3)
C233 nsp CK73B1H102KT +1608
C236,237 nsp CC73CH1H331JT +1608
C242,243 00D 254 4524 985 CE04W1H100MT SMG/RE3
C244,245 nsp CK73B1H103KT (1608) +1608
C251,252 00D 254 4524 985 CE04W1H100MT SMG/RE3
C501 00D 254 4722 981 CE04W1H100MT(GR)
C502 00D 254 4524 985 CE04W1H100MT SMG/RE3
C503 00D 254 4651 913 CE04W0J102MT H15(KY)
C505 nsp CK73B0J475KT +1608
C506 00D 254 4651 913 CE04W0J102MT H15(KY)
C508 00D 254 4722 949 CE04W1H010MT(GR)
C509 00D 254 4803 703 CE04W1E472MC(SMQL25S
C510 00D 254 4524 943 CE04W1H010MT SMG/RE3
C511 00D 254 4760 749 CE04W1E102MC(SMQ)
C512 00D 254 4760 707 CE04W1E103MC(SMQ)
C514 00D 254 4708 701 CE04W1V471MC J20(KY)
C515 00D 254 4428 706 CE04W1V222MC (SMG)
C516-523 00D 255 1279 951 CQ93M1H104JT(B)
C524 00D 253 8022 707 CK45F2EAC103MC
C525 00D 254 4722 949 CE04W1H010MT(GR)
C527 00D 253 8022 707 CK45F2EAC103MC
C543 nsp CK73B0J475KT +1608
C544 nsp CK73B1E104KT +1608
C548 nsp CK73B0J475KT +1608
C549 nsp CK73B1E104KT +1608
C554 nsp CK73B0J475KT +1608
C557,558 00D 254 4586 978 CE04W2A010MT(RA3)
OTHERS PARTS GROUP
CW037 nsp 11P 8P/3P PH-SAN CORD
CW051 nsp 5P PH-SAN CON.CORD
CW063 nsp 6P PH-SAN CON.CORD
CW083 nsp 11P 8P/3P PH-SAN CORD
CX001-003 nsp JL CONNECTOR(BT-E)
CX021 nsp 2P VH CON BASE (Red)
CX022 nsp 2P VH CON BASE (Blue)
CX023 nsp 2P VH CONNECTOR BASE
CX042 nsp 4P CON.BASE(TUC-P)
CX051 nsp 5P CONN.BASE(KR-PH)
CX106 nsp 10P CON.BASE TUC-P
CX126,127 nsp 12P CON.BASE TUC-P
CX132 nsp 13P CON.BASE(TUC-P)
CX154,155 nsp 15P CON.BASE TUC-P
CX512 nsp 5P EH CONNECTOR BASE
CX901 nsp 10P CON.BASE(KR-PH)
CY001-003 nsp JL CONNECTOR(F-E)
CY035 nsp 3P VH CON.BASE
CY042 nsp 4P CON.SOCKET(TUC-P)
CY117 nsp 11P CON.BASE TUC-P
CY124 nsp 12P CON.BASE TUC-P
CY125,126 nsp 12P CON.SOCKET TUC-P
CY251 00D 205 1316 000 25P FFC BASE(9610S)Y
CY271 00D 205 1329 000 27P FFC BASE(9610SB)
!F001 00D 206 1086 016 FUSE 10A (UL/CSA/J)
!F008 00D 206 1052 008 FUSE 8A
Ref. No. Part No. Part Name Remarks Q'ty New
148
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
!F501-504 00D 206 1035 009 FUSE 3.15A (T)
FF501-505 nsp FUSE CLIP(TAPE)
FF507 nsp FUSE HOLDER(DPS1)
FH501-505 nsp FUSE CLIP(TAPE)
FH507 nsp FUSE HOLDER(DPS1)
JK111 00D 204 8760 009 2P PIN JACK(MSP-252V3)-NI-RW
!JK501 00D 203 3976 002 AC OUTLET(2P)
L501 00D 232 0200 009 COIL(C3B-A0542)
RL601 00D 214 0221 006 RELAY TV-8
RL602 00D 214 0241 002 RELAY DL1SU TV-8
!T601 00D 233 0703 004 MINI TRANS(3806JP)
!T602 00D 233 0736 000 STANDBY TRANS
W201 nsp M3 SCREW TERMINAL
W501-504 nsp M3 SCREW TERMINAL
W508 nsp 1P SIN CON CORD
X101 00D 399 0594 005 X'TAL(30MHZ)
nsp FUSE LABEL
nsp FUSE LABEL
nsp FUSE LABEL
nsp FUSE LABEL(T10A)
00D 255 1273 986 CQ93M1H471JT(B)
nsp RUBBER SHEET
Ref. No. Part No. Part Name Remarks Q'ty New
149
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308AVC-2308 JP model
1U-3875A D TERMINAL UNIT(AVC2308) P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC401,402 00D 262 2643 908 TC4052BF(TAPE)
TR401 00D 269 0191 903 KRA104S-RTK/P (47K-47K)
TR402 00D 269 0193 901 KRC104S-RTK/P (47K-47K)
CAPACITORS GROUP
C401-409 nsp CC73CH1H101JT +1608
C410 00D 254 4536 928 CE04W1A101MT SMG/RE3
C412 nsp CK73B1H103KT (1608) +1608
C415 nsp CK73B1H103KT (1608) +1608
C416-418 nsp CC73CH1H101JT +1608
OTHERS PARTS GROUP
CW023 nsp 7P/6P/2P-15P PH CORD
CW064 nsp 7P/6P/2P-15P PH CORD
CW712 nsp 7P/6P/2P-15P PH CORD
CY045 nsp 4P ZR CON. BASE
CY066 nsp 6P ZR CON BASE
CY513 nsp 5P CONN.BASE(KR-PH)
JK970-973 00D 204 8718 006 D CONNECTOR
W401 nsp M3 SCREW TERMINAL
150
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
EXPLODED VIEWS (1/2) (AVR-2308CI,AVR-2308 and AVC-2308 FRONT PANEL EXPLODED VIEW)
5-11 211
61
60
6-6
212
34
205
1
2-1
2-2
4-10 4-8
3-6
7-11
3-7
7-12
35
6-4
2-3
6-3
37
38
39
36
205
212
50
4-6
4-1
5-10
211
202
211
4-9
4-7
5-1
6-2
8
3-5
7-10
201
205
217
51
211
82
204
83
81
213
202
202
3-10
7-14
205
49
49-2
49-1 202
205
211
202
45
205
43
63
52
53
212
205
205
201 205
46
6-1
210
44
205
201
205
205
205
3-4
7-9
85
84
203
42
202
205
202
40
48
207
3-2
25
28
30
202
29
3-8
23
22
22
207
207
207
207
208
202
3-3
24
21
3-1
207
207
18
19
207
205
17
12
20
207
11
X3
X3
X3
X3
X5
87
This illustration is AVR-2308CIE3 model.
This illustration is
AVR-2308CIE3 model.
AVR-888 model.
Cut INNER PANEL
AVR-2308CI model.
AVC-2308 model.
AVC-2308 model.
AVR-2308 model.
AVR-888 model.
AVC-2308 model.
AVR-888 model.
AVC-2308 model.
AVR-888/AVR-2808 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-2308CI/AVR-2808
and AVR-888 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-2308CI/AVR-2808
and AVC-2308 model.
AVR-888 model.
AVR-2308CI and AVR-888 model.
AVR-888 model.
AVR-888 model.
Note :
The exploded view of this front panel ass'y is AVR-2308CI,AVR-2308 and AVC-2308 model.
Please refer to another detailed drawing for the exploded view of AVR-888.
AVR-2308E2/E2A model only.
AVR-2308E2/E2A model only.
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
151
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
EXPLODED VIEWS (2/2) (AVR-888 FRONT PANEL EXPLODED VIEW)
12
20
18
19
207
207
207
207
202
216
215
208
208
214
207
214
207
208
7-1
22 X4
7-3
7-13
7-2
90
7-8
29
28
21
25 17
205
7-7
202
26
7-5
30
11
7-4
7-6
26
AVR-888 E3 Model : FRONT PANEL EXPLODED VIEW
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
 印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
152
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
PARTS LIST OF EXPLODED VIEW
＊ 本表に "nsp" と記載されている部品は供給できません。
＊Parts for which "nsp" is indicated on this table cannot be supplied.
＊ 本表に "nsp" と記載されている基板 ASS'Y は供給できません。基板 ASS'Y の修理の際には基板部品表を確認のうえ、交換部品を発注してください。
＊P.W.B. ASS'Y for which "nsp" is indicated on this table cannot be supplied. When repairing the P.W.B. ASS'Y, check the board parts table and order replacement
parts.
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
2308CIE3 : U.S.A. & Canada model 888E3 : U.S.A. & Canada model
2308BKE2 : Europe model(Black) 2308SRE2 : Europe model(Silver)
2308E2A : Asia model(Premium Silver) 2308JP : Japan model(Premium Silver)
Ref. No. Part No. Part Name Remarks Q'ty New
1 00D 1U- 3852 DIGITAL UNIT ASSY 1U-3852 :2308CIE3,888E3 1 *
1 00D 1U- 3852 A DIGITAL UNIT ASSY 1U-3852A
:2308BKE2,2308SRE2,2308E2A 1*
1 00D 1U- 3852 D DIGITAL UNIT ASSY 1U-3852D :2308JP 1 *
2 nsp A.AUDIO/VIDEO UNIT ASSY 1U-3853 :2308CIE3,888E3 *
2 nsp A.AUDIO/VIDEO UNIT ASSY 1U-3853A
:2308BKE2,2308SRE2,2308E2A *
2 nsp A.AUDIO/VIDEO UNIT ASSY 1U-3853D :2308JP *
2-1 A.VIDEO UNIT 1
2-2 AUDIO UNIT 1
2-3 PHONO UNIT 1
3 nsp FRONT UNIT ASSY
1U-3855
:2308CIE3,888E3,2308BKE2,
2308SRE2,2308E2A
*
3 nsp FRONT UNIT ASSY 1U-3855D :2308JP *
3-1 FLD UNIT 1
3-2 FUNC UNIT 1
3-3 FRONT IN UNIT 1
3-4 REMOTE/IPOD UNIT 1
3-5 DIGITAL I/O UNIT 1
3-6 V/D JOINT UNIT 1
3-7 UCON CONNECT UNIT 1
3-8 P.SW UNIT 1
3-10 FFC LOCK UNIT 1
4 nsp POWER REG. UNIT ASSY 1U-3841 :2308CIE3,888E3 *
4 nsp POWER REG. UNIT ASSY 1U-3841G
:2308BKE2,2308SRE2,2308E2A *
4 nsp POWER REG. UNIT ASSY 1U-3841H :2308JP *
4-1 REG UNIT 1
4-6 PRE AMP UNIT 1
4-7 AUDIO CONNECT UNIT 1
4-8 AUDIO LIMIT UNIT 1
4-9 LIMIT CONNECT UNIT 1
4-10 V-POWER JUNCTION UNIT 1
5 nsp POWER AMP UNIT ASSY 1U-3854 :2308CIE3,888E3 *
5 nsp POWER AMP UNIT ASSY 1U-3854G
:2308BKE2,2308SRE2,2308E2A *
5 nsp POWER AMP UNIT ASSY 1U-3854H :2308JP *
5-1 P.AMP UNIT 1
5-10 REG CONNECT UNIT 1
5-11 P.AMP HOLDER UNIT 1
153
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
6 nsp MAIN CPU UNIT ASSY 1U-3857 :2308CIE3,888E3 *
6 nsp MAIN CPU UNIT ASSY 1U-3857G
:2308BKE2,2308SRE2,2308E2A *
6 nsp MAIN CPU UNIT ASSY 1U-3857H :2308JP *
6-1 MAIN CPU UNIT 1
6-2 POWER UNIT 1
6-3 PRIM/CPU SUPPLY UNIT 1
6-4 UCON JUNCTION UNIT 1
7 nsp FRONT UNIT ASSY 1U-3843 : 888E3 *
7-1 FLD UNIT 1
7-2 FUNC UNIT 1
7-3 H/P UNIT 1
7-4 S.IN UNIT 1
7-5 AUX IN UNIT 1
7-6 OPT IN UNIT 1
7-7 MIC UNIT 1
7-8 JUNCTION UNIT 1
7-9 REMOTE/IPOD UNIT 1
7-10 DIGITAL I/O UNIT 1
7-11 V/D JOINT UNIT 1
7-12 UCON CONNECT UNIT 1
7-13 P.SW UNIT 1
7-14 FFC LOCK UNIT 1
8 nsp D-TERMINAL UNIT 1U-3875A :2308JP 1 *
11 00D 144 3032 003 FRONT PANEL 2308CIE3 1 *
11 00D 144 3033 002 FRONT PANEL 888E3 1 *
11 00D 144 3032 032 FRONT PANEL 2308BKE2 1 *
11 00D 144 3032 016 FRONT PANEL 2308SRE2 1 *
11 00D 144 3032 029 FRONT PANEL 2308E2A 1 *
11 00D 144 3032 045 FRONT PANEL 2308JP 1 *
12 nsp DENON BADGE 2308CIE3,888E3,2308BKE2 1
12 nsp DENON BADGE 2308SRE2 1
12 nsp DENON BADGE 2308E2A,2308JP 1
17 00D 146 2356 207 RCA COVER 2308CIE3,888E3,2308BKE2 1 *
17 00D 146 2356 210 RCA COVER 2308SRE2 1 *
17 00D 146 2356 236 RCA COVER 2308E2A,2308JP 1 *
18 00D 112 1009 002 KNOB(S) ASSY 2308CIE3,2308BKE2 1
18 00D 112 1009 015 KNOB(S) ASSY 2308SRE2 1 *
18 00D 112 1009 028 KNOB(S) ASSY 2308E2A,2308JP 1 *
18 00D 112 1019 005 KNOB(S) ASSY 888E3 1 *
19 00D 112 1005 006 KNOB(M) ASSY 2308CIE3,2308BKE2 1
19 00D 112 1005 019 KNOB(M) ASSY 2308SRE2 1
19 00D 112 1005 022 KNOB(M) ASSY 2308E2A,2308JP 1
19 00D 112 1013 001 KNOB(M) ASSY 888E3 1 *
20 00D 112 1007 004 KNOB(F) ASSY 2308CIE3,2308BKE2 1
20 00D 112 1007 017 KNOB(F) ASSY 2308SRE2 1
20 00D 112 1007 020 KNOB(F) ASSY 2308E2A,2308JP 1
20 00D 112 1016 008 KNOB(F) ASSY 888E3 1 *
21 00D 146 2511 136 INNER PANEL 2308CIE3,2308BKE2 1
21 00D 146 2511 110 INNER PANEL 2308SRE2 1 *
21 00D 146 2511 123 INNER PANEL 2308E2A 1 *
21 00D 146 2511 149 INNER PANEL 2308JP 1 *
21 00D 146 2516 021 INNER PANEL 888E3 1 *
Ref. No. Part No. Part Name Remarks Q'ty New
154
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
22 00D 113 2102 008 TACT KNOB (3P) 2308CIE3,2308BKE2 2
22 00D 113 2102 011 TACT KNOB (3P) 2308SRE2 2 *
22 00D 113 2102 024 TACT KNOB (3P) 2308E2A,2308JP 2 *
22 00D 113 2116 007 TACT KNOB (3P) 888E3 4 *
23 00D 113 2103 007 TACT KNOB (6P) 2308CIE3,2308BKE2 1
23 00D 113 2103 010 TACT KNOB (6P) 2308SRE2 1 *
23 00D 113 2103 023 TACT KNOB (6P) 2308E2A 1 *
24 nsp V.AUX PLATE Cut INN.PANEL:Except for 888E3 1
25 00D 143 1296 107 WINDOW 2308CIE3 1 *
25 00D 143 1296 110 WINDOW 2308BKE2,2308SRE2,2308E2A 1 *
25 00D 143 1296 123 WINDOW 2308JP 1 *
25 00D 143 1299 007 WINDOW 888E3 1 *
26 nsp SIDE BRACKET 888E3 2 *
28 nsp LENS (POWER) Except for 888E3 1
28 nsp LENS (POWER) 888E3 1 *
29 00D 113 1992 109 P.KNOB ASSY(SUB) 2308CIE3,2308BKE2 1
29 00D 113 1992 112 P.KNOB ASSY(SUB) 2308SRE2 1
29 00D 113 1992 138 P.KNOB ASSY(SUB) 2308E2A,2308JP 1
29 00D 113 2117 006 P.KNOB ASSY(SUB) 888E3 1 *
30 00D 113 1994 107 P.KNOB ASSY(MAIN) 2308CIE3,2308BKE2 1
30 00D 113 1994 110 P.KNOB ASSY(MAIN) 2308SRE2 1
30 00D 113 1994 149 P.KNOB ASSY(MAIN) 2308E2A,2308JP 1
30 00D 113 2120 006 P.KNOB ASSY(MAIN) 888E3 1 *
34 00D GEN 8688 TOP COVER SUB ASSY 2308CIE3,888E3,2308BKE2
00D1020704000 1
34 00D GEN 8688-1 TOP COVER SUB ASSY 2308SRE2,2308E2A,2308JP
00D1020704013 1
35 nsp MAIN CHASSIS Except for 888E3 1 *
35 nsp MAIN CHASSIS 888E3 1
36 nsp BRACKET Except for 888E3 2
36 nsp BRACKET 888E3 1
37 nsp FOOT 4
38 nsp RUBBER PAD 4
39 nsp SUPPORT BRACKET 1
40 nsp SCREW COVER (BOTTOM) 1
! 42 00D 233 6616 001 POWER TRANS (E3) 2308CIE3,888E3 1 *
! 42 00D 233 6585 006 POWER TRANS (E2) 2308BKE2,2308SRE2,2308E2A 1 *
! 42 00D 233 0729 004 POWER TRANS (JP) 2308JP 1 *
43 00D 105 1694 105 BACK PANEL 2308CIE3 1 *
43 00D 105 1694 118 BACK PANEL 888E3 1 *
43 00D 105 1694 121 BACK PANEL 2308BKE2,2308SRE2,2308E2A 1 *
43 00D 105 1694 134 BACK PANEL 2308JP 1 *
44 00D 216 0124 002 AM FM TUNER(E3) 2308CIE3,888E3 1
44 00D 216 0125 001 AM FM TUNER(E2) 2308BKE2,2308SRE2,2308E2A 1
45 00D 205 1116 006 TERMINAL ASS 1
46 nsp SCREW COVER 1
48 nsp RADIATOR 1
49 00D 278 0020 007 2SB1647/2SD2560(P/Y)-LF 7
49-1 - 2SB1647
49-2 - 2SD2560
50 nsp RADIATOR BRACKET (L) 1
51 nsp RADIATOR BRACKET (R) 1
52 00D 445 0056 008 CORD BUSH 2308BKE2,2308SRE2,2308E2A,
888E3 1
! 53 00D 206 2089 106 AC CORD E2 2308BKE2,2308SRE2,2308E2A 1
! 53 00D 206 2245 005 AC CORD E3 888E3 1
Ref. No. Part No. Part Name Remarks Q'ty New
155
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
★ 57 nsp FUSE CAUTION LABEL 2308CIE3,888E3
:MAIN CHASSIS side 1
★ 58 nsp LICENSE SUB ASSY MAIN CHASSIS bottom 1
★ 59 nsp SERIAL NO. SHEET BACK PANEL 1
60 00D 414 1058 001 SAFETY COVER 2308BKE2,2308SRE2,2308E2A 1
61 00D 449 0139 105 COVER HOLDER 2308BKE2,2308SRE2,2308E2A 6
★ 62 00D 415 0845 001 SP RIVET 2308BKE2,2308SRE2,2308E2A
:SP TERMINAL 18
! 63 00D 203 3983 008 AC INLET 2308JP 1
★ 64 00D 513 3214 108 NOTICE SHEET 2308JP 1
81 nsp CARD SPACER (L=8) MPS-08-0 2
82 nsp CARD SPACER(L=10) MPS-10-0 4
83 nsp LOCKING CARD SPACER KGLS-14RT:Fix CPU POWER UNIT 1
84 nsp P.W.B.HOLDER (H=10) KGLS-10RT:Fix MAIN CPU UNIT 1
85 nsp CARD SPACER (H=10) KGPS-10RF:Fix MAIN CPU UNIT 1
★ 86 nsp WIRE CLAMPER 8
87 nsp RUBBER SHEET 60X25XT2 2
★ 91 nsp CHUKOH TAPE 13X30X0.13 : TOP COVER
★ 88 nsp RUBBER SHEET 35X25XT2 1
★ 89 nsp CORD HOLDER (L76) 1
90 nsp PWB HOLDER (WLS-10) 888E3 4
Screws
201 00D 477 0064 107 FIXING SCREW 2308BKE2,2308SRE2,2308E2A 32
201 00D 477 0064 107 FIXING SCREW 2308JP 29
201 00D 477 0064 107 FIXING SCREW 2308CIE3,888E3 31
202 nsp 3X8 CBTS (S)-Z 2308BKE2,2308SRE2,2308E2A,
2308JP 23
202 nsp 3X8 CBTS (S)-Z 2308CIE3 24
202 nsp 3X8 CBTS (S)-Z 888E3 20
203 nsp 4X8 TP SCREW 4
204 nsp 3X5 CBTS(S)Z 1
205 nsp 3X6 CBTS(S)-B 2308CIE3,2308BKE2,2308SRE2,
2308E2A 32
205 nsp 3X6 CBTS(S)-B 2308JP 31
205 nsp 3X6 CBTS(S)-B 888E3 33
207 nsp 3X8 CBTS (P)-Z 2308BKE2,2308SRE2,2308E2A,
2308JP 28
207 nsp 3X8 CBTS (P)-Z 2308CIE3 29
207 nsp 3X8 CBTS (P)-Z 888E3 25
208 nsp SPECIAL SCREW Except for 888E3 1
208 nsp SPECIAL SCREW 888E3 4
210 nsp 3X8 CUP SCREW 1
211 nsp 3X10 CBTS(B)-Z 19
212 0RD 473 8064 000 4X8 CBTS(B)-B-3P 888E3,2308BKE2 8
212 0RD 473 8064 013 4X8 CBTS(B)-N-3P 2308SRE2,2308E2A,2308JP 8
212 0RD 473 8064 000 4X8 CBTS(B)-B-3P 2308CIE3 10
213 nsp 3X16 CPTS(B) SW W 14
214 nsp 3X14 CBTS(B)Z 888E3 3
215 nsp 3X8 CFTS(P)-Z 888E3 2
216 nsp 3X10 CBTS(P)-Z 888E3 3
217 nsp 3X8 CFTS(S)-B 2308JP 2
Ref. No. Part No. Part Name Remarks Q'ty New
156
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
Wires
★ 501 00D 009 0295 032 25P FFC(1.0) CX251(DISP-MAINuCON) 1
★ 501 00D 009 0295 032 25P FFC(1.0) CX251(DISP-MAINuCON) 1
★ 502 00D 009 0295 045 27P FFC(1.0) CX271(FRONTIN-MAINu-
CON):Except for 888E3 1
★ 502 00D 009 0295 061 27P FFC(1.0) CX271(FRONTIN-MAINu-
CON):888E3 1
★ 503 00D 009 0296 002 15P FFC(1.25) TUNER-MAINuCON
:Except for 2308JP 1
★ 504 nsp 1P SIN CON CORD W-508 1
★ 505 nsp 2P VA-3P SDN CON.CORD CW021 1
★ 506 nsp 3P SDN-VH CON.CORD CX035 1
★ 507 nsp 3P BL-SCN CON.CORD CX409 1
★ 508 nsp 3P BL-SCN CON.CORD CX410 1
★ 509 nsp 3P BL-SCN CON.CORD CX411 1
★ 510 nsp 3P BL-SCN CON.CORD CX412 1
★ 511 nsp 3P BL-SCN CON.CORD CX413 1
★ 512 nsp 3P BL-SCN CON.CORD CX414 1
★ 513 nsp 3P BL-SCN CON.CORD CX415 1
★ 514 nsp 4P PH-SAN CON.CORD CY041 1
★ 515 nsp 6P PH-SAN CON.CORD CW063 1
★ 516 nsp 9P DA-DA CON.CORD CZ093 1
★ 517 nsp 11P 8P/3P PH-SAN CORD CW037CW083 1
★ 518 00D 009 0222 050 13P FFC(1.25) DIGITAL-DIGITAL I/O 1
★ 519 nsp 1P SIN-SIN WIRE W-102W-103:Except for 888E3 1
★ 519 nsp 3P PH-SAN CON.CORD CW036:888E3 1
★ 520 nsp 2P VA CORD CX022:2308JP 1
★ 520 nsp 4P PH-SAN CON.CORD CW046:888E3 1
★ 521 nsp 4P/6P/5P-15P SAN CORD CX156:2308JP 1
★ 521 nsp 4P PH-SAN CON.CORD CW047:888E3 1
★ 522 nsp 7P/6P/2P-15P PH CORD CW023CW064CW712:2308JP 1
★ 522 nsp 5P PH-SAN CON.CORD CW514:888E3 1
★ 523 nsp 5P PH-SAN CON.CORD CW051:2308JP 1
★ 523 nsp 5P PH-SAN CORD(SHIEL CW513:888E3 1
Ref. No. Part No. Part Name Remarks Q'ty New
157
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
＊ 本表に "nsp" と記載されている部品は供給できません。
＊ Parts for which "nsp" is indicated on this table cannot be supplied.
＊ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
2308CIE3: U.S.A. & Canada model(Black) 888E3 : U.S.A. & Canada model(Black)
2308BKE2 : Europe model(Black) 2308SRE2 : Europe model(Silver)
2308E2A : Asia model(Premium Silver) 2308JP : Japan model(Premium Silver)
Ref. No. Part No. Part Name Remarks Q'ty New
301 nsp CABINET SHEET 1
302 00D 503 1544 019 CUSHION ASSY Except for 888E3. 1
302 00D 503 1561 005 CUSHION ASSY 888E3 1
303 nsp ENVELOPE 1
304 00D 511 4669 002 INST. MANUAL (E3) 2308CIE3 1 *
304 00D 511 4670 004 INST. MANUAL (888) 888E3 1 *
304 00D 511 4734 005 INST.MANUAL(E2) 1 2308BKE2,2308SRE2 1 *
304 00D 511 4735 004 INST.MANUAL(E2) 2 2308BKE2,2308SRE2 1 *
304 00D 511 4701 009 INST.MANUAL(E2A) 2308E2A 1 *
304 00D 511 4708 002 INST.MANUAL(JP) 2308JP 1 *
306 00D 231 0089 007 AM LOOP ANTENNA Except for 2308JP. 1
307 00D 395 0029 002 FM ANT ASS Y(F/ETRO) Except for 2308JP. 1
308 nsp XM SHEET 2308CIE3,888E3 1
309 nsp S.S.LIST(EX) Except for 2308JP. 1
309 nsp SERVICE STATION LIST 2308JP 1
310 nsp WARRANTY (HOME) 2308CIE3,888E3 1
311 nsp BATTERY(R03X2) 2308CIE3:ZONE 1
313 nsp BATTERY(SUM-3)ASS 1
314 00D 399 1111 005 RC-1081 2308BKE2,2308SRE2,2308E2A 1 *
314 00D 399 1112 004 RC-1082 2308JP 1 *
302
302
301
322
321
323
324
321
323
313303
318 319
320
317
316
314
Except for A
VC-2308 JP model
Except for AVC-2308 JP model
AVC-2308 JP model
AVR-2308CI E3 model
AVR-2308CI E3 and AVC--2308 JP model
AVR-2308SRE2 and
AVR--2308SPE2A model
AVR-2308SRE2 and
AVR--2308SPE2A model
158
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
314 00D 399 1110 006 RC-1080 2308CIE3,888E3:MAIN 1 *
316 00D 399 1119 007 RC-1084 2308CIE3:ZONE 1 *
317 00D 321 0040 006 DM-A405EM 1
! 318 00D 206 2219 002 AC CORD SET (E3) 2308CIE3 1
! 310 00D 206 2251 002 AC CORD WITH CONN. 2308JP 1
319 nsp POLY COVER 2308CIE3,888E3,2308JP 1
320 00D 501 2376 002 CARTON CASE 2308CIE3 1 *
320 00D 501 2376 015 CARTON CASE 888E3 1 *
320 00D 501 2376 028 CARTON CASE 2308BKE2,2308SRE2,2308E2A 1 *
320 00D 501 2376 031 CARTON CASE 2308JP 1 *
321 nsp CONT.CARD(L)SUB ASSY Except for 2308JP. 1
322 nsp BAR CODE LABEL ASSY 1
323 00D 513 9111 056 COLOR LABEL 2808SRE2 2
323 00D 513 9111 030 COLOR LABEL 2808E2A 2
324 nsp GUARANTEE CARD (S) 2308JP 1
Ref. No. Part No. Part Name Remarks Q'ty New
159
AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufactur-
er.
CAUTION:
Before returning the unit to the customer, make sure you make
either (1) a leakage current check or (2) a line to chassis resis-
tance check. If the leakage current exceeds 0.5 milliamps, or if
the resistance from chassis to either side of the power cord is
less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is lo-
cated and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
配線図について
! 印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。
注）
(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。
(2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。
(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変更する
ことがありますのでご了承ください。
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (1/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (1/29)
1U-3852 DIGITAL UNIT (1/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (2/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (2/29)
1U-3852 DIGITAL UNIT (2/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (3/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (3/29)
1U-3852 DIGITAL UNIT (3/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (4/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (4/29)
1U-3852 DIGITAL UNIT (4/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (5/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (5/29)
1U-3852 DIGITAL UNIT (5/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (6/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (6/29)
1U-3852 DIGITAL UNIT (6/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (7/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (7/29)
1U-3852 DIGITAL UNIT (7/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (8/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (8/29)
1U-3852 DIGITAL UNIT (8/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (9/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (9/29)
1U-3852 DIGITAL UNIT (9/9)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (10/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (10/29)
1U-3853 A.AUDIO/VIDEO UNIT (1/5)
1U-3853-1 A.VIDEO UNIT (1/3)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (11/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (11/29)
1U-3853-1 A.AUDIO/VIDEO UNIT (2/5)
1U-3853-1 A.VIDEO UNIT (2/3)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (12/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (12/29)
1U-3853-1 A.AUDIO/VIDEO UNIT (3/5)
1U-3853-1 A.VIDEO UNIT (3/3)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (13/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (13/29)
1U-3858 A.AUDIO/VIDEO UNIT (4/5)
1U-3858-2 AUDIO UNIT (1/1)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (14/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (14/29)
1U-3853 A.AUDIO/VIDEO UNIT(5/5)
1U-3853-3 PHONO UNIT
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (15/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (15/29)
1U-3855-1 FLD UNIT
1U-3855 FRONT UNIT (1/3)
1U-3855-2 FUNCTION UNIT
1U-3855-8 P.SW UNIT
AVR-2308CI/AVR-2308/AVC-2308 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (16/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (16/29)
1U-3855-3 FRONT IN UNIT
1U-3855 FRONT UNIT(2/3)
1U-3855-4 REMOTE/IPOD UNIT
1U-3855-10 FFC LOCK UNIT
AVR-2308CI/AVR-2308/AVC-2308 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (17/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (17/29)
1U-3855-5 DIGITAL I/O UNIT
1U-3855 FRONT UNIT(3/3)
1U-3855-6 V/D JOINT UNIT
1U-3855-7 uCON CONNECT UNIT
1U-3855-9 D-Terminal UNIT
AVR-2308CI/AVR-2308/AVC-2308 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (18/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (18/29)
1U-3843-1 FLD UNIT
1U-3843 FRONT UNIT(1/3)
1U-3843-2 FUNCTION UNIT
1U-3843-13 P.SW UNIT
AVR-888 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (19/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (19/29)
1U-3843-3 H/P UNIT
1U-3843 FRONT UNIT(2/3)
1U-3843-4 S IN UNIT
1U-3843-5 AUX IN UNIT
1U-3843-6 OPT IN UNIT
1U-3843-7 MIC UNIT
1U-3843-8 JUNCTION UNIT
1U-3843-9 REMOTE/IPOD UNIT
1U-3843-14 FFC LOCK UNIT
AVR-888 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (20/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (20/29)
1U-3843-10 DIGITAL I/O UNIT
1U-3843 FRONT UNIT(3/3)
1U-3843-11 V/D JOINT UNIT
1U-3843-12 uCON CONNECT UNIT
AVR-888 model
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (21/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (21/29)
1U-3841-1 REG. UNIT
1U-3841 POWER REG. UNIT(1/3)
1U-3841-9 LIMIT CONNECT UNIT
1U-3841-10 V. POWER JUNCTION UNIT
1U-3841-11 VPJ. F UNIT
1U-3841-12 VPJ. R UNIT
F801 F802
USA
CANADA 2.0A/125V 2.0A/125V
EUROPE T2AL 250V T2AL 250V
JAPAN T2A T2A
3
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (22/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (22/29)
1U-3841 POWER REG. UNIT(2/3)
1U-3841-6 PRE AMP UNIT
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (23/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (23/29)
1U-3841-7 AUDIO CONNECT UNIT
1U-3841 POWER REG. UNIT(3/3)
1U-3841-8 AUDIO LIMIT UNIT
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (24/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (24/29)
1U-3854-1 POWER AMP UNIT (1/2)
1U-3854 POWER AMP UNIT (1/2)
1U-3854-11 HOLD UNIT
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (25/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (25/29)
1U-3854-1 POWER AMP UNIT (2/2)
1U-3854 POWER AMP UNIT (2/2)
1U-3854-10 REG CONNECT UNIT
3
F701 F702
USA
CANADA 4A/125V 4A/125V
EUROPE T4AL 250V T4AL 250V
JAPAN T4A T4A
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (26/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (26/29)
1U-3857 MAIN CPU UNIT (1/3)
1U-3857-1 MAIN CPU UNIT (1/2)
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (27/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (27/29)
1U-3857 MAIN CPU UNIT (2/3)
1U-3857-1 MAIN CPU UNIT (2/2)
1U-3857-6 TUNER IN UNIT
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (28/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (28/29)
1U-3857-2 POWER UNIT
1U-3857 MAIN CPU UNIT(3/3)
1U-3857-3 PRIM/CPU SUPPLY UNIT
1U-3857-4 uCON JUNCTION UNIT
1U-3857-5 E2 OUTLET UNIT
3
T601 T602 R532 JK501 JK301 FF506 FH506 FF507 FH507
USA
CANADA
00D2336524009 00D2336576109
2.2M AC OUTLET OPEN FUSE CLIP OPEN
EUROPE
00D2336526007 00D2336606105
OPEN OPEN AC OUTLET FUSE CLIP OPEN
JAPAN
00D2330703004 00D2330736000
OPEN AC OUTLET OPEN OPEN
FUSE HOLDER
F1 F8 F501 F502 F503 F504
USA
CANADA 10A/125V 8A/125V 3.15A/125V 3.15A/125V 3.15A/125V 3.15A/125V
EUROPE T4AL 250V T2.5A 250V T3.15AL 250V T3.15AL 250V T3.15AL 250V T3.15AL 250V
JAPAN T10A T8A T3.15A T3.15A T3.15A T3.15A
87654321
A
B
C
D
E
F
SCHEMATIC DIAGRAMS (29/29) AVR-2308CI / AVR-888 / AVR-2308 / AVC-2308
SCHEMATIC DIAGRAMS (29/29)
1U-3875 D-TERMINAL UNIT
AVC-2308 JP model

Navigation menu
