- AVR-4806/AVC-A11XV
- DIMENSION
- WIRE ARRANGEMENT
- CAUTION IN SERVICING
- DISASSEMBLY

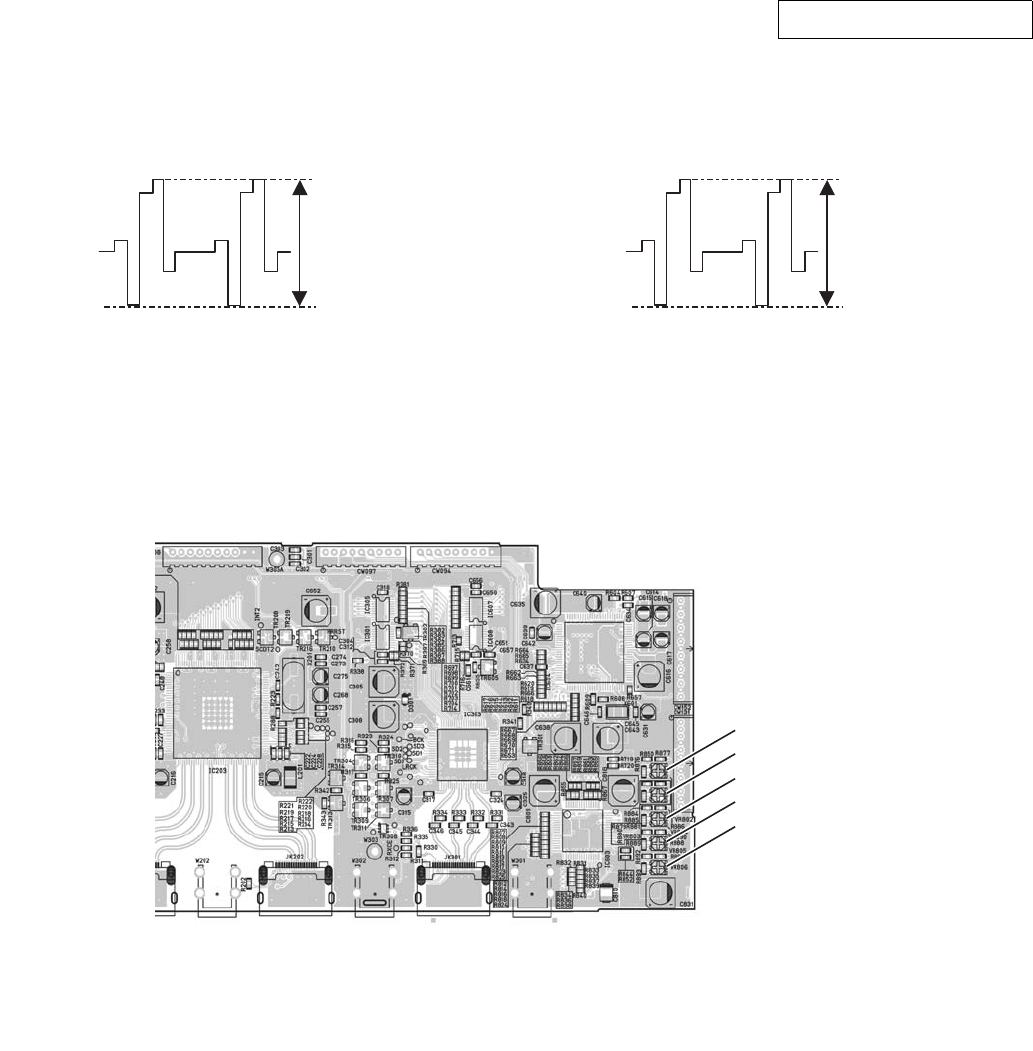

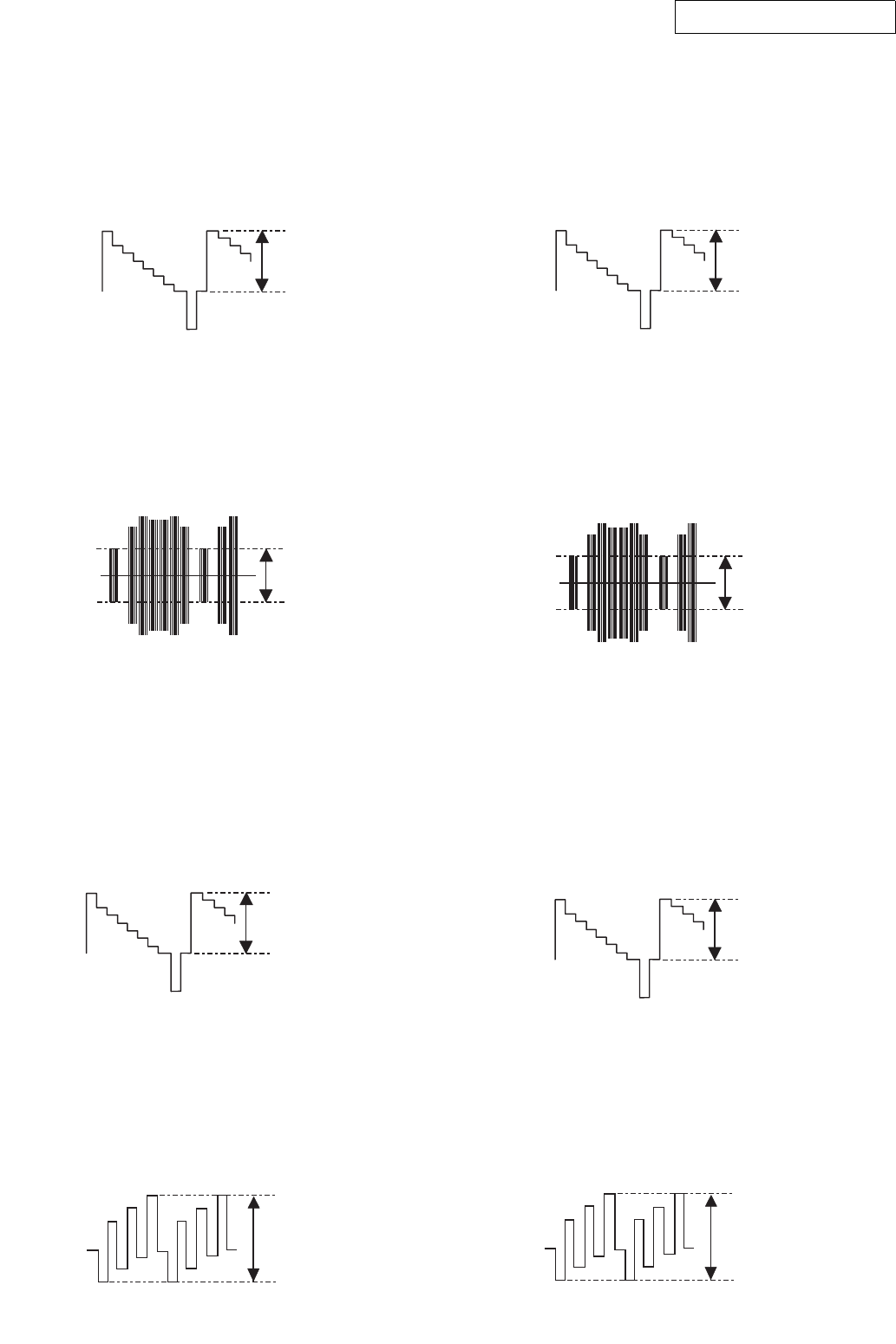

- CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK

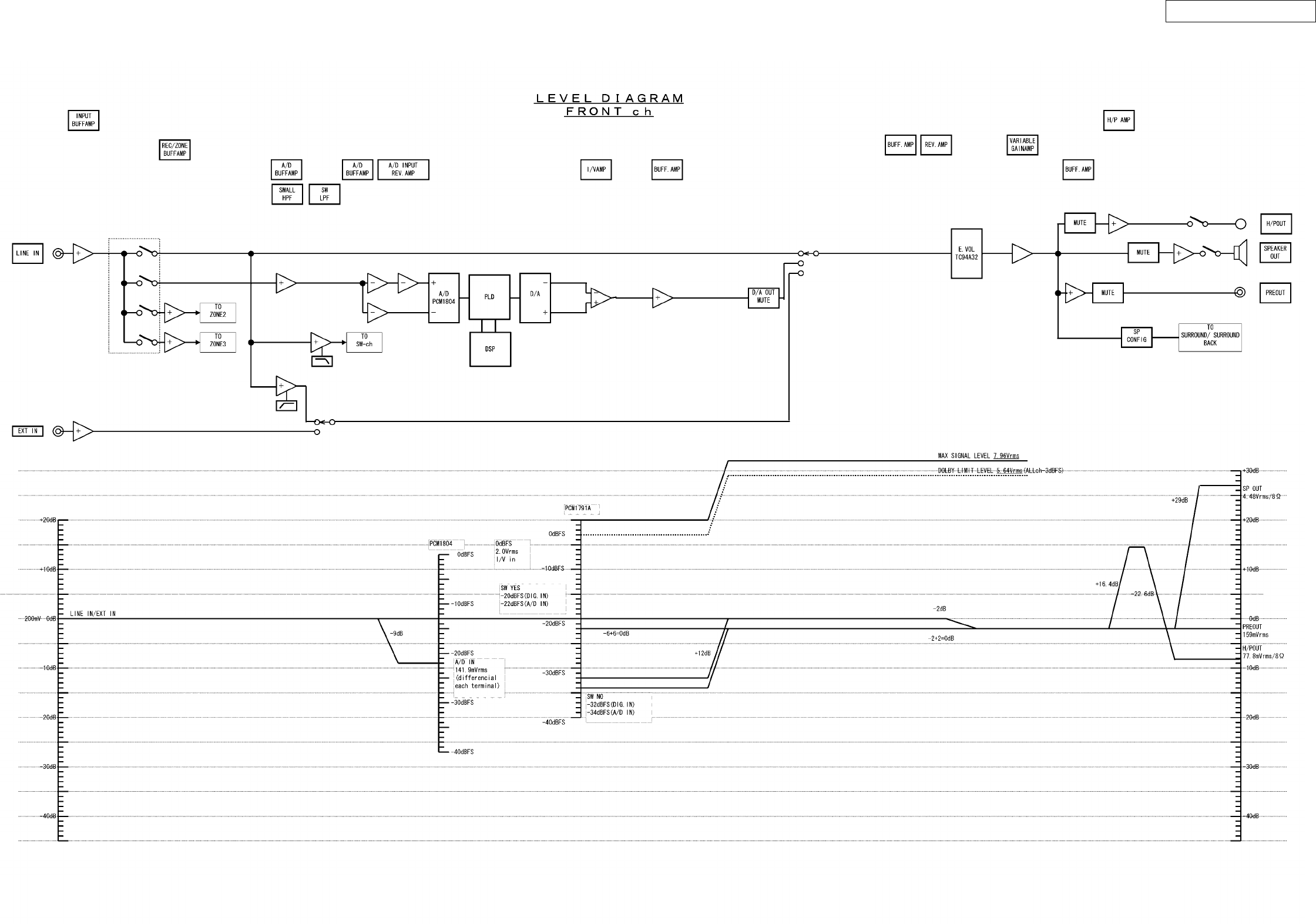

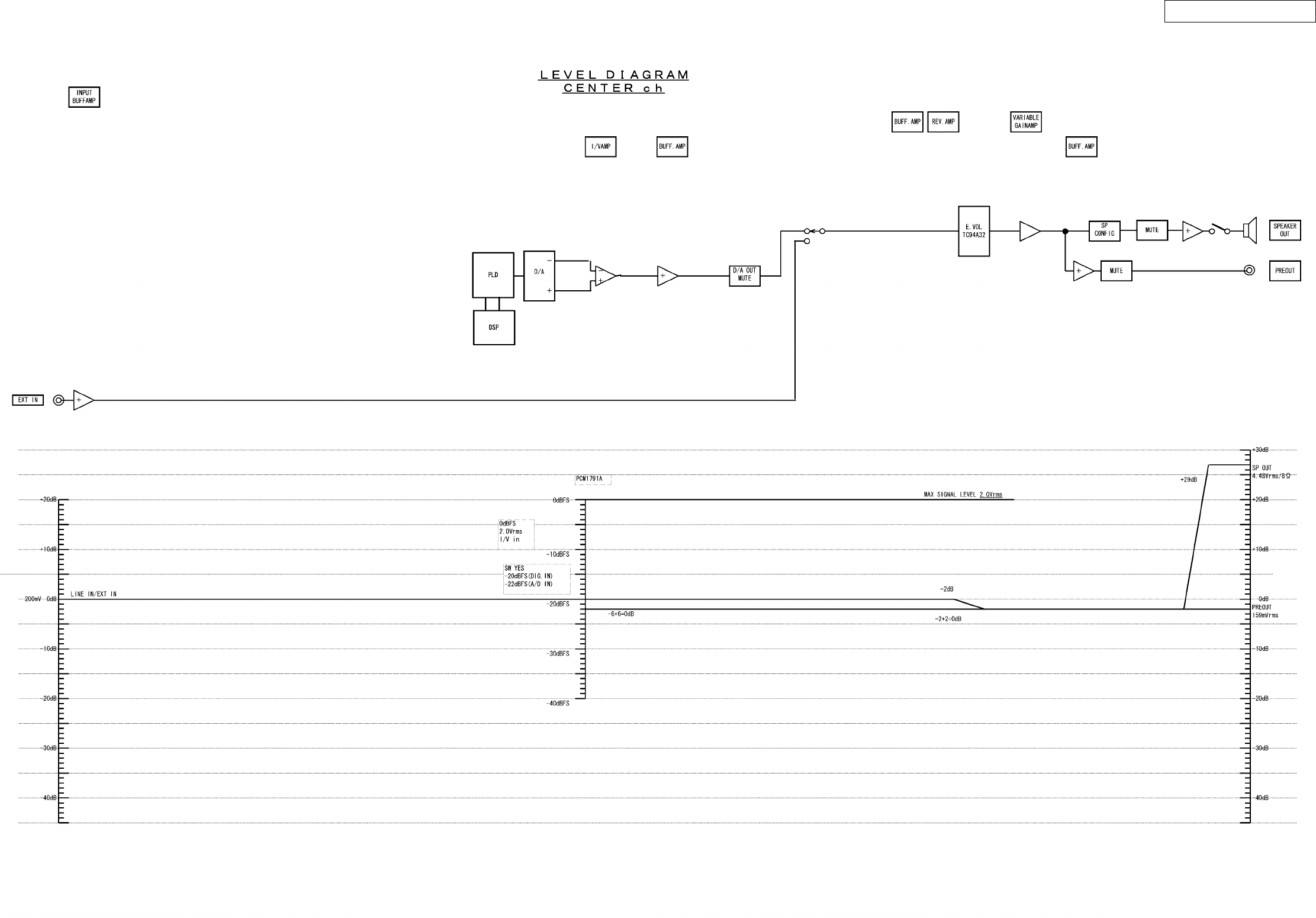

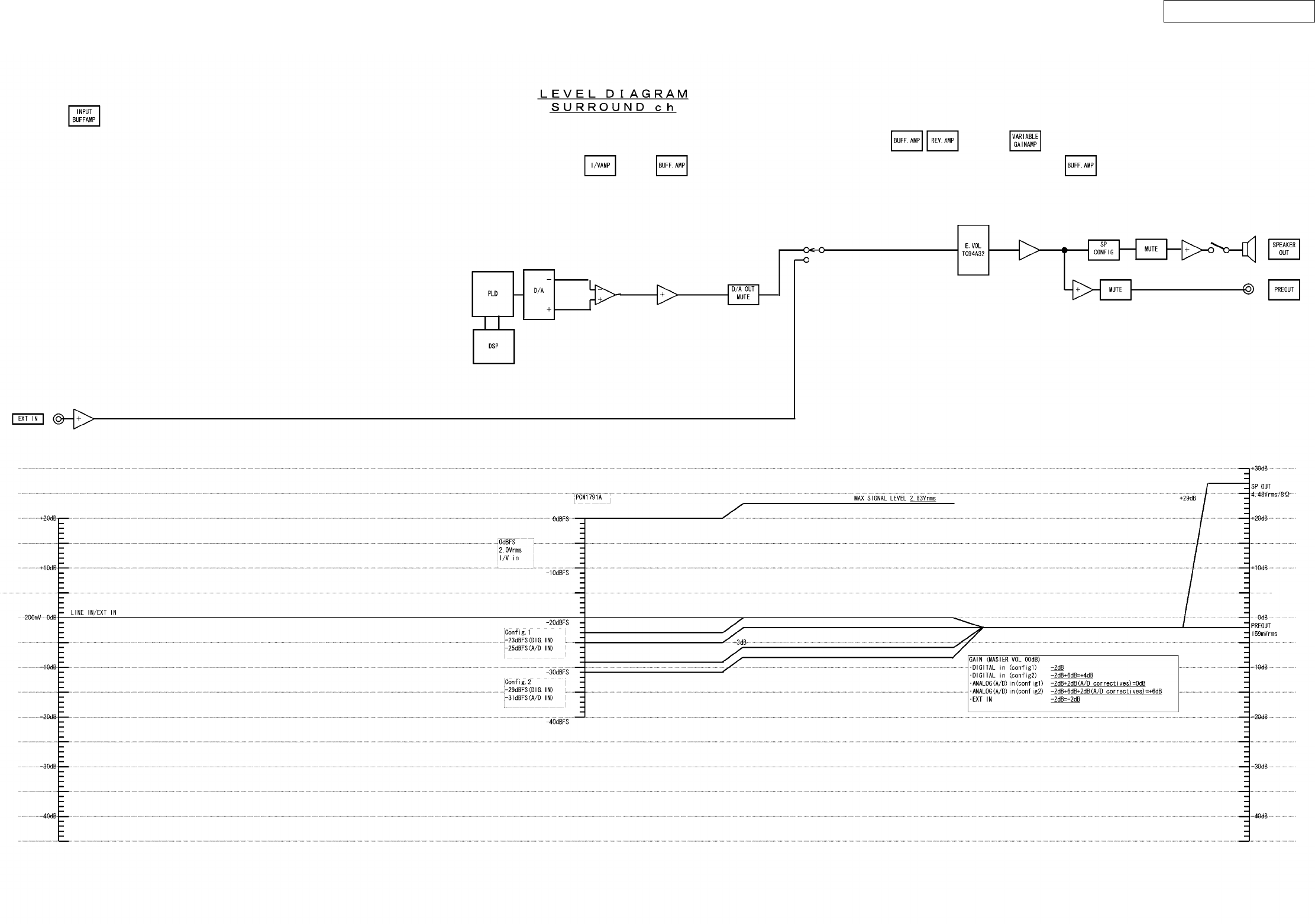

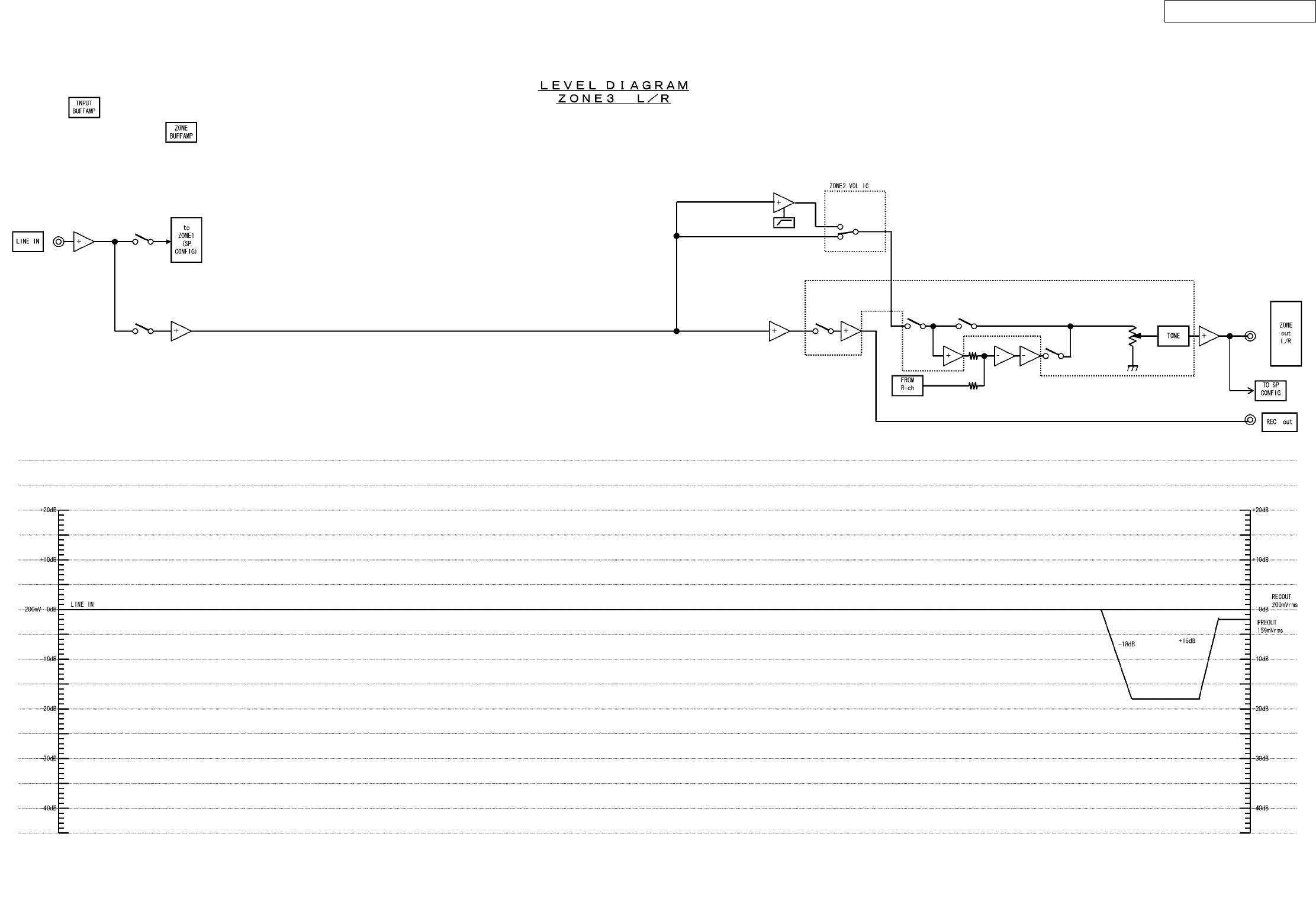

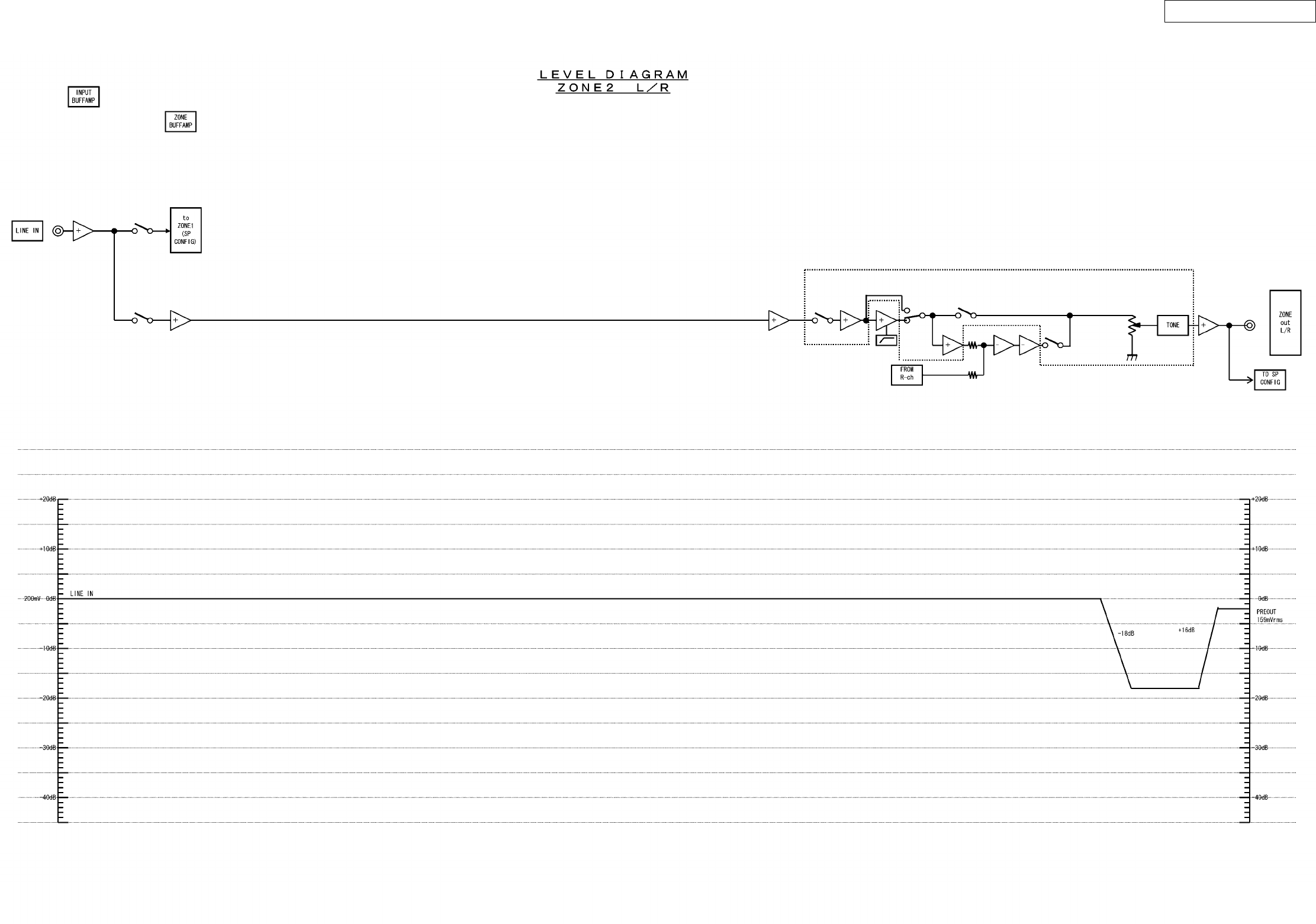

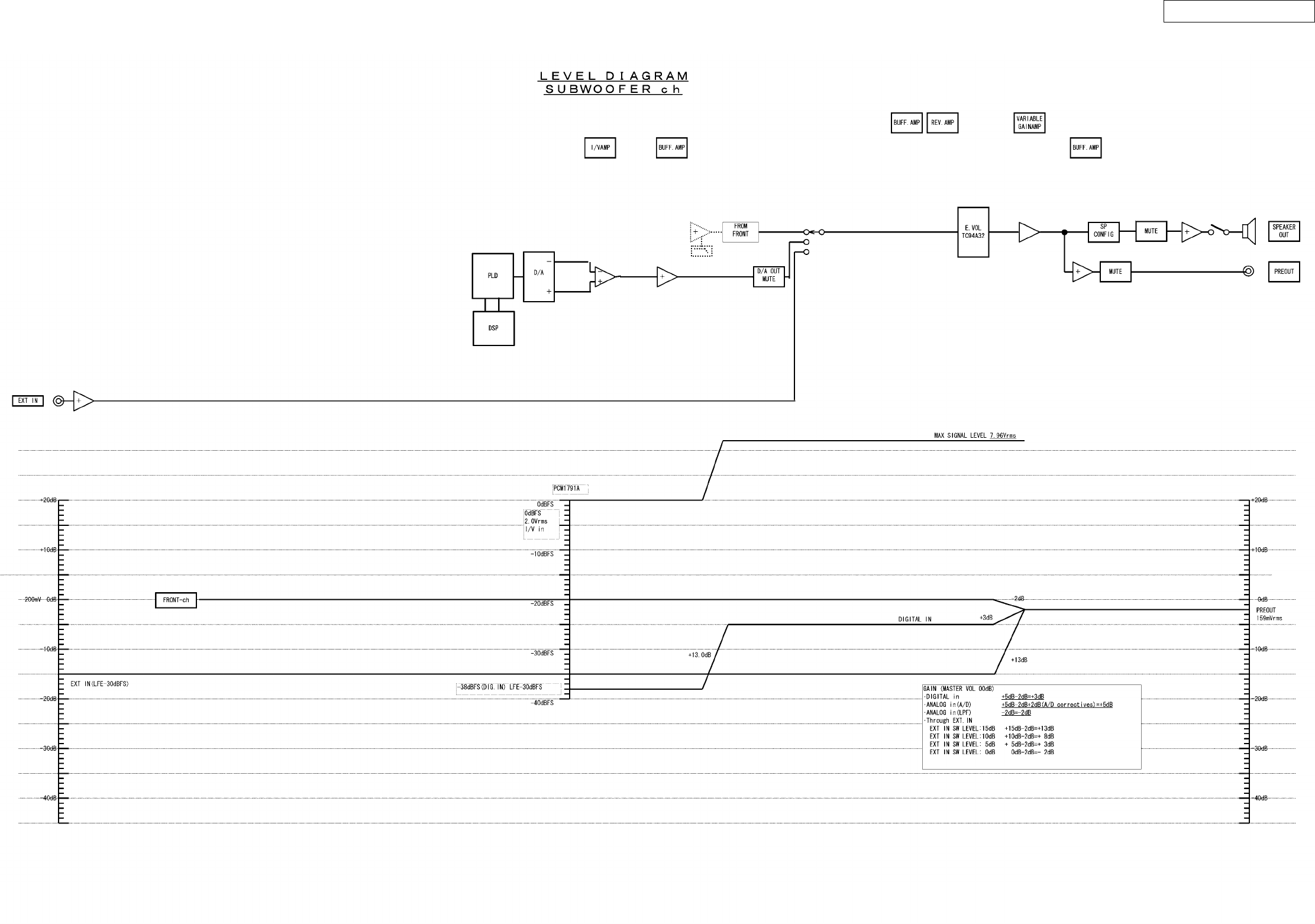

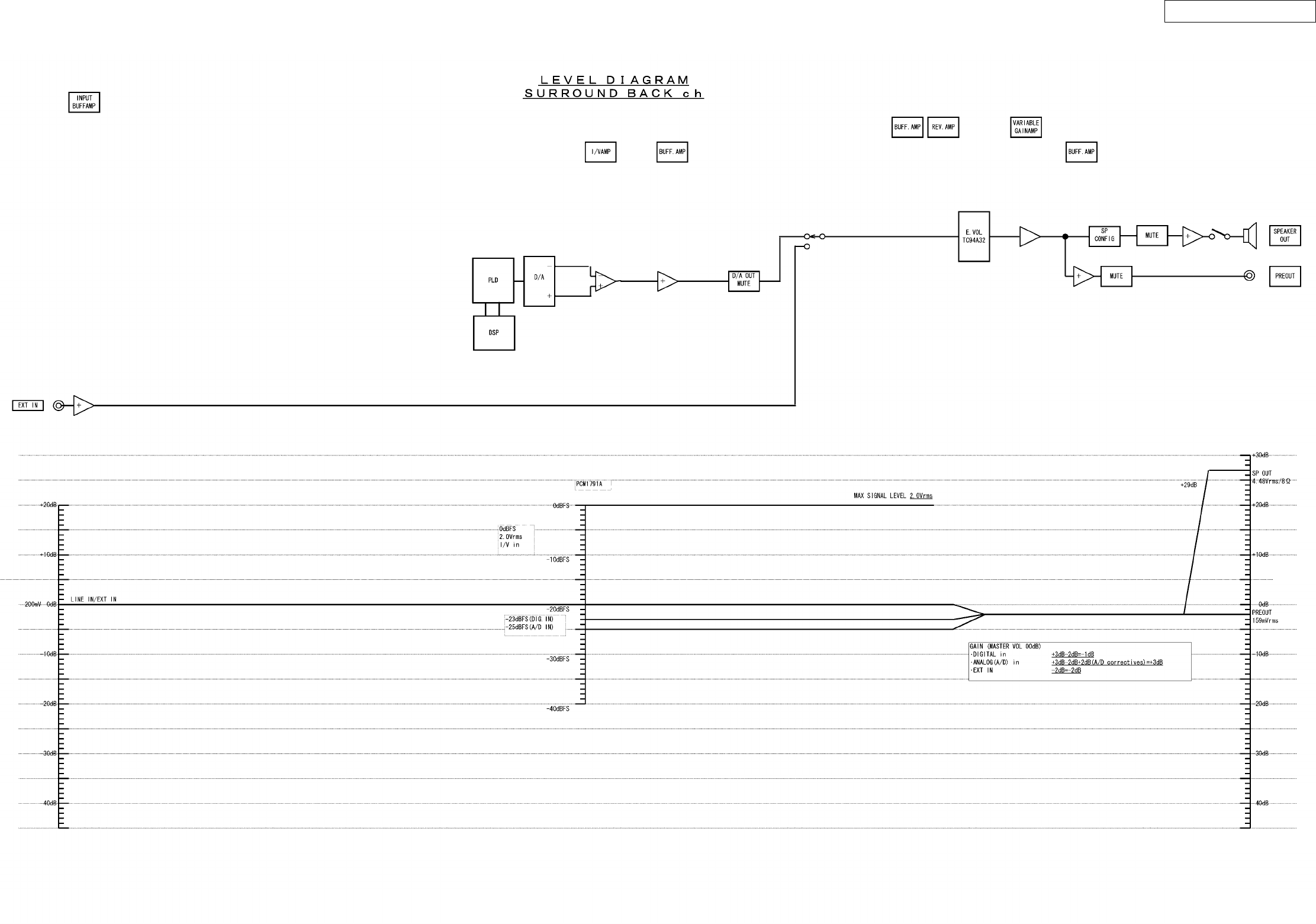

- LEVEL DIAGRAMS

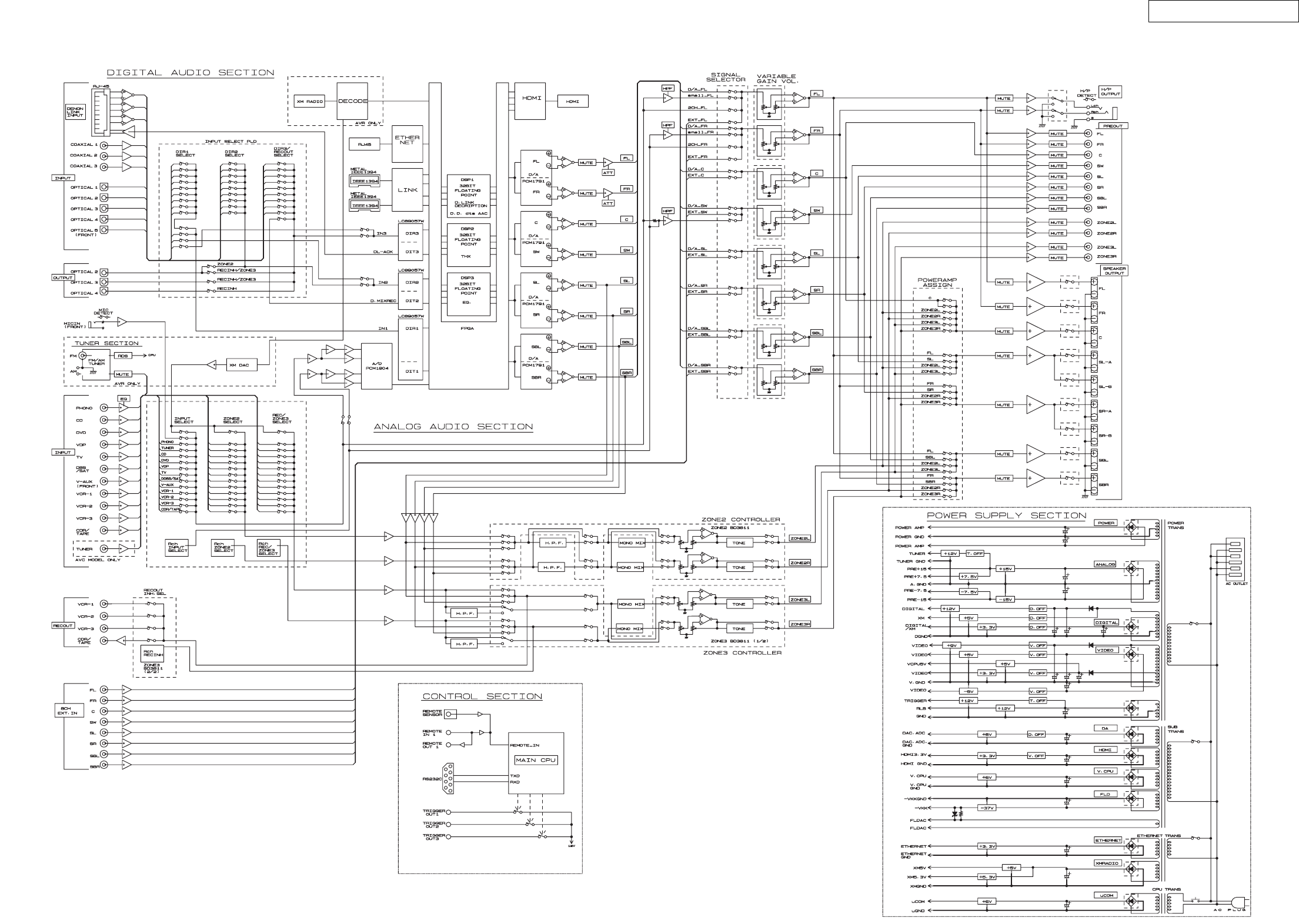

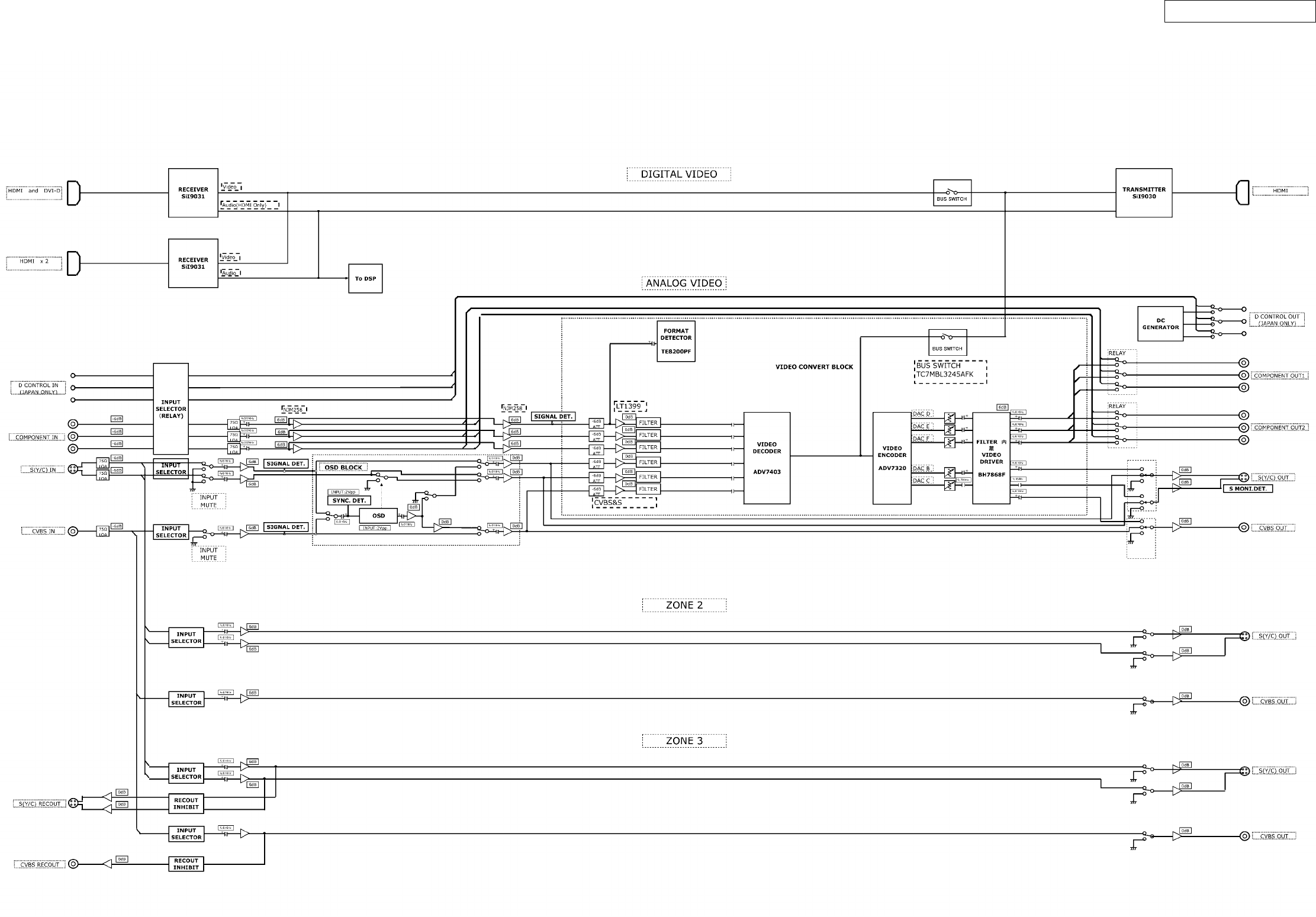

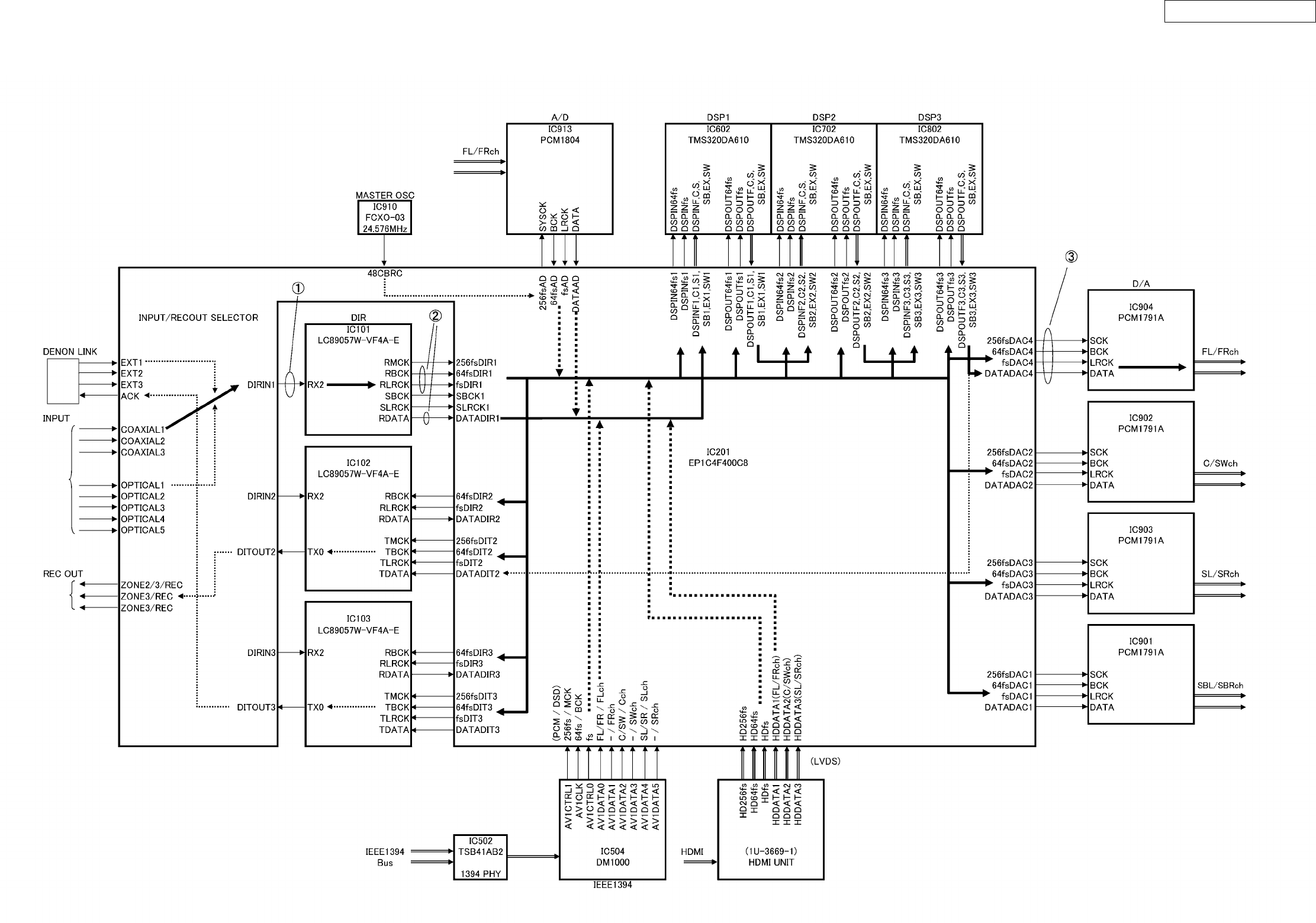

- BLOCK DIAGRAMS

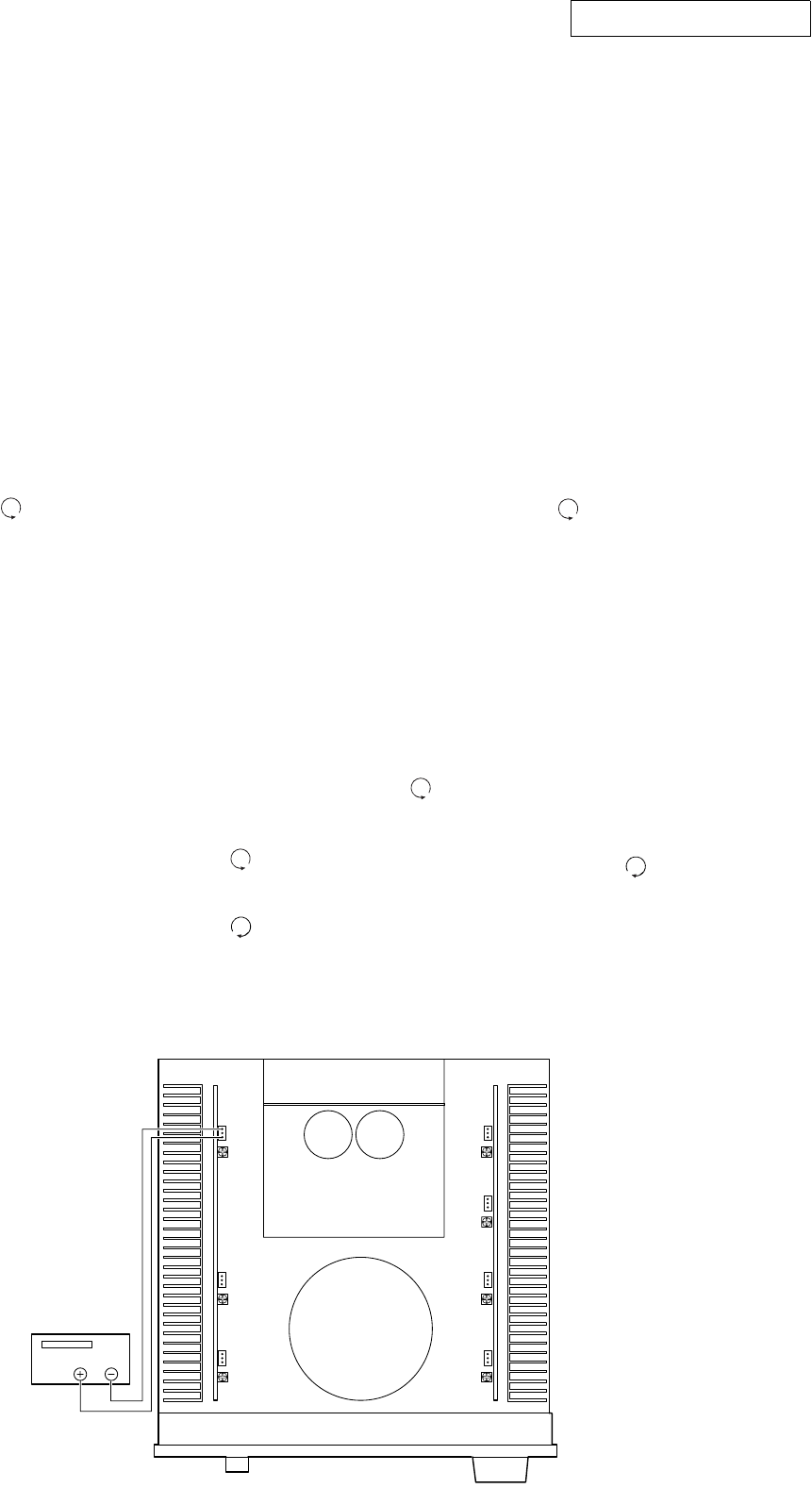

- ADJUSTMENT

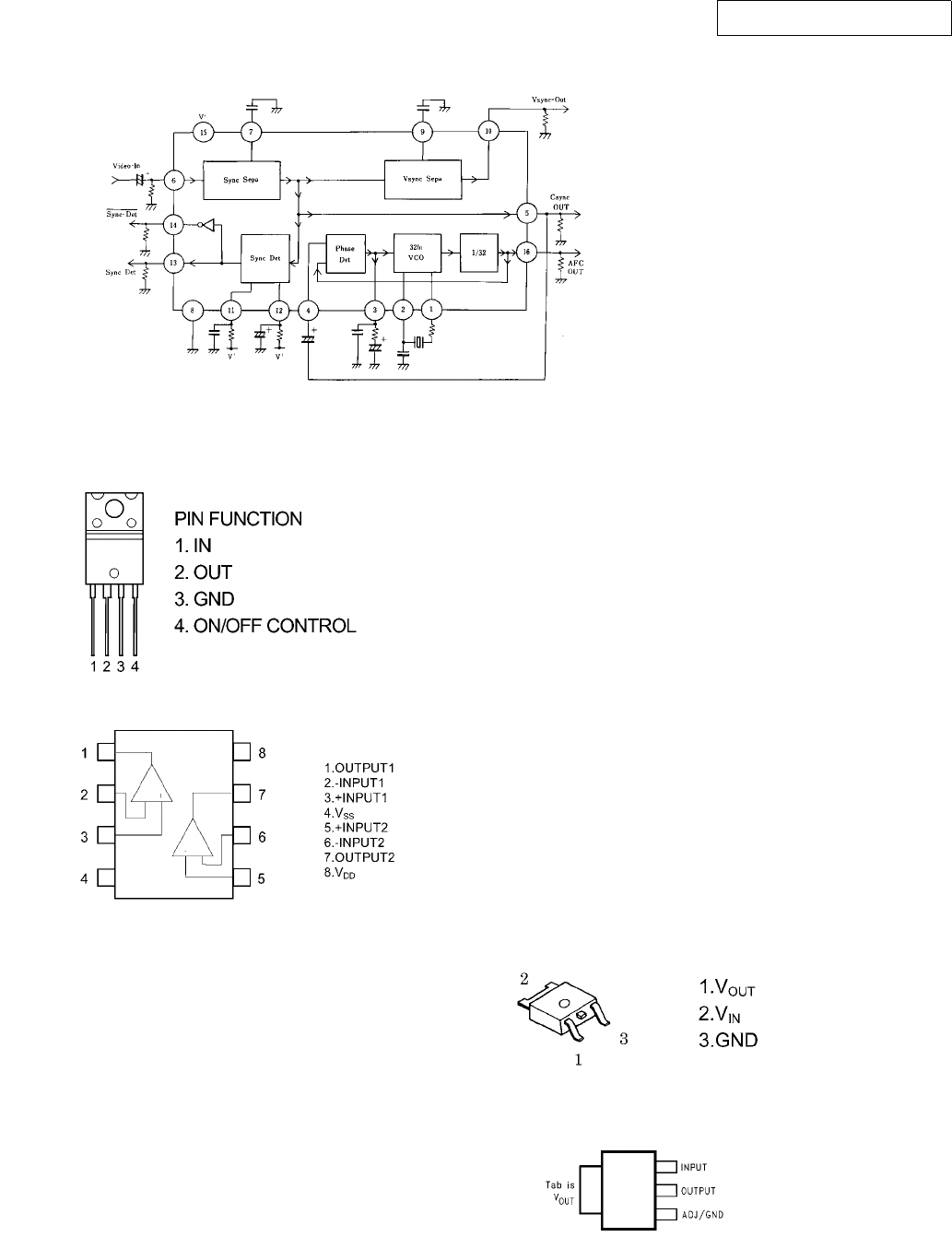

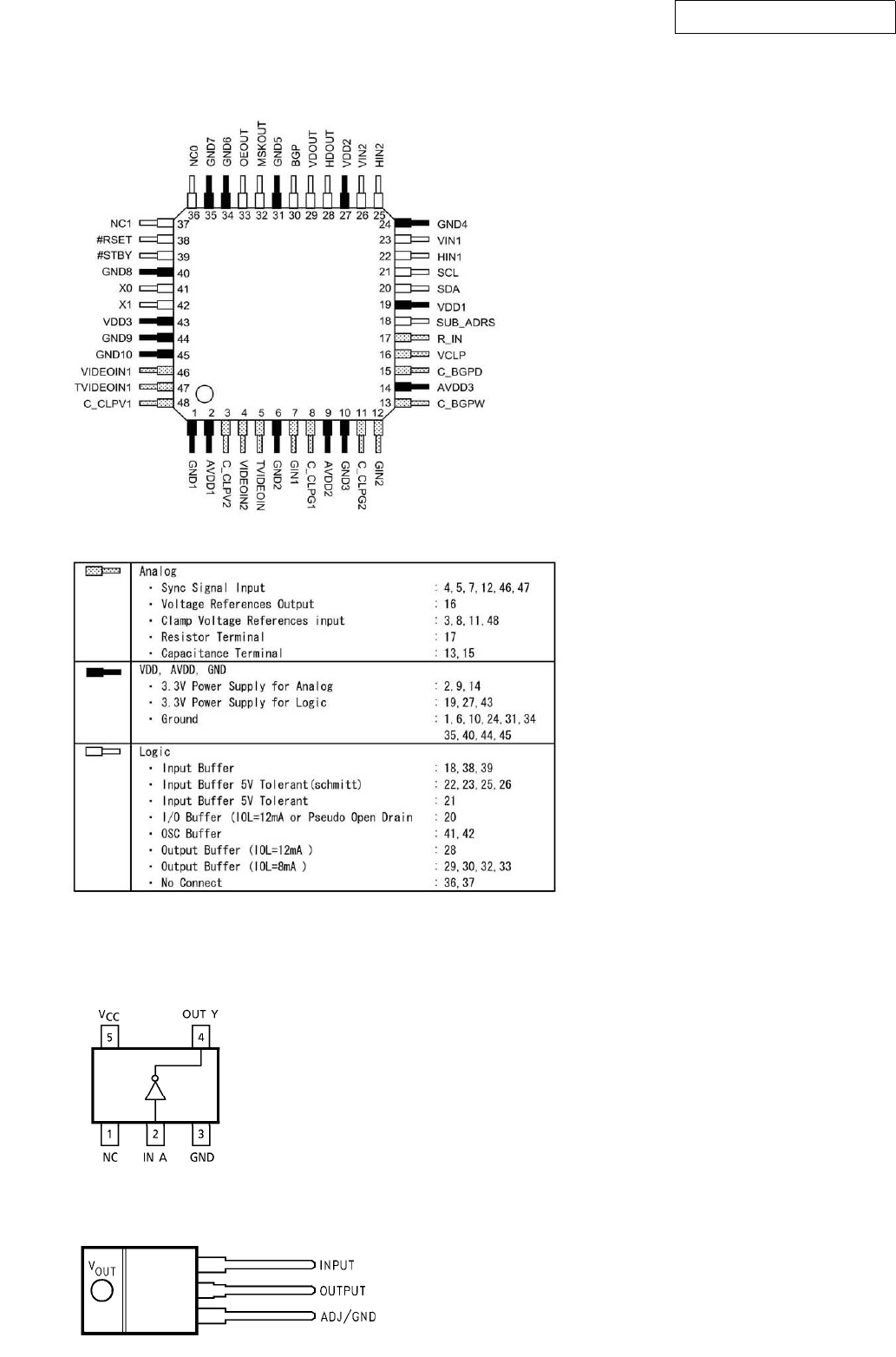

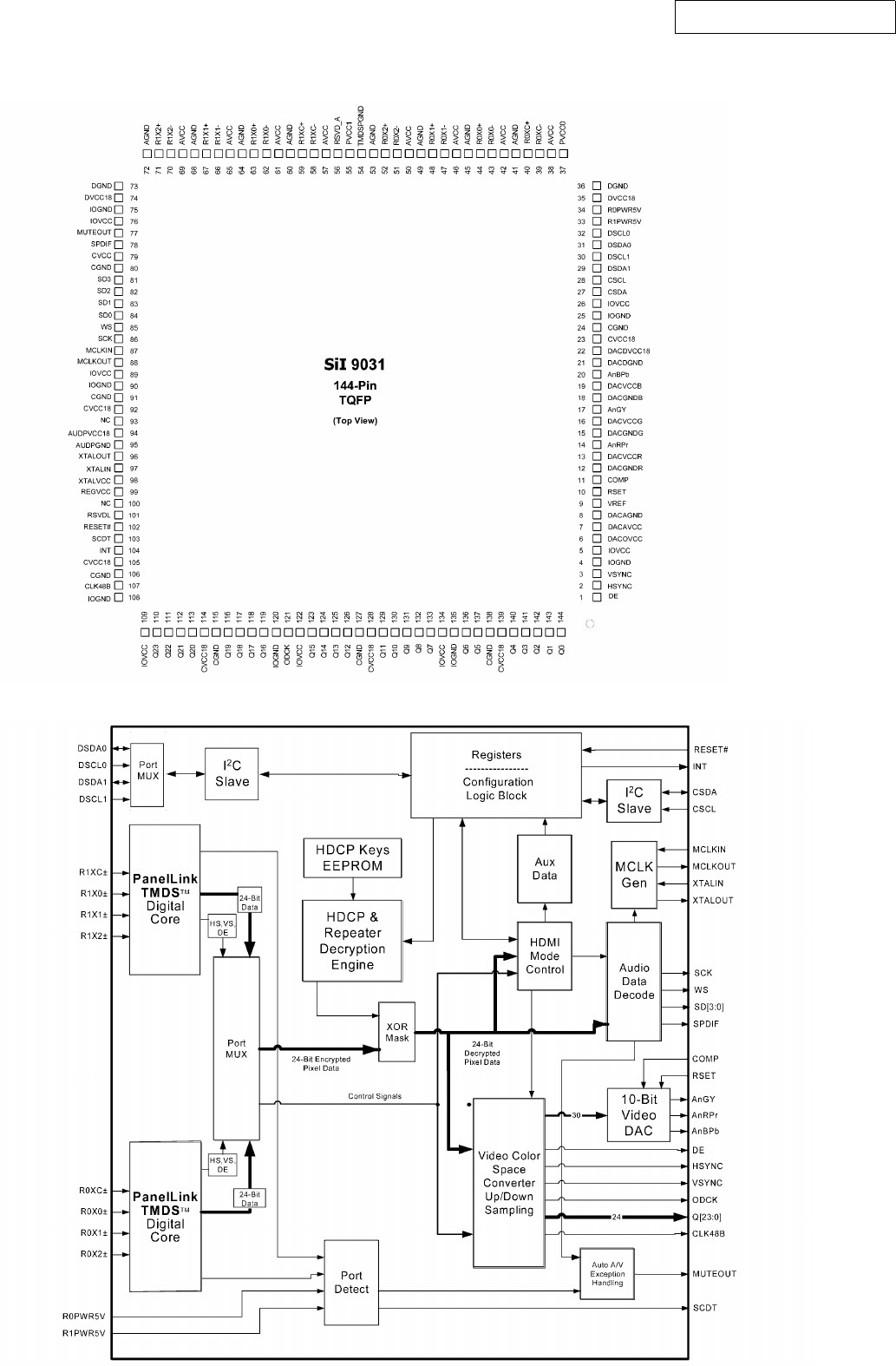

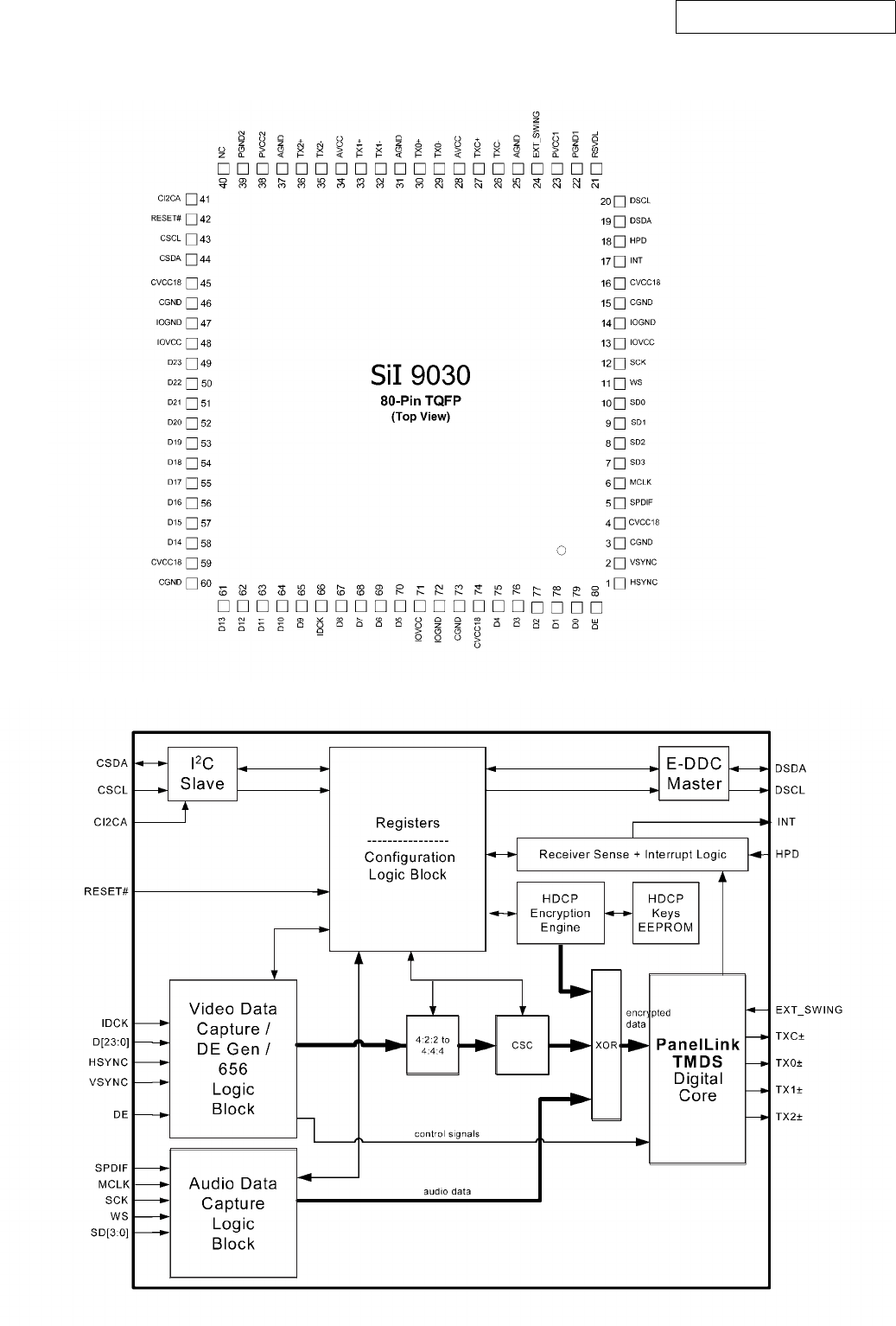

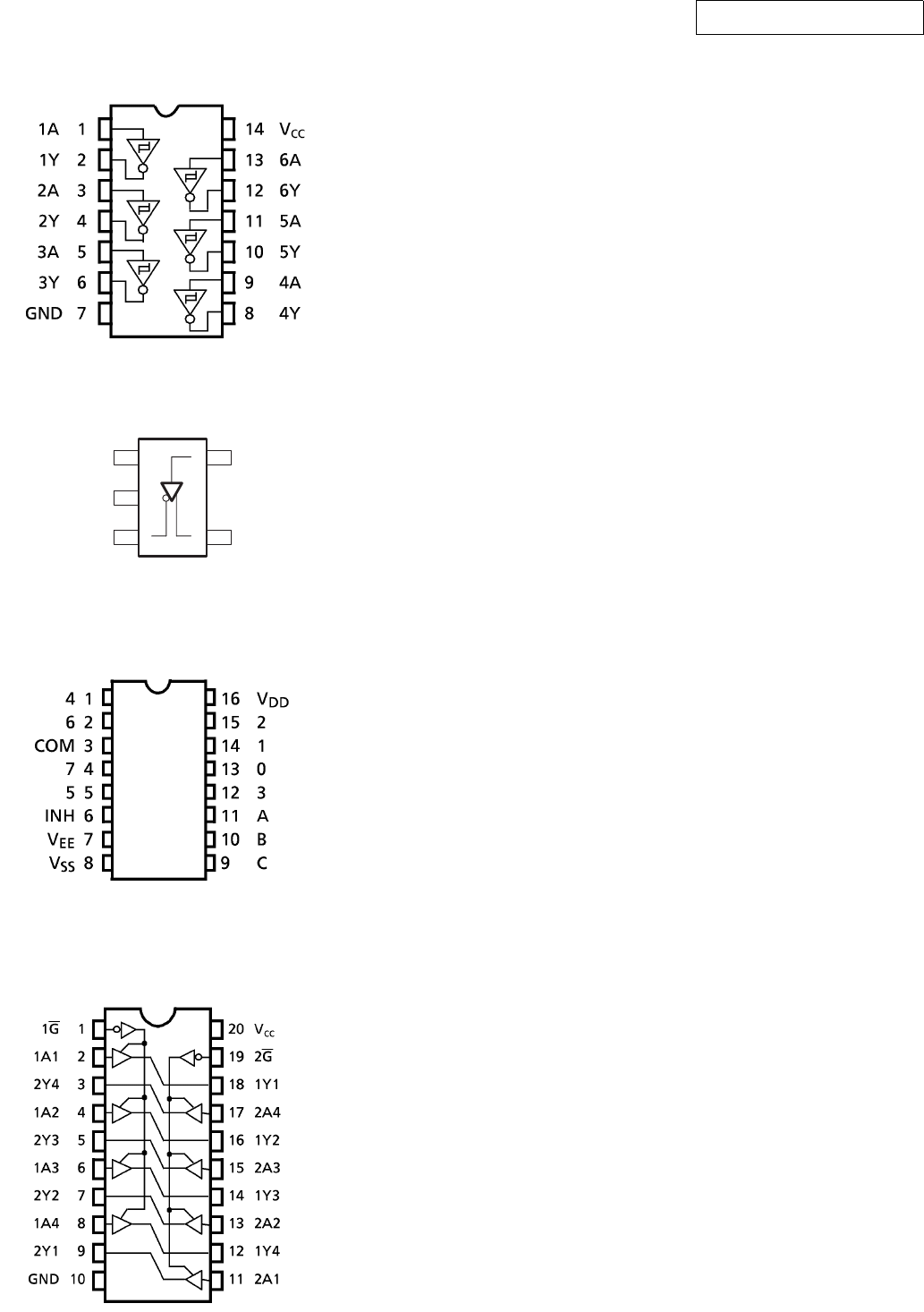

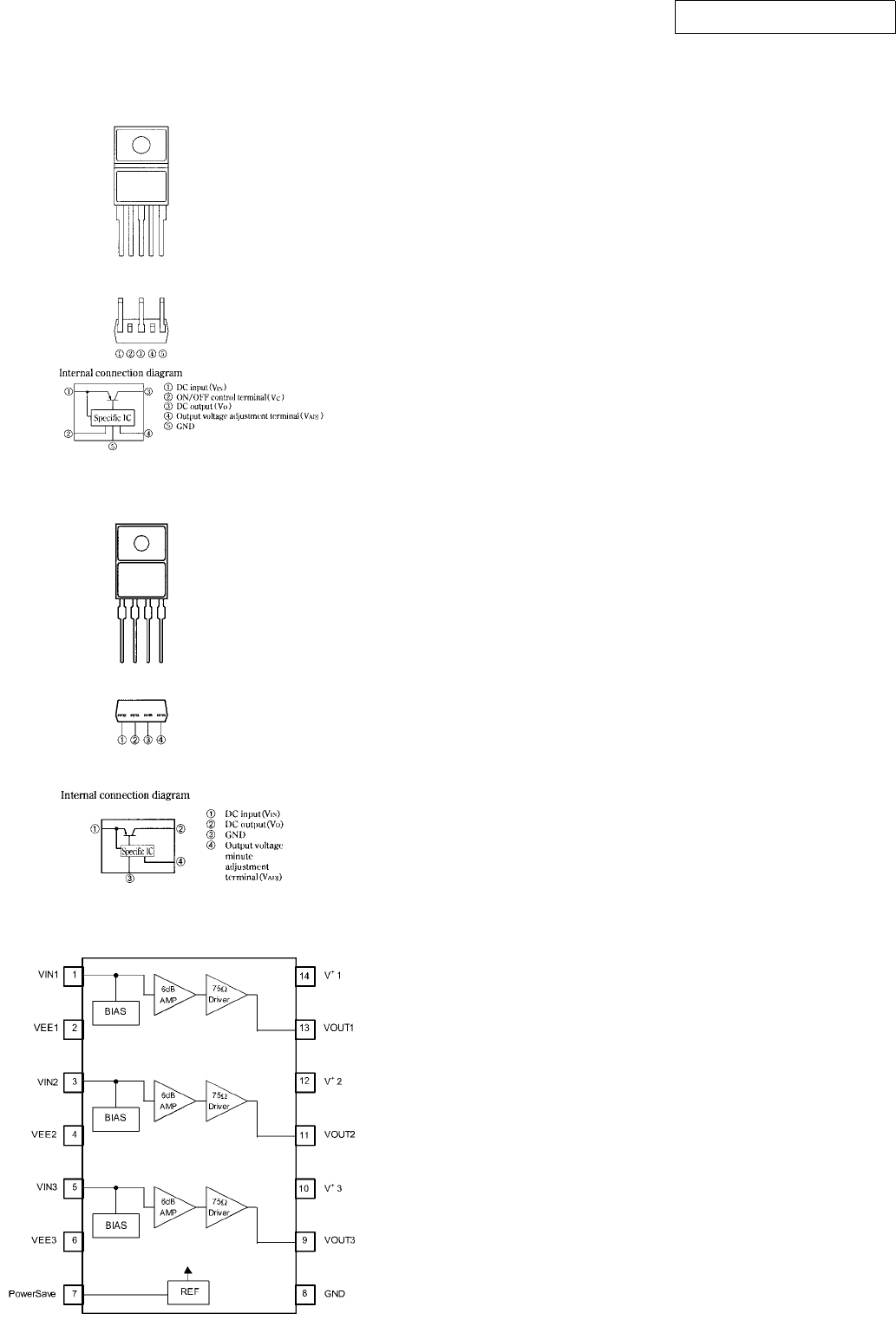

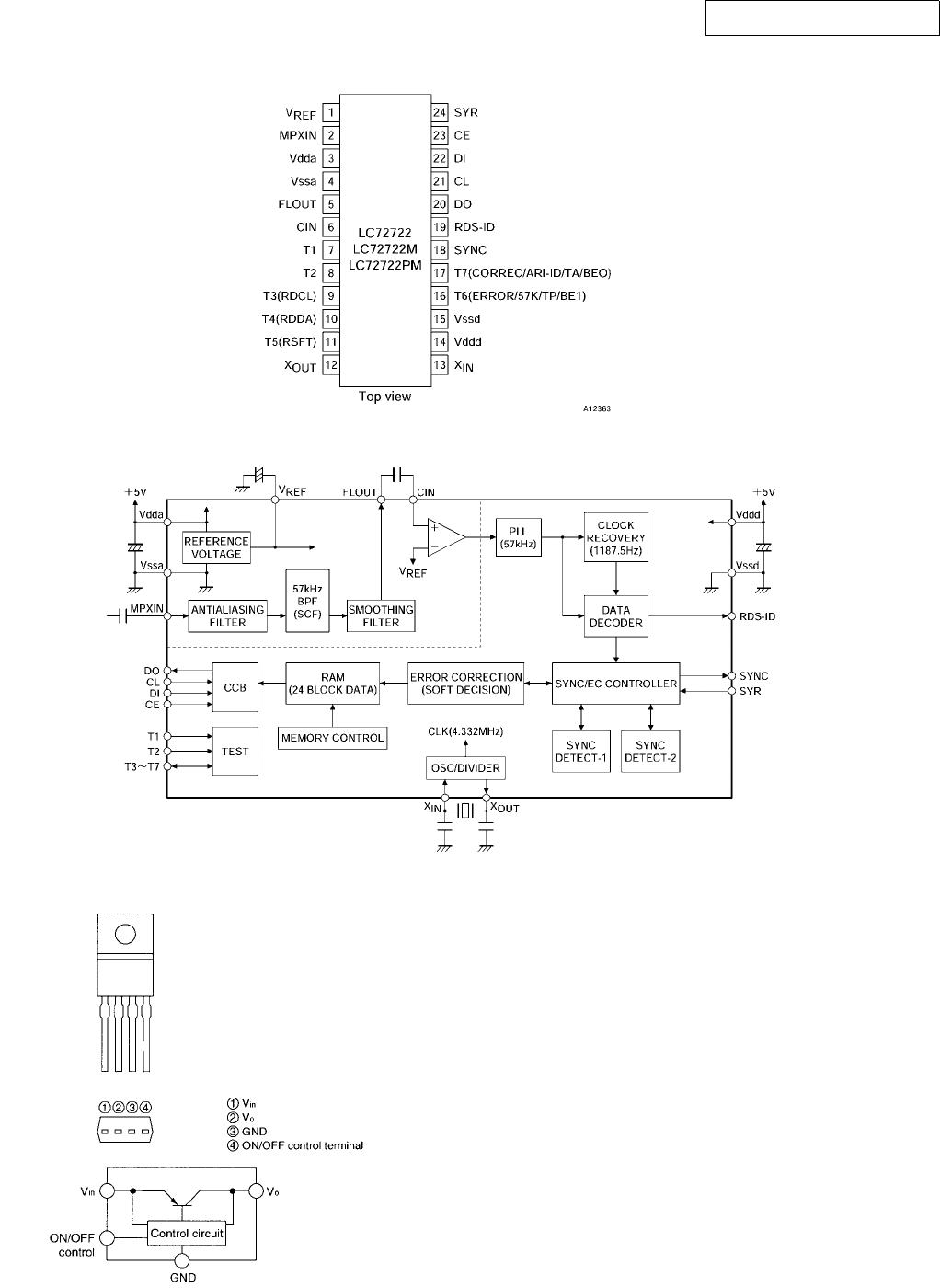

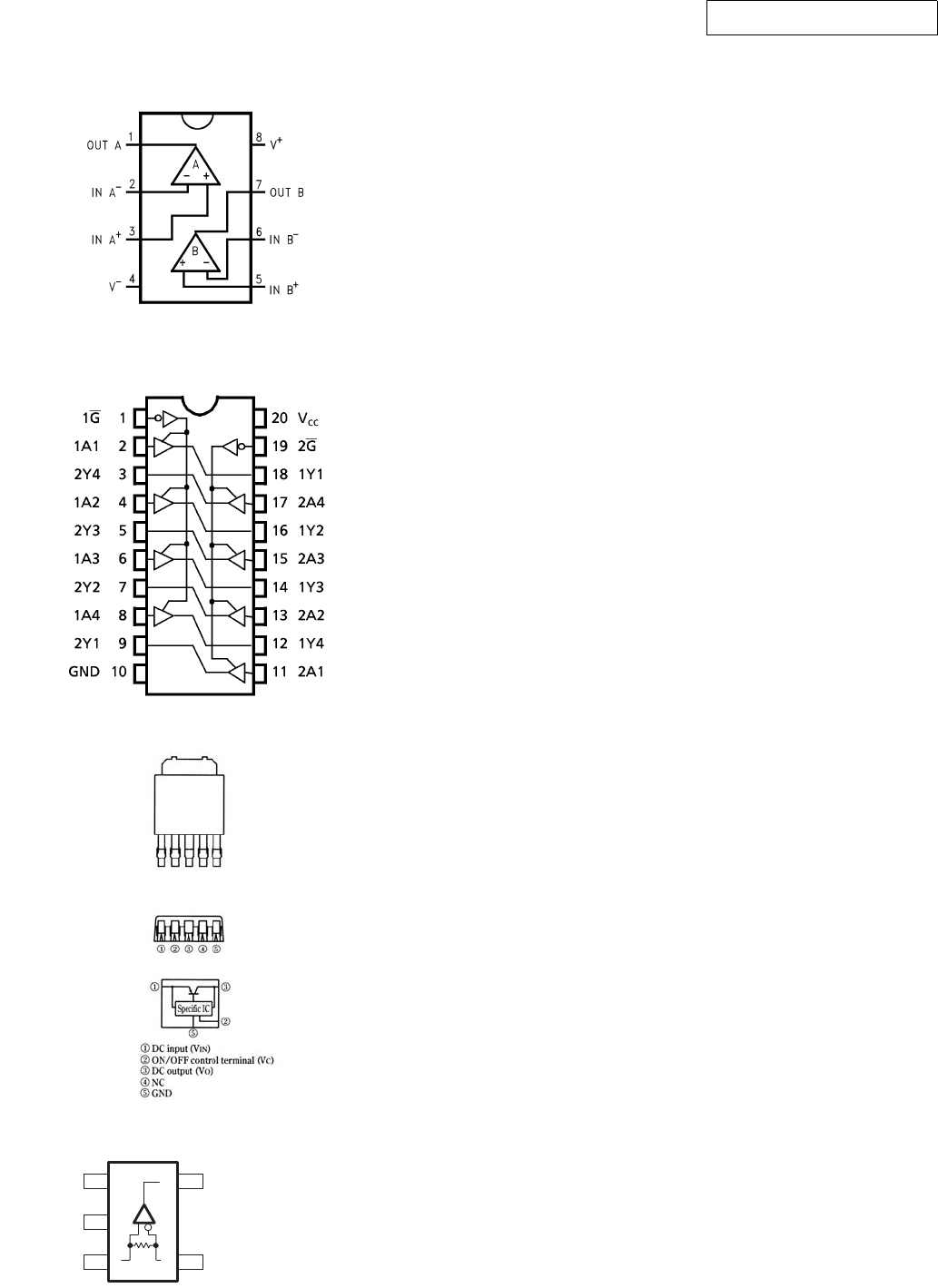

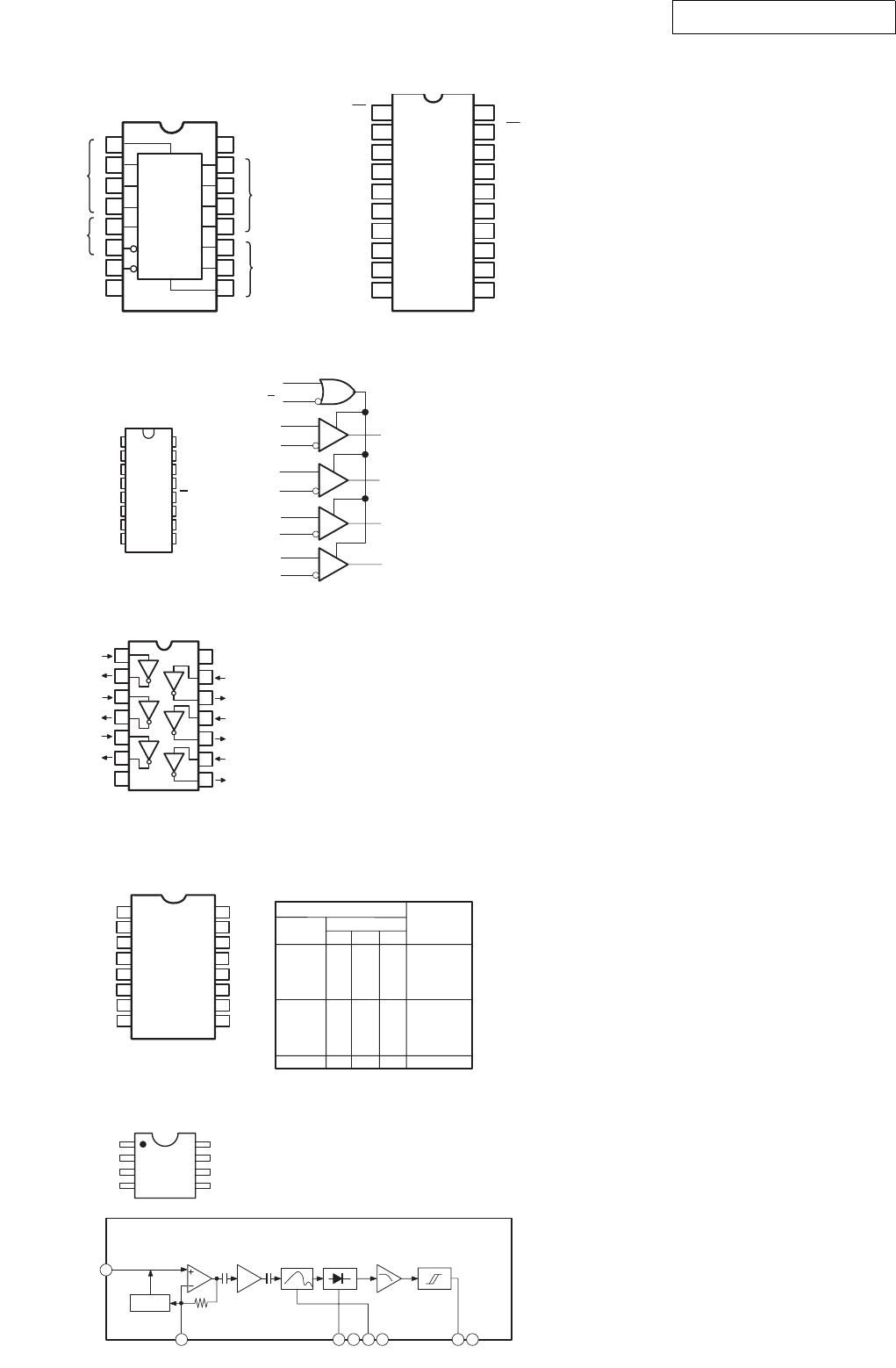

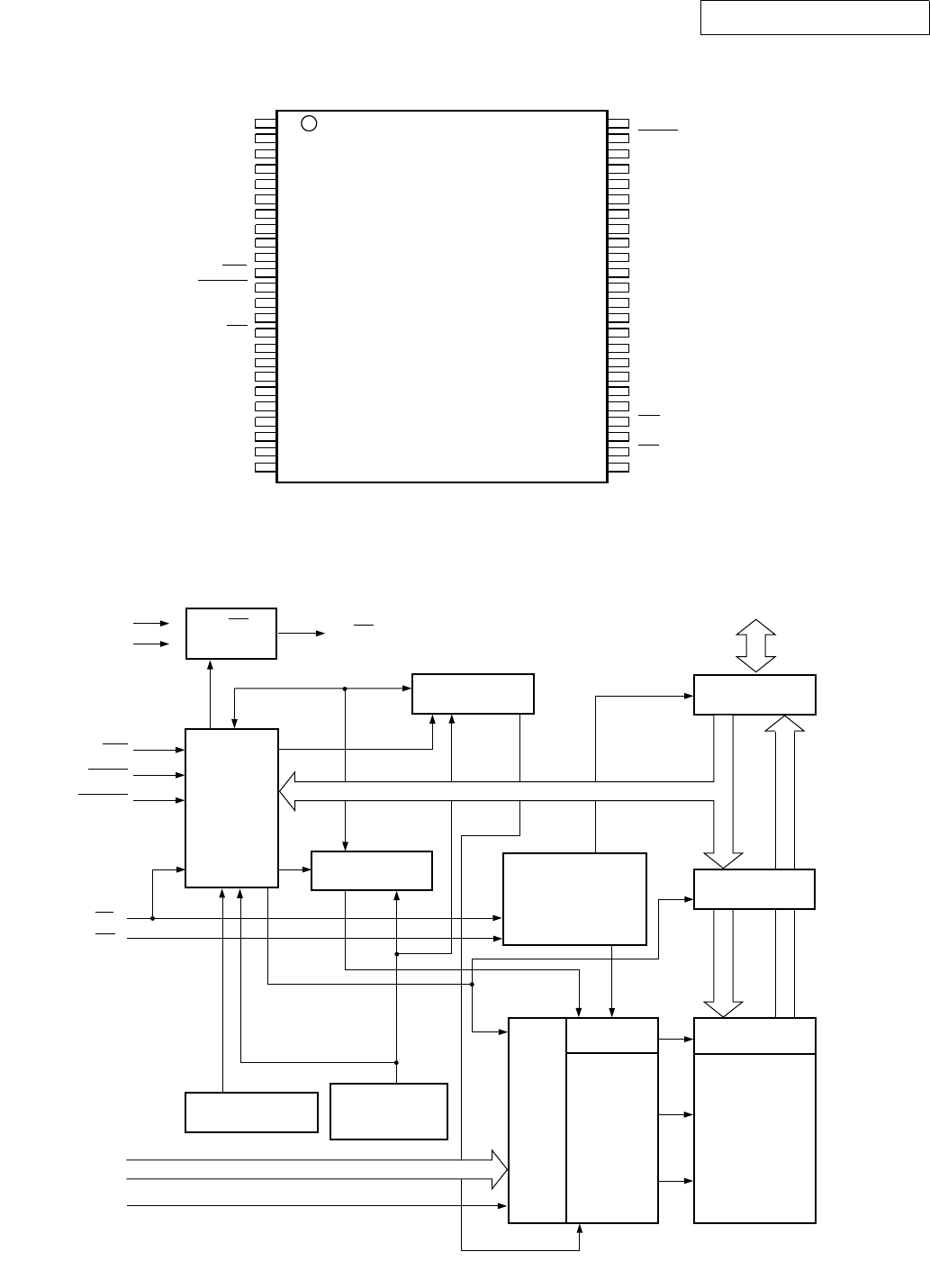

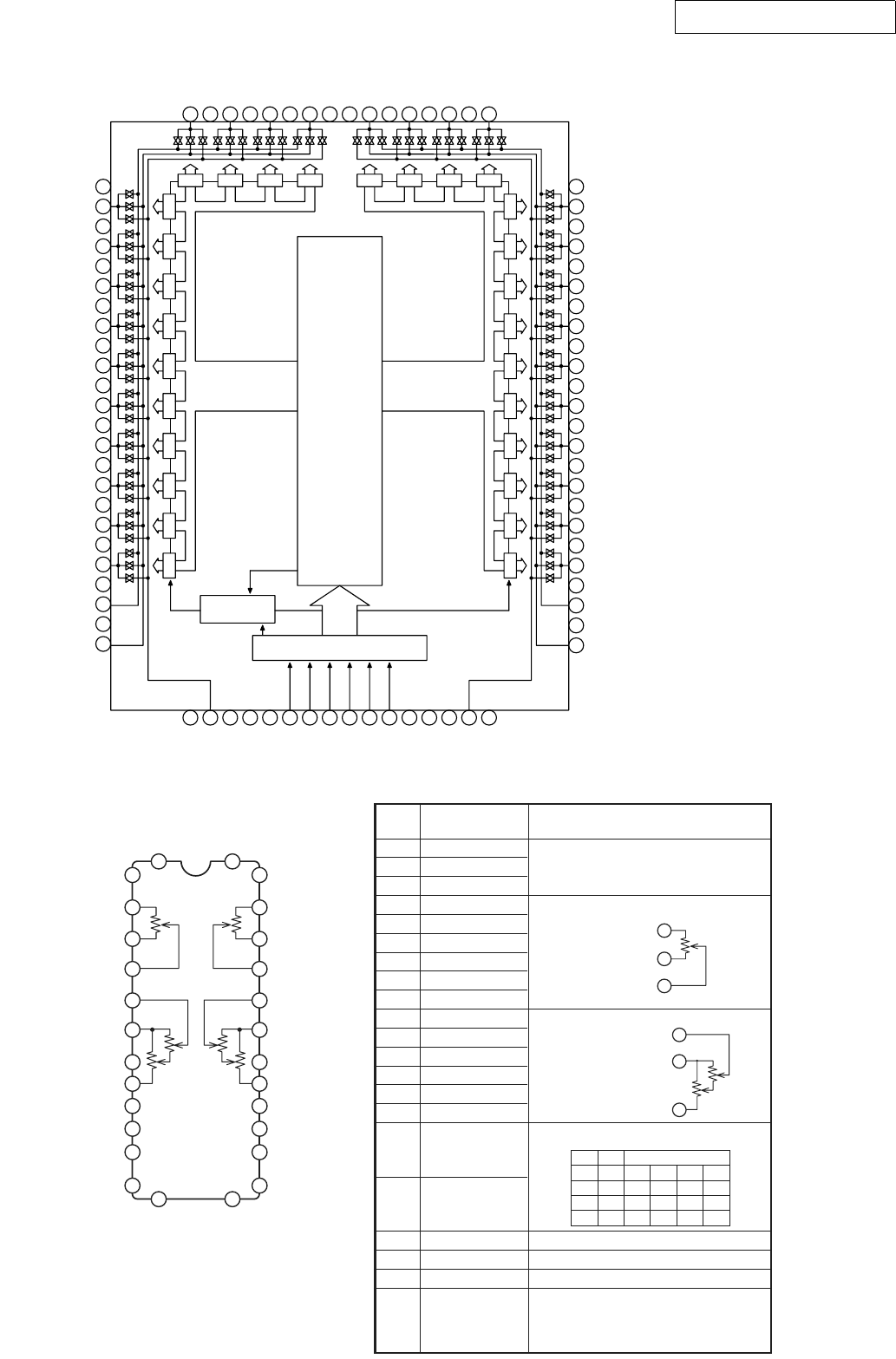

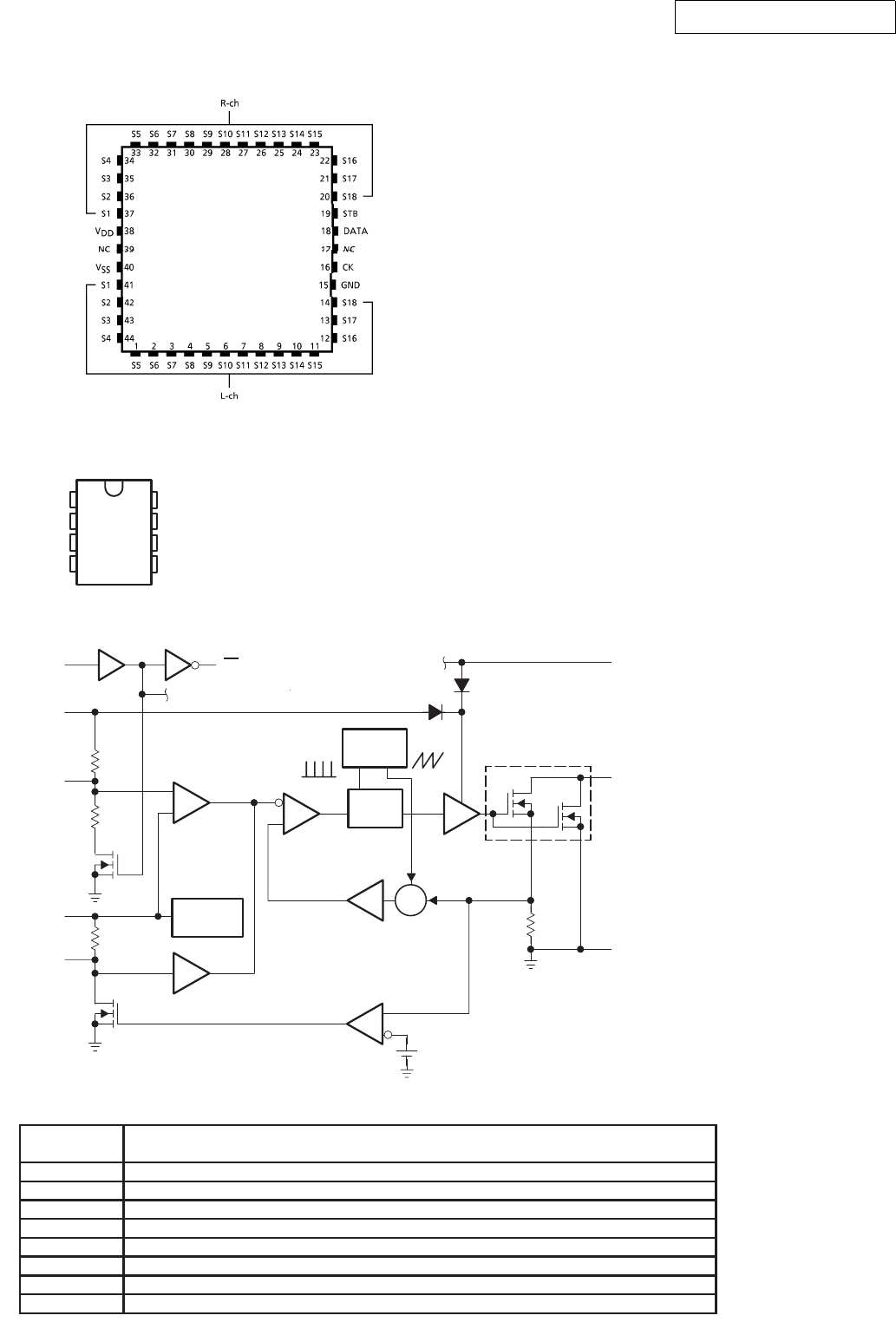

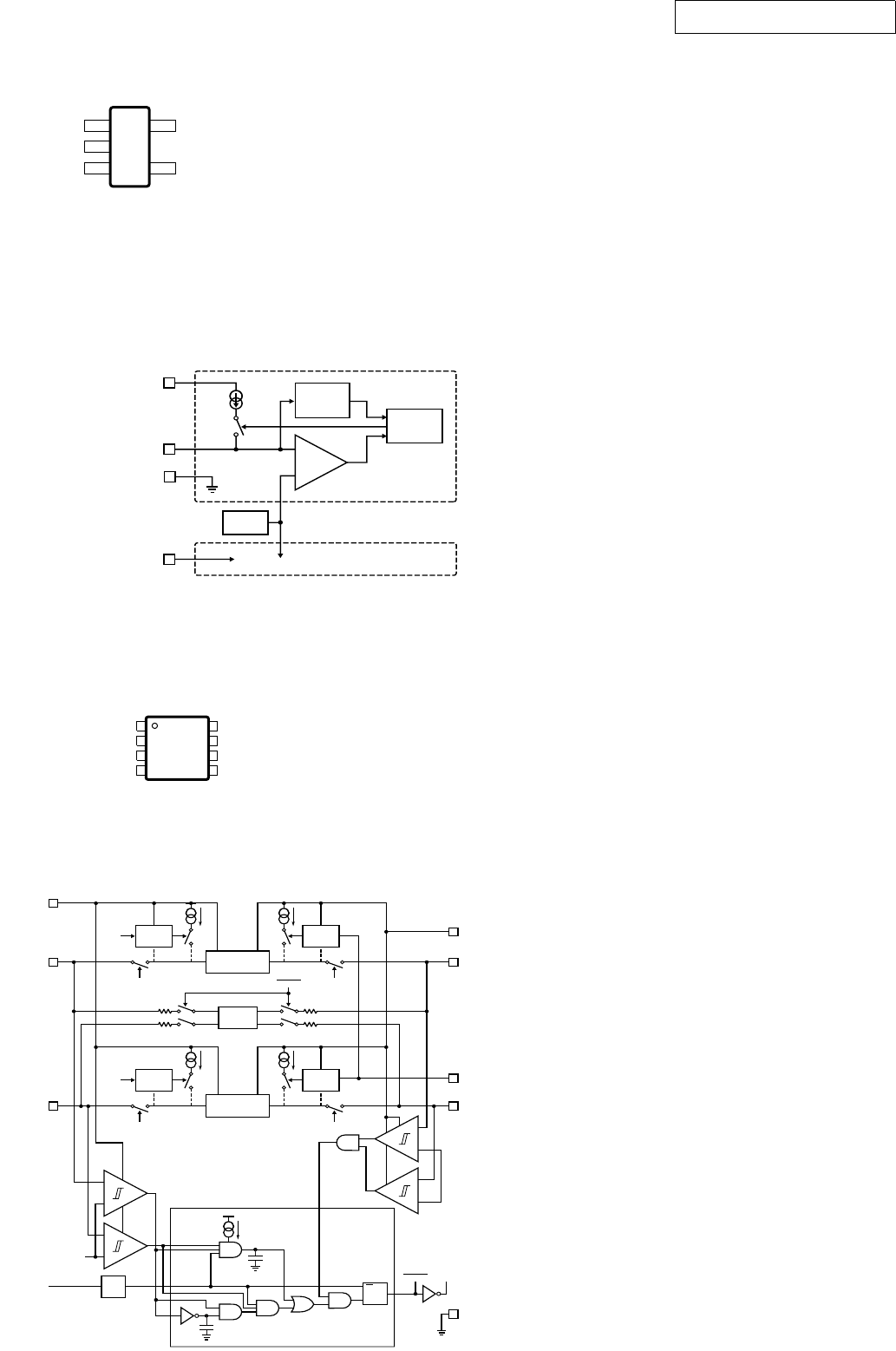

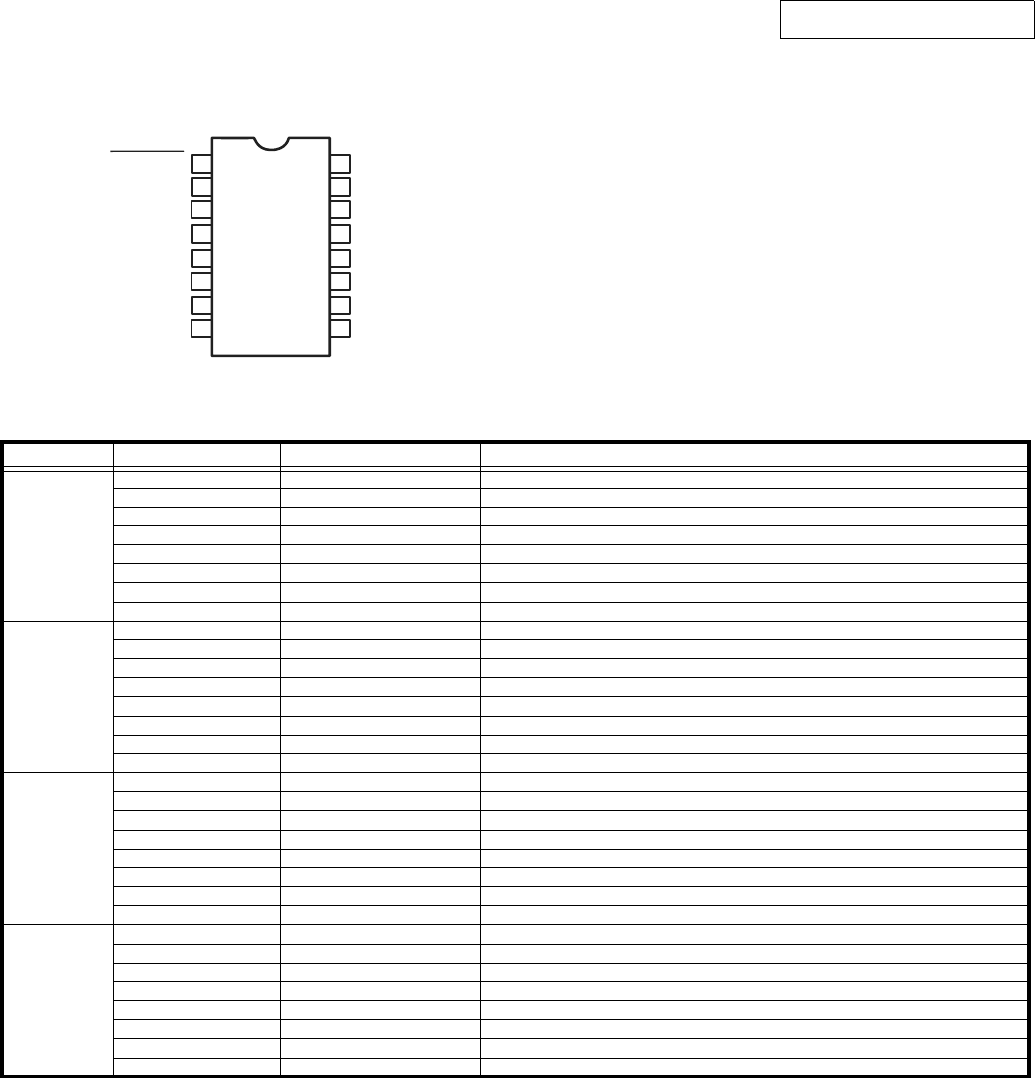

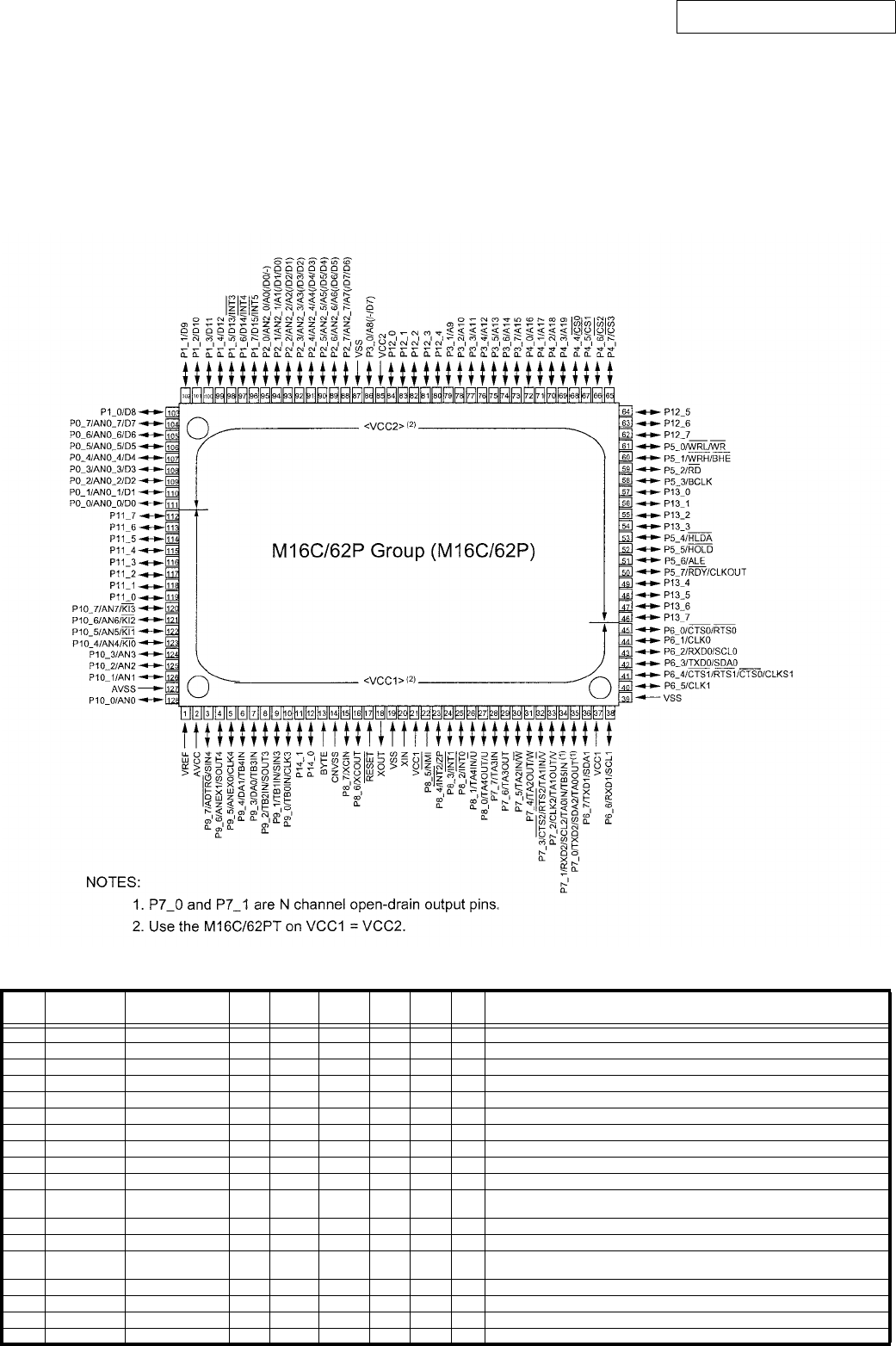

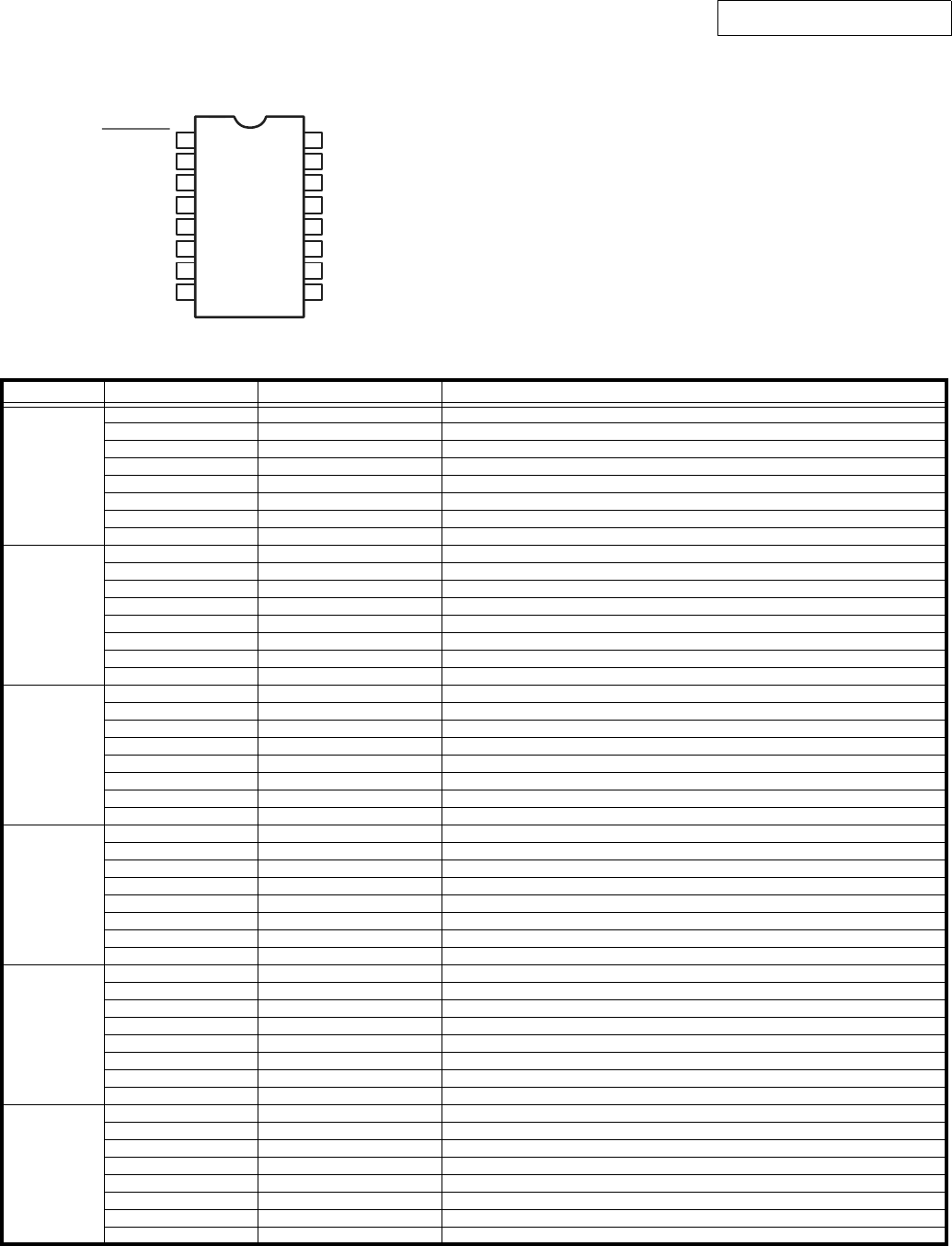

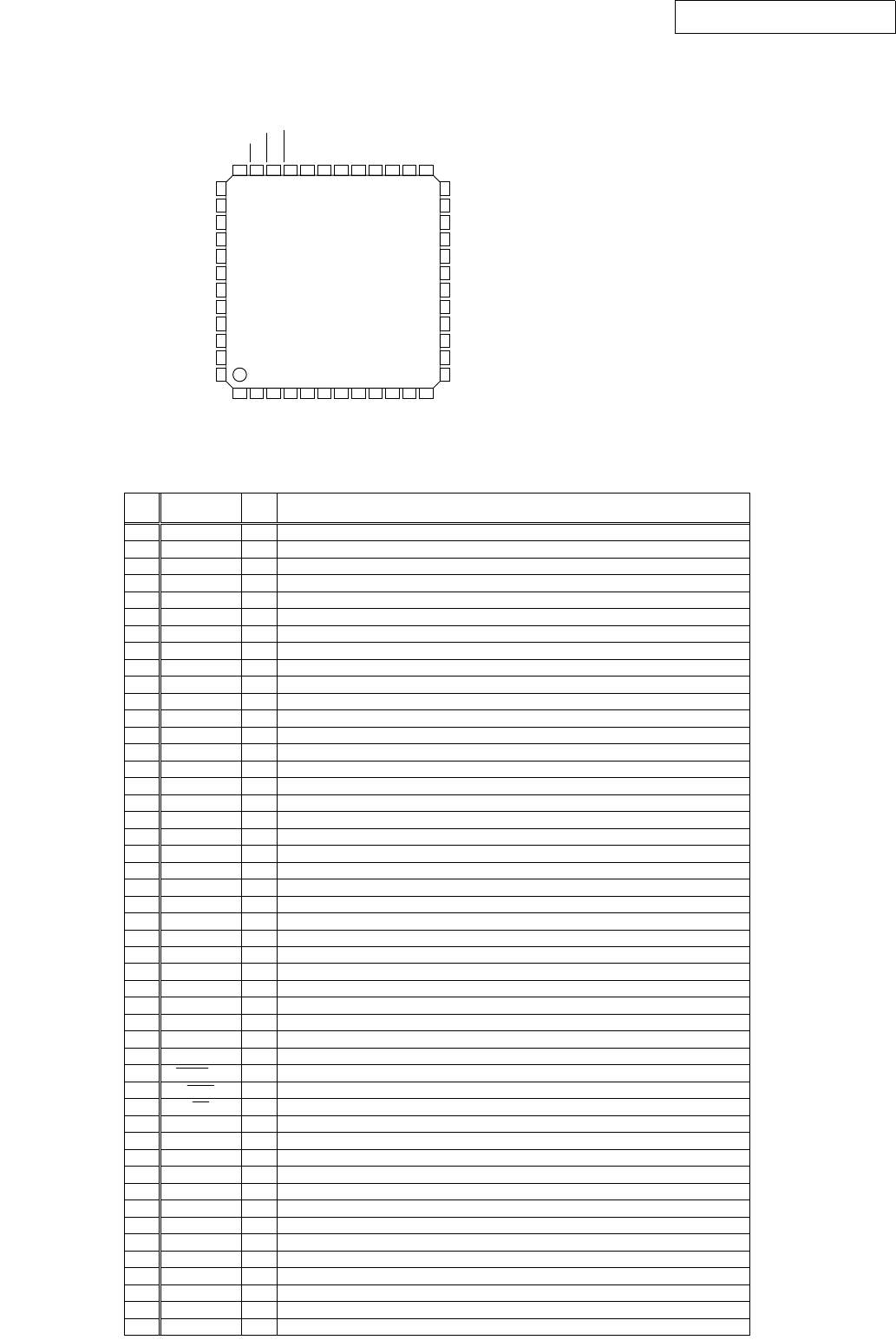

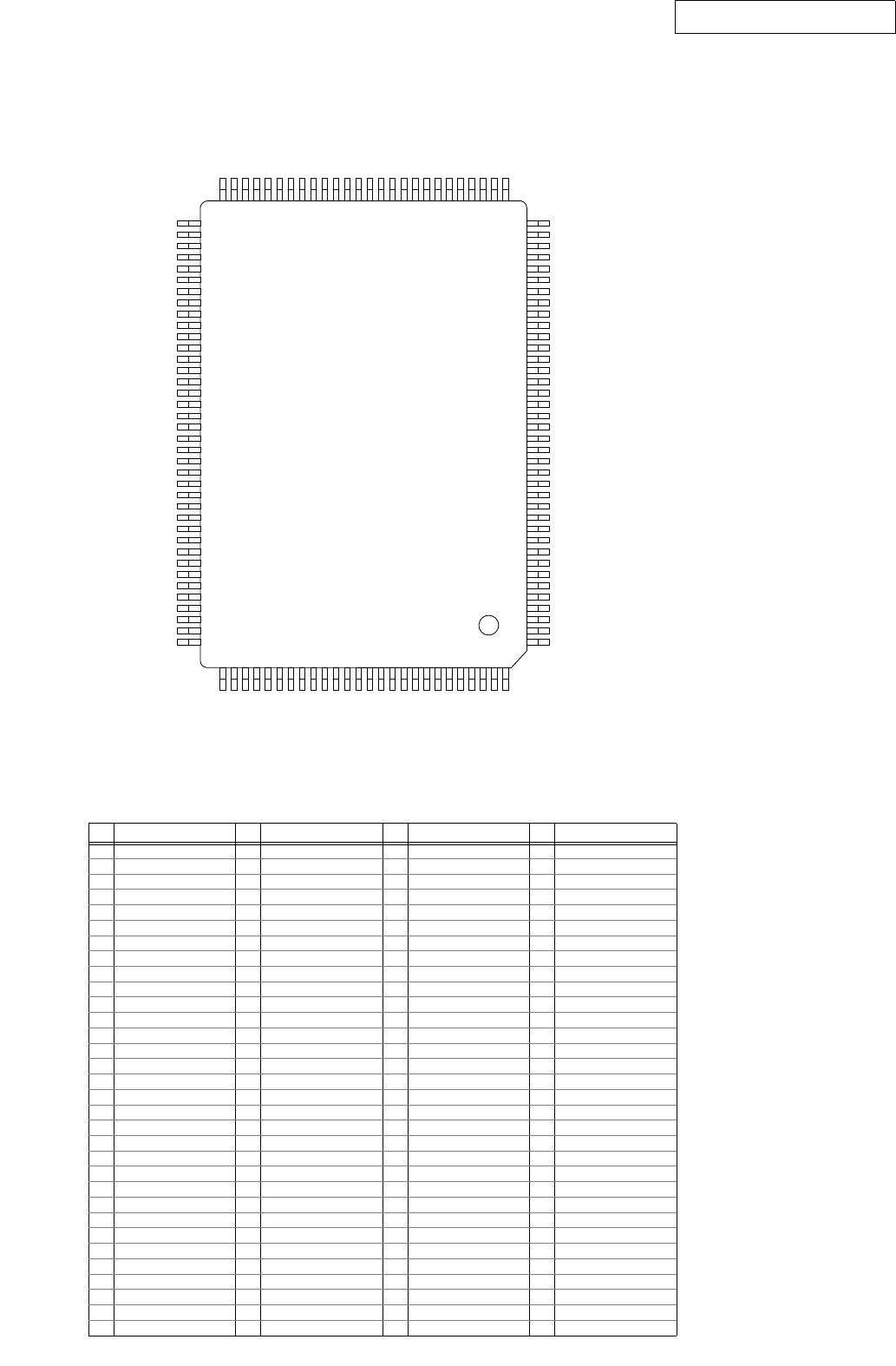

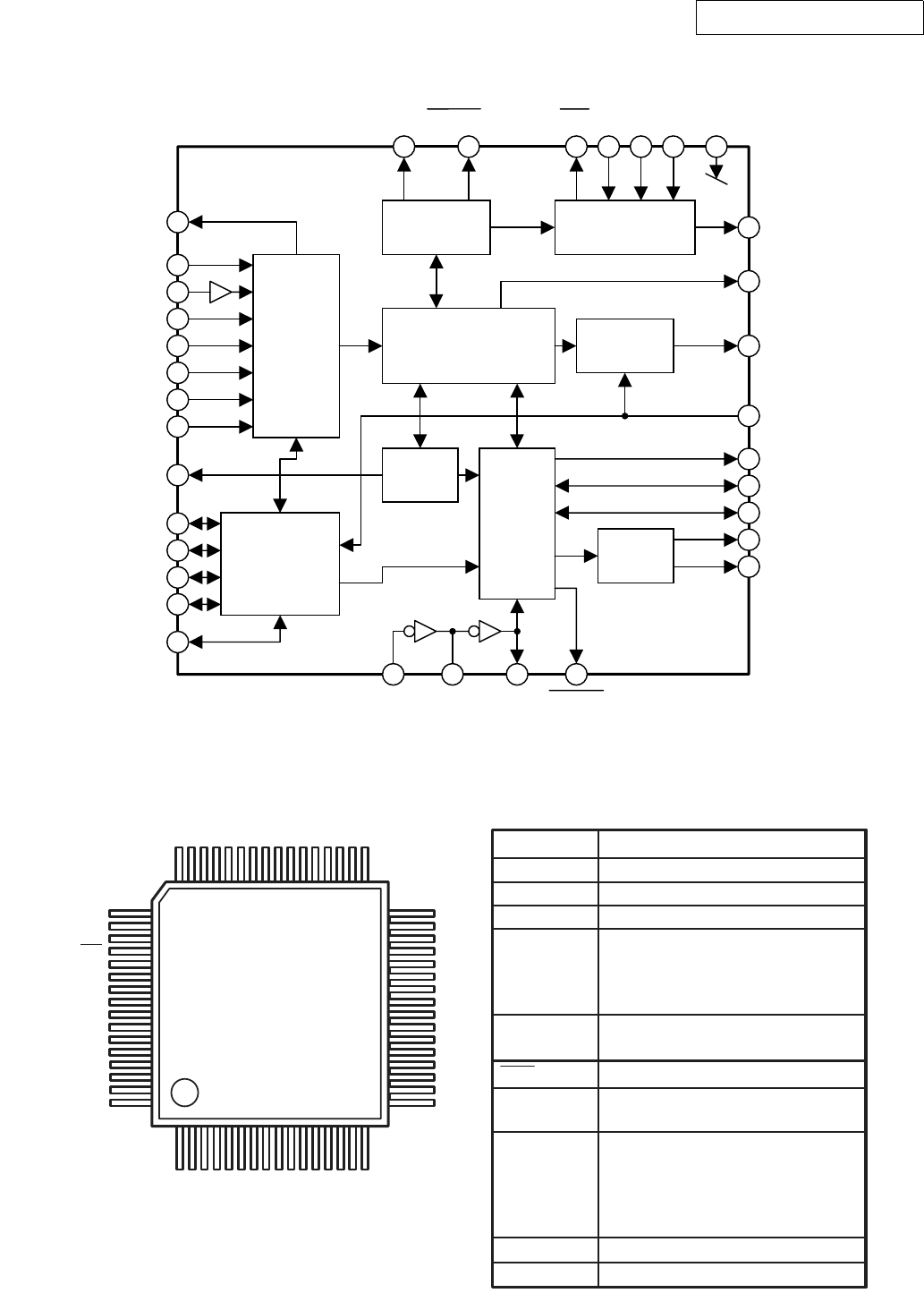

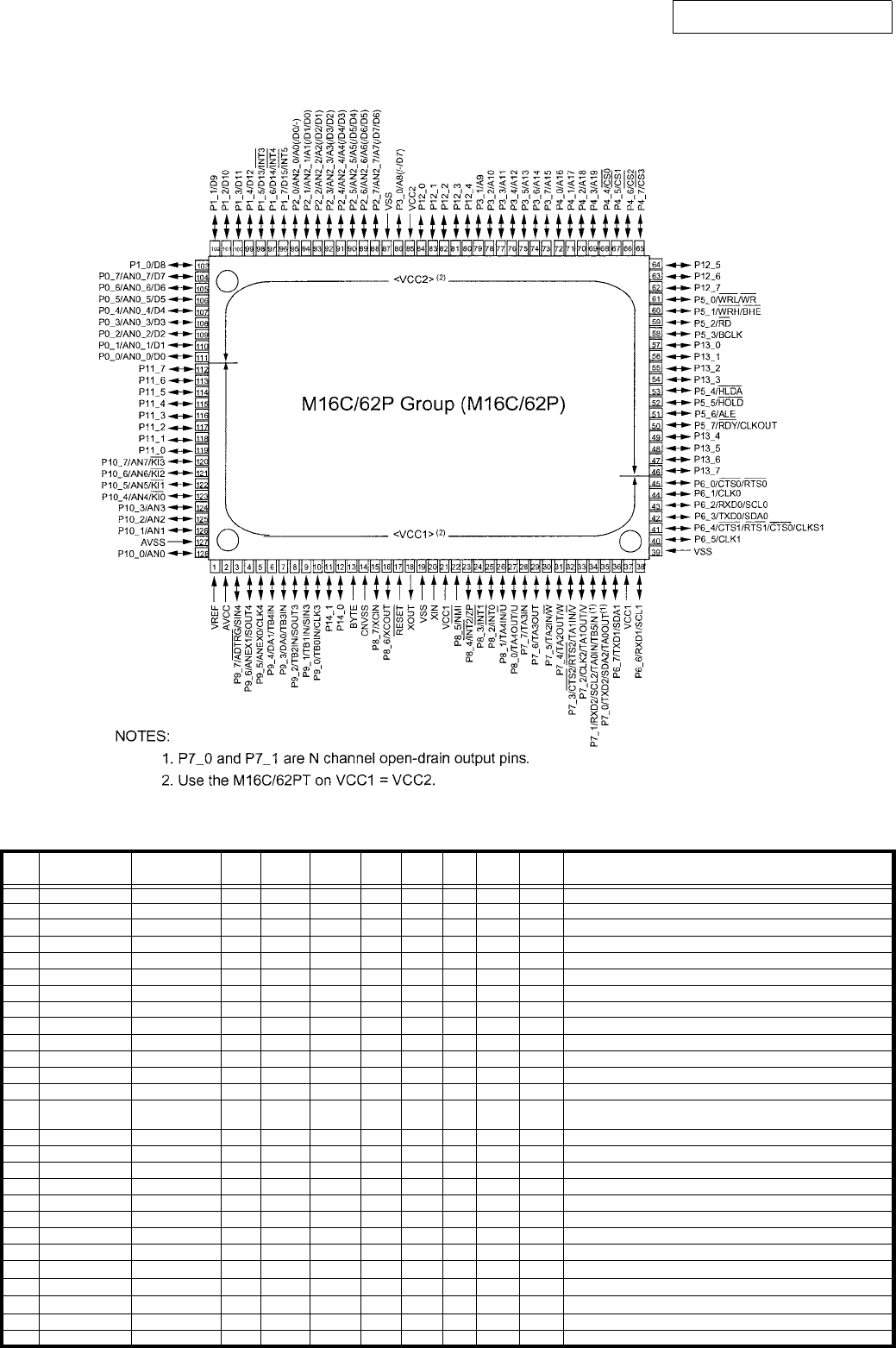

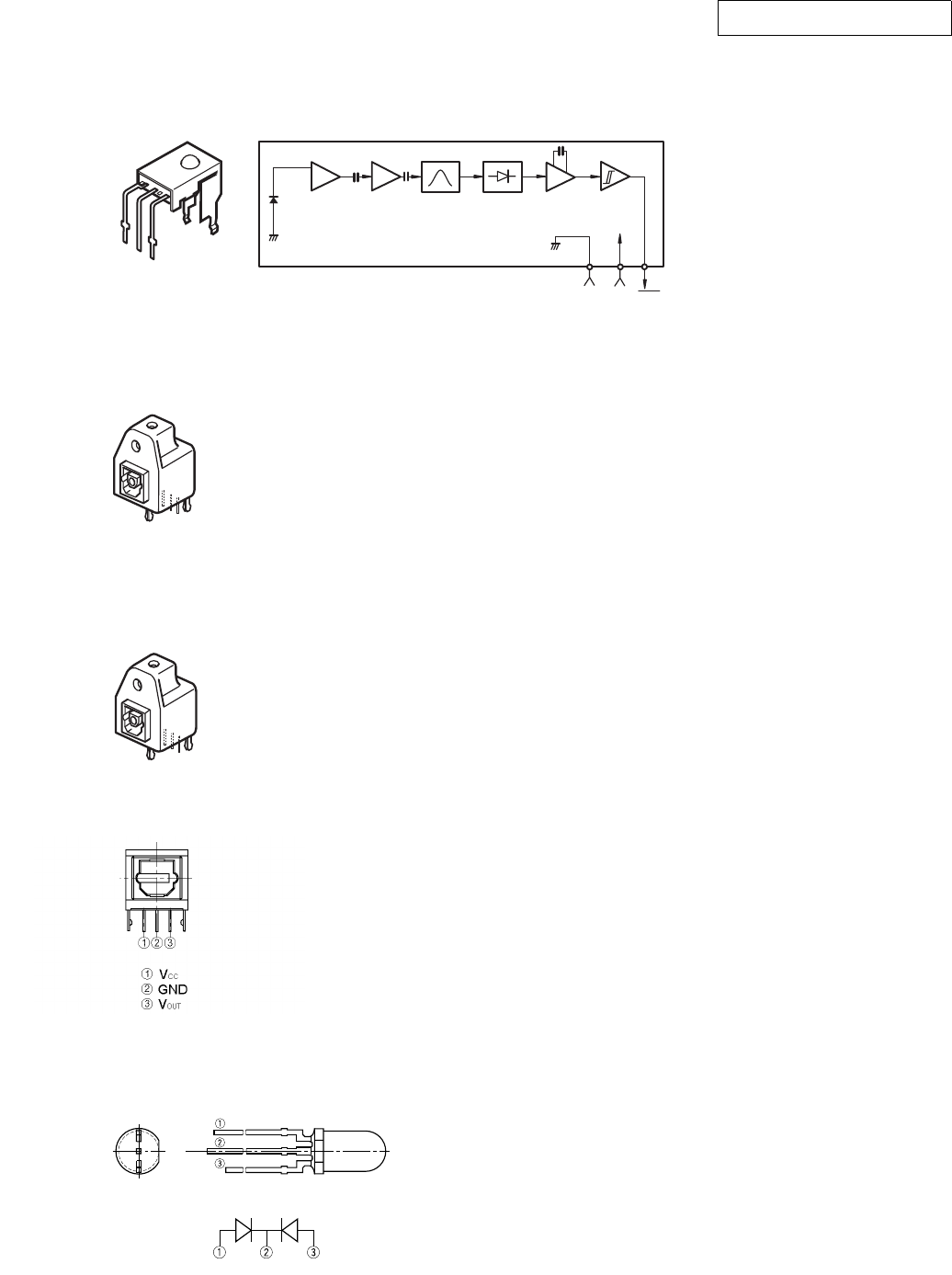

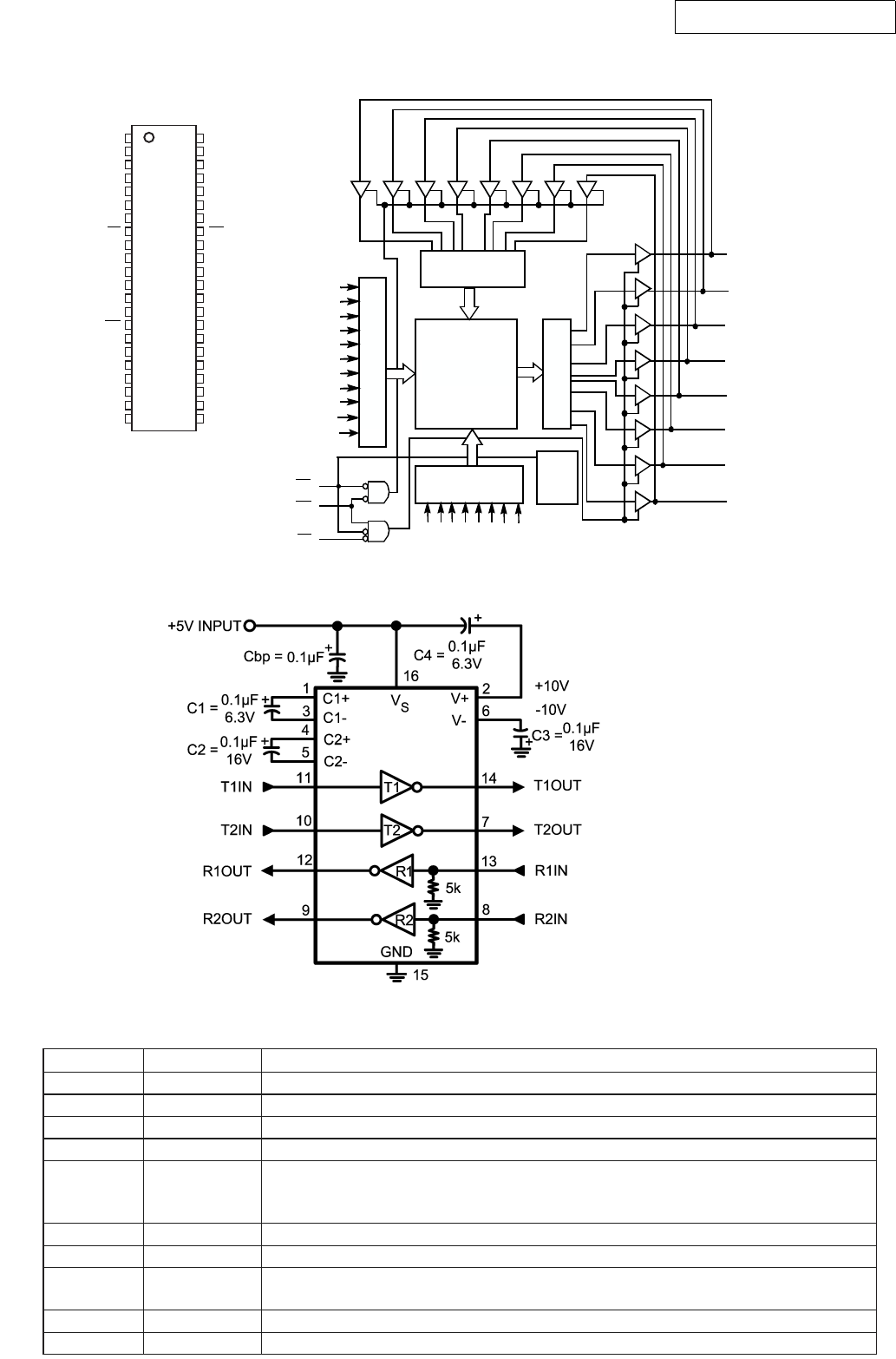

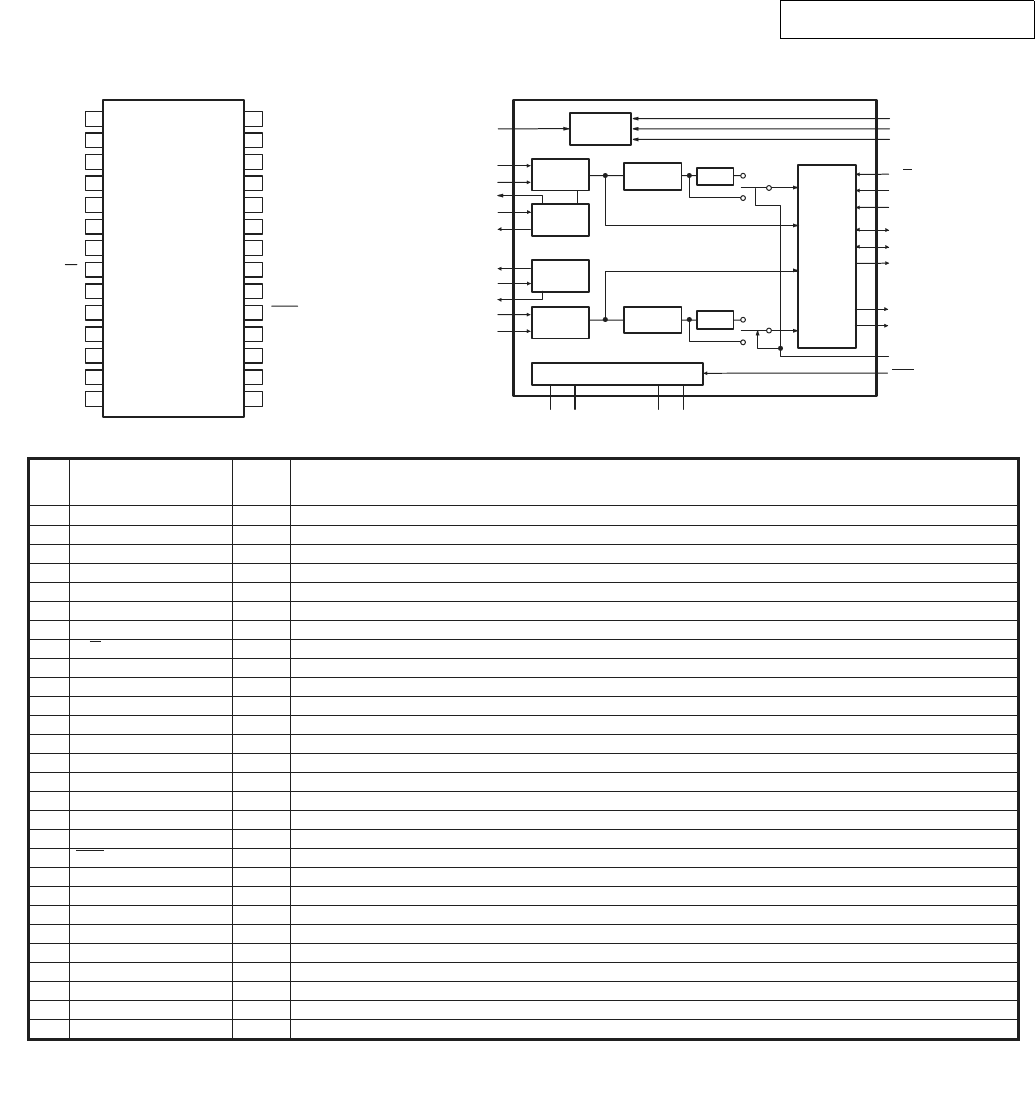

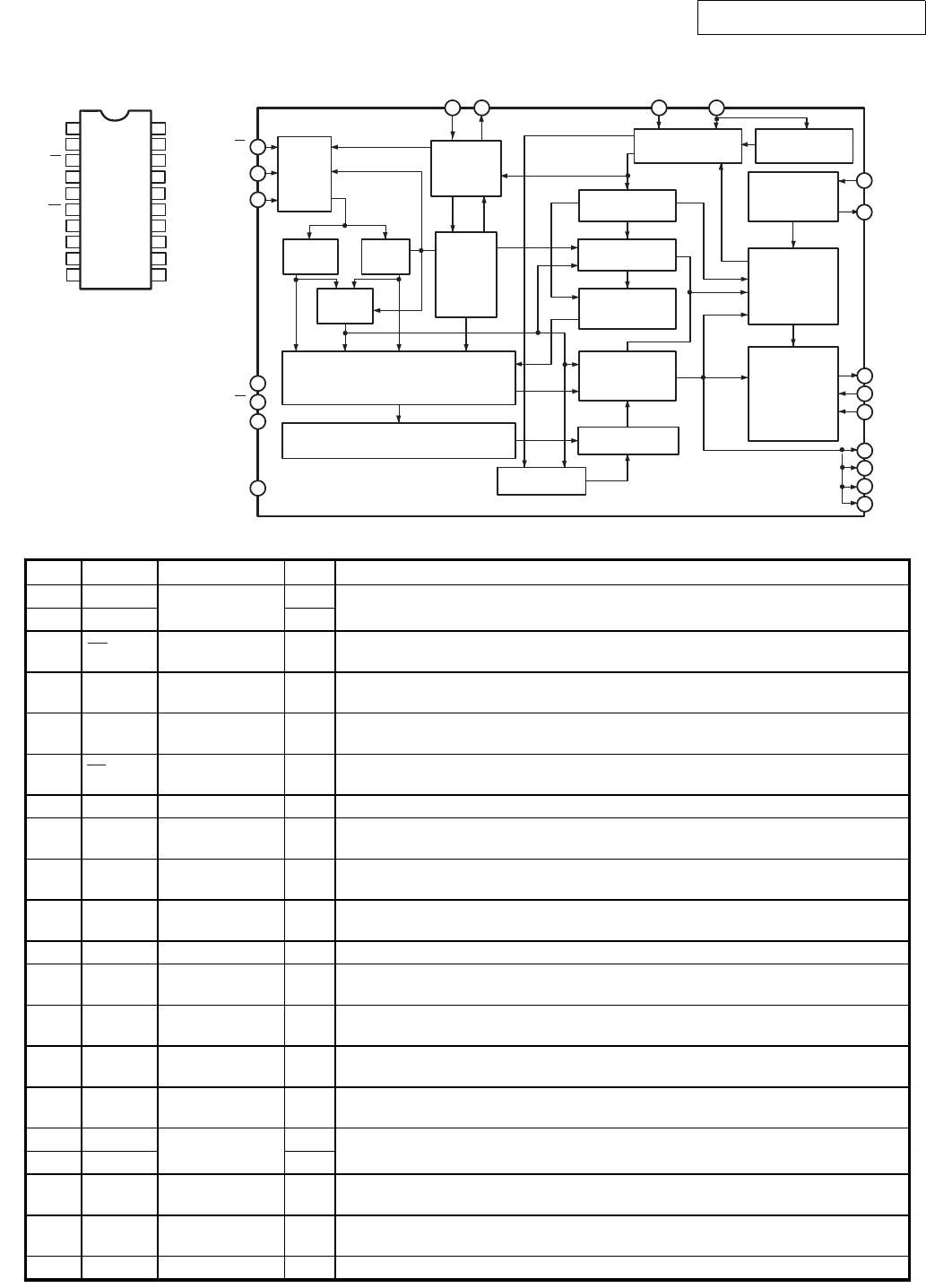

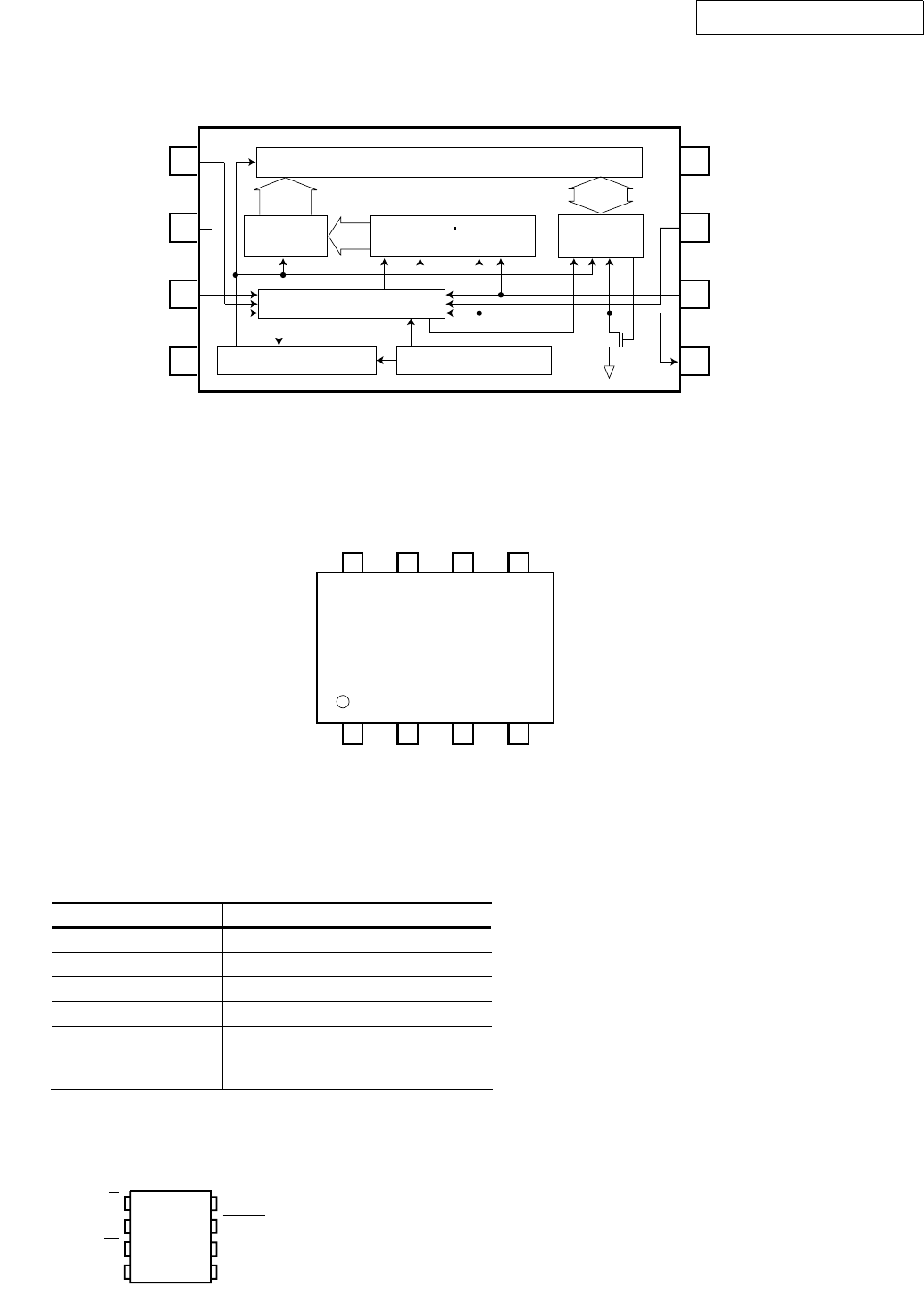

- SEMICONDUCTORS

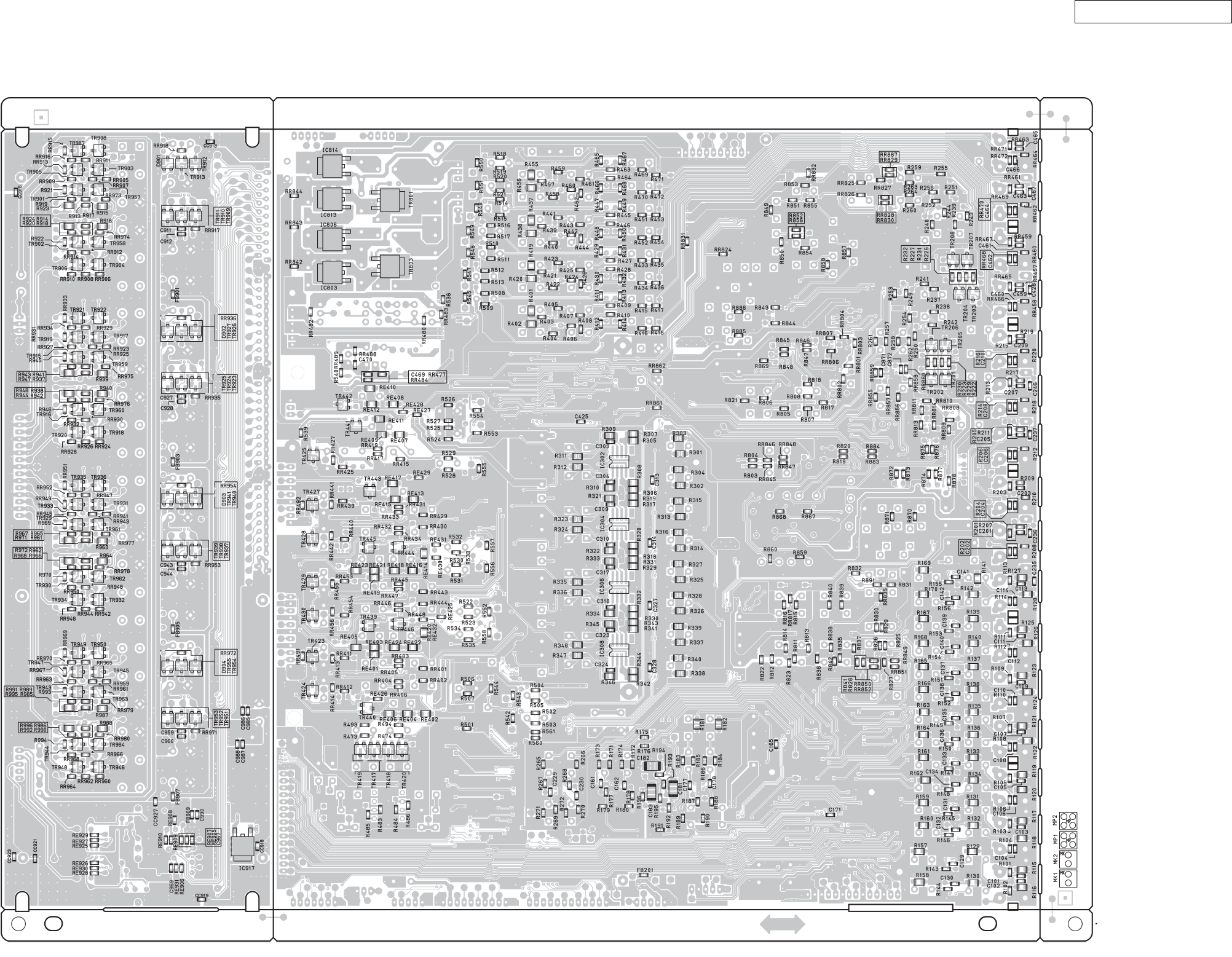

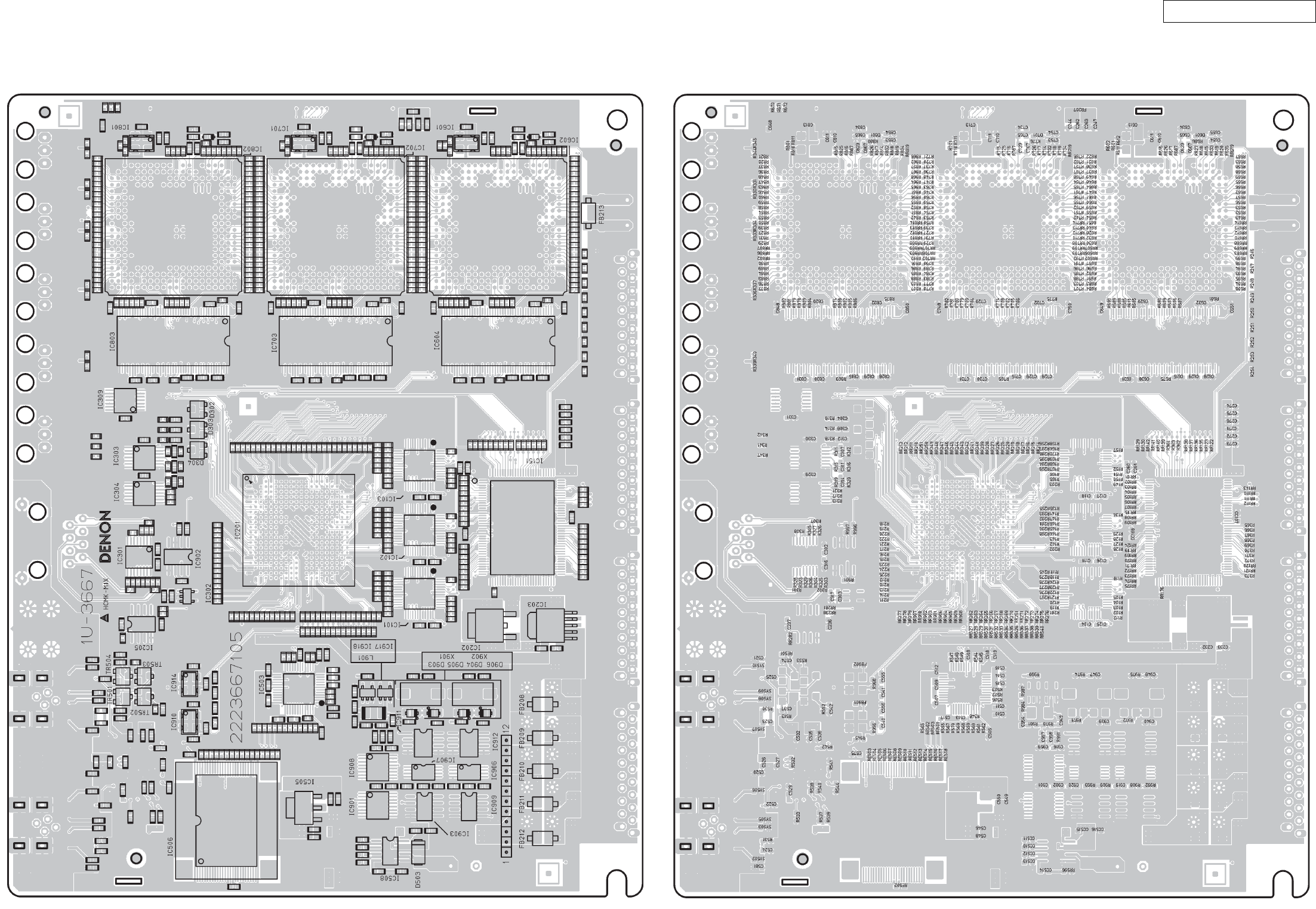

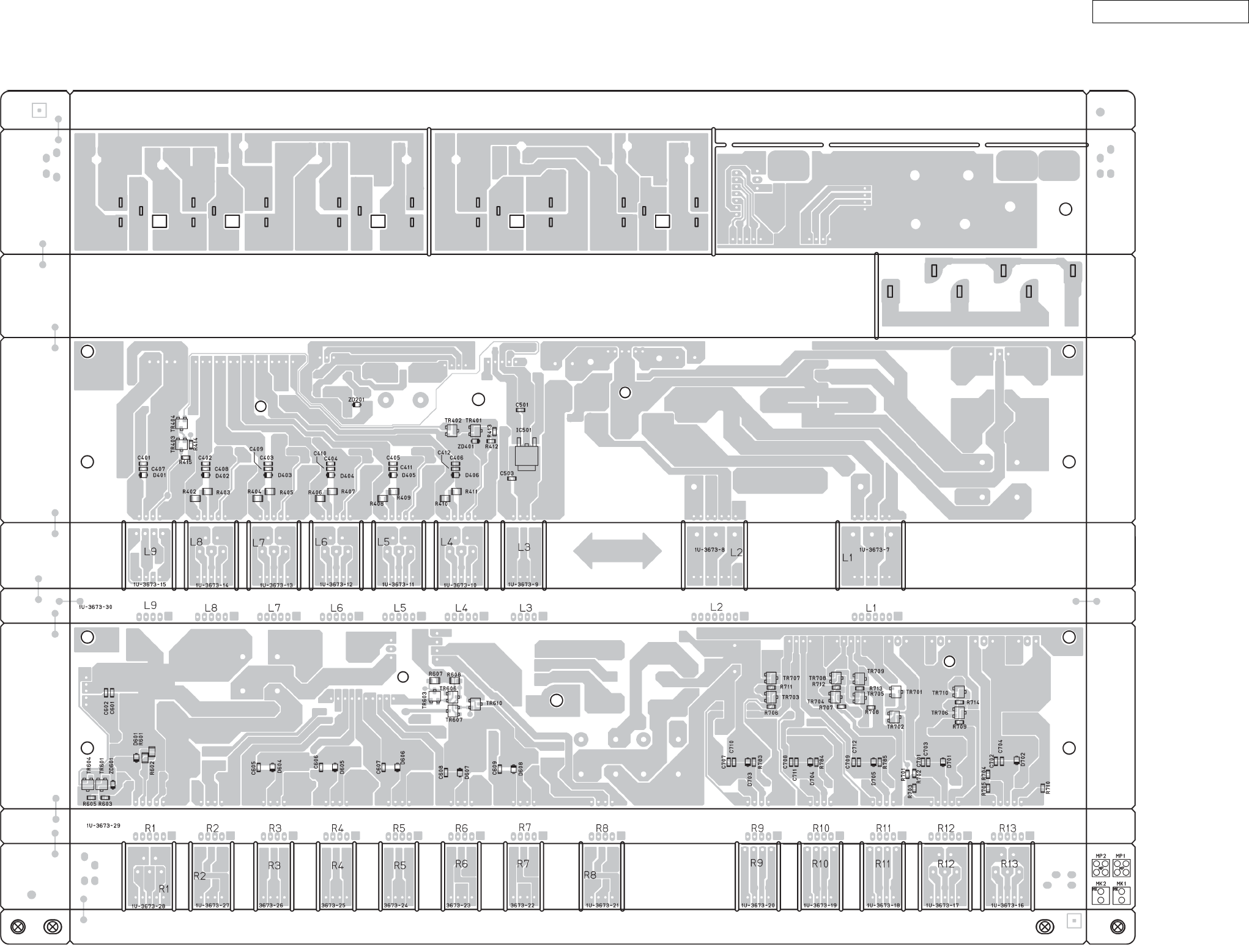

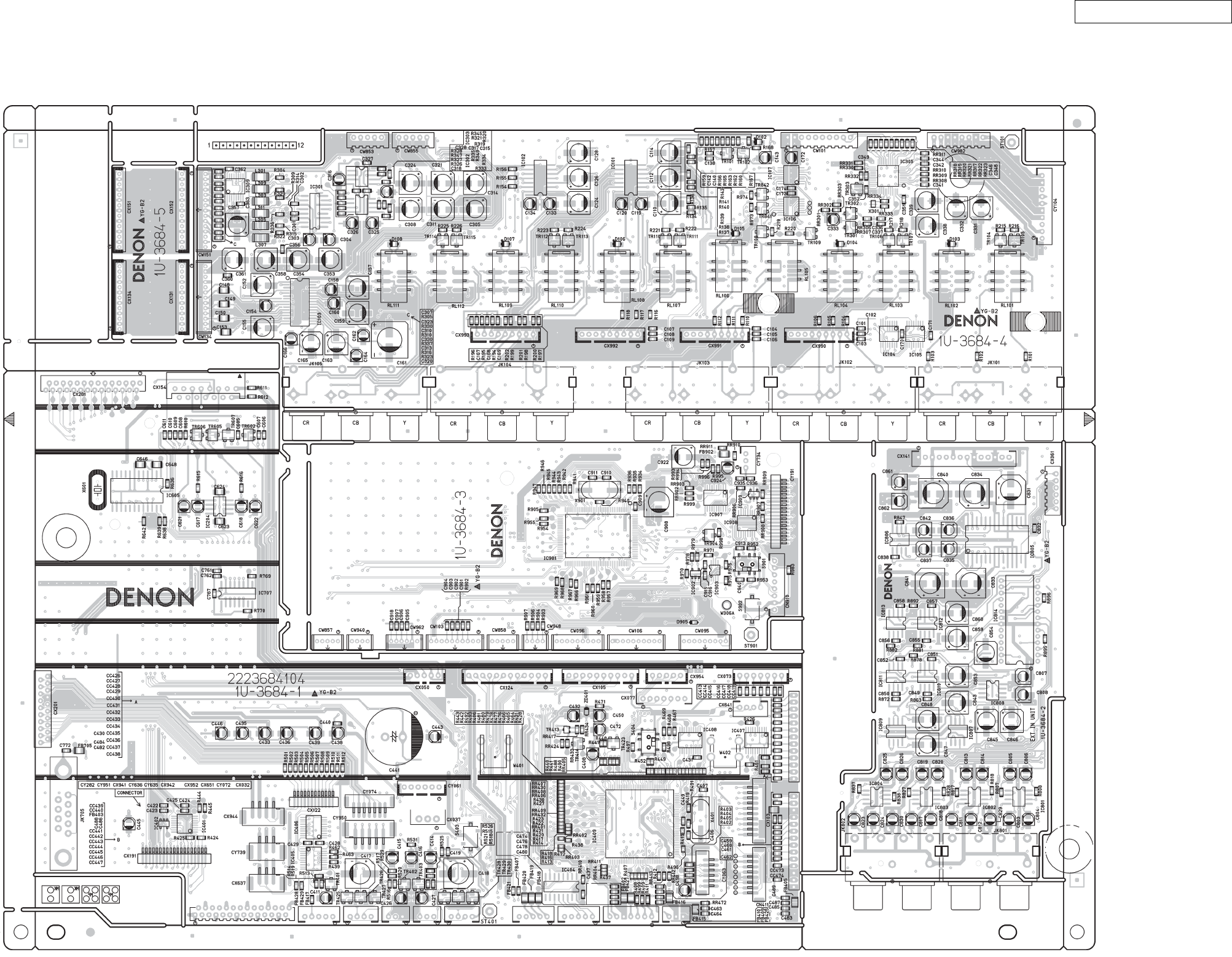

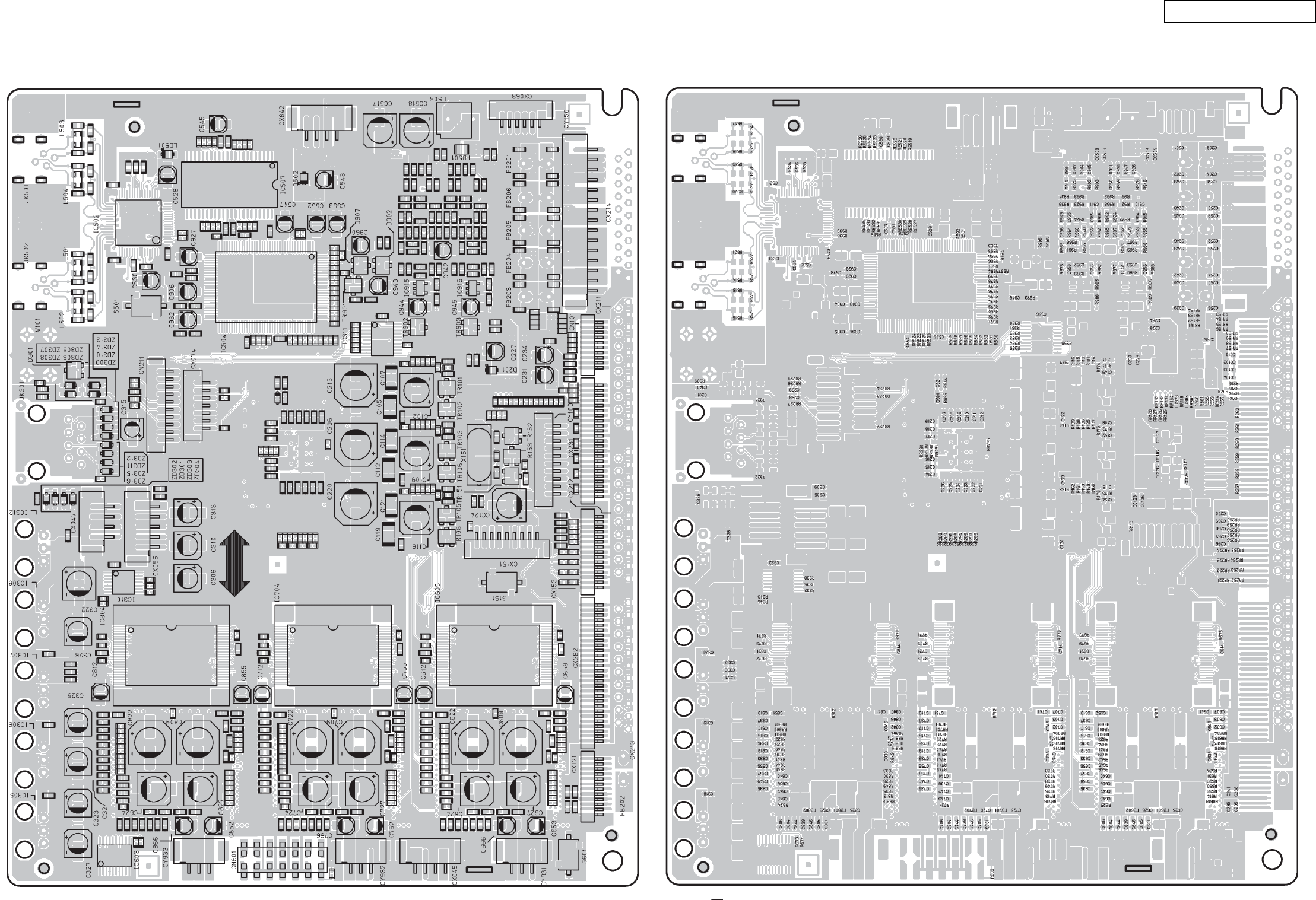

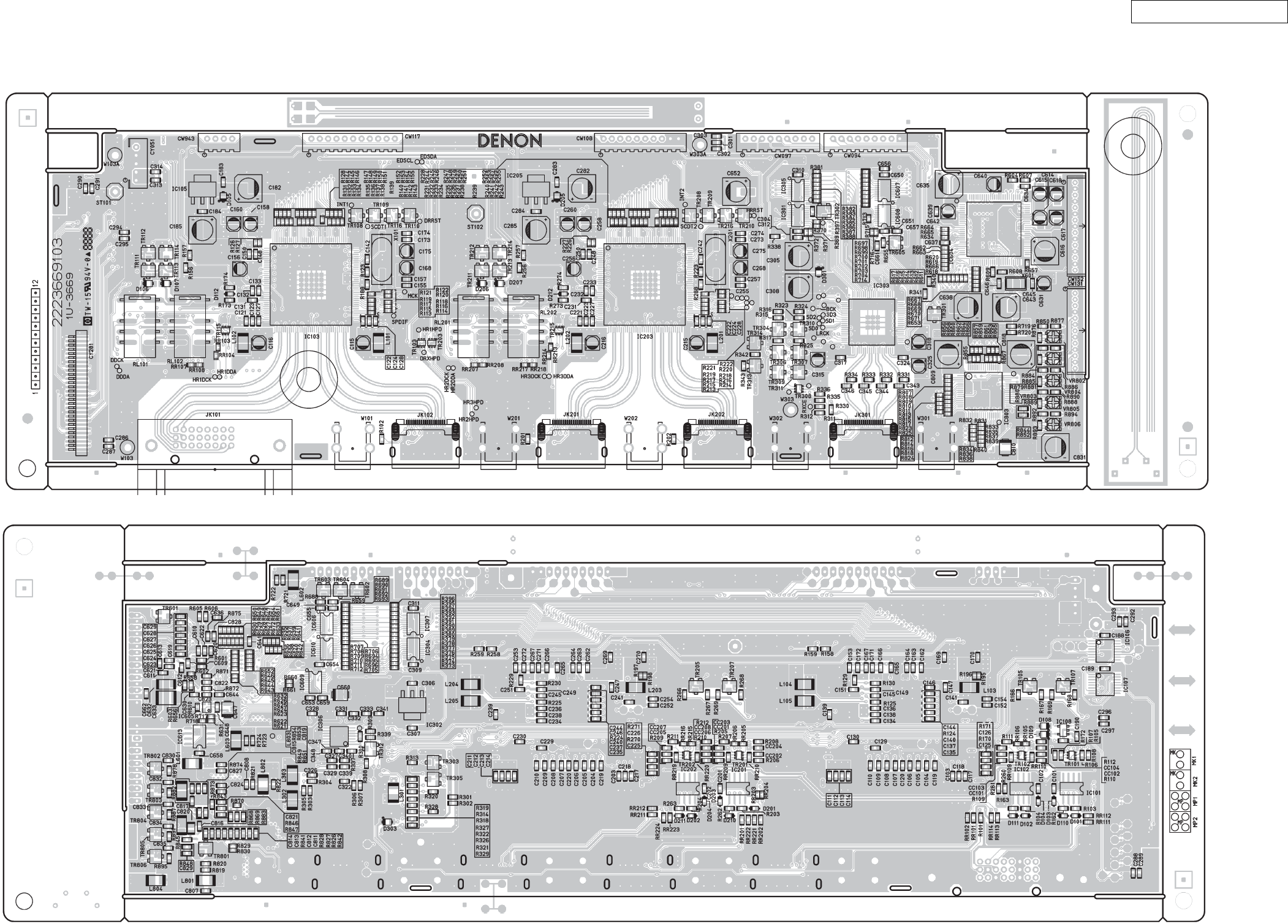

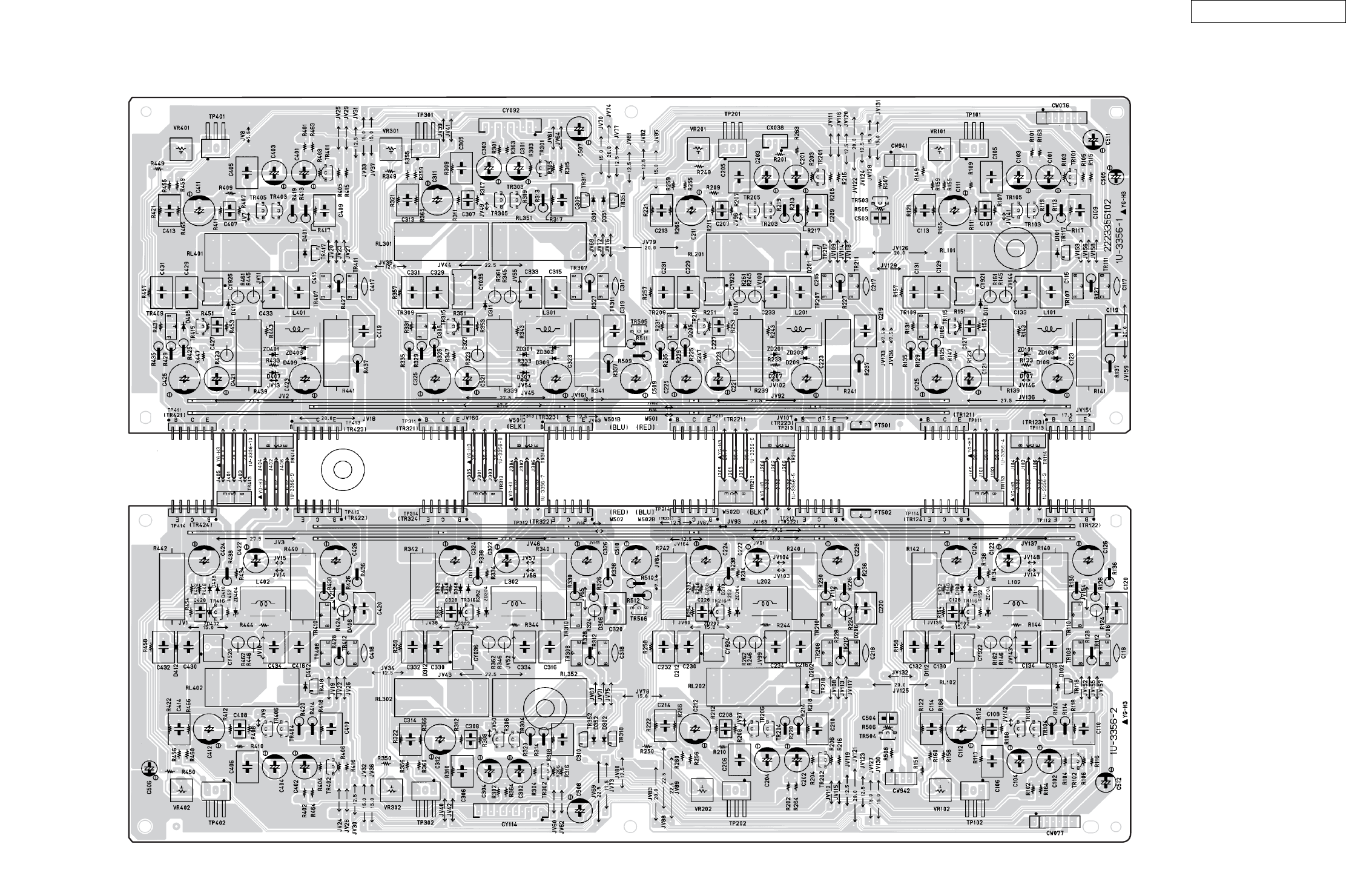

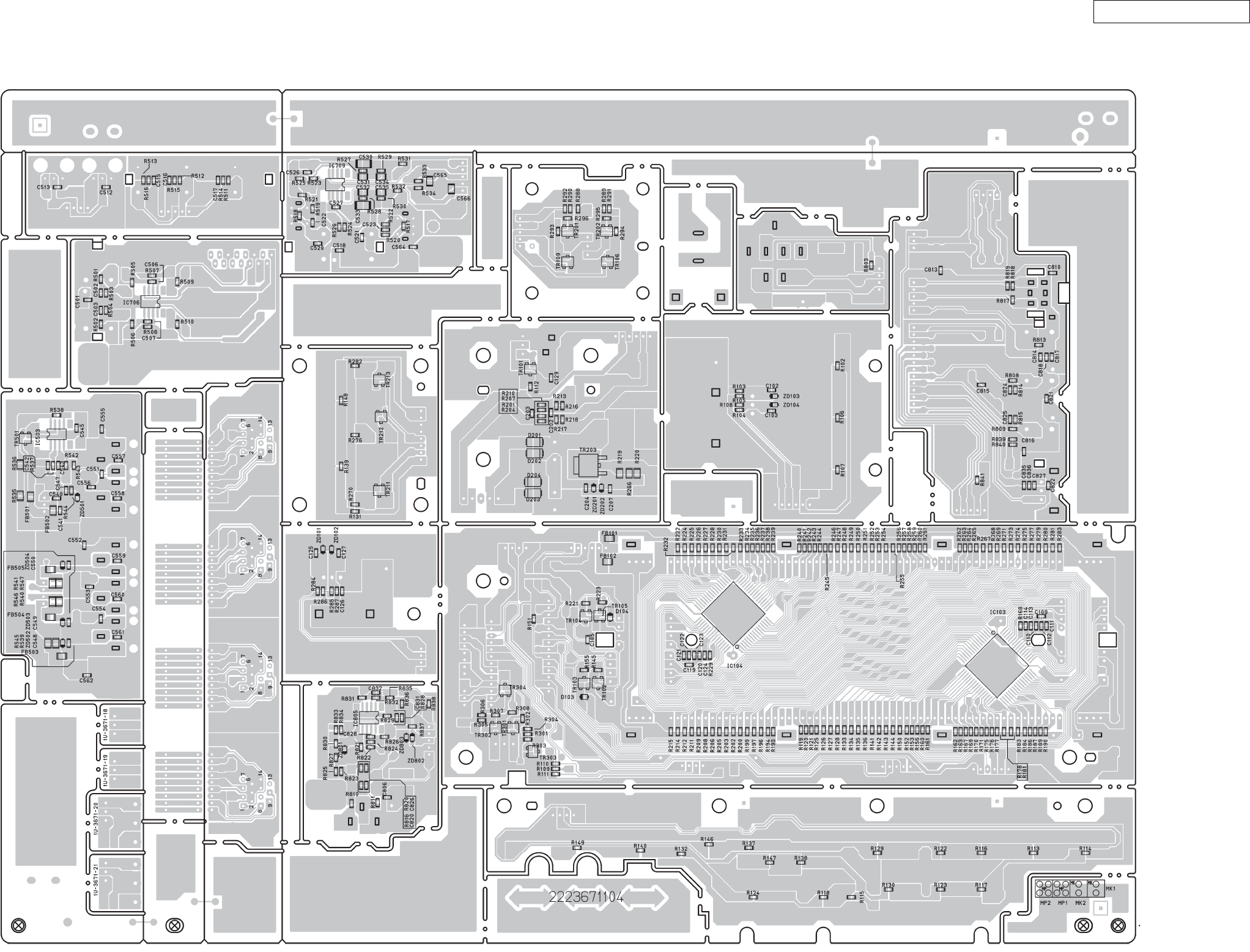

- PRINTED WIRING BOARDS

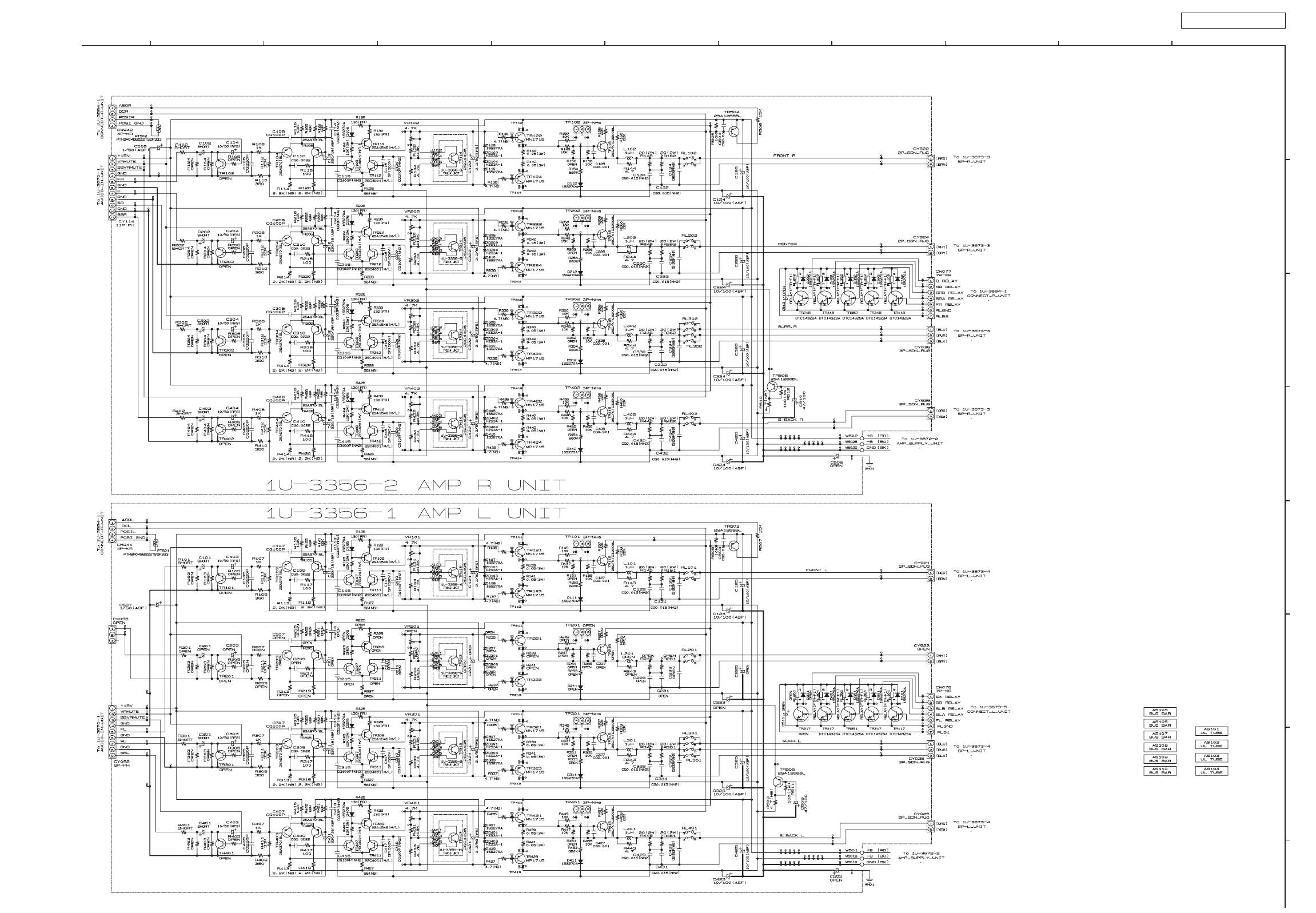

- 1U-3356 AMP P.W.B. UNIT

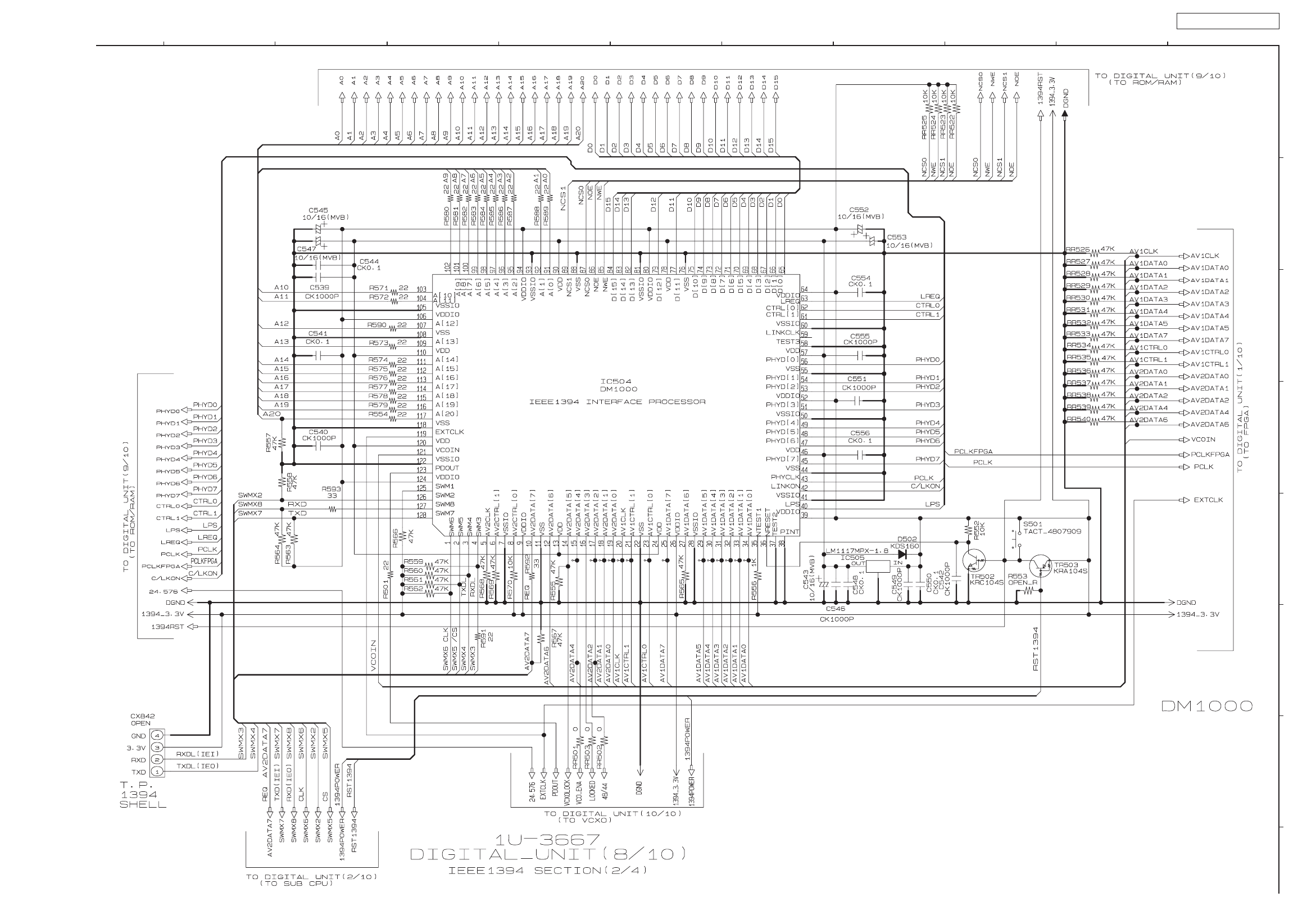

- 1U-3667 DIGITAL P.W.B. UNIT

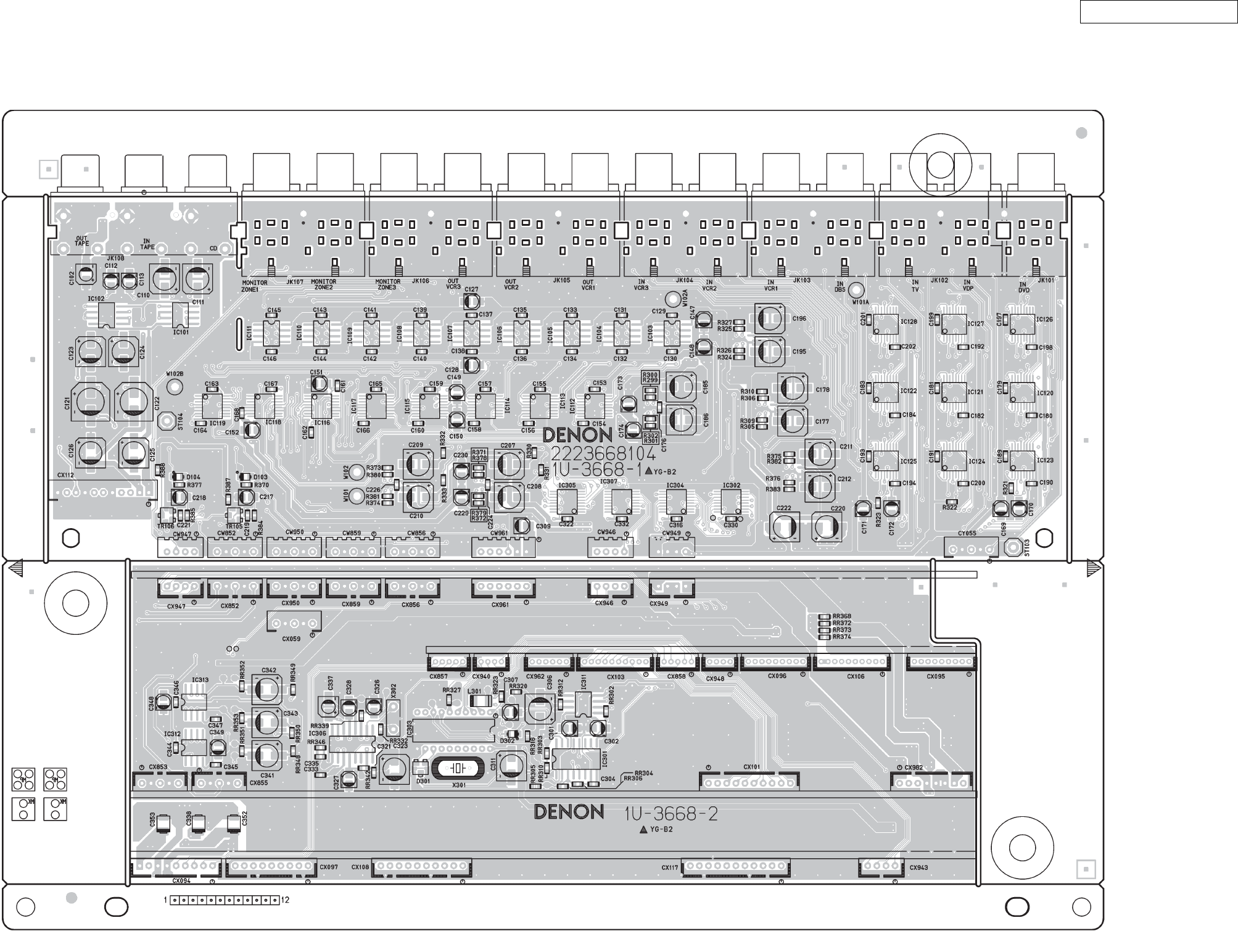

- 1U-3668 A.VIDEO P.W.B. UNIT
- 1U-3669 D.VIDEO P.W.B. UNIT

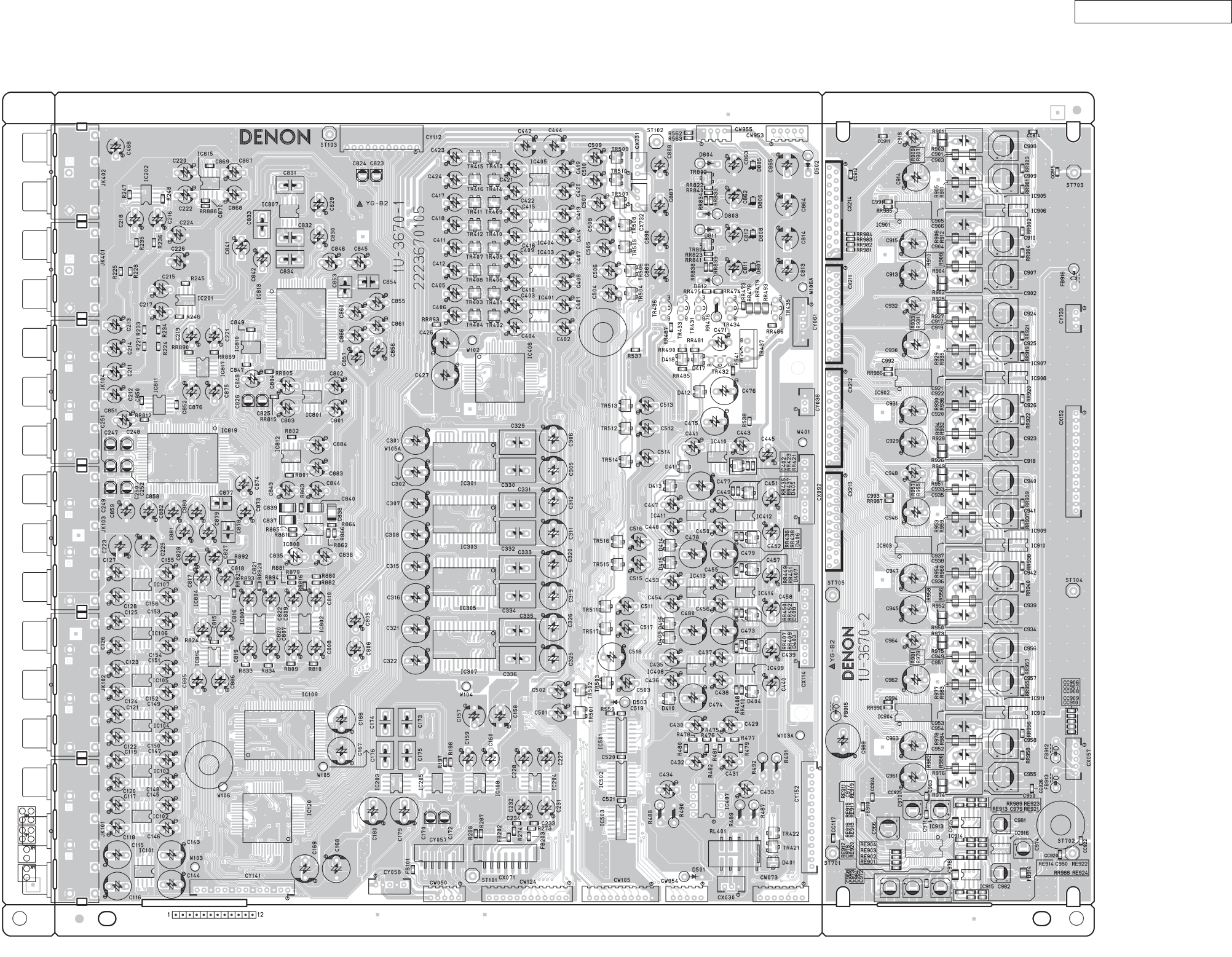

- 1U-3670 AUDIO P.W.B. UNIT
- 1U-3671 FRONT P.W.B. UNIT

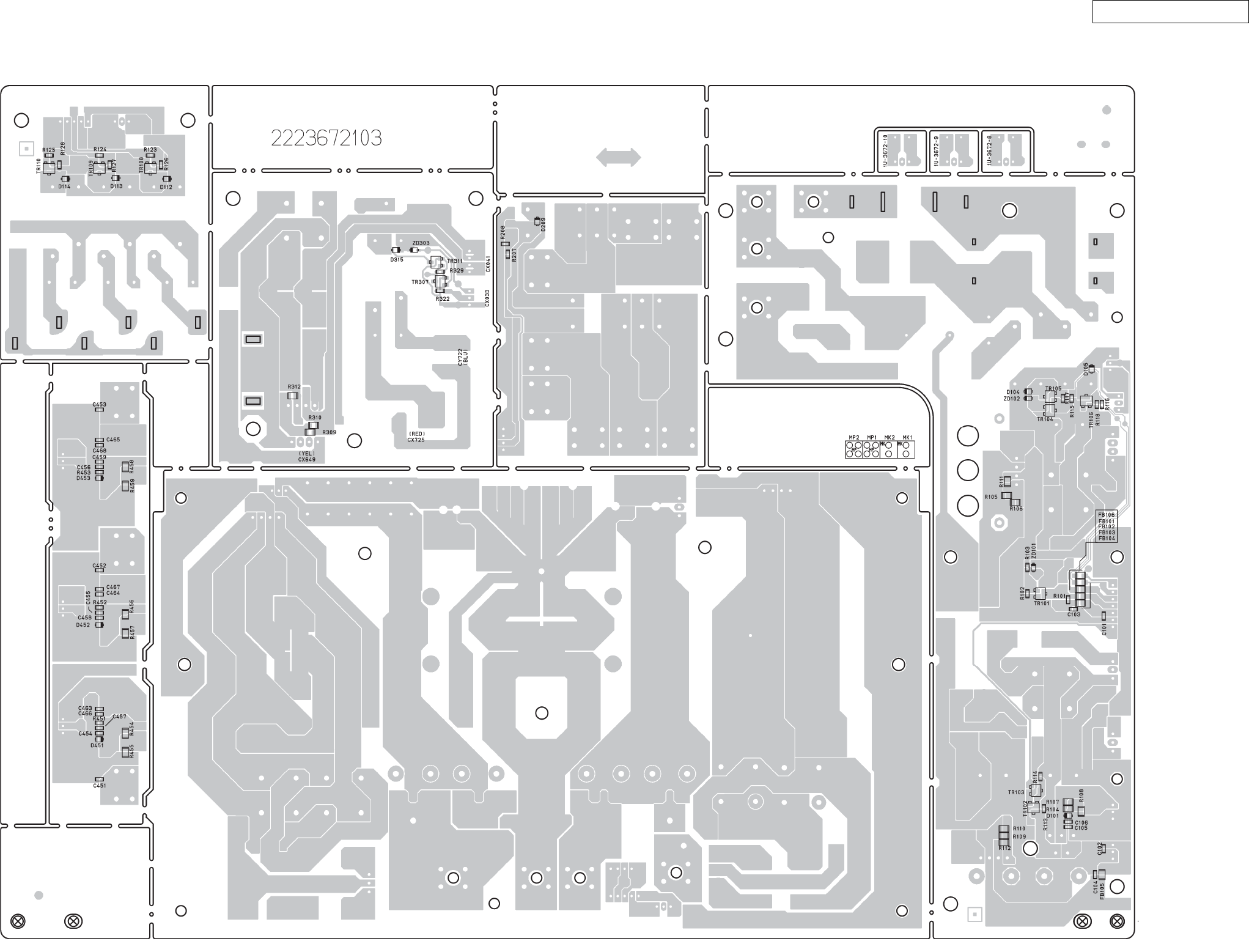

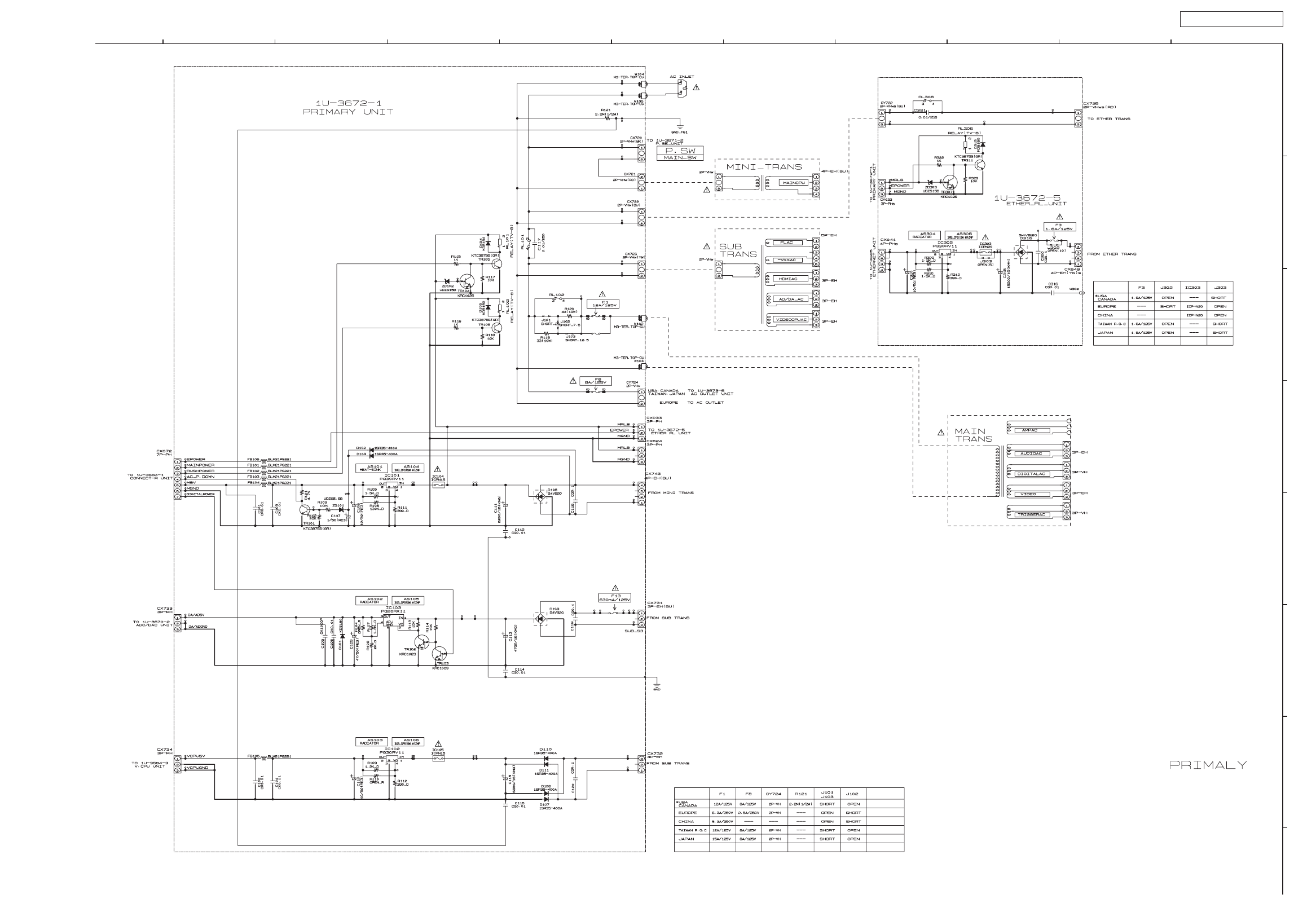

- 1U-3672 PRIMARY P.W.B. UNIT

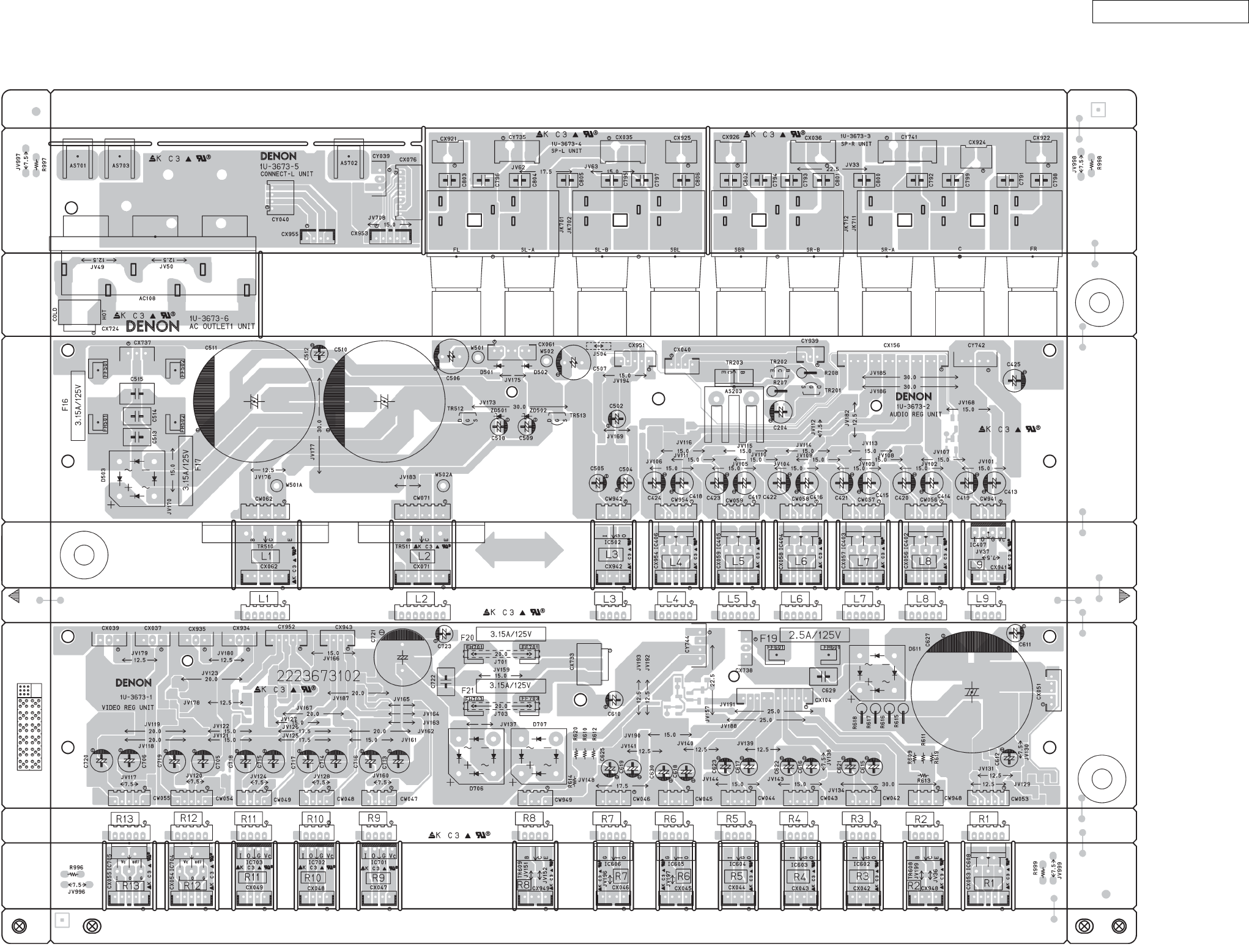

- 1U-3673 REGULATOR P.W.B. UNIT
- 1U-3684 CONNECT P.W.B. UNIT

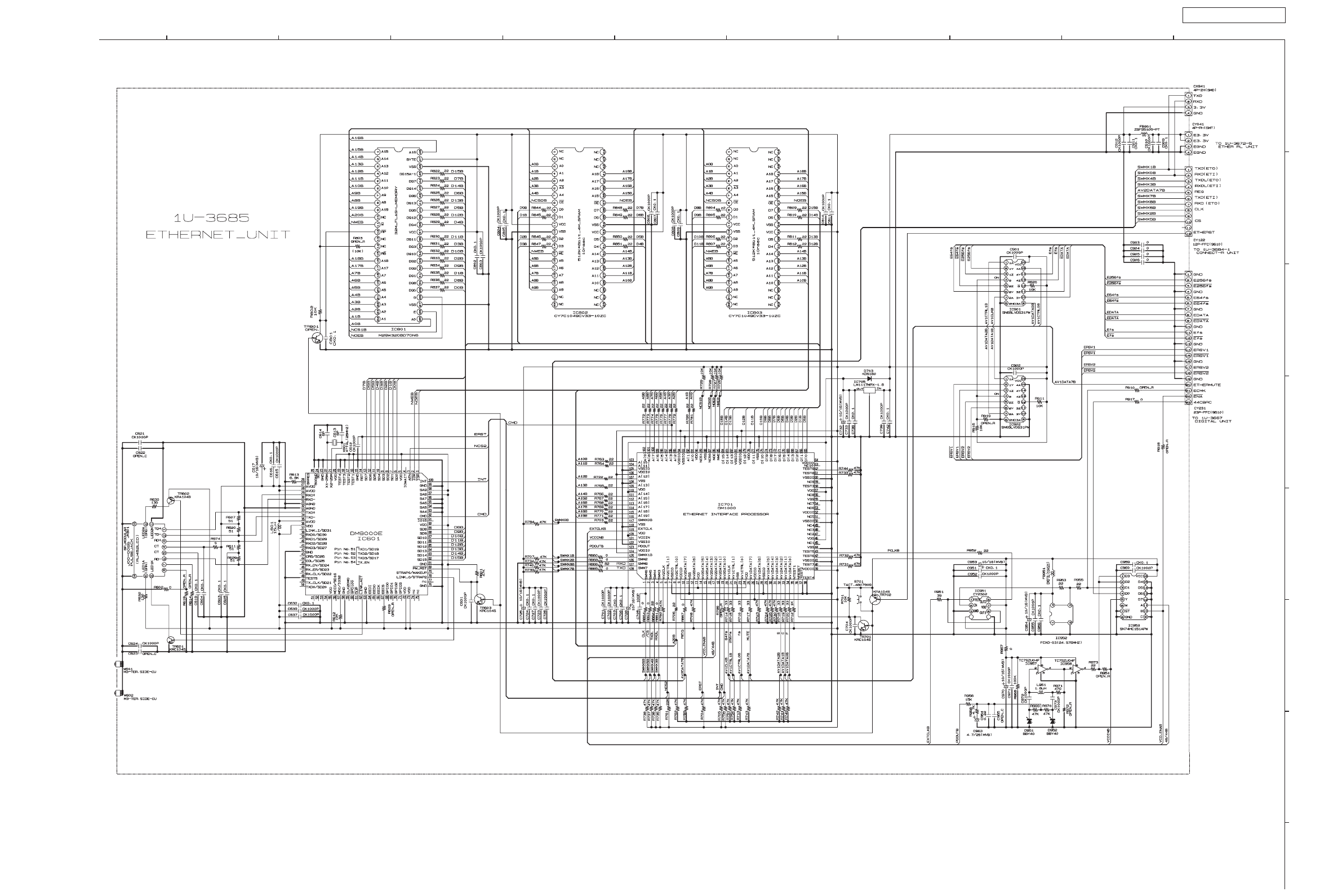

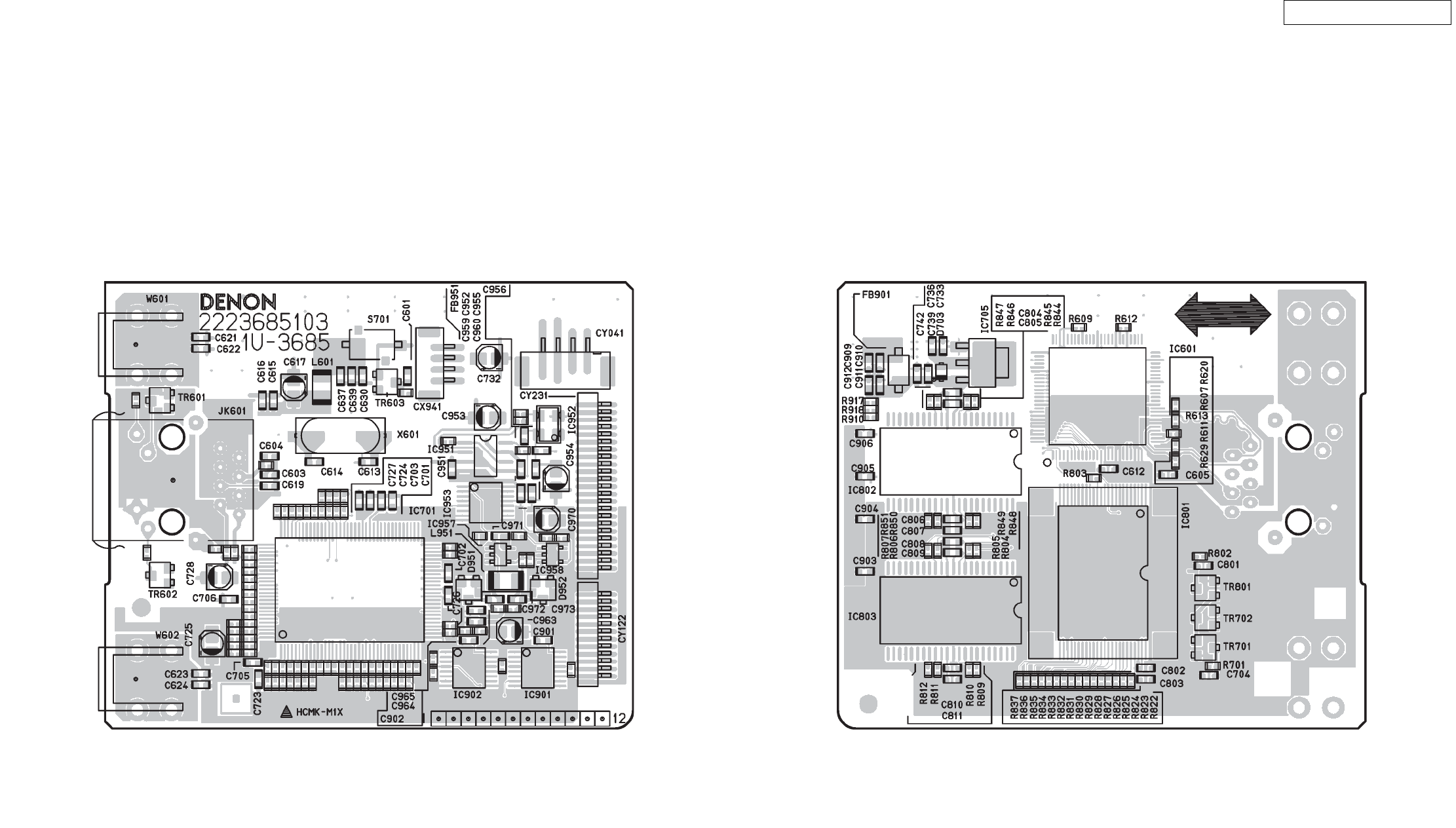

- 1U-3685 ETHERNET P.W.B. UNIT

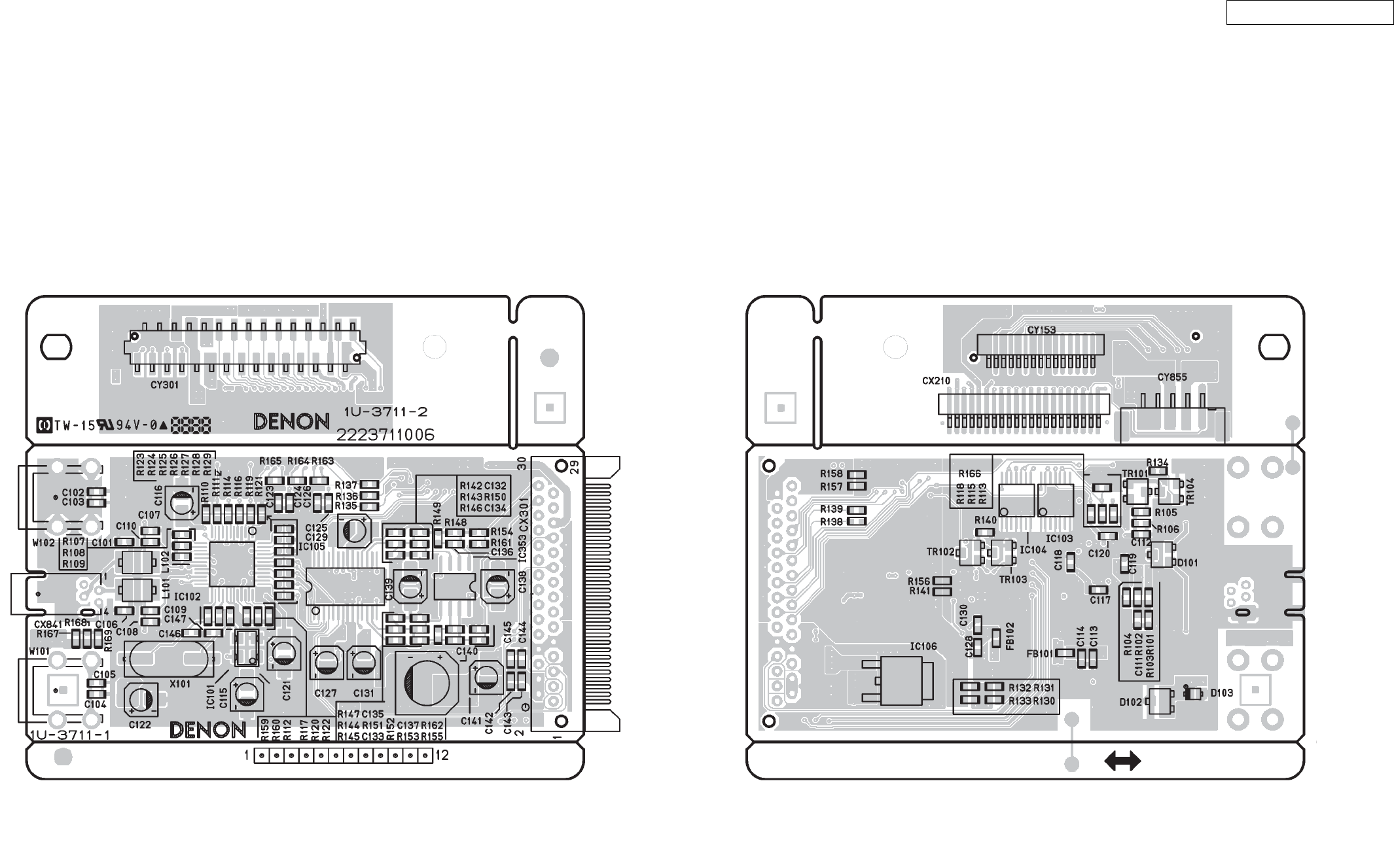

- 1U-3711 XM P.W.B. UNIT (AVR-4806 ONLY)

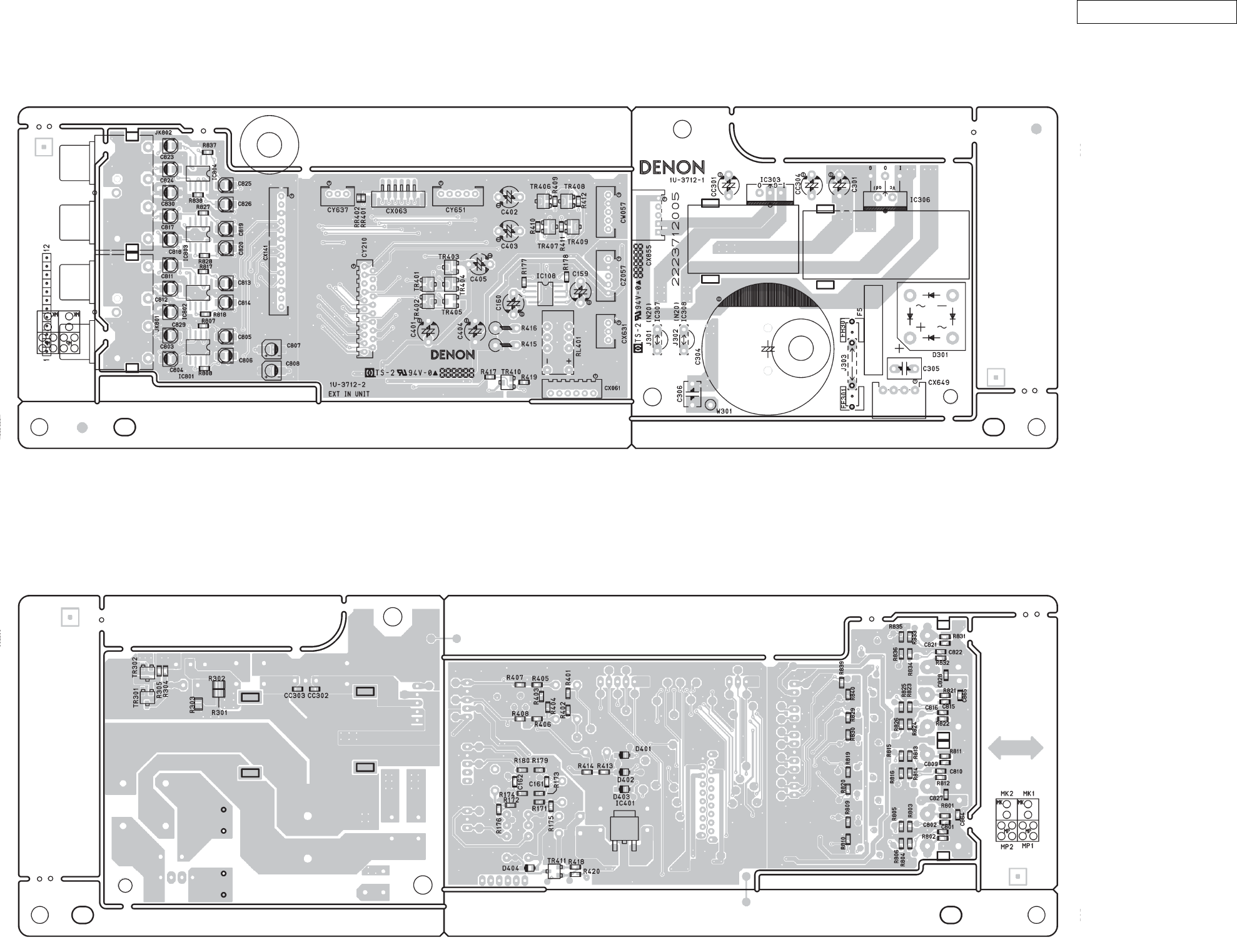

- 1U-3712 XM REG. P.W.B. UNIT (AVR-4806 ONLY)

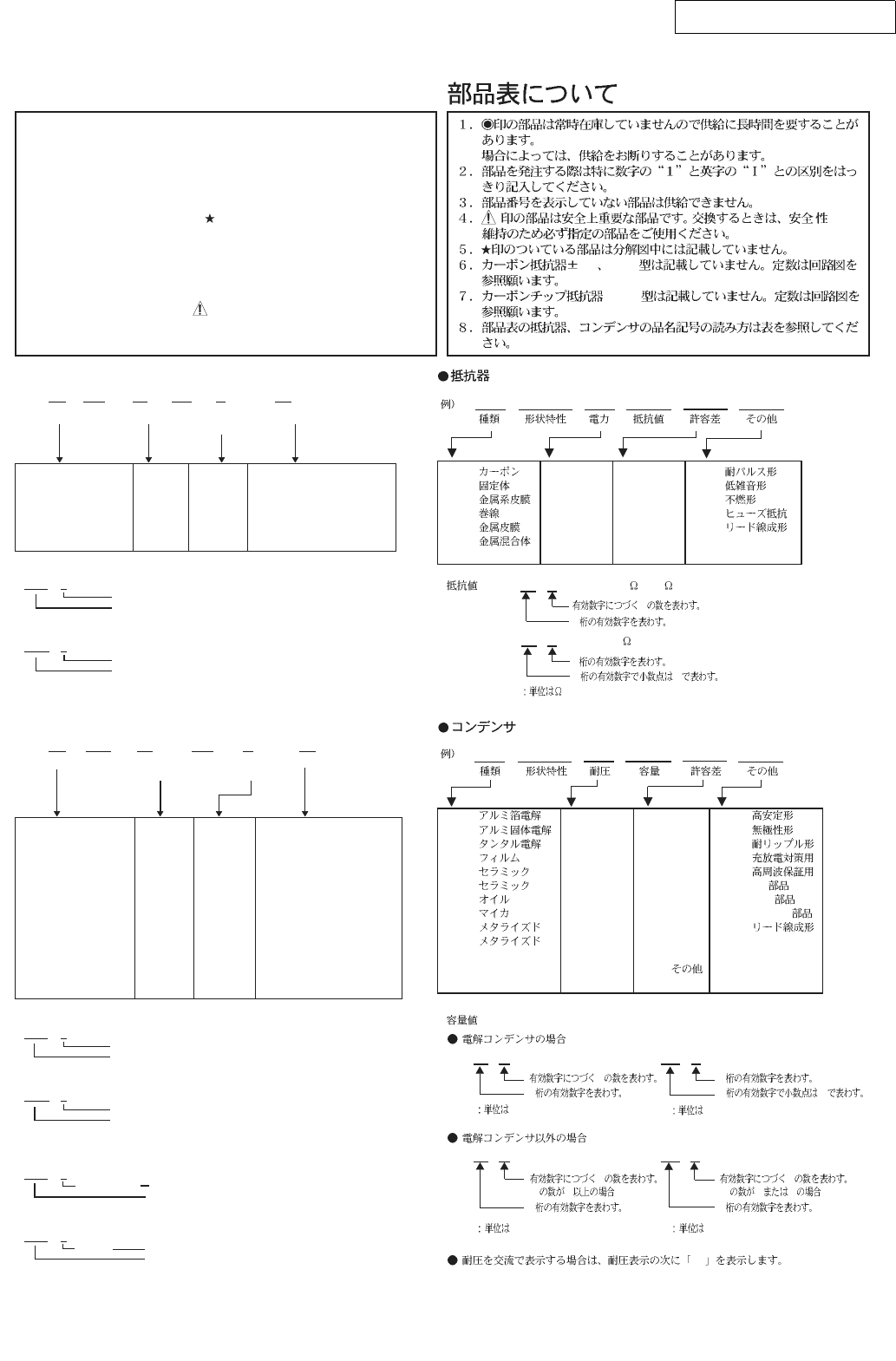

- NOTE FOR PARTS LIST
- PARTS LIST OF P.W.B. UNIT ASS’Y
- 00D1U-3356 AMP P.W.B. UNIT ASS'Y
- 00D1U-3667 DIGITAL P.W.B. UNIT ASS'Y
- 00D1U-3668 A.VIDEO P.W.B. UNIT ASS'Y
- 00D1U-3669 D.VIDEO P.W.B. UNIT ASS'Y
- 00D1U-3670 AUDIO P.W.B. UNIT ASS'Y
- 00D1U-3671 FRONT P.W.B. UNIT ASS'Y
- 00D1U-3672 PRIMALY P.W.B. UNIT ASS'Y
- 00D1U-3673 REGULATOR P.W.B. UNIT ASS'Y
- 00D1U-3684 CONNECT P.W.B. UNIT ASS'Y
- 00D1U-3685 ETHERNET P.W.B. UNIT ASS'Y
- 00D1U-3711 XM P.W.B. UNIT ASS'Y (for EU, EC model)
- 00D1U-3712 XM REG P.W.B. UNIT ASS'Y (for EU, EC model)
- EXPLODED VIEWS
- PARTS LIST OF EXPLODED VIEW

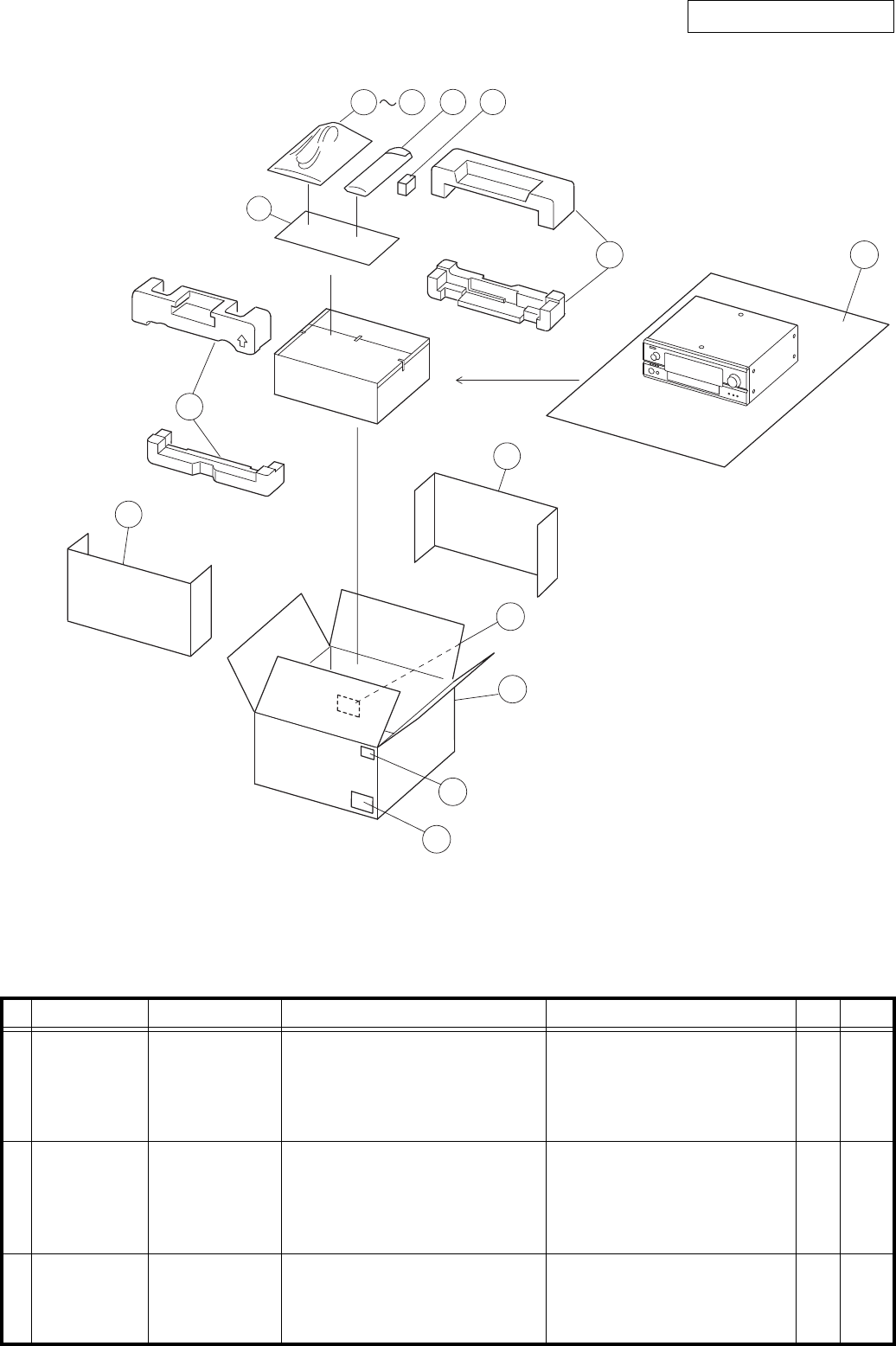

- PACKING VIEW
- PARTS LIST OF PACKING & ACCESSORIES

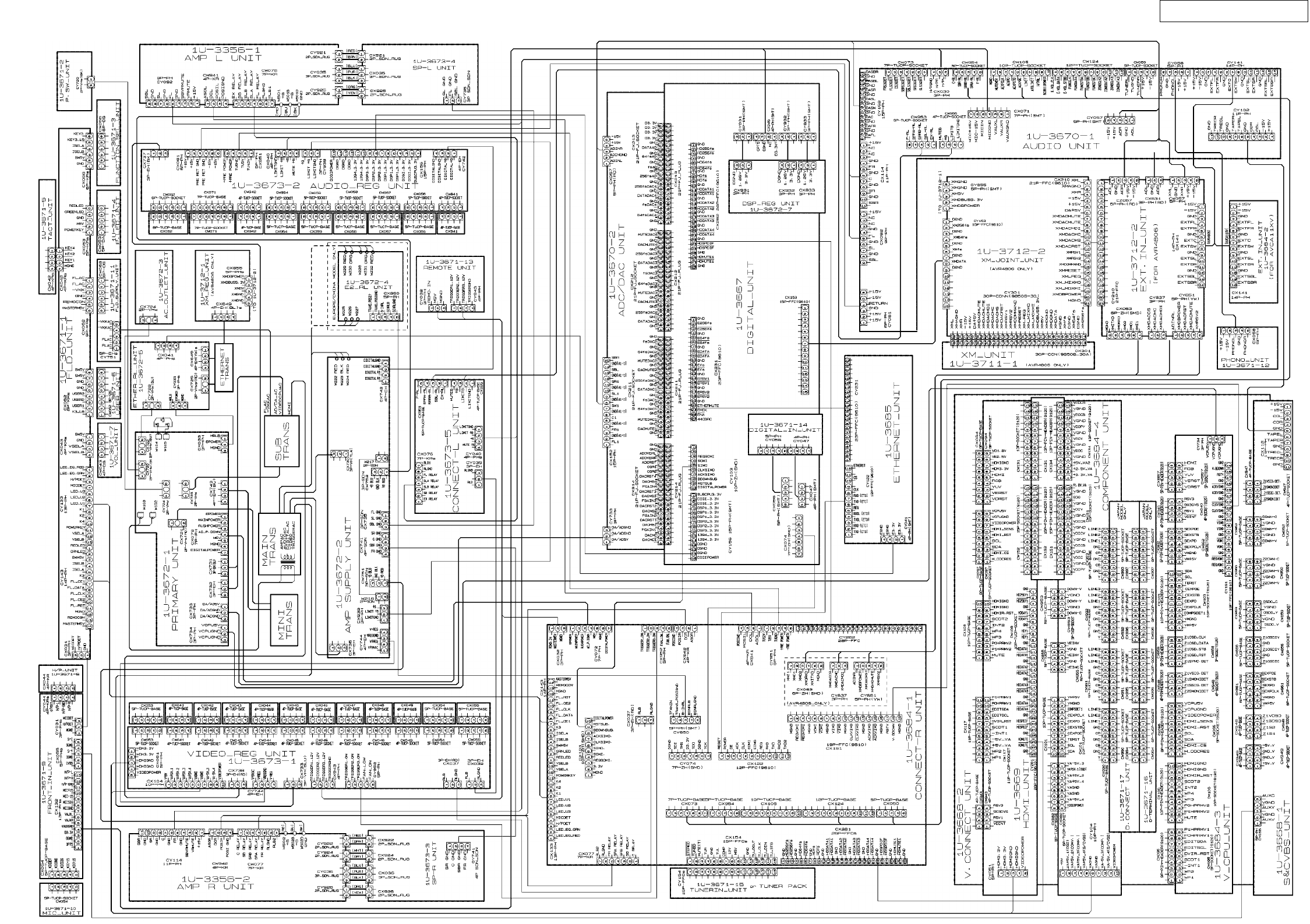

- WIRING DIAGRAM
- NOTE FOR SCHEMATIC DIAGRAM

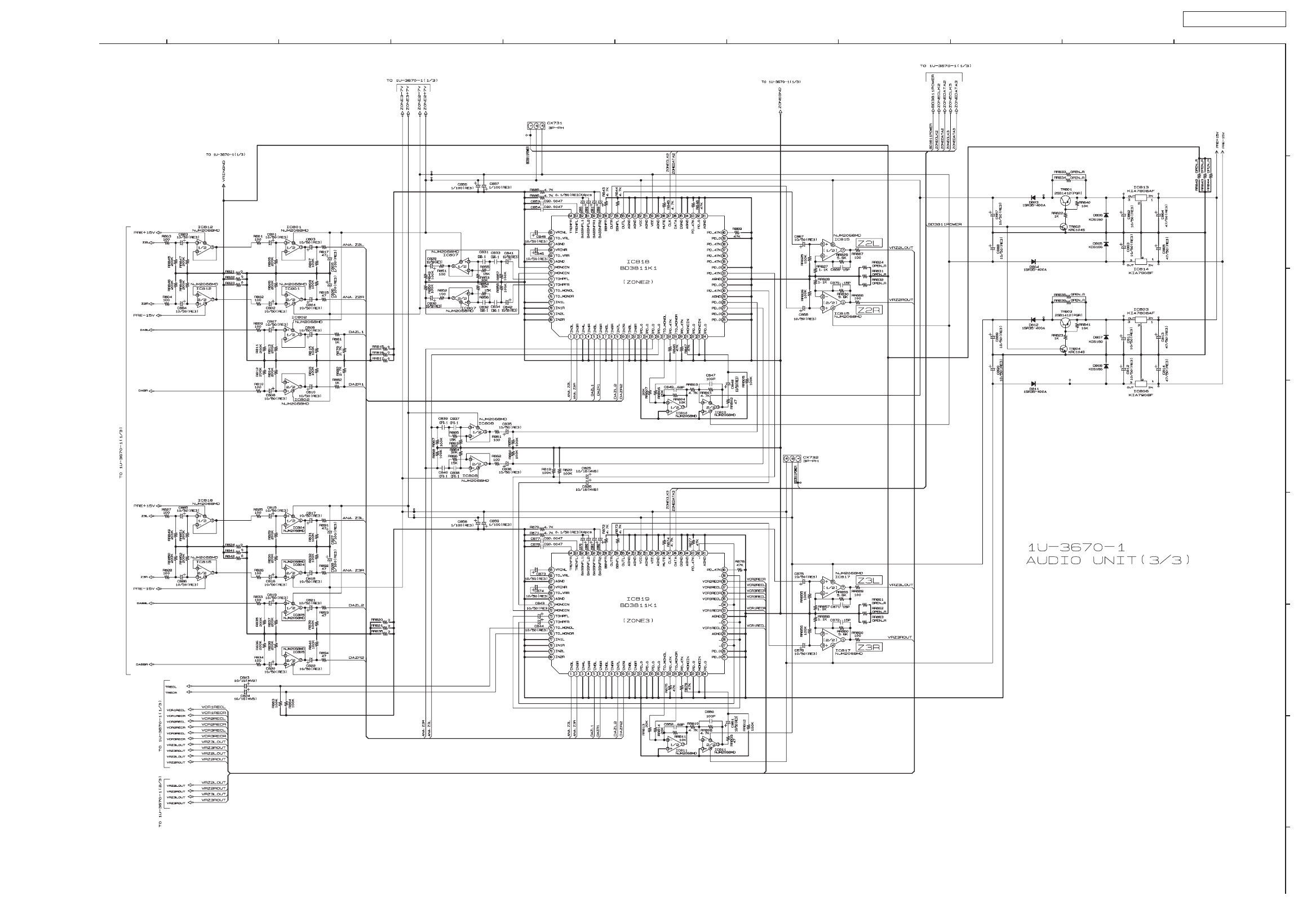

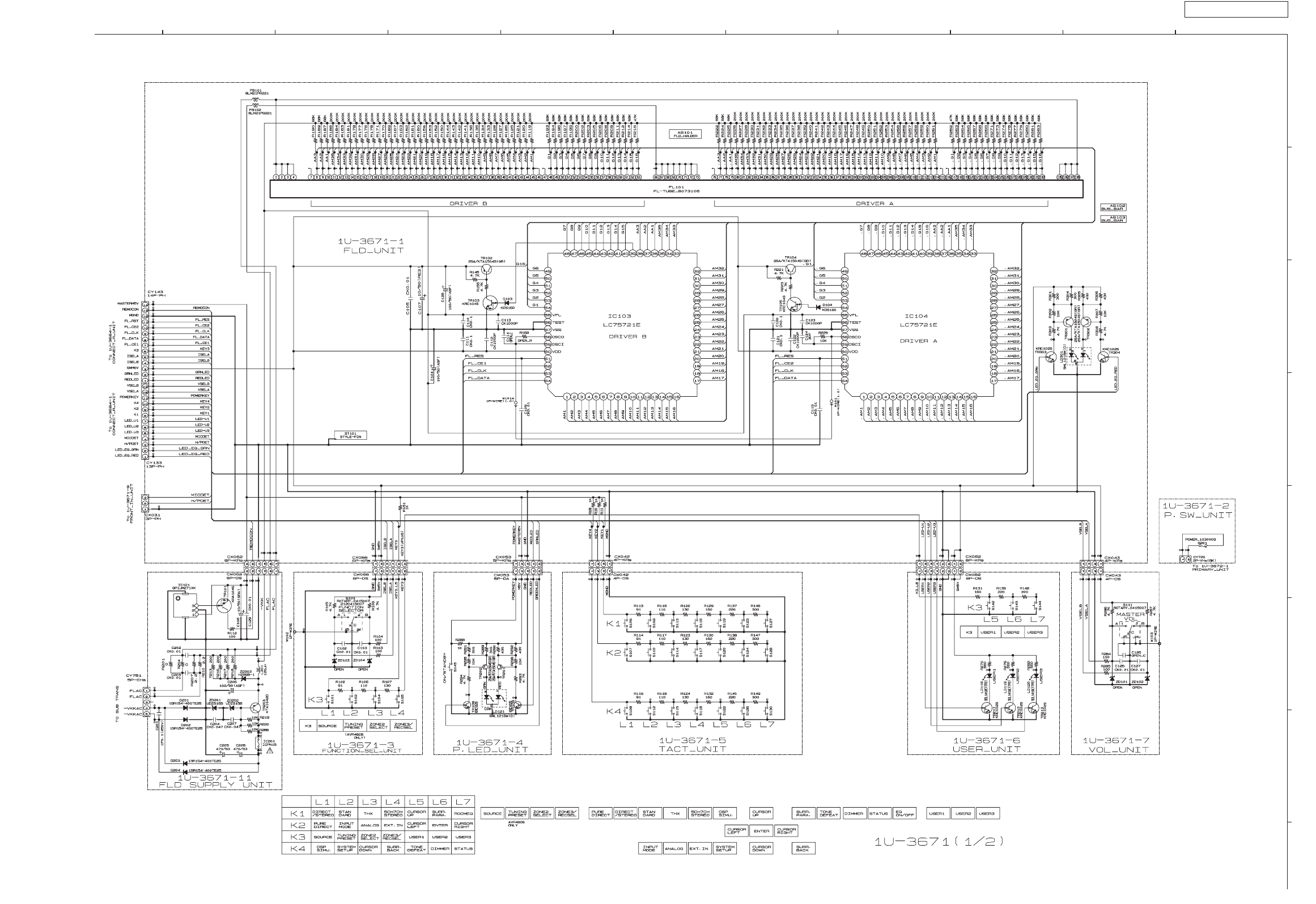

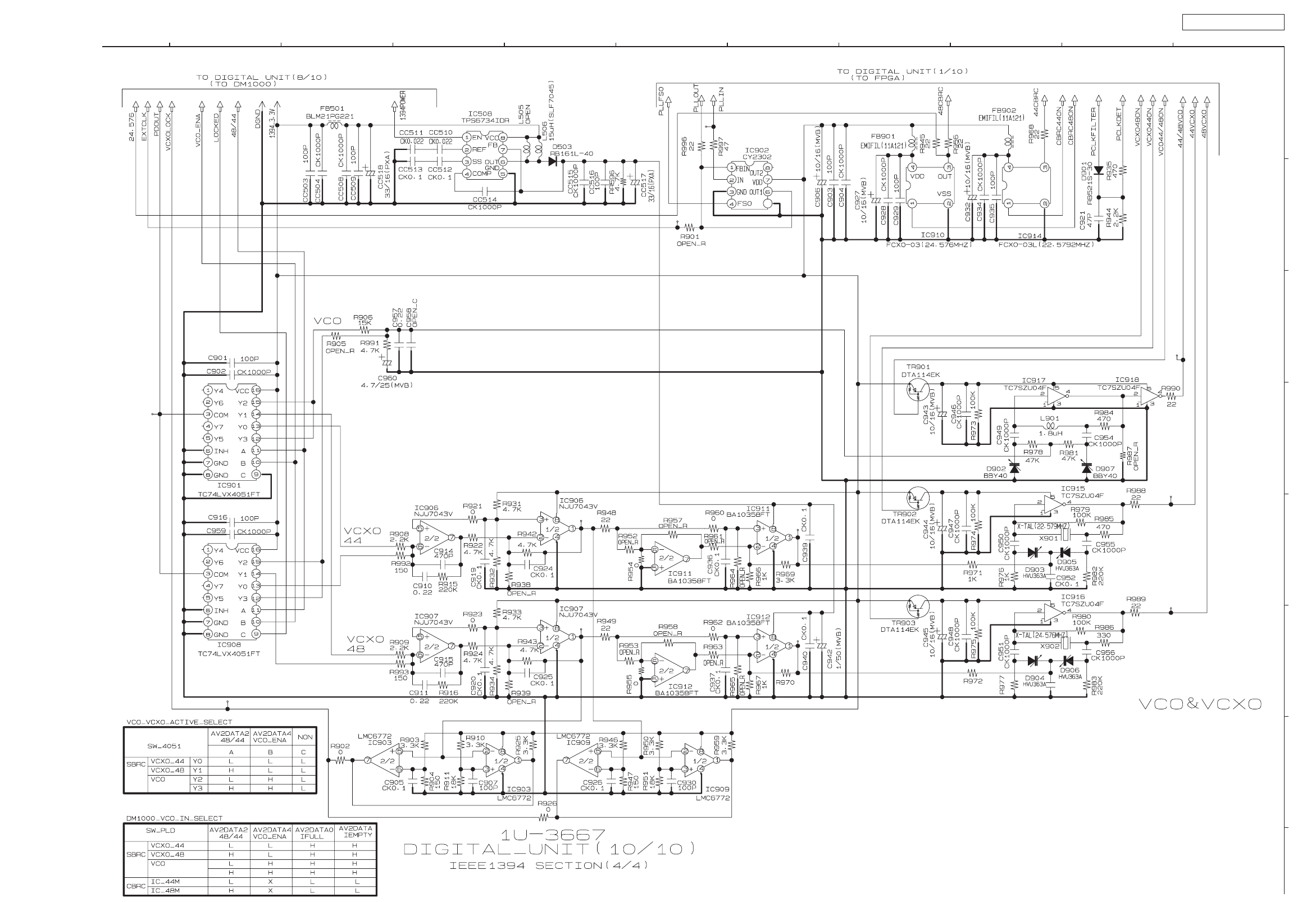

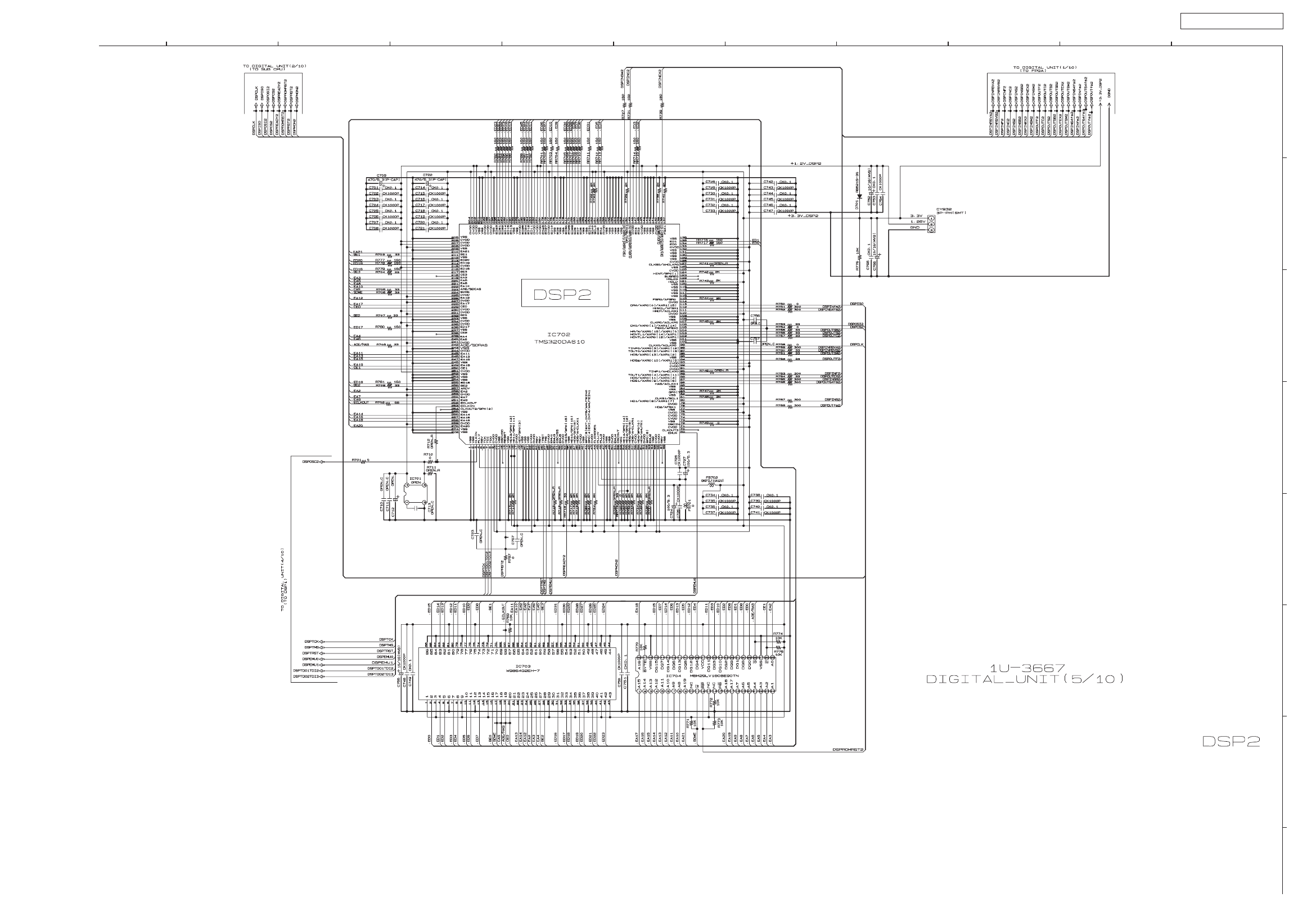

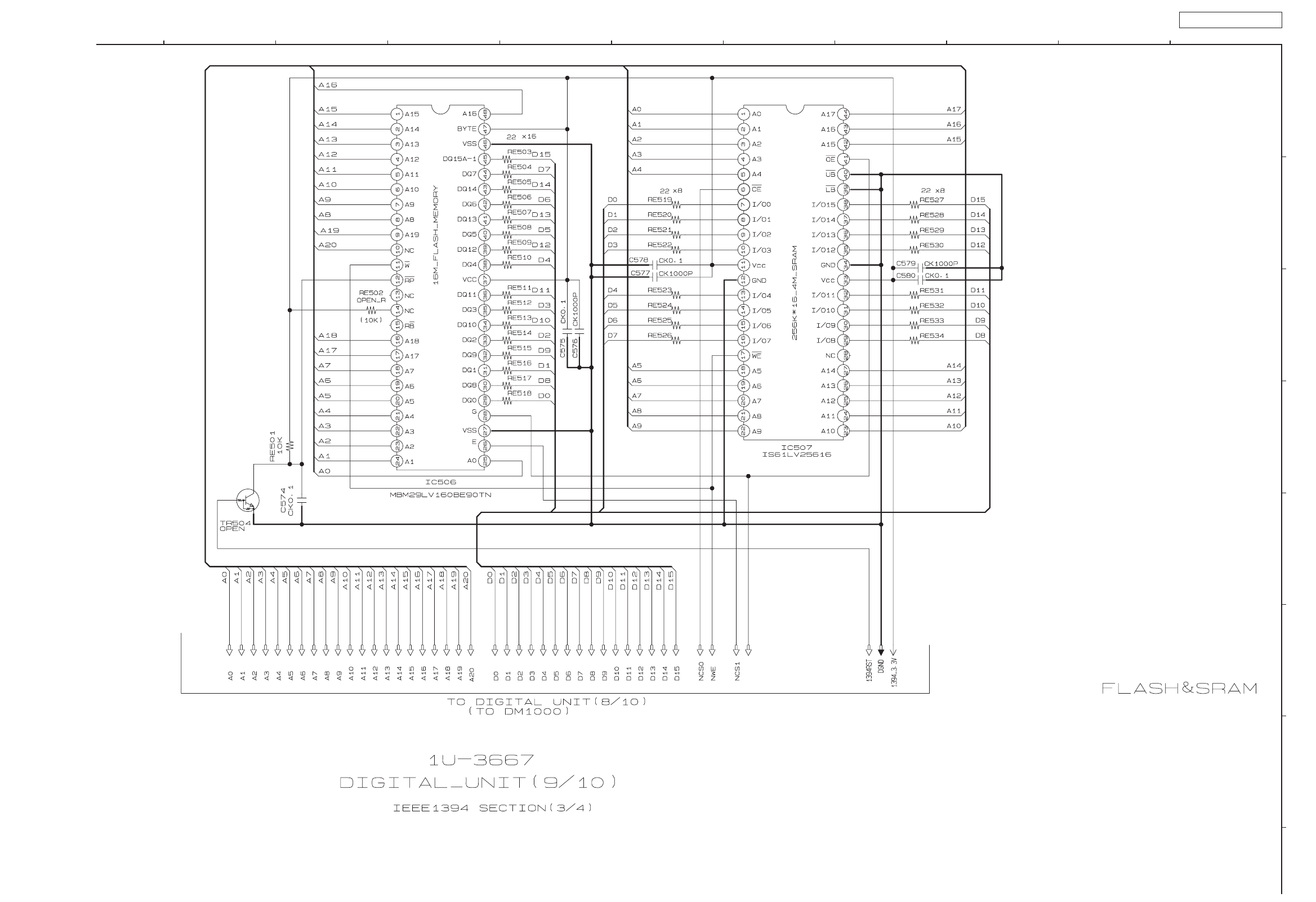

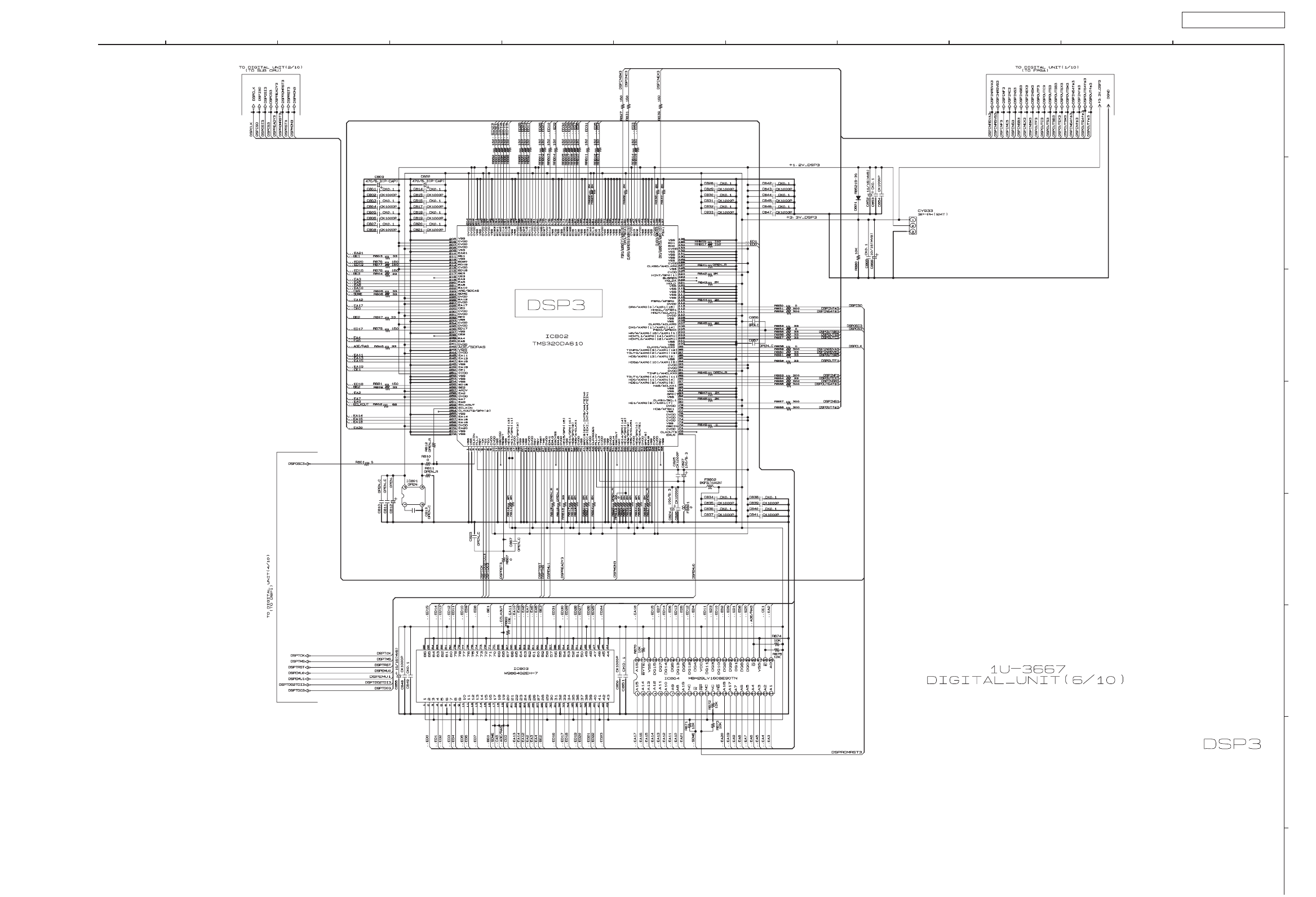

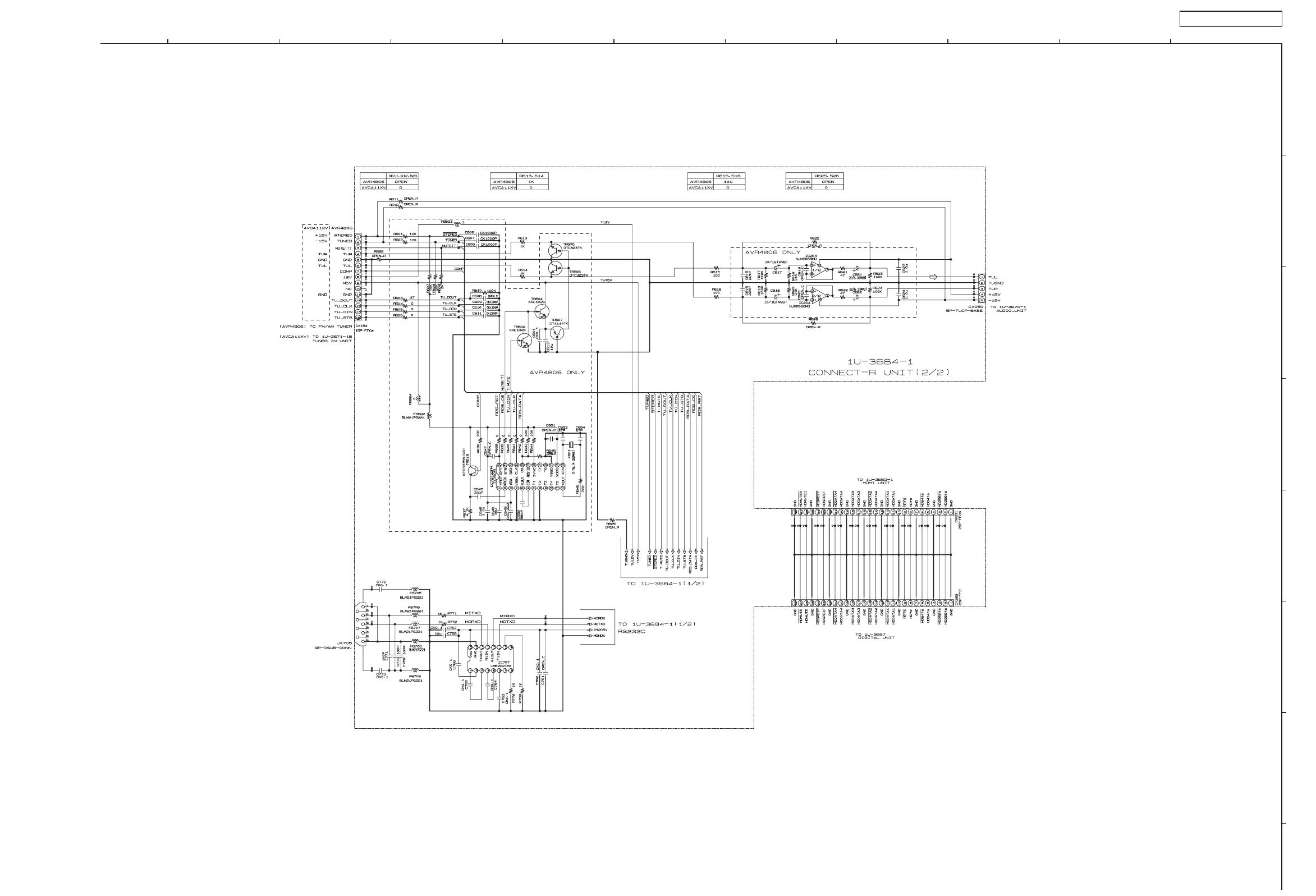

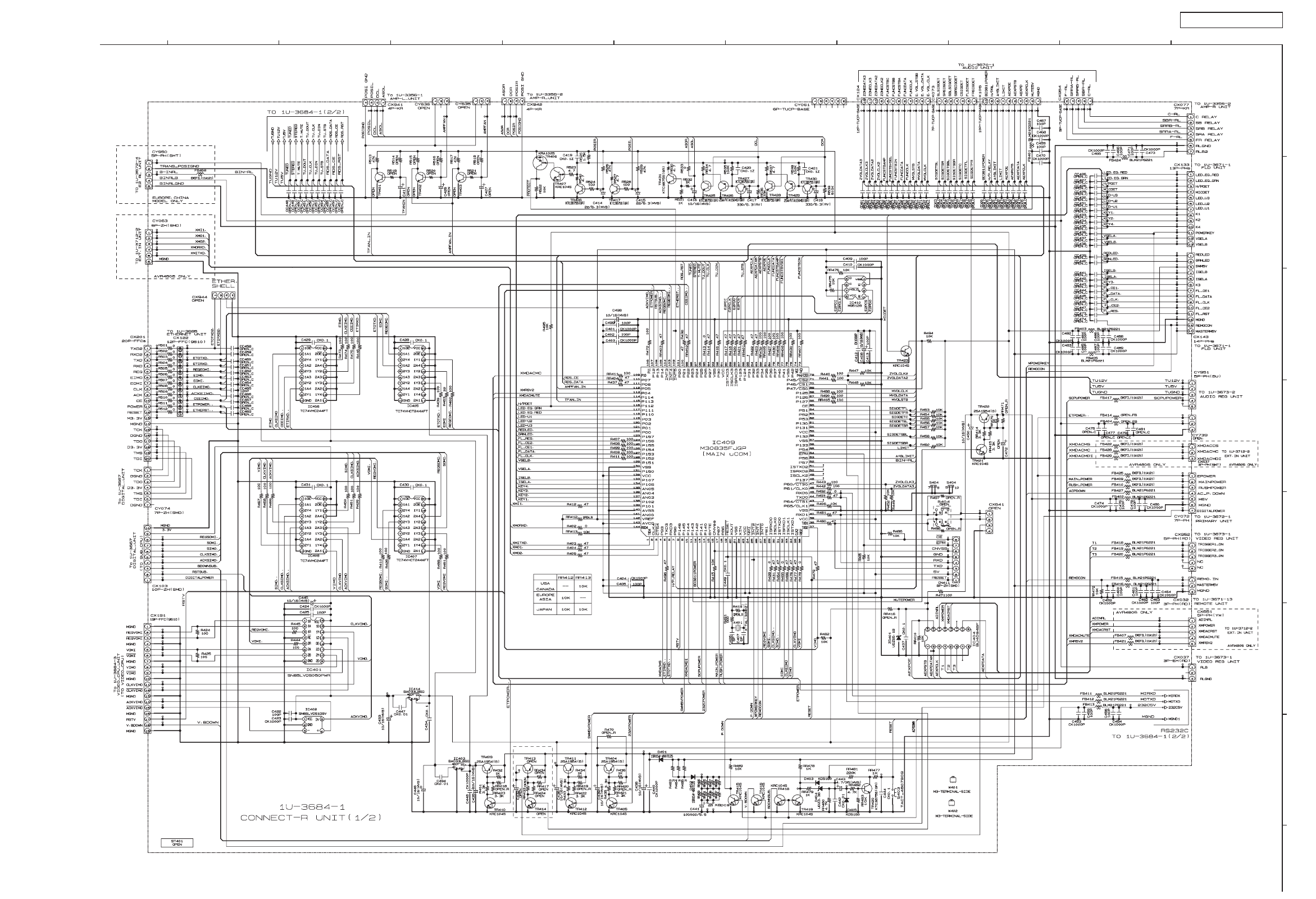

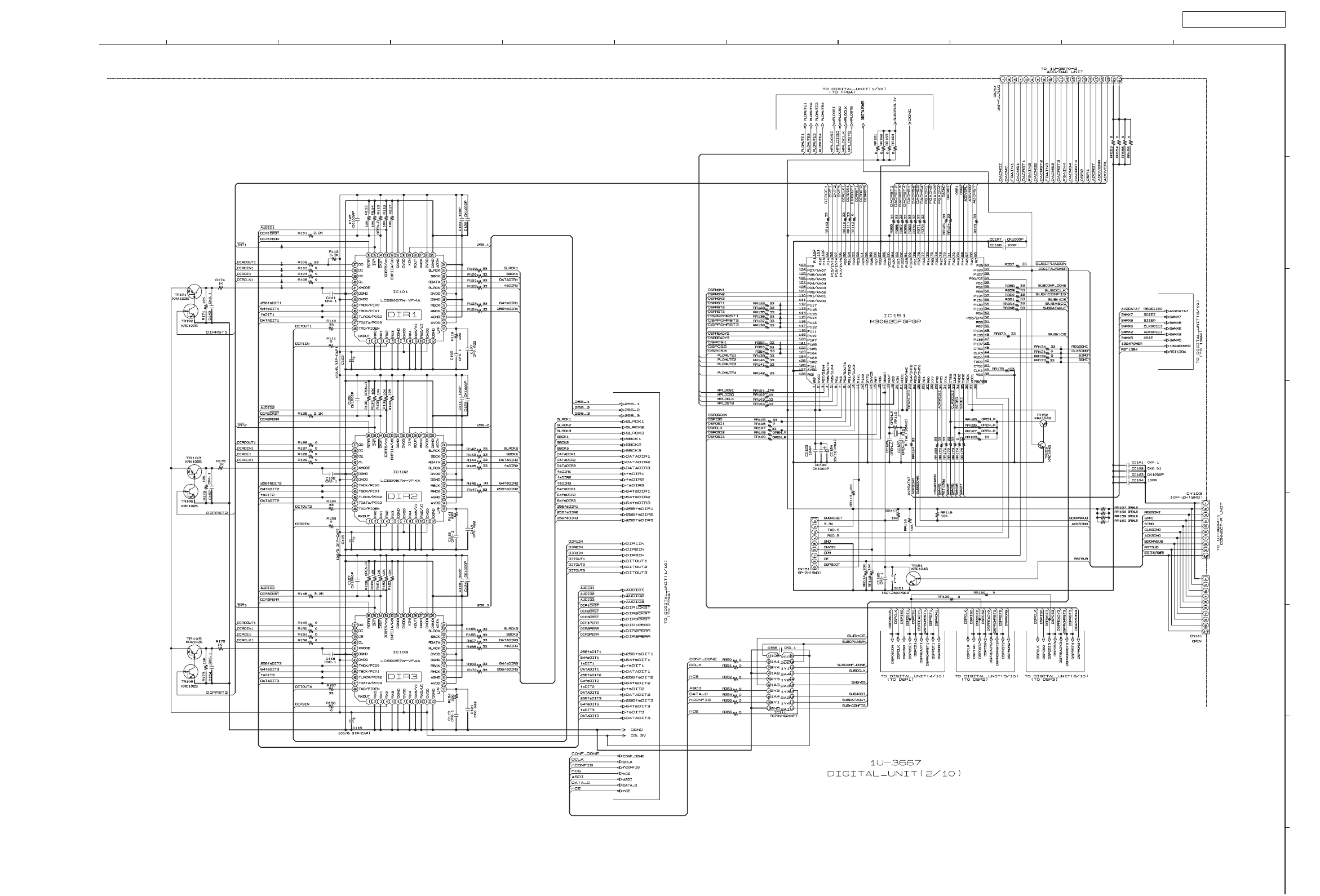

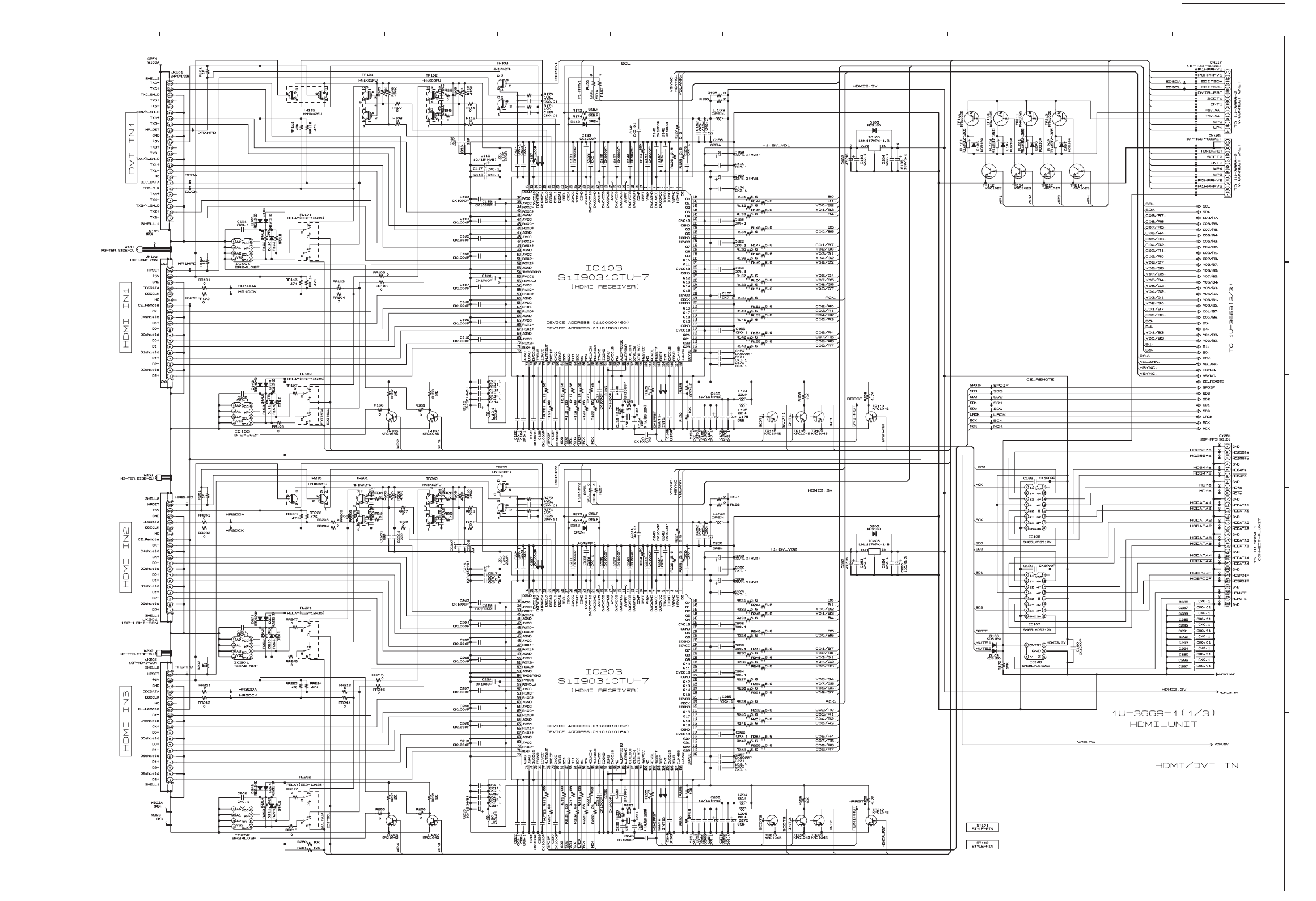

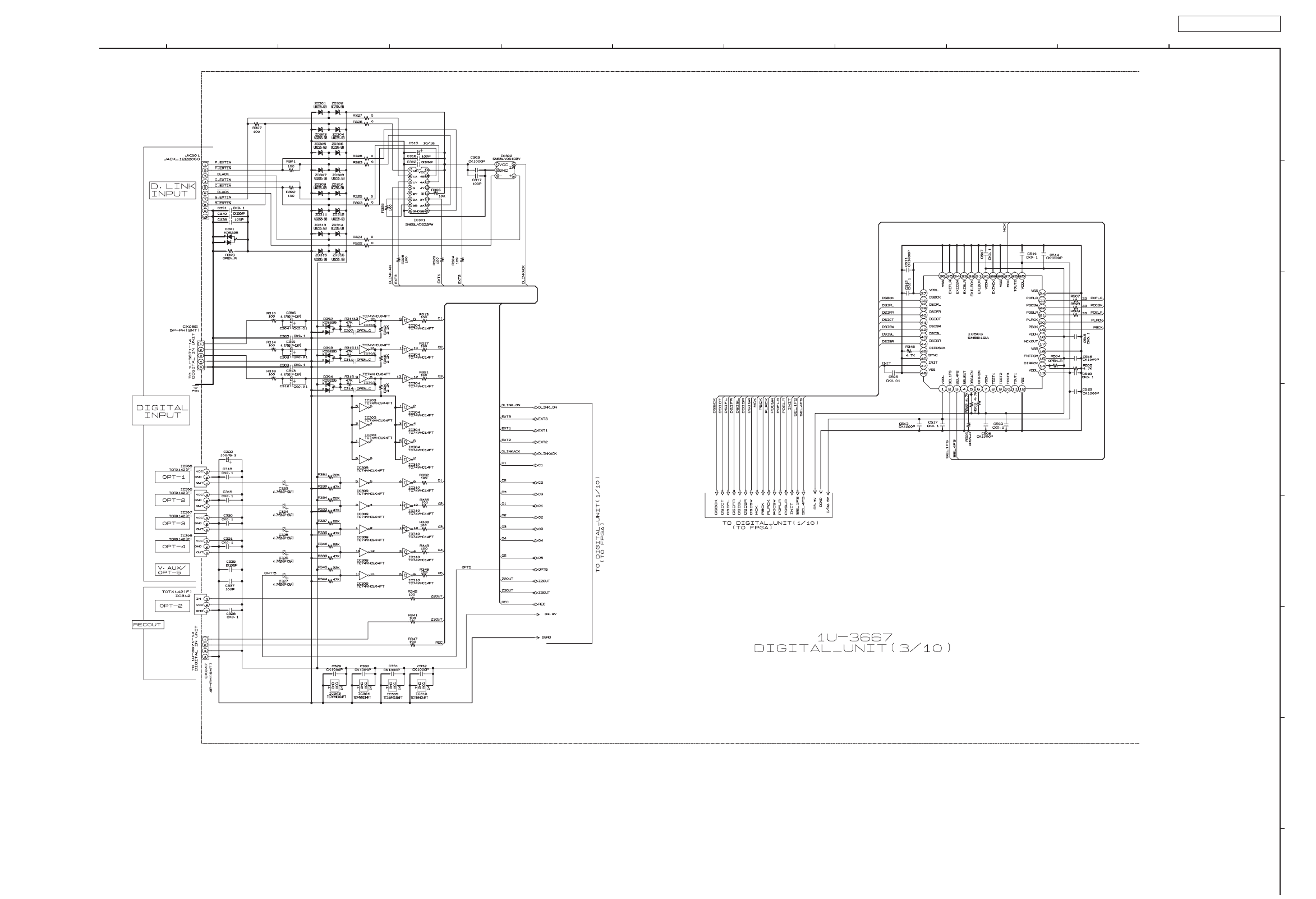

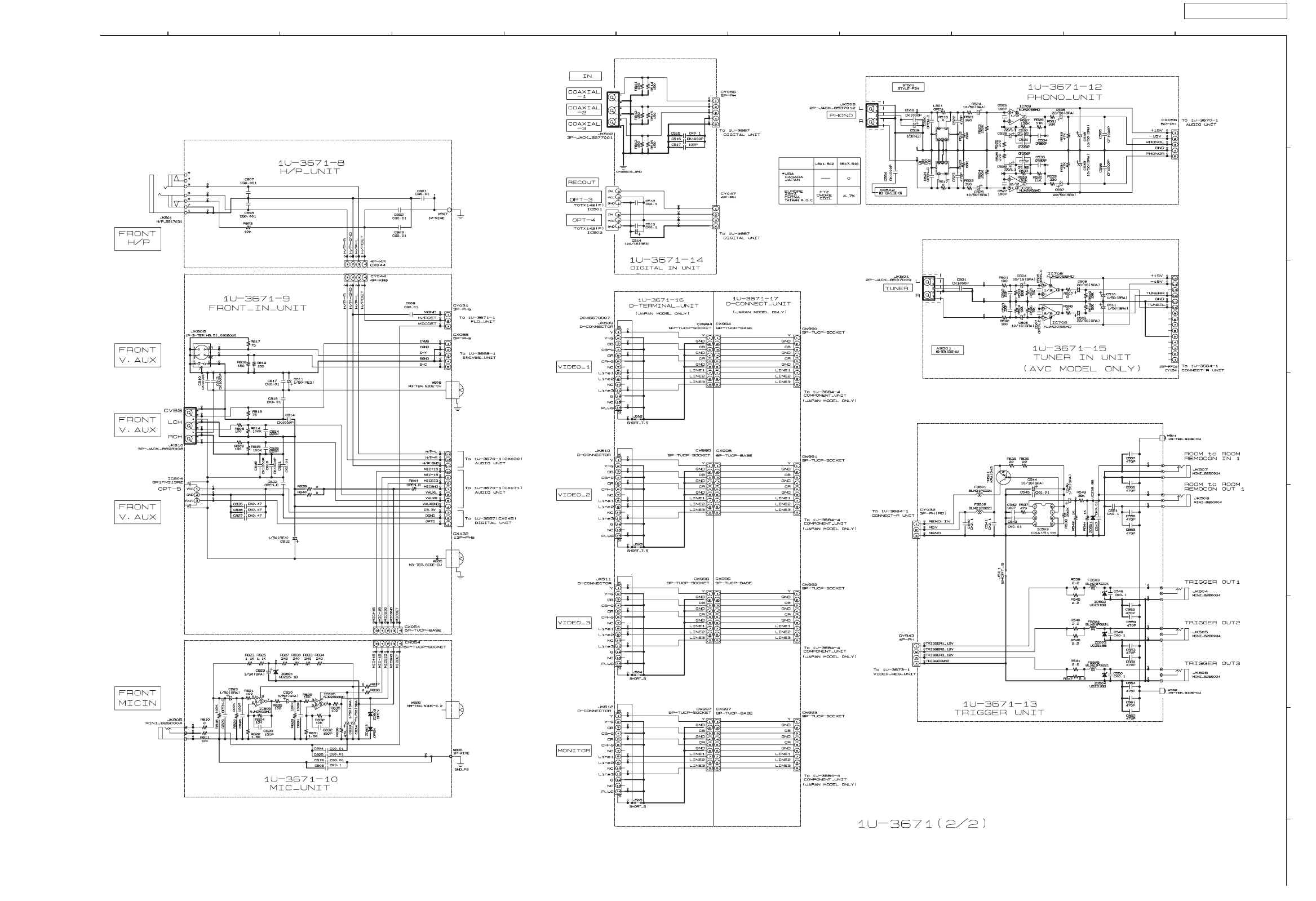

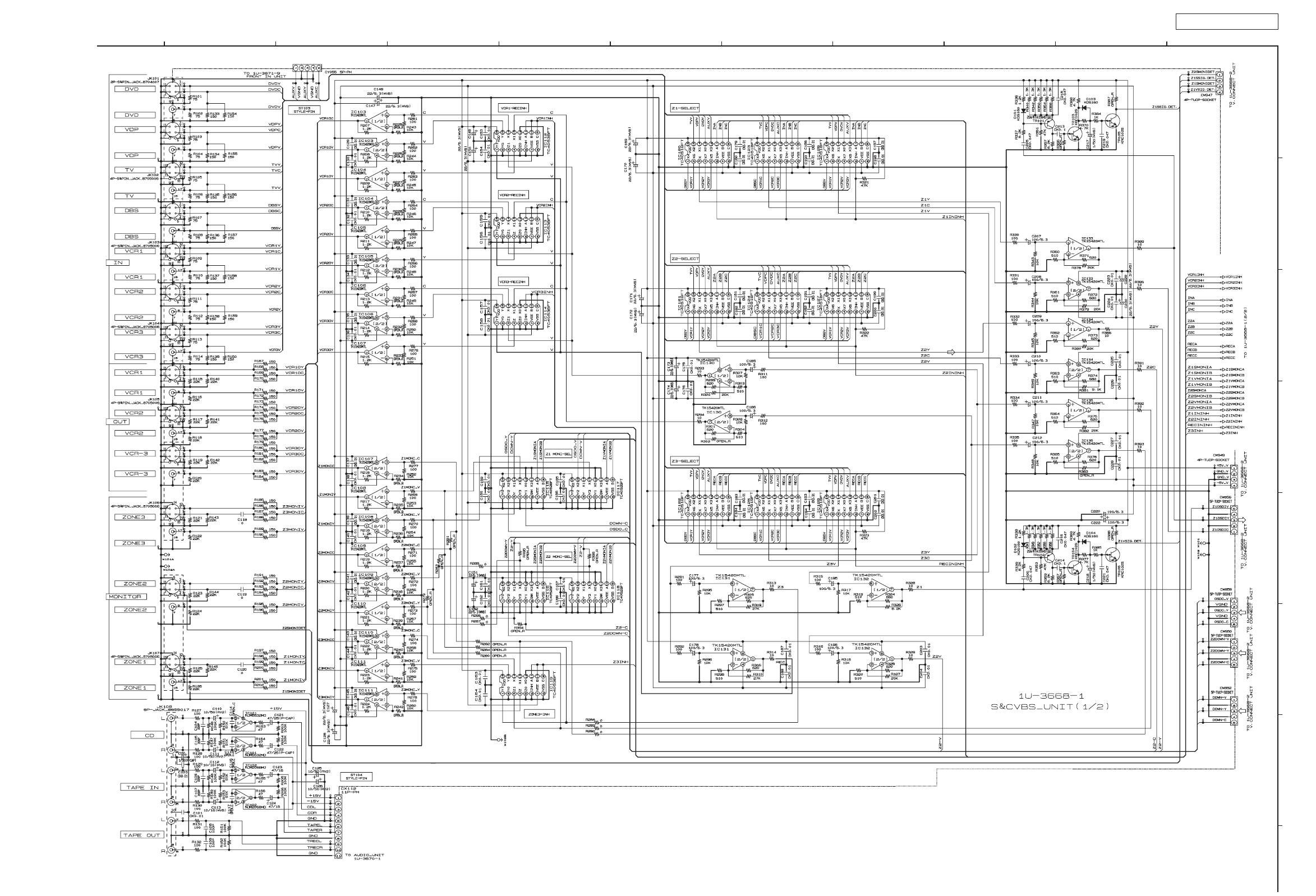

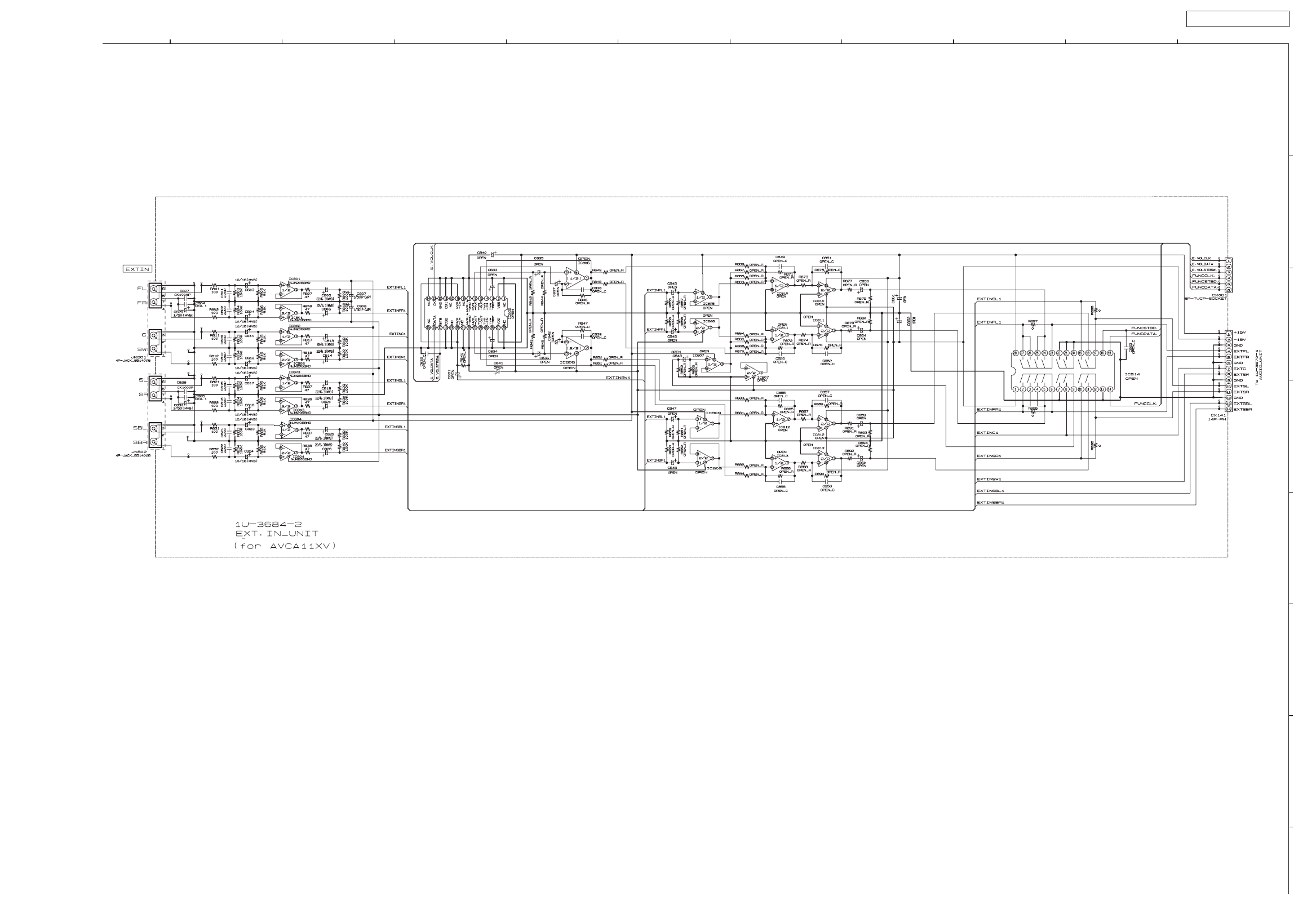

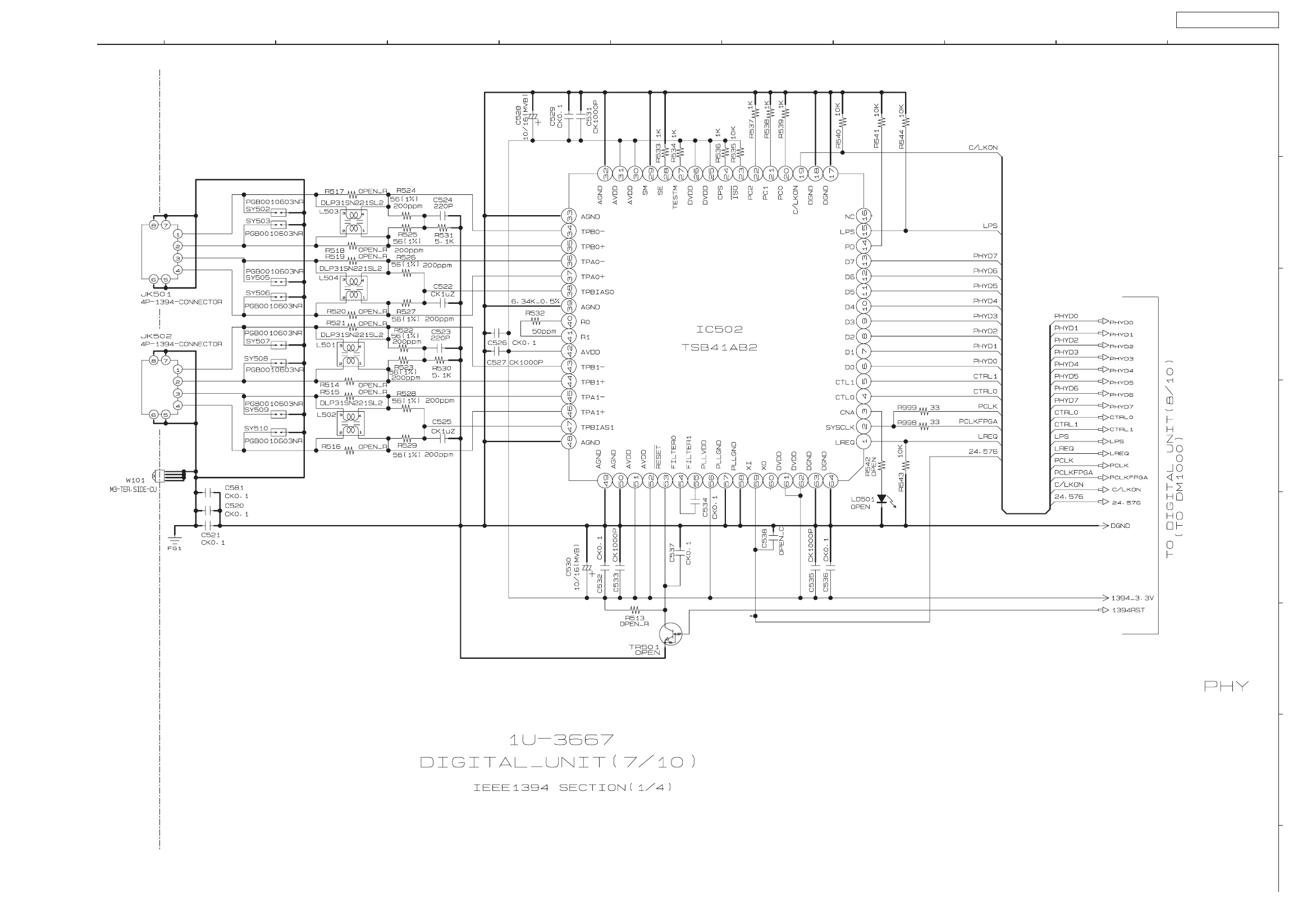

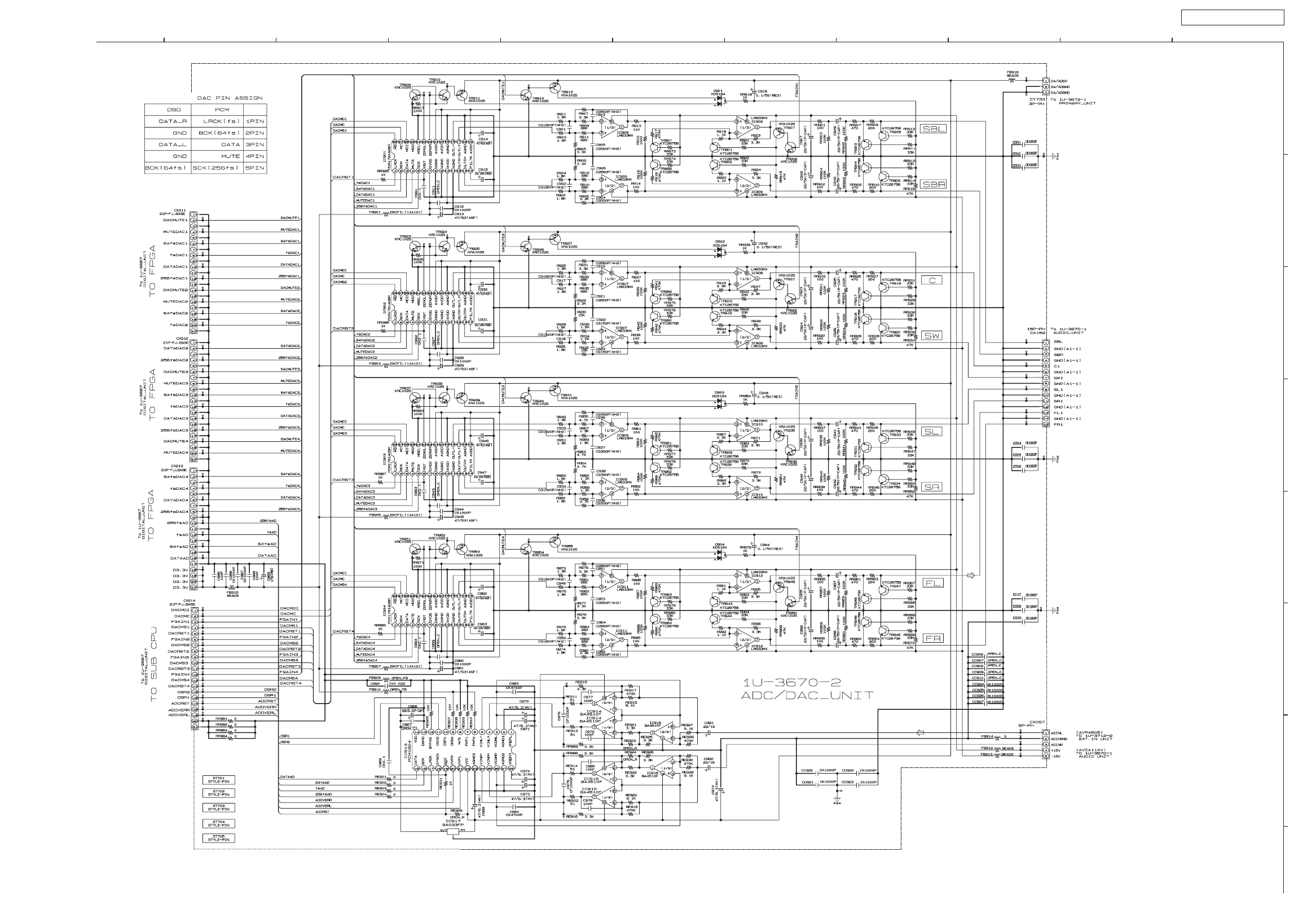

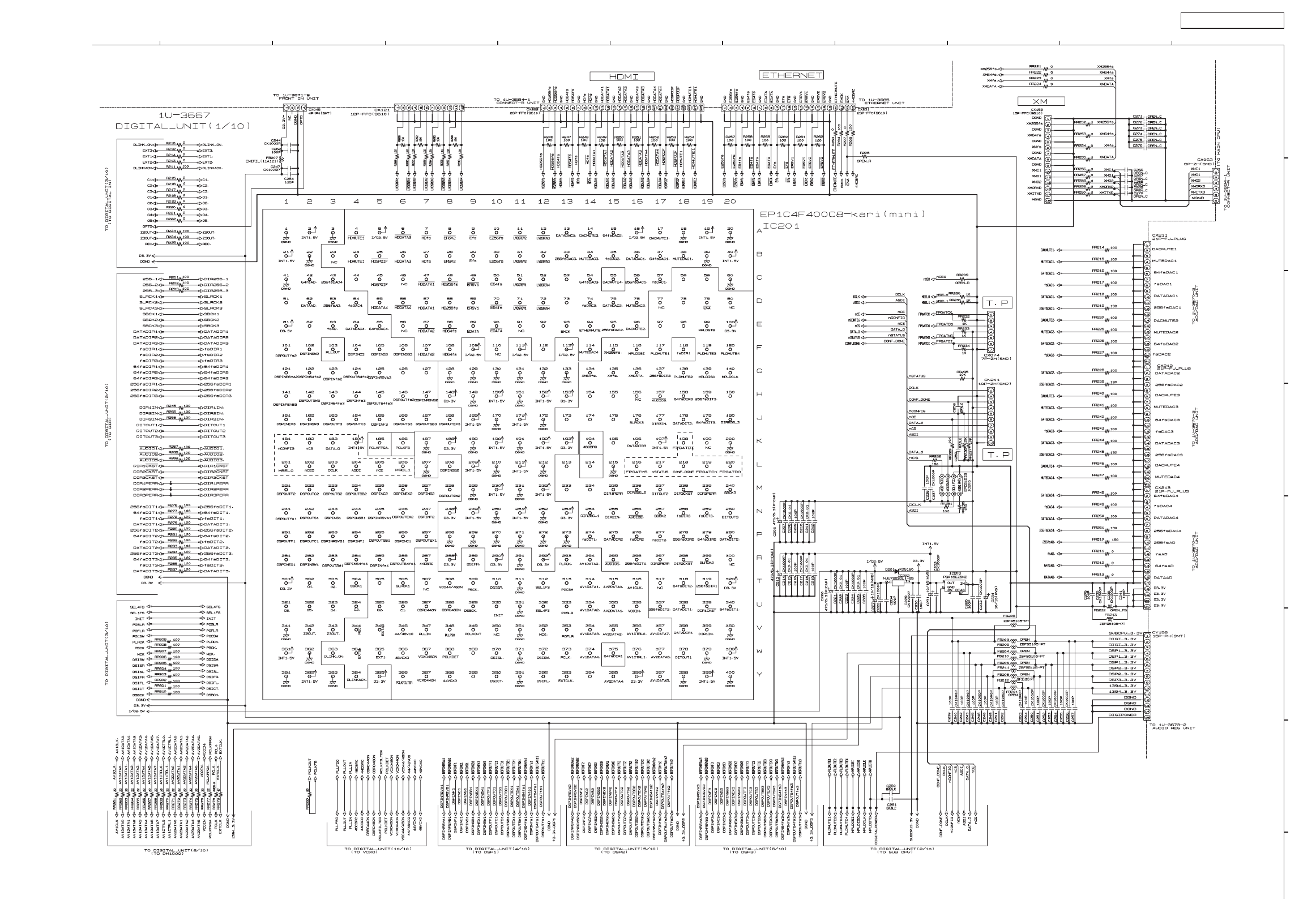

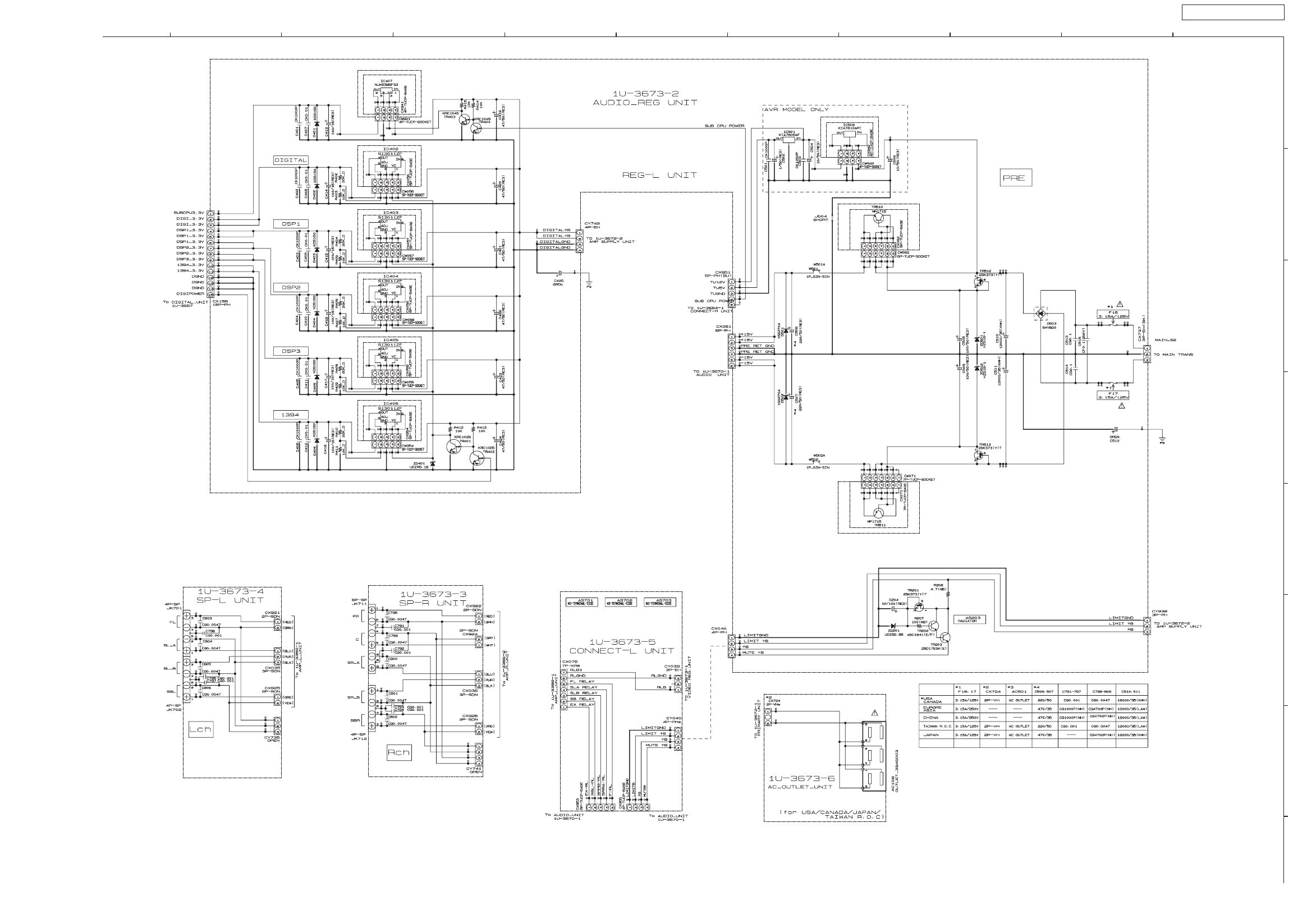

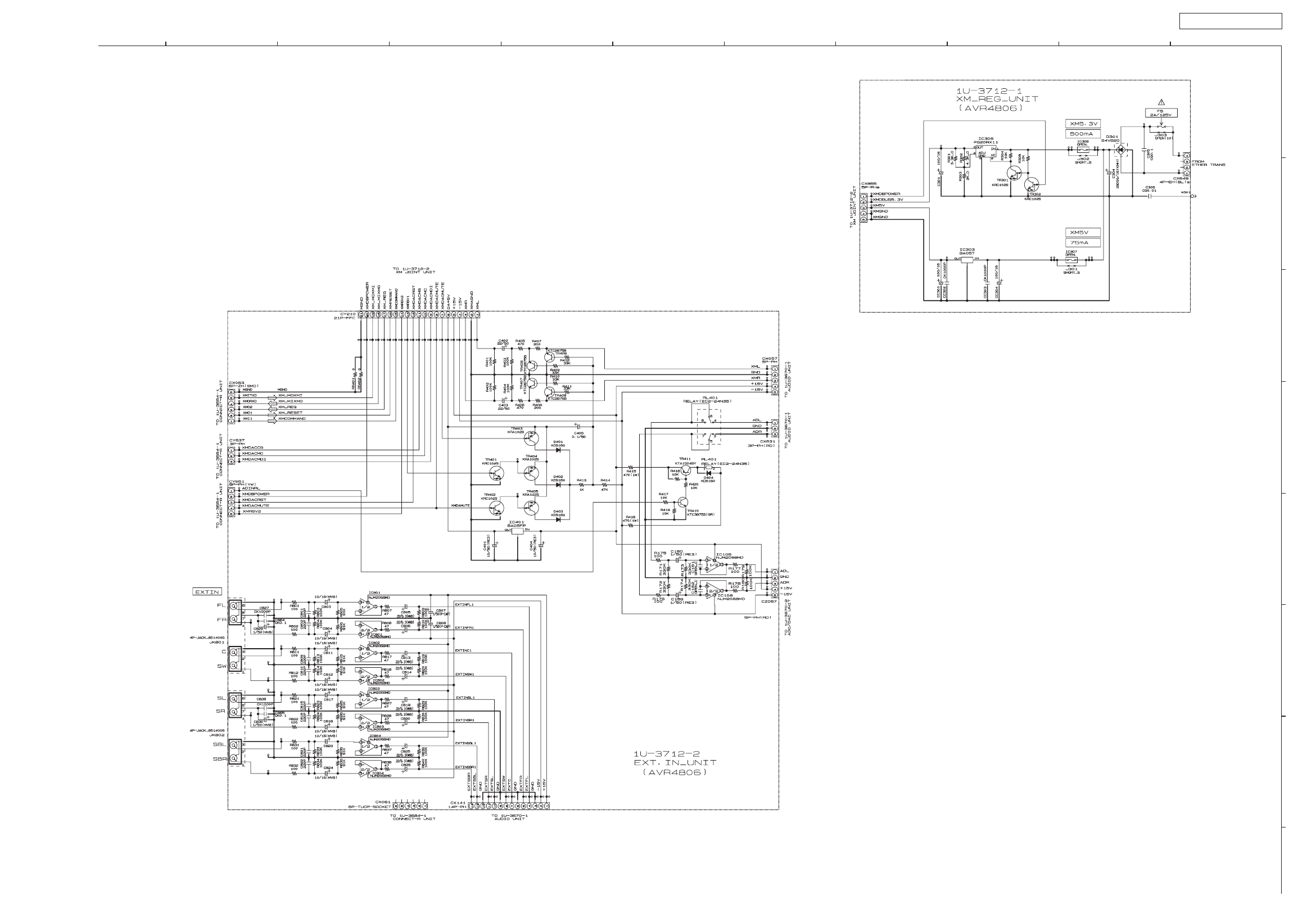

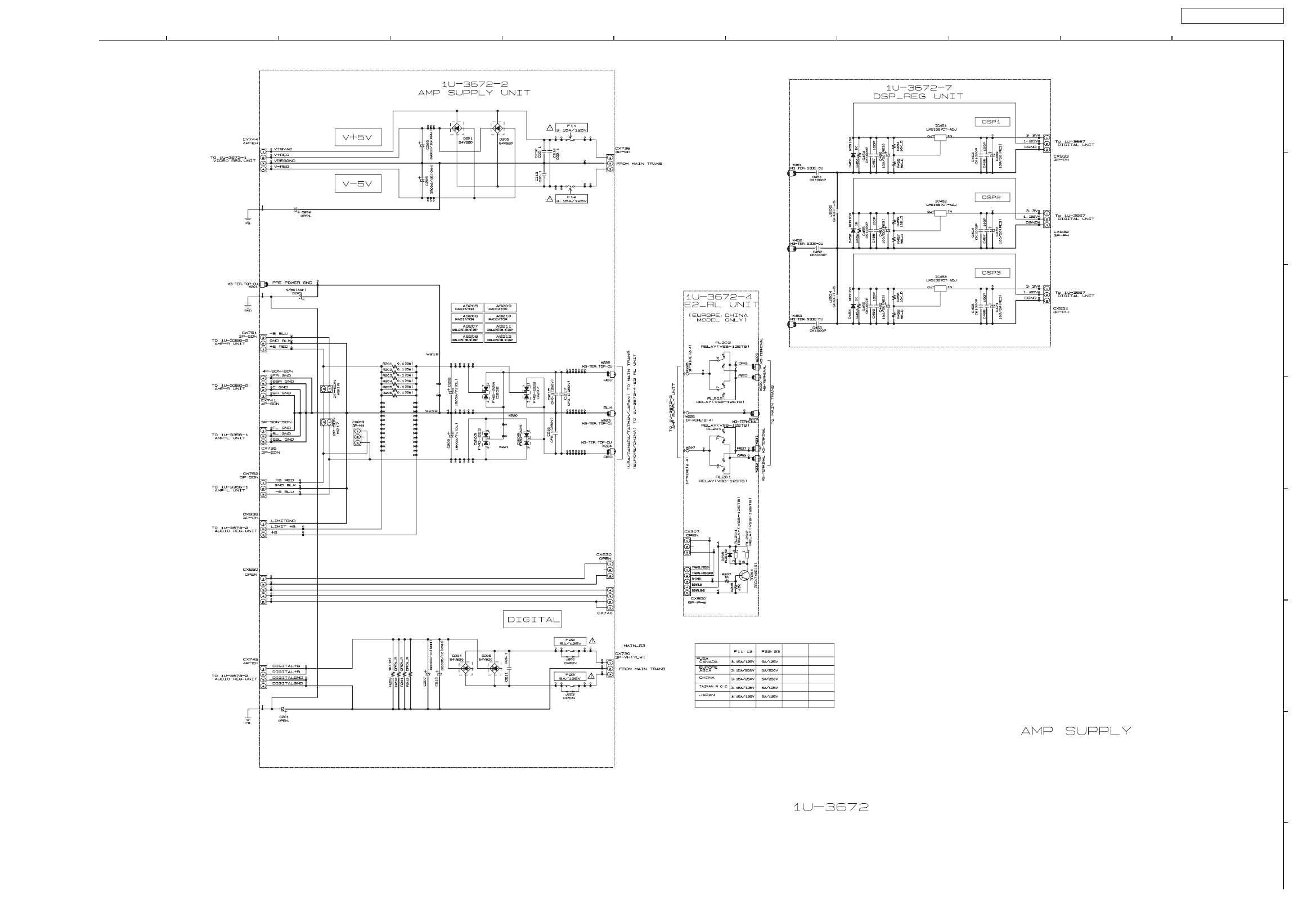

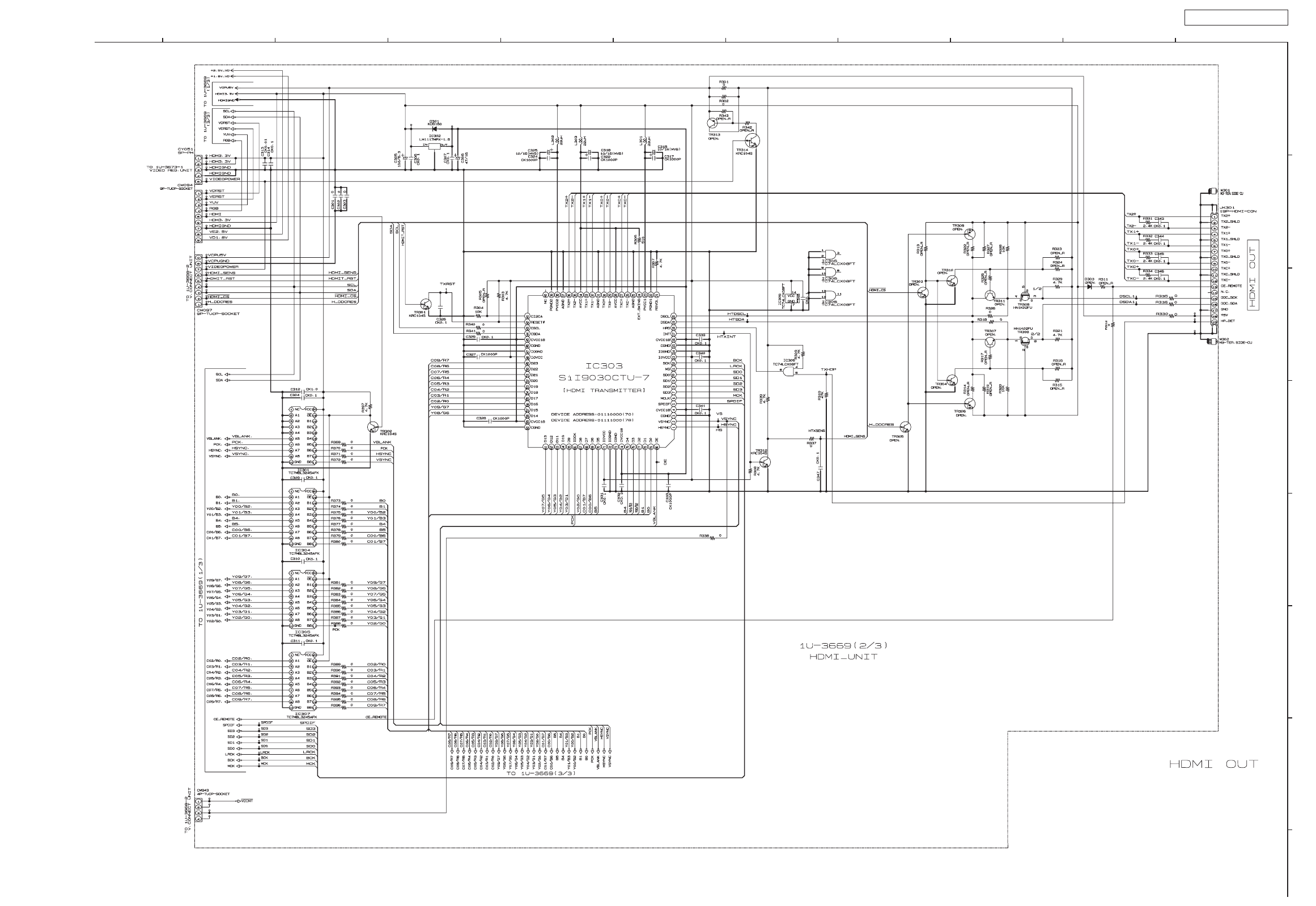

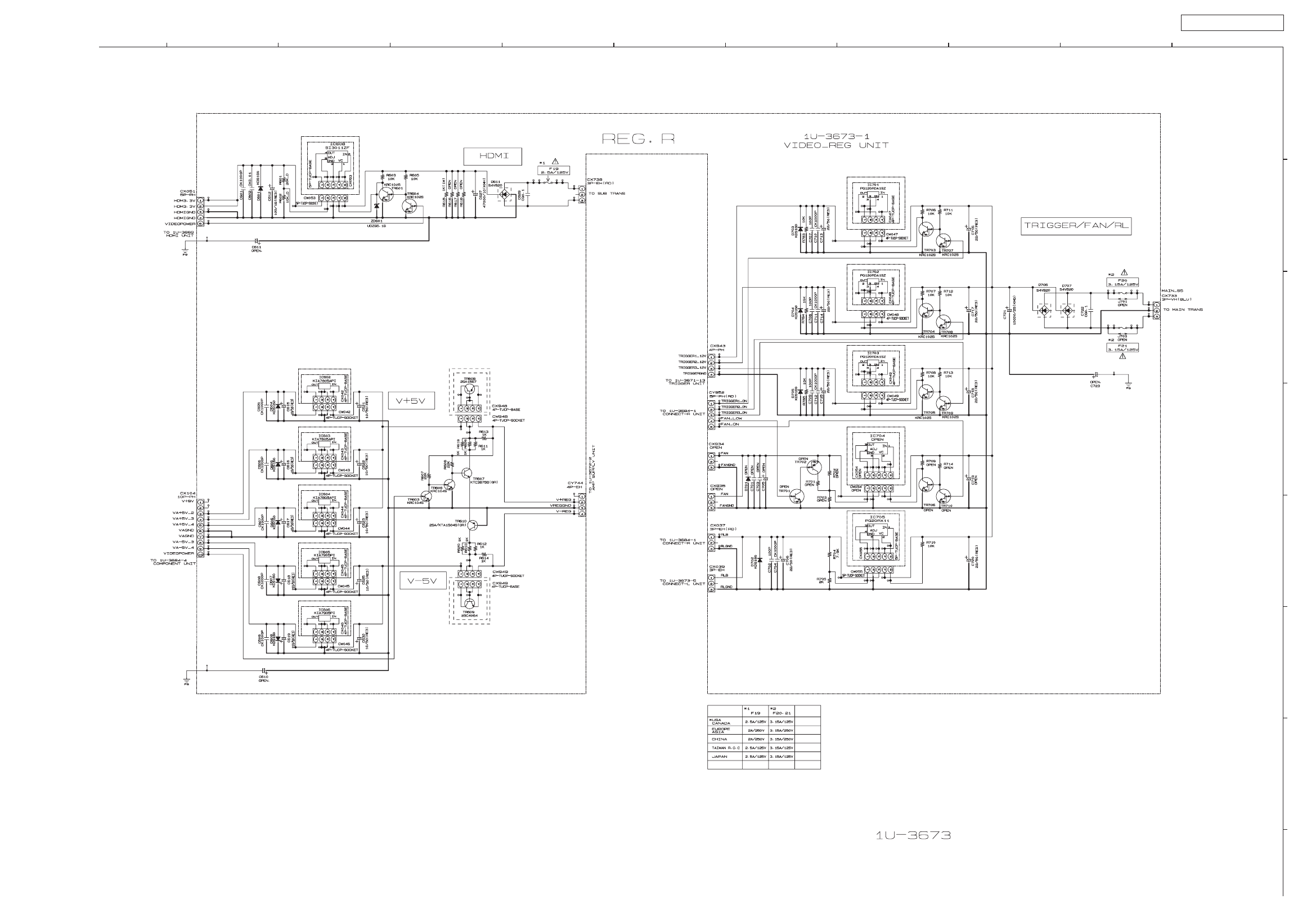

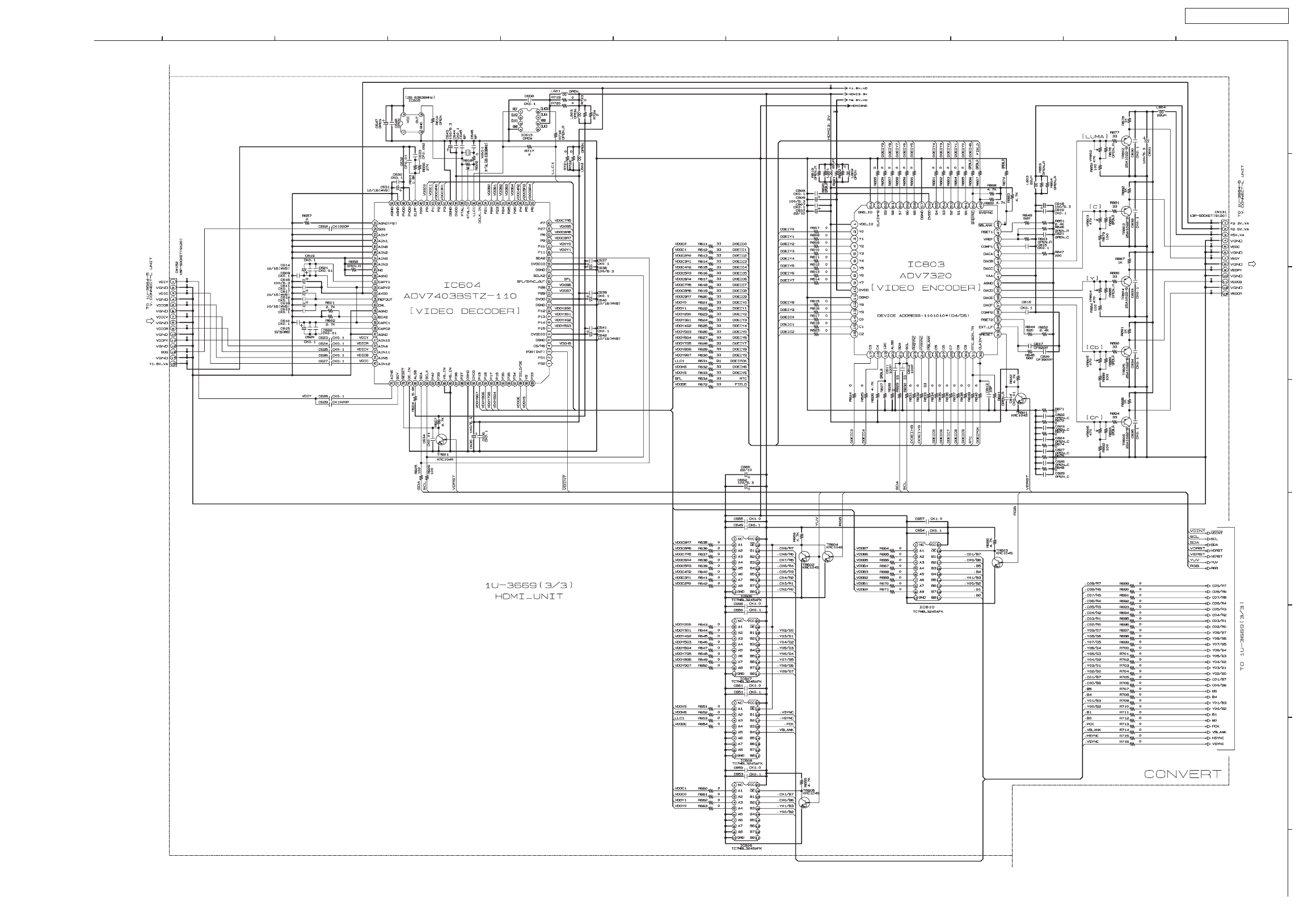

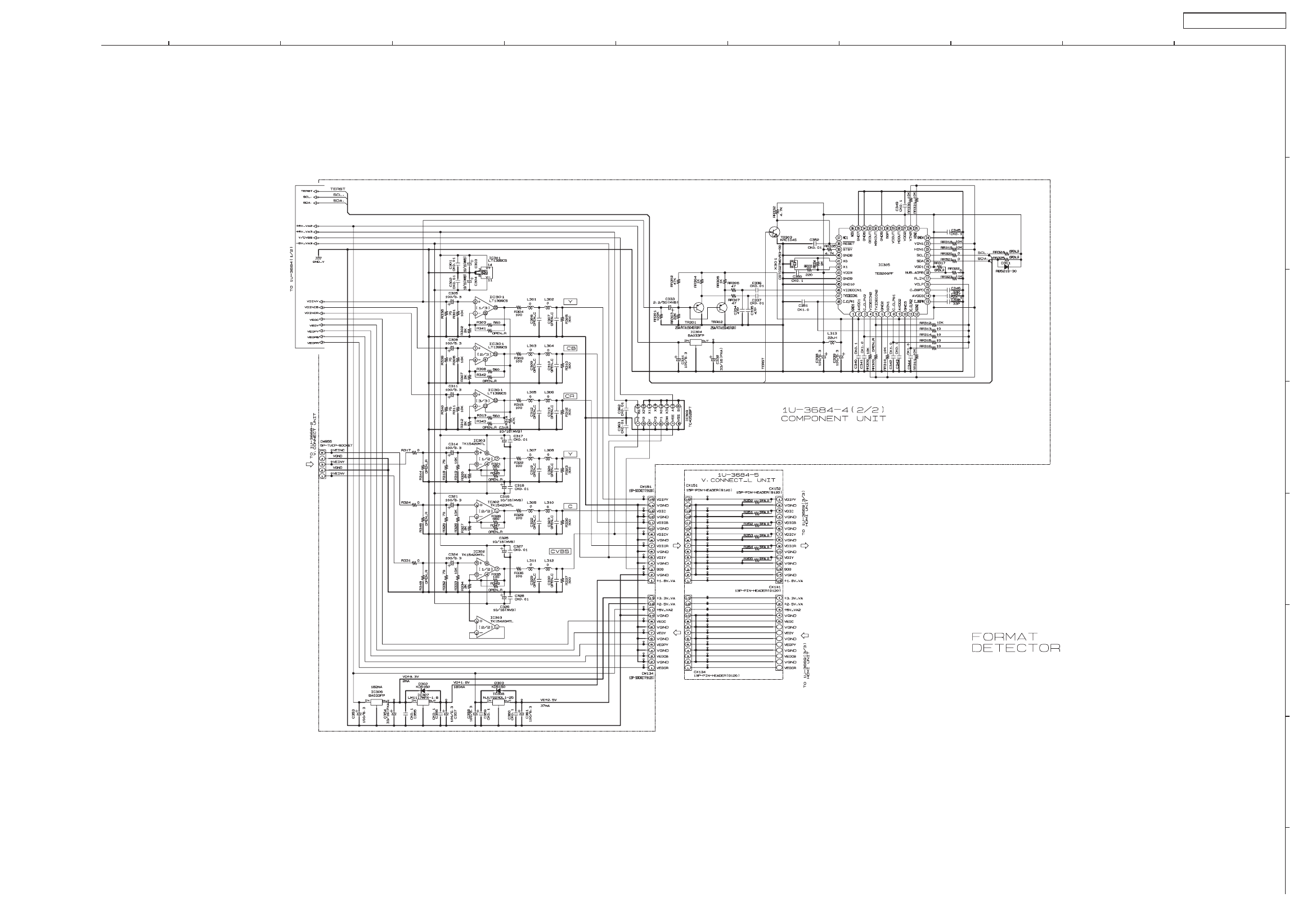

- SCHEMATIC DIAGRAMS
SERVICE MANUAL
AV SURROUND RECEIVER
MODEL AVR-4806
AV SURROUND AMPLIFIER
MODEL AVC-A11XV
For U.S.A., Canada, &
Taiwan R.O.C., model
TOKYO JAPAN
X0228-2 V.02 DE/CDM 0701
Some illustrations using in this service manual are
slightly different from the actual set.
●
Please use this service manual with referring to the
operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
●
本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
●
修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
●
本機の仕様は性能改良のため、予告なく変更すること
があります。
●
補修用性能部品の保有期間は、製造打切後8年です。
注 意
Denon Brand Company, D&M Holdings Inc.
Ver. 2
Please refer to the
MODIFICATION NOTICE.
2
AVR-4806/AVC-A11XV
Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎
Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.
◎Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the ! mark.
(2) Parts lists ... Indicated by the ! mark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に ! 印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子、マイク端子、入力端子など］と
の間で、絶縁抵抗値が 1MΩ 以上であること。この値以下の
ときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図… ! マークで表示しています。
(2) 部品表… ! マークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意
3
AVR-4806 / AVC-A11XV

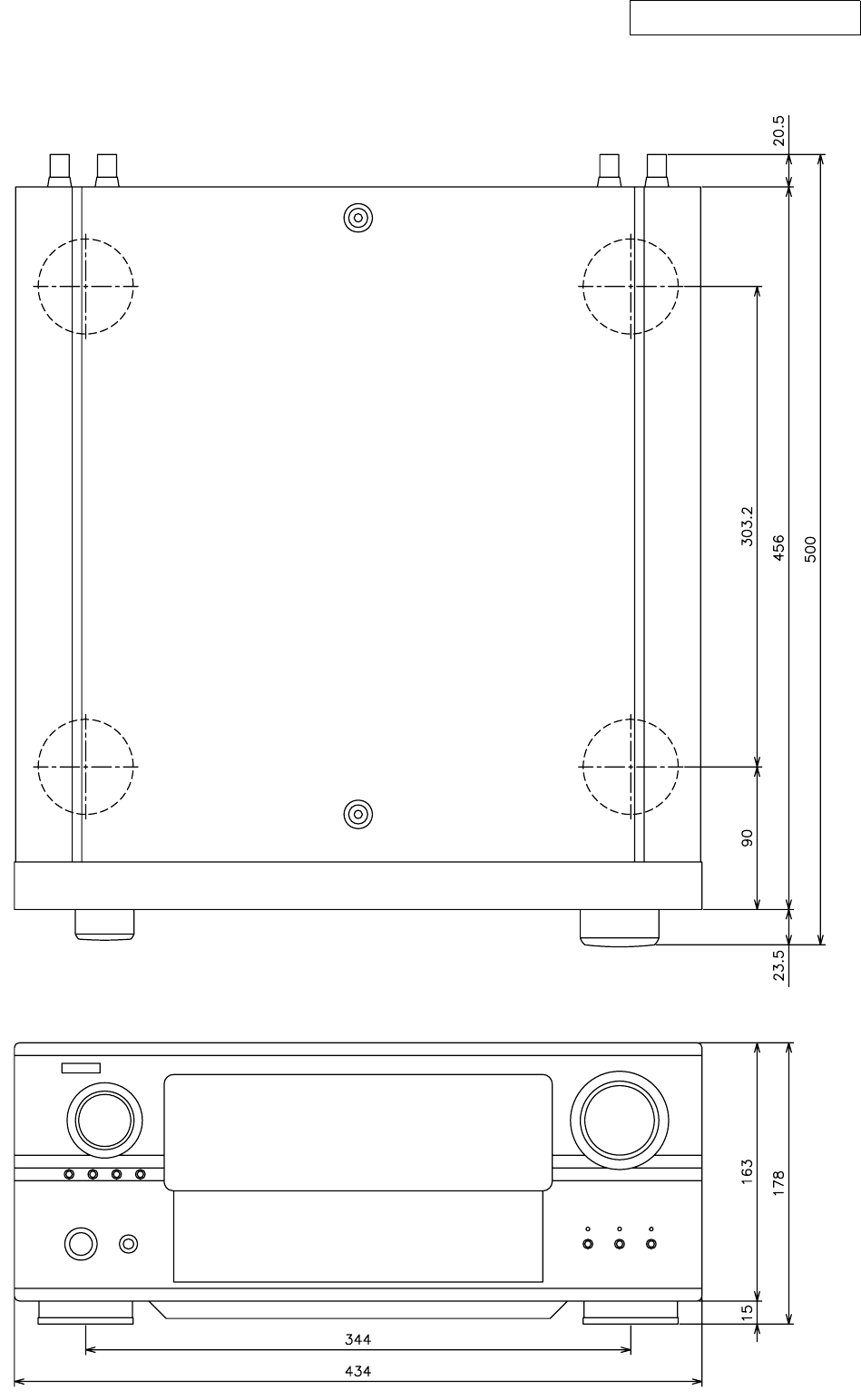

DIMENSION
4
AVR-4806 / AVC-A11XV
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc.,be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.
Wire arrangement viewed from the top
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずしたり
移動させた場合には、それらの作業が完了した時点でワイ
ヤーの整形をおこなってください。正しく整形されていない
とノイズ発生の原因となることがあります。
上面からみたワイヤー整形
Front Panel side
Back Panel side
5
AVR-4806 / AVC-A11XV

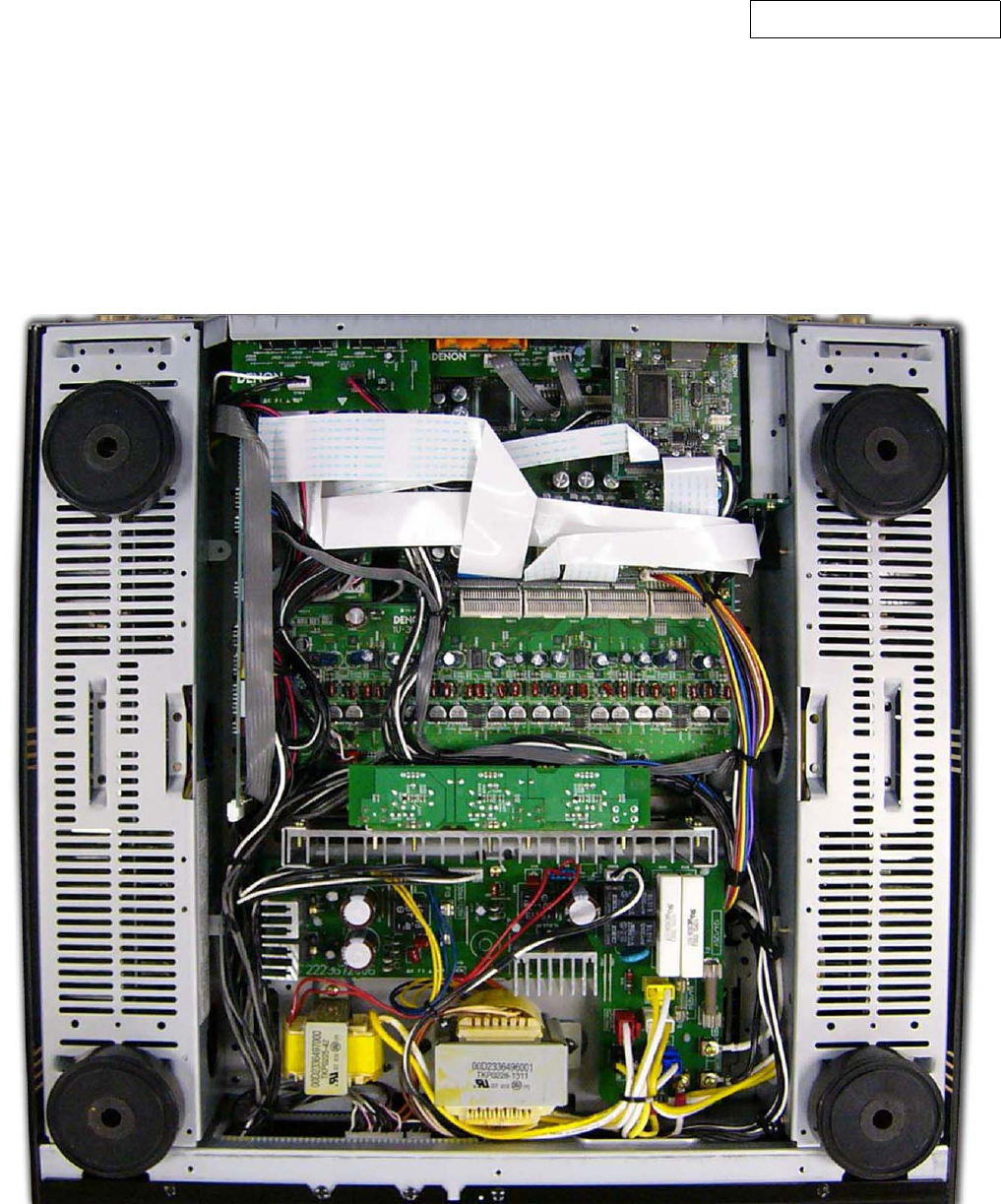

Wire arrangement viewed from the bottom 下面からみたワイヤー整形
Front Panel side
Back Panel side
6
AVR-4806 / AVC-A11XV
CAUTION IN SERVICING

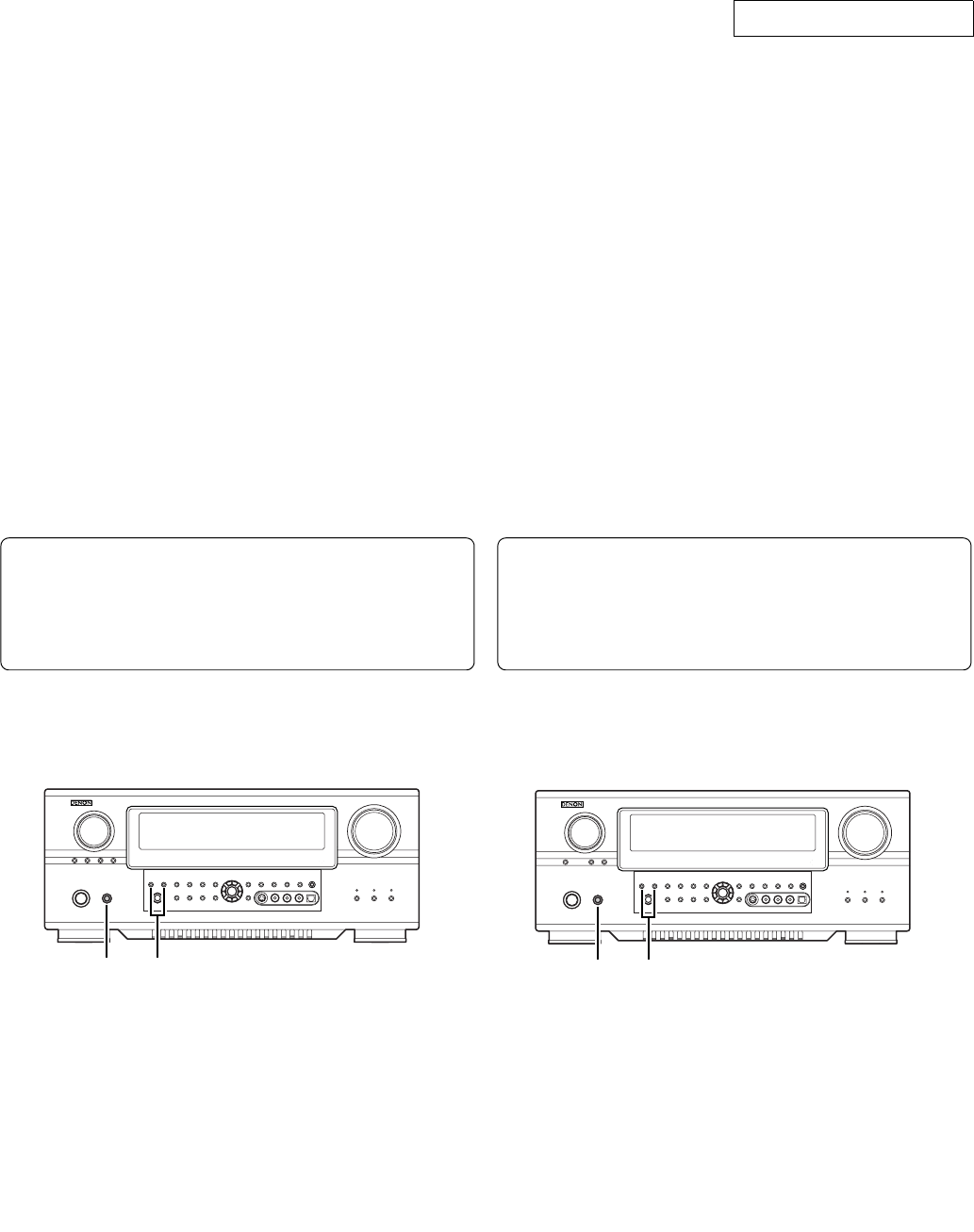

Initializing AV SURROUND RECEIVER
/AMPLIFIER
AV SURROUND RECEIVER/AMPLIFIER initialization should be
performed when the µcom, peripheral parts of µcom, and Digital
P.W.B. are replaced.
1. Switch off the unit using the Main unit’s power operation
switch.
2. Hold the following PURE DIRECT button and DIRECT/
STEREO button, and turn the Main unit’s power operation
switch on.
3. Check that the entire display is flashing with an interval of
about 1 second, and release your fingers from the 2 buttons
and the microprocessor will be initialized.
Note:・If step 3 does not work, start over from step 1.
・ All user settings will be lost and this factory setting will
be recovered when this initialization mode.
So make sure to memorize your setting for restoring
after the initialization.
1,2 2
サービス時の注意事項
AV サラウンドアンプの初期化について
マイコンやマイコン周辺部品、Digital 基板等を交換した場合
は、AV サラウンドアンプの初期化を行って下さい。
1. 電源スイッチを OFF にします。
2. ピュアダイレクトボタンとダイレクト / ステレオボタンを
同時に押しながら、電源スイッチを ON にします。
3. ディスプレイ表示が約 1 秒間隔で点滅するのを確認後、2
つのボタンから指を離します。
＊マイコンが初期化されます。
注意 :・上記 3 の状態にならない場合は、もう一度操作 1 か
らやり直してください。
・初期化を行うとお客様が設定した内容が工場出荷状
態に戻りますので、あらかじめ設定内容を控えてお
き初期化後再設定してください。
1,2 2
7
AVR-4806 / AVC-A11XV

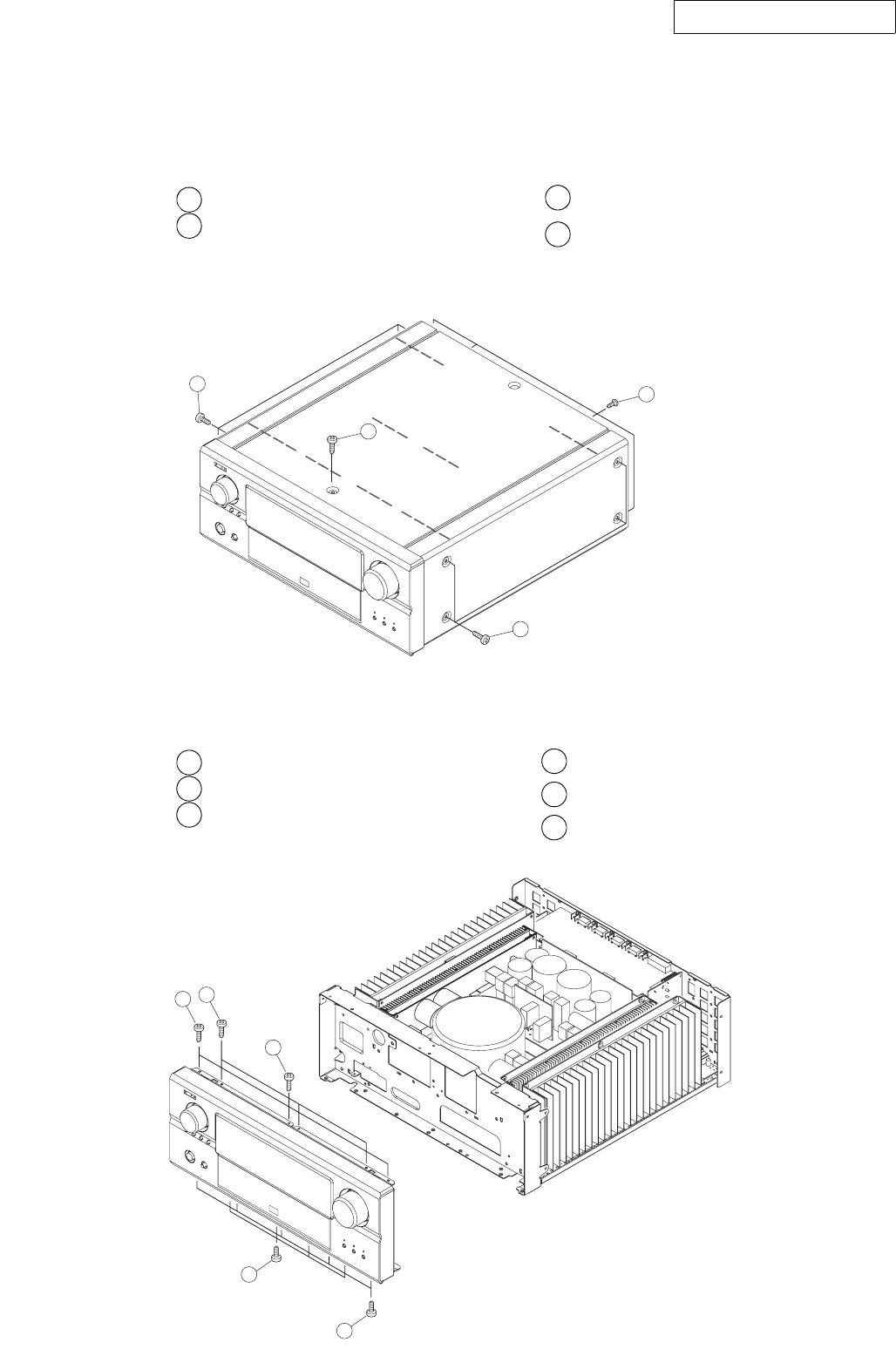

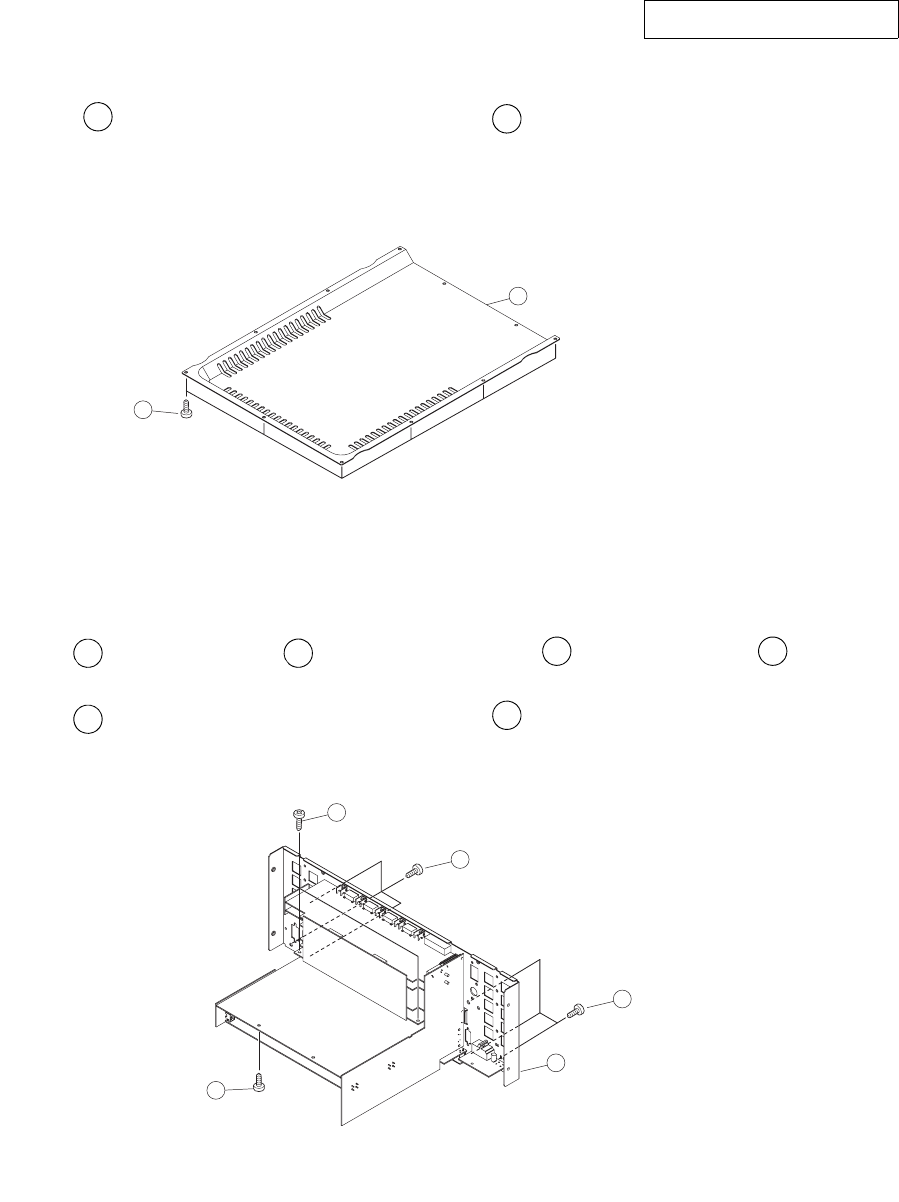

DISASSEMBLY
(Follow the procedure below in reverse order when reassem-
bling.)
1. Top Cover
(1) Remove 9 screws on the top cover.
(2) Remove 4 screws on the top cover.
2. Front Panel
(1) Remove 7 screws .
(2) Remove 6 screws .
(3) Remove 2 screws .
214
205
214
205
214
214
201
205
206
206 201
205
205
201
各部のはずしかた
（組み立てるときは、逆の順序で行ってください。）
1. Top Cover
(1) ねじ を 9 本はずします。
(2) ねじ を 4 本はずします。
2. Front Panel
(1) ねじ を 7 本はずします。
(2) ねじ を 6 本はずします。
(3) ねじ を 2 本はずします。
214
205
201
205
206
8
AVR-4806 / AVC-A11XV
3. Bottom Cover
(1) Remove 11 screws .
4. P.W.B. Unit of Back Panel
(1) Remove 6 screws fixing the Back Panel .
(2) Remove 3 screws .
205
205
85
212 33
206
212
212
206
206
33
3. Bottom Cover
(1) ねじ を 11 本はずします。
4. P.W.B. Unit of Back Panel
(1) Back Panel を取り付けているねじ を 6 本はずし
ます。
(2) ねじ を 3 本はずします。
205
33 212
206
9
AVR-4806 / AVC-A11XV

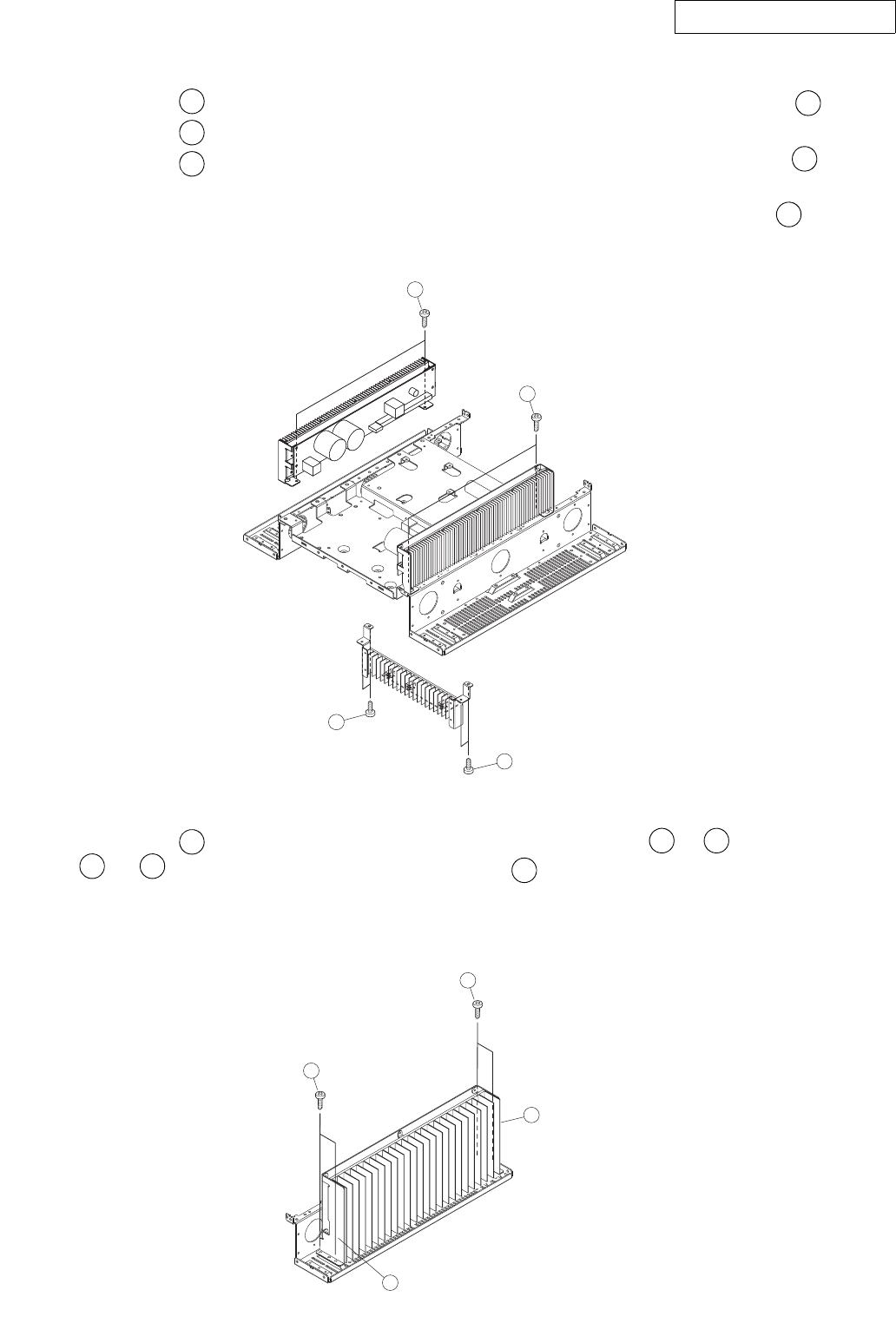

5. Regulator Unit
(1) Remove 2 screws fixing the AUDIO REG. UNIT.
(2) Remove 2 screws fixing the VIDEO REG. UNIT.
(3) Remove 4 screws fixing the DSP REG. UNIT.
6. Power Amp Unit L/R
(1) Remove 4 screws fixing the Radiator Bracket A.
(A : , A : )
※Right side is same.
206
206
205
205
205
206
206
DSP REG. UNIT
VIDEO REG. UNIT
AUDIOREG.UNIT
211
50 51
(Left side)
51
50
211
211
5. Regulator Unit
(1) AUDIO REG. UNIT を取り付けているねじ を 2 本は
ずします。
(2) VIDEO REG. UNIT を取り付けているねじ を 2 本は
ずします。
(3) DSP REG. UNIT を取り付けているねじ を 4 本はず
します。
6. Power Amp Unit L/R
(1) Radiator Bracket (A) (A) を取り付けているねじ
を 4 本はずします。
※ (R) 側も同様
206
206
205
50 51
211
10
AVR-4806 / AVC-A11XV
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
Clock Flow
11
AVR-4806 / AVC-A11XV
Wave form
CH1: D-DATA
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: fs
CH3: 64fs
2
12
AVR-4806 / AVC-A11XV
FRONT ch
LEVEL DIAGRAMS
13
AVR-4806 / AVC-A11XV
CENTER ch
14
AVR-4806 / AVC-A11XV
SUBWOOFER ch
15
AVR-4806 / AVC-A11XV
SURROUND ch
16
AVR-4806 / AVC-A11XV
SURROUND BACK ch
17
AVR-4806 / AVC-A11XV
ZONE 2 L/R ch
18
AVR-4806 / AVC-A11XV
ZONE3 L/R ch
19
AVR-4806 / AVC-A11XV
AUDIO SECTION
BLOCK DIAGRAMS
20
AVR-4806 / AVC-A11XV
VIDEO SECTION
21
AVR-4806 / AVC-A11XV
ADJUSTMENT
AUDIO Section
IDLING CURRENT (1U-3356-1,2)
Required measurement equipment: DC Voltmeter
1. PREPARATION
(1) Avoid direct blow from an air conditioner or an electric
fan, and adjust the unit at normal room temperature 15 °C
~ 30 °C (59 °F ~ 86 °F).
(2) Presetting
• POWER (Power source switch) OFF
• SPEAKER (Speaker terminal) No load
(Do not connect speaker, dummy resistor, etc.)
2. ADJUSTMENT
(1) Remove top cover and set VR101, VR301, VR401, on
1U-3356-1 (Power Amp L Unit), VR102, VR202, VR302,
VR402 on 1U-3356-2 (Power Amp R Unit) at fully coun-
terclockwise ( ) position.
(2) Connect DC Voltmeter to test points (FRONT Lch:
TP101, FRONT Rch: TP102, CENTER ch: TP202, SUR-
ROUND-Lch: TP301, SURROUND-Rch: TP302, SUR-
ROUND BACK-Lch: TP401, SURROUND BACK-Rch:
TP402).
(3) • U.S.A./CANADA/JAPAN/TAIWAN R.O.C. model.
Connect power cord to AC Line, and turn power switch
"ON".
• EUROPE/ASIA/CHINA model.(AC 220V/230V)
Connect power cord to AC Line, and hold the following
DIMMER button and ROOM EQ button, and turn power
switch "ON".
(4) Presetting.
MASTER VOLUME: "---" counterclockwise ( min.)
MODE : 7CH STEREO
FUNCTION : CD
(5) Allow 2 minutes, and turn VR101 clockwise ( ) to ad-
just the TEST POINT voltage to 1.5 mV ± 0.2 mV DC.
(6) After 10 minutes from preset, turn VR101 to set the volt-
age to 2.0 mV ± 0.2 mV DC.
(7) Adjust the Variable Resistors of other channels in the
same way.
調整
オーディオセクション
アイドリング電流の調整 (1U-3356-1,2)
調整に必要な測定器 : DC Voltmeter
1. 準備
(1) セットをクーラ、扇風機のそばなど風通しの良い場所
を避け、通常の使用状態に置きます。セットの周囲温
度は 15 ∼ 30 ℃、湿度は常湿とします。
(2) プリセット
・電源スイッチ OFF
・スピーカー端子 無負荷
( スピーカー・ダミー抵抗器などを接続しない。)
2. 調整
(1) トップカバーをはずし、1U-3356-1（パワーアンプ Ｌ
ユニット）の VR101, VR301, VR401、1U-3356-2（パ
ワーアンプ Ｒ ユニット）の VR102, VR202, VR302,
VR402 を反時計方向 ( ) に回し切った状態にセット
します。
(2) テストポイント (FRONT Lch: TP101, FRONT Rch:
TP102, CENTER ch: TP202, SURROUND-Lch: TP301,
SURROUND-Rch: TP302, SURROUND BACK-Lch:
TP401, SURROUND BACK-Rch: TP402) に DC
Voltmeter を接続します。
(3) 電源コードを AC ライン（95 ∼ 105V の範囲であること）
に接続し、電源スイッチを "ON" にします。
(4) ON 後、次のようにセットします。
・MASTER VOLUME（音量調節つまみ）→反時計方向
( ) に回し、最小の状態 "---" にする。
MODE : 7CH STEREO
FUNCTION : CD
(5) 2 分以内に VR101 を時計方向 ( ) に回しテストポイ
ントの電圧を次のように調整します。
1.5mV ± 0.2mV DC
(6) 予備調整から 10 分後 VR101 を回し、次のように電圧を
設定します。
2.0mV ± 0.2mV DC
(7) 同じ方法で各チャネルの可変抵抗を調整します。
1U-3356-1
VR402
TP402
1U-3356-2
Power Trans
VR302
TP302
VR102
TP102
VR401
TP401
VR301
TP301
VR101
TP101
DC Voltmeter
VR202
TP202
22
AVR-4806 / AVC-A11XV
VIDEO Section
I. MAIN ZONE
1. SETTING
(1) Connect the oscilloscope to the Y-signal and C-signal of
S MONITOR OUT terminal and each terminate at 75
Ohms.
(2) Connect the oscilloscope to the Y-signal, PB-signal and
CB-signal, PR-signal and CR-signal of COMPONENT
MONITOR OUT2 terminal and each terminate at 75
Ohms.
※ Use the 75 Ohms resistance must be 1%
(3) DVD test disc : DVDT-S01
(4) COMPONENT VIDEO OUT of DVD player is connected
to COMPONENT IN-1.
2. BEFORE ADJUSTMENT
2.1. Setting the Oscilloscope as below.
(1) PB/CB, PR/CR, C
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 100mV
(Use the probe : x10 )
(2) Y
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 200mV
(Use the probe : x10 )
Power on. Power Supply
USA & Canada : 120V
Europe : 230V
Japan : 100V
China & Korea : 220V
2.2. Setup the DVD player and confirmation of the
stators
(1) Set to "INTERLACED" mode at the COMPONENT OUT.
(2) Confirm the DVD player’s out put level is equal as the
item 2.4. in following.
2.3. Preparation
(1) Push [POWER] button with pressing [DIMMER] and
[ROOM EQ] buttons.
(2) Confirm "0.0dB" appearing on the FL display.
(3) Turn the FUNCTION knob to select "DVD" input.
(4) Push [PURE DIRECT] button to select "PURE DIRECT".
(FL display disappears and becomes adjustment mode.)
(5) Push [OPEN/CLOSE] button of DVD player, then open
the Disc Tray.
Set DVD test disc (DVDT-S01) on the Disc Tray, and
then push [CLOSE] button.
(6) DVD player FL display appear "STOP", push [PLAY] but-
ton to playback DVD.
(7) Push the [DISPLAY] button of remote control of DVD
player unit and then appear the ON-Screen Display (GUI)
on the monitor TV.
(8) Push the [+10] and [2] button, select Title 12 of DVD.
(9) Push the [ENTER] button, playback Title 12.
(color bar 75%)
ビデオセクション
I. MAIN ZONE
1. セッティング手順
(1) セットの S MONITOR OUT 端子から Y 信号と C 信号を
それぞれオシロスコープ（終端抵抗：75Ω）に接続し
ます。
(2) セットの COMPONENT MONITOR OUT2 の端子（Y,
PB/CB, PR/CR ）をそれぞれオシロスコープ（終端抵抗：
75Ω）に接続します。
※ 75Ω 抵抗は 1％品を使用する事。
(3) DVD テストディスク：DVDT-S01 を用意します。
(4) DVD プレーヤーの COMPONENT VIDEO OUT を
COMPONENT IN-1 に接続します。
2. 調整のまえに
2.1. オシロスコープを下記に設定
(1) PB/CB, PR/CR, C
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 100mV
（プローブ x10 使用）
(2) Y
(a) TIME/DIV : 10μs
(b) VOLT/DIV : 200mV
（プローブ x10 使用）
電源電圧 ： 100V
2.2. DVD プレーヤの設定と確認
(1) COMPONENT OUT の設定を " インターレース " にしま
す。
(2) DVD プレーヤーの出力が以下 2.4. に合っていることを
確認します。
2.3. 準備手順
(1) セットの AC コードをコンセントへ挿入し、「DIMMER」
と「ROOM EQ」ボタンを押しながらセットの電源を
"ON" にします。
(2) FL 表示右上の VOL 表示が "0.0dB" になっていることを
確認します。
(3) FUNCTION ノブを回し、入力を "DVD" に切り替えます。
(4) 「PURE DIRECT」ボタンを押し、"PURE DIRECT" にしま
す。（FL 表示が消え、調整モードになります。）
(5) DVD プレーヤーの「OPEN/CLOSE」ボタンを押しトレ
イを開き、トレイ上に DVD テストディスク（DVDT-
S01）をセット後、「CLOSE」ボタンを押します。
(6) DVD プレーヤーの表示管上に "STOP" が表示されてか
ら、「PLAY」ボタンを押し、ディスクを再生します。
(7) DVD プレーヤーのリモコンの「DISPLAY」ボタンを押
しグラフィカル・ユーザー・インターフェイス (GUI) 画
面を出します。
(8) 番号ボタンの ｢ +10 ｣ , ｢ 2 ｣ボタンを押し、Title 12 を選択
します。
(9) 「ENTER」ボタンを押し、Title 12 を再生します。
（75％カラーバー信号）
23
AVR-4806 / AVC-A11XV
2.4. Procedure
(1) Adjust the signal of S MONITOR OUT by the wave of os-
cilloscope.
(a) Target, Y-signal
Point : 1U-3669 VR802
Adjustment Value : 714 ±14mV
Waveform
(b) Target, C-signal
Point : 1U-3669 VR803
Adjustment Value : 286 ±5mV
Waveform
(2) Adjust the signal of COMPONENT OUT by the wave of
oscilloscope.
(a) Target, Y-signal
Point : 1U-3669 VR804
Adjustment Value : 714 ±14mV
Waveform
(b) Target, PB/CB-signal
Point : 1U-3669 VR805
Adjustment Value : *525 ±10mV
Waveform
Y-signal of S MONITOR OUT
Y
C
C-signal of S-MONITOR
Y
Y-signal COMPONENT OUT
PB/CB-signal COMPONENT OUT
PB/CB
2.4. 手順
(1) セットの S MONITOR OUT の信号レベルをオシロスコー
プ上の波高値で調整します。
(a) Y 信号レベル
調整個所 ： 1U-3669 VR802
調整値 ： 714 ± 14mV
波形
(b) C 信号レベル
調整個所 ： 1U-3669 VR803
調整値 ： 286 ± 5ｍV
波形
(2) COMPONENT OUT の信号レベルをオシロスコープ上の
波高値で調整します。
(a) Y 信号レベル
調整個所 ： 1U-3669 VR804
調整値 ： 714 ± 14ｍV
波形
(b) PB/CB信号レベル
調整個所 ： 1U-3669 VR805
調整値 ： 525 ± 10ｍV
波形
S MONITOR OUT の Y 信号レベル
Y
C
S MONITOR の C 信号レベル
Y
COMPONENT OUT の Y 信号レベル
PB/CB
COMPONENT OUT の PB/CB信号レベル
24
AVR-4806 / AVC-A11XV
(c) Target, PR/CR-signal
Point : 1U-3669 VR806
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ±10mV for U.S.A. & Canada model
1U-3669 D.VIDEO UNIT
PR/CR-signal COMPONENT OUT
PR/CR
VR802 S-Y
VR803 S-C
VR804 Y
VR805 PB/CB
VR806 PR/CR
(c) PR/CR信号レベル
調整個所 ： 1U-3669 VR806
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENT OUT の PR/CR信号レベル
25
AVR-4806 / AVC-A11XV
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s
M30625FGPGP (IC151) DIGITAL P.W.B.
M30625FGPGP Terminal Function
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res FUNCTION
1 VREF VREF - - - - - - AD ref. +5V
2 AVCC AVCC - - - - - - AD +3.3V
3 P97/SIN4 MPLDOSI I - Lv - - Z MAIN FPGA control pin
4 P96/SOUT4 MPLDISO O C - - - Z MAIN FPGA control pin
5 P95/CLK4 MPLDCLK O C - - - Z MAIN FPGA control pin
6 P94 MPLDSTB O C - - - Z MAIN FPGA control pin
7 P93 DSPOSCON O C - - - Z ON="H"(After 20ms from DIGITAL POWER ON)
8 P92/SOUT3 DSPISO O C - - - Z DSP control pin
9 P91/SIN3 DSPOSI1 I - Lv - - Z DSP1/2/3 control pin
10 P90/CLK3 DSPCLK O C - - - Z DSP control pin
11 P141 DSPBOOT I - - - Eu Z "DSP rewrite boot program (DSP rewrite: L input) /(DLINK ID writing mode start:L
input set)"
12 P140 NC O C - - - Z Not used
13 BYTE BYTE - - - - - - GND (Ext. data bus bit width switching, 16bit: L)
14 CNVCS CNVSS - - - - Ed - Single-chip/Micro-processor mode switching (Normal single-chip: L, Rewrite boot pro-
gram start:H input set)
15 P87 (DSPOSI2) O C - - - Z Not used (DSP2 control pin)
16 P86 (DSPOSI3) O C - - - Z Not used (DSP3 control pin)
17 RESET SUBRESET I - Lv - Eu L Reset input (Reset: L)
18 XOUT X1 O - - - - - Oscillator connection
26
AVR-4806 / AVC-A11XV
19 VSS VSS - - - - - - GND
20 XIN X2 I - - - - - Oscillator connection
21 VCC1 VCC1 - - - - - - +3.3V
22 P85/NMI _NMI I - - - - - Not used (Fixed to H)
23 P84/INT2 REQSIIEO I - E↓&L - Ed Z 1394 control pin
24 P83/INT1 ACKSIMO I - E↓&L --Z
MAIN-SUB μcom comm. control pin
25 P82/INT0 SUBBDOWN I - E↓&L Eu Z Power down detect (Power down: L)
26 P81 NC O C - - - Z Not used
27 P80 NC O C - - - Z Not used
28 P77 NC O C - - - Z Not used
29 P76 1394POWER O C - - - Z 1394 control pin (1394POWER ON:H)
30 P75 ACKSOIEI O C - - Eu Z 1394 control pin
31 P74 RST1394 O C - - Eu Z 1394 control pin, Reset="L"(Reset release="H" after 80msec from IEPOWER ON)
32 P73/CTS2 CSIE O C - - Eu Z 1394 control pin
33 P72/CLK2 CLKSOIEI O C - - Eu Z 1394 control pin
34 P71/RXD2 SIIEO I - - - Eu Z 1394 control pin
35 P70/TXD2 SOIEI O N - - Eu Z 1394 control pin
36 P67/TXD1 TXD.S O C - - Ed Z Data transfer output to outside
37 VCC1 VCC1 - - - - - Z +3.3V
38 P66/RXD1 RXD.S I - Lv - Ed Z Data receive input from outside
39 VSS VSS - - - - - Z GND
40 P65/CLK1 NC I - - - - Z Not used
41 P64/CTS1 NC O C - - - Z Not used
42 P63/TXD0 SOMI O C - - - Z MAIN-SUB μcom comm. control pin
43 P62/RXD0 SIMO I - - - - Z MAIN-SUB μcom comm. control pin
44 P61/CLK0 CLKSIMO I - - - - Z MAIN-SUB μcom comm. control pin
45 P60/CTS0 REQSOMI O C - - - Z MAIN-SUB μcom comm. control pin
46 P137 NC O C - - - Z Not used
47 P136 NC O C - - - Z Not used
48 P135 SUBnCE O C - - - Z FPGA rewrite control pin
49 P134 NC O C - - - Z Not used
50 P57 NC O C - - - Z Not used
51 P56 NC O C - - - Z Not used
52 P55/EPM FRASH EPM I - Lv - Eu Z Rewrite boot program start: L
53 P54 NC O C - - - Z Not used
54 P133 SUBDATAOUT I - - - - Z FPGA rewrite control pin
55 P132 SUBASDI O C - - - Z FPGA rewrite control pin
56 P131 SUBnCS O C - - - Z FPGA rewrite control pin
57 P130 SUBÇéCONFIG O C - - - Z FPGA rewrite control pin
58 P53 SUBDCLK O C - - - Z FPGA rewrite control pin
59 P52 SUBCONF_DONE I - Lv - - Z FPGA rewrite control pin
60 P51 NC O C - - - Z Not used
61 P50/CE FRASH CE I - - - Ed Z Rewrite boot program start: H
62 P127 NC O C - - - Z Not used
63 P126 DIGITAL POWER O C - - Ed Z DIGITAL power on/off switching(ON:H)
64 P125 SUBCPUASON O C - - - Z Active Serial on(FPGA rewrite from SUB-μCOM:L) ※ default → D.POWER OFF:H
65 P47 ADC RST O C - - Eu Z AD RST
66 P46 AD OVER R I - Lv - - Z RCH OVERLOAD
67 P45 AD OVER L I - Lv - - Z LCH OVERLOAD
68 P44 OSR2 O C - - - Z A/D control pin(PCM1804) 96kHz:H
69 P43 OSR1 O C - - - Z A/D control pin(PCM1804) 48kHz:H
70 P42 NC O C - - - Z Not used
71 P41 DACMDI O C - - - Z DAC control pin
72 P40 DACMC O C - - - Z DAC control pin
73 P37 FGAIN4 O C - - Ed Z FGAIN control pin
74 P36 FGAIN3 O C - - Ed Z FGAIN control pin
75 P35 FGAIN2 O C - - Ed Z FGAIN control pin
76 P34 FGAIN1 O C - - Ed Z FGAIN control pin
77 P33 DACMS4 O C - - - Z DAC control pin
78 P32 DACMS3 O C - - - Z DAC control pin
79 P31 DACMS2 O C - - - Z DAC control pin
80 P124 DACMS1 O C - - - Z DAC control pin
81 P123 DACRST4 O C - - - Z DAC control pin
82 P122 DACRST3 O C - - - Z DAC control pin
83 P121 DACRST2 O C - - - Z DAC control pin
84 P120 DACRST1 O C - - - Z DAC control pin
85 VCC2 VCC2 - - - - - - +3.3V
86 P30 NC O C - - - Z Not used
87 VSS VSS - - - - - - GND
88 P27 NC O C - - - Z Not used
89 P26 NC O C - - - Z Not used
90 P25 DIRRST3 O C - - Ed Z DIR control pin(LC89057W-VF4-E)
91 P24 DIRRST2 O C - - Ed Z DIR control pin(LC89057W-VF4-E)
92 P23 DIRRST1 O C - - Ed Z DIR control pin(LC89057W-VF4-E)
93 P22 DIRDOUT1 I - Lv - Eu Z DIR control pin(LC89057W-VF4-E)
94 P21 DIRDIN1 O C - - - Z DIR control pin(LC89057W-VF4-E)
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res FUNCTION
27
AVR-4806 / AVC-A11XV
95 P20 DIRCLK1 O C - - - Z DIR control pin(LC89057W-VF4-E)
96 P17/INT5 INT3 I - E↓&L - Ed Z DIR control pin(LC89057W-VF4-E)
97 P16/INT4 INT2 I - E↓&L - Ed Z DIR control pin(LC89057W-VF4-E)
98 P15/INT3 INT1 I - E↓&L - Ed Z DIR control pin(LC89057W-VF4-E)
99 P14 DIRCE1 O C - - - Z DIR control pin(LC89057W-VF4-E)
100 P13 NC O C - - - Z Not used
101 P12 NC O C - - - Z Not used
102 P11 NC O C - - - Z Not used
103 P10 NC O C - - - Z Not used
104 P07/AN07 NC O C - - - Z Not used
105 P06/AN06 NC O C - - - Z Not used
106 P05/AN05 NC O C - - - Z Not used
107 P04/AN04 NC O C - - - Z Not used
108 P03/AN03 NC O C - - - Z Not used
109 P02/AN02 DSPMON1 I - Lv - - Z DSP1 control pin
110 P01/AN01 DSPMON2 I - Lv - - Z DSP2 control pin
111 P00/AN00 DSPMON3 I - Lv - - Z DSP3 control pin
112 P117 DSPRST1 O C - - - Z DSP1 control pin
113 P116 DSPRST2 O C - - - Z DSP2 control pin
114 P115 DSPRST3 O C - - - Z DSP3 control pin
115 P114 DSPROMRST1 O C - - Ed Z DSP1 control pin
116 P113 DSPROMRST2 O C - - Ed Z DSP2 control pin
117 P112 DSPROMRST3 O C - - Ed Z DSP3 control pin
118 P111 DSPREADY1 I - Lv - - Z DSP1 control pin
119 P110 DSPREADY2 I - Lv - - Z DSP2 control pin
120 P107/AN7 DSPREADY3 I - Lv - - Z DSP3 control pin
121 P106/AN6 DSPCS1 O C - - - Z DSP1 control pin
122 P105/AN5 DSPCS2 O C - - - Z DSP2 control pin
123 P104/AN4 DSPCS3 O C - - - Z DSP3 control pin
124 P103/AN3 PLDMUTE1 O C - - - Z MAINFPGA control pin
125 P102/AN2 PLDMUTE2 O C - - - Z MAINFPGA control pin
126 P101/AN1 PLDMUTE3 O C - - - Z MAINFPGA control pin
127 AVSS AVSS - - - - - - AD GND
128 P100/AN0 PLDMUTE4 O C - - - Z MAINFPGA control pin
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res FUNCTION
Note: Pin No. : Terminal number of microcomputer.
Port Name : The name entered in the data sheet of microcomputer.
Symbol : Symbolized interface function.
I/O : Input or out of part.
“I” = Input port
“O” = Output port
Type : Composition of port in case of output port.
“C” = CMOS output
“N” = NMOS open drain output
“P” = PMOS open drain output
Op : Pull up/Pull down selection information.
“Iu” = Inner microcomputer pull up
“Id” = Inner microcomputer pull down
“Eu” = External microcomputer pull up
“Ed” = External microcomputer pull down
Det : Indicates judging state of input port. Level detection is “LV”; Edge detection is “Ed”; Detection by both shifting is “E&L”;
Serial data detection is “S” (Serial data output is also “S”).
Res : State at reset.
“H” = Outputs High Level at reset
“L” = Outputs Low Level at reset
“Z” = Becomes High impedance mode at reset
STBY : State of port when STANDBY mode.
“O/L” = Output port and “L”
“I” = Input port
Stop : State of port when Stop mode.
“O/L” = Output port and “L”
“I” = Input port
28
AVR-4806 / AVC-A11XV
M30627FHPGP (IC901) CONNECT P.W.B.
M30625FGPGP Terminal Function
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
1 VREF VREF - - - - - - - - AD ref. +5V
2AVCC AVCC - - - - - - - - AD +5V
3 P97/SIN4 Z1 OSD STB O C - - - Z O/L O/L MAIN OSD control pin
4 P96/SOUT4 Z1 OSD DATA O C - - - Z O/L O/L MAIN OSD control pin
5 P95/CLK4 Z1 OSD CLK O C - - - Z O/L O/L MAIN OSD control pin
6 P94 NC O C - - - Z O/L O/L Not used
7 P93 NC O C - - - Z O/L O/L Not used
8 P92/SOUT3 NC O C - - - Z O/L O/L Not used
9 P91/SIN3 NC O C - - - Z O/L O/L Not used
10 P90/CLK3 NC O C - - - Z O/L O/L Not used
11 P141 NC O C - - - Z O/L O/L Not used
12 P140 NC O C - - - Z O/L O/L Not used
13 BYTE BYTE - - - - - - - - GND (Ext. data bus bit width switching, 16bit: L)
14 CNVCS CNVSS - - - - Ed - - - "Single-chip/Micro-processor mode switching (Normal single-chip: L,
Rewrite boot program start:H input set)"
15 P87 TE RST O C - - - Z O/L O/L COMPONENT FORMAT DETECTOR reset (TE8200PF)
16 P86 NC O C - - - Z O/L O/L Not used
17 RESET _RESET I - Lv - Eu L I I Reset input (Reset: L)
18 XOUT X1 O - - - - - - - Oscillator connection
19 VSS VSS - - - - - - - - GND
20 XIN X2 I - - - - - I I Oscillator connection
21 VCC1 VCC1 - - - - - - - - +5V
22 P85/NMI _NMI I - - - - - - - Not used (Fixed to H)
23 P84/INT2 INT I - E↓&L - Ed Z I I HDMI RX interruption
24 P83/INT1 REMOTE I - E↑&L - Ed Z I I Remote control signal input
25 P82/INT0 V.B.DOWN I - E↑&L - Eu Z I I Power down detect (Power down: L)
26 P81 (VSDA) I/O C - - Eu Z O/L O/L Not used
27 P80 (VSCL) I/O C - - Eu Z O/L O/L Not used
29
AVR-4806 / AVC-A11XV
28 P77 NC O C - - - Z O/L O/L Not used
29 P76 NC O C - - - Z O/L O/L Not used
30 P75 NC O C - - - Z O/L O/L Not used
31 P74 VIDEO POWER O C - - Ed Z O/L O/L VIDEO POWER control pin(ON="H",OFF="L")
32 P73/CTS2 REQ VOMI O C - - - Z O/L O/L MAIN-VIDEO μcom comm. control pin
33 P72/CLK2 CLK VIMO I - Lv - - Z I O/L MAIN-VIDEO μcom comm. control pin
34 P71/RXD2 VIMO I - Lv - - Z I O/L MAIN-VIDEO μcom comm. control pin
35 P70/TXD2 VOMI O N - - Eu Z O/L O/L MAIN-VIDEO μcom comm. control pin
36 P67/TXD1/SDA1 5V SDA/TxD I/O C - - - Z O/L O/L HDMI IC control/Data transfer pin to outside(MAKER BOOT)
37 VCC1 VCC - - - - - - - - +5V
38 P66/RXD1/SCL1 5V SCL/RxD I/O C - - - Z O/L O/L HDMI IC control/Data transfer pin from outside(MAKER BOOT)
39 VSS VSS - - - - - - - - GND
40 P65/CLK1 (Y/C SEL) O C - - Ed Z O/L O/L Not used
41 P64/CTS1 NC O C - - - Z O/L O/L Not used
42 P63/TXD0/SDA0 EDIT SDA I/O C - - Eu Z O/L O/L HDMI/DVI EDIT(E2PROM) control pin
43 P62/RXD0/SCL0 EDIT SCL I/O C - - Eu Z O/L O/L HDMI/DVI EDIT(E2PROM) control pin
44 P61/CLK0 NC O C - - - Z O/L O/L Not used
45 P60/CTS0 NC O C - - - Z O/L O/L Not used
46 P137 NC O C - - - Z O/L O/L Not used
47 P136 NC O C - - - Z O/L O/L Not used
48 P135 NC O C - - - Z O/L O/L Not used
49 P134 NC O C - - - Z O/L O/L Not used
50 P57 NC O C - - - Z O/L O/L Not used
51 P56 NC O C - - - Z O/L O/L Not used
52 P55/EPM FRASH EPM I - Lv - Eu Z I I Rewrite boot program start: L input set
53 P54 NC O C - - - Z O/L O/L Not used
54 P133 NC O C - - - Z O/L O/L Not used
55 P132 NC O C - - - Z O/L O/L Not used
56 P131 NC O C - - - Z O/L O/L Not used
57 P130 NC O C - - - Z O/L O/L Not used
58 P53 NC O C - - - Z O/L O/L Not used
59 P52 NC O C - - - Z O/L O/L Not used
60 P51 NC O C - - - Z O/L O/L Not used
61 P50/CE FRASH CE I - - - Ed Z I I Rewrite boot program start: H input set
62 P127 Z1 SMONIDET1 I - - - Eu Z I O/L MAIN ZONE's S-monitor connection detect input (Connected:L )
63 P126 Z1 VSIG DET I - Lv - Eu Z I O/L MAIN ZONE's VIDEO signal detect port（Detected:H)
64 P125 NC O C - - - Z O/L O/L Not used
65 P47 NC O C - - - Z O/L O/L Not used
66 P46 NC O C - - - Z O/L O/L Not used
67 P45 S EXP CLK O C - - - Z O/L O/L Video switching expander control for S/CVBS(BU4094B)
68 P44 S EXP DATA O C - - - Z O/L O/L Video switching expander control for S/CVBS(BU4094B)
69 P43 S EXP STB O C - - - Z O/L O/L Video switching expander control for S/CVBS(BU4094B)
70 P42 S EXP OE O C - - Ed Z O/L O/L Video switching expander control for S/CVBS(BU4094B)
71 P41 NC O C - - - Z O/L O/L Not used
72 P40 NC O C - - - Z O/L O/L Not used
73 P37 NC O C - - - Z O/L O/L Not used
74 P36 NC O C - - - Z O/L O/L Not used
75 P35 NC O C - - - Z O/L O/L Not used
76 P34 HDMI O C - - - Z O/L O/L HDMI output control pin(HDMI)
77 P33 RGB O C - - - Z O/L O/L HDMI output control pin(RGB)
78 P32 YUV O C - - - Z O/L O/L HDMI output control pin(YUV)
79 P31 Z1 SYNC DET I - Lv - Eu Z I I Sync. detect input for MAINZONE (H: Ext. synchronized)
80 P124 Z1 OSD RST O C - - - Z O/L O/L OSD control for MAINZONE (M35015)
81 P123 NC O C - - - Z O/L O/L Not used
82 P122 NC O C - - - Z O/L O/L Not used
83 P121 C EXP CLK O C - - - Z O/L O/L Video switching expander control for COMPONENT(BU4094B)
84 P120 C EXP DATA O C - - - Z O/L O/L Video switching expander control for COMPONENT(BU4094B)
85 VCC2 VCC2 - - - - - - - - +5V
86 P30 (PAL ENA.) I - Lv - Eu Z I O/L Not used (DECODE correspondence/ non-correspondence detect
(noncorrespondence:L))
87 VSS VSS - - - - - - - - GND
88 P27 C EXP STB O C - - - Z O/L O/L Video switching expander control for COMPONENT(BU4094B)
89 P26 C EXP OE O C - - Ed Z O/L O/L Video switching expander control for COMPONENT(BU4094B)
90 P25 COMP SDET1 I - Lv - Eu Z I O/L MAIN ZONE's COMPONENT signal detect input
91 P24 NC O C - - - Z O/L O/L Not used
92 P23 P1HPRMV2 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN3 terminal
93 P22 POHPRMV2 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN2 terminal
94 P21 P1HPRMV1 O C - - - Z O/L O/L HP(hot-plug) detect input for HDMI IN1 terminal
95 P20 P0HPRMV1 O C - - - Z O/L O/L HP(hot-plug) detect input for DVI IN terminal
96 P17/INT5 HDMI SENS I - E↓&L - Eu Z I O/L HDMI signal detect input
97 P16/INT4 VD INT I - E↓&L - Eu Z I O/L VIDEO DECODER(ADV7403) INT signal detect input
98 P15/INT3 ACK VIMO I - E↓&L - - Z I O/L MAIN-VIDEO μcom comm. control pin
99 P14 NC O C - - - Z O/L O/L Not used
100 P13 (H DDCRES) O C - - Ed Z O/L O/L HDMI MONITOR OUT DATA ON/OFF control pin
101 P12 NC O C - - - Z O/L O/L Not used
102 P11 HDMI T RST O C - - Ed Z O/L O/L HDMI TRANSMITTER reset (Si I9030)
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
30
AVR-4806 / AVC-A11XV
103 P10 HDMI CS O - - - Ed Z O/L O/L HDMI TRANSMITTER chip select (Si I9030)
104 P07/AN07 NC O C - - - Z O/L O/L Not used
105 P06/AN06 NC O C - - - Z O/L O/L Not used
106 P05/AN05 VD RST O - - - - Z O/L O/L VIDEO DECODER reset (ADV7403)
107 P04/AN04 NC O C - - - Z O/L O/L Not used
108 P03/AN03 NC O C - - - Z O/L O/L Not used
109 P02/AN02 VE RST O - - - - Z O/L O/L VIDEO ENCODER reset (ADV7320)
110 P01/AN01 NC O C - - - Z O/L O/L Not used
111 P00/AN00 INT1 I - - - Eu Z I O/L HDMI RECEIVER(Si I9031)INT output (DVI IN1/HDMI IN1)
112 P117 INT2 I - - - Eu Z I O/L HDMI RECEIVER(Si I9031)INT output (HDMI IN2/IN3)
113 P116 HDMI R RST O C - - Ed Z O/L O/L HDMI RECEIVER reset (Si I9031) (HDMI IN2/IN3)
114 P115 DVI R RST O C - - Ed Z O/L O/L HDMI RECEIVER reset (Si I9031) (DVI IN1/HDMI IN1)
115 P114 SCDT1 I - - - Eu Z I O/L HDMI RECEIVER(Si I9031)SCDT output (DVI IN1/HDMI IN1)
116 P113 SCDT2 I - - - Eu Z I O/L HDMI RECEIVER(Si I9031)SCDT output (HDMI IN2/IN3)
117 P112 WP1 O C - - Ed Z O/L O/L HDMI IN1 EDIT(24LC02) WRITE PROTECT
118 P111 WP2 O C - - Ed Z O/L O/L HDMI IN1 EDIT(24LC02) WRITE PROTECT
119 P110 WP3 O C - - Ed Z O/L O/L HDMI IN1 EDIT(24LC02) WRITE PROTECT
120 P107/AN7 WP4 O C - - Ed Z O/L O/L HDMI IN1 EDIT(24LC02) WRITE PROTECT
121 P106/AN6 NC O C - - - Z O/L O/L Not used
122 P105/AN5 Z1 S SIG DET I - - - Eu Z I O/L MAIN ZONE's S-signal detect input (H: S-signal inputted)
123 P104/AN4 NC O C - - - Z O/L O/L Not used
124 P103/AN3 NC O C - - - Z O/L O/L Not used
125 P102/AN2 NC O C - - - Z O/L O/L Not used
126 P101/AN1 NC O C - - - Z O/L O/L Not used
127 AVSS AVSS - - - - - - - - AD GND
128 P100/AN0 NC O C - - - Z O/L O/L Not used
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
Note: Pin No. : Terminal number of microcomputer.
Port Name : The name entered in the data sheet of microcomputer.
Symbol : Symbolized interface function.
I/O : Input or out of part.
“I” = Input port
“O” = Output port
Type : Composition of port in case of output port.
“C” = CMOS output
“N” = NMOS open drain output
“P” = PMOS open drain output
Op : Pull up/Pull down selection information.
“Iu” = Inner microcomputer pull up
“Id” = Inner microcomputer pull down
“Eu” = External microcomputer pull up
“Ed” = External microcomputer pull down
Det : Indicates judging state of input port. Level detection is “LV”; Edge detection is “Ed”; Detection by both shifting is “E&L”;
Serial data detection is “S” (Serial data output is also “S”).
Res : State at reset.
“H” = Outputs High Level at reset
“L” = Outputs Low Level at reset
“Z” = Becomes High impedance mode at reset
STBY : State of port when STANDBY mode.
“O/L” = Output port and “L”
“I” = Input port
Stop : State of port when Stop mode.
“O/L” = Output port and “L”
“I” = Input port
31
AVR-4806 / AVC-A11XV
M30835FJGP (IC409) CONNECT P.W.B.
M30835FJGP Terminal Function
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
1 P96/TXD4 (XMI TxD) O C - - - Z O/L O/L Not used (XM RADIO control pin)
2 P95/CLK4 (XMO1) O C - - - Z O/L O/L Not used (XM RADIO control pin)
3 P94/CTS4 (XMO2) O C - - - Z O/L O/L Not used (XM RADIO control pin)
4 P93/CTS3 (XM POWER) O C - - - Z O/L O/L Not used (XM RADIO power control pin)
5 P92/TXD3/SDA3 ETI RxD O C - - - Z O/L O/L ETHERNET UART control pin
6 P91/RXD3/SCL3 ETO Txd I - Lv - - Z I O/L ETHERNET UART control pin
7 P90/CLK3 H/P RELAY O C - - Ed Z O/L O/L HEADPHONE RELAY control pin
8 P146 RSTV O C - - Ed Z O/L O/L VIDEO-μcom reset output
9 P145 SW5V POWER O C - - Ed Z O/L O/L SW5V POWER control pin (Same as MAIN POWER PORT)
10 P144 (PRE POWER -B) O C - - Ed Z O/L O/L (PRE -B Power Relay conerol pin (H:After 100ms from P141:PRE
POWER +B ="H"))
11 P143 MUTE POWER O C - - Ed Z O/L O/L Muting ON:"H" (30msec before POWER ON), OFF:"L"(Same timing as
POWER OFF)
12 P142 BD3811 POWER O C - - Ed Z O/L O/L ZONE +B control pin (H:After 100ms from P144:PRE POWER -B="H"))
13 P141 SUB CPU POWER O C - - - Z O/L O/L SUB-μcom power on/off switching(ON:H)
14 P140 232C POWER O C - - Ed Z O/H O/L 232C POWER control pin (STANDBY:H)
15 BYTE BYTE - - - - - - - - GND(Ext. data bus bit width switching,16bit:"L")
16 CNVss CNVSS I - - - Ed - - - "Single-chip/Micro-processor mode switching (Normal singlechip:
L, Rewrite boot program start:H input set)"
17 P87/XCIN MAIN POWER O C - - Ed Z O/L O/L POWER relay control output (H:ON)
32
AVR-4806 / AVC-A11XV
18 P86/XCOUT RUSH POWER O C - - Ed Z O/L O/L POWER Relay control pin (H:After 500ms from P87:MAIN
POWER="H")
19 RESET RESET I - Lv - Eu L I I Reset input (Reset="L")
20 XOUT X2 O - - - - - - - Oscillator connection
21 VSS VSS - - - - - - - - GND
22 XIN X1 I - - - - - I I Oscillator connection
23 VCC VCC - - - - - - - - +5V
24 P85/NMI _NMI I - - - - - - - Not used(Fixed to H)
25 P84/INT2 B.DOWN I - E↓&L - Eu Z I I Power down detect(Power down:L)
26 P83/INT1 POWER KEY I - E↓&L - Eu I O/L Interrupt port for WAIT mode cancel
27 P82/INT0 REMOCON I - E↑&L - Ed Z I I Remote control signal input
28 P81/ REQ VOMI I - Lv - - Z O/L O/L MAIN-VIDEO μcom comm. control pin
29 P80/ISRXD0 SOMI I - Lv - - Z O/L O/L MAIN-SUB μcom comm. control pin
30 P77/ISCLK0 CLK SIMO O C - - Z O/L O/L MAIN-SUB μcom comm. control pin
31 P76/ISTXD0 SIMO O C - - Z O/L O/L MAIN-SUB μcom comm. control pin
32 P75/ISRXD1 ETHER EOMI I - Lv - - Z O/L O/L ETHERNET control pin
33 P74/ISCLK1 ETHER CLK EIMO O C - - Z O/L O/L ETHERNET control pin
34 P73/CTS2/ISTXD1 ETHER EIMO O C - - Z O/L O/L ETHERNET control pin
35 P72/CLK2 CLK VIMO O C - - Z O/L O/L MAIN-VIDEO μcom comm. control pin
36 P71/RXD2/ VOMI I - Lv - - Z O/L O/L MAIN-VIDEO μcom comm. control pin
37 P70/TXD2/ VIMO O N - - Eu Z O/L O/L MAIN-VIDEO μcom comm. control pin
38 P67/TXD1 FRONT TxD O C - - - Z O/L O/L Data transfer pin to outside(MAKER BOOT)
39 VCC VCC - - - - - - - - +5V
40 P66/RXD1 FRONT RxD I - Lv - - Z I O/L Data transfer pin from outside(MAKER BOOT)
41 VSS VSS - - - - - - - - GND
42 P65/CLK1 NC I - Lv - Ed Z I O/L Not used
43 P64/CTS1 NC O C - - - Z O/L O/L Not used
44 P63/TXD0 BACK TxD O C - - - Z O/L O/L Data transfer pin to outside(AMX)
45 P62/RXD0 BACK RxD I - Lv - - Z I O/L Data transfer pin to outside(AMX)
46 P61/CLK0 ZVOL DATA3 O C - - Ed Z O/L O/L E-VR control output for ZONE3
47 P60/CTS0 ZVOL CLK3 O C - - Ed Z O/L O/L E-VR control output for ZONE3
48 P137 NC O C - - - Z O/L O/L Not used
49 P136/ISCLK2 NC O C - - - Z O/L O/L Not used
50 P135/ISRXD2 NC O C - - - Z O/L O/L Not used
51 P134/ISTXD2 NC O C - - - Z O/L O/L Not used
52 P57 BIN RL O C - - Ed Z O/L O/L AMP +B control(H=SIG DET"L")
53 P56 A+B LIMIT O C - - Ed Z O/L O/L A+B LIMIT control ,H=SURROUND SPEAKER A+B="H"
54 P55/EPM FRASH EPM I - - - Eu Z I I Rewrite boot program start:L input set
55 P54 LIMIT O C - - Ed Z O/L O/L LIMIT control
56 P133 SIG DET SBR I - Lv - Eu Z O/L O/L SBR signal detect input
57 VSS VSS - - - - - - - - GND
58 P132 SIG DET SBL I - Lv - Eu Z O/L O/L SBL signal detect input
59 VCC VCC - - - - - - - - +5V
60 P131 SIG DET SR I - Lv - Eu Z O/L O/L SR signal detect input
61 P130 SIG DET SL I - Lv - Eu Z O/L O/L SL signal detect input
62 P53 SIG DET C I - Lv - Eu Z O/L O/L C signal detect input
63 P52 SIG DET FR I - Lv - Eu Z O/L O/L FR signal detect input
64 P51 SIG DET FL I - Lv - Eu Z O/L O/L FL signal detect input
65 P50/CE FRASH CE I - - - Ed Z I I Rewrite boot program start:H input set
66 P127 MVOL STB O C - - - Z O/L O/L E-VR control output for MAIN ZONE
67 P126 MVOL DATA O C - - - Z O/L O/L E-VR control output for MAIN ZONE
68 P125 MVOL CLK O C - - - Z O/L O/L E-VR control output for MAIN ZONE
69 P47/CS0/A23 MIC DET I - Lv - Eu Z O/L O/L Microphone detect input
70 P46/CS1/A22 NC O C - - - Z O/L O/L Not used
71 P45/CS2/A21 ZVOL DATA2 O C - - Ed Z O/L O/L E-VR control output for ZONE2
72 P44/CS3/A20 ZVOL CLK2 O C - - Ed Z O/L O/L E-VR control output for ZONE2
73 P43/A19 FUC STB IN O C - - - Z O/L O/L ANALOG SW control pin for function switching(TC94A46FG)
74 VCC VCC - - - - - - - - +5V
75 P42/A18 SUB CPU POWER O C - - - Z O/L O/L SUB-Éþcom power on/off switching(ONÅFH)
76 VSS VSS - - - - - - - - GND
77 P41/A17 FUNC STB VSEL O C - - - Z O/L O/L STB output for function switching control (VOL IN)(TC9274F-022)
78 P40/A16 FUC STB AMP O C - - - Z O/L O/L "STB output for function switching control (POWER AMP
ASSIGN)(TC9274F-022)"
79 P37/D15 FUNC DATA O C - - - Z O/L O/L ANALOG SW control pin
80 P36/D14 FUNC CLK O C - - - Z O/L O/L ANALOG SW control pin
81 P35/D13 AEXP OE O C - - Ed Z O/L O/L OE output for expander control(BU4094B)
82 P34/D12 AEXP STB O C - - - Z O/L O/L STB output for expander control(BU4095B)
83 P33/A11 AEXP DATAM O C - - - Z O/L O/L DATA output for expander control(BU4094B)
84 P32/D10 AEXP CLK O C - - - Z O/L O/L CLK output for expander control(BU4094B)
85 P31/D9 (FUNC STB D) O C - - - Z O/L O/L Not used
86 P124 TU STB O C - - - Z O/L O/L TUNER PLL control pin (LC72131)
87 P123 E2P CS O C - - - Z O/L O/L E2PROM control pin
88 P122/ISRXD3 E2P DO I - Lv - - Z O/L O/L E2PROM control pin
89 P121/ISCLK3 E2P CLK O C - - - Z O/L O/L E2PROM control pin
90 P120/ISTXD3 E2P DI O C - - - Z O/L O/L E2PROM control pin
91 VCC VCC - - - - - - - - +5V
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
33
AVR-4806 / AVC-A11XV
92 P30/D8 TU/RDS DIN O C - - - Z O/L O/L PLL & RDS control pin (LC72131 & LC72720)
93 VSS VSS - - - - - - - - GND
94 P27/AN27/D7 TU/RDS CLK O C - - - Z O/L O/L PLL & RDS control pin (LC72131 & LC72720)
95 P26/AN26/D6 TU DOUT I - Lv - - Z I O/L TUNER PLL control pin (LC72131)
96 P25/AN25/D5 MUTE(T) O C - - Ed Z O/L O/L TUNER muting control(MUTE:L)
97 P24/AN24/D4 STEREO I - Lv - Eu Z I O/L When TUNER FM stereo receive: L
98 P23/AN23/D3 TUNED I - Lv - Eu Z I O/L TUNER turned detect (Detected:L)
99 P22/AN22/D2 CE EIMO O C - - - Z O/L O/L ETHERNET control pin
100 P21/AN21/D1 RDS RESET O C - - - Z O/L O/L RDS reset output(LC72720)
101 P20/AN20/D0 ETHER RST O C - - - Z O/L O/L ETHERNET control pin
102 P17/INT5/D15 PROTECTION I - E↓&L - - I I Protection detect input(Detected:L)
103 P16/INT4/D14 REQ ETHER EOMI I - E↓&L - - I O/L ETHERNET control pin
104 P15/INT3/D13 REQ SOMI I - E↓&L - - I O/L MAIN-SUB μcom comm. control pin
105 P14/D12 ACK SIMO O C - - - Z O/L O/L MAIN-SUB μcom comm. control pin
106 P13/D11 RST SUB(RESET2) O C - - Ed Z O/L O/L SUB-μcom reset output
107 P12/D10 ETHER POWER O C - - Ed Z O/L O/L ETHERNET POWER ON/OFF switching(ON:H)
108 P11/D9 ACK VIMO O C - - - Z O/L O/L MAIN-VIDEO Éþcom comm. control pin
109 P10/D8 (E VOL STB SW) O C - - - Z O/L O/L Not used
110 P07/AN07/D7 RDS CE O C - - - Z O/L O/L RDS data output(LC72720)
111 P06/AN06/D6 RDS DATAOUT I - E↓&L - - I O/L RDS data input(LC72720)
112 P05/AN05/D5 (AMPFANIN) I - Lv - Eu Z O/L O/L AMP temperature detect(Detected:L)
113 P04/AN04/D4 (FAN ON) O C - - Ed Z O/L O/L Not used (FAN control pin)
114 P114 (FAN LOW) O C - - Ed Z O/L O/L Not used (FAN control pin)
115 P113 (TFAN IN) I - Lv - Eu Z O/L O/L Not used (TRANS temperature detect(Detected:L))
116 P112/ H/P DET I - - - Eu Z O/L O/L H/P detect input(Detected:H)
117 P111/ LED_EQ_GRN O C - - Ed Z O/L O/L MULT EQ LED (GRN) control pin
118 P110/ LED_EQ_RED O C - - Ed Z O/L O/L MULT EQ LED (RED) control pin
119 P03/AN03/D3 LED-U1 O C - - Ed Z O/L O/L USER SELECT 1 LED control pin
120 P02/AN02/D2 LED-U2 O C - - Ed Z O/L O/L USER SELECT 2 LED control pin
121 P01/AN01/D1 LED-U3 O C - - Ed Z O/L O/L USER SELECT 3 LED control pin
122 P00/AN00/D0 REDLED O C - - Ed Z O/L O/L POWER/STANDBY LED control pin
123 P157/AN157 GRNLED O C - - Ed Z O/L O/L POWER/STANDBY LED control pin
124 P156/AN156 FL RST O C - - - Z O/L O/L FL DRIVER control pin
125 P155/AN155 FL CE2 O C - - - Z O/L O/L FL DRIVER control pin
126 P154/AN154 FL CE1 O C - - - Z O/L O/L FL DRIVER control pin
127 P153/AN153 FL DATA O C - - - Z O/L O/L FL DRIVER control pin
128 P152/AN152/ FL CLK O C - - - Z O/L O/L FL DRIVER control pin
129 P151/AN151/ VSEL B I - Lv - Eu Z O/L O/L Master VR rotation detect input（Rotary encoder）
130 VSS VSS - - - - - - - - GND
131 P150/AN150/ VSEL A I - Lv - Eu Z O/L O/L Master VR rotation detect input（Rotary encoder）
132 VCC VCC - - - - - - - - +5V
133 P107/AN7 ISEL B I - Lv - Eu Z O/L O/L Input selector rotation detect input（Rotary encoder）
134 P106/AN6 ISEL A I - Lv - Eu Z O/L O/L Input selector rotation detect input（Rotary encoder）
135 P105/AN5 KEY4 I - Lv - Eu Z O/L O/L Button input4
136 P104/AN4 KEY3 I - Lv - Eu Z O/L O/L Button input3
137 P103/AN3 KEY2 I - Lv - Eu Z O/L O/L Button input2
138 P102/AN2 KEY1 I - Lv - Eu Z O/L O/L Button input1
139 P101/AN1 (XMI1) O C - - - Z O/L O/L Not used (XM RADIO control pin)
140 AVSS AVSS - - - - - - - - AD GND
141 P100/AN0 MODE I - Lv - - Z O/L O/L Destination switching input
142 VREF VREF - - - - - - - - AD ref. +5V
143 AVCC AVCC - - - - - - - - AD +5V
144 P97/ADTRG/RXD4 (XMO RxD) O C - - - Z O/L O/L Not used (XM RADIO control pin)
Pin Pin Name Symbol I/O Type Det Op
(Int.) Op
(Ext.) Res STBY stop FUNCTION
Note: Pin No. : Terminal number of microcomputer.
Port Name : The name entered in the data sheet of microcomputer.
Symbol : Symbolized interface function.
I/O : Input or out of part.
“I” = Input port
“O” = Output port
Type : Composition of port in case of output port.
“C” = CMOS output
“N” = NMOS open drain output
“P” = PMOS open drain output
Op : Pull up/Pull down selection information.
“Iu” = Inner microcomputer pull up
“Id” = Inner microcomputer pull down
“Eu” = External microcomputer pull up
“Ed” = External microcomputer pull down
Det : Indicates judging state of input port. Level detection is “LV”; Edge detection is “Ed”; Detection by both shifting is “E&L”;
Serial data detection is “S” (Serial data output is also “S”).
Res : State at reset.
“H” = Outputs High Level at reset
“L” = Outputs Low Level at reset
“Z” = Becomes High impedance mode at reset
STBY : State of port when STANDBY mode.
“O/L” = Output port and “L”
“I” = Input port
Stop : State of port when Stop mode.
“O/L” = Output port and “L”
“I” = Input port
34
AVR-4806 / AVC-A11XV
BU4094BCF-E2 (IC404) CONNECT P.W.B.
(IC501-503) AUDIO P.W.B.
BU4094BCF-E2 Terminal Function
Port Symbol Function
IC404
EXP1 T1 TRIGGER OUT 1 control pin
EXP2 T2 TRIGGER OUT 2 control pin
EXP3 T3 TRIGGER OUT 3 control pin
EXP4 NC Not used
EXP5 (ADINRL) (AD IN RELAY control pin)
EXP6 (XMPOWER) (XM POWER control pin)
EXP7 (XMDACRST) (XM DAC control pin)
EXP8 NC NC
IC501
EXP9 F MUTE PREOUT MUTE control pin
EXP10 C MUTE PREOUT MUTE control pin
EXP11 SW MUTE PREOUT MUTE control pin
EXP12 SRL MUTE PREOUT MUTE control pin
EXP13 SRR MUTE PREOUT MUTE control pin
EXP14 SBL MUTE PREOUT MUTE control pin
EXP15 SBR MUTE PREOUT MUTE control pin
EXP16 FVR MUTE VOL MUTE control pin
IC502
EXP17 CVR MUTE VOL MUTE control pin
EXP18 (EXVR MUTE) Not used (VOL MUTE control pin)
EXP19 SRL VR MUTE VOL MUTE control pin
EXP20 SRR VR MUTE VOL MUTE control pin
EXP21 SBL VR MUTE VOL MUTE control pin
EXP22 SBR VR MUTE VOL MUTE control pin
EXP23 F-RL SPEAKER RELAY control pin
EXP24 C-RL SPEAKER RELAY control pin
IC503
EXP25 (EX-RL) Not used (SPEAKER RELAY control pin)
EXP26 SRR_A-RL SPEAKER RELAY control pin
EXP27 SRR_B-RL SPEAKER RELAY control pin
EXP28 SBL-RL SPEAKER RELAY control pin
EXP29 SBR-RL SPEAKER RELAY control pin
EXP30 Z3 MUTE ZONE3 MUTE control pin
EXP31 Z2 MUTE ZONE2 MUTE control pin
EXP32 H/P MUTE HEADPHONE MUTE control pin
STROBE 1
2
3
4
5
6
7
8
9
10
11
16
15
14
13
12
DATA
CLOCK
Q1
Q2
Q3
Q4
V
SS
V
DD
OE
Q5
Q6
Q7
Q8
Q’
S
Q
S
35
AVR-4806 / AVC-A11XV
BU4094BCFV-E2 (IC106,107) CONNECT P.W.B.
(IC302,304,305,307) A.VIDEO P.W.B.
BU4094BCFV-E2 Terminal Function
Port Symbol Function
IC106
CV-EXP1 V1IN MAIN ZONE COMPONENT SELECT
CV-EXP2 V2IN MAIN ZONE COMPONENT SELECT
CV-EXP3 V3IN MAIN ZONE COMPONENT SELECT
CV-EXP4 V4IN MAIN ZONE COMPONENT SELECT
CV-EXP5 MONI V1 COMPONENT CONPONENT MONITOR 1 control pin
CV-EXP6 MONI V2 COMPONENT CONPONENT MONITOR 2 control pin
CV-EXP7 ASPECT_H ASPECT ratio level control pin
CV-EXP8 ASPECT_L ASPECT ratio level control pin
IC107
CV-EXP9 MONI1 DIS COMPONENT MONITOR 1 DISABLE control pin
CV-EXP10 MONI2 DIS COMPONENT MONITOR 2 DISABLE control pin
CV-EXP11 BHMUTE BH7868F MUTE (S/CVBS output)
CV-EXP12 INH LINE D connector LINE control pin
CV-EXP13 LINEA D connector LINE control pin
CV-EXP14 LINEB D connector LINE control pin
CV-EXP15 PS COMPONENY CONVERT MUTE
CV-EXP16 Y/CVBS VIDEO DECODER input select
IC302
SV-EXP1 VCR1INH VCR1INH
SV-EXP2 VCR2INH VCR2INH
SV-EXP3 VCR3INH VCR3INH
SV-EXP4 INA INPUT SELECT
SV-EXP5 INB INPUT SELECT
SV-EXP6 INC INPUT SELECT
SV-EXP7 Z2A ZONE2 SELECT
SV-EXP8 Z2B ZONE2 SELECT
IC304
SV-EXP9 Z2C ZONE2 SELECT
SV-EXP10 RECA RECOUT SELECT
SV-EXP11 RECB RECOUT SELECT
SV-EXP12 RECC RECOUT SELECT
SV-EXP13 Z1ININH INPUT SELECT
SV-EXP14 Z2ININH ZONE2 SELECT
SV-EXP15 RECININH RECOUT SELECT
SV-EXP16 Z3INH ZONE3 SELECT
IC305
SV-EXP17 Z1SMONIA MONITOR OUT SELECT
SV-EXP18 Z1SMONIB MONITOR OUT SELECT
SV-EXP19 Z1VMONIA MONITOR OUT SELECT
SV-EXP20 Z1VMONIB MONITOR OUT SELECT
SV-EXP21 Z2SMONIA ZONE2 MONITOR OUT SELECT
SV-EXP22 Z2SMONIB ZONE2 MONITOR OUT SELECT
SV-EXP23 Z2VMONIA ZONE2 MONITOR OUT SELECT
SV-EXP24 Z2VMONIB ZONE2 MONITOR OUT SELECT
IC307
SV-EXP25 Z1S1 MAIN S1
SV-EXP26 Z1S2 MAIN S2
SV-EXP27 Z1 S OSD MAIN S OSD/OSD PASS select control pin
SV-EXP28 Z1 V OSD MAIN S OSD/OSD PASS select control pin
SV-EXP29 NC Not used
SV-EXP30 NC Not used
SV-EXP31 NC Not used
SV-EXP32 NC Not used
STROBE 1
2
3
4
5
6
7
8
9
10
11
16
15
14
13
12
DATA
CLOCK
Q1
Q2
Q3
Q4
V
SS
V
DD
OE
Q5
Q6
Q7
Q8
Q’
S
Q
S
36
AVR-4806 / AVC-A11XV
MBM29LV160BE90TN (IC506,605,704,804) DIGITAL P.W.B.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A
15
A
14
A
13
A
12
A
11
A
10
A
9
A
8
A
19
N.C.
WE
RESET
N.C.
N.C.
RY/BY
A
18
A
17
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
16
BYTE
V
SS
DQ
15
/A
-1
DQ
7
DQ
14
DQ
6
DQ
13
DQ
5
DQ
12
DQ
4
V
CC
DQ
11
DQ
3
DQ
10
DQ
2
DQ
9
DQ
1
DQ
8
DQ
0
OE
V
SS
CE
A
0
Standard Pinout
(Marking Side)
A-1
VSS
VCC
WE
CE
A0 to A19
OE
State
Control
Command
Register
Erase Voltage
Generator Input/Output
Buffer
Y-Decoder
X-Decoder
Y-Gating
Cell Matrix
DQ0 to DQ15
Low VCC Detector
Program Voltage
Generator
Timer for
Program/Erase
Chip Enable
Output Enable
Logic
Data Latch
BYTE
RESET
RY/BY
Buffer RY/BY
STB
STB
Address
Latch
37
AVR-4806 / AVC-A11XV
BR24L02F-WE2 (IC101,102,201,202) D,VIDEO P.W.B.
M95128-WMN6T (IC410) CONNECT P.W.B.
Block diagram
1
A0
A1 2
A2 3
GND 4
VCC8
WP7
6 SCL
SDA5
2kbit EEPROM array
Control logic
High voltage generator Vcc level detect
8bit
8bit
ACK
STOPSTART
Address
decoder
Slave word
address register
8bits Data
register
Pin configuration
V
CC
A0
WP
A1
SCL
A2
SDA
GND
1234
5678
Pin name
Write protect input
Power supply
Function
Ground (0V)
Slave address set
Serial clock input
SDA
V
CC
A0, A1, A2
Pin name
GND
WP
SCL
I/O
IN
IN
IN
IN / OUT Slave and word address,
serial data input, serial data output
1 An open drain output requires a pull-up resistor.
1
DVSS
C
HOLDQ
SV
CC
W
AI01790D
1
2
3
4
8
7
6
5
38
AVR-4806 / AVC-A11XV
SiI9030CUT-7 (IC303) D.VIDEO P.W.B.
Functional Block Diagram
39
AVR-4806 / AVC-A11XV
SiI9031CUT-7 (IC103,203) D.VIDEO P.W.B.
Functional Block Diagram
40
AVR-4806 / AVC-A11XV
PCM1804 (IC913) AUDIO P.W.B.
2
1
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
VREFL
AGNDL
VCOML
VINL+
VINL−
FMT0
FMT1
S/M
OSR0
OSR1
OSR2
BYPAS
DGND
VDD
VREFR
AGNDR
VCOMR
VINR+
VINR−
AGND
VCC
OVFL
OVFR
RST
SCKI
LRCK/DSDBCK
BCK/DSDL
DATA/DSDR
TOP VIEW
SCKI
VINL+
VCOML
AGNDL
VREFL
VREFR
AGNDR
VCOMR
VINR+
VINR
−
OSR0
OSR1
OSR2
S/M
FMT0
FMT1
LRCK/
DSDBCK
BCK/DSDL
DATA /DSDR
OVFL
OVFR
BYPAS
RST
CLK Control
VINL
−
DGND VDD
AGNDVCC
Delta-sigma
Modulator (L)
V
REF
L
V
REF
R
Delta-sigma
Modulator (R)
Power Supply
Decimation
Filter (L)
Decimation
Filter (R)
HPF
HPF
Serial
Output
Interface
Pin Name Function
PCM1804 Terminal Function
Pin
No.
1VREFL⎯L-channel voltage reference output, requires capacitors for decoupling to AGND.
2 AGNDL ⎯Analog ground for VREFL.
3VCOML⎯L-channel analog common mode output.
4VINL+ I L-channel analog input, positive pin.
5VINL−I L-channel analog input, negative pin.
6 FMT0 I Audio data format 0. See TABLE V. *
7 FMT1 I Audio data format 1. See TABLE V. *
8 S/M I Master/slave mode selection. See TABLE IV. *
9 OSR0 I Oversampling ratio 0. See TABLE I. TABLE II. *
10 OSR1 I Oversampling ratio 1. See TABLE I. TABLE II. *
11 OSR2 I Oversampling ratio 2. See TABLE I. TABLE II. *
12 BYPAS I HPF bypass control. HIGH: HPF disable, LOW: HPF enable. ***
13 DGND ⎯Digital ground.
14 VDD ⎯Digital power supply.
15 DATA/DSDR O
L-channel and R-channel audio data output in PCM mode. R-channel Audio data output in DSD mode.(DSD output, when DSD mode)
16 BCK/DSDL I/O Bit clock input/output in PCM mode. L-channel audio data output in DSD mode. ***
17 LRCK/DSDBCK I/O Sampling clock input/output in PCM and DSD mode. ***
18 SCKI I System clock input; 128fs, 256fs, 384fs, 512fs or 768fs. **
19 RST I Reset, power down input, active LOW. *
20 OVFR O Overflow signal of R-channel in PCM mode. This is available in PCM mode only.
21 OVFL O Overflow signal of L-channel in PCM mode. This is available in PCM mode only.
22 VCC ⎯Analog power supply.
23 AGND ⎯Analog ground.
24 VINR−I R-channel analog input, negative pin.
25 VINR+ I R-channel analog input, positive pin.
26 VCOMR⎯R-channel analog common mode output.
27 AGNDR ⎯Analog ground for VREFR.
28 VREFR⎯R-channel voltage reference output, requires capacitors for decoupling to AGND.
I/O
* Schmitt trigger input with internal pull-down (51kohm typically), 5V tolerant.
** Schmitt trigger input, 5V tolerant.
*** Schmitt trigger input.
41
AVR-4806 / AVC-A11XV
LC89057W-VF4-E (IC101-103) DIGITAL P.W.B.
LC89057W-VF4-E Terminal Function
39
38
37
DI
RERR
SLRCK
SDIN
LC89057W-VF4-E
DO
36
42
41
40
45
44
43
48
47
46
CL
CE
DGND
XMODE
TMCK/ PIO0
DVDD
TLRCK/PIO2
TBCK/PIO1
TXO/PIOE
TDATA/PIO3
INT
35
CKST
34
AUDIO/VO
33 32 31
DVDD
30
XIN
29
EMPHA/UO
DGND
28 27
DVDD
26
DGND
25
XOUT
XMCK
23
24
21
RDATA
SBCK
DVDD
RLRCK
RBCK
DGND
AGND
RMCK
LPF
AVDD
43 65 87 1091211
21
22
19
20
17
18
15
16
13
14
*: Pull-down resistor internal
RXOUT
* RX0
RX1
* RX2
* RX3
DGND
DVDD
* RX4
* RX5/VI
* RX6/UI
DVDD
DGND
Pin
No. Pin I/O Function
1 RXOUT O Input bi-phase selection data output pin
2RX0I
5TTL-compatible digital data input pin
3 RX1 I Coaxial-compatible digital data input pin with built-in amplifier
4RX2I
5TTL-compatible digital data input pin
5RX3I
5TTL-compatible digital data input pin
6 DGND Digital GND
7 DVDD Digital power supply
8RX4I
5TTL-compatible digital data input pin
9RX5/VII
5TTL-compatible digital data || Validity flag input pin for modulation
10 RX6/UI I5TTL-compatible digital data || User data input pin for modulation
11 DVDD PLL digital power supply
12 DGND PLL digital GND
13 LPF O PLL loop filter connection pin
14 ACDD PLL analog power supply
15 AGND PLL analog GND
16 RMCK O R system clock output pin (256fs, 512fs, XIN, VCO)
17 RBCK O/I R bit clock input/output pin (64fs)
18 DGND Digital GND
19 DVDD Digital power supply
20 RLRCK O/I R LR clock input/output pin (fs)
21 RDATA O Serial audio data input pin
22 SBCK O S bit clock output pin (32fs, 64fs, 128fs)
23 SLRCK O S LR clock output pin (fs/2, fs, 2fs)
24 SDIN I5Serial audio data input pin
25 DGND Digital GND
26 DVDD Digital power supply
27 XMCK O Oscillation amplifier output pin
28 XOUT O Crystal resonator connection output pin
29 XIN I Crystal resonator connection, external supply clock input pin (24.576 MHz or 12.288 MHz)
30 DVDD Digital power supply
31 DGND Digital GND
32 EMPHA/UO I/O Emphasis information || U data output || Chip address setting pin
33 AUDIO/VO I/O Non-PCM output || V flag output || Chip address setting pin
34 CKST I/O Clock switch transition period signal || Demodulation master or slave function switch pin
35 INT I/O Microcontroller interrupt output || Modulation or general-purpose I/O switch pin
36 RERR O PLL clock error, data error flag output
37 DO O Microcontroller I/F read data output pin (3-state)
38 DI I5Microcontroller I/F write data input pin
39 CE I5Microcontroller I/F chip enable input pin
40 CL I5Microcontroller I/F clock input pin
41 XMODE I5System reset input pin
42 DGND Digital GND
43 DVDD Digital power supply
44 TMCK/PIO0 I/O Modulation 256fs system clock input || General-purpose I/O input/output pin
45 TMCK/PIO1 I/O Modulation 64fs bit clock input || General-purpose I/O input/output pin
46 TLRCK/PIO2 I/O Modulation fs clock input || General-purpose I/O input/output pin
47 TLRCK/PIO3 I/O Modulation serial audio data input || General-purpose I/O input/output pin
48 TXO/PIOEN O/I Modulation data output || General-purpose I/O enable input pin
42
AVR-4806 / AVC-A11XV
LC89057W-VF4-E BLOCK DIAGRAM
LC75721E (IC103,104) FRONT P.W.B. LC75721E Terminal Function
XMCKXIN XOUT
XMODECICECLINTAUDIO/ VOEMPHA/UO
RXOUT
CKST
1
1/N
PLL
RX0
RX1
RX2
RX3
RX4
RX5/VI
TBCK/PIO1
TMCK/PIO0
RMCK
RBCK
SDIN
RDATA
RERR
DO
LPF
RX6/UI
10
33
9
8
5
4
3
2
32 35 48 39 38 41
21
37
36
13
44
45
46
47
48
22
23
20
17
16
24
29 28 27 34
TXO/PIOEN
TDATA/PIO3
TLRCK/PIO2
RLRCK
SBCK
SLRCK
Input
Selector
Demodulation
&
Lock detect
Microcontroller
I/F
Data
Selector
Cbit, Ubit
Clock
Selector
Modulation
&
Parallel Port
64
49
48 33
32
17
161
AM 1
AM 2
AM 3
AM 4
AM 5
AM 6
AM 7
AM 8
AM 9
AM 10
AM 11
AM 12
AM 13
AM 14
AM 15
AM 16
AM 17
AM 18
AM 19
AM 20
AM 21
AM 22
AM 23
AM 24
AM 25
AM 26
AM 27
AM 28
AM 29
AM 30
AM 31
AM 32
G7
G8
G9
G10
G11
AA8/G12
AA7/G13
AA6/G14
AA5/G15
AA4/G16
AA3
AA2
AA1
AM35
AM34
AM33
DI
CL
CE
RES
V
DD
OSCI
OSCO
Vss
TEST
V
FL
G1
G2
G3
G4
G5
G6
Symbol
V
DD
Vss
Power terminal +5V
Power terminal GND
V
FL
Power terminal FL drive
DI
CL
CE
Serial data transfer terminal
DI: Data
CL: Clock
CE: Chip enable
OSCI
OSCO External CR connecting terminal
RES System reset terminal
AM1~AM35
AA1~AA3 Anode output terminal
AA4/G16
AA5/G15
AA6/G14
AA7/G13
AA8/G12
Anode/Grid output terminal
G1~G11 Grid output terminal
TEST LSI test terminal
Function
LC75721E Terminal Function
43
AVR-4806 / AVC-A11XV

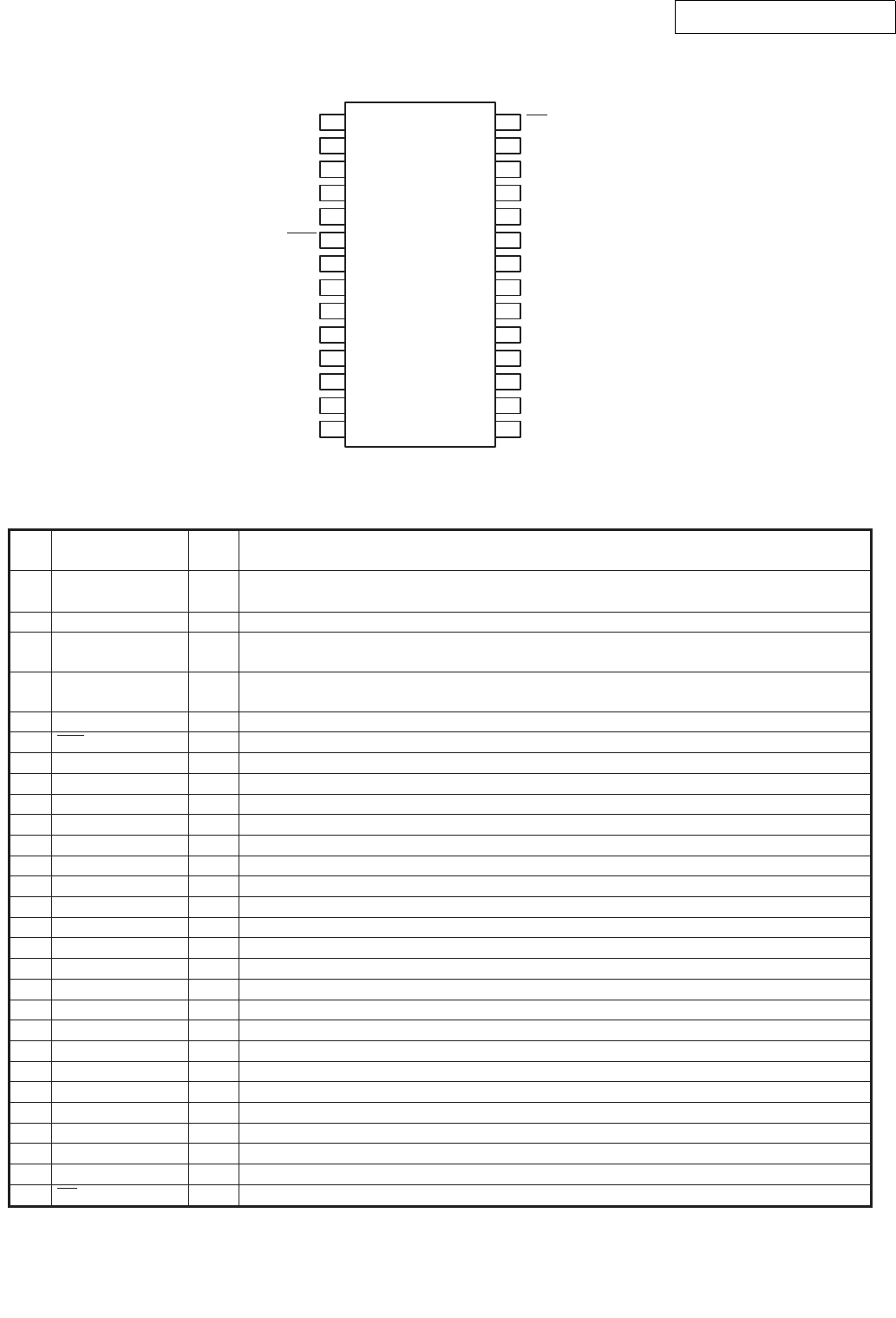

PCM1791ADBR (IC901-904) AUDIO P.W.B.
PCM1791 Terminal Function
DESCRIPTIONS
Pin
No. Pin Name
1 LRCK I Left and right clock (fs) input for normal operation. WDCK clock input in external DF mode.
Connected to GND in DSD mode*
2 BCK I Bit clock input. Connected GND for DSD mode*
3DATA I
Serial audio data input for normal operation. L-channel audio data input for external DF and DSD
modes*
4 MUTE I Analog output mute control for normal operation. R-channel audio data input for external DF and
DSD modes*
5 SCKI I System Clock Input. BCK (64fs) clock input for DSD mode*
6 RST I Reset*
7VDD — Digital power supply, +3.3 V
8 DGND — Digital ground
9 AGNDF — Analog ground (DACFF)
10 VCCR — Analog power supply (R-channel DAC), +5.0 V
11 AGNDR — Analog ground (R-channel DAC)
12 VOUTR- O R-channel analog voltage output-
13 VOUTR+ O R-channel analog voltage output+
14 VCOM — Internal bias de-coupling pin
15 VCCC — Analog power supply (internal bias), +5.0 V
16 AGNDC — Analog ground (internal bias)
17 VOUTL+ O L-channel analog voltage output+
18 VOUTL- O L-channel analog voltage output-
19 AGNDL — Analog ground (L-channel DAC)
20 VCCL — Analog power supply (L-channel DAC), +5.0 V
21 VCCF — Analog power supply ( DACFF), +5.0 V
22 ZEROR O Zero flag for R-channel
23 ZEROL O Zero flag for L-channel
24 RSV — Reserved pin. It must be open.
25 MDO O Serial data output for function control register**
26 MDI I Serial data input for function control register*
27 MC I Shift clock for function control register*
28 MS I Mode control chip select and latch signal*
I/O
128
227
326
5
425
6
24
7
23
8
22
9
21
10
20
11
19
12
18
13
17
14
LRCK
BCK
DATA
SCKI
MUTE
RST
V
DGND
AGNDF
V R
AGNDR
V R-
V R+
V15
16
MS
MC
MDO
MDI
RSV
ZEROL
ZEROR
V F
V L
AGNDL
V L-
V L+
AGNDC
V C
DD
COM
CC
CC
CC
CC
OUT
OUT
OUT
OUT
* Schmitt trigger input, 5V tolerant.
** Tristate output.
44
AVR-4806 / AVC-A11XV
DM1000 (IC504) DIGITAL P.W.B.
DM1000 (IC701) ETHERNET P.W.B.
74
65
66
67
68
69
70
71
72
73
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
48
39
40
41
42
43
44
45
46
47
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
10
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
DM1000
IEEE1394 a/b
Interface Processor
128-pin QFP
SWMATRIX[6] *)
SWMATRIX[5] *)
SWMATRIX[4] *)
SWMATRIX[3] *)
AV2CLK
AV2CTRL[1] / NCS2
VSSIO
AV2CTRL[0] / A[20]
VDDIO
AV2DATA[7]
VSS
AV2DATA[6]
VDD
AV2DATA[5]
AV2DATA[4]
AV2DATA[3]
AV2DATA[2]
AV2DATA[1]
AV2DATA[0]
AV1CLK
AV1CTRL[1]
AV1CTRL[0]
VSS
VDD
AV1DATA[7]
VDDIO
AV1DATA[6]
VSSIO
AV1DATA[5]
AV1DATA[4]
AV1DATA[3]
AV1DATA[2]
AV1DATA[1]
AV1DATA[0]
NTEST1
NRESET
TEST2
PINT
NWE
NOE
NCS0
VSS
NCS1
VDD
A[10]
A[11]
VSSIO
VDDIO
A[12]
VSS
A[13]
VDD
A[14]
A[15]
A[16]
A[17]
*) SWMATRIX[0]
*) SWMATRIX[1]
*) SWMATRIX[2]
VSS
EXTCLK
VDD
VCOIN
VSSIO
PDOUT
VDDIO
*) SWMATRIX[8]
*) SWMATRIX[7]
113
104
105
106
107
108
109
110
111
112
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
103
A[0]
A[1]
VSSIO
VDDIO
A[2]
A[3]
A[4]
A[5]
A[6]
A[7]
A[8]
A[9]
D[13]
D[14]
D[15]
D[0]
D[1]
D[2]
D[3]
D[4]
D[5]
D[6]
D[7]
D[8]
D[9]
D[10]
VSS
D[11]
VDD
D[12]
VDDIO
VSSIO
PHYCLK
VSS
PHYD[7]
VDD
PHYD[6]
PHYD[5]
PHYD[4]
VSSIO
PHYD[3]
VDDIO
PHYD[2]
PHYD[1]
VSS
PHYD[0]
VDD
TEST3
LINKCLK
VSSIO
CTRL[1]
CTRL[0]
LREQ
VDDIO
VDDIO
LPS
VSSIO
LINKON
A[18]
A[19]
*) refer to chapter 4 fo r th e Switch-Matrix descrip tio n
Pin Assignment by Pin Number
Pi n Nam e Pi n Nam e Pi n Nam e Pi n Name
1 SWM ATRIX[6] *) 33 AV1DATA[1] 65 D[0] 97 A[4]
2 SWM ATRIX[5] *) 34 AV1DATA[7] 66 D[1] 98 A[5]
3 SWM ATRIX[4] *) 35 NTEST1 67 D[2] 99 A[ 6]
4 SWM ATRIX[3] *) 36 NRESET 68 D[3] 10 0 A[7]
5 AV2CLK 37 TEST2 69 D[4] 101 A[ 8]
6 AV2CTRL[1] / NCS[2] 38 PINT 70 D[5] 102 A[9]
7 VSSIO 39 VDDIO 71 D[6] 103 A[10]
8 AV2CTRL[0] / A[20] 40 LPS 72 D[7] 104 A[11]
9 VDDIO 41 VSSIO 73 D[8] 105 VSSIO
10 AV2DATA[7] 42 LINKON 74 D[9] 106 VDDIO
11 VSS 43 PHYCLK 75 D[10] 107 A[12]
12 AV2DATA[6] 44 VSS 76 VSS 108 VSS
13 VDD 45 PHYD[7] 77 D[11] 109 A[ 13]
14 AV2DATA[5] 46 VDD 78 VDD 110 VDD
15 AV2DATA[4] 47 PHYD[6] 79 D[12] 111 A[14]
16 AV2DATA[3] 48 PHYD[5] 80 VDDIO 11 2 A[15]
17 AV2DATA[2] 49 PHYD[4] 81 VSSIO 11 3 A[ 16]
18 AV2DATA[1] 50 VSSIO 82 D[13] 114 A[ 17]
19 AV2DATA[0] 51 PHYD[3] 83 D[14] 11 5 A[18]
20 AV1CLK 52 VDDIO 84 D[15] 11 6 A[ 19]
21 AV1CTRL[1] 53 PHYD[2] 85 NWE 11 7 SWMATRIX[0] *)
22 VSS 54 PHYD[1] 86 NOE 11 8 VSS
23 AV1CTRL[0] 55 VSS 87 NCS[0] 119 EXTCLK
24 VDD 56 PHYD[0] 88 VSS 120 VDD
25 AV1DATA[7] 57 VDD 89 NCS[1] 121 VCOIN
26 VDDIO 58 TEST3 90 VDD 122 VSSIO
27 AV1DATA[6] 59 LINKCLK 91 A[0] 123 PDOUT
28 VSSIO 60 VSSIO 92 A[ 1] 124 VDDIO
29 AV1DATA[5] 61 CTRL[1] 93 VSSIO 125 SWMATRIX[1] *)
30 AV1DATA[4] 62 CTRL[0] 94 VDDIO 126 SWM ATRIX[2] *)
31 AV1DATA[3] 63 LREQ 95 A[2] 127 SWMATRIX[8] *)
32 AV1DATA[2] 64 VDDIO 96 A[ 3] 128 SWM ATRIX[7] *)
45
AVR-4806 / AVC-A11XV
M35015-210SP (IC303) A.VIDEO P.W.B.
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
OSC1
OSC2
CS
SCK
SIN
AC
V
DD2
CVIDEO
LECHA
CVIN
V
DD1
VERT*
HOR*
OSCIN
OSCOUT
P3
P2
P1
P0
Vss
CS
SCK
SIN
V
DD1
20
AC
Vss
V
DD2
P1
P0
CVIN
LECHA
CVIDEO
OSCOUT
OSCIN
HOR*VERT*OSC2OSC1
INPUT
CONTROL
CIRCUIT
INDICATION
OSCILLATOR
DATA
CONTROL
CIRCUIT
ADDRESS
CONTROL
CIRCUIT TIMING
GENERATOR
INDICATION
CONTROL
REGISTER
INDICATION RAM
INDICATION CHARACTER ROM
BLINKING CIRCUIT
SHIFT REGISTER
INDICATION
CONTROL CIRCUIT
READ OUT ADDRESS
CONTROL CIRCUIT
IINDICATION LOCATION
DETECTION CIRCUIT
H COUNTER
SYNC SIGNAL
SWITCHING CIRCUIT
SYNC SIGNAL DIS-
CRIMINATING CIRCUIT
OSC CIRCUIT
FOR SYNC SIGNAL
GENERATION
TIMING
GENERATOR
NTSC
VIDEO OUTPUT
CIRCUIT
6
11
5
4
3
7
1 2 19 18
17
16
8
9
10
12
13
P2
14
P3
15
()
M35015-210SP Terminal Function
Pin No. Symbol Name I/O Function
1 OSC1 Osc. circuit ext. I External terminal for indication oscillator circuit. Standard OSC. freq. is approx. 7MHz.
2 OSC2 terminal. O With this OSC. freq., decides horizontal indication and character width.
3 CS Chip select input I Chip select terminal and turns to “L” when transfer serial data.
Hysteresis input. Pull up resistor is built-in.
4 SCK Serial clock input I Takes in serial data of SIN at SCK rise when CS terminal is in “L”.
Hysteresis input. Pull up rersist is built-in.
5 SIN Serial data input I Serial input of register for indication control and data, and address for indication data
memory. Hysteresis input. Pull up rersistor is built-in.
6 AC Auto-clear input I Resets internal circuit of IC at “L” mode.
Hysteresis input. Pull up resistor is built-in.
7V
DD2 Power supply ⎯Power supply terminal of analog system. Connect to +5V.
8 CVIDEO Combined
video output OOutput terminal of combined video signal. Outputs 2Vp-p combined signal. Character
output, etc. Overlap CVIN signal and outputs at superimpose.
9 LECHA Character level
input IInput terminal deciding character output level in combined video signal. Color of character
is white.
10 CVIN Combined video
input IInput terminal of external combined video signal.
Character output etc. overlap this external combined video signal.
11 Vss Ground ⎯Ground terminal. Connect to GND.
12 P0 Output port P0 O General output or character background signal BL NK1* output is switchable.
Polarity can be selected at ROM mask.
13 P1 Output port P1 O General output or character background signal CO1* output is switchable.
Polarity can be selected at ROM mask.
14 P2 Output port P2 O General output or character background signal BLNK2* output is switchable.
Polarity can be selected at ROM mask.
15 P3 Output port P3 O General output or character background signal CO2* output is switchable.
Polarity can be selected at ROM mask.
16 OSCOUT O Terminal for external use of sync signal OSC. circuit. Use the freq.: 14.32MHz at NTSC
17 OSCIN I system, 17.73MHz at PAL system, 14.30MHz at MPAL system.
18 HOR* Horizontal sync
signal IInputs horizontal sync signal.
Hysteresis input.
19 VERT* Vertical sync
signal ⎯Input vertical sync signal. Hysteresis input. Polarity can be selected at ROM mask.
20 VDD1 Power supply I Power supply terminal of digital system. Connect to +5V.
Ext. terminal
for sync sig.
OSC. Circuit
46
AVR-4806 / AVC-A11XV
CY7C1049CV33-10ZC (IC802,803) ETHERNET P.W.B.
LMS2021MX (IC707) CONNECT P.W.B.
14
15
A1
A2
A3
A4
A5
A6
A7
A8
COLUMN
DECODER
ROW DECODER
SENSE AMPS
INPUT BUFFER
DOWN
WE
OE
I/O0
I/O1
I/O2
I/O3
512K x 8
ARRAY
I/O7
I/O6
I/O5
I/O4
A0
A
11
A
13
A
12
A
CE
A
A
16
A
17
A9
A
18
A10
Top View
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
WE
V
CC
V
SS
A
18
A
15
A
12
A
14
I/O
5
I/O
4
A
9
A
0
I/O
0
I/O
1
I/O
2
I/O
3
OE
A
17
A
16
A
13
CE
NC
NC
NC
NC
I/O
7
I/O
6
V
CC
V
SS
A
10
A
11
NC
NC
NC
NC
NC
NC
1
2
3
4
5
6
7
837
40
39
38
41
44
43
42
9
10
11
14 31
32
36
35
34
33
12
13
16
15
29
30
18
19
20
21
22
17
27
26
25
24
23
28
POWER
LMS202IMX Terminal Function
Pin Number Pin Name Pin Function
1, 3C1+, C1− External capacitor connection pins. Recommended external capacitor C1 = 0.1μF (6.3V)
2V+ Positive supply for TIA/EIA-232E drivers. Recommended external capacitor C4 = 0.1μF (6.3V)
4, 5 C2+, C2− External capacitor connection pins. Recommended external capacitor C2 = 0.1μF (16V)
6V−Negative supply for TIA/EIA-232E drivers. Recommended external capacitor C3= 0.1μF (16V)
7, 14 T1out, T2out Transmitter output pins conform to TIA/EIA-232E levels. The typical transmitter output swing is
±8Vwhen loaded 3kΩload to ground. The open-circuit output voltage swings from (V+−0.6V)
to V−
8,13R1in, R2in Receiver inputs accept TIA/EIA-232
9,12 R1out and R2out Receiver output pins are TTL/CMOScompatible
10, 11 Tin1, Tin2 Transmitter input pins are TTL/CMOScompatible. Inputs of transmitter do not have pull-up
resistors. Connect all unused transmitter inputs to ground
15 GND Ground pin
16 V
S
Power supply pin for the device, +5V(±10%)
47
AVR-4806 / AVC-A11XV
TC94A46FG (IC109) AUDIO P.W.B.
TC94A32F (IC301,303,305,307) AUDIO P.W.B.
S05
S06
NC
NC
S07
NC
S08
NC
S09
NC
S10
NC
S11
NC
S12
NC
S13
NC
S14
NC
NC
COM1
NC
COM2
S05
S06
NC
NC
S07
NC
S08
NC
S09
NC
S10
NC
S11
NC
S12
NC
S13
NC
S14
NC
NC
COM1
NC
COM2
LATCH LATCH LATCH LATCH LATCH LATCH LATCHLATCH
LATCHLATCHLATCHLATCHLATCHLATCHLATCHLATCHLATCH LATCH
LATCHLATCHLATCHLATCHLATCH LATCH LATCHLATCHLATCH LATCH
Level shift circuit
Timing
generating
circuit
16 bit shift register circuit
S04
NC
S03
NC
S02
NC
S01
NC
NC
S01
NC
S02
NC
S03
NC
S04
NC
COM3
NC
VSS
NC
CS1
GND
CK
DATA
STB
CS2
NC
VDD
NC
COM3
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65
L/R-TVR-REF 20kohm
L/R-TVR-IN
L/R-TVR-OUT
L/R-MVR-OUT
50kohm
20kohm
L/R-MVR-AGND
L/R-MVR-IN
28
272
1613
1712
1811
1910
209
218
227
236
245
254
26
VDD
Trim VR
0~+24dB/
1dB step
Trim VR
0~+24dB/
1dB step
Main VR
0~-95dB/
0.5dB step
Main VR
0~-95dB/
0.5dB step
DATA
STB
CS2
NC
MVR-IN
NC
MVR-A-GND
MVR-OUT
TVR-OUT
TVR-IN
TVR-REF
3
VSS
CK
GND
CS1
NC
MVR-IN
NC
MVR-A-GND
MVR-OUT
TVR-OUT
TVR-IN
TVR-REF
1
NCNC
1514
NCNC
Function
Pin
No. Pin Name
2 VSS
27 VDD
12 GND
3 L-TVR-REF Trim volume circuit
26 R-TVR-REF
4 L-TVR-IN
25 R-TVR-IN
5 L-TVR-OUT
24 R-TVR-OUT
6 L-MVR-OUT Main volume circuit
23 R-MVR-OUT
7 L-MVR-AGND
22 R-MVR-AGND
9 L-MVR-IN
20 R-MVR-IN
Chip select code switching input
11 CS1
18 CS2
13 CK Clock input pin for data transfer
16 DATA A-SW control data input pin
17 STB Strobe input pin for data writing
1, 28,
8, 21, NC
10,19,
14,15
CS1 CS2
L L0001
HL1001
L H0101
HH1101
Chip select code
48
AVR-4806 / AVC-A11XV
TC74VHC14FT (IC304,310) DIGITAL P.W.B.
SN65LVDS1DBVR (IC108) D.VIDEO P.W.B.
(IC402) CONNECT P.W.B.
(IC302) DIGITAL P.W.B.
TC4051BFT (IC120-125,128) A.VIDEO P.W.B.
TC4052BFT (IC115-118) A.VIDEO P.W.B.
TC4052BFT (IC309) CONNECT P.W.B..
TC74VHC244FT (IC311) DIGITAL P.W.B.
TC74VHC244FT (IC406,408) CONNECT P.W.B.
TC74VHCT244FT (IC405,407,907) CONNECT P.W.B.
3
2
4
5
1
VCC
GND
Z
D
Y
49
AVR-4806 / AVC-A11XV
SN74HC151APW-EL2 (IC953) ETHERNET P.W.B.
SN65LVDS32PW (IC301) DIGITAL P.W.B.
TC74VHCU04FT (IC303,309) DIGITAL P.W.B.
MM74HC4053SJ (IC301) A.VIDEO P.W.B.
CXA1511M (IC503) FRONT P.W.B.
(AD
:
IC806
,
807)
Data
Inputs
Outputs
GND
Strobe
3
2
1
0
Y
W
1
2
3
4
5
6
7
8
D2
D1
D0
Y
W
S
D5
D6
D7
A
D4
B
C
16
15
14
13
12
11
10
9
Vcc
5
6
7
A
B
C
4
Data
Inputs
Data
Select
1
2
3
4
5
6
7
8
10
9
20
19
18
17
16
15
14
13
12
11
1OE
1A1
2Y4
1A2
2Y3
1A3
2Y2
1A4
2Y1
GND
Vcc
2OE
1Y1
2A4
1Y2
2A3
1Y3
2A2
1Y4
2A1
TOP VIEW
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
1B
1A
1Y
G
2Y
2A
2B
GND
V
CC
4B
4A
4Y
G
3Y
3A
3B
G
G
1A
1B
2A
2B
3A
3B
4A
4B
4
12
2
1
6
7
10
9
14
15
3
5
11
13
1Y
2Y
3Y
4Y
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
6Y
5A
5Y
4A
4Y
1
2
V
EE
3
4
5
6
7
89
10
11
16
15
14
13
12
Y1
Y0
Z1
Z
Z0
Enable
GND
Vcc
Y
X1
X
X0
C
A
B
X = Don’t Care
Truth Table
Control Inputs
Select
Enable C B A
ONSwitches
L L L L Z0 Y0 X0
L L L H Z0 Y0 X1
L L H L Z0 Y1 X0
L L H H Z0 Y1 X1
L H L L Z1 Y0 X0
L H L H Z1 Y0 X1
L H H L Z1 Y1 X0
L H H H Z1 Y1 X1
H X X X None
1
45
8
2 3 4 5 6 7 8
1
IN
ABLC
C1 C2 GND fo N.C. OUT Vcc
Detector &
Comparator Integrator
TOP
VIEW
Head
Amp
Limiter
Amp
BPF
BEF
Hysteresis
Comparator
50
AVR-4806 / AVC-A11XV
TC9274F-022 (IC120,406) AUDIO P.W.B.
TPS6734IDR (IC508) DIGITAL P.W.B.
1
2
3
4
8
7
6
5
EN
REF
SS
COMP
VCC
FB
OUT
GND
functional block diagram
EN
1
EN
7
EN
FB
_
+
4
COMP
Voltage
Reference
x3.5 SS
Clamp
Error
Amplifier PWM
Comparator
R
S
170-kHz
Oscillator
VCC
Power Switch
Drive Latch
Σ
2
REF
3
SS
x6
Current
Sense Amplifier
Overcurrent
Comparator
Driver
VCC
OUT
GND
8
6
5
+
1 MΩ
–
Q
Terminal Functions
TERMINAL
DESCRIPTION
NAME NO.
DESCRIPTION
EN 1 Enable. EN ≥2 V turns on the TPS6734. EN ≤ 0.4 V turns it off and reduces the supply current to 3 μA max.
REF 2 1.22-V reference voltage output. REF can source 100 μA for external loads.
SS 3 Soft Start. A capacitor between SS and GND brings the output voltage up slowly at power-up.
COMP 4 Compensation connection. A 0.001-μF capacitor between COMP and FB stabilizes the feedback loop.
GND 5 Ground
OUT 6 N-channel MOSFET drain connection
FB 7 Feedback voltage. FB is connected to the converter output for the feedback loop.
VCC 8Supply voltage input
51
AVR-4806 / AVC-A11XV
LMC6772AIM (IC903,909) DIGITAL P.W.B.
TC74VHCT244AFT (IC401) CONNECT P.W.B.
(IC908) DIGITAL P.W.B.
PQ015EZ5MZ (IC203) DIGITAL P.W.B.
SN65LVDS2DBVR (IC909) CONNECT P.W.B.
8-Pin DIP/SO/MSOP
DS012347-1
3
2
4
5
(TOP VIEW)
1
VCC
GND
A
R
B
110- Resistor for LVDT Onl
y
52
AVR-4806 / AVC-A11XV
TE8200PF (IC305) CONNECT P.W.B.
TC7SZU04F (IC915-918) DIGITAL P.W.B.
TC7SZU04F (IC957,958) ETHERNET P.W.B.
LMS1587CT-ADJ (IC451-453) PRIMALY P.W.B.
TO-220
53
AVR-4806 / AVC-A11XV
PQ20RX11J00H (IC103) PRIMALY P.W.B.
(IC705) REGULATOR P.W.B.
PQ30RV11 (IC101,102,302) PRIMALY P.W.B.
NJM2581M-TE1 (IC101,102) CONNECT P.W.B.
54
AVR-4806 / AVC-A11XV
NJM2229M-TE1 (IC306) A.VIDEO P.W.B.
NJM2396F33 (IC407) REGULATOR P.W.B.
NJU7043V (IC906,907) DIGITAL P.W.B.
NJU7223DL1-25 (IC202) DIGITAL P.W.B.
(IC308) A.VIDEO P.W.B.
(IC308) CONNECT P.W.B.
LM1117MPX-1.8 (IC505) DIGITAL P.W.B.
(IC310) A.VIDEO P.W.B.
(IC105,205,302) D.VIDEO P.W.B.
(IC307) CONNECT P.W.B.
55
AVR-4806 / AVC-A11XV
LC72722PM-TLM (IC605) CONNECT P.W.B.
PQ120RDA11J00H (IC701,702,703) REGULATOR P.W.B.
56
AVR-4806 / AVC-A11XV
LTC1694CS5 (IC902) CONNECT P.W.B.
LTC4300-2CMS8 (IC903) CONNECT P.W.B.
V
CC
1
GND 2
NC 3
5 SMBus1
4 SMBus2
V
CC
(Pin 1): Power Supply Input. V
CC
can range from 2.7V
to 6V and requires a 0.1
F bypass capacitor to GND.
Supply current is typically 45
A when the SMBus or I2C
lines are inactive (SCL and SDA are a logic high level).
GND (Pin 2):Ground.
NC (Pin 3):No Connection.
SMBus2 (Pin 4):Active Pull-Up for SMBus.
SMBus1 (Pin 5):Active Pull-Up for SMBus.
BLOCK DIAGRA
M
-
+
SLEW RATE
DETECTOR
CONTROL
LOGIC
0.65V
V
REF
VOLTAGE
COMP
2.2mA
CHANNEL ONE
CHANNEL TWO
(DUPLICATE OF CHANNEL ONE)
1694-1 BD
1
V
CC
5
SMBus1
SMBus2
2
GND
4
μ
μ
1
2
3
4
ENABLE/V
CC2
SCLOUT
SCLIN
GND
8
7
6
5
V
CC
SDAOUT
SDAIN
READY/ACC
TOP VIEW
BLOCK DIAGRAM
100k
RCH1
100k
RCH3
Ð
+
Ð
+
0.5pF
UVLO
3SCLIN
4300-2 BD
CONNECT CONNECT
STOP BIT AND BUS IDLE
4
4
GND
20pF
RD
S
QB
0.5 A
0.55V
CC
/
0.45V
CC
Ð
+
Ð
+
0.55V
CC2
/
0.45V
CC2
2mA
95 s
DELAY
BACKPLANE-TO-CARD
CONNECTION
CONNECTCONNECT
2SCLOUT
6SDAIN
8V
CC
BACKPLANE-TO-CARD
CONNECTION
CONNECT CONNECT
7SDAOUT
1V
CC2
5ACC
1V
PRECHARGE
100k
RCH2
100k
RCH4
CONNECT
SLEW RATE
DECTECTOR
2mA
SLEW RATE
DECTECTOR
2mA
SLEW RATE
DECTECTOR
ACC
ACC
2mA
SLEW RATE
DECTECTOR
2-Wire Bus Buffer and Hot Swap Controller
μ
μ
57
AVR-4806 / AVC-A11XV
2. OTHERS
GP1UM271XK(Remote Control Sensor) IC101 FRONT P.W.B.
3. OPTICAL
TORX142 IC305-308 DIGITAL P.W.B.
TORX142 IC312 DIGITAL P.W.B.
TORX142 IC501,502 FRONT P.W.B.
GP1FM313RZ IC804 FRONT P.W.B.
4. LED
SML1216W(LED) LD121,301 FRONT P.W.B.
GND
Vcc
Vout
GND
VOUT
Vcc
Head
Amp
Limiter
Amp BPF
Detector &
Comparator
Integrator Hysteresis
Comparator
1. Vcc
2. GND
3. Vout
123
(,)
1. Vin
2. Vcc
3. GND
123
()
RED GREEN
58
AVR-4806 / AVC-A11XV

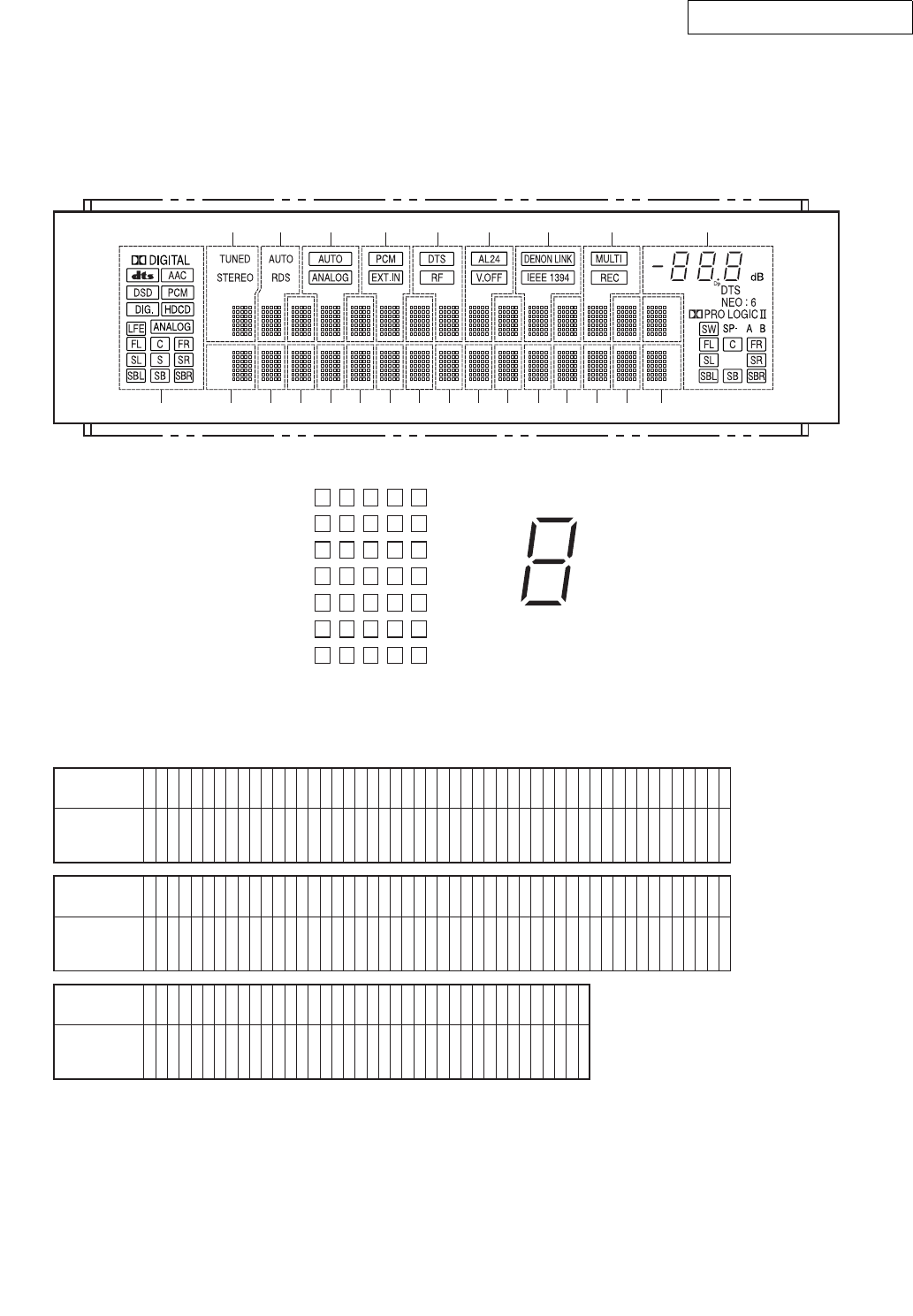

5. FL DISPLAY
FLD(32-BT-10GN) (FL101) FRONT P.W.B.
2GA3GA5GA7GA10GA12GA14GA
8GA 6GA 4GA 1GA
1GB2GB3GB4GB5GB6GB7GB
4g
3a 2a 1a
16GA 15GA 13GA 11GA 9GA
8GB9GB
10GB11GB12GB13GB
1-1 2-1 3-1 4-1 5-1
1-2 2-2 3-2 4-2 5-2
a
g
f
e
b
c
d
1-3 2-3 3-3 4-3 5-3
1-4 2-4 3-4 4-4 5-4
1-5 2-5 3-5 4-5 5-5
1-6 2-6 3-6 4-6 5-6
1-7
[ 15GB ~ 1GB, 16GA ~ 2GA ]
[ 1GA ]
2-7 3-7 4-7 5-7
14GB15GB
16GB
138 70
691
Connection
NOTE 1) F1,F2 : Filament
2) NP : No pin
3) NC : No connection
(NC pin should be electrically open on the PC board)
4) DL : Datum Line
5) 1GA~16GA, 1GB~16GB : Grid
6) IC : Internal connection
(IC pin should be electrically open on the PC board)
Pin connection
1
F
1
2
F
1
3
F
1
4
F
1
5
N
P
6
N
P
7
N
C
8
P
3
8
B
9
P
3
7
B
1
0
P
3
6
B
1
1
P
3
5
B
1
2
P
3
4
B
1
3
P
3
3
B
1
4
P
3
2
B
1
5
P
3
1
B
1
6
P
3
0
B
1
7
P
2
9
B
1
8
P
2
8
B
1
9
P
2
7
B
2
0
P
2
6
B
2
1
P
2
5
B
2
2
P
2
4
B
2
3
P
2
3
B
2
4
P
2
2
B
2
5
P
2
1
B
2
6
P
2
0
B
2
7
P
1
9
B
2
8
P
1
8
B
2
9
P
1
7
B
3
0
P
1
6
B
3
1
P
1
5
B
3
2
P
1
4
B
3
3
P
1
3
B
3
4
P
1
2
B
3
5
P
1
1
B
3
6
P
1
0
B
3
7
P
9
B
3
8
P
8
B
3
9
P
7
B
4
0
P
6
B
4
1
P
5
B
4
2
P
4
B
4
3
P
3
B
4
4
P
2
B
4
5
P
1
B
4
6
N
C
4
7
I
C
4
8
1
G
B
4
9
2
G
B
5
0
3
G
B
Pin No.
Connection
5
1
4
G
B
5
2
5
G
B
5
3
6
G
B
5
4
7
G
B
5
5
8
G
B
5
6
9
G
B
5
7
1
0
G
B
5
8
1
1
G
B
5
9
1
2
G
B
6
0
1
3
G
B
6
1
1
4
G
B
6
2
1
5
G
B
6
3
1
6
G
B
6
4
N
P
6
5
N
P
6
6
F
2
6
7
F
2
6
8
F
2
6
9
F
2
7
0
F
2
7
1
F
2
7
2
F
2
7
3
F
2
7
4
N
P
7
5
N
P
7
6
I
C
7
7
P
3
8
A
7
8
P
3
7
A
7
9
P
3
6
A
8
0
P
3
5
A
8
1
P
3
4
A
8
2
P
3
3
A
8
3
P
3
2
A
8
4
P
3
1
A
8
5
P
3
0
A
8
6
P
2
9
A
8
7
P
2
8
A
8
8
P
2
7
A
8
9
P
2
6
A
9
0
P
2
5
A
9
1
P
2
4
A
9
2
P
2
3
A
9
3
P
2
2
A
9
4
P
2
1
A
9
5
P
2
0
A
9
6
P
1
9
A
9
7
P
1
8
A
9
8
P
1
7
A
9
9
P
1
6
A
1
0
0
P
1
5
A
Pin No.
Connection
1
0
1
P
1
4
A
1
0
2
P
1
3
A
1
0
3
P
1
2
A
1
0
4
P
1
1
A
1
0
5
P
1
0
A
1
0
6
P
9
A
1
0
7
P
8
A
1
0
8
P
7
A
1
0
9
P
6
A
1
1
0
P
5
A
1
1
1
P
4
A
1
1
2
P
3
A
1
1
3
P
2
A
1
1
4
P
1
A
1
1
5
N
C
1
1
6
N
C
1
1
7
1
G
A
1
1
8
2
G
A
1
1
9
3
G
A
1
2
0
4
G
A
1
2
1
5
G
A
1
2
2
6
G
A
1
2
3
7
G
A
1
2
4
8
G
A
1
2
5
9
G
A
1
2
6
1
0
G
A
1
2
7
1
1
G
A
1
2
8
1
2
G
A
1
2
9
1
3
G
A
1
3
0
1
4
G
A
1
3
1
1
5
G
A
1
3
2
1
6
G
A
1
3
3
N
P
1
3
4
N
P
1
3
5
F
1
1
3
6
F
1
1
3
7
F
1
1
3
8
F
1
Pin No.
59
AVR-4806 / AVC-A11XV
ANODE CONNECTION
16GB
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
15GB 14GB 13GB 12GB 11GB 10GB 9GB 8GB 7GB
2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1
1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1
P1B
P2B
P8B
P9B
P10B
P11B
P12B
P13B
P14B
P15B
P16B
P17B
P18B
P19B
P20B
P21B
P22B
P23B
P24B
P26B
P27B
P28B
P29B
P30B
P31B
P32B
P33B
P34B
P35B
P36B
P37B
P38B
P7B
P6B
P5B
P4B
P3B 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1
4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1
5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1
2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2
1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2
3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2
4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2
5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2
2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3
1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3
3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3
4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3
5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3
2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4
1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4
3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4
4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4
5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4
2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5
1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5
3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5
4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5
P25B 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5
2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6
1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6
3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6
4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6
5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7
1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7
3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7
4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7
5-7 5-7
-
-
-
-
-
-
-
-
-
-
-
-
5-7 5-7 5-7 5-7 5-7 5-7 5-7
6GB
2-1
1-1
3-1
4-1
5-1
2-2
1-2
3-2
4-2
5-2
2-3
1-3
3-3
4-3
5-3
2-4
1-4
3-4
4-4
5-4
2-5
1-5
3-5
4-5
5-5
2-6
1-6
3-6
4-6
5-6
2-7
1-7
3-7
4-7
-
-
-
5-7
5GB 4GB 3GB 2GB
1-1
2-1 2-1 2-1 2-1
3-1 3-1 3-1 3-1
4-1 4-1 4-1 4-1
5-1 5-1 5-1 5-1
1-1 1-1 1-1
1-2
2-2 2-2 2-2 2-2
3-2 3-2 3-2 3-2
4-2 4-2 4-2 4-2
5-2 5-2 5-2 5-2
1-2 1-2 1-2
1-3
2-3 2-3 2-3 2-3
3-3 3-3 3-3 3-3
4-3 4-3 4-3 4-3
5-3 5-3 5-3 5-3
1-3 1-3 1-3
1-4
2-4 2-4 2-4 2-4
3-4 3-4 3-4 3-4
4-4 4-4 4-4 4-4
5-4 5-4 5-4 5-4
1-4 1-4 1-4
1-5
2-5 2-5 2-5 2-5
3-5 3-5 3-5 3-5
4-5 4-5 4-5 4-5
1-5 1-5 1-5
5-5 5-5 5-5 5-5
1-6
2-6 2-6 2-6 2-6
3-6 3-6 3-6 3-6
4-6 4-6 4-6 4-6
5-6 5-6 5-6 5-6
1-6 1-6 1-6
1-7
2-7 2-7 2-7 2-7
3-7 3-7 3-7 3-7
4-7 4-7 4-7 4-7
-
-
-
-
-
-
-
-
-
-
-
-
5-7 5-7 5-7 5-7
1-7 1-7 1-7
1GB
2-1
3-1
4-1
5-1
1-1
2-2
3-2
4-2
5-2
1-2
2-3
3-3
4-3
5-3
1-3
2-4
3-4
4-4
5-4
1-4
2-5
3-5
4-5
1-5
5-5
2-6
3-6
4-6
5-6
1-6
2-7
3-7
4-7
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5-7
1-7
16GA 15GA 14GA 13GA 12GA 11GA 10GA 9GA 8GA 7GA 6GA 1GA
5GA 4GA 3GA 2GA
1-1
2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1 2-1
1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1 1-1
P1A
P2A
P8A
P9A
P10A
P11A
P12A
P13A
P14A
P15A
P16A
P17A
P18A
P19A
P20A
P21A
P22A
P23A
P24A
P26A
P25A
P27A
P28A
P29A
P30A
P31A
P32A
P33A
P34A
P35A
P36A
P37A
P38A
P7A
P6A
P5A
P4A
P3A
1-1
2-1
4g
3a
3d
3e
3c
3g
3f
3b
1a
1d
Dp
1e
1c
1g
1f
1b
2a
2d
2e
2c
2g
2f
2b
1-1
2-1 2-1 2-1 2-1
3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1 3-1
4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1 4-1
5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1 5-1
1-1 1-1 1-1
1-2
2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2 2-2
1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2 1-2
2-2
1-2
2-2 2-2 2-2 2-2
3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2 3-2
4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2 4-2
5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2 5-2
1-2 1-2 1-2
1-3
2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3 2-3
1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3 1-3
2-3
1-3
2-3 2-3 2-3 2-3
3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3 3-3
4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3 4-3
5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3 5-3
1-3 1-3 1-3
1-4
2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4
1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4 1-4
2-4
1-4
2-4 2-4 2-4 2-4
3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4 3-4
4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4 4-4
5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4 5-4
1-4 1-4 1-4
1-5
2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5 2-5
1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5 1-5
2-5
1-5
2-5 2-5 2-5 2-5
3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5 3-5
4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5 4-5
5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-5 5-55-55-5
1-5 1-5 1-5
1-6
2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6 2-6
1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6 1-6
2-6
-
1-6
2-6 2-6 2-6 2-6
3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6 3-6
4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6
5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
1-6 1-6 1-6
1-7
2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7 2-7
1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7 1-7
2-7
1-7
2-7 2-7 2-7 2-7
3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7 3-7
4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7 4-7
5-7 5-7 5-7
-
-
- - ------
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7 5-7
1-7 1-7 1-7
60
AVR-4806 / AVC-A11XV
PRINTED WIRING BOARDS
1U-3356 AMP P.W.B. UNIT
13 1
19
313
13
13
14
17
13 13
111
13 13
14
17
COMPONENT SIDE
61
AVR-4806 / AVC-A11XV
1U-3667 DIGITAL P.W.B. UNIT (1/2)
COMPONENT SIDE
62
AVR-4806 / AVC-A11XV
1U-3667 DIGITAL P.W.B. UNIT (2/2)
FOIL SIDE
63
AVR-4806 / AVC-A11XV
1U-3668 A.VIDEO P.W.B. UNIT (1/2)
COMPONENT SIDE
64
AVR-4806 / AVC-A11XV
1U-3668 A.VIDEO P.W.B. UNIT (2/2)
FOIL SIDE
65
AVR-4806 / AVC-A11XV
1U-3669 D.VIDEO P.W.B. UNIT
COMPONENT SIDE
FOIL SIDE
66
AVR-4806 / AVC-A11XV
1U-3670 AUDIO P.W.B. UNIT (1/2)
COMPONENT SIDE
67
AVR-4806 / AVC-A11XV
1U-3670 AUDIO P.W.B. UNIT (2/2)
FOIL SIDE
68
AVR-4806 / AVC-A11XV
1U-3671 FRONT P.W.B. UNIT (1/2)
COMPONENT SIDE
69
AVR-4806 / AVC-A11XV
1U-3671 FRONT P.W.B. UNIT (2/2)
FOIL SIDE
70
AVR-4806 / AVC-A11XV

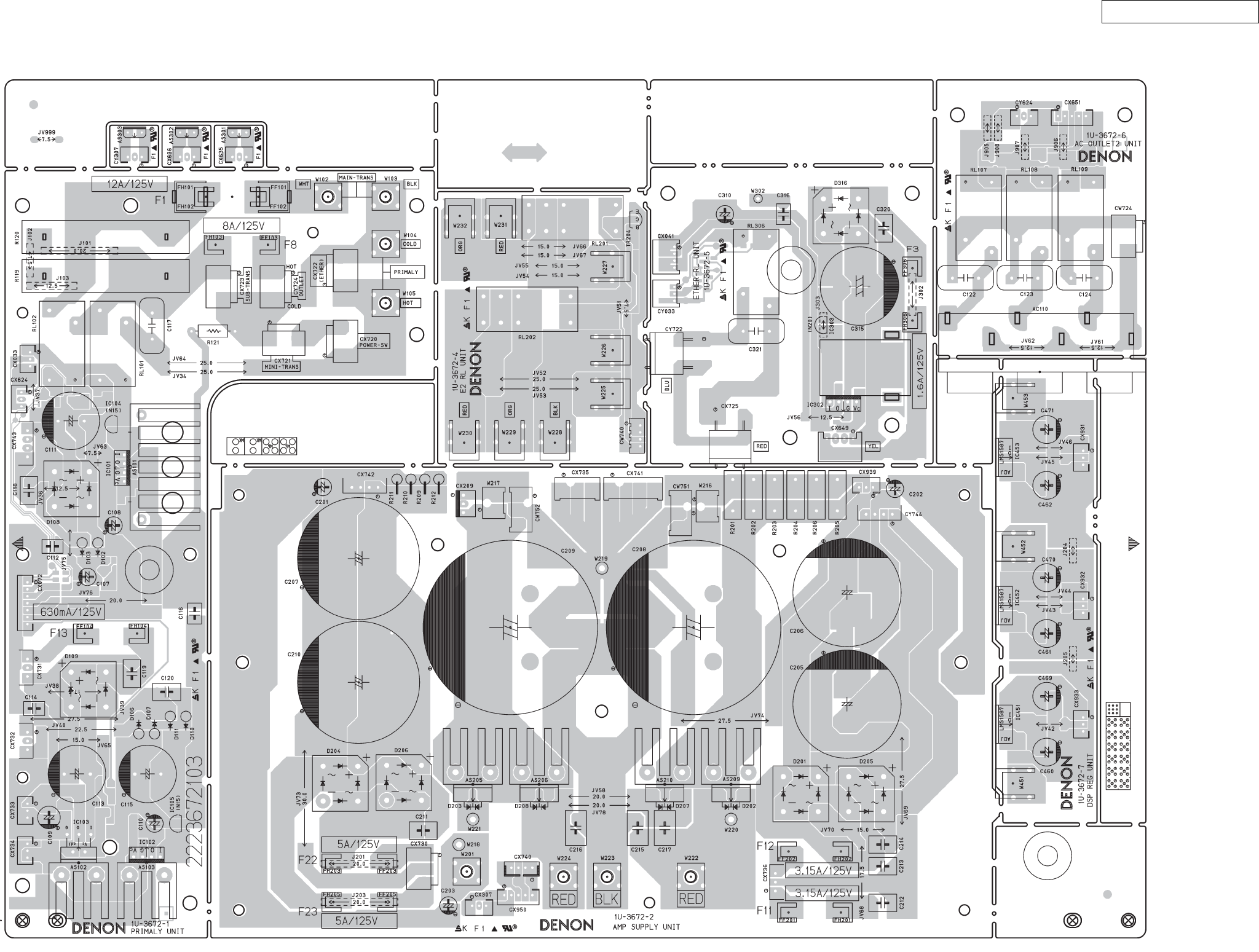

1U-3672 PRIMARY P.W.B. UNIT (1/2)
COMPONENT SIDE
71
AVR-4806 / AVC-A11XV
1U-3672 PRIMARY P.W.B. UNIT (2/2)
FOIL SIDE
72
AVR-4806 / AVC-A11XV
1U-3673 REGULATOR P.W.B. UNIT (1/2)
COMPONENT SIDE
73
AVR-4806 / AVC-A11XV
1U-3673 REGULATOR P.W.B. UNIT (2/2)
FOIL SIDE
74
AVR-4806 / AVC-A11XV
1U-3684 CONNECT P.W.B. UNIT (1/2)
COMPONENT SIDE
75
AVR-4806 / AVC-A11XV
1U-3684 CONNECT P.W.B. UNIT (2/2)
FOIL SIDE
76
AVR-4806 / AVC-A11XV
1U-3685 ETHERNET P.W.B. UNIT
COMPONENT SIDE FOIL SIDE
77
AVR-4806 / AVC-A11XV
1U-3711 XM P.W.B. UNIT (AVR-4806 ONLY)
COMPONENT SIDE FOIL SIDE
78
AVR-4806 / AVC-A11XV
1U-3712 XM REG. P.W.B. UNIT (AVR-4806 ONLY)
FOIL SIDE
COMPONENT SIDE
79
AVR-4806 / AVC-A11XV
NOTE FOR PARTS LIST
5% 1/4W
1/16W
s
s
s
s
ss
ss
s
s
s
s
RD : 2B : 1/8 W F : ±1% P :
RC : 2E : 1/4 W G : ±2% NL :
RS : 2H : 1/2 W J : ±5% NB :
RW : 3A : 1 W K : ±10% FR :
RN : 3D : 2 W M : ±20% F :
RK : 3F : 3 W
3H : 5 W
RN 14K 2E 182 G FR
∗18 2 Ö1800 =1.8k
0
2
1R 2 Ö1.2
1
2 R
CE 04W 1H 2R2 M BP
CE : 0J : 6.3 V F : ±1% HS :
CA : 1A : 10 V G : ±2% BP :
CS : 1C : 16 V J : ±5% HR :
CQ : 1E : 25 V K : ±10% DL :
CK : 1V : 35 V M : ±20% HF :
CC : 1H : 50 V Z : +80% U : UL
CP : 2A : 100 V −20% C : CSA
CM : 2B : 125 V P : +100% W : UL-CSA
CF : 2C : 160 V − 0% F :
CH : 2D : 200 V C : ±0.25pF
2E : 250 V D : ±0.5pF
2H : 500 V = :
2J : 630 V
∗
22 2 Ö2200μF
0
2
μF
22 2 Ö2200pF=0.0022μF
0
2
pFpF
22 1 Ö220pF
2
(0 2 )
0
(0 0 1 )
2R 2 Ö2.2μF
1
2 R
μF
AC
RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type
RC : Composition 2E : 1/4W G : ±2% NL : Low noise type
RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type
RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor
RN : Metal film 3D : 2W M : ±20% F : Lead wire forming
RK : Metal mixture 3F : 3W
3H : 5W
CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type
electrolytic
CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type
electrolytic
CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type
CQ : Film 1E : 25V K : ±10% DL : For change and discharge
CK : Ceramic 1V : 35V M : ±20% HF : For assuring high
requency
CC : Ceramic 1H : 50V Z : +80% U : UL part
CP : Oil 2A : 100V –20% C : CSA part
CM : Mica 2B : 125V P : +100% W : UL-CSA type
CF : Metallized 2C : 160V –0% F : Lead wire forming
CH : Metallized 2D : 200V C : ±0.25pF
2E : 250V D : ±0.5pF
2H : 500V = : Others
2J : 630V
lPart indicated with the mark "" are not always in stock and possibly to
take a long period of time for supplying, or in some case supplying of
part may be refused.
lWhen ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
lOrdering part without stating its part number can not be supplied.
lPart indicated with the mark " " is not illustrated in the exploded view.
lNot including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
lNot including Carbon Chip Resister 1/16W Type in the P.W.Board parts
list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
ll
ll
lResistors
Ex.:RN 14K 2E 182 GFR
Type Shape Power Resist- Allowable Others
and per- ance error
formance
]Resistance
1 8 2⇒1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1 R 2⇒1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
ll
ll
lCapacitors
Ex.:CE 04W 1H 2R2 M BP
Type Shape Dielectric Capacity Allowable Others
and per- strength error
formance
]Capacity (electrolyte only)
2 2 2⇒2200μF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: μF.
2 R 2⇒2.2μF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: μF.
]Capacity (except electrolyte)
2 2 2⇒2200pF=0.0022μF
(More than 2) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2 2 1⇒220pF
(0 or 1) Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.
80
AVR-4806/AVC-A11XV
PARTS LIST OF P.W.B. UNIT ASS’Y
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EU: U.S.A. model EC: Canada model EUT : Taiwan R.O.C.model
00D1U-3356 AMP P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
TR103-106 00D 271 0094 919 2SA970(BL)TPE2
TR107,108 00D 273 0453 006 2SC4001(M/L)
TR109,110 00D 271 0304 007 2SA1546(M/L)
TR111,112 00D 273 0453 006 2SC4001(M/L)
TR113,114 00D 273 0445 001 2SC4495
TR115,116 00D 273 0458 904 2SC/KTC3200BL-AT
TR117,118 00D 269 0160 905 DTC143ZSATP
TR204 00D 271 0094 919 2SA970(BL)TPE2
TR206 00D 271 0094 919 2SA970(BL)TPE2
TR208 00D 273 0453 006 2SC4001(M/L)
TR210 00D 271 0304 007 2SA1546(M/L)
TR212 00D 273 0453 006 2SC4001(M/L)
TR214 00D 273 0445 001 2SC4495
TR216 00D 273 0458 904 2SC/KTC3200BL-AT
TR218 00D 269 0160 905 DTC143ZSATP
TR303-306 00D 271 0094 919 2SA970(BL)TPE2
TR307,308 00D 273 0453 006 2SC4001(M/L)
TR309,310 00D 271 0304 007 2SA1546(M/L)
TR311,312 00D 273 0453 006 2SC4001(M/L)
TR313,314 00D 273 0445 001 2SC4495
TR315,316 00D 273 0458 904 2SC/KTC3200BL-AT
TR317,318 00D 269 0160 905 DTC143ZSATP
TR351,352 00D 269 0160 905 DTC143ZSATP
TR403-406 00D 271 0094 919 2SA970(BL)TPE2
TR407,408 00D 273 0453 006 2SC4001(M/L)
TR409,410 00D 271 0304 007 2SA1546(M/L)
TR411,412 00D 273 0453 006 2SC4001(M/L)
TR413,414 00D 273 0445 001 2SC4495
TR415,416 00D 273 0458 904 2SC/KTC3200BL-AT
TR417,418 00D 269 0160 905 DTC143ZSATP
TR503-506 00D 271 0301 903 2SA/KTA1268BL-AT
D101,102 00D 276 0432 903 1SS270A TE (TAPE)
D105-112 00D 276 0432 903 1SS270A TE (TAPE)
D202 00D 276 0432 903 1SS270A TE (TAPE)
D206 00D 276 0432 903 1SS270A TE (TAPE)
D208 00D 276 0432 903 1SS270A TE (TAPE)
D210 00D 276 0432 903 1SS270A TE (TAPE)
D212 00D 276 0432 903 1SS270A TE (TAPE)
D301,302 00D 276 0432 903 1SS270A TE (TAPE)
D305-312 00D 276 0432 903 1SS270A TE (TAPE)
D351,352 00D 276 0432 903 1SS270A TE (TAPE)
D401,402 00D 276 0432 903 1SS270A TE (TAPE)
D405-412 00D 276 0432 903 1SS270A TE (TAPE)
ZD101-104 00D 276 0452 909 HZS3A-1TD
ZD202 00D 276 0452 909 HZS3A-1TD
ZD204 00D 276 0452 909 HZS3A-1TD
ZD301-304 00D 276 0452 909 HZS3A-1TD
ZD401-404 00D 276 0452 909 HZS3A-1TD
PT501,502 00D 279 0034 067 PTH9M04BB222TS2F333
81
AVR-4806/AVC-A11XV
RESISTORS GROUP
R113,114 00D 241 2380 963 RD14B2E222JNBST
R119,120 00D 241 2380 963 RD14B2E222JNBST
R123,124 00D 244 2671 969 RS14B3D123JNBST(S)
R125,126 00D 241 2435 928 RD14B2E131GFRST
R127,128 00D 241 2376 980 RD14B2E560JNBST
R129,130 00D 241 2435 928 RD14B2E131GFRST
R135-138 00D 241 2387 940 RD14B2E4R7JNBST
R139-142 00D 243 2093 010 RW98A3FR05K
R145,146 00D 244 2671 930 RS14B3D200JNBST(S)
R161,162 00D 244 2671 930 RS14B3D200JNBST(S)
R214 00D 241 2380 963 RD14B2E222JNBST
R220 00D 241 2380 963 RD14B2E222JNBST
R224 00D 244 2671 969 RS14B3D123JNBST(S)
R226 00D 241 2435 928 RD14B2E131GFRST
R228 00D 241 2376 980 RD14B2E560JNBST
R230 00D 241 2435 928 RD14B2E131GFRST
R236 00D 241 2387 940 RD14B2E4R7JNBST
R238 00D 241 2387 940 RD14B2E4R7JNBST
R240 00D 243 2093 010 RW98A3FR05K
R242 00D 243 2093 010 RW98A3FR05K
R246 00D 244 2671 930 RS14B3D200JNBST(S)
R262 00D 244 2671 930 RS14B3D200JNBST(S)
R313,314 00D 241 2380 963 RD14B2E222JNBST
R319,320 00D 241 2380 963 RD14B2E222JNBST
R323,324 00D 244 2671 969 RS14B3D123JNBST(S)
R325,326 00D 241 2435 928 RD14B2E131GFRST
R327,328 00D 241 2376 980 RD14B2E560JNBST
R329,330 00D 241 2435 928 RD14B2E131GFRST
R335-338 00D 241 2387 940 RD14B2E4R7JNBST
R339-342 00D 243 2093 010 RW98A3FR05K
R345,346 00D 244 2671 930 RS14B3D200JNBST(S)
R361,362 00D 244 2671 930 RS14B3D200JNBST(S)
R413,414 00D 241 2380 963 RD14B2E222JNBST
R419,420 00D 241 2380 963 RD14B2E222JNBST
R423,424 00D 244 2671 969 RS14B3D123JNBST(S)
R425,426 00D 241 2435 928 RD14B2E131GFRST
R427,428 00D 241 2376 980 RD14B2E560JNBST
R429,430 00D 241 2435 928 RD14B2E131GFRST
R435-438 00D 241 2387 940 RD14B2E4R7JNBST
R439-442 00D 243 2093 010 RW98A3FR05K
R445,446 00D 244 2671 930 RS14B3D200JNBST(S)
R461,462 00D 244 2671 930 RS14B3D200JNBST(S)
R509,510 00D 241 2387 940 RD14B2E4R7JNBST
R511,512 00D 244 2051 961 RS14B3A101JNBST(S)
VR101,102 00D 211 6146 908 V06QB472T(RH063)
VR202 00D 211 6146 908 V06QB472T(RH063)
VR301,302 00D 211 6146 908 V06QB472T(RH063)
VR401,402 00D 211 6146 908 V06QB472T(RH063)
CAPACITORS GROUP
C103,104 00D 254 4557 936 CE04W1H100MT(RFS)
C105,106 00D 255 1273 944 CQ93M1H221KT(B)
C107,108 00D 255 1273 902 CQ93M1H101KT(B)
C109,110 00D 255 1264 940 CQ93M1H222JT(B)
C111,112 00D 254 4382 910 CE04W1C221MT(ASF)
C113,114 00D 255 4250 964 CQ93P2A330JT(NH2)
C115,116 00D 255 4251 976 CQ93P2A101JT(NH2)
C117,118 00D 253 4550 901 CC45SL2H050CT
Ref. No. Part No. Part Name Remarks Q'ty New
82
AVR-4806/AVC-A11XV
C119,120 00D 255 4251 976 CQ93P2A101JT(NH2)
C121,122 00D 254 4557 910 CE04W1H2R2MT(RFS)
C123-126 00D 254 4481 918 CE04W2A100MT(ASF)
C127,128 00D 255 1264 908 CQ93M1H102JT(B)
C129-132 00D 255 4256 997 CQ93P2A153JT(NH2)
C133,134 00D 255 4254 915 CQ93P2A102JT(NH2)
C204 00D 254 4557 936 CE04W1H100MT(RFS)
C206 00D 255 1273 944 CQ93M1H221KT(B)
C208 00D 255 1273 902 CQ93M1H101KT(B)
C210 00D 255 1264 940 CQ93M1H222JT(B)
C212 00D 254 4382 910 CE04W1C221MT(ASF)
C214 00D 255 4250 964 CQ93P2A330JT(NH2)
C216 00D 255 4251 976 CQ93P2A101JT(NH2)
C218 00D 253 4550 901 CC45SL2H050CT
C220 00D 255 4251 976 CQ93P2A101JT(NH2)
C222 00D 254 4557 910 CE04W1H2R2MT(RFS)
C224 00D 254 4481 918 CE04W2A100MT(ASF)
C226 00D 254 4481 918 CE04W2A100MT(ASF)
C228 00D 255 1264 908 CQ93M1H102JT(B)
C230 00D 255 4256 997 CQ93P2A153JT(NH2)
C232 00D 255 4256 997 CQ93P2A153JT(NH2)
C234 00D 255 4254 915 CQ93P2A102JT(NH2)
C303,304 00D 254 4557 936 CE04W1H100MT(RFS)
C305,306 00D 255 1273 944 CQ93M1H221KT(B)
C307,308 00D 255 1273 902 CQ93M1H101KT(B)
C309,310 00D 255 1264 940 CQ93M1H222JT(B)
C311,312 00D 254 4382 910 CE04W1C221MT(ASF)
C313,314 00D 255 4250 964 CQ93P2A330JT(NH2)
C315,316 00D 255 4251 976 CQ93P2A101JT(NH2)
C317,318 00D 253 4550 901 CC45SL2H050CT
C319,320 00D 255 4251 976 CQ93P2A101JT(NH2)
C321,322 00D 254 4557 910 CE04W1H2R2MT(RFS)
C323-326 00D 254 4481 918 CE04W2A100MT(ASF)
C327,328 00D 255 1264 908 CQ93M1H102JT(B)
C329-332 00D 255 4256 997 CQ93P2A153JT(NH2)
C333,334 00D 255 4254 915 CQ93P2A102JT(NH2)
C403,404 00D 254 4557 936 CE04W1H100MT(RFS)
C405,406 00D 255 1273 944 CQ93M1H221KT(B)
C407,408 00D 255 1273 902 CQ93M1H101KT(B)
C409,410 00D 255 1264 940 CQ93M1H222JT(B)
C411,412 00D 254 4382 910 CE04W1C221MT(ASF)
C413,414 00D 255 4250 964 CQ93P2A330JT(NH2)
C415,416 00D 255 4251 976 CQ93P2A101JT(NH2)
C417,418 00D 253 4550 901 CC45SL2H050CT
C419,420 00D 255 4251 976 CQ93P2A101JT(NH2)
C421,422 00D 254 4557 910 CE04W1H2R2MT(RFS)
C423-426 00D 254 4481 918 CE04W2A100MT(ASF)
C427,428 00D 255 1264 908 CQ93M1H102JT(B)
C429-432 00D 255 4256 997 CQ93P2A153JT(NH2)
C433,434 00D 255 4254 915 CQ93P2A102JT(NH2)
C503,504 00D 255 1265 936 CQ93M1H103JT(B)
C507,508 00D 254 4313 963 CE04W1H010MT(ASF)
C509,510 00D 254 4528 716 CE04W2A470MC SMG/RE3
OTHERS PARTS GROUP
AS101-104 00D 415 0309 039 PVC TUBE(L=25) for PT501,502
AS105-110 00D 009 0185 113 BUS BAR(4P)
CW076,077 00D 205 0343 074 7P CONN.BASE(KR-PH)
CW941,942 00D 205 0343 045 4P CONN.BASE(KR-PH)
Ref. No. Part No. Part Name Remarks Q'ty New
83
AVR-4806/AVC-A11XV
CY035,036 00D 203 5265 038 3P SDN-SDN CORD
CY092 00D 205 0343 090 9P CONN.BASE(KR-PH)
CY114 00D 205 0375 013 11P CON.BASE(KR-PH)
CY921,922 00D 203 2399 059 2P SDN-SDN CON.CORD
CY924 00D 203 2399 062 2P SDN-SDN CON.CORD
CY925,926 00D 203 2399 075 2P SDN-SDN CON.CORD
L101,102 00D 235 0068 004 INDUCTOR(1MH)
L202 00D 235 0068 004 INDUCTOR(1MH)
L301,302 00D 235 0068 004 INDUCTOR(1MH)
L401,402 00D 235 0068 004 INDUCTOR(1MH)
RL101,102 00D 214 0195 006 RELAY FTR-F1
RL202 00D 214 0195 006 RELAY FTR-F1
RL301,302 00D 214 0195 006 RELAY FTR-F1
RL351,352 00D 214 0195 006 RELAY FTR-F1
RL401,402 00D 214 0195 006 RELAY FTR-F1
TP101,102 00D 205 0154 030 3P NH CONNECTOR BASE
TP111-114 00D 205 1358 068 6P PIN HEADER(9205)
TP202 00D 205 0154 030 3P NH CONNECTOR BASE
TP212 00D 205 1358 068 6P PIN HEADER(9205)
TP214 00D 205 1358 068 6P PIN HEADER(9205)
TP301,302 00D 205 0154 030 3P NH CONNECTOR BASE
TP311-314 00D 205 1358 068 6P PIN HEADER(9205)
TP401,402 00D 205 0154 030 3P NH CONNECTOR BASE
TP411-414 00D 205 1358 068 6P PIN HEADER(9205)
W501,502 00D 203 5362 009 3P SDN-LUG WIRE
00D 449 0080 018 EDGING
00D 449 0226 005 EDGING(CE-012S)
00D 203 5367 004 3P SDN CON.CORD
00D 203 6630 002 4P SDN CON.CORD
Ref. No. Part No. Part Name Remarks Q'ty New
84
AVR-4806/AVC-A11XV
00D1U-3667 DIGITAL P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101-103 00D 262 3449 004 LC89057W-VF4A
IC151 00D GEN6923 SUB CPU SUB ASS'Y M30625FGPGP
IC201 00D 262 3419 005 EP1C4F400C8
IC202 00D 263 1183 909 NJU7223DL1-25 +C
IC203 00D 262 3290 907 PQ015EZ5MZ +REF
IC205 - -
IC301 00D 262 3106 907 SN65LVDS32PW +REF
IC302 00D 262 3432 901 SN65LVDS1DBVR
IC303 00D 262 3077 900 TC74VHCU04FT +REF
IC304 00D 262 3412 905 TC74VHC14FT
IC305-308 00D 262 3387 001 TORX142(F)
IC309 00D 262 3077 900 TC74VHCU04FT +REF
IC310 00D 262 3412 905 TC74VHC14FT
IC311 00D 262 3436 907 TC74VHC244FT
IC312 00D 262 3386 002 TOTX142(F)
IC502 00D 262 3274 004 TSB41AB2 +REF
IC503 00D 262 3291 003 SM5819A +C
IC504 00D 262 3262 003 DM1000
IC505 00D 262 3265 903 LM1117MPX-1.8 +C
IC506 00D GEN6974 DM1000 ROM SUB ASS'Y for EU,EC , MBM29LV160BE90TN
IC506 00D GEN6974-A DM1000 ROM SUB ASS'Y for EUT , MBM29LV160BE90TN
IC507 00D 262 3266 009 IC61LV25616-10T
IC508 00D 262 3442 904 TPS6734IDR
IC601 00D 262 3063 901 FCX0-03(25.000MHZ) +REF
IC602 00D 262 3441 002 TMS320DA610
IC604 00D 262 3457 009 W9864G2EH-7
IC605 00D GEN6925 TI DSP1 SUB ASS'Y MBM29LV160BE90TN
IC702 00D 262 3441 002 TMS320DA610
IC703 00D 262 3457 009 W9864G2EH-7
IC704 00D GEN6926 TI DSP2 SUB ASS'Y MBM29LV160BE90TN
IC802 00D 262 3441 002 TMS320DA610
IC803 00D 262 3457 009 W9864G2EH-7
IC804 00D GEN6927 TI DSP3 SUB ASS'Y MBM29LV160BE90TN
IC901 00D 262 3413 904 TC74LVX4051FT
IC902 00D 262 3261 907 CY2302 +REF
IC903 00D 262 3423 907 LMC6772AIM
IC906,907 00D 263 1192 903 NJU7043V +REF
IC908 00D 262 3413 904 TC74LVX4051FT
IC909 00D 262 3423 907 LMC6772AIM
IC910 00D 262 3062 902 FCX0-03(24.576MHZ) +REF
IC911,912 00D 263 0686 902 BA10358FT
IC914 00D 262 3422 908 FCXO-03L(22.5792MHZ)
IC915-918 00D 262 3415 902 TC7SZU04F
TR101 00D 269 0184 907 KRA102S-RTK +C
TR102 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR103 00D 269 0184 907 KRA102S-RTK +C
TR105 00D 269 0184 907 KRA102S-RTK +C
TR106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR108 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR151 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR152 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
TR153 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR502 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR503 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
TR901-903 00D 269 0083 901 DTA114EKT96 +C
D201 00D 276 0794 900 KDS160 +2125
2
85
AVR-4806/AVC-A11XV
D301-304 00D 276 0738 908 KDS226-RTK(A-K) +C
D502 00D 276 0794 900 KDS160 +2125
D503 00D 276 0737 909 RB161L-40 (TAPE) +C
D601 00D 276 0750 902 RB521S-30TE61 +REF
D701 00D 276 0750 902 RB521S-30TE61 +REF
D801 00D 276 0750 902 RB521S-30TE61 +REF
D901 00D 276 0750 902 RB521S-30TE61 +REF
D902 00D 276 0793 901 BBY40 +C
D903-906 00D 276 0795 909 HVU363A +C
D907 00D 276 0793 901 BBY40 +C
ZD301-316 00D 276 0683 901 UDZS5.6B-TE17 +C
CAPACITORS GROUP
C101 00D 257 0516 954 CK73B1E104KT +1608
C102 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF
C104 00D 257 0506 951 CC73CH1H101JT +1608
C105 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225
C107 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C108 00D 257 0516 954 CK73B1E104KT +1608
C109 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF
C111 00D 257 0506 951 CC73CH1H101JT +1608
C112 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225
C114 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C115 00D 257 0516 954 CK73B1E104KT +1608
C116 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF
C118 00D 257 0506 951 CC73CH1H101JT +1608
C119 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225
C121 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C122-127 00D 257 0509 929 CK73B1H102KT +1608
C149 00D 257 0516 954 CK73B1E104KT +1608
C152 00D 257 0516 954 CK73B1E104KT +1608
C154 00D 257 0516 954 CK73B1E104KT +1608
C201 00D 257 0506 951 CC73CH1H101JT +1608
C202,203 00D 257 0509 929 CK73B1H102KT +1608
C204,205 00D 257 0506 951 CC73CH1H101JT +1608
C206 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C207 00D 257 0509 929 CK73B1H102KT +1608
C208 00D 257 0501 901 CK73B1H103KT (1608) +1608
C209 00D 257 0506 951 CC73CH1H101JT +1608
C210 00D 257 0509 929 CK73B1H102KT +1608
C211 00D 257 0501 901 CK73B1H103KT (1608) +1608
C212 00D 257 0506 951 CC73CH1H101JT +1608
C213 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C214 00D 257 0509 929 CK73B1H102KT +1608
C215 00D 257 0501 901 CK73B1H103KT (1608) +1608
C216 00D 257 0506 951 CC73CH1H101JT +1608
C217 00D 257 0509 929 CK73B1H102KT +1608
C218 00D 257 0501 901 CK73B1H103KT (1608) +1608
C219 00D 257 0506 951 CC73CH1H101JT +1608
C220 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C221 00D 257 0509 929 CK73B1H102KT +1608
C222 00D 257 0501 901 CK73B1H103KT (1608) +1608
C223 00D 257 0506 951 CC73CH1H101JT +1608
C224 00D 257 0509 929 CK73B1H102KT +1608
C225 00D 257 0501 901 CK73B1H103KT (1608) +1608
C226 00D 257 0506 951 CC73CH1H101JT +1608
C227 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C228,229 00D 257 0509 929 CK73B1H102KT +1608
C230 00D 257 0506 951 CC73CH1H101JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
86
AVR-4806/AVC-A11XV
C231 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C232,233 00D 257 0509 929 CK73B1H102KT +1608
C234 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C235 00D 257 0509 929 CK73B1H102KT +1608
C236 00D 257 0506 951 CC73CH1H101JT +1608
C237,238 00D 257 0509 929 CK73B1H102KT +1608
C239 00D 257 0506 951 CC73CH1H101JT +1608
C240 00D 257 0509 929 CK73B1H102KT +1608
C241,242 00D 257 0506 951 CC73CH1H101JT +1608
C243,244 00D 257 0509 929 CK73B1H102KT +1608
C245 00D 257 0506 951 CC73CH1H101JT +1608
C246,247 00D 257 0509 929 CK73B1H102KT +1608
C248 00D 257 0506 951 CC73CH1H101JT +1608
C249,250 00D 257 0509 929 CK73B1H102KT +1608
C251 00D 257 0506 951 CC73CH1H101JT +1608
C252 00D 257 0509 929 CK73B1H102KT +1608
C253 00D 257 0506 951 CC73CH1H101JT +1608
C254 00D 257 0509 929 CK73B1H102KT +1608
C255 00D 257 0506 951 CC73CH1H101JT +1608
C256 00D 257 0509 929 CK73B1H102KT +1608
C257 00D 257 0506 951 CC73CH1H101JT +1608
C262-265 00D 257 0506 951 CC73CH1H101JT +1608
C301 00D 257 0516 954 CK73B1E104KT +1608
C302,303 00D 257 0509 929 CK73B1H102KT +1608
C304 00D 257 0501 901 CK73B1H103KT (1608) +1608
C305 00D 257 0516 954 CK73B1E104KT +1608
C306 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF
C308 00D 257 0501 901 CK73B1H103KT (1608) +1608
C309 00D 257 0516 954 CK73B1E104KT +1608
C310 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF
C312 00D 257 0501 901 CK73B1H103KT (1608) +1608
C313 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF
C315 00D 254 4465 921 CE67C1C100MT +REF
C316,317 00D 257 0506 951 CC73CH1H101JT +1608
C318-321 00D 257 0516 954 CK73B1E104KT +1608
C322 00D 254 4464 906 CE67C0J101MT +REF
C323-327 00D 254 4604 973 CE67W1H4R7MT(P.CAP) +REF
C328 00D 257 0516 954 CK73B1E104KT +1608
C329-332 00D 257 0509 929 CK73B1H102KT +1608
C337,338 00D 257 0506 951 CC73CH1H101JT +1608
C339,340 00D 257 0509 929 CK73B1H102KT +1608
C356 00D 257 0516 954 CK73B1E104KT +1608
C506 00D 257 0501 901 CK73B1H103KT (1608) +1608
C507 00D 257 0516 954 CK73B1E104KT +1608
C508 00D 257 0509 929 CK73B1H102KT +1608
C509,510 00D 257 0516 954 CK73B1E104KT +1608
C511 00D 257 0509 929 CK73B1H102KT +1608
C512 00D 257 0516 954 CK73B1E104KT +1608
C513,514 00D 257 0509 929 CK73B1H102KT +1608
C515 00D 257 0516 954 CK73B1E104KT +1608
C516 00D 257 0509 929 CK73B1H102KT +1608
C517,518 00D 257 0516 954 CK73B1E104KT +1608
C519 00D 257 0509 929 CK73B1H102KT +1608
C520,521 00D 257 0516 954 CK73B1E104KT +1608
C522 00D 257 0513 902 CK73F1A105ZT +1608
C523,524 00D 257 0507 934 CC73CH1H221JT +1608
C525 00D 257 0513 902 CK73F1A105ZT +1608
C526 00D 257 0516 954 CK73B1E104KT +1608
C527 00D 257 0509 929 CK73B1H102KT +1608
C528 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C529 00D 257 0516 954 CK73B1E104KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
87
AVR-4806/AVC-A11XV
C530 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C531 00D 257 0509 929 CK73B1H102KT +1608
C532 00D 257 0516 954 CK73B1E104KT +1608
C533 00D 257 0509 929 CK73B1H102KT +1608
C534 00D 257 0516 954 CK73B1E104KT +1608
C535 00D 257 0509 929 CK73B1H102KT +1608
C536,537 00D 257 0516 954 CK73B1E104KT +1608
C539,540 00D 257 0509 929 CK73B1H102KT +1608
C541 00D 257 0516 954 CK73B1E104KT +1608
C542 00D 257 0509 929 CK73B1H102KT +1608
C543 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C544 00D 257 0516 954 CK73B1E104KT +1608
C545 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C546 00D 257 0509 929 CK73B1H102KT +1608
C547 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C548 00D 257 0516 954 CK73B1E104KT +1608
C549 00D 257 0509 929 CK73B1H102KT +1608
C550 00D 257 0516 954 CK73B1E104KT +1608
C551 00D 257 0509 929 CK73B1H102KT +1608
C552,553 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C554 00D 257 0516 954 CK73B1E104KT +1608
C555 00D 257 0509 929 CK73B1H102KT +1608
C556 00D 257 0516 954 CK73B1E104KT +1608
C574,575 00D 257 0516 954 CK73B1E104KT +1608
C576,577 00D 257 0509 929 CK73B1H102KT +1608
C578 00D 257 0516 954 CK73B1E104KT +1608
C579 00D 257 0509 929 CK73B1H102KT +1608
C580,581 00D 257 0516 954 CK73B1E104KT +1608
C601 00D 257 0516 954 CK73B1E104KT +1608
C602 00D 257 0509 929 CK73B1H102KT +1608
C603 00D 257 0516 954 CK73B1E104KT +1608
C604 00D 257 0509 929 CK73B1H102KT +1608
C605 00D 257 0516 954 CK73B1E104KT +1608
C606 00D 257 0509 929 CK73B1H102KT +1608
C607 00D 257 0516 954 CK73B1E104KT +1608
C608 00D 257 0509 929 CK73B1H102KT +1608
C609 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C610 00D 257 0516 954 CK73B1E104KT +1608
C611 00D 257 0509 929 CK73B1H102KT +1608
C612 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C614 00D 257 0516 954 CK73B1E104KT +1608
C615 00D 257 0509 929 CK73B1H102KT +1608
C616 00D 257 0516 954 CK73B1E104KT +1608
C617 00D 257 0509 929 CK73B1H102KT +1608
C618 00D 257 0516 954 CK73B1E104KT +1608
C619 00D 257 0509 929 CK73B1H102KT +1608
C620 00D 257 0516 954 CK73B1E104KT +1608
C621 00D 257 0509 929 CK73B1H102KT +1608
C622 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C624 00D 254 4464 906 CE67C0J101MT +REF
C625,626 00D 257 0509 929 CK73B1H102KT +1608
C627 00D 254 4464 906 CE67C0J101MT +REF
C628 00D 257 0516 954 CK73B1E104KT +1608
C629 00D 257 0509 929 CK73B1H102KT +1608
C630 00D 257 0516 954 CK73B1E104KT +1608
C631 00D 257 0509 929 CK73B1H102KT +1608
C632 00D 257 0516 954 CK73B1E104KT +1608
C633 00D 257 0509 929 CK73B1H102KT +1608
C634 00D 257 0516 954 CK73B1E104KT +1608
C635 00D 257 0509 929 CK73B1H102KT +1608
C636 00D 257 0516 954 CK73B1E104KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
88
AVR-4806/AVC-A11XV
C637 00D 257 0509 929 CK73B1H102KT +1608
C638 00D 257 0516 954 CK73B1E104KT +1608
C639 00D 257 0509 929 CK73B1H102KT +1608
C640 00D 257 0516 954 CK73B1E104KT +1608
C641 00D 257 0509 929 CK73B1H102KT +1608
C642 00D 257 0516 954 CK73B1E104KT +1608
C643 00D 257 0509 929 CK73B1H102KT +1608
C644 00D 257 0516 954 CK73B1E104KT +1608
C645 00D 257 0509 929 CK73B1H102KT +1608
C646 00D 257 0516 954 CK73B1E104KT +1608
C647 00D 257 0509 929 CK73B1H102KT +1608
C648 00D 257 0516 954 CK73B1E104KT +1608
C649 00D 257 0509 929 CK73B1H102KT +1608
C650 00D 257 0516 954 CK73B1E104KT +1608
C651 00D 257 0509 929 CK73B1H102KT +1608
C652 00D 257 0516 954 CK73B1E104KT +1608
C653 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C654 00D 257 0516 954 CK73B1E104KT +1608
C655 00D 257 0509 929 CK73B1H102KT +1608
C658 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C665 00D 257 0516 954 CK73B1E104KT +1608
C666 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C701 00D 257 0516 954 CK73B1E104KT +1608
C702 00D 257 0509 929 CK73B1H102KT +1608
C703 00D 257 0516 954 CK73B1E104KT +1608
C704 00D 257 0509 929 CK73B1H102KT +1608
C705 00D 257 0516 954 CK73B1E104KT +1608
C706 00D 257 0509 929 CK73B1H102KT +1608
C707 00D 257 0516 954 CK73B1E104KT +1608
C708 00D 257 0509 929 CK73B1H102KT +1608
C709 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C714 00D 257 0516 954 CK73B1E104KT +1608
C715 00D 257 0509 929 CK73B1H102KT +1608
C716 00D 257 0516 954 CK73B1E104KT +1608
C717 00D 257 0509 929 CK73B1H102KT +1608
C718 00D 257 0516 954 CK73B1E104KT +1608
C719 00D 257 0509 929 CK73B1H102KT +1608
C720 00D 257 0516 954 CK73B1E104KT +1608
C721 00D 257 0509 929 CK73B1H102KT +1608
C722 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C724 00D 254 4464 906 CE67C0J101MT +REF
C725,726 00D 257 0509 929 CK73B1H102KT +1608
C727 00D 254 4464 906 CE67C0J101MT +REF
C728 00D 257 0516 954 CK73B1E104KT +1608
C729 00D 257 0509 929 CK73B1H102KT +1608
C730 00D 257 0516 954 CK73B1E104KT +1608
C731 00D 257 0509 929 CK73B1H102KT +1608
C732 00D 257 0516 954 CK73B1E104KT +1608
C733 00D 257 0509 929 CK73B1H102KT +1608
C734 00D 257 0516 954 CK73B1E104KT +1608
C735 00D 257 0509 929 CK73B1H102KT +1608
C736 00D 257 0516 954 CK73B1E104KT +1608
C737 00D 257 0509 929 CK73B1H102KT +1608
C738 00D 257 0516 954 CK73B1E104KT +1608
C739 00D 257 0509 929 CK73B1H102KT +1608
C740 00D 257 0516 954 CK73B1E104KT +1608
C741 00D 257 0509 929 CK73B1H102KT +1608
C742 00D 257 0516 954 CK73B1E104KT +1608
C743 00D 257 0509 929 CK73B1H102KT +1608
C744 00D 257 0516 954 CK73B1E104KT +1608
C745 00D 257 0509 929 CK73B1H102KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
89
AVR-4806/AVC-A11XV
C746 00D 257 0516 954 CK73B1E104KT +1608
C747,748 00D 257 0509 929 CK73B1H102KT +1608
C749 00D 257 0516 954 CK73B1E104KT +1608
C750 00D 257 0509 929 CK73B1H102KT +1608
C751 00D 257 0516 954 CK73B1E104KT +1608
C752 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C753 00D 257 0516 954 CK73B1E104KT +1608
C754 00D 257 0509 929 CK73B1H102KT +1608
C755 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C765 00D 257 0516 954 CK73B1E104KT +1608
C766 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C801 00D 257 0516 954 CK73B1E104KT +1608
C802 00D 257 0509 929 CK73B1H102KT +1608
C803 00D 257 0516 954 CK73B1E104KT +1608
C804 00D 257 0509 929 CK73B1H102KT +1608
C805 00D 257 0516 954 CK73B1E104KT +1608
C806 00D 257 0509 929 CK73B1H102KT +1608
C807 00D 257 0516 954 CK73B1E104KT +1608
C808 00D 257 0509 929 CK73B1H102KT +1608
C809 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C814 00D 257 0516 954 CK73B1E104KT +1608
C815 00D 257 0509 929 CK73B1H102KT +1608
C816 00D 257 0516 954 CK73B1E104KT +1608
C817 00D 257 0509 929 CK73B1H102KT +1608
C818 00D 257 0516 954 CK73B1E104KT +1608
C819 00D 257 0509 929 CK73B1H102KT +1608
C820 00D 257 0516 954 CK73B1E104KT +1608
C821 00D 257 0509 929 CK73B1H102KT +1608
C822 00D 254 4601 918 CE67W0J471MT(P.CAP) +REF
C824 00D 254 4464 906 CE67C0J101MT +REF
C825,826 00D 257 0509 929 CK73B1H102KT +1608
C827 00D 254 4464 906 CE67C0J101MT +REF
C828 00D 257 0516 954 CK73B1E104KT +1608
C829 00D 257 0509 929 CK73B1H102KT +1608
C830 00D 257 0516 954 CK73B1E104KT +1608
C831 00D 257 0509 929 CK73B1H102KT +1608
C832 00D 257 0516 954 CK73B1E104KT +1608
C833 00D 257 0509 929 CK73B1H102KT +1608
C834 00D 257 0516 954 CK73B1E104KT +1608
C835 00D 257 0509 929 CK73B1H102KT +1608
C836 00D 257 0516 954 CK73B1E104KT +1608
C837 00D 257 0509 929 CK73B1H102KT +1608
C838 00D 257 0516 954 CK73B1E104KT +1608
C839 00D 257 0509 929 CK73B1H102KT +1608
C840 00D 257 0516 954 CK73B1E104KT +1608
C841 00D 257 0509 929 CK73B1H102KT +1608
C842 00D 257 0516 954 CK73B1E104KT +1608
C843 00D 257 0509 929 CK73B1H102KT +1608
C844 00D 257 0516 954 CK73B1E104KT +1608
C845 00D 257 0509 929 CK73B1H102KT +1608
C846 00D 257 0516 954 CK73B1E104KT +1608
C847,848 00D 257 0509 929 CK73B1H102KT +1608
C849 00D 257 0516 954 CK73B1E104KT +1608
C850 00D 257 0509 929 CK73B1H102KT +1608
C851 00D 257 0516 954 CK73B1E104KT +1608
C852 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C853 00D 257 0516 954 CK73B1E104KT +1608
C854 00D 257 0509 929 CK73B1H102KT +1608
C855 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C865 00D 257 0516 954 CK73B1E104KT +1608
C866 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
Ref. No. Part No. Part Name Remarks Q'ty New
90
AVR-4806/AVC-A11XV
C901 00D 257 0506 951 CC73CH1H101JT +1608
C902 00D 257 0509 929 CK73B1H102KT +1608
C903 00D 257 0506 951 CC73CH1H101JT +1608
C904 00D 257 0509 929 CK73B1H102KT +1608
C905 00D 257 0516 954 CK73B1E104KT +1608
C906 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C907 00D 257 0506 951 CC73CH1H101JT +1608
C910,911 00D 257 0520 911 CK73B1A224KT +1608
C914,915 00D 257 0508 917 CC73CH1H471JT +1608
C916 00D 257 0506 951 CC73CH1H101JT +1608
C919,920 00D 257 0516 954 CK73B1E104KT +1608
C921 00D 257 0504 982 CC73CH1H470JT +1608
C924-926 00D 257 0516 954 CK73B1E104KT +1608
C927 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C928 00D 257 0509 929 CK73B1H102KT +1608
C929,930 00D 257 0506 951 CC73CH1H101JT +1608
C932 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C934 00D 257 0509 929 CK73B1H102KT +1608
C935 00D 257 0506 951 CC73CH1H101JT +1608
C936,937 00D 257 0516 954 CK73B1E104KT +1608
C939,940 00D 257 0516 954 CK73B1E104KT +1608
C942 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C943-945 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C946-951 00D 257 0509 929 CK73B1H102KT +1608
C952,953 00D 257 0516 954 CK73B1E104KT +1608
C954-956 00D 257 0509 929 CK73B1H102KT +1608
C957 00D 257 0520 911 CK73B1A224KT +1608
C959 00D 257 0509 929 CK73B1H102KT +1608
C960 00D 257 4016 900 CE67C1E4R7MT(MV-B)
CC101 00D 257 0516 954 CK73B1E104KT +1608
CC102 00D 257 0501 901 CK73B1H103KT (1608) +1608
CC103 00D 257 0509 929 CK73B1H102KT +1608
CC104 00D 257 0506 951 CC73CH1H101JT +1608
CC106,107 00D 257 0509 929 CK73B1H102KT +1608
CC108 00D 257 0506 951 CC73CH1H101JT +1608
CC123 00D 257 0506 951 CC73CH1H101JT +1608
CC124 00D 257 4015 901 CE67C1C330MT(PXA)
CC125 00D 257 0516 954 CK73B1E104KT +1608
CC503 00D 257 0506 951 CC73CH1H101JT +1608
CC504 00D 257 0509 929 CK73B1H102KT +1608
CC508 00D 257 0509 929 CK73B1H102KT +1608
CC509 00D 257 0506 951 CC73CH1H101JT +1608
CC510,511 00D 257 0516 909 CK73B1E223KT +1608
CC512,513 00D 257 0516 954 CK73B1E104KT +1608
CC514,515 00D 257 0509 929 CK73B1H102KT +1608
CC516 00D 257 0506 951 CC73CH1H101JT +1608
CC517,518 00D 257 4015 901 CE67C1C330MT(PXA)
OTHERS PARTS GROUP
CN211 00D 205 1154 903 10P ZH-ZR CON.BASE-T
CX045 00D 205 1072 917 4P PH CON BASE(TAPE) +REF
CX047 00D 205 1072 917 4P PH CON BASE(TAPE) +REF
CX056 00D 205 1072 920 5P PH CON BASE(TAPE) +REF
CX063 00D 205 1154 961 6P ZH-ZR CON.BASE-T
CX074 00D 205 1154 974 7P ZH-ZR CON.BASE-T
CX121 00D 205 1313 935 12P FFC BASE(9610SC)
CX151 00D 205 1154 990 9P ZH-ZR CON.BASE-T
CX153 00D 205 1343 934 15P FFC BASE(9610SC)
Ref. No. Part No. Part Name Remarks Q'ty New
91
AVR-4806/AVC-A11XV
CX211-214 00D 205 1345 000 21P 1.25FJ CONN.PLUG
CX231 00D 205 1343 918 23P FFC BASE(9610SCA
CX282 00D 205 1313 980 28P FFC BASE(9610SC)
CY103 00D 205 1154 903 10P ZH-ZR CON.BASE-T
CY156 00D 205 1330 918 15P PH BASE(TAPE)
CY931-933 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF
FB207 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB208-213 00D 235 0181 907 ZBFS5105-PT
FB501 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB601 00D 247 2018 903 RM73B--0R0KT +1608
FB602 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB701 00D 247 2018 903 RM73B--0R0KT +1608
FB702 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB801 00D 247 2018 903 RM73B--0R0KT +1608
FB802 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB901,902 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
JK301 00D 205 1222 000 RJ-45 JACK(GND)
JK501,502 00D 205 1347 008 4P 1394 CONNECTOR
L501-504 00D 235 0168 904 DLP31SN221SL2 +C
L506 00D 235 0180 908 SLF7045T-150M1R1-RF
L901 00D 235 0150 983 LQH32MN1R8K23L
S151 00D 212 4807 909 TACT SW(SKQDAA) +REF
S501 00D 212 4807 909 TACT SW(SKQDAA) +REF
S601 00D 212 4807 909 TACT SW(SKQDAA) +REF
SY502,503 00D 276 0797 907 PGB0010603NR +C
SY505-510 00D 276 0797 907 PGB0010603NR +C
W101 00D 205 1034 023 M3 SCREW TERMINAL
X151 00D 399 0974 900 X-TAL(12MHZ)
X901 00D 399 0972 902 FCX-02(22.579MHZ)
X902 00D 399 0973 901 FCX-02(24.576MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
92
AVR-4806/AVC-A11XV
00D1U-3668 A.VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 263 0898 907 NJM5532MD-TE1 +C
IC102 00D 263 0896 909 NJM2068MD-TE1 +C
IC103-111 00D 263 1082 903 TK15420MTL +C
IC112-114 00D 262 3447 909 TC4053BFT
IC115-118 00D 262 3446 900 TC4052BFT
IC119 00D 262 3447 909 TC4053BFT
IC120-128 00D 262 3445 901 TC4051BFT
IC130-135 00D 263 1082 903 TK15420MTL +C
IC301 00D 262 2827 902 MM74HC4053SJ +C
IC302 00D 263 1197 908 BU4094BCFV-E2
IC303 00D 262 3450 006 M35015-***SP
IC304,305 00D 263 1197 908 BU4094BCFV-E2
IC306 00D 262 1671 900 NJM2229M-TE1
IC307 00D 263 1197 908 BU4094BCFV-E2
IC308 00D 263 1183 909 NJU7223DL1-25 +C
IC309 00D 262 0707 901 TC4053BF (TAPE) +C
IC310 00D 262 3265 903 LM1117MPX-1.8 +C
IC311-313 00D 263 1082 903 TK15420MTL +C
TR101,102 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR103-106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR301,302 00D 273 0464 901 KTC3875SGR-RTK +C
D101-104 00D 276 0794 900 KDS160 +2125
D301 00D 276 0740 909 KDS184-RTK(K-COM) +C
D302-304 00D 276 0794 900 KDS160 +2125
CAPACITORS GROUP
C101 00D 257 0501 901 CK73B1H103KT (1608) +1608
C102 00D 254 4604 944 CE67W1H010MT(P.CAP)
C103 00D 257 0501 901 CK73B1H103KT (1608) +1608
C104-107 00D 257 0507 934 CC73CH1H221JT +1608
C108,109 00D 257 0506 951 CC73CH1H101JT +1608
C110,111 00D 254 4661 932 CE67C1H100MT (RV2)
C112,113 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C118-120 00D 247 2018 903 RM73B--0R0KT +1608
C121,122 00D 254 4603 945 CE67W1E470MT(P.CAP)
C123,124 00D 254 4465 918 CE67C1C470MT +REF
C125,126 00D 254 4661 932 CE67C1H100MT (RV2)
C127,128 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C129-146 00D 257 0501 901 CK73B1H103KT (1608) +1608
C147-152 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C153-168 00D 257 0501 901 CK73B1H103KT (1608) +1608
C169-174 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C175,176 00D 257 0501 901 CK73B1H103KT (1608) +1608
C177,178 00D 254 4464 906 CE67C0J101MT +REF
C179-184 00D 257 0501 901 CK73B1H103KT (1608) +1608
C185,186 00D 254 4464 906 CE67C0J101MT +REF
C187-194 00D 257 0501 901 CK73B1H103KT (1608) +1608
C195,196 00D 254 4464 906 CE67C0J101MT +REF
C197-204 00D 257 0501 901 CK73B1H103KT (1608) +1608
C205,206 00D 257 0516 941 CK73B1E473KT +1608
C207-212 00D 254 4464 906 CE67C0J101MT +REF
C213,214 00D 257 0516 954 CK73B1E104KT +1608
C215,216 00D 257 0516 941 CK73B1E473KT +1608
C217,218 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C219 00D 257 0516 941 CK73B1E473KT +1608
93
AVR-4806/AVC-A11XV
C220 00D 254 4464 906 CE67C0J101MT +REF
C221 00D 257 0516 941 CK73B1E473KT +1608
C222 00D 254 4464 906 CE67C0J101MT +REF
C223-228 00D 257 0501 901 CK73B1H103KT (1608) +1608
C229,230 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C301,302 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C303,304 00D 257 0516 954 CK73B1E104KT +1608
C306 00D 254 4464 906 CE67C0J101MT +REF
C307 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C308 00D 257 0501 901 CK73B1H103KT (1608) +1608
C309 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C310 00D 257 0501 901 CK73B1H103KT (1608) +1608
C311 00D 254 4464 906 CE67C0J101MT +REF
C312,313 00D 257 0504 940 CC73CH1H330JT +1608
C314 00D 257 0506 977 CC73CH1H121JT +1608
C315 00D 257 0503 925 CC73CH1H100DT +1608
C316 00D 257 0501 901 CK73B1H103KT (1608) +1608
C317 00D 257 0503 925 CC73CH1H100DT +1608
C318 00D 257 0501 901 CK73B1H103KT (1608) +1608
C319,320 00D 257 0506 977 CC73CH1H121JT +1608
C321,322 00D 257 0501 901 CK73B1H103KT (1608) +1608
C323 00D 254 4464 906 CE67C0J101MT +REF
C324 00D 257 0508 917 CC73CH1H471JT +1608
C325 00D 257 0510 918 CK73B1H332KT +1608
C326 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C327 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C328 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C329 00D 257 3015 944 CF73=1C683JT(ECHUB5)+3225
C331 00D 257 0506 993 CC73CH1H151JT +1608
C332 00D 257 0501 901 CK73B1H103KT (1608) +1608
C333 00D 257 0509 929 CK73B1H102KT +1608
C334 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C335 00D 257 0509 945 CK73B1H122KT +1608
C336 00D 257 0506 951 CC73CH1H101JT +1608
C337 00D 254 4471 902 CE67C1V4R7MT +REF
C338 00D 257 2010 937 CS77B1A220MT +C
C339,340 00D 257 0501 901 CK73B1H103KT (1608) +1608
C341-343 00D 254 4464 906 CE67C0J101MT +REF
C344-347 00D 257 0501 901 CK73B1H103KT (1608) +1608
C348,349 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C350,351 00D 257 0516 954 CK73B1E104KT +1608
C352,353 00D 257 2010 937 CS77B1A220MT +C
C354,355 00D 257 0516 954 CK73B1E104KT +1608
OTHERS PARTS GROUP
CW852 00D 205 0885 008 5P CON.SOCKET TUC-P
CW856 00D 205 0885 008 5P CON.SOCKET TUC-P
CW859 00D 205 0885 008 5P CON.SOCKET TUC-P
CW946,947 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CW949 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CW950 00D 205 0885 008 5P CON.SOCKET TUC-P
CW961 00D 205 0942 019 6P CON.SOCKET(TUC-P
CX094 00D 205 0884 038 9P CON.BASE TUC-P
CX095,096 00D 205 1323 093 9P PIN HEADER(9120)
CX097 00D 205 0884 038 9P CON.BASE TUC-P
CX101 00D 205 0884 054 10P CON.BASE TUC-P
CX103 00D 205 1324 005 10P PIN HEADER(9120)
CX106 00D 205 1324 005 10P PIN HEADER(9120)
CX108 00D 205 0884 054 10P CON.BASE TUC-P
Ref. No. Part No. Part Name Remarks Q'ty New
94
AVR-4806/AVC-A11XV
CX112 00D 205 0375 013 11P CON.BASE(KR-PH)
CX117 00D 205 0884 067 11P CON.BASE TUC-P
CX852,853 00D 205 0884 009 5P CON.BASE TUC-P
CX855,856 00D 205 0884 009 5P CON.BASE TUC-P
CX857,858 00D 205 1323 051 5P PIN HEADER(9120)
CX859 00D 205 0884 009 5P CON.BASE TUC-P
CX940 00D 205 1323 048 4P PIN HEADER(9120)
CX943 00D 205 0884 083 4P CON.BASE(TUC-P)
CX946,947 00D 205 0884 083 4P CON.BASE(TUC-P)
CX948 00D 205 1323 048 4P PIN HEADER(9120)
CX949 00D 205 0884 083 4P CON.BASE(TUC-P)
CX950 00D 205 0884 009 5P CON.BASE TUC-P
CX961 00D 205 0943 018 6P CON.BASE(TUC-P)
CX962 00D 205 1323 064 6P PIN HEADER(9120)
CX982 00D 205 0884 096 8P CON BASE(TUC-P)
CY055 00D 205 0343 058 5P CONN.BASE(KR-PH)
FB301 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
JK101 00D 204 8704 007 2P S&PIN JACK(AU)
JK102-107 00D 204 8705 006 4P S&PIN JACK(AU)
JK108 00D 204 8655 017 6P PIN JACK-S2GND-AU
L301 00D 235 0150 909 LQH32MN150J23L
ST103,104 00D 205 0452 017 STYLE PIN
X301 00D 399 0739 006 X'TAL(14.32M-RIBER)
X302 00D 399 0105 009 CSB503F2
00D 414 1035 008 SHIELD PLATE
Ref. No. Part No. Part Name Remarks Q'ty New
95
AVR-4806/AVC-A11XV

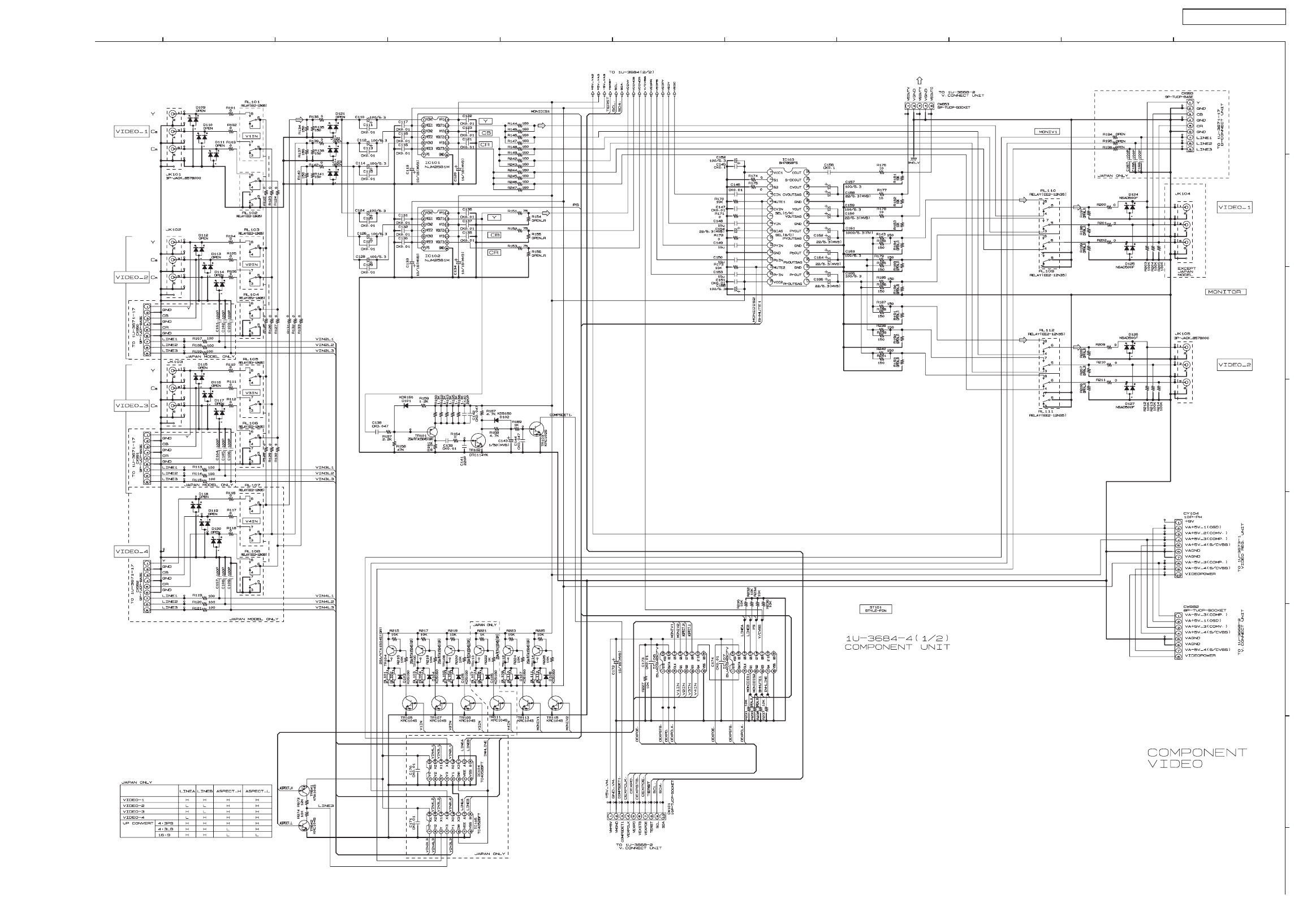

00D1U-3669 D.VIDEO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101,102 00D 262 3416 901 BR24L02F-WE2
IC103 00D 262 3431 012 SII9031CTU-7
IC105 00D 262 3265 903 LM1117MPX-1.8 +C
IC106,107 00D 262 3120 909 SN65LVDS31PW +REF
IC108 00D 262 3432 901 SN65LVDS1DBVR
IC201,202 00D 262 3416 901 BR24L02F-WE2
IC203 00D 262 3431 012 SII9031CTU-7
IC205 00D 262 3265 903 LM1117MPX-1.8 +C
IC301 00D 262 3493 908 TC7MBL3245AFK
IC302 00D 262 3265 903 LM1117MPX-1.8 +C
IC303 00D 262 3364 011 SII9030CTU-7
IC304,305 00D 262 3493 908 TC7MBL3245AFK
IC306 00D 262 3488 900 TC74LCX08FT
IC307 00D 262 3493 908 TC7MBL3245AFK
IC604 00D 262 3495 003 ADV7403BSTZ-110
IC606-610 00D 262 3493 908 TC7MBL3245AFK
IC803 00D 262 3478 004 ADV7320
TR101-103 00D 275 0110 905 HN1K02FU-TE85L
TR105 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR107-110 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR111 00D 269 0184 907 KRA102S-RTK +C
TR112 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR113 00D 269 0184 907 KRA102S-RTK +C
TR114 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR115 00D 275 0110 905 HN1K02FU-TE85L
TR116 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR201-203 00D 275 0110 905 HN1K02FU-TE85L
TR205 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR207-210 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR211 00D 269 0184 907 KRA102S-RTK +C
TR212 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR213 00D 269 0184 907 KRA102S-RTK +C
TR214 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR215 00D 275 0110 905 HN1K02FU-TE85L
TR216 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR301,302 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR308 00D 275 0110 905 HN1K02FU-TE85L
TR312 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR314 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR601-605 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR801 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR802-806 00D 271 0293 901 2SA1022-B +C
D101-104 00D 276 0750 902 RB521S-30TE61 +REF
D105-109 00D 276 0794 900 KDS160 +2125
D201-204 00D 276 0750 902 RB521S-30TE61 +REF
D205-207 00D 276 0794 900 KDS160 +2125
D301 00D 276 0794 900 KDS160 +2125
RESISTORS GROUP
VR802-806 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF
CAPACITORS GROUP
C101,102 00D 257 0516 954 CK73B1E104KT +1608
C103-110 00D 257 0509 929 CK73B1H102KT +1608
C111-114 00D 257 0516 954 CK73B1E104KT +1608
C115,116 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
96
AVR-4806/AVC-A11XV
C117,118 00D 257 0516 954 CK73B1E104KT +1608
C119,120 00D 257 0509 929 CK73B1H102KT +1608
C121-124 00D 257 0516 954 CK73B1E104KT +1608
C125,126 00D 257 0501 901 CK73B1H103KT (1608) +1608
C127-132 00D 257 0509 929 CK73B1H102KT +1608
C133 00D 257 0516 954 CK73B1E104KT +1608
C134-138 00D 257 0509 929 CK73B1H102KT +1608
C139 00D 257 0503 967 CC73CH1H150JT +1608
C140 00D 257 0509 929 CK73B1H102KT +1608
C141 00D 257 0501 901 CK73B1H103KT (1608) +1608
C142 00D 257 0503 967 CC73CH1H150JT +1608
C144-146 00D 257 0509 929 CK73B1H102KT +1608
C147 00D 257 0516 954 CK73B1E104KT +1608
C148,149 00D 257 0509 929 CK73B1H102KT +1608
C150-154 00D 257 0516 954 CK73B1E104KT +1608
C155 00D 257 0509 929 CK73B1H102KT +1608
C157 00D 257 0516 954 CK73B1E104KT +1608
C158 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C160 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C162-166 00D 257 0516 954 CK73B1E104KT +1608
C167 00D 257 0509 929 CK73B1H102KT +1608
C168 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C169-172 00D 257 0516 954 CK73B1E104KT +1608
C173 00D 257 0509 929 CK73B1H102KT +1608
C174 00D 257 0516 954 CK73B1E104KT +1608
C182 00D 254 4465 918 CE67C1C470MT +REF
C183,184 00D 257 0516 954 CK73B1E104KT +1608
C185 00D 254 4464 906 CE67C0J101MT +REF
C188-190 00D 257 0509 929 CK73B1H102KT +1608
C201,202 00D 257 0516 954 CK73B1E104KT +1608
C203-210 00D 257 0509 929 CK73B1H102KT +1608
C211-214 00D 257 0516 954 CK73B1E104KT +1608
C215,216 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C217,218 00D 257 0516 954 CK73B1E104KT +1608
C219,220 00D 257 0509 929 CK73B1H102KT +1608
C221-224 00D 257 0516 954 CK73B1E104KT +1608
C225,226 00D 257 0501 901 CK73B1H103KT (1608) +1608
C227-232 00D 257 0509 929 CK73B1H102KT +1608
C233 00D 257 0516 954 CK73B1E104KT +1608
C234-238 00D 257 0509 929 CK73B1H102KT +1608
C239 00D 257 0503 967 CC73CH1H150JT +1608
C240 00D 257 0509 929 CK73B1H102KT +1608
C241 00D 257 0501 901 CK73B1H103KT (1608) +1608
C242 00D 257 0503 967 CC73CH1H150JT +1608
C244-246 00D 257 0509 929 CK73B1H102KT +1608
C247 00D 257 0516 954 CK73B1E104KT +1608
C248,249 00D 257 0509 929 CK73B1H102KT +1608
C250-254 00D 257 0516 954 CK73B1E104KT +1608
C255 00D 257 0509 929 CK73B1H102KT +1608
C257 00D 257 0516 954 CK73B1E104KT +1608
C258 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C260 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C262-266 00D 257 0516 954 CK73B1E104KT +1608
C267 00D 257 0509 929 CK73B1H102KT +1608
C268 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C269-272 00D 257 0516 954 CK73B1E104KT +1608
C273 00D 257 0509 929 CK73B1H102KT +1608
C274 00D 257 0516 954 CK73B1E104KT +1608
C282 00D 254 4465 918 CE67C1C470MT +REF
C283,284 00D 257 0516 954 CK73B1E104KT +1608
C285 00D 254 4464 906 CE67C0J101MT +REF
Ref. No. Part No. Part Name Remarks Q'ty New
97
AVR-4806/AVC-A11XV
C286 00D 257 0516 954 CK73B1E104KT +1608
C287 00D 257 0501 901 CK73B1H103KT (1608) +1608
C288 00D 257 0516 954 CK73B1E104KT +1608
C289 00D 257 0501 901 CK73B1H103KT (1608) +1608
C290 00D 257 0516 954 CK73B1E104KT +1608
C291 00D 257 0501 901 CK73B1H103KT (1608) +1608
C292 00D 257 0516 954 CK73B1E104KT +1608
C293 00D 257 0501 901 CK73B1H103KT (1608) +1608
C294 00D 257 0516 954 CK73B1E104KT +1608
C295 00D 257 0501 901 CK73B1H103KT (1608) +1608
C296 00D 257 0516 954 CK73B1E104KT +1608
C297 00D 257 0501 901 CK73B1H103KT (1608) +1608
C301-303 00D 247 2018 903 RM73B--0R0KT +1608
C304 00D 257 0516 954 CK73B1E104KT +1608
C305 00D 254 4464 906 CE67C0J101MT +REF
C306,307 00D 257 0516 954 CK73B1E104KT +1608
C308 00D 254 4465 918 CE67C1C470MT +REF
C309-311 00D 257 0516 954 CK73B1E104KT +1608
C312 00D 257 0521 907 CK73B1A105KT +1608
C313 00D 257 0501 901 CK73B1H103KT (1608) +1608
C314 00D 257 0516 954 CK73B1E104KT +1608
C315 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C317 00D 257 0509 929 CK73B1H102KT +1608
C318 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C322 00D 257 0509 929 CK73B1H102KT +1608
C324 00D 257 0509 929 CK73B1H102KT +1608
C325 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C326 00D 257 0516 954 CK73B1E104KT +1608
C327,328 00D 257 0509 929 CK73B1H102KT +1608
C329 00D 257 0516 954 CK73B1E104KT +1608
C331,332 00D 257 0516 954 CK73B1E104KT +1608
C333 00D 257 0509 929 CK73B1H102KT +1608
C339-341 00D 257 0516 954 CK73B1E104KT +1608
C343-348 00D 257 0516 954 CK73B1E104KT +1608
C609-613 00D 257 0516 954 CK73B1E104KT +1608
C614,615 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C616 00D 254 4464 906 CE67C0J101MT +REF
C617,618 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C619,620 00D 257 0516 954 CK73B1E104KT +1608
C621,622 00D 257 0501 901 CK73B1H103KT (1608) +1608
C623-628 00D 257 0516 954 CK73B1E104KT +1608
C629 00D 257 0509 929 CK73B1H102KT +1608
C630 00D 257 0516 954 CK73B1E104KT +1608
C631 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C632 00D 257 3012 921 CF73=1H103JT(ECHUB5)+3216
C633 00D 257 3013 920 CF73=1H823JT(ECHUC9)
C634 00D 257 0501 901 CK73B1H103KT (1608) +1608
C635 00D 254 4464 906 CE67C0J101MT +REF
C636,637 00D 257 0516 954 CK73B1E104KT +1608
C638 00D 254 4464 906 CE67C0J101MT +REF
C639 00D 257 0516 954 CK73B1E104KT +1608
C640 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C641 00D 257 0516 954 CK73B1E104KT +1608
C642 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C643 00D 254 4464 906 CE67C0J101MT +REF
C644 00D 257 0516 954 CK73B1E104KT +1608
C645,646 00D 257 0502 984 CC73CH1H6R0DT +1608
C649-651 00D 257 0516 954 CK73B1E104KT +1608
C652 00D 254 4464 906 CE67C0J101MT +REF
C653,654 00D 257 0516 954 CK73B1E104KT +1608
C655-657 00D 257 0521 907 CK73B1A105KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
98
AVR-4806/AVC-A11XV
C658 00D 257 0516 954 CK73B1E104KT +1608
C659 00D 257 0521 907 CK73B1A105KT +1608
C660 00D 257 2010 937 CS77B1A220MT +C
C661 00D 257 0521 907 CK73B1A105KT +1608
C662 00D 257 0509 929 CK73B1H102KT +1608
C807,808 00D 257 0516 954 CK73B1E104KT +1608
C809 00D 254 4464 906 CE67C0J101MT +REF
C810 00D 257 2010 937 CS77B1A220MT +C
C811,812 00D 257 0506 951 CC73CH1H101JT +1608
C813 00D 257 0503 967 CC73CH1H150JT +1608
C814 00D 257 0501 901 CK73B1H103KT (1608) +1608
C815,816 00D 257 0516 954 CK73B1E104KT +1608
C817 00D 257 3011 906 CF73=1H821JT(ECHUB5)+2125
C818 00D 254 4464 906 CE67C0J101MT +REF
C819 00D 257 0516 954 CK73B1E104KT +1608
C820 00D 257 3011 977 CF73=1H392JT(ECHUB5)+2125
C830 00D 257 0516 954 CK73B1E104KT +1608
C831 00D 254 4464 906 CE67C0J101MT +REF
C832-835 00D 257 0516 954 CK73B1E104KT +1608
CC103,104 00D 257 0504 908 CC73CH1H220JT +1608
CC203,204 00D 257 0504 908 CC73CH1H220JT +1608
CC207,208 00D 257 0504 908 CC73CH1H220JT +1608
OTHERS PARTS GROUP
CW094 00D 205 0885 037 9P CON.SOCKET TUC-P
CW097 00D 205 0885 037 9P CON.SOCKET TUC-P
CW108 00D 205 0885 053 10P CON.SOCKET TUC-P
CW117 00D 205 0885 066 11P CON.SOCKET TUC-P
CW131 00D 205 1326 032 13P SOCKET(9120)
CW152 00D 205 1326 058 15P SOCKET(9120)
CW943 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CY051 00D 205 0343 058 5P CONN.BASE(KR-PH)
CY281 00D 205 1313 980 28P FFC BASE(9610SC)
JK101 00D 205 1303 000 24P DVI CONNECTOR
JK102 00D 205 1331 904 19P HDMI CONNECTOR
JK201,202 00D 205 1331 904 19P HDMI CONNECTOR
JK301 00D 205 1331 904 19P HDMI CONNECTOR
L101,102 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L104,105 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L201,202 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L204,205 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L301-303 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L801 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
L803,804 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
RL101,102 00D 214 0228 902 RELAY(EE2-12N35) +REF
RL201,202 00D 214 0228 902 RELAY(EE2-12N35) +REF
ST101 00D 205 0452 004 STYLE PIN
W101 00D 205 1034 023 M3 SCREW TERMINAL
W201,202 00D 205 1034 023 M3 SCREW TERMINAL
W301,302 00D 205 1034 023 M3 SCREW TERMINAL
X101 00D 399 0976 908 X-TAL(28.322M)
X201 00D 399 0976 908 X-TAL(28.322M)
X601 00D 399 1000 909 FCX-03(28.63636MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
99
AVR-4806/AVC-A11XV

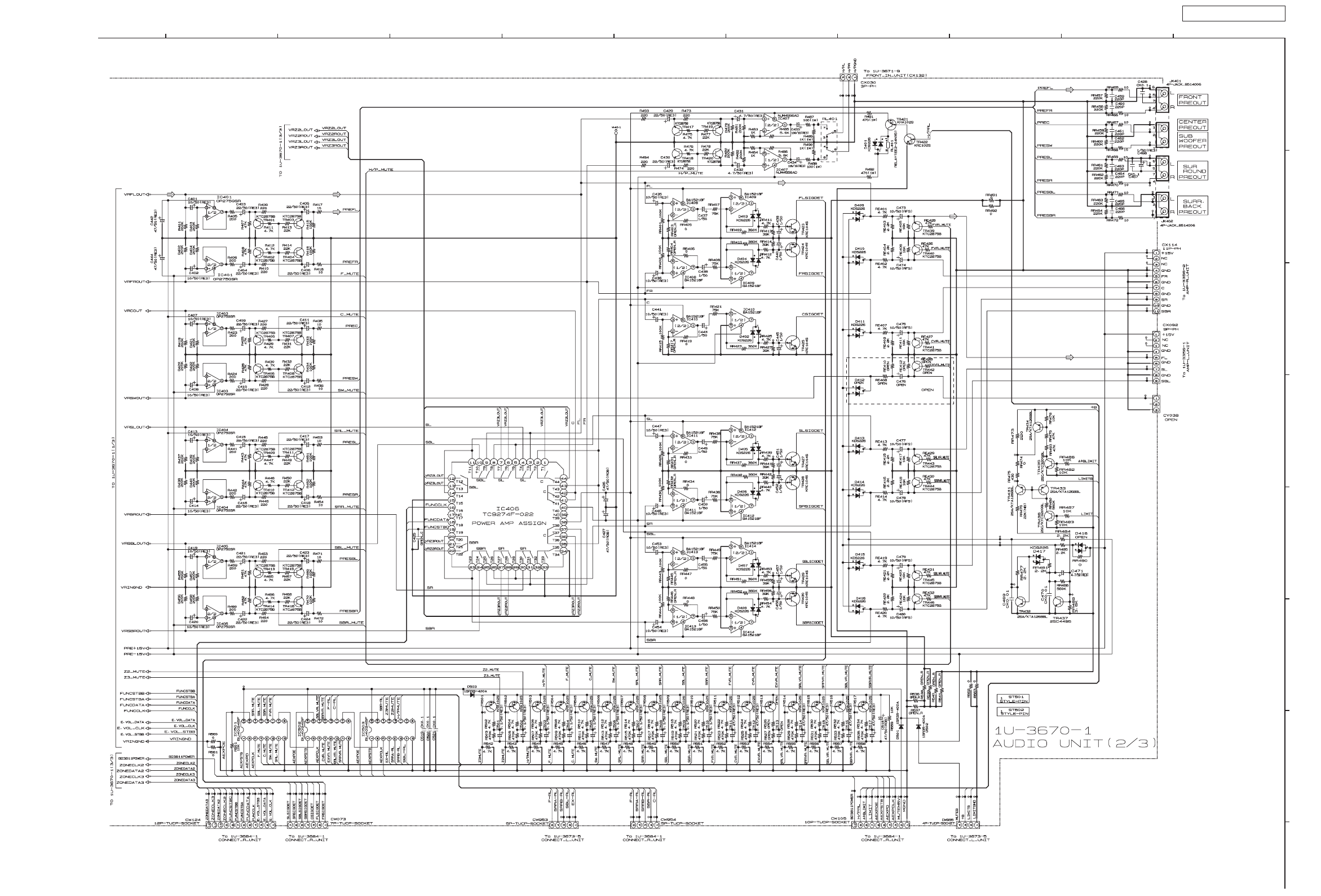

00D1U-3670 AUDIO P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101-107 00D 263 0896 909 NJM2068MD-TE1 +C
IC108 00D 263 0896 909 NJM2068MD-TE1 +C for EUT
IC109 00D 262 3347 009 TC94A46FG +C
IC120 00D 262 3439 001 TC9274F-022
IC201,202 00D 263 0615 902 BA15218F-DXE2 +C
IC203,204 00D 263 0896 909 NJM2068MD-TE1 +C
IC205 00D 263 0615 902 BA15218F-DXE2 +C
IC301 00D 262 3168 903 TC94A32F +C
IC302 00D 263 1207 908 AD8512AR REEL
IC303 00D 262 3168 903 TC94A32F +C
IC304 00D 263 1207 908 AD8512AR REEL
IC305 00D 262 3168 903 TC94A32F +C
IC306 00D 263 1207 908 AD8512AR REEL
IC307 00D 262 3168 903 TC94A32F +C
IC308 00D 263 1207 908 AD8512AR REEL
IC401 00D 263 1074 908 OP275GSR +C
IC403-405 00D 263 1074 908 OP275GSR +C
IC406 00D 262 3439 001 TC9274F-022
IC407 00D 263 0995 004 NJM4556AD +T
IC408-414 00D 263 0615 902 BA15218F-DXE2 +C
IC501-503 00D 263 1040 903 BU4094BCF-E2 +C
IC801,802 00D 263 0896 909 NJM2068MD-TE1 +C
IC803 00D 263 1213 905 KIA7808AF-RTF
IC804,805 00D 263 0896 909 NJM2068MD-TE1 +C
IC806 00D 263 1215 903 KIA7908F-RTF
IC807,808 00D 263 0896 909 NJM2068MD-TE1 +C
IC810-812 00D 263 0896 909 NJM2068MD-TE1 +C
IC813 00D 263 1213 905 KIA7808AF-RTF
IC814 00D 263 1215 903 KIA7908F-RTF
IC815-817 00D 263 0896 909 NJM2068MD-TE1 +C
IC818,819 00D 263 1156 004 BD3811K1 +C
IC901-904 00D 262 3332 904 PCM1791ADBR +REF
IC905-912 00D 263 1098 900 LM833MX +C
IC913 00D 262 3069 905 PCM1804 +REF
IC914-916 00D 263 0934 900 BA4510F-E2 +C
IC917 00D 263 1079 903 BA033FP +C
TR201-208 00D 273 0460 905 KTC2875B-RTK +C
TR401-420 00D 273 0460 905 KTC2875B-RTK +C
TR421 00D 269 0184 907 KRA102S-RTK +C
TR422 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR423-425 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR427-430 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR431-434 00D 271 0301 903 2SA/KTA1268BL-AT
TR435,436 00D 273 0458 904 2SC/KTC3200BL-AT
TR437 00D 273 0445 001 2SC4495
TR439-441 00D 273 0460 905 KTC2875B-RTK +C
TR443-446 00D 273 0460 905 KTC2875B-RTK +C
TR501-512 00D 269 0184 907 KRA102S-RTK +C
TR514-517 00D 269 0184 907 KRA102S-RTK +C
TR801 00D 272 0161 900 2SB1412TL(PQR) +C
TR802 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR803 00D 272 0161 900 2SB1412TL(PQR) +C
TR804 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR901-906 00D 273 0460 905 KTC2875B-RTK +C
TR907 00D 269 0184 907 KRA102S-RTK +C
TR908-910 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR911 00D 269 0184 907 KRA102S-RTK +C
100
AVR-4806/AVC-A11XV
TR912 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR913 00D 269 0184 907 KRA102S-RTK +C
TR915-920 00D 273 0460 905 KTC2875B-RTK +C
TR921 00D 269 0184 907 KRA102S-RTK +C
TR922-924 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR925 00D 269 0184 907 KRA102S-RTK +C
TR926 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR927 00D 269 0184 907 KRA102S-RTK +C
TR929-934 00D 273 0460 905 KTC2875B-RTK +C
TR935 00D 269 0184 907 KRA102S-RTK +C
TR936-938 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR939 00D 269 0184 907 KRA102S-RTK +C
TR940 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR941 00D 269 0184 907 KRA102S-RTK +C
TR943-948 00D 273 0460 905 KTC2875B-RTK +C
TR949 00D 269 0184 907 KRA102S-RTK +C
TR950-952 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR953 00D 269 0184 907 KRA102S-RTK +C
TR954 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR955 00D 269 0184 907 KRA102S-RTK +C
TR957-964 00D 273 0460 905 KTC2875B-RTK +C
D401-411 00D 276 0738 908 KDS226-RTK(A-K) +C
D413-417 00D 276 0738 908 KDS226-RTK(A-K) +C
D501-503 00D 276 0704 903 1SR35-400A(T93X)
D803,804 00D 276 0704 903 1SR35-400A(T93X)
D805-808 00D 276 0794 900 KDS160 +2125
D811,812 00D 276 0704 903 1SR35-400A(T93X)
D901-904 00D 276 0740 909 KDS184-RTK(K-COM) +C
RESISTORS GROUP
R487,488 00D 244 2051 961 RS14B3A101JNBST(S)
R489,490 00D 244 2051 974 RS14B3A102JNBST(S)
R491,492 00D 244 2043 953 RS14B3A471JNBST(S)
RR476 00D 241 2383 902 RD14B2E223JNBST
CAPACITORS GROUP
C101-114 00D 257 0507 934 CC73CH1H221JT +1608
C115-128 00D 254 4573 981 CE04W1H100MT(RE3)
C143-156 00D 254 4574 906 CE04W1H330MT(RE3)
C157,158 00D 254 4586 978 CE04W2A010MT(RE3)
C159,160 00D 209 0008 146 JUMPER for EU,EC
C159,160 00D 254 4524 943 CE04W1H010MT SMG/RE3 for EUT
C166-169 00D 254 4586 978 CE04W2A010MT(RE3)
C170 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C172 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C173-176 00D 255 1279 951 CQ93M1H104JT(B)
C179,180 00D 254 4583 971 CE04W1H470MT(ROB)
C181 00D 257 3012 934 CF73=1H123JT(ECHUB5)+3225
C182 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225
C183 00D 257 3015 931 CF73=1C563JT(ECHUB5)
C201-210 00D 257 0506 951 CC73CH1H101JT +1608
C211-218 00D 254 4573 994 CE04W1H220MT(RE3)
C219-222 00D 254 4573 981 CE04W1H100MT(RE3)
C223 00D 254 4586 949 CE04W2A100MT(RE3)
C224 00D 254 4586 978 CE04W2A010MT(RE3)
C225 00D 254 4586 949 CE04W2A100MT(RE3)
C226 00D 254 4586 978 CE04W2A010MT(RE3)
C227,228 00D 254 4574 906 CE04W1H330MT(RE3)
C231,232 00D 254 4573 981 CE04W1H100MT(RE3)
C235-237 00D 257 0509 929 CK73B1H102KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
101
AVR-4806/AVC-A11XV
C246 00D 257 0509 929 CK73B1H102KT +1608
C247-252 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C301,302 00D 254 4574 919 CE04W1H470MT(RE3)
C303,304 00D 257 0503 967 CC73CH1H150JT +1608
C305,306 00D 254 4586 949 CE04W2A100MT(RE3)
C307,308 00D 254 4574 919 CE04W1H470MT(RE3)
C309,310 00D 257 0503 967 CC73CH1H150JT +1608
C311,312 00D 254 4586 949 CE04W2A100MT(RE3)
C315,316 00D 254 4574 919 CE04W1H470MT(RE3)
C317,318 00D 257 0503 967 CC73CH1H150JT +1608
C319,320 00D 254 4586 949 CE04W2A100MT(RE3)
C321,322 00D 254 4574 919 CE04W1H470MT(RE3)
C323,324 00D 257 0503 967 CC73CH1H150JT +1608
C325,326 00D 254 4586 949 CE04W2A100MT(RE3)
C401,402 00D 254 4573 981 CE04W1H100MT(RE3)
C403-406 00D 254 4573 994 CE04W1H220MT(RE3)
C407,408 00D 254 4573 981 CE04W1H100MT(RE3)
C409-412 00D 254 4573 994 CE04W1H220MT(RE3)
C413,414 00D 254 4573 981 CE04W1H100MT(RE3)
C415-418 00D 254 4573 994 CE04W1H220MT(RE3)
C419,420 00D 254 4573 981 CE04W1H100MT(RE3)
C421-424 00D 254 4573 994 CE04W1H220MT(RE3)
C426,427 00D 254 4586 978 CE04W2A010MT(RE3)
C428 00D 257 0516 954 CK73B1E104KT +1608
C429,430 00D 254 4573 994 CE04W1H220MT(RE3)
C431,432 00D 254 4573 978 CE04W1H4R7MT(RE3)
C433,434 00D 254 4577 945 CE04W1C101MT(RE3)
C435,436 00D 254 4573 981 CE04W1H100MT(RE3)
C437-440 00D 254 4524 943 CE04W1H010MT SMG/RE3
C441 00D 254 4573 981 CE04W1H100MT(RE3)
C442 00D 254 4586 978 CE04W2A010MT(RE3)
C443 00D 254 4524 943 CE04W1H010MT SMG/RE3
C444 00D 254 4586 978 CE04W2A010MT(RE3)
C445 00D 254 4524 943 CE04W1H010MT SMG/RE3
C447,448 00D 254 4573 981 CE04W1H100MT(RE3)
C449-452 00D 254 4524 943 CE04W1H010MT SMG/RE3
C453,454 00D 254 4573 981 CE04W1H100MT(RE3)
C455-458 00D 254 4524 943 CE04W1H010MT SMG/RE3
C459-466 00D 257 0507 934 CC73CH1H221JT +1608
C467 00D 257 0516 954 CK73B1E104KT +1608
C468 00D 254 4573 949 CE04W1H010MT(RE3)
C469,470 00D 257 0501 901 CK73B1H103KT (1608) +1608
C471 00D 254 4573 978 CE04W1H4R7MT(RE3)
C473-475 00D 254 4573 994 CE04W1H220MT(RE3)
C477-480 00D 254 4573 994 CE04W1H220MT(RE3)
C501-510 00D 254 4573 907 CE04W1H0R1MT(RE3)
C511,512 00D 254 4573 936 CE04W1HR47MT(RE3)
C514-517 00D 254 4573 936 CE04W1HR47MT(RE3)
C518 00D 254 4583 971 CE04W1H470MT(ROB)
C519-521 00D 257 0516 954 CK73B1E104KT +1608
C801-804 00D 254 4573 981 CE04W1H100MT(RE3)
C805,806 00D 254 4586 978 CE04W2A010MT(RE3)
C807-812 00D 254 4573 981 CE04W1H100MT(RE3)
C813,814 00D 254 4586 978 CE04W2A010MT(RE3)
C815-822 00D 254 4573 981 CE04W1H100MT(RE3)
C823-826 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C827,828 00D 254 4586 978 CE04W2A010MT(RE3)
C829,830 00D 254 4573 981 CE04W1H100MT(RE3)
C831-834 00D 255 1279 951 CQ93M1H104JT(B)
C835,836 00D 254 4573 981 CE04W1H100MT(RE3)
C837-840 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225
Ref. No. Part No. Part Name Remarks Q'ty New
102
AVR-4806/AVC-A11XV
C841-846 00D 254 4573 981 CE04W1H100MT(RE3)
C847 00D 257 0506 951 CC73CH1H101JT +1608
C848 00D 254 4573 981 CE04W1H100MT(RE3)
C849 00D 257 0506 919 CC73CH1H680JT +1608
C850 00D 257 0506 951 CC73CH1H101JT +1608
C851 00D 254 4573 981 CE04W1H100MT(RE3)
C852 00D 257 0506 919 CC73CH1H680JT +1608
C853,854 00D 255 1264 982 CQ93M1H472JT(B)
C855 00D 254 4573 907 CE04W1H0R1MT(RE3)
C856-859 00D 254 4586 978 CE04W2A010MT(RE3)
C860,861 00D 254 4573 907 CE04W1H0R1MT(RE3)
C862,863 00D 254 4573 981 CE04W1H100MT(RE3)
C864,865 00D 254 4586 978 CE04W2A010MT(RE3)
C866 00D 254 4573 907 CE04W1H0R1MT(RE3)
C867,868 00D 254 4573 981 CE04W1H100MT(RE3)
C869-872 00D 257 0503 967 CC73CH1H150JT +1608
C873-876 00D 254 4573 981 CE04W1H100MT(RE3)
C877,878 00D 255 1264 982 CQ93M1H472JT(B)
C879-882 00D 254 4573 907 CE04W1H0R1MT(RE3)
C883-890 00D 254 4573 981 CE04W1H100MT(RE3)
C901,902 00D 255 1264 937 CQ93M1H182JT(B)
C903-906 00D 255 1273 999 CQ93M1H561JT(B)
C907-910 00D 254 4604 999 CE67W1H220MT(P.CAP)
C912 00D 257 0509 929 CK73B1H102KT +1608
C913,914 00D 254 4574 919 CE04W1H470MT(RE3)
C915 00D 254 4586 949 CE04W2A100MT(RE3)
C916 00D 254 4573 907 CE04W1H0R1MT(RE3)
C917 00D 255 1264 937 CQ93M1H182JT(B)
C918 00D 255 1264 924 CQ93M1H152JT(B)
C919 00D 255 1273 999 CQ93M1H561JT(B)
C920 00D 255 1273 928 CQ93M1H151KT(B)
C921 00D 255 1273 999 CQ93M1H561JT(B)
C922 00D 255 1273 928 CQ93M1H151KT(B)
C923-926 00D 254 4604 999 CE67W1H220MT(P.CAP)
C928 00D 257 0509 929 CK73B1H102KT +1608
C929,930 00D 254 4574 919 CE04W1H470MT(RE3)
C931 00D 254 4586 949 CE04W2A100MT(RE3)
C932 00D 254 4573 907 CE04W1H0R1MT(RE3)
C933,934 00D 255 1264 924 CQ93M1H152JT(B)
C935-938 00D 255 1273 973 CQ93M1H391KT(B)
C939-942 00D 254 4604 999 CE67W1H220MT(P.CAP)
C944 00D 257 0509 929 CK73B1H102KT +1608
C945,946 00D 254 4574 919 CE04W1H470MT(RE3)
C947 00D 254 4586 949 CE04W2A100MT(RE3)
C948 00D 254 4573 907 CE04W1H0R1MT(RE3)
C949,950 00D 255 1264 937 CQ93M1H182JT(B)
C951-954 00D 255 1273 999 CQ93M1H561JT(B)
C955-958 00D 254 4604 999 CE67W1H220MT(P.CAP)
C960 00D 257 0509 929 CK73B1H102KT +1608
C961,962 00D 254 4574 919 CE04W1H470MT(RE3)
C963 00D 254 4586 949 CE04W2A100MT(RE3)
C964 00D 254 4573 907 CE04W1H0R1MT(RE3)
C966 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF
C968 00D 254 4464 964 CE67C0J470MT(MV) +REF
C969 00D 257 0516 954 CK73B1E104KT +1608
C970-974 00D 254 4464 964 CE67C0J470MT(MV) +REF
C975,976 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125
C977-980 00D 257 0506 951 CC73CH1H101JT +1608
C981,982 00D 254 4465 905 CE67C1C220MT +REF
C983,984 00D 257 0510 934 CK73B1H472KT +1608
C985 00D 257 0506 951 CC73CH1H101JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
103
AVR-4806/AVC-A11XV
C986,987 00D 257 0509 929 CK73B1H102KT +1608
C988 00D 257 0506 951 CC73CH1H101JT +1608
C989 00D 254 4649 909 CE04W1H010MT(PWX)
C990 00D 257 0516 909 CK73B1E223KT +1608
C991-994 00D 257 0516 954 CK73B1E104KT +1608
CC117 00D 257 0509 929 CK73B1H102KT +1608
CC911-916 00D 257 0509 929 CK73B1H102KT +1608
CC918-927 00D 257 0509 929 CK73B1H102KT +1608
OTHERS PARTS GROUP
CW050 00D 205 0885 008 5P CON.SOCKET TUC-P
CW073 00D 205 0942 022 7P CON.SOCKET(TUC-P
CW105 00D 205 0885 053 10P CON.SOCKET TUC-P
CW124 00D 205 0885 079 12P CON.SOCKET TUC-P
CW953,954 00D 205 0885 008 5P CON.SOCKET TUC-P
CW955 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CX030 00D 205 0343 032 3P CONN.BASE(KR-PH)
CX057 00D 205 0321 054 5P CONN.BASE (RED) for EU,EC
CX057 00D 205 0343 058 5P CONN.BASE(KR-PH) for EUT
CX071 00D 205 1072 959 7P PH CON.BASE +REF
CX092 00D 205 0343 090 9P CONN.BASE(KR-PH)
CX114 00D 205 0375 013 11P CON.BASE(KR-PH)
CX152 00D 205 0375 055 15P CONN.BASE(KR-PH)
CX211-214 00D 205 1346 009 21P 1.25FJ CONN.BASE
CY057 00D 205 1072 920 5P PH CON BASE(TAPE) +REF
CY058 00D 205 0343 058 5P CONN.BASE(KR-PH)
CY061 00D 205 0343 061 6P CONN.BASE(KR-PH)
CY112 00D 205 0480 018 11P KR CON BASE(L)
CY141 00D 205 0375 042 14P CONN.BASE(KR-PH)
CY152 00D 205 0375 055 15P CONN.BASE(KR-PH)
CY733 00D 205 0343 032 3P CONN.BASE(KR-PH)
FB101 00D 247 2018 903 RM73B--0R0KT +1608
FB201 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB202,203 00D 247 2018 903 RM73B--0R0KT +1608
FB901 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB903 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB905 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB907 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB912,913 00D 235 0049 900 BEADS INDUCTOR TAPE
FB914 00D 247 0018 905 RM73B--0R0KT +2125
FB915,916 00D 235 0049 900 BEADS INDUCTOR TAPE
JK101-104 00D 204 8513 023 6P PIN JACK-S2GND-AU
JK401,402 00D 204 8514 006 4P PIN JACK(S-GND)
RL401 00D 214 0222 908 RELAY(EE2-24N35) +REF
ST101-103 00D 205 0452 017 STYLE PIN
ST701-705 00D 205 0452 017 STYLE PIN
W102 00D 203 0756 005 1P CONTACT ASSY
W103 00D 203 0752 012 1P SIN CORD ASSY to W103A
W105 00D 203 0752 025 1P SIN CORD ASSY to W105A
W106 00D 203 0752 038 1P SIN CORD ASSY to W106A
00D 203 5366 005 3P PH ASSY for EU,EC
00D 001 0237025 1P WIRE
Ref. No. Part No. Part Name Remarks Q'ty New
104
AVR-4806/AVC-A11XV
00D1U-3671 FRONT P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 499 0303 004 GP1UM271XK
IC103,104 00D 262 2549 002 LC75721E +C
! IC201 00D 268 0073 905 ICP-N15T
IC501,502 00D 262 3386 002 TOTX142(F)
IC503 00D 262 2580 906 CXA1511M +C
IC706 00D 263 0896 909 NJM2068MD-TE1 +C for EUT
IC709 00D 263 0896 909 NJM2068MD-TE1 +C
IC804 00D 269 0221 006 GP1FM313RZ
IC805 00D 263 0896 909 NJM2068MD-TE1 +C
TR101 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
TR102 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR103 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR104 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR105 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR106 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR109 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR201,202 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR203 00D 271 0316 901 KTA1042D +C
TR211-213 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR301,302 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR303,304 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR501 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
D103,104 00D 276 0794 900 KDS160 +2125
D201-204 00D 276 0751 901 1SR154-400TE25 +REF
ZD201 00D 276 0683 998 UDZS16B-TE17 +C
ZD202 00D 276 0683 956 UDZS15B-TE17 +C
ZD203 00D 276 0468 906 HZS9B-1TD
ZD501 00D 276 0798 919 UDZS6.8B-TE17
ZD502-504 00D 276 0683 998 UDZS16B-TE17 +C
ZD801 00D 276 0683 930 UDZS5.1B-TE17 +C
LD118-120 00D 393 9452 904 SEL1410E(TP2)
LD121 00D 393 9645 009 SML1216W(D)
LD301 00D 393 9645 009 SML1216W(D)
CAPACITORS GROUP
C102,103 00D 257 0501 901 CK73B1H103KT (1608) +1608
C104 00D 254 4313 950 CE04W1H101MT(ASF)
C105 00D 257 0501 901 CK73B1H103KT (1608) +1608
C106 00D 254 4196 986 CE04W1H100MT (SRA)
C107 00D 254 4573 981 CE04W1H100MT(RE3)
C109 00D 257 0501 901 CK73B1H103KT (1608) +1608
C110,111 00D 257 0516 954 CK73B1E104KT +1608
C112,113 00D 257 0509 929 CK73B1H102KT +1608
C119 00D 257 0501 901 CK73B1H103KT (1608) +1608
C120,121 00D 257 0516 954 CK73B1E104KT +1608
C122,123 00D 257 0509 929 CK73B1H102KT +1608
C124 00D 257 0504 937 CC73CH1H300JT +1608
C125 00D 257 0501 901 CK73B1H103KT (1608) +1608
C127 00D 257 0501 901 CK73B1H103KT (1608) +1608
C128 00D 254 4313 950 CE04W1H101MT(ASF)
C129 00D 257 0501 901 CK73B1H103KT (1608) +1608
C201 00D 256 1042 903 CF93A2E104KT
C202,203 00D 257 0501 901 CK73B1H103KT (1608) +1608
105
AVR-4806/AVC-A11XV
C204 00D 257 0517 908 CK73B1C473KT +1608
C205 00D 254 4540 011 CE04W1J471M(SMG)
C206 00D 254 4313 950 CE04W1H101MT(ASF)
C207 00D 257 0517 908 CK73B1C473KT +1608
C208 00D 254 4540 011 CE04W1J471M(SMG)
C501 00D 257 0509 929 CK73B1H102KT +1608 for EUT
C502,503 00D 257 0507 934 CC73CH1H221JT +1608 for EUT
C504,505 00D 254 4193 905 CE04W1C100MT (SRA) for EUT
C508,509 00D 254 4193 918 CE04W1C220MT (SRA) for EUT
C510,511 00D 254 4196 944 CE04W1H010MT (SRA) for EUT
C512,513 00D 257 0516 954 CK73B1E104KT +1608
C514 00D 254 4577 945 CE04W1C101MT(RE3)
C515 00D 257 0516 954 CK73B1E104KT +1608
C516 00D 257 0509 929 CK73B1H102KT +1608
C517 00D 257 0506 951 CC73CH1H101JT +1608
C518 00D 257 0509 929 CK73B1H102KT +1608
C519 00D 254 4573 949 CE04W1H010MT(RE3) for EU,EC
C519 00D 254 4583 900 CE04W1H010MT(ROB) for EUT
C522,523 00D 257 0508 917 CC73CH1H471JT +1608
C524,525 00D 254 4196 986 CE04W1H100MT (SRA)
C526,527 00D 257 0506 951 CC73CH1H101JT +1608
C528,529 00D 254 4533 934 CE04W0J221MT SMG/RE3
C530 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C531,532 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125
C533 00D 257 3014 987 CF73=1C223JT(ECHUB5)+3216
C534,535 00D 257 3006 908 CF73=1C682JT(ECHUB5)+2125
C536,537 00D 254 4196 999 CE04W1H220MT (SRA)
C538,539 00D 254 4196 986 CE04W1H100MT (SRA)
C540,541 00D 257 0516 954 CK73B1E104KT +1608
C542 00D 257 0506 951 CC73CH1H101JT +1608
C543 00D 257 0501 901 CK73B1H103KT (1608) +1608
C544 00D 254 4193 905 CE04W1C100MT (SRA)
C545 00D 257 0501 901 CK73B1H103KT (1608) +1608
C546 00D 254 4196 944 CE04W1H010MT (SRA)
C547 00D 257 0501 901 CK73B1H103KT (1608) +1608
C548-551 00D 257 0516 954 CK73B1E104KT +1608
C552-562 00D 257 0508 917 CC73CH1H471JT +1608
C564 00D 257 0509 929 CK73B1H102KT +1608
C565,566 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125
C801 00D 255 1265 936 CQ93M1H103JT(B) for EU,EC
C801 00D 255 4256 955 CQ93P2A103JT(NH2) for EUT
C802-805 00D 255 1265 936 CQ93M1H103JT(B)
C806 00D 257 0516 954 CK73B1E104KT +1608
C807,808 00D 255 1264 908 CQ93M1H102JT(B)
C809 00D 255 1265 936 CQ93M1H103JT(B)
C810 00D 257 0509 929 CK73B1H102KT +1608
C811,812 00D 254 4573 949 CE04W1H010MT(RE3) for EU,EC
C811,812 00D 254 4583 900 CE04W1H010MT(ROB) for EUT
C813-816 00D 257 0509 929 CK73B1H102KT +1608
C817,818 00D 257 0501 901 CK73B1H103KT (1608) +1608
C819 00D 255 1265 936 CQ93M1H103JT(B) for EU,EC
C819 00D 255 4256 955 CQ93P2A103JT(NH2) for EUT
C821 00D 257 0501 901 CK73B1H103KT (1608) +1608
C823 00D 254 4196 944 CE04W1H010MT (SRA)
C824,825 00D 257 0507 934 CC73CH1H221JT +1608
C826 00D 257 0506 951 CC73CH1H101JT +1608
C827 00D 257 0521 949 CK73B1A474KT
C828 00D 257 0506 993 CC73CH1H151JT +1608
C829,830 00D 254 4196 944 CE04W1H010MT (SRA)
C831 00D 257 0506 951 CC73CH1H101JT +1608
C832 00D 257 0506 993 CC73CH1H151JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
106
AVR-4806/AVC-A11XV
C833,834 00D 254 4196 944 CE04W1H010MT (SRA)
C835,836 00D 257 0521 949 CK73B1A474KT
OTHERS PARTS GROUP
AS101 00D 146 2348 008 FLD HOLDER
AS102,103 00D 412 5186 025 BUS BAR
AS502 00D 205 1034 023 M3 SCREW TERMINAL
CW042 00D 203 6605 008 4P KR-DS CON.CORD
CW043 00D 203 6605 011 4P KR-DS CON.CORD
CW053 00D 203 8483 037 5P KR-DA CON.CORD
CW054 00D 205 0885 008 5P CON.SOCKET TUC-P
CW062 00D 204 0558 015 6P KR-DS CON.CORD
CW066 00D 204 0558 028 6P KR-DS CON.CORD
CW082 00D 204 2481 038 8P KR-DS CON.CORD
CX031 00D 205 0343 032 3P CONN.BASE(KR-PH)
CX042,043 00D 205 0355 046 4P KR CON BASE(L)
CX044 00D 205 0343 045 4P CONN.BASE(KR-PH)
CX053 00D 205 0355 059 5P KR CON BASE(L)
CX054 00D 205 0884 009 5P CON.BASE TUC-P
CX055 00D 205 0355 059 5P KR CON BASE(L)
CX058 00D 205 0343 058 5P CONN.BASE(KR-PH)
CX062 00D 205 0355 062 6P KR CON BASE(L)
CX066 00D 205 0355 062 6P KR CON BASE(L)
CX082 00D 205 0355 088 8P KR CON BASE(L)
CX132 00D 205 0480 034 13P KR CON BASE(L)
CY031 00D 205 0355 033 3P KR CON BASE(L)
CY032 00D 205 0321 038 3P CONNE.BASE(RED)
CY044 00D 205 0355 046 4P KR CON BASE(L)
CY047 00D 205 0343 045 4P CONN.BASE(KR-PH)
CY056 00D 205 0343 058 5P CONN.BASE(KR-PH)
CY133 00D 205 0375 039 13P CONN.BASE(KR-PH)
CY143 00D 205 0375 042 14P CONN.BASE(KR-PH)
CY154 00D 205 0770 045 15P FFC BASE(SIDE) for EUT
CY720 00D 205 0581 056 2P VH CONNECTOR BASE
CY751 00D 205 0234 057 5P EH SID CONN BASE
CY943 00D 205 0343 045 4P CONN.BASE(KR-PH)
FB101,102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB501-505 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FL101 00D 393 8073 106 FLD(32-BT-10GN)
JK501 00D 204 8537 012 2P PIN JACK(GND) for EUT
JK502 00D 204 8577 001 3P PIN JACK(F-GND)
JK503 00D 204 8537 012 2P PIN JACK(GND)
JK504-508 00D 204 8260 004 MINI JACK
JK801 00D 204 8217 031 H/P JACK (BK(AU))
JK805 00D 204 8260 004 MINI JACK
JK806 00D 205 0906 000 1P S-TERMINAL(AU.SW)
JK810 00D 204 8693 008 3P PINJACK(BK/AU)
L201 00D 235 0060 989 INDUCTOR(121)ST
L501,502 00D 235 9003 002 FTZ CHOKE COIL for EUT
S101,102 00D 212 5611 903 TACT SWITCH(TAPE H5)
S103 00D 212 0415 007 ROT.ENCODER(EC16B36)
S104-110 00D 212 5611 903 TACT SWITCH(TAPE H5)
Ref. No. Part No. Part Name Remarks Q'ty New
107
AVR-4806/AVC-A11XV
S111 00D 212 0415 007 ROT.ENCODER(EC16B36)
S112-120 00D 212 5611 903 TACT SWITCH(TAPE H5)
S122-124 00D 212 5611 903 TACT SWITCH(TAPE H5)
S126-128 00D 212 5611 903 TACT SWITCH(TAPE H5)
S130 00D 212 5611 903 TACT SWITCH(TAPE H5)
S142-145 00D 212 5611 903 TACT SWITCH(TAPE H5)
S201 00D 212 1030 009 POWER SWITCH (TV-5)
ST101 00D 205 0452 017 STYLE PIN
ST501 00D 205 0452 017 STYLE PIN
W101 00D 001 0247 031 1P WIRE to W101A
W102,103 00D 203 0755 006 1P CONTACT ASSY
W501,502 00D 205 1034 023 M3 SCREW TERMINAL
W805 00D 205 1034 023 M3 SCREW TERMINAL
W806 00D 203 0755 019 1P CONTACT ASSY
W807 00D 203 0755 006 1P CONTACT ASSY for EU,EC
W807 00D 203 0755 022 1P CONTACT ASSY for EUT
W808 00D 205 1034 023 M3 SCREW TERMINAL
W809 00D 205 1034 010 M3 SCREW TERMINAL
Ref. No. Part No. Part Name Remarks Q'ty New
108
AVR-4806/AVC-A11XV
00D1U-3672 PRIMALY P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 263 1035 002 PQ30RV11
IC102 00D 263 1035 002 PQ30RV11
IC103 00D 263 1223 005 PQ20RX11J00H
! IC104,105 00D 268 0073 905 ICP-N15T
IC302 00D 263 1035 002 PQ30RV11
IC451-453 00D 263 1217 008 LMS1587CT-ADJ
TR101 00D 273 0464 901 KTC3875SGR-RTK +C
TR102-104 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR105,106 00D 273 0464 901 KTC3875SGR-RTK +C
TR307 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR311 00D 273 0464 901 KTC3875SGR-RTK +C
D101 00D 276 0794 900 KDS160 +2125
D102,103 00D 276 0704 903 1SR35-400A(T93X)
D104,105 00D 276 0794 900 KDS160 +2125
D106,107 00D 276 0704 903 1SR35-400A(T93X)
D108,109 00D 276 0305 001 S4VB20
D110,111 00D 276 0704 903 1SR35-400A(T93X)
D201 00D 276 0305 001 S4VB20
D202,203 00D 276 0681 000 FMG-22S
D204-206 00D 276 0305 001 S4VB20
D207,208 00D 276 0681 000 FMG-22S
D315 00D 276 0794 900 KDS160 +2125
D316 00D 276 0305 001 S4VB20
D451-453 00D 276 0794 900 KDS160 +2125
ZD101 00D 276 0683 901 UDZS5.6B-TE17 +C
ZD102 00D 276 0683 956 UDZS15B-TE17 +C
ZD303 00D 276 0683 956 UDZS15B-TE17 +C
RESISTORS GROUP
R119,120 00D 243 2091 009 RW78A4A330J=(UL)
R121 00D 242 2009 001 RC05GF2H225K(UL) for EU,EC
R201-206 00D 243 2039 032 RW99=3H0R1K
R209 00D 244 2051 974 RS14B3A102JNBST(S)
CAPACITORS GROUP
C101-104 00D 257 0501 901 CK73B1H103KT (1608) +1608
C105 00D 257 0509 929 CK73B1H102KT +1608
C106 00D 257 0501 901 CK73B1H103KT (1608) +1608
C107 00D 254 4573 949 CE04W1H010MT(RE3)
C108 00D 254 4573 981 CE04W1H100MT(RE3)
C109 00D 254 4574 919 CE04W1H470MT(RE3)
C110 00D 254 4573 981 CE04W1H100MT(RE3)
C111 00D 254 4686 700 CE04W1C822MC(KMQ)
C112 00D 255 1265 936 CQ93M1H103JT(B)
C113 00D 254 6250 008 CE04W1C472MC(KMQ)
C114 00D 255 1265 936 CQ93M1H103JT(B)
C115 00D 254 4685 701 CE04W1C682MC(KMQ)
C116 00D 255 1265 936 CQ93M1H103JT(B)
! C117 00D 253 8022 707 CK45F2EAC103MC
C118-120 00D 255 1279 951 CQ93M1H104JT(B)
C203 00D 254 4313 963 CE04W1H010MT(ASF)
C205,206 00D 254 6248 007 CE68W1C393M(KMH)
C207 00D 254 6251 007 CE68W1A683M(KMH)
109
AVR-4806/AVC-A11XV
C208,209 00D 254 6252 006 CE68W==183M(DL)
C210 00D 254 6251 007 CE68W1A683M(KMH)
C211-214 00D 255 1279 951 CQ93M1H104JT(B)
C215-217 00D 256 1042 903 CF93A2E104KT
C310 00D 254 4573 981 CE04W1H100MT(RE3)
C315 00D 254 4707 003 CE68W1A153M(KMH)
C316 00D 255 1265 936 CQ93M1H103JT(B)
C320 00D 255 1279 951 CQ93M1H104JT(B)
! C321 00D 253 8022 707 CK45F2EAC103MC
C451-456 00D 257 0509 929 CK73B1H102KT +1608
C457-459 00D 257 0506 951 CC73CH1H101JT +1608
C460-462 00D 254 4574 922 CE04W1H101MT(RE3)
C463-465 00D 257 0509 929 CK73B1H102KT +1608
C466-468 00D 257 0506 951 CC73CH1H101JT +1608
C469-471 00D 254 4574 922 CE04W1H101MT(RE3)
OTHERS PARTS GROUP
CX033 00D 205 0343 032 3P CONN.BASE(KR-PH)
CX041 00D 205 0355 046 4P KR CON BASE(L)
CX072 00D 205 0343 074 7P CONN.BASE(KR-PH)
CX209 00D 205 0190 036 3P NH CONNECTOR BASE
CX649 00D 205 1359 041 4P EH SIDE BASE(Y)
CX720 00D 205 0768 002 2P VH CON.BASE (BLK)
CX721 00D 205 0581 069 2P VH-VH CON BASE
CX722 00D 205 0581 085 2P VH CONNECTOR BASE
CX723 00D 205 1093 006 2P VH CONNECTOR BASE
CX725 00D 205 0453 029 2P VH CONN.BASE(L)RD
CX730 00D 205 0833 034 3P VH CON.BASE(YW)
CX731 00D 205 0276 031 3P EH CON BASE (BU)
CX732 00D 205 0233 032 3P EH CONNECTOR BASE
CX733,734 00D 205 0343 032 3P CONN.BASE(KR-PH)
CX736 00D 205 0233 032 3P EH CONNECTOR BASE
CX742 00D 205 0233 045 4P EH CONNECTOR BASE
CX743 00D 205 0276 044 4P EH CON BASE (BU)
CX931-933 00D 205 0343 032 3P CONN.BASE(KR-PH)
CX939 00D 205 0343 032 3P CONN.BASE(KR-PH)
CY033 00D 205 0355 033 3P KR CON BASE(L)
CY722 00D 205 0947 001 2P VH CON.BASE(BU)
CY724 00D 205 0581 001 2P VH CONNECTOR BASE
CY744 00D 205 0233 045 4P EH CONNECTOR BASE
! F1 00D 206 1086 029 FUSE 12A (UL/CSA/J)
! F3 00D 206 1039 050 FUSE 1.6A T
! F8 00D 206 1046 014 FUSE 8A
! F11,12 00D 206 1039 089 FUSE 3.15A
! F13 00D 206 1039 005 FUSE 0.63A
! F22,23 00D 206 1046 027 FUSE 5A
FB101-106 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FF102 00D EP- 5870 FUSE HOLDER
FF103,104 00D 202 0040 909 FUSE CLIP(TAPE)
FF201-203 00D 202 0040 909 FUSE CLIP(TAPE)
FF205 00D 202 0040 909 FUSE CLIP(TAPE)
FF306 00D 202 0040 909 FUSE CLIP(TAPE)
FH102 00D EP- 5870 FUSE HOLDER
FH103,104 00D 202 0040 909 FUSE CLIP(TAPE)
FH201-203 00D 202 0040 909 FUSE CLIP(TAPE)
Ref. No. Part No. Part Name Remarks Q'ty New
110
AVR-4806/AVC-A11XV
FH205 00D 202 0040 909 FUSE CLIP(TAPE)
FH306 00D 202 0040 909 FUSE CLIP(TAPE)
RL101,102 00D 214 0212 002 RELAY TV-8 (DLS1U)
RL306 00D 214 0212 002 RELAY TV-8 (DLS1U)
W102-105 00D 205 0864 003 M3 SCREW TERMINAL
W201 00D 205 0864 003 M3 SCREW TERMINAL
W216 00D 203 2399 046 2P SDN-SDN CON.CORD to W217
W218 00D 203 0711 024 1P SIN-SIN CORD to W219
W220 00D 203 0711 011 1P SIN-SIN CORD to W221
W222-224 00D 205 0864 003 M3 SCREW TERMINAL
W451-453 00D 205 1034 010 M3 SCREW TERMINAL
AS101 00D 417 0616 029 HEAT SINK(PUG36) for IC101
00D 470 0051 009 3X8 CPS(SW,W) ZNP for IC101
AS102,103 00D 417 0666 024 RADIATOR for IC102,103
00D 470 0051 009 3X8 CPS(SW,W) ZNP for IC102,103
00D 417 0689 001 RADIATOR for IC302
00D 412 5245 005 RADIATOR BRACKET for IC302
00D 470 0051 009 3X8 CPS(SW,W) ZNP for IC302
00D 417 0685 005 RADIATOR for IC451,452,453
00D 415 0669 009 INSULATING SHEET 220 for IC451,452,453
00D 415 0956 000 INSULATOR(YC40B) for IC451,452,453
00D 477 0153 021 3X16 CPTS(B) SW W for IC451,452,453
00D 473 8034 030 3X10 CBTS(B)-Z
00D 417 0686 004 RADIATOR for D204,206
00D 470 0014 020 3X16 CPS SW W ZNP for D204,206
00D 417 0476 094 RADIATOR for D202,203,207,208
00D 470 0051 009 3X8 CPS(SW,W) ZNP for D202,203,207,208
00D 412 5255 008 BUS PLATE
00D 001 0237 012 1P WIRE
Ref. No. Part No. Part Name Remarks Q'ty New
111
AVR-4806/AVC-A11XV
00D1U-3673 REGULATOR P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC402-406 00D 263 1224 004 SI3011ZF
IC407 00D 263 1226 002 NJM2396F33
IC501 00D 263 1212 906 KIA7805AF-RTF for EU,EC
IC502 00D 263 1100 021 KIA7812API for EU,EC
IC602-604 00D 263 1100 005 KIA7805API
IC605,606 00D 263 1099 006 KIA7905PI
IC608 00D 263 1224 004 SI3011ZF
IC701-703 00D 263 1222 006 PQ120RDA1SZH
IC705 00D 263 1223 005 PQ20RX11J00H
TR201 00D 275 0042 905 2SK373(Y)TPE2
TR202 00D 273 0235 923 2SC1841-T(E/F)
TR203 00D 274 0158 016 2SD1763A(E)
TR401,402 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR403,404 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR510 00D 274 0192 001 MN1715
TR511 00D 272 0154 001 MP1715
TR512,513 00D 275 0042 905 2SK373(Y)TPE2
TR601 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR603 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR604 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR606 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR607 00D 273 0464 901 KTC3875SGR-RTK +C
TR608 00D 271 0322 005 2SA1567(O)/(Y)
TR609 00D 273 0482 006 2SC4064(O)/(Y)
TR610 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR703-705 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR707-709 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
D401-406 00D 276 0794 900 KDS160 +2125
D501,502 00D 276 0432 903 1SS270A TE (TAPE)
D503 00D 276 0305 001 S4VB20
D601 00D 276 0794 900 KDS160 +2125
D604-608 00D 276 0794 900 KDS160 +2125
D611 00D 276 0305 001 S4VB20
D702-705 00D 276 0794 900 KDS160 +2125
D706,707 00D 276 0305 001 S4VB20
ZD201 00D 276 0798 919 UDZS6.8B-TE17
ZD401 00D 276 0683 930 UDZS5.1B-TE17 +C
ZD501,502 00D 276 0478 909 HZS18-1TD
ZD601 00D 276 0683 930 UDZS5.1B-TE17 +C
RESISTORS GROUP
R207 00D 241 2377 947 RD14B2E101JNBST
R208 00D 241 2387 940 RD14B2E4R7JNBST
R615 00D 244 2051 974 RS14B3A102JNBST(S)
CAPACITORS GROUP
C204 00D 254 4586 949 CE04W2A100MT(RE3)
C401-406 00D 257 0509 929 CK73B1H102KT +1608
C407-412 00D 257 0501 901 CK73B1H103KT (1608) +1608
C413-418 00D 254 4577 945 CE04W1C101MT(RE3)
C419-424 00D 254 4574 919 CE04W1H470MT(RE3)
C501 00D 257 0509 929 CK73B1H102KT +1608 for EU,EC
C502 00D 254 4573 949 CE04W1H010MT(RE3) for EU,EC
112
AVR-4806/AVC-A11XV
C503 00D 257 0509 929 CK73B1H102KT +1608 for EU,EC
C504,505 00D 254 4573 981 CE04W1H100MT(RE3) for EU,EC
C506,507 00D 254 4579 707 CE04W1H221MC(RE3)
C508,509 00D 254 4574 922 CE04W1H101MT(RE3)
C510,511 00D 254 6247 008 CE68W1V123M(KMH)
C513,514 00D 255 1279 951 CQ93M1H104JT(B)
C515 00D 256 1042 903 CF93A2E104KT
C601 00D 257 0509 929 CK73B1H102KT +1608
C602 00D 257 0501 901 CK73B1H103KT (1608) +1608
C605-609 00D 257 0509 929 CK73B1H102KT +1608
C612 00D 254 4577 945 CE04W1C101MT(RE3)
C615-619 00D 254 4573 981 CE04W1H100MT(RE3)
C621-623 00D 254 4573 981 CE04W1H100MT(RE3)
C625 00D 254 4573 981 CE04W1H100MT(RE3)
C627 00D 254 4706 004 CE68W1A473M(KMH)
C629 00D 255 1279 951 CQ93M1H104JT(B)
C630 00D 254 4573 981 CE04W1H100MT(RE3)
C702 00D 257 0506 951 CC73CH1H101JT +1608
C704 00D 257 0509 929 CK73B1H102KT +1608
C706 00D 254 4573 994 CE04W1H220MT(RE3)
C707-709 00D 257 0506 951 CC73CH1H101JT +1608
C710-712 00D 257 0509 929 CK73B1H102KT +1608
C713-718 00D 254 4573 994 CE04W1H220MT(RE3)
C720 00D 254 4573 994 CE04W1H220MT(RE3)
C721 00D 254 4684 702 CE04W1E103MC(KMQ)
C722 00D 255 1279 951 CQ93M1H104JT(B)
C791-797 00D 255 1264 908 CQ93M1H102JT(B)
C798-806 00D 255 1264 982 CQ93M1H472JT(B)
OTHERS PARTS GROUP
! AC108 00D 203 3946 003 AC OUTLET(POLARIZED)
AS701-703 00D 205 1034 007 M3 SCREW TERMINAL
CW042-049 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CW053 00D 205 0885 008 5P CON.SOCKET TUC-P
CW055-059 00D 205 0885 008 5P CON.SOCKET TUC-P
CW062 00D 205 0942 019 6P CON.SOCKET(TUC-P
CW071 00D 205 0942 022 7P CON.SOCKET(TUC-P
CW941 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CW942 00D 205 0885 082 4P CON.SOCKET(TUC-P) for EU,EC
CW948,949 00D 205 0885 082 4P CON.SOCKET(TUC-P)
CW954 00D 205 0885 008 5P CON.SOCKET TUC-P
CX037 00D 205 0277 030 3P EH CON BASE (RD)
CX039 00D 205 0233 032 3P EH CONNECTOR BASE
CX040 00D 205 0343 045 4P CONN.BASE(KR-PH)
CX042-049 00D 205 0884 083 4P CON.BASE(TUC-P)
CX051 00D 205 0343 058 5P CONN.BASE(KR-PH)
CX053 00D 205 0884 009 5P CON.BASE TUC-P
CX055-059 00D 205 0884 009 5P CON.BASE TUC-P
CX061 00D 205 0343 061 6P CONN.BASE(KR-PH)
CX062 00D 205 0943 018 6P CON.BASE(TUC-P)
CX071 00D 205 0943 021 7P CON.BASE(TUC-P)
CX076 00D 205 0355 075 7P KR CON BASE(L)
CX104 00D 205 0375 000 10P CON.BASE(KR-PH)
CX156 00D 205 0375 055 15P CONN.BASE(KR-PH)
CX724 00D 205 0581 001 2P VH CONNECTOR BASE
CX733 00D 205 0833 034 3P VH CON.BASE(YW)
CX737 00D 205 0233 032 3P EH CONNECTOR BASE
Ref. No. Part No. Part Name Remarks Q'ty New
113
AVR-4806/AVC-A11XV
CX738 00D 205 0277 030 3P EH CON BASE (RD)
CX941 00D 205 0884 083 4P CON.BASE(TUC-P)
CX942 00D 205 0884 083 4P CON.BASE(TUC-P) for EU,EC
CX943 00D 205 0343 045 4P CONN.BASE(KR-PH)
CX948,949 00D 205 0884 083 4P CON.BASE(TUC-P)
CX951 00D 205 0406 050 5P CON BASE(KR-PH)
CX953,954 00D 205 0884 009 5P CON.BASE TUC-P
CX955 00D 205 0884 083 4P CON.BASE(TUC-P)
CY039 00D 205 0233 032 3P EH CONNECTOR BASE
CY040 00D 205 0355 046 4P KR CON BASE(L)
CY742 00D 205 0233 045 4P EH CONNECTOR BASE
CY744 00D 205 0233 045 4P EH CONNECTOR BASE
CY939 00D 205 0343 032 3P CONN.BASE(KR-PH)
CY952 00D 205 0321 054 5P CONNE.BASE (RED)
! F16,17 00D 206 1039 089 FUSE 3.15A
! F19 00D 206 1039 076 FUSE 2.5A
! F20,21 00D 206 1039 089 FUSE 3.15A
FF501,502 00D 202 0040 909 FUSE CLIP(TAPE)
FF601 00D 202 0040 909 FUSE CLIP(TAPE)
FF701 00D 202 0040 909 FUSE CLIP(TAPE)
FF703 00D 202 0040 909 FUSE CLIP(TAPE)
FH501,502 00D 202 0040 909 FUSE CLIP(TAPE)
FH601 00D 202 0040 909 FUSE CLIP(TAPE)
FH701 00D 202 0040 909 FUSE CLIP(TAPE)
FH703 00D 202 0040 909 FUSE CLIP(TAPE)
JK701,702 00D 205 1335 007 4P SP TERMINAL
JK711 00D 205 1336 006 6P SP TERMINAL
JK712 00D 205 1335 007 4P SP TERMINAL
W501 00D 203 0711 011 1P SIN-SIN CORD to W501A
W502 00D 203 0711 037 1P SIN-SIN CORD to W502A
AS203 00D 417 0666 037 RADIATOR for TR203
00D 470 0051 009 3X8 CPS(SW,W) ZNP for TR203
00D 417 0687 003 RADIATOR for D611
00D 470 0014 020 3X16 CPS SW W ZNP for D611
Ref. No. Part No. Part Name Remarks Q'ty New
114
AVR-4806/AVC-A11XV
00D1U-3684 CONNECT P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101,102 00D 263 1225 906 NJM2581M-TE1
IC103 00D 262 3365 900 BH7868FS
IC106,107 00D 263 1197 908 BU4094BCFV-E2
IC204 00D 263 0896 909 NJM2068MD-TE1 +C
IC301 00D 263 1198 907 LT1399CS +REF
IC302,303 00D 263 1082 903 TK15420MTL +C
IC304 00D 263 1079 903 BA033FP +C
IC305 00D 262 3440 003 TE8200PF
IC306 00D 263 1079 903 BA033FP +C
IC307 00D 262 3265 903 LM1117MPX-1.8 +C
IC308 00D 263 1183 909 NJU7223DL1-25 +C
IC309 00D 262 3446 900 TC4052BFT
IC401 00D 262 3443 903 SN65LVDS050PWR
IC402 00D 262 3432 901 SN65LVDS1DBVR
IC403 00D 263 1136 901 BA033LBSG-TR
IC404 00D 263 1040 903 BU4094BCF-E2 +C
IC405 00D 262 3437 906 TC74VHCT244AFT
IC406 00D 262 3436 907 TC74VHC244FT
IC407 00D 262 3437 906 TC74VHCT244AFT
IC408 00D 262 3436 907 TC74VHC244FT
IC409 00D GEN6922-1 MAIN CPU SUB ASS'Y for EU,EC : M30835FJGP
IC409 00D GEN6922-A MAIN CPU SUB ASS'Y for EUT : M30835FJGP
IC410 00D 262 3428 902 M95128-WMN6T
IC414 00D 263 1136 901 BA033LBSG-TR
IC605 00D 262 3360 905 LC72722PM-TLM
IC707 00D 262 3351 901 LMS202IMX +C
IC801-804 00D 263 0896 909 NJM2068MD-TE1 +C for EUT
IC901 00D GEN6924-1 VIDEO CPU SUB ASS'Y for EU,EC : M30627FHPGP
IC901 00D GEN6924-A VIDEO CPU SUB ASS'Y for EUT : M30627FHPGP
IC902 00D 262 3424 906 LTC1694CS5
IC903 00D 262 3425 905 LTC4300-2CMS8
IC904 00D 263 1079 903 BA033FP +C
IC907 00D 262 3437 906 TC74VHCT244AFT
IC908 00D 262 3443 903 SN65LVDS050PWR
IC909 00D 262 3433 900 SN65LVDS2DBVR
TR101 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR102 00D 269 0144 905 DTC114YK-T146 +C
TR103 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR104 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR105 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR106 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR107 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR108 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR109 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR112 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR113 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR114 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR115 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR301,302 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR303 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR404 00D 271 0326 904 2SA1954(B)-TE85L
TR405 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR406 00D 269 0184 907 KRA102S-RTK +C
TR407 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR408 00D 273 0464 901 KTC3875SGR-RTK +C
TR409 00D 271 0326 904 2SA1954(B)-TE85L
TR410 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
2
2
2
2
115
AVR-4806/AVC-A11XV
TR411 00D 271 0326 904 2SA1954(B)-TE85L
TR412 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR415,416 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR417 00D 273 0464 901 KTC3875SGR-RTK +C
TR418,419 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR420 00D 273 0464 901 KTC3875SGR-RTK +C
TR421 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR422 00D 271 0326 904 2SA1954(B)-TE85L
TR423 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR425 00D 273 0464 901 KTC3875SGR-RTK +C
TR426 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR427,428 00D 273 0464 901 KTC3875SGR-RTK +C
TR429 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR430,431 00D 273 0464 901 KTC3875SGR-RTK +C
TR602 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR604 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR605,606 00D 269 0066 902 DTC323TKT96 +C
TR607 00D 269 0086 908 DTA114TKT96 +C
TR619 00D 273 0464 901 KTC3875SGR-RTK +C
TR841 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
TR842 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR901,902 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR903 00D 271 0312 905 2SA/KTA1504SGR-RTK +C
TR904 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
D101-105 00D 276 0794 900 KDS160 +2125
D107,108 00D 276 0794 900 KDS160 +2125
D124-127 00D 276 0829 901 NSAD500F-T1B
D301 00D 276 0750 902 RB521S-30TE61 +REF
D302,303 00D 276 0794 900 KDS160 +2125
D401,402 00D 276 0751 901 1SR154-400TE25 +REF
D403 00D 276 0794 900 KDS160 +2125
D404 00D 276 0686 908 UDZ3.3B-TE17
D405 00D 276 0794 900 KDS160 +2125
D906 00D 276 0750 902 RB521S-30TE61 +REF
ZD401 00D 276 0683 930 UDZS5.1B-TE17 +C
CAPACITORS GROUP
C110 00D 254 4464 906 CE67C0J101MT +REF
C111 00D 257 0501 901 CK73B1H103KT (1608) +1608
C112 00D 254 4464 906 CE67C0J101MT +REF
C113 00D 257 0501 901 CK73B1H103KT (1608) +1608
C114 00D 254 4464 906 CE67C0J101MT +REF
C115-118 00D 257 0501 901 CK73B1H103KT (1608) +1608
C119,120 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C121-123 00D 257 0501 901 CK73B1H103KT (1608) +1608
C124 00D 254 4464 906 CE67C0J101MT +REF
C125 00D 257 0501 901 CK73B1H103KT (1608) +1608
C126 00D 254 4464 906 CE67C0J101MT +REF
C127 00D 257 0501 901 CK73B1H103KT (1608) +1608
C128 00D 254 4464 906 CE67C0J101MT +REF
C129-132 00D 257 0501 901 CK73B1H103KT (1608) +1608
C133,134 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C135-137 00D 257 0501 901 CK73B1H103KT (1608) +1608
C138 00D 257 0516 941 CK73B1E473KT +1608
C139 00D 257 0501 901 CK73B1H103KT (1608) +1608
C140,141 00D 257 0507 934 CC73CH1H221JT +1608
C142 00D 257 0516 941 CK73B1E473KT +1608
C143 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
Ref. No. Part No. Part Name Remarks Q'ty New
116
AVR-4806/AVC-A11XV
C144 00D 257 0516 941 CK73B1E473KT +1608
C145 00D 257 0516 954 CK73B1E104KT +1608
C146,147 00D 257 0501 901 CK73B1H103KT (1608) +1608
C148-150 00D 257 0038 908 CK73B1A106KT +2125
C151 00D 257 0501 901 CK73B1H103KT (1608) +1608
C152 00D 254 4464 906 CE67C0J101MT +REF
C153 00D 257 0038 908 CK73B1A106KT +2125
C154 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C155 00D 254 4464 906 CE67C0J101MT +REF
C156 00D 257 0516 954 CK73B1E104KT +1608
C157 00D 254 4464 906 CE67C0J101MT +REF
C158 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C159 00D 254 4464 906 CE67C0J101MT +REF
C160 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C161 00D 254 4655 977 CE67C0J102MT (RV) +REF
C162 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C163 00D 254 4464 906 CE67C0J101MT +REF
C164 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C165 00D 254 4464 906 CE67C0J101MT +REF
C166 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C172 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C173,174 00D 257 0501 901 CK73B1H103KT (1608) +1608
C301,302 00D 257 0501 901 CK73B1H103KT (1608) +1608
C303,304 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C305 00D 254 4464 906 CE67C0J101MT +REF
C308 00D 254 4464 906 CE67C0J101MT +REF
C311 00D 254 4464 906 CE67C0J101MT +REF
C314 00D 254 4464 906 CE67C0J101MT +REF
C315,316 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C317,318 00D 257 0501 901 CK73B1H103KT (1608) +1608
C321 00D 254 4464 906 CE67C0J101MT +REF
C324 00D 254 4464 906 CE67C0J101MT +REF
C325,326 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C327,328 00D 257 0501 901 CK73B1H103KT (1608) +1608
C331 00D 254 4464 906 CE67C0J101MT +REF
C332 00D 257 4015 901 CE67C1C330MT(PXA)
C333 00D 254 4571 925 CE67C1H2R2MT(MV-B) +REF
C334,335 00D 257 0504 982 CC73CH1H470JT +1608
C336,337 00D 257 0501 901 CK73B1H103KT (1608) +1608
C338,339 00D 254 4464 906 CE67C0J101MT +REF
C340 00D 257 0516 954 CK73B1E104KT +1608
C341,342 00D 257 0521 907 CK73B1A105KT +1608
C343 00D 257 0516 954 CK73B1E104KT +1608
C344 00D 257 0521 907 CK73B1A105KT +1608
C345 00D 257 0516 954 CK73B1E104KT +1608
C346 00D 257 0504 940 CC73CH1H330JT +1608
C347 00D 257 0516 954 CK73B1E104KT +1608
C348 00D 257 0504 940 CC73CH1H330JT +1608
C349,350 00D 257 0516 954 CK73B1E104KT +1608
C351 00D 257 0521 907 CK73B1A105KT +1608
C352 00D 257 0501 901 CK73B1H103KT (1608) +1608
C353 00D 254 4464 906 CE67C0J101MT +REF
C354 00D 257 4015 901 CE67C1C330MT(PXA)
C355,356 00D 257 0516 954 CK73B1E104KT +1608
C357,358 00D 254 4464 906 CE67C0J101MT +REF
C359,360 00D 257 0516 954 CK73B1E104KT +1608
C361 00D 254 4464 906 CE67C0J101MT +REF
C362,363 00D 257 0501 901 CK73B1H103KT (1608) +1608
C401 00D 257 0509 929 CK73B1H102KT +1608
C402 00D 257 0506 951 CC73CH1H101JT +1608
C403,404 00D 257 0509 929 CK73B1H102KT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
117
AVR-4806/AVC-A11XV
C405 00D 257 0506 951 CC73CH1H101JT +1608
C406,407 00D 257 0502 984 CC73CH1H6R0DT +1608
C408 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C409 00D 257 0506 951 CC73CH1H101JT +1608
C410 00D 257 0509 929 CK73B1H102KT +1608
C412 00D 257 0509 929 CK73B1H102KT +1608
C413 00D 257 0506 951 CC73CH1H101JT +1608
C414,415 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C416 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C417,418 00D 254 4655 951 CE67C0J331MT (RV) +REF
C419-421 00D 257 0512 903 CK73F1E104ZT +1608
C422 00D 257 0506 951 CC73CH1H101JT +1608
C423,424 00D 257 0509 929 CK73B1H102KT +1608
C425 00D 257 0506 951 CC73CH1H101JT +1608
C428-431 00D 257 0516 954 CK73B1E104KT +1608
C433 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C434 00D 257 0516 954 CK73B1E104KT +1608
C435,436 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C437 00D 257 0516 954 CK73B1E104KT +1608
C438,439 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C440 00D 257 0509 929 CK73B1H102KT +1608
C441 00D 254 4666 005 CE04W0H105ZC(FG)
C442 00D 257 0501 901 CK73B1H103KT (1608) +1608
C443 00D 257 4016 900 CE67C1E4R7MT(MV-B)
C444 00D 257 0516 954 CK73B1E104KT +1608
C445,446 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C447 00D 257 0501 901 CK73B1H103KT (1608) +1608
C448 00D 257 0509 929 CK73B1H102KT +1608
C449 00D 257 0516 954 CK73B1E104KT +1608
C450 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C453,454 00D 257 0509 929 CK73B1H102KT +1608
C455,456 00D 257 0506 951 CC73CH1H101JT +1608
C459 00D 257 0509 929 CK73B1H102KT +1608
C460,461 00D 257 0506 951 CC73CH1H101JT +1608
C462 00D 257 0509 929 CK73B1H102KT +1608
C463 00D 257 0506 951 CC73CH1H101JT +1608
C464,465 00D 257 0509 929 CK73B1H102KT +1608
C466,467 00D 257 0506 951 CC73CH1H101JT +1608
C468 00D 257 0509 929 CK73B1H102KT +1608
C469 00D 257 0506 951 CC73CH1H101JT +1608
C470 00D 257 0509 929 CK73B1H102KT +1608
C471 00D 257 0506 951 CC73CH1H101JT +1608
C473,474 00D 257 0509 929 CK73B1H102KT +1608
C476 00D 257 0506 951 CC73CH1H101JT +1608
C478 00D 257 0506 951 CC73CH1H101JT +1608
C480 00D 257 0509 929 CK73B1H102KT +1608
C482,483 00D 257 0509 929 CK73B1H102KT +1608
C484-487 00D 257 0506 951 CC73CH1H101JT +1608
C488,489 00D 257 0509 929 CK73B1H102KT +1608
C494 00D 257 0501 901 CK73B1H103KT (1608) +1608
C498 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C499 00D 257 0506 951 CC73CH1H101JT +1608
C601 00D 257 0516 954 CK73B1E104KT +1608
C605-607 00D 257 0509 929 CK73B1H102KT +1608
C609-611 00D 257 0509 945 CK73B1H122KT +1608
C613 00D 257 0038 908 CK73B1A106KT +2125
C615,616 00D 257 0507 934 CC73CH1H221JT +1608
C617,618 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C621,622 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C623,624 00D 257 0037 909 CK73B1E105KT +2125
C645 00D 257 0507 976 CC73CH1H331JT +1608
Ref. No. Part No. Part Name Remarks Q'ty New
118
AVR-4806/AVC-A11XV
C646 00D 257 0037 909 CK73B1E105KT +2125
C648 00D 257 0038 908 CK73B1A106KT +2125
C649 00D 257 0516 909 CK73B1E223KT +1608
C650 00D 257 0508 933 CC73CH1H561JT +1608
C653,654 00D 257 0504 924 CC73CH1H270JT +1608
C762 00D 257 0516 954 CK73B1E104KT +1608
C763-766 00D 257 0011 996 CK73B1E104KT +2125
C767 00D 257 0516 954 CK73B1E104KT +1608
C768 00D 257 0038 908 CK73B1A106KT +2125
C769-771 00D 257 0506 951 CC73CH1H101JT +1608
C772,773 00D 257 0516 954 CK73B1E104KT +1608
C801,802 00D 257 0507 934 CC73CH1H221JT +1608 for EUT
C803,804 00D 254 4572 908 CE67C1C100MT(MV-B) +REF for EUT
C805,806 00D 254 4464 951 CE67C0J220MT(MV-B) +REF for EUT
C807,808 00D 254 4604 944 CE67W1H010MT(P.CAP) for EUT
C809,810 00D 257 0507 934 CC73CH1H221JT +1608 for EUT
C811,812 00D 254 4572 908 CE67C1C100MT(MV-B) +REF for EUT
C813,814 00D 254 4464 951 CE67C0J220MT(MV-B) +REF for EUT
C815,816 00D 257 0507 934 CC73CH1H221JT +1608 for EUT
C817,818 00D 254 4572 908 CE67C1C100MT(MV-B) +REF for EUT
C819,820 00D 254 4464 951 CE67C0J220MT(MV-B) +REF for EUT
C821,822 00D 257 0507 934 CC73CH1H221JT +1608 for EUT
C823,824 00D 254 4572 908 CE67C1C100MT(MV-B) +REF for EUT
C825,826 00D 254 4464 951 CE67C0J220MT(MV-B) +REF for EUT
C827,828 00D 257 0509 929 CK73B1H102KT +1608 for EUT
C829,830 00D 254 4571 912 CE67C1H010MT(MV-B) +REF for EUT
C864,865 00D 257 0516 954 CK73B1E104KT +1608 for EUT
C908 00D 257 4010 906 CE67C1C101MT +REF
C909 00D 257 0516 954 CK73B1E104KT +1608
C910,911 00D 257 0504 908 CC73CH1H220JT +1608
C912 00D 257 0509 929 CK73B1H102KT +1608
C913 00D 257 0507 921 CC73CH1H201JT +1608
C915-917 00D 257 0516 954 CK73B1E104KT +1608
C922 00D 254 4464 906 CE67C0J101MT +REF
C924 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C928 00D 257 0516 954 CK73B1E104KT +1608
C929,930 00D 257 0509 929 CK73B1H102KT +1608
C931 00D 257 0516 954 CK73B1E104KT +1608
C932 00D 257 0509 929 CK73B1H102KT +1608
C933 00D 257 0516 954 CK73B1E104KT +1608
C934,935 00D 257 0509 929 CK73B1H102KT +1608
C936 00D 257 0516 954 CK73B1E104KT +1608
C940 00D 257 0507 921 CC73CH1H201JT +1608
C941,942 00D 257 0506 977 CC73CH1H121JT +1608
CC465 00D 257 0506 977 CC73CH1H121JT +1608
OTHERS PARTS GROUP
CN411 00D 205 1154 987 8P ZH-ZR CON.BASE(T) +REF
CN910 00D 205 0343 087 8P CONN.BASE(KR-PH)
CW095,096 00D 205 1325 091 9P SOCKET(9120)
CW101 00D 205 0885 053 10P CON.SOCKET TUC-P
CW103 00D 205 1326 003 10P SOCKET(9120)
CW106 00D 205 1326 003 10P SOCKET(9120)
CW134 00D 205 1326 032 13P SOCKET(9120)
CW151 00D 205 1326 058 15P SOCKET(9120)
CW853 00D 205 0885 008 5P CON.SOCKET TUC-P
CW855 00D 205 0885 008 5P CON.SOCKET TUC-P
CW857,858 00D 205 1325 059 5P SOCKET(9120)
CW940 00D 205 1325 046 4P SOCKET(9120)
Ref. No. Part No. Part Name Remarks Q'ty New
119
AVR-4806/AVC-A11XV
CW948 00D 205 1325 046 4P SOCKET(9120)
CW962 00D 205 1325 062 6P SOCKET(9120)
CW982 00D 205 0885 095 8P CON.SOCKET(TUC-P)
CX032 00D 205 0321 038 3P CONNE.BASE(RED)
CX037 00D 205 0277 030 3P EH CON BASE (RD)
CX050 00D 205 0884 009 5P CON.BASE TUC-P
CX061 00D 205 0942 019 6P CON.SOCKET(TUC-P for EUT
CX073 00D 205 0943 021 7P CON.BASE(TUC-P)
CX077 00D 205 0343 074 7P CONN.BASE(KR-PH)
CX103 00D 205 1154 903 10P ZH-ZR CON.BASE-T
CX105 00D 205 0884 054 10P CON.BASE TUC-P
CX122 00D 205 1313 935 12P FFC BASE(9610SC)
CX124 00D 205 0884 070 12P CON.BASE TUC-P
CX131 00D 205 1324 034 13P PIN HEADER(9120)
CX133 00D 205 0480 034 13P KR CON BASE(L)
CX134 00D 205 1324 034 13P PIN HEADER(9120)
CX141 00D 205 0375 042 14P CONN.BASE(KR-PH) for EUT
CX143 00D 205 0480 047 14P KR CON BASE(L)
CX151,152 00D 205 1324 050 15P PIN HEADER(9120)
CX154 00D 205 0770 045 15P FFC BASE(SIDE)
CX191 00D 205 1313 951 19P FFC BASE(9610SC)
CX201 00D 205 1329 026 20P FFC BASE(9610SB)
CX281 00D 205 1308 005 28P FFC BASE(P=1)
CX637 00D 205 1072 904 3P PH CON.BASE(TAPE) +REF
CX651 00D 205 0543 052 5P CONNE.BASE(YEL)
CX941,942 00D 205 0343 045 4P CONN.BASE(KR-PH)
CX952 00D 205 0321 054 5P CONNE.BASE (RED)
CX954 00D 205 0884 009 5P CON.BASE TUC-P
CY061 00D 205 0943 018 6P CON.BASE(TUC-P)
CY063 00D 205 1154 961 6P ZH-ZR CON.BASE-T
CY072 00D 205 0343 074 7P CONN.BASE(KR-PH)
CY074 00D 205 1154 974 7P ZH-ZR CON.BASE-T
CY104 00D 205 0375 000 10P CON.BASE(KR-PH)
CY191 00D 205 1313 951 19P FFC BASE(9610SC)
CY282 00D 205 1100 041 28P FFC BASE (P=1)
CY734 00D 205 0343 032 3P CONN.BASE(KR-PH)
CY950 00D 205 1072 920 5P PH CON BASE(TAPE) +REF
CY951 00D 205 0406 050 5P CON BASE(KR-PH)
FB401-403 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB405 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB407-410 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB411-413 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB415,416 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB417 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB418-420 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB421,422 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB424 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB425 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB427 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB428,429 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
FB622 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB623,624 00D 247 0018 905 RM73B--0R0KT +2125
FB705-709 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
FB901 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125
JK101-103 00D 204 8578 000 3P PIN JACK(S-GND)
JK104,105 00D 204 8715 009 YKC21-4108N(3PJACKAU
JK705 00D 205 1305 008 9P D-SUB CONNECTOR
Ref. No. Part No. Part Name Remarks Q'ty New
120
AVR-4806/AVC-A11XV
JK801,802 00D 204 8514 006 4P PIN JACK(S-GND) for EUT
L301-312 00D 247 1018 904 RM73B20R0KT +3216
L313 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216
RL101-106 00D 214 0228 902 RELAY(EE2-12N35) +REF
RL109-112 00D 214 0228 902 RELAY(EE2-12N35) +REF
S403 00D 212 4807 909 TACT SW(SKQDAA) +REF
S902 00D 212 4807 909 TACT SW(SKQDAA) +REF
ST101 00D 205 0452 017 STYLE PIN
W401,402 00D 205 1034 007 M3 SCREW TERMINAL
X301 00D 399 1019 903 CSTCG27M0V53-R0
X401 00D 399 0975 909 X-TAL(30MHZ)
X601 00D 399 0178 007 X-TAL(4.332MHZ)
X901 00D 399 0974 900 X-TAL(12MHZ)
Ref. No. Part No. Part Name Remarks Q'ty New
121
AVR-4806/AVC-A11XV
00D1U-3685 ETHERNET P.W.B. UNIT ASS'Y
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC601 00D 262 3395 006 DM9000EP(PB FREE)
IC701 00D 262 3262 003 DM1000
IC705 00D 262 3265 903 LM1117MPX-1.8 +C
IC801 00D GEN 6955 DM800 ROM SUB ASS'Y M29W320BD70N6
IC802,803 00D 262 3341 005 CY7C1049CV33-10ZC +REF
IC901,902 00D 262 3120 909 SN65LVDS31PW +REF
IC951 00D 262 3261 907 CY2302 +REF
IC952 00D 262 3062 902 FCX0-03(24.576MHZ) +REF
IC953 00D 262 2944 908 SN74HC151APW-EL2 +REF
IC957,958 00D 262 3415 902 TC7SZU04F
TR601 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR602 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
TR603 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR701 00D 269 0193 901 KRC104S-RTK(47K-47K) +C
TR702 00D 269 0191 903 KRA104S-RTK(47K-47K) +C
D703 00D 276 0794 900 KDS160 +2125
D951,952 00D 276 0793 901 BBY40 +C
CAPACITORS GROUP
C601 00D 257 0509 929 CK73B1H102KT +1608
C603-605 00D 257 0516 954 CK73B1E104KT +1608
C612 00D 257 0509 929 CK73B1H102KT +1608
C613,614 00D 257 0502 984 CC73CH1H6R0DT +1608
C615 00D 257 0509 929 CK73B1H102KT +1608
C616 00D 257 0516 954 CK73B1E104KT +1608
C617 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C619 00D 257 0516 954 CK73B1E104KT +1608
C621 00D 257 0509 929 CK73B1H102KT +1608
C624 00D 257 0509 929 CK73B1H102KT +1608
C630 00D 257 0516 954 CK73B1E104KT +1608
C637 00D 257 0509 929 CK73B1H102KT +1608
C639 00D 257 0509 929 CK73B1H102KT +1608
C701,702 00D 257 0509 929 CK73B1H102KT +1608
C703 00D 257 0516 954 CK73B1E104KT +1608
C704 00D 257 0509 929 CK73B1H102KT +1608
C705 00D 257 0506 951 CC73CH1H101JT +1608
C706 00D 257 0516 954 CK73B1E104KT +1608
C723 00D 257 0509 929 CK73B1H102KT +1608
C724 00D 257 0516 954 CK73B1E104KT +1608
C725 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C726 00D 257 0509 929 CK73B1H102KT +1608
C727 00D 257 0516 954 CK73B1E104KT +1608
C728 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C732 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C733 00D 257 0509 929 CK73B1H102KT +1608
C736 00D 257 0516 954 CK73B1E104KT +1608
C739 00D 257 0509 929 CK73B1H102KT +1608
C742 00D 257 0516 954 CK73B1E104KT +1608
C801,802 00D 257 0516 954 CK73B1E104KT +1608
C803,804 00D 257 0509 929 CK73B1H102KT +1608
C805 00D 257 0516 954 CK73B1E104KT +1608
C806 00D 257 0509 929 CK73B1H102KT +1608
C807 00D 257 0516 954 CK73B1E104KT +1608
C808 00D 257 0509 929 CK73B1H102KT +1608
C809 00D 257 0516 954 CK73B1E104KT +1608
122
AVR-4806/AVC-A11XV
C810 00D 257 0509 929 CK73B1H102KT +1608
C811 00D 257 0516 954 CK73B1E104KT +1608
C901,902 00D 257 0509 929 CK73B1H102KT +1608
C903-906 00D 247 2018 903 RM73B--0R0KT +1608
C909 00D 257 0516 954 CK73B1E104KT +1608
C910 00D 257 0509 929 CK73B1H102KT +1608
C911 00D 257 0516 954 CK73B1E104KT +1608
C912 00D 257 0509 929 CK73B1H102KT +1608
C951 00D 257 0516 954 CK73B1E104KT +1608
C952 00D 257 0509 929 CK73B1H102KT +1608
C953,954 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C955 00D 257 0509 929 CK73B1H102KT +1608
C956 00D 257 0516 954 CK73B1E104KT +1608
C959 00D 257 0516 954 CK73B1E104KT +1608
C960 00D 257 0509 929 CK73B1H102KT +1608
C963 00D 257 4016 900 CE67C1E4R7MT(MV-B)
C964 00D 257 0520 911 CK73B1A224KT +1608
C970 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C971-973 00D 257 0509 929 CK73B1H102KT +1608
OTHERS PARTS GROUP
CX941 00D 205 1154 945 4P ZH-ZR CON.BASE-T
CY041 00D 205 1072 917 4P PH CON BASE(TAPE) +REF
CY122 00D 205 1313 935 12P FFC BASE(9610SC)
CY231 00D 205 1343 918 23P FFC BASE(9610SCA
FB901 00D 235 0181 907 ZBFS5105-PT
FB951 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
JK601 00D 205 1333 009 8P MODULAR
L601 00D 235 0150 909 LQH32MN150J23L
L951 00D 235 0150 983 LQH32MN1R8K23L
S701 00D 212 4807 909 TACT SW(SKQDAA) +REF
W601,602 00D 205 1034 023 M3 SCREW TERMINAL
X601 00D 399 0996 904 XTAL(25MHZ/SMT)
Ref. No. Part No. Part Name Remarks Q'ty New
123
AVR-4806/AVC-A11XV
00D1U-3711 XM P.W.B. UNIT ASS'Y (for EU, EC model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC101 00D 262 3516 908 FCXO-03L(45.1584MHZ)
IC102 00D 262 3517 907 F2602-01-TR
IC103 00D 262 2517 908 SN74LV08APW-EL2 +REF
IC104 00D 262 2813 903 SN74AHCT08PW-EL2 +C
IC105 00D 262 3332 904 PCM1791ADBR +REF
IC106 00D 263 1079 903 BA033FP +C
IC353 00D 263 0896 909 NJM2068MD-TE1 +C
TR101 00D 269 0184 907 KRA102S-RTK +C
TR102-104 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
D101,102 00D 276 0829 901 NSAD500F-T1B
D103 00D 276 0794 900 KDS160 +2125
RESISTORS GROUP
R130,131 00D 257 0516 954 CK73B1E104KT +1608
CAPACITORS GROUP
C101 00D 257 0503 996 CC73CH1H200JT +1608
C102,103 00D 257 0516 954 CK73B1E104KT +1608
C104,105 00D 257 0509 929 CK73B1H102KT +1608
C106-108 00D 257 0503 996 CC73CH1H200JT +1608
C109-113 00D 257 0516 954 CK73B1E104KT +1608
C114 00D 257 0509 929 CK73B1H102KT +1608
C115,116 00D 254 4465 921 CE67C1C100MT +REF
C117,118 00D 257 0516 954 CK73B1E104KT +1608
C119,120 00D 257 0509 929 CK73B1H102KT +1608
C121,122 00D 254 4465 921 CE67C1C100MT +REF
C123 00D 257 0509 929 CK73B1H102KT +1608
C124 00D 257 0516 954 CK73B1E104KT +1608
C125 00D 257 0509 929 CK73B1H102KT +1608
C126 00D 257 0516 954 CK73B1E104KT +1608
C127 00D 254 4465 921 CE67C1C100MT +REF
C128 00D 257 0516 954 CK73B1E104KT +1608
C129 00D 254 4465 921 CE67C1C100MT +REF
C130 00D 257 0509 929 CK73B1H102KT +1608
C131 00D 254 4465 921 CE67C1C100MT +REF
C132,133 00D 257 0509 987 CK73B1H182KT +1608
C134-137 00D 257 0508 933 CC73CH1H561JT +1608
C138,139 00D 254 4465 921 CE67C1C100MT +REF
C140 00D 257 4010 906 CE67C1C101MT +REF
C141 00D 254 4465 921 CE67C1C100MT +REF
C142-145 00D 257 0516 954 CK73B1E104KT +1608
OTHERS PARTS GROUP
CX210 00D 205 1343 947 21P FFC BASE(9610SC)
CX301 00D 205 1360 001 30P PLUG(9850BA)
CX841 00D 205 1362 009 XM/DT BUS CONNECTOR
CY153 00D 205 1343 934 15P FFC BASE(9610SC)
CY301 00D 205 1361 903 30P SOCKET(9850SA)
CY855 00D 205 1072 920 5P PH CON BASE(TAPE) +REF
FB101,102 00D 235 0130 903 CHIP EMIFIL(11A121) +1608
W101,102 00D 205 1034 007 M3 SCREW TERMINAL
124
AVR-4806/AVC-A11XV
00D1U-3712 XM REG P.W.B. UNIT ASS'Y (for EU, EC model)
Ref. No. Part No. Part Name Remarks Q'ty New
SEMICONDUCTORS GROUP
IC108 00D 263 0896 909 NJM2068MD-TE1 +C
IC303 00D 263 1092 003 BA05T
IC306 00D 263 1223 005 PQ20RX11J00H
IC401 00D 263 1078 904 BA05FP +C
IC801-804 00D 263 0896 909 NJM2068MD-TE1 +C
TR301,302 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR401,402 00D 269 0192 902 KRC102S-RTK(10K-10K) +C
TR403-405 00D 269 0184 907 KRA102S-RTK +C
TR406-409 00D 273 0460 905 KTC2875B-RTK +C
TR410 00D 273 0464 901 KTC3875SGR-RTK +C
TR411 00D 271 0305 909 KTA1504SY-RTK +C
D301 00D 276 0305 001 S4VB20
D401-404 00D 276 0794 900 KDS160 +2125
RESISTORS GROUP
R415,416 00D 244 2043 953 RS14B3A471JNBST(S)
CAPACITORS GROUP
C159,160 00D 254 4573 949 CE04W1H010MT(RE3)
C301 00D 254 4538 942 CE04W1C101MT SMG/RE3
C304 00D 254 6253 005 CE68W1C183M(KMH)
C305 00D 255 1279 951 CQ93M1H104JT(B)
C306 00D 255 1265 936 CQ93M1H103JT(B)
C401 00D 254 4573 981 CE04W1H100MT(RE3)
C402,403 00D 254 4524 998 CE04W1H220MT SMG/RE3
C404 00D 254 4573 981 CE04W1H100MT(RE3)
C405 00D 254 4524 901 CE04W1H0R1MT SMG/RE3
C801,802 00D 257 0507 934 CC73CH1H221JT +1608
C803,804 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C805,806 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C807,808 00D 254 4604 944 CE67W1H010MT(P.CAP)
C809,810 00D 257 0507 934 CC73CH1H221JT +1608
C811,812 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C813,814 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C815,816 00D 257 0507 934 CC73CH1H221JT +1608
C817,818 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C819,820 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C821,822 00D 257 0507 934 CC73CH1H221JT +1608
C823,824 00D 254 4572 908 CE67C1C100MT(MV-B) +REF
C825,826 00D 254 4464 951 CE67C0J220MT(MV-B) +REF
C827,828 00D 257 0509 929 CK73B1H102KT +1608
C829,830 00D 254 4571 912 CE67C1H010MT(MV-B) +REF
C864,865 00D 257 0516 954 CK73B1E104KT +1608
CC301 00D 254 4538 942 CE04W1C101MT SMG/RE3
CC302,303 00D 257 0509 929 CK73B1H102KT +1608
CC304 00D 254 4538 942 CE04W1C101MT SMG/RE3
OTHERS PARTS GROUP
CW057 00D 205 0343 058 5P CONN.BASE(KR-PH)
CX061 00D 205 0942 019 6P CON.SOCKET(TUC-P
CX063 00D 205 1154 961 6P ZH-ZR CON.BASE-T
CX141 00D 205 0375 042 14P CONN.BASE(KR-PH)
125
AVR-4806/AVC-A11XV
CX631 00D 205 0321 038 3P CONNE.BASE(RED)
CX649 00D 205 0280 043 4P EH SID BASE (BU)
CX855 00D 205 0355 059 5P KR CON BASE(L)
CY210 00D 205 0892 062 21P FFC BASE (P=1)
CY637 00D 205 0343 032 3P CONN.BASE(KR-PH)
CY651 00D 205 0543 052 5P CONNE.BASE(YEL)
CZ057 00D 205 0321 054 5P CONNE.BASE (RED)
! F5 00D 206 1039 063 FUSE 2.0A T
FF301 00D 202 0040 909 FUSE CLIP(TAPE)
FH301 00D 202 0040 909 FUSE CLIP(TAPE)
JK801,802 00D 204 8514 006 4P PIN JACK(S-GND)
RL401 00D 214 0223 004 RELAY(EC2-24N35)
00D 417 0691 002 RADIATOR
00D 412 5245 005 RADIATOR BRACKET
00D 470 0051 009 3X8 CPS(SW,W) ZNP
Ref. No. Part No. Part Name Remarks Q'ty New
126
AVR-4806 / AVC-A11XV
202
214
214
205
205
88
214
214
39
26
214
203
202
49
206
202
202
206
206
206
42
170
8-2
206
202
202
206
84
77
216
79
80
81
206
17
206
205
17
16
58
205
212
206
202
202
202
207
100
207
57
7-5
6-4
64
15
53
25
7-2
63
207
207
200
62
72
67
70
71
73
207
6-5
68
6-9
207
207
85
205
201
206
74
205
205
201
208
206
212 205
206
205
206
171
170
163
167
173
29
27
28
217
202
87
206
1-1
52
211
51
21
50
211
212
206
206
206
205
32
20
19
11-2
206
212
212
12-1
7-4
212
212
211
211
202
41
42
87
51
49
26
46
66
39
40
50
206
213
40
166
166
168
45
202
202
202
206
206
206
35
206
202
202
205
215
215
205
212
212
205
215
215
212
8-3
8-4
104
95
94
95
93
11-1
34
205
205
37
218
8-6
10
4
9-4
6-16
9-3
6-17
3-1
8-5 5-1
2
5-2
7-7
9-1
172
31
169
30
52
202
170
43
44
8-1
1-2
6-13
6-14 6-12
12-2
9-2
3-2
9-5
43
41
44
33
33
36
207
207
6-1
6-11
6-7
69
6-2
65
6-8
207
209
207
83
78
59
60
61
6-6
6-10
216
76
6-3
208
55
56
7-1
AVR Model
AVC Model
AVR Model
AVR Model
AVC Model
AVCE2/E1CModel
AVR Model
AVC Model
E2/E1C Model
6-15 AVC Model
80 DOOR ASS'Yを交換する場合は
81 HINGE(L) 82 HINGR(R)を同時に
交換して下さい。
When exchange of 80 DOOR ASS'Y, exchange
81 HINGE (L) and 82 HINGR (R) simultaneously.
82
218
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。
Parts List
EXPLODED VIEWS
127
AVR-4806/AVC-A11XV
PARTS LIST OF EXPLODED VIEW
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EU: U.S.A. model EC: Canada model EUT : Taiwan R.O.C.model
E2: Europe model E1C : China model JP: Japan model
Ref. No. Part No. Part Name Remarks Q'ty New
1 00D1U-3356A AMP UNIT ASS'Y for EU,EC,EUT 1
1 00D1U-3356D AMP UNIT ASS'Y for E2,E1C,JP 1
1-1 AMP-L UNIT
1-2 AMP-R UNIT
2 00D1U-3667 DIGITAL UNIT ASS'Y for EU,EC 1 *
2 00D1U-3667A DIGITAL UNIT ASS'Y for E2,E1C,EUT,JP 1 *
3 00D1U-3668 A.VIDEO UNIT ASS'Y 1 *
3-1 S&CVBS UNIT
3-2 V.CONNECT UNIT
4 00D1U-3669 D.VIDEO UNIT ASS'Y
5 00D1U-3670 AUDIO UNIT ASS'Y for EU,EC 1 *
5 00D1U-3670A AUDIO UNIT ASS'Y for E2,E1C,JP 1 *
5 00D1U-3670E AUDIO UNIT ASS'Y for EUT 1 *
5-1 AUDIO UNIT
5-2 ADC/DAC UNIT
6 00D1U-3671 FRONT UNIT ASS'Y for EU,EC 1 *
6 00D1U-3671A FRONT UNIT ASS'Y for E2,E1C,EUT 1 *
6 00D1U-3671D FRONT UNIT ASS'Y for JP 1 *
6-1 FLD UNIT
6-2 P.SW UNIT
6-3 FUNCTION SEL UNIT
6-4 P.LED UNIT
6-5 TACT UNIT
6-6 USER UNIT
6-7 VOL UNIT
6-8 H/P UNIT
6-9 FRONT IN UNIT
6-10 MIC UNIT
6-11 FLD SUPPLY UNIT
6-12 PHONO UNIT
6-13 TRIGGER UNIT
6-14 DIGITAL IN UNIT
6-15 TUNER IN UNIT for E2,E1C,EUT,JP
6-16 D.TERMINAL UNIT for JP
6-17 D.CONNECT UNIT for JP
7 00D1U-3672 PRIMARY UNIT ASS'Y for EU,EC 1 *
7 00D1U-3672A PRIMARY UNIT ASS'Y for E2 1 *
7 00D1U-3672B PRIMARY UNIT ASS'Y for E1C 1 *
7 00D1U-3672D PRIMARY UNIT ASS'Y for JP 1 *
7 00D1U-3672E PRIMARY UNIT ASS'Y for EUT 1 *
7-1 PRIMARY UNIT
7-2 AMP SUPPLY UNIT
7-4 E2 RL UNIT for E2,E1C
7-5 ETHER RL UNIT
7-7 DSP REG UNIT
128
AVR-4806/AVC-A11XV
8 00D1U-3673 REGULATOR UNIT ASS'Y for EU,EC 1 *
8 00D1U-3673A REGULATOR UNIT ASS'Y for E2,E1C 1 *
8 00D1U-3673D REGULATOR UNIT ASS'Y for JP 1 *
8 00D1U-3673E REGULATOR UNIT ASS'Y for EUT 1 *
8-1 VIDEO REG UNIT
8-2 AUDIO REG UNIT
8-3 SP-R UNIT
8-4 SP-L UNIT
8-5 CONNECT-L UNIT
8-6 AC OUTLET1 UNIT for EU,EC,JP
9 00D1U-3684 CONNECT UNIT for EU, EC 1 *
9 00D1U-3684A CONNECT UNIT for E2,E1C,EUT 1 *
9 00D1U-3684D CONNECT UNIT for JP 1 *
9-1 CONNECT R UNIT
9-2 EXT.IN UNIT for E2,E1C,EUT,JP
9-3 VIDEO CPU UNIT
9-4 COMPONENT UNIT
9-5 V.CONNECT L UNIT
10 00D1U-3685 ETHERNET UNIT 1 *
11 00D1U-3711 XM UNIT for EU,EC 1 *
11-1 XM UNIT for EU,EC
11-2 XM JOINT UNIT for EU,EC
12 00D1U-3712 XM REG UNIT for EU,EC 1 *
12-1 XM REG UNIT for EU,EC
12-2 EXT.IN UNIT for EU,EC
15 00D 411 2084 208 FRONT CHASSIS 1 *
16 00D 412 5242 008 PWB BRACKET for EU,EC 1 *
16 00D 412 5242 008 PWB BRACKET for E2,E1C,EUT,JP 2 *
17 00D 412 5260 006 PWB BRACKET(XM) for EU,EC 1 *
★ 18 00D 513 4085 006 FUSE CAUTION(B) for EU,EC 1 *
19 00D 146 2432 008 GUIDE PLATE for EU,EC 2 *
20 00D 479 0003 041 PUSH RIVET for EU,EC 2 *
21 00D 414 1036 007 SHIELD SHEET for EU,EC 1 *
★ 22 00D 513 4046 003 FUSE CAUTION for EU,EC 1 *
★ 23 00D 513 4047 002 FUSE & IC CAUTION for EU,EC 1 *
★ 24 00D 513 4058 004 IC CAUTION LABEL for EU,EC 1 *
25 00D 412 5216 102 TRANS PLATE 1 *
26 00D 411 2072 003 SIDE CHASSIS for E2,E1C,EUT,JP 2
26 00D 411 2072 029 SIDE CHASSIS for EU,EC 2 *
27 00D 414 1033 000 SHIELD PLATE 1 *
28 00D 414 1033 013 SHIELD PLATE 1 *
29 00D 414 1034 009 SHIELD SHEET 1 *
30 00D 461 1227 003 RUBBER FOAM 2 *
31 00D 414 1026 004 SHIELD PLATE(DIGITAL) 1 *
32 00D 412 5256 007 XM BRACKET for EU,EC 1 *
33 00D 105 1476 064 BACK PANEL for EU,EC 1 *
33 00D 105 1476 019 BACK PANEL for E2 1 *
33 00D 105 1476 035 BACK PANEL for E1C 1 *
33 00D 105 1476 048 BACK PANEL for EUT 1 *
33 00D 105 1476 022 BACK PANEL for JP 1 *
34 00D 412 5257 019 XM PLATE for EU,EC 1 *
Ref. No. Part No. Part Name Remarks Q'ty New
129
AVR-4806/AVC-A11XV
35 00D 216 0117 006 AM FM TUNER(E3) for EU,EC 1
36 00D 205 1116 006 TERMINAL ASS 1
! 37 00D 203 3996 008 AC INLET (2P) for EU,EC,E2,E1C,EUT 1
! 37 00D 203 3983 008 AC INLET for JP 1
★ 38 00D 342 0030 000 FERRITE CORE 1
39 00D 104 0334 007 FOOT 4
40 00D 461 0385 001 RUBBER PAD 4
41 00D 417 0684 006 RADIATOR (ES149) 2 *
42 00D 412 5225 009 RADIATOR BRACKET (L) 2 *
43 00D 412 5226 008 RADIATOR BRACKET (R) 2 *
44 00D 412 5231 006 RADIATOR BRACKET (C) 2 *
45 00D 412 5232 005 RADIATOR BRACKET (A) 1 *
46 00D 412 5232 018 RADIATOR BRACKET (B) 1 *
★ 47 00D 272 0159 006 MP1715(O/P/Y)LF(202) 7
★ 48 00D 274 0199 004 MN1715(O/P/Y)LF(202) 7
49 00D 417 0612 104 POWER RADIATOR 2
50 00D 412 4799 109 RADIATOR BRACKET(A) 2
51 00D 412 4799 112 RADIATOR BRACKET(A) 2
52 00D 412 4800 001 RADIATOR BRACKET(B) 2
! 53 00D 233 6495 002 POWER TRANS(MAIN/E3) for EU,EC,EUT 1 *
! 53 00D 233 6500 007 POWER TRANS(MAIN/E2) for E2 1 *
! 53 00D 233 6503 004 POWER TRANS(MAIN/E1C) for E1C 1 *
! 53 00D 233 0693 004 POWER TRANS(MAIN/D) for JP 1 *
★ 54 00D 513 3333 005 LABEL (TRANS) 1
! 55 00D 233 6496 001 POWER TRANS(SUB/E3) for EU,EC,EUT 1 *
! 55 00D 233 6501 006 POWER TRANS(SUB/E2) for E2 1 *
! 55 00D 233 6504 003 POWER TRANS(SUB/E1C) for E1C 1 *
! 55 00D 233 0694 003 POWER TRANS(SUB/D) for JP 1 *
! 56 00D 233 6497 000 POWER TRANS(MINI/E3) for EU,EC,EUT 1 *
! 56 00D 233 6502 005 POWER TRANS(MINI/E2) for E2 1 *
! 56 00D 233 6505 002 POWER TRANS(MINI/E1C) for E1C 1 *
! 56 00D 233 0695 002 POWER TRANS(MINI/D) for JP 1 *
! 57 00D 233 6508 009 ETHER TRANS(E3) for EUT 1 *
! 57 00D 233 6508 012 ETHER TRANS(E3) for EU,EC 1 *
! 57 00D 233 6509 008 ETHER TRANS(E2) for E2 1 *
! 57 00D 233 6510 000 ETHER TRANS(E1C) for E1C 1 *
! 57 00D 233 0696 001 ETHER TRANS(N) for JP 1 *
58 00D 415 0967 002 INSULATING SHEET 1 *
59 00D 146 2400 108 INNER PANEL for EU,EC black model 1 *
59 00D 146 2400 124 INNER PANEL for EU,EC silver model 1 *
59 00D 146 2400 137 INNER PANEL for E2 black model 1 *
59 00D 146 2400 111 INNER PANEL for E2 P.silver model,E1C,EUT,JP 1 *
60 00D 143 1216 006 DISPLAY SHEET 1 *
61 00D 143 1217 005 DOOR SHEET for black model 1 *
61 00D 143 1217 021 DOOR SHEET for silver model 1 *
61 00D 143 1217 018 DOOR SHEET for P.silver model 1 *
62 00D 412 4177 006 VR BRACKET 1
63 00D 143 1189 007 POWER LENS 1
64 00D 113 1992 109 P.KNOB ASSY(SUB) for black model 1
64 00D 113 1992 112 P.KNOB ASSY(SUB) for silver model 1
64 00D 113 1992 138 P.KNOB ASSY(SUB) for P.silver model 1
65 00D 113 1994 107 P.KNOB ASSY(MAIN) for black model 1
65 00D 113 1994 110 P.KNOB ASSY(MAIN) for silver model 1
65 00D 113 1994 149 P.KNOB ASSY(MAIN) for P.silver model 1
66 00D 417 0685 005 RADIATOR 1
67 00D 113 1996 202 CURSOR KNOB for black model 1
Ref. No. Part No. Part Name Remarks Q'ty New
130
AVR-4806/AVC-A11XV
67 00D 113 1996 215 CURSOR KNOB for silver model 1
67 00D 113 1996 231 CURSOR KNOB for P.silver model 1 *
68 00D 113 1995 009 ENTER KNOB for black model 1
68 00D 113 1995 012 ENTER KNOB for silver model 1
68 00D 113 1995 038 ENTER KNOB for P.silver model 1 *
69 00D 412 5218 003 SUPPORT PLATE 1 *
70 00D 412 5083 102 DOOR STOPPER 1
71 - D/S PLATE 1
72 00D 421 0763 010 GEAR DAMPER 1
73 00D 412 5252 001 DAMPER BRACKET 1 *
74 00D 461 1065 003 DOOR STOPPER for black model 2
74 00D 461 1065 016 DOOR STOPPER for silver / P.silver model 2
★ 75 00D 461 1182 009 RUBBER SHEET 2
76 00D 144 2927 106 FRONT PANEL for EU,EC black model 1 *
76 00D 144 2927 122 FRONT PANEL for EU,EC silver model 1 *
76 00D 144 2927 135 FRONT PANEL for E2 black model 1 *
76 00D 144 2927 119 FRONT PANEL for E2 P.silver model,E1C, EUT,JP 1 *
77 00D 131 0158 007 DENON BADGE for black model 1
77 00D 131 0158 023 DENON BADGE for silver model 1
77 00D 131 0158 010 DENON BADGE for P.silver model 1
78 00D 143 0952 002 LENS 3
79 00D 143 1218 101 WINDOW for EU,EC black model 1 *
79 00D 143 1218 130 WINDOW for EU,EC silver model 1 *
79 00D 143 1218 143 WINDOW for E2 black model 1 *
79 00D 143 1218 114 WINDOW for E2 P.silver model,E1C,EUT 1 *
79 00D 143 1218 127 WINDOW for JP 1 *
80 00D 144 2940 002 DOOR ASSY for black model 1 *
80 00D 144 2940 028 DOOR ASSY for silver model 1 *
80 00D 144 2940 015 DOOR ASSY for P.silver model 1 *
81 00D 401 0195 202 HINGE (L) for black model 1
81 00D 401 0195 215 HINGE (L) for silver model 1
81 00D 401 0195 231 HINGE (L) for P.silver model 1 *
82 00D 401 0196 201 HINGE (R) for black model 1
82 00D 401 0196 214 HINGE (R) for silver model 1
82 00D 401 0196 230 HINGE (R) for P.silver model 1 *
83 00D 112 0951 009 KNOB (M) ASSY for black model 1 *
83 00D 112 0951 025 KNOB (M) ASSY for silver model 1 *
83 00D 112 0951 012 KNOB (M) ASSY for P.silver model 1 *
84 00D 114 0168 005 KNOB (F) ASSY for black model 1 *
84 00D 112 0952 024 KNOB (F) ASSY for silver model 1 *
84 00D 112 0952 011 KNOB (F) ASSY for P.silver model 1 *
85 00D 105 1377 105 BOTTOM COVER for EU,EC,JP 1
85 00D 105 1377 147 BOTTOM COVER for E2,E1C,EUT 1 *
★ 86 00D 513 8266 009 DANGEROUS MARK for EU,EC 1
87 00D 412 5244 006 RADIATOR BRACKET 2 *
88 00D 102 0682 009 TOP COVER for black model 1 *
88 00D 102 0682 012 TOP COVER for silver model 1 *
88 00D 102 0682 012 TOP COVER for P.silver model 1 *
★ 89 00D 461 1182 025 RUBBER SHEET 1 *
★ 90 00D 461 1182 038 RUBBER SHEET 1 *
★ 91 00D 461 0573 046 RUBBER SHEET 4
★ 92 00D 461 0573 059 RUBBER SHEET 2
93 00D 146 2392 009 SCREW COVER 1
94 00D 146 2402 009 SCREW COVER(S) 1 *
95 00D 479 0003 038 PUSH RIVET 2
★ 96 00D 513 1581 011 SERIAL NO. SHEET 1
Ref. No. Part No. Part Name Remarks Q'ty New
131
AVR-4806/AVC-A11XV
★ 97 00D 113 1945 004 RJ45 DUST COVER 2
★ 98 00DGEN6737J LICENSE SUB ASSY for EU,EC 1
★ 98 00DGEN6737J1 LICENSE SUB ASSY for E2,E1C,EUT 1
★ 98 00DGEN6737J2 LICENSE SUB ASSY for JP 1
★ 99 00DGEN6863-2 RATING SUB ASSY for EU,EC 1 *
★ 99 00DGEN6863-3 RATING SUB ASS'Y for E2 1 *
★ 99 00DGEN6881 RATING LABEL (T) for EUT 1 *
100 00D 415 1971 001 INSULATING SHEET XM for EU,EC 1 *
★ 101 00D 477 0231 011 4W(S) 1
★ 102 00D 461 1182 041 RUBBER SHEET 1 *
★ 103 00D 513 4086 005 UL LABEL for EU,EC 1 *
104 00D 203 3942 007 AC OUTLET (E2) for E2 1
★ 105 00D 203 4871 054 3P KR-KR RIBBON 150 CX031 1 *
★ 106 00D 203 5364 007 3P PH-PH CON.CORD CX032 1 *
★ 107 00D 203 5364 052 3P PH-PH CON.CORD CX033 1 *
★ 108 00D 203 5363 008 3P EH-EH CORD CX037 1 *
★ 109 00D 203 6385 001 4P KR-KR RIBBON 70 CX044 1 *
★ 110 00D 203 6385 001 4P KR-KR RIBBON 70 CX047 1 *
★ 111 00D 203 8565 007 5P PH-PH CON.CORD CX055 1 *
★ 112 00D 203 8341 001 5P KR-KR RIBBON 70 CX056 1 *
★ 113 00D 204 2544 043 7P KR-KR RIBBON 375 CX076 1 *
★ 114 00D 204 2544 072 7P KR-KR RIBBON 450 CX077 1 *
★ 115 00D 204 2989 006 9P PH-PH CON.CORD CX092 1 *
★ 116 00D 204 2992 006 10P ZH-ZH CON.CORD CX103 1 *
★ 117 00D 204 2990 008 11P PH-PH CON.CORD CX112 1 *
★ 118 00D 204 6784 003 11P PH-PH CON.CORD CX114 1 *
★ 119 00D 009 0258 095 12P FFC(1.0) CX122 1 *
★ 120 00D 204 6785 002 13P PH-PH CON.CORD CX132 1 *
★ 121 00D 204 6787 000 14P PH-PH CON.CORD CX143 1 *
★ 122 00D 009 0257 012 15P FFC(1.25) CX154 1 *
★ 123 00D 009 0252 091 19P FFC(1.0) CX191 1 *
★ 124 00D 009 0258 082 23P FFC(1.0) CX231 1 *
★ 125 00D 009 0249 059 28P FFC(1.0) CX281 1 *
★ 126 00D 009 0252 088 28P FFC(1.0) CX282 1 *
★ 127 00D 203 2437 005 2P VA-VA CON.CORD CX720 1 *
★ 128 00D 203 2437 021 2P VA-VA CON.CORD CX722 1 *
★ 129 00D 203 2437 034 2P VA-VA CON.CORD CX724, for EU,EC,E1C,EUT,JP 1 *
★ 130 00D 203 6625 017 4P EH-EH CORD CX742 1 *
★ 131 00D 203 5364 049 3P PH-PH CON.CORD CX939 1 *
★ 132 00D 203 6386 097 4P KR-KR RIBBON 500 CX941 1 *
★ 133 00D 203 6386 039 4P KR-KR RIBBON 350 CX942 1 *
★ 134 00D 203 8562 013 5P PH-PH CON.CORD CX952 1 *
★ 135 00D 203 5281 025 3P EH-EH CORD CY039 1 *
★ 136 00D 203 6626 016 4P PH-PH CON.CORD CY040 1 *
★ 137 00D 203 6626 029 4P PH-PH CON.CORD CY041 1 *
★ 138 00D 203 8562 000 5P PH-PH CON.CORD CY051 1 *
★ 139 00D 203 8564 008 5P PH-PH CON.CORD CY057,for E2,E1C,EUT,JP 1 *
★ 140 00D 203 8563 009 5P PH-PH CON.CORD CY058 1 *
★ 141 00D 204 0596 006 6P PH-PH CON.CORD CY061 1 *
★ 142 00D 204 2988 007 7P PH-PH CON.CORD CY072 1 *
Ref. No. Part No. Part Name Remarks Q'ty New
132
AVR-4806/AVC-A11XV
★ 143 00D 204 2987 008 7P ZH-ZH CON.CORD CY074 1 *
★ 144 00D 204 2991 007 10P PH-PH CON.CORD CY104 1 *
★ 145 00D 204 6786 001 13P PH-PH CON.CORD CY133 1 *
★ 146 00D 204 6788 009 14P PH-PH CON.CORD CY141 1 *
★ 147 00D 204 6789 008 15P PH-PH CON.CORD CY152 1 *
★ 148 00D 204 6790 000 15P PH-PH CON.CORD CY156,for E2,E1C,EUT,JP 1 *
★ 148 00D 204 6790 013 15P PH-PH CON.CORD CY156,for EU,EC 1 *
★ 149 00D 203 5364 023 3P PH-PH CON.CORD CY733 1 *
★ 150 00D 203 5364 010 3P PH-PH CON.CORD CY734 1 *
★ 151 00D 203 6625 004 4P EH-EH CORD CY744 1 *
★ 152 00D 203 5364 036 3P PH-PH CON.CORD CY931-933 3 *
★ 153 00D 203 6626 003 4P PH-PH CON.CORD CY943 1 *
★ 154 00D 203 8562 039 5P PH-PH CON.CORD CY950 1 *
★ 155 00D 203 8562 026 5P PH-PH CON.CORD CY951 1 *
156 00D 203 0746 015 1P CONTACT ASSY 1 *
157 00D 203 2406 010 2C WIRE ASSY 1 *
★ 158 00D 445 8004 007 WIRE CLAMPER 1
★ 159 00D 414 1010 007 ALUMINUM TAPE 15mm 1
★ 160 00D 461 1232 001 EMIGASKET SHSG003050 50mm 1 *
★ 161 00D 461 1233 000 EMIGASKET SHSG010100 50mm 1 *
★ 162 00D 461 1221 009 MIGASKET SHSG030100 50mm 1
163 00D 412 2741 049 P.W.B.HOLDER (H=12) 6
★ 164 00D 445 0048 016 CORD HOLDER (L50) 5
166 00D 449 0202 045 LOCKING CARD SPACER 1
167 00D 449 0070 002 LOCKING CARD SPACER 1
168 00D 449 0203 002 LOCKING CARD SPACER for EU,EC 1
169 00D 409 0052 019 HOLDER (A) 1
170 00D 412 2814 057 CARD SPACER (L=12) 7
171 00D 412 2814 002 CARD SPACER (L=8) 5
172 00D 412 2814 044 CARD SPACER (L=6) 1
173 00D 449 0077 047 CARD SPACER 2
★ 174 00D 415 0469 063 FLEXIBLE BUSH 3
★ 175 00D 415 0516 042 FLEXIBLE BUSH 1 *
★ 176 00D 415 0516 055 FLEXIBLE BUSH 1 *
★ 177 00D 415 0469 092 FLEXIBLE BUSH 2 *
★ 178 00D 449 0141 070 EDGING(CE-024) 1 *
★ 179 00D 449 0141 083 EDGING(CE-024) 2 *
★ 180 00D 415 0845 001 SP RIVET for E2,E1C 18
★ 181 00D 203 5364 065 3P PH-PH CON.CORD CY637,for EU,EC 1 *
★ 182 00D 203 8562 042 5P PH-PH CON.CORD CX855,for EU,EC 1 *
★ 183 00D 203 8562 055 5P PH-PH CON.CORD CY651,for EU,EC 1 *
★ 184 00D 203 8564 011 5P PH-PH CON.CORD CZ057,for EU,EC 1 *
★ 185 00D 203 8564 024 5P PH-PH CON.CORD CW057,for EU,EC 1 *
★ 186 00D 203 0597 005 6P ZH-ZH CON.CORD CX063,for EU,EC 1 *
★ 187 00D 203 0249 062 21P FFC(1.0) CX210,for EU,EC 1 *
★ 188 00D 203 0249 075 15P FFC(1.0) CX153,for EU,EC 1 *
Ref. No. Part No. Part Name Remarks Q'ty New
133
AVR-4806/AVC-A11XV
SCREWS
200 00D 473 7505 010 2.6X6 CBTS (P)-Z 4
201 00D 473 7508 017 3X10 CBTS (P)-B 7
202 00D 473 8034 030 3X10 CBTS(B)-Z 52
203 00D 477 0153 021 3X16 CPTS(B) SW W 44
204 00D 470 0014 020 3X16 CPS SW W ZNP 3
205 00D 473 7015 005 3X6 CBTS(S)-B 49
206 00D 473 7002 005 3X6 CBTS(S)-Z 55
207 00D 473 7500 015 3X8 CBTS (P)-Z 34
208 00D 473 7002 018 3X8 CBTS (S)-Z 4
209 00D 473 7500 028 3X8 CFTS (P)-Z 2
210 00D 470 0051 009 3X8 CPS(SW,W) ZNP 18
211 00D 473 8007 083 3X8 CUP SCREW 8
212 00D 473 7026 007 4X6 CBTS (S)-B 28
213 00D 473 7007 000 4X8 CBTS (S)-B 4
214 00D 477 0263 018 3P.SWELLING SCREW 9
215 00D 477 0064 107 FIXING SCREW 48
216 - 9NU T 2
217 00D 473 7003 017 3X8 CFTS (S)-B 6
218 00D 473 7512 003 3X8 CFTS (P)-B 2
Ref. No. Part No. Part Name Remarks Q'ty New
134
AVR-4806/AVC-A11XV
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EU: U.S.A. model EC: Canada model EUT : Taiwan R.O.C.model
E2: Europe model E1C : China model JP: Japan model
Ref. No. Part No. Part Name Remarks Q'ty New
401 00D 504 0192 106 CABINET SHEET 1
402 00D 501 2290 036 CARTON CASE for EU,EC 1 *
402 00D 501 2290 049 CARTON CASE for EUT,E2,E1C 1 *
402 00D 501 2290 052 CARTON CASE for JP 1 *
403 00D 509 0190 006 SPACER 2*
404 00D 503 1361 108 CUSHION ASS'Y 1
405 00D 501 2262 006 PAD 1
406 00D 505 8006 019 ENVELOPE 1
407 00D 511 4294 008 INST.MANUAL(EU) for EU,EC 1 *
407A 00D 511 4303 009 INST.MANUAL(EC) for EC 1 *
407 00D 511 4313 002 INST.MANUAL(EUT) for EUT 1 *
407 00D 511 4304 008 INST.MANUAL(E2) for E2 1 *
407 00D 511 4312 003 INST.MANUAL(E1C) for E1C 1 *
407 00D 511 4306 006 INST.MANUAL(D) for JP 1 *
403
403
401
418
417
417
402
404
404
405
414406 415 416
135
AVR-4806/AVC-A11XV
408 00D 511 4254 006 PRESET CODE SHEET 1
409 00D 231 0922 009 LOOP ANTENNA for EU,EC 1
410 00D 395 0029 002 FM ANT ASS Y(F/ETRO) for EU,EC 1
411 00D 515 0921 500 S.S.LIST(EX) for EU,EC,EUT,E2,E1C 1
411 00D 515 0918 403 SERVICE STATION LIST for JP 1
412 00D 515 0944 202 WARRANTY (HOME) for EU,EC,EUT 1
413 00D 515 0970 014 CUSTOMER CARD for JP 1
! 414 00D 206 2157 009 AC CORD SET (E3) for EU,EC 1
! 414 00D 206 2227 007 AC CORD SET(EUT) for EUT
! 414 00D 206 2215 006 AC CORD-E1/10A/INLET for E2 1
! 414 00D 206 2189 006 AC CORD (E1C) for E1C 1
! 414 00D 206 2141 002 AC CORD W/CON&PLUG for JP 1
415 00D 399 0982 002 RC-995 1
416 00D 321 0037 006 DM-S305 1
417 - CONT.CARD(L) for EU,EC,EUT,E2,E1C 1 *
418 - BAR CODE LABEL for EU,EC,EUT,E2,JP 1 *
★ 419 00D 513 9111 056 COLOR LABEL for EU,EC silver model 2
★ 419 00D 513 9111 030 COLOR LABEL for E2 P.silver model,EUT,E1C 2
★ 420 00DGEN6072H9 CARTON LABEL (T) for EUT 1 *
★ 420 00DGEN6211H6 CARTON LABEL (C) for E1C 1 *
★ 421 00D 513 3286 000 CAUTION LABEL for EU,EC,E2 1
★ 421 00D 513 2482 009 CAUTION LABEL(T) for EUT 1
★ 422 00D 515 0919 208 GUARANTEE CARD(S) for JP 1
Ref. No. Part No. Part Name Remarks Q'ty New
136
AVR-4806 / AVC-A11XV
WIRING DIAGRAM
137
AVR-4806 / AVC-A11XV
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol have critical characteristics.
Use ONLY replacement parts recommended by the manufactur-
er.
CAUTION:
Before returning the unit to the customer, make sure you make
either (1) a leakage current check or (2) a line to chassis resis-
tance check. If the leakage current exceeds 0.5 milliamps, or if
the resistance from chassis to either side of the power cord is
less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is lo-
cated and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
!
配線図について
印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。
注）
(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。
(2) 指定なきコンデンサーの値は μF、ｐ は ｐF を示す。
(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変更する
ことがありますのでご了承ください。
!
138
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (1/35)
1U-3356 AMP UNIT
1U-3356-1 AMP L UNIT
1U-3356-2 AMP R UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (1/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
139
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (2/35)
1U-3667 DIGITAL UNIT (1/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (2/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
140
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (3/35)
1U-3667 DIGITAL UNIT (2/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (3/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
141
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (4/35)
1U-3667 DIGITAL UNIT (3/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (4/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
142
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (5/35)
1U-3667 DIGITAL UNIT (4/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (5/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
143
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (6/35)
1U-3667 DIGITAL UNIT (5/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (6/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
144
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (7/35)
1U-3667 DIGITAL UNIT (6/10)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (7/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
145
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (8/35)
1U-3667 DIGITAL UNIT (7/10)
IEEE1394 SECTION(1/4)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (8/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
146
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (9/35)
1U-3667 DIGITAL UNIT (8/10)
IEEE1394 SECTION(2/4)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (9/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
147
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (10/35)
1U-3667 DIGITAL UNIT (9/10)
IEEE1394 SECTION(3/4)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (10/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
148
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (11/35)
1U-3667 DIGITAL UNIT (10/10)
IEEE1394 SECTION(4/4)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (11/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
149
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (12/35)
1U-3668 A.VIDEO UNIT (1/2)
1U-3668-1 S&CVBS UNIT(1/2)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (12/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
150
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (13/35)
1U-3668 A.VIDEO UNIT (2/2)
1U-3668-1 S&CVBS UNIT(2/2)
1U-3668-2 V.CONNECT UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (13/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
151
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (14/35)
1U-3669 D.VIDEO UNIT (1/3)
1U-3669-1 HDMI UNIT(1/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (14/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
152
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (15/35)
1U-3669 D.VIDEO UNIT (2/3)
1U-3669 HDMI UNIT(2/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (15/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
153
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (16/35)
1U-3669 D.VIDEO UNIT (3/3)
1U-3669 HDMI UNIT(3/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (16/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
154
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (17/35)
1U-3670 AUDIO UNIT (1/4)
1U-3670-1 AUDIO UNIT(1/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (17/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
155
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (18/35)
1U-3670 AUDIO UNIT (2/4)
1U-3670-1 AUDIO UNIT (2/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (18/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
156
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (19/35)
1U-3670 AUDIO UNIT (3/4)
1U-3670-1 AUDIO UNIT (3/3)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (19/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
157
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (20/35)
1U-3670 AUDIO UNIT (4/4)
1U-3670-2 ADC/DAC UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (20/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
158
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (21/35)
1U-3671 FRONT UNIT (1/2)
1U-3671-1 FLD UNIT
1U-3671-2 P.SW UNIT
1U-3671-3 FUNCTION SEL UNIT
1U-3671-4 P.LED UNIT
1U-3671-5 TACT UNIT
1U-3671-6 USER UNIT
1U-3671-7 VOL UNIT
1U-3671-11 FLD SUPPLY UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (21/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
159
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (22/35)
1U-3671 FRONT UNIT (2/2)
1U-3671-8 H/P UNIT
1U-3671-9 FRONT IN UNIT
1U-3671-10 MIC UNIT
1U-3671-12 PHONO UNIT
1U-3671-13 TRIGGER UNIT
1U-3671-14 DIGITAL IN UNIT
1U-3671-15 TUNER IN UNIT
1U-3671-16 D-TERMINAL UNIT
1U-3671-16 D-CONNECT UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (22/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
160
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (23/35)
1U-3672 PRIMARY UNIT (1/2)
1U-3672-2 AMP SUPPLY UNIT
1U-3672-4 E2 RL UNIT
1U-3672-7 DSP REG UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (23/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
161
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (24/35)
1U-3672 PRIMARY UNIT (2/2)
1U-3672-1 PRIMARY UNIT
1U-3672-5 ETHER RL UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (24/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
162
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (25/35)
1U-3673 REGULATOR UNIT (1/2)
1U-3673-1 VIDEO REG UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (25/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
163
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (26/35)
1U-3673 REGULATOR UNIT (2/2)
1U-3673-2 AUDIO REG UNIT
1U-3673-3 SP-R UNIT
1U-3673-4 SP-R UNIT
1U-3673-5 CONNECT-L UNIT
1U-3673-6 AC OUTLET UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (26/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
164
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (27/35)
1U-3684 CONNECT UNIT (1/6)
1U-3684-1 CONNECT-R UNIT(1/2)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (27/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
165
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (28/35)
1U-3684 CONNECT UNIT (2/6)
1U-3684-1 CONNECTOR-R UNIT(2/2)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (28/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
166
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (29/35)
1U-3684 CONNECT UNIT (3/6)
1U-3684-2 EXT.IN UNIT
(For AVC-A11XV)
SCHEMATIC DIAGRAMS (29/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
167
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (30/35)
1U-3684 CONNECT UNIT (4/6)
1U-3684-3 VIDEO CPU UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (30/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
168
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (31/35)
1U-3684 CONNECT UNIT (5/6)
1U-3684-4 COMPONENT UNIT(1/2)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (31/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
169
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (32/35)
1U-3684 CONNECT UNIT (6/6)
1U-3684-4 COMPONENT UNIT(2/2)
1U-3684-5 V.CONNECT L UNIT
(For ALL MODEL)
SCHEMATIC DIAGRAMS (32/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
170
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (33/35)
1U-3685 ETHERNET UNIT (1/1)
(For ALL MODEL)
SCHEMATIC DIAGRAMS (33/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
171
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (34/35)
1U-3711 XM UNIT
1U-3711-1 XM UNIT
1U-3711-2 XM JOINT UNIT
(For AVR-4806)
SCHEMATIC DIAGRAMS (34/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
172
AVR-4806 / AVC-A11XV
SCHEMATIC DIAGRAMS (35/35)
1U-3712 XM REG UNIT
1U-3712-1 XM REG UNIT
1U-3712-2 EXT.IN UNIT
(For AVR-4806)
SCHEMATIC DIAGRAMS (35/35)
1234567891011
A
B
C
D
E
F
G
H
AVR-4806 / AVC-A11XV
