SERVICE Whirlpool Europe
Customer Services
Model AWZ 410
Version 8575 410 01000 Page
Technical data 2
Spare part list 3 - 4
Exploded view 5 - 7
Wiring diagram 8
Circuit diagram 9
Program diagram 10 - 13
Service Manual
Washer dryer
Frontloader
AWZ 410
AWZ 410
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations.
Date: 31.10.2002 Subject to modification
Document-No.: 4812 713 12675
SERVICE
31.10.2002 / Page 2 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service
Technical data
Dimension
Height 85 cm
Width 59.5 cm
Depth 53 cm
Weight
Gross 82 kg
Net 79 kg
Main connection
Voltage 230 +6% -10% V
Frequency 50 Hz
Power Consumption 2200 W
Fuse rating 10 A
Drum data
Volume 42.5 l
Cotton/synthetics
(washing-rinsing) 50 - 60 rpm
Pre-spinning 100 rpm
Low spinning 500 rpm
High spinning 1000 rpm
Capacity of dry laundry
Loading - washing max. 5.0 kg
Loading - drying max. 2.5 kg
Heating
Rated power draft:
- washing 1950 W
- drying(2) 1150 W
Drain-pump
Power consumption 34 W
Capacity 20 - 25 l/min.
Rotation speed ~ 2800 rpm
Height of drain hose :
max. 0.90 m
min. 0.60 m
Motor
Type Universal
Timer washing
Type 1837-01
Basic cycles 3
- normal washing
- delicate washing
Thermostat
A- washing fixed thermostat90 ˚C
B- drying fixed thermostat 107 ˚C
C- safety thermostat 142 ˚C
D- safety thermostat 170 ˚C
E- adjustable thermostat 10 - 90 ˚C
Pressostat (without laundry)
Low level 7 l
High level 12.5 l
Very high level (wool) 15 l
Overflow level 35 l
Push button switch unit
Version with 5 buttons
- On/off
- Low/High speed
- Rinse hold
- Intensiv rinse
- Half load
Timer drying
Type Eaton 8403-01
Voltage 220/240 V
Frequency 50 Hz
drying time 2 to 120 min
cooling time 20 min
Drying motor
Type Plaset 63318
Voltage 220/240 V
Frequency 50 Hz
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 3
Customer Service 8575 410 01000 Doc. No: 4812 713 12675
Spare part list
Model AWZ 410
Service No. 857541001000
Version 857541001000
Pos. No. 12NC Code Description
001 0 4812 440 10616 Cabinet
003 0 4819 404 43391 Bearer hook crosspiece
011 0 4819 462 47014 Foot adjustable
024 0 4819 903 03649 Panel, rear
030 0 4812 440 10614 Table top
041 0 4819 417 19534 Hinge
054 0 4812 462 28312 Cover filter
061 0 4819 466 88802 Counter weight
061 1 4819 466 89461 Counter weight bottom
061 2 4819 404 79294 Bracket
065 0 4812 325 18002 Insulation
083 0 4819 466 47003 Friction plate
086 0 4819 492 68576 Spring
086 1 4819 502 18407 Fastener counter weight
086 2 4819 310 39573 Kit fixation
086 3 4819 466 89132 Fastener counter weight
086 5 4812 904 48018 Friction pad unit
110 0 4819 498 78431 Handle
110 1 4819 498 78432 Handle cpl
131 0 4819 903 10159 Lock Plate
133 0 4819 903 10175 Door latch
133 1 4819 903 10174 Pin handle
133 2 4819 903 10176 Door catch lever
140 0 4819 450 58178 Door glass
141 1 4819 466 98878 Protector
143 0 4819 903 02494 Strap
144 0 4819 903 10179 Frame,door glas
144 1 4812 416 18441 Frame,door glas
144 2 4819 532 88054 Collarring
190 0 4819 468 18285 Door bellow
200 0 4812 418 18233 Tub
201 0 4812 310 18587 Bearing unit
201 1 4819 903 02529 Ring tub
201 3 4819 532 38088 Ring kit
210 0 4819 404 49869 Crosspiece,drum
220 0 4819 418 18251 Drum
220 1 4819 418 18303 Drum with cross piece
271 0 4812 358 18182 Belt
272 0 4812 528 88098 Pulley
278 0 4812 535 98097 Rod,pull dispenser
291 0 4819 903 03668 Gasket tub
301 0 4812 464 69009 Control panel
303 1 4812 498 78213 Handle, drawer
331 0 4812 412 58947 Knob,changeover Timer
331 1 4812 413 78646 Knob disc timer
331 2 4812 413 78645 Knob,timer
332 0 4812 410 28854 Button,push
335 0 4812 412 58919 Knob thermostat
338 0 4812 412 58949 Knob,timer drying
351 0 4819 134 48503 Pilot lamp
351 1 4812 381 18276 Lamp screen
401 0 4812 361 78017 Motor
401 1 4812 361 78019 Motor fan
421 0 4812 121 18212 Interf.filter
422 0 4812 214 78504 Tachometer
Pos. No. 12NC Code Description
430 0 4819 360 18217 Pump,draining
432 0 4812 480 58146 Filter body
443 0 4812 515 48011 Fan wheel
451 0 4819 259 28799 Heating element
451 1 4812 418 38086 Heating chamber
451 3 4812 259 28712 Heating element drying
483 0 4812 321 78151 Cable harness
490 0 4812 321 18122 Cable,mains
491 0 4819 401 18738 Clamp
501 0 4812 282 18663 Timer 1837/1
501 1 4812 282 19288 Timer 8403-01, dryer
521 0 4812 214 58074 Unit electrical
551 0 4819 282 28627 Thermostat MRTL 170 ˚C
551 1 4812 282 28214 Thermostat 100 ˚C
551 2 4812 282 28215 Thermostat 47 ˚C
551 9 4812 271 28445 Thermostat
554 0 4819 903 08226 Potentiometer
572 0 4812 271 28443 Valve,magnet cold
583 0 4812 271 28421 Pressostat
620 0 4819 276 18368 Switch
630 0 4812 280 58028 Door lock
701 0 4819 530 28932 Hose, inlet 1.5 m cold water
708 4 4819 530 28545 Drainhose inner
711 0 4819 418 78886 Dispenser
711 1 4819 462 79036 Cover dispenser housing
711 2 4812 462 28316 Cover dispenser complete
712 0 4819 418 78067 Drawer
713 0 4819 418 78989 Accessory deterg. fluid
714 0 4819 418 78988 Container liquid detergent
714 1 4819 418 78166 Tray bleach
718 0 4819 360 69849 Nozzle
718 1 4819 310 38651 Accessories liquid detergent
742 0 4812 360 78054 Cover
743 0 4819 466 69941 Hose
743 1 4812 310 38436 Air guide
743 2 4812 526 48046 Air guide
743 3 4812 526 48045 Air guide upper
754 0 4819 530 28862 Drainhose
760 0 4819 480 58082 Filter
760 1 4819 462 78861 Grip filter
781 0 4812 530 29045 Hose,draining
781 1 4819 903 02515 Hose
781 2 4812 903 08205 Container Non-Overflow
781 3 4812 903 08206 Tube Non-Overflow-Filter cas.
783 0 4819 530 28861 Hose pressostat
783 1 4819 526 48213 Air guide
783 2 4812 530 28926 Hose
783 3 4812 530 28927 Hose
783 4 4812 530 28928 Hose
783 5 4819 903 10156 Hose
792 0 4812 466 68593 Seal for blower
794 0 4819 903 04978 Gasket
794 1 4819 310 38057 Gasket
794 2 4819 532 68309 Cover filter
900 0 4819 401 13348 Hook
SERVICE
31.10.2002 / Page 4 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service
Spare part list
Model AWZ 410
Service No. 857541001000
Version 857541001000
Pos. No. 12NC Code Description
900 1 4819 466 98528 Clamping piece
900 4 4819 401 13349 Hook
900 5 4819 466 89459 Holder
900 7 4819 535 38151 Hook
901 0 4822 401 10258 Clamp,hose 10-18 mm
901 1 4812 401 18458 Strap
901 2 4812 401 18576 Clamp,hose
901 3 4819 401 18351 Clamp,hose
901 4 4819 401 18174 Clamp,hose 25-45 mm
901 5 4819 492 68475 Strap
901 6 4819 401 18817 Clamp,hose
902 0 4819 903 02468 Lever
902 1 4812 418 79639 Holder unit electrical
902 2 4812 404 48664 Holder
902 3 4812 418 78991 Holder Modul
903 0 4819 492 68392 Clamp
903 1 4819 903 02535 Silent bloc
903 2 4819 401 18348 Holder,hose
903 3 4819 903 02466 Lever
903 4 4819 903 10167 Door glass insert
903 5 4819 903 02469 Rocker
903 6 4819 492 68488 Clip
903 7 4819 401 18429 Clamp
903 8 4819 401 18883 Staple
910 1 4819 502 18347 Screw
910 2 4819 502 18406 Screw
910 3 4819 502 33254 Screw
910 6 4812 502 18415 Screw
910 7 4812 502 18417 Screw
912 0 4819 502 18414 Screw
912 2 4819 440 19616 Cover Screw
914 0 4819 505 13084 Nut
921 0 4819 532 13433 Washer pulley
921 1 4819 532 38083 Washer
923 0 4819 532 68726 Washer
931 0 4819 903 10178 Spring
931 2 4819 903 02471 Spring
931 3 4819 492 68872 Spring,tension
931 5 4819 903 10172 Spring,ret.
932 0 4812 492 68142 Spring Thermostat
932 1 4812 526 48047 Spring
933 0 4819 903 03659 Spring,tension
941 1 4812 530 68027 Shaft seal
951 1 4819 530 57019 Gasket
952 0 4819 466 69816 Gasket
952 1 4819 903 02447 Gasket thermostat
993 0 4819 401 18345 Bow
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 5
Customer Service 8575 410 01000 Doc. No: 4812 713 12675

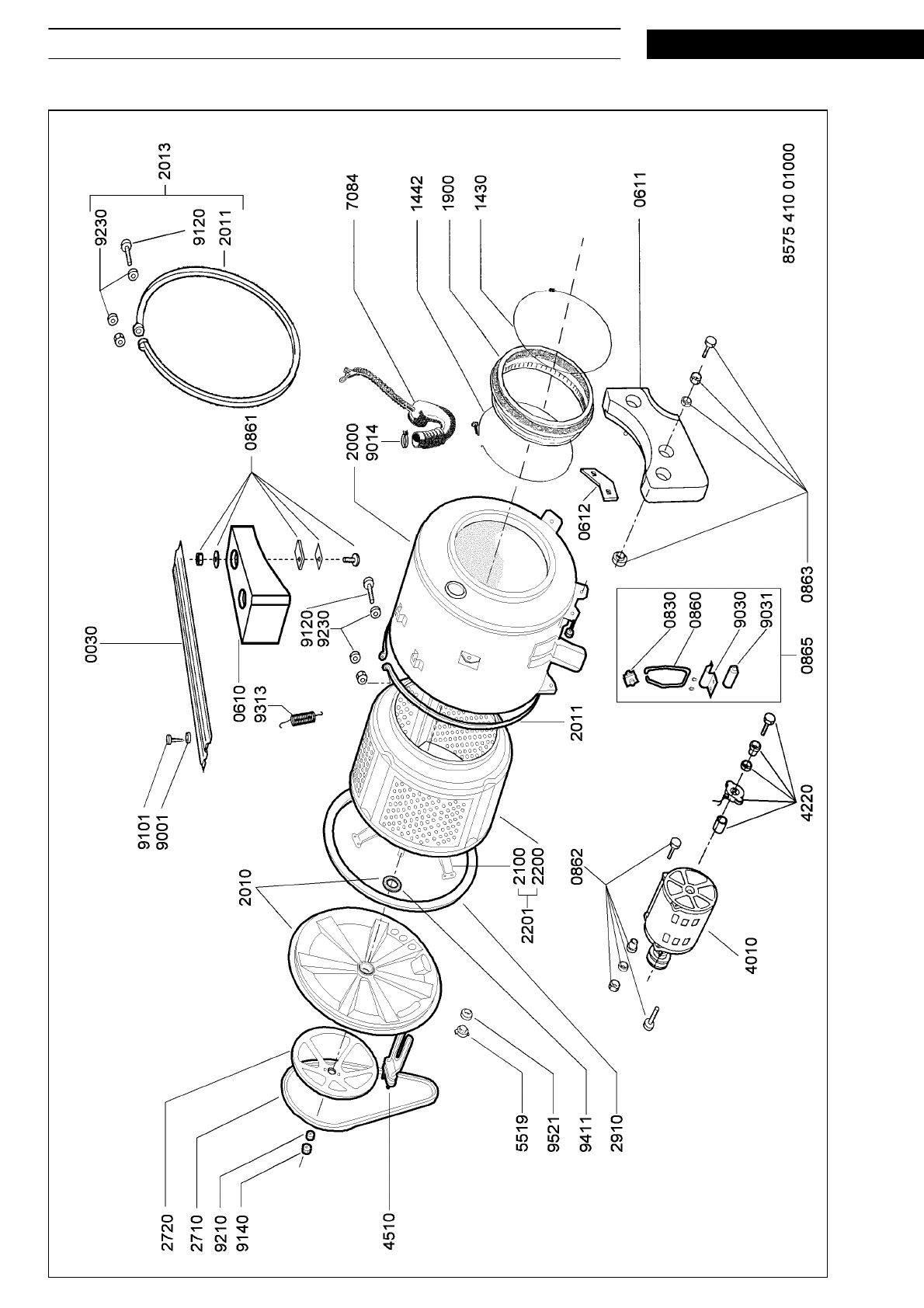

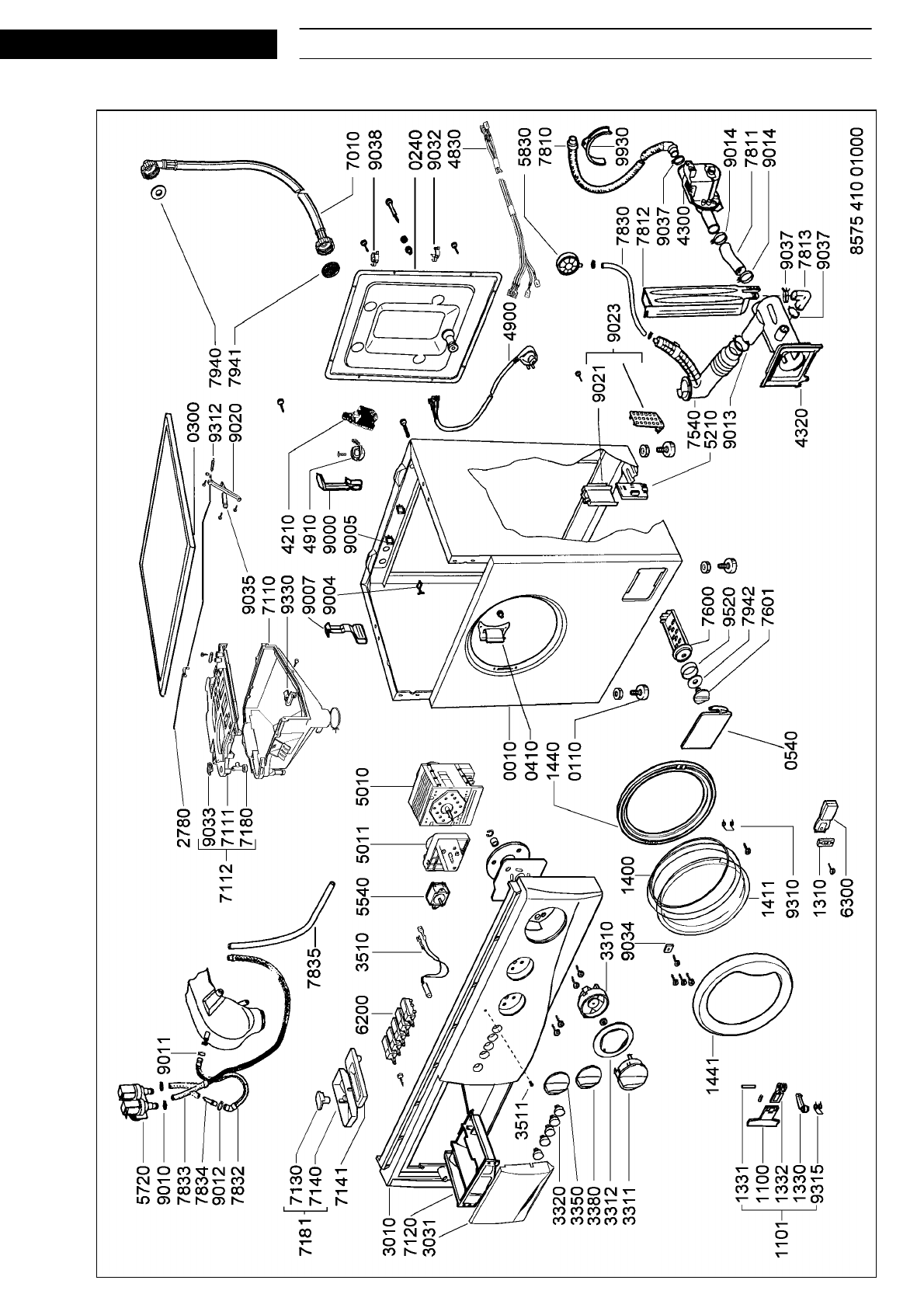

Exploded view
SERVICE
31.10.2002 / Page 6 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service

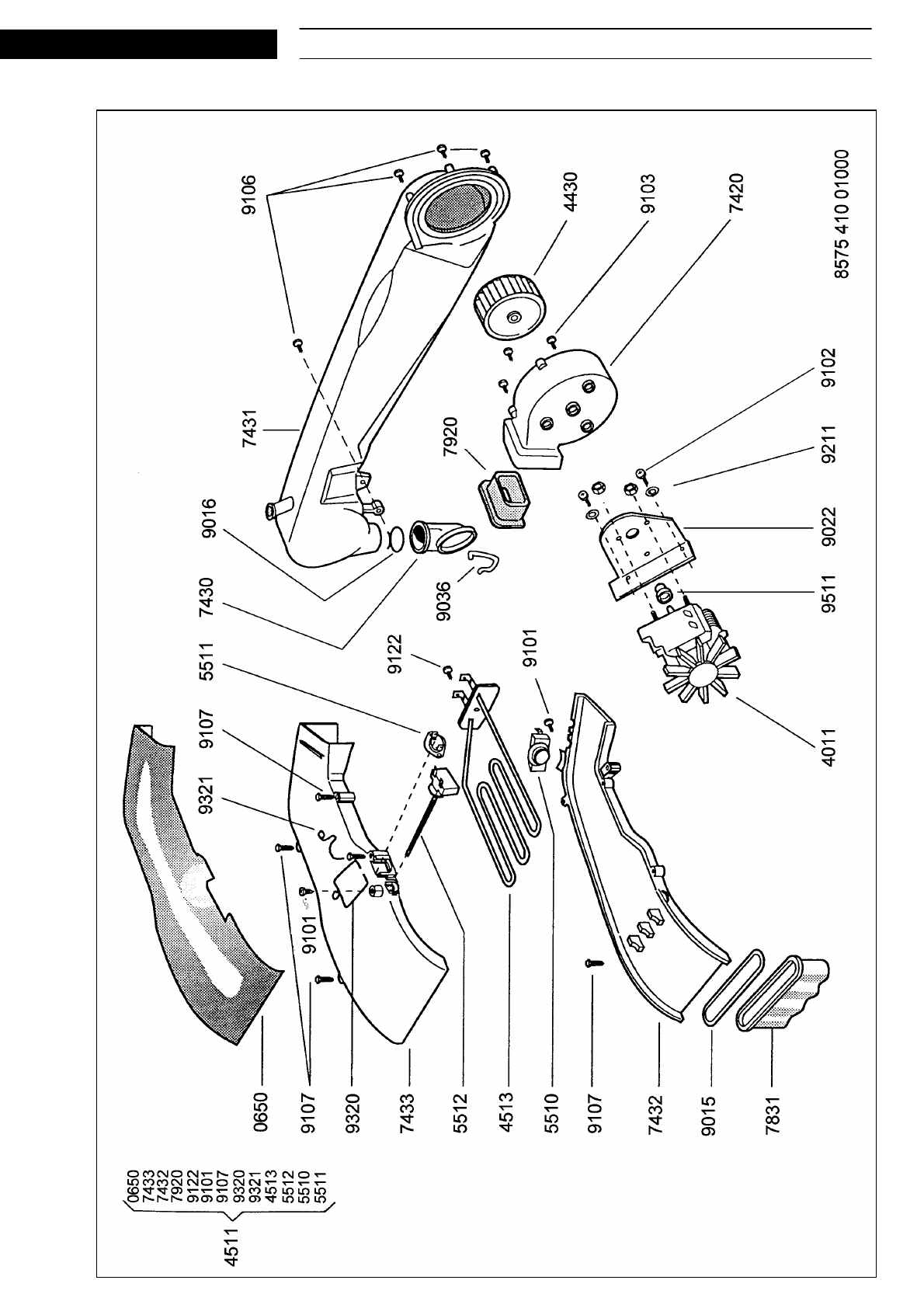

Exploded view
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 7
Customer Service 8575 410 01000 Doc. No: 4812 713 12675
Exploded view
SERVICE
31.10.2002 / Page 8 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service

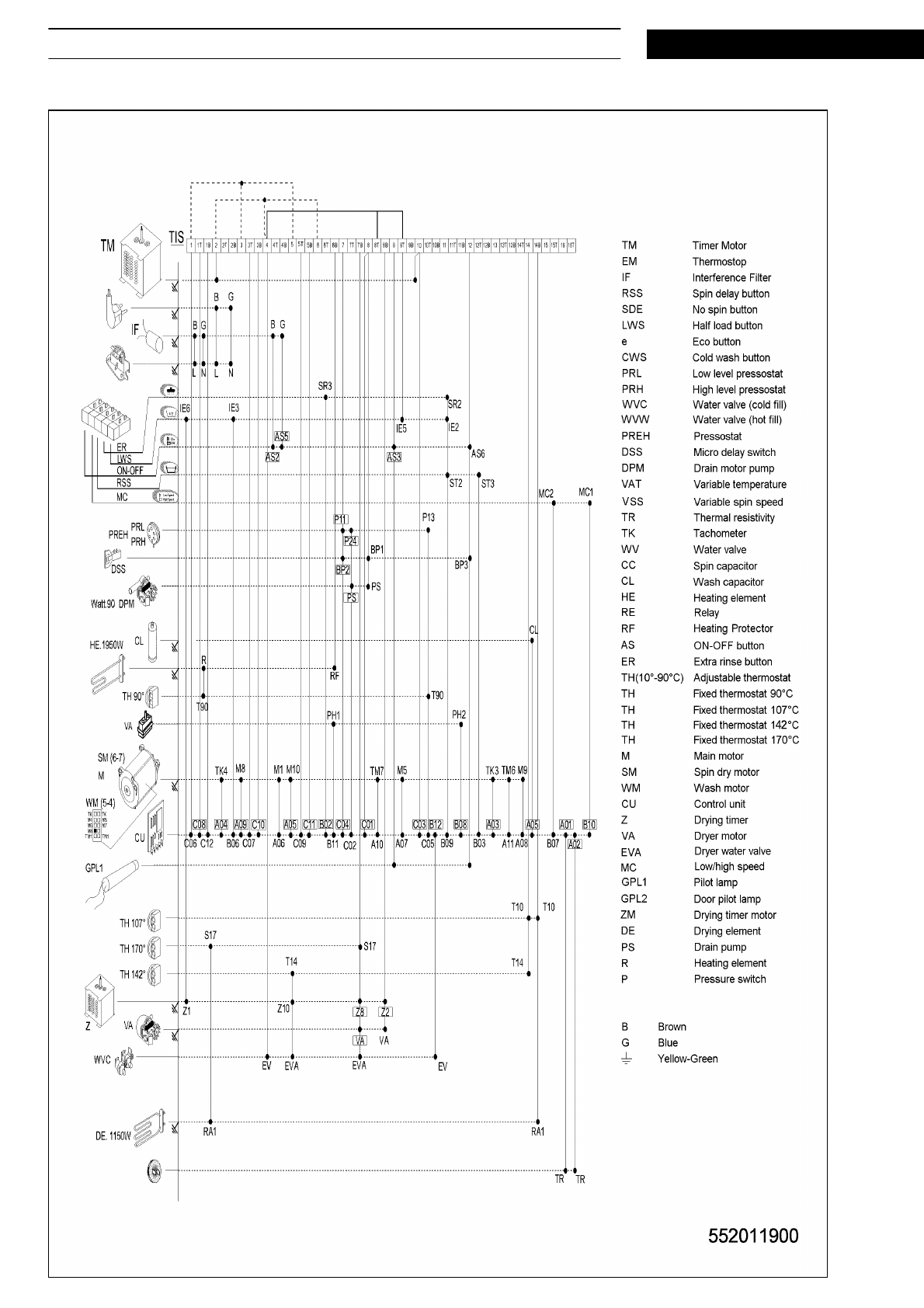

Wiring diagram
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 9
Customer Service 8575 410 01000 Doc. No: 4812 713 12675

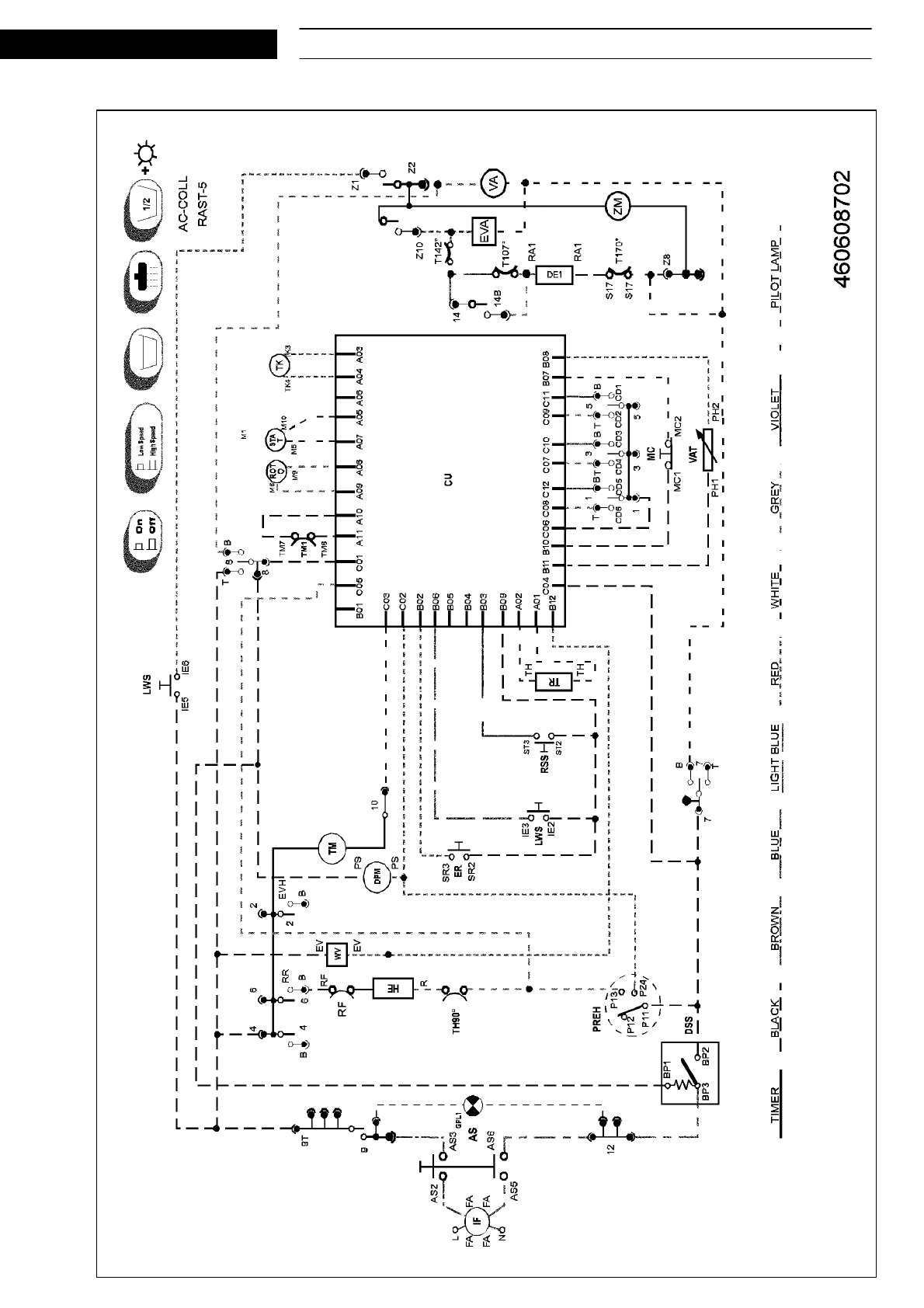

Circuit diagram
SERVICE
31.10.2002 / Page 10 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service

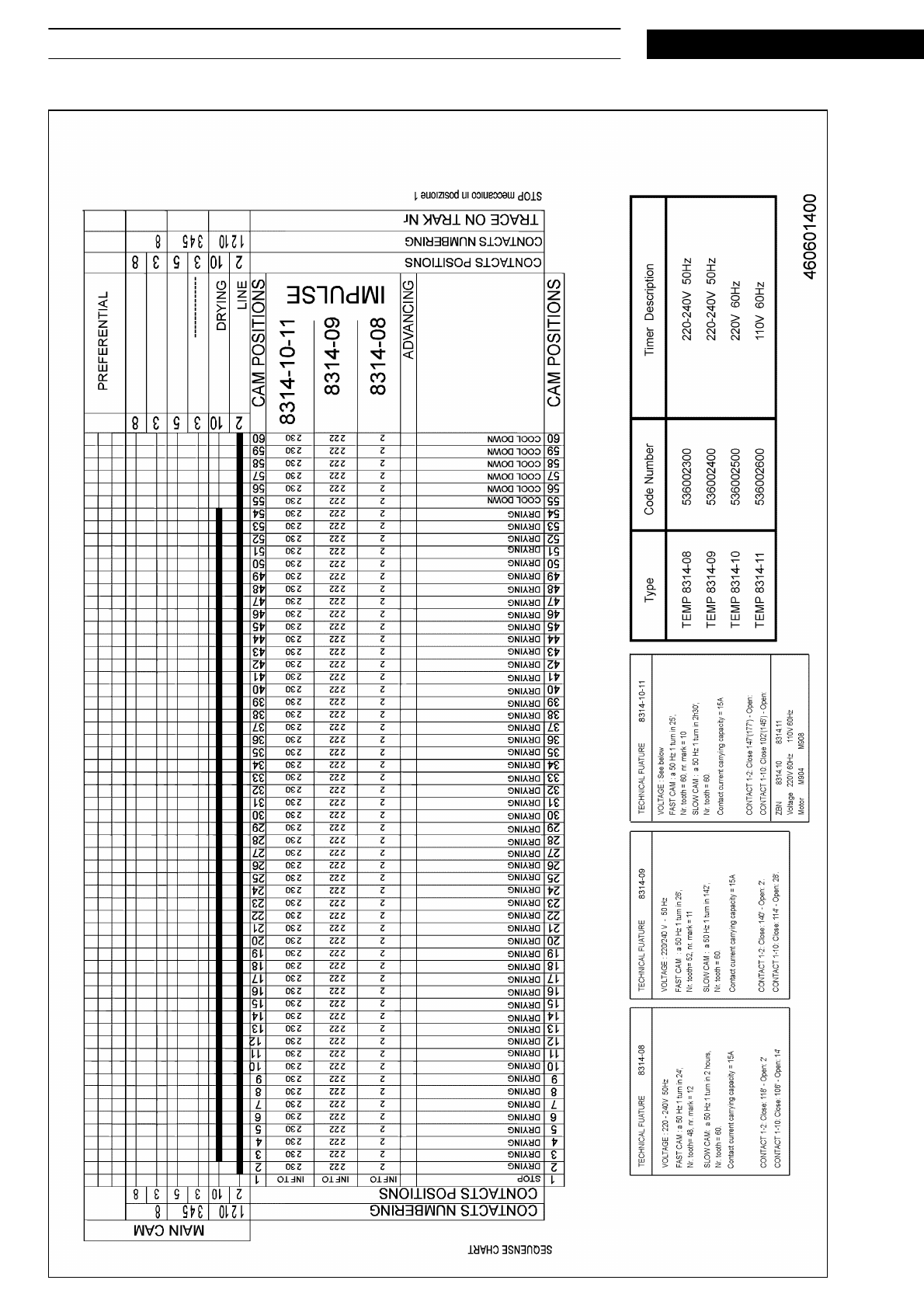

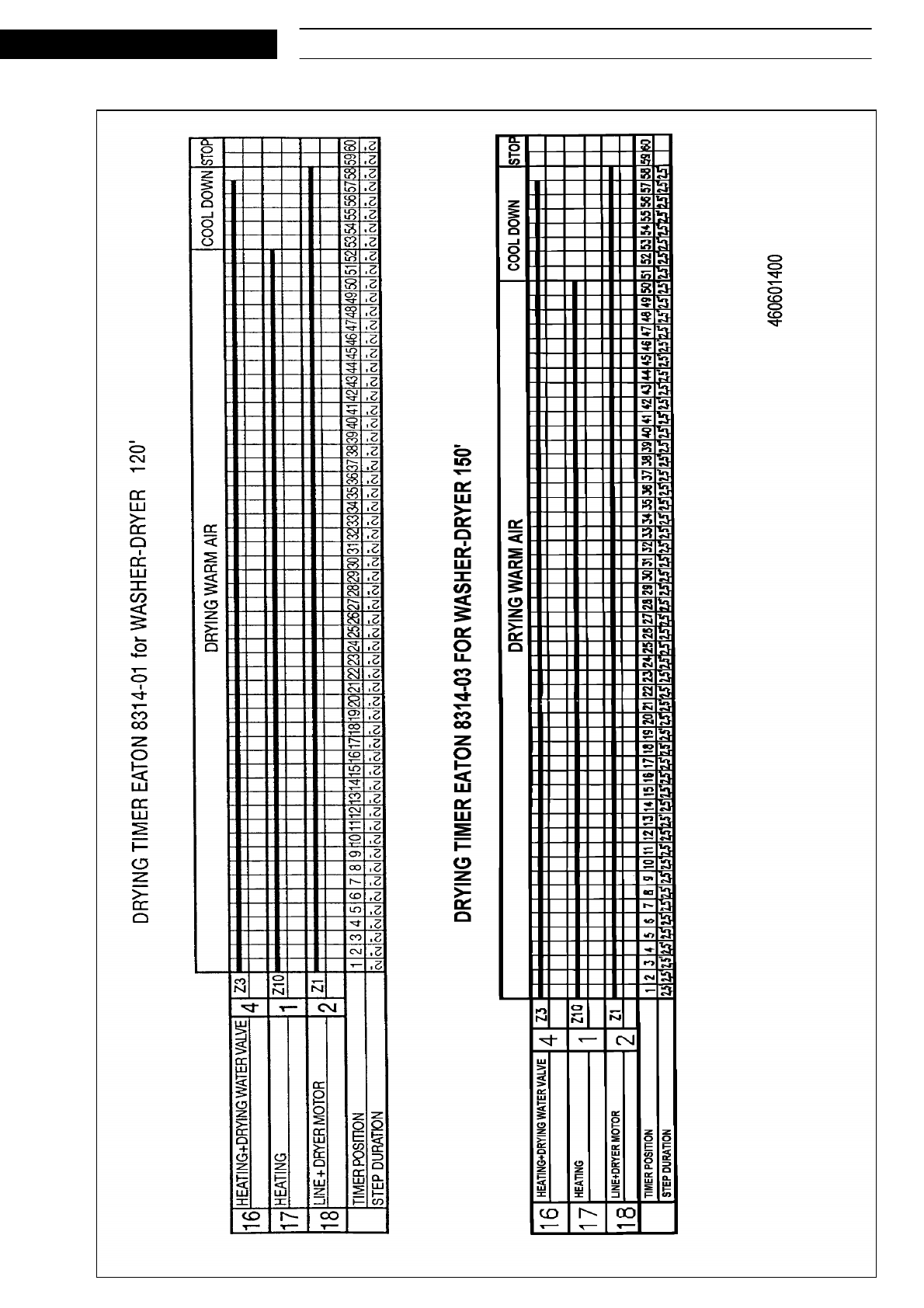

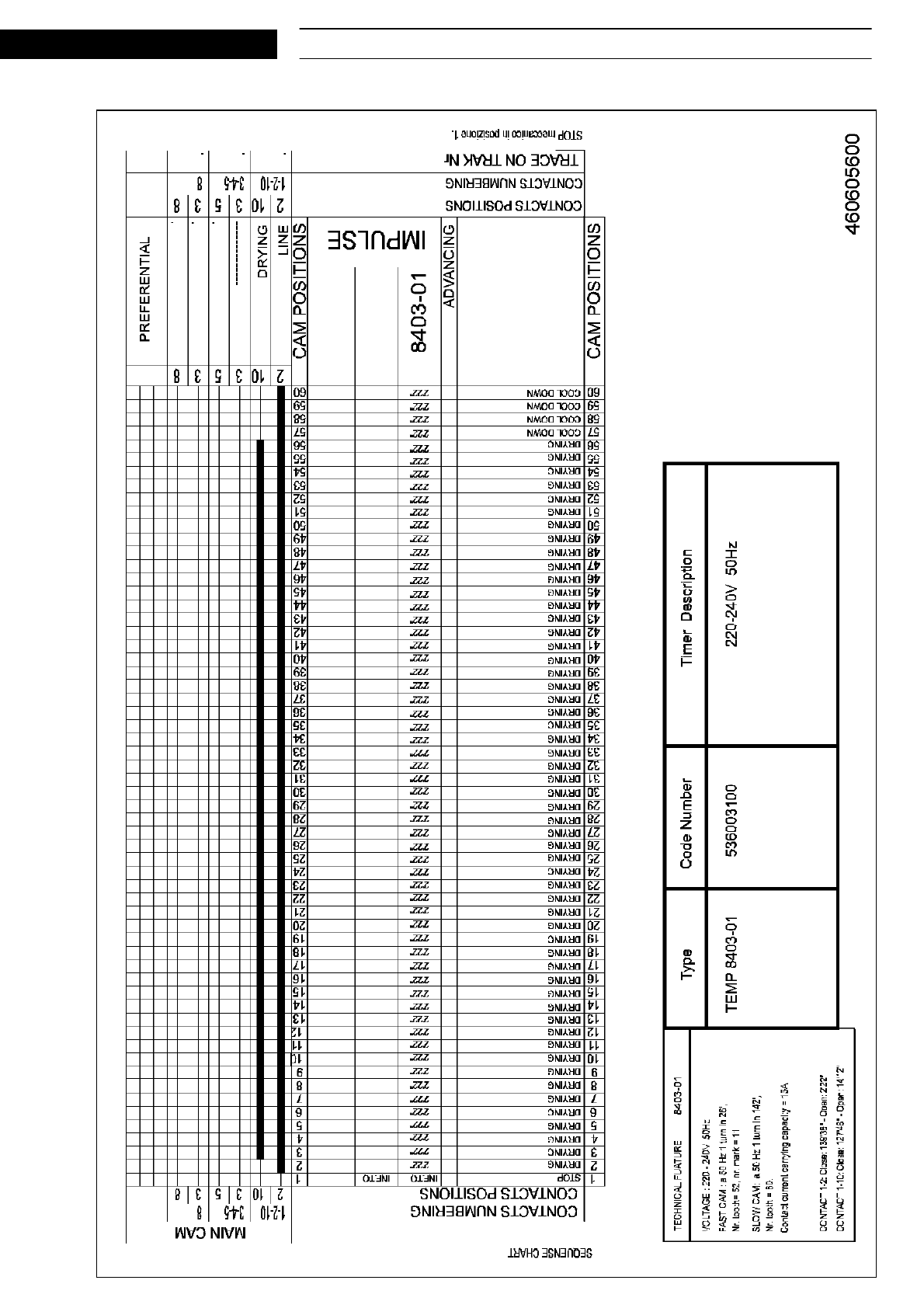

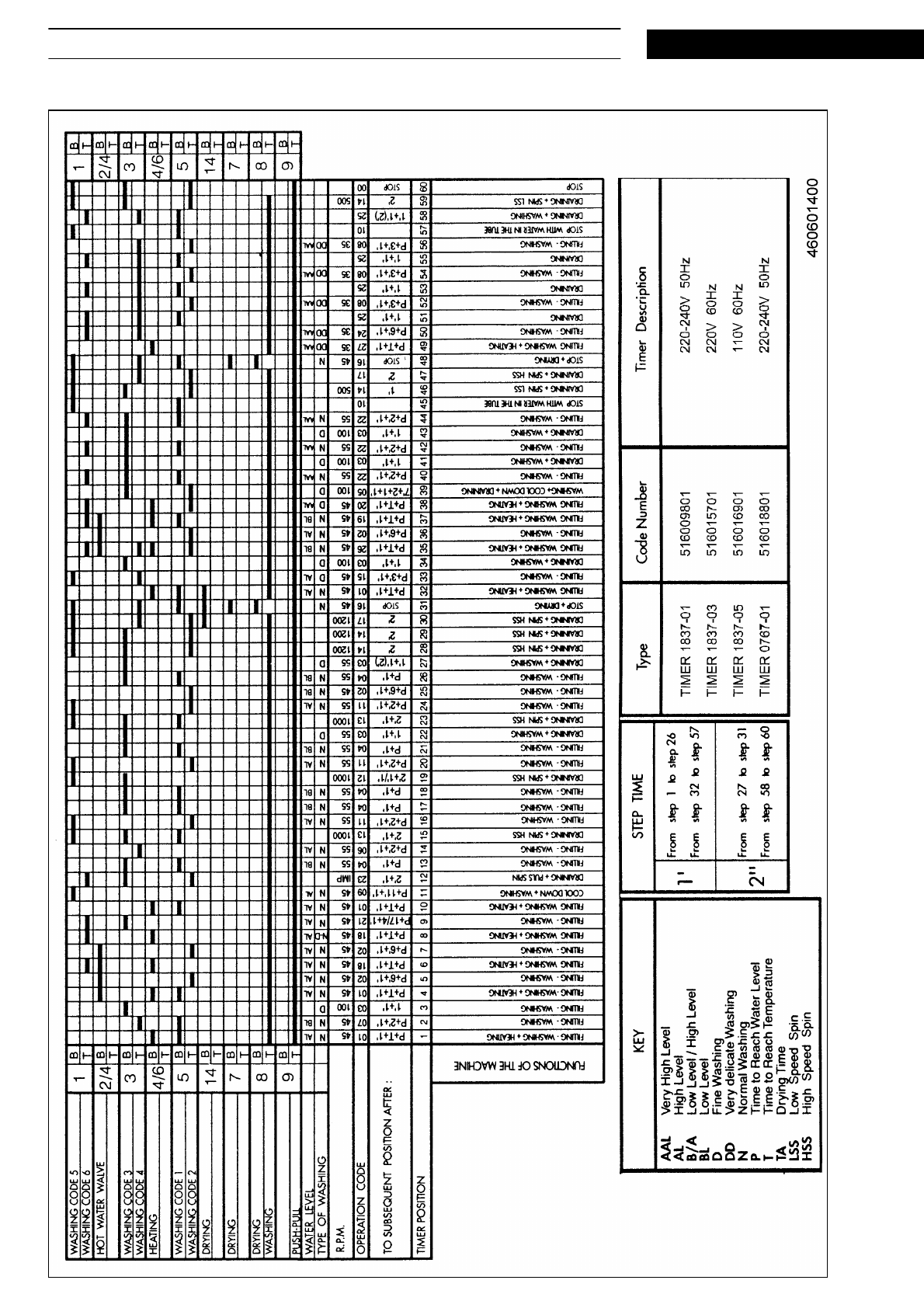

Program diagram
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 11
Customer Service 8575 410 01000 Doc. No: 4812 713 12675
Program diagram
SERVICE
31.10.2002 / Page 12 AWZ 410 Whirlpool Europe
Doc. No: 4812 713 12675 8575 410 01000 Customer Service
Program diagram
SERVICE Whirlpool Europe AWZ 410 31.10.2002 / Page 13
Customer Service 8575 410 01000 Doc. No: 4812 713 12675
Program diagram
