AXL122
User Manual: AXL122
Open the PDF directly: View PDF
.
Page Count: 20
Service Manual
S/N No. :
Sep. 2002
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr
Mini Component System
Model:
AXL-122W(XW-122)
AXL-125W(XW-125)
9CD8300100

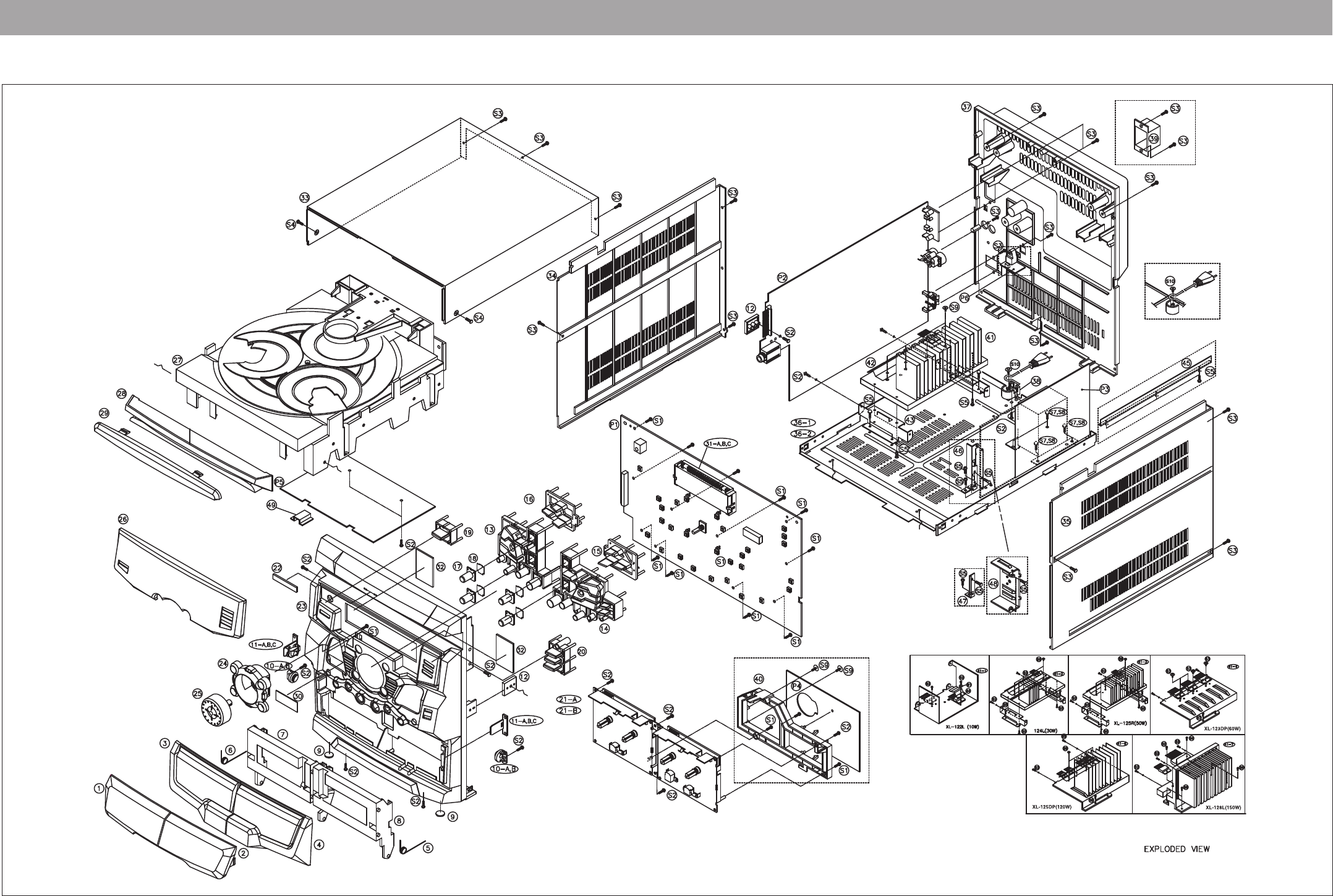

Exploded View and Mechanical Parts List
Model No:XL-125/R
AXL-122L/124L/125R/123DP/125DP/128L
Exploded View and Mechanical Parts List
Model : AXL-122W(XW-122) / AXL-125W(XW-125)
5
1 WINDOW DOOR A 9CD16177A0 MIPS 1
2 WINDOW DOOR B 9CD16177B0 MIPS 1
3 DOOR COVER A 9CD18123A0 MIPS 1
4 DOOR COVER B 9CD18123B0 MIPS 1
5 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
6 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB CD A 9CD1342200 ABS 1
14 KNOB CD B 9CD1342300 ABS 1
15 DECO EQ L 9CD10034L0 ACRYL 1
16 DECO EQ R 9CD10034R0 ACRYL 1
17 KNOB FUNCTION 9CD1342400 ACRYL 4
18 PLATE FUNCTION 9CD0911900 PC 4
19 KNOB POWER 9CD1342600 ABS 1
20 KNOB DISC 9CD1342500 ABS 1
21-A CASSETTE DECK LOGIC 9CD6007800 ADR-243AMW 1 124L/125L/128L/123DP
21-B CASSETTE DECK LOGIC 9CD6007700 ADR-243DSW 1 122L
22 BADGE DAEWOO 9CD1500900 ABS 1
23 PANEL FRONT 9CD0308600 MIPS 1
24 DECO VOL 9CD1003300 ABS 1
25 KNOB VOL 9CD1342700 ABS 1
26 WINDOW FLT 9CD1617800 ACRYL 1
27 CD DECK MECHA 9CD6006900 1
28 DOOR CD 9CD1812400 MIPS 1
29 WIN DOOR CD 9CD1617600 ACRYL 1
30 PLATE LED 9CD0911700 PVC T=0.5 1 OPTION
31-A GUIDE FLT 9CD2506500 ABS 1
122L/124L/125L/123DP
31-B GUIDE FLT 9CD2506300 ABS 1
125S/128L/125DP
31-C GUIDE FLT 9CD2506700 ABS 1 128
32 PLATE FLT 9CD0909800 PVC T=1.0 2
33 COVER TOP 9CD0411400 MIPS
NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS
Exploded View and Mechanical Parts List
Model : AXL-122W(XW-122) / AXL-125W(XW-125)
6
34 COVER SIDE L 9CD04115L0 MIPS 1
35 COVER SIDE R 9CD04115R0 MIPS 1
36-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1 124L/125L/123DP
37 COVER BACK MIPS 1 OPTION
38 HOLDER AC CORD 9CD2303300 ABS 1 124L/125L/128L/123DP
39 COVER ANT 9CD0410400 ABS 1
41-3 HEAT SINK N50 9CD4405900 AL 1 125L
42 9CD2414400 SUS 0.3T 1
43 9CD2414600 SECC 1.0T 1
44 9CD2413900 SUS 0.5T 1
49 HEAT SINK
BRACKET HEAT TR
BRACKET HEAT TR
BRACKET HEAT TR
9CD4402800 BSP 0.5T 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 13
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 18
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 18
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2
S5 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X6 MFZN 7
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN 2
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 4
S9 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 3
W1 WASHER PLAIN 1
P1 1
P2 1
P3 1
P5 1
P5 1
Ref : AMI-128R
OPTION
FRONT PCB
MAIN PCB
POWER PCB
PCB JACK
PCB CD
NO PARTS NAME CODE NO. DESCRIPTIONS Q’TY REMARKS

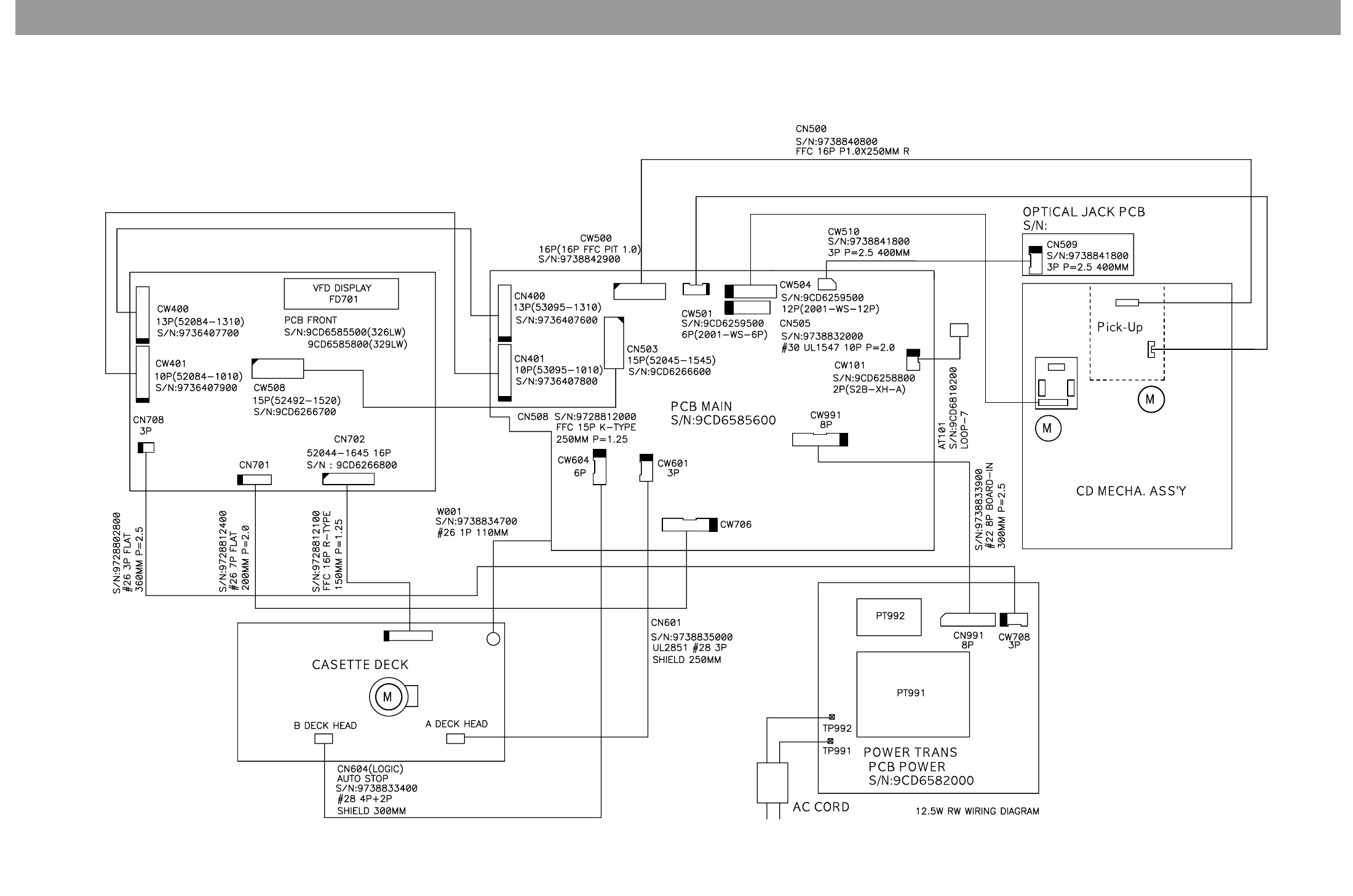

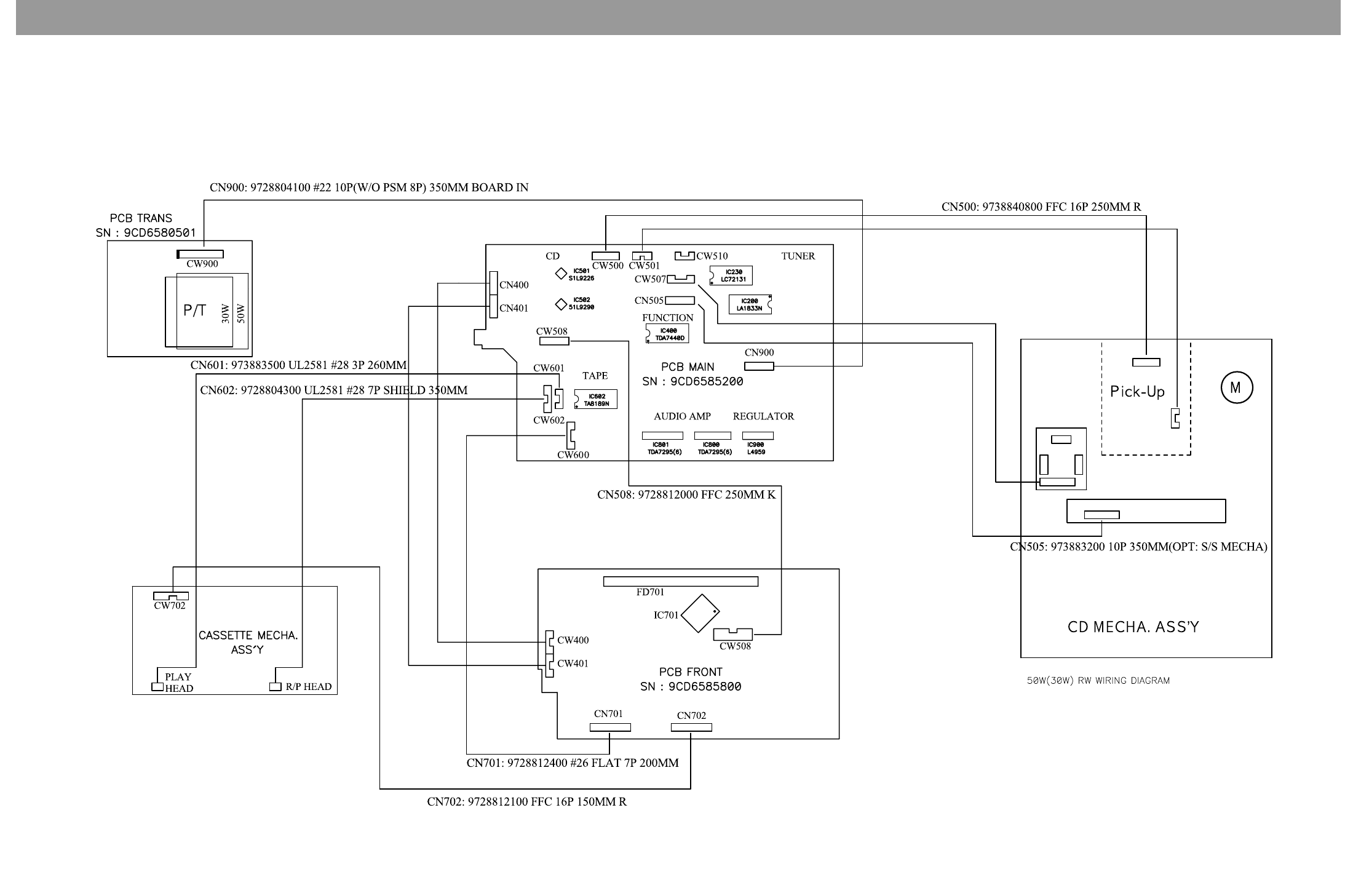

Wiring Diagram
7
Model : AXL-122W(XW-122)
Wiring Diagram
8
Model : AXL-125W(XW-125)

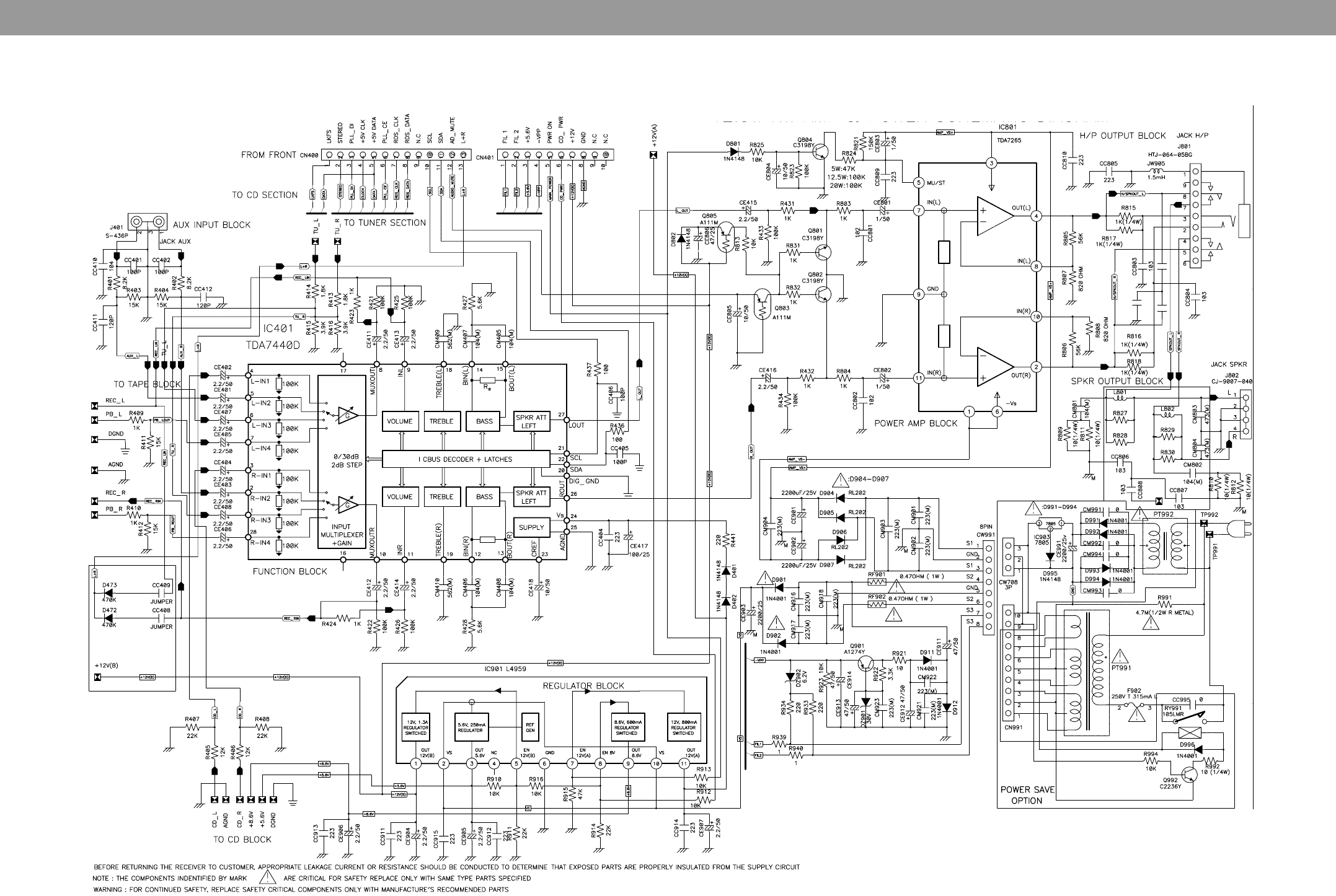

Schematic Diagram
11
Model : AXL-122W(XW-122)
Ass’y Name : AMP / POWER

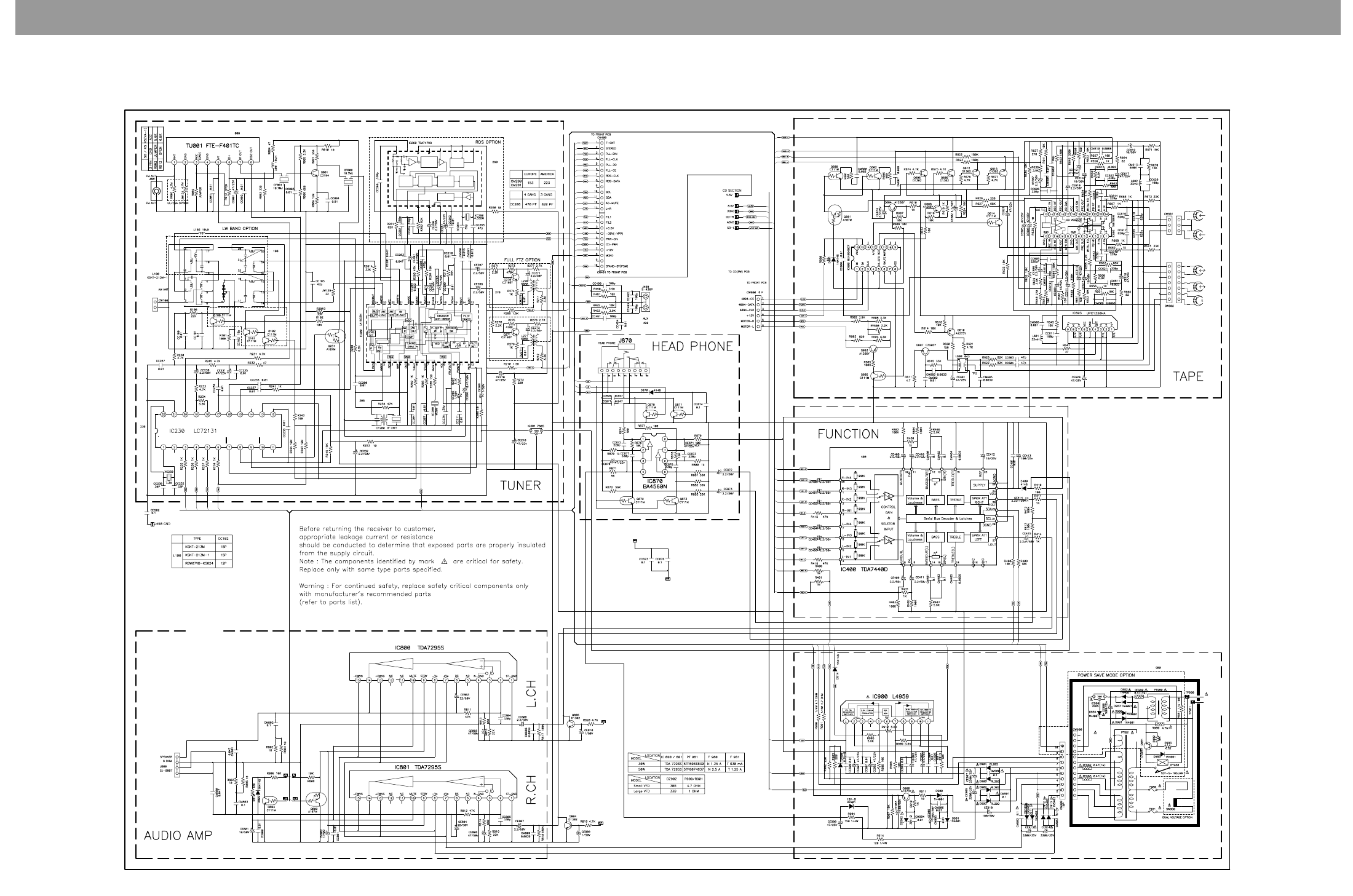

Schematic Diagram
12
Model : AXL-125W(XW-125)
Ass’y Name : TUNER / TAPE / AMP / POWER
DA
CE
CK
DO
XIN
NC
PD1
VSS
AM/FM
XOUT
VDD
FMIN
IFIN
FM
AMIN
NCST/MO
IF REQ
LW
SD
S-CURVE
AM/FM
IF
BUFF 304KHz 19K 19K 0
23
14
1612 3 6 14513
811 7124 910 15
VDD1
R/DATA
QUAL
R/CLK
CLOCK
VSS1 ANALOG
V REF
VSS2 VSS3
PLL
1187.5Hz
PLL 57KHz
RDS/ARI
anti
aliasimg
8th switched
capacitor
filter comparator
BIPHASE
DECODER
TEST
Differential
DECODER
ALC
50W(30W) RW MAIN
MAIN GND
3
14
13
1
210
6 5 4 9 8 7 11 12
6
5
3
241 7
9
813
11 14
1210
L101
21 20 19
11
15
14
2
12 17
4
5
7
8
6
18
9
16 13
3
10
22
1
VSS VT
N.C
MUTE
AM OSC 1/2
VT-IN FM/AM IF N.C VDD
IF REQ
DO
DI
CL
C B
I/F
AM/FM
PD
FM OSC
ST/MO
X-OUT
X-IN
FM
CE
Vtg(V) 1.81.8
IC201 Pin No. 13 14
Name Pin No.
Vtg(V) 12
2.1 4.8
#1 : SD ON(0V)
OTHERWISE(5V)
#2 : STEREO ON(0V)
OTHERWISE(5V)
15
3
2.1
4
2.1
567
GND
16 17 18 19
#2#1
2.1 2.1 2.1 2.1 #4
#3 : NORMAL(V=< 0.5V )
MUTE(1.4V=<V=<2.2V)
SEEK(V>=3.5V)
8 9 10 11 12
2.9
20 21 22 23 24
#3
4.8 3.5 3.8
2.1 2.1#5 4.8 3.5
#4 : FM(0V), AM(1.5V)
#5 : FM(0.2V), AM(0.9V)
CC104 : 15pF
CC104 : 12pF
KWANGSUNG : KSNT-213M-1
TOKO : RBW07VB-K5024
KWANGSUNG
TOKO
S-CURVE
AM/FM
IF
BUFF 304KHz 19K 19K 0
FTZ
CE X
O
CC214
R217
JW
O
FTZ
CE
#5 : FM(0), AM(2.4)
#7 : VT
IC202 Pin No.
Vtg(V)
Pin No.
Name
Vtg(V)
#1 : FM(3.7), AM(0)
#3 : FM(3.7), AM(0)
2.5 N.C
12
0
12
VCC
13
Vtg(V)
Name
E(1)
B(3)
C(2)
FTZ OPTION
#1
18
1
7
VCC
#6#5
00
VCC
17
#4 : FM(0), AM(12)
#2 : ON TUNING OPERATION(VCC)
14
N.C
3
0
456
15 16
Q104
#6 : FM(2.4), AM(0)
12
Q001
0
Q003
12
0
0
00
0
12
111098
19 20 21 22
GND 2.5
#4
1
#2
#7
#3 0
12
IC205
GND
REMARK
BASIC : FM
5
JW
OX
OX
OO
X820pF
560pF
RDS OPTION
X
O
X
OX
O
R218 R219 R220
JW205JW204CC215
JW213
L202L201
O
X
O
X
CC203
R214 R215
X
OO
X
R221 CF002
56K MS3-A
MJ-A56K

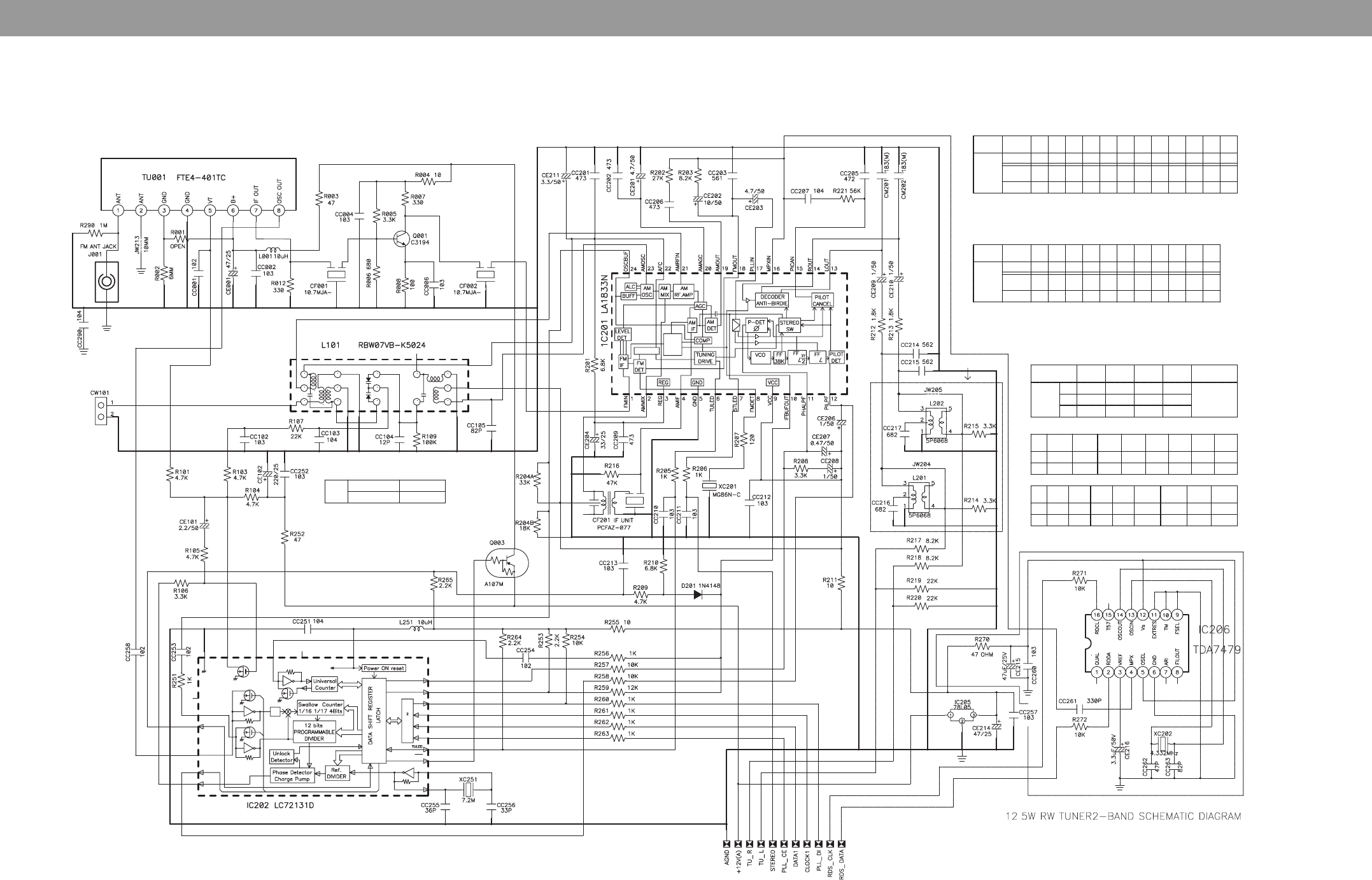

Schematic Diagram
Model : AXL-122W(XW-122)
Ass’y Name : TUNER
13

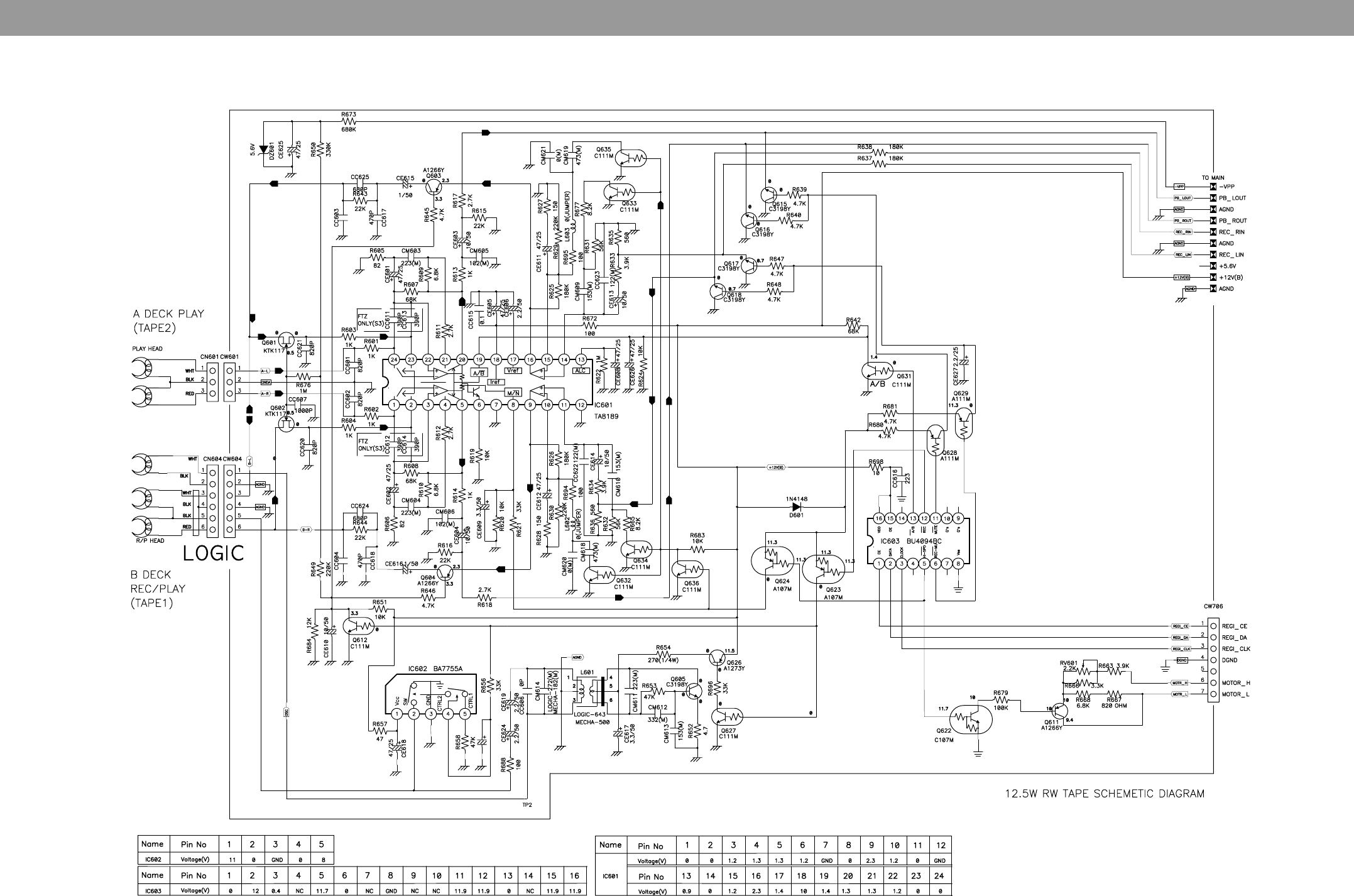

Schematic Diagram
Model : AXL-122W(XW-122)
Ass’y Name : TAPE
14

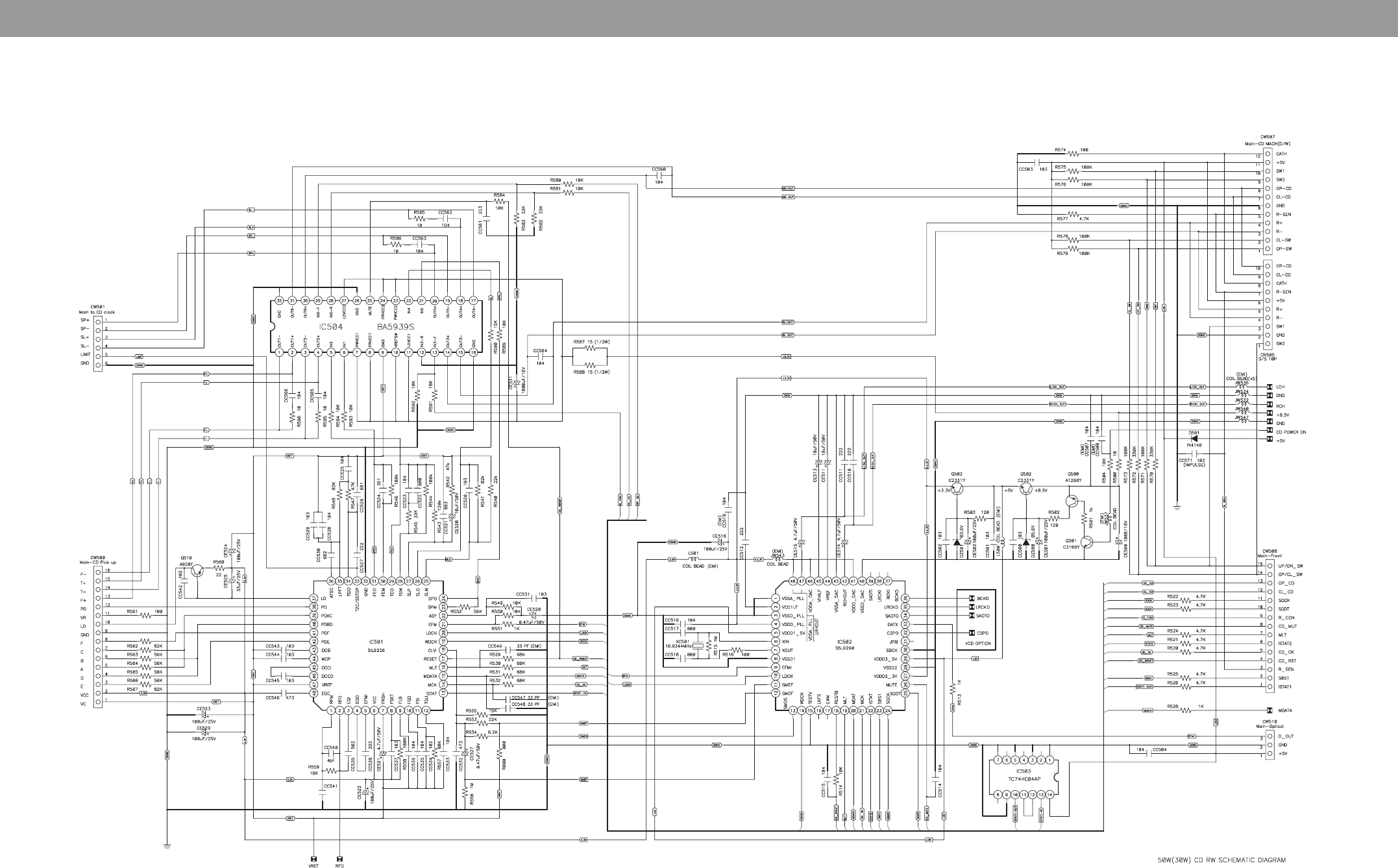

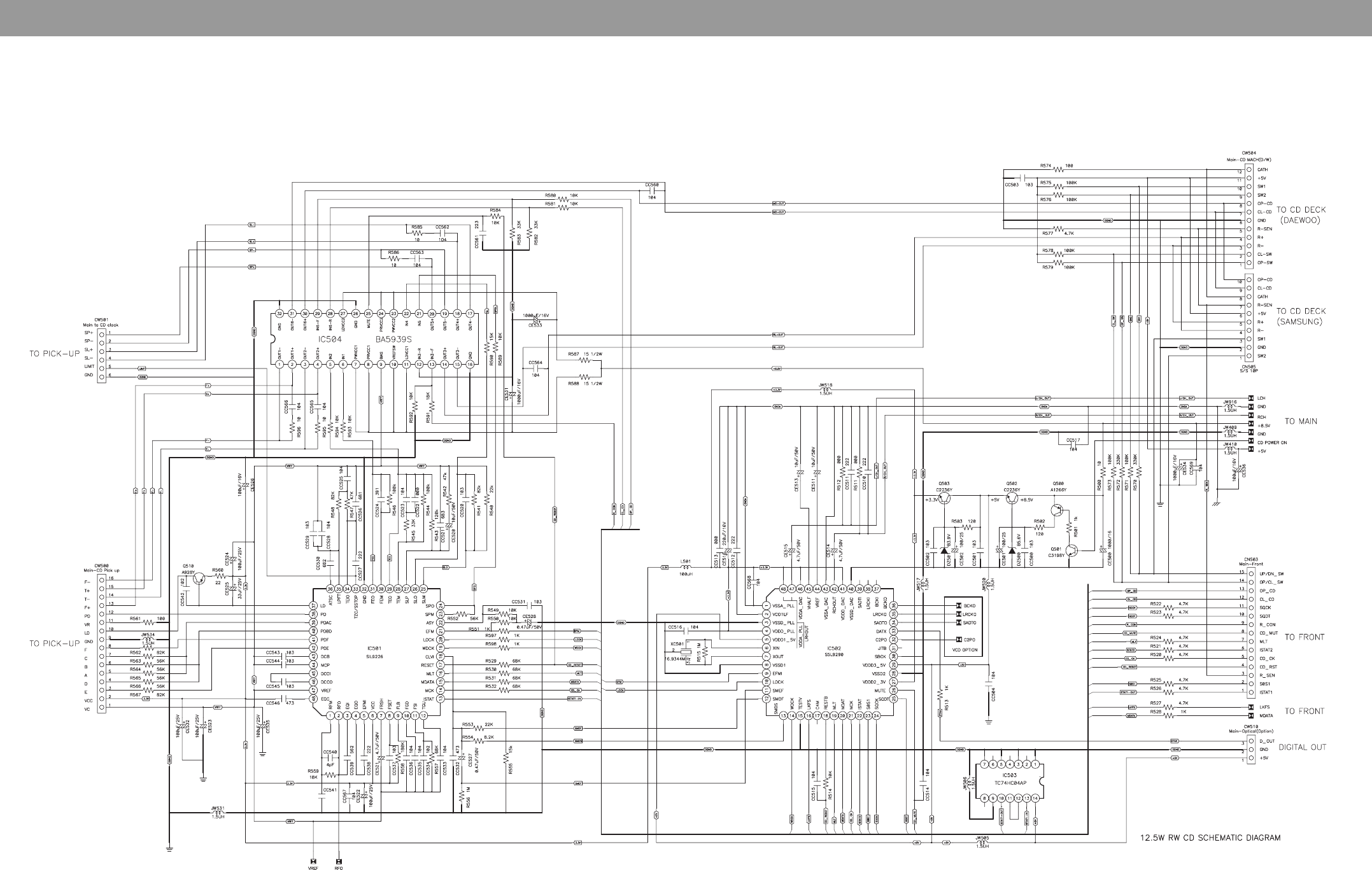

Schematic Diagram
Model : AXL-122W(XW-122)
Ass’y Name : CD
15
Schematic Diagram
Model : AXL-125W(XW-125)
Ass’y Name : CD
16

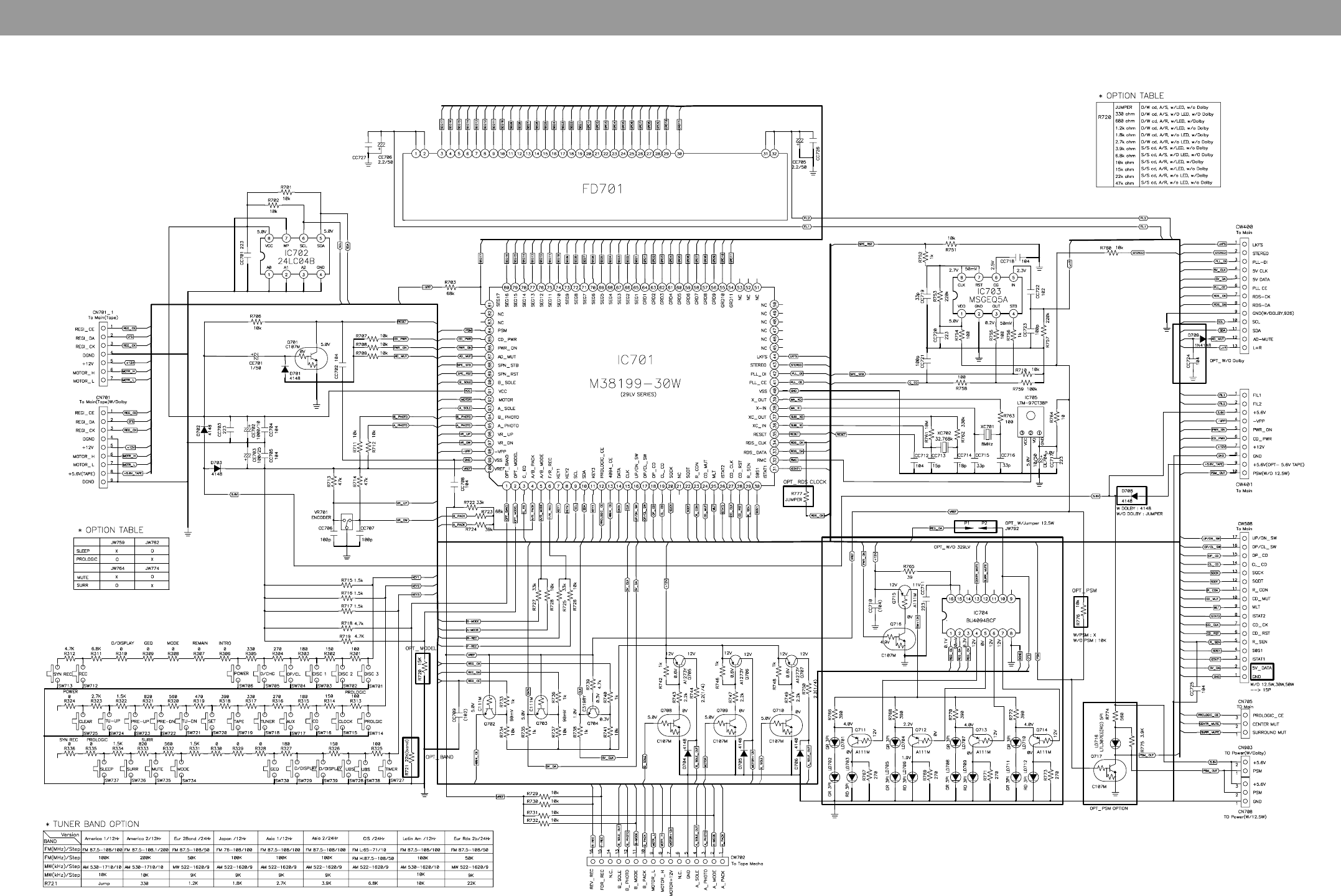

Schematic Diagram
Model : AXL-122W(XW-122) / AXL-125W(XW-125)
Ass’y Name : FRONT
17
Electrical Parts List
22
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
1 11000 PCB FRONT AS 9CDC061700 87 R724 R CARBON FILM RD-AZ393J- 1/6 39K OHM J
1 B001 PCB FRONT 9CD6587700 247X139X1.6T 88 R725 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
2 CC701 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 89 R726 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
3 CC702 C CERA CCXF1H104Z 50V F 0.1MF Z 90 R727 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
4 CC703 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 91 R728~732 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
5 CC704~705 C CERA CCXF1H104Z 50V F 0.1MF Z 92 R733 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
6 CC706~707 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 93 R734 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
7 CC708 C CERA CCXF1H104Z 50V F 0.1MF Z 94 R735~736 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
8 CC709 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 95 R737 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
9 CC710 C CERA CCXF1H104Z 50V F 0.1MF Z 96 R738 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
10 CC711 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 97 R739 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
11 CC712 C CERA CCXF1H104Z 50V F 0.1MF Z 98 R740 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
12 CC713 C CERA CZCH1H150J 50V CH 15PF J (AXIAL) 99 R741 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
13 CC714 C CERA CZCH1H180J 50V CH 18PF J (AXIAL) 100 R742 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
14 CC715~716 C CERA CZCH1H330J CH 50V 33PF J AXIAL 52MM 101 R743 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
15 CC717 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 102 R744 R CARBON FILM RD-4Z229J- 1/4 2.2 OHM J
16 CC718 C CERA CCXF1H104Z 50V F 0.1MF Z 103 R746 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
17 CC719 C CERA CZCH1H330J CH 50V 33PF J AXIAL 52MM 104 R747 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
18 CC720 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 105 R748 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
19 CC721 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 106 R749 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
20 CC722 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 107 R750 R CARBON FILM RD-4Z229J- 1/4 2.2 OHM J
21 CC723 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 108 R751 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
22 CC724~725 C CERA CCXF1H104Z 50V F 0.1MF Z 109 R752 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
23 CE701 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 110 R753 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
24 CE702 C ELECTRO CEYF1A102V 10V 1000MF RSS 10X16 111 R754~755 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
25 CE703 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 112 R756 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
26 CE704 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 113 R757 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
27 CE705~706 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 114 R758 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
28 CN508 CONN AS 9728812000 FFC 15P P1.25X250MM K 115 R759 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
29 CN701 CONN AS 9728812400 #26 FLAT 200MM 7P 116 R760 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
30 CN702 CONN AS 9728812100 FFC 16P P1.25X150MM R 117 R761 R CARBON FILM RD-AZ106J- 1/6 10M OHM J
31 CN708 CONN AS 9728802800 #26 3P FLAT 360MM P=2.5 118 R762 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
32 CW400 CONN WAFER 9736407700 52084-1310 13P BOTTOM 119 R763 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
33 CW401 CONN WAFER 9736407900 52084-1010 10P BOTTOM 120 R764 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
34 CW508 CONN WAFER 9CD6266700 52492-1520 BOTTOM ENTRY 121 R765 R CARBON FILM RD-AZ390J- 1/6 39 OHM J
35 CW702 CONN WAFER 9CD6261600 52492-1620 BOTTOM 122 R774 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
36 D701~706 DIODE DZN4148--- 1N4148 AUTO 52MM 123 R775 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
37 D708 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO 124 R777 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
38 D709 DIODE DZN4148--- 1N4148 AUTO 52MM 125 SW701~706 SW TACT 5S50101001 KPT-1105A 1C-1P
39 FD701 VFD DHNA11MS26 HNA-11MS26 126 SW712~713 SW TACT 5S50101001 KPT-1105A 1C-1P
40 IC701 IC 1M38199RWS U-COM M38199RW 326LW 127 SW715~725 SW TACT 5S50101001 KPT-1105A 1C-1P
41 IC702 IC 1M24C04--- M24C04-BN6 128 SW727~730 SW TACT 5S50101001 KPT-1105A 1C-1P
42 IC703 IC 1MSGEQ5A-- MSGEQ5A 129 SW734~735 SW TACT 5S50101001 KPT-1105A 1C-1P
43 IC705 IC 1HEG838--- HEG838 130 SW737~739 SW TACT 5S50101001 KPT-1105A 1C-1P
44 LD716 LED DLTL307EE- LTL-307EE(RED)PI5 131 VR701 SW ENCORDER 5SH162401- EC16B24204 24P W/DETENT
45 Q701 TR TKRC107M-- KRC 107-M (TAPPING) 132 XC701 RESONATOR 5PCSA8MTZ- CSALA8M00T55-B0 (8.00MTZ)
46 Q702~703 TR TKRC111M-- KRC111M (KSR1010) 133 XC702 X-TAL 5XA32R768- DT-38 32.768KHZ 20PPM
47 Q704 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 1 10000 PCB MAIN AS 9CDC059600 AMI-326LW
48 Q705~707 TR TZTA1273Y- KTA1273Y(966Y) 2 B001 PCB MAIN 9CD6585600 330X197X1.6T
49 Q708~710 TR TKRC107M-- KRC 107-M (TAPPING) 3 CC001 C CERA CCZB1E102K 25V B 1000PF K (AXIAL)
50 Q715 TR TKRA111M-- KRA 111-M (TAPPING) 4 CC002 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
51 Q716~717 TR TKRC107M-- KRC 107-M (TAPPING) 5 CC004 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
52 R301 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 6 CC006 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
53 R302 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 7 CC102 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
54 R303 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 8 CC103 C CERA CCXF1H104Z 50V F 0.1MF Z
55 R304 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 9 CC104 C CERA CZCH1H150J 50V CH 15PF J (AXIAL)
56 R305 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 10 CC105 C CERA CZCH1E820J CH 25V 82PF J AXL 52MM
57 R311 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 11 CC201~202 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING)
58 R312 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 12 CC203 C CERA CCZB1E561K 25V B 560PF K (AXIAL)
59 R313 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 13 CC205 C CERA CCZB1E472K 25V B 4700PF K (AXIAL)
60 R314 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 14 CC206 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING)
61 R315 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 15 CC207 C CERA CCXF1H104Z 50V F 0.1MF Z
62 R316 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 16 CC209 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING)
63 R317 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 17 CC210~213 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
64 R318 R CARBON FILM RD-AZ391J- 1/6 390 OHM J 18 CC216~217 C CERA CCZB1E682K 25V B 6800PF K (AXIAL)
65 R319 R CARBON FILM RD-AZ471J- 1/6 470 OHM J 19 CC251 C CERA CCXF1H104Z 50V F 0.1MF Z
66 R320 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 20 CC252 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
67 R321 R CARBON FILM RD-AZ821J- 1/6 820 OHM J 21 CC253~254 C CERA CCZB1E102K 25V B 1000PF K (AXIAL)
68 R322 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 22 CC255 C CERA CZCH1E360J CH 25V 36PF J AXIAL 52MM
69 R323 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J 23 CC256 C CERA CZCH1E330J CH 25V 33PF J AXIAL 52MM
70 R325 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 24 CC257 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
71 R326 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 25 CC258 C CERA CCZB1E102K 25V B 1000PF K (AXIAL)
72 R327 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 26 CC260 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
73 R331 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 27 CC261 C CERA CCXB1H331K 50V B 330PF K (TAPPING)
74 R332 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 28 CC262 C CERA CXCH1H470J 50V CH 47PF J (TAPPING)
75 R333 R CARBON FILM RD-AZ821J- 1/6 820 OHM J 29 CC263 C CERA CXCH1H820J 50V CH 82PF J (TAPPING)
76 R334 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 30 CC290 C CERA CCXF1H104Z 50V F 0.1MF Z
77 R701~702 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 31 CC401~402 C CERA CXCH1H101J 50V CH 100PF J (TAPPING)
78 R703 R CARBON FILM RD-AZ683J- 1/6 68K OHM J 32 CC404 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING)
79 R706~712 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 33 CC405~406 C CERA CXCH1H101J 50V CH 100PF J (TAPPING)
80 R713~714 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 34 CC408 WIRE JUMPER W581GY5095 AWG22 1/0.65 SN 5 AUTO
81 R715~717 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 35 CC409 WIRE JUMPER W581GY5095 AWG22 1/0.65 SN 5 AUTO
82 R718~719 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 36 CC410 C CERA CCXF1H104Z 50V F 0.1MF Z
83 R720 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 37 CC411~412 C CERA CCXB1H121K 50V B 120PF K (TAPPING)
84 R721 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 38 CC500~503 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
85 R722 R CARBON FILM RD-AZ333J- 1/6 33K OHM J 39 CC504 C CERA CCXF1H104Z 50V F 0.1MF Z
86 R723 R CARBON FILM RD-AZ683J- 1/6 68K OHM J 40 CC510~512 C CERA CCXB1H222K 50V B 2200PF K (TAPPING)
Model : AXL-122W(XW-122)
Electrical Parts List
23
Model : AXL-122W(XW-122)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
41 CC514~517 C CERA CCXF1H104Z 50V F 0.1MF Z 128 CE619 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
42 CC520 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 129 CE623 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
43 CC521 C CERA CCXF1H683Z 50V F 0.068MF Z 130 CE624 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
44 CC523 C CERA CCXF1H104Z 50V F 0.1MF Z 131 CE625 C ELECTRO CEXF1E330V 25V RSS 33MF (5X11) TP
45 CC524 C CERA CCXB1H391K 50V B 390PF K (TAPPING) 132 CE626 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
46 CC525 C CERA CCXF1H104Z 50V F 0.1MF Z 133 CE801~803 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP
47 CC526 C CERA CCXB1H681K 50V B 680PF K (TAPPING) 134 CE804~805 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
48 CC527 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 135 CE806 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
49 CC528 C CERA CCXF1H104Z 50V F 0.1MF Z 136 CE901~903 C ELECTRO CEXF1E222V 25V RSS 2200MF (16X25) TP
50 CC529 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 137 CE904~907 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
51 CC530 C CERA CCXB1H682K 50V B 6800PF K (TAPPING) 138 CE911~914 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP
52 CC531 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 139 CF001~002 FILTER CERA 5PE107MJA- SFE 10.7MHZ RED
53 CC532 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 140 CF201 FILTER 5PPCFAZ077 PCFAZ077
54 CC533 C CERA CCXF1H104Z 50V F 0.1MF Z 141 CM201~202 C MYLAR CMXM1H183J 50V 0.018MF J
55 CC534 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 142 CM405~408 C MYLAR CMXM1H104J 50V 0.1MF J
56 CC535~536 C CERA CCXF1H104Z 50V F 0.1MF Z 143 CM409~410 C MYLAR CMXM1H562J 50V 5600 PF J
57 CC537 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 144 CM603~604 C MYLAR CMXM1H223J 50V 0.022MF J
58 CC538 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 145 CM605~606 C MYLAR CMXM1H102J 50V 0.001MF J (TP)
59 CC539 C CERA CCXB1H562K 50V B 5600PF K (TAPPING) 146 CM609~610 C MYLAR CMXM1H153J 50V 0.015MF J (TP)
60 CC540 C CERA CXCH1H409D 50V CH 4PF D (TAPPING) 147 CM611 C MYLAR CMXM1H223J 50V 0.022MF J
61 CC542 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 148 CM612 C MYLAR CMXM1H332J 50V 3300 PF J
62 CC543~545 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 149 CM613 C MYLAR CMXM1H153J 50V 0.015MF J (TP)
63 CC546 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 150 CM614 C MYLAR CMXM1H272J 50V 2700PF J
64 CC560 C CERA CCXF1H104Z 50V F 0.1MF Z 151 CM618~619 C MYLAR CMXM1H473J 50V 0.047MF J
65 CC561 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 152 CM801~802 C MYLAR CMXM1H104J 50V 0.1MF J
66 CC562~569 C CERA CCXF1H104Z 50V F 0.1MF Z 153 CM803~804 C MYLAR CMXM1H473J 50V 0.047MF J
67 CC601~602 C CERA CCXB1H821K 50V B 820PF K (TAPPING) 154 CM901~904 C MYLAR CMXM1H223J 50V 0.022MF J
68 CC607 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 155 CM916~918 C MYLAR CMXM1H223J 50V 0.022MF J
69 CC611~614 C CERA CCXB1H391K 50V B 390PF K (TAPPING) 156 CM921~923 C MYLAR CMXM1H223J 50V 0.022MF J
70 CC615 C CERA CCXF1H104Z 50V F 0.1MF Z 157 CN400 CONN PIN 9736407600 PIN BASE 53095-1310 13P
71 CC616 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 158 CN401 CONN PIN 9736407800 53095-1010 10PIN ANGLE
72 CC617~618 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 159 CN500 CONN AS 9738840800 FFC 16P P1.0X250MM R
73 CC620~621 C CERA CCXB1H821K 50V B 820PF K (TAPPING) 160 CN503 CONN WAFER 9CD6264100 52045-1545 TOP ENTRY
74 CC622~623 C MYLAR CMXM1H122J 50V 0.0012MF J 161 CN508 CONN AS 9728812300 FFC 21P PI25X150MM K
75 CC624~625 C CERA CCXB1H681K 50V B 680PF K (TAPPING) 162 CN601 CONN AS 9738835000 UL 2851 #28X2C0 3P 260MM
76 CC801~802 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 163 CN604 CONN AS 9738833400 #28 4P+2P SHIELD 300MM
77 CC803~804 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 164 CN605 CONN AS 9738834700 UL 1007 #26 1P 110MM
78 CC805 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 165 CN702 CONN AS 9728812100 FFC 16P P1.25X150MM R
79 CC806~808 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 166 CW101 CONN WAFER 9CD6258800 2P S2B-XH-A
80 CC809~810 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 167 CW500 CONN WAFER 9738842900 16P FFC PIT1.0
81 CC911~915 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 168 CW501 CONN WAFER 9CD6259500 2001-WS-6P
82 CE001 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 169 CW504 CONN WAFER 9CD6259400 2001-WS-12P
83 CE101 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 170 CW510 CONN AS 9738841800 #26 400MM 3P 2.5P
84 CE102 C ELECTRO CEXF1E221V 25V RSS 220MF (8X11.5) TP 171 CW601 CONN AS 9738835000 UL 2851 #28X2C0 3P 260MM
85 CE201 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 172 CW604 CONN AS 9738833400 #28 4P+2P SHIELD 300MM
86 CE202 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 173 CW605 CONN AS 9738834700 UL 1007 #26 1P 110MM
87 CE203 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 174 CW706 CONN AS 9728812400 #26 FLAT 200MM 7P
88 CE204 C ELECTRO CEXF1E330V 25V RSS 33MF (5X11) TP 175 CW991 CONN AS 9738833900 #22 8P BOARD-IN 350MM
89 CE206 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 176 D201 DIODE DZN4148--- 1N4148 AUTO 52MM
90 CE207 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 177 D401~402 DIODE DZN4148--- 1N4148 AUTO 52MM
91 CE208~210 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 178 D472~473 R CARBON FILM RD-AZ474J- 1/6 470K OHM J
92 CE211 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 179 D601 DIODE DZN4148--- 1N4148 AUTO 52MM
93 CE214~215 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 180 D801~802 DIODE DZN4148--- 1N4148 AUTO 52MM
94 CE216 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 181 D901~902 DIODE D1N4001--- 1N4001
95 CE401~408 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 182 D904~907 DIODE DRL202---- RL202
96 CE411~416 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 183 D911~912 DIODE D1N4001--- 1N4001
97 CE417 C ELECTRO CEXF1E221V 25V RSS 220MF (8X11.5) TP 184 DZ500 DIODE ZENER DZTZ5R6B-- UZ-5.6B
98 CE418 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 185 DZ501 DIODE ZENER DZTZ3R9B-- MTZ3.9B
99 CE500 C ELECTRO CEXF1C102V 16V RSS 1000MF (10X20) TP 186 DZ601 DIODE ZENER DZTZ5R6B-- UZ-5.6B
100 CE501~502 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 187 DZ901 DIODE ZENER DZTZ30B--- MTZ30B
101 CE511 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 188 DZ902 DIODE ZENER DZTZ6R2B-- MTZ6.2B
102 CE513 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 189 IC201 IC 1LA1833N-- LA1833N
103 CE514~515 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 190 IC202 IC 1LC72131D- LC72131D
104 CE516 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 191 IC205 IC REGULATOR 1KA78L05AZ KA78L05AZ
105 CE520 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 192 IC206 IC 1TDA7479-- TDA7479
106 CE521 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 193 IC401 IC 1TDA7440D- TDA7440D
107 CE522~524 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 194 IC501 IC SSP 1S1L9226-- S1L9226
108 CE525 C ELECTRO CEXF1E330V 25V RSS 33MF (5X11) TP 195 IC502 IC DSP 1S5L9290-- S5L9290
109 CE526 C ELECTRO CEXF1C101V 16V RSS 100MF (6.3X11) TP 196 IC503 IC 174HCT04AF TC74HCT04AF
110 CE527~528 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 197 IC504 IC MOTOR DRIVE 1BA5939S-- BA5939S
111 CE531 C ELECTRO CEXF1C102V 16V RSS 1000MF (10X20) TP 198 IC601 IC 1TA8189N-- TA8189N
112 CE532 C ELECTRO CEXF1C101V 16V RSS 100MF (6.3X11) TP 199 IC602 IC SWITCHING 1BA7755A-- BA7755A (HEAD SW)
113 CE533~534 C ELECTRO CEYF1C102V 16V RSS 1000MF (10X20) 200 IC603 IC 1BU4094BCF BU4094BCF(SOP16)
114 CE535~536 C ELECTRO CEXF1C101V 16V RSS 100MF (6.3X11) TP 201 IC801 IC 1TDA7265-- TDA7265
115 CE537 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 202 IC901 IC 1L4959---- L4959
116 CE601~602 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 203 J001 JACK ANT 9736321900 PAT645
117 CE603~604 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 204 J401 JACK RCA 9CD6313700 S-436P
118 CE605 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 205 J801 JACK HEADPHONE 9766319501 HTJ-064-05B GOLD
119 CE606 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 206 J802 JACK SPEAKER 9736320500 CJ-9007-040
120 CE608 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 207 JW404 COIL BEAD 5LX159P829 1.5UH MIN
121 CE609 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 208 JW409~410 COIL BEAD 5LX159P829 1.5UH MIN
122 CE610 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 209 JW411 DIODE DZN4148--- 1N4148 AUTO 52MM
123 CE611~612 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 210 JW505~506 COIL BEAD 5LX159P829 1.5UH MIN
124 CE613~614 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 211 JW517~518 COIL BEAD 5LX159P829 1.5UH MIN
125 CE615~616 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 212 JW520 COIL BEAD 5LX159P829 1.5UH MIN
126 CE617 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 213 JW531 COIL BEAD 5LX159P829 1.5UH MIN
127 CE618 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 214 JW534 COIL BEAD 5LX159P829 1.5UH MIN
Electrical Parts List
24
Model : AXL-122W(XW-122)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
215 JW905 COIL BEAD 5LX159P829 1.5UH MIN 302 R432 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
216 JW916 COIL BEAD 5LX159P829 1.5UH MIN 303 R433~434 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
217 L001 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 304 R436~437 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
218 L101 AM RF UNIT 5LR0000835 KSNT-213M-1 305 R441 R CARBON FILM RD-AZ221J- 1/6 220 OHM J
219 L201~202 COIL 5P076068-- 6068MPX 306 R500 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
220 L251 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 307 R501 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
221 L601 COIL BIAS OSC 5L0503K643 SM-10F 5.04MH 308 R502~503 R CARBON FILM RD-AZ121J- 1/6 120 OHM J
222 L602 WIRE JUMPER W581GY5095 AWG22 1/0.65 SN 5 AUTO 309 R513 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
223 L603 WIRE JUMPER W581GY5095 AWG22 1/0.65 SN 5 AUTO 310 R514 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
224 Q001 TR TZTC3194Y- KTC3194Y 311 R515 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
225 Q003 TR TZRA107M-- KRA107M (KSR2006) 312 R520~527 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
226 Q500 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 313 R528 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
227 Q501 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 314 R529~532 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
228 Q502~503 TR TZTC2236Y- KTC2236-Y(AUTO) 315 R540 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
229 Q510 TR TZSA928AY- KSA928A-Y(AUTO) 316 R541 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
230 Q601~602 FET TKTK117Y-- KTK117(Y) 317 R542 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
231 Q603~604 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 318 R543 R CARBON FILM RD-AZ124J- 1/6 120K OHM J
232 Q605 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 319 R544 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
233 Q611 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 320 R545 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
234 Q612 TR TZRC111M-- KRC111M 321 R546 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
235 Q615~618 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 322 R547 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
236 Q622 TR TZRC107M-- KRC107M(AUTO) 323 R548 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
237 Q623~624 TR TZRA107M-- KRA107M (KSR2006) 324 R549~550 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
238 Q626 TR TZTA1273Y- KTA1273Y(966Y) 325 R551 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
239 Q627 TR TZRC111M-- KRC111M 326 R552 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
240 Q628~629 TR TZRA111M-- KRA111M 327 R553 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
241 Q631~636 TR TZRC111M-- KRC111M 328 R554 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J
242 Q801~802 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 329 R555 R CARBON FILM RD-AZ153J- 1/6 15K OHM J
243 Q803 TR TZRA111M-- KRA111M 330 R556 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
244 Q804 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 331 R557 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
245 Q805 TR TZRA111M-- KRA111M 332 R558 R CARBON FILM RD-AZ184J- 1/6 180K OHM J
246 Q901 TR TZTA1274Y- KTA1274Y- 333 R559 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
247 R002 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO 334 R560 R CARBON FILM RD-AZ220J- 1/6 22 OHM J
248 R003 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 335 R561 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
249 R004 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 336 R562 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
250 R005 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 337 R563~566 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
251 R006 R CARBON FILM RD-AZ681J- 1/6 680 OHM J 338 R567 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
252 R007 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 339 R570 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
253 R008 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 340 R571 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
254 R101 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 341 R572 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
255 R103~105 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 342 R573 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
256 R106 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 343 R574 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
257 R107 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 344 R575~576 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
258 R109 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 345 R577 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
259 R201 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 346 R578~579 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
260 R202 R CARBON FILM RD-AZ273J- 1/6 27K OHM J 347 R580~581 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
261 R203 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J 348 R582 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
262 R204A R CARBON FILM RD-AZ333J- 1/6 33K OHM J 349 R583 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
263 R204B R CARBON FILM RD-AZ183J- 1/6 18K OHM J 350 R584 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
264 R205~206 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 351 R585~586 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
265 R207 R CARBON FILM RD-AZ121J- 1/6 120 OHM J 352 R587~588 R CARBON FILM RD-2Y150J- 1/2 15 OHM J
266 R208 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 353 R589 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
267 R209 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 354 R590 R CARBON FILM RD-AZ153J- 1/6 15K OHM J
268 R210 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 355 R591 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
269 R211 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 356 R592~594 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
270 R212~213 R CARBON FILM RD-AZ182J- 1/6 1.8K OHM J 357 R595~596 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
271 R214~215 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 358 R597~598 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
272 R216 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 359 R601~604 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
273 R217 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO 360 R605~606 R CARBON FILM RD-AZ820J- 1/6 82 OHM J
274 R218 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO 361 R607~608 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
275 R221 R CARBON FILM RD-AZ563J- 1/6 56K OHM J 362 R609~610 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J
276 R251 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 363 R611~612 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J
277 R252 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 364 R613~614 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
278 R253 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J 365 R615~616 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
279 R254 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 366 R617~618 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J
280 R255 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 367 R619~620 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
281 R256 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 368 R621 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
282 R257~258 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 369 R622 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
283 R259 R CARBON FILM RD-AZ123J- 1/6 12K OHM J 370 R624 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
284 R260~263 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 371 R625~626 R CARBON FILM RD-AZ184J- 1/6 180K OHM J
285 R264~265 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J 372 R627~628 R CARBON FILM RD-AZ151J- 1/6 150 OHM J
286 R270 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 373 R629~630 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
287 R271~272 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 374 R631~632 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
288 R290 R CARBON FILM RD-AZ105J- 1/6 1M OHM J 375 R633~634 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
289 R401~402 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J 376 R635~636 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
290 R403~404 R CARBON FILM RD-AZ153J- 1/6 15K OHM J 377 R637~638 R CARBON FILM RD-AZ184J- 1/6 180K OHM J
291 R405~406 R CARBON FILM RD-AZ123J- 1/6 12K OHM J 378 R639~640 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
292 R407~408 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 379 R642 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
293 R409~410 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 380 R643~644 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
294 R411~412 R CARBON FILM RD-AZ153J- 1/6 15K OHM J 381 R645~648 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
295 R413~414 R CARBON FILM RD-AZ182J- 1/6 1.8K OHM J 382 R649 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
296 R415~416 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J 383 R650 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
297 R421~422 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 384 R651 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
298 R423~424 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 385 R652 R CARBON FILM RD-AZ479J- 1/6 4.7 OHM J
299 R425~426 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 386 R653 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
300 R427~428 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J 387 R654 R CARBON FILM RD-4Z271J- 1/4 270 OHM J
301 R431 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 388 R656 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
Electrical Parts List
25
Model : AXL-122W(XW-122)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
389 R657 R CARBON FILM RD-AZ470J- 1/6 47 OHM J
390 R658 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
391 R663 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
392 R665 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J
393 R666 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J
394 R667 R CARBON FILM RD-AZ821J- 1/6 820 OHM J
395 R668 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J
396 R672 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
397 R673 R CARBON FILM RD-AZ684J- 1/6 680K OHM J
398 R676 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
399 R677 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J
400 R679 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
401 R680~681 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
402 R683 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
403 R684 R CARBON FILM RD-AZ123J- 1/6 12K OHM J
404 R688 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
405 R694~695 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
406 R696 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
407 R698 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
408 R803~804 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
409 R805~806 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
410 R807~808 R CARBON FILM RD-AZ821J- 1/6 820 OHM J
411 R809~812 R CARBON FILM RD-4Z100J- 1/4 10 OHM J
412 R813 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
413 R815~818 R CARBON FILM RD-4Z102J- 1/4 1K OHM J
414 R821 R CARBON FILM RD-AZ154J- 1/6 150K OHM J
415 R823~824 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
416 R825 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
417 R827 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
418 R828 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
419 R829 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
420 R830 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
421 R831~832 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
422 R910 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
423 R911 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
424 R912~913 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
425 R914 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
426 R915 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
427 R916 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
428 R921 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
429 R922 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J
430 R923 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
431 R933~934 R CARBON FILM RD-AZ221J- 1/6 220 OHM J
432 R939~940 R CARBON FILM RD-AZ109J- 1/6 1 OHM J
433 RF901~902 R FUSIBLE RF01F4780J 0.47OHM 1W
434 RV601 R SEMI FIXED RV1417222- 1/10 2.2K OHM B V6EK-PV1S
435 TU001 TUNER PACK 9737613500 FTE4-401TC
436 W600 CONN AS 9738834700 UL 1007 #26 1P 110MM
437 W601 CONN AS 9738834700 UL 1007 #26 1P 110MM
438 XC201 C DISCRIMINATOR 5P107MG86C CDA10.7MG86N-C
439 XC202 X-TAL 5XA4R332M- 4.332M
440 XC251 X-TAL 5XA7R20000 7.2M
441 XC501 RESONATOR CERA 5PCST16R93 CSTLS16M9X55-B0
1 13000 PCB OPTICAL JACK AS 9CDC050700 AMI-710R0F(OM MECHA)
2 B001 PCB OPTICAL 9CD6577800 29X21X1.6T
3 BD501 CORE BEAD 9768602000 H.B-T15X25X13ON
4 CC561 C CERA CCXF1H104Z 50V F 0.1MF Z
5 CN510 CONN AS 9738841800 #26 400MM 3P 2.5P
6 IC507 IC 1T0TX178-- T0TX178
7 L502 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
1 12000 PCB PT AS 9CDC055611 AMI-326LW
2 B991 PCB PT 9CD6582000 98X123
3 CD991 CORD AC 9736900200 KKP419C,KLCE-2F,0.75SQURE
4 CE991 C ELECTRO CEXF1E222V 25V RSS 2200MF (16X25) TP
5 CN991 CONN AS 9738833900 #22 8P BOARD-IN 350MM
6 CW708 CONN AS 9728802800 #26 3P FLAT 360MM P=2.5
7 D991~994 DIODE DZN4001A-- 1N4001A AUTO
8 D995 DIODE DZN4148--- 1N4148 AUTO 52MM
9 D996 DIODE DZN4001A-- 1N4001A AUTO
10 F902 FUSE GLASS TUBE 5FSGB4012L SEMKO TL 400MA 250V MF51
11 FC903~904 CLIP FUSE 9734600700 FC-5N
12 IC991 IC 1MC7805--- MC 7805 (KA7805)
13 PT991 TRANS POWER 5TP8066762 EI=66X30
14 PT992 TRANS POWER 5TP8028829 EI=28X12 230V 50HZ
15 Q992 TR TZTC2236Y- KTC2236-Y(AUTO)
16 R991 R METAL FILM RN-2Y475J- 1/2 4.7M OHM J
17 R992 R CARBON FILM RD-4Z100J- 1/4 10 OHM J
18 R994 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
19 RY991 SW RELAY 5SC2001A01 SDT-S-105LMR
20 TP991~992 PIN WRAPPING 9713550400 1.0X2.5X15
Electrical Parts List
26
Model : AXL-125W(XW-125)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
1 11000 PCB FRONT AS 9CDC061500 88 R706~712 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
2 B001 PCB FRONT 9CD6587700 247X139X1.6T 89 R713~714 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
3 CC701 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 90 R715~717 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J
4 CC702 C CERA CCXF1H104Z 50V F 0.1MF Z 91 R718~719 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
5 CC703 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 92 R720 R CARBON FILM RD-AZ122J- 1/6 1.2K OHM J
6 CC704~705 C CERA CCXF1H104Z 50V F 0.1MF Z 93 R721 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
7 CC706~707 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 94 R722 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
8 CC708 C CERA CCXF1H104Z 50V F 0.1MF Z 95 R723 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
9 CC709 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 96 R724 R CARBON FILM RD-AZ393J- 1/6 39K OHM J
10 CC710 C CERA CCXF1H104Z 50V F 0.1MF Z 97 R725 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
11 CC711 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 98 R726 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
12 CC712 C CERA CCXF1H104Z 50V F 0.1MF Z 99 R727 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
13 CC713 C CERA CZCH1H150J 50V CH 15PF J (AXIAL) 100 R728~732 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
14 CC714 C CERA CZCH1H180J 50V CH 18PF J (AXIAL) 101 R733 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
15 CC715~716 C CERA CZCH1H330J CH 50V 33PF J AXIAL 52MM 102 R734 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
16 CC717 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 103 R735~736 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
17 CC718 C CERA CCXF1H104Z 50V F 0.1MF Z 104 R737 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
18 CC719 C CERA CZCH1H330J CH 50V 33PF J AXIAL 52MM 105 R738 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
19 CC720 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 106 R739 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
20 CC721 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 107 R740 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
21 CC722 C CERA CCZB1H102K 50V B 1000PF K (AXIAL) 108 R741 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
22 CC723 C CERA CZCH1H101J CH 50V 100PF J AXL 52MM 109 R742 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
23 CC724~725 C CERA CCXF1H104Z 50V F 0.1MF Z 110 R743 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
24 CE701 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 111 R744 R CARBON FILM RD-4Z229J- 1/4 2.2 OHM J
25 CE702 C ELECTRO CEYF1A102V 10V 1000MF RSS 10X16 112 R746 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
26 CE703 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 113 R747 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
27 CE704 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 114 R748 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
28 CE705~706 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 115 R749 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
29 CN508 CONN AS 9728812000 FFC 15P P1.25X250MM K 116 R750 R CARBON FILM RD-4Z229J- 1/4 2.2 OHM J
30 CN701 CONN AS 9728812400 #26 FLAT 200MM 7P 117 R751 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
31 CN702 CONN AS 9728812100 FFC 16P P1.25X150MM R 118 R752 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
32 CW400 CONN WAFER 9736407700 52084-1310 13P BOTTOM 119 R753 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
33 CW401 CONN WAFER 9736407900 52084-1010 10P BOTTOM 120 R754~755 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
34 CW508 CONN WAFER 9CD6266700 52492-1520 BOTTOM ENTRY 121 R756 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
35 CW702 CONN WAFER 9CD6261600 52492-1620 BOTTOM 122 R757 R CARBON FILM RD-AZ224J- 1/6 220K OHM J
36 D701~706 DIODE DZN4148--- 1N4148 AUTO 52MM 123 R758 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
37 D708 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO 124 R759 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
38 D709 DIODE DZN4148--- 1N4148 AUTO 52MM 125 R760 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
39 FD701 VFD DHNA11MS26 HNA-11MS26 126 R761 R CARBON FILM RD-AZ106J- 1/6 10M OHM J
40 IC701 IC 1M38199RWS U-COM M38199RW 326LW 127 R762 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
41 IC702 IC MEMORY 124LC04B-- 24LC04B 128 R763 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
42 IC703 IC 1MSGEQ5A-- MSGEQ5A 129 R764 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
43 IC704 IC 1BU4094BCF BU4094BCF(SOP16) 130 R765 R CARBON FILM RD-AZ390J- 1/6 39 OHM J
44 IC705 IC PRE AMP 1TM97CT38P LTM97CT-38P 131 R766 R CARBON FILM RD-AZ391J- 1/6 390 OHM J
45 LD701~702 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 132 R767 R CARBON FILM RD-AZ271J- 1/6 270 OHM J
46 LD703 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 133 R768 R CARBON FILM RD-AZ391J- 1/6 390 OHM J
47 LD704~705 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 134 R769 R CARBON FILM RD-AZ271J- 1/6 270 OHM J
48 LD706 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 135 R770 R CARBON FILM RD-AZ391J- 1/6 390 OHM J
49 LD707~708 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 136 R771 R CARBON FILM RD-AZ271J- 1/6 270 OHM J
50 LD709 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 137 R772 R CARBON FILM RD-AZ391J- 1/6 390 OHM J
51 LD710~711 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 138 R773 R CARBON FILM RD-AZ271J- 1/6 270 OHM J
52 LD712 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 139 R774 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
53 LD716 LED DLTL307EE- LTL-307EE(RED)PI5 140 R775 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
54 Q701 TR TKRC107M-- KRC 107-M (TAPPING) 141 R777 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
55 Q702~703 TR TKRC111M-- KRC111M (KSR1010) 142 SW701~706 SW TACT 5S50101001 KPT-1105A 1C-1P
56 Q704 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 143 SW712~713 SW TACT 5S50101001 KPT-1105A 1C-1P
57 Q705~707 TR TZTA1273Y- KTA1273Y(966Y) 144 SW715~725 SW TACT 5S50101001 KPT-1105A 1C-1P
58 Q708~710 TR TKRC107M-- KRC 107-M (TAPPING) 145 SW727~730 SW TACT 5S50101001 KPT-1105A 1C-1P
59 Q711~715 TR TKRA111M-- KRA 111-M (TAPPING) 146 SW734~735 SW TACT 5S50101001 KPT-1105A 1C-1P
60 Q716~717 TR TKRC107M-- KRC 107-M (TAPPING) 147 SW737~739 SW TACT 5S50101001 KPT-1105A 1C-1P
61 R301 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 148 VR701 SW ENCORDER 5SH162401- EC16B24204 24P W/DETENT
62 R302 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 149 XC701 RESONATOR 5PCSA8MTZ- CSALA8M00T55-B0 (8.00MTZ)
63 R303 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 150 XC702 X-TAL 5XA32R768- DT-38 32.768KHZ 20PPM
64 R304 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 1 10000 PCB MAIN AS 9CDC057256 AMI-829RW
65 R305 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 2 B1000 PCB MAIN 9CD6585200 330X197X1.6T
66 R311 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 3 CC001~004 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
67 R312 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 4 CC100 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
68 R313 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 5 CC101 C CERA CCXF1H104Z 50V F 0.1MF Z
69 R314 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 6 CC102 C CERA CXCH1H150J 50V CH 15PF J (TAPPING)
70 R315 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 7 CC103 C CERA CXCH1H470J 50V CH 47PF J (TAPPING)
71 R316 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 8 CC200 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
72 R317 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 9 CC201 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING)
73 R318 R CARBON FILM RD-AZ391J- 1/6 390 OHM J 10 CC202 C CERA CCXF1H104Z 50V F 0.1MF Z
74 R319 R CARBON FILM RD-AZ471J- 1/6 470 OHM J 11 CC203 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING)
75 R320 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 12 CC204 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
76 R321 R CARBON FILM RD-AZ821J- 1/6 820 OHM J 13 CC205 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING)
77 R322 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 14 CC206 C CERA CCXB1H471K 50V B 470PF K (TAPPING)
78 R323 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J 15 CC207 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
79 R325 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 16 CC209~211 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
80 R326 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 17 CC230 C CERA CXCH1H390J 50V CH 39PF J (TAPPING)
81 R327 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 18 CC232 C CERA CXCH1H330J 50V CH 33PF J (TAPPING)
82 R331 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 19 CC234~238 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
83 R332 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 20 CC239 C CERA CXCH1H390J 50V CH 39PF J (TAPPING)
84 R333 R CARBON FILM RD-AZ821J- 1/6 820 OHM J 21 CC260~262 C CERA CCXB1H331K 50V B 330PF K (TAPPING)
85 R334 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 22 CC263 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING)
86 R701~702 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 23 CC264 C CERA CXCH1H820J 50V CH 82PF J (TAPPING)
87 R703 R CARBON FILM RD-AZ683J- 1/6 68K OHM J 24 CC265 C CERA CXCH1H470J 50V CH 47PF J (TAPPING)
Electrical Parts List
27
Model : AXL-125W(XW-125)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
25 CC267 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 112 CE529 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP
26 CC401 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 113 CE531 C ELECTRO CEXF1C102V 16V RSS 1000MF (10X20) TP
27 CC490~493 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) 114 CE532 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
28 CC494 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 115 CE601 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
29 CC500~503 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 116 CE602 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP
30 CC504 C CERA CCXF1H104Z 50V F 0.1MF Z 117 CE605~606 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
31 CC506~507 C CERA CCXF1H104Z 50V F 0.1MF Z 118 CE607~608 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
32 CC510~512 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 119 CE609 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
33 CC514~516 C CERA CCXF1H104Z 50V F 0.1MF Z 120 CE610~611 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
34 CC519 C CERA CCXF1H104Z 50V F 0.1MF Z 121 CE612~613 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
35 CC520 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 122 CE614~615 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
36 CC521 C CERA CCXF1H683Z 50V F 0.068MF Z 123 CE616 C ELECTRO CEXF1E339V 25V RSS 3.3MF
37 CC523 C CERA CCXF1H104Z 50V F 0.1MF Z 124 CE617~618 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
38 CC524 C CERA CCXB1H391K 50V B 390PF K (TAPPING) 125 CE619 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
39 CC525 C CERA CCXF1H104Z 50V F 0.1MF Z 126 CE620~621 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
40 CC526 C CERA CCXB1H681K 50V B 680PF K (TAPPING) 127 CE801 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP
41 CC527 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 128 CE802 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP
42 CC528 C CERA CCXF1H104Z 50V F 0.1MF Z 129 CE803~804 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP
43 CC529 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 130 CE805~806 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP
44 CC530 C CERA CCXB1H682K 50V B 6800PF K (TAPPING) 131 CE807~808 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
45 CC531 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 132 CE809~810 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP
46 CC532 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 133 CE870~871 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
47 CC533 C CERA CCXF1H104Z 50V F 0.1MF Z 134 CE872~873 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP
48 CC534 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 135 CE900~902 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
49 CC535~536 C CERA CCXF1H104Z 50V F 0.1MF Z 136 CE903 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP
50 CC537 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 137 CE904~905 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP
51 CC538 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 138 CE906 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP
52 CC539 C CERA CCXB1H562K 50V B 5600PF K (TAPPING) 139 CE907~908 C ELECTRO CEYF1V222V 35V RSS 2200MF (16X31.5)
53 CC540 C CERA CXCH1H409D 50V CH 4PF D (TAPPING) 140 CE910 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP
54 CC542 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 141 CE913~914 C ELECTRO CEYF1H332V 50V RSS 3300MF
55 CC543~545 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 142 CF001~002 FILTER CERA 5PE107MJA- SFE 10.7MHZ RED
56 CC546 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 143 CF200 FILTER 5PPCFAZ077 PCFAZ077
57 CC547~549 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) 144 CM200~201 C MYLAR CMXM1H153J 50V 0.015MF J (TP)
58 CC560 C CERA CCXF1H104Z 50V F 0.1MF Z 145 CM270~271 C MYLAR CMXM1H103J 50V 0.01MF J (TP)
59 CC561 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 146 CM400~403 C MYLAR CMXM1H104J 50V 0.1MF J
60 CC562~566 C CERA CCXF1H104Z 50V F 0.1MF Z 147 CM404~405 C MYLAR CMXM1H562J 50V 5600 PF J
61 CC571 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 148 CM600~601 C MYLAR CMXM1H683J 50V 0.068 MF J
62 CC600 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 149 CM602 C MYLAR CMXM1H103J 50V 0.01MF J (TP)
63 CC603~604 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) 150 CM603 C MYLAR CMXM1H332J 50V 3300 PF J
64 CC605~606 C CERA CCXB1H221K 50V B 220PF K (TAPPING) 151 CM605 C MYLAR CMXM1H392J 50V 0.0039MF J
65 CC609~611 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) 152 CM606~607 C MYLAR CMXM1H123J 50V 0.012 MF J
66 CC612~615 C CERA CCXB1H221K 50V B 220PF K (TAPPING) 153 CM608 C MYLAR CMXM1H102J 50V 0.001MF J (TP)
67 CC616~619 C CERA CCXB1H821K 50V B 820PF K (TAPPING) 154 CM609~610 C MYLAR CMXM1H682J 50V 0.0068MF J
68 CC620 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) 155 CM611~612 C MYLAR CMXM1H223J 50V 0.022MF J
69 CC621~622 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 156 CM613 C MYLAR CMXM1H102J 50V 0.001MF J (TP)
70 CC623 C CERA CCXF1H104Z 50V F 0.1MF Z 157 CM800~801 C MYLAR CMXM1H473J 50V 0.047MF J
71 CC800~801 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 158 CM802~803 C MYLAR CMXM1H104J 50V 0.1MF J
72 CC804~805 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 159 CM808~809 C MYLAR CMXM1H392J 50V 0.0039MF J
73 CC870~871 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 160 CM900~903 C MYLAR CMXM1H104J 50V 0.1MF J
74 CC872~873 C CERA CCXB1H221K 50V B 220PF K (TAPPING) 161 CM904~906 C MYLAR CMXM1H103J 50V 0.01MF J (TP)
75 CC874~876 C CERA CCXF1H104Z 50V F 0.1MF Z 162 CN400 CONN PIN 9736407600 PIN BASE 53095-1310 13P
76 CC877~878 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 163 CN401 CONN PIN 9736407800 53095-1010 10PIN ANGLE
77 CC900~902 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 164 CN500 CONN AS 9738840800 FFC 16P P1.0X250MM R
78 CC904 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 165 CN508 CONN AS 9728812000 FFC 15P P1.25X250MM K
79 CC906 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 166 CN601 CONN AS 9738835000 UL 2851 #28X2C0 3P 260MM
80 CE001 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 167 CN602 CONN AS 9728804300 #26 7P SHIELD 350MM
81 CE201 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 168 CW100 CONN WAFER 9CD6258800 2P S2B-XH-A
82 CE202~203 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 169 CW500 CONN WAFER 9738842900 16P FFC PIT1.0
83 CE205 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 170 CW501 CONN WAFER 9CD6259500 2001-WS-6P
84 CE206 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 171 CW507 CONN WAFER 9CD6259400 2001-WS-12P
85 CE207~208 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 172 CW508 CONN WAFER 9CD6264100 52045-1545 TOP ENTRY
86 CE209 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 173 CW510 CONN AS 9738841800 #26 400MM 3P 2.5P
87 CE210 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 174 CW600 CONN AS 9728812400 #26 FLAT 200MM 7P
88 CE230 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 175 CW601 CONN AS 9738835000 UL 2851 #28X2C0 3P 260MM
89 CE231 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 176 CW602 CONN AS 9728804300 #26 7P SHIELD 350MM
90 CE232 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 177 CW900 CONN WAFER 9728804100 #22 10P P2.5 350 BOARD-IN
91 CE260 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 178 D400 DIODE DZN4148--- 1N4148 AUTO 52MM
92 CE261 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 179 D501 DIODE DZN4148--- 1N4148 AUTO 52MM
93 CE270 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 180 D601 DIODE DZN4148--- 1N4148 AUTO 52MM
94 CE271~272 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 181 D802 DIODE DZN4148--- 1N4148 AUTO 52MM
95 CE400~402 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 182 D870 DIODE DZN4148--- 1N4148 AUTO 52MM
96 CE404~406 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 183 D900~901 DIODE D1N4001--- 1N4001
97 CE408~411 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 184 D902~905 DIODE DRL202---- RL202
98 CE412 C ELECTRO CEXF1E100V 25V RSS 10MF (5X11) TP 185 D910~913 DIODE D1N5402--- 1N5402
99 CE413 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 186 D914 DIODE DZN4148--- 1N4148 AUTO 52MM
100 CE414~415 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 187 DZ500 DIODE ZENER DZTZ5R6B-- UZ-5.6B
101 CE500 C ELECTRO CEYF1C102V 16V RSS 1000MF (10X20) 188 DZ501 DIODE ZENER DZTZ3R9B-- MTZ3.9B
102 CE501~502 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 189 DZ900 DIODE ZENER DZTZ6R2B-- MTZ6.2B
103 CE511 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 190 DZ901 DIODE ZENER DZTZ12B--- MTZ 12V 26MM TAPPING
104 CE513 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 191 DZ902 DIODE ZENER DZTZ33B--- MTZ-33B
105 CE514~515 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 192 IC200 IC 1LA1833N-- LA1833N
106 CE516 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 193 IC201 IC 1MC78L05-- MC78L05AC
107 CE520 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 194 IC230 IC PLL 1LC72131-- LC72131
108 CE521 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 195 IC260 IC 1TDA7479D- TDA7479D
109 CE522~524 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 196 IC400 IC 1TDA7440D- TDA7440D
110 CE525 C ELECTRO CEXF1E330V 25V RSS 33MF (5X11) TP 197 IC501 IC SSP 1S1L9226-- S1L9226
111 CE527~528 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 198 IC502 IC DSP 1S5L9290-- S5L9290
Electrical Parts List
28
Model : AXL-125W(XW-125)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
199 IC503 IC 174HCT04AF TC74HCT04AF 286 R261~262 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
200 IC504 IC MOTOR DRIVE 1BA5939S-- BA5939S 287 R270~271 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J
201 IC600 IC 1BU4094BCF BU4094BCF(SOP16) 288 R272 R CARBON FILM RD-AZ221J- 1/6 220 OHM J
202 IC602 IC 1TA8189N-- TA8189N 289 R273 R CARBON FILM RD-AZ474J- 1/6 470K OHM J
203 IC603 IC 1UPC1330HA UPC1330HA 290 R274 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
204 IC800~801 IC 1TDA7295-- TDA7295 291 R275 R CARBON FILM RD-AZ474J- 1/6 470K OHM J
205 IC870 IC 1BA4560N-- BA4560N(H/P AMP) 292 R276 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
206 IC900 IC 1L4959---- L4959 293 R277~278 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J
207 J001 JACK ANT 9736321900 PAT645 294 R400~401 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
208 J490 JACK RCA 9CD6313700 S-436P 295 R402~405 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
209 J800 JACK SPEAKER 9736320500 CJ-9007-040 296 R406~407 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J
210 J870 JACK HEADPHONE 9766319501 HTJ-064-05B GOLD 297 R408~409 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
211 JW129 R CARBON FILM RD-AZ220J- 1/6 22 OHM J 298 R410 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
212 JW532 COIL BEAD 5LX159P829 1.5UH MIN 299 R411 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
213 JW534 COIL BEAD 5LX159P829 1.5UH MIN 300 R412~413 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
214 JW536~537 COIL BEAD 5LX159P829 1.5UH MIN 301 R414 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
215 JW540 COIL BEAD 5LX159P829 1.5UH MIN 302 R415~416 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
216 JW547 COIL BEAD 5LX159P829 1.5UH MIN 303 R430~431 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
217 L001 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 304 R490 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
218 L100 AM RF UNIT 5LR0000835 KSNT-213M-1 305 R491~492 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
219 L102 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 306 R493 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
220 L270~271 COIL 5P076068-- 6068MPX 307 R500 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
221 L500~501 COIL BEAD 5LX159P829 1.5UH MIN 308 R501 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
222 L600 COIL BIAS OSC 5L0503K643 SM-10F 5.04MH 309 R502~503 R CARBON FILM RD-AZ121J- 1/6 120 OHM J
223 L601~602 COIL CHOKE 5LC333K804 33MH K 310 R504 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
224 Q001 TR TZTC3194Y- KTC3194Y 311 R513 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
225 Q231 TR TZRA107M-- KRA107M (KSR2006) 312 R514 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
226 Q270~271 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 313 R515 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
227 Q500 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 314 R516 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
228 Q501 TRANSISTOR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 315 R520~526 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
229 Q502~503 TR TKSC2331Y- KSC2331Y 316 R528 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
230 Q510 TR TKSA928AY- KSA928A-Y 317 R529~532 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
231 Q600 TR TKRC111M-- KRC111M (KSR1010) 318 R540 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
232 Q601 TR TZRA107M-- KRA107M (KSR2006) 319 R541 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
233 Q602 TR TKRC111M-- KRC111M (KSR1010) 320 R542 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
234 Q603~604 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 321 R543 R CARBON FILM RD-AZ124J- 1/6 120K OHM J
235 Q605 TR TKRC111M-- KRC111M (KSR1010) 322 R544 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
236 Q606 TR TZTD1302-- KTD1302 323 R545 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
237 Q607 TR TZTC3205Y- KTC3205Y (2236Y) 324 R546 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
238 Q608 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 325 R547 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
239 Q609 TR TZTD1302-- KTD1302 326 R548 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
240 Q610 TR TZTA1273Y- KTA1273Y(966Y) 327 R549~550 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
241 Q612 TR TZTD1302-- KTD1302 328 R551 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
242 Q614 TR TKRC111M-- KRC111M (KSR1010) 329 R552 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
243 Q616 TR TZTD1302-- KTD1302 330 R553 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
244 Q802 TR TZRA107M-- KRA107M (KSR2006) 331 R554 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J
245 Q803 TR TKRC111M-- KRC111M (KSR1010) 332 R555 R CARBON FILM RD-AZ153J- 1/6 15K OHM J
246 Q804~805 TR TZTD1302-- KTD1302 333 R556 R CARBON FILM RD-AZ105J- 1/6 1M OHM J
247 Q870~873 TR TKRC111M-- KRC111M (KSR1010) 334 R557 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
248 Q900 TR TZTA1273Y- KTA1273Y(966Y) 335 R558 R CARBON FILM RD-AZ184J- 1/6 180K OHM J
249 R002 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO 336 R559 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
250 R003 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 337 R560 R CARBON FILM RD-AZ220J- 1/6 22 OHM J
251 R004 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 338 R561 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
252 R005 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 339 R562 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
253 R006 R CARBON FILM RD-AZ681J- 1/6 680 OHM J 340 R563~566 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
254 R007 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 341 R567 R CARBON FILM RD-AZ823J- 1/6 82K OHM J
255 R009 R CARBON FILM RD-AZ121J- 1/6 120 OHM J 342 R570 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
256 R010 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 343 R571 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
257 R100 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 344 R572 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
258 R101 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 345 R573 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
259 R102 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 346 R574 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
260 R200 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 347 R575~576 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
261 R201A R CARBON FILM RD-AZ333J- 1/6 33K OHM J 348 R577 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
262 R201B R CARBON FILM RD-AZ333J- 1/6 33K OHM J 349 R578~579 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
263 R202 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 350 R580~581 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
264 R203 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 351 R582~583 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
265 R204 R CARBON FILM RD-AZ183J- 1/6 18K OHM J 352 R584 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
266 R205 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 353 R585~586 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
267 R206 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 354 R587~588 R CARBON FILM RD-2Z150J- 1/2 15 OHM J
268 R207 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 355 R589 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
269 R208 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 356 R590 R CARBON FILM RD-AZ153J- 1/6 15K OHM J
270 R209~210 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 357 R591 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
271 R211~212 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 358 R592~594 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
272 R213 R CARBON FILM RD-AZ563J- 1/6 56K OHM J 359 R595~596 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
273 R230~231 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 360 R600 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
274 R232 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 361 R601 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
275 R233 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 362 R602 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J
276 R234 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 363 R603 R CARBON FILM RD-AZ821J- 1/6 820 OHM J
277 R235~237 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 364 R604 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J
278 R239 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 365 R605 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
279 R241 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 366 R606 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
280 R242~244 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 367 R607 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
281 R245 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 368 R608 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J
282 R246 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 369 R609 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
283 R253 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 370 R610 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
284 R254 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 371 R611 R CARBON FILM RD-AZ479J- 1/6 4.7 OHM J
285 R260 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 372 R613~614 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
Electrical Parts List
29
Model : AXL-125W(XW-125)
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
373 R615 R CARBON FILM RD-AZ333J- 1/6 33K OHM J 6 D980~985 DIODE D1N4001--- 1N4001
374 R616 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 7 F981 FUSE GLASS TUBE 5FSGB1222L SEMKO TL 1.25A 250V MF51
375 R618 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 8 FC982~983 CLIP FUSE 9734600700 FC-5N
376 R619 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 9 IC980 IC 1MC78L05-- MC78L05AC
377 R620 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 10 PT980 TRANS POWER 5TP8028829 EI=28X12 230V 50HZ
378 R621 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 11 PT981 TRANS POWER 5TP8074837 EI=74X42 230V 50HZ
379 R622~623 R CARBON FILM RD-AZ184J- 1/6 180K OHM J 12 Q981 TR TZTC3205Y- KTC3205Y (2236Y)
380 R624 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 13 R980 R METAL FILM RN-2Y475J- 1/2 4.7M OHM J
381 R626 R CARBON FILM RD-AZ221J- 1/6 220 OHM J 14 R981 R CARBON FILM RD-4Z101J- 1/4 100 OHM J
382 R627 R CARBON FILM RD-AZ683J- 1/6 68K OHM J 15 R982 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
383 R628~629 R CARBON FILM RD-AZ823J- 1/6 82K OHM J 16 R983 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
384 R633~635 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 17 RF980 R FUSIBLE RF01F4780J 0.47OHM 1W
385 R636 R CARBON FILM RD-AZ105J- 1/6 1M OHM J 18 RF982~983 R FUSIBLE RF01F4780J 0.47OHM 1W
386 R637 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 19 RY980 SW RELAY 5SC2001A01 SDT-S-105LMR
387 R638~639 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J 20 TP980~981 PIN WRAPPING 9713550400 1.0X2.5X15
388 R640 R CARBON FILM RD-AZ271J- 1/6 270 OHM J
389 R641~642 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
390 R643~644 R CARBON FILM RD-AZ184J- 1/6 180K OHM J
391 R645 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
392 R646 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
393 R647 R CARBON FILM RD-AZ470J- 1/6 47 OHM J
394 R648~649 R CARBON FILM RD-AZ334J- 1/6 330K OHM J
395 R650~651 R CARBON FILM RD-AZ151J- 1/6 150 OHM J
396 R652~653 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
397 R654~655 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J
398 R656 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
399 R657 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
400 R658 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
401 R659~660 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J
402 R661 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
403 R662~663 R CARBON FILM RD-AZ683J- 1/6 68K OHM J
404 R664~665 R CARBON FILM RD-AZ820J- 1/6 82 OHM J
405 R666~669 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
406 R670 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
407 R671 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
408 R672~673 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
409 R674~677 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
410 R802~805 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
411 R806 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
412 R808 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
413 R810 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
414 R811~812 R CARBON FILM RD-AZ473J- 1/6 47K OHM J
415 R813~814 R CARBON FILM RD-AZ681J- 1/6 680 OHM J
416 R815~816 R CARBON FILM RD-AZ223J- 1/6 22K OHM J
417 R817~818 R CARBON FILM RD-AZ104J- 1/6 100K OHM J
418 R819~820 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
419 R870 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
420 R871 R CARBON FILM RD-AZ560J- 1/6 56 OHM J
421 R872 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
422 R874 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
423 R876 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
424 R877 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
425 R878 R CARBON FILM RD-AZ183J- 1/6 18K OHM J
426 R879 R CARBON FILM RD-AZ101J- 1/6 100 OHM J
427 R880 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
428 R881 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
429 R882 R CARBON FILM RD-AZ563J- 1/6 56K OHM J
430 R883 R CARBON FILM RD-AZ333J- 1/6 33K OHM J
431 R900~901 R CARBON FILM RD-4Z479J- 1/4 4.7 OHM J
432 R902~903 R CARBON FILM RD-AZ221J- 1/6 220 OHM J
433 R904 R CARBON FILM RD-4Z121J- 1/4 120 OHM J
434 R905 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J
435 R906~908 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
436 R909 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J
437 R910 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
438 R911 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
439 R912 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J
440 R913 R CARBON FILM RD-AZ103J- 1/6 10K OHM J
441 RV600 R SEMI FIXED RV1417222- 1/10 2.2K OHM B V6EK-PV1S
442 TU001 TUNER PACK 9737613500 FTE4-401TC
443 W501 WIRE LEAD WP-4BK8007 AWG26 7/0.16 BK 10-80-10
444 XC200 C DISCRIMINATOR 5P107MG86C CDA10.7MG86N-C
445 XC230 X-TAL 5XA7R20000 7.2M
446 XC260 X-TAL 5XA4R332M- 4.332M
447 XC501 RESONATOR CERA 5PCST16R93 CSTLS16M9X55-B0
1 13000 PCB OPTICAL JACK AS 9CDC050700 AMI-710R0F(OM MECHA)
2 B001 PCB OPTICAL 9CD6577800 29X21X1.6T
3 BD501 CORE BEAD 9768602000 H.B-T15X25X13ON
4 CC561 C CERA CCXF1H104Z 50V F 0.1MF Z
5 CN510 CONN AS 9738841800 #26 400MM 3P 2.5P
6 IC507 IC 1T0TX178-- T0TX178
7 L502 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
1 12000 PCB P/T AS 9CDC060000 AMI-829RW
2 B9000 PCB P/T 9CD6580501 108X123X1.6T
3 CD900 CORD AC 9736900200 KKP419C,KLCE-2F,0.75SQURE
4 CE980 C ELECTRO CEYF1E102V 25V RSS 1000MF (13X20)
5 CN900 CONN WAFER 9728804100 #22 10P P2.5 350 BOARD-IN
