Alpro Architectural Hardware is an independent supplier of both mechanical and electro-mechanical
products to the UK commercial aluminium OEM marketplace and access control environment.
The Alpro product range comprises a variety of electro-mechanical products designed to meet
the needs of the demanding access control market segment. Products include electric strikes,
deadlocking bolts, shearlocks, cabinet locks, waterproof keypads and exit switches, to name but a
few.
A variety of contemporary handle styles complement this impressive product portfolio, which are both
hard wearing and aesthetically pleasing. The Alpro range also includes deadlocks, deadlatches,
cylinders, concealed door closers, flushbolts, lever and paddle handles. All of which have been
designed for the commercial aluminium door industry.
Alpro’s location in Poole boasts substantial levels of stock, tailored to the fast response times expected
of a quality supplier with Kan-Ban and JIT systems in place. Comprehensive internal and external sales
and technical support is available to ensure the correct selection of product and application.
As a quality supplier of access control and door hardware products facilitating solutions to most
access scenarios, Alpro has supplied products to a number of major organisations.
Quality Policy
Our success is built on our ability to provide our customers with quality products and standards of
service that meet or exceed their expectations.
We shall continue to be successful by:
• Ensuring that quality is everybody’s responsibility
• Maintaining an environment in which teamwork and involvement results in continuous
improvements in the way we work
• Improving our skills by effective training and development
• Working on our Quality Management System which meets ISO 9001:2008
• Providing our customers with the right products at the right time from our specialist suppliers.
The Managing Director is ultimately responsible for the implementation of this policy with the
assistance of our Quality Manager who controls the reviews, audits and works to ensure the unfailing
maintenance of our quality standards.
Our policy is to provide an unrivalled service by getting it right first time and every time thereafter.
©
About Alpro Architectural Hardware
alpro
2About Alpro www.alpro.co.uk 01202 676262
©
3
Contents
access control
Contents www.alpro.co.uk 01202 676262
©
2 3
Electric Strikes
- Pages 4 - 10
Electric Bolts
- Pages 11 - 13
Solenoid Bolts
- Pages 14 - 15
Deadlocking Bolts
- Pages 16 - 21
Mini Electric Bolts
- Page 22
Cabinet Locks
- Page 23
Compact Shearlocks
- Page 24 - 25
Vortex Magnets
- Pages 26 - 31
Keypads & Exit Switches
- Pages 34 - 39
Interlock Controller
- Pages 40 - 41
Other Magnets
- Pages 32 - 33
Infrared Proximity Switch
- Page 42

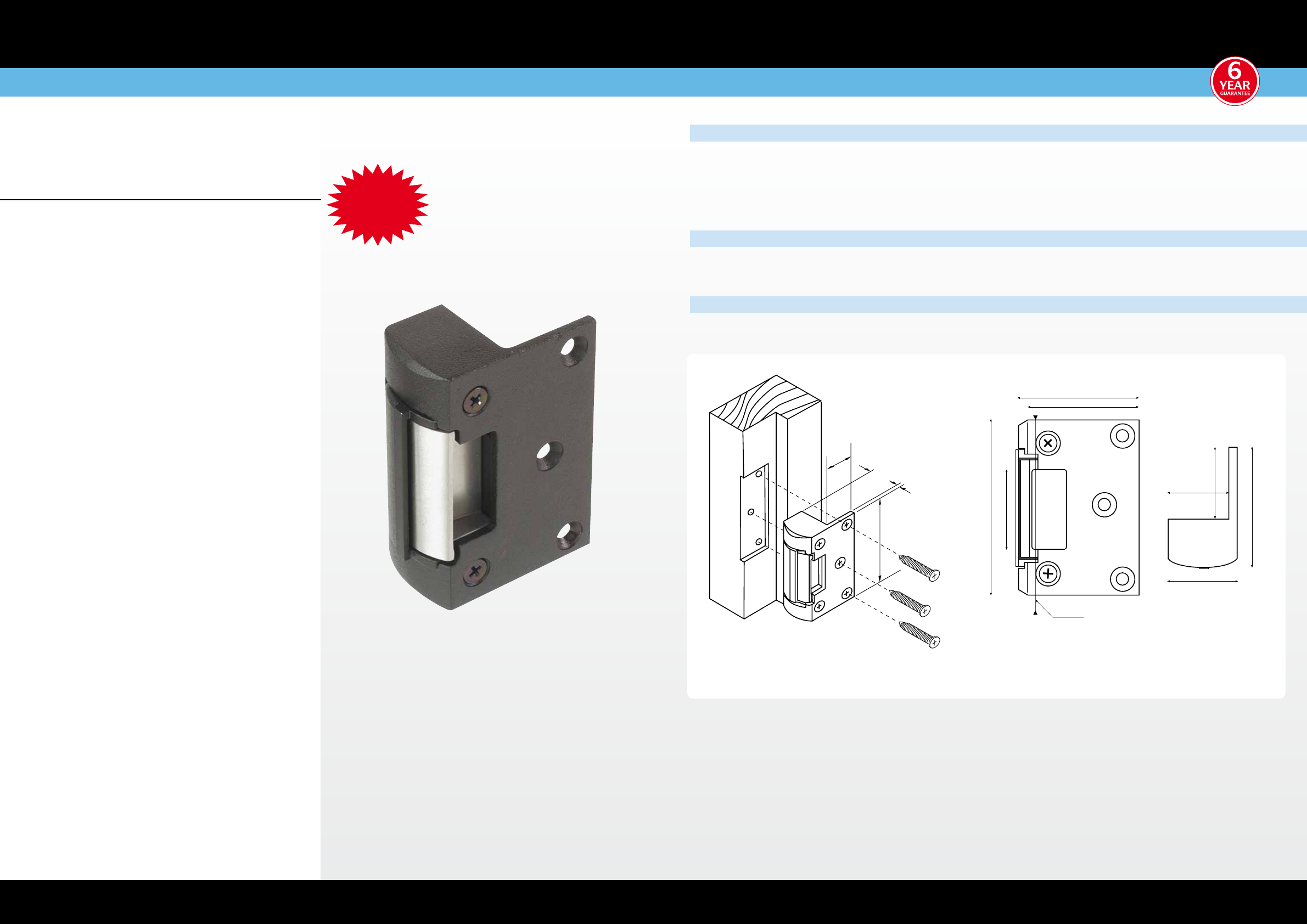

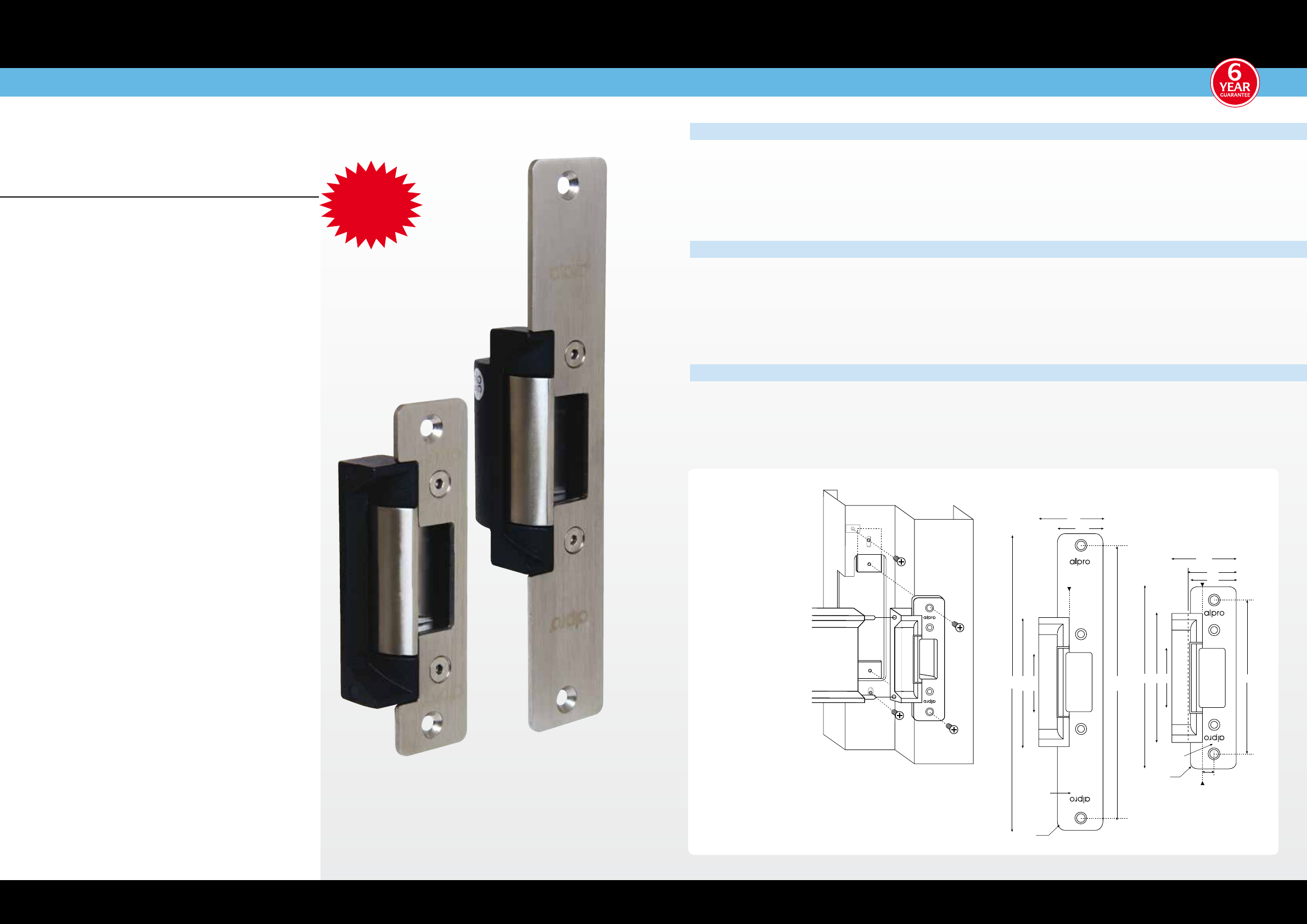

The Alpro AL110 series is an ANSI style security
strike complete with stainless steel short or
long faceplates for use in metal or timber
door applications.
12/24v Selectable
Stainless Steel Face Plate and Striker
Holding Force
1,750kg (3,860lb) - factory tested
Compact Cast Aluminium Body
35mm overall depth
Deep Jaw
Accepts 13mm latch bolt
Low Current Consumption
200mA - 12v DC continuous (±15%)
100mA - 24v DC continuous (±15%)
Simple Fail Safe/Fail Secure Changeover
Easy Installation
Stick on/Peel off template
Monitored and lipless versions available
Weather Resistant - IP56 Protection as Standard
Options
ANSI short and ANSI long faceplates
Extension lips – 15, 25, 50 and 75mm (pre-drilled
strike body)
Spares
Replacement changeover pin
Approvals
CE – BS EN 50081-1 and BS EN 50082-1
AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation
with AC voltages.
The sounder can be set for either buzzing or
silence with both AC and DC voltages.
The IEC RM1 unit is continuously rated –
max 1 amp.
AL110 www.alpro.co.uk 01202 676262
Lock Compatibility/Ordering Information/Specifications
AL110 www.alpro.co.uk 01202 676262
ANSI electric strike
AL110
4 5
AC
Compatible
Use Rectifier Sounder
Module
DESCRIPTION FUNCTION CODE
12/24vDC ANSI Short SS Strike including mounting kit Fail Safe/PTL AL111AS
12/24vDC ANSI Short SS Strike including mounting kit Fail Secure/PTO AL112AS
12/24vDC ANSI Long SS Strike including mounting kit Fail Safe/PTL AL111BS
12/24vDC ANSI Long SS Strike including mounting kit Fail Secure/PTO AL112BS
For monitored version add -M to code e.g. AL111AS-M
For lipless version add -O to code e.g. AL111AS-O
ACCESSORIES CODE
15mm Extension Lip ALEX1115
25mm Extension Lip ALEX1125
50mm Extension Lip ALEX1150
75mm Extension Lip ALEX1175
Rectifier Sounder Module IEC-RM1
COMPANY MODEL
Accepts 13mm latch bolt when fitted with 3mm door gap
Adams-Rite 4710, 4720, 4750
ASEC AS1094, AS1095
ASSA 3059, 3061, 3062, 8516, 8517, 8518,
8519, 8760, 8761, 8762, 8764
Chubb 3R35
COMPANY MODEL
Accepts 13mm latch bolt when fitted with 3mm door gap
Legge 8767, 8157N, E900
Union 2332, 2341, 2349, 2370, 2379
Viro 8516, 8517, 8518, 8519
Yale 3600, 3610, 4103, 6025, 6070
(BS) ANSI Long (AS) ANSI Short
Faceplate Faceplate
183
3886200
44.5
35
R 4.0
Front face
of latch
bolt
Overall depth 35mm
105
3886
124
42
31
7.5
R 4.0
Front face
of latch
bolt
38.0
Lipless version
Illustrated AL110 ANSI
short metal door
preparation
(BS) ANSI long
faceplate 200 x 35
(AS) ANSI short
faceplate
124 x 31
15, 25, 50 & 75mm
Extension Lips are
available as extras
Note: For detail
of installation see
instructions/ template
AL2000 www.alpro.co.uk 01202 676262
Lock Compatibility/Ordering Information/Specifications
7
6
monitored electric strike
AL2000

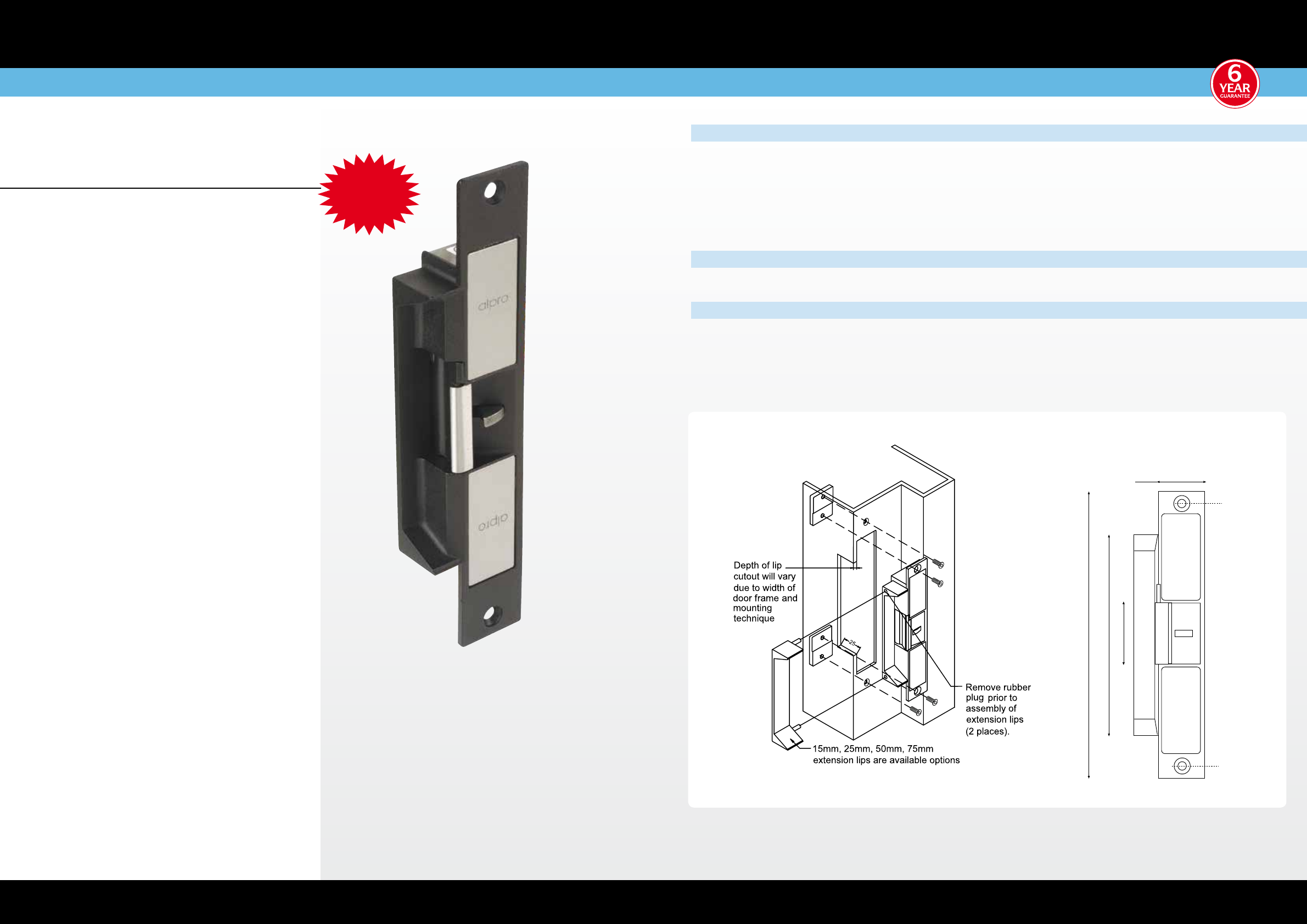

The Alpro AL2000 series high security
monitored strikes are designed for timber
and metal door applications.
12/24v Selectable
High Security
Stainless steel one part body and striker
Holding Force
1,380kg (3,000lb) - factory tested
Monitoring
Latch and door monitoring
Anti-tamper monitoring
Compact Shallow Body
26mm overall depth
Fixing Tab Options
Single fixing for metal
Low Current Consumption
220mA - 12v DC continuous (±15%)
110mA - 24v DC continuous (±15%)
Simple Fail Safe/Fail Secure Changeover
Easy Installation
Stick on / peel off template
Weather Resistant - IP56 Protection as Standard
Options
Unmonitored version available
Extension lips – 15, 25, 50 and 75mm (pre-drilled
strike body)
Spares
Replacement changeover pin
Approvals
CE – BS EN 50081-1 and BS EN 50082-1
AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation
with AC voltages.
The sounder can be set for either buzzing or
silence with both AC and DC voltages.
The IEC RM1 unit is continuously rated – max 1
amp.
AC
Compatible
Use Rectifier Sounder
Module
AL2000 www.alpro.co.uk 01202 676262
6
COMPANY MODEL
Accepts 15mm latch bolt when fitted with 3mm door gap
Adams-Rite 4710, 4720, 4750
ASEC AS1094, AS1095
ASSA 3059, 3061, 3062, 8516, 8517, 8518,
8519, 8760, 8761, 8762, 8764
Chubb 3R35
COMPANY MODEL
Accepts 15mm latch bolt when fitted with 3mm door gap
Legge 8767, 8157N, E900
Union 2332, 2341, 2349, 2370, 2379
Viro 8516, 8517, 8518, 8519
Yale 3600, 3610, 4103, 6025, 6070
DESCRIPTION FUNCTION CODE
12/24vDC Monitored Strike including mounting kit Fail Safe/PTL AL2001
ACCESSORIES CODE
15mm Extension Lip ALEX2015
25mm Extension Lip ALEX2025
50mm Extension Lip ALEX2050
75mm Extension Lip ALEX2075
Rectifier Sounder Module IEC-RM1
AL2000
Overall depth 26mm
38123175
2915.5
162175
29
Note: For detail
of installation see
instructions/template
AL150 www.alpro.co.uk 01202 676262
Lock Compatibility/Ordering Information/Specifications
9
AL150 www.alpro.co.uk 01202 676262
8
RIM electric strike
AL150
The Alpro AL150 series security rim strikes
are designed for use with the majority of
popular rim latches used on timber door
applications.
12/24v Selectable
Stainless Steel Striker
Holding Force
750kg (1,680lb) - factory tested
Low Current Consumption
200mA - 12v DC continuous (±15%)
100mA - 24v DC continuous (±15%)
Simple Fail Safe/Fail Secure Changeover
Compact Cast Aluminium Body
Enclosed in one-part case
Easy Installation
Stick on/peel off template
Finish
Black polyester powder paint
Options
Monitored version available
Weather Resistant - IP56 Protection as Standard
Spares
Replacement changeover pin
Approvals
CE - BS EN 50081-1 and BS EN 50082-1
AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation
with AC voltages.
The sounder can be set for either buzzing or
silence with both AC and DC voltages.
The IEC RM1 unit is continuously rated – max 1
amp.
AC
Compatible
Use Rectifier Sounder
Module
COMPANY MODEL
Accepts 12mm latch bolt when fitted with 3mm door gap
Chubb Narrow style 4L73
Standard style 4L74
Traditional style 4L75
Legge 66, 707, 727
COMPANY MODEL
Accepts 12mm latch bolt when fitted with 3mm door gap
Union Narrow style 1027, 1047, 1097
Standard style 1022, 1026, 1028, 1048, 1098
Yale Narrow style 84, 706, No.2
Standard style 77, 88, 90, 91, No.1
DESCRIPTION FUNCTION CODE
12/24vDC Rim Strike Fail Safe/PTL AL151
12/24vDC Rim Strike Fail Secure/PTO AL152
ACCESSORIES CODE
Rectifier Sounder Module IEC-RM1
3893.5
55
60
36
33
60
3
Front face of
lock tongue
39
33mm
93.5mm
36mm 3mm
Bolt Selection Chart www.alpro.co.uk 01202 676262
electric bolts
Selection Chart

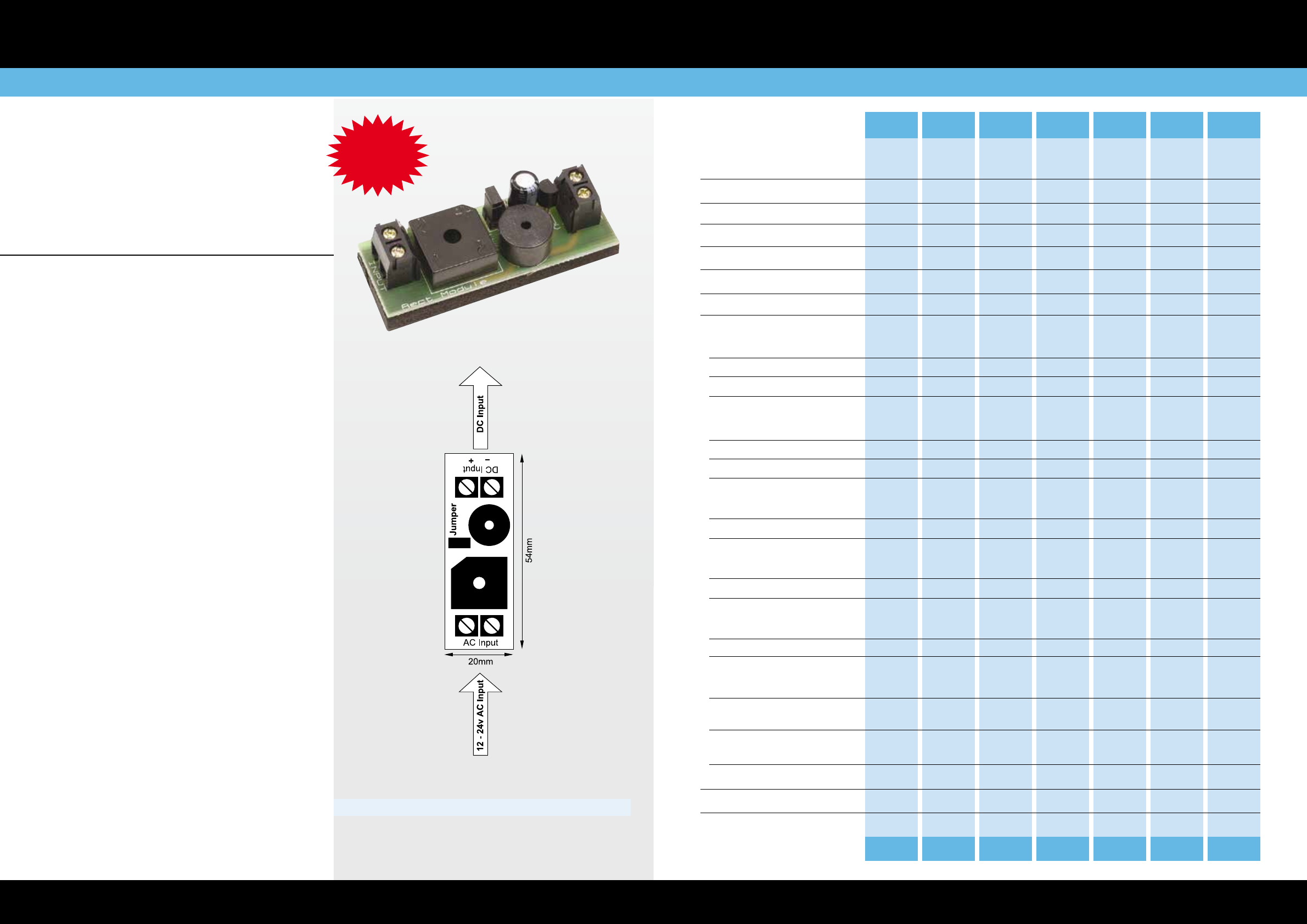

RM1 www.alpro.co.uk 01202 676262
rectifier sound module
RM1
10 11
Slimline Key Slimline Key Latching Mini
Security Override Security Override Bolt Security Security
Holding Force kg 1,000 1,000 1,000 1,000 1,000 - -
Deadlocking - -
4 4
4
- -
Bolt material SS SS SS SS SS SS SS
Bolt throw mm 15.5 14 16 16 16 15 13
Bolt diameter mm 14 14 12.7 12.7 12.7 15 12
Face plate material SS SS SS SS SS ALI SS
Face Plate width mm 25 25 25 25 25 34/38 22
Overall dimension mm
Length 210 230 210 280 210 203 150
Width 25 25 25 25 25 34/38 22
Depth 45 45 42 42 42 38 30
Back box dimension mm
Length 160 180 164 230 164 167 118
Width 22 22 22 22 22 28 20
Depth 42 42 39 42 39 34 27
Current @ 12vDC
Activate 740mA 740mA 1100mA 1100mA 1100mA 1000mA 700mA
Hold (after 200ms) *8 secs 120mA 120mA 210mA 210mA 160mA 250mA 100mA
Current @ 24vDC
Activate 440mA 440mA
1000mA 1000mA 1000mA - -
Hold (after 200ms) 70mA 70mA
90mA 90mA 90mA - -
Monitoring
Bolt position indicator
4 4 4
4
4
4
-
Door position switch
4 4 4
4
4
4
4
Access Control Module
Auto unlock period 8 secs -
-
4
4
4
- -
Multiple relocking -
9 attempts over 16 secs -
-
4
4
4
- -
Auto lock time delay –
zero, 3, 6 or 9 secs)
4 4 4 4
4
4 4
Surface Mount Kit SS - SS SS SS STEEL SS
CE Approved
4 4 4 4
4
4
4
Guarantee 3 years 3 years 5 years 5 years 5 years 3 years 3 Years
SERIES REF EB250 EB250KO DB25 DB25KO DB25L EB1001 EB501
DESCRIPTION CODE
Rectifier Sounder Module for AC operation IEC-RM1
Enables Alpro strikes to operate with AC
systems.
Enables use of quality strike at greatly
reduced current consumption over
dedicated AC strikes.
Only for use with product with maximum
current load of 1 amp. Not solenoid bolts or
shearlocks for example.
RM1 continuously rated
Switchable buzzer
Buzzer function available on DC - on/off.
Allows for silent operation on AC.
Power
Input voltage range is 12-24v AC +/1 15%
There is no polarity on the AC input
Output will always be lower than the input
by 10% approximately. If you require 12v DC
output ensure input is at least 13v AC. Standard
voltmeters will show the output voltage as lower,
this is because the output is not smoothed which
will create false readings on your meter.
Current Load
Maximum current load is 1 amp (1000mA).
Sounder
The sounder will sound whenever an input
voltage is present, if this is not required remove
the link located next to the sounder. Store the
link on the pin, in case you change your mind
and need it later.
Location
This RM1 Rectifier is not designed to work in
damp environments; and MUST BE protected from
moisture. If this is not possible at the device end
of the circuit, the PCB must be removed to a dry
position near the AC power source. The exact
location of the PCB is not critical; the voltage
output will not change significantly.
DC Input
This product will accept a DC input if you only
wanted to use the sounder function. There is still
no polarity on the input and the output polarity
will always be as shown.
PATENTED
EB1001 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
EB1001 www.alpro.co.uk 01202 676262
electric bolt
EB1001
12 13

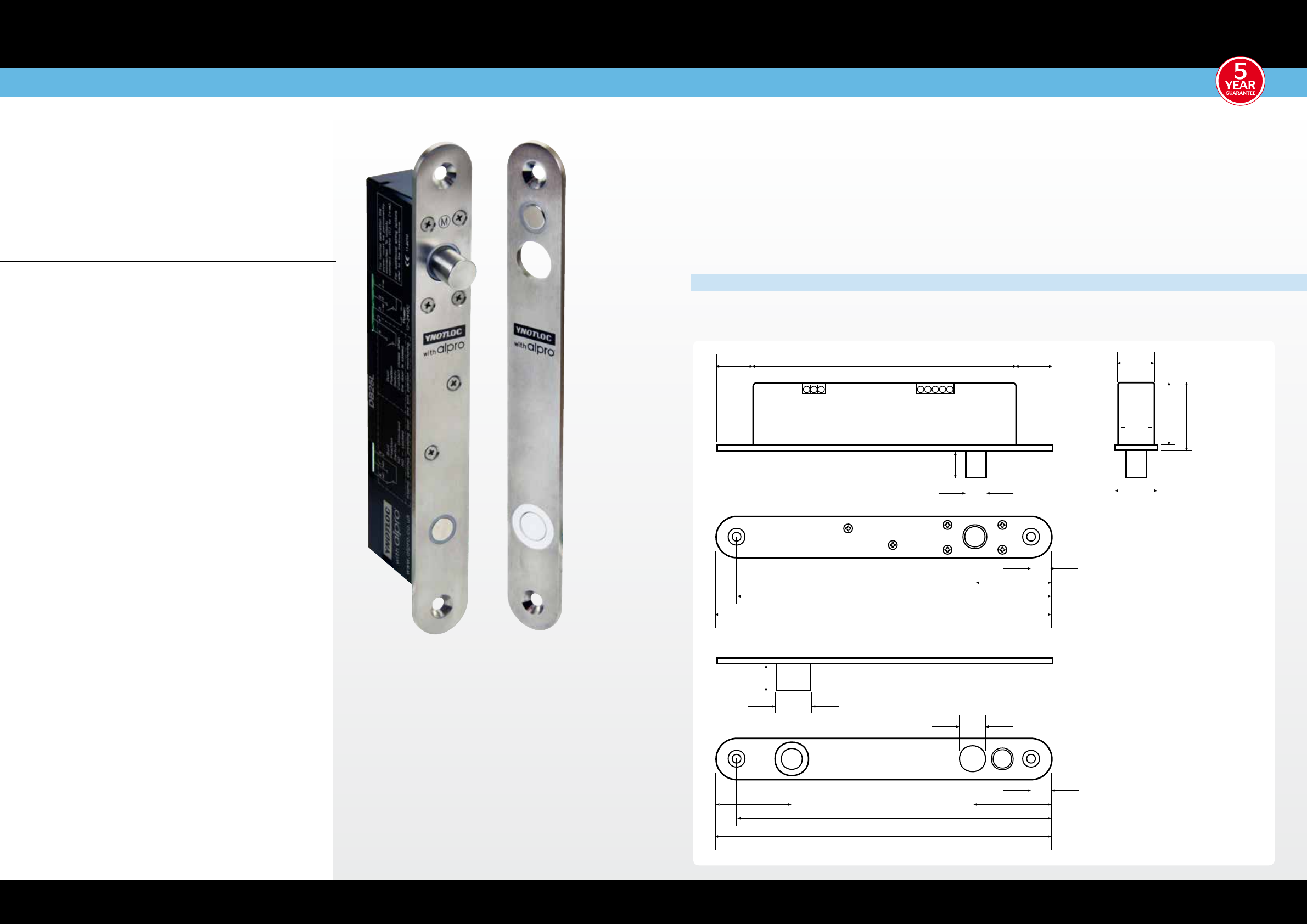

The Alpro EB1001 Electric Bolt allows for
remote access and exit control of most
timber and metal doors. It is suitable for
sliding or swing, single and double action
operations. It can be fitted in the frame or
in the door and comes with plug in LED Bolt
indicator as standard.
Function
Fail Open/Power to Lock
Construction
Stainless steel bolt (15mm diameter and throw)
and strike plate provide secure locking. A
stainless steel dress plate is provided to cover the
brushed aluminium faceplate.
Electrical Features
Voltage 12v DC±15%
Activating current 1000mA
Holding current 250mA
Continuously rated solenoid
Fully protected against transient & reverse
polarity
Monitoring
Door position switch
Bolt position indicator
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting.
Auto Relock Function
Can be set for 0,3,6 or 9 seconds
Accessories
Surface mounting kit in chromated steel
DESCRIPTION FUNCTION CODE
Electric bolt
12v DC Fail Open / PTL EB1001/34MM/R1
ACCESSORIES FINISH CODE
Surface Mounting Kit Chromated steel EB1001/SMHKIT 34MM
Housing dimensions 228mm(L) x 38mm(W) x 42mm(D)
FRAME
DOOR
Section A-A
A
ALong Strike Plate
15.0
Section A-A
FRAME
DOOR
A
A
Ø15.5
Normal fixing Surface mount kit - chromated steel
203
5 Ø 15 Ø
34
167
15
37
28
34
98
DPS reed
magnet
31
21
17
EB250 & EB250KO www.alpro.co.uk 01202 676262
Ordering Information/Specifications
EB250 & EB250KO www.alpro.co.uk 01202 676262
solenoid bolt
Slimline - EB250 & EB250KO
14 15
DESCRIPTION FUNCTION CODE
12-24vDC Radius Cover Faceplate Fail Safe/PTL EB-250/PTL
12-24vDC Key Override Radius Cover Faceplate Fail Secure/PTO EB-250KO/PTO
ACCESSORIES
Glass mounting bracket for EB250 (frameless door) EB-250/GMB
Glass SMK dress plates (2) for EB250 EB-250/SMK-DP
Short strike plate with square hole for EB250 EB-250/SHORT
Surface mounting kit for EB250 (Stainless Steel) EB-250/SMH-KIT
Short strike plate with square hole for EB250KO EB-250KO/SHORT
Maintained Key Override (EB250KO only)
Using standard Euro profile cylinder case pierced
both sides for operation either side.

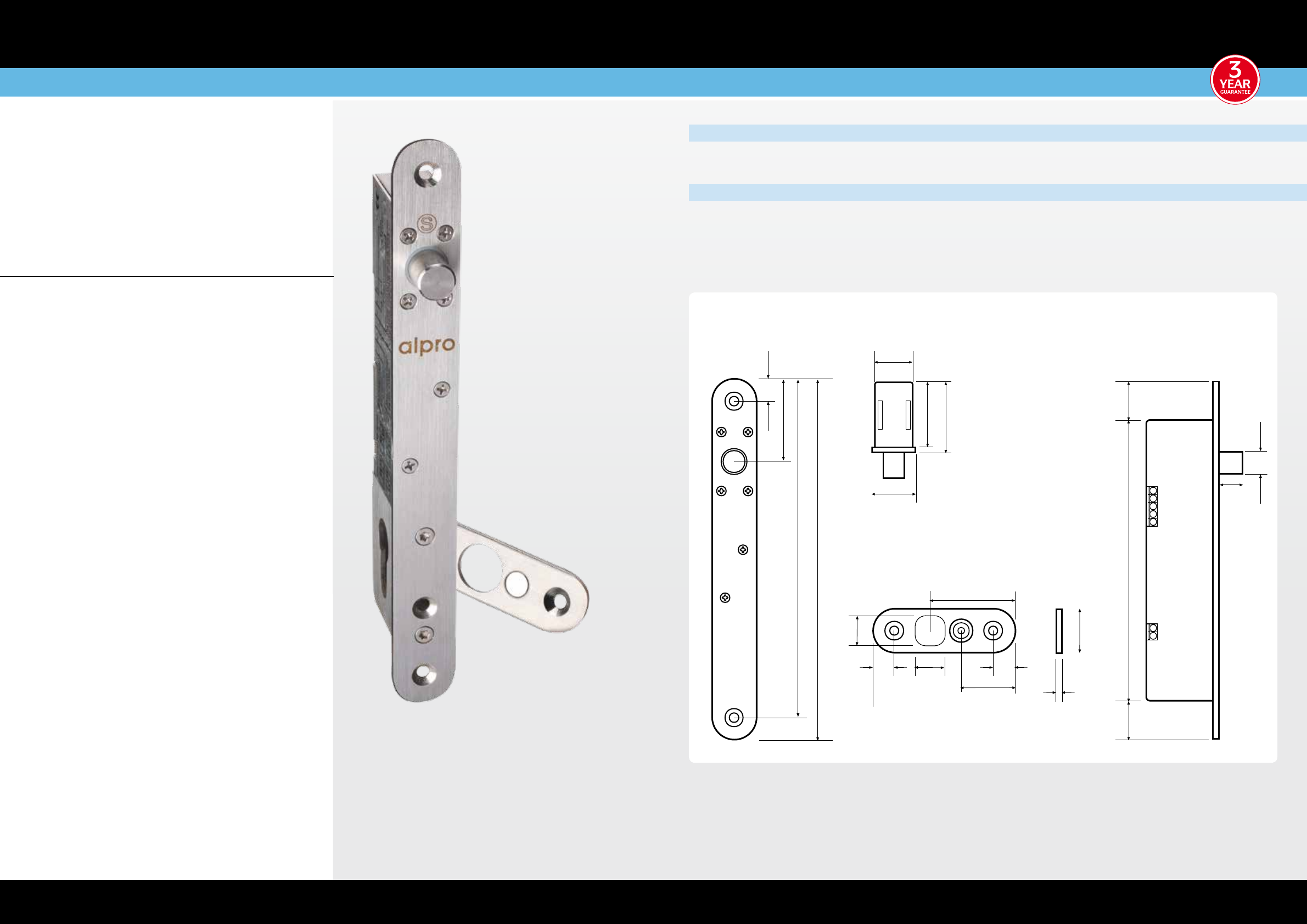

The Alpro EB250 & EB250KO key override bolts
allow for both remote access and exit control
of most timber and metal doors. It is also
suitable for sliding or swing, single or double
action operations. It can be fitted in the
frame or in the door. With concealed mortise
mounting and slimline styling the bolts suit
most narrow stile aluminium doors and narrow
profile joinery.
High Physical Security
Holding force 1,000kg - Bolt throw 14mm
Robust Construction
All stainless steel bolt of 14mm diameter, linkages
and springs. 3mm stainless steel faceplate and
strike plates with fully enclosed mechanism.
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting.
Slimline Dimensions
EB250 210mm(L) x 25mm(W) x 43mm(H)
Back box 160mm(L) x 22mm(W) x 40mm(H)
EB250KO 230mm(L) x 25mm(W) x 43mm(H)
Back box 180mm(L) x 22mm(W) x 40mm(H)
Faceplates
Radius
Multiple Voltage Input
Any voltage from 12v DC/24v DC. Complete with
built in transient and reverse polarity protection
and continuously rated solenoid.
Low Current Consumption
Volts Current - Activate Current - Hold
12v DC 740mA 120mA
24v DC 440mA 70mA
Auto Relock Function
Can be set to 0, 3, 6 or 9 seconds (DIP switch)
Monitoring
EB250 - Dual monitoring
Door position switch/bolt position switch
EB250KO - Triple monitoring
Door position switch/bolt position switch/key
position switch
210 (230)
197.5 (217.5)
47.5
12.5
80
25
3
47.5
30.5
12.5
12.5
20
18
14
14
160 (180)
25 25
25
43
40
22
Dimensional drawings shown are for the EB250
Dimensions for EB250KO model are shown in red where different.
DB25 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
17
DB25 www.alpro.co.uk 01202 676262
16
deadlocking bolt
Slimline - DB25
High Physical Security
Holding force 1,000kg - automatic deadlocking
Bolt throw 16mm
Robust Construction
All stainless steel bolt of 12.7mm diameter,
linkages and springs. 3mm stainless steel
faceplate and strike plates with fully enclosed
mechanism.
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting.
Slimline Dimensions
210mm(L) x 25mm(W) x 42mm(D)
Back box 164mm(L) x 22mm(W) x 39mm(D)
Faceplates
Radius
Multiple Voltage Input
Any voltage from 12v DC -10% to 24v DC +15%.
Complete with built in transient and reverse
polarity protection and continuously rated
solenoid.
Low Current Consumption
Volts Current - Activate Current - Hold
(after 200ms)
12v DC 1100mA 210mA
24v DC 1000mA 90mA
Dual Monitoring
Bolt and Door position switches
Built-in Access Control Module
Automatic unlock period - 8 seconds
Multiple auto relock function - PTL
Multiple unlock function - PTO
Accessories
Stainless steel surface mount kit
Approvals
CE - BS EN 50081-1 and BS EN 50082-1

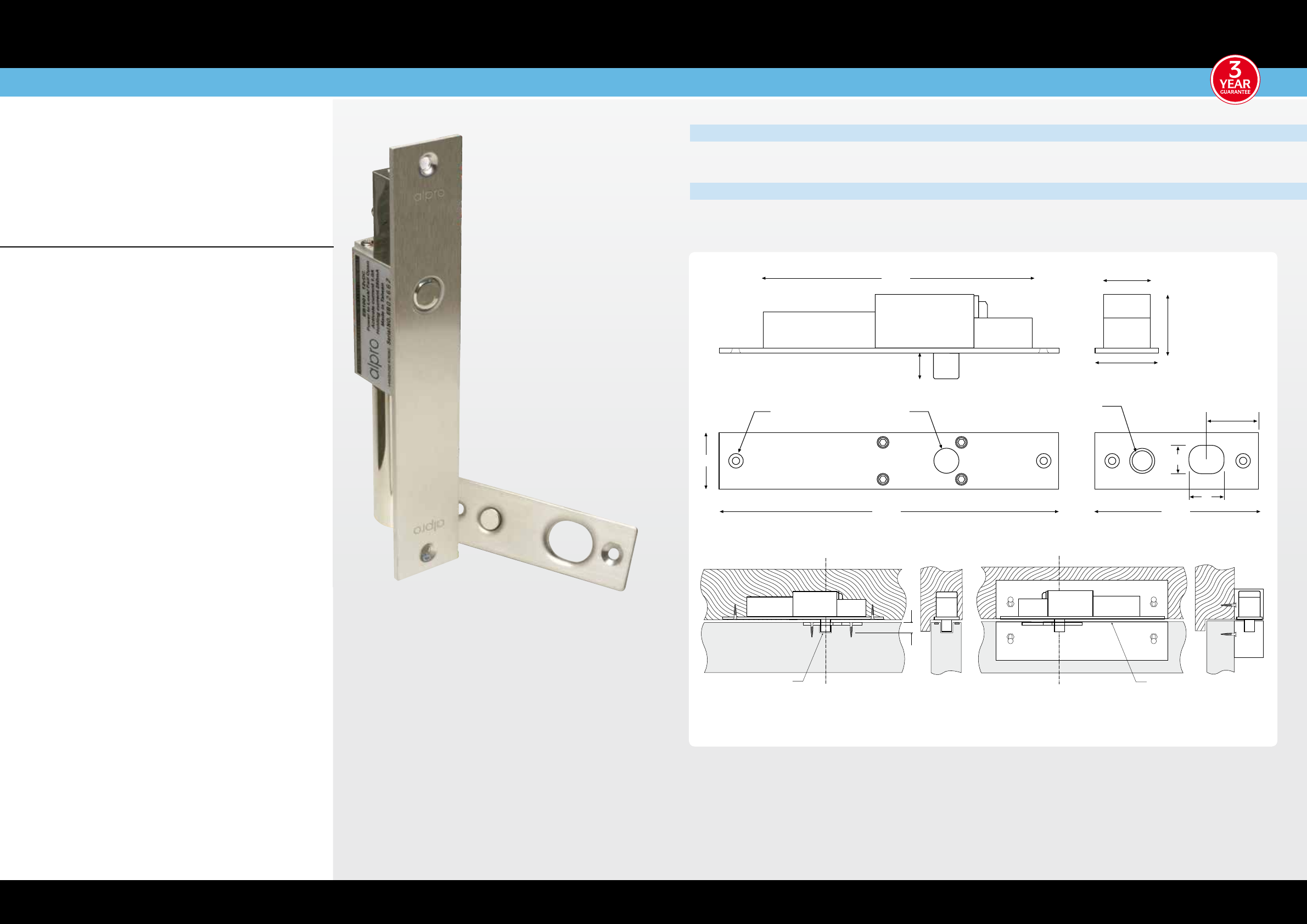

The Alpro DB25 incorporates the latest
design innovations to be applied to
the manufacture of a transverse action
Deadlocking Solenoid Bolt.
This Ultra-slim design enables fixing into
very narrow sections whilst an advanced
microprocessor module provides power
reduction allowing for continuous
operation without heat generation as well
as automatic voltage regulation, dual
monitoring and access control features.
12.7
16
164 161
23 19.8 23 19.8
210 202.6
197.5 185
47.5
25 37.5
42
39
31.7
22
80 90
25
30
3
48 55
30.5 30
12.5
912.5
9
12.5
9
16.9
16.9
37.5
DESCRIPTION FUNCTION CODE FUNCTION CODE
Slimline Solenoid Bolt
12/24v DC Fail Open - Power to Lock DB25 PTLOCK Fail Secure - Power to Open DB25 PTOPEN
Solenoid Bolt 38mm faceplate
12/24v DC Fail Open - Power to Lock DB38 PTLOCK Fail Secure - Power to Open DB38 PTOPEN
ACCESSORIES FINISH CODE
Surface Mounting Kit Stainless steel DB25/SMH-KIT
Built-in Access Control Module
Automatic unlock period - a fixed 8 second period operates once the bolt is signalled to unlock. This
enables traffic exiting 8 seconds in which to open the door before it automatically relocks. See Anti-
Tailgate.
Multiple auto relock function - when relocking the bolt makes 8 locking attempts over 16 seconds. Change
in the Bolt Position Switch status indicates that the door has been locked. Fail open models only.
Multiple unlock - in fail secure mode - 5 attempts to unlock door at 1.6 second intervals.
Anti-Tailgate - once the door has been pushed open and closed during the 8 second unlock period, the
bolt will immediately relock.
DB38 - 38mm deadlocking
bolt is also available
15.0
FRAME
DOOR
Section A-AA
AØ15.5
Normal fixing
Housing dimensions 225mm(L) x 27.4mm(W) x 46.5mm(D) for DB25
Surface mount kit - stainless steel
FRAME
DOOR
Section A-A
A
ALong Strike Plate
Dimensional
drawings shown
are for the DB25
Dimensions for DB38
model are shown in
red where different.

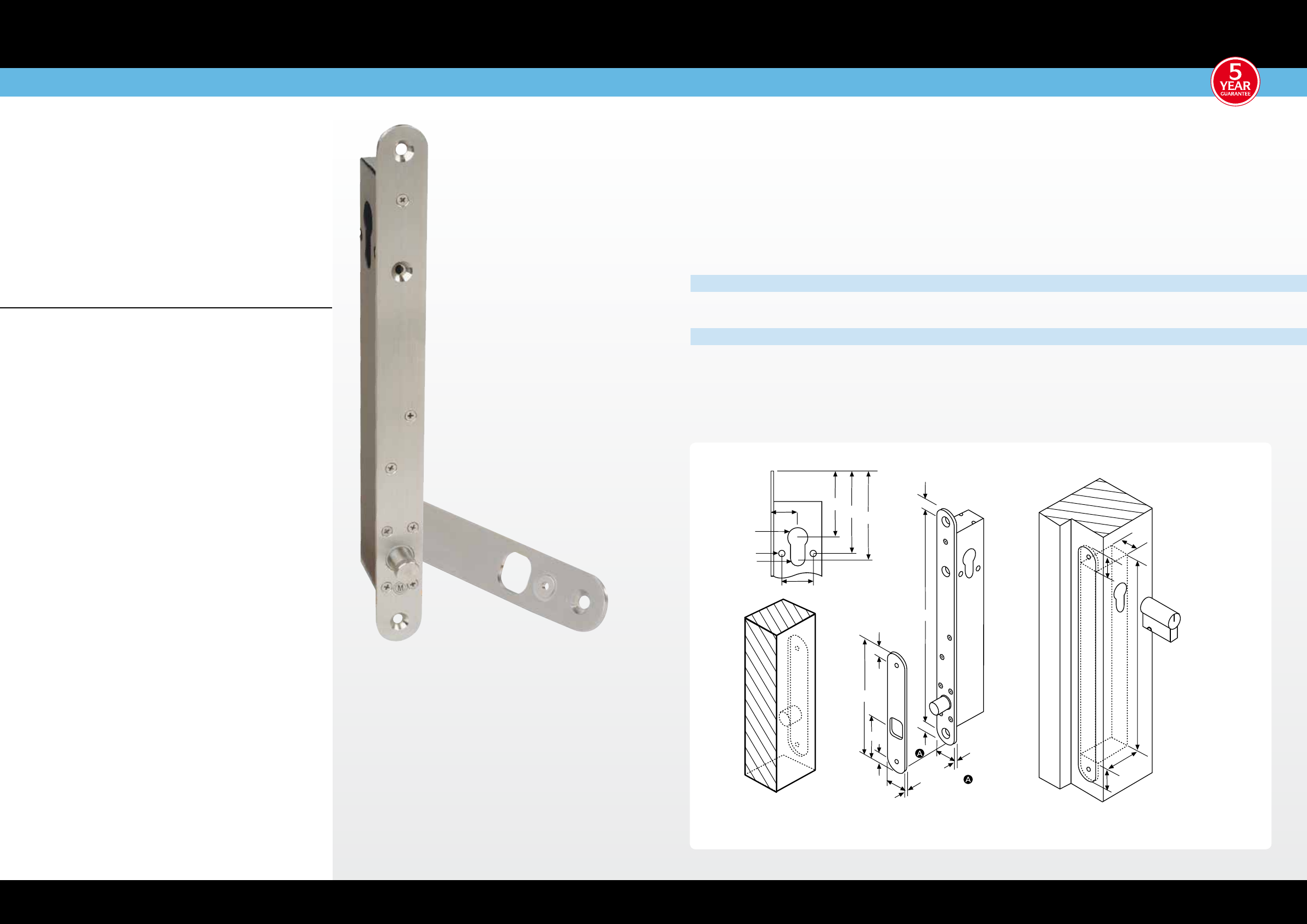

DB25KO www.alpro.co.uk 01202 676262
Ordering Information/Specifications
19
DB25KO www.alpro.co.uk 01202 676262
18
deadlocking bolt
Slimline - Key Overide DB25KO
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE

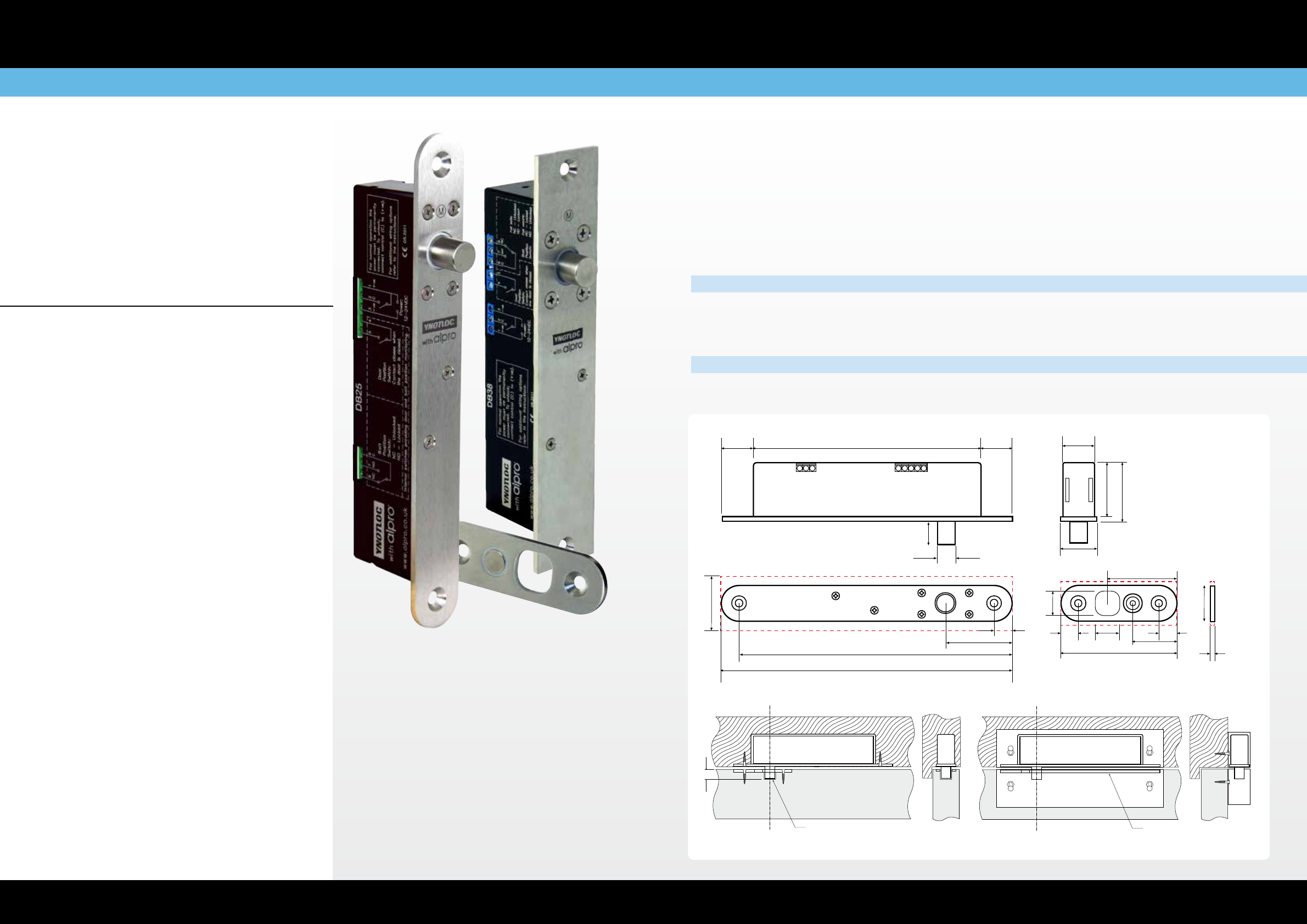

The Alpro DB25KO key override model
offers the same functionality as the
standard DB25 with provision for a Euro
profile cylinder as a means of mechanical
override. The ultra-slim design of the DB25KO
enables fixing into very narrow sections. An
advanced microprocessor module provides
power reduction allowing continuous
operation without heat generation as well
as automatic voltage regulation, dual
monitoring and access control features.
High Physical Security
Holding force 1,000kg - automatic deadlocking
Bolt throw 16mm
Robust Construction
All stainless steel bolt of 12.7mm diameter,
linkages and springs. 3mm stainless steel
faceplate and strike plates with fully enclosed
mechanism.
Maintained Key Override
Using standard Euro profile cylinder case pierced
both sides for operation either side.
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting.
Slimline Dimensions
280mm(L) x 25mm(W) x 42mm(D)
Back box 230mm(L) x 22mm(W) x 42mm(D)
Faceplates
Radius
Multiple Voltage Input
Any voltage from 12v DC -10% to 24v DC +15%.
Complete with built in transient and reverse
polarity protection and continuously rated
solenoid.
Low Current Consumption
Volts Current - Activate Current - Hold
(after 200ms)
12v DC 1100mA 210mA
24v DC 1000mA 90mA
Triple Monitoring
Bolt, Door and Key position switches
Built-in Access Control Module
Automatic unlock period - 8 seconds
Multiple auto relock function - PTL - 8 times
Multiple unlock function - PTO - 5 times
Accessories
Stainless steel surface mount kit
Approvals
CE - BS EN 50081-1 and BS EN 50082-1
3
25
12.5
255
140
12.5
12.5
25
3
50.5
12.5
42
25
25
22
230
DOOR
KEYHOLE DETAIL
52 64.5 71.5
29
24
Ø18
Ø6
Ø11
DB25KO DOOR FRAME
STRIKE PLATE
The gap A between
the Strike Plate and the
DB25KO must not
exceed 6mm when the
door is closed.
Housin
g
dimensions: 295mm (L) x 47mm (H) x 28.5mm (W)
DESCRIPTION FUNCTION CODE
12/24v DC Fail Open - Power to Lock DB25KO PTLOCK
12/24v DC Fail Secure - Power to Open DB25KO PTOPEN
ACCESSORIES CODE
Surface Mounting Kit - Surface Mount Housing/Surface Mount Strike Box/
Long Strike Plate (stainless steel) DB25KO/SMH-KIT
Extras for glass applications - Kit comprises 2 stainless steel Dress Plates DB25KO/SMK-DP
Long Strike Plate - Replacement DB25KO/LONG
Half Euro Profile Cylinder Keyed Alike 40mm 5224
Half Euro Profile Cylinder Keyed Differ 40mm 5222
Built-in Access Control Module
Automatic unlock period - a fixed 8 second period operates once the bolt is signalled to unlock. This
enables traffic exiting 8 seconds in which to open the door before it automatically relocks. See Anti-
Tailgate.
Multiple auto relock function - when relocking the bolt makes 8 locking attempts over 16 seconds. Change
in the Bolt Position Switch status indicates that the door has been locked. Fail open models only.
Multiple unlock - in fail secure mode - 5 attempts to unlock door at 1.6 second intervals.
Anti-Tailgate - once the door has been pushed open and closed during the 8 second unlock period, the
bolt will immediately relock.
DB25L www.alpro.co.uk 01202 676262
Ordering Information/Specifications
21
DB25L www.alpro.co.uk 01202 676262
20
deadlocking latching bolt
DB25L
Dual Action
Magnetic latch on strike plate to capture the door
Deadbolt to secure the door
High Physical Security
Holding force 1,000kg - automatic deadlocking
Bolt throw 16mm
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting.
Slimline Dimensions
210mm(L) x 25mm(W) x 42mm(D)
Back box 164mm(L) x 22mm(W) x 39mm(D)
Faceplates
Radius
Multiple Voltage Input
Any voltage from 12v DC -10% to 24v DC +15%.
Complete with built in transient and reverse polarity
protection and continuously rated solenoid.
Low Current Consumption
Volts Current - Activate Current - Hold
(after 200ms)
12v DC 1100mA 160mA
24v DC 1000mA 90mA
Dual Monitoring
Bolt and Door position switches
Built-in Access Control Module
Automatic unlock period - 8 seconds
Multiple auto relock function - PTL
Multiple unlock function - PTO
Accessories
Stainless steel surface mounting kit
Approvals
CE - BS EN 50081-1 and BS EN 50082-1
The Alpro DB25L incorporates a unique
latching device that is a world first in electronic
deadbolts. Door alignment problems vanish
with the innovative design which ensures
the correct positioning of the lock and strike
every time. Incorporating access control
functions, two monitors and the highest quality
componentry.
12.7
16
20.5
16
164
23 23
25
42
39
22
210
197.5
47.5
12.5
210
197.5
47.5
47.5
15.5
12.5
DESCRIPTION FUNCTION CODE
Deadlocking Bolt with Latch Fail Open - Power to Lock DB25L/PTLOCK
12-24v DC - 25mm wide radius cornered faceplate including long strike plate with square hole.
Built-in Access Control Module
Selectable unlock period - a field selectable timer operates once the bolt is signalled to unlock. This
enables traffic exiting 0. 3, 6 or 9 seconds in which to open the door before it automatically relocks. See
Anti-Tailgate.
Multiple auto relock function - when relocking the bolt makes 9 locking attempts over 18 seconds.
Change in the bolt position switch status indicates that the door has been locked. Fail open models only.
Multiple unlock - in fail secure mode - 5 attempts to unlock door at 2 second intervals.
Anti-Tailgate - once the door has been pushed open and closed during the chosen unlock period, the
bolt will immediately relock.
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE

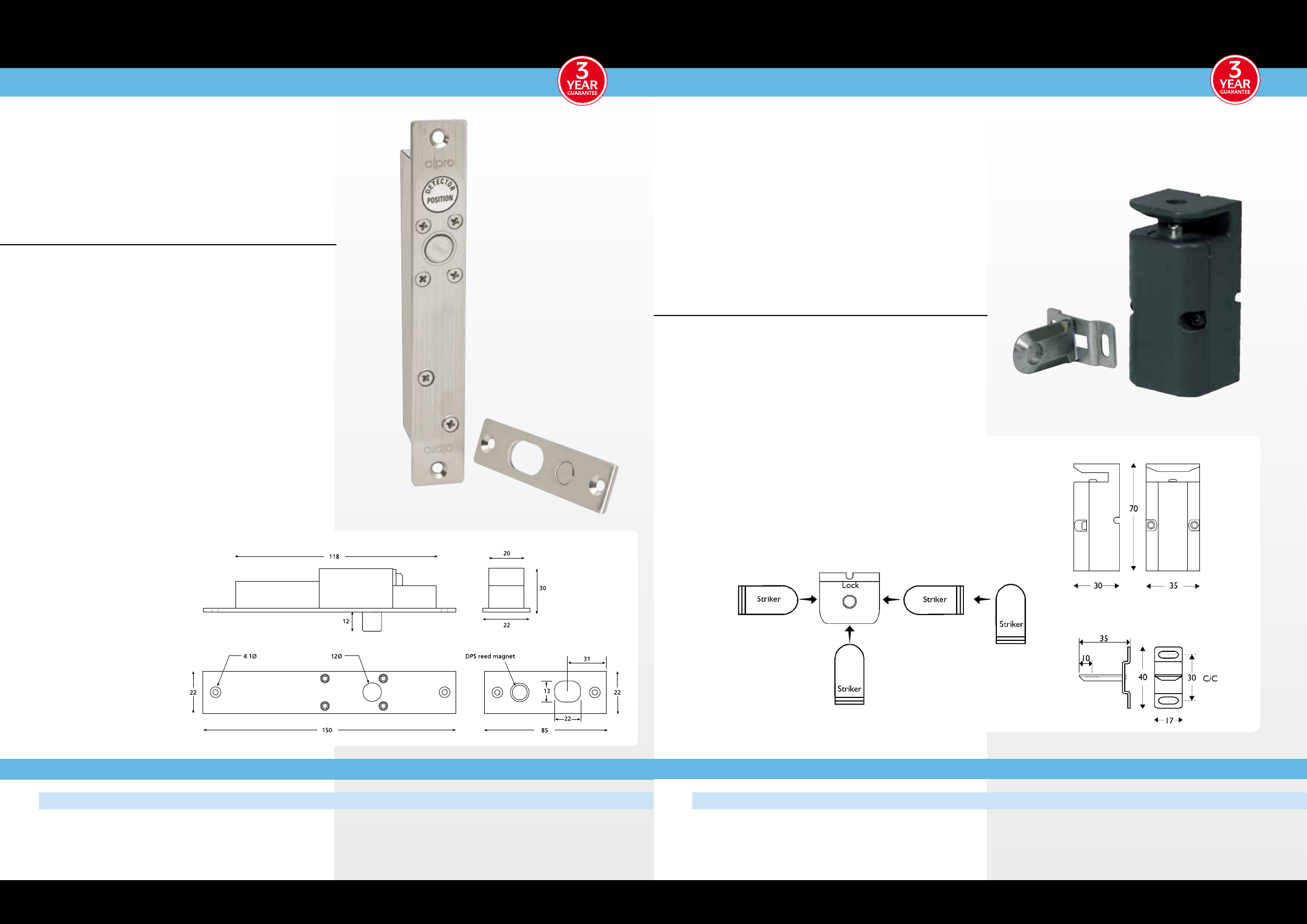

This compact rugged cabinet lock is designed
to be fitted in display cases, cabinets and
lockers with either swing or sliding doors
requiring electronic control and where keys
are not a practicable solution.
The innovative design enables the lock to be
fitted vertically or horizontally whilst receiving
the striker plate from the front, side or slide
entry positions.
Offering maximum flexibility and alignment
adjustment whilst maintaining an excellent
level of security for its size.
Stainless Steel Striker
Holding >250Kg
Flexible Alignment
Has 5mm vertical/horizontal adjustment after
installation
Power consumption
180 mA - 12v DC continious (+/- 15%)
90 mA - 24v DC continious (+/- 15%)
Compact case size
70mm (H) x 35mm (W) x 30mm (D)
Approvals
CE Approved
DESCRIPTION FUNCTION CODE
12v DC Fail Open - Power To Lock ACL212 PTL
12v DC Fail Secure- Power To Open ACL212 PTO
24v DC Fail Open - Power To Lock ACL224 PTL
24v DC Fail Secure- Power To Open ACL224 PTO
Function
Fail Open/Power to Lock
Construction
Stainless steel bolt (12mm diameter and throw) and
strike plate provide secure locking.
Electrical Features
Voltage 12v DC±15%
Activating current 700mA
Holding current 100mA
Continuously rated solenoid
Fully protected against transient & reverse polarity
Versatile Installation
Designed to provide concealed high security
locking on any single or double action, hinged
or sliding door in timber or metal for vertical or
horizontal mounting. Also suitable for cabinets and
showcases
Monitoring
Door position switch.
Auto Relock Function
Can be set for
0,3,6 or 9 seconds
The Alpro EB501 Electric Mini Bolt allows for
remote access and exit control of most timber
and metal doors. Suitable for sliding or swing,
single and double action operations. It can
be fitted in the frame or in the door and is also
suitable for narrow profile joinery cabinets and
showcases
Ordering Information/Specifications
DESCRIPTION FUNCTION CODE
Electric Mini Bolt Fail Open- Power to Lock Monitored EB501-22
ACL200 www.alpro.co.uk 01202 676262
cabinet locks
ACL200
EB501 www.alpro.co.uk 01202 676262
electric mini bolt
EB501
22 23
Ordering Information/Specifications
Striker can enter lock from
any three sides including
sliding on.

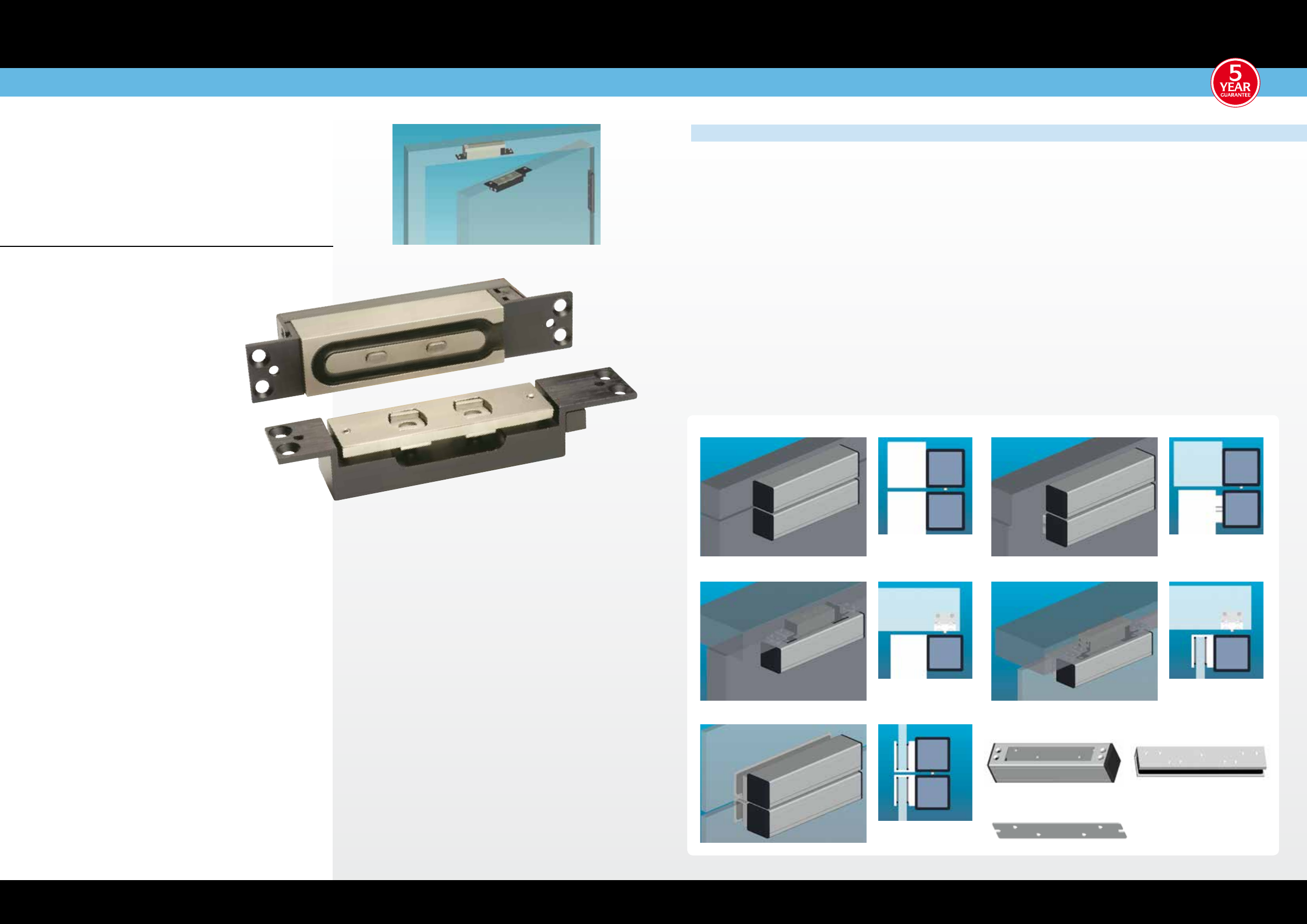

The Alpro EMS1200 Compact Shearlock
is available in Mortice or Surface Mount
models (inc. Glass Mount) and offer slimline
dimensions whilst maintaining a holding force
in shear of 1200kg. Other benefits include
built in PCB controller with switch selectable
features and plug in 3 metre flying leads.
High Physical Security
Shear Holding Force 1200kg
Models
Mortice and Surface Mount
Model
230mm (L) x 51mm (W) x
51mm (D)
Compact Design
Magnet - 163mm (L) x 30mm
(W) x 35mm (D)
Armature – 163mm (L) x 30mm (W)
x 32mm (D)
Specification
Built in PCB Controller
Switch selectable adjustable time delay
0-30 secs
Misalignment - Multiple auto relock x100
3 metre flying leads
Fully Monitored Hall Effect
Max 24v DC@1 amp
Door Position Switch
Versatile Installation
Single or Double Action Doors
Mortice / Surface / Glass Mount
IMPORTANT NOTE:
THE EMS1200 COMPACT SHEARLOCK IS NOT
SUITABLE FOR VERTICAL INSTALLATION
Multiple Voltage Input
Any voltage from 12v DC -10% to 24v DC +15%.
Complete with built in transient and reverse
polarity protection and continuously rated
solenoid.
Current Consumption
Volts Current – Activate Current – Hold
12v DC 1150mA 290mA
24v DC 1550mA 160mA
Max Armature Pull In
12v DC – 4mm
24v DC – 5mm
Accessories
For use with Surface Mount Housings
Aluminium Glass Mount Bracket suitable for
10-12mm Glass, 230mm (L) x 30mm (W) x 45mm (D)
Filler Plates, 225mm (L) x 1/2/6mm (W) x 38mm (D)
CE Approved
Cycle Tested
SGS - 500k operations
Side View
Metal door to metal frame - flush Metal door to metal frame - offset
Side View
Metal door to metal frame Frameless glass door to metal frame, Armature surface.
Side View Side View
Frameless glass door to glass
SM 1200 GDC 1200
FP 1200-1/2/6
Side View
EMS1200 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
EMS1200 www.alpro.co.uk 01202 676262
compact shearlock
EMS1200
24 25
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
DESCRIPTION CODE
Mortice Shearlock -12/24v DC Door position Switch -
Monitored complete with on board PCB/Plug in 3m flying leads EMS 1200M
Surface Mount Shearlock as above complete with Surface Mount Housings x2 EMS 1200S
Mortice Shearlock as above complete with Surface Mount Housings x1 EMS 1200SM
Accessories
Aluminium Frameless Glass (10/12mm) Door Clamp for use with EMS 1200S,
One per Surface Mount Housing e.g. 2 required for use with EMS 1200S
1 required for use with EMS 1200MS GDC 1200
Aluminium Filler Plate 1mm thick x1 FP 1200 - 1
Aluminium Filler Plate 2mm thick x1 FP 1200 - 2
Aluminium Filler Plate 6mm thick x1 FP 1200 – 6
Regulated PSU/Back Up Battery
12v 2Amp Power Supply Unit IECPSU12V2AMP
24v 2Amp Power Supply Unit IECPSU24V2AMP
Regulated PSU required for correct operation
Independent DPS (Door Position Switch) required for steel door applications
Suitable positive centring closer required on double action doors

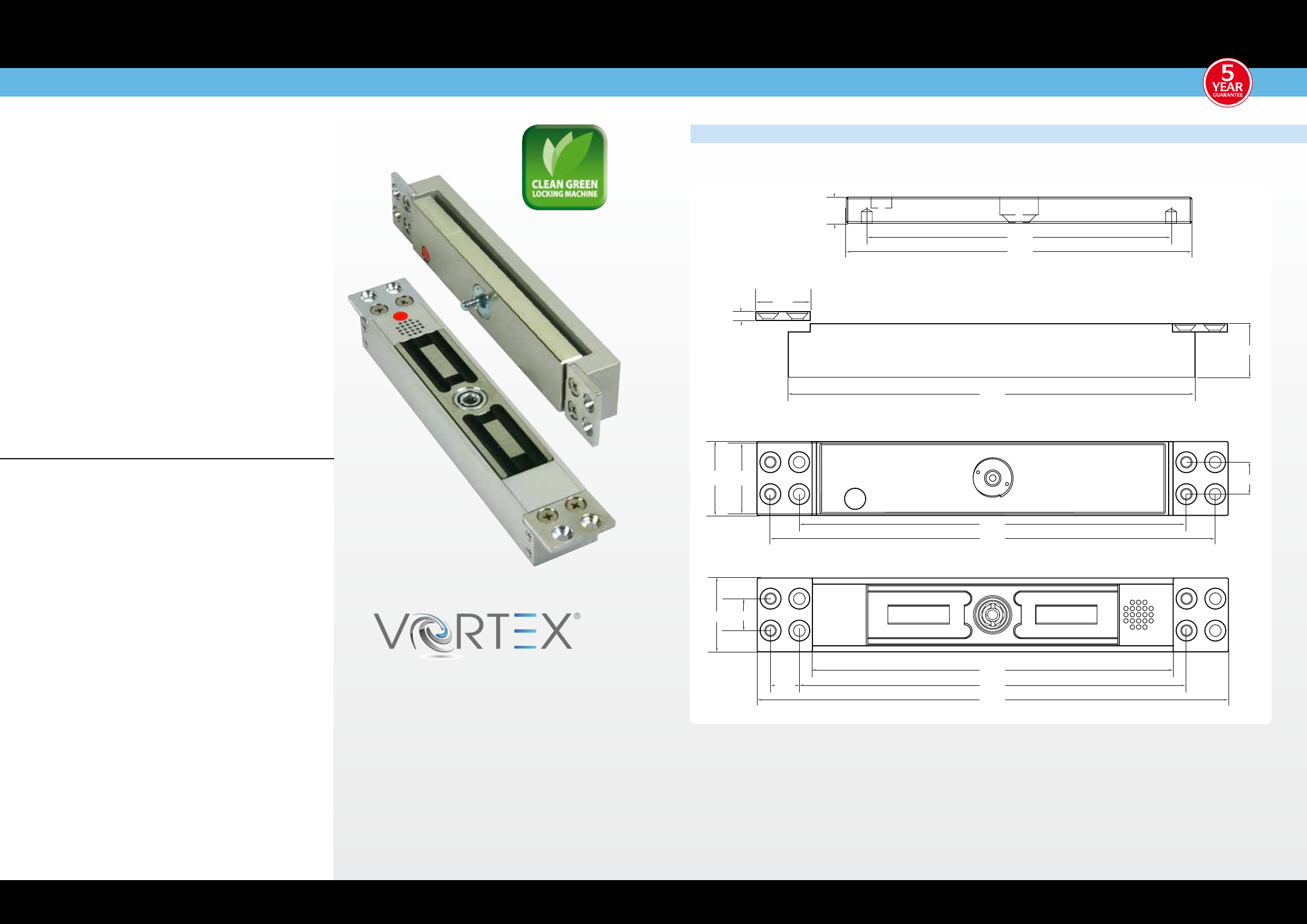

Alpro’s Vortex 2400 compact door magnet
is a unique magnet with patented inbuilt
technology ensuring improved
performance and reliability and a real
alternative to standard face to face
magnets. Complete with a conical
aperture to receive a strong alloy pin
the unit embodies both magnetic and
mechanical holding force.
Independently tested to 1500kg, the
holding force is 400% stronger, the body size
is 75% smaller, power consumption is 50%
lower and there is 75% less material
used in the manufacturing processes
making the Vortex greener and
more environmentally friendly than its
competitors. Complete with built in LED
and dual monitoring.
High Physical Security
Holding force 1,500kg
Releases under Side Load Pressure
Magnet will release with up to 100kg of side load
pressure when the power is removed
Weight
450g
Slimline Dimensions
218mm(L) x 35mm(W) x 30mm(D)
Multiple Voltage Input
Any voltage from 12vDC to 24vDC
Low Current Consumption
Volts Current
12v DC 240mA
24v DC 120mA
Dual Monitoring
Locking and door position
Early Warning Alarm EW Technology
Magnets are fitted with EW pressure sensors able
to send an alarm before access forced open.
Also fitted with buzzer.
Surface Mounting for easy retrofit
Armature Plate Security Bracket
No residual magnetism
Accessories
L & Z brackets
Glass door bracket
Patented
AL2400LP www.alpro.co.uk 01202 676262
Ordering Information/Specifications
27
AL2400LP www.alpro.co.uk 01202 676262
26
surface door magnet
AL2400LP
150
180
256
30
30
30.5
140
DESCRIPTION FINISH CODE
Surface mounted magnet. Secure armature – LED – 12/24vDC Satin Anodised AL2400-LP
ACCESSORIES FINISH CODE
L bracket for 2400 model Satin Anodised ALAMLB2400
L&Z brackets for 2400 model Satin Anodised ALAMZB2400
Glass door bracket for 2400 model Satin Anodised ALUGB2400-10/12
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
AL1982-35.5 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
AL1982-35.5 www.alpro.co.uk 01202 676262
mortice door magnet

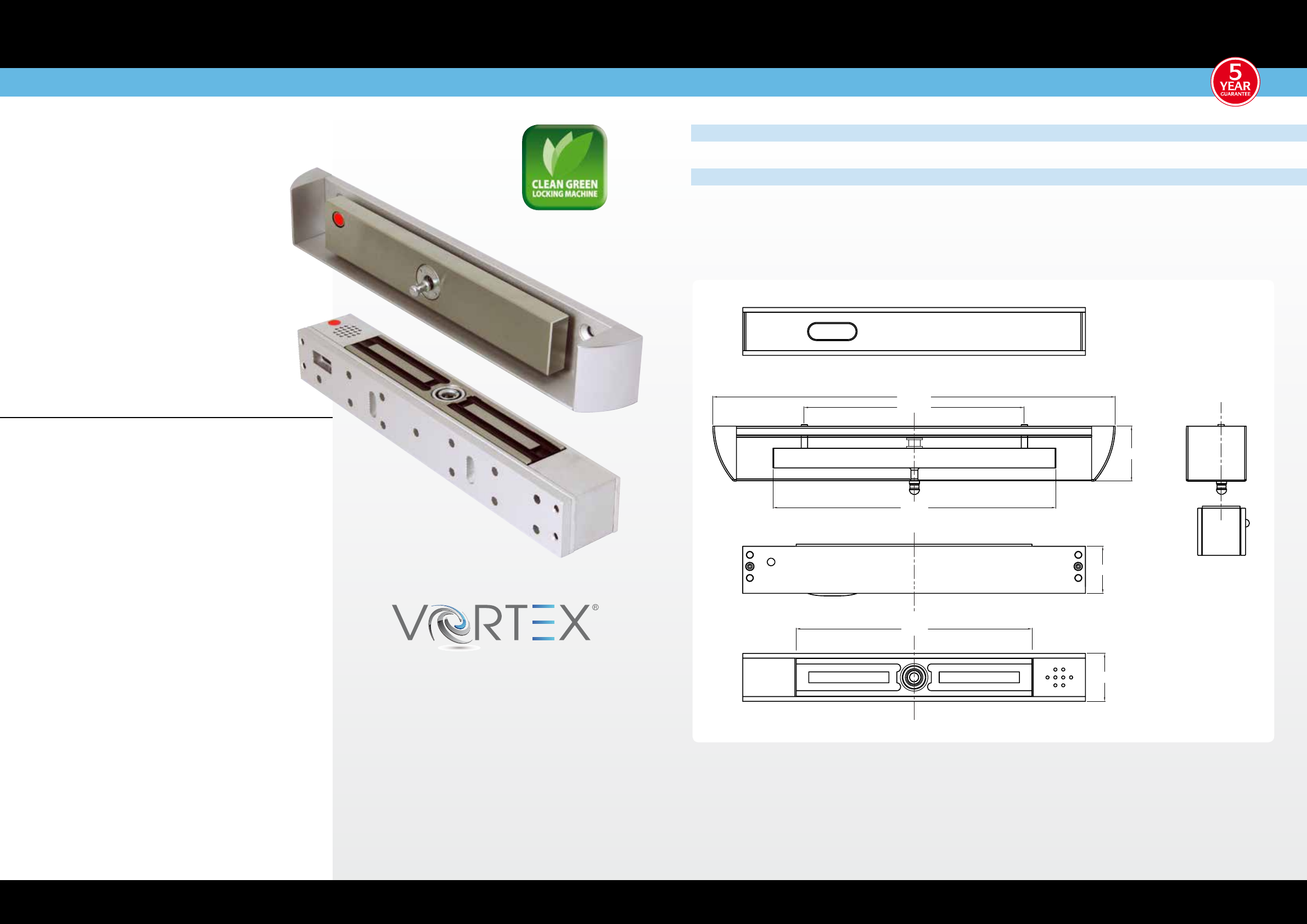

AL1982-35.5
28 29
The Alpro 1982.35.5 Vortex magnet is designed
for use when a mortice type installation is
required.
When external pressure is applied to open
the magnet and break the hold of the unit,
the pivoting pin head fitted into the electro
magnet holes will initiate an additional locking
from the upward movement of the integrated
ball bearings which hold the pivoting pin
head on the armature plate securely. When
the power is disengaged from the magnet, it
releases its hold on the armature plate and it
returns to its normal state.
The unit requires a filtered and regulated
DC power supply of the correct voltage to
ensure the attraction of the armature plate is
initiated. The unit operates on 12/24vDC and
is complete with two built in SPST reed switch
sensors for remote lock monitoring status and
remote door monitoring status. The overall
holding force of the unit is 1500Kgs.
High Holding Force
Holding force 1,500Kg
Releases under Side Load Pressure
Magnet will release with up to 100Kg of side load
pressure when the power is removed
Weight
1.3Kg
Magnet Body Dimensions
226mm(L) x 35.5mm(W) x 26.5mm(D)
Armature Plate (including bracket) Dimensions
226mm(L) x 35.5mm(W) x 25.7 mm(D)
Multiple Voltage Input
Any voltage from 12vDC to 24vDC
Low Current Consumption
Volts Current
12v DC 240mA
24v DC 120mA
Dual Monitoring
Locking and door position
Early Warning Alarm EW Technology
Magnets are fitted with EW pressure sensors able to
send an alarm before access is gained. Also fitted
with buzzer.
Built-in MOV Surge Protection
Mortice mounting for concealed installation
Armature plate security bracket
No residual magnetism
ISO and TÜV tested
Patented
DESCRIPTION FINISH CODE
Small mortice mounted magnet - 12/24vDCC Satin Anodised AL1982‐35.5
15.5
15.5
186
214
186
14
173.5
226
146
166
12.5
25.7
195
26.5
4
3435.5
35.5
Armature plate
Armature plate including bracket (side view)
Armature plate including bracket
Magnet
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
©©
AL4400 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
AL4400 www.alpro.co.uk 01202 676262
automatic door magnet

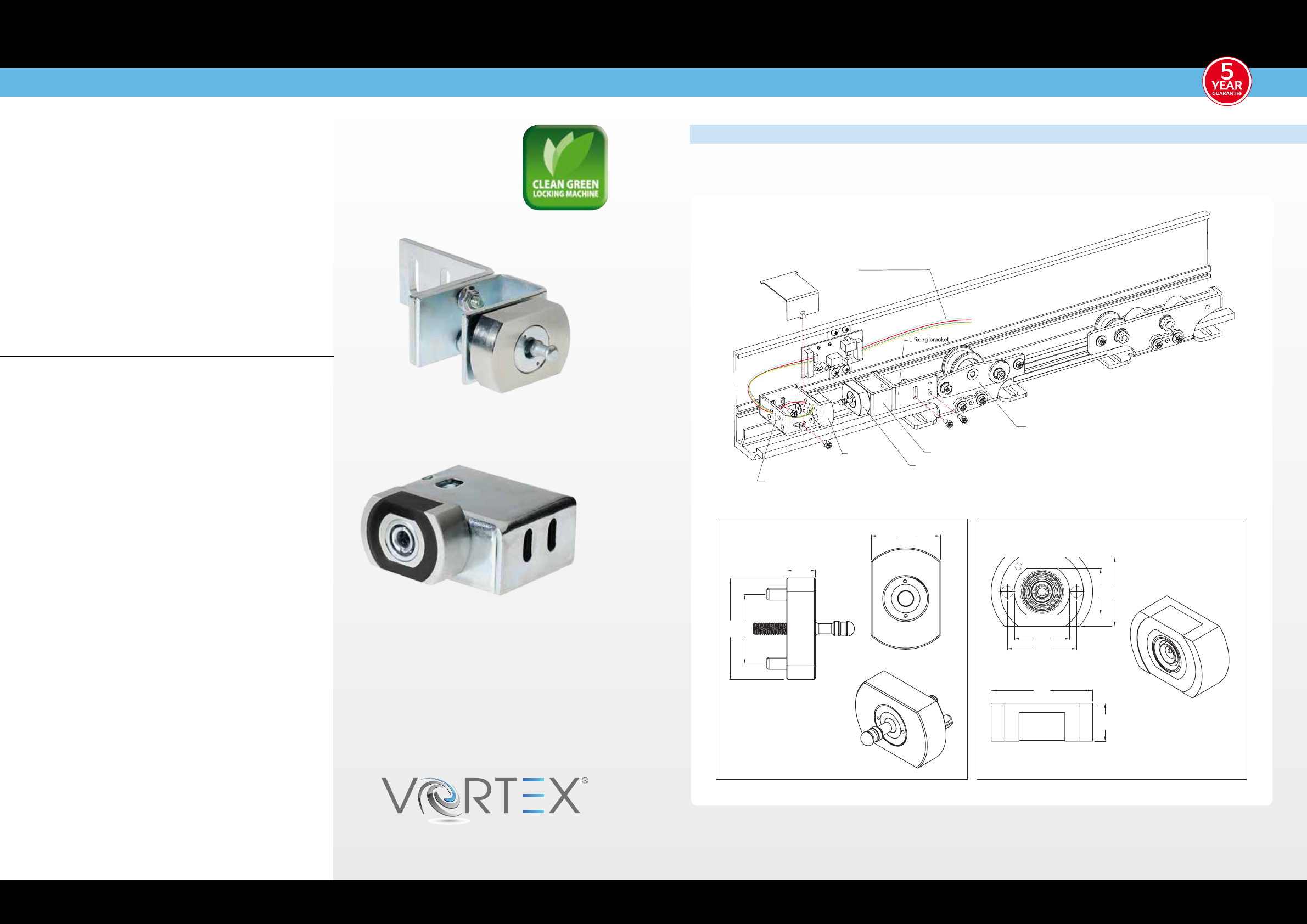

AL4400
30 31
Alpro’s patented AL4400 mechanical electro
magnet is specifically designed for securing
sliding door mechanisms both automatic
and mechanical. The holding force of the
magnet will depend on its fitting arrangement,
but in test the average holding force has
been shown to be 680Kgs. The installation is
simple and the unit provides an additional
and reliable locking solution which is superior
to traditional electromechanical locking
devices. The AL4400 can also be supplied with
the necessary mounting accessories usually
required by door manufacturers. The units
operate on a12v/24vDC power supply.
High Holding Force
Holding force 680Kg
Weight
400g
Slimline Dimensions
44mm (L) x 30mm (W) x 16.5mm (H)
Multiple Voltage Input
12vDC/24vDC
Low Current Consumption
260mA
Early Warning Alarm EW Technology
Magnets are fitted with EW pressure sensors able to
send an alarm before access forced open.
Built-in MOV Surge Protection
Surface mounting for easy retrofit
Armature plate security bracket
No residual magnetism
ISO and TÜV tested
PatentedPatented
DESCRIPTION FINISH CODE
Automatic door magnet - 12vDC/24vDC Satin Anodised AL4400
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
Auto door control
Door supporting
roller brackets
Armature U bracket
Armature plate
MEM4400
magnetic
lock
Magnetic lock
bracket
12.5
24
30
44
44 30
30
16.5
20
30
DESCRIPTION CODE
250kg Mini Magnets
250kgs mini magnet non monitored 56121
250kgs double mini magnet non monitored 56122
250kgs mini magnet monitored 56111
250kgs double mini magnet monitored 56112
500kg Magnets
500kgs magnet non monitored 56221
500kgs double magnet non monitored 56222
500kgs magnet monitored 56211
500kgs double magnet monitored 56212
ACCESSORIES

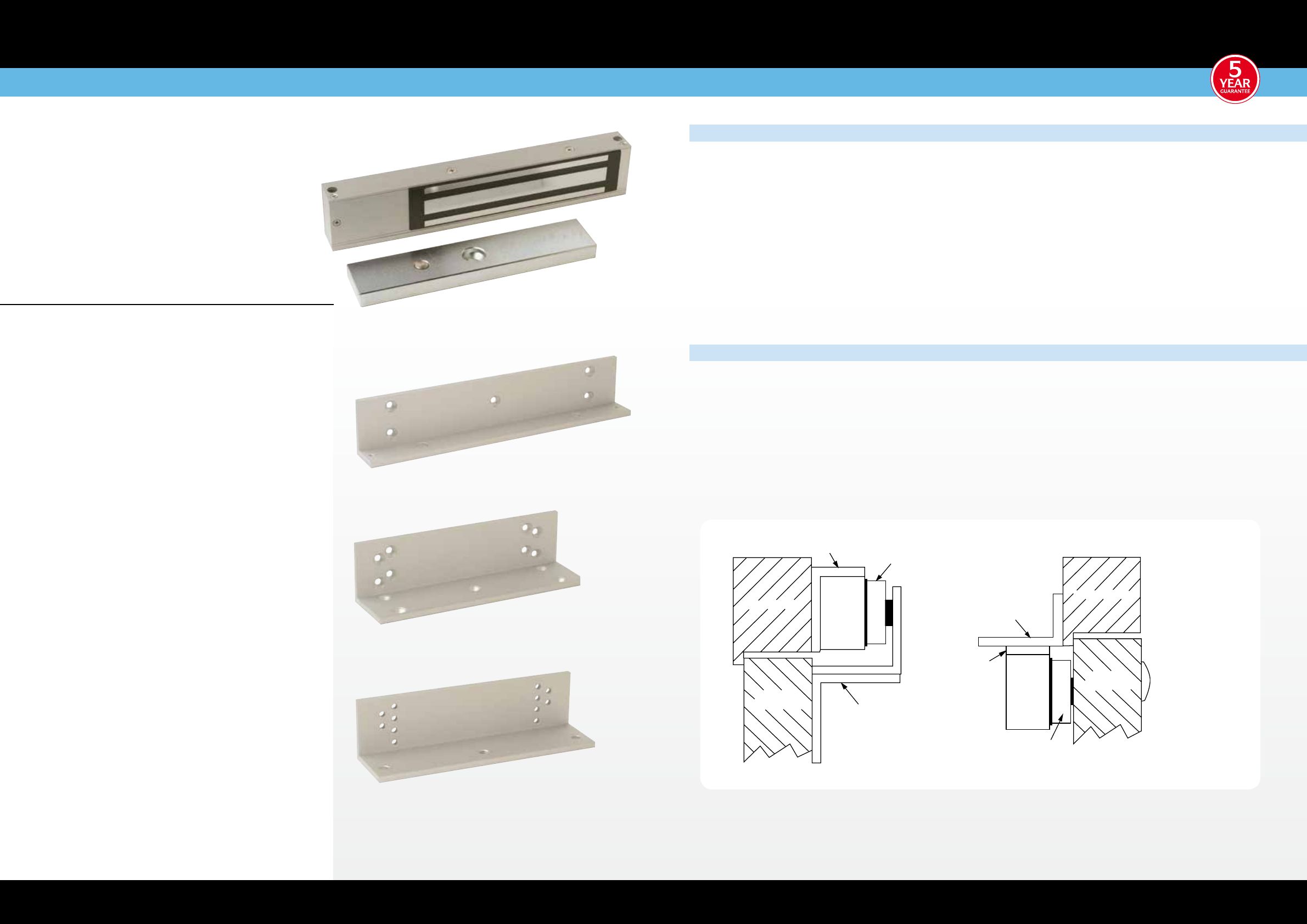

Adjustable L brackets: Suits typical outward opening door applications, where space restrictions do not allow the
magnet to be fitted at the head of the door frame. L & Z brackets allow magnets to be used on inward opening
door applications.
L bracket for mini magnet 561A
L & Z bracket for mini magnet 562A
L bracket for 500kgs magnet 563A
L & Z bracket for 500kgs magnet 564A
N.B. - 2 brackets required for double magnet
Functionality
Magnets can be used to facilitate access
and exit control systems for a variety of
aluminium, timber and steel doors. The
magnets embodies clean aesthetic looks
with the ability to maintain a holding force
of 250kgs (550lbs), offers low maintenance,
and ease of installation. They provide positive
fail safe operation (unless battery back up
is available) at all times. Suitable for both
inward and outward opening doors.
250kg Mini Magnets
Specification
Single magnet 25mm x 250mm x 42mm
Double magnet 25mm x 500mm x 42mm
Armature plate 160mm x 36mm x 11mm
(x 2 for double magnet)
Holding force 250kgs (550lbs)
(x 2 for double magnet)
500kg Magnets
Specification
Single magnet 40mm x 266mm x 73mm
Double magnet 40mm x 532mm x 73mm
Armature plate 160mm x 61mm x 16mm
(x 2 for double magnet)
Holding force 510kgs (1120lbs)
(x 2 for double magnet)
General Specification
Supply voltage Dual voltage 12 or 24vDC
(Dual coil). Nominal +/- 10%
Nominal current 500mA @ 12vDC,
250mA @ 24vDC
Built in voltage spike suppressor
Monitoring Relay with dry contact integral
LED
Door Gaps Maximum 3mm
Positioning Outward opening - surface
mounted to door header
transom bar. Inward opening -
door frame transom bar using
L & Z brackets
Magnet housing Brushed Satin Aluminium
Please note: To ensure immediate release, it is
important that the release switch breaks the circuit
between the power supply and the magnet
Magnets www.alpro.co.uk 01202 676262
Ordering Information/Specifications
Magnets www.alpro.co.uk 01202 676262
locks
Magnets
32 33
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
'L' Bracket
Armature
Magnet
Adjustable
'Z' Bracket
Inward
Opening Door
Door Frame Head
Door Frame Head
Adjustable
'L' Bracket
Standard
Fixing Plate
Magnet
Armature
Outward
Opening Door
'L' Bracket
Armature
Magnet
Adjustable
'Z' Bracket
Inward
Opening Door
Door Frame Head
Door Frame Head
Adjustable
'L' Bracket
Standard
Fixing Plate
Magnet
Armature
Outward
Opening Door
Adjustable L Bracket
30mm x 250mm x 48mm
L & Z Bracket
30mm x 250mm x 48mm
(adjustable and standard L brackets)
L & Z Bracket
30mm x 250mm x 48mm
50mm x 160mm x 50mm (adjustable plates)
Magnetic
Door Lock
Choose Magnetic
Door Lock or
Electric Strike
Electric Door
Strike
Keypad
AC
Transformer
RQE
44.5 12
146 180
DESCRIPTION CODE
Self Contained Single Door Access Control - 200 Users
Slim Surface Mount, 2x6, 2 LED, Outdoor/Indoor, Bright Aluminium AS-626S-200/3M
Accessories
Cable, replacement, between Keypad and Controller. 3 metres of cable with connectors AST10CABLE
The Alpro Waterproof Keypads are simple to
install and user friendly. These aesthetically
designed and vandal resistant keypads are
suitable for up to 200 users.
Slim and secure with no moving parts they
are manufactured to highest standards for
external or internal use.
No Moving Parts
Solid state Piezo technology
Waterproof – IP68 Certificated
Highest certification available
Slimline Design
44.5mm (W) x 181mm (L) x 12mm (D)
Tamper Resistant
Security plugs provided
Vandal Resistant
One piece solid housing
Variable Length Codes
From 4 to 8 digit codes can be used
simultaneously
Electrical Features
2 amp changeover relay
12v AC or 12-24v DC (±10%) power 120mA max
Visual & Audible Feedback
Timeout functions for code entry and
programming
Up to 200 User Codes
100 million combinations 4 to 8 digit codes
Non Volatile Memory
Anodized Graphics
Long life - wear resistant
Approvals
CE and UL
Self Contained Single Door Access Control - 200 Users Slim Surface
AS626 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
AS626 www.alpro.co.uk 01202 676262
waterproof keypad

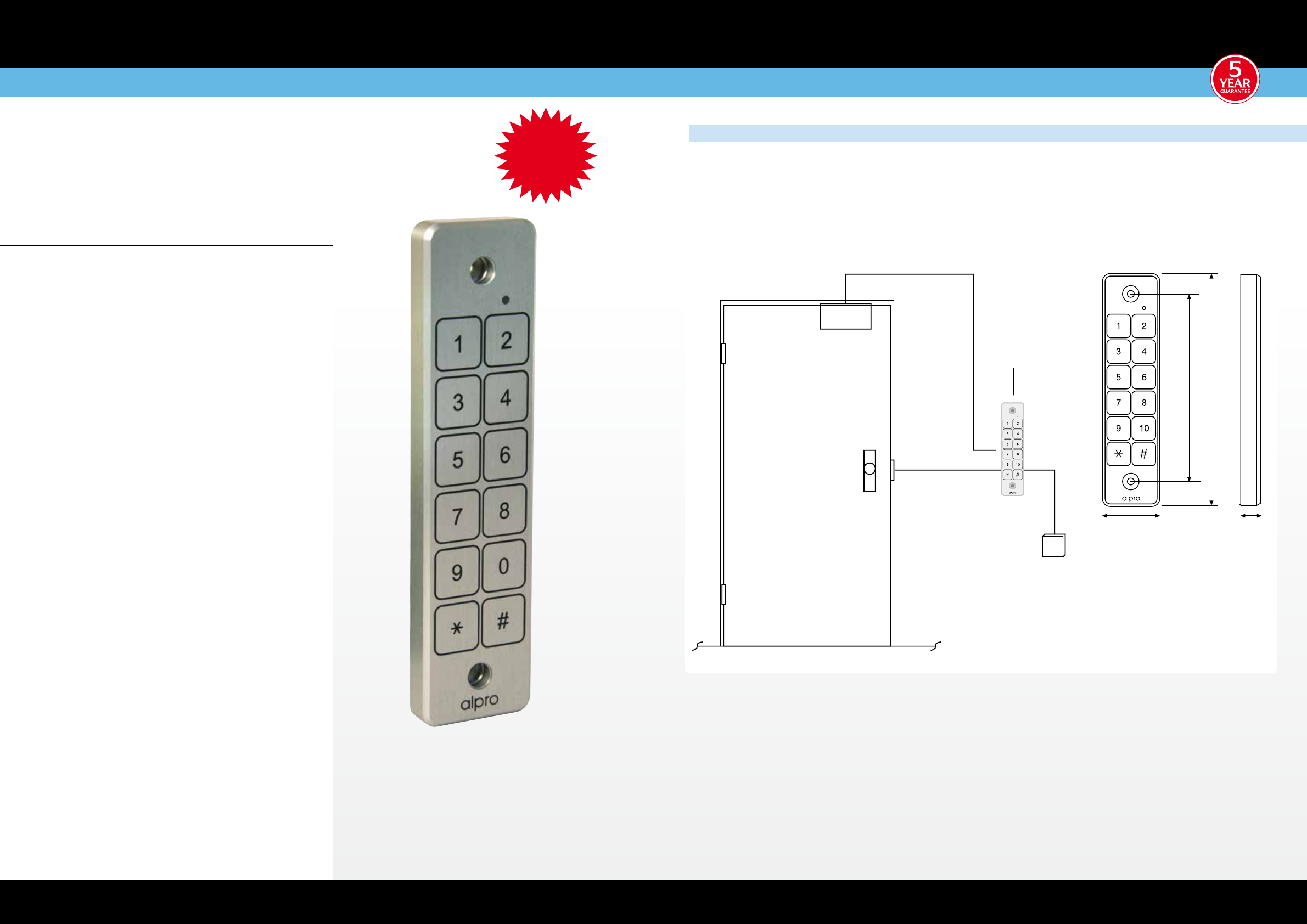

AS626
34 35
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
NEW
Slimmer
Body
Alpro’s new fully sealed polycarbonate Piezo
backlit braille keypad is easy to install and
user friendly.
This keypad uses the same technology that
is found in the existing Alpro vandal proof
slim line keypad and provides the ultimate
solution for high traffic access control, single
door and stand-alone installations.
These vandal resistant keypads are suitable
for up to 200 users with no moving parts and
are manufactured to highest standards for
external and internal use.
No Moving Parts
Solid state Piezo technology
Waterproof – IP68 Certificated
Highest certification available
Baklit Illumination with Braille Facility
Dimensions
112.8mm (H) x 80mm (W) x 28mm (D)
Electrical Features
2 amp changeover relay
12v AC or 12-24v DC (±10%) power 120mA
maximum
Working Temperatures
-20°C to +75°C
Tamper & Vandal Resistant
One piece solid housing
Audio & Visual Feedback
Timeout functions for code entry and
programming
Variable Length Codes up to 200 User Codes
100 million combination 4 to 8 digit codes which
can be used simultaneously
Approvals
CE and UL
AS-ATP2S200 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
AS-ATP2S200 www.alpro.co.uk 01202 676262

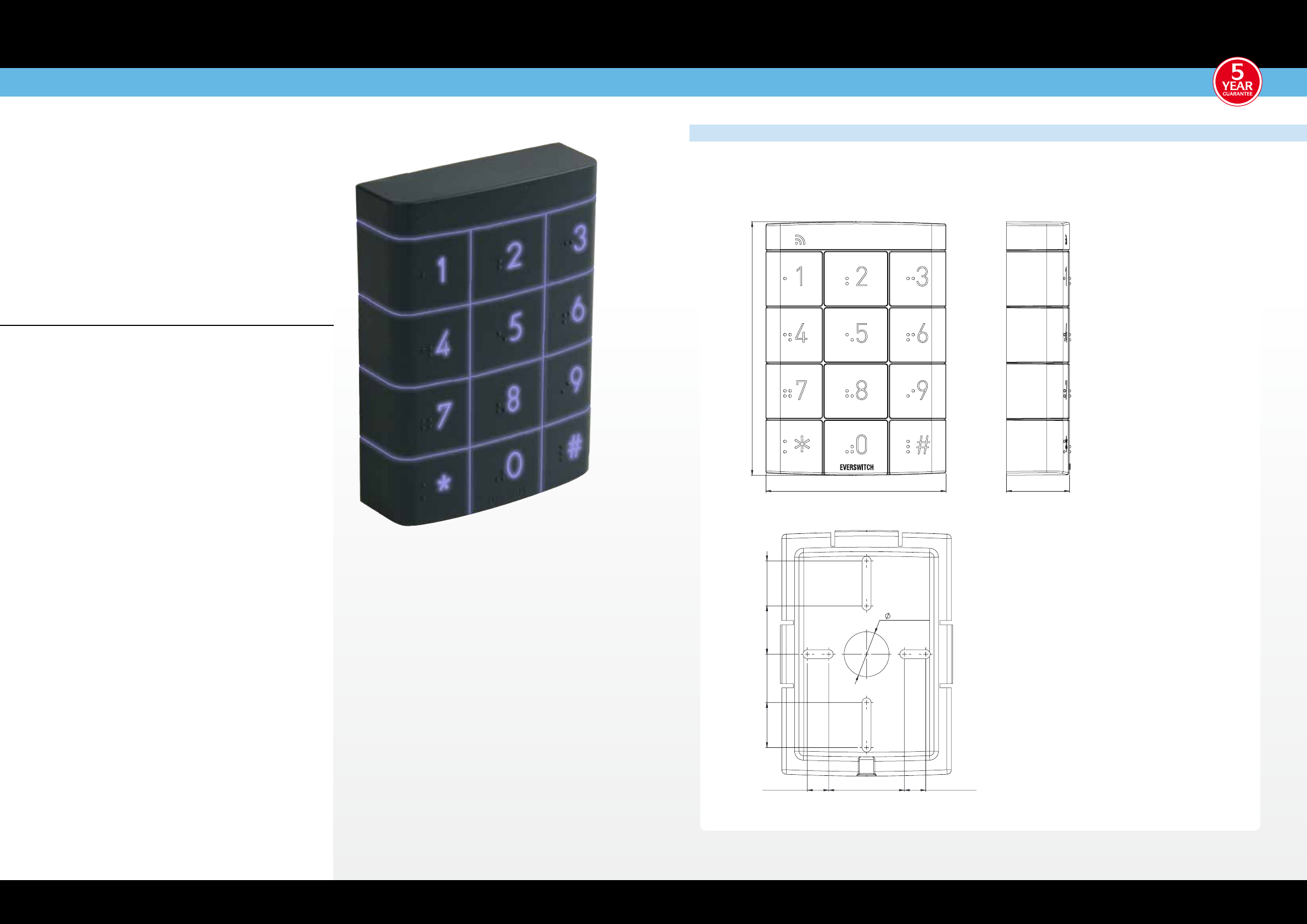

backlit keypad
AS-ATP2S200
36 37
DESCRIPTION FINISH CODE
Backlit Self Contained Keypad - Surface Mounted Black Polycarbonate AS-ATP2S200
112.8 (4.441)
20 (0.787)21.5 (0.846)21.5 (0.846)20 (0.787)
80 (3.153) 28 (1.102)
9.5 (0.374)
33.6 (1.323) 9.5 (0.374)
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
About alpro www.alpro.co.uk 01202 676262
alpro
About alpro Architectural Hardware
39
©

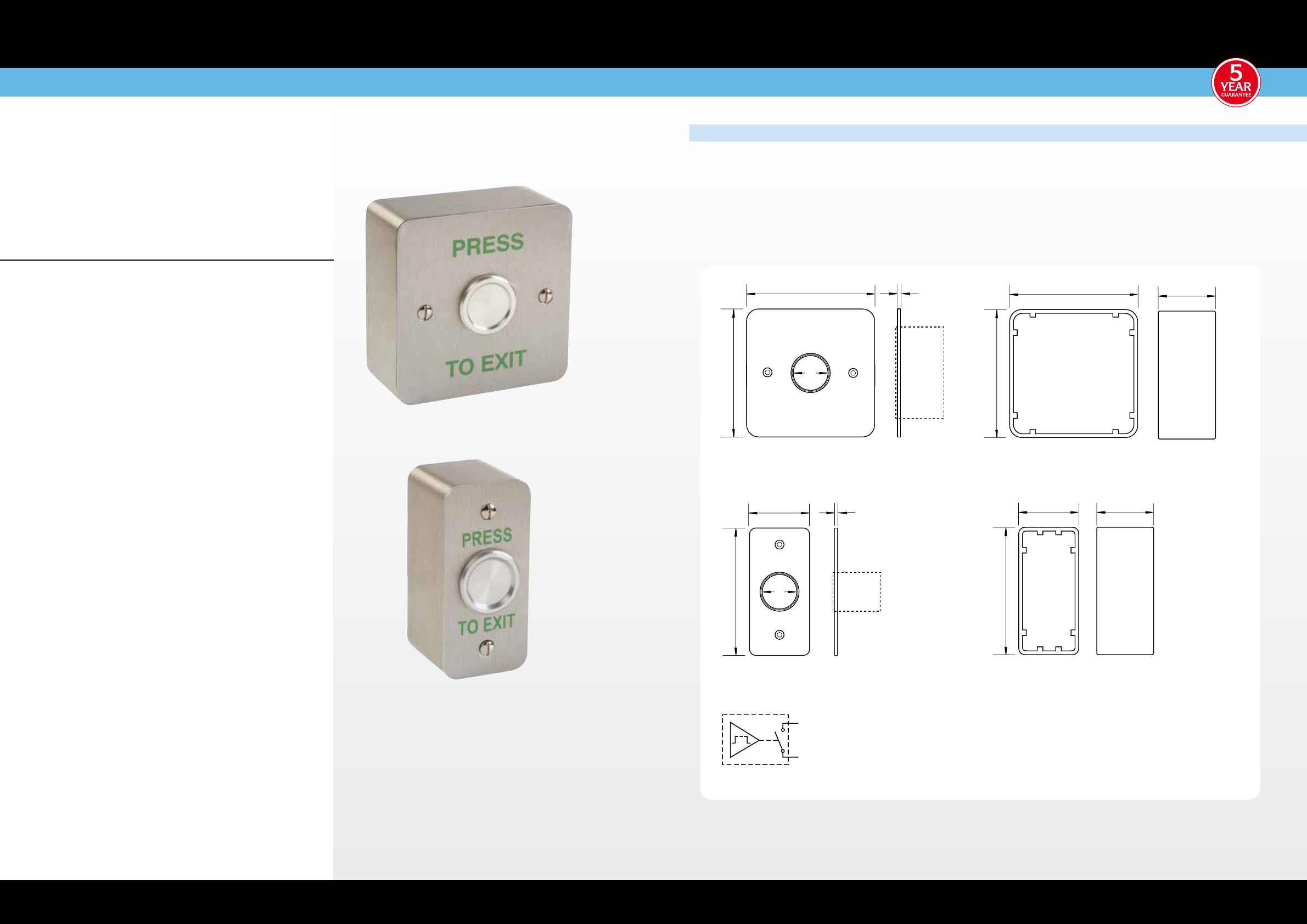

The Alpro Waterproof Exit Switches are
available in Natural Aluminium with two
different switch plate sizes – MK 1 gang and
Narrow Style for flush or surface mounting.
These switches offer fully weatherproofed IP68
functions.
Requiring only light pressure to operate they
are tested to in excess of 50-6 cycles.
No Moving Parts
Solid state Piezo technology
Waterproof – IP68 Certificated
Highest certification available
Tamper and Vandal Resistant
Switch Activation Time
One shot 120m sec.
Cycle Tested
50-6 operations
Electrical Features
Normally open
Max 0.2A @ 24v AC/DC
(1.0A model on request)
Intrinsically Safe
Switches without LED
UL certificated
Approvals
CE and UL
IEC06 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
IEC06 www.alpro.co.uk 01202 676262
waterproof exit switch
IEC06
38 39
DESCRIPTION CODE
SMA Switch - Non LED - Intrinsically Safe
Natural Anodised Exit Switch – MK 1 gang switch plate IEC06/1N
Natural Anodised Exit Switch – Narrow style switch plate IEC06/1N/NS
Accessories
Surface mount housing for MK 1 gang IEC0610-1
Surface mount housing for Narrow Style IEC0620-1
SMA Switch - Non LED
N.O. SPST
Ø 20.70
PG - 16
Ø 28.00
5.00
20.00
3.00
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28
28
85.5
85.5
85.5
85.5
38
2
2
40
85.5
40
85.5
38
28 28
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28 28
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28 28
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28
28
85.5
85.5
85.5
85.5
38
2
2
40
85.5
40
85.5
38
28 28
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28 28
85.5
85.5
85.5
85.5
38
2 2
40
85.5
40
85.5
38
28 28
Narrow style surface housing -
brushed aluminium
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE
Standard MK1 gang plate dimensions MK1 gang surface housing - brushed aluminium
Narrow style plate dimensions
DESCRIPTION CODE
Interlock Control Board IEC-IB1
Interlock Control Board Mounted in Metal 12v DC, 3 amp power supply IEC-IB1PSU12V3AMP
Interlock Control Board Mounted in Metal 12v DC, 5 amp power supply IEC-IB1PSU12V5AMP
Indicator Plate 12vDC - no legend ALP0654-1NS
19mm Vandal Resistant SSS Button 12vDC - no legend ALP0658-1-L-SNS
19mm Vandal Resistant Button & Led 12vDC – with legend ALPIB1BUTTON/LEDV2
2 Door True Interlock Controller
Processor control prevents both doors
opening at the same time. Firmware control
of all logical functions.
Dual Voltage
12 or 24v DC
High Load Capability
5 Amp double pole change over relay (1 powered
output, 1 volt free) NO, NC, C - Per Door.
Flexible Installation
Pluggable terminal blocks
Nylon stick-on mountings supplied
Dual Alarm Output
Selectable door forced or door left open alarm
output
1 Amp full changeover relay output.
Dip Switch Controls
Accurate switching for simple and constant door
control
0-62 seconds adjustable door open time
0-45 seconds adjustable door alarm delay
Cancels Remaining Door Open Time
On closing of active door, allowing other doors to
open
Independent Controls For Each Door
All Inputs and outputs are individual for each door
including timer settings and door override inputs
Door Status LED Output
LED output allows remote signal indication to show
door status
Engineering LED’s
9 LED’s allow simple diagnostic testing to be carried
out in seconds.
Fully Expandable To Infinite Number Of Doors
Simple cross wire connection allows additional boards
to be connected creating a complete interlock
system of an infinite number of doors. Simply connect
additional IB1 controllers as required.
Locked or Unlocked Modes
Controller will operate in both Secure ‘All Doors Locked’
mode or Convenience ‘All Doors Open’ mode to suit
all applications.
IB1 www.alpro.co.uk 01202 676262
Ordering Information/Specifications
IB1 www.alpro.co.uk 01202 676262
interlock controller
IB1
40 41
F
I
V
E
Y
E
A
R
G
U
A
R
A
N
T
E
E
5
YEAR
GUARANTEE

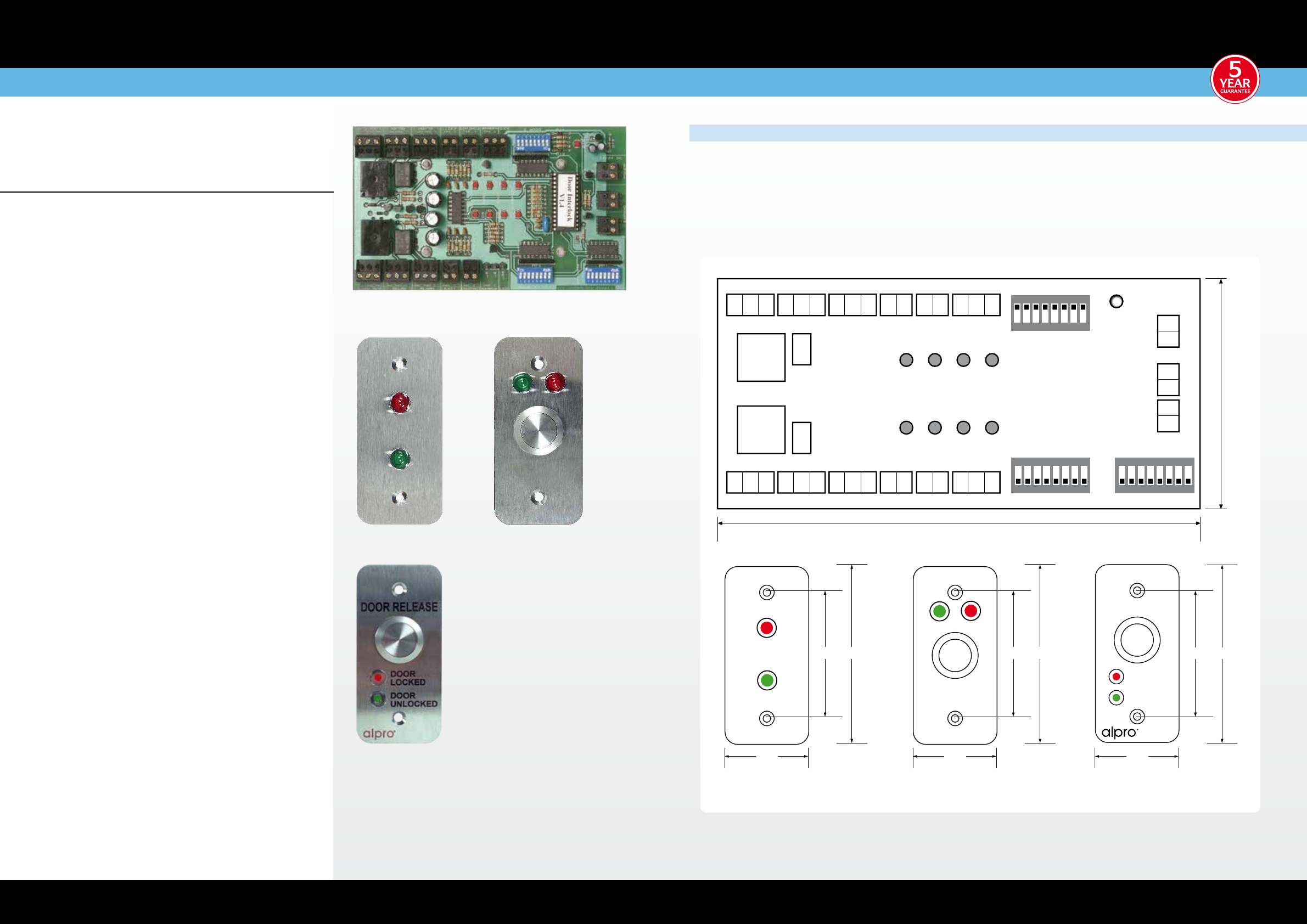

IB1 PCB only
12345678
ON
12345678
ON
12345678
ON
Lock
Relay 2
Lock
Relay 1
Alarm
Relay 2
Alarm
Relay 1
Status
Exit
Door
Override
DOOR 1
OPTIONS
DOOR 2
12/24v DC
Power/
Inhibit
D3
D2
D1
D8
D4
D5
D6
D7
Lock Output
-NCNO
J39 J21 J22
Override
NO CLED
J5 J6 J36
Relay
NC NO C
J18 J19 J20
Alarm
NC NO C
J31 J30 J22
Button
NO C
J1 J2
Contact
NC C
J3 J4
Expand
12
J16J14
34
J15 J13
Power
-
+
J34 J33
Lock Output
-NCNO
J38 J17 J26
Override
NO CLED
J8 J7 J37
Relay
NC NO C
J23 J24 J25
Alarm
NC NO C
J28 J27 J29
Button
NO C
J12 J11
Contact
NC C
J10 J9
171mm
101mm
60mm
40mm
85mm 60mm
40mm
85mm 60mm
40mm
85mm
DOOR RELEASE
DOOR
LOCKED
DOOR
UNLOCKED
ALP0654-1NS ALP0658-1-L-SNS ALPIB1BUTTON/LEDV2
ALP0654-1NS ALP0658-1-L-SNS
ALPIB1BUTTON/LEDV2
Other products www.alpro.co.uk 01202 676262
other products

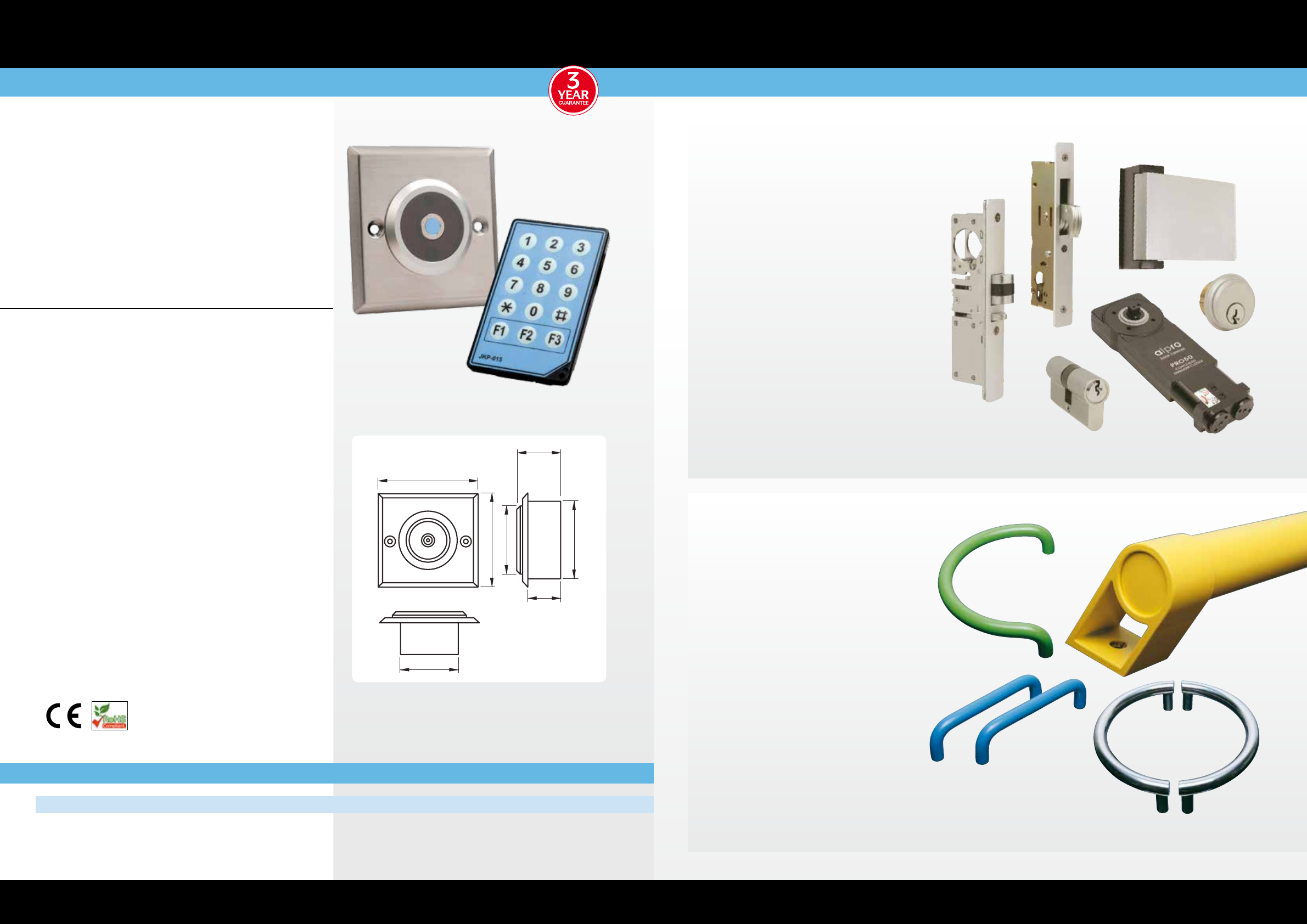

PB86 www.alpro.co.uk 01202 676262
infrared proximity switch
PB86
Door Hardware
Alpro offer a complete range of
aluminium door hardware offering
excellent levels of security and quality.
The range includes:
• Europrofile Deadlocks
• Round Mortice Cylinder Deadlocks
• Europrofile Deadlatches
• Round Mortice Cylinder Deadlatches
• Lever & Paddle Handles
• Lock Accessories
• Flush Bolts
• Armoured Strikes
• Digital Locks
• Door Closers
• Magnets
• Panic Hardware
Door Handles
Alpro door handles are bold and
modern in appearance and
practical in everyday use.
• Aluminium, timber and glass door
applications
• Made from stainless steel or
aluminium with powder and nylon
coated versions to RAL colours
• Wide range of styles and finishes
• Many sizes available from stock or
within a few days
42 43
Ordering Information/Specifications
The Alpro PB86 infrared proximity switch is
designed to be used in conjunction with the
full range of Alpro access control products.
This proximity switch offers contactless
features offering sterile and hygienic
operation.
The simple swipe of the hand operates the
switch, ensuring no contact is required. A
feature especially important with MRSA
and other infectious bacteria prevalent in
hospitals and other communal areas.
Function
Adjustable relay trigger from 1 to 9 seconds
Easy indication of operation status
Remote control door open with an infrared
keypad (optional)
Offers one touch point to operate when infrared is
abnormal
Proximity distance is adjustable from 15-27cms
Suitable for indoor use only
Specification
Dimensions: 86 (L) x 86 (W) x 37 (H) mm
Contact Rating: 0.5A 125vAC
2A 30vDC
0.3A 110vDC
Relay Life: Mechanical: 100,000,000 / Electrical:
500,000
Operation Temperature: -20°C ~ 55°C
LED indicator: Blue - Normal
Green - Active
86mm
45mm
86mm
50mm
60mm
37mm
27mm
DESCRIPTION CODE
Infrared Proximity Switch - 12v ALP-PB86
Remote Control Keypad Unit ALP-RCKU
We are a family owned company founded in 1938 to
supply quality mechanical components. Today we serve
a broad band of industry with a wide range of quality
products.
These are manufactured by companies of international
repute who are each specialists in their own field.
We are approved to BS EN ISO 9001:2008.
• Experienced informative staff give fast, effective
and friendly service.
• Technical support nationwide.
• Competitive and cost effective solutions.
• CAD design facility.
• Large stocks - same day despatch - Kanban and
JIT deliveries.
• Modern technology combined with people.
• Listen, communicate - no surprises!
• Think long term - everlasting customers.
We aim to provide the best in both products and service
Our difference...
alpro®
...
the team that cares
Integrity • Expertise • Commitment
012 0 2 6 7 6 2 6 2
01202 6801 0 1
info@alpro.co.uk
www.alpro.co.uk
T
F
E
W
IEC Limited, Harwell Road, Nuffield Estate, Poole, Dorset BH17 0BD Great Britain
Registered in England 1925537 8/2015
RS00117
