Contents
Preface
Changes in This Release for Oracle Database Advanced Security Guide
- Changes in Oracle Database Advanced Security 12c Release 1 (12.1.0.2)
  - New Features
    - Support for OLS_LABEL_DOMINATES in Data Redaction Policies
    - Support for Oracle Key Vault for Keystore and Encryption Key Management
- Changes in Oracle Database Advanced Security 12c Release 1 (12.1.0.1)
1 Introduction to Oracle Advanced Security
- 1.1 Transparent Data Encryption
- 1.2 Oracle Data Redaction
Part I Using Transparent Data Encryption
Part II Using Oracle Data Redaction
Glossary
Index

Oracle® Database

Advanced Security Guide

12c Release 1 (12.1)

E50333-18

June 2017

Oracle Database Advanced Security Guide, 12c Release 1 (12.1)

E50333-18

Primary Author: Patricia Huey

Contributors: Rahil Mir, Paul Youn, Adam Lee, Preetam Ramakrishna, Gopal Mulagund, Rajbir Chahal, Min-

Hank Ho, Michael Hwa, Sudha Iyer, Adam Lindsey, Supriya Kalyanasundaram, Lakshmi Kethana, Andrew

Koyfman, Vikram Pesati, Andy Philips, Philip Thornton, Paul Needham, Peter Wahl

This software and related documentation are provided under a license agreement containing restrictions on

use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your

license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license,

transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse

engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is

prohibited.

The information contained herein is subject to change without notice and is not warranted to be error-free. If

you find any errors, please report them to us in writing.

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on

behalf of the U.S. Government, then the following notice is applicable:

U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated software,

any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users are

"commercial computer software" pursuant to the applicable Federal Acquisition Regulation and agency-

specific supplemental regulations. As such, use, duplication, disclosure, modification, and adaptation of the

programs, including any operating system, integrated software, any programs installed on the hardware,

and/or documentation, shall be subject to license terms and license restrictions applicable to the programs.

No other rights are granted to the U.S. Government.

This software or hardware is developed for general use in a variety of information management applications.

It is not developed or intended for use in any inherently dangerous applications, including applications that

may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you

shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its

safe use. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this

software or hardware in dangerous applications.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of

their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are

used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron,

the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro

Devices. UNIX is a registered trademark of The Open Group.

This software or hardware and documentation may provide access to or information about content, products,

and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly

disclaim all warranties of any kind with respect to third-party content, products, and services unless

otherwise set forth in an applicable agreement between you and Oracle. Oracle Corporation and its affiliates

will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party

content, products, or services, except as set forth in an applicable agreement between you and Oracle.

Contents

Preface................................................................................................................................................................ xi

Audience ....................................................................................................................................................... xi

Documentation Accessibility ..................................................................................................................... xi

Related Documents...................................................................................................................................... xi

Conventions................................................................................................................................................. xii

Changes in This Release for Oracle Database Advanced Security Guide ..................... xiii

Changes in Oracle Database Advanced Security 12c Release 1 (12.1.0.2) ......................................... xiii

New Features ..................................................................................................................................... xiii

Changes in Oracle Database Advanced Security 12c Release 1 (12.1.0.1) ......................................... xiv

New Features ..................................................................................................................................... xiv

Deprecated Features........................................................................................................................... xv

Other Changes .................................................................................................................................... xv

1 Introduction to Oracle Advanced Security

1.1 Transparent Data Encryption.................................................................................................................. 1-1

1.2 Oracle Data Redaction.............................................................................................................................. 1-1

Part I Using Transparent Data Encryption

2 Introduction to Transparent Data Encryption

2.1 What Is Transparent Data Encryption? ......................................................................................... 2-1

2.2 Benefits of Using Transparent Data Encryption .......................................................................... 2-1

2.3 Who Can Configure Transparent Data Encryption? ................................................................... 2-2

2.4 Types and Components of Transparent Data Encryption.......................................................... 2-2

2.4.1 About Transparent Data Encryption Types and Components....................................... 2-3

2.4.2 How Transparent Data Encryption Column Encryption Works ................................... 2-3

2.4.3 How Transparent Data Encryption Tablespace Encryption Works .............................. 2-4

2.4.4 How the Keystore for the Storage of TDE Master Encryption Keys Works................. 2-5

2.4.5 Supported Encryption and Integrity Algorithms............................................................. 2-7

iii

3 Configuring Transparent Data Encryption

3.1 Configuring a Software Keystore ................................................................................................... 3-1

3.1.1 About Configuring a Software Keystore ........................................................................... 3-1

3.1.2 Step 1: Set the Software Keystore Location in the sqlnet.ora File................................... 3-2

3.1.3 Step 2: Create the Software Keystore.................................................................................. 3-4

3.1.4 Step 3: Open the Software Keystore ................................................................................... 3-7

3.1.5 Step 4: Set the Software TDE Master Encryption Key...................................................... 3-8

3.1.6 Step 5: Encrypt Your Data.................................................................................................. 3-10

3.2 Configuring a Hardware Keystore............................................................................................... 3-10

3.2.1 About Configuring a Hardware (External) Keystore..................................................... 3-11

3.2.2 Step 1: Set the Hardware Keystore Type in the sqlnet.ora File .................................... 3-11

3.2.3 Step 2: Configure the Hardware Security Module ......................................................... 3-11

3.2.4 Step 3: Open the Hardware Keystore............................................................................... 3-12

3.2.5 Step 4: Set the Hardware Keystore TDE Master Encryption Key ................................ 3-14

3.2.6 Step 5: Encrypt Your Data.................................................................................................. 3-16

3.3 Encrypting Columns in Tables ..................................................................................................... 3-16

3.3.1 About Encrypting Columns in Tables.............................................................................. 3-16

3.3.2 Data Types That Can Be Encrypted with TDE Column Encryption ........................... 3-17

3.3.3 Restrictions on Using Transparent Data Encryption Column Encryption ................. 3-18

3.3.4 Creating Tables with Encrypted Columns ...................................................................... 3-18

3.3.5 Encrypting Columns in Existing Tables........................................................................... 3-22

3.3.6 Creating an Index on an Encrypted Column .................................................................. 3-23

3.3.7 Adding Salt to an Encrypted Column.............................................................................. 3-24

3.3.8 Removing Salt from an Encrypted Column .................................................................... 3-24

3.3.9 Changing the Encryption Key or Algorithm for Tables with Encrypted Columns... 3-24

3.4 Encrypting Tablespaces ................................................................................................................. 3-25

3.4.1 Restrictions on Using Transparent Data Encryption Tablespace Encryption ............ 3-25

3.4.2 Step 1: Set the COMPATIBLE Initialization Parameter for Tablespace Encryption.. 3-25

3.4.3 Step 2: Set the Tablespace TDE Master Encryption Key................................................ 3-27

3.4.4 Step 3: Create the Encrypted Tablespace ......................................................................... 3-27

3.5 Transparent Data Encryption Data Dynamic and Data Dictionary Views ............................ 3-29

4 Managing the Keystore and the TDE Master Encryption Key

4.1 Managing the Keystore.................................................................................................................... 4-1

4.1.1 Changing the Password of a Password-Based Software Keystore ................................ 4-2

4.1.2 Changing the Password of a Hardware Keystore ............................................................ 4-3

4.1.3 Backing Up Password-Based Software Keystores............................................................ 4-3

4.1.4 Backups of the Hardware Keystore.................................................................................... 4-5

4.1.5 Merging Software Keystores................................................................................................ 4-6

4.1.6 Moving a Software Keystore to a New Location .............................................................. 4-9

4.1.7 Moving a Software Keystore Out of Automatic Storage Management....................... 4-10

4.1.8 Migrating Between a Software Password Keystore and a Hardware Keystore ........ 4-11

4.1.9 Migration of Keystores to and from Oracle Key Vault.................................................. 4-17

4.1.10 Closing a Keystore............................................................................................................. 4-17

4.1.11 Using a Software Keystore That Resides on ASM Volumes ....................................... 4-20

4.1.12 Backup and Recovery of Encrypted Data...................................................................... 4-20

4.1.13 Deletion of Keystores........................................................................................................ 4-21

4.2 Managing the TDE Master Encryption Key................................................................................ 4-22

4.2.1 Creating TDE Master Encryption Keys for Later Use.................................................... 4-22

4.2.2 Activation of TDE Master Encryption Keys .................................................................... 4-24

4.2.3 TDE Master Encryption Key Attribute Management .................................................... 4-26

4.2.4 Creating Custom TDE Master Encryption Key Attributes for Reporting Purposes . 4-28

4.2.5 Setting and Resetting the TDE Master Encryption Key in the Keystore..................... 4-29

4.2.6 Exporting and Importing the TDE Master Encryption Key.......................................... 4-33

4.2.7 Management of TDE Master Encryption Keys Using Oracle Key Vault .................... 4-38

4.3 Storing Secrets Used by Oracle Database.................................................................................... 4-38

4.3.1 About Storing Oracle Database Secrets in a Keystore ................................................... 4-38

4.3.2 Storage of Oracle Database Secrets in a Software Keystore .......................................... 4-39

4.3.3 Example: Adding an HSM Password to a Software Keystore...................................... 4-40

4.3.4 Example: Changing an HSM Password That Is Stored as a Secret in a Software

Keystore...................................................................................................................................... 4-40

4.3.5 Example: Deleting an HSM Password That Is Stored as a Secret in a Software

Keystore...................................................................................................................................... 4-41

4.3.6 Storage of Oracle Database Secrets in a Hardware Keystore........................................ 4-41

4.3.7 Example: Adding an Oracle Database Secret to a Hardware Keystore....................... 4-42

4.3.8 Example: Changing an Oracle Database Secret in a Hardware Keystore................... 4-42

4.3.9 Example: Deleting an Oracle Database Secret in a Hardware Keystore ..................... 4-42

4.3.10 Configuring Auto-Login Hardware Security Modules ............................................... 4-42

4.4 Storing Oracle GoldenGate Secrets in a Keystore...................................................................... 4-44

4.4.1 About Storing Oracle GoldenGate Secrets in Keystores................................................ 4-45

4.4.2 Oracle GoldenGate Extract Classic Capture Mode TDE Requirements...................... 4-45

4.4.3 Configuring TDE Keystore Support for Oracle GoldenGate........................................ 4-46

5 General Considerations of Using Transparent Data Encryption

5.1 Compression and Data Deduplication of Encrypted Data......................................................... 5-1

5.2 Security Considerations for Transparent Data Encryption ........................................................ 5-2

5.2.1 Transparent Data Encryption General Security Advice .................................................. 5-2

5.2.2 Transparent Data Encryption Column Encryption-Specific Advice ............................. 5-2

5.2.3 Managing Security for Plaintext Fragments...................................................................... 5-3

5.3 Performance and Storage Overhead of Transparent Data Encryption..................................... 5-3

5.3.1 Performance Overhead of Transparent Data Encryption................................................ 5-3

5.3.2 Storage Overhead of Transparent Data Encryption......................................................... 5-4

5.4 Modifying Your Applications for Use with Transparent Data Encryption ............................. 5-5

5.5 How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT ................ 5-5

5.6 Using Transparent Data Encryption with PKI Encryption......................................................... 5-9

5.6.1 Software Master Encryption Key Use with PKI Key Pairs.............................................. 5-9

5.6.2 TDE Tablespace and Hardware Keystores with PKI Encryption ................................ 5-10

5.6.3 Backup and Recovery of a PKI Key Pair.......................................................................... 5-10

6 Using Transparent Data Encryption with Other Oracle Features

6.1 How Transparent Data Encryption Works with Export and Import Operations ................... 6-1

6.1.1 About Exporting and Importing Encrypted Data ............................................................ 6-1

6.1.2 Exporting and Importing Tables with Encrypted Columns ........................................... 6-2

6.1.3 Using Oracle Data Pump to Encrypt Entire Dump Sets.................................................. 6-3

6.2 How Transparent Data Encryption Works with Oracle Data Guard ....................................... 6-4

6.3 How Transparent Data Encryption Works with Oracle Real Application Clusters............... 6-4

6.3.1 About Using Transparent Data Encryption with Oracle Real Application Clusters .. 6-5

6.3.2 Using a Non-Shared File System to Store a Software Keystore in Oracle RAC........... 6-5

6.4 How Transparent Data Encryption Works with SecureFiles ..................................................... 6-6

6.4.1 About Transparent Data Encryption and SecureFiles ..................................................... 6-6

6.4.2 Example: Creating a SecureFiles LOB with a Specific Encryption Algorithm ............. 6-7

6.4.3 Example: Creating a SecureFiles LOB with a Column Password Specified................. 6-7

6.5 How Transparent Data Encryption Works in a Multitenant Environment ............................. 6-7

6.5.1 About Using Transparent Data Encryption in a Multitenant Environment................. 6-8

6.5.2 Operations That Must Be Performed in Root.................................................................... 6-8

6.5.3 Operations That Can Be Performed in Root or in a PDB............................................... 6-10

6.5.4 Exporting and Importing TDE Master Encryption Keys for a PDB............................. 6-10

6.5.5 Unplugging and Plugging a PDB with Encrypted Data in a CDB............................... 6-12

6.5.6 How Keystore Open and Close Operations Work in a Multitenant Environment ... 6-14

6.5.7 Finding the Keystore Status for All of the PDBs in a Multitenant Environment....... 6-15

6.6 How Transparent Data Encryption Works with Oracle Call Interface................................... 6-16

6.7 How Transparent Data Encryption Works with Editions ........................................................ 6-16

6.8 Configuring Transparent Data Encryption to Work in a Multidatabase Environment ....... 6-16

7 Frequently Asked Questions About Transparent Data Encryption

7.1 Transparency Questions About Transparent Data Encryption ................................................. 7-1

7.2 Performance Questions About Transparent Data Encryption................................................... 7-4

Part II Using Oracle Data Redaction

8 Introduction to Oracle Data Redaction

8.1 What Is Oracle Data Redaction? ..................................................................................................... 8-1

8.2 When to Use Oracle Data Redaction.............................................................................................. 8-2

8.3 Benefits of Using Oracle Data Redaction ...................................................................................... 8-2

8.4 Target Use Cases for Oracle Data Redaction ................................................................................ 8-2

8.4.1 Oracle Data Redaction Use with Database Applications ................................................ 8-3

8.4.2 Oracle Data Redaction with Ad Hoc Database Queries Considerations ...................... 8-3

9 Oracle Data Redaction Features and Capabilities

9.1 Full Data Redaction to Redact All Data......................................................................................... 9-1

9.2 Partial Data Redaction to Redact Sections of Data....................................................................... 9-2

9.3 Regular Expressions to Redact Patterns of Data .......................................................................... 9-3

9.4 Random Data Redaction to Generate Random Values ............................................................... 9-4

9.5 Comparison of Full, Partial, and Random Redaction Based on Data Types ........................... 9-5

9.5.1 Oracle Built-in Data Types Redaction Capabilities .......................................................... 9-5

9.5.2 ANSI Data Types Redaction Capabilities .......................................................................... 9-6

9.5.3 User Defined Data Types or Oracle Supplied Types Redaction Capabilities .............. 9-7

9.6 No Redaction for Testing Purposes................................................................................................ 9-7

10 Configuring Oracle Data Redaction Policies

10.1 About Oracle Data Redaction Policies....................................................................................... 10-1

10.2 Who Can Create Oracle Data Redaction Policies? ................................................................... 10-2

10.3 Planning an Oracle Data Redaction Policy ............................................................................... 10-3

10.4 General Syntax of the DBMS_REDACT.ADD_POLICY Procedure...................................... 10-3

10.5 Using Expressions to Define Conditions for Data Redaction Policies.................................. 10-5

10.5.1 About Using Expressions in Data Redaction Policies.................................................. 10-6

10.5.2 Applying the Redaction Policy Based on User Environment..................................... 10-6

10.5.3 Applying the Redaction Policy Based on Database Roles........................................... 10-7

10.5.4 Applying the Redaction Policy Based on Oracle Label Security Label Dominance 10-7

10.5.5 Applying the Redaction Policy Based on Application Express Session States ........ 10-7

10.5.6 Applying the Redaction Policy to All Users.................................................................. 10-8

10.6 Creating a Full Redaction Policy and Altering the Full Redaction Value ............................ 10-8

10.6.1 Creating a Full Redaction Policy..................................................................................... 10-9

10.6.2 Altering the Default Full Data Redaction Value......................................................... 10-11

10.7 Creating a Partial Redaction Policy.......................................................................................... 10-13

10.7.1 About Creating Partial Redaction Policies .................................................................. 10-13

10.7.2 Syntax for Creating a Partial Redaction Policy ........................................................... 10-13

10.7.3 Creating Partial Redaction Policies Using Fixed Character Formats ...................... 10-14

10.7.4 Creating Partial Redaction Policies Using Character Data Types............................ 10-16

10.7.5 Creating Partial Redaction Policies Using Number Data Types .............................. 10-18

10.7.6 Creating Partial Redaction Policies Using Date-Time Data Types .......................... 10-19

10.8 Creating a Regular Expression-Based Redaction Policy....................................................... 10-20

10.8.1 About Creating Regular Expression-Based Redaction Policies................................ 10-20

10.8.2 Syntax for Creating a Regular Expression-Based Redaction Policy ........................ 10-21

10.8.3 Regular Expression-Based Redaction Policies Using Formats ................................. 10-22

10.8.4 Custom Regular Expression Redaction Policies ......................................................... 10-26

10.9 Creating a Random Redaction Policy ...................................................................................... 10-27

10.9.1 Syntax for Creating a Random Redaction Policy........................................................ 10-28

10.9.2 Example: Random Redaction Policy............................................................................. 10-28

10.10 Creating a Policy That Uses No Redaction ........................................................................... 10-29

vii

10.10.1 Syntax for Creating a Policy with No Redaction ...................................................... 10-29

10.10.2 Example: Performing No Redaction........................................................................... 10-29

10.11 Exemption of Users from Oracle Data Redaction Policies.................................................. 10-30

10.12 Altering an Oracle Data Redaction Policy ............................................................................ 10-31

10.12.1 About Altering Oracle Data Redaction Policies........................................................ 10-31

10.12.2 Syntax for the DBMS_REDACT.ALTER_POLICY Procedure................................ 10-31

10.12.3 Parameters Required for DBMS_REDACT.ALTER_POLICY Actions.................. 10-32

10.12.4 Tutorial: Altering an Oracle Data Redaction Policy................................................. 10-33

10.13 Redacting Multiple Columns .................................................................................................. 10-36

10.13.1 Adding Columns to a Data Redaction Policy for a Single Table or View............. 10-36

10.13.2 Example: Redacting Multiple Columns ..................................................................... 10-37

10.14 Disabling and Enabling an Oracle Data Redaction Policy.................................................. 10-37

10.14.1 Disabling an Oracle Data Redaction Policy............................................................... 10-37

10.14.2 Enabling an Oracle Data Redaction Policy ................................................................ 10-38

10.15 Dropping an Oracle Data Redaction Policy.......................................................................... 10-39

10.16 Tutorial: SQL Expressions to Build Reports with Redacted Values.................................. 10-39

10.17 Oracle Data Redaction Policy Data Dictionary Views ........................................................ 10-41

11 Using Oracle Data Redaction in Oracle Enterprise Manager

11.1 About Using Oracle Data Redaction in Oracle Enterprise Manager..................................... 11-1

11.2 Oracle Data Redaction Workflow............................................................................................... 11-2

11.3 Management of Sensitive Column Types in Enterprise Manager......................................... 11-2

11.4 Managing Oracle Data Redaction Formats Using Enterprise Manager ............................... 11-4

11.4.1 About Managing Oracle Data Redaction Formats Using Enterprise Manager........ 11-4

11.4.2 Creating a Custom Oracle Data Redaction Format...................................................... 11-5

11.4.3 Editing a Custom Oracle Data Redaction Format ........................................................ 11-7

11.4.4 Viewing Oracle Data Redaction Formats....................................................................... 11-7

11.4.5 Deleting a Custom Oracle Data Redaction Format ...................................................... 11-8

11.5 Managing Oracle Data Redaction Policies Using Enterprise Manager ................................ 11-9

11.5.1 About Managing Oracle Data Redaction Policies Using Enterprise Manager......... 11-9

11.5.2 Creating an Oracle Data Redaction Policy Using Enterprise Manager................... 11-10

11.5.3 Editing an Oracle Data Redaction Policy Using Enterprise Manager ..................... 11-13

11.5.4 Viewing Oracle Data Redaction Policy Details Using Enterprise Manager ........... 11-14

11.5.5 Enabling or Disabling an Oracle Data Redaction Policy in Enterprise Manager... 11-15

11.5.6 Deleting an Oracle Data Redaction Policy Using Enterprise Manager ................... 11-16

12 Oracle Data Redaction Use with Oracle Database Features

12.1 Oracle Data Redaction and DML and DDL Operations ......................................................... 12-1

12.2 Oracle Data Redaction and Nested Functions, Inline Views, and the WHERE Clause ..... 12-2

12.3 Oracle Data Redaction and Database Links.............................................................................. 12-2

12.4 Oracle Data Redaction and Aggregate Functions.................................................................... 12-2

12.5 Oracle Data Redaction and Object Types.................................................................................. 12-3

12.6 Oracle Data Redaction and XML Generation ........................................................................... 12-3

viii

12.7 Oracle Data Redaction and Editions .......................................................................................... 12-3

12.8 Oracle Data Redaction in a Multitenant Environment............................................................ 12-3

12.9 Oracle Data Redaction and Oracle Virtual Private Database................................................. 12-3

12.10 Oracle Data Redaction and Oracle Database Real Application Security............................ 12-4

12.11 Oracle Data Redaction and Oracle Database Vault ............................................................... 12-4

12.12 Oracle Data Redaction and Oracle Data Pump ...................................................................... 12-4

12.12.1 Oracle Data Pump Security Model for Oracle Data Redaction ................................ 12-4

12.12.2 Export of Objects That Have Oracle Data Redaction Policies Defined ................... 12-5

12.12.3 Export of Data Using the EXPDP Utility access_method Parameter....................... 12-6

12.12.4 Import of Data into Objects Protected by Oracle Data Redaction............................ 12-7

12.13 Oracle Data Redaction and Data Masking and Subsetting Pack ......................................... 12-7

13 Security Considerations for Oracle Data Redaction

13.1 Oracle Data Redaction General Usage Guidelines .................................................................. 13-1

13.2 Restriction of Administrative Access to Oracle Data Redaction Policies ............................. 13-2

13.3 How Oracle Data Redaction Affects the SYS, SYSTEM, and Default Schemas................... 13-2

13.4 Policy Expressions That Use SYS_CONTEXT Attributes ....................................................... 13-3

13.5 Oracle Data Redaction Policies on Materialized Views .......................................................... 13-3

13.6 Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled....................... 13-3

Glossary

Index

Preface

Welcome to Oracle Database Advanced Security Guide for the 12g Release 1 (12.1) of

Oracle Advanced Security. This guide describes how to implement, configure, and

administer Oracle Advanced Security.

This preface contains:

•Audience (page xi)

•Documentation Accessibility (page xi)

•Related Documents (page xi)

•Conventions (page xii)

Audience

Oracle Database Advanced Security Guide is intended for users and systems professionals

involved with the implementation, configuration, and administration of Oracle

Advanced Security including:

• Implementation consultants

• System administrators

• Security administrators

• Database administrators (DBAs)

Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle

Accessibility Program website at http://www.oracle.com/pls/topic/lookup?

ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers that have purchased support have access to electronic support

through My Oracle Support. For information, visit http://www.oracle.com/pls/

topic/lookup?ctx=acc&id=info or visit http://www.oracle.com/pls/topic/lookup?

ctx=acc&id=trs if you are hearing impaired.

See Also:

•Creating a Table with an Encrypted Column Using No Algorithm or a

Non-Default Algorithm (page 3-20) for the correct syntax when choosing

the NO SALT parameter for the SQL ENCRYPT clause

•Using the NOMAC Parameter to Save Disk Space and Improve

Performance (page 3-20) for more information about the NOMAC option in

the CREATE TABLE statement

•Changing the Encryption Key or Algorithm for Tables with Encrypted

Columns (page 3-24) for syntax examples when setting a different

algorithm with the SQL ENCRYPT clause

Types and Components of Transparent Data Encryption

2-8 Oracle Database Advanced Security Guide

Configuring Transparent Data Encryption

You can configure software or hardware keystores, for use on both individual table

columns or entire tablespaces.

Topics:

•Configuring a Software Keystore (page 3-1)

•Configuring a Hardware Keystore (page 3-10)

•Encrypting Columns in Tables (page 3-16)

•Encrypting Tablespaces (page 3-25)

•Transparent Data Encryption Data Dynamic and Data Dictionary Views

(page 3-29)

3.1 Configuring a Software Keystore

A software keystore is a container for the TDE master encryption key, and it resides in

the software file system.

Topics:

•About Configuring a Software Keystore (page 3-1)

•Step 1: Set the Software Keystore Location in the sqlnet.ora File (page 3-2)

•Step 2: Create the Software Keystore (page 3-4)

•Step 3: Open the Software Keystore (page 3-7)

•Step 4: Set the Software TDE Master Encryption Key (page 3-8)

•Step 5: Encrypt Your Data (page 3-10)

3.1.1 About Configuring a Software Keystore

A software keystore is a container that stores the Transparent Data Encryption master

encryption key.

Before you can configure the keystore, you first must define a location for it in the

sqlnet.ora file. There is one keystore per database, and the database locates this

keystore by checking the keystore location that you define in the sqlnet.ora file.

You can create other keystores, such as copies of the keystore and export files that

contain keys, depending on your needs. However, you must never remove or delete

the keystore that you configured in the sqlnet.ora location, nor replace it with a

different keystore.

Configuring Transparent Data Encryption 3-1

After you configure the software keystore location in the sqlnet.ora file, you can

master encryption key. After you complete these steps, you can begin to encrypt data.

3.1.2 Step 1: Set the Software Keystore Location in the sqlnet.ora File

The first step you must take to configure a software keystore is to designate a location

for it in the sqlnet.ora file.

Topics:

•About the Keystore Location in the sqlnet.ora File (page 3-2)

•Configuring the sqlnet.ora File for a Software Keystore Location (page 3-3)

•Example: Configuring a Software Keystore for a Regular File System (page 3-3)

•Example: Configuring a Software Keystore When Multiple Databases Share the

sqlnet.ora File (page 3-3)

•Example: Configuring a Software Keystore for Oracle Automatic Storage

Management (page 3-4)

•Example: Configuring a Software Keystore for an Oracle Automatic Storage

Management Disk Group (page 3-4)

3.1.2.1 About the Keystore Location in the sqlnet.ora File

Oracle Database checks the sqlnet.ora file for the directory location of the keystore,

whether it is a software keystore, a hardware module security (HSM) keystore, or an

Oracle Key Vault keystore.

You must edit the sqlnet.ora file to define a directory location for the keystore that

you plan to create. Ensure that this directory exists beforehand. Preferably, this

directory should be empty.

Note the following behavior when you must edit the sqlnet.ora file in an Oracle

Real Application Clusters (Oracle RAC) or a multitenant environment:

•In an Oracle RAC environment: If you are using the srvctl utility and if you

want to include environment variables in the sqlnet.ora configuration file,

then you must set these environment variables in both the operating system and

the srvctl environment. Oracle recommends that you place the keystore on a

shared file system, such as Oracle Automatic Storage Management (ASM) or NFS.

•In a multitenant environment: The keystore location is set for the entire

multitenant container database (CDB), not for individual pluggable databases

(PDBs).

In the sqlnet.ora file, you must set the ENCRYPTION_WALLET_LOCATION

parameter to specify the keystore location. When determining which keystore to use,

Oracle Database searches for the keystore location in the following places, in this

order:

1. It attempts to use the keystore in the location specified by the parameter

ENCRYPTION_WALLET_LOCATION in the sqlnet.ora file.

2. If the ENCRYPTION_WALLET_LOCATION parameter is not set, then it attempts to

use the keystore in the location that is specified by the parameter

WALLET_LOCATION.

Configuring a Software Keystore

3-2 Oracle Database Advanced Security Guide

3. If the WALLET_LOCATION parameter is also not set, then Oracle Database looks

for a keystore at the default database location, which is ORACLE_BASE/admin/

DB_UNIQUE_NAME/wallet or ORACLE_HOME/admin/DB_UNIQUE_NAME/

wallet. (DB_UNIQUE_NAME is the unique name of the database specified in the

initialization parameter file.) When the keystore location is not set in the

sqlnet.ora file, then the V$ENCRYPTION_WALLET view displays the default

location. You can check the location and status of the keystore in the V

$ENCRYPTION_WALLET view.

By default, the sqlnet.ora file is located in the ORACLE_HOMEdbs directory or in

the location set by the TNS_ADMIN environment variable. Ensure that you have

properly set the TNS_ADMIN environment variable to point to the correct

sqlnet.ora file.

See Also: SQL*Plus User's Guide and Reference for more information and

examples of setting the TNS_ADMIN environment variable

3.1.2.2 Configuring the sqlnet.ora File for a Software Keystore Location

Use the sqlnet.ora file to configure the keystore location for a regular file system,

for multiple database access, and for use with Oracle Automatic Storage Management

(ASM).

• To create a software keystore on a regular file system, use the following format

when you edit the sqlnet.ora file:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=path_to_keystore)))

If the path_to_keystore will contain an environment variable, then set this variable

in the environment where the database instance is started and before you start the

database. If you are using the srvctl utility to start the database, then set the

environment variable in the srvctl environment as well, using the following

command:

srvctl setenv database -db database_name -env

"environment_variable_name=environment_variable_value"

3.1.2.3 Example: Configuring a Software Keystore for a Regular File System

You can configure a software keystore for a regular file system.

The following example shows how to configure a software keystore location in the

sqlnet.ora file for a regular file system in which the database name is orcl.

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/orcl)))

3.1.2.4 Example: Configuring a Software Keystore When Multiple Databases Share

the sqlnet.ora File

You can configure multiple databases to share the sqlnet.ora file.

Configuring a Software Keystore

Configuring Transparent Data Encryption 3-3

The following example shows how to configure a software keystore location when

multiple databases share the sqlnet.ora file.

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/$ORACLE_SID/)))

3.1.2.5 Example: Configuring a Software Keystore for Oracle Automatic Storage

Management

You can configure sqlnet.ora for an Automatic Storage Management (ASM) file

system

The following example shows how to configure a software keystore location in the

sqlnet.ora file for an ASM file system:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=+disk1/mydb/wallet)))

3.1.2.6 Example: Configuring a Software Keystore for an Oracle Automatic Storage

Management Disk Group

You can configure sqlnet.ora for an Oracle Automatic Storage Management (ASM)

disk group.

The following format shows how to configure a software keystore if you want to

create a software keystore location on an ASM disk group:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=+ASM_file_path_of_the_diskgroup)))

3.1.3 Step 2: Create the Software Keystore

After you have specified a directory location for the software keystore, you can create

the keystore.

Topics:

•About Creating Software Keystores (page 3-4)

•Creating a Password-Based Software Keystore (page 3-5)

•Creating an Auto-Login or a Local Auto-Login Software Keystore (page 3-6)

3.1.3.1 About Creating Software Keystores

There are three different types of software keystores.

You can create password-based software keystores, auto-login software keystores, and

local auto-login software keystores.

Be aware that executing the query SELECT * FROM V$ENCRYPTION_WALLET will

automatically open an auto-login software keystore. For example, suppose you have a

password-based keystore and an auto-login keystore. If the password-based keystore

Configuring a Software Keystore

3-4 Oracle Database Advanced Security Guide

is open and you close the password-based keystore and then query the V

$ENCRYPTION_WALLET view, then the output will indicate that a keystore is open.

However, this is because V$ENCRYPTION_WALLET opened up the auto-login software

keystore and then displayed the status of the auto-login keystore.

See Also:

Types of Keystores (page 2-6) for more information about software keystores

3.1.3.2 Creating a Password-Based Software Keystore

A password-based software keystore requires a user password, which is used to

protect the keys and credentials stored in the keystore.

1. Ensure that you complete the procedure described in Step 1: Set the Software

Keystore Location in the sqlnet.ora File (page 3-2).

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

If SQL*Plus is already open and you had modified the sqlnet.ora file during

this time, then reconnect to SQL*Plus. The database session must be changed

before the sqlnet.ora changes can take effect.

3. Run the ADMINISTER KEY MANAGEMENT SQL statement to create the keystore.

The syntax is as follows:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE 'keystore_location' IDENTIFIED BY

software_keystore_password;

In this specification:

•keystore_location is the path to the keystore directory location of the

password-based keystore for which you want to create the auto-login

keystore (for example, /etc/ORACLE/WALLETS/orcl). Enclose the

keystore_location setting in single quotation marks (' '). To find this

location, you can query the WRL_PARAMETER column of the V

$ENCRYPTION_WALLET view. (If the keystore was not created in the default

location, then the STATUS column of the V$ENCRYPTION_WALLET view is

NOT_AVAILABLE.)

•software_keystore_password is the password of the keystore that you,

the security administrator, creates.

For example, to create the keystore in the /etc/ORACLE/WALLETS/orcl

directory:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/WALLETS/orcl'

IDENTIFIED BY password;

keystore altered.

Configuring a Software Keystore

Configuring Transparent Data Encryption 3-5

After you run this statement, the ewallet.p12 file, which is the keystore,

appears in the keystore location.

3.1.3.3 Creating an Auto-Login or a Local Auto-Login Software Keystore

As an alternative to password-based keystores, you can create either an auto-login or

local auto-login software keystore.

Both of these keystores have system-generated passwords. They are also PKCS#12-

based files. The auto-login software keystore can be opened from different computers

from the computer where this keystore resides, but the local auto-login software

keystore can only be opened from the computer on which it was created. Both the

auto-login and local auto-login keystores are created from the password-based

software keystores.

1. Ensure that you complete the procedure described in Step 1: Set the Software

Keystore Location in the sqlnet.ora File (page 3-2).

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

If SQL*Plus is already open and you had modified the sqlnet.ora file during

this time, then reconnect to SQL*Plus. The database session must be changed

before the sqlnet.ora changes can take effect.

3. Create a password-based software keystore, as described in Creating a Password-

Based Software Keystore (page 3-5).

4. Run the ADMINISTER KEY MANAGEMENT SQL statement to create the keystore.

The syntax is as follows:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE FROM KEYSTORE

'keystore_location' IDENTIFIED BY software_keystore_password;

In this specification:

•LOCAL enables you to create a local auto-login software keystore. Otherwise,

omit this clause if you want the keystore to be accessible by other computers.

•keystore_location is the path to the directory location of the password-

based keystore for which you want to create the auto-login keystore (for

example, /etc/ORACLE/WALLETS/orcl). Enclose this setting in single

quotation marks (' '). To find this location, query the WRL_PARAMETER

column of the V$ENCRYPTION_WALLET view.

•software_keystore_password is the password-based keystore for which

you want to create the auto-login keystore.

For example, to create an auto-login software keystore of the password-based

keystore that is located in the/etc/ORACLE/WALLETS/orcl directory:

ADMINISTER KEY MANAGEMENT CREATE AUTO_LOGIN KEYSTORE FROM KEYSTORE '/etc/

ORACLE/WALLETS/orcl' IDENTIFIED BY password;

Configuring a Software Keystore

3-6 Oracle Database Advanced Security Guide

keystore altered.

After you run this statement, the cwallet.sso file appears in the keystore

location. The ewallet.p12 file is the password-based wallet.

Note:

Do not remove the PKCS#12 wallet (ewallet.p12 file) after you create the

auto login keystore (.sso file). You must have the PKCS#12 wallet to

regenerate or rekey the TDE master encryption key in the future. By default,

this file is located in the $ORACLE_HOME/admin/ORACLE_SID/wallet

directory.

Transparent Data Encryption uses an auto login keystore only if it is available at the

correct location (ENCRYPTION_WALLET_LOCATION, WALLET_LOCATION, or the

default keystore location), and the SQL statement to open an encrypted keystore has

not already been executed. (Note that auto-login keystores are encrypted, because they

have system-generated passwords.)

See Also:

Deletion of Keystores (page 4-21)

3.1.4 Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the keystore

before you can use it.

Topics:

•About Opening Software Keystores (page 3-7)

•Opening a Software Keystore (page 3-8)

3.1.4.1 About Opening Software Keystores

You must manually open a password-based software keystore before any TDE master

encryption keys can be created or accessed in the keystore.

You do not need to manually open auto-login or local auto-login software keystores.

These keystore are automatically opened when it is required, that is, when an

encryption operation must access the key. If necessary, you can explicitly close any of

these types of keystores. You can check the status of whether a keystore is open,

closed, open but with no master key, or open but with an unknown master key by

querying the STATUS column of the V$ENCRYPTION_WALLET view.

After you open a keystore, it remains open until you manually close it. Each time you

restart a database instance, you must manually open the password keystore to

reenable encryption and decryption operations.

Configuring a Software Keystore

Configuring Transparent Data Encryption 3-7

See Also:

How Keystore Open and Close Operations Work in a Multitenant

Environment (page 6-14)

3.1.4.2 Opening a Software Keystore

To open a software keystore, you must use the ADMINISTER KEY MANAGEMENT

statement with the SET KEYSTORE OPEN clause.

1. Ensure that you complete the procedure described in Step 2: Create the Software

Keystore (page 3-4).

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, you must open the keystore first in the root before

you can open it in a PDB. For example, to log in to the root:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check the

current PDB, run the show con_name command.

3. Run the ADMINISTER KEY MANAGEMENT statement.

Use the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password [CONTAINER = ALL | CURRENT];

In this specification:

•software_keystore_password is the same password that you used to

create the keystore in Step 2: Create the Software Keystore (page 3-4).

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

keystore in all of the PDBs in this CDB, or CURRENT for the current PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY password;

keystore altered.

Note that if the keystore is open but you have not created a TDE master encryption

key yet (described next), the STATUS column of the V$ENCRYPTION_WALLET view

reminds you with an OPEN_NO_MASTER_KEY status.

3.1.5 Step 4: Set the Software TDE Master Encryption Key

Once the keystore is open, you can set a TDE master encryption key for it.

Topics:

•About Setting the Software TDE Master Encryption Key (page 3-9)

•Setting the TDE Master Encryption Key in the Software Keystore (page 3-9)

Configuring a Software Keystore

3-8 Oracle Database Advanced Security Guide

3.1.5.1 About Setting the Software TDE Master Encryption Key

The TDE master encryption key is stored in the keystore.

This key protects the TDE table keys and tablespace encryption keys. By default, the

TDE master encryption key is a key that Transparent Data Encryption (TDE)

generates. You can find if a keystore has no master key set or an unknown master key

by querying the STATUS column of the V$ENCRYPTION_WALLET view.

In a multitenant environment, you can create and manage the TDE master encryption

key from either the root or the PDB.

Note:

You can create TDE master encryption keys for use later on, and then

manually activate them. See Creating TDE Master Encryption Keys for Later

Use (page 4-22) for more information.

3.1.5.2 Setting the TDE Master Encryption Key in the Software Keystore

To set the TDE master encryption key in a software keystore, use the ADMINISTER

KEY MANAGEMENT statement with the SET KEY clause.

1. For password software keystores, ensure that you complete the procedure

described in Step 3: Open the Software Keystore (page 3-7) to open the key.

Auto-login or local auto-login software keys are opened automatically after you

create them. Password-based software keystores must be open before you can set

the TDE master encryption key. If the auto-login software keystore is open, then

you must close it and open the password-based software keystore. If both the

password-based keystore and auto-login keystores are present in the configured

location and the password-based keystore is open, then the TDE master

encryption key is automatically written to the auto-login keystore as well.

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or to the PDB. For example, to log

in to a PDB:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

3. Ensure that the database is open in READ WRITE mode.

You can set the TDE master encryption key if OPEN_MODE is set to READ WRITE.

To find the status, for a non-multitenant environment, query the OPEN_MODE

column of the V$DATABASE dynamic view. If you are using a multitenant

environment, then query the V$PDBS view. (If you cannot access these views, then

connect as SYSDBA and try the query again. In order to connect as SYSKM for this

type of query, you must create a password file for it. See Oracle Database

Administrator’s Guide for more information.)

Configuring a Software Keystore

Configuring Transparent Data Encryption 3-9

4. Connect using the SYSKM administrative privilege and then run the ADMINISTER

KEY MANAGEMENT SQL statement to set the software management keystore.

ADMINISTER KEY MANAGEMENT SET KEY [USING TAG 'tag'] IDENTIFIED BY

keystore_password [WITH BACKUP [USING 'backup_identifier']] [CONTAINER = ALL |

CURRENT];

In this specification:

•tag is the associated attributes and information that you define. Enclose this

setting in single quotation marks (' ').

•password is the mandatory keystore password that you created when you

created the keystore in Step 2: Create the Software Keystore (page 3-4).

•WITH BACKUP creates a backup of the keystore. You must use this option for

password-based keystores. Optionally, you can use the USING clause to add a

brief description of the backup. Enclose this description in single quotation

marks (' '). This identifier is appended to the named keystore file (for

example, ewallet_time_stamp_emp_key_backup.p12, with

emp_key_backup being the backup identifier). Follow the file naming

conventions that your operating system uses.

•CONTAINER is for use in a multitenant environment. Enter ALL to set the key

in all of the PDBs in this CDB, or CURRENT for the current PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY keystore_password WITH BACKUP

USING 'emp_key_backup';

keystore altered.

3.1.6 Step 5: Encrypt Your Data

After you complete the software keystore configuration, you can begin to encrypt

data.

You can encrypt data in individual table columns or in entire tablespaces.

• See the following topics for information about encrypting data:

–Encrypting Columns in Tables (page 3-16)

–Encrypting Tablespaces (page 3-25)

3.2 Configuring a Hardware Keystore

A hardware keystore resides in a hardware security module (HSM), which is designed

to store encryption keys.

Topics:

•About Configuring a Hardware (External) Keystore (page 3-11)

•Step 1: Set the Hardware Keystore Type in the sqlnet.ora File (page 3-11)

•Step 2: Configure the Hardware Security Module (page 3-11)

•Step 3: Open the Hardware Keystore (page 3-12)

Configuring a Hardware Keystore

3-10 Oracle Database Advanced Security Guide

•Step 4: Set the Hardware Keystore TDE Master Encryption Key (page 3-14)

•Step 5: Encrypt Your Data (page 3-16)

3.2.1 About Configuring a Hardware (External) Keystore

A hardware keystore is a separate server or device that provides security storage for

encryption keys.

External keystores are external to an Oracle database. Oracle Database can interface

with external keystores but cannot manipulate them outside of the Oracle interface.

The Oracle database can request the external keystore to create a key but it cannot

define how this key is stored in an external database. (Conversely, for software

keystores that are created using TDE, Oracle Database has full control: that is, you can

use SQL statements to manipulate this type of keystore.) Examples of external

keystores are hardware security modules or Oracle Key Vault keystores. External

keystores among multiple databases can be managed centrally, such as with Oracle

Key Vault.

To configure a keystore for a hardware security module (hardware keystore), you

must first include the keystore type in the sqlnet.ora file, configure and open the

hardware keystore, and then set the hardware keystore TDE master encryption key. In

short, there is one hardware keystore per database, and the database locates this

keystore by checking the keystore type that you define in the sqlnet.ora file.

After you configure the hardware keystore, you are ready to begin encrypting your

data.

3.2.2 Step 1: Set the Hardware Keystore Type in the sqlnet.ora File

Before you can configure a hardware keystore, you must modify the sqlnet.ora file.

By default, this file is located in the ORACLE_HOMEdbs directory or in the location set

by the TNS_ADMIN environment variable.

• Use the following setting in the sqlnet.ora file to define the hardware keystore

type, which is HSM.

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=HSM))

See Also:

•About the Keystore Location in the sqlnet.ora File (page 3-2) for more

information about how Oracle Database finds the keystore location

•Migrating Between a Software Password Keystore and a Hardware

Keystore (page 4-11) for information about how to configure the

sqlnet.ora file for migration between these two keystore types

3.2.3 Step 2: Configure the Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions.

Configuring a Hardware Keystore

Configuring Transparent Data Encryption 3-11

1. Ensure that you complete the procedure described in Step 1: Set the Hardware

Keystore Type in the sqlnet.ora File (page 3-11).

2. Copy the PKCS#11 library to its correct path.

Your hardware security module vendor should provide you with an associated

PKCS#11 library. Only one PKCS#11 library is supported at a time. If you want to

use an HSM from a new vendor, then you must replace the PKCS#11 library from

the earlier vendor with the library from the new vendor.

Copy this library to the appropriate location to ensure that Oracle Database can

find this library:

•UNIX systems: Use the following syntax to copy the library to this directory:

/opt/oracle/extapi/[32,64]/hsm/{VENDOR}/{VERSION}/libapiname.so

•Windows systems: Use the following syntax to copy the library to this

directory:

%SYSTEM_DRIVE%\oracle\extapi\[32,64]\hsm\{VENDOR}\{VERSION}\libapiname.dll

In this specification:

•[32,64] specifies whether the supplied binary is 32 bits or 64 bits.

•VENDOR stands for the name of the vendor supplying the library

•VERSION refers to the version of the library. This should preferably be in the

format, number.number.number

•apiname requires no special format. However, the apiname must be

prefixed with the word lib, as illustrated in the syntax.

3. Follow your vendor's instructions to set up the hardware security module.

Use your hardware security module management interface and the instructions

provided by your HSM vendor to set up the hardware security module. Create

the user account and password that must be used by the database to interact with

the hardware security module. This process creates and configures a hardware

keystore that communicates with your Oracle database.

3.2.4 Step 3: Open the Hardware Keystore

After you have configured the hardware security module, you must open the

hardware keystore before it can be used.

Topics:

•About Opening the Hardware Keystore (page 3-12)

•Opening the Hardware Keystore (page 3-13)

3.2.4.1 About Opening the Hardware Keystore

You must open the hardware keystore so that it is accessible to the database before

you can perform any encryption or decryption.

You can check the status of whether a keystore is open, closed, open but with no TDE

master encryption key, or open but with an unknown master encryption key by

querying the STATUS column of the V$ENCRYPTION_WALLET view.

Configuring a Hardware Keystore

3-12 Oracle Database Advanced Security Guide

See Also:

How Keystore Open and Close Operations Work in a Multitenant

Environment (page 6-14)

3.2.4.2 Opening the Hardware Keystore

To open a hardware keystore, use the ADMINISTER KEY MANAGEMENT statement

with the SET KEYSTORE OPEN clause.

1. Ensure that you complete the procedure described in Step 2: Configure the

Hardware Security Module (page 3-11).

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, you must open the keystore first in the root before

you can open it in a PDB. For example, to log in to the root:

sqlplus sec_admin as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

If SQL*Plus is already open and you had modified the sqlnet.ora file during

this time, then reconnect to SQL*Plus. The database session must be changed

before the sqlnet.ora changes can take effect.

3. Run the ADMINISTER KEY MANAGEMENT SQL statement using the following

syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "user_id:password"

[CONTAINER = ALL | CURRENT];

In this specification:

•user_id is the user ID created for the database using the HSM management

interface

•password is the password created for the user ID using the HSM

management interface.

Enclose the user_id:password string in double quotation marks (" ") and

separate user_id and password with a colon (:).

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

keystore in all of the PDBs in this CDB, or CURRENT for the current PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "psmith:password";

keystore altered.

4. Repeat this procedure each time you restart the database instance.

Configuring a Hardware Keystore

Configuring Transparent Data Encryption 3-13

3.2.5 Step 4: Set the Hardware Keystore TDE Master Encryption Key

After you have opened the hardware keystore, you are ready to set the hardware

keystore TDE master encryption key.

Topics:

•About Setting the Hardware Keystore TDE Master Encryption Key (page 3-14)

•Setting a TDE Master Encryption Key if You Have Not Previously Configured

One (page 3-14)

•Migration of a Previously Configured TDE Master Encryption Key (page 3-15)

3.2.5.1 About Setting the Hardware Keystore TDE Master Encryption Key

You must create a TDE master encryption key that is stored inside the hardware

keystore.

Oracle Database uses the TDE master encryption key to encrypt or decrypt TDE table

keys or tablespace encryption keys inside the hardware security module.

If you have not previously configured a software keystore for Transparent Data

Encryption, then follow the steps in Setting a TDE Master Encryption Key if You Have

Not Previously Configured One (page 3-14). If you have already configured a

software keystore for TDE, then you must migrate it to the hardware security module,

as described in Migration of a Previously Configured TDE Master Encryption Key

(page 3-15).

Along with the current TDE master key, Oracle wallets maintain historical TDE master

keys that are generated after every re-key operation that rotates the TDE master key.

These historical TDE master keys help to restore Oracle database backups that were

taken previously using one of the historical TDE master keys.

3.2.5.2 Setting a TDE Master Encryption Key if You Have Not Previously Configured

One

You should complete this procedure if you have not previously configured a software

keystore for Transparent Data Encryption.

In a multitenant environment, you can create and manage the TDE master encryption

key from either the root or the PDB.

Note:

You can create TDE master encryption keys for use later on, and then

manually activate them. See Creating TDE Master Encryption Keys for Later

Use (page 4-22) for more information.

1. Ensure that you complete the procedure described in Step 3: Open the Hardware

Keystore (page 3-12).

2. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or to the PDB. For example:

Configuring a Hardware Keystore

3-14 Oracle Database Advanced Security Guide

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

3. Ensure that the database is open in READ WRITE mode.

You can set the TDE master encryption key if OPEN_MODE is set to READ WRITE.

To find the status, for a non-multitenant environment, query the OPEN_MODE

column of the V$DATABASE dynamic view. If you are in a multitenant

environment, then query the V$PDBS view. (If you cannot access these views, then

connect as SYSDBA and try the query again. In order to connect as SYSKM for this

type of query, you must create a password file for it. See Oracle Database

Administrator’s Guide for more information.)

4. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT SET KEY [USING TAG 'tag'] [FORCE KEYSTORE] IDENTIFIED

BY [EXTERNAL STORE | "user_id:password"] [CONTAINER = ALL | CURRENT];

In this specification:

•tag is the associated attributes and information that you define. Enclose this

setting in single quotation marks (' ').

•FORCE KEYSTORE enables the keystore operation if the keystore is closed.

•IDENTIFIED BY can be one of the following settings:

–EXTERNAL STORE uses the keystore password stored in the external

store to perform the keystore operation.

–user_id:password: user_id is the user ID created for the hardware

keystore; password is the password created for the hardware keystore.

Enclose the user_id:password string in double quotation marks (" ")

and separate user_id and password with a colon (:).

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

keystore in all of the PDBs in this CDB, or CURRENT for the current PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "psmith:password";

keystore altered.

3.2.5.3 Migration of a Previously Configured TDE Master Encryption Key

You must migrate the previously configured TDE master encryption key if you

previously configured a software keystore.

Tools such as Oracle Data Pump and Oracle Recovery Manager require access to the

old software keystore to perform decryption and encryption operations on data

exported or backed up using the software keystore. You can migrate from the software

to the hardware keystore by following the instructions in Migrating Between a

Software Password Keystore and a Hardware Keystore (page 4-11).

Along with the current TDE master key, Oracle wallets maintain historical TDE master

keys that are generated after every re-key operation that rotates the TDE master key.

Configuring a Hardware Keystore

Configuring Transparent Data Encryption 3-15

These historical TDE master keys help to restore Oracle database backups that were

taken previously using one of the historical TDE master keys.

3.2.6 Step 5: Encrypt Your Data

After you have completed the hardware keystore configuration, you can begin to

encrypt data.

You can encrypt individual columns in a table or entire tablespaces.

• See the following topics for more information about encrypting data:

–Encrypting Columns in Tables (page 3-16)

–Encrypting Tablespaces (page 3-25)

3.3 Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in database

tables.

Topics:

•About Encrypting Columns in Tables (page 3-16)

•Data Types That Can Be Encrypted with TDE Column Encryption (page 3-17)

•Restrictions on Using Transparent Data Encryption Column Encryption

(page 3-18)

•Creating Tables with Encrypted Columns (page 3-18)

•Encrypting Columns in Existing Tables (page 3-22)

•Creating an Index on an Encrypted Column (page 3-23)

•Adding Salt to an Encrypted Column (page 3-24)

•Removing Salt from an Encrypted Column (page 3-24)

•Changing the Encryption Key or Algorithm for Tables with Encrypted Columns

(page 3-24)

3.3.1 About Encrypting Columns in Tables

You can encrypt individual columns in tables.

Whether you choose to encrypt individual columns or entire tablespaces depends on

the data types that the table has. There are also several features that do not support

TDE column encryption.

See Also:

•Data Types That Can Be Encrypted with TDE Column Encryption

(page 3-17)

•Restrictions on Using Transparent Data Encryption Column Encryption

(page 3-18)

Encrypting Columns in Tables

3-16 Oracle Database Advanced Security Guide

3.3.2 Data Types That Can Be Encrypted with TDE Column Encryption

Oracle Database supports a specific set of data types that can be used with TDE

column encryption.

You can encrypt data columns that use a variety of different data types.

Supported data types are as follows:

•BINARY_DOUBLE

•BINARY_FLOAT

•CHAR

•DATE

•INTERVAL DAY TO SECOND

•INTERVAL YEAR TO MONTH

•NCHAR

•NUMBER

•NVARCHAR2

•RAW (legacy or extended)

•TIMESTAMP (includes TIMESTAMP WITH TIME ZONE and TIMESTAMP WITH

LOCAL TIME ZONE)

•VARCHAR2 (legacy or extended)

You cannot encrypt a column if the encrypted column size is greater than the size

allowed by the data type of the column.

Table 3-1 (page 3-17) shows the maximum allowable sizes for various data types.

Table 3-1 Maximum Allowable Size for Data Types

Data Type Maximum Size

CHAR 1932 bytes

VARCHAR2 (legacy) 3932 bytes

VARCHAR2 (extended) 32,699 bytes

NVARCHAR2 (legacy) 1966 bytes

NVARCHAR2 (extended) 16,315 bytes

NCHAR 966 bytes

RAW (extended) 32,699 bytes

Encrypting Columns in Tables

Configuring Transparent Data Encryption 3-17

Note:

TDE tablespace encryption does not have these data type restrictions. See

Encrypting Tablespaces (page 3-25) for more information.

3.3.3 Restrictions on Using Transparent Data Encryption Column Encryption

TDE encrypts at the SQL layer. Oracle Database utilities that bypass the SQL layer

cannot use the TDE column encryption services.

Do not use TDE column encryption with the following database features:

• Index types other than B-tree

• Range scan search through an index

• Synchronous change data capture

• Transportable tablespaces

In addition, you cannot use TDE column encryption to encrypt columns used in

foreign key constraints.

Applications that must use these unsupported features can use the DBMS_CRYPTO

PL/SQL package for their encryption needs.

Transparent Data Encryption protects data stored on a disk or other media. It does not

protect data in transit. Use the network encryption solutions discussed in Oracle

Database Security Guide to encrypt data over the network.

See Also:

•How Transparent Data Encryption Works with Export and Import

Operations (page 6-1)

•Data Types That Can Be Encrypted with TDE Column Encryption

(page 3-17)

•Oracle Database PL/SQL Packages and Types Reference for information about

the DBMS_CRYPTO PL/SQL package

•Oracle Database SQL Language Reference for more information about

identity columns, which are created with the CREATE TABLE statement

3.3.4 Creating Tables with Encrypted Columns

You can create new tables that have encrypted columns. Oracle Database provides a

selection of different algorithms that you can use to definite the encryption.

Topics:

•About Creating Tables with Encrypted Columns (page 3-19)

•Creating a Table with an Encrypted Column Using the Default Algorithm

(page 3-19)

Encrypting Columns in Tables

3-18 Oracle Database Advanced Security Guide

•Creating a Table with an Encrypted Column Using No Algorithm or a Non-

Default Algorithm (page 3-20)

•Using the NOMAC Parameter to Save Disk Space and Improve Performance

(page 3-20)

•Example: Using the NOMAC Parameter in a CREATE TABLE Statement

(page 3-21)

•Example: Changing the Integrity Algorithm for a Table (page 3-21)

•Creating an Encrypted Column in an External Table (page 3-21)

3.3.4.1 About Creating Tables with Encrypted Columns

You can use the CREATE TABLE SQL statement to create a table with an encrypted

column.

To create relational tables with encrypted columns, you can specify the SQL ENCRYPT

clause when you define database columns with the CREATE TABLE SQL statement.

3.3.4.2 Creating a Table with an Encrypted Column Using the Default Algorithm

By default, TDE uses the AES encryption algorithm with a 192-bit key length

(AES192).

If you encrypt a table column without specifying an algorithm, then the column is

encrypted using the AES192 algorithm.

TDE adds salt to plaintext before encrypting it. Adding salt makes it harder for

attackers to steal data through a brute force attack. TDE also adds a Message

Authentication Code (MAC) to the data for integrity checking. The SHA-1 integrity

algorithm is used by default.

• To create a table that encrypts a column, use the CREATE TABLE SQL statement

with the ENCRYPT clause.

For example, to encrypt a table column using the default algorithm:

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER,

salary NUMBER(6) ENCRYPT);

This example creates a new table with an encrypted column (salary). The

column is encrypted using the default encryption algorithm (AES192). Salt and

MAC are added by default. This example assumes that the wallet is open and a

master key is set.

Note:

If there are multiple encrypted columns in a table, then all of these columns

must use the same pair of encryption and integrity algorithms.

Salt is specified at the column level. This means that an encrypted column in a

table can choose not to use salt irrespective of whether or not other encrypted

columns in the table use salt.

Encrypting Columns in Tables

Configuring Transparent Data Encryption 3-19

3.3.4.3 Creating a Table with an Encrypted Column Using No Algorithm or a Non-

Default Algorithm

You an use the CREATE TABLE SQL statement to create a table with an encrypted

column.

By default, TDE adds salt to plaintext before encrypting it. Adding salt makes it

harder for attackers to steal data through a brute force attack. However, if you plan to

index the encrypted column, then you must use the NO SALT parameter.

• To create a table that uses an encrypted column that is a non-default algorithm or

no algorithm, run the CREATE TABLE SQL statement as follows:

– If you do not want to use any algorithm, then include the ENCRYPT NO SALT

clause.

– If you want to use a non-default algorithm, then use the ENCRYPT USING

clause, followed by one of the following algorithms enclosed in single

quotation marks:

*3DES168

*AES128

*AES192 (default)

*AES256

The following example shows how to specify encryption settings for the empID and

salary columns.

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT NO SALT,

salary NUMBER(6) ENCRYPT USING '3DES168');

In this example:

• The empID column is encrypted and does not use salt. Both the empID and

salary columns will use the 3DES168 encryption algorithm, because all of the

encrypted columns in a table must use the same encryption algorithm.

• The salary column is encrypted using the 3DES168 encryption algorithm. Note

that the string that specifies the algorithm must be enclosed in single quotation

marks (' '). The salary column uses salt by default.

3.3.4.4 Using the NOMAC Parameter to Save Disk Space and Improve Performance

You can bypass checks that TDE performs. This can save up to 20 bytes of disk space

per encrypted value.

If the number of rows and encrypted columns in the table is large, then bypassing TDE

checks can add up to a significant amount of disk space. In addition, this saves

processing cycles and reduces the performance overhead associated with TDE.

TDE uses the SHA-1 integrity algorithm by default. All of the encrypted columns in a

table must use the same integrity algorithm. If you already have a table column using

the SHA-1 algorithm, then you cannot use the NOMAC parameter to encrypt another

column in the same table.

Encrypting Columns in Tables

3-20 Oracle Database Advanced Security Guide

• To bypass the integrity check during encryption and decryption operations, use

the NOMAC parameter in the CREATE TABLE and ALTER TABLE statements.

See Also:

Performance and Storage Overhead of Transparent Data Encryption

(page 5-3)

3.3.4.5 Example: Using the NOMAC Parameter in a CREATE TABLE Statement

You can use the CREATE TABLE SQL statement to encrypt a table column using the

NOMAC parameter.

Example 3-1 (page 3-21) creates a table with an encrypted column. The empID

column is encrypted using the NOMAC parameter.

Example 3-1 Using the NOMAC parameter in a CREATE TABLE statement

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT 'NOMAC' ,

salary NUMBER(6));

3.3.4.6 Example: Changing the Integrity Algorithm for a Table

You can use the ALTER TABLE SQL statement to change the integrity algorithm for a

database table.

Example 3-2 (page 3-21) shows how to change the integrity algorithm for encrypted

columns in a table. The encryption algorithm is set to 3DES168 and the integrity

algorithm is set to SHA-1. The second ALTER TABLE statement sets the integrity

algorithm to NOMAC.

Example 3-2 Changing the Integrity Algorithm for a Table

ALTER TABLE EMPLOYEE REKEY USING '3DES168' 'SHA-1';

ALTER TABLE EMPLOYEE REKEY USING '3DES168' 'NOMAC';

3.3.4.7 Creating an Encrypted Column in an External Table

The external table feature enables you to access data in external sources as if the data

were in a database table.

External tables can be updated using the ORACLE_DATAPUMP access driver.

• To encrypt specific columns in an external table, use the ENCRYPT clause when

you define those columns:

A system-generated key encrypts the columns. For example, the following

CREATE TABLE SQL statement encrypts the ssn column using the 3DES168

algorithm:

CREATE TABLE emp_ext (

first_name,

....

ssn ENCRYPT USING '3DES168',

....

Encrypting Columns in Tables

Configuring Transparent Data Encryption 3-21

If you plan to move an external table to a new location, then you cannot use a

randomly generated key to encrypt the columns. This is because the randomly

generated key will not be available at the new location.

For such scenarios, you should specify a password while you encrypt the columns.

After you move the data, you can use the same password to regenerate the key

required to access the encrypted column data at the new location.

Table partition exchange also requires a password-based TDE table key.

Example 3-3 (page 3-22) creates an external table using a password to create the TDE

table key.

Example 3-3 Creating a New External Table with a Password-Generated TDE Table

Key

CREATE TABLE emp_ext (

first_name,

last_name,

empID,

salary,

ssn ENCRYPT IDENTIFIED BY password

) ORGANIZATION EXTERNAL

(

TYPE ORACLE_DATAPUMP

DEFAULT DIRECTORY "D_DIR"

LOCATION('emp_ext.dat')

)

REJECT LIMIT UNLIMITED

AS SELECT * FROM EMPLOYEE;

3.3.5 Encrypting Columns in Existing Tables

You can encrypt columns in existing tables. As with new tables, you have a choice of

different algorithms to use to definite the encryption.

Topics:

•About Encrypting Columns in Existing Tables (page 3-22)

•Adding an Encrypted Column to an Existing Table (page 3-22)

•Encrypting an Unencrypted Column (page 3-23)

•Disabling Encryption on a Column (page 3-23)

3.3.5.1 About Encrypting Columns in Existing Tables

The ALTER TABLE SQL statement enables you to encrypt columns in an existing table.

To add an encrypted column to an existing table, or to encrypt or decrypt an existing

column, you use the ALTER TABLE SQL statement with the ADD or MODIFY clause.

3.3.5.2 Adding an Encrypted Column to an Existing Table

You can encrypt columns in existing tables, use a different algorithm, and use NO

SALT to index the column.

• To add an encrypted column to an existing table, use the ALTER TABLE ADD

statement, specifying the new column with the ENCRYPT clause.

Encrypting Columns in Tables

3-22 Oracle Database Advanced Security Guide

Example 3-4 (page 3-23) adds an encrypted column, ssn, to an existing table, called

employee. The ssn column is encrypted with the default AES192 algorithm. Salt and

MAC are added by default.

Example 3-4 Adding an Encrypted Column to an Existing Table

ALTER TABLE employee ADD (ssn VARCHAR2(11) ENCRYPT);

3.3.5.3 Encrypting an Unencrypted Column

You can use the ALTER TABLE MODIFY statement to encrypt an existing unencrypted

column.

• To encrypt an existing unencrypted column, use the ALTER TABLE MODIFY

statement, specifying the unencrypted column with the ENCRYPT clause.

The following example encrypts the first_name column in the employee table. The

first_name column is encrypted with the default AES192 algorithm. Salt is added to

the data, by default. You can encrypt the column using a different algorithm. If you

want to index a column, then you must specify NO SALT. You can also bypass

integrity checks by using the NOMAC parameter.

ALTER TABLE employee MODIFY (first_name ENCRYPT);

The following example encrypts the first_name column in the employee table using

the NOMAC parameter.

ALTER TABLE employee MODIFY (first_name ENCRYPT 'NOMAC');

3.3.5.4 Disabling Encryption on a Column

You may want to disable encryption for reasons of compatibility or performance.

• To disable column encryption, use the ALTER TABLE MODIFY command with

the DECRYPT clause.

Example 3-5 (page 3-23) decrypts the first_name column in the employee table.

Example 3-5 Turning Off Column Encryption

ALTER TABLE employee MODIFY (first_name DECRYPT);

3.3.6 Creating an Index on an Encrypted Column

You can create an index on an encrypted column.

The column being indexed must be encrypted without salt. If the column is encrypted

with salt, then the ORA-28338: cannot encrypt indexed column(s) with

salt error is raised.

• To create an index on an encrypted column, use the CREATE INDEX statement

with the ENCRYPT NO SALT clause.

Example 3-6 (page 3-23) shows how to create an index on a column that has been

encrypted without salt.

Example 3-6 Creating Index on a Column Encrypted Without Salt

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT NO SALT,

salary NUMBER(6) ENCRYPT USING '3DES168');

Encrypting Columns in Tables

Configuring Transparent Data Encryption 3-23

CREATE INDEX employee_idx on employee (empID);

3.3.7 Adding Salt to an Encrypted Column

Salt, which is a random string added to data before encryption, is a way to strengthen

the security of encrypted data. .

Salt ensures that the same plaintext data does not always translate to the same

encrypted text. Salt removes the one common method that intruders use to steal data,

namely, matching patterns of encrypted text. Adding salt requires an additional 16

bytes of storage per encrypted data value.

• To add or remove salt from encrypted columns, use the ALTER TABLE MODIFY

SQL statement.

For example, suppose you want to encrypt the first_name column using salt. If the

first_name column was encrypted without salt earlier, then the ALTER TABLE

MODIFY statement reencrypts it using salt.

ALTER TABLE employee MODIFY (first_name ENCRYPT SALT);

3.3.8 Removing Salt from an Encrypted Column

You can use the ALTER TABLE SQL statement to remove salt from an encrypted

column.

• To remove salt from an encrypted column, use the ENCRYPT NO SALT clause in

the ALTER TABLE SQL statement.

For example, suppose you wanted to remove salt from the first_name column. If

you must index a column that was encrypted using salt, then you can use this

statement to remove the salt before indexing

ALTER TABLE employee MODIFY (first_name ENCRYPT NO SALT);

3.3.9 Changing the Encryption Key or Algorithm for Tables with Encrypted Columns

You can use the ALTER TABLE SQL statement to change the encryption key or

algorithm used in encrypted columns.

Each table can have only one TDE table key for its columns. You can regenerate the

TDE table key with the ALTER TABLE statement. This process generates a new key,

decrypts the data in the table using the previous key, reencrypts the data using the

new key, and then updates the table metadata with the new key information. You can

also use a different encryption algorithm for the new TDE table key.

• To change the encryption key or algorithm for tables that contain encrypted

columns, use the ALTER TABLE SQL statement with the REKEY or REKEY USING

clause.

For example:

ALTER TABLE employee REKEY;

Example 3-7 (page 3-24) regenerates the TDE table key for the employee table by

using the 3DES168 algorithm.

Example 3-7 Changing an Encrypted Table Column Encryption Key and Algorithm

ALTER TABLE employee REKEY USING '3DES168';

Encrypting Columns in Tables

3-24 Oracle Database Advanced Security Guide

3.4 Encrypting Tablespaces

You can perform encryption operations on both offline and online tablespaces and

databases.

Topics:

•Restrictions on Using Transparent Data Encryption Tablespace Encryption

(page 3-25)

•Step 1: Set the COMPATIBLE Initialization Parameter for Tablespace Encryption

(page 3-25)

•Step 2: Set the Tablespace TDE Master Encryption Key (page 3-27)

•Step 3: Create the Encrypted Tablespace (page 3-27)

3.4.1 Restrictions on Using Transparent Data Encryption Tablespace Encryption

You should be aware of restrictions on using Transparent Data Encryption when you

encrypt a tablespace.

Note the following restrictions:

• Transparent Data Encryption (TDE) tablespace encryption encrypts or decrypts

data during read and write operations, as opposed to TDE column encryption,

which encrypts and decrypts data at the SQL layer. This means that most

restrictions that apply to TDE column encryption, such as data type restrictions

and index type restrictions, do not apply to TDE tablespace encryption.

• To perform import and export operations, use Oracle Data Pump.

See Also:

Oracle Database Utilities for more information about Oracle Data Pump

3.4.2 Step 1: Set the COMPATIBLE Initialization Parameter for Tablespace Encryption

You must set the COMPATIBLE initialization parameter before creating an encrypted

tablespace.

Topics:

•About Setting the COMPATIBLE Initialization Parameter for Tablespace

Encryption (page 3-25)

•Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

(page 3-26)

3.4.2.1 About Setting the COMPATIBLE Initialization Parameter for Tablespace

Encryption

A minimum COMPATIBLE setting of 11.2.0.0 enables the full set of tablespace

encryption features.

Setting the compatibility to 11.2.0.0 instead of 11.1.0.0 enables the following

additional features:

Encrypting Tablespaces

Configuring Transparent Data Encryption 3-25

• The 11.2.0.0 setting enables the database to use any of the four supported

algorithms for data encryption (3DES168, AES128, AES192, and AES256).

• The 11.2.0.0 setting enables the migration of a key from a software keystore to

a hardware keystore (ensure that the TDE master encryption key was configured

for the hardware keystore)

• The 11.2.0.0 setting enables resetting and rotating the TDE master encryption

key

Be aware that once you set this parameter to 11.2.0.0, the change is irreversible. To

use tablespace encryption, ensure that the compatibility setting is at the minimum,

which is 11.1.0.0.

See Also:

•Oracle Database SQL Language Reference for more information about the

COMPATIBLE parameter

•Oracle Database Administrator’s Guide for more information about

initialization parameter files

3.4.2.2 Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

To set the COMPATIBLE initialization parameter, you must edit the initialization

parameter file for the database instance.

1. Log in to the database instance.

In a multitenant environment, log in to the PDB. For example:

sqlplus sec_admin@hrpdb

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Check the current setting of the COMPATIBLE parameter.

For example:

SHOW PARAMETER COMPATIBLE

NAME TYPE VALUE

------------------------------------ ----------- ------------------------------

compatible string 11.0.0.0

noncdbcompatible BOOLEAN FALSE

3. If you must change the COMPATIBLE parameter, then complete the remaining

steps in this procedure.

The value should be 11.2.0.0 or higher.

4. Locate the initialization parameter file for the database instance.

•UNIX systems: This file is in the ORACLE_HOME/dbs directory and is named

initORACLE_SID.ora (for example, initmydb.ora).

Encrypting Tablespaces

3-26 Oracle Database Advanced Security Guide

•Windows systems: This file is in the ORACLE_HOME\database directory and

is named initORACLE_SID.ora (for example, initmydb.ora).

5. Edit the initialization parameter file to use the new COMPATIBLE setting.

For example:

compatible=11.2.0.0.0

6. In SQL*Plus, connect as a user who has the SYSDBA administrative privilege, and

then shut down the database.

For example:

CONNECT /AS SYSDBA

SHUTDOWN

7. Edit the initialization parameter file to use the correct COMPATIBLE setting.

For example:

COMPATIBLE = 12.1.0.0

8. In SQL*Plus, ensure that you are connected as a user who has the SYSDBA

administrative privilege, and then start the database.

For example:

CONNECT /AS SYSDBA

STARTUP

If tablespace encryption is in use, then open the keystore at the database mount.

The keystore must be open before you can access data in an encrypted tablespace.

STARTUP MOUNT;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY keystore_password;

ALTER DATABASE OPEN;

3.4.3 Step 2: Set the Tablespace TDE Master Encryption Key

You should ensure that you have configured the TDE master encryption key.

• Set the TDE master encryption key as follows:

– For software TDE master encryption keys, see Step 4: Set the Software TDE

Master Encryption Key (page 3-8).

– For hardware TDE master encryption keys, see Step 4: Set the Hardware

Keystore TDE Master Encryption Key (page 3-14).

3.4.4 Step 3: Create the Encrypted Tablespace

After you have set the COMPATIBLE initialization parameter, you are ready to create

the encrypted tablespace.

Topics:

•About Creating Encrypted Tablespaces (page 3-28)

•Creating an Encrypted Tablespace (page 3-28)

•Example: Creating an Encrypted Tablespace That Uses 3DES168 (page 3-29)

Encrypting Tablespaces

Configuring Transparent Data Encryption 3-27

•Example: Creating an Encrypted Tablespace That Uses the Default Algorithm

(page 3-29)

3.4.4.1 About Creating Encrypted Tablespaces

To create an encrypted tablespace, you can use the CREATE TABLESPACE SQL

statement.

You must have the CREATE TABLESPACE system privilege to create an encrypted

tablespace.

You cannot change an existing tablespace to make it encrypted. You can, however,

import data into an encrypted tablespace by using Oracle Data Pump. You can also

use a SQL statement such as CREATE TABLE...AS SELECT...or ALTER

TABLE...MOVE... to move data into an encrypted tablespace. The CREATE

TABLE...AS SELECT... statement creates a table from an existing table. The ALTER

TABLE...MOVE... statement moves a table into the encrypted tablespace.

For security reasons, you cannot encrypt a tablespace with the NO SALT option.

You can query the ENCRYPTED column of the DBA_TABLESPACES and

USER_TABLESPACES data dictionary views to verify if a tablespace was encrypted.

See Also:

Oracle Database Reference for more information about these data dictionary

views

3.4.4.2 Creating an Encrypted Tablespace

To create an encrypted tablespace, you must use the CREATE TABLESPACE statement

with the ENCRYPTION USING clause.

1. Log in to the database instance as a user who has been granted the CREATE

TABLESPACE system privilege.

In a multitenant environment, log in to the PDB. For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Run the CREATE TABLESPACE statement, using its encryption clauses.

For example:

CREATE TABLESPACE encrypt_ts

DATAFILE '$ORACLE_HOME/dbs/encrypt_df.dbf' SIZE 1M

ENCRYPTION USING 'AES256'

DEFAULT STORAGE (ENCRYPT);

In this specification:

•ENCRYPTION USING 'AES256' specifies the encryption algorithm and the

key length for the encryption. Enclose this setting in single quotation marks ('

'). The key lengths are included in the names of the algorithms. If you do not

Encrypting Tablespaces

3-28 Oracle Database Advanced Security Guide

specify an encryption algorithm, then the default encryption algorithm,

AES128, is used. Choose from the following algorithms:

–3DES168

–AES128

–AES192

–AES256

•ENCRYPT in the DEFAULT STORAGE clause encrypts the tablespace.

See Also:

Oracle Database SQL Language Reference for the CREATE TABLESPACE

statement syntax

3.4.4.3 Example: Creating an Encrypted Tablespace That Uses 3DES168

You can use the CREATE TABLESPACE SQL statement to create an encrypted

tablespace.

Example 3-8 (page 3-29) creates a tablespace called securespace_1 that is

encrypted using the 3DES algorithm. The key length is 168 bits.

Example 3-8 Creating an Encrypted Tablespace That Uses 3DES168

CREATE TABLESPACE securespace_1

DATAFILE '/home/user/oradata/secure01.dbf'

SIZE 150M

ENCRYPTION USING '3DES168'

DEFAULT STORAGE(ENCRYPT);

3.4.4.4 Example: Creating an Encrypted Tablespace That Uses the Default Algorithm

You can use the CREATE TABLESPACE SQL statement to create an encrypted

tablespace that uses the default algorithm.

Example 3-9 (page 3-29) creates a tablespace called securespace_2. Because no

encryption algorithm is specified, the default encryption algorithm (AES128) is used.

The key length is 128 bits.

You cannot encrypt an existing tablespace.

Example 3-9 Creating an Encrypted Tablespace That Uses the Default Algorithm

CREATE TABLESPACE securespace_2

DATAFILE '/home/user/oradata/secure01.dbf'

SIZE 150M

ENCRYPTION

DEFAULT STORAGE(ENCRYPT);

3.5 Transparent Data Encryption Data Dynamic and Data Dictionary Views

Oracle Database provides a set of dynamic and data dictionary views that you can

query to find more information about Transparent Data Encryption data.

Table 3-2 (page 3-30) describes these dynamic and data dictionary views.

Transparent Data Encryption Data Dynamic and Data Dictionary Views

Configuring Transparent Data Encryption 3-29

Table 3-2 Transparent Data Encryption Related Views

View Description

ALL_ENCRYPTED_COLUMNS Displays encryption information about encrypted columns

in the tables accessible to the current user

DBA_ENCRYPTED_COLUMNS Displays encryption information for all of the encrypted

columns in the database

USER_ENCRYPTED_COLUMNS Displays encryption information for encrypted table

columns in the current user's schema

DBA_TABLESPACE_USAGE_M

ETRICS

Describes tablespace usage metrics for all types of

tablespaces, including permanent, temporary, and undo

tablespaces

V$CLIENT_SECRETS Lists the properties of the strings (secrets) that were stored in

the keystore for various features (clients).

In a multitenant environment, when you query this view in a

PDB, then it displays information about keys that were

created or activated for the current PDB. If you query this

view in the root, then it displays this information about keys

for all of the PDBs.

$ENCRYPTED_TABLESPACES

Displays information about the tablespaces that are

encrypted

V$ENCRYPTION_KEYS When used with keys that have been rotated with the

ADMINISTER KEY MANAGEMENT statement, displays

information about the TDE master encryption keys.

In a multitenant environment, when you query this view in a

PDB, it displays information about keys that were created or

activated for the current PDB. If you query this view in the

root, it displays this information about keys for all of the

PDBs.

V$ENCRYPTION_WALLET Displays information on the status of the keystore and the

keystore location for TDE

V$WALLET Displays metadata information for a PKI certificate, which

can be used as a master encryption key for TDE

See Also:

Oracle Database Reference for detailed information about these views

Transparent Data Encryption Data Dynamic and Data Dictionary Views

3-30 Oracle Database Advanced Security Guide

Managing the Keystore and the TDE

Master Encryption Key

You can modify and manage settings for the keystore and TDE master encryption key,

and store secrets used by Oracle Database and store Oracle GoldenGate secrets in a

keystore.

Topics:

•Managing the Keystore (page 4-1)

•Managing the TDE Master Encryption Key (page 4-22)

•Storing Secrets Used by Oracle Database (page 4-38)

•Storing Oracle GoldenGate Secrets in a Keystore (page 4-44)

4.1 Managing the Keystore

You can perform maintenance activities on keystores such as changing passwords, and

backing up, merging, and moving keystores.

Topics:

•Changing the Password of a Password-Based Software Keystore (page 4-2)

•Changing the Password of a Hardware Keystore (page 4-3)

•Backing Up Password-Based Software Keystores (page 4-3)

•Backups of the Hardware Keystore (page 4-5)

•Merging Software Keystores (page 4-6)

•Moving a Software Keystore to a New Location (page 4-9)

•Moving a Software Keystore Out of Automatic Storage Management (page 4-10)

•Migrating Between a Software Password Keystore and a Hardware Keystore

(page 4-11)

•Migration of Keystores to and from Oracle Key Vault (page 4-17)

•Closing a Keystore (page 4-17)

•Using a Software Keystore That Resides on ASM Volumes (page 4-20)

•Backup and Recovery of Encrypted Data (page 4-20)

•Deletion of Keystores (page 4-21)

Managing the Keystore and the TDE Master Encryption Key 4-1

See Also:

•Configuring a Software Keystore (page 3-1)

•Configuring a Hardware Keystore (page 3-10)

4.1.1 Changing the Password of a Password-Based Software Keystore

Oracle Database enables you to easily change password-based software keystore

passwords.

Topics:

•About Changing the Password of a Password-Based Software Keystore

(page 4-2)

•Changing the Password-Based Software Keystore Password (page 4-2)

4.1.1.1 About Changing the Password of a Password-Based Software Keystore

You can only change (rotate) the password for password-based software keystores.

You can change this password at any time, as per the security policies, compliance

guidelines, and other security requirements of your site. As part of the command to

change the password, you will be forced to specify the WITH BACKUP clause, and thus

forced to make a backup of the current keystore. During the password change

operation, Transparent Data Encryption operations such as encryption and decryption

will continue to work normally.

You can change this password at any time. You may want to change this password if

you think it was compromised.

4.1.1.2 Changing the Password-Based Software Keystore Password

To change the password of a password-based software keystore, you must use the

ADMINISTER KEY MANAGEMENT statement.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD IDENTIFIED BY

old_password SET new_password [WITH BACKUP [USING 'backup_identifier']];

In this specification:

•old_password is the current keystore password that you want to change.

•new_password is the new password that you set for the keystore.

•WITH BACKUP creates a backup of the current keystore before the password

is changed. You must include this clause.

Managing the Keystore

4-2 Oracle Database Advanced Security Guide

•backup_identifier specifies an optional identifier string for the backup

that is created. The backup_identifier is added to the name of the

backup file. Enclose backup_identifier in single quotation marks (' ').

This identifier is appended to the named keystore file (for example,

ewallet_time_stamp_emp_key_pwd_change.p12).

The following example backs up the current keystore and then changes the

password for the keystore:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD IDENTIFIED BY

old_password SET new_password WITH BACKUP USING 'pwd_change';

keystore altered.

4.1.2 Changing the Password of a Hardware Keystore

To change the password of a hardware keystore, you must use the ADMINISTER KEY

MANAGEMENT statement.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Close the hardware keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "psmith:password";

See "Closing a Hardware Keystore (page 4-19)".

3. From the hardware security module management interface, create a new

hardware security module password.

4. In SQL*Plus, open the hardware keystore.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "psmith:new_password";

See "Step 3: Open the Software Keystore (page 3-7)".

4.1.3 Backing Up Password-Based Software Keystores

When you back up a password-based software keystore, you optionally can create a

backup identifier string to describe the type of backup.

Topics:

•About Backing Up Password-Based Software Keystores (page 4-4)

•Creating a Backup Identifier String for the Backup Keystore (page 4-4)

•How the V$ENCRYPTION_WALLET View Interprets Backup Operations

(page 4-4)

•Backing Up a Password-Based Software Keystore (page 4-5)

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-3

4.1.3.1 About Backing Up Password-Based Software Keystores

You must back up password-based software keystores, as per the security policy and

requirements of your site.

A backup of the keystore contains all of the keys contained in the original keystore.

Oracle Database prefixes the backup keystore with the creation time stamp (UTC). If

you provide an identifier string, then this string is inserted between the time stamp

and keystore name.

After you complete the backup operation, the keys in the original keystore are marked

as "backed up". You can check the status of keys querying the V

$ENCRYPTION_WALLET data dictionary view.

You cannot back up auto-login or local auto-login software keystores. No new keys

can be added to them directly through the ADMINISTER KEY MANAGEMENT

statement operations. The information in these keystores is only read and hence there

is no need for a backup.

If you have not yet backed up the keystore, then you can include the BACKUP clause in

the ADMINISTER KEY MANAGEMENT statement when you create the TDE master

encryption key. This both backs up the keystore and creates the TDE master

encryption key. (Step 4: Set the Software TDE Master Encryption Key (page 3-8) shows

an example of how to accomplish this.)

4.1.3.2 Creating a Backup Identifier String for the Backup Keystore

The backup file name of a software password keystore is derived from the name of the

password-based software keystore.

Oracle Database prefixes the software keystore password file name with the file

creation time stamp in UTC format. If you provide an identifier string, then this string

is inserted between the time stamp and keystore name.

• To create a backup identifier string for a backup keystore, use the ADMINISTER

KEY MANAGEMENT SQL statement with the BACKUP KEYSTORE clause, with the

following syntax:

ewallet_creation-time-stamp-in-UTC_user-defined-string.p12

When you create the backup identifier (user_defined_string), use the

operating system file naming convention. For example, in UNIX systems, you

may want to ensure that this setting does not have spaces.

Example 4-1 (page 4-4) shows the creation of a backup keystore that uses a bug

number as the user-identified string, and how the resultant keystore appears in the file

system.

Example 4-1 Creating a Backup Identifier String for a Backup Keystore

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE USING 'BUG12966094' IDENTIFIED BY

keystore_password;

Resultant keystore file:

ewallet_2013041513244657_BUG12966094.p12

4.1.3.3 How the V$ENCRYPTION_WALLET View Interprets Backup Operations

In the V$ENCRYPTION_WALLET view, the BACKUP column indicates if a copy of the

keystore had been created with the WITH BACKUP clause of the ADMINISTER KEY

Managing the Keystore

4-4 Oracle Database Advanced Security Guide

MANAGEMENT statement or the ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

statement.

When you modify a key or a secret, the modifications that you make do not exist in the

previously backed-up copy, because you make a copy and then modify the key itself.

Because there is no copy of the modification in the previous keystores, the BACKUP

column is set to NO, even if the BACKUP had been set to YES previously. Hence, if the

BACKUP column is YES, then after you perform an operation that requires a backup,

such as adding a custom attribute tag, the BACKUP column value changes to NO.

4.1.3.4 Backing Up a Password-Based Software Keystore

To back up a password-based software keystore, you must use the ADMINISTER KEY

MANAGEMENT statement with the BACKUP KEYSTORE clause.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE [USING 'backup_identifier']

IDENTIFIED BY software_keystore_password [TO 'keystore_location'];

In this specification:

•USING backup_identifier is an optional string that you can provide to

identify the backup. Enclose this identifier in single quotation marks (' '). This

identifier is appended to the named keystore file (for example,

ewallet_time-stamp_emp_key_backup.p12).

•software_keystore_password is the password for the keystore.

•keystore_location is the path at which the backup keystore is stored. If

you do not specify the keystore_location, then the backup is created in

the same directory as the original keystore. Enclose this location in single

quotation marks (' ').

The following example backs up a software keystore in the same location as the

source keystore:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE USING 'hr.emp_keystore' IDENTIFIED BY

password TO '/etc/ORACLE/KEYSTORE/DB1/';

keystore altered.

After you run this statement, an ewallet_identifier.p12 file (for example,

ewallet_time-stamp_hr.emp_keystore.p12) appears in the keystore

location.

4.1.4 Backups of the Hardware Keystore

You cannot use Oracle Database to back up hardware keystores.

See your HSM vendor instructions for information about backing up keys for

hardware keystores.

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-5

4.1.5 Merging Software Keystores

You can merge software keystores in a variety of ways, such as merging two keystores

to create a third keystore, merging one keystore into an existing keystore, or merging

an auto-login software keystore into a password-based software keystore.

Topics:

•About Merging Software Keystores (page 4-6)

•Merging Two Software Keystores into a Third New Keystore (page 4-6)

•Merging One Software Keystore into an Existing Software Keystore (page 4-7)

•Merging an Auto-Login Software Keystore into an Existing Password-Based

Software Keystore (page 4-8)

•Reversing a Software Keystore Merge Operation (page 4-8)

4.1.5.1 About Merging Software Keystores

You can merge any combination of the software keystores. However, the merged

keystore must be a password-based software keystore, and it can have a password that

is different from the constituent keystores.

To use the merged keystore, you must explicitly open the merged keystore after you

create it, even if one of the constituent keystores was already open before the merge.

Whether a common key from two source keystores is added or overwritten to a

merged keystore depends on how you write the ADMINISTER KEY MANAGEMENT

merge statement. For example, if you merge Keystore 1 and Keystore 2 to create

Keystore 3, then the key in Keystore 1 is added to Keystore 3. If you merge Keystore 1

into Keystore 2, then the common key in Keystore 2 is not overwritten.

The ADMINISTER KEY MANAGEMENT merge statement has no bearing on the

configured keystore that is in use. However, the merged keystore can be used as the

new configured database keystore if you want. Remember that you must reopen the

keystore if you are using the newly created keystore as the keystore for the database at

the location configured by the sqlnet.ora file.

See Also:

•Migrating Between a Software Password Keystore and a Hardware

Keystore (page 4-11)

•Step 3: Open the Software Keystore (page 3-7)

4.1.5.2 Merging Two Software Keystores into a Third New Keystore

You can merge two software keystores into a third new keystore, so that the two

existing keystores are not changed.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

Managing the Keystore

4-6 Oracle Database Advanced Security Guide

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password] AND KEYSTORE 'keystore2_location'

[IDENTIFIED BY software_keystore2_password]

INTO NEW KEYSTORE 'keystore3_location'

IDENTIFIED BY software_keystore3_password;

In this specification:

•keystore1_location is the directory location of the first keystore, which

will be left unchanged after the merge. Enclose this path in single quotation

marks (' ').

• The IDENTIFIED BY clause is required for the first keystore if it is a

password-based keystore. software_keystore1_password is the current

password for the first keystore.

•keystore2_location is the directory location of the second keystore.

Enclose this path in single quotation marks (' ').

• The IDENTIFIED BY clause is required for the second keystore if it is a

password-based keystore. software_keystore2_password is the current

password for the second keystore.

•keystore3_location specifies the directory location of the new, merged

keystore. Enclose this path in single quotation marks (' '). If there is already an

existing keystore at this location, the command exits with an error.

•software_keystore3_password is the new password for the merged

keystore.

The following example merges an auto-login software keystore with a password-

based keystore to create a merged password-based keystore at a new location:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

AND KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY existing_password_for_keystore_2

INTO NEW KEYSTORE '/etc/ORACLE/KEYSTORE/DB3'

IDENTIFIED BY new_password_for_keystore_3;

keystore altered.

4.1.5.3 Merging One Software Keystore into an Existing Software Keystore

You can use the ADMINISTER KEY MANAGEMENT statement with the MERGE

KEYSTORE clause to merge one software keystore into another existing software

keystore.

• To perform this type of merge, follow the steps in Merging Two Software

Keystores into a Third New Keystore (page 4-6) but use the following SQL

statement:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password]

INTO EXISTING KEYSTORE 'keystore2_location'

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-7

IDENTIFIED BY software_keystore2_password

[WITH BACKUP [USING 'backup_identifier]];

In this specification:

–keystore1_location is the directory location of the first keystore, which

will be left unchanged after the merge. Enclose this path in single quotation

marks (' ').

– The IDENTIFIED BY clause is required for the first keystore if it is a

password-based keystore. software_keystore1_password is the

password for the first keystore.

–keystore2_location is the directory location of the second keystore into

which the first keystore is to be merged. Enclose this path in single quotation

marks (' ').

–software_keystore2_password is the password for the second keystore.

–WITH BACKUP creates a backup of the software keystore. Optionally, you can

use the USING clause to add a brief description of the backup. Enclose this

description in single quotation marks (' '). This identifier is appended to the

named keystore file (for example, ewallet_time-

stamp_emp_key_backup.p12, with emp_key_backup being the backup

identifier). Follow the file naming conventions that your operating system

uses.

The resultant keystore after the merge operation is always a password-based keystore.

4.1.5.4 Merging an Auto-Login Software Keystore into an Existing Password-Based

Software Keystore

You can merge an auto-login software keystore into an existing password-based

software keystore.

• Use the ADMINISTER KEY MANAGEMENT MERGE KEYSTORE SQL statement to

merge an auto-login software keystore into an existing password-based software

keystore.

Example 4-2 (page 4-8) shows how to merge an auto-login software keystore into a

password-based software keystore. It also creates a backup of the second keystore

before creating the merged keystore.

Example 4-2 Merging a Software Auto-Login Keystore into a Password Keystore

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY password WITH BACKUP;

In this specification:

•MERGE KEYSTORE must specify the auto-login keystore.

•EXISTING KEYSTORE refers to the password keystore.

4.1.5.5 Reversing a Software Keystore Merge Operation

You cannot directly reverse a keystore merge operation.

When you merge a keystore into an existing keystore (rather than creating a new one),

you must include the WITH BACKUP clause in the ADMINISTER KEY MANAGEMENT

Managing the Keystore

4-8 Oracle Database Advanced Security Guide

statement to create a backup of this existing keystore. Later on, if you decide that you

must reverse the merge, you can replace the merged software keystore with the one

that you backed up.

In other words, suppose you want merge Keystore A into Keystore B. By using the

WITH BACKUP clause, you create a backup for Keystore B before the merge operation

begins. (The original Keystore A is still intact.) To reverse the merge operation, revert

to the backup that you made of Keystore B.

• Use the ADMINISTER KEY MANAGEMENT MERGE KEYSTORE SQL statement to

perform merge operations.

– For example, to perform a merge operation into an existing keystore:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY password WITH BACKUP USING "merge1";

Replace the new keystore with the backup keystore, which in this case would

be named ewallet_time-stamp_merge1.p12.

– To merge an auto-login keystore into a password-based keystore, use the

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE SQL statement.

4.1.6 Moving a Software Keystore to a New Location

To move a software keystore to a new location, you must back up and close the

keystore, edit the sqlnet.ora file, and then physically move the keystore to the new

location.

If you are using Oracle Key Vault, then you can configure a TDE direct connection

where Key Vault directly manages the TDE master keys. In this case, you will never

need to manually move the keystore to a new location. See Oracle Key Vault

Administrator's Guide for more information about using a TDE direct connection.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or to the pluggable database

(PDB). For example, to log in to a PDB called hrpdb:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Make a backup copy of the software keystore.

See "Backing Up Password-Based Software Keystores (page 4-3)".

3. Close the software keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE; -- For an auto-login software

keystore

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY

software_keystore_password; -- For a password-based software keystore

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-9

4. Exit the database session.

For example, if you are logged in to SQL*Plus:

EXIT

5. Back up and then manually edit the sqlnet.ora file to point to the new location

where you want to move the keystore.

See the "Step 1: Set the Software Keystore Location in the sqlnet.ora File

(page 3-2)" for more information.

6. Use the operating system move command (such as mv) to move the keystore with

all of its keys to the new directory location.

4.1.7 Moving a Software Keystore Out of Automatic Storage Management

You can use the ADMINISTER KEY MANAGEMENT statement to move a software

keystore out Automatic Storage Management.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check the

current PDB, run the show con_name command.

2. Initialize a target keystore on the file system by using the following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE targetKeystorePath IDENTIFIED BY

targetKeystorePassword;

In this specification:

•targetKeystorePath is the directory path to the target keystore on the file

system.

•targetKeystorePassword is a password that you create for the keystore.

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1/' IDENTIFIED

BY "targetKeystorePassword";

3. Copy the keystore from ASM to the target keystore that you just created.

This step requires that you merge the keystore from ASM to the file system, as

follows:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE srcKeystorePath IDENTIFIED BY

srcKeystorePassword INTO EXISTING KEYSTORE targetKeystorePath IDENTIFIED BY

targetKeystorePassword WITH BACKUP USING backupIdentifier;

In this specification:

•srcKeystorePath is the directory path to the source keystore.

Managing the Keystore

4-10 Oracle Database Advanced Security Guide

•srcKeystorePassword is th source keystore password.

•targetKeystorePath is the path to the target keystore.

•targetKeystorePassword is the target keystore password.

•backupIdentifier is the backup identifier to be added to the backup file

name.

For example:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '+DATAFILE' IDENTIFIED BY "srcPassword"

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB1/' IDENTIFIED BY

"targetKeystorePassword" WITH BACKUP USING "bkup";

4.1.8 Migrating Between a Software Password Keystore and a Hardware Keystore

You can migrate between password-based software keystores and hardware

keystores.

Topics:

•Migrating from a Password-Based Software Keystore to a Hardware Keystore

(page 4-11)

•Migrating from a Hardware Keystore to a Password-Based Software Keystore

(page 4-14)

•Keystore Order After a Migration (page 4-16)

4.1.8.1 Migrating from a Password-Based Software Keystore to a Hardware Keystore

You can migrate from a password-based software keystore to a hardware keystore.

Topics:

•Step 1: Convert the Software Keystore to Open with the Hardware Keystore

(page 4-11)

•Step 2: Configure sqlnet.ora for the Migration of the Password-Based Software

Keystore (page 4-12)

•Step 3: Perform the Hardware Keystore Migration (page 4-13)

4.1.8.1.1 Step 1: Convert the Software Keystore to Open with the Hardware Keystore

Tools such as Oracle Data Pump and Oracle Recovery Manager require access to the

old software keystore to perform decryption and encryption operations on data that

was exported or backed up using the software keystore.

• Use the ADMINISTER KEY MANAGEMENT SQL statement to convert a software

keystore to a open with a hardware keystore.

– To set the software keystore password as that of the hardware keystore, use

the following syntax:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

IDENTIFIED BY software_keystore_password

SET "user_id:password" WITH BACKUP [USING 'backup_identifier'];

In this specification:

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-11

*software_keystore_password is the same password that you used

when creating the software keystore.

*user_id:password is the new software keystore password which is the

same as the password of the HSM.

*WITH BACKUP creates a backup of the software keystore. Optionally, you

can use the USING clause to add a brief description of the backup.

Enclose this description in single quotation marks (' '). This identifier is

appended to the named keystore file (for example, ewallet_time-

stamp_emp_key_backup.p12, with emp_key_backup being the

backup identifier). Follow the file naming conventions that your

operating system uses.

– To create an auto-login keystore for a software keystore, use the following

syntax:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE

FROM KEYSTORE 'keystore_location'

IDENTIFIED BY software_keystore_password;

In this specification:

*LOCAL enables you to create a local auto-login software keystore.

Otherwise, omit this clause if you want the keystore to be accessible by

other computers.

*keystore_location is the path to the keystore directory location of

the keystore that is configured in the sqlnet.ora file.

*software_keystore_password is the existing password of the

configured software keystore.

4.1.8.1.2 Step 2: Configure sqlnet.ora for the Migration of the Password-Based Software Keystore

After keystore migration, you are ready to open both the software and hardware

keystore operations to enable access to keys created in the software keystore when

required.

For the software keystore to open with the hardware keystore, either the software

keystore must have the same password as the hardware keystore, or alternatively, you

can create an auto-login keystore for the software keystore.

If you are migrating from a software keystore to a hardware keystore, then you must

edit the sqlnet.ora file to use the METHOD=HSM setting.

See Also:

About the Keystore Location in the sqlnet.ora File (page 3-2)

• Use the following format in the sqlnet.ora file:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=HSM)(METHOD_DATA=

(DIRECTORY=path_to_keystore)))

path_to_software_keystore is the path to the previously configured

software keystore. Having both HSM and the DIRECTORY location in the

Managing the Keystore

4-12 Oracle Database Advanced Security Guide

ENCRYPTION_WALLET_LOCATION parameter indicates that you switched

between using the software keystore and the hardware keystore in the past, and it

also enables you to switch back easily in the future.

Note:

If a DIRECTORY value is present in the ENCRYPTION_WALLET_LOCATION

parameter setting, then ensure that you do not delete it.

Although hardware keystores do not require a DIRECTORY value, Oracle

Database uses this value to locate your software keystore when you migrate to

and from a hardware security module.

Example 4-3 (page 4-13) shows how to edit the sqlnet.ora file to format a software

keystore to hardware security module-based keystore or the reverse:

Example 4-3 Sample ENCRYPTION_WALLET_LOCATION Entries

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=HSM)(METHOD_DATA=

(DIRECTORY=/app/wallet)))

4.1.8.1.3 Step 3: Perform the Hardware Keystore Migration

You can use the ADMINISTER KEY MANAGEMENT SQL statement to perform a

hardware keystore migration.

To migrate from the software keystore to hardware keystore, you must use the

MIGRATE USING keystore_password clause in the ADMINISTER KEY

MANAGEMENT SET KEY SQL statement to decrypt the existing TDE table keys and

the tablespace encryption keys with the TDE master encryption key in the software

keystore and then reencrypt them with the newly created TDE master encryption key

in the hardware keystore.

After you complete the migration, you do not need to restart the database, nor do you

need to manually re-open the hardware keystore. The migration process automatically

reloads the keystore keys in memory.

• Use the following syntax when you run the ADMINISTER KEY MANAGEMENT

SQL statement for migration:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY IDENTIFIED BY "user_id:password"

MIGRATE USING software_keystore_password [WITH BACKUP [USING

'backup_identifier']];

In this specification:

–user_id:password is the user ID and password that was created in Step 3

(page 3-12) under Step 2: Configure the Hardware Security Module

(page 3-11) (in Configuring Transparent Data Encryption (page 3-1)). Enclose

this setting in double quotation marks (" ") and separate user_id and

password with a colon (:).

–software_keystore_password is the same password that you used when

creating the software keystore or that you have changed to in Step 1: Convert

the Software Keystore to Open with the Hardware Keystore (page 4-11).

–USING enables you to add a brief description of the backup. Enclose this

description in single quotation marks (' '). This identifier is appended to the

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-13

named keystore file (for example, ewallet_time-

stamp_emp_key_backup.p12, with emp_key_backup being the backup

identifier). Follow the file naming conventions that your operating system

uses.

Note:

If the database contains columns encrypted with a public key, then the

columns are decrypted and reencrypted with an AES symmetric key

generated by HSM-based Transparent Data Encryption.

4.1.8.2 Migrating from a Hardware Keystore to a Password-Based Software Keystore

You can migrate a hardware keystore to a software keystore.

Topics:

•About Migrating Back from a Hardware Keystore (page 4-14)

•Step 1: Configure sqlnet.ora for the Reverse Migration (page 4-15)

•Step 2: Configure the Keystore for the Reverse for the Reverse Migration

(page 4-15)

•Step 3: Configure the Hardware Keystore to Open with the Software Keystore

(page 4-16)

4.1.8.2.1 About Migrating Back from a Hardware Keystore

If you want to switch from using a hardware keystore solution to a software keystore,

then you can use reverse migration of the keystore.

After you complete the switch, keep the hardware security module, in case earlier

backup files rely on the TDE master encryption keys in the hardware security module.

If you had originally migrated from the software keystore to the hardware security

module and reconfigured the software keystore as described in Migration of a

Previously Configured TDE Master Encryption Key (page 3-15), then you already have

an existing keystore with the same password as the HSM password. Reverse

migration configures this keystore to act as the new software keystore with a new

password. If your existing keystore is an auto-login software keystore and you have

the password-based software keystore for this auto-login keystore, then use the

password-based keystore. If the password-based keystore is not available, then merge

the auto-login keystore into a newly created empty password-based keystore, and use

the newly create password-based keystore.

If you do not have an existing keystore, then you must specify a keystore location in

the sqlnet.ora file using the ENCRYPTION_WALLET_LOCATION parameter. When

you perform the reverse migration, migrate to the previous keystore so that you do

not lose the keys.

See Also:

Merging Software Keystores (page 4-6)

Managing the Keystore

4-14 Oracle Database Advanced Security Guide

4.1.8.2.2 Step 1: Configure sqlnet.ora for the Reverse Migration

First, you must edit the sqlnet.ora file.

• Set the following configuration in the sqlnet.ora file:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=FILE)(METHOD_DATA=

(DIRECTORY=path_to_keystore)))

Replace path_to_keystore with the directory location of the destination

keystore.

See Also:

About the Keystore Location in the sqlnet.ora File (page 3-2)

4.1.8.2.3 Step 2: Configure the Keystore for the Reverse for the Reverse Migration

To perform a reverse migration on a keystore, you can use the ADMINISTER KEY

MANAGEMENT statement with the SET ENCRYPTION KEY and REVERSE MIGRATE

clauses.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY IDENTIFIED BY

software_keystore_password REVERSE MIGRATE USING "user_id:password" [WITH BACKUP

[USING 'backup_identifier']];

In this specification:

•software_keystore_password is the password for the existing keystore

or the new keystore.

•user_id:password is the user ID and password that was created in Step 3

(page 3-12) in Step 2: Configure the Hardware Security Module (page 3-11)

(in Configuring Transparent Data Encryption (page 3-1)). If the pre-hardware

security module software keystore is the new keystore, then you must ensure

that it has the same password as the user_id:password before issuing the

reverse migration command. Enclose this setting in double quotation marks ("

").

•WITH BACKUP creates a backup of the software keystore. Optionally, you can

include the USING clause to add a brief description of the backup. Enclose

this description in single quotation marks (' '). This identifier is appended to

the named keystore file (for example, ewallet_time-

stamp_emp_key_backup.p12, with emp_key_backup being the backup

identifier). Follow the file naming conventions that your operating system

uses.

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-15

For example:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY IDENTIFIED BY password REVERSE

MIGRATE USING "psmith:password" WITH BACKUP;

keystore altered.

3. Optionally, change the keystore password.

See Changing the Password of a Password-Based Software Keystore (page 4-2) for

more information.

4.1.8.2.4 Step 3: Configure the Hardware Keystore to Open with the Software Keystore

After you complete the migration, you do not need to restart the database, nor do you

need to manually re-open the software keystore. The migration process automatically

reloads the keystore keys in memory.

The hardware keystore may still be required after reverse migration because the old

keys are likely to have been used for encrypted backups or by tools such as Oracle

Data Pump and Oracle Recovery Manager. You should cache the hardware keystore

credentials in the keystore so that the HSM can be opened with the software keystore.

See Configuring Auto-Login Hardware Security Modules (page 4-42) for more

information about how to store the HSM credential in a migrated keystore.

4.1.8.3 Keystore Order After a Migration

After you perform a migration, keystores can be either primary or secondary in their

order.

The WALLET_ORDER column of the V$ENCRYPTION_WALLET dynamic view describes

whether a keystore is primary (that is, it holds the current TDE master encryption key)

or if it is secondary (it holds the previous TDE master encryption key). The WRL_TYPE

column describes the type of locator for the keystore (for example, FILE for the

sqlnet.ora file). The WALLET_ORDER column shows SINGLE if two keystores are

not configured together and no migration was ever performed previously.

Table 4-1 (page 4-16) describes how the keystore order works after you perform a

migration.

Table 4-1 Keystore Order After a Migration

Type of Migration

Done WRL_TYPE WALLET_ORDER Description

Migration of software

keystore to HSM

HSM

FILE

PRIMARY

SECONDARY

Both the HSM and software keystore are

configured. The TDE master encryption key

can be either in the HSM or the software

keystore.

The TDE master encryption key is first

searched in the HSM.

If the TDE master encryption key is not in

the primary keystore (HSM), then it will be

searched for in the software keystore.

All of the new TDE master encryption keys

will be created in the primary keystore (in

this case, the HSM).

Managing the Keystore

4-16 Oracle Database Advanced Security Guide

Table 4-1 (Cont.) Keystore Order After a Migration

Type of Migration

Done WRL_TYPE WALLET_ORDER Description

Reverse migration of

HSM to software

keystore

FILE

HSM

PRIMARY

SECONDARY

Both the HSM and software keystore are

configured. The TDE master encryption key

can be either in the HSM or the software

keystore.

The TDE master encryption key is first

searched for in the software keystore.

If the TDE master encryption key is not

present in the primary (that is, software)

keystore, then it will be searched for in the

HSM.

All of the new TDE master encryption keys

will be created in the primary keystore (in

this case, the software keystore).

4.1.9 Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to and

from Oracle Key Vault. This enables you to manage the keystores centrally, and then

share the keystores as necessary with other TDE-enabled databases in your enterprise.

Oracle Key Vault enables you to upload a keystore to a container called a virtual

wallet, and then create a new virtual wallet from the contents of previously uploaded

Oracle keystores. For example, suppose you previously uploaded a keystore that

contains 5 keys. You can create a new virtual wallet that consists of only 3 of these

keys. You then can download this keystore to another TDE-enabled database. This

process does not modify the original keystore.

In addition to Oracle keystores, Oracle Key Vault enables you to securely share other

security objects, such as credential files and Java keystores, across the enterprise. It

prevents the loss of keys and keystores due to forgotten passwords or accidentally

deleted keystores. You can use Oracle Key Vault with products other than TDE: Oracle

Real Application Security, Oracle Active Data Guard, and Oracle GoldenGate. Oracle

Key Vault facilitates the movement of encrypted data using Oracle Data Pump and

Oracle Transportable Tablespaces.

See Also:

Oracle Key Vault Administrator's Guide

4.1.10 Closing a Keystore

You can manually close software and hardware keystores.

Topics:

•About Closing Keystores (page 4-18)

•Closing a Software Keystore (page 4-18)

•Closing a Hardware Keystore (page 4-19)

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-17

See Also:

•Step 3: Open the Software Keystore (page 3-7)

•Step 3: Open the Hardware Keystore (page 3-12)

4.1.10.1 About Closing Keystores

After you open a keystore, it remains open until you shut down the database instance.

When you restart the database instance, then auto-login and local auto-login software

keystores automatically open when required (that is, when the TDE master encryption

key must be accessed). However, software password-based and hardware keystores

do not automatically open. You must manually open them again before you can use

them.

When you close a software or hardware keystore, you disable all of the encryption and

decryption operations on the database. Hence, a database user or application cannot

perform any operation involving encrypted data until the keystore is reopened.

When you re-open a keystore after closing it, the keystore contents are reloaded back

into the database. Thus, if the contents had been modified (such as during a

migration), the database will have the latest keystore contents.

You can check the status of a keystore, whether it is open or closed, by querying the

STATUS column of the V$ENCRYPTION_WALLET view.

The following data operations will fail if the keystore is not accessible:

•SELECT data from an encrypted column

•INSERT data into on an encrypted column

•CREATE a table with encrypted columns

•CREATE an encrypted tablespace

See Also:

"How Open and Close Operations for a Keystore Work in a Multitenant

Environment (page 6-14)"

4.1.10.2 Closing a Software Keystore

You can manually close password-based software keystores, auto-login software

keystores, and local auto-login software keystores.

In the case of an auto-login keystore, which opens automatically when it is accessed,

manually close it if you moved it to a new location. You do this if you are changing

your configuration from an auto-login keystore to a password-based keystore: you

move out the auto-login keystore, and then close the auto-login keystore.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, you must close the keystore first in the root.

Afterward, all keystores in the PDBs will close as well. For example, to log in to

the root:

Managing the Keystore

4-18 Oracle Database Advanced Security Guide

sqlplus sec_admin as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Run the ADMINISTER KEY MANAGEMENT SQL statement.

• For a password-based software keystore, use the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE [IDENTIFIED BY

software_keystore_password] [CONTAINER = ALL | CURRENT];

In this specification:

–software_keystore_password is the password of the user who

created the keystore.

–CONTAINER is for use in a multitenant environment. Enter ALL to close

the keystore in all of the PDBs in this multitenant container database

(CDB), or CURRENT for the current PDB. If you run this ADMINISTER

KEY MANAGEMENT statement in the root, then all of the keystores on all

of the PDBs will close, irrespective of whether CONTAINER is set to ALL

or to CURRENT.

• For an auto-login or local auto-login software keystore, use the following SQL

statement:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE;

You do not need to specify a password for this statement.

Closing a keystore disables all of the encryption and decryption operations. Any

attempt to encrypt or decrypt data or access encrypted data results in an error.

See Also:

"Step 3: Open the Software Keystore (page 3-7)"

4.1.10.3 Closing a Hardware Keystore

To close a hardware keystore, you must use the ADMINISTER KEY MANAGEMENT

statement with the SET KEYSTORE CLOSE clause.

1. Log into the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "user_id:password"

[CONTAINER = ALL | CURRENT];

In this specification:

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-19

•user_id:password is the user ID and password that was created in Step 3

(page 3-12) in "Step 2: Configure the Hardware Security Module (page 3-11)".

Enclose this setting in double quotation marks (" ") and separate user_id

and password with a colon (:).

•CONTAINER is for use in a multitenant environment. Enter ALL to close the

keystore in all of the PDBs in this CDB, or CURRENT for the current PDB. If

you run this ADMINISTER KEY MANAGEMENT statement in the root, then all

of the keystores on all of the PDBs will close, irrespective of whether

CONTAINER is set to ALL or to CURRENT.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "psmith:password";

See Also:

"Step 3: Open the Hardware Keystore (page 3-12)"

4.1.11 Using a Software Keystore That Resides on ASM Volumes

You can store a software keystore on an Automatic Storage Management (ASM) disk

group.

• Edit the sqlnet.ora file to use the location of an ASM disk group specified

using the ASM file naming convention when you configure the DIRECTORY

setting in the ENCRYPTION_WALLET_LOCATION setting. That is, you must use the

plus sign (+) notation for the ASM file name.

For example:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=FILE)(METHOD_DATA=

(DIRECTORY=+disk1/mydb/wallet)))

If you must move or merge software keystores between a regular file system and an

ASM file system, then you can use the same keystore merge statements described in

"Merging Software Keystores (page 4-6)".

To manage keystores in an ASM environment, you can use the ASMCMD utility.

See Also:

•Configuring the sqlnet.ora File for a Software Keystore Location

(page 3-3)

•Oracle Database Storage Administrator's Guide for detailed information

about using the ASMCMD utility

4.1.12 Backup and Recovery of Encrypted Data

For software keystores, you cannot access encrypted data without the TDE master

encryption key.

Because the TDE master encryption key is stored in the keystore, you should

periodically back up the software keystore in a secure location. You must back up a

Managing the Keystore

4-20 Oracle Database Advanced Security Guide

copy of the keystore whenever you set a new TDE master encryption key or perform

any operation that writes to the keystore.

Do not back up the software keystore in the same location as the encrypted data. Back

up the software keystore separately. This is especially true when you use the auto-

lost, a malicious user should not be able to get both the encrypted data and the

keystore.

Oracle Recovery Manager (Oracle RMAN) does not back up the software keystore as

part of the database backup. When using a media manager such as Oracle Secure

Backup with Oracle RMAN, Oracle Secure Backup automatically excludes auto-open

keystores (the cwallet.sso files). However, it does not automatically exclude

encryption keystores (the ewallet.p12 files). It is a good practice to add the

following exclude data set statement to your Oracle Secure Backup configuration:

exclude name *.p12

This setting instructs Oracle Secure Backup to exclude the encryption keystore from

the backup set.

If you lose the software keystore that stores the TDE master encryption key, then you

can restore access to encrypted data by copying the backed-up version of the keystore

to the appropriate location. If you archived the restored keystore after the last time

that you reset the TDE master encryption key, then you do not need to take any

additional action.

If the restored software keystore does not contain the most recent TDE master

encryption key, then you can recover old data up to the point when the TDE master

encryption key was reset by rolling back the state of the database to that point in time.

All of the modifications to encrypted columns after the TDE master encryption key

was reset are lost.

See Also:

Oracle Database Backup and Recovery User's Guide for information about

recovering a database

4.1.13 Deletion of Keystores

Oracle strongly recommends that you do not delete keystores, particularly after you

have configured Transparent Data Encryption and the keystore is in use.

You can find if a keystore is in use by querying the WRL_PARAMETER column of the V

$ENCRYPTION_WALLET view after you open the keystore.

The reason you should not delete a keystore is because the keystore contains a list of

all of the keys that were used for the database. Deleting the keystore deletes these

keys, and could result in the loss of encrypted data. The deletion of a keystore can

even hamper the normal functioning of the Oracle database. Even if you decrypted all

of the data in your database, you still should not delete the keystore, because the TDE

master encryption key in the keystore is also used for other Oracle Database features,

such as off-lined tablespaces, Oracle Recovery Manager, and Oracle Secure Backup.

Even after you have migrated your keystores to a hardware security module, you

should not delete the original keystore. The keys in the original keystore will be

needed at a later time, for example when recovering an offline encrypted tablespace.

Even if there is no data online that are not encrypted, the key may still be in use.

Managing the Keystore

Managing the Keystore and the TDE Master Encryption Key 4-21

The exception is in the case of software auto-login (or auto-login local) keystores. If

you do not want to use this type of keystore, then ideally you should move it to a

secure directory. Only delete an auto-login keystore if you are sure that it comes from

a specific password-based software keystore and that this keystore is available. The

keystore should be available and known.

4.2 Managing the TDE Master Encryption Key

You can manage the TDE master encryption key in several ways.

Topics:

•Creating TDE Master Encryption Keys for Later Use (page 4-22)

•Activation of TDE Master Encryption Keys (page 4-24)

•TDE Master Encryption Key Attribute Management (page 4-26)

•Creating Custom TDE Master Encryption Key Attributes for Reporting Purposes

(page 4-28)

•Setting and Resetting the TDE Master Encryption Key in the Keystore (page 4-29)

•Exporting and Importing the TDE Master Encryption Key (page 4-33)

•Management of TDE Master Encryption Keys Using Oracle Key Vault

(page 4-38)

4.2.1 Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

Topics:

•About Creating a TDE Master Encryption Key for Later Use (page 4-22)

•Creating a TDE Master Encryption Key for Later Use (page 4-23)

•Example: Creating a TDE Master Encryption Key in a Single Database

(page 4-23)

•Example: Creating a TDE Master Encryption Key in All PDBs (page 4-24)

4.2.1.1 About Creating a TDE Master Encryption Key for Later Use

The CREATE KEY clause of the ADMINISTER KEY MANAGEMENT statement can create

a TDE master encryption key to be activated at a later date.

You then can activate this key on the same database or export it to another database

and activate it there.

This method of TDE master encryption key creation is useful in a multitenant

environment when you must re-create the TDE master encryption keys. The CREATE

KEY clause enables you to use a single SQL statement to generate a new TDE master

encryption key for all of the PDBs within a multitenant environment. The creation

time of the new TDE master encryption key is later than the activation of the TDE

master encryption key that is currently in use. Hence, the creation time can serve as a

reminder to all of the PDBs to activate the most recently created TDE master

encryption key as soon as possible.

Managing the TDE Master Encryption Key

4-22 Oracle Database Advanced Security Guide

4.2.1.2 Creating a TDE Master Encryption Key for Later Use

A keystore must be opened before you can create a TDE master encryption key for use

later on.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Ensure that the keystore is open.

You can query the STATUS column of the V$ENCRYPTION_WALLET view to find if

the keystore is open. If you find that you must open the keystore, then see the

following sections:

•Step 3: Open the Software Keystore (page 3-7)

•Step 3: Open the Hardware Keystore (page 3-12)

3. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT CREATE KEY [USING TAG 'tag'] IDENTIFIED BY

keystore_password [WITH BACKUP [USING 'backup_identifier']] [CONTAINER = (ALL|

CURRENT)];

In this specification:

•tag is the associated attribute and information that you define. Enclose this

setting in single quotation marks (' ').

•keystore_password is the mandatory keystore password that you used

when you created the original keystore. It is case sensitive.

•WITH BACKUP backs up the TDE master encryption key in the same location

as the key, as identified by the WRL_PARAMETER column of the V

$ENCRYPTION_WALLET view. To find the key locations for all of the database

instances, query the GV$ENCRYPTION_WALLET view.

You must back up password-based software keystores. You do not need to

back up auto-login or local auto-login software keystores. Optionally, include

the USING backup_identifier clause to add a description of the backup.

Enclose backup_identifier in single quotation marks (' ').

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

encryption key in all of the PDBs in this CDB, or CURRENT for the current

PDB.

4. If necessary, activate the TDE master encryption key.

See Activation of TDE Master Encryption Keys (page 4-24).

4.2.1.3 Example: Creating a TDE Master Encryption Key in a Single Database

You can use the ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

statement to create a TDE master encryption key in a single database.

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-23

Example 4-4 (page 4-24) shows how to create a TDE master encryption key in a single

database. After you run this statement, a TDE master encryption key with the tag

definition is created in the keystore for that database. You can query the TAG column

of the V$ENCRYPTION_KEYS view for the identifier of the newly created key. You can

query the CREATION_TIME column to find the most recently created key, which

would be the key that you created from this statement. You can export this key to

another database if you want or activate it locally later on, as described in Activation

of TDE Master Encryption Keys (page 4-24).

Example 4-4 Creating a TDE Master Encryption Key in a Single Database

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

'source:admin@source;target:db1@target'

IDENTIFIED BY password WITH BACKUP;

keystore altered.

4.2.1.4 Example: Creating a TDE Master Encryption Key in All PDBs

The ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG SQL statement

creates a TDE master encryption key in all PDBs.

Example 4-5 (page 4-24) shows how to create a TDE master encryption key in all of

the PDBs in a multitenant environment. After you run this statement, a TDE master

encryption key is created in each PDB. You can find the identifiers for these keys as

follows:

• Log in to the PDB and then query the TAG column of the V$ENCRYPTION_KEYS

view.

• Log in to the root and then query the INST_ID and TAG columns of the GV

$ENCRYPTION_KEYS view.

You also can check the CREATION_TIME column of these views to find the most

recently created key, which would be the key that you created from this statement.

After you create the keys, you can individually activate the keys in each of the PDBs.

Example 4-5 Creating a TDE Master Encryption Key in All of the PDBs

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

'scope:all pdbs;description:Create Key for ALL PDBS'

IDENTIFIED BY password WITH BACKUP CONTAINER=ALL;

keystore altered.

4.2.2 Activation of TDE Master Encryption Keys

After you activate a TDE master encryption key, it can be used.

Topics:

•About Activating TDE Master Encryption Keys (page 4-24)

•Activating a TDE Master Encryption Key (page 4-25)

•Example: Activating a TDE Master Encryption Key (page 4-26)

4.2.2.1 About Activating TDE Master Encryption Keys

You can activate a previously created or imported TDE master encryption key by

using the USE KEY clause of ADMINSTER KEY MANAGEMENT.

Managing the TDE Master Encryption Key

4-24 Oracle Database Advanced Security Guide

After you activate the key, it is available for use. The key will be used to protect all of

the column keys and all of the tablespace encryption keys. If you have deployed a

logical standby database, then you must export the TDE master encryption keys after

recreating them, and then import them into the standby database. You can have the

TDE master encryption key in use on both the primary and the standby databases. To

do so, you must activate the TDE master encryption key after you import it to the

logical standby database.

4.2.2.2 Activating a TDE Master Encryption Key

To activate a TDE master encryption key, you must open the keystore and use

ADMINISTER KEY MANAGEMENT with the USE KEY clause.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. Ensure that the keystore is open.

You can query the STATUS column of the V$ENCRYPTION_WALLET view to find if

the keystore is open. If you find that you must open the keystore, see the

following sections:

•Step 3: Open the Software Keystore (page 3-7)

•Step 3: Open the Hardware Keystore (page 3-12)

3. Query the KEY_ID column of the V$ENCRYPTION_KEYS view to find the key

identifier.

For example:

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

4. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT USE KEY 'key_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier']];

In this specification:

•key_identifier is the key identifier that you find from querying the

KEY_ID column of the V$ENCRYPTION_KEYS view. Enclose this setting in

single quotation marks (' ').

•tag is the associated attributes and information that you define. Enclose this

setting in single quotation marks (' ').

•keystore_password is the mandatory keystore password that you used

when you created the original keystore.

•WITH BACKUP backs up the TDE master encryption key in the same location

as the key, as identified by the WRL_PARAMETER column of the V

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-25

$ENCRYPTION_WALLET view. To find the key locations for all of the database

instances, query the GV$ENCRYPTION_WALLET view.

You must back up password-based software keystores. You do not need to

back up auto-login or local auto-login software keystores. Optionally, include

the USING backup_identifier clause to add a description of the backup.

Enclose backup_identifier in single quotation marks (' ').

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

encryption key in all of the PDBs in this CDB, or CURRENT for the current

PDB.

4.2.2.3 Example: Activating a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT SQL statement to activate a TDE

master encryption key.

Example 4-6 (page 4-26) shows how to activate a previously imported TDE master

encryption key and then update its tag. This key is activated with the current database

time stamp and time zone.

Example 4-6 Activating a TDE Master Encryption Key

ADMINISTER KEY MANAGEMENT USE KEY

'ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

IDENTIFIED BY password WITH BACKUP;

keystore altered.

4.2.3 TDE Master Encryption Key Attribute Management

Master encryption key attributes store information about the TDE master encryption

key.

Topics:

•TDE Master Encryption Key Attributes (page 4-26)

•Finding the TDE Master Encryption Key That Is in Use (page 4-27)

4.2.3.1 TDE Master Encryption Key Attributes

Master encryption key attributes include detailed information about the TDE master

encryption key.

The information contains the following types:

•Key time stamp information: Internal security policies and compliance policies

usually determine the key rotation frequency. You should expire keys when they

reach the end of their lifetimes and then generate new keys. Time stamp attributes

such as key creation time and activation time help you to determine the key age

accurately, and automate key generation.

The V$ENCRYPTION_KEYS view includes columns such as CREATION_TIME and

ACTIVATION_TIME. See Oracle Database Reference for a complete description of

the V$ENCRYPTION_KEYS view.

•Key owner information: Key owner attributes help you to determine the user

who created or activated the key. These attributes can be important for security,

Managing the TDE Master Encryption Key

4-26 Oracle Database Advanced Security Guide

auditing, and tracking purposes. Key owner attributes also include key use

information, such as whether the key is used for standalone TDE operations or

used in a multitenant environment.

The V$ENCRYPTION_KEYS view includes columns such as CREATOR,

CREATOR_ID, USER, USER_ID, and KEY_USE.

•Key source information: Keys often must be moved between databases for

operations such as import-export operations and Data Guard-related operations.

Key source attributes enable you to track the origin of each key. You can track

whether a key was created locally or imported, and the database name and

instance number of the database that created the key. In a multitenant

environment, you can track the PDB where the key was created.

The V$ENCRYPTION_KEYS view includes columns such as CREATOR_DBNAME,

CREATOR_DBID, CREATOR_INSTANCE_NAME,

CREATOR_INSTANCE_NUMBER, CREATOR_PDBNAME, and so on.

•Key usage information: Key usage information determines the database or PDB

where the key is being used. It also helps determine whether a key is in active use

or not.

The V$ENCRYPTION_KEYS view includes columns such as

ACTIVATING_DBNAME, ACTIVATING_DBID,

ACTIVATING_INSTANCE_NAME, ACTIVATING_PDBNAME, and so on.

•User-defined information and other information: When creating a key, you can

tag it with information using the TAG option. Each key contains important

information such as whether or not it has been backed up.

The V$ENCRYPTION_KEYS view includes columns such as KEY_ID, TAG, and

other miscellaneous columns, for example BACKED_UP.

4.2.3.2 Finding the TDE Master Encryption Key That Is in Use

A TDE master encryption key that is in use is the key that was activated most recently

for the database.

In a multitenant environment, the master key in use of the PDB is the one that was

activated most recently for that PDB.

• To find the master key, query the V$ENCRYPTION_KEYS dynamic view.

– To find the master key in use in a non-CDB:

SELECT KEY_ID

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATION_TIME = (SELECT MAX(ACTIVATION_TIME)

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATING_DBID = (SELECT DBID FROM V

$DATABASE));

– To find the master key in use in a CDB:

SELECT KEY_ID

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATION_TIME = (SELECT MAX(ACTIVATION_TIME)

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATING_PDBID = SYS_CONTEXT('USERENV',

'CON_ID'));

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-27

4.2.4 Creating Custom TDE Master Encryption Key Attributes for Reporting Purposes

Custom TDE master encryption key attributes enable you to defined attributes that are

specific to your needs.

Topics:

•About Creating Custom Attribute Tags (page 4-28)

•Creating a Custom Attribute Tag (page 4-28)

4.2.4.1 About Creating Custom Attribute Tags

Attribute tags enable you to monitor specific activities users perform, such as

accessing a particular terminal ID.

By default, Oracle Database defines a set of attributes that describe various

characteristics of the TDE master encryption keys that you create, such as the creation

time, database in which the TDE master encryption key is used, and so on. These

attributes are captured by the V$ENCRYPTION_KEY dynamic view.

You can create custom attributes that can be captured by the TAG column of the V

$ENCRYPTION_KEYS dynamic view. This enables you to define behaviors that you

may want to monitor, such as users who perform activities on encryption keys. The

tag can encompass multiple attributes, such as session IDs from a specific terminal.

4.2.4.2 Creating a Custom Attribute Tag

To create a custom attribute tag, you must use the SET TAG clause of the

ADMINISTER KEY MANAGEMENT statement.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. If necessary, query the TAG column of the V$ENCRYPTION_KEY dynamic view to

find a listing of existing tags for the TDE master encryption keys.

When you create a new tag for a TDE master encryption key, it overwrites the

existing tag for that TDE master encryption key.

3. Create the tag as follows:

ADMINISTER KEY MANAGEMENT SET TAG 'tag' FOR 'master_key_identifier'

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification

•tag is the associated attributes or information that you define. Enclose this

information in single quotation marks (' ').

•master_key_identifier identifies the TDE master encryption key for

which the tag is set. To find a list of TDE master encryption key identifiers,

query the KEY_ID column of the V$ENCRYPTION_KEYS dynamic view.

Managing the TDE Master Encryption Key

4-28 Oracle Database Advanced Security Guide

•keystore_password is the password that was used to create the keystore.

•backup_identifier defines the tag values. Enclose this setting in single

quotation marks (' ') and separate each value with a colon.

For example, to create a tag that uses two values, one to capture a specific session

ID and the second to capture a specific terminal ID:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY USING TAG

'sessionid=3205062574:terminal=xcvt'

IDENTIFIED BY keystore_password WITH BACKUP;

keystore altered.

Both the session ID (3205062574) and terminal ID (xcvt) can derive their values

by using either the SYS_CONTEXT function with the USERENV namespace, or by

using the USERENV function. For a full list of predefined parameters for the

USERENV namespace in the SYS_CONTEXT function, see Oracle Database SQL

Language Reference.

After you create the tag for a TDE master encryption key, its name should appear in

the TAG column of the V$ENCRYPTION_KEYS view for that TDE master encryption

key. If you create a tag for the secret, then the tag appears in the SECRET_TAG column

of the V$CLIENT_SECRETS view. If you create a secret with a tag, then the tag

appears in the SECRET_TAG column of the V$CLIENT_SECRETS view.

See Also:

Storing Oracle GoldenGate Secrets in a Keystore (page 4-44) for information

about creating secrets

4.2.5 Setting and Resetting the TDE Master Encryption Key in the Keystore

You can set and reset the TDE master encryption key for both software keystores and

hardware keystores.

Topics:

•About Setting or Rotating the TDE Master Encryption Key in the Keystore

(page 4-29)

•Creating and Backing Up a TDE Master Encryption Key and Applying a Tag to It

(page 4-30)

•About Rotating the TDE Master Encryption Key (page 4-31)

•Rotating the TDE Master Encryption Key (page 4-31)

4.2.5.1 About Setting or Rotating the TDE Master Encryption Key in the Keystore

You can set or rotate the TDE master encryption key for both software password-

based and hardware keystores.

The TDE master encryption key is stored in an external security module (keystore),

and it is used to protect the TDE table keys and tablespace encryption keys. By

default, the TDE master encryption key is a system-generated random value created

by Transparent Data Encryption (TDE).

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-29

Use the ADMINISTER KEY MANAGEMENT statement to set or reset (REKEY) the TDE

master encryption key. When the master encryption key is set, then TDE is considered

enabled and cannot be disabled.

Before you can encrypt or decrypt database columns or tablespaces, you must

generate a TDE master encryption key. Oracle Database uses the same TDE master

encryption key for both TDE column encryption and TDE tablespace encryption. The

following sections explain how to create a basic TDE master encryption key:

•Master encryption key for software keystores: Step 4: Set the Software TDE

Master Encryption Key (page 3-8)

•Master encryption key for hardware keystores: Step 4: Set the Hardware

Keystore TDE Master Encryption Key (page 3-14)

4.2.5.2 Creating and Backing Up a TDE Master Encryption Key and Applying a Tag to

The ADMINISTER KEY MANAGEMENT statement enables you to create and back up a

TDE master encryption key and apply a tag to it.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or to the PDB. For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY [USING TAG 'tag']

IDENTIFIED BY keystore_password WITH BACKUP

[USING 'backup_identifier'] [CONTAINER = ALL | CURRENT];

In this specification:

•tag is the tag that you want to create. Enclose this tag in single quotation

marks (' '). (See Creating Custom TDE Master Encryption Key Attributes for

Reporting Purposes (page 4-28) for more information about tags.)

•keystore_password is either software_keystore_password or

user_id:password. The user_id:password setting is the hardware

keystore user ID and password that was created in Step 3 (page 3-12) under

Step 2: Configure the Hardware Security Module (page 3-11). As with

software passwords, it is case sensitive. You must enclose the password string

in double quotation marks (" "). Separate user_id and password with a

colon (:).

•WITH BACKUP backs the TDE master encryption key up in the same location

as the key, as identified by the WRL_PARAMETER column of the V

$ENCRYPTION_WALLET view. To find the WRL_PARAMETER values for all of

the database instances, query the GV$ENCRYPTION_WALLET view.

You must back up password-based software keystores. You do not need to

use it for auto-login or local auto-login software keystores. Optionally,

Managing the TDE Master Encryption Key

4-30 Oracle Database Advanced Security Guide

include the USING backup_identifier clause to add a description of the

backup. Enclose this identifier in single quotation marks (' ').

•CONTAINER is for use in a multitenant environment. Enter ALL to set the

encryption key in all of the PDBs in this CDB, or CURRENT for the current

PDB.

For example:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY USING TAG 'backups"

IDENTIFIED BY password WITH BACKUP USING 'hr.emp_key_backup';

keystore altered.

Oracle Database uses the keystore in the keystore location specified by the

ENCRYPTION_WALLET_LOCATION parameter in the sqlnet.ora file to store the

TDE master encryption key. See About the Keystore Location in the sqlnet.ora File

(page 3-2) for information about how the ENCRYPTION_WALLET_LOCATION

parameter works in the sqlnet.ora file.

4.2.5.3 About Rotating the TDE Master Encryption Key

Oracle Database uses a unified master encryption key for both TDE column

encryption and TDE tablespace encryption.

When you rotate (also called rekeying) the TDE master encryption key for TDE

column encryption, the master encryption key for TDE tablespace encryption also is

rotated. Rotate the master encryption key only if it was compromised or as per the

security policies of the organization. This process deactivates the previous TDE master

encryption key.

You cannot change the TDE master encryption key or rotate a TDE master encryption

key for an auto-login keystore. Because auto-login keystores do not have a password,

an administrator or a privileged user can change the keys without the knowledge of

the security officer. However, if both the auto-login and the password-based keystores

are present in the configured location (as set in the sqlnet.ora file), then when you

rotate the TDE master encryption key, a TDE master encryption key is added to both

the auto-login and password-based keystores. If the auto-login keystore is in use in a

location that is different from that of the password-based keystore, then you must re-

create the auto-login keystore.

Note:

You cannot add new information to auto-login keystores separately.

4.2.5.4 Rotating the TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT statement to rotate (also called

rekeying) a TDE master encryption key.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or to the PDB. For example, to log

in to a PDB called hrpdb:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-31

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

2. Ensure that the keystore is open.

Query the STATUS column of the V$ENCRYPTION_WALLET view to find if the

keystore is open. If the keystore is closed, then see the following sections for

information about opening it:

•Step 3: Open the Software Keystore (page 3-7)

•Step 3: Open the Hardware Keystore (page 3-12)

3. If you are rotating the TDE master encryption key for a keystore that has auto

the .sso file, and the encryption keystore, identified by the .p12 file, are present.

You can find the location of these files by querying the WRL_PARAMETER column

of the V$ENCRYPTION_WALLET view. To find the WRL_PARAMETER values for all

of the database instances, query the GV$ENCRYPTION_WALLET view.

4. Rotate the TDE master encryption key by using the following statement:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY [USING TAG 'tag'] IDENTIFIED BY

keystore_password WITH BACKUP [USING 'backup_identifier'] [CONTAINER = ALL |

CURRENT];

In this specification:

•tag is the associated attributes and information that you define. Enclose this

setting in single quotation marks (' ').

•keystore_password is the mandatory keystore password that you created

when you created the keystore in Step 2: Create the Software Keystore

(page 3-4).

•WITH BACKUP creates a backup of the keystore. You must use this option for

password-based and hardware keystores. Optionally, you can use the USING

clause to add a brief description of the backup. Enclose this description in

single quotation marks (' '). This identifier is appended to the named keystore

file (for example, ewallet_time-stamp_emp_key_backup.p12). Follow

the file naming conventions that your operating system uses.

•CONTAINER is for use in a multitenant environment. Enter ALL to open the

keystore in all of the PDBs in this CDB, or CURRENT for the current PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY password WITH BACKUP USING

'emp_key_backup';

keystore altered.

For better security and to meet compliance regulations, periodically rotate the TDE

master encryption key. This process deactivates the previous TDE master encryption

key, creates a new TDE master encryption key, and then activates it. You can check the

keys that were created recently by querying the CREATION_TIME column in the V

$ENCRYPTION_KEYS view. To find the keys that were activated recently, query the

ACTIVATION_TIME column in the V$ENCRYPTION_KEYS view.

Managing the TDE Master Encryption Key

4-32 Oracle Database Advanced Security Guide

4.2.6 Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in a variety ways, to satisfy

the needs of other Oracle features, such as a multitenant environment or Oracle Data

Guard.

Topics:

•About Exporting and Importing the TDE Master Encryption Key (page 4-33)

•About Exporting TDE Master Encryption Keys (page 4-33)

•Exporting a TDE Master Encryption Key (page 4-34)

•Example: Exporting a TDE Master Encryption Key by Using a Subquery

(page 4-35)

•Example: Exporting a List of TDE Master Encryption Key Identifiers to a File

(page 4-35)

•Example: Exporting All TDE Master Encryption Keys of the Database (page 4-35)

•About Importing TDE Master Encryption Keys (page 4-36)

•Importing a TDE Master Encryption Key (page 4-36)

•Example: Importing a TDE Master Encryption Key (page 4-37)

•How Keystore Merge Differs from TDE Master Encryption Key Export or Import

(page 4-37)

See Also:

Using Oracle Data Pump to Encrypt Entire Dump Sets (page 6-3)

4.2.6.1 About Exporting and Importing the TDE Master Encryption Key

Oracle Database features such as transportable tablespaces and Oracle Data Pump

move data that is possibly encrypted between databases.

In addition, CDBs contain PDBs that can be plugged in or unplugged. These are some

common scenarios in which you can choose to export and import TDE master

encryption keys to move them between source and target keystores. For Data Guard

(Logical Standby), you must copy the keystore that is in the primary database to the

standby database. Instead of merging the primary database keystore with the standby

database, you can export the TDE master encryption key that is in use and then import

it to the standby database. Moving transportable tablespaces that are encrypted

between databases requires that you export the TDE master encryption key at the

source database and then import it into the target database.

4.2.6.2 About Exporting TDE Master Encryption Keys

You can use ADMINISTER KEY MANAGEMENT EXPORT to export TDE master

encryption keys from a keystore, and then import them into another keystore.

A TDE master encryption key is exported together with its key identifier and key

attributes. The exported keys are protected with a password (secret) in the export file.

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-33

You can specify the TDE master encryption keys to be exported by using the WITH

IDENTIFIER clause of the ADMINSITER KEY MANAGENT EXPORT statement. To

export the TDE master encryption keys, you can either specify their key identifiers as a

comma-separated list, or you can specify a query that enumerates their key identifiers.

Be aware that Oracle Database executes the query determining the key identifiers

within the current user's rights and not with definer's rights.

If you omit the WITH IDENTIFER clause, then all of the TDE master encryption keys

of the database are exported.

In a consolidated database, you can export the keys from within a PDB for a PDB to be

unplugged. In this scenario, you can only use the WITH IDENTIFIER clause in the

root and not in a PDB. See Exporting and Importing TDE Master Encryption Keys for a

PDB (page 6-10) for information about exporting keys in a PDB.

To export a set of TDE master encryption keys:

See Also:

Exporting and Importing TDE Master Encryption Keys for a PDB (page 6-10)

for an example of using this statement in a multitenant environment

4.2.6.3 Exporting a TDE Master Encryption Key

The ADMINISTER KEY MANAGEMENT statement with the EXPORT [ENCRYPTION]

KEYS WITH SECRET clause exports a TDE master encryption key.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. For example:

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. If necessary, open the keystore.

See Step 3: Open the Software Keystore (page 3-7) for information about opening a

keystore.

3. Run the following SQL statement to export a set of TDE master encryption keys:

ADMINISTER KEY MANAGEMENT EXPORT [ENCRYPTION] KEYS

WITH SECRET "export_secret"

TO 'file_path' IDENTIFIED BY software_keystore_password

[WITH IDENTIFIER IN 'key_id1', 'key_id2', 'key_idn' | (SQL_query)];

In this specification:

•export_secret is a password that you can specify to encrypt the export the

file that contains the exported keys. Enclose this secret in double quotation

marks (" "), or you can omit the quotation marks if the secret has no spaces.

•file_path is the complete path and name of the file to which the keys must

be exported. Enclose this path in single quotation marks (' ').

•software_keystore_password is the password of the keystore containing

the keys.

Managing the TDE Master Encryption Key

4-34 Oracle Database Advanced Security Guide

•key_id1, key_id2, key_idn is a string of one or more TDE master

encryption key identifiers for the TDE master encryption key being exported.

Separate each key identifier with a comma and enclose each of these key

identifiers in single quotation marks (' '). To find a list of TDE master

encryption key identifiers, query the KEY_ID column of the V

$ENCRYPTION_KEYS dynamic view.

•SQL_query is a query that fetches a list of the TDE master encryption key

identifiers. It should return only one column which contains the TDE master

encryption key identifiers. This query is executed with current user rights.

4.2.6.4 Example: Exporting a TDE Master Encryption Key by Using a Subquery

The ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS statement can

export a TDE master encryption key by using a subquery.

Example 4-8 (page 4-35) shows how to export TDE master encryption keys whose

identifiers are fetched by a query to a file called export.exp. The TDE master

encryption keys in the file are encrypted using the secret my_secret. The SELECT

statement finds the identifiers for the TDE master encryption keys to be exported.

Be aware that in a multitenant environment, the WITH IDENTIFIER clause is not

supported when you try to import or export keys inside a PDB. It is only permitted in

the root. See Exporting and Importing TDE Master Encryption Keys for a PDB

(page 6-10) for information about exporting keys in a PDB.

Example 4-7 Exporting a List of TDE Master Encryption Key Identifiers to a File

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET "my_secret"

TO '/TDE/export.exp' IDENTIFIED BY password

WITH IDENTIFIER IN 'AdoxnJ0uH08cv7xkz83ovwsAAAAAAAAAAAAAAAAAAAAAAAAAAAAA',

'AW5z3CoyKE/yv3cNT5CWCXUAAAAAAAAAAAAAAAAAAAAAAAAAAAAA';

keystore altered.

4.2.6.5 Example: Exporting a List of TDE Master Encryption Key Identifiers to a File

The ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET

statement can export a list of TDE master encryption key identifiers to a file.

Example 4-7 (page 4-35) shows how to export TDE master encryption keys by

specifying their identifiers as a list, to a file called export.exp. Master encryption

keys in the file are encrypted using the secret my_secret. The identifiers of the TDE

master encryption key to be exported are provided as a comma-separated list.

Example 4-8 Exporting TDE Master Encryption Key Identifiers by Using a Subquery

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET "my_secret"

TO '/etc/TDE/export.exp' IDENTIFIED BY password

WITH IDENTIFIER IN (SELECT KEY_ID FROM V$ENCRYPTION_KEYS WHERE ROWNUM <3);

keystore altered.

4.2.6.6 Example: Exporting All TDE Master Encryption Keys of the Database

The ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS SQL statement

can export all TDE master encryption keys of a database.

Example 4-9 (page 4-36) shows how to export all of the TDE master encryption keys

of the database to a file called export.exp. The TDE master encryption keys in the

file are encrypted using the secret my_secret.

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-35

Example 4-9 Exporting All of the TDE Master Encryption Keys of the Database

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET "my_secret" TO

'/etc/TDE/export.exp' IDENTIFIED BY password;

keystore altered.

4.2.6.7 About Importing TDE Master Encryption Keys

The ADMINISTER KEY MANAGEMENT IMPORT statement can import exported TDE

master encryption keys from a key export file into a target keystore.

You cannot re-import TDE master encryption keys that have already been imported.

In a consolidated database, you can import the keys from within a PDB for a PDB to be

plugged. See Exporting and Importing TDE Master Encryption Keys for a PDB

(page 6-10) for information about exporting keys in a PDB.

4.2.6.8 Importing a TDE Master Encryption Key

The ADMINISTER KEY MANAGEMENT statement with the IMPORT [ENCRYPTION]

KEYS WITH SECRET clause can import a TDE master encryption key.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root. The following command logs

user c##sec_admin into the root.

sqlplus c##sec_admin as syskm

Enter password: password

Connected.

2. If necessary, open the keystore.

See Step 3: Open the Software Keystore (page 3-7) for information about opening a

keystore.

3. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT IMPORT [ENCRYPTION] KEYS

WITH SECRET "import_secret" FROM 'file_name' | FROM 'file_name'

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•import_secret is the same password that was used to encrypt the keys

during the export operation. Enclose this secret in double quotation marks ("

"), or you can omit the quotation marks if the secret has no spaces.

•file_name is the complete path and name of the file from which the keys

need to be imported. Enclose this setting in single quotation marks (' ').

•IDENTIFIED BY can be one of the following settings:

–EXTERNAL STORE uses the keystore password stored in the external

store to perform the keystore operation.

–software_keystore_password is the password of the software

keystore where the keys are being imported.

Managing the TDE Master Encryption Key

4-36 Oracle Database Advanced Security Guide

•WITH BACKUP must be used in case the target keystore was not backed up

before the import operation. backup_identifier is an optional string that

you can provide to identify the keystore backup. Enclose this setting in single

quotation marks (' ').

4.2.6.9 Example: Importing a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT IMPORT KEYS SQL statement to

import a TDE master encryption key.

Example 4-10 (page 4-37) shows how to import the TDE master encryption key

identifiers that are stored in the file export.exp and encrypted with the secret

my_secret.

Example 4-10 Importing TDE Master Encryption Key Identifiers from an Export File

ADMINISTER KEY MANAGEMENT IMPORT KEYS WITH SECRET "my_secret"

FROM '/etc/TDE/export.exp' IDENTIFIED BY password WITH BACKUP;

keystore altered.

4.2.6.10 How Keystore Merge Differs from TDE Master Encryption Key Export or

Import

The keystore merge operation differs from the TDE master encryption key export and

import operations.

Even though both the ADMINISTER KEY MANAGEMENT MERGE statement and the

ADMINISTER KEY MANAGEMENT EXPORT and IMPORT statements eventually move

the TDE master encryption keys from one keystore to the next, there are differences in

how these two statements function.

• The MERGE statement merges two keystores whereas the EXPORT and IMPORT

statements export the keys to a file or import the keys from a file. The keystore is

different from the export file, and the two cannot be used interchangeably. The

export file is not a keystore and cannot be configured to be used with a database

as a keystore. Similarly, the IMPORT statement cannot extract the TDE master

encryption keys from the keystore.

• The MERGE statement merges all of the TDE master encryption keys of the

specified keystores where as the EXPORT and IMPORT statements can be selective.

• The EXPORT and IMPORT statements require the user to provide both a location

(filepath) and the file name of the export file, whereas the MERGE statement

only takes in the location of the keystores.

• The file name of the keystores is fixed and is determined by the MERGE operation

and can be either ewallet.p12 or cwallet.sso. The file names for the export

files used in the EXPORT the IMPORT statements are specified by the user.

• The keystores on Automatic Storage Management (ASM) disk groups or regular

file systems can be merged with MERGE statements. The export files used in the

EXPORT and the IMPORT statements can only be a regular operating system file

and cannot be located on an ASM disk group.

• The keystores merged using the MERGE statement do not need to be configured or

in use with the database. The EXPORT statement can only export the keys from a

keystore that is configured and in use with the database and is also open when the

export is done. The IMPORT statement can only import the keys into a keystore

that is open, configured, and in use with the database.

Managing the TDE Master Encryption Key

Managing the Keystore and the TDE Master Encryption Key 4-37

• The MERGE statement never modifies the metadata associated with the TDE

master encryption keys. The EXPORT and IMPORT operations can modify the

metadata of the TDE master encryption keys when required, such as during a

PDB plug operation.

4.2.7 Management of TDE Master Encryption Keys Using Oracle Key Vault

You can use Oracle Key Vault to manage and share TDE master encryption keys

across an enterprise.

Oracle Key Vault securely stores the keys in a central repository, along with other

security objects such as credential files and Java keystores, and enables you to share

these objects with other TDE-enabled databases.

See Also:

•Migration of Keystores to and from Oracle Key Vault (page 4-17) for

additional benefits of using Oracle Key Vault

•Oracle Key Vault Administrator's Guide

4.3 Storing Secrets Used by Oracle Database

Secrets are data that support internal Oracle Database features and enable external

clients such as Oracle GoldenGate to be integrated into the database.

Topics:

•About Storing Oracle Database Secrets in a Keystore (page 4-38)

•Storage of Oracle Database Secrets in a Software Keystore (page 4-39)

•Example: Adding an HSM Password to a Software Keystore (page 4-40)

•Example: Changing an HSM Password That Is Stored as a Secret in a Software

Keystore (page 4-40)

•Example: Deleting an HSM Password That Is Stored as a Secret in a Software

Keystore (page 4-41)

•Storage of Oracle Database Secrets in a Hardware Keystore (page 4-41)

•Example: Adding an Oracle Database Secret to a Hardware Keystore (page 4-42)

•Example: Changing an Oracle Database Secret in a Hardware Keystore

(page 4-42)

•Example: Deleting an Oracle Database Secret in a Hardware Keystore (page 4-42)

•Configuring Auto-Login Hardware Security Modules (page 4-42)

4.3.1 About Storing Oracle Database Secrets in a Keystore

Keystores can store secrets that support internal Oracle Database features and

integrate external clients such as Oracle GoldenGate.

The secret key must be a string adhering to Oracle identifier rules. You can add,

update, or delete a client secret in an existing keystore. The Oracle GoldenGate Extract

Storing Secrets Used by Oracle Database

4-38 Oracle Database Advanced Security Guide

process must have data encryption keys to decrypt the data that is in data files and in

REDO or UNDO logs. Keys are encrypted with shared secrets when you share the keys

between an Oracle database and an Oracle GoldenGate client. The software keystore

stores the shared secrets.

Depending on your site's requirements, you may require automated open keystore

operations even when a hardware security module is configured. For this reason, the

hardware security module password can be stored in a software auto-login keystore,

which enables the auto-login capability for the hardware security module. The Oracle

Database side can also store the credentials for the database to log in to an external

storage server in the software keystore.

You can store Oracle Database secrets in both software keystores and hardware

keystores:

•Software keystores: You can store secrets in software password-based, auto-login,

and local auto-login software keystores. If you want to store secrets in an auto-

– If the software auto-login keystore is in the same location as its corresponding

password-based software keystore, then the secrets are added automatically.

– If the software auto-login keystore is in a different location from its

corresponding password-based software keystore, then you must create the

auto-login keystore again from the password-based keystore, and keep the

two keystores in synchronization.

•Hardware keystores: You can store secrets in standard hardware security

modules.

See Also:

•Storage of Oracle Database Secrets in a Hardware Keystore (page 4-41)

•Configuring Auto-Login Hardware Security Modules (page 4-42)

4.3.2 Storage of Oracle Database Secrets in a Software Keystore

The ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE

CLIENT statements can add secrets, update secrets, and delete secrets from a keystore.

As with all of the ADMINISTER KEY MANAGEMENT statements, you must have the

ADMINISTER KEY MANAGEMENT or the SYSKM administrative privilege. In a

multitenant environment, run the statement in the root.

•Adding a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT

ADD SECRET 'secret' FOR CLIENT 'client_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier'];

•Updating a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'secret' FOR CLIENT 'client_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier'];

•Deleting a secret: Use the following syntax:

Storing Secrets Used by Oracle Database

Managing the Keystore and the TDE Master Encryption Key 4-39

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'client_identifier'

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier'];

In all of these statements, the specification is as follows:

•secret is the client secret key to be stored, updated, or deleted. Enclose this

setting in single quotation marks (' ') or omit the quotation marks if the secret has

no spaces.

•client_identifier is an alphanumeric string used to identify the secret key.

client_identifier does not have a default value. Enclose this setting in single

quotation marks (' ').

•tag is an optional, user-defined description for the secret key to be stored. You

can use tag with the ADD and UPDATE operations. Enclose this setting in single

quotation marks (' '). This tag appears in the SECRET_TAG column of the V

$CLIENT_SECRETS view. See Creating Custom TDE Master Encryption Key

Attributes for Reporting Purposes (page 4-28) for more information about tags.

•keystore_password is the password for the keystore.

•WITH BACKUP is required in case the keystore was not backed up before the ADD,

UPDATE, or DELETE operation. backup_identifier is an optional user-defined

description for the backup. Enclose backup_identifier in single quotation

marks (' ').

4.3.3 Example: Adding an HSM Password to a Software Keystore

The ADMINISTER KEY MANAGEMENT ADD SECRET statement can add an HSM

password to a software keystore.

Example 4-11 (page 4-40) shows how to add a hardware security module (HSM)

password as a secret to a software keystore.

Example 4-11 Adding an Oracle Database Secret to a Software Keystore

ADMINISTER KEY MANAGEMENT

ADD SECRET 'psmith:password' FOR CLIENT 'HSM_PASSWORD'

USING TAG 'HSM credentials' IDENTIFIED BY password WITH BACKUP;

4.3.4 Example: Changing an HSM Password That Is Stored as a Secret in a Software

Keystore

The ADMINISTER KEY MANAGEMENT UPDATE SECRET statement can change an

HSM password that is stored as a secret in a software keystore.

Example 4-12 (page 4-40) shows how to change an HSM password that is stored as a

secret in a software keystore.

Example 4-12 Changing an Oracle Database Secret to a Software Keystore

ADMINISTER KEY MANAGEMENT

UPDATE SECRET admin_password FOR CLIENT 'HSM_PASSWORD'

USING TAG 'new_host_credentials' IDENTIFIED BY software_keytore_password;

Storing Secrets Used by Oracle Database

4-40 Oracle Database Advanced Security Guide

4.3.5 Example: Deleting an HSM Password That Is Stored as a Secret in a Software

Keystore

The ADMINISTER KEY MANAGEMENT DELETE SECRET statement can delete HSM

passwords that are stored as secrets in a software keystore.

Example 4-13 (page 4-41) shows how to delete an HSM password that is stored as a

secret in the software keystore.

Example 4-13 Deleting an Oracle Database Secret in a Software Keystore

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'HSM_PASSWORD'

IDENTIFIED BY password WITH BACKUP;

4.3.6 Storage of Oracle Database Secrets in a Hardware Keystore

The ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE

CLIENT statements can add, update, and delete secrets.

As with all ADMINISTER KEY MANAGEMENT statements, you must have the

ADMINISTER KEY MANAGEMENT or the SYSKM administrative privilege. In a

multitenant environment, run the statement in the root.

Note:

Before you attempt to add a secret to a hardware security module, ensure that

it has PDCS#11 data object support.

•Adding a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT ADD SECRET 'secret'

FOR CLIENT 'client_identifier' [USING TAG 'tag']

IDENTIFIED BY "user_id:password";

•Updating a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT UPDATE SECRET 'secret'

FOR CLIENT 'client_identifier' [USING TAG 'tag']

IDENTIFIED BY "user_id:password";

•Deleting a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT 'client_identifier'

IDENTIFIED BY "user_id:password";

In all of these statements, the specification as follows:

•secret is the client secret key to be stored, updated, or deleted. Enclose this

setting in double quotation marks (' ') or omit the quotation marks if the secret has

no spaces.

•client_identifier is an alphanumeric string used to identify the secret key.

client_identifier does not have a default value. Enclose this setting in single

quotation marks (' ').

•tag is an optional, user-defined description for the secret key to be stored. You

can use tag with the ADD and UPDATE operations. Enclose this setting in single

quotation marks (' '). This tag appears in the SECRET_TAG column of the V

Storing Secrets Used by Oracle Database

Managing the Keystore and the TDE Master Encryption Key 4-41

$CLIENT_SECRETS view. See Creating Custom TDE Master Encryption Key

Attributes for Reporting Purposes (page 4-28) for more information about tags.

•user_id:password is the password for the hardware keystore. Separate the

user_id and the password with a colon, and enclose this setting in double

quotation marks (" ").

4.3.7 Example: Adding an Oracle Database Secret to a Hardware Keystore

The ADMINISTER KEY MANAGEMENT ADD SECRET statement can add an Oracle

Database secret to a hardware keystore.

Example 4-14 (page 4-42) shows how to add a password for a user to a hardware

keystore.

Example 4-14 Adding an Oracle Database Secret to a Hardware Keystore

ADMINISTER KEY MANAGEMENT ADD SECRET 'password'

FOR CLIENT 'admin@myhost' USING TAG 'myhost admin credentials'

IDENTIFIED BY "psmith:password";

4.3.8 Example: Changing an Oracle Database Secret in a Hardware Keystore

The ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET statement can

change an Oracle Database secret in a hardware keystore.

Example 4-15 (page 4-42) shows how to change a password that is stored as a secret

in a hardware keystore.

Example 4-15 Changing an Oracle Database Secret in a Hardware Keystore

ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET 'password2'

FOR CLIENT 'admin@myhost' USING TAG 'New host credentials'

IDENTIFIED BY "psmith:password";

4.3.9 Example: Deleting an Oracle Database Secret in a Hardware Keystore

The ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT statement can

delete an Oracle Database secret that is in a hardware keystore.

Example 4-16 (page 4-42) shows how to delete a hardware security module password

that is stored as a secret in the hardware keystore.

Example 4-16 Deleting an Oracle Database Secret in a Hardware Keystore

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT 'admin@myhost'

IDENTIFIED BY "psmith:password";

4.3.10 Configuring Auto-Login Hardware Security Modules

A hardware security module can be configured to use the auto-login capability.

Topics:

•About Configuring Auto-Login Hardware Security Modules (page 4-42)

•Configuring an Auto-Login Hardware Security Module (page 4-43)

4.3.10.1 About Configuring Auto-Login Hardware Security Modules

An auto-login hardware security module stores the hardware security module

credentials in an auto-login keystore.

Storing Secrets Used by Oracle Database

4-42 Oracle Database Advanced Security Guide

This configuration reduces the security of the system as a whole. However, this

configuration does support unmanned or automated operations and is useful in

deployments where automatic re-login of the hardware security module is necessary.

Be aware that executing the query SELECT * FROM V$ENCRYPTION_WALLET will

automatically open an auto-login hardware security module. For example, suppose

you have an auto-login hardware security module configured. If you close the

keystore and query the V$ENCRYPTION_WALLET view, then the output will indicate

that a keystore is open. This is because V$ENCRYPTION_WALLET opened up the auto-

To enable the auto-login capability for a hardware security module, you must store the

hardware security module credentials in the hardware keystore.

4.3.10.2 Configuring an Auto-Login Hardware Security Module

The ADMINISTER KEY MANAGEMENT statement configures an auto-login hardware

security module.

1. Ensure that you configured the TDE hardware keystore. using Configuring a

Hardware Keystore (page 3-10).

2. Close the hardware security module if it is open. (You can check the status of

whether a keystore is open or closed by querying the STATUS column of the V

$ENCRYPTION_WALLET view.)

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "psmith:password";

See Closing a Hardware Keystore (page 4-19) for more information.

3. If you have not migrated from a software keystore, then create the software

keystore with the hardware keystore password in the appropriate location (for

example, /etc/ORACLE/WALLETS/orcl).

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/WALLETS/orcl'

IDENTIFIED BY "psmith:password";

4. If you have migrated and are using an auto-login software keystore in a specific

location (for example, /etc/ORACLE/WALLETS/HSM), then create the software

password keystore with the hardware keystore password from the auto-login

keystore.

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/WALLETS/orcl' IDENTIFIED

BY "psmith:password";

ADMINISTER KEY MANAGEMENT

MERGE KEYSTORE '/etc/ORACLE/WALLETS/HSM' -- Example keystore path

INTO EXISTING KEYSTORE '/etc/ORACLE/WALLETS/HSM' -- Example keystore location

IDENTIFIED BY "psmith:password" WITH BACKUP;

The location of the keystore for the ADMINISTER KEY MANAGEMENT merge

statement does not need to be the location of the keystore in use.

5. Reconfigure the sqlnet.ora file and add the keystore location of the software

keystore created in Step 3 (page 4-43) or Step 4 (page 4-43) to the DIRECTORY

setting of the ENCRYPTION_WALLET_LOCATION setting.

Storing Secrets Used by Oracle Database

Managing the Keystore and the TDE Master Encryption Key 4-43

For example:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=FILE)(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/orcl)))

About the Keystore Location in the sqlnet.ora File (page 3-2) provides more

information about how Oracle Database finds the keystore location.

6. Reconnect to the database, or log out and then log back in again, so that the

change that you made in the previous step takes effect.

For example:

CONNECT psmith/AS SYSKM

Enter password: password

7. Open the software keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password;

8. Add or update the secret in the software keystore.

The secret is the hardware security module password and the client is the

HSM_PASSWORD. HSM_PASSWORD is an Oracle-defined client name that is used to

represent the HSM password as a secret in the software keystore.

For example:

ADMINISTER KEY MANAGEMENT ADD SECRET "user_id:password"

FOR CLIENT "HSM_PASSWORD" IDENTIFIED BY software_keystore_password

WITH BACKUP;

9. Close the software keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY

software_keystore_password;

10. Create (or re-create) the auto-login keystore.

ADMINISTER KEY MANAGEMENT CREATE AUTO_LOGIN KEYSTORE

FROM KEYSTORE '/etc/ORACLE/WALLETS/orcl/hsm' -- Keystore location

IDENTIFIED BY software_keystore_password;

11. Update the sqlnet.ora file to use the hardware security module location.

For example:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=(METHOD=HSM)(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/orcl)))

At this stage, the next time that a TDE operation executes, the hardware security

module auto-login keystore opens automatically.

4.4 Storing Oracle GoldenGate Secrets in a Keystore

You can store Oracle GoldenGate secrets in Transparent Data Encryption keystores.

Topics:

Storing Oracle GoldenGate Secrets in a Keystore

4-44 Oracle Database Advanced Security Guide

•About Storing Oracle GoldenGate Secrets in Keystores (page 4-45)

•Oracle GoldenGate Extract Classic Capture Mode TDE Requirements (page 4-45)

•Configuring TDE Keystore Support for Oracle GoldenGate (page 4-46)

See Also:

Oracle Key Vault Administrator's Guide about how to use TDE with Oracle

GoldenGate in an Oracle Key Vault environment

4.4.1 About Storing Oracle GoldenGate Secrets in Keystores

You can use a keystore to store secret keys for tools and external clients such as Oracle

GoldenGate.

The secret key must be a string adhering to Oracle identifier rules. You can add,

update, or delete a client secret in an existing keystore. This section describes how to

capture Transparent Data Encryption encrypted data in the Oracle GoldenGate Extract

(Extract) process using classic capture mode.

TDE support when Extract is in classic capture mode requires the exchange of the

following keys:

• TDE support for Oracle GoldenGate in the classic capture mode of the Extract

process requires that an Oracle database and the Extract process share the secret

to encrypt sensitive information being exchanged. The shared secret is stored

securely in the Oracle database and Oracle GoldenGate domains. The shared

secret is stored in the software keystore or the HSM as the database secret.

• The decryption key is a password known as the shared secret that is stored

securely in the Oracle database and Oracle GoldenGate domains. Only a party

that has possession of the shared secret can decrypt the table and redo log keys.

After you configure the shared secret, Oracle GoldenGate Extract uses the shared

secret to decrypt the data. Oracle GoldenGate Extract does not handle the TDE master

encryption key itself, nor is it aware of the keystore password. The TDE master

encryption key and password remain within the Oracle database configuration.

Oracle GoldenGate Extract only writes the decrypted data to the Oracle GoldenGate

trail file, which Oracle GoldenGate persists during transit. You can protect this file

using your site's operating system standard security protocols, as well as the Oracle

GoldenGate AES encryption options. Oracle GoldenGate does not write the encrypted

data to a discard file (specified with the DISCARDFILE parameter). The word

ENCRYPTED will be written to any discard file that is in use.

Oracle GoldenGate does require that the keystore be open when processing encrypted

data. There is no performance effect of Oracle GoldenGate feature on the TDE

operations.

4.4.2 Oracle GoldenGate Extract Classic Capture Mode TDE Requirements

Ensure that you meet the requirements for Oracle GoldenGate Extract to support

Transparent Data Encryption capture.

The requirements are as follows:

Storing Oracle GoldenGate Secrets in a Keystore

Managing the Keystore and the TDE Master Encryption Key 4-45

• To maintain high security standards, ensure that the Oracle GoldenGate Extract

process runs as part of the Oracle user (the user that runs the Oracle database).

That way, the keys are protected in memory by the same privileges as the Oracle

user.

• Run the Oracle GoldenGate Extract process on the same computer as the Oracle

database installation.

4.4.3 Configuring TDE Keystore Support for Oracle GoldenGate

To configure Transparent Data Encryption keystore support for Oracle GoldenGate,

you must decide on a shared secret for the keystore, configure the Oracle database,

store the shared secret in the keystore, and then set the shared secret in the extract

process.

Topics:

•Step 1: Decide on a Shared Secret for the Keystore (page 4-46)

•Step 2: Configure Oracle Database for TDE Support for Oracle GoldenGate

(page 4-46)

•Step 3: Store the TDE GoldenGate Shared Secret in the Keystore (page 4-47)

•Step 4: Set the TDE Oracle GoldenGate Shared Secret in the Extract Process

(page 4-48)

4.4.3.1 Step 1: Decide on a Shared Secret for the Keystore

A shared secret for a keystore is a password.

• Decide on a shared secret that meets or exceeds Oracle Database password

standards.

Do not share this password with any user other than trusted administrators who are

responsible for configuring Transparent Data Encryption to work with Oracle

GoldenGate Extract.

See Also:

Oracle Database Security Guide for guidelines on creating secure passwords

4.4.3.2 Step 2: Configure Oracle Database for TDE Support for Oracle GoldenGate

The DBMS_INTERNAL_CLKM PL/SQL package enables you to configure TDE support

for Oracle GoldenGate.

1. Log in to the database instance as user SYS with the SYSDBA administrative

privilege.

For example

sqlplus sys as sysdba

Enter password: password

Connected.

2. In a multitenant environment, connect to the appropriate PDB.

For example:

Storing Oracle GoldenGate Secrets in a Keystore

4-46 Oracle Database Advanced Security Guide

CONNECT SYS@hrpdb AS SYSDBA

Enter password: password

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

3. Load the Oracle Database-supplied DBMS_INTERNAL_CLKM PL/SQL package.

For example:

@?/app/oracle/product/12.1/rdbms/admin/prvtclkm.plb

The prvtclkm.plb file also enables Oracle GoldenGate to extract encrypted data

from an Oracle database.

4. Grant the EXECUTE privilege on the DBMS_INTERNAL_CLKM PL/SQL package to

the Oracle GoldenGate Extract database user.

For example:

GRANT EXECUTE ON DBMS_INTERNAL_CLKM TO psmith;

This procedure enables the Oracle database and Oracle GoldenGate Extract to

exchange information.

5. Exit SQL*Plus.

4.4.3.3 Step 3: Store the TDE GoldenGate Shared Secret in the Keystore

The ADMINISTER KEY MANAGEMENT statement can store a TDE GoldenGate shared

secret in a keystore.

1. Ensure that you have configured the TDE software or hardware keystore, based

on the following topics:

•Configuring a Software Keystore (page 3-1)

•Configuring a Hardware Keystore (page 3-10)

2. Set the Oracle GoldenGate-Transparent Data Encryption key in the keystore.

The syntax is as follows:

ADMINISTER KEY MANAGEMENT ADD|UPDATE|DELETE SECRET 'secret'

FOR CLIENT 'secret_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier']];

In this specification:

•secret is the client secret key to be stored, updated, or deleted. Enclose this

setting in single quotation marks (' ').

•secret_identifier is an alphanumeric string used to identify the secret

key. secret_identifier does not have a default value. Enclose this setting

in single quotation marks (' ').

•tag is an optional, user-defined description for the secret key to be stored.

tag can be used with the ADD and UPDATE operations. Enclose this setting in

single quotation marks (' '). This tag appears in the SECRET_TAG column of

the V$CLIENT_SECRETS view. Creating Custom TDE Master Encryption Key

Attributes for Reporting Purposes (page 4-28) provides more information

about tags.

Storing Oracle GoldenGate Secrets in a Keystore

Managing the Keystore and the TDE Master Encryption Key 4-47

•keystore_password is the password for the keystore that is configured.

•WITH BACKUP is required in case the keystore was not backed up before the

ADD, UPDATE or DELETE operation. backup_identifier is an optional

user-defined description for the backup. Enclose backup_identifier in

single quotation marks (' ').

The following example adds a secret key to the keystore and creates a backup in

the same directory as the keystore:

ADMINISTER KEY MANAGEMENT ADD SECRET 'some_secret'

FOR CLIENT 'ORACLE_GG' USING TAG 'GoldenGate Secret'

IDENTIFIED BY password WITH BACKUP USING 'GG backup';

3. Verify the entry that you just created.

For example:

SELECT CLIENT, SECRET_TAG FROM V$CLIENT_SECRETS WHERE CLIENT = 'ORACLEGG';

CLIENT SECRET_TAG

-------- ------------------------------------------

ORACLEGG some_secret

4. Switch the log files.

CONNECT / AS SYSDBA

ALTER SYSTEM SWITCH LOGFILE;

Oracle Database Administrator’s Guide provides more information about switching

log files.

See Also:

How Transparent Data Encryption Works with Oracle Real Application

Clusters (page 6-4) if you are having problems using this procedure in an

Oracle Real Application Clusters environment

4.4.3.4 Step 4: Set the TDE Oracle GoldenGate Shared Secret in the Extract Process

The GoldenGate Software Command Interface (GGSCI) utility set the TDE Oracle

GoldenGate shared secret in the extract process.

1. Start the GGSCI utility.

For example:

ggsci

2. In the GGSCI utility, run the ENCRYPT PASSWORD command to encrypt the

shared secret so that it is obfuscated within the Oracle GoldenGate Extract

parameter file.

ENCRYPT PASSWORD shared_secret algorithm ENCRYPTKEY keyname

In this specification:

•shared_secret is the clear-text shared secret that you created in Step 1:

Decide on a Shared Secret for the Keystore (page 4-46). This setting is case

sensitive.

Storing Oracle GoldenGate Secrets in a Keystore

4-48 Oracle Database Advanced Security Guide

•algorithm is one of the following values to specify AES encryption:

–AES128

–AES192

–AES256

•keyname is the logical name of the encryption key in the ENCKEYS lookup

file. Oracle GoldenGate uses this name to look up the actual key in the

ENCKEYS file.

For example:

ENCRYPT PASSWORD password AES256 ENCRYPTKEY mykey1

3. In the Oracle GoldenGate Extract parameter file, set the DBOPTIONS parameter

with the DECRYPTPASSWORD option.

As input, supply the encrypted shared secret and the Oracle GoldenGate-

generated or user-defined decryption key.

DBOPTIONS DECRYPTPASSWORD shared_secret algorithm ENCRYPTKEY keyname

In this specification:

•shared_secret is the clear-text shared secret that you created in Step 1:

Decide on a Shared Secret for the Keystore (page 4-46). This setting is case

sensitive.

•algorithm is one of the following values to specify AES encryption:

–AES128

–AES192

–AES256

•keyname is the logical name of the encryption key in the ENCKEYS lookup

file.

For example:

DBOPTIONS DECRYPTPASSWORD AACAAAAAAAAAAAIALCKDZIRHOJBHOJUH AES256

ENCRYPTKEY mykey1

Storing Oracle GoldenGate Secrets in a Keystore

Managing the Keystore and the TDE Master Encryption Key 4-49

Storing Oracle GoldenGate Secrets in a Keystore

4-50 Advanced Security Guide

General Considerations of

Using Transparent Data Encryption

When you use Transparent Data Encryption, you should consider factors such as

security, performance, and storage overheads.

Topics:

•Compression and Data Deduplication of Encrypted Data (page 5-1)

•Security Considerations for Transparent Data Encryption (page 5-2)

•Performance and Storage Overhead of Transparent Data Encryption (page 5-3)

•Modifying Your Applications for Use with Transparent Data Encryption

(page 5-5)

•How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

(page 5-5)

•Using Transparent Data Encryption with PKI Encryption (page 5-9)

5.1 Compression and Data Deduplication of Encrypted Data

With tablespace encryption, Oracle Database compresses tables and indexes before

encrypting the tablespace.

This ensures that you receive the maximum space and performance benefits from

compression, while also receiving the security of encryption at rest. In the CREATE

TABLESPACE SQL statement, include both the COMPRESS and ENCRYPT clauses.

With column encryption, Oracle Database compresses the data after it encrypts the

column. This means that compression will have minimal effectiveness on encrypted

columns. There is one notable exception: if the column is a SecureFiles LOB, and the

encryption is implemented with SecureFiles LOB Encryption, and the compression

(and possibly deduplication) are implemented with SecureFiles LOB Compression &

Deduplication, then compression is performed before encryption. Similar to the

CREATE TABLESPACE statement for tablespace encryption, include both the

COMPRESS and ENCRYPT clauses.

General Considerations of Using Transparent Data Encryption 5-1

See Also:

•Oracle Database Backup and Recovery User’s Guide for more information

about the Advanced Compression Option

•Oracle Database SecureFiles and Large Objects Developer's Guide for

information about SecureFiles LOB storage

•Oracle Database SecureFiles and Large Objects Developer's Guide for

information about SecureFiles Compression

5.2 Security Considerations for Transparent Data Encryption

As with all Oracle Database features, you should consider security when you create

TDE policies.

Topics:

•Transparent Data Encryption General Security Advice (page 5-2)

•Transparent Data Encryption Column Encryption-Specific Advice (page 5-2)

•Managing Security for Plaintext Fragments (page 5-3)

5.2.1 Transparent Data Encryption General Security Advice

Security considerations for Transparent Data Encryption (TDE) operate within the

broader area of total system security.

Follow these general guidelines:

• Identify the degrees of sensitivity of data in your database, the protection that

they need, and the levels of risk to be addressed. For example, highly sensitive

data requiring stronger protection can be encrypted with the AES256 algorithm. A

database that is not as sensitive can be protected with no salt or the nomac option

to enable performance benefits.

• Evaluate the costs and benefits that are acceptable to data and keystore protection.

Protection of keys determines the type of keystore to be used: auto-login software

keystores, password-based software keystores, or hardware keystores.

• Consider having separate security administrators for TDE and for the database.

• Consider having a separate and exclusive keystore for TDE.

• Implement protected back-up procedures for your encrypted data.

5.2.2 Transparent Data Encryption Column Encryption-Specific Advice

Additional security considerations apply to normal database and network operations

when using TDE.

Encrypted column data stays encrypted in the data files, undo logs, redo logs, and the

buffer cache of the system global area (SGA). However, data is decrypted during

expression evaluation, making it possible for decrypted data to appear in the swap file

on the disk. Privileged operating system users can potentially view this data.

Column values encrypted using TDE are stored in the data files in encrypted form.

However, these data files may still contain some plaintext fragments, called ghost

Security Considerations for Transparent Data Encryption

5-2 Oracle Database Advanced Security Guide

copies, left over by past data operations on the table. This is similar to finding data on

the disk after a file was deleted by the operating system.

5.2.3 Managing Security for Plaintext Fragments

You should remove old plaintext fragments that can appear over time.

Old plaintext fragments may be present for some time until the database overwrites

the blocks containing such values. If privileged operating system users bypass the

access controls of the database, then they might be able to directly access these values

in the data file holding the tablespace.

To minimize this risk:

1. Create a new tablespace in a new data file.

You can use the CREATE TABLESPACE statement to create this tablespace.

2. Move the table containing encrypted columns to the new tablespace. You can use

the ALTER TABLE.....MOVE statement.

Repeat this step for all of the objects in the original tablespace.

3. Drop the original tablespace.

You can use the DROP TABLESPACE tablespace INCLUDING CONTENTS

KEEP DATAFILES statement. Oracle recommends that you securely delete data

files using platform-specific utilities.

4. Use platform-specific and file system-specific utilities to securely delete the old

data file. Examples of such utilities include shred (on Linux) and sdelete (on

Windows).

5.3 Performance and Storage Overhead of Transparent Data Encryption

The performance of Transparent Data Encryption can vary. There are no storage

overheads, but TDE column encryption has some associated storage overhead.

Topics:

•Performance Overhead of Transparent Data Encryption (page 5-3)

•Storage Overhead of Transparent Data Encryption (page 5-4)

See Also:

Performance Questions About Transparent Data Encryption (page 7-4)

5.3.1 Performance Overhead of Transparent Data Encryption

Transparent Data Encryption tablespace encryption has small associated performance

overhead.

The actual performance impact on applications can vary. TDE column encryption

affects performance only when data is retrieved from or inserted into an encrypted

column. No reduction in performance occurs for operations involving unencrypted

columns, even if these columns are in a table containing encrypted columns. Accessing

data in encrypted columns involves small performance overhead, and the exact

overhead you observe can vary.

Performance and Storage Overhead of Transparent Data Encryption

General Considerations of Using Transparent Data Encryption 5-3

The total performance overhead depends on the number of encrypted columns and

their frequency of access. The columns most appropriate for encryption are those

containing the most sensitive data.

Enabling encryption on an existing table results in a full table update like any other

ALTER TABLE operation that modifies table characteristics. Keep in mind the

potential performance and redo log impact on the database server before enabling

encryption on a large existing table.

A table can temporarily become inaccessible for write operations while encryption is

being enabled, TDE table keys are being rekeyed, or the encryption algorithm is being

changed. You can use online table redefinition to ensure that the table is available for

write operations during such procedures.

If you enable TDE column encryption on a very large table, then you may need to

increase the redo log size to accommodate the operation.

Encrypting an indexed column takes more time than encrypting a column without

indexes. If you must encrypt a column that has an index built on it, you can try

dropping the index, encrypting the column with NO SALT, and then re-creating the

index.

If you index an encrypted column, then the index is created on the encrypted values.

When you query for a value in the encrypted column, Oracle Database transparently

encrypts the value used in the SQL query. It then performs an index lookup using the

encrypted value.

Note:

If you must perform range scans over indexed, encrypted columns, then use

TDE tablespace encryption in place of TDE column encryption.

See Also:

•Creating an Encrypted Column in an External Table (page 3-21)

•Oracle Database Administrator’s Guide for information about redefining

tables online

5.3.2 Storage Overhead of Transparent Data Encryption

TDE tablespace encryption has no storage overhead, but TDE column encryption has

some associated storage overhead.

Encrypted column data must have more storage space than plaintext data. In addition,

TDE pads out encrypted values to multiples of 16 bytes. This means that if a credit

card number requires nine bytes for storage, then an encrypted credit card value will

require an additional seven bytes.

Each encrypted value is also associated with a 20-byte integrity check. This does not

apply if you have encrypted columns using the NOMAC parameter. If data was

encrypted with salt, then each encrypted value requires an additional 16 bytes of

storage.

The maximum storage overhead for each encrypted value is from one to 52 bytes.

Performance and Storage Overhead of Transparent Data Encryption

5-4 Oracle Database Advanced Security Guide

See Also:

Creating an Encrypted Column in an External Table (page 3-21)

5.4 Modifying Your Applications for Use with Transparent Data

Encryption

You can modify your applications to use Transparent Data Encryption.

1. Configure the software or hardware keystore for TDE, and then set the master

encryption key.

See the following sections for more information:

•Configuring a Software Keystore (page 3-1)

•Configuring a Hardware Keystore (page 3-10)

2. Verify that the master encryption key was created by querying the KEY_ID

column of the V$ENCRYPTION_KEYS view.

3. Identify the sensitive columns (such as those containing credit card data) that

require Transparent Data Encryption protection.

4. Decide whether to use TDE column encryption or TDE tablespace encryption.

See the following sections for more information:

•How Transparent Data Encryption Column Encryption Works (page 2-3)

•How Transparent Data Encryption Tablespace Encryption Works (page 2-4)

5. Open the keystore.

See the following sections for more information:

•Step 3: Open the Software Keystore (page 3-7)

•Step 3: Open the Hardware Keystore (page 3-12)

6. Encrypt the columns or tablespaces.

See the following sections for more information:

•Encrypting Columns in Tables (page 3-16)

•Encrypting Tablespaces (page 3-25)

5.5 How ALTER SYSTEM and orapki Map to ADMINISTER KEY

MANAGEMENT

Many of the clauses from the ALTER SYSTEM statement correspond to the

ADMINISTER KEY MANAGEMENT statement.

Table 5-1 (page 5-6) compares the Transparent Data Encryption usage of the ALTER

SYSTEM statement and the orapki utility from previous releases with the

ADMINISTER KEY MANAGEMENT statement.

Modifying Your Applications for Use with Transparent Data Encryption

General Considerations of Using Transparent Data Encryption 5-5

Table 5-1 How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki ADMINISTER KEY MANAGEMENT

Creating a keystore For software keystores (called

wallets in previous releases):

ALTER SYSTEM SET ENCRYPTION KEY

["certificate_ID"] IDENTIFIED

BY keystore_password;

For hardware keystores, the

keystore is available after you

configure the hardware security

module.

For software keystores:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

'keystore_location'

IDENTIFIED BY software_keystore_password

For hardware keystores, the keystore is available

after you configure the hardware security

module.

Creating an auto-login

keystore

orapki wallet create -wallet

wallet_location

-auto_login [-pwd password]

For software keystores:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL]

AUTO_LOGIN KEYSTORE FROM KEYSTORE

'keystore_location'

IDENTIFIED BY software_keystore_password;

This type of keystore applies to software

keystores only.

Opening a keystore

ALTER SYSTEM SET ENCRYPTION

WALLET OPEN IDENTIFIED BY

password;

ADMINISTER KEY MANAGEMENT SET KEYSTORE

OPEN IDENTIFIED BY keystore_password

[CONTAINER = ALL | CURRENT];

Closing a keystore

ALTER SYSTEM SET ENCRYPTION

WALLET CLOSE IDENTIFIED BY

password;

For both software and hardware keystores:

ADMINISTER KEY MANAGEMENT SET KEYSTORE

CLOSE IDENTIFIED BY keystore_password

[CONTAINER = ALL | CURRENT];

Migrating from a

hardware keystore to

a software keystore

Not available

ADMINISTER KEY MANAGEMENT SET ENCRYPTION

KEY IDENTIFIED BY

software_keystore_password

REVERSE MIGRATE USING "user_id:password"

[WITH BACKUP [USING 'backup_identifier']];

Migrating from a

software keystore to a

hardware keystore

ALTER SYSTEM SET ENCRYPTION KEY

IDENTIFIED BY

"user_id:password" MIGRATE

USING wallet_password;

ADMINISTER KEY MANAGEMENT SET ENCRYPTION

KEY IDENTIFIED BY "user_id:password"

MIGRATE USING software_keystore_password;

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

5-6 Oracle Database Advanced Security Guide

Table 5-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki ADMINISTER KEY MANAGEMENT

Changing a keystore

password

orapki wallet change_pwd

-wallet wallet_location

[-oldpwd password ]

[-newpwd password]

For password-based software keystores:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE

PASSWORD IDENTIFIED BY

software_keystore_old_password

SET software_keystore_new_password

[WITH BACKUP [USING 'backup_identifier']];

For hardware keystores, you close the keystore,

change it in the hardware security module

interface, and then reopen the keystore.

Backing up a

password-based

software keystore

Not available

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

[USING 'backup_identifier'] IDENTIFIED BY

software_keystore_password

[TO 'keystore_location'];

Merging two software

keystores into a third

new keystore

Not available

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

'keystore1_location' [IDENTIFIED BY

software_keystore1_password]

AND KEYSTORE 'keystore2_location'

[IDENTIFIED BY software_keystore2_password]

INTO NEW KEYSTORE 'keystore3_location'

IDENTIFIED BY software_keystore3_password;

Merging one software

keystore into another

existing keystore

Not available

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

'keystore1_location' [IDENTIFIED BY

software_keystore1_password]

INTO EXISTNG KEYSTORE 'keystore2_location'

IDENTIFIED BY software_keystore2_password

[WITH BACKUP [USING 'backup_identifier']];

Setting or rotating the

master encryption key

For software wallets:

ALTER SYSTEM SET ENCRYPTION KEY

["certificate_ID"] IDENTIFIED

BY keystore_password;

For hardware security modules:

ALTER SYSTEM SET ENCRYPTION KEY

IDENTIFIED BY

"user_id:password"

Note: The ALTER SYSTEM SET

ENCRYPTION KEY statement does

not update the V

$ENCRYPTION_KEYS dynamic

view after you rotate the encryption

key.

ADMINISTER KEY MANAGEMENT

SET ENCRYPTION KEY [USING TAG 'tag']

IDENTIFIED BY keystore_password

WITH BACKUP [USING 'backup_identifier']

[CONTAINER = ALL | CURRENT];

After you rotate the encryption key, the V

$ENCRYPTION_KEYS dynamic view is updated.

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

General Considerations of Using Transparent Data Encryption 5-7

Table 5-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki ADMINISTER KEY MANAGEMENT

Creating a master

encryption key for

later user

Not available

ADMINISTER KEY MANAGEMENT CREATE KEY

[USING TAG 'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']]

[CONTAINER = (ALL|CURRENT)];

Activating a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT USE KEY

'key_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']];

Creating custom tags

for master encryption

keys

Not available

ADMINISTER KEY MANAGEMENT SET TAG 'tag'

FOR 'master_key_identifier'

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']];

Exporting a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT

EXPORT [ENCRYPTION] KEYS

WITH SECRET "export_secret"

TO 'file_path'

IDENTIFIED BY software_keystore_password

[WITH IDENTIFIER IN

'key_id1', 'key_id2', 'key_idn' |

(SQL_query)]

Importing a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT

IMPORT [ENCRYPTION] KEYS

WITH SECRET "import_secret" |

FROM 'file_name'

IDENTIFIED BY software_keystore_password

[WITH BACKUP [USING 'backup_identifier']];

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

5-8 Oracle Database Advanced Security Guide

Table 5-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki ADMINISTER KEY MANAGEMENT

Storing Oracle

Database secrets in a

keystore

Not available For software keystores:

ADMINISTER KEY MANAGEMENT

ADD SECRET|UPDATE SECRET|DELETE SECRET

"secret" FOR CLIENT 'client_identifier'

[USING TAG'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier'];

For hardware keystores:

ADMINISTER KEY MANAGEMENT

ADD SECRET|UPDATE SECRET|DELETE SECRET

"secret" FOR CLIENT 'client_identifier'

[USING TAG 'tag']

IDENTIFIED BY "user_id:password"

[WITH BACKUP [USING 'backup_identifier'];

5.6 Using Transparent Data Encryption with PKI Encryption

PKI encryption is deprecated, but if you are still using it, then there are several issues

you must consider.

Topics:

•Software Master Encryption Key Use with PKI Key Pairs (page 5-9)

•TDE Tablespace and Hardware Keystores with PKI Encryption (page 5-10)

•Backup and Recovery of a PKI Key Pair (page 5-10)

Note:

The use of PKI encryption with Transparent Data Encryption is deprecated. To

configure Transparent Data Encryption, use the ADMINISTER KEY

MANAGEMENT SQL statement.

5.6.1 Software Master Encryption Key Use with PKI Key Pairs

A master encryption key can be an existing key pair from a PKI certificate designated

for encryption.

Note the following:

• If you have already deployed PKI in your organization, then you can use PKI

services such as key escrow and recovery. However, encryption using current PKI

algorithms requires significantly more system resources than symmetric key

encryption. Using a PKI key pair as a master encryption key may result in greater

performance degradation when accessing encrypted columns in the database.

• For PKI-based keys, certificate revocation lists are not enforced because enforcing

certificate revocation may lead to losing access to all of the encrypted information

Using Transparent Data Encryption with PKI Encryption

General Considerations of Using Transparent Data Encryption 5-9

in the database. However, you cannot use the same certificate to create the master

encryption key again.

5.6.2 TDE Tablespace and Hardware Keystores with PKI Encryption

PKI encryption is a cryptographic system that uses two keys, a public key and a

private key, to encrypt data.

You cannot use PKI-based encryption with TDE tablespace encryption or with

hardware keystores.

5.6.3 Backup and Recovery of a PKI Key Pair

For software keystores, Transparent Data Encryption supports the use of PKI

asymmetric key pairs as master encryption keys for column encryption.

This enables the database to use existing key backup, escrow, and recovery facilities

from leading certificate authority vendors.

In current key escrow or recovery systems, the certificate authority with key recovery

capabilities typically stores a version of the private key, or a piece of information that

helps recover the private key. If the private key is lost, then you can recover the

original key and certificate by contacting the certificate authority and initiating a key

recovery process.

Typically, the key recovery process is automated and requires the user to present

certain authenticating credentials to the certificate authority. TDE puts no restrictions

on the key recovery process other than that the recovered key and its associated

certificate be a PKCS#12 file that can be imported into an keystore. This requirement is

consistent with the key recovery mechanisms of leading certificate authorities.

After obtaining the PKCS#12 file with the original certificate and private key, you

must create an empty keystore in the same location as the previous keystore. You can

then import the PKCS#12 file into the new keystore by using the same utility. Choose a

strong password to protect the keystore.

After you use the ADMINISTER KEY MANAGEMENT statements to create the keystore

and import the correct encryption keys, log in to the database and run the following

ALTER SYSTEM statement at the SQL prompt to complete the recovery process:

ALTER SYSTEM SET ENCRYPTION KEY "cert_id" IDENTIFIED BY keystore_password;

In this specification:

•cert_id is the certificate ID of the certificate to be used as the master encryption

key.

•keystore_password is a password that you create.

Note:

You must use the ALTER SYSTEM statement to regenerate encryption keys for

PKI key pairs only. This restriction does not apply to non-PKI encryption

keys.

Using Transparent Data Encryption with PKI Encryption

5-10 Oracle Database Advanced Security Guide

Using Transparent Data Encryption

with Other Oracle Features

You can use Oracle Data Encryption with other Oracle features, such as Oracle Data

Guard or Oracle Real Application Clusters.

Topics:

•How Transparent Data Encryption Works with Export and Import Operations

(page 6-1)

•How Transparent Data Encryption Works with Oracle Data Guard (page 6-4)

•How Transparent Data Encryption Works with Oracle Real Application Clusters

(page 6-4)

•How Transparent Data Encryption Works with SecureFiles (page 6-6)

•How Transparent Data Encryption Works in a Multitenant Environment

(page 6-7)

•How Transparent Data Encryption Works with Oracle Call Interface (page 6-16)

•How Transparent Data Encryption Works with Editions (page 6-16)

•Configuring Transparent Data Encryption to Work in a Multidatabase

Environment (page 6-16)

6.1 How Transparent Data Encryption Works with Export and Import

Operations

You can use Oracle Data Pump to export and import tables that contain encrypted

columns, as well as encrypt entire dump sets.

Topics:

•About Exporting and Importing Encrypted Data (page 6-1)

•Exporting and Importing Tables with Encrypted Columns (page 6-2)

•Using Oracle Data Pump to Encrypt Entire Dump Sets (page 6-3)

6.1.1 About Exporting and Importing Encrypted Data

You can use Oracle Data Pump to export and import tables that have encrypted

columns.

For both software and hardware keystores, the following points are important when

you must export tables containing encrypted columns:

Using Transparent Data Encryption with Other Oracle Features 6-1

• Sensitive data should remain unintelligible during transport.

• Authorized users should be able to decrypt the data after it is imported at the

destination.

When you use Oracle Data Pump to export and import tables containing encrypted

columns, it uses the ENCRYPTION parameter to enable encryption of data in dump file

sets. The ENCRYPTION parameter allows the following values:

•ENCRYPTED_COLUMNS_ONLY: Writes encrypted columns to the dump file set in

encrypted format

•DATA_ONLY: Writes all of the data to the dump file set in encrypted format

•METADATA_ONLY: Writes all of the metadata to the dump file set in encrypted

format

•ALL: Writes all of the data and metadata to the dump file set in encrypted format

•NONE: Does not use encryption for dump file sets

6.1.2 Exporting and Importing Tables with Encrypted Columns

You can export and import tables with encrypted columns using the

ENCRYPTION=ENCRYPTED_COLUMNS_ONLY setting.

1. Ensure that the keystore is open before you attempt to export tables containing

encrypted columns.

In a multitenant environment, if you are exporting data in a pluggable database

(PDB), then ensure that the wallet is open in the PDB. If you are exporting into the

root, then ensure that the wallet is open in the root.

To find if the keystore is open, query the STATUS column of the V

$ENCRYPTION_WALLET view. If you must open the keystore, then run the

following SQL statement:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password [CONTAINER = ALL | CURRENT];

The software_keystore_password setting is the password for the keystore.

The keystore must be open because the encrypted columns must be decrypted

using the TDE table keys, which requires access to the TDE master encryption

key. The columns are reencrypted using a password, before they are exported.

2. Run the EXPDP command, using the ENCRYPTION_PASSWORD parameter to

specify a password that is used to encrypt column data in the export dump file

set.

The following example exports the employee_data table. The

ENCRYPTION_PWD_PROMPT = YES setting enables you to prompt for the

password interactively, which is a recommended security practice.

expdp hr TABLES=employee_data DIRECTORY=dpump_dir

DUMPFILE=dpcd2be1.dmp ENCRYPTION=ENCRYPTED_COLUMNS_ONLY

ENCRYPTION_PWD_PROMPT = YES

Password: password_for_hr

How Transparent Data Encryption Works with Export and Import Operations

6-2 Oracle Database Advanced Security Guide

3. To import the exported data into the target database, ensure that you specify the

same password that you used for the export operation, as set by the

ENCRYPTION_PASSWORD parameter.

The password is used to decrypt the data. Data is reencrypted with the new TDE

table keys generated in the target database. The target database must have the

keystore open to access the TDE master encryption key. The following example

imports the employee_data table:

impdp hr TABLES=employee_data DIRECTORY=dpump_dir

DUMPFILE=dpcd2be1.dmp

ENCRYPTION_PWD_PROMPT = YES

Password: password_for_hr

6.1.3 Using Oracle Data Pump to Encrypt Entire Dump Sets

Oracle Data Pump can encrypt entire dump sets, not just Transparent Data Encryption

columns.

While importing, you can use either the password or the keystore TDE master

encryption key to decrypt the data. If the password is not supplied, then the TDE

master encryption key in the keystore is used to decrypt the data. The keystore must

be present and open at the target database. The open keystore is also required to

reencrypt column encryption data at the target database.

You can use the ENCRYPTION_MODE=TRANSPARENT setting to transparently encrypt

the dump file set with the TDE master encryption key stored in the keystore. A

password is not required in this case. The keystore must be present and open at the

target database, and it must contain the TDE master encryption key from the source

database for a successful decryption of column encryption metadata during an import

operation.

The open keystore is also required to reencrypt column encryption metadata at the

target database. If a keystore already exists on the target database, then you can export

the current TDE master encryption key from the keystore of the source database and

import it into the keystore of the target database.

• Use the ENCRYPTION_MODE parameter to specify the encryption mode.

ENCRYPTION_MODE=DUAL encrypts the dump set using the TDE master

encryption key stored in the keystore and the password provided.

For example, to use dual encryption mode to export encrypted data:

expdp hr DIRECTORY=dpump_dir1 DUMPFILE=hr_enc.dmp

ENCRYPTION=all ENCRYPTION_PASSWORD=encryption_password

ENCRYPTION_ALGORITHM=AES256 ENCRYPTION_MODE=dual

Password: password_for_hr

See Also:

•Exporting and Importing the TDE Master Encryption Key (page 4-33)

•Oracle Database Utilities for details on using Oracle Data Pump and the

associated encryption parameters

•Creating an Encrypted Column in an External Table (page 3-21)

How Transparent Data Encryption Works with Export and Import Operations

Using Transparent Data Encryption with Other Oracle Features 6-3

6.2 How Transparent Data Encryption Works with Oracle Data Guard

For both software keystores and hardware keystores, Oracle Data Guard supports

Transparent Data Encryption (TDE).

If the primary database uses TDE, then each standby database in a Data Guard

configuration must have a copy of the encryption keystore from the primary database.

If the primary database uses TDE, then each standby database in a Data Guard

configuration must have an encryption keystore with the keystore from the primary

database merged into it. If you reset the TDE master encryption key in the primary

database, then you must merge the keystore on the primary database that contains the

TDE master encryption key to each standby database.

Note the following:

• Encrypted data in log files remains encrypted when data is transferred to the

standby database. Encrypted data also stays encrypted during transit.

• TDE works with SQL*Loader direct path loads. The data loaded into encrypted

columns is transparently encrypted during the direct path load.

• Materialized views work with TDE tablespace encryption. You can create both

materialized views and materialized view logs in encrypted tablespaces.

Materialized views also work with TDE column encryption.

See Also:

•Merging Software Keystores (page 4-6)

•Oracle Data Guard Concepts and Administration more information about the

use of TDE with logical standby databases

•Oracle Database Advanced Replication for more information about

materialized views

•Oracle Key Vault Administrator's Guide for information about how to use

TDE with Oracle Data Guard in an Oracle Key Vault environment

6.3 How Transparent Data Encryption Works with Oracle Real Application

Clusters

Oracle Real Application Clusters (Oracle RAC) nodes can share software keystores.

Hardware security module keystores must be shared by using a network connection.

You can store software keystores on non-shared file systems in Oracle RAC.

Topics:

•About Using Transparent Data Encryption with Oracle Real Application Clusters

(page 6-5)

•Using a Non-Shared File System to Store a Software Keystore in Oracle RAC

(page 6-5)

How Transparent Data Encryption Works with Oracle Data Guard

6-4 Oracle Database Advanced Security Guide

See Also:

Oracle Key Vault Administrator's Guide for information about using TDE with

Oracle RAC in an Oracle Key Vault environment

6.3.1 About Using Transparent Data Encryption with Oracle Real Application Clusters

Oracle Database enables Oracle Real Application Clusters nodes to share a software

keystore. Hardware security modules use a network connection for each database

instance.

This eliminates the need to manually copy and synchronize the software keystore

across all of the nodes. Oracle recommends that you create the software keystore on a

shared file system. This enables all of the instances to access the same shared software

keystore. If you configure Oracle RAC to use Automatic Storage Management (ASM),

then store the keystore on the ASM disk group.

For hardware security modules, use a network connection for each database instance.

Thus, all database instances have access to the hardware security module.

Keystore operations that must be performed or synchronized on all of the instances,

such as opening or closing the keystore or rekeying can be performed on any one

Oracle RAC instance. The synchronization operation applies to all of the other Oracle

RAC instances in the cluster. This means that when you open and close a keystore for

one instance, then it opens and closes for all of the Oracle RAC instances. Similarly, a

TDE master encryption key rekey operation that you perform on one database

instance applies to all of the database instances. You can perform other keystore

operations, such as exporting TDE master encryption keys, rotating the keystore

password, merging keystores, or backing up keystores, from a single instance only.

When using a shared file system, ensure that the ENCRYPTION_WALLET_LOCATION

or WALLET_LOCATION parameter setting in the sqlnet.ora file for all of the Oracle

RAC instances point to the same shared software keystore location. You also must

ensure security of the shared software keystore by assigning the appropriate directory

permissions.

6.3.2 Using a Non-Shared File System to Store a Software Keystore in Oracle RAC

If you do not use a shared file system to store the software keystore, then you must

copy the keystore to the associated nodes.

1. Log in to the database instance as a user who has been granted the ADMINISTER

KEY MANAGEMENT or SYSKM privilege.

In a multitenant environment, log in to the root or the appropriate PDB. For

example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

2. Reset the TDE master encryption key on the first Oracle Real Application Clusters

(Oracle RAC) node.

See Setting and Resetting the TDE Master Encryption Key in the Keystore

(page 4-29) for more information.

3. Copy the keystore file with the new TDE master encryption key from the first

node to all of the other nodes.

How Transparent Data Encryption Works with Oracle Real Application Clusters

Using Transparent Data Encryption with Other Oracle Features 6-5

To find the keystore file location, query the WRL_PARAMETER column in the V

$ENCRYPTION_WALLET view. To find the WRL_PARAMETER settings for all of the

database instances, query the GV$ENCRYPTION_WALLET view.

4. Close and then reopen the keystore on any node. (If you are using a multitenant

container database (CDB), then run these statements in the root.)

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY

software_keystore_password;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password [CONTAINER = ALL | CURRENT];

Note:

Any keystore operation, such as opening or closing the keystore, performed

on any one Oracle RAC instance applies to all other Oracle RAC instances.

This is true even if you are not using a shared file system.

All of the Oracle RAC nodes are now configured to use the new TDE master

encryption key.

See Also:

•Step 3: Open the Software Keystore (page 3-7)

•Closing a Software Keystore (page 4-18)

6.4 How Transparent Data Encryption Works with SecureFiles

You can use SecureFiles to store LOBS. SecureFile storage has three features:

compression, deduplication, and encryption.

Topics:

•Example: Creating a SecureFiles LOB with a Specific Encryption Algorithm

(page 6-7)

•Example: Creating a SecureFiles LOB with a Column Password Specified

(page 6-7)

See Also:

Oracle Database SecureFiles and Large Objects Developer's Guide for more

information about SecureFiles encryption

6.4.1 About Transparent Data Encryption and SecureFiles

SecureFiles encryption uses TDE to provide the encryption facility for LOBs.

When you create or alter tables, you can specify the SecureFiles encryption or LOB

columns that must use the SecureFiles storage. You can enable the encryption for a

LOB column by either using the current Transparent Data Encryption (TDE) syntax or

How Transparent Data Encryption Works with SecureFiles

6-6 Oracle Database Advanced Security Guide

by using the ENCRYPT clause as part of the LOB parameters for the LOB column. The

DECRYPT option in the current syntax or the LOB parameters turn off encryption.

6.4.2 Example: Creating a SecureFiles LOB with a Specific Encryption Algorithm

The CREATE TABLE statement can create a SecureFiles LOB with encryption specified.

Example 6-1 (page 6-7) shows how to create a SecureFiles LOB in a CREATE TABLE

statement.

Example 6-1 Creating a SecureFiles LOB with a Specific Encryption Algorithm

CREATE TABLE table1 ( a BLOB ENCRYPT USING 'AES256')

LOB(a) STORE AS SECUREFILE (

CACHE

);

6.4.3 Example: Creating a SecureFiles LOB with a Column Password Specified

The CREATE TABLE statement can create a SecureFiles LOB with a column password.

Example 6-2 (page 6-7) shows an example of creating a SecureFiles LOB that uses

password protections for the encrypted column.

All of the LOBS in the LOB column are encrypted with the same encryption

specification.

Example 6-2 Creating a SecureFiles LOB with a Column Password Specified

CREATE TABLE table1 (a VARCHAR2(20), b BLOB)

LOB(b) STORE AS SECUREFILE (

CACHE

ENCRYPT USING 'AES192' IDENTIFIED BY password

);

6.5 How Transparent Data Encryption Works in a Multitenant Environment

In a multitenant environment, the TDE operations that you can perform depend on

whether you are in the root or a PDB.

Topics:

•About Using Transparent Data Encryption in a Multitenant Environment

(page 6-8)

•Operations That Must Be Performed in Root (page 6-8)

•Operations That Can Be Performed in Root or in a PDB (page 6-10)

•Exporting and Importing TDE Master Encryption Keys for a PDB (page 6-10)

•Unplugging and Plugging a PDB with Encrypted Data in a CDB (page 6-12)

•How Keystore Open and Close Operations Work in a Multitenant Environment

(page 6-14)

•Finding the Keystore Status for All of the PDBs in a Multitenant Environment

(page 6-15)

How Transparent Data Encryption Works in a Multitenant Environment

Using Transparent Data Encryption with Other Oracle Features 6-7

6.5.1 About Using Transparent Data Encryption in a Multitenant Environment

You can use Transparent Data Encryption for both columns and tablespaces in a

multitenant environment.

Note the following:

•The keystore that you create resides in the host multitenant environment, not

within any particular PDB. Multiple PDBs can access a single keystore while

running on this host. Each PDB that uses encryption has a Transparent Data

Encryption TDE master encryption key stored in this keystore.

•Each PDB has its own TDE master encryption key. You must manage the TDE

master encryption key for each PDB from within the PDB only, using the PDB-

specific key management ADMINISTER KEY MANAGEMENT statements. From the

root or a PDB, you can query the appropriate views to find information about the

TDE master encryption keys of the PDBs in a CDB. For example, the PDBID

column of the V$ENCYRYPTION_KEYS view indicates the PDBs to which a TDE

master encryption key belongs.

•You can manage the Transparent Data Encryption TDE master encryption keys

independently within the keystore for each PDB. You can rotate the TDE master

encryption keys for each PDB individually. See "Exporting and Importing the TDE

Master Encryption Key (page 4-33)" for more information.

•You perform most of the keystore operations from the root. Keystore operations

such as rotating a keystore password, merging keystores, and so on must be

performed in the root. There are a few key management operations that you can

perform within a PDB, such as opening, closing, resetting, and creating keys. The

operations can also be performed for all of the PDBs from the root. Where

applicable, the ADMINISTER KEY MANAGEMENT statement has the CONTAINER

clause. Setting CONTAINER=ALL performs the action on all of the PDBs.

See the following sections for more information:

– "Operations That Must Be Performed in Root (page 6-8)"

– "Operations That Can Be Performed in Root or in a PDB (page 6-10)"

•If you plan to move a PDB that uses Transparent Data Encryption to a new host

computer, then you must move its TDE master encryption key as well. To move

the TDE master encryption key from one host computer to another, use the

procedures described in "Exporting and Importing the TDE Master Encryption

Key (page 4-33)".

6.5.2 Operations That Must Be Performed in Root

You must perform specific ADMINISTER KEY MANAGEMENT keystore operations only

in the root.

These operations are as follows:

•Creating password-based software keystores, using the ADMINISTER KEY

MANAGEMENT CREATE KEYSTORE statement

•Creating auto-login software keystores, using the ADMINISTER KEY

MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE FROM KEYSTORE

statement

How Transparent Data Encryption Works in a Multitenant Environment

6-8 Oracle Database Advanced Security Guide

•Changing the software keystore password, using the ADMINISTER KEY

MANAGEMENT ALTER KEYSTORE PASSWORD statement

•Merging software keystores, using the ADMINISTER KEY MANAGEMENT MERGE

KEYSTORE statement

•Backing up software keystores, using the ADMINISTER KEY MANAGEMENT

BACKUP KEYSTORE keystore

•Migrating from a software keystore to a hardware keystore, using the

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY... MIGRATE

USING statement

•Reverse migrating from a hardware security module to a software keystore,

using the ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY...

REVERSE MIGRATE statement

•Adding, updating, and deleting secrets, using the ADMINISTER KEY

MANAGEMENT ADD|UPDATE|DELETE SECRET statement

•Selectively exporting and importing keys, based on a query or identifier list

How the CONTAINER=ALL Setting Works for Key and Keystore Operations

You can specify the CONTAINER=ALL setting for the key and keystore operations

described in this section. Specifying the CONTAINER=ALL setting performs the same

operation on all of the PDBs within the CDB. Remember that you can only use the

CONTAINER=ALL setting in the root. The CONTAINER clause is optional. If you omit

the CONTAINER clause, then the default is CONTAINER = CURRENT.

The permitted CONTAINER=ALL operations are as follows:

•Opening a keystore. If you open the keystore using the CONTAINER=ALL setting,

then the keystores on all of the associated PDBs open.

•Closing a keystore. Closing a keystore using the CONTAINER=ALL setting closes

the keystores on all of the associated PDBs.

•Creating a TDE master encryption key. Creating a TDE master encryption key

using the CONTAINER=ALL setting creates the key on all of the PDBs that are

open. You can check the keys that were created recently by querying the

CREATION_TIME column in the V$ENCRYPTION_KEYS view. You can also

specify a tag with CONTAINER=ALL operation, but be aware that this operation

creates the keys in all of the PDBs with the same tag. You should have individual

tags for each TDE master encryption key, because the tags can help identify PDBs

on which the create key operation succeeded in case of an error. You can modify

the tag by using the ADMINISTER KEY MANAGEMENT SET TAG statement later

on.

•Performing a rekey operation. Performing a rekey operation with the

CONTAINER=ALL setting creates and then activates the key on all of the PDBs that

are open. You can check the keys that were created recently by querying the

CREATION_TIME column in the V$ENCRYPTION_KEYS view. To find the keys

that were activated recently, query the ACTIVATION_TIME column in the V

$ENCRYPTION_KEYS view. You can also specify a tag with CONTAINER=ALL

operation, but be aware that this operation creates the keys in all of the PDBs with

the same tag. The tag can also help identify PDBs on which the create key

operation succeeded in case of an error. You can modify the tag by using the

ADMINISTER KEY MANAGEMENT SET TAG statement later on.

How Transparent Data Encryption Works in a Multitenant Environment

Using Transparent Data Encryption with Other Oracle Features 6-9

6.5.3 Operations That Can Be Performed in Root or in a PDB

You can perform the some keystore operations in either the root or a PDB.

These operations are as follows:

•Opening keystores, using the ADMINISTER KEY MANAGEMENT SET KEYSTORE

OPEN statement

•Closing keystores, using the ADMINISTER KEY MANAGEMENT SET KEYSTORE

CLOSE statement

You can perform the following key management operations either in the root or a

PDB:

•Creating a tag for the TDE master encryption key, using the ADMINISTER KEY

MANAGEMENT SET TAG statement

•Creating a TDE master encryption key, using the ADMINISTER KEY

MANAGEMENT CREATE KEY statement

•Resetting or rotating the TDE master encryption key, using the ADMINISTER

KEY MANAGEMENT SET ENCRYPTION KEY statement

•Activating a TDE master encryption key, using the ADMINISTER KEY

MANAGEMENT USE KEY statement

•Exporting TDE master encryption keys, using the ADMINISTER KEY

MANAGEMENT EXPORT ENCRYPTION KEYS statement

•Importing TDE master encryption keys, using the ADMINISTER KEY

MANAGEMENT IMPORT ENCRYPTION KEYS statement

6.5.4 Exporting and Importing TDE Master Encryption Keys for a PDB

To export or import TDE master encryption keys for a PDB, you use the ADMINISTER

KEY MANAGEMENT EXPORT and ADMINISTER KEY MANAGEMENT IMPORT

statements.

Topics:

•About Exporting and Importing TDE Master Encryption Keys for a PDB

(page 6-10)

•Exporting or Importing a TDE Master Encryption Key for a PDB (page 6-11)

•Example: Exporting a TDE Master Encryption Key from a PDB (page 6-12)

•Example: Importing a TDE Master Encryption Key into a PDB (page 6-12)

6.5.4.1 About Exporting and Importing TDE Master Encryption Keys for a PDB

You can export and import any TDE master encryption key from the root in the same

way that you export and import the TDE master encryption key for a non-CDB

database.

You can export and import all of the TDE master encryption keys that belong to the

PDB by exporting and importing the TDE master encryption keys from within a PDB.

Export and import of TDE master encryption keys in a PDB supports the PDB unplug

How Transparent Data Encryption Works in a Multitenant Environment

6-10 Oracle Database Advanced Security Guide

and plug operations. During a PDB unplug and plug, all of the TDE master encryption

keys that belong to a PDB, as well as the metadata, are involved. Therefore, the WITH

IDENTIFIER clause of the ADMINISTER KEY MANAGEMENT EXPORT statement is

not allowed when you export keys from within a PDB. The WITH IDENTIFIER clause

is only permitted in the root.

You should include the FORCE KEYSTORE clause if the root has an auto-login

keystore or if the keystore is closed. If the keystore has been configured to use an

external store for the password, then use the IDENTIFIED BY EXTERNAL STORE

clause. For example, to perform an export operation for this scenario:

ADMINISTER KEY MANAGEMENT EXPORT KEYS WITH SECRET "my_secret"

TO '/etc/TDE/export.exp'

FORCE KEYSTORE IDENTIFIED BY EXTERNAL STORE;

This ADMINISTER KEY MANAGEMENT EXPORT operation exports not only the keys

but creates metadata that is necessary for PDB environments (as well as for cloning

operations).

Inside a PDB, the export operation of TDE master encryption keys exports the keys

that were created or activated by a PDB with the same GUID as the PDB where the

keys are being exported. Essentially, all of the keys that belong to a PDB where the

export is being performed will be exported.

The importing of TDE master encryption keys from an export file within a PDB takes

place only if the TDE master encryption key was exported from another PDB with the

same GUID. To support the plug-in of a PDB into a CDB, the import will also import

the TDE master encryption keys from an export file that contains the TDE master

encryption keys of a non-CDB exported without the WITH IDENTIFIER clause.

Because the PDB-specific details, such as the PDB name and database ID, can change

from one CDB to the next, the PDB-specific information is modified during the import

to reflect the updated PDB information.

Note:

Within a PDB, you can only export the keys of a PDB as a whole. The ability to

export them selectively based on a query or an identifier is restricted to the

root.

6.5.4.2 Exporting or Importing a TDE Master Encryption Key for a PDB

To export or import a TDE master encryption for a PDB, you must open the keystore

and then use the ADMINISTER KEY MANAGEMENT statement with the EXPORT

ENCRYPTION KEYS WITH SECRET or IMPORT ENCRYPTION KEYS WITH SECRET

clause.

1. Log in to the PDB as a user who was granted the ADMINISTER KEY

MANAGEMENT or SYSKM privilege.

For example:

sqlplus sec_admin@hr_pdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check

the current PDB, run the show con_name command.

How Transparent Data Encryption Works in a Multitenant Environment

Using Transparent Data Encryption with Other Oracle Features 6-11

2. Ensure that the keystore is open.

You can query the STATUS column of the V$ENCRYPTION_WALLET view to find if

the keystore is open.

If you find that you must open the keystore, then see "Step 3: Open the Software

Keystore (page 3-7)".

3. Perform the export or import operation, as shown in the examples in "Example:

Exporting a TDE Master Encryption Key from a PDB (page 6-12)".

6.5.4.3 Example: Exporting a TDE Master Encryption Key from a PDB

You can use the ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS SQL

statement to export TDE master encryption keys for a PDB.

Example 6-3 (page 6-12) shows how to export a TDE master encryption key from the

PDB hr_pdb1.

Example 6-3 Exporting a TDE Master Encryption Key from a PDB

sqlplus sec_admin@hr_pdb1 as syskm

Enter password: password

Connected.

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET "my_secret" TO '/

export.p12' IDENTIFIED BY password_cdb1;

6.5.4.4 Example: Importing a TDE Master Encryption Key into a PDB

You can use the ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS SQL

statement to import a TDE master encryption key into a PDB.

Example 6-4 (page 6-12) shows how to import a TDE master encryption key into the

PDB hr_pdb2.

Example 6-4 Importing a TDE Master Encryption Key into a PDB

sqlplus sec_admin@hr_pdb2 as syskm

Enter password: password

Connected.

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS WITH SECRET "my_secret" FROM '/tmp/

export.p12' IDENTIFIED BY password_cdb2 WITH BACKUP;

6.5.5 Unplugging and Plugging a PDB with Encrypted Data in a CDB

You can add or remove PDBs that have encrypted data to and from a CDB.

6.5.5.1 Unplugging a PDB That Has Encrypted Data

You can unplug a PDB from one CDB and then plug it into another CDB.

The database that was unplugged contains data files and other associated files. The

export file is another file that forms part of the unplugged PDB files and should be

transported with the unplugged PDB.

1. Export the TDE master encryption key of the PDB that you want to unplug.

See Exporting and Importing TDE Master Encryption Keys for a PDB (page 6-10).

2. Unplug the PDB, as described in Oracle Database Administrator's Guide.

How Transparent Data Encryption Works in a Multitenant Environment

6-12 Oracle Database Advanced Security Guide

Note:

If you inadvertently unplug the PDB without first exporting the TDS master

encryption key, the encryption key is not lost. This information is still in the

database. Plug the PDB back into the CDB, export the TDE master encryption

key, and then unplug the PDB.

6.5.5.2 Plugging a PDB That Has Encrypted Data into a CDB

To plug a PDB that has encrypted data into a CDB, you must import the TDE master

encryption key into the PDB and then configure it there.

1. Create the PDB by plugging the unplugged PDB into the CDB, as described in

Oracle Database Administrator's Guide.

During the open operation of the PDB after the plug operation, Oracle Database

determines if the PDB has encrypted data. If so, it opens the PDB in the

RESTRICTED mode.

See Oracle Database Administrator's Guide for more information about the Open

Mode of a PDB.

2. Import the TDE master encryption key into the PDB.

See "Exporting and Importing TDE Master Encryption Keys for a PDB

(page 6-10)".

3. Close the PDB and then re-open the PDB, as described in Oracle Database

Administrator's Guide.

4. Open the keystore.

See the following sections:

• "Step 3: Open the Software Keystore (page 3-7)"

• "Step 3: Open the Hardware Keystore (page 3-12)"

5. Set the TDE master encryption key for the PDB.

See the following sections:

• "Step 4: Set the Software TDE Master Encryption Key (page 3-8)"

• "Step 4: Set the Hardware Keystore TDE Master Encryption Key (page 3-14)"

• "Creating TDE Master Encryption Keys for Later Use (page 4-22)"

6.5.5.3 Unplugging a PDB That Has Master Keys Stored in an HSM

You can unplug a PDB from one CDB that has been configured with a hardware

security module (HSM) and then plug it into another CDB that is configured with an

HSM.

1. Unplug the PDB.

See Oracle Database Administrator’s Guide for information about unplugging PDBs.

2. Move the master keys of the unplugged PDB in the HSM that was used at the

source CDB to the HSM that is in use at the destination CDB.

How Transparent Data Encryption Works in a Multitenant Environment

Using Transparent Data Encryption with Other Oracle Features 6-13

Refer to the documentation for the HSM for information about moving master keys

between HSMs.

6.5.5.4 Plugging a PDB That Has Master Keys Stored in an HSM

You can use the ADMINISTER KEY MANAGEMENT statement to import an HSM master

key to a PDB that has been moved to another CDB.

1. Plug that unplugged PDB into the destination CDB that has been configured with

the HSM.

After the plug-in operation, the PDB that has been plugged in will be in restricted

mode. See Oracle Database Administrator’s Guide for information about plugging

PDBs.

2. Ensure that the master keys from the HSM that has been configured with the

source CDB are available in the HSM of the destination CDB.

3. Log in to the plugged PDB as a user who was granted the ADMINISTER KEY

MANAGEMENT or SYSKM privilege.

For example:

sqlplus sec_admin@hr_pdb as syskm

Enter password: password

Connected.

To find the available PDBs, query the DBA_PDBS data dictionary view. To check the

current PDB, run the show con_name command.

4. Open the master encryption key of the plugged PDB.

For example, for a PDB called PDB1:

ALTER SESSION SET CONTAINER = PDB1;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "keystore_passsword";

5. Import the HSM master key into the PDB.

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS WITH SECRET "HSM" FROM 'HSM'

IDENTIFIED BY "keystore_password";

6. Restart the PDB.

ALTER PLUGGABLE DATABASE PDB1 CLOSE;

ALTER PLUGGABLE DATABASE PDB1 OPEN;

6.5.6 How Keystore Open and Close Operations Work in a Multitenant Environment

You should be aware of how keystore open and close operations work in a multitenant

environment.

For each PDB in a multitenant environment, you must explicitly open the password-

based software keystore or hardware keystore in the PDB to enable the Transparent

Data Encryption operations to proceed. (Auto-login and local auto-login software

keystores open automatically.) Closing a keystore on a PDB blocks all of the

Transparent Data Encryption operations on that PDB.

In a CDB, the open and close keystore operations in a PDB depends on the open and

close status of the keystore in the root.

Note the following:

How Transparent Data Encryption Works in a Multitenant Environment

6-14 Oracle Database Advanced Security Guide

• Before you can manually open a software password-based or hardware keystore

in an individual PDB, you must open the keystore in the root.

• Before you can set a TDE master encryption key in an individual PDB, you must

set the key in the root.

• Auto-login and local auto-login software keystores open automatically. You do

not need to manually open these from the root first, or from the PDB.

• If you close a keystore in the root, then the keystores in the dependent PDBs also

close. A keystore close operation in the root is the equivalent of performing a

keystore close operation with the CONTAINER clause set to ALL.

• If you open a keystore in the root and set the CONTAINER clause to ALL, then the

keystores in the dependent PDBs also open.

6.5.7 Finding the Keystore Status for All of the PDBs in a Multitenant Environment

The V$ENCRYPTION_WALLET view displays the status of the keystore in a PDB,

whether it is open, closed, uses a software or hardware keystore, and so on. You can

create a convenience function that uses this view to find the status for keystores in all

of the PDBs in a CDB.

• To create a function that uses theV$ENCRYPTION_WALLET view to find the

keystore status, use the CREATE PROCEDURE PL/SQL statement.

Example 6-5 (page 6-15) shows how to create this function.

Example 6-5 Function to Find the Keystore Status of All of the PDBs in a CDB

CREATE OR REPLACE PROCEDURE all_pdb_v$encryption_wallet

err_occ BOOLEAN;

curr_pdb VARCHAR2(30);

pdb_name VARCHAR2(30);

wrl_type VARCHAR2(20);

status VARCHAR2(30);

wallet_type VARCHAR2(20);

wallet_order VARCHAR2(12);

fully_backed_up VARCHAR2(15);

wrl_parameter VARCHAR2(4000);

cursor sel_pdbs IS SELECT NAME FROM V$CONTAINERS

WHERE NAME <> 'PDB$SEED' order by con_id desc;

BEGIN

-- Store the original PDB name

SELECT sys_context('userenv', 'con_name') INTO curr_pdb FROM DUAL;

IF curr_pdb <> 'CDB$ROOT' THEN

dbms_output.put_line('Operation valid in ROOT only');

END IF;

err_occ := FALSE;

dbms_output.put_line('---');

dbms_output.put_line('PDB_NAME WRL_TYPE STATUS ');

dbms_output.put_line('------------------------------ -------- ------------------------------');

dbms_output.put_line('WALLET_TYPE WALLET_ORDER FULLY_BACKED_UP');

dbms_output.put_line('-------------------- ------------ ---------------');

dbms_output.put_line('WRL_PARAMETER');

dbms_output.put_line('--------------------------------------------------------------------------');

FOR pdbinfo IN sel_pdbs LOOP

How Transparent Data Encryption Works in a Multitenant Environment

Using Transparent Data Encryption with Other Oracle Features 6-15

pdb_name := DBMS_ASSERT.ENQUOTE_NAME(pdbinfo.name, FALSE);

EXECUTE IMMEDIATE 'ALTER SESSION SET CONTAINER = ' || pdb_name;

BEGIN

pdb_name := rpad(substr(pdb_name,1,30), 30, ' ');

EXECUTE IMMEDIATE 'SELECT wrl_type from V$ENCRYPTION_WALLET' into wrl_type;

wrl_type := rpad(substr(wrl_type,1,8), 8, ' ');

EXECUTE IMMEDIATE 'SELECT status from V$ENCRYPTION_WALLET' into status;

status := rpad(substr(status,1,30), 30, ' ');

EXECUTE IMMEDIATE 'SELECT wallet_type from V$ENCRYPTION_WALLET' into wallet_type;

wallet_type := rpad(substr(wallet_type,1,20), 20, ' ');

EXECUTE IMMEDIATE 'SELECT wallet_order from V$ENCRYPTION_WALLET' into wallet_order;

wallet_order := rpad(substr(wallet_order,1,9), 12, ' ');

EXECUTE IMMEDIATE 'SELECT fully_backed_up from V$ENCRYPTION_WALLET' into fully_backed_up;

fully_backed_up := rpad(substr(fully_backed_up,1,9), 15, ' ');

EXECUTE IMMEDIATE 'SELECT wrl_parameter from V$ENCRYPTION_WALLET' into wrl_parameter;

wrl_parameter := rpad(substr(wrl_parameter,1,79), 79, ' ');

dbms_output.put_line(pdb_name || ' ' || wrl_type || ' ' || status);

dbms_output.put_line(wallet_type || ' ' || wallet_order || ' ' || fully_backed_up);

dbms_output.put_line(wrl_parameter);

EXCEPTION

WHEN OTHERS THEN

err_occ := TRUE;

END;

END LOOP;

IF err_occ = TRUE THEN

dbms_output.put_line('One or more PDB resulted in an error');

END IF;

END;

set serveroutput on

exec all_pdb_v$encryption_wallet;

6.6 How Transparent Data Encryption Works with Oracle Call Interface

Transparent Data Encryption does not have any effect on the operation of Oracle Call

Interface (OCI).

For most practical purposes, TDE is transparent to OCI except for the row shipping

feature. You cannot use the OCI row shipping feature with TDE because the key to

make the row usable is not available at the receipt-point.

6.7 How Transparent Data Encryption Works with Editions

Transparent Data Encryption does not have any effect on the Editions feature of

Oracle Database.

For most practical purposes, TDE is transparent to Editions. Tables are always

noneditioned objects. TDE Column Encryption encrypts columns of the table. Editions

are not affected by TDE tablespace encryption.

6.8 Configuring Transparent Data Encryption to Work in a Multidatabase

Environment

Each Oracle database on the same server (such as databases sharing the same Oracle

binary but using different data files) must access its own TDE keystore.

How Transparent Data Encryption Works with Oracle Call Interface

6-16 Oracle Database Advanced Security Guide

Keystores are not designed to be shared among databases. By design, there must be

one keystore per database. You cannot use the same keystore for more than one

database.

• To configure the sqlnet.ora file for a multidatabase environment, use one of

the following options:

–Option 1: If the databases share the same Oracle home, then keep the

sqlnet.ora file in the default location, which is in the ORACLE_HOME/

network/admin directory.

In this case, it is ideal to use the default location. Ensure that the sqlnet.ora

file has no WALLET_LOCATION or ENCRYPTION_WALLET_LOCATION entries.

Transparent Data Encryption accesses the keystore from the default

sqlnet.ora location if these two entries are not in the sqlnet.ora file.

–Option 2: If Option 1 is not feasible for your site, then you can specify the

keystore location based on an environment variable setting, such as

ORACLE_SID.

For example:

ENCRYPTION_WALLET_LOCATION =

(SOURCE =

(METHOD = FILE)

(METHOD_DATA =

(DIRECTORY = /home/oracle/wallet/$ORACLE_SID)

–Option 3: If Options 1 and 2 are not feasible, then use separate sqlnet.ora

files, one for each database. Ensure that you correctly set the TNS_ADMIN

environment variable to point to the correct database configuration. See

SQL*Plus User's Guide and Reference for more information and examples of

setting the TNS_ADMIN variable.

Caution:

Using a keystore from another database can cause partial or complete data

loss.

Configuring Transparent Data Encryption to Work in a Multidatabase Environment

Using Transparent Data Encryption with Other Oracle Features 6-17

Configuring Transparent Data Encryption to Work in a Multidatabase Environment

6-18 Advanced Security Guide

Frequently Asked Questions About

Transparent Data Encryption

Users frequently have questions about transparency and performance issues with

Transparent Data Encryption.

Topics:

•Transparency Questions About Transparent Data Encryption (page 7-1)

•Performance Questions About Transparent Data Encryption (page 7-4)

7.1 Transparency Questions About Transparent Data Encryption

Transparent Data encryption handles transparency in data in a variety of ways.

Security auditors occasionally ask detailed questions about the encryption used by

Oracle Advanced Security Transparent Data Encryption (TDE). They request

information about TDE keys, algorithms, lengths, and keystores and then directly

compare to requirements of regulations such as PCI-DSS. This topic contains

important details about TDE encryption and key management. This information is

current as of Oracle Database 12c (12.1.0.2). It is intended to help TDE customers

respond to auditor questions quickly and accurately.

1. Is Transparent Data Encryption compatible with my application software?

Transparent Data Encryption is compatible with applications by default because it

does not alter the inbound SQL statements or the outbound SQL query results.

Oracle executes internal testing and validation of certain Oracle and third-party

application software to capture helpful deployment tips or scripts, and to evaluate

performance profiles. See the following Oracle Technology Network page to find

more information about deployment scripts that you can use for various

applications.

http://www.oracle.com/technetwork/database/options/advanced-

security/index-099011.html

Be aware of the difference between Transparent Data Encryption and the

DBMS_CRYPTO PL/SQL package. This package is intended for different customer

use cases. It is an API and toolkit solution and as such, it is non-transparent.

2. Is Transparent Data Encryption compatible with other Oracle Database tools

and technologies that I am using?

One of the chief benefits of Transparent Data Encryption is its integration with

frequently used Oracle Database tools and technologies such as high-availability

clusters, storage compression, backup compression, data movement, database

backup and restore, and database replication. Specific Oracle technologies that are

integrated directly with Transparent Data Encryption include Oracle Real

Application Clusters (Oracle RAC), Oracle Recovery Manager (RMAN), Oracle

Frequently Asked Questions About Transparent Data Encryption 7-1

Data Guard, Advanced Compression, Oracle Data Pump, and Oracle GoldenGate,

among others. Transparent Data Encryption also has special points of integration

with Oracle Exadata that fully use unique features of Oracle-engineered systems.

Transparent Data Encryption also works easily with security features of the

Oracle Database. With Transparent Data Encryption, privilege grants, roles,

Oracle Database Vault realms, Virtual Private Database policies, and Oracle Label

Security labels remain in effect. You can use these and other security features in

tandem with Transparent Data Encryption encryption.

3. Are there any known Transparent Data Encryption limitations or

incompatibilities?

•TDE column encryption: TDE column encryption encrypts and decrypts data

transparently when data passes through the SQL layer. Some features of

Oracle will bypass the SQL layer, and hence cannot benefit from TDE column

encryption. The following are known database features that TDE column

encryption does not support, and their relevant software version numbers:

– Materialized View Logs (not supported prior to Oracle Database 11g

Release 2)

– Streams (not supported prior to Oracle Database 11g Release 1)

– Synchronous and asynchronous change data capture for data

warehousing (CDC)

– Transportable Tablespaces

– LOBs

Note that Secure Files were introduced in Oracle Database 11g Release 1, so it

is not supported with TDE column encryption prior to that release

•TDE tablespace encryption: TDE tablespace encryption encrypts all content

that is stored in the tablespace at the block level in storage, and it generally

does not conflict with other database features. TDE tablespace encryption

does not have any of the limitations that TDE column encryption has.

However, you should be aware of the following:

– You can use full transportable tablespaces (TTS) with Oracle Data Pump

compression and encryption when going from a TDE-encrypted source to

a TDE-encrypted destination. You must have an Oracle Database Release

12c database instance available so that you can use its key export or

keystore (wallet) merge capabilities to get the correct TDE master key to

the destination database host without having to overwrite the original

Oracle wallet file. This process is subject to the standard TTS limitations,

and you must remember to check for compatible endianness.

– Do not attempt to encrypt database internal objects such as the SYSTEM,

SYSAUX, UNDO, or TEMP tablespaces using TDE tablespace encryption.

You should focus TDE tablespace encryption on tablespaces that hold

application data, not on these core components of the Oracle database.

4. What types of keys and algorithms does TDE use?

TDE relies on two distinct sets of encryption keys. The first set of encryption keys

are data encryption keys (DEK), which are used to transparently encrypt and

decrypt stored data. DEKs are generated automatically by the database, stored

Transparency Questions About Transparent Data Encryption

7-2 Oracle Database Advanced Security Guide

internally in the database in encrypted form, and managed mostly behind the

scenes. One place where end-users interact with DEKs is when selecting the

encryption algorithm and key length that TDE will use, which can be 3DES168,

AES128, AES192, or AES256. This selection is made independently for each table

containing encrypted columns and for each encrypted tablespace. You may also

hear DEKs referred to as table keys (column encryption) or tablespace keys

(tablespace encryption). The table keys are used in cipher block chaining (CBC)

operating mode, and the tablespace keys are used in cipher feedback (CFB)

operating mode.

The second set of encryption keys consists of current and historical key encryption

keys (KEK), also known as TDE master keys. The TDE master keys are generated

automatically by the database, used automatically to encrypt and decrypt DEKs as

needed, and stored externally in a protected keystore. Users may interact with the

current TDE master key by periodically rotating it, modifying certain key

attributes, and so forth. Typically, the keystore for TDE master keys is either an

Oracle wallet (out-of-the-box solution) or Oracle Key Vault (a specialized key

management product). Although the database uses only one TDE master key at a

time, all rotated TDE master keys are retained in the keystore for long-term

recovery of encrypted data backups. TDE master keys always are AES256. They

encrypt and decrypt DEKs using CBC operating mode. For both DEKs and TDE

master keys, the underlying key material is not directly exposed. End-users see

only attributes of keys necessary to manage TDE.

5. How are Oracle wallets containing TDE master keys protected?

There are three different types of wallets to consider when you use an Oracle

wallet as the keystore for TDE master keys: password-based wallet, auto-login

wallet, and local auto-login wallet. All of these wallets externalize TDE master

keys, so they are separate from TDE-encrypted data. Oracle recommends that you

place wallet files in local or network directories that are protected by tight file

permissions and other security measures.

The password-based wallet is an encrypted key storage file (ewallet.p12) that

follows the PKCS #12 standard. It is encrypted by a password-derived key

according to the PKCS #5 standard. A human user must enter a command

containing the password for the database to open the wallet, decrypt its contents,

and gain access to keys. The password-based wallet is the default keystore for

TDE master keys. In the past, it was encrypted using the 3DES168 encryption

algorithm and CBC operating mode. Starting in Oracle Database 12c (12.1.0.2), a

new orapki command, convert wallet, enables you to convert password-

based wallets to AES256 and CBC operating mode. (See Oracle Database Security

Guide for more information about using orapki to convert wallets).

Auto-login wallets (cwallet.sso) optionally are derived from standard

password-based wallets for special cases where automatic startup of the database

is required with no human interaction to enter a wallet password. When using

auto-login wallet, the master password-based wallet must be preserved because it

is needed to rotate the TDE master key. In addition to the best practice of storing

auto-login wallet in a local or network directory that is protected by tight file

permissions, the file contents are scrambled by the database using a proprietary

method for added security. A slight variation on the auto-login wallet called local

auto-login wallet has similar behavior. One notable difference with local auto-

the host machine where the file was created. This renders the local auto-login

wallet unusable on other host machines. Details of the host factors and scrambling

technique are proprietary.

Transparency Questions About Transparent Data Encryption

Frequently Asked Questions About Transparent Data Encryption 7-3

6. What is Oracle Key Vault and how does it manage TDE master keys?

Oracle Key Vault centrally manages TDE master keys, Oracle wallets, Java

keystores, and more. It helps you to take control of proliferating keys and key

storage files. It includes optimizations specifically for TDE and other components

of the Oracle stack. For more information about using Oracle Key Vault with TDE,

see the product pages on www.oracle.com and Oracle Technology Network and

Oracle Key Vault Administrator's Guide.

7.2 Performance Questions About Transparent Data Encryption

There are several performance issues to consider when using Transparent Data

Encryption.

1. What is the typical performance overhead from Transparent Data Encryption?

There are many different variables involved in the creation of an accurate

Transparent Data Encryption performance test. The results can vary depending on

the test environment, test case or workload, measurement metrics or methods,

and so on. Oracle cannot guarantee a specific performance overhead percentage

that can apply in all possible scenarios. In practice, the performance tests by many

Transparent Data Encryption customers are often in the low single digits as a

percentage, but that is not universally the case. Customer examples that cite 1

percent and 2 percent overhead respectively are published on Oracle Technology

Network in the following URL:

http://streaming.oracle.com/ebn/podcasts/media/

12740910_ColumbiaU_120312.mp3

If possible, use Oracle Real Application Testing (Oracle RAT) to capture a real

production workload and then replay it against Transparent Data Encryption to

get a true indication of the performance overhead that the you can expect within

your environment.

See Also:

•Oracle Database 2 Day + Security Guide for a tutorial about creating Oracle

Data Redaction policies

•Oracle Database Security Guide for information about using Transparent

Sensitive Data Protection policies with Oracle Data Redaction

8.1 What Is Oracle Data Redaction?

Oracle Data Redaction enables you to mask (redact) data that is returned from queries

issued by applications.

You can redact column data by using one of the following methods:

•Full redaction. You redact all of the contents of the column data. The redacted

value returned to the querying application user depends on the data type of the

column. For example, columns of the NUMBER data type are redacted with a zero

(0), and character data types are redacted with a single space.

•Partial redaction. You redact a portion of the column data. For example, you can

redact a Social Security number with asterisks (*), except for the last 4 digits.

•Regular expressions. You can use regular expressions to look for patterns of data

to redact. For example, you can use regular expressions to redact email addresses,

which can have varying character lengths. It is designed for use with character

data only.

•Random redaction. The redacted data presented to the querying application user

appears as randomly generated values each time it is displayed, depending on the

data type of the column.

•No redaction. The None redaction type option enables you to test the internal

operation of your redaction policies, with no effect on the results of queries

Introduction to Oracle Data Redaction 8-1

against tables with policies defined on them. You can use this option to test the

redaction policy definitions before applying them to a production environment.

Oracle Database applies the redaction at runtime, when users access the data (that is,

at query-execution time). This solution works well in a production system. During the

time that the data is being redacted, all of the data processing is performed normally,

and the back-end referential integrity constraints are preserved.

Data redaction can help you to comply with industry regulations such as Payment

Card Industry Data Security Standard (PCI DSS) and the Sarbanes-Oxley Act.

8.2 When to Use Oracle Data Redaction

Use Oracle Data Redaction when you must disguise sensitive data that your

applications and application users must access.

Data Redaction enables you to easily disguise the data using several different

redaction styles.

Oracle Data Redaction is ideal for situations in which you must redact specific

characters out of the result set of queries of Personally Identifiable Information (PII)

returned to certain application users. For example, you may want to present a U.S.

Social Security number that ends with the numbers 4320 as ***-**-4320.

Oracle Data Redaction is particularly suited for call center applications and other

applications that are read-only. Take care when using Oracle Data Redaction with

applications that perform updates back to the database, because redacted data can be

written back to this database.

8.3 Benefits of Using Oracle Data Redaction

Oracle Data Redaction provides several benefits when you use it to protect your data.

These benefits are as follows:

• You have different styles of redaction from which to choose.

• Because the data is redacted at runtime, Data Redaction is well suited to

environments in which data is constantly changing.

• You can create the Data Redaction policies in one central location and easily

manage them from there.

• The Data Redaction policies enable you to create a wide variety of function

conditions based on SYS_CONTEXT values, which can be used at runtime to

decide when the Data Redaction policies will apply to the results of the

application user's query.

8.4 Target Use Cases for Oracle Data Redaction

Oracle Data Redaction fulfils common use case scenarios.

Topics:

•Oracle Data Redaction Use with Database Applications (page 8-3)

•Oracle Data Redaction with Ad Hoc Database Queries Considerations

(page 8-3)

When to Use Oracle Data Redaction

8-2 Oracle Database Advanced Security Guide

8.4.1 Oracle Data Redaction Use with Database Applications

Oracle Data Redaction protects sensitive data that is displayed in database

applications.

Data Redaction is transparent to application users because it preserves the original

data type and (optionally) the formatting. It is highly transparent to the database

because the data remains the same in buffers, caches, and storage—only being

changed at the last minute just before SQL query results are returned to the caller. The

redaction is enforced consistently across all of the applications that use the same

underlying database. You can specify which application users should see only

redacted data by checking application user information that is passed into the

database through the SYS_CONTEXT function; you can redact data based on attributes

of the current database or application user; and you can implement multiple logical

conditions within a given redaction policy. In addition, Data Redaction is

implemented in a way that minimizes performance overhead. These characteristics

make Oracle Data Redaction particularly well suited for usage by a range of

applications, analytics tools, reporting tools, and monitoring tools that share common

production databases. Although its primary target is redaction of production data for

applications, Oracle Data Redaction also can be used in combination with Oracle

Enterprise Manager Data Masking and Subsetting Pack for protecting sensitive data in

testing and development environments.

See Also:

•Oracle Data Masking and Subsetting Guide for more information about data

masking and subsetting

•Oracle Data Redaction and Data Masking and Subsetting Pack

(page 12-7)

8.4.2 Oracle Data Redaction with Ad Hoc Database Queries Considerations

You may encounter situations where it is convenient to redact sensitive data for ad hoc

queries that are performed by database users.

For example, in the course of supporting a production application, a user may need to

run ad hoc database queries to troubleshoot and fix an urgent problem with the

application. This is different from the application-based scenarios described in Oracle

Data Redaction Use with Database Applications (page 8-3), which typically generate a

bounded set of SQL queries, use defined database accounts, and have fixed privileges.

Even though Oracle Data Redaction is not designed to prevent data exposure to

database users who run ad hoc queries directly against the database, it can provide an

additional layer to reduce the chances of accidental data exposure. Because such users

may have rights to change data, alter the database schema, and circumvent the SQL

query interface entirely, it is possible for a malicious user to bypass Data Redaction

policies in certain circumstances.

Remember that the Oracle Database security tools are designed to be used together to

improve overall security. By deploying one or more of these tools as a complement to

Oracle Data Redaction, you can securely increase your overall security posture.

Target Use Cases for Oracle Data Redaction

Introduction to Oracle Data Redaction 8-3

See Also:

Oracle Data Redaction General Usage Guidelines (page 13-1) for additional

general usage guidelines

Target Use Cases for Oracle Data Redaction

8-4 Oracle Database Advanced Security Guide

Oracle Data Redaction Features and

Capabilities

Oracle Data Redaction provides a variety of ways to redact different types of data.

Topics:

•Full Data Redaction to Redact All Data (page 9-1)

•Partial Data Redaction to Redact Sections of Data (page 9-2)

•Regular Expressions to Redact Patterns of Data (page 9-3)

•Random Data Redaction to Generate Random Values (page 9-4)

•Comparison of Full, Partial, and Random Redaction Based on Data Types

(page 9-5)

•No Redaction for Testing Purposes (page 9-7)

9.1 Full Data Redaction to Redact All Data

Full data redaction redacts the entire contents of the specified table or view column.

By default the output is displayed as follows:

•Character data types: The output text is a single space.

•Number data types: The output text is a zero (0).

•Date-time data types: The output text is set to the first day of January, 2001,

which appears as 01-JAN-01.

Full redaction is the default and is used whenever a Data Redaction policy specifies

the column but omits the function_type parameter setting. When you run the

DBMS_REDACT.ADD_POLICY procedure, to set the function_type parameter

setting for full redaction, you enter the following setting:

function_type => DBMS_REDACT.FULL

You can use the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure to

change the full redaction output to different values.

See Also:

•Syntax for Creating a Full Redaction Policy (page 10-9)

•Altering the Default Full Data Redaction Value (page 10-11)

Oracle Data Redaction Features and Capabilities 9-1

9.2 Partial Data Redaction to Redact Sections of Data

In partial data redaction, you redact portions of the displayed output.

You can set the position within the actual data at which to begin the redaction, the

number of characters to redact starting from that position, and the redaction character

to use. This type of redaction is useful for situations where you want it to be obvious

to the person viewing the data that it was redacted in some way. Typically, you use

this type of redaction for credit cards or ID numbers.

Be aware that partial data redaction requires that your data width remain fixed. If you

want to redact columns containing string values of variable length, then you must use

regular expressions, as described in Regular Expressions to Redact Patterns of Data

(page 9-3).

To specify partial redaction, you must set the DBMS_REDACT.ADD_POLICY procedure

function_type parameter to DBMS_REDACT.PARTIAL and use the

function_parameters parameter to define the partial redaction behavior.

The displayed output for partial data redaction can be as follows:

•Character data types: When partially redacted, a Social Security number

(represented as a hyphenated string within a character data type) with value

987-65-4320 could be redacted so that it is displayed as shown in the following

examples. The code on the right specifies how to redact the character data: it

specifies the expected input format of the actual data, the format to use for the

display of the redacted output, the start position at which to begin the redaction,

the character to use for the redaction, and how many characters to redact. The first

example uses a predefined format (in previous releases called a shortcut) for

character data type Social Security numbers, and the second example replaces the

first five numbers with an asterisk (*) while preserving the hyphens (-) in

between the numbers.

XXX-XX-4320 function_parameters => DBMS_REDACT.REDACT_US_SSN_F5,

***-**-4320 function_parameters => 'VVVFVVFVVVV,VVV-VV-VVVV,*,1,5',

•Number data types: The partially redacted NUMBER data type Social Security

number 987654328 could appear as follows. Both redact the first five digits. The

first example uses a predefined format that is designed for Social Security

numbers in the NUMBER data type, and the second replaces the first five numbers

with the number 9, starting from the first digit.

XXXXX4328 function_parameters => DBMS_REDACT.REDACT_NUM_US_SSN_F5,

999994328 function_parameters => '9,1,5',

•Date-time data types: Partially redacted datetime values can appear simply as

different dates. For example, the date 29-AUG-11 10.20.50.000000 AM could

appear as follows. In the first example, the day of the month is redacted to 02

(using the setting d02) and in the second example, the month is redacted to DEC

(using m12). The uppercase values show the actual month (M), year (Y), hour (H),

minute (M), and second (S).

02-AUG-11 10.20.50.000000 AM function_parameters => 'Md02YHMS',

29-DEC-11 10.20.50.000000 AM function_parameters => 'm12DYHMS',

Partial Data Redaction to Redact Sections of Data

9-2 Oracle Database Advanced Security Guide

See Also:

•Syntax for Creating a Regular Expression-Based Redaction Policy

(page 10-21)

•Syntax for Creating a Partial Redaction Policy (page 10-13)

9.3 Regular Expressions to Redact Patterns of Data

You can use regular expressions to redact specific data within a column data value,

based on a pattern search.

For example, you can redact the user name of email addresses, so that only the domain

shows (for example, replacing hpreston in the email address

hpreston@example.com with [redacted] so that it appears as

[redacted]@example.com). To perform the redaction, set the

DBMS_REDACT.ADD_POLICY procedure function_type parameter to

DBMS_REDACT.REGEXP, and then use the following parameters to build the regular

expression:

• A string search pattern (that is, the values to search for), such as:

regexp_pattern => '(.+)@(.+\.[A-Za-z]{2,4})'

This setting looks for a pattern of the following form:

one_or_more_characters@one_or_more_characters.2-4_characters_in_range_A-Z_or_a-z

• A replacement string, which replaces the value matched by the regexp_pattern

setting. The replacement string can include back references to sub-expressions of

the main regular expression pattern. The following example replaces the data

before the @ symbol (from the regexp_pattern setting) with the text

[redacted]. The \2 setting refers to the second match group, which is (.+\.

[A-Za-z]{2,4}) from the regexp_pattern setting.

regexp_replace_string => '[redacted]@\2'

• The starting position for the string search string, such as the first character of the

data, such as:

regexp_position => DBMS_REDACT.RE_BEGINNING

• The kind of search and replace operation to perform, such as the first occurrence,

every fifth occurrence, or all of the occurrences, such as:

regexp_occurrence => DBMS_REDACT.RE_ALL

• The default matching behavior for the search and replace operation, such as

whether the search is case-sensitive (i sets it to be not case-sensitive):

regexp_match_parameter => 'i

In addition to the default parameters, you can use a set of predefined formats that

enable you to use commonly used regular expressions for telephone numbers, email

addresses, and credit card numbers.

Regular Expressions to Redact Patterns of Data

Oracle Data Redaction Features and Capabilities 9-3

See Also:

Syntax for Creating a Regular Expression-Based Redaction Policy (page 10-21)

9.4 Random Data Redaction to Generate Random Values

In random data redaction, the entire value is redacted by replacing it with a random

value.

The redacted values displayed in the result set of the query change randomly each

time application users run the query.

This type of redaction is useful in cases where you do not want it to be obvious that

the data was redacted. It works especially well for number and datetime data types,

where it is difficult to distinguish between random and real data.

The displayed output for random values changes based on the data type of the

redacted column, as follows:

•Character data types: The random output is a mixture of characters (for example,

HTU[G{\pjkEWcK). It behaves differently for the CHAR and VARCHAR2 data

types, as follows:

–CHAR data type: The redacted output is always in the same character set as

the character set of the column. The byte length of the redacted output is

always the same as the column definition length (that is, the column length

that was provided at the time of table creation). For example, if the column is

CHAR(20), then a string of 20 random characters is provided in the redacted

output of the user's query.

–VARCHAR2 data type: For random redaction of a VARCHAR data type, the

redacted output is always in the same character set as the character set of the

column. The length of the redacted output is limited based on the length of

the actual data in the column. No characters in excess of the length of the

actual data are displayed. For example, if the column is VARCHAR2(20) and

the row being redacted contains actual data with a length of 12, then a string

of 12 random characters (not 20) is provided in the redacted output of the

user's query for that row.

•Number data types: Each actual number value is redacted by replacing it with a

random, non-negative number modulo the absolute value of the actual data. This

redaction results in random numbers that do not exceed the precision of the actual

data. For example, the number 987654321 can be redacted by replacing it with

any of the numbers 12345678, 13579, 0, or 987654320, but not by replacing it

with any of the numbers 987654321, 99987654321, or -1. The number -123

could be redacted by replacing it with the numbers 122, 0, or 83, but not by

replacing it with any of the numbers 123, 1123, or -2.

The only exception to the above is when the actual value is an integer between -1

and 9. In this case, the actual data is redacted by replacing it with a random, non-

negative integer modulo ten (10).

•Date-time data types: When values of the date data type are redacted using

random Data Redaction, Oracle Database displays them with random dates that

are always different from those of the actual data.

The setting for using random redaction is as follows:

Random Data Redaction to Generate Random Values

9-4 Oracle Database Advanced Security Guide

function_type => DBMS_REDACT.RANDOM

See Also:

Syntax for Creating a Random Redaction Policy (page 10-28)

9.5 Comparison of Full, Partial, and Random Redaction Based on Data

Types

The full, partial, and random data redaction styles affect the Oracle built-in, ANSI,

user-defined, and Oracle supplied types in different ways.

Topics:

•Oracle Built-in Data Types Redaction Capabilities (page 9-5)

•ANSI Data Types Redaction Capabilities (page 9-6)

•User Defined Data Types or Oracle Supplied Types Redaction Capabilities

(page 9-7)

9.5.1 Oracle Built-in Data Types Redaction Capabilities

Oracle Data Redaction handles the Oracle built-in data types depending on the type of

Data Redaction policies are used.

Table 9-1 (page 9-5) compares how the full, partial, and random redaction styles

work for Oracle built-in data types.

Table 9-1 Redaction Capabilities for Oracle Built-in Data Types

Data Type Full Redaction Partial Redaction Random Redaction

Character: CHAR, VARCHAR2 (including

long VARCHAR2, for example,

VARCHAR2(20000)), NCHAR,

NVARCHAR2

Default redacted value is a

single blank space

Supported data

type

Supported data

type

Number: NUMBER, FLOAT,

BINARY_FLOAT, BINARY_DOUBLE

Default redacted value is

zero (0).

Supported data

type

Supported data

type

Raw: LONG RAW, RAW Not a supported data type Not a supported

data type

Not a supported

data type

Date-time: DATE, TIMESTAMP,

TIMESTAMP WITH TIME ZONE,

TIMESTAMP WITH LOCAL TIME

ZONE

Default redacted value is

01-01-01 or 01-01-01

01:00:00.

Supported data

type

Supported data

type

Interval: INTERVAL YEAR TO MONTH,

INTERVAL DAY TO SECOND

Not a supported data type Not a supported

data type

Not a supported

data type

Large Object: BFILE Not a supported data type Not a supported

data type

Not a supported

data type

Large Object: BLOB Oracle's raw representation

of [redacted]

Not a supported

data type

Not a supported

data type

Comparison of Full, Partial, and Random Redaction Based on Data Types

Oracle Data Redaction Features and Capabilities 9-5

Table 9-1 (Cont.) Redaction Capabilities for Oracle Built-in Data Types

Data Type Full Redaction Partial Redaction Random Redaction

Large Object: CLOB, NCLOB Default redacted value is

[redacted].

Not a supported

data type

Not a supported

data type

Rowid: ROWID, UROWID Not a supported data type Not a supported

data type

Not a supported

data type

1If you have changed the character set, then you may need to invoke the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure to set the value to the raw representation in the

new character set, as follows:

DECLARE

new_red_blob BLOB;

BEGIN

DBMS_LOB.CREATETEMPORARY(new_red_blob, TRUE);

DBMS_LOB.WRITE(new_red_blob, 10, 1, UTL_RAW.CAST_TO_RAW('[redacted]'));

dbms_redact.update_full_redaction_values(

blob_val => new_red_blob);

DBMS_LOB.FREETEMPORARY(new_red_blob);

END;

After you run this procedure, restart the database.

See also Altering the Default Full Data Redaction Value (page 10-11) for more information about using the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure.

9.5.2 ANSI Data Types Redaction Capabilities

Oracle Data Redaction converts ANSI data types in specific ways, depending on the

type of redaction the Data Redaction policy has.

Table 9-2 (page 9-6) compares how the full, partial, and random redaction styles

work for ANSI data types.

Table 9-2 Redaction Capabilities for the ANSI Data Types

Data Type How

Converted Full Redaction Partial Redaction Random Redaction

CHARACTER(n),

CHAR(n)

Converted to

CHAR(n)

Yes Yes Yes

CHARACTER VARYING(n),

CHAR VARYING(n)

Converted to

VARCHAR2(n)

Yes Yes Yes

NATIONAL CHARACTER(n),

NATIONAL CHAR(n),

NCHAR(n)

Converted to

NCHAR(n)

Yes Yes Yes

NATIONAL CHARACTER

VARYING(n),

NATIONAL CHAR

VARYING(n),

NCHAR VARYING(n)

Converted to

NVARCHAR2(n

)

Yes Yes Yes

Comparison of Full, Partial, and Random Redaction Based on Data Types

9-6 Oracle Database Advanced Security Guide

Table 9-2 (Cont.) Redaction Capabilities for the ANSI Data Types

Data Type How

Converted Full Redaction Partial Redaction Random Redaction

NUMERIC[(p,s)]

DECIMAL[(p,s)]

Converted to

NUMBER(p,s)

Yes Yes Yes

INTEGER

INT

SMALLINT

Converted to

NUMBER(38)

Yes Yes Yes

FLOAT

DOUBLE PRECISION

Converted to

FLOAT(126)

Yes Yes Yes

REAL Converted to

FLOAT(63)

Yes Yes Yes

GRAPHIC

LONG VARGRAPHIC

VARGRAPHIC

TIME

No conversion No No No

9.5.3 User Defined Data Types or Oracle Supplied Types Redaction Capabilities

Several data types or types are not supported by Oracle Data Redaction.

Table 9-3 (page 9-7) compares how the full, partial, and random redaction styles

work for user defined and Oracle supplied types.

Table 9-3 Redaction Capabilities for the User Defined Data Types or Oracle Supplied Types

Data Type or Type Full Redaction Partial Redaction Random Redaction

User-defined data types Not a supported data type Not a supported

data type

Not a supported

data type

Oracle supplied types: Any types, XML

types, Oracle Spatial types, Oracle

Media types

Not a supported data type Not a supported

data type

Not a supported

data type

9.6 No Redaction for Testing Purposes

You can create a Data Redaction policy that does not perform redaction.

This is useful for cases in which you have a redacted base table, yet you want a

specific application user to have a view that always shows the actual data. You can

create a new view of the redacted table and then define a Data Redaction policy for

this view. The policy still exists on the base table, but no redaction is performed when

the application queries using the view as long as the DBMS_REDACT.NONE

function_type setting was used to create a policy on the view.

No Redaction for Testing Purposes

Oracle Data Redaction Features and Capabilities 9-7

No Redaction for Testing Purposes

9-8 Advanced Security Guide

Configuring Oracle Data Redaction Policies

An Oracle Data Redaction policy defines how to redact data in a column based on the

table column type and the type of redaction you want to use.

Topics:

•About Oracle Data Redaction Policies (page 10-1)

•Who Can Create Oracle Data Redaction Policies? (page 10-2)

•Planning an Oracle Data Redaction Policy (page 10-3)

•General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

•Using Expressions to Define Conditions for Data Redaction Policies (page 10-5)

•Creating a Full Redaction Policy and Altering the Full Redaction Value

(page 10-8)

•Creating a Partial Redaction Policy (page 10-13)

•Creating a Regular Expression-Based Redaction Policy (page 10-20)

•Creating a Random Redaction Policy (page 10-27)

•Creating a Policy That Uses No Redaction (page 10-29)

•Exemption of Users from Oracle Data Redaction Policies (page 10-30)

•Altering an Oracle Data Redaction Policy (page 10-31)

•Redacting Multiple Columns (page 10-36)

•Altering the Default Full Data Redaction Value (page 10-11)

•Disabling and Enabling an Oracle Data Redaction Policy (page 10-37)

•Dropping an Oracle Data Redaction Policy (page 10-39)

•Tutorial: SQL Expressions to Build Reports with Redacted Values (page 10-39)

•Oracle Data Redaction Policy Data Dictionary Views (page 10-41)

10.1 About Oracle Data Redaction Policies

An Oracle Data Redaction policy defines the conditions in which redaction must occur

for a table or view.

A Data Redaction policy has the following characteristics:

Configuring Oracle Data Redaction Policies 10-1

• The Data Redaction policy defines the following: What kind of redaction to

perform, how the redaction should occur, and when the redaction takes place.

Oracle Database performs the redaction at execution time, just before the data is

returned to the application.

• A Data Redaction policy can fully redact values, partially redact values, or

randomly redact values. In addition, you can define a Data Redaction policy to

not redact any data at all, for when you want to test your policies in a test

environment.

• A Data Redaction policy can be defined with a policy expression which allows for

different application users to be presented with either redacted data or actual

data, based on whether the policy expression returns TRUE or FALSE. Redaction

takes place when the boolean result of evaluating the policy expression is TRUE.

For security reasons, the functions and operators that can be used in the policy

expression are limited to SYS_CONTEXT and a few others. User-created functions

are not allowed. Policy expressions can make use of the SYS_SESSION_ROLES

namespace with the SYS_CONTEXT function to check for enabled roles.

Table 10-1 (page 10-2) lists the procedures in the DBMS_REDACT package.

Table 10-1 DBMS_REDACT Procedures

Procedure Description

DBMS_REDACT.ADD_POLICY Adds a Data Redaction policy to a table or view

DBMS_REDACT.ALTER_POLICY Modifies a Data Redaction policy

DBMS_REDACT.UPDATE_FULL_RED

ACTION_VALUES

Globally updates the full redaction value for a given

data type. You must restart the database instance

before the updated values can be used.

DBMS_REDACT.ENABLE_POLICY Enables a Data Redaction policy

DBMS_REDACT.DISABLE_POLICY Disables a Data Redaction policy

DBMS_REDACT.DROP_POLICY Drops a Data Redaction policy

See Also:

•Oracle Database PL/SQL Packages and Types Reference for detailed

information about the DBMS_REDACT PL/SQL package

•Using Oracle Data Redaction in Oracle Enterprise Manager

(page 11-1)for information about using Oracle Enterprise Manager

Cloud Control to create and manage Oracle Data Redaction policies and

formats

10.2 Who Can Create Oracle Data Redaction Policies?

Because data redaction involves the protection of highly sensitive data, only trusted

users should create Oracle Data Redaction policies.

Who Can Create Oracle Data Redaction Policies?

10-2 Oracle Database Advanced Security Guide

To create redaction policies, you must have the EXECUTE privilege on the

DBMS_REDACT PL/SQL package. To find the privileges that a user has been granted,

you can query the DBA_SYS_PRIVS data dictionary view.

You do not need any privileges to access the underlying tables or views that will be

protected by the policy.

10.3 Planning an Oracle Data Redaction Policy

Before you create a Oracle Data Redaction policy, you should plan the data redaction

policy that best suits your site’s needs.

1. Ensure that you have been granted the EXECUTE privilege on the DBMS_REDACT

PL/SQL package.

2. Determine the data type of the table or view column that you want to redact.

3. Ensure that this column is not used in an Oracle Virtual Private Database (VPD)

row filtering condition. That is, it must not be part of the VPD predicate generated

by the VPD policy function.

4. Decide on the type of redaction that you want to perform: full, random, partial,

regular expressions, or none.

5. Decide which users to apply the Data Redaction policy to.

6. Based on this information, create the Data Redaction policy by using the

DBMS_REDACT.ADD_POLICY procedure.

7. Configure the policy to have additional columns to be redacted, as described in

Redacting Multiple Columns (page 10-36).

After you create the Data Redaction policy, it is automatically enabled and ready to

redact data.

10.4 General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

To create a Data Redaction policy, you must use the DBMS_REDACT.ADD_POLICY

procedure.

The complete syntax for the DBMS_REDACT.ADD_POLICY procedure is as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

policy_description IN VARCHAR2 := NULL,

column_name IN VARCHAR2 := NULL,

column_description IN VARCHAR2 := NULL,

function_type IN BINARY_INTEGER := DBMS_REDACT.FULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE,

regexp_pattern IN VARCHAR2 := NULL,

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER :=1,

regexp_occurrence IN BINARY_INTEGER :=0,

regexp_match_parameter IN VARCHAR2 := NULL);

In this specification:

Planning an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-3

•object_schema: Specifies the schema of the object on which the Data Redaction

policy will be applied. If you omit this setting (or enter NULL), then Oracle

Database uses the current user's name. Be aware that the meaning of "current

user" here can change, depending on where you invoke the

DBMS_REDACT.ADD_POLICY procedure.

For example, suppose user mpike grants user fbrown the EXECUTE privilege on

a definer's rights PL/SQL package called mpike.protect_data in mpike's

schema. From within this package, mpike has coded a procedure called

protect_cust_data, which invokes the DBMS_REDACT.ADD_POLICY

procedure. User mpike has set the object_schema parameter to NULL.

When fbrown invokes the protect_cust_data procedure in the

mpike.protect_data package, Oracle Database attempts to define the Data

Redaction policy around the object cust_data in the mpike schema, not the

cust_data object in the schema that belongs to fbrown.

•object_name: Specifies the name of the table or view to which the Data

Redaction policy applies.

•policy_name: Specifies the name of the policy to be created. Ensure that this

name is unique in the database instance. You can find a list of existing Data

Redaction policies by querying the POLICY_NAME column of the

REDACTION_POLICIES data dictionary view.

•policy_description: Specifies a brief description of the purpose of the policy.

•column_name: Specifies the column whose data you want to redact. Note the

following:

–You can apply the Data Redaction policy to multiple columns. If you want

to apply the Data Redaction policy to multiple columns, then after you use

DBMS_REDACT.ADD_POLICY to create the policy, run the

DBMS_REDACT.ALTER_POLICY procedure as many times as necessary to

add each of the remaining required columns to the policy. See Altering an

Oracle Data Redaction Policy (page 10-31).

–Only one policy can be defined on a table or view. You can, however, create

a new view on the table, and by defining a second redaction policy on this

new view, you can choose to redact the columns in a different way when a

query is issued against this new view. When deciding how to redact a given

column, Oracle Database uses the policy of the earliest view in a view chain.

–If you do not specify a column (for example, by entering NULL), then no

columns are redacted by the policy. This enables you to create your policies

so that they are in place, and then later on, you can add the column

specification when you are ready.

–Do not use a column that is currently used in an Oracle Virtual Private

Database (VPD) row filtering condition. In other words, the column should

not be part of the VPD predicate generated by the VPD policy function. (See

Oracle Data Redaction and Oracle Virtual Private Database (page 12-3) for

more information about using Data Redaction with VPD.)

–You cannot define a Data Redaction policy on a virtual column. In addition,

you cannot define a Data Redaction policy on a column that is involved in the

SQL expression of any virtual column.

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

10-4 Oracle Database Advanced Security Guide

•column_description: Specifies a brief description of the column that you are

redacting.

•function_type: Specifies a function that sets the type of redaction. See the

following sections for more information:

–Syntax for Creating a Full Redaction Policy (page 10-9)

–Syntax for Creating a Partial Redaction Policy (page 10-13)

–Syntax for Creating a Regular Expression-Based Redaction Policy

(page 10-21)

–Syntax for Creating a Random Redaction Policy (page 10-28)

–Syntax for Creating a Policy with No Redaction (page 10-29)

If you omit the function_type parameter, then the default redaction

function_type setting is DBMS_REDACT.FULL.

•function_parameters: Specifies how the column redaction should appear for

partial redaction. See Syntax for Creating a Partial Redaction Policy (page 10-13).

•expression: Specifies a Boolean SQL expression to determine how the policy is

applied. Redaction takes place only if this policy expression evaluates to TRUE.

See Using Expressions to Define Conditions for Data Redaction Policies

(page 10-5).

•enable: When set to TRUE, enables the policy upon creation. When set to FALSE,

it creates the policy as a disabled policy. The default is TRUE. After you create the

policy, you can disable or enable it. See the following sections:

–Disabling an Oracle Data Redaction Policy (page 10-37)

–Enabling an Oracle Data Redaction Policy (page 10-38)

•regexp_pattern, regexp_replace_string, regexp_position,

regexp_position, regexp_occurrence, regexp_match_parameter:

Enable you to use regular expressions to redact data, either fully or partially. If the

regexp_pattern does not match anything in the actual data, then full redaction

will take place, so be careful when specifying the regexp_pattern. Ensure that

all of the values in the column conform to the semantics of the regular expression

you are using. See Syntax for Creating a Regular Expression-Based Redaction

Policy (page 10-21) for more information.

10.5 Using Expressions to Define Conditions for Data Redaction Policies

The expression parameter in the DBMS_REDACT.ADD_POLICY procedure specifies

the conditions to which the policy applies.

Topics:

•About Using Expressions in Data Redaction Policies (page 10-6)

•Applying the Redaction Policy Based on User Environment (page 10-6)

•Applying the Redaction Policy Based on Database Roles (page 10-7)

•Applying the Redaction Policy Based on Oracle Label Security Label Dominance

(page 10-7)

Using Expressions to Define Conditions for Data Redaction Policies

Configuring Oracle Data Redaction Policies 10-5

•Applying the Redaction Policy Based on Application Express Session States

(page 10-7)

•Applying the Redaction Policy to All Users (page 10-8)

10.5.1 About Using Expressions in Data Redaction Policies

The DBMS_REDACT.ADD_POLICY and DBMS_REDACT.ALTER_POLICY expression

parameter defines a Boolean expression that must evaluate to TRUE to enable a

redaction.

This expression must be based on one of the following functions:

•SYS_CONTEXT, using a specified namespace. The default namespace for

SYS_CONTEXT is USERENV, which includes values such as SESSION_USER and

CLIENT_IDENTIFIER. (See Oracle Database SQL Language Reference for detailed

information about this function.) Another namespace that you can use is the

SYS_SESSION_ROLES namespace, which contains attributes for each role.

• The following Oracle Application Express functions:

–V, which is a wrapper for the APEX_UTIL.GET_SESSION_STATE function

–NV, which is a wrapper for the

APEX_UTIL.GET_NUMERIC_SESSION_STATE function

See Oracle Application Express API Reference for more information about these

APEX_UTIL package functions.

• The OLS_LABEL_DOMINATES function, described in Oracle Label Security

Administrator's Guide, which is a wrapper for the

LBACSYS.OLS_LABEL_DOMINATES function.

Follow these guidelines when you write the expression:

• Use only the following operators: =, !=, >, <, >=, <=

• Because the expression must evaluate to TRUE for redaction, be careful when

making comparisons with NULL. Remember that in SQL the value NULL is

undefined, so comparisons with NULL tend to return FALSE.

• Do not use user-created functions in the expression parameter; this is not

permitted.

Remember that for user SYS and users who have the EXEMPT REDACTION POLICY

privilege, all of the Data Redaction policies are bypassed, so the results of their queries

are not redacted. See the following sections for more information about users who are

exempted from Data Redaction policies:

•Exemption of Users from Oracle Data Redaction Policies (page 10-30)

•Oracle Data Pump Security Model for Oracle Data Redaction (page 12-4)

10.5.2 Applying the Redaction Policy Based on User Environment

You can apply a Data Redaction policy based on the user’s environment, such as the

session user name or a client identifier.

Using Expressions to Define Conditions for Data Redaction Policies

10-6 Oracle Database Advanced Security Guide

• Use the USERENV namespace of the SYS_CONTEXT function in the

DBMS_REDACT.ADD_POLICY expression parameter to apply the policy based

on a user’s environment.

For example, to apply the policy only to the session user name psmith:

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') = ''PSMITH'''

See Also:

Oracle Database SQL Language Reference for information about more

namespaces that you can use with the SYS_CONTEXT function

10.5.3 Applying the Redaction Policy Based on Database Roles

You can apply a Data Redaction policy based on a database role, such as the DBA role.

• Use the SYS_SESSION_ROLES namespace in the SYS_CONTEXT function to apply

the policy based on a user role.

This namespace contains attributes for each role. The value of the attribute is

TRUE if the specified role is enabled for the querying application user; the value is

FALSE if the role is not enabled.

For example, suppose you wanted only supervisors to be allowed to see the actual

data. The following example shows how to use the DBMS_REDACT.ADD_POLICY

expression parameter to set the policy to show the actual data to any application

user who has the supervisor role enabled, but redact the data for all of the other

application users.

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''SUPERVISOR'') = ''FALSE'''

10.5.4 Applying the Redaction Policy Based on Oracle Label Security Label Dominance

You can set a condition on which to apply a Data Redaction policy based on the

dominance of Oracle Label Security labels.

Note:

This feature is available starting with Oracle Database 12c Release 1 (12.1.0.2).

• Use the public standalone function OLS_LABEL_DOMINATES to check the

dominance of a session label. This function returns 1 (TRUE) if the session label of

the specified policy_name value dominates or is equal to the label that is

specified by the label parameter; otherwise, it returns 0 (FALSE).

For example, to apply a Data Redaction policy only in cases where the session label for

the policy hr_ols_pol does not dominate nor is equal to label hs:

expression => 'OLS_LABEL_DOMINATES (''hr_ols_pol'',''hs'') = 0'

10.5.5 Applying the Redaction Policy Based on Application Express Session States

You can apply a Data Redaction policy based on an Oracle Application Express

(APEX) session state.

Using Expressions to Define Conditions for Data Redaction Policies

Configuring Oracle Data Redaction Policies 10-7

• Use either of the following public Application Express APIs in the

DBMS_REDACT.ADD_POLICY expression parameter to apply the policy on an

Oracle Application Express session state:

–V, which is a synonym for the APEX_UTIL.GET_SESSION_STATE function

–NV, which is a synonym for the

APEX_UTIL.GET_NUMERIC_SESSION_STATE function

For example, to set the DBMS_REDACT.ADD_POLICY expression parameter if you

wanted redaction to take place when the application item called G_JOB has the value

CLERK:

expression => 'V(''APP_USER'') != ''mavis@example.com'' or V(''APP_USER'') is null'

You can, for example, use these functions to redact data based on a job or a privilege

role that is stored in a session state in an APEX application.

If you want redaction to take place when the querying user is not within the context of

an APEX application (when the query is issued from outside the APEX framework, for

example directly through SQL*Plus), then use an IS NULL clause as follows. This

policy expression causes actual data to be shown to user mavis only when her query

comes from within an APEX application. Otherwise, the query result is redacted.

See Also:

Oracle Application Express API Reference

10.5.6 Applying the Redaction Policy to All Users

You can apply the policy irrespective of the context to any user, with no filtering.

However, be aware that user SYS and users who have the EXEMPT REDACTION

POLICY privilege are always except from Oracle Data Redaction policies.

• To apply the policy to users who are not SYS or have been granted the EXEMPT

REDACTION POLICY privilege, write the DBMS_REDACT.ADD_POLICY

expression parameter to evaluate to TRUE.

For example:

expression => '1=1'

See Also:

Exemption of Users from Oracle Data Redaction Policies (page 10-30)

10.6 Creating a Full Redaction Policy and Altering the Full Redaction

Value

You can create a full redaction policy to redact all contents in a data column, and

optionally, you can alter the default full redaction value.

Topics:

•Creating a Full Redaction Policy (page 10-9)

Creating a Full Redaction Policy and Altering the Full Redaction Value

10-8 Oracle Database Advanced Security Guide

•Altering the Default Full Data Redaction Value (page 10-11)

10.6.1 Creating a Full Redaction Policy

A full data redaction policy redacts all the contents of a data column.

Topics:

•About Creating Full Data Redaction Policies (page 10-9)

•Syntax for Creating a Full Redaction Policy (page 10-9)

•Example: Full Redaction Policy (page 10-10)

•Example: Fully Redacted Character Values (page 10-10)

10.6.1.1 About Creating Full Data Redaction Policies

To set a redaction policy to redact all data in the column, you must set the

function_type parameter to DBMS_REDACT.FULL.

By default, NUMBER data type columns are replaced with zero (0) and character data

type columns are replaced with a single space ( ). You can modify this default by

using the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure.

See Also:

Altering the Default Full Data Redaction Value (page 10-11) if you want to

modify the default full redaction value

10.6.1.2 Syntax for Creating a Full Redaction Policy

The DBMS_REDACT.ADD_POLICY procedure enables you to create a full redaction

policy.

The DBMS_REDACT.ADD_POLICY fields for creating a full data redaction policy are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•object_schema, object_name, column_name, policy_name, expression,

enable: See General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3).

•function_type: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.FULL.

If you omit the function_type parameter, then the default redaction

function_type setting is DBMS_REDACT.FULL.

Creating a Full Redaction Policy and Altering the Full Redaction Value

Configuring Oracle Data Redaction Policies 10-9

Remember that the data type of the column determines which function_type

settings that you are permitted to use. See Comparison of Full, Partial, and

Random Redaction Based on Data Types (page 9-5).

10.6.1.3 Example: Full Redaction Policy

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a full

redaction policy.

Example 10-1 (page 10-10) shows how to use full redaction for all the values in the

HR.EMPLOYEES table COMMISSION_PCT column. The expression parameter applies

the policy to any user querying the table, except for users who have been granted the

EXEMPT REDACTION POLICY system privilege. (See Exemption of Users from Oracle

Data Redaction Policies (page 10-30) for more information about the EXEMPT

REDACTION POLICY system privilege.)

Example 10-1 Full Data Redaction Policy

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'hr',

object_name => 'employees',

column_name => 'commission_pct',

policy_name => 'redact_com_pct',

function_type => DBMS_REDACT.FULL,

expression => '1=1');

END;

Query and redacted result:

SELECT COMMISSION_PCT FROM HR.EMPLOYEES;

COMMISSION_PCT

--------------

10.6.1.4 Example: Fully Redacted Character Values

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a policy

that fully redacts character values.

Example 10-2 (page 10-10) shows how to redact fully the user IDs of the user_id

column in the mavis.cust_info table. The user_id column is of the VARCHAR2

data type. The output is a blank string. The expression setting enables users who

have the MGR role to view the user IDs.

Example 10-2 Fully Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'user_id',

policy_name => 'redact_cust_user_ids',

function_type => DBMS_REDACT.FULL,

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''MGR'') = ''FALSE''');

END;

Creating a Full Redaction Policy and Altering the Full Redaction Value

10-10 Oracle Database Advanced Security Guide

Query and redacted result:

SELECT user_id FROM mavis.cust_info;

USER_ID

------------

10.6.2 Altering the Default Full Data Redaction Value

You can use the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure to

alter the default full data redaction value.

Topics:

•About Altering the Default Full Data Redaction Value (page 10-11)

•Syntax for the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

Procedure (page 10-11)

•Modifying the Default Full Data Redaction Value (page 10-12)

10.6.2.1 About Altering the Default Full Data Redaction Value

You can alter the default displayed values for full Data Redaction polices.

By default, 0 is the redacted value when Oracle Database performs full redaction

(DBMS_REDACT.FULL) on a column of the NUMBER data type. If you want to change it

to another value (for example, 7), then you can run the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure to modify this value.

The modification applies to all of the Data Redaction policies in the current database

instance. After you modify a value, you must restart the database for it to take effect.

You can find the current values by querying the

REDACTION_VALUES_FOR_TYPE_FULL data dictionary view.

Be aware that this change affects all Data Redaction policies in the database that use

full data redaction. Before you alter the default full data redaction value, examine the

affect that this change would have on existing full Data Redaction policies.

10.6.2.2 Syntax for the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

Procedure

The DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure accommodates

the standard supported Oracle Database data types.

The syntax is as follows:

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES (

number_val IN NUMBER NULL,

binfloat_val IN BINARY_FLOAT NULL,

bindouble_val IN BINARY_DOUBLE NULL,

char_val IN CHAR NULL,

varchar_val IN VARCHAR2 NULL,

nchar_val IN NCHAR NULL,

nvarchar_val IN NVARCHAR2 NULL,

date_val IN DATE NULL,

ts_val IN TIMESTAMP NULL,

tswtz_val IN TIMESTAMP WITH TIME ZONE NULL,

blob_val IN BLOB NULL,

Creating a Full Redaction Policy and Altering the Full Redaction Value

Configuring Oracle Data Redaction Policies 10-11

clob_val IN CLOB NULL,

nclob_val IN NCLOB NULL);

In this specification:

•number_val modifies the default value for columns of the NUMBER data type.

•binfloat_val modifies the default value for columns of the BINARY_FLOAT

data type.

•bindouble_val modifies the default value for columns of the BINARY_DOUBLE

data type.

•char_val modifies the default value for columns of the CHAR data type.

•varchar_val modifies the default value for columns of the VARCHAR2 data type.

•nchar_val modifies the default value for columns of the NCHAR data type.

•nvarchar_val modifies the default value for columns of the NVARCHAR2 data

type.

•date_val modifies the default value for columns of the DATE data type.

•ts_val modifies the default value for columns of the TIMESTAMP data type.

•tswtz_val modifies the default value for columns of the TIMESTAMP WITH

TIME ZONE data type.

•blob_val modifies the default value for columns of the BLOB data type.

•clob_val modifies the default value for columns of the CLOB data type.

•nclob modifies the default value for columns of the NCLOB data type.

10.6.2.3 Modifying the Default Full Data Redaction Value

To modify the default full data redaction value, use the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure.

1. Log in to the database instance as user SYS with the SYSDBA administrative

privilege.

2. Check the value that you want to change.

For example, to check the current value for columns that use the NUMBER data

type:

SELECT NUMBER_VALUE FROM REDACTION_VALUES_FOR_TYPE_FULL;

NUMBER_VALUE

------------

3. Run the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES procedure to

modify the value.

For example:

EXEC DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES (number_val => 7);

4. Restart the database instance.

Creating a Full Redaction Policy and Altering the Full Redaction Value

10-12 Oracle Database Advanced Security Guide

For example:

SHUTDOWN IMMEDIATE

STARTUP

10.7 Creating a Partial Redaction Policy

In partial data redaction, you can redact portions of data, and for different kinds of

data types.

Topics:

•About Creating Partial Redaction Policies (page 10-13)

•Syntax for Creating a Partial Redaction Policy (page 10-13)

•Creating Partial Redaction Policies Using Fixed Character Formats (page 10-14)

•Creating Partial Redaction Policies Using Character Data Types (page 10-16)

•Creating Partial Redaction Policies Using Number Data Types (page 10-18)

•Creating Partial Redaction Policies Using Date-Time Data Types (page 10-19)

10.7.1 About Creating Partial Redaction Policies

In partial data redaction, only a portion of the data, such as the first five digits of an

identification number, are redacted.

For example, you can redact most of a credit card number with asterisks (*), except for

the last 4 digits. You can create policies for columns that use character, number, or

date-time data types. For policies that redact character data types, you can use fixed

character redaction formats. If you have the Enterprise Manager for Oracle Database

12.1.0.7 plug-in deployed on your system, then you can also create and save custom

redaction formats.

Note:

In previous releases, the term shortcut was used for the term format.

10.7.2 Syntax for Creating a Partial Redaction Policy

The DBMS_REDACT.ADD_POLICY statement enables you to create policies that redact

specific parts of the data returned to the application.

The DBMS_REDACT.ADD_POLICY fields for creating a partial redaction policy are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

Creating a Partial Redaction Policy

Configuring Oracle Data Redaction Policies 10-13

In this specification:

•object_schema, object_name, column_name, policy_name, expression,

enable: See General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3)

•function_type: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.PARTIAL.

•function_parameters: The parameters that you set here depend on the data

type of the column specified for the column_name parameter. See the following

sections for details:

–Creating Partial Redaction Policies Using Fixed Character Formats

(page 10-14)

–Creating Partial Redaction Policies Using Character Data Types (page 10-16)

–Creating Partial Redaction Policies Using Number Data Types (page 10-18)

–Creating Partial Redaction Policies Using Date-Time Data Types (page 10-19)

10.7.3 Creating Partial Redaction Policies Using Fixed Character Formats

The DBMS_REDACT.ADD_POLICY function_parameters parameter enables you to

use fixed character formats.

Topics:

•Settings for Fixed Character Formats (page 10-14)

•Example: Partial Redaction Policy Using a Fixed Character Format (page 10-15)

10.7.3.1 Settings for Fixed Character Formats

Oracle Data Redaction provides special predefined formats to configure policies that

use fixed characters.

Table 10-2 (page 10-14) describes DBMS_REDACT.ADD_POLICY

function_parameters parameter formats that you can use for commonly redacted

Social Security numbers, postal codes, and credit cards that use either the VARCHAR2

or NUMBER data types for their columns.

Table 10-2 Partial Fixed Character Redaction Formats

Format Description

DBMS_REDACT.REDACT_US_SSN_F5 Redacts the first 5 numbers of Social Security

numbers when the column is a VARCHAR2 data

type. For example, the number 987-65-4320

becomes XXX-XX-4320.

DBMS_REDACT.REDACT_US_SSN_L4 Redacts the last 4 numbers of Social Security

numbers when the column is a VARCHAR2 data

type. For example, the number 987-65-4320

becomes 987-65-XXXX.

Creating a Partial Redaction Policy

10-14 Oracle Database Advanced Security Guide

Table 10-2 (Cont.) Partial Fixed Character Redaction Formats

Format Description

DBMS_REDACT.REDACT_US_SSN_ENTIRE Redacts the entire Social Security number

when the column is a VARCHAR2 data type. For

example, the number 987-65-4320 becomes

XXX-XX-XXXX.

DBMS_REDACT.REDACT_NUM_US_SSN_F5 Redacts the first 5 numbers of Social Security

numbers when the column is a NUMBER data

type. For example, the number 987654320

becomes XXXXX4320.

DBMS_REDACT.REDACT_NUM_US_SSN_L4 Redacts the last 4 numbers of Social Security

numbers when the column is a NUMBER data

type. For example, the number 987654320

becomes 98765XXXX.

DBMS_REDACT.REDACT_NUM_US_SSN_EN

TIRE

Redacts the entire Social Security number

when the column is a NUMBER data type. For

example, the number 987654320 becomes

XXXXXXXXX.

DBMS_REDACT.REDACT_ZIP_CODE Redacts a 5-digit postal code when the column

is a VARCHAR2 data type. For example, 95476

becomes XXXXX.

DBMS_REDACT.REDACT_NUM_ZIP_CODE Redacts a 5-digit postal code when the column

is a NUMBER data type. For example, 95476

becomes XXXXX.

DBMS_REDACT.REDACT_DATE_MILLENNI

Redacts dates that are in the DD-MON-YY

format to 01-JAN-00 (January 1, 2000).

DBMS_REDACT.REDACT_DATE_EPOCH Redacts all dates to 01-JAN-70.

DBMS_REDACT.REDACT_CCN16_F12 Redacts a 16-digit credit card number, leaving

the last 4 digits displayed. For example, 5105

1051 0510 5100 becomes ****-****-

****-5100.

See Also:

"General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)"

for information about other DBMS_REDACT.ADD_POLICY parameters

10.7.3.2 Example: Partial Redaction Policy Using a Fixed Character Format

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a partial

redaction policy that uses a fixed character format.

Example 10-3 (page 10-15) shows how Social Security numbers in a VARCHAR2 data

type column and can be redacted using the REDACT_US_SSN_F5 format.

Example 10-3 Partially Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

Creating a Partial Redaction Policy

Configuring Oracle Data Redaction Policies 10-15

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'ssn',

policy_name => 'redact_cust_ssns3',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => DBMS_REDACT.REDACT_US_SSN_F5,

expression => '1=1',

policy_description => 'Partially redacts 1st 5 digits in SS numbers',

column_description => 'ssn contains Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

-------

XXX-XX-4320

XXX-XX-4323

XXX-XX-4325

XXX-XX-4329

10.7.4 Creating Partial Redaction Policies Using Character Data Types

The DBMS_REDACT.ADD_POLICY function_parameters parameter enables you to

redact character data types.

Topics:

•Settings for Character Data Types (page 10-16)

•Example: Partial Redaction Policy Using a Character Data Type (page 10-17)

10.7.4.1 Settings for Character Data Types

Oracle Data Redaction provides special settings to configure policies that use character

data types.

When you set the DBMS_REDACT.ADD_POLICY function_parameters parameter

to define partial redaction of character data types, enter values for the following

settings in the order shown. Separate each value with a comma

Note:

Be aware that you must use a fixed width character set for the partial

redaction. In other words, each character redacted must be replaced by

another of equal byte length. If you want to use a variable-length character set

(for example, UTF-8), then you must use a regular expression-based redaction.

See Syntax for Creating a Regular Expression-Based Redaction Policy

(page 10-21) for more information.

The settings are as follows:

1. Input format: Defines how the data is currently formatted. Enter V for each

character that potentially can be redacted, such as all of the digits in a credit card

number. Enter F for each character that you want to format using a formatting

character, such as hyphens or blank spaces in the credit card number. Ensure that

Creating a Partial Redaction Policy

10-16 Oracle Database Advanced Security Guide

each character has a corresponding V or F value. (The input format values are not

case-sensitive.)

2. Output format: Defines how the displayed data should be formatted. Enter V for

each character to be potentially redacted. Replace each F character in the input

format with the character that you want to use for the displayed output, such as a

hyphen. (The output format values are not case-sensitive.)

3. Mask character: Specifies the character to be used for the redaction. Enter a single

character to use for the redaction, such as an asterisk (*).

4. Starting digit position: Specifies the starting V digit position for the redaction.

5. Ending digit position: Specifies the ending V digit position for the redaction. Do

not include the F positions when you decide on the ending position value.

For example, the following setting redacts the first 12 V digits of the credit card

number 5105 1051 0510 5100, and replaces the F positions (which are blank

spaces) with hyphens to format it in a style normally used for credit card numbers,

resulting in ****-****-****-4320.

function_parameters => 'VVVVFVVVVFVVVVFVVVV,VVVV-VVVV-VVVV-VVVV,*,1,12',

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

for information about other DBMS_REDACT.ADD_POLICY parameters

10.7.4.2 Example: Partial Redaction Policy Using a Character Data Type

The DBMS_REDACT.ADD_POLICY PL/SQL procedure can create a partial redaction

policy that uses a character data type.

Example 10-4 (page 10-17) shows how to redact Social Security numbers that are in a

VARCHAR2 data type column and to preserve the character hyphens in the Social

Security number.

Example 10-4 Partially Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'ssn',

policy_name => 'redact_cust_ssns2',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => 'VVVFVVFVVVV,VVV-VV-VVVV,*,1,5',

expression => '1=1',

policy_description => 'Partially redacts Social Security numbers',

column_description => 'ssn contains character Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

-----------

***-**-4320

Creating a Partial Redaction Policy

Configuring Oracle Data Redaction Policies 10-17

***-**-4323

***-**-4325

***-**-4329

10.7.5 Creating Partial Redaction Policies Using Number Data Types

The DBMS_REDACT.ADD_POLICY function_parameters parameter enables you to

redact number data types.

Topics:

•Settings for Number Data Types (page 10-18)

•Example: Partial Redaction Policy Using a Number Data Type (page 10-18)

10.7.5.1 Settings for Number Data Types

When you set values for the number data type, you must specify a mask character, a

starting digit position, and ending digit position.

For partial redaction of number data types, you can enter values for the following

settings for the function_parameters parameter of the

DBMS_REDACT.ADD_POLICY procedure, in the order shown.

1. Mask character: Specifies the character to display. Enter a number from 0 to 9.

2. Starting digit position: Specifies the starting digit position for the redaction, such

as 1 for the first digit.

3. Ending digit position: Specifies the ending digit position for the redaction.

For example, the following setting redacts the first five digits of the Social Security

number 987654321, resulting in 999994321.

function_parameters => '9,1,5',

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

for information about other DBMS_REDACT.ADD_POLICY parameters

10.7.5.2 Example: Partial Redaction Policy Using a Number Data Type

The DBMS_REDACT.ADD_POLICY procedure can create a partial redaction policy that

uses a number data type.

Example 10-5 (page 10-18) shows how to partially redact a set of Social Security

numbers in the mavis.cust_info table, for any application user who logs in.

(Hence, the expression parameter evaluates to TRUE.)

This type of redaction is useful when the application is expecting a formatted number

and not a string. In this scenario, the Social Security numbers are in a column of the

data type NUMBER. In other words, the ssn column contains numbers only, not other

characters such as hyphens or blank spaces.

Example 10-5 Partially Redacted Data Redaction Numeric Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

Creating a Partial Redaction Policy

10-18 Oracle Database Advanced Security Guide

column_name => 'ssn',

policy_name => 'redact_cust_ssns1',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '7,1,5',

expression => '1=1',

policy_description => 'Partially redacts Social Security numbers',

column_description => 'ssn contains numeric Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

---------

777774320

777774323

777774325

777774329

10.7.6 Creating Partial Redaction Policies Using Date-Time Data Types

The DBMS_REDACT.ADD_POLICY function_parameters parameter enables you to

redact date-time data types.

Topics:

•Settings for Date-Time Data Types (page 10-19)

•Example: Partial Redaction Policy Using Date-Time Data Type (page 10-20)

10.7.6.1 Settings for Date-Time Data Types

Oracle Data Redaction provides special settings for configuring date-time data types.

For partial redaction of date-time data types, enter values for the following

DBMS_REDACT.ADD_POLICY function_parameters parameter settings.

Enter these values in the order shown:

1. m: Redacts the month. To redact with a month name, append 1–12 to lowercase

m. For example, m5 displays as MAY. To omit redaction, enter an uppercase M.

2. d: Redacts the day of the month. To redact with a day of the month, append 1–31

to a lowercase d. For example, d7 displays as 07. If you enter a higher number

than the days of the month (for example, 31 for the month of February), then the

last day of the month is displayed (for example, 28). To omit redaction, enter an

uppercase D.

3. y: Redacts the year. To redact with a year, append 1–9999 to a lowercase y. For

example, y1984 displays as 84. To omit redaction, enter an uppercase Y.

4. h: Redacts the hour. To redact with an hour, append 0–23 to a lowercase h. For

example, h20 displays as 20. To omit redaction, enter an uppercase H.

5. m: Redacts the minute. To redact with a minute, append 0–59 to a lowercase m.

For example, m30 displays as 30. To omit redaction, enter an uppercase M.

6. s: Redacts the second. To redact with a second, append 0–59 to a lowercase s. For

example, s45 displays as 45. To omit redaction, enter an uppercase S.

Creating a Partial Redaction Policy

Configuring Oracle Data Redaction Policies 10-19

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

for information about other DBMS_REDACT.ADD_POLICY parameters

10.7.6.2 Example: Partial Redaction Policy Using Date-Time Data Type

The DBMS_REDACT.ADD_POLICY procedure can create a partial redaction policy that

uses the date-time data type.

Example 10-6 (page 10-20) shows how to partially redact a date. This example redacts

the birth year of customers; replacing it with 13, but retaining the remaining values.

Example 10-6 Partially Redacted Data Redaction Using Date-Time Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'birth_date',

policy_name => 'redact_cust_bdate',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => 'mdy2013HMS',

expression => '1=1',

policy_description => 'Replaces birth year with 2013',

column_description => 'birth_date contains customer's birthdate');

END;

Query and redacted result:

SELECT birth_date FROM mavis.cust_info;

BIRTH_DATE

07-DEC-13 09.45.40.000000 AM

12-OCT-13 04.23.29.000000 AM

10.8 Creating a Regular Expression-Based Redaction Policy

A regular expression-based redaction policy enables you to redact data based on a

search-and-replace model.

Topics:

•About Creating Regular Expression-Based Redaction Policies (page 10-20)

•Syntax for Creating a Regular Expression-Based Redaction Policy (page 10-21)

•Regular Expression-Based Redaction Policies Using Formats (page 10-22)

•Custom Regular Expression Redaction Policies (page 10-26)

10.8.1 About Creating Regular Expression-Based Redaction Policies

Regular expression-based redaction enables you to search for patterns of data to

redact.

For example, you can use regular expressions to redact email addresses, which can

have varying character lengths. It is designed for use with character data only. You

Creating a Regular Expression-Based Redaction Policy

10-20 Oracle Database Advanced Security Guide

can use formats for the search and replace operation, or you can create custom pattern

formats.

You cannot use regular expressions to redact a subset of the values in a column. The

REGEXP_PATTERN (regular expression pattern) must match all of the values in order

for the REGEXP_REPLACE_STRING setting to take effect, and the

REGEXP_REPLACE_STRING must change the value.

For rows where the REGEXP_PATTERN fails to match, Data Redaction performs

DBMS_REDACT.FULL redaction. This mitigates the risk of a mistake in the

REGEXP_PATTERN which causes the regular expression to fail to match all of the

values in the column, from showing the actual data for those rows which it failed to

match.

In addition, if no change to the value occurs as a result of the

REGEXP_REPLACE_STRING setting during regular expression replacement operation,

Data Redaction performs DBMS_REDACT.FULL redaction.

10.8.2 Syntax for Creating a Regular Expression-Based Redaction Policy

The regexp_* parameters of the DBMS_REDACT.ADD_POLICY procedure can create a

regular expression-based redaction policy.

The DBMS_REDACT.ADD_POLICY fields for creating a regular expression-based data

redaction policy are as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE,

regexp_pattern IN VARCHAR2 := NULL,

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER := 1,

regexp_occurrence IN BINARY_INTEGER := 0,

regexp_match_parameter IN VARCHAR2 := NULL);

In this specification:

•object_schema, object_name, column_name, policy_name, expression,

enable: See General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3).

•function_type: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.REGEXP.

Note the following:

– When you set the function_type parameter to DBMS_REDACT.REGEXP,

omit the function_parameters parameter.

– Specify the regular expressions—regexp_pattern, regexp_replace,

regexp_position, regexp_occurrence, and

regexp_match_parameter—in much the same way that you specify the

pattern, replace, position, occurrence, and match_parameter

arguments to the REGEXP_REPLACE SQL function. See Oracle Database SQL

Language Reference for information about the REGEXP_REPLACE SQL function.

Creating a Regular Expression-Based Redaction Policy

Configuring Oracle Data Redaction Policies 10-21

•regexp_pattern: Describes the search pattern for data that must be matched. If

it finds a match, then Oracle Database replaces the data as specified by the

regexp_replace_string setting. See the following sections for more

information:

–Regular Expression-Based Redaction Policies Using Formats (page 10-22)

–Custom Regular Expression Redaction Policies (page 10-26)

•regexp_replace_string: Specifies how you want to replace the data to be

redacted. See the following sections for more information:

–Regular Expression-Based Redaction Policies Using Formats (page 10-22)

–Custom Regular Expression Redaction Policies (page 10-26)

•regexp_position: Specifies the starting position for the string search. The value

that you enter must be a positive integer indicating the character of the

column_name data where Oracle Database should begin the search. The default

is 1 or the RE_BEGINNING format, meaning that Oracle Database begins the

search at the first character of the column_name data.

•regexp_occurrence: Specifies how to perform the search and replace

operation. The value that you enter must be a nonnegative integer indicating the

occurrence of the replace operation:

– If you specify 0 or the RE_ALL format, then Oracle Database replaces all of

the occurrences of the match.

– If you specify the RE_FIRST format, then Oracle Database replaces the first

occurrence of the match.

– If you specify a positive integer n, then Oracle Database replaces the nth

occurrence of the match.

If the occurrence is greater than 1, then the database searches for the second

occurrence beginning with the first character following the first occurrence of

pattern, and so forth.

•regexp_match_parameter: Specifies a text literal that lets you change the

default matching behavior of the function. The behavior of this parameter is the

same for this function as for the REGEXP_REPLACE SQL function. See Oracle

Database SQL Language Reference for detailed information.

To filter the search so that it is not case sensitive, specify the

RE_MATCH_CASE_INSENSITIVE format.

10.8.3 Regular Expression-Based Redaction Policies Using Formats

You can use formats for both the regexp_pattern and regexp_replace_string

parameters in the DBMS_REDACT.ADD_POLICY procedure.

Topics:

•Regular Expression Formats (page 10-23)

•Example: Regular Expression Redaction Policy Using Formats (page 10-25)

Creating a Regular Expression-Based Redaction Policy

10-22 Oracle Database Advanced Security Guide

10.8.3.1 Regular Expression Formats

The regular expression formats represent commonly used expressions that you may

want to use, such as replacing digits within a credit card number.

Table 10-3 (page 10-23) describes the formats that you can use with the

regexp_pattern parameter in the DBMS_REDACT.ADD_POLICY procedure.

Table 10-3 Formats for the regexp_pattern Parameter

Format Description

DBMS_REDACT.RE_PATTERN_ANY_DIGIT Searches for any digit. Replaces the identified

pattern with the characters specified by

theregexp_replace_string parameter.

The

DBMS_REDACT.RE_PATTERN_ANY_DIGIT is

commonly used with the following values of

the regexp_replace_string parameter:

regexp_replace_string =>

DBMS_REDACT.RE_REDACT_WITH_SINGLE_X,

This setting replaces any matched digit with

the X character.

The following setting replaces any matched

digit with the 1 character.

regexp_replace_string =>

DBMS_REDACT.RE_REDACT_WITH_SINGLE_1,

DBMS_REDACT.RE_PATTERN_CC_L6_T4 Searches for the middle digits of any credit

card that has 6 leading digits and 4 trailing

digits. Replaces the identified pattern with

the characters specified by

theregexp_replace_string parameter.

The appropriate regexp_replace_string

setting to use with this format is

DBMS_REDACT.RE_REDACT_CC_MIDDLE_D

IGITS, which finds any credit card that

could have 6 leading and 4 trailing digits left

as actual data. It then redacts the middle

digits.

DBMS_REDACT.RE_PATTERN_US_PHONE Searches for any U.S. telephone number.

Replaces the identified pattern with the

characters specified by

theregexp_replace_string parameter

The appropriate regexp_replace_string

setting to use with this format is

DBMS_REDACT.RE_REDACT_US_PHONE_L7,

which finds United States phone numbers

and then redacts the last 7 digits.

Creating a Regular Expression-Based Redaction Policy

Configuring Oracle Data Redaction Policies 10-23

Table 10-3 (Cont.) Formats for the regexp_pattern Parameter

Format Description

DBMS_REDACT.RE_PATTERN_EMAIL_ADDRE

Searches for any email address. Replaces the

identified pattern with the characters

specified by theregexp_replace_string

parameter

The appropriate regexp_replace_string

settings that you can use with this format are

as follows:

RE_REDACT_EMAIL_NAME, which finds any

email address and redacts the email user

name

RE_REDACT_EMAIL_DOMAIN, which finds

any email address and redacts the email

domain

RE_REDACT_EMAIL_ENTIRE, which finds

any email address and redacts the entire

email address

DBMS_REDACT.RE_PATTERN_IP_ADDRESS Searches for an IP address. Replaces the

identified pattern with the characters

specified by theregexp_replace_string

parameter.

The appropriate regexp_replace_string

setting to use with this format is

DBMS_REDACT.RE_REDACT_IP_L3, which

replaces the last section of the dotted decimal

string representation of an IP address with

the characters 999 to indicate that it was

redacted.

Table 10-4 (page 10-24) describes formats that you can use with the

regexp_replace_string parameter in the DBMS_REDACT.ADD_POLICY

procedure.

Table 10-4 Formats for the regexp_replace_string Parameter

Format Description

DBMS_REDACT.RE_REDACT_WITH_SI

NGLE_X

Replaces the data with a single X character for each

of the actual data characters. For example, the

credit card number 5105 1051 0510 5100

could be replaced with XXXX XXXX XXXX XXXX.

DBMS_REDACT.RE_REDACT_WITH_SI

NGLE_1

Replaces the data with a single 1 digit for each of

the actual data digits. For example, the credit card

number 5105 1051 0510 5100 could be

replaced with 1111 1111 1111 1111.

Creating a Regular Expression-Based Redaction Policy

10-24 Oracle Database Advanced Security Guide

Table 10-4 (Cont.) Formats for the regexp_replace_string Parameter

Format Description

DBMS_REDACT.RE_REDACT_CC_MIDD

LE_DIGITS

Redacts the middle digits in credit card numbers,

as specified by setting the regexp_pattern

parameter with the RE_PATTERN_CC_L6_T4

format. The redaction replaces each redacted

character with an X. For example, the credit card

number 5105 1051 0510 5100 could be

replaced with 5105 10XX XXXX 5100.

DBMS_REDACT.RE_REDACT_PHONE_L

Redacts the last 7 digits of U.S. telephone numbers,

as specified by setting the regexp_pattern

parameter with the RE_PATTERN_US_PHONE

format. The redaction replaces each redacted

character with an X. This setting only applies to

hyphenated phone numbers, not phone numbers

with spaces. For example, the telephone number

415-555-0100 could be replaced with 415-XXX-

XXXX.

DBMS_REDACT.RE_REDACT_EMAIL_N

AME

Redacts the email name as specified by setting the

regexp_pattern parameter with the

RE_PATTERN_EMAIL_ADDRESS format. The

redaction replaces the email user name with four x

characters. For example, the email address

psmith@example.com could be replaced with

xxxx@example.com.

DBMS_REDACT.RE_REDACT_EMAIL_D

OMAIN

Redacts the email domain name as specified by

setting the regexp_pattern parameter with the

RE_PATTERN_EMAIL_ADDRESS format. The

redaction replaces the domain with five x

characters. For example, the email address

psmith@example.com could be replaced with

psmith@xxxxx.com.

DBMS_REDACT.RE_REDACT_IP_L3 Redacts the last three digits of the IP address as

specified by setting the regexp_pattern

parameter with the RE_PATTERN_IP_ADDRESS

format. For example, the IP address 192.0.2.254

could be replaced with 192.0.2.999, which is an

invalid IP address.

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

for information about other DBMS_REDACT.ADD_POLICY parameters

10.8.3.2 Example: Regular Expression Redaction Policy Using Formats

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a regular

expression redaction policy that uses formats.

Example 10-7 (page 10-26) shows how to use regular expression formats to redact

credit card numbers.

Creating a Regular Expression-Based Redaction Policy

Configuring Oracle Data Redaction Policies 10-25

Example 10-7 Regular Expression Data Redaction Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'cc_num',

policy_name => 'redact_cust_cc_nums',

function_type => DBMS_REDACT.REGEXP,

function_parameters => NULL,

expression => '1=1',

regexp_pattern => DBMS_REDACT.RE_PATTERN_CC_L6_T4,

regexp_replace_string => DBMS_REDACT.RE_REDACT_CC_MIDDLE_DIGITS,

regexp_position => DBMS_REDACT.RE_BEGINNING,

regexp_occurrence => DBMS_REDACT.RE_FIRST,

regexp_match_parameter => DBMS_REDACT.RE_MATCH_CASE_INSENSITIVE,

policy_description => 'Regular expressions to redact credit card numbers',

column_description => 'cc_num contains customer credit card numbers');

END;

Query and redacted result:

SELECT cc_num FROM mavis.cust_info;

CC_NUM

-------

401288XXXXXX1881

411111XXXXXX1111

555555XXXXXX1111

511111XXXXXX1118

10.8.4 Custom Regular Expression Redaction Policies

You can customize regular expressions in Data Redaction policies.

Topics:

•Settings for Custom Regular Expressions (page 10-26)

•Example: Custom Regular Expression Redaction Policy (page 10-27)

10.8.4.1 Settings for Custom Regular Expressions

Oracle Data Redaction provides special settings to configure policies that use regular

expressions.

To create custom regular expression redaction policies, you use the following

parameters in the DBMS_REDACT.ADD_POLICY procedure:

•regexp_pattern: This pattern is usually a text literal and can be of any of the

data types CHAR, VARCHAR2, NCHAR, or NVARCHAR2. The pattern can contain up

to 512 bytes. For further information about writing the regular expression for the

regexp_pattern parameter, see the description of the pattern argument of

the REGEXP_REPLACE SQL function in Oracle Database SQL Language Reference,

because the support that Data Redaction provides for regular expression matching

is similar to that of the REGEXP_REPLACE SQL function.

•regexp_replace_string: This data can be of any of the data types CHAR,

VARCHAR2, NCHAR, or NVARCHAR2. The regexp_replace_string can contain

up to 500 back references to subexpressions in the form \n, where n is a number

Creating a Regular Expression-Based Redaction Policy

10-26 Oracle Database Advanced Security Guide

from 1 to 9. If you want to include a backslash (\) in the

regexp_replace_string setting, then you must precede it with the escape

character, which is also a backslash. For example, to literally replace the matched

pattern with \2 (rather than replace it with the second matched subexpression of

the matched pattern), you enter \\2 in the regexp_replace_string setting.

For more information, see Oracle Database SQL Language Reference.

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure (page 10-3)

for information about other DBMS_REDACT.ADD_POLICY parameters

10.8.4.2 Example: Custom Regular Expression Redaction Policy

The DBMS_REDACT.ADD_POLICY procedure regexp* parameters can create a custom

regular expression redaction policy.

Example 10-8 (page 10-27) shows how to use regular expressions to redact the

emp_id column data. In this example, taken together, the regexp_pattern and

regexp_replace_string parameters do the following: first, find the pattern of 9

digits. For reference, break them into three groups that contain the first 3, the next 2,

and then the last 4 digits. Then, replace all 9 digits with XXXXX concatenated with the

third group (the last 4 digits) as found in the original pattern.

Query and redacted result:

SELECT emp_id FROM mavis.cust_info;

EMP_ID

------------

XXXXX1234

XXXXX5678

Example 10-8 Partially Redacted Data Redaction Using Regular Expressions

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'emp_id',

policy_name => 'redact_cust_ids',

function_type => DBMS_REDACT.REGEXP,

expression => '1=1',

regexp_pattern => '(\d\d\d)(\d\d)(\d\d\d\d)',

regexp_replace_string => 'XXXXX\3',

regexp_position => 1,

regexp_occurrence => 0,

regexp_match_parameter => 'i',

policy_description => 'Redacts customer IDs using regular expression',

column_description => 'emp_id contains employee ID numbers');

END;

10.9 Creating a Random Redaction Policy

A random redaction policy presents redacted data as randomly generated values, such

as Ukjsl32[[]]]s.

Topics:

Creating a Random Redaction Policy

Configuring Oracle Data Redaction Policies 10-27

•Syntax for Creating a Random Redaction Policy (page 10-28)

•Example: Random Redaction Policy (page 10-28)

10.9.1 Syntax for Creating a Random Redaction Policy

A random redaction policy presents the redacted data to the querying application user

as randomly generated values, based on the column data type.

Be aware that LOB columns are not supported.

The DBMS_REDACT.ADD_POLICY fields for creating a random redaction policy are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•object_schema, object_name, column_name, policy_name, expression,

enable: See General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3).

•function_type: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.RANDOM.

If you omit the function_type parameter, then the default redaction

function_type setting is DBMS_REDACT.FULL.

Remember that the data type of the column determines which function_type

settings that you are permitted to use. See Comparison of Full, Partial, and

Random Redaction Based on Data Types (page 9-5).

10.9.2 Example: Random Redaction Policy

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure create a random

redaction policy.

Example 10-9 (page 10-28) shows how to generate random values. Each time you run

the SELECT statement, the output will be different.

Example 10-9 Randomly Redacted Data Redaction Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'login_username',

policy_name => 'redact_cust_rand_username',

function_type => DBMS_REDACT.RANDOM,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') = ''APP_USER''');

END;

Query and redacted result:

Creating a Random Redaction Policy

10-28 Oracle Database Advanced Security Guide

SELECT login_username FROM mavis.cust_info;

LOGIN_USERNAME

--------------

N[CG{\pTVcK

10.10 Creating a Policy That Uses No Redaction

You can create policies that use no redaction at all, for when you want to test the

policy in a development environment.

Topics:

•Syntax for Creating a Policy with No Redaction (page 10-29)

•Example: Performing No Redaction (page 10-29)

10.10.1 Syntax for Creating a Policy with No Redaction

The None redaction type option can be used to test the internal operation of redaction

policies.

The None redaction type has no effect on the query results against tables that have

policies defined on them. You can use this option to test the redaction policy

definitions before applying them to a production environment. Be aware that LOB

columns are not supported.

The DBMS_REDACT.ADD_POLICY fields for creating a policy with no redaction are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•object_schema, object_name, column_name, policy_name, expression,

enable: See General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3).

•function_type: Specifies the functions used to set the type of data redaction.

Enter DBMS_REDACT.NONE.

If you omit the function_type parameter, then the default redaction

function_type setting is DBMS_REDACT.FULL.

10.10.2 Example: Performing No Redaction

The DBMS_REDACT.ADD_POLICY procedure can create a policy that performs no

redaction.

Example 10-10 (page 10-30) shows how to create a Data Redaction policy that does

not redact any of the displayed values.

Creating a Policy That Uses No Redaction

Configuring Oracle Data Redaction Policies 10-29

Example 10-10 No Redacted Data Redaction Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'user_name',

policy_name => 'redact_cust_no_vals',

function_type => DBMS_REDACT.NONE,

expression => '1=1');

END;

Query and redacted result:

SELECT user_name FROM mavis.cust_info;

USER_NAME

----------

IDA NEAU

10.11 Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the data

they access.

To do so, you should grant the users the EXEMPT REDACTION POLICY system

privilege. Grant this privilege to trusted users only.

In addition to users who were granted this privilege, user SYS is also exempt from all

Data Redaction policies. The person who creates the Data Redaction policy is by

default not exempt from it, unless this person is user SYS or has the EXEMPT

REDACTION POLICY system privilege.

Note the following:

• Users who have the INSERT privilege on a table can insert values into a redacted

column, regardless of whether a Data Redaction policy exists on the table. Data

Redaction only affects SQL SELECT statements (that is, queries) issued by a user,

and has no effect on any other SQL issued by a user, including INSERT, UPDATE,

or DELETE statements. (See the next bullet for exceptions to this rule.)

• Users cannot perform a CREATE TABLE AS SELECT where any of the columns

being selected (source columns) is protected by a Data Redaction policy (and

similarly, any DML operation where the source is a redacted column), unless the

user was granted the EXEMPT REDACTION POLICY system privilege.

• The EXEMPT REDACTION POLICY system privilege is included in the DBA role,

but this privilege must be granted explicitly to users because it is not included in

the WITH ADMIN OPTION for DBA role grants. Users who were granted the DBA

role are exempt from redaction policies because the DBA role contains the

EXP_FULL_DATABASE role, which is granted the EXEMPT REDACTION POLICY

system privilege.

Exemption of Users from Oracle Data Redaction Policies

10-30 Oracle Database Advanced Security Guide

See Also:

•Restriction of Administrative Access to Oracle Data Redaction Policies

(page 13-2)

•Oracle Data Pump Security Model for Oracle Data Redaction

(page 12-4) for information about how Oracle Data Pump privileges

affect the EXEMPT REDACTION POLICY system privilege

10.12 Altering an Oracle Data Redaction Policy

The DBMS_REDACT.ALTER_POLICY procedure enables you to modify Oracle Data

Redaction policies.

Topics:

•About Altering Oracle Data Redaction Policies (page 10-31)

•Syntax for the DBMS_REDACT.ALTER_POLICY Procedure (page 10-31)

•Parameters Required for DBMS_REDACT.ALTER_POLICY Actions (page 10-32)

•Tutorial: Altering an Oracle Data Redaction Policy (page 10-33)

10.12.1 About Altering Oracle Data Redaction Policies

The DBMS_REDACT.ALTER_POLICY procedure alters a Data Redaction policy.

If the policy is already enabled, then you do not need to disable it first, and after you

alter the policy, it remains enabled.

You can find the names of existing Data Redaction policies by querying the

POLICY_NAME column of the REDACTION_POLICIES data dictionary view, and

information about the columns, functions, and parameters specified in a policy by

querying the REDACTION_COLUMNS view. To find the current value for policies that

use full data redaction, you can query the REDACTION_VALUES_FOR_TYPE_FULL

data dictionary view.

The action parameter specifies the type of modification that you want to perform. At

a minimum, you must include the object_name and policy_name parameters

when you run this procedure.

10.12.2 Syntax for the DBMS_REDACT.ALTER_POLICY Procedure

The DBMS_REDACT.ALTER_POLICY procedure syntax can be used to alter all types of

the Data Redaction policies.

The syntax for the DBMS_REDACT.ALTER_POLICY procedure is as follows:

DBMS_REDACT.ALTER_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

action IN BINARY_INTEGER := DBMS_REDACT.ADD_COLUMN,

column_name IN VARCHAR2 := NULL,

function_type IN BINARY_INTEGER := DBMS_REDACT.FULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2 := NULL,

regexp_pattern IN VARCHAR2 := NULL,

Altering an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-31

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER := NULL,

regexp_occurrence IN BINARY_INTEGER := NULL,

regexp_match_parameter IN VARCHAR2 := NULL,

policy_description IN VARCHAR2 := NULL,

column_description IN VARCHAR2 := NULL);

In this specification:

•action: Enter one of the following values to define the kind of action to use:

–DBMS_REDACT.MODIFY_COLUMN if you plan to change the column_name

value.

–DBMS_REDACT.ADD_COLUMN if you plan to add a new column (in addition to

columns that are already protected by the policy) for redaction. This setting is

the default for the action parameter.

–DBMS_REDACT.DROP_COLUMN if you want to remove redaction from a

column.

–DBMS_REDACT.MODIFY_EXPRESSION if you plan to change the

expression value. Each policy can have only one policy expression. In other

words, when you modify the policy expression, you are replacing the existing

policy expression with a new policy expression.

–DBMS_REDACT.SET_POLICY_DESCRIPTION if you want to change the

description of the policy.

–DBMS_REDACT.SET_COLUMN_DESCRIPTION if you want to change the

description of the column.

See Also:

•Parameters Required for DBMS_REDACT.ALTER_POLICY Actions

(page 10-32)

•General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

(page 10-3) for information about the remaining parameters

10.12.3 Parameters Required for DBMS_REDACT.ALTER_POLICY Actions

The DBMS_REDACT.ALTER_POLICY procedure provides parameters than can

perform various actions, such as adding or modifying a column.

Table 10-5 (page 10-32) shows the combinations of these parameters.

Table 10-5 Parameters Required for Various DBMS_REDACT.ALTER_POLICY

Actions

Desired Alteration Parameters to Set

Add or modify a column • action (DBMS_REDACT.MODIFY_COLUMN)

•column_name

•function_type

•function_parameters (if necessary)

•regexp* (if necessary)

Altering an Oracle Data Redaction Policy

10-32 Oracle Database Advanced Security Guide

Table 10-5 (Cont.) Parameters Required for Various

DBMS_REDACT.ALTER_POLICY Actions

Desired Alteration Parameters to Set

Change the policy expression • action (DBMS_REDACT.MODIFY_EXPRESSION)

•expression

Change the description of the

policy

•action

(DBMS_REDACT.SET_POLICY_DESCRIPTION)

•policy_description

Change the description of the

column

•action

(DBMS_REDACT.SET_COLUMN_DESCRIPTION)

•column_description

Drop a column • action (DBMS_REDACT.DROP_COLUMN)

•column_name

10.12.4 Tutorial: Altering an Oracle Data Redaction Policy

You can redact multiple columns in a table or view, with each column having its own

redaction setting.

The exercise in this section shows how to modify a Data Redaction policy so that

multiple columns are redacted. It also shows how to change the expression setting

for the policy. To accomplish this, you must run the DBMS_REDACT.ALTER_POLICY

procedure in stages.

1. Connect as a user who has privileges to create users and grant them privileges.

For example:

CONNECT sec_admin

Enter password: password

2. Create the following users:

GRANT CREATE SESSION TO dr_admin IDENTIFIED BY password;

GRANT CREATE SESSION TO sales_rep IDENTIFIED BY password;

GRANT CREATE SESSION TO support_rep IDENTIFIED BY password;

3. Grant EXECUTE on the DBMS_REDACT PL/SQL package to user dr_admin:

GRANT EXECUTE ON DBMS_REDACT TO dr_admin;

4. Connect as user OE.

CONNECT OE

Enter password: password

5. Create and populate a table that contains customer credit card information.

CREATE TABLE cust_order_info(

first_name varchar2(20),

last_name varchar2(20),

address varchar2(30),

city varchar2(30),

state varchar2(3),

zip varchar2(5),

cc_num varchar(19),

Altering an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-33

cc_exp varchar2(7));

INSERT INTO cust_order_info VALUES ('Jane','Dough','39 Mockingbird Lane', 'San

Francisco', 'CA', 94114, '5105 1051 0510 5100', '10/2018');

INSERT INTO cust_order_info VALUES ('Mary','Hightower','2319 Maple Street',

'Sonoma', 'CA', 95476, '5111 1111 1111 1118', '03/2019');

INSERT INTO cust_order_info VALUES ('Herbert','Donahue','292 Winsome Way', 'San

Francisco', 'CA', 94117, '5454 5454 5454 5454', '08/2018');

6. Grant the SELECT privilege on the cust_order_info table to the sales_rep

and support_rep users.

GRANT SELECT ON cust_order_info TO sales_rep, support_rep;

7. Connect as user dr_admin.

CONNECT dr_admin

Enter password: password

8. Create and enable policy to redact the credit card number.

BEGIN DBMS_REDACT.ADD_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

column_name => 'cc_num',

policy_name => 'redact_cust_cc_info',

function_type => DBMS_REDACT.REGEXP,

function_parameters => NULL,

expression => '1=1',

regexp_pattern => DBMS_REDACT.RE_PATTERN_CCN,

regexp_replace_string => DBMS_REDACT.RE_REDACT_CCN,

regexp_position => NULL,

regexp_occurrence => NULL,

regexp_match_parameter => NULL,

policy_description => 'Partially redacts credit card info',

column_description => 'cc_num_number lists credit card numbers');

END;

9. Modify the policy to include redaction of the expiration date.

BEGIN DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'cc_exp',

function_type => DBMS_REDACT.RANDOM,

expression => '1-1');

END;

10. Modify the policy again, to use a condition so that the sales_rep user views the

redacted values and the support_rep user views the actual data.

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.MODIFY_EXPRESSION,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') =

Altering an Oracle Data Redaction Policy

10-34 Oracle Database Advanced Security Guide

''SALES_REP''');

END;

11. To test the policy, have the two users query the cust_order_info table.

CONNECT suport_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

------------------- -------

5105 1051 0510 5100 10/2018

5111 1111 1111 1118 03/2019

5454 5454 5454 5454 08/2018

User support_rep can view the actual data.

CONNECT sales_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

---------------- -------

************5100 lST=033

************1119 OZA.w4C

************5454 B(9+;O1

The actual data is redacted using for user sales_rep.

12. Alter the cust_order_info to include a condition so that only support_rep

can see the redacted data but sales_rep cannot.

CONNECT dr_admin

Enter password: password

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.MODIFY_EXPRESSION,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') =

''SUPPORT_REP''');

END;

13. Have the users test the policy again.

CONNECT support_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

---------------- -------

************5100 1^XMF~`

************1119 qz+9=#S

************5454 *KCaUkm

Altering an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-35

User support_rep can no longer view the actual data; it is now redacted.

CONNECT sales_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

------------------- -------

5105 1051 0510 5100 10/2018

5111 1111 1111 1118 03/2019

5454 5454 5454 5454 08/2018

User sales_rep now can view the actual data.

14. If you do not need the components of this tutorial, then you can remove them as

follows:

CONNECT dr_admin

Enter password: password

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info');

END;

CONNECT sec_admin

Enter password: password

DROP USER dr_admin;

DROP USER sales_rep;

DROP USER support_rep;

CONNECT OE

Enter password: password

DROP TABLE cust_order_info;

10.13 Redacting Multiple Columns

You can redact more than one column in a Data Redaction policy.

Topics:

•Adding Columns to a Data Redaction Policy for a Single Table or View

(page 10-36)

•Example: Redacting Multiple Columns (page 10-37)

10.13.1 Adding Columns to a Data Redaction Policy for a Single Table or View

You can redact columns of different data types, using different redaction types, for one

table or view.

1. Create the policy for the first column that you want to redact.

2. Use the DBMS_REDACT.ALTER_POLICY procedure to add the next column to the

policy.

Redacting Multiple Columns

10-36 Oracle Database Advanced Security Guide

As necessary, set the action, column_name, function_type, and

function_parameters (or the parameters that begin with regexp_)

parameters to define the redaction for the new column, but do not change the

object_schema, object_name, policy_name, or expression parameters.

Each redacted column continues to have the same redaction parameters that were

used to create it.

10.13.2 Example: Redacting Multiple Columns

The DBMS_REDACT.ALTER_POLICY procedure can redact multiple columns.

Example 10-11 (page 10-37) shows how to add a column to an existing Data

Redaction policy. In this example, the action parameter specifies that a new column

must be added, using DBMS_REDACT.ADD_COLUMN. The name of the new column,

card_num, is set by the column_name parameter.

Example 10-11 Adding a Column to a Data Redaction Policy

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'card_num',

function_type => DBMS_REDACT.FULL,

function_parameters => '',

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''ADM'') = ''TRUE''');

END;

10.14 Disabling and Enabling an Oracle Data Redaction Policy

After you have created an Oracle Data Redaction policy, you can disable it and then

reenable it as necessary.

Topics:

•Disabling an Oracle Data Redaction Policy (page 10-37)

•Enabling an Oracle Data Redaction Policy (page 10-38)

10.14.1 Disabling an Oracle Data Redaction Policy

The DBMS_REDACT.DISABLE_POLICY procedure disables Oracle Data Redaction

policies.

You can find the names of existing Data Redaction policies and whether they are

enabled by querying the POLICY_NAME and ENABLE columns of the

REDACTION_POLICIES view. However, as long as the policy still exists, you cannot

create another policy for that table or view, even if the original policy is disabled. In

other words, if you want to create a different policy on the same table column, then

you must drop the first policy before you can create and use the new policy.

• To disable a Data Redaction policy, run the DBMS_REDACT.DISABLE_POLICY

procedure, using the following syntax:

DBMS_REDACT.DISABLE_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

Disabling and Enabling an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-37

In this specification:

–object_schema: Specifies the schema of the object on which the Data

Redaction policy will be applied. If you omit this setting (or enter NULL), then

Oracle Database uses the name of the current schema.

–object_name: Specifies the name of the table or view to be used for the Data

Redaction policy.

–policy_name: Specifies the name of the policy to be disabled.

Example 10-12 (page 10-38) shows how to disable a Data Redaction policy.

Example 10-12 Disabling a Data Redaction Policy

BEGIN

DBMS_REDACT.DISABLE_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

END;

10.14.2 Enabling an Oracle Data Redaction Policy

The DBMS_REDACT.ENABLE_POLICY procedure enables Oracle Data Redaction

policies.

Immediately after you create a new policy, you do not need to enable it; the creation

process handles that for you. To find the names of existing Data Redaction policies

and whether they are enabled, you can query the POLICY_NAME and ENABLE columns

of the REDACTION_POLICIES view. After you run the procedure to enable the policy,

the enablement takes effect immediately.

• To enable a Data Redaction policy, run the DBMS_REDACT.ENABLE_POLICY

procedure, using the following syntax.

DBMS_REDACT.ENABLE_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

In this specification:

–object_schema: Specifies the schema of the object on which the Data

Redaction policy will be applied. If you omit this setting (or enter NULL), then

Oracle Database uses the name of the current schema.

–object_name: Specifies the name of the table or view to be used for the Data

Redaction policy.

–policy_name: Specifies the name of the policy to be enabled.

Example 10-13 (page 10-38) shows how to enable a Data Redaction policy.

Example 10-13 Enabling a Data Redaction Policy

BEGIN

DBMS_REDACT.ENABLE_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

Disabling and Enabling an Oracle Data Redaction Policy

10-38 Oracle Database Advanced Security Guide

END;

10.15 Dropping an Oracle Data Redaction Policy

The DBMS_REDACT.DROP_POLICY procedure drops Oracle Data Redaction policies.

You can drop an Oracle Data Redaction policy whether it is enabled or disabled. You

can find the names of existing Data Redaction policies, by querying the POLICY_NAME

column of the REDACTION_POLICIES view. When you drop a table or view that is

associated with an Oracle Data Redaction policy, the policy is automatically dropped.

As a best practice, drop the policy first, and then drop the table or view afterward. See

Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled

(page 13-3) for more information.

• To drop a Data Redaction policy, run the DBMS_REDACT.DROP_POLICY

procedure.

Use the following syntax:

DBMS_REDACT.DROP_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

In this specification:

–object_schema: Specifies the schema of the object to which the Data

Redaction policy applies. If you omit this setting (or enter NULL), then Oracle

Database uses the name of the current schema.

–object_name: Specifies the name of the table or view to be used for the Data

Redaction policy.

–policy_name: Specifies the name of the policy to be dropped.

After you run the DBMS_REDACT.DROP_POLICY procedure, the drop takes effect

immediately.

Example 10-14 (page 10-39) shows how to drop a Data Redaction policy.

Example 10-14 Dropping a Data Redaction Policy

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

END;

10.16 Tutorial: SQL Expressions to Build Reports with Redacted Values

SQL expressions can be used to build reports based on columns that have Oracle Data

Redaction policies defined on them.

The values used in the SQL expression will be redacted. This redaction occurs in such

a way that the redaction takes place before the SQL expression is evaluated: the result

value that is displayed in the report is the end result of the evaluated SQL expression

over the redacted values, rather than the redacted result of the SQL expression as a

whole.

Dropping an Oracle Data Redaction Policy

Configuring Oracle Data Redaction Policies 10-39

1. Create the following Data Redaction policy for the HR.EMPLOYEES table.

This policy will replace the first 4 digits of the value from the SALARY column

with the number 9 and the first digit of the value from the COMMISSION_PCT

column with a 9.

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'HR',

object_name => 'EMPLOYEES',

column_name => 'SALARY',

column_description => 'emp_sal_comm shows employee salary and commission',

policy_name => 'redact_emp_sal_comm',

policy_description => 'Partially redacts the emp_sal_comm column',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '9,1,4',

expression => '1=1');

END;

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'HR',

object_name => 'EMPLOYEES',

policy_name => 'redact_emp_sal_comm',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'COMMISSION_PCT',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '9,1,1',

expression => '1=1');

END;

2. Log in to the HR schema and then run the following report.

This report will use the SQL expression (SALARY + COMMISSION_PCT) to

combine the employees' salaries and commissions.

SELECT (SALARY + COMMISSION_PCT) total_emp_compensation

FROM HR.EMPLOYEES

WHERE DEPARTMENT_ID = 80;

TOTAL_EMP_COMPENSATION

----------------------

9999.9

9999.95

99990.95

...

3. Use SQL expressions for the report, including concatenation.

For example:

SELECT 'Employee ID ' || EMPLOYEE_ID ||

' has a salary of ' || SALARY ||

' and a commission of ' || COMMISSION_PCT || '.' detailed_emp_compensation

FROM HR.EMPLOYEES

WHERE DEPARTMENT_ID = 80

ORDER BY EMPLOYEE_ID;

DETAILED_EMP_COMPENSATION

-------------------------------------------------------------

Employee ID 150 has a salary of 99990 and a commission of .9.

Employee ID 151 has a salary of 9999 and a commission of .95.

Tutorial: SQL Expressions to Build Reports with Redacted Values

10-40 Oracle Database Advanced Security Guide

Employee ID 152 has a salary of 9999 and a commission of .95.

...

4. Connect the user who created the redact_emp_sal_comm Data Redaction policy

and then run the following statement to drop the policy.

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'HR',

object_name => 'EMPLOYEES',

policy_name => 'redact_emp_sal_comm');

END;

10.17 Oracle Data Redaction Policy Data Dictionary Views

Oracle Database provides data dictionary views that list information about Data

Redaction policies.

Before you can query these views, you must be granted the SELECT_CATALOG_ROLE

role.

Table 10-6 (page 10-41) lists the Data Redaction data dictionary views.

Table 10-6 Data Redaction Views

View Description

REDACTION_COLUMNS Describes all of the redacted columns in the database,

providing the the owner of the table or view within

which the column resides, the object name, the column

name, the type of redaction function, the parameters to

the redaction function (if any), and a description of the

redaction policy. If a policy expression has been created,

displays the default object-wide policy expression’s SQL

expression.

REDACTION_EXPRESSIONS Displays the names of existing policy expressions and

their SQL expressions

REDACTION_POLICIES Describes all of the data redaction policies in the

database. It includes information about the object owner,

object name, policy name, policy expression, whether the

policy is enabled, and a description of the Data

Redaction policy.

REDACTION_VALUES_FOR_TYPE

_FULL

Shows the current redaction values for Data Redaction

policies that use full redaction

Oracle Data Redaction Policy Data Dictionary Views

Configuring Oracle Data Redaction Policies 10-41

Oracle Data Redaction Policy Data Dictionary Views

10-42 Advanced Security Guide

Using Oracle Data Redaction in Oracle

Enterprise Manager

Oracle Enterprise Manager Cloud Control (Cloud Control) enables you to manage

Oracle Data Redaction policies and formats.

Topics:

•About Using Oracle Data Redaction in Oracle Enterprise Manager (page 11-1)

•Oracle Data Redaction Workflow (page 11-2)

•Management of Sensitive Column Types in Enterprise Manager (page 11-2)

•Managing Oracle Data Redaction Formats Using Enterprise Manager

(page 11-4)

•Managing Oracle Data Redaction Policies Using Enterprise Manager (page 11-9)

11.1 About Using Oracle Data Redaction in Oracle Enterprise Manager

Oracle Enterprise Manager Cloud Control provides an unified user interface for

creating and managing Oracle Data Redaction policies.

Starting with the Oracle Enterprise Manager 12c Database plug-in 12.1.0.7, you can do

the following:

• Create and manage custom Oracle Data Redaction formats, which were

previously known as Data Redaction shortcuts. (This functionality is not available

from the command line.)

• Create and manage sensitive column types directly from the Oracle Data

Redaction pages. While you create a Data Redaction policy, Cloud Control uses

sensitive column types to obtain the Oracle Data Redaction formats that are

relevant to the column that you are redacting.

Note:

You can redact data in Oracle Database Enterprise Edition 11.2.0.4 or later by

using Oracle Enterprise Manager, starting with Oracle Enterprise Manager

12c. However, before you can create custom redaction formats and sensitive

column types, you must deploy the Enterprise Manager for Oracle Database

plug-in 12.1.0.7 or higher.

For information about how to deploy a plug-in, see Enterprise Manager Cloud

Control Administrator's Guide.

Using Oracle Data Redaction in Oracle Enterprise Manager 11-1

11.2 Oracle Data Redaction Workflow

First, you should create sensitive column types and formats if necessary, and then

create the Oracle Data Redaction policy afterward.

The following figure illustrates this process:

Create Sensitive

Column Types

(Optional)

Step 1 Step 2

Create Oracle

Data Redaction

Formats

(Optional)

Step 3

Create an Oracle

Data Redaction

Policy

1. (Optional) If you want to map the database columns (that contain the data that

you want to redact) to new sensitive column types, then create the required

sensitive column types as described in Management of Sensitive Column Types in

Enterprise Manager (page 11-2).

2. (Optional) If you want to redact the data (present in a particular database column)

using a custom redaction format, then create the required redaction format as

described in Creating a Custom Oracle Data Redaction Format (page 11-5).

3. Create an Oracle Data Redaction policy for the required database, as described in

Creating an Oracle Data Redaction Policy Using Enterprise Manager

(page 11-10).

Note:

When you create an Oracle Data Redaction policy, it is enabled by default. For

information on how to disable an enabled redaction policy, see Enabling or

Disabling an Oracle Data Redaction Policy in Enterprise Manager

(page 11-15).

11.3 Management of Sensitive Column Types in Enterprise Manager

A sensitive column type categorizes table column sensitive information into a sensitive

information type, such as credit card numbers.

Sensitive column types use a combination of the column name, column comments,

and the data pattern defined using a regular expression to tag a column to a particular

sensitive information type.

While you create Oracle Data Redaction policies, redaction formats are filtered on the

basis of the chosen sensitive column type, thus saving time and effort. For example, if

the database table column that you want to redact contains U.S. Social Security

numbers, and you select the SOCIAL_SECURITY_NUMBER sensitive column type for

the column while adding it to the Oracle Data Redaction policy, the default redaction

formats that you can use to redact the column data are filtered, and only the relevant

redaction formats are displayed.

Figure 11-1 (page 11-3) illustrates the filtering of Oracle Data Redaction formats

based on sensitive column types.

Oracle Data Redaction Workflow

11-2 Oracle Database Advanced Security Guide

Figure 11-1 Oracle Data Redaction Formats Filtered on the Basis of Sensitive

Column Types

Note:

This functionality is available only if you have the Enterprise Manager for

Oracle Database plug-in 12.1.0.7 or later deployed in your system.

For information on how to verify the plug-ins deployed in your environment,

see Enterprise Manager Cloud Control Administrator's Guide..

As part of the Application Data Modelling feature, Oracle provides a number of

default sensitive column types that a database column can be mapped to.

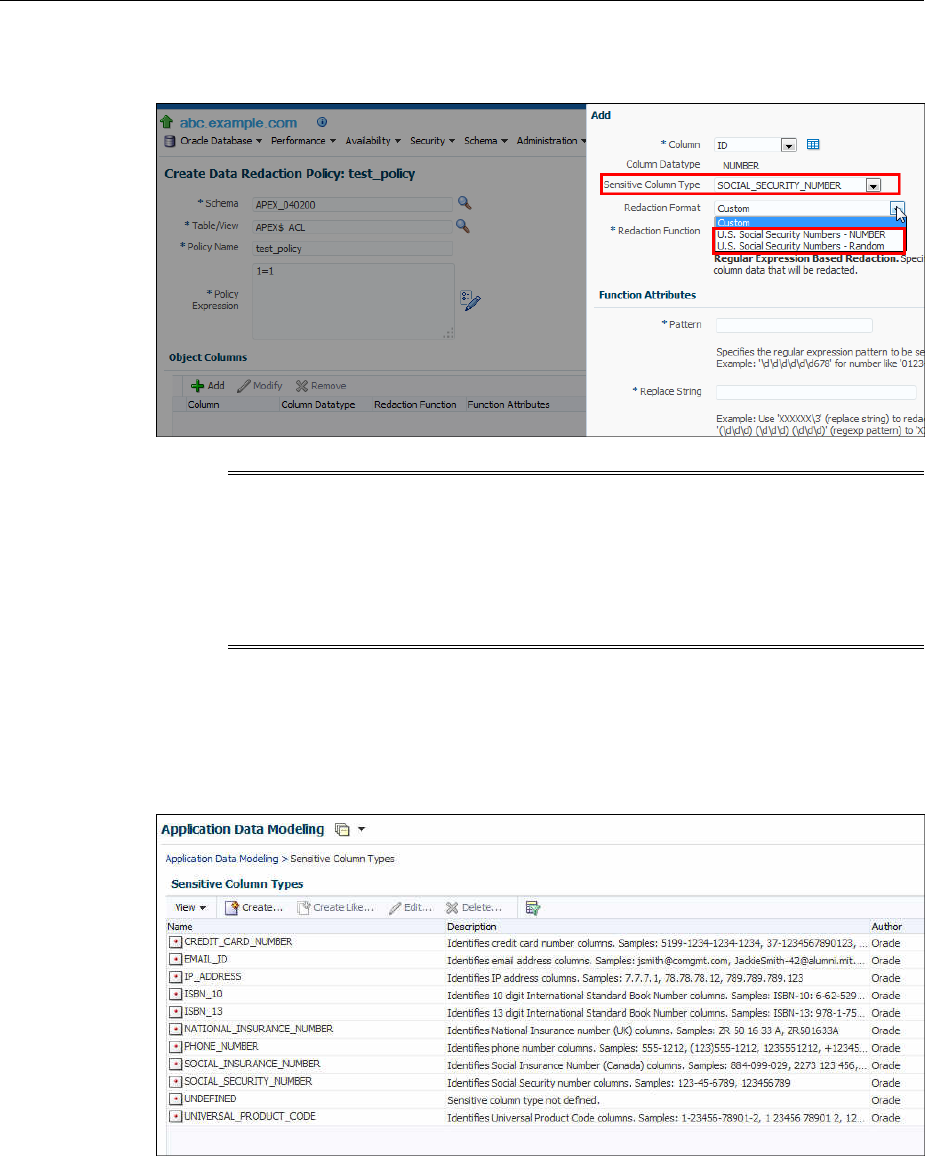

Figure 11-2 (page 11-3) displays some of the default sensitive column types.

Figure 11-2 Default Sensitive Column Types

If none of the default sensitive column types are suitable for the database column that

contains the data that you want to redact, you can create a new sensitive column type,

or create a sensitive column type that is based on an existing sensitive column type, as

described in Oracle Database Testing Guide..

Management of Sensitive Column Types in Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-3

11.4 Managing Oracle Data Redaction Formats Using Enterprise Manager

Oracle Data Redaction provides redaction formats that can be used directly within a

redaction policy to redact data.

Topics:

•About Managing Oracle Data Redaction Formats Using Enterprise Manager

(page 11-4)

•Creating a Custom Oracle Data Redaction Format (page 11-5)

•Editing a Custom Oracle Data Redaction Format (page 11-7)

•Viewing Oracle Data Redaction Formats (page 11-7)

•Deleting a Custom Oracle Data Redaction Format (page 11-8)

11.4.1 About Managing Oracle Data Redaction Formats Using Enterprise Manager

The Oracle Data Redaction formats are used for commonly redacted data, such as ID

numbers, credit cards, or phone numbers.

Oracle Database provides several default Oracle Data Redaction formats.

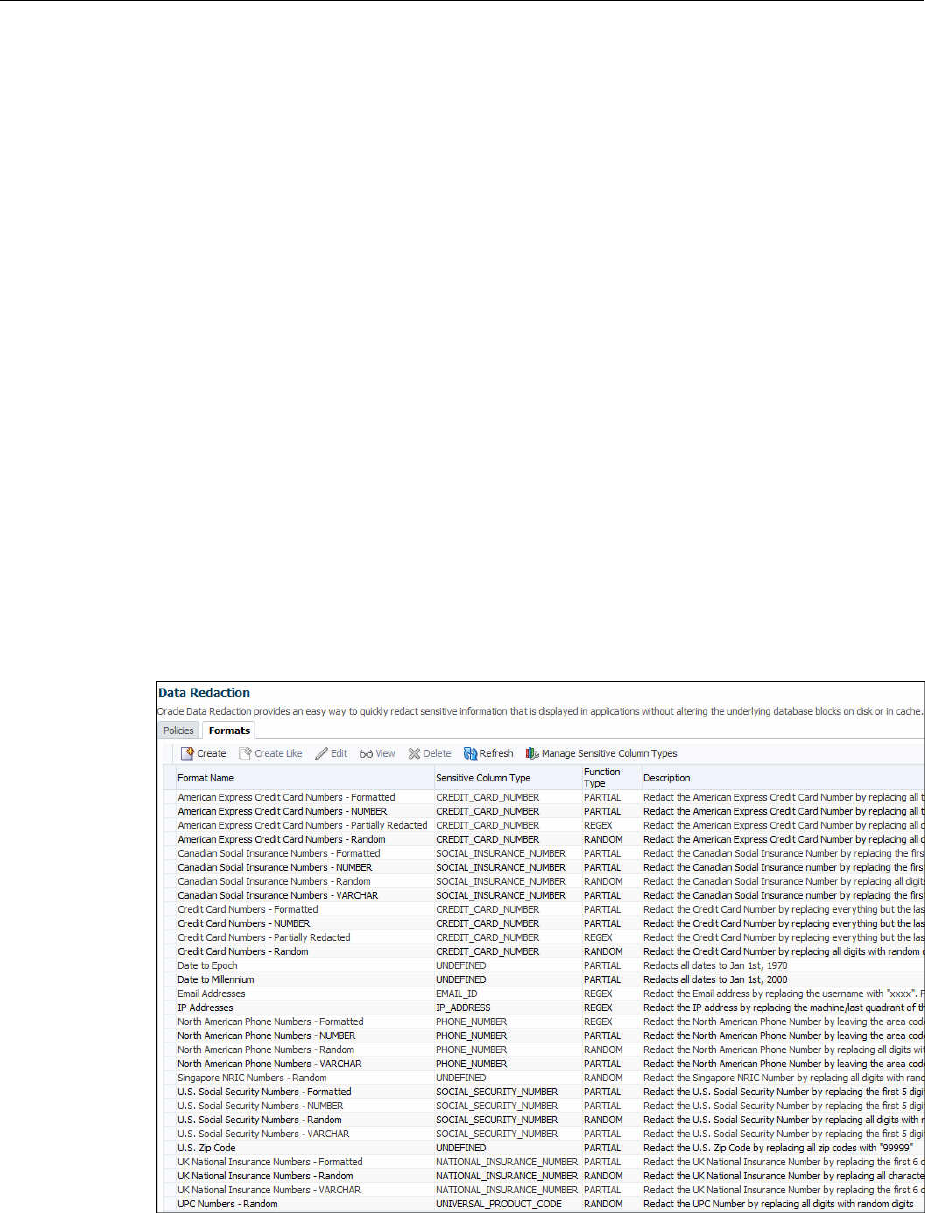

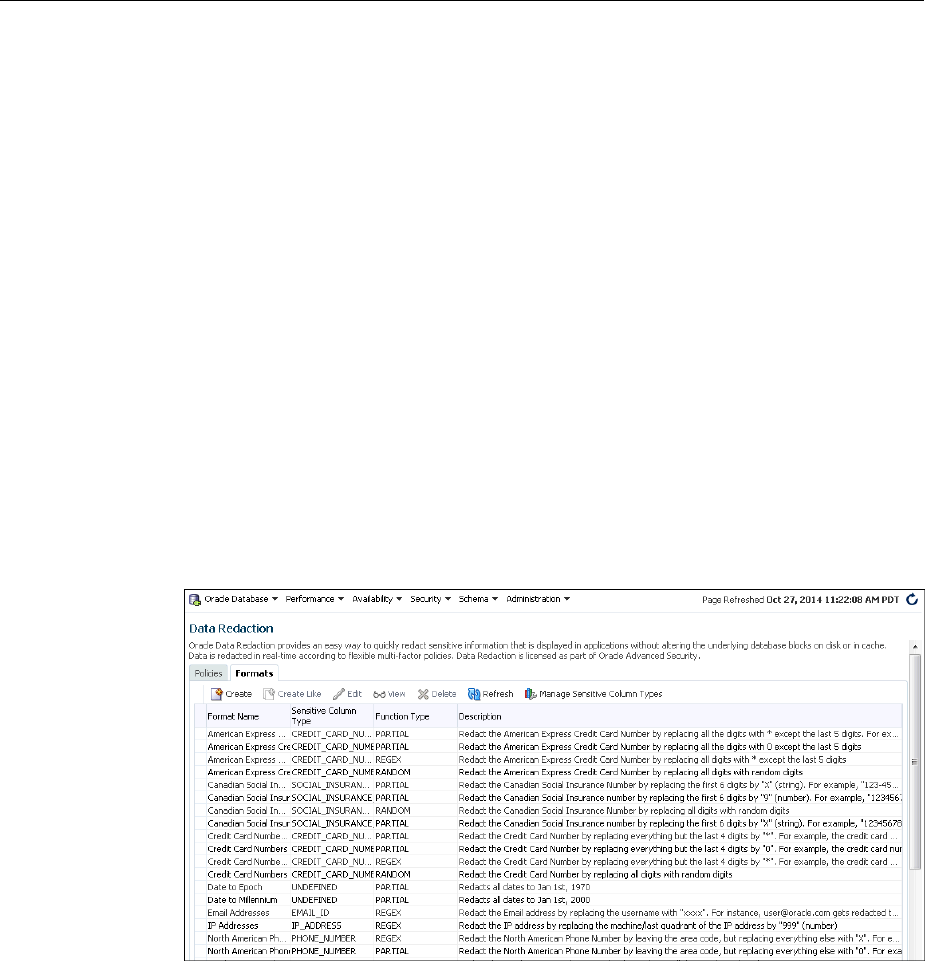

Figure 11-3 (page 11-4) displays the default Oracle Data Redaction formats.

Figure 11-3 Default Oracle Data Redaction Formats

Each default Oracle Data Redaction format consists of a specific redaction function

that determines the redacted output when the redaction format is used in an Oracle

Data Redaction policy. For example, the Credit Card Numbers - NUMBER default

redaction format replaces the first twelve digits of the column data with the digit 0,

when it is used in an Oracle Data Redaction policy. That is, if the column data is

5555555555554444, the redacted output will be 0000000000004444.

Managing Oracle Data Redaction Formats Using Enterprise Manager

11-4 Oracle Database Advanced Security Guide

If you have deployed the Enterprise Manager for Oracle Database plug-in 12.1.0.7 or

higher on your system, then you can also create and save custom redaction formats,

which you can then use in your redaction policies.

11.4.2 Creating a Custom Oracle Data Redaction Format

You can create and save custom Oracle Data Redaction formats using Enterprise

Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. Select the Formats tab and then click Create.

If you want to create a custom redaction format that is based on, or is similar to an

existing redaction format, then click Create Like.

If you select Create, then the following dialog box appears:

Managing Oracle Data Redaction Formats Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-5

7. Provide a name and a description for the redaction format that you want to create.

If you want to map the redaction format to a particular sensitive column type (such

that the created redaction format can be used to redact the data of a column that is

associated with the sensitive column type), then select a value for Sensitive

Column Type.

Select the function that the format should use to redact the column data. For

Redaction Function, select FULL if the format should redact the entire column

data, PARTIAL if the format should redact only a part of the column data, REGEX

if the format should redact data based on a regular expression, RANDOM if the

format should redact data in a random manner, using randomly generated values,

or NONE if the format will be used to only test the definition of a redaction policy,

and not redact any column data. If you select PARTIAL, then ensure that you

provide the function attributes, as well as the data type that you want to use the

redaction format for. If you select REGEX, ensure that you provide the function

attributes.

For more information about the redaction functions you can use, and the patterns

you can specify with each redaction function, see Oracle Data Redaction Features

and Capabilities (page 9-1).

Managing Oracle Data Redaction Formats Using Enterprise Manager

11-6 Oracle Database Advanced Security Guide

8. Click OK to create and save the custom redaction format.

This format can now be used to create a redaction policy. For information about

how to create a redaction policy, see Creating an Oracle Data Redaction Policy

Using Enterprise Manager (page 11-10).

11.4.3 Editing a Custom Oracle Data Redaction Format

You can edit custom Oracle Data Redaction formats using Enterprise Manager Cloud

Control, but not in SQL*Plus.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. Select the Formats tab.

7. Select the custom redaction format that you want to edit, and then click Edit.

A dialog box similar to the following appears:

8. (Optional) Choose to edit the format description, sensitive column type, redaction

function, and the redaction function attributes.

9. Click OK to save the edited format.

11.4.4 Viewing Oracle Data Redaction Formats

Enterprise Manager Cloud Control displays the details of the Oracle-supplied and

custom Oracle Data Redaction formats.

Managing Oracle Data Redaction Formats Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-7

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. Select the Formats tab.

7. Select the required redaction format, then click View.

The Data Redaction Formats page appears, similar to the following page.

11.4.5 Deleting a Custom Oracle Data Redaction Format

You can delete a custom Oracle Data Redaction format using Enterprise Manager

Cloud Control (Cloud Control).

You can only delete custom Oracle Data Redaction formats, and not the redaction

formats that are provided by Oracle.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

Managing Oracle Data Redaction Formats Using Enterprise Manager

11-8 Oracle Database Advanced Security Guide

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. Select the Formats tab.

7. Select the custom redaction format that you want to delete, and then click Delete.

8. In the Confirmation dialog box, click Yes or No.

11.5 Managing Oracle Data Redaction Policies Using Enterprise Manager

You can create, edit, view, and delete Oracle Data Redaction policies in Enterprise

Manager Cloud Control (Cloud Control).

Topics:

•Creating an Oracle Data Redaction Policy Using Enterprise Manager (page 11-10)

•Editing an Oracle Data Redaction Policy Using Enterprise Manager (page 11-13)

•Viewing Oracle Data Redaction Policy Details Using Enterprise Manager

(page 11-14)

•Enabling or Disabling an Oracle Data Redaction Policy in Enterprise Manager

(page 11-15)

•Deleting an Oracle Data Redaction Policy Using Enterprise Manager (page 11-16)

11.5.1 About Managing Oracle Data Redaction Policies Using Enterprise Manager

Use the Data Redaction page in Cloud Control to manage Oracle Data Redaction

policies.

To redact the data present in a particular database table or view column, you must

create an Oracle Data Redaction policy. Data is redacted using a redaction format that

is specified by the Oracle Data Redaction policy. To redact data, you can use any of the

Oracle-supplied redaction formats, or create and use a custom redaction format. If the

table or view column that contains the data that you want to redact is mapped to a

sensitive column type, Oracle uses the mapping to recommend suitable redaction

formats for the data. Thus, Oracle Data Redaction policies encapsulate database

schemas, database table and view columns, sensitive column types, and Oracle Data

Redaction formats.

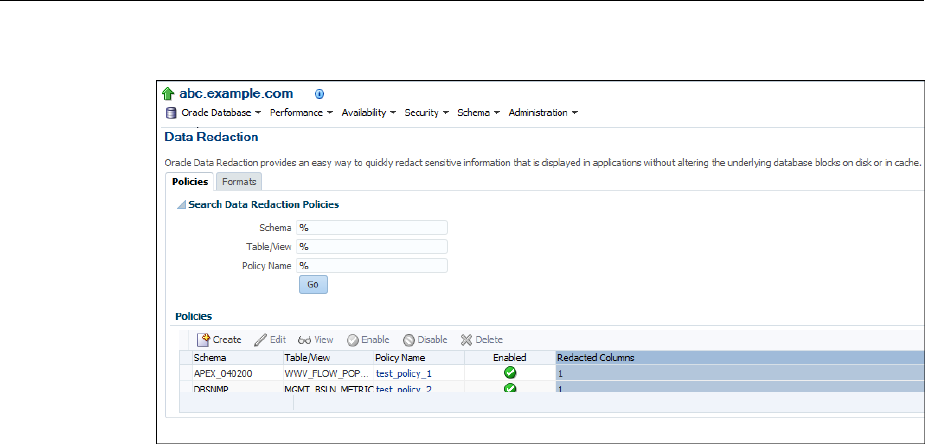

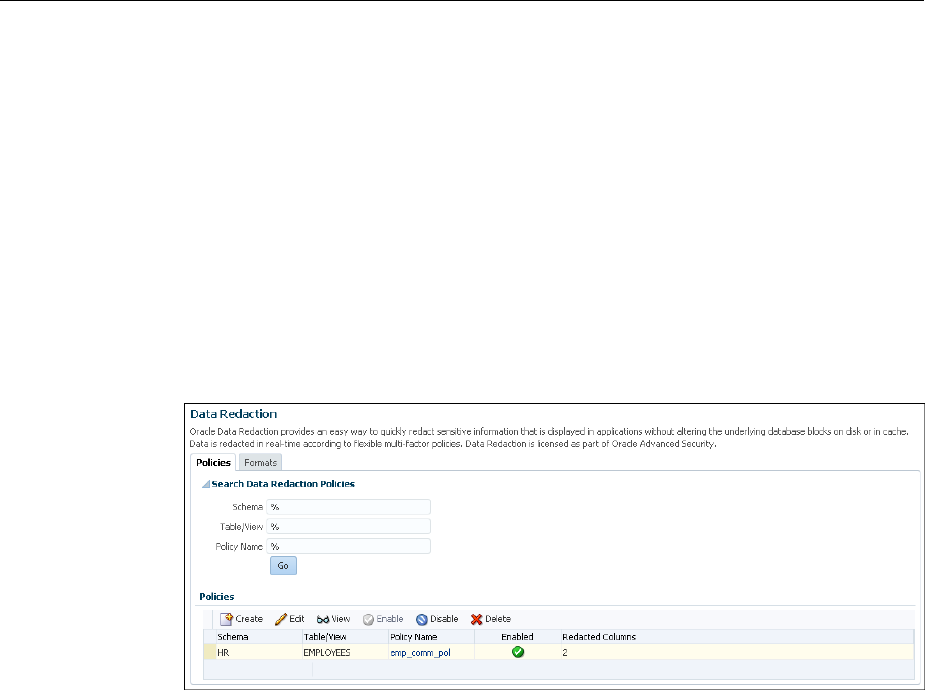

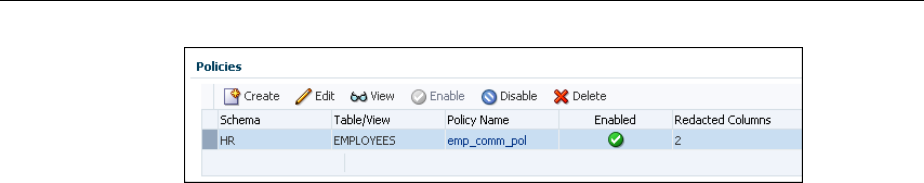

Figure 11-4 (page 11-10) shows the Data Redaction page, which enables you to create

and manage Oracle Data Redaction policies in Cloud Control.

Managing Oracle Data Redaction Policies Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-9

Figure 11-4 Oracle Data Redaction Policies Page

11.5.2 Creating an Oracle Data Redaction Policy Using Enterprise Manager

You can create an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. In the Policies section of the Policies tab, select Create.

7. On the Create Data Redaction Policy page, enter the following information:

•Schema: Enter (or search for) the name of the schema that contains the data

you want to redact.

•Table/View: Enter (or search for) the table or field that contains the column

you want to redact.

•Policy Name: Enter a for the policy, such as emp_wages_pol.

•Policy Expression: Enter a policy expression. The default is 1=1, which means

that the policy always will be enforced. If you are not familiar with the

components of a policy expression, click the pencil icon beside the Policy

Expression field to use Policy Expression Builder. Select Policy is in effect

Managing Oracle Data Redaction Policies Using Enterprise Manager

11-10 Oracle Database Advanced Security Guide

when, select the required conditions, then click Add. Click Edit if you want to

edit the policy expression manually. After building the required policy

expression, click OK. The Policy Expression Builder appears as follows:

8. In the Object Columns section, click Add to add a table or view column to the

redaction policy.

The following dialog box appears:

The redaction policy is applied only on the table or view columns that are added to

it.

9. From the Column menu, select the table or view column to which you want to

apply the redaction policy.

Managing Oracle Data Redaction Policies Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-11

To the right of the Column menu is an icon that you can click to view the contents

of the selected column.

For example:

If the column contains sensitive data and has been mapped to a sensitive column

type, then from the Sensitive Column Type menu, select the sensitive column type

that it has been mapped to. If the search pattern in the Sensitive Column Type

menu matches, then the sensitive column type is selected by default. For example,

for a column listing credit card numbers, if there is a match, then the menu will list

Undefined and CREDIT_CARD_TYPE. If there is no sensitive column type

created, then the default Sensitive Column Type menu listing is only Undefined.

10. From the Redaction Format menu, select the redaction format that you want to use.

The drop-down list is populated with the Oracle Database-supplied redaction

formats, as well as the custom redaction formats that you have created and saved.

For information about how to create and save a redaction format, see Creating a

Custom Oracle Data Redaction Format (page 11-5).

If you do not want to use a pre-defined redaction format (that is, an Oracle-

Database supplied redaction format, or a custom redaction format that you have

created), and instead want to specify the redaction details while creating the

redaction policy, select CUSTOM for Redaction Format.

The Add dialog box adjusts to accommodate the type of redaction format and

function that you select. For example, if you select the CUSTOM redaction format

and the REGEX redaction function, then the Function Attributes region appears in

the dialog box.

11. From the Redaction Function menu, select the function that you want to use to

redact the column data.

Select FULL if you want to redact the entire column data, PARTIAL if you want to

redact only a part of the column data, REGEX if you want to redact the column

data based on a regular expression, RANDOM if you want to redact the column

data in a random manner, using randomly generated values, or NONE if you only

want to test the definition of the redaction policy, and not redact any column data.

Note that all the redaction functions may not be applicable for a particular

redaction format. The drop-down list displays only the redaction functions that are

applicable for the selected redaction format.

If you selected CUSTOM for Redaction Format in the previous step, and

PARTIAL or REGEX for Redaction Function, ensure that you specify the function

attributes.

Managing Oracle Data Redaction Policies Using Enterprise Manager

11-12 Oracle Database Advanced Security Guide

See Oracle Data Redaction Features and Capabilities (page 9-1)for more

information and examples of the available redaction formats.

12. Click OK.

13. Repeat these steps starting with Step 8 for all the columns that you want to add to

the redaction policy.

14. On the Create Data Redaction Policy page, click OK to create the data redaction

policy.

The new policy appears, similar to the following image:

Note:

When you create an Oracle Data Redaction policy, it is enabled by default. For

information on how to disable an enabled redaction policy, see Enabling or

Disabling an Oracle Data Redaction Policy in Enterprise Manager

(page 11-15).

11.5.3 Editing an Oracle Data Redaction Policy Using Enterprise Manager

You can edit an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

Managing Oracle Data Redaction Policies Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-13

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to edit was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to edit, then click Edit..

7. On the Edit Data Redaction Policy page, choose to edit the policy expression, add

new columns to the redaction policy, modify the redaction details of a column that

is a part of the policy, or delete a column from the redaction policy.

You can do the following:

• To add a new column to the redaction policy, in the Object Columns section,

click Add, select the table or view column that you want to add, then specify

the redaction details.

• To modify the redaction details of a column that is a part of the policy, select

the column, click Modify, then edit the redaction details.

• To delete a column from the redaction policy, select the column, then click

Delete.

For information about how to specify or edit the policy expression, see Step 6

described in Creating an Oracle Data Redaction Policy Using Enterprise Manager

(page 11-10). For information about how to specify or edit the redaction details of a

column, see Step 7.

8. On the Edit Data Redaction Policy page, after editing the required fields, click OK

to save and enable the edited redaction policy.

11.5.4 Viewing Oracle Data Redaction Policy Details Using Enterprise Manager

You can find Oracle Data Redaction policy details such as whether the policy is

enabled by using Enterprise Manager Cloud Control.

Managing Oracle Data Redaction Policies Using Enterprise Manager

11-14 Oracle Database Advanced Security Guide

You can disable an enabled redaction policy, or enable a disabled redaction policy

using Enterprise Manager Cloud Control (Cloud Control).

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to view was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

6. In the Policies section of the Policies tab, do one of the following:

• Select the name of the policy in the table.

• Select the required redaction policy, then click View.

11.5.5 Enabling or Disabling an Oracle Data Redaction Policy in Enterprise Manager

An Oracle Data Redaction policy is executed at run time only if it is enabled. When

you create an Oracle Data Redaction policy, it is enabled by default.

You can disable an enabled redaction policy, or enable a disabled redaction policy

using Enterprise Manager Cloud Control (Cloud Control).

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to enable or disable was

created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to enable or disable, and then click Enable or Disable.

Managing Oracle Data Redaction Policies Using Enterprise Manager

Using Oracle Data Redaction in Oracle Enterprise Manager 11-15

7. In the Confirmation dialog box, click Yes or No.

11.5.6 Deleting an Oracle Data Redaction Policy Using Enterprise Manager

You can delete an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user SYSTEM or

SYSMAN.

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to delete was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the EXECUTE privilege on

the DBMS_REDACT PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to delete, and then click Delete.

7. In the Confirmation dialog box, click Yes or No.

Managing Oracle Data Redaction Policies Using Enterprise Manager

11-16 Oracle Database Advanced Security Guide

Oracle Data Redaction Use with Oracle

Database Features

Oracle Data Redaction can be used with other Oracle features. Some Oracle features

may have restrictions with regard to Oracle Data Redaction.

Topics:

•Oracle Data Redaction and DML and DDL Operations (page 12-1)

•Oracle Data Redaction and Nested Functions, Inline Views, and the WHERE

Clause (page 12-2)

•Oracle Data Redaction and Database Links (page 12-2)

•Oracle Data Redaction and Aggregate Functions (page 12-2)

•Oracle Data Redaction and Object Types (page 12-3)

•Oracle Data Redaction and XML Generation (page 12-3)

•Oracle Data Redaction and Editions (page 12-3)

•Oracle Data Redaction in a Multitenant Environment (page 12-3)

•Oracle Data Redaction and Oracle Virtual Private Database (page 12-3)

•Oracle Data Redaction and Oracle Database Real Application Security

(page 12-4)

•Oracle Data Redaction and Oracle Database Vault (page 12-4)

•Oracle Data Redaction and Oracle Data Pump (page 12-4)

•Oracle Data Redaction and Data Masking and Subsetting Pack (page 12-7)

12.1 Oracle Data Redaction and DML and DDL Operations

Oracle Data Redaction affects DML and DDL operations, especially for users who

issue ad-hoc SQL against tables with redacted columns.

Note the following:

• Oracle Data Redaction treats the RETURNING INTO clause of a DML statement as

a query, even though the result is not displayed. The result that is sent to the

buffer is what would have been displayed had the RETURNING INTO clause been

run as an ordinary SQL query, rather than as part of a DML statement. If your

application performs further processing on the buffer that contains the

RETURNING INTO value, then consider changing the application because it may

not expect to find a redacted value in the buffer.

Oracle Data Redaction Use with Oracle Database Features 12-1

• If a redacted column appears as the source in a DML or DDL operation, then

Oracle Data Redaction considers this as an attempt to circumvent the policy and

prevents it with an ORA-28081: Insufficient privileges - the

command references a redacted object error unless you have the

EXEMPT REDACTION POLICY system privilege. Internally, Oracle Data Pump

issues these kinds of operations, so you may also need to grant the EXEMPT

REDACTION POLICY system privilege to a user if they need to perform schema-

level exports of tables that have redacted columns.

12.2 Oracle Data Redaction and Nested Functions, Inline Views, and the

WHERE Clause

You can use Oracle Data Redaction with nested functions, inline views, and the WHERE

clause in SELECT statements.

Oracle Data Redaction policies work as follows:

•Nested functions are redacted innermost. For example, in SELECT

SUM(AVG(TO_NUMBER(((X))) FROM HR.EMPLOYEES WHERE ..., the

TO_NUMBER function is redacted first, followed by AVG, and then last the SUM

function.

•Inline views are redacted outermost. For example, in SELECT XYZ … AS

SELECT A… AS SELECT B… AS SELECT C…, SELECT XYZ is redacted first,

followed by AS SELECT A, then AS SELECT B, and so on. AS SELECT C is

redacted last.

•The WHERE clause is never redacted. Data Redaction redacts only data in the

column SELECT list.

12.3 Oracle Data Redaction and Database Links

Do not create Oracle Data Redaction policies on database views that reference

database links.

You can find information about existing database links by querying the

DBA_DB_LINKS data dictionary view.

See Also:

Oracle Database Administrator’s Guide for detailed information about database

links

12.4 Oracle Data Redaction and Aggregate Functions

Aggregate functions can affect performance overhead on Oracle Data Redaction

policies.

Because Oracle Data Redaction dynamically modifies the value of each row in a

column, certain SQL queries that use aggregate functions cannot take full advantage of

database optimizations that presume the row values to be static.

In the case of SQL queries that call aggregate functions, it may be possible to notice

performance overhead due to redaction.

Oracle Data Redaction and Nested Functions, Inline Views, and the WHERE Clause

12-2 Oracle Database Advanced Security Guide

12.5 Oracle Data Redaction and Object Types

You can use object types to model real-world entities such as customer accounts.

An object type is a user-defined type. You cannot redact object types. This is because

Database Redaction cannot handle all of the possible ways that object types can be

configured, because they are user defined. You can find the type that an object uses by

querying the OBJECT_NAME and OBJECT_TYPE columns of the ALL_OBJECTS data

dictionary view.

12.6 Oracle Data Redaction and XML Generation

You cannot use XML generation functions on columns that have Oracle Data

Redaction policies defined on them.

Oracle XML DB Developer’s Guide describes the kinds of SQL functions to which this

restriction applies. This restriction applies irrespective of whether the Oracle Data

Redaction policy has been enabled or disabled, or is active for the querying user.

12.7 Oracle Data Redaction and Editions

You cannot redact editioned views.

In addition to not being able to redact editioned views, you cannot use a redacted

column in the definition of any editioned view. You can find information about

editions by querying the DBA_EDITIONS data dictionary view.

12.8 Oracle Data Redaction in a Multitenant Environment

In a multitenant environment, Oracle Data Redaction policies apply only to the objects

within the current pluggable database (PDB).

You cannot create a Data Redaction policy for a multitenant container database (CDB).

This is because the objects for which you create Data Redaction policies typically

reside in a PDB. You can find all the PDBs in a CDB by querying the DBA_PDBS data

dictionary view.

12.9 Oracle Data Redaction and Oracle Virtual Private Database

Oracle Data Redaction does not affect Oracle Virtual Private Database policies because

the VPD inline view, which contains the VPD predicate, acts on actual values.

Oracle Data Redaction differs from Oracle Virtual Private Database in the following

ways:

• Oracle Data Redaction provides more redacting features than Oracle Virtual

Private Database, which only supports NULL redacting. Many applications cannot

use NULL redacting, so Data Redaction is a good solution for these applications.

• Oracle Virtual Private Database policies can be static, dynamic, and context

sensitive, whereas Data Redaction policies only allow static and context-sensitive

policy expressions.

• Data Redaction permits only one policy to be defined on a table or view, whereas

you can define multiple Virtual Private Database policies on an object.

• Data Redaction is when application users try to access an object that is protected

by a Data Redaction policy using a synonym, but (unlike Oracle Virtual Private

Oracle Data Redaction and Object Types

Oracle Data Redaction Use with Oracle Database Features 12-3

Database) Data Redaction does not support the creation of policies directly on the

synonyms themselves.

12.10 Oracle Data Redaction and Oracle Database Real Application

Security

Oracle Data Redaction differs from Oracle Database Real Application Security because

of how security is implemented for applications.

Oracle Data Redaction differs from Oracle Database Real Application Security in that

Real Application Security provides a comprehensive authorization framework for

application security.

Column security within Real Application Security is based on application privileges

that are defined by applications using the Real Application Security framework.

See Also:

Oracle Database Real Application Security Administrator's and Developer's Guide

for information about how you can protect table columns with custom

application privileges

12.11 Oracle Data Redaction and Oracle Database Vault

You can use Oracle Data Redaction in an Oracle Database Vault environment.

For example, if there is an Oracle Database Vault realm around an object, a user who

does not belong to the authorized list of realm owners or participants cannot see the

object data, regardless of whether the user was granted the EXEMPT REDACTION

POLICY privilege. If the user attempts a DML or DDL statement on the data, error

messages result.

12.12 Oracle Data Redaction and Oracle Data Pump

When you use Oracle Data Redaction with Oracle Data Pump, you must consider the

impact the DATAPUMP_EXP_FULL_DATABASE role has, the ramifications of exporting

objects that contain Data Redaction policies, and exporting data using the EXPDP

access_method parameter.

Topics:

•Oracle Data Pump Security Model for Oracle Data Redaction (page 12-4)

•Export of Objects That Have Oracle Data Redaction Policies Defined (page 12-5)

•Export of Data Using the EXPDP Utility access_method Parameter (page 12-6)

•Import of Data into Objects Protected by Oracle Data Redaction (page 12-7)

12.12.1 Oracle Data Pump Security Model for Oracle Data Redaction

The DATAPUMP_EXP_FULL_DATABASE role includes the powerful EXEMPT

REDACTION POLICY system privilege.

Remember that by default the DBA role is granted the

DATAPUMP_EXP_FULL_DATABASE role as well as DATAPUMP_IMP_FULL_DATABASE.

Oracle Data Redaction and Oracle Database Real Application Security

12-4 Oracle Database Advanced Security Guide

This enables users who were granted these roles to be exempt from Data Redaction

policies. This means that, when you export objects with Data Redaction policies

defined on them, the actual data in the protected tables is copied to the Data Pump

target system without being redacted. Users with these roles, including users who

were granted the DBA role, are able to see the actual data in the target system.

However, by default, all of the Data Redaction policies associated with any tables and

views in the Data Pump source system are also included in the export and import

operation (along with the objects themselves) and applied to the objects in the target

system, so the data is still redacted when users query the objects in the target system.

See Also:

Exemption of Users from Oracle Data Redaction Policies (page 10-30)

12.12.2 Export of Objects That Have Oracle Data Redaction Policies Defined

You can export objects that have already had Oracle Data Redaction policies defined

on them.

Topics:

•Finding Type Names Used by Oracle Data Pump (page 12-5)

•Exporting Only the Data Dictionary Metadata Related to Data Redaction Policies

(page 12-5)

•Importing Objects Using the INCLUDE Parameter in IMPDP (page 12-6)

12.12.2.1 Finding Type Names Used by Oracle Data Pump

You must find the type names Oracle Data Pump uses before exporting objects that

have Oracle Data Redaction policies defined on these objects.

After you find these types, you should use these types as parameters for the INCLUDE

directive to the IMPDP utility, to selectively export only metadata of these specific

types to the dump file.

• To find type names, query the DATABASE_EXPORT_OBJECTS view.

For example:

SELECT OBJECT_PATH

FROM DATABASE_EXPORT_OBJECTS

WHERE OBJECT_PATH LIKE 'RADM_%';

Output similar to the following appears:

OBJECT_PATH

------------

RADM_FPTM

RADM_POLICY

12.12.2.2 Exporting Only the Data Dictionary Metadata Related to Data Redaction

Policies

You can export only the data dictionary metadata that is related to data redaction

policies and full redaction settings.

Oracle Data Redaction and Oracle Data Pump

Oracle Data Redaction Use with Oracle Database Features 12-5

This kind of Data Pump export could, for example, be used if you must use the same

set of Data Redaction policies and settings across development, test, and production

databases. Because the flag content=metadata_only is specified, the dump file

does not contain any actual data.

• To export only the data dictionary metadata related to data redaction policies and

full redaction settings, enter an EXPDP utility command similar to the following:

expdp system/password \

full=y \

COMPRESSION=NONE \

content=metadata_only \

INCLUDE=RADM_FPTM,RADM_POLICY\

directory=my_directory \

job_name=my_job_name \

dumpfile=my_data_redaction_policy_metadata.dmp

See Also:

•Oracle Database Utilities for detailed information about the INCLUDE

parameter of the EXPDP utility

•Oracle Database Utilities for detailed information about metadata filters

12.12.2.3 Importing Objects Using the INCLUDE Parameter in IMPDP

You can import objects using Oracle Database Pump.

• To import the objects, include these names in the INCLUDE parameter in the

IMPDP utility command, based on the output from querying the OBJECT_PATH

column in the DATABASE_EXPORT_OBJECTS view.

12.12.3 Export of Data Using the EXPDP Utility access_method Parameter

Oracle Data Pump can export data from a schema that contains an object that has a

Data Redaction policy.

If you are using Oracle Data Pump to perform full database export operations using

the Data Pump default settings (direct_path), and if you receive error messages

that you do not understand, then use this section to repeat the operation in such a way

as to better understand the error.

If you try to use the Oracle Data Pump Export (EXPDP) utility with the

access_method parameter set to direct_path to export data from a schema that

contains an object that has a Data Redaction policy defined on it, then the following

error message may appear and the export operation fails:

ORA-31696: unable to export/import TABLE_DATA:"schema.table" using client specified

DIRECT_PATH method

This problem only occurs when you perform a schema-level export as a user who was

not granted the EXP_FULL_DATABASE role. It does not occur during a full database

export, which requires the EXP_FULL_DATABASE role. The EXP_FULL_DATABASE

role includes the EXEMPT REDACTION POLICY system privilege, which bypasses

Data Redaction policies.

To find the underlying problem, try the EXPDP invocation again, but do not set the

access_method parameter to direct_path. Instead, use either automatic or

Oracle Data Redaction and Oracle Data Pump

12-6 Oracle Database Advanced Security Guide

external_table. The underlying problem could be a permissions problem, for

example:

ORA-28081: Insufficient privileges - the command references a redacted object.

See Also:

Oracle Database Utilities for more information about using Data Pump Export.

12.12.4 Import of Data into Objects Protected by Oracle Data Redaction

During an import operation, be careful that you do not inadvertently drop data

redaction policies that protect imported data.

Consider a scenario in which the source tables that were exported using the Oracle

Data Pump Export (EXPDP) utility do not have Oracle Data Redaction polices.

However, the destination tables to which the data is to be imported by using Oracle

Data Pump Import (IMPDP) have Oracle Data Redaction policies.

During the Data Pump import operation, the status of the Data Redaction policies on

the objects being imported depends on the CONTENT option of IMPDP command.

• If you use the CONTENT=ALL or CONTENT=METADATA_ONLY option in the IMPDP

command, then the Data Redaction policies on the destination tables are dropped.

You must recreate the Data Redaction policies.

• If you use CONTENT=DATA_ONLY in the IMPDP command, then the Data

Redaction polices on the destination tables are not dropped.

See Also:

Oracle Database Utilities for more information about using Data Pump Export

12.13 Oracle Data Redaction and Data Masking and Subsetting Pack

Oracle Enterprise Manager Data Masking and Subsetting Pack can be used to create a

development or test copy of a production database.

To accomplish this, you can mask this data in bulk, and then put the resulting masked

data in the development or test copy.

You can still apply Data Redaction policies to the non-production database, in order to

redact columns that contain data that was already masked by Oracle Enterprise

Manager Data Masking and Subsetting Pack.

Remember that Oracle Enterprise Manager Data Masking and Subsetting Pack is used

to mask data sets when you want to move the data to development and test

environments. Data Redaction is mainly designed for redacting at runtime for

production applications in a consistent fashion across multiple applications, without

having to make application code changes.

Oracle Data Redaction and Data Masking and Subsetting Pack

Oracle Data Redaction Use with Oracle Database Features 12-7

See Also:

Oracle Data Masking and Subsetting Guide for more information about data

masking and subsetting

Oracle Data Redaction and Data Masking and Subsetting Pack

12-8 Oracle Database Advanced Security Guide

Security Considerations for Oracle Data

Redaction

Oracle provides a set of guidelines for using Oracle Data Redaction.

Topics:

•Oracle Data Redaction General Usage Guidelines (page 13-1)

•Restriction of Administrative Access to Oracle Data Redaction Policies

(page 13-2)

•How Oracle Data Redaction Affects the SYS, SYSTEM, and Default Schemas

(page 13-2)

•Policy Expressions That Use SYS_CONTEXT Attributes (page 13-3)

•Oracle Data Redaction Policies on Materialized Views (page 13-3)

•Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled

(page 13-3)

13.1 Oracle Data Redaction General Usage Guidelines

It is important to understand general guidelines for using Oracle Data Redaction.

• Oracle Data Redaction is not intended to protect against attacks by regular and

privileged database users who run ad hoc queries directly against the database.

• Oracle Data Redaction is not intended to protect against users who run ad hoc

SQL queries that attempt to determine the actual values by inference.

• Oracle Data Redaction relies on the database and application context values. For

applications, it is the responsibility of the application to properly initialize the

context value.

• Oracle Data Redaction is not enforced for users who are logged in using the

SYSDBA administrative privilege.

• Certain DDL statements that attempt to copy the actual data out from under the

control of a data redaction policy (that is, CREATE TABLE AS SELECT, INSERT

AS SELECT) are blocked by default, but you can disable this behavior by granting

the user the EXEMPT REDACTION POLICY system privilege.

• Oracle Data Redaction does not affect day-to-day database operations, such as

backup and recovery, Oracle Data Pump exports and imports, Oracle Data Guard

operations, and replication.

• Do not include any redacted columns in a SQL expression that is used in a GROUP

BY clause in a SQL statement. Oracle does not support this behavior, and raises an

Security Considerations for Oracle Data Redaction 13-1

ORA-00979: not a GROUP BY expression error. This happens because

internally the expression in the SELECT list must be modified by Data Redaction,

but this causes it to no longer be found when it comes time to process the GROUP

BY clause (which is currently not updated by Data Redaction) leading to this

unintended error message.

13.2 Restriction of Administrative Access to Oracle Data Redaction

Policies

You can restrict the list of users who can create, view and edit Data Redaction policies.

To accomplish this, you can limit who has the EXECUTE privilege on the

DBMS_REDACT package and by limiting who has the SELECT privilege on the

REDACTION_POLICIES and REDACTION_COLUMNS views.

You also can restrict who is exempted from redaction by limiting the EXEMPT

REDACTION POLICY privilege. If you use Oracle Database Vault to restrict privileged

user access, then you can use realms to restrict granting of EXEMPT REDACTION

POLICY.

See Also:

•Exemption of Users from Oracle Data Redaction Policies (page 10-30)

•Oracle Data Redaction and Oracle Database Vault (page 12-4)

•Oracle Database Vault Administrator’s Guide for more information about

Oracle Database Vault

13.3 How Oracle Data Redaction Affects the SYS, SYSTEM, and Default

Schemas

Both users SYS and SYSTEM automatically have the EXEMPT REDACTION POLICY

system privilege.

SYSTEM has the EXP_FULL_DATABASE role, which includes the EXEMPT REDACTION

POLICY system privilege.

This means that the SYS and SYSTEM users can always bypass any existing Oracle

Data Redaction policies, and will always be able to view data from tables (or views)

that have Data Redaction policies defined on them.

Follow these guidelines:

• Do not create Data Redaction policies on the default Oracle Database schemas,

including the SYS and SYSTEM schemas.

• Be aware that granting the EXEMPT DATA REDACTION system privilege to

additional roles may enable users to bypass Oracle Data Redaction, because the

grantee role may have been granted to additional roles.

• Do not revoke the EXEMPT DATA REDACTION system privilege from the roles

that it was granted to by default.

Restriction of Administrative Access to Oracle Data Redaction Policies

13-2 Oracle Database Advanced Security Guide

13.4 Policy Expressions That Use SYS_CONTEXT Attributes

Be careful when writing a policy expression that depends on a SYS_CONTEXT

attribute that is populated by an application.

The application might not always populate that attribute.

If the user somehow connects directly (rather than through the application), then the

SYS_CONTEXT attribute would not have been populated. If you do not handle this

NULL scenario in your policy expression, you could unintentionally reveal actual data

to the querying user.

For example, suppose you wanted to create a policy expression that intends to redact

the query results for everyone except users who have the client identifier value of

SUPERVISOR. The following expression unintentionally enables querying users who

have NULL as the value for their CLIENT_IDENTIFIER to see the real data:

SYS_CONTEXT('USERENV', 'CLIENT_IDENTIFIER') IS NOT 'SUPERVISOR'

A more rigorous policy expression redacts the result of the query if the client identifier

is not set, that is, it has a NULL value.

SYS_CONTEXT('USERENV', 'CLIENT_IDENTIFIER') IS NOT 'SUPERVISOR' OR IS NULL

Remember that in SQL, comparisons with NULL are undefined, and are thus FALSE,

but redaction only takes place when the policy expression evaluates to TRUE.

13.5 Oracle Data Redaction Policies on Materialized Views

You can create Oracle Data Redaction policies on materialized views and on their base

tables.

However, ensure that the creator of the materialized view, or the user who performs

the refresh of the materialized view, is not blocked by any Data Redaction policies. In

other words, the user performing the materialized view creation or refresh operations

should be exempt from the Data Redaction policy. As a best practice, when you create

a new materalized view, treat it as a copy of the actual table, and then create a separate

Data Redaction policy to protect it.

13.6 Dropped Oracle Data Redaction Policies When the Recycle Bin Is

Enabled

You should check if the recycle bin is enabled before you drop Oracle Data Redaction

policies.

If you drop a table or view that has an Oracle Data Redaction policy defined on it

when the recycle bin feature is enabled, and if you query the REDACTION_COLUMNS or

REDACTION_POLICIES data dictionary views before you purge the recycle bin, then

you will see object names such as BIN$... (for example, BIN

$1Xu5PSW5VaPgQxGS5AoAEA==$0).

This is normal behavior. These policies are removed when you purge the recycle bin.

To find if the recycle bin is enabled, you can run the SHOW PARAMETER RECYCLEBIN

command in SQL*Plus.

Policy Expressions That Use SYS_CONTEXT Attributes

Security Considerations for Oracle Data Redaction 13-3

See Also:

Oracle Database Administrator’s Guide for information about purging objects

from the recycle bin

Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled

13-4 Oracle Database Advanced Security Guide

Glossary

actual data

In Oracle Data Redaction, the data in a protected table or view. An example of actual

data could be the number 123456789, and the redacted data version of this number

could be 999996789.

auto-login software keystore

A software keystore that is protected by a system-generated password and does not

need to be explicitly opened by a security administrator. Auto-login software

keystores are automatically opened when accessed and can be used on any computer

that runs an Oracle database. For example, consider an Oracle RAC environment that

has four nodes, and each node is on a different computer. This environment uses an

auto-login keystore. When a REKEY operation is performed on node 1, the auto-login

and password-based keystores must be copied to the computers that host nodes 2, 3,

and 4. In this configuration, the auto-login keystores will be opened on all four nodes

when required.

See also local auto-login software keystore.

cipher suite

A set of authentication, encryption, and data integrity algorithms used to exchange

messages between network nodes using Secure Sockets Layer (SSL). During an SSL

handshake, for example, the two nodes negotiate to see which cipher suite they will

use when transmitting messages back and forth.

ciphertext

Message text that has been encrypted.
