Preface
Changes in This Release for Oracle Database Advanced Security Guide
- Changes in Oracle Database Advanced Security 18c
- Changes in Oracle Database Advanced Security 12c Release 2 (12.2)
1 Introduction to Oracle Advanced Security
- Transparent Data Encryption
- Oracle Data Redaction
Part I Using Transparent Data Encryption
Part II Using Oracle Data Redaction
Glossary
Index

Oracle® Database

Advanced Security Guide

18c

E83681-04

August 2018

Oracle Database Advanced Security Guide, 18c

E83681-04

Primary Author: Patricia Huey

Contributors: Sudha Duraiswamy , Michael Hwa, Sudha Iyer, Supriya Kalyanasundaram, Lakshmi Kethana,

Peter Knaggs, Andrew Koyfman, Dah-Yoh Lim, Adam Lee, Adam Lindsey, Rahil Mir, Gopal Mulagund, Andy

Philips, Preetam Ramakrishna, Saikat Saha, Philip Thornton, Peter Wahl, Lixia Yuan, Paul Youn

This software and related documentation are provided under a license agreement containing restrictions on

use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your

license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify,

license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means.

Reverse engineering, disassembly, or decompilation of this software, unless required by law for

interoperability, is prohibited.

The information contained herein is subject to change without notice and is not warranted to be error-free. If

you find any errors, please report them to us in writing.

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on

behalf of the U.S. Government, then the following notice is applicable:

U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated software,

any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users are

"commercial computer software" pursuant to the applicable Federal Acquisition Regulation and agency-

specific supplemental regulations. As such, use, duplication, disclosure, modification, and adaptation of the

programs, including any operating system, integrated software, any programs installed on the hardware,

and/or documentation, shall be subject to license terms and license restrictions applicable to the programs.

No other rights are granted to the U.S. Government.

This software or hardware is developed for general use in a variety of information management applications.

It is not developed or intended for use in any inherently dangerous applications, including applications that

may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you

shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its

safe use. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this

software or hardware in dangerous applications.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of

their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are

used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron,

the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro

Devices. UNIX is a registered trademark of The Open Group.

This software or hardware and documentation may provide access to or information about content, products,

and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly

disclaim all warranties of any kind with respect to third-party content, products, and services unless otherwise

set forth in an applicable agreement between you and Oracle. Oracle Corporation and its affiliates will not be

responsible for any loss, costs, or damages incurred due to your access to or use of third-party content,

products, or services, except as set forth in an applicable agreement between you and Oracle.

Contents

Preface

Audience xviii

Documentation Accessibility xviii

Related Topics

•How the Multitenant Option Affects Transparent Data Encryption

In a multitenant environment, you can configure keystores for either the entire

container database (CDB) or for individual pluggable databases (PDBs).

Ability to Create a User-Defined Master Encryption Key

This release introduces the ability to create a user-defined master encryption key, also

known as “bring your own key.”

Instead of requiring that TDE master encryption keys always be generated in the

database, Oracle Database now supports the use of master encryption keys that have

been generated outside the database.

Changes in This Release for Oracle Database Advanced Security Guide

xxi

To create the user-defined key, you supply your own master key identification value

when you create the master encryption key by using the

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

ADMINISTER KEY MANAGEMENT CREATE [ENCRYPTION] KEY

statements. This enhancement applies to master encryption keys that are used in

software keystores only, not hardware keystores. It can be used in non-multitenant,

standalone environments and in multitenant environments.

This feature particularly benefits Oracle Fusion Applications Software-as-a-Service

deployments. You can create these keys in your own environment. If you want to

insert a key that you trust for encryption but later on decide that you must replace the

key, then you can insert another key without the intervention of the Cloud provider.

To complement this feature, you can configure the automatic removal of inactive

master encryption keys from an Oracle Data Guard standby database.

Related Topics

•Creating a User-Defined TDE Master Encryption Key

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

•Creating a User-Defined TDE Master Encryption Key in United Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

•Creating a User-Defined TDE Master Encryption Key in Isolated Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

Ability to Use Encrypted Passwords for Database Links with Oracle

Data Pump

The behavior for handling database link passwords has changed in this release.

Passwords in database links are now encrypted. Oracle Data Pump handles the

export and import of these passwords. Import operations from older versions and

export operations to older versions can still be used.

The benefit of this feature is that it prevents an intruder from decrypting an encrypted

database link password.

Related Topics

•Using Oracle Data Pump with Encrypted Data Dictionary Data

Oracle Data Pump operations provide protections for encrypted passwords and

other encrypted data.

Changes in Oracle Database Advanced Security 12c

Release 2 (12.2)

The following are changes in Oracle Database Advanced Security Guide for Oracle

Database 12c release 2 (12.2).

•Ability to Encrypt Existing Tablespaces and Fully Encrypt Databases

Starting with this release, you can encrypt existing tablespaces and fully encrypt

databases.

Changes in This Release for Oracle Database Advanced Security Guide

xxii

•Additional Supported Encryption Algorithms

You now can use the ARIA, GOST, and SEED encryption algorithms for column

and tablespace encryption, and the AES and DES encryption standards.

•Ability to Force Software Keystore Operations

You now can force a keystore operation that is prevented because of an in-use

auto-login keystore or a closed software or hardware keystore.

•Ability to Use an External Store for Software Keystore Passwords

You now can configure a software or a hardware keystore to use an external store

for its password.

•New Way to Specify Oracle Key Vault as a Keystore

As an alternative to third-party hardware security modules, you now can specify

Oracle Key Vault as a keystore.

•Ability to Redact Data Based on Different Runtime Conditions

You now can define and associate different Data Redaction policy expressions

with different columns within the same table or view.

•Ability to Centrally Manage Data Redaction Policy Expressions within a Database

This new feature applies to named Oracle Data Redaction policy expressions.

•Ability to Use NULL as the Redacted Value

Starting with this release, the redacted value can be

NULL

•Enhanced Support for Redacting Unstructured Data

You now can define regular expression-based redaction (

DBMS_REDACT.REGEXP

)

policies on columns of the

CLOB

and

NCLOB

data types.

Ability to Encrypt Existing Tablespaces and Fully Encrypt Databases

Starting with this release, you can encrypt existing tablespaces and fully encrypt

databases.

In previous releases, you could only encrypt new tablespaces. However, this new

feature enables you to encrypt both offline and online tablespaces. To encrypt a

database, you encrypt the Oracle-supplied tablespaces, such as

SYSTEM

and

SYSAUX

Offline tablespace conversion can be used for tablespaces in Oracle Database 11g

release 1 (11.1) and Oracle Database 12g release 1 (12.1). You can perform

encryption conversion operations in parallel and perform the encryption in an Oracle

Data Guard environment. You can configure all future tablespaces to be automatically

encrypted, which is beneficial for an Oracle Cloud environment.

Related Topics

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Additional Supported Encryption Algorithms

You now can use the ARIA, GOST, and SEED encryption algorithms for column and

tablespace encryption, and the AES and DES encryption standards.

The main benefit of these new encryption standards is that they meet the national

standards for their respective countries.

Changes in This Release for Oracle Database Advanced Security Guide

xxiii

•ARIA uses the same block sizes as AES. It is designed for lightweight

environments and the implementation of hardware. ARIA meets the standards

used in Korea.

•GOST is very similar to DES except that it has a large number of rounds and

secret S-boxes. GOST meets the standards used in Russia.

•SEED is used by several standard protocols: S/MIME, TLS/SSL, IPSec, and ISO/

IEC. SEED meets the standards used in Korea.

Related Topics

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

Ability to Force Software Keystore Operations

You now can force a keystore operation that is prevented because of an in-use auto-

In previous releases, for many keystore operations, you had to manually open the

software keystore before performing the operation. In this release, you can perform

these two actions in one

ADMINISTER KEY MANAGEMENT

statement execution by including

the

FORCE KEYSTORE

clause.

The operations that you can use the

FORCE KEYSTORE

clause on are as follows: changing

a keystore password; creating, using, rekeying, tagging, importing, exporting,

migrating, or reverse migrating encryption keys; opening or backing up keystores;

adding, updating, or deleting secret keystores.

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

Ability to Use an External Store for Software Keystore Passwords

You now can configure a software or a hardware keystore to use an external store for

its password.

This feature enables you to store the password in a separate location where it can be

centrally managed and accessed. To use this functionality, you must first set the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

initialization parameter to a location where the

external keystore credential will be stored. Afterward, you can include the

EXTERNAL

STORE

setting in the

IDENTIFIED BY

clause when you run the

ADMINISTER KEY MANAGEMENT

statement for the following operations: opening, closing, backing up the keystore;

adding, updating, or deleting a secret keystore; creating, using, rekeying, tagging,

importing, exporting encryption keys.

Related Topics

•Configuring an External Store for a Keystore Password

An external store for a keystore password stores the keystore password in a

centrally accessed and managed location.

Changes in This Release for Oracle Database Advanced Security Guide

xxiv

New Way to Specify Oracle Key Vault as a Keystore

As an alternative to third-party hardware security modules, you now can specify Oracle

Key Vault as a keystore.

To configure Oracle Key Vault as a keystore, you can edit the

sqlnet.ora

file

METHOD

setting in the

WALLET_LOCATION

parameter to point to

OKV

Related Topics

•Configuring a Hardware Keystore

A hardware keystore resides in a hardware security module (HSM), which is

designed to store encryption keys.

Ability to Redact Data Based on Different Runtime Conditions

You now can define and associate different Data Redaction policy expressions with

different columns within the same table or view.

This feature provides greater flexibility for anyone who creates Data Redaction

policies.

For example, this feature enables you to share a single Data Redaction policy

expression with multiple Data Redaction policies.

When you create the policy expression, you can apply it to any table or view column

that is included in an existing Data Redaction policy. If you change the policy

expression, the change is reflected in all Data Redaction policies that redact the

associated table or view columns.

Related Topics

•Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be

used in multiple redaction policies and applied to multiple tables or views.

Ability to Centrally Manage Data Redaction Policy Expressions within

a Database

This new feature applies to named Oracle Data Redaction policy expressions.

This feature facilitates the maintenance and administration of policy expressions.

When you modify the named policy expression, the changes are automatically applied

to all tables and views in the database that use the expression.

Related Topics

•Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be

used in multiple redaction policies and applied to multiple tables or views.

Ability to Use NULL as the Redacted Value

Starting with this release, the redacted value can be

NULL

For example, you can use this feature to hide data.

Changes in This Release for Oracle Database Advanced Security Guide

xxv

When you define an Oracle Data Redaction policy, you can set the

function_type

parameter to

DBMS_REDACT.NULLIFY

to ensure that the redacted value to always be

NULL

Related Topics

•Creating a DBMS_REDACT.NULLIFY Redaction Policy

You can create Oracle Data Redaction policies that return null values for the

displayed value of the table or view column.

Enhanced Support for Redacting Unstructured Data

You now can define regular expression-based redaction (

DBMS_REDACT.REGEXP

) policies

on columns of the

CLOB

and

NCLOB

data types.

Related Topics

•Syntax for Creating a Regular Expression-Based Redaction Policy

The

regexp_*

parameters of the

DBMS_REDACT.ADD_POLICY

procedure can create a

regular expression-based redaction policy.

Changes in This Release for Oracle Database Advanced Security Guide

xxvi

Introduction to Oracle Advanced Security

Two features comprise Oracle Advanced Security: Transparent Data Encryption and

Oracle Data Redaction.

•Transparent Data Encryption

Transparent Data Encryption (TDE) enables you to encrypt data so that only an

authorized recipient can read it.

•Oracle Data Redaction

Oracle Data Redaction enables you to redact (mask) column data using several

redaction types.

Transparent Data Encryption

Transparent Data Encryption (TDE) enables you to encrypt data so that only an

authorized recipient can read it.

Use encryption to protect sensitive data in a potentially unprotected environment, such

as data you placed on backup media that is sent to an off-site storage location. You

can encrypt individual columns in a database table, or you can encrypt an entire

tablespace.

To use Transparent Data Encryption, you do not need to modify your applications.

TDE enables your applications to continue working seamlessly as before. It

automatically encrypts data when it is written to disk, and then automatically decrypts

the data when your applications access it. Key management is built-in, eliminating the

complex task of managing and securing encryption keys.

Oracle Data Redaction

Oracle Data Redaction enables you to redact (mask) column data using several

redaction types.

The types of redaction that you can perform are as follows:

•Full redaction. You redact all of the contents of the column data. The redacted

value that is returned to the querying user depends on the data type of the column.

For example, columns of the

NUMBER

data type are redacted with a zero (

) and

character data types are redacted with a blank space.

•Partial redaction. You redact a portion of the column data. For example, you can

redact most of a Social Security number with asterisks (*), except for the last 4

digits.

•Regular expressions. You can use regular expressions in both full and partial

redaction. This enables you to redact data based on a search pattern for the data.

For example, you can use regular expressions to redact specific phone numbers

or email addresses in your data.

1-1

•Random redaction. The redacted data presented to the querying user appears as

randomly generated values each time it is displayed, depending on the data type

of the column.

•No redaction. This option enables you to test the internal operation of your

redaction policies, with no effect on the results of queries against tables with

policies defined on them. You can use this option to test the redaction policy

definitions before applying them to a production environment.

Data Redaction performs the redaction at runtime, that is, the moment that the user

tries to view the data. This functionality is ideally suited for dynamic production

systems in which data constantly changes. While the data is being redacted, Oracle

Database is able to process all of the data normally and to preserve the back-end

referential integrity constraints. Data redaction can help you to comply with industry

regulations such as Payment Card Industry Data Security Standard (PCI DSS) and the

Sarbanes-Oxley Act.

Chapter 1

Oracle Data Redaction

1-2

Part I

Using Transparent Data Encryption

Part I describes how to use Transparent Data Encryption.

•Introduction to Transparent Data Encryption

Transparent Data Encryption enables you to encrypt sensitive data, such as credit

card numbers or Social Security numbers.

•Configuring Transparent Data Encryption

You can configure software or hardware keystores, for use on both individual table

columns or entire tablespaces.

•Managing the Keystore and the Master Encryption Key

You can modify settings for the keystore and TDE master encryption key, and

store Oracle Database and store Oracle GoldenGate secrets in a keystore.

•Managing Keystores and TDE Master Encryption Keys in United Mode

United mode enables you to create a common keystore for the CDB and the PDBs

for which the keystore is in united mode.

•Managing Keystores and TDE Master Encryption Keys in Isolated Mode

Isolated mode enables you to create a keystore for each pluggable database

(PDB).

•General Considerations of Using Transparent Data Encryption

When you use Transparent Data Encryption, you should consider factors such as

security, performance, and storage overheads.

•Using Transparent Data Encryption with Other Oracle Features

You can use Oracle Data Encryption with other Oracle features, such as Oracle

Data Guard or Oracle Real Application Clusters.

•Using sqlnet.ora to Configure Transparent Data Encryption Keystores

If you do not want to use the

WALLET_ROOT

parameter to configure keystores, then

you can use the

sqlnet.ora

file.

•Frequently Asked Questions About Transparent Data Encryption

Users frequently have questions about transparency and performance issues with

Transparent Data Encryption.

Introduction to Transparent Data

Encryption

Transparent Data Encryption enables you to encrypt sensitive data, such as credit

card numbers or Social Security numbers.

•What Is Transparent Data Encryption?

Transparent Data Encryption (TDE) enables you to encrypt sensitive data that you

store in tables and tablespaces.

•Benefits of Using Transparent Data Encryption

Transparent Data Encryption (TDE) ensures that sensitive data is encrypted,

meets compliance, and provides functionality that streamlines encryption

operations.

•Who Can Configure Transparent Data Encryption?

You must be granted the

ADMINISTER KEY MANAGEMENT

system privilege to configure

Transparent Data Encryption (TDE).

•Types and Components of Transparent Data Encryption

Transparent Data Encryption can be applied to individual columns or entire

tablespaces.

•How the Multitenant Option Affects Transparent Data Encryption

In a multitenant environment, you can configure keystores for either the entire

container database (CDB) or for individual pluggable databases (PDBs).

What Is Transparent Data Encryption?

Transparent Data Encryption (TDE) enables you to encrypt sensitive data that you

store in tables and tablespaces.

After the data is encrypted, this data is transparently decrypted for authorized users or

applications when they access this data. TDE helps protect data stored on media (also

called data at rest) in the event that the storage media or data file is stolen.

Oracle Database uses authentication, authorization, and auditing mechanisms to

secure data in the database, but not in the operating system data files where data is

stored. To protect these data files, Oracle Database provides Transparent Data

Encryption (TDE). TDE encrypts sensitive data stored in data files. To prevent

unauthorized decryption, TDE stores the encryption keys in a security module external

to the database, called a keystore.

You can configure Oracle Key Vault as part of the TDE implementation. This enables

you to centrally manage TDE keystores (called TDE wallets in Oracle Key Vault) in

your enterprise. For example, you can upload a software keystore to Oracle Key Vault

and then make the contents of this keystore available to other TDE-enabled

databases.

Related Topics

•Oracle Key Vault Administrator's Guide

2-1

Benefits of Using Transparent Data Encryption

Transparent Data Encryption (TDE) ensures that sensitive data is encrypted, meets

compliance, and provides functionality that streamlines encryption operations.

Benefits are as follows:

•As a security administrator, you can be sure that sensitive data is encrypted and

therefore safe in the event that the storage media or data file is stolen.

•Using TDE helps you address security-related regulatory compliance issues.

•You do not need to create auxiliary tables, triggers, or views to decrypt data for the

authorized user or application. Data from tables is transparently decrypted for the

database user and application. An application that processes sensitive data can

use TDE to provide strong data encryption with little or no change to the

application.

•Data is transparently decrypted for database users and applications that access

this data. Database users and applications do not need to be aware that the data

they are accessing is stored in encrypted form.

•You can encrypt data with zero downtime on production systems by using online

table redefinition or you can encrypt it offline during maintenance periods. (See

Oracle Database Administrator’s Guide for more information about online table

redefinition.)

•You do not need to modify your applications to handle the encrypted data. The

database manages the data encryption and decryption.

•Oracle Database automates TDE master encryption key and keystore

management operations. The user or application does not need to manage TDE

master encryption keys.

Who Can Configure Transparent Data Encryption?

You must be granted the

ADMINISTER KEY MANAGEMENT

system privilege to configure

Transparent Data Encryption (TDE).

If you must open the keystore at the mount stage, then you must be granted the

SYSKM

administrative privilege, which includes the

ADMINISTER KEY MANAGEMENT

system privilege

and other necessary privileges.

When you grant the

SYSKM

administrative privilege to a user, ensure that you create a

password file for it so that the user can connect to the database as

SYSKM

using a

password. This enables the user to perform actions such as querying the

V$DATABASE

view.

To configure TDE column or tablespace encryption, you do not need the

SYSKM

ADMINISTER KEY MANAGEMENT

privileges. You must have the following additional privileges

to create TDE policies on tables and tablespaces:

•

CREATE TABLE

•

ALTER TABLE

•

CREATE TABLESPACE

Chapter 2

Benefits of Using Transparent Data Encryption

2-2

Types and Components of Transparent Data Encryption

Transparent Data Encryption can be applied to individual columns or entire

tablespaces.

•About Transparent Data Encryption Types and Components

You can encrypt sensitive data at the column level or the tablespace level.

•How Transparent Data Encryption Column Encryption Works

Transparent Data Encryption (TDE) column encryption protects confidential data,

such as credit card and Social Security numbers, that is stored in table columns.

•How Transparent Data Encryption Tablespace Encryption Works

Transparent Data Encryption (TDE) tablespace encryption enables you to encrypt

an entire tablespace.

•How the Keystore for the Storage of TDE Master Encryption Keys Works

To control the encryption, you use a keystore and a TDE master encryption key.

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

About Transparent Data Encryption Types and Components

You can encrypt sensitive data at the column level or the tablespace level.

At the column level, you can encrypt data using selected table columns. TDE

tablespace encryption enables you to encrypt all of the data that is stored in a

tablespace.

Both TDE column encryption and TDE tablespace encryption use a two-tiered key-

based architecture. Unauthorized users, such as intruders who are attempting security

attacks, cannot read the data from storage and back up media unless they have the

TDE master encryption key to decrypt it.

How Transparent Data Encryption Column Encryption Works

Transparent Data Encryption (TDE) column encryption protects confidential data, such

as credit card and Social Security numbers, that is stored in table columns.

TDE column encryption uses the two-tiered key-based architecture to transparently

encrypt and decrypt sensitive table columns. The TDE master encryption key is stored

in an external security module, which can be an Oracle software keystore or hardware

keystore. This TDE master encryption key encrypts and decrypts the TDE table key,

which in turn encrypts and decrypts data in the table column.

Figure 2-1 an overview of the TDE column encryption process.

Chapter 2

Types and Components of Transparent Data Encryption

2-3

Figure 2-1 TDE Column Encryption Overview

Data Dictionary

S.No Name Credit Card

No.

1. SCOTT #!&*!%@)$(

3. MARY @!@*!$%)#&

2. JOHN !#%&*@!)$(

TDE Master

Encryption Key

External Security

Module

(Software/Hardware

Keystore)

TDE Table

Keys

Encrypt/Decrypt

Encrypt/

Decrypt

Oracle Database

As shown in Figure 2-1, the TDE master encryption key is stored in an external

security module that is outside of the database and accessible only to a user who was

granted the appropriate privileges. For this external security module, Oracle Database

uses an Oracle software keystore (wallet, in previous releases) or hardware security

module (HSM) keystore. Storing the TDE master encryption key in this way prevents

its unauthorized use.

Using an external security module separates ordinary program functions from

encryption operations, making it possible to assign separate, distinct duties to

database administrators and security administrators. Security is enhanced because

the keystore password can be unknown to the database administrator, requiring the

security administrator to provide the password.

When a table contains encrypted columns, TDE uses a single TDE table key

regardless of the number of encrypted columns. Each TDE table key is individually

encrypted with the TDE master encryption key. All of the TDE table keys are located

together in the

colklc

column of the

ENC$

data dictionary table. No keys are stored in

plaintext.

How Transparent Data Encryption Tablespace Encryption Works

Transparent Data Encryption (TDE) tablespace encryption enables you to encrypt an

entire tablespace.

All of the objects that are created in the encrypted tablespace are automatically

encrypted. TDE tablespace encryption is useful if your tables contain sensitive data in

multiple columns, or if you want to protect the entire table and not just individual

columns. You do not need to perform a granular analysis of each table column to

determine the columns that need encryption.

In addition, TDE tablespace encryption takes advantage of bulk encryption and

caching to provide enhanced performance. The actual performance impact on

applications can vary.

Chapter 2

Types and Components of Transparent Data Encryption

2-4

TDE tablespace encryption encrypts all of the data stored in an encrypted tablespace

including its redo data. TDE tablespace encryption does not encrypt data that is stored

outside of the tablespace. For example,

BFILE

data is not encrypted because it is

stored outside the database. If you create a table with a

BFILE

column in an encrypted

tablespace, then this particular column will not be encrypted.

All of the data in an encrypted tablespace is stored in encrypted format on the disk.

Data is transparently decrypted for an authorized user having the necessary privileges

to view or modify the data. A database user or application does not need to know if the

data in a particular table is encrypted on the disk. In the event that the data files on a

disk or backup media is stolen, the data is not compromised.

TDE tablespace encryption uses the two-tiered, key-based architecture to

transparently encrypt (and decrypt) tablespaces. The TDE master encryption key is

stored in an external security module (software or hardware keystore). This TDE

master encryption key is used to encrypt the TDE tablespace encryption key, which in

turn is used to encrypt and decrypt data in the tablespace.

Figure 2-2 shows an overview of the TDE tablespace encryption process.

Figure 2-2 TDE Tablespace Encryption

TDE Master

Encryption Key

External Security

Module

(Software/Hardware

Keystore)

Tablespace

TDE Tablespace

Encryption Key

Encrypt /

Decrypt

Encrypt /

Decrypt

Oracle Database

TDE Tablespace Encryption

@!@*!

Encrypted Data Files

Tablespace

TDE Tablespace

Encryption Key

@!@*!

Encrypted Data Files

Note:

The encrypted data is protected during operations such as

JOIN

and

SORT

This means that the data is safe when it is moved to temporary tablespaces.

Data in undo and redo logs is also protected.

TDE tablespace encryption also allows index range scans on data in encrypted

tablespaces. This is not possible with TDE column encryption.

Chapter 2

Types and Components of Transparent Data Encryption

2-5

Oracle Database implements the following features to TDE tablespace encryption:

•It uses a unified TDE master encryption key for both TDE column encryption and

TDE tablespace encryption.

•You can reset the unified TDE master encryption key. This provides enhanced

security and helps meet security and compliance requirements.

How the Keystore for the Storage of TDE Master Encryption Keys

Works

To control the encryption, you use a keystore and a TDE master encryption key.

•About the Keystore Storage of TDE Master Encryption Keys

Oracle Database provides a key management framework for Transparent Data

Encryption that stores and manages keys and credentials.

•Benefits of the Keystore Storage Framework

The key management framework provides several benefits for Transparent Data

Encryption.

•Types of Keystores

Oracle Database supports both software keystores and hardware keystores.

About the Keystore Storage of TDE Master Encryption Keys

Oracle Database provides a key management framework for Transparent Data

Encryption that stores and manages keys and credentials.

The key management framework includes the keystore to securely store the TDE

master encryption keys and the management framework to securely and efficiently

manage keystore and key operations for various database components.

The Oracle keystore stores a history of retired TDE master encryption keys, which

enables you to change them and still be able to decrypt data that was encrypted under

an earlier TDE master encryption key.

Benefits of the Keystore Storage Framework

The key management framework provides several benefits for Transparent Data

Encryption.

•Enables separation of duty between the database administrator and the security

administrator who manages the keys. You can grant the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege to users who are responsible for managing the

keystore and key operations.

•Facilitates compliance, because it helps you to track encryption keys and

implement requirements such as keystore password rotation and TDE master

encryption key reset or rekey operations.

•Facilitates and helps enforce keystore backup requirements. A backup is a copy of

the password-protected software keystore that is created for all of the critical

keystore operations.

You must make a backup of the keystore for all of the critical keystore operations.

You must also make a backup of the TDE master encryption key before you reset

or rekey this TDE master encryption key.

Chapter 2

Types and Components of Transparent Data Encryption

2-6

•Enables the keystore to be stored on an ASM file system. This is particularly

useful for Oracle Real Application Clusters (Oracle RAC) environments where

database instances share a unified file system view.

•Enables reverse migration from a hardware keystore to a file system-based

software keystore. This option is useful if you must migrate back to a software

keystore.

Types of Keystores

Oracle Database supports both software keystores and hardware keystores.

Figure 2-3 illustrates the types of keystores that Oracle Database supports.

Figure 2-3 Oracle Database Supported Keystores

Keystore

Software

Keystore

Hardware

Keystore

Password-

Protected

Keystore

Local Auto-Login

Keystore

Auto-Login

Keystore

Hardware

Security

Module (HSM)

Oracle Key

Vault

(OKV)

These keystores are as follows:

•Auto-login software keystores: Auto-login software keystores are protected by a

system-generated password, and do not need to be explicitly opened by a security

administrator. Auto-login software keystores are automatically opened when

accessed. Auto-login software keystores can be used across different systems. If

your environment does not require the extra security provided by a keystore that

must be explicitly opened for use, then you can use an auto-login software

keystore. Auto-login software keystores are ideal for unattended scenarios.

•Local auto-login software keystores: Local auto-login software keystores are

auto-login software keystores that are local to the computer on which they are

created. Local auto-login keystores cannot be opened on any computer other than

the one on which they are created. This type of keystore is typically used for

scenarios where additional security is required (that is, to limit the use of the auto-

•Password-protected software keystores: Password-protected software

keystores are protected by using a password that you create. You must open this

type of keystore before the keys can be retrieved or used.

Software keystores can be stored on ASM disk groups or in a regular file system.

Hardware keystores are in the following categories:

Chapter 2

Types and Components of Transparent Data Encryption

2-7

•Hardware security modules (HSMs): Hardware security modules are third-party

physical devices that provide secure storage for encryption keys, in hardware

keystores. HSMs also provide secure computational space (memory) to perform

encryption and decryption operations. When using an HSM, all encryption and

decryption operations that use the TDE master encryption key are performed

inside the HSM. This means that the TDE master encryption key is never exposed

in insecure memory.

•Oracle Key Vault (OKV) keystores: Oracle Key Vault keystores are Oracle

supplied hardware keystores. Oracle Key Vault enables you to centrally manage

encryption keys, Oracle keystores, Java kesytores, and credential files.

Related Topics

•Oracle Key Vault Administrator's Guide

Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the Advanced

Encryption Standard (AES).

The supported Advanced Encryption Standard cipher keys are the 192-bit length

cipher key (

AES192

). Tablespace and database encryption use the 128–bit length cipher

key (

AES128

)

In addition, salt is added by default to plaintext before encryption unless specified

otherwise. You cannot add salt to indexed columns that you want to encrypt. For

indexed columns, choose the

NO SALT

parameter for the SQL

ENCRYPT

clause.

For TDE tablespace encryption and database encryption, the default is to use the

Advanced Encryption Standard with a 128-bit length cipher key (AES128). In addition,

salt is always added to plaintext before encryption.

You can change encryption algorithms and encryption keys on existing encrypted

columns by setting a different algorithm with the SQL

ENCRYPT

clause.

Table 2-1 lists the supported encryption algorithms.

Table 2-1 Supported Encryption Algorithms for Transparent Data Encryption

Algorithm Key Size Parameter Name

Advanced Encryption Standard (AES) •128 bits (default

tablespace

encryption

setting)

•192 bits (default

column level

encryption)

•256 bits

•

AES192

for

column-level

encryption

•

AES128

for

tablespace

encryption

•

AES256

ARIA •128 bits

•192 bits

•256 bits

•

ARIA128

•

ARIA192

•

ARIA256

GOST 256 bits

GOST256

SEED 128 bits

SEED128

Triple Encryption Standard (DES) 168 bits

3DES168

Chapter 2

Types and Components of Transparent Data Encryption

2-8

For integrity protection of TDE column encryption, the

SHA-1

hashing algorithm is used.

If you have storage restrictions, then use the

NOMAC

option.

How the Multitenant Option Affects Transparent Data

Encryption

In a multitenant environment, you can configure keystores for either the entire

container database (CDB) or for individual pluggable databases (PDBs).

Oracle Database supports the following multitenant modes for the management of

keystores:

•United mode enables you to configure one keystore and TDE master encryption

key for the CDB root and any associated united mode PDBs. United mode

operates much the same as how TDE was managed in an multitenant

environment in previous releases.

•Isolated mode enables you to create and manage both keystores and TDE master

encryption keys in an individual PDB. Different isolated mode PDBs can have

different keystore types.

You can use these modes to configure software keystores, hardware keystores, and

Oracle Key Vault keystores.

Depending on your site’s needs, you can use a mixture of both united mode and

isolated mode. For example, if you want most of the PDBs to use one type of a

keystore, then you can configure the keystore type in the CDB root (united mode). For

the PDBs in this CDB that must use a different type of keystore, then you can

configure the PDB itself to use the keystore it needs (isolated mode). The isolated

mode setting for the PDB will override the united mode setting for the CDB.

Before you can configure keystores for use in united or isolated mode, you must

perform a one-time configuration by using initialization parameters. To configure

keystores for united mode and isolated mode, you use the

ADMINISTER KEY MANAGEMENT

statement. After you restart the database, where you can use the

ADMINISTER KEY

MANAGEMENT

statement commands will change. For example, before the configuration,

you could not use the

EXTERNAL STORE

clause in the

ADMINISTER KEY MANAGEMENT

statement in the CDB root, but after the configuration, you can.

Related Topics

•Managing Keystores and TDE Master Encryption Keys in United Mode

United mode enables you to create a common keystore for the CDB and the PDBs

for which the keystore is in united mode.

•Managing Keystores and TDE Master Encryption Keys in Isolated Mode

Isolated mode enables you to create a keystore for each pluggable database

(PDB).

•Using sqlnet.ora to Configure Transparent Data Encryption Keystores

If you do not want to use the

WALLET_ROOT

parameter to configure keystores, then

you can use the

sqlnet.ora

file.

Chapter 2

How the Multitenant Option Affects Transparent Data Encryption

2-9

Configuring Transparent Data Encryption

You can configure software or hardware keystores, for use on both individual table

columns or entire tablespaces.

•About Configuring Transparent Data Encryption

To configure Transparent Data Encryption, you must perform a one-time setup

before you create keystores and encrypt data.

•Configuring a Software Keystore

A software keystore is a container for the master encryption key, and it resides in

the software file system.

•Configuring a Hardware Keystore

A hardware keystore resides in a hardware security module (HSM), which is

designed to store encryption keys.

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

•Transparent Data Encryption Data Dynamic and Data Dictionary Views

You can query a set of dynamic and data dictionary views to find more information

about Transparent Data Encryption (TDE) data.

About Configuring Transparent Data Encryption

To configure Transparent Data Encryption, you must perform a one-time setup before

you create keystores and encrypt data.

Before you can configure keystores and begin to encrypt data, you must perform a

one-time configuration using the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters to

designate the location and type of keystores that you plan to create.

The

WALLET_ROOT

parameter specifies the keystore directory location. Before you set

WALLET_ROOT

, ensure that you have an existing directory that you can use to store

keystores. Oracle Database retrieves the keystore by searching in these locations, in

the following order:

1. The location set by the

WALLET_ROOT

location

2. The location specified in the

ENCRYPTION_WALLET_LOCATION

setting in the

sqlnet.ora

file

3. The location specified by the

WALLET_LOCATION

setting in the

sqlnet.ora

file

4. The

$ORACLE_BASE/admin/db_unique_name/wallet

Related Topics

•Types of Keystores

Oracle Database supports both software keystores and hardware keystores.

Creating a Password-Protected Software Keystore

A password-protected software keystore requires a user password, which is used to

protect the keys and credentials stored in the keystore.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

If SQL*Plus is already open and you had modified the

init.ora

file to set the

WALLET_ROOT

parameter during this time, then reconnect to SQL*Plus. The database

session must be changed before the

init.ora

changes can take effect.

2. Create the keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE 'keystore_location'

IDENTIFIED BY software_keystore_password;

In this specification:

•

keystore_location

is the path to the keystore directory location of the

password-protected keystore for which you want to create the auto-login

keystore (for example,

/etc/ORACLE/WALLETS/orcl

). If the path that is set by the

Chapter 3

Configuring a Software Keystore

3-4

WALLET_ROOT

parameter is the path that you want to use, then you can omit the

keystore_location

setting.

If you specify the

keystore_location

, then enclose it in single quotation marks

(

' '

). To find this location, you can query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. (If the keystore was not created in the default

location, then the

STATUS

column of the

V$ENCRYPTION_WALLET

view is

NOT_AVAILABLE

.) If

WALLET_ROOT

is set and you want to use the directory that

WALLET_ROOT

points to, then you can omit the

keystore_location

setting.

•

software_keystore_password

is the password of the keystore that you, the

security administrator, creates.

For example, to create the keystore in the

/etc/ORACLE/WALLETS/orcl

directory:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

'/etc/ORACLE/WALLETS/orcl

' IDENTIFIED

BY password;

keystore altered.

After you run this statement, the

ewallet.p12

file, which is the keystore, appears in

the keystore location.

Creating an Auto-Login or a Local Auto-Login Software Keystore

As an alternative to password-protected keystores, you can create either an auto-login

or local auto-login software keystore.

Both of these keystores have system-generated passwords. They are also PKCS#12-

based files. The auto-login software keystore can be opened from different computers

from the computer where this keystore resides, but the local auto-login software

keystore can only be opened from the computer on which it was created. Both the

auto-login and local auto-login keystores are created from the password-protected

software keystores.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

If SQL*Plus is already open and you had modified the

init.ora

file to set the

WALLET_ROOT

parameter during this time, then reconnect to SQL*Plus. The database

session must be changed before the

init.ora

changes can take effect.

2. Create a password-protected software keystore.

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/WALLETS/orcl'

IDENTIFIED BY keystore_password;

3. Create the auto-login or local auto-login keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE

FROM KEYSTORE 'keystore_location'

IDENTIFIED BY software_keystore_password;

In this specification:

Chapter 3

Configuring a Software Keystore

3-5

•

LOCAL

enables you to create a local auto-login software keystore. Otherwise,

omit this clause if you want the keystore to be accessible by other computers.

•

keystore_location

is the path to the directory location of the password-

protected keystore for which you want to create the auto-login keystore (for

example,

/etc/ORACLE/WALLETS/orcl

). Enclose this setting in single quotation

marks (

' '

). To find this location, query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view.

•

software_keystore_password

is the password-protected keystore for which you

want to create the auto-login keystore.

For example, to create an auto-login software keystore of the password-protected

keystore that is located in the

/etc/ORACLE/WALLETS/orcl

directory:

ADMINISTER KEY MANAGEMENT CREATE AUTO_LOGIN KEYSTORE

FROM KEYSTORE '/etc/ORACLE/WALLETS/orcl

IDENTIFIED BY password;

keystore altered.

After you run this statement, the

cwallet.sso

file appears in the keystore location.

The

ewallet.p12

file is the password-protected wallet.

Note:

Do not remove the

PKCS#12

wallet (

ewallet.p12

file) after you create the auto

.sso

file). You must have the

PKCS#12

wallet to regenerate or

rekey the TDE master encryption key in the future. By default, this file is

located in the

$ORACLE_HOME/admin/ORACLE_SID/wallet

directory.

Transparent Data Encryption uses an auto login keystore only if it is available at the

correct location (

ENCRYPTION_WALLET_LOCATION, WALLET_LOCATION,

or the default keystore

location), and the SQL statement to open an encrypted keystore has not already been

executed. (Note that auto-login keystores are encrypted, because they have system-

generated passwords.)

Related Topics

•Creating a Password-Protected Software Keystore

A password-protected software keystore requires a user password, which is used

to protect the keys and credentials stored in the keystore.

Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the keystore

before you can use it.

•About Opening Software Keystores

A password-protected software keystore must be open before any TDE master

encryption keys can be created or accessed in the keystore.

•Opening a Software Keystore

To open a software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

Chapter 3

Configuring a Software Keystore

3-6

About Opening Software Keystores

A password-protected software keystore must be open before any TDE master

encryption keys can be created or accessed in the keystore.

Many Transparent Data Encryption operations require the software keystore to be

open. There are two ways that you can open the software keystore:

•Manually open the keystore by issuing the

ADMINISTER KEY MANAGEMENT SET KEYSTORE

OPEN

statement. Afterward, you can perform the operation.

•Include the

FORCE KEYSTORE

clause in the

ADMINISTER KEY MANAGEMENT

statement that

is used to perform the operation.

FORCE KEYSTORE

temporarily opens the keystore for

the duration of the operation, and when the operation completes, the keystore is

closed again.

FORCE KEYSTORE

is useful for situations when the database is heavily

loaded. In this scenario, because of concurrent access to encrypted objects in the

database, the auto-login keystore continues to open immediately after it has been

closed but before a user has had chance to open the password-based keystore.

Keystores can be in the following states: open, closed, open but with no master

encryption key, open but with an unknown master encryption key, undefined, or not

available (that is, not present in the

WALLET_ROOT

location).

After you manually open a keystore, it remains open until you manually close it. Each

time you restart a database instance, you must manually open the password keystore

to reenable encryption and decryption operations.

You can check the status of whether a keystore is open or not by querying the

STATUS

column of the

V$ENCRYPTION_WALLET

view.

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

•How Keystore Open and Close Operations Work in United Mode

You should be aware of how keystore open and close operations work in united

mode.

Opening a Software Keystore

To open a software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement

with the

SET KEYSTORE OPEN

clause.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Run the

ADMINISTER KEY MANAGEMENT

statement to open the keystore.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

keystore altered.

Chapter 3

Configuring a Software Keystore

3-7

To switch over to opening the password-protected software keystore when an

auto-login keystore is configured and is currently open, specify the

FORCE KEYSTORE

clause as follows.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

keystore altered.

Here, the

IDENTIFIED BY EXTERNAL STORE

clause is included in the statement

because the keystore credentials exist in an external store. This enables

the password-protected keystore to be opened without specifying the

keystore password within the statement itself.

If the

WALLET_ROOT

parameter has been set, then Oracle Database finds the

external store by searching in this path:

WALLET_ROOT/PDB_GUID/tde_seps

3. Confirm that the keystore is open.

SELECT STATUS FROM V$ENCRYPTION_WALLET;

Note that if the keystore is open but you have not created a TDE master encryption

key yet, the

STATUS

column of the

V$ENCRYPTION_WALLET

view reminds you with an

OPEN_NO_MASTER_KEY

status.

Step 4: Set the TDE Master Encryption Key in the Software Keystore

Once the keystore is open, you can set a TDE master encryption key for it.

•About Setting the Software Keystore TDE Master Encryption Key

The TDE master encryption key is stored in the keystore.

•Setting the TDE Master Encryption Key in the Software Keystore

To set the TDE master encryption key in a software keystore, use the

ADMINISTER

KEY MANAGEMENT

statement with the

SET KEY

clause.

About Setting the Software Keystore TDE Master Encryption Key

The TDE master encryption key is stored in the keystore.

The TDE master encryption key protects the TDE table keys and tablespace

encryption keys. By default, the TDE master encryption key is a key that TDE

generates. You can find if a keystore has no TDE master encryption key set or an

unknown TDE master encryption key by querying the

STATUS

column of the

V$ENCRYPTION_WALLET

view.

You can manually create a master encryption ID outside the database, which is useful

for Cloud environments. You also can create TDE master encryption keys for use later

on, and then manually activate them.

Related Topics

•Creating User-Defined TDE Master Encryption Keys

You can create a user-defined TDE master encryption key outside the database

by generating a TDE master encryption key ID.

•Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

Chapter 3

Configuring a Software Keystore

3-8

Setting the TDE Master Encryption Key in the Software Keystore

To set the TDE master encryption key in a software keystore, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEY

clause.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Ensure that the database is open in

READ WRITE

mode.

You can set the TDE master encryption key if

OPEN_MODE

is set to

READ WRITE

. To

find the status, query the

OPEN_MODE

column of the

V$DATABASE

dynamic view. (If you

cannot access this view, then connect as

SYSDBA

and try the query again. In order

to connect as

SYSKM

for this type of query, you must create a password file for it.)

3. Set the TDE master encryption key in the software by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE] | keystore_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

FORCE KEYSTORE

should be included if the keystore is closed. This automatically

opens the keystore before setting the TDE master encryption key. The

FORCE

KEYSTORE

clause also switches over to opening the password-protected

software keystore when an auto-login keystore is configured and is currently

open.

•

IDENTIFIED BY

specifies the keystore password. Alternatively, if the keystore

password is in an external store, you can use the

IDENTIFIED BY EXTERNAL

STORE

clause.

•

WITH BACKUP

creates a backup of the keystore. You must use this option for

password-protected keystores. Optionally, you can use the

USING

clause to add

a brief description of the backup. Enclose this description in single quotation

marks (

' '

). This identifier is appended to the named keystore file (for

example,

ewallet_time_stamp_emp_key_backup.p12

, with

emp_key_backup

being

the backup identifier). Follow the file naming conventions that your operating

system uses.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

Chapter 3

Configuring a Software Keystore

3-9

keystore altered.

Step 5: Encrypt Your Data

Now that you have completed the keystore configuration, you can begin to encrypt

data in the PDB.

You can encrypt data in individual table columns or in entire tablespaces or databases.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Configuring a Hardware Keystore

A hardware keystore resides in a hardware security module (HSM), which is designed

to store encryption keys.

•About Configuring a Hardware (External) Keystore

A hardware keystore, also called an external keystore, is a separate server or

device that provides security storage for encryption keys.

•Step 1: Configure the Hardware Keystore Type

You can configure the hardware keystore type by setting the

TDE_CONFIGURATION

parameter.

•Step 2: Configure the Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions.

•Step 3: Open the Hardware Keystore

After you have configured the hardware security module, you must open the

hardware keystore before it can be used.

•Step 4: Set the Hardware Keystore TDE Master Encryption Key

After you have opened the hardware keystore, you are ready to set the hardware

keystore TDE master encryption key.

•Step 5: Encrypt Your Data

Now that you have completed the configuration for a hardware keystore or for an

Oracle Key Vault keystore, you can begin to encrypt data.

About Configuring a Hardware (External) Keystore

A hardware keystore, also called an external keystore, is a separate server or device

that provides security storage for encryption keys.

External keystores are external to an Oracle database. Oracle Database can interface

with external keystores but cannot manipulate them outside of the Oracle interface.

The Oracle database can request the external keystore to create a key but it cannot

define how this key is stored in an external database. (Conversely, for software

Chapter 3

Configuring a Hardware Keystore

3-10

keystores that are created using TDE, Oracle Database has full control: that is, you

can use SQL statements to manipulate this type of keystore.) Examples of external

keystores are hardware security modules or Oracle Key Vault keystores. External

keystores among multiple databases can be managed centrally, such as with Oracle

Key Vault.

To configure a keystore for a hardware security module (hardware keystore), you must

first include the keystore type in the

TDE_CONFIGURATION

parameter setting, configure

and open the hardware keystore, and then set the hardware keystore TDE master

encryption key. In short, there is one hardware keystore per database, and the

database locates this keystore by checking the keystore type that you define in the

TDE_CONFIGURATION

parameter.

How you specify the

IDENTIFIED BY

clause when you run the

ADMINISTER KEY MANAGEMENT

statement depends on the type of hardware keystore. In most cases, and in the

examples throughout this guide, you would use the following syntax for a hardware

security module (

HSM

) or Cloud Key Management Service (

KMS

) keystore:

IDENTIFIED BY "user_name:password"

However, depending on your site’s configuration of HSMs, the syntax for the credential

may be

“password:user_name”

For an Oracle Key Vault keystore, you can omit the

user_name

and colon, but you must

include the quotation marks:

IDENTIFIED BY "password"

After you configure the hardware keystore, you are ready to begin encrypting your

data.

Step 1: Configure the Hardware Keystore Type

You can configure the hardware keystore type by setting the

TDE_CONFIGURATION

parameter.

1. Log in to the database instance as a user who has been granted the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

2. Set the

TDE_CONFIGURATION

dynamic initialization parameter to specify the keystore

type by using the following syntax:

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=keystore_type"

SCOPE=scope_type ;

In this specification:

•

keystore_type

can be one of the following types:

–

HSM

to configure a hardware security module (HSM) keystore

–

OKV

to configure an Oracle Key Vault keystore

•

scope_type

sets the type of scope (for example,

both

memory

, or

spfile

For example, to configure an HSM keystore if the parameter file (

pfile

) is in use,

set

scope

memory

Chapter 3

Configuring a Hardware Keystore

3-11

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM"

scope=memory;

To configure an Oracle Key Vault keystore if the server parameter file (

spfile

) is in

use, set

scope

both

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=OKV"

scope=both;

3. Restart the database.

SHUTDOWN IMMEDIATE

STARTUP

Step 2: Configure the Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions.

If you are using Oracle Key Vault, then you can bypass this section.

1. Copy the PKCS#11 library to its correct path.

Your hardware keystore vendor should provide you with an associated PKCS#11

library. Only one PKCS#11 library is supported at a time. If you want to use a

hardware keystore from a new vendor, then you must replace the PKCS#11 library

from the earlier vendor with the library from the new vendor.

Copy this library to the appropriate location to ensure that Oracle Database can

find this library:

•UNIX systems: Use the following syntax to copy the library to this directory:

/opt/oracle/extapi/[32,64]/hsm/{VENDOR}/{VERSION}/libapiname.so

•Windows systems: Use the following syntax to copy the library to this

directory:

%SYSTEM_DRIVE%\oracle\extapi\[32,64]\hsm\{VENDOR}\{VERSION}\libapiname.dll

In this specification:

•

[32,64]

specifies whether the supplied binary is 32 bits or 64 bits.

•

VENDOR

stands for the name of the vendor supplying the library

•

VERSION

refers to the version of the library. This should preferably be in the

format,

number.number.number

•

apiname

requires no special format. However, the

apiname

must be prefixed with

the word

lib

, as illustrated in the syntax.

2. Follow your vendor's instructions to set up the hardware keystore.

Use your hardware keystore management interface and the instructions provided

by your HSM vendor to set up the hardware keystore. Create the user account and

password that must be used by the database to interact with the hardware

keystore. This process creates and configures a hardware keystore that

communicates with your Oracle database.

Chapter 3

Configuring a Hardware Keystore

3-12

Step 3: Open the Hardware Keystore

After you have configured the hardware security module, you must open the hardware

keystore before it can be used.

•About Opening Hardware Keystores

You must open the hardware keystore so that it is accessible to the database

before you can perform any encryption or decryption.

•Opening a Hardware Keystore

To open a hardware keystore, use the

ADMINISTER KEY MANAGEMENT

statement with

the

SET KEYSTORE OPEN

clause.

About Opening Hardware Keystores

You must open the hardware keystore so that it is accessible to the database before

you can perform any encryption or decryption.

If a recovery operation is needed on your database (for example, if the database was

not cleanly shut down, and has an encrypted tablespace that needs recovery), then

you must open the hardware keystore before you can open the database itself.

There are two ways that you can open the hardware keystore:

•Manually open the keystore by issuing the

ADMINISTER KEY MANAGEMENT SET KEYSTORE

OPEN

statement. Afterward, you can perform the operation.

•Include the

FORCE KEYSTORE

clause in the

ADMINISTER KEY MANAGEMENT

statement.

FORCE KEYSTORE

temporarily opens the keystore for the duration of the operation,

and when the operation completes, the keystore is closed again.

FORCE KEYSTORE

useful for situations when the database is heavily loaded. In this scenario,

because of concurrent access to encrypted objects in the database, the auto-login

keystore continues to open immediately after it has been closed but before a user

has had a chance to open the password-based keystore.

To check the status of the keystore, query the

STATUS

column of the

V$ENCRYPTION_WALLET

view. Keystores can be in the following states:

CLOSED

NOT_AVAILABLE

(that is, not present in the

WALLET_ROOT

location),

OPEN

OPEN_NO_MASTER_KEY

OPEN_UNKNOWN_MASTER_KEY_STATUS

Be aware that for hardware keystores, if the database is in the mounted state, then it

cannot check if the master key is set because the data dictionary is not available. In

this situation, the status will be

OPEN_UNKNOWN_MASTER_KEY_STATUS

Related Topics

•How Keystore Open and Close Operations Work in United Mode

You should be aware of how keystore open and close operations work in united

mode.

Opening a Hardware Keystore

To open a hardware keystore, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Chapter 3

Configuring a Hardware Keystore

3-13

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Open the hardware keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_password";

In this specification:

•

FORCE KEYSTORE

enables the keystore operation if the keystore is closed.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

hardware_keystore_credentials

refers to the credentials for either an HSM

or an Oracle Key Vault hardware keystore. For an HSM, specify the

credentials using this format, enclosed in quotation marks and separating

the components with a colon:

“user_name:password”

, with

user_name

being

the user who created the HSM and password being this user’s password.

For Oracle Key Vault, enter only the password of the user who created the

keystore. Enclose this password with quotation marks.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:password";

keystore altered.

3. Repeat this procedure each time you restart the database instance.

Step 4: Set the Hardware Keystore TDE Master Encryption Key

After you have opened the hardware keystore, you are ready to set the hardware

keystore TDE master encryption key.

•About Setting the Hardware Keystore TDE Master Encryption Key

You must create a TDE master encryption key that is stored inside the hardware

keystore.

•Setting a New TDE Master Encryption Key

You should complete this procedure if you have not previously configured a

hardware keystore for Transparent Data Encryption.

•Migration of a Previously Configured TDE Master Encryption Key

You must migrate the previously configured TDE master encryption key if you

previously configured a software keystore.

About Setting the Hardware Keystore TDE Master Encryption Key

You must create a TDE master encryption key that is stored inside the hardware

keystore.

Oracle Database uses the master encryption key to encrypt or decrypt TDE table keys

or tablespace encryption keys inside the hardware security module.

Chapter 3

Configuring a Hardware Keystore

3-14

If you have not previously configured a software keystore for TDE, then you must set

the master encryption key. If you have already configured a software keystore for TDE,

then you must migrate it to the hardware security module.

Along with the current master encryption key, Oracle wallets maintain historical master

encryption keys that are generated after every re-key operation that rekeys the master

encryption key. These historical master keys help to restore Oracle database backups

that were taken previously using one of the historical master encryption keys.

Related Topics

•Setting a New TDE Master Encryption Key

You should complete this procedure if you have not previously configured a

hardware keystore for Transparent Data Encryption.

•Migration of a Previously Configured TDE Master Encryption Key

You must migrate the previously configured TDE master encryption key if you

previously configured a software keystore.

Setting a New TDE Master Encryption Key

You should complete this procedure if you have not previously configured a hardware

keystore for Transparent Data Encryption.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Ensure that the database is open in

READ WRITE

mode.

You can set the master encryption key if

OPEN_MODE

is set to

READ WRITE

. To find the

status, for a non-multitenant environment, query the

OPEN_MODE

column of the

V$DATABASE

dynamic view. If you are in a multitenant environment, then run the

show_pdbs

command.

3. Set the new master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"];

In this specification:

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

hardware_keystore_credentials

refers to the credentials for either an HSM

or an Oracle Key Vault hardware keystore. For an HSM, specify the

credentials using this format, enclosed in quotation marks and separating

Chapter 3

Configuring a Hardware Keystore

3-15

the components with a colon:

“user_name:password”

, with

user_name

being

the user who created the HSM and password being this user’s password.

For Oracle Key Vault, enter only the password of the user who created the

keystore. Enclose this password with quotation marks.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY "psmith:password";

keystore altered.

Related Topics

•Creating a TDE Master Encryption Key for Later Use

A keystore must be opened before you can create a TDE master encryption key

for use later on.

•Oracle Database Administrator’s Guide

Migration of a Previously Configured TDE Master Encryption Key

You must migrate the previously configured TDE master encryption key if you

previously configured a software keystore.

Tools such as Oracle Data Pump and Oracle Recovery Manager require access to the

old software keystore to perform decryption and encryption operations on data

exported or backed up using the software keystore. You can migrate from the software

to the hardware keystore.

Along with the current master encryption key, Oracle keystores maintain historical

master encryption keys that are generated after every re-key operation that rotates the

master encryption key. These historical master encryption keys help to restore Oracle

database backups that were taken previously using one of the historical master

encryption keys.

Related Topics

•Migrating Between a Software Password Keystore and a Hardware Keystore

You can migrate between password-protected software keystores and hardware

keystores.

Step 5: Encrypt Your Data

Now that you have completed the configuration for a hardware keystore or for an

Oracle Key Vault keystore, you can begin to encrypt data.

Oracle Key Vault Administrator's Guide describes how to configure Oracle Key Vault

keystores.

You can encrypt individual columns in a table or entire tablespaces.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

Chapter 3

Configuring a Hardware Keystore

3-16

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in database

tables.

•About Encrypting Columns in Tables

You can encrypt individual columns in tables.

•Data Types That Can Be Encrypted with TDE Column Encryption

Oracle Database supports a specific set of data types that can be used with TDE

column encryption.

•Restrictions on Using TDE Column Encryption

TDE column encryption is performed at the SQL layer. Oracle Database utilities

that bypass the SQL layer cannot use TDE column encryption services.

•Creating Tables with Encrypted Columns

Oracle Database provides a selection of different algorithms that you can use to

define the encryption used in encrypted columns.

•Encrypting Columns in Existing Tables

You can encrypt columns in existing tables. As with new tables, you have a choice

of different algorithms to use to definite the encryption.

•Creating an Index on an Encrypted Column

You can create an index on an encrypted column.

•Adding Salt to an Encrypted Column

Salt, which is a random string added to data before encryption, is a way to

strengthen the security of encrypted data. .

•Removing Salt from an Encrypted Column

You can use the ALTER TABLE SQL statement to remove salt from an encrypted

column.

•Changing the Encryption Key or Algorithm for Tables with Encrypted Columns

You can use the

ALTER TABLE

SQL statement to change the encryption key or

algorithm used in encrypted columns.

About Encrypting Columns in Tables

You can encrypt individual columns in tables.

Whether you choose to encrypt individual columns or entire tablespaces depends on

the data types that the table has. There are also several features that do not support

TDE column encryption.

Related Topics

•Data Types That Can Be Encrypted with TDE Column Encryption

Oracle Database supports a specific set of data types that can be used with TDE

column encryption.

•Restrictions on Using TDE Column Encryption

TDE column encryption is performed at the SQL layer. Oracle Database utilities

that bypass the SQL layer cannot use TDE column encryption services.

Chapter 3

Encrypting Columns in Tables

3-17

Data Types That Can Be Encrypted with TDE Column Encryption

Oracle Database supports a specific set of data types that can be used with TDE

column encryption.

You can encrypt data columns that use a variety of different data types.

Supported data types are as follows:

•

BINARY_DOUBLE

•

BINARY_FLOAT

•

CHAR

•

DATE

•

INTERVAL DAY TO SECOND

•

INTERVAL YEAR TO MONTH

•

NCHAR

•

NUMBER

•

NVARCHAR2

•

RAW

(legacy or extended)

•

TIMESTAMP

(includes

TIMESTAMP WITH TIME ZONE

and

TIMESTAMP WITH LOCAL TIME ZONE

)

•

VARCHAR2

(legacy or extended)

If you want to encrypt large binary objects (LOBs), then you can use Oracle

SecureFiles. Oracle SecureFiles enables you to store LOB data securely. To encrypt a

LOB using SecureFiles, you use the

CREATE TABLE

ALTER TABLE

statements.

You cannot encrypt a column if the encrypted column size is greater than the size

allowed by the data type of the column.

Table 3-1 shows the maximum allowable sizes for various data types.

Table 3-1 Maximum Allowable Size for Data Types

Data Type Maximum Size

CHAR

1932 bytes

VARCHAR2

(legacy) 3932 bytes

VARCHAR2

(extended) 32,699 bytes

NVARCHAR2

(legacy) 1966 bytes

NVARCHAR2

(extended) 16,315 bytes

NCHAR

966 bytes

RAW

(extended) 32,699 bytes

Chapter 3

Encrypting Columns in Tables

3-18

Note:

TDE tablespace encryption does not have these data type restrictions.

Related Topics

•Restrictions on Using Transparent Data Encryption Tablespace Encryption

You should be aware of restrictions on using Transparent Data Encryption when

you encrypt a tablespace.

•Oracle Database SecureFiles and Large Objects Developer's Guide

Restrictions on Using TDE Column Encryption

TDE column encryption is performed at the SQL layer. Oracle Database utilities that

bypass the SQL layer cannot use TDE column encryption services.

Do not use TDE column encryption with the following database features:

•Index types other than B-tree

•Range scan search through an index

•Synchronous change data capture

•Transportable tablespaces

•Columns that have been created as identity columns

In addition, you cannot use TDE column encryption to encrypt columns used in foreign

key constraints.

Applications that must use these unsupported features can use the

DBMS_CRYPTO

PL/SQL package for their encryption needs.

Transparent Data Encryption protects data stored on a disk or other media. It does not

protect data in transit. Use the network encryption solutions discussed in Oracle

Database Security Guide to encrypt data over the network.

Related Topics

•How Transparent Data Encryption Works with Export and Import Operations

Oracle Data Pump can export and import tables that contain encrypted columns,

as well as encrypt entire dump sets.

•Data Types That Can Be Encrypted with TDE Column Encryption

Oracle Database supports a specific set of data types that can be used with TDE

column encryption.

Creating Tables with Encrypted Columns

Oracle Database provides a selection of different algorithms that you can use to define

the encryption used in encrypted columns.

•About Creating Tables with Encrypted Columns

You can use the

CREATE TABLE

SQL statement to create a table with an encrypted

column.

Chapter 3

Encrypting Columns in Tables

3-19

•Creating a Table with an Encrypted Column Using the Default Algorithm

By default, TDE uses the

AES

encryption algorithm with a 192-bit key length

(

AES192

•Creating a Table with an Encrypted Column Using No Algorithm or a Non-Default

Algorithm

You an use the

CREATE TABLE

SQL statement to create a table with an encrypted

column.

•Using the NOMAC Parameter to Save Disk Space and Improve Performance

You can bypass checks that TDE performs. This can save up to 20 bytes of disk

space per encrypted value.

•Example: Using the NOMAC Parameter in a CREATE TABLE Statement

You can use the CREATE TABLE SQL statement to encrypt a table column using

the NOMAC parameter.

•Example: Changing the Integrity Algorithm for a Table

You can use the ALTER TABLE SQL statement to change the integrity algorithm

for a database table.

•Creating an Encrypted Column in an External Table

The external table feature enables you to access data in external sources as if the

data were in a database table.

About Creating Tables with Encrypted Columns

You can use the

CREATE TABLE

SQL statement to create a table with an encrypted

column.

To create relational tables with encrypted columns, you can specify the SQL

ENCRYPT

clause when you define database columns with the

CREATE TABLE

SQL statement.

Creating a Table with an Encrypted Column Using the Default Algorithm

By default, TDE uses the

AES

encryption algorithm with a 192-bit key length (

AES192

If you encrypt a table column without specifying an algorithm, then the column is

encrypted using the

AES192

algorithm.

TDE adds salt to plaintext before encrypting it. Adding salt makes it harder for

attackers to steal data through a brute force attack. TDE also adds a Message

Authentication Code (MAC) to the data for integrity checking. The

SHA-1

integrity

algorithm is used by default.

•To create a table that encrypts a column, use the

CREATE TABLE

SQL statement with

the

ENCRYPT

clause.

For example, to encrypt a table column using the default algorithm:

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER,

salary NUMBER(6) ENCRYPT);

This example creates a new table with an encrypted column (

salary

). The column

is encrypted using the default encryption algorithm (

AES192

). Salt and MAC are

added by default. This example assumes that the keystore is open and a master

encryption key is set.

Chapter 3

Encrypting Columns in Tables

3-20

Note:

If there are multiple encrypted columns in a table, then all of these columns

must use the same pair of encryption and integrity algorithms.

Salt is specified at the column level. This means that an encrypted column in

a table can choose not to use salt irrespective of whether or not other

encrypted columns in the table use salt.

Creating a Table with an Encrypted Column Using No Algorithm or a Non-

Default Algorithm

You an use the

CREATE TABLE

SQL statement to create a table with an encrypted

column.

By default, TDE adds salt to plaintext before encrypting it. Adding salt makes it harder

for attackers to steal data through a brute force attack. However, if you plan to index

the encrypted column, then you must use the

NO SALT

parameter.

•To create a table that uses an encrypted column that is a non-default algorithm or

no algorithm, run the

CREATE TABLE

SQL statement as follows:

–If you do not want to use any algorithm, then include the

ENCRYPT NO SALT

clause.

–If you want to use a non-default algorithm, then use the

ENCRYPT USING

clause,

followed by one of the following algorithms enclosed in single quotation marks:

3DES168

AES128

AES192

(default)

AES256

The following example shows how to specify encryption settings for the

empID

and

salary

columns.

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT NO SALT,

salary NUMBER(6) ENCRYPT USING '3DES168');

In this example:

•The

empID

column is encrypted and does not use salt. Both the

empID

and

salary

columns will use the

3DES168

encryption algorithm, because all of the encrypted

columns in a table must use the same encryption algorithm.

•The

salary

column is encrypted using the

3DES168

encryption algorithm. Note that

the string that specifies the algorithm must be enclosed in single quotation marks ('

'). The

salary

column uses salt by default.

Chapter 3

Encrypting Columns in Tables

3-21

Using the NOMAC Parameter to Save Disk Space and Improve Performance

You can bypass checks that TDE performs. This can save up to 20 bytes of disk space

per encrypted value.

If the number of rows and encrypted columns in the table is large, then bypassing TDE

checks can add up to a significant amount of disk space. In addition, this saves

processing cycles and reduces the performance overhead associated with TDE.

TDE uses the

SHA-1

integrity algorithm by default. All of the encrypted columns in a

table must use the same integrity algorithm. If you already have a table column using

the

SHA-1

algorithm, then you cannot use the

NOMAC

parameter to encrypt another

column in the same table.

•To bypass the integrity check during encryption and decryption operations, use the

NOMAC

parameter in the

CREATE TABLE

and

ALTER TABLE

statements.

Related Topics

•Performance and Storage Overhead of Transparent Data Encryption

The performance of Transparent Data Encryption can vary.

Example: Using the NOMAC Parameter in a CREATE TABLE Statement

You can use the CREATE TABLE SQL statement to encrypt a table column using the

NOMAC parameter.

Example 3-1 creates a table with an encrypted column. The

empID

column is encrypted

using the

NOMAC

parameter.

Example 3-1 Using the NOMAC parameter in a CREATE TABLE statement

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT 'NOMAC' ,

salary NUMBER(6));

Example: Changing the Integrity Algorithm for a Table

You can use the ALTER TABLE SQL statement to change the integrity algorithm for a

database table.

Example 3-2 shows how to change the integrity algorithm for encrypted columns in a

table. The encryption algorithm is set to

3DES168

and the integrity algorithm is set to

SHA-1

. The second

ALTER TABLE

statement sets the integrity algorithm to

NOMAC

Example 3-2 Changing the Integrity Algorithm for a Table

ALTER TABLE EMPLOYEE REKEY USING '3DES168' 'SHA-1';

ALTER TABLE EMPLOYEE REKEY USING '3DES168' 'NOMAC';

Chapter 3

Encrypting Columns in Tables

3-22

Creating an Encrypted Column in an External Table

The external table feature enables you to access data in external sources as if the

data were in a database table.

External tables can be updated using the

ORACLE_DATAPUMP

access driver.

•To encrypt specific columns in an external table, use the

ENCRYPT

clause when you

define those columns:

A system-generated key encrypts the columns. For example, the following

CREATE

TABLE

SQL statement encrypts the

ssn

column using the

3DES168

algorithm:

CREATE TABLE emp_ext (

first_name,

....

ssn ENCRYPT USING '3DES168',

....

If you plan to move an external table to a new location, then you cannot use a

randomly generated key to encrypt the columns. This is because the randomly

generated key will not be available at the new location.

For such scenarios, you should specify a password while you encrypt the columns.

After you move the data, you can use the same password to regenerate the key

required to access the encrypted column data at the new location.

Table partition exchange also requires a password-protected TDE table key.

Example 3-3 creates an external table using a password to create the TDE table key.

Example 3-3 Creating a New External Table with a Password-Generated TDE

Table Key

CREATE TABLE emp_ext (

first_name,

last_name,

empID,

salary,

ssn ENCRYPT IDENTIFIED BY password

) ORGANIZATION EXTERNAL

(

TYPE ORACLE_DATAPUMP

DEFAULT DIRECTORY "D_DIR"

LOCATION('emp_ext.dat')

)

REJECT LIMIT UNLIMITED

AS SELECT * FROM EMPLOYEE;

Encrypting Columns in Existing Tables

You can encrypt columns in existing tables. As with new tables, you have a choice of

different algorithms to use to definite the encryption.

•About Encrypting Columns in Existing Tables

The

ALTER TABLE

SQL statement enables you to encrypt columns in an existing

table.

Chapter 3

Encrypting Columns in Tables

3-23

•Adding an Encrypted Column to an Existing Table

You can encrypt columns in existing tables, use a different algorithm, and use

SALT

to index the column.

•Encrypting an Unencrypted Column

You can use the

ALTER TABLE MODIFY

statement to encrypt an existing unencrypted

column.

•Disabling Encryption on a Column

You may want to disable encryption for reasons of compatibility or performance.

About Encrypting Columns in Existing Tables

The

ALTER TABLE

SQL statement enables you to encrypt columns in an existing table.

To add an encrypted column to an existing table, or to encrypt or decrypt an existing

column, you use the

ALTER TABLE

SQL statement with the

ADD

MODIFY

clause.

Adding an Encrypted Column to an Existing Table

You can encrypt columns in existing tables, use a different algorithm, and use

NO SALT

to index the column.

•To add an encrypted column to an existing table, use the

ALTER TABLE ADD

statement, specifying the new column with the

ENCRYPT

clause.

Example 3-4 adds an encrypted column,

ssn

, to an existing table, called

employee

. The

ssn

column is encrypted with the default

AES192

algorithm. Salt and MAC are added by

default.

Example 3-4 Adding an Encrypted Column to an Existing Table

ALTER TABLE employee ADD (ssn VARCHAR2(11) ENCRYPT);

Encrypting an Unencrypted Column

You can use the

ALTER TABLE MODIFY

statement to encrypt an existing unencrypted

column.

•To encrypt an existing unencrypted column, use the

ALTER TABLE MODIFY

statement,

specifying the unencrypted column with the

ENCRYPT

clause.

The following example encrypts the

first_name

column in the

employee

table. The

first_name

column is encrypted with the default

AES192

algorithm. Salt is added to the

data, by default. You can encrypt the column using a different algorithm. If you want to

index a column, then you must specify

NO SALT

. You can also bypass integrity checks

by using the

NOMAC

parameter.

ALTER TABLE employee MODIFY (first_name ENCRYPT);

The following example encrypts the

first_name

column in the employee table using the

NOMAC

parameter.

ALTER TABLE employee MODIFY (first_name ENCRYPT 'NOMAC');

Chapter 3

Encrypting Columns in Tables

3-24

Disabling Encryption on a Column

You may want to disable encryption for reasons of compatibility or performance.

•To disable column encryption, use the

ALTER TABLE MODIFY

command with the

DECRYPT

clause.

Example 3-5 decrypts the

first_name

column in the

employee

table.

Example 3-5 Turning Off Column Encryption

ALTER TABLE employee MODIFY (first_name DECRYPT);

Creating an Index on an Encrypted Column

You can create an index on an encrypted column.

The column being indexed must be encrypted without salt. If the column is encrypted

with salt, then the

ORA-28338: cannot encrypt indexed column(s) with salt

error is

raised.

•To create an index on an encrypted column, use the

CREATE INDEX

statement with

the

ENCRYPT NO SALT

clause.

Example 3-6 shows how to create an index on a column that has been encrypted

without salt.

Example 3-6 Creating Index on a Column Encrypted Without Salt

CREATE TABLE employee (

first_name VARCHAR2(128),

last_name VARCHAR2(128),

empID NUMBER ENCRYPT NO SALT,

salary NUMBER(6) ENCRYPT USING '3DES168');

CREATE INDEX employee_idx on employee (empID);

Adding Salt to an Encrypted Column

Salt, which is a random string added to data before encryption, is a way to strengthen

the security of encrypted data. .

Salt ensures that the same plaintext data does not always translate to the same

encrypted text. Salt removes the one common method that intruders use to steal data,

namely, matching patterns of encrypted text. Adding salt requires an additional 16

bytes of storage per encrypted data value.

•To add or remove salt from encrypted columns, use the

ALTER TABLE MODIFY

SQL

statement.

For example, suppose you want to encrypt the

first_name

column using salt. If the

first_name

column was encrypted without salt earlier, then the

ALTER TABLE MODIFY

statement reencrypts it using salt.

ALTER TABLE employee MODIFY (first_name ENCRYPT SALT);

Chapter 3

Encrypting Columns in Tables

3-25

Removing Salt from an Encrypted Column

You can use the ALTER TABLE SQL statement to remove salt from an encrypted

column.

•To remove salt from an encrypted column, use the

ENCRYPT NO SALT

clause in the

ALTER TABLE SQL statement.

For example, suppose you wanted to remove salt from the

first_name

column. If you

must index a column that was encrypted using salt, then you can use this statement to

remove the salt before indexing

ALTER TABLE employee MODIFY (first_name ENCRYPT NO SALT);

Changing the Encryption Key or Algorithm for Tables with Encrypted

Columns

You can use the

ALTER TABLE

SQL statement to change the encryption key or algorithm

used in encrypted columns.

Each table can have only one TDE table key for its columns. You can regenerate the

TDE table key with the

ALTER TABLE

statement. This process generates a new key,

decrypts the data in the table using the previous key, reencrypts the data using the

new key, and then updates the table metadata with the new key information. You can

also use a different encryption algorithm for the new TDE table key.

•To change the encryption key or algorithm for tables that contain encrypted

columns, use the

ALTER TABLE

SQL statement with the

REKEY

REKEY USING

clause.

For example:

ALTER TABLE employee REKEY;

Example 3-7 regenerates the TDE table key for the

employee

table by using the

3DES168

algorithm.

Example 3-7 Changing an Encrypted Table Column Encryption Key and

Algorithm

ALTER TABLE employee REKEY USING '3DES168';

Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

•About Encryption Conversions for Tablespaces and Databases

The

CREATE TABLESPACE

SQL statement can be used to encrypt new tablespaces.

ALTER TABLESPACE

can encrypt existing tablespaces.

•Restrictions on Using Transparent Data Encryption Tablespace Encryption

You should be aware of restrictions on using Transparent Data Encryption when

you encrypt a tablespace.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-26

•Creating an Encrypted New Tablespace

When you create a new tablespace, you can configure its encryption settings

during the creation process.

•Encrypting Future Tablespaces

You can configure Oracle Database to automatically encrypt future tablespaces

that you will create.

•Encrypted Sensitive Credential Data in the Data Dictionary

You can encrypt sensitive credential data in the

SYS.LINK$

and

SYS.SCHEDULER$_CREDENTIAL

system tables.

•Encryption Conversions for Existing Offline Tablespaces

You can perform offline encryption conversions by using the

ALTER TABLESPACE

SQL

statement

OFFLINE

ENCRYPT

, and

DECRYPT

clauses.

•Encryption Conversions for Existing Online Tablespaces

You can encrypt and decrypt an online existing tablespace by using the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

ENCRYPT

DECRYPT

clauses.

•Encryption Conversions for Existing Databases

You can encrypt both offline and online databases.

About Encryption Conversions for Tablespaces and Databases

The

CREATE TABLESPACE

SQL statement can be used to encrypt new tablespaces.

ALTER

TABLESPACE

can encrypt existing tablespaces.

In addition to encrypting new and existing tablespaces, you can encrypt full databases,

which entails the encryption of the Oracle-managed tablespaces (in this release, the

SYSTEM

SYSAUX

TEMP

, and

UNDO

tablespaces). To encrypt a full database, you use the

ALTER TABLESPACE

statement, not

ALTER DATABASE

, to encrypt the Oracle-managed

tablespaces.

The following table compares the differences between an offline and an online

encryption conversion of tablespaces and databases.

Table 3-2 Offline and Online Tablespace and Database Encryption Conversions

Functionality Offline Conversion Online Conversion

Release with minimum

conversion capability

Oracle Database 11g release

1 (11.1)

Oracle Database 12c release

2 (12.2) and later

What can be backported? The ability to encrypt or

decrypt a data file with the

AES128

algorithm (using

ALTER DATABASE DATAFILE

data_file ENCRYPT

DECRYPT

) can be used in

Oracle Database releases

12.1.0.2 and 11.2.0.4.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-27

Table 3-2 (Cont.) Offline and Online Tablespace and Database Encryption

Conversions

Functionality Offline Conversion Online Conversion

Algorithms supported

AES128

only All symmetric encryption

algorithm that TDE supports.

See About Encryption

Conversions for Existing

Online Tablespaces for a list

of the supported algorithms.

When can the conversion be

run?

When the tablespace is offline

or the database is in the

mount stage.

When the tablespace is online

and database is open in read/

write mode.

Is auxiliary space required for

the conversion?

No Yes. See Encrypting an

Existing Tablespace with

Online Conversion for

guidelines.

Oracle Data Guard conversion

guidelines

Convert both the primary and

standby manually. Convert the

standby first and then switch

over to minimum downtime

After you convert the primary,

the standby conversion takes

place automatically. You

cannot perform an online

conversion directly on the

standby.

Encrypt the

SYSTEM

SYSAUX

and

UNDO

tablespaces

(database conversion)

Oracle Database 12c release

2 (12.2) and later only. You

must set

COMPATIBILITY

12.2.0.0

Oracle Database 12c release

2 (12.2) and later only. You

must set

COMPATIBILITY

12.2.0.0

Can an existing

TEMP

tablespace be converted?

No, but you can create an

encrypted

TEMP

tablespace in

Oracle Database 12c release

2 (12.2) and later, make it the

default temporary tablespace,

and then drop the original

TEMP

tablespace.

No, but you can create an

encrypted

TEMP

tablespace in

Oracle Database 12c release

2 (12.2) and later, make it the

default temporary tablespace,

and then drop the original

TEMP

tablespace.

Can an existing tablespace be

decrypted?

You only can decrypt a

tablespace or data file that

was previously encrypted by

an offline encrypt operation.

Oracle does not recommend

that you decrypt the

UNDO

tablespace once it is

encrypted.

Yes, but Oracle does not

recommend that you decrypt

the

UNDO

tablespace once it is

encrypted.

Can encryption keys be

rekeyed?

No, but after the tablespace is

encrypted, you can then use

online conversion to rekey in

Oracle Database 12c release

2 (12.2) compatibility.

Yes

Can encryption operations be

run in parallel?

You can run parallel

encryption conversions at the

data file level with multiple

user sessions running.

You can run parallel

encryption conversions at the

tablespace level with multiple

user sessions running.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-28

Table 3-2 (Cont.) Offline and Online Tablespace and Database Encryption

Conversions

Functionality Offline Conversion Online Conversion

What to do if an encryption

conversion SQL statement

fails to complete?

Re-issue the encryption or

decryption SQL statement to

ensure that all the data files

within the tablespace are

consistently either encrypted

or decrypted.

Rerun the SQL statement but

use the

FINISH

clause.

Restrictions on Using Transparent Data Encryption Tablespace

Encryption

You should be aware of restrictions on using Transparent Data Encryption when you

encrypt a tablespace.

Note the following restrictions:

•Transparent Data Encryption (TDE) tablespace encryption encrypts or decrypts

data during read and write operations, as opposed to TDE column encryption,

which encrypts and decrypts data at the SQL layer. This means that most

restrictions that apply to TDE column encryption, such as data type restrictions

and index type restrictions, do not apply to TDE tablespace encryption.

•To perform import and export operations, use Oracle Data Pump.

•If you encrypt the

SYSTEM

SYSAUX

TEMP

, or

UNDO

tablespace, then never close the

keystore manually, even if you later decrypt the tablespace by using the

ALTER

TABLESPACE

SQL statement.

See Also:

Oracle Database Utilities for more information about Oracle Data Pump

Creating an Encrypted New Tablespace

When you create a new tablespace, you can configure its encryption settings during

the creation process.

•Step 1: Set the COMPATIBLE Initialization Parameter for Tablespace Encryption

You must set the

COMPATIBLE

initialization parameter before creating an encrypted

tablespace.

•Step 2: Set the Tablespace TDE Master Encryption Key

You should ensure that you have configured the TDE master encryption key.

•Step 3: Create the Encrypted Tablespace

After you have set the

COMPATIBLE

initialization parameter, you are ready to create

the encrypted tablespace.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-29

Step 1: Set the COMPATIBLE Initialization Parameter for Tablespace

Encryption

You must set the

COMPATIBLE

initialization parameter before creating an encrypted

tablespace.

•About Setting the COMPATIBLE Initialization Parameter for Tablespace

Encryption

A minimum

COMPATIBLE

initialization parameter setting of

11.2.0.0

enables the full

set of tablespace encryption features.

•Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

To set the

COMPATIBLE

initialization parameter, you must edit the initialization

parameter file for the database instance.

About Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

A minimum

COMPATIBLE

initialization parameter setting of

11.2.0.0

enables the full set of

tablespace encryption features.

Setting the compatibility to

11.2.0.0

enables the following functionality:

•The

11.2.0.0

setting enables the database to use any of the four supported

algorithms for data encryption (

3DES168

AES128

AES192

, and

AES256

•The

11.2.0.0

setting enables the migration of a key from a software keystore to a

hardware keystore (ensure that the TDE master encryption key was configured for

the hardware keystore)

•The

11.2.0.0

setting enables rekeying the TDE master encryption key

Be aware that once you set the

COMPATIBLE

parameter to

11.2.0.0

, the change is

irreversible. To use tablespace encryption, ensure that the compatibility setting is at

the minimum, which is

11.2.0.0

See Also:

•Oracle Database SQL Language Reference for more information about

the

COMPATIBLE

parameter

•Oracle Database Administrator’s Guide for more information about

initialization parameter files

Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

To set the

COMPATIBLE

initialization parameter, you must edit the initialization parameter

file for the database instance.

1. Log in to the database instance.

In a multitenant environment, log in to the PDB. For example:

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-30

sqlplus sec_admin@hrpdb

Enter password: password

Connected.

To find the available PDBs, run the

show pdbs

command. To check the current

PDB, run the

show con_name

command.

2. Check the current setting of the

COMPATIBLE

parameter.

For example:

SHOW PARAMETER COMPATIBLE

NAME TYPE VALUE

------------------------------------ ----------- ------------------------------

compatible string 11.2.0.0

noncdbcompatible BOOLEAN FALSE

3. If you must change the

COMPATIBLE

parameter, then complete the remaining steps

in this procedure.

The value should be 11.2.0.0 or higher.

4. From the command line, locate the initialization parameter file for the database

instance.

•UNIX systems: This file is in the

ORACLE_HOME/dbs

directory and is named

initORACLE_SID.ora

(for example,

initmydb.ora

•Windows systems: This file is in the

ORACLE_HOME\database

directory and is

named

initORACLE_SID.ora

(for example,

initmydb.ora

5. Edit the initialization parameter file to use the new

COMPATIBLE

setting.

For example:

compatible=12.2.0.0.0

6. In SQL*Plus, connect as a user who has the

SYSDBA

administrative privilege, and

then restart the database.

For example:

CONNECT /AS SYSDBA

SHUTDOWN

STARTUP

If tablespace encryption is in use, then open the keystore at the database mount.

The keystore must be open before you can access data in an encrypted

tablespace.

For example:

STARTUP MOUNT;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY keystore_password;

ALTER DATABASE OPEN;

Step 2: Set the Tablespace TDE Master Encryption Key

You should ensure that you have configured the TDE master encryption key.

•Set the TDE master encryption key as follows:

–For software TDE master encryption keys, see Step 4: Set the TDE Master

Encryption Key in the Software Keystore.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-31

–For hardware TDE master encryption keys, see Step 4: Set the Hardware

Keystore TDE Master Encryption Key.

Step 3: Create the Encrypted Tablespace

After you have set the

COMPATIBLE

initialization parameter, you are ready to create the

encrypted tablespace.

•About Creating Encrypted Tablespaces

To create an encrypted tablespace, you can use the

CREATE TABLESPACE

SQL

statement.

•Creating an Encrypted Tablespace

To create an encrypted tablespace, you must use the

CREATE TABLESPACE

statement

with the

ENCRYPTION USING

clause.

•Example: Creating an Encrypted Tablespace That Uses AES192

You can use the

CREATE TABLESPACE

SQL statement to create an encrypted

tablespace.

•Example: Creating an Encrypted Tablespace That Uses the Default Algorithm

You can use the

CREATE TABLESPACE

SQL statement to create an encrypted

tablespace that uses the default algorithm.

About Creating Encrypted Tablespaces

To create an encrypted tablespace, you can use the

CREATE TABLESPACE

SQL

statement.

You must have the

CREATE TABLESPACE

system privilege to create an encrypted

tablespace.

You can import data into an encrypted tablespace by using Oracle Data Pump. You

can also use a SQL statement such as

CREATE TABLE...AS SELECT...

ALTER

TABLE...MOVE...

to move data into an encrypted tablespace. The

CREATE TABLE...AS

SELECT...

statement creates a table from an existing table. The

ALTER TABLE...MOVE...

statement moves a table into the encrypted tablespace.

For security reasons, you cannot encrypt a tablespace with the

NO SALT

option.

You can query the

ENCRYPTED

column of the

DBA_TABLESPACES

and

USER_TABLESPACES

data

dictionary views to verify if a tablespace was encrypted.

See Also:

Oracle Database Reference for more information about the

DBA_TABLESPACES

and

USER_TABLESPACES

data dictionary views

Creating an Encrypted Tablespace

To create an encrypted tablespace, you must use the

CREATE TABLESPACE

statement

with the

ENCRYPTION USING

clause.

1. Log in to the database instance as a user who has been granted the

CREATE

TABLESPACE

system privilege.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-32

In a multitenant environment, log in to the PDB. For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

To find the available PDBs, run the

show pdbs

command. To check the current

PDB, run the

show con_name

command.

2. Run the

CREATE TABLESPACE

statement, using its encryption clauses.

For example:

CREATE TABLESPACE encrypt_ts

DATAFILE '$ORACLE_HOME/dbs/encrypt_df.dbf' SIZE 1M

ENCRYPTION USING 'AES256' ENCRYPT;

In this specification:

•

ENCRYPTION USING 'AES256' ENCRYPT

specifies the encryption algorithm and the

key length for the encryption. The

ENCRYPT

clause encrypts the tablespace.

Enclose this setting in single quotation marks (' '). The key lengths are

included in the names of the algorithms. If you do not specify an encryption

algorithm, then the default encryption algorithm,

AES128

, is used.

See Also:

•Supported Encryption and Integrity Algorithms

•Oracle Database SQL Language Reference

Example: Creating an Encrypted Tablespace That Uses AES192

You can use the

CREATE TABLESPACE

SQL statement to create an encrypted tablespace.

Example 3-8 creates a tablespace called

securespace_1

that is encrypted using the

3DES

algorithm. The key length is 168 bits.

Example 3-8 Creating an Encrypted Tablespace That Uses AES192

CREATE TABLESPACE securespace_1

DATAFILE '/home/user/oradata/secure01.dbf'

SIZE 150M

ENCRYPTION USING 'AES192' ENCRYPT;

Example: Creating an Encrypted Tablespace That Uses the Default Algorithm

You can use the

CREATE TABLESPACE

SQL statement to create an encrypted tablespace

that uses the default algorithm.

Example 3-9 creates a tablespace called

securespace_2

. Because no encryption

algorithm is specified, the default encryption algorithm (

AES128

) is used. The key length

is 128 bits.

You cannot encrypt an existing tablespace.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-33

Example 3-9 Creating an Encrypted Tablespace That Uses the Default

Algorithm

CREATE TABLESPACE securespace_2

DATAFILE '/home/user/oradata/secure01.dbf'

SIZE 150M

ENCRYPTION ENCRYPT;

Encrypting Future Tablespaces

You can configure Oracle Database to automatically encrypt future tablespaces that

you will create.

•About Encrypting Future Tablespaces

The ability to encrypt future tablespaces can help prevent data breaches in Oracle

Cloud environments.

•Setting Future Tablespaces to be Encrypted

You can set the

ENCRYPT_NEW_TABLESPACES

database initialization parameter to

automatically encrypt future tablespaces that you create.

About Encrypting Future Tablespaces

The ability to encrypt future tablespaces can help prevent data breaches in Oracle

Cloud environments.

The

ENCRYPT_NEW_TABLESPACES

database initialization parameter controls how future

databases are encrypted.

You can create and run an Oracle database completely in Oracle Cloud. Because this

configuration hosts the customer’s data in the Cloud, Oracle recommends that you

enable encryption as much as possible. A long-term goal is to encrypt all data in

Oracle Cloud. Alternatively, you can have the database both in the Cloud and on

premises.

In an Oracle Cloud environment, the following scenarios may occur when you create

encrypted tablespaces in Oracle Cloud and on-premises environments:

•You create a test database in Oracle Cloud and the tablespaces were encrypted

by using when the

ENCRYPT_NEW_TABLESPACE

parameter has been set to

automatically create the Cloud database as encrypted. However, you may not

have the intention or even an Advanced Security Option license to bring the

encrypted database back on premises.

•You create a hybrid definer’s rights environment where the primary database is on

premises and the standby database is on Oracle Cloud. If a switchover operation

takes place, then the new primary is on Oracle Cloud. If a new tablespace is

transparently encrypted, then a similar scenario to the first item in this list may

occur. For example, suppose you do not have an Advanced Security Option (ASO)

license, and you have an automatically encrypted tablespace in the Oracle Cloud.

The standby database on premises is also automatically encrypted. In this case,

because you do not have an ASO license, you cannot use the standby database.

To remedy this problem, set the

ENCRYPT_NEW_TABLESPACES

to DDL, which prevents

the encryption of the tablespace in Oracle Cloud.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-34

Setting Future Tablespaces to be Encrypted

You can set the

ENCRYPT_NEW_TABLESPACES

database initialization parameter to

automatically encrypt future tablespaces that you create.

•In SQL*Plus, enter the following

ALTER SYSTEM

statement:

ALTER SYSTEM SET ENCRYPT_NEW_TABLESPACES = value;

In this specification,

value

can be:

–

CLOUD_ONLY

transparently encrypts the tablespace in the Cloud using the

AES128

algorithm if you do not specify the

ENCRYPTION

clause of the

CREATE TABLESPACE

SQL statement. It applies only to an Oracle Cloud environment. If you create

the tablespace on premise, then it will follow the

CREATE TABLESPACE

statement

specification that you enter. For example, if you omit the

ENCRYPTION

clause,

then the tablespace is created unencrypted. If you include this clause and use

a different algorithm, then the tablespace will use that algorithm.

CLOUD_ONLY

the default.

–

ALWAYS

automatically encrypts the tablespace using the

AES128

algorithm if you

omit the

ENCRYPTION

clause of

CREATE TABLESPACE

, for both the Cloud and

premises scenarios.

If you do provide the

ENCRYPTION

clause, however, the algorithm that you

specify takes precedence over

AES128

–

DDL

encrypts the tablespace using the specified setting of the

ENCRYPTION

clause of

CREATE TABLESPACE

, for both Oracle Cloud and on-premise

environments.

Related Topics

•ENCRYPT_NEW_TABLESPACES

Encrypted Sensitive Credential Data in the Data Dictionary

You can encrypt sensitive credential data in the

SYS.LINK$

and

SYS.SCHEDULER$_CREDENTIAL

system tables.

By default, the credential data in the

SYS.LINK$

and

SYS.SCHEDULER$_CREDENTIAL

system

tables is obfuscated. However, because of the availability of many types of de-

obfuscation algorithms, Oracle recommends that you encrypt this sensitive credential

data. To check the status the data dictionary credentials, you can query the

DICTIONARY_CREDENTIALS_ENCRYPT

data dictionary view.

The encryption of sensitive credential data in these two system tables uses

Transparent Data Encryption. Encryption of credential data uses the AES256

algorithm. To encrypt credential data, you do not need an Oracle Advanced Security

Option license, but you must be granted the

SYSKM

administrative privilege and the

database must have an open keystore.

Related Topics

•Oracle Database Security Guide

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-35

Encryption Conversions for Existing Offline Tablespaces

You can perform offline encryption conversions by using the

ALTER TABLESPACE

SQL

statement

OFFLINE

ENCRYPT

, and

DECRYPT

clauses.

•About Encryption Conversions for Existing Offline Tablespaces

You can encrypt or decrypt an existing data file of a user tablespace when the

tablespace is offline or when the database is not open.

•Encrypting an Existing User-Defined Tablespace with Offline Conversion

To encrypt an existing tablespace with offline conversion, you can use the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

ENCRYPT

clauses.

•Decrypting an Existing Tablespace with Offline Conversion

To decrypt an existing tablespace with offline conversion, you can use the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

DECRYPT

clauses.

About Encryption Conversions for Existing Offline Tablespaces

You can encrypt or decrypt an existing data file of a user tablespace when the

tablespace is offline or when the database is not open.

Use the offline encryption method if you do not plan to change the compatibility of your

databases from Oracle Database 11c release 2 (11.2) or Oracle Database 12c release

1 (12.1) to release 18c, which is irreversible. The offline encryption method is also

useful if you want to quickly make use of Transparent Data Encryption before you

upgrade this database to release 18c. You can both encrypt and decrypt offline

tablespaces.

Note the following:

•If you want to encrypt the Oracle Database-supplied tablespaces (

SYSTEM

SYSAUX

and

UNDO

) using the offline conversion method, then you must use the method that

is described in Encrypting an Existing Database with Offline Conversion.

•You can use the online method to rekey a tablespace that was previously

encrypted with the offline method.

•If you have configured Oracle Data Guard, you can minimize downtime by

encrypting the tablespaces on the standby first, switching over to the primary, and

then encrypting the tablespaces on the primary.

•You cannot specify the encryption algorithm in an offline conversion. In an offline

conversion, all data files and tablespaces are encrypted using the

AES128

encryption key. You can check the encryption key by querying the

ENCRYPTIONALG

column in the

V$DATABASE_KEY_INFO

view.

•You can convert offline tablespaces in parallel by using multiple foreground

sessions to encrypt different data files.

•If you are using Oracle Data Guard, you can minimize the downtime by encrypting

the tablespaces on the standby first, switching over, and then encrypting the

tablespaces on the original primary next.

•For Oracle Database 11g release 2 (11.2.0.4) and Oracle Database 12c release 1

(12.1.0.2), you cannot perform an offline encryption of the

SYSTEM

and

SYSAUX

tablespaces. Also, Oracle does not recommend encrypting offline the

UNDO

tablespace in these releases. Doing so prevents the keystore from being closed,

and this prevents the database from functioning. In addition, encrypting the

UNDO

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-36

tablespace while the database is offline is not necessary because all undo records

that are associated with any encrypted tablespaces are already automatically

encrypted in the

UNDO

tablespace. If you want to encrypt the

TEMP

tablespace, you

must drop and then recreate it as encrypted.

Encrypting an Existing User-Defined Tablespace with Offline Conversion

To encrypt an existing tablespace with offline conversion, you can use the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

ENCRYPT

clauses.

The procedure that is described in this section applies to the case where you want to

encrypt individual user-created tablespaces within a database. These tablespaces can

be encrypted offline. However, the Oracle Database-supplied

SYSTEM

and

UNDO

tablespaces cannot be brought offline. If you want to encrypt the tablespaces offline,

then you must use the method that is described in Encrypting an Existing Database

with Offline Conversion.

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege if you plan to encrypt the

SYSTEM

and

SYSAUX

tablespaces. Otherwise, connect with the

SYSKM

administrative privilege.

2. Bring the tablespace offline.

ALTER TABLESPACE users OFFLINE NORMAL;

3. Back up the tablespace.

The offline conversion method does not use auxiliary disk space or files, and it

operates directly in-place to the data files. Therefore, you should perform a full

backup of the user tablespace before converting it offline.

4. As a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege,

open the software keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password;

5. Encrypt the tablespace.

For example, to encrypt an entire tablespace, include its data files:

ALTER TABLESPACE users ENCRYPTION OFFLINE ENCRYPT;

To encrypt individual data files within a tablespace, use the

ALTER DATABASE

DATAFILE

SQL statement. For example, to encrypt the data files

user_01.dbf

and

user_02.dbf

ALTER DATABASE DATAFILE 'user_01.dbf' ENCRYPT;

ALTER DATABASE DATAFILE 'user_02.dbf' ENCRYPT;

In the same database session, these statements encrypt each of the data files in

sequence, one after another. If you execute each statement in its own database

session, then they will be executed in parallel.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-37

If the encryption process is interrupted, then rerun the

ALTER TABLESPACE

statement.

The kinds of errors that you can expect in an interruption are general errors, such

as file system or storage file system errors. The data files within the tablespace

should be consistently encrypted. For example, suppose you offline a tablespace

that has 10 files but for some reason, the encryption only completes for nine of the

files, leaving one decrypted. Although it is possible to bring the tablespace back

online with such inconsistent encryption if the

COMPATIBLE

parameter is set to

12.2.0.0

or higher, then it is not recommended to leave the tablespace in this

state. If

COMPATIBLE

is less than

12.2.0.0

, then it is not possible to bring the

tablespace online if the encryption property is inconsistent across the data files.

6. Bring the tablespace back online or open the database.

•To bring the tablespace back online:

ALTER TABLESPACE users ONLINE;

•To open a database in a non-multitenant environment:

ALTER DATABASE OPEN

•In a multitenant environment, you can encrypt a data file or tablespace with

the offline method if the root is open and the PDB is not open. For example,

for a PDB named

hr_pdb

ALTER PLUGGABLE DATABASE hr_pdb OPEN

Related Topics

•Opening a Software Keystore

To open a software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

Decrypting an Existing Tablespace with Offline Conversion

To decrypt an existing tablespace with offline conversion, you can use the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

DECRYPT

clauses.

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege if you plan to decrypt the

SYSTEM

and

SYSAUX

tablespaces. Otherwise, connect with the

SYSKM

administrative privilege.

2. Bring the tablespace offline.

ALTER TABLESPACE users OFFLINE NORMAL;

3. As a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege,

open the keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password;

4. Run the

ALTER TABLESPACE

SQL statement to perform the decryption.

For example, for a tablespace called

users

ALTER TABLESPACE users ENCRYPTION OFFLINE DECRYPT;

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-38

If the decryption process is interrupted, then rerun the

ALTER TABLESPACE

statement.

The kinds of errors that you can expect in an interruption are general errors, such

as file system or storage file system errors. The data files within the tablespace

should be consistently decrypted. For example, suppose you offline a tablespace

that has 10 files but for some reason, the decryption only completes for nine of the

files, leaving one encrypted. Although it is possible to bring the tablespace back

online with such inconsistent decryption if the

COMPATIBLE

parameter is set to

12.2.0.0

or higher, then it is not recommended to leave the tablespace in this

state. If

COMPATIBLE

is less than

12.2.0.0

, then it is not possible to bring the

tablespace online if the encryption property is inconsistent across the data files.

5. Bring the tablespace online.

ALTER TABLESPACE users ONLINE;

Related Topics

•Opening a Software Keystore

To open a software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

Encryption Conversions for Existing Online Tablespaces

You can encrypt and decrypt an online existing tablespace by using the

ALTER

TABLESPACE

SQL statement with the

OFFLINE

and

ENCRYPT

DECRYPT

clauses.

•Encrypting an Existing Tablespace with Online Conversion

To encrypt an existing tablespace with online conversion, use

ALTER TABLESPACE

with the

ONLINE

and

ENCRYPT

clauses.

•About Encryption Conversions for Existing Online Tablespaces

You can encrypt, decrypt, or rekey existing user tablespaces, and the

SYSTEM

SYSAUX

, and

UNDO

tablespace when they are online.

•Rekeying an Existing Tablespace with Online Conversion

To rekey an existing tablespace that is online, you can use the

REKEY

clause of the

ALTER TABLESPACE

SQL statement.

•Decrypting an Existing Tablespace with Online Conversion

To decrypt an existing tablespace with online conversion, you can use the

ALTER

TABLESPACE

SQL statement with

DECRYPT

clause.

•Finishing an Interrupted Online Encryption Conversion

If an online encryption process is interrupted, then you can complete the

conversion by rerunning the

ALTER TABLESPACE

statement using the

FINISH

clause.

Encrypting an Existing Tablespace with Online Conversion

To encrypt an existing tablespace with online conversion, use

ALTER TABLESPACE

with

the

ONLINE

and

ENCRYPT

clauses.

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege if you plan to encrypt the

SYSTEM

and

SYSAUX

tablespaces. Otherwise, connect with the

SYSKM

administrative privilege.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-39

2. Ensure that the

COMPATIBLE

initialization parameter is set to 12.2.0.0.

You can use the

SHOW PARAMETER

command to check the current setting of a

parameter.

3. Ensure that the database is open in read-write mode.

You can query the

STATUS

column of the

V$INSTANCE

dynamic view to find if a

database is open and the

OPEN_MODE

column of the

V$DATABASE

view to find if it in

read-write mode.

4. If necessary, open the database in read-write mode.

ALTER DATABASE OPEN READ WRITE;

5. Ensure that the auxiliary space is at least the same size as the largest data file of

this tablespace.

This size requirement is because Oracle Database performs the conversion one

file at a time. For example, if the largest data file of the tablespace is 32 GB, then

ensure that you have 32 GB of auxiliary space. To find the space used by a data

file, query the

BYTES

BLOCKS

column of the

V$DATAFILE

dynamic performance view.

6. Create and open a master encryption key.

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE 'keystore_location' IDENTIFIED BY

software_keystore_password;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY

software_keystore_password;

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY software_keystore_password WITH

BACKUP;

7. Run the

ALTER TABLESPACE

statement using the

ENCRYPTION

and

ENCRYPT

clauses to

perform the encryption.

For example, for a non-Oracle managed files tablespace named

users

ALTER TABLESPACE users ENCRYPTION ONLINE USING 'AES192' ENCRYPT

FILE_NAME_CONVERT = ('users.dbf', 'users_enc.dbf');

In this example:

•

ENCRYPTION ONLINE USING ‘AES192’ ENCRYPT

sets the statement to encrypt the

tablespace

users

while it is online and assigns it the

AES192

encryption

algorithm. If you omit the

USING algorithm

clause, then the default algorithm,

AES128

, is used. For the

SYSTEM

and

UNDO

tablespaces, you can use the

ENCRYPT

clause to encrypt the tablespace, but you cannot specify an encryption

algorithm because they must be encrypted with the existing database key the

first time. After encrypting the tablespace, use the

REKEY

clause to specify the

algorithm.

•

FILE_NAME_CONVERT

specifies one or more pairs of data files that are associated

with the tablespace. The first name in the pair is an existing data file, and the

second name is for the encrypted version of this data file, which will be created

after the

ALTER TABLESPACE

statement successfully executes. If the tablespace

has more than one data file, then you must process them all in this statement.

Note the following:

–Separate each file name with a comma, including multiple pairs of files.

For example:

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-40

FILE_NAME_CONVERT = ('users1.dbf', 'users1_enc.dbf', 'users2.dbf',

'users2_enc.dbf')

–You can specify directory paths in the

FILE_NAME_CONVERT

clause. For

example, the following clause converts and moves the matching files of

the tablespace from the

dbs

directory to the

dbs/enc

directory:

FILE_NAME_CONVERT = ('dbs', 'dbs/enc')

–The

FILE_NAME_CONVERT

clause recognizes patterns. The following example

converts the data files

users_1.dbf

and

users_2.dbf

users_enc1.dbf

and

users_enc2.dbf

FILE_NAME_CONVERT = ('users', 'users_enc')

–In an Oracle Data Guard environment, include the name of the standby

database data file in the

FILE_NAME_CONVERT

settings.

–You must use the

FILE_NAME_CONVERT

clause for non-Oracle managed files.

(In an Oracle-managed files configuration, new data files are created

automatically.)

–You can find the data files for a tablespace by querying the

V$DATAFILE

V$DATAFILE_HEADER

dynamic views.

By default, data files are in the

$ORACLE_HOME/dbs

directory. If the data files are

located there, then you do not have to specify a path.

After you complete the conversion, you can check the encryption status by querying

the

STATUS

column of the

V$ENCRYPTED_TABLESPACES

dynamic view. The

ENCRYPTIONALG

column of this view shows the encryption algorithm that is used. If the conversion

process was interrupted, then you can resume it by running

ALTER TABLESPACE

with the

FINISH

clause. For example, if the primary data file converts but the standby data file

does not, then you can run

ALTER TABLESPACE ... FINISH

on the standby database for

the standby data files.

Related Topics

•Setting the COMPATIBLE Initialization Parameter for Tablespace Encryption

To set the

COMPATIBLE

initialization parameter, you must edit the initialization

parameter file for the database instance.

•Finishing an Interrupted Online Encryption Conversion

If an online encryption process is interrupted, then you can complete the

conversion by rerunning the

ALTER TABLESPACE

statement using the

FINISH

clause.

About Encryption Conversions for Existing Online Tablespaces

You can encrypt, decrypt, or rekey existing user tablespaces, and the

SYSTEM

SYSAUX

and

UNDO

tablespace when they are online.

However, you cannot encrypt, decrypt, or rekey a temporary tablespace online.

An online tablespace can be created by using the

ONLINE

clause of the

CREATE

TABLESPACE

SQL statement. When you encrypt or rekey a tablespace online, the

tablespace will have its own independent encryption keys and algorithms.

Note the following:

•If an offline tablespace has been encrypted, then you can rekey it online to use a

different algorithm.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-41

•You can encrypt multiple tablespaces online in parallel by using multiple

foreground sessions to encrypt different tablespaces. Within each tablespace, the

data files are encrypted sequentially.

•If the conversion is interrupted, then you can resume the process by issuing the

FINISH

clause of the

ALTER TABLESPACE

SQL statement.

•A redo log is generated for each online tablespace conversion.

•Do not encrypt the

SYSTEM

and

UNDO

tablespaces concurrently with other

tablespaces.

•You cannot use the transportable tablespace feature with Oracle Data Pump while

you are encrypting a tablespace.

•You cannot run the

ALTER TABLESPACE

statement concurrently with the following

features:

–

ADMINSTER KEY MANAGEMENT SET KEY

SQL statement

–

FLASHBACK DATABASE

SQL statement

•If you are using Oracle-managed files for the data files, then the encryption

process rekeys the data files that are associated with the tablespace and then

copies or moves them to the default Oracle-managed files location.

•You can add new files to the tablespace after you have encrypted it. Oracle

Database reformats the new file with the new encryption key. Blocks will be

encrypted using the new key.

•Previous operations that took place in the root or the PDB may require the control

files to be cross-checked against the data dictionary before you can begin the

online conversion process. An

ORA-241 operation disallowed: control file is not

yet checked against data dictionary

error may occur. To resolve this problem,

restart the root or PDB, and then try issuing the online conversion commands

again.

Related Topics

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

Rekeying an Existing Tablespace with Online Conversion

To rekey an existing tablespace that is online, you can use the

REKEY

clause of the

ALTER TABLESPACE

SQL statement.

Before you perform a rekey operation, be aware of the following:

•You cannot rekey the

TEMP

tablespace. If you want to assign a different encryption

algorithm to a

TEMP

tablespace, then drop

TEMP

and recreate it with the correct

encryption algorithm.

•Do not perform an online tablespace rekey operation with a master key operation

concurrently. To find if any tablespaces are currently being rekeyed, issue the

following query to find the rekey status of encrypted tablespaces:

SELECT TS#,ENCRYPTIONALG,STATUS FROM V$ENCRYPTED_TABLESPACES;

A status of

REKEYING

means that the corresponding tablespace is still being

rekeyed. Do not rekey the master key while this status is in effect.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-42

To rekey an existing tablespace with online conversion:

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege if you plan to rekey the

SYSTEM

and

SYSAUX

tablespaces. Otherwise, connect with the

SYSKM

administrative privilege.

2. Ensure that the following requirements are met:

•The

COMPATIBLE

initialization parameter is set to 12.2.0.0.

•The database is open and in read-write mode.

•A master encryption key has been created and is open.

3. Query the

KEY_VERSION

and

STATUS

columns of the

V$ENCRYPTED_TABLESPACES

dynamic

view to find the current status of the encryption algorithm used by the master

encryption key.

4. Perform the rekey operation, based on the status returned by the

V$ENCRYPTED_TABLESPACES

dynamic view:

•If the key version status of the tablespace is

NORMAL

, then specify the new

algorithm of the online tablespace rekey.

For example:

ALTER TABLESPACE users ENCRYPTION USING 'AES192' REKEY FILE_NAME_CONVERT =

('users.dbf', 'users_enc.dbf');

•If the key version status is

ENCRYPTING

DECRYPTING

, or

REKEYING

, then use the

FINISH

clause.

For example:

ALTER TABLESPACE users ENCRYPTION ONLINE FINISH REKEY FILE_NAME_CONVERT =

('users.dbf', 'users_enc.dbf');

5. If the

ORA-00241 operation disallowed: control file inconsistent with data

dictionary

error appears, then restart the database.

In a multitenant environment, restart the CDB root database and then retry Step 4.

If the conversion process was interrupted, then you can resume it by running

ALTER

TABLESPACE

with the

FINISH

clause.

Related Topics

•Encrypting an Existing Tablespace with Online Conversion

To encrypt an existing tablespace with online conversion, use

ALTER TABLESPACE

with the

ONLINE

and

ENCRYPT

clauses.

•About Encryption Conversions for Existing Online Tablespaces

You can encrypt, decrypt, or rekey existing user tablespaces, and the

SYSTEM

SYSAUX

, and

UNDO

tablespace when they are online.

•Finishing an Interrupted Online Encryption Conversion

If an online encryption process is interrupted, then you can complete the

conversion by rerunning the

ALTER TABLESPACE

statement using the

FINISH

clause.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-43

Decrypting an Existing Tablespace with Online Conversion

To decrypt an existing tablespace with online conversion, you can use the

ALTER

TABLESPACE

SQL statement with

DECRYPT

clause.

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege if you plan to decrypt the

SYSTEM

and

SYSAUX

tablespaces. Otherwise, connect with the

SYSKM

administrative privilege.

2. Ensure that the following requirements are met:

•The

COMPATIBLE

initialization parameter is set to 12.2.0.0.

•The database is open and in read-write mode.

•A master encryption key has been created and is open.

•There is enough auxiliary space to complete the decryption.

3. Run the

ALTER TABLESPACE

SQL statement with the

DECRYPT

clause.

For example:

ALTER TABLESPACE users ENCRYPTION ONLINE DECRYPT FILE_NAME_CONVERT =

('users_enc.dbf', 'users.dbf');

In this specification:

•When you specify the files to decrypt, enter them in the reverse order in which

they were originally encrypted. That is, first enter the name of the encrypted

file (

users_enc.dbf

), followed by the data file (

users.dbf

•Do not provide an algorithm key for the decryption.

If the conversion process was interrupted, then you can resume it by running

ALTER

TABLESPACE

with the

FINISH

clause.

Related Topics

•Encrypting an Existing Tablespace with Online Conversion

To encrypt an existing tablespace with online conversion, use

ALTER TABLESPACE

with the

ONLINE

and

ENCRYPT

clauses.

•Finishing an Interrupted Online Encryption Conversion

If an online encryption process is interrupted, then you can complete the

conversion by rerunning the

ALTER TABLESPACE

statement using the

FINISH

clause.

Finishing an Interrupted Online Encryption Conversion

If an online encryption process is interrupted, then you can complete the conversion by

rerunning the

ALTER TABLESPACE

statement using the

FINISH

clause.

An interrupted encryption process (encryption, rekey, or decryption) can be, for

example, an

ORA-28425: missing a valid FILE_NAME_CONVERT clause

error in the

FILE_NAME_CONVERT

clause of the

ALTER TABLESPACE

SQL statement. Other examples of

interrupted processes are if the conversion skips a data file, which can happen if there

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-44

is an error when an Oracle DataBase WRiter (DBWR) process offlines a data file, or if

there is not enough space for the auxiliary file. The tablespace should be operational

even if you do not rerun the

ALTER TABLESPACE

statement with the

FINISH

clause.

1. Query the

V$ENCRYPTED_TABLESPACES

to check the

STATUS

column for the tablespace.

If the

STATUS

column reports

ENCRYPTING

DECRYPTING

, or

REKEYING

, then re-run the

ALTER TABLESPACE

statement with the

FINISH

clause, as described in this procedure.

If the

STATUS

reports

NORMAL

, then you can rerun

ALTER TABLESPACE

without the

FINISH

clause.

You can find the tablespace name that matches the

TS#

and

TABLESPACE_NAME

columns by querying the

V$DATAFILE_HEADER

view.

2. If necessary query the following additional views to find information about the

tablespace whose online conversion was interrupted:

•

DBA_TABLESPACES

to find if the

STATUS

of the tablespace indicates if it is online or

offline.

•

V$ENCRYPTED_TABLESPACES

to find if the

STATUS

of the tablespace indicates if it is

encrypted, and what the

KEY_VERSION

of the encryption key is.

•

V$DATAFILE

and

V$DATAFILE_HEADER

to find the data files that are associated with

a tablespace.

3. Run the

ALTER TABLESPACE

statement using the

FINISH

clause.

Examples are as follows:

•For an encryption operation:

ALTER TABLESPACE users ENCRYPTION ONLINE FINISH ENCRYPT FILE_NAME_CONVERT =

('users.dbf', 'users_enc.dbf');

•For a decryption operation:

ALTER TABLESPACE users ENCRYPTION ONLINE FINISH DECRYPT FILE_NAME_CONVERT =

('users_enc.dbf', 'users.dbf');

Note the order in which the files are specified: first, the name of the encrypted

file, and then the name of the data file. (In the encryption operation, the name

of the data file is specified first, followed by the name of the encrypted file.)

•For a rekey operation:

ALTER TABLESPACE users ENCRYPTION ONLINE FINISH REKEY FILE_NAME_CONVERT =

('users.dbf', 'users_enc.dbf');

You cannot specify an algorithm when you use the

FINISH

clause in an

ALTER

TABLESPACE

statement.

4. To check the conversion, query the

STATUS

column of the

V$ENCRYPTED_TABLESPACES

view.

The status should be

NORMAL

. In an Oracle Data Guard environment, if the

database does not have

NORMAL

as the

STATUS

, then run the

ALTER TABLESPACE ...

FINISH

statement on the primary or the standby data file that did not successfully

convert.

Encryption Conversions for Existing Databases

You can encrypt both offline and online databases.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-45

•About Encryption Conversions for Existing Databases

The encryption conversion of an entire database encrypts all tablespaces,

including the Oracle-supplied

SYSTEM

SYSAUX

UNDO

, and

TEMP

tablespaces.

•Encrypting an Existing Database with Offline Conversion

When you encrypt an existing database with offline conversion, you do not specify

an encryption algorithm.

•Encrypting an Existing Database with Online Conversion

When you encrypt an existing database with online conversion, you do not specify

an encryption algorithm.

About Encryption Conversions for Existing Databases

The encryption conversion of an entire database encrypts all tablespaces, including

the Oracle-supplied

SYSTEM

SYSAUX

UNDO

, and

TEMP

tablespaces.

Note the following:

•To perform the encryption, you can use the offline and online functionality of the

tablespace encryption conversions.

•You can encrypt any or all of the Oracle-supplied tablespaces, and in any order.

The encryption of the Oracle-supplied tablespaces has no impact on the

encryption of user-created tablespaces.

•When you encrypt the Oracle-supplied tablespaces, Oracle Database prevents the

keystore from being closed.

•You cannot encrypt an existing temporary tablespace, but you can drop the

existing temporary tablespace and then recreate it as encrypted.

•The

UNDO

and

TEMP

metadata that is generated from sensitive data in an encrypted

tablespace is already automatically encrypted. Therefore, encrypting

UNDO

and

TEMP

is optional.

•Oracle recommends that you encrypt the Oracle-supplied tablespaces by using

the default tablespace encryption algorithm,

AES128

. However, you can rekey any

of these tablespaces afterwards to use a different encryption algorithm if you want.

(To find the current encryption key for the current database, you can query the

V$DATABASE_KEY_INFO

dynamic view.)

•The performance effect of encrypting all the tablespaces in a database depends

on the workload and platform. Many modern CPUs provide built-in hardware

acceleration, which results in a minimal performance impact.

•In a multitenant environment, you can encrypt any tablespaces in any pluggable

databases (PDBs), including the Oracle-supplied tablespaces. However, the

keystore in the CDB root must be open at all times so that a PDB can open its

keystore. You can check the status of whether a keystore is open by querying the

STATUS

column of the

V$ENCRYPTION_WALLET

view

Encrypting an Existing Database with Offline Conversion

When you encrypt an existing database with offline conversion, you do not specify an

encryption algorithm.

1. Connect as a user who has the

SYSDBA

administrative privilege.

For example:

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-46

sqlplus sec_admin as sysdba

Enter password: password

You must have the

SYSDBA

administrative privilege to encrypt the

SYSTEM

and

SYSAUX

tablespaces.

2. Mount the database.

STARTUP MOUNT

3. Open the keystore.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY keystore_password;

4. Run the

ALTER TABLESPACE

SQL statement to encrypt the

SYSTEM

SYSAUX

, and

UNDO

tablespaces. Do not specify an algorithm, and do not encrypt the

SYSTEM

tablespace concurrently with the encryption of other tablespaces.

For example, to encrypt the

SYSTEM

tablespace:

ALTER TABLESPACE SYSTEM ENCRYPTION OFFLINE ENCRYPT;

5. Open the database.

For example, to open the database in read/write mode:

ALTER DATABASE OPEN READ WRITE;

6. For a temporary tablespace, drop it and then recreate it as encrypted. Do not

specify an algorithm.

For example, for a user-created tablespace:

DROP TABLESPACE temp_01;

CREATE TEMPORARY TABLESPACE temp_01

TEMPFILE 'temp01.dbf' SIZE 5M AUTOEXTEND ON

ENCRYPTION ENCRYPT;

You cannot drop the default

TEMP

tablespace. You must first create a new

tablespace and make it the default before you can drop

TEMP

For example:

CREATE TEMPORARY TABLESPACE temp_01

TEMPFILE 'temp01.dbf' SIZE 5M AUTOEXTEND ON

ENCRYPTION ENCRYPT;

ALTER DATABASE DEFAULT TEMPORARY TABLESPACE temp_01;

DROP TABLESPACE TEMP;

7. Run the

ALTER TABLESPACE

SQL statement to encrypt other user tablespaces.

Alternatively, you can proceed to the next step and open the database first, and

then perform the steps described in Encrypting an Existing User-Defined

Tablespace with Offline Conversion.

8. Open the database.

ALTER DATABASE OPEN;

See Rekeying the TDE Master Encryption Key for a Tablespace if you want to change

the encryption algorithm of the tablespace.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-47

Encrypting an Existing Database with Online Conversion

When you encrypt an existing database with online conversion, you do not specify an

encryption algorithm.

The reason that you do not need to specify an encryption algorithm the first time you

perform the encryption is that the tablespaces that you must use to encrypt the

database are automatically encrypted with the database key. If you want to change the

algorithm, then you can issue the

ALTER TABLESPACE ENCRYPTION REKEY

SQL statement

after the initial encryption.

1. Perform the following tasks, which are described in Encrypting an Existing

Tablespace with Online Conversion:

a. Connect as a user who has been granted the

SYSDBA

administrative privilege.

b. Ensure that the

COMPATIBLE

parameter is set to

12.2.0.0

c. Ensure that the database is open in read-write mode.

d. Ensure that you have enough auxiliary space to complete the encryption.

e. Back up the tablespaces that you must encrypt.

f. Open the keystore.

2. Run the

ALTER TABLESPACE

SQL statement to encrypt the

SYSTEM

SYSAUX

, and

UNDO

tablespaces. Do not specify an algorithm, and do not encrypt the

SYSTEM

tablespace concurrently with the encryption of other tablespaces.

For example, to encrypt the

SYSTEM

tablespace:

ALTER TABLESPACE SYSTEM ENCRYPTION ONLINE ENCRYPT

FILE_NAME_CONVERT=('system01.dbf','system01_enc.dbf');

3. For a temporary tablespace, drop it and then recreate it as encrypted. Do not

specify an algorithm.

For example, for a user-created tablespace:

DROP TABLESPACE temp_01;

CREATE TEMPORARY TABLESPACE temp_01

TEMPFILE 'temp01.dbf' SIZE 5M AUTOEXTEND ON

ENCRYPTION ENCRYPT;

You cannot drop the default

TEMP

tablespace. You must first create a new

tablespace and make it the default before you can drop

TEMP

For example:

CREATE TEMPORARY TABLESPACE temp_01

TEMPFILE 'temp01.dbf' SIZE 5M AUTOEXTEND ON

ENCRYPTION ENCRYPT;

ALTER DATABASE DEFAULT TEMPORARY TABLESPACE temp_01;

DROP TABLESPACE TEMP;

Related Topics

•Rekeying the TDE Master Encryption Key for a Tablespace

You can use the

REKEY

clause of the

ALTER TABLESPACE

statement to rekey a TDE

master encryption key for an encrypted tablespace.

Chapter 3

Encryption Conversions for Tablespaces and Databases

3-48

Transparent Data Encryption Data Dynamic and Data

Dictionary Views

You can query a set of dynamic and data dictionary views to find more information

about Transparent Data Encryption (TDE) data.

Table 3-3 describes these dynamic and data dictionary views.

Table 3-3 Transparent Data Encryption Related Views

View Description

ALL_ENCRYPTED_COLUMNS

Displays encryption information about encrypted columns in

the tables accessible to the current user

DBA_ENCRYPTED_COLUMNS

Displays encryption information for all of the encrypted

columns in the database

USER_ENCRYPTED_COLUMNS

Displays encryption information for encrypted table columns

in the current user's schema

DBA_TABLESPACE_USAGE_METRIC

Describes tablespace usage metrics for all types of

tablespaces, including permanent, temporary, and undo

tablespaces

V$CLIENT_SECRETS

Lists the properties of the strings (secrets) that were stored in

the keystore for various features (clients).

In a multitenant environment, when you query this view in a

PDB, then it displays information about keys that were

created or activated for the current PDB. If you query this

view in the root, then it displays this information about keys

for all of the PDBs.

V$DATABASE_KEY_INFO

Displays information about the default encryption key that is

used for the current database. The default is

AES128

V$ENCRYPTED_TABLESPACES

Displays information about the tablespaces that are encrypted

V$ENCRYPTION_KEYS

When used with keys that have been rekeyed with the

ADMINISTER KEY MANAGEMENT

statement, displays information

about the TDE master encryption keys.

In a multitenant environment, when you query this view in a

PDB, it displays information about keys that were created or

activated for the current PDB. If you query this view in the

root, it displays this information about keys for all of the PDBs.

V$ENCRYPTION_WALLET

Displays information on the status of the keystore and the

keystore location for TDE

V$WALLET

Displays metadata information for a PKI certificate, which can

be used as a master encryption key for TDE

See Also:

Oracle Database Reference for detailed information about these views

Chapter 3

Transparent Data Encryption Data Dynamic and Data Dictionary Views

3-49

Managing the Keystore and the

Master Encryption Key

You can modify settings for the keystore and TDE master encryption key, and store

Oracle Database and store Oracle GoldenGate secrets in a keystore.

•Managing the Keystore

You can perform maintenance activities on keystores such as changing

passwords, and backing up, merging, and moving keystores.

•Managing the TDE Master Encryption Key

You can manage the TDE master encryption key in several ways.

•Storing Oracle Database Secrets

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

•Storing Oracle GoldenGate Secrets in a Keystore

You can store Oracle GoldenGate secrets in Transparent Data Encryption

keystores.

Managing the Keystore

You can perform maintenance activities on keystores such as changing passwords,

and backing up, merging, and moving keystores.

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

•Changing the Password of a Software Keystore

Oracle Database enables you to easily change password-protected software

keystore passwords.

•Changing the Password of a Hardware Keystore

To change the password of a hardware keystore, you must use the

ADMINISTER KEY

MANAGEMENT

statement.

•Configuring an External Store for a Keystore Password

An external store for a keystore password stores the keystore password in a

centrally accessed and managed location.

•Backing Up Password-Protected Software Keystores

When you back up a password-protected software keystore, you can create a

backup identifier string to describe the backup type.

•How the V$ENCRYPTION_WALLET View Interprets Backup Operations

The

BACKUP

column of the

V$ENCRYPTION_WALLET

view indicates a how a copy of the

keystore was created.

•Backups of the Hardware Keystore

You cannot use Oracle Database to back up hardware keystores.

4-1

•Merging Software Keystores

You can merge software keystores in a variety of ways.

•Moving a TDE Master Encryption Key into a New Keystore

You can move an existing TDE master encryption key into a new keystore from an

existing software password keystore.

•Moving a Software Keystore to a New Location

You move a software keystore to a new location after you have updated the

WALLET_ROOT

parameter.

•Moving a Software Keystore Out of Automatic Storage Management

You can use the

ADMINISTER KEY MANAGEMENT

statement to move a software keystore

out Automatic Storage Management.

•Migrating Between a Software Password Keystore and a Hardware Keystore

You can migrate between password-protected software keystores and hardware

keystores.

•Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to

and from Oracle Key Vault.

•Closing a Keystore

You can manually close software and hardware keystores.

•Using a Software Keystore That Resides on ASM Volumes

You can store a software keystore on an Automatic Storage Management (ASM)

disk group.

•Backup and Recovery of Encrypted Data

For software keystores, you cannot access encrypted data without the TDE master

encryption key.

•Dangers of Deleting Keystores

Oracle strongly recommends that you do not delete keystores until you have

moved the keystore encryption key to a new keystore.

Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore password, for

both software and hardware keystores.

In some cases, a software keystore depends on an auto-login keystore before the

operation can succeed. The auto-login keystore must be closed and the password-

protected keystore must be opened before the password can be accessed. Auto-login

keystores open automatically when they are configured and a key is requested. They

are generally used for operations where the keystore could be closed but a database

operation needs a key (for example, after the database is restarted). Because the

auto-login keystore opens automatically, it can be retrieved to perform a database

operation without manual intervention. However, some keystore operations that

require the keystore password cannot be performed when the auto-login keystore is

open. The auto-login keystore must be closed and the password-protected keystore

must be opened for the keystore operations that require a password.

In a multitenant environment, the re-opening of keystores affects other PDBs. For

example, an auto-login keystore in the root must be accessible by the PDBs in the

CDB for this root.

Chapter 4

Managing the Keystore

4-2

You can temporarily open the keystore by including the

FORCE KEYSTORE

clause in the

ADMINISTER KEY MANAGEMENT

statement when you perform the following operations:

rotating a keystore password; creating, using, rekeying, tagging, importing, exporting,

migrating, or reverse migrating encryption keys; opening or backing up keystores;

adding, updating, or deleting secret keystores. In a multitenant environment, if no

keystore is open in the root, then

FORCE KEYSTORE

opens the password-protected

keystore in the root.

Changing the Password of a Software Keystore

Oracle Database enables you to easily change password-protected software keystore

passwords.

•About Changing the Password of a Password-Protected Software Keystore

You can only change the password for protected-protected software keystores.

•Changing the Password-Protected Software Keystore Password

To change the password of a password-protected software keystore, you must use

the

ADMINISTER KEY MANAGEMENT

statement.

About Changing the Password of a Password-Protected Software Keystore

You can only change the password for protected-protected software keystores.

You can change this password at any time, as per the security policies, compliance

guidelines, and other security requirements of your site. As part of the command to

change the password, you will be forced to specify the

WITH BACKUP

clause, and thus

forced to make a backup of the current keystore. During the password change

operation, Transparent Data Encryption operations such as encryption and decryption

will continue to work normally.

You can change this password at any time. You may want to change this password if

you think it was compromised.

Changing the Password-Protected Software Keystore Password

To change the password of a password-protected software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Change the password of the password-protected software keystore by using the

following syntax:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

[FORCE KEYSTORE]

IDENTIFIED BY

old_password SET new_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

Chapter 4

Managing the Keystore

4-3

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

old_password

is the current keystore password that you want to change.

•

new_password

is the new password that you will set for the keystore.

•

WITH BACKUP

creates a backup of the current keystore before the password is

changed. You must include this clause.

•

backup_identifier

specifies an optional identifier string for the backup that is

created. The

backup_identifier

is added to the name of the backup file.

Enclose

backup_identifier

in single quotation marks (' '). This identifier is

appended to the named keystore file (for example,

ewallet_time_stamp_emp_key_pwd_change.p12

The following example backs up the current keystore and then changes the

password for the keystore:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

FORCE KEYSTORE

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

keystore altered.

Changing the Password of a Hardware Keystore

To change the password of a hardware keystore, you must use the

ADMINISTER KEY

MANAGEMENT

statement.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Close the hardware keystore.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password";

For a keystore whose password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY EXTERNAL STORE;

3. From the hardware security module management interface, create a new

hardware security module password.

4. In SQL*Plus, open the hardware keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:new_password";

Chapter 4

Managing the Keystore

4-4

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY EXTERNAL STORE;

Related Topics

•Closing a Hardware Keystore

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE CLOSE

clause.

•Opening a Hardware Keystore

To open a hardware keystore, use the

ADMINISTER KEY MANAGEMENT

statement with

the

SET KEYSTORE OPEN

clause.

Configuring an External Store for a Keystore Password

An external store for a keystore password stores the keystore password in a centrally

accessed and managed location.

An external store for a password is useful for situations in which you use automated

tools to perform Transparent Data Encryption operations that require a password,

when the scripts that run the automated tools include hard-coded passwords. To avoid

hard-coding the password in a script, you can store this password in an external store

on the database server. In a multitenant environment, different PDBs can make use of

the external store.

You must complete the following steps before you use the

IDENTIFIED BY EXTERNAL

STORE

clause in the

ADMINISTER KEY MANAGEMENT

statement.

1. Set the external keystore credential location by using one of the following

methods:

•Run the

ALTER SYSTEM

statement for the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

parameter. For example:

ALTER SYSTEM SET EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION = "/etc/ORACLE/

WALLETS/orcl/external_store" SCOPE = SPFILE;

•Edit the

init.ora

file for the database instance. For example:

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION = "/etc/ORACLE/WALLETS/orcl/

external_store"

By default, the

init.ora

file is located in the

ORACLE_HOME/dbs

directory or in the

location set by the

TNS_ADMIN

environment variable.

2. Log in as a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege and who has the

ALTER SYSTEM

system privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

Connected.

3. Create an auto-login keystore that contains the keystore password, by including

the

ADD SECRET

clause to the

ADMINISTER KEY MANAGEMENT

statement.

For example:

ADMINISTER KEY MANAGEMENT ADD SECRET 'password'

FOR CLIENT 'TDE_WALLET'

TO LOCAL AUTO_LOGIN KEYSTORE '/etc/ORACLE/WALLETS/orcl/external_store';

Chapter 4

Managing the Keystore

4-5

In this example, enter

'TDE_WALLET'

, in capital letters and enclosed in single

quotation marks, for the

client_identifier

value set by the

FOR CLIENT

clause. This

is a fixed value and must be entered as shown here for this application of the

ADD

SECRET

clause. Otherwise, TDE will be unable to find this secret, and attempts to

use the

IDENTIFIED BY EXTERNAL STORE

setting will generate an

ORA-00988: missing

or invalid password(s)

error message.

4. Restart the database.

SHUTDOWN IMMEDIATE

STARTUP

Afterward, you must use the

EXTERNAL STORE

clause in the

ADMINISTER KEY MANAGEMENT

statement for the following operations: opening, closing, backing up the keystore;

adding, updating, or deleting a secret keystore; creating, using, rekeying, tagging,

importing, exporting encryption keys.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY EXTERNAL STORE;

You can change or delete external keystore passwords by using the

ADMINISTER KEY

MANAGEMENT UPDATE CLIENT SECRET

statement or the

ADMINISTER KEY MANAGEMENT DELETE

CLIENT SECRET

statement.

Related Topics

•Storing Oracle Database Secrets

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

Backing Up Password-Protected Software Keystores

When you back up a password-protected software keystore, you can create a backup

identifier string to describe the backup type.

•About Backing Up Password-Protected Software Keystores

You must back up password-protected software keystores, as per the security

policy and requirements of your site.

•Creating a Backup Identifier String for the Backup Keystore

The backup file name of a software password keystore is derived from the name of

the password-protected software keystore.

•Backing Up a Password-Protected Software Keystore

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

About Backing Up Password-Protected Software Keystores

You must back up password-protected software keystores, as per the security policy

and requirements of your site.

A backup of the keystore contains all of the keys contained in the original keystore.

Oracle Database prefixes the backup keystore with the creation time stamp (UTC). If

you provide an identifier string, then this string is inserted between the time stamp and

keystore name.

Chapter 4

Managing the Keystore

4-6

After you complete the backup operation, the keys in the original keystore are marked

as "backed up". You can check the status of keys querying the

V$ENCRYPTION_WALLET

data dictionary view.

You cannot back up auto-login or local auto-login software keystores. No new keys

can be added to them directly through the

ADMINISTER KEY MANAGEMENT

statement

operations. The information in these keystores is only read and hence there is no need

for a backup.

If you have not yet backed up the keystore, then you can include the

BACKUP

clause in

the

ADMINISTER KEY MANAGEMENT

statement when you create the TDE master encryption

key. This both backs up the keystore and creates the TDE master encryption key.

Creating a Backup Identifier String for the Backup Keystore

The backup file name of a software password keystore is derived from the name of the

password-protected software keystore.

•To create a backup identifier string for a backup keystore, use the

ADMINISTER KEY

MANAGEMENT

SQL statement with the

BACKUP KEYSTORE

clause, with the following

syntax:

ewallet_creation-time-stamp-in-UTC_user-defined-string.p12

When you create the backup identifier (

user_defined_string

), use the operating

system file naming convention. For example, in UNIX systems, you may want to

ensure that this setting does not have spaces.

The following example shows the creation of a backup keystore that uses a bug

number as the user-identified string, and how the resultant keystore appears in the

file system. This example includes the

FORCE KEYSTORE

clause in the event the auto-

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE USING 'BUG1296'

FORCE KEYSTORE

IDENTIFIED BY keystore_password;

This version is for a scenario in which the password is stored in an external store:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE USING 'BUG1296'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

Resultant keystore file:

ewallet_2013041513244657_BUG1296.p12

Backing Up a Password-Protected Software Keystore

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

Chapter 4

Managing the Keystore

4-7

2. Back up the keystore by using the following syntax

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

[USING 'backup_identifier']

FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | software_keystore_password]

[TO 'keystore_location'];

In this specification:

•

USING

backup_identifier

is an optional string that you can provide to identify

the backup. Enclose this identifier in single quotation marks (

' '

). This

identifier is appended to the named keystore file (for example,

ewallet_time-

stamp_emp_key_backup.p12

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

software_keystore_password

is the password for the keystore.

•

keystore_location

is the path at which the backup keystore is stored. If you do

not specify the

keystore_location

, then the backup is created in the same

directory as the original keystore. Enclose this location in single quotation

marks (

' '

The following example backs up a software keystore in the same location as the

source keystore.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY software_keystore_password

TO '/etc/ORACLE/KEYSTORE/DB1/';

keystore altered.

In the following version, the password for the keystore is external, so the

EXTERNAL

STORE

clause is used. The keystore is backed up into the same directory as the

current keystore.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

After you run this statement, an

ewallet_identifier.p12

file (for example,

ewallet_time-stamp_hr.emp_keystore.p12

) appears in the keystore location.

How the V$ENCRYPTION_WALLET View Interprets Backup

Operations

The

BACKUP

column of the

V$ENCRYPTION_WALLET

view indicates a how a copy of the

keystore was created.

Chapter 4

Managing the Keystore

4-8

The column indicates if a copy of the keystore had been created with the

WITH BACKUP

clause of the

ADMINISTER KEY MANAGEMENT

statement or the

ADMINISTER KEY MANAGEMENT

BACKUP KEYSTORE

statement.

When you modify a key or a secret, the modifications that you make do not exist in the

previously backed-up copy, because you make a copy and then modify the key itself.

Because there is no copy of the modification in the previous keystores, the

BACKUP

column is set to

, even if the

BACKUP

had been set to

YES

previously. Hence, if the

BACKUP

column is

YES

, then after you perform an operation that requires a backup, such

as adding a custom attribute tag, the

BACKUP

column value changes to

Backups of the Hardware Keystore

You cannot use Oracle Database to back up hardware keystores.

See your HSM vendor instructions for information about backing up keys for hardware

keystores.

Merging Software Keystores

You can merge software keystores in a variety of ways.

•About Merging Software Keystores

You can merge any combination of software keystores, but the merged keystore

must be password-protected. It can have a password that is different from the

constituent keystores.

•Merging One Software Keystore into an Existing Software Keystore

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

MERGE KEYSTORE

clause to merge one software keystore into another existing software keystore.

•Merging Two Software Keystores into a Third New Keystore

You can merge two software keystores into a third new keystore, so that the two

existing keystores are not changed.

•Merging an Auto-Login Software Keystore into an Existing Password-Protected

Software Keystore

You can merge an auto-login software keystore into an existing password-

protected software keystore.

•Reversing a Software Keystore Merge Operation

You cannot directly reverse a keystore merge operation.

About Merging Software Keystores

You can merge any combination of software keystores, but the merged keystore must

be password-protected. It can have a password that is different from the constituent

keystores.

To use the merged keystore, you must explicitly open the merged keystore after you

create it, even if one of the constituent keystores was already open before the merge.

Whether a common key from two source keystores is added or overwritten to a

merged keystore depends on how you write the

ADMINISTER KEY MANAGEMENT

merge

statement. For example, if you merge Keystore 1 and Keystore 2 to create Keystore 3,

then the key in Keystore 1 is added to Keystore 3. If you merge Keystore 1 into

Keystore 2, then the common key in Keystore 2 is not overwritten.

Chapter 4

Managing the Keystore

4-9

The

ADMINISTER KEY MANAGEMENT

merge statement has no bearing on the configured

keystore that is in use. However, the merged keystore can be used as the new

configured database keystore if you want. Remember that you must reopen the

keystore if you are using the newly created keystore as the keystore for the database

at the location configured by the

WALLET_ROOT

parameter.

Related Topics

•Migrating Between a Software Password Keystore and a Hardware Keystore

You can migrate between password-protected software keystores and hardware

keystores.

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

Merging One Software Keystore into an Existing Software Keystore

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

MERGE KEYSTORE

clause

to merge one software keystore into another existing software keystore.

•To perform this type of merge, follow the steps in Merging Two Software

Keystores into a Third New Keystore but use the following SQL statement:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password]

INTO EXISTING KEYSTORE 'keystore2_location'

IDENTIFIED BY software_keystore2_password

[WITH BACKUP [USING 'backup_identifier]];

In this specification:

–

keystore1_location

is the directory location of the first keystore, which will be

left unchanged after the merge. Enclose this path in single quotation marks ('

').

–The

IDENTIFIED BY

clause is required for the first keystore if it is a password-

protected keystore.

software_keystore1_password

is the password for the first

keystore.

–

keystore2_location

is the directory location of the second keystore into which

the first keystore is to be merged. Enclose this path in single quotation marks

(' ').

–

software_keystore2_password

is the password for the second keystore.

–

WITH BACKUP

creates a backup of the software keystore. Optionally, you can

use the

USING

clause to add a brief description of the backup. Enclose this

description in single quotation marks (' '). This identifier is appended to the

named keystore file (for example,

ewallet_time-stamp_emp_key_backup.p12

, with

emp_key_backup

being the backup identifier). Follow the file naming conventions

that your operating system uses.

The resultant keystore after the merge operation is always a password-protected

keystore.

Merging Two Software Keystores into a Third New Keystore

You can merge two software keystores into a third new keystore, so that the two

existing keystores are not changed.

Chapter 4

Managing the Keystore

4-10

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Merge the software keystores by using the following syntax:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password]

AND KEYSTORE 'keystore2_location'

[IDENTIFIED BY software_keystore2_password]

INTO NEW KEYSTORE 'keystore3_location'

IDENTIFIED BY software_keystore3_password;

In this specification:

•

keystore1_location

is the directory location of the first keystore, which will be

left unchanged after the merge. Enclose this path in single quotation marks

(

' '

•The

IDENTIFIED BY

clause is required for the first keystore if it is a password-

protected keystore.

software_keystore1_password

is the current password for

the first keystore.

•

keystore2_location

is the directory location of the second keystore. Enclose

this path in single quotation marks (

' '

•The

IDENTIFIED BY

clause is required for the second keystore if it is a

password-protected keystore.

software_keystore2_password

is the current

password for the second keystore.

•

keystore3_location

specifies the directory location of the new, merged

keystore. Enclose this path in single quotation marks (

' '

). If there is already

an existing keystore at this location, the command exits with an error.

•

software_keystore3_password

is the new password for the merged keystore.

The following example merges an auto-login software keystore with a password-

protected keystore to create a merged password-protected keystore at a new

location:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

AND KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY existing_password_for_keystore_2

INTO NEW KEYSTORE '/etc/ORACLE/KEYSTORE/DB3'

IDENTIFIED BY new_password_for_keystore_3;

keystore altered.

Merging an Auto-Login Software Keystore into an Existing Password-Protected

Software Keystore

You can merge an auto-login software keystore into an existing password-protected

software keystore.

•Use the

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

SQL statement to merge an

auto-login software keystore into an existing password-protected software

keystore.

Chapter 4

Managing the Keystore

4-11

Example 4-1 shows how to merge an auto-login software keystore into a password-

protected software keystore. It also creates a backup of the second keystore before

creating the merged keystore.

Example 4-1 Merging a Software Auto-Login Keystore into a Password

Keystore

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY keystore_password WITH BACKUP;

In this specification:

•

MERGE KEYSTORE

must specify the auto-login keystore.

•

EXISTING KEYSTORE

refers to the password keystore.

Reversing a Software Keystore Merge Operation

You cannot directly reverse a keystore merge operation.

When you merge a keystore into an existing keystore (rather than creating a new one),

you must include the

WITH BACKUP

clause in the

ADMINISTER KEY MANAGEMENT

statement to

create a backup of this existing keystore. Later on, if you decide that you must reverse

the merge, you can replace the merged software keystore with the one that you

backed up.

In other words, suppose you want merge Keystore A into Keystore B. By using the

WITH BACKUP

clause, you create a backup for Keystore B before the merge operation

begins. (The original Keystore A is still intact.) To reverse the merge operation, revert

to the backup that you made of Keystore B.

•Use the

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

SQL statement to perform

merge operations.

–For example, to perform a merge operation into an existing keystore:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY password WITH BACKUP USING "merge1";

Replace the new keystore with the backup keystore, which in this case would

be named

ewallet_time-stamp_merge1.p12

–To merge an auto-login keystore into a password-based keystore, use the

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

SQL statement.

Moving a TDE Master Encryption Key into a New Keystore

You can move an existing TDE master encryption key into a new keystore from an

existing software password keystore.

This feature enables you to delete unused keystores: after you move the encryption

key to a new keystore, you then can delete the old keystore.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

Chapter 4

Managing the Keystore

4-12

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

view to find the key identifier of

the keystore to which you want to move the keys.

For example:

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Move the key into a new keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT

MOVE [ENCRYPTION] KEYS

TO NEW KEYSTORE 'keystore_location1'

IDENTIFIED BY keystore1_password

FROM [FORCE] KEYSTORE

IDENTIFIED BY keystore_password

[WITH IDENTIFIER IN

{ 'key_identifier' [, 'key_identifier' ]... | ( subquery ) } ]

[WITH BACKUP [USING 'backup_identifier'] ];

In this specification:

•

keystore_location1

is the path to the

wallet

directory that will store the new

keystore

.p12

file. By default, this directory is in

$ORACLE_BASE/admin/

db_unique_name/wallet

•

keystore1_password

is the password for the keystore from which the new

keystore is moved.

•

keystore_password

is the password for the keystore from which the key is

moving.

•

key_identifier

is the key identifier that you find from querying the

KEY_ID

column of the

V$ENCRYPTION_KEYS

view. Enclose this setting in single quotation

marks (

' '

•

subquery

can be used to find the exact key identifier that you want.

•

backup_identifier

is an optional description of the backup. Enclose

backup_identifier

in single quotation marks (

' '

For example:

ADMINISTER KEY MANAGEMENT MOVE KEYS

TO NEW KEYSTORE $ORACLE_BASE/admin/orcl/wallet

IDENTIFIED BY keystore_password

FROM FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH IDENTIFIER IN

(SELECT KEY_ID FROM V$ENCRYPTION_KEYS WHERE ROWNUM < 2);

4. To delete the old keystore, go to the

wallet

directory and then manually delete

the

.p12

file containing the keystore.

To find the location of the keystore, open the keystore, and then query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view.

Chapter 4

Managing the Keystore

4-13

Related Topics

•Dangers of Deleting Keystores

Oracle strongly recommends that you do not delete keystores until you have

moved the keystore encryption key to a new keystore.

Moving a Software Keystore to a New Location

You move a software keystore to a new location after you have updated the

WALLET_ROOT

parameter.

If you are using Oracle Key Vault, then you can configure a TDE direct connection

where Key Vault directly manages the master encryption keys. In this case, you will

never need to manually move the keystore to a new location.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Back up the software keystore.

For example:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY

software_keystore_password TO '/etc/ORACLE/KEYSTORE/DB1/';

3. Close the software keystore.

Examples of ways that you can close the keystore are as follows.

For an auto-login software keystore:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE;

For a password-protected software keystore:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY software_keystore_password;

For a keystore in which the password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY EXTERNAL STORE;

4. Exit the database session.

For example, if you are logged in to SQL*Plus:

EXIT

5. In the

init.ora

file for the database instance, update the

WALLET_ROOT

parameter to

point to the new location where you want to move the keystore.

6. Use the operating system move command (such as

) to move the keystore with

all of its keys to the new directory location.

Related Topics

•Oracle Key Vault Administrator's Guide

Chapter 4

Managing the Keystore

4-14

Moving a Software Keystore Out of Automatic Storage Management

You can use the

ADMINISTER KEY MANAGEMENT

statement to move a software keystore out

Automatic Storage Management.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Initialize a target keystore on the file system by using the following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE targetKeystorePath

IDENTIFIED BY targetKeystorePassword;

In this specification:

•

targetKeystorePath

is the directory path to the target keystore on the file

system.

•

targetKeystorePassword

is a password that you create for the keystore.

For example:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1/' IDENTIFIED

BY "targetKeystorePassword";

3. Copy the keystore from ASM to the target keystore that you just created.

This step requires that you merge the keystore from ASM to the file system, as

follows:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE srcKeystorePath

IDENTIFIED BY srcKeystorePassword

INTO EXISTING KEYSTORE targetKeystorePath

IDENTIFIED BY targetKeystorePassword

WITH BACKUP USING backupIdentifier;

In this specification:

•

srcKeystorePath

is the directory path to the source keystore.

•

srcKeystorePassword

is th source keystore password.

•

targetKeystorePath

is the path to the target keystore.

•

targetKeystorePassword

is the target keystore password.

•

backupIdentifier

is the backup identifier to be added to the backup file name.

For example:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '+DATAFILE'

IDENTIFIED BY "srcPassword"

INTO EXISTING KEYSTORE '/etc/ORACLE/KEYSTORE/DB1/'

IDENTIFIED BY "targetKeystorePassword"

WITH BACKUP USING "bkup";

Chapter 4

Managing the Keystore

4-15

Migrating Between a Software Password Keystore and a Hardware

Keystore

You can migrate between password-protected software keystores and hardware

keystores.

•Migrating from a Password-Protected Software Keystore to a Hardware Keystore

You can migrate from a password-protected software keystore to a hardware

keystore.

•Migrating from a Hardware Keystore to a Password-Based Software Keystore

You can migrate a hardware keystore to a software keystore.

•Keystore Order After a Migration

After you perform a migration, keystores can be either primary or secondary in

their order.

Migrating from a Password-Protected Software Keystore to a Hardware

Keystore

You can migrate from a password-protected software keystore to a hardware keystore.

•Step 1: Convert the Software Keystore to Open with the Hardware Keystore

Some Oracle tools require access to the old software keystore to encrypt or

decrypt data that was exported or backed up using the software keystore.

•Step 2: Configure the Hardware Security Module Keystore Type

You can use the

ALTER SYSTEM

statement to configure the HSM keystore type.

•Step 3: Perform the Hardware Keystore Migration

You can use the

ADMINISTER KEY MANAGEMENT

SQL statement to perform a hardware

keystore migration.

Step 1: Convert the Software Keystore to Open with the Hardware Keystore

Some Oracle tools require access to the old software keystore to encrypt or decrypt

data that was exported or backed up using the software keystore.

Examples of these tools are Oracle Data Pump and Oracle Recovery Manager.

•Use the

ADMINISTER KEY MANAGEMENT

SQL statement to convert a software keystore

to a open with a hardware keystore.

–To set the software keystore password as that of the hardware keystore, use

the following syntax:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

FORCE KEYSTORE

IDENTIFIED BY software_keystore_password

SET "hardware_keystore_credentials" WITH BACKUP

[USING 'backup_identifier'];

In this specification:

software_keystore_password

is the same password that you used when

creating the software keystore.

Chapter 4

Managing the Keystore

4-16

hardware_keystore_credentials

is the new software keystore password

which is the same as the password of the hardware keystore.

WITH BACKUP

creates a backup of the software keystore. Optionally, you can

use the

USING

clause to add a brief description of the backup. Enclose this

description in single quotation marks (' '). This identifier is appended to the

named keystore file (for example,

ewallet_time-stamp_emp_key_backup.p12

with

emp_key_backup

being the backup identifier). Follow the file naming

conventions that your operating system uses.

–To create an auto-login keystore for a software keystore, use the following

syntax:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE

FROM KEYSTORE 'keystore_location'

IDENTIFIED BY software_keystore_password;

In this specification:

LOCAL

enables you to create a local auto-login software keystore.

Otherwise, omit this clause if you want the keystore to be accessible by

other computers.

keystore_location

is the path to the keystore directory location of the

keystore that is configured in the

sqlnet.ora

file.

software_keystore_password

is the existing password of the configured

software keystore.

Step 2: Configure the Hardware Security Module Keystore Type

You can use the

ALTER SYSTEM

statement to configure the HSM keystore type.

For the software keystore to open with the hardware keystore, either the software

keystore must have the same password as the hardware keystore, or alternatively, you

can create an auto-login keystore for the software keystore.

1. Log in to the database instance as a user who has been granted the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

2. Set the

TDE_CONFIGURATION

dynamic initialization parameter.

The following example migrates from a TDE keystore to a hardware keystore:

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE|HSM";

The next example migrates from a TDE keystore to an Oracle Key Vault keystore:

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE|OKV";

3. Restart the database.

SHUTDOWN IMMEDIATE

STARTUP

Chapter 4

Managing the Keystore

4-17

Step 3: Perform the Hardware Keystore Migration

You can use the

ADMINISTER KEY MANAGEMENT

SQL statement to perform a hardware

keystore migration.

To migrate from the software keystore to hardware keystore, you must use the

MIGRATE

USING

keystore_password

clause in the

ADMINISTER KEY MANAGEMENT SET KEY

SQL

statement to decrypt the existing TDE table keys and the tablespace encryption keys

with the TDE master encryption key in the software keystore and then reencrypt them

with the newly created TDE master encryption key in the hardware keystore.

After you complete the migration, you do not need to restart the database, nor do you

need to manually re-open the hardware keystore. The migration process automatically

reloads the keystore keys in memory.

•Migrate the hardware keystores by using the following syntax:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

IDENTIFIED BY "user_name:password"

MIGRATE USING software_keystore_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

–

user_name:password

is the user ID and password that was created in Step 2

under Step 2: Configure the Hardware Security Module (in Configuring

Transparent Data Encryption). Enclose this setting in double quotation marks

(

" "

) and separate

user_name

and

password

with a colon (

–

software_keystore_password

is the same password that you used when

creating the software keystore or that you have changed to in Step 1: Convert

the Software Keystore to Open with the Hardware Keystore.

–

USING

enables you to add a brief description of the backup. Enclose this

description in single quotation marks (

' '

). This identifier is appended to the

named keystore file (for example,

ewallet_time-stamp_emp_key_backup.p12

, with

emp_key_backup

being the backup identifier). Follow the file naming conventions

that your operating system uses.

Note:

If the database contains columns encrypted with a public key, then the

columns are decrypted and reencrypted with an AES symmetric key

generated by HSM-based Transparent Data Encryption.

Migrating from a Hardware Keystore to a Password-Based Software Keystore

You can migrate a hardware keystore to a software keystore.

•About Migrating Back from a Hardware Keystore

To switch from using a hardware keystore solution to a software keystore, you can

use reverse migration of the keystore.

Chapter 4

Managing the Keystore

4-18

•Step 1: Configure Hardware Security Module Keystore Type

You can use the

ALTER SYSTEM

statement to configure the hardware security

module keystore type.

•Step 2: Configure the Keystore for the Reverse Migration

The

ADMINISTER KEY MANAGEMENT

statement with the

SET ENCRYPTION KEY

and

REVERSE

MIGRATE

clauses can be used to reverse the migration of a keystore.

•Step 3: Configure the Hardware Keystore to Open with the Software Keystore

After you complete the migration, the migration process automatically reloads the

keystore keys in memory.

About Migrating Back from a Hardware Keystore

To switch from using a hardware keystore solution to a software keystore, you can use

reverse migration of the keystore.

After you complete the switch, keep the hardware security module, in case earlier

backup files rely on the TDE master encryption keys in the hardware security module.

If you had originally migrated from the software keystore to the hardware security

module and reconfigured the software keystore as described in Migration of a

Previously Configured TDE Master Encryption Key, then you already have an existing

keystore with the same password as the HSM password. Reverse migration

configures this keystore to act as the new software keystore with a new password. If

your existing keystore is an auto-login software keystore and you have the password-

based software keystore for this auto-login keystore, then use the password-based

keystore. If the password-based keystore is not available, then merge the auto-login

keystore into a newly created empty password-based keystore, and use the newly

created password-based keystore.

If you do not have an existing keystore, then you must specify a keystore location

using the

WALLET_ROOT

parameter in the

init.ora

file. When you perform the reverse

migration, migrate to the previous keystore so that you do not lose the keys.

Related Topics

•Merging Software Keystores

You can merge software keystores in a variety of ways.

Step 1: Configure Hardware Security Module Keystore Type

You can use the

ALTER SYSTEM

statement to configure the hardware security module

keystore type.

1. Log in to the database instance as a user who has been granted the

SYSDBA

administrative privilege.

For example:

sqlplus sec_admin as sysdba

Enter password: password

2. Set the

TDE_CONFIGURATION

dynamic initialization parameter to specify the TDE

keystore type.

For example:

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM";

3. Restart the database.

Chapter 4

Managing the Keystore

4-19

SHUTDOWN IMMEDIATE

STARTUP

Step 2: Configure the Keystore for the Reverse Migration

The

ADMINISTER KEY MANAGEMENT

statement with the

SET ENCRYPTION KEY

and

REVERSE

MIGRATE

clauses can be used to reverse the migration of a keystore.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Reverse migrate the keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

IDENTIFIED BY software_keystore_password

REVERSE MIGRATE USING "user_name:password"

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

software_keystore_password

is the password for the existing keystore or the

new keystore.

•

user_name:password

is the user ID and password that was created in Step 2 in

Step 2: Configure the Hardware Security Module (in Configuring Transparent

Data Encryption). If the pre-hardware security module software keystore is the

new keystore, then you must ensure that it has the same password as the

user_name:password

before issuing the reverse migration command. Enclose

this setting in double quotation marks (

" "

•

WITH BACKUP

creates a backup of the software keystore. Optionally, you can

include the

USING

clause to add a brief description of the backup. Enclose this

description in single quotation marks (

' '

). This identifier is appended to the

named keystore file (for example,

ewallet_time-stamp_emp_key_backup.p12

, with

emp_key_backup

being the backup identifier). Follow the file naming conventions

that your operating system uses.

For example:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

IDENTIFIED BY password

REVERSE MIGRATE USING "psmith:password" WITH BACKUP;

keystore altered.

3. Optionally, change the keystore password.

For example:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

IDENTIFIED BY old_password

SET new_password

WITH BACKUP USING 'pwd_change';

Chapter 4

Managing the Keystore

4-20

Related Topics

•Changing the Password of a Software Keystore

Oracle Database enables you to easily change password-protected software

keystore passwords.

Step 3: Configure the Hardware Keystore to Open with the Software Keystore

After you complete the migration, the migration process automatically reloads the

keystore keys in memory.

You do not need to restart the database, nor do you need to manually re-open the

software keystore.

The hardware keystore may still be required after reverse migration because the old

keys are likely to have been used for encrypted backups or by tools such as Oracle

Data Pump and Oracle Recovery Manager. You should cache the hardware keystore

credentials in the keystore so that the HSM can be opened with the software keystore.

Related Topics

•Configuring Auto-Login Hardware Security Modules

A hardware security module can be configured to use the auto-login capability.

Keystore Order After a Migration

After you perform a migration, keystores can be either primary or secondary in their

order.

The

WALLET_ORDER

column of the

V$ENCRYPTION_WALLET

dynamic view describes whether

a keystore is primary (that is, it holds the current TDE master encryption key) or if it is

secondary (it holds the previous TDE master encryption key). The

WRL_TYPE

column

describes the type of locator for the keystore (for example,

FILE

for the

sqlnet.ora

file).

The

WALLET_ORDER

column shows

SINGLE

if two keystores are not configured together

and no migration was ever performed previously.

Table 4-1 describes how the keystore order works after you perform a migration.

Table 4-1 Keystore Order After a Migration

Type of Migration

Done

WRL_TYPE WALLET_ORDER Description

Migration of software

keystore to HSM

HSM

FILE

PRIMARY

SECONDARY

Both the HSM and software keystore are

configured. The TDE master encryption key

can be either in the HSM or the software

keystore.

The TDE master encryption key is first

searched in the HSM.

If the TDE master encryption key is not in the

primary keystore (HSM), then it will be

searched for in the software keystore.

All of the new TDE master encryption keys

will be created in the primary keystore (in this

case, the HSM).

Chapter 4

Managing the Keystore

4-21

Table 4-1 (Cont.) Keystore Order After a Migration

Type of Migration

Done

WRL_TYPE WALLET_ORDER Description

Reverse migration of

HSM to software

keystore

FILE

HSM

PRIMARY

SECONDARY

Both the HSM and software keystore are

configured. The TDE master encryption key

can be either in the HSM or the software

keystore.

The TDE master encryption key is first

searched for in the software keystore.

If the TDE master encryption key is not

present in the primary (that is, software)

keystore, then it will be searched for in the

HSM.

All of the new TDE master encryption keys

will be created in the primary keystore (in this

case, the software keystore).

Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to and

from Oracle Key Vault.

This enables you to manage the keystores centrally, and then share the keystores as

necessary with other TDE-enabled databases in your enterprise.

Oracle Key Vault enables you to upload a keystore to a container called a virtual

wallet, and then create a new virtual wallet from the contents of previously uploaded

Oracle keystores. For example, suppose you previously uploaded a keystore that

contains 5 keys. You can create a new virtual wallet that consists of only 3 of these

keys. You then can download this keystore to another TDE-enabled database. This

process does not modify the original keystore.

In addition to Oracle keystores, Oracle Key Vault enables you to securely share other

security objects, such as credential files and Java keystores, across the enterprise. It

prevents the loss of keys and keystores due to forgotten passwords or accidentally

deleted keystores. You can use Oracle Key Vault with products other than TDE:

Oracle Real Application Security, Oracle Active Data Guard, and Oracle GoldenGate.

Oracle Key Vault facilitates the movement of encrypted data using Oracle Data Pump

and Oracle Transportable Tablespaces.

Related Topics

•Oracle Key Vault Administrator's Guide

Closing a Keystore

You can manually close software and hardware keystores.

•About Closing Keystores

After you open a keystore, it remains open until you shut down the database

instance.

Chapter 4

Managing the Keystore

4-22

•Closing a Software Keystore

You can manually close password-based software keystores, auto-login software

keystores, and local auto-login software keystores.

•Closing a Hardware Keystore

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE CLOSE

clause.

About Closing Keystores

After you open a keystore, it remains open until you shut down the database instance.

When you restart the database instance, then auto-login and local auto-login software

keystores automatically open when required (that is, when the TDE master encryption

key must be accessed). However, software password-based and hardware keystores

do not automatically open. You must manually open them again before you can use

them.

When you close a software or hardware keystore, you disable all of the encryption and

decryption operations on the database. Hence, a database user or application cannot

perform any operation involving encrypted data until the keystore is reopened.

When you re-open a keystore after closing it, the keystore contents are reloaded back

into the database. Thus, if the contents had been modified (such as during a

migration), the database will have the latest keystore contents.

You can check if a keystore is closed by querying the

STATUS

column of the

V$ENCRYPTION_WALLET

view.

The following data operations will fail if the keystore is not accessible:

•

SELECT

data from an encrypted column

•

INSERT

data into on an encrypted column

•

CREATE

a table with encrypted columns

•

CREATE

an encrypted tablespace

Closing a Software Keystore

You can manually close password-based software keystores, auto-login software

keystores, and local auto-login software keystores.

In the case of an auto-login keystore, which opens automatically when it is accessed,

manually close it if you moved it to a new location. You do this if you are changing

your configuration from an auto-login keystore to a password-based keystore: you

move out the auto-login keystore, and then close the auto-login keystore.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Run the

ADMINISTER KEY MANAGEMENT

SQL statement.

•For a password-based software keystore, use the following syntax:

Chapter 4

Managing the Keystore

4-23

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

[IDENTIFIED BY [EXTERNAL STORE | software_keystore_password]];

In this specification:

–

IDENTIFIED BY

can be one of the following:

EXTERNAL STORE

uses the keystore password stored in the external

store to perform the keystore operation.

software_keystore_password

is the password of the user who created

the keystore.

•For an auto-login or local auto-login software keystore, use the following SQL

statement:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE;

You do not need to specify a password for this statement.

Closing a keystore disables all of the encryption and decryption operations. Any

attempt to encrypt or decrypt data or access encrypted data results in an error.

Closing a Hardware Keystore

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement

with the

SET KEYSTORE CLOSE

clause.

1. Log into the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Close the hardware keystore by using this syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"];

In this specification:

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

hardware_keystore_credentials

refers to the credentials for either an HSM

or an Oracle Key Vault hardware keystore. For an HSM, specify the

credentials using this format, enclosed in quotation marks and separating

the components with a colon:

“user_name:password”

, with

user_name

being

the user who created the HSM and password being this user’s password.

For Oracle Key Vault, enter only the password of the user who created the

keystore. Enclose this password with quotation marks.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password";

Chapter 4

Managing the Keystore

4-24

Using a Software Keystore That Resides on ASM Volumes

You can store a software keystore on an Automatic Storage Management (ASM) disk

group.

•Edit the

WALLET_ROOT

parameter of the

init.ora

file to use the location of an ASM

disk group specified using the ASM file naming convention when you configure the

Related Topics

•Merging Software Keystores

You can merge software keystores in a variety of ways.

•Step 1: Configure the Software Keystore Location and Type

You must configure the keystore location and type by setting

WALLET_ROOT

init.ora

and

TDE_CONFIGURATION

in the database instance.

•Oracle Automatic Storage Management Administrator's Guide

Backup and Recovery of Encrypted Data

For software keystores, you cannot access encrypted data without the TDE master

encryption key.

Because the TDE master encryption key is stored in the keystore, you should

periodically back up the software keystore in a secure location. You must back up a

copy of the keystore whenever you set a new TDE master encryption key or perform

any operation that writes to the keystore.

Do not back up the software keystore in the same location as the encrypted data. Back

up the software keystore separately. This is especially true when you use the auto-

lost, a malicious user should not be able to get both the encrypted data and the

keystore.

Oracle Recovery Manager (Oracle RMAN) does not back up the software keystore as

part of the database backup. When using a media manager such as Oracle Secure

Backup with Oracle RMAN, Oracle Secure Backup automatically excludes auto-open

keystores (the

cwallet.sso

files). However, it does not automatically exclude

encryption keystores (the

ewallet.p12

files). It is a good practice to add the following

exclude

data set statement to your Oracle Secure Backup configuration:

exclude name *.p12

This setting instructs Oracle Secure Backup to exclude the encryption keystore from

the backup set.

Chapter 4

Managing the Keystore

4-25

If you lose the software keystore that stores the TDE master encryption key, then you

can restore access to encrypted data by copying the backed-up version of the

keystore to the appropriate location. If you archived the restored keystore after the last

time that you reset the TDE master encryption key, then you do not need to take any

additional action.

If the restored software keystore does not contain the most recent TDE master

encryption key, then you can recover old data up to the point when the TDE master

encryption key was reset by rolling back the state of the database to that point in time.

All of the modifications to encrypted columns after the TDE master encryption key was

reset are lost.

Related Topics

•Oracle Database Backup and Recovery User’s Guide

Dangers of Deleting Keystores

Oracle strongly recommends that you do not delete keystores until you have moved

the keystore encryption key to a new keystore.

Deleting a keystore that still contains keys is particularly dangerous if after you have

configured Transparent Data Encryption and the keystore is in use. You can find if a

keystore is in use by querying the

STATUS

column of the

V$ENCRYPTION_WALLET

view after

you open the keystore.

The reason you should not delete a keystore that has active keys in it is because the

keystore contains a list of all of the keys that were used for the database. Deleting the

keystore deletes these keys, and could result in the loss of encrypted data. The

deletion of a keystore can even hamper the normal functioning of the Oracle database.

Even if you decrypted all of the data in your database, you still should not delete the

keystore, because the TDE master encryption key in the keystore is also used for

other Oracle Database features, such as off-lined tablespaces, Oracle Recovery

Manager, and Oracle Secure Backup.

Even after you have migrated your software keystores to a hardware keystore, you

should not delete the original keystore. The keys in the original keystore will be

needed at a later time, for example when recovering an offline encrypted tablespace.

Even if there is no data online that are not encrypted, the key may still be in use.

The exception is in the case of software auto-login (or auto-login local) keystores. If

you do not want to use this type of keystore, then ideally you should move it to a

secure directory. Only delete an auto-login keystore if you are sure that it comes from

a specific password-based software keystore and that this keystore is available. The

keystore should be available and known.

If you must delete a keystore, do so with great caution. You must first move the keys

within the keystore to a new keystore by using the

ADMINISTER KEY MANAGEMENT MOVE

KEYS TO NEW KEYSTORE

statement. After the key is in a new keystore, then you can safely

delete the old keystore.

Related Topics

•Moving a TDE Master Encryption Key into a New Keystore

You can move an existing TDE master encryption key into a new keystore from an

existing software password keystore.

Chapter 4

Managing the Keystore

4-26

•Moving a TDE Master Encryption Key into a New Keystore in United Mode

In united mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

•Moving a TDE Master Encryption Key into a New Keystore in Isolated Mode

In isolated mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

Managing the TDE Master Encryption Key

You can manage the TDE master encryption key in several ways.

•Creating User-Defined TDE Master Encryption Keys

You can create a user-defined TDE master encryption key outside the database

by generating a TDE master encryption key ID.

•Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

•Activating TDE Master Encryption Keys

After you activate a TDE master encryption key, it can be used.

•TDE Master Encryption Key Attribute Management

TDE master encryption key attributes store information about the TDE master

encryption key.

•Creating Custom TDE Master Encryption Key Attributes for Reports

Custom TDE master encryption key attributes enable you to defined attributes that

are specific to your needs.

•Setting or Rekeying the TDE Master Encryption Key in the Keystore

You can set or rekey the TDE master encryption key for both software keystores

and hardware keystores.

•Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in different ways.

•Management of TDE Master Encryption Keys Using Oracle Key Vault

You can use Oracle Key Vault to manage and share TDE master encryption keys

across an enterprise.

Creating User-Defined TDE Master Encryption Keys

You can create a user-defined TDE master encryption key outside the database by

generating a TDE master encryption key ID.

•About User-Defined TDE Master Encryption Keys

A TDE master encryption key that is outside the database has its own user-

generated ID, which tracks the use of the TDE master encryption key.

•Creating a User-Defined TDE Master Encryption Key

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

About User-Defined TDE Master Encryption Keys

A TDE master encryption key that is outside the database has its own user-generated

ID, which tracks the use of the TDE master encryption key.

Chapter 4

Managing the TDE Master Encryption Key

4-27

You can use the

ADMINISTER KEY MANAGEMENT

to create and set user-defined TDE master

encryption key IDs. After you generate the TDE master encryption key, you can bring

this key into the database. Optionally, you can specify the TDE master encryption key

ID in various

ADMINISTER KEY MANAGEMENT

statements.

This type of configuration benefits Oracle Fusion SaaS Cloud environments in that it

enables you to generate a TDE master encryption key this complies with your site’s

requirements. This key that you generate supports the current encryption algorithms

and can be used for software keystores.

After you generate the TDE master encryption key ID, you can encrypt your data as

you normally would.

The TDE master encryption key and its corresponding ID will not be captured by any

auditing logs.

Creating a User-Defined TDE Master Encryption Key

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Create the user-defined TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET | CREATE [ENCRYPTION] KEY

'[mkid:mk | mk]'

[USING ALGORITHM 'algorithm']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

SET | CREATE

: Enter

SET

if you want to create the master and activate the TDE

master encryption key now, or select

CREATE

if you want to create the key for

later use, without activating it yet.

•

mkid

and

–

mkid

, the TDE master encryption key ID, is a 16–byte hex-encoded value

that you can specify or have Oracle Database generate.

–

, the TDE master encryption key, is a hex-encoded value that you can

specify or have Oracle Database generate, either 32 bytes (for the for

AES256

ARIA256

, and

GOST256

algorithms) or 16 bytes (for the

SEED128

algorithm).

If you omit the

mkid:mk|mkid

clause but include the

value, then Oracle

Database generates the

mkid

for the

If you omit the entire

mkid:mk|mkid

clause, then Oracle Database generates

these values for you.

•

USING ALGORITHM

: Specify one of the following supported algorithms:

Chapter 4

Managing the TDE Master Encryption Key

4-28

–

AES256

–

ARIA256

–

SEED128

–

GOST256

If you omit the algorithm, then the default,

AES256

, is used.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

The following example includes a user-created TDE master encryption key but no

TDE master encryption key ID, so that the TDE master encryption key ID is

generated:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

'3D432109DF88967A541967062A6F4E460E892318E307F017BA048707B402493C'

USING ALGORITHM 'GOST256'

FORCE KEYSTORE

IDENTIFIED BY keystore_password;

The next example creates user-defined keys for both the master encryption ID and

the TDE master encryption key. It omits the algorithm specification, so the default

algorithm

AES256

is used.

ADMINISTER KEY MANAGEMENT CREATE ENCRYPTION KEY

'10203040506070801112131415161718:3D432109DF88967A541967062A6F4E460E892318E307F01

7BA048707B402493C'

IDENTIFIED BY keystore_password;

Related Topics

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

•About Creating a TDE Master Encryption Key for Later Use

The

CREATE KEY

clause of the

ADMINISTER KEY MANAGEMENT

statement can create a

TDE master encryption key to be activated at a later date.

•Creating a TDE Master Encryption Key for Later Use

A keystore must be opened before you can create a TDE master encryption key

for use later on.

•Example: Creating a TDE Master Encryption Key in a Single Database

You can use the

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

statement to

create a TDE master encryption key in a single database.

About Creating a TDE Master Encryption Key for Later Use

The

CREATE KEY

clause of the

ADMINISTER KEY MANAGEMENT

statement can create a TDE

master encryption key to be activated at a later date.

You then can activate this key on the same database or export it to another database

and activate it there.

Chapter 4

Managing the TDE Master Encryption Key

4-29

This method of TDE master encryption key creation is useful in a multitenant

environment when you must re-create the TDE master encryption keys. The

CREATE

KEY

clause enables you to use a single SQL statement to generate a new TDE master

encryption key for all of the PDBs within a multitenant environment. The creation time

of the new TDE master encryption key is later than the activation of the TDE master

encryption key that is currently in use. Hence, the creation time can serve as a

reminder to all of the PDBs to activate the most recently created TDE master

encryption key as soon as possible.

Creating a TDE Master Encryption Key for Later Use

A keystore must be opened before you can create a TDE master encryption key for

use later on.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Create the TDE master encryption key by using this syntax:

ADMINISTER KEY MANAGEMENT CREATE KEY [USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

tag

is the associated attribute and information that you define. Enclose this

setting in single quotation marks (' ').

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the mandatory keystore password that you used

when you created the original keystore. It is case sensitive.

•

WITH BACKUP

backs up the TDE master encryption key in the same location as

the key, as identified by the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the key locations for all of the database instances, query the

GV$ENCRYPTION_WALLET

view.

You must back up password-based software keystores. You do not need to

back up auto-login or local auto-login software keystores. Optionally, include

the

USING

backup_identifier

clause to add a description of the backup. Enclose

backup_identifier

in single quotation marks (

' '

3. If necessary, activate the TDE master encryption key.

a. Fin the key ID.

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

Chapter 4

Managing the TDE Master Encryption Key

4-30

----------------------------------------------------

AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

b. Use this key ID to activate the key.

ADMINISTER KEY MANAGEMENT USE KEY

'AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

IDENTIFIED BY password

WITH BACKUP;

Related Topics

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

•Opening a Hardware Keystore

To open a hardware keystore, use the

ADMINISTER KEY MANAGEMENT

statement with

the

SET KEYSTORE OPEN

clause.

•Activating TDE Master Encryption Keys

After you activate a TDE master encryption key, it can be used.

Example: Creating a TDE Master Encryption Key in a Single Database

You can use the

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

statement to create

a TDE master encryption key in a single database.

Example 4-2 shows how to create a TDE master encryption key in a single database.

After you run this statement, a TDE master encryption key with the tag definition is

created in the keystore for that database. You can query the

TAG

column of the

V$ENCRYPTION_KEYS

view for the identifier of the newly created key. You can query the

CREATION_TIME

column to find the most recently created key, which would be the key

that you created from this statement. You can export this key to another database if

you want or activate it locally later on, as described in Activating TDE Master

Encryption Keys.

Example 4-2 Creating a TDE Master Encryption Key in a Single Database

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

'source:admin@source;target:db1@target'

IDENTIFIED BY password WITH BACKUP;

keystore altered.

Activating TDE Master Encryption Keys

After you activate a TDE master encryption key, it can be used.

•About Activating TDE Master Encryption Keys

You can activate a previously created or imported TDE master encryption key by

using the

USE KEY

clause of

ADMINSTER KEY MANAGEMENT

•Activating a TDE Master Encryption Key

To activate a TDE master encryption key, you must open the keystore and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

Chapter 4

Managing the TDE Master Encryption Key

4-31

•Example: Activating a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT SQL statement to activate a

TDE master encryption key.

About Activating TDE Master Encryption Keys

You can activate a previously created or imported TDE master encryption key by using

the

USE KEY

clause of

ADMINSTER KEY MANAGEMENT

After you activate the key, it is available for use. The key will be used to protect all of

the column keys and all of the tablespace encryption keys. If you have deployed a

logical standby database, then you must export the TDE master encryption keys after

recreating them, and then import them into the standby database. You can have the

TDE master encryption key in use on both the primary and the standby databases. To

do so, you must activate the TDE master encryption key after you import it to the

logical standby database.

Activating a TDE Master Encryption Key

To activate a TDE master encryption key, you must open the keystore and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

view to find the key identifier.

For example:

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Use this key identifier to activate the TDE master encryption key by using the

following syntax:

ADMINISTER KEY MANAGEMENT USE KEY 'key_identifier_from_V$ENCRYPTION_KEYS'

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

key_identifier_from_V$ENCRYPTION_KEYS

is the key identifie. Enclose this setting

in single quotation marks (

' '

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

Chapter 4

Managing the TDE Master Encryption Key

4-32

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the mandatory keystore password that you used

when you created the original keystore.

•

WITH BACKUP

backs up the TDE master encryption key in the same location as

the key, as identified by the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the key locations for all of the database instances, query the

GV$ENCRYPTION_WALLET

view.

You must back up password-based software keystores. You do not need to

back up auto-login or local auto-login software keystores. Optionally, include

the

USING

backup_identifier

clause to add a description of the backup. Enclose

backup_identifier

in single quotation marks (

' '

Related Topics

•Opening a Software Keystore

To open a software keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Opening a Hardware Keystore

To open a hardware keystore, use the

ADMINISTER KEY MANAGEMENT

statement with

the

SET KEYSTORE OPEN

clause.

Example: Activating a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT SQL statement to activate a TDE

master encryption key.

Example 4-3 shows how to activate a previously imported TDE master encryption key

and then update its tag. This key is activated with the current database time stamp and

time zone.

Example 4-3 Activating a TDE Master Encryption Key

ADMINISTER KEY MANAGEMENT USE KEY

'ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

IDENTIFIED BY password WITH BACKUP;

keystore altered.

In this version of the same operation, the

FORCE KEYSTORE

clause is added in the event

that the auto-login keystore is in use, or if the keystore is closed. The password of the

keystore is stored externally, so the

EXTERNAL STORE

setting is used for the

IDENTIFIED

clause.

ADMINISTER KEY MANAGEMENT USE KEY

'ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

FORCE KEYSTORE IDENTIFIED BY EXTERNAL STORE WITH BACKUP;

keystore altered.

TDE Master Encryption Key Attribute Management

TDE master encryption key attributes store information about the TDE master

encryption key.

Chapter 4

Managing the TDE Master Encryption Key

4-33

•TDE Master Encryption Key Attributes

TDE master encryption key attributes include detailed information about the TDE

master encryption key.

•Finding the TDE Master Encryption Key That Is in Use

A TDE master encryption key that is in use is the encryption key that was activated

most recently for the database.

TDE Master Encryption Key Attributes

TDE master encryption key attributes include detailed information about the TDE

master encryption key.

The information contains the following types:

•Key time stamp information: Internal security policies and compliance policies

usually determine the key rekeying frequency. You should expire keys when they

reach the end of their lifetimes and then generate new keys. Time stamp attributes

such as key creation time and activation time help you to determine the key age

accurately, and automate key generation.

The

V$ENCRYPTION_KEYS

view includes columns such as

CREATION_TIME

and

ACTIVATION_TIME.

See Oracle Database Reference for a complete description of

the

V$ENCRYPTION_KEYS

view.

•Key owner information: Key owner attributes help you to determine the user who

created or activated the key. These attributes can be important for security,

auditing, and tracking purposes. Key owner attributes also include key use

information, such as whether the key is used for standalone TDE operations or

used in a multitenant environment.

The

V$ENCRYPTION_KEYS

view includes columns such as

CREATOR, CREATOR_ID, USER,

USER_ID,

and

KEY_USE.

•Key source information: Keys often must be moved between databases for

operations such as import-export operations and Data Guard-related operations.

Key source attributes enable you to track the origin of each key. You can track

whether a key was created locally or imported, and the database name and

instance number of the database that created the key. In a multitenant

environment, you can track the PDB where the key was created.

The

V$ENCRYPTION_KEYS

view includes columns such as

CREATOR_DBNAME,

CREATOR_DBID, CREATOR_INSTANCE_NAME, CREATOR_INSTANCE_NUMBER, CREATOR_PDBNAME,

and so on.

•Key usage information: Key usage information determines the database or PDB

where the key is being used. It also helps determine whether a key is in active use

or not.

The

V$ENCRYPTION_KEYS

view includes columns such as

ACTIVATING_DBNAME,

ACTIVATING_DBID, ACTIVATING_INSTANCE_NAME, ACTIVATING_PDBNAME,

and so on.

•User-defined information and other information: When creating a key, you can

tag it with information using the

TAG

option. Each key contains important

information such as whether or not it has been backed up.

The

V$ENCRYPTION_KEYS

view includes columns such as

KEY_ID, TAG,

and other

miscellaneous columns, for example

BACKED_UP

Chapter 4

Managing the TDE Master Encryption Key

4-34

Note:

TDE Master Key Attributes and Tag are only supported with a hardware

security module that has PKCS#11 data object support.

Finding the TDE Master Encryption Key That Is in Use

A TDE master encryption key that is in use is the encryption key that was activated

most recently for the database.

•To find the TDE master encryption key, query the

V$ENCRYPTION_KEYS

dynamic view.

For example:

SELECT KEY_ID

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATION_TIME = (SELECT MAX(ACTIVATION_TIME)

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATING_DBID = (SELECT DBID FROM V$DATABASE));

Creating Custom TDE Master Encryption Key Attributes for Reports

Custom TDE master encryption key attributes enable you to defined attributes that are

specific to your needs.

•About Creating Custom Attribute Tags

Attribute tags enable you to monitor specific activities users perform, such as

accessing a particular terminal ID.

•Creating a Custom Attribute Tag

To create a custom attribute tag, you must use the

SET TAG

clause of the

ADMINISTER KEY MANAGEMENT

statement.

About Creating Custom Attribute Tags

Attribute tags enable you to monitor specific activities users perform, such as

accessing a particular terminal ID.

By default, Oracle Database defines a set of attributes that describe various

characteristics of the TDE master encryption keys that you create, such as the

creation time, database in which the TDE master encryption key is used, and so on.

These attributes are captured by the

V$ENCRYPTION_KEY

dynamic view.

You can create custom attributes that can be captured by the

TAG

column of the

V$ENCRYPTION_KEYS

dynamic view. This enables you to define behaviors that you may

want to monitor, such as users who perform activities on encryption keys. The tag can

encompass multiple attributes, such as session IDs from a specific terminal.

After you create the tag for a TDE master encryption key, its name should appear in

the

TAG

column of the

V$ENCRYPTION_KEYS

view for that TDE master encryption key. If

you create a tag for the secret, then the tag appears in the

SECRET_TAG

column of the

V$CLIENT_SECRETS

view. If you create a secret with a tag, then the tag appears in the

SECRET_TAG

column of the

V$CLIENT_SECRETS

view.

Chapter 4

Managing the TDE Master Encryption Key

4-35

Creating a Custom Attribute Tag

To create a custom attribute tag, you must use the

SET TAG

clause of the

ADMINISTER

KEY MANAGEMENT

statement.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. If necessary, query the

TAG

column of the

V$ENCRYPTION_KEY

dynamic view to find a

listing of existing tags for the TDE master encryption keys.

When you create a new tag for a TDE master encryption key, it overwrites the

existing tag for that TDE master encryption key.

3. Create the custom attribute tag by using the following syntax:

ADMINISTER KEY MANAGEMENT SET TAG 'tag'

FOR 'master_key_identifier'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification

•

tag

is the associated attributes or information that you define. Enclose this

information in single quotation marks (' ').

•

master_key_identifier

identifies the TDE master encryption key for which the

tag

is set. To find a list of TDE master encryption key identifiers, query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

dynamic view.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password that was used to create the keystore.

•

backup_identifier

defines the tag values. Enclose this setting in single

quotation marks (

' '

) and separate each value with a colon.

For example, to create a tag that uses two values, one to capture a specific

session ID and the second to capture a specific terminal ID:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

USING TAG 'sessionid=3205062574:terminal=xcvt'

IDENTIFIED BY keystore_password

WITH BACKUP;

keystore altered.

Both the session ID (

3205062574

) and terminal ID (

xcvt

) can derive their values by

using either the

SYS_CONTEXT

function with the

USERENV

namespace, or by using the

USERENV

function.

Chapter 4

Managing the TDE Master Encryption Key

4-36

Setting or Rekeying the TDE Master Encryption Key in the Keystore

You can set or rekey the TDE master encryption key for both software keystores and

hardware keystores.

•About Setting or Rekeying the TDE Master Encryption Key in the Keystore

You can set or rekey the TDE master encryption key for both software password-

based and hardware keystores.

•Creating, Tagging, and Backing Up a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement enables you to create, tag, and back up

a TDE master encryption key.

•About Rekeying the TDE Master Encryption Key

Oracle Database uses a unified TDE Master Encryption Key for both TDE column

encryption and TDE tablespace encryption.

•Rekeying the TDE Master Encryption Key

You can use the

ADMINISTER KEY MANAGEMENT

statement to rekey a TDE master

encryption key.

•Rekeying the TDE Master Encryption Key for a Tablespace

You can use the

REKEY

clause of the

ALTER TABLESPACE

statement to rekey a TDE

master encryption key for an encrypted tablespace.

About Setting or Rekeying the TDE Master Encryption Key in the Keystore

You can set or rekey the TDE master encryption key for both software password-

based and hardware keystores.

The TDE master encryption key is stored in an external security module (keystore),

and it is used to protect the TDE table keys and tablespace encryption keys. By

default, the TDE master encryption key is a system-generated random value created

by Transparent Data Encryption (TDE).

Use the

ADMINISTER KEY MANAGEMENT

statement to set or reset (

REKEY

) the TDE master

encryption key. When the master encryption key is set, then TDE is considered

enabled and cannot be disabled.

Before you can encrypt or decrypt database columns or tablespaces, you must

generate a TDE master encryption key. Oracle Database uses the same TDE master

encryption key for both TDE column encryption and TDE tablespace encryption. The

instructions for setting a software or hardware TDE master encryption key explain how

to generate a tDE master encryption key.

Related Topics

•Step 4: Set the TDE Master Encryption Key in the Software Keystore

Once the keystore is open, you can set a TDE master encryption key for it.

•Step 4: Set the Hardware Keystore TDE Master Encryption Key

After you have opened the hardware keystore, you are ready to set the hardware

keystore TDE master encryption key.

Chapter 4

Managing the TDE Master Encryption Key

4-37

Creating, Tagging, and Backing Up a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement enables you to create, tag, and back up a

TDE master encryption key.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Create and back up the TDE master encryption key, and apply a tag, by using the

following syntax:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

WITH BACKUP [USING 'backup_identifier'];

In this specification:

•

tag

is the tag that you want to create. Enclose this tag in single quotation

marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is either

software_keystore_password

hardware_keystore_credentials

. As with software passwords, it is case

sensitive. You must enclose the password string in double quotation

marks (

" "

). Separate

user_name

and

password

with a colon (

•

WITH BACKUP

backs the TDE master encryption key up in the same location as

the key, as identified by the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the

WRL_PARAMETER

values for all of the database instances, query

the

GV$ENCRYPTION_WALLET

view.

You must back up password-based software keystores. You do not need to

use it for auto-login or local auto-login software keystores. Optionally, include

the

USING

backup_identifier

clause to add a description of the backup. Enclose

this identifier in single quotation marks (

' '

For example:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

USING TAG 'backups"

IDENTIFIED BY password

WITH BACKUP USING 'hr.emp_key_backup';

keystore altered.

Chapter 4

Managing the TDE Master Encryption Key

4-38

Oracle Database uses the keystore in the keystore location specified by the

WALLET_ROOT

parameter in the initialization parameter file to store the TDE master

encryption key.

Related Topics

•Creating Custom TDE Master Encryption Key Attributes for Reports

Custom TDE master encryption key attributes enable you to defined attributes that

are specific to your needs.

•About the Keystore Location in the sqlnet.ora File

If you have not set the

WALLET_ROOT

parameter, then Oracle Database checks the

sqlnet.ora

file for the directory location of the keystore.

About Rekeying the TDE Master Encryption Key

Oracle Database uses a unified TDE Master Encryption Key for both TDE column

encryption and TDE tablespace encryption.

When you rekey the TDE master encryption key for TDE column encryption, the TDE

Master Encryption Key for TDE tablespace encryption also is rekeyed. Rekey the TDE

Master Encryption Key only if it was compromised or as per the security policies of the

organization. This process deactivates the previous TDE master encryption key.

For better security and to meet compliance regulations, periodically rekey the TDE

master encryption key. This process deactivates the previous TDE master encryption

key, creates a new TDE master encryption key, and then activates it. You can check

the keys that were created recently by querying the

CREATION_TIME

column in the

V$ENCRYPTION_KEYS

view. To find the keys that were activated recently, query the

ACTIVATION_TIME

column in the

V$ENCRYPTION_KEYS

view.

You cannot change the TDE master encryption key or rekey a TDE master encryption

key for an auto-login keystore. Because auto-login keystores do not have a password,

an administrator or a privileged user can change the keys without the knowledge of the

security officer. However, if both the auto-login and the password-based keystores are

present in the configured location (as set in the

sqlnet.ora

file), then when you rekey

the TDE master encryption key, a TDE master encryption key is added to both the

auto-login and password-based keystores. If the auto-login keystore is in use in a

location that is different from that of the password-based keystore, then you must re-

create the auto-login keystore.

Do not perform a rekey operation of the master key concurrently with an online

tablespace rekey operation. You can find if an online tablespace is in the process of

being TDE Master Encryption Keyed by issuing the following query:

SELECT TS#,ENCRYPTIONALG,STATUS FROM V$ENCRYPTED_TABLESPACES;

A status of

REKEYING

means that the corresponding tablespace is still being rekeyed.

Note:

You cannot add new information to auto-login keystores separately.

Chapter 4

Managing the TDE Master Encryption Key

4-39

Rekeying the TDE Master Encryption Key

You can use the

ADMINISTER KEY MANAGEMENT

statement to rekey a TDE master

encryption key.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. If you are rekeying the TDE master encryption key for a keystore that has auto

.sso

file, and the encryption keystore, identified by the

.p12

file, are present.

You can find the location of these files by querying the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the

WRL_PARAMETER

values for all of the database

instances, query the

GV$ENCRYPTION_WALLET

view.

3. Rekey the TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the mandatory keystore password that you created

when you created the keystore in Step 2: Create the Software Keystore.

•

WITH BACKUP

creates a backup of the keystore. You must use this option for

password-based and hardware keystores. Optionally, you can use the

USING

clause to add a brief description of the backup. Enclose this description in

single quotation marks (

' '

). This identifier is appended to the named keystore

file (for example,

ewallet_time-stamp_emp_key_backup.p12

). Follow the file

naming conventions that your operating system uses.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

keystore altered.

Chapter 4

Managing the TDE Master Encryption Key

4-40

Related Topics

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

•Step 3: Open the Hardware Keystore

After you have configured the hardware security module, you must open the

hardware keystore before it can be used.

Rekeying the TDE Master Encryption Key for a Tablespace

You can use the

REKEY

clause of the

ALTER TABLESPACE

statement to rekey a TDE

master encryption key for an encrypted tablespace.

1. Ensure that the tablespace open in read-write mode.

You can query the

STATUS

column of the

V$INSTANCE

dynamic view to find if a

database is open and the

OPEN_MODE

column of the

V$DATABASE

view to find if it in

read-write mode.

2. If necessary, open the database in read-write mode.

ALTER DATABASE OPEN READ WRITE;

3. Run the

ALTER TABLESPACE

SQL statement to encrypt the tablespace.

For example:

ALTER TABLESPACE encrypt_ts ENCRYPTION USING 'AES256' ENCRYPT;

Related Topics

•About Encryption Conversions for Existing Online Tablespaces

You can encrypt, decrypt, or rekey existing user tablespaces, and the

SYSTEM

SYSAUX

, and

UNDO

tablespace when they are online.

Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in different ways.

•About Exporting and Importing the TDE Master Encryption Key

Oracle Database features such as transportable tablespaces and Oracle Data

Pump move data that is possibly encrypted between databases.

•About Exporting TDE Master Encryption Keys

You can use

ADMINISTER KEY MANAGEMENT EXPORT

to export TDE master encryption

keys from a keystore, and then import them into another keystore.

•Exporting a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement with the

EXPORT [ENCRYPTION] KEYS WITH

SECRET

clause exports a TDE master encryption key.

•Example: Exporting a TDE Master Encryption Key by Using a Subquery

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

statement can export a

TDE master encryption key by using a subquery.

•Example: Exporting a List of TDE Master Encryption Key Identifiers to a File

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET

statement can

export a list of TDE master encryption key identifiers to a file.

Chapter 4

Managing the TDE Master Encryption Key

4-41

•Example: Exporting All TDE Master Encryption Keys of the Database

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

SQL statement can export

all TDE master encryption keys of a database.

•About Importing TDE Master Encryption Keys

The

ADMINISTER KEY MANAGEMENT IMPORT

statement can import exported TDE master

encryption keys from a key export file into a target keystore.

•Importing a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement with the

IMPORT [ENCRYPTION] KEYS WITH

SECRET

clause can import a TDE master encryption key.

•Example: Importing a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT IMPORT KEYS SQL

statement to import a TDE master encryption key.

•How Keystore Merge Differs from TDE Master Encryption Key Export or Import

The keystore merge operation differs from the TDE master encryption key export

and import operations.

About Exporting and Importing the TDE Master Encryption Key

Oracle Database features such as transportable tablespaces and Oracle Data Pump

move data that is possibly encrypted between databases.

These are some common scenarios in which you can choose to export and import

TDE master encryption keys to move them between source and target keystores. For

Data Guard (Logical Standby), you must copy the keystore that is in the primary

database to the standby database. Instead of merging the primary database keystore

with the standby database, you can export the TDE master encryption key that is in

use and then import it to the standby database. Moving transportable tablespaces that

are encrypted between databases requires that you export the TDE master encryption

key at the source database and then import it into the target database.

About Exporting TDE Master Encryption Keys

You can use

ADMINISTER KEY MANAGEMENT EXPORT

to export TDE master encryption keys

from a keystore, and then import them into another keystore.

A TDE master encryption key is exported together with its key identifier and key

attributes. The exported keys are protected with a password (secret) in the export file.

You can specify the TDE master encryption keys to be exported by using the

WITH

IDENTIFIER

clause of the

ADMINSITER KEY MANAGENT EXPORT

statement. To export the TDE

master encryption keys, you can either specify their key identifiers as a comma-

separated list, or you can specify a query that enumerates their key identifiers. Be

aware that Oracle Database executes the query determining the key identifiers within

the current user's rights and not with definer's rights.

If you omit the

WITH IDENTIFER

clause, then all of the TDE master encryption keys of

the database are exported.

Related Topics

•Exporting and Importing Master Encryption Keys for a PDB in Isolated Mode

In isolated mode, the

EXPORT

and

IMPORT

clauses of

ADMINISTER KEY MANAGEMENT

EXPORT

can export or import master encryption keys for a PDB.

Chapter 4

Managing the TDE Master Encryption Key

4-42

•Exporting and Importing Master Encryption Keys for a PDB in Isolated Mode

In isolated mode, the

EXPORT

and

IMPORT

clauses of

ADMINISTER KEY MANAGEMENT

EXPORT

can export or import master encryption keys for a PDB.

Exporting a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement with the

EXPORT [ENCRYPTION] KEYS WITH

SECRET

clause exports a TDE master encryption key.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Export the TDE master encryption keys by using the following syntax:

ADMINISTER KEY MANAGEMENT EXPORT [ENCRYPTION] KEYS

WITH SECRET "export_secret"

TO 'file_path'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH IDENTIFIER IN 'key_id1', 'key_id2', 'key_idn' | (SQL_query)];

In this specification:

•

export_secret

is a password that you can specify to encrypt the export the file

that contains the exported keys. Enclose this secret in double quotation marks

(" "), or you can omit the quotation marks if the secret has no spaces.

•

file_path

is the complete path and name of the file to which the keys must be

exported. Enclose this path in single quotation marks (

' ')

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

software_keystore_password

is the password of the keystore containing the

keys.

•

key_id1

key_id2

key_idn

is a string of one or more TDE master encryption key

identifiers for the TDE master encryption key being exported. Separate each

key identifier with a comma and enclose each of these key identifiers in single

quotation marks (

' '

). To find a list of TDE master encryption key identifiers,

query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

dynamic view.

•

SQL_query

is a query that fetches a list of the TDE master encryption key

identifiers. It should return only one column which contains the TDE master

encryption key identifiers. This query is executed with current user rights.

Related Topics

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

Chapter 4

Managing the TDE Master Encryption Key

4-43

Example: Exporting a TDE Master Encryption Key by Using a Subquery

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

statement can export a TDE

master encryption key by using a subquery.

Example 4-5 shows how to export TDE master encryption keys whose identifiers are

fetched by a query to a file called

export.exp

. The TDE master encryption keys in the

file are encrypted using the secret

my_secret

. The

SELECT

statement finds the identifiers

for the TDE master encryption keys to be exported.

Example 4-4 Exporting a List of TDE Master Encryption Key Identifiers to a File

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

WITH SECRET "my_secret"

TO '/TDE/export.exp'

FORCE KEYSTORE

IDENTIFIED BY password

WITH IDENTIFIER IN 'AdoxnJ0uH08cv7xkz83ovwsAAAAAAAAAAAAAAAAAAAAAAAAAAAAA',

'AW5z3CoyKE/yv3cNT5CWCXUAAAAAAAAAAAAAAAAAAAAAAAAAAAAA';

keystore altered.

Example: Exporting a List of TDE Master Encryption Key Identifiers to a File

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS WITH SECRET

statement can

export a list of TDE master encryption key identifiers to a file.

Example 4-4 shows how to export TDE master encryption keys by specifying their

identifiers as a list, to a file called

export.exp

. TDE master encryption keys in the file

are encrypted using the secret

my_secret

. The identifiers of the TDE master encryption

key to be exported are provided as a comma-separated list.

Example 4-5 Exporting TDE Master Encryption Key Identifiers by Using a

Subquery

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

WITH SECRET "my_secret" TO '/etc/TDE/export.exp'

FORCE KEYSTORE

IDENTIFIED BY password

WITH IDENTIFIER IN (SELECT KEY_ID FROM V$ENCRYPTION_KEYS WHERE ROWNUM <3);

keystore altered.

Example: Exporting All TDE Master Encryption Keys of the Database

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

SQL statement can export all

TDE master encryption keys of a database.

Example 4-6 shows how to export all of the TDE master encryption keys of the

database to a file called

export.exp

. The TDE master encryption keys in the file are

encrypted using the secret

my_secret

Example 4-6 Exporting All of the TDE Master Encryption Keys of the Database

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

WITH SECRET "my_secret" TO '/etc/TDE/export.exp'

FORCE KEYSTORE

IDENTIFIED BY password;

Chapter 4

Managing the TDE Master Encryption Key

4-44

keystore altered.

About Importing TDE Master Encryption Keys

The

ADMINISTER KEY MANAGEMENT IMPORT

statement can import exported TDE master

encryption keys from a key export file into a target keystore.

You cannot re-import TDE master encryption keys that have already been imported.

Related Topics

•Exporting and Importing Master Encryption Keys for a PDB in Isolated Mode

In isolated mode, the

EXPORT

and

IMPORT

clauses of

ADMINISTER KEY MANAGEMENT

EXPORT

can export or import master encryption keys for a PDB.

Importing a TDE Master Encryption Key

The

ADMINISTER KEY MANAGEMENT

statement with the

IMPORT [ENCRYPTION] KEYS WITH

SECRET

clause can import a TDE master encryption key.

1. Log in to the database instance as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

sqlplus sec_admin as syskm

Enter password: password

Connected.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT IMPORT [ENCRYPTION] KEYS

WITH SECRET "import_secret"

FROM 'file_name'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

import_secret

is the same password that was used to encrypt the keys during

the export operation. Enclose this secret in double quotation marks (" "), or

you can omit the quotation marks if the secret has no spaces.

•

file_name

is the complete path and name of the file from which the keys need

to be imported. Enclose this setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

software_keystore_password

is the password of the software keystore

where the keys are being imported.

•

WITH BACKUP

must be used in case the target keystore was not backed up

before the import operation.

backup_identifier

is an optional string that you

can provide to identify the keystore backup. Enclose this setting in single

quotation marks (

' '

Chapter 4

Managing the TDE Master Encryption Key

4-45

Related Topics

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

Example: Importing a TDE Master Encryption Key

You can use the ADMINISTER KEY MANAGEMENT IMPORT KEYS SQL statement to

import a TDE master encryption key.

Example 4-7 shows how to import the TDE master encryption key identifiers that are

stored in the file

export.exp

and encrypted with the secret

my_secret

Example 4-7 Importing TDE Master Encryption Key Identifiers from an Export

File

ADMINISTER KEY MANAGEMENT IMPORT KEYS

WITH SECRET "my_secret"

FROM '/etc/TDE/export.exp'

FORCE KEYSTORE

IDENTIFIED BY password WITH BACKUP;

keystore altered.

How Keystore Merge Differs from TDE Master Encryption Key Export or Import

The keystore merge operation differs from the TDE master encryption key export and

import operations.

Even though both the

ADMINISTER KEY MANAGEMENT MERGE

statement and the

ADMINISTER

KEY MANAGEMENT EXPORT

and

IMPORT

statements eventually move the TDE master

encryption keys from one keystore to the next, there are differences in how these two

statements function.

•The

MERGE

statement merges two keystores whereas the

EXPORT

and

IMPORT

statements export the keys to a file or import the keys from a file. The keystore is

different from the export file, and the two cannot be used interchangeably. The

export file is not a keystore and cannot be configured to be used with a database

as a keystore. Similarly, the

IMPORT

statement cannot extract the TDE master

encryption keys from the keystore.

•The

MERGE

statement merges all of the TDE master encryption keys of the specified

keystores where as the

EXPORT

and

IMPORT

statements can be selective.

•The

EXPORT

and

IMPORT

statements require the user to provide both a location

(

filepath

) and the file name of the export file, whereas the

MERGE

statement only

takes in the location of the keystores.

•The file name of the keystores is fixed and is determined by the

MERGE

operation

and can be either

ewallet.p12

cwallet.sso

. The file names for the export files

used in the

EXPORT

the

IMPORT

statements are specified by the user.

•The keystores on Automatic Storage Management (ASM) disk groups or regular

file systems can be merged with

MERGE

statements. The export files used in the

EXPORT

and the

IMPORT

statements can only be a regular operating system file and

cannot be located on an ASM disk group.

•The keystores merged using the

MERGE

statement do not need to be configured or

in use with the database. The

EXPORT

statement can only export the keys from a

Chapter 4

Managing the TDE Master Encryption Key

4-46

keystore that is configured and in use with the database and is also open when the

export is done. The

IMPORT

statement can only import the keys into a keystore that

is open, configured, and in use with the database.

•The

MERGE

statement never modifies the metadata associated with the TDE master

encryption keys. The

EXPORT

and

IMPORT

operations can modify the metadata of the

TDE master encryption keys when required, such as during a PDB plug operation.

Management of TDE Master Encryption Keys Using Oracle Key Vault

You can use Oracle Key Vault to manage and share TDE master encryption keys

across an enterprise.

Oracle Key Vault securely stores the keys in a central repository, along with other

security objects such as credential files and Java keystores, and enables you to share

these objects with other TDE-enabled databases.

Related Topics

•Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to

and from Oracle Key Vault.

•Oracle Key Vault Administrator's Guide

Storing Oracle Database Secrets

Secrets are data that support internal Oracle Database features that integrate external

clients such as Oracle GoldenGate into the database.

•About Storing Oracle Database Secrets in a Keystore

Keystores can store secrets that support internal Oracle Database features and

integrate external clients such as Oracle GoldenGate.

•Storage of Oracle Database Secrets in a Software Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements can add secrets, update secrets, and delete secrets from a keystore.

•Example: Adding an HSM Password to a Software Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET

statement can add an HSM password

to a software keystore.

•Example: Changing an HSM Password Stored as a Secret in a Software Keystore

The

ADMINISTER KEY MANAGEMENT UPDATE SECRET

statement can change an HSM

password that is stored as a secret in a software keystore.

•Example: Deleting an HSM Password Stored as a Secret in a Software Keystore

The

ADMINISTER KEY MANAGEMENT DELETE SECRET

statement can delete HSM

passwords that are stored as secrets in a software keystore.

•Storage of Oracle Database Secrets in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements can add, update, and delete secrets.

•Example: Adding an Oracle Database Secret to a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET

statement can add an Oracle Database

secret to a hardware keystore.

Chapter 4

Storing Oracle Database Secrets

4-47

•Example: Changing an Oracle Database Secret in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET

statement can change

an Oracle Database secret in a hardware keystore.

•Example: Deleting an Oracle Database Secret in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT

statement can delete an

Oracle Database secret that is in a hardware keystore.

•Configuring Auto-Login Hardware Security Modules

A hardware security module can be configured to use the auto-login capability.

About Storing Oracle Database Secrets in a Keystore

Keystores can store secrets that support internal Oracle Database features and

integrate external clients such as Oracle GoldenGate.

The secret key must be a string adhering to Oracle identifier rules. You can add,

update, or delete a client secret in an existing keystore. The Oracle GoldenGate

Extract process must have data encryption keys to decrypt the data that is in data files

and in

REDO

UNDO

logs. Keys are encrypted with shared secrets when you share the

keys between an Oracle database and an Oracle GoldenGate client. The software

keystore stores the shared secrets.

Depending on your site's requirements, you may require automated open keystore

operations even when a hardware security module is configured. For this reason, the

hardware security module password can be stored in a software auto-login keystore,

which enables the auto-login capability for the hardware security module. The Oracle

Database side can also store the credentials for the database to log in to an external

storage server in the software keystore.

You can store Oracle Database secrets in both software keystores and hardware

keystores:

•Software keystores: You can store secrets in software password-based, auto-

auto-login (or auto-login local) keystore, then note the following:

–If the software auto-login keystore is in the same location as its corresponding

password-based software keystore, then the secrets are added automatically.

–If the software auto-login keystore is in a different location from its

corresponding password-based software keystore, then you must create the

auto-login keystore again from the password-based keystore, and keep the

two keystores in synchronization.

•Hardware keystores: You can store secrets in standard hardware security

modules.

Related Topics

•Storage of Oracle Database Secrets in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements can add, update, and delete secrets.

•Configuring Auto-Login Hardware Security Modules

A hardware security module can be configured to use the auto-login capability.

Chapter 4

Storing Oracle Database Secrets

4-48

Storage of Oracle Database Secrets in a Software Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements

can add secrets, update secrets, and delete secrets from a keystore.

As with all of the

ADMINISTER KEY MANAGEMENT

statements, you must have the

ADMINISTER

KEY MANAGEMENT

or the

SYSKM

administrative privilege. To find information about existing

secrets, you can query the

V$CLIENT_SECRETS

dynamic view.

•Adding a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT

ADD SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id];

•Updating a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id];

•Deleting a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'client_identifier'

[FROM [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id];

In all of these statements, the specification is as follows:

•

secret

is the client secret key to be stored, updated, or deleted. Enclose this

setting in single quotation marks (

' '

) or omit the quotation marks if the secret has

no spaces. To find information about existing secrets and their client identifiers,

query the

V$CLIENT_SECRETS

dynamic view.

•

client_identifier

is an alphanumeric string used to identify the secret key.

client_identifier

does not have a default value. Enclose this setting in single

quotation marks (

' '

•

TO [[LOCAL] AUTOLOGIN] KEYSTORE

refers to the location of an auto-login keystore,

which is specified in the

sqlnet.ora

file.

•

tag

is an optional, user-defined description for the secret key to be stored. You can

use

tag

with the

ADD

and

UPDATE

operations. Enclose this setting in single quotation

marks (

' '

). This tag appears in the

SECRET_TAG

column of the

V$CLIENT_SECRETS

view.

WITH BACKUP

is required in case the keystore was not backed up before the

ADD

UPDATE

, or

DELETE

operation.

backup_identifier

is an optional user-defined

description for the backup. Enclose

backup_identifier

in single quotation marks

(

' '

Chapter 4

Storing Oracle Database Secrets

4-49

•

[TO | FROM [[LOCAL] AUTOLOGIN] KEYSTORE

specifies the location of the auto-login or

password keystore, which is set in the s

qlnet.ora

file.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if an auto-login keystore is open (and in use) or if the keystore is closed.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password for the keystore.

Related Topics

•Creating Custom TDE Master Encryption Key Attributes for Reports

Custom TDE master encryption key attributes enable you to defined attributes that

are specific to your needs.

Example: Adding an HSM Password to a Software Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET

statement can add an HSM password to a

software keystore.

Example 4-8 shows how to add a hardware security module (HSM) password as a

secret to a software keystore.

Example 4-8 Adding an Oracle Database Secret to a Software Keystore

ADMINISTER KEY MANAGEMENT

ADD SECRET 'psmith:password' FOR CLIENT 'HSM_PASSWORD'

USING TAG 'HSM credentials' FORCE KEYSTORE

IDENTIFIED BY password WITH BACKUP;

In this version, the keystore password is in an external store, so the

EXTERNAL STORE

setting is used for

IDENTIFIED BY

ADMINISTER KEY MANAGEMENT

ADD SECRET 'psmith:password' FOR CLIENT 'HSM_PASSWORD'

USING TAG 'HSM credentials' FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE WITH BACKUP;

Example: Changing an HSM Password Stored as a Secret in a

Software Keystore

The

ADMINISTER KEY MANAGEMENT UPDATE SECRET

statement can change an HSM

password that is stored as a secret in a software keystore.

Example 4-9 shows how to change an HSM password that is stored as a secret in a

software keystore.

Example 4-9 Changing an Oracle Database Secret to a Software Keystore

ADMINISTER KEY MANAGEMENT

UPDATE SECRET admin_password FOR CLIENT 'admin@myhost'

USING TAG 'new_host_credentials' FORCE KEYSTORE

IDENTIFIED BY software_keytore_password;

In this version, the password for the keystore is in an external store:

Chapter 4

Storing Oracle Database Secrets

4-50

DMINISTER KEY MANAGEMENT

UPDATE SECRET admin_password FOR CLIENT 'admin@myhost'

USING TAG 'new_host_credentials' FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

Example: Deleting an HSM Password Stored as a Secret in a

Software Keystore

The

ADMINISTER KEY MANAGEMENT DELETE SECRET

statement can delete HSM passwords

that are stored as secrets in a software keystore.

Example 4-10 shows how to delete an HSM password that is stored as a secret in the

software keystore.

Example 4-10 Deleting an Oracle Database Secret in a Software Keystore

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'HSM_PASSWORD'

FORCE KEYSTORE

IDENTIFIED BY password WITH BACKUP;

In this version, the password for the keystore is in an external store:

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'HSM_PASSWORD'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE WITH BACKUP;

Storage of Oracle Database Secrets in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements

can add, update, and delete secrets.

As with all

ADMINISTER KEY MANAGEMENT

statements, you must have the

ADMINISTER KEY

MANAGEMENT

or the

SYSKM

administrative privilege. When you add, update, or delete

secrets from a keystore that is in use or presently open, then you must run

ADMINISTER

KEY MANAGEMENT

in the root.

You can store Oracle Database secrets in both HSM and Oracle Key Vault hardware

keystores, but be aware that automatic logins do not work if you store the

HSM_PASSWORD

in a Key Vault keystore.

Note:

Before you attempt to add a secret to a hardware security module, ensure

that it has PKCS#11 data object support.

•Adding a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT ADD SECRET 'secret'

FOR CLIENT 'client_identifier' [USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials"

[WITH BACKUP [USING backup_id]];

Chapter 4

Storing Oracle Database Secrets

4-51

•Updating a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT UPDATE SECRET 'secret'

FOR CLIENT 'client_identifier' [USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials"

[WITH BACKUP [USING backup_id]];

•Deleting a secret: Use the following syntax:

ADMINISTER KEY MANAGEMENT DELETE SECRET

FOR CLIENT 'client_identifier'

[FROM [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials"

[WITH BACKUP [USING backup_id]];

In all of these statements, the specification as follows:

•

secret

is the client secret key to be stored, updated, or deleted. Enclose this

setting in double quotation marks (

' '

) or omit the quotation marks if the secret

has no spaces. To find information about existing secrets and their client

identifiers, query the

V$CLIENT_SECRETS

dynamic view.

•

client_identifier

is an alphanumeric string used to identify the secret key.

client_identifier

does not have a default value. Enclose this setting in single

quotation marks (' ').

•

tag

is an optional, user-defined description for the secret key to be stored. You can

use

tag

with the

ADD

and

UPDATE

operations. Enclose this setting in single quotation

marks (

' '

). This tag appears in the

SECRET_TAG

column of the

V$CLIENT_SECRETS

view.

•

[TO | FROM [[LOCAL] AUTOLOGIN] KEYSTORE

specifies the location of the keystore

used for the hardware keystore.

•

hardware_keystore_credentials

refers to the credentials for either an HSM or an

Oracle Key Vault hardware keystore. For an HSM, specify the credentials using

this format, enclosed in quotation marks and separating the components with a

colon:

“user_name:password”

, with

user_name

being the user who created the HSM

and password being this user’s password. For Oracle Key Vault, enter only the

password of the user who created the keystore. Enclose this password with

quotation marks.

Related Topics

•Creating Custom TDE Master Encryption Key Attributes for Reports

Custom TDE master encryption key attributes enable you to defined attributes that

are specific to your needs.

Example: Adding an Oracle Database Secret to a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT ADD SECRET

statement can add an Oracle Database

secret to a hardware keystore.

Example 4-11 shows how to add a password for a user to a hardware keystore.

Chapter 4

Storing Oracle Database Secrets

4-52

Example 4-11 Adding an Oracle Database Secret to a Hardware Keystore

ADMINISTER KEY MANAGEMENT ADD SECRET 'password'

FOR CLIENT 'admin@myhost' USING TAG 'myhost admin credentials'

IDENTIFIED BY "psmith:password";

In this version, the keystore password is in an external store, so the

EXTERNAL STORE

setting is used for

IDENTIFIED BY

ADMINISTER KEY MANAGEMENT ADD SECRET 'password'

FOR CLIENT 'admin@myhost' USING TAG 'myhost admin credentials'

IDENTIFIED BY EXTERNAL STORE;

Example: Changing an Oracle Database Secret in a Hardware

Keystore

The

ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET

statement can change an

Oracle Database secret in a hardware keystore.

Example 4-12 shows how to change a password that is stored as a secret in a

hardware keystore.

Example 4-12 Changing an Oracle Database Secret in a Hardware Keystore

ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET 'password2'

FOR CLIENT 'admin@myhost' USING TAG 'New host credentials'

IDENTIFIED BY "psmith:password";

In this version, the password for the keystore is in an external store:

ADMINISTER KEY MANAGEMENT MANAGEMENT UPDATE SECRET 'password2'

FOR CLIENT 'admin@myhost' USING TAG 'New host credentials'

IDENTIFIED BY EXTERNAL STORE;

Example: Deleting an Oracle Database Secret in a Hardware Keystore

The

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT

statement can delete an

Oracle Database secret that is in a hardware keystore.

Example 4-13 shows how to delete a hardware security module password that is

stored as a secret in the hardware keystore.

Example 4-13 Deleting an Oracle Database Secret in a Hardware Keystore

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT 'admin@myhost'

IDENTIFIED BY "psmith:password";

In this version, the password for the keystore is in an external store:

ADMINISTER KEY MANAGEMENT DELETE SECRET FOR CLIENT 'admin@myhost'

IDENTIFIED BY EXTERNAL STORE;

Configuring Auto-Login Hardware Security Modules

A hardware security module can be configured to use the auto-login capability.

Chapter 4

Storing Oracle Database Secrets

4-53

•About Configuring Auto-Login Hardware Security Modules

An auto-login hardware security module stores the hardware security module

credentials in an auto-login keystore.

•Configuring an Auto-Login Hardware Security Module

The

ADMINISTER KEY MANAGEMENT

statement configures an auto-login hardware

security module.

About Configuring Auto-Login Hardware Security Modules

An auto-login hardware security module stores the hardware security module

credentials in an auto-login keystore.

This configuration reduces the security of the system as a whole. However, this

configuration does support unmanned or automated operations and is useful in

deployments where automatic re-login of the hardware security module is necessary.

Be aware that executing the query

SELECT * FROM V$ENCRYPTION_WALLET

will

automatically open an auto-login hardware security module. For example, suppose

you have an auto-login hardware security module configured. If you close the keystore

and query the

V$ENCRYPTION_WALLET

view, then the output will indicate that a keystore is

open. This is because

V$ENCRYPTION_WALLET

opened up the auto-login hardware and

then displayed the status of the auto-login keystore.

To enable the auto-login capability for a hardware security module, you must store the

hardware security module credentials in the hardware keystore.

Configuring an Auto-Login Hardware Security Module

The

ADMINISTER KEY MANAGEMENT

statement configures an auto-login hardware security

module.

Before you begin this procedure, ensure that you have configured the TDE hardware

keystore. See Configuring a Hardware Keystore.

1. Reconfigure the

WALLET_ROOT

parameter in the

init.ora

file to include the keystore

location of the software keystore, if it is not already present.

The software keystore location may already be present if the you have previously

migrated to using HSM.

For example:

WALLET_ROOT=/etc/ORACLE/WALLETS/orcl

2. Add or update the secret in the software keystore.

The secret is the hardware security module password and the client is the

HSM_PASSWORD

is an Oracle-defined client name that is used to

represent the HSM password as a secret in the software keystore.

For example:

ADMINISTER KEY MANAGEMENT ADD SECRET 'user_name:password'

FOR CLIENT 'HSM_PASSWORD'

TO LOCAL AUTOLOGIN KEYSTORE software_keystore_location

WITH BACKUP;

In this example,

software_keystore_location

is the location of the software

keystore that you just defined.

Chapter 4

Storing Oracle Database Secrets

4-54

At this stage, the next time that a TDE operation executes, the hardware security

module auto-login keystore opens automatically.

Related Topics

•About the Keystore Location in the sqlnet.ora File

If you have not set the

WALLET_ROOT

parameter, then Oracle Database checks the

sqlnet.ora

file for the directory location of the keystore.

Storing Oracle GoldenGate Secrets in a Keystore

You can store Oracle GoldenGate secrets in Transparent Data Encryption keystores.

•About Storing Oracle GoldenGate Secrets in Keystores

You can use a keystore to store secret keys for tools and external clients such as

Oracle GoldenGate.

•Oracle GoldenGate Extract Classic Capture Mode TDE Requirements

Ensure that you meet the requirements for Oracle GoldenGate Extract to support

Transparent Data Encryption capture.

•Configuring Keystore Support for Oracle GoldenGate

You can configure Transparent Data Encryption keystore support for Oracle

GoldenGate by using a shared secret for the keystore.

About Storing Oracle GoldenGate Secrets in Keystores

You can use a keystore to store secret keys for tools and external clients such as

Oracle GoldenGate.

The secret key must be a string adhering to Oracle identifier rules. You can add,

update, or delete a client secret in an existing keystore. This section describes how to

capture Transparent Data Encryption encrypted data in the Oracle GoldenGate Extract

(Extract) process using classic capture mode.

TDE support when Extract is in classic capture mode requires the exchange of the

following keys:

•TDE support for Oracle GoldenGate in the classic capture mode of the Extract

process requires that an Oracle database and the Extract process share the secret

to encrypt sensitive information being exchanged. The shared secret is stored

securely in the Oracle database and Oracle GoldenGate domains. The shared

secret is stored in the software keystore or the HSM as the database secret.

•The decryption key is a password known as the shared secret that is stored

securely in the Oracle database and Oracle GoldenGate domains. Only a party

that has possession of the shared secret can decrypt the table and redo log keys.

After you configure the shared secret, Oracle GoldenGate Extract uses the shared

secret to decrypt the data. Oracle GoldenGate Extract does not handle the TDE

master encryption key itself, nor is it aware of the keystore password. The TDE master

encryption key and password remain within the Oracle database configuration.

Oracle GoldenGate Extract only writes the decrypted data to the Oracle GoldenGate

trail file, which Oracle GoldenGate persists during transit. You can protect this file

using your site's operating system standard security protocols, as well as the Oracle

GoldenGate AES encryption options. Oracle GoldenGate does not write the encrypted

Chapter 4

Storing Oracle GoldenGate Secrets in a Keystore

4-55

data to a discard file (specified with the

DISCARDFILE

parameter). The word

ENCRYPTED

will be written to any discard file that is in use.

Oracle GoldenGate does require that the keystore be open when processing

encrypted data. There is no performance effect of Oracle GoldenGate feature on the

TDE operations.

Oracle GoldenGate Extract Classic Capture Mode TDE Requirements

Ensure that you meet the requirements for Oracle GoldenGate Extract to support

Transparent Data Encryption capture.

The requirements are as follows:

•To maintain high security standards, ensure that the Oracle GoldenGate Extract

process runs as part of the Oracle user (the user that runs the Oracle database).

That way, the keys are protected in memory by the same privileges as the Oracle

user.

•Run the Oracle GoldenGate Extract process on the same computer as the Oracle

database installation.

Configuring Keystore Support for Oracle GoldenGate

You can configure Transparent Data Encryption keystore support for Oracle

GoldenGate by using a shared secret for the keystore.

•Step 1: Decide on a Shared Secret for the Keystore

A shared secret for a keystore is a password.

•Step 2: Configure Oracle Database for TDE Support for Oracle GoldenGate

The

DBMS_INTERNAL_CLKM

PL/SQL package enables you to configure TDE support

for Oracle GoldenGate.

•Step 3: Store the TDE GoldenGate Shared Secret in the Keystore

The

ADMINISTER KEY MANAGEMENT

statement can store a TDE GoldenGate shared

secret in a keystore.

•Step 4: Set the TDE Oracle GoldenGate Shared Secret in the Extract Process

The GoldenGate Software Command Interface (GGSCI) utility set the TDE Oracle

GoldenGate shared secret in the extract process.

Step 1: Decide on a Shared Secret for the Keystore

A shared secret for a keystore is a password.

•Decide on a shared secret that meets or exceeds Oracle Database password

standards.

Do not share this password with any user other than trusted administrators who are

responsible for configuring Transparent Data Encryption to work with Oracle

GoldenGate Extract.

Related Topics

•Oracle Database Security Guide

Chapter 4

Storing Oracle GoldenGate Secrets in a Keystore

4-56

Step 2: Configure Oracle Database for TDE Support for Oracle GoldenGate

The

DBMS_INTERNAL_CLKM

PL/SQL package enables you to configure TDE support for

Oracle GoldenGate.

1. Log in to the database instance as user

SYS

with the

SYSDBA

administrative

privilege.

For example

sqlplus sys as sysdba

Enter password: password

Connected.

2. Load the Oracle Database-supplied

DBMS_INTERNAL_CLKM

PL/SQL package.

For example:

@?/app/oracle/product/12.2/rdbms/admin/prvtclkm.plb

The

prvtclkm.plb

file also enables Oracle GoldenGate to extract encrypted data

from an Oracle database.

3. Grant the

EXECUTE

privilege on the

DBMS_INTERNAL_CLKM

PL/SQL package to the

Oracle GoldenGate Extract database user.

For example:

GRANT EXECUTE ON DBMS_INTERNAL_CLKM TO psmith;

This procedure enables the Oracle database and Oracle GoldenGate Extract to

exchange information.

4. Exit SQL*Plus.

Step 3: Store the TDE GoldenGate Shared Secret in the Keystore

The

ADMINISTER KEY MANAGEMENT

statement can store a TDE GoldenGate shared secret

in a keystore.

Before you begin this procedure, ensure that you have configured the TDE software or

hardware keystore, based on Configuring a Software Keystore and Configuring a

Hardware Keystore.

1. Set the Oracle GoldenGate-TDE key in the keystore by using the following syntax.

ADMINISTER KEY MANAGEMENT ADD|UPDATE|DELETE SECRET 'secret'

FOR CLIENT 'secret_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password [WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

secret

is the client secret key to be stored, updated, or deleted. Enclose this

setting in single quotation marks (

' '

•

secret_identifier

is an alphanumeric string used to identify the secret key.

secret_identifier

does not have a default value. Enclose this setting in single

quotation marks (

' '

•

tag

is an optional, user-defined description for the secret key to be stored.

tag

can be used with the

ADD

and

UPDATE

operations. Enclose this setting in single

quotation marks (

' '

). This tag appears in the

SECRET_TAG

column of the

Chapter 4

Storing Oracle GoldenGate Secrets in a Keystore

4-57

V$CLIENT_SECRETS

view. Creating Custom TDE Master Encryption Key

Attributes for Reports

•

keystore_password

is the password for the keystore that is configured.

•

WITH BACKUP

is required in case the keystore was not backed up before the

ADD

UPDATE

DELETE

operation.

backup_identifier

is an optional user-defined

description for the backup. Enclose

backup_identifier

in single quotation

marks (

' '

The following example adds a secret key to the keystore and creates a backup in

the same directory as the keystore:

ADMINISTER KEY MANAGEMENT ADD SECRET 'some_secret'

FOR CLIENT 'ORACLE_GG' USING TAG 'GoldenGate Secret'

IDENTIFIED BY password WITH BACKUP USING 'GG backup';

2. Verify the entry that you just created.

For example:

SELECT CLIENT, SECRET_TAG FROM V$CLIENT_SECRETS WHERE CLIENT = 'ORACLEGG';

CLIENT SECRET_TAG

-------- ------------------------------------------

ORACLEGG some_secret

3. Switch the log files.

CONNECT / AS SYSDBA

ALTER SYSTEM SWITCH LOGFILE;

See Also:

•Creating Custom TDE Master Encryption Key Attributes for Reports for

more information about tags

•Oracle Database Administrator’s Guide for more information about

switching log files

•How Transparent Data Encryption Works with Oracle Real Application

Clusters if you are having problems using this procedure in an Oracle

Real Application Clusters environment

Step 4: Set the TDE Oracle GoldenGate Shared Secret in the Extract Process

The GoldenGate Software Command Interface (GGSCI) utility set the TDE Oracle

GoldenGate shared secret in the extract process.

1. Start the GGSCI utility.

For example:

ggsci

2. In the GGSCI utility, run the

ENCRYPT PASSWORD

command to encrypt the shared

secret so that it is obfuscated within the Oracle GoldenGate Extract parameter file.

ENCRYPT PASSWORD shared_secret algorithm ENCRYPTKEY keyname

Chapter 4

Storing Oracle GoldenGate Secrets in a Keystore

4-58

In this specification:

•

shared_secret

is the clear-text shared secret that you created when you

decided on a shared secret for the keystore. This setting is case sensitive.

•

algorithm

is one of the following values to specify AES encryption:

–

AES128

–

AES192

–

AES256

•

keyname

is the logical name of the encryption key in the

ENCKEYS

lookup file.

Oracle GoldenGate uses this name to look up the actual key in the

ENCKEYS

file.

For example:

ENCRYPT PASSWORD password AES256 ENCRYPTKEY mykey1

3. In the Oracle GoldenGate Extract parameter file, set the

DBOPTIONS

parameter with

the

DECRYPTPASSWORD

option.

As input, supply the encrypted shared secret and the Oracle GoldenGate-

generated or user-defined decryption key.

DBOPTIONS DECRYPTPASSWORD shared_secret algorithm ENCRYPTKEY keyname

In this specification:

•

shared_secret

is the clear-text shared secret that you created when you

decided on a shared secret for the keystore. This setting is case sensitive.

•

algorithm

is one of the following values to specify AES encryption:

–

AES128

–

AES192

–

AES256

•

keyname

is the logical name of the encryption key in the

ENCKEYS

lookup file.

For example:

DBOPTIONS DECRYPTPASSWORD AACAAAAAAAAAAAIALCKDZIRHOJBHOJUH AES256 ENCRYPTKEY

mykey1

Related Topics

•Step 1: Decide on a Shared Secret for the Keystore

A shared secret for a keystore is a password.

Chapter 4

Storing Oracle GoldenGate Secrets in a Keystore

4-59

Managing Keystores and TDE Master

Encryption Keys in United Mode

United mode enables you to create a common keystore for the CDB and the PDBs for

which the keystore is in united mode.

The keys for the CDB and the PDBs reside in the common keystore.

•About Managing Keystores and TDE Master Encryption Keys in United Mode

In united mode, you create the keystore and TDE master encryption key for CDB

and PDBs that reside in the same keystore.

•Operations That Are Allowed in United Mode

Many

ADMINISTER KEY MANAGEMENT

operations performed in the CDB root apply to

keystores and encryption keys in the united mode PDB.

•Operations That Are Not Allowed in a United Mode PDB

ADMINISTER KEY MANAGEMENT

operations that are not allowed in a united mode PDB

can be performed in the CDB root.

•Configuring the Keystore Location and Type for United Mode

For united mode, you can configure the keystore location and type by using only

parameters or a combination of parameters and the

ALTER SYSTEM

statement.

•Configuring a Software Keystore for Use in United Mode

In united mode, the software keystore resides in the CDB root but the master keys

from this keystore are available for the PDBs that have their keystore in united

mode.

•Configuring a Hardware Keystore in United Mode

In united mode, a hardware keystore resides in a hardware security module

(HSM), which is designed to store encryption keys.

•Administering Keystores and TDE Master Encryption Keys in United Mode

After you configure a keystore and master encryption key for use in united mode,

you can perform tasks such as rekeying TDE master encryption keys.

•Administering Transparent Data Encryption in United Mode

You can perform general administrative tasks with Transparent Data Encryption in

united mode.

About Managing Keystores and TDE Master Encryption

Keys in United Mode

In united mode, you create the keystore and TDE master encryption key for CDB and

PDBs that reside in the same keystore.

The keys for PDBs having keystore in united mode, can be created from CDB root or

from the PDB.

5-1

This design enables you to have one keystore to manage the entire CDB environment,

enabling the PDBs to share this keystore, but you can customize the behavior of this

keystore in the individual united mode PDBs. For example, in a united mode PDB, you

can configure a TDE master encryption key for the PDB in the united keystore that you

created in the CDB root, open the keystore locally, and close the keystore locally. In

order to perform these actions, the keystore in the CDB root must be open.

Before you configure your environment to use united mode or isolated mode, all the

PDBs in the CDB environment are considered to be in united mode.

To use united mode, you must follow these general steps:

1. In the CDB root, configure the database to use united mode by setting the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters.

The

WALLET_ROOT

parameter sets the location for the wallet directory and the

TDE_CONFIGURATION

parameter sets the type of keystore to use.

2. Restart the database so that these settings take effect.

3. In the CDB root, create the keystore, open the keystore, and then create the TDE

master encryption key.

4. In each united mode PDB, perform TDE master encryption key tasks as needed,

such as opening the keystore locally in the united mode PDB and creating the

TDE master encryption key for the PDB. Remember that the keystore is managed

by the CDB root, but must contain a TDE master encryption key that is specific to

the PDB for the PDB to be able to use TDE.

When you run

ADMINISTER KEY MANAGEMENT

statements in united mode from the CDB

root, if the statement accepts the

CONTAINER

clause, and if you set it to

ALL

, then the

statement applies only to the CDB root and its associated united mode PDBs. Any

PDB that is in isolated mode is not affected.

Operations That Are Allowed in United Mode

Many

ADMINISTER KEY MANAGEMENT

operations performed in the CDB root apply to

keystores and encryption keys in the united mode PDB.

Available United Mode-Related Operations in a CDB Root

Table 5-1 describes the

ADMINISTER KEY MANAGEMENT

operations that you can perform in

the CDB root.

Table 5-1 ADMINISTER KEY MANAGEMENT United Mode Operations in a CDB

Root

Operation Syntax United Mode Notes

Creating a keystore

ADMINISTER KEY MANAGEMENT

CREATE KEYSTORE

['keystore_location']

IDENTIFIED BY keystore_password;

After you create the keystore in

the CDB root, by default it is

available in the united mode

PDBs. Do not include the

CONTAINER

clause.

Chapter 5

Operations That Are Allowed in United Mode

5-2

Table 5-1 (Cont.) ADMINISTER KEY MANAGEMENT United Mode Operations in

a CDB Root

Operation Syntax United Mode Notes

Opening a keystore

ADMINISTER KEY MANAGEMENT

SET KEYSTORE OPEN

IDENTIFIED BY

[EXTERNAL STORE | keystore_password]

[CONTAINER = ALL | CURRENT];

In this operation, the

EXTERNAL

STORE

clause uses the

password in the SSO wallet

located in the

tde_seps

directory under the per-PDB

WALLET_ROOT

location.

Changing a

keystore password

ADMINISTER KEY MANAGEMENT

ALTER KEYSTORE PASSWORD

IDENTIFIED BY old_keystore_password

SET new_keystore_passwordWITH

BACKUP

[USING 'backup_identifier'];

Do not include the

CONTAINER

clause.

Backing up a

keystore

ADMINISTER KEY MANAGEMENT

BACKUP KEYSTORE

[USING 'backup_identifier']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE |

keystore_password]

[TO 'keystore_location'];

Do not include the

CONTAINER

clause.

Closing a keystore

without force

ADMINISTER KEY MANAGEMENT

SET KEYSTORE CLOSE

[IDENTIFIED BY [EXTERNAL STORE |

keystore_password]]

[CONTAINER = ALL | CURRENT];

If an isolated mode PDB

keystore is open, then this

statement raises an

ORA-46692

cannot close wallet

error.

Closing a keystore

with force

ADMINISTER KEY MANAGEMENT

FORCE KEYSTORE CLOSE

[IDENTIFIED BY [EXTERNAL STORE |

keystore_password]]

[CONTAINER = ALL | CURRENT];

This operation allows the

keystore to be closed in the

CDB root when an isolated

keystore is open.

Creating and

activating a new

TDE master

encryption key

(rekeying)

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE |

keystore_password]

[WITH BACKUP

[USING 'backup_identifier']]

[CONTAINER = ALL | CURRENT]

Chapter 5

Operations That Are Allowed in United Mode

5-3

Table 5-1 (Cont.) ADMINISTER KEY MANAGEMENT United Mode Operations in

a CDB Root

Operation Syntax United Mode Notes

Creating a user-

defined TDE

master encryption

key for either now

(

SET

) or later on

(

CREATE

)

ADMINISTER KEY MANAGEMENT [SET |

CREATE] [ENCRYPTION] KEY

'mkid:mk | mk'

[USING ALGORITHM 'algorithm']

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE |

keystore_password]

[WITH BACKUP [USING

'backup_identifier']]

[CONTAINER = CURRENT];

Activating an

existing TDE

master encryption

key

ADMINISTER KEY MANAGEMENT

USE [ENCRYPTION] KEY 'key_id

[USING TAG 'tag']

IDENTIFIED BY [EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Do not include the

CONTAINER

clause.

Tagging a TDE

master encryption

key

ADMINISTER KEY MANAGEMENT

SET TAG 'tag' FOR 'key_id'

IDENTIFIED BY [EXTERNAL STORE |

keystore_password ]

WITH BACKUP

[USING 'backup_identifier'];

Do not include the

CONTAINER

clause.

Moving a TDE

master encryption

key to a new

keystore

ADMINISTER KEY MANAGEMENT

MOVE [ENCRYPTION] KEYS

TO NEW KEYSTORE 'keystore_location1'

IDENTIFIED BY keystore1_password

FROM [FORCE] KEYSTORE

IDENTIFIED BY keystore_password

[WITH IDENTIFIER IN

{ 'key_id' [, 'key_id' ]... |

( subquery ) } ]

[WITH BACKUP

[USING 'backup_identifier'];

You can only move the master

encryption key to a keystore

that is within the same

container (for example,

between keystores in the CDB

root or between keystores in

the same PDB). You cannot

move the master encryption

key from a keystore in the CDB

root to a keystore in a PDB,

and vice versa.

Do not include the

CONTAINER

clause.

Available Operations in a United Mode PDB

Table 5-2 describes the

ADMINISTER KEY MANAGEMENT

operations that you can perform in

a united mode PDB.

Chapter 5

Operations That Are Allowed in United Mode

5-4

Table 5-2 ADMINISTER KEY MANAGEMENT United Mode PDB Operations

Operation Syntax United Mode Notes

Opening a keystore

ADMINISTER KEY MANAGEMENT

SET KEYSTORE OPEN

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

[CONTAINER = CURRENT];

In this operation, the

EXTERNAL_STORE

clause uses

the password in the Secure

Sockets Layer (SSL) wallet.

This wallet is located in the

tde_seps

directory in the

WALLET_ROOT

location.

Closing a keystore without

force

ADMINISTER KEY MANAGEMENT

SET KEYSTORE CLOSE

[IDENTIFIED BY

keystore_password]

[CONTAINER = CURRENT];

Closing a keystore with force

ADMINISTER KEY MANAGEMENT

FORCE KEYSTORE CLOSE

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

[CONTAINER = CURRENT];

Creating and activating a new

TDE master encryption key

(rekeying or rotating)

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL

STORE | keystore_password]

[WITH BACKUP

[USING

'backup_identifier']]

[CONTAINER = CURRENT];

Creating a user-defined TDE

master encryption key for use

either now (

SET

) or later on

(

CREATE

)

ADMINISTER KEY MANAGEMENT

SET | CREATE [ENCRYPTION]

KEY

'mkid:mk | mk'

[USING ALGORITHM

'algorithm']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL

STORE | keystore_password]

[WITH BACKUP [USING

'backup_identifier']]

[CONTAINER = CURRENT];

Chapter 5

Operations That Are Allowed in United Mode

5-5

Table 5-2 (Cont.) ADMINISTER KEY MANAGEMENT United Mode PDB

Operations

Operation Syntax United Mode Notes

Activating an existing TDE

master encryption key

ADMINISTER KEY MANAGEMENT

USE [ENCRYPTION] KEY

'key_id'

[USING TAG 'tag']

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

[WITH BACKUP

[USING

'backup_identifier']];

Do not include the

CONTAINER

clause.

Tagging a TDE master

encryption key

ADMINISTER KEY MANAGEMENT

SET TAG 'tag' FOR 'key_id'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL

STORE | keystore_password]

[WITH BACKUP

[USING

'backup_identifier']];

Do not include the

CONTAINER

clause.

Moving an encryption key to a

new keystore

ADMINISTER KEY MANAGEMENT

MOVE [ENCRYPTION] KEYS

TO NEW KEYSTORE

'keystore_location1'

IDENTIFIED BY

keystore1_password

FROM [FORCE] KEYSTORE

IDENTIFIED BY

keystore_password

[WITH IDENTIFIER IN

{ 'key_id' [,

'key_id' ]... |

( subquery ) } ]

[WITH BACKUP

[USING

'backup_identifier']];

Do not include the

CONTAINER

clause.

Moving a key from a united

mode keystore in the CDB

root to an isolated mode

keystore in a PDB

ADMINISTER KEY MANAGEMENT

ISOLATE KEYSTORE

IDENTIFIED BY

isolated_keystore_password

FROM ROOT KEYSTORE

[FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE |

united_keystore_password]

[WITH BACKUP [USING

backup_id]];

Do not include the

CONTAINER

clause.

Chapter 5

Operations That Are Allowed in United Mode

5-6

Table 5-2 (Cont.) ADMINISTER KEY MANAGEMENT United Mode PDB

Operations

Operation Syntax United Mode Notes

Using the

FORCE

clause when

a clone of a PDB is using the

TDE master encryption key

that is being isolated; then

coping (rather than moving)

the TDE master encryption

keys from the keystore that is

in the CDB root into the

isolated mode keystore of the

PDB

ADMINISTER KEY MANAGEMENT

[FORCE] ISOLATE KEYSTORE

IDENTIFIED BY

isolated_keystore_password

FROM ROOT KEYSTORE

[FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE |

united_keystore_password]

[WITH BACKUP [USING

backup_id]];

Operations That Are Not Allowed in a United Mode PDB

ADMINISTER KEY MANAGEMENT

operations that are not allowed in a united mode PDB can

be performed in the CDB root.

These operations are as follows:

•Keystore operations:

–Performing merge operations on keystores

–Exporting a keystore

–Importing a keystore

–Migrating a keystore

–Reverse-migrating a keystore

–Moving the keys of a keystore that is in the CDB root into the keystores of a

PDB

–Moving the keys from a PDB into a united mode keystore that is in the CDB

root

•Encryption key operations:

–Using the

CONTAINER = ALL

clause to create a new TDE master encryption key

for later user in each pluggable database (PDB)

•Client secret operations:

–Adding client secrets

–Updating client secrets

–Deleting client secrets

Chapter 5

Operations That Are Not Allowed in a United Mode PDB

5-7

Configuring the Keystore Location and Type for United

Mode

For united mode, you can configure the keystore location and type by using only

parameters or a combination of parameters and the

ALTER SYSTEM

statement.

•Configuring United Mode by Editing the Initialization Parameter File

You can configure united mode by setting both the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters in the initialization parameter file.

•Configuring United Mode with the Initialization Parameter File and ALTER

SYSTEM

If your environment relies on server parameter files (spfile) or parameter files

(pfile), then you can set

TDE_CONFIGURATION

using

ALTER SYSTEM

with

SCOPE

Configuring United Mode by Editing the Initialization Parameter File

You can configure united mode by setting both the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters in the initialization parameter file.

1. Log in to the server where the CDB root of the Oracle database resides.

2. If necessary, create a wallet directory.

Typically, the wallet directory is located in the

$ORACLE_BASE/admin/db_unique_name

directory, and it is named

wallet

. Preferably, this directory should be empty.

3. Edit the initialization parameter file, which by default is located in

the

$ORACLE_HOME/dbs

directory, to include the following parameters:

•

WALLET_ROOT

, to point to the location of the wallet directory.

For example, for a database named

orcl

wallet_root=$ORACLE_BASE/admin/orcl/wallet

•

TDE_CONFIGURATION

, to specify one of the following keystore types:

–

FILE

specifies a software keystore.

–

OKV

specifies an Oracle Key Vault keystore.

–

HSM

specifies a hardware security module (HSM) keystore.

For example, to specify the TDE keystore type:

tde_configuration="keystore_configuration=file"

4. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

5. Check the configuration settings.

•For the

WALLET_ROOT

parameter:

SHOW PARAMETER WALLET_ROOT

Chapter 5

Configuring the Keystore Location and Type for United Mode

5-8

The

VALUE

column of the output should show the absolute path location of the

wallet

directory.

•For the

TDE_CONFIGURATION

parameter:

SHOW PARAMETER TDE_CONFIGURATION

The

VALUE

column should show the keystore type, prepended with

KEYSTORE_CONFIGURATION=

If the values do not appear, then try restarting your database with the

STARTUP

command pointing to the location of the initialization parameter file where you

added these settings. For example:

STARTUP PFILE = /u01/oracle/dbs/init.ora

6. Confirm that the

TDE_CONFIGURATION

parameter was set correctly.

SELECT CON_ID, KEYSTORE_MODE FROM V$ENCRYPTION_WALLET;

The output should be similar to the following:

CON_ID KEYSTORE

---------- --------

1 NONE

2 UNITED

3 UNITED

4 UNITED

5 UNITED

The CDB root (

CON_ID 1

) will always be in the

NONE

state, and at this stage, the

remaining

CON_ID

s should be set to

UNITED

. PDBs can be either

UNITED

ISOLATED

depending on how you configure them. When you query the

V$ENCRYPTION_WALLET

view, if the

ORA-46691: The value of the KEYSTORE_CONFIGURATION attribute is

invalid

error appears, then check the initialization parameter file where you added

this setting.

After you configure united mode, you can create keystores and master encryption

keys, and when these are configured, you can encrypt data.

Configuring United Mode with the Initialization Parameter File and

ALTER SYSTEM

If your environment relies on server parameter files (spfile) or parameter files (pfile),

then you can set

TDE_CONFIGURATION

using

ALTER SYSTEM

with

SCOPE

With this method, you still set the

WALLET_ROOT

static initialization parameter in the

initialization parameter file.

1. Log in to the server where the CDB root of the Oracle database resides.

2. If necessary, create a wallet directory.

Typically, the wallet directory is located in the

$ORACLE_BASE/admin/db_unique_name

directory, and it is named

wallet

. Preferably, this directory should be empty.

3. Edit the initialization parameter file to include the

WALLET_ROOT

static initialization

parameter for the wallet directory.

By default, the initialization parameter file is located in the

$ORACLE_HOME/dbs

directory.

Chapter 5

Configuring the Keystore Location and Type for United Mode

5-9

For example, for a database instance named

orcl

wallet_root=$ORACLE_BASE/admin/orcl/wallet

4. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin as syskm

Enter password: password

5. Restart the database.

SHUTDOWN IMMEDIATE

STARTUP

To start the database by pointing to the location of the initialization file where you

added the

WALLET_ROOT

setting, issue a

STARTUP

command similar to the following:

STARTUP PFILE = /u01/oracle/dbs/init.ora

6. Check the

WALLET_ROOT

setting.

SHOW PARAMETER WALLET_ROOT

The

VALUE

column of the output should show the absolute path location of the

wallet

directory.

7. Set the

TDE_CONFIGURATION

dynamic initialization parameter to specify the keystore

type, using the following syntax:

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=keystore_type"

SCOPE=scope_type;

In this specification:

•

keystore_type

can be one of the following settings for united mode:

–

FILE

configures a TDE keystore.

–

OKV

configures an Oracle Key Vault keystore.

–

HSM

configures a hardware security module (HSM) keystore.

•

scope_type

sets the type of scope (for example,

both

memory

spfile

pfile

For example, to configure a TDE keystore if the parameter file (

pfile

) is in use, set

scope

memory

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE"

SCOPE=memory;

To configure a TDE keystore if the server parameter file (

spfile

) is in use, set

scope to

both

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE"

SCOPE=both;

8. Check the

TDE_CONFIGURATION

parameter setting.

SHOW PARAMETER TDE_CONFIGURATION

The

VALUE

column should show the keystore type, prepended with

KEYSTORE_CONFIGURATION=

Chapter 5

Configuring the Keystore Location and Type for United Mode

5-10

9. Confirm that the

TDE_CONFIGURATION

parameter was set correctly.

SELECT CON_ID, KEYSTORE_MODE FROM V$ENCRYPTION_WALLET;

The output should be similar to the following:

CON_ID KEYSTORE

---------- --------

1 NONE

2 UNITED

3 UNITED

4 UNITED

5 UNITED

The CDB root (

CON_ID 1

) will always be in the

NONE

state, and at this stage, the

remaining

CON_ID

s should be set to

UNITED

. PDBs can be either

UNITED

ISOLATED

depending on how you configure them. When you query the

V$ENCRYPTION_WALLET

view, if the

ORA-46691: The value of the KEYSTORE_CONFIGURATION attribute is

invalid

error appears, then check the initialization parameter file where you added

this setting.

After you configure united mode, you can create keystores and master encryption

keys, and when these are configured, you can encrypt data.

Configuring a Software Keystore for Use in United Mode

In united mode, the software keystore resides in the CDB root but the master keys

from this keystore are available for the PDBs that have their keystore in united mode.

•About Configuring a Software Keystore in United Mode

In united mode, the keystore that you create in the CDB root will be accessible by

the united mode PDBs.

•Step 1: Create the Software Keystore

In united mode, you must create the keystore in the CDB root.

•Step 2: Open the Software Keystore in a United Mode PDB

To open a software keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Step 3: Set the TDE Master Encryption Key in the Software Keystore in United

Mode

To set the TDE master encryption key in the keystore when the PDB is configured

in united mode, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

•Step 4: Encrypt Your Data in United Mode

Now that you have completed the keystore configuration and the PDB is

configured in united mode, you can begin to encrypt data in the PDB.

About Configuring a Software Keystore in United Mode

In united mode, the keystore that you create in the CDB root will be accessible by the

united mode PDBs.

In general, to configure a united mode software keystore after you have enabled

united mode, you create and open the keystore in the CDB root, and then create a

master encryption key for this keystore. Afterward, you can begin to encrypt data for

tables and tablespaces that will be accessible throughout the CDB environment.

Chapter 5

Configuring a Software Keystore for Use in United Mode

5-11

The

V$ENCRYPTION_WALLET

dynamic view describes the status and location of the

keystore. For example, the following query shows the open-closed status and the

keystore location of the CDB root keystore (

CON_ID 1

) and its associated united mode

PDBs. The

WRL_PARAMETER

column shows the CDB root keystore location being in

the

$ORACLE_BASE/wallet/tde

directory.

SELECT CON_ID, STATUS, WRL_PARAMETER FROM V$ENCRYPTION_WALLET;

CON_ID STATUS WRL_PARAMETER

------ ------ -----------------------------

1 OPEN /app/oracle/wallet/tde/

2 CLOSED

3 OPEN

4 OPEN

5 OPEN

In this output, there is no keystore path listed for the other PDBs in this CDB because

these PDBs use the keystore in the CDB root. If any of these PDBs are isolated and

you create a keystore in the isolated mode PDB, then when you perform this query,

the

WRL_PARAMETER

column will show the keystore path for the isolated mode PDB.

You can create a secure external store for the software keystore. This feature enables

you to hide the password from the operating system: it removes the need for storing

clear-text keystore passwords in scripts or other tools that can access the database

without user intervention, such as overnight batch scripts. The location for this

keystore is set by the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

initialization parameter.

In a multitenant environment, different PDBs can access this external store location

when you run the

ADMINISTER KEY MANAGEMENT

statement using the

IDENTIFIED BY

EXTERNAL STORE

clause. This way, you can centrally locate the password and then

update it only once in the external store.

Step 1: Create the Software Keystore

In united mode, you must create the keystore in the CDB root.

After you create this keystore in the CDB root, it becomes available in any united

mode PDB, but not in any isolated mode PDBs.

1. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus c##sec_admin as syskm

Enter password: password

2. Run the

ADMINISTER KEY MANAGEMENT

SQL statement to create the keystore using the

following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

['keystore_location']

IDENTIFIED BY software_keystore_password;

In this specification:

•

keystore_location

is the path to the keystore directory location of the

password-protected keystore for which you want to create the auto-login

keystore. If the path that is set by the

WALLET_ROOT

parameter is the path that

you want to use, then you can omit the

keystore_location

setting.

Chapter 5

Configuring a Software Keystore for Use in United Mode

5-12

If you specify the

keystore_location

, then enclose it in single quotation marks

(

' '

). To find the default location, you can query the

WRL_PARAMETER

column of

the

V$ENCRYPTION_WALLET

view. (If the keystore was not created in the default

location, then the

STATUS

column of the

V$ENCRYPTION_WALLET

view is

NOT_AVAILABLE

•

software_keystore_password

is the password of the keystore that you, the

security administrator, creates.

For example, to create the keystore in the default location, assuming that

WALLET_ROOT

has been set:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

IDENTIFIED BY password;

keystore altered.

After you complete these steps, the

ewallet.p12

file, which contains the keystore,

appears in the designated keystore location. For example, if you had set the

WALLET_ROOT

parameter to

$ORACLE_BASE/wallet

and the

TDE_CONFIGURATION

parameter to

FILE

(for TDE, which creates a

tde

directory in the wallet root location), then the

keystore will be created in the

$ORACLE_BASE/wallet/tde

directory. The name of the

keystore is

ewallet.p12

Related Topics

•Configuring an External Store for a Keystore Password

An external store for a keystore password stores the keystore password in a

centrally accessed and managed location.

Step 2: Open the Software Keystore in a United Mode PDB

To open a software keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

1. Log in to the CDB root as a common user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus c##sec_admin as syskm

Enter password: password

2. Open the keystore in the CDB root.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

keystore altered.

If the database instance is configured using the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

instance initialization parameter and has a

keystore at that location containing the credentials of the password-protected

keystore, and you want to switch over from using an auto-login keystore to using

the password-protected keystore with these credentials, you must include the

FORCE KEYSTORE

clause and the

IDENTIFIED BY EXTERNAL STORE

clause in the

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

statement, as follows:

Chapter 5

Configuring a Software Keystore for Use in United Mode

5-13

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

keystore altered.

If the

WALLET_ROOT

parameter has been set, then Oracle Database finds the

external store by searching in this path in the CDB root:

WALLET_ROOT/tde_seps

3. Ensure that the PDB in which you want to open the keystore is in

READ WRITE

mode.

For example:

SHOW PDBS

CON_ID CON_NAME OPEN MODE RESTRICTED

------ ---------- ------------ -----------

2 PDB$SEED READ ONLY NO

3 CDB1_PDB1 READ WRITE NO

If any PDB has an

OPEN MODE

value that is different from

READ WRITE

, then run the

following statement to open the PDB, which will set it to

READ WRITE

mode:

ALTER PLUGGABLE DATABASE CDB1_PDB1 OPEN;

Now the keystore can be opened in both the CDB root and the PDB.

4. Connect to the PDB.

5. Run the

ADMINISTER KEY MANAGEMENT

statement to open the keystore.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

keystore altered.

To switch over to opening the password-protected software keystore when an

auto-login keystore is configured and is currently open, specify the

FORCE KEYSTORE

clause as follows.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

keystore altered.

FORCE KEYSTORE

is also useful for databases that are heavily loaded. The

IDENTIFIED

BY EXTERNAL STORE

clause is included in the statement because the keystore

credentials exist in an external store. This enables the password-protected

keystore to be opened without specifying the keystore password within the

statement itself.

If the

WALLET_ROOT

parameter has been set, then Oracle Database finds the

external store by searching in this path:

WALLET_ROOT/PDB_GUID/tde_seps

6. Confirm that the keystore is open.

SELECT STATUS FROM V$ENCRYPTION_WALLET;

Related Topics

•About Opening Software Keystores

A password-protected software keystore must be open before any TDE master

encryption keys can be created or accessed in the keystore.

Chapter 5

Configuring a Software Keystore for Use in United Mode

5-14

Step 3: Set the TDE Master Encryption Key in the Software Keystore

in United Mode

To set the TDE master encryption key in the keystore when the PDB is configured in

united mode, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

1. Log in to the CDB root or to the PDB that is configured for united mode as a user

who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Ensure that the database is open in

READ WRITE

mode.

To find the status, run the

show pdbs

command.

3. Run the

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

statement to create or

rekey the TDE master encryption key in the keystore.

For example, if the keystore is password-protected and open, and you want to

create or rekey the TDE master encryption key in the current container:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

keystore altered.

If the keystore is closed:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

keystore altered.

In this specification:

•

FORCE KEYSTORE

should be included if the keystore is closed. This automatically

opens the keystore before setting the TDE master encryption key. The

FORCE

KEYSTORE

clause also switches over to opening the password-protected

software keystore when an auto-login keystore is configured and is currently

open.

•

IDENTIFIED BY

specifies the keystore password. Alternatively, if the keystore

password is in an external store, you can use the

IDENTIFIED BY EXTERNAL

STORE

clause.

4. Confirm that the TDE master encryption key is set.

SELECT MASTERKEY_ACTIVATED FROM V$DATABASE_KEY_INFO;

The output should be

YES

Related Topics

•About Setting the Software Keystore TDE Master Encryption Key

The TDE master encryption key is stored in the keystore.

Chapter 5

Configuring a Software Keystore for Use in United Mode

5-15

Step 4: Encrypt Your Data in United Mode

Now that you have completed the keystore configuration and the PDB is configured in

united mode, you can begin to encrypt data in the PDB.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Configuring a Hardware Keystore in United Mode

In united mode, a hardware keystore resides in a hardware security module (HSM),

which is designed to store encryption keys.

•About Configuring a Hardware Keystore in United Mode

You must create a hardware keystore in a PDB using isolated mode but you can

perform other tasks in united mode.

•Step 1: Configure the United Mode Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions

•Step 2: Open the Hardware Keystore in a United Mode PDB

To open a hardware keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Step 3: Set the TDE Master Encryption Key in the Hardware Keystore in United

Mode

To set the TDE master encryption key in the keystore when the PDB is configured

in united mode, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

•Step 4: Encrypt Your Data in United Mode

Now that you have completed the keystore configuration and the PDB is

configured in united mode, you can begin to encrypt data in the PDB.

About Configuring a Hardware Keystore in United Mode

You must create a hardware keystore in a PDB using isolated mode but you can

perform other tasks in united mode.

To configure a hardware keystore for a PDB in isolated mode, you first must set the

WALLET_ROOT

parameter. This is necessary for two reasons: first, to have support for

migrating to a software keystore in the future, and second, because the configuration

file for Oracle Key Vault is retrieved from a location under

WALLET_ROOT

. Afterwards, you

must set the

KEYSTORE_CONFIGURATION

attribute of the

TDE_CONFIGURATION

parameter to

HSM

OKV

, open the configured hardware keystore, and then set the TDE master

encryption key for the PDB. After you complete these tasks, you can begin to encrypt

data in the PDB.

Chapter 5

Configuring a Hardware Keystore in United Mode

5-16

How you specify the

IDENTIFIED BY

clause when you run the

ADMINISTER KEY MANAGEMENT

statement depends on the type of hardware keystore. For a hardware security module

(

HSM

), you use the following syntax:

IDENTIFIED BY "user_name:password"

For an Oracle Key Vault keystore, you can omit the

user_name

and colon (but keep the

quotation marks):

IDENTIFIED BY "password"

Step 1: Configure the United Mode Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions

Related Topics

•Step 2: Configure the Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions.

Step 2: Open the Hardware Keystore in a United Mode PDB

To open a hardware keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

1. Log in to the CDB root as a common user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus c##sec_admin as syskm

Enter password: password

2. Open the keystore in the CDB root by using the following syntax.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "hardware_keystore_credentials";

The type of hardware keystore determines how you specify the hardware keystore

password. For hardware security modules, you must use the

user_name:password

syntax. For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:password";

keystore altered.

For an Oracle Key Vault keystore, you can only provide the password. No user

name is allowed in the

IDENTIFIED BY

clause. Enclose the password in double

quotation marks.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "password";

3. Ensure that the PDB in which you want to open the keystore is in

READ WRITE

mode.

For example:

Chapter 5

Configuring a Hardware Keystore in United Mode

5-17

SHOW PDBS

CON_ID CON_NAME OPEN MODE RESTRICTED

------ ---------- ------------ -----------

2 PDB$SEED READ ONLY NO

3 CDB1_PDB1 READ WRITE NO

If any PDB has an

OPEN MODE

value that is different from

READ WRITE

, then run the

following statement to open the PDB, which will set it to

READ WRITE

mode:

ALTER PLUGGABLE DATABASE CDB1_PDB1 OPEN;

Now the keystore can be opened in both the CDB root and the PDB.

4. Connect to the PDB and run the

ADMINISTER KEY MANAGEMENT

statement to open the

keystore.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:password";

keystore altered.

You can include the

FORCE KEYSTORE

clause if there is a chance that the CDB root

keystore has been closed, or the database is heavily loaded.

5. Confirm that the keystore is open.

SELECT STATUS FROM V$ENCRYPTION_WALLET;

6. Repeat this procedure each time you restart the database instance.

Related Topics

•About Opening Hardware Keystores

You must open the hardware keystore so that it is accessible to the database

before you can perform any encryption or decryption.

Step 3: Set the TDE Master Encryption Key in the Hardware Keystore

in United Mode

To set the TDE master encryption key in the keystore when the PDB is configured in

united mode, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

1. Log in to the CDB root or to the PDB that is configured for united mode as a user

who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Ensure that the database is open in

READ WRITE

mode.

To find the status, run the

SHOW PDBS

command.

3. Run the

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

statement to create or

rekey the TDE master encryption key in the keystore.

ADMINISTER KEY MANAGEMENT SET KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"];

In this specification:

Chapter 5

Configuring a Hardware Keystore in United Mode

5-18

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

hardware_keystore_credentials

refers to the credentials for either an HSM or

an Oracle Key Vault hardware keystore. For an HSM, specify the credentials

using this format, enclosed in quotation marks and separating the components

with a colon:

“user_name:password”

, with

user_name

being the user who created

the HSM and password being this user’s password. For Oracle Key Vault,

enter only the password of the user who created the keystore. Enclose this

password with quotation marks.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY "psmith:password";

keystore altered.

4. Confirm that the TDE master encryption key is set.

SELECT MASTERKEY_ACTIVATED FROM V$DATABASE_KEY_INFO;

The output should be

YES

Related Topics

•About Setting the Hardware Keystore TDE Master Encryption Key

You must create a TDE master encryption key that is stored inside the hardware

keystore.

Step 4: Encrypt Your Data in United Mode

Now that you have completed the keystore configuration and the PDB is configured in

united mode, you can begin to encrypt data in the PDB.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Administering Keystores and TDE Master Encryption Keys

in United Mode

After you configure a keystore and master encryption key for use in united mode, you

can perform tasks such as rekeying TDE master encryption keys.

•Changing the Keystore Password in United Mode

You can change the password of either a software keystore or a hardware

keystores only in the CDB root.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-19

•Backing Up a Password-Protected Software Keystore in United Mode

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

•Closing Keystores in United Mode

You can close both software and hardware keystores in united mode, unless the

system tablespace is encrypted.

•Creating a User-Defined TDE Master Encryption Key in United Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

•Example: Creating a Master Encryption Key in All PDBs

You can use the

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

statement to

create a TDE master encryption key in all PDBs.

•Creating a TDE Master Encryption Key for Later Use in United Mode

A keystore must be opened before you can create a TDE master encryption key

for use later on in united mode.

•Activating a TDE Master Encryption Key in United Mode

To activate a TDE master encryption key in united mode, you must open the

keystore and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

•Rekeying the TDE Master Encryption Key in United Mode

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause to

rekey a TDE master encryption key.

•Finding the TDE Master Encryption Key That Is in Use in United Mode

A TDE master encryption key that is in use is the key that was activated most

recently for the database.

•Creating a Custom Attribute Tag in United Mode

To create a custom attribute tag in united mode, you must use the

SET TAG

clause

of the

ADMINISTER KEY MANAGEMENT

statement.

•Moving a TDE Master Encryption Key into a New Keystore in United Mode

In united mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

•Automatically Removing Inactive TDE Master Encryption Keys in United Mode

In united mode, the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization

parameter can configure the automatic removal of inactive TDE master encryption

keys.

•Isolating a Pluggable Database Keystore

Isolating a PDB keystore moves the master encryption key from the CDB root

keystore into an isolated mode keystore in the a PDB.

Changing the Keystore Password in United Mode

You can change the password of either a software keystore or a hardware keystores

only in the CDB root.

•Changing the Password-Protected Software Keystore Password in United Mode

To change the password of a password-protected software keystore in united

mode, you must use the

ADMINISTER KEY MANAGEMENT

statement in the CDB root.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-20

•Changing the Password of a Hardware Keystore in United Mode

To change the password of a hardware keystore, you must close the hardware

keystore and then change the password from the hardware keystore management

interface.

Changing the Password-Protected Software Keystore Password in United

Mode

To change the password of a password-protected software keystore in united mode,

you must use the

ADMINISTER KEY MANAGEMENT

statement in the CDB root.

You cannot change keystore passwords from a united mode PDB.

1. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

2. Use the following syntax to change the password for the keystore:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

[FORCE KEYSTORE]

IDENTIFIED BY

old_keystore_password SET new_keystore_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if the keystore is closed if an auto-login keystore is configured and is

currently open, or if a password-protected keystore is configured and is

currently closed.

•

old_password

is the current keystore password that you want to change.

•

new_password

is the new password that you set for the keystore.

•You do not need to include the

CONTAINER

clause because the password can

only be changed locally, in the CDB root.

The following example creates a backup of the keystore and then changes the

password:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

keystore altered.

This example performs the same operation but uses the

FORCE KEYSTORE

clause in

case the auto-login software keystore is in use or the password-protected software

keystore is closed.

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

FORCE KEYSTORE

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

keystore altered.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-21

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

•Changing the Password of a Software Keystore

Oracle Database enables you to easily change password-protected software

keystore passwords.

Changing the Password of a Hardware Keystore in United Mode

To change the password of a hardware keystore, you must close the hardware

keystore and then change the password from the hardware keystore management

interface.

You cannot change keystore passwords from a united mode PDB.

1. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

2. Close the hardware keystore.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password";

For a keystore whose password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY EXTERNAL STORE;

3. From the hardware security module management interface, create a new

hardware security module password.

4. Update the credentials of the HSM in the external store to use

user_name:password"

Currently, the external store contains the old HSM credentials, which would no

longer work.

For example:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'user_name:password'

FOR CLIENT 'TDE_WALLET'

TO LOCAL AUTO_LOGIN KEYSTORE '/etc/ORACLE/WALLETS/orcl/external_store';

5. In SQL*Plus, open the hardware keystore.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:new_password";

For a hardware keystore whose password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY EXTERNAL STORE;

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-22

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

Backing Up a Password-Protected Software Keystore in United Mode

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

1. Log in to the CDB root as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus c##sec_admin@hrpdb as syskm

Enter password: password

Connected.

2. Back up the keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

[USING 'backup_identifier']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | software_keystore_password]

[TO 'keystore_location'];

In this specification:

•

USING

backup_identifier

is an optional string that you can provide to identify

the backup. Enclose this identifier in single quotation marks (

' '

). This

identifier is appended to the named keystore file (for example,

ewallet_time-

stamp_emp_key_backup.p12

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

is required for the

BACKUP KEYSTORE

operation on a password-

protected keystore because although the backup is simply a copy of the

existing keystore, the status of the TDE master encryption key in the

password-protected keystore must be set to

BACKED UP

and for this change the

keystore password is required.

•

keystore_location

is the path at which the backup keystore is stored. This

setting is restricted to the PDB when the PDB lockdown profile

EXTERNAL_FILE_ACCESS

setting is blocked in the PDB or when the

PATH_PREFIX

variable was not set when the PDB was created. If you do not specify the

keystore_location

, then the backup is created in the same directory as the

original keystore. Enclose this location in single quotation marks (

' '

•You do not need to include the

CONTAINER

clause because the keystore can

only be backup up locally, in the CDB root.

The following example backs up a software keystore in the same location as the

source keystore.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY

software_keystore_password ;

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-23

keystore altered.

In the following version, the password for the keystore is external, so the

EXTERNAL

STORE

clause is used.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

After you run this statement, an

ewallet_identifier.p12

file (for example,

ewallet_time-stamp_hr.emp_keystore.p12

) appears in the keystore backup location.

Related Topics

•Backing Up Password-Protected Software Keystores

When you back up a password-protected software keystore, you can create a

backup identifier string to describe the backup type.

Closing Keystores in United Mode

You can close both software and hardware keystores in united mode, unless the

system tablespace is encrypted.

•Closing a Software Keystore in United Mode

You can close password-protected keystores, auto-login keystores, and local auto-

•Closing a Hardware Keystore in United Mode

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE CLOSE

clause.

Closing a Software Keystore in United Mode

You can close password-protected keystores, auto-login keystores, and local auto-

In the case of an auto-login keystore, which opens automatically when it is accessed,

you must first move it to a new location where it cannot be automatically opened, then

you must manually close it. You must do this if you are changing your configuration

from an auto-login keystore to a password-protected keystore: you change the

configuration to stop using the auto-login keystore (by moving the auto-login keystore

to another location where it cannot be automatically opened), and then closing the

auto-login keystore.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Close the software keystore.

•For a password-protected software keystore, use the following syntax if you

are in the CDB root:

ADMINISTER KEY MANAGEMENT SET | FORCE KEYSTORE CLOSE

[IDENTIFIED BY [EXTERNAL STORE | software_keystore_password]]

[CONTAINER = ALL | CURRENT];

Use the

SET

clause to close the keystore without force. If there is a dependent

keystore that is open (for example, an isolated mode PDB keystore and you

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-24

are trying to close the CDB root keystore), then an

ORA-46692 cannot close

wallet

error appears. If this happens, then use the

FORCE

clause instead of

SET

to temporarily close the dependent keystore during the close operation. The

STATUS

column of the

V$ENCRYPTION_WALLET

view shows if a keystore is open.

If you are in the united mode PDB, then either omit the

CONTAINER

clause or set

it to

CURRENT

•For an auto-login or local auto-login software keystore, use this syntax if you

are in the CDB root:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

[CONTAINER = ALL | CURRENT];

Closing a keystore disables all of the encryption and decryption operations. Any

attempt to encrypt or decrypt data or access encrypted data results in an error.

Related Topics

•About Closing Keystores

After you open a keystore, it remains open until you shut down the database

instance.

Closing a Hardware Keystore in United Mode

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement

with the

SET KEYSTORE CLOSE

clause.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Close the hardware keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"]

[CONTAINER = ALL | CURRENT];

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password"

CONTAINER = ALL;

If an

ORA-46692 cannot close wallet

error appears, then check if any isolated mode

keystores are open. To find the status of a keystore, query the

STATUS

column of

the

V$ENCRYPTION_WALLET

view.

Closing a keystore disables all of the encryption and decryption operations. Any

attempt to encrypt or decrypt data or access encrypted data results in an error.

Related Topics

•About Closing Keystores

After you open a keystore, it remains open until you shut down the database

instance.

Creating a User-Defined TDE Master Encryption Key in United Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-25

1. Log in to the CDB root a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus c##sec_admin as syskm

Enter password: password

2. Create the user-defined TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET | CREATE [ENCRYPTION] KEY

'mkid:mk | mk'

[USING ALGORITHM 'algorithm']

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']]

[CONTAINER = CURRENT];

In this specification:

•

SET | CREATE

: Enter

SET

if you want to create the master and activate the TDE

master encryption key now, or enter

CREATE

if you want to create the key for

later use, without activating it yet.

•

mkid

and

–

mkid

, the TDE master encryption key ID, is a 16–byte hex-encoded value

that you can specify or have Oracle Database generate.

–

, the TDE master encryption key, is a hex-encoded value that you can

specify or have Oracle Database generate, either 32 bytes (for the for

AES256

ARIA256

, and

GOST256

algorithms) or 16 bytes (for the

SEED128

algorithm).

If you omit the

mkid

value but include the

, then Oracle Database generates

the

mkid

for the

If you omit the entire

mkid:mk|mkid

clause, then Oracle Database generates

these values for you.

•

USING ALGORITHM

: Specify one of the following supported algorithms:

–

AES256

–

ARIA256

–

SEED128

–

GOST256

If you omit the algorithm, then the default,

AES256

, is used.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

CONTAINER

: If you include this clause, then set it to

CURRENT

. (

CURRENT

is the

default.)

The following example includes a user-created TDE master encryption key but no

TDE master encryption key ID, so that the TDE master encryption key is

generated:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

'3D432109DF88967A541967062A6F4E460E892318E307F017BA048707B402493C'

USING ALGORITHM 'GOST256'

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-26

FORCE KEYSTORE

IDENTIFIED BY keystore_password;

The next example creates user-defined keys for both the master encryption ID and

the TDE master encryption key. It omits the algorithm specification, so the default

algorithm

AES256

is used.

ADMINISTER KEY MANAGEMENT CREATE ENCRYPTION KEY

'10203040506070801112131415161718:3D432109DF88967A541967062A6F4E460E892318E307F01

7BA048707B402493C'

IDENTIFIED BY keystore_password

CONTAINER = CURRENT;

Related Topics

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

Example: Creating a Master Encryption Key in All PDBs

You can use the

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

statement to create

a TDE master encryption key in all PDBs.

Example 5-1 shows how to create a master encryption key in all of the PDBs in a

multitenant environment. It uses the

FORCE KEYSTORE

clause in the event that the auto-

EXTERNAL STORE

setting is used for the

IDENTIFIED BY

clause. After you execute this

statement, a master encryption key is created in each PDB. You can find the identifiers

for these keys as follows:

•Log in to the PDB and then query the

TAG

column of the

V$ENCRYPTION_KEYS

view.

•Log in to the CDB root and then query the

INST_ID

and

TAG

columns of the

GV$ENCRYPTION_KEYS

view.

You also can check the

CREATION_TIME

column of these views to find the most recently

created key, which would be the key that you created from this statement. After you

create the keys, you can individually activate the keys in each of the PDBs.

Example 5-1 Creating a Master Encryption Key in All of the PDBs

ADMINISTER KEY MANAGEMENT CREATE KEY USING TAG

'scope:all pdbs;description:Create Key for ALL PDBS'

FORCE KEYSTORE IDENTIFIED BY EXTERNAL STORE

WITH BACKUP

CONTAINER = ALL;

keystore altered.

Creating a TDE Master Encryption Key for Later Use in United Mode

A keystore must be opened before you can create a TDE master encryption key for

use later on in united mode.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Create the TDE master encryption key by using the following syntax:

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-27

ADMINISTER KEY MANAGEMENT CREATE [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']]

[CONTAINER = ALL | CURRENT];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

CONTAINER

: In the CDB root, set

CONTAINER

to either

ALL

CURRENT

. In a PDB, set

it to

CURRENT

. In both cases, omitting

CONTAINER

defaults to

CURRENT

For example:

ADMINISTER KEY MANAGEMENT CREATE KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP

CONTAINER = CURRENT;

3. If necessary, activate the TDE master encryption key.

a. Find the key ID.

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

b. Use this key ID to activate the key.

ADMINISTER KEY MANAGEMENT USE KEY

'AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

IDENTIFIED BY password

WITH BACKUP;

Related Topics

•Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

Activating a TDE Master Encryption Key in United Mode

To activate a TDE master encryption key in united mode, you must open the keystore

and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Query the

ORIGIN

and

KEY_ID

columns of the

V$ENCRYPTION_KEYS

view to find the key

identifier.

For example:

SELECT ORIGIN, KEY_ID FROM V$ENCRYPTION_KEYS;

ORIGIN KEY_ID

------ ----------------------------------------------

LOCAL ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-28

3. Use this key identifier to activate the TDE master encryption key by using the

following syntax:

ADMINISTER KEY MANAGEMENT USE KEY 'key_identifier_from_V$ENCRYPTION_KEYS'

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

WITH BACKUP [USING 'backup_identifier']

[CONTAINER = ALL | CURRENT];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

CONTAINER

: In the CDB root, set

CONTAINER

to either

ALL

CURRENT

. In a PDB,

omit the

CONTAINER

clause. In both cases, omitting

CONTAINER

defaults to

CURRENT

For example:

ADMINISTER KEY MANAGEMENT USE KEY

'ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE

WITH BACKUP

CONTAINER = ALL;

Related Topics

•About Activating TDE Master Encryption Keys

You can activate a previously created or imported TDE master encryption key by

using the

USE KEY

clause of

ADMINSTER KEY MANAGEMENT

Rekeying the TDE Master Encryption Key in United Mode

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause to rekey

a TDE master encryption key.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. If you are rekeying the TDE master encryption key for a keystore that has auto

.sso

file, and the encryption keystore, identified by the

.p12

file, are present.

You can find the location of these files by querying the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the

WRL_PARAMETER

values for all of the database

instances, query the

GV$ENCRYPTION_WALLET

view.

3. Rekey the TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']]

[CONTAINER = ALL | CURRENT];

In this specification:

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-29

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password that was created for this keystore.

•

CONTAINER

: In the CDB root, set

CONTAINER

to either

ALL

CURRENT

. In a PDB, set

it to

CURRENT

. In both cases, omitting

CONTAINER

defaults to

CURRENT

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup'

CONTAINER = CURRENT;

keystore altered.

Related Topics

•About Rekeying the TDE Master Encryption Key

Oracle Database uses a unified TDE Master Encryption Key for both TDE column

encryption and TDE tablespace encryption.

Finding the TDE Master Encryption Key That Is in Use in United Mode

A TDE master encryption key that is in use is the key that was activated most recently

for the database.

In united mode, the TDE master encryption key in use of the PDB is the one that was

activated most recently for that PDB.

•To find the TDE master encryption key that is in use, query the

V$ENCRYPTION_KEYS

dynamic view.

For example:

SELECT KEY_ID

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATION_TIME = (SELECT MAX(ACTIVATION_TIME)

FROM V$ENCRYPTION_KEYS

WHERE ACTIVATING_PDBID = SYS_CONTEXT('USERENV', 'CON_ID'));

Creating a Custom Attribute Tag in United Mode

To create a custom attribute tag in united mode, you must use the

SET TAG

clause of

the

ADMINISTER KEY MANAGEMENT

statement.

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. If necessary, query the

TAG

column of the

V$ENCRYPTION_KEY

dynamic view to find a

listing of existing tags for the TDE master encryption keys.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-30

When you create a new tag for a TDE master encryption key, it overwrites the

existing tag for that TDE master encryption key.

3. Create the custom attribute tag by using the following syntax:

ADMINISTER KEY MANAGEMENT SET TAG 'tag'

FOR 'master_key_identifier'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

WITH BACKUP [USING 'backup_identifier'];

In this specification

•

tag

is the associated attributes or information that you define. Enclose this

information in single quotation marks (

' '

•

master_key_identifier

identifies the TDE master encryption key for which the

tag

is set. To find a list of TDE master encryption key identifiers, query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

dynamic view.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password that was created for this keystore.

•

backup_identifier

defines the tag values. Enclose this setting in single

quotation marks (

' ')

and separate each value with a colon.

For example, to create a tag that uses two values, one to capture a specific

session ID and the second to capture a specific terminal ID:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

USING TAG 'sessionid=3205062574:terminal=xcvt'

IDENTIFIED BY keystore_password

WITH BACKUP;

keystore altered.

Both the session ID (

3205062574

) and terminal ID (

xcvt

) can derive their values by

using either the

SYS_CONTEXT

function with the

USERENV

namespace, or by using the

USERENV

function.

Related Topics

•About Creating Custom Attribute Tags

Attribute tags enable you to monitor specific activities users perform, such as

accessing a particular terminal ID.

Moving a TDE Master Encryption Key into a New Keystore in United

Mode

In united mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

This feature enables you to delete unused keys. After you move the key to a new

keystore, you then can delete the old keystore.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-31

1. Log in to the CDB root or the united mode PDB as a user who has been granted

the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

view to find the key identifier of

the keystore to which you want to move the keys.

For example:

SELECT CREATION_TIME, KEY_ID FROM V$ENCRYPTION_KEYS;

CREATION TIME

----------------------------------------------------

22-SEP-17 08.55.12.956170 PM +00:00

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Move the key into a new keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT

MOVE [ENCRYPTION] KEYS

TO NEW KEYSTORE 'keystore_location1'

IDENTIFIED BY keystore1_password

FROM [FORCE] KEYSTORE

IDENTIFIED BY keystore_password

[WITH IDENTIFIER IN

{ 'key_identififier' [, 'key_identifier' ]... | ( subquery ) } ]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

keystore_location1

is the path to the

wallet

directory that will store the new

keystore

.p12

file. By default, this directory is in

$ORACLE_BASE/admin/

db_unique_name/wallet

•

FORCE

temporarily opens the keystore for this operation.

•

keystore_password

is the password for the keystore from which the key is

moving.

For example:

ADMINISTER KEY MANAGEMENT MOVE KEYS

TO NEW KEYSTORE '$ORACLE_BASE/admin/orcl/wallet'

IDENTIFIED BY keystore_password

FROM FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH IDENTIFIER IN

(SELECT KEY_ID FROM V$ENCRYPTION_KEYS WHERE ROWNUM < 2)

WITH BACKUP;

4. To delete the old keystore, go to the

wallet

directory and then manually delete

the

.p12

file containing the keystore.

To find the location of the keystore, open the keystores, and then query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view.

Related Topics

•Dangers of Deleting Keystores

Oracle strongly recommends that you do not delete keystores until you have

moved the keystore encryption key to a new keystore.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-32

Automatically Removing Inactive TDE Master Encryption Keys in

United Mode

In united mode, the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization parameter

can configure the automatic removal of inactive TDE master encryption keys.

1. Log in to the server where the CDB root or the united mode PDB of the Oracle

standby database resides.

2. Locate the initialization parameter file for the database.

By default, the initialization parameter fileis located in the

$ORACLE_HOME/dbs

directory.

3. Edit the initialization parameter file to include the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization parameter.

For example:

remove_inactive_standby_tde_master_key = true

Setting this parameter to

TRUE

enables the automatic removal of inactive TDE

master encryption keys; setting it to

FALSE

disables the automatic removal.

Isolating a Pluggable Database Keystore

Isolating a PDB keystore moves the master encryption key from the CDB root keystore

into an isolated mode keystore in the a PDB.

This process enables the keystore to be managed as a separate keystore in isolated

mode. This way, an administrator who has been locally granted the

ADMINISTER KEY

MANAGEMENT

privilege for the PDB can manage the keystore.

1. Log in to the united mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

2. Move the keys from the keystore of the CDB root into the isolated mode keystore

of the PDB by using the following syntax:

ADMINISTER KEY MANAGEMENT [FORCE] ISOLATE KEYSTORE

IDENTIFIED BY isolated_keystore_password

FROM ROOT KEYSTORE

[FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE | united_keystore_password]

[WITH BACKUP [USING backup_id]];

In this specification:

•

FORCE

is used when a clone of the PDB is using the master encryption key that

is being isolated. The

ADMINISTER KEY MANAGEMENT

statement then copies (rather

than moves) the keys from the wallet of the CDB root into the isolated mode

PDB.

Chapter 5

Administering Keystores and TDE Master Encryption Keys in United Mode

5-33

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if an auto-login keystore is open (and in use) or if the keystore is

closed.

•

united_keystore_password

: Knowledge of this password does not enable the

user who performs the

ISOLATE KEYSTORE

operation privileges to perform

ADMINISTER KEY MANAGEMENT UNITE KEYSTORE

operations on the CDB root. This

password is the same as the keystore password in the CDB root.

After the keystore of a CDB root has been united with that of a PDB, all of the

previously active (historical) master encryption keys that were associated with the

CDB are moved to the keystore of the PDB.

3. Confirm that the united mode PDB is now an isolated mode PDB.

SELECT KEYSTORE_MODE FROM V$ENCRYPTION_WALLET;

The output should be

ISOLATED

After the united mode PDB has been converted to an isolated mode PDB, you can

change the password of the keystore.

Administering Transparent Data Encryption in United Mode

You can perform general administrative tasks with Transparent Data Encryption in

united mode.

•Moving PDBs from One CDB to Another in United Mode

In united mode, you can automatically move a PDB from one CDB to another (for

example, for load balancing or adding new functionality).

•Unplugging and Plugging a PDB with Encrypted Data in a CDB in United Mode

In united mode, for a PDB that has encrypted data, you can plug it into a CDB.

Conversely, you can unplug this PDB from the CDB.

•Managing Cloned PDBs with Encrypted Data in United Mode

In united mode, you can clone a PDB that has encrypted data in a CDB.

•How Keystore Open and Close Operations Work in United Mode

You should be aware of how keystore open and close operations work in united

mode.

•Finding the Keystore Status for All of the PDBs in United Mode

You can create a convenience function that uses the

V$ENCRYPTION_WALLET

view to

find the status for keystores in all PDBs in a CDB.

Moving PDBs from One CDB to Another in United Mode

In united mode, you can automatically move a PDB from one CDB to another (for

example, for load balancing or adding new functionality).

If the PDB has TDE-encrypted tables or tablespaces, then you can set the

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

dynamic system parameter to

TRUE

to enable the

PDB to include the TDE keys in the PDB move operation. This parameter avoids you

having to manually provide a keystore password when you import the TDE keys into

the PDB after it has moved to a different CDB. When

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

is set to

TRUE

, the database caches the keystore

Chapter 5

Administering Transparent Data Encryption in United Mode

5-34

password in memory, obfuscated at the system level, and then uses it for the import

operation. The default for

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

FALSE

1. Log in to the PDB as a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

2. Set the

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

dynamic initialization parameter

TRUE

For example:

ALTER SYSTEM SET ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE = TRUE;

3. Move (relocate) the PDB.

Related Topics

•Oracle Multitenant Administrator's Guide

Unplugging and Plugging a PDB with Encrypted Data in a CDB in

United Mode

In united mode, for a PDB that has encrypted data, you can plug it into a CDB.

Conversely, you can unplug this PDB from the CDB.

•Unplugging a PDB That Has Encrypted Data in United Mode

In united mode, you can unplug a PDB with encrypted data and export it into an

XML metadata file or an archive file.

•Plugging a PDB That Has Encrypted Data into a CDB in United Mode

To plug a PDB that has encrypted data into a CDB, you first plug in the PDB and

then you can set the keystore in the PDB.

•Unplugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in United Mode

You can unplug a PDB from one CDB that has been configured with an HSM and

then plug it into another CDB also configured with an hardware keystore.

•Plugging a PDB That Has Master Encryption Keys Stored in a Hardware Keystore

in United Mode

The

ADMINISTER KEY MANAGEMENT

statement can import a TDE master encryption key

from a hardware keystore to a PDB that has been moved to another CDB.

Unplugging a PDB That Has Encrypted Data in United Mode

In united mode, you can unplug a PDB with encrypted data and export it into an XML

metadata file or an archive file.

The database that is unplugged contains data files and other associated files. You can

check if a PDB has been unplugged by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

1. In the CDB root, query the

V$ENCRYPTION_WALLET

dynamic view to ensure that the

keystore is open.

2. Use the

ENCRYPT USING transport_secret

clause in the

ALTER PLUGGABLE DATABASE

statement when you unplug the PDB.

You must use this clause if the PDB has encrypted data. Otherwise, an

ORA-46680:

master keys of the container database must be exported

error is returned.

•For example, to export the PDB data into an XML file:

Chapter 5

Administering Transparent Data Encryption in United Mode

5-35

ALTER PLUGGABLE DATABASE CDB1_PDB2

UNPLUG INTO '/tmp/cdb1_pdb2.xml'

ENCRYPT USING transport_secret;

•To export the PDB data into an archive file:

ALTER PLUGGABLE DATABASE CDB1_PDB2

UNPLUG INTO '/tmp/cdb1_pdb2.pdb'

ENCRYPT USING transport_secret;

Related Topics

•Step 2: Open the Software Keystore in a United Mode PDB

To open a software keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Oracle Database SQL Language Reference

•Oracle Multitenant Administrator's Guide

Plugging a PDB That Has Encrypted Data into a CDB in United Mode

To plug a PDB that has encrypted data into a CDB, you first plug in the PDB and then

you can set the keystore in the PDB.

When you plug an unplugged PDB into another CDB, the key version is set to

because this operation invalidates the history of the previous keys. You can check the

key version by querying the

KEY_VERSION

column of the

V$ENCRYPTED_TABLESPACES

dynamic view. Similarly, if a control file is lost and recreated, then the previous history

of the keys is reset to

. You can check if a PDB has already been plugged in by

querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

1. From the CDB root, create the PDB by plugging the unplugged PDB into the CDB.

To perform this operation for united mode, include the

DECRYPT USING

transport_secret

clause.

You must use this clause if the metadata or archive file for the PDB has encrypted

data. Otherwise, an

ORA-46680: master keys of the container database must be

exported

error is returned.

•For example, if you had exported the PDB data into a metadata XML file:

CREATE PLUGGABLE DATABASE CDB1_PDB2

USING '/tmp/cdb1_pdb2.xml'

NOCOPY KEYSTORE

IDENTIFIED BY password

DECRYPT USING transport_secret;

•If you had exported the PDB into an archive file:

CREATE PLUGGABLE DATABASE CDB1_PDB2

USING '/tmp/cdb1_pdb2.pdb'

DECRYPT USING transport_secret;

During the open operation of the PDB after the plug operation, Oracle Database

determines if the PDB has encrypted data. If so, it opens the PDB in the

RESTRICTED

mode.

If you want to create the PDB by cloning another PDB or from a non-CDB, and if

the source database has encrypted data or a TDE master encryption key that has

been set, then you must provide the keystore password by including the

keystore

identified by keystore_password

clause in the

CREATE PLUGGABLE DATABASE ... FROM

Chapter 5

Administering Transparent Data Encryption in United Mode

5-36

SQL statement. You must provide this password even if the source database is

using an auto-login software keystore. You can find if the source database has

encrypted data or a TDE master encryption key set in the keystore by querying the

V$ENCRYPTION_KEYS

dynamic view

2. Open the PDB.

For example:

ALTER PLUGGABLE DATABASE CDB1_PDB2 OPEN;

3. Open the keystore in the CDB root.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

Optionally, open the keystore in the PDB.

4. In either the CDB root or the PDB (if the keystore is open in the PDB), set the TDE

master encryption key for the PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

Related Topics

•Step 2: Open the Software Keystore in a United Mode PDB

To open a software keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Step 3: Set the TDE Master Encryption Key in the Software Keystore in United

Mode

To set the TDE master encryption key in the keystore when the PDB is configured

in united mode, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

Unplugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in United Mode

You can unplug a PDB from one CDB that has been configured with an HSM and then

plug it into another CDB also configured with an hardware keystore.

1. Unplug the PDB.

You can check if a PDB has already been unplugged by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

2. Move the master encryption keys of the unplugged PDB in the hardware keystore

that was used at the source CDB to the hardware keystore that is in use at the

destination CDB.

Refer to the documentation for the hardware keystore for information about

moving master encryption keys between hardware keystores.

Related Topics

•Oracle Multitenant Administrator's Guide

Chapter 5

Administering Transparent Data Encryption in United Mode

5-37

Plugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in United Mode

The

ADMINISTER KEY MANAGEMENT

statement can import a TDE master encryption key

from a hardware keystore to a PDB that has been moved to another CDB.

1. Plug the unplugged PDB into the destination CDB that has been configured with

the hardware keystore.

You can check if a PDB has already been plugged in by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

After the plug-in operation, the PDB that has been plugged in will be in restricted

mode.

2. Ensure that the master encryption keys from the hardware keystore that has been

configured with the source CDB are available in the hardware keystore of the

destination CDB.

3. Log in to the plugged PDB as a user who was granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin@hr_pdb as syskm

Enter password: password

Connected.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

4. Open the master encryption key of the plugged PDB.

For example, for a PDB called

PDB1

ALTER SESSION SET CONTAINER = PDB1;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY keystore_passsword;

5. Import the hardware keystore master encryption key into the PDB.

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS

WITH SECRET "HSM" FROM 'HSM'

IDENTIFIED BY keystore_password;

6. Restart the PDB.

ALTER PLUGGABLE DATABASE PDB1 CLOSE;

ALTER PLUGGABLE DATABASE PDB1 OPEN;

Related Topics

•Oracle Multitenant Administrator's Guide

Managing Cloned PDBs with Encrypted Data in United Mode

In united mode, you can clone a PDB that has encrypted data in a CDB.

•About Managing Cloned PDBs That Have Encrypted Data in United Mode

When you clone a PDB, you must make the master encryption key of the source

PDB available to cloned PDB.

Chapter 5

Administering Transparent Data Encryption in United Mode

5-38

•Cloning a PDB with Encrypted Data in a CDB in United Mode

The

CREATE PLUGGABLE DATABASE

statement with the

KEYSTORE IDENTIFIED BY

clause

can clone a PDB that has encrypted data.

About Managing Cloned PDBs That Have Encrypted Data in United Mode

When you clone a PDB, you must make the master encryption key of the source PDB

available to cloned PDB.

This allows a cloned PDB to operate on the encrypted data. To perform the clone, you

do not need to export and import the keys because Oracle Database transports the

keys for you even if the cloned PDB is in a remote CDB. However, you will need to

provide the keystore password of the CDB where you are creating the clone.

Cloning a PDB with Encrypted Data in a CDB in United Mode

The

CREATE PLUGGABLE DATABASE

statement with the

KEYSTORE IDENTIFIED BY

clause can

clone a PDB that has encrypted data.

1. In the CDB root, query the

STATUS

column of the

V$ENCRYPTION_WALLET

dynamic view

to ensure that the keystore is open in the CDB root.

2. Log in to the PDB as a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

3. Use the

CREATE PLUGGABLE DATABASE

statement with the

KEYSTORE IDENTIFIED BY

clause to clone the PDB.

For example:

CREATE PLUGGABLE DATABASE cdb1_pdb3

FROM cdb1_pdb1

FILE_NAME_CONVERT=('cdb1_pdb1', 'pdb3/cdb1_pdb3') KEYSTORE

IDENTIFIED BY keystore_password;

Replace

keystore_password

with the password of the keystore of the CDB where

the

cdb1_pdb3

clone is created.

After you create the cloned PDB, encrypted data is still accessible by the clone

using the master encryption key of the original PDB. After a PDB is cloned, there

may be user data in the encrypted tablespaces. This encrypted data is still

accessible because the master encryption key of the source PDB is copied over to

the destination PDB. Because the clone is a copy of the source PDB but will

eventually follow its own course and have its own data and security policies, you

should rekey the master encrytion key of the cloned PDB.

4. Rekey the master encryption key of the cloned PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

In this example,

FORCE KEYSTORE

is included because the keystore must be open

during the rekey operation.

Before you rekey the master encryption key of the cloned PDB, the clone can still

use master encryption keys that belong to the original PDB. However, these

Chapter 5

Administering Transparent Data Encryption in United Mode

5-39

master encryption keys do not appear in the cloned PDB

dynamic views.

Rekeying the master encryption key ensures that the cloned PDB uses its own

unique keys, which will be viewable in the

views.

Related Topics

•Step 2: Open the Software Keystore in a United Mode PDB

To open a software keystore in united mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

How Keystore Open and Close Operations Work in United Mode

You should be aware of how keystore open and close operations work in united mode.

For each PDB in united mode, you must explicitly open the password-protected

software keystore or hardware keystore in the PDB to enable the Transparent Data

Encryption operations to proceed. (Auto-login and local auto-login software keystores

open automatically.) Closing a keystore on a PDB blocks all of the Transparent Data

Encryption operations on that PDB.

The open and close keystore operations in a PDB depend on the open and close

status of the keystore in the CDB root.

Note the following:

•You can create a separate keystore password for each PDB in united mode.

•Before you can manually open a software password-protected or hardware

keystore in an individual PDB, you must open the keystore in the CDB root.

•If an auto-login keystore is in use, or if the keystore is closed, then include the

FORCE KEYSTORE

clause in the

ADMINISTER KEY MANAGEMENT

statement when you open

or close the keystore.

•If the keystore is a password-protected software keystore that uses an external

store for passwords, then set the

IDENTIFIED BY

clause to

EXTERNAL STORE

•Before you can set a TDE master encryption key in an individual PDB, you must

set the key in the CDB root.

•Auto-login and local auto-login software keystores open automatically. You do not

need to manually open these from the CDB root first, or from the PDB.

•If you close the keystore in the CDB root, then the keystores in the dependent

PDBs also close. A keystore close operation in the root is the equivalent of

performing a keystore close operation with the

CONTAINER

clause set to

ALL

•If you perform an

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

statement in the

CDB root and set the

CONTAINER

clause to

ALL

, then the keystore will only be

opened in each PDB that is configured in united mode, and any PDB that is

configured in isolated mode is not opened.

Finding the Keystore Status for All of the PDBs in United Mode

You can create a convenience function that uses the

V$ENCRYPTION_WALLET

view to find

the status for keystores in all PDBs in a CDB.

The

V$ENCRYPTION_WALLET

view displays the status of the keystore in a PDB, whether it

is open, closed, uses a software or hardware keystore, and so on.

Chapter 5

Administering Transparent Data Encryption in United Mode

5-40

•To create a function that uses the

V$ENCRYPTION_WALLET

view to find the keystore

status, use the

CREATE PROCEDURE

PL/SQL statement.

Example 5-2 shows how to create this function.

Example 5-2 Function to Find the Keystore Status of All of the PDBs in a CDB

CREATE OR REPLACE PROCEDURE all_pdb_v$encryption_wallet

err_occ BOOLEAN;

curr_pdb VARCHAR2(30);

pdb_name VARCHAR2(30);

wrl_type VARCHAR2(20);

status VARCHAR2(30);

wallet_type VARCHAR2(20);

wallet_order VARCHAR2(12);

fully_backed_up VARCHAR2(15);

wrl_parameter VARCHAR2(4000);

cursor sel_pdbs IS SELECT NAME FROM V$CONTAINERS

WHERE NAME <> 'PDB$SEED' order by con_id desc;

BEGIN

-- Store the original PDB name

SELECT sys_context('userenv', 'con_name') INTO curr_pdb FROM DUAL;

IF curr_pdb <> 'CDB$ROOT' THEN

dbms_output.put_line('Operation valid in ROOT only');

END IF;

err_occ := FALSE;

dbms_output.put_line('---');

dbms_output.put_line('PDB_NAME WRL_TYPE STATUS ');

dbms_output.put_line('------------------------------ -------- ------------------------------');

dbms_output.put_line('WALLET_TYPE WALLET_ORDER FULLY_BACKED_UP');

dbms_output.put_line('-------------------- ------------ ---------------');

dbms_output.put_line('WRL_PARAMETER');

dbms_output.put_line('--------------------------------------------------------------------------');

FOR pdbinfo IN sel_pdbs LOOP

pdb_name := DBMS_ASSERT.ENQUOTE_NAME(pdbinfo.name, FALSE);

EXECUTE IMMEDIATE 'ALTER SESSION SET CONTAINER = ' || pdb_name;

BEGIN

pdb_name := rpad(substr(pdb_name,1,30), 30, ' ');

EXECUTE IMMEDIATE 'SELECT wrl_type from V$ENCRYPTION_WALLET' into wrl_type;

wrl_type := rpad(substr(wrl_type,1,8), 8, ' ');

EXECUTE IMMEDIATE 'SELECT status from V$ENCRYPTION_WALLET' into status;

status := rpad(substr(status,1,30), 30, ' ');

EXECUTE IMMEDIATE 'SELECT wallet_type from V$ENCRYPTION_WALLET' into wallet_type;

wallet_type := rpad(substr(wallet_type,1,20), 20, ' ');

EXECUTE IMMEDIATE 'SELECT wallet_order from V$ENCRYPTION_WALLET' into wallet_order;

wallet_order := rpad(substr(wallet_order,1,9), 12, ' ');

EXECUTE IMMEDIATE 'SELECT fully_backed_up from V$ENCRYPTION_WALLET' into fully_backed_up;

fully_backed_up := rpad(substr(fully_backed_up,1,9), 15, ' ');

EXECUTE IMMEDIATE 'SELECT wrl_parameter from V$ENCRYPTION_WALLET' into wrl_parameter;

wrl_parameter := rpad(substr(wrl_parameter,1,79), 79, ' ');

dbms_output.put_line(pdb_name || ' ' || wrl_type || ' ' || status);

dbms_output.put_line(wallet_type || ' ' || wallet_order || ' ' || fully_backed_up);

dbms_output.put_line(wrl_parameter);

EXCEPTION

WHEN OTHERS THEN

Chapter 5

Administering Transparent Data Encryption in United Mode

5-41

err_occ := TRUE;

END;

END LOOP;

IF err_occ = TRUE THEN

dbms_output.put_line('One or more PDB resulted in an error');

END IF;

END;

set serveroutput on

exec all_pdb_v$encryption_wallet;

Chapter 5

Administering Transparent Data Encryption in United Mode

5-42

Managing Keystores and TDE Master

Encryption Keys in Isolated Mode

Isolated mode enables you to create a keystore for each pluggable database (PDB).

•About Managing Keystores and TDE Master Encryption Keys in Isolated Mode

In isolated mode, where a pluggable database (PDB) has its own keystore, you

manage the keystore and its TDE master encryption keys from the PDB only.

•Operations That Are Allowed in Isolated Mode

You can perform many

ADMINISTER KEY MANAGEMENT

operations in isolated mode.

•Operations That Are Not Allowed in an Isolated Mode PDB

There are several

ADMINISTER KEY MANAGEMENT

operations that you cannot perform in

an isolated mode PDB.

•Configuring the Keystore Location and Type for Isolated Mode

For isolated mode, you can configure the keystore location and type by using only

parameters or a combination of parameters and the

ALTER SYSTEM

statement.

•Configuring a Keystore and TDE Master Encryption Key in Isolated Mode

In isolated mode, the software keystore is associated with a PDB.

•Configuring a Hardware Keystore in Isolated Mode

There are two different types of hardware keystores that Oracle Database

supports: hardware security modules (

HSM

) or Oracle Key Vault (

OKV

) keystores.

•Administering Keystores and TDE Master Encryption Keys in Isolated Mode

After you create a keystore and a TDE master encryption key in isolated mode,

you can perform administration tasks such as rekeying or tagging encryption keys.

•Administering Transparent Data Encryption in Isolated Mode

You can perform a number of general administrative tasks with Transparent Data

Encryption in isolated mode.

About Managing Keystores and TDE Master Encryption

Keys in Isolated Mode

In isolated mode, where a pluggable database (PDB) has its own keystore, you

manage the keystore and its TDE master encryption keys from the PDB only.

Similar to united mode, you must first configure a PDB to use isolated mode by setting

the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters. After you set these parameters,

you can create and manage the keystore from the PDB. In this way, you can have the

following scenario:

•The united mode settings in the CDB root will apply to all PDBs that do not have

isolated mode settings. For example, the keystore that you create in the CDB root

will be used by the root’s associated united mode PDBs.

6-1

•The PDBs that are configured in isolated mode are allowed to independently

create and manage their own keystore. An isolated mode PDB can have its own

keystore, independent of the keystore of the CDB root.

This scenario is useful in cases where you have many PDBs that must use one type of

keystore, but you have a few PDBs that must use a different type. By different types of

keystores, this refers to either a TDE software keystore or to one of the hardware

keystores that Oracle supports (for example, Oracle Key Vault, Safenet, or Cloud Key

Management Service). You cannot have a mixture of different hardware keystore

types in one CDB environment because the Oracle server can load only one PKCS#11

vendor library. If necessary, you can configure these PDBs in isolated mode so that

each PDB can use its own keystore.

An advantage of configuring a PDB in isolated mode is that it improves the

performance of rekey operations in the PDB as compared to the rekey performance in

united mode when there are a large number of encrypted PDBs.

In a CDB when the number of encrypted PDBs is large, configuring a PDB in isolated

mode allows the performance of the rekey operation in that PDB to remain similar to

the performance of a rekey operation in a standalone system, and remain constant as

the number of encrypted PDBs in the overall system increases.

Operations That Are Allowed in Isolated Mode

You can perform many

ADMINISTER KEY MANAGEMENT

operations in isolated mode.

These operations include creating, backing up, opening keystores; changing keystore

passwords, merging keystores, closing keystores; creating, activating, tagging,

moving, exporting, importing, and migrating encryption keys; and adding, updating,

and deleting client secrets.

Table 6-1 describes the

ADMINISTER KEY MANAGEMENT

operations that you can perform in

an isolated mode PDB.

Table 6-1 ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Creating a keystore

ADMINISTER KEY MANAGEMENT

CREATE KEYSTORE

['keystore_location']

IDENTIFIED BY

keystore_password;

You can create password-

protected, local auto-login,

and auto-login keystores in

an isolated mode PDB.

The

keystore_location

clause is optional only when

you have set the

WALLET_ROOT

parameter.

Otherwise, it is mandatory.

Creating an auto-login

keystore

ADMINISTER KEY MANAGEMENT

CREATE [LOCAL] AUTO_LOGIN

KEYSTORE

FROM KEYSTORE

['keystore_location']

IDENTIFIED BY

keystore_password;

The

keystore_location

optional if the

WALLET_ROOT

parameter is set.

Chapter 6

Operations That Are Allowed in Isolated Mode

6-2

Table 6-1 (Cont.) ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Opening a keystore

ADMINISTER KEY MANAGEMENT

SET KEYSTORE OPEN

[FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password];

In this operation, the

EXTERNAL_STORE

clause uses

the password in the wallet. In

a non-multitenant

(standalone) environment,

the wallet is configured at the

location set by the

EXTERNAL_KEYSTORE_CREDENT

IAL_LOCATION

initialization

parameter. In a multitenant

environment the wallet is

configured in the

tde_seps

directory in the

WALLET_ROOT

location. This wallet contains

the password of the keystore.

For a PDB in isolated mode,

the wallet used by the

EXTERNAL_STORE

clause must

be configured at the

WALLET_ROOT/PDB_GUID/

tde_seps

location.

Changing a keystore

password

ADMINISTER KEY MANAGEMENT

ALTER KEYSTORE PASSWORD

IDENTIFIED BY

old_keystore_password

SET new_keystore_password

WITH BACKUP

[USING 'backup_identifier'];

Backing up a keystore

ADMINISTER KEY MANAGEMENT

BACKUP KEYSTORE

[USING 'backup_identifier']

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

[TO 'keystore_location'];

Merging the contents of one

keystore into an existing

keystore

ADMINISTER KEY MANAGEMENT

MERGE KEYSTORE

'keystore_location1'

[IDENTIFIED BY

keystore1_password]

INTO EXISTING KEYSTORE

'keystore_location2'

IDENTIFIED BY

keystore2_password

WITH BACKUP [USING

'backup_identifier'];

Chapter 6

Operations That Are Allowed in Isolated Mode

6-3

Table 6-1 (Cont.) ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Merging the contents of two

keystores to create a third

keystore

ADMINISTER KEY MANAGEMENT

MERGE KEYSTORE

'keystore_location1'

[IDENTIFIED BY

keystore1_password]

AND KEYSTORE

'keystore_location2'

[IDENTIFIED BY

keystore2_password]

INTO NEW KEYSTORE

'keystore_location3'

IDENTIFIED BY

keystore3_password;

Closing a keystore

ADMINISTER KEY MANAGEMENT

SET KEYSTORE CLOSE

[IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]];

Closing the keystore of the

CDB root when a PDB in

isolated mode has its keystore

open

ADMINISTER KEY MANAGEMENT

FORCE KEYSTORE CLOSE

[IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]];

The

FORCE

clause allows the

keystore to be closed in the

CDB root even when a PDB

in isolated mode still has its

keystore open

Creating and activating a new

TDE master encryption key

(rekeying)

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

[USING TAG 'tag_name']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL

STORE | keystore_password

]WITH BACKUP

[USING 'backup_identifier'];

Creating a user-defined TDE

master encryption key for

either now (

SET

) or later on

(

CREATE

ADMINISTER KEY MANAGEMENT

[SET | CREATE] [ENCRYPTION]

KEY

'mkid:mk | mk'

[USING ALGORITHM

'algorithm']

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL

STORE | keystore_password]

[WITH BACKUP [USING

'backup_identifier']]

[CONTAINER = CURRENT];

Chapter 6

Operations That Are Allowed in Isolated Mode

6-4

Table 6-1 (Cont.) ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Activating an existing TDE

master encryption key

ADMINISTER KEY MANAGEMENT

USE [ENCRYPTION] KEY

'key_id'

[USING TAG 'tag']

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Tagging a TDE master

encryption key

ADMINISTER KEY MANAGEMENT

SET TAG 'tag' FOR 'key_id'

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Exporting a TDE master

encryption key

ADMINISTER KEY MANAGEMENT

EXPORT [ENCRYPTION] KEYS

WITH SECRET secret

TO 'filename'

IDENTIFIED BY

keystore_password

[WITH IDENTIFIER IN

{ 'key_id' [, 'key_id' ]...

( subquery ) }];

Importing a TDE master

encryption key

ADMINISTER KEY MANAGEMENT

IMPORT [ENCRYPTION] KEYS

WITH SECRET secret

FROM 'filename'

IDENTIFIED BY

keystore_password

[WITH BACKUP

[USING

'backup_identifier']];

Migrating a TDE master

encryption key from a software

keystore to an HSM

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

IDENTIFIED BY

HSM_auth_string

[FORCE KEYSTORE]

MIGRATE USING

software_keystore_password

WITH BACKUP

[USING 'backup_identifier'];

Chapter 6

Operations That Are Allowed in Isolated Mode

6-5

Table 6-1 (Cont.) ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Reverse-migrating a TDE

master encryption key from an

HSM to a software keystore

ADMINISTER KEY MANAGEMENT

SET [ENCRYPTION] KEY

IDENTIFIED BY

software_keystore_password

REVERSE MIGRATE USING

HSM_auth_string;

Adding a client secret

ADMINISTER KEY MANAGEMENT

ADD SECRET 'secret'

FOR CLIENT

'client_identifier'

[USING TAG 'tag_name' ]

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Updating a client secret

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'secret'

FOR CLIENT

'client_identifier'

[USING TAG 'tag_name' ]

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Deleting a client secret

ADMINISTER KEY MANAGEMENT

DELETE SECRET

FOR CLIENT

'client_identifier'

IDENTIFIED BY

[EXTERNAL STORE |

keystore_password]

WITH BACKUP

[USING 'backup_identifier'];

Chapter 6

Operations That Are Allowed in Isolated Mode

6-6

Table 6-1 (Cont.) ADMINISTER KEY MANAGEMENT Isolated Mode Operations

Operation Syntax Isolated Mode Notes

Isolate a PDB

ADMINISTER KEY MANAGEMENT

ISOLATE KEYSTORE

IDENTIFIED BY

isolated_keystore_password

FROM ROOT KEYSTORE

[FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE |

united_keystore_password]

WITH BACKUP [USING

backup_id];

This operation performs two

actions. First, it changes the

TDE_CONFIGURATION

of the

PDB so that it is in isolated

mode. Second, it moves the

TDE master encryption key

and all previously active

(historical) TDE master

encryption keys from the

keystore of the CDB root to a

newly-created keystore for

the PDB having its own

password, where the PDB

will be able to manage its

own keys.

Operations That Are Not Allowed in an Isolated Mode PDB

There are several

ADMINISTER KEY MANAGEMENT

operations that you cannot perform in an

isolated mode PDB.

These operations include the following:

•Using the

CONTAINER = ALL

clause to create a new TDE master encryption key for

later use in each pluggable database (PDB)

•Moving encryption keys from the keystore of the CDB root into a keystore of a

PDB that is configured in isolated mode

Configuring the Keystore Location and Type for Isolated

Mode

For isolated mode, you can configure the keystore location and type by using only

parameters or a combination of parameters and the

ALTER SYSTEM

statement.

•Configuring Isolated Mode

You can configure isolated mode by setting

WALLET_ROOT

in the initialization

parameter file in the CDB root and

TDE_CONFIGURATION

in the PDB you want to

isolate.

•Example: Restoring an Older Version of a Control File

You can set

TDE_CONFIGURATION

if you have an older version of a control file that

must be restored and only a few PDBs were configured in isolated mode.

•Example: Addressing the Problem of a Lost Control File

You can address the problem of a lost control file by using the

ALTER SYSTEM

statement.

Chapter 6

Operations That Are Not Allowed in an Isolated Mode PDB

6-7

•Example: Configuring Isolated Mode in an Oracle Real Application Clusters

Environment

You can use

ALTER SYSTEM

to configure isolated mode in an Oracle Real Application

Clusters (Oracle RAC) environment.

Configuring Isolated Mode

You can configure isolated mode by setting

WALLET_ROOT

in the initialization parameter

file in the CDB root and

TDE_CONFIGURATION

in the PDB you want to isolate.

Configuring the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters for the CDB

environment is a similar procedure as the one you would use to configure united

mode, except rather than using the

RESET

clause of the

ALTER SYSTEM

statement, you

use the

SET

clause. You can perform the configuration by adding the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters to the initialization parameter file. To configure a PDB in

isolated mode, you must set a value for the

TDE_CONFIGURATION

parameter of the PDB,

which you can do either by using the

ALTER SYSTEM

statement or by issuing the

ADMINISTER KEY MANAGEMENT ISOLATE KEYSTORE

statement. This section focuses on the

use of the

ALTER SYSTEM

statement.

Depending on whether your system uses pfile or spfile, you must set the

SCOPE

clause

in the

ALTER SYSTEM

statement appropriately when setting the value of the

TDE_CONFIGURATION

parameter for the PDB. The value of the

TDE_CONFIGURATION

parameter is a list of attribute-value pairs, and it is the value of the

KEYSTORE_CONFIGURATION

attribute that specifies the type of the keystore, as follows:

•

FILE

specifies a software keystore

•

OKV

specifies an Oracle Key Vault hardware keystore)

•

HSM

specifies a hardware security module keystore

•

FILE|OKV

specifies a reverse-migration from the

OKV

keystore type to the

FILE

keystore type has occurred

•

FILE|HSM

specifies a reverse-migration from the

HSM

keystore type to the

FILE

keystore type has occurred

•

OKV|FILE

specifies a migration from the

FILE

keystore type to the

OKV

keystore type

has occurred

•

HSM|FILE

specifies a migration from the

FILE

keystore type to the

HSM

keystore type

has occurred

After you have used

ALTER SYSTEM

to configure the

TDE_CONFIGURATION

value for the

selected PDB, the PDB in the CDB environment is in isolated mode. The steps in this

procedure explain in detail how to configure an individual PDB to be in isolated mode,

using its own keystore type.

1. Connect to the PDB as a user who has been granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

2. Run the

ALTER SYSTEM

statement to configure the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters for the CDB environment.

•If the CDB root and the PDB are open, then set

SCOPE

both

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=keystore_type"

SCOPE=both;

Chapter 6

Configuring the Keystore Location and Type for Isolated Mode

6-8

•If the CDB root is open and the PDB is in the mount state, then set

scope

spfile

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=keystore_type"

SCOPE=spfile;

3. Check the configuration.

•To check the

TDE_CONFIGURATION

parameter setting:

SHOW PARAMETER TDE_CONFIGURATION

The output should reflect the keystore configuration that you set for the current

PDB. If it shows a different keystore configuration (for example,

FILE

if you had

set it to

OKV

), then the setting may be showing the keystore configuration that

was set for the CDB root, in united mode.

•To check the keystore mode:

SELECT KEYSTORE_MODE FROM V$ENCRYPTION_WALLET;

The output should be

ISOLATED

After you configure isolated mode, the CDB root keystore that was available to the

PDB when it was in united mode is no longer available to this PDB. At this stage, the

PDB is configured to use its own keystore. If the

KEYSTORE_CONFIGURATION

parameter

was

FILE

(meaning that the PDB is configured to use a software keystore), then the

keystore location configured for the PDB is

WALLET_ROOT/PDB-GUID/tde

. If a keystore

exists at that location and contains a TDE master encryption key, then that key is only

available to this PDB, not to any other PDB. If no keystore exists at that location, you

now can now proceed to create a software keystore and set a TDE master encryption

key. If you later decide that you want the isolated mode PDB to become a united mode

PDB again, then you can use the

ADMINISTER KEY MANAGEMENT UNITE KEYSTORE

statement. When you run

ADMINISTER KEY MANAGEMENT UNITE KEYSTORE

, it moves the keys

from the PDB's keystore to the keystore of the CDB root, but it leaves any client

secrets behind. So if there were no client secrets in the first place, then it would leave

the PDB's keystore essentially "empty". It can now be backed up, and removed.

Always back up keystores before you remove them, even empty keystores.

Related Topics

•Configuring United Mode by Editing the Initialization Parameter File

You can configure united mode by setting both the

WALLET_ROOT

and

TDE_CONFIGURATION

parameters in the initialization parameter file.

•Configuring United Mode with the Initialization Parameter File and ALTER

SYSTEM

If your environment relies on server parameter files (spfile) or parameter files

(pfile), then you can set

TDE_CONFIGURATION

using

ALTER SYSTEM

with

SCOPE

•Uniting a Pluggable Database Keystore

Uniting a PDB keystore moves the TDE master encryption keys from the PDB

keystore into the keystore of the CDB root. This enables the administrator of the

keystore of the CDB root to manage the keys.

Example: Restoring an Older Version of a Control File

You can set

TDE_CONFIGURATION

if you have an older version of a control file that must

be restored and only a few PDBs were configured in isolated mode.

Chapter 6

Configuring the Keystore Location and Type for Isolated Mode

6-9

When the CDB root and the PDB are both in the mount state, then you can only

change the PDB’s keystore configuration from the CDB root.

1. Log in to the CDB root as a user who was granted the

SYSDBA

administrative

privilege.

2. For each PDB that you want to change, use the following syntax:

ALTER SYSTEM SET

TDE_CONFIGURATION="CONTAINER=pdb_name;KEYSTORE_CONFIGURATION=keystore_type"

SCOPE=memory;

For example, for the

hrpdb

and

salespdb

PDBs using

FILE

(for software keystores)

as the keystore type:

ALTER SYSTEM SET TDE_CONFIGURATION="CONTAINER=hrpdb;KEYSTORE_CONFIGURATION=FILE"

SCOPE=memory;

ALTER SYSTEM SET

TDE_CONFIGURATION="CONTAINER=salespdb;KEYSTORE_CONFIGURATION=FILE" SCOPE=memory;

3. After you set the

TDE_CONFIGURATION

parameter for each PDB, log in to the CDB

root and then set

TDE_CONFIGURATION

for the CDB root itself.

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE";

At this stage, CDB root is in the mounted state. The value of the

TDE_CONFIGURATION

parameter that was set using

ALTER SYSTEM

with the

CONTAINER

attribute is only

present in the memory of the CDB root. To ensure that the configuration is

properly applied to each PDB, you must close and then reopen the PDB. When an

isolated mode PDB is opened, the configuration set by the

ALTER SYSTEM

statement

that was issued in the CDB root is read from the control file and then is

automatically applied to the PDB.

4. Connect to each PDB and then close and reopen the PDB.

ALTER PLUGGABLE DATABASE pdb_name CLOSE IMMEDIATE;

ALTER PLUGGABLE DATABASE pdb_name OPEN;

Example: Addressing the Problem of a Lost Control File

You can address the problem of a lost control file by using the

ALTER SYSTEM

statement.

Running these statements with

SCOPE

set to memory will store the

CONTAINER

value in

memory. When you open the isolated PDB, this configuration will automatically be

updated for the PDB.

If you are using an Oracle Data Guard environment, then to correct the control file, run

these statements on both the primary and the standby databases.

1. Log in to the CDB root as a user who was granted the

SYSDBA

administrative

privilege.

2. If you are unsure of the exact state of the system, then you should run

ALTER

SYSTEM

with

RESET

For example:

ALTER SYSTEM RESET TDE_CONFIGURATION SCOPE=memory;

3. For each PDB that you want to change, use the following syntax:

ALTER SYSTEM SET

TDE_CONFIGURATION="CONTAINER=pdb_name;KEYSTORE_CONFIGURATION=FILE" SCOPE=memory;

Chapter 6

Configuring the Keystore Location and Type for Isolated Mode

6-10

For example, for the

hrpdb

and

salespdb

PDBs with

FILE

(for software keystores) as

the keystore type:

ALTER SYSTEM SET TDE_CONFIGURATION="CONTAINER=hrpdb;KEYSTORE_CONFIGURATION=FILE"

SCOPE=memory;

ALTER SYSTEM SET

TDE_CONFIGURATION="CONTAINER=salespdb;KEYSTORE_CONFIGURATION=FILE" SCOPE=memory;

4. After you set the

TDE_CONFIGURATION

parameter for each PDB, log in to the CDB

root and then set

TDE_CONFIGURATION

for the CDB root itself.

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE";

At this stage, CDB root is in the mounted state. The value of the

TDE_CONFIGURATION

parameter that was set using

ALTER SYSTEM

with the

CONTAINER

attribute is only

present in the memory of the CDB root. To ensure that the configuration is

properly applied to each PDB, you must close and then reopen the PDB. When an

isolated mode PDB is opened, the configuration set by the

ALTER SYSTEM

statement

that was issued in the CDB root is read from the control file and then is

automatically applied to the PDB.

5. Connect to each PDB and then close and reopen the PDB.

ALTER PLUGGABLE DATABASE pdb_name CLOSE IMMEDIATE;

ALTER PLUGGABLE DATABASE pdb_name OPEN;

Example: Configuring Isolated Mode in an Oracle Real Application

Clusters Environment

You can use

ALTER SYSTEM

to configure isolated mode in an Oracle Real Application

Clusters (Oracle RAC) environment.

1. To ensure that the effect of the

ALTER SYSTEM

statement is applied on each Oracle

RAC node, specify the wildcard (

) in the

SID

clause of the

ALTER SYSTEM

statement,

as follows. You can run this statement from either the CDB root or a PDB.

ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=keystore_type"

SID='*';

2. If you ran this statement in the CDB root, then restart the database. If you

executed it from a PDB, then close and open the PDB.

Configuring a Keystore and TDE Master Encryption Key in

Isolated Mode

In isolated mode, the software keystore is associated with a PDB.

•About Configuring a Software Keystore in Isolated Mode

You can create all types of software keystores in isolated mode: password-

protected, password protected with the credential provided from an external store,

auto-login, local auto-login.

•Step 1: Create a Software Keystore in a PDB Configured in Isolated Mode

A password-protected software keystore requires a password to protect the

keystore keys and credentials.

Chapter 6

Configuring a Keystore and TDE Master Encryption Key in Isolated Mode

6-11

•Step 2: Open the Software Keystore in an Isolated Mode PDB

To open a software keystore in isolated mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Step 3: Set the TDE Master Encryption Key in the Software Keystore of the

Isolated Mode PDB

To set the TDE master encryption key in a software keystore in an isolated mode

PDB, use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

•Step 4: Encrypt Your Data in Isolated Mode

Now that you have completed the keystore configuration and the PDB is

configured in isolated mode, you can begin to encrypt data in the PDB.

About Configuring a Software Keystore in Isolated Mode

You can create all types of software keystores in isolated mode: password-

protected, password protected with the credential provided from an external store,

auto-login, local auto-login.

To enable encryption in the PDB after it is configured in isolated mode with the

KEYSTORE_CONFIGURATION

attribute set to

FILE

(that is, to use a software keystore), you

must create a software keystore, open the software keystore, and then set a TDE

master encryption key in the software keystore. Afterward, you can begin to encrypt

data for tables and tablespaces that will be accessible in the PDB.

In a multitenant environment, you can create a secure external store to hold the

credentials of the software keystore. This feature enables you to hide the keystore

password: it removes the need for storing the keystore password in any script or tool

that accesses the database without user intervention, such as an overnight batch

script. When the

WALLET_ROOT

parameter is specified, the location of the external store

for the CDB root is

WALLET_ROOT/tde_seps

and for the PDB it is

WALLET_ROOT/PDB-GUID/

tde_seps

. When the

WALLET_ROOT

parameter is set, there is no longer a single central

external store, so when a keystore password is updated, the corresponding external

store must be updated as well. When the

WALLET_ROOT

parameter is not specified, then

the location of the external store is the same for both the CDB root and for every PDB.

The external store location must then be set by the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

initialization parameter. When the

WALLET_ROOT

parameter is not specified, then there is a single central external store, so when you

update the keystore password, only the central external store at the

EXTERNAL_KEYSTORE_CREDENTIAL_LOCATION

must be updated.

In a multitenant environment, different PDBs can access this external store location

when you run the

ADMINISTER KEY MANAGEMENT

statement using the

IDENTIFIED BY

EXTERNAL STORE

clause. This way, you can centrally locate the password and then

update it only once in the external store.

Related Topics

•Configuring an External Store for a Keystore Password

An external store for a keystore password stores the keystore password in a

centrally accessed and managed location.

Chapter 6

Configuring a Keystore and TDE Master Encryption Key in Isolated Mode

6-12

Step 1: Create a Software Keystore in a PDB Configured in Isolated

Mode

A password-protected software keystore requires a password to protect the keystore

keys and credentials.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Run the

ADMINISTER KEY MANAGEMENT

SQL statement to create the keystore using the

following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

['keystore_location']

IDENTIFIED BY software_keystore_password;

In this specification:

•

keystore_location

is the path to the keystore directory location of the

password-protected keystore. If the path that is set by the

WALLET_ROOT

parameter is the path that you want to use, then you can omit the

keystore_location

setting.

If you specify the

keystore_location

, then enclose it in single quotation marks

(

' '

). To find this location, you can query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. (If the keystore was not created in the default

location, then the

STATUS

column of the

V$ENCRYPTION_WALLET

view is

NOT_AVAILABLE

•

software_keystore_password

is the password of the keystore that you, the

security administrator, creates.

For example, to create the keystore in the default location (assuming

WALLET_ROOT

is set):

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

IDENTIFIED BY password;

keystore altered.

After you complete these steps, the

ewallet.p12

file, which is the keystore, appears in

the default keystore location under the

WALLET_ROOT

which you have configured. For

example, if you had set the

WALLET_ROOT

parameter to

$ORACLE_BASE/wallet

and set the

TDE_CONFIGURATION

parameter to

FILE

(indicating that a software keystore is configured

for the PDB that is in isolated mode), then the keystore of the PDB will be created in

the

$ORACLE_BASE/wallet/PDB-GUID/tde

directory.

Step 2: Open the Software Keystore in an Isolated Mode PDB

To open a software keystore in isolated mode, you must use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

Chapter 6

Configuring a Keystore and TDE Master Encryption Key in Isolated Mode

6-13

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Run the

ADMINISTER KEY MANAGEMENT

statement to open the keystore.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

keystore altered.

To switch over to opening the password-protected software keystore when an

auto-login keystore is configured and is currently open, specify the

FORCE KEYSTORE

clause as follows.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

keystore altered.

Here, the

IDENTIFIED BY EXTERNAL STORE

clause is included in the statement

because the keystore credentials exist in an external store. This enables

the password-protected keystore to be opened without specifying the

keystore password within the statement itself.

If the

WALLET_ROOT

parameter has been set, then Oracle Database finds the

external store by searching in this path:

WALLET_ROOT/PDB_GUID/tde_seps

3. Confirm that the keystore is open.

SELECT STATUS FROM V$ENCRYPTION_WALLET;

Related Topics

•About Opening Software Keystores

A password-protected software keystore must be open before any TDE master

encryption keys can be created or accessed in the keystore.

Step 3: Set the TDE Master Encryption Key in the Software Keystore

of the Isolated Mode PDB

To set the TDE master encryption key in a software keystore in an isolated mode PDB,

use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Ensure that the database is open in

READ WRITE

mode.

To find the status, run the

show pdbs

command.

3. Run the

ADMINISTER KEY MANAGEMENT

SQL statement to set the key in the software

keystore.

For example, if the keystore of the PDB is password-protected, the PDB is open,

and the keystore of the PDB is open:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

Chapter 6

Configuring a Keystore and TDE Master Encryption Key in Isolated Mode

6-14

keystore altered.

If the keystore is closed:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

keystore altered.

In this specification:

•

FORCE KEYSTORE

should be included if the keystore is closed. This automatically

opens the keystore before setting the TDE master encryption key. The

FORCE

KEYSTORE

clause also switches over to opening the password-protected

software keystore when an auto-login keystore is configured and is currently

open.

•

IDENTIFIED BY

specifies the keystore password. Alternatively, if the keystore

password is in an external store, you can use the

IDENTIFIED BY EXTERNAL

STORE

clause.

4. Confirm that the TDE master encryption key is set.

SELECT MASTERKEY_ACTIVATED FROM V$DATABASE_KEY_INFO;

The output should be

YES

Related Topics

•About Setting the Software Keystore TDE Master Encryption Key

The TDE master encryption key is stored in the keystore.

Step 4: Encrypt Your Data in Isolated Mode

Now that you have completed the keystore configuration and the PDB is configured in

isolated mode, you can begin to encrypt data in the PDB.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Configuring a Hardware Keystore in Isolated Mode

There are two different types of hardware keystores that Oracle Database

supports: hardware security modules (

HSM

) or Oracle Key Vault (

OKV

) keystores.

•About Configuring a Hardware Keystore in Isolated Mode

You can configure a hardware keystore for a PDB when the PDB is configured in

isolated mode.

Chapter 6

Configuring a Hardware Keystore in Isolated Mode

6-15

•Step 1: Configure the Hardware Security Module for the Isolated Mode PDB

To configure a third-party hardware security module, you must copy your vendor’s

PKCS#11 library to the correct location and follow your vendor's instructions.

•Step 2: Open the Hardware Keystore in an Isolated Mode PDB

To open a hardware keystore in an isolated mode PDB, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

•Step 3: Set TDE Master Encryption Key in the Hardware Keystore of a PDB in

Isolated Mode

After you have opened the hardware keystore in an isolated mode PDB, you are

ready to set the TDE master encryption key for the PDB.

•Step 4: Encrypt Your Data in Isolated Mode

Now that you have completed the keystore configuration and the PDB is

configured in isolated mode, you can begin to encrypt data in the PDB.

About Configuring a Hardware Keystore in Isolated Mode

You can configure a hardware keystore for a PDB when the PDB is configured in

isolated mode.

To configure a hardware keystore for a PDB in isolated mode, you first must set the

WALLET_ROOT

parameter. This is necessary for two reasons: first, to have support for

migrating to a software keystore in the future, and second, because the configuration

file for Oracle Key Vault is retrieved from a location under

WALLET_ROOT

. Afterwards, you

must set the

KEYSTORE_CONFIGURATION

attribute of the

TDE_CONFIGURATION

parameter to

HSM

OKV

, open the configured hardware keystore, and then set the TDE master

encryption key for the PDB. After you complete these tasks, you can begin to encrypt

data in the PDB.

How you specify the

IDENTIFIED BY

clause when you run the

ADMINISTER KEY MANAGEMENT

statement depends on the type of hardware keystore. For a hardware security module

(

HSM

), you use the following syntax:

IDENTIFIED BY "user_name:password"

For an Oracle Key Vault keystore, you can omit the

user_name

and colon, but you must

enclose the password in quotation marks:

IDENTIFIED BY "password"

Step 1: Configure the Hardware Security Module for the Isolated Mode

PDB

To configure a third-party hardware security module, you must copy your vendor’s

PKCS#11 library to the correct location and follow your vendor's instructions.

Related Topics

•Step 2: Configure the Hardware Security Module

To configure a third-party hardware security module, you must copy the PKCS#11

library to the correct location and follow your vendor's instructions.

Chapter 6

Configuring a Hardware Keystore in Isolated Mode

6-16

Step 2: Open the Hardware Keystore in an Isolated Mode PDB

To open a hardware keystore in an isolated mode PDB, you must use the

ADMINISTER

KEY MANAGEMENT

statement with the

SET KEYSTORE OPEN

clause.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Open the hardware keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "hardware_keystore_credentials";

The type of hardware keystore determines how you specify the hardware keystore

password. For hardware security modules, you must use the

user_name:password

syntax. For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:password";

keystore altered.

For an Oracle Key Vault keystore, you can only provide the password. No user

name is allowed in the

IDENTIFIED BY

clause. Enclose the password in double

quotation marks.

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "password";

3. Repeat this procedure each time you restart the database instance.

You must open the keystore of the CDB root first.

Related Topics

•About Opening Hardware Keystores

You must open the hardware keystore so that it is accessible to the database

before you can perform any encryption or decryption.

Step 3: Set TDE Master Encryption Key in the Hardware Keystore of a

PDB in Isolated Mode

After you have opened the hardware keystore in an isolated mode PDB, you are ready

to set the TDE master encryption key for the PDB.

•Setting a New TDE Master Encryption Key in Isolated Mode

You should complete this procedure if you have not previously configured a

hardware keystore for Transparent Data Encryption.

Chapter 6

Configuring a Hardware Keystore in Isolated Mode

6-17

•Migration of a Previously Configured Encryption Key in Isolated Mode

You must migrate the previously configured master encryption key if you

previously configured a software keystore.

Setting a New TDE Master Encryption Key in Isolated Mode

You should complete this procedure if you have not previously configured a hardware

keystore for Transparent Data Encryption.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Ensure that the database is open in

READ WRITE

mode.

You can set the TDE master encryption key if

OPEN_MODE

is set to

READ WRITE

. To

find the status, run the

show pdbs

command.

3. Set the new TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if the keystore is closed if an auto-login keystore is configured and is

currently open, or if a password-protected keystore is configured and is

currently closed.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

hardware_keystore_credentials

refers to the credentials for either an HSM

or an Oracle Key Vault hardware keystore. For an HSM, specify the

credentials using this format, enclosed in quotation marks and separating

the components with a colon:

“user_name:password”

, with

user_name

being

the user who created the HSM and password being this user’s password.

For Oracle Key Vault, enter only the password of the user who created the

keystore. Enclose this password with quotation marks.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY "psmith:password";

keystore altered.

4. Confirm that the TDE master encryption key is set.

SELECT MASTERKEY_ACTIVATED FROM V$DATABASE_KEY_INFO;

The output should be

YES

Chapter 6

Configuring a Hardware Keystore in Isolated Mode

6-18

Related Topics

•About Setting the Hardware Keystore TDE Master Encryption Key

You must create a TDE master encryption key that is stored inside the hardware

keystore.

Migration of a Previously Configured Encryption Key in Isolated Mode

You must migrate the previously configured master encryption key if you previously

configured a software keystore.

Related Topics

•Migration of a Previously Configured TDE Master Encryption Key

You must migrate the previously configured TDE master encryption key if you

previously configured a software keystore.

Step 4: Encrypt Your Data in Isolated Mode

Now that you have completed the keystore configuration and the PDB is configured in

isolated mode, you can begin to encrypt data in the PDB.

Related Topics

•Encrypting Columns in Tables

You can use Transparent Data Encryption to encrypt individual columns in

database tables.

•Encryption Conversions for Tablespaces and Databases

You can perform encryption operations on both offline and online tablespaces and

databases.

Administering Keystores and TDE Master Encryption Keys

in Isolated Mode

After you create a keystore and a TDE master encryption key in isolated mode, you

can perform administration tasks such as rekeying or tagging encryption keys.

To change the password of a hardware keystore, you must use the administrative

interface of the hardware keystore. You cannot perform this operation by using the

ADMINISTER KEY MANAGEMENT

statement.

•Changing the Keystore Password in Isolated Mode

You can change the password of a software keystore when the PDB is in isolated

mode.

•Backing Up a Password-Protected Software Keystore in Isolated Mode

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

•Merging Software Keystores in Isolated Mode

In isolated mode, you can merge software keystores.

•Closing Keystores in Isolated Mode

You can close both software and hardware keystores in isolated mode, unless the

system tablespace is encrypted.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-19

•Creating a User-Defined TDE Master Encryption Key in Isolated Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

•Creating a TDE Master Encryption Key for Later Use in Isolated Mode

A keystore must be open before you can create a TDE master encryption key for

use later on in isolated mode.

•Activating a TDE Master Encryption Key in Isolated Mode

To activate a TDE master encryption key in isolated mode, you must open the

keystore and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

•Rekeying the TDE Master Encryption Key in Isolated Mode

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause to

rekey a TDE master encryption key.

•Moving a TDE Master Encryption Key into a New Keystore in Isolated Mode

In isolated mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

•Creating a Custom Attribute Tag in Isolated Mode

To create a custom attribute tag in isolated mode, you must use the

SET TAG

clause

of the

ADMINISTER KEY MANAGEMENT

statement.

•Exporting and Importing the TDE Master Encryption Key in Isolated Mode

You can export and import the TDE master encryption key in different ways in

isolated mode.

•Storing Oracle Database Secrets in Isolated Mode

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

•Migrating Keystores in Isolated Mode

You can perform migration and reverse migration operations between software

keystores and hardware keystores in isolated mode.

•Automatically Removing Inactive TDE Master Encryption Keys in Isolated Mode

In isolated mode, the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization

parameter can configure the automatic removal of inactive master encryption keys.

•Uniting a Pluggable Database Keystore

Uniting a PDB keystore moves the TDE master encryption keys from the PDB

keystore into the keystore of the CDB root. This enables the administrator of the

keystore of the CDB root to manage the keys.

•Creating a Keystore When the PDB Is Closed

When you create a keystore in a PDB that is closed, the new keystore is empty

and the PDB is converted to isolated mode.

Changing the Keystore Password in Isolated Mode

You can change the password of a software keystore when the PDB is in isolated

mode.

To change the password of a hardware keystore, you must use the administrative

interface of the hardware keystore. You cannot perform this operation by using the

ADMINISTER KEY MANAGEMENT

statement.

•Changing the Password-Protected Software Keystore Password in Isolated Mode

To change the password of a password-protected software keystore in isolated

mode, you must use the

ADMINISTER KEY MANAGEMENT

statement.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-20

•Changing the Password of a Hardware Keystore in Isolated Mode

To change the password of a hardware keystore, you must close the hardware

keystore and then change the password from the hardware keystore’s

management interface.

Changing the Password-Protected Software Keystore Password in Isolated

Mode

To change the password of a password-protected software keystore in isolated mode,

you must use the

ADMINISTER KEY MANAGEMENT

statement.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Change the password for the keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

[FORCE KEYSTORE]

IDENTIFIED BY

old_password SET new_password

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if the keystore is closed if an auto-login keystore is configured and is

currently open, or if a password-protected keystore is configured and is

currently closed.

•

old_password

is the current keystore password that you want to change.

•

new_password

is the new password that you set for the keystore.

The following example creates a backup of the keystore and then changes the

keystore password:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

keystore altered.

This example performs the same operation but uses the

FORCE KEYSTORE

clause in

case the auto-login software keystore is in use or the password-protected software

keystore is closed.

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

FORCE KEYSTORE

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

keystore altered.

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-21

•Changing the Password of a Software Keystore

Oracle Database enables you to easily change password-protected software

keystore passwords.

Changing the Password of a Hardware Keystore in Isolated Mode

To change the password of a hardware keystore, you must close the hardware

keystore and then change the password from the hardware keystore’s management

interface.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Close the hardware keystore.

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password";

For a hardware keystore whose password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY EXTERNAL STORE;

3. From the hardware security module management interface, change the hardware

security module password.

4. Update the credentials of the HSM in the external store to use

user_name:password"

Currently, the external store contains the old HSM credentials, which would no

longer work.

For example:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'user_name:password'

FOR CLIENT 'TDE_WALLET'

TO LOCAL AUTO_LOGIN KEYSTORE '/etc/ORACLE/WALLETS/orcl/external_store';

5. In SQL*Plus, open the hardware keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "psmith:new_password";

For a hardware keystore whose password is stored externally:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY EXTERNAL STORE;

Related Topics

•Performing Operations That Require a Keystore Password

Many

ADMINISTER KEY MANAGEMENT

operations require access to a keystore

password, for both software and hardware keystores.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-22

•Storing Oracle Database Secrets in Isolated Mode

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

Backing Up a Password-Protected Software Keystore in Isolated Mode

The

BACKUP KEYSTORE

clause of the

ADMINISTER KEY MANAGEMENT

statement backs up a

password-protected software keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

For example:

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Back up the keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

[USING 'backup_identifier']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | software_keystore_password]

[TO 'keystore_location'];

In this specification:

•

USING

backup_identifier

is an optional string that you can provide to identify

the backup. Enclose this identifier in single quotation marks (

' '

). This

identifier is appended to the named keystore file (for example,

ewallet_time-

stamp_emp_key_backup.p12

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

is required for the

BACKUP KEYSTORE

operation on a password-

protected keystore because although the backup is simply a copy of the

existing keystore, the status of the TDE master encryption key in the

password-protected keystore must be set to

BACKED UP

and for this change the

keystore password is required.

•

keystore_location

is the path at which the backup keystore is stored. This

setting is restricted to the PDB when the PDB lockdown profile

EXTERNAL_FILE_ACCESS

setting is blocked in the PDB or when the

PATH_PREFIX

variable was set when the PDB was created. If you do not specify the

keystore_location

, then the backup is created in the same directory as the

original keystore. Enclose this location in single quotation marks (

' '

The following example backs up a software keystore in the same location as the

source keystore.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY

'software_keystore_password';

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-23

keystore altered.

In the following version, the password for the keystore is stored externally, so the

EXTERNAL STORE

clause is used.

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

USING 'hr.emp_keystore'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

After you run this statement, an

ewallet_identifier.p12

file (for example,

ewallet_time-stamp_hr.emp_keystore.p12

) appears in the keystore backup location.

Related Topics

•Backing Up Password-Protected Software Keystores

When you back up a password-protected software keystore, you can create a

backup identifier string to describe the backup type.

Merging Software Keystores in Isolated Mode

In isolated mode, you can merge software keystores.

•Merging One Software Keystore into an Existing Software Keystore in Isolated

Mode

In isolated mode, you can use the

ADMINISTER KEY MANAGEMENT

statement with the

MERGE KEYSTORE

clause to merge one software keystore into another existing

software keystore.

•Merging Two Software Keystores into a Third New Keystore in Isolated Mode

In isolated mode, you can merge two software keystores into a third new keystore,

so that the two existing keystores are not changed and the new keystore contains

the keys of both source keystores.

Merging One Software Keystore into an Existing Software Keystore in Isolated

Mode

In isolated mode, you can use the

ADMINISTER KEY MANAGEMENT

statement with the

MERGE

KEYSTORE

clause to merge one software keystore into another existing software

keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Merge the software keystores by using the following syntax:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password]

INTO EXISTING KEYSTORE 'keystore2_location'

IDENTIFIED BY software_keystore2_password

[WITH BACKUP [USING 'backup_identifier]];

In this specification:

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-24

•

keystore1_location

is the directory location of the first keystore, which will be

left unchanged after the merge. Enclose this path in single quotation marks (

•The

IDENTIFIED BY

clause is required for the first keystore if it is a password-

protected keystore.

software_keystore1_password

is the password for the first

keystore.

•

keystore2_location

is the directory location of the second keystore into which

the first keystore is to be merged. Enclose this path in single quotation marks

(

' '

•

software_keystore2_password

is the password for the second keystore.

The target keystore (

keystore2

) remains a password-protected keystore after the

keystore merge operation.

Related Topics

•About Merging Software Keystores

You can merge any combination of software keystores, but the merged keystore

must be password-protected. It can have a password that is different from the

constituent keystores.

Merging Two Software Keystores into a Third New Keystore in Isolated Mode

In isolated mode, you can merge two software keystores into a third new keystore, so

that the two existing keystores are not changed and the new keystore contains the

keys of both source keystores.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Merge the keystores by using the following syntax:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE 'keystore1_location'

[IDENTIFIED BY software_keystore1_password] AND KEYSTORE 'keystore2_location'

[IDENTIFIED BY software_keystore2_password]

INTO NEW KEYSTORE 'keystore3_location'

IDENTIFIED BY software_keystore3_password;

In this specification:

•

keystore1_location

is the directory location of the first keystore, which will be

left unchanged after the merge. Enclose this path in single quotation marks

(

' '

•The

IDENTIFIED BY

clause is required for the first keystore if it is a password-

protected keystore.

software_keystore1_password

is the current password for

the first keystore.

•

keystore2_location

is the directory location of the second keystore. Enclose

this path in single quotation marks (

' '

•The

IDENTIFIED BY

clause is required for the second keystore if it is a

password-protected keystore.

software_keystore2_password

is the current

password for the second keystore.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-25

•

keystore3_location

specifies the directory location of the new, merged

keystore. Enclose this path in single quotation marks (

' '

). If there is already

an existing keystore at this location, the command exits with an error.

•

software_keystore3_password

is the new password for the merged keystore.

The following example merges an auto-login software keystore with a password-

protected keystore to create a merged password-protected keystore at a new

location:

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE '/etc/ORACLE/KEYSTORE/DB1'

AND KEYSTORE '/etc/ORACLE/KEYSTORE/DB2'

IDENTIFIED BY existing_password_for_keystore_2

INTO NEW KEYSTORE '/etc/ORACLE/KEYSTORE/DB3'

IDENTIFIED BY new_password_for_keystore_3;

keystore altered.

Related Topics

•About Merging Software Keystores

You can merge any combination of software keystores, but the merged keystore

must be password-protected. It can have a password that is different from the

constituent keystores.

Closing Keystores in Isolated Mode

You can close both software and hardware keystores in isolated mode, unless the

system tablespace is encrypted.

•Closing a Software Keystore in Isolated Mode

You can close password-protected keystores, auto-login keystores, and local auto-

•Closing a Hardware Keystore in Isolated Mode

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEYSTORE CLOSE

clause.

Closing a Software Keystore in Isolated Mode

You can close password-protected keystores, auto-login keystores, and local auto-

In the case of an auto-login keystore, which opens automatically when it is accessed,

you must first move it to a new location where it cannot be automatically opened, then

you must manually close it. You must do this if you are changing your configuration

from an auto-login keystore to a password-protected keystore: you change the

configuration to stop using the auto-login keystore (by moving the auto-login keystore

to another location where it cannot be automatically opened), and then closing the

auto-login keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Close the software keystore by using the following syntax.

Note that the only difference between the following two

ADMINISTER KEY MANAGEMENT

SET KEYSTORE CLOSE

statements is that a password must be provided for a

password-protected keystore.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-26

•For a password-protected software keystore:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY [EXTERNAL STORE | software_keystore_password];

Closing a password-protected keystore disables all encryption and decryption

operations. Any attempt to encrypt or decrypt data or access encrypted data

results in an error.

•For an auto-login or local auto-login software keystore:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE;

The result of this statement will not necessarily be that the keystore status will

change to

CLOSED

, because unless you also moved the

cwallet.sso

file to a

location that Oracle Database cannot find, then a background job or

background process could automatically re-open the auto-login keystore. This

can cause the status to potentially always appear to be

OPEN

even after the

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

statement completed

successfully.

Related Topics

•About Closing Keystores

After you open a keystore, it remains open until you shut down the database

instance.

Closing a Hardware Keystore in Isolated Mode

To close a hardware keystore, you must use the

ADMINISTER KEY MANAGEMENT

statement

with the

SET KEYSTORE CLOSE

clause.

For an Oracle Key Vault keystore, you can only provide the password. No user name

is allowed in the

IDENTIFIED BY

clause. Enclose the password in double quotation

marks.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Close the hardware keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY [EXTERNAL STORE | "hardware_keystore_credentials"];

For example, for an HSM:

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE

IDENTIFIED BY "psmith:password";

Closing a keystore disables all encryption and decryption operations. Any attempt to

encrypt or decrypt data or access encrypted data results in an error.

Related Topics

•About Closing Keystores

After you open a keystore, it remains open until you shut down the database

instance.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-27

Creating a User-Defined TDE Master Encryption Key in Isolated Mode

To create a user-defined TDE master encryption key, use the

ADMINISTER KEY

MANAGEMENT

statement with the

SET | CREATE [ENCRYPTION] KEY

clause.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Create the user-defined TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET | CREATE [ENCRYPTION] KEY

'mkid:mk | mk'

[USING ALGORITHM 'algorithm']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

SET | CREATE

: Enter

SET

if you want to create the master and activate the TDE

master encryption key now, or enter

CREATE

if you want to create the key for

later use, without activating it yet.

•

mkid

and

–

mkid

, the TDE master encryption key ID, is a 16–byte hex-encoded value

that you can specify or have Oracle Database generate.

–

, the TDE master encryption key, is a hex-encoded value that you can

specify or have Oracle Database generate, either 32 bytes (for the for

AES256

ARIA256

, and

GOST256

algorithms) or 16 bytes (for the

SEED128

algorithm).

If you omit the

mkid:mk|mkid

clause but include the

value, then Oracle

Database generates the

mkid

for the

If you omit the entire

mkid:mk|mkid

clause, then Oracle Database generates

these values for you.

•

USING ALGORITHM

: Specify one of the following supported algorithms:

–

AES256

–

ARIA256

–

SEED128

–

GOST256

If you omit the algorithm, then the default,

AES256

, is used.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

The following example includes a user-created TDE master encryption key but no

TDE master encryption key ID, so that the TDE master encryption key ID is

generated:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

'3D432109DF88967A541967062A6F4E460E892318E307F017BA048707B402493C'

USING ALGORITHM 'GOST256'

FORCE KEYSTORE

IDENTIFIED BY keystore_password;

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-28

The next example creates user-defined keys for both the master encryption ID and

the TDE master encryption key. It omits the algorithm specification, so the default

algorithm

AES256

is used.

ADMINISTER KEY MANAGEMENT CREATE ENCRYPTION KEY

'10203040506070801112131415161718:3D432109DF88967A541967062A6F4E460E892318E307F01

7BA048707B402493C'

IDENTIFIED BY keystore_password;

Related Topics

•Supported Encryption and Integrity Algorithms

By default, Transparent Data Encryption (TDE) Column encryption uses the

Advanced Encryption Standard (AES).

Creating a TDE Master Encryption Key for Later Use in Isolated Mode

A keystore must be open before you can create a TDE master encryption key for use

later on in isolated mode.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Create the TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT CREATE KEY

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

is required for the

BACKUP KEYSTORE

operation on a password-

protected keystore because although the backup is simply a copy of the

existing keystore, the status of the TDE master encryption key in the

password-protected keystore must be set to

BACKED UP

and for this change the

keystore password is required.

•

keystore_location

is the path at which the backup keystore is stored. This

setting is restricted to the PDB when the PDB lockdown profile

EXTERNAL_FILE_ACCESS

setting is blocked in the PDB or when the

PATH_PREFIX

variable was not set when the PDB was created. If you do not specify the

keystore_location

, then the backup is created in the same directory as the

original keystore. Enclose this location in single quotation marks (

' '

For example:

ADMINISTER KEY MANAGEMENT CREATE KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP;

3. If necessary, activate the TDE master encryption key.

a. Find the key ID.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-29

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

b. Use this key ID to activate the key.

ADMINISTER KEY MANAGEMENT USE KEY

'AWsHwVYC2U+Nv3RVphn/yAIAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

USING TAG 'quarter:second;description:Activate Key on standby'

IDENTIFIED BY password

WITH BACKUP;

Related Topics

•Creating TDE Master Encryption Keys for Later Use

You can create a TDE master encryption key that can be activated at a later date.

Activating a TDE Master Encryption Key in Isolated Mode

To activate a TDE master encryption key in isolated mode, you must open the

keystore and use

ADMINISTER KEY MANAGEMENT

with the

USE KEY

clause.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

view to find the key identifier.

For example:

SELECT KEY_ID FROM V$ENCRYPTION_KEYS;

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Use this key identifier to activate the TDE master encryption key by using the

following syntax:

ADMINISTER KEY MANAGEMENT USE KEY 'key_identifier_from_V$ENCRYPTION_KEYS'

[USING TAG 'tag']

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

For example:

ADMINISTER KEY MANAGEMENT USE KEY

'ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA'

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP;

Related Topics

•About Activating TDE Master Encryption Keys

You can activate a previously created or imported TDE master encryption key by

using the

USE KEY

clause of

ADMINSTER KEY MANAGEMENT

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-30

Rekeying the TDE Master Encryption Key in Isolated Mode

You can use the

ADMINISTER KEY MANAGEMENT

statement with the

SET KEY

clause to rekey

a TDE master encryption key.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. If you are rekeying the TDE master encryption key for a keystore that has auto

.sso

file, and the encryption keystore, identified by the

.p12

file, are present.

You can find the location of these files by querying the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view. To find the

WRL_PARAMETER

values for all of the database

instances, query the

GV$ENCRYPTION_WALLET

view.

3. Rekey the TDE master encryption key by using the following syntax:

ADMINISTER KEY MANAGEMENT SET [ENCRYPTION] KEY

[FORCE KEYSTORE]

[USING TAG 'tag_name']

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

tag

is the associated attributes and information that you define. Enclose this

setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password that was created for this keystore.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

keystore altered.

Related Topics

•About Rekeying the TDE Master Encryption Key

Oracle Database uses a unified TDE Master Encryption Key for both TDE column

encryption and TDE tablespace encryption.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-31

Moving a TDE Master Encryption Key into a New Keystore in Isolated

Mode

In isolated mode, you can move an existing TDE master encryption key into a new

keystore from an existing software password keystore.

This feature enables you to move a subset, or all, of a keystore’s keys into a new

keystore. After you move the key or keys to the new keystore and then back up the old

keystore, optionally you then can delete this old keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Query the

CREATION_TIME

and

KEY_ID

columns of the

V$ENCRYPTION_KEYS

view to find

the key identifier of the key that you want to move.

For example:

SELECT CREATION_TIME, KEY_ID FROM V$ENCRYPTION_KEYS;

CREATION TIME

----------------------------------------------------

22-SEP-17 08.55.12.956170 PM +00:00

KEY_ID

----------------------------------------------------

ARaHD762tUkkvyLgPzAi6hMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

3. Move the key into a new keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT

MOVE [ENCRYPTION] KEYS

TO NEW KEYSTORE 'keystore_location1'

IDENTIFIED BY keystore1_password

FROM [FORCE] KEYSTORE

IDENTIFIED BY keystore_password

[WITH IDENTIFIER IN

{ 'key_identifier' [, 'key_identifier' ]... | ( subquery ) }]

[WITH BACKUP [USING 'backup_identifier'] ];

In this specification:

•

keystore_location1

is the path to the

wallet

directory that will store the new

keystore

.p12

file. By default, this directory is

$ORACLE_BASE/admin/

db_unique_name/wallet

•

FORCE

temporarily opens the keystore for this operation.

•

keystore_password

is the password for the keystore from which the key is

moving.

For example:

ADMINISTER KEY MANAGEMENT MOVE KEYS

TO NEW KEYSTORE '$ORACLE_BASE/admin/orcl/wallet'

IDENTIFIED BY keystore_password

FROM FORCE KEYSTORE

IDENTIFIED BY keystore_password

WITH IDENTIFIER IN

(SELECT KEY_ID FROM V$ENCRYPTION_KEYS WHERE ROWNUM < 2)

WITH BACKUP;

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-32

After the keys are moved to the new keystore, they no longer exist in the old

keystore.

4. To delete the old keystore, go to the

wallet

directory and do the following:

a. Back up the

.p12

file containing the keystore that you want to delete.

b. Manually delete the

.p12

file containing the keystore.

To find the location of the keystore, open the keystore, and then query the

WRL_PARAMETER

column of the

V$ENCRYPTION_WALLET

view.

Related Topics

•Dangers of Deleting Keystores

Oracle strongly recommends that you do not delete keystores until you have

moved the keystore encryption key to a new keystore.

Creating a Custom Attribute Tag in Isolated Mode

To create a custom attribute tag in isolated mode, you must use the

SET TAG

clause of

the

ADMINISTER KEY MANAGEMENT

statement.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. If necessary, query the

TAG

column of the

V$ENCRYPTION_KEY

dynamic view to find a

listing of existing tags for the TDE master encryption keys.

When you create a new tag for a TDE master encryption key, it overwrites the

existing tag for that TDE master encryption key.

3. Create the custom attribute tag by using the following syntax:

ADMINISTER KEY MANAGEMENT SET TAG 'tag'

FOR 'master_key_identifier'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

tag

is the associated attributes or information that you define. Enclose this

information in single quotation marks (

' '

•

master_key_identifier

identifies the TDE master encryption key for which the

tag

is set. To find a list of TDE master encryption key identifiers, query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

dynamic view.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

IDENTIFIED BY

can be one of the following settings:

–

EXTERNAL STORE

uses the keystore password stored in the external store to

perform the keystore operation.

–

keystore_password

is the password that was created for this keystore.

–

backup_identifier

defines the tag values. Enclose this setting in single

quotation marks (

' ')

and separate each value with a colon.

For example, to create a tag that uses two values, one to capture a specific

session ID and the second to capture a specific terminal ID:

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-33

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

USING TAG 'sessionid=3205062574:terminal=xcvt'

IDENTIFIED BY keystore_password

WITH BACKUP;

keystore altered.

Both the session ID (

3205062574

) and terminal ID (

xcvt

) can derive their values by

using either the

SYS_CONTEXT

function with the

USERENV

namespace, or by using the

USERENV

function.

Related Topics

•About Creating Custom Attribute Tags

Attribute tags enable you to monitor specific activities users perform, such as

accessing a particular terminal ID.

Exporting and Importing the TDE Master Encryption Key in Isolated

Mode

You can export and import the TDE master encryption key in different ways in isolated

mode.

•Exporting a TDE Master Encryption Key in Isolated Mode

In isolated mode, you can use the

ADMINISTER KEY MANAGEMENT

statement to export a

TDE master encryption key.

•Importing a TDE Master Encryption Key in Isolated Mode

The

ADMINISTER KEY MANAGEMENT

statement with the

IMPORT [ENCRYPTION] KEYS WITH

SECRET

clause can import a TDE master encryption key.

Exporting a TDE Master Encryption Key in Isolated Mode

In isolated mode, you can use the

ADMINISTER KEY MANAGEMENT

statement to export a

TDE master encryption key.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Export the TDE master encryption keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT EXPORT [ENCRYPTION] KEYS

WITH SECRET "export_secret"

TO 'file_path'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH IDENTIFIER IN 'key_id1', 'key_id2', 'key_idn' | (SQL_query)];

In this specification:

•

export_secret

is a password that you can specify to encrypt the export the file

that contains the exported keys. Enclose this secret in double quotation marks

(

" "

), or you can omit the quotation marks if the secret has no spaces.

•

file_path

is the complete path and name of the file to which the keys must be

exported. Enclose this path in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-34

•

key_id1

key_id2

key_idn

is a string of one or more TDE master encryption key

identifiers for the TDE master encryption key being exported. Separate each

key identifier with a comma and enclose each of these key identifiers in single

quotation marks (

' '

). To find TDE master encryption key identifiers, query the

KEY_ID

column of the

V$ENCRYPTION_KEYS

dynamic view.

•

SQL_query

is a query that fetches a list of the TDE master encryption key

identifiers. It should return only one column that contains the TDE master

encryption key identifiers. This query is executed with current user rights.

Related Topics

•Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in different ways.

Importing a TDE Master Encryption Key in Isolated Mode

The

ADMINISTER KEY MANAGEMENT

statement with the

IMPORT [ENCRYPTION] KEYS WITH

SECRET

clause can import a TDE master encryption key.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

Contact your

SYSDBA

administrator for the correct PDB. To check the current

container, run the

SHOW CON_NAME

command.

2. Run the following SQL statement:

ADMINISTER KEY MANAGEMENT IMPORT [ENCRYPTION] KEYS

WITH SECRET "import_secret"

FROM 'file_name'

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING 'backup_identifier']];

In this specification:

•

import_secret

is the same password that was used to encrypt the keys during

the export operation. Enclose this secret in double quotation marks (

" "

), or

you can omit the quotation marks if the secret has no spaces.

•

file_name

is the complete path and name of the file from which the keys need

to be imported. Enclose this setting in single quotation marks (

' '

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

Related Topics

•Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in different ways.

Storing Oracle Database Secrets in Isolated Mode

Secrets are data that support internal Oracle Database features that integrate external

clients such as Oracle GoldenGate into the database.

•Storing Oracle Database Secrets in a Software Keystore in Isolated Mode

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements can add secrets, update secrets, and delete secrets in a keystore.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-35

•Storing Oracle Database Secrets in a Hardware Keystore in Isolated Mode

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements can add secrets, update secrets, and delete secrets in a keystore.

Storing Oracle Database Secrets in a Software Keystore in Isolated Mode

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements

can add secrets, update secrets, and delete secrets in a keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Add, update, or delete a database secret in a software keystore by using the

following syntax:

•To add a secret:

ADMINISTER KEY MANAGEMENT

ADD SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[WITH BACKUP [USING backup_id]]

| [FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id]]];

•To update a secret:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[WITH BACKUP [USING backup_id]]

| [FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id]]];

•To delete a secret:

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'client_identifier'

[FROM [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY [EXTERNAL STORE | keystore_password]

[WITH BACKUP [USING backup_id]]];

The specification is as follows:

•

secret

is the client secret key to be stored, updated, or deleted. To find

information about existing secrets and their client identifiers, query the

V$CLIENT_SECRETS

dynamic view.

•

client_identifier

is an alphanumeric string used to identify the secret key.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

Related Topics

•Storing Oracle Database Secrets

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-36

Storing Oracle Database Secrets in a Hardware Keystore in Isolated Mode

The

ADMINISTER KEY MANAGEMENT ADD SECRET|UPDATE SECRET|DELETE SECRET

statements

can add secrets, update secrets, and delete secrets in a keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Add, update, or delete a database secret in a hardware keystore by using the

following syntax:

•To add a secret:

ADMINISTER KEY MANAGEMENT

ADD SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials"]

[WITH BACKUP [USING backup_id]];

•To update a secret:

ADMINISTER KEY MANAGEMENT

UPDATE SECRET 'secret' FOR CLIENT 'client_identifier'

[USING TAG 'tag']

[TO [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials"

[WITH BACKUP [USING backup_id]];

•To delete a secret:

ADMINISTER KEY MANAGEMENT

DELETE SECRET FOR CLIENT 'client_identifier'

[FROM [[LOCAL] AUTOLOGIN] KEYSTORE keystore_location

[FORCE KEYSTORE]

IDENTIFIED BY "hardware_keystore_credentials";

The specification is as follows:

•

secret

is the client secret key to be stored, updated, or deleted. To find

information about existing secrets and their client identifiers, query the

V$CLIENT_SECRETS

dynamic view.

•

client_identifier

is an alphanumeric string used to identify the secret key.

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation. You must open the keystore for this operation.

•

hardware_keystore_credentials

refers to the credentials for either an HSM or

an Oracle Key Vault hardware keystore. For an HSM, specify the credentials

using this format, enclosed in quotation marks and separating the components

with a colon:

“user_name:password”

, with

user_name

being the user who created

the HSM and password being this user’s password. For Oracle Key Vault,

enter only the password of the user who created the keystore. Enclose this

password with quotation marks.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-37

Related Topics

•Storing Oracle Database Secrets

Secrets are data that support internal Oracle Database features that integrate

external clients such as Oracle GoldenGate into the database.

Migrating Keystores in Isolated Mode

You can perform migration and reverse migration operations between software

keystores and hardware keystores in isolated mode.

•Migrating from a Password-Protected Software Keystore to a Hardware Keystore

in Isolated Mode

In isolated mode, you can migrate from a password-protected software keystore to

a hardware keystore.

•Migrating from a Hardware Keystore to a Password-Protected Software Keystore

in Isolated Mode

In isolated mode, you can migrate from a hardware keystore to a password-

protected software keystore.

Migrating from a Password-Protected Software Keystore to a Hardware

Keystore in Isolated Mode

In isolated mode, you can migrate from a password-protected software keystore to a

hardware keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Convert the software keystore to open with the hardware keystore.

Some Oracle tools, such as Oracle Data Pump and Oracle Recovery Manager,

require access to the old software keystore to encrypt or decrypt data that was

exported or backed up using the software keystore.

•To set the software keystore password as that of the hardware keystore, use

the following syntax:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

[FORCE KEYSTORE]

IDENTIFIED BY software_keystore_password

SET "harware_keystore_credentials"

WITH BACKUP [USING 'backup_identifier'];

In this specification:

–

software_keystore_password

is the password that was assigned to this

keystore when it was created.

–

hardware_keystore_credentials

refers to the credentials for either an HSM

or an Oracle Key Vault hardware keystore. For an HSM, specify the

credentials using this format, enclosed in quotation marks and separating

the components with a colon:

“user_name:password”

, with

user_name

being

the user who created the HSM and password being this user’s password.

For Oracle Key Vault, enter only the password of the user who created the

keystore. Enclose this password with quotation marks.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-38

•To create an auto-login keystore for a software keystore, use the following

syntax:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL] AUTO_LOGIN KEYSTORE

FROM KEYSTORE 'keystore_location'

IDENTIFIED BY software_keystore_password;

3. Edit the

WALLET_ROOT

parameter in the initialization parameter file for the PDB to

point to the new location for the keystore.

For the software keystore to open with the hardware keystore, either the software

keystore must have the same password as the hardware keystore, or alternatively,

you can create an auto-login keystore for the software keystore.

4. Migrate the hardware keystore by using the following syntax:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

IDENTIFIED BY "hardware_keystore_credentials"

[FORCE KEYSTORE]

MIGRATE USING software_keystore_password

[WITH BACKUP [USING 'backup_identifier']];

After you complete the migration, you do not need to restart the database, nor do

you need to manually re-open the hardware keystore. The migration process

automatically reloads the keystore keys in memory.

Related Topics

•Keystore Order After a Migration

After you perform a migration, keystores can be either primary or secondary in

their order.

•Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to

and from Oracle Key Vault.

Migrating from a Hardware Keystore to a Password-Protected Software

Keystore in Isolated Mode

In isolated mode, you can migrate from a hardware keystore to a password-protected

software keystore.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Edit the

WALLET_ROOT

parameter in the

init.ora

initialization file for the PDB to point

to the new location for the keystore.

For the software keystore to open with the hardware keystore, either the software

keystore must have the same password as the hardware keystore, or alternatively,

you can create an auto-login keystore for the software keystore.

3. Configure the keystore for the reverse migration by using the following syntax:

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

IDENTIFIED BY software_keystore_password

REVERSE MIGRATE USING "harware_keystore_credentials"

[WITH BACKUP [USING 'backup_identifier']];

4. Optionally, change the password of the newly migrated software keystore.

For example:

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-39

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE PASSWORD

IDENTIFIED BY

old_password SET new_password

WITH BACKUP USING 'pwd_change';

After you complete these steps, the migration process automatically reloads the

keystore keys in memory. You do not need to restart the database, nor do you need to

manually re-open the software keystore. The hardware keystore may still be required

after reverse migration because the old keys are likely to have been used for

encrypted backups or by tools such as Oracle Data Pump and Oracle Recovery

Manager. You should cache the hardware keystore credentials in the keystore so that

the HSM can be opened with the software keystore.

Related Topics

•About Migrating Back from a Hardware Keystore

To switch from using a hardware keystore solution to a software keystore, you can

use reverse migration of the keystore.

•Keystore Order After a Migration

After you perform a migration, keystores can be either primary or secondary in

their order.

•Migration of Keystores to and from Oracle Key Vault

You can use Oracle Key Vault to migrate both software and hardware keystores to

and from Oracle Key Vault.

Automatically Removing Inactive TDE Master Encryption Keys in

Isolated Mode

In isolated mode, the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization parameter

can configure the automatic removal of inactive master encryption keys.

1. Log in to the server where the isolated mode PDB standby database resides.

2. Locate the

init.ora

file for the database.

By default,

init.ora

file is located in the

$ORACLE_HOME/dbs

directory.

3. Edit the

init.ora

file to include the

REMOVE_INACTIVE_STANDBY_TDE_MASTER_KEY

initialization parameter.

For example:

remove_inactive_standby_tde_master_key = true

Setting this parameter to

TRUE

enables the automatic removal of inactive master

encryption keys; setting it to

FALSE

disables the automatic removal.

Uniting a Pluggable Database Keystore

Uniting a PDB keystore moves the TDE master encryption keys from the PDB

keystore into the keystore of the CDB root. This enables the administrator of the

keystore of the CDB root to manage the keys.

The client secrets are not moved. Instead, they are left behind in the keystore that the

PDB used while it was configured in isolated mode. Oracle recommends that you

delete client secrets from that keystore before you unite the PDB keystore. Similarly,

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-40

when a PDB becomes isolated, no client secret contained in the keystore of the CDB

root is moved.

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Unite the PDB keystore, which moves the TDE master encryption keys from the

PDB keystore into the keystore of the CDB root, by using the following syntax:

ADMINISTER KEY MANAGEMENT UNITE KEYSTORE

IDENTIFIED BY isolated_keystore_password

WITH ROOT KEYSTORE [FORCE KEYSTORE]

IDENTIFIED BY

[EXTERNAL STORE | keystore_password_of_cdb_root]

[WITH BACKUP [USING backup_id]];

In this specification:

•

FORCE KEYSTORE

temporarily opens the password-protected keystore for this

operation if an auto-login keystore is open (and in use) or if the keystore is

closed.

•

united_keystore_password

: Knowledge of this password does not enable the

user who performs the

UNITE KEYSTORE

operation privileges to perform

ADMINISTER KEY MANAGEMENT UNITE KEYSTORE

operations on the PDB.

When the keystore of a PDB is united with a keystore in the CDB root, all of the

previously active (historical) TDE master encryption keys that were associated

with the PDB are moved to the keystore of the CDB root.

3. Confirm that the isolated mode PDB is now a united mode PDB.

SELECT KEYSTORE_MODE FROM V$ENCRYPTION_WALLET;

The output should be

UNITED

The keystore no longer exists but its master encryption key is now in the keystore in

the CDB root. If you later decide that you want the united mode PDB to be an isolated

mode PDB again, then you can use the

ADMINISTER KEY MANAGEMENT ISOLATE KEYSTORE

statement.

Related Topics

•Isolating a Pluggable Database Keystore

Isolating a PDB keystore moves the master encryption key from the CDB root

keystore into an isolated mode keystore in the a PDB.

Creating a Keystore When the PDB Is Closed

When you create a keystore in a PDB that is closed, the new keystore is empty and

the PDB is converted to isolated mode.

•About Creating a Keystore When the PDB Is Closed

Creating a keystore in a PDB that is closed could inadvertently cause problems in

rekey operations, but the keystore creation can be reverted.

•Reverting a Keystore Creation Operation When a PDB Is Closed

If you have inadvertently created a keystore in a PDB (and thereby caused it to

become configured in isolated mode), then you should reverse the keystore

creation operation.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-41

About Creating a Keystore When the PDB Is Closed

Creating a keystore in a PDB that is closed could inadvertently cause problems in

rekey operations, but the keystore creation can be reverted.

In previous releases, if you tried to create a keystore in a closed PDB, you were

prevented and an

ORA-65040: operation not allowed from within a pluggable database

error would appear. Starting in Oracle Database release 18c, for convenience, when

the keystore of the PDB is closed and if you run the

ADMINISTER KEY MANAGEMENT CREATE

KEYSTORE

statement in the PDB, Oracle Database allows the operation.

If the closed PDB has not been configured to use encryption (that is, it has never had

ADMINISTER KEY MANAGEMENT SET KEY

statement performed in it), after you execute

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

, resulting in an empty keystore and the

configuration of the PDB being changed to isolated mode, then you can create a TDE

master encryption key in this empty keystore.

If, however, the PDB was already configured to use encryption, then the PDB may be

configured in united mode (and thus have its TDE master encryption key being

managed in the keystore of the CDB root).

Mistakenly running an

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

statement on such a

closed PDB will create an additional keystore (which will be empty), and will then

configure the PDB to be in isolated mode. This effectively misconfigures the PDB,

because the PDB is now in isolated mode (whereas it should be in united mode), yet

its TDE master encryption key is still in the keystore of the CDB root. This

misconfiguration can cause problems later on, if you try to rekey the TDE master

encryption key by using the

ADMINISTER KEY MANAGEMENT SET ENCRYPTION KEY

statement .

ORA-28362: master key not found

error will appear, because when encryption has

already been enabled and a key has been set, Oracle Database treats the

ADMINISTER

KEY MANAGEMENT SET ENCRYPTION KEY

statement as a rekey operation. In order to perform

a rekey operation, Oracle Database must locate the currently active TDE master

encryption key of the PDB. But in this misconfigured PDB, Oracle Database cannot

locate the TDE master encryption key, because the PDB is now in isolated mode and

the necessary key is in the keystore of the CDB root. Hence, the PDB is no longer

configured to search in the keystore of the PDB, and the rekey operation fails.

To remedy the misconfiguration of the PDB, you must reconfigure the PDB to united

mode and you must remove the empty keystore. (Always make a backup before

removing any keystore.) When the PDB is configured back to united mode, then the

currently active TDE master encryption key is once again available for rekey and other

TDE master encryption key operations.

If later on you want to configure the PDB to be in isolated mode, then you can open

the PDB and run the

ADMINISTER KEY MANAGEMENT ISOLATE KEYSTORE

statement, which

isolates the PDB and moves its TDE master encryption key and previously-active

(historical) keys from the keystore of the CDB root to a newly-created keystore for the

isolated PDB.

Related Topics

•Reverting a Keystore Creation Operation When a PDB Is Closed

If you have inadvertently created a keystore in a PDB (and thereby caused it to

become configured in isolated mode), then you should reverse the keystore

creation operation.

Chapter 6

Administering Keystores and TDE Master Encryption Keys in Isolated Mode

6-42

Reverting a Keystore Creation Operation When a PDB Is Closed

If you have inadvertently created a keystore in a PDB (and thereby caused it to

become configured in isolated mode), then you should reverse the keystore creation

operation.

Use this procedure if you created a keystore in a closed PDB that already had

encryption enabled (that is, it already had a TDE master encryption key).

1. Log in to the isolated mode PDB as a user who has been granted the

ADMINISTER

KEY MANAGEMENT

SYSKM

privilege.

2. Confirm the mode of the PDB by querying the

KEYSTORE_MODE

column of the

V$ENCRYPTION_WALLET

dynamic view.

3. If the

V$ENCRYPTION_WALLET

output is

ISOLATED

, then execute the

ALTER SYSTEM

statement to reconfigure the PDB to united mode.

•When pfile is in use, clear the

TDE_CONFIGURATION

parameter by using the

following statement:

ALTER SYSTEM RESET TDE_CONFIGURATION SCOPE=MEMORY;

In an Oracle Real Application Clusters environment, include the

SID

parameter:

ALTER SYSTEM RESET TDE_CONFIGURATION SCOPE=MEMORY SID='*';

•When spfile is in use, clear the

TDE_CONFIGURATION

parameter by using this

statement:

ALTER SYSTEM RESET TDE_CONFIGURATION SCOPE=BOTH;

In an Oracle Real Application Clusters environment, include the

SID

parameter:

ALTER SYSTEM RESET TDE_CONFIGURATION SCOPE=BOTH SID='*';

4. In the

WALLET_ROOT/PDB_GUID/tde

directory, find and back up the

ewallet.p12

keystore file that was mistakenly created.

5. Delete the mistakenly-created empty keystore file.

At this stage, the PDB will be in united mode and the correct keystore and TDE master

encryption key will be available for any future rekey operations.

Administering Transparent Data Encryption in Isolated Mode

You can perform a number of general administrative tasks with Transparent Data

Encryption in isolated mode.

•Moving PDBs from One CDB to Another in Isolated Mode

In isolated mode, you can automatically move a PDB from one CDB to another (for

example, for load balancing or adding new functionality).

•Unplugging and Plugging a PDB with Encrypted Data in a CDB in Isolated Mode

In isolated mode, for a PDB that has encrypted data, you can plug it into a CDB.

Conversely, you can unplug this PDB from the CDB.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-43

•Cloning a PDB with Encrypted Data in a CDB in Isolated Mode

The

CREATE PLUGGABLE DATABASE

statement with the

KEYSTORE IDENTIFIED BY

clause

can clone a PDB that has encrypted data.

•How Keystore Open and Close Operations Work in Isolated Mode

You should be aware of how keystore open and close operations work in isolated

mode.

•Exporting and Importing Master Encryption Keys for a PDB in Isolated Mode

In isolated mode, the

EXPORT

and

IMPORT

clauses of

ADMINISTER KEY MANAGEMENT

EXPORT

can export or import master encryption keys for a PDB.

Moving PDBs from One CDB to Another in Isolated Mode

In isolated mode, you can automatically move a PDB from one CDB to another (for

example, for load balancing or adding new functionality).

If the PDB has TDE-encrypted tables or tablespaces, then you can set the

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

dynamic system parameter to

TRUE

to enable the

PDB to include the TDE keys in the PDB move operation. This parameter avoids you

having to manually provide a keystore password when you import the TDE keys into

the PDB after it has moved to a different CDB. When

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

is set to

TRUE

, the database caches the keystore

password in memory, obfuscated at the system level, and then uses it for the import

operation. The default for

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

FALSE

1. Before you begin the PDB move operation, log in to the CDB root as a user who

has been granted the

SYSDBA

administrative privilege.

For example:

sqlplus c##sec_admin as sysdba

Enter password: password

2. Set the

ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE

dynamic initialization parameter

TRUE

For example:

ALTER SYSTEM SET ONE_STEP_PLUGIN_FOR_PDB_WITH_TDE = TRUE;

3. Move (relocate) the PDB.

Related Topics

•Oracle Multitenant Administrator's Guide

Unplugging and Plugging a PDB with Encrypted Data in a CDB in

Isolated Mode

In isolated mode, for a PDB that has encrypted data, you can plug it into a CDB.

Conversely, you can unplug this PDB from the CDB.

•Unplugging a PDB That Has Encrypted Data in Isolated Mode

You can unplug a PDB (that has encrypted data) from one CDB and then

optionally plug it into another CDB.

•Plugging a PDB That Has Encrypted Data into a CDB in Isolated Mode

After you plug a PDB that has encrypted data into a CDB, you can set the

encryption key in the PDB.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-44

•Unplugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in Isolated Mode

You can unplug a PDB from one CDB that has been configured with a hardware

keystore and then plug it into another CDB also configured with a hardware

keystore.

•Plugging a PDB That Has Master Encryption Keys Stored in a Hardware Keystore

in Isolated Mode

The

ADMINISTER KEY MANAGEMENT

statement can import a hardware keystore master

encryption key to a PDB that has been moved to another CDB.

Unplugging a PDB That Has Encrypted Data in Isolated Mode

You can unplug a PDB (that has encrypted data) from one CDB and then optionally

plug it into another CDB.

Unlike united mode, you do not need to specify the

ENCRYPT

clause in the

ALTER

PLUGGABLE DATABASE

statement. The database that is unplugged contains data files and

other associated files. Because each PDB can have its own unique keystore, you do

not need to export the TDE master encryption key of the PDB that you want to unplug.

You can check if a PDB has already been unplugged by querying the

STATUS

column of

the

DBA_PDBS

data dictionary view.

•Unplug the isolated mode PDB as you normally unplug PDBs.

For example:

ALTER PLUGGABLE DATABASE pdb1

UNPLUG INTO '/oracle/data/pdb1.xml';

Related Topics

•Oracle Multitenant Administrator's Guide

•Oracle Database SQL Language Reference

Plugging a PDB That Has Encrypted Data into a CDB in Isolated Mode

After you plug a PDB that has encrypted data into a CDB, you can set the encryption

key in the PDB.

Unlike united mode, you do not need to specify the

DECRYPT

clause in the

CREATE

PLUGGABLE DATABASE

statement. When you plug an unplugged PDB into another CDB,

the key version is set to

because this operation invalidates the history of the previous

keys. You can check the key version by querying the

KEY_VERSION

column of the

V$ENCRYPTED_TABLESPACES

dynamic view. Similarly, if a control file is lost and recreated,

then the previous history of the keys is reset to

. You can check if a PDB has already

been plugged in by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

1. Create the PDB by plugging the unplugged PDB into the CDB.

•For example, if you had exported the PDB data into a metadata XML file:

CREATE PLUGGABLE DATABASE CDB1_PDB2

USING '/tmp/cdb1_pdb2.xml'

NOCOPY KEYSTORE

IDENTIFIED BY password;

•If you had exported the PDB into an archive file:

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-45

CREATE PLUGGABLE DATABASE CDB1_PDB2

USING '/tmp/cdb1_pdb2.pdb';

During the open operation of the PDB after the plug operation, Oracle Database

determines if the PDB has encrypted data. If so, it opens the PDB in the

RESTRICTED

mode.

You can find if the source database has encrypted data or a TDE master

encryption key set in the keystore by querying the

V$ENCRYPTION_KEYS

dynamic

view.

2. Open the PDB.

For example:

ALTER PLUGGABLE DATABASE CDB1_PDB2 OPEN;

3. Open the keystore in the CDB root.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY password;

Optionally, open the keystore in the PDB.

4. In the PDB, open the keystore and set the TDE master encryption key for the

PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

Unplugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in Isolated Mode

You can unplug a PDB from one CDB that has been configured with a hardware

keystore and then plug it into another CDB also configured with a hardware keystore.

1. Unplug the PDB.

You can check if a PDB has already been unplugged by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

2. Move the master encryption keys of the unplugged PDB from the hardware that

was used at the source CDB to the hardware that is in use at the destination CDB.

Refer to the documentation for the hardware keystore for information about

moving master keys between hardware keystores.

Related Topics

•Oracle Multitenant Administrator's Guide

Plugging a PDB That Has Master Encryption Keys Stored in a Hardware

Keystore in Isolated Mode

The

ADMINISTER KEY MANAGEMENT

statement can import a hardware keystore master

encryption key to a PDB that has been moved to another CDB.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-46

1. Plug the unplugged isolated mode PDB into the destination CDB that has been

configured with the hardware keystore.

You can check if a PDB has already been plugged in by querying the

STATUS

column of the

DBA_PDBS

data dictionary view.

After the plug-in operation, the PDB that has been plugged in will be in restricted

mode.

2. Ensure that the master keys from the HSM that has been configured with the

source CDB are available in the hardware keystore of the destination CDB.

3. Log in to the plugged PDB as a user who was granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

4. Open the keystore of the plugged PDB.

For example, for a PDB called

PDB1

ALTER SESSION SET CONTAINER = PDB1;

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY "harware_keystore_credentials";

5. Import the hardware keystore master encryption key into the PDB.

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS

WITH SECRET "hardware_keystore" FROM 'hardware_keystore'

IDENTIFIED BY "hardware_keystore_credentials";

6. Close and re-open the PDB.

ALTER PLUGGABLE DATABASE PDB1 CLOSE;

ALTER PLUGGABLE DATABASE PDB1 OPEN;

Related Topics

•Oracle Multitenant Administrator's Guide

Cloning a PDB with Encrypted Data in a CDB in Isolated Mode

The

CREATE PLUGGABLE DATABASE

statement with the

KEYSTORE IDENTIFIED BY

clause can

clone a PDB that has encrypted data.

1. Log in to the isolated mode PDB as a user who was granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

2. Ensure that the software keystore of the PDB that you plan to clone is open.

You can query the

STATUS

column of the

V$ENCRYPTION_WALLET

view to find if the

software keystore is open.

For example:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN FORCE KEYSTORE IDENTIFIED BY

keystore_password;

3. Clone the PDB.

For example:

CREATE PLUGGABLE DATABASE cdb1_pdb3 FROM cdb1_pdb1

FILE_NAME_CONVERT=('cdb1_pdb1', 'pdb3/cdb1_pdb3') KEYSTORE

IDENTIFIED BY keystore_password;

Replace

keystore_password

with the password of the keystore of the CDB where

the

cdb1_pdb3

clone is created.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-47

After you create the cloned PDB, encrypted data is still accessible by the clone

using the master encryption key of the original PDB. After a PDB is cloned, there

may be user data in the encrypted tablespaces. This encrypted data is still

accessible because the master encryption key of the source PDB is copied over to

the destination PDB. Because the clone is a copy of the source PDB but will

eventually follow its own course and have its own data and security policies, you

should rekey the master encryption key of the cloned PDB.

4. Rekey the master encryption key of the cloned PDB.

For example:

ADMINISTER KEY MANAGEMENT SET KEY

IDENTIFIED BY keystore_password

WITH BACKUP USING 'emp_key_backup';

Before you rekey the master encryption key of the cloned PDB, the clone can still

use master encryption keys that belong to the original PDB. However, these

master encryption keys do not appear in the cloned PDB

dynamic views.

Rekeying the master encryption key ensures that the cloned PDB uses its own

unique keys, which will be viewable in the

views.

Related Topics

•About Managing Cloned PDBs That Have Encrypted Data in United Mode

When you clone a PDB, you must make the master encryption key of the source

PDB available to cloned PDB.

How Keystore Open and Close Operations Work in Isolated Mode

You should be aware of how keystore open and close operations work in isolated

mode.

For each PDB in isolated mode, you must explicitly open the password-protected

software keystore or hardware keystore in the PDB to enable the Transparent Data

Encryption operations to proceed. (Auto-login and local auto-login software keystores

open automatically.) Closing a keystore on a PDB blocks all of the Transparent Data

Encryption operations on that PDB.

The open and close keystore operations in a PDB depend on the open and close

status of the keystore in the PDB.

Note the following:

•You can create a separate keystore password for each PDB in the multitenant

environment.

•Before you can manually open a software password-protected or hardware

keystore in an individual PDB, you must open the keystore in the CDB root.

•If an auto-login keystore is in use, or if the keystore is closed, then include the

FORCE KEYSTORE

clause in the

ADMINISTER KEY MANAGEMENT

statement when you open

or close the keystore.

•If the keystore is a password-protected software keystore that uses an external

store for passwords, then set the

IDENTIFIED BY

clause to

EXTERNAL STORE

•Before you can set a TDE master encryption key in an individual PDB, you must

set the key in the CDB root.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-48

•Auto-login and local auto-login software keystores open automatically. You do not

need to manually open these from the root first, or from the PDB.

•If there is any PDB configured in isolated mode that has its keystore open, then an

attempt to close the keystore in the CDB root would fail with an

ORA-46692 cannot

close wallet

error. Use the

FORCE CLOSE

clause in the

ADMINISTER KEY MANAGEMENT

statement to override this behavior.

•If you perform an

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

statement in the

CDB root and set the

CONTAINER

clause to

ALL

, then the keystore will only be

opened in each PDB that is configured in united mode, and the keystore of any

PDB that is configured in isolated mode is not opened.

Exporting and Importing Master Encryption Keys for a PDB in Isolated

Mode

In isolated mode, the

EXPORT

and

IMPORT

clauses of

ADMINISTER KEY MANAGEMENT EXPORT

can export or import master encryption keys for a PDB.

•About Exporting and Importing Master Encryption Keys for a PDB in Isolated Mode

In isolated mode, you can export and import master encryption keys from the CDB

root in the same way that you export and import this key for a non-CDB database.

•Exporting or Importing a Master Encryption Key for a PDB in Isolated Mode

In isolated mode, the

ADMINISTER KEY MANAGEMENT

statement can export or import a

master encryption key for a PDB.

•Example: Exporting a Master Encryption Key from a PDB in Isolated Mode

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

statement can export

master encryption keys for a PDB.

•Example: Importing a Master Encryption Key into a PDB in Isolated Mode

The

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS

statement can import a

master encryption key into a PDB.

About Exporting and Importing Master Encryption Keys for a PDB in Isolated

Mode

In isolated mode, you can export and import master encryption keys from the CDB root

in the same way that you export and import this key for a non-CDB database.

You can export and import all of the master encryption keys that belong to the PDB by

exporting and importing the master encryption keys from within a PDB. Export and

import operations of master encryption keys in a PDB supports the PDB unplug and

plug operations. During a PDB unplug and plug operations, all the master encryption

keys that belong to a PDB, as well as the metadata, are involved. Therefore, the

WITH

IDENTIFIER

clause of the

ADMINISTER KEY MANAGEMENT EXPORT

statement is not allowed

when you export keys from within a PDB. The

WITH IDENTIFIER

clause is only permitted

in the CDB root.

You should include the

FORCE KEYSTORE

clause if the CDB root has an auto-login

keystore or if the keystore is closed. If the keystore has been configured to use an

external store for the password, then use the

IDENTIFIED BY EXTERNAL STORE

clause. For

example, to perform an export operation for this scenario:

ADMINISTER KEY MANAGEMENT EXPORT KEYS

WITH SECRET "my_secret"

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-49

TO '/etc/TDE/export.exp'

FORCE KEYSTORE

IDENTIFIED BY EXTERNAL STORE;

This

ADMINISTER KEY MANAGEMENT EXPORT

operation exports not only the keys but creates

metadata that is necessary for PDB environments (as well as for cloning operations).

Inside a PDB, the export operation of master encryption keys exports the keys that

were created or activated by a PDB with the same GUID as the PDB where the keys

are being exported. Essentially, all of the keys that belong to a PDB where the export

is being performed will be exported.

The importing of master encryption keys from an export file within a PDB takes place

only if the master encryption key was exported from another PDB with the same GUID.

To support the plug-in of a PDB into a CDB, the import will also import the master

encryption keys from an export file that contains the master encryption keys of a non-

CDB exported without the

WITH IDENTIFIER

clause. Because the PDB-specific details,

such as the PDB name and database ID, can change from one CDB to the next, the

PDB-specific information is modified during the import to reflect the updated PDB

information.

Note:

Within a PDB, you can only export the keys of a PDB as a whole. The ability

to export them selectively based on a query or an identifier is restricted to the

root.

Exporting or Importing a Master Encryption Key for a PDB in Isolated Mode

In isolated mode, the

ADMINISTER KEY MANAGEMENT

statement can export or import a

master encryption key for a PDB.

1. Log in to the isolated mode PDB as a user who was granted the

ADMINISTER KEY

MANAGEMENT

SYSKM

privilege.

2. Perform the export or import operation.

For example:

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

WITH SECRET "hr_secret" TO '/tmp/export.p12'

FORCE KEYSTORE

IDENTIFIED BY password;

Ensure that you include the

FORCE KEYSTORE

clause because the keystore must be

open for this operation.

Related Topics

•Example: Exporting a Master Encryption Key from a PDB in Isolated Mode

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

statement can export

master encryption keys for a PDB.

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-50

Example: Exporting a Master Encryption Key from a PDB in Isolated Mode

The

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

statement can export master

encryption keys for a PDB.

Example 6-1 shows how to export a master encryption key from the PDB

hrpdb

. In this

example, the

FORCE KEYSTORE

clause is included in case the auto-login keystore is in

use, or if the keystore is closed.

Example 6-1 Exporting a Master Encryption Key from a PDB

ADMINISTER KEY MANAGEMENT EXPORT ENCRYPTION KEYS

WITH SECRET "my_secret" TO '/tmp/export.p12'

FORCE KEYSTORE

IDENTIFIED BY password;

Example: Importing a Master Encryption Key into a PDB in Isolated Mode

The

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS

statement can import a master

encryption key into a PDB.

Example 6-2 shows how to import a master encryption key into the PDB

hrpdb

Example 6-2 Importing a Master Encryption Key into a PDB

ADMINISTER KEY MANAGEMENT IMPORT ENCRYPTION KEYS

WITH SECRET "my_secret"

FROM '/tmp/export.p12'

FORCE KEYSTORE

IDENTIFIED BY password

WITH BACKUP;

Chapter 6

Administering Transparent Data Encryption in Isolated Mode

6-51

General Considerations of

Using Transparent Data Encryption

When you use Transparent Data Encryption, you should consider factors such as

security, performance, and storage overheads.

•Compression and Data Deduplication of Encrypted Data

With tablespace encryption, Oracle Database compresses tables and indexes

before encrypting the tablespace.

•Security Considerations for Transparent Data Encryption

As with all Oracle Database features, you should consider security when you

create TDE policies.

•Performance and Storage Overhead of Transparent Data Encryption

The performance of Transparent Data Encryption can vary.

•Modifying Your Applications for Use with Transparent Data Encryption

You can modify your applications to use Transparent Data Encryption.

•How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Many of the clauses from the

ALTER SYSTEM

statement correspond to the

ADMINISTER

KEY MANAGEMENT

statement.

•Using Transparent Data Encryption with PKI Encryption

PKI encryption is deprecated, but if you are still using it, then there are several

issues you must consider.

•Data Loads from External Files to Tables with Encrypted Columns

You can use SQL*Loader to perform data loads from files to tables that have

encrypted columns.

•Transparent Data Encryption and Database Close Operations

You should ensure that the software or hardware keystore is open before you

close the database.

Compression and Data Deduplication of Encrypted Data

With tablespace encryption, Oracle Database compresses tables and indexes before

encrypting the tablespace.

This ensures that you receive the maximum space and performance benefits from

compression, while also receiving the security of encryption at rest. In the

CREATE

TABLESPACE

SQL statement, include both the

COMPRESS

and

ENCRYPT

clauses.

With column encryption, Oracle Database compresses the data after it encrypts the

column. This means that compression will have minimal effectiveness on encrypted

columns. There is one notable exception: if the column is a SecureFiles LOB, and the

encryption is implemented with SecureFiles LOB Encryption, and the compression

(and possibly deduplication) are implemented with SecureFiles LOB Compression &

Deduplication, then compression is performed before encryption. Similar to the

CREATE

7-1

TABLESPACE

statement for tablespace encryption, include both the

COMPRESS

and

ENCRYPT

clauses.

See Also:

•Oracle Database Backup and Recovery User’s Guide for more

information about the Advanced Compression Option

•Oracle Database SecureFiles and Large Objects Developer's Guide for

information about SecureFiles LOB storage

•Oracle Database SecureFiles and Large Objects Developer's Guide for

information about SecureFiles Compression

Security Considerations for Transparent Data Encryption

As with all Oracle Database features, you should consider security when you create

TDE policies.

•Transparent Data Encryption General Security Advice

Security considerations for Transparent Data Encryption (TDE) operate within the

broader area of total system security.

•Transparent Data Encryption Column Encryption-Specific Advice

Additional security considerations apply to normal database and network

operations when using TDE.

•Managing Security for Plaintext Fragments

You should remove old plaintext fragments that can appear over time.

Transparent Data Encryption General Security Advice

Security considerations for Transparent Data Encryption (TDE) operate within the

broader area of total system security.

Follow these general guidelines:

•Identify the degrees of sensitivity of data in your database, the protection that they

need, and the levels of risk to be addressed. For example, highly sensitive data

requiring stronger protection can be encrypted with the AES256 algorithm. A

database that is not as sensitive can be protected with no salt or the

nomac

option

to enable performance benefits.

•Evaluate the costs and benefits that are acceptable to data and keystore

protection. Protection of keys determines the type of keystore to be used: auto-

keystores.

•Consider having separate security administrators for TDE and for the database.

•Consider having a separate and exclusive keystore for TDE.

•Implement protected back-up procedures for your encrypted data.

Chapter 7

Security Considerations for Transparent Data Encryption

7-2

Transparent Data Encryption Column Encryption-Specific Advice

Additional security considerations apply to normal database and network operations

when using TDE.

Encrypted column data stays encrypted in the data files, undo logs, redo logs, and the

buffer cache of the system global area (SGA). However, data is decrypted during

expression evaluation, making it possible for decrypted data to appear in the swap file

on the disk. Privileged operating system users can potentially view this data.

Column values encrypted using TDE are stored in the data files in encrypted form.

However, these data files may still contain some plaintext fragments, called ghost

copies, left over by past data operations on the table. This is similar to finding data on

the disk after a file was deleted by the operating system.

Managing Security for Plaintext Fragments

You should remove old plaintext fragments that can appear over time.

Old plaintext fragments may be present for some time until the database overwrites

the blocks containing such values. If privileged operating system users bypass the

access controls of the database, then they might be able to directly access these

values in the data file holding the tablespace.

To minimize this risk:

1. Create a new tablespace in a new data file.

You can use the

CREATE TABLESPACE

statement to create this tablespace.

2. Move the table containing encrypted columns to the new tablespace. You can use

the

ALTER TABLE.....MOVE

statement.

Repeat this step for all of the objects in the original tablespace.

3. Drop the original tablespace.

You can use the

DROP TABLESPACE tablespace

INCLUDING CONTENTS KEEP DATAFILES

statement. Oracle recommends that you securely delete data files using platform-

specific utilities.

4. Use platform-specific and file system-specific utilities to securely delete the old

data file. Examples of such utilities include

shred

(on Linux) and

sdelete

(on

Windows).

Performance and Storage Overhead of Transparent Data

Encryption

The performance of Transparent Data Encryption can vary.

•Performance Overhead of Transparent Data Encryption

Transparent Data Encryption tablespace encryption has small associated

performance overhead.

•Storage Overhead of Transparent Data Encryption

TDE tablespace encryption has no storage overhead, but TDE column encryption

has some associated storage overhead.

Chapter 7

Performance and Storage Overhead of Transparent Data Encryption

7-3

Performance Overhead of Transparent Data Encryption

Transparent Data Encryption tablespace encryption has small associated performance

overhead.

The actual performance impact on applications can vary. TDE column encryption

affects performance only when data is retrieved from or inserted into an encrypted

column. No reduction in performance occurs for operations involving unencrypted

columns, even if these columns are in a table containing encrypted columns.

Accessing data in encrypted columns involves small performance overhead, and the

exact overhead you observe can vary.

The total performance overhead depends on the number of encrypted columns and

their frequency of access. The columns most appropriate for encryption are those

containing the most sensitive data.

Enabling encryption on an existing table results in a full table update like any other

ALTER TABLE

operation that modifies table characteristics. Keep in mind the potential

performance and redo log impact on the database server before enabling encryption

on a large existing table.

A table can temporarily become inaccessible for write operations while encryption is

being enabled, TDE table keys are being rekeyed, or the encryption algorithm is being

changed. You can use online table redefinition to ensure that the table is available for

write operations during such procedures.

If you enable TDE column encryption on a very large table, then you may need to

increase the redo log size to accommodate the operation.

Encrypting an indexed column takes more time than encrypting a column without

indexes. If you must encrypt a column that has an index built on it, you can try

dropping the index, encrypting the column with

NO SALT

, and then re-creating the index.

If you index an encrypted column, then the index is created on the encrypted values.

When you query for a value in the encrypted column, Oracle Database transparently

encrypts the value used in the SQL query. It then performs an index lookup using the

encrypted value.

Note:

If you must perform range scans over indexed, encrypted columns, then use

TDE tablespace encryption in place of TDE column encryption.

See Also:

•Creating an Encrypted Column in an External Table

•Oracle Database Administrator’s Guide for information about redefining

tables online

Chapter 7

Performance and Storage Overhead of Transparent Data Encryption

7-4

Storage Overhead of Transparent Data Encryption

TDE tablespace encryption has no storage overhead, but TDE column encryption has

some associated storage overhead.

Encrypted column data must have more storage space than plaintext data. In addition,

TDE pads out encrypted values to multiples of 16 bytes. This means that if a credit

card number requires nine bytes for storage, then an encrypted credit card value will

require an additional seven bytes.

Each encrypted value is also associated with a 20-byte integrity check. This does not

apply if you have encrypted columns using the

NOMAC

parameter. If data was encrypted

with salt, then each encrypted value requires an additional 16 bytes of storage.

The maximum storage overhead for each encrypted value is from one to 52 bytes.

Related Topics

•Creating an Encrypted Column in an External Table

The external table feature enables you to access data in external sources as if the

data were in a database table.

Modifying Your Applications for Use with Transparent Data

Encryption

You can modify your applications to use Transparent Data Encryption.

1. Configure the software or hardware keystore for TDE, and then set the master

encryption key.

See the following sections for more information:

•Configuring a Software Keystore

•Configuring a Hardware Keystore

2. Verify that the master encryption key was created by querying the

KEY_ID

column

of the

V$ENCRYPTION_KEYS

view.

3. Identify the sensitive columns (such as those containing credit card data) that

require Transparent Data Encryption protection.

4. Decide whether to use TDE column encryption or TDE tablespace encryption.

See the following sections for more information:

•How Transparent Data Encryption Column Encryption Works

•How Transparent Data Encryption Tablespace Encryption Works

5. Open the keystore.

See the following sections for more information:

•Step 3: Open the Software Keystore

•Step 3: Open the Hardware Keystore

6. Encrypt the columns or tablespaces.

See the following sections for more information:

Chapter 7

Modifying Your Applications for Use with Transparent Data Encryption

7-5

•Encrypting Columns in Tables

•Encryption Conversions for Tablespaces and Databases

How ALTER SYSTEM and orapki Map to ADMINISTER

KEY MANAGEMENT

Many of the clauses from the

ALTER SYSTEM

statement correspond to the

ADMINISTER KEY

MANAGEMENT

statement.

Table 7-1 compares the Transparent Data Encryption usage of the

ALTER SYSTEM

statement and the

orapki

utility from previous releases with the

ADMINISTER KEY

MANAGEMENT

statement.

Table 7-1 How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki

ADMINISTER KEY MANAGEMENT

Creating a keystore For software keystores (called

wallets in previous releases):

ALTER SYSTEM SET ENCRYPTION KEY

["certificate_ID"] IDENTIFIED

BY keystore_password;

For hardware keystores, the

keystore is available after you

configure the hardware security

module.

For software keystores:

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE

'keystore_location'

IDENTIFIED BY software_keystore_password

For hardware keystores, the keystore is available

after you configure the hardware security module.

Creating an auto-login

keystore

orapki wallet create -wallet

wallet_location

-auto_login [-pwd password]

For software keystores:

ADMINISTER KEY MANAGEMENT CREATE [LOCAL]

AUTO_LOGIN KEYSTORE FROM KEYSTORE

'keystore_location'

IDENTIFIED BY software_keystore_password;

This type of keystore applies to software keystores

only.

Opening a keystore

ALTER SYSTEM SET ENCRYPTION

WALLET OPEN IDENTIFIED BY

password;

ADMINISTER KEY MANAGEMENT SET KEYSTORE

OPEN IDENTIFIED BY keystore_password

[CONTAINER = ALL | CURRENT];

Closing a keystore

ALTER SYSTEM SET ENCRYPTION

WALLET CLOSE IDENTIFIED BY

password;

For both software and hardware keystores:

ADMINISTER KEY MANAGEMENT SET KEYSTORE

CLOSE IDENTIFIED BY keystore_password

[CONTAINER = ALL | CURRENT];

Migrating from a

hardware keystore to a

software keystore

Not available

ADMINISTER KEY MANAGEMENT SET ENCRYPTION

KEY IDENTIFIED BY

software_keystore_password

REVERSE MIGRATE USING "user_name:password"

[WITH BACKUP [USING 'backup_identifier']];

Chapter 7

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

7-6

Table 7-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki

ADMINISTER KEY MANAGEMENT

Migrating from a

software keystore to a

hardware keystore

ALTER SYSTEM SET ENCRYPTION KEY

IDENTIFIED BY

"user_name:password" MIGRATE

USING wallet_password;

ADMINISTER KEY MANAGEMENT SET ENCRYPTION

KEY IDENTIFIED BY "user_name:password"

MIGRATE USING software_keystore_password;

Changing a keystore

password

orapki wallet change_pwd

-wallet wallet_location

[-oldpwd password ]

[-newpwd password]

For password-based software keystores:

ADMINISTER KEY MANAGEMENT ALTER KEYSTORE

PASSWORD IDENTIFIED BY

software_keystore_old_password

SET software_keystore_new_password

[WITH BACKUP [USING 'backup_identifier']];

For hardware keystores, you close the keystore,

change it in the hardware security module

interface, and then reopen the keystore.

Backing up a

password-based

software keystore

Not available

ADMINISTER KEY MANAGEMENT BACKUP KEYSTORE

[USING 'backup_identifier'] IDENTIFIED BY

software_keystore_password

[TO 'keystore_location'];

Merging two software

keystores into a third

new keystore

Not available

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

'keystore1_location' [IDENTIFIED BY

software_keystore1_password]

AND KEYSTORE 'keystore2_location'

[IDENTIFIED BY software_keystore2_password]

INTO NEW KEYSTORE 'keystore3_location'

IDENTIFIED BY software_keystore3_password;

Merging one software

keystore into another

existing keystore

Not available

ADMINISTER KEY MANAGEMENT MERGE KEYSTORE

'keystore1_location' [IDENTIFIED BY

software_keystore1_password]

INTO EXISTNG KEYSTORE 'keystore2_location'

IDENTIFIED BY software_keystore2_password

[WITH BACKUP [USING 'backup_identifier']];

Chapter 7

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

7-7

Table 7-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki

ADMINISTER KEY MANAGEMENT

Setting or rekeying the

master encryption key

For software wallets:

ALTER SYSTEM SET ENCRYPTION KEY

["certificate_ID"] IDENTIFIED

BY keystore_password;

For hardware security modules:

ALTER SYSTEM SET ENCRYPTION KEY

IDENTIFIED BY

"user_name:password"

Note: The

ALTER SYSTEM SET

ENCRYPTION KEY

statement does not

update the

V$ENCRYPTION_KEYS

dynamic view after you rekey the

encryption key.

ADMINISTER KEY MANAGEMENT

SET ENCRYPTION KEY [USING TAG 'tag']

IDENTIFIED BY keystore_password

WITH BACKUP [USING 'backup_identifier']

[CONTAINER = ALL | CURRENT];

After you rekey the encryption key, the

V$ENCRYPTION_KEYS

dynamic view is updated.

Creating a master

encryption key for later

user

Not available

ADMINISTER KEY MANAGEMENT CREATE KEY

[USING TAG 'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']]

[CONTAINER = (ALL|CURRENT)];

Activating a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT USE KEY

'key_identifier' [USING TAG 'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']];

Creating custom tags

for master encryption

keys

Not available

ADMINISTER KEY MANAGEMENT SET TAG 'tag'

FOR 'master_key_identifier'

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier']];

Exporting a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT

EXPORT [ENCRYPTION] KEYS

WITH SECRET "export_secret"

TO 'file_path'

IDENTIFIED BY software_keystore_password

[WITH IDENTIFIER IN

'key_id1', 'key_id2', 'key_idn' |

(SQL_query)]

Importing a master

encryption key

Not available

ADMINISTER KEY MANAGEMENT

IMPORT [ENCRYPTION] KEYS

WITH SECRET "import_secret" |

FROM 'file_name'

IDENTIFIED BY software_keystore_password

[WITH BACKUP [USING 'backup_identifier']];

Chapter 7

How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

7-8

Table 7-1 (Cont.) How ALTER SYSTEM and orapki Map to ADMINISTER KEY MANAGEMENT

Behavior ALTER SYSTEM or

orapki

ADMINISTER KEY MANAGEMENT

Storing Oracle

Database secrets in a

keystore

Not available For software keystores:

ADMINISTER KEY MANAGEMENT

ADD SECRET|UPDATE SECRET|DELETE SECRET

"secret" FOR CLIENT 'client_identifier'

[USING TAG'tag']

IDENTIFIED BY keystore_password

[WITH BACKUP [USING 'backup_identifier'];

For hardware keystores:

ADMINISTER KEY MANAGEMENT

ADD SECRET|UPDATE SECRET|DELETE SECRET

"secret" FOR CLIENT 'client_identifier'

[USING TAG 'tag']

IDENTIFIED BY "user_name:password"

[WITH BACKUP [USING 'backup_identifier'];

Using Transparent Data Encryption with PKI Encryption

PKI encryption is deprecated, but if you are still using it, then there are several issues

you must consider.

Note:

The use of PKI encryption with Transparent Data Encryption is deprecated.

To configure Transparent Data Encryption, use the

ADMINISTER KEY

MANAGEMENT

SQL statement.

•Software Master Encryption Key Use with PKI Key Pairs

A master encryption key can be an existing key pair from a PKI certificate

designated for encryption.

•TDE Tablespace and Hardware Keystores with PKI Encryption

PKI encryption is a cryptographic system that uses two keys, a public key and a

private key, to encrypt data.

•Backup and Recovery of a PKI Key Pair

For software keystores, Transparent Data Encryption supports the use of PKI

asymmetric key pairs as master encryption keys for column encryption.

Software Master Encryption Key Use with PKI Key Pairs

A master encryption key can be an existing key pair from a PKI certificate designated

for encryption.

Note the following:

Chapter 7

Using Transparent Data Encryption with PKI Encryption

7-9

•If you have already deployed PKI in your organization, then you can use PKI

services such as key escrow and recovery. However, encryption using current PKI

algorithms requires significantly more system resources than symmetric key

encryption. Using a PKI key pair as a master encryption key may result in greater

performance degradation when accessing encrypted columns in the database.

•For PKI-based keys, certificate revocation lists are not enforced because enforcing

certificate revocation may lead to losing access to all of the encrypted information

in the database. However, you cannot use the same certificate to create the

master encryption key again.

TDE Tablespace and Hardware Keystores with PKI Encryption

PKI encryption is a cryptographic system that uses two keys, a public key and a

private key, to encrypt data.

You cannot use PKI-based encryption with TDE tablespace encryption or with

hardware keystores.

Backup and Recovery of a PKI Key Pair

For software keystores, Transparent Data Encryption supports the use of PKI

asymmetric key pairs as master encryption keys for column encryption.

This enables the database to use existing key backup, escrow, and recovery facilities

from leading certificate authority vendors.

In current key escrow or recovery systems, the certificate authority with key recovery

capabilities typically stores a version of the private key, or a piece of information that

helps recover the private key. If the private key is lost, then you can recover the

original key and certificate by contacting the certificate authority and initiating a key

recovery process.

Typically, the key recovery process is automated and requires the user to present

certain authenticating credentials to the certificate authority. TDE puts no restrictions

on the key recovery process other than that the recovered key and its associated

certificate be a PKCS#12 file that can be imported into an keystore. This requirement

is consistent with the key recovery mechanisms of leading certificate authorities.

After obtaining the PKCS#12 file with the original certificate and private key, you must

create an empty keystore in the same location as the previous keystore. You can then

import the PKCS#12 file into the new keystore by using the same utility. Choose a

strong password to protect the keystore.

After you use the

ADMINISTER KEY MANAGEMENT

statements to create the keystore and

import the correct encryption keys, log in to the database and run the following

ALTER

SYSTEM

statement at the SQL prompt to complete the recovery process:

ALTER SYSTEM SET ENCRYPTION KEY "cert_id" IDENTIFIED BY keystore_password;

In this specification:

•

cert_id

is the certificate ID of the certificate to be used as the master encryption

key.

•

keystore_password

is a password that you create.

Chapter 7

Using Transparent Data Encryption with PKI Encryption

7-10

Note:

You must use the

ALTER SYSTEM

statement to regenerate encryption keys for

PKI key pairs only. This restriction does not apply to non-PKI encryption

keys.

Data Loads from External Files to Tables with Encrypted

Columns

You can use SQL*Loader to perform data loads from files to tables that have

encrypted columns.

Be aware that with SQL*Loader, you cannot include the

ENCRYPT

clause in the column

definition of an external table of the type

ORACLE_LOADER

, but you can include it in the

column definitions of external tables of type

ORACLE_DATAPUMP

•External tables of type

ORACLE_LOADER

The reason that you cannot include the

ENCRYPT

clause in the column definitions of

external tables of the type

ORACLE_LOADER

is because the contents of an external

table with the

ORACLE_LOADER

type must come from a user-specified plaintext

"backing file," and such plaintext files cannot contain any TDE encrypted data.

If you use the

ENCRYPT

clause in the definition of an external table of type

ORACLE_LOADER

, then when you query the TDE-encrypted column in this external

table, the query fails. This is because TDE expects the external data to have been

encrypted, and automatically tries to decrypt it on load. This action fails because

the "backing file" only contains plaintext.

•External tables of type

ORACLE_DATAPUMP

You can use TDE column encryption with external tables of type

ORACLE_DATAPUMP

This is because for external tables of

ORACLE_DATAPUMP

type, the "backing file" is

always created by Oracle Database(during an unload operation) and thus does

have support for being populated with encrypted data.

Transparent Data Encryption and Database Close

Operations

You should ensure that the software or hardware keystore is open before you close

the database.

The master encryption keys may be required during the database close operation. The

database close operation automatically closes the software or hardware keystore.

Related Topics

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

Chapter 7

Data Loads from External Files to Tables with Encrypted Columns

7-11

•Step 3: Open the Hardware Keystore

After you have configured the hardware security module, you must open the

hardware keystore before it can be used.

Chapter 7

Transparent Data Encryption and Database Close Operations

7-12

Using Transparent Data Encryption

with Other Oracle Features

You can use Oracle Data Encryption with other Oracle features, such as Oracle Data

Guard or Oracle Real Application Clusters.

•How Transparent Data Encryption Works with Export and Import Operations

Oracle Data Pump can export and import tables that contain encrypted columns,

as well as encrypt entire dump sets.

•How Transparent Data Encryption Works with Oracle Data Guard

For both software keystores and hardware keystores, Oracle Data Guard supports

Transparent Data Encryption (TDE).

•How Transparent Data Encryption Works with Oracle Real Application Clusters

Oracle RAC nodes can share both a software keystore and a hardware security

module.

•How Transparent Data Encryption Works with SecureFiles

SecureFiles, which stores LOBS, has three features: compression, deduplication,

and encryption.

•How Transparent Data Encryption Works with Oracle Call Interface

Transparent Data Encryption does not have any effect on the operation of Oracle

Call Interface (OCI).

•How Transparent Data Encryption Works with Editions

Transparent Data Encryption does not have any effect on the Editions feature of

Oracle Database.

•Configuring Transparent Data Encryption to Work in a Multidatabase Environment

Each Oracle database on the same server (such as databases sharing the same

Oracle binary but using different data files) must access its own TDE keystore.

How Transparent Data Encryption Works with Export and

Import Operations

Oracle Data Pump can export and import tables that contain encrypted columns, as

well as encrypt entire dump sets.

•About Exporting and Importing Encrypted Data

You can use Oracle Data Pump to export and import tables that have encrypted

columns.

•Exporting and Importing Tables with Encrypted Columns

You can export and import tables with encrypted columns using the

ENCRYPTION=ENCRYPTED_COLUMNS_ONLY

setting.

•Using Oracle Data Pump to Encrypt Entire Dump Sets

Oracle Data Pump can encrypt entire dump sets, not just Transparent Data

Encryption columns.

8-1

•Using Oracle Data Pump with Encrypted Data Dictionary Data

Oracle Data Pump operations provide protections for encrypted passwords and

other encrypted data.

About Exporting and Importing Encrypted Data

You can use Oracle Data Pump to export and import tables that have encrypted

columns.

For both software and hardware keystores, the following points are important when

you must export tables containing encrypted columns:

•Sensitive data should remain unintelligible during transport.

•Authorized users should be able to decrypt the data after it is imported at the

destination.

When you use Oracle Data Pump to export and import tables containing encrypted

columns, it uses the

ENCRYPTION

parameter to enable encryption of data in dump file

sets. The

ENCRYPTION

parameter allows the following values:

•

ENCRYPTED_COLUMNS_ONLY

: Writes encrypted columns to the dump file set in

encrypted format

•

DATA_ONLY

: Writes all of the data to the dump file set in encrypted format

•

METADATA_ONLY

: Writes all of the metadata to the dump file set in encrypted format

•

ALL

: Writes all of the data and metadata to the dump file set in encrypted format

•

NONE

: Does not use encryption for dump file sets

Exporting and Importing Tables with Encrypted Columns

You can export and import tables with encrypted columns using the

ENCRYPTION=ENCRYPTED_COLUMNS_ONLY

setting.

1. Ensure that the keystore is open before you attempt to export tables containing

encrypted columns.

In a multitenant environment, if you are exporting data in a pluggable database

(PDB), then ensure that the wallet is open in the PDB. If you are exporting into the

root, then ensure that the wallet is open in the root.

To find if the keystore is open, query the

STATUS

column of the

V$ENCRYPTION_WALLET

view. If you must open the keystore, then run the following SQL statement:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN

IDENTIFIED BY software_keystore_password

[CONTAINER = ALL | CURRENT];

The

software_keystore_password

setting is the password for the keystore. The

keystore must be open because the encrypted columns must be decrypted using

the TDE table keys, which requires access to the TDE master encryption key. The

columns are reencrypted using a password, before they are exported.

2. Run the

EXPDP

command, using the

ENCRYPTION_PASSWORD

parameter to specify a

password that is used to encrypt column data in the export dump file set.

Chapter 8

How Transparent Data Encryption Works with Export and Import Operations

8-2

The following example exports the

employee_data

table. The

ENCRYPTION_PWD_PROMPT

= YES

setting enables you to prompt for the password interactively, which is a

recommended security practice.

expdp hr TABLES=employee_data DIRECTORY=dpump_dir

DUMPFILE=dpcd2be1.dmp ENCRYPTION=ENCRYPTED_COLUMNS_ONLY

ENCRYPTION_PWD_PROMPT = YES

Password: password_for_hr

3. To import the exported data into the target database, ensure that you specify the

same password that you used for the export operation, as set by the

ENCRYPTION_PASSWORD

parameter.

The password is used to decrypt the data. Data is reencrypted with the new TDE

table keys generated in the target database. The target database must have the

keystore open to access the TDE master encryption key. The following example

imports the

employee_data

table:

impdp hr TABLES=employee_data DIRECTORY=dpump_dir

DUMPFILE=dpcd2be1.dmp

ENCRYPTION_PWD_PROMPT = YES

Password: password_for_hr

Using Oracle Data Pump to Encrypt Entire Dump Sets

Oracle Data Pump can encrypt entire dump sets, not just Transparent Data Encryption

columns.

While importing, you can use either the password or the keystore TDE master

encryption key to decrypt the data. If the password is not supplied, then the TDE

master encryption key in the keystore is used to decrypt the data. The keystore must

be present and open at the target database. The open keystore is also required to

reencrypt column encryption data at the target database.

You can use the

ENCRYPTION_MODE=TRANSPARENT

setting to transparently encrypt the

dump file set with the TDE master encryption key stored in the keystore. A password is

not required in this case. The keystore must be present and open at the target

database, and it must contain the TDE master encryption key from the source

database for a successful decryption of column encryption metadata during an import

operation.

The open keystore is also required to reencrypt column encryption metadata at the

target database. If a keystore already exists on the target database, then you can

export the current TDE master encryption key from the keystore of the source

database and import it into the keystore of the target database.

•Use the

ENCRYPTION_MODE

parameter to specify the encryption mode.

ENCRYPTION_MODE=DUAL

encrypts the dump set using the TDE master encryption key

stored in the keystore and the password provided.

For example, to use dual encryption mode to export encrypted data:

expdp hr DIRECTORY=dpump_dir1

DUMPFILE=hr_enc.dmp

ENCRYPTION=all

ENCRYPTION_PASSWORD=encryption_password

ENCRYPTION_PWD_PROMPT=yes

ENCRYPTION_ALGORITHM=AES256

Chapter 8

How Transparent Data Encryption Works with Export and Import Operations

8-3

ENCRYPTION_MODE=dual

Password: password_for_hr

Encryption Password: password_for_encryption

Related Topics

•Exporting and Importing the TDE Master Encryption Key

You can export and import the TDE master encryption key in different ways.

•Oracle Database Utilities

•Creating an Encrypted Column in an External Table

The external table feature enables you to access data in external sources as if the

data were in a database table.

Using Oracle Data Pump with Encrypted Data Dictionary Data

Oracle Data Pump operations provide protections for encrypted passwords and other

encrypted data.

When you enable the encryption of fixed-user database passwords in a source

database, then an Oracle Data Pump export operation dump stores a known invalid

password for the database link password. This password is in place instead of the

encrypted password that the export operation extracts from the database. An

ORA-39395: Warning: object <database link name> requires password reset after

import

warning message is displayed as a result. If you import data into an Oracle

Database 18c or later database, then this same warning appears when the database

link object with its invalid password is created in the target database. When this

happens, you must reset the database link password, as follows:

ALTER DATABASE LINK database_link_name CONNECT TO schema_name IDENTIFIED BY password;

To find information about the database link, you can query the

V$DBLINK

dynamic view.

When the encryption of fixed-user database passwords has been disabled in a source

database, then there are no changes to Data Pump. The obfuscated database link

passwords are exported and imported as in previous releases.

In this case, Oracle recommends the following:

•Set the

ENCRYPTION_PASSWORD

parameter on the

expdp

command so that you can

further protect the obfuscated database link passwords.

•Set the

ENCRYPTION_PWD_PROMPT

parameter to

YES

so that the password can be

entered interactively from a prompt, instead of being echoed on the screen.

Both the

ENCRYPTION_PASSWORD

and the

ENCRYPTION_PWD_PROMPT

parameters are available

in import operations.

ENCRYPTION_PWD_PROMPT

is only available with the

expdp

and

impdp

command-line clients, whereas

ENCRYPTION_PASSWORD

is available in both the command-

line clients and the

DBMS_DATAPUMP

PL/SQL package.

During an import operation, whether the keystore is open or closed affects the

behavior of whether or not an encryption password must be provided. If the keystore

was open during the export operation and you provided an encryption password, then

you do not need to provide the password during the import operation. If the keystore is

closed during the export operation, then you must provide the password during the

import operation.

Chapter 8

How Transparent Data Encryption Works with Export and Import Operations

8-4

Related Topics

•Oracle Database Reference

•Oracle Database Utilities

How Transparent Data Encryption Works with Oracle Data

Guard

For both software keystores and hardware keystores, Oracle Data Guard supports

Transparent Data Encryption (TDE).

If the primary database uses TDE, then each standby database in a Data Guard

configuration must have a copy of the encryption keystore from the primary database.

If the primary database uses TDE, then each standby database in a Data Guard

configuration must have an encryption keystore with the keystore from the primary

database merged into it. If you reset the TDE master encryption key in the primary

database, then you must merge the keystore on the primary database that contains

the TDE master encryption key to each standby database.

Note the following:

•Encrypted data in log files remains encrypted when data is transferred to the

standby database. Encrypted data also stays encrypted during transit.

•TDE works with SQL*Loader direct path loads. The data loaded into encrypted

columns is transparently encrypted during the direct path load.

•Materialized views work with TDE tablespace encryption. You can create both

materialized views and materialized view logs in encrypted tablespaces.

Materialized views also work with TDE column encryption.

See Also:

•Merging Software Keystores

•Oracle Data Guard Concepts and Administration more information about

the use of TDE with logical standby databases

•Oracle Key Vault Administrator's Guide for information about how to use

TDE with Oracle Data Guard in an Oracle Key Vault environment

How Transparent Data Encryption Works with Oracle Real

Application Clusters

Oracle RAC nodes can share both a software keystore and a hardware security

module.

•About Using Transparent Data Encryption with Oracle Real Application Clusters

Oracle Database enables Oracle RAC nodes to share a software keystore.

Chapter 8

How Transparent Data Encryption Works with Oracle Data Guard

8-5

•Using a Non-Shared File System to Store a Software Keystore in Oracle RAC

If you do not use a shared file system to store the software keystore, then you

must copy the keystore to the associated nodes.

About Using Transparent Data Encryption with Oracle Real Application

Clusters

Oracle Database enables Oracle RAC nodes to share a software keystore.

A configuration with a hardware security module uses a network connection from each

instance of the database to the shared hardware security module. This eliminates the

need to manually copy the software keystore to each of the other nodes in the cluster.

Oracle recommends that you create the software keystore on a shared file system.

This enables all of the instances to access the same shared software keystore. If you

configure Oracle RAC to use Automatic Storage Management (ASM), then store the

keystore on the ASM disk group.

For a hardware security module based configuration, configure the database instance

on each Oracle RAC node to connect to the shared hardware security module. Thus,

all instances of the database have access to the hardware security module.

Keystore operations that must be performed on all of the instances (such as opening

or closing the keystore, or rekeying the TDE master encryption key) can be issued on

any one Oracle RAC instance. Internally, the Oracle database takes care of

synchronizing the keystore context on each Oracle RAC node, so that the effect of the

keystore operation is visible to all of the other Oracle RAC instances in the cluster.

This means that when you open the keystore on one instance, then it also opens for

each of the other Oracle RAC instances. Similarly, when a TDE master encryption key

rekey operation takes place, the new key becomes available to each of the Oracle

RAC instances. This means that when you open the keystore on one database

instance, it opens for each of the other Oracle RAC instances. You can perform other

keystore operations, such as exporting TDE master encryption keys, rotating the

keystore password, merging keystores, or backing up keystores, from a single

instance only.

When using a shared file system, ensure that the

ENCRYPTION_WALLET_LOCATION

WALLET_LOCATION

parameter setting in the

sqlnet.ora

file for all of the Oracle RAC

instances point to the same shared software keystore location. You also must ensure

security of the shared software keystore by assigning the appropriate directory

permissions.

Using a Non-Shared File System to Store a Software Keystore in

Oracle RAC

If you do not use a shared file system to store the software keystore, then you must

copy the keystore to the associated nodes.

1. Log in to the instance of the database as a user who has been granted the

ADMINISTER KEY MANAGEMENT

SYSKM

privilege.

In a multitenant environment, log in to the root or the appropriate PDB. For

example:

Chapter 8

How Transparent Data Encryption Works with Oracle Real Application Clusters

8-6

sqlplus sec_admin@hrpdb as syskm

Enter password: password

Connected.

2. Reset the TDE master encryption key on the first Oracle Real Application Clusters

(Oracle RAC) node.

For example, for column encryption:

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY keystore_password WITH BACKUP

USING 'emp_key_backup';

3. Copy the keystore file with the new TDE master encryption key from the first node

to all of the other nodes.

To find the keystore file location, query the

WRL_PARAMETER

column in the

V$ENCRYPTION_WALLET

view. To find the

WRL_PARAMETER

settings for all of the database

instances, query the

GV$ENCRYPTION_WALLET

view.

4. Close and then reopen the keystore on any node.

If you are using a multitenant container database (CDB), then run the following

statement in the root:

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN FORCE KEYSTORE IDENTIFIED BY

software_keystore_password [CONTAINER = ALL | CURRENT];

Note:

Any keystore operation, such as opening or closing the keystore, performed

on any one Oracle RAC instance applies to all other Oracle RAC instances.

This is true even if you are not using a shared file system.

All of the Oracle RAC nodes are now configured to use the new TDE master

encryption key.

Related Topics

•Setting or Rekeying the TDE Master Encryption Key in the Keystore

You can set or rekey the TDE master encryption key for both software keystores

and hardware keystores.

•Step 3: Open the Software Keystore

Depending on the type of keystore you create, you must manually open the

keystore before you can use it.

•Closing a Software Keystore

You can manually close password-based software keystores, auto-login software

keystores, and local auto-login software keystores.

How Transparent Data Encryption Works with SecureFiles

SecureFiles, which stores LOBS, has three features: compression, deduplication, and

encryption.

•About Transparent Data Encryption and SecureFiles

SecureFiles encryption uses TDE to provide the encryption facility for LOBs.

Chapter 8

How Transparent Data Encryption Works with SecureFiles

8-7

•Example: Creating a SecureFiles LOB with a Specific Encryption Algorithm

The

CREATE TABLE

statement can create a SecureFiles LOB with encryption

specified.

•Example: Creating a SecureFiles LOB with a Column Password Specified

The

CREATE TABLE

statement can create a SecureFiles LOB with a column

password.

About Transparent Data Encryption and SecureFiles

SecureFiles encryption uses TDE to provide the encryption facility for LOBs.

When you create or alter tables, you can specify the SecureFiles encryption or LOB

columns that must use the SecureFiles storage. You can enable the encryption for a

LOB column by either using the current Transparent Data Encryption (TDE) syntax or

by using the

ENCRYPT

clause as part of the LOB parameters for the LOB column. The

DECRYPT

option in the current syntax or the LOB parameters turn off encryption.

Example: Creating a SecureFiles LOB with a Specific Encryption

Algorithm

The

CREATE TABLE

statement can create a SecureFiles LOB with encryption specified.

Example 8-1 shows how to create a SecureFiles LOB in a

CREATE TABLE

statement.

Example 8-1 Creating a SecureFiles LOB with a Specific Encryption Algorithm

CREATE TABLE table1 ( a BLOB ENCRYPT USING 'AES256')

LOB(a) STORE AS SECUREFILE (

CACHE

);

Example: Creating a SecureFiles LOB with a Column Password

Specified

The

CREATE TABLE

statement can create a SecureFiles LOB with a column password.

Example 8-2 shows an example of creating a SecureFiles LOB that uses password

protections for the encrypted column.

All of the LOBS in the LOB column are encrypted with the same encryption

specification.

Example 8-2 Creating a SecureFiles LOB with a Column Password Specified

CREATE TABLE table1 (a VARCHAR2(20), b BLOB)

LOB(b) STORE AS SECUREFILE (

CACHE

ENCRYPT USING 'AES192' IDENTIFIED BY password

);

Chapter 8

How Transparent Data Encryption Works with SecureFiles

8-8

How Transparent Data Encryption Works with Oracle Call

Interface

Transparent Data Encryption does not have any effect on the operation of Oracle Call

Interface (OCI).

For most practical purposes, TDE is transparent to OCI except for the row shipping

feature. You cannot use the OCI row shipping feature with TDE because the key to

make the row usable is not available at the receipt-point.

How Transparent Data Encryption Works with Editions

Transparent Data Encryption does not have any effect on the Editions feature of

Oracle Database.

For most practical purposes, TDE is transparent to Editions. Tables are always

noneditioned objects. TDE Column Encryption encrypts columns of the table. Editions

are not affected by TDE tablespace encryption.

Configuring Transparent Data Encryption to Work in a

Multidatabase Environment

Each Oracle database on the same server (such as databases sharing the same

Oracle binary but using different data files) must access its own TDE keystore.

Keystores are not designed to be shared among databases. By design, there must be

one keystore per database. You cannot use the same keystore for more than one

database.

•To configure the

sqlnet.ora

file for a multidatabase environment, use one of the

following options:

–Option 1: If the databases share the same Oracle home, then keep the

sqlnet.ora

file in the default location, which is in the

ORACLE_HOME/network/admin

directory.

In this case, it is ideal to use the default location. Ensure that the

sqlnet.ora

file has no

WALLET_LOCATION

ENCRYPTION_WALLET_LOCATION

entries. Transparent

Data Encryption accesses the keystore from the default

sqlnet.ora

location if

these two entries are not in the

sqlnet.ora

file.

–Option 2: If Option 1 is not feasible for your site, then you can specify the

keystore location based on an environment variable setting, such as

ORACLE_SID

For example:

ENCRYPTION_WALLET_LOCATION =

(SOURCE =

(METHOD = FILE)

(METHOD_DATA =

(DIRECTORY = /home/oracle/wallet/$ORACLE_SID)

Chapter 8

How Transparent Data Encryption Works with Oracle Call Interface

8-9

–Option 3: If Options 1 and 2 are not feasible, then use separate

sqlnet.ora

files, one for each database. Ensure that you correctly set the

TNS_ADMIN

environment variable to point to the correct database configuration.

Caution:

Using a keystore from another database can cause partial or complete data

loss.

See Also:

SQL*Plus User's Guide and Reference for more information and examples of

setting the

TNS_ADMIN

variable

Chapter 8

Configuring Transparent Data Encryption to Work in a Multidatabase Environment

8-10

Using sqlnet.ora to Configure Transparent

Data Encryption Keystores

If you do not want to use the

WALLET_ROOT

parameter to configure keystores, then you

can use the

sqlnet.ora

file.

•About the Keystore Location in the sqlnet.ora File

If you have not set the

WALLET_ROOT

parameter, then Oracle Database checks the

sqlnet.ora

file for the directory location of the keystore.

•Configuring the sqlnet.ora File for a Software Keystore Location

Use the

sqlnet.ora

file to configure the keystore location for a regular file system,

for multiple database access, and for use with Oracle Automatic Storage

Management (ASM).

•Example: Configuring a Software Keystore for a Regular File System

You can configure a software keystore for a regular file system.

•Example: Configuring a Software Keystore When Multiple Databases Share the

sqlnet.ora File

You can configure multiple databases to share the

sqlnet.ora

file.

•Example: Configuring a Software Keystore for Oracle Automatic Storage

Management

You can configure

sqlnet.ora

for an Automatic Storage Management (ASM) file

system

•Example: Configuring a Software Keystore for an Oracle Automatic Storage

Management Disk Group

You can configure

sqlnet.ora

for an Oracle Automatic Storage Management

(ASM) disk group.

About the Keystore Location in the sqlnet.ora File

If you have not set the

WALLET_ROOT

parameter, then Oracle Database checks the

sqlnet.ora

file for the directory location of the keystore.

This applies to whether the keystore is a software keystore, a hardware module

security (HSM) keystore, or an Oracle Key Vault keystore. You must edit the

sqlnet.ora

file to define a directory location for the keystore that you plan to create.

Ensure that this directory exists beforehand. Preferably, this directory should be

empty.

Note the following behavior when you must edit the

sqlnet.ora

file in an Oracle Real

Application Clusters (Oracle RAC) or a multitenant environment:

•In an Oracle RAC environment: If you are using the

srvctl

utility and if you want

to include environment variables in the

sqlnet.ora

configuration file, then you must

set these environment variables in both the operating system and the

srvctl

environment. Oracle recommends that you place the keystore on a shared file

system, such as Oracle Automatic Storage Management (ASM) or NFS.

9-1

•In a multitenant environment: If the

sqlnet.ora

file is in the CDB root, then the

keystore location will be set for the entire CDB environment. You can configure a

sqlnet.ora

at the PDB level if the PDBs are working in isolated mode.

In the

sqlnet.ora

file, you must set the

ENCRYPTION_WALLET_LOCATION

parameter to

specify the keystore location. When determining which keystore to use, Oracle

Database searches for the keystore location in the following places, in this order:

1. It attempts to use the keystore in the location specified by the parameter

ENCRYPTION_WALLET_LOCATION

in the

sqlnet.ora

file.

2. If the

ENCRYPTION_WALLET_LOCATION

parameter is not set, then it attempts to use the

keystore in the location that is specified by the parameter

WALLET_LOCATION

3. If the

WALLET_LOCATION

parameter is also not set, then Oracle Database looks for a

keystore at the default database location, which is

$ORACLE_BASE/admin/

DB_UNIQUE_NAME/wallet

$ORACLE_HOME/admin/DB_UNIQUE_NAME/wallet

(

DB_UNIQUE_NAME

is the unique name of the database specified in the initialization

parameter file.) When the keystore location is not set in the

sqlnet.ora

file, then

the

V$ENCRYPTION_WALLET

view displays the default location. You can check the

location and status of the keystore in the

V$ENCRYPTION_WALLET

view.

By default, the

sqlnet.ora

file is located in the

$ORACLE_HOME/dbs

directory or in the

location set by the

TNS_ADMIN

environment variable. Ensure that you have properly set

the

TNS_ADMIN

environment variable to point to the correct

sqlnet.ora

file.

Related Topics

•SQL*Plus User's Guide and Reference

Configuring the sqlnet.ora File for a Software Keystore

Location

Use the

sqlnet.ora

file to configure the keystore location for a regular file system, for

multiple database access, and for use with Oracle Automatic Storage Management

(ASM).

•To create a software keystore on a regular file system, use the following format

when you edit the

sqlnet.ora

file:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=path_to_keystore)))

If the

path_to_keystore

will contain an environment variable, then set this variable in

the environment where the database instance is started and before you start the

database. If you are using the

srvctl

utility to start the database, then set the

environment variable in the

srvctl

environment as well, using the following command:

srvctl setenv database -db database_name -env

"environment_variable_name=environment_variable_value"

Chapter 9

Configuring the sqlnet.ora File for a Software Keystore Location

9-2

Example: Configuring a Software Keystore for a Regular File

System

You can configure a software keystore for a regular file system.

The following example shows how to configure a software keystore location in the

sqlnet.ora

file for a regular file system in which the database name is

orcl

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/orcl)))

Example: Configuring a Software Keystore When Multiple

Databases Share the sqlnet.ora File

You can configure multiple databases to share the

sqlnet.ora

file.

The following example shows how to configure a software keystore location when

multiple databases share the

sqlnet.ora

file.

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=/etc/ORACLE/WALLETS/$ORACLE_SID/)))

Example: Configuring a Software Keystore for Oracle

Automatic Storage Management

You can configure

sqlnet.ora

for an Automatic Storage Management (ASM) file

system

The following example shows how to configure a software keystore location in the

sqlnet.ora

file for an ASM file system:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=+disk1/mydb/wallet)))

Example: Configuring a Software Keystore for an Oracle

Automatic Storage Management Disk Group

You can configure

sqlnet.ora

for an Oracle Automatic Storage Management (ASM)

disk group.

Chapter 9

Example: Configuring a Software Keystore for a Regular File System

9-3

The following format shows how to configure a software keystore if you want to create

a software keystore location on an ASM disk group:

ENCRYPTION_WALLET_LOCATION=

(SOURCE=

(METHOD=FILE)

(METHOD_DATA=

(DIRECTORY=+ASM_file_path_of_the_diskgroup)))

Chapter 9

Example: Configuring a Software Keystore for an Oracle Automatic Storage Management Disk Group

9-4

Frequently Asked Questions About

Transparent Data Encryption

Users frequently have questions about transparency and performance issues with

Transparent Data Encryption.

•Transparency Questions About Transparent Data Encryption

Transparent Data encryption handles transparency in data in a variety of ways.

•Performance Questions About Transparent Data Encryption

There are several performance issues to consider when using Transparent Data

Encryption.

Transparency Questions About Transparent Data

Encryption

Transparent Data encryption handles transparency in data in a variety of ways.

Security auditors occasionally ask detailed questions about the encryption used by

Transparent Data Encryption (TDE). They request information about TDE keys,

algorithms, lengths, and keystores and then directly compare to requirements of

regulations such as PCI-DSS. This topic contains important details about TDE

encryption and key management. This information is current as of Oracle Database

12c (12.1.0.2). It is intended to help TDE customers respond to auditor questions

quickly and accurately.

1. Is Transparent Data Encryption compatible with my application software?

Transparent Data Encryption is compatible with applications by default because it

does not alter the inbound SQL statements or the outbound SQL query results.

Oracle executes internal testing and validation of certain Oracle and third-party

application software to capture helpful deployment tips or scripts, and to evaluate

performance profiles.

Be aware of the difference between Transparent Data Encryption and the

DBMS_CRYPTO

PL/SQL package. This package is intended for different customer use

cases. It is an API and toolkit solution and as such, it is non-transparent.

2. Is Transparent Data Encryption compatible with other Oracle Database tools

and technologies that I am using?

One of the chief benefits of Transparent Data Encryption is its integration with

frequently used Oracle Database tools and technologies such as high-availability

clusters, storage compression, backup compression, data movement, database

backup and restore, and database replication. Specific Oracle technologies that

are integrated directly with Transparent Data Encryption include Oracle Real

Application Clusters (Oracle RAC), Oracle Recovery Manager (RMAN), Oracle

Data Guard, Advanced Compression, Oracle Data Pump, and Oracle GoldenGate,

among others. Transparent Data Encryption also has special points of integration

with Oracle Exadata that fully use unique features of Oracle-engineered systems.

10-1

Transparent Data Encryption also works easily with security features of the Oracle

Database. With Transparent Data Encryption, privilege grants, roles, Oracle

Database Vault realms, Virtual Private Database policies, and Oracle Label

Security labels remain in effect. You can use these and other security features in

tandem with Transparent Data Encryption encryption.

3. Are there any known Transparent Data Encryption limitations or

incompatibilities?

•TDE column encryption: TDE column encryption encrypts and decrypts data

transparently when data passes through the SQL layer. Some features of

Oracle will bypass the SQL layer, and hence cannot benefit from TDE column

encryption. The following are known database features that TDE column

encryption does not support, and their relevant software version numbers:

–Materialized View Logs (not supported prior to Oracle Database 11g

Release 2)

–Streams (not supported prior to Oracle Database 11g Release 1)

–Synchronous and asynchronous change data capture for data

warehousing (CDC)

–Transportable Tablespaces

–LOBs

Note that Secure Files were introduced in Oracle Database 11g Release 1, so

it is not supported with TDE column encryption prior to that release

•TDE tablespace encryption: TDE tablespace encryption encrypts all content

that is stored in the tablespace at the block level in storage, and it generally

does not conflict with other database features. TDE tablespace encryption

does not have any of the limitations that TDE column encryption has.

However, you can use full transportable tablespaces (TTS) with Oracle Data

Pump compression and encryption when going from a TDE-encrypted source

to a TDE-encrypted destination. You must have an Oracle Database release

12c or later database instance available so that you can use its key export or

keystore (wallet) merge capabilities to get the correct master encryption key to

the destination database host without having to overwrite the original Oracle

wallet file. This process is subject to the standard TTS limitations, and you

must remember to check for compatible endianness.

4. What types of keys and algorithms does TDE use?

TDE relies on two distinct sets of encryption keys. The first set of encryption keys

are TDE tablespace encryption keys, which are used to transparently encrypt and

decrypt stored data. DEKs are generated automatically by the database, stored

internally in the database in encrypted form, and managed mostly behind the

scenes. One place where end-users interact with DEKs is when selecting the

encryption algorithm and key length that TDE will use, which can be 3DES168,

AES128, AES192, or AES256. This selection is made independently for each table

containing encrypted columns and for each encrypted tablespace. You may also

hear DEKs referred to as table keys (column encryption) or tablespace keys

(tablespace encryption). The table keys are used in cipher block chaining (CBC)

operating mode, and the tablespace keys are used in cipher feedback (CFB)

operating mode.

The second set of encryption keys consists of current and historical key encryption

keys (KEK), also known as master encryption keys. The master encryption keys

are generated automatically by the database, used automatically to encrypt and

Chapter 10

Transparency Questions About Transparent Data Encryption

10-2

decrypt DEKs as needed, and stored externally in a protected keystore. Users

may interact with the current master encryption key by periodically rekeying it,

modifying certain key attributes, and so forth. Typically, the keystore for master

encryption keys is either an Oracle wallet (out-of-the-box solution) or Oracle Key

Vault (a specialized key management product). Although the database uses only

one TDE master key at a time, all rekeyed master encryption keys are retained in

the keystore for long-term recovery of encrypted data backups.Master encryption

keys always are AES256. They encrypt and decrypt DEKs using CBC operating

mode. For both DEKs and master encryption keys, the underlying key material is

not directly exposed. End-users see only attributes of keys necessary to manage

TDE.

5. How are Oracle keystores containing master encryption keys protected?

There are three different types of keystore to consider when you use an Oracle

wallet as the keystore for master encryption keys: password-based, auto-login,

and local auto-login. All of these keystore externalize master encryption keys, so

they are separate from TDE-encrypted data. Oracle recommends that you place

wallet files in local or network directories that are protected by tight file

permissions and other security measures.

The password-based wallet is an encrypted key storage file (

ewallet.p12

) that

follows the PKCS #12 standard. It is encrypted by a password-derived key

according to the PKCS #5 standard. A human user must enter a command

containing the password for the database to open the wallet, decrypt its contents,

and gain access to keys. The password-based wallet is the default keystore for

TDE master keys. In the past, it was encrypted using the 3DES168 encryption

algorithm and CBC operating mode. The

orapki

command

convert wallet

enables

you to convert password-based wallets to AES256 and CBC operating mode.

Oracle Database Security Guide provides details about using

orapki

to convert

wallets.

Auto-login wallets (

cwallet.sso

) optionally are derived from standard password-

based wallets for special cases where automatic startup of the database is

required with no human interaction to enter a wallet password. When using auto-

needed to rekey the master encryption key. In addition to the best practice of

storing auto-login wallet in a local or network directory that is protected by tight file

permissions, the file contents are scrambled by the database using a proprietary

method for added security. A slight variation on the auto-login wallet called local

auto-login wallet has similar behavior. One notable difference with local auto-login

wallet is that its contents are scrambled using additional factors taken from the

host machine where the file was created. This renders the local auto-login wallet

unusable on other host machines. Details of the host factors and scrambling

technique are proprietary.

6. What is Oracle Key Vault and how does it manage TDE master keys?

Oracle Key Vault centrally manages TDE master keys, Oracle wallets, Java

keystores, and more. It helps you to take control of proliferating keys and key

storage files. It includes optimizations specifically for TDE and other components

of the Oracle stack. For more information about using Oracle Key Vault with TDE,

see the product pages on www.oracle.com and Oracle Technology Network and

Oracle Key Vault Administrator's Guide.

Chapter 10

Transparency Questions About Transparent Data Encryption

10-3

Performance Questions About Transparent Data Encryption

There are several performance issues to consider when using Transparent Data

Encryption.

1. What is the typical performance overhead from Transparent Data

Encryption?

There are many different variables involved in the creation of an accurate

Transparent Data Encryption performance test. The results can vary depending on

the test environment, test case or workload, measurement metrics or methods,

and so on. Oracle cannot guarantee a specific performance overhead percentage

that can apply in all possible scenarios. In practice, the performance tests by many

Transparent Data Encryption customers are often in the low single digits as a

percentage, but that is not universally the case. Customer examples that cite 1

percent and 2 percent overhead respectively are published on Oracle Technology

Network in the following URL:

http://streaming.oracle.com/ebn/podcasts/media/12740910_ColumbiaU_120312.mp3

If possible, use Oracle Real Application Testing (Oracle RAT) to capture a real

production workload and then replay it against Transparent Data Encryption to get

a true indication of the performance overhead that the you can expect within your

environment.

See Also:

•Oracle Database 2 Day + Security Guide for a tutorial about creating

Oracle Data Redaction policies

•Oracle Database Security Guide for information about using Transparent

Sensitive Data Protection policies with Oracle Data Redaction

When to Use Oracle Data Redaction

Use Oracle Data Redaction when you must disguise sensitive data that your

applications and application users must access.

Data Redaction enables you to easily disguise the data using several different

redaction styles.

Oracle Data Redaction is ideal for situations in which you must redact specific

characters out of the result set of queries of Personally Identifiable Information (PII)

returned to certain application users. For example, you may want to present a U.S.

Social Security number that ends with the numbers 4320 as

***-**-4320

Oracle Data Redaction is particularly suited for call center applications and other

applications that are read-only. Take care when using Oracle Data Redaction with

applications that perform updates back to the database, because redacted data can be

written back to this database.

Benefits of Using Oracle Data Redaction

Oracle Data Redaction provides several benefits when you use it to protect your data.

These benefits are as follows:

•You have different styles of redaction from which to choose.

•Because the data is redacted at runtime, Data Redaction is well suited to

environments in which data is constantly changing.

•You can create the Data Redaction policies in one central location and easily

manage them from there.

•The Data Redaction policies enable you to create a wide variety of function

conditions based on

SYS_CONTEXT

values, which can be used at runtime to decide

when the Data Redaction policies will apply to the results of the application user's

query.

Target Use Cases for Oracle Data Redaction

Oracle Data Redaction fulfils common use case scenarios.

Chapter 11

When to Use Oracle Data Redaction

11-2

•Oracle Data Redaction Use with Database Applications

Oracle Data Redaction protects sensitive data that is displayed in database

applications.

•Oracle Data Redaction with Ad Hoc Database Queries Considerations

You may encounter situations where it is convenient to redact sensitive data for ad

hoc queries that are performed by database users.

Oracle Data Redaction Use with Database Applications

Oracle Data Redaction protects sensitive data that is displayed in database

applications.

Data Redaction is transparent to application users because it preserves the original

data type and (optionally) the formatting. It is highly transparent to the database

because the data remains the same in buffers, caches, and storage—only being

changed at the last minute just before SQL query results are returned to the caller.

The redaction is enforced consistently across all of the applications that use the same

underlying database. You can specify which application users should see only

redacted data by checking application user information that is passed into the

database through the

SYS_CONTEXT

function; you can redact data based on attributes of

the current database or application user; and you can implement multiple logical

conditions within a given redaction policy. In addition, Data Redaction is implemented

in a way that minimizes performance overhead. These characteristics make Oracle

Data Redaction particularly well suited for usage by a range of applications, analytics

tools, reporting tools, and monitoring tools that share common production databases.

Although its primary target is redaction of production data for applications, Oracle Data

Redaction also can be used in combination with Oracle Enterprise Manager Data

Masking and Subsetting Pack for protecting sensitive data in testing and development

environments.

Related Topics

•Oracle Data Redaction and Data Masking and Subsetting Pack

Oracle Enterprise Manager Data Masking and Subsetting Pack can be used to

create a development or test copy of a production database.

Oracle Data Redaction with Ad Hoc Database Queries Considerations

You may encounter situations where it is convenient to redact sensitive data for ad hoc

queries that are performed by database users.

For example, in the course of supporting a production application, a user may need to

run ad hoc database queries to troubleshoot and fix an urgent problem with the

application. This is different from the application-based scenarios described in Oracle

Data Redaction Use with Database Applications, which typically generate a bounded

set of SQL queries, use defined database accounts, and have fixed privileges.

Even though Oracle Data Redaction is not designed to prevent data exposure to

database users who run ad hoc queries directly against the database, it can provide

an additional layer to reduce the chances of accidental data exposure. Because such

users may have rights to change data, alter the database schema, and circumvent the

SQL query interface entirely, it is possible for a malicious user to bypass Data

Redaction policies in certain circumstances.

Chapter 11

Target Use Cases for Oracle Data Redaction

11-3

Remember that the Oracle Database security tools are designed to be used together

to improve overall security. By deploying one or more of these tools as a complement

to Oracle Data Redaction, you can securely increase your overall security posture.

Related Topics

•Oracle Data Redaction General Security Guidelines

It is important to understand general security guidelines for using Oracle Data

Redaction.

Chapter 11

Target Use Cases for Oracle Data Redaction

11-4

Oracle Data Redaction Features and

Capabilities

Oracle Data Redaction provides a variety of ways to redact different types of data.

•Full Data Redaction to Redact All Data

Full data redaction redacts the entire contents of the specified table or view

column.

•Partial Data Redaction to Redact Sections of Data

In partial data redaction, you redact portions of the displayed output.

•Regular Expressions to Redact Patterns of Data

Regular expressions redact specific data within a column data value, based on a

pattern search.

•Redaction Using Null Values

You can create an Oracle Data Redaction policy that redacts column data by

replacing it with null values.

•Random Data Redaction to Generate Random Values

In random data redaction, the entire value is redacted by replacing it with a

random value.

•Comparison of Full, Partial, and Random Redaction Based on Data Types

The full, partial, and random data redaction styles affect the Oracle built-in, ANSI,

user-defined, and Oracle supplied types in different ways.

•No Redaction for Testing Purposes

You can create a Data Redaction policy that does not perform redaction.

•Central Management of Named Data Redaction Policy Expressions

You can create a library of named policy expressions that can be used in the

columns of multiple tables and views.

Full Data Redaction to Redact All Data

Full data redaction redacts the entire contents of the specified table or view column.

By default the output is displayed as follows:

•Character data types: The output text is a single space.

•Number data types: The output text is a zero (

•Date-time data types: The output text is set to the first day of January, 2001,

which appears as

01-JAN-01

Full redaction is the default and is used whenever a Data Redaction policy specifies

the column but omits the

function_type

parameter setting. When you run the

DBMS_REDACT.ADD_POLICY

procedure, to set the

function_type

parameter setting for full

redaction, you enter the following setting:

12-1

function_type => DBMS_REDACT.FULL

You can use the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure to change the

full redaction output to different values.

Related Topics

•Syntax for Creating a Full Redaction Policy

The

DBMS_REDACT.ADD_POLICY

procedure enables you to create a full redaction

policy.

Partial Data Redaction to Redact Sections of Data

In partial data redaction, you redact portions of the displayed output.

You can set the position within the actual data at which to begin the redaction, the

number of characters to redact starting from that position, and the redaction character

to use. This type of redaction is useful for situations where you want it to be obvious to

the person viewing the data that it was redacted in some way. Typically, you use this

type of redaction for credit cards or ID numbers.

Be aware that partial data redaction requires that your data width remain fixed. If you

want to redact columns containing string values of variable length, then you must use

regular expressions.

To specify partial redaction, you must set the

DBMS_REDACT.ADD_POLICY

procedure

function_type

parameter to

DBMS_REDACT.PARTIAL

and use the

function_parameters

parameter to define the partial redaction behavior.

The displayed output for partial data redaction can be as follows:

•Character data types: When partially redacted, a Social Security number

(represented as a hyphenated string within a character data type) with value

987-65-4320

could be redacted so that it is displayed as shown in the following

examples. The code on the right specifies how to redact the character data: it

specifies the expected input format of the actual data, the format to use for the

display of the redacted output, the start position at which to begin the redaction,

the character to use for the redaction, and how many characters to redact. The

first example uses a predefined format (in previous releases called a shortcut) for

character data type Social Security numbers, and the second example replaces

the first five numbers with an asterisk (

) while preserving the hyphens (

) in

between the numbers.

XXX-XX-4320 function_parameters => DBMS_REDACT.REDACT_US_SSN_F5,

***-**-4320 function_parameters => 'VVVFVVFVVVV,VVV-VV-VVVV,*,1,5',

•Number data types: The partially redacted

NUMBER

data type Social Security

number

987654328

could appear as follows. Both redact the first five digits. The first

example uses a predefined format that is designed for Social Security numbers in

the

NUMBER

data type, and the second replaces the first five numbers with the

number

, starting from the first digit.

XXXXX4328 function_parameters => DBMS_REDACT.REDACT_NUM_US_SSN_F5,

999994328 function_parameters => '9,1,5',

•Date-time data types: Partially redacted datetime values can appear simply as

different dates. For example, the date

29-AUG-11 10.20.50.000000 AM

could appear

Chapter 12

Partial Data Redaction to Redact Sections of Data

12-2

as follows. In the first example, the day of the month is redacted to

(using the

setting

d02

) and in the second example, the month is redacted to

DEC

(using

m12

The uppercase values show the actual month (

), year (

), hour (

), minute (

), and

second (

02-AUG-11 10.20.50.000000 AM function_parameters => 'Md02YHMS',

29-DEC-11 10.20.50.000000 AM function_parameters => 'm12DYHMS',

Related Topics

•Regular Expressions to Redact Patterns of Data

Regular expressions redact specific data within a column data value, based on a

pattern search.

•Syntax for Creating a Partial Redaction Policy

The

DBMS_REDACT.ADD_POLICY

statement enables you to create policies that redact

specific parts of the data returned to the application.

Regular Expressions to Redact Patterns of Data

Regular expressions redact specific data within a column data value, based on a

pattern search.

For example, you can redact the user name of email addresses, so that only the

domain shows (for example, replacing

hpreston

in the email address

hpreston@example.com

with

[redacted]

so that it appears as

[redacted]@example.com

). To

perform the redaction, set the

DBMS_REDACT.ADD_POLICY

procedure

function_type

parameter to either

DBMS_REDACT.REGEXP

DBMS_REDACT.REGEXP_WIDTH

, and then use the

following parameters to build the regular expression:

•A string search pattern (that is, the values to search for), such as:

regexp_pattern => '(.+)@(.+\.[A-Za-z]{2,4})'

This setting looks for a pattern of the following form:

one_or_more_characters@one_or_more_characters.2-4_characters_in_range_A-Z_or_a-z

•A replacement string, which replaces the value matched by the

regexp_pattern

setting. The replacement string can include back references to sub-expressions of

the main regular expression pattern. The following example replaces the data

before the

symbol (from the

regexp_pattern

setting) with the text

[redacted]

. The

setting refers to the second match group, which is

(.+\.[A-Za-z]{2,4})

from the

regexp_pattern

setting.

regexp_replace_string => '[redacted]@\2'

•The starting position for the string search string, such as the first character of the

data, such as:

regexp_position => DBMS_REDACT.RE_BEGINNING

•The kind of search and replace operation to perform, such as the first occurrence,

every fifth occurrence, or all of the occurrences, such as:

regexp_occurrence => DBMS_REDACT.RE_ALL

•The default matching behavior for the search and replace operation, such as

whether the search is case-sensitive (

sets it to be not case-sensitive):

regexp_match_parameter => 'i

Chapter 12

Regular Expressions to Redact Patterns of Data

12-3

In addition to the default parameters, you can use a set of predefined formats that

enable you to use commonly used regular expressions for telephone numbers, email

addresses, and credit card numbers.

Related Topics

•Syntax for Creating a Regular Expression-Based Redaction Policy

The

regexp_*

parameters of the

DBMS_REDACT.ADD_POLICY

procedure can create a

regular expression-based redaction policy.

Redaction Using Null Values

You can create an Oracle Data Redaction policy that redacts column data by replacing

it with null values.

This feature enables you to use the

DBMS_REDACT.NULLIFY

function hide all of the

sensitive data in a table or view column and replace it with null values. You can set

this function by using the

function_type

parameter of the

DBMS_REDACT.ADD_POLICY

DBMS_REDACT.ALTER_POLICY

procedure.

For example:

function_type => DBMS_REDACT.NULLIFY

Related Topics

•Creating a DBMS_REDACT.NULLIFY Redaction Policy

You can create Oracle Data Redaction policies that return null values for the

displayed value of the table or view column.

Random Data Redaction to Generate Random Values

In random data redaction, the entire value is redacted by replacing it with a random

value.

The redacted values displayed in the result set of the query change randomly each

time application users run the query.

This type of redaction is useful in cases where you do not want it to be obvious that

the data was redacted. It works especially well for number and datetime data types,

where it is difficult to distinguish between random and real data.

The displayed output for random values changes based on the data type of the

redacted column, as follows:

•Character data types: The random output is a mixture of characters (for example,

HTU[G{\pjkEWcK

). It behaves differently for the

CHAR

and

VARCHAR2

data types, as

follows:

–CHAR data type: The redacted output is always in the same character set as

the character set of the column. The byte length of the redacted output is

always the same as the column definition length (that is, the column length

that was provided at the time of table creation). For example, if the column is

CHAR(20)

, then a string of 20 random characters is provided in the redacted

output of the user's query.

–VARCHAR2 data type: For random redaction of a

VARCHAR

data type, the

redacted output is always in the same character set as the character set of the

Chapter 12

Redaction Using Null Values

12-4

column. The length of the redacted output is limited based on the length of the

actual data in the column. No characters in excess of the length of the actual

data are displayed. For example, if the column is

VARCHAR2(20)

and the row

being redacted contains actual data with a length of 12, then a string of 12

random characters (not 20) is provided in the redacted output of the user's

query for that row.

•Number data types: Each actual number value is redacted by replacing it with a

random, non-negative number modulo the absolute value of the actual data. This

redaction results in random numbers that do not exceed the precision of the actual

data. For example, the number

987654321

can be redacted by replacing it with any

of the numbers

12345678

13579

, or

987654320

, but not by replacing it with any of

the numbers

987654321

99987654321

, or

-1

. The number

-123

could be redacted by

replacing it with the numbers

122

, or

, but not by replacing it with any of the

numbers

123

1123

, or

-2

The only exception to the above is when the actual value is an integer between -1

and 9. In this case, the actual data is redacted by replacing it with a random, non-

negative integer modulo ten (10).

•Date-time data types: When values of the date data type are redacted using

random Data Redaction, Oracle Database displays them with random dates that

are always different from those of the actual data.

The setting for using random redaction is as follows:

function_type => DBMS_REDACT.RANDOM

Related Topics

•Syntax for Creating a Random Redaction Policy

A random redaction policy presents the redacted data to the querying application

user as randomly generated values, based on the column data type.

Comparison of Full, Partial, and Random Redaction Based

on Data Types

The full, partial, and random data redaction styles affect the Oracle built-in, ANSI,

user-defined, and Oracle supplied types in different ways.

•Oracle Built-in Data Types Redaction Capabilities

Oracle Data Redaction handles the Oracle built-in data types depending on the

type of Data Redaction policies that are used.

•ANSI Data Types Redaction Capabilities

Oracle Data Redaction converts ANSI data types in specific ways, depending on

the type of redaction that the Data Redaction policy has.

•Built-in and ANSI Data Types Full Redaction Capabilities

For full redaction, the default redacted value depends on whether the data type is

Oracle built-in or ANSI.

•User-Defined Data Types or Oracle Supplied Types Redaction Capabilities

Several data types or types are not supported by Oracle Data Redaction.

Chapter 12

Comparison of Full, Partial, and Random Redaction Based on Data Types

12-5

Oracle Built-in Data Types Redaction Capabilities

Oracle Data Redaction handles the Oracle built-in data types depending on the type of

Data Redaction policies that are used.

Table 12-1 describes the Oracle Data Redaction support for Oracle built-in data types.

Table 12-1 Redaction Support for Oracle Built-in Data Types

Column Data

Type

Full Partial Regexp Random

Character1Yes Yes Yes Yes

Number2Yes Yes No Yes

Raw3No No No No

Date-time4Yes Yes No Yes

Interval5No No No No

BFILE

No No No No

BLOB

Yes No No No

CLOB

Yes No Yes No

NCLOB

Yes No Yes No

ROWID

No No No No

UROWID

No No No No

1Includes

CHAR

VARCHAR2

(including long

VARCHAR2

, for example,

VARCHAR2(20000)

NCHAR

NVARCHAR2

2Includes

NUMBER

FLOAT

BINARY_FLOAT

BINARY_DOUBLE

3Includes

LONG

RAW

4Includes

DATE

TIMESTAMP

TIMESTAMP WITH TIME ZONE

TIMESTAMP WITH LOCAL TIME ZONE

5Includes

INTERVAL YEAR TO MONTH

INTERVAL DAY TO SECOND

ANSI Data Types Redaction Capabilities

Oracle Data Redaction converts ANSI data types in specific ways, depending on the

type of redaction that the Data Redaction policy has.

Table 12-2 compares how the full, partial, and random redaction styles work for ANSI

data types, with regard to how they are converted and their support status.

Table 12-2 Redaction Support for the ANSI Data Types

Data Type How

Converted

Full

Redaction

Partial

Redaction

Regexp NULL

Redaction

Random

Redaction

CHARACTER(n)

CHAR(n)

Converted

CHAR(n)

Yes Yes Yes Yes Yes

CHARACTER

VARYING(n)

CHAR VARYING(n)

Converted

VARCHAR2(n

)

Yes Yes Yes Yes Yes

Chapter 12

Comparison of Full, Partial, and Random Redaction Based on Data Types

12-6

Table 12-2 (Cont.) Redaction Support for the ANSI Data Types

Data Type How

Converted

Full

Redaction

Partial

Redaction

Regexp NULL

Redaction

Random

Redaction

NATIONAL

CHARACTER(n)

NATIONAL CHAR(n)

NCHAR(n)

Converted

NCHAR(n)

Yes Yes Yes Yes Yes

NATIONAL CHARACTER

VARYING(n)

NATIONAL CHAR

VARYING(n)

NCHAR VARYING(n)

Converted

NVARCHAR2(

Yes Yes Yes Yes Yes

NUMERIC

[(

p,s

)]

DECIMAL

[(

p,s

)]

Converted

NUMBER(p,s

)

Yes Yes Yes Yes Yes

INTEGER

INT

SMALLINT

Converted

NUMBER(38)

Yes Yes Yes Yes Yes

FLOAT

DOUBLE PRECISION

Converted

FLOAT(126)

Yes Yes Yes Yes Yes

REAL

Converted

FLOAT(63)

Yes Yes Yes Yes Yes

GRAPHIC

LONG VARGRAPHIC

VARGRAPHIC

TIME

conversion

No No No No No

Built-in and ANSI Data Types Full Redaction Capabilities

For full redaction, the default redacted value depends on whether the data type is

Oracle built-in or ANSI.

ANSI Data Types Redaction Capabilities shows the default settings for both Oracle

built-in and ANSI data type columns that use full redaction.

Table 12-3 Default Settings and Categories for Columns That Use Full

Redaction

Data Type Default Redacted Value Data Type Category

CHARACTER

Single space (

“ “

) Oracle built-in

CHARACTER(n)

CHAR(n)

Single space (

“ “

) ANSI

CHARACTER VARYING(n)

CHAR VARYING(n)

Single space (

“ “

) ANSI

Chapter 12

Comparison of Full, Partial, and Random Redaction Based on Data Types

12-7

Table 12-3 (Cont.) Default Settings and Categories for Columns That Use Full

Redaction

Data Type Default Redacted Value Data Type Category

NATIONAL CHARACTER(n)

NATIONAL CHAR(n)

NCHAR(n)

Single space (

“ “

) ANSI

NATIONAL CHARACTER VARYING(n)

NATIONAL CHAR VARYING(n)

NCHAR VARYING(n)

Single space (

“ “

) ANSI

NUMBER

Zero (

) Oracle built-in

NUMERIC

[(

p,s

)]

DECIMAL

[(

p,s

)]

Zero (

) Oracle built-in

INTEGER

INT

SMALLINT

Zero (

) ANSI

FLOAT

DOUBLE PRECISION

Zero (

) ANSI

REAL

Zero (

) ANSI

DATE-TIME 01–01–01

01–01–01

01:00:00

Oracle built-in

BLOB

Oracle’s raw

representation of

[redacted]

Oracle built-in

CLOB [redacted]

Oracle built-in

NCLOB [redacted]

Oracle built-in

1If you have changed the character set, then you may need to invoke the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure to set the value to the raw representation

in the new character set, as follows:

DECLARE

new_red_blob BLOB;

BEGIN

DBMS_LOB.CREATETEMPORARY(new_red_blob, TRUE);

DBMS_LOB.WRITE(new_red_blob, 10, 1, UTL_RAW.CAST_TO_RAW('[redacted]'));

dbms_redact.update_full_redaction_values(

blob_val => new_red_blob);

DBMS_LOB.FREETEMPORARY(new_red_blob);

END;

After you run this procedure, restart the database.

See also Altering the Default Full Data Redaction Value for more information about using the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure.

Chapter 12

Comparison of Full, Partial, and Random Redaction Based on Data Types

12-8

User-Defined Data Types or Oracle Supplied Types Redaction

Capabilities

Several data types or types are not supported by Oracle Data Redaction.

Table 12-4 compares how the full, partial, regular expression, and random redaction

styles work for user-defined and Oracle-supplied types.

Table 12-4 Redaction Support for the User-Defined Data Types or Oracle-Supplied Types

Data Type or Type Full

Redaction

Partial

Redaction

Regexp NULL

Redactio

Random

Redaction

User-defined data types No No No No No

Oracle supplied types: Any types, XML types,

Oracle Spatial types, Oracle Media types

No No No No No

No Redaction for Testing Purposes

You can create a Data Redaction policy that does not perform redaction.

This is useful for cases in which you have a redacted base table, yet you want a

specific application user to have a view that always shows the actual data. You can

create a new view of the redacted table and then define a Data Redaction policy for

this view. The policy still exists on the base table, but no redaction is performed when

the application queries using the view as long as the

DBMS_REDACT.NONE

function_type

setting was used to create a policy on the view.

Central Management of Named Data Redaction Policy

Expressions

You can create a library of named policy expressions that can be used in the columns

of multiple tables and views.

By having named policy expressions, you can centrally manage all of the policy

expressions within a database.

When you modify the policy expression, the change is reflected in all table columns

that use the expression. The policy expression takes precedence over the

expression

setting in the Data Redaction policy. To create the policy expression, you must use the

DBMS_REDACT.CREATE_POLICY_EXPRESSION

procedure, and to apply the policy expression to

a column, you use

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

. This feature provides

flexibility to redact different columns in a table or view, based on different runtime

conditions.

For example, consider a use case that involves a customer care application. A

customer calls the customer care center to request a return on a recent purchase. A

level 1 support representative of the call center must first verify the order ID, customer

name, and customer address before initiating the return. During the process, there is

no need for the level 1 support representative to view the customer’s credit card

Chapter 12

No Redaction for Testing Purposes

12-9

number. So, the credit card column is redacted when the support representative

queries the customer details in the call center application. When the return is initiated,

a sales representative from the return department may need to view the credit card

number to process the return. However, there is no need for the sales representative

to view the expiration date of the credit card. So, when the sales representative

queries the customer details in the same application, the credit card number is visible

but the expiration date is redacted.

In this use case, different columns in the customer details table must be redacted in

different ways, based on who the logged in user is. Oracle Data Redaction simplifies

the implementation of this use case by using named Data Redaction policy

expressions. This type of policy expression enables you to define and associate

different policy expressions on different columns in the same table or view. Moreover,

you can centrally manage named policy expressions within a database. Any updates

that you make to a named policy expression are immediately propagated to all of the

associated table or view columns.

Related Topics

•Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be

used in multiple redaction policies and applied to multiple tables or views.

Chapter 12

Central Management of Named Data Redaction Policy Expressions

12-10

Configuring Oracle Data Redaction Policies

An Oracle Data Redaction policy defines how to redact data in a column based on the

table column type and the type of redaction you want to use.

•About Oracle Data Redaction Policies

An Oracle Data Redaction policy defines the conditions in which redaction must

occur for a table or view.

•Who Can Create Oracle Data Redaction Policies?

Because data redaction involves the protection of highly sensitive data, only

trusted users should create Oracle Data Redaction policies.

•Planning an Oracle Data Redaction Policy

Before you create a Oracle Data Redaction policy, you should plan the data

redaction policy that best suits your site’s needs.

•General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

To create a Data Redaction policy, you must use the

DBMS_REDACT.ADD_POLICY

procedure.

•Using Expressions to Define Conditions for Data Redaction Policies

The

expression

parameter in the

DBMS_REDACT.ADD_POLICY

procedure sets the

conditions to which the policy applies.

•Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be

used in multiple redaction policies and applied to multiple tables or views.

•Creating a Full Redaction Policy and Altering the Full Redaction Value

You can create a full redaction policy to redact all contents in a data column, and

optionally, you can alter the default full redaction value.

•Creating a DBMS_REDACT.NULLIFY Redaction Policy

You can create Oracle Data Redaction policies that return null values for the

displayed value of the table or view column.

•Creating a Partial Redaction Policy

In partial data redaction, you can redact portions of data, and for different kinds of

data types.

•Creating a Regular Expression-Based Redaction Policy

A regular expression-based redaction policy enables you to redact data based on

a search-and-replace model.

•Creating a Random Redaction Policy

A random redaction policy presents redacted data as randomly generated values,

such as

Ukjsl32[[]]]s

•Creating a Policy That Uses No Redaction

You can create policies that use no redaction at all, for when you want to test the

policy in a development environment.

•Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the

data they access.

13-1

•Altering an Oracle Data Redaction Policy

The

DBMS_REDACT.ALTER_POLICY

procedure enables you to modify Oracle Data

Redaction policies.

•Redacting Multiple Columns

You can redact more than one column in a Data Redaction policy.

•Disabling and Enabling an Oracle Data Redaction Policy

You can disable and then reenable Oracle Data Redactions policies as necessary.

•Dropping an Oracle Data Redaction Policy

The

DBMS_REDACT.DROP_POLICY

procedure drops Oracle Data Redaction policies.

•Tutorial: SQL Expressions to Build Reports with Redacted Values

SQL expressions can be used to build reports based on columns that have Oracle

Data Redaction policies defined on them.

•Oracle Data Redaction Policy Data Dictionary Views

Oracle Database provides data dictionary views that list information about Data

Redaction policies.

About Oracle Data Redaction Policies

An Oracle Data Redaction policy defines the conditions in which redaction must occur

for a table or view.

A Data Redaction policy has the following characteristics:

•The Data Redaction policy defines the following: What kind of redaction to

perform, how the redaction should occur, and when the redaction takes place.

Oracle Database performs the redaction at execution time, just before the data is

returned to the application.

•A Data Redaction policy can fully redact values, partially redact values, or

randomly redact values. In addition, you can define a Data Redaction policy to not

redact any data at all, for when you want to test your policies in a test

environment.

•A Data Redaction policy can be defined with a policy expression which allows for

different application users to be presented with either redacted data or actual data,

based on whether the policy expression returns

TRUE

FALSE

. Redaction takes

place when the boolean result of evaluating the policy expression is

TRUE

. For

security reasons, the functions and operators that can be used in the policy

expression are limited to

SYS_CONTEXT

and a few others. User-created functions are

not allowed. Policy expressions can make use of the

SYS_SESSION_ROLES

namespace with the

SYS_CONTEXT

function to check for enabled roles.

•Different Data Redaction policy expressions can be created and then applied

individually for different columns within the same table or view.

Table 13-1 lists the procedures in the

DBMS_REDACT

package.

Table 13-1 DBMS_REDACT Procedures

Procedure Description

DBMS_REDACT.ADD_POLICY

Adds a Data Redaction policy to a table or view

DBMS_REDACT.ALTER_POLICY

Modifies a Data Redaction policy

Chapter 13

About Oracle Data Redaction Policies

13-2

Table 13-1 (Cont.) DBMS_REDACT Procedures

Procedure Description

DBMS_REDACT.APPLY_POLICY_EXPR_TO

_COL

Applies a Data Redaction policy expression to a table

or view column

DBMS_REDACT.CREATE_POLICY_EXPRES

SION

Creates a Data Redaction policy expression

DBMS_REDACT.DISABLE_POLICY

Disables a Data Redaction policy

DBMS_REDACT.DROP_POLICY

Drops a Data Redaction policy

DBMS_REDACT.DROP_POLICY_EXPRESSI

Drops a Data Redaction policy expression

DBMS_REDACT.ENABLE_POLICY

Enables a Data Redaction policy

DBMS_REDACT.UPDATE_FULL_REDACTIO

N_VALUES

Globally updates the full redaction value for a given

data type. You must restart the database instance

before the updated values can be used.

DBMS_REDACT.UPDATE_POLICY_EXPRES

SION

Updates a Data Redaction policy expression

See Also:

•Oracle Database PL/SQL Packages and Types Reference for detailed

information about the

DBMS_REDACT

PL/SQL package

•Managing Oracle Data Redaction Policies in Oracle Enterprise Manager

for information about using Oracle Enterprise Manager Cloud Control to

create and manage Oracle Data Redaction policies and formats

Who Can Create Oracle Data Redaction Policies?

Because data redaction involves the protection of highly sensitive data, only trusted

users should create Oracle Data Redaction policies.

To create redaction policies, you must have the

EXECUTE

privilege on the

DBMS_REDACT

PL/SQL package. To find the privileges that a user has been granted, you can query

the

DBA_SYS_PRIVS

data dictionary view.

You do not need any privileges to access the underlying tables or views that will be

protected by the policy.

Planning an Oracle Data Redaction Policy

Before you create a Oracle Data Redaction policy, you should plan the data redaction

policy that best suits your site’s needs.

1. Ensure that you have been granted the

EXECUTE

privilege on the

DBMS_REDACT

PL/SQL package.

Chapter 13

Who Can Create Oracle Data Redaction Policies?

13-3

2. Determine the data type of the table or view column that you want to redact.

3. Determine if the base object to which you want to add the Data Redaction policy

has dependent objects. If it does have dependent objects, then these objects will

become invalid when the Data Redaction policy is added to the base object, and

these objects will be recompiled automatically when they are used.

Alternatively, you can proactively recompile them yourself by using an

ALTER ...

COMPILE

statement. Be aware that invalidating dependent objects (by adding a Data

Redaction policy on their base object) and causing them to need to be recompiled

can decrease performance in the overall system. Oracle recommends that you

only add a Data Redaction policy to an object that has dependent objects during

off-peak hours or during a scheduled downtime.

4. Ensure that this column is not used in an Oracle Virtual Private Database (VPD)

row filtering condition. That is, it must not be part of the VPD predicate generated

by the VPD policy function.

5. Decide on the type of redaction that you want to perform: full, random, partial,

regular expressions, or none.

6. Decide which users to apply the Data Redaction policy to.

7. Based on this information, create the Data Redaction policy by using the

DBMS_REDACT.ADD_POLICY

procedure.

8. Configure the policy to have additional columns to be redacted.

After you create the Data Redaction policy, it is automatically enabled and ready to

redact data.

Related Topics

•Redacting Multiple Columns

You can redact more than one column in a Data Redaction policy.

General Syntax of the DBMS_REDACT.ADD_POLICY

Procedure

To create a Data Redaction policy, you must use the

DBMS_REDACT.ADD_POLICY

procedure.

The complete syntax for the

DBMS_REDACT.ADD_POLICY

procedure is as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

policy_description IN VARCHAR2 := NULL,

column_name IN VARCHAR2 := NULL,

column_description IN VARCHAR2 := NULL,

function_type IN BINARY_INTEGER := DBMS_REDACT.FULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE,

regexp_pattern IN VARCHAR2 := NULL,

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER :=1,

regexp_occurrence IN BINARY_INTEGER :=0,

regexp_match_parameter IN VARCHAR2 := NULL);

Chapter 13

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

13-4

In this specification:

•

object_schema

: Specifies the schema of the object on which the Data Redaction

policy will be applied. If you omit this setting (or enter

NULL

), then Oracle Database

uses the current user's name. Be aware that the meaning of "current user" here

can change, depending on where you invoke the

DBMS_REDACT.ADD_POLICY

procedure.

For example, suppose user

mpike

grants user

fbrown

the

EXECUTE

privilege on a

definer's rights PL/SQL package called

mpike.protect_data

mpike

's schema.

From within this package,

mpike

has coded a procedure called

protect_cust_data

which invokes the

DBMS_REDACT.ADD_POLICY

procedure. User

mpike

has set the

object_schema

parameter to

NULL

When

fbrown

invokes the

protect_cust_data

procedure in the

mpike.protect_data

package, Oracle Database attempts to define the Data Redaction policy around

the object

cust_data

in the

mpike

schema, not the

cust_data

object in the schema

that belongs to

fbrown

•

object_name

: Specifies the name of the table or view to which the Data Redaction

policy applies.

•

policy_name

: Specifies the name of the policy to be created. Ensure that this name

is unique in the database instance. You can find a list of existing Data Redaction

policies by querying the

POLICY_NAME

column of the

REDACTION_POLICIES

data

dictionary view.

•

policy_description

: Specifies a brief description of the purpose of the policy.

•

column_name

: Specifies the column whose data you want to redact. Note the

following:

–You can apply the Data Redaction policy to multiple columns. If you want

to apply the Data Redaction policy to multiple columns, then after you use

DBMS_REDACT.ADD_POLICY

to create the policy, run the

DBMS_REDACT.ALTER_POLICY

procedure as many times as necessary to add each of the remaining required

columns to the policy. See Altering an Oracle Data Redaction Policy.

–Only one policy can be defined on a table or view. You can, however,

create a new view on the table, and by defining a second redaction policy on

this new view, you can choose to redact the columns in a different way when a

query is issued against this new view. When deciding how to redact a given

column, Oracle Database uses the policy of the earliest view in a view chain.

–If you do not specify a column (for example, by entering NULL), then no

columns are redacted by the policy. This enables you to create your

policies so that they are in place, and then later on, you can add the column

specification when you are ready.

–Do not use a column that is currently used in an Oracle Virtual Private

Database (VPD) row filtering condition. In other words, the column should

not be part of the VPD predicate generated by the VPD policy function. (See

Oracle Data Redaction and Oracle Virtual Private Database for more

information about using Data Redaction with VPD.)

–You cannot define a Data Redaction policy on a virtual column. In

addition, you cannot define a Data Redaction policy on a column that is

involved in the SQL expression of any virtual column.

•

column_description

: Specifies a brief description of the column that you are

redacting.

Chapter 13

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

13-5

•

function_type

: Specifies a function that sets the type of redaction. See the

following sections for more information:

–Syntax for Creating a Full Redaction Policy

–Syntax for Creating a Partial Redaction Policy

–Syntax for Creating a Regular Expression-Based Redaction Policy

–Syntax for Creating a Random Redaction Policy

–Syntax for Creating a Policy with No Redaction

If you omit the

function_type

parameter, then the default redaction

function_type

setting is

DBMS_REDACT.FULL

•

function_parameters

: Specifies how the column redaction should appear for partial

redaction. See Syntax for Creating a Partial Redaction Policy.

•

expression

: Specifies a Boolean SQL expression to determine how the policy is

applied. Redaction takes place only if this policy expression evaluates to

TRUE

. See

Using Expressions to Define Conditions for Data Redaction Policies.

•

enable

: When set to

TRUE

, enables the policy upon creation. When set to

FALSE

, it

creates the policy as a disabled policy. The default is

TRUE

. After you create the

policy, you can disable or enable it. See the following sections:

–Disabling an Oracle Data Redaction Policy

–Enabling an Oracle Data Redaction Policy

•

regexp_pattern

regexp_replace_string

regexp_position

regexp_occurrence

regexp_match_parameter

: Enable you to use regular expressions

to redact data, either fully or partially. If the

regexp_pattern

does not match

anything in the actual data, then full redaction will take place, so be careful when

specifying the

regexp_pattern

. Ensure that all of the values in the column conform

to the semantics of the regular expression you are using. See Syntax for Creating

a Regular Expression-Based Redaction Policy for more information.

Using Expressions to Define Conditions for Data Redaction

Policies

The

expression

parameter in the

DBMS_REDACT.ADD_POLICY

procedure sets the conditions

to which the policy applies.

•About Using Expressions in Data Redaction Policies

The

DBMS_REDACT.ADD_POLICY

and

DBMS_REDACT.ALTER_POLICY

expression

parameter

defines a Boolean expression that must evaluate to

TRUE

to enable a redaction.

•Supported Functions for Data Redaction Expressions

You can create expressions that use functions to return specific types of data,

such as

SYS_CONTEXT

namespaces.

•Applying the Redaction Policy Based on User Environment

You can apply a Data Redaction policy based on the user’s environment, such as

the session user name or a client identifier.

•Applying the Redaction Policy Based on Database Roles

You can apply a Data Redaction policy based on a database role, such as the

DBA

role.

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-6

•Applying the Redaction Policy Based on Oracle Label Security Label Dominance

You can set a condition on which to apply a Data Redaction policy based on the

dominance of Oracle Label Security labels.

•Applying the Redaction Policy Based on Application Express Session States

You can apply a Data Redaction policy based on an Oracle Application Express

(APEX) session state.

•Applying the Redaction Policy to All Users

You can apply the policy irrespective of the context to any user, with no filtering.

About Using Expressions in Data Redaction Policies

The

DBMS_REDACT.ADD_POLICY

and

DBMS_REDACT.ALTER_POLICY

expression

parameter

defines a Boolean expression that must evaluate to

TRUE

to enable a redaction.

The expression that is defined in the

expression

parameter is the default expression for

the Oracle Data Redaction policy. If you apply a named policy expression for the

columns that will be redacted by the Data Redaction policy, then the named policy

expression takes precedence over the expression defined in the Data Redaction

policy.

You can create expressions that make use of other Oracle Database features. For

example, you can create expressions that are based on a user’s environment (using

the

SYS_CONTEXT

and

XS_SYS_CONTEXT

functions), character string functions, the Oracle

Label Security label dominance functions, or Oracle Application Express functions.

Follow these guidelines when you write the expression:

•Use only the following operators:

AND

NOT IN

•Because the expression must evaluate to

TRUE

for redaction, be careful when

making comparisons with

NULL

. Remember that in SQL the value

NULL

is undefined,

so comparisons with

NULL

tend to return

FALSE

•Do not use user-created functions in the

expression

parameter; this is not

permitted.

•Remember that for user

SYS

and users who have the

EXEMPT REDACTION POLICY

privilege, all of the Data Redaction policies are bypassed, so the results of their

queries are not redacted. See the following topics for more information about

users who are exempted from Data Redaction policies:

–Exemption of Users from Oracle Data Redaction Policies

–Oracle Data Pump Security Model for Oracle Data Redaction

Supported Functions for Data Redaction Expressions

You can create expressions that use functions to return specific types of data, such as

SYS_CONTEXT

namespaces.

•Expressions Using Namespace Functions

You can use the

SYS_CONTEXT

and

XS_SYS_CONTEXT

namespace functions in Data

Redaction expressions.

•Expressions Using the SUBSTR Function

You can use the

SUBSTR

function, which returns portion (such as characters 1–3) of

the character string specified, in Data Redaction expressions. The first parameter

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-7

must be a constant string or a call to the

SYS_CONTEXT

function or the

XS_SYS_CONTEXT

function.

•Expressions Using Length of Character String Functions

You can use the following functions, which return the length of character strings, in

Data Redaction expressions. Oracle Database also checks that the arguments to

each of these operators is either a constant string or a call to the

SYS_CONTEXT

XS_SYS_CONTEXT

function.

•Expressions Using Oracle Application Express Functions

You can use Oracle Application Express functions in Data Redaction expressions.

•Expressions Using Oracle Label Security Functions

You can use Oracle Label Security functions with Data Redaction expressions.

Expressions Using Namespace Functions

You can use the

SYS_CONTEXT

and

XS_SYS_CONTEXT

namespace functions in Data

Redaction expressions.

Table 13-2 Expressions Using Namespace Functions

Namespace Function Description

SYS_CONTEXT

Returns the value associated with a namespace. The following

namespace functions are valid:

•

USERENV

(default namespace), which includes values such as

SESSION_USER

and

CLIENT_IDENTIFIER

•

SYS_SESSION_ROLES

, which contains attributes for each role

•

XS$SESSION

, which contains attributes for the user session.

•User-defined namespaces, but these must exist in the

DBA_CONTEXT

catalog view before the policy expression is

created.

XS_SYS_CONTEXT

Similar to

SYS_CONTEXT

but designed for an Oracle Real

Application Security environment.

XS_SYS_CONTEXT

supports the same namespaces that

SYS_CONTEXT

supports.

See Also:

•Oracle Database SQL Language Reference for more information about

SYS_CONTEXT

•Oracle Database Real Application Security Administrator's and

Developer's Guide for more information about

XS_SYS_CONTEXT

Expressions Using the SUBSTR Function

You can use the

SUBSTR

function, which returns portion (such as characters 1–3) of the

character string specified, in Data Redaction expressions. The first parameter must be

a constant string or a call to the

SYS_CONTEXT

function or the

XS_SYS_CONTEXT

function.

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-8

Table 13-3 Expressions Using SUBSTR String Functions

SUBSTR String Function Description

SUBSTR

Returns a portion of the input

char

value, beginning at

character position

substring_length

characters long.

SUBSTR

calculates length using characters as defined by

the input character set.

SUBSTRB

Returns the specified portion of the input value in bytes

SUBSTRC

Returns the specified portion of the input value in Unicode

complete characters

SUBSTR2

Returns the specified portion of the input value in UCS2

code points

SUBSTR4

Returns the specified portion of the input value in UCS4

code points

See Also:

Oracle Database SQL Language Reference for more information about the

SUBSTR

functions

Expressions Using Length of Character String Functions

You can use the following functions, which return the length of character strings, in

Data Redaction expressions. Oracle Database also checks that the arguments to each

of these operators is either a constant string or a call to the

SYS_CONTEXT

XS_SYS_CONTEXT

function.

Table 13-4 Expressions Using Character String Functions

Character String Function Description

LENGTH

Returns the length of the input

char

value.

LENGTH

calculates length using characters as defined by the input

character set.

LENGTHB

Returns the length of the input value in bytes

LENGTHC

Returns the length of the input value in Unicode complete

characters

LENGTH2

Returns the length of the input value in UCS2 code points

LENGTH4

Returns the length of the input value in UCS4 code points

See Also:

Oracle Database SQL Language Reference for more information about the

LENGTH

functions

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-9

Expressions Using Oracle Application Express Functions

You can use Oracle Application Express functions in Data Redaction expressions.

Table 13-5 Oracle Application Express Functions

Oracle Application Express Function Description

Returns the session state for an item. It is a

wrapper for the

APEX_UTIL.GET_SESSION_STATE

function

Returns the numeric value for a numeric item.

It is a wrapper for the

APEX_UTIL.GET_NUMERIC_SESSION_STATE

function

See Also:

Oracle Application Express API Reference for more information about the

Oracle Application Express functions

Expressions Using Oracle Label Security Functions

You can use Oracle Label Security functions with Data Redaction expressions.

For the functions in the bold font, Oracle Data Redaction checks that their parameters

are either constants or calls to only one of the

SA_UTL.NUMERIC_LABEL

CHAR_TO_LABEL

and

SA_SESSION.LABEL

functions, and that the arguments to those functions are

constant.

Table 13-6 Oracle Label Security Functions

Oracle Label Security Function Description

LBACSYS.OLS_LABEL_DOMINATES

Checks if the session label of an Oracle Label

Security policy dominates or is equal to

another OLS label

DOMINATES

Checks if one OLS label is dominant to a

second OLS label.

Deprecated in Oracle Database 12c release 1

(12.1); use the

OLS_DOMINATES

OLS_DOM

function instead.

OLS_DOMINATES

Checks if one OLS label is dominant to a

second OLS label

OLS_DOM

Checks if one OLS label is dominant to a

second OLS label

DOM

Checks if one OLS label is dominant to a

second OLS label

OLS_STRICTLY_DOMINATES

Checks if one OLS label is dominant to a

second OLS label and is not equal to it

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-10

Table 13-6 (Cont.) Oracle Label Security Functions

Oracle Label Security Function Description

STRICTLY_DOMINATES

Checks if one OLS label is dominant to a

second OLS label and is not equal to it

S_DOM

Checks if one OLS label is dominant to a

second OLS label and is not equal to it.

Deprecated in Oracle Database 12c release 1

(12.1); use the

OLS_DOMINATES

OLS_DOM

function instead.

SA_UTL.DOMINATES

Checks if one OLS label dominates a second

OLS label or if the session label for a given

OLS policy dominates an OLS label

SA_UTL.CHECK_READ

Checks if a user can read a policy-protected

row

SA_UTL.NUMERIC_LABEL

Returns the current session OLS label

CHAR_TO_LABEL

Converts a character string to an OLS label

tag

SA_SESSION.LABEL

Returns the label that is associated with the

specified OLS policy

Related Topics

•Oracle Label Security Administrator’s Guide

Applying the Redaction Policy Based on User Environment

You can apply a Data Redaction policy based on the user’s environment, such as the

session user name or a client identifier.

•Use the

USERENV

namespace of the

SYS_CONTEXT

function in the

DBMS_REDACT.ADD_POLICY

expression

parameter to apply the policy based on a user’s

environment.

For example, to apply the policy only to the session user name

psmith

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') = ''PSMITH'''

See Also:

Oracle Database SQL Language Reference for information about more

namespaces that you can use with the

SYS_CONTEXT

function

Applying the Redaction Policy Based on Database Roles

You can apply a Data Redaction policy based on a database role, such as the

DBA

role.

•Use the

SYS_SESSION_ROLES

namespace in the

SYS_CONTEXT

function to apply the

policy based on a user role.

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-11

This namespace contains attributes for each role. The value of the attribute is

TRUE

if the specified role is enabled for the querying application user; the value is

FALSE

if the role is not enabled.

For example, suppose you wanted only supervisors to be allowed to see the actual

data. The following example shows how to use the

DBMS_REDACT.ADD_POLICY

expression

parameter to set the policy to show the actual data to any application user who has the

supervisor

role enabled, but redact the data for all of the other application users.

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''SUPERVISOR'') = ''FALSE'''

Applying the Redaction Policy Based on Oracle Label Security Label

Dominance

You can set a condition on which to apply a Data Redaction policy based on the

dominance of Oracle Label Security labels.

•Use the public standalone function

OLS_LABEL_DOMINATES

to check the dominance of

a session label. This function returns

(

TRUE

) if the session label of the specified

policy_name

value dominates or is equal to the label that is specified by the

label

parameter; otherwise, it returns

(

FALSE

For example, to apply a Data Redaction policy only in cases where the session label

for the policy

hr_ols_pol

does not dominate nor is equal to label

expression => 'OLS_LABEL_DOMINATES (''hr_ols_pol'',''hs'') = 0'

Applying the Redaction Policy Based on Application Express Session

States

You can apply a Data Redaction policy based on an Oracle Application Express

(APEX) session state.

•Use either of the following public Application Express APIs in the

DBMS_REDACT.ADD_POLICY

expression

parameter to apply the policy on an Oracle

Application Express session state:

–

, which is a synonym for the

APEX_UTIL.GET_SESSION_STATE

function

–

, which is a synonym for the

APEX_UTIL.GET_NUMERIC_SESSION_STATE

function

For example, to set the

DBMS_REDACT.ADD_POLICY

expression

parameter if you wanted

redaction to take place when the application item called

G_JOB

has the value

CLERK

expression => 'V(''APP_USER'') != ''mavis@example.com'' or V(''APP_USER'') is null'

You can, for example, use these functions to redact data based on a job or a privilege

role that is stored in a session state in an APEX application.

If you want redaction to take place when the querying user is not within the context of

an APEX application (when the query is issued from outside the APEX framework, for

example directly through SQL*Plus), then use an

IS NULL

clause as follows. This policy

expression causes actual data to be shown to user

mavis

only when her query comes

from within an APEX application. Otherwise, the query result is redacted.

Chapter 13

Using Expressions to Define Conditions for Data Redaction Policies

13-12

See Also:

Oracle Application Express API Reference

Applying the Redaction Policy to All Users

You can apply the policy irrespective of the context to any user, with no filtering.

However, be aware that user

SYS

and users who have the

EXEMPT REDACTION POLICY

privilege are always except from Oracle Data Redaction policies.

•To apply the policy to users who are not

SYS

or have been granted the

EXEMPT

REDACTION POLICY

privilege, write the

DBMS_REDACT.ADD_POLICY

expression

parameter

to evaluate to

TRUE

For example:

expression => '1=1'

See Also:

Exemption of Users from Oracle Data Redaction Policies

Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be used in

multiple redaction policies and applied to multiple tables or views.

•About Data Redaction Policy Expressions to Define Conditions

A named Oracle Data Redaction policy expression is designed to work as an

alternative to the policy expression that is used in existing Data Redaction policies.

•Creating and Applying a Named Data Redaction Policy Expression

The

DBMS_REDACT.CREATE_POLICY_EXPRESSION

and

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

enable you to create and apply a named

Data Redaction policy expression.

•Updating a Named Data Redaction Policy Expression

You can use the

DBMS_REDACT.UPDATE_POLICY_EXPRESSION

procedure to update a

Data Redaction policy expression. The update takes place immediately and is

reflected in all columns that use the policy expression.

•Dropping a Named Data Redaction Expression Policy

You can use the

DBMS_REDACT.DROP_POLICY_EXPRESSION

procedure to drop a Data

Redaction expression policy.

•Tutorial: Creating and Sharing a Named Data Redaction Policy Expression

This tutorial shows how to create an Oracle Data Redaction policy expression,

apply it to multiple tables, and centrally manage the policy expression.

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-13

About Data Redaction Policy Expressions to Define Conditions

A named Oracle Data Redaction policy expression is designed to work as an

alternative to the policy expression that is used in existing Data Redaction policies.

A named policy expression enables you to redact data based on runtime conditions.

This type of policy can only affect whether or not redaction takes place on columns of

the table or view on which the redaction policy is defined. By default, a Data Redaction

policy expression applies to all the columns of a table or view. Alternatively, you can

choose to create and associate a policy expression for individual columns of a table or

view. These column level expressions are called as named policy expressions; in

other words, a policy expression with a name. A named policy expressions has the

following properties:

You can use Data Redaction policy expressions in the following ways.:

•A single Data Redaction policy expression can be shared by more than one Data

Redaction policy by applying it to columns that are a part of separate Data

Redaction policies.

•Each named policy expression can be associated with multiple columns of the

same or different tables or views.

•Each named policy expression can be associated with columns within the same or

different Data Redaction policies.

•The named policy expression overrides the default policy expression of the

associated columns. The default policy expression still applies to redaction

columns that have no named policy expressions applied to them.

•Any updates made to a named policy expression apply to all of the column

associations of the expression.

•You cannot associate multiple named policy expressions for the same column.

•In a multitenant environment, you cannot associate named policy expressions with

columns in a different pluggable database (PDB).

The column to which you apply a named policy expression must already be redacted

by a Data Redaction policy. After the named policy expression is applied, the result of

its evaluation takes precedence over that of the default policy expression when

deciding whether or not to redact the column. When you modify a named policy

expression, the changes are applied to all the tables and views that use it. In a

multitenant environment, as with Data Redaction policies, a named policy expression

is valid only in the PDB in which it was created, and can only be applied to columns of

objects within the PDB in which it was created.

Table 13-7 describes the

DBMS_REDACT

PL/SQL procedures that you can use to create

and manage named policy expressions. To find information about policy expressions,

query the

REDACTION_EXPRESSIONS

data dictionary view.

Table 13-7 DBMS_REDACT Policy Expression Procedures

Procedure Description

DBMS_REDACT.CREATE_POLICY_EXPRESSION

Creates a Data Redaction policy expression

DBMS_REDACT.UPDATE_POLICY_EXPRESSION

Updates a Data Redaction policy expression

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-14

Table 13-7 (Cont.) DBMS_REDACT Policy Expression Procedures

Procedure Description

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

Applies a Data Redaction policy expression to

a table or a view column

DBMS_REDACT.DROP_POLICY_EXPRESSION

Drops a Data Redaction policy expression

Related Topics

•Managing Named Data Redaction Policy Expressions Using Enterprise Manager

You can manage Oracle Data Redaction policy expressions in Enterprise Manager

Cloud Control.

Creating and Applying a Named Data Redaction Policy Expression

The

DBMS_REDACT.CREATE_POLICY_EXPRESSION

and

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

enable you to create and apply a named Data Redaction policy expression.

1. Ensure that the

COMPATIBLE

initialization parameter is set to

12.2.0.0

To find the current setting, use the

SHOW PARAMETER

command.

2. To create the policy expression, run the

DBMS_REDACT.CREATE_POLICY_EXPRESSION

procedure.

For example:

BEGIN

DBMS_REDACT.CREATE_POLICY_EXPRESSION (

policy_expression_name => 'redact_pol',

expression => '1=1',

policy_expression_description => 'Determines whether the column will be

redacted');

END;

3. Run the

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

procedure to apply the policy

expression to a table or view column.

For example, assume that you have already created a Data Redaction policy on

the

SALARY

column of the

HR.EMPLOYEES

table, as follows:

BEGIN

DBMS_REDACT.ADD_POLICY (

object_schema => 'hr',

object_name => 'employees',

policy_name => 'overall_policy',

expression => '1=0');

END;

BEGIN

DBMS_REDACT.ALTER_POLICY (

object_schema => 'hr',

object_name => 'employees' ,

policy_name => 'overall_policy',

function_type => DBMS_REDACT.FULL,

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'SALARY );

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-15

END;

Then you can apply the policy expression to the

SALARY

table as follows:

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL (

object_schema => 'hr',

object_name => 'employees',

column_name => 'salary',

policy_expression_name => 'redact_pol');

END;

In this specification:

•

object_schema

: Specifies the schema of the object on which the policy

expression will be used. If you omit this setting (or enter

NULL

), then Oracle

Database uses the name of the current schema.

•

object_name

: Specifies the name of the table or view to be used for the policy

expression.

•

column_name

: Specifies the column to which you want to apply the policy

expression.

•

policy_expression_name

: Specifies the name of the policy expression.

After you create an Oracle Data Redaction policy expression, you can apply it to a

column of a table or view which is part of an existing Data Redaction policy.

Updating a Named Data Redaction Policy Expression

You can use the

DBMS_REDACT.UPDATE_POLICY_EXPRESSION

procedure to update a Data

Redaction policy expression. The update takes place immediately and is reflected in

all columns that use the policy expression.

You can query the

REDACTION_EXPRESSIONS

data dictionary view to find existing Data

Redaction policy expressions.

1. Ensure that the

COMPATIBLE

initialization parameter is set to

12.2.0.0

To find the current setting, use the

SHOW PARAMETER

command.

2. Run the

DBMS_REDACT.UPDATE_POLICY_EXPRESSION

procedure to perform the update.

For example:

BEGIN

DBMS_REDACT.UPDATE_POLICY_EXPRESSION(

policy_expression_name => 'redact_pol',

expression => '1=0');

END;

Dropping a Named Data Redaction Expression Policy

You can use the

DBMS_REDACT.DROP_POLICY_EXPRESSION

procedure to drop a Data

Redaction expression policy.

You can query the

REDACTION_EXPRESSIONS

data dictionary view to find existing Data

Redaction policy expressions.

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-16

1. Ensure that the

COMPATIBLE

initialization parameter is set to

12.2.0.0

To find the current setting, use the

SHOW PARAMETER

command.

2. Remove the named policy expression's association with any table or view column.

You cannot drop a policy expression if it is associated with an existing table or

view column. To remove a given column’s association with a named policy

expression (to revert to redacting that column based on the evaluation result of the

default policy expression), you must set the

policy_expression_name

parameter of

the

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL

procedure to

NULL

For example:

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL(

object_schema => 'hr',

object_name => 'employees',

column_name => 'salary',

policy_expression_name => null);

END;

3. Run

DBMS_REDACT.DROP_POLICY_EXPRESSION

to drop the policy expression.

For example:

BEGIN

DBMS_REDACT.DROP_POLICY_EXPRESSION(

policy_expression_name => 'redact_pol');

END;

Tutorial: Creating and Sharing a Named Data Redaction Policy

Expression

This tutorial shows how to create an Oracle Data Redaction policy expression, apply it

to multiple tables, and centrally manage the policy expression.

•Step 1: Create Users for This Tutorial

You must create two users for this tutorial:

dr_admin

, who will create the Oracle

Data Redaction policies, and

hr_clerk

, who will test them.

•Step 2: Create an Oracle Data Redaction Policy

User

dr_admin

is ready to create an Oracle Data Redaction policy to protect the

HR.EMPLOYEES

and

HR.JOBS

tables.

•Step 3: Test the Oracle Data Redaction Policy

User

hr_clerk

is ready to query the tables that have redacted data.

•Step 4: Create and Apply a Policy Expression to the Redacted Table Columns

Next, user

dr_admin

is ready to create a Data Redaction policy expression and

apply it to two of the three redacted table columns.

•Step 5: Test the Data Redaction Policy Expression

User

hr_clerk

is now ready to test the

hr_redact_pol

policy expression.

•Step 6: Modify the Data Redaction Policy Expression

User

dr_admin

decides to modify the Data Redaction policy expression so that user

will have access to the redacted data, not user

hr_clerk

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-17

•Step 7: Test the Modified Policy Expression

Users

and

hr_clerk

are ready to test the modified Data Redaction policy

expression.

•Step 8: Remove the Components of This Tutorial

If you do not need the components of this tutorial, then you can remove them.

Step 1: Create Users for This Tutorial

You must create two users for this tutorial:

dr_admin

, who will create the Oracle Data

Redaction policies, and

hr_clerk

, who will test them.

Before you begin this tutorial, ensure that the

COMPATIBLE

initialization parameter is set

12.2.0.0

. You can check this setting by using the

SHOW PARAMETER

command.

1. Log in to SQL*Plus as user

SYS

with the

SYSDBA

administrative privilege.

sqlplus sys as sysdba

Enter password: password

2. In a multitenant environment, connect to the appropriate PDB.

For example:

CONNECT SYS@my_pdb AS SYSDBA

Enter password: password

To find the available PDBs, run the

show pdbs

command. To check the current

PDB, run the

SHOW CON_NAME

command.

3. Create the

dr_admin

and

hr_clerk

user accounts.

GRANT CREATE SESSION TO dr_admin IDENTIFIED BY password;

GRANT CREATE SESSION TO hr_clerk IDENTIFIED BY password;

4. Grant the

EXECUTE

privilege to the

dr_admin

user.

GRANT EXECUTE ON DBMS_REDACT TO dr_admin;

5. Connect as user

CONNECT HR --Or, for a PDB, CONNECT hr@my_pdb

Enter password: password

6. Grant

hr_clerk

the

SELECT

privilege on the

EMPLOYEES

and

JOBS

tables.

GRANT SELECT on EMPLOYEES to hr_clerk;

GRANT SELECT on JOBS to hr_clerk;

Step 2: Create an Oracle Data Redaction Policy

User

dr_admin

is ready to create an Oracle Data Redaction policy to protect the

HR.EMPLOYEES

and

HR.JOBS

tables.

1. Connect as user

dr_admin

CONNECT dr_admin --Or, for a PDB, CONNECT dr_admin@my_pdb

Enter password: password

2. Create the

hr_emp_redact_comp_pol

policy, which will perform full redaction of the

HR.EMPLOYEES.SALARY

column.

BEGIN

DBMS_REDACT.ADD_POLICY(

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-18

object_schema => 'hr',

object_name => 'employees',

column_name => 'salary',

policy_name => 'hr_emp_redact_comp_pol',

function_type => DBMS_REDACT.FULL,

expression => '1=1');

END;

3. Alter the

hr_redact_comp_pol

policy to also redact the

COMMISSION_PCT

column of the

HR.EMPLOYEES

table.

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'hr',

object_name => 'employees',

policy_name => 'hr_emp_redact_comp_pol',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'commission_pct',

function_type => DBMS_REDACT.FULL,

expression => '1=1');

END;

4. Create the

hr_jobs_redact_comp_pol

policy for the

max_salary

column of the

HR.JOBS

table.

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'hr',

object_name => 'jobs',

column_name => 'max_salary',

policy_name => 'hr_jobs_redact_comp_pol',

function_type => DBMS_REDACT.FULL,

expression => '1=1');

END;

At this stage, the data in the

HR.EMPLOYEES.SALARY

HR.EMPLOYEES.COMMISSION_PCT

, and

HR.JOBS.MAX_SALARY

columns are redacted.

Step 3: Test the Oracle Data Redaction Policy

User

hr_clerk

is ready to query the tables that have redacted data.

1. Connect as user

hr_clerk

CONNECT hr_clerk --Or, for a PDB, CONNECT hr_clerk@my_pdb

Enter password: password

2. Query the

HR.EMPLOYEES

table.

SELECT SALARY, COMMISSION_PCT FROM HR.EMPLOYEES WHERE SALARY > 15000;

The output should be as follows:

SALARY COMMISSION_PCT

---------- --------------

3. Query the

HR.JOBS

table.

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-19

SELECT MAX_SALARY FROM HR.JOBS WHERE MAX_SALARY > 15000;

The output should be as follows:

MAX_SALARY

----------

Step 4: Create and Apply a Policy Expression to the Redacted Table Columns

Next, user

dr_admin

is ready to create a Data Redaction policy expression and apply it

to two of the three redacted table columns.

This policy expression will enable user

hr_clerk

to view the redacted data.

1. Connect as user

dr_admin.

CONNECT dr_admin --Or, for a PDB, CONNECT dr_admin@my_pdb

Enter password: password

2. Create the policy expression.

BEGIN

DBMS_REDACT.CREATE_POLICY_EXPRESSION(

policy_expression_name => 'hr_redact_pol',

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') !=

''HR_CLERK''');

END;

This expression returns

FALSE

for the

hr_clerk

user, which enables the

hr_clerk

user to view actual data in the

HR.EMPLOYEES

and

HR.JOBS

tables that are subject to

the Data Redaction policies.

3. Apply the

hr_redact_pol

policy expression to the

HR.EMPLOYEES.SALARY

column.

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL(

object_schema => 'hr',

object_name => 'employees',

column_name => 'salary',

policy_expression_name => 'hr_redact_pol');

END;

4. Apply the

hr_redact_pol

policy expression to the

HR.JOBS.MAX_SALARY

column.

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL(

object_schema => 'hr',

object_name => 'jobs',

column_name => 'max_salary',

policy_expression_name => 'hr_redact_pol');

END;

User

hr_clerk

can view data in the

HR.EMPLOYEES.SALARY

and

HR.JOBS.MAX_SALARY

, but

the data in the

HR.EMPLOYEES.COMMISSION_PCT

column will still be redacted for this user.

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-20

Step 5: Test the Data Redaction Policy Expression

User

hr_clerk

is now ready to test the

hr_redact_pol

policy expression.

1. Connect as user

hr_clerk

CONNECT hr_clerk --Or, for a PDB, CONNECT hr_clerk@my_pdb

Enter password: password

2. Query the

HR.EMPLOYEES

table.

SELECT SALARY, COMMISSION_PCT FROM HR.EMPLOYEES WHERE SALARY > 15000;

The output should be as follows:

SALARY COMMISSION_PCT

---------- --------------

24000

17000

User

hr_clerk

now can view the

SALARY

column data, but still has not access to the

COMMISSION_PCT

column data.

3. Query the

HR.JOBS

table.

SELECT MAX_SALARY FROM HR.JOBS WHERE MAX_SALARY > 15000;

The output should be as follows:

MAX_SALARY

----------

40000

30000

16000

20080

User

hr_clerk

now can view the

MAX_SALARY

column data.

Step 6: Modify the Data Redaction Policy Expression

User

dr_admin

decides to modify the Data Redaction policy expression so that user

will have access to the redacted data, not user

hr_clerk

1. Connect as user

dr_admin

CONNECT dr_admin --Or, for a PDB, CONNECT dr_admin@my_pdb

Enter password: password

2. Modify the

hr_redact_pol

policy as follows:

BEGIN

DBMS_REDACT.UPDATE_POLICY_EXPRESSION(

policy_expression_name => 'hr_redact_pol',

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') !=

''HR''');

END;

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-21

Step 7: Test the Modified Policy Expression

Users

and

hr_clerk

are ready to test the modified Data Redaction policy expression.

1. Connect as user

CONNECT HR --Or, for a PDB, CONNECT HR@my_pdb

Enter password: password

2. Query the

HR.EMPLOYEES

table.

SELECT SALARY, COMMISSION_PCT FROM HR.EMPLOYEES WHERE SALARY > 15000;

The output should be as follows:

SALARY COMMISSION_PCT

---------- --------------

24000

17000

User

now has access to the redacted data. A query by

on the

HR.JOBS.MAX_SALARY

column will produce similar results.

SELECT MAX_SALARY FROM HR.JOBS WHERE MAX_SALARY > 15000;

MAX_SALARY

----------

40000

30000

16000

20080

3. Connect as user

hr_clerk

CONNECT hr_clerk --Or, for a PDB, CONNECT hr_clerk@my_pdb

Enter password: password

4. Query the

HR.EMPLOYEES

and

HR.JOBS

tables and then observe the results.

SELECT SALARY, COMMISSION_PCT FROM HR.EMPLOYEES WHERE SALARY > 15000;

SALARY COMMISSION_PCT

---------- --------------

SELECT MAX_SALARY FROM HR.JOBS WHERE MAX_SALARY > 15000;

MAX_SALARY

----------

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-22

Step 8: Remove the Components of This Tutorial

If you do not need the components of this tutorial, then you can remove them.

1. Connect as user

dr_admin

CONNECT dr_admin --Or, for a PDB, CONNECT dr_admin@my_pdb

Enter password: password

2. Modify the policy expression so that it is no longer associated with the table

columns that are associated with the expression.

To do so, you must set the

policy_expression_name

parameter to

NULL

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL(

object_schema => 'hr',

object_name => 'employees',

column_name => 'salary',

policy_expression_name => null);

END;

BEGIN

DBMS_REDACT.APPLY_POLICY_EXPR_TO_COL(

object_schema => 'hr',

object_name => 'jobs',

column_name => 'max_salary',

policy_expression_name => null);

END;

3. Drop the policy expressions.

BEGIN

DBMS_REDACT.DROP_POLICY_EXPRESSION(

policy_expression_name => 'hr_redact_pol');

END;

4. Drop the

hr_emp_redact_comp_pol

and

hr_jobs_redact_comp_pol

Data Redaction

policies.

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'hr',

object_name => 'employees',

policy_name => 'hr_emp_redact_comp_pol');

END;

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'hr',

object_name => 'jobs',

policy_name => 'hr_jobs_redact_comp_pol');

END;

5. Connect as the

SYSTEM

user or a user who has privileges to drop user accounts.

For example:

Chapter 13

Creating and Managing Multiple Named Policy Expressions

13-23

CONNECT SYSTEM

Enter password: password

6. Drop the

dr_admin

and

hr_clerk

user accounts.

DROP USER dr_admin;

DROP USER hr_clerk;

Creating a Full Redaction Policy and Altering the Full

Redaction Value

You can create a full redaction policy to redact all contents in a data column, and

optionally, you can alter the default full redaction value.

•Creating a Full Redaction Policy

A full data redaction policy redacts all the contents of a data column.

•Altering the Default Full Data Redaction Value

The

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure alters the default full

data redaction value.

Creating a Full Redaction Policy

A full data redaction policy redacts all the contents of a data column.

•About Creating Full Data Redaction Policies

To set a redaction policy to redact all data in the column, you must set the

function_type

parameter to

DBMS_REDACT.FULL

•Syntax for Creating a Full Redaction Policy

The

DBMS_REDACT.ADD_POLICY

procedure enables you to create a full redaction

policy.

•Example: Full Redaction Policy

You can use the

DBMS_REDACT.ADD_POLICY

PL/SQL procedure to create a full

redaction policy.

•Example: Fully Redacted Character Values

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a

policy that fully redacts character values.

About Creating Full Data Redaction Policies

To set a redaction policy to redact all data in the column, you must set the

function_type

parameter to

DBMS_REDACT.FULL

By default,

NUMBER

data type columns are replaced with zero (

) and character data

type columns are replaced with a single space (

). You can modify this default by

using the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure.

Related Topics

•Altering the Default Full Data Redaction Value

The

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure alters the default full

data redaction value.

Chapter 13

Creating a Full Redaction Policy and Altering the Full Redaction Value

13-24

Syntax for Creating a Full Redaction Policy

The

DBMS_REDACT.ADD_POLICY

procedure enables you to create a full redaction policy.

The

DBMS_REDACT.ADD_POLICY

fields for creating a full data redaction policy are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure.

•

function_type

: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.FULL

If you omit the

function_type

parameter, then the default redaction

function_type

setting is

DBMS_REDACT.FULL

Remember that the data type of the column determines which

function_type

settings that you are permitted to use. See Comparison of Full, Partial, and

Random Redaction Based on Data Types.

Example: Full Redaction Policy

You can use the

DBMS_REDACT.ADD_POLICY

PL/SQL procedure to create a full redaction

policy.

Example 13-1 shows how to use full redaction for all the values in the

HR.EMPLOYEES

table

COMMISSION_PCT

column. The expression parameter applies the policy to any user

querying the table, except for users who have been granted the

EXEMPT REDACTION

POLICY

system privilege.

Example 13-1 Full Data Redaction Policy

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'hr',

object_name => 'employees',

column_name => 'commission_pct',

policy_name => 'redact_com_pct',

function_type => DBMS_REDACT.FULL,

expression => '1=1');

END;

Query and redacted result:

SELECT COMMISSION_PCT FROM HR.EMPLOYEES;

COMMISSION_PCT

--------------

Chapter 13

Creating a Full Redaction Policy and Altering the Full Redaction Value

13-25

Related Topics

•Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the

data they access.

Example: Fully Redacted Character Values

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure to create a policy

that fully redacts character values.

Example 13-2 shows how to redact fully the user IDs of the

user_id

column in the

mavis.cust_info

table. The

user_id

column is of the

VARCHAR2

data type. The output is a

blank string. The

expression

setting enables users who have the

MGR

role to view the

user IDs.

Example 13-2 Fully Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'user_id',

policy_name => 'redact_cust_user_ids',

function_type => DBMS_REDACT.FULL,

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''MGR'') = ''FALSE''');

END;

Query and redacted result:

SELECT user_id FROM mavis.cust_info;

USER_ID

------------

Altering the Default Full Data Redaction Value

The

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure alters the default full data

redaction value.

•About Altering the Default Full Data Redaction Value

You can alter the default displayed values for full Data Redaction polices.

•Syntax for the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

Procedure

The

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure accommodates the

standard supported Oracle Database data types.

•Modifying the Default Full Data Redaction Value

To modify the default full data redaction value, use the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure.

Chapter 13

Creating a Full Redaction Policy and Altering the Full Redaction Value

13-26

About Altering the Default Full Data Redaction Value

You can alter the default displayed values for full Data Redaction polices.

By default,

is the redacted value when Oracle Database performs full redaction

(

DBMS_REDACT.FULL

) on a column of the

NUMBER

data type. If you want to change it to

another value (for example,

), then you can run the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure to modify this value. The

modification applies to all of the Data Redaction policies in the current database

instance. After you modify a value, you must restart the database for it to take effect.

You can find the current values by querying the

REDACTION_VALUES_FOR_TYPE_FULL

data

dictionary view.

Be aware that this change affects all Data Redaction policies in the database that use

full data redaction. Before you alter the default full data redaction value, examine the

affect that this change would have on existing full Data Redaction policies.

Syntax for the DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

Procedure

The

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure accommodates the standard

supported Oracle Database data types.

The syntax is as follows:

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES (

number_val IN NUMBER NULL,

binfloat_val IN BINARY_FLOAT NULL,

bindouble_val IN BINARY_DOUBLE NULL,

char_val IN CHAR NULL,

varchar_val IN VARCHAR2 NULL,

nchar_val IN NCHAR NULL,

nvarchar_val IN NVARCHAR2 NULL,

date_val IN DATE NULL,

ts_val IN TIMESTAMP NULL,

tswtz_val IN TIMESTAMP WITH TIME ZONE NULL,

blob_val IN BLOB NULL,

clob_val IN CLOB NULL,

nclob_val IN NCLOB NULL);

In this specification:

•

number_val

modifies the default value for columns of the

NUMBER

data type.

•

binfloat_val

modifies the default value for columns of the

BINARY_FLOAT

data type.

•

bindouble_val

modifies the default value for columns of the

BINARY_DOUBLE

data

type.

•

char_val

modifies the default value for columns of the

CHAR

data type.

•

varchar_val

modifies the default value for columns of the

VARCHAR2

data type.

•

nchar_val

modifies the default value for columns of the

NCHAR

data type.

•

nvarchar_val

modifies the default value for columns of the

NVARCHAR2

data type.

•

date_val

modifies the default value for columns of the

DATE

data type.

•

ts_val

modifies the default value for columns of the

TIMESTAMP

data type.

Chapter 13

Creating a Full Redaction Policy and Altering the Full Redaction Value

13-27

•

tswtz_val

modifies the default value for columns of the

TIMESTAMP WITH TIME ZONE

data type.

•

blob_val

modifies the default value for columns of the

BLOB

data type.

•

clob_val

modifies the default value for columns of the

CLOB

data type.

•

nclob

modifies the default value for columns of the

NCLOB

data type.

Modifying the Default Full Data Redaction Value

To modify the default full data redaction value, use the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure.

1. Log in to the database instance as a user who has been granted the

EXECUTE

privilege on the

DBMS_REDACT

PL/SQL package and who has administrative

privileges, such as users who have been granted the

DBA

role.

2. Check the value that you want to change.

For example, to check the current value for columns that use the

NUMBER

data type:

SELECT NUMBER_VALUE FROM REDACTION_VALUES_FOR_TYPE_FULL;

NUMBER_VALUE

------------

3. Run the

DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES

procedure to modify the value.

For example:

EXEC DBMS_REDACT.UPDATE_FULL_REDACTION_VALUES (number_val => 7);

4. Restart the database instance.

For example:

SHUTDOWN IMMEDIATE

STARTUP

Creating a DBMS_REDACT.NULLIFY Redaction Policy

You can create Oracle Data Redaction policies that return null values for the displayed

value of the table or view column.

•About Creating a Policy That Returns Null Values

The

DBMS_REDACT.NULLIFY

function_type

parameter redacts all the data in a column

and replace it with null values.

•Syntax for Creating a Policy That Returns Null Values

The

DBMS_REDACT.ADD_POLICY

procedure can create a redaction policy that performs

a full redaction and displays null values for the redacted columns.

•Example: Redaction Policy That Returns Null Values

The DBMS_REDACT.ADD_POLICY procedure will return null values for the

COMMISSION_PCT

column of the

HR.EMPLOYEES

table.

Chapter 13

Creating a DBMS_REDACT.NULLIFY Redaction Policy

13-28

About Creating a Policy That Returns Null Values

The

DBMS_REDACT.NULLIFY

function_type

parameter redacts all the data in a column and

replace it with null values.

You can use this function type on all supported column types that the

DBMS_REDACT.FULL

function type supports. It also supports the

CLOB

and

NCLOB

data types. To use the

DBMS_REDACT.NULLIFY

function, you must first ensure that the

COMPATIBLE

parameter is

set at a minimum to

12.2.0.0.0

Syntax for Creating a Policy That Returns Null Values

The

DBMS_REDACT.ADD_POLICY

procedure can create a redaction policy that performs a

full redaction and displays null values for the redacted columns.

The syntax for using

DBMS_REDACT.ADD_POLICY

to return null values is as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure.

•

function_type

: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.NULLIFY

If you omit the

function_type

parameter, then the default setting is

DBMS_REDACT.FULL

Remember that the data type of the column determines which

function_type

settings that you are permitted to use. See Comparison of Full, Partial, and

Random Redaction Based on Data Types.

Example: Redaction Policy That Returns Null Values

The DBMS_REDACT.ADD_POLICY procedure will return null values for the

COMMISSION_PCT

column of the

HR.EMPLOYEES

table.

The

expression

parameter applies the policy to any user who queries the table, except

for users who have been granted the

EXEMPT REDACTION POLICY

system privilege.

Example 13-3 shows how to create the Oracle Data Redaction policy.

Example 13-3 Redaction Policy That Returns Null Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'hr',

object_name => 'employees',

column_name => 'commission_pct',

Chapter 13

Creating a DBMS_REDACT.NULLIFY Redaction Policy

13-29

policy_name => 'nullify_com_pct',

function_type => DBMS_REDACT.NULLIFY,

expression => '1=1');

END;

Query and redacted result:

SELECT COMMISSION_PCT FROM HR.EMPLOYEES;

COMMISSION_PCT

--------------

Related Topics

•Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the

data they access.

Creating a Partial Redaction Policy

In partial data redaction, you can redact portions of data, and for different kinds of data

types.

•About Creating Partial Redaction Policies

In partial data redaction, only a portion of the data, such as the first five digits of an

identification number, are redacted.

•Syntax for Creating a Partial Redaction Policy

The

DBMS_REDACT.ADD_POLICY

statement enables you to create policies that redact

specific parts of the data returned to the application.

•Creating Partial Redaction Policies Using Fixed Character Formats

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter enables you to use

fixed character formats.

•Creating Partial Redaction Policies Using Character Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter enables you to redact

character data types.

•Creating Partial Redaction Policies Using Number Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter can redact number

data types.

•Creating Partial Redaction Policies Using Date-Time Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter can redact date-time

data types.

About Creating Partial Redaction Policies

In partial data redaction, only a portion of the data, such as the first five digits of an

identification number, are redacted.

For example, you can redact most of a credit card number with asterisks (*), except for

the last 4 digits. You can create policies for columns that use character, number, or

date-time data types. For policies that redact character data types, you can use fixed

character redaction formats. If you have the Enterprise Manager for Oracle Database

Chapter 13

Creating a Partial Redaction Policy

13-30

12.1.0.7 plug-in deployed on your system, then you can also create and save custom

redaction formats.

Note:

In previous releases, the term shortcut was used for the term format.

Syntax for Creating a Partial Redaction Policy

The

DBMS_REDACT.ADD_POLICY

statement enables you to create policies that redact

specific parts of the data returned to the application.

The

DBMS_REDACT.ADD_POLICY

fields for creating a partial redaction policy are as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure

•

function_type

: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.PARTIAL

•

function_parameters

: The parameters that you set here depend on the data type of

the column specified for the

column_name

parameter. See the following sections for

details:

–Creating Partial Redaction Policies Using Fixed Character Formats

–Creating Partial Redaction Policies Using Character Data Types

–Creating Partial Redaction Policies Using Number Data Types

–Creating Partial Redaction Policies Using Date-Time Data Types

Creating Partial Redaction Policies Using Fixed Character Formats

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter enables you to use fixed

character formats.

•Settings for Fixed Character Formats

Oracle Data Redaction provides special predefined formats to configure policies

that use fixed characters.

•Example: Partial Redaction Policy Using a Fixed Character Format

You can use the

DBMS_REDACT.ADD_POLICY

PL/SQL procedure to create a partial

redaction policy that uses a fixed character format.

Chapter 13

Creating a Partial Redaction Policy

13-31

Settings for Fixed Character Formats

Oracle Data Redaction provides special predefined formats to configure policies that

use fixed characters.

Table 13-8 describes

DBMS_REDACT.ADD_POLICY

function_parameters

parameter formats

that you can use for commonly redacted identity numbers (such as Social Security

numbers or Canadian Social Insurance Numbers), postal codes, and credit cards that

use either the

VARCHAR2

NUMBER

data types for their columns.

Table 13-8 Partial Fixed Character Redaction Formats

Format Description

DBMS_REDACT.REDACT_US_SSN_F5

Redacts the first 5 numbers of Social Security

numbers when the column is a

VARCHAR2

data

type. For example, the number

987-65-4320

becomes

XXX-XX-4320

DBMS_REDACT.REDACT_US_SSN_L4

Redacts the last 4 numbers of Social Security

numbers when the column is a

VARCHAR2

data

type. For example, the number

987-65-4320

becomes

987-65-XXXX

DBMS_REDACT.REDACT_US_SSN_ENTIRE

Redacts the entire Social Security number when

the column is a

VARCHAR2

data type. For

example, the number

987-65-4320

becomes

XXX-XX-XXXX

DBMS_REDACT.REDACT_NUM_US_SSN_F5

Redacts the first 5 numbers of Social Security

numbers when the column is a

NUMBER

data

type. For example, the number

987654320

becomes

XXXXX4320

DBMS_REDACT.REDACT_NUM_US_SSN_L4

Redacts the last 4 numbers of Social Security

numbers when the column is a

NUMBER

data

type. For example, the number

987654320

becomes

98765XXXX

DBMS_REDACT.REDACT_NUM_US_SSN_ENTIRE

Redacts the entire Social Security number when

the column is a

NUMBER

data type. For example,

the number

987654320

becomes

XXXXXXXXX

DBMS_REDACT.REDACT_SIN_NUMBER

Redacts the Canadian Social Insurance number

by replacing the first 6 digits by

(number). For

example,

123456789

is redacted to

999999789

DBMS_REDACT.REDACT_SIN_UNFORMATTED

Redacts the Canadian Social Insurance number

by replacing the first 6 digits by

(string). For

example,

123456789

is redacted to

XXXXXX789

DBMS_REDACT.REDACT_SIN_FORMATTED

Redacts the Canadian Social Insurance Number

by replacing the first 6 digits by

(string). For

example,

123-456-789

is redacted to

XXX-

XXX-789

DBMS_REDACT.REDACT_UK_NIN_FORMATTED

Redacts the UK National Insurance number by

replacing the first 6 digits by

(string) but

leaving the alphabetic characters as is. For

example,

ET 27 02 23 D

is redacted to

ET XX

XX XX D

Chapter 13

Creating a Partial Redaction Policy

13-32

Table 13-8 (Cont.) Partial Fixed Character Redaction Formats

Format Description

DBMS_REDACT.REDACT_UK_NIN_UNFORMATTED

Redacts the UK National Insurance number by

replacing the first 6 digits by

(string) and

leaving the alphabetic characters as is. For

example,

ET270223D

is redacted to

ETXXXXXXD

DBMS_REDACT.REDACT_CCN_FORMATTED

Redacts the credit card number (other than

American Express) by replacing everything but

the last 4 digits by

. For example, the credit

card number

5105–1051–0510–5100

is redacted

****—****—****—5100

DBMS_REDACT.REDACT_CCN_NUMBER

Redacts the credit card number (other than

American Express) by replacing everything but

the last 4 digits by

. For example, the credit

card number

5105105105105100

is redacted to

************5100

DBMS_REDACT.REDACT_CCN16_F12

Redacts a 16-digit credit card number (other

than American Express), leaving the last 4 digits

displayed. For example,

5105 1051 0510 5100

becomes

****-****-****-5100

DBMS_REDACT.REDACT_AMEX_CCN_FORMATTED

Redacts the American Express credit card

number by replacing the digits with

except the

last 5 digits. For example, the credit card

number

3782 822463 10005

is redacted to

****

****** 10005

DBMS_REDACT.REDACT_AMEX_CCN_NUMBER

Redacts the American Express Credit Card

Number by replacing the digits with

except the

last 5 digits. For example, the credit card

number

3782 822463 10005

is redacted to

0000

000000 10005

DBMS_REDACT.REDACT_ZIP_CODE

Redacts a 5-digit postal code when the column

is a

VARCHAR2

data type. For example,

95476

becomes

XXXXX

DBMS_REDACT.REDACT_NUM_ZIP_CODE

Redacts a 5-digit postal code when the column

is a

NUMBER

data type. For example,

95476

becomes

XXXXX

DBMS_REDACT.REDACT_DATE_EPOCH

Redacts all dates to

01-JAN-70

DBMS_REDACT.REDACT_NA_PHONE_FORMATTED

Redacts the North American phone number by

leaving the area code, but replacing everything

else with

. For example,

650-555–0100

redacted to

650-XXX-XXXX

DBMS_REDACT.REDACT_NA_PHONE_NUMBER

Redacts the North American phone number by

leaving the area code, but replacing everything

else with

. For example,

6505550100

gets

redacted to

650000000

DBMS_REDACT.REDACT_NA_PHONE_UNFORMATTE

Redacts the North American phone number by

leaving the area code, but replacing everything

else with

. For example,

6505550100

redacted to

650XXXXXXX

DBMS_REDACT.REDACT_DATE_MILLENNIUM

Redacts dates that are in the

DD-MON-YY

format

01-JAN-00

(January 1, 2000).

Chapter 13

Creating a Partial Redaction Policy

13-33

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Example: Partial Redaction Policy Using a Fixed Character Format

You can use the

DBMS_REDACT.ADD_POLICY

PL/SQL procedure to create a partial

redaction policy that uses a fixed character format.

Example 13-4 shows how Social Security numbers in a

VARCHAR2

data type column and

can be redacted using the

REDACT_US_SSN_F5

format.

Example 13-4 Partially Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'ssn',

policy_name => 'redact_cust_ssns3',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => DBMS_REDACT.REDACT_US_SSN_F5,

expression => '1=1',

policy_description => 'Partially redacts 1st 5 digits in SS numbers',

column_description => 'ssn contains Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

-------

XXX-XX-4320

XXX-XX-4323

XXX-XX-4325

XXX-XX-4329

Creating Partial Redaction Policies Using Character Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter enables you to redact

character data types.

•Settings for Character Data Types

Oracle Data Redaction provides special settings to configure policies that use

character data types.

•Example: Partial Redaction Policy Using a Character Data Type

The

DBMS_REDACT.ADD_POLICY

PL/SQL procedure can create a partial redaction

policy that uses a character data type.

Chapter 13

Creating a Partial Redaction Policy

13-34

Settings for Character Data Types

Oracle Data Redaction provides special settings to configure policies that use

character data types.

When you set the

DBMS_REDACT.ADD_POLICY

function_parameters

parameter to define

partial redaction of character data types, enter values for the following settings in the

order shown. Separate each value with a comma

Note:

Be aware that you must use a fixed width character set for the partial

redaction. In other words, each character redacted must be replaced by

another of equal byte length. If you want to use a variable-length character

set (for example, UTF-8), then you must use a regular expression-based

redaction. See Syntax for Creating a Regular Expression-Based Redaction

Policy for more information.

The settings are as follows:

1. Input format: Defines how the data is currently formatted. Enter

for each

character that potentially can be redacted, such as all of the digits in a credit card

number. Enter

for each character that you want to format using a formatting

character, such as hyphens or blank spaces in the credit card number. Ensure that

each character has a corresponding

value. (The input format values are not

case-sensitive.)

2. Output format: Defines how the displayed data should be formatted. Enter

for

each character to be potentially redacted. Replace each

character in the input

format with the character that you want to use for the displayed output, such as a

hyphen. (The output format values are not case-sensitive.)

3. Mask character: Specifies the character to be used for the redaction. Enter a

single character to use for the redaction, such as an asterisk (*).

4. Starting digit position: Specifies the starting

digit position for the redaction.

5. Ending digit position: Specifies the ending

digit position for the redaction. Do

not include the

positions when you decide on the ending position value.

For example, the following setting redacts the first 12

digits of the credit card number

5105 1051 0510 5100

, and replaces the

positions (which are blank spaces) with

hyphens to format it in a style normally used for credit card numbers, resulting in

****-

****-****-4320

function_parameters => 'VVVVFVVVVFVVVVFVVVV,VVVV-VVVV-VVVV-VVVV,*,1,12',

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Chapter 13

Creating a Partial Redaction Policy

13-35

Example: Partial Redaction Policy Using a Character Data Type

The

DBMS_REDACT.ADD_POLICY

PL/SQL procedure can create a partial redaction policy

that uses a character data type.

Example 13-5 shows how to redact Social Security numbers that are in a

VARCHAR2

data

type column and to preserve the character hyphens in the Social Security number.

Example 13-5 Partially Redacted Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'ssn',

policy_name => 'redact_cust_ssns2',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => 'VVVFVVFVVVV,VVV-VV-VVVV,*,1,5',

expression => '1=1',

policy_description => 'Partially redacts Social Security numbers',

column_description => 'ssn contains character Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

-----------

***-**-4320

***-**-4323

***-**-4325

***-**-4329

Creating Partial Redaction Policies Using Number Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter can redact number data

types.

•Settings for Number Data Types

When you set values for the number data type, you must specify a mask

character, a starting digit position, and ending digit position.

•Example: Partial Redaction Policy Using a Number Data Type

The

DBMS_REDACT.ADD_POLICY

procedure can create a partial redaction policy that

uses a number data type.

Settings for Number Data Types

When you set values for the number data type, you must specify a mask character, a

starting digit position, and ending digit position.

For partial redaction of number data types, you can enter values for the following

settings for the

function_parameters

parameter of the

DBMS_REDACT.ADD_POLICY

procedure, in the order shown.

1. Mask character: Specifies the character to display. Enter a number from 0 to 9.

Chapter 13

Creating a Partial Redaction Policy

13-36

2. Starting digit position: Specifies the starting digit position for the redaction, such

for the first digit.

3. Ending digit position: Specifies the ending digit position for the redaction.

For example, the following setting redacts the first five digits of the Social Security

number

987654321

, resulting in

999994321

function_parameters => '9,1,5',

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Example: Partial Redaction Policy Using a Number Data Type

The

DBMS_REDACT.ADD_POLICY

procedure can create a partial redaction policy that uses a

number data type.

Example 13-6 shows how to partially redact a set of Social Security numbers in the

mavis.cust_info

table, for any application user who logs in. (Hence, the

expression

parameter evaluates to

TRUE

This type of redaction is useful when the application is expecting a formatted number

and not a string. In this scenario, the Social Security numbers are in a column of the

data type

NUMBER

. In other words, the

ssn

column contains numbers only, not other

characters such as hyphens or blank spaces.

Example 13-6 Partially Redacted Data Redaction Numeric Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'ssn',

policy_name => 'redact_cust_ssns1',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '7,1,5',

expression => '1=1',

policy_description => 'Partially redacts Social Security numbers',

column_description => 'ssn contains numeric Social Security numbers');

END;

Query and redacted result:

SELECT ssn FROM mavis.cust_info;

SSN

---------

777774320

777774323

777774325

777774329

Chapter 13

Creating a Partial Redaction Policy

13-37

Creating Partial Redaction Policies Using Date-Time Data Types

The

DBMS_REDACT.ADD_POLICY

function_parameters

parameter can redact date-time data

types.

•Settings for Date-Time Data Types

Oracle Data Redaction provides special settings for configuring date-time data

types.

•Example: Partial Redaction Policy Using Date-Time Data Type

The

DBMS_REDACT.ADD_POLICY

procedure can create a partial redaction policy that

uses the date-time data type.

Settings for Date-Time Data Types

Oracle Data Redaction provides special settings for configuring date-time data types.

For partial redaction of date-time data types, enter values for the following

DBMS_REDACT.ADD_POLICY

function_parameters

parameter settings.

Enter these values in the order shown:

1. m: Redacts the month. To redact with a month name, append

–

to lowercase

For example,

displays as

MAY

. To omit redaction, enter an uppercase

2. d: Redacts the day of the month. To redact with a day of the month, append

–

to a lowercase

. For example,

displays as

. If you enter a higher number than

the days of the month (for example,

for the month of February), then the last

day of the month is displayed (for example,

). To omit redaction, enter an

uppercase

3. y: Redacts the year. To redact with a year, append

–

9999

to a lowercase

. For

example,

y1984

displays as

. To omit redaction, enter an uppercase

4. h: Redacts the hour. To redact with an hour, append

–

to a lowercase

. For

example,

h20

displays as

. To omit redaction, enter an uppercase

5. m: Redacts the minute. To redact with a minute, append

–

to a lowercase

. For

example,

m30

displays as

. To omit redaction, enter an uppercase

6. s: Redacts the second. To redact with a second, append

–

to a lowercase

For example,

s45

displays as

. To omit redaction, enter an uppercase

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Example: Partial Redaction Policy Using Date-Time Data Type

The

DBMS_REDACT.ADD_POLICY

procedure can create a partial redaction policy that uses

the date-time data type.

Chapter 13

Creating a Partial Redaction Policy

13-38

Example 13-7 shows how to partially redact a date. This example redacts the birth

year of customers; replacing it with

, but retaining the remaining values.

Example 13-7 Partially Redacted Data Redaction Using Date-Time Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'birth_date',

policy_name => 'redact_cust_bdate',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '

mdy2013HMS

expression => '1=1',

policy_description => 'Replaces birth year with 2013',

column_description => 'birth_date contains customer's birthdate');

END;

Query and redacted result:

SELECT birth_date FROM mavis.cust_info;

BIRTH_DATE

07-DEC-13 09.45.40.000000 AM

12-OCT-13 04.23.29.000000 AM

Creating a Regular Expression-Based Redaction Policy

A regular expression-based redaction policy enables you to redact data based on a

search-and-replace model.

•About Creating Regular Expression-Based Redaction Policies

Regular expression-based redaction enables you to search for patterns of data to

redact.

•Syntax for Creating a Regular Expression-Based Redaction Policy

The

regexp_*

parameters of the

DBMS_REDACT.ADD_POLICY

procedure can create a

regular expression-based redaction policy.

•Regular Expression-Based Redaction Policies Using Formats

The

DBMS_REDACT.ADD_POLICY

procedure

regexp_pattern

and

regexp_replace_string

parameters both support formats.

•Custom Regular Expression Redaction Policies

You can customize regular expressions in Data Redaction policies.

About Creating Regular Expression-Based Redaction Policies

Regular expression-based redaction enables you to search for patterns of data to

redact.

For example, you can use regular expressions to redact email addresses, which can

have varying character lengths. It is designed for use with character data only. You

can use formats for the search and replace operation, or you can create custom

pattern formats.

You cannot use regular expressions to redact a subset of the values in a column. The

REGEXP_PATTERN

(regular expression pattern) must match all of the values in order for

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-39

the

REGEXP_REPLACE_STRING

setting to take effect, and the

REGEXP_REPLACE_STRING

must

change the value.

For rows where the

REGEXP_PATTERN

fails to match, Data Redaction performs

DBMS_REDACT.FULL

redaction. This mitigates the risk of a mistake in the

REGEXP_PATTERN

which causes the regular expression to fail to match all of the values in the column,

from showing the actual data for those rows which it failed to match.

In addition, if no change to the value occurs as a result of the

REGEXP_REPLACE_STRING

setting during regular expression replacement operation, Data Redaction performs

DBMS_REDACT.FULL

redaction.

Syntax for Creating a Regular Expression-Based Redaction Policy

The

regexp_*

parameters of the

DBMS_REDACT.ADD_POLICY

procedure can create a regular

expression-based redaction policy.

The

DBMS_REDACT.ADD_POLICY

fields for creating a regular expression-based data

redaction policy are as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE,

regexp_pattern IN VARCHAR2 := NULL,

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER := 1,

regexp_occurrence IN BINARY_INTEGER := 0,

regexp_match_parameter IN VARCHAR2 := NULL);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure.

•

function_type

: Specifies the type of redaction. For regular expression based

redaction, use either

DBMS_REDACT.REGEXP

DBMS_REDACT.REGEXP_WIDTH

If you use the

DBMS_REDACT.REGEXP

redaction type, then no truncation occurs. This

applies even if the redacted value is wider than the column width, and if the Oracle

Call Interface width attribute (

OCI_ATTR_CHAR_SIZE

) of the column is not preserved.

(It becomes 4000, just as it does when the

REGEXP_REPLACE

SQL operator is used

on a column.)

Using the

DBMS_REDACT.REGEXP_WIDTH

redaction type truncates any redacted value

that exceeds the width of the column, and ensures that the OCI width attribute of

the column (

OCI_ATTR_CHAR_SIZE

) remains unchanged.

Note the following:

–Use the

DBMS_REDACT.REGEXP_WIDTH

function type if your applications depend on

the value of the

OCI_ATTR_CHAR_SIZE

attribute. For example, applications that

are built using the Oracle OLE DB Provider interface are sensitive to the value

of the

OCI_ATTR_CHAR_SIZE

attribute. If you use

DBMS_REDACT.REGEXP

as the

redaction type, then the

OCI_ATTR_CHAR_SIZE

always becomes 4000. This

setting makes it unsuitable as the redaction type of policies on tables that are

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-40

used by Oracle OLE DB based applications. See Oracle Call Interface

Programmer's Guide for more information about Oracle Call Interface

parameter attributes.

–When you set the

function_type

parameter to

DBMS_REDACT.REGEXP

DBMS_REDACT.REGEXP_WIDTH

, omit the

function_parameters

parameter from the

DBMS_REDACT.ADD_POLICY

procedure.

–Specify the regular expression parameters in much the same way that you

specify the

pattern

replace

position

occurrence

, and

match_parameter

arguments to the

REGEXP_REPLACE

SQL function. See Oracle Database SQL

Language Reference for information about the

REGEXP_REPLACE

SQL function.

•

regexp_pattern

: Describes the search pattern for data that must be matched. If it

finds a match, then Oracle Database replaces the data as specified by the

regexp_replace_string

setting. See the following sections for more information:

–Regular Expression-Based Redaction Policies Using Formats

–Custom Regular Expression Redaction Policies

•

regexp_replace_string

: Specifies how you want to replace the data to be redacted.

See the following sections for more information:

–Regular Expression-Based Redaction Policies Using Formats

–Custom Regular Expression Redaction Policies

•

regexp_position

: Specifies the starting position for the string search. The value that

you enter must be a positive integer indicating the character of the

column_name

data where Oracle Database should begin the search. The default is

or the

DBMS_REDACT.RE_BEGINNING

format, meaning that Oracle Database begins the search

at the first character of the

column_name

data.

•

regexp_occurrence

: Specifies how to perform the search and replace operation.

The value that you enter must be a nonnegative integer indicating the occurrence

of the replace operation:

–If you specify

or the

DBMS_REDACT.RE_ALL

format, then Oracle Database

replaces all the occurrences of the match.

–If you specify the

DBMS_REDACT.RE_FIRST

format, then Oracle Database replaces

the first occurrence of the match.

–If you specify a positive integer

, then Oracle Database replaces the

occurrence of the match.

If the occurrence is greater than 1, then the database searches for the second

occurrence beginning with the first character following the first occurrence of

pattern, and so forth.

•

regexp_match_parameter

: Specifies a text literal that lets you change the default

matching behavior of the function. The behavior of this parameter is the same for

this function as for the

REGEXP_REPLACE

SQL function. See Oracle Database SQL

Language Reference for detailed information.

To filter the search so that it is not case sensitive, specify the

RE_CASE_INSENSITIVE

format.

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-41

Regular Expression-Based Redaction Policies Using Formats

The

DBMS_REDACT.ADD_POLICY

procedure

regexp_pattern

and

regexp_replace_string

parameters both support formats.

•Regular Expression Formats

The regular expression formats represent commonly used expressions, such as

the replacement of digits within a credit card number.

•Example: Regular Expression Redaction Policy Using Formats

The DBMS_REDACT.ADD_POLICY procedure can create a regular expression

redaction policy that uses formats.

Regular Expression Formats

The regular expression formats represent commonly used expressions, such as the

replacement of digits within a credit card number.

Table 13-9 describes the formats that you can use with the

regexp_pattern

parameter

in the

DBMS_REDACT.ADD_POLICY

procedure.

Table 13-9 Formats for the regexp_pattern Parameter

Format Description

DBMS_REDACT.RE_PATTERN_ANY_DIGIT

Searches for any digit. Replaces the identified

pattern with the characters specified by

the

regexp_replace_string

parameter. The

DBMS_REDACT.RE_PATTERN_ANY_DIGIT

commonly used with the following values of the

regexp_replace_string

parameter:

regexp_replace_string =>

DBMS_REDACT.RE_REDACT_WITH_SINGLE_X,

This setting replaces any matched digit with the

character.

The following setting replaces any matched digit

with the

character.

regexp_replace_string =>

DBMS_REDACT.RE_REDACT_WITH_SINGLE_1,

DBMS_REDACT.RE_PATTERN_CC_L6_T4

Searches for the middle digits of any credit card

(other than American Express) that has 6 leading

digits and 4 trailing digits. Replaces the identified

pattern with the characters specified by the

regexp_replace_string

parameter.

The appropriate

regexp_replace_string

setting

to use with this format is

DBMS_REDACT.RE_REDACT_CC_MIDDLE_DIGITS

which finds any credit card that could have 6

leading and 4 trailing digits left as actual data. It

then redacts the middle digits.

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-42

Table 13-9 (Cont.) Formats for the regexp_pattern Parameter

Format Description

DBMS_REDACT.RE_PATTERN_CCN

Matches credit card numbers other than

American Express credit card numbers. The

appropriate

regexp_replace_string

setting to

use with this format is

DBMS_REDACT.RE_REDACT_CCN

. The end result is a

redaction of all the digits except the last 4.

DBMS_REDACT.RE_PATTERN_AMEX_CCN

Matches American Express credit card numbers.

The appropriate

regexp_replace_string

setting

to use with this format is

DBMS_REDACT.RE_REDACT_AMEX_CCN

. The end

result is a redaction of all the digits except the

last 5.

DBMS_REDACT.RE_PATTERN_US_PHONE

Searches for any U.S. telephone number.

Replaces the identified pattern with the

characters specified by

the

regexp_replace_string

parameter

The appropriate

regexp_replace_string

setting

to use with this format is

DBMS_REDACT.RE_REDACT_US_PHONE_L7

, which

finds United States phone numbers and then

redacts the last 7 digits.

DBMS_REDACT.RE_PATTERN_EMAIL_ADDRESS

Searches for any email address. Replaces the

identified pattern with the characters specified by

the

regexp_replace_string

parameter

The appropriate

regexp_replace_string

settings

that you can use with this format are as follows:

RE_REDACT_EMAIL_NAME

, which finds any email

address and redacts the email user name

RE_REDACT_EMAIL_DOMAIN

, which finds any email

address and redacts the email domain

RE_REDACT_EMAIL_ENTIRE

, which finds any email

address and redacts the entire email address

DBMS_REDACT.RE_PATTERN_IP_ADDRESS

Searches for an IP address. Replaces the

identified pattern with the characters specified by

the

regexp_replace_string

parameter.

The appropriate

regexp_replace_string

setting

to use with this format is

DBMS_REDACT.RE_REDACT_IP_L3

, which replaces

the last section of the dotted decimal string

representation of an IP address with the

characters

999

to indicate that it was redacted.

Table 13-10 describes formats that you can use with the

regexp_replace_string

parameter in the

DBMS_REDACT.ADD_POLICY

procedure.

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-43

Table 13-10 Formats for the regexp_replace_string Parameter

Format Description

DBMS_REDACT.RE_REDACT_WITH_SINGLE_X

Replaces the data with a single

character for

each of the actual data characters. For example,

the credit card number

5105 1051 0510 5100

could be replaced with

XXXX XXXX XXXX XXXX

DBMS_REDACT.RE_REDACT_WITH_SINGLE_1

Replaces the data with a single

digit for each of

the actual data digits. For example, the credit

card number

5105 1051 0510 5100

could be

replaced with

1111 1111 1111 1111

DBMS_REDACT.RE_REDACT_CC_MIDDLE_DIGITS

Redacts the middle digits in credit card numbers,

as specified by setting the

regexp_pattern

parameter with the

RE_PATTERN_CC_L6_T4

format.

The redaction replaces each redacted character

with an

. For example, the credit card number

5105 1051 0510 5100

could be replaced with

5105 10XX XXXX 5100

DBMS_REDACT.RE_REDACT_CCN

Redacts the first 12 digits of a credit card

number other than an American Express card

number. For example,

4012888888881881

redacted to

************1881

DBMS_REDACT.RE_REDACT_AMEX_CCN

Redacts the first 10 digits of an American

Express number. For example,

378282246310005

is redacted to

**********10005

DBMS_REDACT.RE_REDACT_PHONE_L7

Redacts the last 7 digits of U.S. telephone

numbers, as specified by setting the

regexp_pattern

parameter with the

RE_PATTERN_US_PHONE

format. The redaction

replaces each redacted character with an

. This

setting only applies to hyphenated phone

numbers, not phone numbers with spaces. For

example, the telephone number

415-555-0100

could be replaced with

415-XXX-XXXX

DBMS_REDACT.RE_REDACT_EMAIL_NAME

Redacts the email name as specified by setting

the

regexp_pattern

parameter with the

RE_PATTERN_EMAIL_ADDRESS

format. The

redaction replaces the email user name with four

characters. For example, the email address

psmith@example.com

could be replaced with

xxxx@example.com

DBMS_REDACT.RE_REDACT_EMAIL_DOMAIN

Redacts the email domain name as specified by

setting the

regexp_pattern

parameter with the

RE_PATTERN_EMAIL_ADDRESS

format. The

redaction replaces the domain with five

characters. For example, the email address

psmith@example.com

could be replaced with

psmith@xxxxx.com

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-44

Table 13-10 (Cont.) Formats for the regexp_replace_string Parameter

Format Description

DBMS_REDACT.RE_REDACT_IP_L3

Redacts the last three digits of the IP address as

specified by setting the

regexp_pattern

parameter with the

RE_PATTERN_IP_ADDRESS

format. For example, the IP address

192.0.2.254

could be replaced with

192.0.2.999

, which is an invalid IP address.

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Example: Regular Expression Redaction Policy Using Formats

The DBMS_REDACT.ADD_POLICY procedure can create a regular expression

redaction policy that uses formats.

Example 13-8 shows how to use regular expression formats to redact credit card

numbers.

Example 13-8 Regular Expression Data Redaction Character Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'cc_num',

policy_name => 'redact_cust_cc_nums',

function_type => DBMS_REDACT.REGEXP,

function_parameters => NULL,

expression => '1=1',

regexp_pattern => DBMS_REDACT.RE_PATTERN_CC_L6_T4,

regexp_replace_string => DBMS_REDACT.RE_REDACT_CC_MIDDLE_DIGITS,

regexp_position => DBMS_REDACT.RE_BEGINNING,

regexp_occurrence => DBMS_REDACT.RE_FIRST,

regexp_match_parameter => DBMS_REDACT.RE_CASE_INSENSITIVE,

policy_description => 'Regular expressions to redact credit card numbers',

column_description => 'cc_num contains customer credit card numbers');

END;

Query and redacted result:

SELECT cc_num FROM mavis.cust_info;

CC_NUM

-------

401288XXXXXX1881

411111XXXXXX1111

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-45

555555XXXXXX1111

511111XXXXXX1118

Custom Regular Expression Redaction Policies

You can customize regular expressions in Data Redaction policies.

•Settings for Custom Regular Expressions

Oracle Data Redaction provides special settings to configure policies that use

regular expressions.

•Example: Custom Regular Expression Redaction Policy

The

DBMS_REDACT.ADD_POLICY

procedure regexp* parameters can create a custom

regular expression redaction policy.

Settings for Custom Regular Expressions

Oracle Data Redaction provides special settings to configure policies that use regular

expressions.

To create custom regular expression redaction policies, you use the following

parameters in the

DBMS_REDACT.ADD_POLICY

procedure:

•

regexp_pattern

: This pattern is usually a text literal and can be of any of the data

types

CHAR

VARCHAR2

NCHAR

, or

NVARCHAR2

. The pattern can contain up to 512 bytes.

For further information about writing the regular expression for the

regexp_pattern

parameter, see the description of the

pattern

argument of the

REGEXP_REPLACE

SQL

function in Oracle Database SQL Language Reference, because the support that

Data Redaction provides for regular expression matching is similar to that of the

REGEXP_REPLACE

SQL function.

•

regexp_replace_string

: This data can be of any of the data types

CHAR

VARCHAR2

NCHAR

, or

NVARCHAR2

. The

regexp_replace_string

can contain up to 500 back

references to subexpressions in the form

, where

is a number from 1 to 9. If

you want to include a backslash (\) in the

regexp_replace_string

setting, then you

must precede it with the escape character, which is also a backslash. For

example, to literally replace the matched pattern with

(rather than replace it with

the second matched subexpression of the matched pattern), you enter

\\2

in the

regexp_replace_string

setting. For more information, see Oracle Database SQL

Language Reference.

See Also:

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about other

DBMS_REDACT.ADD_POLICY

parameters

Example: Custom Regular Expression Redaction Policy

The

DBMS_REDACT.ADD_POLICY

procedure regexp* parameters can create a custom

regular expression redaction policy.

Example 13-9 shows how to use regular expressions to redact the

emp_id

column data.

In this example, taken together, the

regexp_pattern

and

regexp_replace_string

Chapter 13

Creating a Regular Expression-Based Redaction Policy

13-46

parameters do the following: first, find the pattern of 9 digits. For reference, break them

into three groups that contain the first 3, the next 2, and then the last 4 digits. Then,

replace all 9 digits with

XXXXX

concatenated with the third group (the last 4 digits) as

found in the original pattern.

Query and redacted result:

SELECT emp_id FROM mavis.cust_info;

EMP_ID

------------

XXXXX1234

XXXXX5678

Example 13-9 Partially Redacted Data Redaction Using Regular Expressions

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'emp_id',

policy_name => 'redact_cust_ids',

function_type => DBMS_REDACT.REGEXP,

expression => '1=1',

regexp_pattern => '(\d\d\d)(\d\d)(\d\d\d\d)',

regexp_replace_string => 'XXXXX\3',

regexp_position => 1,

regexp_occurrence => 0,

regexp_match_parameter => 'i',

policy_description => 'Redacts customer IDs using regular expression',

column_description => 'emp_id contains employee ID numbers');

END;

Creating a Random Redaction Policy

A random redaction policy presents redacted data as randomly generated values,

such as

Ukjsl32[[]]]s

•Syntax for Creating a Random Redaction Policy

A random redaction policy presents the redacted data to the querying application

user as randomly generated values, based on the column data type.

•Example: Random Redaction Policy

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure create a

random redaction policy.

Syntax for Creating a Random Redaction Policy

A random redaction policy presents the redacted data to the querying application user

as randomly generated values, based on the column data type.

Be aware that LOB columns are not supported.

The

DBMS_REDACT.ADD_POLICY

fields for creating a random redaction policy are as

follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

Chapter 13

Creating a Random Redaction Policy

13-47

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure.

•

function_type

: Specifies the function used to set the type of redaction. Enter

DBMS_REDACT.RANDOM

If you omit the

function_type

parameter, then the default redaction

function_type

setting is

DBMS_REDACT.FULL

Remember that the data type of the column determines which

function_type

settings that you are permitted to use. See Comparison of Full, Partial, and

Random Redaction Based on Data Types.

Example: Random Redaction Policy

You can use the DBMS_REDACT.ADD_POLICY PL/SQL procedure create a random

redaction policy.

Example 13-10 shows how to generate random values. Each time you run the

SELECT

statement, the output will be different.

Example 13-10 Randomly Redacted Data Redaction Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'login_username',

policy_name => 'redact_cust_rand_username',

function_type => DBMS_REDACT.RANDOM,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') = ''APP_USER''');

END;

Query and redacted result:

SELECT login_username FROM mavis.cust_info;

LOGIN_USERNAME

--------------

N[CG{\pTVcK

Creating a Policy That Uses No Redaction

You can create policies that use no redaction at all, for when you want to test the

policy in a development environment.

•Syntax for Creating a Policy with No Redaction

The None redaction type option can be used to test the internal operation of

redaction policies.

Chapter 13

Creating a Policy That Uses No Redaction

13-48

•Example: Performing No Redaction

The

DBMS_REDACT.ADD_POLICY

procedure can create a policy that performs no

redaction.

Syntax for Creating a Policy with No Redaction

The None redaction type option can be used to test the internal operation of redaction

policies.

The None redaction type has no effect on the query results against tables that have

policies defined on them. You can use this option to test the redaction policy

definitions before applying them to a production environment. Be aware that LOB

columns are not supported.

The

DBMS_REDACT.ADD_POLICY

fields for creating a policy with no redaction are as follows:

DBMS_REDACT.ADD_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2,

column_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

function_type IN BINARY_INTEGER := NULL,

expression IN VARCHAR2,

enable IN BOOLEAN := TRUE);

In this specification:

•

object_schema

object_name

column_name

policy_name

expression

enable

: See

General Syntax of the DBMS_REDACT.ADD_POLICY Procedure.

•

function_type

: Specifies the functions used to set the type of data redaction. Enter

DBMS_REDACT.NONE

If you omit the

function_type

parameter, then the default redaction

function_type

setting is

DBMS_REDACT.FULL

Example: Performing No Redaction

The

DBMS_REDACT.ADD_POLICY

procedure can create a policy that performs no redaction.

Example 13-11 shows how to create a Data Redaction policy that does not redact any

of the displayed values.

Example 13-11 No Redacted Data Redaction Values

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

column_name => 'user_name',

policy_name => 'redact_cust_no_vals',

function_type => DBMS_REDACT.NONE,

expression => '1=1');

END;

Query and redacted result:

SELECT user_name FROM mavis.cust_info;

Chapter 13

Creating a Policy That Uses No Redaction

13-49

USER_NAME

----------

IDA NEAU

Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the data

they access.

To do so, you should grant the users the

EXEMPT REDACTION POLICY

system privilege.

Grant this privilege to trusted users only.

In addition to users who were granted this privilege, user

SYS

is also exempt from all

Data Redaction policies. The person who creates the Data Redaction policy is by

default not exempt from it, unless this person is user

SYS

or has the

EXEMPT REDACTION

POLICY

system privilege.

Note the following:

•Users who have the

INSERT

privilege on a table can insert values into a redacted

column, regardless of whether a Data Redaction policy exists on the table. Data

Redaction only affects SQL

SELECT

statements (that is, queries) issued by a user,

and has no effect on any other SQL issued by a user, including

INSERT

UPDATE

, or

DELETE

statements. (See the next bullet for exceptions to this rule.)

•Users cannot perform a

CREATE TABLE AS SELECT

where any of the columns being

selected (source columns) is protected by a Data Redaction policy (and similarly,

any DML operation where the source is a redacted column), unless the user was

granted the

EXEMPT REDACTION POLICY

system privilege.

•The

EXEMPT REDACTION POLICY

system privilege is included in the

DBA

role, but this

privilege must be granted explicitly to users because it is not included in the

WITH

ADMIN OPTION

for

DBA

role grants. Users who were granted the

DBA

role are exempt

from redaction policies because the

DBA

role contains the

EXP_FULL_DATABASE

role,

which is granted the

EXEMPT REDACTION POLICY

system privilege.

Related Topics

•Restriction of Administrative Access to Oracle Data Redaction Policies

You can restrict the list of users who can create, view and edit Data Redaction

policies.

•Oracle Data Pump Security Model for Oracle Data Redaction

The

DATAPUMP_EXP_FULL_DATABASE

role includes the powerful

EXEMPT REDACTION

POLICY

system privilege.

Altering an Oracle Data Redaction Policy

The

DBMS_REDACT.ALTER_POLICY

procedure enables you to modify Oracle Data Redaction

policies.

•About Altering Oracle Data Redaction Policies

The

DBMS_REDACT.ALTER_POLICY

procedure alters a Data Redaction policy.

•Syntax for the DBMS_REDACT.ALTER_POLICY Procedure

The

DBMS_REDACT.ALTER_POLICY

procedure syntax can be used to alter all types of

the Data Redaction policies.

Chapter 13

Exemption of Users from Oracle Data Redaction Policies

13-50

•Parameters Required for DBMS_REDACT.ALTER_POLICY Actions

The DBMS_REDACT.ALTER_POLICY procedure provides parameters than can

perform various actions, such as adding or modifying a column.

•Tutorial: Altering an Oracle Data Redaction Policy

You can redact multiple columns in a table or view, with each column having its

own redaction setting.

About Altering Oracle Data Redaction Policies

The

DBMS_REDACT.ALTER_POLICY

procedure alters a Data Redaction policy.

If the policy is already enabled, then you do not need to disable it first, and after you

alter the policy, it remains enabled.

You can find the names of existing Data Redaction policies by querying the

POLICY_NAME

column of the

REDACTION_POLICIES

data dictionary view, and information

about the columns, functions, and parameters specified in a policy by querying the

REDACTION_COLUMNS

view. To find the current value for policies that use full data

redaction, you can query the

REDACTION_VALUES_FOR_TYPE_FULL

data dictionary view.

The

action

parameter specifies the type of modification that you want to perform. At a

minimum, you must include the

object_name

and

policy_name

parameters when you run

this procedure.

Syntax for the DBMS_REDACT.ALTER_POLICY Procedure

The

DBMS_REDACT.ALTER_POLICY

procedure syntax can be used to alter all types of the

Data Redaction policies.

The syntax for the

DBMS_REDACT.ALTER_POLICY

procedure is as follows:

DBMS_REDACT.ALTER_POLICY (

object_schema IN VARCHAR2 := NULL,

object_name IN VARCHAR2 := NULL,

policy_name IN VARCHAR2,

action IN BINARY_INTEGER := DBMS_REDACT.ADD_COLUMN,

column_name IN VARCHAR2 := NULL,

function_type IN BINARY_INTEGER := DBMS_REDACT.FULL,

function_parameters IN VARCHAR2 := NULL,

expression IN VARCHAR2 := NULL,

regexp_pattern IN VARCHAR2 := NULL,

regexp_replace_string IN VARCHAR2 := NULL,

regexp_position IN BINARY_INTEGER := NULL,

regexp_occurrence IN BINARY_INTEGER := NULL,

regexp_match_parameter IN VARCHAR2 := NULL,

policy_description IN VARCHAR2 := NULL,

column_description IN VARCHAR2 := NULL);

In this specification:

•

action

: Enter one of the following values to define the kind of action to use:

–

DBMS_REDACT.MODIFY_COLUMN

if you plan to change the

column_name

value.

–

DBMS_REDACT.ADD_COLUMN

if you plan to add a new column (in addition to

columns that are already protected by the policy) for redaction. This setting is

the default for the

action

parameter.

–

DBMS_REDACT.DROP_COLUMN

if you want to remove redaction from a column.

Chapter 13

Altering an Oracle Data Redaction Policy

13-51

–

DBMS_REDACT.MODIFY_EXPRESSION

if you plan to change the

expression

value.

Each policy can have only one policy expression. In other words, when you

modify the policy expression, you are replacing the existing policy expression

with a new policy expression.

–

DBMS_REDACT.SET_POLICY_DESCRIPTION

if you want to change the description of

the policy.

–

DBMS_REDACT.SET_COLUMN_DESCRIPTION

if you want to change the description of

the column.

See Also:

•Parameters Required for DBMS_REDACT.ALTER_POLICY Actions

•General Syntax of the DBMS_REDACT.ADD_POLICY Procedure for

information about the remaining parameters

Parameters Required for DBMS_REDACT.ALTER_POLICY Actions

The DBMS_REDACT.ALTER_POLICY procedure provides parameters than can

perform various actions, such as adding or modifying a column.

Table 13-11 shows the combinations of these parameters.

Table 13-11 Parameters Required for Various DBMS_REDACT.ALTER_POLICY

Actions

Desired Alteration Parameters to Set

Add or modify a column •

action

(

DBMS_REDACT.MODIFY_COLUMN

)

•

column_name

•

function_type

•

function_parameters

(if necessary)

•

regexp

* (if necessary)

Change the policy expression •

action

(

DBMS_REDACT.MODIFY_EXPRESSION

)

•

expression

Change the description of the

policy

•

action

(

DBMS_REDACT.SET_POLICY_DESCRIPTION

)

•

policy_description

Change the description of the

column

•

action

(

DBMS_REDACT.SET_COLUMN_DESCRIPTION

)

•

column_description

Drop a column •

action

(

DBMS_REDACT.DROP_COLUMN

)

•

column_name

Tutorial: Altering an Oracle Data Redaction Policy

You can redact multiple columns in a table or view, with each column having its own

redaction setting.

The exercise in this section shows how to modify a Data Redaction policy so that

multiple columns are redacted. It also shows how to change the

expression

setting for

Chapter 13

Altering an Oracle Data Redaction Policy

13-52

the policy. To accomplish this, you must run the

DBMS_REDACT.ALTER_POLICY

procedure in

stages.

1. Connect as a user who has privileges to create users and grant them privileges.

For example:

CONNECT sec_admin

Enter password: password

2. Create the following users:

GRANT CREATE SESSION TO dr_admin IDENTIFIED BY password;

GRANT CREATE SESSION TO sales_rep IDENTIFIED BY password;

GRANT CREATE SESSION TO support_rep IDENTIFIED BY password;

3. Grant

EXECUTE

on the

DBMS_REDACT

PL/SQL package to user

dr_admin

GRANT EXECUTE ON DBMS_REDACT TO dr_admin;

4. Connect as user

CONNECT OE

Enter password: password

5. Create and populate a table that contains customer credit card information.

CREATE TABLE cust_order_info(

first_name varchar2(20),

last_name varchar2(20),

address varchar2(30),

city varchar2(30),

state varchar2(3),

zip varchar2(5),

cc_num varchar(19),

cc_exp varchar2(7));

INSERT INTO cust_order_info VALUES ('Jane','Dough','39 Mockingbird Lane', 'San

Francisco', 'CA', 94114, '5105 1051 0510 5100', '10/2018');

INSERT INTO cust_order_info VALUES ('Mary','Hightower','2319 Maple Street',

'Sonoma', 'CA', 95476, '5111 1111 1111 1118', '03/2019');

INSERT INTO cust_order_info VALUES ('Herbert','Donahue','292 Winsome Way', 'San

Francisco', 'CA', 94117, '5454 5454 5454 5454', '08/2018');

6. Grant the

SELECT

privilege on the

cust_order_info

table to the

sales_rep

and

support_rep

users.

GRANT SELECT ON cust_order_info TO sales_rep, support_rep;

7. Connect as user

dr_admin

CONNECT dr_admin

Enter password: password

8. Create and enable policy to redact the credit card number.

BEGIN DBMS_REDACT.ADD_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

column_name => 'cc_num',

policy_name => 'redact_cust_cc_info',

function_type => DBMS_REDACT.REGEXP,

function_parameters => NULL,

expression => '1=1',

regexp_pattern => DBMS_REDACT.RE_PATTERN_CCN,

Chapter 13

Altering an Oracle Data Redaction Policy

13-53

regexp_replace_string => DBMS_REDACT.RE_REDACT_CCN,

regexp_position => NULL,

regexp_occurrence => NULL,

regexp_match_parameter => NULL,

policy_description => 'Partially redacts credit card info',

column_description => 'cc_num_number lists credit card numbers');

END;

9. Modify the policy to include redaction of the expiration date.

BEGIN DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'cc_exp',

function_type => DBMS_REDACT.RANDOM,

expression => '1-1');

END;

10. Modify the policy again, to use a condition so that the

sales_rep

user views the

redacted values and the

support_rep

user views the actual data.

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.MODIFY_EXPRESSION,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') =

''SALES_REP''');

END;

11. To test the policy, have the two users query the

cust_order_info

table.

CONNECT support_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

------------------- -------

5105 1051 0510 5100 10/2018

5111 1111 1111 1118 03/2019

5454 5454 5454 5454 08/2018

User

support_rep

can view the actual data.

CONNECT sales_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

---------------- -------

************5100 lST=033

************1119 OZA.w4C

************5454 B(9+;O1

The actual data is redacted using for user

sales_rep

Chapter 13

Altering an Oracle Data Redaction Policy

13-54

12. Alter the

cust_order_info

to include a condition so that only

support_rep

can see

the redacted data but

sales_rep

cannot.

CONNECT dr_admin

Enter password: password

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info',

action => DBMS_REDACT.MODIFY_EXPRESSION,

expression => 'SYS_CONTEXT(''USERENV'',''SESSION_USER'') =

''SUPPORT_REP''');

END;

13. Have the users test the policy again.

CONNECT support_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

---------------- -------

************5100 1^XMF~`

************1119 qz+9=#S

************5454 *KCaUkm

User

support_rep

can no longer view the actual data; it is now redacted.

CONNECT sales_rep

Enter password: password

SELECT cc_num, cc_exp FROM OE.cust_order_info;

CC_NUM CC_EXP

------------------- -------

5105 1051 0510 5100 10/2018

5111 1111 1111 1118 03/2019

5454 5454 5454 5454 08/2018

User

sales_rep

now can view the actual data.

14. If you do not need the components of this tutorial, then you can remove them as

follows:

CONNECT dr_admin

Enter password: password

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'oe',

object_name => 'cust_order_info',

policy_name => 'redact_cust_cc_info');

END;

CONNECT sec_admin

Enter password: password

DROP USER dr_admin;

Chapter 13

Altering an Oracle Data Redaction Policy

13-55

DROP USER sales_rep;

DROP USER support_rep;

CONNECT OE

Enter password: password

DROP TABLE cust_order_info;

Redacting Multiple Columns

You can redact more than one column in a Data Redaction policy.

•Adding Columns to a Data Redaction Policy for a Single Table or View

You can redact columns of different data types, using different redaction types, for

one table or view.

•Example: Redacting Multiple Columns

The

DBMS_REDACT.ALTER_POLICY

procedure can redact multiple columns.

Adding Columns to a Data Redaction Policy for a Single Table or View

You can redact columns of different data types, using different redaction types, for one

table or view.

1. Create the policy for the first column that you want to redact.

2. Use the

DBMS_REDACT.ALTER_POLICY

procedure to add the next column to the policy.

As necessary, set the

action

column_name

function_type

, and

function_parameters

(or the parameters that begin with

regexp_

) parameters to define the redaction for

the new column, but do not change the

object_schema

object_name

policy_name

, or

expression

parameters. Each redacted column continues to have the same

redaction parameters that were used to create it.

Example: Redacting Multiple Columns

The

DBMS_REDACT.ALTER_POLICY

procedure can redact multiple columns.

Example 13-12 shows how to add a column to an existing Data Redaction policy. In

this example, the

action

parameter specifies that a new column must be added, using

DBMS_REDACT.ADD_COLUMN

. The name of the new column,

card_num

, is set by the

column_name

parameter.

Example 13-12 Adding a Column to a Data Redaction Policy

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'card_num',

function_type => DBMS_REDACT.FULL,

function_parameters => '',

expression => 'SYS_CONTEXT(''SYS_SESSION_ROLES'',''ADM'') = ''TRUE''');

END;

Chapter 13

Redacting Multiple Columns

13-56

Disabling and Enabling an Oracle Data Redaction Policy

You can disable and then reenable Oracle Data Redactions policies as necessary.

•Disabling an Oracle Data Redaction Policy

The

DBMS_REDACT.DISABLE_POLICY

procedure disables Oracle Data Redaction

policies.

•Enabling an Oracle Data Redaction Policy

The

DBMS_REDACT.ENABLE_POLICY

procedure enables Oracle Data Redaction policies.

Disabling an Oracle Data Redaction Policy

The

DBMS_REDACT.DISABLE_POLICY

procedure disables Oracle Data Redaction policies.

You can find the names of existing Data Redaction policies and whether they are

enabled by querying the

POLICY_NAME

and

ENABLE

columns of the

REDACTION_POLICIES

view. However, as long as the policy still exists, you cannot create another policy for

that table or view, even if the original policy is disabled. In other words, if you want to

create a different policy on the same table column, then you must drop the first policy

before you can create and use the new policy.

•To disable a Data Redaction policy, run the

DBMS_REDACT.DISABLE_POLICY

procedure,

using the following syntax:

DBMS_REDACT.DISABLE_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

In this specification:

–

object_schema

: Specifies the schema of the object on which the Data

Redaction policy will be applied. If you omit this setting (or enter

NULL

), then

Oracle Database uses the name of the current schema.

–

object_name

: Specifies the name of the table or view to be used for the Data

Redaction policy.

–

policy_name

: Specifies the name of the policy to be disabled.

Example 13-13 shows how to disable a Data Redaction policy.

Example 13-13 Disabling a Data Redaction Policy

BEGIN

DBMS_REDACT.DISABLE_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

END;

Chapter 13

Disabling and Enabling an Oracle Data Redaction Policy

13-57

Enabling an Oracle Data Redaction Policy

The

DBMS_REDACT.ENABLE_POLICY

procedure enables Oracle Data Redaction policies.

Immediately after you create a new policy, you do not need to enable it; the creation

process handles that for you. To find the names of existing Data Redaction policies

and whether they are enabled, you can query the

POLICY_NAME

and

ENABLE

columns of

the

REDACTION_POLICIES

view. After you run the procedure to enable the policy, the

enablement takes effect immediately.

•To enable a Data Redaction policy, run the

DBMS_REDACT.ENABLE_POLICY

procedure,

using the following syntax.

DBMS_REDACT.ENABLE_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

In this specification:

–

object_schema

: Specifies the schema of the object on which the Data

Redaction policy will be applied. If you omit this setting (or enter

NULL

), then

Oracle Database uses the name of the current schema.

–

object_name

: Specifies the name of the table or view to be used for the Data

Redaction policy.

–

policy_name

: Specifies the name of the policy to be enabled.

Example 13-14 shows how to enable a Data Redaction policy.

Example 13-14 Enabling a Data Redaction Policy

BEGIN

DBMS_REDACT.ENABLE_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

END;

Dropping an Oracle Data Redaction Policy

The

DBMS_REDACT.DROP_POLICY

procedure drops Oracle Data Redaction policies.

You can drop an Oracle Data Redaction policy whether it is enabled or disabled. You

can find the names of existing Data Redaction policies, by querying the

POLICY_NAME

column of the

REDACTION_POLICIES

view. When you drop a table or view that is

associated with an Oracle Data Redaction policy, the policy is automatically dropped.

As a best practice, drop the policy first, and then drop the table or view afterward. See

Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled for more

information.

•To drop a Data Redaction policy, run the

DBMS_REDACT.DROP_POLICY

procedure.

Use the following syntax:

DBMS_REDACT.DROP_POLICY (

object_schema IN VARCHAR2 DEFAULT NULL,

Chapter 13

Dropping an Oracle Data Redaction Policy

13-58

object_name IN VARCHAR2,

policy_name IN VARCHAR2);

In this specification:

–

object_schema

: Specifies the schema of the object to which the Data Redaction

policy applies. If you omit this setting (or enter

NULL

), then Oracle Database

uses the name of the current schema.

–

object_name

: Specifies the name of the table or view to be used for the Data

Redaction policy.

–

policy_name

: Specifies the name of the policy to be dropped.

After you run the

DBMS_REDACT.DROP_POLICY

procedure, the drop takes effect

immediately.

Example 13-15 shows how to drop a Data Redaction policy.

Example 13-15 Dropping a Data Redaction Policy

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'mavis',

object_name => 'cust_info',

policy_name => 'redact_cust_user_ids');

END;

Tutorial: SQL Expressions to Build Reports with Redacted

Values

SQL expressions can be used to build reports based on columns that have Oracle

Data Redaction policies defined on them.

The values used in the SQL expression will be redacted. This redaction occurs in such

a way that the redaction takes place before the SQL expression is evaluated: the

result value that is displayed in the report is the end result of the evaluated SQL

expression over the redacted values, rather than the redacted result of the SQL

expression as a whole.

1. Create the following Data Redaction policy for the

HR.EMPLOYEES

table.

This policy will replace the first 4 digits of the value from the

SALARY

column with

the number

and the first digit of the value from the

COMMISSION_PCT

column with a

BEGIN

DBMS_REDACT.ADD_POLICY(

object_schema => 'HR',

object_name => 'EMPLOYEES',

column_name => 'SALARY',

column_description => 'emp_sal_comm shows employee salary and commission',

policy_name => 'redact_emp_sal_comm',

policy_description => 'Partially redacts the emp_sal_comm column',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '9,1,4',

expression => '1=1');

END;

Chapter 13

Tutorial: SQL Expressions to Build Reports with Redacted Values

13-59

BEGIN

DBMS_REDACT.ALTER_POLICY(

object_schema => 'HR',

object_name => 'EMPLOYEES',

policy_name => 'redact_emp_sal_comm',

action => DBMS_REDACT.ADD_COLUMN,

column_name => 'COMMISSION_PCT',

function_type => DBMS_REDACT.PARTIAL,

function_parameters => '9,1,1',

expression => '1=1');

END;

2. Log in to the

schema and then run the following report.

This report will use the SQL expression

(SALARY + COMMISSION_PCT)

to combine the

employees' salaries and commissions.

SELECT (SALARY + COMMISSION_PCT) total_emp_compensation

FROM HR.EMPLOYEES

WHERE DEPARTMENT_ID = 80;

TOTAL_EMP_COMPENSATION

----------------------

9999.9

9999.95

99990.95

...

3. Use SQL expressions for the report, including concatenation.

For example:

SELECT 'Employee ID ' || EMPLOYEE_ID ||

' has a salary of ' || SALARY ||

' and a commission of ' || COMMISSION_PCT || '.' detailed_emp_compensation

FROM HR.EMPLOYEES

WHERE DEPARTMENT_ID = 80

ORDER BY EMPLOYEE_ID;

DETAILED_EMP_COMPENSATION

-------------------------------------------------------------

Employee ID 150 has a salary of 99990 and a commission of .9.

Employee ID 151 has a salary of 9999 and a commission of .95.

Employee ID 152 has a salary of 9999 and a commission of .95.

...

4. Connect the user who created the

redact_emp_sal_comm

Data Redaction policy and

then run the following statement to drop the policy.

BEGIN

DBMS_REDACT.DROP_POLICY (

object_schema => 'HR',

object_name => 'EMPLOYEES',

policy_name => 'redact_emp_sal_comm');

END;

Chapter 13

Tutorial: SQL Expressions to Build Reports with Redacted Values

13-60

Oracle Data Redaction Policy Data Dictionary Views

Oracle Database provides data dictionary views that list information about Data

Redaction policies.

Before you can query these views, you must be granted the

SELECT_CATALOG_ROLE

role.

Table 13-12 lists the Data Redaction data dictionary views.

Table 13-12 Data Redaction Views

View Description

REDACTION_COLUMNS

Describes all of the redacted columns in the database,

providing the the owner of the table or view within which

the column resides, the object name, the column name,

the type of redaction function, the parameters to the

redaction function (if any), and a description of the

redaction policy. If a policy expression has been created,

displays the default object-wide policy expression’s SQL

expression.

REDACTION_EXPRESSIONS

Displays the names of existing policy expressions and

their SQL expressions

REDACTION_POLICIES

Describes all of the data redaction policies in the

database. It includes information about the object owner,

object name, policy name, policy expression, whether the

policy is enabled, and a description of the Data Redaction

policy.

REDACTION_VALUES_FOR_TYPE_FULL

Shows the current redaction values for Data Redaction

policies that use full redaction

Chapter 13

Oracle Data Redaction Policy Data Dictionary Views

13-61

Managing Oracle Data Redaction Policies

in Oracle Enterprise Manager

Oracle Enterprise Manager Cloud Control (Cloud Control) can manage Oracle Data

Redaction policies and formats.

•About Using Oracle Data Redaction in Oracle Enterprise Manager

Oracle Enterprise Manager Cloud Control provides an unified user interface for

creating and managing Oracle Data Redaction policies.

•Oracle Data Redaction Workflow

First, you should create sensitive column types and formats if necessary, and then

create the Oracle Data Redaction policy afterward.

•Management of Sensitive Column Types in Enterprise Manager

A sensitive column type categorizes table column sensitive information into a

sensitive information type, such as credit card numbers.

•Managing Oracle Data Redaction Formats Using Enterprise Manager

Oracle Data Redaction provides redaction formats to be used directly within a

redaction policy to redact data.

•Managing Oracle Data Redaction Policies Using Enterprise Manager

You can create, edit, view, and delete Oracle Data Redaction policies in Enterprise

Manager Cloud Control.

•Managing Named Data Redaction Policy Expressions Using Enterprise Manager

You can manage Oracle Data Redaction policy expressions in Enterprise Manager

Cloud Control.

About Using Oracle Data Redaction in Oracle Enterprise

Manager

Oracle Enterprise Manager Cloud Control provides an unified user interface for

creating and managing Oracle Data Redaction policies.

You can do the following:

•Create and manage custom Oracle Data Redaction formats, which were

previously known as Data Redaction shortcuts. (This functionality is not available

from the command line.)

•Create and manage sensitive column types directly from the Oracle Data

Redaction pages. While you create a Data Redaction policy, Cloud Control uses

sensitive column types to obtain the Oracle Data Redaction formats that are

relevant to the column that you are redacting.

14-1

Note:

Ensure that you have the latest plug-in for Oracle Enterprise Manager. For

information about how to deploy a plug-in, see Enterprise Manager Cloud

Control Administrator's Guide. If you have the Oracle Database plug-in

release 13.1.1.0.0, then you can create named Data Redaction policy

expressions in Oracle Enterprise Manager.

Oracle Data Redaction Workflow

First, you should create sensitive column types and formats if necessary, and then

create the Oracle Data Redaction policy afterward.

The following figure illustrates this process:

Create Sensitive

Column Types

(Optional)

Step 1 Step 2

Create Oracle

Data Redaction

Formats

(Optional)

Step 3

Create an Oracle

Data Redaction

Policy

1. (Optional) If you want to map the database columns (that contain the data that you

want to redact) to new sensitive column types, then create the required sensitive

column types as described in Management of Sensitive Column Types in

Enterprise Manager.

2. (Optional) If you want to redact the data (present in a particular database column)

using a custom redaction format, then create the required redaction format as

described in Creating a Custom Oracle Data Redaction Format Using Enterprise

Manager.

3. Create an Oracle Data Redaction policy for the required database, as described in

Creating an Oracle Data Redaction Policy Using Enterprise Manager.

Note:

When you create an Oracle Data Redaction policy, it is enabled by default.

For information on how to disable an enabled redaction policy, see Enabling

or Disabling an Oracle Data Redaction Policy in Enterprise Manager.

Management of Sensitive Column Types in Enterprise

Manager

A sensitive column type categorizes table column sensitive information into a sensitive

information type, such as credit card numbers.

Chapter 14

Oracle Data Redaction Workflow

14-2

Sensitive column types use a combination of the column name, column comments,

and the data pattern defined using a regular expression to tag a column to a particular

sensitive information type.

While you create Oracle Data Redaction policies, redaction formats are filtered on the

basis of the chosen sensitive column type, thus saving time and effort. For example, if

the database table column that you want to redact contains U.S. Social Security

numbers, and you select the

SOCIAL_SECURITY_NUMBER

sensitive column type for the

column while adding it to the Oracle Data Redaction policy, the default redaction

formats that you can use to redact the column data are filtered, and only the relevant

redaction formats are displayed.

Figure 14-1 illustrates the filtering of Oracle Data Redaction formats based on

sensitive column types.

Figure 14-1 Oracle Data Redaction Formats Filtered on the Basis of Sensitive

Column Types

Note:

This functionality is available only if you have the Enterprise Manager for

Oracle Database plug-in 12.1.0.7 or later deployed in your system.

For information on how to verify the plug-ins deployed in your environment,

see Enterprise Manager Cloud Control Administrator's Guide..

As part of the Application Data Modeling feature, Oracle provides a number of default

sensitive column types that a database column can be mapped to.

Chapter 14

Management of Sensitive Column Types in Enterprise Manager

14-3

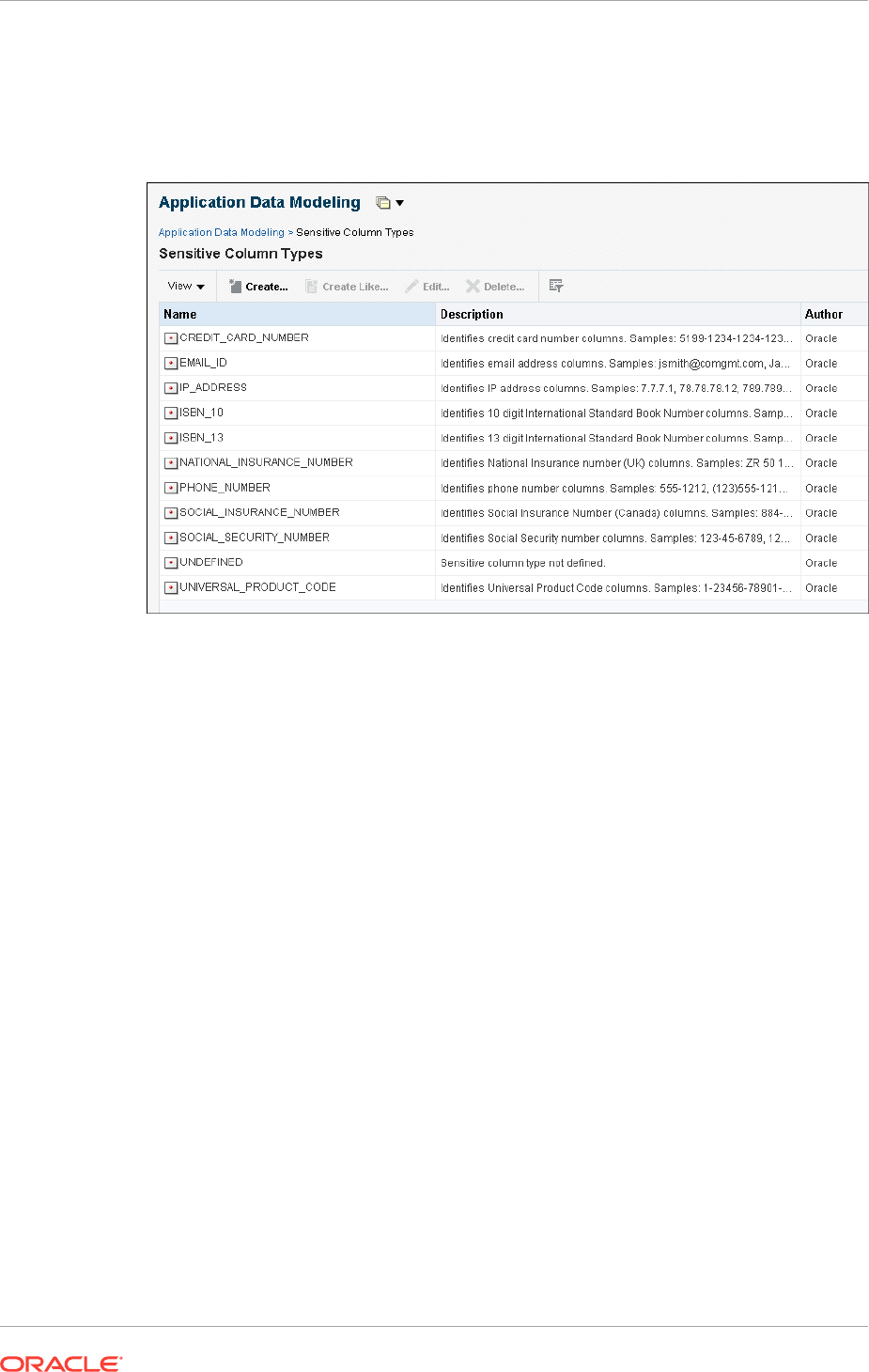

Figure 14-2 displays some of the default sensitive column types. To access this page,

click Manage Sensitive Column Types on the Data Redaction Formats page.

Figure 14-2 Default Sensitive Column Types

If none of the default sensitive column types are suitable for the database column that

contains the data that you want to redact, you can create a new sensitive column type,

or create a sensitive column type that is based on an existing sensitive column type,

as described in Oracle Database Testing Guide..

Managing Oracle Data Redaction Formats Using Enterprise

Manager

Oracle Data Redaction provides redaction formats to be used directly within a

redaction policy to redact data.

•About Managing Oracle Data Redaction Formats Using Enterprise Manager

The Oracle Data Redaction formats are used for commonly redacted data, such as

ID numbers, credit cards, or phone numbers.

•Creating a Custom Oracle Data Redaction Format Using Enterprise Manager

You can create and save custom Oracle Data Redaction formats using Enterprise

Manager Cloud Control.

•Editing a Custom Oracle Data Redaction Format Using Enterprise Manager

You can edit custom Oracle Data Redaction formats using Enterprise Manager

Cloud Control, but not in SQL*Plus.

•Viewing Oracle Data Redaction Formats Using Enterprise Manager

Enterprise Manager Cloud Control displays the details of the Oracle-supplied and

custom Oracle Data Redaction formats.

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-4

•Deleting a Custom Oracle Data Redaction Format Using Enterprise Manager

You can delete custom Oracle Data Redaction formats using Enterprise Manager

Cloud Control.

About Managing Oracle Data Redaction Formats Using Enterprise

Manager

The Oracle Data Redaction formats are used for commonly redacted data, such as ID

numbers, credit cards, or phone numbers.

You can use several default Oracle Data Redaction formats (previously known as

Oracle Data Redaction templates). As an example of the Oracle Data Redaction

formats, a set of Social Security number formats enable you to quickly designate ways

to redact Social Security numbers, such as redacting the first five numbers of the

Social Security number.

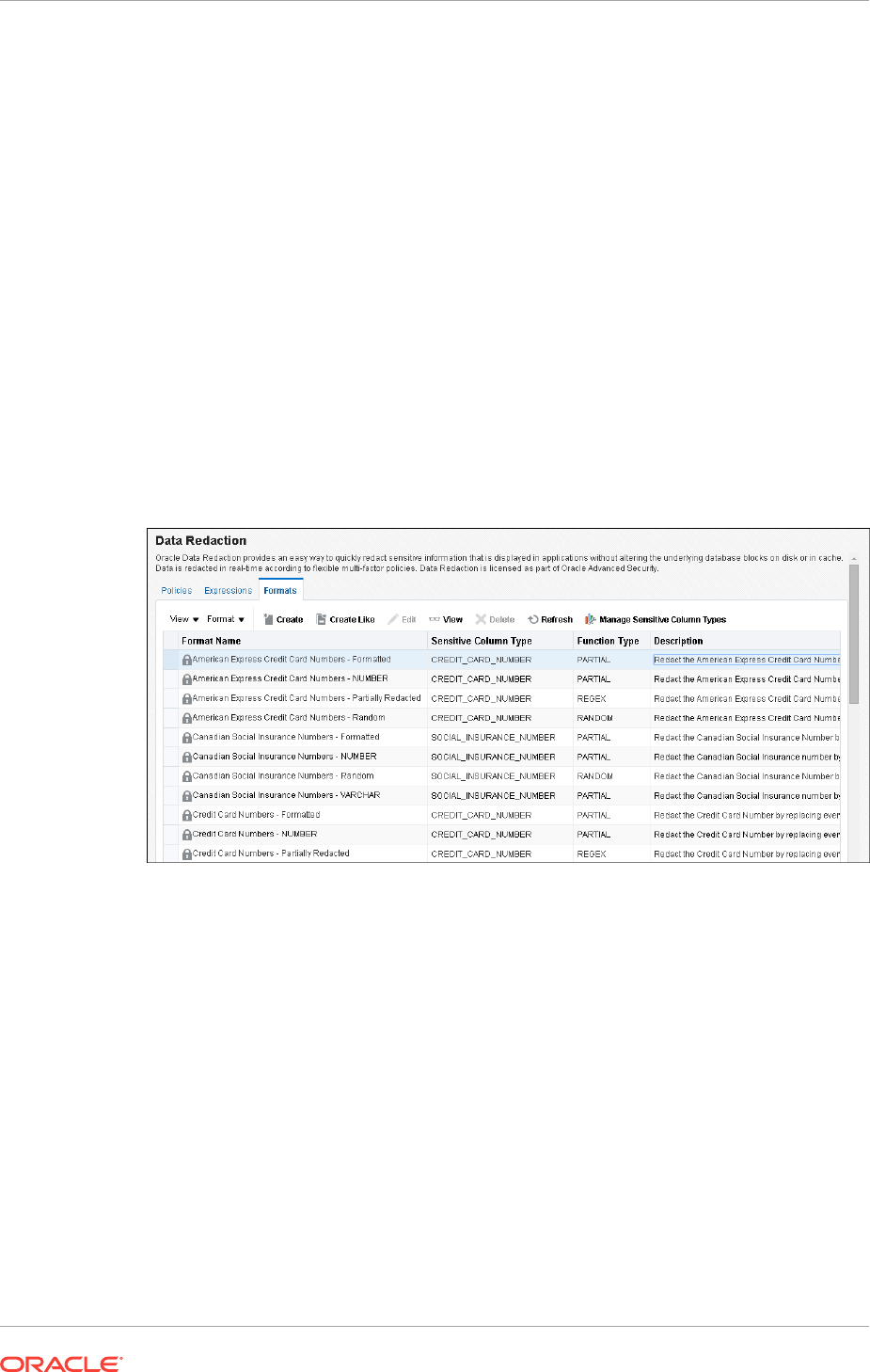

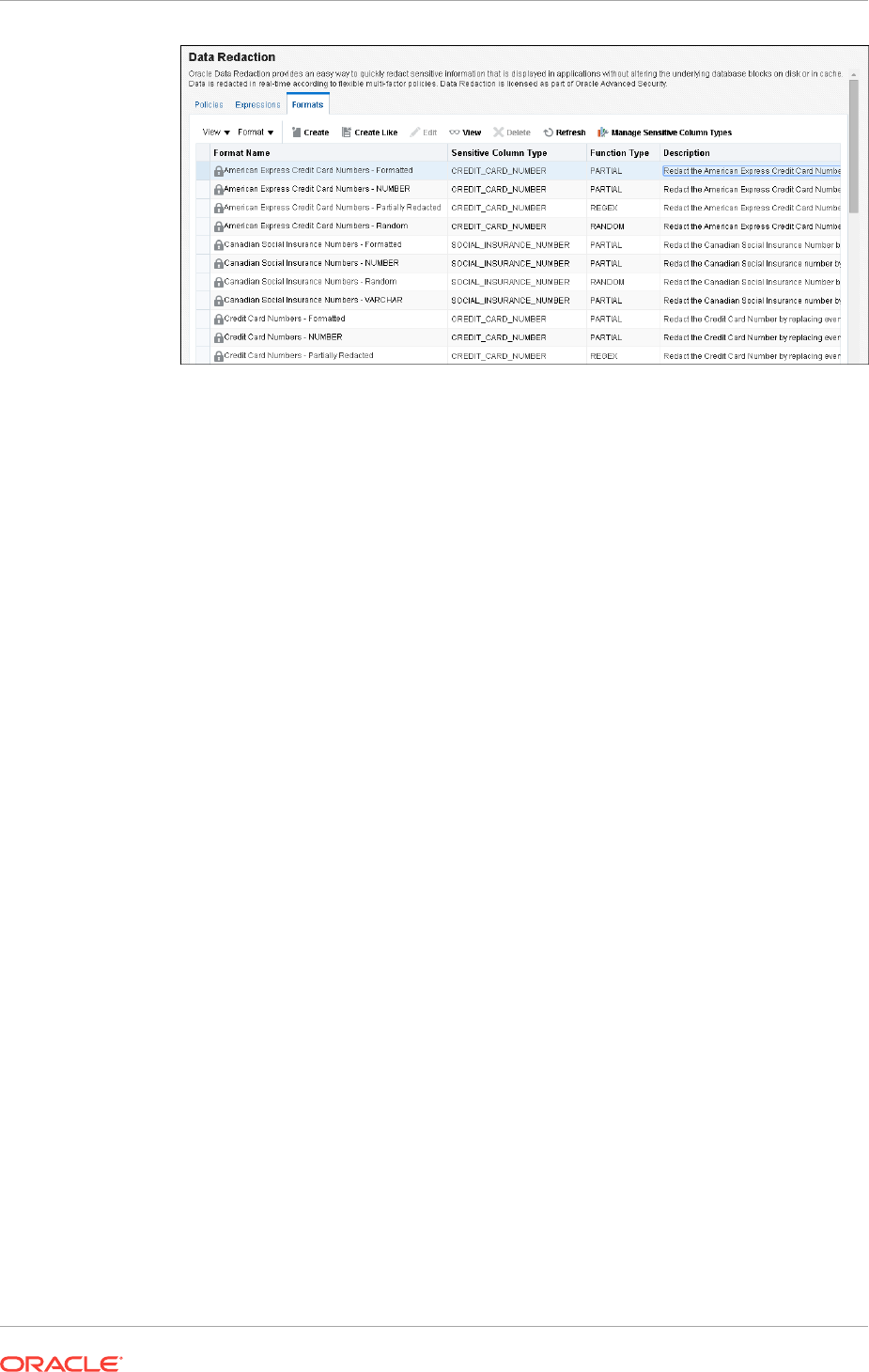

Figure 14-3 displays the default Oracle Data Redaction formats.

Figure 14-3 Default Oracle Data Redaction Formats

Each default Oracle Data Redaction format consists of a specific redaction function

that determines the redacted output when the redaction format is used in an Oracle

Data Redaction policy. For example, the

Credit Card Numbers - NUMBER

default

redaction format replaces the first twelve digits of the column data with the digit 0,

when it is used in an Oracle Data Redaction policy. That is, if the column data is

5555555555554444

, the redacted output will be

0000000000004444

If you have deployed the Enterprise Manager for Oracle Database plug-in 12.1.0.7 or

higher on your system, then you can also create and save custom redaction formats,

which you can then use in your redaction policies.

Creating a Custom Oracle Data Redaction Format Using Enterprise

Manager

You can create and save custom Oracle Data Redaction formats using Enterprise

Manager Cloud Control.

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-5

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. Select the Formats tab.

7. Do one of the following:

•To create a new redaction format, click Create.

•To create a redaction format that is based on a default format, select the

format and then click Create Like.

If you select Create, then the following dialog box appears:

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-6

8. Provide a name and a description for the redaction format that you want to create.

If you want to map the redaction format to a particular sensitive column type (such

that the created redaction format can be used to redact the data of a column that

is associated with the sensitive column type), then select a value for Sensitive

Column Type.

Select the function that the format should use to redact the column data. For

Redaction Function, select as follows:

•FULL if the format should redact the entire column data.

•PARTIAL if the format should redact only a part of the column data. Ensure

that you provide the function attributes, as well as the data type that you want

to use the redaction format for.

•REGEX if the format should redact data based on a regular expression.

Ensure that you provide the function attributes.

•RANDOM if the format should redact data in a random manner, using

randomly generated values

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-7

•NONE if the format will be used to only test the definition of a redaction policy,

and not redact any column data

9. Click OK to create and save the custom redaction format.

This format now can be used to create a redaction policy.

Related Topics

•Oracle Data Redaction Features and Capabilities

Oracle Data Redaction provides a variety of ways to redact different types of data.

•Creating an Oracle Data Redaction Policy Using Enterprise Manager

You can create an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

Editing a Custom Oracle Data Redaction Format Using Enterprise

Manager

You can edit custom Oracle Data Redaction formats using Enterprise Manager Cloud

Control, but not in SQL*Plus.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. Select the Formats tab.

7. Select the custom redaction format that you want to edit, then click Edit.

A dialog box similar to the following appears:

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-8

8. (Optional) Choose to edit the format description, sensitive column type, redaction

function, and the redaction function attributes.

9. Click OK to save the edited format.

Viewing Oracle Data Redaction Formats Using Enterprise Manager

Enterprise Manager Cloud Control displays the details of the Oracle-supplied and

custom Oracle Data Redaction formats.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. Select the Formats tab.

The Data Redaction Formats page appears, similar to the following page.

Chapter 14

Managing Oracle Data Redaction Formats Using Enterprise Manager

14-9

7. Select the required redaction format, then click View.

Deleting a Custom Oracle Data Redaction Format Using Enterprise

Manager

You can delete custom Oracle Data Redaction formats using Enterprise Manager

Cloud Control.

You can only delete custom Oracle Data Redaction formats, and not the redaction

formats that are provided by Oracle.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. Select the Formats tab.

7. Select the custom redaction format that you want to delete, and then click Delete.

8. In the Confirmation dialog box, click Yes or No.

Managing Oracle Data Redaction Policies Using Enterprise

Manager

You can create, edit, view, and delete Oracle Data Redaction policies in Enterprise

Manager Cloud Control.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-10

•About Managing Oracle Data Redaction Policies Using Enterprise Manager

Use the Data Redaction page in Cloud Control to manage Oracle Data Redaction

policies.

•Creating an Oracle Data Redaction Policy Using Enterprise Manager

You can create an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

•Editing an Oracle Data Redaction Policy Using Enterprise Manager

You can edit an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

•Viewing Oracle Data Redaction Policy Details Using Enterprise Manager

You can find Oracle Data Redaction policy details such as whether the policy is

enabled by using Enterprise Manager Cloud Control.

•Enabling or Disabling an Oracle Data Redaction Policy in Enterprise Manager

An Oracle Data Redaction policy is executed at run time only if it is enabled. When

you create an Oracle Data Redaction policy, it is enabled by default.

•Deleting an Oracle Data Redaction Policy Using Enterprise Manager

You can delete an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

About Managing Oracle Data Redaction Policies Using Enterprise

Manager

Use the Data Redaction page in Cloud Control to manage Oracle Data Redaction

policies.

To redact the data present in a particular database table or view column, you must

create an Oracle Data Redaction policy. Data is redacted using a redaction format that

is specified by the Oracle Data Redaction policy. To redact data, you can use any of

the Oracle-supplied redaction formats, or create and use a custom redaction format. If

the table or view column that contains the data that you want to redact is mapped to a

sensitive column type, Oracle uses the mapping to recommend suitable redaction

formats for the data. Thus, Oracle Data Redaction policies encapsulate database

schemas, database table and view columns, sensitive column types, and Oracle Data

Redaction formats.

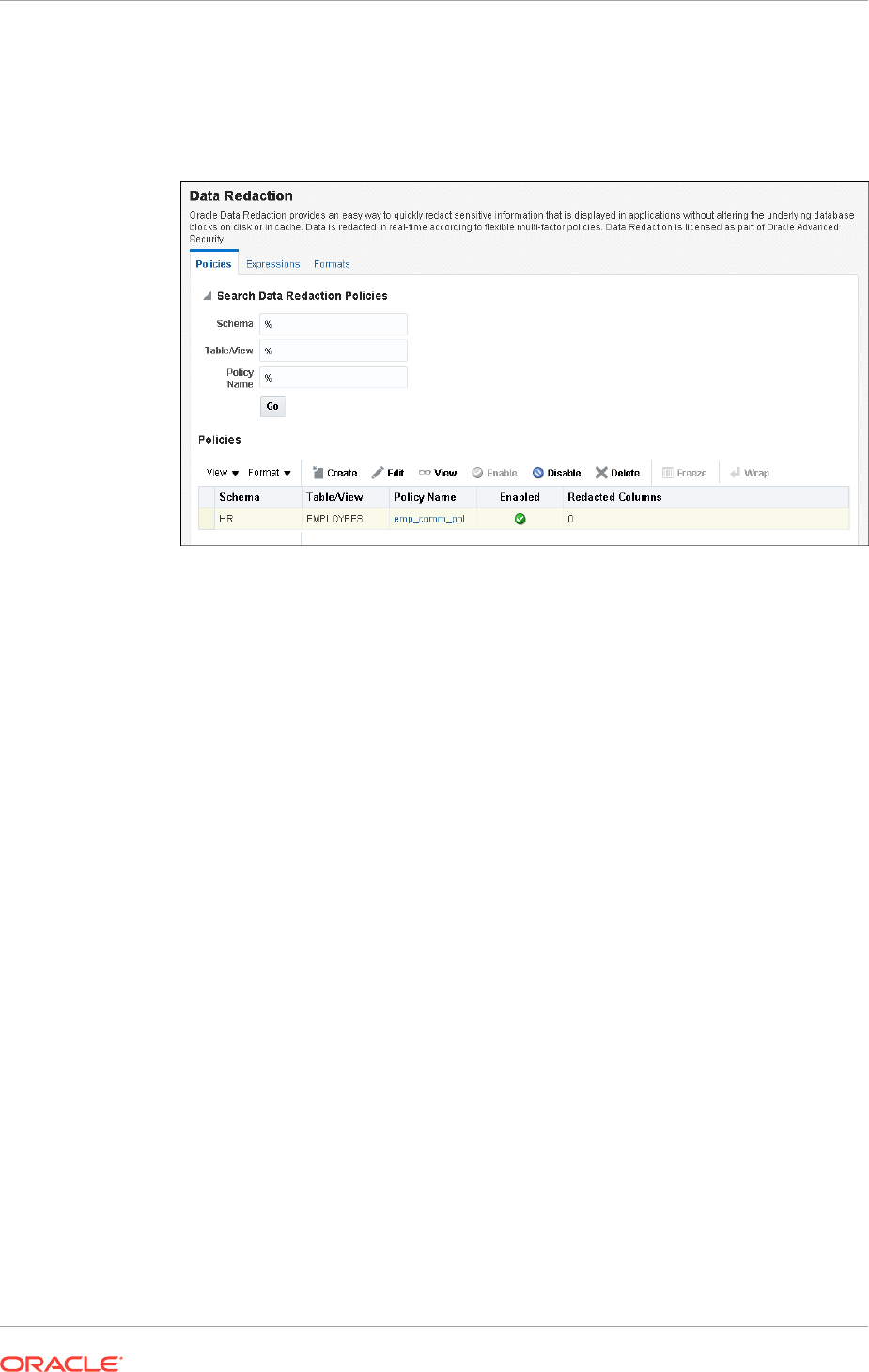

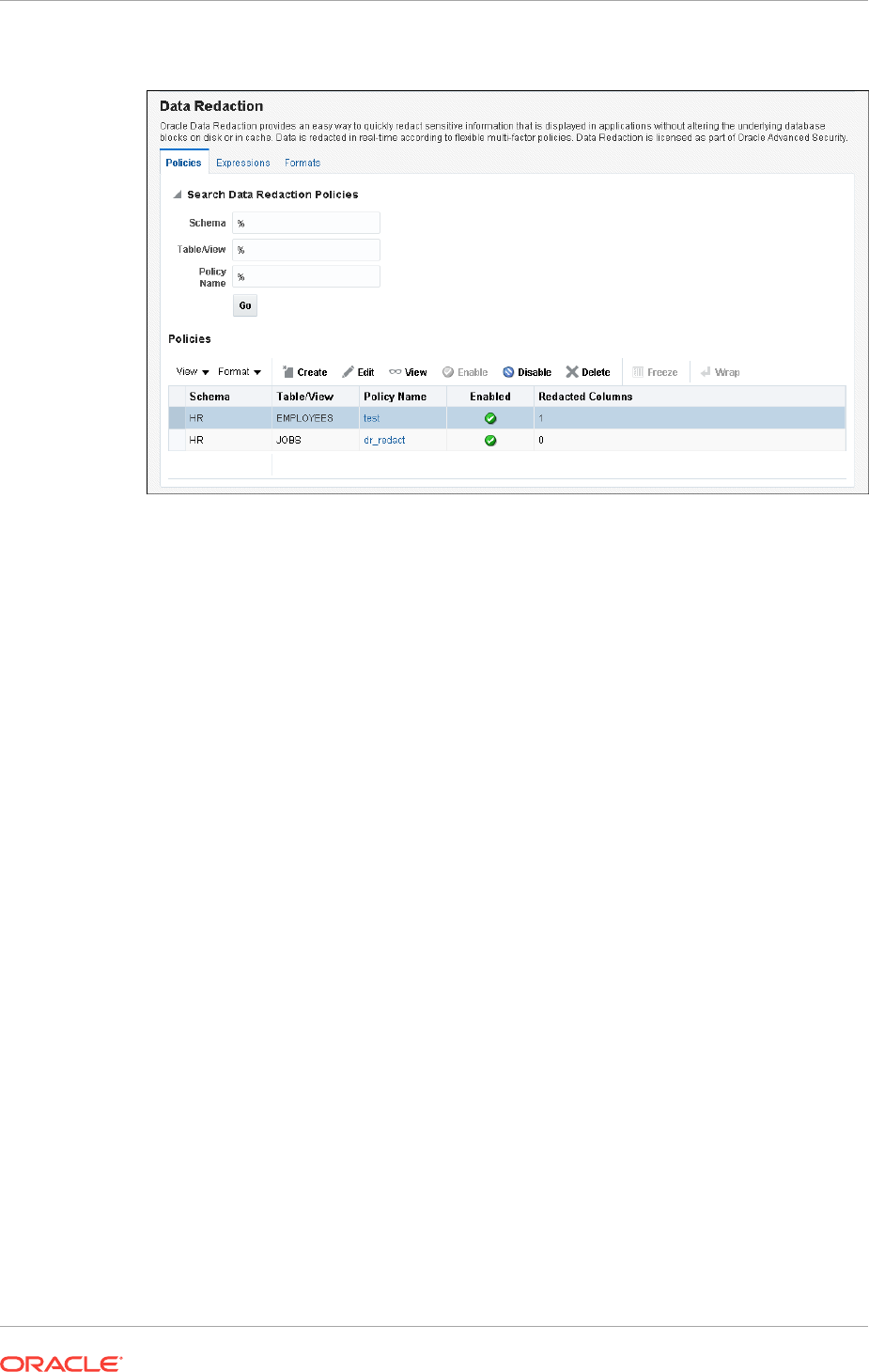

Figure 14-4 shows the Data Redaction page, which enables you to create and manage

Oracle Data Redaction policies in Cloud Control.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-11

Figure 14-4 Oracle Data Redaction Policies Page

Creating an Oracle Data Redaction Policy Using Enterprise Manager

You can create an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. In the Policies section of the Policies tab, select Create.

If this is the first time that you are creating a Data Redaction policy, then the Data

Redaction: Set up for enabling column sensitive type discovery dialog box

appears. This feature enables the use of column sensitive type discovery for Data

Redaction policies.

To accomplish this, Enterprise Manager creates the

GET_COL_DATA_SENSITIVE_TYPES

procedure in the

DBSNMP

schema. To perform a sensitive type discovery for a

selected column while creating an Oracle Data Redaction policy, a user must have

the

EXECUTE

privilege on the

DBSNMP.GET_COL_DATA_SENSITIVE_TYPES

procedure. If the

database is protected by Oracle Database Vault, then ensure that any users who

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-12

must create Data Redaction policies are participants to realms that protect the

DBSNMP

schema.

7. If the Data Redaction: Set up for enabling column sensitive type discovery dialog

box appears and if the current login user does not have the correct requirements,

select a credential of a user who has the

EXECUTE

privilege on

DBSNMP.GET_COL_DATA_SENSITIVE_TYPES

. Then click

8. On the Create Data Redaction Policy page, enter the following information:

•Schema: Enter (or search for) the name of the schema that contains the data

you want to redact.

•Table/View: Enter (or search for) the table or field that contains the column

you want to redact.

•Policy Name: Enter a for the policy, such as emp_wages_pol.

•Default Expression: Enter the default expression. The default setting is 1=1,

which means that the policy always will be enforced. If you are not familiar with

the components of a policy expression, then click the pencil icon beside the

Policy Expression field to use Policy Expression Builder. Select Policy is in

effect when, select the required conditions, then click Add. Click Edit if you

want to edit the policy expression manually. After building the required policy

expression, click OK. The Policy Expression Builder appears as follows:

9. In the Object Columns section, click Add to add a table or view column to the

redaction policy.

A dialog box similar to the following appears:

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-13

The redaction policy is applied only on the table or view columns that are added to

it.

10. From the Column menu, select the table or view column to which you want to

apply the redaction policy.

To the right of the Column menu is an icon that you can click to view the contents

of the selected column.

If the column contains sensitive data and has been mapped to a sensitive column

type, then from the Sensitive Column Type menu, select the sensitive column

type that it has been mapped to. If the search pattern in the Sensitive Column

Type menu matches, then the sensitive column type is selected by default. For

example, for a column listing credit card numbers, if there is a match, then the

menu will list Undefined and CREDIT_CARD_TYPE. If there is no sensitive

column type created, then the default Sensitive Column Type menu listing is only

Undefined.

11. From the Redaction Format menu, select the redaction format that you want to

use.

The drop-down list is populated with the Oracle Database-supplied redaction

formats, as well as the custom redaction formats that you have created and saved.

If you do not want to use a pre-defined redaction format (that is, an Oracle-

Database supplied redaction format, or a custom redaction format that you have

created), and instead want to specify the redaction details while creating the

redaction policy, select CUSTOM for Redaction Format.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-14

The Add dialog box adjusts to accommodate the type of redaction format and

function that you select. For example, if you select the CUSTOM redaction format

and the REGEX redaction function, then the Function Attributes region appears in

the dialog box.

12. From the Redaction Function menu, select the function that you want to use to

redact the column data.

Select FULL if you want to redact the entire column data, PARTIAL if you want to

redact only a part of the column data, REGEX if you want to redact the column

data based on a regular expression, RANDOM if you want to redact the column

data in a random manner, using randomly generated values, or NONE if you only

want to test the definition of the redaction policy, and not redact any column data.

Note that all the redaction functions may not be applicable for a particular

redaction format. The drop-down list displays only the redaction functions that are

applicable for the selected redaction format.

If you selected CUSTOM for Redaction Format in the previous step, and

PARTIAL or REGEX for Redaction Function, ensure that you specify the

function attributes.

13. Click OK.

14. Repeat these steps starting with Step 8 for all the columns that you want to add to

the redaction policy.

15. On the Create Data Redaction Policy page, click OK to create the data redaction

policy.

When you create an Oracle Data Redaction policy, it is enabled by default.

Related Topics

•Creating a Custom Oracle Data Redaction Format Using Enterprise Manager

You can create and save custom Oracle Data Redaction formats using Enterprise

Manager Cloud Control.

•Oracle Data Redaction Features and Capabilities

Oracle Data Redaction provides a variety of ways to redact different types of data.

•Enabling or Disabling an Oracle Data Redaction Policy in Enterprise Manager

An Oracle Data Redaction policy is executed at run time only if it is enabled. When

you create an Oracle Data Redaction policy, it is enabled by default.

Editing an Oracle Data Redaction Policy Using Enterprise Manager

You can edit an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to edit was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-15

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to edit, then click Edit..

7. On the Edit Data Redaction Policy page, choose to edit the policy expression, add

new columns to the redaction policy, modify the redaction details of a column that

is a part of the policy, or delete a column from the redaction policy.

You can do the following:

•To add a new column to the redaction policy, in the Object Columns section,

click Add, select the table or view column that you want to add, then specify

the redaction details.

•To modify the redaction details of a column that is a part of the policy, select

the column, click Modify, then edit the redaction details.

•To delete a column from the redaction policy, select the column, then click

Delete.

8. On the Edit Data Redaction Policy page, after editing the required fields, click OK

to save and enable the edited redaction policy.

Viewing Oracle Data Redaction Policy Details Using Enterprise

Manager

You can find Oracle Data Redaction policy details such as whether the policy is

enabled by using Enterprise Manager Cloud Control.

You can disable an enabled redaction policy, or enable a disabled redaction policy

using Enterprise Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-16

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to view was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. In the Policies section of the Policies tab, do one of the following:

•Select the name of the policy in the table.

•Select the required redaction policy, then click View.

7. To exit, click OK.

Enabling or Disabling an Oracle Data Redaction Policy in Enterprise

Manager

An Oracle Data Redaction policy is executed at run time only if it is enabled. When you

create an Oracle Data Redaction policy, it is enabled by default.

You can disable an enabled redaction policy, or enable a disabled redaction policy

using Enterprise Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to enable or disable was

created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to enable or disable, and then click Enable or Disable.

7. In the Confirmation dialog box, click Yes or No.

Chapter 14

Managing Oracle Data Redaction Policies Using Enterprise Manager

14-17

Deleting an Oracle Data Redaction Policy Using Enterprise Manager

You can delete an Oracle Data Redaction policy using Enterprise Manager Cloud

Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then search for and click the name of the database target for

which the Oracle Data Redaction policy that you want to delete was created.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. In the Policies section of the Policies tab, select the redaction policy that you want

to delete, and then click Delete.

7. In the Confirmation dialog box, click Yes or No.

Managing Named Data Redaction Policy Expressions Using

Enterprise Manager

You can manage Oracle Data Redaction policy expressions in Enterprise Manager

Cloud Control.

•About Named Data Redaction Policy Expressions in Enterprise Manager

You can create and apply named Oracle Data Redaction policy expression to

multiple columns in tables and views in Oracle Enterprise Manager Cloud Control.

•Creating a Named Data Redaction Policy Expression in Enterprise Manager

You can create and apply a named Oracle Data Redaction policy expression using

Enterprise Manager Cloud Control.

•Editing a Named Data Redaction Policy Expression in Enterprise Manager

You can edit a named Oracle Data Redaction policy expression using Enterprise

Manager Cloud Control.

•Viewing Named Data Redaction Policy Expressions in Enterprise Manager

You can view named Oracle Data Redaction policy expressions using Enterprise

Manager Cloud Control.

•Deleting a Named Data Redaction Policy Expression in Enterprise Manager

You can delete named Oracle Data Redaction policy expressions using Enterprise

Manager Cloud Control.

Chapter 14

Managing Named Data Redaction Policy Expressions Using Enterprise Manager

14-18

About Named Data Redaction Policy Expressions in Enterprise

Manager

You can create and apply named Oracle Data Redaction policy expression to multiple

columns in tables and views in Oracle Enterprise Manager Cloud Control.

When you modify the policy expression, the change is reflected in all redacted

columns in the database instance that use the policy expression. Cloud Control

enables you to create, edit, view, apply to columns, and delete policy expressions.

Before you can create and use named Data Redaction policy expressions, ensure that

the

COMPATIBLE

initialization parameter is set to

12.2.0.0

Related Topics

•Creating and Managing Multiple Named Policy Expressions

A named, centrally managed Oracle Data Redaction policy expression can be

used in multiple redaction policies and applied to multiple tables or views.

Creating a Named Data Redaction Policy Expression in Enterprise

Manager

You can create and apply a named Oracle Data Redaction policy expression using

Enterprise Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. On the Oracle Data Redaction page, select the Expressions tab.

7. Click Create.

The Create dialog box appears.

Chapter 14

Managing Named Data Redaction Policy Expressions Using Enterprise Manager

14-19

8. In the Create dialog box, enter the following information:

•Expression Name: Enter a name for the policy expression. Existing policy

expressions are listed on the Data Redaction page.

•Description: Enter a brief description of the policy.

•Expression: Enter the expression. For more complex expressions, such as

applying or exempting the policy from specific users, click the Policy

Expression Builder icon at the right of the Expression field. Click OK in the

Policy Expression Builder to create the expression.

9. Click OK in the Create dialog box.

After you create the policy expression, it is listed in the Data Redaction page and

ready to be associated with a Data Redaction policy.

10. In the Data Redaction page, select the Policies tab.

11. Under Policies, select the row for the policy that redacts the column to which you

want to apply the policy expression, and then click Edit.

12. Under Object Columns, select the column that you want and then click the Modify

button.

13. In the Modify dialog box, select the expression from the Expression Name list.

14. Click OK, and then click OK again in the Edit Data Redaction Policy dialog box.

Editing a Named Data Redaction Policy Expression in Enterprise

Manager

You can edit a named Oracle Data Redaction policy expression using Enterprise

Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

Chapter 14

Managing Named Data Redaction Policy Expressions Using Enterprise Manager

14-20

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. On the Oracle Data Redaction page, select the Expressions tab.

7. Select the policy expression that you want to edit and then click Edit.

8. In the Edit dialog box, modify the Description and Expression fields as

necessary. For more complex expressions, click the Policy Expression Builder

icon, and then click OK after you have recreated the expression.

9. Click OK in the Edit dialog box.

Viewing Named Data Redaction Policy Expressions in Enterprise

Manager

You can view named Oracle Data Redaction policy expressions using Enterprise

Manager Cloud Control.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. On the Oracle Data Redaction page, select the Expressions tab.

7. Select the policy expression that you want to view and then click View.

The View dialog box appears, showing the definition of the policy expression.

8. Click OK to exit the View dialog box.

Chapter 14

Managing Named Data Redaction Policy Expressions Using Enterprise Manager

14-21

Deleting a Named Data Redaction Policy Expression in Enterprise

Manager

You can delete named Oracle Data Redaction policy expressions using Enterprise

Manager Cloud Control.

The deletion process first dissociates the policy expression from all columns to which it

is applied.

1. Log into Oracle Enterprise Manager Cloud Control as either user

SYSTEM

SYSMAN

The URL is as follows:

https://host:port/em

2. From the Targets menu, select Databases.

3. Select Search List, then click the name of a database target for which you want to

create an Oracle Data Redaction policy.

4. On the home page of the database target, from the Security menu, select Data

Redaction.

5. Log in to the database, if you are prompted to do so.

Ensure that you log in to the database as a user that has the

EXECUTE

privilege on

the

DBMS_REDACT

PL/SQL package.

6. On the Oracle Data Redaction page, select the Expressions tab.

7. Select the policy expression that you want to delete, and then click Delete.

The Delete Expressions confirmation dialog box appears.

8. Click OK.

Chapter 14

Managing Named Data Redaction Policy Expressions Using Enterprise Manager

14-22

Using Oracle Data Redaction with Oracle

Database Features

Oracle Data Redaction can be used with other Oracle features, but some Oracle

features may have restrictions with regard to Oracle Data Redaction.

•Oracle Data Redaction General Usage Guidelines

It is important to understand usage guidelines for using Oracle Data Redaction.

•Oracle Data Redaction and DML and DDL Operations

Oracle Data Redaction affects DML and DDL operations, especially for users who

issue ad-hoc SQL against tables with redacted columns.

•Oracle Data Redaction and Nested Functions, Inline Views, and the WHERE

Clause

You can use Oracle Data Redaction with nested functions, inline views, and the

WHERE

clause in

SELECT

statements.

•Oracle Data Redaction and Queries on Columns Protected by Data Redaction

Policies

Queries that include the

DISTINCT

ORDER BY

clause on columns that are protected

by Oracle Data Redaction policies may return 0 rows.

•Oracle Data Redaction and Database Links

Do not create Oracle Data Redaction policies on database views that reference

database links.

•Oracle Data Redaction and Aggregate Functions

Aggregate functions can affect performance overhead on Oracle Data Redaction

policies.

•Oracle Data Redaction and Object Types

You can use object types to model real-world entities such as customer accounts.

•Oracle Data Redaction and XML Generation

You cannot use XML generation functions on columns that have Oracle Data

Redaction policies defined on them.

•Oracle Data Redaction and Editions

You cannot redact editioned views.

•Oracle Data Redaction in a Multitenant Environment

In a multitenant environment, Oracle Data Redaction policies apply only to the

objects within the current pluggable database (PDB).

•Oracle Data Redaction and Oracle Virtual Private Database

Oracle Data Redaction does not affect Oracle Virtual Private Database policies

because the VPD inline view, which contains the VPD predicate, acts on actual

values.

•Oracle Data Redaction and Oracle Database Real Application Security

Oracle Data Redaction differs from Oracle Database Real Application Security

because of how security is implemented for applications.

15-1

•Oracle Data Redaction and Oracle Database Vault

You can use Oracle Data Redaction in an Oracle Database Vault environment.

•Oracle Data Redaction and Oracle Data Pump

Oracle Data Pump export operations can affect objects that have Oracle Data

Redaction policies.

•Oracle Data Redaction and Data Masking and Subsetting Pack

Oracle Enterprise Manager Data Masking and Subsetting Pack can be used to

create a development or test copy of a production database.

•Oracle Data Redaction and JSON

JavaScript Object Notation (JSON) can be used to create

is json

constraints on

table columns.

Oracle Data Redaction General Usage Guidelines

It is important to understand usage guidelines for using Oracle Data Redaction.

•Do not include any redacted columns in a SQL expression that is used in a

GROUP

clause in a SQL statement. Oracle does not support this, and raises an

ORA-00979: not a GROUP BY expression

error. This happens because internally the

expression in the

SELECT

list must be modified by Data Redaction, but this causes it

to no longer be found when it comes time to process the

GROUP BY

clause (which is

currently not updated by Data Redaction) leading to this unintended error

message.

•Do not include any redacted columns in a SQL expression that is used in both the

DISTINCT

clause and

ORDER BY

clause in a SQL statement. Oracle does not support

this, and raises an error:

ORA-01791: not a SELECTed expression

. This happens

because internally the expression in the

SELECT

list must be modified by Data

Redaction, but this causes it to no longer be found when it comes time to process

the

GROUP BY

clause, leading to this unintended error message.

•An

ORA-28094: SQL construct not supported by data redaction

error is raised if a

query involves a

UNION

of redacted columns and each branch of the

UNION

does not

have the same redaction policy. To avoid the

ORA-28094

error, ensure that the

query has the following properties:

–When a column in the

UNION

has a redaction policy, the corresponding column

in each branch of the

UNION

must use a redaction policy with the same values

for all of its properties:

*Function type

*Function parameters or

REGEXP

parameters

*Policy expression

*Enable flag

It can be a different redaction policy, but all these properties must be the

same.

–In an inline view, a

UNION

cannot have a subquery or any SQL expression that

involves a redacted column.

Chapter 15

Oracle Data Redaction General Usage Guidelines

15-2

Oracle Data Redaction and DML and DDL Operations

Oracle Data Redaction affects DML and DDL operations, especially for users who

issue ad-hoc SQL against tables with redacted columns.

Note the following:

•Oracle Data Redaction treats the

RETURNING INTO

clause of a DML statement as a

query, even though the result is not displayed. The result that is sent to the buffer

is what would have been displayed had the

RETURNING INTO

clause been run as an

ordinary SQL query, rather than as part of a DML statement. If your application

performs further processing on the buffer that contains the

RETURNING INTO

value,

then consider changing the application because it may not expect to find a

redacted value in the buffer.

•If a redacted column appears as the source in a DML or DDL operation, then

Oracle Data Redaction considers this as an attempt to circumvent the policy and

prevents it with an

ORA-28081: Insufficient privileges - the command references

a redacted object

error unless you have the

EXEMPT REDACTION POLICY

system

privilege. Internally, Oracle Data Pump issues these kinds of operations, so you

may also need to grant the

EXEMPT REDACTION POLICY

system privilege to a user if

they need to perform schema-level exports of tables that have redacted columns.

Oracle Data Redaction and Nested Functions, Inline Views,

and the WHERE Clause

You can use Oracle Data Redaction with nested functions, inline views, and the

WHERE

clause in

SELECT

statements.

Oracle Data Redaction policies work as follows:

•Nested functions are redacted innermost. For example, in

SELECT

SUM(AVG(TO_NUMBER(((X))) FROM HR.EMPLOYEES WHERE ...

, the

TO_NUMBER

function is

redacted first, followed by

AVG

, and then last the

SUM

function.

•Inline views are redacted outermost. For example, in

SELECT XYZ … AS SELECT A…

AS SELECT B… AS SELECT C…

SELECT XYZ

is redacted first, followed by

AS SELECT A

then

AS SELECT B

, and so on.

AS SELECT C

is redacted last.

•The WHERE clause is never redacted. Data Redaction redacts only data in the

column

SELECT

list.

Oracle Data Redaction and Queries on Columns Protected

by Data Redaction Policies

Queries that include the

DISTINCT

ORDER BY

clause on columns that are protected by

Oracle Data Redaction policies may return 0 rows.

This happens because redaction preserves the semantics of the query. For example, a

query such as

SELECT * table_name WHERE sensitive_column LIKE 'value';

would likely

result in 0 rows returned, because the redacted value would not match the

'value'

value entered in the

WHERE

clause. To work around this issue, rewrite the query to

Chapter 15

Oracle Data Redaction and DML and DDL Operations

15-3

include an inline view so that the semantic layer can find the column. For example,

instead of the following query:

SELECT DISTINCT sensitive_column

FROM table_name

ORDER BY sensitive_column;

Write the query as follows:

SELECT sensitive_column FROM

(SELECT DISTINCT sensitive_column

FROM table_name

ORDER BY sensitive_column);

Oracle Data Redaction and Database Links

Do not create Oracle Data Redaction policies on database views that reference

database links.

You can find information about existing database links by querying the

DBA_DB_LINKS

data dictionary view.

See Also:

Oracle Database Administrator’s Guide for detailed information about

database links

Oracle Data Redaction and Aggregate Functions

Aggregate functions can affect performance overhead on Oracle Data Redaction

policies.

Because Oracle Data Redaction dynamically modifies the value of each row in a

column, certain SQL queries that use aggregate functions cannot take full advantage

of database optimizations that presume the row values to be static.

In the case of SQL queries that call aggregate functions, it may be possible to notice

performance overhead due to redaction.

Oracle Data Redaction and Object Types

You can use object types to model real-world entities such as customer accounts.

An object type is a user-defined type. You cannot redact object types. This is because

Database Redaction cannot handle all of the possible ways that object types can be

configured, because they are user defined. You can find the type that an object uses

by querying the

OBJECT_NAME

and

OBJECT_TYPE

columns of the

ALL_OBJECTS

data

dictionary view.

Chapter 15

Oracle Data Redaction and Database Links

15-4

Oracle Data Redaction and XML Generation

You cannot use XML generation functions on columns that have Oracle Data

Redaction policies defined on them.

Oracle XML DB Developer’s Guide describes the kinds of SQL functions to which this

restriction applies. This restriction applies irrespective of whether the Oracle Data

Redaction policy has been enabled or disabled, or is active for the querying user.

Oracle Data Redaction and Editions

You cannot redact editioned views.

In addition to not being able to redact editioned views, you cannot use a redacted

column in the definition of any editioned view. You can find information about editions

by querying the

DBA_EDITIONS

data dictionary view.

Oracle Data Redaction in a Multitenant Environment

In a multitenant environment, Oracle Data Redaction policies apply only to the objects

within the current pluggable database (PDB).

You cannot create a Data Redaction policy for a multitenant container database

(CDB). This is because the objects for which you create Data Redaction policies

typically reside in a PDB. If you have the

SYSDBA

privilege, then you can list all the

PDBs in a CDB by running the

SHOW PDBS

command.

As with the CDB root, you cannot create Data Redaction policies in an application root.

Oracle Data Redaction and Oracle Virtual Private Database

Oracle Data Redaction does not affect Oracle Virtual Private Database policies

because the VPD inline view, which contains the VPD predicate, acts on actual values.

Oracle Data Redaction differs from Oracle Virtual Private Database in the following

ways:

•Oracle Data Redaction provides more redacting features than Oracle Virtual

Private Database, which only supports

NULL

redacting. Many applications cannot

use

NULL

redacting, so Data Redaction is a good solution for these applications.

•Oracle Virtual Private Database policies can be static, dynamic, and context

sensitive, whereas Data Redaction policies only allow static and context-sensitive

policy expressions.

•Data Redaction permits only one policy to be defined on a table or view, whereas

you can define multiple Virtual Private Database policies on an object.

•Data Redaction is when application users try to access an object that is protected

by a Data Redaction policy using a synonym, but (unlike Oracle Virtual Private

Database) Data Redaction does not support the creation of policies directly on the

synonyms themselves.

Chapter 15

Oracle Data Redaction and XML Generation

15-5

Oracle Data Redaction and Oracle Database Real

Application Security

Oracle Data Redaction differs from Oracle Database Real Application Security

because of how security is implemented for applications.

Oracle Data Redaction differs from Oracle Database Real Application Security in that

Real Application Security provides a comprehensive authorization framework for

application security.

Column security within Real Application Security is based on application privileges that

are defined by applications using the Real Application Security framework.

See Also:

Oracle Database Real Application Security Administrator's and Developer's

Guide for information about how you can protect table columns with custom

application privileges

Oracle Data Redaction and Oracle Database Vault

You can use Oracle Data Redaction in an Oracle Database Vault environment.

For example, if there is an Oracle Database Vault realm around an object, a user who

does not belong to the authorized list of realm owners or participants cannot see the

object data, regardless of whether the user was granted the

EXEMPT REDACTION POLICY

privilege. If the user attempts a DML or DDL statement on the data, error messages

result.

Oracle Data Redaction and Oracle Data Pump

Oracle Data Pump export operations can affect objects that have Oracle Data

Redaction policies.

•Oracle Data Pump Security Model for Oracle Data Redaction

The

DATAPUMP_EXP_FULL_DATABASE

role includes the powerful

EXEMPT REDACTION

POLICY

system privilege.

•Export of Objects That Have Oracle Data Redaction Policies Defined

You can export objects that have already had Oracle Data Redaction policies

defined on them.

•Export of Data Using the EXPDP Utility access_method Parameter

Oracle Data Pump can export data from a schema that contains an object that has

a Data Redaction policy.

•Import of Data into Objects Protected by Oracle Data Redaction

During an import operation, be careful that you do not inadvertently drop data

redaction policies that protect imported data.

Chapter 15

Oracle Data Redaction and Oracle Database Real Application Security

15-6

Oracle Data Pump Security Model for Oracle Data Redaction

The

DATAPUMP_EXP_FULL_DATABASE

role includes the powerful

EXEMPT REDACTION POLICY

system privilege.

Remember that by default the

DBA

role is granted the

DATAPUMP_EXP_FULL_DATABASE

role

as well as

DATAPUMP_IMP_FULL_DATABASE

This enables users who were granted these roles to be exempt from Data Redaction

policies. This means that, when you export objects with Data Redaction policies

defined on them, the actual data in the protected tables is copied to the Data Pump

target system without being redacted. Users with these roles, including users who

were granted the

DBA

role, are able to see the actual data in the target system.

However, by default, all of the Data Redaction policies associated with any tables and

views in the Data Pump source system are also included in the export and import

operation (along with the objects themselves) and applied to the objects in the target

system, so the data is still redacted when users query the objects in the target system.

Related Topics

•Exemption of Users from Oracle Data Redaction Policies

You can exempt users from having Oracle Data Redaction policies applied to the

data they access.

Export of Objects That Have Oracle Data Redaction Policies Defined

You can export objects that have already had Oracle Data Redaction policies defined

on them.

•Finding Type Names Used by Oracle Data Pump

You must find the type names Oracle Data Pump uses before exporting objects

that have Oracle Data Redaction policies defined on these objects.

•Exporting Only the Data Dictionary Metadata Related to Data Redaction Policies

You can export only the data dictionary metadata that is related to data redaction

policies and full redaction settings.

•Importing Objects Using the INCLUDE Parameter in IMPDP

You can import objects using Oracle Database Pump.

Finding Type Names Used by Oracle Data Pump

You must find the type names Oracle Data Pump uses before exporting objects that

have Oracle Data Redaction policies defined on these objects.

After you find these types, you should use these types as parameters for the

INCLUDE

directive to the

IMPDP

utility, to selectively export only metadata of these specific types

to the dump file.

•To find type names, query the

DATABASE_EXPORT_OBJECTS

view.

For example:

SELECT OBJECT_PATH

FROM DATABASE_EXPORT_OBJECTS

WHERE OBJECT_PATH LIKE 'RADM_%';

Chapter 15

Oracle Data Redaction and Oracle Data Pump

15-7

Output similar to the following appears:

OBJECT_PATH

------------

RADM_FPTM

RADM_POLICY

Exporting Only the Data Dictionary Metadata Related to Data Redaction

Policies

You can export only the data dictionary metadata that is related to data redaction

policies and full redaction settings.

This kind of Data Pump export could, for example, be used if you must use the same

set of Data Redaction policies and settings across development, test, and production

databases. Because the flag

content=metadata_only

is specified, the dump file does not

contain any actual data.

•To export only the data dictionary metadata related to data redaction policies and

full redaction settings, enter an

EXPDP

utility command similar to the following:

expdp system/password \

full=y \

COMPRESSION=NONE \

content=metadata_only \

INCLUDE=RADM_FPTM,RADM_POLICY\

directory=my_directory \

job_name=my_job_name \

dumpfile=my_data_redaction_policy_metadata.dmp

See Also:

•Oracle Database Utilities for detailed information about the

INCLUDE

parameter of the

EXPDP

utility

•Oracle Database Utilities for detailed information about metadata filters

Importing Objects Using the INCLUDE Parameter in IMPDP

You can import objects using Oracle Database Pump.

•To import the objects, include these names in the

INCLUDE

parameter in the

IMPDP

utility command, based on the output from querying the

OBJECT_PATH

column in the

DATABASE_EXPORT_OBJECTS

view.

Export of Data Using the EXPDP Utility access_method Parameter

Oracle Data Pump can export data from a schema that contains an object that has a

Data Redaction policy.

If you are using Oracle Data Pump to perform full database export operations using

the Data Pump default settings (

direct_path

), and if you receive error messages that

you do not understand, then use this section to repeat the operation in such a way as

to better understand the error.

Chapter 15

Oracle Data Redaction and Oracle Data Pump

15-8

If you try to use the Oracle Data Pump Export (

EXPDP

) utility with the

access_method

parameter set to

direct_path

to export data from a schema that contains an object that

has a Data Redaction policy defined on it, then the following error message may

appear and the export operation fails:

ORA-31696: unable to export/import TABLE_DATA:"schema.table" using client specified

DIRECT_PATH method

This problem only occurs when you perform a schema-level export as a user who was

not granted the

EXP_FULL_DATABASE

role. It does not occur during a full database export,

which requires the

EXP_FULL_DATABASE

role. The

EXP_FULL_DATABASE

role includes the

EXEMPT REDACTION POLICY

system privilege, which bypasses Data Redaction policies.

To find the underlying problem, try the

EXPDP

invocation again, but do not set the

access_method

parameter to

direct_path

. Instead, use either

automatic

external_table

. The underlying problem could be a permissions problem, for example:

ORA-28081: Insufficient privileges - the command references a redacted object.

See Also:

Oracle Database Utilities for more information about using Data Pump

Export.

Import of Data into Objects Protected by Oracle Data Redaction

During an import operation, be careful that you do not inadvertently drop data

redaction policies that protect imported data.

Consider a scenario in which the source tables that were exported using the Oracle

Data Pump Export (

EXPDP

) utility do not have Oracle Data Redaction polices. However,

the destination tables to which the data is to be imported by using Oracle Data Pump

Import (

IMPDP

) have Oracle Data Redaction policies.

During the Data Pump import operation, the status of the Data Redaction policies on

the objects being imported depends on the

CONTENT

option of

IMPDP

command.

•If you use the

CONTENT=ALL

CONTENT=METADATA_ONLY

option in the

IMPDP

command,

then the Data Redaction policies on the destination tables are dropped. You must

recreate the Data Redaction policies.

•If you use

CONTENT=DATA_ONLY

in the

IMPDP

command, then the Data Redaction

polices on the destination tables are not dropped.

See Also:

Oracle Database Utilities for more information about using Data Pump Export

Chapter 15

Oracle Data Redaction and Oracle Data Pump

15-9

Oracle Data Redaction and Data Masking and Subsetting

Pack

Oracle Enterprise Manager Data Masking and Subsetting Pack can be used to create

a development or test copy of a production database.

To accomplish this, you can mask this data in bulk, and then put the resulting masked

data in the development or test copy.

You can still apply Data Redaction policies to the non-production database, in order to

redact columns that contain data that was already masked by Oracle Enterprise

Manager Data Masking and Subsetting Pack.

Remember that Oracle Enterprise Manager Data Masking and Subsetting Pack is

used to mask data sets when you want to move the data to development and test

environments. Data Redaction is mainly designed for redacting at runtime for

production applications in a consistent fashion across multiple applications, without

having to make application code changes.

Oracle Data Redaction and JSON

JavaScript Object Notation (JSON) can be used to create

is json

constraints on table

columns.

However, you cannot create an Oracle Data Redaction policy on a table column that

has the

is json

constraint. If you attempt to do so, an

ORA-28073 - The column

column_name has an unsupported datatype

error is raised. As a workaround solution,

Oracle recommends that you create a relational view that uses the

JSON_TABLE

row

source operator on top of the JSON object, and then apply the Data Redaction policy

to this view.

See Oracle Database SQL Language Reference for more information about

JASON_TABLE

Chapter 15

Oracle Data Redaction and Data Masking and Subsetting Pack

15-10

Security Considerations for Oracle Data

Redaction

Oracle provides guidelines for using Oracle Data Redaction.

•Oracle Data Redaction General Security Guidelines

It is important to understand general security guidelines for using Oracle Data

Redaction.

•Restriction of Administrative Access to Oracle Data Redaction Policies

You can restrict the list of users who can create, view and edit Data Redaction

policies.

•How Oracle Data Redaction Affects the SYS, SYSTEM, and Default Schemas

Both users

SYS

and

SYSTEM

automatically have the

EXEMPT REDACTION POLICY

system

privilege.

•Policy Expressions That Use SYS_CONTEXT Attributes

Be careful when writing a policy expression that depends on a

SYS_CONTEXT

attribute that is populated by an application.

•Oracle Data Redaction Policies on Materialized Views

You can create Oracle Data Redaction policies on materialized views and on their

base tables.

•Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled

You should check if the recycle bin is enabled before you drop Oracle Data

Redaction policies.

Oracle Data Redaction General Security Guidelines

It is important to understand general security guidelines for using Oracle Data

Redaction.

•Oracle Data Redaction is not intended to protect against attacks by regular and

privileged database users who run ad hoc queries directly against the database. If

the user can issue arbitrary SQL or PL/SQL statements, then he or she will be

able to access the actual value.

•Oracle Data Redaction is not intended to protect against users who run ad hoc

SQL queries that attempt to determine the actual values by inference.

•Oracle Data Redaction relies on the database and application context values. For

applications, it is the responsibility of the application to properly initialize the

context value.

•Oracle Data Redaction is not enforced for users who are logged in using the

SYSDBA

administrative privilege.

•Certain DDL statements that attempt to copy the actual data out from under the

control of a data redaction policy (that is,

CREATE TABLE AS SELECT

INSERT AS

SELECT

) are blocked by default, but you can disable this behavior by granting the

user the

EXEMPT REDACTION POLICY

system privilege.

16-1

•Oracle Data Redaction does not affect day-to-day database operations, such as

backup and recovery, Oracle Data Pump exports and imports, Oracle Data Guard

operations, and replication.

Restriction of Administrative Access to Oracle Data

Redaction Policies

You can restrict the list of users who can create, view and edit Data Redaction

policies.

To accomplish this, you can limit who has the

EXECUTE

privilege on the

DBMS_REDACT

package and by limiting who has the

SELECT

privilege on the

REDACTION_POLICIES

and

REDACTION_COLUMNS

views.

You also can restrict who is exempted from redaction by limiting the

EXEMPT REDACTION

POLICY

privilege. If you use Oracle Database Vault to restrict privileged user access,

then you can use realms to restrict granting of

EXEMPT REDACTION POLICY

See Also:

•Exemption of Users from Oracle Data Redaction Policies

•Oracle Data Redaction and Oracle Database Vault

•Oracle Database Vault Administrator’s Guide for more information about

Oracle Database Vault

How Oracle Data Redaction Affects the SYS, SYSTEM, and

Default Schemas

Both users

SYS

and

SYSTEM

automatically have the

EXEMPT REDACTION POLICY

system

privilege.

SYSTEM

has the

EXP_FULL_DATABASE

role, which includes the

EXEMPT REDACTION POLICY

system privilege.

This means that the

SYS

and

SYSTEM

users can always bypass any existing Oracle Data

Redaction policies, and will always be able to view data from tables (or views) that

have Data Redaction policies defined on them.

Follow these guidelines:

•Do not create Data Redaction policies on the default Oracle Database schemas,

including the

SYS

and

SYSTEM

schemas.

•Be aware that granting the

EXEMPT DATA REDACTION

system privilege to additional

roles may enable users to bypass Oracle Data Redaction, because the grantee

role may have been granted to additional roles.

•Do not revoke the

EXEMPT DATA REDACTION

system privilege from the roles that it was

granted to by default.

Chapter 16

Restriction of Administrative Access to Oracle Data Redaction Policies

16-2

Policy Expressions That Use SYS_CONTEXT Attributes

Be careful when writing a policy expression that depends on a

SYS_CONTEXT

attribute

that is populated by an application.

The application might not always populate that attribute.

If the user somehow connects directly (rather than through the application), then the

SYS_CONTEXT

attribute would not have been populated. If you do not handle this

NULL

scenario in your policy expression, you could unintentionally reveal actual data to the

querying user.

For example, suppose you wanted to create a policy expression that intends to redact

the query results for everyone except users who have the client identifier value of

SUPERVISOR

. The following expression unintentionally enables querying users who have

NULL

as the value for their

CLIENT_IDENTIFIER

to see the real data:

SYS_CONTEXT('USERENV', 'CLIENT_IDENTIFIER') IS NOT 'SUPERVISOR'

A more rigorous policy expression redacts the result of the query if the client identifier

is not set, that is, it has a

NULL

value.

SYS_CONTEXT('USERENV', 'CLIENT_IDENTIFIER') IS NOT 'SUPERVISOR' OR IS NULL

Remember that in SQL, comparisons with

NULL

are undefined, and are thus

FALSE

, but

redaction only takes place when the policy expression evaluates to

TRUE

Oracle Data Redaction Policies on Materialized Views

You can create Oracle Data Redaction policies on materialized views and on their

base tables.

However, ensure that the creator of the materialized view, or the user who performs

the refresh of the materialized view, is not blocked by any Data Redaction policies. In

other words, the user performing the materialized view creation or refresh operations

should be exempt from the Data Redaction policy. As a best practice, when you create

a new materalized view, treat it as a copy of the actual table, and then create a

separate Data Redaction policy to protect it.

Dropped Oracle Data Redaction Policies When the Recycle

Bin Is Enabled

You should check if the recycle bin is enabled before you drop Oracle Data Redaction

policies.

If you drop a table or view that has an Oracle Data Redaction policy defined on it when

the recycle bin feature is enabled, and if you query the

REDACTION_COLUMNS

REDACTION_POLICIES

data dictionary views before you purge the recycle bin, then you

will see object names such as

BIN$...

(for example,

BIN$1Xu5PSW5VaPgQxGS5AoAEA==$0

This is normal behavior. These policies are removed when you purge the recycle bin.

To find if the recycle bin is enabled, you can run the

SHOW PARAMETER RECYCLEBIN

command in SQL*Plus.

Chapter 16

Policy Expressions That Use SYS_CONTEXT Attributes

16-3

See Also:

Oracle Database Administrator’s Guide for information about purging objects

from the recycle bin

Chapter 16

Dropped Oracle Data Redaction Policies When the Recycle Bin Is Enabled

16-4

Glossary

actual data

In Oracle Data Redaction, the data in a protected table or view. An example of actual

data could be the number

123456789

, and the redacted data version of this number

could be

999996789

auto-login software keystore

A software keystore that is protected by a system-generated password and does not

need to be explicitly opened by a security administrator. Auto-login software keystores

are automatically opened when accessed and can be used on any computer that runs

an Oracle database. For example, consider an Oracle RAC environment that has four

nodes, and each node is on a different computer. This environment uses an auto-login

keystore. When a REKEY operation is performed on node 1, the auto-login and

password-based keystores must be copied to the computers that host nodes 2, 3, and

4. In this configuration, the auto-login keystores will be opened on all four nodes when

required.

See also local auto-login software keystore.

cipher suite

A set of authentication, encryption, and data integrity algorithms used to exchange

messages between network nodes using Secure Sockets Layer (SSL). During an SSL

handshake, for example, the two nodes negotiate to see which cipher suite they will

use when transmitting messages back and forth.

ciphertext

Message text that has been encrypted.
