Advent™ Commercial Fire System

Contents Installation Instructions

About This Manual ............................................................... 1

Special Installation Requirements ........................................1

UL Listed Installations ..................................................1

California State Fire Marshall Listed Installations ........ 4

Planning the Installation ....................................................... 4

Panel Types ....................................................................4

Panel Components .........................................................4

Panel Terminals ........................................................5

Panel Accessory Kit ................................................. 5

BUS Device Headers ................................................ 6

Panel Devices ................................................................6

SuperBus 2000 Touchpads .......................................6

SuperBus 2000 Modules .......................................... 6

SnapCards .................................................................6

Installing the System ............................................................6

Determining the Panel Location .................................... 7

Running Wires to the Panel Location ............................7

System Wire Lengths ............................................... 7

Mounting the Panel ....................................................... 8

Installing Optional Panel Snapcards .............................. 8

Connecting SuperBus 2000 Modules and Touchpads ... 9

SuperBus 2000 Touchpads .......................................9

SuperBus 2000 Modules ........................................10

Voice Siren 25/70 Volt Converter Card (60-773)* .12

Connecting Detection Devices to Panel Zone Inputs ..12

Connecting Speakers ...................................................12

Connecting Listed Sirens .............................................13

Connecting Commercial Fire Devices ........................13

Installing an RJ-31X Phone Jack (13-081) ..................13

Connecting the Phone Line to the Panel with a DB-8

Cord (49-442) ..............................................................14

Mounting/Connecting an AC Power Transformer ...... 14

Installing Panel Backup Battery(s) ..............................15

Powering Up the Panel .......................................................15

Programming the Panel ......................................................15

Using the Downloader Software to Program

the Panel ......................................................................16

Using an Alphanumeric Touchpad to Program

the Panel ......................................................................16

Entering/Exiting Program Mode ............................16

Using Item Numbers ..............................................16

Codes ......................................................................27

Specific Phone Number Settings ............................29

Phone Access Settings ............................................32

Zone Settings ..........................................................34

I/O Settings .............................................................37

Accessory Modules .................................................38

Programmable Output Settings ...............................41

Alarm Settings ........................................................42

System Settings .......................................................43

Miscellaneous Settings ...........................................46

Remote Downloader Programming ....................................48

Advent Downloader Programming .........................48

Installing Line Carrier Devices ...........................................49

Programming the Panel House Code ......................49

Installing X-10 Modules .........................................49

Adding Lights/Devices to Program Memory ..........49

Testing the System ..............................................................49

Basic System Commands .............................................49

Testing Panel Backup Battery(s) ..................................50

Testing Hardwire and Wireless Zones/Sensors ............50

If a Wireless Sensor Fails the Zone/Sensor Test .....50

Testing Outputs and Sirens ..........................................51

Testing the X-10 Modules (menu controlled outputs) .51

Testing Phone Communication ....................................51

Testing Central Station Communication ......................51

Adjusting Touchpad Display Contrast .........................52

Troubleshooting ..................................................................53

Appendix A: System Configuration Worksheets ................61

Determining Maximum Panel Wire Length ...........62

Other System Devices .............................................63

X-10 Module and Device Settings ..........................63

Partition/Area Descriptions .....................................64

SuperBus 2000 Device Information .......................65

Zone and Sensor Information .................................66

Menu Outputs .........................................................72

Access Codes and Authority Level Settings ...........74

Authority Level Settings .........................................74

Item Numbers Index and Record ............................75

Appendix B: Reference Tables ............................................85

Contact ID Codes and Event Types ......................100

Additional CID Reporting ....................................103

Smoke and Heat Detector Installation ..................105

$GYHQW&RPPHUFLDO

)LUH6\VWHP

Document Number: 466-1835 Rev. B

April 2002

ITI Part No. 60-562-03

60-562-06

Appendix C: Commercial Fire Wiring Examples ..........107

Connecting Speakers for Fire Protective

Signaling Units ...................................................107

Connecting Horns and Strobes ...........................107

Connecting Hardwire Full Pulls .........................107

Connecting Water Flow Detection Devices .......107

Wiring AL602ITI Power Supply ........................108

FCC Notices ...................................................................109

Diagram .......................................................................... 110

)

*(,QWHUORJL[

Advent Commercial Fire System

About This Manual

This manual provides information for planning, installing,

programming, and testing an Advent Commercial security

or fire system. When necessary, this manual refers you to

other documentation included with compatible peripherals.

“Appendix A: System Configuration Worksheets” on

page 61 are included for you to record hardware layout and

software programming settings.

About the User Guide

The User Guide contains user worksheets that should be

filled out during the installation and programming of the

system.

Special Installation Requirements

Commercial Fire Panel

The commercial fire panel can be used as a fire warning

system and an intrusion alarm system. When using the com-

mercial fire panel as both a fire warning and intrusion alarm

system, follow the guidelines below:

❑All aspects of fire and burglary applications must occur in

separate partitions/areas.

❑All onboard panel inputs and outputs must be used only

for fire or burglary applications. Do not mix fire and bur-

glary applications.

❑Bus 1 and Bus 2 headers must be used only for fire or bur-

glary applications. Do not mix fire and burglary applica-

tions on inputs and outputs of any bus device.

❑Some installations may require configurations dictated by

city/state codes, insurance, or Underwriter’s Laboratories

(UL). See “UL Listed Installations” for various UL com-

ponent and configuration listings.

UL Listed Installations

This section describes the minimum requirements for differ-

ent UL Listed installations.

Basic System

❑Commercial Fire (60-562-03 or 60-562-06) Control Panel

❑SuperBus 2000 VFD (60-804-01) or LCD (60-803-01)

Alphanumeric Touchpad

❑24 VAC output, 100 VA Class I, 110VAC, 60 Hz (60-830)

or 24 VAC output, 100 VA Class II, 110VAC, 60 Hz (60-

823) Line Carrier AC Power Transformer

❑17.2 AH or 18.0 AH Backup Battery(s) (60-781)

❑Backup Battery Cable Assemblies (49-475 [red] and 49-

476 [black])

❑UL listed 4 ohm, 15W Speaker

❑2K ohm EOL Resistor(s) (49-467)

Police Station Connected Burglary Alarm Units and

Systems (UL 365)

The system Feature Numbers shall be set as follows in UL

365 listed systems:

Local Burglar Alarm Units and Systems (UL 609)

System Setup and Programming

The system Feature Numbers shall be set as follows in UL

609 listed systems:

Table 1. UL 365 Listed System Settings

Feature

No. Feature Required Setting

xx002 Siren Time Out 16 min. minimum

xx003 Standard Entry Delay 45 sec. maximum

xx004 Exit Delay 60 sec. maximum

yy003 Number of Attempts 5 min. 10 maximum

yy004 Communication Format 0 Contact ID

xx088 Report Partition/Area Events

to Central Station 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

xx098 Audible Verification at Close

Report 1-On

xx102 One-Time Reset Enabled 0-Off

xx108 Enable Daily Reporting of

Partition Trouble 1-On

17034 Phone Test Interval 1 Day

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 8 hours (or less)

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1=4 hours

17076 Commercial or Residential

Installation 1-Commercial

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Played at

High Volume 1-On (High)

17096 Report System Events 1-On

47004 Zone Attributes (edit zones) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 2. UL 609 Listed System Settings

Feature

No. Feature Required Setting

xx002 Siren Time Out 16 min. minimum

yy004 Communication Format 0 Contact ID

xx088 Report Partition/Area Events

to Central Station 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

2Advent Commercial Fire System

Control Units for Fire Protective Signaling Devices (UL

864)

Basic system using:

❑Commercial Fire (60-562-03 or 60-562-06) Control Panel

❑24 VAC output, 100 VA Class I, 110 VAC, 60 Hz (60-830)

Line Carrier AC Power Transformer

plus:

❑SuperBus 2000 Fire Alphanumeric Touchpad (60-810-04)

❑SuperBus 2000 Dual Phone Line Module (60-768)

❑UL 864 listed 4 ohm, 15W Speaker

Hardwire 2-Wire Smoke Detector (Compatibility Identifier

#60-562, 20 per loop maximum.):

System Sensor models 2100S, 2100TS, 2100D, 2100TD, 2400,

or 2400T added (learned) into

Zone Type 80

Sentrol models 429AT, 521B, or 521BXT added (learned) into

Zone Type 80

The basic system may also include:

❑SuperBus 2000 Commercial RF Transceiver (60-856-95)

for use with listed wireless signaling devices

❑Wireless Smoke Sensor (60-506-319.5 or 60-849-95)

added (learned) into Zone Type 80

❑SuperBus 2000 Printer Automation Module (60-854) for

use with a listed printer

❑AL602 ITI NAC Power Supply (13-522)

❑24V Smoke Loop SnapCard (60-767)

Zone Types 11 (Extended Entry/Exit Delay), 12 (Twice

Extended Delay), 15 (Instant Interior), 17 (Instant Interior),

18 Instant Interior), 19 (Delayed Interior), 20 (Delayed Inte-

rior), 24 (Local Instant Auxiliary), and 25 (Local Special

Chime) are not to be used as primary protection circuits in

UL 864 listed systems and are for supplementary use only.

Zone Types 27, 28, and 32 (Custom Outputs) may not be

used in UL 864 listed systems.

xx102 One-Time Reset Enabled 0-Off

17034 Phone Test Interval 1 Day

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 8 hours (or less)

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1=4 hours

17076 Commercial or Residential

Installation 1-Commercial

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Played at

High Volume 1-On (High)

17096 Report System Events 1-On

47004 Zone Attributes (edit zones) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 3. UL 864 Listed System Settings

Feature

No. Feature Required Setting

xx002 Siren Time Out 6 min. minimum

yy004 Comm Format 0 Contact ID

xx081 Disable Siren 1-On

xx083 Tamper Signals from Fire

Zones are Alarms 0-off

xx085 Enable Police Panic Keys 1-On

xx086 Enable Auxiliary/Medical

Panic Keys 1-On

Table 2. UL 609 Listed System Settings (Continued)

Feature

No. Feature Required Setting

xx087 Enable Fire Panic Keys 0-Off

xx088 Report Partition/Area Events

to Central Station 1-On

xx091 Print Partition/Area Events 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

xx102 One-Time Reset Enabled 0-Off

17034 Phone Test Interval 1 Day

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 8 hours (or less)

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1-4 hours

17076 Commercial or Residential

Installation 1-Commercial

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Played at

High Volume 1-On (High)

17084 First Disarm Silences Fire

Alarmd and Second Disarm

Cancels the Alarm

1-On

17096 Report System Events 1-On

17099 Print System Events 1-On

17111 Time Fire Alarm is Silenced 30 sec. (or less)

17126 Unsilence Alarm after

Silencing Period 1-On

47004 Zone Attributes (edit zones) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 3. UL 864 Listed System Settings (Continued)

Feature

No. Feature Required Setting

Advent Commercial Fire System

Household Fire Warning System Units (UL 985)

Basic system, plus:

❑Hardwire Smoke Detector (Compatibility Identifier

60-562, 20 per loop maximum):

❑System Sensor models 2100S, 2100TS, 2100D,

2100TD, 2400, or 2400TH added (learned) into Zone

Type 80.

❑Sentrol models 429AT, 521B, or 521BXT added

(learned) into Zone Type 80.

The basic system may also include:

❑SuperBus 2000 Commercial RF Transceiver (60-821) for

use with listed wireless signaling devices.

❑Wireless Smoke Sensor (60-506-319.5 or 60-848-95)

added (learned into Zone Type 80.

❑SuperBus 2000 Printer Automation Module

(60-783) for use with a listed printer.

❑SuperBus 2000 Dual Phone Line Module (60-768) for

expansion to primary and secondary phone line reporting.

❑24V Smoke Loop SnapCard (60-767).

System Setup and Programming

The system Feature Numbers shall be set as follows in

UL 985 listed systems:

Household Burglar-Alarm System Units (UL 1023)

Basic system plus:

❑Hardwire Magnetic Contact (13-068 or 13-071)

The basic system may also include:

❑SuperBus 2000 Commercial RF Transceiver (60-821) for

use with listed wireless signaling devices.

❑Wireless Learn Mode Door/Window Sensor (60-362)

❑SuperBus 2000 Printer or Automation Module

(60-783) for use with a listed printer.

❑SuperBus 2000 Dual Phone Line Module (60-768) for

expansion to primary and secondary phone line reporting.

System Setup and Programming

The system Feature Numbers shall be set as follows in

UL 1023 listed systems:

Table 4. UL 985 Listed System Settings

Feature

No. Feature Required Setting

xx002 Siren Time Out 4 min. minimum

xx003 Standard Entry Delay 45 sec. maximum

xx004 Exit Delay 60 sec. maximum

yy004 Communication Format 0 Contact ID

xx085 Enable Police Panic Keys 1-On

xx086 Enable Auxiliary/Medical

Panic Keys 1-On

xx087 Enable Fire Panic Keys 1-On

xx088 Report Partition/Area Events

to Central Station 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

xx102 One-Time Reset Enabled 0-Off

xx108 Enable Daily Reporting of

Partition Trouble 1-On

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 8 hours (or less)

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1-4 hours

17076 Commercial or Residential

Installation 0-Off Residential

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Play at High

Volume 1-On High

17096 Report System Events 1-On

47004 Zone Attributes (edit zones) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 5. UL 1023 Listed System Settings

Feature No. Feature Required Setting

xx002 Siren Time Out 6 min. minimum

xx003 Standard Entry Delay 45 sec. maximum

xx004 Exit Delay 60 sec. maximum

yy004 Communication Format 0 Contact ID

xx088 Report Partition/Area Events

to Central Station 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

xx102 One-Time Reset Enabled 0-Off

xx108 Enable Daily Reporting of

Partition Trouble 1-On

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 8 hours (or less)

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1-4 hours

17076 Commercial or Residential

Installation 0-Off Residential

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Play at High

Volume 1-On High

17096 Report System Events 1-On

Table 4. UL 985 Listed System Settings (Continued)

Feature

No. Feature Required Setting

4Advent Commercial Fire System

Central Station Burglar-Alarm System Units (UL 1610)

System Setup and Programming

The system Feature Numbers shall be set as follows in

UL 1610 listed systems:

Digital Alarm Communicator System Units (UL 1635)

Same as UL 1610 plus:

❑A UL Listed Exterior Siren

Central Station Reporting

The panel has been tested with the following central station

receivers using Contact ID reporting format:

❑ITI CS-5000 Central Station Receiver

❑Sur-Gard Central Station Receiver with models

SG-DRL2A and SG-CPM2

CSA Certified Accessories

California State Fire Marshall Listed

Installations

The California State Fire Marshall listing has been

approved.

❑ZONE ATTRIBUTES attribute 4 must be set to off

(47004)

Planning the Installation

This section describes system capabilities to help you get

familiar with the system. “Appendix A” provides planning

sheets with tables that let you record the hardware and pro-

gramming configuration of the system. Fill in all necessary

information ahead of time to help prepare for the installa-

tion, and retain for your records.

Note

It is recommended that no more than 132 wireless sensors

be used in any individual Advent system.

If 2 or more Advent systems are in close proximity to each

other, the total number of wireless sensors for all systems

must not exceed 132.

Panel Types

To start planing the installation, find your specific panel

type below. The panel type will help determine the system

capabilities (dependent upon devices used).

Panel Components

Before installing devices and making wiring connections,

familiarize yourself with the main panel components. Fig-

ure 1 shows the main component locations for the circuit

board.

47004 Zone Attributes (edit sensors) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 6. UL 1610 Listed System Settings

Feature No. Feature Required Setting

xx002 Siren Time Out 16 min., minimum

xx003 Standard Entry Delay 45 sec., maximum

xx004 Exit Delay 60 sec., maximum

yy004 Communication Format 0 Contact ID

xx088 Report Partition/Area Events

to Central Station 1-On

xx092 Enable Auto Force Arming 0-Off

xx097 Exterior Arming Verification 0-Off

xx098 Audible Verification at Close

Report 1-On

xx102 One-Time Reset Enabled 0-Off

xx108 Enable Daily Reporting of

Partition Trouble 1-On

17034 Phone Test Interval 1 Day

17036 AC Stable Time 90 sec. maximum

17041 Hours to Delay Before

Reporting AC Failure 6-12 hours

17049 RF Supervisory Time A 4 hours

17069 No Phone Line Attached 0-Off

17072 Enable RF Jam Detect 1-On

17073 Battery Test Interval 1-4 hours

17076 Commercial or Residential

Installation 1-Commercial

17078 Detect Receiver Failure 1-On

17079 Alarm Messages Play at High

Volum e 1-On High

17096 Report System Events 1-On

47004 Zone Attributes (edit zones) N/A

xx = Two digit partition number.

yy = Two digit non-pager phone number.

Table 5. UL 1023 Listed System Settings

Feature No. Feature Required Setting

Table 7. Advent Commercial Panel Types

Part Number Description

Partitions/Areas

Users

Input Zones

LEDs

250Z, 60-562-03 Commercial Fire

Panel. UL Listings

include 864, 365, 609,

985, 1023, 1610, and

1635. Red enclosure.

8 250 250 512

132Z, 60-562-06 4 100 132 256

Advent Commercial Fire System

Figure 1. Circuit Board Main Components

Panel Terminals

Table 8 describes each of the control panel terminals. Typi-

cal system wiring diagrams are provided on the last page of

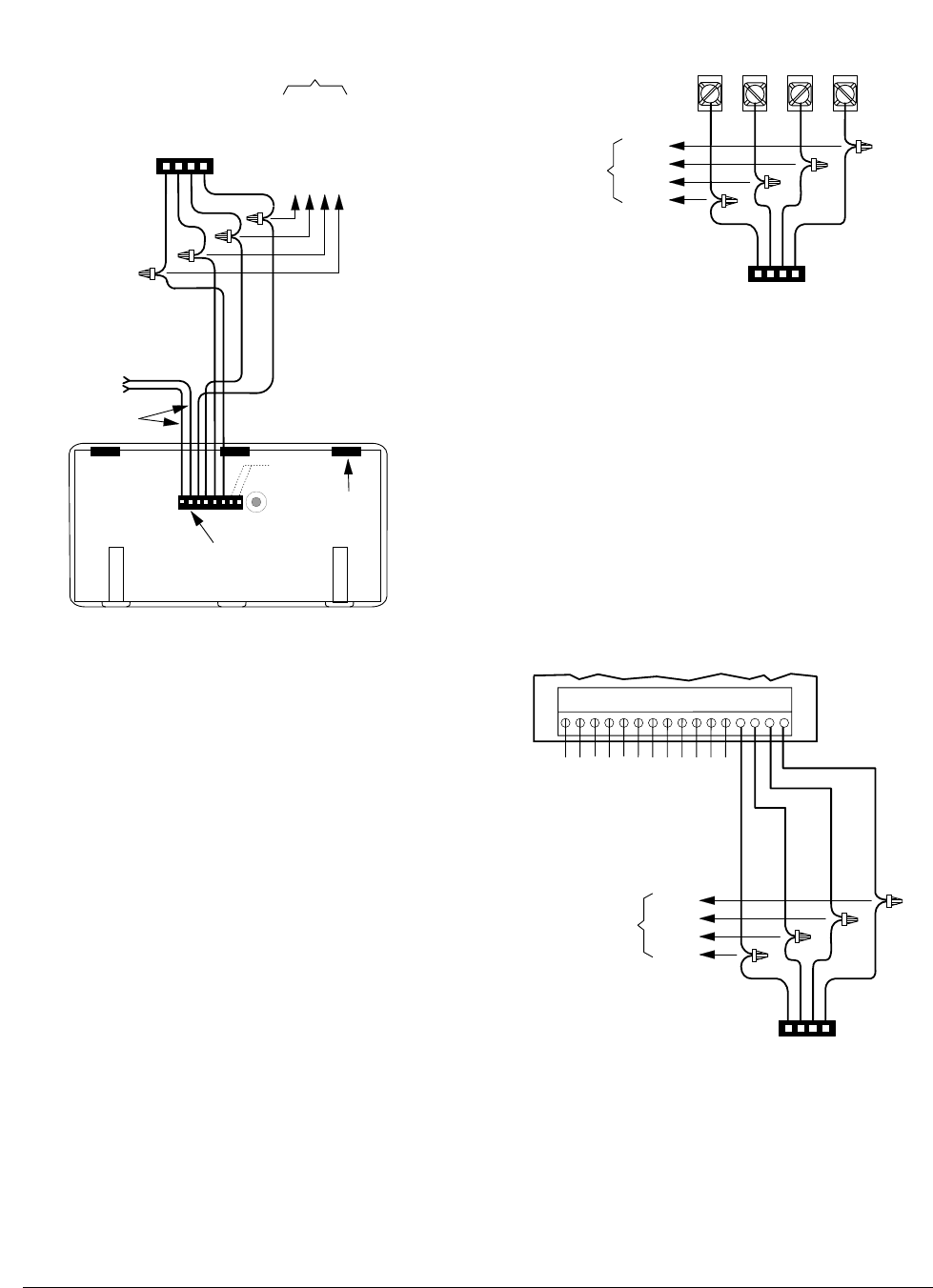

this manual.

Note

A) Class 2, Class 3, and power-limited fire alarm circuits

must be installed using FPL, FPLR, FPLP, or substitute

cable permitted by the National Electrical Code ANSI/

NFPA 70. Wire that extends beyond the cable jacket must

be separated from all other conductors by a minimum of

¼-inch or by a nonconductive barrier.

(B) Class 2, Class 3, and power-limited fire alarm circuit

conductors must be installed as Class 1 or higher circuits.

Panel Accessory Kit

The components listed in Table 9 are included in the panel

accessory kit.

Table 8. Panel Terminal Strip Connections

Terminal Name Used for

1 24 VAC 24 VAC, 100 VA power transformer

connection.

2 24 VAC 24 VAC, 100 VA power transformer

connection.

3 GND Common ground connection for sirens,

general purpose outputs 1-6, etc.

4 +12 VDC Interior bell (+), and misc. DC power

supply, 12 VDC @ 5.0A maximum load

(includes Bus 1, Bus 2 headers, and

SnapCards) Current limited.

5INT

BELL Negative (-) side of bell connection. 12

VDC @ 150mA (sink) maximum.

Positive (+) side to +12 VDC terminal 4.

Connect multiple interior bells in parallel.

See Note 1

6EXT

SIREN

RTN

Negative (-) external siren drive return

connection. See Note 1

7EXT

SIREN

OUT

Positive (+) external siren drive output

connection. 30 VDC @ 2.5A maximum

load.See Note 1

8EXT

SIREN IN Positive (+) external siren drive input

connection. 30 VDC @ 2.5A or 70 VAC

@ 500 mA maximum. Normally

connected to +12 VDC terminal 4 or

other siren voltage source. See Note 1

CONTROL PANEL

CIRCUIT BOARD

TERMINAL STRIP

8543G05B.DSF

OPTIONAL

EXPANSION

SNAPCARD

CONNECT-

ORS

OPTIONAL

EXPANSION SNAPCARD

SUPERBUS

CONNECT-

ORS (2)

INCOMING PHONE LINE TEST

LUGS (TIP/RING)

PHONE JACK

(DB-8 CORD)

POWER

LED

–

BACKUP

BATTERY

LUGS

MEMORY

CLEAR

BUTTON 9 VOICE

SIREN One side of voice siren (speaker)

connection. Other side to VOICE SIREN

terminal 10. See Note 2

10 VOICE

SIREN One side of voice siren (speaker)

connection. Other side to VOICE SIREN

terminal 9. See Note 2

11 ZONE

COM Common return connection for general

purpose inputs 1–7, sensors, etc.

12 GPI/O 1 General purpose hardwire input. GPI/Os

1–6 can be programmed for use as a

hardwire contact input (2.0K ohm EOL

resistor) or a control relay driver output

(200 mA sink at 12 VDC maximum).

13 GPI/O 2

14 GPI/O 3

15 GPI/O 4

16 GPI/O 5

17 GPI/O 6

18 INPUT 7 Hardwire input 7.

19 Unused

20 GND Common ground

21 +SMOKE

(+12V DC

SW)

Positive (+) side of 2-wire, 12 VDC

smoke loop. (Smoke and heat sensor DC

power supply.) Switched 12 VDC @ 100

mA maximum (in alarm).

22 -SMOKE Negative (-) side of 2-wire, 12 VDC

smoke loop.

Backup

Battery 1 +RED Positive (+) side of panel backup battery

one. 12V @ 1.6A source maximum.

Source current limited.

-BLACK Negative (-) side of panel backup battery

one.

Backup

Battery 2 +RED Positive (+) side of panel backup battery

two. Source current limited.

-BLACK Negative (-) side of panel backup battery

two.

For supplementary use only.

Four to eight ohm maximum load between terminals 9 and 10.

Table 9. Panel Accessory Kit

Part No. Description Qty.

01-022 2K-ohm, ¼-watt EOL Resistor 9

17-101 220 MF, 35 V Non-polarized Capacitor 5

31-347 Fast-On Connector for battery cables 4

40-415 Self-tapping screws for mounting modules 18

40-577 Lock and keys for panel cabinet 1

40-582 6-32 x ¼ green self-tapping screw for ground

connection on lower-left board 1

40-588 Protective adhesive p-ads for side-mounted

SnapCards 2

49-442 DB-8 phone cord 1

49-462 SuperBus header cable 2

Table 8. Panel Terminal Strip Connections

Terminal Name Used for

6Advent Commercial Fire System

BUS Device Headers

Both bus device headers allow you to use SuperBus 2000

touchpads, modules, and devices. Each header can handle

up to 31 devices for a total of 62 devices per panel. Table 10

describes the bus device headers. Use Table A.8 on

page 65 to record all SuperBus device information.

Important !

Use the SuperBus connectors (BUS 1 and BUS 2) head-

ers for either fire or burglary applications. Do not mix fire

and burglary bus devices on either header.

All bus device inputs and outputs must be used for either

fire or burglary applications. Do not mix fire and burglary

applications on inputs and outputs of any bus device.

Panel Devices

Devices that you can attach to the panel include SuperBus

2000 modules and SnapCards.

SuperBus 2000 Touchpads

The following touchpads provide complete system pro-

gramming and operational control.

❑SuperBus 2000 2x20 LCD Touchpad: Provides system

programming and operation control. Large display shows

system messages that prompt users for information when

needed and indicates system status.

❑SuperBus 2000 2x20 VFD Touchpad: Provides system

programming and operation control. Large fluorescent

display shows system messages that prompt users for

information when needed and indicates system status.

❑SuperBus 2000 2x20 VFD Fire Touchpad (Commercial

Fire Panels Only): Provides system programming and

operation control. Large fluorescent display shows system

messages that prompt users for information when needed

and indicates system status.

SuperBus 2000 Modules

The following modules expand the system as described

below:

❑SuperBus 2000 Commercial RF Transceiver Module:

The transceiver enables the use of wireless zones. When

the transceiver is installed you may use a combination of

wireless and hardwire zones to reach the panel maximum.

❑SuperBus 2000 8Z Input Module (HIM): Provides eight

additional hardwire zone inputs.

❑SuperBus 2000 4-Relay Output Module (HOM): Pro-

vides four form C relay outputs that can be set up to acti-

vate other signalling devices, based on system events.

❑SuperBus 2000 Dual Phone Line Module: Allows for

the use of two phone lines. In the event a primary phone

line fails, a secondary line will be used.

❑SuperBus 2000 Printer Module: Allows you to connect

a printer to the panel.

❑SuperBus 2000 RS-232 Automation Module*: The

SuperBus 2000 RS-232 Automation module allows you to

connect an Advent panel to a compatible automation sys-

tem. Once connected, the module will enable the automa-

tion system to interpret panel system status.

❑SuperBus 2000 LED Display Module (LED Driver

Board)*: Uses LEDs to display system and devices status.

Up to 16 SuperBus 2000 LED display or terminal boards

may be connected to one driver board.

❑Voice Siren 25/70 Volt Converter Card*: Adds high

voltage siren audio output capability to fire panels.

SnapCards

The following SnapCards expand the system as described:

❑8Z Input SnapCard+: Provides eight additional hardwire

zone inputs, of which two are dedicated for using 2-wire

smoke detectors.

❑4 Output SnapCard+: Provides four form C relay outputs

that can be set up to activate other signalling devices,

based on system events, schedules, or direct control.

❑4Z Input/2 Output Combo SnapCard+: Provides three

hardwire zone inputs, one two wire smoke detector loop,

and two outputs that can be set up to activate other signal-

ling devices, based on system events, schedules, or direct

control.

❑24V Smoke Loop SnapCard: Adds 24 volt, 2-wire

smoke detector capability to the panel.

Note

If the 24V Smoke Loop SnapCard is used, the panel and

snapcard 2-wire smoke loops are not compatible with the

Sentrol (ESL) 429AT smoke detector.

Installing the System

This section describes how to install the system control

panel. Before starting the installation, plan your system lay-

out and programming using the worksheets provided in

“Appendix A” on page 61.

Installing the system consists of the following:

❑Determining the Panel Location

❑Running Wires to the Panel Location

❑System Wire Lengths

❑Mounting the Panel (page 8)

❑Installing Optional SnapCards (page 8)

❑Connecting SuperBus 2000 Modules and Touchpads

(page 9)

❑Connecting Detection Devices to Panel Zone Inputs

(page 12)

❑Connecting Speakers (page 12)

49-467 2K-ohm EOL resistor assembly for use in UL

listed installations 9

49-475 Red battery cable 1

49-475 Black battery cable 1

Table 10. BUS 1 and BUS 2 Headers

Pin Name Used for

1 (Red) +12V DC SuperBus DC power supply. 12 VDC @

650 mA maximum. Current limited.

2 (Green) BUS A SuperBus communication connection.

3 (White) BUS B

4 (Black) GND SuperBus common ground connection.

Table 9. Panel Accessory Kit

Part No. Description Qty.

*) Not investigated by UL.

+) Residential use only.

Advent Commercial Fire System

❑Connecting Sirens (page 13)

❑Connecting Commercial Fire Devices (page 13)

❑Installing an RJ-31X Phone Jack (page 13)

❑Connecting the Phone Line to the Panel with a DB-8 Cord

(page 14)

❑Mounting/Connecting an AC Power Transformer

(page 14)

❑Installing the Backup Battery(s) (page 15)

❑Powering Up the Panel (page 15)

Determining the Panel Location

Before permanently mounting the panel, determine the

panel location using the following guidelines:

❑Centrally locate the panel in relation to detection devices

whenever possible to help reduce wire run lengths and

labor.

❑Avoid running wires parallel with electrical wiring, or fix-

tures such as fluorescent lighting, to prevent wire runs

from picking up electrical noise.

❑Locate the panel where the temperature will not exceed

120°F (49°C) or fall below 32°F (0°C).

❑If optional wireless transceiver module is used, avoid

locations near excessive metal such as HVAC ducts, foil

wallpaper, gas/water pipes, and electrical wiring.

❑Mount the panel at a comfortable working height (about

45 to 55 inches from the floor to the bottom of the panel,

as shown in Figure 2).

❑Allow 6.5-inches to the right (or left) of the panel for

wiring, phone jack, and optional module mounting.

❑Allow at least 24-inches in front of the panel for access to

panel components.

Figure 2. Determining Panel Location

Running Wires to the Panel Location

Once you have determined the best possible panel location,

run any necessary wires for the:

❑Power transformer

❑Phone line(s)

❑Sirens/speakers

❑SuperBus 2000 alphanumeric touchpads

❑Hardwired zones

❑Output devices

❑Optional SuperBus 2000 modules (such as

Dual Phone Line, Printer Modules, etc.)

System Wire Lengths

The total system wire length allowed varies depending on

devices powered by the panel, the wire length between

devices and the panel, and the combined wire length of all

devices.

❑Table 11 describes wiring recommendations for various

panel components.

For devices where no recommended wire lengths are

stated, or several devices share the same wire runs to the

panel, please see Table A.2 on page 62 to determine wire

lengths based on current draw and resistance.

❑Use 18-gauge wire for all commercial installations.

❑Listed auxiliary power supplies may be used to reach the

4000ft maximum wire length. Please see Table A.2

page 62 to determine wire lengths based on the module(s)

used.

PANEL

21.5"

15"

21.5"

45-55"

PHONE JACK AND

OPTIONAL MODULE

MOUNTING AREA

NOTE

ALLOW AT LEAST 24"

IN FRONT OF PANEL

FOR ACCESS TO PANEL

COMPONENTS

FLOOR

8543G06B.DS4

Table 11. Wire Recommendations

Device Max. Wire Length to

Panel Wire

Type

AC Power Transformer 2-conductor, 18-gauge

(located in cabinet) Stranded

Earth Ground Single conductor, 14-

gauge, 25 feet

maximum

Solid or

Stranded

Telephone Phone grade, 22-gauge Solid or

Stranded

Detection Devices 2- or 4-conductor, 22-

gauge, 50-ohms

resistance per zone

including device

Stranded

Output Devices 18-gauge, 500 feet

maximum Stranded

2-Wire Smoke Detectors 25-ohms per zone

(including detection

device resistance)

Stranded

Sirens, Piezos, and

Speakers 2-conductor, 18-gauge,

500 feet maximum Stranded

SuperBus 2000 2x20

LCD Alphanumeric

Touchpad

22 ga.—500 ft.

18 ga.—1300 ft. Stranded

SuperBus 2000 2x20

VFD Alphanumeric

Touchpad

22 ga.—500 ft.

18 ga.—1300 ft. Stranded

SuperBus 2000

Commercial RF

Transceiver

22 ga.—1250 ft.

18 ga.—3000 ft. Stranded

SuperBus 2000 8Z Input

Module 22 ga.—1750 ft.

18 ga.—4000 ft. Stranded

*) Not investigated by UL.

8Advent Commercial Fire System

Mounting the Panel

Use the following procedure to mount the panel to the wall

or wall studs using the supplied mounting hardware and the

panel mounting holes shown in Figure 3.

Make sure you are free of static electricity whenever you

work on the panel with the cover open. To discharge any

static, first touch the metal panel chassis, then stay in

contact with the chassis when touching the circuit board.

Using an approved grounding strap is recommended.

1. Open the panel door and remove the panel circuit

board, accessory kit, and packing material.

2. Carefully remove the circuit board from the packing

and put it in a safe static free location.

3. Remove the desired panel wiring knockouts.

4. Mount the optional key lock (if used) into the panel

door.

5. Place the enclosure in position against the wall. Make

sure enclosure is level and mark the locations of the

two mounting holes and two keyhole mounting holes.

Remember to leave room near the enclosure for any

optional modules.

6. Use the appropriate mounting anchors and screws for

your application. Partially insert screws into the two

anchors at the two top keyhole locations, and then hang

the panel chassis on the two screws.

7. Recheck level, insert the two lower screws, and then

tighten all four mounting screws.

8. Route all wires to the panel.

9. Install the panel circuit board, using the five supplied

board mounting screws.

Figure 3. Mounting the Panel and Circuit Board

Installing Optional Panel Snapcards

❑8Z Input SnapCard (60-757) *

❑4 Output SnapCard (60-758)+

❑4Z Input/2 Output Combo SnapCard (60-756)+

❑24V Smoke Loop SnapCard (60-767)

The SnapCard Connectors shown in Figure 4 allow for the

installation of two expansion SnapCards.

Carefully install a SnapCard onto the desired SnapCard

Connector and secure it in place with the two screws

included with the card.

Note

If installing 24V Smoke Loop SnapCard in the primary

expansion card connector slot, you will not be able to use

the panel cabinet knockouts behind and to the right of the

card. Whenever possible install this card into the second-

ary expansion card connector slot.

SuperBus 2000 4-Relay

Output Module 22 ga.—200 ft.

18 ga.—500 ft. Stranded

SuperBus 2000 Dual

Phone Line Module 22 ga.—350 ft.

18 ga.—900 ft. Stranded

SuperBus 2000 Printer

Module 22 ga.—1500 ft.

18 ga.—4000 ft. Stranded

SuperBus 2000 RS 232

Automation Module*22 ga.—1500 ft.

18 ga.—4000 ft. Stranded

SuperBus 2000 LED

Driver Board*22 ga.—75 ft.

18 ga.—200 ft. Stranded

4 Input/2 Output

SnapCard N/A N/A

8Z Hardwire Zone

Expander SnapCard N/A N/A

4 Output SnapCard N/A N/A

Table 11. Wire Recommendations (Continued)

Device Max. Wire Length to

Panel Wire

Type

*) Not investigated by UL.

*) For Residential Use Only.

8 5 4 3 G 0 7 B . D S F

C O N T R O L

P A N E L

E N C L O S U R E

( D O O R O P E N )

B A C K U P

B A T T E R Y ( s )

K E Y H O L E

M O U N T I N G

H O L E S

M O U N T I N G

H O L E S

W I R I N G

K N O C K O U T S

E A R T H G R O U N D

C H A S S I S S C R E W

( G R E E N )

C O N T R O L P A N E L

C I R C U I T B O A R D

S T U D S 1 6 " O N C E N T E R M O U N T T O S T U D S O R

I N S T A L L 3 / 4 " P L Y W O O D

M O U N T E D T O S T U D S ,

T H E N H A N G P A N E L O N

P L Y W O O D

Advent Commercial Fire System

Figure 4. Installing an Expansion SnapCard into one of

the two SnapCard Connectors

Connect all necessary input and/or output wiring using the

Installation Instructions included with the SnapCard(s).

Note

Once the 24V Smoke Loop SnapCard is installed, the

panel onboard smoke loop becomes a 24V smoke loop

(panel terminals 21 and 22).

If the 24V Smoke Loop SnapCard is used, the panel and

snapcard 2-wire smoke loops are not compatible with the

Sentrol (ESL) 429AT smoke detector.

Connecting SuperBus 2000 Modules and

Touchpads

Up to 31 SuperBus 2000 devices (combinations of touch-

pads and modules) can be used on each of the two SuperBus

connectors for a total of up to 62 devices. These modules

connect to the panel via a 4-wire digital data bus and may

be located inside, next to, or away from the panel cabinet

(see Figure 5). The panel cabinet may accommodate up to:

❑3 SuperBus 2000 HIM/HOM modules,

❑1 Voice Siren 25/70 Volt Converter Card,

❑and 2 AC Power Transformers.

To wire SuperBus 2000 devices to the SuperBus connectors

you must use the Panel SuperBus Wiring Harnesses (49-

462) included with the accessory kit. You must splice all

SuperBus 2000 module and touchpad wiring to the wires on

these harnesses. Both SuperBus connectors are the same,

and any combination of SuperBus devices (up to 31) may

be wired to either connector. When all of the SuperBus

2000 devices are wired, plug each wiring harness into a

SuperBus connector.

Note

The +12 VDC (RED) lead on the SuperBus wiring harness

is current limited to 650 mA. If the total current draw for all

devices on either SuperBus connector exceeds 650 mA,

another power source must be used—such as Terminal 4

(+12V) or an external + 12V power supply.

Figure 5. Mounting Devices in Panel Cabinet

Important !

Use the SuperBus connectors (BUS 1 and BUS 2) head-

ers for either fire or burglary applications. Do not mix fire

and burglary bus devices on either header. All bus device

inputs and outputs must be used for either fire or burglary

applications. Do not mix fire and burglary applications on

inputs and outputs of any bus device.

SuperBus 2000 Touchpads

❑2x20 LCD Alphanumeric Touchpad (60-803-01)

❑2x20 VFD Alphanumeric Touchpad (60-804-01)

❑2x20 VFD Fire Alphanumeric Touchpad (60-810-04)

(Commercial Fire Panels Only)

Connect SuperBus 2000 touchpads to the desired SuperBus

connector as shown in Figure 6. For mounting instructions

please see the specific touchpad Installation Instructions.

8543G86B.DSF

PRIMARY EXPANSION

CARD CONNECTOR

EXPANSION CARD

CONTROL PANEL

CIRCUIT BOARD

)

ALIGN BOAR

HOLES WITH

STANDOFFS

SECONDARY EXPANSION

CARD CONNECTOR

8543264A.DSF

PANEL CABINET

(COVER NOT SHOWN)

SPACE FOR 3RD

HIM/HOM/DUAL PHONE LINE MODULE

MOUNTED HIM/HOM/DUAL

PHONE LINE MODULE

MOUNTED

VOICE SIREN 25/70

VOLT CONVERTER CARD

MOUNTED

TRANSFORMER

SPACE FOR 2ND HIM/HOM/DUAL

PHONE LINE MODULE

SPACE FOR

ND TRANSFORMER

10 Advent Commercial Fire System

Figure 6. Connecting SuperBus 2000 Alphanumeric

touchpads

SuperBus 2000 Modules

Commercial RF Transceiver Module

❑Commercial RF Transceiver Module in Plastic Case

(60-821-95)

❑Commercial RF Transceiver Module in Metal Case

(60-856-95)

Note

For Commercial Fire installations the Commercial Trans-

ceiver Module in the Metal Case (60-856-95) must be

used.

Connect the transceiver to the panel as shown in Figure 7.

Figure 7. Connecting SuperBus 2000 Commercial RF

Transceiver module

8Z Input Module (60-774)

Connect the SuperBus 2000 8Z Input Module to the panel

as shown in Figure 8. Connect all necessary input wiring

using the Installation Instructions included with the mod-

ule.

Important !

For proper UL 864 compliance, all 8 inputs (terminals 1

through 12) shall be one of the following:

1. Security intrusion connections or,

2. fire device connections.

Combining security and fire connections on these termi-

nals is not approved for UL 864 by the manufacturer.

Figure 8. Connecting a SuperBus 2000 8Z Input

Module

4-Relay Output Module (60-770)

Connect the SuperBus 2000 4-Relay Output Module to the

panel as shown in Figure 9. Connect all necessary output

8543265A.DSF

NOT

USED

YELLOW

TOUCHPAD

WIRING HARNESS

49-430

SPLICE

PANEL SUPERBUS

WIRING

HARNESS 49-462

BLACK (GND)

WHITE (BUS B)

GREEN (BUS A)

RED (+12 VDC)

TO ADDITIONAL

SUPERBUS

TOUCHPADS

AND/OR

MODULES

TAB

SLOT (3)

WIRES FOR HARDWIRE

INPUT OR KEYSWITCH

(SEE SPECIFIC TOUCHPAD

INSTALL INSTRUCTIONS

FOR INFORMATION AND

RESTRICTIONS)

8674G05A.DS

+12

VDC GND

BUS

ABUS

BLACK

WHITE

GREEN

RED

SUPERBUS COMMERCIAL

RF TRANSCEIVER

MODULE

SPLICE

PANEL SUPERBUS

WIRING

HARNESS 49-462

TO OTHER

SUPERBUS

DEVICES

8543266A.DSF

BLACK

WHITE

GREEN

RED

SPLICE

PANEL SUPERBUS

WIRING

HARNESS 49-462

TO OTHER

SUPERBUS

DEVICES

12345678910111213141516

ZONE COMMON

ZONE 1

ZONE 2

ZONE 3

ZONE 4

ZONE 5

ZONE COMMON

ZONE 6

ZONE 7

ZONE COMMON

ZONE 8

Advent Commercial Fire System

wiring using the Installation Instructions included with the

module.

Figure 9. Connecting a 4-Relay Output Module

Dual Phone Line Module (60-768)

Connect the SuperBus 2000 Dual Phone Line Module to the

panel as shown in Figure 10. Connect all other phone wiring

using the Installation Instructions included with the mod-

ule.

Figure 10.Connecting a SuperBus 2000 Dual Phone

Line Module

Printer Module

❑Printer Module in Plastic Case (60-783)

❑Printer Module in Metal Case (60-854)

Note

For Commercial Fire installations the Printer Module in the

Metal Case (60-854) must be used.

Connect the SuperBus 2000 Printer Module to the panel as

shown in Figure 11. Connect all other printer wiring using

the Installation Instructions included with the module.

Figure 11.Connecting a SuperBus 2000 Printer Module

RS-232 Automation Module*

Connect the SuperBus 2000 RS-232 Automation Module to

the panel as shown in Figure 12. For all other connections

please see the module Installation Instructions.

Figure 12.Connecting a RS-232 Automation Module

LED Module (Driver Board)*

Connect the LED driver board to the panel as shown in Fig-

ure 13. For programming instructions please see “Program

LED Module” on page 40. For information on connecting

display and terminal boards please see the module Installa-

tion Instructions.

8543267A.DSF

BLACK

WHITE

GREEN

RED

SPLICE

PANEL SUPERBUS

WIRING

HARNESS 49-462

TO OTHER

SUPERBUS

DEVICES

12 3 4 5 6 7 8 9 1011121314151617

NO 1

NC 1

COM 1

ZONE 1

NO 2

NC 2

COM 2

NO 3

NC 3

COM 3

NO 4

NC 4

COM 4

ZONE COM

SUPERBUS DUAL PHONE LINE MODULE

TERMINAL STRIP

8844G05A.DSF

BLACK (GND)

WHITE (BUS B)

GREEN (BUS A)

RED (+12 VDC)

BUS

+12

VDC

BUS

GND

PANEL SUPERBUS

WIRING HARNESS 49-462

*) Not investigated by UL.

SUPERBUS PRINTER

INTERFACE MODULE

TERMINAL STRIP

8543110A.DSF

BLACK (GND)

WHITE (BUS B)

GREEN (BUS A)

RED (+12 VDC)

BUS

+12

VDC

BUS

GND

PANEL SUPERBUS

WIRING HARNESS 49-462

S U P E R B U S 2 0 0 0

A U T O M A T I O N M O D U L E

T E R M I N A L S T R I P

8 8 4 5 G 1 0 A . D S F

B L A C K ( G N D )

W H I T E ( B U S B )

G R E E N ( B U S A )

R E D ( + 1 2 V D C )

BUS

+ 1 2

V D C

B U S

G N D

P A N E L S U P E R B U S

W I R I N G H A R N E S S 4 9 - 4 6 2

12 Advent Commercial Fire System

Figure 13.Connecting an LED Module (Driver Board)

Voice Siren 25/70 Volt Converter Card (60-773)*

Mount the card in the panel cabinet in the area shown in

Figure 5, and as described in the specific Installation

Instructions. Wire the card to the panel and speakers as

shown in Figure 14.

Note

70 volt wiring and supervision is shown. For 25 volt wiring,

connect speakers to COMMON and 25V terminals, then

jump +SUPERVISION to 25V terminal.

Figure 14.Connecting the Voice Siren 25/70 Volt

Converter Card

Note

Separate in and out conductors must be used at each

speaker. Do not loop a single wire around each terminal.

Connecting Detection Devices to Panel

Zone Inputs

Important !

Use onboard panel inputs and outputs for all fire applica-

tions only. Do not mix fire and burglary circuits.

Connecting 2-Wire Smoke Detectors

Panel terminals 21 and 22 are set up to accept the following

12 VDC 2-wire smoke detectors.

❑System Sensor models 2100S, 2100TS, 2100D, 2100TD,

2400, or 2400TH.

❑Sentrol (ESL) models 429AT, 521B, or 521BXT

Panel terminals 21 and 22 can handle up to 20 smoke detec-

tors with 120 uA maximum idle current per detector. Maxi-

mum total loop current in alarm condition is 100 mA.

Connect one or more 2-wire smoke detectors to the panel as

shown in Figure 15.

Note

If the 24V Smoke Loop SnapCard is used, the panel and

snapcard 2-wire smoke loops are not compatible with the

Sentrol (ESL) 429AT smoke detector.

Figure 15.Connecting 2-Wire Smoke Detectors

Connecting Speakers

The panel provides one speaker driver output for intrusion

(steady), fire (temporal 3), and auxiliary (on-off-on-off)

alarm sounds.

The output can drive a single 8-ohm speaker or multiple

speaker circuit of 4- to 8-ohms (as shown in the following

speaker wiring diagrams). Comparable speakers are

described below and on the following page.

To avoid damage the panel speaker output, do not make

speaker connections with the panel powered up.

BUS A

DATA IN

DRIVE

+12V

CLOCK

DRIVE

LOAD

DRIVE

10987

DRIVER BOARD

TERMINAL STRIP

DATA OUT

RETURN

ZONE 1

BUS B COM

GND

BLACK (GND)

WHITE (BUS B)

GREEN (BUS A

)

RED (+12 VDC)

PANEL SUPERBUS

WIRING HARNESS 49-462

9715g03d.dsf

L-LISTED SPEAKERS

(PARALLEL)

PANEL

TERMINALS

COM-

MON

25V70V

SUPER-

VISION

4 OHMS

VOICE

SIREN VOICE

SIREN

VOICE SIREN CONVERTER

CARD TERMINALS

2K OHM 5 WATT

EOL RESISTOR

ASSEMBLY 49-482

(LOCATE AT

LAST DEVICE)

PANEL TERMINAL STRIP

+–

+ 12V

21 22

+–

2-WIRE

SMOKE LOOP

LISTED 2-WIRE,

12V* SMOKE/HEA

DETECTOR

(USE IN-AND-OUT

[DAISY-CHAIN]

MULTIPLE DEVICE

WIRING METHODS

ONLY.)

2.0K OHM

EOL RESISTOR

49-467

(INSTALL AT LAST DEVICE)

Advent Commercial Fire System

UL Listed Speaker

Use a UL listed 4-8 ohm, 30 watt speaker for siren applica-

tions such as status and a voice alarm annunciation speaker

for voice. When wiring multiple speakers, the total

impedange must be between 4 and 8 ohms. Connect the

speaker(s) to the panel as shown in Figure 16. For mounting

instructions please refer to the Installation Instructions

included with the speaker.

Figure 16.Connecting 15- and 30-Watt Interior

Speakers

Connecting Listed Sirens

Connect a listed exterior siren to the panel as shown in Fig-

ure 17.

Note

This siren is for supplementary use only.

Figure 17.Connecting the Hardwire Exterior siren to

the panel.

Connecting Commercial Fire Devices

For information on connecting commercial fire devices

please see Appendix C on page 107.

Installing an RJ-31X Phone Jack (13-081)

Use the following guidelines when installing an RJ-31X

phone jack for system control by phone and central station

monitoring.

❑Locate the RJ-31X jack (CA-38A in Canada) no further

than five feet from the panel.

❑The panel must be connected to a standard analog (loop-

start) phone line, that provides around 48 volts DC (on-

hook or idle).

Note

The panel cannot be used on a digital or PBX phone line.

These systems are designed for digital type devices only,

operating anywhere from 5 volts DC and up. The panel

uses an analog modem and does not have a digital con-

verter, adapter, or interface to operate through such sys-

tems.

❑For full line seizure, install an RJ-31X phone jack on the

premises phone line so the panel is ahead of all phones

and other devices on the line. This allows the panel to take

control of the phone line when an alarm occurs, even if the

phone is in use or off-hook.

❑If an analog line is not available, contact your customer’s

telecommunications specialist and tell him/her you need

an analog line off the phone switch (PBX mainframe) or a

1FB (standard business line).

Note

Connecting the panel to an analog line off the phone

switch places the panel ahead of the phone system, pre-

venting panel access from phones on the premises. How-

ever, the panel can still be accessed from off-site phones.

To connect a phone line to the panel using an

RJ-31X/CA-38A jack:

1. Run a 4-conductor cable from the TELCO protector

block to the jack location (see Figure 18).

2. Connect one end of the cable to the jack.

3. At the TELCO protector block, remove the premises

phone lines (lines from phone jacks on premises) from

the block and splice them to the black and white (or

yellow) wires of the 4-conductor cable.

4. Connect the green and red wires from the 4-conductor

cable to the A (+) and B (-) posts on the block (see Fig-

ure 18).

5. If desired, add phone jack tamper by splicing the black

and yellow phone jack wires to the panel terminals and

adding a 2.0K ohm EOL resistor between the blue and

orange phone jack terminals as shown in Figure 18.

6. Check the phones on the premises for dial tone and the

ability to dial out and make phone calls. If phones do

not work correctly, check all wiring and correct where

necessary. Proceed to “Troubleshooting” on page 53 if

problems persist.

8 5 4 3 G 1 6 A . D S F

P a n e l T e r m i n a l S t r i p s

V o i c e

S i r e n

V o i c e

S i r e n

T w o L i s t e d 8 O H M S p e a k e r s

i n P a r a l l e l ( 4 O H M S )

O R

L i s t e d 8 O H M S p e a k e r

( 3 0 W A T T )

2 . 0 K O H M

E O L R E S I S T O R

49-467

( L O C A T E A T

L A S T D E V I C E )

2 2 0 M F , 3 5 V

C a p a c i t o r

( N o n - P o l a r i z e d )

17-101

( L o c a t e d a t D e v i c e )

2 . 0 K O H M

E O L R E S I S T O R

49-467

( L O C A T E A T

L A S T D E V I C E )

91 0

P a n e l T e r m i n a l S t r i p s

V o i c e

S i r e n

V o i c e

S i r e n

8543139B.DSF

4 5 67 8

INT.

BELL RTN

+12

VDC OUT

HARDWIRE

EXTERIOR SIREN

RED

BLACK

PANEL TERMINALS

EXT. SIREN/HORN

FOR SUPPLEMENTARY USE ONLY

14 Advent Commercial Fire System

Figure 18.Installing an RJ-31X Phone Jack

Connecting the Phone Line to the Panel

with a DB-8 Cord (49-442)

After installing the RJ-31X jack, you are ready to connect

the phone line to the panel.

To connect the DB-8 cord to the panel terminals and RJ-

31X jack:

1. Insert one end of the DB-8 cord plug into the RJ-31X

(see Figure 19).

2. Insert the other end of the DB-8 cord plug into the

phone jack on the Advent panel circuit board (see Fig-

ure 19).

3. Check the phones on the premises for dial tone and the

ability to dial out and make phone calls. If phones do

not work correctly, check all wiring and correct where

necessary. Proceed to “Troubleshooting” on page 53 if

problems persist.

Figure 19.Connecting the DB-8 Cord to the Panel and

RJ-31X Jack

Mounting/Connecting an AC Power

Transformer

Use the following AC power transformer with Advent Fire

panels:

❑24 VAC output, 100 VA Class I, 110VAC, 60 Hz (60-830)

❑24 VAC output, 100 VA Class II, 110VAC, 60 Hz (60-823)

Line Carrier AC Power Transformer

Note

For UL 864 Advent Fire panel installations the 24 VAC,

100 VA Class I AC transformer is required.

1. Mount the transformer in the cabinet at one of the two

locations shown in Figure 5.

Note

Transformer load (secondary) terminals must face the

center of the enclosure.

2. Secure the transformer to the cabinet using the threaded

standoffs and supplied hex nuts.

3. Route the AC power transformer cord or wires through

one of the knockouts.

Note

The AC supply is non-power limited. It must be separated

from all power limited wiring in the cabinet by at least 0.25”

and wired using a separate knockout.

8 5 4 3 G 1 0 A . D S F

B R N G R Y

R E D

G R N

W H T / YEL

B L K

T E L C O

P R O T E C T O R

B L O C K

G R N R E D

( A ) ( B )

P H O N E

S P L I C E

W I R E

G R N ( C ) R E D ( D )

B L A C K

W H I T E O R Y E L L O W

T O

P R E M I S E S

P H O N E S

B L U O R G

B L KY E L

2 . 0 K O H M

E O L R E S I S T O R

49-467

( F O R

O P T I O N A L

J A C K

T A M P E R )

R J - 3 1 X

( C A - 3 8 A )

P H O N E J A C K

G R N R E D

T O P A N E L T E R M I N A L 1 1

T O P A N E L T E R M I N A L 1 2

( O R T O A N Y G E N E R A L P U R P O S E

I / O T E R M I N A L P R O G R A M M E D A S A N

I N P U T F O R O P T I O N A L J A C K T A M P E R )

8543268A.DSF

PHONE JACK

BRN GRY

GRN RED

DB-8 COR

RJ-31X

JACK

PLUG

(PANEL CIRCUIT BOARD)

Advent Commercial Fire System

4. Wire the AC power transformer to the panel as shown

in Figure 20.

Figure 20.Wiring an AC Power Transformer to the

Panel

Installing Panel Backup Battery(s)

The panel uses from one to three rechargeable, sealed 12V

lead-acid backup batteries (60-781).

Note

When replacing batteries, always replace with the same

battery type and size.

To install (or replace) backup battery(s):

1. Make sure the panel AC power is off or disconnected.

While AC power is applied to the panel, the charging

voltage is present at the battery leads.

2. Verify all wiring at the panel and devices for correct

terminations.

3. Place the battery in the lower left or right portion of the

panel enclosure, with the terminals facing up.

4. Connect the black battery wire(s) from the panel circuit

board negative (-) battery spade lug(s) (located on the

left side of the board) to the negative (-) battery termi-

nal (Figure 21).

5. Connect the red battery wire(s) from the panel circuit

board positive (+) battery spade lug(s) to the positive

(+) battery terminal.

6. On three battery installations, wire the third battery in

parallel (positive to positive and negative to negative)

with either of the two sets of battery spade lugs on the

panel.

!Never short-circuit or reverse the battery wires. Pos-

sible injury to you and/or permanent damage to the

panel and battery could result.

Figure 21.Connecting Backup Battery(s)

Powering Up the Panel

After connecting and wiring all devices to the panel, you are

ready to power up the panel.

To power up the panel:

1. If you have not already done so, connect the backup

battery(s).

2. Depending on your transformer,

❑Plug the transformer into an outlet not controlled by a

switch,

❑or apply power to the circuit which the transformer is

connected to.

3. Wait about 30 seconds and note the following:

❑The green power LED (located on the circuit board)

turns and stays on.

❑Alphanumeric touchpads should display “Partition 1

Security is Off.”

Note

If the power LED is off or flashing, or if touchpads don’t

display anything, remove panel power, disconnect the

backup battery(s) and see “Troubleshooting” on page 53.

Programming the Panel

The panel can be programmed using downloader software

(on site only) or an alphanumeric touchpad connected to the

panel. The system interface is menu-driven and self-

prompting. It will automatically request access codes and

data if required.

1 2

VAC 24

VAC

TO 110 VAC 60 HZ

CIRCUIT

SPLICE

TO 110 VAC 60 HZ

OUTLET

LINE

LOAD

CLASS 1

24 VAC 100 VA

60-830

LOAD

CLASS 2

24 VAC 100 VA

60-823

LINE

BUILT-IN

CIRCUIT

BREAKERS

PANEL TERMINALS

8543269A.DS

VAC 24

VAC

O R

B L KR E D

S I N G L E B A T T E R Y C O N N E C T I O N S ( S T A N D A R D )

12V

B A C K U P

B A T T E R Y

+ 



R E D

B L A C K

60-781

P A N E L

B A C K U P

B A T T E R Y

L U G S



49-475

49-476

1 0 A M P , 3 2 V , 1 / 4 " X 1 " ,

F A S T A C T I N G F U S E 3 3 - 0 5 3

T R I P L E B A T T E R Y C O N N E C T I O N S ( O P T I O N A L , N O T S H O W N )

W I R E T H I R D B A T T E R Y I N P A R A L L E L W I T H A N Y O T H E R

B A T T E R Y U S I N G A D D I T I O N A L 4 9 - 4 7 5 A N D 4 9 - 4 7 6

B A T T E R Y C A B L E S .

D U A L B A T T E R Y C O N N E C T I O N S ( O P T I O N A L )

P A N E L

B A C K U P

B A T T E R Y

L U G S



R E D

B L A C K

12V

B A C K U P

B A T T E R Y

+ 

12V

B A C K U P

B A T T E R Y

+ 

60-781

B L K

R E D



B L A C K

R E D

60-781

B L A C K

R E D

49-475

49-476

49-475

49-476

1 0 A M P , 3 2 V , 1 / 4 " X 1 " ,

F A S T A C T I N G F U S E 3 3 - 0 5 3

8 5 4 3 2 7 9 A . D S F

16 Advent Commercial Fire System

Using the Downloader Software to

Program the Panel

With a personal computer, modem, phone cables, and ITI

Advent Downloader software, you can quickly and effi-

ciently download previously selected programming to the

panel via a phone line connection. You can also upload

panel programming to the software for your records or for

“copying” to another similar installation.

For details on using the downloader software, refer to the

Advent Downloader User’s Manual shipped with the soft-

ware.

For detailed instructions on preparing the panel for down-

loading, refer to “Remote Downloader Programming” on

page 48.

Note

Not investigated by UL for use with Advent

Commercial Fire panel (60-562-03 and 60-562-06).

Using an Alphanumeric Touchpad to

Program the Panel

In program mode, touchpad buttons let you navigate

through installer programming menus for configuring the

system. Table 12 describes the touchpad button functions in

program mode.

Entering/Exiting Program Mode

Entering program mode is done using an installer code. The

system can only be placed in program mode when all parti-

tions/areas are disarmed.

To enter program mode:

1. Make sure the system is disarmed in all partitions/

areas.

2. At a touchpad, press 8 and the touchpad displays SYS-

TEM MENU.

3. Press 0 and the touchpad displays ENTER YOUR

CODE.

4. Enter your installer access CODE (0123 is default)

and the touchpad shows PROGRAM MENU then

ENTER ITEM NUMBER. Enter the desired item num-

ber.

To exit program mode:

❑Press ‚ repeatedly.

Using Item Numbers

When prompted, entering an Item Number will “jump” you

to the setting associated with the number. Once at the set-

ting you may view or change setting attributes. After chang-

ing attributes you may exit programming (‚) or enter

another item number.

Table 13 describes the setting type and range/description of

all system item numbers.

System settings are explained below and on the following

pages. They appear as follows:

System settings in this manual appear in the same order as

you would see them in Advent Downloader software. This

is done to eliminate confusion whether you are program-

ming from a touchpad or the downloader.

If you prefer, Table A.13 on page 75 in Appendix A lists

the system settings in numeric order, by item number.

Included in the table are the item number, default setting,

and page number reference of the setting description.

Note

To keep track of panel programming, it is recommended

that you enter item number settings in Table A.13 in

Appendix A.

Table 12. Touchpad Button Functions

Button Programming Function

ƒConfirms data entry.

‚Press to undo, cancel data/selection, or return to

previous menu.

0 thru 9Enter numeric values wherever needed.

0 & 1Select off (0) or on (1) wherever needed.

Table 13. Item Number Descriptions

Setting Type Range and Description

Partition/Area xx001–xx125 (xx = partition 01–08)

Global/System 17001–17129

Phone Number yy001–yy005 (yy = phone 19–24)

zz001–zz016 (zz = phone/pager 25–40)

Zone Utilities 47001–47008

SuperBus Utilities 48001–48007, 48009–48010

Display Text

Utilities 49001–49005

Miscellaneous

Utilities 50001–50016

S e t t i n g N a m e

I t e m N u m b e r

S i r e n T i m e O u t

xx002 ( P a r t i t i o n s - A l a r m s )

L o c a t i o n

Advent Commercial Fire System

Special Programming Settings Partitions/General Partition Settings

Clear Panel Memory

50002

(Default = n/a) It is recommended that you clear memory on all

newly installed panels before programming. Clearing memory

deletes setup values and resets all values to factory defaults.

To Clear Panel Memory:

1. Enter program mode.

2. Enter the installer code.

3. Enter item number 50002.

4. Press 99 and then ƒ. Wait about a minute until touchpads

return to their default displays.

Note

Since all programming information is contained in mem-

ory, clearing memory deletes all existing programming

information except dealer values (if any).

Reviewing (List) Settings

00000

(Default = n/a) An easy way of listing all programming settings

and their values is provided. You can list all settings, or settings

starting at a selected item number.

To list all Settings:

1. Once in program mode enter the item number (00000).

2. Press ƒ to start listing settings from the beginning

enter the item number you wish to start at and press ƒ.

Touchpads will flash each of the item numbers and values

(if not protected by dealer password).

3. Press ‚ at any time to exit this menu.

Note

Displayed setting values may be viewed but not changed

using this procedure.

Partitions Act As Areas

17127 (Partitions-General Partition Settings)

(Default = off) Choose whether or not to treat partitions as areas.

If treated as areas:

❑Zones, touchpads, schedules, programming options, etc.,

belong to areas instead of partitions.

❑Users may “jump” from one area to another area using an

alphanumeric touchpad.

❑The word “partition” will be changed to “area” wherever

it is spoken, displayed, or printed.

To turn Areas On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Touchpad Redirect Reset Time

17035 (Partitions-General Partition)

(Default = 10 seconds) This setting allows you to select the length

(in seconds) of inactivity (no menu activity) before a “jumped”

touchpad returns to its assigned area.

To set Touchpad Redirect Reset Time:

1. Once in program mode enter the item number.

2. Enter the desired length (5–60) and press ƒ.

Global Account Reporting

17093 (Partitions-General Partition)

(Default = off) The setting enables the panel to report events as a

system.

When set to on:

❑The panel will use system account and area numbers when

reporting events.

❑The panel will only perform one automatic phone test (not

one for each partition/area).

To turn Global Account Reporting On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Partitions Enabled

xx068 (Partitions-General Partition Settings)

(Defaults = Partition/Area 1 - on, all others off) Choose whether

or not to enable the partition/area. Partition/Area 1 is always

enabled.

To turn a Partition/Area On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

18 Advent Commercial Fire System

Partition/Arming Settings

Account Number 1

Account Number 2

1: xx116, 2: xx117 (Partitions-General Partition)

(Defaults = 00000000) Enter an 8 digit account number. Each

partition/area may have two account numbers. Account number 1

will use the primary phone number to report partition/area events,

while account number 2 will use the secondary phone number to

report partition/area events.

Account Number Format:

❏ for 0 enter 00 ❏ for 6 enter 06 ❏ for C enter 12

❏ for 1 enter 01 ❏ for 7 enter 07 ❏ for D enter 13

❏ for 2 enter 02 ❏ for 8 enter 08 ❏ for E enter 14

❏ for 3 enter 03 ❏ for 9 enter 09 ❏ for F enter 15

❏ for 4 enter 04 ❏ for A enter 10

❏ for 5 enter 05 ❏ for B enter 11

To enter an Account Number:

1. Once the desired item number has been entered the cur-

rent account number will be displayed.

2. Enter the new account number using the list above. For

example, if you wanted the account number to be

“123456AB,” at the keypad you would enter “01, 02, 03,

04, 05, 06, 10, 11.”

3. Press ƒ and the touchpad displays the new account num-

ber.

Note

Account numbers must equal 8 characters. If you enter

less than 8 characters the panel will automatically replace

the blank spaces with leading zeros (0).

Partition/Area Text

49004 (Partitions-General Partition Settings)

(Default = none) Use the following guidelines to assign each

partition/area a name.

❑Use the item numbers that appear in Table B.2 on page

page 90 for characters and words listed there.

❑If a desired word does not appear in Table B.2, create it

using the characters (custom text).

❑When using words from Table B.2, spaces between them

appear automatically. When using characters from Table

B.2 to create words, you must reserve an item number for

a ‘space’ after the word.

❑Each character or word uses up one item number. For

example, a word from the list counts as one item number.

A created word (such as BOY’S) counts as six item num-

bers—4 letters, 1 apostrophe, and 1 space.

❑Only 8 item numbers are allowed for each partition/area

name, so plan ahead before programming partition/area

text. You may need to abbreviate words to avoid running

out of item numbers.

To program Partition/Area Text:

1. Once in program mode enter 49004. The display

shows ENTER PARTITION NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired partition number and press ƒ. The dis-

play shows TEXT FOR PARTITION n IS current text.

ENTER TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter the numbers of the desired characters or words. If

you make a mistake press ‚ to start over.

4. Once all numbers have been entered, press ƒ to accept.

The display shows the new partition/area text.

To delete Partition/Area Text:

1. Once in program mode enter 49004. The display

shows ENTER PARTITION NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired partition/area number and press ƒ. The

display shows TEXT FOR PARTITION n IS current text.

ENTER TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter 000 and press ƒ. The display shows TEXT FOR

PARTITION n IS NO TEXT.

Exterior Siren Delay

xx113 (Partitions-Arming)

(Default = foothills setting allows you to set the delay (in

seconds) before an exterior siren sounds during and alarm. This

includes all high level alarms, except for auxiliary alarms, which

don’t sound exterior sirens. If set to off, exterior sirens sound

instantly. If set to on, exterior sirens sound after a 15-second

delay.

To turn Exterior Siren Delay On/Off:

Once the item number has been entered, enter 1 for on (15-

second delay), or 0 for off (no delay). Press ƒ to apply the new

setting.

Advent Commercial Fire System

Partitions/Alarms

Daily Trouble Reporting Time

xx001 (Partitions-Alarms)

(Default = 12:00) This is the time of day when the system will

annunciate any existing trouble conditions. For Advent

Commercial Fire and Burglary panels, trouble(s) are annunciated

every 4 hours. If the Daily Trouble Reporting time is set at 12:00

pm then the system will announce trouble(s) at 12:00 pm, 4:00

pm, 8:00 pm, 12:00 am, 4:00 am, and 8:00 am.

To set the Daily Trouble Reporting Time:

Once the item number has been entered, enter the 4-digit time

(00:00–23:59) in 24 hour format and press ƒ.

Note

The Enable Daily Reporting of Partition Trouble setting

(xx108) must be set to “on” for this setting to work.

Enable Daily Reporting of Partition Trouble

xx108 (Partitions-Alarms)

(Default = on) Enables annunciation of all trouble conditions at

LTime (

To turn Enable Daily Reporting of Partition Trouble on/off:

Once the item number has been entered, enter 1 for on (15-

second delay), or 0 for off (no delay). Press ƒ to apply the new

setting.

Siren Time Out

xx002 (Partitions-Alarms)

(Default = 16 Minutes) This is the number of minutes that the

alarm siren is allowed to sound. The siren will silence when this

value is reached.

To set Siren Sound Time:

Once the item number has been entered, enter the number of

minutes (01–30) you wish the siren to sound and press ƒ.

Generate Alarm for Unarmed Tamper Signals

xx079 (Partitions-Alarms)

(Default = off) This setting determines whether a tamper alarm is

generated for a zone that is not armed (applies to non-fire zones

only). If on, a zone tamper alarm is generated when a zone tamper

is detected in any arming level. If off, an alarm is only generated

when the zone is in an active level.

To turn Alarm for Unarmed Tamper Signals On/Off:

Once the item number has been entered, enter 1 for on (alarm in

all levels), or 0 for off (alarm in active levels). Press ƒ to apply

the new setting.

Tamper Signals from Fire Zones are Alarms

xx083 (Partitions-Alarms)

(Default = off) This setting enables the panel to generate a tamper

alarm (in addition to a trouble report) when tampering of a fire

zone is detected.

To set the Fire Tamper Response to On/Off:

Once the item number has been entered, enter 1 for on (alarm is

generated) or 0 for off (alarm not generated). Press ƒ to apply

the new setting.

Enable Keystroke Violation Alarm

xx076 (Partitions-Alarms)

(Default = off) This setting enables keypad tamper. When on, the

panel will generate a police alarm when it detects four or more

incorrect access code entry attempts that do not include a valid

access code. A tamper report is also sent to the central station.

To turn Enable Keystroke Violation Alarm On/Off:

Once the item number has been entered, enter 1 for on (generate

alarm and report) or 0 for off. Press ƒ to apply the new setting.

No Activity Tripped After

xx009 (Partitions-Alarms)

(Default = not active) This setting allows you to select the length

of time (in hours) the panel will wait after not detecting any

activity before initiating a no-activity pre-alarm. Once a no-

activity pre-alarm is initiated the panel will wait until the time in

the Delay Between No Activity Trip and Alarm setting (xx010)

expires before generating an alarm.

To set the No Activity Tripped After time:

1. Once the item number has been entered, enter the number

of hours (1–24) you wish the panel to wait before initiat-

ing a no-activity pre-alarm, or 0 for not active.

2. Press ƒ to apply the new setting.

Delay Between No Activity Trip and Alarm

xx010 (Partitions-Alarms)

(Default = 5 Minutes) This setting allows you to select the length

of time (in minutes) allowed after the No Activity Tripped After

setting (xx009) time has expired. If no activity is generated during

this time the panel sends a report to the central station. If the

user(s) generate activity within this delay period no report will be

sent.

To set the Delay Between No Activity Trip and Alarm:

Once the item number has been entered, enter the number of

minutes (1–10) you wish the panel to wait before sending a

report. Press ƒ to apply the new setting.

Note

If the No Activity Tripped After setting (xx009) is set to 0

(not active) this setting will have no affect.

20 Advent Commercial Fire System

Generate Alarm for Suspicion Trips

xx078 (Partitions-Alarms)

(Default = on) This setting allows you to enable the panel to

generate a suspicion trip alarm. If on, and suspicion zones are

tripped, an alarm will be generated after the Delay Between

Suspicion Zone Trip and Alarm Generated (xx015) expires. If off,

the tripping of suspicion zones will not generate an alarm.

To turn Generate Alarm for Suspicion Trips On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Delay Between Suspicion Zone Trip and Alarm

Generated

xx015 (Partitions-Alarms)

(Default = 05 Minutes) Select the length of time in minutes in

which an alarm can be avoided after a suspicion zone is tripped.

This allows the user time to prevent a false alarm from being

generated.

Programming the Delay Between Suspicion Trip and Alarm

Generated:

Once the item number has been entered, enter the number of

minutes (1–15) you wish the panel to wait before going into

alarm. Press ƒ to apply the new setting.

Note

If the Generate Alarm for Suspicion Trips setting (xx078)

is set to off, this setting will have no effect.

First Trip Local Second Trip Event

xx080 (Partitions-Alarms)

(Default = off) If on, the first zone trip in a two trip zone type (18

or 77) causes a local police alarm. A second zone trip from a

different zone, occurring within four minutes of the first zone trip,

generates a report. Zones must reside in the same partition/area. If

off, the first zone trip starts a timer and the second zone trip

causes the alarm and report.

To turn this setting On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Disable Siren

xx081 (Partitions-Alarms)

(Default = on) Select whether or not you want to disable siren

time-out for fire alarms. If disabled, a siren will continue to sound

until the system is disarmed.

Note

This option is not available in UL-864 version.

To turn this setting On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Agent Release Zone 1

Agent Release Zone 2

1: xx122, 2: xx123 (Partitions-Alarms)

(Default = Off) This setting allows you to specify which zones,

when tripped, cause an output to release an extinguishing agent.

Note

All aspects of an agent release should occur in the same

partition. All zones, outputs, and devices relating to an

agent release should physically reside and be pro-

grammed into the same partition.

Select the zone number that, when tripped, causes an agent

release.

Note

This option is not available in UL-864 version.

To turn this setting On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Manual Agent Release Delays

xx125 (Partitions-Alarms)

(Default = 0) This setting allows you to specify delay times (0-30

seconds) before an agent is released after an alarm has been

triggered. Manual agent release cannot be aborted.

Note

This option is not available in UL-864 version.

To turn this setting On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Automatic Agent Release Delays

xx124 (Partitions-Alarms)

(Default = 30) This setting allows you to set the automatic agent

release delay time (0-60 seconds). Automatic agent release may

be aborted during the delay.

Note

This option is not available in UL-864 version.

To turn this setting On/Off:

Once the item number has been entered, enter 1 for on or 0 for

off. Press ƒ to apply the new setting.

Advent Commercial Fire System

Partitions/X-10 Partitions/Reporting

X-10 House Code 1

xx022 (Partitions-X-10)

(Default = Partition/Area Number) The house code is a number

from 1 to 16 (representing A–P) used to communicate panel

signals to line carrier devices such as X-10 Lamp, Appliance, and

Universal Modules. You can have up to two house codes per

partition/area.

Enter the panel house code setting used for the first 16 X-10 line

carrier devices. The system commands “All Lights On/Off” or

“All Units On/Off” control only modules with House Code 1

(within respective partition/area). See Table B.5 on page 95 for

information on defaults.

Entering House Code 1:

Once the item number has been entered, enter the desired house

code (1–16). Press ƒ to apply the new setting.

X-10 House Code 2

xx023 (Partitions-X-10)

(Default = Partition/Area Number + 8) Enter the panel house code

setting used for the last 16 X-10 line carrier devices within

respective partition/area. See for information on defaults.

Entering House Code 2:

Once the item number has been entered, enter the desired house

code (1–16). Press ƒ to apply the new setting.

Non X-10 Output 1 (menu output 33)

Non X-10 Output 2 (menu output 34)

Non X-10 Output 3 (menu output 35)

Non X-10 Output 4 (menu output 36)

Non X-10 Output 5 (menu output 37)

Non X-10 Output 6 (menu output 38)

Non X-10 Output 7 (menu output 39)

Non X-10 Output 8 (menu output 40)

1: xx049, 2: xx050, 3: xx051, 4: xx052,

5: xx053, 6: xx054, 7: xx055, 8: xx056 (Partitions-X-10)

(Default = none) There are 40 menu outputs per partition/area.

The first 32 are X-10 outputs, the last 8 are non X-10 outputs. All

X-10 outputs (menu outputs 1-32) are automatically linked to X-

10 devices. Non X-10 outputs (menu outputs 33-40) must be

linked to a programmable output in order to control a light or

device.

Note

All menu outputs must be programmed (learned) into the

panel before they will function. See “Programmable Out-

put Settings” on page 41 for more information.

Linking Non X-10 Outputs:

1. Enter the item number for the desired non X-10 output.

2. Enter the desired programmable output number (1–100),

then press ƒ to confirm the selection.

Light Control

xx069 (Partitions-Reporting)

(Default = off) If on, users must enter a valid access code before

controlling lights. If off, an access code is not required for light

control.

To turn Light Code On/Off:

Once the item number has been entered, enter 1 for on (access

code required), or 0 for off. Press ƒ to apply the new setting.

Device Control

xx070 (Partitions-Reporting)

(Default = off) If on, users must enter a valid access code before

controlling devices. If off, an access code is not required for

device control.

To turn Device Control On/Off:

Once the item number has been entered, enter 1 for on (access

code required) or 0 for off. Press ƒ to apply the new setting.

Latchkey Access

xx071 (Partitions-Reporting)

(Default = off) If on, users must enter a valid access code before

accessing the Latchkey setting. If off, an access code is not

required to access the Latchkey setting. For more information on

Latchkey, please see the User’s Manual.

To turn Latchkey Access On/Off:

Once the item number has been entered, enter 1 for on (access

code required) or 0 for off. Press ƒ to apply the new setting.

Report Partition Events to Central Station

xx088 (Partitions-Reporting)

(Default = on) If on, the panel will report partition/area events to

the central station.

To turn Reporting Partition Events to Central Station On/

Off:

Once the item number has been entered, enter 1 to turn partition/

area event reporting on or 0 turn reporting off. Press ƒ to apply

the new setting.

Cancel Event Cancels Report

xx089 (Partitions-Reporting)

(Default = on) If on, the panel will cancel the sending of an alarm

report (to central station) if the event is canceled before the delay

between generated standard alarm and alarm reporting (xx013)

expires.

To turn Cancel Event Cancels Report On/Off:

Once the item number has been entered, enter 1 to turn the

setting on (canceled event cancels report) or 0 to turn it off. Press

ƒ to apply the new setting.

22 Advent Commercial Fire System

Print Partition/Area Events

xx091 (Partitions-Reporting)

(Default = on) If on, the panel will print partition/area events on a

local printer.

To Print Partition/Area Events:

Once the item number has been entered, enter 1 (on) to enable

printing of partition/area events or 0 (off) to disable printing of

partition/area events. Press ƒ to apply the new setting.

Delay Between Generated Panic Alarm and Alarm

Reporting

xx012 (Partitions-Reporting)

(Default = 05 seconds) This setting allows you to specify the

length of time (in seconds) between the time a panic alarm

condition is detected, and a panic report is sent to the central

station. This allows users time to cancel a false alarm.

Note

If Cancel Event Cancels Report setting (xx089) is set to

off, this setting will have no affect.

Specifying the Delay Between Generated Panic Alarm and

Alarm Reporting:

Once the item number has been entered, enter the number of

seconds (1–120) you wish the panel to wait before sending a

panic report. Press ƒ to apply the new setting.

Delay Between Generated Standard Alarm and Alarm

Reporting

xx013 (Partitions-Reporting)

(Default = 05 seconds) This setting allows you to specify the

length of time (in seconds) between the time a non-panic and non-

fire alarm condition is detected, and a report is sent to the central

station. This allows users time to cancel a false alarm.

Note

If Cancel Event Cancels Report setting (xx089) is set to

off, this setting will have no affect.

Specifying the Delay Between Generated Standard Alarm

and Alarm Reporting:

Once the item number has been entered, enter the number of

seconds (1–120) you wish the panel to wait before sending a

report. Press ƒ to apply the new setting.

Delay Between Generated Fire Alarm and Alarm

Reporting

xx014 (Partitions-Reporting)

(Default = 0 minutes) This setting allows you to specify the length

of time (in minutes) between the time a fire alarm condition is

detected, and a report is sent to the central station. This allows

users time to cancel a false alarm.

Note

If Cancel Event Cancels Report setting (xx089) is set to

off, this setting will have no affect.

Specifying the Delay Between Generated Fire Alarm and

Alarm Reporting:

Once the item number has been entered, enter the number of

minutes (0–15) you wish the panel to wait before sending a

report. Press ƒ to apply the new setting.

Second Fire Alarm Ends Reporting Delay

xx090 (Partitions-Reporting)

(Default = on) If on, and a fire report delay is in progress, a

second fire alarm condition will end the delay between generated

fire alarm and alarm reporting (xx014), immediately sending a

report to the central station.

Programming Second Fire Alarm Ends Reporting Delay:

Once the item number has been entered, enter 1 to turn the

setting on (second alarm ends delay) or 0 to turn it off. Press ƒ

to apply the new setting.

Second Intrusion Causes Report

xx077 (Partitions-Reporting)

(Default = off) If on, the first trip of an intrusion zone causes a

local police alarm. A second trip (different intrusion zone) within

four minutes generates a report. If off, the first trip of an intrusion

zone generates both an alarm and report.

To set the Second Intrusion Causes Report:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Generate Restoral Reports for Reporting Zone Types

xx112 (Partitions-Reporting)

(Default = off) If on, restoral reports are generated for all

reporting zone types (which require restoral). If off, the zone type

definition dictates whether on not a restoral report is generated.

To turn Generate Restoral Reports for Reporting Zone

Types On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Advent Commercial Fire System

Partitions/Arming

Audible Verification at Close Report

xx098 (Partitions-Reporting)

(Default = off) When on, the panel will locally verify that a

closing report has been sent to the central station with an audible

signal.

Note

In order for this setting to work, Exterior Arming Verifica-

tion setting (xx097) must be set to “on.”

To turn Audible Verification at Close Report On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Enable Arming Level 2

Enable Arming Level 3

Enable Arming Level 4

Enable Arming Level 5

2: xx025, 3: xx025,

4: xx027, 5: xx028 (Partitions-Arming)

(Default = on) If on, the selected arming level will be enabled

(level 1 is always enabled) in the selected partition/area. Users

will then have access to this arming level. An arming level is the

degree of security protection set at the panel.

To Enable Arming Level:

Once the item number has been entered, enter 1 to turn the

setting on (level enabled) or 0 to turn it off. Press ƒ to apply the

new setting.

Default Keyfob Schedule Arming Level

xx118 (Partitions-Arming)

(Default = 3) This setting allows you to select the arming level

(2–5) the panel arms to when armed by a keyfob or schedule (auto

arming).

Specifying Default Keyfob Schedule Arming Level:

Once the item number has been entered, enter the keyfob/

scheduled arming level (2–5). Press ƒ to apply the new setting.

Default Keyswitch Arming Level

xx120 (Partitions-Arming)

(Default = 3) This setting allows you to select the arming level

(2–5) the panel arms to when armed by a keyswitch.

Specifying Default Keyswitch Arming Level:

Once the item number has been entered, enter the keyswitch

arming level (2–5). Press ƒ to apply the new setting.

Activity Fault Threshold 1

Activity Fault Threshold 2

Activity Fault Threshold 3

1: xx018, 2: xx019, 3: xx020 (Partitions-Arming)

(Defaults = Threshold 1-10, Threshold 2-30, Threshold 3-50)

This setting allows you to specify the number of disarms without

any activity before zone activity trouble is generated.

Specifying Activity Fault Thresholds:

Once the item number has been entered, enter the number of

disarms before zone activity trouble is generated (2–255). Press

ƒ to apply the new setting.

Enable Scheduled Arming

xx094) (Partitions-Arming)

(Default = on) This setting allows you to select whether or not to

allow the system to arm/disarm according to a schedule.

To turn Enable Scheduled Arming On/Off:

Once the item number has been entered, enter 1 to enable

scheduled arming or 0 to turn it off. Press ƒ to apply the new

setting.

Time Between Arming Notification and Arming

xx007 (Partitions-Arming)

(Default = 10 minutes) This is the amount of time between the

start of arming notification and when the partition/area is armed

by a schedule (auto arming). This notifies users that a scheduled

arm is about to occur and allows time for users to vacate the

premises.

To set the Time Between Arming Notification and Arming:

Once the item number has been entered, enter the number of

minutes (05–30) that will pass between notification and arming.

Press ƒ to apply the new setting.

Extension Time

xx008 (Partitions-Arming)

(Default = 30 minutes) This is the amount of time by which a

scheduled arming period will be suspended during the arming

notification period. For example, let’s say the extension is entered

when there is four minutes left in the delay. Once the extension

has expired the system will start counting down the remaining

four minutes.

To set the Extension Time:

Once the item number has been entered, enter the number of

minutes (15–120) users will be able to extend the notification

period and press ƒ.

24 Advent Commercial Fire System

Enable Auto Force Arming

xx092 (Partitions-Arming)

(Default = on) If on, any protesting zone(s) will be bypassed upon

arming. If off, then the partition/area will not arm if any zone(s)

are protesting.

To turn Enable Auto Force Arming On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Enable Quick Arming

xx093 (Partitions-Arming)

(Default = on) If on, anyone can arm the panel and increase

arming levels without an access code. A valid access code is still

required to decrease arming levels or disarm the system. Quick

arm works as follows:

❏ Level 3 to 5 = no code ❏ Level 1 to 2 = no code

❏ Level 3 to 4 = code ❏ Level 1 to 3 = no code

❏ Level 4 to 3 = no code ❏ Level 1 to 4 = no code

❏ Level 5 to 3 = code ❏ Level 1 to 5 = no code

To turn Enable Quick Arming On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Exterior Arming Verification

xx097 (Partitions-Arming)

(Default = off) If on, exterior sirens will produce arming

verification sounds notifying users that the system was armed.

Note

In order for this setting to work, Audible Verification at

Close Reports setting (xx098) must be set to “on.”

To turn Exterior Arming Verification On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Number of Zones that can be Bypass

xx017 (Partitions-Arming)

(Default = 250) Select the number of zones that may be bypassed

at once. See Table B.1 on page 85 for information on which zone

types may be bypassed.

To program the Number of Zones that can be Bypassed:

Once the item number has been entered, enter the number of

zones that may be bypassed at once (0–250). Press ƒ to apply the

new setting.

Enable Automatic Unbypass

xx096 (Partitions-Arming)

(Default = off) If on, an indirectly bypassed zone will

automatically be unbypassed once the door, window, etc., has

been closed for 30 seconds. This setting only applies to delayed

zones.

To turn Enable Automatic Unbypass On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Enable Swinger Bypass

xx095 (Partitions-Arming)

(Default = on) If on, a zone that exceeds the set swing count

(xx021) during a single arming period will automatically be

bypassed. Changing the arming level restores all automatically

bypassed zones and resets the swing count.

To turn Enable Swinger Bypass On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Swing Count (Auto Bypass Trips)

xx021 (Partitions-Arming)

(Default = 3) Select the maximum number of report attempts that

one zone can generate during a single arming period before the

panel automatically bypasses that zone.

All automatically bypassed zones, and the swing count, will reset

if the system clock reaches midnight or an arming level change

occurs.

To set the Swing Count:

Once the item number has been entered, enter the desired swing

count (1–8) and press ƒ.

Standard Entry Delay

xx003 (Partitions-Arming)

(Default = 32 seconds) Enter the length of the standard entry

delay (in seconds). This is the number of seconds the user has to

disarm the system after tripping a standard delay zone. If the

system isn’t disarmed within this time period an alarm is

generated.

To set the Standard Entry Delay:

Once the item number has been entered, enter the number of

seconds (24–120) users will have to disarm the system. Press ƒ

to apply the new setting.

Advent Commercial Fire System

Partitions/Zones

Exit Delay

xx004 (Partitions-Arming)

(Default = 32 seconds) Enter the length of the standard exit delay

(in seconds). This is the number of seconds the user has to exit the

premises through a standard delay door after arming the system.

If the user trips a zone after this time period has expired, an alarm

is generated.

To set the Exit Delay:

Once the item number has been entered, enter the number of

seconds (24–120) users will have to exit the premises after arming

the system. Press ƒ to apply the new setting.

Extended Delay

xx005 (Partitions-Arming)

(Default = 2 minutes) Enter the length of the extended delay. The

extended delay time determines how much time (in minutes) the

user has to enter or exit the premises through an extended delay

door without causing an alarm.

To set the Extended Delay:

Once the item number has been entered, enter the number of

minutes (1–10) for the extended delay and press ƒ.

Early Termination Delay

xx101 (Partitions-Arming)

(Default = off) If on, the system will arm as soon as it detects a

delay zone closing. Once a person leaves through an exit delay

door and the door closes, the exit delay is terminated and the

system is armed.

Note

Cannot be used with One-Time Reset Enabled setting

(xx102).

To turn Early Termination Delay On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

One-Time Reset Enabled

xx102 (Partitions-Arming)

(Default = off) If on, the system will allow a one-time reset of the

standard exit delay. If a user leaves through a delay door and the

door closes, they may re-enter through the door within the exit

delay time period and the system will reset the exit delay.

Note

Cannot be used with Early Termination Enabled setting

(xx101).

To turn One-Time Reset Enabled On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Fast Beep Duration

xx006 (Partitions-Arming)

(Default = 10 seconds) Enter the length of time (in seconds) that

fast beeps will sound during the last portion of the exit delay to

signal the delay is ending.

To set the Fast Beep Duration:

Once the item number has been entered, enter the number of

seconds (5–15) fast beeps will sound before the end of the delay

and press ƒ.

Fast Beeps at End of Exit Delay Only

xx100 (Partitions-Arming)

(Default = on) If on, only the fast beeps at the end of the exit

delay will sound. If off, slow exit delay beeps will sound followed

by the fast beeps at the end of the delay.

To turn Fast Beeps at End of Exit Delay Only On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Beeps During Standard Entry Delay Only

xx103 (Partitions-Arming)

(Default = off) If on, beeps only sound during the standard entry

delay. If off, beeps sound during all segments of an entry delay

including standard, extended, and twice extended.

To turn Beeps During Standard Entry Delay Only On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Announce and Display Zone Text with Chime

xx110 (Partitions-Zones)

(Default = off) If on, zone text will be announced over speakers

and displayed on touchpads whenever a chime sounds (the sensor

is open or closed).

Note

Only partition/area 1 has voice capabilities.

To turn Announce and Display Zone Text with Chime On/

Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

Chime On Zone Restoral

xx111 (Partitions-Zones)

(Default = off) If on, a chime will sound whenever a zone is

restored.

To turn Chime on Zone Restoral On/Off:

Once the item number has been entered, enter 1 to turn the

setting on or 0 to turn it off. Press ƒ to apply the new setting.

26 Advent Commercial Fire System

Key or Code Needed for Special Fire Touchpad Keys

xx082 (Partitions-Zones)

(Default = on) If on, then a key or code must be used before using

the special panic keys (on fire touchpad) to acknowledge an

alarm, silence an alarm, or perform a fire alarm drill. If off, then

no key or code is required to use the special panic keys.

To turn Key or Code Needed for Special Fire Touchpad

Keys On/Off:

Once the item number has been entered, enter 1 to turn the

setting on (key or code required) or 0 to turn it off. Press ƒ to

apply the new setting.

Zone Test Time Out

xx011 (Partitions-Zones)

(Default = 30 minutes) Enter the length of time (in minutes) after

which a zone test automatically times out (ends).

To set the Zone Test Time Out:

Once the item number has been entered, enter the number of

minutes (5–120) before a zone test ends and press ƒ.

Disarm Key

Arm Key

Lights Key

Star Key

Lights/Star Keys

Arm Level 2

Arm Level 3

Arm/Star Keys

Disarm/Lights Keys

xx057, xx058, xx059, xx060, xx061, xx063, xx064, xx065,

xx066 (Partitions-Zones)

(Defaults = Unlock-4, Lock-9, Lights-15, Star-12, Light/Star-3,

Level 2-6, Level 3-5, Arm/Star-16, Disarm/Lights-16) These

settings allow you to specify how the system behaves when

specific keychain touchpad button or button combinations are

pressed.

Special Action Assignments:

❑0- not used

❑1- not used

❑2- not used

❑3- auxiliary panic (only used for item no. xx061)

❑4- arm to level 1

❑5- arm to level 2

❑6- arm to level 3

❑7- arm to special level 4

❑8- arm to special level 5

❑9- arm to closed level

❑10- arm to closed level with no delay

❑11- arm to closed level with Latchkey

❑12- increment arming level from 0 to 1, 1 to 2, or 2 to 3

only

❑13- turn all* lights on

❑14- turn all* lights off

❑15- toggle all* lights

❑16- do nothing

* all lights having the first (of two) house codes in the partition.

Specifying Keychain Touchpad Button Action:

1. Once the desired item number has been entered, enter the

special action assignment number (3–16) from the above

list.

2. Press ƒ to apply the new setting.

Enable Auxiliary/Medical Panic Keys

xx086 (Partitions-Zones)

(Default = on) Choose whether or not to enable the Auxiliary

panic buttons on non-fire touchpads. If enabled, when a user

presses and holds the Auxiliary panic buttons or presses them

twice, an auxiliary or medical alarm is generated. See Auxiliary/

Medical Assignments setting (xx084).

Turning Enable Auxiliary/Medical Panic Keys On/Off:

Once the item number has been entered, enter 1 to turn the

setting on (enabled) or 0 to turn it off. Press ƒ to apply the new

setting.

Advent Commercial Fire System

Codes

The settings below cover only installer programming codes.

For information on user access code programming, please

refer to the User’s Guide.

Enable Police Panic Keys

xx085 (Partitions-Zones)

(Default = on) Choose whether or not to enable the Police panic

buttons on non-fire touchpads. If enabled, when a user presses

and holds the police panic buttons or presses them twice, a police

alarm is generated.

Turning Enable Police Panic Keys On/Off:

Once the item number has been entered, enter 1 to turn the

setting on (enabled) or 0 to turn it off. Press ƒ to apply the new

setting.

Enable Fire Panic Keys

xx087 (Partitions-Zones)

(Default = on) Choose whether or not to enable the Fire panic

buttons on non-fire touchpads. If enabled, when a user presses

and holds the fire panic buttons or presses them twice, a fire alarm

is generated.

Turning Enable Fire Panic Keys On/Off:

Once the item number has been entered, enter 1 to turn the

setting on (enabled) or 0 to turn it off. Press ƒ to apply the new

setting.

Auxiliary/Medical Assignment

xx084 (Partitions-Zones)

(Default = on) Choose whether the Auxiliary/Medical panic

buttons are used to produce an auxiliary (on) or medical (off)

alarm.

Note

In order for an auxiliary or medical alarm to be produced

by the pressing of the panic buttons, they must be

enabled. See the Enable Auxiliary/Medical Panic Keys

setting xx086.

Selecting the Alarm Type:

Once the item number has been entered, enter 1 to turn the

setting on (auxiliary) or 0 to turn it off (medical). Press ƒ to

apply the new setting.

Dealer Access Code

17107 (Codes)

(Default = none) Enter a six-digit Dealer Access code. This code

is used to access special programming menus when the panel is in

program mode.

To set the Dealer Access Code:

1. Once the item number has been entered, enter any six-

digits (0–9) then press ƒ.

2. When prompted, enter the six-digit code again (for verifi-

cation), and press ƒ.

3. The touchpad will display NEW CODE OK.

Changing/Deleting the Dealer Access Code:

1. Once the item number has been entered, enter the six-

digit dealer code.

2. Wait until the touchpad displays ENTER NEW CODE

then

❑enter a new six-digit dealer code or,

❑enter 0 + ƒ to delete the dealer access code (no

code).

3. Enter the new code again.

4. The touchpad will display NEW CODE OK.

Downloader Access Code

17108 (Codes)

(Default = 12345) Enter a five-digit access code to be used in

conjunction with downloader programming.

Note

This code must match (or be left at default) the down-

loader access code programmed in downloader in order

for the two to communicate.

Changing the Downloader Access Code:

1. Enter the item number.

Note

If a Dealer Access Code has been programmed, you will

be prompted to enter it.

2. Once the Dealer Access Code has been entered (if appli-

cable) the touchpad will display the current Downloader

Access Code.

3. Enter any five-digits (0–9) for the new Downloader

Access code, then press ƒ.

28 Advent Commercial Fire System

Phone Settings

Access Code Length

50013 (Codes)

(Default = 4) Select the required length of all installer, primary,

and user access codes. If the access code length is changed, then

all access codes will automatically be updated to the correct

length. Access codes that contained less digits than the new

length will be given leading zeros (1234 = 001234). Access codes

that contained more digits than the new length will be have the

first digit(s) removed (987654 = 7654).

Changing the Access Code Length:

1. Enter the item number. The current code length will be

displayed.

2. Enter the new code length (4–6) and press ƒ.

Enable DTMF Dialing Line 1

Enable DTMF Dialing Line 2

1: 17094, 2: 17095 (Phone)

(Default = on) Select whether or not you want to enable the phone

line for DTMF (touch-tone) dialing. If off, the panel will dial

using pulse format.

To set the Dialing format:

Once the item number has been entered, enter 1 to turn this

setting on (DTMF dialing) or 0 to turn it off (pulse dialing).

Press ƒ to apply the new setting.

Phone Line 1 Dialing Prefix

Phone Line 2 Dialing Prefix

1: 17105, 2: 17106 (Phone)

(Default = none) Enter up to a six-digit phone line dialing prefix.

Use this setting to access an outside line, disable call waiting, etc.

Line Dial Prefix Format:

❑Enter 00–09 for numbers 0-9

❑Enter 10 for * (star)

❑Enter 11 for # (pound)

❑Enter 12 for D (1–5 second delay)

❑Enter 13 for W (wait for dial tone)

Setting a Line Dialing Prefix:

1. Once the desired item number has been entered the cur-

rent line dial prefix will be displayed.

2. Enter up to a six-digit phone line dialing prefix using the

format above and press ƒ.

Deleting a Line Dialing Prefix:

1. Once the desired item number has been entered the cur-

rent line dial prefix will be displayed.

2. Enter 0 + ƒ. The touchpad will display NO DATA.

Number of Attempts Before Reporting Failure RF

Buddy

17101 (Phone)

(Default = 5) Set the number of dialing attempts (to central

station) before a buddy transmission is generated.

Note

Not investigated by UL.

To set the number of Attempts:

Once the item number has been entered, enter the number of

buddy dial attempts (0-11)* and press ƒ.

* 0 = immediate transmit request, 11 = no transmit request.

No Phone Line Attached

17069 (Phone)

(Default = off) Turn this setting on if there is no phone line

connected to the panel. When on, the panel will not check for

phone line failure.

Turning No Phone Line Attached On/Off:

Once the item number has been entered, enter 1 to turn this

setting on (no phone line) or 0 to turn it off (phone line). Press ƒ

to apply the new setting.

System Account Number 1

System Account Number 2

1: 17102, 2: 17103 (Phone)

(Default = 00000000) Enter an 8-digit system account number

which will identify the panel to the central station when reporting

system events. System Account Number 1 is reported on

reporting phone 1 and its backup. System account number 2 is

reported on reporting phone 2 and its backup.

Account Number Format:

❏ for 0 enter 00 ❏ for 6 enter 06 ❏ for C enter 12

❏ for 1 enter 01 ❏ for 7 enter 07 ❏ for D enter 13

❏ for 2 enter 02 ❏ for 8 enter 08 ❏ for E enter 14

❏ for 3 enter 03 ❏ for 9 enter 09 ❏ for F enter 15

❏ for 4 enter 04 ❏ for A enter 10

❏ for 5 enter 05 ❏ for B enter 11

To enter a System Account Number

1. Once the desired item number has been entered the cur-

rent system account number will be displayed.

Note

If a Dealer Access Code has been programmed, you will

be prompted to enter it.

2. Enter the new system account number using the list

above. For example, if you wanted the system account

number to be “123456AB,” at the keypad you would

enter “01, 02, 03, 04, 05, 06, 10, 11.”

3. Press ƒ and the touchpad displays the new system

account number.

Note

System account numbers must equal 8 characters. If you

enter less than 8 characters the panel will automatically

replace the blank spaces with leading zeros (0).

Advent Commercial Fire System

Specific Phone Number Settings

Specific phone number settings allow you to program cen-

tral monitoring station, downloader, and pager phone num-

bers.

Note

If a Dealer Access Code has been programmed, you will

be prompted to enter it when setting/changing specific

phone settings.

❑Phone numbers 19–22 are central monitoring station

reporting phone numbers and function as follows:

19 = phone 1

20 = phone 1 backup

21 = phone 2

22 = phone 2 backup

❑Phone numbers 23–24 are downloader phone numbers and

function as follows:

23 = phone 3

24 = phone 3 backup

Note

Downloader phone numbers are for commercial burglary

panels only.

❑Phone numbers 25–40 are reporting pager phone numbers

1 through 16.

Pager ID

17058 (Phone)

(Default = 00000) The Pager ID identifies the panel to pager-

holders. Select the ID to be sent with pager reports.

To set the Pager ID:

Once the item number has been entered, enter the 5-digit Pager ID

(00000–99999) to be sent with pager reports and press ƒ.

Phone Test Interval

17034 (Phone)

(Default = 1 day [comm], 7 days [home nav]) Select the number

of days between automatic phone test reports to all enable central

station phone numbers. Entering 0 will disable automatic phone

test.

To set Phone Test Interval:

Once the item number has been entered, (17-034) enter the

number of days (0–255). Press ƒ to apply the new setting.

Phone Number Enable

yy001 (Phone)

(Default = off) Select whether or not to enable the phone number.

If on, the panel will use the number when reporting or

downloading. If off, the number will be skipped.

To turn Phone Number Enable On/Off:

Once the item number has been entered (19001–24001), enter 1

to turn this setting on (call), or 0 to turn it off (no call). Press ƒ

to apply the new setting.

Number to Dial

yy002 (Phone)

(Default = none) Enter up to a 24-digit phone number for

reporting or downloading.

Phone Number Format:

❑Enter 00–09 for numbers 0-9

❑Enter 10 for * (star)

❑Enter 11 for # (pound)

❑Enter 12 for D (1–5 second delay)

❑Enter 13 for W (wait for dial tone)

To enter Number to Dial:

1. Enter the desired item number (ex. 19002).

2. Enter the phone number using the list above. For exam-

ple, if you wanted the phone number to be

“1235551212,” at the keypad you would enter “01, 02,

03, 05, 05, 05, 01, 02, 01, 02.”

3. Press ƒ and the touchpad displays the new phone num-

ber.

Note

In order for the phone number to be used for reporting

events or downloading, it must be enabled. See the

Phone Number Enable setting (yy001) on page 29.

To delete a Number to Dial:

Enter the desired item number. Enter 0 + ƒ. The touchpad will

display NO DATA.

Number of Attempts

yy003 (Phone)

(Default = 5) Set the number of times (attempts) the panel will

dial (and report) to the reporting or downloader phone number.

Note

19003 for phones 1 and 2, 21003 for phones 3 and 4.

To set the Number of Dial Attempts:

Once the item number has been entered, enter the number of dial

attempts (5–10) and press ƒ.

Comm Format

yy004 (Phone)

(Default = Contact ID) Select the type of communication format

the panel will use when reporting events to the central station.

Note

Currently only Contact ID format is supported.

30 Advent Commercial Fire System

System Pagers

Report Panic Special

yy005 (Phone)

(Default = off) Choose how the panel formats touchpad panic

alarm reports to the central station. When on, touchpad panic

alarms report using the following special 3-digit codes:

❑Fire Panic—599

❑Police Panic—598

❑Auxiliary Panic—597

❑Medical Panic—596

When off, panics will report as “500” plus the bus device number.

For example, a keypad with bus device number “03” would report

as “503.”

Turning Report Panic Special On/Off:

Once the item number has been entered, enter 1 to turn this

setting on (report panic special), or 0 to turn it off (not special).

Press ƒ to apply the new setting.

Enabled Pager Phone Number

zz001 (Phone-Pagers)

(Default = off) Select whether or not to enable the pager phone

number. If on, number will report events to the pager. If off, the

number will be skipped when the panel is reporting to pagers.

To turn Enable Pager Phone Number On/Off:

Once the item number has been entered (25001–40001), enter 1

to turn this setting on (page), or 0 to turn it off (no page). Press

ƒ to apply the new setting.

Pager Number to Dial

zz002 (Phone-Pagers)

(Default = none) Enter up to a 24-digit phone number for pager

reporting.

Pager Phone Number Format

❑Enter 00–09 for numbers 0-9

❑Enter 10 for * (star)

❑Enter 11 for # (pound)

❑Enter 12 for D (1–5 second delay)

❑Enter 13 for W (wait for dial tone)

To enter a Pager Phone Number:

1. Enter the desired item number (ex. 25002).

2. Enter the phone number using the list above. For exam-

ple, if you wanted the pager phone number to be

“1235551212,” at the keypad you would enter “01, 02,

03, 05, 05, 05, 01, 02, 01, 02.”

3. Press ƒ and the touchpad displays the new pager phone

number.

Note

In order for the panel to report events to the pager the

pager phone number must be enabled. See Enable Pager

Phone Number setting (zz001).

To delete a Pager Phone Number:

Enter the desired item number. Enter 0 + ƒ. The touchpad will

display NO DATA.

Number of Attempts

zz003 (Phone-Pagers)

(Default = 3) Set the number of times (attempts) the panel will try

to dial the pager phone number.

To set the Number of Dial Attempts:

Once the item number has been entered, enter the number of dial

attempts (3–10) and press ƒ.

Comm Format

zz004 (Phone-Pagers)

(Default = 1 [TAP at 1200 bps PSK]) Select the type of

communication format the panel will use when reporting events

to pagers.

Communication Formats:

❑Enter 0 for TAP at 300 bps (FSK)

❑Enter 1 for TAP at 1200 bps (PSK)

To set the Communication Format:

Once the item number has been entered, use the choices above to

select a communication format. Press ƒ to apply the new setting.

Character Format

zz005 (Phone-Pagers)

(Default = 1 [7/E/1]) Select the character format the panel will use

when reporting to pagers.

Character Formats:

❑Enter 0 for 8/N/1

❑Enter 1 for 7/E/1

To set the Character Format:

Once the item number has been entered, press 0 for 8/N/1

character format (off), or 1 for 7/N/1 character format (on). Press

ƒ to apply the setting.

Pager System Reports

zz006 (Phone-Pagers)

(Default = off) Select whether or not you want system events

reported to pager.

To turn System Pager Report On/Off:

Once the item number has been entered, enter 1 to turn this

setting on (report), or 0 to turn it off (don’t report). Press ƒ to

apply the new setting.

Advent Commercial Fire System

Advanced Settings

Only qualified persons should make changes to advanced

phone settings.

Partition/Area 1 Pager Reports

Partition/Area 2 Pager Reports

Partition/Area 3 Pager Reports

Partition/Area 4 Pager Reports

Partition/Area 5 Pager Reports

Partition/Area 6 Pager Reports

Partition/Area 7 Pager Reports

Partition/Area 8 Pager Reports

1: zz007, 2: zz008, 3: zz009, 4: zz010,

5: zz011, 6: zz012, 7: zz013, 8: zz014 (Phone-Pagers)

(Defaults = 0, phone 25-31 = 1) Select whether or not you want

partition/area events to report to pager(s).

To turn Partition/Area Report On/Off:

Once the item number has been entered, enter 1 to turn this

setting on (report), or 0 to turn it off (don’t report). Press ƒ to

apply the new setting.

Pager PIN #

zz015 (Phone-Pagers)

(Default = none) Enter up to a 15-digit pager PIN.

To enter a Pager PIN:

1. Enter the desired item number (ex. 25015).

2. Enter up to a 15-digit (0–9) pager PIN.

3. Press ƒ and the touchpad displays the pager PIN.

Pager Max Message Length

zz016 (Phone-Pagers)

(Default = 120 characters) Set the maximum character length for

pager messages.

To set the maximum Pager Message Length:

Once the item number has been entered, enter the maximum

pager length (0–255) and press ƒ.

Maximum Ring Cycle Time

17018 (Phone-Advanced Dialog Screen)

(Default = 67 milliseconds) Specify (in milliseconds) the

maximum cycle time for a ring signal.

To set the Maximum Ring Cycle Time:

Once the item number has been entered, specify the maximum

ring cycle time (0–255). Press ƒ to apply the new setting.

DTMF on Time

17031 (Phone-Advanced Dialog Screen)

(Default = 3 [30 ms]) Specify the minimum duration of a valid

DTMF (touch-tone) tone in 10 millisecond increments (1–100 x

10 ms). This is the minimum amount of time that a phone number

button must be pressed in order to be valid.

To set the DTMF on Time:

Once the item number has been entered, specify the minimum

tone duration (1–100). Press ƒ to apply the new setting.

DTMF off Time

17032 (Phone-Advanced Dialog Screen)

(Default = 5 [50 ms]) Specify the minimum duration of pause

between DTMF (touch-tone) tones in 10 millisecond increments

(1–100 x 10 ms). This is the minimum amount of time required

between two phone number buttons being pressed.

To set the DTMF off Time:

Once the item number has been entered, specify the minimum

duration between tones (1–100). Press ƒ to apply the new

setting.

Minimum Cycles in a Valid Ring

17054 (Phone-Advanced Dialog Screen)

(Default = 2 cycles) Specify the minimum number of cycles in a

valid ring.

To set the Minimum Cycles in a Valid Ring:

Once the item number has been entered, specify the minimum

number of cycles (0–255). Press ƒ to apply the new setting.

Number of Ringlets Needed for a Valid Ring

17055 (Phone-Advanced Dialog Screen)

(Default = 1 burst) Specify the number of ring bursts in a valid

ring.

To set the Number of Ringlets Needed for a Valid Ring:

Once the item number has been entered, specify the number of

ring bursts (0–5). Press ƒ to apply the new setting.

Valid Ring at Beginning or End of Cycle

17091 (Phone-Advanced Dialog Screen)

(Default = off) Select to enable ring valid at beginning or end of

cycle.

To set the Valid Ring at Beginning or End of Cycle:

Once the item number has been entered, enter 1 to turn this

setting on (ring valid), or 0 to turn it off (ring not valid). Press ƒ

to apply the new setting.

32 Advent Commercial Fire System

Phone Access Settings

Local Phone Settings

Local phone settings allow you to choose how phones

located on the same premises as the panel interact with the

system.

Maximum Ringlet Burst Duration

17020 (Phone-Advanced Dialog Screen)

(Default = 250 [2500 ms]) Specify the maximum duration of a

valid ring burst in 10 ms increments (3–300 x 10 ms).

To set the Maximum Ringlet Burst Duration:

Once the item number has been entered, specify the maximum

ring burst duration (3–300). Press ƒ to apply the new setting.

Minimum Ringlet Burst Duration

17019 (Phone-Advanced Dialog Screen)

(Default = 40 [400 ms]) Specify the minimum duration of a valid

ring burst in 10 ms increments (3–300 x 10 ms).

To set the Minimum Ringlet Burst Duration:

Once the item number has been entered, specify the minimum

ring burst duration (3–300). Press ƒ to apply the new setting.

Maximum Pause Between Ringlets

17022 (Phone-Advanced Dialog Screen)

(Default = 0) Specify the maximum duration between valid ring

bursts in 10 millisecond increments (0–300 x 10 ms).

To set the Maximum Pause Between Ringlets:

Once the item number has been entered, specify the maximum

duration between ring bursts (0–300). Press ƒ to apply the new

setting.

Minimum Pause Between Ringlets

17021 (Phone-Advanced Dialog Screen)

(Default = 0) Specify the minimum duration between valid ring

bursts in 10 millisecond increments (0–300 x 10 ms).

To set the Minimum Pause Between Ringlets:

Once the item number has been entered, specify the minimum

duration between ring bursts (0–300). Press ƒ to apply the new

setting.

Maximum Pause Between Rings

17024 (Phone-Advanced Dialog Screen)

(Default = 450 [4500 ms]) Specify the maximum amount of time

allowed between valid rings in 10 millisecond increments (100–

999 x 10 ms).

To set the Maximum Pause Between Rings:

Once the item number has been entered, specify the maximum

time between rings (100–999). Press ƒ to apply the new setting.

Minimum Pause Between Rings

17023 (Phone-Advanced Dialog Screen)

(Default = 200 [2000 ms]) Specify the minimum amount of time

allowed between valid rings in 10 millisecond increments (100–

999 x 10 ms).

To set the Minimum Pause Between Rings:

Once the item number has been entered, specify the minimum

time between rings (100–999). Press ƒ to apply the new setting.

Enable Local Phone Access in Partition/Area 1

17085 (Phone Access)

(Default = off) This setting allows you to enable local phone

control in partition/area 1. If on, partition/area 1 may be

controlled by local on premises phones.

To turn Enable Local Phone Access in Partition/Area 1

On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

Local Phone Connect Sequence

17056 (Phone Access)

(Default = #*) Enter up to a 4-digit DTMF (touch-tone) sequence

for local control. This is the sequence of numbers the user will

have to enter when accessing the panel locally (on-site)

Format:

❑Enter 00–09 for numbers 0-9

❑Enter 10 for * (star)

❑Enter 11 for # (pound)

To enter Local Phone Connect Sequence:

1. Enter the item number.

2. Enter the sequence using the format above. For example,

if you wanted the sequence to be “12#*,” at the keypad

you would enter “01, 02, 11, 10.”

3. Press ƒ and the touchpad displays the new sequence.

To delete the Local Phone Connect Sequence:

1. Enter the item number.

2. Enter 0 + ƒ. The touchpad will display NO DATA.

Advent Commercial Fire System

Remote Phone Settings

Remote phone settings allow you to choose how phones

located off premises (different line) interact with the panel.

Phone Device Override Sequence

17057 (Phone Access)

(Default = **##) Enter up to a 4-digit DTMF (touch-tone)

sequence for phone device override. This sequence will instruct

the panel to seize the line from the local phone and initiate a

remote connection. Users will be able to enter this sequence and

bypass any phone devices (answering machines, fax machines,

etc.) when calling from a remote phone.

Format:

❑Enter 00–09 for numbers 0-9

❑Enter 10 for * (star)

❑Enter 11 for # (pound)

To enter Phone Device Override Sequence:

1. Enter the item number.

2. Enter the sequence using the format above. For example,

if you wanted the sequence to be “12#*,” at the keypad

you would enter “01, 02, 11, 10.”

3. Press ƒ and the touchpad displays the new sequence.

To delete Phone Device Override Sequence:

1. Enter the item number.

2. Enter 0 + ƒ. The touchpad will display NO DATA.

Max Delay Between Phone Panic Sequence

17030 (Phone Access)

(Default = 2 seconds) Specify the maximum time allowed (in

seconds) between keystrokes in a phone panic sequence. If this

delay is exceeded, a panic alarm will not be activated.

Setting the Max Delay Between Phone Panic Sequence:

Once the item number has been entered, enter the maximum delay

(1–5). Press ƒ to apply the new setting.

Local Phone Connect Time

17028 (Phone Access)

(Default = 5 seconds) Specify the maximum time allowed (in

seconds) between local phone off-hook and DTMF seize

sequence for local phone control. If the maximum time is

exceeded, remote phone control will be put on hold.

Setting the Local Phone Connect Time:

1. Once the item number has been entered, enter the maxi-

mum allowable connect time (0–255 [0 = no max time]).

2. Press ƒ to apply the new setting.

Local Phone Answer Time

17029 (Phone Access)

(Default = 8 seconds) Specify the maximum time (in seconds)

between a ring signal and local phone off-hook signal to be

considered answer of call.

Setting the Local Phone Answer Time:

Once the item number has been entered, enter the answer time

(0–255). Press ƒ to apply the new setting.

On Hook Hang Up Time

17027 (Phone Access)

Default = 4 seconds) Select the amount of time (in seconds) a

local telephone must be on-hook before hanging up.

Setting the On Hook Hang Up Time:

Once the item number has been entered, enter the hang up time

(2–10). Press ƒ to apply the new setting.

Enable Local Phone Police Alarm

Enable Local Phone Auxiliary Alarm

Enable Local Phone Fire Alarm

Police: 17080, Auxiliary: 17081,

Fire: 17082 (Phone Access)

(Default = off) Select whether or not you want to enable the

selected phone alarm sequence. If on, users will be able to

activate the specific alarm using a local phone (88888 for police,

77777 for auxiliary/medical, and 99999 for fire).

To turn Enable Local Phone Alarm On/Off:

Once the desired item number has been entered, enter 1 to turn

this setting on, or 0 to turn it off. Press ƒ to apply the new

setting.

Enable Remote Phone Access

17086 (Phone Access)

(Default = on) This setting allows you to enable remote phone

access. If on, the panel may be controlled using remote off-site

phones.

Note

Turning this setting to “off” will prevent the panel from

receiving future downloader calls.

Note

For residential use only.

To turn Enable Remote Phone Access On/Off:

Once the item number has been entered, enter 1 to turn this

setting on (enabled), or 0 to turn it off. Press ƒ to apply the new

setting.

Enable Remote Phone Ring Count

17087 (Phone Access)

(Default = on) This setting allows you to tell the panel to count

remote phone rings so that it will pick up after a certain number of

rings. This setting only works if Remote Phone Access setting

(above) is set to “on”.

Note

For residential use only.

To turn Enable Remote Phone Ring Count On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

34 Advent Commercial Fire System

Zone Settings

Use zone settings to add, delete, test, and modify zones.

Note

It is recommended that no more than 132 wireless sensors

be used in any individual Advent system.

If 2 or more Advent systems are in close proximity to each

other, the total number of wireless sensors for all systems

must not exceed 132.

Answer Phone after XX Rings

17052 (Phone Access)

(Default = 12 rings) Specify the number of rings after which the

panel will answer an incoming phone call. The Enable Remote

Phone Ring Count setting (17087) must be set to “on” for this

setting to work.

Note

For residential use only.

To set the number of Rings:

Once the item number has been entered, specify the maximum

number of rings (1–12). Press ƒ to apply the new setting.

Enable Toll Saver

17090 (Phone Access)

(Default = on) Choose whether or not to enable the panel to

answer a remote phone up to 4-rings earlier than normal if an

alarm condition or system trouble has occurred. Normal is

considered the value in Answer Phone after XX Rings setting

(17052). The Enable Remote Phone Ring Count setting (17087)

must be set to “on” for this setting to take effect.

Note

For residential use only.

To turn Toll Saver On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

Enable Remote Phone Ring-Pause-Ring

17088 (Phone Access)

(Default = on) This setting allows you to program the panel to

answer remote phone ring-pause-rings. When on, a user can call

the panel once, hang up, and call again. The panel will then

answer the phone. Use this setting if an answering machine shares

a phone line with the panel.

Note

The user must not exceed the number of rings in the Can-

cel Ring-Pause-Ring after XX Rings setting (17053) when

calling the panel. Additionally, the user must call the panel

again between the times programmed in settings 17025

and 17026.

For residential use only.

To turn Enable Remote Phone Ring-Pause-Ring On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

Min Time Between Ring-Pause-Ring Calls

17025 (Phone Access)

(Default = 10 seconds) Specify the minimum time (in seconds)

between ring-pause-ring calls. This is the minimum amount of

time that must elapse before the second call in a ring-pause-ring

attempt.

Setting the Min Time Between Ring-Pause-Ring Calls:

Once the item number has been entered, specify the minimum

time (6–20). Press ƒ to apply the new setting.

Max Time Between Ring-Pause-Ring Calls

17026 (Phone Access)

(Default = 30 seconds) Specify the maximum time (in seconds)

between ring-pause-ring calls. This is the maximum amount of

time that may elapse before the second call in a ring-pause-ring

attempt. If this time is exceeded, the current ring-pause-ring

attempt will be canceled.

Setting the Max Time Between Ring-Pause-Ring Calls:

Once the item number has been entered, specify the maximum

time (7–60). Press ƒ to apply the new setting.

Cancel Ring Pause Ring After XX Rings

17053 (Phone Access)

(Default = 3 rings) Specify the number or rings at which ring-

pause-ring is aborted. For example, if this setting is set at 3, then

(during the first call) at 3 rings, ring-pause-ring will be aborted.

Setting Cancel Ring Pause Ring After XX Rings:

Once the item number has been entered, specify the maximum

number of rings (2–10). Press ƒ to apply the new setting.

Enable Remote Phone Override

17089 (Phone Access)

(Default = on) If on, users may cut off a local phone call or

answering machine to access the panel from a remote phone.

Note

For residential use only.

To turn Enable Remote Phone Override On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

Allow Remote Phone Zone Test

17098 (Phone Access)

(Default = on) If on, users may perform zone tests from remote

phones.

To turn Allow Remote Phone Zone Test On/Off:

Once the item number has been entered, enter 1 to turn this

setting on, or 0 to turn it off. Press ƒ to apply the new setting.

Advent Commercial Fire System

Tripping Hardwire Zones

❑Hardwire Zones—Start with the zone in its “normal”

state, then trip the zone into its alarm state. A normally

closed door, for example, should be closed when you

begin the Add Zones process. Trip the zone by opening

the door.

❑Door/Window Sensors with External Contacts—Place

the external contact in the alarm condition, then activate

the sensor tamper switch.

❑On hardwired zones containing multiple sensors, only one

needs to be tripped for the panel to learn the zone.

❑The alarm state is either open or closed, depending on the

normal condition of the sensor. Multiple normally closed

switches are wired in series and tripped open. Multiple

normally open switches are wired in parallel and tripped

closed.

Tripping Learn Mode Wireless Sensors*

To trip a wireless sensor with an external hardwired contact

connected to its screw terminals, check that the external

contact is in its alarm state, then activate the sensor tamper.

For high-security installations, always remove both internal

reed switches when connecting an external contact to the

wireless sensor terminals.

Only the normally closed configuration can be used in UL-

listed installations.

Do not attempt to use the built-in magnetic reed switch and

an external contact on the same wireless sensor.

On hardwired sensors connected to the external contacts of

a wireless transmitter, the alarm state is either open or

closed, depending on the normal condition of the sensor.

Multiple normally closed switches are wired in series and

tripped while the loop is open. Multiple normally open

switches are wired in parallel and tripped while the loop is

closed.

❑Fire Pull Station—Actuate the sensor. Open the sensor

cover located inside the fire pull station.

❑Glass Guard—Open sensor cover.

❑Rate-of Rise-Heat—Open sensor cover and press learn

switch on circuit board.

❑Smoke (System Sensor 2100RF)—Remove base.

❑Smoke (ESL 570 Series)—Remove base.

❑Pressure Switch Sensor—Hold a magnet next to the sen-

sor cover where indicated (does not require cover

removal).

❑2 and 4 Button Keychain Touchpads—Simultaneously

press Lock and Unlock buttons until the touchpad LED

flashes (added [learned] in a sensor zone type).

❑Handheld—Press Bypass button.

❑HiTech Wall-Mount—Press Bypass button.

❑HiTech Handheld—Press Bypass button.

Add (Learn) Zones

47001 (Zones)

(Default = none) Use this item number to add (learn) hardwire

zones and wireless devices into panel memory.

To learn Zones into panel memory:

1. Once in program mode enter item number 47001.

The display shows ENTER PARTITION/AREA NUMBER

OR PRESS * TO CANCEL.

2. Enter the desired one-digit partition/area number (1–8)

and press ƒ. The display shows ENTER ZONE TYPE OR

PRESS * TO CANCEL.

Note

If the partition/area is not enabled, the display will show

PARTITION/AREA nn INVALID. See item number xx068

(page 17) to enable partition/area(s).

3. Enter the two-digit zone type number (00–96) and press

ƒ. Refer to Table B.1 on page 85 for zone type descrip-

tions.

Note

If zone type 84 (Enhanced Buddy) is selected please see

description of group for information on adding (learning)

in buddy zones.

4. The display shows LEARN ZONE nn ENTER NEW

ZONE NUMBER OR PRESS # TO ACCEPT, where nn is

the next available zone number. If desired, enter a differ-

ent zone number. Press ƒ.

5. When the display shows TRIP ZONE n, use the guide-

lines below and on this page to force the zone you are

adding (learning) into panel memory.

6. The display shows ZONE nn TYPE nn PARTITION/

AREA n OK.

7. To add another zone to the same zone type and partition/

area, go to step 5.

To add zones to another zone type (same partition/area)

press ƒ and go back to step 2.

To add zones to another zone type and partition/area press

‚ and repeat the above procedure (exits to program-

ming).

Note

Make sure wireless touchpads that may be removed from

the premises such as portable and keychain touchpads

are assigned to an unsupervised zone type such as 87.

Assign permanently mounted wireless touchpads to

supervised zone type 86.

*) Refer to the specific sensor/touchpad Installation Instruc-

tions for more details on tripping sensors/touchpads.

Delete Zones

47002 (Zones)

(Default = n/a) Use this item number to delete zones from panel

memory. You must delete zones one at a time.

Note

Deleting zones does not delete the zone text associated

with the deleted zone number. To delete zone text use

item number 49001, Zone Text.

To Delete Zones from panel memory:

1. Once in program mode enter 47002. The display

shows ENTER ZONE NUMBER OR PRESS * TO CAN-

CEL.

2. Enter the 3-digit zone number you wish to delete and

press ƒ.

3. The display shows ZONE nn DELETED.

4. To delete another zone, repeat the above procedure.

36 Advent Commercial Fire System

Zone Text

49001 (Zones)

(Default = none) Use the following guidelines to “name” zones.

❑Use the item numbers that appear in Table B.2 on page 90

for characters and words listed there.

❑If a desired word does not appear in Table B.2, create it

using the characters (custom text).

❑When using words from Table B.2, spaces between them

appear automatically. When using characters from Table

B.2 to create words, you must reserve an item number for

a ‘space’ after the word.

❑Each character or word uses up one item number. For

example, a word from the list counts as one item number.

A created word (such as BOY’S) counts as six item num-

bers—4 letters, 1 apostrophe, and 1 space.

❑Only 8 item numbers are allowed for each zone name, so

plan ahead before programming zone text. You may need

to abbreviate words to avoid running out of item numbers.

To program Zone Text:

1. Once in program mode enter 49001. The display

shows ENTER ZONE NUMBER OR PRESS * TO CAN-

CEL.

2. Enter the desired zone number and press ƒ. The display

shows TEXT FOR ZONE n IS current zone text. ENTER

TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter the numbers of the desired characters or words. If

you make a mistake press ‚ to start over.

4. Once all numbers have been entered, press ƒ to accept.

The display shows the new zone text.

To delete Zone Text:

1. Once in program mode enter 49001. The display

shows ENTER ZONE NUMBER OR PRESS * TO CAN-

CEL.

2. Enter the desired zone number and press ƒ. The display

shows TEXT FOR ZONE n IS current zone text. ENTER

TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter 000 and press ƒ. The display shows TEXT FOR

ZONE n IS NO TEXT.

List Zones

47003 (Zones)

(Default = n/a) Use this item number to list information about

existing zones. The system will list the zone number, any zone

text, zone type number, and the partition/area number.

To List Zones:

Once in program mode enter 47003. The display will show

ZONE nn, any zone text, TYPE nn, PARTITION/AREA n.

The panel will scroll through and display information about each

zone. To skip forward press ƒ. To exit press ‚. Once the panel

lists all the zones it will return to the program menu.

Zone Attributes (Edit Zones)

47004 (Zones)

(Default = n/a) Use this item number to edit the following zone

attributes.

❑1—Critical Security Zone (Default = 0 [Off])

Enter 0 to turn attribute Off, 1 to turn attribute On. Critical

zones require special authority (partition master and full

authority codes) in order to be bypassed.

❑2—RF Supervisory Time (Default = A [4 hours])

Enter 0 for RF Supervisory Time A (17049), 1 for

Supervisory Time B (17050).

❑3—Zone Activity Threshold (Default = 0 [None])

Enter 0 for None, 1 for Threshold 1 (xx018), 2 for Thresh-

old 2 (xx019), 3 for Threshold 3 (xx020).

❑4—Hardwire Smoke Verify (Default = 0 [Off])

Enter 0 to turn attribute Off, 1 to turn attribute On. If on,

when a hardwire smoke detector is tripped, the panel will

remove power for 3 seconds to reset the smoke. If a sec-

ond trip occurs within 120 seconds, an alarm will sound

and a report will be sent to the central station.

❑5—Delayed Zone (Default = 0 Off)

Enter 0 to turn attribute Off, 1 to turn attribute On (see

17117).

❑6—Floor (Default = 0 [None])

Enter the floor number the zone resides on (1–90 above

ground, 91–99 below ground, 0 = None) (see item 17074

on page 44).

❑7—not supported

❑8—not supported

❑9—not supported

❑10—Warning message index (Default = 0 [None])

Enter the desired warning message (1–5). If learned into

zone type 70 it will only play the desired warning mes-

sage.

❑11—Zone Bypass Group (Default = 0 [None])

Enter the desired bypass group number (0–32). This will

allow users to directly bypass and unbypass groups of

zones.

To Edit Zone Attributes:

1. Once in program mode enter 47004. The display

shows ENTER ZONE NUMBER OR PRESS * TO CAN-

CEL.

2. Enter the desired zone number and press ƒ. The display

shows ENTER ATTRIBUTE NUMBER OR PRESS * TO

CANCEL.

3. Enter the attribute number from the list above and press

ƒ. The display will show the current attribute setting. If

desired, change the attribute setting.

4. Press ƒ to apply changes. To edit another attribute repeat

step 1.

Test Buddies

47005 (Zones)

(Default = n/a) Use this item number to test zone buddies.

To Test Buddies:

Once in program mode enter 47005. The display will show

BUDDY TEST MODE. Once the test is complete the display will

list buddies (see List Buddies 47006).

Advent Commercial Fire System

I/O Settings

Use the following item numbers to specify how inputs and

outputs behave.

List Buddies

47006 (Zones)

(Default = n/a) Use this item number to list information about

existing buddy zones. The system will list the buddy zone

number, ID, and latest buddy test results.

To List Buddies:

Once in program mode enter 47006. The display will list all

four buddies.

❑If the buddy doesn’t exists, the panel will display BUDDY

n INVALID.

❑If the buddy failed the latest test (47005), the panel will

display BUDDY n FAILED.

❑If the buddy passed the latest test, the signal strength will

be displayed.

The panel will scroll through and display information about each

buddy. To skip forward press ƒ. To exit press ‚. Once the panel

lists all the buddies it will return to the program menu.

Zone Delay Time

17117 (Zones)

(Default = 10 seconds) Set the time delay (in seconds) between a

zone being tripped and the trip being processed by the panel. This

allows time for a zone to reset.

Note

This setting only applies to zones programmed as

delayed.

To set Zone Delay Time:

Enter the item number. Enter the delay time (1–250 seconds) and

press ƒ.

Smoke Loop Reset Time

17051 (Zones)

(Default = 3 seconds) Select the time (in seconds) for a zone to

reset.

To set Smoke Loop Reset Time:

Enter the item number. Enter the reset time (3-15 seconds) and

press ƒ.

General Input Response Time 1

General Input Response Time 2

General Input Response Time 3

General Input Response Time 4

General Input Response Time 5

General Input Response Time 6

General Input Response Time 7

1: 17006, 2: 17007, 3: 17008, 4: 17009, 5: 17010,

6: 17011, 7: 17118 (Input and Output)

(Defaults = 32 [0.512 seconds]) Each of the seven onboard inputs

has a response time. The panel has to “see” a transition for at least

that length of time in order to deem it a trip or restoral. At the

panel you enter response times in 16 millisecond increments

(actual time = value x 16 ms).

To program a General Input Response Time:

Enter the desired item number. Enter a response time (8–255) and

press ƒ.

Expansion Input Response Time 1

Expansion Input Response Time 2

Expansion Input Response Time 3

Expansion Input Response Time 4

Expansion Input Response Time 5

Expansion Input Response Time 6

Expansion Input Response Time 7

Expansion Input Response Time 8

1: 17012, 2: 17013, 3: 17014, 4: 17015 5: 17016, 6: 17017,

7: 17119, 8: 17120 (Input and Output)

(Default = 32 [0.512 seconds]) Each of the eight expansion inputs

has a response time. The panel has to “see” a transition for at least

that length of time in order to deem it a trip or restoral. At the

panel you enter response times in 16 millisecond increments

(actual time = value x 16 ms).

Note

Response times only apply if the input is not a smoke

loop. A smoke loop response time is always set to 1 sec-

ond.

To program an Expansion Input Response Time:

Enter the desired item number. Enter a response time (8–255) and

press ƒ.

General Purpose I/O 1 Direction

General Purpose I/O 2 Direction

General Purpose I/O 3 Direction

General Purpose I/O 4 Direction

General Purpose I/O 5 Direction

General Purpose I/O 6 Direction

1: 17063, 2: 17064, 3: 17065, 4: 17066

5: 17067, 6: 17068 (Input and Output)

(Default = 0 [input]) Select the direction of each general purpose

input/output.

To program General Purpose Input/Output direction:

1. Enter the desired item number.

2. Enter 1 to set the direction as an output, or 0 to set it as

an input. Press ƒ to apply the direction.

38 Advent Commercial Fire System

Accessory Modules

The items below allow you to add, delete, list, and modify

SuperBus 2000 devices and settings.

Activation Interval One-Shot Time A

Activation Interval One-Shot Time B

Activation Interval One-Shot Time C

Activation Interval One-Shot Time D

A: 17113, B: 17114, C: 17115,

D: 17116 (Input and Output)

(Default = A: 4 secs, B: 30 secs, C: 180 secs, D: 900 secs) Specify

how long (in-seconds) outputs are activated for when the response

is set to one-shot.

Note

Only those outputs programmed to be one-shot (A, B, C,

or D) will be affected by this setting.

To program One-Shot Time:

Enter the desired item number. Enter the desired one-shot time

duration (1–999) and press ƒ.

Output Activation Delay

17112 (Input and Output)

(Default = 30 seconds) Specify how long (in-seconds) output

activation is delayed.

Note

Only those outputs that are programmed to be delayed

will be affected by this setting.

To program the Output Activation Delay:

Enter the desired item number. Enter the desired delay time (1–

999) and press ƒ.

Add (Learn) Bus Devices

48001 (Accessory)

(Default = n/a) Use this item number to force the panel to scan for

bus devices once they have been correctly connected to the panel.

Note

All SuperBus 2000 devices are added to partition/area 1

initially. Use item number 48004, Bus Device Partition/

Area, to assign devices to different partitions/areas once

added.

To force the Panel to Scan for Bus Devices:

Once in program mode enter 48001. The display will

show DEVICES ADDED, then it will list the added devices as

shown.

DEVICE nn ID xxxxxxxx PARTITION/AREA z

Where n is the 2-digit device number (01–62), xxxxxxxx is the

8-digit ID number (address), and z is the partition/area number

(0–8).

Delete/Change Bus Device ID

48002 (Accessory)

(Default = n/a) Use this item number to delete bus devices or

change device IDs. If you are deleting bus devices, you must

delete them one at a time.

Note

Deleting the device does not delete the bus text associ-

ated with the deleted device. To delete device text use

item number 49002.

To Delete/Change Bus Device ID:

1. Once in program mode enter 48002. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

2. Enter the 8-digit device ID of the device you wish to

delete/change (located on module) and press ƒ.

3. The display shows ENTER NEW DEVICE ID OR ENTER

0 TO DELETE.

4. Enter a new device ID or enter 0.

5. Press ƒ. The panel displays DEVICE ID xxxxxxxx

DELETED, or DEVICE CHANGE OK.

6. To delete/change another device ID, repeat the above pro-

cedure.

Advent Commercial Fire System

Bus Device Text

49002 (Accessory)

(Default = none) Use the following guidelines to “name” bus

devices.

❑Use the item numbers that appear in Table B.2 on page 90

for characters and words listed there.

❑If a desired word does not appear in Table B.2, create it

using the characters (custom text).

❑When using words from Table B.2, spaces between them

appear automatically. When using characters from Table

B.2 to create words, you must reserve an item number for

a ‘space’ after the word.

❑Each character or word uses up one item number. For

example, a word from the list counts as one item number.

A created word (such as BOY’S) counts as six item num-

bers—4 letters, 1 apostrophe, and 1 space.

❑Only 8 item numbers are allowed for each bus device

name, so plan ahead before programming device text. You

may need to abbreviate words to avoid running out of item

numbers.

To program Bus Device Text:

1. Once in program mode enter 49002. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

2. Enter the desired device ID (located on module) and press

ƒ. The display shows TEXT FOR DEVICE xxxxxxxx IS

current text. ENTER TEXT NUMBERS OR PRESS # TO

ACCEPT.

3. Enter the numbers of the desired characters or words. If

you make a mistake press ‚ to start over.

4. Once all numbers have been entered, press ƒ to accept.

The display shows the new device text.

To delete Device Text:

1. Once in program mode enter 49002. The display

shows ENTER DEVICE ID NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired device ID number and press ƒ. The dis-

play shows TEXT FOR DEVICE xxxxxxxx IS current text.

ENTER TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter 000 and press ƒ. The display shows TEXT FOR

DEVICE xxxxxxxx IS NO TEXT.

List Bus Devices

48003 (Accessory)

(Default = n/a) Use this item number to list information about

existing bus devices. The system will list the device address

number, device ID number, and the partition/area number.

To List Bus Devices:

Once in program mode enter 48003. The display will show

DEVICE nn, ID xxxxxxxx, PARTITION/AREA n.

The panel will scroll through and display information about each

device. To skip forward press ƒ. To exit press ‚. Once the panel

lists all the bus devices it will return to the program menu.

Bus Device Partition/Area

48004 (Accessory)

(Default = n/a) Use this item number to assign bus devices to

partitions/areas.

Note

All bus devices default to partition/area 1.

To assign Bus Devices to Partition/Area:

1. Once in program mode enter 48004. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

2. Enter the 8-digit device ID and press ƒ. The display

shows ENTER PARTITION NUMBER OR PRESS * TO

CANCEL.

3. Enter the partition/area number and press ƒ. The display

shows DEVICE xxxxxxxx IS IN PARTITION n.

Note

If the partition/area is not enabled, the display will show

PARTITION nn INVALID. See item number xx068

(page 17) to enable partition/area(s).

Change Transmit Bus ID

48005 (Accessory)

(Default n/a) This item number allows you to change or view the

wireless transmitting device ID used to communicate with

“buddy” panels and/or wireless 2-way devices.

To change/view Transmit Bus ID:

1. Once in program mode enter 48005. The display

shows RADIO ID IS xxxxxxxx, then displays ENTER

NEW TRANSMIT ID OR PRESS # TO ACCEPT.

2. Enter the new 8-digit transmit ID or press ƒ to accept the

existing ID. The touchpad displays RADIO ID IS

xxxxxxxx.

List Bus Device Text

48006 (Accessory)

(Default = n/a) Use this item number to list existing bus device ID

numbers and display text.

To List Bus Device Text:

Once in program mode enter 48006. The display will show

ID xxxxxxxx any device text.

The panel will scroll through and display information about each

device. To skip forward press ƒ. To exit press ‚. Once the panel

lists all the bus devices it will return to the program menu.

40 Advent Commercial Fire System

Replace/Delete Bus Device ID

48007 (Accessory)

(Default = n/a) Changes (overwrites) the bus device text with that

of another bus device.

To Replace/Delete Bus Device ID:

1. Once in program mode enter 48007. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

Note

If the display shows DEVICE xxxxxxxx INVALID, there is

no device text associated with the device ID you entered.

2. Enter the 8-digit device ID of the device you wish to

replace/delete (located on module) and press ƒ.

3. The display shows ENTER NEW DEVICE ID OR ENTER

0 TO DELETE.

4. Enter the new device ID or enter 0. Press ƒ.

Program LED Module

48009 (Programmable Output)

(Default n/a) Use this item number to program LED modules

(driver boards).

To program LED Modules:

1. Once in program mode enter 48009. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

2. Enter the 8-digit device ID number and press ƒ. The dis-

play shows ENTER LED NUMBER OR PRESS * TO

CANCEL.

3. Enter the desired LED number (0–128) and press ƒ. The

display shows LED TYPE IS n. ENTER NEW LED TYPE

OR PRESS # TO ACCEPT.

4. Enter the desired LED type (0–15) from Table B.10 on

page 104 and press ƒ. The display shows LED DATA IS

n. ENTER NEW LED DATA OR PRESS # TO ACCEPT.

5. Depending on the LED type, enter the desired LED data

(see Table B.10) and press ƒ.

6. To program another LED group, go back to step 1. To exit

back to the program menu, press ‚.

Delete/Replace LED Module

48010 (Programmable Outputs-LED Module)

(Default = n/a) Use this item number to delete LED modules or

change device IDs. This setting allows you to replace a

malfunctioning LED module without having to reprogram LED

settings.

To Delete/Replace LED Module:

Note

Deleting the module does not delete the bus text associ-

ated with the deleted device. To delete device text use

item number 49002.

1. Once in program mode enter 48010. The display

shows ENTER DEVICE ID OR PRESS * TO CANCEL.

2. Enter the 8-digit device ID of the device you wish to

delete or replace (located on module) and press ƒ.

3. The display shows ENTER NEW DEVICE ID OR ENTER

0 TO DELETE.

4. Enter a new device ID or enter 0. Press ƒ. The panel

displays DEVICE ID xxxxxxxx DELETED, or DEVICE

CHANGE OK.

5. To delete or replace another LED module, repeat the

above procedure.

Keypad Idle Text

49005 (Partitions)

(Default = none) Use the following guidelines to add keypad idle

text to the panel. This is the custom text displayed when the

touchpad is not armed.

❑Use the item numbers that appear in Table B.2 on page 90

(2 digit display descriptors) for characters.

❑When using characters from Table B.2 to create words,

you must reserve an item number for a ‘space’ after the

word.

❑Each character or word uses up one item number. For

example a word (such as EAST WING) counts as nine

item numbers—8 letters and 1 space.

❑63 item numbers are reserved for display text in each par-

tition/area so plan ahead before programming text. You

may need to abbreviate words to avoid running out of item

numbers.

To program Keypad Idle Text:

1. Once in program mode enter 49005. The display

shows ENTER PARTITION/AREA NUMBER OR PRESS

* TO CANCEL.

2. Enter the desired partition/area number and press ƒ. The

display shows ENTER DISPLAY NUMBERS OR PRESS

* TO CANCEL.

3. Enter the numbers of the desired characters. If you make

a mistake press ‚ to start over.

4. Once all numbers have been entered, press ƒ.

To delete Keypad Idle Text:

1. Once in program mode enter 49005. The display

shows ENTER PARTITION NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired partition/area number and press ƒ. The

display shows ENTER DISPLAY NUMBERS OR PRESS

* TO CANCEL. Press ƒ.

Advent Commercial Fire System

Programmable Output Settings

Note

Whenever possible, use Advent Downloader (on-site) to

program outputs.

All non-X-10 outputs must be mapped to the desired bus

module, SnapCard, or panel relay/general purpose output.

Due to the complexity of this procedure, it is recommended

to program outputs on-site using Advent Downloader. Out-

put text may easily be programmed at a panel touchpad.

Output Configuration

50005 (Partitions-X-10)

(Default = n/a) Use the procedure below for mapping outputs.

To program an Output:

1. Once in program mode enter 50005. The display

shows ENTER OUTPUT NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired 3-digit output number from the choices

below.

❑001 - 100, programmable outputs

❑501–508, Interior siren outputs (1 per partition/area)

❑601–608, Exterior siren outputs (1 per partition/area)

❑701–708, Strobe outputs (1 per partition/area)

3. Press ƒ. The display shows OUTPUT TYPE IS n.

ENTER NEW TYPE OR PRESS # TO ACCEPT.

4. Enter the output type from the choices below:

❑Enter 1 for a Bus Module Output

❑Enter 3 for a SnapCard Output

❑Enter 4 for an Panel Output

Press ƒ. The display shows OUTPUT DATA n IS

nnnnnnnn. ENTER OUTPUT DATA n OR PRESS # TO

ACCEPT.

5. Based on the output type, enter the required data from the

choices below.

Bus Module Output

Enter the 8-digit device ID and press #.

Enter 1 + ƒ for output data 4. Output data 5 shows

00000000. The first 4 places represent outputs 1-4 on a

HOM.

Choose which output(s) to activate. For example, enter-

ing 10010000 activates outputs 1 and 4 on a HOM.

SnapCard Output

Output data 5 shows 00000000. The first 4 places represent

an output SnapCard mounted in the lower slot (SnapCard 1).

The last 4 places represent an output SnapCard mounted in

the side slot (SnapCard 2).

Choose which output(s) to activate. For example, entering

01000010 would activate the second output on SnapCard 1,

and the third output on SnapCard 2.

Panel Output

Output data 5 shows 00000000. The first 6 places repre-

sent general outputs 1–6, 7 represents the panel interior

siren output, and 8 represents the panel exterior siren out-

put.

Choose which output(s) to activate. For example, enter-

ing 11000000 activates onboard outputs 1 and 2.

Menu Output Text

49003 (Partitions-X-10)

(Default = none) Use the following guidelines to “name” the X-10

and non-X-10 menu output numbers that appear in the “Lights/

Devices” user menus.

❑Use the item numbers that appear in Table B.2 on page 90

for characters and words listed there.

❑If a desired word does not appear in Table B.2, create it

using the characters (custom text).

Note

Only preprogrammed words from Table B.2 can be spo-

ken by the panel. Silence takes the place of any created

words when the panel voice speaks. However, created

words are displayed just like preprogrammed words.

❑When using words from Table B.2, spaces between them

appear automatically. When using characters from Table

B.2 to create words, you must reserve an item number for

a ‘space’ after the word.

❑Each character or word uses up one item number. For

example, a word from the list counts as one item number.

A created word (such as BOY’S) counts as six item num-

bers—4 letters, 1 apostrophe, and 1 space.

❑Only 8 item numbers are allowed for each output name, so

plan ahead before programming output text. You may

need to abbreviate words to avoid running out of item

numbers.

To Program Output Text:

1. Once in program mode enter 49003. The display

shows ENTER OUTPUT NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired output number as follows:

❑Partition 1—1 thru 40

❑Partition 2—41 thru 80

❑Partition 3—81 thru 120

❑Partition 4—121 thru 160

❑Partition 5—161 thru 200

❑Partition 6—201 thru 240

❑Partition 7—241 thru 280

❑Partition 8—281 thru 320

Note

Entering an output number outside the range for a given

partition is indicated by an “Invalid” message.)

3. Press ƒ. The display shows TEXT FOR OUTPUT nn IS

current text. ENTER TEXT NUMBERS OR PRESS # TO

ACCEPT.

4. Enter the numbers of the desired characters or words. If

you make a mistake press ‚ to start over.

5. Once all numbers have been entered, press ƒ to accept.

The display shows the new output text.

To Delete Output Text:

1. Once in program mode enter 49003. The display

shows ENTER OUTPUT NUMBER OR PRESS * TO

CANCEL.

2. Enter the desired output number and press ƒ. The display

shows TEXT FOR OUTPUT nn IS current text. ENTER

TEXT NUMBERS OR PRESS # TO ACCEPT.

3. Enter 000 and press ƒ. The display shows TEXT FOR

OUTPUT nn IS NO TEXT.

42 Advent Commercial Fire System

Alarm Settings

Alarm settings specify how the panel behaves during cer-

tain alarm situations. Alarm settings are global.

Alarm Messages Played at High Volume

17079 (Alarms)

(Default = on) Choose whether or not you want alarm messages

(on voice siren) always played at high volume. If not, they will be

played at normal volume.

Note

Auxiliary/Medical alarm messages are never sounded at

high volume regardless of this setting.

To set Alarm Message Volume:

Once the item number has been entered, enter 1 for on (high

volume), or 0 for off (normal volume). Press ƒ to apply the new

setting.

Play Evacuation Messages During Fire Alarm

17083 (Alarms)

(Default = on) Choose whether or not fire alarm evacuation audio

messages are played during fire alarms. If off, evacuation

messages will not play during fire alarms.

To turn Play Evacuation Messages During Fire Alarm On/

Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Evacuation Message Count

17104 (Alarms)

(Default = 4 messages) Set the number of evacuation messages

(0–4) to be played. Evacuation messages are automatically played

until the siren times out, the alarm is silenced, or the alarm is

canceled. This setting determines the number of evacuation

messages played starting with number 1 and up (then repeated).

For example, if set to 2, evacuation messages 1 and 2 will be

played and repeated.

Note

In order for the panel to play evacuation messages during

fire alarms, the Play Evacuation Messages During Fire

Alarm setting (17083) must be set to “on”.

To set Evacuation Message Count:

Once the item number has been entered, enter the evacuation

message count (0–4) and press ƒ.

First Disarm Silences Fire Alarm and Second Disarm

Cancels the Alarm

17084 (Alarms)

(Default = on) When set to on, the first code entry will silence a

fire alarm and the second code entry will cancel the alarm. If off,

the first code entry will silence and cancel the alarm.

To turn First Disarm Silences Fire Alarm and Second

Disarm Cancels the Alarm On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Unsilence Alarm after Silencing Period

17126 (Alarms)

(Default = off) Choose whether or not to enable unsilencing of

alarm after silencing period expires. If on, a silenced fire alarm

will resound.

Note

The silencing period can be set using the Time Fire Alarm

is Silenced setting (17111) below.

To turn Unsilence Alarm After Silencing Period On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Time Fire Alarm is Silenced

17111 (Alarms)

(Default = 30 seconds) Specify the amount of time (in seconds),

for which sirens are silenced during a fire alarm (after a user

enters a valid access code).

Note

The alarm will not unsilence if Unsilence Alarm after

Silencing Period setting (17126) is set to off.

To set Time Fire Alarm is Silenced:

Once the item number has been entered, specify the silence time

(15–999). Press ƒ to apply the new setting.

Annunciate Earliest Fire Alarm not the Most Recent

17128 (Alarms)

(Default = off) If on, the panel will annunciate the earliest active

fire alarm instead of the most recent, during a multiple fire alarm

situation.

Note

This option is intended for panels installed in Canada.

To turn Annunciate Earliest Fire Alarm not the most Recent

On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Fire Alarm in One Partition Sounds In All Partitions

17077 (Alarms)

(Default = on) Enable if you want a fire alarm in one partition to

sound in all partitions. If not, a fire alarm will only sound in the

partition where it occurred.

Note

This option is not available in UL-864 version.

To turn Fire Alarm in One Partition Sounds In All Partitions

On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Advent Commercial Fire System

System Settings

Note

Date, time, and day settings affect all partitions/areas.

System Strobe Light Type

17062 (Alarms)

(Default = 1 [Amseco]) This setting allows you to choose the

strobe manufacturer synchronization type.

Strobe Light Types:

❑1— Amseco

❑2— Wheelock

❑3— System Sensor

❑4— Gentex

Note

This option can only be programmed through Advent

Downloader.

Medical Siren Cadence

Police Siren Cadence

Auxiliary Siren Cadence

17046, 17047, 17048 (Alarms)

(Defaults = Medical: alternate modulated, Police: steady,

Auxiliary: fast modulated) Set the siren cadence to the desired

sound rhythm.

Sound Rhythms:

(_ represents 0.125 second sound, ___represents 0.5 second

sound)

❑1— Temporal 3 ___ ___ ___ (repeat)

❑2— Modulated ___ ___ ___ ___(repeat)

❑3— Alternate Modulated ________ (repeat)

❑4— Fast _ (repeat)

❑5— Steady ___________ (steady on)

❑6— Programmable Cadence (must program through

downloader)

To set Siren Cadence:

1. Once in program mode enter the desired item number.

2. Enter the desired sound rhythm (1–6) and press ƒ.

System Date

17001 (System)

(Default = 01 01 00 [1/1/00]) This setting lets you adjust the panel

calendar to the correct month, day, and year.

To set the System Date:

1. Enter the item number.

2. Enter the correct month (01–12), day (01–31), and year

(00–99). For example, enter 090100 for September 1,

2000.

3. Press ƒ. The display shows the new date.

System Time

17002 (System)

(Default = 12 00 00 [12:00:00])This setting lets you adjust the

panel clock to the correct time. The panel uses a 24-hour clock.

For example, to set the time to 4:17 PM, enter 1617.

To set the System Time:

Enter the item number. Enter the correct time (0000–2359). Press

ƒ. The display shows the new time.

System Day of Week

17003 (System)

(Default = 5 [Saturday]) This setting lets you adjust the panel to

the current day of week.

Day Format

❑0—Monday ❏ 4—Friday

❑1—Tuesday ❏ 5—Saturday

❑2—Wednesday ❏ 6—Sunday

❑3—Thursday

To set the System Day of Week:

Enter the item number. Enter the day of week using the above

format (0–6) and press ƒ.

Time Format

17100 (System)

(Default = off) This setting allows you to choose whether the

panel time format is in 12- (AM and PM) or 24-hour format. If on,

the panel will announce and display the time in 24-hour format.

To turn Time Format On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Detect Receiver Failure

17078 (System)

(Default = on) When on, (and a wireless commercial transceiver

is installed), the panel will detect and indicate wireless receiver

failure.

To turn Detect Receiver Failure On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Panel Calls Back to Downloader

17122 (System)

(Default = off) Select whether or not to have the panel call back

the downloader when the downloader calls out to the panel with a

job.

To turn Panel Calls Back to Downloader On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

44 Advent Commercial Fire System

Phone Off-Hook is Activity

17092 (System)

(Default = on) Select whether or not a phone off-hook condition is

considered an activity.

Note

For residential use only.

To turn Phone Off-Hook is Activity On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

RF Supervisory Time A

RF Supervisory Time B

A; 17049, B: 17050 (System)

(Defaults = A: 4 hours, B: 24 hours) The RF Supervisory Time is

the time (in hours) in which the panel must receive a transmission

from a wireless zone. If the panel does not receive a transmission

within this time window, a trouble report occurs. Advent panels

have two RF Supervisory Times (A and B).

To set RF Supervisory Time:

Enter the desired item number. Enter the RF Supervisory Time in

hours (2–24). Press ƒ to apply the new setting.

Battery Test Interval

17073 (System)

(Default = 4 hours) Select how (4 or 24 hours) often the panel

performs a self-test on its backup battery to ensure that it is

adequately charged.

Note

This option is not available in UL-864 version.

To set Battery Test Interval:

Once the item number has been entered, enter 1 for 4 hours, or

0 for 24 hours. Press ƒ to apply the new setting.

High Rise Installation

17074 (System)

(Default = off) Set to “on” when the panel is installed in a high

rise building. This will enable zones to have “floor” attributes.

When on, any zone not programmed with a floor attribute will not

turn on all outputs with a “fire on floor” condition programmed.

When off, any zone not programmed with a floor attribute will

turn on all outputs with a “fire on floor” condition programmed.

To turn High Rise Installation On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Commercial or Residential Installation

17076 (System)

(Default = Commercial: 1, Residential: 0) Select either a

commercial or residential installation. If commercial, LTIME is

set to every 4 hours instead of 24 hours.

Note

This option is not available in UL-864 version.

To set Commercial or Residential Installation:

Once the item number has been entered, enter 1 for commercial,

or 0 for residential. Press ƒ to apply the new setting.

Report System Events

17096 (System)

(Default = on) This setting determines if system events are

reported to the central station.

To turn Report System Events On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

System Report Time (STIME)

17004 (System)

(Default = random) Enter the time of day (in 24-hour format)

when an automatic phone test to the central station is performed.

To set the System Report Time:

Enter the desired item number. Enter the 4-digit system report

time (00:00-23:59) and press ƒ.

Enable RF Jam Detect

17072 (System)

(Default = on) Select whether or not the panel will detect an RF

jam.

Note

This setting must be set to “on” in commercial fire and

burglary systems.

To turn Enable RF Jam Detect On/Off:

Once the item number has been entered, enter 1 for on (jam

detection), or 0 for off (no jam detection). Press ƒ to apply the

new setting.

Enable Long Range Radio

17075 (System)

(Default = off) Select whether or not you want to enable long

range radio (if connected to panel).

Note

This option can only be programmed through Advent

Downloader.

Advent Commercial Fire System

Percent Full History Buffer Reports

17043 (System)

(Default = 80 percent) This setting allows you to specify how full

(percent) the history buffer may get before generating trouble.

Another trouble is generated when the history buffer overflows.

To set History Buffer Percent:

Once in program mode enter the item number. Enter the desired

percentage (10–100) and press ƒ.

Percent Full Report Buffer Reports

17044 (System)

(Default = 80 percent) This setting allows you to specify how full

(percent) the report buffer gets before forcing early reporting of

delayed low priority events. No trouble is generated until the

report buffer overflows.

To set Report Buffer Percent:

1. Once in program mode enter the item number.

2. Enter the desired percentage (10–100) and press ƒ.

Partition/Area Text Displayed on Touchpads and

Spoken Over Speakers

17125 (System)

(Default = on) If on, partition/area text (49004) will be displayed

on touchpads and spoken over speakers. If off, partition/area text

will only be displayed on touchpads.

To turn Partition/Area Text Displayed on Touchpads and

Spoken Over Speakers On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Enable Daylight Savings

17070 (System)

(Default = on) This setting allows you to select whether or not the

panel adjusts to daylight savings time. If on, the clock makes

daylight savings adjustments at 2:00 AM on the first Sunday in

April and the last Sunday in October. The time will spring ahead

from 01:59 to 03:00 or fall back from 01:59 to 01:00.

To turn Daylight Savings t On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Print System Events

17099 (System)

(Default = on) This setting allows you to select whether or not to

print system events.

Note

This setting only enables the printing of system events.

See Print Partition/Area Events setting (xx091) on

page 22 to enable partition/area event printing.

To turn Print System Events On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Print Line Feed after Carriage Return

17097 (System)

(Default = on) This setting allows you to select whether or not to

print a line feed after a carriage return. This will tell the printer to

print a line feed, creating an extra blank line.

Some printers have an auto line feed setting. If the printer adds its

own extra line feed, disable this setting so that it doesn’t print

extra blank lines. Check the printer manual for details.

To turn Print Line Feed after Carriage Return On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Printer Supports Epson ESC/P Protocol

17124 (System)

(Default = on) Turn this setting on if the printer attached to the

panel supports ESC/P protocol. Check the printer manual for

details.

To turn Epson ESC/P Protocol On/Off:

Once the item number has been entered, enter 1 for on, or 0 for

off. Press ƒ to apply the new setting.

Hours to Delay Before Reporting AC Failure

17041 (System)

(Default = 6 hours) This setting allows you to select the hours to

delay (in addition to random 0–30 minute delay) before the panel

reports AC power failure to the central station.

To set Hours to Delay Before Reporting AC Failure:

Once in program mode enter the item number. Enter the desired

delay (0–36) and press ƒ.

Low Battery Trip Voltage

17037 (System)

(Default = 180 [10.6V]) This setting allows you to specify the

backup battery voltage at which low battery trouble is generated

(set in 1/17 volt units).

To set Low Battery Trip Voltage:

Once in program mode enter the item number. Enter the desired

voltage (172–188 [10.1–11.1V]) and press ƒ.

46 Advent Commercial Fire System

Miscellaneous Settings

Battery Restored Voltage

17038 (System)

(Default = 196 [11.6V]) This setting allows you to set the voltage

at which a low battery trouble restoral is generated (set in 1/17

volt units).

To set Battery Restoral Voltage:

Once in program mode enter the item number. Enter the desired

voltage (188–204 [11.1–12.0V]) and press ƒ.

Battery Voltage Shutdown is Started

17039 (System)

(Default = 159 [9.4V]) This setting allows you to set the backup

battery voltage at which a system shutdown (during an AC power

failure) is started (set in 1/17 volt units).

To set Battery Voltage Shutdown is Started:

Once in program mode enter the item number. Enter the desired

voltage (151–167 [8.9–9.8V]) and press ƒ.

Battery Voltage Shutdown is Canceled

17040 (System)

(Default = 176 (10.4V)) This setting allows you to set the backup

battery voltage at which a system shutdown (during an AC power

failure) is canceled (set in 1/17 volt units).

To set Battery Voltage Shutdown is Canceled:

Once in program mode enter the item number. Enter the desired

voltage (168–184 [9.9–10.8V]) and press ƒ.

AC Stable Time

17036 (System)

(Default = 8 seconds) This setting allows you to specify the time

(in seconds) that AC power must be lost or restored before a

trouble, or trouble restoral is generated. These events are not

reported immediately.

To set AC Report Delay:

Once in program mode enter the item number. Enter the desired

time (0–200) and press ƒ.

AC Frequency

17123 (System)

(Default = 0 [60 Hz]) This setting allows you to choose the AC

frequency that is powering the panel.

To set the AC Frequency:

Once in program mode enter the item number. Enter 1 for 50 Hz

(off), or 0 for 60 Hz (on). Press ƒ to apply the new setting.

Panel Latitude

17110 (System)

(Default = 0 degrees) This setting allows you to specify the

latitude (in degrees) where the panel is located. This information

is then used by the panel when automatically adjusting sunrise/

sunset schedules.

To set the Panel Latitude:

Once in program mode enter the item number. Enter the desired

latitude (0–65) and press ƒ.

On Premises Pager ID 1

On Premises Pager ID 2

1: 17060, 2: 17061 (System)

(Default = 0000000) This setting allows you to specify 7-digit

pager IDs that will identify the 2 different pager groups in a local

paging network.

To specify On Premises Pager IDs:

Once in program mode enter the item number. Enter the desired

7-digit (0–9) pager ID and press ƒ.

Downloader Account Number

17109 (Customer)

(Default = 00000000) The Downloader Account Number is used

to identify the panel to Advent Downloader.

To enter a Downloader Account Number:

1. Once the desired item number has been entered the cur-

rent account number will be displayed.

2. Enter an 8-digit number (0–9) and press ƒ.

Reset Panel

50001

(Default = n/a) This setting allows you to clear any errors the

panel may have by “rebooting” the system. All settings will

remain unchanged.

To Reset the Panel:

1. Enter the installer code. Enter 50001.

2. Press 99 and then ƒ. Wait about a minute for the panel

to reset.

Advent Commercial Fire System

Software/Hardware Version

50003

(Default = n/a) This setting allows you to view and identify panel

hardware and software version.

To view System Version:

1. Enter the installer code.

2. Enter 50003. The panel displays SYSTEM ID

nnnnnnnn VERSION n.nn nnn.nnn PANEL TYPE n

SNAPCARD n n.

Panel Type Formats

❏ 0—Commercial Burg. ❏ 5—Commercial Fire High

❏ 1—Home Navigator ❏ 6—not used

❏ 2—Commercial Fire ❏ 7—Commercial Burg. Low

❏ 3—Home Navigator High ❏ 8—Commercial Fire Low

❏ 4—Commercial Burg. High

SnapCard Type Formats

❏ 0—none ❏ 5—quad smoke loop

❏ 1—(not used) ❏ 6—24V smoke loop

❏ 2—NAC ❏ 7—(not used)

❏ 3—8Z input ❏ 8—4Z input, 2 relay output

❏ 4—4 relay output

Clear History Buffer

50004

(Default = n/a) This setting allows you to clear the history buffer.

To Clear History Buffer:

1. Enter the installer code.

2. Enter 50004. The display shows HISTORY

BUFFER CLEARED.

Holiday A List

Holiday B List

A: 50008, B: 50009 (Holiday)

(Default = n/a) Holiday lists allow you to set up time periods

when regular schedule hours vary. a holiday is defined as one day.

A separate holiday must be added in order to span over

consecutive days. Once set up, users can incorporate holidays into

schedules. Each partition/area has 2 lists (A and B) and each list

has up to 16 holidays. Document holidays in the User’s Guide.

To add a Holiday:

1. Enter the installer code.

2. Enter the desired item number. The display shows

ENTER PARTITION/AREA NUMBER OR PRESS * TO

CANCEL.

3. Enter the partition/area number (1–8) and press ƒ. The

display shows ENTER HOLIDAY NUMBER OR PRESS *

TO CANCEL.

4. Enter the desired holiday number (1–8) and press ƒ. The

panel display shows HOLIDAY DATA IS current data.

5. Enter a 2-digit month (01-12), a 2-digit day (01–31), and

press ƒ. For example, if the holiday fell on July 4, you

would enter 0704.

6. The display shows the new holiday setting.

To delete a Holiday:

1. Enter the installer code.

2. Enter the desired item number. The display shows

ENTER PARTITION/AREA NUMBER OR PRESS * TO

CANCEL.

3. Enter the partition/area number (0–8) and press ƒ. The

display shows ENTER HOLIDAY NUMBER OR PRESS *

TO CANCEL.

4. Enter the desired holiday number (1–8) and press ƒ. The

panel display shows HOLIDAY DATA IS current data.

5. Enter 0 + ƒ. The display shows HOLIDAY DATA IS NO

DATA.

48 Advent Commercial Fire System

Remote Downloader Programming

Note

Downloader programming must occur on-site when pro-

gramming an Advent Commercial Fire panel. Please see

the Advent Downloader User’s Guide for more informa-

tion.

Although most information can be programmed at the panel,

some optional information must be programmed remotely from

Advent Downloader. Use the information you recorded in

Appendix A to inform the downloading operator of the pro-

gramming requirements for this system.

Advent Downloader Programming

Note

The Enable Remote Access setting (17086) must be set to

“on” in order for remote downloader programming to be

enabled. This setting defaults to “on”.

To initiate an upload/download session from the panel:

1. Contact your download station and ask the operator to

prepare for an upload/download session.

2. Make sure the panel is connected to a phone line and

that premises telephones are on hook (hung up).

3. Enter panel programming and verify/enter the follow-

ing downloader settings:

❑17107 Dealer Access Code—Must match (in Advent

Downloader and at the panel) or be left at default.

❑17108 Downloader Access Code—Must match (in

Advent Downloader and at the panel) or be left at

default.

❑17109 Downloader Account Number—Must match

(in Advent Downloader and at the panel) or be left at

default.

❑yy001 (23001 or 24001) Phone Number Enable—

Must be “on” for panel to call the downloader.

❑yy002 (23002 or 24002) Phone Number—At least one

downloader phone number must be programmed.

(Programming the phone number automatically

enables it.)

4. Enter 0 + 2 + install code (0123).

5. For an upload enter 1, a download press 2, and a gen-

eral upload/download press 3. The session will start

and the system will return to the previous arming level.

Event Configuration and Alarm Masks

50010 (Event Mask)

(Default = n/a) This setting allows you to specify how you want

events reported.

Note

Whenever possible, use Advent Downloader to set con-

figuration masks.

Event masks are represented by an eight-digit event mask number

where 0 = off and 1 = on. For example, if an event mask reported

to phone 1, phone 2, history buffer, and was high priority, it would

be represented as “11010001” (see event mask formats below). If

you wanted the same event mask to stop reporting to phone 2, you

would change the event mask number to “10010001.” Notice how

the place holder for phone 2 was changed from a 1 (on) to a 0

(off). (From 11010001 to 10010001).

Event Mask Formats:

❏ 1—Reporting Phone 1 ❏ 5—Pager

❏ 2—Reporting Phone 2 ❏ 6—Report to Backup

❏ 3—Print ❏ 7—(not used)

❏ 4—History Buffer (Store) ❏ 8—High Priority

To set a Configuration Mask:

1. Enter 50010. The display shows ENTER EVENT

GENERAL TYPE OR PRESS * TO CANCEL.

2. Enter the event general type (1–19) using Table B.8 on

page 100, then press ƒ. The display shows ENTER

EVENT SPECIFIC TYPE OR PRESS * TO CANCEL.

3. Enter the event specific type using Table B.7, and press

ƒ. The display shows ENTER PARTITION NUMBER OR

PRESS * TO CANCEL.

4. Enter the desired partition/area (1–8) and press ƒ. The

display shows the eight-digit event mask, then ENTER

NEW EVENT MASK OR PRESS # TO ACCEPT.

5. Enter the desired 8-digit event mask (0 = off, 1 = on, and

2 = unchanged), then press ƒ.

Print Zone & Device Information

50012

(Default = n/a) Sends programmed zone and device information

to the printer.

To Print Zone and Device Information:

Enter 50012. Zone and Device information will print.

Print History Buffer

50016

(Default = n/a) Prints events based on a time range.

To Print History Buffer:

1. Enter 50016. The display shows ENTER HISTORY

START.

2. Enter the desired start date in mm/dd/yy format. For

example, if you wanted to print events starting on

September 1, 1999 you would enter 090199. The display

shows ENTER HISTORY STOP.

3. Enter the desired stop date in mm/dd/yy format. Events

occurring within that time frame will print.

Delete Primary SnapCard

Delete Secondary SnapCard

Primary: 50014, Secondary: 50015

(Default = n/a) This setting enables you to delete a SnapCard

when it is being replaced with a different type of SnapCard. All

inputs/outputs for the new card must be programmed.

Note

If you are replacing the SnapCard with the same type of

SnapCard you don’t have to perform this procedure and

can keep the current input/output settings.

To Delete SnapCard Information:

1. Enter the installer code.

2. Enter the desired item number. The panel displays SNAP-

CARD DELETED.

Advent Commercial Fire System

Note

The panel software versions (in Advent Downloader and at

the panel) must match.

If the panel displays DOWNLOAD FAILURE contact the

downloader station to verify the downloader phone num-

ber and settings.

Installing Line Carrier Devices

This section describes how to install X-10 Lamp, Appli-

ance, and Universal Module line carrier (wireless) line car-

rier devices.

Note

The operation of X-10 modules is for supplementary pur-

poses only.

Programming the Panel House Code

Please see item numbers xx022 and xx023 (page 21) for

information on setting house codes.

Installing X-10 Modules

When installing X-10 modules:

❑Use only incandescent lamps with lamp modules.

❑Do not plug X-10 modules into outlets controlled by a

switch.

❑Do not use extension cords to connect several lamps or

appliances to one module.

Use X-10 Lamp Modules to control light fixtures – do not

use X-10 Appliance or Universal Modules. Appliance and

Universal Modules are not controlled during an alarm.

To install X-10 modules:

1. Plug the lamp or appliance cord into the bottom of the

module.

2. Plug the module into a lower AC outlet.

3. Refer to Table B.5 on page 95 for the house code you

programmed into the panel, and then find the letter that

corresponds to that house code. Each letter setting rep-

resents one panel house code. For example, house code

1 corresponds with “A” on the X-10 module house dial.

4. Set the house dial on the module to the appropriate let-

ter.

5. Set the unit number dial from 1 to 16 for the desired

response as described in Table B.6 on page 95.

Adding Lights/Devices to Program Memory

To add lights or devices to program memory:

1. Press 7. The display shows FEATURES MENU.

2. Enter 3 and the display shows LEARN LIGHTS AND

DEVICES.

3. Press 1 to add a light. The panel displays ENTER A

LIGHT NUMBER THEN PRESS #.

Press 4 to add a device. The panel displays ENTER A

DEVICE NUMBER THEN PRESS #.

4. Enter the desired light or device number (1–40) and

press ƒ. The display shows LIGHT/DEVICE nn

ADDED.

5. To add another light or device, enter the desired light or

device number and press ƒ.

6. To exit press ‚ + ‚.

To delete lights or devices from program memory:

1. Press 7. The display shows FEATURES MENU.

2. Enter 3 and the display shows LEARN LIGHTS AND

DEVICES.

3. Press 2 to delete a light. The panel displays ENTER A

LIGHT NUMBER THEN PRESS #.

Press 5 to delete a device. The panel displays ENTER

A DEVICE NUMBER THEN PRESS #.

4. Enter the desired light or device number (1–40) and

press ƒ. The display shows LIGHT/DEVICE nn

DELETED.

5. To delete another light or device enter the desired light

or device number and press ƒ.

6. To exit press ‚ + ‚.

Testing the System

Note

Before testing, it is recommended that you have covers on

all modules (mounted outside the cabinet) and the panel

cabinet door closed. The testing environment should

match the system working environment.

This section describes how to perform the following test

procedures:

❑Basic System Commands

❑Testing Panel Backup Battery(s)

❑Testing Hardwired Zone Inputs

❑Testing Wireless Sensors

❑Testing Outputs

❑Testing Optional Lights and Devices

(X-10 Modules)

❑Testing Phone Communication

❑Testing Central Station Communication

❑Adjusting Touchpad Contrast

You should test the system after installing, servicing, and

adding or removing devices from the system.

Refer “Troubleshooting” on page 53 if correct test results

are not achieved.

Basic System Commands

Table 14 describes basic touchpad operating commands.

For complete details on system operation, including user

programming, refer to the system User Guide.

Table 14. Basic Touchpad Operating Commands

Command System Response

1 + 9 Indicates current system status

1 + 1 + CODE Disarms system to OFF

50 Advent Commercial Fire System

Testing Panel Backup Battery(s)

The panel can both automatically and manually place a test

load on the panel backup battery(s) and measure the voltage

output.

Note

A newly installed battery may require up to eight hours

under panel power before an accurate charge indication.

To manually test the panel backup battery(s):

1. Press 8. The display shows SYSTEM MENU.

2. Press 8 again to test the battery(s) and display the

result. The display will show the battery voltage as

BATTERY TEST: 13.8 V (or similar) TO QUIT PRESS

3. Press ‚ to quit. The system will automatically quit the

battery test after 15 minutes.

Testing Hardwire and Wireless Zones/

Sensors

It is recommended that you test all hardwired zones and

sensors after all programming is completed and whenever a

zone/sensor-related problem occurs.

Note

While the zone test is a valuable installation and service

tool, it only tests zone operation for the current conditions.

You should perform a zone test after any change in envi-

ronment, equipment, or programming.

1. Close and secure the panel door.

2. Make sure all zones and sensors are in their secured

(non-alarm) state.

3. Press 8. The display shows SYSTEM MENU.

4. Enter 1 + installer code to initiate the zone test.

5. The display shows ZONE TEST ON - PRESS 11 TO

QUIT and sounds one 0.5 second long beep.

6. Actuate/trip and restore each zone/sensor one at a time

while monitoring the display.

7. For hardwire zones the system will beep and display

[ZONE #] TEST GOOD in confirmation. If the system

does not respond, check the zone/sensor wiring or

panel programming.

For wireless zones the system will beep, and indicate

[zone #] signal level [##] to confirm the zone number

tested. (Refer to Table A.12 for signal level descrip-

tions.) If the system does not respond, or if the sensor

does not meet the minimum requirements, refer to the

“If a Wireless Sensor Fails the Zone/Sensor Test” sec-

tion.

8. Press 8 + 2 to view tested zones.

9. Press 8 + 3 to list untested zones.

10. Press 1 + 1 to disarm and end testing (if Quik Arm is

on). Otherwise, Press 1 and enter your install access

code.

If a Wireless Sensor Fails the Zone/Sensor Test

If system does not beep when a sensor is tripped, place an

ITI RF Sniffer (60-401) test tool near the wireless sensor

when tripping to verify that the sensor is transmitting. Con-

stant beeps from the RF Sniffer indicate a runaway (faulty)

wireless sensor. Remove the sensor battery(s) and replace

the sensor.

If possible, locate wireless sensors within 500 feet of the

panel. While a transmitter may have a range of one mile or

more out in the open, the environment at the installation site

can have a significant effect on transmitter range.

Sometimes a change in sensor location can help overcome

adverse wireless conditions.

To improve wireless sensor communication, you can

❑Reorient the sensor,

❑relocate the sensor,

❑if necessary, replace the sensor, or

❑add additional RF transceivers.

To reorient a wireless sensor:

1. Rotate the sensor and test for improved sensor commu-

nication at 90 and 180 degrees from the original posi-

tion.

2. If poor communication persists, relocate the sensor as

described below.

To relocate a wireless sensor:

1. Test the sensor a few inches from the original position.

2. Move the sensor from the original position and retest

until an acceptable location is found.

3. Mount the sensor in the new location.

4. If no location is acceptable, replace the sensor as

described below.

To replace a wireless sensor:

1. Test a known good sensor at the same location.

1 + 2 + CODE Arms system to PERIMETER

1 + 3 + CODE Arms system to FULL

8 + 9 + CODE Manually reset smoke sensors

1 + 0 Check alarm history

7 + 5 Check event history buffer

7 + 7 + CODE + Area Area jump

8 + 8 Initiates a battery test

8 + 1 + CODE Initiates a zone test

0 + 1 + CODE Initiates a phone test

8 + 7 + CODE Initiates a fire test

Table 14. Basic Touchpad Operating Commands

Command System Response

Number Signal Level

0-5 Weak

6-14 Fair

15-30 Good

31+ Excellent

Advent Commercial Fire System

2. If the transmission beeps remain below the minimum

level, avoid mounting a sensor at that location.

3. If the replacement sensor functions, contact ITI for

repair or replacement of the problem sensor.

To add RF transceiver(s):

Install and wire the RF transceiver module according to the

Installation Instructions included with the module and the

information provided on page 10 of this manual. You can

have up to 5 RF transceivers on an Advent Fire panel.

Testing Outputs and Sirens

All outputs (onboard, SnapCard, output module, and X-10)

should be tested to verify configuration programming.

Inform the central station of the test before activating

outputs that trigger from an alarm condition.

1. Contact the central station to inform them you are test-

ing the system.

2. Verify that all wiring at the panel and output devices is

correct.

3. Activate the appropriate device to trigger each output

as programmed.

4. Verify that each output responds according the pro-

grammed configuration. For outputs that trigger sirens,

verify that the correct alarm sounds are produced from

these sirens. Table 15 describes the system alarm

sounds you should hear from each alarm event (based

on defaults). Verify that sirens stop when a fire alarm is

silenced.

5. If strobes are used, verify that the strobes flash, and

continue to flash until a fire alarm is acknowledged

(cancelled).

6. Contact the central station when you are finished test-

ing.

Testing the X-10 Modules (menu

controlled outputs)

Refer to Table B.5 in Appendix B for X-10 lamp, appliance,

and universal module response operation.

Note

Lights and devices must be added (learned) before they

can be accessed using the Lights or Devices menus.

To test lights and devices:

1. Press 4 to test lights or 5 to test devices. The display

shows ENTER A LIGHT/DEVICE NUMBER THEN

PRESS #.

2. Enter the desired light or device number to test and

press ƒ.

3. Press 1 to select Turn [selected light or device] on

now.

4. Verify that the light or device is on.

5. Press 2 to select Turn [selected light or device] off

now.

6. Verify that the light is off.

7. Press Lights On or Lights Off buttons twice to turn all

lights on the first house code on or off at the same time.

Note

Appliance and universal X-10 modules, if any, are all

turned off by pressing Lights Off but are not turned on by

pressing Lights On.

8. Repeat steps 2–6 for remaining assigned lamp and

appliance module unit numbers.

9. Press ‚ to return to the main menu.

Testing Phone Communication

Perform a phone test to check phone communication

between the panel and the central station.

To perform a phone test:

1. Contact the central station to inform them that you are

testing the system.

2. Make sure all premises telephones are on-hook (hung

up).

3. Press 0. The display shows PHONE MENU.

4. Press 1 + primary access code + ƒ. The display

shows PHONE TEST.

5. Wait for the system to dial and test all programmed

telephone numbers.

6. The panel indicates PHONE TEST OK for each phone

number successfully tested.

7. Press ‚ to quit the phone test.

Note

If NUMBER n TEST FAILURE is indicated, press ‚ to quit

the test and refer to the “Troubleshooting” section.

Testing Central Station Communication

After performing zone and phone tests, check that the sys-

tem is reporting alarms successfully to the central station

and pager(s).

Be sure to contact the central station before activating

outputs/zones that trigger an alarm condition.

To test communication with the central station:

1. Call the central station and tell the operator that you

will be testing the system.

2. Arm the system.

3. Test each touchpad, wireless panic button, and trip all

of the sensors. Verify that the appropriate system indi-

cations and alarms are working correctly.

4. Make sure that you test all programmed central station

phone numbers.

Table 15. System Alarm Sounds

Alarm Type Alarm Sound

Fire Repeating series of three beeps (temporal 3)

Police/Intrusion Continuous tone

Auxiliary Rapid beeps

52 Advent Commercial Fire System

5. When you finish testing the system, call the central sta-

tion to verify that all of the correct alarms were

received. Check pager displays to verify that reports

were received.

Adjusting Touchpad Display Contrast

Touchpad displays can be adjusted for easier viewing to

help compensate for lighting conditions in the touchpad

location. The contrast adjustment lightens or darkens the

text.

Note

When performing the procedure below you may get a Bus

Communication Failure. This is because the panel takes

the touchpad off-line when adjusting the contrast.

To adjust display contrast:

1. Enter configuration mode by pressing the D and 6

buttons together for at least two seconds. The display

shows DA nnn.

2. Press and release the 1 and 2 buttons together repeat-

edly, until the desired contrast level is displayed.

3. Press ‚ and the display briefly shows DONE, then

shows the time and date.

Note

For information on adjusting display backlighting and

brightness, please see the specific Advent panel User

Guide.

Vacuum fluorescent displays do not have a contrast

adjustment.

Advent Commercial Fire System

Troubleshooting

This section describes what to do if you experience problems with system operation. If after performing the troubleshooting

procedures the panel still malfunctions, please call Technical Support at 1-800-777-2624.

Feature Problem Solution

Access Codes

Invalid Code or Invalid Authority is indicated.

1. Check that access code is valid or is within use/time limits.

2. Special dealer access code is required for some system programming.

Customer cannot remember access code(s).

1. Check your records or downloader database to see if you have the customer’s access code(s)

on file.

2. If downloading software is available, read the panel access code(s) using the downloader.

Installer cannot remember install code.

1. Check your records or downloader database to see if you have the install code on file.

2. If downloading software is available, read the panel access code(s) using the downloader.

3. If the panel has no access to downloading, clear memory (to defaults) and reprogram the

panel locally.

Note

Dealer access codes are not erased by clearing memory.

Access code stops working.

1. Check for valid access code or that code use/time limits have not expired.

2. Check for proper partition/area and code selection.

Duress Code

Optional duress code is not working.

Check for valid code. (See List Access Codes feature.)

Arming/Disarming

System won’t arm.

1. If arming to Perimeter, make sure all monitored perimeter doors and windows are closed or

bypassed.

2. If arming to Full, make sure all perimeter and interior zone sensors are closed or bypassed.

3. Check system status (press 1 + 9) for an indication of the problem.

System won’t disarm.

1. Check for proper access code.

2. Check the access code authority setting.

Batteries

Main battery and/or main battery failure is indicated.

Check the panel backup battery(s) and connections and replace if necessary. Also, refer to the

Panel - Power LED section in this table.

Zone [zone #] low battery is indicated.

Replace the indicated sensor battery.

SnapCard low battery is indicated.

Check the panel 24 VDC Smoke Expansion SnapCard backup battery and connections and

replace if necessary.

54 Advent Commercial Fire System

Bypassing

Note

Fire zones cannot be bypassed.

Fail and/or Invalid is indicated when you attempt to bypass a zone.

Zone may already be bypassed, or you are trying to bypass a 24-hour zone that cannot be

bypassed.

System won’t automatically unbypass closed zones.

Check that the Unbypassing feature is enabled in programming.

System only allows a certain number of zones to be bypassed.

Check Bypassing Limit feature programming for desired number.

Central Station Reporting

Central station is not receiving reports from panel.

1. Perform a phone test. If phone test fails, follow the remaining steps

2. Check that the DB-8 Cord is plugged into the panel phone jack and into the RJ-31X/CA-38A

jack.

3. Check for proper RJ-31X/CA-38A jack to phone line wiring.

4. Verify with the central station operator that the correct receiver line phone number is pro-

grammed into the panel. Reprogram the phone number and retest if necessary.

5. Verify that the correct phone reporting format is being used.

6. Replace faulty RJ-31X/CA-38A jack.

7. Replace faulty DB-8 cord.

8. Check that the premises phone line is working.

Devices

(See X-10 Modules, Hardwire Outputs, or 4 Relay Output Module).

Dual Phone Line Module

Module bus status LED stays off.

1. Check module and panel power (Green LEDs on).

2. Check SuperBus wiring and connections.

3. Check that the module is programmed (added/learned) into panel memory. Add the module if

necessary.

Module bus status LED stays on.

1. Reinitialize panel and module by turning panel power off and back on.

2. Module circuit failure. Replace the module.

Module bus status LED blinks, but phones don’t work.

1. Check phone wiring and connections.

2. Check that the module is programmed (added/learned) into panel memory. Add the module if

necessary.

Module phone line status LED is on.

Check for phone line failure or phone wiring and connections for that line.

Phones connected to module work intermittently.

1. Check module and panel (Green LEDs on).

2. Check Superbus wire routing and length. (Shielded cable may be required on very long or

noisy wire runs.)

3. Check panel/module programming.

Only one module phone line works.

1. Check phone/module connections.

2. Repair/replace faulty module.

3. Check panel/module programming.

Feature Problem Solution

Advent Commercial Fire System

False Alarm

Alarm is being sent by mistake.

Enter the access code immediately to cancel the alarm. This command aborts the alarm report if

done within 5 seconds (alarm report delay time [xx013]) after alarm activation (Dialer Abort

feature must be on). The system will indicate Report Canceled and the report will not be sent to

the monitoring station.

Note

Some alarms such as Fire alarms will not be aborted.

Hardwire Alphanumeric Touchpad

Touchpad displays Touchpad Not Enrolled and does not respond to buttons.

Enter panel programming mode by entering 8 + 0 and the install code at a working touchpad or

from a telephone.

Enter item number 48001 and enroll the new touchpad into panel memory.

Touchpad displays ********** and does not respond to button presses.

Check for SuperBus miswiring.

Hardwire Alphanumeric Touchpad (continued)

Touchpad appears “dead” (no display or response to buttons).

1. Check that the wiring connector is plugged into the back of the touchpad and into the panel

bus connector.

2. Check SuperBus wiring for opens or shorts.

3. Check panel power.

Hardwire Inputs

No inputs detected.

1. Check panel programming of all general purpose inputs/outputs.

2. Check all input device wiring and connections.

One input is never detected.

1. Check panel programming of general purpose input/output.

2. Check input device operation.

3. Check input device wiring and connections.

Wrong input is detected.

1. Check panel input programming for input.

2. Check input device wiring and connections.

Hardwire Outputs

No outputs activate.

1. Check panel/module programming.

2. Check output wiring and connections.

3. Check panel/module power (green LEDs on).

4. If used, check the optional external supply powering the output devices.

One output never activates.

1. Check panel/module programming for that output.

2. Check output wiring and connections.

3. Check that the output programmed trigger event actually occurs.

4. Output relay may have failed or been overloaded. Reprogram to use a different (unused) out-

put or replace the module.

Wrong output activates.

1. Check panel output programming.

2. Check output device wiring and connections.

Feature Problem Solution

56 Advent Commercial Fire System

Hardwire Sirens/Bells

Exterior sirens are not producing alarm sounds.

1. Check for 12 VDC between panel terminals 6 and 7 during alarm.

2. Check panel main power.

3. Check for correct wiring at the siren and panel terminals.

Exterior sirens produce status sounds.

1. Check for correct wiring at the siren and panel terminals.

2. Check exterior siren output programming.

Interior bells are not producing sounds.

1. Check for 12 VDC between panel terminals 4 and 5 with bell activated.

2. Check panel main power.

3. Check for correct wiring at the siren and panel terminals.

Hardwire Speakers (Voice)

Speakers are not producing sounds.

1. Check for correct wiring (and opens or shorts) at the speaker and panel terminals.

2. Check that required capacitor and end of line (EOL) resistor are installed at the speaker.

3. Make sure that voice volume is correctly programmed.

Speaker volume too high or low.

1. Make sure that the voice volume is correctly programmed.

2. Check for too many speakers or incorrect speaker impedance.

Hardwire Zones

Panel does not respond to hardwire zone input.

1. Check that zones are programmed into panel and add if missing.

2. Make sure that zone is set to a restoral-required type or make sure that system is armed to

active level before tripping sensor.

3. If it is an optional 8 Input Module zone, check that the module bus status LED is blinking to

show communication with panel.

Lights (See also X-10 Modules, Hardwire Outputs, or 4 Relay Output Module)

Light fixture using X-10 Lamp Module does not work.

See X-10 Modules feature in this table.

Panel

Panel does not power up. Panel LED is off and alphanumeric touchpad display is dark.

1. Check the AC circuit breaker to be sure the circuit is live.

2. Check that the backup battery is installed correctly, the battery wires are connected, and the

AC power transformer is plugged in.

3. Check for proper panel and transformer wiring.

4. Measure the incoming AC voltage at the panel terminals. The voltage should be about 24

VAC between panel terminals 1 and 2.

No incoming AC voltage at panel terminals 1 and 2.

1. Check that AC power transformer is not wired into a switched circuit.

2. Disconnect the AC power transformer and disconnect the wires from the transformer and the

panel.

3. Check transformer to panel wire for short or open circuits.

4. Connect the transformer and check for about 24 VAC at the transformer unconnected termi-

nals. If zero (0) volts, reset the built-in transformer circuit breaker (if it has one) or replace

the transformer.

Feature Problem Solution

Advent Commercial Fire System

Panel (continued)

Panel power LED is on constantly, display indicates Main Low Battery or voice sounds Main Low Battery.

1. Check that the panel backup battery is installed correctly, the battery wires are connected,

and the AC power transformer is connected.

2. Measure the incoming AC voltage at the panel terminals. It should read about 24 VAC at

panel terminals 1 and 2.

3. Remove the panel backup battery power by disconnecting the red (positive) battery wire.

4. Check for 13.6 to 14.2 VDC battery charging voltage between panel terminal 3 (GND) and

the disconnected red battery wire.

5. Check for 11.5 to 13.9 VDC battery voltage between the backup battery spade lugs. If the

battery voltage is not within the recommended range, allow the battery time to charge or

replace faulty battery.

Note

When the panel is running a backup battery test, the reading at the connected battery can range

from 11.4 to 13.7 VDC. The panel automatically runs a backup battery test once every 4 or 24

hours (programmed test interval) and at STIME.

6. Restore the backup battery power by reconnecting the red wire from the battery.

Note

While the AC power transformer is plugged in, the panel automatically charges the battery.

While the battery is charging for the first time it is normal for the system to indicate Main Low

Battery. This can take a number of hours depending on the initial battery charge. Once the bat-

tery reaches full charge as measured while in battery test, trouble indication will stop once

cleared by pressing the * button. If the trouble condition persists after 24 hours, replace the

backup battery.

Panel power LED quickly flashes once a second, and after pressing 1 + 9, the touchpad indicates Main Power

Failure. (Panel continues to operate from backup battery.)

1. Check the AC circuit breaker to be sure the circuit is live.

2. Check for proper panel and transformer wiring.

3. Check that the AC transformer is wired to a non-switched circuit.

4. Check that the transformer is supplying AC to the panel. (Transformer internal breaker or

fuse may be blown.)

Panel power LED blinks. (Panel power is on and receiving AC power).

Panel internal failure is detected - service is required:

3 Blinks - Program memory checksum failure.

4 Blinks - Voice memory checksum failure.

5 Blinks - EVAC memory checksum failure.

7 Blinks - RAM failure.

Partitions/Areas

Only partition/area one (1) functions.

1. Check that other partitions/areas are enabled.

2. Check that devices are correctly added (learned) into the other enabled partitions/areas.

Phones

Loss of dial tone on premises phones after wiring the RJ-31X jack or connecting the DB-8 Cord.

1. Wait 2 minutes and try again. The panel may be busy trying to report to the central station

receiver.

2. Check the RJ-31X jack wiring.

3. Check the panel connection to the DB-8 cord.

4. Replace the RJ-31X jack.

5. Replace the DB-8 cord.

6. Perform a phone test after troubleshooting the phone line.

Constant dial tone is preventing dial-out on premises phones.

Polarity-sensitive phones exist on the premises. Reverse the phone wires connected to the brown

and gray wire terminals on the RJ-31X jack.

Feature Problem Solution

58 Advent Commercial Fire System

Phones (continued)

Phone does not work.

Disconnect the panel DB-8 Cord from the RJ-31 jack. If the phone still doesn’t work, the system

is okay and the problem is in the wiring.

System does not respond to remote phone access.

Check that Remote Phone Enable panel feature (17086) is set to “on.”

Noisy or “radio” sounds on phone when system answers.

1. Check phone wire routing and connections.

2. Check for good panel ground connection.

Printer or Automation Module

Module bus status LED stays off.

1. Check module and panel power (green LEDs on).

2. Check SuperBus wiring and connections.

Module bus status LED stays on.

1. Reinitialize panel and module by turning panel power off then on.

2. Module circuit failure. Replace the module.

Module bus status LED blinks, but no interface operation.

1. Panel and module are communicating correctly via the SuperBus.

2. Check panel/module programming.

3. Check module and device cables and connections.

RF Transceiver Module (see also, Hardwire Outputs, Wireless Sensors, and Panel)

Module bus status LED stays off.

1. Check module and panel power (green LEDs on).

2. Check SuperBus wiring and connections.

3. Check for proper panel/module power-up initialization.

Module bus status LED stays on.

1. Reinitialize panel and module by turning panel power off and on.

2. Module circuit failure. Replace the module.

Module bus status LED blinks, but limited or no module wireless operation.

1. Panel and module are communicating correctly via the SuperBus.

2. Check panel/module programming.

3. Check antenna and ground connections.

4. Check for too close of proximity to metal obstructions such as ducting or AC wiring.

Limited wireless signal range.

1. Check Commercial RF Transceiver Module antenna and ground connections. (Never bend or

cut wireless radio antennas.)

2. Check for too close a proximity to metal obstructions such as ducting or large appliances.

3. Check/change transmitting device orientation to module.

Schedules

Wrong clock time, date, or day indication.

1. Check panel clock/calendar programming.

2. Check panel day of week programming.

Schedules don’t repeat.

1. Check panel schedules programming.

2. Check if system clock/calendar has been changed since schedules were programmed.

Feature Problem Solution

Advent Commercial Fire System

Sensors/Zones (see also wireless smoke sensors)

Zone # Tamper is indicated.

Replace the zone sensor cover if it is off. Trip and reset the sensor.

Zone # Supervisory Failure is indicated.

The zone/sensor is not communicating with the panel.

Zone # Trouble Low Battery is indicated.

Replace the indicated zone sensor battery.

Tamper Indications

1. Check that wireless sensor covers are in place.

2. Check that surface tampered wireless PIRs, Smoke, and Sound sensors are securely mounted.

3. Check that hardwired sensor loop end of line (EOL) resistors are installed.

4. Check for hardwire sensor loop shorts or opens.

5. If panel door is tampered, check that the panel cover is closed.

6. If phone jack is tampered, check that phone line cords are plugged in.

7. Check that Commercial RF Transceiver antennas are not bent, cut, or missing and that

antenna and ground connections are tight.

8. Check for multiple incorrect access code entries from touchpad or phone.

Trouble Beeps (see also Panel)

Check system status for an indication of the problem. Troubles must be individually

acknowledged to silence the beeps.

Wireless Sensors (also see RF Transceiver Module)

The panel does not respond to sensor activity. There are no alarm, chime, or sensor test sounds.

1. Check that the wireless sensor battery is installed.

2. Check the sensor battery for low voltage. Replace batteries if necessary.

3. Use an RF Sniffer tool (60-401) to verify that the sensor is transmitting.

4. Check that the sensor is programmed (added/learned) into panel memory. Add the sensor if

necessary.

5. Verify that both RF Transceiver module antennas are installed and that the connections are

tight.

The panel responds intermittently to wireless sensor signals.

1. Rotate the sensor position from 90 to 180 degrees.

2. Mount the sensor in a different location.

3. Verify that both RF Transceiver Module antennas are installed and connections tight.

Wireless Smoke Sensor (see also RF Transceiver Module)

Beeps once every minute.

Sensor batteries are low. Replace all of the smoke sensor batteries.

Zone # Trouble is indicated.

Replace the zone/sensor cover, if it is off. Trip the sensor.

Check for blocked dirty sensor screen and clean if necessary.

Zone # Supervisory Failure is indicated.

The sensor is not communicating with the panel.

Zone # Trouble Low Battery is indicated.

Replace the indicated sensor battery.

Wireless Touchpads

The panel does not respond to wireless touchpad commands.

1. Operate touchpads from different locations to locate areas of intermittent operation.

2. Check and/or replace wireless touchpad battery.

3. Program or reprogram the touchpad(s) into the panel.

Feature Problem Solution

60 Advent Commercial Fire System

X-10 Lamp/Appliance Modules

Lights or devices controlled by the X-10 Modules are not working.

1. Check that the light or device is working and the power switch is on.

2. Confirm light or device operation at working outlet.

3. Check that the lights or devices are plugged into X-10 Modules and that the X-10 Modules

are plugged into outlets that are not controlled by a switch. If necessary, relocate modules to

nonswitched outlets.

4. Check that the HOUSE dial on the X-10 Modules match the house code programmed into the

panel.

5. Check for correct X-10 module unit settings and panel programming.

Zones, Loops

(See Hardwire Inputs, Sensors.)

Feature Problem Solution

Advent Commercial Fire System

Appendix A:

System Configuration Worksheets

Use Table A.1 to determine maximum and standby current

draw based on the devices connected to the panel.

Customer Name _________________________________

Address _______________________________________

City _________________ County ___________ State ___

Zip __________ Phone (____) _______________

Table A.1 System Hardwire Devices

Part No. Description Qty. Standby Current Draw Standby

Current

Subtotal

Maximum

Current Draw

Maximum

Current

Subtotal

Hardwire Sensors/Detectors

13-082 PIR Motion Detector 10 mA 10 mA

13-443 2-Wire Smoke Sensor 100 uA N/A

13-444 2-Wire Smoke/Heat Sensor 100 uA N/A

Fire Pull Station N/A N/A

Hardwire Sirens/Speakers

13-046 Hardwire Exterior Siren N/A 145 mA

13-060 8 Ohm, 15W Speaker N/A N/A

SuperBus 2000 Touchpads and Modules (31 Devices per Bus Header)

60-768 SuperBus 2000 Dual Phone

Line Module 20 mA 60 mA

60-783

60-854 SuperBus 2000 Printer

Module

Note

Metal enclosure required for

commercial applications.

35 mA 40 mA

60-783-02 SuperBus 2000 RS 232

Automation Module 35 mA 35 mA

60-803-01 SuperBus 2000 2x20 LCD

Alphanumeric Touchpad 75 mA 120 mA

60-804-01 SuperBus 2000 2x20 VFD

Alphanumeric Touchpad 75 mA 120 mA

60-810-04 SuperBus 2000 2x20 VFD

Fire Alphanumeric Touchpad 75 mA 120 mA

60-821-95

(plastic)

60-856-95

(metal)

SuperBus 2000 RF Commer-

cial Transceiver Module

Note

Metal enclosure required for

commercial applications.

50 mA 50 mA

60-774 SuperBus 2000 8Z Hardwire

Input Module 18 mA 35 mA

60-770 SuperBus 2000 4-Relay

Output Module 25 mA 180 mA

60-870 SuperBus 2000 LED Driver

Board 20 mA 20 mA

60-871

(display)

60-872

(terminal)

SuperBus 2000 LED Display

or Terminal Board 36 mA (1 LED per group) 65 mA

(max LEDs lit)

SnapCards (2 per panel)

60-756 4 Input/2 Output SnapCard 10 mA

+ 2.5 mA per zone used

+ 7 mA per smoke loop used

+ 34 mA per relay used

185 mA

62 Advent Commercial Fire System

Determining Maximum Panel Wire Length

Example:

Using 22 gauge wire to connect the following devices on

one wire run (length of cable):

Device Current Draw (see note)

1- Hardwire 2-Line Alpha Touchpad = 120 mA

1- RF Transceiver Module = 50 mA

1-8Z Hardwire Input Module = 35 mA

Total Device Current Draw = 205 mA

Find the total device current draw in the table and match the

wire type used. In this example, the maximum recom-

mended wire length is about 154 feet. For longer lengths,

use a larger gauge wire.

Note

For self- or remotely-powered devices, the maximum rec-

ommended wire length is 4,000 feet using 22 gauge or

larger wire.

60-757 8Z Hardwire Input SnapCard 10 mA

+ 2.5 mA per zone used

+ 7 mA per smoke loop used

230 mA

60-758 4 Output SnapCard 6 mA

+ 34 mA per relay used 130 mA

Total Standby Current Draw (must not exceed 150 mA with 1 battery, 850 mA with 2 batteries, or 1.5A with 3 batteries for UL

systems)

Total Maximum Current Draw (must not exceed 5A)

Table A.1 System Hardwire Devices (Continued)

Part No. Description Qty. Standby Current Draw Standby

Current

Subtotal

Maximum

Current Draw

Maximum

Current

Subtotal

Table A.2 Max. Wire Length Recommendations*

(Feet)

Total

Device

Current

Draw

(mA)

22 Gauge

(AWG) 18 Gauge

(AWG) 16 Gauge

(AWG) 14 Gauge

(AWG)

100 616 1,562 2,486 3,936

200 308 782 1,244 1,968

300 206 522 830 1314

400 154 392 622 982

500 124 314 500 792

600 104 262 416 653

700 88 224 356 564

800 78 196 312 492

900 70 174 278 438

1000 61 156 250 394

1100 56 142 226 358

1200 54 130 208 330

1300 48 120 192 304

1400 44 112 178 282

1500 42 104 166 264

1600 40 98 156 246

1700 36 92 146 232

1800 34 88 138 216

1900 32 82 132 208

2000 30 78 126 198

2100 29 74 120 188

2200 28 72 114 180

2300 27 68 108 172

2400 26 66 104 164

2500 25 64 100 158

2600 24 60 96 152

2700 23 58 92 146

2800 22 56 90 140

2900 21 54 86 136

3000 20 52 84 132

*Two volt maximum loop voltage drop.

Table A.2 Max. Wire Length Recommendations*

(Feet)

Total

Device

Current

Draw

(mA)

22 Gauge

(AWG) 18 Gauge

(AWG) 16 Gauge

(AWG) 14 Gauge

(AWG)

Advent Commercial Fire System

Other System Devices X-10 Module and Device Settings

Use Table A.6 to document information about X-10 module

and device settings. If you need more room, simply copy

this page.

Table A.3 Wireless Sensors

Part No. Description Qty.

60-348 Handheld Wireless Touchpad

60-362 Learn Mode Door/Window Sensor

60-409 Learn Mode Recessed Door/Window

Sensor

60-452 Learn Mode Pendant Panic Sensor

60-453 Wall-Mount Wireless Touchpad

60-457 Dual Button Panic Sensor

60-458 Single Button Panic Sensor

60-460 Rate-of-Rise Heat Sensor

60-461 Learn Mode Shock Sensor

60-462 Learn Mode Glass Guard Sensor

60-499 Learn Mode Slim Line Door/Window

Sensor

60-504 Learn Mode Freeze Sensor

60-506-

319.5 Learn Mode Smoke Sensor

60-848-95 Learn Mode Smoke Sensor (ESL) 560

Series

60-849-95 Learn Mode Smoke Sensor (ESL) 570

Series

60-511 Learn Model DS924i PIR Motion

Sensor

60-578 Water-Resistant Panic Sensor

60-582 Learn Mode Sound Sensor

(IntelliSense)

60-641 Learn Mode Long Life Door/Window

Sensor

60-688 Learn Mode Micro Door/Window

Sensor

60-741 Learn Mode Recessed Micro Door/

Window Sensor

Table A.4 X-10 Module Line Carrier Devices

Part No. Description Qty.

13-399 X-10 Universal Module

13-402 X-10 Appliance Module

13-403 X-10 Lamp Module

Table A.5 AC Power Transformer and Backup Battery

Part No. Description Qty.

60-781 Heavy Duty 12V, 17.2 AH or 18.0

AH Backup Battery

60-830 Heavy Duty Line Carrier 24 VAC,

100 VA, Class I, 110VAC, 60 Hz AC

Power Transformer

60-823 Heavy Duty Line Carrier 24 VAC,

100 VA, Class II 110 VAC, 60 Hz AC

Power Transformer

Table A.6 X-10 Module House and Unit Code

Settings

Partition

Number

Light

Device

Number

Device

Type/Location

House Code

Unit Code*

*Unit codes affect module responses.

64 Advent Commercial Fire System

Partition/Area Descriptions

Use Table A.7 to write in information about each partition

or area.

Table A.7 Partition/Area Numbers and Descriptions

Partition/

Area No. Description/Location [Display Text]

Advent Commercial Fire System

SuperBus 2000 Device Information

Use Table A.8 to document information about SuperBus

2000 touchpads and modules. If you need more room, sim-

ply copy this page.

Table A.8 SuperBus Touchpad and SuperBus Module Unit Numbers

Device Description

Bus Connector

(circle one)

Bus Address

Number

(assigned by panel)

Unique ID Number

(From device label)

1 / 2

66 Advent Commercial Fire System

Zone and Sensor Information

Use Table A.9 to record information about zones and sen-

sors.

Table A.9 Zone and Sensor Assignments

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

01 HW/RF

02 HW/RF

03 HW/RF

04 HW/RF

05 HW/RF

06 HW/RF

07 HW/RF

08 HW/RF

09 HW/RF

10 HW/RF

11 HW/RF

12 HW/RF

13 HW/RF

14 HW/RF

15 HW/RF

16 HW/RF

17 HW/RF

18 HW/RF

19 HW/RF

20 HW/RF

21 HW/RF

22 HW/RF

23 HW/RF

24 HW/RF

25 HW/RF

26 HW/RF

27 HW/RF

28 HW/RF

29 HW/RF

30 HW/RF

31 HW/RF

32 HW/RF

33 HW/RF

34 HW/RF

35 HW/RF

Advent Commercial Fire System

36 HW/RF

37 HW/RF

38 HW/RF

39 HW/RF

40 HW/RF

41 HW/RF

42 HW/RF

43 HW/RF

44 HW/RF

45 HW/RF

46 HW/RF

47 HW/RF

48 HW/RF

49 HW/RF

50 HW/RF

51 HW/RF

52 HW/RF

53 HW/RF

54 HW/RF

55 HW/RF

56 HW/RF

57 HW/RF

58 HW/RF

59 HW/RF

60 HW/RF

61 HW/RF

62 HW/RF

63 HW/RF

64 HW/RF

65 HW/RF

66 HW/RF

67 HW/RF

68 HW/RF

69 HW/RF

70 HW/RF

71 HW/RF

72 HW/RF

73 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

68 Advent Commercial Fire System

74 HW/RF

75 HW/RF

76 HW/RF

77 HW/RF

78 HW/RF

79 HW/RF

80 HW/RF

81 HW/RF

82 HW/RF

83 HW/RF

84 HW/RF

85 HW/RF

86 HW/RF

87 HW/RF

88 HW/RF

89 HW/RF

90 HW/RF

91 HW/RF

92 HW/RF

93 HW/RF

94 HW/RF

95 HW/RF

96 HW/RF

97 HW/RF

98 HW/RF

99 HW/RF

100 HW/RF

101 HW/RF

102 HW/RF

103 HW/RF

104 HW/RF

105 HW/RF

106 HW/RF

107 HW/RF

108 HW/RF

109 HW/RF

110 HW/RF

111 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

Advent Commercial Fire System

112 HW/RF

113 HW/RF

114 HW/RF

115 HW/RF

116 HW/RF

117 HW/RF

118 HW/RF

119 HW/RF

120 HW/RF

121 HW/RF

122 HW/RF

123 HW/RF

124 HW/RF

125 HW/RF

126 HW/RF

127 HW/RF

128 HW/RF

129 HW/RF

130 HW/RF

131 HW/RF

132 HW/RF

133 HW/RF

134 HW/RF

135 HW/RF

136 HW/RF

137 HW/RF

138 HW/RF

139 HW/RF

140 HW/RF

141 HW/RF

142 HW/RF

143 HW/RF

144 HW/RF

145 HW/RF

146 HW/RF

147 HW/RF

148 HW/RF

149 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

70 Advent Commercial Fire System

150 HW/RF

151 HW/RF

152 HW/RF

153 HW/RF

154 HW/RF

155 HW/RF

156 HW/RF

157 HW/RF

158 HW/RF

159 HW/RF

160 HW/RF

161 HW/RF

162 HW/RF

163 HW/RF

164 HW/RF

165 HW/RF

166 HW/RF

167 HW/RF

168 HW/RF

169 HW/RF

170 HW/RF

171 HW/RF

172 HW/RF

173 HW/RF

174 HW/RF

175 HW/RF

176 HW/RF

177 HW/RF

178 HW/RF

179 HW/RF

180 HW/RF

181 HW/RF

182 HW/RF

183 HW/RF

184 HW/RF

185 HW/RF

186 HW/RF

187 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

Advent Commercial Fire System

188 HW/RF

189 HW/RF

190 HW/RF

191 HW/RF

192 HW/RF

193 HW/RF

194 HW/RF

195 HW/RF

196 HW/RF

197 HW/RF

198 HW/RF

199 HW/RF

200 HW/RF

201 HW/RF

202 HW/RF

203 HW/RF

204 HW/RF

205 HW/RF

206 HW/RF

207 HW/RF

208 HW/RF

209 HW/RF

210 HW/RF

211 HW/RF

212 HW/RF

213 HW/RF

214 HW/RF

215 HW/RF

216 HW/RF

217 HW/RF

218 HW/RF

219 HW/RF

220 HW/RF

221 HW/RF

222 HW/RF

223 HW/RF

224 HW/RF

225 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

72 Advent Commercial Fire System

Menu Outputs

Use Table A.10 to document information about menu out-

puts. Room to document 40 menu outputs is provided

below. If you need more room, simply copy this page.

226 HW/RF

227 HW/RF

228 HW/RF

229 HW/RF

230 HW/RF

231 HW/RF

232 HW/RF

233 HW/RF

234 HW/RF

235 HW/RF

236 HW/RF

237 HW/RF

238 HW/RF

239 HW/RF

240 HW/RF

241 HW/RF

242 HW/RF

243 HW/RF

244 HW/RF

245 HW/RF

246 HW/RF

247 HW/RF

248 HW/RF

249 HW/RF

250 HW/RF

Table A.9 Zone and Sensor Assignments (Continued)

Zone Number

Partition Number

Zone Type

Zone/Sensor Type

(circle one)

Module Bus

ID Number

Module

Input Number

Attributes

(N0, NC, Floor No., etc.)

Zone/Sensor Text

Table A.10 Menu Outputs

Partition/Area

No. Menu

Output No. Text Schedule

No.

Advent Commercial Fire System

Table A.10 Menu Outputs

Partition/Area

No. Menu

Output No. Text Schedule

No.

74 Advent Commercial Fire System

Access Codes and Authority Level Settings

Table A.11 shows the default access codes and Table A12

shows default authority level settings. Document any

changes in the tables.

Authority Level Settings

Table A.12 (right) shows default authority level settings.

Document any changes in table.

Table A.11 Default Access Codes

Partition Default Code Authority User #

1 1234 Primary 1

2 2345 Primary 2

3 3456 Primary 3

4 4567 Primary 4

5 5678 Primary 5

6 6789 Primary 6

7 7890 Primary 7

8 8901 Primary 8

Global 2020 Primary 5 or 9*

Installer 0123 Installer 0

* The primary global access code is user #5 in 4 partition systems, and

user #9 in 8 partition systems.

Table A.12 Authority Level Settings Programming

Setting Description

10 Remote Access Allowed

11 Arming to Off Allowed

12 Arming to Home Allowed

13 Arming to Away Allowed

14 Arming to Special Level 4 Allowed

15 Arming to Special Level 5 Allowed

18 Standard Zone Bypassing Allowed

19 Critical Zone Bypassing Allowed

20 Zone Test Allowed

21 Phone Test Allowed

22 Schedule Menu Access Allowed

Programmable Authority

Level Setting*

1✔✔✔✔✔✔✔ ✔

2✔✔✔✔✔✔✔ ✔

3✔✔✔✔✔✔

4✔✔✔✔✔

5✔✔✔✔✔

6✔✔✔✔✔

* Factory defaults shown. Write in actual settings.

Primary (prime) authority - of which there is only one per

partition/area is required to assign full and duress authorities.

Primary, full and duress authority levels (not shown) are not

programmable.

Advent Commercial Fire System

Item Numbers Index and Record

Use Table A.13 to document settings. Items are in numerical

order.

Table A.13 Item Numbers Index and Record

Item

Number Setting Reference and Default Setting

Installer Programming—8 + 0 + Installer/Dealer CODE

xx001 Daily Trouble Reporting Time (page 19) 12:00 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx002 Siren Time Out (page 19) 16 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx003 Standard Entry Delay (page 24) 32 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx004 Standard Exit Delay (page 25) 32 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx005 Extended Delay (page 25) 2 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx006 Fast Beep Duration (page 25) 10 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx007 Time Between Arming Notification and

Arming (page 23) 10 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx008 Extension Time (page 23) 30 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx009 No Activity Tripped After (page 19) 0

(Not Active) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx010 Delay Between No Activity Trip and Alarm

(page 19) 5 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx011 Zone Test Time Out (page 26) 30 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx012 Delay Between Generated Panic Alarm and

Alarm Reporting (page 22) 5 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx013 Delay Between Generated Standard Alarm and

Alarm Reporting (page 22) 5 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx014 Delay Between Generated Fire Alarm and

Alarm Reporting (page 22) 0 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx015 Delay Between Suspicion Zone Trip and

Alarm Generated (page 20) 5 min. 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx017 Number of Zones that can be Bypassed

(page 24) 250 (all) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx018 Activity Fault Threshold 1 (page 23) 10 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx019 Activity Fault Threshold 2 (page 23) 30 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx020 Activity Fault Threshold 3 (page 23) 50 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx021 Swing Count (Auto Bypass Trips) (page 24) 3 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx022 X-10 House Code 1 (page 21) default is

partition/area number 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx023 X-10 House Code 2 (page 21) default is

partition/area number + 8 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx025 Enable Arming Level 2 (page 23) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx026 Enable Arming Level 3 (page 23) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx027 Enable Arming Level 4 (page 23) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

76 Advent Commercial Fire System

xx028 Enable Arming Level 5 (page 23) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx049 Non X-10 Output 1 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx050 Non X-10 Output 2 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx051 Non X-10 Output 3 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx052 Non X-10 Output 4 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx053 Non X-10 Output 5 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx054 Non X-10 Output 6 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx055 Non X-10 Output 7 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx056 Non X-10 Output 8 (page 21) None 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx057 Disarm Key (page 26) 4 (arm to level 1) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx058 Arm Key (page 26) 9 (arm to closed level) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx059 Lights Key (page 26) 15 (toggle all lights) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx060 Star Key (page 26) 12 (incremental arming) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx061 Lights/Star Key (page 26) 3 (auxiliary panic) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx063 Arm Level 2 (page 26) 6 (arm to level 3) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx064 Arm Level 3 (page 26) 5 (arm to level 2) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx065 Arm/Star Key (page 26) 16 (do nothing) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx066 Disarm/Lights Key (page 26) 16 (do nothing) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx068 Partition/Area Enable (page 17) Partition 1 On,

Partitions 2–8 Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx069 Light Control (page 21) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx070 Device Control (page 21) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx071 Latchkey Access (page 21) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx076 Enable Keystroke Violation Alarm (page 19)

Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx077 Second Intrusion Causes Report (page 22) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx078 Generate Alarm for Suspicion Trips (page 20)

On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx079 Generate Alarm for Unarmed Tamper Signals

(page 19) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx080 First Trip Local Second Trip Report (page 20)

Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

Advent Commercial Fire System

xx082 Key or Code Needed for Special Fire

Touchpad Keys (page 26) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx083 Tamper Signals from Fire Zones are Alarms

(page 19) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx084 Auxiliary/Medical Assignment (page 27) On

(auxiliary alarm) 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx085 Enable Police Panic Keys (page 27) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx086 Enable Auxiliary/Medical Panic Keys

(page 26) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx087 Enable Fire Panic Keys (page 27) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx088 Report Partition/Area Event to Central Station

(page 21) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx089 Cancel Event Cancels Report (page 21) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx090 Second Fire Alarm Ends Reporting Delay

(page 22) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx091 Print Partition/Area Events (page 22) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx092 Enable Auto Force Arming (page 24) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx093 Enable Quick Arming (page 24) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx094 Enable Scheduled Arming (page 23) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx095 Enable Swinger Bypass (page 24) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx096 Enable Automatic Unbypass (page 24) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx097 Exterior Arming Verification (page 24) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx098 Audible Verification at Close Reports

(page 23) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx100 Fast Beeps at End of Exit Delay Only

(page 25) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx101 Early Termination Delay (page 25) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx102 One-Time Reset Enabled (page 25) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx103 Beeps During Standard Entry Delay Only

(page 25) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx108 Enable Daily Reporting of Partition Trouble

(page 19) On 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx110 Announce and Display Zone Text with Chime

(page 25) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx111 Chime on Zone Restoral (page 25) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx112 Generate Restoral Reports for Reporting Zone

Types (page 22) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx113 Exterior Siren Delay (page 18) Off 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx116 Account Number 1 (page 18) 00000000 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

78 Advent Commercial Fire System

xx117 Account Number 2 (page 18) 00000000 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx118 Default Keyfob Schedule Arming Level

(page 23) 3 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

xx120 Default Keyswitch Arming Level (page 23) 3 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

17001 System Date (page 43) 1/1/00

17002 System Time (page 43) 12:00:00

17003 System Day of Week (page 43) Saturday

17004 System Report Time (STIME) (page 44)

Random

17006-17111

17118 General Input Response Times (page 37)

32 sec I/O 1__________, I/O 3__________, I/O 5__________, I/O 7__________

I/O 2__________, I/O 4__________, I/O 6__________

17012-17017

17119-17120 Expansion Input Response Times (page 37)

32 sec 1_____________, 3_____________, 5_____________, 7_____________,

2_____________, 4_____________, 6_____________, 8_____________

17018 Max Ring Cycle Time (page 31) 67 ms

17019 Minimum Ringlet Burst Duration (page 32)

400 ms

17020 Maximum Ringlet Burst Duration (page 32)

2500 ms

17021 Minimum Pause Between Ringlets (page 32) 0

17022 Maximum Pause Between Ringlets (page 32) 0

17023 Minimum Pause Between Rings (page 32)

2000 ms

17024 Maximum Pause Between Rings (page 32)

4500 ms

17025 Minimum Time Between Ring-Pause-Ring

(page 34) 10 sec

17026 Max Time Between Ring-Pause-Ring

(page 34) 30 sec

17027 On Hook Hang Up Time (page 33) 4 sec

17028 Local Phone Connect Time (page 33) 2 sec

17029 Local Phone Answer Time (page 33) 8 sec

17030 Max Delay Between Phone Panic Sequence

(page 33) 2 sec

17031 DTMF On Time (page 31) 30 ms

17032 DTMF Off Time (page 31) 50 ms

17034 Phone Test Interval (page 29) 1 day -

Commercial, 7 days - Home Navigator

17035 Touchpad Redirect Reset Time (page 17) 10

sec

17036 AC Stable Time (page 46) 8 sec

17037 Low Battery Trip Voltage (page 45) 10.6V

17038 Battery Restored Voltage (page 46) 11.6V

17039 Battery Voltage Shutdown is Started (page 46)

9.4V

17040 Battery Voltage Shutdown is Canceled

(page 46) 10.4V

17041 Hours to Delay Before Reporting AC Failure

(page 45) 6 hrs

17043 Percent Full History Buffer Reports (page 45)

80 percent

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

Advent Commercial Fire System

17044 Percent Full Report Buffer Reports (page 45)

80 percent

17046-17048 Siren Cadence (page 43) Medical alternate

modulated, Police steady, Auxiliary fast

modulated

Medical_______, Police_________, Auxiliary_______

17049-17050 RF Supervisory Times (page 44) A 4 hrs,

B 24 hrs A_____________, B_____________

17051 Smoke Loop Reset Time (page 37) 3 seconds

17052 Answer Phone after XX Rings (page 34) 12

Rings

17053 Cancel Ring-Pause-Ring After XX Rings

(page 34) 3 rings

17054 Minimum Cycles in a Valid Ring (page 31) 2

cycles

17055 Number of Ringlets Needed for a Valid Ring

(page 31) 1 burst

17056 Local Phone Connect Sequence (page 32) #*

17057 Phone Device Override Sequence (page 33)

**##

17058 System Pager ID (page 29) 0

17060-17061 On Premises Pager IDs (page 46) 0000000 1_____________, 2_____________

17062 System Strobe Light Type (page 43) Amesco

17063-17068 General Purpose I/O Direction (page 37) 0

(input) 1_____________, 3_____________, 5_____________,

2_____________, 4_____________, 6_____________

17069 No Phone Line Attached (page 28) Off

17070 Enable Daylight Savings (page 45) On

17072 Enable RF Jam Detect (page 44) On

17073 Battery Test Interval (page 44) 4 hours

17074 High Rise Installation (page 44) Off

17075 Enable Long Range Radio (page 44) Off

17076 Commercial or Residential Installation

(page 44) Home Navigator Off, Commercial

17078 Detect Receiver Failure (page 43) On

17079 Alarm Messages Played at High Volume

(page 42) On

17080 Enable Local Phone Police Alarm (page 33)

Off

17081 Enable Local Phone Auxiliary Alarm

(page 33) Off

17082 Enable Local Phone Fire Alarm (page 33) Off

17083 Play Evacuation Message During Fire Alarms

(page 42) On

17084 First Disarm Silences Fire Alarm and Second

Disarm Cancels the Alarm (page 42)

Commercial Fire On, Commercial Burglary

Off

17085 Enable Local Phone Access in Partition/Area 1

(page 32) Off

17086 Enable Remote Phone Access (page 33) On

17087 Enable Remote Phone Ring Count (page 33)

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

80 Advent Commercial Fire System

17088 Enable Remote Phone Ring Pause Ring

(page 34) On

17089 Enable Remote Phone Override (page 34) On

17090 Enable Toll Saver (page 34) On

17092 Phone Off Hook is Activity (page 44) On

17093 Global Account Reporting (page 17) Off

17094-17095 Enable DTMF Dialing Line 1/2 (page 28) On 1_____________, 2_____________

17096 Report System Events (page 44) On

17097 Print Line Feed after Carriage Return

(page 45) On

17098 Allow Remote Phone Zone Test (page 34) On

17099 Print System Events (page 45) On

17100 Time Format (page 43) Off (12 hr)

17101 Number of Dial Attempts Before Reporting

Failure to RF Buddy (page 28) 5

17102 System Account Number 1 (page 28)

00000000

17103 System Account Number 2 (page 28)

00000000

17104 Evacuation Message Count (page 42) 4

messages

17105 Line 1 Dial Prefix (page 28) None

17106 Line 2 Dial Prefix (page 28) None

17107 Dealer Access Code (page 27) None

17108 Downloader Access Code (page 27) 12345

17109 Downloader Account Number (page 46)

00000000

17110 Panel Latitude (page 46) 0 degrees

17111 Time Fire Alarm is Silenced (page 42) 30 sec

17112 Output Activation Delay (page 38) 30 sec

17113-17116 Activation Interval One-Shot Times (page 38)

A 4 sec, B 30 sec, C 180 sec, D 900 sec A_____________, B_____________, C_____________,

D_____________

17117 Zone Delay Time (page 37) 10 sec

17122 Panel Calls Back to Downloader (page 43) Off

17123 AC Frequency (page 46) 60 Hz

17124 Printer Supports Epson ESC/P Protocol

(page 45) On

17125 Partition/Area Text Displayed on Touchpads

and Spoken Over Speakers (page 45) On

17126 Unsilence Alarm after Silencing Period

(page 42) Off

17127 Partitions Act as Areas (page 17) Off

17128 Annunciate Earliest Fire Alarm Not the Most

Current (page 42) Off

yy001 Phone Number Enable (page 29) Off 19001_____________, 20001_____________, 21001_____________,

22001_____________, 23001_____________, 24001_____________

yy002 Number to Dial (page 29) None 19002_____________, 20002_____________, 21002_____________,

22002_____________, 23002_____________, 24002_____________

yy003 Number of Attempts (page 29) 5 19003__________________, 20003__________________,

21003__________________, 22003__________________,

23003__________________, 24003__________________

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

Advent Commercial Fire System

yy004 Comm Format (page 29) 0 (Contact ID) 19004_____________, 20004_____________, 21004_____________,

22004_____________, 23004_____________, 24004_____________

yy005 Report Panic Special (page 30) Off 19005_____________, 20005_____________, 21005_____________,

22005_____________, 23005_____________, 24005_____________

zz001 Enabled Pager Phone Number (page 30) Off 25001_____________, 26001_____________, 27001_____________,

28001_____________, 29001_____________, 30001_____________,

31001_____________, 32001_____________, 33001_____________,

34001_____________, 35001_____________, 36001_____________,

37001_____________, 38001_____________, 39001_____________,

40001_____________

zz002 Pager Number to Dial (page 30) None 25002____________________, 26002____________________,

27002____________________, 28002____________________,

29002____________________, 30002____________________,

31002____________________, 32002____________________,

33002____________________, 34002____________________,

35002____________________, 36002____________________,

37002____________________, 38002____________________,

39002____________________, 40002____________________

zz003 Number of Attempts (page 30) 3 25003_____________, 26003_____________, 27003_____________,

28003_____________, 29003_____________, 30003_____________,

31003_____________, 32003_____________, 33003_____________,

34003_____________, 35003_____________, 36003_____________,

37003_____________, 38003_____________, 39003_____________,

40003_____________

zz004 Comm Format (page 30) 1 (TAP at 1200 bps

PSK) 25004_____________, 26004_____________, 27004_____________,

28004_____________, 29004_____________, 30004_____________,

31004_____________, 32004_____________, 33004_____________,

34004_____________, 35004_____________, 36004_____________,

37004_____________, 38004_____________, 39004_____________,

40004_____________

zz005 Character Format (page 30) 1 (7/E/1) 25005_____________, 26005_____________, 27005_____________,

28005_____________, 29005_____________, 30005_____________,

31005_____________, 32005_____________, 33005_____________,

34005_____________, 35005_____________, 36005_____________,

37005_____________, 38005_____________, 39005_____________,

40005_____________

zz006 Pager System Reports (page 30) Off 25006_____________, 26006_____________, 27006_____________,

28006_____________, 29006_____________, 30006_____________,

31006_____________, 32006_____________, 33006_____________,

34006_____________, 35006_____________, 36006_____________,

37006_____________, 38006_____________, 39006_____________,

40006_____________

zz007 Partition/Area 1 Pager Reports (page 31) Off 25007_____________, 26007_____________, 27007_____________,

28007_____________, 29007_____________, 30007_____________,

31007_____________, 32007_____________, 33007_____________,

34007_____________, 35007_____________, 36007_____________,

37007_____________, 38007_____________, 39007_____________,

40007_____________

zz008 Partition/Area 2 Pager Reports (page 31) Off 25008_____________, 26008_____________, 27008_____________,

28008_____________, 29008_____________, 30008_____________,

31008_____________, 32008_____________, 33008_____________,

34008_____________, 35008_____________, 36008_____________,

37008_____________, 38008_____________, 39008_____________,

40008_____________

zz009 Partition/Area 3 Pager Reports (page 31) Off 25009_____________, 26009_____________, 27009_____________,

28009_____________, 29009_____________, 30009_____________,

31009_____________, 32009_____________, 33009_____________,

34009_____________, 35009_____________, 36009_____________,

37009_____________, 38009_____________, 39009_____________,

40009_____________

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

82 Advent Commercial Fire System

zz010 Partition/Area 4 Pager Reports (page 31) Off 25010_____________, 26010_____________, 27010_____________,

28010_____________, 29010_____________, 30010_____________,

31010_____________, 32010_____________, 33010_____________,

34010_____________, 35010_____________, 36010_____________,

37010_____________, 38010_____________, 39010_____________,

40010_____________

zz011 Partition/Area 5 Pager Reports (page 31) Off 25011_____________, 26011_____________, 27011_____________,

28011_____________, 29011_____________, 30011_____________,

31011_____________, 32011_____________, 33011_____________,

34011_____________, 35011_____________, 36011_____________,

37011_____________, 38011_____________, 39011_____________,

40011_____________

zz012 Partition/Area 6 Pager Reports (page 31) Off 25012_____________, 26012_____________, 27012_____________,

28012_____________, 29012_____________, 30012_____________,

31212_____________, 32012_____________, 33012_____________,

34012_____________, 35012_____________, 36012_____________,

37012_____________, 38012_____________, 39012_____________,

40012_____________

zz013 Partition/Area 7 Pager Reports (page 31) Off 25013_____________, 26013_____________, 27013_____________,

28013_____________, 29013_____________, 30013_____________,

31013_____________, 32013_____________, 33013_____________,

34013_____________, 350113_____________, 36013_____________,

37013_____________, 38013_____________, 39013_____________,

40013_____________

zz014 Partition/Area 8 Pager Reports (page 31) Off 25014_____________, 26014_____________, 27014_____________,

28014_____________, 29014_____________, 30014_____________,

31014_____________, 32014_____________, 33014_____________,

34014_____________, 35014_____________, 36014_____________,

37014_____________, 38014_____________, 39014_____________,

40014_____________

zz015 Pager PIN # (page 31) None 25015____________________, 26015____________________,

27015____________________, 28015____________________,

29015____________________, 30015____________________,

31015____________________, 32015____________________,

33015____________________, 34015____________________,

35015____________________, 36015____________________,

37015____________________, 38015____________________,

39015____________________, 40015____________________

zz016 Pager Max Message Length (page 31) 120

Characters 25016_____________, 26016_____________, 27016_____________,

28016_____________, 29016_____________, 30016_____________,

31016_____________, 32016_____________, 33016_____________,

34016_____________, 35016_____________, 36016_____________,

37016_____________, 38016_____________, 39016_____________,

40016_____________

47001 Add Zones (page 35)

47002 Delete Zones (page 35)

47003 List Zones (page 36)

47004 Zone Attributes (Edit Zones) (page 36)

47005 Test Buddies (page 36)

47006 List Buddies (page 37)

48001 Add (Learn) Bus Devices (page 38)

48002 Delete/Change Bus Device ID (page 38)

48003 List Bus Devices (page 39)

48004 Bus Device Partition/Area (page 39)

48005 Change Transmit Bus ID (page 39)

48006 List Bus Device Text (page 39)

48007 Replace/Delete Bus Device ID (page 40)

48009 Program LED Module (page 40)

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

Advent Commercial Fire System

48010 Delete/Replace LED Module (page 40)

49001 Zone Text (page 36)

49002 Bus Device Text (page 39)

49003 Menu Output Text (page 41)

49004 Partition/Area Text (page 18)

49005 Keypad Idle Text (page 40)

50001 Reset Panel (page 46)

50002 Clear Panel Memory (page 17)

50003 Software/Hardware Version (page 47)

50004 Clear History Buffer (page 47)

50005 Output Configuration (page 41)

50008-50009 Holiday Lists (page 47)

50010 Event Configuration and Alarm Masks

(page 48)

50012 Print Zone & Device Information (page 48)

50013 Access Code Length (page 28) 4

50014-50015 Delete Primary/Secondary SnapCard (page 48)

50016 Print History Buffer (page 48)

Table A.13 Item Numbers Index and Record (Continued)

Item

Number Setting Reference and Default Setting

84 Advent Commercial Fire System

Advent Commercial Fire System

Appendix B: Reference Tables

This appendix contains tables for selecting zone type num-

bers, system features, X-10 Module house, unit codes and

responses, SuperBus device unique ID numbers, and text

descriptor numbers. Table notes (if any) appear at the bot-

tom of the last page of the table.

Note

Fire zone types are always active.

Table B.1 Zone Type Characteristics

No. Name Application

Active Level

Alarm/Siren

Delay

Supervisory

Restoral

CS Alarm Report

CS Cancel Report

Bypassable

Chime

Resets Activity Timer

00 Fixed Panic 24-hour audible fixed emergency

buttons. 1, 2, 3, 4, 5 Police/Police Instant √ √ √ √

01 Portable

Panic 24-hour audible portable

emergency buttons. 1, 2, 3, 4, 5 Police/Police Instant √ √ √

02 Fixed Panic 24-hour silent fixed emergency

buttons. 1, 2, 3, 4, 5 Police/Silent Instant √ √ √ √

03 Portable

Panic 24-hour silent portable emergency

buttons. 1, 2, 3, 4, 5 Police/Silent Instant √ √ √

04 Fixed

Auxiliary 24-hour auxiliary sensor, such as

Pendant Panic or holdup button. 1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √ √

05 Fixed

Auxiliary 24-hour auxiliary emergency

buttons. Siren shut-off confirms

CS alarm report.

1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √ √

06 Portable

Auxiliary 24-hour portable auxiliary alert

buttons. 1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √

07 Portable

Auxiliary 24-hour portable auxiliary button.

Siren shut-off confirms CS alarm

report.

1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √

08 Special

Intrusion Special belongings, such as gun

cabinets and wall safes. 1, 2, 3, 4, 5 Police/Police Instant √ √ √ √ √

09 Special

Intrusion Special belongings, such as gun

cabinets and wall safes. 1, 2, 3, 4, 5 Police/Police Standard √ √ √ √ √

10 Entry/Exit

Delay Entry and exit doors that require a

standard delay time. 2, 3, 4, 5 Police/Police Standard √ √ √ √ √ √ √

11 Entry/Exit

Delay Garage doors and entrances that

require an extended delay time. * 2, 3, 4, 5 Police/Police Extended √ √ √ √ √ √

12 Entry/Exit

Delay Driveway gates and entrances that

require a twice extended delay

time. *

2, 3, 4, 5 Police/Police Twice

Extended √ √ √ √ √ √

13 Instant

Perimeter Exterior doors and windows. 2, 3, 4, 5 Police/Police Instant √ √ √ √ √ √ √

14 Instant

Interior Interior doors. 2, 3, 4, 5 Police/Police Follower √ √ √ √ √ √

15 Instant

Interior Interior PIR motion sensors. * 2, 3, 4, 5 Police/Police Follower √ √ √ √ √

16 Instant

Interior Interior doors. 3, 4, 5 Police/Police Follower √ √ √ √ √ √

17 Instant

Interior PIR motion sensors. * 3, 4, 5 Police/Police Follower √ √ √ √ √

18 Cross Zone

Instant

Interior

PIR motion sensors subject to false

alarms. * †3, 4, 5 Police/Police Follower √ √ √ √ √

19 Delayed

Interior Interior doors that initiate a delay

before going into alarm.* 3, 4, 5 Police/Police Standard √ √ √ √ √ √

86 Advent Commercial Fire System

20 Delayed

Interior PIR motion sensors that initiate a

delay before going into alarm. * 3, 4, 5 Police/Police Standard √ √ √ √ √

21 Local

Instant

Interior

24-hour local alarm zone

protecting anything that opens and

closes.

1, 2, 3, 4, 5 Police/Police Instant √ √ √ √

22 Local

Delayed

Interior

Same as type 21, plus activation

initiates a delay before going into

alarm.

1, 2, 3, 4, 5 Police/Police Standard √ √ √ √

23 Local

Instant

Auxiliary

24-hour local alarm zone

protecting anything that opens and

closes. ‡

1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √

24 Local

Instant

Auxiliary

24-hour local alarm zone

protecting anything that opens and

closes. Sirens shut off at restoral. *

1, 2, 3, 4, 5 Aux./Aux. Instant √ √ √

25 Local

Special

Chime

Notify the user when a door is

opened. Sounds emit from a local

annunciator. *

1, 2, 3, 4, 5 Special Chime Instant √ √ √ √

26 Fire 24-hour audible fire emergency

buttons, rate-of-rise heat, and

smoke sensors.

1, 2, 3, 4, 5 Fire/Fire Instant √ √ √ √

27 Custom

Output Output, lamp control, or other

customer feature. ‡1, 2, 3, 4, 5 Silent Instant √ √ √

28 Custom

Output Output, PIR motion sensor, sound

sensor, or pressure mat. ‡1, 2, 3, 4, 5 Silent Instant √ √

29 Auxiliary Auxiliary. 1, 2, 3, 4, 5 Aux. Instant √ √ √ √ √

(A)

Report

Police 24-hour audible police alarm in

levels 2 and 3. 2, 3, 4, 5 Police/Police Instant √ √ √ √ √

(B)

Local

Auxiliary 24-hour audible auxiliary alarm in

level 1. Siren shut off at restoral. 1 Aux./Aux. Instant √ √ √

32 Custom

Output Output, PIR motion sensor, sound

sensor, or pressure mat. ‡1, 2, 3, 4, 5 Silent Instant √

(A) Report

Police 24-hour audible police alarm in

levels 2 and 3. 2, 3, 4, 5 Police/Police Instant √ √ √ √ √

(B) Local

Auxiliary 24-hour audible auxiliary alarm in

level 1. 1 Aux./Aux. Instant √ √ √

50 Local

Instant

Interior

24-hour local alarm zone

protecting anything that opens and

closes.

2, 3, 4, 5 Police/Police Instant √ √ √ √

51 Local

Delayed

Interior

24-hour local alarm zone

protecting anything that opens and

closes.

2, 3, 4, 5 Police/Police Standard √ √ √ √

52 Local

Indicator 24-hour local auxiliary alarm zone

protecting anything that opens and

closes. No voice. Sirens shut off at

restoral. *

1, 2, 3, 4, 5 Aux./Aux. Instant

√ √ √

53 Local

Indicator 24-hour local indicator zone

protecting anything that opens and

closes. Chime only.

1, 2, 3, 4, 5 None Instant √ √ √ √

54 Fixed

Medical 24-hour audible fixed medical

emergency buttons. 1, 2, 3, 4, 5 Medical/Medical Instant √ √ √ √

Table B.1 Zone Type Characteristics (Continued)

No. Name Application

Active Level

Alarm/Siren

Delay

Supervisory

Restoral

CS Alarm Report

CS Cancel Report

Bypassable

Chime

Resets Activity Timer

Advent Commercial Fire System

55 Fixed

Medical 24-hour audible fixed medical

emergency buttons. Sirens shut off

when reported.

1, 2, 3, 4, 5 Medical/Medical Instant √ √ √ √

56 Portable

Medical 24-hour audible portable medical

emergency buttons. 1, 2, 3, 4, 5 Medical/Medical Instant √ √ √

57 Portable

Medical 24-hour audible portable medical

emergency buttons. Sirens shut off

when reported.

1, 2, 3, 4, 5 Medical/Medical Instant √ √ √

58 Suspicion If not canceled within 1-15 min.,

alarm may optionally be

generated. A second trip within 1-

15 min. will cause an alarm.

1, 2, 3, 4, 5 Suspicion/Silent Instant

√ √ √ √

59 Fire

Keyswitch Keyswitch used for enabling fire

type touchpad. 1, 2, 3, 4, 5 Silent Instant √ √

(A)

Police 24-hour audible police emergency

buttons. 3, 5 Police/Police Instant √ √ √ √ √

(B)

Fire 24-hour audible fire emergency

buttons 1, 2, 4, Fire/Fire Instant √ √ √ √ √

61 Local

Indicator/

Delay

Perimeter

Local beeps only in Level -1. 2, 3, 4, 5 Police/Police Standard

√ √ √ √ √ √

62 Fire Panic Fire Panic 1, 2, 3, 4, 5 Fire/Fire Instant √ √ √ √

63 Equipment

Tamper 24-hour audible security system

panel tamper alarm. 1, 2, 3, 4, 5 Equipment

Tamper/Police Instant √ √ √ √

64 Equipment

Tamper 24-hour silent security system

panel tamper alarm. 1, 2, 3, 4, 5 Equipment

Tamper/None Instant √ √ √ √

65 Siren

Tamper 24-hour audible siren tamper

alarm. 1, 2, 3, 4, 5 Siren Tamper/

Police Instant √ √ √ √

66 Siren

Tamper 24-hour silent siren tamper alarm. 1, 2, 3, 4, 5 Siren Tamper/

None Instant √ √ √ √

67 Unused.

68 Carbon

Monoxide Carbon Monoxide gas detectors.

Note: For residential use only. 1, 2, 3, 4, 5 Carbon

Monoxide/

Medical

Instant √ √ √ √

69 Touchpad

disable

keyswitch

Keyswitch for disabling touchpad. 1, 2, 3, 4, 5 None/None Instant √ √

70 Warning Trip plays programmable

evacuation message. 1, 2, 3, 4, 5 None/None Instant √ √ √

71 On/Off

Keyswitch Trip causes arm. Restoral causes a

disarm. 1, 2, 3, 4, 5 None/None Instant √ √ √

72 Momentary

Keyswitch First trip arms, second trip

disarms. 1, 2, 3, 4, 5 None/None Instant √ √

73 Fixed

Holdup 24-hour silent fixed holdup

emergency button alarm. 1, 2, 3, 4, 5 Holdup/None Instant √ √

74 Portable

Holdup 24-hour silent portable holdup

emergency button alarm. 1, 2, 3, 4, 5 Holdup/None Instant √

75 Night

Interior Disarmed in “night” level. 3, 5 Police/Police Follower √ √ √ √ √ √

Table B.1 Zone Type Characteristics (Continued)

No. Name Application

Active Level

Alarm/Siren

Delay

Supervisory

Restoral

CS Alarm Report

CS Cancel Report

Bypassable

Chime

Resets Activity Timer

88 Advent Commercial Fire System

76 Night

Interior Disarmed in “night” level. 3, 5 Police/Police Follower √ √ √ √ √

77 Cross Zone

Night

Delayed

Interior

Disarmed in “night” level. † 3, 5 Police/Police Follower

√ √ √ √ √

78 Night

Delayed

Interior

Disarmed in “night” level. 3, 5 Police/Police Standard √ √ √ √ √ √

79 Night

Delayed

Interior

Disarmed in “night” level. 3, 5 Police/Police Standard √ √ √ √ √

80 Smoke 24-hour audible smoke/fire alarm. 1, 2, 3, 4, 5 Smoke/Fire Instant √ √ √ √

81 Heat 24-hour audible heat/fire alarm. 1, 2, 3, 4, 5 Heat/Fire Instant √ √ √ √

82 Water Flow 24-hour audible sprinkler/fire

alarm. 1, 2, 3, 4, 5 Sprinkler/Fire Instant √ √ √ √

83 Unused.

84 Enhanc-ed

Buddy Special enhanced “buddy system”

function. 1, 2, 3, 4, 5 Buddy/None Instant √

85 Repeater Wireless signal repeaters 1, 2, 3, 4, 5 None/None Instant √

86 Fixed

Wireless

Touchpad

Fixed (wall-mount) wireless

touchpads 1, 2, 3, 4, 5 None/None Instant √

87 Portable

Wireless

Touchpad

Portable (hand-held) wireless

touchpads.

Note: For residential use only.

1, 2, 3, 4, 5 None/None Instant

88 Unused.

89 Unused.

90 Pump

Active Fire pump is active. 1, 2, 3, 4, 5 Fire/Fire Instant √ √ √ √

91 Pump

Failure Fire pump has failed. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

92 Gate Valve

Closed Fire gate valve has been closed. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

93 CO2

Pressure CO2 pressure is low. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

94 Liquid

Pressure Liquid pressure is low. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

95 Liquid

Level Liquid level is low. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

96 Fire

Supervisory A fire supervisory trouble has been

detected. §1, 2, 3, 4, 5 Aux./Aux. Instant √ √

Table B.1 Zone Type Characteristics (Continued)

No. Name Application

Active Level

Alarm/Siren

Delay

Supervisory

Restoral

CS Alarm Report

CS Cancel Report

Bypassable

Chime

Resets Activity Timer

Advent Commercial Fire System

** Active levels are as follows:

Note

Check marks (√) represent characteristics present in a type.

* This type is not certified as a primary protection circuit for UL-listed systems and is for supplementary use only.

† Sounds instant police siren if two or more sensors are tripped within 4 minutes; otherwise sensors are followers to delayed

sensors. If central station Alarm Verification feature is on, type 18 functions like type 17.

‡ This type has not been investigated by UL.

§ Zone trip causes trouble, restoral causes trouble restoral.

Note

Reported to Central Station as “Fire Supervisory.”

Table B.1 Zone Type Characteristics (Continued)

No. Name Application

Active Level

Alarm/Siren

Delay

Supervisory

Restoral

CS Alarm Report

CS Cancel Report

Bypassable

Chime

Resets Activity Timer

Level # Name Description Attributes

Level 1 OFF The partition/area is disarmed. Only 24-hour sensors cause an alarm in the OFF

level. Cancelling alarms or entry delay automatically disarms to OFF. - Open

- Entry, but no exit delay

- Cannot be disabled

Level 2 PERIMETER The user is on-site and only requires perimeter protection. In addition to 24-hour

sensors, perimeter sensors such as those protecting exterior doors and windows

cause an alarm in the HOME/PERIMETER level.

- Closed

- Entry and exit delay

- Can be disabled

Level 3 FULL The user is away and requires complete protection. 24-hour sensors, perimeter

sensors, and interior sensors cause an alarm in the AWAY/FULL level. Same as Level 2.

Level 4 NIGHT The user is on-site and perimeter and 24-hour sensors are active. Since users are not

moving around, Interior sensors except those in night groups are also active. Same as Level 2.

Level 5 SILENT Same as Level 3, but police alarms are silent. Same as Level 2.

90 Advent Commercial Fire System

Table B.2 Three-Digit Text Descriptors

No. Text Descriptor

001 0

002 1

003 2

004 3

005 4

006 5

007 6

008 7

009 8

010 9

011 10

012 11

013 12

014 13

015 14

016 15

017 16

018 17

019 18

020 19

021 20

022 30

023 40

024 50

025 60

026 70

027 80

028 90

029 100

030 THOUSAND_

031 ONE_

032 0_

033 1_

034 2_

035 3_

036 4_

037 5_

038 6_

039 7_

040 8_

041 9_

042 10_

043 11_

044 12_

765 24_

045 Dash

046 Cursor

047 Space And 125 ms

Pause

048 Space

049 Blink Next Token

050 Break Line (Return)

051 Period (Dot)

052 Apostrophe

053 AM_

054 PM_

055 125 ms Pause

056 250 ms Pause

057 500 ms Pause

058 125 ms Beep

059 250 ms Beep

060 500 ms Beep

061 125 ms Low Beep

062 250 ms Low Beep

063 500 ms Low Beep

064 Long Beep

065 Chime Ding

066 Chime Dong

067 A (display only)

068 A

069 A_ (short)

070 ABORT_

071 ABORTED_

072 ABOVE_

766 AC_ (A.C.)

073 ACCEPT_

074 ACCESS_

075 ACKNOWLEDGE_

076 ACKNOWLEDGME

NT_

077 ACTIVE_

078 ACTIVITY_

079 ADD_

080 ADDED_

081 ADDRESS_

767 ADDRESSABLE_

082 ADVENT_

083 AGAIN_

084 AGENT_

No. Text Descriptor

085 AIR_

086 ALARM_

087 ALERT_

088 ALL_

089 ALLEY_

090 AN_

768 ANALOG_

091 AND_

092 ANNEX_

093 ANNUNCIATOR_

094 ANTENNA_

095 APARTMENT_

096 APPLIANCE_

097 APRIL_

098 ARE_

099 AREA_

100 ARM_

101 ARMED_

102 ARMING_

103 ART_

104 AS_

105 ASSEMBLY_

106 ATTIC_

107 ATTRIBUTE_

108 AUDIO_

109 AUGUST_

110 AUTHORITY_

111 AUTO_

112 AUTO ARMING_

113 AUTOMATIC_

114 AUTOMATION_

115 AUXILIARY_

116 AWAY_

117 B (display only)

118 B

119 BABY’S_

120 BACK_

121 BACKUP_

122 BAD_

123 BADGE_

124 BALCONY_

125 BAR_

126 BARN_

127 BASEMENT_

No. Text Descriptor

128 BATH_

129 BATTERY_

130 BAY_

131 BEDROOM_

769 BELL_

132 BLACK_

133 BLOWER_

134 BLUE_

135 BOAT_

136 BOILER_

137 BOTTOM_

770 BOX_

138 BREAK_

139 BREAKER_

140 BREATHING_

141 BREEZEWAY_

142 BRIGHTEN_

143 BROWN_

144 BUDDY_

145 BUFFER_

146 BUILDING_

147 BUS_

148 BUSINESS_

149 BUSY_

150 BYPASS_

151 BYPASSED_

152 C (display only)

153 C

154 CABIN_

155 CABINET_

156 CAGE_

771 CALL_

157 CALLER ID_

158 CAMERA_

159 CANCEL_

160 CANCELED_

161 CAR_

162 CARBON

MONOXIDE_

163 CASH_

164 CCTV_

165 CEILING_

166 CELLAR_

167 CELLULAR_

No. Text Descriptor

Advent Commercial Fire System

168 CENTER_

169 CENTRAL_

170 CHANGE_

171 CHANGED_

172 CHECK IN_

173 CHECKSUM_

174 CHIME_

772 CIRCUIT_

175 CLASS_

176 CLEAR_

177 CLEARED_

178 CLOSE_

179 CLOSED_

180 CLOSET_

181 CLOSING_

182 CO_

183 CO2_

184 COAT_

185 CODE_

186 CODE’S_

187 CODES_

188 COLLECTION_

189 Colon

190 COMMON_

191 COMMUNICATION_

192 COMMUNICATOR_

193 COMPLETE_

194 COMPUTER_

195 CONFERENCE_

196 CONFIGURATION_

197 CONSERVATORY_

198 CONTACT_

199 CONTINUE_

200 CONTROL_

201 COOLER_

202 CORRIDOR_

203 COTTAGE_

204 COUNT_

205 COUNTER_

206 CPU_

207 CRITICAL_

208 CUSTOM_

209 D (display only)

210 D

211 DAMPER_

No. Text Descriptor

212 DATA_

213 DAUGHTER’S_

214 DAY_

215 DAYLIGHT_

216 DAYS_

773 DEALER_

217 DECEMBER_

218 DECK_

219 DEGREES_

220 DELAY_

221 DELETE_

222 DELETED_

223 DEN_

224 DESCRIPTORS_

225 DESK_

226 DETECTOR_

227 DEVICE_

228 DEVICES_

229 DIAL_

230 DIFFERENT_

231 DIM_

232 DINING_

233 DIRECT_

234 DISABLE_

235 DISABLED_

236 DISARM_

237 DISARMED_

774 DISPLAY_

238 DO_

775 DOCK_

239 DOES_ (long)

240 DOES_ (short)

241 DOOR_

242 DOWN_

243 DOWNLOAD_

244 DOWNSTAIRS_

245 DRILL_

246 DRIVEWAY_

247 DRUG_

248 DUAL_

249 DUCT_

250 DURESS_

251 E (display only)

252 E

253 EARLY_

No. Text Descriptor

254 EAST_

255 EIGHTH_

776 ELECTRICAL_

256 ELEVATOR_

257 ELEVENTH_

258 EMERGENCY_

259 EMPLOYEE_

260 ENABLE_

261 ENERGY SAVER_

262 ENERGY SAVERS_

263 ENTER_

264 ENTERED_

265 ENTRANCE_

266 ENTRY_

267 ENVIRONMENTAL_

268 EQUIPMENT_

269 ERROR_

270 EVACUATION_

271 EVENT_

272 EXECUTIVE_

273 EXERCISE_

274 EXIST_

275 EXISTS_

276 EXIT_

277 EXPLOSIVE_

278 EXTEND_

279 EXTENDED_

280 EXTENSION_

281 EXTERIOR_

282 EXTINGUISHER_

283 F (display only)

284 F

285 FACTORY_

286 FAILED_

287 FAILURE_

288 FAMILY_

289 FAN_

290 FATHER’S_

291 FAULT_

292 FEATURE_

293 FEATURES_

294 FEBRUARY_

295 FENCE_

296 FIFTH_

297 FILE_

No. Text Descriptor

298 FIRE_

299 FIRST_

777 FLAME_

300 FLASH_

301 FLOOD_

302 FLOOR_

303 FLOW_

304 FOR_

305 FORCE_

306 FORMAT_

307 FOURTH_

308 FOYER_

309 FREEZE_

310 FREEZER_

311 FRIDAY_

312 FROM_

313 FRONT_

314 FULL_

315 FURNACE_

316 G (display only)

317 G

318 GALLERY_

319 GAME_

320 GARAGE_

321 GARDEN_

322 GAS_

323 GATE_

324 GENERATOR_

778 GENERAL_

325 GLASS_

326 GLOBAL_

327 GOLD_

328 GOOD_

329 GOODBYE_

330 GRAY_

331 GREEN_

332 GROUND_

333 GROUP_

334 GUARD_

335 GUEST_

336 GUN_

337 H (display only)

338 H

339 HALL_

340 HALLWAY_

No. Text Descriptor

92 Advent Commercial Fire System

341 HARDWIRE_

342 HEAD_

343 HEAT_

344 HEATER_

345 HEATING_

346 HELLO_

347 HELP_

348 HIGH_

349 HISTORY_

350 HOLDUP_

351 HOLIDAY_

352 HOME_

779 HORN_

353 HOT TUB_

354 HOUSE_

355 I (display only)

356 I

357 ID_

358 IN_

780 INDICATING_

359 INDIRECT_

360 INDOOR_

361 INFORMATION_

362 INFRARED_

363 INHIBIT_

781 INITIATING_

364 IN PROGRESS_

365 INPUT_

366 IN SERVICE_

367 INSIDE_

368 INSTANT_

369 INTEGRATION_

370 INTERCOM_

371 INTERIOR_

372 INTRUSION_

373 INVALID_

374 IS_

375 ITEM_

376 J (display only)

377 J

378 JACUZZI_

379 JAM_

380 JANITOR_

381 JANUARY_

382 JEWELRY_

No. Text Descriptor

383 JOFFRE_

384 JULY_

385 JUNE_

386 K (display only)

387 K

782 KEY_

388 KEYFOB_

389 KEYSTROKE_

390 KEYSWITCH_

391 KITCHEN_

392 L (display only)

393 L

394 LADIES’_

395 LAKE_

396 LATCHKEY_

397 LATE_

398 LAUNDRY_

783 LED_ (L.E.D.)

399 LEARN_

400 LEFT_

401 LENGTH_

402 LEVEL_

403 LIBRARY_

404 LIGHT_

405 LIGHTING_

406 LIGHTS_

407 LIMIT_

408 LIMITS_

409 LINE_

410 LIQUID_

411 LIQUOR_

412 LIST_

413 LISTEN_

414 LIVING_

415 LOBBY_

416 LOCAL_

417 LOCKOUT_

418 LOG_

419 LONG_

420 LOOP_

421 LOT_

422 LOUNGE_

423 LOW_

424 LOWER_

425 LTIME_

No. Text Descriptor

426 M (display only)

427 M

428 MACHINE_

429 MAID’S_

430 MAILBOX_

431 MAIN_

784 MAINTENANCE_

432 MALL_

433 MANAGER’S_

785 MANUAL_

434 MANUFACTURING_

435 MARCH_

786 MASK_

436 MASTER_

437 MAT_

438 MAY_

439 MECHANICAL_

440 MEDIA_

441 MEDICAL_

442 MEDICINE_

443 MEMORY_

444 MEN’S_

445 MENU_

446 MESSAGE_

447 MICROPHONE_

448 MICROWAVE_

449 MIDNIGHT_

450 MINUTES_

451 MODE_

452 MODIFIER_

453 MODIFY_

454 MODULE_

455 MONDAY_

456 MONEY_

457 MOTHER’S_

458 MOTION_

459 MOTOR_

460 N (display only)

461 N

787 NAC_ (“knack”)

462 NEGATIVE_

463 NEW_

464 NIGHT_

465 NINTH_

466 NO_

No. Text Descriptor

788 NON_

467 NON-REPORTING_

468 NOON_

469 NORMAL_

470 NORTH_

471 NOT_

472 NOVA ALERT_

473 NOVEMBER_

474 NOW_

475 NUMBER_

476 NUMBERS_

477 NURSERY_

478 O (display only)

479 O

480 OBSCURITY_

481 O’CLOCK_

482 OCTOBER_

483 OF_

484 OFF_

485 OFFICE_

486 0 (spoken as OH)

487 OK_

488 ON_

489 OPEN_

490 OPENING_

491 OPTION_

492 OR_

493 ORANGE_

494 OUT_

495 OUTDOOR_

496 OUTPUT_

497 OVER_

498 P (display only)

499 P

500 PAGER_

501 PAINTING_

502 PANEL_

503 PANIC_

504 PANTRY_

505 PARENTS’_

506 PARKING_

507 PARTITION_

508 PATH_

509 PATIO_

510 PERIMETER_

No. Text Descriptor

Advent Commercial Fire System

511 PERIOD_

512 PERMANENT_

513 PHONE_

514 PHOTO_

515 PLACE_

516 PLANT_

517 PLEASE_

518 POLICE_

519 POOL_

789 PORCH

520 POSITIVE_

521 POUND_

522 #_ (spoken as Pound)

523 # (spoken as Pound)

524 POWER_

525 PREARM_

526 PRESS_

527 PRESS_ (on new line)

528 PRESSURE_

529 PRIMARY_

530 PRINTER_

531 PROGRAM_

532 PROGRAMMING_

533 PROTEST_

534 PULL STATION_

535 PUMP_

536 PURPLE_

537 Q (display only)

538 Q

539 QUAD_

540 QUIET_

541 QUIT_

542 R (display only)

543 R

544 RADIO_

545 RAMP_

546 RANGE_

547 READY_

548 REAR_

790 RECALL

549 RECEIVER_

550 RECEIVING_

551 RECEPTION_

552 RECONNECT_

553 RED_

No. Text Descriptor

554 REDIRECT_

555 RELAY_

556 RELEASE_

557 REMOTE_

558 REMOVE_

559 REMOVED_

560 REPEATER_

561 REPORT_

791 REQUEST

562 RESET_

563 RESTORAL_

564 RESTORED_

565 RETURN_

566 REVIEW_

567 RF_

568 RIGHT_

569 RING_

570 ROOF_

571 ROOM_

572 S (display only)

573 S

574 SAFE_

575 SATURDAY_

576 SAUNA_

577 SCHEDULE_

578 SCHEDULES_

579 SCHOOL_

580 SCREEN_

581 SCRIPT_

582 SCRIPTS_

583 2ND_

584 SECOND_

792 SECONDARY

585 SECONDS_

586 SECTION_

587 SECTOR_

588 SECURE_

589 SECURITY_

590 SELECTION_

793 SENSITIVITY

591 SENSOR_

592 SENSORS_

593 SEPTEMBER_

594 SERVANT_

595 SERVICE_

No. Text Descriptor

596 SET_

597 SETPOINT_

598 SETUP_

599 SEVENTH_

600 SHACK_

601 SHARED_

602 SHED_

603 SHEEP_

604 SHIPPING_

605 SHOCK_

606 SHOP_

607 SHORT_

794 SHUNT

795 SHUTDOWN

796 SIGNALING

608 SHUT OFF_

609 SIDE_

610 SIGNAL_

611 SILENCE_

612 SILENT_

613 SILVER_

614 SIREN_

615 SITE_

616 SIXTH_

617 SKYLIGHT_

618 SLIDING_

619 SMOKE_

797 SNAPCARD

620 SON’S_

621 SOUND_

622 SOUTH_

623 SPEAKER_

624 SPECIAL_

798 SPECIFIC

625 SPRINKLER_

626 STAIR_

627 STAIRS_

628 STANDARD_

629 *_ (spoken as Star)

630 Flashing * -- do not

use

631 * (spoken as Star)

632 START_

633 STARTING_

634 STATION_

No. Text Descriptor

635 STATUS_

636 STAY_

637 STIME_

638 STOP_

639 STORAGE_

640 STORE_

641 STORY_

642 STRIKE_

643 STRIP_

644 STROBE_

645 STUDY_

646 SUMP_

647 SUPERBUS_

648 SUPERVISORY_

649 SUSPICION_

650 SUNDAY_

651 SWIMMING_

652 SWINGER_

653 SWITCH_

654 SYSTEM_

655 T (display only)

656 T

657 TAMPER_

658 TAMPERED_

659 TANK_

660 TAPE_

661 TELCO_

662 TELLER_

663 TEMPERATURE_

664 TEMPORARY_

665 TENTH_

666 TEST_

667 TESTED_

668 TEXT_

669 THE_ (short)

670 THEATER_

671 THE_ (spoken as

short Thee)

672 THEN_

673 THERMOSTAT_

674 THIRD_

675 Dash (spoken as

Through)

676 Dash_ (spoken as

Through)

677 THURSDAY_

No. Text Descriptor

94 Advent Commercial Fire System

678 TIME_

679 TIMED_

680 TIMER_

681 TIMEOUT_

682 TO_

683 TONE_

684 TOOL_

685 TOOLBOX_

686 TOP_

687 TOUCHPAD_

688 TRAILER_

689 TRANSCEIVER_

690 TRANSMIT_

691 TRAP_

692 TRIES_

693 TRIP_

694 TROUBLE_

695 TRUCK_

696 TUESDAY_

697 TURN_

698 TWELFTH_

699 TWICE_

700 TYPE_

701 U (display only)

No. Text Descriptor

702 U

703 A_ (spoken as Uh)

704 UNBYPASS_

705 UNDER_

706 UNIT_

707 UP_

799 UPLOAD

708 UPSTAIRS_

709 USE_

710 USED_

711 USER_

712 UserTokens -- do not

use

713 USES_

714 UTILITY_

715 V (display only)

716 V

717 VALID_

718 VALUE_

719 VALVE_

720 VAULT_

800 VERIFICATION

721 VERSION_

722 VESTIBULE_

No. Text Descriptor

723 VIBRATION_

724 VIDEO_

725 VIEW_

726 VIOLATION_

727 VOICE_

728 EVAC MESSAGE 1

729 EVAC MESSAGE 2

730 EVAC MESSAGE 3

731 EVAC MESSAGE 4

732 EVAC MESSAGE 5

733 VOLTS_

734 VOLUME_

735 W (display only)

736 W

737 WAIT_

738 WALL_

739 WAREHOUSE_

740 WARNING_

741 WASH_

742 WASHROOM_

743 WATER_

801 WEATHER

744 WEDNESDAY_

745 WEEK_

No. Text Descriptor

746 WEEKLY_

802 WELL

747 WEST_

748 WHITE_

749 WINDOW_

750 WINE_

751 WING_

752 WORKSHOP_

753 X (display only)

754 X

755 Y (display only)

756 Y

757 YARD_

758 YELLOW_

759 YES_

760 YOUR_

761 Z (display only)

762 Z

763 ZONE_

764 ZONES_

No. Text Descriptor

Table B.3 Two-Digit Display Descriptors

No. Token Text No. Token Text

00 0 29 M

01 1 30 N

02 2 31 O

03 3 32 P

04 4 33 Q

05 5 34 R

05 6 35 S

07 7 36 T

08 8 37 U

09 9 38 V

10 (undefined) 39 W

11 (undefined) 40 X

12 # (pound) 41 Y

13 : (colon)

14 / (slash) 42 Z

15 ? (question mrk) 43 _ (space)

16 . (period) 44 ‘ (apostrophe)

17 A 45 -- (dash)

18 B 46 __ (underline)

19 C 47 * (star)

20 D 48 (time)

21 E 49 (date)

22 F 50 (day and date)

23 G 51 _(pseudo space)

24 H 52 (return)

25 I 53 * (Flashing star)

Trouble Indicator

26 J

27 K

28 L

Table B.3 Two-Digit Display Descriptors

No. Token Text No. Token Text

Advent Commercial Fire System

Table B.4 Panel House Code Defaults/Settings for 4

Partition Panels

Partition

/Area

Panel House Code

Defaults

(HC1, HC2)

X-10 House

Dial House

Code

X-10

House

Dial

1HC1 = 1

HC2 = 5 A

E____

____ ____

____

2HC1 = 2

HC2 = 6 B

F____

____ ____

____

3HC1 = 3

HC2 = 7 C

G____

____ ____

____

4HC1 = 4

HC2 = 8 D

H____

____ ____

____

Table B.5 Panel House Code Defaults/Settings for 8

Partition Panels

Partition

/Area

Panel House Code

Defaults

(HC1, HC2)

X-10 House

Dial House

Code

X-10

House

Dial

1HC1 = 1

HC2 = 9 A

I____

____ ____

____

2HC1 = 2

HC2 = 10 B

J____

____ ____

____

3HC1 = 3

HC2 = 11 C

K____

____ ____

____

4HC1 = 4

HC2 = 12 D

L____

____ ____

____

5 HC1 (CB, CF) = 5

HC2 (CB, CF) = 13 E

M____

____ ____

____

6 HC1 (CB, CF) = 6

HC2 (CB, CF) = 14 F

N____

____ ____

____

7 HC1 (CB, CF) =7

HC2 (CB, CF) = 15 G

O____

____ ____

____

8 HC1 (CB, CF) = 8

HC2 (CB, CF) = 16 H

P____

____ ____

____

Table B.6 X-10 Module Operation

Condition Lamp Module

Unit No. 1 Lamp Module

Unit Nos. 2–16

Appliance/

Universal

Module Unit

Nos. 2–16

On entry delay On for 5

minutes Unchanged Unchanged

On Fire Alarm* On On Unchanged

On Police

Alarm* On On Unchanged

On Auxiliary

Alarm* On On Unchanged

Lights On On On Unchanged

Lights Off Off Off Off

* Fire alarms have priority over both police and auxiliary

alarms. Police alarms have priority over auxiliary alarms.

96 Advent Commercial Fire System

Table B.7 X-10 and Non-X-10 Light/Device Numbers by Partition

Partition 1 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

House Code 2

Non-X-10

Partition 2 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

House Code 2

Non-X-10

Advent Commercial Fire System

Partition 3 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

House Code 2

100

101

102

103

104

105

106

107

108

109

110

111

112

Non-X-10

113

114

115

116

117

118

119

120

Partition 4 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

House Code 2

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

Non-X-10

153

154

155

156

157

158

159

160

98 Advent Commercial Fire System

Partition 5 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

House Code 2

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

Non-X-10

193

194

195

196

197

198

199

200

Partition 6 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

House Code 2

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

Non-X-10

Non-X-10 33

233

234

235

236

237

238

239

240

Advent Commercial Fire System

Partition 7 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

House Code 2

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

Non-X-10

273

274

275

276

277

278

279

280

Partition 8 X-10 Unit Dial

Setting Light/Device

Number Menu Output

Number

House Code 1

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

House Code 2

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

Non-X-10

313

314

315

316

317

318

319

320

100 Advent Commercial Fire System

Contact ID Codes and Event Types

Use Table B.8 for determining event types and CID codes.

Note

Items in grey are not supported.

Table B.8 Contact ID Codes

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

Alarms

(General Types 1–Alarm, 2–Alarm Cancel, 3–Alarm Restoral)

Note

All alarm cancels are reported as CID code 406

*Advent has a defined level that reports “silent burglary” (CID

146). This will be used in place of the defined event code at the

appropriate level.

Unspecified 0 140

Fire 1 110 26, 90

Fire Panic 2 115 60(B), 62, Touchpad

Panics

Police 3 130 8, 9, 30*, 60(A),

61*, 64*, 75-79*

Police Panic 4 120 0, 1, Touchpad Panics

Medical 5 100 4-7, Touchpad Panics

Medical Panic 6 101 54-57, Touchpad Panics

Auxiliary 7 140

Auxiliary Panic 8 100 4-7, Touchpad Panics

Tamper 9 144 63*, 65*, 66*, 85,

Any Zone

No Activity 10 102

Suspicion 11 122 2, 3, 58, 73, 74

Buddy 12 140

Low Temperature Limit 13 159

High Temperature Limit 14 158

Keystroke Violation 15 145

Duress 16 121

Exit Fault 17 374

Explosive Gas 18 151 34, 67

Carbon Monoxide 19 162 68

Environmental 20 150 29

Latchkey 21 642

Equipment Tamper 22 137

Holdup 23 122 2, 3, 58, 73, 74

Sprinkler 24 113 82

Heat 25 114 81

Siren Tamper 26 137

Smoke 27 111 80

Repeater 28 144 63*, 65*, 66*, 85,

Any Zone

Fire Pump Activated 29 110 26, 90

Fire Pump Failure 30 140

Fire Gate Valve 31 140

Low CO2 Pressure 32 140

Low Liquid Pressure 33 140

Low Liquid Level 34 140

Entry Exit Intrusion (Police) 35 134 10-12*

Perimeter Intrusion (Police) 37 131 13*

Interior Intrusion (Police) 38 132 14-20*

Fire Trouble

(General Types 4–Zone Trouble Fire, 5–Zone Trouble Restoral

Fire)

Unspecified 0 373

Hardwire Trouble 1 373

Ground Fault 2 310

Device Trouble 3 373

RF Supervisory 4 381

RF Low Battery 5 384

Tamper 6 383

Suspected Sensor Failure 7 373

Partial Obscurity 8 386

RF Jam 9 373

Zone AC Failure 10 373

Zone Low Battery 11 373

NAC Trouble 12 373

Analog Zone Trouble 13 373

Fire Supervisory Trouble 14 200 96

Pump Failure 15 206 91

Gate Valve Closed 16 203 92

CO2 Pressure 17 202 93

Liquid Pressure 18 201 94

Liquid Level 19 204 95

Non-Fire Trouble

(General Types 6–Zone Trouble Non Fire, 7–Zone Trouble

Restoral Non Fire)

Unspecified 0 380

Hardwire Trouble 1 380

Ground Fault 2 310

Device Trouble 3 380

RF Supervisory 4 381

RF Low Battery 5 384

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

101

Advent Commercial Fire System

Tamper 6 383

Suspected Sensor Failure 7 391

Partial Obscurity 8386

RF Jam 9 380

Zone AC Failure 10 380

Zone Low Battery 11 380

NAC Trouble 12 380

Analog Zone Trouble 13 380

Fire Supervisory Trouble 14 200 96

Pump Failure 15 206 91

Gate Valve Closed 16 203 92

CO2 Pressure 17 202 93

Liquid Pressure 18 201 94

Liquid Level 19 204 95

Bypass and Unbypass

(General Types 8–Bypass, 9–Unbypass

Direct 0 570

Indirect 1 570

Swinger 2 575

Inhibit 3 570

Opening

(General Type 10–Opening)

Normal 0 401

Early 1 451

Late 2 452

Fail 3 453

Exception 4 450

Extension 5450

Keyswitch/Keyfob Disarm 6409

Scheduled Disarm 7 403

Remote 8407

Closing

(General Type 11–Closing)

Normal 0 401

Early 1 451

Late 2 452

Fail 3 454

Exception 4 450

Extension 5464

Keyswitch/Keyfob Disarm 6409

Scheduled Disarm 7 403

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

Remote 8407

Partition/Area Configuration Change

(General Type 12–Partition/Area Configuration Change)

Access Code Added 0 306

Access Code Deleted 1 306

Access Code Changed 2 306

Access Code Expired 3306

Code Authority Changed 4306

Authority Level Changed 5306

Schedule Changed 6306

Arm/OC Schedule Changed 7632

Zone Added 8 306

Zone Deleted 9 306

Partition/Area Event

(General Type 13–Partition/Area Event)

Schedule On 0 None

Schedule Off 1 None

Latchkey On 2None

Latchkey Off 3None

Smoke Loop Reset 4 None

Access Code Entered 5 462

Arming Level Change 6 None

Alarm Reported 7 None

Agent Release 8 None

Agent Release Restoral 9 None

Remote Access 10 410

Keystroke Violation 11 None

Manual Force Arm 12 401

Auto Force Arm 13 457

Force Arm Failed 14 455

Protest Start 15 None

Protest End 16 None

Partition/Area Test

(General Type 14– Partition/Area Test)

Manual Phone Test 0 601

Auto Phone Test 1 602

Off-Normal Auto Phone Test 2 608

Phone Test Passed 3 None

Phone Test Failed 4 None

User Zone Test Started 5 607

User Zone Test Ended 6 607

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

102 Advent Commercial Fire System

User Zone Test Complete 7607

User Zone Test Incomplete 8607

User Zone Test Trip 9 611

Installer Zone Test Started 10 607

Installer Zone Test Ended 11 607

Installer Zone Test Complete 12 607

Installer Zone Test

Incomplete 13 607

Installer Zone Test Trip 14 611

Fire Drill 15 604

System Trouble

(General Types 15–System Trouble, 16–System Trouble

Restoral)

Receiver Failure 0 355

Antenna Tamper 1 355

Main Low Battery 2 302

SnapCard Low Battery 3 302

Module Low Battery 4 338

Main AC Power Failure 5 301

Snap Card AC Power Failure 6 301

Module AC Power Failure 7 342

Auxiliary Power Failure 8 330

Shutdown 9 308

Bus Low Power Mode 10 330

Phone Line #1 Failure (will

be reported to phone 2) 11 351

Phone Line #2 Failure (will

be reported to phone 1) 12 352

Remote Phone Tamper 13 413

Watchdog Reset 14 305

RAM Failure 15 303

Flash Error 16 304

Printer Trouble 17 336

History Buffer Full 18 623

History Buffer Overflow 19 624

Report Buffer Overflow 20 624

Bus Device Failure 21 333

Failure to Communicate 22 354

Long Range Radio Trouble 23 353

Module Tamper 24 341

Unenrolled Module 25 333

Audio Amplifier Trouble 26 320 33

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

Analog Module Trouble 27 333

Cell Module Trouble 28 333

Buddy #1 Failure 29 334 84, 85

Buddy #2 Failure 30 334 84, 85

Buddy #3 Failure 31 334 84, 85

Buddy #4 Failure 32 334 84, 85

SnapCard Trouble 33 333

Analog Loop Short 34 332

Analog Loop Break 35 331

Analog Head at Address 0 36 333

Unenrolled Analog Head 37 333

Duplicate Analog Head 38 333

Analog Loop Initializing 39 333

Microphone Switch Trouble 40 333

Microphone Trouble 41 333

Microphone Audio Trouble 42 333

JTech Module Trouble 43 333

Voice Siren Tamper 44 320 33

System Configuration Change

(General Type 17–System Configuration Change)

Program Mode Entry 0 627

Program Mode Exit No

Change 1 628

Program Mode Exit With

Change 2 306

Download Started 3 412

Download Ended No Change 4 416

Download Ended With

Change 5 412

Download Error 6 413

Download Denied 7 413

Date/Time Changed 8625

Expansion Module Added 9 531

Expansion Module Deleted 10 532

Speech Tokens Changed 11 306

Program Code Changed 12 306

First Service -- Cold Reset 13 305

Back in Service -- Warm

Reset 14 308

Installer Code Changed 15 306

System Error

(General Type 18–System Event)

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

103

Advent Commercial Fire System

Additional CID Reporting

Table B.9 shows additional CID reports.

Callback Requested 0411

Output Activity 1None

Buddy Reception 2None

Buddy Transmit Request 3 None

History Buffer Cleared 4621

Output On 5 None

Output Off 6 None

System Test

(General Type 19–System Test)

Manual Phone Test 0 601

Auto Phone Test 1 602

Off-Normal Auto Phone Test 2 608

Phone Test Passed 3 None

Phone Test Failed 4 None

Table B.8 Contact ID Codes (Continued)

Description

Specific

Type

Contact ID

Code

Associated

Zone Type

Table B.9 Additional CID Reporting

Type Number

Range Example

System Reports 00 System low battery would

report as 000.

Normal Zones 01–499 Zone number 4 would report

as 004.

Bus Devices 500–594 Device number 1 would

report as 501.

Touchpad Panic Zones 595–599 Touchpad fire panic would

report as 599

Touchpad police panic would

report as 598.

Touchpad auxiliary panic

would report as 597.

Touchpad medical panic

would report as 596.

Note

Only if setting yy005 is on.

User 600–849 User number 52 would report

as 652.

Local Phone Reports 900 Local phone panic would

report as 900.

Remote Phone Reports 901 Remote phone, phone test

would report as 901.

Installer Code 999 Alarm cancelled with installer

code would report as 999.

104 Advent Commercial Fire System

Table B.10 LED Types and Behaviors

LED Types LED Type Behavior

LED

Type Description LED Data When the Green

LED is On When the Yellow

LED is On When the RED

LED is On

0 Disable all LED’s (default)

1 Zone status type 1 Zone number Zone normal Zone in trouble or

bypassed Zone in alarm

2 Zone status type 2 Zone number Zone normal Zone open, in

trouble, or bypassed Zone in alarm

3 Zone status type 3 Zone number Zone normal Zone in trouble or

bypassed Zone open

(unrestored)

4 Programmable output status type 1 Output number Output off Output on

5 Programmable output status type 2 Output number Output off Output on

6 Arming level Partition/Area Partition/Area

disarmed Partition/Area armed

7 Alarm/Trouble status Partition/Area Partition/Area normal Partition/Area in

trouble Partition/Area in

alarm

8 System trouble No system trouble System trouble

9 Main AC trouble Main AC on Main AC off

10 SnapCard AC trouble SnapCard AC on SnapCard AC off

11 Module AC trouble Module AC on Module AC off

12 Auxiliary power trouble Auxiliary power OK Auxiliary power

trouble

13 Main battery trouble Main battery(s) OK Main battery(s) low

14 SnapCard battery trouble SnapCard battery(s)

OK SnapCard battery(s)

low

15 Module battery trouble Module battery OK Module battery(s)

low.

Note: If no LEDs are on, either the group is not programmed or the partition/area is not enabled.

105

Advent Commercial Fire System

Smoke and Heat Detector Installation

Smoke and heat detector installation must adhere to the fol-

lowing diagram:

L i v i n g

R o o m

D i n i n g

R o o m

B a s e m e n t

H a l l

B e d r o o m B e d r o o m

L i v i n g

R o o m

D i n i n g

R o o m

H a l l

B e d r o o m B e d r o o m

B e d r o o m

K i t c h e n

A s m o k e d e t e c t o r

s h o u l d b e l o c a t e d

o n e a c h l e v e l .

S m o k e d e t e c t o r s s h o u l d b e l o c a t e d b e t w e e n t h e

s l e e p i n g a r e a a n d t h e r e s t o f t h e f a m i l y l i v i n g u n i t .

N O T E : D o n o t i n s t a l l s m o k e d e t e c t o r s w h e r e n o r m a l a m b i e n t t e m p e r a t u r e s a r e a b o v e

1 0 0 ° F o r b e l o w 4 0 ° F . A l s o , d o n o t l o c a t e d e t e c t o r s i n f r o n t o f A C / H e a t

r e g i s t e r s o r o t h e r l o c a t i o n s w h e r e n o r m a l a i r c i r c u l a t i o n w i l l k e e p s m o k e

f r o m e n t e r i n g t h e d e t e c t o r .

N O T E : A d d i t i o n a l i n f o r m a t i o n o n h o u s e h o l d f i r e w a r n i n g i s a v a i l a b l e a t n o m i n a l

c o s t f r o m : T h e N a t i o n a l F i r e P r o t e c t i o n A s s o c i a t i o n , B a t t e r y m a r c h P a r k ,

Q u i n c y , M A 0 2 2 6 9 . R e q u e s t S t a n d a r d N o . N F P A 7 4 .

I n f a m i l y l i v i n g u n i t s w i t h m o r e

t h a n o n e s l e e p i n g a r e a , l o c a t e a

s m o k e d e t e c t o r a t e a c h a r e a .

L i v i n g

R o o m

B e d r o o m

D i n i n g

R o o m K i t c h e n

T V

R o o m

N O T E : C e i l i n g - m o u n t e d s m o k e d e t e c t o r s s h o u l d b e l o c a t e d i n t h e c e n t e r o f t h e r o o m

o r h a l l , o r n o t l e s s t h a n 4 i n c h e s f r o m t h e w a l l . W h e n t h e d e t e c t o r i s m o u n t e d

o n t h e w a l l , t h e t o p o f t h e d e t e c t o r s h o u l d b e 4 t o 1 2 i n c h e s f r o m t h e c e i l i n g .

R e q u i r e d s m o k e d e t e c t o r

H e a t d e t e c t o r

S m o k e d e t e c t o r i s o p t i o n a l i f d o o r i s n o t p r o v i d e d b e t w e e n

b a s e m e n t a n d r e c r e a t i o n r o o m s .

8557g160a.dsf

O f f i c e O f f i c e

L o b b y

H a l l

O f f i c e O f f i c e

S t a i r w e l l

H a l l

O f f i c e O f f i c e

C o n f e r e n c e R o o m

C l o s e t

E l e v a t o r

M e n s L a d i e s

O f f i c e

S t a i r w e l l

I n c o m m e r c i a l p r o p e r t i e s a s m o k e d e t e c t o r

s h o u l d b e l o c a t e d i n e a c h r o o m .

106 Advent Commercial Fire System

107

Advent Commercial Fire System

Appendix C:

Commercial Fire Wiring Examples

Connecting Speakers for Fire Protective Signaling

Units

Connect UL-listed speakers for fire protective singling units

as shown in Figure C1.

Figure C1. Connecting UL-Listed Speakers.

Connecting Horns and Strobes

Connect UL-listed DC horns, strobes, and horn/strobe com-

binations as shown in Figure C2.

Figure C2. Connecting UL-Listed Horns and Strobes to

the Panel

Connecting Hardwire Full Pulls

Connect one or more hardwire fire pulls as shown in

Figure C3.

Figure C3. Connecting Hardwire Fire Pulls

Connecting Water Flow Detection Devices.

Connect one or more water flow detection devices as shown

in Figure C4.

91 0

V O I C E

S I R E N

V O I C E

S I R E N

8 5 4 3 2 7 4 A . D S F

220 MF, 35V

Capacitor

(Non-Polarized)

17-101 (Locate

at Device)

Listed 4 OHM

Speaker for

Fire Protective

Signaling Unit

2.0K OHM

EOL Resistor

49-467 (Locate

at Last Device)

NOTE:

Use in-and-out (daisy-chain) multiple device

wiring methods only. Impedance must be

between 4 to 8 OHMS.

4 5 8

I N T .

B E L L R T N

+ 1 2

V D C O U T I N



For Supplementary Use Only

Ext. Siren/Horn

Listed DC

Horn/Strobe(s)

NOTE:

For supplementary use only.

Z O N E

C O M Z O N E 1

8 5 7 3 2 7 7 A . D S F

2 Conductor

18-Gauge Solid Wire

2.0K OHM

EOL Resistor

(at last device)

49-467

108 Advent Commercial Fire System

Figure C4. Connecting Water Flow Devices

Wiring AL602ITI Power Supply

The Advent Fire panel will be configured for a continuous

fire alarm output, and an audible fire alarm output. The con-

tinuous output is used to control visual alarm appliances

(strobes), and is active until a fire alarm is acknowledged

(cancelled). The audible output is used to control audible

alarm appliances (horns), and is active until a fire alarm is

silenced. A trouble indicator output in the AL602ITI acti-

vates a relay output for AC power loss, low backup battery

or trouble on any of the output circuits. This output is

learned in to a fire supervisory input (zone type 96) on the

Advent panel.

If additional power or additional outputs are required, up to

four AL 602ITI NAC Power Supplies can be controlled

from one pair of Advent Fire panel outputs.

Note

The AL602ITI must be mounted within 20 feet of the

Advent panel enclosure and all wiring between the

Advent panel and the AL602ITI must be enclosed in con-

duit.

To wire the trouble indicator:

1. Wire the “AC Fail” and “Battery Fail” outputs to the

“Fault” input in the AL602ITI as shown in Figure C5.

2. Wire the N.O. and C terminals of the common trouble

output on the AL602ITI to an input zone on the Advent

panel as shown in Figure X. This input zone must be

learned into the Advent panel as Zone type 96.

To wire the audible output:

1. Configure a relay output on a 4 relay output module as

an audible (fire alarm-not silent) output (used to control

horns), using Advent downloader software on site.

2. Wire this output relay to input 2 on the AL602ITI as

shown in Figure C5.

Note

The 4 Relay Output Module must be mounted inside the

Advent panel enclosure.

To wire the visual (strobe) output:

1. Configure a relay output on a 4 relay output module as

a continuous fire alarm output (used to control strobes),

using Advent downloader software on site.

2. Wire this output relay to input 1 on the AL602ITI as

shown in Figure C5.

Note

The 4 Relay Output Module must be mounted inside the

Advent panel enclosure.

If additional power or outputs are required, up to 3 addi-

tional AL602ITI NAC Power Supplies can be added by

connecting the “RET” terminals of the first AL602ITI to the

corresponding “IN” terminals of the next AL602ITI and so

on. See Figure C5 for details.

Set the DIP switches on the AL602ITI as required for the

horn/strobes used. Refer to the AL602ITI installation

instructions for information on setting the DIP switches and

wiring the output circuits.

2.0K OHM

EOL Resistor

(at last device)

Detail

2 Conductor

18-Gauge Solid Wire

109

Advent Commercial Fire System

Figure C5. Wiring AL602ITI Power Supply

+ D C  + B A T  A C A C

B A T F A I L

N O C N C

A C F A I L

N O C N C

+ O U T 1  + O U T 2 

I N 1 +

+ O U T 3  + O U T 4 

I N 1  I N 2 + I N 2 

R E T 1 + R E T 1  R E T 2 +

 A U X +

N O ' R E M O T E ' C

 D C +

N C C N O

C ' F A U L T '

N C

O U T 1 O U T 3

I N P U T S E L E C T

T E M P O R A L

S T R O B E S Y N C

I N > O U T S Y N C

O U T 2 O U T 4

I N P U T S E L E C T

T E M P O R A L

S T R O B E S Y N C

I N > O U T S Y N C

8 5 4 3 2 7 2 A . D S F

S W 2 S W 1

1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7

N O 1

N C 1

C O M 1

+ 1 2 V D C

1 8

N O 2

N C 2

C O M 2

N O 3

N C 3

C O M 3

N O 4

N C 4

C O M 4

G N D

Z O N E 1

Z O N E C O M

B U S A

B U S B



R E T 2 

Refer to AL602ITI

Installation

Instructions For

DIP Switch Settings

Trouble Output

to any Advent Panel

Input or Input Modul

Programmed as Zon

Type 96

Listed

2K-OHM EOL

Resistor

PS-12/24-8

AL802UL-ADA

Power Supply

PS-12/24-8

Logic Board

AL802UL-ADA

(To Logic Board NC)

(To Logic Board C “Fault”)

(To Power Sup Board Bat Fail NC)

(To Power Sup Board AC Fail C)

To IN2 of Next

AL602ITI

To IN1 of Next

AL602ITI

Audible (Horn)

Output

Visual (Strobe)

Output

Transformer

To any Available

Outputs

4 Relay Output Module

(60-770)

(Mounted Inside

Advent Panel Enclosure)

FCC Notices

FCC Part 15 Information to the User

Changes or modifications not expressly approved by Interlogix Inc. can void the user’s authority to operate the equipment.

ACTA Part 68

This equipment complies with Part 68 of the FCC Rules. Located on this equipment is a label that contains, among other information, the FCC registration

number and the ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

FCC Part 68 Registration No. B4ZUSA-27810-AL-E

The REN is used to determine the maximum number of devices that may be connected to your telephone line. Excessive RENs on a telephone line may result

in devices not ringing in response to an incoming call. In most areas, the sum of all device RENs should not exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the

REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal

point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and require-

ments as adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compliant modu-

lar jack that is also compliant. See the Installation Instructions for details.

Alarm dialing equipment must be able to seize the telephone line and place a call in an emergency situation. It must be able to do this even if other equipment

(telephone, answering system, computer modem, etc.) already has the telephone line in use. To do so, alarm dialing equipment must be connected to a prop-

erly installed RJ31X jack that is electrically in series and ahead of all other equipment attached to the same telephone line. Proper installation is depicted in

the following diagram. If you have any questions concerning these instructions, consult your local telephone company or a qualified installer about installing

an RJ31X jack and alarm dialing equipment for you.

If this equipment causes harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, you will be notified in

advance. When advance notice is not practical, you will be notified as soon as possible. You will also be advised of your right to file a complaint with the

FCC.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. You will be

given advance notice in order to maintain uninterrupted service.

If you experience trouble with this equipment, please contact the company that installed the equipment for service and/or repair information. The telephone

company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure that the equipment is not malfunc-

tioning.

This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

N e t w o r k

S e r v i c e

P r o v i d e r ' s

F a c i l i t i e s

Telephone

L i n e

N e t w o r k

D e m a r c a t i o n

P o i n t

Telephone

A n s w e r i n g

S y s t e m

F a x M a c h i n e

C o m p u t e r

Telephone

A l a r m D i a l i n g

E q u i p m e n t

R J 3 1 X

J a c k

U n u s e d

R J - 1 1 J a c k

U n u s e d

R J - 1 1 J a c k

C u s t o m e r P r e m i s e s E q u i p m e n t a n d W i r i n g

1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0

2 4

VAC

2 4

V A C

G N D

I N T .

B E L L R T N

V O I C E

S I R E N

V O I C E

S I R E N

I / O

C O M 142 3 5 6 M I C G N D

+ 1 2

V D C O U T

2 1 2 2

+

I N

I N P U T

8 5 4 3 1 6 3 E . D S F



+

R G W B

6 5 0 m A

L I N E 2

L I N E 1

PANEL

T E R M I N A L

S T R I P

I / O

C O M Z O N E 1

1 1 1 2

Z O N E

C O M Z O N E 1

1 1 1 2

R J - 3 I X

( C A - 7 8 A )

P H O N E

J A C K

R J - 3 I X

( C A - 7 8 A )

P H O N E

J A C K

ITI Advent Commercial Fire System

60-562-03-250Z and 60-562-06-132Z

For Supplementary Use Only

Ext. Siren/Horn

Use Onboard Panel Inputs Only For Fire Or Burglary Applications.

Do Not Mix Fire And Burglary Applications.

General Purpose Inputs/Outputs

Listed Panel

Cabinet Tamper Switch

(Normally Closed)

Listed 4 OHM

Speaker For

Fire Protective

Signaling Unit

Note 2:

Listed Output

Device Control

(12 VDC, 200 MA

Max.)

Note 6:

Listed Fire

Pulls

2.0K OHM

EOL Resistor

(Black) 49-467

(at last device)

Use In-and-Out

(Daisy-Chain)

Multiple Device

Wiring Methods

Only

To Additional

Listed Superbus

Touchpads

And/Or

Modules

Built-In

Circuit

Breaker

Note 1:

Class 1 24 VAC

100 VA 60-830

Line

Splice

To 110 VAC 60 HZ

Circuit

Lower

Left

Panel

Mounting

Screw

(Green)

Earth

Ground

Panel SuperBus

Wiring Harness

49-462

Splice

2.0K OHM EOL Resistor (Black)

49-467 (locate at device)

Optional

Listed Touchpad

Enable Keyswitch

(Normally Closed)

Yellow Not Used

Touchpad

Wiring Harness

49-430

Listed DC

Horn/Strobe(s)

Supplementary

Use Only

2 Conductor

18-Gauge Solid Wire

2.0K OHM

EOL Resistor

49-467

(at last device)

Note 6:

Listed Water

Flow Sensors

Note 4:

Listed 2-Wire

Smoke/Heat

Detector

2 Conductor

18-Gauge Solid Wire

2.0K OHM

EOL Resistor

49-467

(at last device)

2.0K OHM

EOL Resistor

49-467

(at last device)

Use In-and-Out

(Daisy-Chain)

Multiple Device

Wiring Methods

Only

1/2-Inch EMT

Conduit

Phone Line 2

Phone Line 1

Dual Phone

Line Module

60-768

Dual DB-8

Phone

Cord

49-426(3)

Phone

Jack

Phone

Test

Tip/Ring

Lugs

Note 3:

SuperBus Device

Connectors (2)

Primary

Secondary

IMPORTANT!

Connectors For Optional

Listed Panel Input/Output

Expansion SnapCards

IMPORTANT!

Use Bus 1 and Bus 2 Headers

For Only Fire or Burglary

Applications. Do Not Mix Fire

And Burglary Bus Devices On

Either Header.

Also, All Bus Device Inputs

And Outputs Must Be Dedicated

To Either Fire Or Burglary

Applications. Do Not Mix Fire

Inputs and Outputs on Any Bus

Device.

And Burglary Applications On

IMPORTANT!

SnapCard Expansion Slots

Must Be Used For Either Fire

Or Burglary Applications.

Do Not Mix Fire and Burglary

Applications on SnapCard

Inputs and Outputs.

NOTES:

1. The AC power supply is non-power limited. It must be separated from all power limited

wiring by at least 0.25” and wired using a separate knockout.

2. Or to any general purpose I/O terminal programmed as an output. For UL burglary use only.

3. Either connector may be used for connecting up to 31 SuperBus 2000 devices.

4. 2-wire smoke loop compatibility identifier 60-562.

5. See SuperBus 2000 Dual Phone Line Module Installation Instructions (document

number 466-1363) for module and BUS and phone jack wiring details.

6. Or to any general purpose I/O terminal programmed as an input.

SuperBus 2-Line Alphanumeric Touchpad 60-810-4

Black (Gnd)

White (Bus B)

Green (Bus A)

Red (+12 VDC)

All Panel Terminal Connections Except Backup Battery Are Class II Power Limited

Not Used 2-Wire

Smoke Loop

The Following Terminals Are Supervised:

1, 2, 4, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 21, and 22.

The Following Terminals Are Not Supervised:

3, 5, 6, 7, 8, 19, and 20.

2.0K OHM

EOL Resistor

(Black) 49-467

(at last device)

220 MF

35 V Capacitor

17-101

Load

)

*(,QWHUORJL[

Advent Commerical Fire Rev B Installation Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
