H
Fuse Blocks & Holders
“Finger-safe” IEC, Traditional, Panel Mount... You name the block, we’ve got it in stock.
Your problem:
You need a range
of standard fuse
blocks to meet
industrial require-
ments. You need
DIN-rail mount-
ing fuse holders
that save space
and conform with today’s “Finger-safe” IEC standards. You need
panel-mount fuse holders, blocks that safely handle stress on
conductors, accessories to make pulling fuses safer.
Our solution: Mersen’s extensive line of fuses is matched by our
line of fuseblocks. Need a durable Class H, K, or R block? We’ve
got congurations that accept nearly all 250 and 600V power
fuses. How about Class CC or Class J IEC-style holders? Turn to
our popular UltraSafe™ models for the small footprints, blown-
fuse indicators, and nger-safe changeouts you want. The same
goes for traditional Class J blocks, space-saving “SJ” blocks,
600V Class CC and midget dimension holders, and a dozen other
fuse holder solutions.
Want more information fast? For more technical or application-
specic information, please call our Fuse Block experts, at
978-462-6662; 416-252-9371 in Canada; or visit our website at
ep.mersen.com.
H Fuse Blocks & Holders
• UltraSafe™ USCC & USM ............... H2
• UltraSafe™ USBB Bus Bar System . H4
• UltraSafe™ USGCC &USGM .......... H6
• UltraSafe™ USFM ........................... H8
• UltraSafe™ US3J & US6J .............. H10
• UltraSafe™ US14 & US22 ............. H12
• UltraSafe™ US15M1HEL for PV .... H16
• Open Style Class J & SJ Series ..... H17
• Open Style Midget & Class CC ...... H21
• Open Style Class H, K & R ............ H23
• Open Style Class T ........................ H30
• Open Style Class G ........................ H35
• Open Style Miniature ...................... H37
• In-Line Fuse Holders / FEB, FEC, FEX,
FEY Series - Midget/Class CC ....... H38
• Panel Mount Fuse Holders /
GPM Series .................................... H42
• Semiconductor Fuse Blocks /
P243/P266/P292 ............................ H49
• Modular Semiconductor Fuse Blocks /
1SC/1MSC ..................................... H50
• Semiconductor Fuse Holders /
703, U705, U710 Series ................. H51
• Ferrule Fuse Holders / PS20x127 .. H53
• Fuse Bases / NH Dimension .......... H55
• HPBB 1000V DC Size NH Open Style
Fuse Blocks.................................... H58
• Dead Front Fuse Covers / DFC ..... H59
• Fuse Block Accessories /
DFC3M, DFC3LP & DRM .............. H61
• Ferrule Fuse Clips / PC Board
Mount Fuse Clips ........................... H62
H2H2
Applications:
•All circuits up to 600 volts
for motors, control circuits,
transformers, etc…
•DC circuits up to 1000VDC
including photovoltaic applications
•Non-load disconnect
Highlights:
•IP20 Finger-Safe (touch safe)
•Optional visual blown fuse
Indicator lights
•DIN-rail mounting
•Compact footprint
•Quick, tool-free, easy fuse
change outs

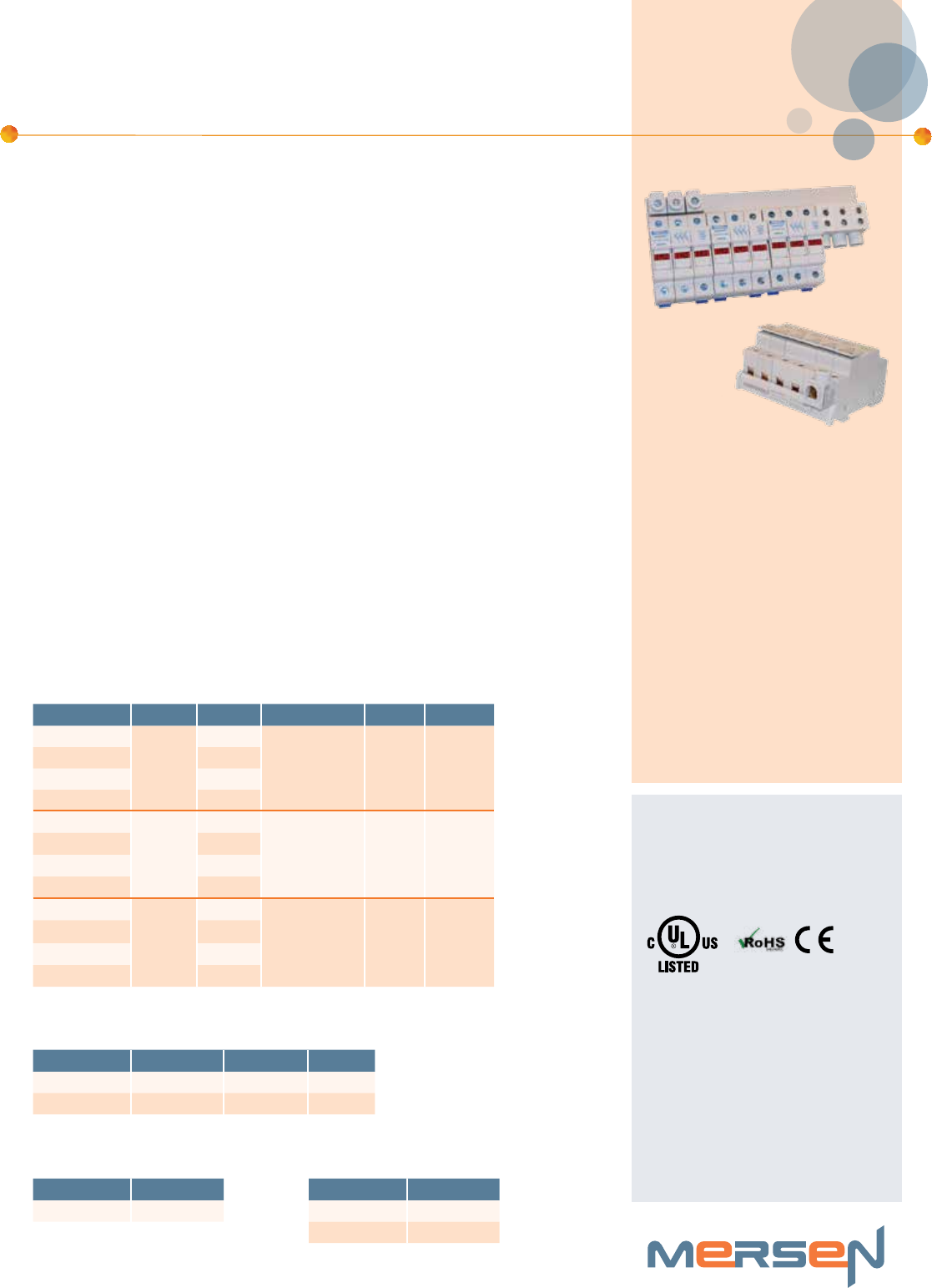

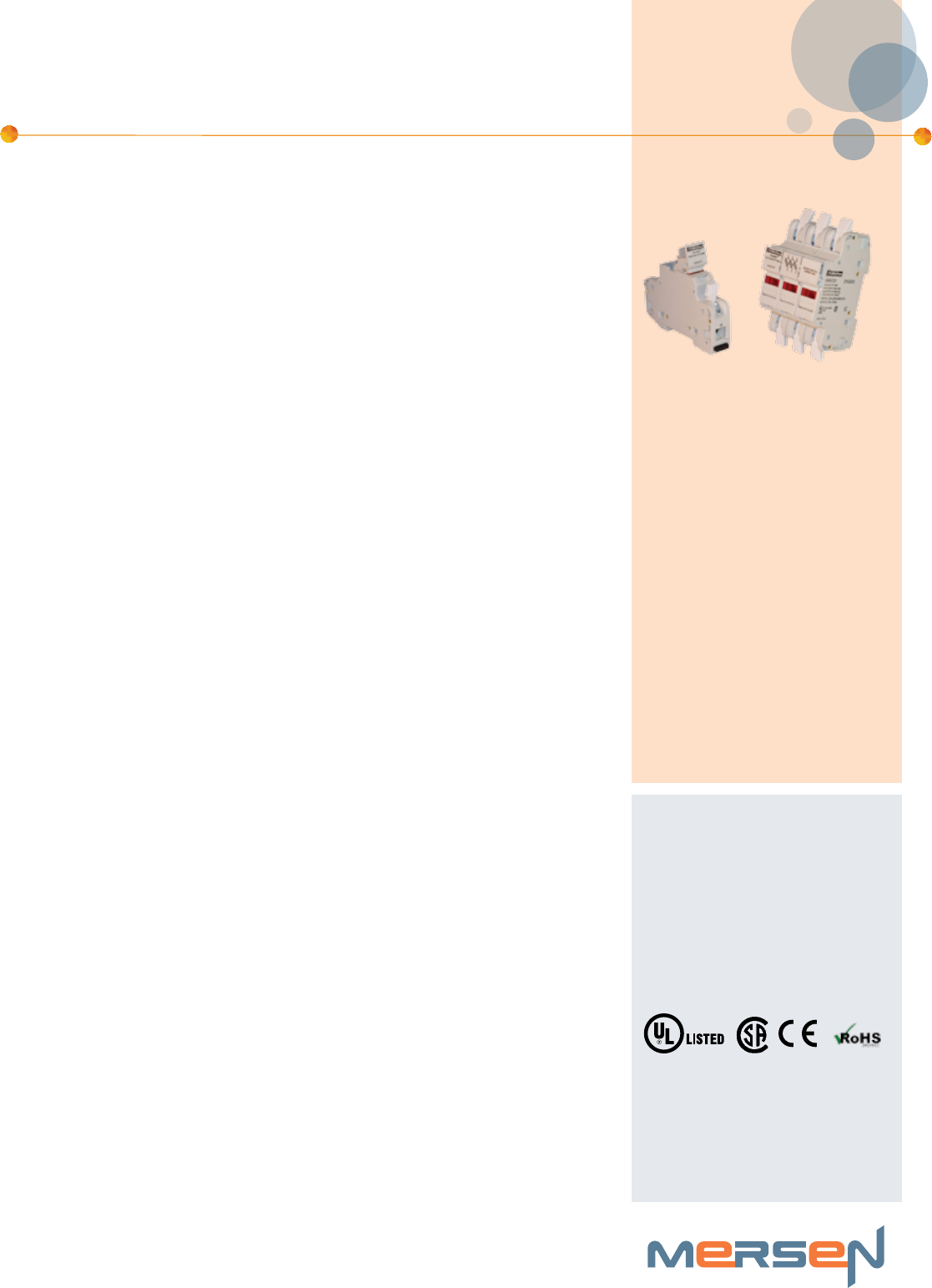

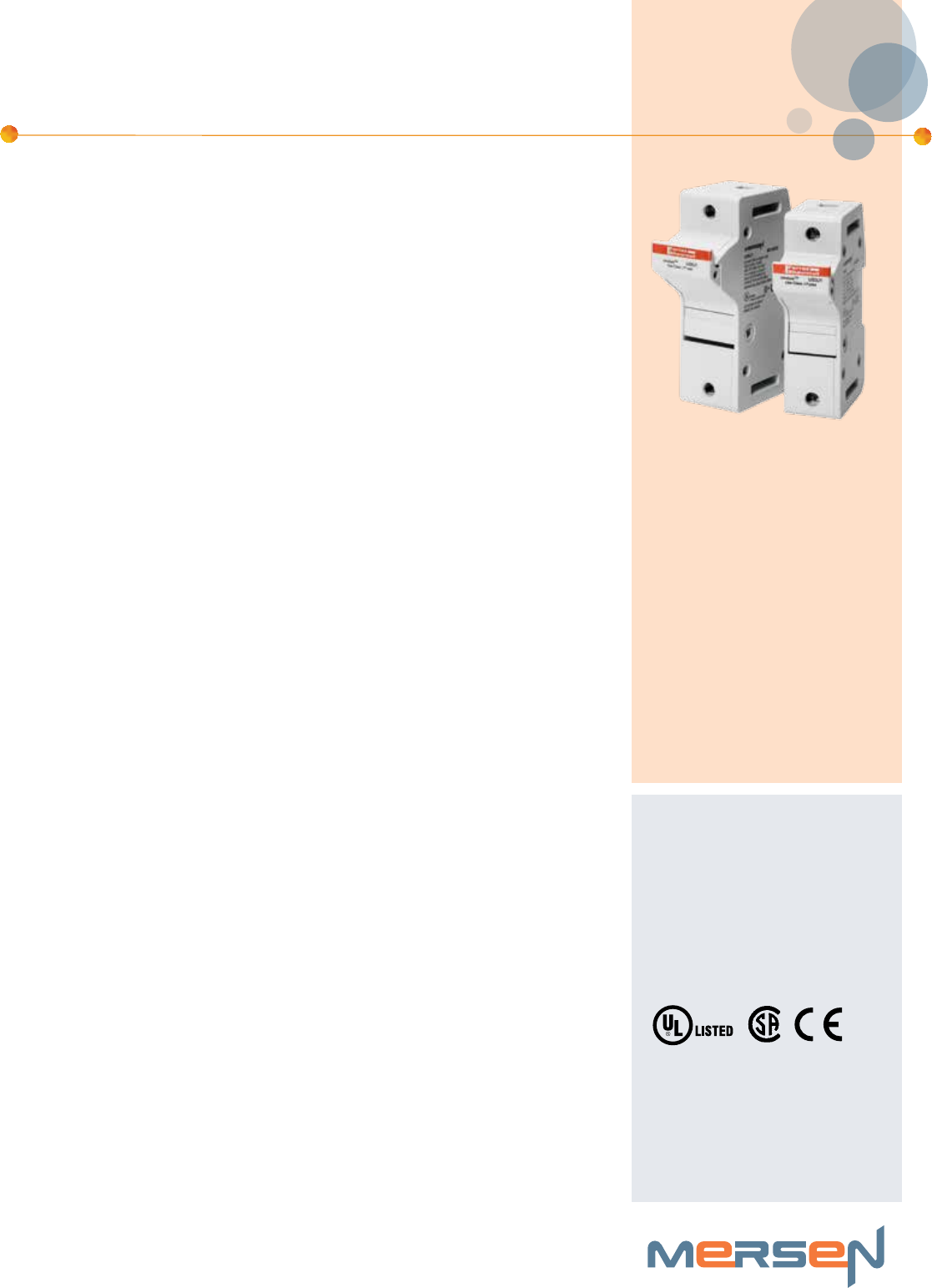

USCC & USM UltraSafeTM Fuseholders
UltraSafe modular fuseholders for midget and class CC fuses
Mersen UltraSafe Modular Fuseholders introduce a new level of safety for Class CC
(USCC) and Midget 1-1/2” x 13/32” (USM) AC and DC-rated fuses up to 30 amperes.
UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20
grade of protection, including fuse changing (with the ick of a nger). UltraSafe
holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators
in each pole. Multi-pole units can also be eld assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be
snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe
holders with Class CC fuses chosen for Type “2” No Damage protection give one of
the safest protection packages in the industry. UltraSafe body material is tough and
durable polyamide, with exceptional insulating properties. Ratings:
USM (Midget 10x38mm Fuses)
Volts : 800VAC Maximum
: 1000VDC Maximum
Amps : 30A Maximum
SCCR : 200kA AC
: 100kA DC
USCC (Class CC Fuses)
Volts : 600VAC / DC Maximum
Amps : 30A Maximum
SCCR : 200kA
Min. voltage to operate indicator light: 90VAC,
115VDC [Less than 0.7 mA leakage current
at 600V]
USM1IHEL minimum indicator operating
voltage: 350VDC
Approvals:
•UL Listed to Standard 4248-4
(class CC) and 4248-1 (midget),
File E52283
•UL Listed to standard 4248-18
(photovoltaic), File E347822
•CSA Certied C22.2
•IEC 60269-2-1 and 60947-3
Compliant (USM only)
Recommended Fuse Usage:
• USM use with:
ATQ, ATM*, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2,
DCT*, HP6M, HP10M
• USCC use with:
ATDR, ATMR*, ATQR
* Recommended for DC applications
Additional Specifications:
Terminal screws: Phillips/slot head
Suggested screw torque: 14.75 in-lbs.
Wire range: #14 to 6 AWG (2.5 to 16mm2) single conductor
: #14 to 10 AWG (2.5 to 5.0 mm2) dual conductor
Wire type: 60/75/90°C solid/stranded copper
Connector type: Pressure plate
Load-break disconnect: No
Environmental: RoHS compliant, lead free
Operating temperature: -40° to 85°C
Watts loss: 3W or less
Flammability rating: UL 94-V0
Optional Blown Fuse Indicator Lens Color: Red
For the most current product performance data visit ep.mersen.com and use catalog search.
H3
H

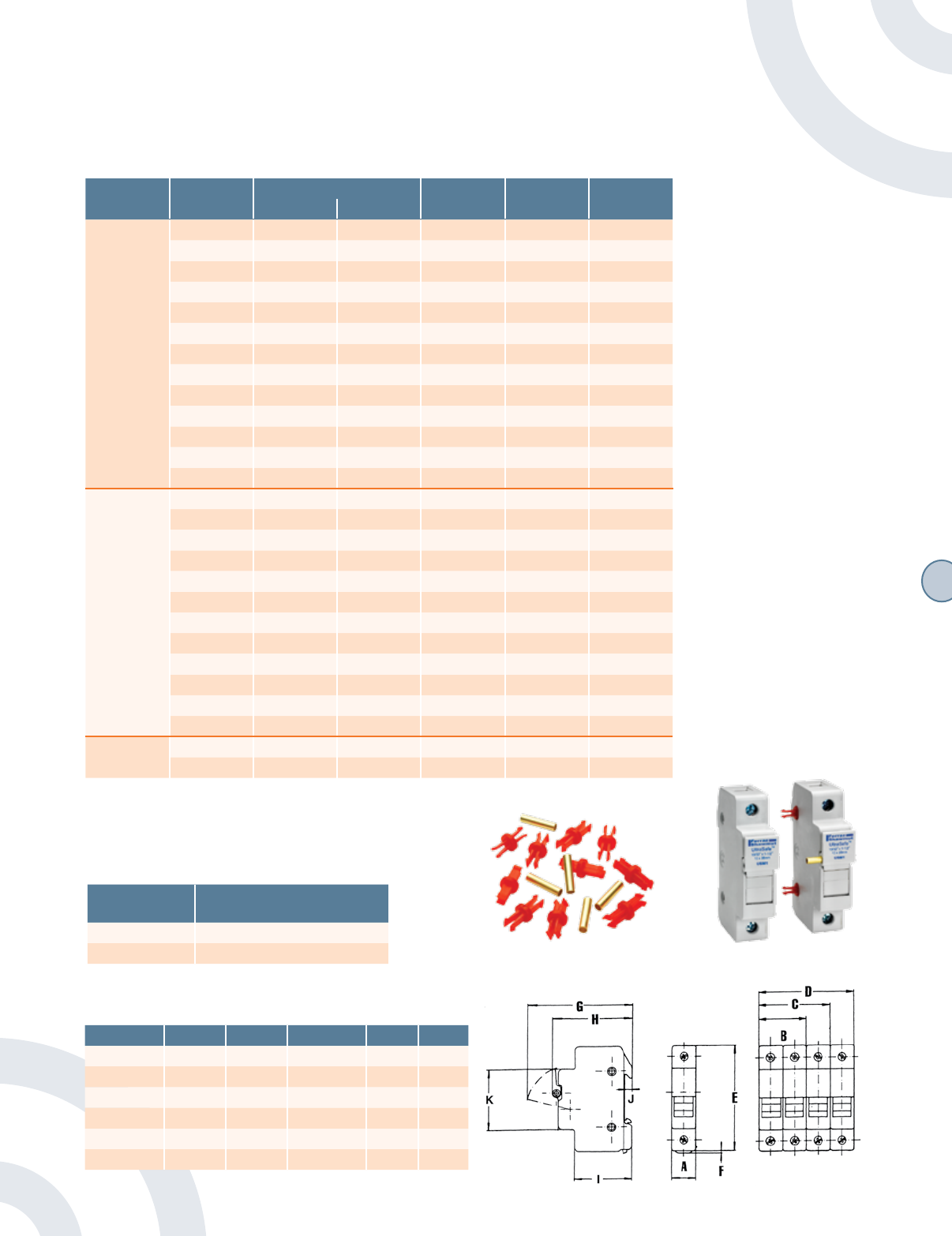

USPTH Pin-Tie Accessory USM1 with USPTH Pin-Ties

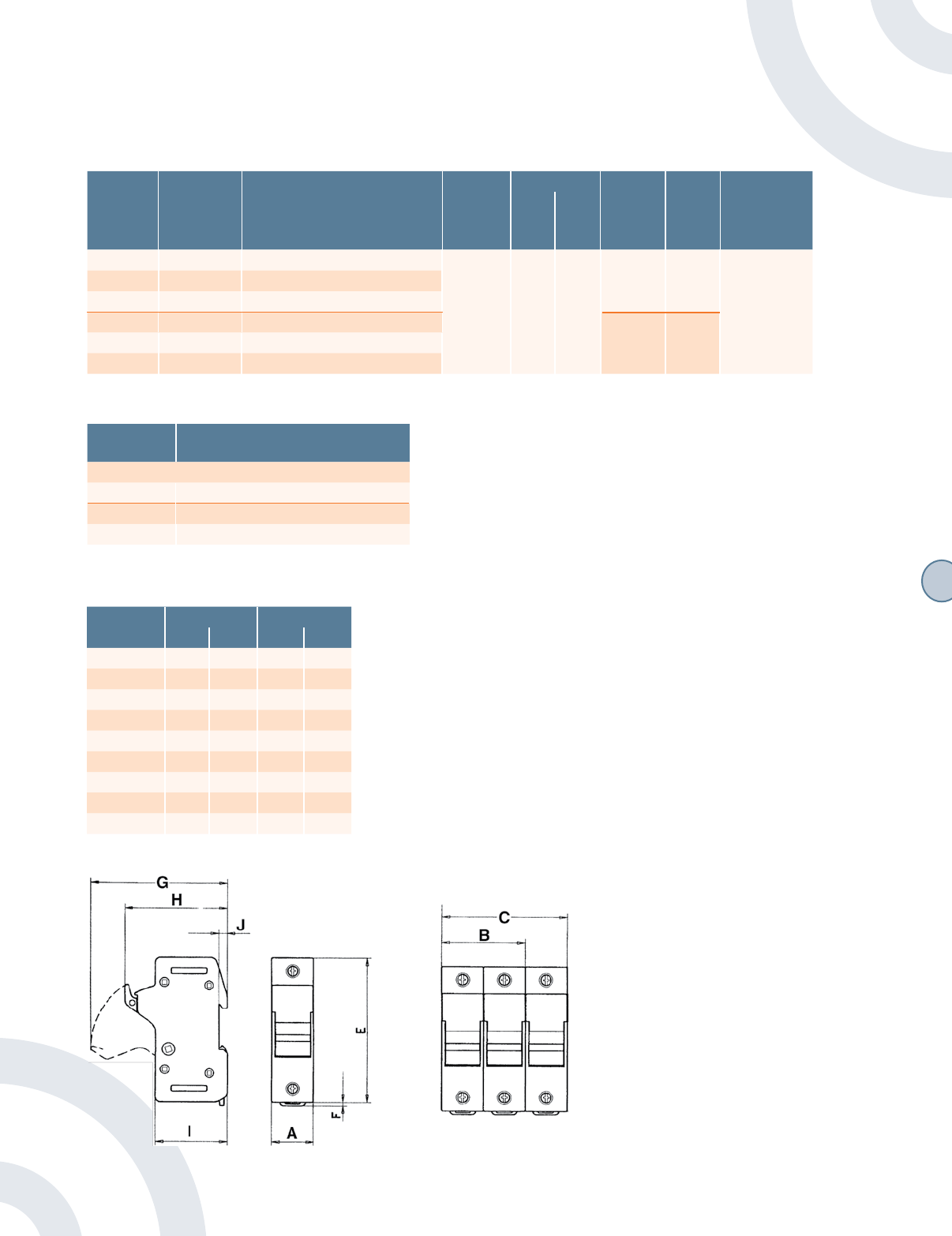

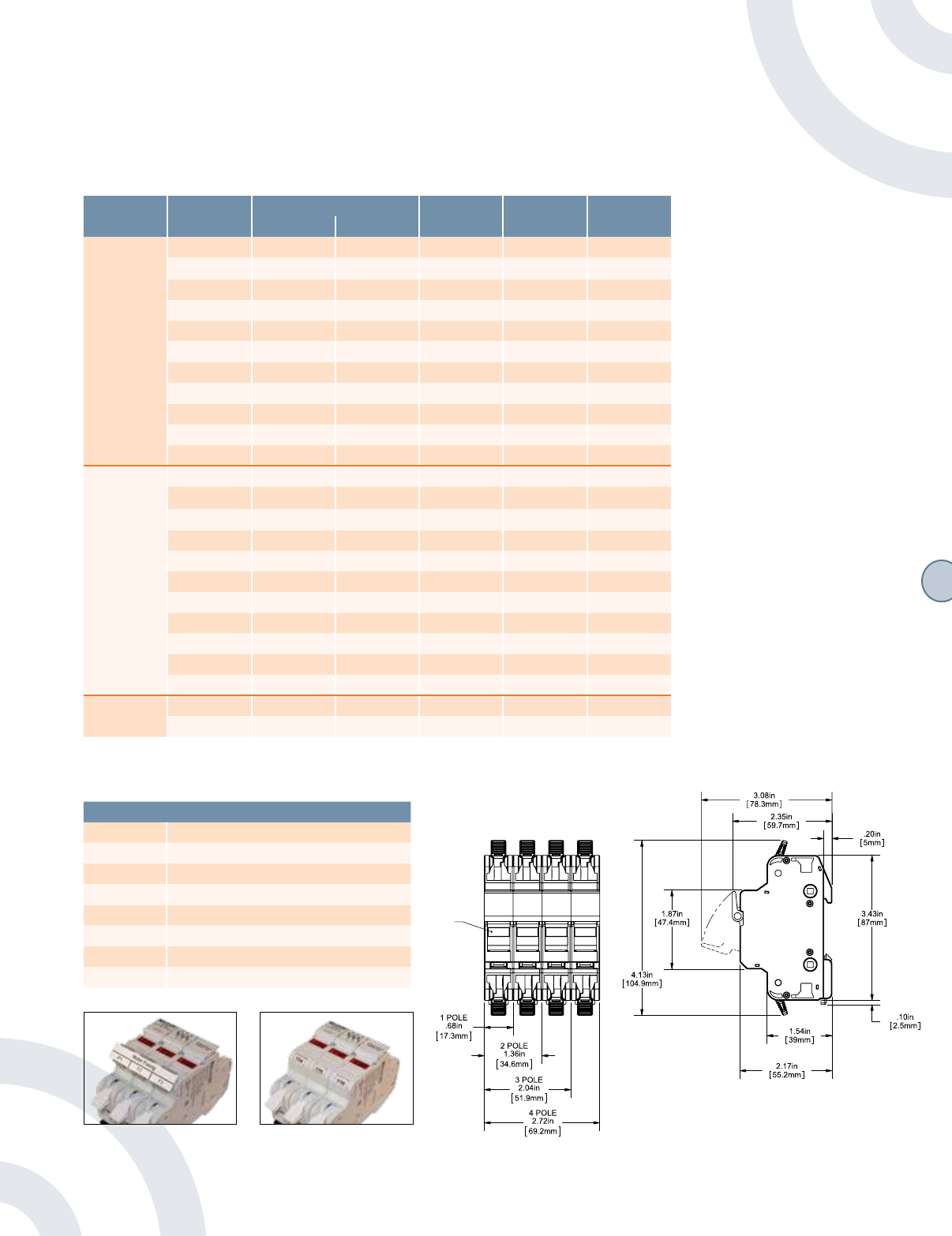

Dimensions
Catalog Numbers:
USCC & USM UltraSafeTM Fuseholders
Accessories
Catalog No. Description
USN 1-Pole with Intergral Neutral Link
USPTH Pin-tie Accessory for 12-Poles
Dimension mm In Dimension mm In
A 17.5 0.69 G 78.0 3.07
B 35.0 1.38 H 59.0 2.32
C 52.5 2.07 I 42.5 1.67
D 70.0 2.76 J 5.0 0.20
E 78.0 3.07 K 45.0 1.77
F 2.5 0.10
Fuse Type Ampere
Rating
Voltage Rating Visual
Indication No. of Poles Catalog
Number
AC DC
Class CC
30 600 600 No 1 USCC1
30 600 600 No 2 USCC2
30 600 600 No 3 USCC3
30 600 600 No 4 USCC4
30 600 600 No 3+N USCC3N
30 600 600 Yes 1 USCC1I
30 600 600 Yes 2 USCC2I
30 600 600 Yes 3 USCC3I
30 600 600 Yes 4 USCC4I
30 600 600 Yes 3+N USCC3IN
30 120 - Yes 1 USCC1I-AC120
30 300 - Yes 1 USCC1I-AC300
30 - 24 Yes 1 USCC1I-DC24
Midget
(10 x 38mm)
(1-1/2" x 13/32")
30 800 1000 No 1 USM1
30 800 1000 No 2 USM2
30 800 1000 No 3 USM3
30 800 1000 No 4 USM4
30 800 1000 No 3+N USM3N
30 600 600 Yes 1 USM1I
30 600 600 Yes 2 USM2I
30 600 600 Yes 3 USM3I
30 600 600 Yes 4 USM4I
30 600 600 Yes 3+N USM3IN
30 120 - Yes 1 USM1I-AC120
30 - 24 Yes 1 USM1I-DC24
Photovoltaic
Midget
32 - 1000 No 1 USM1HEL
32 - 1000 Yes 1 USM1IHEL
IEC Ratings for USM: 690VAC / 1000VDC, 32A, 50kA SCCR
CSA Ratings for USM: 750VAC / 1000VDC, 30A
Catalog Numbers—Accessories:
H4
* 50 pc. minimum order quantity
USBB UltraSafeTM Bus Bar System
Bus bar systems for use with UltraSafe class CC (USCC) and
midget (USM) fuseholders.
Mersen USBB UltraSafe bus bar systems are intended for use with UltraSafe Class
CC (USCC) and Midget (USM) fuseholders. The USBB delivers safe and reliable
combination of circuits in a compact design. Bus bar systems reduce installation
time when compared to wire solutions, offer space savings and deliver touch-safe,
shock resistant solutions to panel builders and designers. 1-, 2-, and 3-phase designs
available.
Applications:
•UL 508 panels
•Solar string combiner boxes
•Control panels
•Power distribution panels
Highlights:
•Decrease installation time
compared to wire solutions
•Save panel space with compact
design and footprint
•Reduce shock hazards with touch-
safe cover (included)
•Environmentally conscious, RoHS
compliant and lead free
•Cuttable design offers exibility
Ratings:
USBB Bus Bar
Volts : 600VAC
: 1000VDC
Amps : 100A (End Feed)
: 200A (Center Feed)
SCCR : 10kA
: 100kA (with 200A J Fuse)
USBB Feeder Terminal
Volts : 600VAC
: 1000VDC
Amps : 115A Maximum
SCCR : 10kA
: 100kA (with 200A J Fuse)
Approvals:
•UL Listed to Standard 508,
File E348854
•IEC Compliant
Catalog Numbers
Bus Bar (1-, 2-, and 3-phase)
Catalog No. Phase Poles Cross Section Pitch Material
USBB1PH25K4
1
4
25mm217.8mm Copper
USBB1PH25K6 6
USBB1PH25K8 8
USBB1PH25K12 12
USBB2PH25K4
2
4
25mm217.8mm Copper
USBB2PH25K6 6
USBB2PH25K8 8
USBB2PH25K10 10
USBB3PH25K6
3
6
25mm217.8mm
USBB3PH25K9 9
USBB3PH25K12 12 Copper
USBB3PH25K15 15
Catalog No. Wire Range Wire Type Torque
USBBC1 10 - 1/0 AWG 60°C Cu 50 lb-in
USBBESB1 14 - 1 AWG 75°C Cu 35 lb-in
Feeder Terminal
Catalog No. Qty per Unit
USBBPC 5
Protective Cover
Catalog No. Qty per Unit
USBB1PHEC 1 set*
USBB23PHEC 1 pc
End Caps
For the most current product performance data visit ep.mersen.com and use catalog search.
H5
H

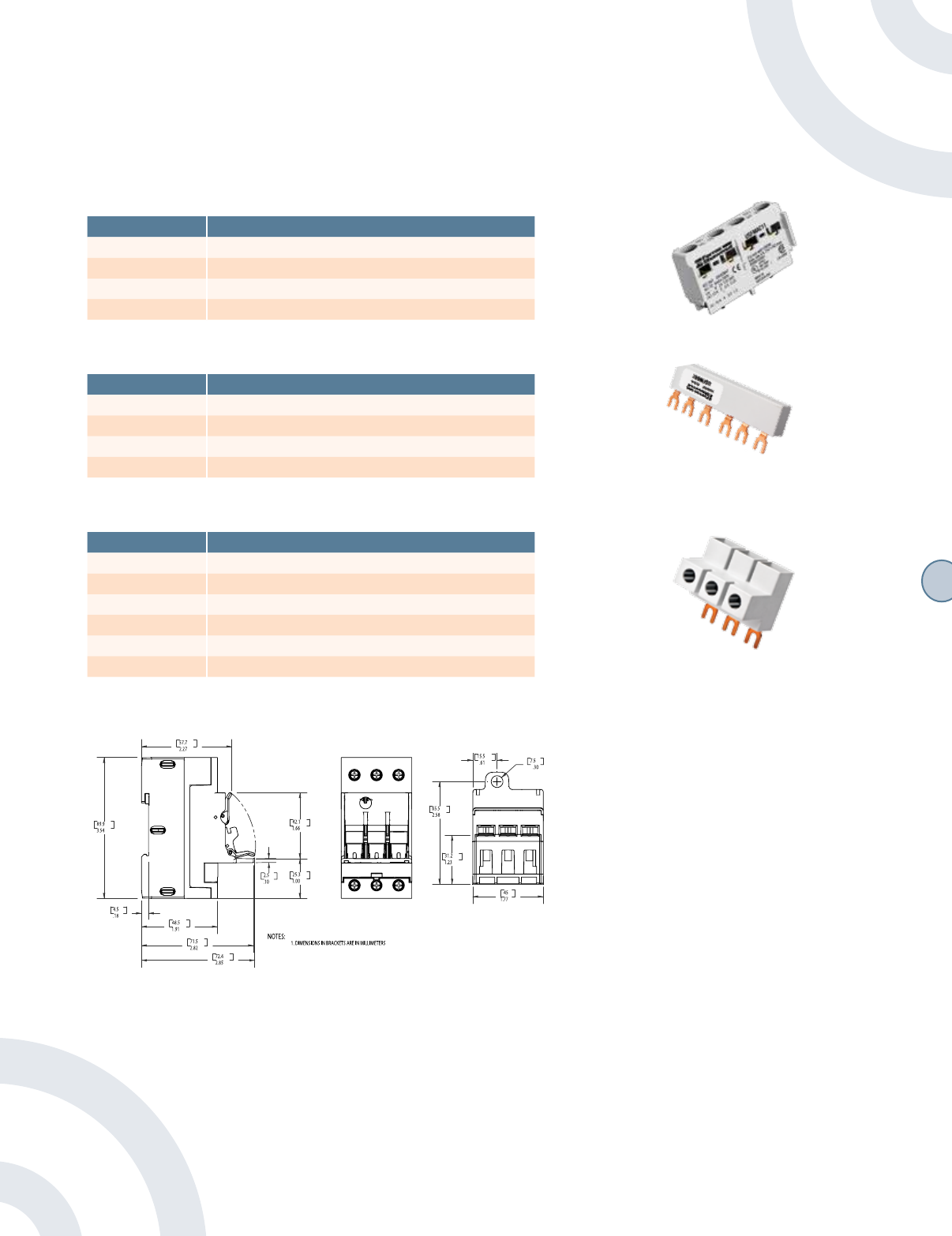

USBB UltraSafeTM Bus Bar System

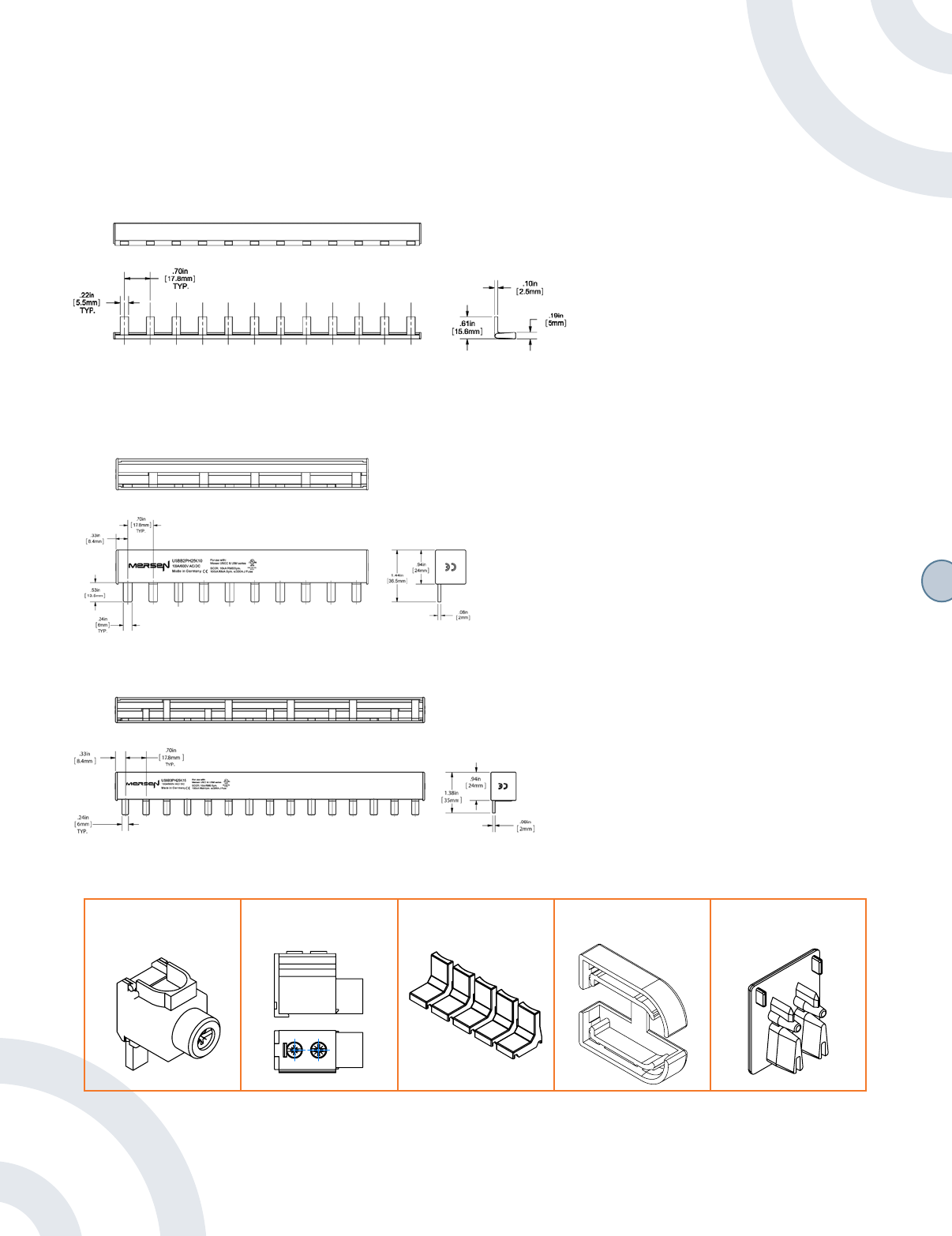

Dimensions
1-Phase Bus Bar – USBB1PH25K(4,6,8,12)
3-Phase Bus Bar – USBB3PH25K(6,9,12,15)
2-Phase Bus Bar – USBB2PH25K(4,6,8,10)
USBBC1 USBBESB1 USBBPC USBB1PHEC USBB23PHEC
DIMENSIONS IN [ ] ARE MILLIMETERS
.64in
16.2mm
1.43in
36.2mm
.49in
12.5mm
.24in
6mm
.51in
13mm
1.12in
28.5mm
.12in
3mm
.83in
21mm
.45in
11.5mm
FEEDING: LENGTHWISE
CROSS SECTION: 6-35mm2
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
A
2-13-13
N/A
MIRRORED ORIENTATION OF TAB
LDB
N/A N/A
CONTROL No:____________
1488
USBBC1
FEEDER TERMINAL
115A 1000VAC/DC
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701722
DIMENSIONS IN [ ] ARE MILLIMETERS
.55in
TYP.
14mm
.70in
TYP.
17.8mm
2.80in
71.2mm
3.35in
85.2mm
.94in
24mm
.94in
23.8mm
.22in
5.7mm
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
-
6-10-11
N/A
INITIAL RELEASE
LDB
N/A N/A
CONTROL No:____________
1345
USBBPC
PROTECTIVE COVER
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701723
DIMENSIONS IN [ ] ARE MILLIMETERS
.69in
17.6mm
.61in
15.6mm
.16in
4mm
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
-
2-20-13
N/A
INITIAL RELEASE
LDB
N/A N/A
CONTROL No:____________
1489
USBB1PHEC
USBB 1-PH END CAP
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701877
DIMENSIONS IN [ ] ARE MILLIMETERS
.94in
24mm
.85in
21.6mm
.37in
9.5mm
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
-
2-20-13
N/A
INITIAL RELEASE
LDB
N/A N/A
CONTROL No:____________
1489
USBB23PHEC
USBB 2/3-PH END CAP
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701878
DIMENSIONS IN [ ] ARE MILLIMETERS
1.57in
40mm
.70in
17.8mm
1.17in
29.8mm
1.13in
28.8mm
.48in
12.3mm
.16in
4mm
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
-
02/15/13
N/A
INITIAL RELEASE
LDB
N/A N/A
CONTROL No:____________
1489
USBBESB1
USBB FEEDER TERMINAL
115A 1000VAC/DC
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701876
DIMENSIONS IN [ ] ARE MILLIMETERS
1.57in
40mm
.70in
17.8mm
1.17in
29.8mm
1.13in
28.8mm
.48in
12.3mm
.16in
4mm
REV.
DATE
ECO
DESCRIPTION
BY
CK
APP
-
02/15/13
N/A
INITIAL RELEASE
LDB
N/A N/A
CONTROL No:____________
1489
USBBESB1
USBB FEEDER TERMINAL
115A 1000VAC/DC
OUTLINE DIMENSIONS
NOT TO BE USED FOR PRODUCTION
SIGN:
DATE:
DESIGN ENGINEER
PRODUCT MANAGER
SIGN:
DATE:
MERSEN USA NEWBURYPORT-MA, LLC
374 MERRIMAC STREET
NEWBURYPORT,MA 01950
SHEET 1 OF 1
701876
H6
USGCC & USGM UltraSafeTM Fuseholders
Innovative UltraSafe class CC and midget fuseholders with
screw-less, spring pressure, wire termination technology.
Mersen’s new USGCC & USGM series fuseholders deliver the ultimate ease-of-use,
time (labor) saving and reliable solution available in the marketplace. Mersen is the
rst manufacturer to offer screw-less, spring pressure, wire termination technology
into a power fuseholder, delivering the best of both technologies to its customers. Now
you can experience the combined benets of safety, ease-of-use, labor savings and
reliability of UltraSafe fuseholders and spring pressure technology.
Highlights:
•Equipped with industry proven,
patented WAGO CAGE CLAMP®
technology (over 25 years of eld
experience and acceptance)
•Reduce wire installation time by up
to 75%
•Highly reliable, maintenance free
wire contact
•Secure, vibration proof, corrosion
resistant, temperature cycling
resistant, cost saving wire
connection
•Quick, tool-free, easy fuse
change-outs
•IP20 nger-safe protection
•Option visual blown fuse indicator
•DIN-rail mounting
•Compact footprint
•Environmentally conscious, RoHS
compliant and lead free
Applications:
•All circuits up to 750VAC /
1000VDC for power control, power
distribution and power electronics
•Non-load disconnect
Recommended
Fuse Usage:
•USGM use with Midget Fuses:
ATQ, ATM, TRM, OTM, A60Q-2,
DCT-2
•USGCC use with Class CC Fuses:
ATDR, ATQR, ATMR
•USGM-HEL use with
Photovoltaic Fuses: HP6M,
HP10M
Additional Specifications:
•Screw-less, spring pressure terminals: WAGO CAGE CLAMP®
•Wire Range : #14 to 6 AWG (2.5 to 16mm2) Single Conductor
: #14 to 10 AWG (2.5 to 5.0 mm2) Dual Conductor
•Wire Type : 60/75/90°C Solid/Stranded Copper
: Can be used with wire ferrules
•Wire Strip Length: 12-13 mm (0.49 in)
•Load-Break Disconnect: No
•Environmental: RoHS compliant, Lead Free
•Operating Temperature: -40 to +85°C
•Watts Loss: 3W or less
•Flammability Rating: UL 94-V0
•Optional Blown Fuse Indicator Lens Color: Red
Ratings:
USGM (Midget 10x38mm Fuses)
Volts : 750VAC maximum
: 1000VDC maximum
Amps : 30A maximum
SCCR : 200kA AC
: 100kA DC
USGCC (Class CC Fuses)
Volts : 600VAC / DC maximum
Amps : 30A maximum
SCCR : 200kA
Min voltage to operate indicator light:
90VAC, 115VDC [Less than 0.7 mA leakage
current at 600V]
USGM1IHEL minimum indicator operating
voltage: 350VDC
Approvals:
•UL Listed to Standard 4248-4
(Class CC) and 4248-1 (Midget),
File E52283
•UL Listed to Standard 4248-18
(Photovoltaic), File E347822
•CSA Certied C22.2
•IEC Compliant (USGM only)
For the most current product performance data visit ep.mersen.com and use catalog search.
H7
H
USGCC & USGM UltraSafeTM Fuseholders
RED
INDICATOR
LENS
Catalog Numbers - Accessories
Catalog No. Description
USGN 1-Pole with Integral Neutral Link
USPTH Pin-Tie Accessory for 12-Poles
USTP Test Plug, 2 x 500mm (0.079 x 17.7 in), Red
USWMB0 WMB Markers, blank, 10 x 10 strips
USWMB1 WMB Markers, pre-marked 1-10, x10 strips
USCMA Continuous Marking Strip Adapter (1 needed per pole)
USCM0* Continuous Marking Strips, blank, 10 x 10 strips
USCM1* Continuous Marking Strips, pre-marked 1-10, x10 strips
Fuse Type Ampere
Rating
Voltage Rating Visual
Indication No. of Poles Catalog
Number
AC DC
Class CC
30 600 600 No 1 USGCC1
30 600 600 No 2 USGCC2
30 600 600 No 3 USGCC3
30 600 600 No 4 USGCC4
30 600 600 No 3 + N USGCC3N
30 600 600 Yes 1 USGCC1I
30 600 600 Yes 2 USGCC2I
30 600 600 Yes 3 USGCC3I
30 600 600 Yes 4 USGCC4I
30 600 600 Yes 3 + N USGCC3IN
30 - 24 Yes 1 USGCC1I-DC24
Midget
(10 x 38mm)
(1-1/2" x 13/32")
30 750 1000 No 1 USGM1
30 750 1000 No 2 USGM2
30 750 1000 No 3 USGM3
30 750 1000 No 4 USGM4
30 750 1000 No 3 + N USGM3N
30 600 600 Yes 1 USGM1I
30 600 600 Yes 2 USGM2I
30 600 600 Yes 3 USGM3I
30 600 600 Yes 4 USGM4I
30 600 600 Yes 3 + N USGM3IN
30 - 24 Yes 1 USGM1I-DC24
Photovoltaic
Midget
32 - 1000 No 1 USGM1HEL
32 - 1000 Yes 1 USGM1IHEL
Catalog Numbers
Dimensions
Continuous marking strip and
adaptors
WMB Marker System
* USCMA required for use with USCM0 and USCM1
H8
Applications:
•Primarily for motor circuits to
replace circuit breakers for higher
SCCR ratings
•Other circuits up to 600 volts for
control circuits, transformers, etc.
•Non-load disconnect
•Padlock compliance
Highlights:
•Dedicated 3-pole fuse module
•Finger-safe
•Compact footprint with
45mm width
•Auxiliary contact option
(1NO/1NC)
•Ability to padlock in OPEN
position with 1/4” shank diameter
•DIN-rail mount with
tool free removal
•Quick, easy fuse change
•Optional indicator lights

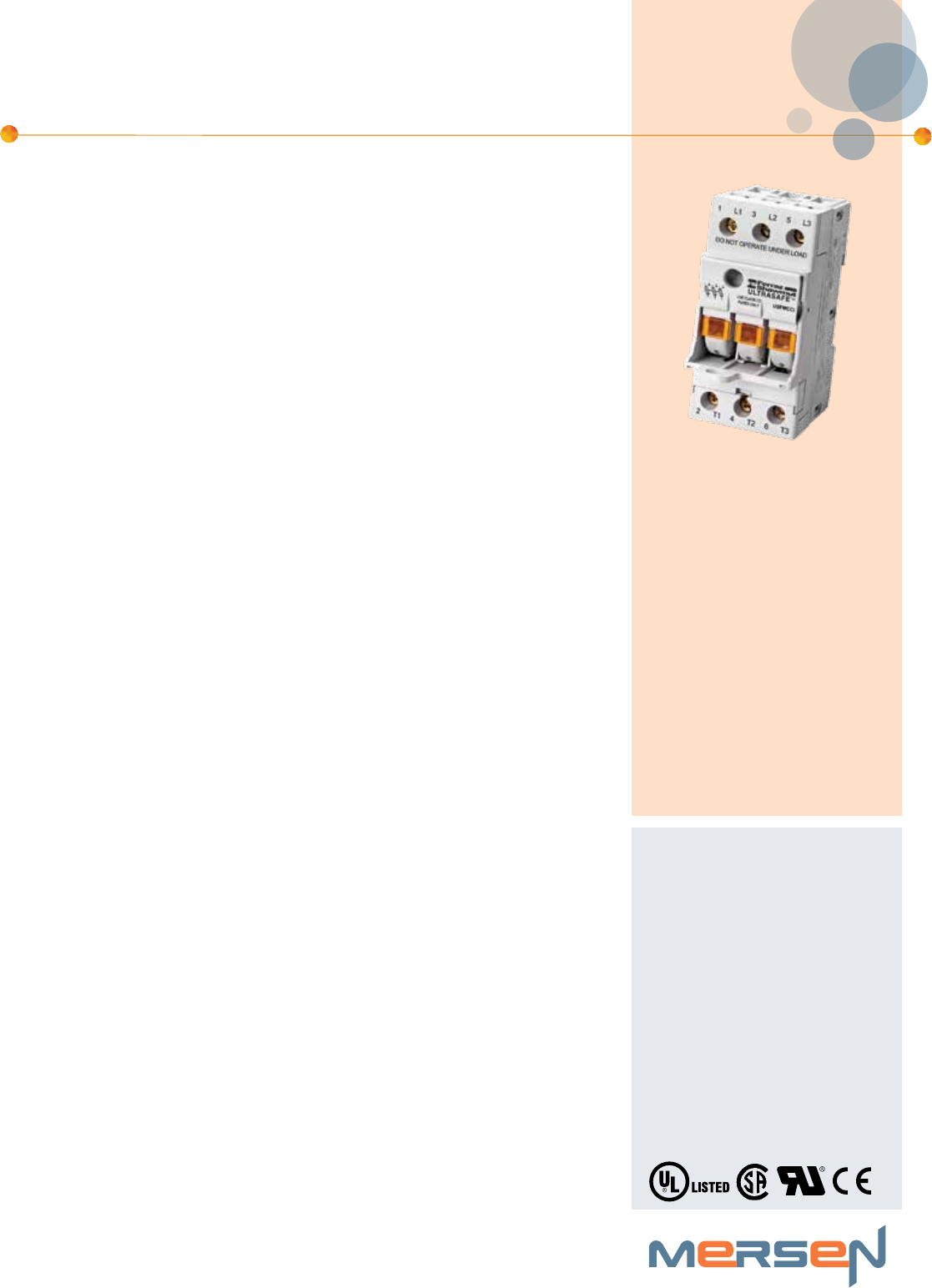

USFM UltraSafeTM Fuse Modules
UltraSafe 3-pole fuse modules for midget and class CC fuses

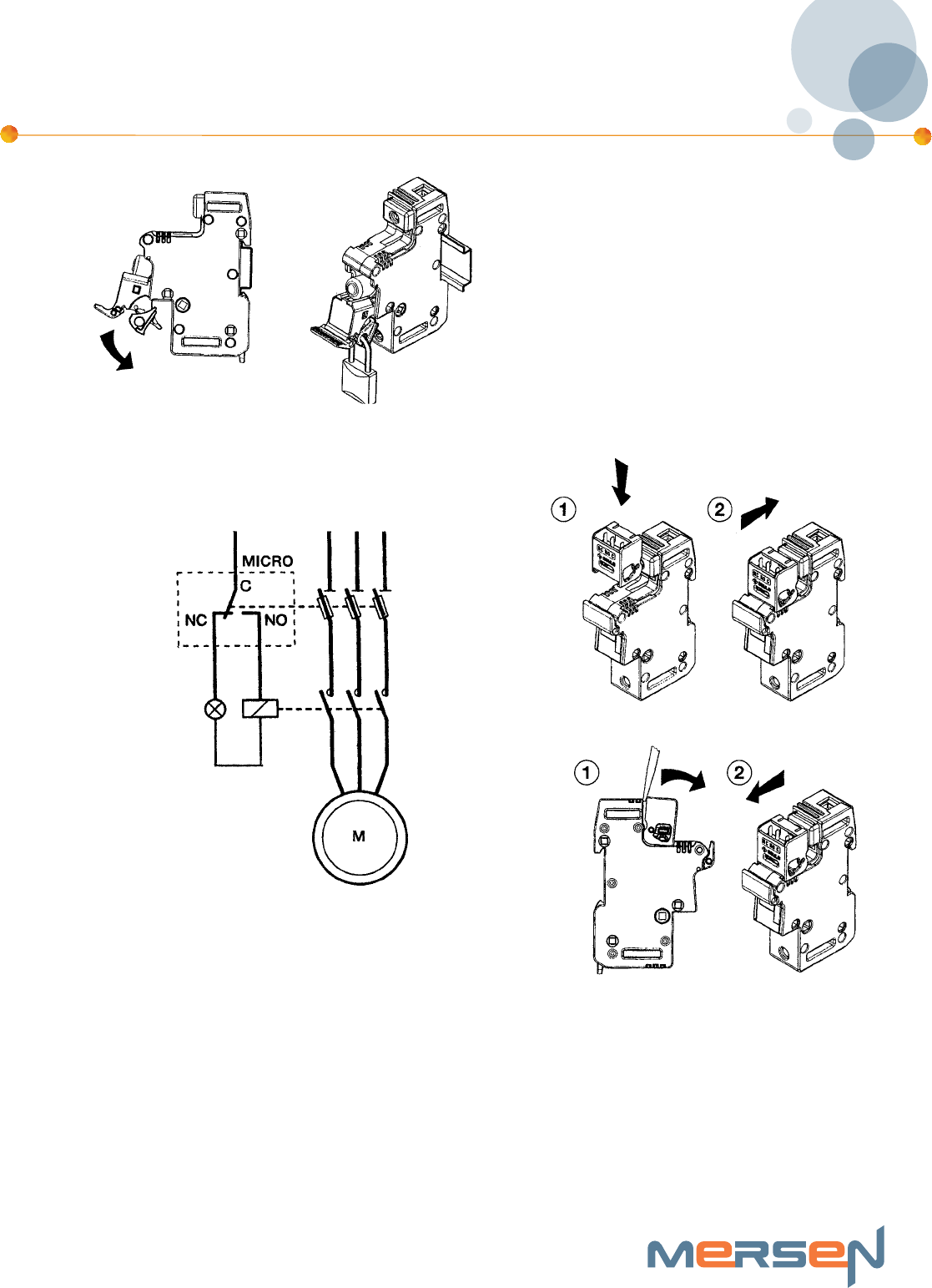

Mersen UltraSafe™ Fuse Modules have a unique, compact design suited for use
with 45mm wide IEC contactors. These modules also offer other features not found
on other Class CC and midget UltraSafe fuse holders such as an auxiliary contact
option. When the auxiliary is wired to an adjacent contactor the load is dropped out
by the contactor immediately once someone tries to open the fuse extractor handle.
Additionally, the fuse module features padlock capabilities, compact busbars for
line side terminations, and tool free removal from DIN-rail. Yet the fuse modules still
incorporate well known UltraSafe features such as IP20 protection, easy operating
fuse extraction handles and an open fuse visual indication option.
Recommended Fuse
Usage:
•USM use with:
ATQ, ATM*, A6Y-2B, A25Z-2,
TRM, OTM, A13X-2, A60Q-2,
DCT*
•USCC use with:
ATDR, ATMR*, ATQR
* Recommended for DC applications
Ratings:
USFMCC (Class CC Fuses)
Volts : 600VAC / DC :
Amps : 30A Maximum
SCCR : 200kA
USFM10 (Midget 10x38mm Fuses)
Volts : 600VAC / DC
Amps : 30A Maximum
SCCR : 100kA
Min. voltage to operate indicator light: 90VAC,
115VDC [Less than 0.7 mA leakage current
at 600V]
Approvals:
USFMCC (Class CC Fuses)
•UL Listed, guide IZLT, File
E52283
•CSA Certied C22.2, class 6225
01, File 32169
USFM10 (Midget 10x38mm Fuses)
•UL Recognized Component,
guide IZLT2, File E52283
•CSA Certied C22.2, Class 6225
01, File 32169
•IEC Certied 60269-1, 60947-3
(690VAC, 32A, 120kA)
For the most current product performance data visit ep.mersen.com and use catalog search.
H9
H
Catalog Numbers and Descriptions:
Additional specifications:
Terminal screws: Pozidriv#2
Suggested screw torque: 13 Lbs-in (1.5 N-m)
Connector type: Pressure plate
Wire range: #10 to #16 AWG (1-4 mm2)
75ºC solid/stranded Cu only
Load-break disconnect: No (when auxiliary
contact is installed in fuse module and properly
wired to adjacent IEC contactor the load will be
dropped out prior to disconnection between
fuse and clip inside holder upon operation of the
fuse extractor handle).
Dimensions
USFM UltraSafeTM Fuse Modules
For use with Class CC Fuses
Catalog No. Description
USFMCC 3 pole fuse module
USFMCCI 3 pole fuse module with indicators
USFMCCM 3 pole fuse module with microswitch style auxiliary contact
USFMCCMI 3 pole fuse module with microswitch style auxiliary contact and indicators
For use with Midget and 10x38mm UL and IEC Fuses
Catalog No. Description
USFM10 3 pole fuse module
USFM10I 3 pole fuse module with indicators
USFM10M 3 pole fuse module with microswitch style auxiliary contact
USFM10MI 3 pole fuse module with microswitch style auxiliary contact and indicators
Accessories
Catalog No. Description
USFMAC11 1NO (late make)/NC (early break) auxiliary contact
USFMBB2 Busbar to connect 2 modules together
USFMBB3 Busbar to connect 3 modules together
USFMBB4 Busbar to connect 4 modules together
USFMBB5 Busbar to connect 5 modules together
USFMBBC1 Busbar connector terminal
USFMAC11
USFMBB2
USFMBBC1
H10
Applications:
•600 volt motors, transformers,
lighting, heating, control circuits,
general loads
•Non-load disconnect
Highlights
•Finger-safe IP20 protection
•Optional indicator lights
•DIN-rail mount
•Compact footprint
•Quick, easy fuse change
US3J & US6J UltraSafe™ Class J Fuse Holders
UltraSafe™ modular fuse holders for class J fuses
Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new
level of safety and ease for installing or replacing Class J fuses. UltraSafe holders
qualify as “nger-safe” to an IP20 grade of protection under IEC standards. The US3J
accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. The US6J is for
60A Class J fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units,
with or without blown-fuse indicators in each pole. Multi-pole units can also be made
up in the eld by using the multiple-pole Assembly Kits. All units have provisions for
locking in the open position for safety during fuse changeouts or equipment servicing.
US3J and US6J holders can be snap-mounted to 35 mm DIN-rail and they have a
unique latch which will stay open to allow re-positioning of the holder in the future.
UltraSafe body material is tough and durable polyamide.
*Holder not UL listed when installed with French Ferrule fuses.
Ratings:
Volts : 600VAC/DC
Amps : US3J - 30A Maximum
: US6J - 60A Maximum
SCCR : 200kA
Min. voltage to operate indicator light:
90VAC, 115VDC [Less than 0.7 mA leakage
current at 600V]
Approvals:
•UL Listed, guide IZLT File
E52283
•CSA Certied C22.2, class 6225
01, File 32169
•IEC certied 60269-1, 60947-3
Recommended Fuse Usage:
US3J, US6J use with AJT, A4J, HSJ
For the most current product performance data visit ep.mersen.com and use catalog search.
H11
H
US3J & US6J UltraSafeTM Class J Fuse Holders
Catalog
No. W/O
Indicator
Catalog No.
W/ Indicator Description Fuse
Type
Voltage Rating
Ampere
Rating
No. of
Poles Certifications
AC DC
US3J1 US3J1I 1-Pole 30A Class J UltraSafe Fuse Holder
Class J 600V 600V
30A
1
UL Listed
CSA Approved
IEC Certified
US3J2 US3J2I 2-Pole 30A Class J UltraSafe Fuse Holder 2
US3J3 US3J3I 3-Pole 30A Class J UltraSafe Fuse Holder 3
US6J1 US6J1I 1-Pole 60A Class J UltraSafe Fuse Holder
60A
1
US6J2 US6J2I 2-Pole 60A Class J UltraSafe Fuse Holder 2
US6J3 US6J3I 3-Pole 60A Class J UltraSafe Fuse Holder 3
Catalog Numbers – Accessories
Accessories
Catalog No. Description
US3JN 1-Pole Neutral 30A Class J UltraSafe Fuse Holder
US3JPAK Pin Tie Assembly Kit, 6-Poles, for use with US3J
US6JN 1-Pole Neutral 60A Class J UltraSafe Fuse Holder
US6JPAK Pin Tie Assembly Kit, 6-Poles, for use with US6J
Catalog Numbers
Dimensions
Additional specifications:
Terminal screws: Phillips/slot head
Suggested screw torque: 30A - 35 in-lbs. 60A - 45 in-lbs.
Connector type: Pressure plate
Wire range: #2 to #14 (solid/stranded Cu)
Load-break disconnect: No
Dimension US3J US6J
mm In mm In
A 32.5 1.28 40 1.57
B 65 2.56 80 3.15
C 97.5 3.84 120 4.72
E114 4.49 122 4.80
F 3 0.12 3 0.12
G 106 4.17 115 4.53
H 80 3.15 89 3.50
I 56 2.20 62 2.44
J 6.5 0.26 6.5 0.26
H12
Applications:
•All circuits up to 750 volts
using semiconductor fuses for
protection of small inverters, UPS
systems, motor drives, etc.
•No-load disconnect
•IP20 requirements
Highlights:
•Finger-safe
•Optional indicator lights
•Optional microswitches
•DIN-rail mount
•Compact footprint
•Quick, easy fuse change

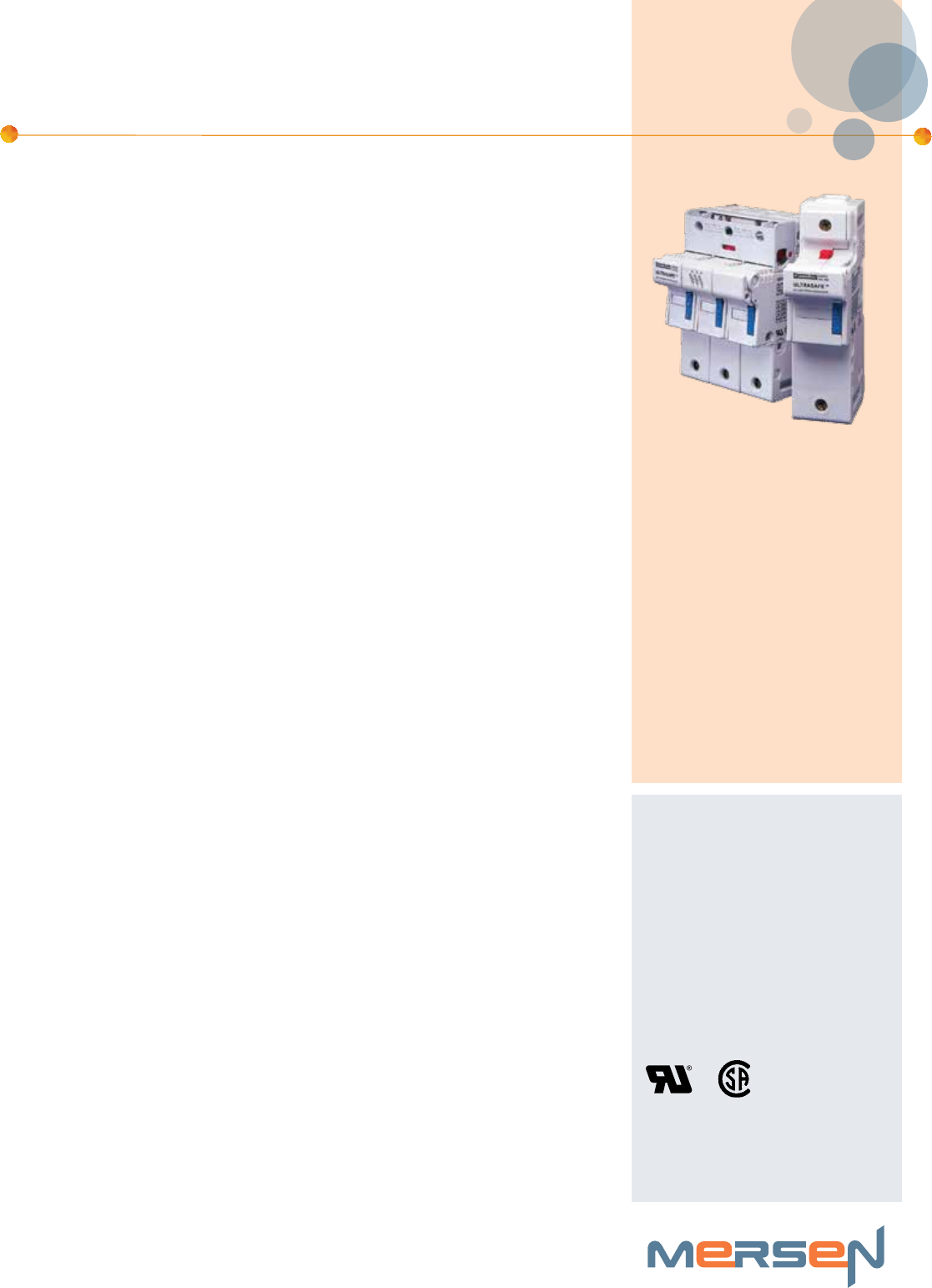

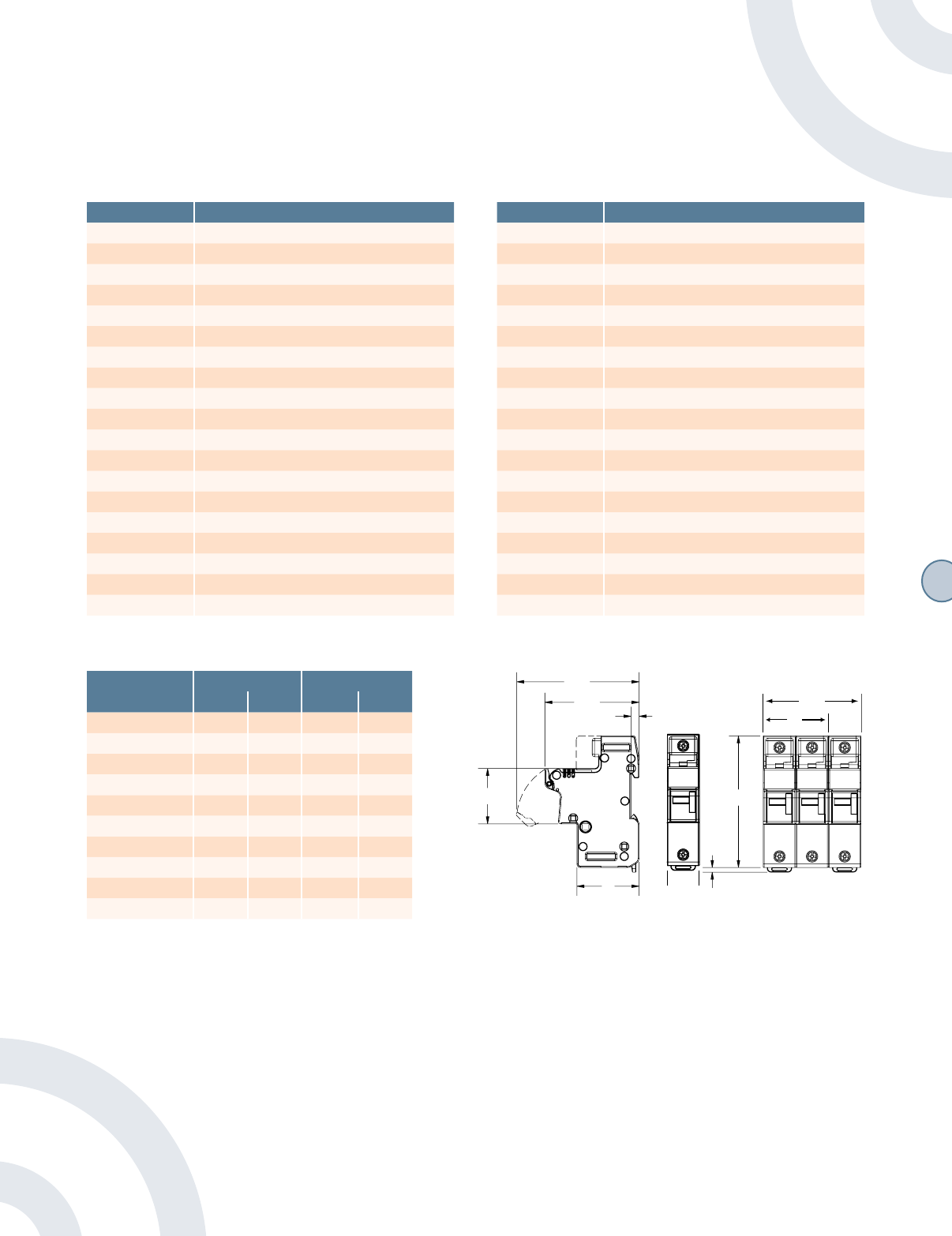

US14 & US22
750 Volt UltraSafeTM Fuse Holders
UltraSafe modular fuse holders for 14 x 51 and
22 x 58mm fuses
Mersen UltraSafeTM modular 750 volt Fuse Holders offer the highest levels
of safety and features for 14 x 51 mm and 22 x 58 mm fuses. Like all UltraSafe
holders, they qualify as “nger-safe” to an IP20 grade of protection under IEC
standards, including fuse changing (with the ick of a nger). The US14 and US22
ranges are available in 1, 2 or 3 pole units, with or without blown-fuse indicator
lights in each pole.
These holders come standard with a mechanical indicator that shows fuse presence.
If a striker fuse is used, this mechanical indicator will also indicate a blown fuse.
Microswitches can be supplied with the holders (or ordered separately for eld
installation) to allow remote communication. These holders also feature padlocking
capabilities, DIN-rail mounting with our unique latching system to allow re-positioning,
and the capability to be joined as multiple poles in the eld.
Approvals:
•All UltraSafe fuse holders
meet the requirements of
UL4248
•UL Recognized Component
guide IZLT2, File E52283
•CSA Certied C22.2, class
6225, File 32169
•IEC Compliant (60269-1,
60947-3)
Recommended Fuse Usage:
•US14 use with 14 x 51mm: A70QS, A70P, URC, URD
•US22 use with 22 x 58 mm: A70QS, URD
Ratings:
Volts : 750VAC/DC
Amps : 50A (14 x 51 mm)
: 125A (22 x 58 mm)
SCCR : 200kA
For the most current product performance data visit ep.mersen.com and use catalog search.
H13
H
Catalog Numbers and Descriptions -
For use with 14 x 51 mm Fuses up to 50A
Catalog Numbers and Descriptions -
For use with 22 x 58 mm Fuses up to 125A
Additional Specifications:
Terminal screws: Phillips/slot head
Suggested screw torque: 50A - 35 lbs.-in. 125A - 45 lbs.-in.
Connector type: Pressure Plate
Wire range: US14 #2 to #14 (solid/stranded Cu), US22 1/0 to #14 (solid/stranded Cu)
Load-break disconnect: No
Dimensions
A
G
H
J
K
I
C
B
E
F
US14 & US22
750 Volt UltraSafeTM Fuse Holders
Catalog No. Description
US141 1 Pole
US142 2 Pole
US143 3 Pole
US141I 1 Pole with Indicator
US142I 2 Pole with Indicators
US143I 3 Pole with Indicators
US141M 1 Pole with Microswitch
US142M 2 Pole with Microswitch
US143M 3 Pole with Microswitch
US143M2 3 Pole with 2 Microswitches
US141MI 1 Pole with Microswitch & Indicator
US142MI 2 Pole with Microswitch & Indicators
US143MI 3 Pole with Microswitch & Indicators
US143M2I 3 Pole with 2 Microswitches & Indicators
US141N 1 Pole - Neutral
US14PAK Accessory - Multi-pole Assembly Kit
US14S1P Accessory - 1 Pole Microswitch
US14S3P Accessory - 3 Pole Microswitch
US14S3P2 Accessory - 3 Pole, 2 Microswitches
Catalog No. Description
US221 1 Pole
US222 2 Pole
US223 3 Pole
US221I 1 Pole with Indicator
US222I 2 Pole with Indicators
US223I 3 Pole with Indicators
US221M 1 Pole with Microswitch
US222M 2 Pole with Microswitch
US223M 3 Pole with Microswitch
US223M2 3 Pole with 2 Microswitches
US221MI 1 Pole with Microswitch & Indicator
US222MI 2 Pole with Microswitch & Indicators
US223MI 3 Pole with Microswitch & Indicators
US223M2I 3 Pole with 2 Microswitches & Indicators
US22N 1 Pole - Neutral
US22PAK Accessory - Multi-pole Assembly Kit
US22S1P Accessory - 1 Pole Microswitch
US22S3P Accessory - 3 Pole Microswitch
US22S3P2 Accessory - 3 Pole, 2 Microswitches
Dimension US14 US22
mm In mm In
A 26.5 1.04 35.0 1.38
B 53.0 2.09 70.0 2.76
C 79.5 3.13 105.0 4.13
E 107.0 4.21 124.0 4.88
F 3.80 0.15 3.80 0.15
G 94.0 3.70 103.0 4.06
H 76.5 3.01 76.5 3.01
I 50.5 1.98 50.5 1.98
J 6.50 0.26 6.5 0.26
K 45.0 1.77 45.0 1.77
H14
Lock installation
Assembly
Disassembly
Microswitch mounting instructions(*)
US14 & US22
750 Volt UltraSafeTM Fuse Holders
(*) Microswitch functions
Blown fuse: Fuse holder containing Nominal current and 6A AC12
fuse with striker sends interrupting rating(1) at 250V 3A AC13
message when fuse 0,3A AC14
blown 0,1A DC12/13/14
Prebreaking: When fuse holder opens Nominal current and 6A DC12/DC13
interrupting rating(1) at 12 V and 24 V 5A AC13
Presence: Sends message or not 2A AC14/DC13
depending on fuse 0,6A DC14
presence (1) According IEC947-5 Standard
Auxilliary microswitch characteristics
H15
H
CLICK!
Microswitch options
Fuse holder assembly
CLICK!
US14 & US22
US14 & US22
750 Volt UltraSafeTM Fuse Holders
H16

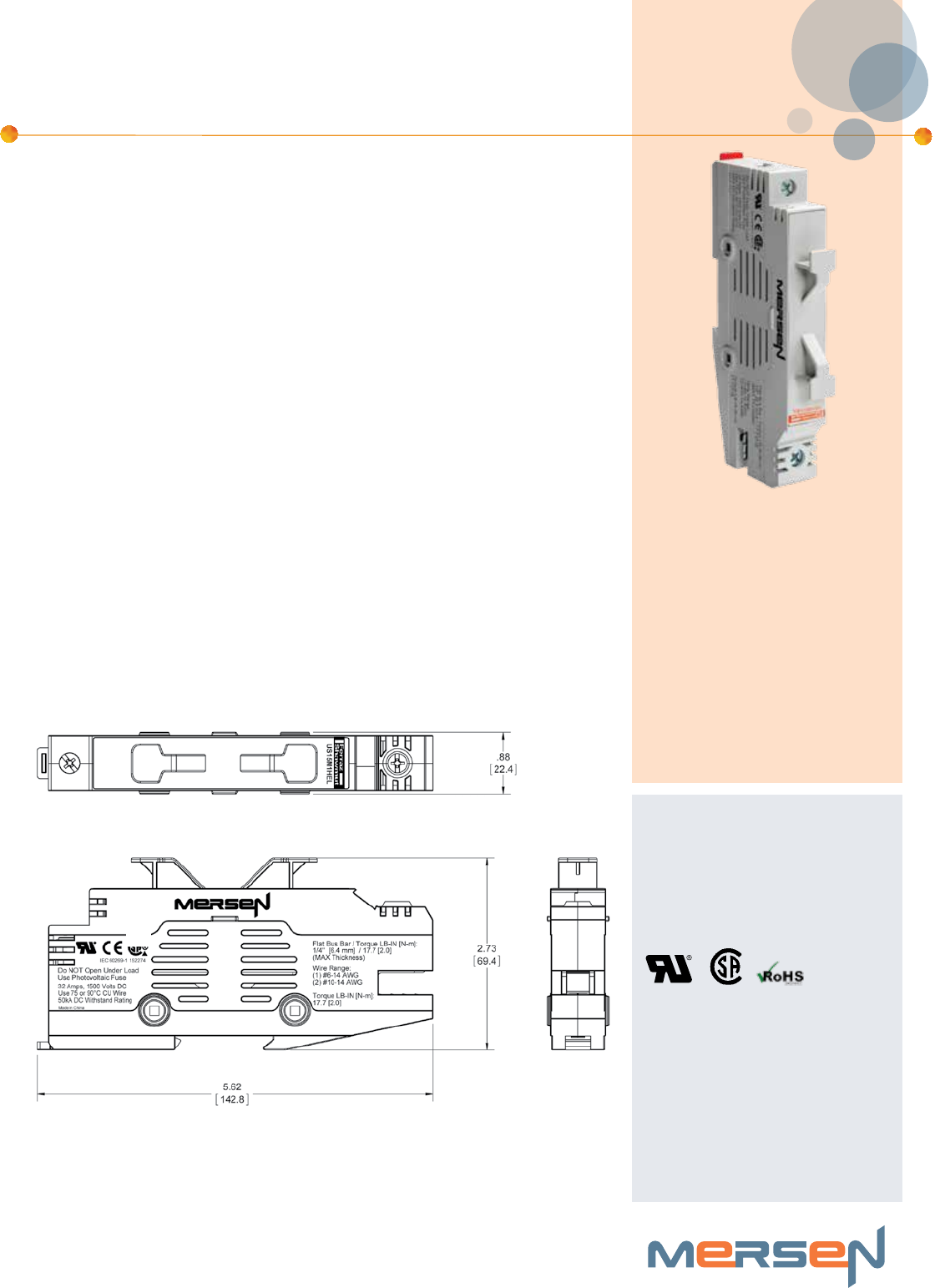

US15M1HEL UltraSafeTM Fuse Holders for PV Applications
Touch-safe design increases user safety
Mersen UltraSafe modular fuse holders introduce the next level of safety for
Photovolatic applications for 10x85mm fuses. UltraSafe fuse holders are nger safe
up to an IP20 grade of protection, and the 10x85mm features a pull out, pivoting fuse
carrier.
The US15M1HEL is designed with terminals to accept standard stock busbar
eliminating the need for custom combed bus bar, saving cost, time and simplifying
installation. The body features industry leading UL94V0 material, providing superior
ammability rating with exceptional durability.
Ratings:
Volts : 1500VDC Maximum
Amps : 32A Maximum
SCCR : 50kA
Approvals:
•UL Recognized Component,
evaluated to UL 4248-18
Features/Benefits:
•Bus bar termination clamp
•UL94V0 Material Flammability Rating
•Wire terminal for use with 90°C wire
•Wire range: 6-14 stranded, 10-14 solid.
Copper wire only.
•IP20 Finger Safe
•Din Rail Mounting
•Recommended fuse usage: HP15M
Dimensions:
Applications:
•All photovoltaic applications
•Combiner box applications
H17
H

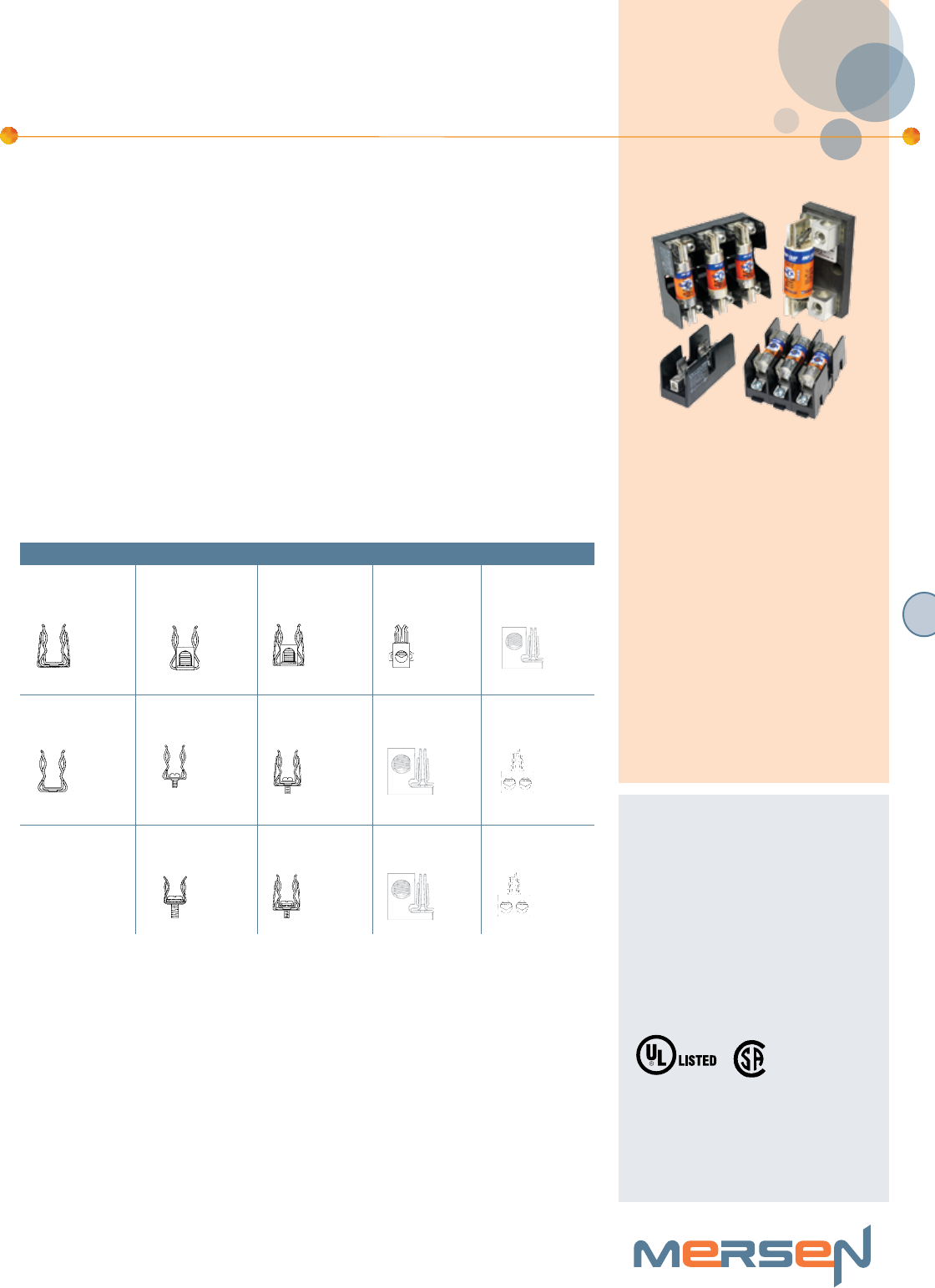

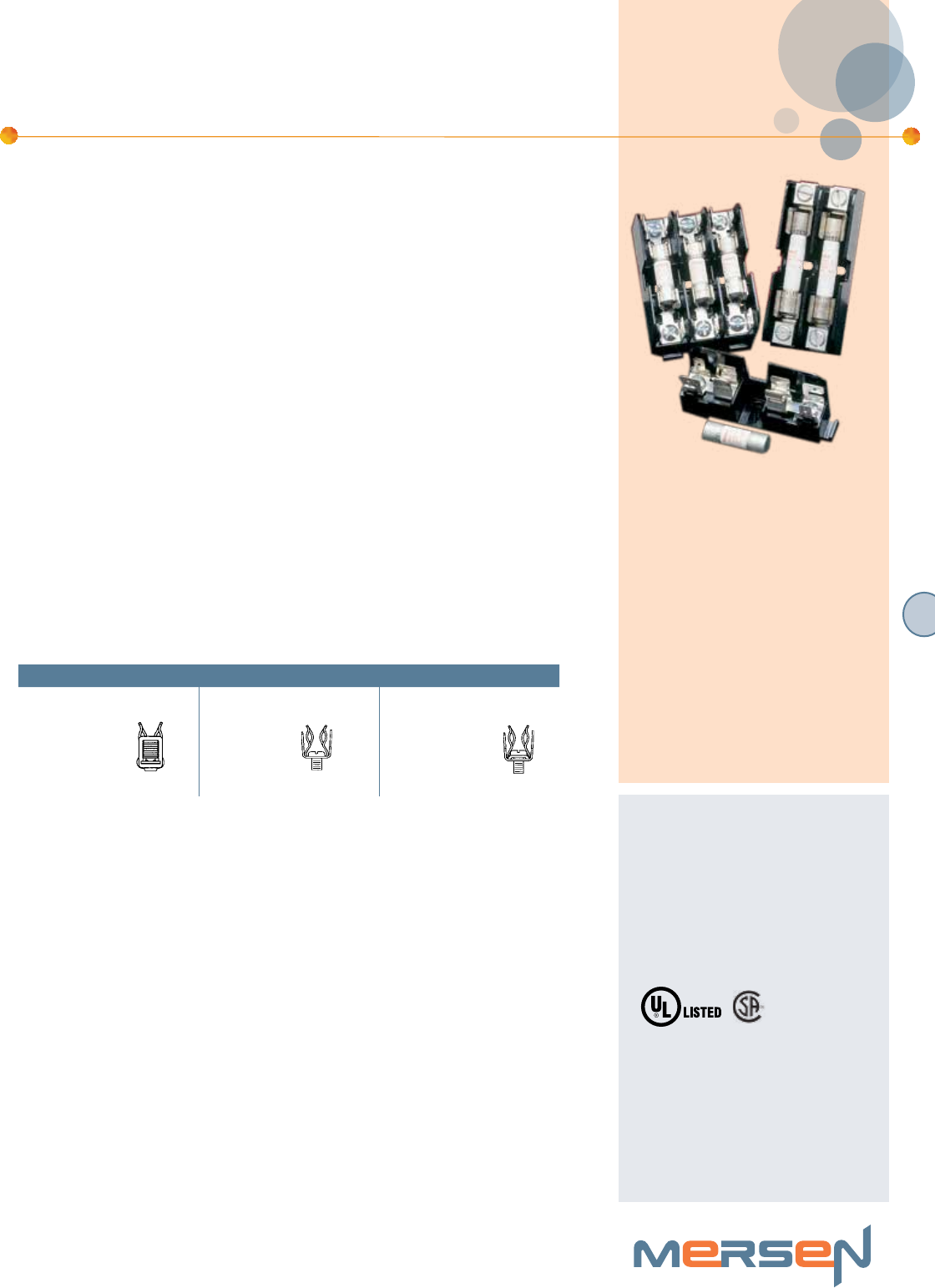

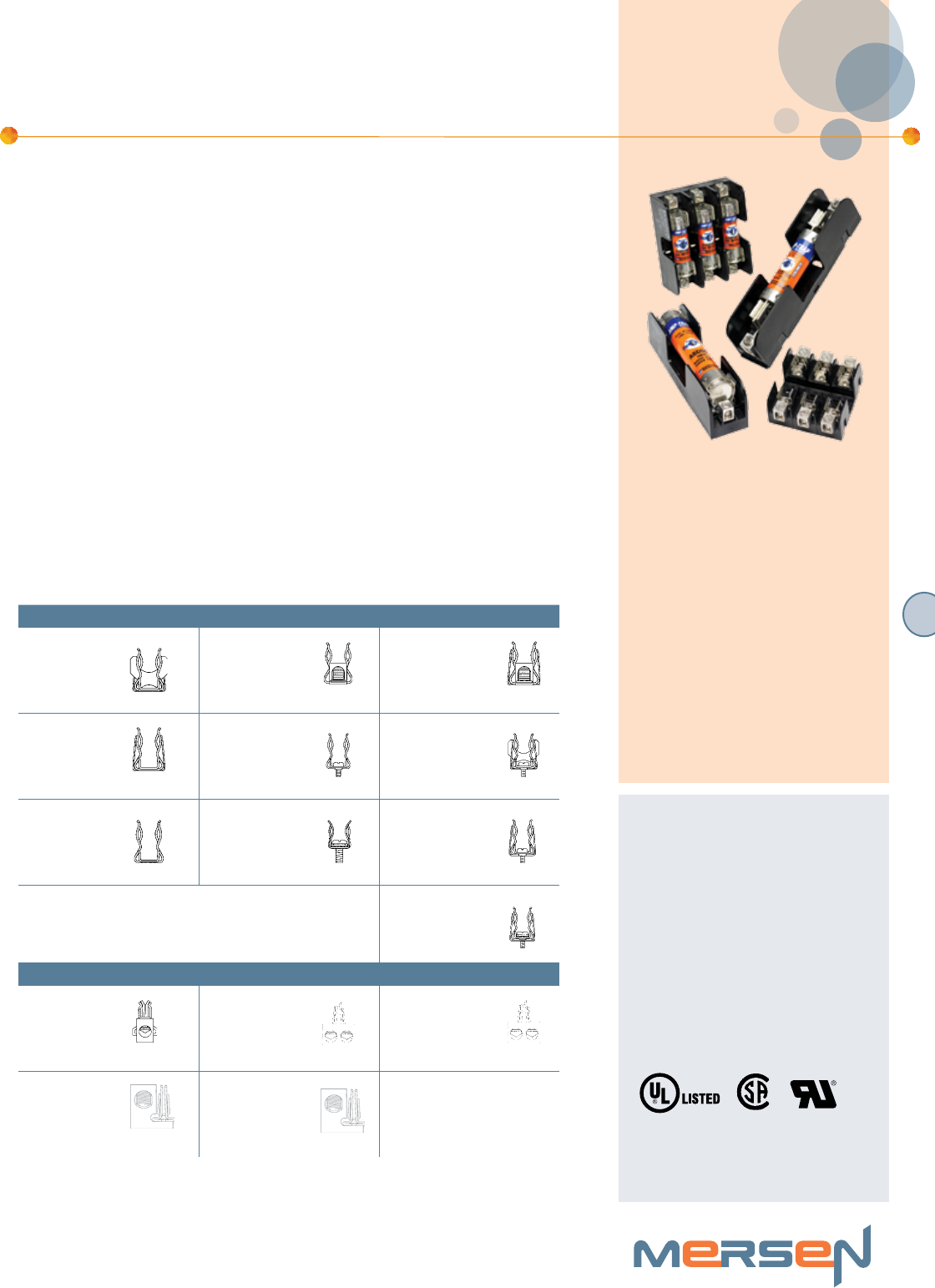

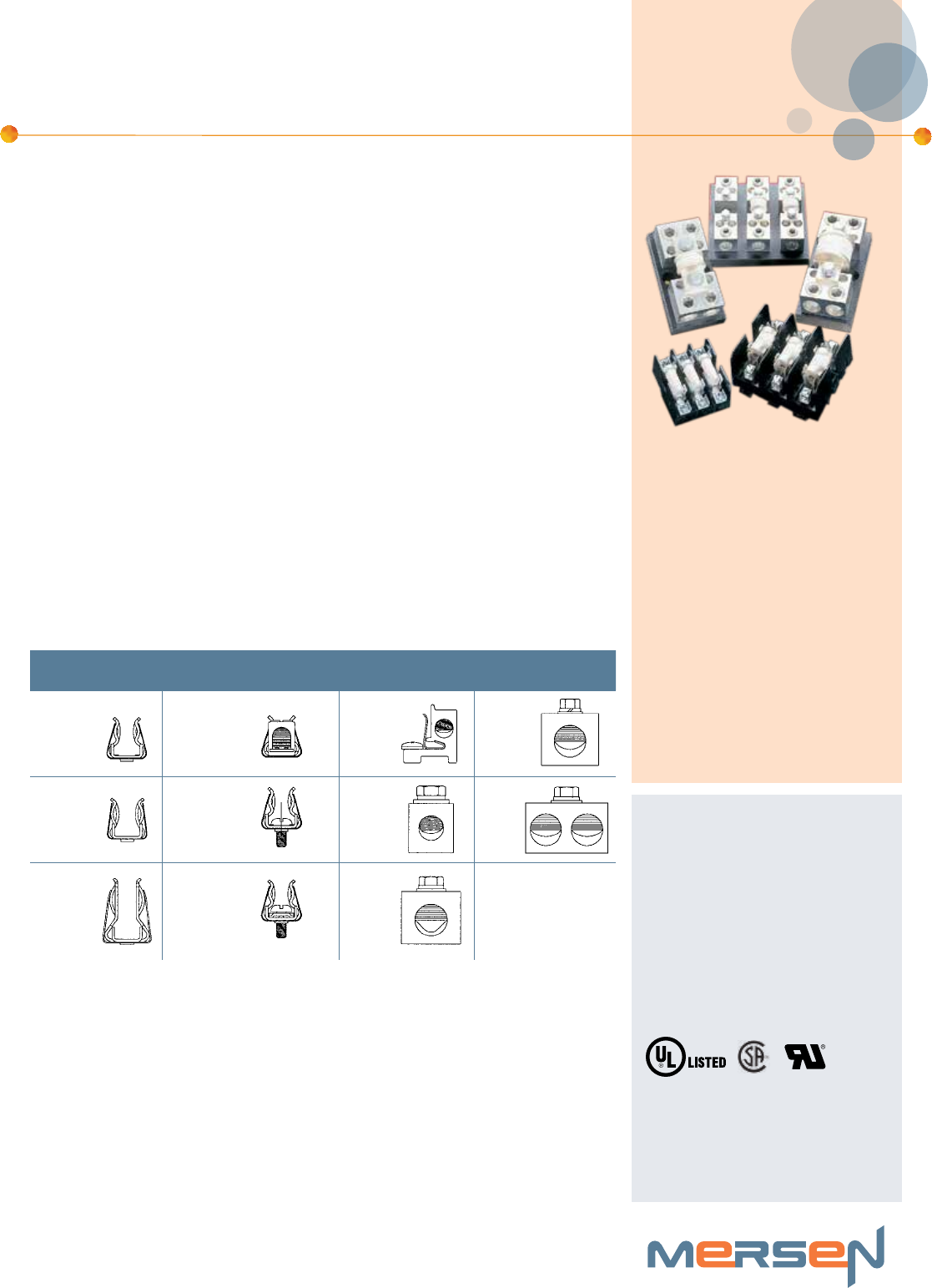

CLASS J 600 Volt Fuse Blocks
Mersen Class J fuse blocks accommodate all Class J fuses.
A choice of screw, pressure plate, box and special order stud connectors t a wide
range of stranded or solid copper or aluminum conductors. Insulators are either
molded glass-lled polycarbonate (GFPC) or phenolic with veried dielectric strength
in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique
adder block conguration which can be snapped onto 1-, 2-, or 3-pole blocks to form
multi-pole segmented blocks of as many poles as desired. All fuse clips are made
of high conductivity tin-plated copper, with a choice of spring-reinforced or non-
spring reinforced clips. Space saving options are now available in the 30A and 100A
congurations which are noted in the product selection tables.
Ratings:
Volts : 600VAC / DC
Amps : 30A, 60A, 100A,
: 200A, 400A, 600A
SCCR: : 200kA
Approvals:
•All class J fuse blocks meet
the requirements of UL4248
(formerly UL512)
•UL listed Guide IZLT, File
E52283
•CSA certied class 6225,
File 32169
Clip & Connector Types:
30A & 60A Clips Connectors Connectors Connectors Connectors
Spring Reinforced Non-spring Reinforced
30A & 60A Box
Spring Reinforced
30A & 60A Box
Spring Reinforced
100A Box
Spring Reinforced
400A Box Side Clip
Non-spring Reinforced Non-spring Reinforced
30A Screw
Spring Reinforced 30A
Screw
Spring Reinforced
100A Box Side Clip
Spring Reinforced
400A Box In-line Clip
Non-spring Reinforced
30A Pressure Plate
Spring Reinforced 30A
Pressure Plate
Spring Reinforced
200A Box Side Clip
Spring Reinforced
600A Box In-line Clip
Recommended Fuse Usage:
•Class J Blocks (600V) use with AJT, A4J, HSJ
H18

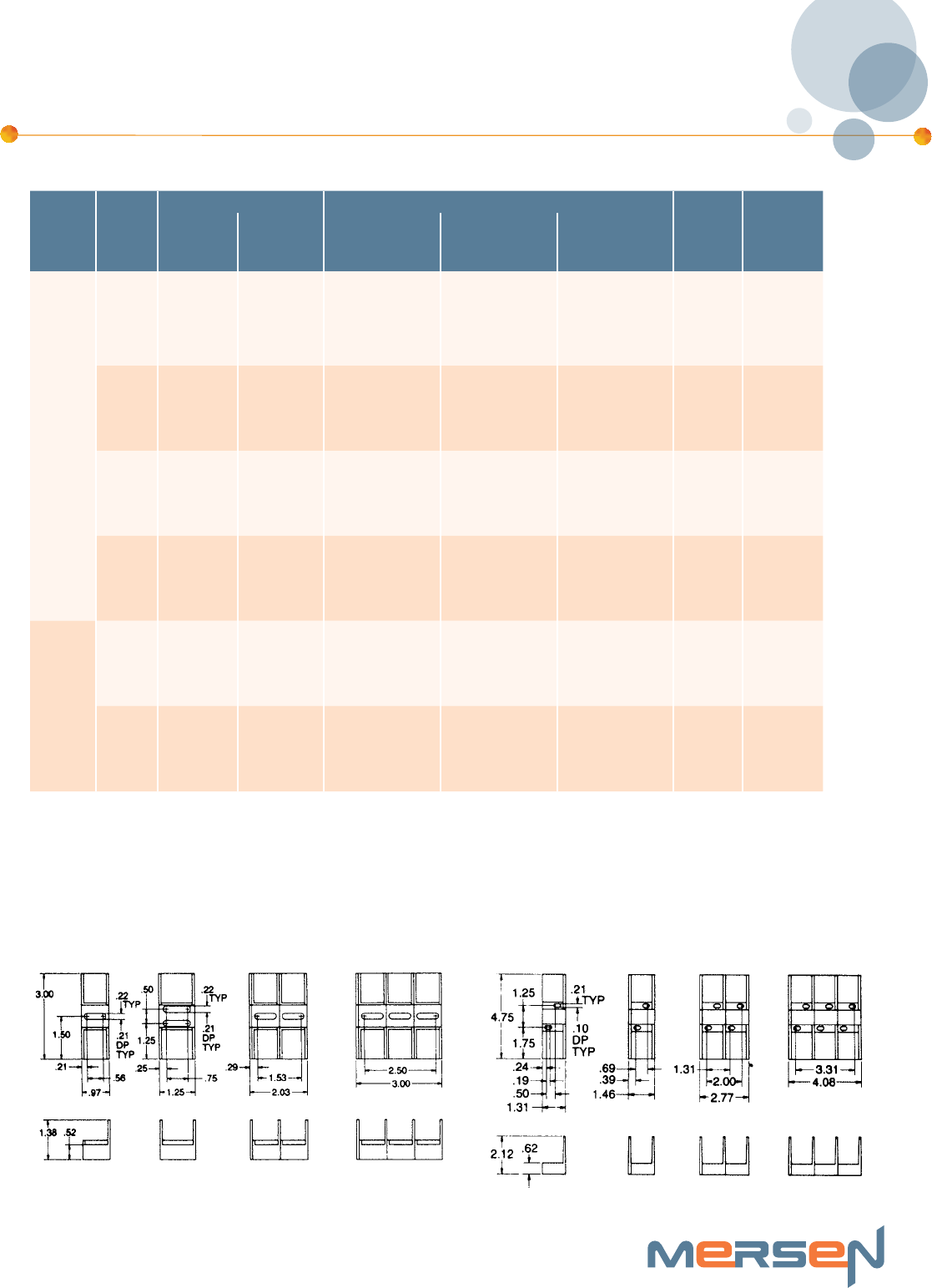

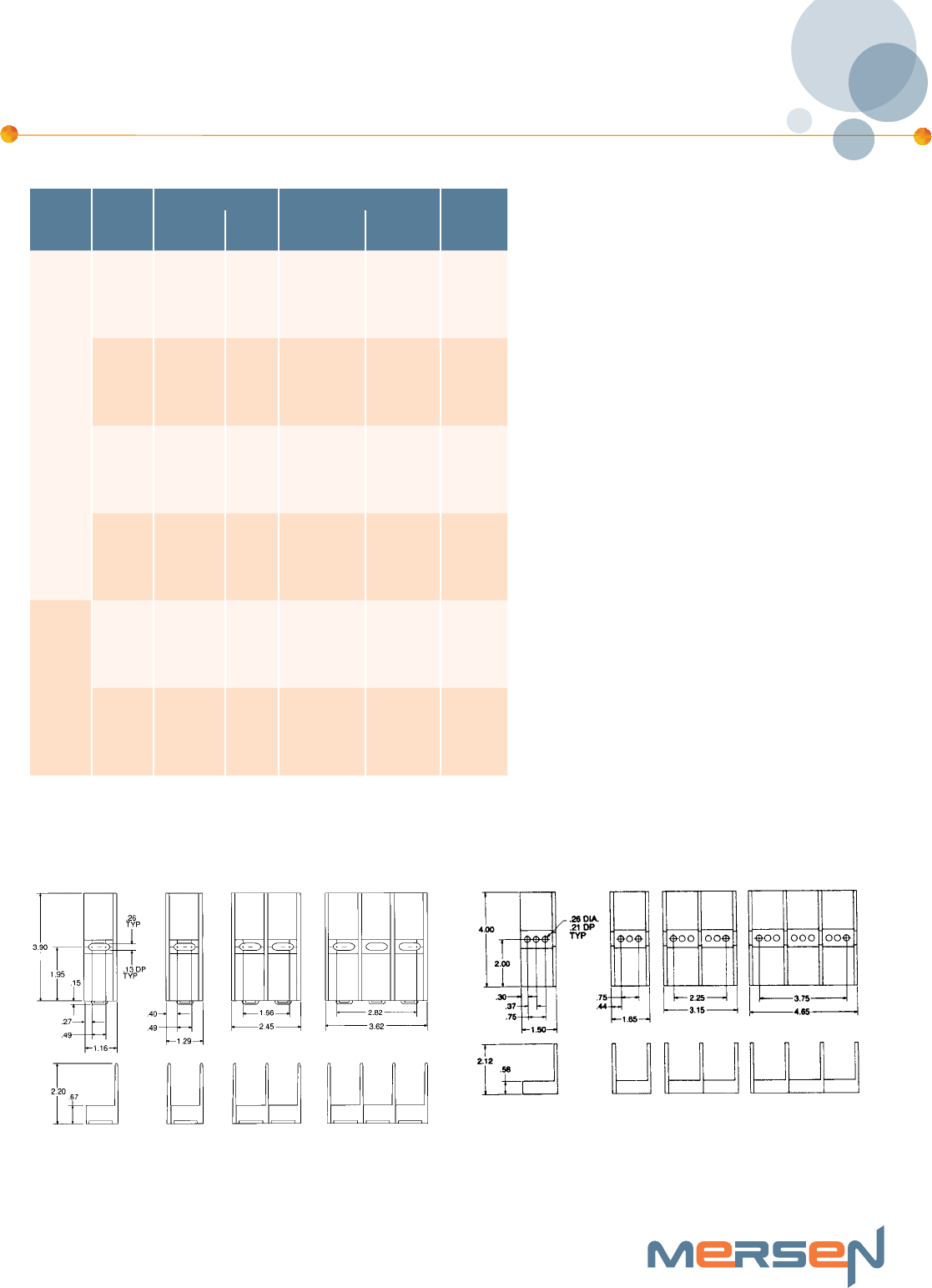

600 Volt, 30 & 60 Ampere Class J Fuse Blocks
Note: To convert 30A “SJ” adder pole to single pole use
end barrier cat # U09372. To convert 30A or 60A standard J
adder pole to single use pole use end barrier cat # U09617.
Recommended mounting screws for all 30A and 60A fuse
blocks: 1/4” (0.250” dia).
*Fuses have copper box connectors and clips and are for
copper wires only. These are specifically designed with the
same coefficient of expansion as copper wire for improved heat
cycling and meet or exceed OEM “no aluminum” specifications.
Adder 1-Pole

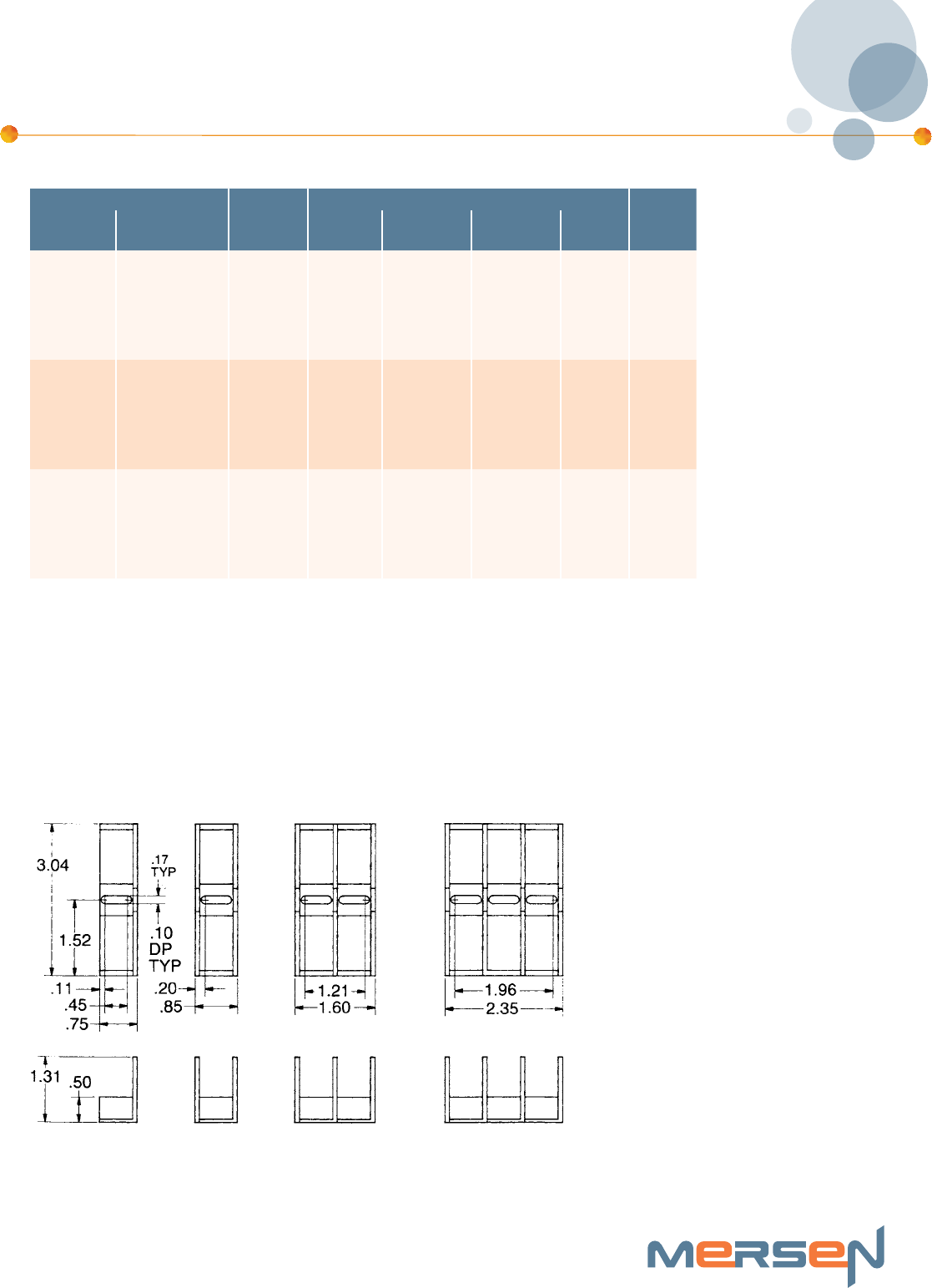

Dimensions for 30A Space Saving
“SJ” Style Fuse Blocks
Dimensions for 30A and 60A Standard
Class J Style Fuse Blocks
2-Pole 3-Pole Adder 1-Pole 2-Pole 3-Pole
CLASS J 600 Volt Fuse Blocks
Ampere
Rating Poles
Connectors Catalog Number Connector
Torque
In - lb
Types Wire
Range
Non-Spring
Reinforced
Spring
Reinforced
30
GFPC
Insulator
ADDER
BOX Al/Cu
#2-14
60300J 60305SJ
35
1 60301J 60306SJ
2 60302J 60307SJ
3 60303J 60308SJ
ADDER
SCREW Cu*
#4-14
60310J 60315SJ
20
1 60311J 60316SJ
2 60312J 60317SJ
3 60313J 60318SJ
ADDER
PRESSURE
PLATE
Cu*
#4-14
60320J 60325SJ
20
1 60321J 60326SJ
2 60322J 60327SJ
3 60323J 60328SJ
ADDER
BOX Cu*
#4-14
- 60355SJ
35
1 - 60356SJ
2 - 60357SJ
3 - 60358SJ
60
GFPC
Insulator
ADDER
BOX Al/Cu
#2-14
60600J 60605J
45
1 60601J 60606J
2 60602J 60607J
3 60603J 60608J
ADDER
BOX Cu*
#4-14
- 60655J
45
1 - 60656J
2 - 60657J
3 - 60658J
For the most current product performance data visit ep.mersen.com and use catalog search.
H19
H
600 Volt, 100 Ampere Class J Fuse Blocks

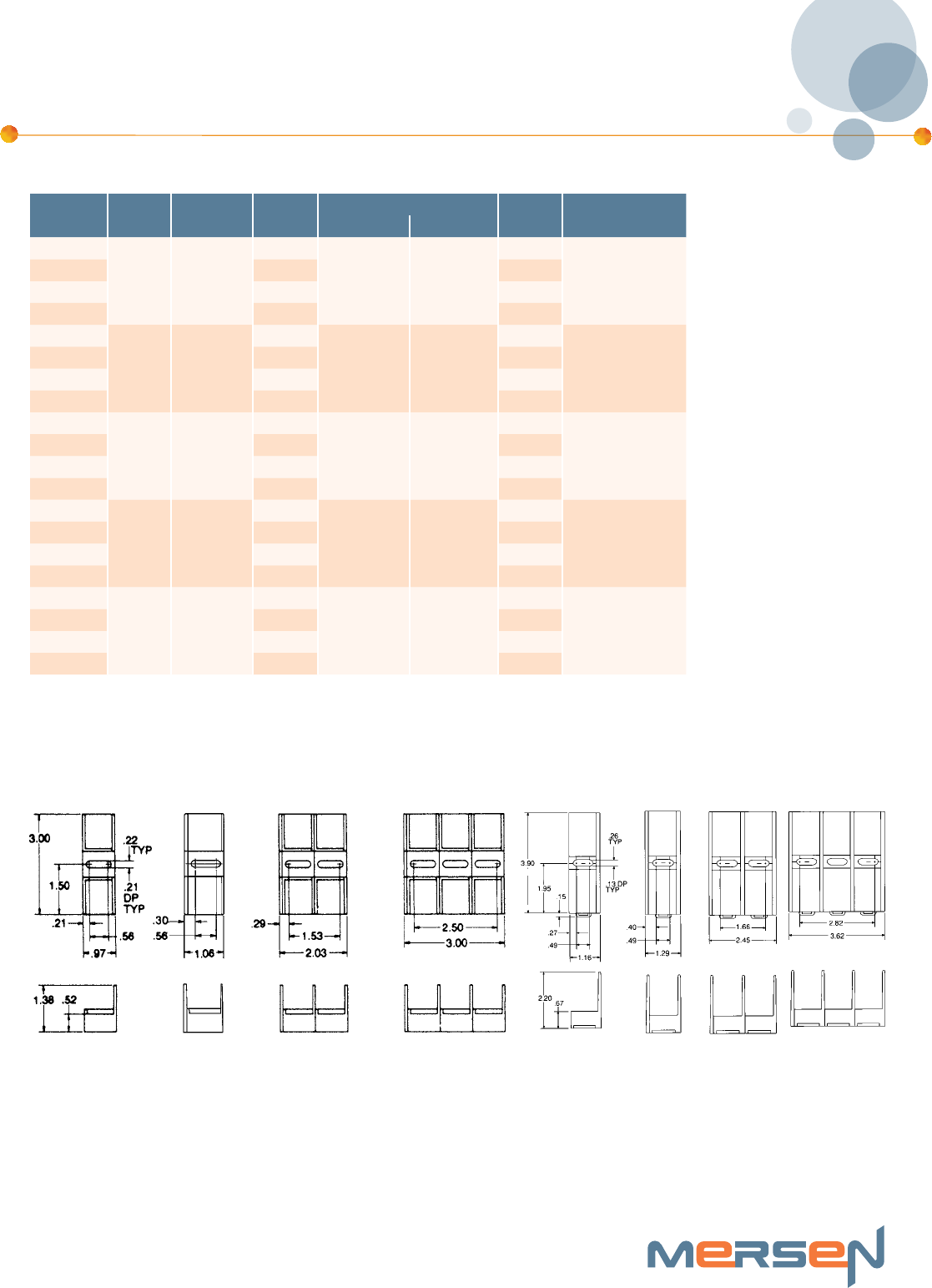

Dimensions for 100A Space Saving “SJ” Style Fuse Blocks
Adder 1-Pole 2-Pole 3-Pole
Dimensions for 100A Standard Class J Style Fuse Blocks
1-Pole 2-Pole 3-Pole
CLASS J 600 Volt Fuse Blocks
Ampere
Rating Poles
Connectors Catalog Number Connector
Torque In - lb
Type Wire Range Spring Reinforced
100
GFCP
Insulator
Adder
1
2
3
Box
Side Clip
Al/Cu
2/0-#6
61005SJ
61006SJ
61007SJ
61008SJ
100 (Al)
60 (Cu)
1
2
3
Box Al/Cu
2/0-#6
61036J
61037J
61038J
120
1
2
3
Box Cu*
2/0-#12
61006J
61007J
61008J
50
H20

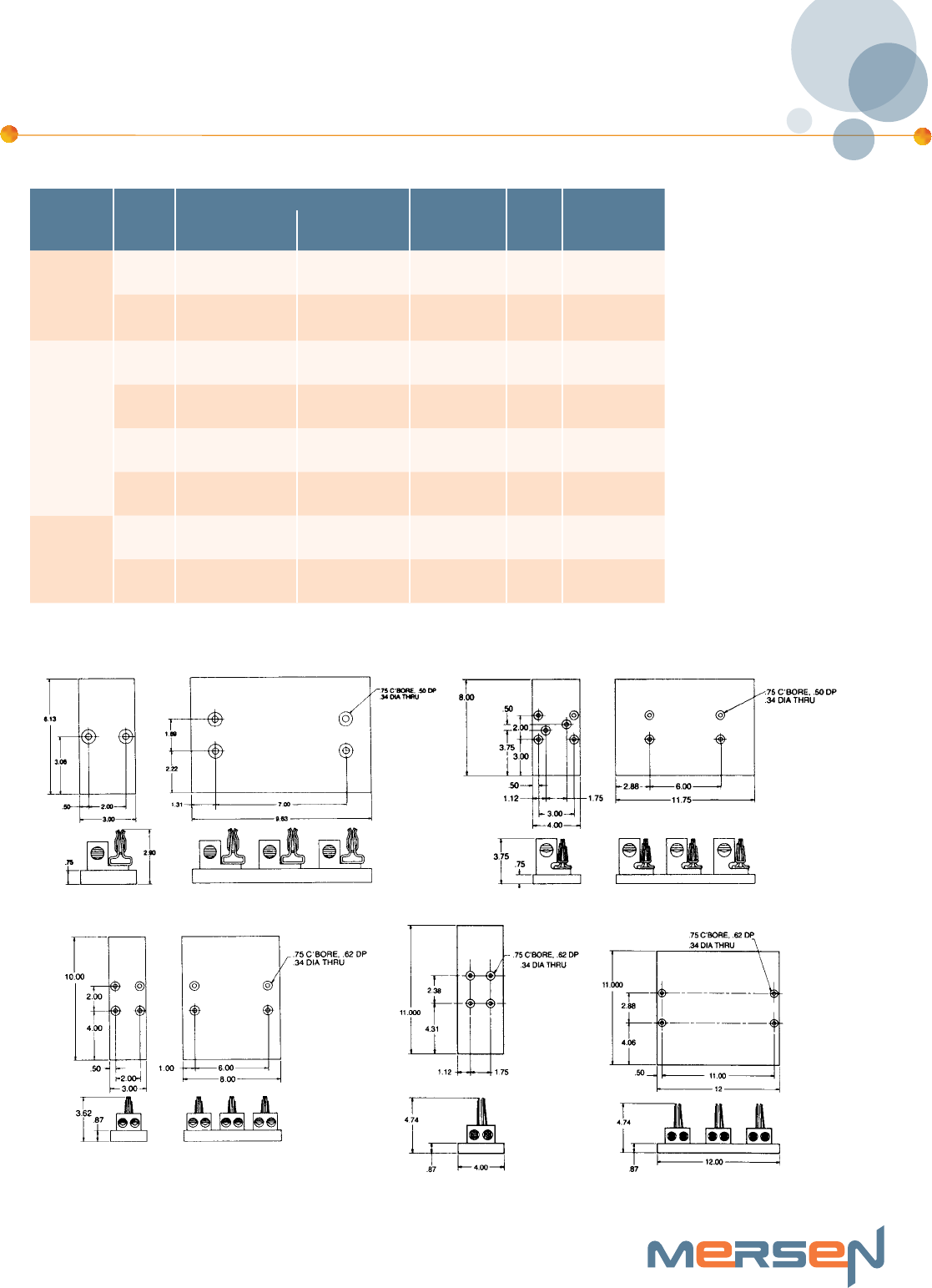

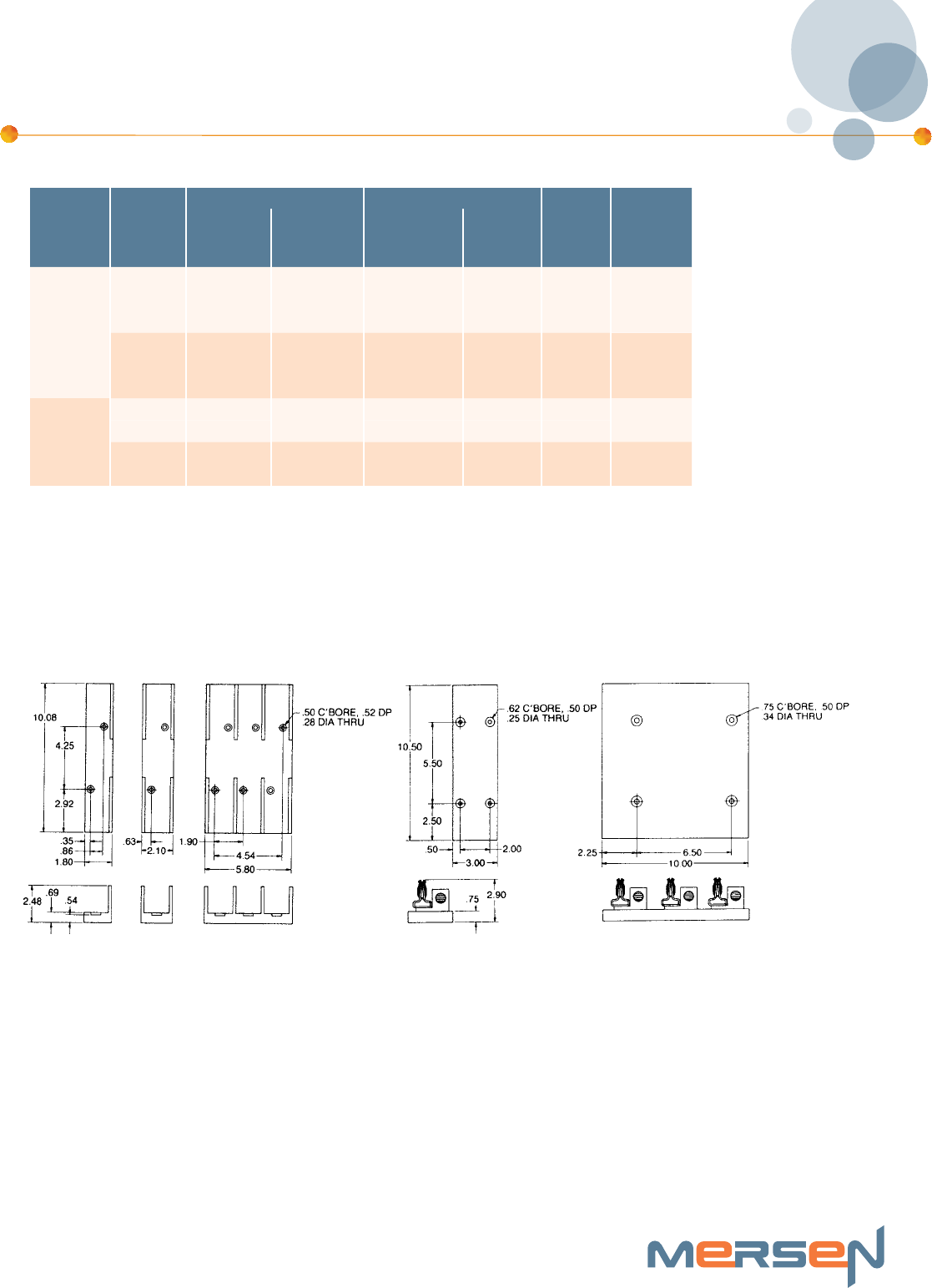

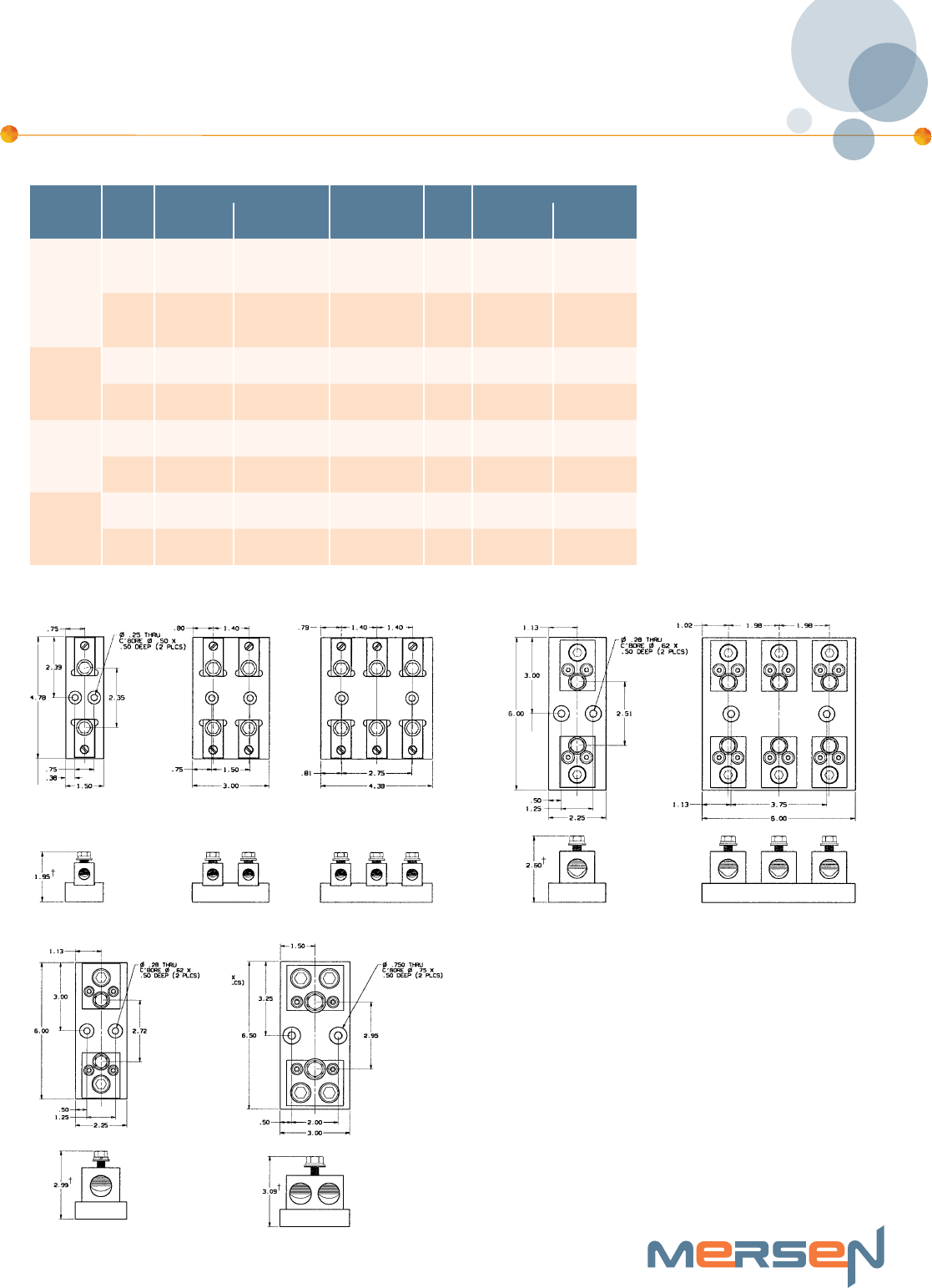

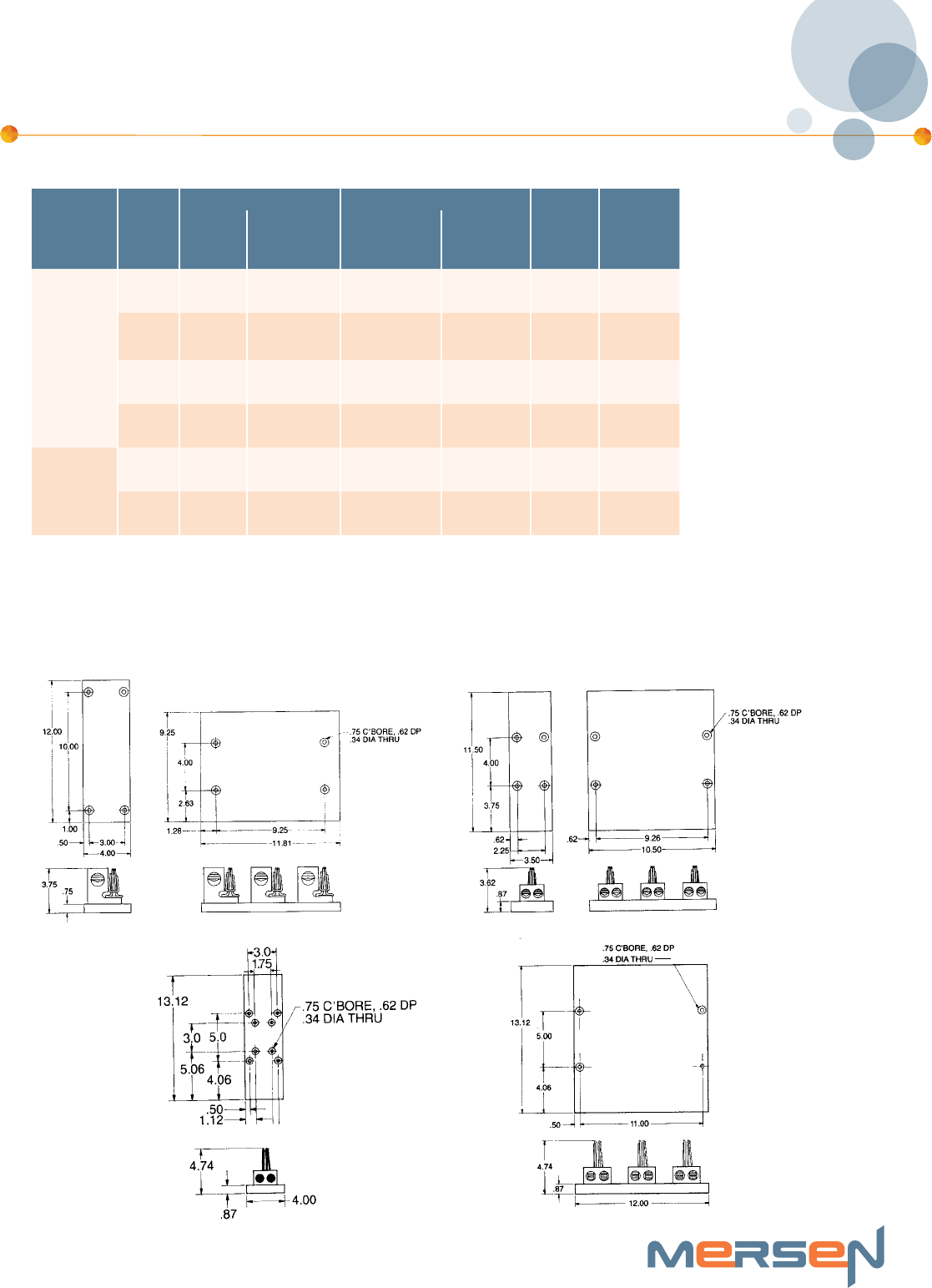

600 Volt, 200, 400 & 600 Ampere Class J Fuse Blocks
Dimensions
CLASS J 600 Volt Fuse Blocks
Ampere
Rating Poles
Connector Catalog No.
Fig. Connector
Torque In - lb
Type Wire Range Spring
Reinforced
200
Phenolic
Insulator
1 Box Al/Cu 62001J 1 375
3 Side-Clip 350kcmil-#6 62003J 2
1 Box Cu** 62051J 1 275
3 Side-Clip 350kcmil-#6 62053J 2
400
Phenolic
Insulator
1 Box* AL/Cu 64001J 3 375
3 Side-Clip 1000-250kcmil 64003J 4
1 Box AL/Cu 64031J 5 275
3In-Line Clip (2) 350kcmil-#4 64033J 6
1 Box* Cu** 64051J 3 375
3 Side-Clip 1000-250kcmil 64053J 4
1 Box Cu** 64061J 5 275
3In-Line Clip (2) 350kcmil-#6 64063J 6
600
Phenolic
Insulator
1 Box Al/Cu 6631J 7 500
3In-Line Clip (2) 500kcmil-#4 6633J 8
1 Box Cu** 6661J 7 375
3In-Line Clip (2) 500kcmil-#4 6663J 8
Figure 1 Figure 2
Figure 5 Figure 6
Figure 3 Figure 4
Figure 7 Figure 8
* Not UL Listed or CSA
Certified
** Fuse blocks have copper
box connectors and clips
and are for copper wires
only. These are specifically
designed with the same coef-
ficient of expansion as copper
wire for improved heat cycling
and meet or exceed OEM “no
aluminum” specifications.
Recommended mounting
screws:
All 200A, 400A & 600A -
5/16” (.313” dia.)
H21
H

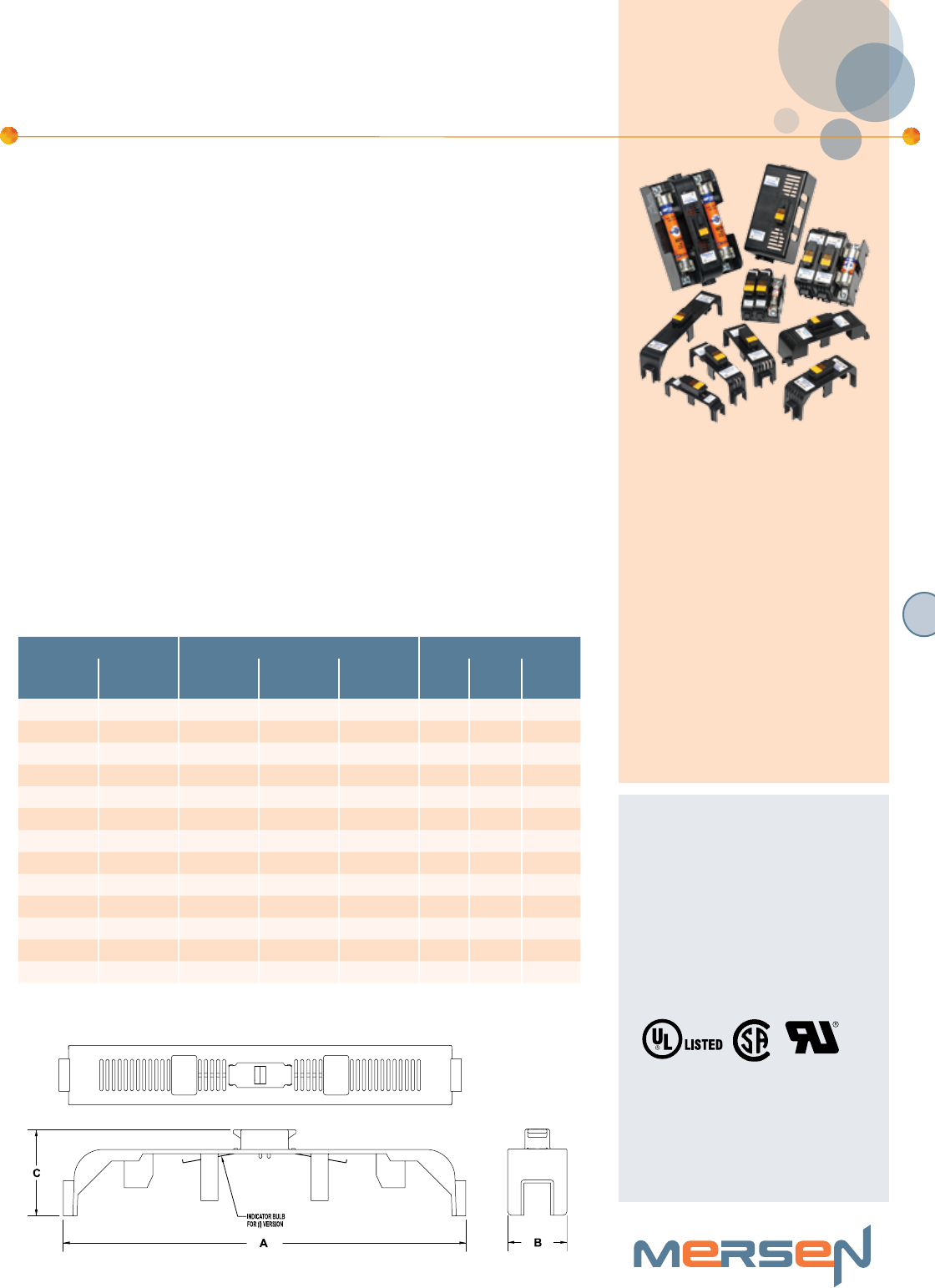

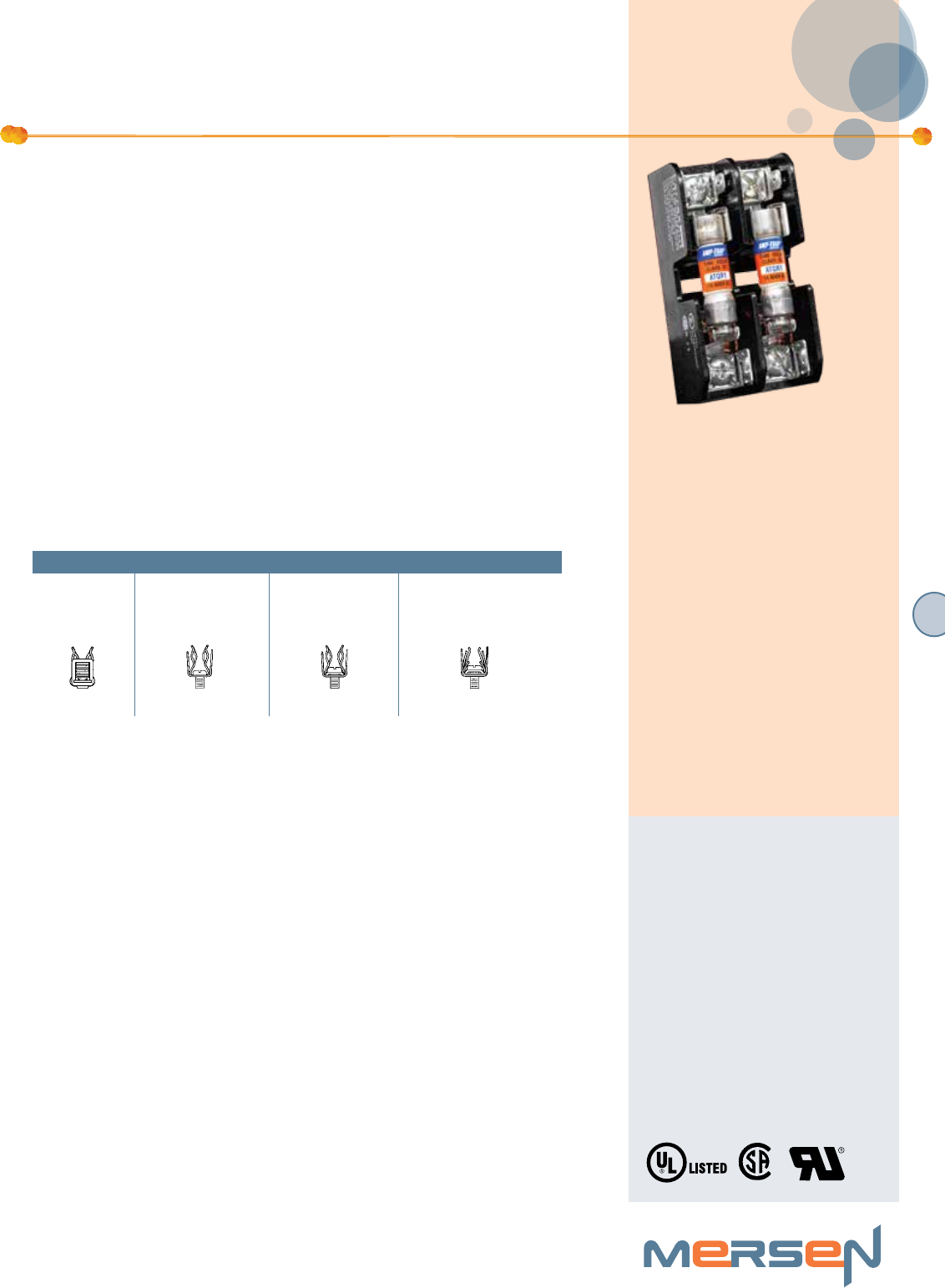

600 Volt midget and Class CC fuse blocks
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses.
Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box,
screw, or pressure-plate connectors t a wide range of stranded or solid copper wire.
Insulators are glass-lled polycarbonate (GFPC) with veried dielectric strength in
excess of 2500V. Fuse blocks feature a unique adder block which can be snapped
onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as
desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Ratings:
Midget Block
Volts : 600VAC / DC
Amps : 30A Maximum
SCCR : 100kA (depending on
fuse I.R.)
: 10kA (when using quick
connect terminal)
Class CC Block
Volts : 600VAC / DC
Amps : 30A Maximum
SCCR : 200kA
: 10kA (when using quick
connect terminal)
Temperature/ammability GFPC
insulators rated 1250C, 94V-0
ammability.
MIDGET & CLASS CC
600 Volt Fuse Blocks
Approvals:
All fuse blocks meet the
requirements of UL 4248
Midget Block
•UL recognized component
guide IZLT2, File E52283
•CSA certied class 6225,
File 32169
Class CC Block
•UL listed, guide IZLT, File
E52283
•CSA certied class 6225,
File 32169
30A MIDGET/CC
COPPER BOX
CONNECTOR
SCREW WITH DOUBLE
QUICK-CONNECTS
PRESSURE PLATE
WITH DOUBLE QUICK-
CONNECTS
PRESSURE PLATE WITH
DOUBLE QUICK- CONNECTS
(CLASS CC REJECTION END)
Clip & Connector Types
Recommended Fuse Usage:
Midget Fuse Block use with ATQ, ATM, A6Y-2B, A25Z-2,
TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT
Class CC Fuse Block use with ATDR, ATMR, ATQR
H22

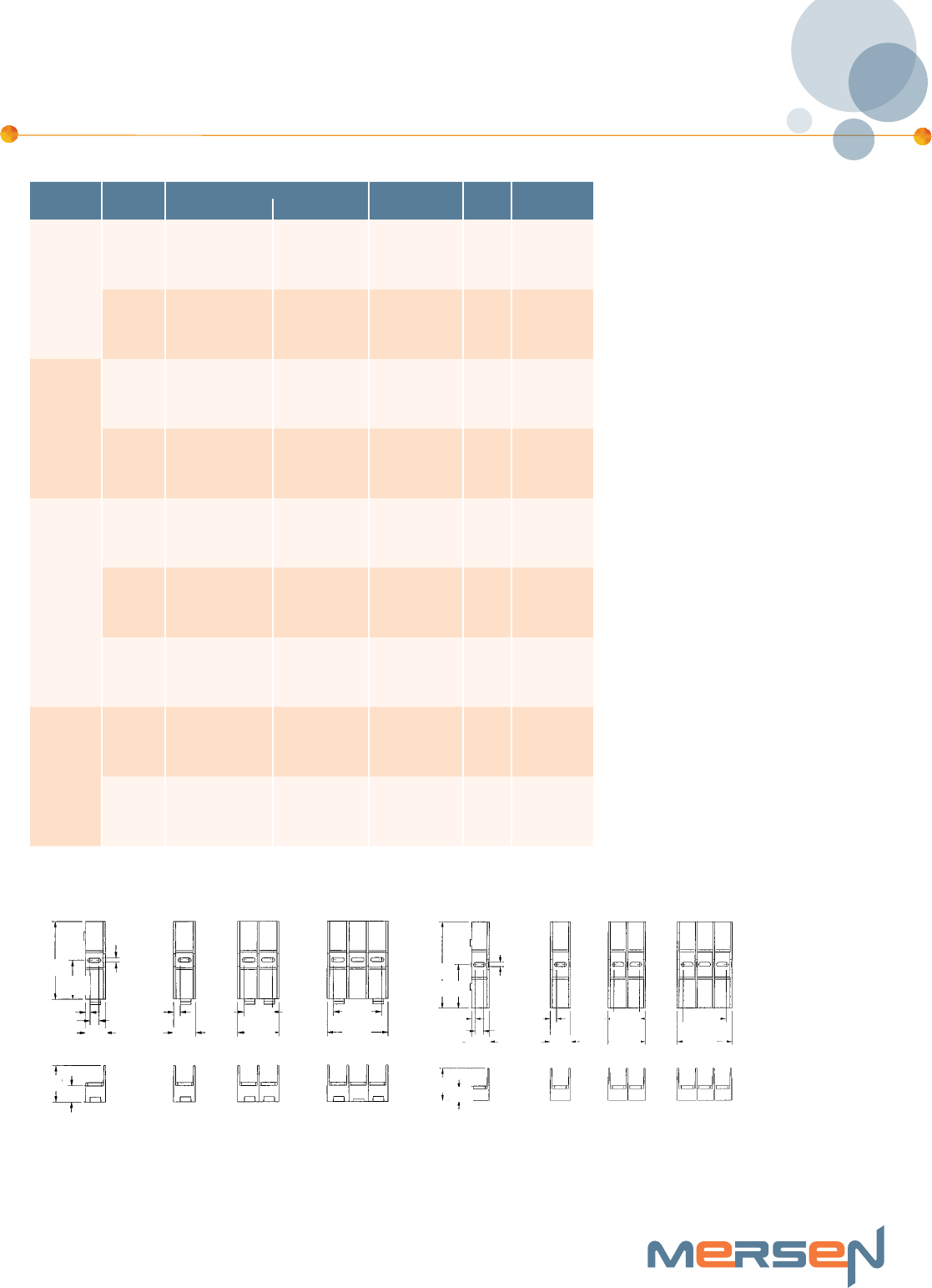

600 Volt, 30A Midget and Class CC Fuse Blocks
Note: To convert Midget or Class CC adder pole to single pole, use end barrier #U09301.
* Available in any number of poles. Replace last digit in Catalog Number with number of poles needed.
Example: 303112 is a 12-pole screw/double QC connector Midget Fuse Block. Total width of N poles = (N x .76) + .08
inches. 12 poles = (12 x .76”) + .08” = 9.20”.
Recommended mounting screws for all Midget and Class CC fuse blocks: #8 (.164” dia.)
Adder 1 Pole 2 Pole 3 Pole
Dimensions
MIDGET & CLASS CC
600 Volt Fuse Blocks
Connector Catalog No. Torque
In - Ib
Type Wire Range Poles* Midget Listing Class CC Listing
Screw w/
double quick
connects at
both ends
Cu
#10-14
ADDER 30310
UL Rec.
&
CSA
30310R
1 30311 30311R UL
2 30312 30312R & 20
3 30313 30313R CSA
4 30314 30314R
Pressure plate
(sems) w/
double quick
connects at
both ends
Cu
#10-14
ADDER 30320
UL Rec.
&
CSA
30320R
1 30321 30321R UL
2 30322 30322R & 20
3 30323 30323R CSA
4 30324 30324R
Copper box Cu
#6-14
ADDER 30350
UL Rec.
&
CSA
30350R
1 30351 30351R UL
2 30352 30352R & 35
3 30353 30353R CSA
4 30354 30354R
H23
H
CLASS H, K & R
250 & 600 Volt Fuse Blocks
250 & 600V Class H, K & R Fuse Blocks
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250
and 600V power fuses. A choice of screw, pressure plate, box and special order
stud connectors t a wide range of stranded or solid copper or aluminum wire.
Insulators are either molded glass-lled polycarbonate (GFPC) or phenolic with
veried dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature
a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form
multi-pole segmented blocks of as many poles as desired. All fuse clips are made of
high conductivity tin-plated copper, with a choice of spring reinforced or non-spring
reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Ratings:
Volts : 250VAC / DC
: 600VAC /DC
Amps : 30A, 60A, 100A, 200A,
400A, 600A
SCCR: : 10kA with class H fuses
: 50kA with class K fuses
: 200kA with class R fuses
Approvals:
•All fuse blocks meet the
requirements of UL 4248
•UL listed, guide IZLT,
File E52283
•UL recognized component
guide IZLT2, le E52283
•CSA certied class 6225,
File 32169
Recommended Fuse Usage:
Class R Blocks (250V) use with A2D-R, A2K-R, TR-R
Class R Blocks (600V) use with A6D-R, A6K-R, TRS-R
Class H & K Blocks (250V) use with OT, RF, A2Y types 1 & 3 OTN, CRN, NRN
Class H & K Blocks (600V) use with OTS, RFS, A6Y types 1 & 3 CRS, NRS
30A & 60A Clips Connectors Connectors
Spring Reinforced
Class R
Non-Spring Reinforced
30A & 60A Box
Spring Reinforced
30A & 60A Box
Class H & K Non-Spring
30A Screw
Spring
30A Screw (R)
Non-Spring
Reinforced
Non-Spring
30A Pressure Plate
Spring
30A Screw
Spring Reinforced
30A Pressure Plate
Connectors
Spring
Reinforced
100A Box
Spring Reinforced
400A Box
In-Line Clip
Spring
200A Box
Side Clip
Spring 400A Box
Side Clip
Clip & Connector Types
H24
CLASS H, K & R 250 & 600 Volt Fuse Blocks
Dimensions
250 Volt, 30 & 60 Ampere Class H, K and R Fuse Blocks
Note: To convert 30A adder pole to single pole, use end barrier #U09322. To convert 60A adder pole to single pole, use end barrier #U09365.
* 1-pole, 30A block does not accept adder pole.
** Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of expan-
sion as copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws for all 30A and 60A fuse blocks: #10 (.190” dia.)
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range Class H & K Non-
Spring Reinforced
Class H K
Spring einforced
Class R
Spring Reinforced
30 GFPC
Insulator
ADDER
BOX Al/Cu
#2-14
20300 20305 20305R 1
1 20301* 20306* 20306R* 2 35
2 20302 20307 20307R 3
3 20303 20308 20308R 4
ADDER
SCREW Cu
#10-14
20310 20315 20315R 1
1 20311* 20316* 20316R* 2 20
2 20312 20317 20317R 3
3 20313 20318 20318R 4
ADDER
PRESSURE
PLATE
Cu
#10-14
20320 20325 20325R 1
1 20321* 20326* 20326R* 2 20
2 20322 20327 20327R 3
3 20323 20328 20328R 4
ADDER
BOX Cu**
#4-14
- 20355 20355R 1
1 - 20356* 20356R* 2 35
2 - 20357 20357R 3
3 - 20358 20358R 4
60 GFPC
Insulator
ADDER
BOX Al/Cu
#2-14
20600 20605 20605R 5
1 20601 20606 20606R 6 45
2 20602 20607 20607R 7
3 20603 20608 20608R 8
ADDER
BOX Cu**
#4-14
- 20655 20655R 5
1 - 20656 20656R 6 45
2 - 20657 20657R 7
3 - 20658 20658R 8
For the most current product performance data visit ep.mersen.com and use catalog search.
H25
H
CLASS H, K & R 250 & 600 Volt Fuse Blocks
250 Volt, 100 & 200 Ampere Class H, K and R Fuse Blocks
Note: To convert 100A adder pole to single pole, use end barrier #U09363.
*Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of expansion as
copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws:
All 100A-1/4” (.250” dia.)
200A, 1-pole - #10 (.190” dia.)
200A, 3-pole - 5/16” (.313” dia.)
Figure 1 Figure 2 Figure 3 Figure 4
Figure 6Figure 5
Dimensions
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range Class H & K
Spring Reinforced
Class R Spring
Reinforced
100
GFPC
Insulator
ADDER
Box
Al/Cu
2/0-#6
21035 21035R 1
120
121036 21036R 2
221037 21037R 3
321038 21038R 4
ADDER
Box
Cu*
2/0-#12
21005 21005R 1
50
121006 21006R 2
221007 21007R 3
321008 21008R 4
200
Phenolic
Insulator
1Box Side-
Clip
AL/Cu
350kcmil-#6
22001 22001R 5
375
322003 22003R 6
1Box Side-
Clip
Cu*
350kcmil-#6
22051 22051R 5
275
322053 22053R 6
H26

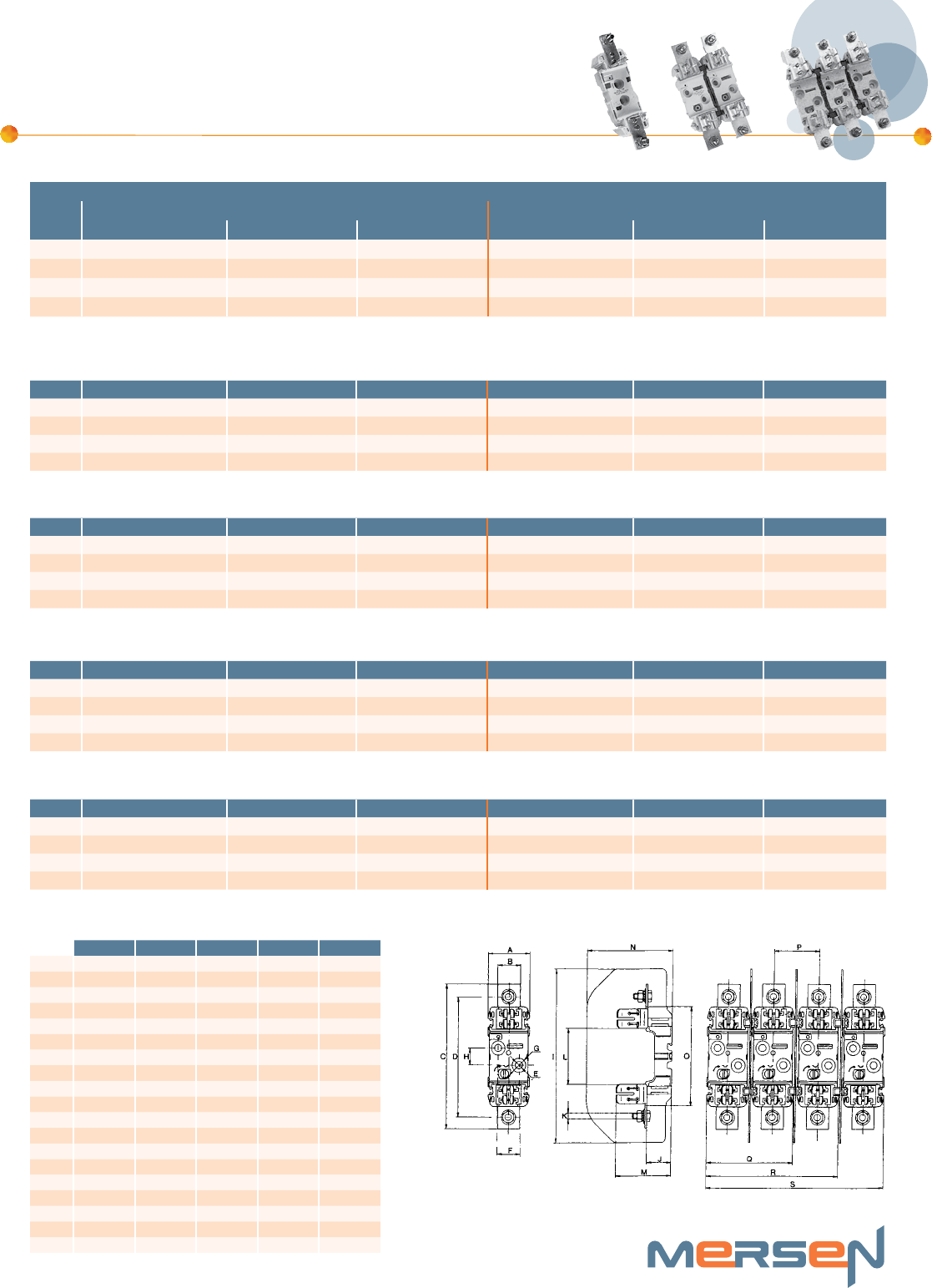

250 Volt, 400 & 600 Ampere Class H, K and R Fuse Blocks
*Not UL Listed or CSA Certified
**Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the
same coefficient of expansion as copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws for all 400A and 600A fuse blocks: 5/16 (.313” dia.)
Dimensions
CLASS H, K & R 250 & 600 Volt Fuse Blocks
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range
Class H & K
Spring Rein-
forced
Class R
Spring
Reinforced
400
Phenolic
Insulator
1Box*
Side-Clip
Al/Cu
1000-250kcmil
24001 24001R 1 375
324003 24003R 2
1Box*
Side-Clip
Cu**
1000-250kcmil
24051 24051R 1
375
324053 24053R 2
1Box
In-Line Clip
Al/Cu
(2) 350kcmil-#4
24031 24031R 3 275
324033 24033R 4
1Box
In-Line Clip
Al/Cu
(2) 350kcmil-#6
24061 24061R 3 275
324033 24033R 4
600
Phenolic
Insulator
1Box
In-Line Clip
Al/Cu
(2) 500kcmil-#4
2631 2631R 5 500
32633 2633R 6
1Box
In-Line Clip
Cu**
(2) 500kcmil-#4
2661 2661R 5 375
32663 2663R 6
Figure 1 Figure 2 Figure 3
Figure 6
Figure 4
Figure 5
For the most current product performance data visit ep.mersen.com and use catalog search.
H27
H
600 Volt, 30 & 60 Ampere Class H, K and R Fuse Blocks
Note: To convert 30A or 60A adder pole to single pole, use end barrier #U09361.
* Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of expansion
as copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws for all 30A and 60A fuse blocks: 1/4” (.250” dia.)
Figure 1 Figure 2 Figure 3 Figure 4
Dimensions
CLASS H, K & R 250 & 600 Volt Fuse Blocks
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range Class H & K Non-
Spring Reinforced
Class H & K
Spring Reinforced
Class R
Spring Reinforced
30
GFPC
Insulator
ADDER 60300 60305 60305R 1
1 Box Al/Cu 60301 60306 60306R 2 35
2 #2-14 60302 60307 60307R 3
3 60303 60308 60308R 4
ADDER 60310 60315 60315R 1
1 Screw Cu 60311 60316 60316R 2 20
2 #10-14 60312 60317 60317R 3
3 60313 60318 60318R 4
ADDER 60320 60325 60325R 1
1 Pressure Cu 60321 60326 60326R 2 20
2 Plate #10-14 60322 60327 60327R 3
3 60323 60328 60328R 4
ADDER - 60355 60355R 1
1 Box Cu* - 60356 60356R 2 35
2 #4-14 - 60357 60357R 3
3 - 60358 60358R 4
60
GFPC
Insulator
ADDER 60600 60605 60605R 1
1 Box Al/Cu 60601 60606 60606R 2 45
2 #2-14 60602 60607 60607R 3
3 60603 60608 60608R 4
ADDER - 60655 60655R 1
1 Box Cu* - 60656 60656R 2 45
2 #4-14 - 60657 60657R 3
3 - 60658 60658R 4
H28
600 Volt, 100 & 200 Ampere Class H, K and R Fuse Blocks
* Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of expansion
as copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws:
All 100A-1/4” (.250” dia.)
200A, 1-pole - #10 (.190” dia.)
200A, 3-pole - 5/16” (.313” dia.)
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
Dimensions
CLASS H, K & R 250 & 600 Volt Fuse Blocks
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range
Class H & K
Spring Rein-
forced
Class R
Spring
Reinforced
100
Insulator
ADDER
Al/Cu
2/0-#6
61035 61035R 1
1201 Box 61036 61036R 2
3 61038 61038R 3
ADDER
Cu*
2/0-#12
61005 61005R 1
501 Box 61006 61006R 2
3 61008 61008R 3
200
Insulator
1 Box Al/Cu
350kcmil-#6
62001 62001R 4 375
3 Side-Clip 62003 62003R 5
1 Box Cu*
350kcmil-#6
62051 62051R 4 275
3 Side-Clip 62053 62053R 5
For the most current product performance data visit ep.mersen.com and use catalog search.
H29
H
*Not UL Listed or CSA Certified
**Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of expansion as copper wire
for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
Recommended mounting screws for all 400A and 600A fuse blocks: 5/16 (.313” dia.)
600 Volt, 400 & 600 Ampere Class H, K and R Fuse Blocks
Dimensions
CLASS H, K & R 250 & 600 Volt Fuse Blocks
Ampere
Rating
Connector Catalog No.
Fig.
Connector
Torque
In - Ib
Poles Type Wire Range Class H & K
Spring Reinforced
Class R
Spring Reinforced
400
Phenolic
Insulator
1Box*
Side-Clip
Al/Cu 64001 64001R 1 375
31000-250kcmil 64003 64003R 2
1Box*
Side-Clip
Cu** 64051 64051R 1 375
31000-250kcmil 64053 64053R 2
1Box
In-Line Clip
AL/Cu 64031 64031R 3 275
3(2) 350kcmil-#4 64033 64033R 4
1Box
In-Line Clip
Cu** 64061 64061R 3 275
3(2) 350kcmil-#6 64063 64063R 4
600
Phenolic
Insulator
1Box
In-Line Clip
Al/Cu 6631 6631R 5 500
3(2) 500kcmil-#4 6633 6633R 6
1Box
In-Line Clip
Cu** 6661 6661R 5 375
3(2) 500kcmil-#4 6663 6663R 6
Figure 1 Figure 2 Figure 3 Figure 4
Figure 5 Figure 6
H30
CLASS T 300 & 600 Volt Fuse Blocks
300 & 600V Class T Fuse Blocks
Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are
either durable, glass-lled polycarbonate (GFPC) or phenolic with veried dielectric
strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks
with copper connectors.
Ratings:
Volts : 300VAC / DC
: 600VAC / DC
Amps : 30A, 60A, 100A, 200A,
400A, 600A
SCCR: : 200kA
Approvals:
•All fuse blocks meet the
requirements of UL 4248
•UL listed, guide IZLT,
File E52283
•UL recognized component guide
IZLT2, le E52283
•CSA certied class 6225,
File 32169
Features/Benefits:
•Unique integral DIN-rail adapters for 600V, 30 & 60A blocks
•Full barrier design (30 & 60A) increases pole to pole safety
•Unique adder-block design (30 & 60A) for design exibility
•Spring reinforcing standard for all 30 & 60A clips
•Features high conductivity copper alloy fuse clips
•Cool running high amperage (100 - 600A) connectors
•Copper connectors available 30 - 600A
Recommended Fuse Usage:
Class T Blocks (300V) use with A3T
Class T Blocks (600V) use with A6T
Spring Reinforced
30A & 60A Clips
Connectors for Spring
Reinforced 30A & 60A Clips Connectors Connectors
300V - 30A
600V - 30A
30A - 60A
Box
100A Box
Side Clip
400A Box
300V - 60A 30A - 60A
Screw
100A Box 600A
Box
600V - 60A 30A - 60A
Pressure
Plate
200A Box
Clip & Connector Types
For the most current product performance data visit ep.mersen.com and use catalog search.
H31
H
Ampere
Rating
Connector Catalog No. Fig. Connector
Torque In - Ib
Poles Type Wire Range Spring Reinforced
30
GFPC
Insulator
ADDER 30305T 1
1 Al/Cu 30306T 2
2 Box #2-14 30307T 3 35
3 30308T 4
4 30309T 5
ADDER 30315T 1
1 Cu 30316T 2
2 Screw #10-14 30317T 3 20
3 30318T 4
4 30319T 5
ADDER 30325T 1
1 Pressure Cu 30326T 2
2 Plate #10-14 30327T 3 20
3 30328T 4
4 30329T 5
ADDER 30355T 1
1 Cu* 30356T 2
2 Box #4-14 30357T 3 35
3 30358T 4
4 30359T 5
ADDER 30615T** 1
1 Cu 30616T** 2
2 Screw #10-14 30617T** 3 20
3 30618T** 4
4 30619T** 5
60
GFPC
Insulator
ADDER 30605T 1
1 Al/Cu 30606T 2
2 Box #2-14 30607T 3 45
3 30608T 4
4 30609T 5
ADDER 30655T 1
1 Cu* 30656T 2
2 Box #4-14 30657T 3 45
3 30658T 4
4 30659T 5
CLASS T 300 & 600 Volt Fuse Blocks
*Fuse blocks have copper box connectors and clips and are for copper wires only. These are specifically designed with the same coefficient of
expansion as copper wire for improved heat cycling and meet or exceed OEM “no aluminum” specifications.
** UL Component Recognized
Recommended base mounting screws: #10 (.190” dia.)
300 Volt, 30 & 60 Ampere Class T Fuse Blocks
Dimensions
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
H32
Note: * Fuse blocks have copper box
connectors and are for copper wires only.
These are specifically designed with the same
coefficient of expansion as copper wire for
improved heat cycling and meet or exceed
OEM “no aluminum” specifications.
300 Volt, 100, 200, 400 & 600 Ampere Class T Fuse Blocks
† Note: Height includes nominal fuse blade
thickness
Recommended base mounting screws:
100A & 200A, #10 (.190” dia.)
400A & 600A, 1/4” (.250” dia.)
Dimensions
CLASS T 300 & 600 Volt Fuse Blocks
Ampere
Rating Poles
Connector Catalog No.
Fig.
Connector Torque In - Ib
Type Wire Range Spring
Reinforced Connector Fuse
Bolt
100
Phenolic
Insulator
1 Cu* 31001T 1
2 Box 2/0-#12 31002T 2 50 72
3 31003T 3
200
Phenolic
Insulator
1 Box Al/Cu 32031T 4 275 132
3350 kcmil-#6 32033T 5
1 Box Cu* 32051T 4 275 132
3350 kcmil-#6 32053T 5
400
Phenolic
Insulator
1 Box Al/Cu 34031T 6 600 228
3600 kcmil-#2 34033T 7
1 Box Cu* 34051T 6 375 228
3600 kcmil-#2 34053T 7
600
Phenolic
Insulator
1 Box Al/Cu 36031T 8 600 360
(2) 600 kcmil-#2
1 Box Cu* 36051T 8 375 360
(2) 600 kcmil-#2
Figure 1 Figure 2 Figure 3
Figure 4 Figure 5 Figure 6 Figure 7 Figure 8
For the most current product performance data visit ep.mersen.com and use catalog search.
H33
H
600 Volt, 30 & 60 Ampere Class T Fuse Blocks
*Fuse blocks have copper box connectors and
clips and are for copper wires only. These are
specifically designed with the same coefficient
of expansion as copper wire for improved heat
cycling and meet or exceed OEM “no aluminum”
specifications.
** UL Component Recognized
Recommended mounting screws:
30A, #10 (.190” dia.)
60A, 1/4 “ (.250” dia.)
Dimensions
CLASS T 300 & 600 Volt Fuse Blocks
Ampere
Rating Poles Connector Catalog No. Fig. Connector
Torque In - Ib
Type Wire Range Spring Reinforced
30
GFPC
Insulator
ADDER 60305T 1
1 Box Al/Cu 60306T 2
2 #2-14 60307T 3 35
3 60308T 4
ADDER 60315T 1
1 Screw Cu 60316T 2
2 #10-14 60317T 3 20
3 60318T 4
ADDER 60325T 1
1 Pressure Cu 60326T 2
2 Plate #10-14 60327T 3 20
3 60328T 4
ADDER 60355T 1
1 Box Cu* 60356T 2
2 #4-14 60357T 3 35
3 60358T 4
60
GFPC
Insulator
ADDER 60615T** 5
1 Screw Cu 60616T** 6
2 #10-14 60617T** 7 20
3 60618T** 8
ADDER 60605T 5
1 Box Al/Cu 60606T 6
2 #2-14 60607T 7 45
3 60608T 8
ADDER 60655T 5
1 Box Cu* 60656T 6
2 #4-14 60657T 7 45
3 60658T 8
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8
H34
600 Volt, 100, 200, 400 & 600 Ampere Class T Fuse Blocks
Note: Fuse blocks have copper box con-
nectors and are for copper wires only.
These are specifically designed with the
same coefficient of expansion as copper
wire for improved heat cycling and meet
or exceed OEM “no aluminum” specifica-
tions.
Recommended base mounting screws:
100A & 200A, #10 (.190” dia.)
400A & 600A, 1/4 “ (.250” dia.)
† Note: Height includes nominal fuse blade thickness
Dimensions
CLASS T 300 & 600 Volt Fuse Blocks
Ampere
Rating Poles
Connector Catalog No.
Fig.
Torque (In - Lbs)
Type Wire Range Spring
Reinforced Connector Fuse Bolt
100
Phenolic
Insulator
1Al/Cu
2/0-#6
61031T 1
2 BOX 61032T 2 120 72
3 61033T 3
1Cu*
2/0-#12
61051T 1
2 BOX 61052T 2 50 72
3 61053T 3
200
Phenolic
Insulator
1 BOX Al/Cu 62031T 4 275 132
3350 kcmil-#6 62033T 5
1 BOX Cu* 62051T 4 275 132
3350 kcmil-#6 62053T 5
400
Phenolic
Insulator
1 BOX Al/Cu 64031T 6 600 228
600 kcmil-#2
1 BOX Cu* 64051T 6 375 228
600 kcmil-#2
600
Phenolic
Insulator
1 BOX Al/Cu 66031T 7 600 360
(2) 600 kcmil-#2
1 BOX Cu* 66051T 7 375 360
(2) 600 kcmil-#2
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
Figure 6 Figure 7
H35
H
CLASS G 480 & 600 Volt Fuse Blocks
480 & 600V Class G Fuse Blocks
Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G
fuses. A choice of box, screw or pressure-plate connectors t a wide range of stranded
or solid copper wire. Insulators are glass-lled polycarbonate (GFPC) with veried
dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which
can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks
of as many poles as desired. All fuse clips are made of high conductivity tin-plated
copper alloy.
Ratings:
Volts : 600VAC (15, 20A)
: 480VAC (30, 60A)
Amps : 15A, 20A, 30A, 60A
SCCR: : 100kA
: 10kA (when using quick
connects)
Temperature/Flammability:
GFPC insulators rated 1250C RTI,
94V-0 ammability
Features/Benefits:
•Unique integral DIN-rail adapters for 15, 20 & 30A blocks
•Unique adder-block design (all ampere ratings) for design exibility
•Spring reinforcing standard for 60A clips
•Features high conductivity copper alloy fuse clips
Approvals:
All fuse blocks meet the
requirements of UL 4248
•UL Listed guide IZLT,
File E52283
•CSA Certied class 6225,
File 32169
Recommended Fuse Usage:
Class G Blocks use with AG
15, 20, 30, 60A 15, 20, 30A 15, 20, 30A
COPPER BOX CONNECTOR OR
ALUMINUM BOX
CONNECTOR
SCREW WITH DOUBLE QUICK-
CONNECTS
PRESSURE PLATE WITH DOUBLE-
QUICK CONNECTS
Clip & Connector Types
H36
600 Volt, 15 & 20 Ampere; 480 Volt 30 & 60 Ampere Class G Fuse Blocks
.17x.10 DP
3.05
1.53
.17
.34 .77
.25
.85
1.11
1.62
1.88
2.39
1.45 .64
3.78
1.89
.17x.10 DP
.16
.76 .35 .26
.86
1.40 .52
1.11
1.62 2.38
1.87
Dimensions
CLASS G 480 & 600 Volt Fuse Blocks
Ampere
Rating Poles
Connector
Catalog No. Fig. Torque
(In - Lbs)
Type Wire Range
15
GFPC
Insulator
ADDER Screw w Double 40110G 1
1Quick Connects at Cu 40111G 2 20
2Both Ends #10-14 40112G 3
3 40113G 4
ADDER Pressure Plate 40120G 1
1(SEMS) w Double Cu 40121G 2 20
2Quick Connects at #10-14 40122G 3
3Both Ends 40123G 4
20
GFPC
Insulator
ADDER Screw w Double 40210G 1
1Quick Connects at Cu 40211G 2 20
2Both Ends #10-14 40212G 3
3 40213G 4
ADDER Pressure Plate 40220G 1
1(SEMS) w Double Cu 40221G 2 20
2Quick Connects at #10-14 40222G 3
3Both Ends 40223G 4
30
GFPC
Insulator
ADDER Screw w Double 40310G 1
1Quick Connects at Cu 40311G 2 20
2Both Ends #10-14 40312G 3
3 40313G 4
ADDER Pressure Plate 40320G 1
1(SEMS) w Double Cu 40321G 2 20
2Quick Connects at #10-14 40322G 3
3Both Ends 40323G 4
ADDER 40350G 1
1 Copper Cu 40351G 2 35
2 Box #6-14 40352G 3
3 40353G 4
60
GFPC
Insulator
ADDER 40605G 5
1 Aluminum Al/Cu 40606G 6 45
2 Box #2-14 40607G 7
3 40608G 8
ADDER 40655G 5
1 Copper Cu 40656G 6 45
2 Box #4-14 40657G 7
3 40658G 8
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8
H37
H
Miniature Fuse Blocks
6X32QC1
Single Pole Fuse Block for
1/4” x 1-1/4” fuses
•Tin plated phosphor bronze clips
•Phenolic insulator
•1/4” quick-connect terminals
•Rated 30A, 250V - UL Recognized
5X20QC1
Single Pole Fuse Block
for 5mm x 20mm fuses
•Tin plated clips
•Polyester insulator
•3/16” quick-connect terminals
•Rated 15A, 250V
•UL recognized
Features/Benefits:
Ratings:
5X20QC1:
Volts: 250V
Amps : 15A
6X32QC1:
Volts: 250V
Amps : 30A
Approvals:
•UL Recognized
Recommended Fuse Usage:
5X20QC1 use with GGM, GGA, GSA, GSB, GDG
6X32QC1 use with GSA, GDL, GGC, GAB
5X20QC1
6X32QC1
Dimensions:
5X20QC1 & 6X32QC1 Single Pole Fuse Blocks
The 5X20QC1 single pole fuse blocks are for for 5mm x 20mm fuses featuring tin-
plated clips, a polyester insultator and 3/16” quick-connect terminals. The 6X32QC1
single pole fuse blocks are for 1/4” x 1-1/4” fuses and have tin-plated phosphor
bronze clips, a phenolic insulator and 1/4” quick-connect terminals.
H38
Applications:
•Street lighting
•Parking lot lighting
•Trafc signaling
•Sports lighting
•Boats and marinas
•Humid/corrosive environments

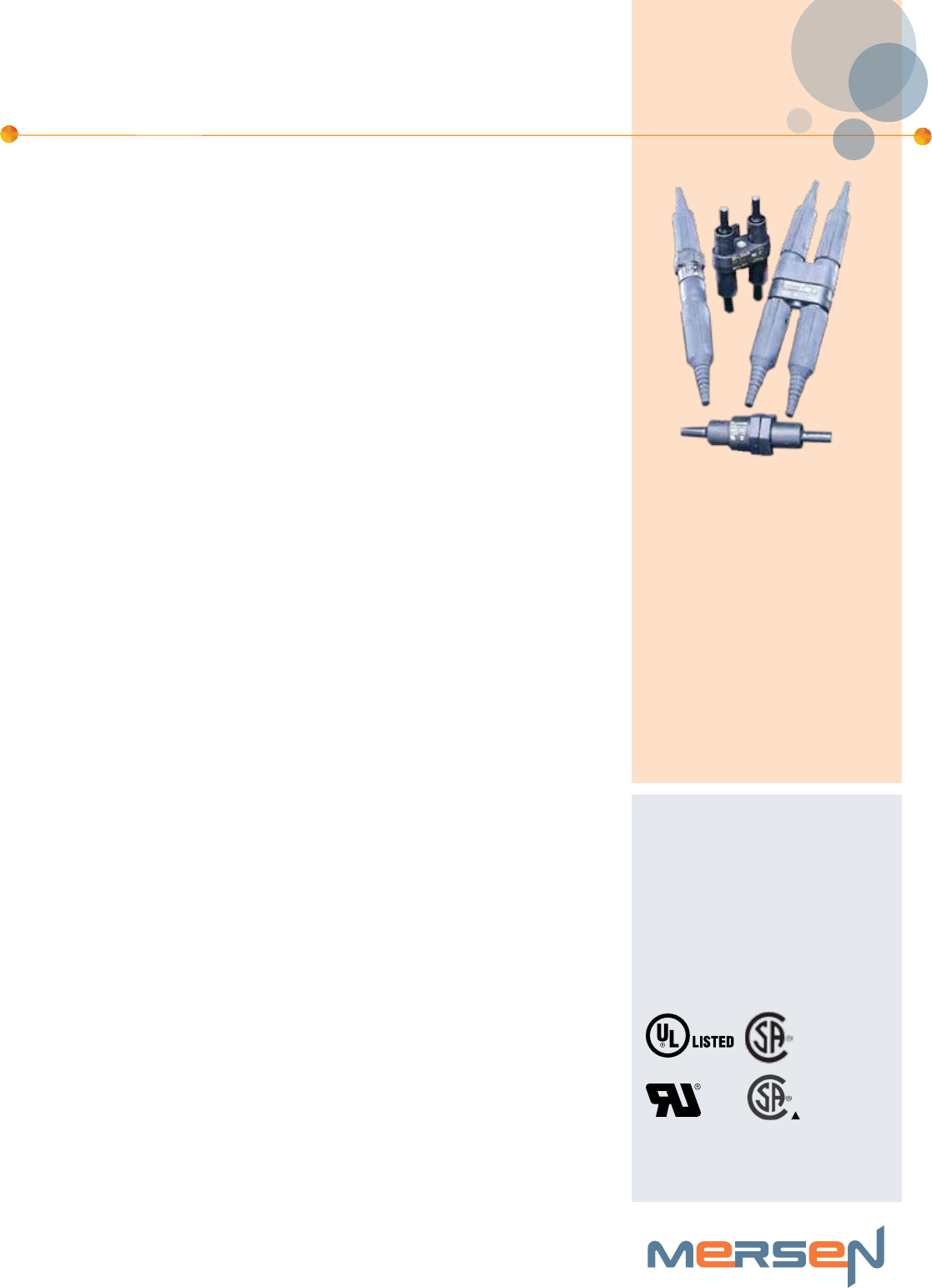

FEB,FEC,FEX,FEY
600 Volt In-Line Fuse Holders
Mersen’s complete line of single and dual pole in-line fuse holders accommodate
either 1-1/2” x 13/32” (10x38mm) midget or Class CC fuses. The fuse holders are
designed for quick installation. Securing nuts or screws are captive thus speeding
installation by reducing the need to locate and assemble loose components in the
eld. Three internal O-rings per pole seal the fuse holder providing a water-resistant
compartment for the fuse. The captive O-rings are colored (blue for single pole and
red for dual pole) for quick detection. Optional cone shaped insulator boots can
be slipped on to provide a watertight seal (breakaway versions come with boots
standard). Both single and dual pole versions have an optional breakaway feature
which safely disconnects the load in case of a pole knockdown. Fuses remain safely
encapsulated within the watertight fuse holder on the load side. Once the pole has
been reinstalled the fuse holder can be easily reconnected.
Ratings:
Volts: : 600VAC / DC
Amps : 30A Maximum
SCCR : 200kA (Class CC Fuses)
: 100kA (Midget Fuses)
Temperature Rating 155º C
Highlights:
•Breakaway version quickly disconnects line side during pole knockdown in
compliance with state and federal highway commission standards
•3 O-rings per pole for water tight applications
•Colored O-rings for quick detection
•Single and dual poles
•Accepts midget or Class CC fuses
•Wide assortment of terminal variations
•High heat, impact resistant insulator
•Captive nut or screw for quick installations
•Polarized dual pole provides simultaneous disconnection
•Permanently installed neutral versions quickly identied by white nuts
•Tulip fuse clip for improved contact and low losses
•Environmentally friendly-no lead solder used
•Highly visible catalog number even with insulation boots installed
•Wire gauge size identied on insulation boots for quick, accurate trimming
•Time delay for motor starting and transformer inrush
Approvals:
•UL Listed Class CC Guide IZLT,
File E52283
•UL Recognized Component
Midget Guide IZLT2,
File E52283
•CSA Certied Class CC and
Midget Class 6225, File 32169
Recommended Fuse Usage:
FEB and FEX holders use with:
Midget (1-1/2” x 13/32”, 10 x 38mm): ATQ, ATM, TRM, OTM, GGU, GFN,
A13X-2, A25Z-2, A60Q-2, A6Y-2B
FEC and FEY holders use with:
Class CC: ATDR, ATMR, ATQR
For the most current product performance data visit ep.mersen.com and use catalog search.
H39
H
FEB,FEC,FEX,FEY 600 Volt In-Line Fuse Holders
Notes:
1. Non-breakaway units do not include insulator boots. These optional cone shaped boots are available to provide a watertight installation. The insulator boots are
designed to form a watertight seal over conductors, but due to varying wire insulation sizes it is suggested that tape wrap be utilized for best results.
FSB1 = Single conductor boot (used to cover all crimp type & single set screw terminals)
FSB2 = Double conductor boot (used to cover all double set screw (Y-type) terminals)
Insulator boot trimming instructions: Locate wire gage size to be utilized marking on the boot and cut just beneath it.
2. Tightening torque for single and double set screw terminations: 35 lbs.-in.
3. Tightening torque for dual pole fastening screw: 10-15 lbs.-in.
4. FEBN versions have a permanently mounted dummy fuse for neutral applications.
Family Load Terminal Line Terminal Option
FEB- 1 1 1 1 -BA
Catalog Numbering System
Nomenclature Legend
Family Description
FEB Single pole midget
FEC Single pole Class CC
FEX Dual Pole midget
FEY Dual pole Class CC
FEBN Single pole neutral
Load or Line Terminal Type Option
Description
Terminal End View Terminal Type Wire No. Per Solid Stranded
11 Cu Crimp #8-#12
#12-#14
1
2
Yes
Yes
Yes
Yes
BA
(breakaway
version equipped
with breakaway
stud,breakaway
boot, and
insulating boots
for both line and
load sides)
21 Cu Crimp
#10
#6
#4
2
1
1
Yes
Yes
Yes
Yes
Yes
No
31 Cu Crimp #10
#4
2
1
Yes
No
Yes
Yes
41 Cu Crimp #6
#2
2
1
Yes
No
Yes
Yes
81 Cu single
Set Screw #2–#12 1 Yes Yes
91 Cu Double
Set Screw #2–#12 1
each Yes Yes
82 Al single
Set Screw #2–#12 1 Yes Yes
92 Al double
Set Screw #2–#12 1
each Yes Yes
SCu Stud N/A 1 N/A N/A
H40
Mersen In-Line Fuse Holder Family - Typical Combination Chart
Note: Consult factory for other configurations.
Terminal Type FCI-Burndy T&B
1 Y8MRB-1 WT-111M
2 Y2MR TBM2/TBM5 BLUE DIE, WT-115-A DIE O
3 Y2MR TBM2/TBM5 GREY DIE, WT-115-A DIE E
4 Y2MR TBM2/TBM5 BROWN DIE, WT-115-A DIE F
Crimping Tools Reference Chart, the following
crimping tools (or equivalent) are recommended:
FEB,FEC,FEX,FEY 600 Volt In-Line Fuse Holders
Midget
10x38mm
Midget
10x38mm
Breakaway
Class CC Class CC
Breakaway
Midget
10x38mm
Dual Pole
Midget
10x38mm
Dual Pole
Breakaway
Class CC
Dual Pole
Class CC
Dual Pole
Breakaway
FEB-11-11 FEB-11-11-BA FEC-11-11 FEC-11-11-BA FEX-11-11 FEX-11-11-BA FEY-11-11 FEY-11-11-BA
FEB-11-21 FEB-11-21-BA FEC-11-21 FEC-11-21-BA FEX-11-21 FEX-11-21-BA FEY-11-21 FEY-11-21-BA
FEB-11-31 FEX-11-31 FEY-11-31
FEB-11-41 FEB-11-41-BA FEX-11-41 FEX-11-41-BA FEY-11-41
FEB-11-81-BA
FEB-11-82 FEB-11-82-BA
FEB-11-91 FEB-11-91-BA FEC-11-91 FEC-11-91-BA FEY-11-91-BA
FEB-11-92 FEB-11-92-BA
FEB-11-S
FEB-21-11
FEB-21-21 FEB-21-21-BA FEC-21-21 FEC-21-21-BA FEX-21-21 FEX-21-21-BA FEY-21-21 FEY-21-21-BA
FEB-21-91 FEB-21-91-BA
FEB-31-31 FEB-31-31-BA
FEB-41-41 FEB-41-41-BA
FEB-81-81 FEB-81-81-BA FEC-81-81 FEC-81-81-BA FEX-81-81 FEY-81-81-BA
FEB-81-91 FEB-81-91-BA FEX-81-91 FEX-81-91-BA FEY-81-91
FEB-81-S
FEB-82-82 FEB-82-82-BA
FEB-82-92 FEB-82-92-BA
FEB-91-91-BA FEX-81-91-BA
FEBN-11-11 FEBN-11-11-BA
FEBN-11-91 FEBN-11-91-BA
FEBN-81-81 FEBN-81-81-BA
FEB-SS
FEX-81-91-BA
For the most current product performance data visit ep.mersen.com and use catalog search.
H41
H

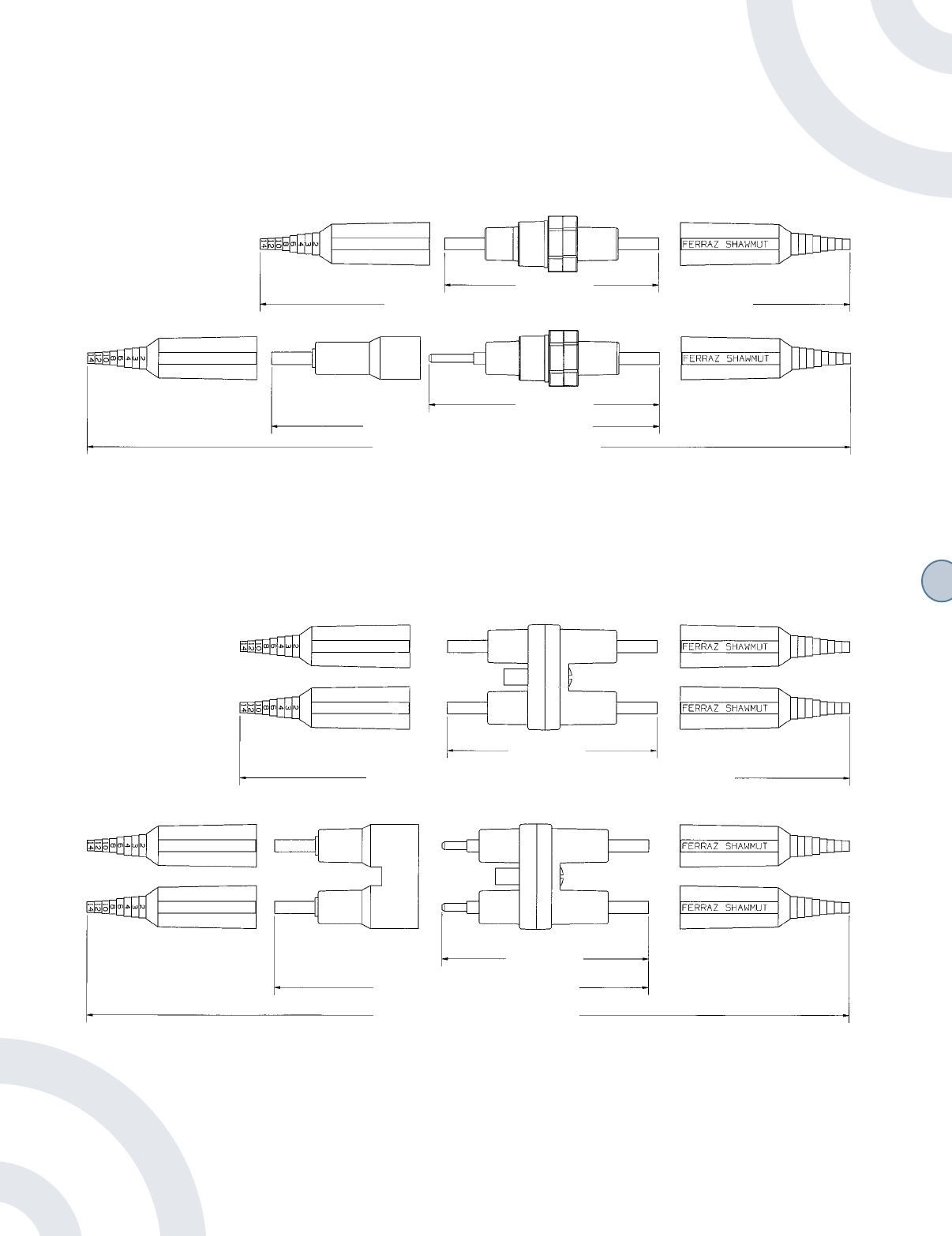

FEB and FEC, Non-Breakaway and Breakaway Assembly Drawings
FEX and FEY, Non-Breakaway and Breakaway Assembly Drawings
8.0” (203mm) ASSEMBLED LENGTH WITH OPTIONAL FSB1 BOOTS
4.3” (110mm)
4.7” (119mm)
5.8” (147mm) ASSEMBLED LENGTH
9.0” (229mm) ASSEMBLED LENGTH
8.0” (203mm) ASSEMBLED LENGTH WITH OPTIONAL FSB1 BOOTS
4.3” (109mm)
5.6” (142mm) ASSEMBLED LENGTH
4.2” (106mm)
8.6” (218mm) ASSEMBLED LENGTH
FEB,FEC,FEX,FEY 600 Volt In-Line Fuse Holders
H42

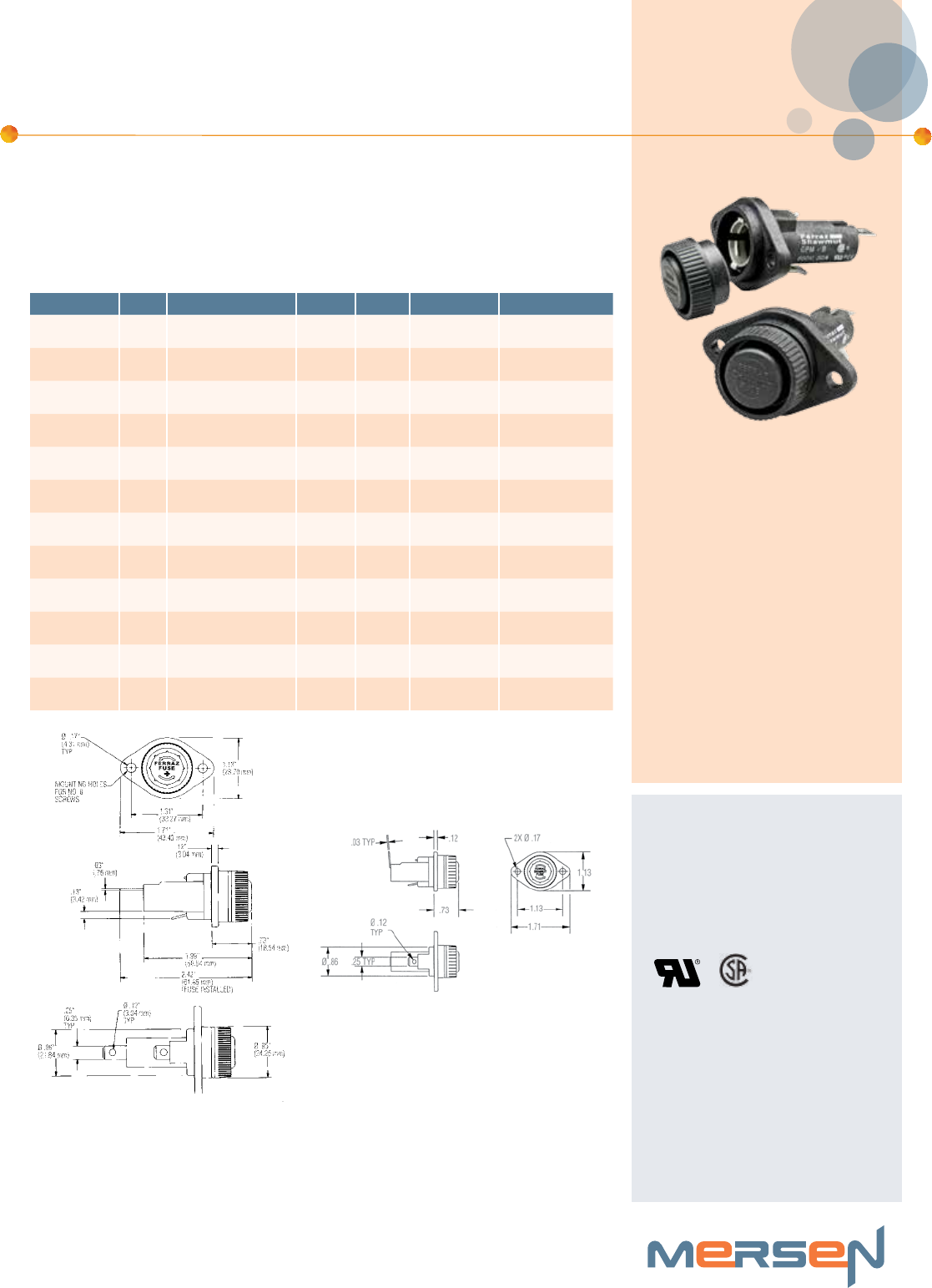

Mersen GPM panel mount fuse holders are in sizes to accommodate Class CC and
midget (1-1/2” x 13/32”) fuses. All 30A holders have glass-lled thermoplastic insulators
for extra dependability and trouble-free installation. Patented design allows same
body to accept screw or bayonet knob. Flange design allows front or rear mounting.
Recommended Fuse Usage:
GPM Fuse Holders will accommodate these Mersen fuses:
GPM-SRR, GPM-BRR, GPM-WTR: ATQR, ATDR, ATMR,
GPM-SRR90, GPM-BRR90, GPM-WTR90: ATQR, ATDR, ATMR,
GPM-S, GPM-B, GPM-WT: ATQ, ATM, TRM, OTM, GGU, A13X-2, A25Z-2, A60Q-2, A6Y-2B,
GPM-S90, GPM-B90, GPM-WT90: ATQ, ATM, TRM, OTM, GGU, A13X-2, A25Z-2, A60Q-2, A6Y-2B
GPM SERIES Panel Mount Fuse Holders
Figure 1 Figure 2
Catalog Numbers & Descriptions
Approvals:
•UL Recognized, guide IZLT2,
File E52283
•CSA Certied - C22.2, class
6225, File 32169
Ratings:
Volts : 600VAC / DC
Amps : 30A Maximum
SCCR : 200kA (Class CC Fuses)
: 100kA (Midget Fuses)
Catalog No. Fig. Cap Type Amps Volts Fuse Type Terminal Type
GPM-S 1 Screw Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder
GPM-S90 2 Screw Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder, Right Angle
GPM-SRR 1 Screw Knob 30 600 Class CC 1/4” Quick-connect/
Solder
GPM-SRR90 2 Screw Knob 30 600 Class CC 1/4” Quick-connect/
Solder, Right Angle
GPM-B 1 1/4 Turn Bayonet Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder
GPM-B90 2 1/4 Turn Bayonet Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder, Right Angle
GPM-BRR 1 1/4 Turn Bayonet Knob 30 600 Class CC 1/4” Quick-connect/
Solder
GPM-BRR90 2 1/4 Turn Bayonet Knob 30 600 Class CC 1/4” Quick-connect/
Solder, Right Angle
GPM-WT 1 Water-tight Screw Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder
GPM-WT90 2 Water-tight Screw Knob 30 600 1-1/2” x 13/32” 1/4” Quick-connect/
Solder, Right Angle
GPM-WTR 1 Water-tight Screw Knob 30 600 Class CC 1/4” Quick-connect/
Solder
GPM-WTR90 2 Water-tight Screw Knob 30 600 Class CC 1/4” Quick-connect/
Solder, Right Angle
For the most current product performance data visit ep.mersen.com and use catalog search.
H43
H
Mersen GPM panel mount fuse holders will accommodate 1/4” x 1-1/4” 3AG fuses and
5mm x 20mm fuses; most are approved by U.L. and CSA. Cap and body material is
bakelite or polycarbonate and function as a screw-in or bayonet style closure. Finger-grip
or screwdriver slots are available. All holders are rated for up to 250 volts with amp ratings
ranging from 3A to 15A.

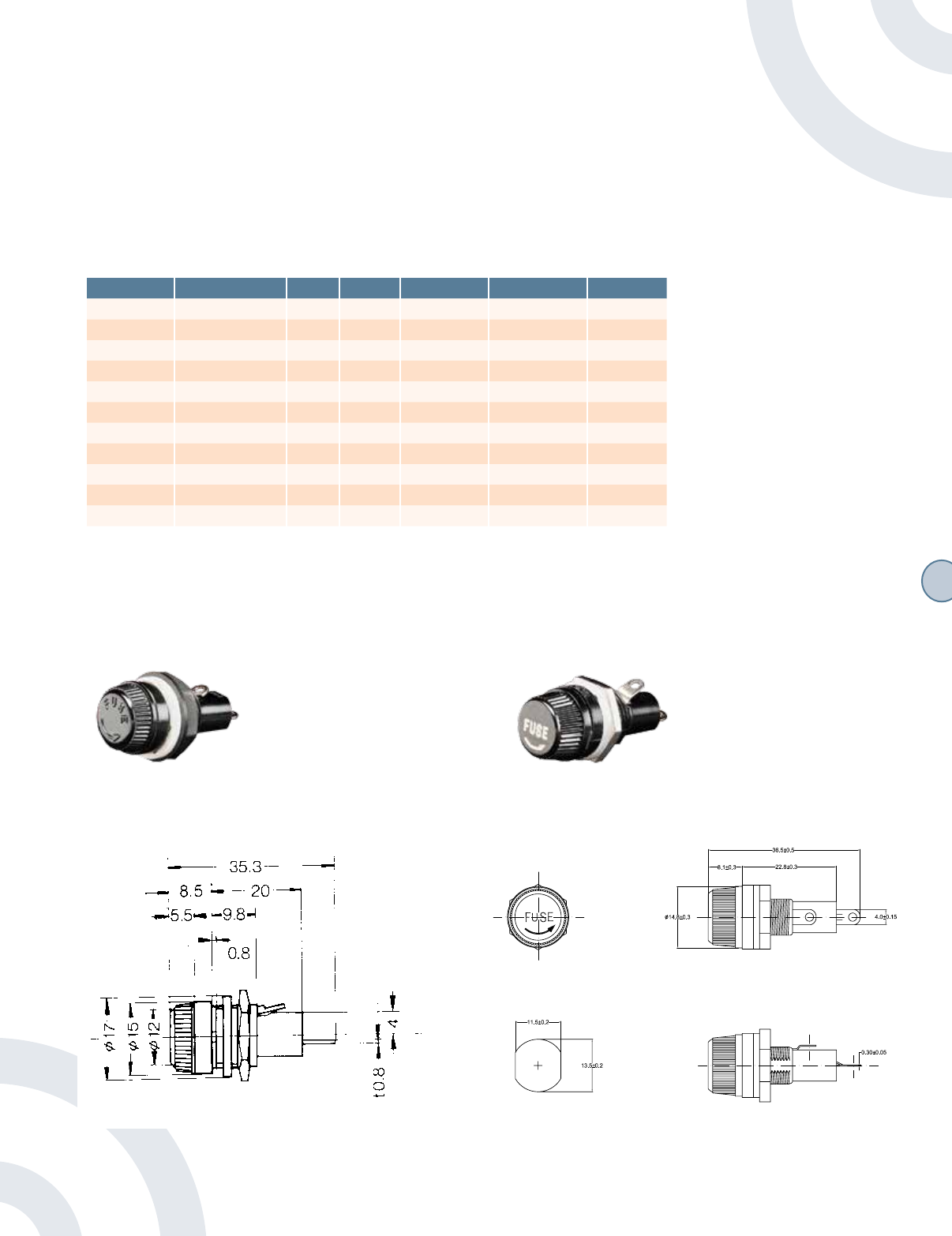

GPM SERIES Panel Mount Fuse Holders
Recommended Fuse Usage:
GPM-A: GGM, GGA, GSB, GSC, GDG, GSD, GSF
All dimensions mm’s
GPM-A GPM-A1
Catalog No. Cap Type Volts Amps Fuse Size Terminal Type Approvals
GPM-A Finger-grip/Screw-in 250 10 5mm x 20mm Solder UR/CSA
GPM-A1 Finger-grip/Screw-in 250 10 5mm x 20mm Solder
GPM-A2 Finger-grip/Screw-in 250 10 5mm x 20mm Solder UR/CSA
GPM-A3 Finger-grip/Screw-in 250 3 5mm x 20mm Solder UR/CSA
GPM-A4 Finger-grip/Screw-in 250 6.3 5mm x 20mm Solder, right angle
GPM-A5 Screwdriver Slot 250 10 5mm x 20mm Solder
GPM-A6 Screwdriver Slot 250 6.3 5mm x 20mm Solder, right angle UR/CSA
GPM-A8 Screwdriver Slot 250 10 5mm x 20mm Solder, right angle UR/CSA
GPM-A9 Screwdriver Slot 250 6.3 5mm x 20mm Solder, right angle UR/CSA
GPM-A10 Screwdriver Slot 250 6.3 5mm x 20mm 3/16”Solder/QC UR/CSA
GPM-A11 Screwdriver Slot 250 10 5mm x 20mm Solder, right angle UR/CSA
H44

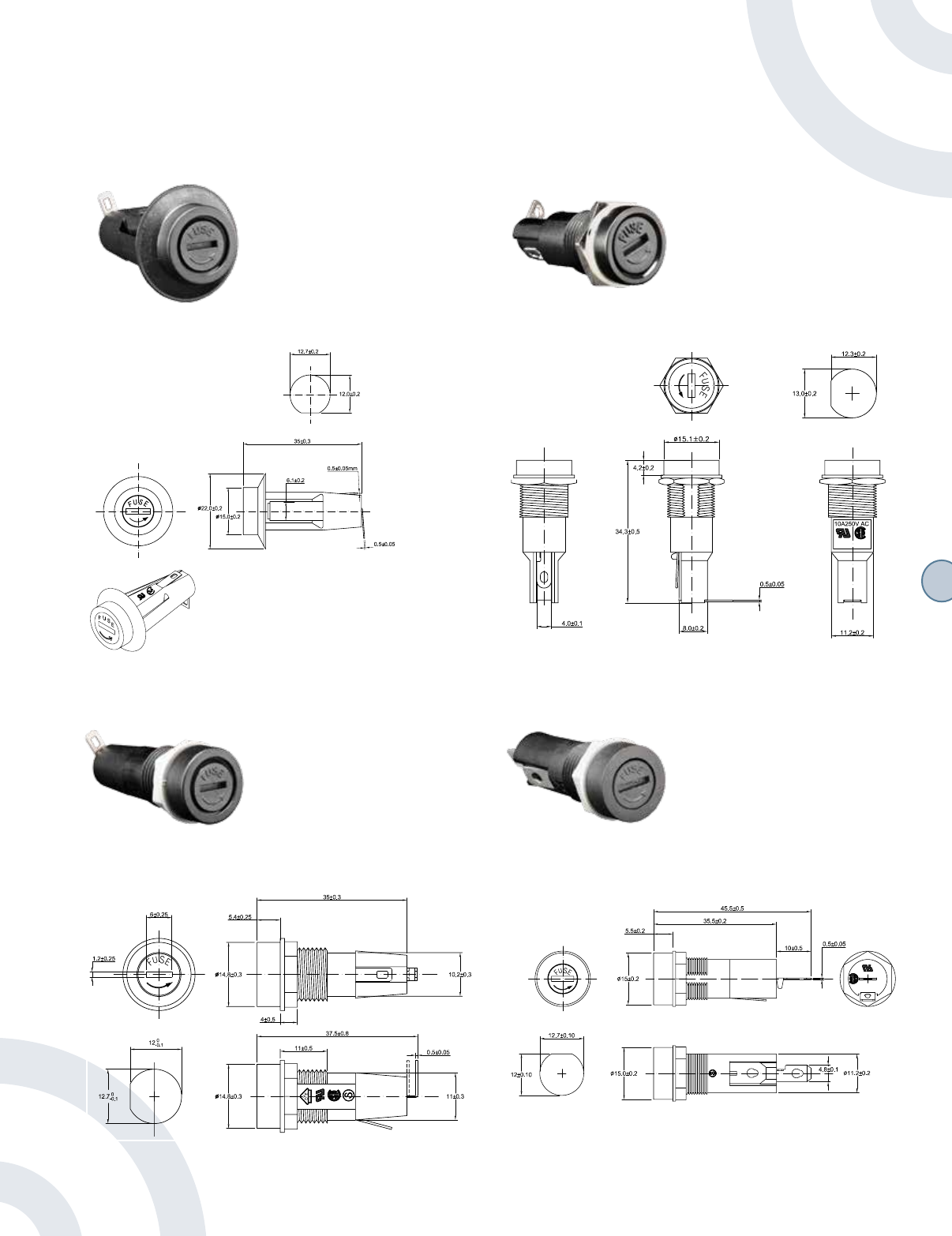

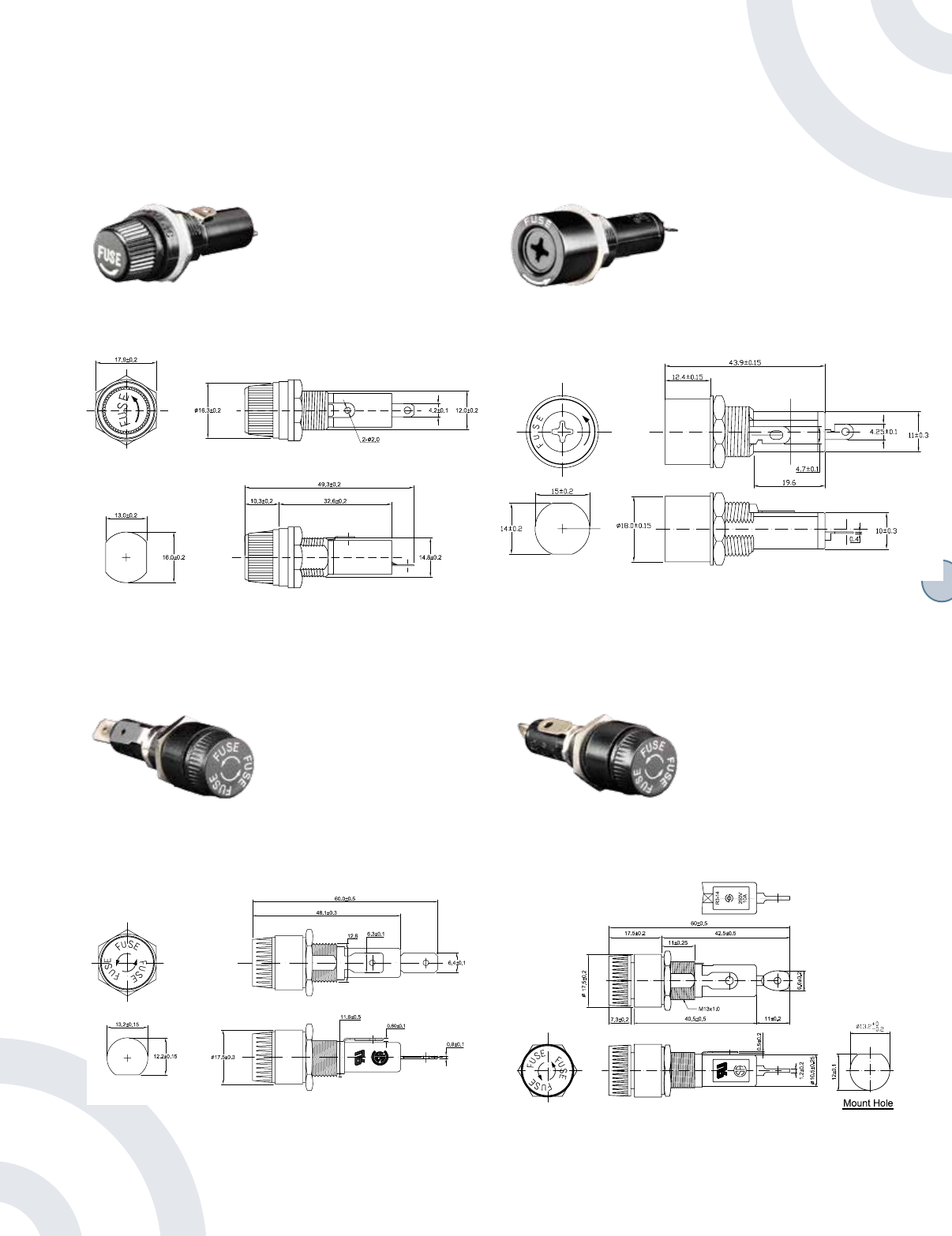

GPM SERIES Panel Mount Fuse Holders
GPM-A4 GPM-A5
GPM-A2 GPM-A3
For the most current product performance data visit ep.mersen.com and use catalog search.
H45
H
GPM-A10
GPM-A8
GPM-A9
GPM-A6
GPM SERIES Panel Mount Fuse Holders
H46

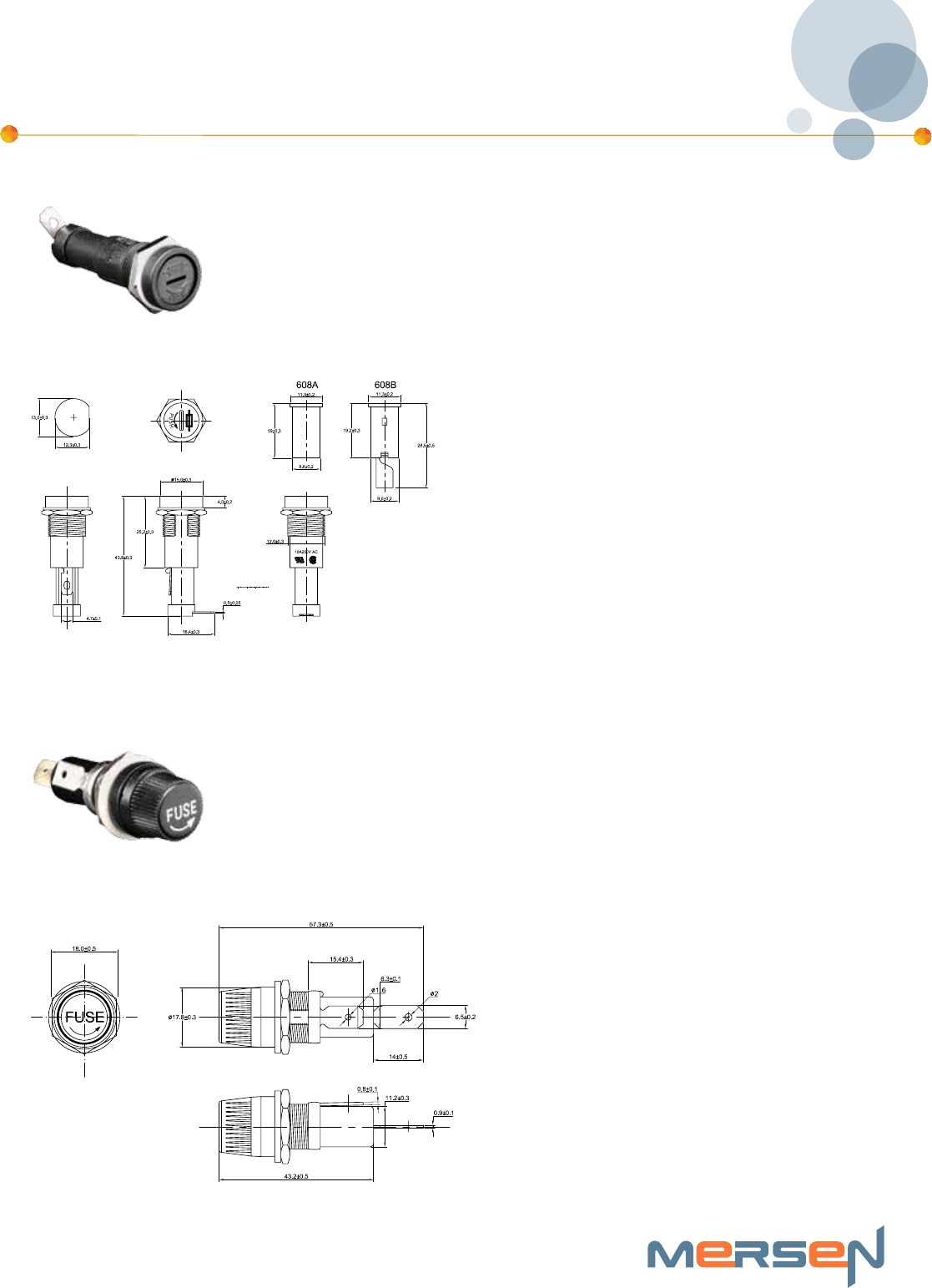

GPM-A11
GPM-G
Recommended Fuse Usage:
GPM-G: GGC, GDL, GSA, GAB
All dimensions mm’s
GPM-G1
GPM SERIES Panel Mount Fuse Holders
Catalog No. Cap Type Volts Amps Fuse Size Terminal Type Approvals
GPM-G Finger-grip/Screw-in 250 15 3AG 3/16” Solder/QC UR/CSA
GPM-G1 Finger-grip/Screw-in 250 10 3AG 3/16” Solder/QC UR/CSA
GPM-G2 Finger-grip/Screw-in 250 10 3AG Solder
GPM-G3 Screwdriver Slot 250 10 3AG Solder UR/CSA
GPM-G5 Finger-grip/Bayonet 250 10 3AG 1/4” Solder/QC UR/CSA
GPM-G6 Finger-grip/Bayonet 250 10 3AG Solder UR/CSA
GPM-G7 Screwdriver Slot 250 15 3AG 3/16” Solder/QC UR/CSA
GPM-G8 Finger-grip/Screw-in 250 15 3AG Quick-connect
For the most current product performance data visit ep.mersen.com and use catalog search.
H47
H

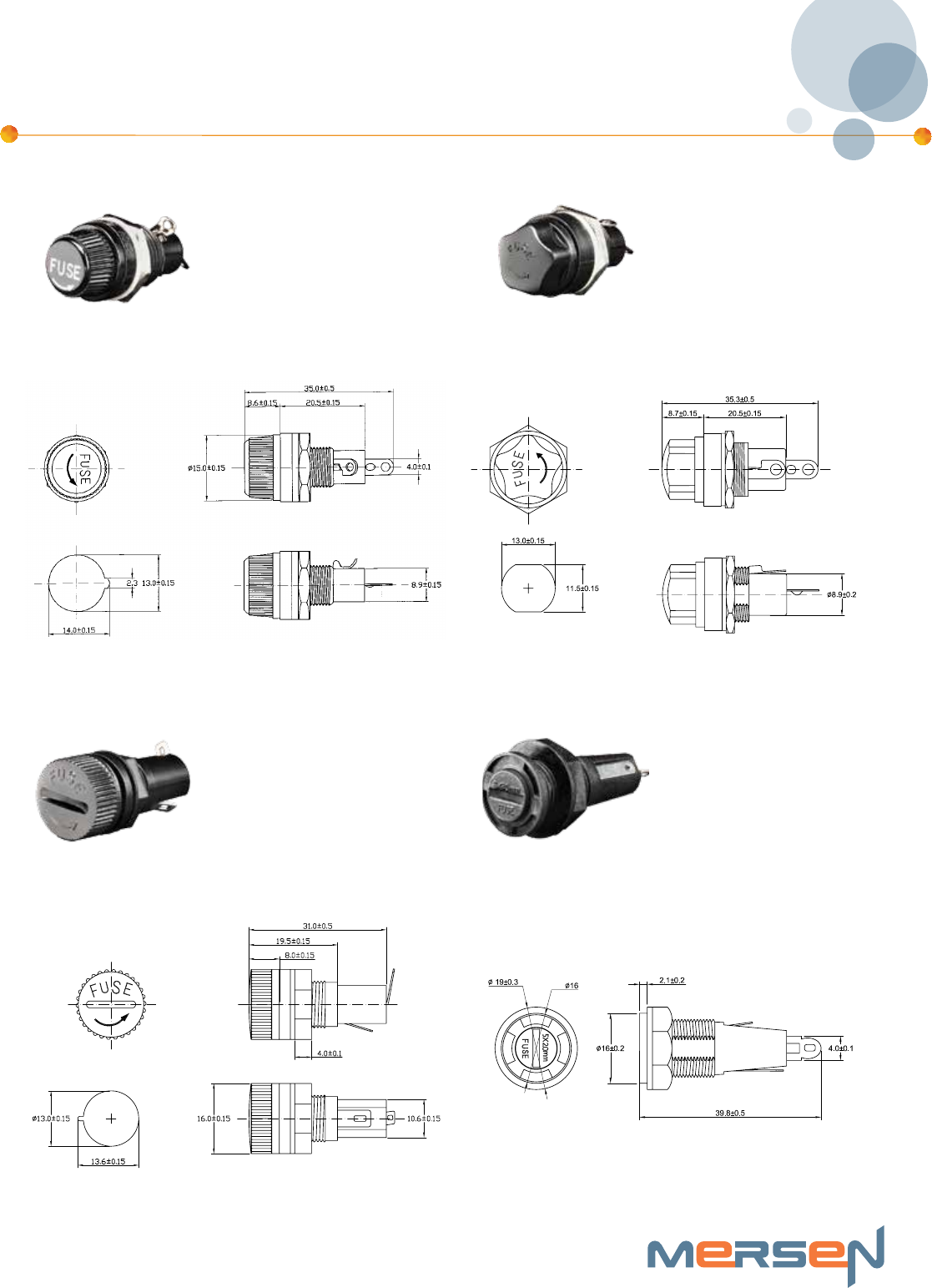

GPM-G6
GPM-G2 GPM-G3
GPM SERIES Panel Mount Fuse Holders
GPM-G5
H48
GPM-G7
GPM-G8
GPM SERIES Panel Mount Fuse Holders
H49
H

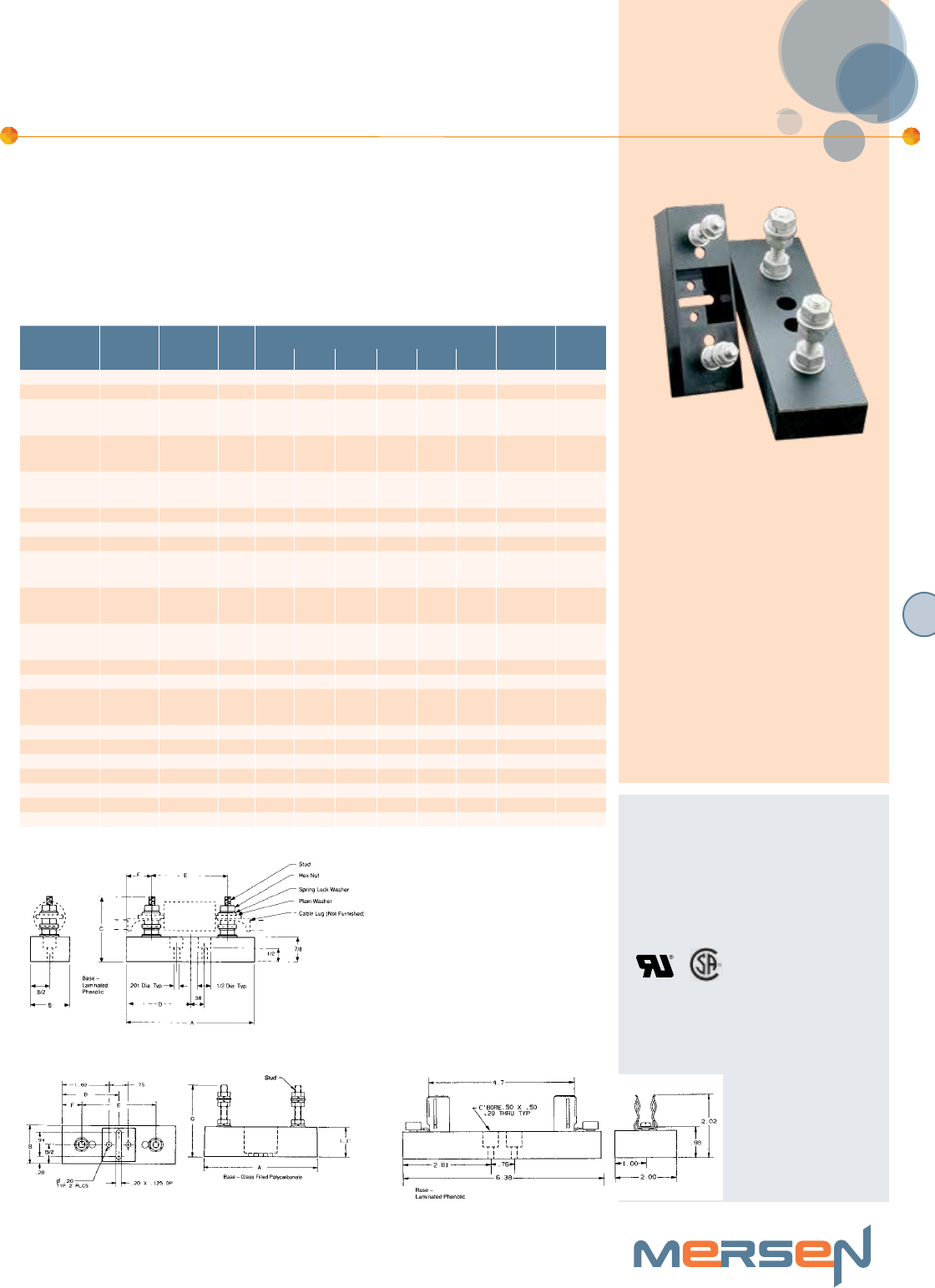

P243/P266/P292 Fuse Blocks
Fuse Blocks for Semiconductor Fuses
Mersen P243 and P266 series fuse blocks for Form 101 fuses are glass-lled
polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-
in fuses. The P292 series has a laminated phenolic insulator base with fuse clips. All
studs, clips and mounting hardware are tin or zinc plated.
Ratings:
Amps : 1 to 1000A
Clip Type : 1200VAC or less
Stud Type : 1000VAC or less
Approvals:
•UL Recognized Component
guide IZLT2 File E52283
•CSA Certied C22.2, class
6225, File 32169
Note: FH Blocks are 1” thick.
* Not UL or CSA Certified
Dimensions
For Use
with Amps
Catalog
No. Fig.
Dimensions - Inches Stud
Size
Torque
(in lbs)A B C D E F
A13X, A15QS 70-450 P243D 2 4.40 1.50 2.79 2.20 2.06 1.17 1/4-20 36
A13X, A15QS 500-600 P243G 2 4.40 1.50 2.79 2.20 2.44 0.98 5/16-18 84
A25X, A25Z,
A30QS
35-60 P243G 2 4.40 1.50 2.79 2.20 2.44 0.98 5/16-18 84
A25X, A25Z,
A30QS
70-200 P243 1 4.50 1.50 2.50 2.25 2.38 1.06 1/4-20 36
A25X, A25Z,
A30QS
225-600 P243G 2 4.40 1.50 2.79 2.20 2.44 0.98 5/16-18 84
A50P 35-60 P243G 2 4.40 1.50 2.79 2.20 2.44 0.98 5/16-18 84
A50P, A50QS 70-200 P243E 2 4.40 1.50 2.79 2.20 2.88 0.76 1/4-20 36
A50P, A50QS 225-600 P266C 1 6.00 2.00 3.00 3.00 3.28 1.36 3/8-16 180
A60X, A60Z,
A70QS-4
35-200 P243C 2 4.40 1.50 2.79 2.20 3.62 0.39 1/4-20 36
A60X, A60Z,
A70QS-4
225-600 P266A 1 6.00 2.00 3.00 3.00 4.06 0.97 3/8-16 180
A70P, A70Q,
A70QS-4
35-100 P243C 2 4.40 1.50 2.79 2.20 3.62 0.39 1/4-20 36
A70QS-4K 125-200 P266A 1 6.00 2.00 3.00 3.00 4.06 0.97 3/8-16 180
A70P, A70Q 125-400 P266A 1 6.00 2.00 3.00 3.00 4.06 0.97 3/8-16 180
A70P, A70Q,
A70QS-4K
450-600 P266F 1 8.00 2.50 3.00 4.00 5.09 1.45 3/8-16 180
A100P 35-100 P266G 1 6.00 2.00 2.50 3.00 4.25 0.88 1/4-20 36
A100P 125-400 P266L 1 6.00 2.00 3.00 3.00 4.66 0.67 3/8-16 180
A120X 1-30 P292 3 - - - - - - - -
A30QS 700-800 FH25F4 1 6.00 2.00 3.00 3.00 2.66 1.67 3/8-16 144
A50QS 700-800 FH50F4 1 8.00 2.50 3.00 4.00 4.21 1.84 1/2-13 360
A50QS 900-1000 FH50F5 1 8.00 2.50 3.00 4.50 4.97 1.50 1/2-13 360
A70QS-4K 450-600 FH70F3 1 8.00 2.50 3.00 4.00 5.09 1.91 1/2-13 360
Figure 1
Figure 2 Figure 3
H50

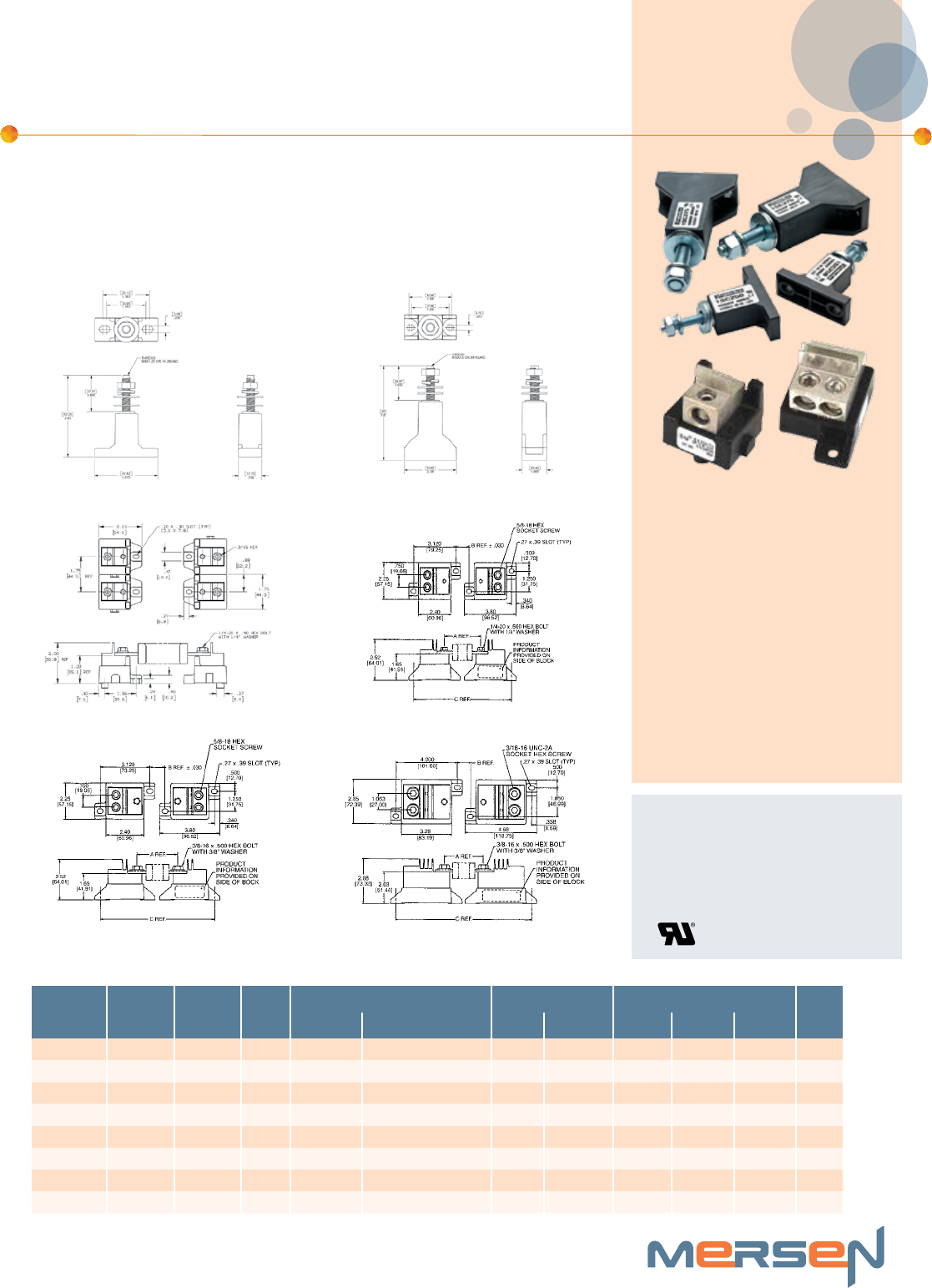

1SC/1MSC
Modular Semiconductor Fuse Blocks
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that
offers greater exibility in adjusting to various fuse lengths. Both stud type and integral
box connector versions are offered to allow for user preference of wire terminations.
The integral box connector versions also provide for greater heat dissipation.
Mounting hardware is supplied with the blocks.
All part numbers are sold in pairs *Consult Factory
Ratings:
1SC
Volts : 1000V
Amps : 800A Maximum
SCCR : 200kA
1MSC
Volts : 600V
Amps : 600A Maximum
SCCR : 200kA
Approvals:
•UL Recognized Component
File for 1SC: E52283
File for 1MSC: E35113
Dimensions
Catalog
No.
Voltage
Rating
Ampere
Rating UR
Connector Hardware Tightning Torque (lb.-in.)
Fig.
Type Wire Range Bolt Washer Cable Fuse Mounting
1SC250 1,000 400 Yes 1/4” Stud — — — 60 60 25 1
1SC375 1,000 800 Yes 3/8” Stud — — — 190 190 50 2
1MSC101 600 100 Yes Al Box Al/Cu 2/0 - #6 1/4” 0.655” 120 70 25 3
1MSC102 600 400 Yes Al Box Al/Cu (2) 250kcmil - #6 1/4” 0.655” 275 120 25 4
1MSC103 600 400 Yes Al Box Al/Cu (2) 250kcmil - #6 3/8” 0.900” 275 120 25 5
1MSC104 600 600 Yes Al Box Al/Cu (2) 500kcmil - #6 3/8” 0.900” 375 170 25 6
1SCM8 1,000 400 Yes M8 Stud — — — 60 60 25 1
1SCM10 1,000 800 Yes M10 Stud — — — 190 190 50 2
Figure 1 Figure 2
Figure 3 Figure 4
Figure 5 Figure 6
H51
H
703,U705,U710
Semiconductor Fuse Holders
750V Semiconductor Fuse Holders
Mersen semiconductor fuse holders feature open face styles. Each version is rated
750 volts and accommodates 14 x 51 mm or 22 x 58 mm fuses. 703, U705 and U710
holders feature Mersen’s unique adder-block design which can be snapped onto 1-,
2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired.
A choice of box, screw or pressure plate connectors is offered to t a wide range of
standard or solid copper wire. All versions have veried dielectric strengths in excess
of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design
versatiltiy. All fuse clips are made of high conductivity tin-plated copper with spring
reinforced clips.
Ratings:
Volts : 750V
Amps : 30A (703)
: 50A (U7050)
: 100A (U7100)
SCCR : 200kA dependent on
fuse I.R.
Approvals:
•UL Recognized component
guide IZLT2, File E52283
•CSA Certied class 6225,
File 32169
Highlights:
•Thermoplastic bases
•DIN-rail (U710) or Screw Mount
•Adder block design
Applications:
•All circuits up to 750 volts using
semiconductor fuses for protection
of small inverters, UPS systems,
motor drives, etc.
Recommended Fuse Usage:
703 use with 14x51mm A70QS, A70P, URD
U705 use with 14x51mm A70QS, A70P, URD
U710 use with 22x58mm A70QS, URD, up to 100A
H52
Recommended mounting screws; #10 (.190”dia)
*Copper box connectors and clips-for copper wires only.
Note: To convert 30A adder pole to single pole, use end barrier #U09322 100A adder pole to single pole, use end barrier #U09372.
750 Volt Fuse Holders for 14 x 51mm & 22 x 58 mm Fuses
Dimensions
703,U705,U710 Semiconductor Fuse Holders
Catalog
No.
Fuse
Size
Ampacity
Rating Poles Connector Figure Connector Torque
(In-Lb)
Type Wire Range
U70505
14 x 51 50
Adder
Box Al/Cu
#2-14
1
35
U70506 1 2
U70507 2 3
U70508 3 4
70315
14 x 51 30
Adder
Screw Cu
#10-14
1
20
70316 1 2
70317 2 3
70318 3 4
70325
14 x 51 30
Adder
Pressure Plate Cu
#10-14
1
20
70326 1 2
70327 2 3
70328 3 4
70355
14 x 51 30
Adder
Box Cu*
#4-14
1
35
70356 1 2
70357 2 3
70358 3 4
U71005
22 x 58 100
Adder
Box A1/Cu
#2-14
5
35
U71006 1 6
U71007 2 7
U71008 3 8
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8
H53
H

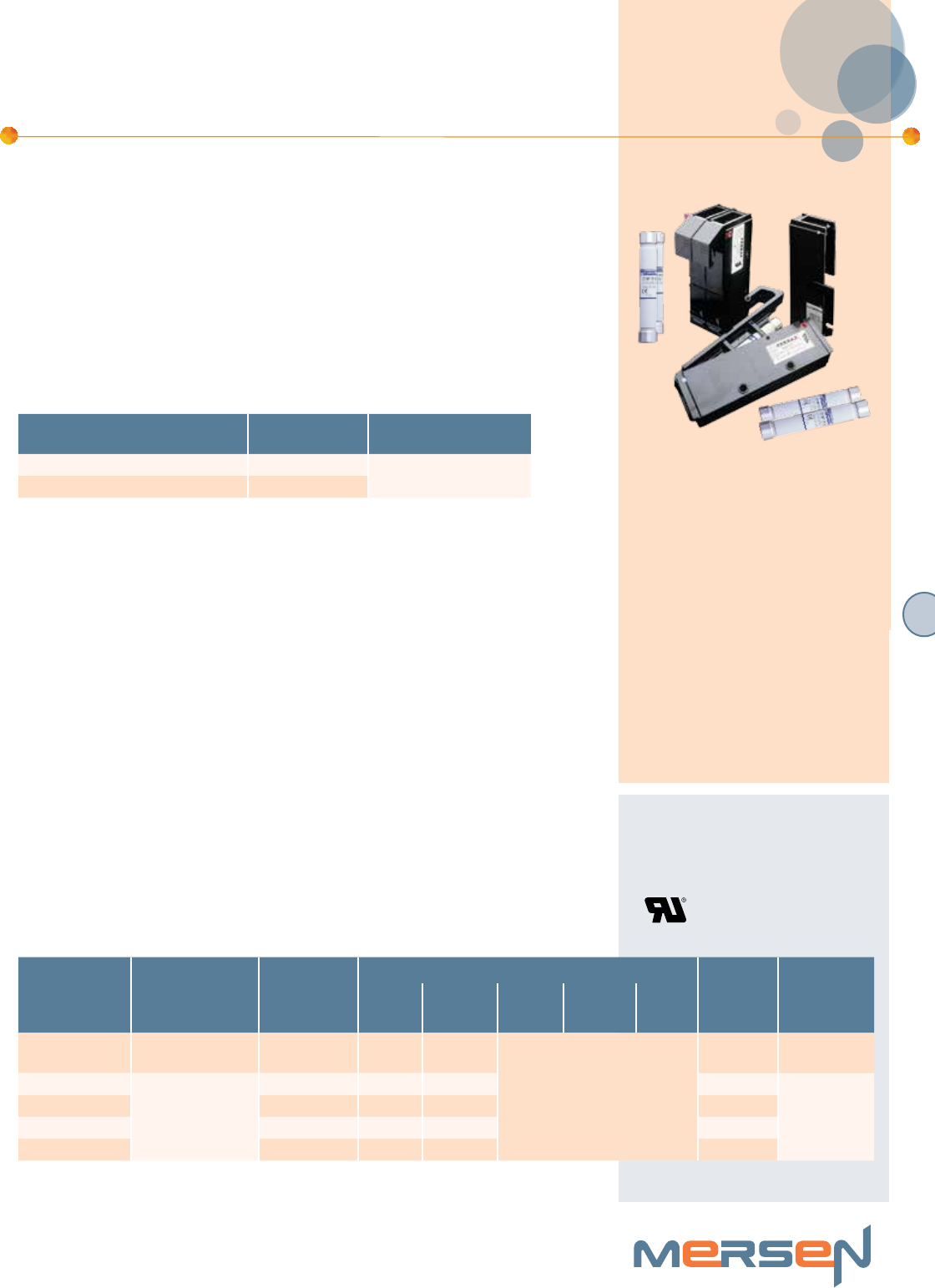

PS 20x127 Ferrule Fuse Holders
and No-Load Disconnectors
Highlights:
•Solid assembly offers good thermal and mechanical withstand rating
•Fuse mounting in holders or no-load disconnectors with or without open fuse
indicating microswitches
•Phenolic resin models for basic applications, ber-glass polyester for applications
in corrosive atmospheres or applications for traction
•Voltage = 1,500 V and 2,500 V
Ratings:
Volts : 1,500V
: 2,500V
SCCR : 42kA AC
: 55kA DC
Approvals:
•UL Recognized component
File E113357
Dimensions
Connecting with 50 mm2 max. cable with copper terminals or with a 15 x 8 max. rigid or flexible bar.
Description
Insulation
voltage rating Ui
AC 50/60 Hz or DC
Fuse current
rating IN(A)
Maximum operating current of fuse (A) Advised
copper wire
size mm2
Fire and fumes
class NF F 16-
101 and 102
and UL
1000 V
gLB
=1000 V
gRC
=1000 V
gRB
=1500 V
gRB
=1500 V
gRD
PSI 20X127 1500 V without terminal
covers 50 50
No Operating Limit
10 basic model
12-F1 UL 94 V1
PSI 20X127 PRE 2500 V with
terminal covers
and only salt
spray-proof model
63 80 56 16
salt spray-proof
model I1 - F1
UL 94 VO
PSII 20X127 PRE 80 90 25
PSIII 20X127 PRE 100 100 35
PSIV 20X127 PRE 125 50
Dielectric withstand tests
Connecting with 16mm2 max. width, 5mm max. thick terminal
(1) Basic model
Max. temperature (°C)/ Relative humidity (%): 20 °C/95% - 40°C/80% - 50°C/50%
(2) Salt spray-proof model
Moist tropical and equatorial climate or corrosive atmosphere.
R.M.S. voltage 1
mn 50/60 Hz
Impulse voltage 1.2/50 s
(IEC 694 et CEI 60)
Between close phases and phase and ground 6kV(1) - 10 kV(2) 12 kV(1) - 20 kV(2)
Between phases and microswitch 12 kV
H54

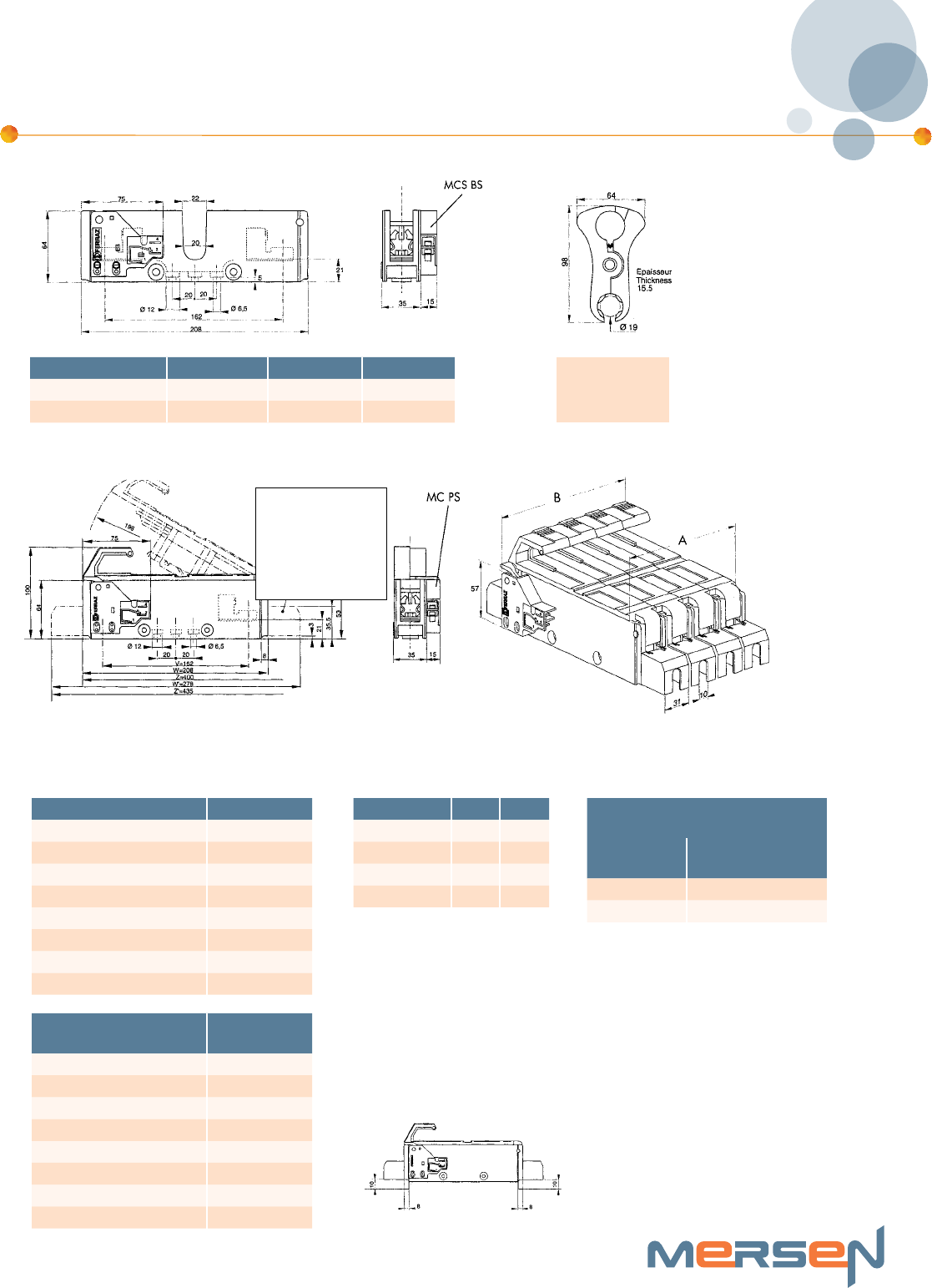

Fuse Holders and Accessories
Fuse non-load Disconnectors and Accessories
PMCP 20+22
Catalog #: K 100036
Weight: 40g
Packaging: 1
V: Connecting distance between centers
W: Clip for rail mounting in two positions
W’: With terminal cover length
Y: Space factor with a 90° fuse carrier position
Z: Without terminal cover, space factor with a 180° fuse
carrier position
Z’: With terminal cover, space factor with 180° fuse carrier
position
Reliable minimum operating voltage/current:
10V - 10mA
Connecting with 6.35 mm lug
Distances when mounting on a conductive
board @ Ui = 2500 VAC
Twin terminal covers
PS 20
Catalog #: F 097226
Weight: 20g
Packaging: 3 twins
PS 20x127
Ferrule Fuse Holders and No-Load Disconnectors
Description Catalog No. Weight (g) Packaging
PSI 20x127 X 097310 260 3 pieces
PSI 20x127 + MCS BS X 220130 290 2 pieces
No. of Poles A B
1 35 50
2 69 84
3 103 118
4 137 152
Description (basic model) Catalog No.
PSI 20x127 PRE F097203
PSII 20x127 PRE G097227
PSIII 20x127 PRE H097228
PSIV 20x127 PRE J097229
PSI 20 x 127 PRE+MC PS H097205
PSII 20 x 127 PRE+MC PS D097293
PSIII 20 x 127 PRE+MC PS E097294
PSIV 20 x 127 PRE+MC PS F097295
Description
(salt spray-proof model) Ref. No.
PSI 20x127 PRE BS G097204
PSII 20x127 PRE BS L097231
PSIII 20x127 PRE BS T097261
PSIV 20x127 PRE BS C097292
PSI 20 x 127 PRE BS+MC PS J097206
PSII 20 x 127 PRE BS+MC PS G097296
PSIII 20 x 127 PRE BS+MC PS H097297
PSIV 20 x 127 PRE BS+MC PS J097298
Preisolating and blown fuse
indicating microswitch features
Microswitch
rated current
Non-inductive circuit
interrupting rating
3A - 50 Hz 3A - 50 Hz
3A - DC 3A - DC
H55
H

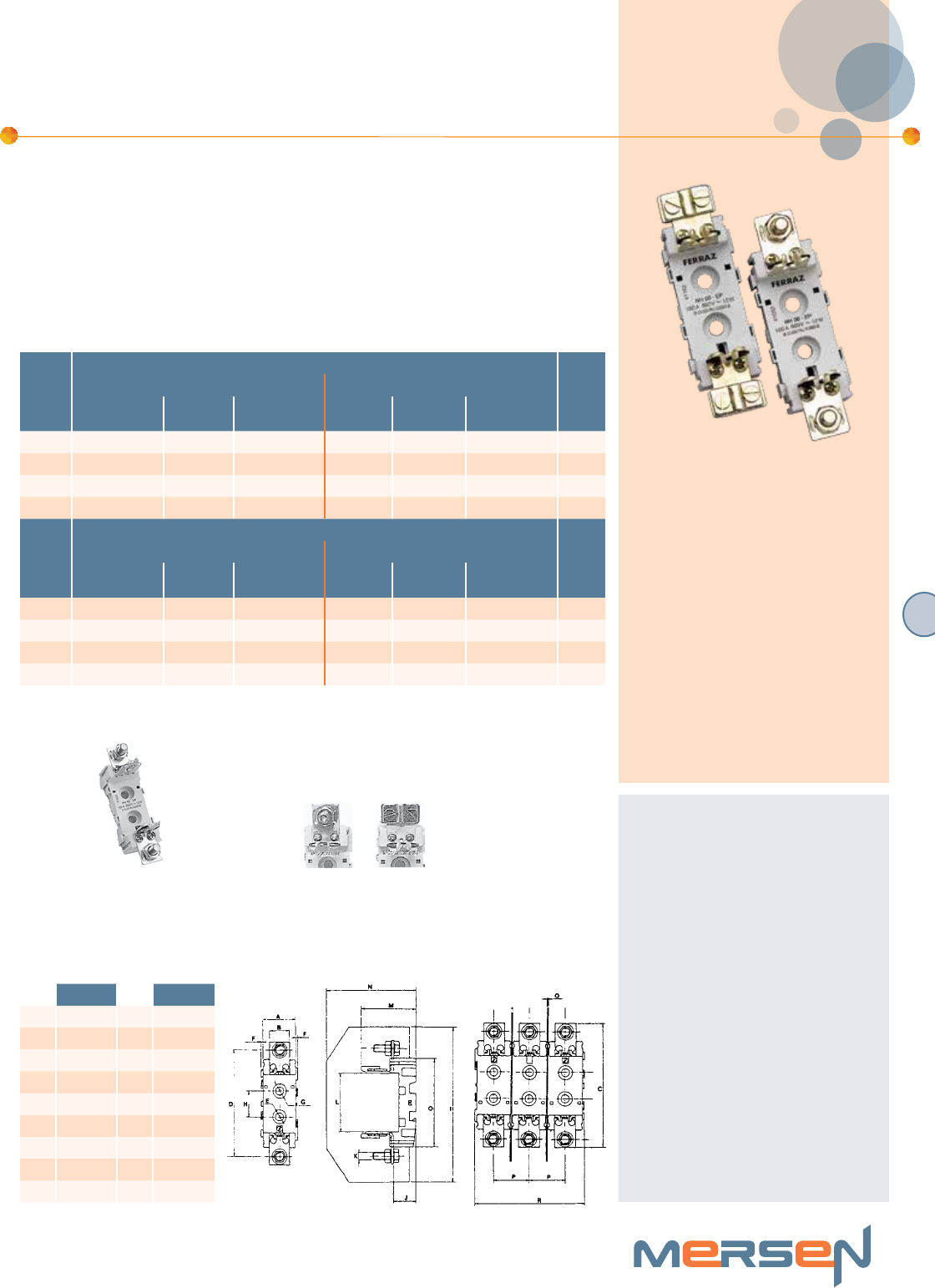

690V plastic fuse bases for NH fuses
•Polyester insulating bases
•Silver plated contacts
•High pressure spring contacts
•Screw or rail mount
Ratings:
Volts : 690VAC
Amps : 160 to 1250A
Approvals:
Designed to meet standards:
•IEC 60269
•DIN VDE 0636-21 & 201
•DIN 43620
BB001EP
Dimensions
Connection Detail
Screw Clamp
NH DIMENSION Fuse Bases
* EP bases have square contacts.
Type 00-EP* – Fuse Bases for NH-00 Fuses without striker
Screw Connector
Screw Mt. Rail Mt.
Poles Discontinued
Catalog No.
New Ref.
No.
New Catalog
No.
Catalog
No.
New Ref.
No.
New Catalog
No.
Std.
Pack
1 41002-G F215170 BB001EP 42002-G R216192 BB001EPR 3
2 41012-G A217212 BB002EP 42012-G F218758 BB002EPR 2
3 41016-G W229122 BB003EPVBLOC 42016-G V229121 BB003EPRBLOC 1
4 41019-G S219275 BB004EP 42019-G Z223007 BB004EPR 1
Pressure Plate Connector
Screw Mt. Rail Mt.
Poles Discontinued
Catalog No.
New Ref.
No.
New Catalog
No.
Catalog
No.
New Ref.
No.
New Catalog
No.
Std.
Pack
1 41102-G T219805 BB00EPBT 42102-G F200795 BB001EPBR 3
2 41112-G D200793 BB002EPB 42112-G T211594 BB002EPBR 2
3 41114-G W201338 BB003EPB 42114-G C212108 BB003EPBR 1
4 41119-G R211592 BB004EPB 42119-G M215682 BB004EPBR 1
00-EP 00-EP
A 32 J 21.5
B 20 K 8
C117 L 56
D 100 M 52
E 8 N 85
F 2 0 84
G 14 P 34
H 25 Q 1
I 145 R 104
H56
Type 0-EP* – Fuse Bases for NH-0 Fuses without striker BB01EPR BB12PP BB23PP
* EP bases have square contacts. PP bases have pincer contacts.
NH DIMENSION Fuse Bases
Mounting Style
Screw DIN-Rail
Poles Discontinued Cat. No. New Reference No. New Catalog No. Discontinued Cat. No. New Reference No. New Catalog No.
1 41202-G B213142 BB01EP 42202-G S216193 BB01EPR
2 41212-G C214661 BB02EP 42212-G P216696 BB02EPR
3 41214-G G215171 BB03EP 42214-G C217214 BB03EPR
4 41219-G Q216191 BB04EP 42219-G J217726 BB04EPR
Type 0-PP – Fuse Bases for NH-0 Fuses w/o striker
Type 2-PP – Fuse Bases for NH-2 Fuses w/o striker
Type 1-PP – Fuse Bases for NH-1 Fuses w/o striker
Type 3-PP – Fuse Bases for NH-3 Fuses w/o striker
Dimensions of Polyester Fuse Bases for NH Fuses
0-EP O-PP 1-PP 2-PP 3-PP
A 46 46 60 60 60
B 20 25 32 35 40
C 168 168 209 225 241
D 150.5 150.5 176 201 210
E 7.5 7.5 10.5 10.5 10.5
F - - 30 30 30
G 14.5 14.5 20.5 20.5 20.5
H 25 25 25 25 25
I 185 185 250 250 270
J 29 29 35 35 35
K M8 M8 M10 M10 M12
L 74 75 81 81 81
M 59 61 71 89 103
N 95 95 122.5 122.5 142.5
O 122 122 146 146 146
P 48.5 48.5 65.5 65.5 81.5
Q 94 94 125.5 125.5 141.5
R 142 142 191 191 223
S 190 190 256.5 256.5 304.5
Poles Discontinued Cat. No. New Reference No. New Catalog No. Discontinued Cat. No. New Reference No. New Catalog No.
1 41302-G N216695 BB01PP 42302-G T218241 BB01PPR
2 41312-G B217213 BB02PP 42312-G G218759 BB02PPR
3 41314-G G217724 BB03PP 42314-G W219278 BB03PPR
4 41319-G R218239 BB04PP 42319-G H222486 BB04PPR
Poles Discontinued Cat. No. New Reference No. New Catalog No. Discontinued Cat. No. New Reference No. New Catalog No.
1 41502-G F201853 BB21PP 42502-G E211075 BB21PPR
2 41512-G S211593 BB22PP 42512-G V211595 BB22PPR
3 41514-G B212107 BB23PP 42514-G D212109 BB23PPR
4 41519-G C213143 BB24PP 42519-G R212627 BB24PPR
Poles Discontinued Cat. No. New Reference No. New Catalog No. Discontinued Cat. No. New Reference No. New Catalog No.
1 41402-G E218757 BB11PP 42402-G A223008 BB11PPR
2 41412-G F222484 BB12PP 42412-G G200796 BB12PPR
3 41414-G Y223006 BB13PP 42414-G Y201340 BB13PPR
4 41419-G X201339 BB14PP 42419-G H201855 BB14PPR
Poles Discontinued Cat. No. New Reference No. New Catalog No. Discontinued Cat. No. New Reference No. New Catalog No.
1 41602-G W213643 BB31PP 42602-G X213644 BB31PPR
2 41612-G D214662 BB32PP 42612-G B214154 BB32PPR
3 41614-G H215172 BB33PP 42614-G F214664 BB33PPR
4 41619-G L215681 BB34PP 42619-G K215174 BB34PPR
For the most current product performance data visit ep.mersen.com and use catalog search.
H57
H

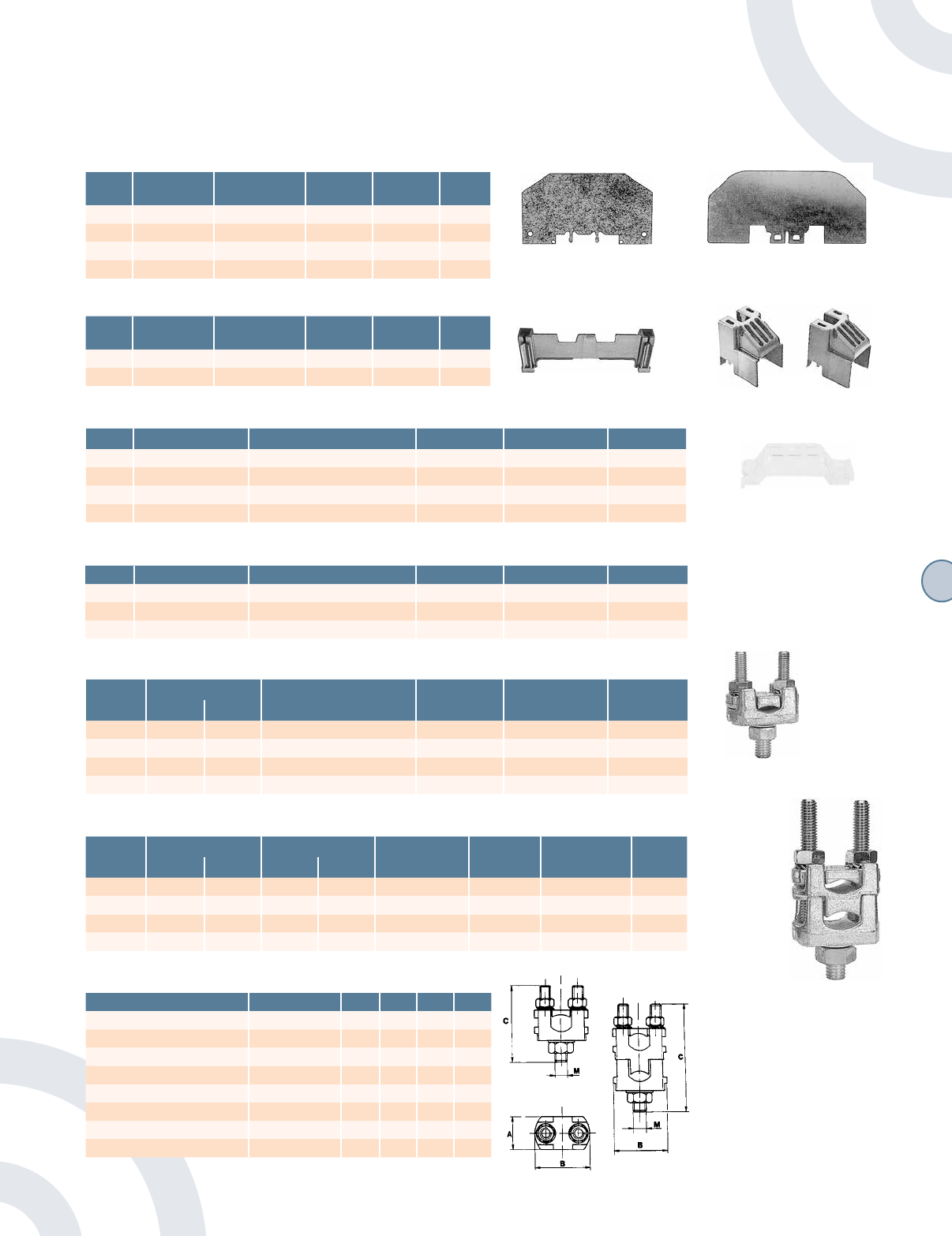

BB00CL BB1-2PPCL
BBPAK1-2 BBT0TS
BB00COV
BORNEABF150
BORNEABF150D
Discontinued Catalog No. New Cat. No. A B C M
45421-G BORNEABF50 18 26 34 6
45423-G BORNEABF95 24 35 52 8
45425-G BORNEABF150 26 41 58 10
45427-G BORNEABF240 36 53 68 12
45431-G BORNEABF50D 18 26 39 6
45433-G BORNEABF95D 24 35 82 8
45435-G BORNEABF150D 26 41 84 10
45437-G BORNEABF240D 36 53 98 12
Dimensions of Terminals
*Not for use with W229122 and V229121. Use B233865.
NH DIMENSION Fuse Bases
Insulating Barriers for Plastic NH Fuse Bases
Size Rated
Current (A)
Discontinued
Catalog No.
New Ref.
No.
New Cat.
No.
Std.
Pack
00 100 44502-G W212654 BB00CL 2
0 160 44504-G Z213669 BB0CL 2
1-2 400 44510-G J214690 BB1-2PPCL 2
3 630 44512-G Q215708 BB3PPCL 2
Separators
Size Rated
Current (A)
Discontinued
Catalog No.
New Ref.
No.
New Cat.
No.
Std.
Pack
0 160 44604-G V216724 BBPAK0 2
1-2 400 44610-G N217753 BBPAK1-2 2
Fuse Shields
Size Rated Current (A) Discontinued Catalog No. New Ref. No. New Cat. No. Std. Pack
00 100 44802-G G213170 BB00COV 3
0 160 44804-G F214181 BB0COV 3
1-2 400 44810-G K214691 BB1-2COV 3
3 630 44812-G R215709 BB3COV 2
One Cable – Terminal for NH Bases
Base
Size
Cable Size (mm) Discontinued Catalog No. New Ref. No. New Cat.
No.
Std.
Pack
Max. Min.
00 50 6 45421-G Q217755 BORNEABF50 60
00-0 95 10 45423-G A218270 BORNEABF95 50
1 150 16 45425-G N218788 BORNEABF150 30
2-3 240 50 45427-G A219305 BORNEABF240 15
Two Cable – Terminal for NH Bases
Base
Size
Cable 1 (Size mm) Cable 2 (Size mm) Discontinued
Catalog No.
New Ref.
No.
New Cat.
No.
Std.
Pack
Max. Min. Max. Min.
00 50 6 50 6 45431-G B219835 BORNEABF50D 60
00-0 95 10 95 10 45433-G P222515 BORNEABF95D 30
1 150 25 150 16 45435-G F223036 BORNEABF150D 20
2-3 240 95 240 50 45437-G B201366 BORNEABF240D 5
Terminal Shields
Size Rated Current (A) Discontinued Catalog No. New Ref. No. New Cat. No. Std. Pack
00 100 44702-G M222513 BB00TS 6
0 160 44704-G K200822 BB0TS 6
1-2 400 44710-G Y211621 BB2TS 6
H58
Catalog Numbers - Fuse Block

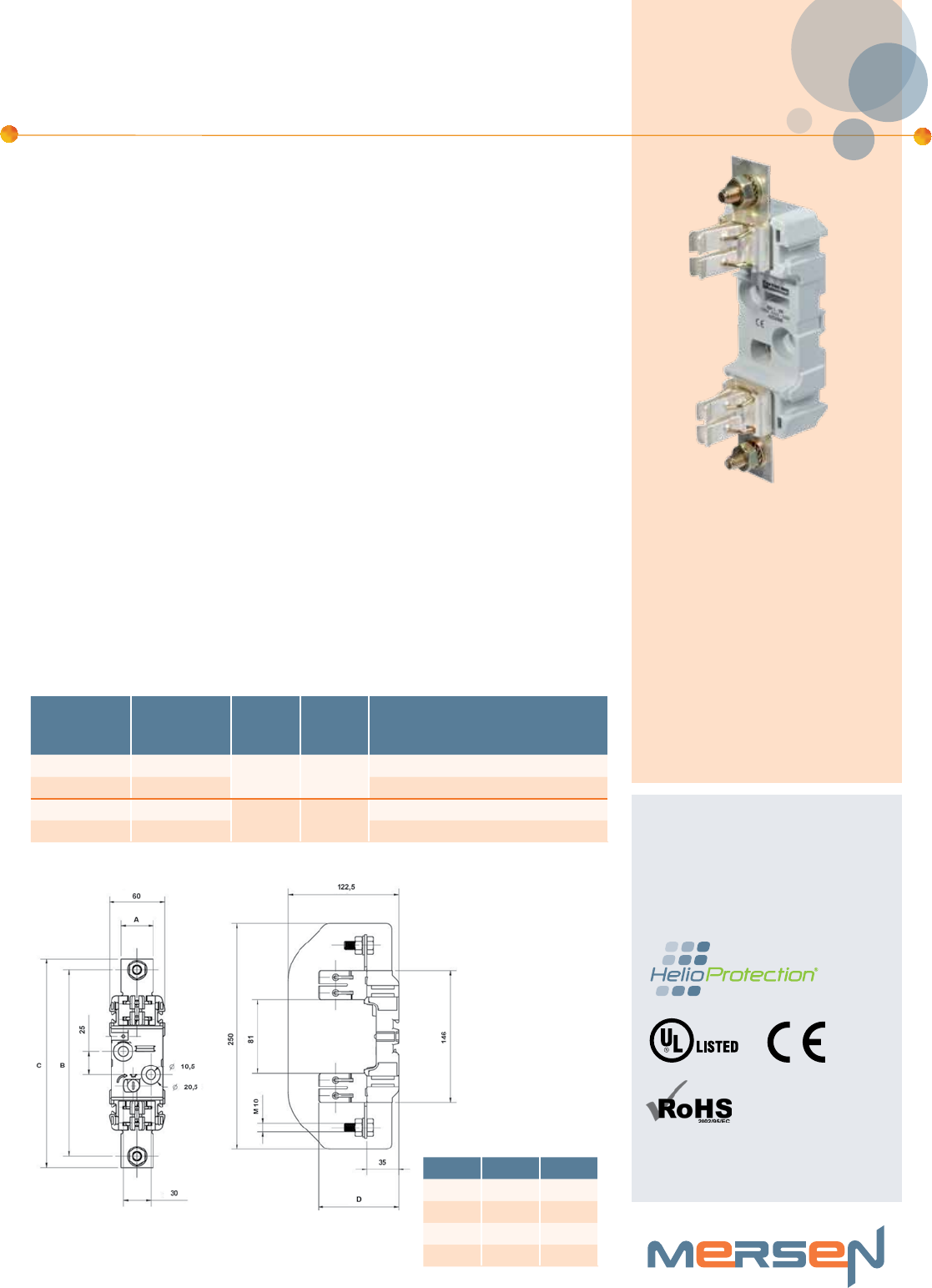

HPBB 1000V DC Size NH Open Style Fuse Blocks
Mersen size NH fuse blocks for use with HP10NH
HelioProtection® Photovoltaic series fuses
1000VDC rated and designed specically for Mersen’s HP10NH series of
photovoltaic fuses. These polyester fuse blocks are available in single pole
congurations with or without nger-safe covers. Fuse blocks come standard with
M10 stud connectors for ease of wire termination. All fuse clips are silver-plated
copper and fuse clips are spring re-enforced for superior conductivity. Select
Mersen’s brand of innovative HelioProtection® products to meet your stringent
photovoltaic application requirements.
Features:
•1000VDC rated
•Polyester insulating base
•Silver plated contacts
•M10 stud wire terminals
•Optional nger-safe covers
•DIN-rail or screw mounting
Applications:
•Re-combiner box (sub-combiner,
array combiner, master combiner)
applications
•Inverter DC input
•Battery charge controllers
Approvals:
•IEC 60269-2-1 Certication
•Pending: UL Listed to Standard
4248-18, File E347822
Ratings:
Volts : 1000VDC
Amps : 315A max
SCCR : 50kA
Catalog
Number
Reference
Number
No. of
Poles
For
use
with
Description
HPBB11PPR A1030607 1 NH1 Open Style
HPBB11PPRFS K1032916 Open Style with Protective Cover
HPBB21PPR C1037509 1 NH2 Open Style
HPBB21PPRFS D1037510 Open Style with Protective Cover
Recommended Fuse Usage:
•Mersen HP10NH series HelioProtection Photovoltaic Fuses
Dimensions (mm)
*87mm for base with protective cover
M10 torque recommendation: 230 in-lbs (26 Nm)
*
Size NH1 NH2
A 32 35
B 176 201
C 209 225
D 80 89
H59
H
DFC SERIES Dead-Front Fuse Covers
Mersen DFC dead-front fuse covers snap on to individual fuses installed in fuse
blocks, covering exposed live clips and terminals and reducing accidental contact by
personnel. They are sized to t Class G, H, J, K, R, CC or midget fuses for increased
safety and (optional) open-fuse indication. All DFC dead-front fuse covers are
reusable when a fuse is replaced – simply detach from the open fuse and re-attach to
the new replacement fuse. On indicator models an orange indicator light will illuminate
to indicate an open fuse. DFC fuse cover ends can be easily cut to accommodate
existing wiring, safety switches or special installations. A blank label is provided with
each DFC to write in circuit or fuse information.
Ratings:
Non-Indicating
Volts : 0 to 600VAC / DC
Amps : Fits fuses rated 0 to
200A
Indicating
Volts : 90 to 600VAC
: 115 to 600VDC
Amps : Fits fuses rated 0 to
200A
Features/Benefits:
•Innovative design provides dead-front electrical safety to personnel
•Optional orange indicator light shows open fuse
•Many sizes to t virtually all popular fuses/fuse blocks
•Reusable with no changes or additional cost
•Labels provided for write-in identication
•Thermoplastic ammability rating of UL 94-V2
•Low leakage current <0.6 mA at 600V
Approvals:
•UL Listed (All except midget
size) guide JDVS, File E90426
•UL Recognized Component
(midget) guide JDVS2, File
E90426
•CSA Certied class 6228, File
70159
WARNING: To avoid electrical shock, TURN POWER OFF before installing, removing or servicing.
Catalog Numbers Fuses Accomodated Dimensions (inches)
Non-
indicating indicating Amps Volts Class A B C
DFC-1 DFC-1I 0-30 600 J 4.68 1.36 1.97
DFC-2 DFC-2I 0-30 600 R, K, H 7.45 1.35 1.80
DFC-3 DFC-3I 65-100 600 J 7.57 1.30 2.20
DFC-4 DFC-4I 65-100 250 R, K, H 8.73 1.40 2.02
DFC-5 DFC-5I 35-60 600 R, K, H 7.46 1.35 2.00
DFC-6 DFC-6I 35-60 600 J 4.64 1.40 2.17
DFC-7 DFC-7I 0-30 600 Midget, CC, G 3.71 0.69 1.37
DFC-8 DFC-8I 65-100 600 R, K, H 10.55 1.55 2.26
DFC-9 DFC-9I 0-30 250 R, K, H 3.71 0.85 1.55
DFC-10 DFC-10I 0-30 600 SJ 4.56 1.06 2.02
DFC-11 DFC-11I 65-100 600 SJ 5.52 1.7 2.04
DFC-12 DFC-12I 110-200 600 J 6.63 3.03 2.86
DFC-13 DFC-13I 35-60 250 R, K, H 5.20 1.12 1.92
Catalog Numbers & Dimensions
H60
Fuses and Fuse Blocks for use with DFC
Note: DFC Covers fit single pole blocks and each pole of multi-pole blocks. Consult factory for data
sheets of DFC trim instructions for safety switches.
WARNING: To avoid electrical shock, TURN POWER OFF before installing, removing or servicing.
DFC SERIES Dead-Front Fuse Covers
Fuse Fuse Block DFC Fuse Fuse Block DFC
AG(0-30) 40xxxG -7I, -7 A6K(35-60)R 606xxR -5I, -5
AJT(1-30) 603xxJ -1I, -1 A6K(70-100)R 610xxR -8I, -8
AJT(1-30) 603xxSJ 10I, -10 A6Y(0-30)-2B 303xx -7I, -7
AJT(35-60) 606xxJ -6I, -6 A60Q(0-30)-2 303xx -7I, -7
AJT(70-100) 610xxJ -3I, -3 A60X(0-30)-1 603xx -1I, -1
AJT(70-100) 6100xxSJ -11I, -11 A70P(10-30)-1 203xx -9I, -9
AJT(110-200) 620xxJ -12I, -12 GFN(0-30) 303xx -7I, -7
ATDR(0-30) 303xxR -7I, -7 GGU(0-30) 303xx -7I, -7
ATM(0-30) 303xx -7I, -7 HSJ(15-30) 603xxSJ -10I, -10
ATMR(0-30) 303xxR -7I, -7 HSJ(70-100) 6100xxSJ -11I, -11
ATQ(0-30) 303xx -7I, -7 HSJ(110-200) 620xxJ -12I, -12
ATQR(0-30) 303xxR -7I, -7 OT(0-30) 203xx -9I, -9
A13X(1-30)-2 303xx -7I, -7 OT(35-60) 206xx -13I, -13
A2D(0-30)R 203xxR -9I, -9 OT(65-100) 210xx -4I, -4
A2D(35-60)R 206xxR -13I, -13 OTM(0-30) 303xx -7I, -7
A2D(65-100)R 210xxR -4I, -4 OTS(0-30) 603xx -2I, -2
A2K(0-30)R 203xxR -9I, -9 OTS(35-60) 606xx -5I, -5
A2K(35-60)R 206xxR -13I, -13 OTS(65-100) 610xx -8I, -8
A2K(70-100)R 210xxR -4I, -4 RF(0-30) 203xx -9I, -9
A2Y(0-30) 203xx -9I, -9 RF(35-60) 206xx -13I, -13
A2Y(35-60) 206xx -13I, -13 RF(65-100) 210xx -4I, -4
A2Y(70-100) 210xx -4I, -4 RFS(0-30) 603xx -2I, -2
A25X(1-30)-1 203xx -9I, -9 RFS(35-60) 606xx -5I, -5
A25Z(1-30)-2 303xx -7I, -7 RFS(65-100) 610xx -8I, -8
A4J(1-30) 603xxJ -1I, -1 TR(0-30)R 203xx -9I, -9
A4J(1-30) 603xxSJ -10I, -10 TR(35-60)R 206xx -13I, -13
A4J(35-60) 606xxJ -6I, -6 TR(70-100)R 210xx -4I, -4
A4J(70-100) 610xxJ -3I, -3 TRM(0-30) 303xx -7I, -7
A4J(70-100) 6100xxSJ -11I, -11 TRS(0-30)R 603xxR -2I, -2
A4J(110-200) 620xxJ -12I, -12 TRS(35-60)R 606xxR -5I, -5
A50P(10-30) 203xx -9I, -9 TRS(65-100)R 610xxR -8I, -8
A6D(0-30)R 603xxR -2I, -2 TRS(35-60)RDC 606xxR -5I, -5
A6D(35-60)R 606xxR -5I, -5 TRS(70-100)RDC 610xxR -8I, -8
A6D(70-100)R 610xxR -8I, -8
A6K(0-30)R 603xxR -2I, -2
H61
H

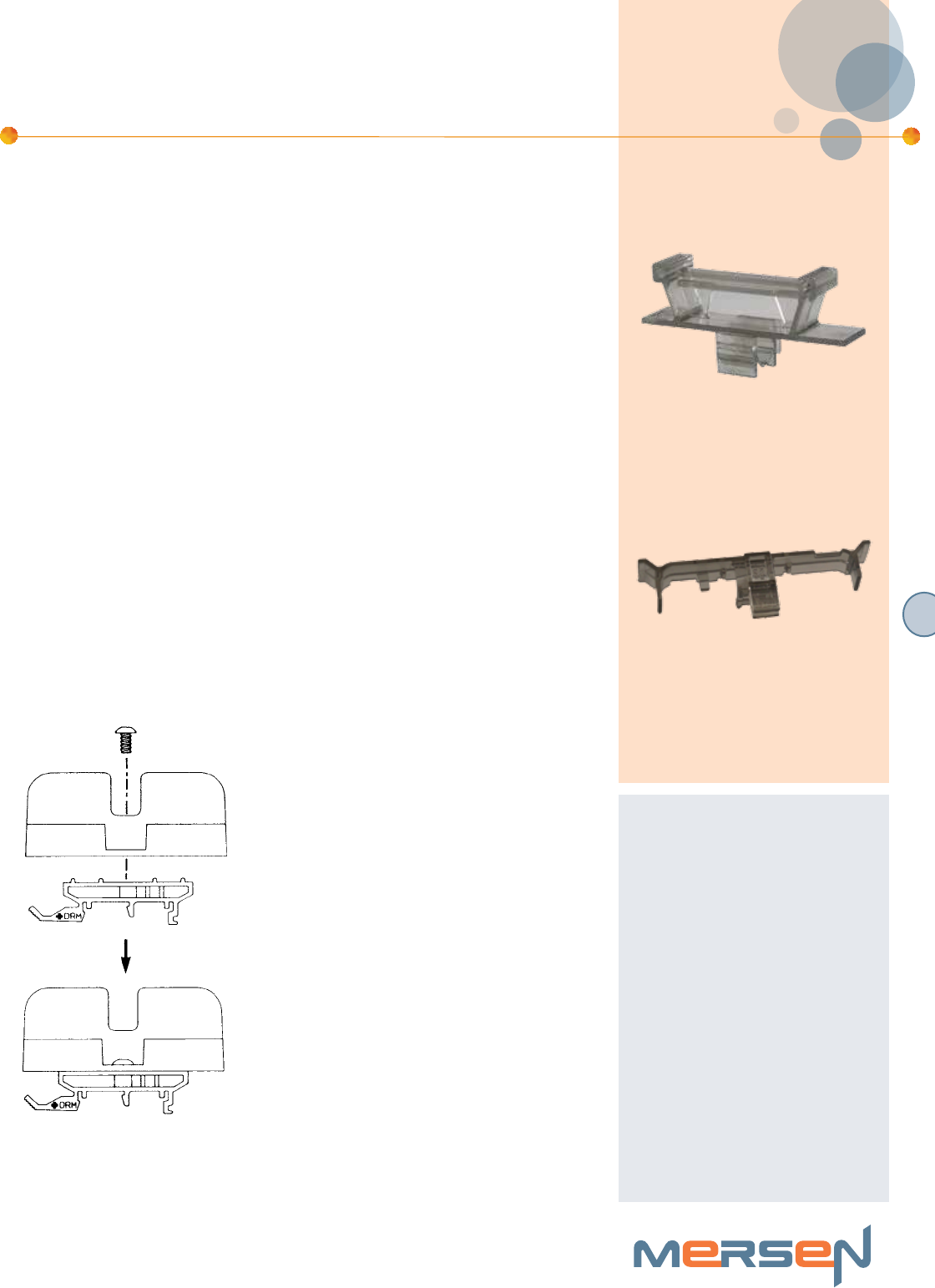

DFC3M/DFC3LP/DRM
Fuse Block Accessories
DFC3M safety puller protects personnel, covers live parts
The DFC3M safety puller is intended to hold and safely enclose 1-1/2” x 13/32” midget
or Class CC fuses for insertion or removal from fuse clips, making fuse installation
easy and safe without the use of a standard fuse puller. The DFC3M is made of clear
polycarbonate, so the fuse can be identied when installed in a 303 series fuse block.
DFC3LP safety puller holds fuse, protects personnel, and
saves space
The DFC3LP holds and safely encloses 1-1/2” x 13/32” midget or class CC fuse,
similar to the DFC3M, but with a lower prole in height so it takes less room where
space is restricted. The DFC3LP is made of clear polycarbonate so the fuse can be
seen after installation in a fuse block such as the Mersen 303 series.
DRM adapts 303 series midget and class CC fuse blocks to
DIN-rail
The DIN-rail adapter, DRM, provides quick mounting for all Mersen 303 series midget
and class CC fuse blocks to all symmetrical 35mm DIN or asymmetrical 32mm “G”
rail. A DRM adapter is attached to each pole with the screw provided. The DRM is
molded of black polycarbonate and is mounted or dismounted from the rail simply by
depressing the nger pull.
H62

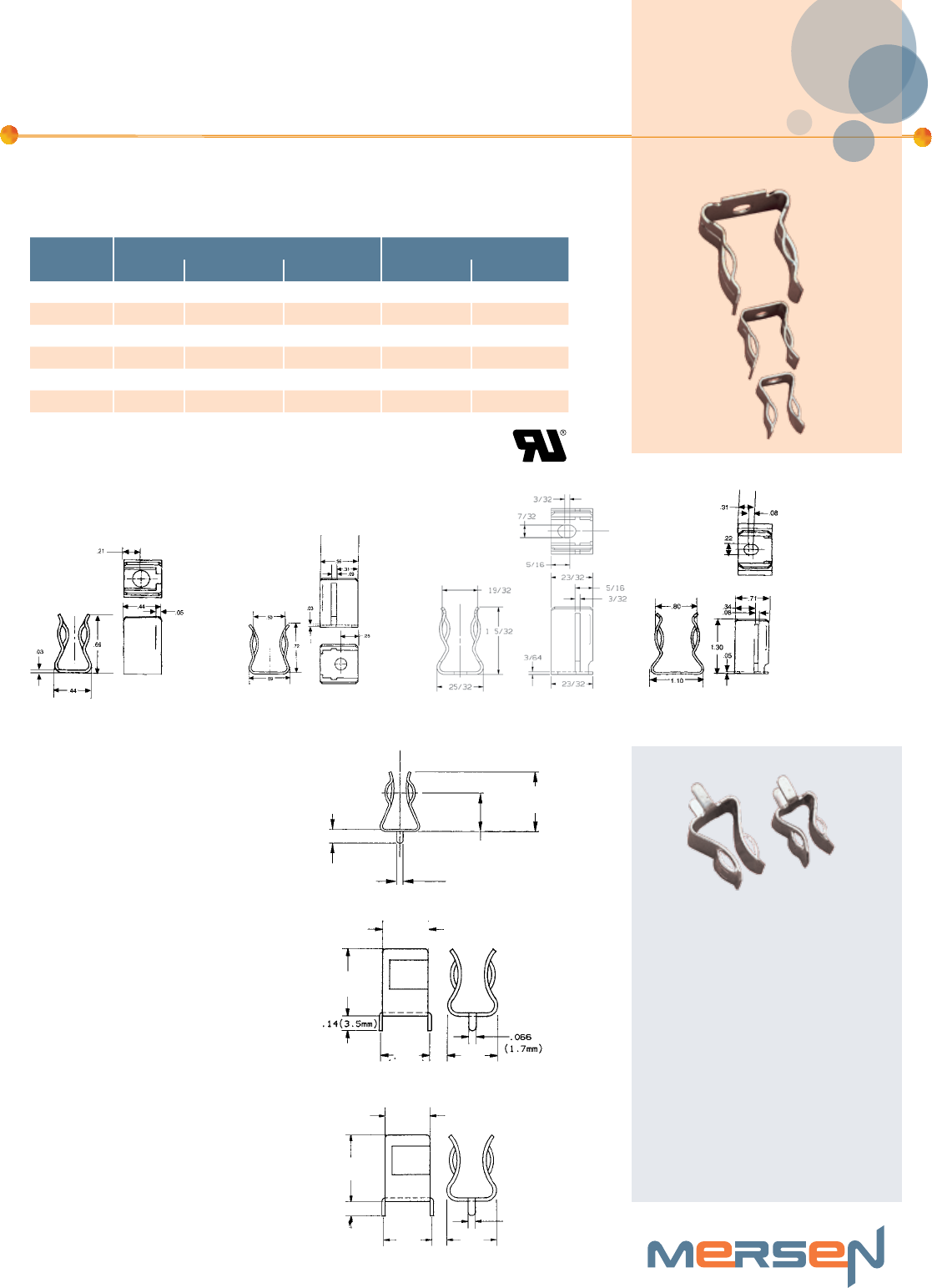

FUSE CLIPS
For Ferrule Fuses/PC Board Mount
30A & 60A Ferrule - Fuse Clips
CO8915P
CO8919P
CO8917P CO8918P
CO8916P
SDC5 PC BOARD clips
•PC board mount fuse clip
•For 5mm diameter fuses
•Tin plated hard brass
.34”
(8.6mm)
.20”
(5mm)
.066”
(1.67mm)
.14”
(3.56mm)
.280”
(7.1mm)
.425”
(0.8mm)
(7.6mm)
.30” (7.9mm)
.312”
SDC6 PC BOARD clips
•PC board mount fuse clip
•For 1/4” diameter fuses
•Tin plated hard brass
.43
(11mm)
.73
(18.5mm)
.08
(2mm)
.17 (4.4mm)
.42
(10.7mm)
.48
(12.3mm)
SDC7 PC BOARD clips
•PC board mount fuse clip
•For 13/32” diameter fuses
•Tin plated hard brass
Fuse Clips for 30 & 60 Ampere Ferrule-type Fuses
All clips are UL recognized: guide IZLT2, file E52283
All clips are tin-plated copper alloy, non-spring reinforced.
For Fuse Rating/Size Mounting Details
Cat. No. Volts Amps (max) Ferrule Dia. Hole Size Screw Size
C08915P 600 30 13/32” .72 dia. #8
C08919P 600 30 13/32” .196 dia. #10
C08916P 250 30 9/16” .172 dia. #8
C08917P 250 60 13/16” .22 X .30” #10
600 30 13/16” .22 X .30” #10
C08918P 600 60 1-1/16” .22 X .30” #10

Navigation menu
