Revolutionize

the Industrial Automation

CIMON-PLC features

-High Reliability and Performance

Combined Remote I/O and Expansion Capability

-Excellent Compatibility and Scalability

-Compact Size

-High Processing Speed

-Interactive Engineering Software (CICON)

PLC

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

Simple and easy set-up of communication

and analog modules

▪

Excellent expansibility and compatibility

(Ethernet standard)

▪

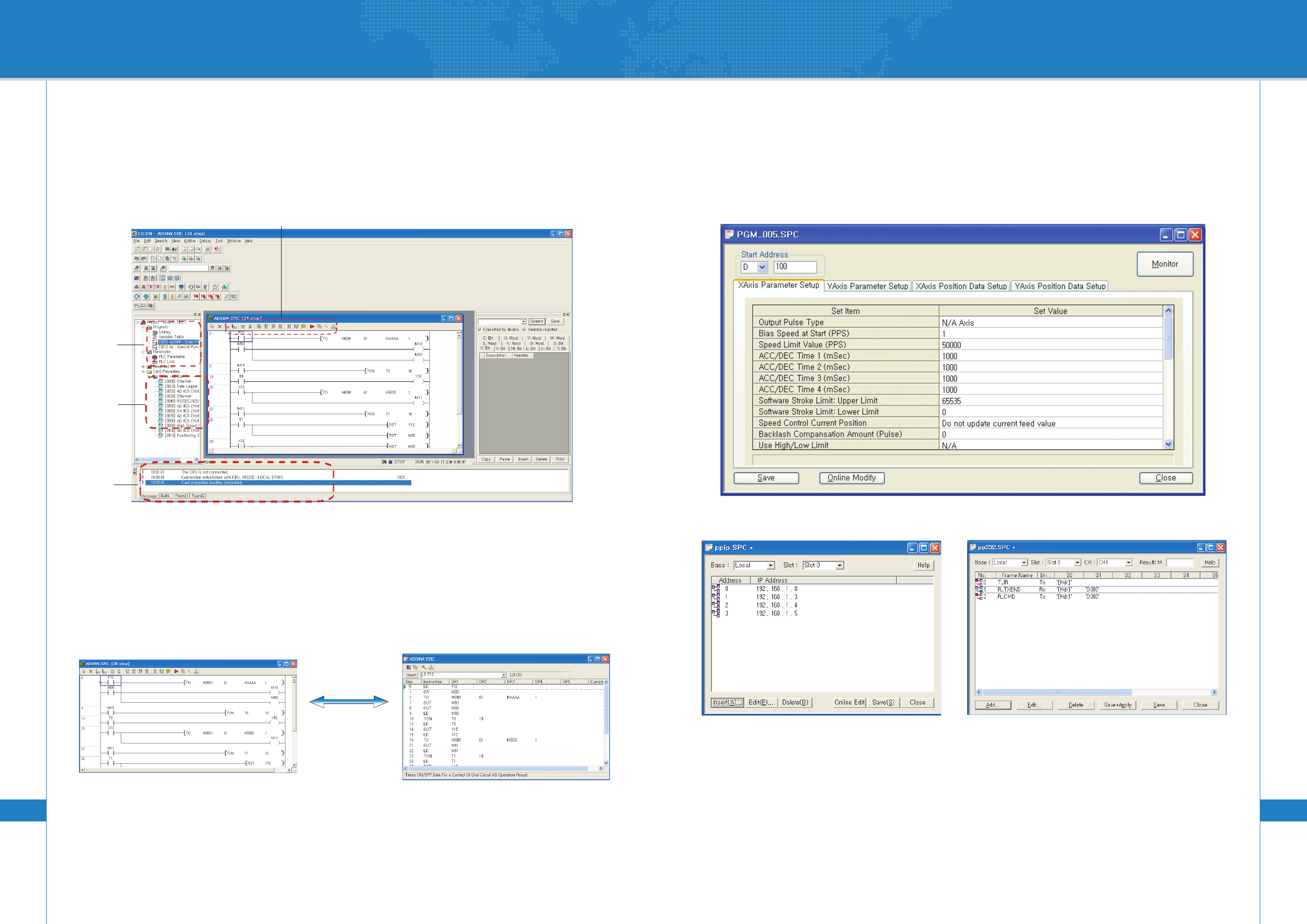

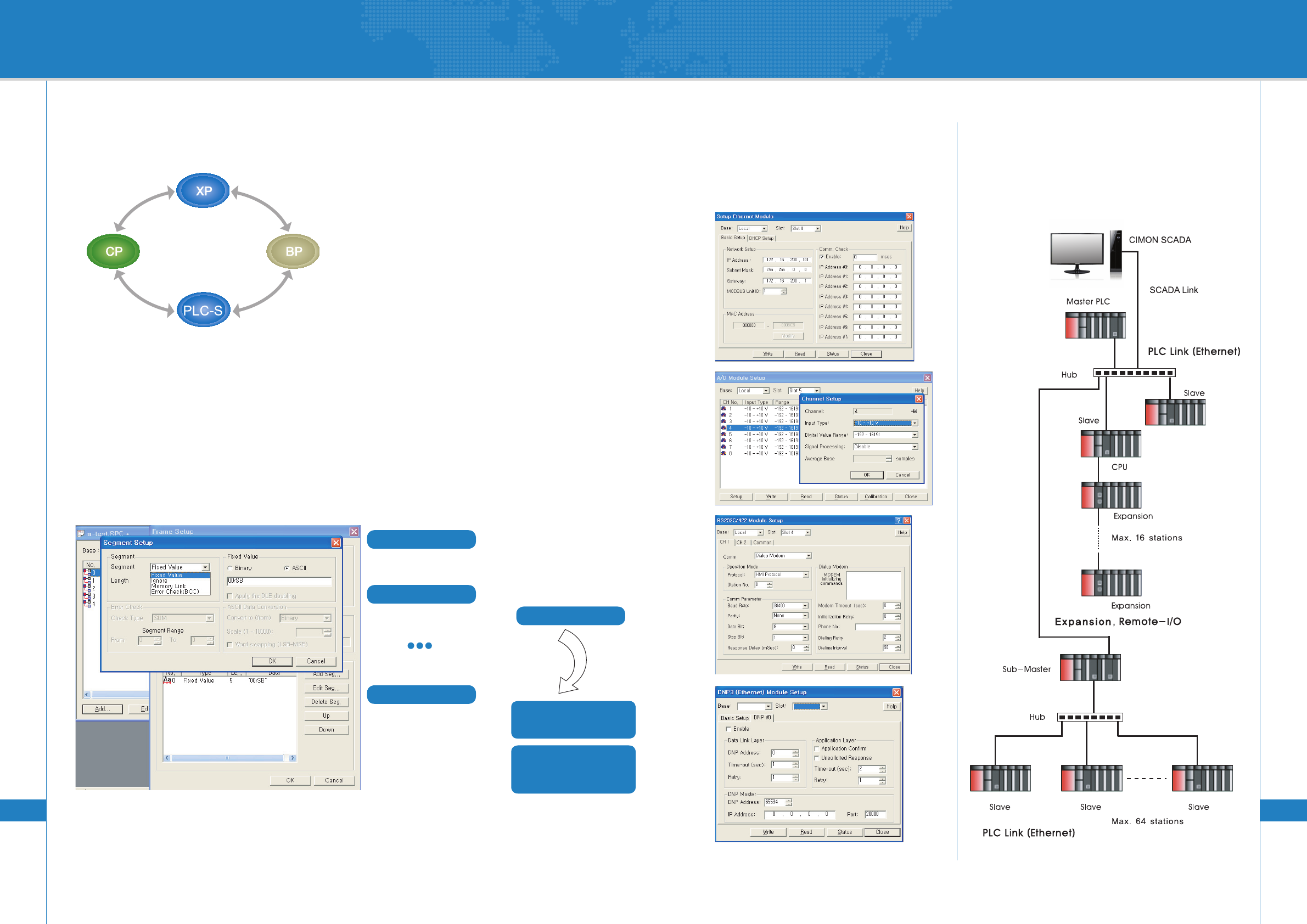

Special Module Set-Up

»Network Conguration

Feature of CIMON-PLC

High-speed CPU process : MPU(ASIC)-(75ns/step)

Remote I/O through expansion feature

High compatibility with other PLC series

One loader program covers all PLC types

▪

Sequence program(CICON) is compatible with XP, CP BP and PLC-S types of PLC

Operator can choose RAM or ROM mode through the integrated ash memory

Analog modules provide high-resolution signal conversion range (1/16000 or 1/64000)

Simple and user-friendly ladder program (PID program, Protocol program, PLC link program, etc.)

Various protocols

▪

CIMON-PLC

Segment

Transmit the registered

frame using SEND,

RECV instructions

Segment

}

Transmit the registered

frame automatically

Protocol Program

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

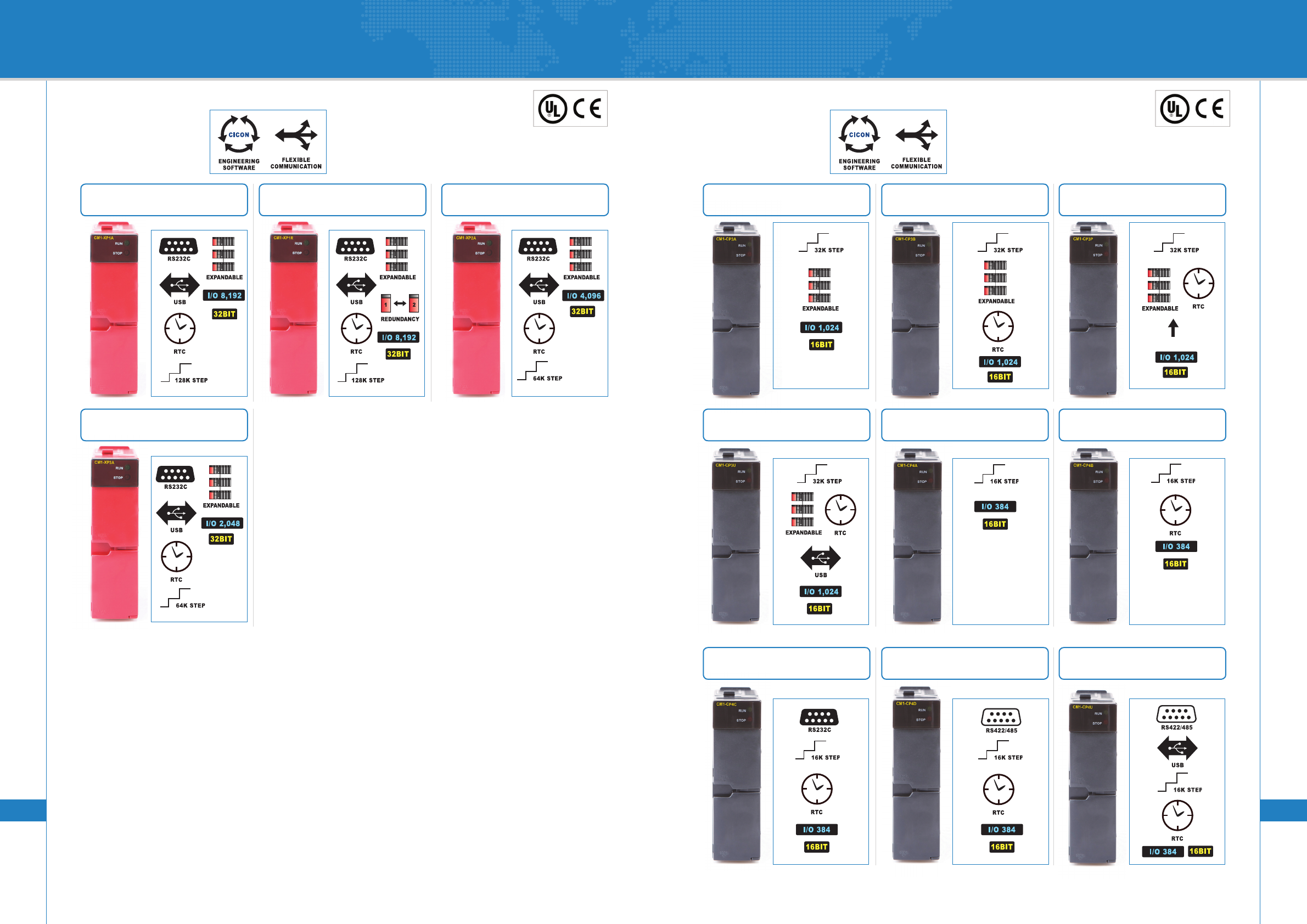

FLASH ROM PACK

CM1-CP3A

CM1-CP3U

CM1-CP4C

CM1-CP3B

CM1-CP4A

CM1-CP4D

CM1-CP3P

CM1-CP4B

CM1-CP4U

FLASH ROM PACK

CP Series

FLASH ROM PACK

XP Series

FLASH ROM PACK

XP/CP Series

CM1-XP3A

FLASH ROM PACK

CM1-XP1A CM1-XP1R CM1-XP2A

FLASH ROM PACK

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

1110

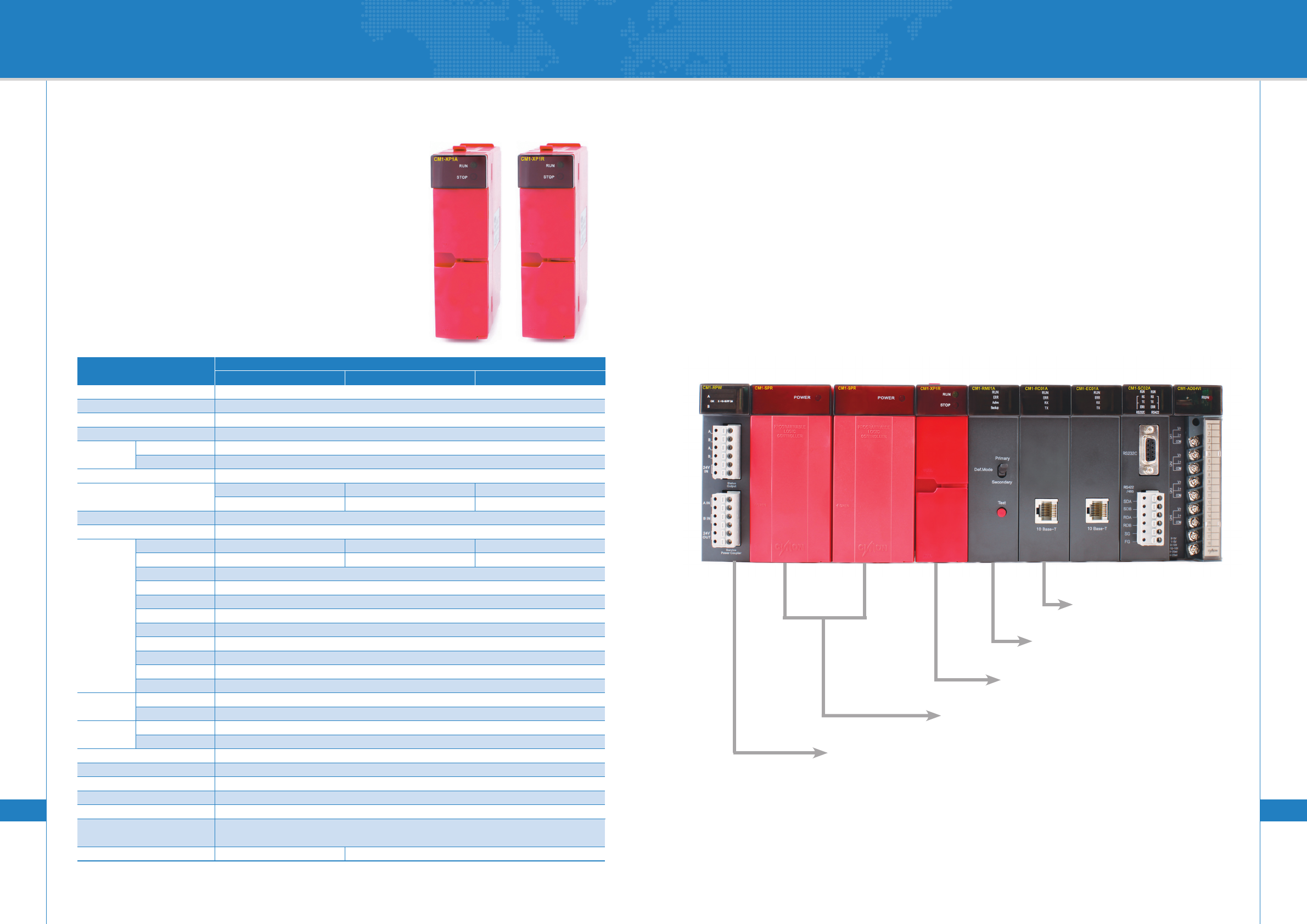

Redundancy Comm. Module(CM1-RC01A)

Redundancy CPU(CM1-XP1R)

Power(CM1-SPR)

Power Monitoring Module(CM1-RPW)

Redundancy Interface(CM1-RM01A)

Redundancy System

CPU, power, base and communication redundancy available

Perfect redundancy conguration derived from the base structure

In case an errors in the active CPU, the back-up CPU will switch to active status automatically

Test button to easily check and maintain the system

Less than 50ms to switch to back-up CPU

▪

Redundancy Conguration

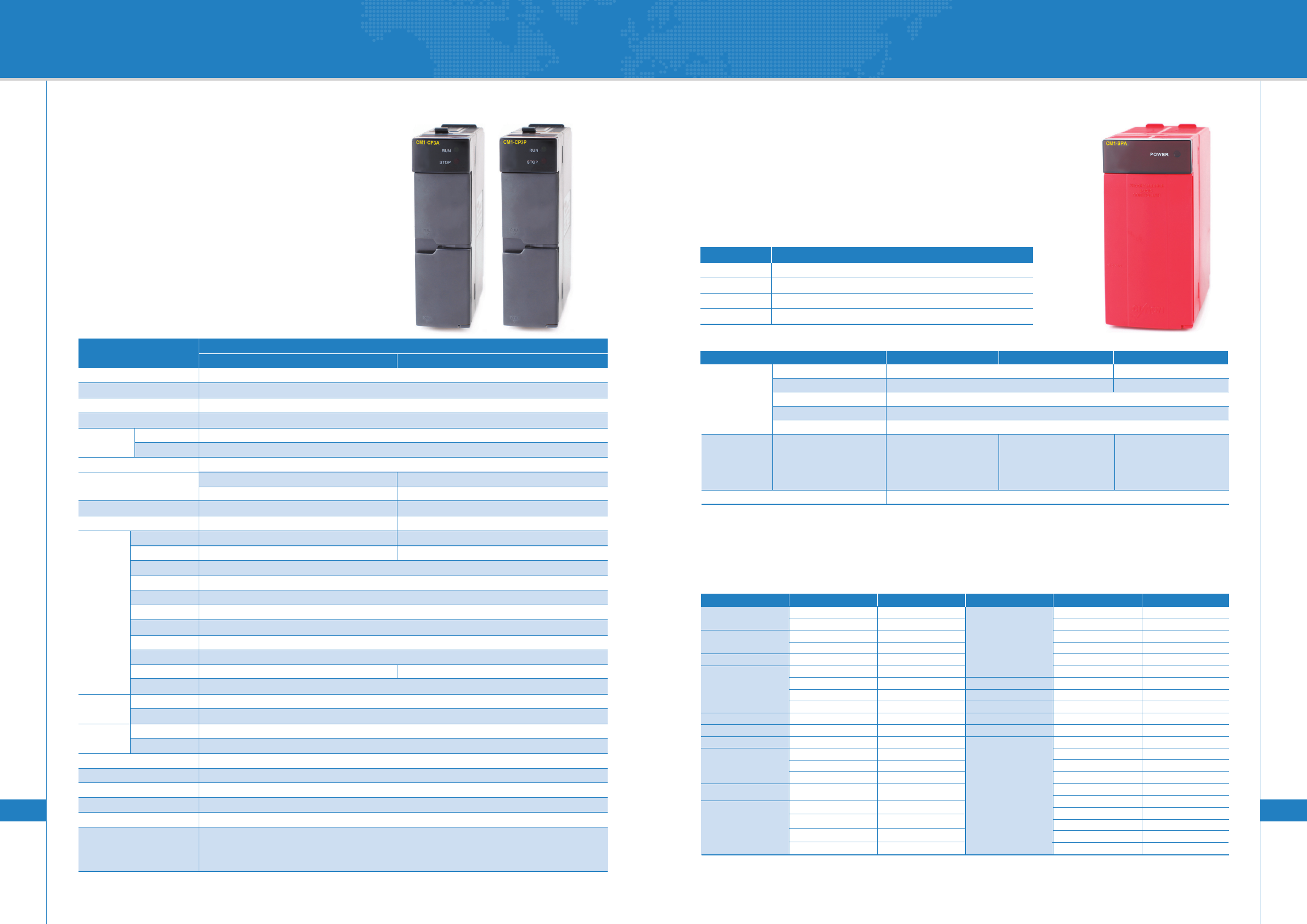

XP CPU

XP/CP Series

MPU (ASIC) - hgh speed processing speed (75ns/step)

Provides Over 400 instructions

Abundant device capacity: I/O - maximum 8,192 points /

Data - 32,000 word / (M,K,L) 16,000 points

Compact size with exceptional performance

Built-in USB 2.0 port

Built-in loader port for downloading/uploading programs

Maximum base expansion: 16

Maximum number of slots in one base is 12

XP series include all the functions and features of CP series and more

▪

32,000

Specification

CM1-XP2A CM1-XP3A

Operation Method

I/O Control Method

Program Language

Data Processing Method

No. of

Instruction

Sequence

Application

Processing Speed

Program Memory Capacity

Base Expansion

Data Memory Capacity

Data

Memory

Capacity

Timer Type

Time Range

Type

Coefficient Range

Counter

No. of Program Blocks

Operation Mode

Self Diagnosis

Restart Mode

Battery Back-up

Built-in Function

Redundancy

Stored Program, Cyclic Operation, Time Driven Interrupt

Interrupt system, Direct by Instructions, Scan Synchronous Batch Processing System.

LD (ladder diagram), IL (instruction list)

32 bits

55 instructions

389 instructions

75 ns/step

128K steps

2M bytes

64K steps

2M bytes

64K steps

2M bytes

1M bytes

16,000

2,048

8,192 4,096

Maximum 16

2,048

4,096 (10 ms,100 ms option)

4,096

100 card * 100 step

1,024

On Delay, Off Delay, Integration, Monostable, Retriggerable

0.01 sec ~ 6,553.5 sec

Up Counter, Down Counter, Up-Down Counter, Ring Counter

-32,768 ~ +32,767

Cold, Warm

Over 3 years

Watch-Dog Timer, Memory Error, I/O Error, Battery Error, Power Error, etc.

RUN, STOP, PAUSE, REMOTE

128

- Computer Link (RS232C) - Clock (RTC) - Program Editable on Run Mode

- PID Control (32 Loops) - I/O Reservation - USB 2.0 Port

Yes (CM1-XP1R) N/A

Item CM1-XP1A/R

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

1312

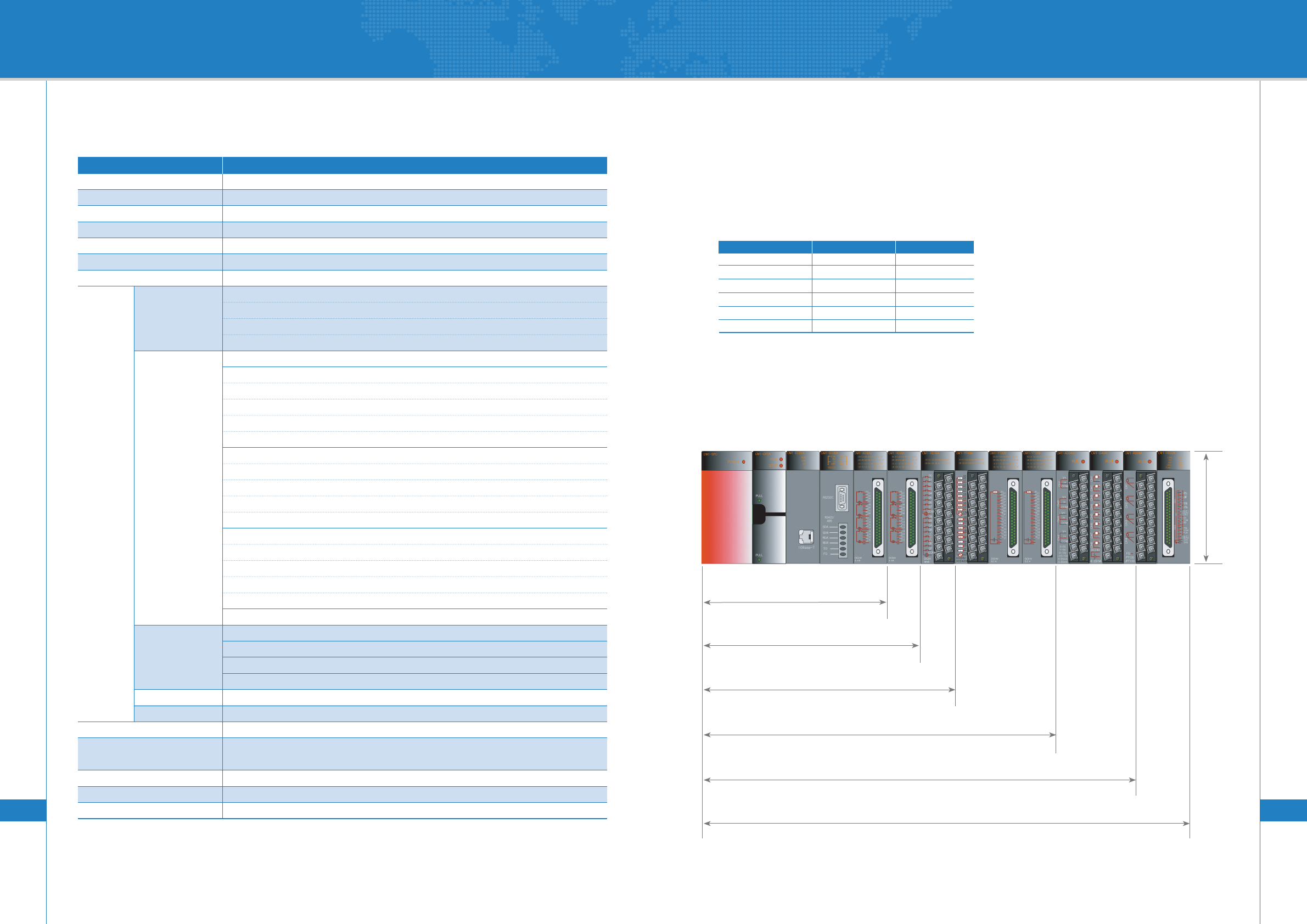

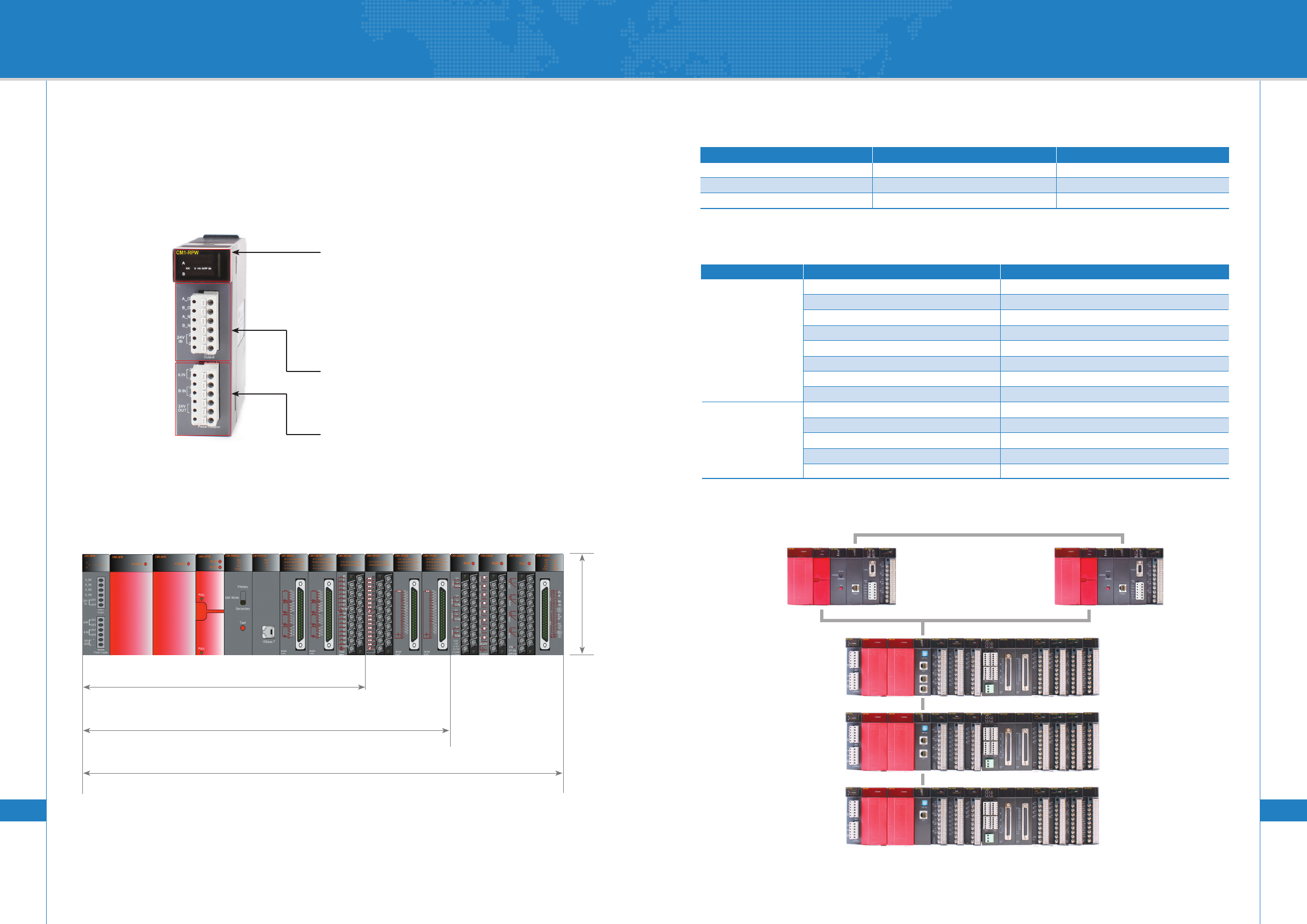

System Conguration

Redundancy

Communication

Expansion 1.

Expansion 2.

Expansion 3.

Model No. of slots Size(mm)

CM1-BS05R 5 slots 314.7 x 108

CM1-BS08R 8 slots 411.7 x 108

CM1-BS10R 10 slots 475.7 x 108

Base for Redundancy

Required Items For Redundancy

Base Unit Applicable Module

CPU

Expansion

Base CM1-BS03A and etc.

Power CM1-SPC and etc.

CPU CM1-XP1R

Redundancy Interface CM1-RM01A

Redundancy Comm. Module CM1-RC01A

Redundancy Cable CM0-CBE

Comm. Module CM1-EC01A and etc.

Expansion Cable CM0-CBE

Expansion 1 CM1-EP03A or CM1-EP02A

Expansion 2 or More CM1-EP02A or CM1-EP01A

Base CM1-BS05R and etc.

Power CM1-SPR and etc.

I/O Modules of all kinds

BS05R 314.7mm

BS08R 411.7mm

BS10R 475.7mm

Redundancy Power Monitoring Module

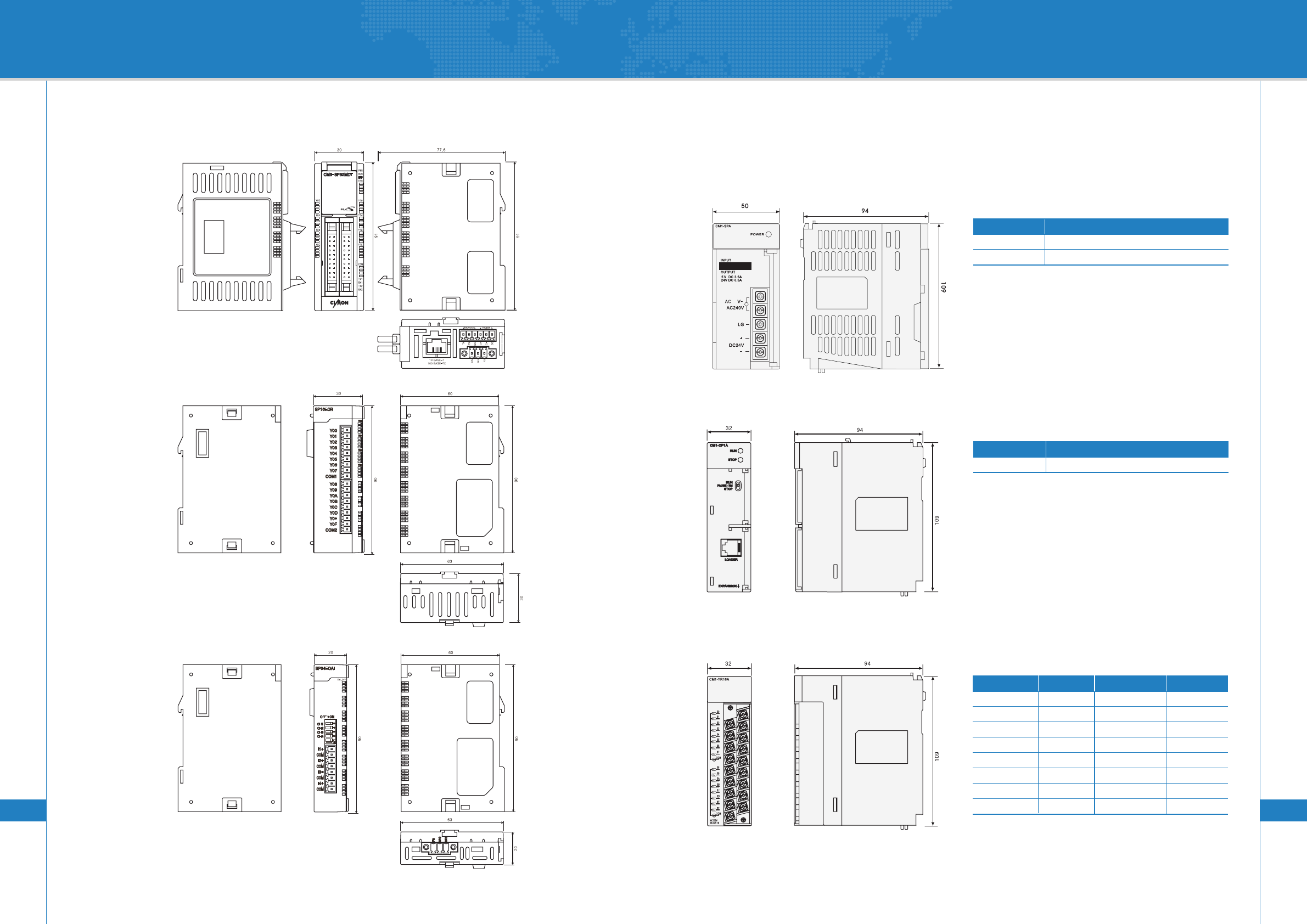

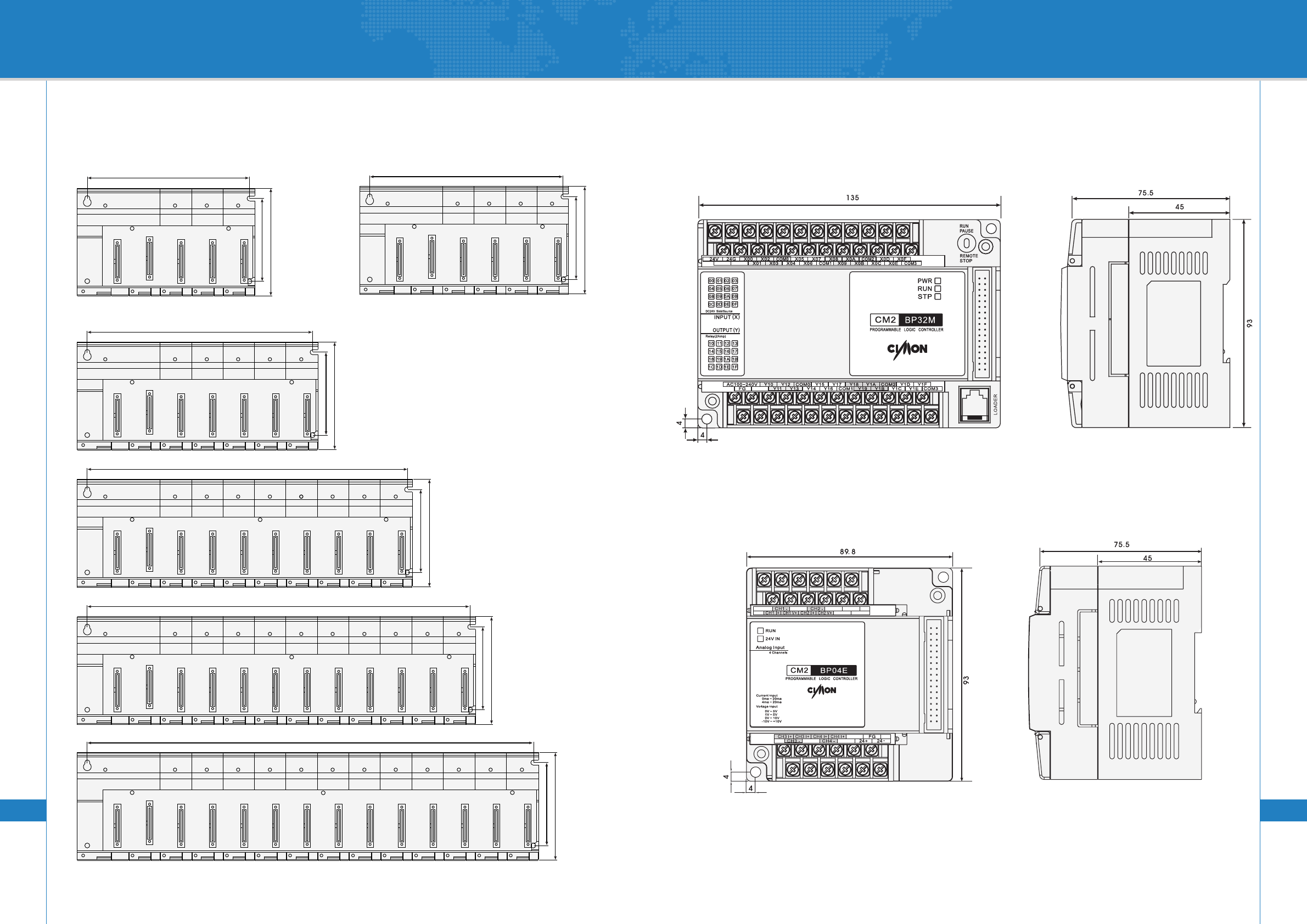

Dimensions

LED display to monitor operations

Digital output (DC24V, Transistor, Sink)

▪

108mm

LED Status window

A Line = Status LEDs for Power “A”

B Line = Status LEDs for Power “B”

OK = ON when all powers are ok

5 = ON when main power output is ok

+15 = ON when analog power (+15V) is ok

-15 = ON when analog power (-15V) is ok

PF = ON when external power fails

24 = ON when service power(24V) is ok

(If there is any failure on each power the LED will blink)

Status output (1point 0.5A, 24V, TR Sink)

A_OK = ON when power_A is ok

B_OK = ON when power_B is ok

A_NG = ON when power_A fails

B_NG = ON when power_B fails

Service power coupler for 24V Redundancy

XP/CP Series

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

1514

Power

Output voltage Function

+5V Operating Power for All PLC Modules

+24V Sensor and Switch Power, Analog Current Output Module

+15V Operating Power for Analog Module (except current output)

-15V Operating Power for Analog Module (except current output)

※ Use CM1-SPC for Analog Input/output module

Items CM1-SPA CM1-SPC CM1-SP2B

Voltage Indicator

Input Voltage

Input Current

Inrush Current

Efficiency

Power Disturbance Susceptabitity

Output Voltage/

(Output Current)

AC100-240V, 50/60Hz

0.25A MAX. For 220VAC

30A or less

+5V(3.5A)

+24V(0.3A)

LED ON When Output Voltage Is OK

DC19-28V

+5V(3.5A)

+15V(0.5A)

-15V(0.3A)

70% or more (rated input / load)

20ms or less

1.8A MAX. For 24VAC

+5V(3.5A)

+24V(0.3A)

+15V(0.5A)

-15V(0.3A)

Input

Output

Current Consumption

Item

CPU Module

Redundancy

Module

Expansion Module

DC Input Module

AC Input Module

Relay Module

Transistor Module

Model

Current Consumption

Item

Current Consumption

Model

I/O Module

Load Cell Module

CM1-CP**

CM1-XP**

CM1-RM01A

CM1-RC01A

CM1-EP***

CM1-XD16*

CM1-XD32*

CM1-XD64C

CM1-XD16W

CM1-XA08*

CM1-XY16DR

CM1-YR16A

CM1-YT16*

CM1-YT32*

CM1-YT64*

CM1-HS02*

CM1-AD04VI

CM1-AD08V

CM1-AD08I

CM1-AD04W

130mA

170mA

70mA

290mA

270mA

60mA

100mA

220mA

32mA

30mA

180mA

250mA

110mA

130mA

260mA

290mA

50mA

55mA

430mA

CM1-DA04V

CM1-DA04VA

CM1-DA08V

CM1-DA08VA

CM1-DA04I

CM1-DA08I

CM1-RD04*

CM1-TC04A

CM1-TH08A

CM1-WG0**

CM1-PS02A

CM1-SC02A

CM1-SC01A

CM1-SC01B

CM1-SC01DNP

CM1-EC01A

CM1-EC10*

CM1-BN01A

CM1-EC0*DNP

CM1-C*01*

CM1-LG32A

40mA

50mA

40mA

50mA

60mA

170mA

240mA

190mA

170mA

290mA

60mA

170mA

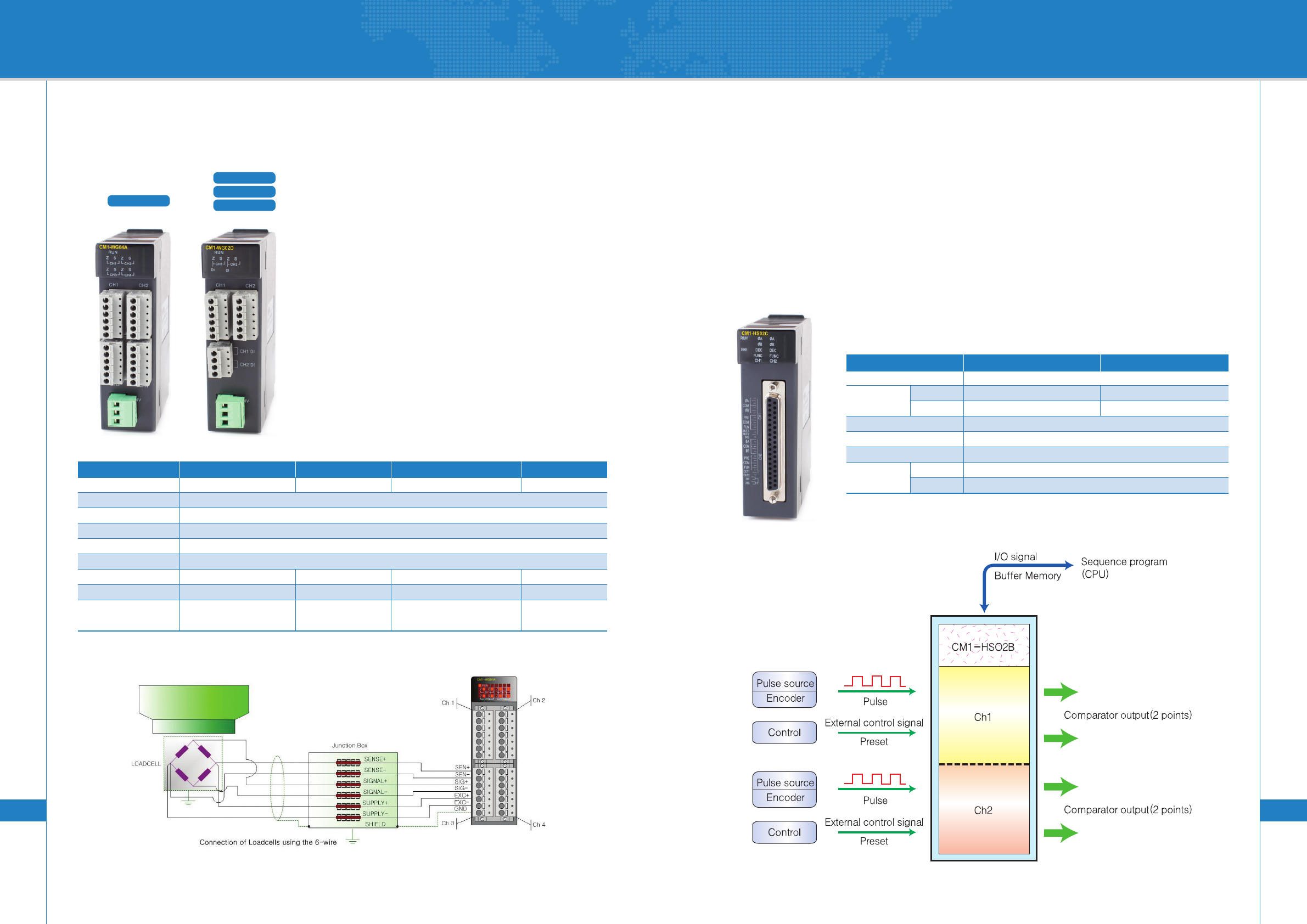

High-Speed

Counter Module

A/D Convert Module

D/A Convert Module

RTD Module

TC Module

Thermistor Module

Positioning Module

Communication

Module

▪

The power supply for CIMON PLC XP/CP Series

(AC100-240V convert to DC +5V, +24V, +15V, -15V)

Internal power disturbance monitoring function prevents data damage

or system malfunctions

Capacity of the power module must be checked before using the following table

XP/CP Series

CP CPU

Data

Memory

Capacity

- Computer Link (RS232C) - PID Control (32 Loops) - I/O Reservation

- Program Editable on Run Mode - USB 2.0 Port (CM1-CP*U) - Clock (except CP*A type)

Timer

Built-in Function

Counter

Program Memory

Capacity

Base Expansion

Data Memory Capacity

No. of Program Blocks

Operation Mode

Self Diagnosis

Restart Mode

Battery Back-up

Processing Speed

No. of

Instructions

Sequence

Application

Operation Method

I/O Control Method

Program Language

Data Processing Method

8,192

2,048

1,024 (10 ms or 100 ms)

1,024

100 card * 100 step

1,024

On Delay, Off Delay, Integration, Monostable, Retriggerable

0.01 ~ 6,553.5 sec

Up Counter, Down Counter, Up-Down Counter, Ring Counter

-32,768 ~ +32,767

128

RUN, STOP, PAUSE, REMOTE

Watch-Dog Timer, Memory Error, I/O Error, Battery Error, Power Error, etc

Cold, Warm

Over 3 years

32K step

512K byte

Maximum 16

512K byte

1,024

10,000

16K step

256K byte

N/A

256K byte

384

5,000

Specification

CM1-CP4A/B/C/D/U

Item CM1-CP3A/B/P/U

Type

Time Range

Type

Coefficient Range

Stored Program, Cyclic Operation, Time Driven Interrupt

Indirect, Direct by Instructions

IL (Instruction List) , LD (ladder diagram)

16 bits

55 instructions

389 instructions

200 ns/step

▪

Easily nd errors with the self-diagnosis program

Maximum base expansion: 16 (except CP4)

Additional integrated communication port

(CM1-CP4C:RS232C, CM1-CP4D/U:RS422/485)

In the event that the CPU is replaced,

I/O and base specications are still maintained

Various program types

Supports over 300 instructions

Built-in USB 2.0 port (CP4U / CP3U only)

Attachable ash memory for exibility (CP3P only)

Built-in loader port for downloading/uploading programs

Maximum number of slots in one base is 12

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

1716

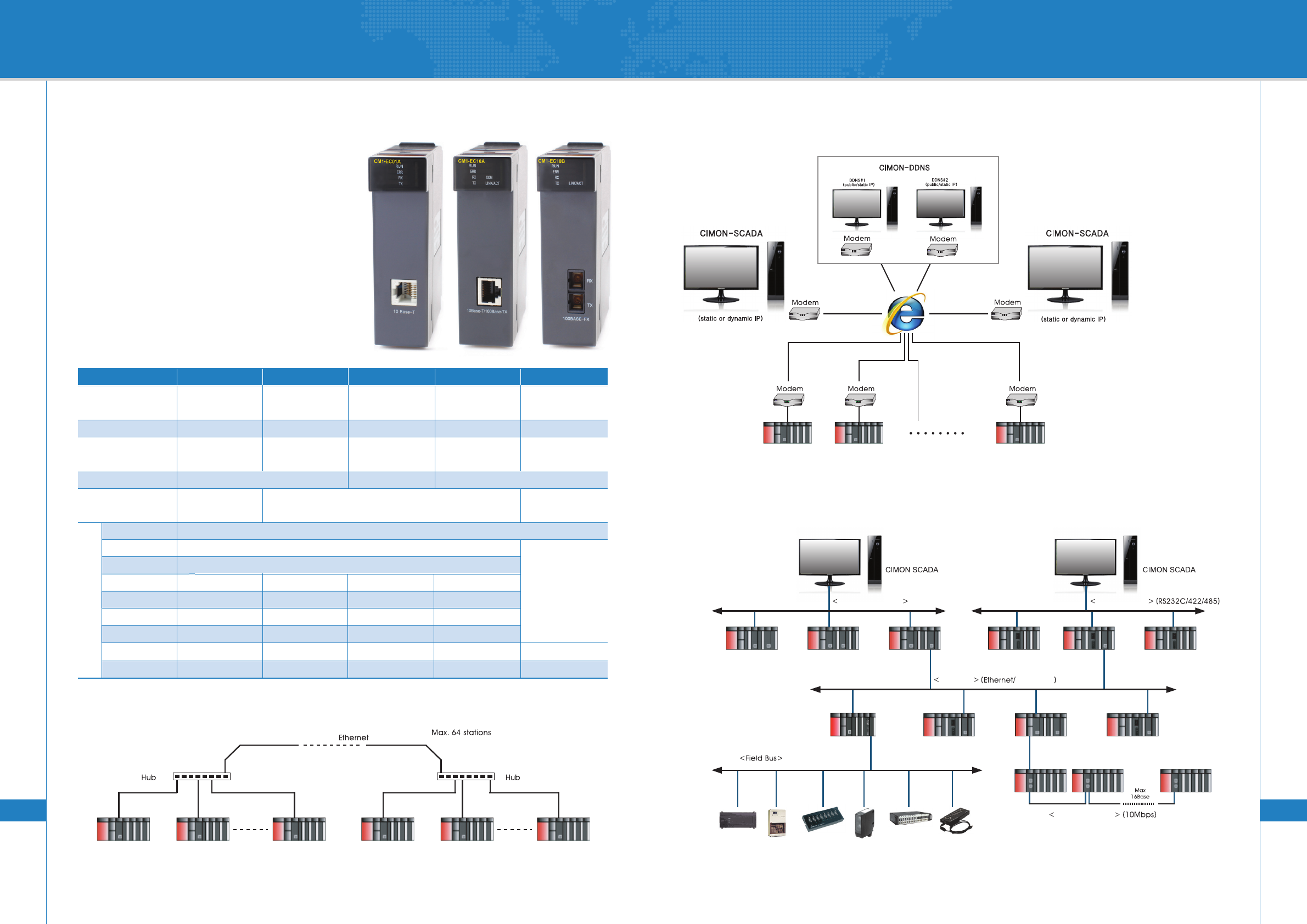

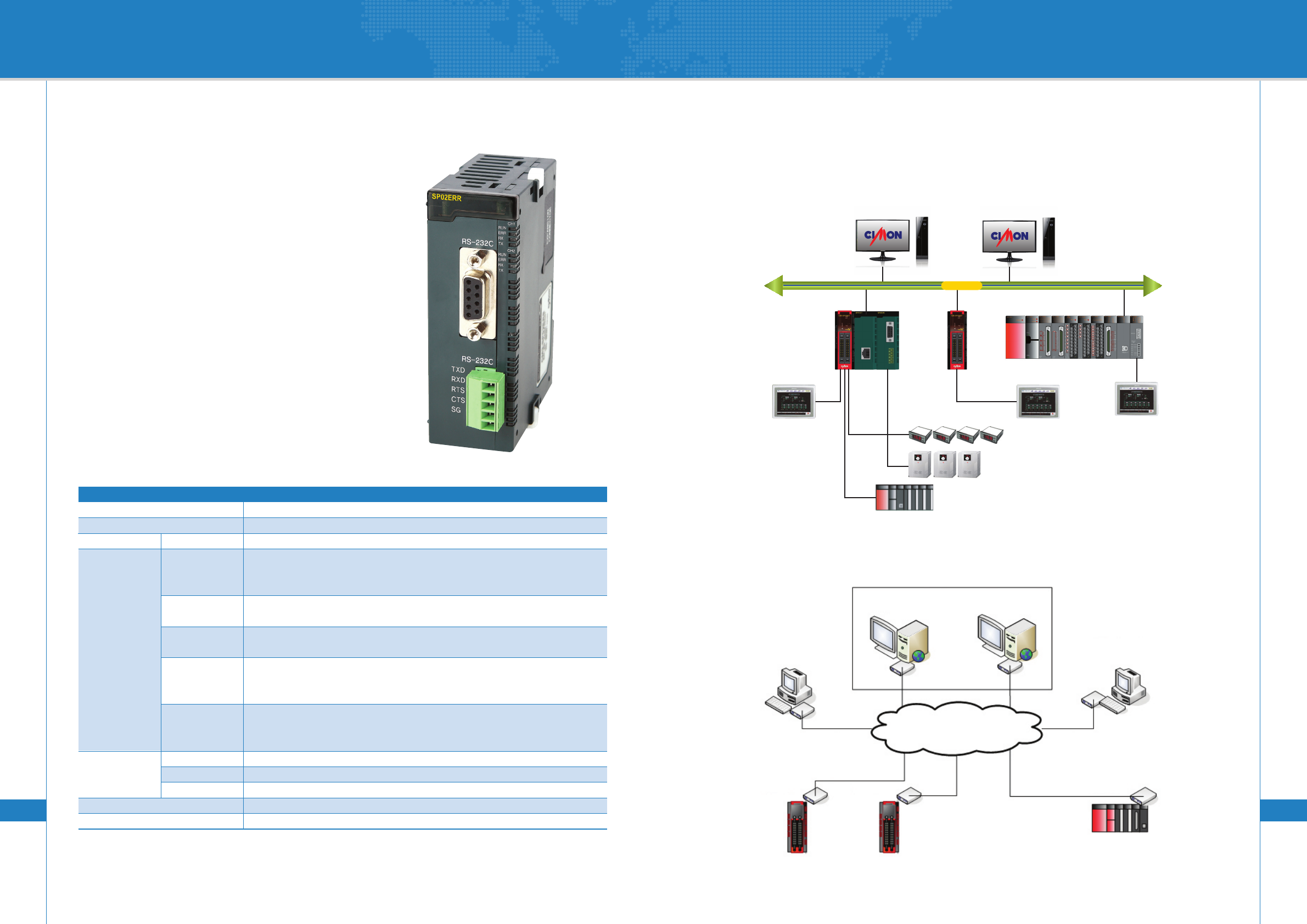

Ethernet Network

PLC Link RS422/485

Base Expansion

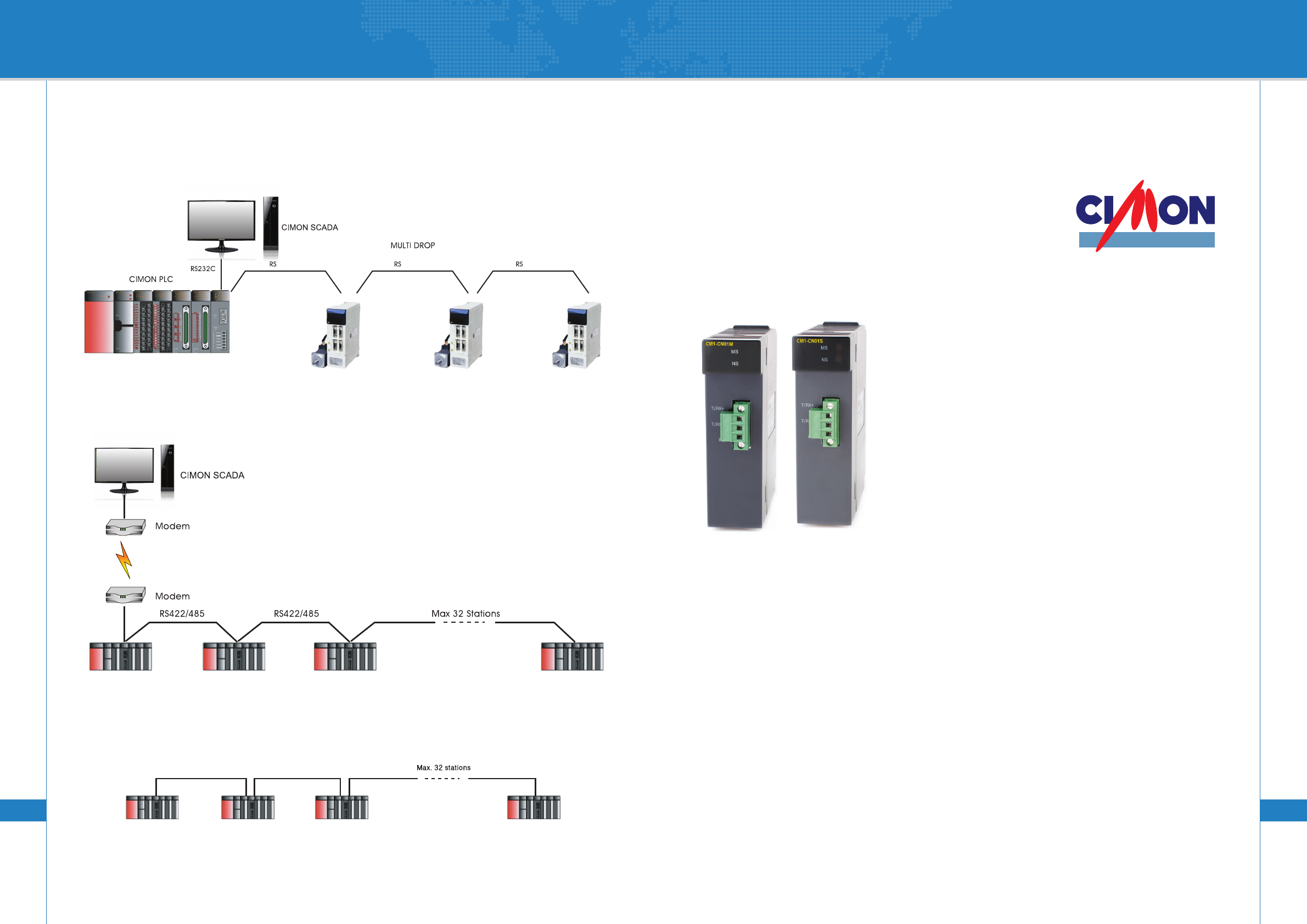

Serial Network

CIMON - Dynamic IP SYSTEM

CIMON Total Network

CIMON-DDNS is integrated within

CIMON-SCADA

CIMON SCADA and DDNS can be run

on the same PC

EC10C has to be installed in order to

run the CIMON PLC in dynamic IP

EC10C can be run under the IP sharer

▪

CIMON PLC(Dynamic IP) CIMON PLC(Dynamic IP) CIMON PLC(Dynamic IP)

XP/CP Series

Ethernet Module

IEEE 802.3

Various protocols (ARP, ICMP, IP, TCP, UDP)

Ethernet communication modules can be installed in one

base with no limitation

High-speed linkage to simultaneously communicate

along CIMON PLC’s and up to 64 stations

DNP 3.0 protocol (CM1-EC01DNP, CM1-EC04DNP)

▪

Ethernet

System Conguration

Model CM1-EC01A CM1-EC10A CM1-EC10B

CM1-EC01DNP/EC04DNP

Media interface

Transmission speed

Transmission Media

Max. Distance

(Node to Node)

Service Capacity

10BASE-T 10BASE-T

100BASE-TX 100BASE-FX 10BASE-T

10Mbps 10/100Mbps 100Mbps 10Mbps

UTP/STP

Category5

UTP/STP Category5

Auto MDIX

SC, Multi-Mode

(1310mm)

UTP/STP

Category5

100m 2Km 100m

UDP 9 Services

TCP 9 Services

UDP 16 Services

TCP 16 Services

EC01DNP : Single Host

EC04DNP : 4 Hosts

Loader

HMI Protocol

MODBUS/TCP SL.

MODBUS/TCP MS.

PLC Link

High-Speed Link

DHCP

Yes(UDP)

Yes(TCP,UDP)

Yes

CM1-EC10C

10BASE-T

100BASE-TX

10/100Mbps

Yes

UTP/STP Category5

Auto MDIX

DNP3 No Yes

No No No

(Private Net)

(Public Net)

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

1918

CDMA Module

CDMA Packet / Circuit communication

Flexible choices for communication

Easy parameter setup

Communication connection management by user program

Possible to read and write data by HMI protocol

Maximum 32 communication

Flexible communication speed set-up (300~76800bps)

1:1 / 1:N / N:M communication (with RS422 channel)

Various diagnostic functions with Loop-Back feature make for

an easy error check

▪

Item CM1-SC02CDMA

Interface RS232C / RS422 / RS485

CICON Communication

CIMON Protocol (1 : n)

MODBUS RTU Mode (Slave and Master)

HMI Mode

Loader Mode

Modbus

User defined mode

Data Bit

Stop Bit

Parity

Transmission Speed

Synchronization

Communication between Different Kinds of Systems

7 or 8 bit

1 or 2 bit

Even / Odd / None

Asynchronous

300 ~ 76800 bps

Comm

Mode

Data

Type

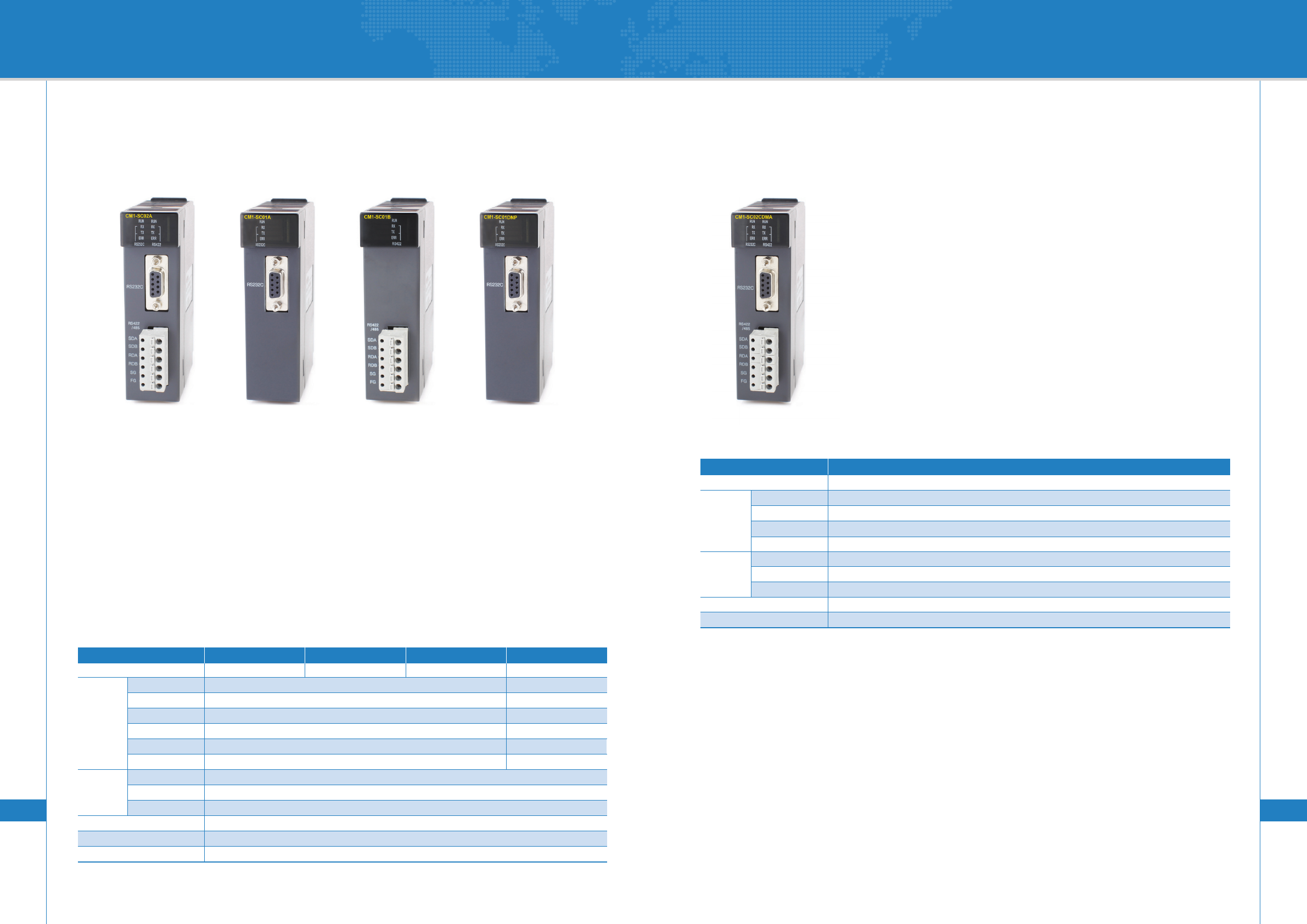

XP/CP Series

Serial Module

Possible to read and write Data by HMI protocol

Maximum 32 unit communications available for multi-drop conguration

Long distance communication via modem connection

Various communication speeds (300bps~76800bps)

Various diagnostic functions with Loop-Back feature makes for an easy error check

RS232C / RS422(RS485) communication port by setting up independent channel or linked channel

1:1 / 1:N / N:M communication (RS422 only)

Full-Duplex (RS422) and Half-Duplex (RS485)

RS485 Multi-Drop communication is available by using parameters

Various diagnostic function and loop-back function make easy error check

DNP 3.0 protocol (CM1-SC01DNP)

Simultaneously link high-speed communication between CIMON PLCs and up to 32 stations

▪

Model CM1-SC02A CM1-SC01A CM1-SC01B CM1-SC01DNP

Interface RS232C / RS422 / RS485 RS232C RS422 / RS485 RS232C

HMI Mode CIMON Protocol (1 : n) -

Loader Mode CICON Communication -

Comm. MODBUS MODBUS RTU Mode (Master / Slave) -

Mode PLC LINK Communication between CIMON PLC's

DNP - DNP 3.0 Protocol

User defined mode Protocol Program -

Data Data Bit 7 or 8 bit

Type Stop Bit 1 or 2 bit

Parity Even / Odd / None

Synchronization Asynchronous

Transmission Speed 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 76800

Modem Long Distance Communication by External Modem

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

2120

CIMON-NET Module

CIMON-NET exchanges real time data with Remote I/O through

the CANbus hardware which provides exceptional reliability.

▪

About CIMON-NET

Features of CIMON-NET

▪

Advantages of CIMON-NET

User can enjoy a simple installation of CIMON-NET system

conguration with easy maintenance

Provides exibility during processing by elevating the main func-

tions which reduces malfunctions, increase accurate data with reli-

able digital transmitting technology

Reduces installation cost of I/O hardware by using one twisted pair

cable which reduces the number of I/O cards required

Maximum 63 slave stations available

Maximum 1,400 bytes for each I/O data

I/O Comm. Block: Maximum 16 modules

Flexible communication speed set-up (10K,20K,50K,100K,125K,150K,500K,1000Kbps)

Auto Scan: easy to nd slave modules

Built-in indicator LED to easily monitor network conditions

Scan program: conveniently diagnose, monitor network condition and control communication ow (Start / Stop)

Communication conguring software is integrated with CICON

▪

NET

422/485 422/485 422/485

RS232C

RS422/485 RS422/485

XP/CP Series

System Conguration

Connecting the Application by protocol programs

▪

RS232C/422/485 SCADA Link (Using Modem)

▪

PLC Link : RS422/485

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

2322

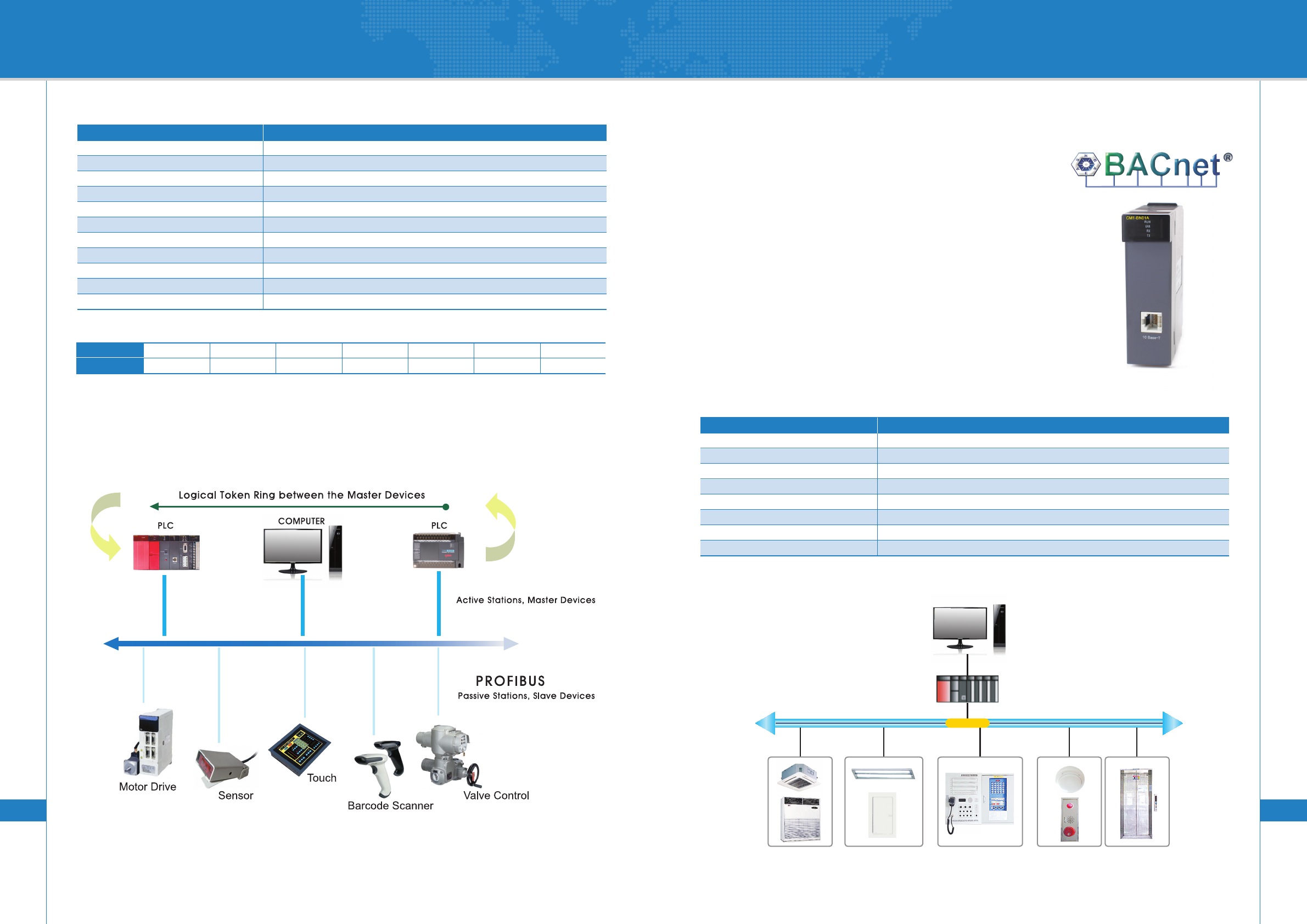

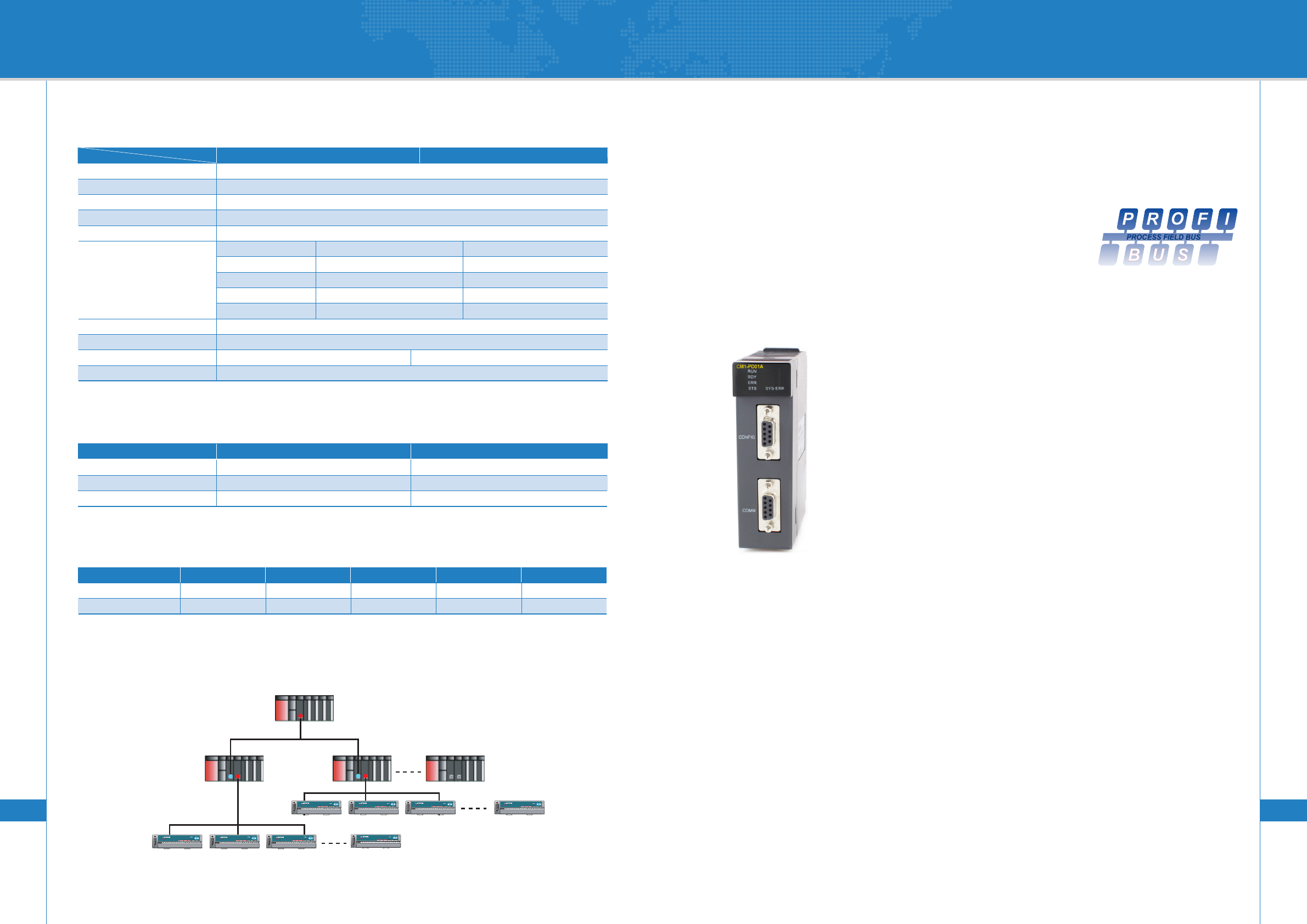

PROFIBUS Module

Probus is an open-type eldbus which is used universally for automation

and enables seamless communication between different manufacturer’s

devices. As technology advances, Probus is the industrial communication

system that will be ready for the future.

▪

Advantages of Probus

Features of Probus DP Module

Minimal hardware structure is required (I/O, terminal blocks, barriers).

Easy and fast installation reduces cost

Simple structure (device is constructed as one tool) with easy repairing

and maintenance

Provides maximum exibility for work progress by powering up the main

functions which reduces malfunctions while increasing accurate data log

with reliable digital transmitting technology

Further cost saving by using a twisted pair cable which minimizes

the amount of analog I/O card required

Suitable to communicate between master automation device and the slave I/O device

Flexible communication speed (9.6Kbps~12Mbps)

RS485 interface

Easy installation by using the twisted pair cable

Maximum 127 slave stations available (32 stations per segment)

Network setup via Sycon-PB conguration tool

1 Kbyte transferred in 2ms

Data transferred with an order or without an order

Single or multi-master network function

▪

About Probus

XP/CP Series

CIMON-NET Specication

Cable Specication

Transmission Distance per Speed

System Conguration

Network Type

Interface

Standard

Comm. Method

Media Access

Transmission

Distance & Speed

Max. Number of Slave per Segment

Cable

Max. I/O data

Parameter Set-up

CIMON-NET

CANbus

ISO11898

Bus

POLL

BUS Length (m)

0 ~ 40

40 ~ 300

300 ~ 600

600 ~ 1000

Cross Section (mm2)

0.25 ~ 0.34

0.34 ~ 0.6

0.5 ~ 0.6

0.75 ~ 0.8

Bit Rate (kbps/s)

1000 kbps / 40m

500 kbps / 200m

100 kbps / 500m

10 kbps / 1km

63 stations

Twisted Pair Electric Cable

Graphical Loader Program Only for CIMON

2800 byte 512 byte

Model Item CM1-CN01M CM1-CN01S

Impedance

Electrostatic capacity

Conductor cross section

108 ~ 132 Ω (f=3 to 20MHz)

< 30 nF/Km2

≥ 0.34 mm2 (22AWG)

cable 1 cable 2

68 ~ 102 Ω (f>800KHz)

< 70 nF/Km2

≥ 0.34 mm2 (22AWG)

Model

Cable 1

Cable 2

1000

10Baud (kbps)

700

500

100

350

400

250

200

500

100

1000

Master

Master Master

Master

Slave Slave

Max. 64

Master

Slave Slave

Max. 64

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

2524

Model CM1-BN01A

Size of Protocol ANSI / ASHRAE 135-1995 (KS X 6909)

Stack of Protocol UDP / IP

Standard of Physical Layer ISO / IEC8802-3 (IEEE 802.3, CSMA / CD, 10Base-T)

Speed of Data Transmitting 10 Mbps

Transmitting Method Base Band

Max. Length of Segment 100 m

Max. I/O Data Slave 244 byte

Support Service Loader, BACnet / IP, PLC Link (public Net)

BACnet Module

BACnet stands for Building Automation and Control Network.

BACnet is applicable to various building utilities such as HVAC control system,

lighting control system, security system, elevator control system etc.

▪

Easy to modify and expand due to use of standard protocol

Supports BACnet which is the standard of building automation system

Supports functionality of BACnet class 3 servers

Uses Ethernet for communication physical layer (BACnet IP)

▪

About BACnet

Features of BACnet Module

System Conguration

BACnet

XP/CP Series

System Conguration

Model CM1-PD01A

Interface RS-485

Network Profibus DP

Media Access Token Passing & Polling

Cable Two Wire Shielded Twisted Pair Cable

Max. No. of Slave per Network / Network 127 stations

Max. No. of Slave per Segment/ Network 32 stations

Max. I/O Data Slave 244 byte

Max. I/O Data I/O 3,584 each

Configuration Tool Sycon-PB

Configuration Port RS-232C

Comm. Parameter Setting High-speed Linked Parameter Communication Setting

9.6K(bps) 19.2K 93.75K 187.5K 500K 1,500K 12,000K

1200m 1200m 1200m 1000m 400m 200m 100m

Transmission

Distance

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

2726

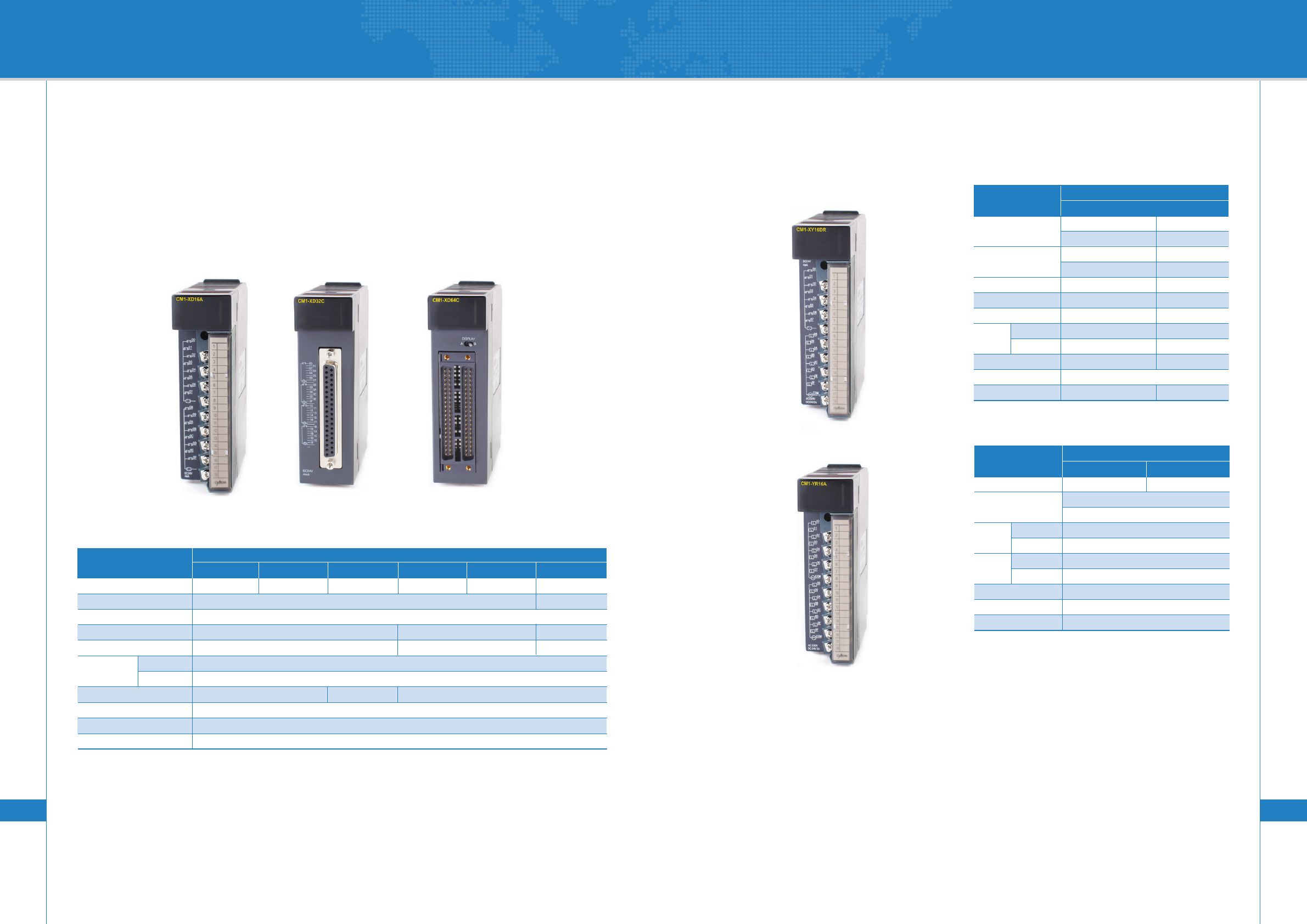

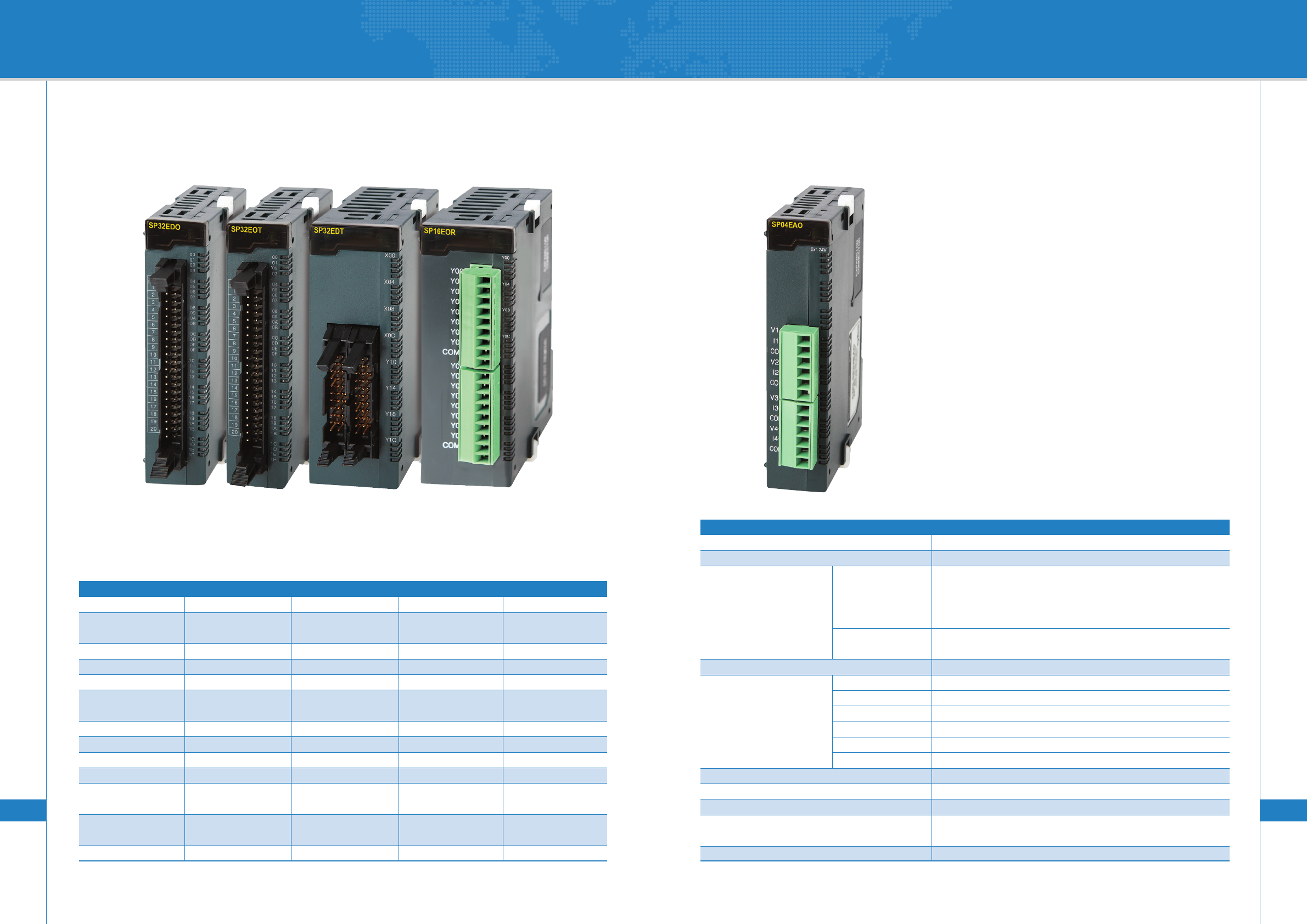

I/O Mixed Module

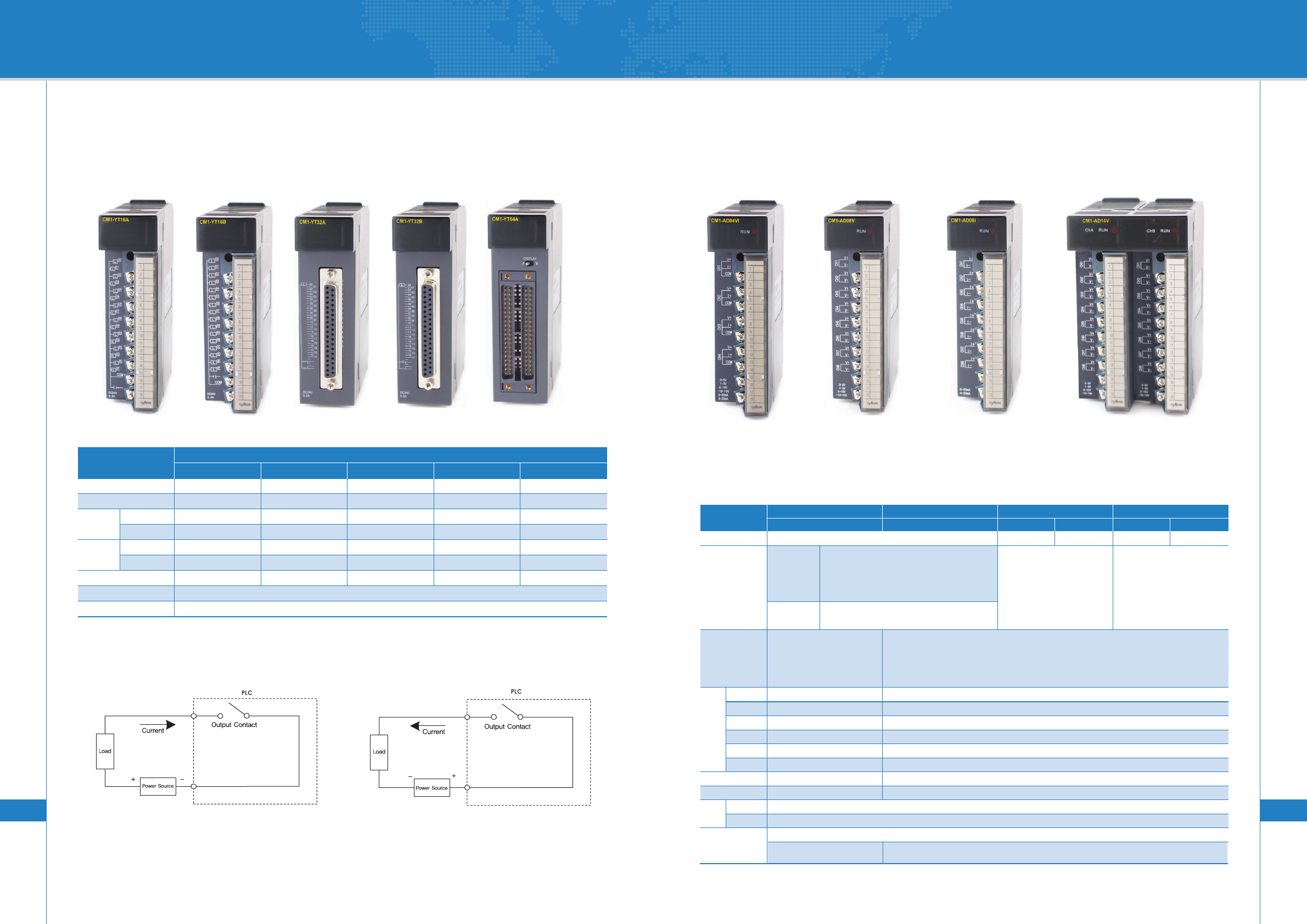

Relay Output Module

※ If this module is used as an inductive load switch, it will shorten the

life of the module. please use transistor output module for this purpose

Model Relay Output

CM1-YR16A CM1-YR32A

No. of Output Points 16 point s 32 points

Rated Load Voltage DC 12 / 24 V

AC 220 V

1 Point 2 A

1 Com 5 A

Off -> On 10 ms or less

On -> Off 5 ms or less

Common Type 8 points

Operation Indication LED will be ON when the Input is ON

Insulation Type Relay Insulation

Response

Time

Rated Load

Current

Response

Time

No. of I/O points

Rated I/O Voltage

Model

I/O Mixed

CM1-XY16DR

8 points 8 points

SINK / SRC Relay

DC 24 V DC 12 / 24 V

N/A AC 220 V

Rated I/O Current 4 mA 2 A

On Voltage / On Current

DC 19 V / 4 mA -

Off Voltage / Off Current

DC 11 V / 1 mA -

Off -> On 5 ms or less 5 ms or less

On -> Off 5 ms or less 5 ms or less

Common Type 8 points 8 points

Operation Indication LED will be ON when the Input is ON

Insulation Type Photo Coupler Insulation Relay Insulation

XP/CP Series

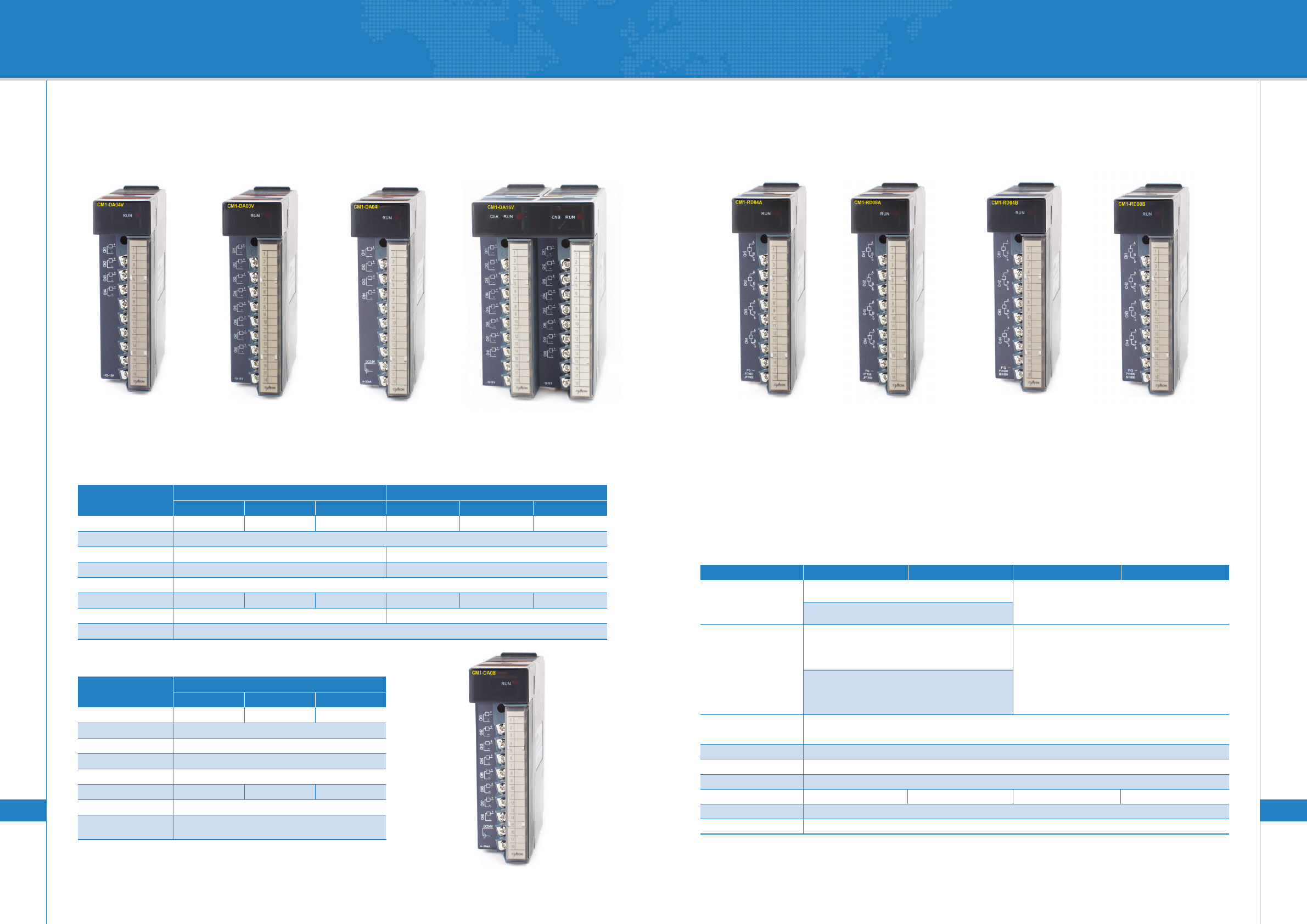

Digital I/O Module

Photo-coupler insulation and relay insulation

LED display to monitor running conditions

Terminal block type: Easy maintenance and installation

▪

DC Input Module

CM1-XD16A CM1-XD32C CM1-XD64C CM1-XD16B CM1-XD32B CM1-XD16W

DC Input

Model

16 points 32 points 64 points 16 points 32 points 16 points

Input Points

Rated Input Voltage

Rated Input Current

On Voltage / On Current

Off Voltage / Off Current

Common Type

Operation Indication

Insulation Type

Input Type

DC 24 V

DC 19 V / 4 mA

DC 11 V / 1 mA

DC 15 V / 4 mA

DC 12 V / 1 mA

DC 100 V

60 V / 4 mA

40 V / 1 mA

4 mA

5 ms or less

LED will be ON when the Input is ON

Photo Coupler Insulation

Sink / Source

8 points / 1com 32 points / com 8 points / com

Response

Time

Off -> On

On -> Off

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

2928

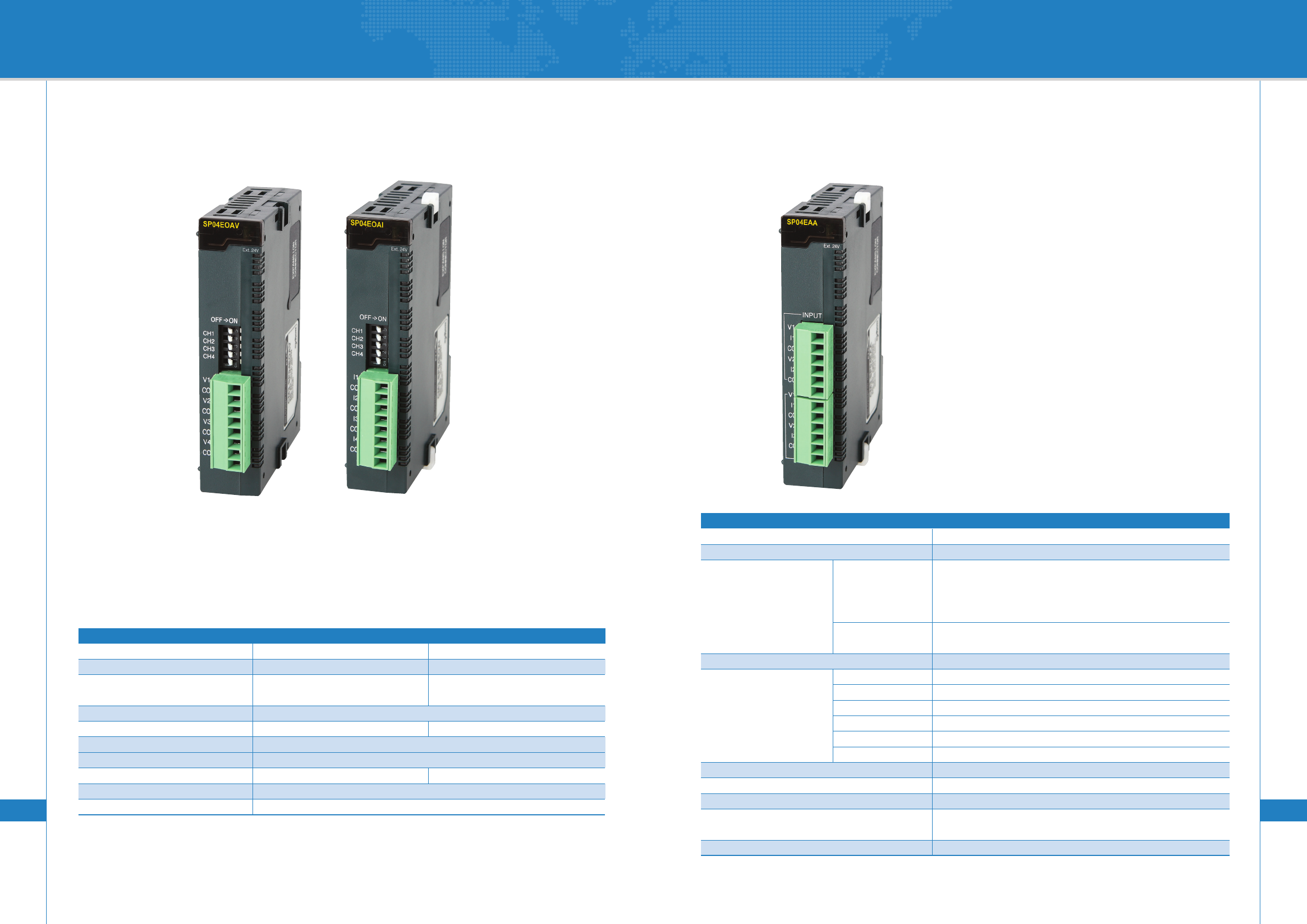

AD Module

4, 8, or 16 channels of A/D conversion with one module

Voltage or current input can be selected from each channel (CM1-AD04VI only)

High resolution of 1/64000 (CM1-AD04W only) and 1/16000

▪

A/D Converter Module

Model

AD16bit / Voltage-Current Input AD14bit / Voltage-Current Input AD14bit / Voltage Input AD14bit / Current Input

CM1-AD04W CM1-AD04VI CM1-AD08V CM1-AD16V CM1-AD08I CM1-AD16I

Analog Input point

Rated Load

Current

16 bit Binary Value

0 ~ 64000), Measured Value,

Percentage Value (0 ~ 10000)

Digital Output (-32000 ~ 32000 or

0 ~ 5 V

1 ~ 5 V

0 ~ 10 V

-10 ~ +10 V

0 ~ 20 mA

4 ~ 20 mA

Voltage

Current

14 bit Binary Value (0~16000 or -8000~8000)

0 ~ 5 V

1 ~ 5 V

0 ~ 10 V

-10 ~ +10 V

0 ~ 20 mA

4 ~ 20 mA

0 ~ 5 V

1~5V

0~10V

-10~+10V

0~20mA

4~20mA

Max.

Resolu

tion

78.1 µV

62.5 µV

156.3 µV

312.5 µV

312.5 nA

250 nA

0.3125 mV

0.25 mV

0.625 mV

1.25 mV

1.25 µA

1.0n µA

±0.1 %

Accuracy

Max. Conversion Rate

Voltage

Current

Absolute

Max.

Input

Insulation Type

±0.05 % or less (25℃)

2.1 ms / 4 ch

5 ms / 1 ch

±21 mA

±12 V

Photo Coupler Insulation between an Input Port and PLC.

4 channels 8 channels 8 channels16 channels 16 channels

Insulation between

Photo Coupler and Channel Non-Insulation between Channels

XP/CP Series

Transistor Output Module

Sink Type

»Source Type

Model Transistor Output

CM1-YT16A CM1 - YT16B CM1 - YT32A CM1 - YT32B CM1-YT64A

No. of Output Points 16 points Sink 16 points Source 32 points Sink 32 points source 64 points Sink

Rated Load Voltage DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V

1 Points 0.5 A 0.5 A 0.2 A 0.2 A 0.2 A

1 Com 4 A 4 A 4 A 4 A 4 A

Off -> On 1 ms or less 1 ms or less 1 ms or less 1 ms or less 1 ms or less

On -> Off 1 ms or less 1 ms or less 1 ms or less 1 ms or less 1 ms or less

Common Type 16 points 16 points 32 points 32 points 32 points

Operation Indication LED will be ON when the Input is ON

Insulation Type Photo Coupler Insulation

Response

Time

Rated Load

Current

※ CM1-YT16A, CM1-YT32A, CM1-YT64A are Sink Type ※ CM1-YT16B, CM1-YT32B are Source Type

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

3130

RTD Module

By using a platinum-coated thermometer Pt100, JPt100 or Pt1000, Ni1000, it can convert the inputted

temperature data to process as a digital value.

It can process inputted temperature data to digital value down to the rst decimal place

One module can connect with Pt100, JPt100 or Pt1000, Ni1000 with 4 point and 8 point to use respectively

Can detect a wire disconnection from each channel and detect the excess range of input temperature

▪

RTD Type

Range of

Input Temperatures

Digital Output

Breakdown Detection

Accuracy

Max. Conversion Rate

No. of input Channels

Insulation Type

Connection Terminal

Pt100 (JIS C1640-1989, DIN 43760-1980)

JPt100 (KS C1603-1991, JIS C1604-1981)

Pt100 : -200.0

℃

to 600

℃

(18.48 to 313.59 Ohm)

Digital Converted Value : 0 ~ 16,000

Detected Temperature Value (first decimal point value X 10)

Insulation between Input Port and PLC, No Insulation between Channels

18 points Terminal

Pt1000 (DIN EN 60751)

Ni1000 (DIN 43760)

Ni1000 (TCR 5000)

Pt1000 : -200.0

℃

to 600

℃

(18.43 to 313.59 Ω)

Ni1000(DIN 43760) : -50

℃

to 160

℃

(742.6 to 1986.3 Ω)

Ni1000(TCR 5000) : -50

℃

to 160

℃

(790.9 to 1799.3 Ω)

Model CM1-RD04A CM1-RD08A CM1-RD04B CM1-RD08B

JPt100 : -200.0

℃

to 600

℃

(17.14 to 317.28 Ohm)

3 wires for Each Channels

±0.1 % [full scale]

400 ms / 1 channel

4 channels 8 channels 4 channels 8 channels

D/A converting module is used to convert a digital value to an analog signal

D/A converting of 4 to 16 channels is possible with one module

No quantity restrictions within a base

▪

Model DA14bit / Voltage Output DA14bit / Voltage Output

CM1-DA04V CM1-DA08V CM1-DA16V CM1-DA04VA CM1-DA08VA CM1-DA16VA

No. of Input Channel 4 channels 8 channels 16 channels 4 channels 8 channels 16 channels

Digital Input 14 bit Binary Value (0~16000 or -8000~8000)

Analog Output -10 ~ 10 V 0 ~ 10 V

Max. Resolution 1.25 mV 0.625 mV

Accuracy Within ±0.1 %

Max. Conversion Rate 10 ms 16 ms 28 ms 10 ms 16 ms 28 ms

Absolute Max. Output ±12 V -0.5 ~ 10.5 V

Insulation Type Insulation between Photo Coupler and Channel , Non-Insulation between Channels

XP/CP Series

DA Module

Model DA14Bit / Current Output

CM1-DA04I CM1-DA08I CM1-DA16I

No. of Input Channel 4 channels 8 channels 16 channels

Digital Input 14 bit Binary Value (0~16000 or -8000~8000)

Analog Output 4 ~ 20 mA

Max. Resolution 1.0 µA

Accuracy Within ±0.1 %

Max. Conversion Rate 10 ms 16 ms 28 ms

Absolute Max. Output +21 mA

Insulation between Photo Coupler and Channel,

Non-Insulation between Channels

Insulation Type

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

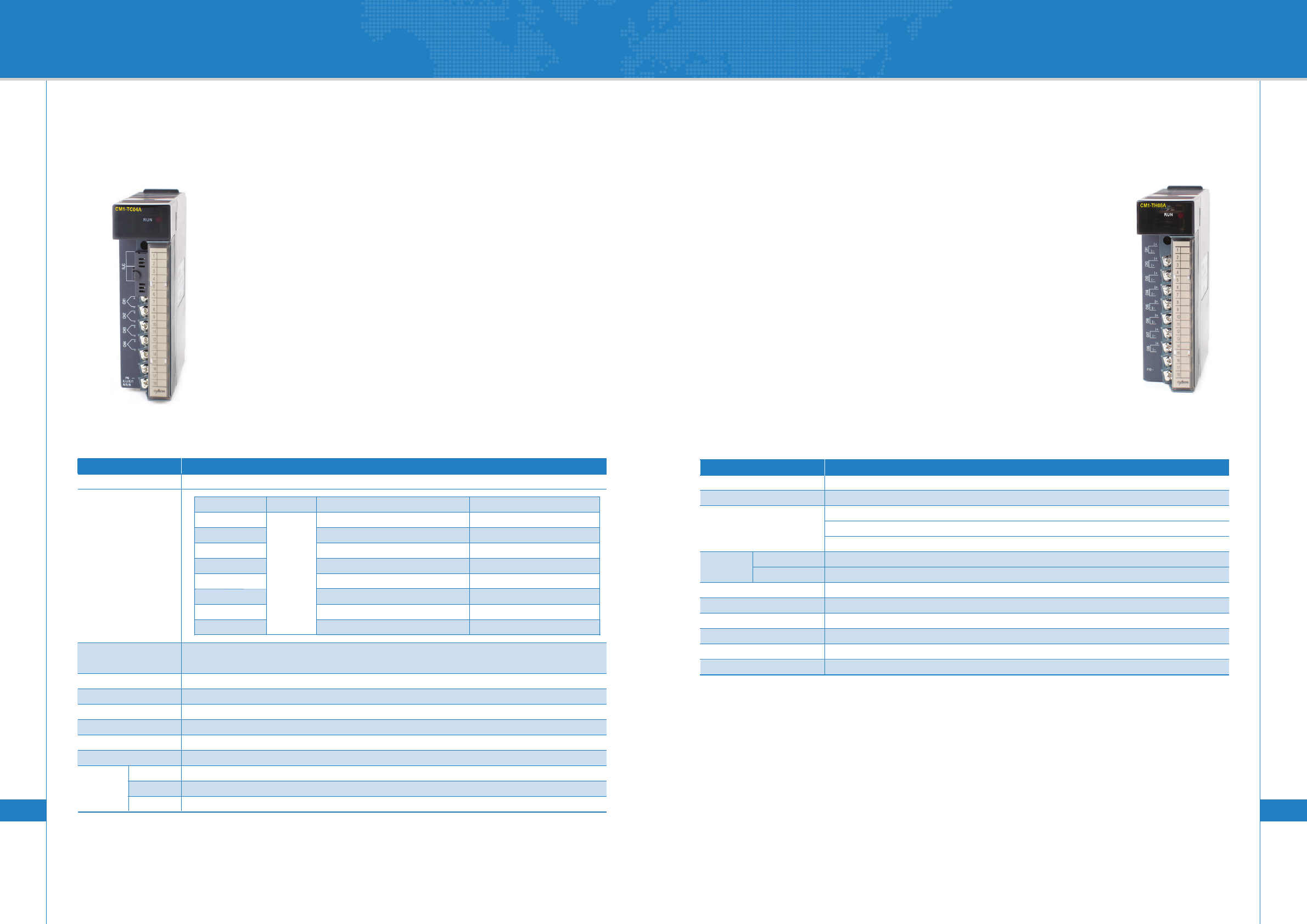

3332

Maximum of 8 channels NTC (Negative Temperature Coefcient) measuring

thermistor with one module

Temperature data (°C) is accurately measured down to the rst decimal place

Can detect disconnection with each channel and also adjust if the temperature

exceeds the measuring range

If using the thermistor temperature-resistance table, the module is able to input desired

minimum, medium, maximum temperature point (°C) and resistance (Ω) to measure.

▪

Thermistor Module

Model CM1-TH08A

Range of Thermistor Input NTC Type

Range of Thermistor Input Resistance

0 ~ 1MΩ

Resolving Power of 0 Ω ~ 40 kΩ : 1 Ω

Thermistor Input 40 kΩ ~ 400 kΩ : 10 Ω

Resistance 400 kΩ ~ 1 MΩ : 30 Ω

℃, ℉

(0.1

℃

Resolution)

Digital Value 0 ~ 16000, -8000 ~ 8000

Resistance - Temperature Calculation

Steinhart-Hart Thermistor Polynomial

Accuracy ±0.3 % (full scale)

Max. Conversion Rate 1 sec (8 channel)

Temperature Input Point 8 points

Insulation Method CPU and Analog Arithmetic Operation Photo Coupler Insulation

Connection Terminal 18 points Terminal

Cover

Range

Temperature

Convert Value

XP/CP Series

Convert the temperature data (°C, °F) to a digital value for processing by

directly connecting to various temperature sensors

Inputted data can be processed to the rst decimal point as a digital value

One module can connect with 4 points of temperature sensors

Can detect if the temperature exceeds the measuring range and adjust automatically

Automatic compensation for error caused by the temperature sensor

▪

Model CM1-TC04A

Available TC Type K, J, E, T, B, R, S, N

Digital Output Digitally Converted Value : 0 ~ 16,000 (-8000 ~ 8000)

Converted Temperature Value :

℃, ℉

(0.1

℃

Resolution)

Compensation Type Automatic Compensation

Breakdown Detection Detection by Channels

Accuracy ±0.3 % (full scale), ±1

℃

(error for base contact compensation)

Max. Conversion Rate 50 ms / 1 channels

No. of Input Channel 4 channels / module

Connection Terminal 18 point Terminal

+5 V 60 mA

+15 V 30 mA

-15 V 10 mA

Range of

Input

Temperature

Type of TC Standard Range of measured temperature(

℃

) Range of measured voltage(µV)

K -200.0 ~ 1200.0 -5891 ~ 48828

J -200.0 ~ 800.0 -7890 ~ 45498

E -200.0 ~ 600.0 -8824 ~ 45085

T ITS-90 -200.0 ~ 400.0 -5602 ~ 20869

B 400.0 ~ 1800.0 786 ~ 13585

R 0.0 ~ 1750.0 0 ~ 21006

S 0.0 ~ 1750.0 0 ~ 21006

N -200.0 ~ 1250.0 -3990 ~ 43846

Internal

Current

Consumption

(mA)

TC Module

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

3534

High-Speed Counter Module

1-Phase input: Up / Down count by a program or B-phase

2-Phase input: Up / Down count by Phase difference

Adding and subtracting functions for 2-phase difference

1-multiple, 2-multiple, 4-multiple functions for 2-phase input

Preset function by external input signal or a program

Outputs comparison signal by comparing the base value and the current value through the built-in transistor

Enables ring counting, sampling counting, periodic pulse counting and latch function

▪

Operation Outline

Model CM1-HS02C CM1-HS02E

Channel 2 channels

Signal 1 phase Input / 2 phase Input Line Drive Input

Level of Signal

DC 5 / 12 / 24V, 10 ~ 12mA RS-422A (Line Drive)

Range of Counting 32 bit (-2,147,483,648 ~ 2,147,483,647)

Counting rate 300 kpps

Form UP / DOWN Linear Counting + Ring Counting

Type Comparison ( > , = , < )

Form of Signal

Open Collector Output

Counting Input

Signal

External

Output

XP/CP Series

Load Cell Module

2 or 4 channels per module

The unit is compatible with various applicable elds such as

Unload Scale, Bin Scale, Mixing Scale, Filling Scale (packaging) etc

24 bit sigma delta AD conversion provides high resolution

digital values

Supports built-in programs such as input and discharge

measurements

WG02C model can be in dynamic measurements by getting

external 24V DI input.

▪

Model CM1-WG04A CM1-WG02C CM1-WG02D CM1-WG02E

Channel 4 channels 2 channels 2 channels 2 channels

Load Cell Strain Gage Method

Insulation Type Photo-Coupler

External Power DC24V

Load Cell Approval Voltage Maximum 350 Ω Cell of 4 Parallel Connection is Possible per Channel

A/D Conversion Method Sigma Delta

Max. Output of Load Cell 3.6 mV / V 2 mV / V 2 mV / V 2 mV / V

Max. Resolving Power 1 / 10,000 1 / 40,000 1 / 40,000 1 / 40,000

A/D Conversion Speed

(each channel) 10 times / sec 1,000 times / sec

(standard form)

1,000 times / sec

(dynamic measurement form)

1,000 times / sec

(wide range)

CM1-WG04A

CM1-WG02C

CM1-WG02D

CM1-WG02E

Operating Introduction

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

3736

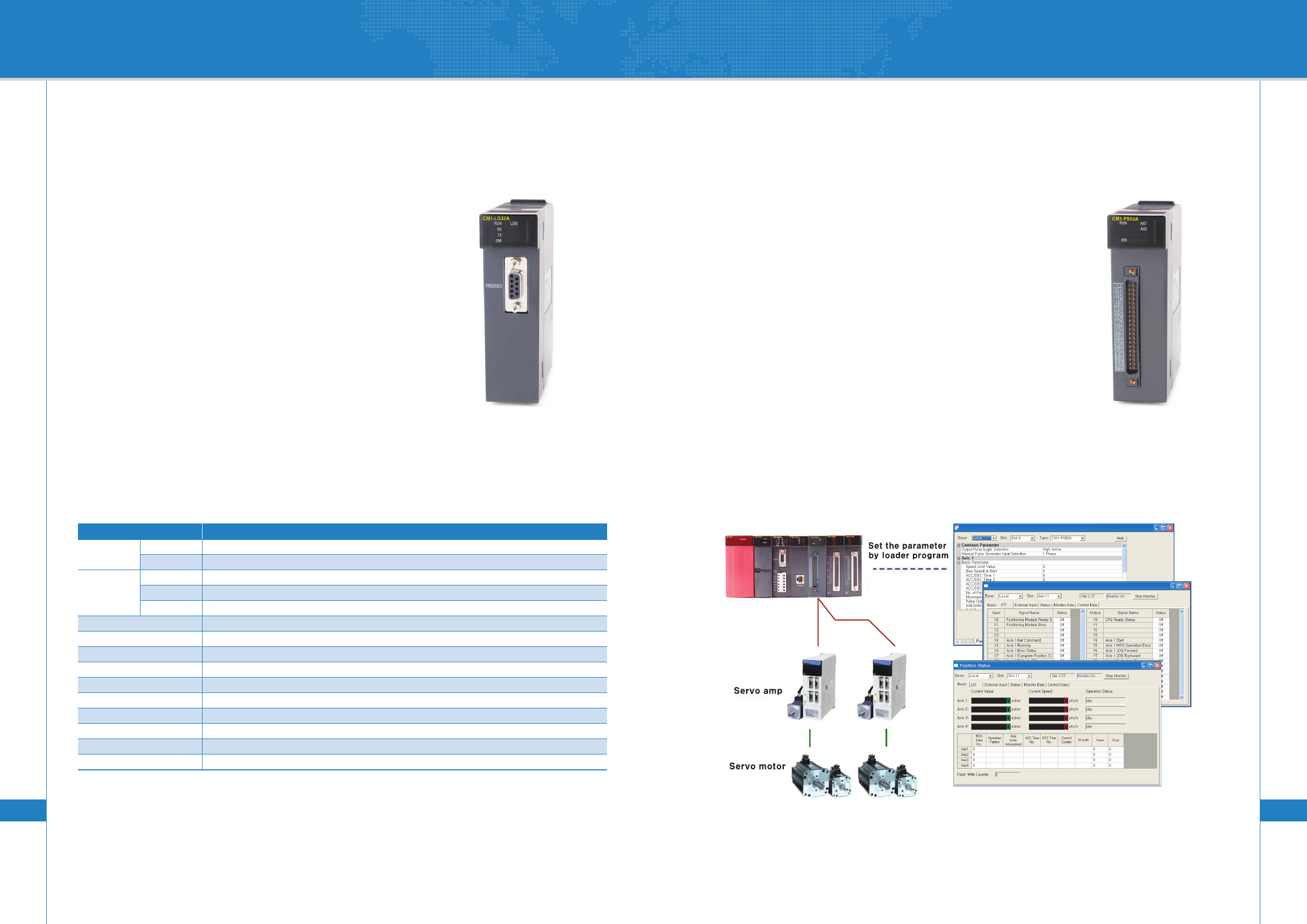

Positioning Module

Enable to set a maximum of 600 positioning data

Features position control and speed control

Positioning control of one axis: linear interpolation,

separate/synchronous operation

Positioning control of two axes: speed control, arc/linear interpolation,

separate/synchronous operation

Origin point return method

- Search origin point after near zero point is off

- Search origin point after reducing speed when near zero point is on

- Search origin point by detecting the origin point and upper/lower limit

- Enable to set an absolute origin point

▪

Operation Outline

XP/CP Series

Large capacity with non-combustible log memory (32MB)

Real time data sampling & saving

Acquires the stored data anytime from SCADA when the communication

status returns to normal

Simultaneously samples data with a maximum of 32 word

and a maximum period of 10ms

Built in HMI protocol: no optional communication card needed

Self-diagnostic function: communication error, memory error, capacity check, etc.

Triggers logging by sequence program

Provides event logging (COS, VOC)

Includes special program for downloading the collected data

▪

Data Logger Module

Model CM1-LG32A

Comm. Mode HMI Mode CIMON SCADA Protocol (HMI protocol)

Terminal Mode Text Transmission

Data Bit 7 / 8

Data Type Stop Bit 1 / 2

Parity Even / Odd / None

Synchronous Asynchronous

Transmission Speed 300 / 600 / 1200 / 4800 / 9600 / 19200 / 38400

Comm. Method RS232C

Modem Connection Cable Modem or Dial Up Modem

Log Memory Capacity 32 Mbytes

Sampling Interval 10 msec ~ 327,670 msec

Max. Logging Data Size 32 words

Log Data Block Sampling or Event Data

Logging Method Periodic, Trigger, Event (COS / VOC)

Built-in Function Memory Condition Check, Communication Error Check, Memory Capacity Check

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

3938

Base

The CIMON PLC is made up of six kinds of slot bases such as 3/4/5/8/10/12 so that

the suitable conguration is available according to the capacities

Base Model

Minimize the Mounting Space

(Unit:mm)

CM1-BS03A 3 slot 183x108

CM1-BS04A 4 slot 216x108

CM1-BS05A 5 slot 247x108

CM1-BS08A 8 slot 344x108

CM1-BS10A 10 slot 408x108

CM1-BS12A 12 slot 473x108

Model name Slot no. of IO Size

CIMON PLC minimalistic design efciently uses space to maximize productivity

3-slot Base 183mm

108mm

4-slot Base 216mm

5-slot Base 247mm

8-slot Base 344mm

10-slot Base 408mm

12-slot Base 473mm

XP/CP Series

Model CM1-PS02A

Number of Axis 2 axis

Interpolation 2-axis Linear Interpolation, 2-axis Circular Interpolation

Control Method Position, Locus, Speed, Speed / Position, Position / Speed Control

Control Unit pulse, mm, inch, degree

Positioning Data 600 ea / axis

Positioning Method Absolute or Relative Method

Backup Flash Rom Backup (parameter, positioning data, block data, condition data)

Position Control Absolute / Relative Coordinate Method

Positioning Position / Speed Switching Control - Relative Coordinate Method

Method Speed / Position Switching Control - Absolute / Relative Coordinate Method

Locus Control - Absolute / Relative Coordinate Method

▪ Absolute Coordinate Method

-214748364.8 ~ 214748364.7 µm

-21474.83648 ~ 21474.83647 inch

0 ~ 359.9999 degree

-2147483648 ~ 2147483647 pulse

▪ Relative Coordinate Method

-214748364.8 ~ 214748364.7 µm

Positioning -21474.83648 ~ 21474.83647 inch

Range -21474.83648 ~ 21474.83647 degree

-2147483648 ~ 2147483647 pulse

▪ Speed / Position Switching Control (relative coordinate method), Position / Speed Switching Control

0 ~ 214748364.7 µm

0 ~ 21474.83647 inch

0 ~ 21474.83647 degree

0 ~ 2147483647 pulse

▪ Speed / Position Switching Control (absolute coordinate method)

0 ~ 359.9999 degree

0.01 ~ 20,000,000.00 (mm / min)

Control Speed 0.001 ~ 2,000,000.000 (inch / min)

0.001 ~ 2,000,000.000 (degree / min)

1 ~ 1,000,000 (pulse / sec)

Acceleration/Deceleration Pattern

Trapezoidal / S-curve

Acceleration/Deceleration Time

125 ~ 1x106 PPS/sec

External Disconnection Method 40 pin Connector

Connector 40 pin Male

for External

Max. Output Pulse 1 MPPS (line driver pulse output)

Max. Distance 10 m

Number of Flash Rom Saving 25 times After Power ON

Positioning

Specications

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

4140

Main Block

BP series are suitable for small scale control

High speed process. Various commands can be applied to control site.

Easy expansion of IO points for analog or comm.

Network is available by using Ethernet

Extra communication block is unnecessary (Ethernet and various options are built in)

Extra module is unnecessary: power module, CPU, and I/O modules are integrated.

High speed MPU is built in. Process speed is 200ns/step

Contains 300 instructions (sequence : 62 instructions, application 289 instructions

▪

Model BP32A BP32B BP32M BP16M

Power AC 100 - 240 V / DC 24 V

Digital Input DC 24 V

Digital Output Relay / TR Sink / TR Source

Expansion Option DA / DA / AD+DA / TC / IO (Maximum 3 steps) Not Expandable

DI : 8, DO : 8 DI : 8, DO : 8

Standard I/O AI (Voltage / Current) : 2 AI (RTD) : 2

DI : 16 DI : 8

AO (Voltage / Current) : 2 AO (Voltage / Current) : 2 DO : 16 DO : 7

Program Control Type Stored Program, Cyclic Operation, Time Driven Interrupt

I/O Control Type Indirect, Direct by Instructions

Program language IL (Instruction List), LD (Ladder Diagram)

Sequence 62 Instructions

Instruction

Application 308 Instructions

Processing Rate 200 ns / step

Program Memory Capacity 8k step

1. Abundant program capacity - 8000 steps

2. Device range:

- internal relay: 4,096 points

- data memory: 5,000 words

3. Easy expansion

- Max. 3 block expansion

1. Abundant program capacity - 8,000 steps

2. Device range

- internal relay: 4,096 points

- data memory: 5,000 words

BP Series

XP/CP Series

Expansion

Maximum number of base expansion is 16

High-speed expansion communication of 10BASE-T (10 Mbps)

Maximum length between the segments is 100m

▪

Built-in network repeater

Extension of remote I/O function setting available

Maximum distance between the expanded segments is 100m

Maximum total extension length is 1600m

▪

Expansion rank of each base can be differentiated

by rotary switches

▪

Local

Expansion #1

Expansion #2

Expansion #3

Expansion #14

Expansion #15

Expansion #16

100m

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

4342

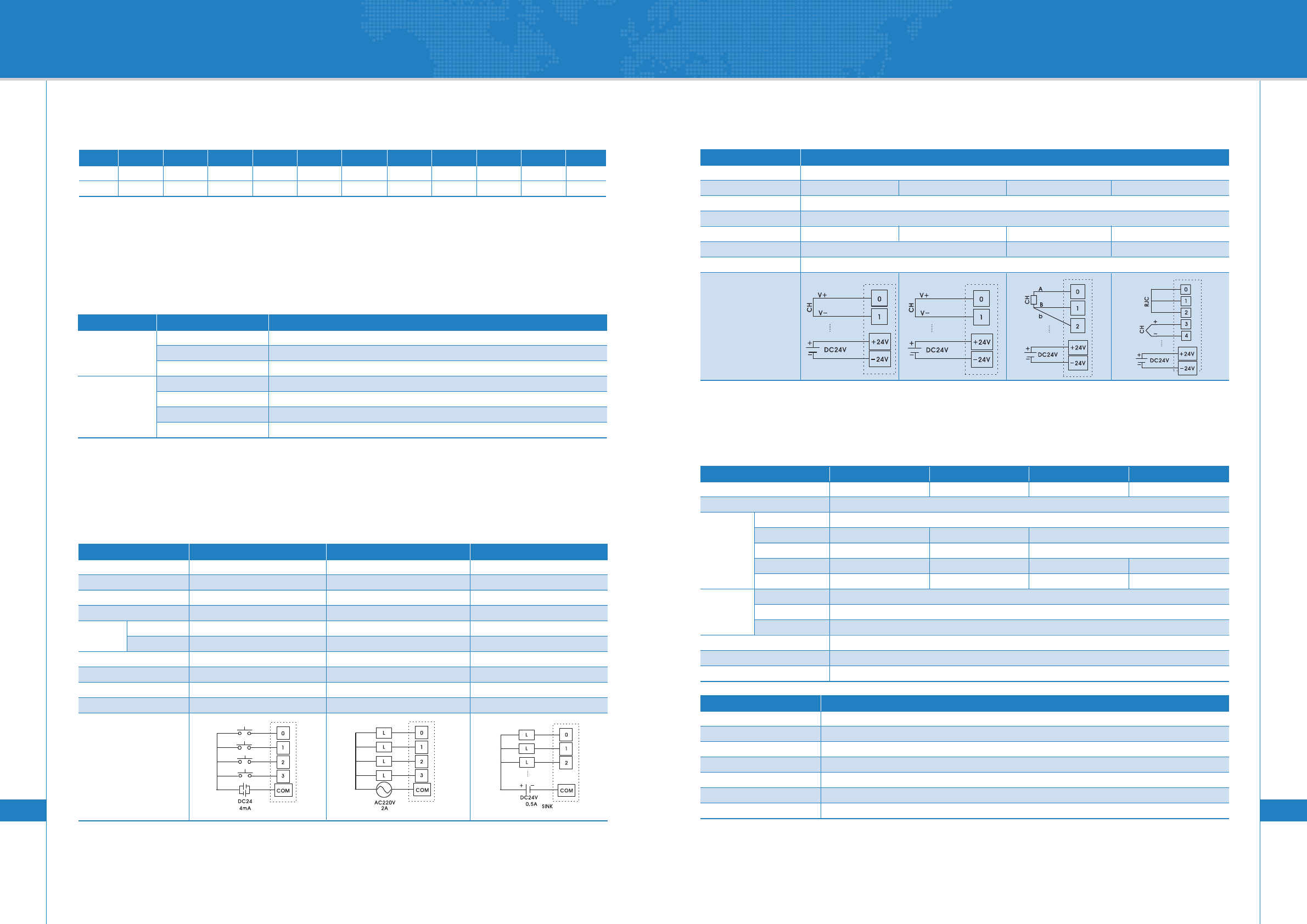

Analog Expansion Block Specications

Built-In Communication Block Specictions

Item Specification

Power DC 24 V External Input

Type A / D D / A RTD TC

Digital Data Signed 16 bit Binary Value (data : 14 bit)

Accuracy Within ±0.3 %

Max. Conversion Speed 5 ms / 1 ch 15 ms / 4 ch 400 ms / 1 ch 400 ms / 1 ch

Absolute Max. I/O ±12V / +21mA

Insulation Type Photo Coupler Insulation between I/O Port and PLC

Circuit

※ Maximum 2 analog blocks can be expanded

Item Ethernet

Power Supplied from CPU Module

Standard 10BASE - T

Transmission Speed 10 Mbps

Max. Segment Length 100 m (node - hub)

No. of Max. Nodes Enables to Link with 4-Line Hub

Max. Protocol Size 1500 byte

Comm. Access Method CSMA / CD

Item RS232C RS422/485 RS422/485 2CH RS232C 1CH

Model *R *S *U *T

Power Supplied from CPU Module

Exclusive HMI Protocol (1: n support communication)

Loader x x Loader Communication

User x x Protocol Program

MODBUS x x Master & Slave Master & Slave

PLC Link x x Supported Supported

Data Bit 7 or 8 bit

Spot Bit 1 or 2 bit

Parity Even / Odd / None

Synchronous Type Asynchronous

Transmission Speed 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 /76800

Modem Connection Function Communication with an External Modem Unit

Comm.

mode

Data

Type

BP Series

I/O Points

Self-Diagnosis and Built-In Functions

I/O Specications

Model X Y M L K F T C S D Z

BP32M 128 128 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024

BP16M 8 7 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024

Model DC Input Relay Output Transistor Output

Rated I/O Voltage DC 24 V AC 220 V / DC 24 V DC 12 / 24 V

Rated I/O Current 4 mA 1

point

2 A / COM 5 A 1

point

0.5 A / COM 4 A

On Voltage / On Current DC 19 V / 4 mA - -

Off Voltage / Off Current DC 11 V / 1 mA - -

Off -> On 5 ms or less 10 ms or less 1 ms or less

On -> Off 5 ms or less 5 ms or less 1 ms or less

Common Type 4 points 4 points 8 points

Operation Indication LED LED LED

Insulation Type Photo Coupler Relay Photo Coupler

Input Type Sink / Source - -

Circuit

Response

Time

Type Function

Operation Delay Monitoring Stops PLC Operation in case the Detected Time is Over the Set Time

Self-Diagnosis Error in Memory Detected Errors in Flash Memory in a CPU or DRAM of Each Specialty Card

Power Trouble Detects Temporary Breakdown in case Input Voltage is Lower

High-Speed Counter 3 kpps

Built-in Functions PID Auto Tuning Executes Automatic PID Operation (Max. 32 loops)

Password Programs Can be Protected

DC 24 V Power Output Allows Controlling Sensors, Switches, etc (300mA)

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

4544

BP Series Product Lineup

BP Series Model Name

CM2 - BP DM32

Series Name

I/O Points

Module Type M : Main

Input Type D : Input

Option

R : RS232C

S : RS422 / 485

U : RS422 / 485 2 ch

E : Ethernet (10M)

T : RS232C 1 ch

Power Type

A : AC100 - 240V

D : DC24V

Output Type

T : TR Output (Sink)

C : TR Output (Source)

R : Relay Output

C : RTC

2 41 3

Model Power Input Output Option

CM2-BP32MDTA* TR (Sink) *indication (option)

CM2-BP32MDCA* AC 100 - 240 V TR (Source) R : RS232C

CM2-BP32MDRA* 16 DC 24 V 16 Relay S : RS422 / 485

CM2-BP32MDTD* TR (Sink) E : Ethernet (10M)

CM2-BP32MDCD* DC 24 V TR (Source) U : RS422 / 485 2Ch

CM2-BP32MDRD* Relay

T : RS232C 1CH

CM2-BP16MDTA* TR (Sink)

CM2-BP16MDCA* AC 100 - 240 V TR (Source) *indication (option)

CM2-BP16MDRA* 8 DC 24 V 7 Relay R : RS232C

CM2-BP16MDTD* TR (Sink) S : RS422 / 485

CM2-BP16MDCD* DC 24 V TR (Source)

CM2-BP16MDRD* Relay

Main Block(BP32M) Expansion(DIO)Main Block(BP16M) Expansion(Analog)

BP Series

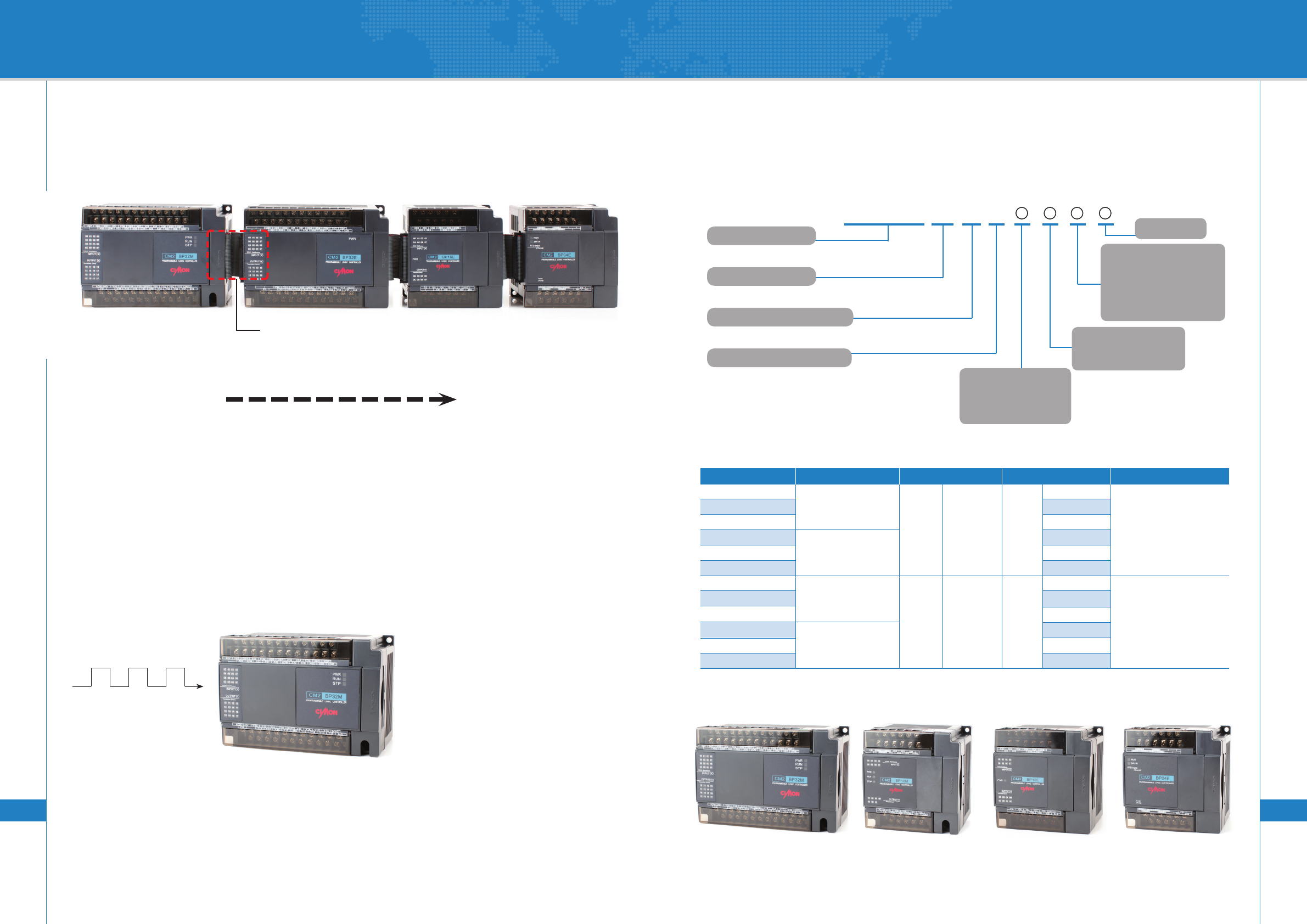

Main function

There is no need for an external power supply since the power is

supplied from a main block (except analog block)

Up to 3 expansion blocks can be added (except BP16M series)

Analog blocks can be expanded up to 2 modules

▪

Expansion

Built-in High Speed Counter

8 types of pulse input methods

Linear, Ring Counter Mode

Coincidence comparison function

Up to 3 kpps

▪

Main block Expansion

Expansion cable connection

(Connecter Type)

power supply

High speed input

Max. 3 blocks

IO 128 Point

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

4746

BP Series Model Name (Expansion Block)

Analog Expansion Unit

Model Input Output Remarks

CM2-BP04EAO 4

AD Voltage / Current Input

CM2-BP04EAA 2 2

DA Voltage / Current Output

CM2-BP04EOA 0 4 Power Source : 24 V External

CM2-BP04ERO 4 RTD Input 0

CM2-BP04ETO 4 TC Input 0

I/O Expansion Unit

Model Input Output Remarks

CM2-BP16EDT TR (Sink)

CM2-BP16EDC 8 8 TR (Source)

CM2-BP16EDR Relay

CM2-BP32EDT DC 24 V TR (Sink)

CM2-BP32EDC 16 16 TR (Source)

CM2-BP32EDR Relay

CM2-BP16EDO 16 0

CM2-BP16EOR Relay

CM2-BP16EOT 0 16 TR (Sink)

CM2-BP16EOC TR (Source)

Power Source :

supplied from a main unit

CM2 - BP E

Series Name

I/O Points 04/16/32

Module Type E : xpansion

Output Type

T : Digital TR Output (Sink)

C : Digital TR Output

(Source)

R : Digital Relay Output

A : Analog Output

O : No Output

Input Type

D : Digital DC Input

(Sink / Source)

A : Analog Input

O : No Input

※ BP16M is not expandable

21 3

BP Series

BP Series Mixed Product Line

※ Built in 1ch RS485 (HMI Protocol)

Model Power Input (D1) Output (D0) Analog Option

CM2-BP32ADRA* Relay

AI 2 ch

CM2-BP32ADTA* Power TR (Sink) (Voltage / Current)

CM2-BP32ADCA*

AC100 - 240 V

TR (Source)

CM2-BP32ADRD* Relay

AO 2 ch

CM2-BP32ADTD* Power TR (Sink) (Voltage / Current)

CM2-BP32ADCD* DC 24 V 8 DC 24 V 8 TR (Source)

CM2-BP32BDRA* Relay

CM2-BP32BDTA* Power TR (Sink) RTD 2 ch

CM2-BP32BDCA*

AC 100 - 240 V

TR (Source)

CM2-BP32BDRD* Relay AO 2 ch

CM2-BP32BDTD* Power TR (Sink) (Voltage / Current)

CM2-BP32BDCD*

DC 24 V

TR (Source)

*Indication (option)

R : RS232C

S : RS422 / 485

E : Ethernet

U : RS422 / 485 2 ch

T : RS232C 1 ch

CM2 - BP D32

Series Name

Input Type D : Input

Option

R : RS232C

S : RS422 / 485

U : RS422 / 485 2 ch

E : Ethernet (10M)

T : RS232C 1 ch

Power Type

A : AC 100 - 240 V

D : DC 24 V

Output Type

R : Relay

T : TR (Sink)

C : TR (Source)

Analog Type

A : AI 2 ch, AO 2 ch

B : RTD 2 ch, AO 2 ch

C : RTC

2 4 51 3

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

4948

SCADA Network

PLC Link

Network

Max. 32 Stations

BP Series

System Conguration

Ethernet

Serial Communication

Max. 32 Stations

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

5150

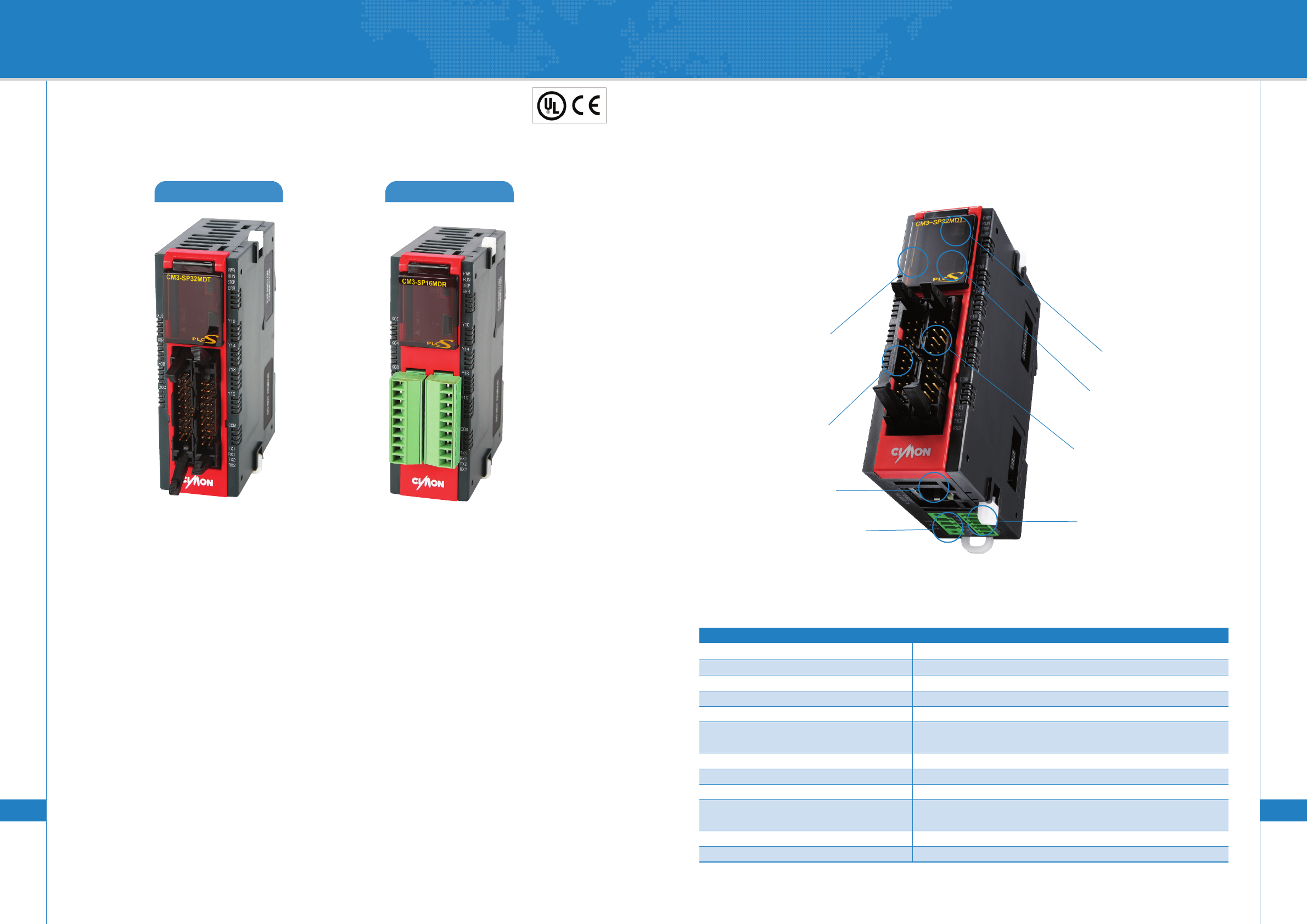

SD/MMC

16 points Input

Ethernet Port

Power : DC 12~24 V Serial Port

16 points Output

USB Port

Mode Switch

COMPACT BUT POWERFUL ALL-

IN-

ONE PLC

Specification

Maximum Expansion 11

Program Capacity 10k steps

Operation Rate 200 ns/step

I/O Points Maximum 384 points

High Speed Counter 2 Phase 2 channels

Pulse Output Maximum 100 kpps

2 axis, Linear Interpolation

Programming Tool CICON Software

PID 32 channels, Auto-Tuning

RTC Built-In (battery : CR2032)

ETC. Floating Point Arithmetic

Run Time Editing

Power DC 24 V

Size & Weight 30 X 90 X 61 mm / 120 g

PLC-S Series

CPU Module

▪

CPU Features

TR Output(DC 24V) / Relay Output

200 nsec/step

32 pts. digital I/O (16 inputs and 16 outputs)

Abundant memory of 10K Step

Data memory 10,000 word

Expansion: Max. 11 modules (max. 384 pts.)

Compact size of 30X90X61mm / 120g

3 built-in Comm. Ports

(RS232C, RS422/485, Ethernet)

USB loader port and SD card slot

Built-in 20Kpps High Speed Counter (2ch)

Built-in 100Kpps 2 axis Pulse Output

(positioning)

Built-in PID 32 loop

Floating point arithmetic

Run time editing, LD/IL language

Built-in flash memory

PLC-S delivers high and fast performance and provides

reliable environment for industrial systems without

compromising the size and the cost. This is the smallest

sized PLC and yet it has the ability of those bigger

PLCʼs and more. This ensures to occupy less space in

the equipment but still maintain the high performance at

the same time.

PLC-S is very cost-effective since the CPU module

already has several functions built in such as high-

speed counter, positioning control function, floating point

arithmetic, 3 way simultaneous communications, PID

auto-tuning and etc. Addition of expensive modules for

these functions is not needed for this reason.

This unit can also be configured with other special

expansion modules up to 11 modules to provide wide

variety of functions. In addition, thereʼs an USB port and

a slot for SD cards for convenient program downloads.

This PLC is especially suitable for small to medium

performance tasks. PLC-S is one of the most flexible, reliable,

powerful but simplest Micro-PLC in the industrial world.

TR TYPE RELAY TYPE

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

5352

PLC-S Main-Block Options

Relay Output (DC Power)

Model CM3-SP32MDT CM3-SP32MDT-SD CM3-SP32MDTV CM3-SP32MDTV-SD

Digital

Input/Output

USB Loader

SD/MMC

Card Slot

RS232C

1ch

RS485

1ch

Ethernet

1ch

16 Digital Input

16 Digital Output

▪

N/A

▪

N/A

16 Digital Input

16 Digital Output

▪

N/A

16 Digital Input

16 Digital Output

▪

N/A

▪

N/A

16 Digital Input

16 Digital Output

▪

N/A

Model CM3-SP32MDTE CM3-SP32MDTE-SD CM3-SP32MDTF CM3-SP32MDTF-SD

Digital

Input/Output

USB Loader

SD/MMC

Card Slot

RS232C

1ch

RS485

1ch

Ethernet

1ch

16 Digital Input

16 Digital Output

▪

N/A

▪

N/A

▪

16 Digital Input

16 Digital Output

▪

N/A

▪

16 Digital Input

16 Digital Output

▪

N/A

▪

16 Digital Input

16 Digital Output

▪

Model CM3-SP32MDR CM3-SP32MDRV CM3-SP32MDRE CM3-SP32MDRF

Digital

Input/Output

USB Loader

SD/MMC

Card Slot

RS232C

1ch

RS485

1ch

Ethernet

1ch

8 Digital Input

8 Digital Output

▪

N/A

▪

N/A

8 Digital Input

8 Digital Output

▪

N/A

▪

N/A

8 Digital Input

6 Digital Output

▪

N/A

▪

N/A

▪

8 Digital Input

6 Digital Output

▪

N/A

▪

TR Output (DC Power) - Sink Type

PLC-S Series

Specification

Communication Protocol

Built-In Functions (Positioning)

Built-In Functions (High-Speed Counter)

Ethernet

RS232C/485

MODBUS TCP, CICON (loader)

CIMON-HMI (TCP,UDP), High Speed PLC Link

MODBUS RTU Master,

MODBUS RTU Slave,

CICON (loader), CIMON-HMI, Protocol Program

Counter Input Signal

Maximum Counting Speed

Number of Channels

Counting Range

Voltage Input (open collector)

20 kpps

2 channels (10 kkps)

Signed 32 bit (-2,147,483,648 ~ 2,147,483,647)

Number of Control Axis

Interpolation

Pulse Output Type

Pulse Output

Control Mode

Maximum Output Speed

2 axis

2 axis Linear Interpolation

Open Collector (DC 24 V)

Pulse + Direction

Position Control

Speed Control

Speed / Position Switching Control,

Position / Speed Switching Control

100 kpps

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

5554

AD Module

Provides wide input range

Very reliable with less than ±0.05% of error

Protected from interference by the photo coupler

insulation between input ports and the PLC

Features

Specification

Model

Analog Input Point

Digital Conversion

Accuracy

Maximum Conversion Rate

Absolute Maximum Input

Insulation Type

Access Terminal

Analog Input

Voltage

Current

Maximum Resolution

0V ~ 5 V

1V ~ 5 V

0V ~ 10 V

-10V ~ 10 V

0mA ~ 20 mA

4mA ~ 20 mA

4 channels

0 ~ 5 V

1 ~ 5 V

0 ~ 10 V

-10 ~ 10 V

0 ~ 20 mA

4 ~ 20 mA

14 bit (0 ~ 16000)

312.5 mV

250 mV

625 mV

1250 mV

1.25 nA

2 nA

±0.1% (full scale)

2.1 ms / 4 channels

Voltage: ± 15 V, Current: ± 30 mA

Photo Coupler Insulation between Input Ports and PLC

(non-insulation between channels)

12 points

CM3-SP04EAO

▪

Digital I/O Module

Specification

Type

Input Voltage

Output Voltage

Input Current

Output Current

On Voltage / Current

Off Voltage / Current

Response Time

Indication Lamp

Insulation Type

Input Method

Output Method

32 points Input

DC24 V

N/A

4 mA

N/A

DC 19 V / 3 mA

DC 6 V / 1 mA

Less than 3 ms

LED On

Photo Coupler Insulation

SINK/SRC

Compatible

N/A

32 points TR Output

N/A

DC 12 V / 24 V

N/A

1 point 0.2A

COM 2A

N/A

Less than 1 ms

LED On

Photo Coupler Insulation

N/A

Sink

16 points Input

16 points TR Output

DC24 V

DC 12 V / 24 V

4 mA

1 point 0.2A

COM 2A

N/A

Less than 1 ms

LED On

Photo Coupler

Insulation

SINK/SRC

Compatible

Sink

16 points Relay Output

N/A

AC 220 V / DC 24 V

N/A

1 point 2A

COM 5A

N/A

Less than 10 ms

LED On

Relay Insulation

N/A

Relay

Model CM3-SP32EDO CM3-SP32EOT CM3-SP32EDT CM3-SP16EOR

PLC-S Series

External terminal block for easy installation and maintenance

Insulated photo-coupler and relays block interference

Features

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

5756

Provides wide input/output range

16 bit conversion for high resolution measurement

Very reliable with less than ±0.05% of error

Protected from interference by the photo coupler

insulation between input ports and the PLC

Features

Specification

Model

Number of Analog Channel

Digital Conversion

Accuracy

Maximum Conversion Rate

Absolute Maximum Input

Insulation Type

Access Terminal

Analog Input / Output

Voltage

Current

Maximum Resolution

0 V ~ 5 V

1 V ~ 5 V

0 V ~ 10 V

-10 V ~ 10 V

0 mA ~ 20 mA

4 mA ~ 20 mA

Input: 2 channels, Output: 2 channels

0 ~ 5 V

1 ~ 5 V

0 ~ 10 V

-10 ~ 10 V

0 ~ 20 mA

4 ~ 20 mA

14 bit (0 ~ 16000) / 16 bit (0 ~ 64000)

78.1 µV

62.5 µV

156.3 µV

312.5 µV

312.5nA

250nA

± 0.05 % (full scale)

2.1 ms / 4 channels

Voltage: ± 15 V, Current: ± 30 mA

Photo Coupler Insulation Between Input Ports and PLC

(non-insulation between channels)

12 points

CM3-SP04EAA

AD/DA Module

▪

DA Module

Provides wide output range

Very reliable with less than ±0.1% of error

Protected from interference by the photo coupler insulation between input ports and the PLC

Features

Specification

4 channels

-10 V ~ 10 V / 0 V ~ 10 V

(selected by DIP switch)

14 bit (0 ~ 16000)

±0.1 %

10ms

Photo Coupler Insulation between Input Ports and PLC

8 points

1.25 mV 1.25 µA

Voltage: ± 15 V Current: ± 24 mA

4 channels

4 mA ~ 20 mA

Model CM3-SP04EOAV

Number of Analog Output Channel

Analog Output

Digital Conversion

Max. Resolution

Accuracy

Maximum Conversion Rate

Absolute Maximum Output

Insulation Type

Access Terminal

CM3-SP04EOAI

PLC-S Series

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

5958

TC Module

Measures wide range of temperature

Supports many different types of TC’s

Supports 4 channels and ±0.3% accuracy

This module converts analog temperature to digital data

Input data can be processed to first decimal point as digital value

Detects cable disconnection and values out of range

Features

Specification

Available TC

Digital Output

Disconnection Detection

Accuracy

Maximum Conversion Rate

Compensation Type

Number of Input Channels

Insulation Method

Connection Terminal

Internal Current Consumption (mA)

External Current Consumption (mA)

Type K,J,E,T,B,R,S,N

Digital Value : 0 ~ 16,000 (-8000 ~ 8000)

Temp Value :℃, ℉ (0.1 ℃ Resolution)

3 points Indication for Each Channel

±0.3 %(Full Scale)

±1 ℃ (error for base contact compensation)

50ms / 4 Channels

Automatic Compensation

4 channels / 1 module

Photo Coupler Insulation between Input Ports and PLC

(non-insulation between channels)

8 points

60 mA

30 mA

Range of Temperature

Type

Range of Temp (℃)

-200.0 ~ 1200.0

-200.0 ~ 800.0

-200.0 ~ 600.0

-200.0 ~ 400.0

400.0 ~ 1800.0

0.0 ~ 1750.0

-200.0 ~ 1250.0

Range of Voltage (µV )

-5891 ~ 48828

-7890 ~ 45498

-8824 ~ 45085

-5602 ~ 20869

786 ~ 13585

0 ~ 21006

0 ~ 18612

-3990 ~ 43846

Standard

ITS-90

+5 V

+24 V

▪

RTD Module

Specification

RTD Type

Range of Temperature

Digital / Temp Output

Disconnection Detection

Accuracy

Maximum Conversion Rate

Number of Input Channels

Insulation Method

Connection Terminal

PT100,JPT100,PT1000,

NI1000 (DIN 43760), NI1000 (TCR 5000)

PT100 : -200.0 ℃ to 600 ℃ (18.48 to 313.59 Ω)

JPT100 : -200.0 ℃ to 600 ℃ (17.14 to 317.28 Ω)

PT1000 : -200.0 ℃ to 600 ℃ (184.8 to 3135.9 Ω)

NI1000 (DIN 43760):

-50.0 ℃ to 160 ℃ (742.6 to 1986.3 Ω)

NI1000 (TCR 5000):

-50.0 ℃ to 160 ℃ (790.9 to 1799.3 Ω)

Digital Value : 0 ~ 16,000 (-8000 ~ 8000)

Temp : -200.0℃ ~ 600.0℃

(floating point x 10)

3 points Indication for Each Channel

± 0.1 %(full scale)

50 ms / 4 Channels

4 channels / 1 module

Photo Coupler Insulation between Input Ports and PLC

(Non-insulation between channels)

12 points

60 mA

30 mA

Internal Current Consumption (mA)

External Current Consumption (mA)

+5 V

+24 V

PLC-S Series

Detects disconnected cables from each channel

Supports most RTD’s

4 channels and ±0.1% accuracy

Ability to detect the values out of range

Digital temperature measurements in 0.1 degree increments

Converts input data to 16 bit digital value

Features

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

6160

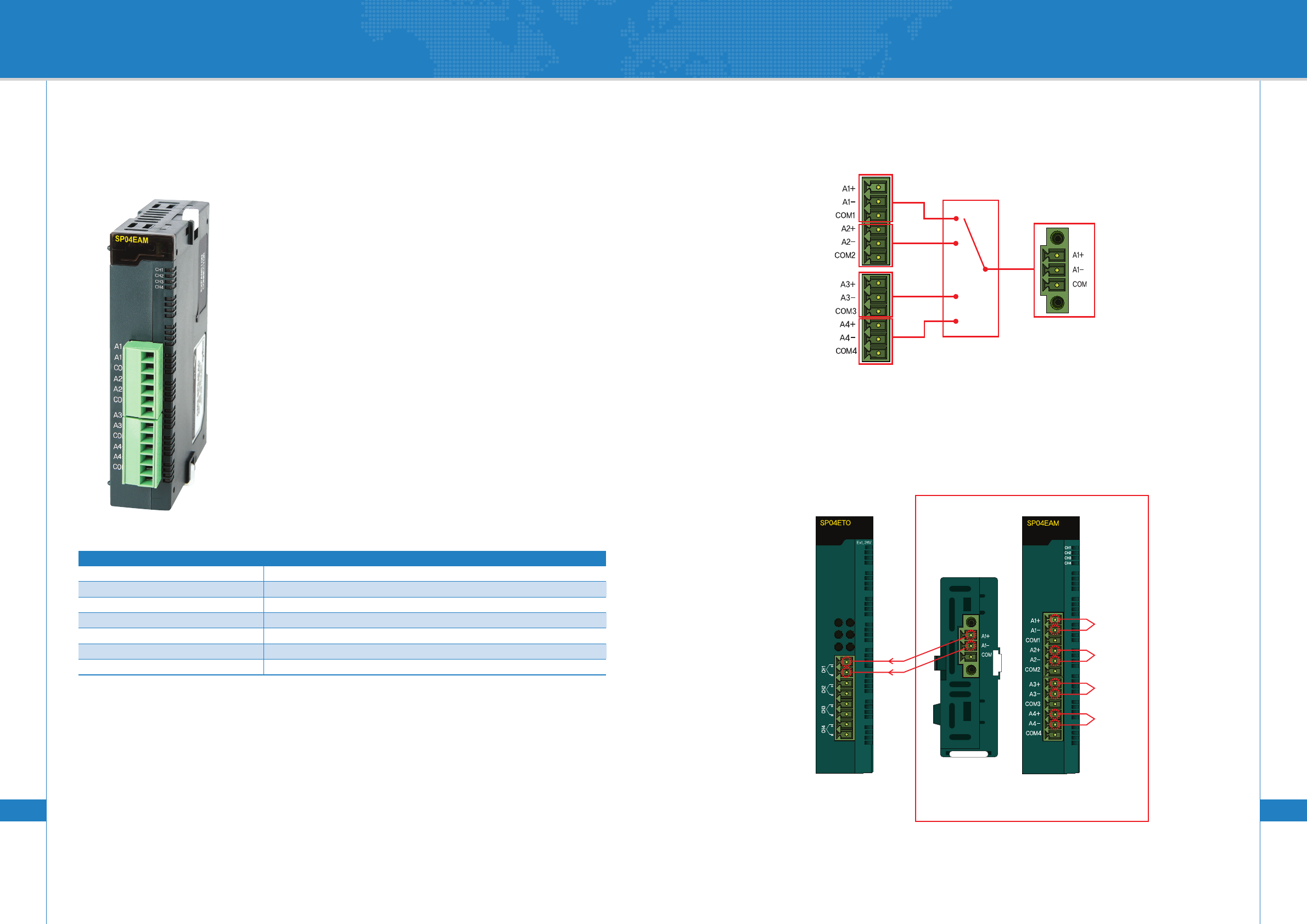

Concept Diagram

Wiring Example

TC Module

Ex) SP04ETO Module and SP04EAM Module Wiring Diagram

Bottom

Analog Output Port

MUX Module

Front

Analog Input Port

TC Sensor

Front Port

CH1

CH2

CH3

CH4

Bottom Port

Analog Input Ports

Analog Output Ports

MUXING

TC Module

Ex) SP04ETO Module and SP04EAM Module Wiring Diagram

Bottom

Analog Output Port

MUX Module

Front

Analog Input Port

TC Sensor

Front Port

CH1

CH2

CH3

CH4

Bottom Port

Analog Input Ports

Analog Output Ports

MUXING

Analog Mux Module

PLC-S Series

Analog Mux Module receives 4 channel analog signals and switches them

sequentially to an output port by a set time interval. By connecting up to

4 mux modules with 1 analog module (AD, RTD, TC, etc.), maximum 16

channels of analog expansions can be achieved.

Specification

Number of Analog Channel

Analog Input

Relay Min/Max ON TIME

Insulation Type

Capacity

Access Terminal

Relay Life-Expectancy

3-wire, 4 channels

Voltage, RTD, TC

Minimum : 0.1 sec, Maximum : 1000 sec

Relay

16 points

12 points

Number of Operation of 108

Channels can be enabled/disabled and easy channel information check

Relay ON time can be selected by 0.1~1000.0 sec interval

Relay life expectancy can be checked through the relay counter function

Auto/Manual mode selectable

Not suitable for current signal use since this module only switches analog

signals repeatedly

▪

Features

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

6362

Serial Module

Read and write data by HMI protocol

Up to 32 units communication available for Multi-Drop

configuration (RS422/485)

Supports wide range of communication speed

(300 bps ~ 38400 bps)

Full-Duplex (RS422) and Half-Duplex (RS485)

Supports 1:1 / 1:N / 1:M communication for RS422 and R485

RS232C/422/485 communication ports are available by

setting up independent channel or linked channel

RS422 and RS485 channels are properly insulated to

prevent any outer interference

Supports universal protocol

MODBUS RTU Master function is built-in for an easy

acquisition of data from third-party devices

(MODBUS RTU Slave)

Features

Specification

Comm. Method

Operation Mode

Data Type

Null Modem

Protocol

Special

Program

HMI

Protocol

MODBUS

Protocol

Graphic

Loader

Protocol

MODBUS

Master

Program

Data Bit

Stop Bit

Parity

Model

Interface

Synchronization

Transmission Speed (bps)

Insulation Type

CM3-SP02ERS

RS232C/422/485

Direct Communication between Each Ports (RS-232C/RS422)

Use Protocol Special Program to Communicate

Use CIMON-PLC HMI Protocol to Communicate

Use MODBUS RTU Protocol to Communicate

Use Connect Function in CICON to Control PLC

Communicate with Slave Devices that Uses MODBUS RTU Protocol

8 bits

1 or 2 bit

Even / Odd / None

Asynchronous

300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400

RS232C : N/A

RS422/485 : Photo Coupler Insulation

▪

Ethernet Module

Specification

Service

Loader

HMI Protocol

MODBUS TCP Slave

MODBUS TCP Master

Protocol Special Program

High-Speed

PLC Link

DHCP

Model

Media Interface

Transmission Speed

Max. Distance (Node to Node)

Service Capacity

CM3-SP01EET

10BASE-T

100BASE-TX

10/100 M

100 m

UDP, TCP : 12 Service

Yes (UDP)

Yes (TCP, UDP)

Yes

Yes (TCP, UDP)

Yes

PLC-S Series

Follows IEEE802.3 standard and supports ARP, ICMP, IP, TCP,

UDP protocols

Operates with CIMON-SCADA to support DHCP

Supports MODBUS TCP Master function to communicate with

third-party devices

High-speed linkage to communicate along CIMON PLC’s and

supports up to 64 simultaneous communications

Features

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

6564

RS232 RS485

Protocol Program

RS485

High Speed Link

MODBUS Protocol

Ethernet

DDNS Server : Static IP

CIMON SCADA

(Dynamic/Static IP)

CIMON PLC

(Dynamic IP)

CIMON PLC

(Dynamic IP)

DHCP Server DHCP Server DHCP Server

CIMON PLC

(Dynamic IP)

CIMON SCADA

(Dynamic/Static IP)

DDNS Server : Static IP

DDNS Server Redundancy

Internet

System Configuration

Total Network Solution

Dynamic IP System

Serial Module

2 Channels of RS-232C

Read and write data by HMI protocol

Supports wide range of communication speed

(300 bps ~ 38400 bps)

RS232C communication ports are available by setting up

independent channel or linked channel

Supports universal protocol

MODBUS RTU Master function is built-in for an easy

acquisition of data from third-party devices

(MODBUS RTU Slave)

Features

Specification

Comm. Method

Operation Mode

Data Type

Null Modem

Protocol

Special

Program

HMI

Protocol

MODBUS

Protocol

Graphic

Loader

Protocol

MODBUS

Master

Program

Data Bit

Stop Bit

Parity

Model

Interface

Synchronization

Transmission Speed (bps)

CM3-SP02ERR

RS232C 2 channels

Direct Communication between Each Ports

Use Protocol Special Program to Communicate

Use CIMON-PLC HMI Protocol to Communicate

Use MODBUS RTU Protocol to Communicate

Use Connect Function in CICON to Control PLC

Communicate with Slave Devices that Uses MODBUS RTU Protocol

8 bits

1 or 2 bit

Even / Odd / None

Asynchronous

300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400

▪

PLC-S Series

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

6766

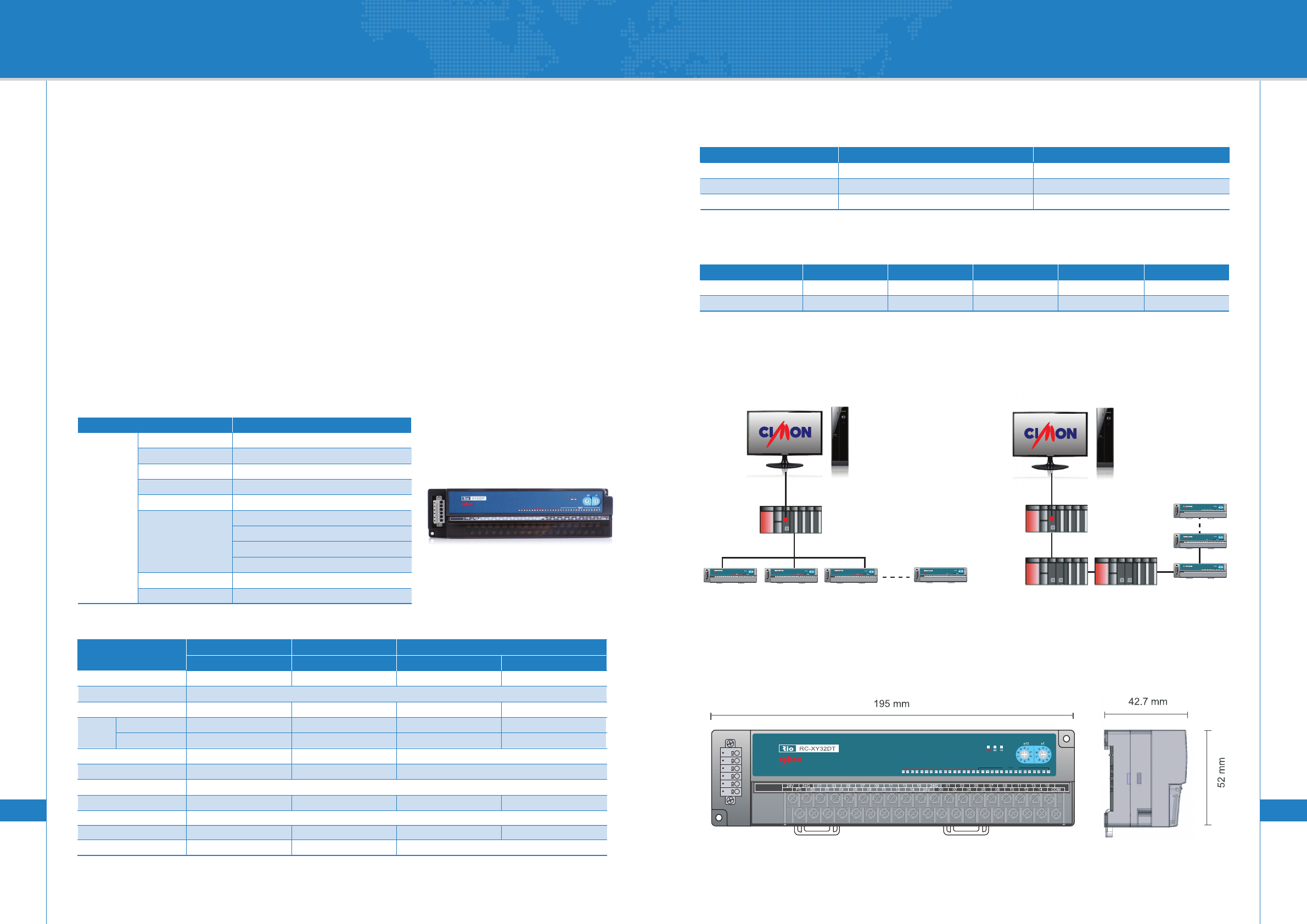

Cable Standard

Impedance

Electrostatic capacity

Conductor sectional area

108 ~ 132 Ω (f = 3 to 20 MHz)

< 30 nF/Km2

≥ 0.34 mm2 (22 AWG)

Cable #1 Cable #2

68 ~ 102 Ω (f > 800 KHz)

< 70 nF/Km2

≥ 0.34 mm2 (22 AWG)

Features of Cable

Transmission Distance

»Dimensions

Cable #1

Cable #2

1000

Baud (Kbps)

700

500

100

350

400

250

200

500

100

1000

Master

Master Master

Master

Slave Slave

Max. 64

Master

Slave Slave

Max. 64

»System Conguration

Remote I/O

▪

About CIMON-NET

Specication

Real time control of diffused I/O

Supports various I/O of 16 point and 32 point units

Available to install up to a maximum of 64 devices

Save on installation and maintenance costs

Easy system set-up with a convenient system, repair and maintenance configurations

Simple communication programming – special program of dialog form –Autoscan function is offered through CICON

Integration of CPU, power, I/O, communication function in one module provides a convenient all-in-one solution

Checks communication condition of long distance module through monitor

Built-in Auto Baud Rate function so that an extra settings for communication speed is unnecessary

Supports various communication speed (10K/20K/50K/80K/100K/125K/250K/500K/1000Kbps)

Prevents noise from the communication line through insulation of communication diagnostic

Built-in LED for diagnostic functions (Power, Module, Line condition)

»Communication Specication

Standard

Transmission

Standard

Interface

Media Access

Topology

Cable

Comm. Distance

Max. Number of Node

Max. I/O Data

Model Performance Standard

ISO11898

CAN BUS

POLL

Bus method

Twisted Pair Shielded Cable

1000 m (10 kbps)

500 m (100 kbps)

200 m (500 kbps)

40 m (1000 kbps)

8 byte

Exchange real time data with CN01M module through the highly reliable CANbus

I/O Specication

Item Input Output Mixed Module

DC (Sink/Source) Transistor (Sink) DC (Sink / Source) Transistor (Sink)

Point

Power

I/O Voltage / Current

Response

Time

Off -> On

On -> Off

Common Method

Current Consumption

External Connection Method

Movement Signal

Inner Circuit

Model

Insulation

32 points 32 points 16 points 16 points

DC24V

DC 24 V / 7 mA DC 24 V / 0.5 A DC 24 V / 7 mA DC 24 V / 0.5 A

3 ms or less

2 ms or less

3 ms or less

2 ms or less

16 points / COM

300 mA

32 points / COM

350 mA

16 points / COM

400 mA

Terminal Connertor

LED LED LED LED

Photo Coupler Insulation

Sink / Source Sink Sink / Source Sink

RC-XD32A RC-YT32A RC-XY32DT

※ RC-XD32A and RC-YT32A modules are custom-built modules

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

6968

Stress-free programming by simply setting up a dialog box for special functions instead of writing a complicated

ladder program. (communication set-up, positioning, PID, protocol program, etc.)

▪

①

Easy management of project files

②

Automatically detects special cards info

③

Present processing condition shown in the

message window

④

Convenient editing by keyboard shortcuts

①

②

③

④

Program conversion

between IL-LD

User-friendly interface for editing and modifying the program

Supports various types of communication methods such as CPU Loader, RS232C/422/485 and Ethernet

Debugging function and system diagnosis

CICON Engineering Software

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

7170

PID operation condition shows as a trend type.

PID tuning is available by controlling ON-OFF.

PID auto tuning

Check PID input and current values constantly in dialog box.

▪

Constant monitoring of the PLC status

Fast and accurate error dectection for each cards

Reserving the I/O

Compares and detects a card and checks if the card is inserted or not

Testing functions and programs is possible without connecting to a physical PLC by CICON Simulator

CICON Engineering Software

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

7372

Included Accessories (PEK- 408)

»Included Accessories (PEK- 308)

Power Cable

CM0-CBL15 1.5m Loader Cable

User Manual

RS 232C Cable, Cross Cable

Installation CD

(CICON, XpanelDesigner, Sample Programs)

▪

Power Cable

USB Loader Cable

CM0-TB32M PLC-S Terminal Block

CM0-SBC15M Main Block I/O Cable

User Manual

Installation CD

(CICON, XpanelDesigner, Sample Programs)

▪

MODULE Model Function

CPU CM1-CP4A 16k step Program Memory Capacity

Power CM1-SPC Voltage Output 5 V / 24 V / +15 V / -15 V

Base CM1-BS08A 8 slot Base

Digital Input CM1-XD32C 32 point Input

Digital Output CM1-YT32B 32 point Source Output

CM1-YR16A 16 point Relay Output

Analog Input CM1-AD08V 14 bit 8 ch Voltage Analog Input

Analog Output CM1-DA04V 14 bit 4 ch Votage Analog Output

Communication CM1-SC02A RS232C / RS422 / RS485

CM1-EC01A 10 Mbps Ethernet

High-Speed Counter CM1-HS02B 200 kpps 2 ch

PEK- 408 Training Kit Conguration

MODULE Model Function

CPU CM3-SP32MDF

10K step Program Memory Capacity with Built-in Functions (HSC, Positioning, etc)

Digital Input/Output CM3-SP32EDT 16 points Input, 16 points TR Output

Analog Input/Output CM3-SP04EAA 16 bit 2 ch Voltage / Current Input, 16 bit 2 ch Voltage / Current Output

RTD CM3-SP04ERO 16 bit 4 ch RTD

PEK-308 Training Kit Conguration

Training Kit

To learn the basics of a PLC

To train the user’s ability to operate a PLC used in an actual setting

To learn the data link system usage between PLC to PLC

To train the user’s ability to apply PLC instructions

To learn controlling ability of analog signals

Understand different conguration methods

(RS232C / RS422 / RS485 / Ethernet)

Trains the user’s ability to congure eld surveillance control and

management

features

▪

Training Kit Purpose

Features

PEK-408 uses CP-series PLC modules and PEK-308 uses PLC-S series PLC modules

Can experiment with different types of high performance modules

Using CICON, user can practice various functions

Extra devices are not needed to operate the training kit

PEK-408 includes toggle switches, push buttons, output lamps and a simulation load display

PEK-308 includes 4” Xpanel HMI, toggle switches, output lamps and servo motor

PID control exercise available

Remote control and monitoring through the HMI software

Comes with a handbook and practice exercises

Understand different conguration methods (RS232C / RS422 / RS485 / Ethernet)

Trains the user’s ability to congure eld surveillance control and management features

Built-in level meter to check the input and output of analog signals (PEK-408)

High-speed counter to control the RPM detection (PEK-408)

Can experiement with temperature measurement functions with a built-in RTD module (PEK-308)

Servo motor for practicing positioning function of the PLC (PEK-308)

▪

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

7574

PLC Specifications

IEC(International Electrotechnical Commission): The IEC is the world’s leading organization that publishes international

standards for all electrotechnical and related technologies

Pollution degree 2 is nonconductive pollution of the sort where occasionally a temporary conductivity caused

by condensation must be expected.

▪

CIMON PLC General Specication

Reference

No. Item Description Standard

1 Ambient Temp -10

℃

~ 65

℃

2 Storage Temp -25

℃

~ 80

℃

3 Ambient Humidity 5 ~ 95 % RH, Non-Condensing

4 Storage Humidity 5 ~ 95 % RH, Non-Condensing

Occasional Vibration

Frequency Acceleration Pulse Width Time

10 ≤ f < 57 Hz - 0.075 mm

5 57 ≤ f ≤ 150 Hz 9.8 m/s2 {1G} - IEC 61131-2

Continuous Vibration

Frequency Acceleration Pulse Width

10 ≤ f < 57 Hz - 0.035 mm

57 ≤ f ≤ 150 Hz 4.9m/s2 {0.5G} -

■ Peak acceleration : 147m/s2 {15G}

6 Impact Resistance ■ Duration : 11 ms IEC 61131-2

■ Pulse waveform : half-sine 3 times each direction X,Y,Z

± 2,000 V

±4 KV IEC 61131-2,

IEC 1000-4-2

27 ~ 500 MHz, 10 V / m IEC 61131-2,

IEC 1000-4-2

7 Noise Resistance

Digital I/O

Division Power Module Digital I/O (less than 24V)

(more than 24V) Analog I/O IEC 61131-2,

Comm. Interface IEC 1000-4-2

Fast transient 2 kV 2 kV 0.25 kV

/ burst noise

Isolation 2 kV / min 2 kV / min 0.5 kV / min

8 Operating Ambience Free from Corrosive Gases and Excessive Dust

9 Altitude Up to 2000m

10 Pollution Level Less than Equal to 2

11 Cooling Air Cooling

Vibration

Resistance

Radiated

Electromagnetic

Field Noise

Electrostatic

Discharge

Square Wave

Impulse Noise

10 times each

direction X,Y,Z

KDT standard

Accessories

Cable Applications

Cable Model Applied Module Terminal Block

CM3-SP32MDT

CM3-SP32EDT

CM3-SP32EDO

CM3-SP32EOT

CM1-XD32C

CM1-YT32A

CM1-YT32B

CM1-HS02C

CM1-HS02S

CM0-SCB15M

CM0-SCB15E

CM0-SCB15I

CM0-TB32M

Accessories

Model

Dummy Module for empty slot (CM0-DM)

ROM-pack type CPU Flash Memory (CM1-FM512)

Connector cover for empty slot (CM0-BSCVR)

CPU batter for data back up (CM0-BAT)

Remote I/O connector (RP-DPC01A)

Loader cable (CM0-CBL15/30)

Expansion Cable for XP/CP cable (CM0-CBE05/10/15)

Expansion cable for BP series (CM2-CBE05)

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

7776

Base

Type Model Description

Base

CM1-BS03A

CM1-BS04A

CM1-BS05A

CM1-BS08A

CM1-BS10A

CM1-BS12A

3 slot Base

4 slot Base

5 slot Base

8 slot Base

10 slot Base

12 slot Base

Type Model Description

CM1-AD04VI

CM1-AD08V

CM1-AD08I

CM1-AD04W

CM1-DA04V

CM1-DA04VA

CM1-DA08V

CM1-DA08VA

CM1-DA04I

CM1-DA08I

AD 14 bit/ 4 ch/ Current & Voltage Input

AD 14 bit/ 8 ch/ Voltage Input

AD 14 bit/ 8 ch/ Current Input

AD 16 bit/ 2.1 ms Sampling / 4 ch/ Current & Voltage Input

DA 14 bit/ 4 ch/ Voltage Output -10~+10V

DA 14 bit/ 4 ch/ Voltage Output 0~+10V

DA 14 bit/ 8 ch/ Voltage Output -10~+10V

DA 14 bit/ 8 ch/ Voltage Output 0~+10V

DA 14 bit/ 4 ch/ Current Output

DA 14 bit/ 8 ch/ Current Output

Analog I/O Module

Type Model Description

DI-DO

DO-R

DO-TR

DI/O

CM1-XD16A

CM1-XD16B

CM1-XD16W

CM1-XD32B

CM1-XD32C

CM1-XD64C

CM1-YR16A

CM1-YT16A

CM1-YT16B

CM1-YT32A

CM1-YT32B

CM1-YT64A

CM1-XY16DR

DC 24V Input/ 16 pts/ Sink & Source/ ON Voltage 19V/ OFF Voltage 11V

DC 24V Input/ 16 pts/Sink & Source/ ON Voltage 15V/ OFF Voltage 12V

DC 100V Input/ 16 pts/Sink & Source/ On Voltage 80V/ OFF Voltage 50V

DC 24V Input/ 32pts/ Sing & Source/ ON voltage 15V/ OFF Voltage 12V

DC 24V Input/ 32pts/ Sing & Source/ ON voltage 19V/ OFF Voltage 11V

DC 24V Input/ 64pts/ Sing & Source/ ON voltage 19V/ OFF Voltage 11V

Relay Output/ 16 pts/ 2A

TR Output/ 16 pts/ 0.5A SINK

TR Output/ 16 pts/ 0.5A SOURCE

TR Output/ 32 pts/ 0.2A SINK

TR Output/ 32 pts/ 0.2A SOURCE

TR Output/ 64 pts/ 0.2A SINK

DC 24V Input 8 pts/ Relay Output 8 pts

Digital I/O Module

CIMON-PLC Line-up

Power Module

Type Model Description

Power supply

CM1-SPA

CM1-SPC

CM1-SP2B

CM1-SPW

5V 3.5A/ 24V 0.5A AC100V~240V

5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A AC100V~240V

5V 3.5A/ +15V 0.5A/ -15V 0.3A DC24V

5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A DC70V~110V

Redundancy

Type Model Description

CPU

Comm.

I/F

Exp.

Redundancy Base

Redundancy

Power Supply

CM1-XP1R

CM1-RC01A

CM1-RM01A

CM1-EP03A

CM1-BS05R

CM1-BS08R

CM1-BS10R

CM1-SPR

CM1-RPW

128K step/ 32 bit/ 75 ns/ 8192 pts/ Expandable/ RTC/ Floating Point Calculation/ Redundancy

10 Mbps Redundancy Communication Module

Dual I/F Master/Standby Setting - Redundancy Interface Module

10 Mbps 3 ports Expansion Module

5 slot Dual Power Base

8 slot Dual Power Base

10 Slot Dual power Base

Redundancy Power Supply 5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A AC100V~240V

Redundancy Power Supply Status Monitoring Module

CPU Module

Type Model Description

High Speed CPU

CPU

+ Comm.

CM1-XP1A

CM1-XP2A

CM1-XP3A

CM1-CP3A

CM1-CP3B

CM1-CP3U

CM1-CP3P

CM1-CP4A

CM1-CP4B

CM1-CP4C

CM1-CP4D

CM1-CP4U

128K step/ 32bit/ 75 ns/ 8192 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation

64K step/ 32 bit/ 75 ns/ 4096 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation

64K step/ 32 bit/ 75 ns/ 2048 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation

32K step/ 16 bit/ 1024 pts/ Expandable

32K step/ 16 bit/ 1024 pts/ Expandable/ RTC

32K step/ 16 bit/ 1024 pts/ Expandable/ RTC/ USB Port

32K step/ 16 bit/ 1024 pts/ Expandable/ RTC/ Flash ROM Pack

16K step/ 16 bit/ 384 pts

16K step/ 16 bit/ 384 pts/ RTC

16K step/ 16 bit/ 384 pts/ RTC/ RS232C Port

16K step/ 16 bit/ 384 pts/ RTC/ RS422/485 Port

16K step/ 16 bit/ 384 pts/ RTC/ RS422/485 Port/ USB Port

Type Model Description

Expansion CM1-EP01A

CM1-EP02A

10 Mbps 1 port - Single-Expansion Module

10 Mbps 2 port - Multi-Expansion Module

Expansion Module

CIMON-XP/CP Series

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

7978

CIMON-PLC-S Series

No. Model Type Description

CM3-SP32MDT

CM3-SP32MDT-SD

CM3-SP32MDTV

CM3-SP32MDTV-SD

CM3-SP32MDTE

CM3-SP32MDTE-SD

CM3-SP32MDTF

CM3-SP32MDTF-SD

CM3-SP16MDR

CM3-SP16MDRV

CM3-SP16MDRE

CM3-SP16MDRF

TR Output

(DC Power)

Relay Output

(DC power)

DI16/DO16, USB Loader, RS232C 1ch

DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch

DI16/DO16, USB Loader, RS232C 1Ch, RS485 1ch

DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, RS485 1ch

DI16/DO16, USB Loader, RS232C 1Ch, Ethernet 1ch

DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, Ethernet 1ch

DI16/DO16, USB Loader, RS232C 1ch, Ethernet 1ch, RS485 1ch

DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, Ethernet 1ch, RS485 1ch

DI 8/DO 8(Relay), USB Loder/RS232 1ch

DI 8/DO 8, USB Loder, RS232 1ch, RS485 1ch

DI 8/DO 6, USB Loader, RS232C 1ch, Ethernet 1ch

DI 8/DO 6, USB Loader, RS232C 1ch, Ethernet1ch, RS485 1ch

Main-Block

CM3-SP32EDO

CM3-SP32EOT

CM3-SP32EDT

CM3-SP16EOR

DI-32

DO-32

DI-16/DO-16

DO-16

DI 32pts, DC 24V

DO 32pts. DC 24V (TR)sink

DI 16pts, DO 16pts, (TR)sink

DO 16pts, Relay Output

Digital Expansion-Block

No. Model Type Description

AI-4

AIO-4

AI-4

AO-4

MUX

AI 4ch Current Voltage

AI 2ch Current Voltage/AO 2ch Current Voltage

AI 4ch RTD

AI 4ch TC

AO 4ch Current Output

AO 4ch Voltage Output

4ch MUX

Analog Expansion-Block

CM3-SP04EAO

CM3-SP04EAA

CM3-SP04ERO

CM3-SP04ETO

CM3-SP04EOAI

CM3-SP04EOAV

CM3-SP04EAM

No. Model Type Description

CM3-SP02ERS

CM3-SP01EET

CM3-SP02ERR

Comm.

RS232C 1ch, RS422/485 1ch

Ethernet 1ch

RS232C 2ch

Comm. Expansion-Block

No. Model Type Description

CM0-TB32M

CM0-SCB15M

CM0-SCB15E

SP32MDT

SP32EDO

SP32EOT

Multi-Terminal

Main Block 1.5M Cable

I/O 32pts. 1.5M Cable

Accessories

No. Model Type Description

Type Model Description

RTD

CM1-RD04A

CM1-RD04B

CM1-TC04A

4 ch (PT100, JPT100)

4 ch (PT1000)

4 ch (Thermocoupler)

RTD & TC Module

Type Model Description

HSC

Load Cell

Data Logger

Positioning

Communication

CM1-HS02C

CM1-HS02E

CM1-WG04A

CM1-WG02C

CM1-WG02D

CM1-WG02E

CM1-LG32A

CM1-PS02A

CM1-SC02A

CM1-SC01A

CM1-SC01B

CM1-SC01DNP

CM1-EC01A

CM1-EC10A

CM1-EC10B

CM1-EC10C

CM1-EC01DNP

CM1-PD01A

CM1-BN01A

2 ch High-Speed Counter Module (pulse in)/ 2 output/ch 200kpps

2 ch High-Speed Counter Module (pulse in)/ 2 output/ch 500kpps

4 ch Load Cell Module/ Strainguag/ 1/10000 Resolution/ 3.6mV/V

2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 2mV/V (Standard)

2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 2mV/V (High Speed Weighing)

2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 3.6mV/V (Wide Range)

32 Mbytes Data Logging Module

2 axis Positioning Module/ Open Collector Type

Serial Module (RS232C, RS422/485)

Serial Module (RS232C)

Serial Module (RS422/485)

Serial Module (RS232C, DNP 3.0)

Ethernet Module/ 10 Mbps/ UDP/IP/ TCP/IP(Slave)/ 10BaseT

Ethernet Module/ 10/100 Mbps/ UDP/IP/ TCP/IP(Master)/ 100BaseT

Ethernet Module/ 100 Mbps/ UDP/IP/ TCP/IP/ Fiber Optic

Ethernet Module/ 100 Mbps/ UDP/IP/ TCP/IP/ 100BaseT/ DHCP Supported

Ethernet Module/ 10 Mbps/ DNP3.0 Single Host

(Fieldbus) Profibus Communication Module

Bacnet I/F Module/ 10base-T

Special Module

Type Model Description

Dummy

Memory

Loader Cable

I/O Cable

Expansion Cable

Base Slot Cover

Battery

Profibus Comm. I/O Connector

CM0-DM

CM1-FM512

CM0-CBL15

CM0-CBL30

CM0-SCB15I

CM0-CBE05

CM0-CBE10

CM0-CBE15

CM0-BSCVR

CM0-BAT

RP-DPC01A

Dummy

Flash Memory Pack for CM1-CP3P (512 kbytes)

1.5 m Graphic Loader PC Connection Cable

3 m Graphic Loader PC Connection Cable

1.5 m I/O Cable

0.5 m, CP Expansion Module Connection Cable

1 m, CP Expansion Module Connection Cable

1.5 m, CP Expansion Module Connection Cable

Base Slot Cover

Battery

Profibus Comm. I/O connector for connection

Accessories

CIMON-PLC Line-up

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

8180

Type Model Description

AI-4

AIO-4

AO-4

AI-4

CM2-BP04EAO

CM2-BP04EAA

CM2-BP04EOA

CM2-BP04ERO

CM2-BP04ETO

AI 4 ch Current Voltage

AI 2 ch Current Voltage / AO 2 ch Current Voltage

AO 4 ch Current Voltage

AI 4 ch RTD

AO 4 ch TC

Analog Expansion-Block

Type Model Description

RS232

RS422

RS422x2

RS232

Ethernet

CM2-BP32MDxx-R

CM2-BP32MDxx-S

CM2-BP32MDxx-U

CM2-BP32MDxx-T

CM2-BP32MDxx-E

HMI Protocol only

HMI/ User/ Loader/ PLC Link/ Modbus Master & Slave

HMI/ User/ Loader/ PLC Link/ Modbus TCP (Slave)

Communication Protocol Option Guideline

Training Kit

Type Model Description

Kit PEK-408

PEK-308

CP type PLC Training Kit

PLC-S + Xpanel Training Kit

Remote I/O (CIMON-NET)

Model Distribution Standard

Input

Output

Mixed

Input, DC24V 32points(Sink/Source combined). photo coupler insulation(custom-built module)

Output, TR Sink 32points, 0.5Amp, Photo coupler insulation(custom-built module)

I/O, DC24V 16points(Sink/Source combined), 0.5Amp, TR Sink 16points

RC-XD32A

RC-YT32A

RC-XY32DT

CIMON-PLC Line-up

Type Model Description

DI/DO

DI-16

DO-16

CM2-BP16EDC

CM2-BP16EDR

CM2-BP32EDC

CM2-BP32EDR

CM2-BP16EDO

CM2-BP16EOR

CM2-BP16EOT

CM2-BP16EOC

DI 8 pts DC 24V/ DO 8 pts TR (Source)

DI 8 pts DC 24V/ DO 8 pts Relay

DI 16 pts DC 24V/ DO 16 pts TR (Source)

DI 16 pts DC 24V/ DO 16 pts Relay

DI 16 pts DC 24V

DO 16 pts Relay

DO 16 pts TR (Sink)

DO 16 pts TR (Source)

Digital Expansion-Block

Type Model Description Option

Main Block

(AC90~240V)

Main Block

(DC24V)

CM2-BP32MDTA

CM2-BP32ADTA

CM2-BP32BDTA

CM2-BP32MDCA

CM2-BP32ADCA

CM2-BP32BDCA

CM2-BP32MDRA

CM2-BP32ADRA

CM2-BP32MDTD

CM2-BP32ADTD

CM2-BP32BDTD

CM2-BP32MDCD

CM2-BP32ADCD

CM2-BP32MDRD

CM2-BP32BDRD

DI 16 pts DC 24V/ DO 16 pts TR(Sink)

AI 2 ch / AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)

AI 2 ch RTD /AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)

DI 16 pts DC 24V / DO 16 pts TR (Source)

AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)

AI 2 ch RTD/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)

DI 16 pts DC 24V/ DO 16 pts Relay

AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts Relay

DI 16 pts DC 24V/ DO 16 pts TR (Sink)

AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)

AI 2 ch RTD/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)

DI 16 pts DC 24V/ DO 16 pts TR (Source)

AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)

DI 16 pts DC 24V/ DO 16 pts Relay

AI 2 ch RTD/ AO 2ch/ DI 8 pts DC 24V/ DO 8 pts Relay

R: RS232C 1ch

S: RS422/485 1ch

E: Ethernet 1ch

U: RS422/485 2ch

T: RS232C 1ch

C: RTC

Main-Block

Type Model Option

Description

Main Block

(AC90~240V)

Main Block

(DC24V)

CM2-BP16MDRA

CM2-BP16MDTA

CM2-BP16MDCA

CM2-BP16MDRD

CM2-BP16MDTD

CM2-BP16MDCD

R: RS232C 1 ch

S: RS422/285 1 ch

DI 8 pts DC 24V/ DO 7 pts Relay

DI 8 pts DC 24V/ DO 7 pts TR Sink

DI 8 pts DC 24V / DO 7 pts TR Source

DI 8 pts DC 24V / DO 7 pts Relay

DI 8 pts DC 24V / DO 7 pts TR Sink

DI 8 pts DC 24V / DO 7 pts TR Source

Micro Main-Block

CIMON-BP Series

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

8382

110

110-240VAC

Unit : mm

Power Module

CPU Module

I/O Module

Model Weight Model Weight

CM1-XD16A 158g CM1-AD04VI 193.5g

CM1-XD32C 121g CM1-AD08I 195.5g

CM1-XA08* 168.5g CM1-AD08V 194.5g

CM1-YR16A 202g CM1-DA08I 219g

CM1-YS08A 202.5g CM1-DA08V 197.5g

CM1-YT16* 159.5g CM1-RD04A 194.5g

CM1-YT32* 122g CM1-TC04A 200.5g

CM1-EC01* 111.5g CM1-SC*** 118.5g

Model Weight

CM1-SP* 278.3g

CM1-SP2B 270.5g

Model Weight

CM1-CP* 132g

PAUSE

Unit : mm

XP/CP

※

Comm. module and other module's dimension is same as IO module.

CIMON-PLC Dimensions

PLC-S

plc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

8584

CH1 -

CH1 I+

CH1 V+

CH2 -

CH2 I+

CH2 V+

BP04E

CH3 I+ CH4 I+

CH3 -CH4 -

CH3 I+ CH4 I+

BP32M

LOADER

Main Block, 32 Points Expansion Block

Main Block (BP 16M), 16 Points Expansion Block, Analog Block

CIMON-PLC Dimensions

CM1-BS03A Weight : 298.5g CM1-BS04A Weight : 353.5g

CM1-BS05A

Weight : 412g

CM1-BS08A

Weight : 573.5g

CM1-BS10A

Weight : 685g

CM1-BS12A

Weight : 802.5g

110.5

165.65 197.85

230.05

326.65

391.05

455.45

Unit : mm

XP/CP Base

Touch the Future with Xpanel

CIMON-Xpanel features

-High Performance CPU

-Windows CE Embedded

Beautiful Color Expression up to 16.7M Colors

-Includes USB Host Controller and

SD Memory Card Slot

-Small and Lightweight for a Variety of

Industrial Applications

-Includes Serial and Ethernet Ports

-Large Memory Capacity

Resistive Type Touch Panel for Convenient Use

Xpanel

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

8988

Comfortable Network Environment

Supports various communication interface

- Built-in 10/100M Ethernet port (except XT04CD-DN, XT07CD-AN/DN)

- Two built-in serial ports

Excellent Scalability

- Built-in USB(Host) port which enables to connect to USB devices such as keyboard, mouse, USB storage, etc.

- Built-in SDHC card slot (except XT04CD, XT07CD-AN/DN)

Integrated Networking Solutions

- Operates up to 3 communication ports concurrently (2 serial, 1 ethernet)

- All models support multi-drop networking : RS485 port, 10/100M Ethernet port

- Easy communication with other CIMON-Xpanels or CIMON-SCADA

- Convenient communication with other monitoring devices or software by MODBUS RTU/TCP slave

- Various drivers supported

▪

CIMON-XPANEL

Experience Ultimate Performance Beyond the Norm

Easy Operating Environment

Convenient Project Download

Flexible

High-speed CPU embedded

Large memory size and user storage

- XT04/07 128MB, XT10/12 256MB DDR2 SDRAM

- 128MB SLC NAND Flash

- Multiple page components and objects

High-quality color expression up to 16.7M colors

High-resolution display up to Max 1024 x 768

▪

Based on Windows CE

Manages the project data by Activesync or Mobile Device Center

▪

Project les downloadable through XpanelDesigner

Easy project downloading through USB cable / Ethernet cable / SD memory card / USB memory

▪

Supports SD memory card

Provides various communication drivers and if requested, wanted drivers can be developed for free

Enables to connect to various external devices through USB

Easy to manage by built-in maintenance functions

▪

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

9190

Convenient Switch/Lamp Object

▪

- Simple mouse operations provide the switch

and lamp functions

- Up/down action is divided in the switch function

- Up to 256 steps can be dened in the lamp function

- Provides 8000 part palette

- All the address data can be identied and

modied in the database

- Database compatible with Excel

Easy to exchange the project to other devices

Simple and Easy Database Manager

▪

CIMON-XPANEL

User-Friendly Workspace

Designing tool for Xpanel is called Xpanel Designer

Development environment is similar to CIMON-SCADA.

Various ways to download / update the project ( USB, Ethernet Loader, Removable Disk)

▪

Easy to insert images using the Clipboard

▪

Animation Editor

▪

- External graphic images can be imported/

exported by using windows clipboard.

- Supports transparent color function

- Supports image compression

- Supports 24bit bitmap image

- User can create his own animation object

- Provides the simulator for animation object

- Newly made animation can be added to

the library

- Supports 24bit bitmap image

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

9392

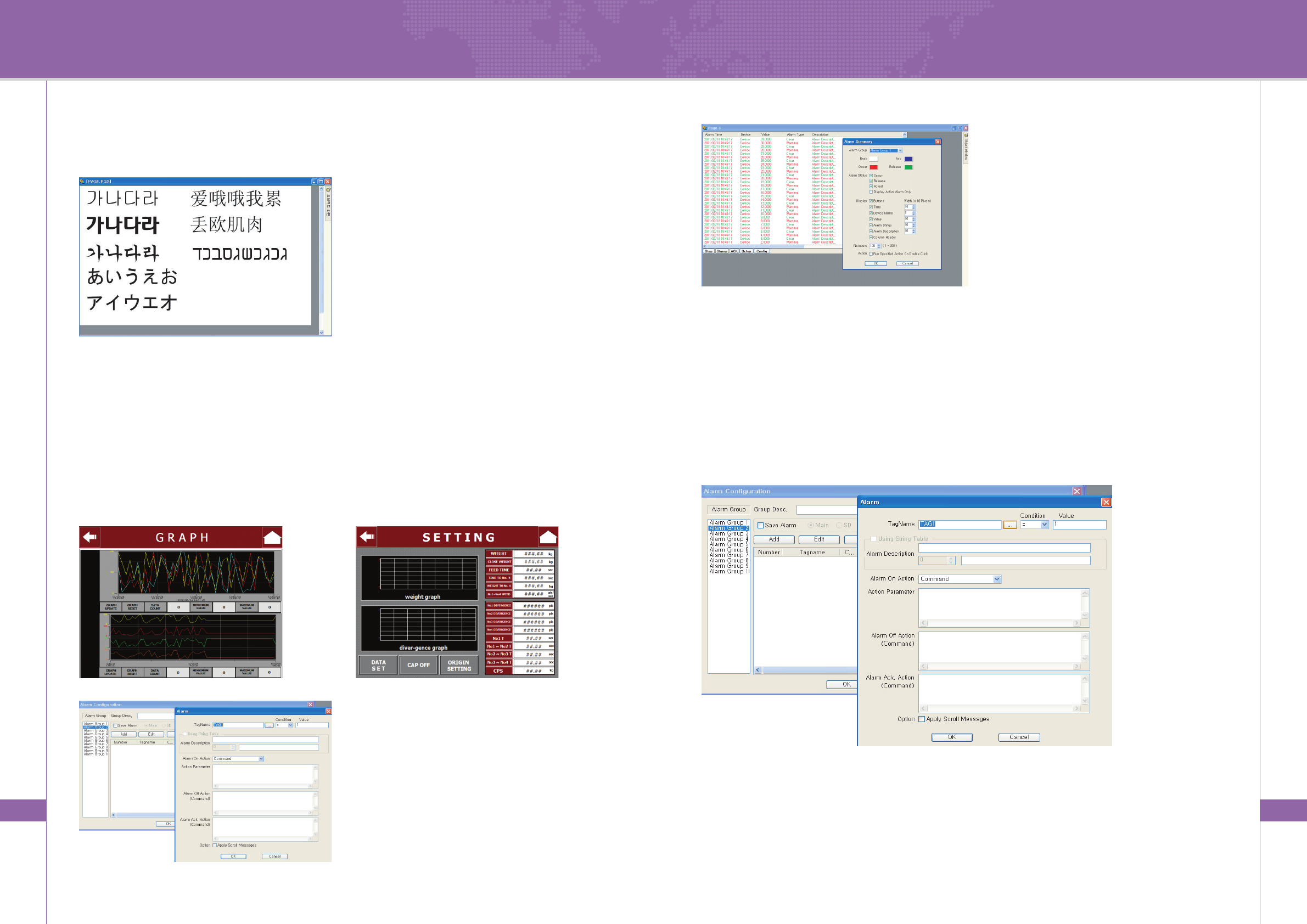

- Supports 10 alarm groups

- Each alarm group stores up to 200 alarms

Depending on the set, the alarm will be saved at power-off

- Alarm summary displays alarm history on the screen

- desired status can be displayed on the screen

- Alarm on/off action can be specied

(supports open page/command expression)

Enables to change font and size of alarm summary object

- Provides alarm acknowledge functionalities

- Supports customized alarm summary control button

Script

- Scripts are activated to execute by event, time period or function call

- Supports script language of C syntax

- Internal script function can control the advanced features of Xpanel

- Enables to call user-dened function

▪

Data Log

▪

- Enables to create up to 32 data blocks (each data block can store up to 2048)

- Collected data through data collect object can be displayed on table

- Collected data through scope trend can be displayed on graph

CIMON-XPANEL

Supports a Variety of Special Function

Supports multi-language and various fonts

- Enables the use of installed fonts from Windows

- Supports unicode

▪

Provides various forms of trend

- YT, XY, Log, ST, SPC, Scope

- Enables to set a sampling period up to 100 ms

- Provides historical trend (YT, XY)

- Supports zoom feature (YT, XY)

- Save as a CSV le (YT, Log)

- Enables to display a data log (Scope)

- Supports special purpose trend (ST, SPC)

▪

Alarm

▪

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

9594

CIMON-XPANEL

Frame Editor

▪

Simulator

▪

- Provides split-screen

- The structure and the size of the frame can be edited

- Provides various forms of frame

- Enables to precheck the project on the PC without the Xpanel

- Enables to modify the tag value on the simulator remote control window

- Runs on the PC with the same resolution as the real screen

- Enables to check the scripts and the alarm

Item Description

Permitted Voltage DC24V or AC100-240V

Ambient Temperature 0

℃

~ 60

℃

Storage Temperature -10

℃

~ 60

℃

Ambient Humidity 10%RH ~ 90%RH(Non-condensing, wet bulb temperature: 39oC max.

Storage Humidity 10%RH ~ 90%RH (Non-condensing, wet bulb temperature: 39oC max

800hPa ~ 1114hPa(Up to 2000m/6,500ft)

Dust 0.1mg/m3 or less

Pollution Degree Less than equal to Pollution degree 2

Corrosive gases Free from corrosive gases

IEC61131-2 Compliant

Occasional Vibration

Vibration Resistance 10Hz to 75Hz 0.075mm, 57Hz to 150Hz 9.8m/s2

Continuous Vibration

10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2

X,Y,Z directions for 10 cycle (80min.)

Noise resistance ± 2kV, 1uS

Contact Discharge 4kV (IEC61000-4-2)

Air Discharge 8kV

Electrostatic Discharge

Immunity

Air Pressure Vibration Resistance

(Availment altitude)

General Specication

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

9796

CIMON-XPANEL

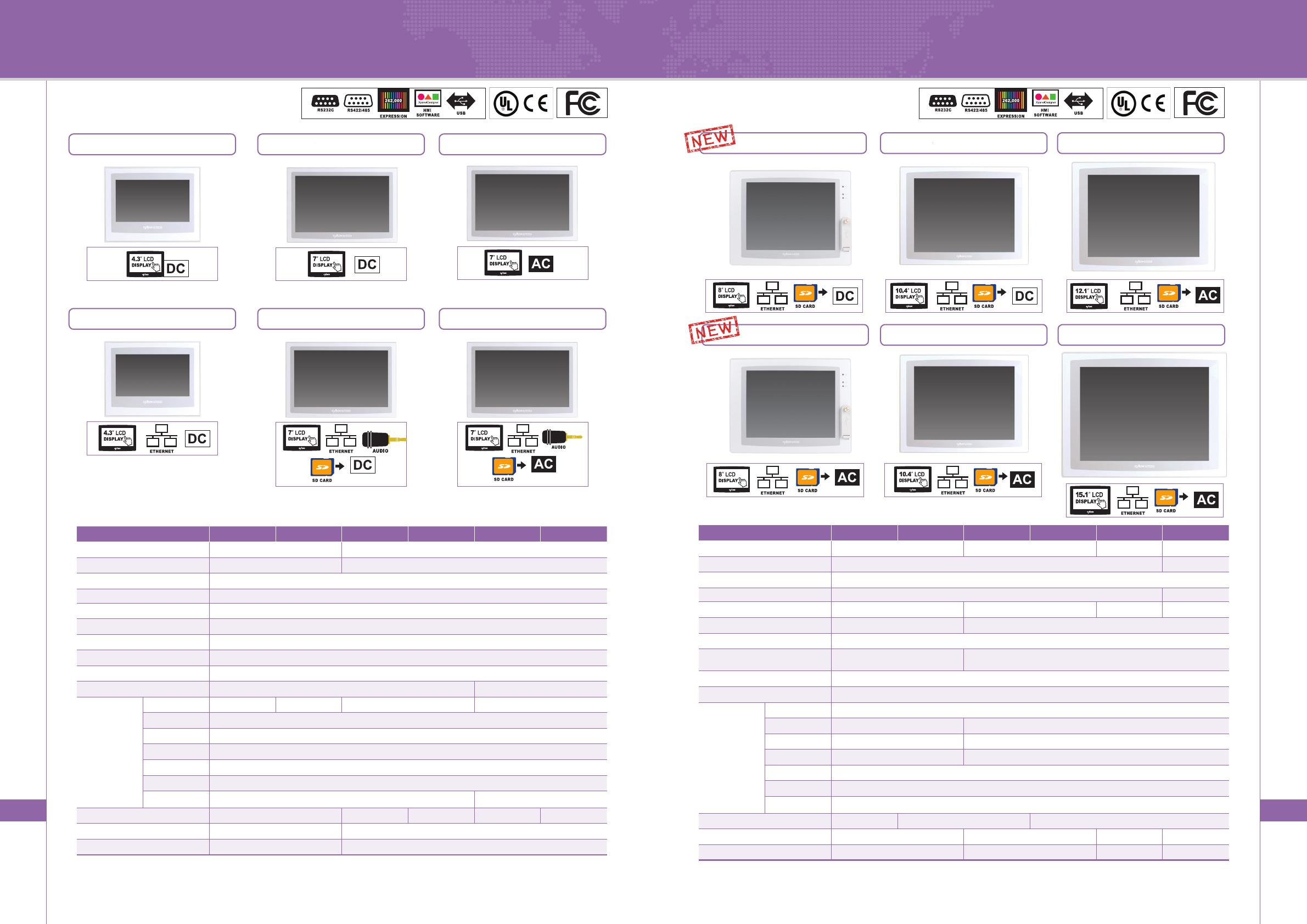

Specication

XT04CD-DN XT07CD-AN

XT07CD-AEXT04CD-DE

XT07CD-DN

XT07CD-DE

Type XT04CD-DN XT04CD-DE XT07CD-DN XT07CD-AN XT07CD-DE XT07CD-AE

Panel Size 4.3" 7"

Resolution 480 x 272 800 x 480

LCD Color TFT

Color 262K Colors

Luminance 400 cd/m2

Memory 128MByte DDR2 SDRAM

Storage 128MByte SLC NAND Flash

Operating System Windows CE 6.0

Programming Tool (HMI) Xpanel Designer

Audio None 1 Port

Interface

Ethernet None

10/100 BaseT

None 10/100 BaseT

Serial (COM1) RS232C

Serial (COM2) RS422/485

Serial (COM3) None

USB Host 1 Port

Tool Port 1 Port (for Loader)

SD Card Slot None 1 Slot

Input Power DC24V DC24V

AC100-240V

DC24V

AC100-240V

Dimension(mm) 128 X 102 X 50 185 X 127 X 50

Panel Cut(mm) 120 X 94 177 X 119

XT08CD-A

XT08CD-D

XT10CD-A

XT12CD-A

XT15CD-A

XT10CD-D

Type XT08CD-A XT08CD-D XT10CD-D XT10-CD-A XT12CD-A XT15CD-A

Panel Size 8" 10.4" 12.1" 15"

Resolution 800 x 600 1024 x 768

LCD Color TFT

Color 262K Colors 16.7M Colors

Luminance 350cd/m2400 cd/m2450 cd/m2400 cd/m2

Memory 128MByte DDR2 SDRAM 256MByte DDR2 SDRAM

Storage 128MByte SLC NAND Flash

Operating System

Windows CE 6.0 Windows Embedded Compact 7

Programming Tool (HMI) Xpanel Designer

Audio None

Interface

Ethernet 10/100 BaseT

Serial (COM1) RS232 RS422/485

Serial (COM2) RS422/485 RS232C

Serial (COM3) None RS232C

USB Host 1 Port

Tool Port 1 Port (for Loader)

SD Card Slot 1 Slot

Input Power AC100-240V DC24V AC100-240V

Dimension(mm) 227.5 X 176.5 X 59.5 280 X 220 X 47 330 X 250 X 83

395 X 310 X 89

Panel Cut(mm) 217 X 166 267 X 207 319 X 239 382 X 297

x-panel

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

9998

CIMON-XPANEL

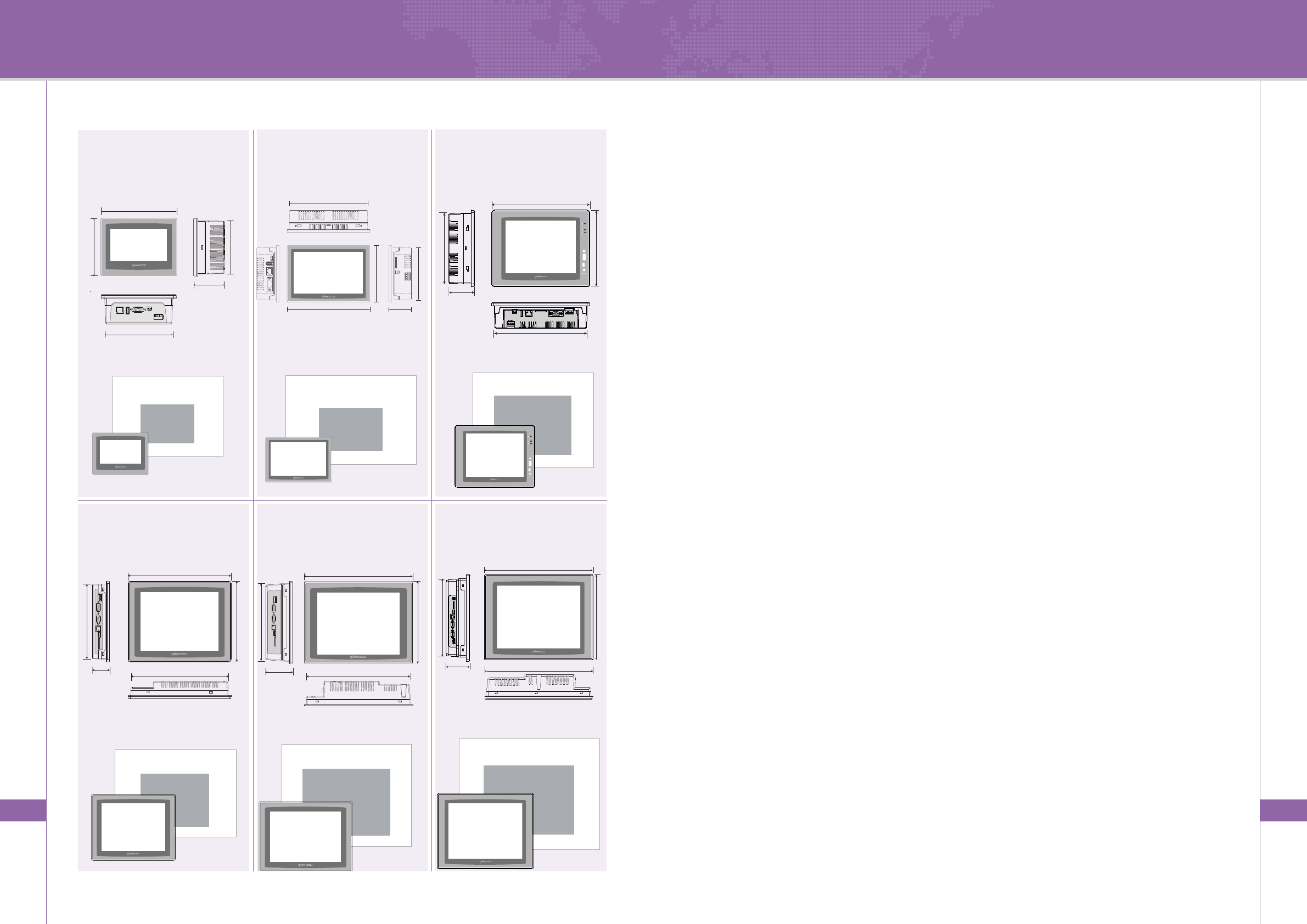

Dimension

XT10CD

Dimensions

▪

Panel cut

▪

XT08CD

Dimensions

▪

Panel cut

▪

Panel cut

▪

XT07CD

Dimensions

▪

XT04CD

Dimensions

▪

Panel cut

▪

XT12CD

Dimensions

▪

Panel cut

▪

XT15CD

Dimensions

▪

Panel cut

▪

176

185 50

127

119

177

Panel

59.5

215

227.5

118

176.5

166

217

Panel

128

120

Panel

118

102

310

381

395

382

297

Panel

250

238

330

318

319

239

Panel

206

280

266

267

207

Panel

118

220

296

Connect the World

with CIMON-SCADA

CIMON-SCADA features

-Redundancy System and Client-Server

Conguration

-Creates the Database Automatically

-Convenient Graphic Works

-Realistic Images and Animations in

the Built-In Library

-Supports Various Drivers for Instant

Connections with other Devices

-Open System Architecture

-Optional WEB/Mobile/ACS/SMS Version

for Remote Monitoring and Controlling

-MRP Systems

SCADA

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

103102

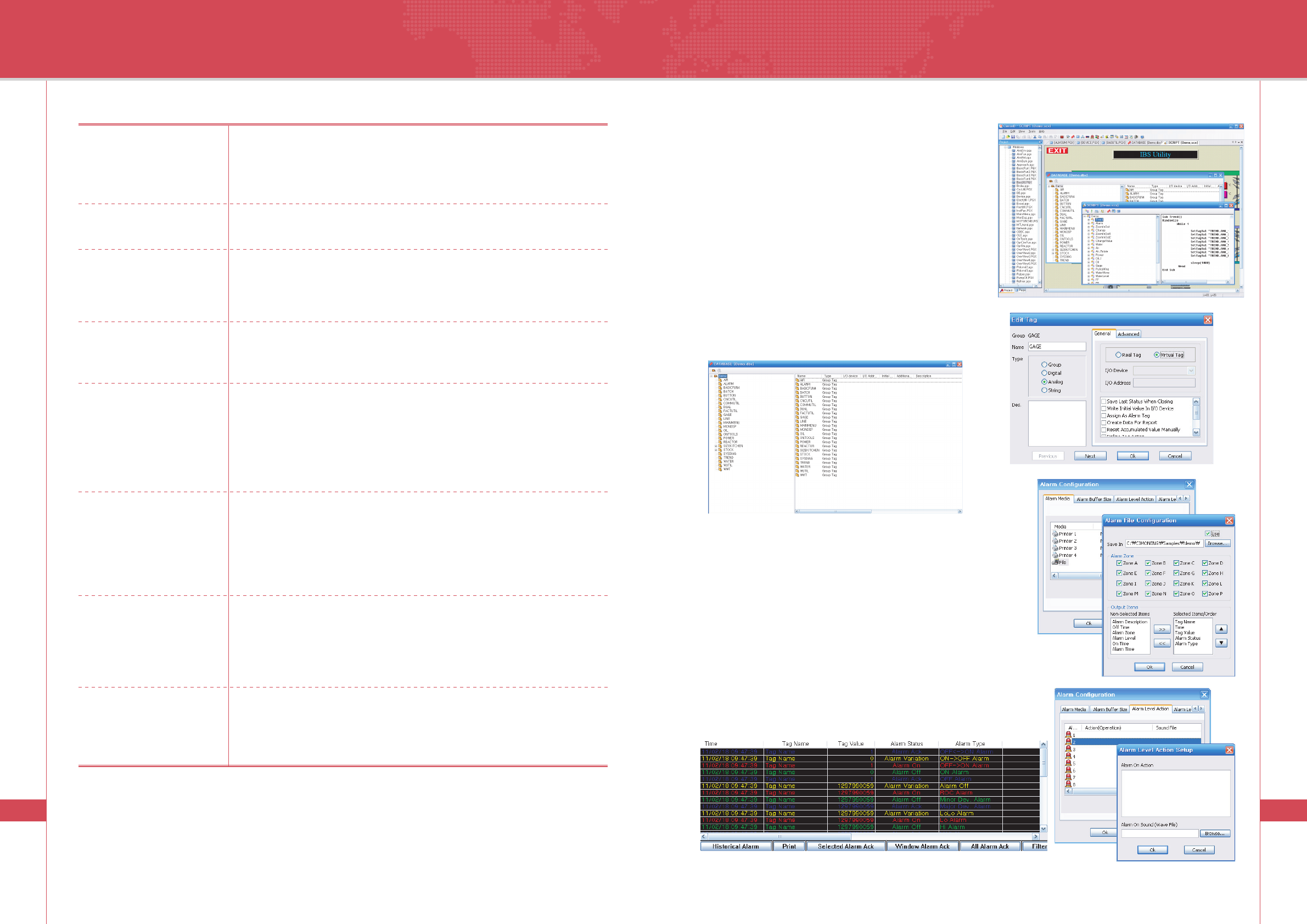

Offers ideal environment to enable several monitoring

windows and workspace

▪

New Style Development Environment

Real-Time Database Management

Alarm

▪

Convenient management program based on the

explorer’s layout and functions

Find/Replace feature to conveniently manage

the large-scale database

Database compatible with excel

Analog / Digital / String / Group tag

Virtual tag: simulation, tag for internal operation

Most important work in the system

Alarm management by zones and priorities

Alarm summary, File, Printer, Alarm sound, Text Message

Digital Tag Alarm: ON and OFF, ON -> OFF, OFF -> ON, ON <-> OFF

Analog Tag Alarm: Boundary Value, Deviation Value, Rate Of Change

Activate specic actions when the alarm is triggered or stopped

Alarm type or alarm area summary can be monitored online

Line color printing by priorities and types

Monitor alarm history with the alarm manager

(ltered by specic tag / alarm area / alarm type / alarm status / occurred time)

Save as a CSV le

CIMON-SCADA

CIMON-SCADA is designed as open system architecture

CIMON-SCADA easily satisfies specific requirements from various users

CIMON-SCADA provides high flexibility such as easy linking with other software systems

Open System Architecture

CIMON-SCADA supports redundancy system which is essential to guarantee reliability

of a large scale system

Supports Various Networks

CIMON-SCADA can be linked with common DBMS by using ODBC

CIMON-SCADA supports all the DB applications (revising, adding, deleting records)

through standard SQL

Connect to Common DBMS

Current equipment status can be monitored and controlled via internet

Supports Internet

Users can easily configure the system using various types of wizard and symbol library.

User-defined objects can be registered in the symbol library and used at any time

CIMON-SCADA can easily expand a system as it supports third-party OCX

components

Convenient Graphic Works

CIMON-SCADA supports Visual Basic Script language syntax which includes about

500 functions (File I/O, OLE object connection, etc) Supported SQL functions allows

for data query or search in the common DBMS

Visual Basic Script

Tag database is compatible with MS Excel; Report forms created by Excel and Word

can be used without modification. Also can use various graphic file formats (Auto-Cad,

Adobe Photoshop, Corel Draw)

Data Compatibility with

Various Application

Software

External programs can easily send and receive data from CIMON-SCADA via the

OPC interface

OPC Server

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

105104

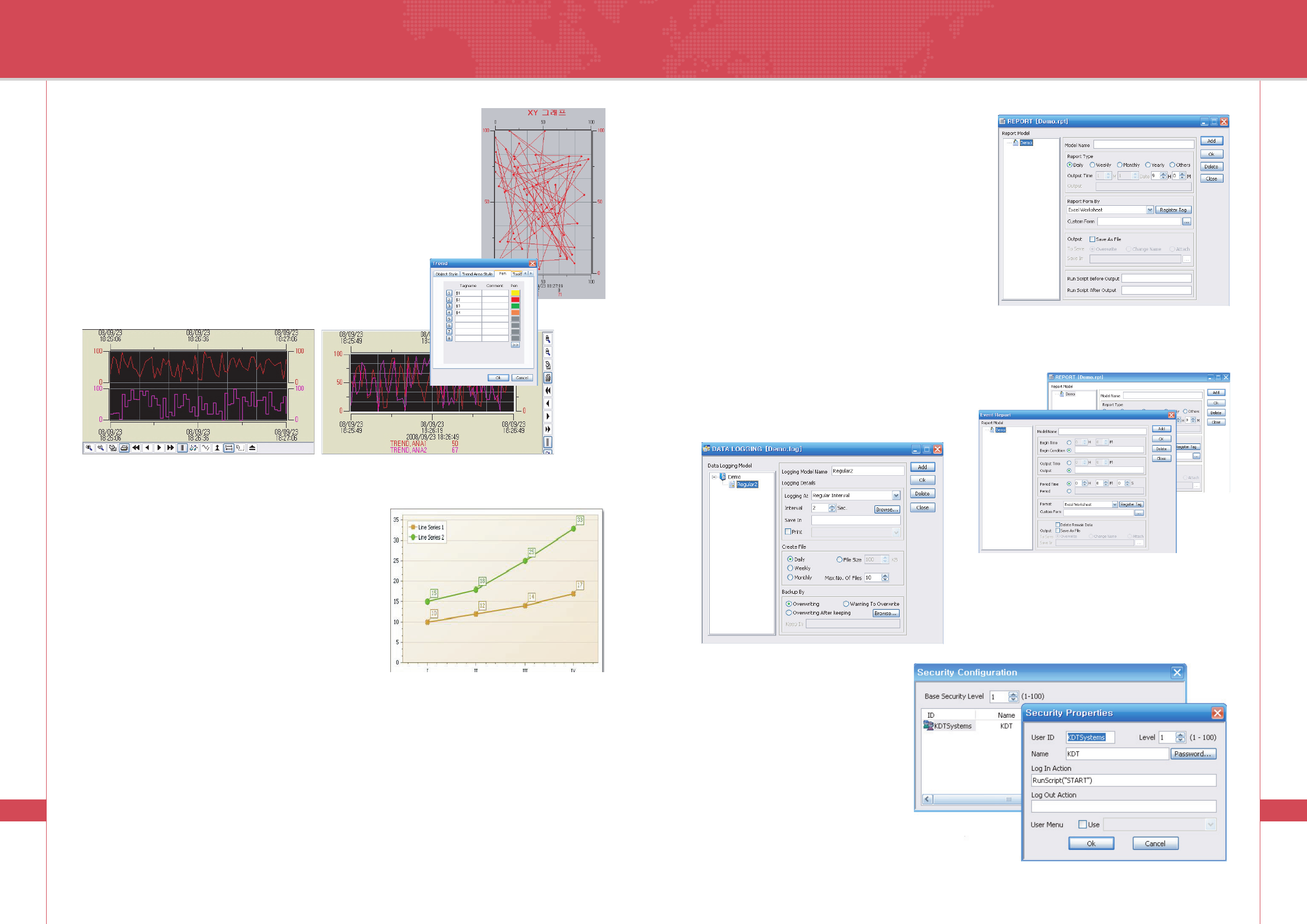

Report

Data Logging

Security

▪

Excel or Word forms can be used

Displays a report in Excel form without using Excel

Reports by regular intervals, time, event which can be

saved as a le

Reports can be made either by a scheduled time or

upon user’s request

▪

Data is logged at a regular interval or when the value is changed

Data can be saved as a le or printed

File can be saved separately by the size or the logging period

Monitors the logging data on the trend screen

The logging data can be read by the script function

▪

User registration based on 100 levels

Stores user’s login/logout history

Allows access to the system only for

the authorized user level

Able to change passwords online

Activate specic actions when logged in

CIMON-SCADA

Display the data gathered from various devices /

data logging / databases on to a chart

Easy to setup the chart by just setting up the series and the data

Enables the chart to connect to database without ODBC

▪

Trend Analysis

Chart

Supported Chart Type

▪

Historical Trend / Real-Time Trend

Data trend analysis through zoom in/out function

Simultaneously monitor many key tags by placing multiple trend objects on one page

Easy data trend monitoring through various toolbars

YT trend, Multiple trend, XT trend, ST trend are various trends that the user can choose

▪▪

2D Chart Type

- Bar Chart (bar, stacked bar, full stacked bar)

- Pie Chart

- Point Chart

- Line Chart (line, step line)

- Area Chart

(area, stacked area, full stacked area)

- Radar Chart (radar, radar line, radar area)

3D Chard Type

- 3D Bar Chart

- 3D Pie Chart

- 3D Line Chart

- 3D Step Line Chart

- 3D Area Chart

- 3D Stacked Chart

- 3D Full Stacked Chart

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

107106

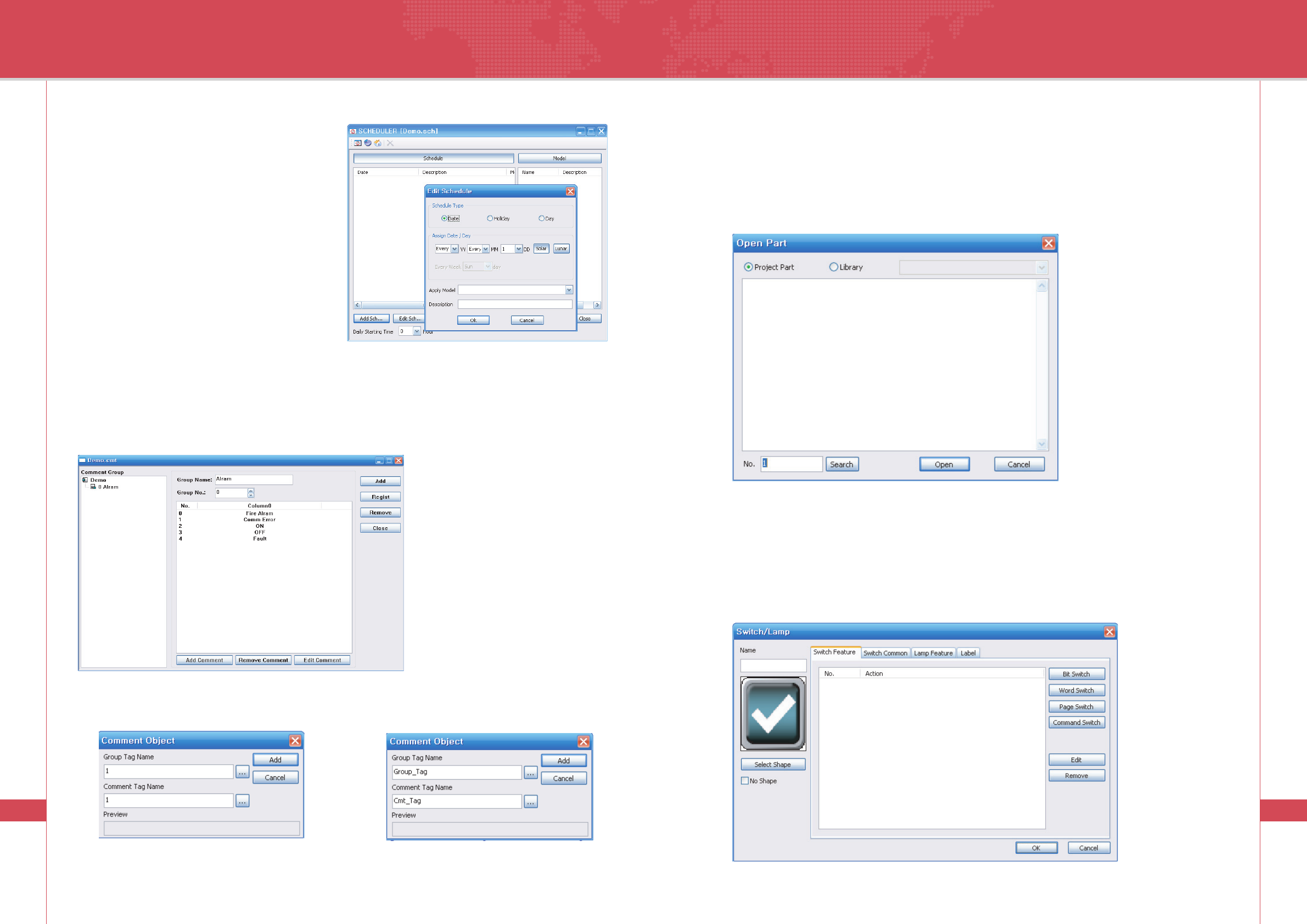

Object link function

Display by the part object

Conjunction with switch / lamp

Batch change by link function

▪

Part

Switch / Lamp

Display various switch / lamp using objects and libraries

Supports bit / word switch

Supports bit / word lamp

Label can display current status

Conjunction with the project and the system part

▪

CIMON-SCADA

Monitor and control according to the schedule

Collected data management and system control

can operate by the date

Executes registered work details on a specic

date automatically

▪

Scheduler

Comment Table

Comment in Static Value

»Comment Conjunction with Tag

Call the strings depends on tag status

Batch process in conjunction with Excel

Display messages in conjunction with alarm

▪

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

109108

▪

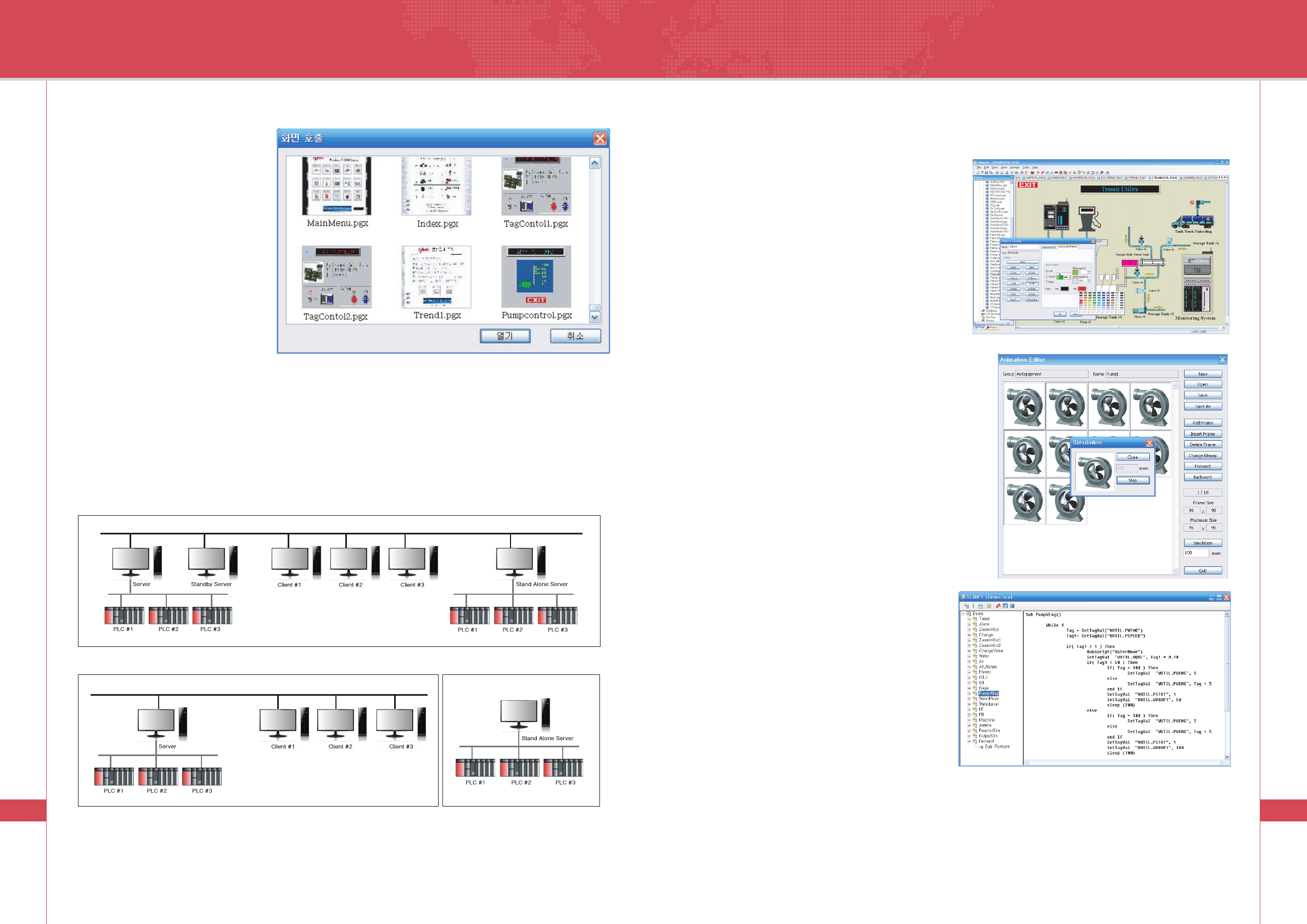

Creating Monitoring / Control Screen

Graphic Effect

Visual Basic Script

OPC Server for CIMON-SCADA

Supports animation modications

By using various framed picture les, create dynamic

and realistic effect of industrial images

Texture expression using the gradation effect

▪

Supports script language of Visual Basic syntax

Supports about 500 internal functions

Execution possible anywhere with CIMON-SCADA

▪

Supports OPC server for CIMON-SCADA

User application gathers the data from CIMON-SCADA and controls it through the OPC interface

Used only with FULL/DS and Web version

▪

Object-oriented graphic

User-friendly toolbar

Various types of control functions

Supports linking the object to other application program

Several screens can be opened together in one layout

Zoom In / Out function in the Editing / Execution mode

Easy to create a screen layout by dragging & dropping

various types of clip art and library

CIMON-SCADA

See the contents of multiple pages

on a single screen

Layout without any frame division

Control the function on a linked page

Save the page size by the link function

▪

Screen Call

Network

Supports various types of network operation including Standalone, Peer-to-Peer, 1 server + n Clients,

and n Servers + n Clients

Connects to other workstations using TCP/IP or RS232C/Modem through the CIMON-NET protocol

(CIMON-SCADA <-> CIMON-SCADA or CIMON-SCADA <-> CIMON-TOUCH communication)

▪

Supports dynamic IP addressing system

▪

The construction of Redundancy and Server-Client

The construction of Server-Client The construction of Peer-to-Peer

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

111110

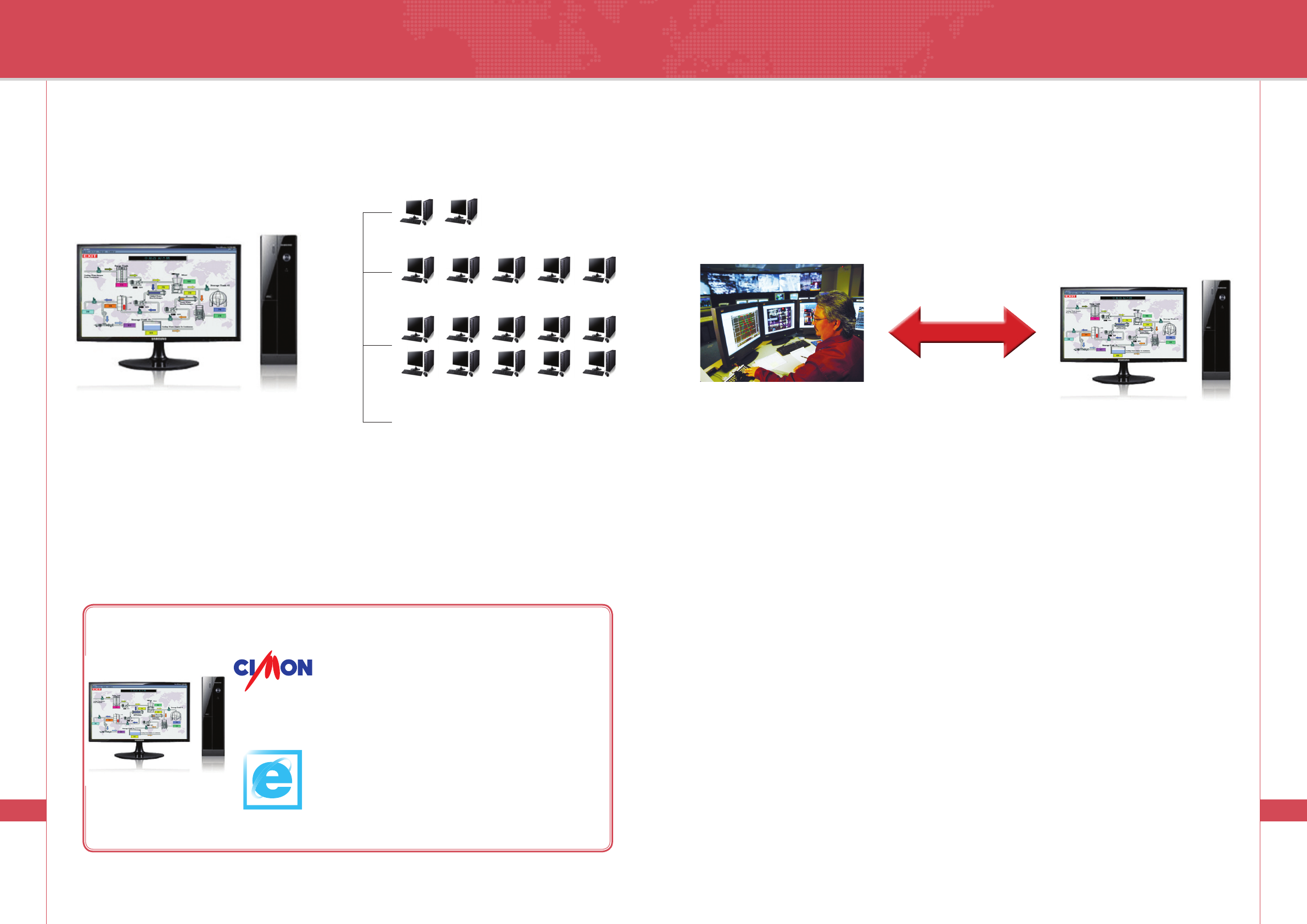

About CIMON-SCADA WEB

Features of CIMON-SCADA WEB

Advantages of CIMON-SCADA WEB

Homepage style conguration for site monitoring

Prevents unauthorized access through complete security on the web

Controls via the Internet

Immediate response is possible by real-time alarm monitoring

Search the data history using the web browser

Supports dynamic IP addressing by DDNS service

User can congure the communication port to access the CIMON-SCADA WEB even with a rewall

▪

Easy to monitor the site on the client PC

The site status can be monitored anywhere if the client PC is connected to the internet

Cost Savings

Save costs by not requiring additional software investments and operating expenses

Improves management efciency

Executives can make decisions quickly through the real-time data ow

▪

At home, Internet Cafe, or even abroad

Internet remote monitoring and control

CIMON-SCADA

▪

I/O Device

I/O Driver List

Manufacturer Product Name

SLC500 DF1 / Ethernet / RsLinx

Allen Bradley PLC5 DF1 / Ethernet / RsLinx

Control Logix 5000 (Ethernet/IP)

MELSEC Computer Link (AJ71UC24,

MITSUBISHI AJ71C24)

MELSEC Ethernet (AJ71E71)

MELSEC FX Series, NET

CIMON-Net Ethernet / RS232/MODEM

KDT Systems

CIMON-PLC RS232C/422/485 / Ethernet / Loader

Dongyang Industrial System

MaxCom

FARA 700 Ethernet SECTOCOLCOM

Brain Series/FARA N Plus CPU

FARA PLC N Series

Hanyoung Electronic Digital thermometer NX,PX Series

Hyosung Digital Protection Relay(HPR Series)

Advantech ADAM4000/5000 Series, PC-Lab Card

CAS CAS Electronic Scale AD-2.5, EXP5500,

S2000 Series

DNP30

Dnp30 TCP / RS232C

Echelon LonWorks DDE Network

Eurotherm 800 Series

MICREX-F Computer Link (FFU120B) /

Ethernet(FFU170B)

FUJI MICREX-F P-Link(CNVAD020-01) /

PE-Link PCI / T- Link(FFU080A)

SX PLC CPU Board

MICREX-SX Computer Link / Ethernet

GE Total Lightning

HITACHI HIDIC COMM-2H, EH-150 Ethernet,

Loader

Manufacturer Product Name

XGT Ethernet

GIPAM/GIMAC/Urtu(INET)

GLOFA-GM Computer Link / Ethernet /

FNET / Loader / Mnet

GIPAM/GIMAC/Urtu(GMPC)

Solar Inverter UPS

PMU Series

MASTER-K H Series Computer Link /

DLU / S Series Loader Port / Ethernet

MODICON Modbus RTU Mode / TCP

National

Lighting Apparatus (WR3381-82, WR3385-891)

OMRON SYSMAC C-Series RS232C/422,

CS Series Ethernet

OPTO22 OPTOMUX protocol RS232C/422

POSCON POSFA PLC Ethernet / Serial

Proface GP Computer Link / Ethernet

SIEMENS 3694® Procedure, RK512 Protocol

S7 Ethernet, TI505 Series TCP/IP

TOSHIBA Lighting Controller (MESL-REMOCON)

YOKOGAWA FA-M3 Series RS232C/422/485 /

Ethernet

OPC OPC Server / Client

NAiS NAiS PLC

Join Join Motor

▪

We have about 500 more communication drivers

Industrial

Systems

For the drivers that are not yet developed, please don’t

hesitate to contact us with the specific name of the

device so that we can develop the drivers at no charge

▪

Supports various networks such as RS232C/422, LAN and wireless communication

Supports standard protocol such as OPC, MODBUS

Communicates with most PLCs

Connects with various DDC’s and special equipment

For the protocols that are not yet developed, if requested, can be developed at no charge

Samsung

Electronics

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

113112

View Server

Monitors the site status through CimonView client

Control Server

Monitors and controls the site status through CimonView client

CimonView Client

CIMON-SCADA View/Control can monitor and control the server site status

without the need of a key-lock

▪

About CIMON-SCADA WEB View/Control Server

Consist of CIMON-SCADA WEB View/Control Server

Features of CIMON-SCADA WEB View/Control Server

CimonView client monitors/controls the site status of CIMON-SCADA view/control server through web

communications or LAN

The product line-up is consisted of 150/500/1500/unlimited tag and 2/5/10/unlimited concurrent users

▪

Client Server can be congured as the actual site

Faster than the Web version

User friendly interface

▪

At home, Internet Cafe, or even abroad

Internet remote monitoring and control

CIMON-SCADA WEB

Product conguration by the number of concurrent users

▪

Consist of CIMON-SCADA WEB

Internal Components of CIMON-SCADA WEB

Product conguration by internal web server component

▪

- Includes the same features as the CIMON-SCADA DS

Additional interface that allows remote login and data request

HttpSvr.exe

- General internet HTTP server service program

MakeHtm.exe

- Default homepage generation tool

MonitorX.cab

- Automatic download and installation on the web client

Monitor / control tool without additional software installation

CIMON-SCADA Development

system with unlimited

tag program(FULL/DS)

2 concurrent users (0002/WS)

5 concurrent users (0005/WS)

10 concurrent users (0010/WS)

∞

Unlimited concurrent users (FULL/WS)

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

115114

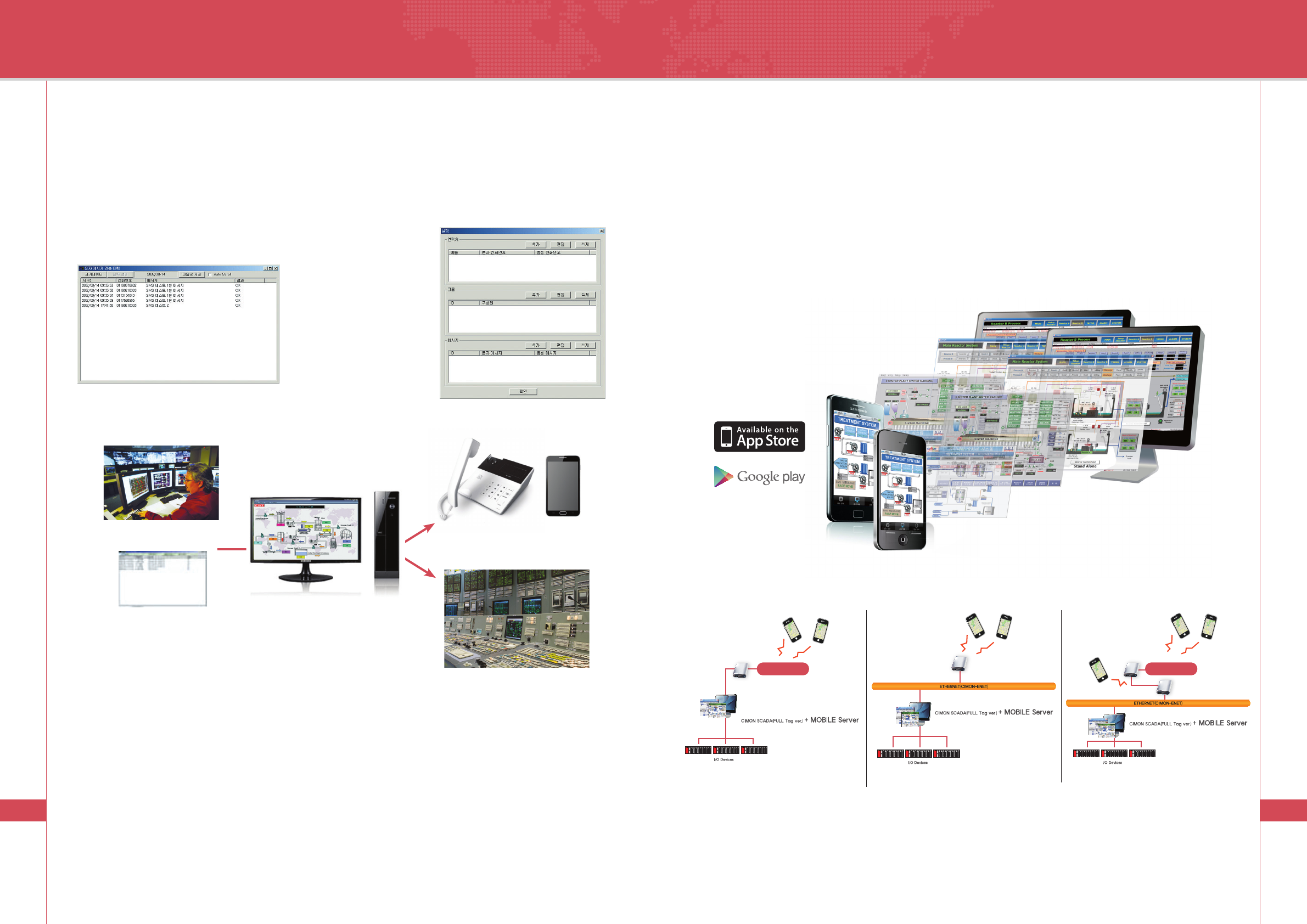

CIMON-SCADA MOBILE

About CIMON-SCADA MOBILE

CIMON-SCADA MOBILE is the mobile option for CIMON-SCADA that can be used on IPad, IPhone, and An-

droid smart phone. It can be used as a Remote Control / Monitoring device for SCADA systems using either

3G network or Wi-Fi.

Sends the text message (SMS) in an alarm situation

Similar SCADA monitoring screen can be created by using the user-friendly graphic design software

called MobileDesigner

Monitor system alarm history

User registration based on 100 levels

Only wanted devices can be selected to access the system

Manual network mode for saving 3G data usage to prevent

any excessive network cost

▪

Internet

3G Network 3G Network

3G Network

Modem Modem

Wi-Fi

Router

Internet

CIMON-SCADA ACS/SMS

About CIMON-SCADA SMS

Sends the text message in an alarm situation (up to 78 characters)

Save and retrieve the text message history

Transmission by contact information or group

▪

CIMON-SCADA SMS is the text messaging system option for CIMON-

SCADA. It sends a text message in an emergency situation

Responsible Staff

Input contact information ACS / SMS Server

Voice and Text message

transmission

Data transmission

in emergency situation

scada

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

117116

Web View Version

NO Model name Item Specification

1 CM01-0150-02/VS 2 User 2 concurrent users (Including Full/DS)

2 CM01-0150-05/VS 5 User 5 concurrent users (Including Full/DS)

3 CM01-0150-10/VS 10 User 10 concurrent users (Including Full/DS)

4 CM01-0150-FU/VS Unlimited User Unlimited concurrent users (Including Full/DS)

5 CM01-0500-02/VS 2 User 2 concurrent users (Including Full/DS)

6 CM01-0500-05/VS 5 User 5 concurrent users (Including Full/DS)

7 CM01-0500-10/VS 10 User 10 concurrent users (Including Full/DS)

8 CM01-0500-FU/VS Unlimited User Unlimited concurrent users (Including Full/DS)

9 CM01-1500-02/VS 2 User 2 concurrent users (Including Full/DS)

10 CM01-1500-05/VS 5 User 5 concurrent users (Including Full/DS)

11 CM01-1500-10/VS 10 User 10 concurrent users (Including Full/DS)

12 CM01-1500-FU/VS Unlimited User Unlimited concurrent users (Including Full/DS)

13 CM01-FULL-02/VS 2 User 2 concurrent users (Including Full/DS)

14 CM01-FULL-05/VS 5 User 5 concurrent users (Including Full/DS)

15 CM01-FULL-10/VS 10 User 10 concurrent users (Including Full/DS)

16 CM01-FULL-FU/VS Unlimited User Unlimited concurrent users (Including Full/DS)

Web Control Version

NO Model name Item Specification

1 CM01-0150-02/CS 2 User 2 concurrent users (Including Full/DS)

2 CM01-0150-05/CS 5 User 5 concurrent users (Including Full/DS)

3 CM01-0150-10/CS 10 User 10 concurrent users (Including Full/DS)

4 CM01-0150-FU/CS Unlimited User Unlimited concurrent users (Including Full/DS)

5 CM01-0500-02/CS 2 User 2 concurrent users (Including Full/DS)

6 CM01-0500-05/CS 5 User 5 concurrent users (Including Full/DS)

7 CM01-0500-10/CS 10 User 10 concurrent users (Including Full/DS)

8 CM01-0500-FU/CS Unlimited User Unlimited concurrent users (Including Full/DS)

9 CM01-1500-02/CS 2 User 2 concurrent users (Including Full/DS)

10 CM01-1500-05/CS 5 User 5 concurrent users (Including Full/DS)

11 CM01-1500-10/CS 10 User 10 concurrent users (Including Full/DS)

12 CM01-1500-FU/CS Unlimited User Unlimited concurrent users (Including Full/DS)

13 CM01-FULL-02/CS 2 User 2 concurrent users (Including Full/DS)

14 CM01-FULL-05/CS 5 User 5 concurrent users (Including Full/DS)

15 CM01-FULL-10/CS 10 User 10 concurrent users (Including Full/DS)

16 CM01-FULL-FU/CS Unlimited User Unlimited concurrent users (Including Full/DS)

Key Type

LPT Parallel Port Type USB USB Port Type ※ Please check before placing an order

Option

NO Model name Item Specification

1 CM01-*-APL Mobile Apple iOS / Android

CIMON-SCADA

Development System

Run-time System

Web Version System

NO Model name Item Specification

1 CM01-0075/DS 75 Tag Development+Runtime+Keylock+Manual

2 CM01-0150/DS 150 Tag Development+Runtime+Keylock+Manual

3 CM01-0500/DS 500 Tag Development+Runtime+Keylock+Manual

4 CM01-1500/DS 1500 Tag Development+Runtime+Keylock+Manual

5 CM01-FULL/DS Unlimited Tag Development+Runtime+Keylock+Manual

NO Model name Item Specification

1 CM01-0075/RS 75 Tag Runtime+Keylock

2 CM01-0150/RS 150 Tag Runtime+Keylock

3 CM01-0500/RS 500 Tag Runtime+Keylock

4 CM01-1500/RS 1500 Tag Runtime+Keylock

5 CM01-FULL/RS Unlimited Tag Runtime+Keylock

NO Model name Item Specification

1 CM01-0002/WS 2 User 2 concurrent users (Including Full/DS)

2 CM01-0005/WS 5 User 5 concurrent users (Including Full/DS)

3 CM01-0010/WS 10 User 10 concurrent users (Including Full/DS)

4 CM01-FULL/WS Unlimited User Unlimited concurrent users (Including Full/DS)

Product Line-up

CM ☐ 1-☐☐☐☐ / ☐ S

Option

01 : Normal / 21 : ACS / 31 : HarrisRTU, HarrisRTU5000, LandisRTU, SicsRTU Communication

31 : HarrisRTU, HarrisRTU5000, LandisRTU, SicsRTU Communication

Maximum number of real tags : 0075/0150/0500/1500/FULL(Unlimited)

Maximum number of concurrent users : 0002/0005/0010/FULL(Unlimited)

DS : Development System / RS : Run-time System

VS : WEB version / VS : WEB View version / CS : WEB Control version

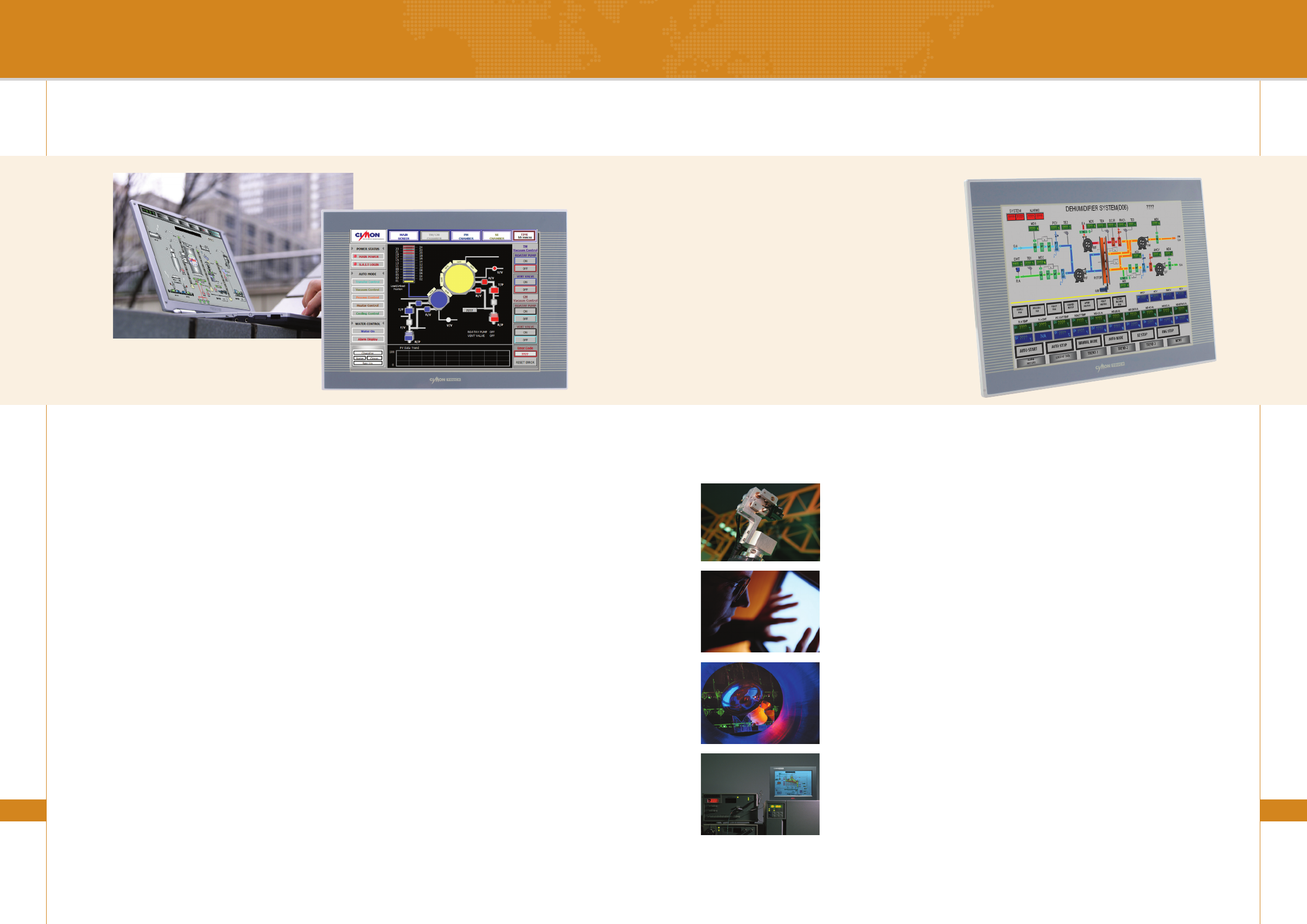

Move Forward to

the Innovative Future

Features of CIMON-TOUCH

Full Tag DS Version CIMON SCADA Included

-Low Voltage Mobile CPU

-Easy and User-Friendly Software

(CIMON-SCADA)

-High Performance with Excellent Stability

-Very Fast and Reliable SSD Storage

-Flexible Communication with Upper and

Lower Systems through a Variety of

Interfaces Provided

TOUCH

touch

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

121120

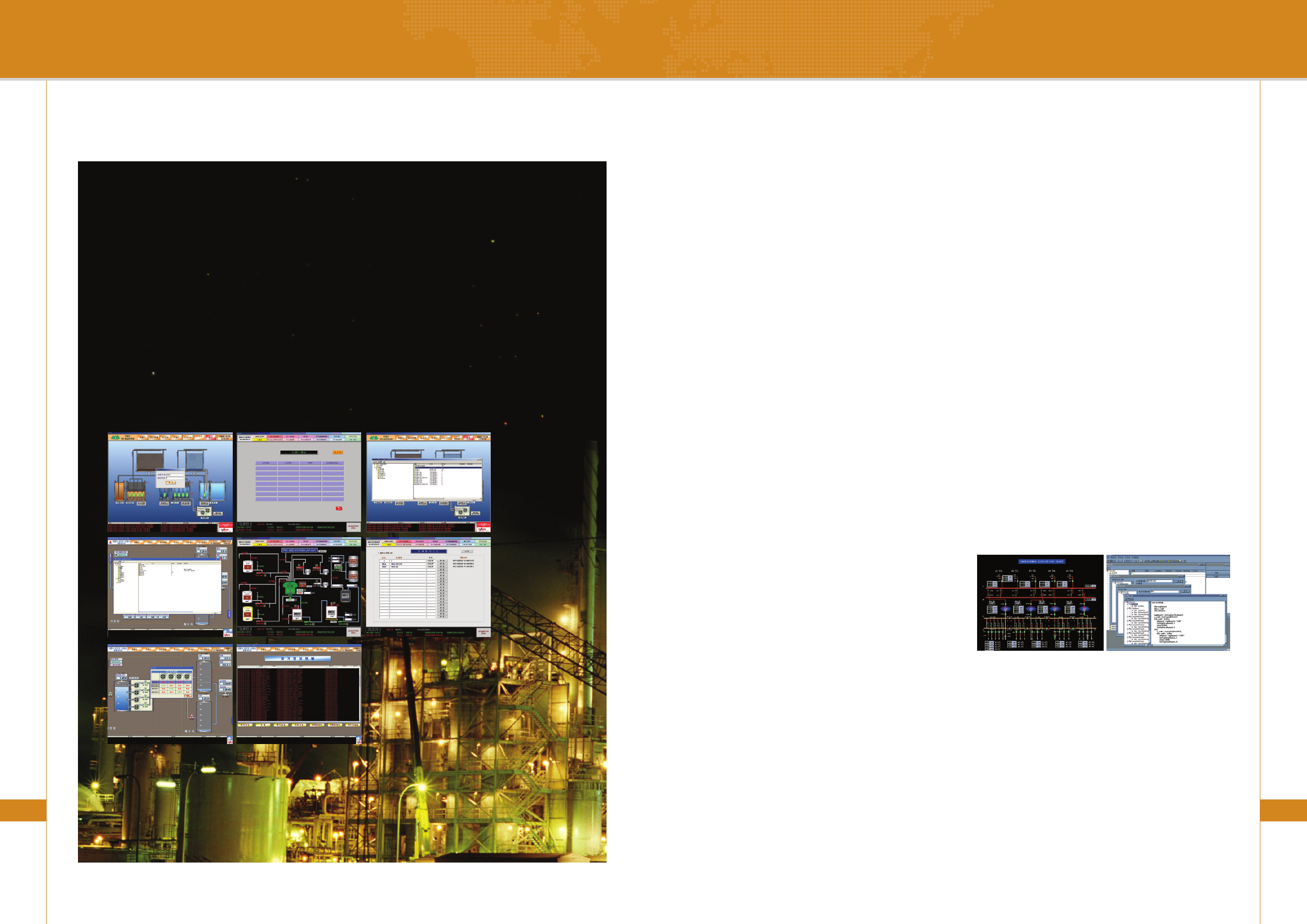

Capabilities of CIMON-SCADA

Live Database management

Managing condition format is similar to Windows Explor-

er and it can be used interchangeably with Excel. Also

can edit the database online by using Tag variables.

▪

Network

Peer to peer / 1 Server + N Client / N Server + N Cli-

ent can be congured with CIMON-SCADA/TOUCH.

CIMON-Net protocol enables the current CIMON-SCADA/

TOUCH to connect with other CIMON-SCADA/TOUCH.

▪

Alarm

When the alarm occurs, user can choose various

ways of alarm options such as alarm summary / le

/ print / voice / character. User can set specic func-

tions to activate when the alarm is on / off. Monitoring

history is possible through the control screen.

▪

Trend

Users are able to analyze live or past trend and se-

lect various types of trend like Y-T/ Multiple/ X-Y/ S-T.

The past trend can be analyzed by expansion, reduc-

tion and ltering by time value.

▪

Report

A report can be retrieved periodically and when a

specic event occurs and users can open the le by

using Excel or Word. User can also open any types

of reports by using VB script.

▪

Collecting Data

CIMON-TOUCH collects the data from the xed cy-

cle / xed time with every event occurrences. User

can monitor the data by trend function and read data

with VB script that can be printed.

▪

Security

User registration function provides a security level of

1 – 100, only permitted users can access the system.

Specic actions can be activated when logging in or

out and also store the user’s history.

▪

Schedule

User can change maintenance settings according to

a specic date & time.

▪

Monitoring Function

The user can easily develop a system by using

object-oriented graphic and convenient toolbars.

CIMON-SCADA/TOUCH offers various clip arts and

the libraries. The user can achieve high quality and

realistic graphics.

▪

Macro Function Usage

Supports strong Visual Basic script language which

includes more than 500 built-in functions.

▪

Communications

CIMON-TOUCH can communicate with various control-

lers and networks. (OPC, Modbus, DDC equipment, etc.)

▪

CIMON-TOUCH

CIMON-PPC + CIMON-SCADA = CIMON-TOUCH

CIMON-SCADA software integrated

Powerful inner part script of visual basic feature

Built in various graphic libraries

Various network solutions

Convenient report writing function

Open type software using OLE automation

Zoom / Panning function of online surveillance screen

Exchanging data with the universal DBMS

Simultaneously link with PLC and other measuring device

▪

Function

touch

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

123122

Reliable Fanless Design

Our efcient fanless design maintains the inner temperature and reduces cost

that relates with fan and cooler maintenance

Windows XP Embedded

Users can use all the functions with Windows-based operating system.

Convenient Project Editing and Transmitting

Easily transfer CIMON-HMI project les using USB ports and networks.

Also can edit directly from CIMON-TOUCH by connecting a keyboard & mouse

Stable High-Performance

Not only can CIMON-TOUCH process simple tasks, but also can easily handle

complicated tasks such as data algorithm, pre-treatment operation, data storage

and connection with other systems.

▪

Capabilities of Touch Panel

Fanless Type

Windows XP Embedded

High-Speed and Reliable SSD Hard Drive

Convenient Project Editing and Transmitting

High-Performance with Stability

▪

It offers more convenient features than any other existing touch panel

by Panel adhesion.

CIMON-TOUCH

Capabilities of Computer

PLC Loader program can be installed for a convenient project le download and upload

Ofce programs and other various user application programs can be installed

Protect system function by EWF

»»»

Freedom to Install Various Programs

User can install various applications so that CIMON-TOUCH can substitute a desktop/laptop computer

Enhanced Write Filter (EWF)

C: driver of TOUCH/PPC is protected by EWF.

EWF is a function of windows XP embedded to protect the disk volume from writing access.

AMI Rescue

AMI Rescue is a function to restore the TOUCH/PPC back to the initial factory settings. (C-Drive Only)

▪

touch

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

125124

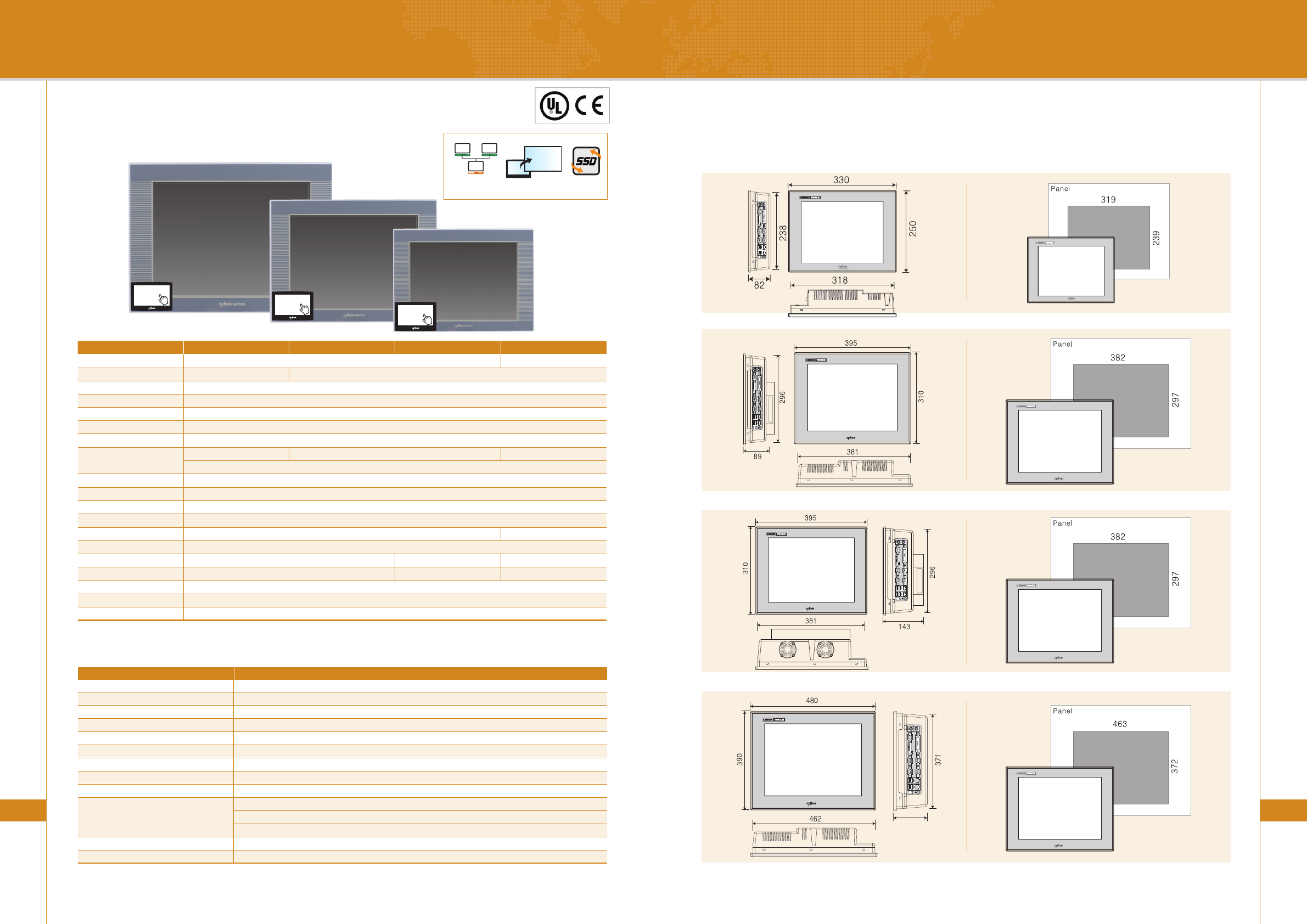

Dimension Panel cut

12.1 inch - T12FS

15 inch - T15FS

15 inch PCI type - T15FP

19 inch PCI type - T19FP

Unit : mm

CIMON-TOUCH

Basic Specication

Item Specification

Energy consumption 60watts or less

Ambient temperature 0

℃

~ 50

℃

Storage temperature -20

℃

~ 60

℃

Ambient humidity 10%RH ~ 85%RH(below 29

℃

, No dew condensation)

Storage humidity 10%RH ~ 85%RH(below 39

℃

, No dew condensation)

Environment condition 800hPa~1114hPa(2000m or less)

Dust 0.1mg/m3 or less

Pollution degree Pollution degree 2

Corrosion gas None

HDD storage type 4.9m/S2 , 10Hz~25Hz in X, Y, Z (80 min)

CF storage type 9.8m/S2 , 10Hz~25Hz in X, Y, Z (80 min)

SSD storage type 9.8m/S2 , 10Hz~25Hz in X, Y, Z (80 min)

Noise resistance

Impulse, EFT/Burse, Surge,

±2KV, 1uS

Static discharge resistance 4kV(IEC61000-4-2 LEVEL 3)

Vibration resistance

Specications

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

Item T12FS T15FS T15FP T19FP

Touch Screen 1024 x 768 (Analog 8-Wire Resistive) 1280 x 1024

Color 262K16.7M

Touch Controller PenMount USB Controller

CPU Intel ATOM Processor N450 1.6GHz (Fanless)

RAM DDR2 SDRAM 1GB

Storage SSD 64G (CF card 4GB, 8GB options)

Graphic Chip Intel GMA 3150 integrated

Display 12.1" TFT LCD 15" TFT LCD 19" TFT LCD

CRT Output (15P DSUB)

Serial RS232/422/485 1 port (COM1) / RS232C 3 port (COM2-4)

Ethernet Gigabit Ethernet 2 port

Parallel 1 port

PS/2 Keyboard & Mouse

USB USB 2.0 4 port USB 2.0 6 port

Audio 1 port

CD-ROM None 1 slot 1 slot

PCI Slot None 1 slot 1 slot

Operating System Windows Embedded POS Ready 2009

Utility Program EWF (Disk Image Safeguard) / Rescue (Factory Default Recovering Tool)

Power AC 110V / 220V

touch

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

127126

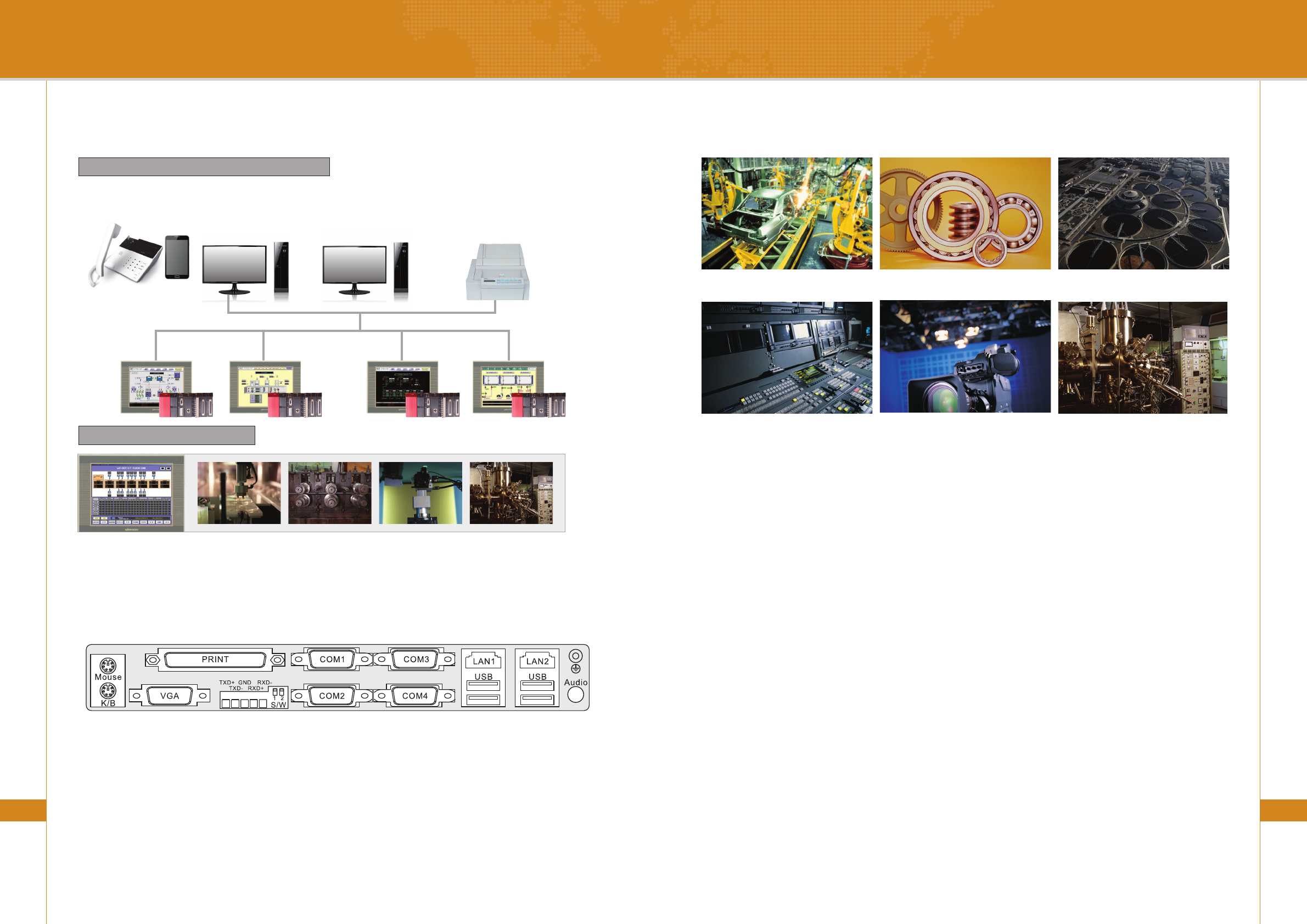

Reference

The Vehicle production line

The Broadcasting installation

The Component production line

The Stage control Line

The Water treatment system

The Electric power Monitor line

CIMON-TOUCH

Application of System

Interface of System

Moniting jobsite

through the Interne

The field data collection / facility

Monitor - control

Field control and DB construction are

available from high ranked system

Integrated operating management system

The alarm / report etc.

printing

Connect to the person in charge in case

of the event occurrence

The Unit machine installation

The Interface arrangement

▪

Next Generation

Industrial Panel PC

Features of PPC

-Perfect Touch Screen Industrial PC

-Low Voltage Mobile CPU

-High Performance with Excellent Stability

-Very Fast and Reliable SSD Storage

-Fast Response Touch Screen and Rich

Color Expression

PPC

ppc

CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation

131130

12.1 inch

- P12FS

15 inch

- P15FS

15 inch

PCI type

- P15FP

19 inch

PCI type

- P19FP

▪

The Interface

arrangement

Dimensions

»Panel cut

Unit : mm

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

CIMON-PPC

PPC Series

Our fanless design superbly dissipates internal heat generated

High denition, abundant color TFT LCD structure

Slim and simple structure

The touch screen provides fast response and excellent reliability

Multimedia system provides various functions

The most suitable panel PC for various automation control programs

All-in-one embedded board applied

Windows Embedded POS Ready 2009

P/G, the O/S protection utility is installed.

▪

Specications

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

15” LCD

DISPLAY

19” LCD

DISPLAY

12.1” LCD

DISPLAY

VGA PORT

SSD

SCADA

DS FULL TAG

CD ROM

Item T12FS T15FS T15FP T19FP

Touch Screen 1024 x 768 (Analog 8-Wire Resistive) 1280 x 1024

Color 262K16.7M

Touch Controller PenMount USB Controller

CPU Intel ATOM Processor N450 1.6GHz (Fanless)

RAM DDR2 SDRAM 1GB

Storage SSD 64G (CF card 4GB, 8GB options)

Graphic Chip Intel GMA 3150 integrated

Display 12.1" TFT LCD 15" TFT LCD 19" TFT LCD

CRT Output (15P DSUB)

Serial RS232/422/485 1 port (COM1) / RS232C 3 port (COM2-4)

Ethernet Gigabit Ethernet 2 port

Parallel 1 port

PS/2 Keyboard & Mouse

USB USB 2.0 4 port USB 2.0 6 port

Audio 1 port

CD-ROM None 1 slot 1 slot

PCI Slot None 1 slot 1 slot

Operating System Windows Embedded POS Ready 2009

Utility Program EWF (Disk Image Safeguard) / Rescue (Factory Default Recovering Tool)

Power AC 110V / 220V

Anaheim Automation PLC_HMI Line PLC HMI

Navigation menu

Versions of this User Manual:

Views

Navigation
