BELTING PRODUCTS
AND SERVICES CATALOG
industrial
aggregate
special service
agricultural
food service
3
QUALITY AND DURABILITY
VALUE-ADDED, PRODUCT INSPECTION
-VENDOR CERTIFICATION
Before our fabricated belting products are delivered, they must
pass two sets of careful inspections. We  rst verify the quality
of the raw materials before the fabrication process. Then after
fabrication is completed, we run tests to ensure the high de-
gree of quality that is built into everything Apache produces.
Our state-of-the-art production facility in Cedar Rapids, Iowa is
ISO 9001: 2000 Certi ed.
BELTING SERVICES
INSTALLATION AND SPLICING SERVICES
Apache belt technicians are factory trained to install,
splice, vulcanize and train conveyor and elevator
belts in the  eld.
Additional services include:
• Computerized design assistance for belt applications
• Conveyor system surveys
• Custom belt fabrication
• Professionally applied belt lacing and endless splices
• Hole and bucket punching
• Die rule & waterjet cut parts
INVENTORY
TOP QUALITY PRODUCTS
Apache maintains a large inventory of top quality
products supplied by a vast network of manufacturers
from throughout the world. These supplier relation-
ships and global sourcing initiatives allow us to quickly
provide our partners premium quality products at very
competitive prices.
COMPANY INFORMATION
4
INDEX
INDUSTRIAL BELT
SPEC # PART # PAGE#
#1 20027202 2 Ply 150 1/32 x BB GR2 8
#2 20027301 2 Ply 150 1/32 x 1/32 GR2 8
#2A 20026910 2 Ply 150 1/16 x BB GR2 8
#3 20000010 2 Ply 150 1/8 x 1/32 GR2 8
#4 20003990 2 Ply 150 1/8 x 1/16 GR2 8
#6A 20029525 2 Ply 220 1/8 x BB GR2 8
#26C 20029690 2 Ply 220 1/8 x BB MOR 9
#8 20013600 2 Ply 220 1/8 x 1/16 GR2 9
#9 20017500 2 Ply 220 3/16 x 1/16 GR2 9
#10A 20029655 3 Ply 225 1/16 x BB GR2 9
HEAVY DUTY INDUSTRIAL BELT
#11 20023005 3 Ply 330 3/16 x 1/16 GR2 9
#12 20026039 3 Ply 330 1/4 x 1/16 GR2 9
#243 20027007 4 Ply 440 1/4 x BB GR2 10
#13 20026815 4 Ply 440 1/4 x 1/16 GR2 10
#246 20029852 1 Ply 440 1/4 x 1/8 GR2 10
#14A 20027210 3 Ply 600 3/8 x 3/32 GR2 10
GRAIN BELT
#21 20027200 2 Ply 150 1/32 x BB MOR 10
#23A 20021628 2 Ply 220 1/16 x 1/16 SCORFR Grain 10
#25A 20021630 3 Ply 330 1/16 x 1/16 SCORFR Grain 11
#27A 20021635 3 Ply 600 1/16 x 1/16 SCORFR Grain 11
#27B 20021640 4 Ply 440 1/16 x 1/16 SCORFR Grain 11
BALER BELT
#36 20021510 2 Ply 220 1/32 x1/32 Baler Belt 11
#36A 20021515 2 Ply 220 Tex x Tex Baler Belt 11
#36B 20029150 3 Ply 225 Diamond Top x MSK Baler Belt 11
#36D 20029170 3 Ply 330 Chevron Top x MSK Baler Belt 12
#37A 20021605 3 Ply 330 Tex x Tex Baler Belt 12
SPECIAL SERVICE BELT
#24B 20017332 2 Ply 220 3/16 x 1/16 MOR 12
#26A 20021820 3 Ply 330 3/16 x 1/16 MOR 12
#26B 20029734 3 Ply 330 3/16 x BB MOR 12
#30A 20021598 2 Ply 220 3/16 x 1/16 SCORFR MSHA 12
#41 20021199 2 Ply 220 3/16 x 1/16 400° MAXI-Heat 13
#41A 20021237 2 Ply 220 3/16 x 1/16 700° SUPER-Heat 13
#42 20021030 2 Ply 220 3/16 x 1/16 350° ORS-HMB 13
#42A 20021093 3 Ply 330 3/16 x 1/16 350° ORS-HMB 13
#177 20026766 3 Ply 330 1/4 x 1/16 400° MAXI-Heat 13
#43A 20026790 3 Ply 330 1/4 x 1/16 700° SUPER-Heat 13
5
BB = Bare Back
Brush = Brushed Bottom
CBS = Cover Both Sides
CR = Cross Rigid
CTII = Chevron Top II
FR = Fire Retardant
DESCRIPTION ABBREVIATION KEY
FS = Friction Surface
GR2 = Grade 2 (SBR)
IMPG = Impregnated
MOR = Moderate Oil Resistance
MRT = Mini Roughtop
MSHA = Mine Safety Health Act
MSK = Mini Skim Coat
OR = Oil Resistant
ORS-HMB = Oil Resistant Hot Asphalt
PVC = Poly Vinyl Chloride
PU = Polyurethane
POLY = Polyester
RMV = Rubber Modied Vinyl
RT = Roughtop
SC = Static Conductive
Tex = Texture
INDEX
IMPRESSION TOP BELT
SPEC # PART # PAGE#
#103B 20029575 2 Ply 220 Chevron Top x BB 14
#46 20030200 3 Ply 105 Black RT x FS 14
#47 20029005 2 Ply 150 Black RT x BB 14
#47A 20029000 2 Ply 150 Tan RT x BB 14
#48 20030220 3 Ply 135 Pure Gum RT x BB 14
#48A 20030205 3 Ply Poly 150 Brown Nitrile RT x BB 14
#51A 20030230 3 Ply 135 Blue Carboxylated Nitrile RT x BB 15
#219 20034520 PVC 120 Green RT x FS 15
#53 20029009 2 Ply 150 Black Wedgegrip x BB 15
#53B 20029200 2 Ply 150 Tan Wedgegrip x BB 15
#54 20029505 3 Ply 105 Black Ridge Top x FS 15
#55A 20034603 PVC 120 Black CTII OR x FS 15
#56 20049012 2 Ply 160 Black Steep-Lok x BB 16
#61A 20035506 PVC 120 Black RT x FS 16
#62A 20033600 PVC 100 Black Bucket Top OR x FS 16
#62B 20035525 PVC 120 Black Crescent Top x FS 16
#185 20035530 PVC 200 Black Crescent Top x FS 16
#63B 20034800 PVC 120 Black Z Top OR x FS 16
#242 20034605 PVC 150 Black Chevron Top II x Brush 17
#204 20035527 PVC 150 Black Crescent Top x Brush 17
#99 20028700 3 Ply Poly 105 White Tyler Wire x FS 17
#102 20028506 3 Ply Poly 135 White Nitrile Meat Cleat x FS 17
#233 24005980 2 Ply Poly Inverted Pyramid PVC Top Cover x BB 17
SLITTABLE CHEVRON BELT
#57A 20029603 2 Ply 220 1/8 x 1/16 Durocleat GR2 17
#58 20029601 2 Ply 220 1/8 x 1/16 Durocleat MOR 18
#178 20029605 3 Ply 330 1/8 x 1/16 Durocleat GR2 18
#59B 20029615 3 Ply 330 1/8 x 1/16 Durocleat MOR 18
#56B 20029602 2 Ply 220 1/8 x BB Durocleat MOR 18
#247 20029607 3 Ply 330 5/32 x BB Durocleat MOR 18
6
INDEX
PVC – RMV BELT
SPEC # PART # PAGE#
#60 20032710 2 Ply 60 Matte PVC Checkout Counter x BB 18
#60A 20032940 2 Ply 100 Black RMV x FS 19
#60B 20032945 3 Ply 150 Black RMV x FS 19
#61A 20035506 PVC 120 Black RT x FS 19
#62A 20033600 PVC 100 Black Bucket Top OR x FS 19
#62B 20035525 PVC 120 Black Crescent Top x FS 19
#55A 20034603 PVC 120 Black CTII OR x FS 19
#63B 20034800 PVC 120 Black Z Top OR x FS 20
#242 20034605 PVC 150 Black Chevron Top II x Brush 20
#204 20035527 PVC 150 Black Crescent Top x Brush 20
#219 20034520 PVC 120 Green RT x FS 20
#64A 20035498 PVC 100 Black Cover x FS 20
#64B 20035508 PVC 120 Black FS x Brush 20
#65 20035501 PVC 120 Black Cover x FS 21
#65A 20035502 PVC 120 Black OR Cover x FS 21
#65B 20035499 PVC 100 Black OR Cover x FS 21
#66 20035500 PVC 120 Black CBS 21
#66A 20038199 PVC 150 Black OR CBS 21
#67 20038200 PVC 150 Black Cover x FS 21
#67A 20038207 PVC 200 Black Cover x FS 22
#69A 20038206 PVC 200 Black ORSC CBS 22
#69B 20038500 PVC 250 Black ORSC CBS 22
PVC ELEVATOR BELT
#66A 20038199 PVC 150 Black OR CBS 22
#70A 20038208 PVC 200 White OR CBS 22
#69A 20038206 PVC 200 Black ORSC CBS 22
#69B 20038500 PVC 250 Black ORSC CBS 23
#72 20039000 PVC 350 Black ORSC CBS 23
#73 20040009 PVC 450 Black ORSC CBS 23
#259 20040015 PVC 600 Black ORSC CBS 23
WHITE FOOD BELT
#91 20028503 2 Ply Poly 70 White Nitrile 3/64 x FS 23
#91B 20032950 2 Ply 100 White RMV x FS 23
#91C 20032951 3 Ply 150 White RMV x FS 24
#221 20028507 Polymate 135 White RMP COS 24
#92 20028505 3 Ply Poly 105 White Nitrile 3/64 x FS 24
#92A 20028504 3 Ply PNT 150 White Nitrile 3/64 x FS 24
#94A 20035400 PVC 100 White Cover x MSK 24
#239 20035535 PVC 120 White Crescent Top x FS 24
#95 20035496 PVC 120 White Cover x MSK 25
#95B 20033550 PVC 120 White CTII OR x MSK 25
#70A 20038208 PVC 200 White OR CBS 25
#98 20028650 3 Ply Poly 105 White Butyl 1/32 x FS 25
#99 20028700 3 Ply Poly 105 White Tyler Wire x FS 25
#102 20028506 3 Ply Poly 135 White Nitrile Meat Cleat x FS 25
#104 20028625 3 Ply Poly 105 White Teflon x FS 26
#223 24041040 2 Ply White Urethane x IMPG Bottom SC 26
7
MSK = Mini Skim Coat
OR = Oil Resistant
ORS-HMB = Oil Resistant Hot Asphalt
PVC = Poly Vinyl Chloride
PU = Polyurethane
POLY = Polyester
RMV = Rubber Modied Vinyl
RT = Roughtop
SC = Static Conductive
Tex = Texture
BB = Bare Back
Brush = Brushed Bottom
CBS = Cover Both Sides
CR = Cross Rigid
CTII = Chevron Top II
FR = Fire Retardant
FS = Friction Surface
GR2 = Grade 2 (SBR)
IMPG = Impregnated
MOR = Moderate Oil Resistance
MRT = Mini Roughtop
MSHA = Mine Safety Health Act
DESCRIPTION ABBREVIATION KEY
INDEX
WHITE FOOD BELT continued
SPEC # PART # PAGE#
#224 24041010 2 Ply White PVC x IMPG Bottom SC 26
#252 20032953 3 Ply 150 White RMV CRSC x BB 26
#230 20038225 4 Ply 200 White RMV CRSC x BB 26
#67B 20038509 2 Ply PVG 220 White 1/16 x 1/16 SC 26
#222 24041030 1 Ply White Urethane x IMPG Bottom SC 27
PACKAGE HANDLING / LIGHT DUTY BELT
#106 20030518 3 Ply 105 Black FS x FS 27
#107 20031018 3 Ply 105 Tan FS x FS 27
#109 20031506 4 Ply 140 Tan FS x FS 27
#110 20032700 3 Ply Brown Nitrile FS x FS 27
#111 20032650 5 Ply Brown Nitrile FS x FS 27
#203 20032690 7 Ply Brown Nitrile FS x FS 28
#195 20032499 3 Ply PNT 150 Tan Nitrile Slip Top x FS 28
#113 20032500 4 Ply Tan Slip Top x FS 28
#114 20032550 3 Ply Hot Stock and Water 28
#118A 20031515 4 Ply 200 Black Nitrile FS x FS 28
#118B 20030515 2 Ply 220 Tan BB x BB w/Black Skim 28
THERMOPLASTIC BELT
#244 20040550 ATI 150 Black Urethane x FS 29
#249 24041050 2 Ply Green Urethane x IMPG SC 29
#250 24041070 2 Ply Green PVC Roughtop x BB 29
#251 24041090 2 Ply Black PVC x BB SC 29
#229 24009752 2 Ply Green PVC SC x BB 29
#223 24041040 2 Ply White Urethane x IMPG Bottom SC 29
#224 24041010 2 Ply White PVC x IMPG Bottom SC 30
#252 20032953 3 Ply 150 White RMV CRSC x BB 30
#230 20038225 4 Ply 200 White RMV CRSC x BB 30
#253 20032955 3 Ply 150 Black RMV CRSC x BB 30
#231 20032957 4 Ply 200 Black RMV CRSC x BB 30
#222 24041030 1 Ply White Urethane x IMPG Bottom SC 30
#60 20032710 2 Ply 60 Matte PVC Checkout Counter x BB 31
TRANSMISSION BELT
#240 24041195 HAM-5P 31
#241 24041193 F-1 31
#236 24005513 XH500-4 31
#237 24005512 XH500-5 31
#238 24005514 XH500-6 31
BELT SAMPLES ARE AVAILABLE •
8

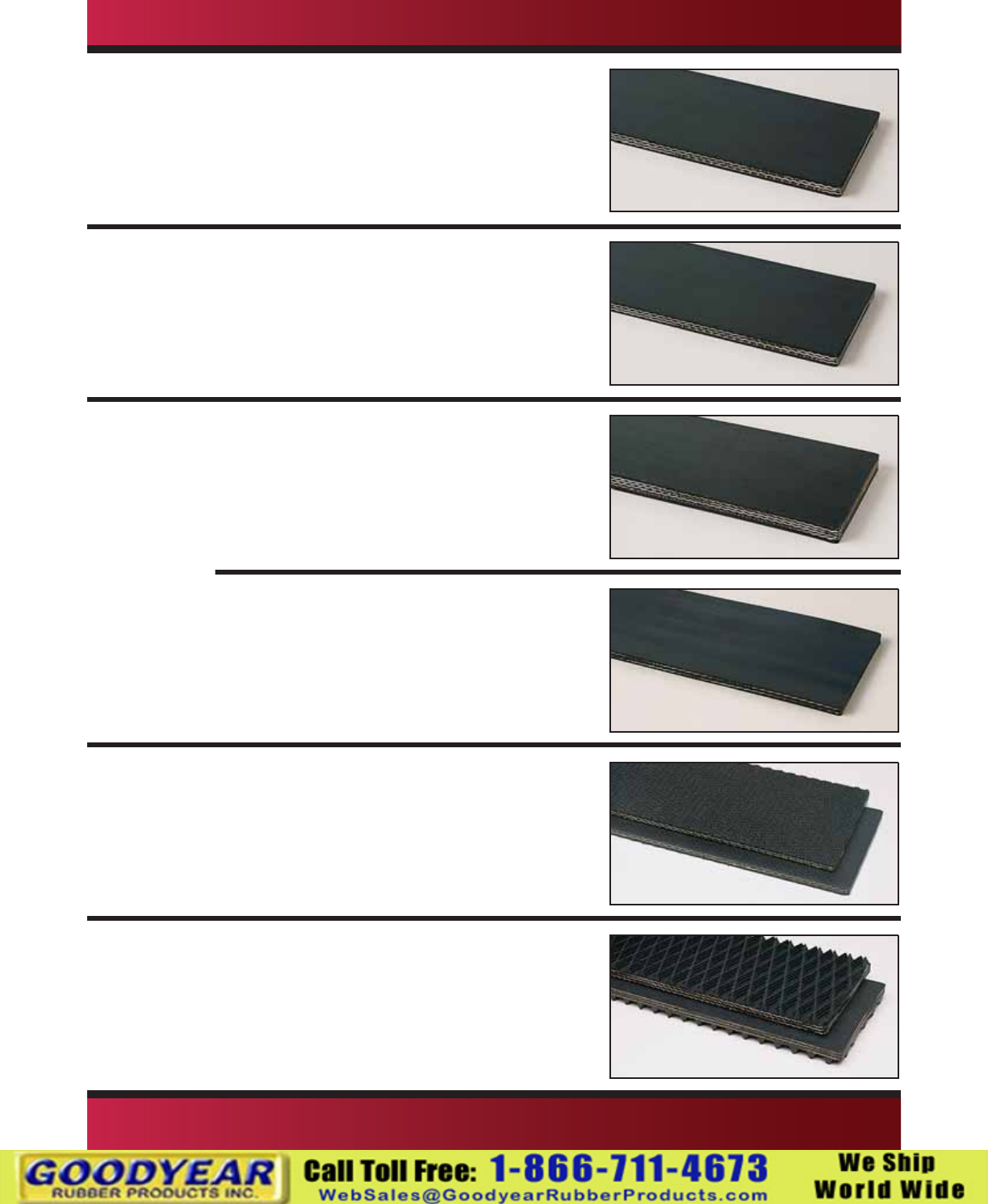

#2 2 Ply 150 1/32 x 1/32 Grade 2
This belt specication ts light duty applications such as package handling, sorting lines, and
applications requiring minimum tensions with no need to resist heavy impact. Standard grade
rubber covers resist abrasion and weathering in non oily applications, including potato sorting
and transport in troughing conveyors.
Temperature range: -25° F to 225° F. Thickness: 13/64”. Weight: .085 piw.
Minimum pulley diameter: 6”. Recommended fasteners: #3 Hook, #187 Staple, #25 Alligator.
Part Number: 20027301
#2A 2 Ply 150 1/16 x Bare Back Grade 2
Excellent light duty conveyor belt with a medium thick abrasion resistant cover. Often used in
agricultural applications and in bunk feeders where the belt slides on at pan surfaces. Good
selection for package handling applications where smooth surfaces are permissible. SBR cover
provides excellent ex life and resistance to abrasion, making it a good buy for most conveyor
applications.
Temperature range: -25° F to 225° F. Thickness: 3/16”. Weight: .105 piw.
Minimum pulley diameter: 6”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20026910
#3 2 Ply 150 1/8 x 1/32 Grade 2
Excellent light duty conveyor belt with medium thick abrasion resistant covers. Often used in
agricultural applications and for sand conveying in the sand and gravel industry. Good selection
for other light duty applications on troughing conveyors. SBR covers provide excellent ex life
and resistance to abrasion, making it a good buy for most conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 1/4”. Weight: .138 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #140 Solid Plate, #187 Staple,
#375 Bolt On, #R2 Rivet.
Part Number: 20000010
#4 2 Ply 150 1/8 x 1/16 Grade 2
Excellent light duty conveyor belt with medium thick abrasion resistant cover. Often used in
agricultural applications and for conveying pea gravel in the sand and gravel industry. Good
selection for other light duty applications on trough conveyors. SBR covers provide excellent ex
life and resistance to abrasion, making it a good buy for most conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 9/32”. Weight: .154 piw.
Minimum pulley diameter: 10”. Recommended fasteners: #140 Solid Plate, #375 Bolt On,
#R2 Rivet.
Part Number: 20003990
#1 2 Ply 150 1/32 x Bare Back Grade 2
This belt specication ts light duty applications such as package handling, sorting lines, and
applications requiring minimum tensions with no need to resist heavy impact. Standard grade
rubber covers resist abrasion and weathering in non oily applications. Used as an economical
general purpose belt and popular in many agricultural applications, including potato sorting and
transport on slider beds.
Temperature range: -25° F to 225° F. Thickness: 5/32”. Weight: .075 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #2 Hook, #125 Staple, #15 Alligator.
Part Number: 20027202

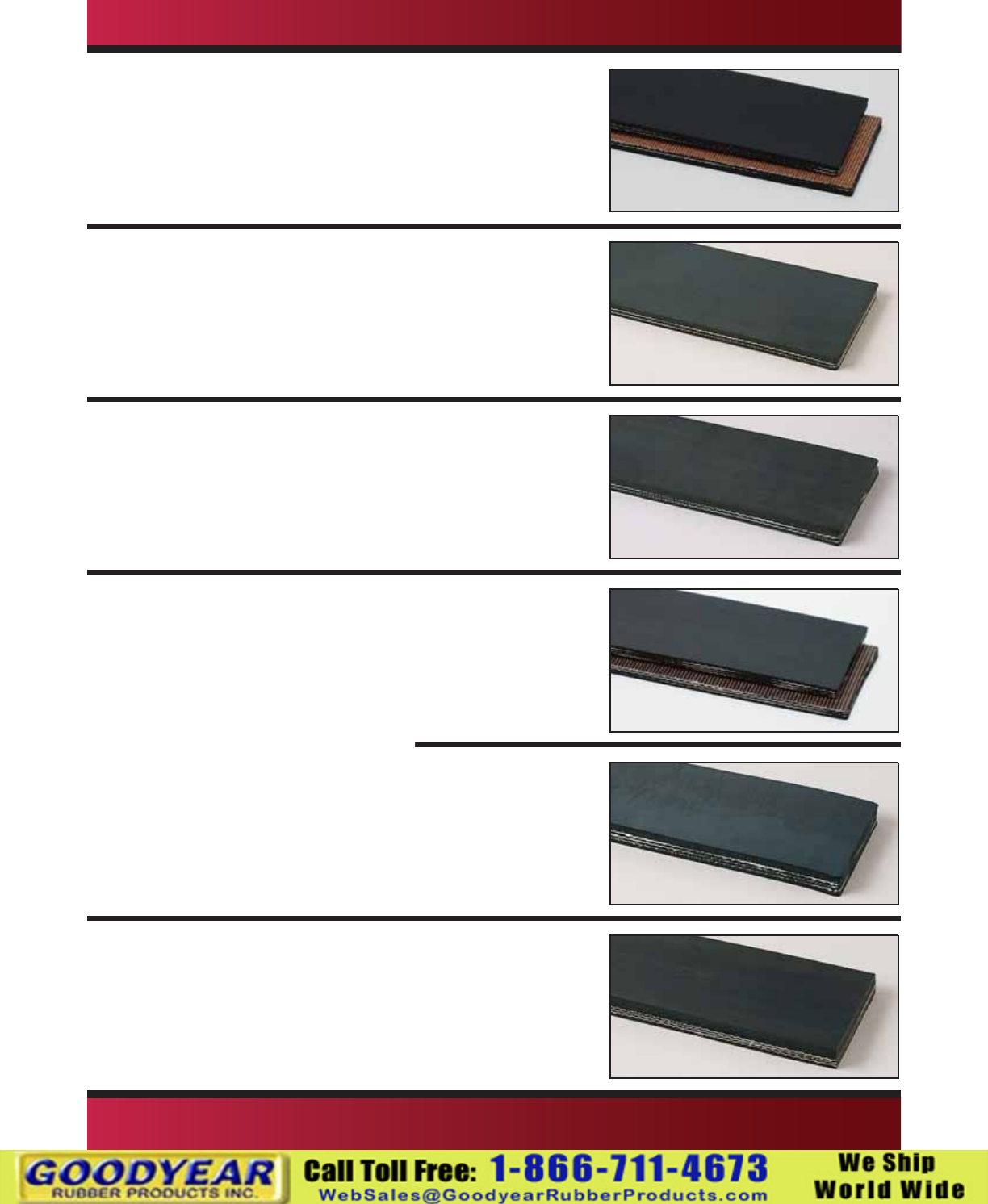

INDUSTRIAL BELT
#6A 2 Ply 220 1/8 x Bare Back Grade 2
Excellent medium duty conveyor belt with moderately thick abrasion resistant top cover. Often
used in bunk feeders, where smooth surfaces are permissible, wood product, and agricultural
applications. SBR cover provides excellent ex life and resistance to abrasion, making it a good
buy for most conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 1/4”. Weight: .145 piw.
Minimum pulley diameter: 10”. Recommended fasteners: #140 Solid Plate, #187 Staple,
#375 Bolt On, #R2 Rivet.
Part Number: 20029525
9
#26C 2 Ply 220 1/8 x Bare Back Moderate Oil Resistance
Excellent light to medium duty conveyor belt has moderately thick cover with moderate oil resis-
tance to wood chips and many non-petroleum oils. Often used in handling wood products and
recycling, where materials contain food oils and greasy waste materials.
Temperature range: 0° F to 250° F. Thickness: 1/4”. Weight: .150 piw.
Minimum pulley diameter: 10”. Recommended fasteners: #140 Solid Plate, #187 Staple,
#375 Bolt On, #R2 Rivet.
Part Number: 20029690
#8 2 Ply 220 1/8 x 1/16 Grade 2
Excellent medium duty conveyor belt with medium thick abrasion resistant covers. Good selec-
tion for sand and gravel portable screening applications on trough conveyors. SBR covers
provide excellent ex life and resistance to abrasion, making it a good buy for most conveyor
applications.
Temperature range: -25° F to 225° F. Thickness: 5/16”. Weight: .167 piw.
Minimum pulley diameter: 10”. Recommended fasteners: #140 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20013600
#9 2 Ply 220 3/16 x 1/16 Grade 2
Excellent heavy duty conveyor belt with thicker abrasion resistant covers. Excellent general pur-
pose sand and gravel belt. Often used in scrap metal plants and foundries where high impact is
not a problem, also used in the wood products industry. Excellent base belt for road machinery.
SBR cover provides excellent ex life and resistance to abrasion, making it a good buy for
heavy duty conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 11/32”. Weight: .195 piw.
Minimum pulley diameter: 12”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20017500
#10A 3 Ply 225 1/16 x Bare Back Grade 2
Versatile medium duty belt for handling lumber, pea gravel, and other bulk materials. Flexible
belt able to negotiate small pulleys.
Temperature range: -25° F to 225° F. Thickness: 7/32”. Weight: .122 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #2 Hook, #187 Staple,
#25 Alligator, #R2 Rivet.
Part Number: 20029655

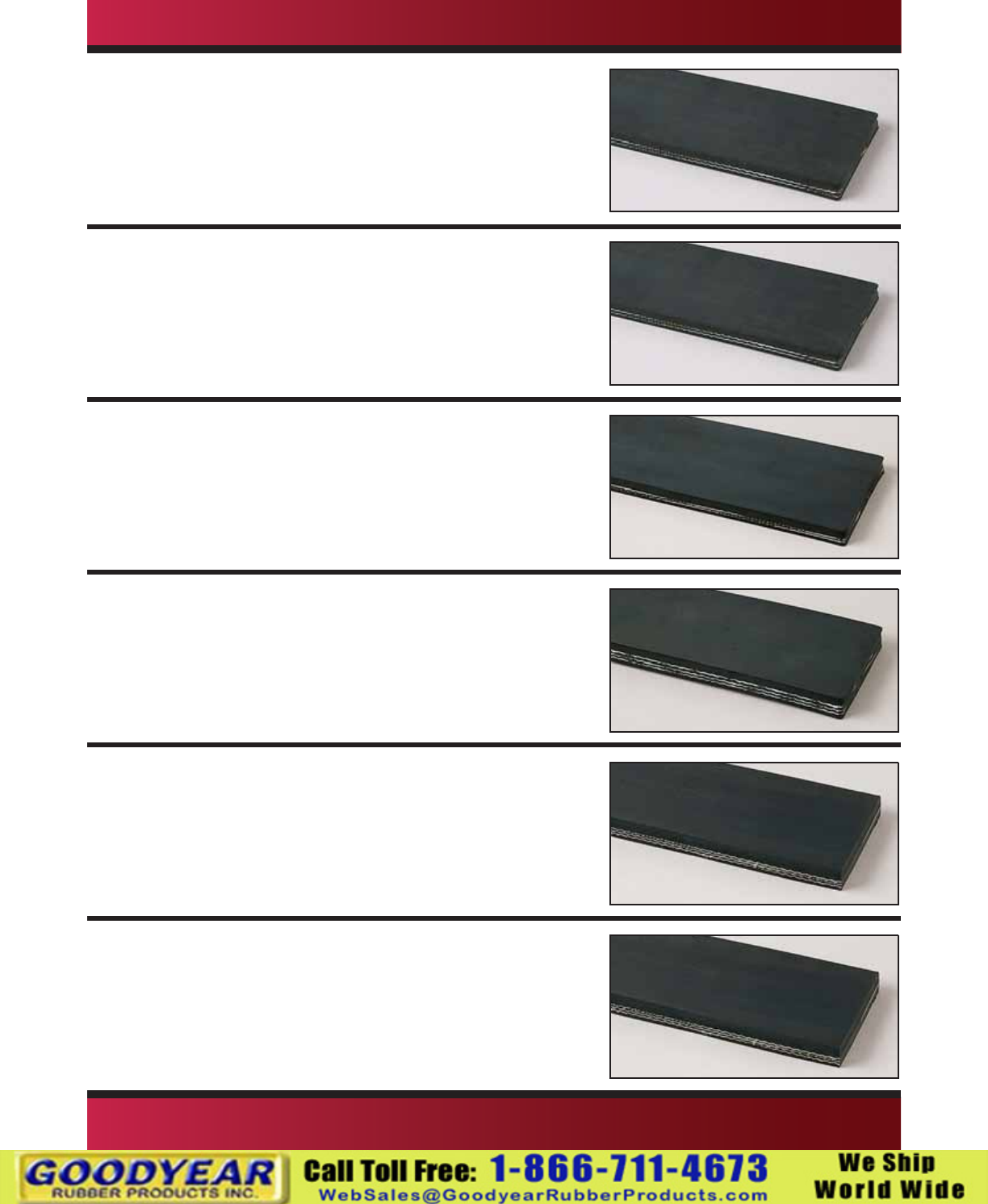

INDUSTRIAL / HEAVY DUTY INDUSTRAIL BELT
#11 3 Ply 330 3/16 x 1/16 Grade 2
Excellent heavy duty conveyor belt with moderately thick abrasion resistant covers. Often used
in the aggregate industry for rock conveying and heavy loads. Good selection for other heavier
duty applications on troughing conveyors, such as for scrap metal, foundries, and high tensions.
SBR covers provide excellent ex life and resistance to abrasion, making it a good buy for most
conveyors.
Temperature range: -25° F to 225° F. Thickness: 13/32”. Weight: .205 piw.
Minimum pulley diameter: 16”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 1/2 Rivet.
Part Number: 20023005
#12 3 Ply 330 1/4 x 1/16 Grade 2
Excellent heavy duty conveyor belt with extra thick abrasion resistant covers. Often used in
aggregate applications where severe cover wear is normally experienced. Good selection for
other heavy duty applications on troughing conveyors. SBR covers provide excellent ex life and
resistance to abrasion, making it a good buy for most conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 15/32”. Weight: .215 piw.
Minimum pulley diameter: 16”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 1/2 Rivet.
Part Number: 20026039
HEAVY DUTY INDUSTRIAL BELT
BELT SAMPLES ARE AVAILABLE •
10
#21 2 Ply 150 1/32 x Bare Back Moderate Oil Resistance
Excellent light duty thin conveyor belt with oil and abrasion resistant cover. Good selection for
light duty use where resistance to oils is required. Used in agriculture, wood, waste, and recy-
cling industries. MOR covers provide excellent ex life and resistance to light oil contact.
Temperature range: 0° F to 250° F. Thickness: 9/64”. Weight: .075 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #2 Hook, #125 Staple, #15 Alligator.
Part Number: 20027200
#23A 2 Ply 220 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Special compounds in this belt make it an excellent choice for handling grain and other applica-
tions requiring resistance to mineral, animal, or vegetable fats. It is also static conductive and
MSHA approved for use on grain conveyors and in grain elevators where static charges must
be held to minimums. Belt is ame resistant.
Temperature range: 0° F to 250° F. Thickness: 15/64”. Weight: .095 piw.
Minimum pulley diameter: 12” for conveyor / 14” for elevator. Recommended fasteners:
#140 Solid Plate, #187 Staple, #375 Bolt On, #R5 Rivet.
Part Number: 20021628
#13 4 Ply 440 1/4 x 1/16 Grade 2
Excellent heavy duty conveyor belt with extra thick abrasion resistant top cover. Often used in
the aggregate industry where impact resistance is important, for example rock crushers. Belt is
often used as a base belt for heavy duty custom fabrications. SBR cover provides excellent ex
life and resistance to abrasion, making it a good buy for most conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 9/16”. Weight: .280 piw.
Minimum pulley diameter: 20”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R6 Rivet.
Part Number: 20026815
#14A 3 Ply 600 3/8 x 3/32 Grade 2
Excellent heavy duty conveyor belt with extra thick abrasion resistant covers. Often used in min-
ing applications requiring cut and gouge resistance. Good selection for scrap metal applications
on troughing conveyors. Used in waste and recycling. SBR covers provide excellent ex life and
resistance to abrasion, making it a good buy for troughing conveyor applications.
Temperature range: -25° F to 225° F. Thickness: 23/32”. Weight: .375 piw.
Minimum pulley diameter: 20”. Recommended recessed fasteners: #11/2 Solid Plate, #R6
Rivet.
Part Number: 20027210
HEAVY DUTY INDUSTRIAL / GRAIN BELT
#246 1 Ply 440 1/4 x 1/8 Grade 2
Construction is a straight warp synthetic carcass design made especially for high resistance to
cutting, snagging, and abrasion. The single ply construction offers exceptional life, low stretch,
high load carrying capacity, and superior resistance to ripping and tearing.
Temperature range: -25° F to 225° F. Thickness: 9/16”. Weight: .295 piw.
Minimum pulley diameter: 20”. Recommended recessed fasteners: #190 Solid Plate,
#550 Bolt On, #R6 Rivet.
Part Number: 20029852
#243 4 Ply 440 1/4 x Bare Back Grade 2
Excellent heavy duty conveyor belt with an extra thick abrasion resistant top cover. Use where
impact resistance is important with slider bed conveyors, as in the logging industry de-barkers,
etc. SBR cover provides excellent ex life and abrasion resistance.
Temperature range: -25° F to 225° F. Thickness: 1/2”. Weight: .220 piw.
Minimum pulley diameter: 18”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 1/2 Rivet.
Part Number: 20027007
GRAIN BELT
11
#25A 3 Ply 330 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Excellent medium duty elevator belt with exceptional bolt retention ability. Often used on elevator
legs and in applications requiring resistance to mineral, animal, or vegetable fats. Good selection
for grain conveyor applications and bucket elevators. Also used where equally thick covers per-
mit belt to be turned over for longer wear. Covers provide excellent ex life, making it a good
buy for tough elevator applications.
Temperature range: 0° F to 250° F. Thickness: 17/64”. Weight: .130 piw.
Minimum pulley diameter: 16” for conveyor / 18” for elevator. Recommended fasteners:
#140 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20021630
#27A 3 Ply 600 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Excellent heavy duty elevator belt with exceptionally strong bolt retention ability. Often used on
elevator legs and in applications requiring resistance to mineral, animal, or vegetable fats. Good
selection for grain conveyor applications and bucket elevators. Also used where equally thick
covers permit belt to be turned over for longer wear. Covers provide excellent ex life, making it
a good buy for tougher elevator applications.
Temperature range: 0° F to 250° F. Thickness: 3/8”. Weight: .195 piw.
Minimum pulley diameter: 20” for conveyor / 24” for elevator. Recommended fasteners:
#140 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20021635
#27B 4 Ply 440 1/16 x 1/16 Static Conductive Oil Resistant Fire Retardant Grain
Excellent heavy duty elevator belt with exceptional bolt retention ability. Often used on elevator
legs and in applications requiring resistance to mineral, animal, or vegetable fats. Good selection
for grain conveyor applications and bucket elevators. Also used where equally thick covers per-
mit belt to be turned over for longer wear. Covers provide excellent ex life, making it a good
buy for tough elevator applications.
Temperature range: F to 250° F. Thickness: 11/32”. Weight: .200 piw.
Minimum pulley diameter: 20”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20021640
GRAIN / BALER BELT
#36A 2 Ply 220 Texture x Texture Baler Belt
Excellent gripping textured top cover belt with exceptional stretch characteristics without loss
of fastener retention. Ideal choice for replacement belts on various round hay baler equipment
requiring a grip top surface. Special SBR compounds resist weathering, sunlight, and the effects
of sitting during long periods of no use. Special compounds in cover provide excellent ex life,
making it a good buy.
Temperature range: -25° F to 225° F. Thickness: 3/16”. Weight: .090 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3-4 1/2 H T H o o k .
Part Number: 20021515
#36B 3 Ply 225 Diamond Top x Mini Skim Coat Baler Belt
Excellent pro le top cover belt with exceptional stretch characteristics without loss of fastener
retention. Ideal choice for replacement belts on various round hay baler equipment requiring a
grip top surface. Special SBR compounds resists weathering, sunlight, and the effects of sitting
during long periods of no use. Special compounds in cover provide excellent ex life, making it
a good buy.
Temperature range: -25° F to 225° F. Thickness: 1/4”. Weight: .135 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3-4 1/2 H T o r # 4 1/2 R H T H o o k s .
Part Number: 20029150
#36 2 Ply 220 1/32 x 1/32 Baler Belt
Popular speci cation for older model hay balers. Excellent fastener retention, with good impact
resistance. Nylon fabric resists moisture and mildew. Special SBR compounds resist weathering
and the effects ozone.
Temperature range: -25° F to 225° F. Thickness: 13/64”. Weight: .100 piw.
Minimum pulley diameter: 4”. Recommended fasteners: 3-41/2 H T H o o k .
Part Number: 20021510
BALER BELT
BELT SAMPLES ARE AVAILABLE •
12
#24B 2 Ply 220 3/16 x 1/16 Moderate Oil Resistance
Excellent heavy duty conveyor belt with a thick oil resistant top cover. Often used in the lumber
and wood chip industries, where resistance to pitch and oils is important. Belt is also used as a
base belt for chevron design medium duty custom fabrications.
Temperature range: 0° F to 250° F. Thickness: 11/32”. Weight: .200 piw.
Minimum pulley diameter: 12”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20017332
#26A 3 Ply 330 3/16 x 1/16 Moderate Oil Resistance
Excellent heavy duty conveyor belt with thick oil resistant top cover. Often used in the lumber
and wood chip industries, where resistance to pitch and oils is important. Belt is often used as
base belt for chevron design medium duty custom fabrications.
Temperature range: 0° F to 250° F. Thickness: 13/32”. Weight: .220 piw.
Minimum pulley diameter: 16”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20021820
#26B 3 Ply 330 3/16 x Bare Back Moderate Oil Resistance
Top quality heavy duty slider back belt with moderate oil resistance. Used in pan
conveying applications, also found in heavy use recycling and lumber conveying
applications. Can be vulcanized with cleat pro les to increase incline conveying angles.
Temperature range: 0° F to 250° F. Thickness: 11/32”. Weight: .180 piw.
Minimum pulley diameter: 16”. Recommended fasteners: #190 Solid Plate, #375 Bolt On,
#R5 Rivet.
Part Number: 20029734
#30A 2 Ply 220 3/16 x 1/16 Static Conductive Oil Resistant Fire Retardant MSHA
This belt has moderate oil resistant covers and conforms to speci cations written by MSHA,
Used in light mining operations and other applications where dusting and oily conditions may be
considered hazardous.
Temperature range: 0° F to 250° F. Thickness: 3/8”. Weight: .195 piw.
Minimum pulley diameter: 12”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20021598
#36D 3 Ply 330 Chevron Top x Mini Skim Coat Baler Belt
Excellent gripping chevron top cover belt with exceptional stretch characteristics without loss
of fastener retention. Ideal choice for replacement belts on various round hay baler equipment
requiring a grip top surface. Special SBR compounds resist weathering, sunlight and the effects
of sitting during long periods of no use. Special compounds in cover provide excellent ex life,
making it a good buy.
Temperature range: -25° F to 225° F. Thickness: 1/4”. Weight: .125 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3-4 1/2 H T o r # 4 1/2 R H T H o o k s .
Part Number: 20029170
#37A 3 Ply 330 Texture x Texture Baler Belt
Excellent gripping textured cover belt with exceptional stretch characteristics without loss of
fastener retention. Ideal choice for replacement belts on various round hay baler equipment
requiring a grip top surface. Special SBR compounds resist weathering, sunlight, and the effects
of sitting during long periods of no use. Special compounds in cover provide excellent ex life,
making it a good buy.
Temperature range: -25° F to 225° F. Thickness: 1/4”. Weight: .123 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3-4 1/2 H T o r # 4 1/2 R H T H o o k s .
Part Number: 20021605
BALER / SPECIAL SERVICE BELT
SPECIAL SERVICE BELT
13
#41 2 Ply 220 3/16 x 1/16 400° MAXI-Heat
Excellent high temperature resistant belt. Used in elevated temperature applications such as ce-
ment plants and foundries where castings and silica molding sand is separated. Special blended
compounds in covers provide maximum resistance to the deteriorating effects of severe heat
and baking conditions.
Temperature range: 400° F for 2” lumps and above, 300° F for fines and dense/baking loads.
Thickness: 3/8”. Weight: .195 piw. Minimum pulley diameter: 12”.
Recommended fasteners: #190 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20021199
SPECIAL SERVICE BELT
#41A 2 Ply 220 3/16 x 1/16 700° SUPER-Heat
Premium belt for higher temperature ranges. Excellent choice for clinker and foundry sand use.
Provides high abrasion resistance, synthetic fabric won’t mildew or rot, has good fastener reten-
tion and excellent adhesion between plies and covers. Synthetic fabric is dimensionally stable.
Hybrid cover compounds provide extended life in high heat environments (up to 700° F).
Temperature range: 700° F for 2” lumps and above, 500° F for fines and dense/baking loads.
Thickness: 3/8”. Weight: .195 piw. Minimum pulley diameter: 12”.
Recommended fasteners: #190 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20021237
#177 3 Ply 330 1/4 x 1/16 400° MAXI-Heat
Excellent high temperature resistant belt. Used in elevated temperature applications such as ce-
ment plants and foundries where castings and silica molding sand is separated. Special blended
cover compounds provide maximum resistance to the deteriorating effects of severe heat and
baking conditions. Heavy cover provides excellent ex life, abrasion, and impact resistance.
Temperature range: 400° F for 2” lumps and above, 300° F for fines and dense/baking loads.
Thickness: 1/2”. Weight: .232 piw. Minimum pulley diameter: 18”. Recommended fasteners:
#190 Solid Plate, #550 Bolt On, #R5 1/2 R i v e t .
Part Number: 20026766
#43A 3 Ply 330 1/4 x 1/16 700° SUPER-Heat
Premium belt where requirements include higher tensions and temperature ranges. Excellent
choice for clinker and foundry sand use. Hybrid cover compounds provide extended life in high
heat environments (up to 700°).
Temperature range: 700° F for 2” lumps and above, 500° F for fines and dense/baking loads.
Thickness: 1/2”. Weight: .232 piw. Minimum pulley diameter: 18”. Recommended fasteners:
#190 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20026790
#42 2 Ply 220 3/16 x 1/16 350° Oil Resistant Hot Asphalt
Excellent heat and oil resistant belt. Used in elevated oily temperature applications such as hot
asphalt, machine oils, oil treated coal, and foundries. Special blended cover compounds provide
maximum resistance to the deteriorating effects of oils and higher temperatures.
Temperature range: 0° F to 350° F. Thickness: 3/8”. Weight: .195 piw.
Minimum pulley diameter: 12”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20021030
#42A 3 Ply 330 3/16 x 1/16 350° Oil Resistant Hot Asphalt
Excellent heat and oil resistant belt with higher tension strengths. Used in elevated oily tempera-
ture applications such as hot asphalt, oily grains, machine oils, oil treated coal, and foundries.
Special blended cover compounds provide maximum resistance to the deteriorating effects of
oils and higher temperatures.
Temperature range: 0° F to 350° F. Thickness: 7/16”. Weight: .215 piw.
Minimum pulley diameter: 18”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R5 Rivet.
Part Number: 20021093
BELT SAMPLES ARE AVAILABLE •
14

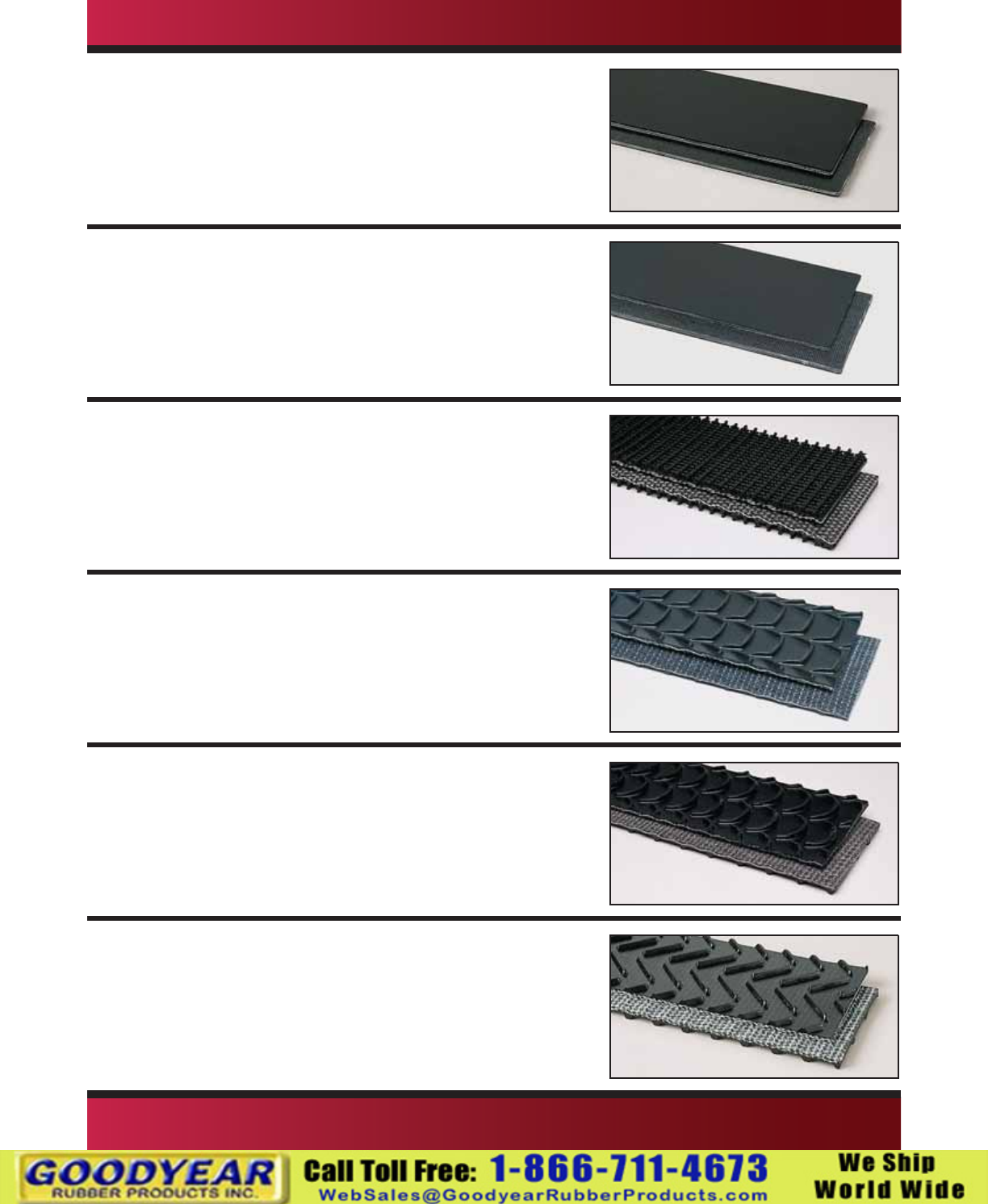

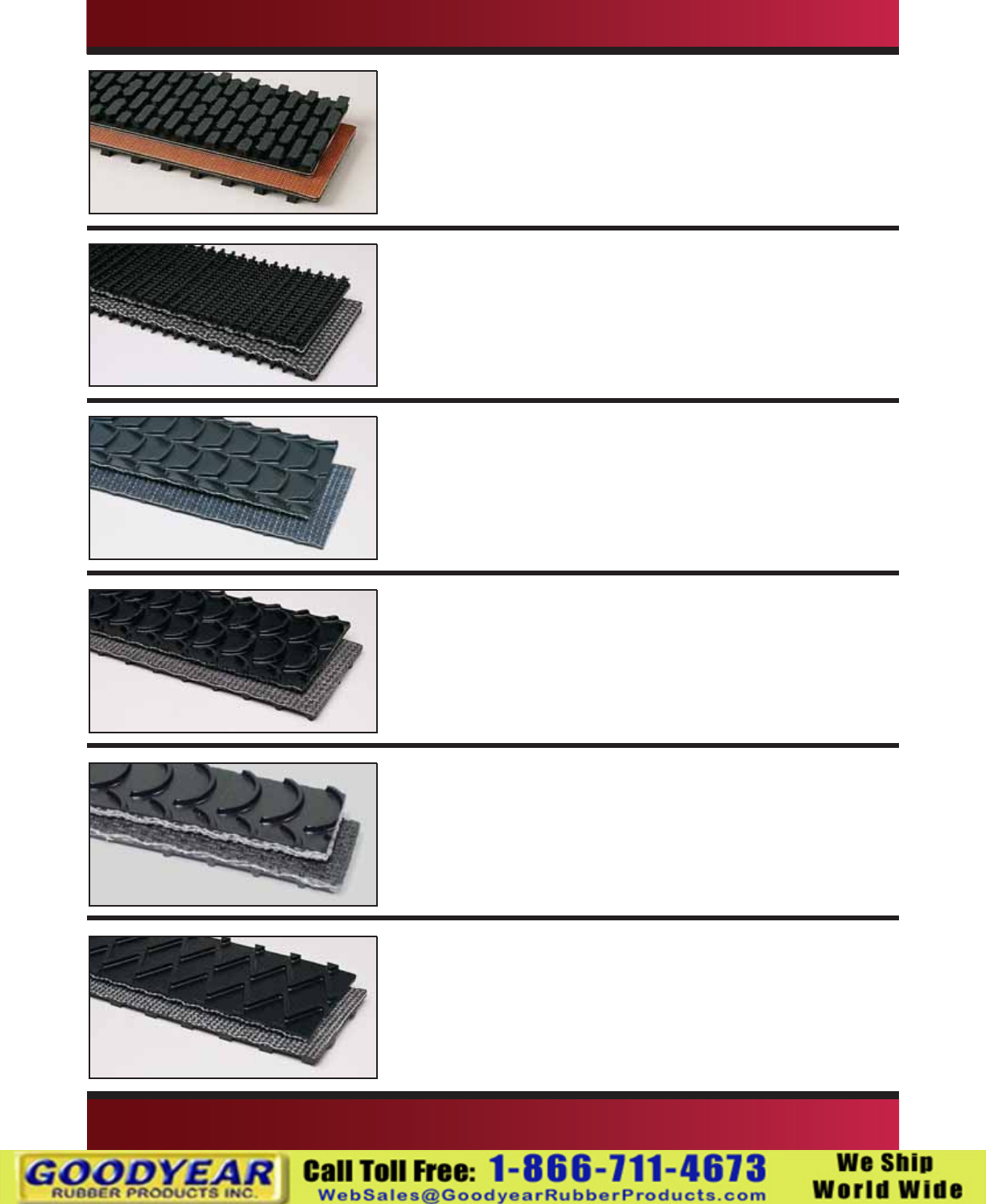

#46 3 Ply 105 Black Roughtop x Friction Surface
Popular standard roughtop belt with rugged appearance. Often used as pulley lagging. Features
a deep, nonskid hemp impression roughtop surface that enables products to be conveyed on
inclines and declines. Grip impression eliminates or minimizes slide back of loads.
Temperature range: -25° F to 225° F. Thickness: 21/64”. Weight: .130 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #1 Hook, #125 Staple, #7 Alligator.
Part Number: 20030200
#47 2 Ply 150 Black Roughtop x Bare Back
Popular standard roughtop belt that can be used as pulley lagging. Features a deep, nonskid
hemp impression roughtop surface that enables products to be conveyed on inclines and de-
clines. Grip impression eliminates or minimizes slide back of loads.
Temperature range: -25° F to 225° F. Thickness: 15/64”. Weight: .120 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #1 Hook, #125 Staple, #7 Alligator.
Part Number: 20029005
#47A 2 Ply 150 Tan Roughtop x Bare Back
Popular non-marking roughtop belt that can be used as pulley lagging. Features a deep, nonskid
hemp impression roughtop surface that enables products to be conveyed on inclines and de-
clines. Grip impression eliminates or minimizes slide back of loads.
Temperature range: -25° F to 225° F. Thickness: 15/64”. Weight: .120 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #25LP Hook, #62 Staple,
#7 Alligator.
Part Number: 20029000

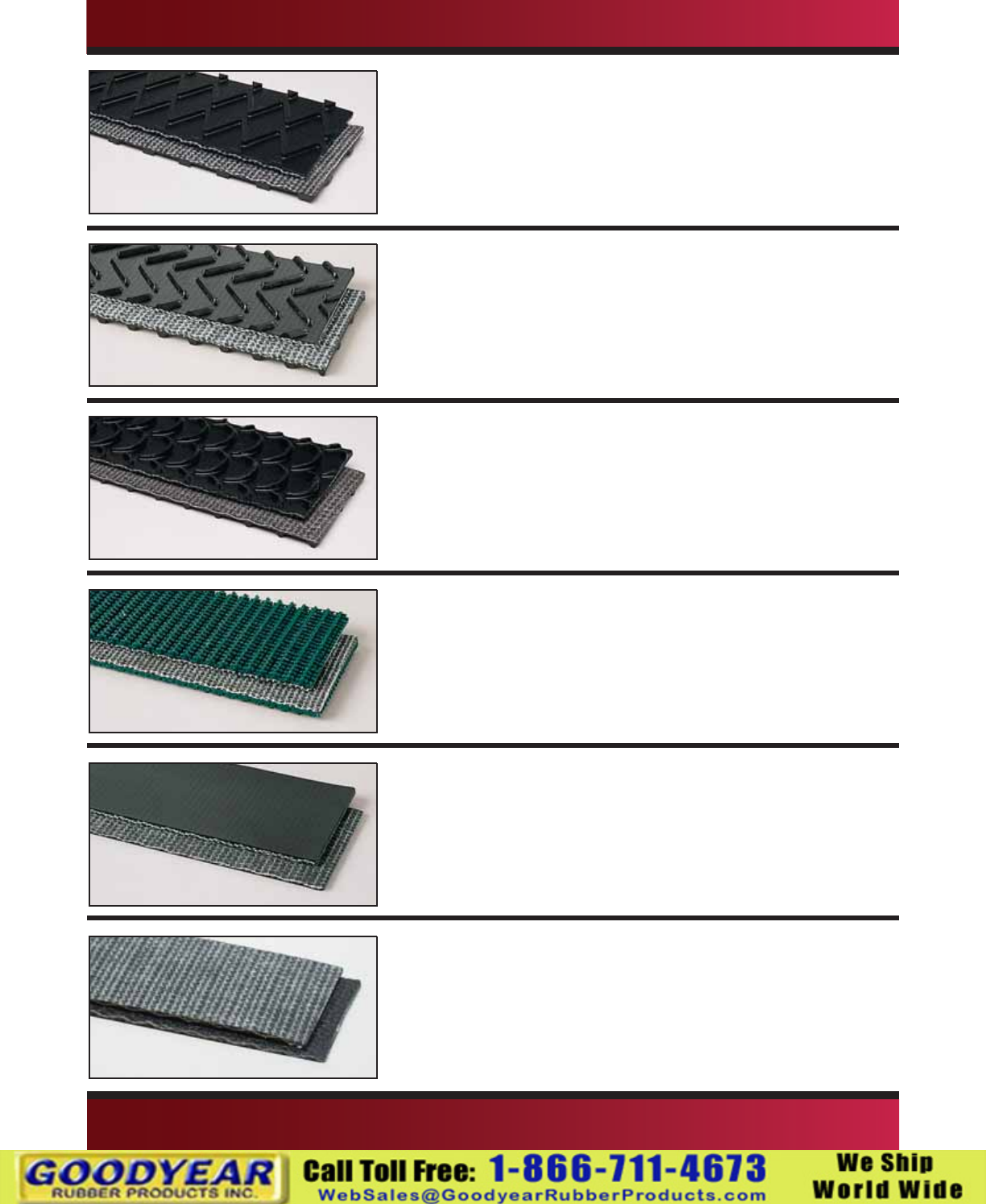

#103B 2 Ply 220 Chevron Top x Bare Back
Excellent all purpose rubber incline belt. Low stretch polyester fabric contains 1/16” high continu-
ous SBR rubber chevrons.
Temperature range: -40° F to 225° F. Thickness: 15/64”. Weight: .130 piw.
Minimum pulley diameter: 12”. Recommended fasteners: #2 Hook, #125 Staple,
#20 Alligator.
Part Number: 20029575
#48 3 Ply 135 Pure Gum Roughtop x Friction Surface
Popular standard natural gum rubber roughtop belt. The natural gum is soft with a low
durometer for the highest grip which eliminates or minimizes slide back of loads. Features a
deep, nonskid hemp impression roughtop surface that permits products to be conveyed on the
steepest inclines and declines. Three plies of cotton-polyester fabric provide strength without
sacri cing exibility.
Temperature range: -40° F to 250° F. Thickness: 9/32”. Weight: .100 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20030220
IMPRESSION TOP BELT
#48A 3 Ply Polyester 150 Brown Nitrile Roughtop x Bare Back
Nitrile roughtop construction resists the effects of oil, heat, grease, and many chemical concen-
trations. Nitrile cover provides excellent ex life, abrasion, and impact resistance.
Temperature range: 0° F to 250° F. Thickness: 9/32”. Weight: .105 piw.
Minimum pulley diameter: 3 1/2”. Recommended fasteners: #2 Hook, #62 Staple,
#7 Alligator.
Part Number: 20030205
15
IMPRESSION TOP BELT

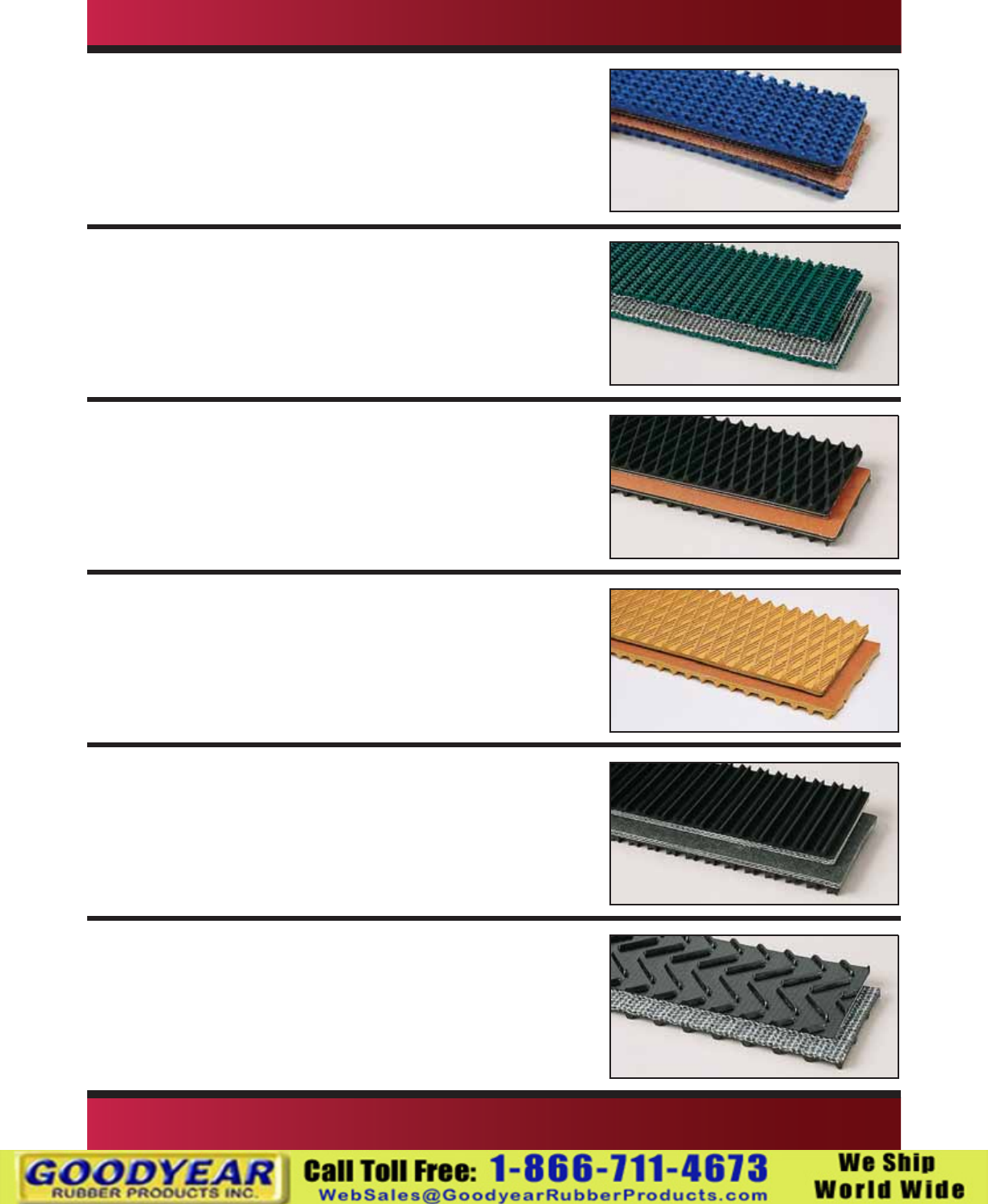

#55A PVC 120 Black Chevron Top II Oil Resistant x Friction Surface
The herringbone pattern of alternating rows of solid PVC chevron pro les form a cover highly
capable of moving free owing bulk solids. Materials such as grains, food stuffs, feeds and fertil-
izers can be carried up steep inclines.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .088 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20034603
#54 3 Ply 105 Black Ridge Top x Friction Surface
Pro le top features 1/4" tall cleats like “m” shaped nubs with v-notch’s. They provide exceptional
gripping of packaged and bagged goods. This belt is an excellent choice for conveyors with
declines. Rubber cover provides good durable wear characteristics.
Temperature range: -25° F to 225° F. Thickness: 21/64". Weight: .130 piw.
Minimum pulley diameter: 3". Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20029505
#53B 2 Ply 150 Tan Wedgegrip x Bare Back
Flexible synthetic fabric has two high strength plies. Tan top cover features a diamond shaped
surface, which is non-marking and molded in a diagonal rib design with an unusually high coef-
c i e n t o f f r i c t i o n f o r c o n v e y i n g b a g g e d a n d p a c k a g e d g o o d s u p v e r y s t e e p i n c l i n e s .
Temperature range: -20° F to 225° F. Thickness: 9/32”. Weight: .100 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #2 Hook, #125 Staple, #15 Alligator.
Part Number: 20029200
#51A 3 Ply 135 Blue Carboxylated Nitrile Roughtop x Bare Back
Carboxylated nitrile roughtop provides superior service with longer wear and better cut and
gouge resistance than standard compounds used in general purpose roughtop specications.
Special cover compounds provide excellent ex life.
Temperature range: 0° F to 250° F. Thickness: 9/32”. Weight: .130 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20030230
#53 2 Ply 150 Black Wedgegrip x Bare Back
Flexible synthetic fabric has two high strength plies. Top cover features a diamond shaped
pro le molded in a diagonal rib design. This speci cation has an unusually high coefcient of
friction for conveying bagged and packaged goods up the very steepest of inclines.
Temperature range: -40° F to 250° F. Thickness: 5/16”. Weight: .115 piw.
Minimum pulley diameter: 3 1/2”. Recommended fasteners: #2 Hook, #125 Staple,
#15 Alligator.
Part Number: 20029009
#219 PVC 120 Green Roughtop x Friction Surface
This roughtop textured PVC belt has a non-marking / non-skid surface that enables pack-
ages, boxes, cases, and other products to be conveyed on both inclines and declines. Uni-ply
construction and PVC compounds combine properties for high traction and low stretch, with
resistance to oils, greases, water, industrial chemicals, and abuse.
Temperature range: 20° F to 180° F. Thickness: 13/64”. Weight: .100 piw.
Minimum pulley diameter: 2 1/2”. Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator.
Part Number: 20034520
BELT SAMPLES ARE AVAILABLE •
16
#56 2 Ply 160 Black Steep-Lok x Bare Back
Features soft oval shaped prole nubs for gripping packages and product. Used for very steep
inclines or declines. The projections prevent slip back and cushioning for all types and shapes
of boxes and cartons.
Temperature range: -25° F to 225° F. Thickness: 19/64". Weight: .095 piw.
Minimum pulley diameter: 4". Recommended fasteners: #1 Hook, #125 Staple, #7 Alligator.
Part Number: 20049012
#61A PVC 120 Black Roughtop x Friction Surface
This medium duty textured roughtop PVC belt has a nonskid surface that enables packages,
boxes, cases, and other products to be conveyed on both inclines and declines. Solid woven
uni-ply construction and PVC compounds combine properties for high traction and performance,
even with light oil, grease, water, and industrial chemicals present. Snythetic carcass has high
strength and low stretch characteristics.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .100 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator.
Part Number: 20035506
IMPRESSION TOP BELT
#62B PVC 120 Black Crescent Top x Friction Surface
Crescent top proles project from the belt surface to aggressively assist the belt in moving bulk
solids. By running the belt in opposite direction, the crescent shapes can assist in draining
liquids from wet products. Crescents overlap to assure a smooth quiet running on return rolls.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .085 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 SP Hook, #62 Staple,
#7 Alligator.
Part Number: 20035525
#62A PVC 100 Black Bucket Top Oil Resistant x Friction Surface
This PVC pro le top belt features a multitude of “bucket” projections to aggressively assist the
belt in elevating bulk solids. In very wet applications, the belt can run in the opposite direction
to assist in draining off uids.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .085 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 SP Hook, #125 Staple,
#7 Alligator.
Part Number: 20033600
#185 PVC 200 Black Crescent Top x Friction Surface
Half moon shaped pro les effectively move bulk materials up steep inclines. This is the speci-
cation of choice for fertilizers, grain, and feed conveying. Durable crescents overlape to assure
a smooth quiet running on return conveyor rollers. By running the belt in opposite direction, the
crescent shapes can assist in draining liquids from wet products.
Temperature range: 20° F to 180° F. Thickness: 5/16”. Weight: .130 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #187 Staple, #27 Alligator.
Part Number: 20035530
#63B PVC 120 Black Z Top Oil Resistant x Friction Surface
Unique pro le is designed for increased capacity and minimal slippage. Special design reduces
noise levels on return idlers. Uses include tube conveying, grain, wood waste, and seed applica-
tions. Strong synthetic carcass and PVC compounds combine for high strength and durability in
light oil, grease, water, and industrial chemical applications.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .090 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20034800
17

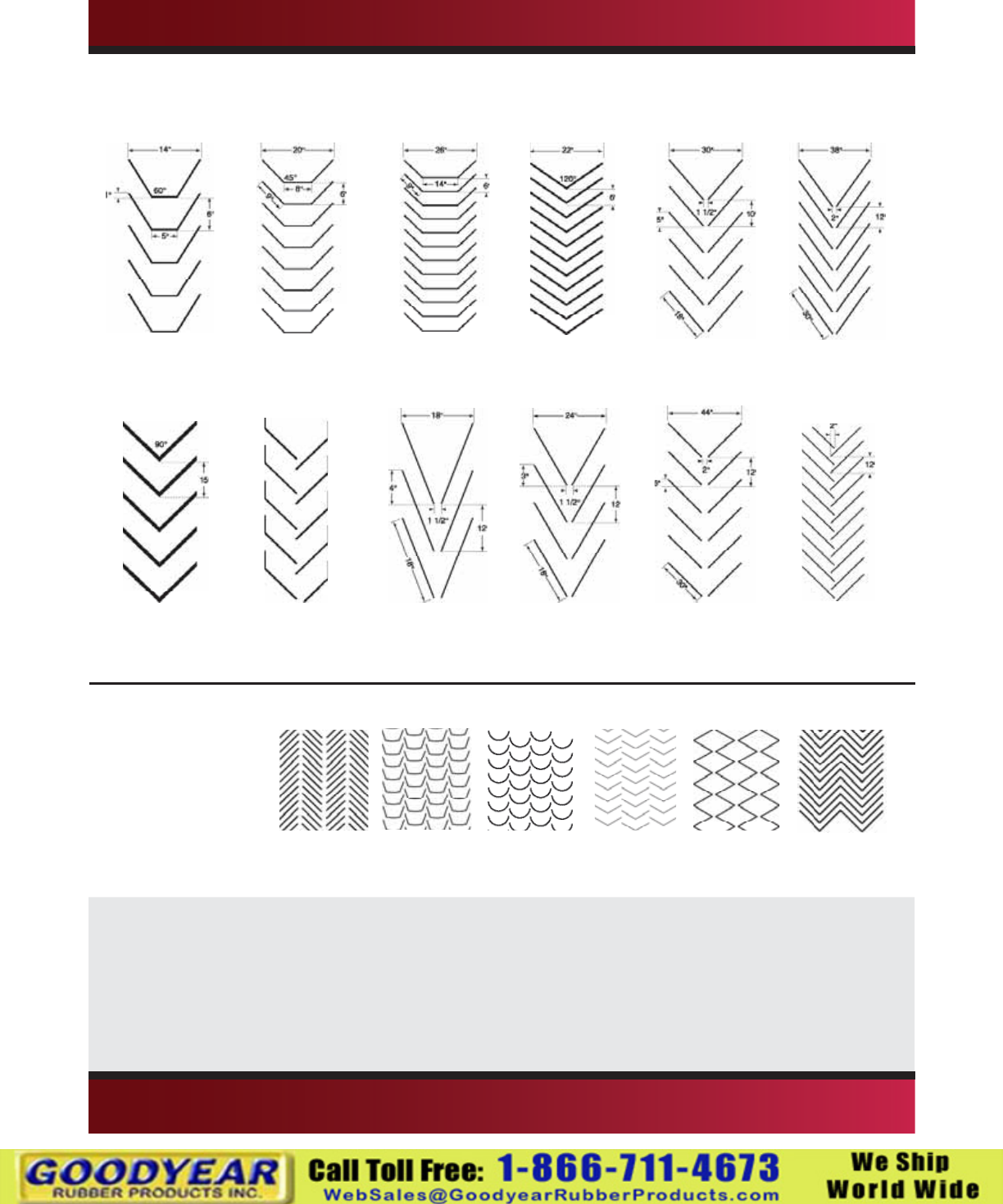

IMPRESSION TOP / SLITTABLE CHEVRON BELT
#99 3 Ply Polyester 105 White Tyler Wire x Friction Surface
This speci cation features an impression capable of high traction on moderate inclines. Often
used in bakeries, produce applications, and for handling packages and small parts. It is non-
marking, oil and grease resistant. Meets FDA, is USDA accepted.
Temperature range: 0° F to 250° F. Thickness: 1/8”. Weight: .060 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20028700
#102 3 Ply Polyester 135 White Nitrile Meat Cleat x Friction Surface
This belt speci cation is an excellent choice for moving meat and poultry products during
processing at federally inspected plants. Smooth surfaces are easily cleaned. Inverted v-shaped
pro les are 1/8" high and spaced evenly on 1" centers. Meets FDA requirements, is USDA ac-
cepted.
Temperature range: 0° F to 250° F. Thickness: 9/64". Weight: .085 piw.
Minimum pulley diameter: 3 1/2". Recommended fasteners: #2 SP Hook, #125 Staple,
#15 Alligator.
Part Number: 20028506
#233 2 Ply Polyester Inverted Pyramid PVC Top Cover x Bare Back
This belt is excellent for handling food and bakery products (bread dough) or in the rubber
industry for the transport of unvulcanized rubber. Odorless and taste free with good resistance
to fats and oils. Meets FDA requirements, is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 3/32”. Weight: .047 piw.
Minimum pulley diameter: 1 1/2". Recommended splice: 25 LP Hook, #62 Staple,
#1 Alligator.
Part Number: 24005980
#242 PVC 150 Black Chevron Top II x Brushed Bottom
The chevron pattern of alternating rows form a unique pattern to effectively convey free ow-
ing bulk solids. A very popular speci cation for heavy duty applications in the transportation of
grains and fertilizers up steep inclines.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .110 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20034605
#204 PVC 150 Black Crescent Top x Brushed Bottom
Half moon shaped pro les effectively move bulk materials up steep inclines. This is the speci-
cation of choice for fertilizers, grain, and feed conveying. Durable crescents overlap to assure a
smooth quiet return on conveyor rollers. By running the belt in opposite direction, the crescent
shapes can assist in draining liquids from wet products.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .110 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20035527
#57A 2 Ply 220 1/8 x 1/16 Durocleat Grade 2
Flexible synthetic fabric has two high strength plies. Top cover pro les are 1/4” high and 3/8”
wide, cross section molded as part of the cover during manufacturing. The resulting prole
is v-shaped, approximately 6” wide and staggered in rows across full width of the top cover.
Excellent choice for elevating bulk materials such as surface grindings from road machinery.
Commonly used as a belt replacement on asphalt scalpers, rotomills or road planers.
Temperature range: -25° F to 225° F. Thickness: 5/16” plus 1/4” x 3/8” profile. Weight: .210
piw. Minimum pulley diameter: 12”. Recommended fasteners: #190 Solid Plate, #375 Bolt
On, #R5 Rivet.
Part Number: 20029603
SLITTABLE CHEVRON BELT
BELT SAMPLES ARE AVAILABLE •
18

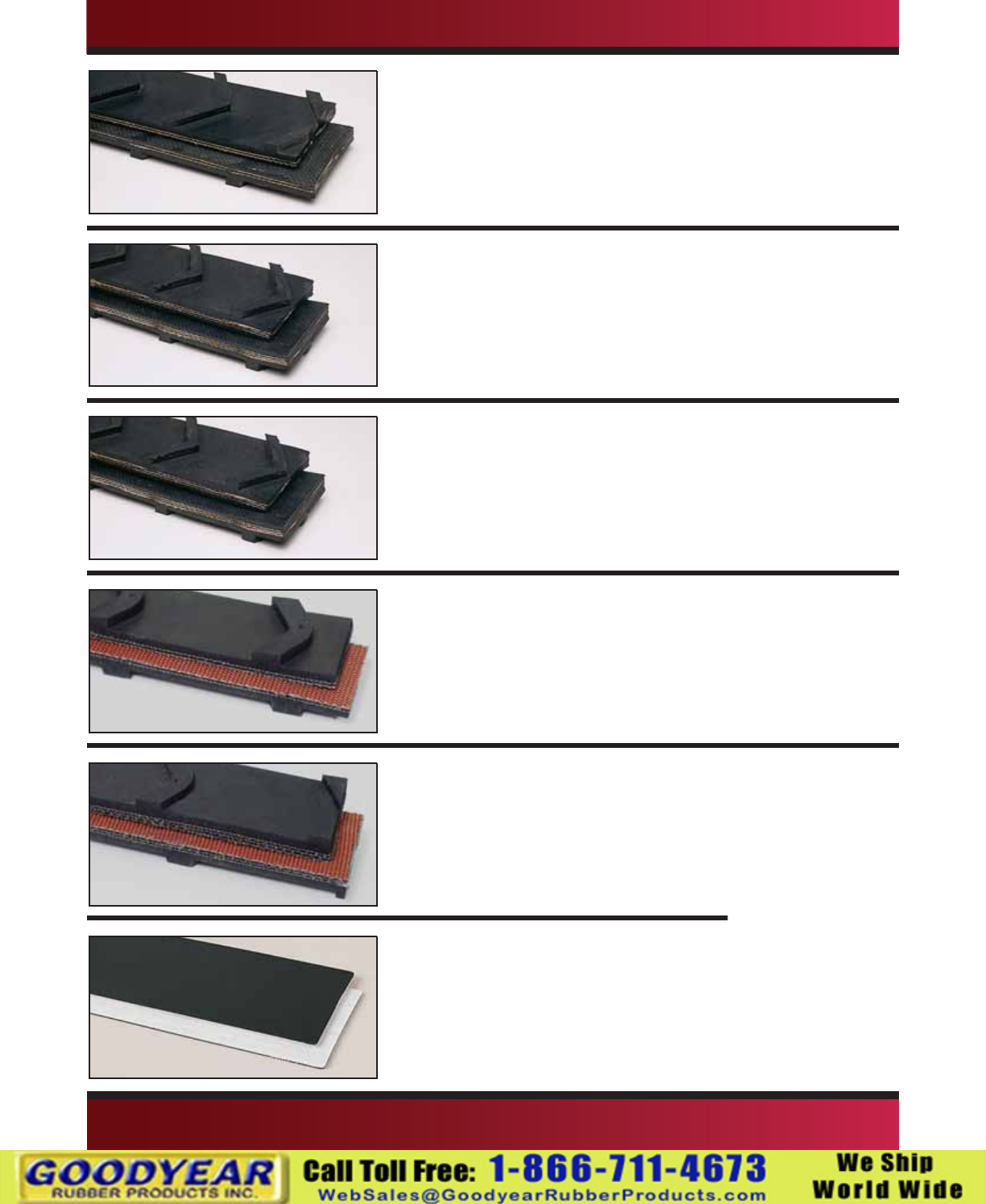

#58 2 Ply 220 1/8 x 1/16 Durocleat Moderate Oil Resistance
Flexible synthetic fabric has two high strength plies. Static conductive cover proles are
1/4” high and 3/8” wide, cross section molded as part of the cover during manufacturing. The
resulting pro le is v-shaped, approximately 6” wide and staggered in rows across full width of
the top cover. Excellent choice for elevating bulk materials requiring oil resistance, such as
wood chips.
Temperature range: F to 250° F. Thickness: 5/16” plus 1/4” x 3/8” profile. Weight: .210
piw. Minimum pulley diameter: 12”. Recommended fasteners: 190 Solid plate, #375 Bolt On,
#R5 Rivet.
Part Number: 20029601
SLITTABLE CHEVRON / PVC-RMV BELT
#59B 3 Ply 330 1/8 x 1/16 Durocleat Moderate Oil Resistance
The manufactured top cover pro le is designed as a slittable chevron belt for heavier duty uses
that requires the ability to overcome the incline limitations of standard at surface conveyor
belts. Other uses include carrying wood chips to surge piles, moving waste and demolition
debris in the waste and recycling industries, and in applications where higher belt operating
tensions are required. MOR compounds make belt resistant to moderately oily contaminants and
the synthetic fabric makes it strong and dimensionally stable.
Temperature range: F to 250° F. Thickness: 3/8” plus 1/4” x 3/8” profile. Weight: .250 piw.
Minimum pulley diameter: 18”. Recommended fasteners: #190 Solid Plate, #550 Bolt On,
#R51/2 R i v e t .
Part Number: 20029615
#178 3 Ply 330 1/8 x 1/16 Durocleat Grade 2
The manufactured top cover pro le is designed as a slittable chevron belt for heavier duty ap-
plications requiring a pro led surface for high inclines. Excellent choice for aggregate, refuse,
and mineral applications.
Temperature range: -25° F to 225° F. Thickness: 3/8” plus 1/4” x 3/8” profile. Weight: .260
piw. Minimum pulley diameter: 18”. Recommended fasteners: #190 Solid Plate, #550 Bolt
On, #R51/2 R i v e t .
Part Number: 20029605
#56B 2 Ply 220 1/8 x Bare Back Durocleat Moderate Oil Resistance
The manufactured top cover pro le is designed as a slittable chevron belt for heavier duty uses
that requires the ability to overcome the incline limitations of standard at surface conveyor belts.
Other uses include carrying wood chips to surge piles, moving waste and demolition debris in
the waste and recycling industries, and in applications where higher belt operating tensions are
required. MOR compounds make belt resistant to moderately oily contaminants and the synthetic
fabric makes it strong and dimensionally stable. Comes in bare back for slider bed conveyors.
Temperature range: F to 250° F. Thickness: 1/4”. Weight: .185 piw. Minimum pulley
diameter: 18”. Recommended fasteners: #190 Solid Plate, #375 Bolt On, #R5 Rivet.
Part Number: 20029602
#247 3 Ply 330 5/32 x Bare Back Durocleat Moderate Oil Resistance
The manufactured top cover pro le is designed as a slittable chevron belt for heavier duty uses
that requires the ability to overcome the incline limitations of standard at surface conveyor belts.
Other uses include carrying wood chips to surge piles, moving waste and demolition debris in
the waste and recycling industries, and in applications where higher belt operating tensions are
required. MOR compounds make belt resistant to moderately oily contaminants and the synthetic
fabric makes it strong and dimensionally stable. Comes in bare back for slider bed conveyors.
Temperature range: F to 250° F. Thickness: 9/16”. Weight: .225 piw. Minimum pulley
diameter: 16”. Recommended fasteners: #190 Solid Plate, #550 Bolt On, #R5 Rivet.
Part Number: 20029602
#60 2 Ply 60 Matte PVC Checkout Counter x Bare Bottom
2 plies of polyester fabric (60 lb. piw) provide adequate strength for this thin belt commonly
used for retail check-out stands. Black PVC cover resists stains, cutting and gouges from rough
use. Matte cover is easily cleaned while back surface has low coef cient of friction for smooth
operation on slider surfaces.
Temperature range: 20° F to 180° F. Thickness: 5/64”. Weight: .047 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #25 LP Hook, #1 Alligator.
Part Number: 20032710
PVC - RMV BELT
19
PVC - RMV BELT

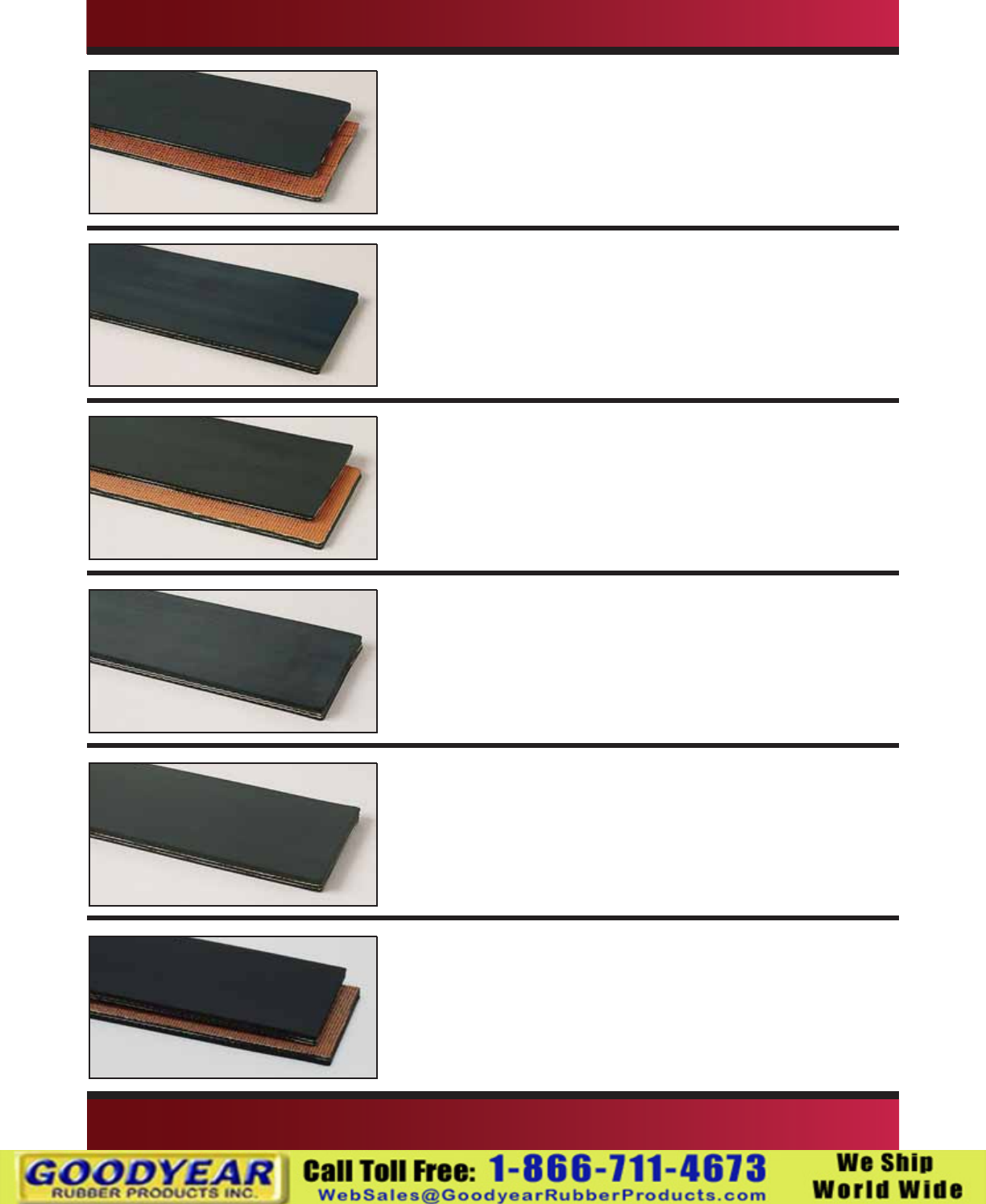

#60B 3 Ply 150 Black RMV x Friction Surface
Excellent multiple purpose light duty conveyor belt. Smooth 1/16”. Used regularly on assembly
and packaging lines, and other applications requiring resistance to some oils associated with
products being moved. Carcass is exible, yet strong. Cover resists oil, grease, and animal fats.
Temperature range: 20° F to 180° F. Thickness: 1/8”. Weight: .080 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #1SP Hook, #62 Staple, #7 Alligator.
Part Number: 20032945
#60A 2 Ply 100 Black RMV x Friction Surface
Excellent all-purpose conveyor belt with a smooth 1/16” RMV top cover. Used regularly on as-
sembly and packaging lines, and other applications requiring resistance to some oils associated
with products being moved. Carcass is exible, yet strong for stretch resistance. Cover resists
oil, grease, and animal fats.
Temperature range: 20° F to 180° F. Thickness: 7/64”. Weight: .070 piw.
Minimum pulley diameter: 11/2”. Recommended fasteners: # 1 S P H o o k ; # 6 2 S t a p l e ;
#7 Alligator.
Part Number: 20032940
#61A PVC 120 Black Roughtop x Friction Surface
This medium duty textured roughtop PVC belt has a nonskid surface that enables packages,
boxes, cases, and other products to be conveyed on both inclines and declines. Solid woven
uni-ply construction and PVC compounds combine properties for high traction and performance,
even with light oil, grease, water, and industrial chemicals present. Snythetic carcass has high
strength and low stretch characteristics.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .100 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator.
Part Number: 20035506
#62B PVC 120 Black Crescent Top x Friction Surface
Crescent top pro les project from the belt surface to aggressively assist the belt in moving bulk
solids. By running the belt in opposite direction, the crescent shapes can assist in draining
liquids from wet products. Crescents overlap to assure a smooth quiet running on return rolls.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .085 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 SP Hook, #62 Staple,
#7 Alligator.
Part Number: 20035525
#62A PVC 100 Black Bucket Top Oil Resistant x Friction Surface
This PVC prole top belt features a multitude of “bucket” projections to aggressively assist the
belt in elevating bulk solids. In very wet applications, the belt can run in the opposite direction
to assist in draining off uids.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .085 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 SP Hook, #125 Staple,
#7 Alligator.
Part Number: 20033600
#55A PVC 120 Black Chevron Top II Oil Resistant x Friction Surface
The herringbone pattern of alternating rows of solid PVC chevron pro les form a cover highly
capable of moving free owing bulk solids. Materials such as grains, food stuffs, feeds and fertil-
izers can be carried up steep inclines.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .088 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20034603
BELT SAMPLES ARE AVAILABLE •
20
PVC-RMV BELT
#64A PVC 100 Black Cover x Friction Surface
This thin, strong, yet exible belt is ideal for general purpose conveying on slider bed convey-
ors. Used mostly on light duty conveying applications of small products. It is oil, chemical, and
stretch resistant.
Temperature range: 20° F to 180° F. Thickness: 7/64”. Weight: .065 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #25 LP Hook, #62 Staple,
#7 Alligator.
Part Number: 20035498

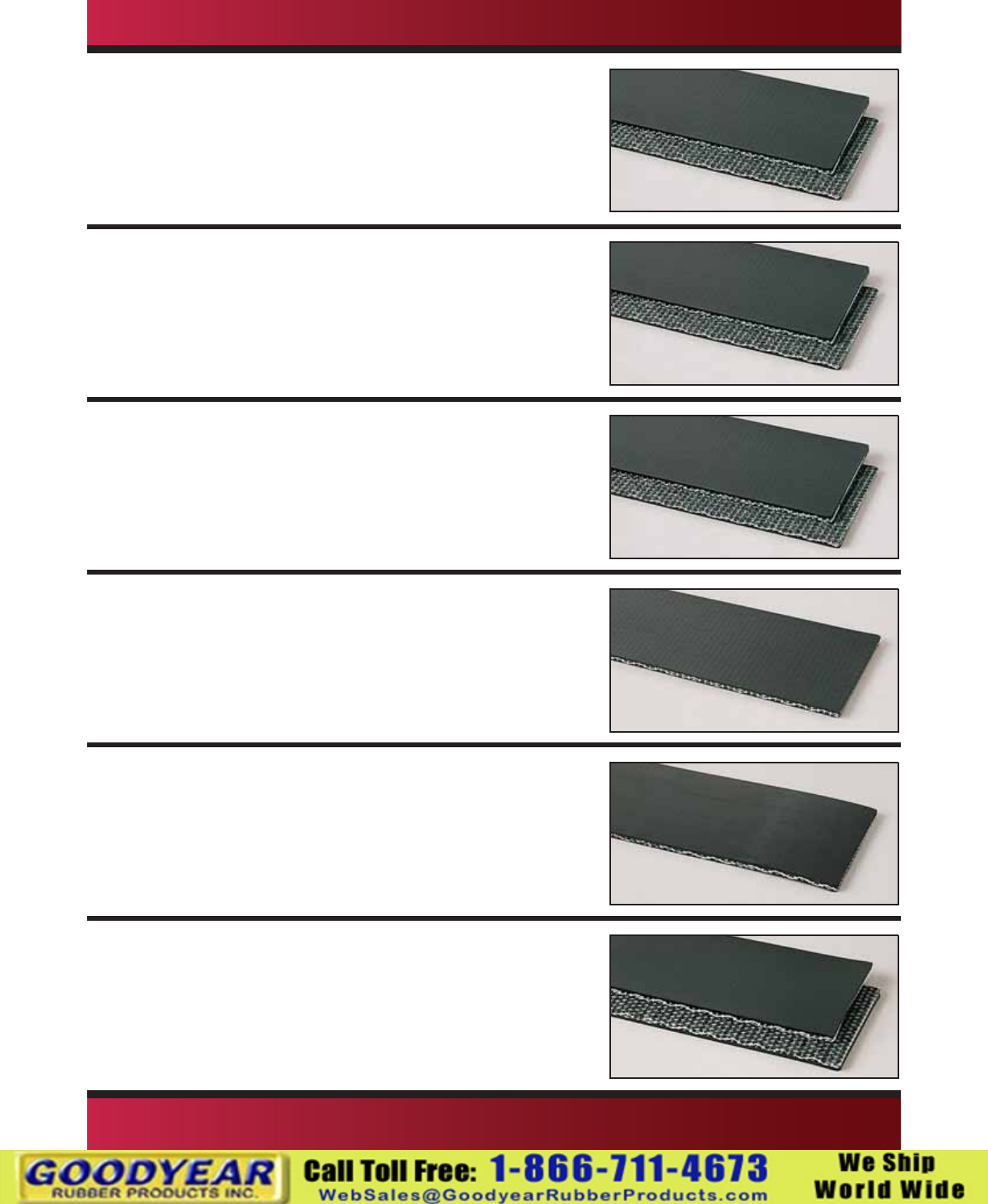

#64B PVC 120 Black Friction Surface x Brushed Bottom
Proven belt for long wearing, high performance, problem free package handling applications.
Friction surfaces on both top and bottom permit belt to move while package remains stopped
in accumulator. Ideal for a variety of roller / slider bed applications. Characteristics include low
stretch, high strength, good fastener retention, with superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 1/8”. Weight: .050 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 Hook; #125 Staple; #15 Alligator.
Part Number: 20035508
#219 PVC 120 Green Roughtop x Friction Surface
This roughtop textured PVC belt has a non-marking / non-skid surface that enables pack-
ages, boxes, cases, and other products to be conveyed on both inclines and declines. Uni-ply
construction and PVC compounds combine properties for high traction and low stretch, with
resistance to oils, greases, water, industrial chemicals, and abuse.
Temperature range: 20° F to 180° F. Thickness: 13/64”. Weight: .100 piw.
Minimum pulley diameter: 2 1/2”. Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator.
Part Number: 20034520
#63B PVC 120 Black Z Top Oil Resistant x Friction Surface
Unique pro le is designed for increased capacity and minimal slippage. Special design reduces
noise levels on return idlers. Uses include tube conveying, grain, wood waste, and seed applica-
tions. Strong synthetic carcass and PVC compounds combine for high strength and durability in
light oil, grease, water, and industrial chemical applications.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .090 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20034800
#242 PVC 150 Black Chevron Top II x Brushed Bottom
The chevron pattern of alternating rows form a unique pattern to effectively convey free ow-
ing bulk solids. A very popular speci cation for heavy duty applications in the transportation of
grains and fertilizers up steep inclines.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .110 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20034605
#204 PVC 150 Black Crescent Top x Brushed Bottom
Half moon shaped pro les effectively move bulk materials up steep inclines. This is the speci-
cation of choice for fertilizers, grain, and feed conveying. Durable crescents overlap to assure a
smooth quiet return on conveyor rollers. By running the belt in opposite direction, the crescent
shapes can assist in draining liquids from wet products.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .110 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20035527
21
PVC-RMV BELT

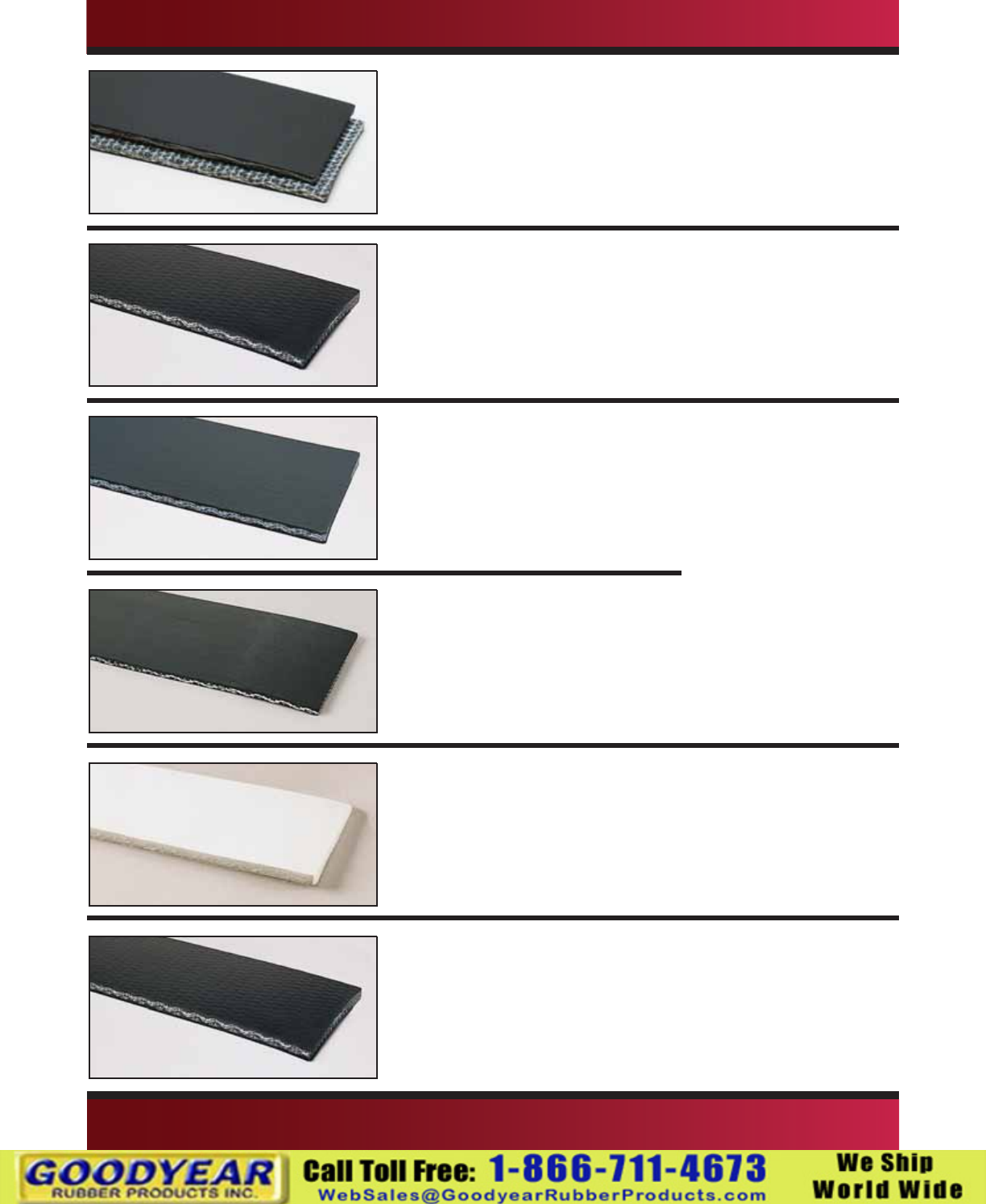

#65A PVC 120 Black Oil Resistant x Friction Surface
This special purpose PVC belt provides excellent service where static conductivity and increased
oil resistance is required. Belt also maintains exibility in lower temperatures and is an ideal
choice for conveying oily parts.
Temperature range: 20° F to 180° F. Thickness: 9/64’’. Weight: .075 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 Hook, #125 Staple, #15 Alligator.
Part Number: 20035502
#65B PVC 100 Black Oil Resistant x Friction Surface
This specially compounded PVC belt has increased temperature and oil resistance, with static
conductive properties. Thin, yet strong and exible, this belt is ideal in many agricultural applica-
tions and for general purpose conveying. Used on slider bed conveyors, for handling light duty
applications of small products.
Temperature range: 20° F to 180° F. Thickness: 7/64”. Weight: .070 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1SP Hook, #62 Staple, #7 Alligator.
Part Number: 20035499
#65 PVC 120 Black Cover x Friction Surface
Proven belt for long wearing, high performance, problem free package handling applications.
Smooth coated top surface resists oil, grease, and chemicals. Ideal for a variety of roller / slider
bed applications. Characteristics include low stretch, high strength, good fastener retention, with
superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 9/64”. Weight: .075 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 Hook, #125 Staple, #15 Alligator.
Part Number: 20035501
#66A PVC 150 Black Oil Resistant Cover x Cover
Proven belt for long wearing, high performance, problem free material handling applications.
Ideal for moving bulk materials, chemicals, fertilizers, and moderate sized product loads. Ideal
for a variety of roller bed and troughed applications. Characteristics include low stretch, high
strength, good fastener retention, with superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 13/64”. Weight: .100 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3 Hook, #187 Staple, #25 Alligator.
Part Number: 20038199
#66 PVC 120 Black Cover x Cover
Proven belt for long wearing, high performance, problem free package handling applications.
Ideal for moving pelletized fertilizers and small to medium sized product loads. Also used for a
variety of roller bed and troughed applications. Characteristics include low stretch, high strength,
good fastener retention, with superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .090 piw.
Minimum pulley diameter: 21/2”. Recommended fasteners: # 2 H o o k , # 1 2 5 S t a p l e ,
#20 Alligator.
Part Number: 20035500
#67 PVC 150 Black Cover x Friction Surface
Very popular medium duty PVC belt proven for long wearing, high performance, and problem
free material handling. Ideal for a variety of slider / roller bed applications. Accommodates
fertilizers, chemicals, and bulk materials. Characteristics include low stretch, high strength, good
fastener retention, with superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 11/64’’. Weight: .100 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator.
Part Number: 20038200
BELT SAMPLES ARE AVAILABLE •
22
PVC / RMV BELT
#67A PVC 200 Black Cover x Friction Surface
Heavier duty PVC belt proven for long wearing, high performance, and problem free material
handling. Regularly used in the feed and grain industries. Also popular as heavy duty package
and bulk product conveyor belt for both slider and roller bed conveyors.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .117 piw. Minimum pulley
diameter: 6”. Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator.
Part Number: 20038207
#69B PVC 250 Black Oil Resistant Static Conductive Cover x Cover
Commonly used for elevator belting in the feed and grain industries. Because of the low tem-
perature, oil resistance, and static conductive qualities of this speci cation, it provides excellent
service life in most agricultural environments. This belt won’t mildew or rot, is moisture resistant,
and has high bolt retention for bucket attachments.
Temperature range: 20° F to 180° F. Thickness: 5/16”. Weight: .150 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #140 Solid Plate, #550 Bolt On,
#R5 Rivet, #35 Alligator.
Part Number: 20038500
#69A PVC 200 Black Oil Resistant Static Conductive Cover x Cover
Heavier duty PVC belt proven for long wearing, high performance and problem free material
handling applications. Regularly used in the feed and grain industries. Also popular as heavy
duty package and bulk product conveying belt for both troughed roller bed conveyors and eleva-
tor applications.
Temperature range: 20° F to 180° F. Thickness: 1/4’’. Weight: .142 piw.
Minimum pulley diameter: 6”. Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator,
#R5 Rivet.
Part Number: 20038206
#70A PVC 200 White Oil Resistant Cover x Cover
Excellent two cover white belt for heavy duty use on conveyors with FDA requirements, such as
o u r m i l l i n g , s u g a r , o r b u l k f o o d s . C h a r a c t e r i s t i c s i n c l u d e l o w s t r e t c h , h i g h b o l t r e t e n t i o n , a n d a n
SOR compound that is not affected by grains. Meets FDA; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .142 piw.
Minimum pulley diameter: 6” for conveyor / 8” for elevator.
Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator, #R5 Rivet.
Part Number: 20038208
#69A PVC 200 Black Oil Resistant Static Conductive Cover x Cover
Heavier duty PVC belt proven for long wearing, high performance and problem free material
handling applications. Regularly used in the feed and grain industries. Also popular as heavy
duty package and bulk product conveying belt for both troughed roller bed conveyors and eleva-
tor applications.
Temperature range: 20° F to 180° F. Thickness: 1/4’’. Weight: .142 piw.
Minimum pulley diameter: 6”. Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator,
#R5 Rivet.
Part Number: 20038206
#66A PVC 150 Black Oil Resistant Cover x Cover
Proven belt for long wearing, high performance, problem free material handling applications.
Ideal for moving bulk materials, chemicals, fertilizers, and moderate sized product loads. Ideal
for a variety of roller bed and troughed applications. Characteristics include low stretch, high
strength, good fastener retention, with superior rip, tear, and gouge resistance.
Temperature range: 20° F to 180° F. Thickness: 13/64”. Weight: .100 piw.
Minimum pulley diameter: 4”. Recommended fasteners: #3 Hook, #187 Staple, #25 Alligator.
Part Number: 20038199
PVC ELEVATOR BELT
23
PVC ELEVATOR / WHITE FOOD BELT
#72 PVC 350 Black Oil Resistant Static Conductive Cover x Cover
Commonly used for elevator belting in the feed and grain industries. Features low stretch,
trouble-free operation, high bolt retention, resistant to grain oils, re, moisture, mildew, and rot.
Breaking strength can be measured when required for Man Lift Elevators.
Temperature range: 20° F to 180° F. Thickness: 5/16”. Weight: .158 piw.
Minimum pulley diameter: 8” for conveyors / 12” for elevators.
Recommended fasteners: #140 Solid Plate, #550 Bolt On, #R5 Rivet, #45 Alligator.
Part Number: 20039000
#73 PVC 450 Black Oil Resistant Static Conductive Cover x Cover
Commonly used for elevator belting in the feed and grain industries. Features low stretch,
trouble-free operation, high bolt retention, resistant to grain oils, re, moisture, mildew, and rot.
Breaking strength can be measured to a certain break when required for Man Lift Elevators.
Temperature range: 20° F to 180° F. Thickness: 11/32”. Weight: .175 piw.
Minimum pulley diameter: 10” for conveyor / 14” for elevator service.
Recommended fasteners: #190 Solid Plate, #550 Bolt On, #R5 Rivet, #45 Alligator.
Part Number: 20040009
#91 2 Ply Poly 70 White Nitrile 3/64 x Friction Surface
Popular food belt used for USDA and FDA applications. This belt is commonly supplied as
original belting by many conveyor equipment manufacturers. The thin pro le can be hot water
and steam cleaned. High strength polyester carcass has great dimensional stability for tracking.
Excellent for meat, poultry, sh, canning, and dry bulk foods. It can be fabricated with cleats,
a n g e s , v - g u i d e s , a n d o t h e r v a l u e a d d e d p r o l e s . M e e t s F D A r e q u i r e m e n t s ; i s U S D A a c c e p t e d .
Temperature range: 0° F to 250° F. Thickness: 3/32”. Weight: .050 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1SP Hook, #62 Staple, #7 Alligator.
Part Number: 20028503
#259 PVC 600 Black Oil Resistant Static Conductive Cover x Cover
Commonly used for elevator belting in the feed and grain industries. Features low stretch,
trouble-free operation, high bolt retention, resistant to grain oils, re, moisture, mildew, and rot.
Breaking strength can be measured to a certain break when required for Man Lift Elevators.
Temperature range: 20° F to 180° F. Thickness: 3/8”. Weight: .191 piw.
Minimum pulley diameter: 12” for conveyor / 16” for elevator service.
Recommended fasteners: #140 Solid Plate, #375 Bolt On, #R5 Rivet.
Part Number: 20040015
#69B PVC 250 Black Oil Resistant Static Conductive Cover x Cover
Commonly used for elevator belting in the feed and grain industries. Because of the low tem-
perature, oil resistance, and static conductive qualities of this speci cation, it provides excellent
service life in most agricultural environments. This belt won’t mildew or rot, is moisture resistant,
and has high bolt retention for bucket attachments.
Temperature range: 20° F to 180° F. Thickness: 5/16”. Weight: .150 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #140 Solid Plate, #550 Bolt On,
#R5 Rivet, #35 Alligator.
Part Number: 20038500
#91B 2 Ply 100 White RMV x Friction Surface
Excellent belt for handling meat, poultry, sh, canned fruits, vegetables, and dry bulk foods.
Polyester carcass is blended with vinyl compounds and remains bright after cleaning. Excellent
choice on many applications where tension requirements are light to moderate. This belt can be
fabricated with cleats, anges, v-guides, and other value added pro les. Meets FDA require-
ments; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 7/64”. Weight: .056 piw.
Minimum pulley diameter: 1 1/2”. Recommended fasteners: #1SP Hook, #62 Staple,
#7 Alligator.
Part Number: 20032950
WHITE FOOD BELT
BELT SAMPLES ARE AVAILABLE •
24

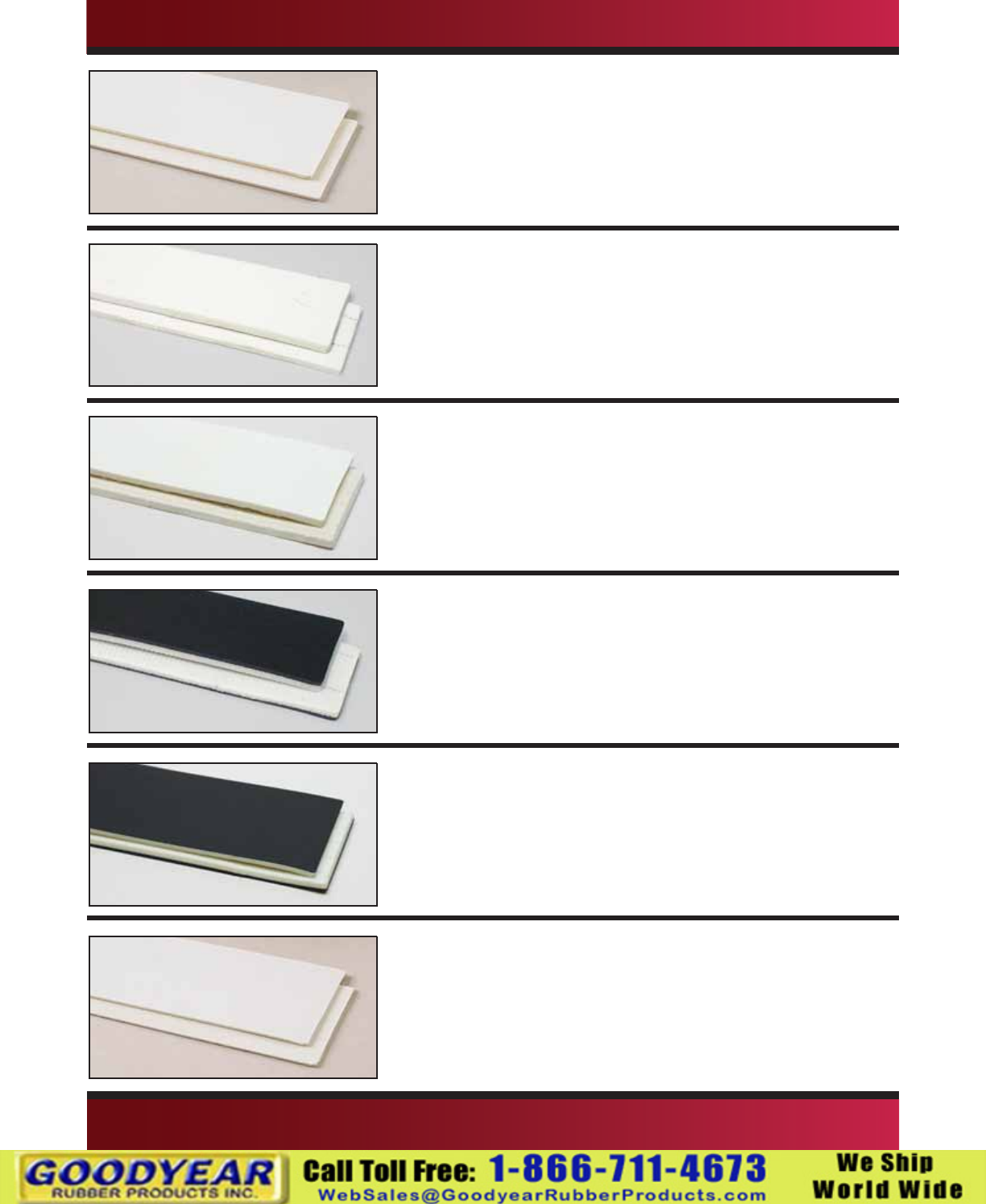

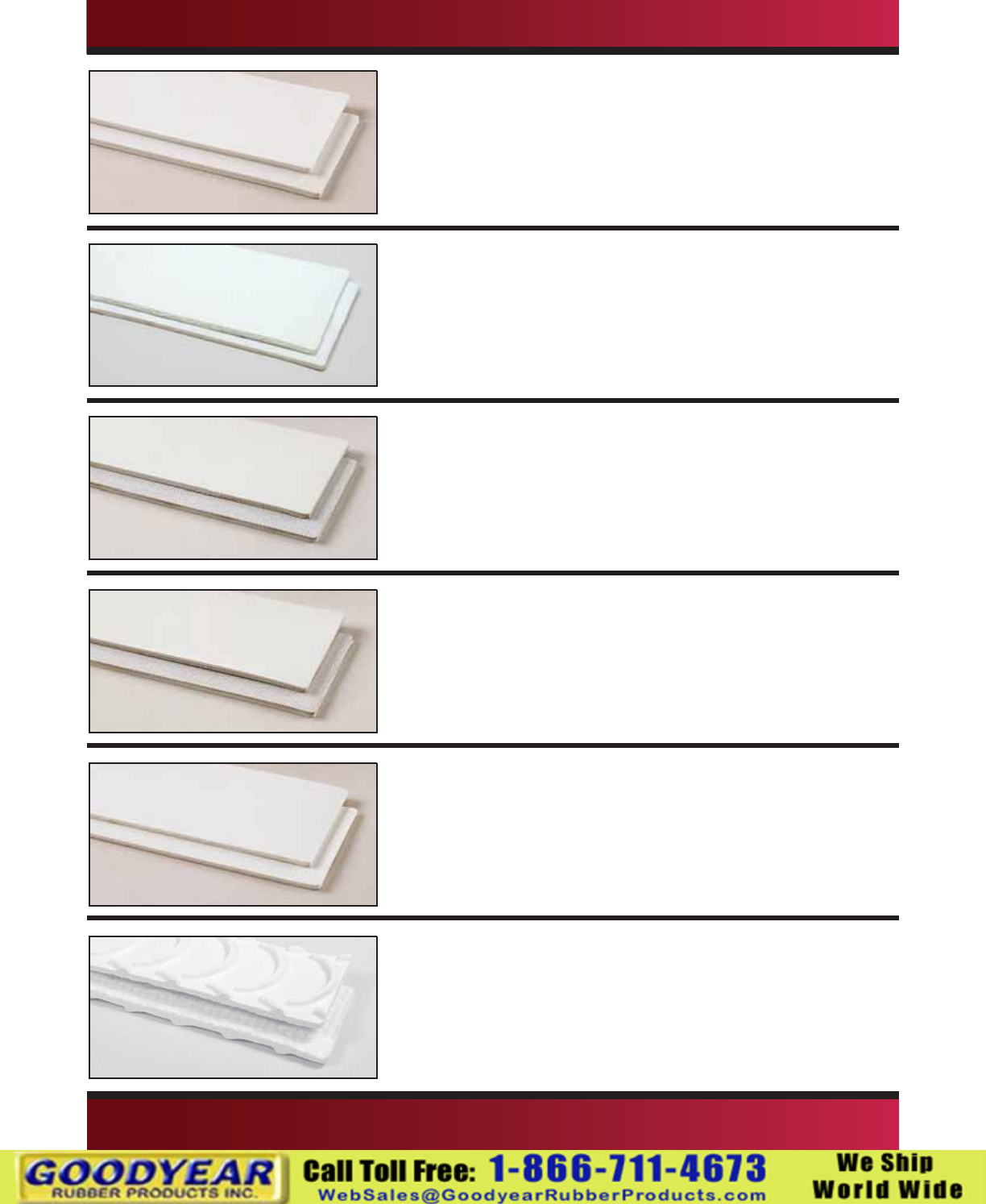

WHITE FOOD BELT
#91C 3 Ply 150 White RMV x Friction Surface
Excellent belt for handling meat, poultry, sh, canned fruits, vegetable, and dry bulk foods.
Polyester carcass is blended with vinyl compounds and remains bright after cleaning. Excellent
choice for many heavier duty belt applications requiring higher belt tensions. This belt can be
fabricated with cleats, anges, v-guides, and other value added pro les. Meets FDA require-
ments; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 9/64”. Weight: .083 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #1 Hook, #125 Staple, #15 Alligator.
Part Number: 20032951
#221 Polymate 135 White RMP COS
Smooth white oil resistant cover with unique quiet running, excellent tracking, and laterally rigid
non-woven carcass. Great choice for cleated proles. FDA/USDA Approved.
Temperature range: 20° F to 180° F. Thickness: 9/64”. Weight: .070 piw.
Minimum pulley diameter: 2 1/2”. Recommended fasteners: #1 Hook, #7 Alligator.
Part Number: 20028507
#92 3 Ply Poly 105 White Nitrile 3/64 x Friction Surface
A thicker and stronger white nitrile food belt. Very popular with USDA and FDA applications.
Generally used for more rugged food handling uses. Can be hot water or steam cleaned. High
strength polyester carcass has great dimensional stability for tracking. Belt can be fabricated
with cleats, anges, v-guides, and other value added pro les. Meets FDA requirements; is
USDA accepted.
Temperature range: 0° F to 250° F. Thickness: 1/8”. Weight: .070 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #1 Hook, #125 Staple, #7 Alligator.
Part Number:20028505
#92A 3 Ply PNT 150 White Nitrile 3/64 x Friction Surface
Strong polyester food belt with an extra heavy cover that resists the higher impact of heavier
loading. Stable polyester carcass is strong, yet exible. Tracks well and can be fabricated with
cleats, anges, v-guides, and other value added proles. Meets FDA requirements; is USDA
accepted.
Temperature range: 0° F to 250° F. Thickness: 5/32”. Weight: .080 piw.
Minimum pulley diameter: 3 1/21/2”. Recommended fasteners: # 2 H o o k , # 1 2 5 S t a p l e ,
#20 Alligator.
Part Number: 20028504
#94A PVC 100 White Cover x Mini Skim Coat
Belt provides a high service yield and is an excellent value for most food processing and
harvesting uses. Fabricated cleats, anges, v-guides, and other value added proles can be hot
welded to surfaces. Meets FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 7/64”. Weight: .050 piw.
Minimum pulley diameter: 1 1/2”. Recommended fasteners: #1SP Hook, #62 Staple,
#7 Alligator.
Part Number: 20035400
#239 PVC 120 White Crescent Top x Friction Surface
Crescent half moon shaped pro les project from belt surface to effectively move packaged and
bulk materials. Pro le design assists in draining liquids and crescents overlap to assure smooth
and quiet running on return rolls. Meets FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 15/64”. Weight: .085 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1 SP Hook, #62 Staple,
#7 Alligator.
Part Number: 20035535
25

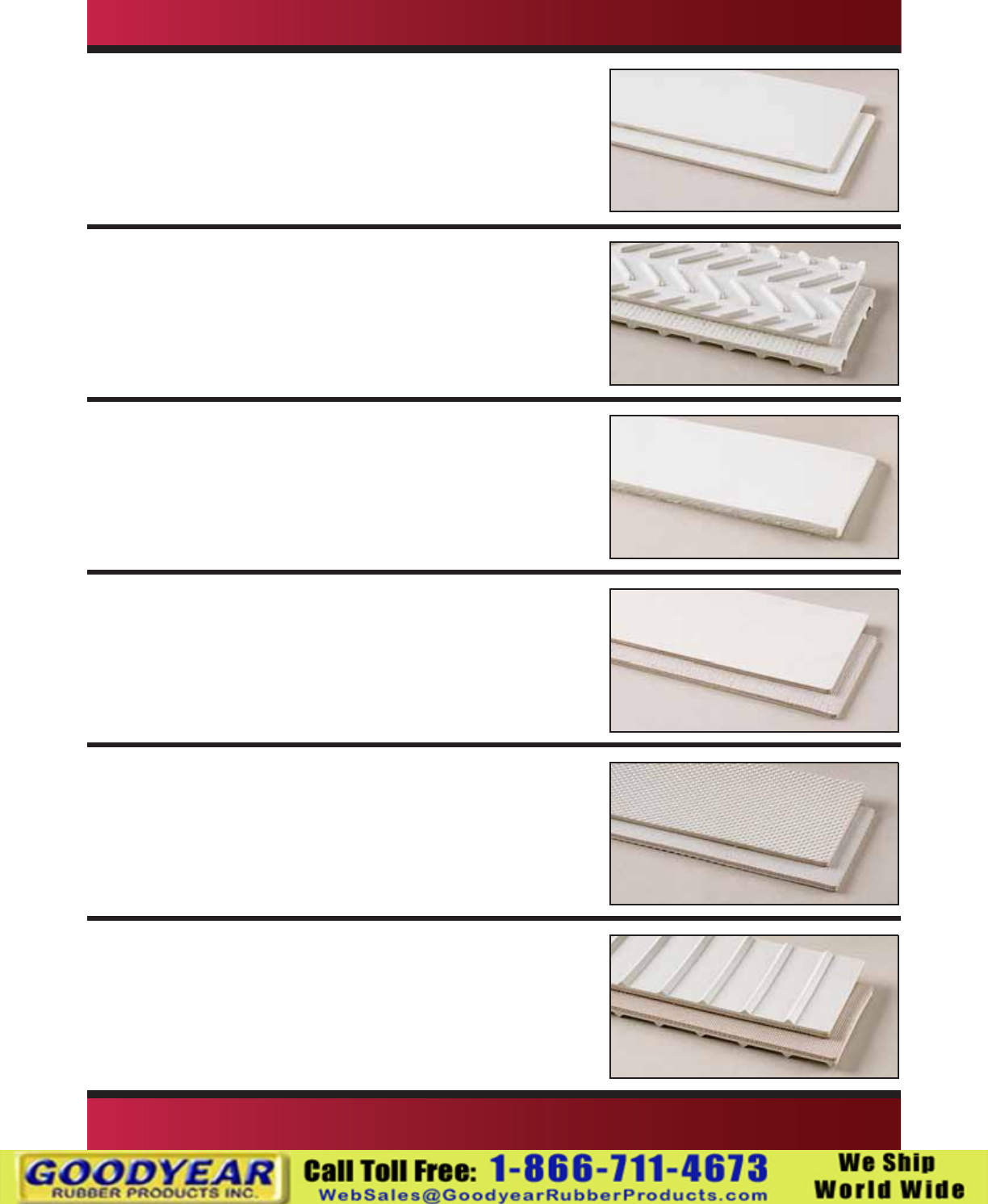

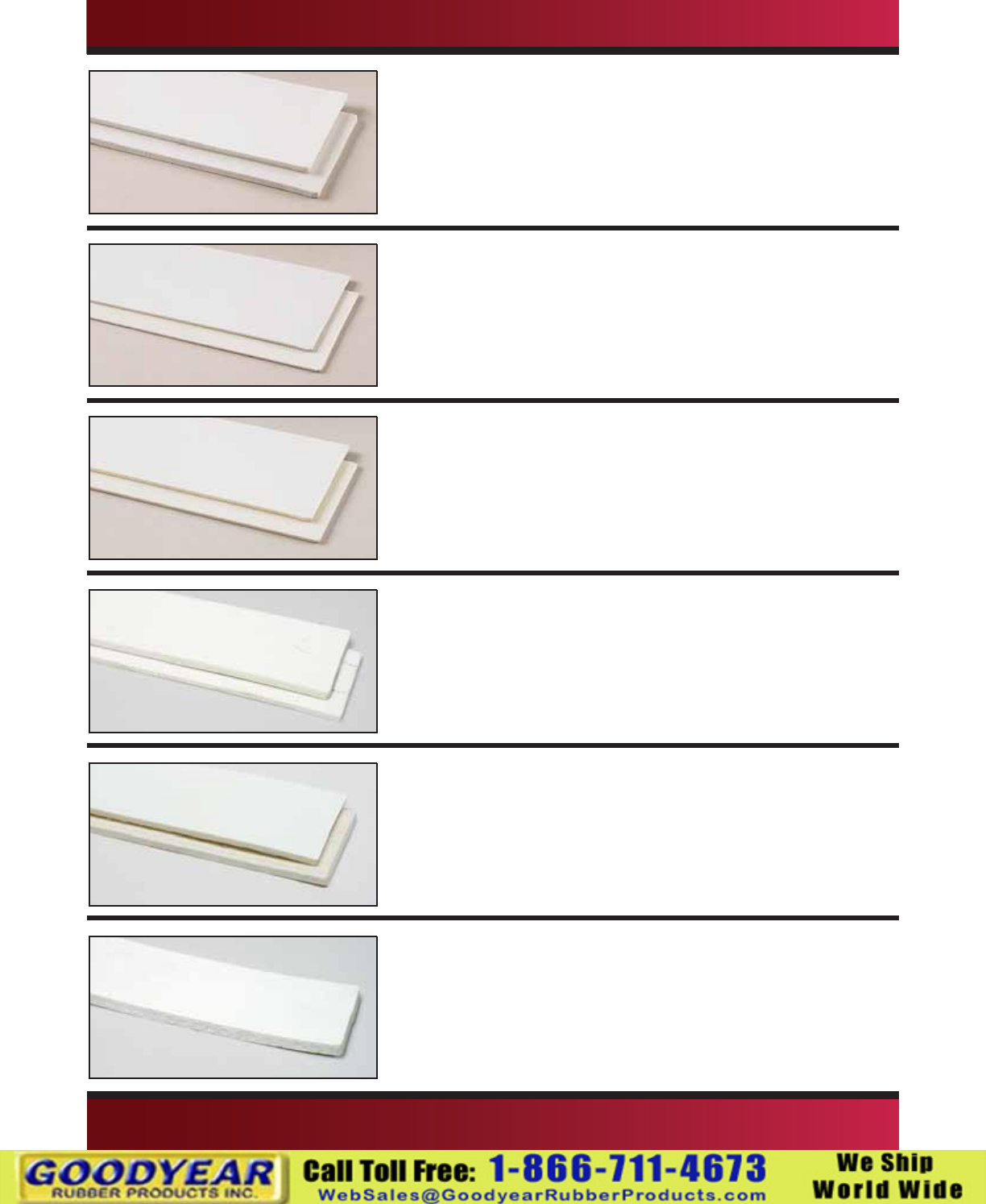

WHITE FOOD BELT
#95 PVC 120 White Cover x Mini Skim Coat
Heavier duty belt that provides a high service yield and is an excellent value for most food pro-
cessing and harvesting uses. Fabricated cleats, anges, v-guides, and other value added proles
can be hot welded to surfaces. Meets FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 9/64”. Weight: .070 piw.
Minimum pulley diameter: 21/2”. Recommended fasteners: # 1 H o o k , # 1 2 5 S t a p l e ,
#15 Alligator.
Part Number: 20035496
#95B PVC 120 White Chevron Top II Oil Resistant x Mini Skim Coat
Excellent belt for moving bulk or free owing materials, such as grains, food stuffs, feeds, and
fertilizers up steep inclines. Alternating rows of solid PVC chevrons form a herringbone pattern
which returns belt smoothly and quietly. Compounds resist grease, fat, vegetable, and mineral
oil exposure. Meets FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 7/32”. Weight: .072 piw.
Minimum pulley diameter: 21/2”. Recommended fasteners: # 1 H o o k , # 1 2 5 S t a p l e ,
#15 Alligator.
Part Number: 20033550
#98 3 Ply Polyester 105 White Butyl 1/32 x Friction Surface
This specication is designed for extreme temperature variations (-65°F to 300°F). Used on heat
sealing machines, heat shrink tunnels, and other high temperature applications. This belt is also
used in cold rooms and freezers where low temperatures are the norm. Meets FDA require-
ments; is USDA accepted.
Temperature range: -65° F to 300° F. Thickness: 7/64”. Weight: .053 piw.
Minimum pulley diameter: 11/2 in hot conditions, 4” in cold.
Recommended fasteners: #1SP Hook, #62 Staple, #7 Alligator.
Part Number: 20028650
#70A PVC 200 White Oil Resistant Cover x Cover
Excellent two cover white belt for heavy duty use on conveyors with FDA requirements, such as
o u r m i l l i n g , s u g a r , o r b u l k f o o d s . C h a r a c t e r i s t i c s i n c l u d e l o w s t r e t c h , h i g h b o l t r e t e n t i o n , a n d a n
SOR compound that is not affected by grains. Meets FDA; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 1/4”. Weight: .142 piw.
Minimum pulley diameter: 6” for conveyor / 8” for elevator.
Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator, #R5 Rivet.
Part Number: 20038208
#99 3 Ply Polyester 105 White Tyler Wire x Friction Surface
This speci cation features an impression capable of high traction on moderate inclines. Often
used in bakeries, produce applications, and for handling packages and small parts. It is non-
marking, oil and grease resistant. Meets FDA, is USDA accepted.
Temperature range: 0° F to 250° F. Thickness: 1/8”. Weight: .060 piw.
Minimum pulley diameter: 2 1/2". Recommended fasteners: #1 Hook, #125 Staple,
#7 Alligator.
Part Number: 20028700
#102 3 Ply Polyester 135 White Nitrile Meat Cleat x Friction Surface
This belt speci cation is an excellent choice for moving meat and poultry products during
processing at federally inspected plants. Smooth surfaces are easily cleaned. Inverted v-shaped
pro les are 1/8" high and spaced evenly on 1" centers. Meets FDA requirements, is USDA ac-
cepted.
Temperature range: 0° F to 250° F. Thickness: 9/64". Weight: .085 piw.
Minimum pulley diameter: 3 1/2". Recommended fasteners: #2 SP Hook, #125 Staple,
#15 Alligator.
Part Number: 20028506
BELT SAMPLES ARE AVAILABLE •
26
WHITE FOOD BELT
#223 2 Ply White Urethane x IMPG Bottom Static Conductive
High quality smooth, non-adhesive urethane top cover. Ideally suited for food conveying and
processing. Hard cover with good release characteristics for sticky material. Monolament poly-
ester carcass with anti-static properties that are excellent for at slide bed and roller conveyors.
FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 1/16”. Weight: .025 piw. Minimum pulley
diameter: 1/2”. Working tension: 46 lbs. piw. Recommended fasteners: # 2 S P , U C M 3 6 S P ,
00 Aligator.
Part Number: 24041040
#224 2 Ply White PVC x IMPG Bottom Static Conductive
This belt has anti-static properties and is excellent for cleated pro les. It is ideally suited for
general food conveying and processing, also excellent for bottom slide bed and roller conveyors.
Applications include food processing such as transporting dry, fatty, oily, and watery foodstuffs.
FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 5/64”. Weight: .042
Minimum pulley diameter: 1”. Working tension at 1% tension: .67 lbs. piw.
Recommended fasteners: #25 LP Hook, #62 Staple, #1 Alligator.
Part Number: 24041010
#104 3 Ply Polyester 105 White Teon x Friction Surface
Excellent belt speci cation for conveying wet sticky materials and uses involving spreading, glu-
ing, and coating. Characteristics of release are the best of rubber like compounds. The strong,
e x i b l e c a r c a s s i s c o v e r e d w i t h a t h i n t e o n l m . M e e t s F D A r e q u i r e m e n t s ; i s U S D A a c c e p t e d .
Temperature range: 0° F to 275° F. Thickness: 3/32”. Weight: .052 piw.
Minimum pulley diameter: 21/2”. Recommended fasteners: # 1 S P H o o k , # 6 2 S t a p l e ,
#7 Alligator.
Part Number: 20028625
#230 4 Ply 200 White RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for conveyor systems requiring corrugated sidewalls. It is a plied
polyester heavy-duty thermoplastic belt specially woven for transverse rigidity. It can be cleated
with hot welded proles, it resists static buildup and has the superior ability to remain at. Meets
FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 7/32”. Weight: .140 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #187 Staple, #27 Alligator.
Part Number: 20038225
#252 3 Ply 150 White RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for conveyor systems requiring corrugated sidewalls. Belt is a plied
polyester heavy-duty thermoplastic, specially woven for transverse rigidity. It can be cleated with
hot welded proles, it resists static build up and has the superior ability to remain at. Meets
FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .083 Minimum pulley
diameter: 3”. Recommended fasteners: #2 Hook, RS#125 Staple, #20 Alligator.
Part Number: 20032953
#67B 2 Ply PVG 220 White 1/16 x 1/16 Static Conductive
Excellent heavy duty food grade belt. Excellent for handling bulk foods such as salt, sugar, and
grain. Good elevator belt with anti-static properties.
Temperature range: 20° F to 180° F. Thickness: 1/4’’. Weight: .126 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #4 Hook, #187 Staple, #27 Alligator,
#140 Solid Plate, #375 Bolt On, #R5 Rivet.
Part Number: 20038509
27

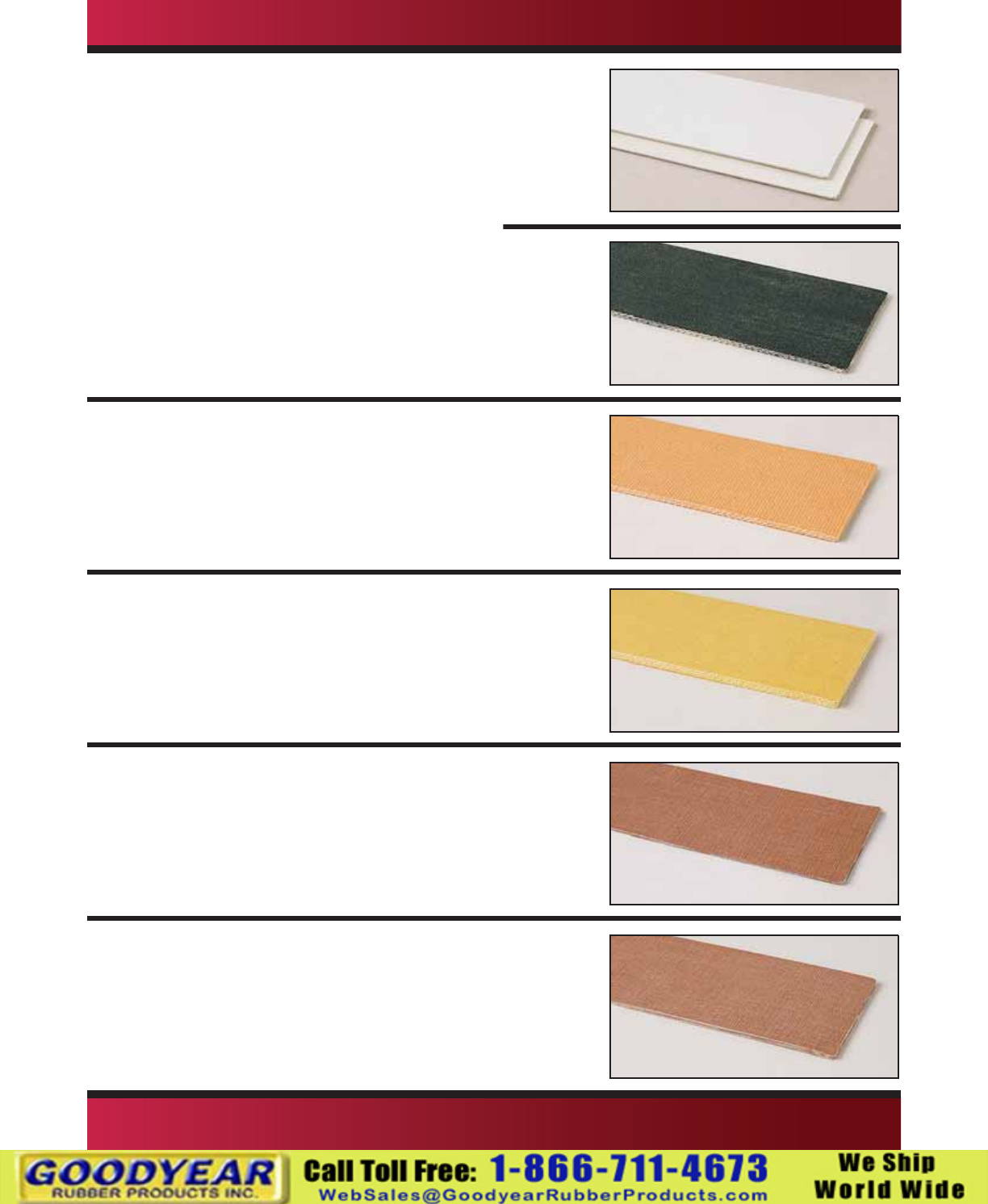

WHITE FOOD / PACAKAGE HANDLING / LIGHT DUT7 BELT
#222 1 Ply White Urethane x IMPG Bottom Static Conductive
High quality smooth non adhesive white urethane top cover. Excellent choice for cooling tunnel
belts and applications requiring a high release surface or small pulley diameters. Anti-static
properties. Operates on knife edge and nose bars. FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 1/32”. Weight: .015 piw.
Minimum pulley diameter: 1/4”. Recommended fasteners: UCM36 XSP.
Part Number: 24041030

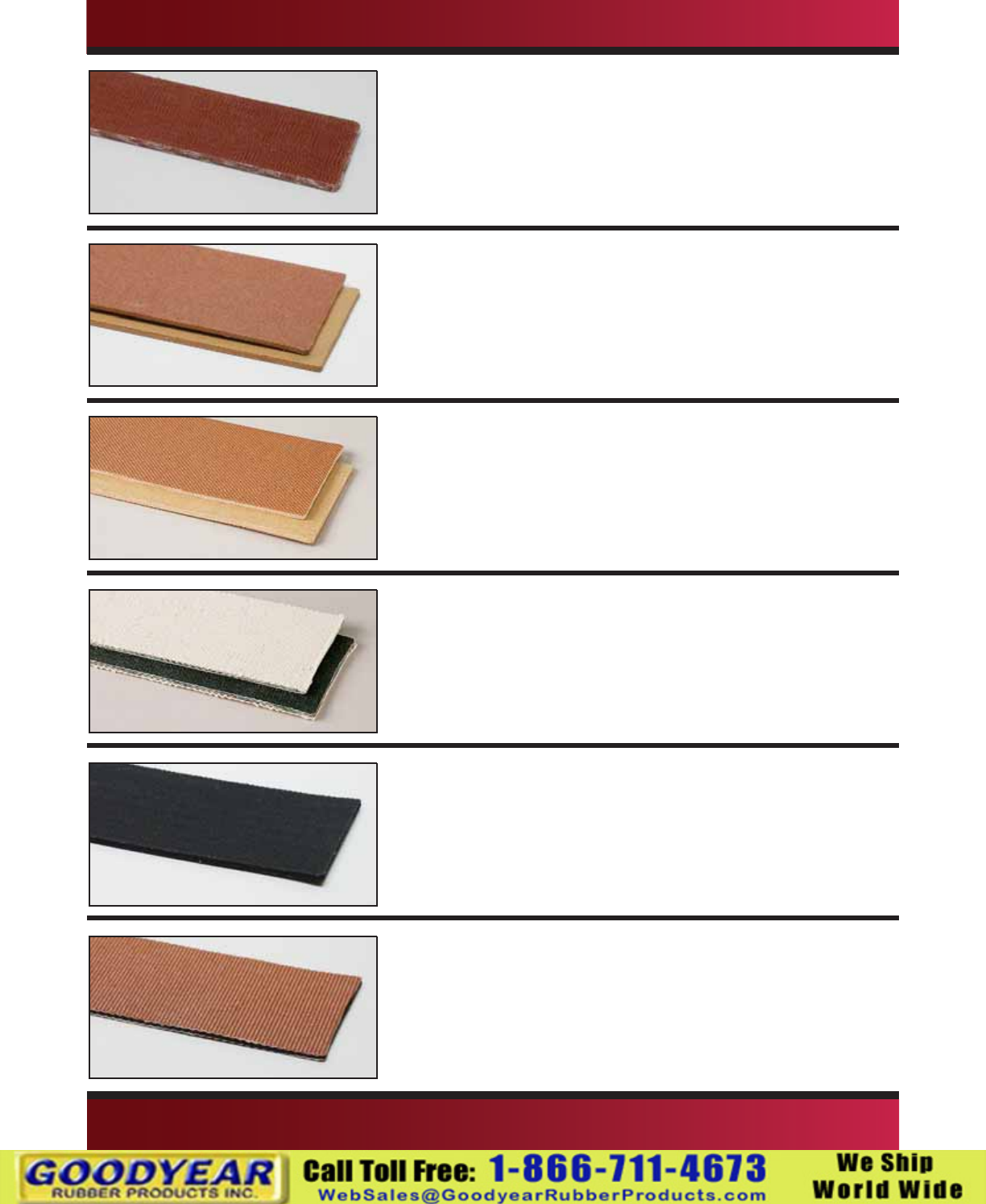

#107 3 Ply 105 Tan Friction Surface x Friction Surface
This belt is non-marking and a standard belt for both conveying products and transmitting power
from pulley to pulley. Often used to convey wood and other building products which might other-
wise be marked by black belting. Can be vulcanized to endless lengths.
Temperature range: -40° F to 250° F. Thickness: 9/64”. Weight: .087 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #1 Hook, #125 Staple, #15 Alligator.
Part Number: 20031018
#109 4 Ply 140 Tan Friction Surface x Friction Surface
This belt is non-marking and a standard belt for heavier duty conveying of products or transmis-
sion of power from pulley to pulley. Often used to convey lumber, plywood, and other wood
products which might otherwise be easily marked by black belting. Can be vulcanized to endless
lengths.
Temperature range: -40° F to 250° F. Thickness: 11/64”. Weight: .110 piw.
Minimum pulley diameter: 6”. Recommended fasteners: #2 Hook, #125 Staple, #20 Alligator
Part Number: 20031506
#106 3 Ply 105 Black Friction Surface x Friction Surface
This belt has long been the standard for a wide variety of conveyor applications including both
slider / roller bed service. It has been used on farm machinery for power transmission and a
multitude of industrial uses where rubber covers are not necessary or desirable.
Temperature range: -40° F to 250° F. Thickness: 1/8”. Weight: .057 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 SP Hook, #125 Staple,
#15 Alligator.
Part Number: 20030518
#111 5 Ply Brown Nitrile Friction Surface x Friction Surface
A tightly woven blend of cotton and polyester fabric. Often referred to as a “sheeting belt” for a
variety of light and medium weight conveying. Nitrile compounds make this construction popular
for oily conditions, particularly metal parts, and for carrying tapes for folding machines. Also suit-
able for medium capacity transmission belt. It is oil, grease, and chemical resistant.
Temperature range: 0° F To 250° F. Thickness: 7/64”. Weight: .065 piw.
Minimum pulley diameter: 11/2”. Recommended fasteners: # 1 S P H o o k , # 6 2 S t a p l e ,
#7 Alligator.
Part Number: 20032650
#110 3 Ply Brown Nitrile Friction Surface x Friction Surface
A tightly woven blend of cotton and polyester fabric. Often referred to as a “sheeting belt” for a
variety of light and medium weight conveying. Nitrile compounds make this construction popular
for oily conditions, particularly metal parts, and for carrying tapes for folding machines. Also suit-
able for medium capacity transmission belt. It is oil, grease, and chemical resistant.
Temperature range: 0° F to 250° F. Thickness: 5/64”. Weight: .037 piw.
Minimum pulley diameter: 3/4”. Recommended fasteners: #25 LP Hook, #62 Staple,
#1 Alligator.
Part Number: 20032700

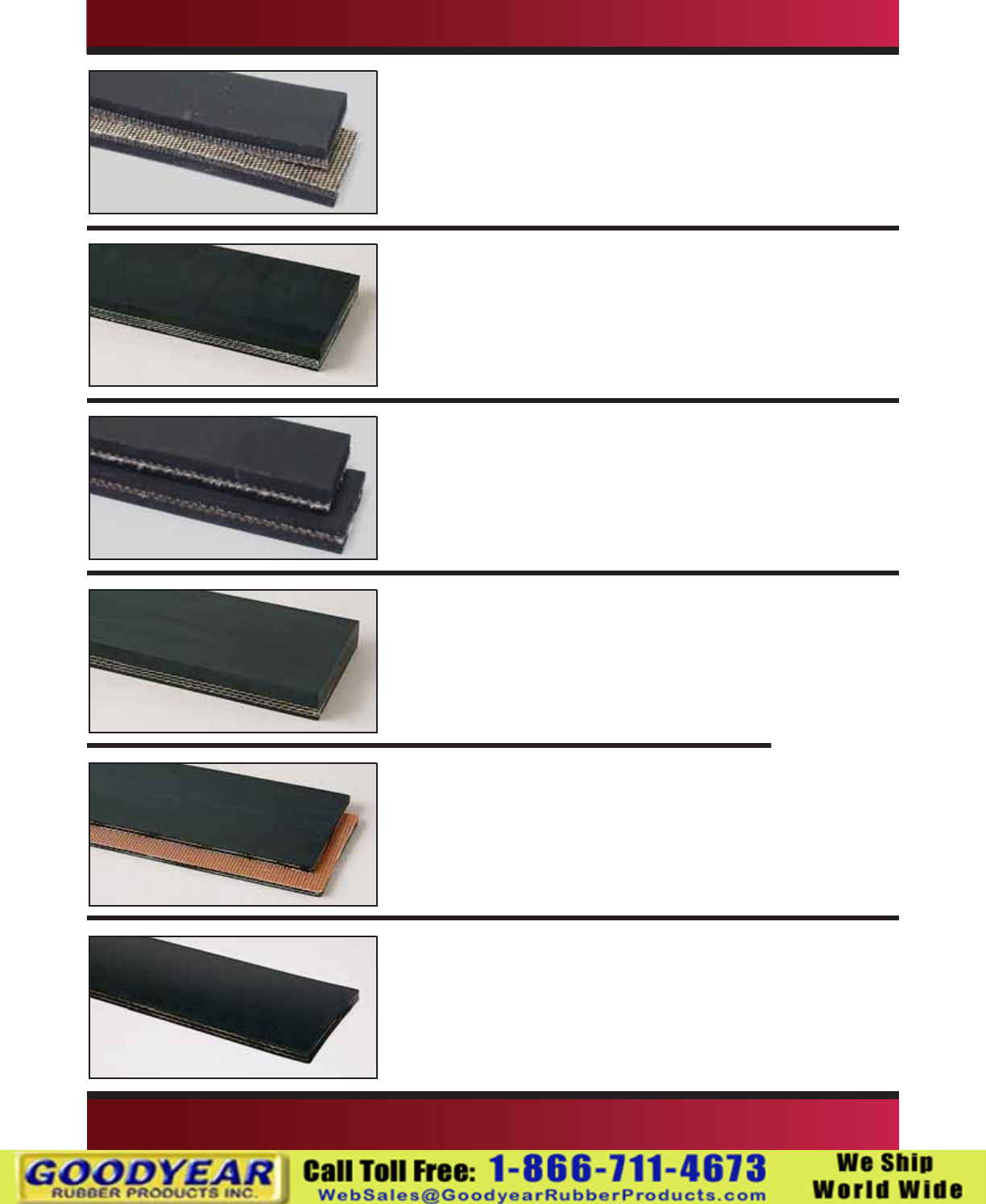

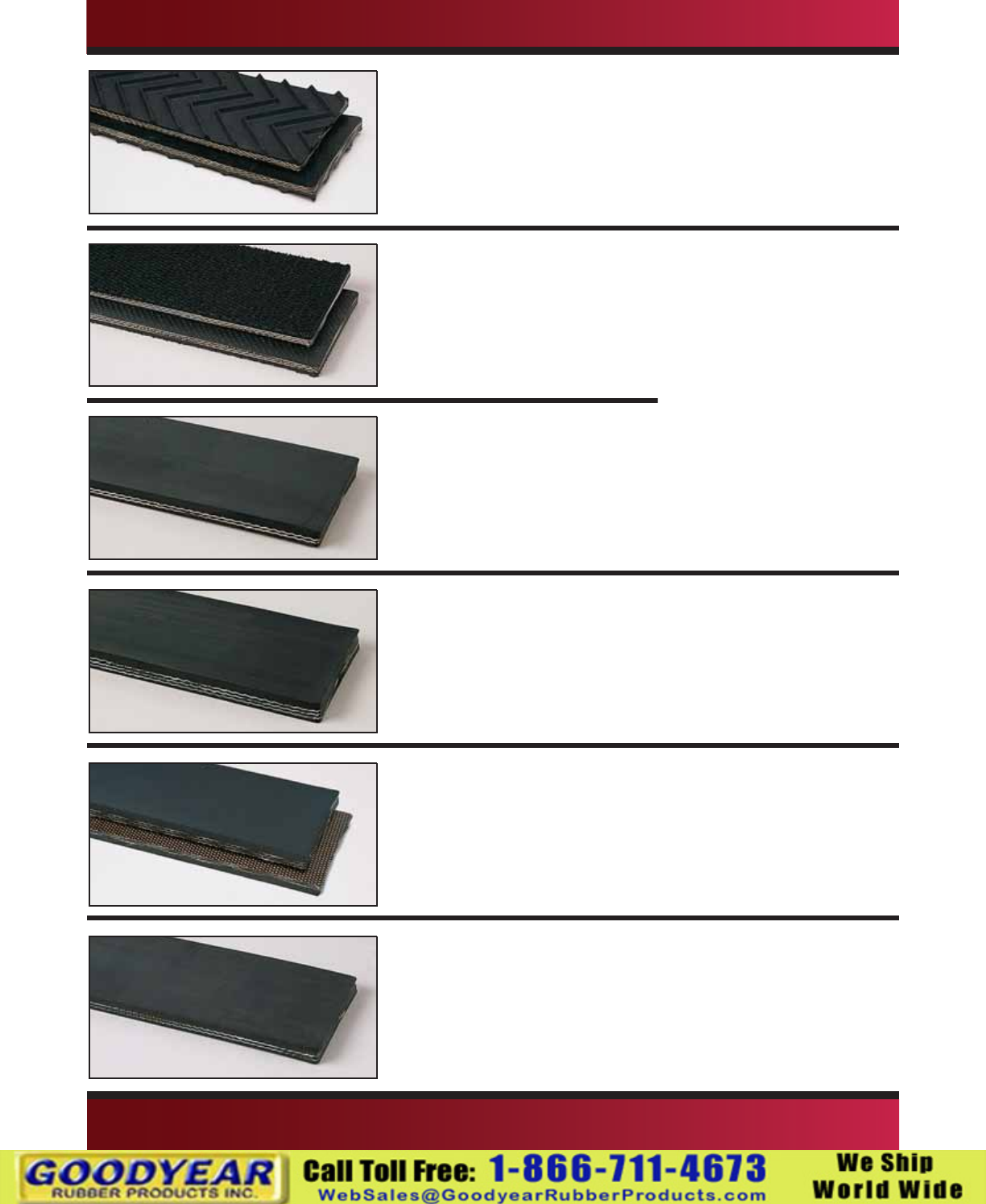

PACKAGE HANDLING / LIGHT DUTY BELT
BELT SAMPLES ARE AVAILABLE •
28
PACKAGE HANDLING / LIGHT DUTY BELT
#203 7 Ply Brown Nitrile Friction Surface x Friction Surface
A tightly woven blend of cotton and polyester fabric. Often referred to as a “sheeting belt” for a
variety of light and medium weight conveying. Nitrile compounds make this construction popular
for oily conditions, particularly metal parts, and for carrying tapes for folding machines. Also suit-
able for medium capacity transmission belt. It is oil, grease, and chemical resistant.
Temperature range: 0° F To 250° F. Thickness: 5/32”. Weight: .094 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #2 Hook, #20 Alligator.
Part Number: 20032690
#113 4 Ply Tan Slip Top x Friction Surface
This belt features a hard woven abrasion resistant bare nylon top ply which is virtually friction-
less. Ideal for stall operations or accumulating applications where the product must stop while
the belt continues to move. Automatic packaging machinery with gates and diverter arms com-
monly use this specication.
Temperature range: -20° F to 250° F. Thickness: 1/8”. Weight: .070 piw.
Minimum pulley diameter: 3”. Recommended fasteners: #1 Hook, #125 Staple, #7 Alligator.
Part Number: 20032500
#114 3 Ply Hot Stock and Water
Originally designed to convey uncured rubber in tire plants, it is often chosen to carry packages.
The bare top surface can function for “stall” operations like other slip top belts or be run on the
bottom for lowest possible friction for slider bed use.
Temperature range: -40° F to 250° F. Thickness: 9/64”. Weight: .072 piw.
Minimum pulley diameter: 31/2”. Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator.
Part Number: 20032550
#195 3 Ply PNT 150 Tan Nitrile Slip Top x Friction Surface
Oil resistant carcass features a hard woven abrasion resistant bare nylon top ply. Excellent
choice for stall and accumulating applications, where oil and grease are present.
Temperature range: 0° F to 250° F. Thickness: 1/8”. Weight: .070 piw.
Minimum pulley diameter: 31/2”. Recommended fasteners: # 1 2 5 S t a p l e ,
#7 Alligator.
Part Number: 20032499
#118A 4 Ply 200 Black Nitrile Friction Surface x Friction Surface
The tightly woven fabric is frictioned throughout with nitrile rubber providing a high degree of
oil resistance and a good degree of cut resistance from nely broken glass, can lids, and other
sharp debris found in garbage. It is also an excellent choice for metal stamping, package and
luggage handling applications.
Temperature range: 0° F to 250° F intermittent. Thickness: 9/64”. Weight: .070 piw. Mini-
mum pulley diameter: 3”. Recommended fasteners: #1 Hook, #125 Staple, #15 Alligator.
Part Number: 20031515
#118B 2 Ply 220 Tan Bare Back x Bare Back w/Black Skim
Durable high strength two ply polyester belt with a low coef cient of friction on both top
and bottom sides. Ideal for handling luggage, parcels, and boxed goods.
Temperature range: -25° F to 225° F. Thickness: 5/32”. Weight: .075 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #1 Hook, #125 Staple,
#15 Alligator, #R2 Rivet.
Part Number: 20030515
29

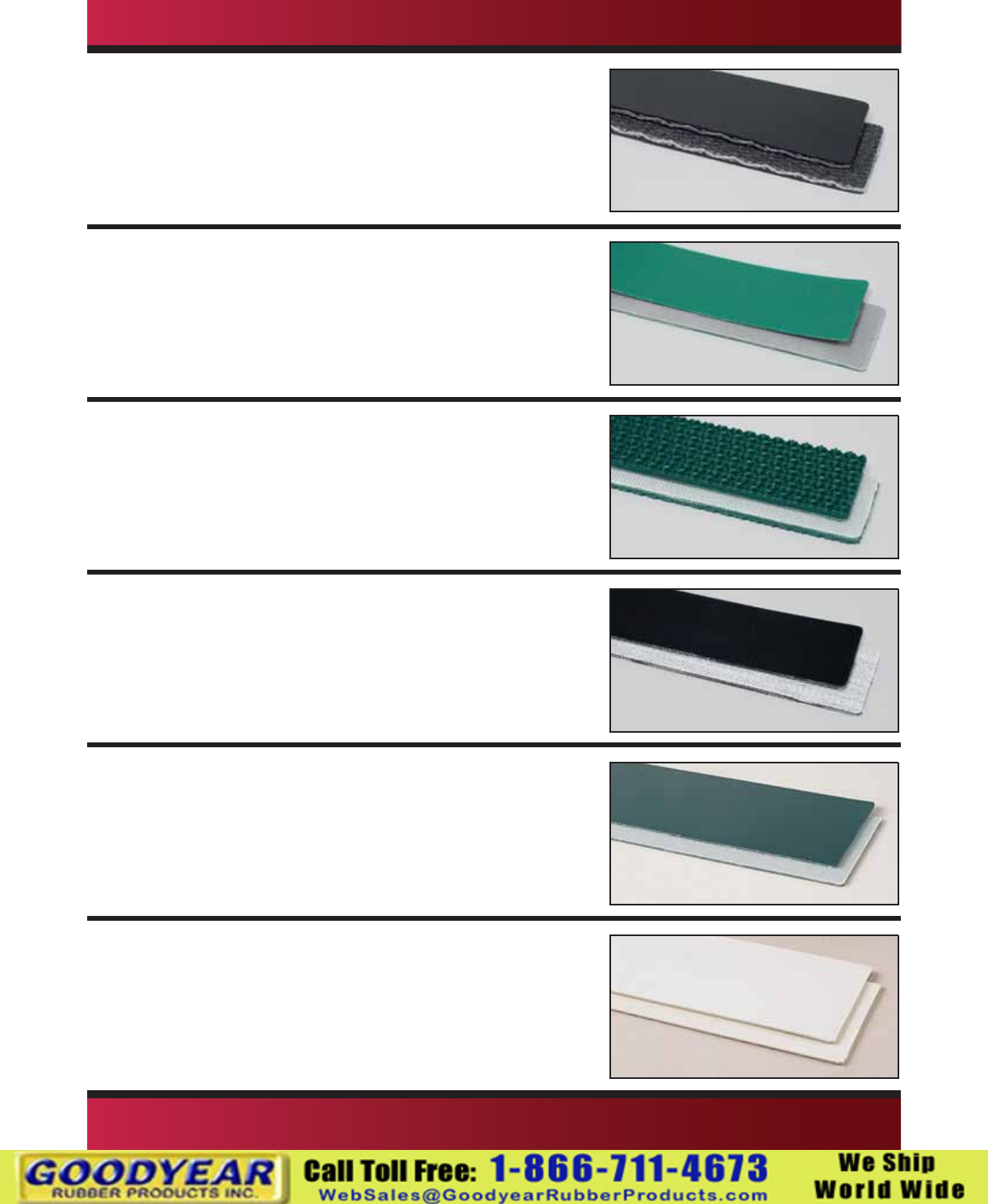

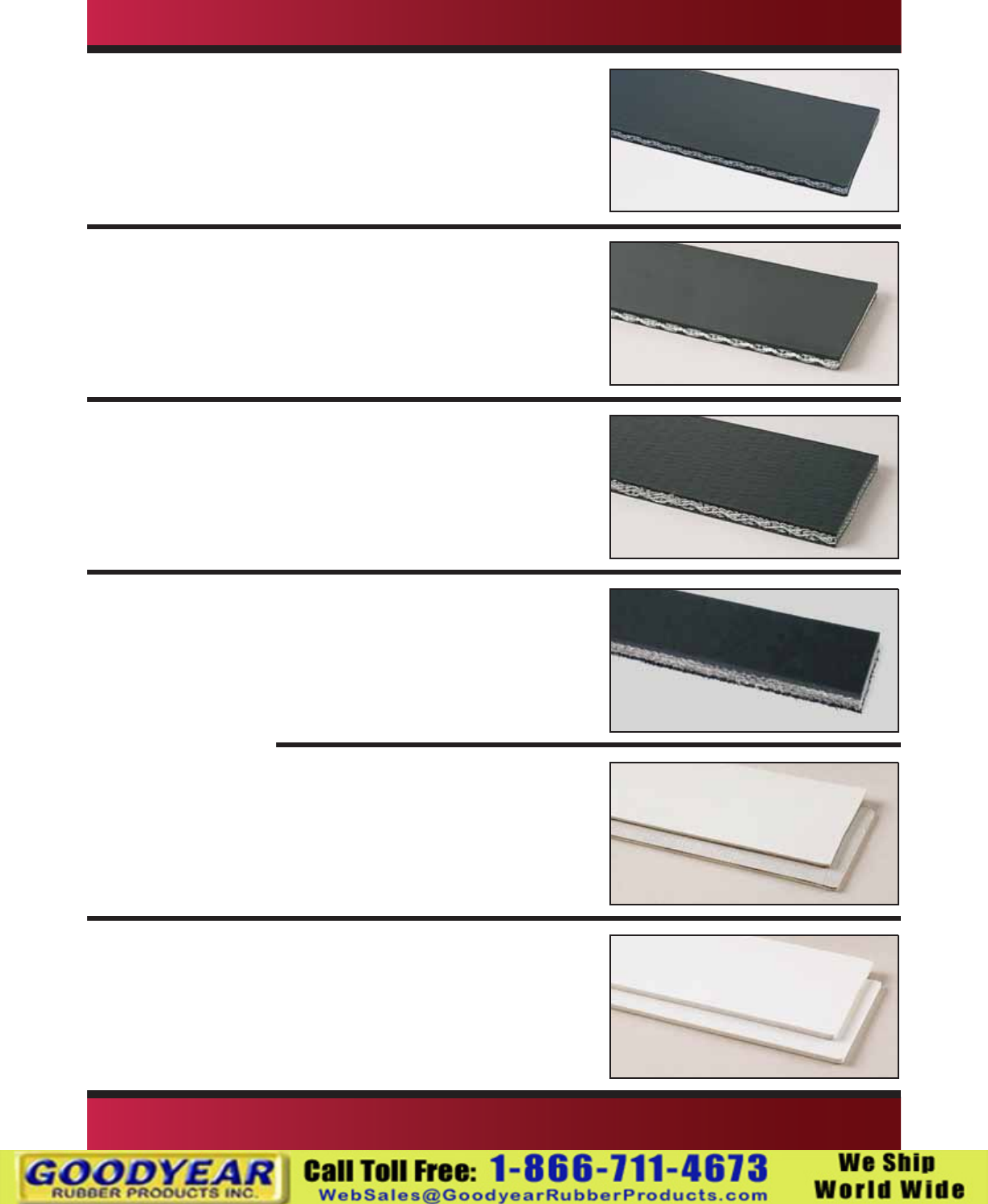

THERMOPLASTIC BELT
#244 ATI 150 Black Urethane x Friction Surface
Very popular medium duty urethane belt proven for long wear, high performance and problem
free material handling. Ideal for a variety of roller/slider bed applications. Oil resistant, accommo-
dates fertilizers, chemicals, bulk materials, grain and packaging.
Temperature range: 20° F to 180° F. Thickness: 3/16”. Weight: .090 piw. Minimum pulley
diameter: 21/2”. Recommended fasteners: #125 Staple, #20 Alligator.
Part Number: 20040550
#249 2 Ply Green Urethane x IMPG Static Conductive
A thin urethane belt with excellent cut and gouge resistance, as well as good release charater-
istics. Excellent food and material handling speci cation, it is also a good choice for stall/accu-
mulating applications. Smooth antistatic urethane cover is abrasion resistant, non-marking, and
meets FDA requirements.
Temperature range: 20° F to 180° F. Thickness: 1/16”. Weight: .025 piw.
Minimum pulley diameter: 5/8”. Recommended fasteners: #25 LP, Hot vulcanized finger
splice, Cold bond bias step splice.
Part Number: 24041050
#250 2 Ply Green PVC Roughtop x Bare Back
This roughtop textured PVC belt has an abrasion resistant super-grip surface that enables pack-
ages, boxes, cases, and other products to be conveyed on both inclines and declines. Special
low noise cover design allows the belt to run quieter on return idlers.
Temperature range: 20° F to 180° F. Thickness: 7/32”. Weight: .077 piw.
Minimum pulley diameter: 2 1/2”. Recommended fasteners: #25 LP, 36LL, 62 Staple, Hot
vulcanized finger splice, Cold bond bias step splice.
Part Number: 24041070
#251 2 Ply Black PVC x Bare Back Static Conductive
This roughtop textured PVC belt has an abrasion resistant super-grip surface that enables pack-
ages, boxes, cases, and other products to be conveyed on both inclines and declines. Special
low noise cover design allows the belt to run quieter on return idlers.
Temperature range: 20° F to 180° F. Thickness: 3/32”. Weight: .042 piw. Minimum pulley
diameter: 1 1/2”. Recommended fasteners: #25 LP, UCM36 SP, Hot vulcanized finger splice,
Cold bond bias step splice.
Part Number: 24041090
#229 2 Ply Green PVC Static Conductive x Bare Back
All around general use conveying with low noise back side. High grade static conductive PVC
cover is excellent for resistance to cuts, abrasions, vegetable oils, mineral oils, and animal fats.
Excellent for at slide or roller bed use.
Temperature range: 20° F to 180° F. Thickness: 5/64”. Weight: .040 piw. Minimum pulley
diameter: 15/8”. Working tension at 1% tension: 86 lbs. piw. Recommended fasteners:
#25 LP Hook, #62 Staple, #1 Alligator.
Part Number: 24009752
#223 2 Ply White Urethane x IMPG Bottom Static Conductive
High quality smooth, non-adhesive urethane top cover. Ideally suited for food conveying and
processing. Hard cover with good release characteristics for sticky material. Monolament poly-
ester carcass with anti-static properties that are excellent for at slide bed and roller conveyors.
FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 1/16”. Weight: .025 piw. Minimum pulley
diameter: 1/2”. Working tension: 46 lbs. piw. Recommended fasteners: # 2 S P H o o k ,
#00 Alligator, UCM36 SP.
Part Number: 24041040
BELT SAMPLES ARE AVAILABLE •
30

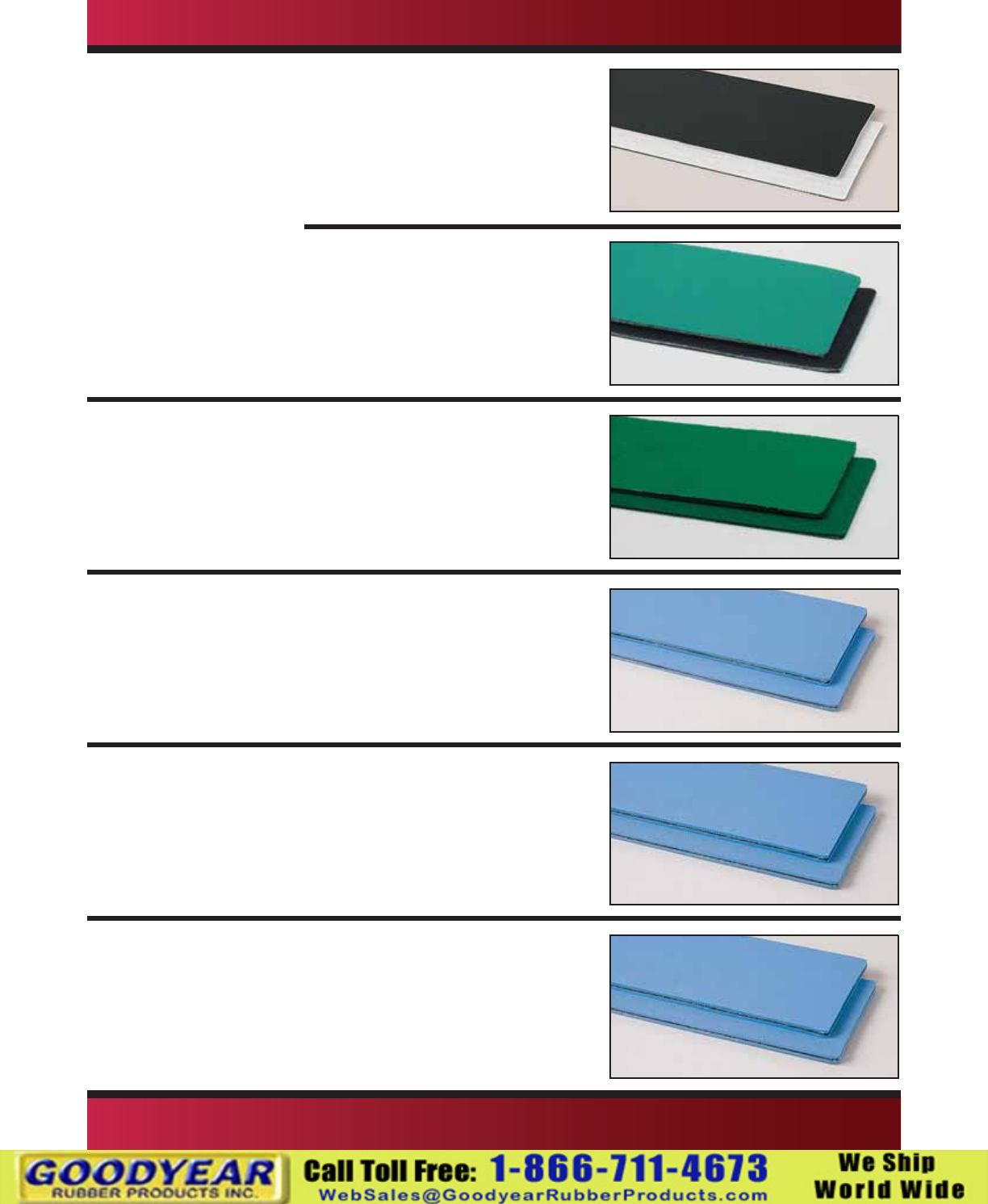

THERMOPLASTIC BELT
#231 4 Ply 200 Black RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for de ected conveyor systems requiring corrugated sidewalls.
Belt is a plied polyester heavy-duty thermoplastic, specially woven for transverse rigidity. It can
be cleated with hot welded pro les, resists static build-up, and has the superior ability to remain
a t .
Temperature range: 20° F to 180° F. Thickness: 7/32”. Weight: .140 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #187 Staple; #27 Alligator.
Part Number: 20032957
#222 1 Ply White Urethane x IMPG Bottom Static Conductive
High quality smooth non adhesive white urethane top cover. Excellent choice for cooling tunnel
belts and applications requiring a high release surface or small pulley diameters. Anti-static
properties. Operates on knife edge and nose bars. FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 1/32”. Weight: .015 piw.
Minimum pulley diameter: 1/4”. Recommended fasteners: UCM36 XSP.
Part Number: 24041030
#253 3 Ply 150 Black RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for de ector conveyor systems requiring corrugated sidewalls. Belt is a
plied polyester heavy-duty thermoplastic, specially woven for transverse rigidity. It can be cleated
with hot welded proles, it resists static build-up and has the superior ability to remain at.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .083 Minimum pulley
diameter: 3”. Recommended fasteners: #2 Hook, RS #125 Staple, #20 Alligator.
Part Number: 20032955
#224 2 Ply White PVC x IMPG Bottom Static Conductive
This belt has anti-static properties and is excellent for cleated pro les. It is ideally suited for
general food conveying and processing, also excellent for bottom slide bed and roller conveyors.
Applications include food processing such as transporting dry, fatty, oily, and watery foodstuffs.
FDA/USDA approved.
Temperature range: 20° F to 180° F. Thickness: 5/64”. Weight: .042
Minimum pulley diameter: 1”. Working tension at 1% tension: .67 lbs. piw.
Recommended fasteners: #25 LP Hook, #62 Staple, #1 Alligator.
Part Number: 24041010
#230 4 Ply 200 White RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for conveyor systems requiring corrugated sidewalls. It is a plied
polyester heavy-duty thermoplastic belt specially woven for transverse rigidity. It can be cleated
with hot welded proles, it resists static buildup and has the superior ability to remain at. Meets
FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 7/32”. Weight: .140 piw.
Minimum pulley diameter: 8”. Recommended fasteners: #187 Staple, #27 Alligator.
Part Number: 20038225
#252 3 Ply 150 White RMV Cross Rigid Static Conductive x Bare Back
This speci cation is used for conveyor systems requiring corrugated sidewalls. Belt is a plied
polyester heavy-duty thermoplastic, specially woven for transverse rigidity. It can be cleated with
hot welded proles, it resists static build up and has the superior ability to remain at. Meets
FDA requirements; is USDA accepted.
Temperature range: 20° F to 180° F. Thickness: 11/64”. Weight: .083 Minimum pulley
diameter: 3”. Recommended fasteners: #2 Hook, RS#125 Staple, #20 Alligator.
Part Number: 20032953
31
THERMOPLASTIC / TRANSMISSION BELT
#60 2 Ply 60 Matte PVC Checkout Counter x Bare Back
2 plies of polyester fabric (60 lb. piw) provide adequate strength for this thin belt commonly
used at retail check out stands. Black PVC cover resists stains, cutting, and gouges from rough
use. Matte cover is easily cleaned while back surface has a low coef cient of friction for smooth
operation on slider surfaces.
Temperature range: 20° F to 180° F. Thickness: 5/64”. Weight: .047 piw.
Minimum pulley diameter: 2”. Recommended fasteners: #1A Hook, 25 LP Hook, #1 Alligator.
Part Number: 20032710
#236 XH500-4
Extra heavy blue cover on both sides with anti-statics properties and excellent exibility, for use
on high wear drives. Used for carton and box folding and gluing, tube winding, live roller convey-
ing. High strength pre-set nylon core. Highly abrasion, oil, and chemical resistant rubber covers,
with superior resistance to exing fatigue. Resistant to fats, oil, grease, gasoline, humidity, dry-
ness, dust, many chemicals and solvents. Not resistant to phenol, creosol, concentrated acids.
Temperature range: 0° F to 250° F. Thickness: 5/32”. Weight: .158 piw.
Minimum pulley diameter: 11/2”. Continuous service. Coefficient of friction on steel is: .6 to .8.
Recommended splice: Thermofix skived.
Part Number: 24005513
#241 F-1
A popular anti-static 2 ply polyamide machine tape used in paper manufacturing and processing.
Frequently use on sheeters for converting, as well as feed board and delivery tapes on printing
presses, and vacuum belts for typesetting.
Temperature range: 0° F to 212° F. Thickness: 3/64”. Weight: .021 piw.
Minimum pulley diameter: 1”. Recommended splice: Thermofix Skived.
Part Number: 24041193
#240 HAM-5P
Heavy duty three ply conveying and processing belt. Used extensively in the printing and paper
processing industry. Popular applications include paper roll transferring, sheeter, folders, and
stackers. Belt has an anti-static green nitrile top cover with a black polyurethane bottom surface.
Temperature range: 0° F to 212° F. Thickness: 1/32”. Weight: .014 piw.
Minimum pulley diameter: 5/8”. Recommended splice: Thermofix Skived.
Part Number: 24041195
#237 XH500-5
Extra heavy blue cover on both sides with anti-static properties and excellent exibility, for use
on high wear drives. Used for carton and box folding and gluing, tube winding, and live roller
conveying. High strength pre-set nylon core. Highly abrasion, oil and chemical resistant rubber
covers, with superior resistance to exing fatigue. Resistant to fats, oil, grease, gasoline, humid-
ity, steam, dryness, dust, many chemicals and solvents. Not resistant to phenol, creosol, or
concentrated acids.
Temperature range: 0° F to 250° F. Thickness: 13/64”. Weight: .197 piw.
Minimum pulley diameter: 21/4”. Continuous service. Coefficient of friction on steel: .6 to .8.
Recommended splice: Thermofix skived.
Part Number: 24005512
#238 XH500-6
Extra heavy blue cover on both sides with anti-static properties and excellent exibility, for use on
high wear drives. Used for carton and box folding and gluing, tube winding, and live roller convey-
ing. High strength pre-set nylon core. Highly abrasion, oil and chemical resistant rubber covers,
with superior resistance to exing fatigue. Resistant to fats, oil, grease, gasoline, humidity, steam,
dryness, dust, many chemicals and solvents. Not resistant to phenol, creosol, or concentrated acids.
Temperature range: 0° F to 250° F. Thickness: 15/64”. Weight: .236 piw.
Minimum pulley diameter: 2 1/2”. Continuous service. Coefficient of friction on steel is: .6 to .8.
Recommended splice: Thermofix skived.
Part Number: 24005514
TRANSMISSION BELT
BELT SAMPLES ARE AVAILABLE •
32

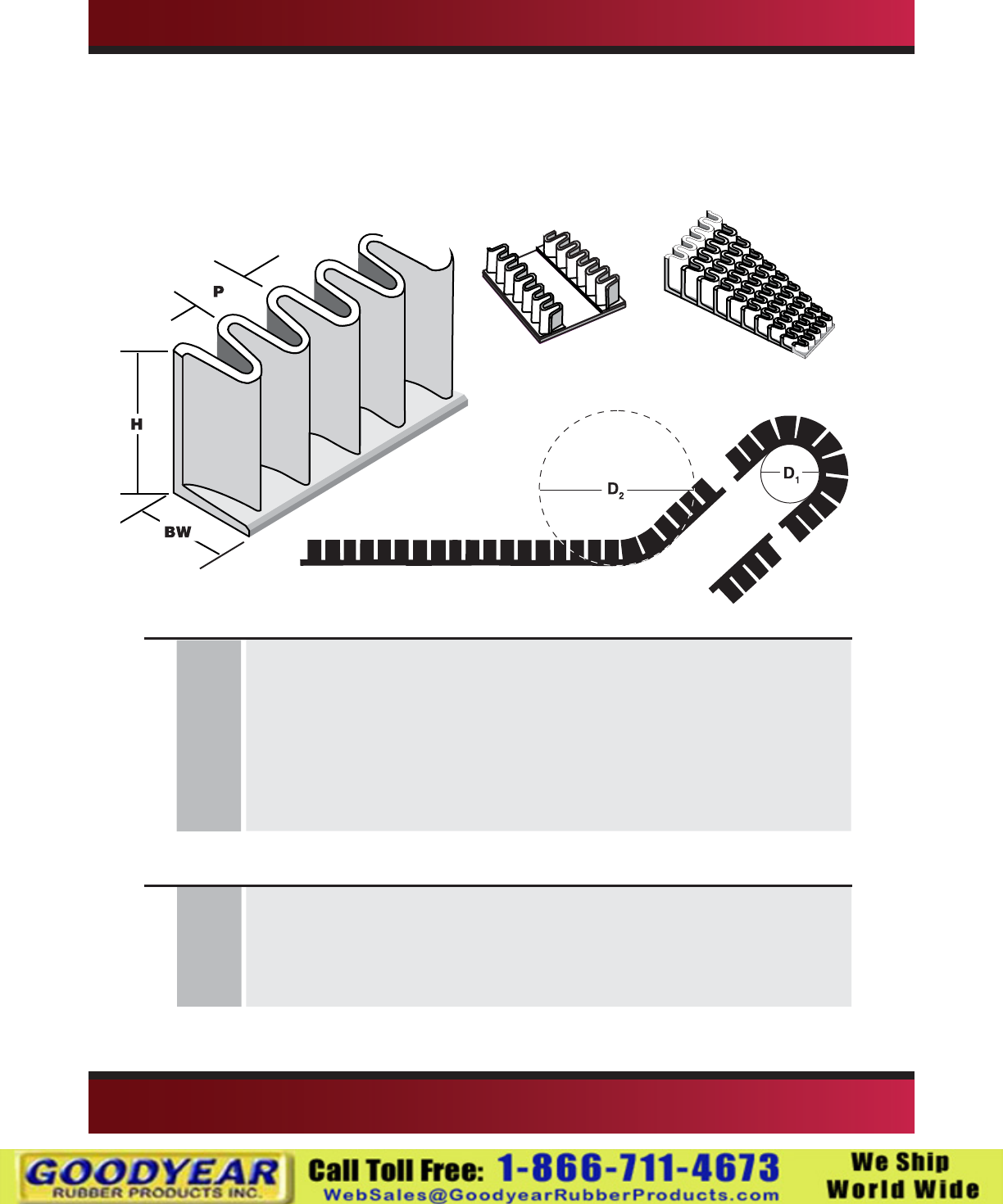

DUROWALL CORRUGATED SIDEWALL
Appropriately named for it’s engineered durability, our Durowall sidewall belting consists of two corrugated sidewalls
bonded to a base belt. This makes it possible to design a steep angle conveyor system that will move a far greater vol ume of
bulk material at any angle of inclination. Depending on the types of cleats and height of the sidewalls, you can ac tu al ly move
product at angles up to and including 90°. With Durowall sidewall belting, conveyors can be designed in al most any con-
ceivable confi guration and to fi t in even the most confi ned areas. Instead of having to transfer material from one conveyor to
another, Apache’s Durowall sidewall belting simply changes the planes of travel. Save valuable space and elim i nate spillage
and loss that occurs at transfer points by using corrugated Durowall sidewall belting.
Durowall™ Corrugated Sidewalls
Height Base Width Pitch Weight Cleat Height D1 D1 D2
(H) (BW) (P) Per Foot/Lbs (Recommended) (Standard Black) (All Other Compounds)
1" 1 1/2" 7/8" .35 2" 6" 8"
1 1/2" 1 1/2" 7/8" .50 1" 3" 6" 8"
2" 2" 1 1/4" .80 1 1/2" 4" 8" 10"
2 1/2" 2" 1 5/8" .95 2" 6" 10" 12"
3" 2" 1 5/8" 1.10 2 1/2" 8" 12" 16"
4" 2" 1 5/8" 1.40 3 1/2" 10" 14" 18"
5" 2" 1 5/8" 1.75 4 1/2" 12" 16" 20"
6" 2" 1 5/8" 2.20 5 1/2" 14" 20" 24"
Durowall™ Fabric Reinforced Corrugated Sidewalls
Height Base Width Pitch Weight Cleat Height D1 D1 D2
(H) (BW) (P) Per Foot/Lbs (Recommended) (Standard Black) (All Other Compounds)
6" 3" 2 7/16" 3.0 5 1/2" 14" 20" 24"
8" 3" 2 7/16" 4.3 7 1/2" 16" 20" 32"
10" 3" 2 7/16" 5.5 9 1/2" 20" 24" 40"
12" 3" 2 7/16" 6.8 11 1/2" 24" 30" 48"
Rubber compounds available: black standard, black oil resistant, black static conducting, black (MSHA), black heat resistant (350°), and white (FDA).
Note: Larger sizes are available upon request.
See chart below for recommended pulley diameters.
Durowall sidewall is
available in heights one inch and up.
33
Larger sizes available upon request.
Larger sizes available upon request.
Use chart section D1 and D2 of desired cleat.

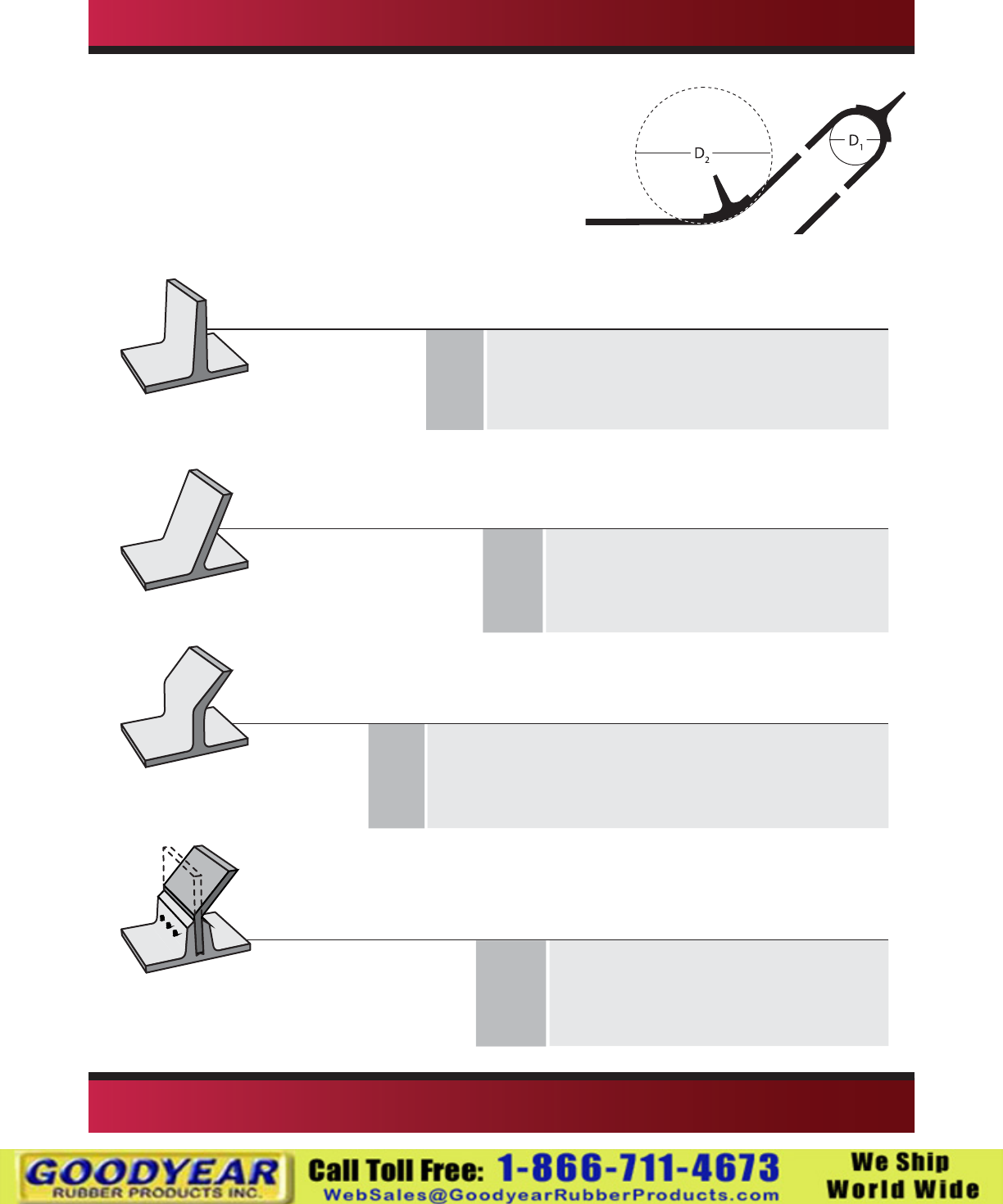

SIDEWALL CLEAT STYLES
Apache has cleat confi gurations that provide maximum productivity
and handling effi ciency, based on the type of ma te ri al be ing carried
and the an gle of inclination. Straight T-Cleats are rec om mend ed on
inclines up to 50°. The C or S cleats al low for larger handling ca pac i ties
on inclines greater than 40°. Two piece com bination cleats are also
available, in which T or S paddles can be in ter changed by bolt ing them
to the cleat base. Larg er cleats are bolt ed to the sidewalls to in crease
their strength and insure last ing re li abil i ty.
T-Cleat
T-Cl e a t T-100 T-15 0 T-20 0 T-250 T-300 T-350 T-400
Height 1" 1.5" 2" 2.5" 3" 3.5" 4"
D1 4" 5" 6" 8" 10" 14" 14"
D2 8" 8" 10" 10" 12" 16" 18"
C-Cleat
C-Cleat C-200 C-250 C-300 C-350 C-400 C-450
Height 2" 2.5" 3" 3.5" 4" 4.5"
D1 6" 8" 8" 10" 12" 12"
D2 10" 12" 12" 16" 16" 16"
S-Cleat
S-Cleat S-300 S-350 S-400 S-450 S-500 S-550 S-700 S-900
Height 3" 3.5" 4" 4.5" 5" 5.5" 7" 9"
D1 8" 11" 12" 12" 16" 16" 16" 20"
D2 12" 16" 16" 18" 20" 20" 20" 24"
Bolted Cleat (S or T)
Bolted-Cleat S/T 450 S/T 500 S/T550 S/T600 S/T700 S/T900
Height 4.5" 5" 5.5" 6" 7" 9"
D1 14" 14" 14" 14" 14" 14"
D2 20" 20" 20" 20" 20" 20"
34
Name:___________________________________________ Company Name:_______________________________
City/State/Zip:___________________________________________________________________________________
Contact:_______________________________ Phone:__________________ Fax:___________________________
Ref. Info.:______________________________________________________________________________________
Material:_______________________________________________________________________________________
Density:__________________________ Size:____________________ Min:_______________ Max:___________
Surcharge:_______________________ Temperature:_____________ Min:_______________ Max:___________
Capacity:_________________________ Belt Speed (check____if maximum):________________________________
Width Preference:__________________ Pulley Diameter (check ____if maximum):___________________________
Oil Resistance Required?_______________Yes_______No

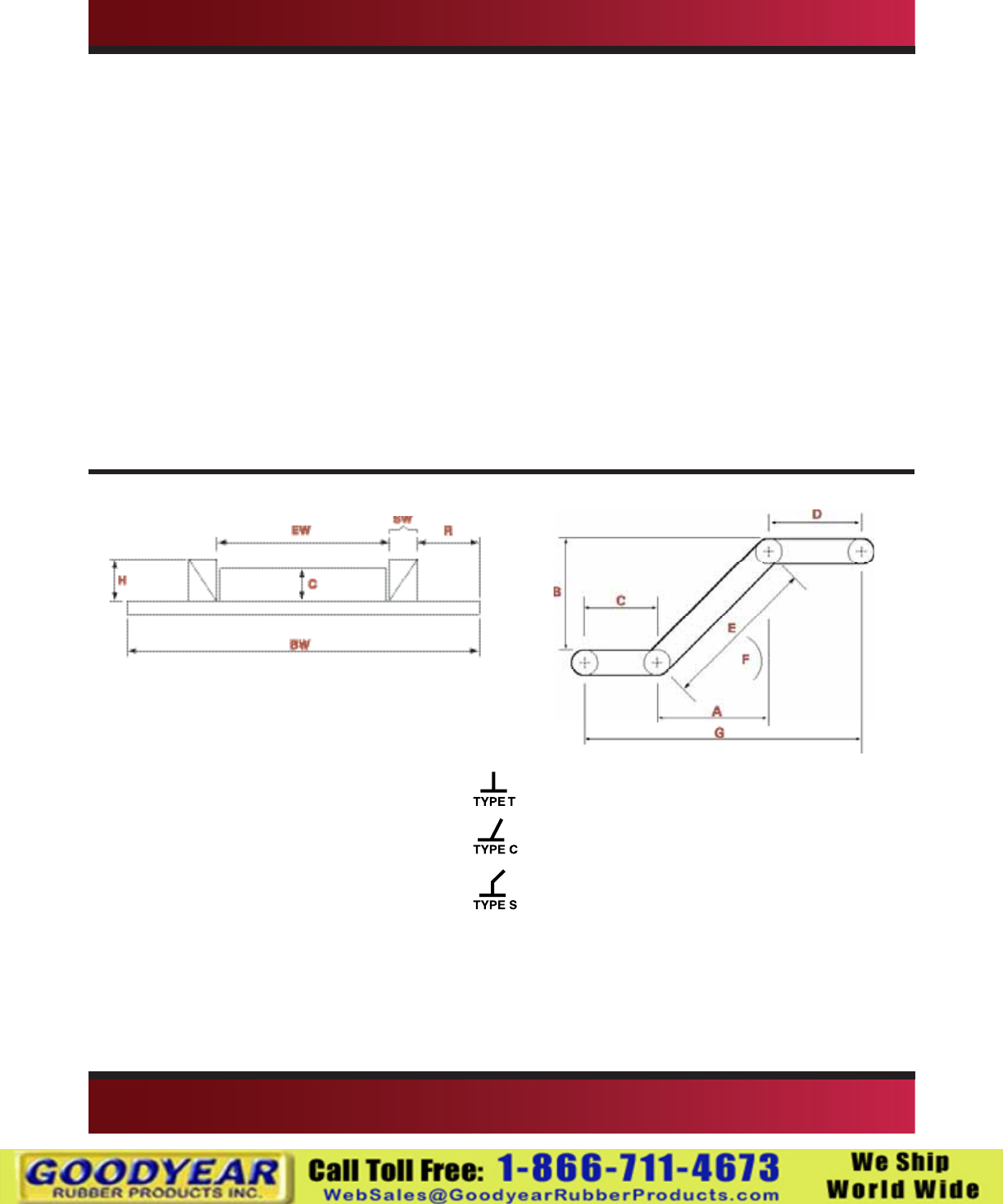

Belt Length ________________________________________________
Belt Width (BW)___________________________________________
Sidewall Height (H)________________________________________
Sidewall Recess (R)______________________________________
Sidewall Width (SW)_______________________________________
Effective Width (EW)_________________________________________
Cleat Height (C)______________________________________________
Belt Type_________________________________________________
Pulley Dia.__________________________________________________
Defl. Dia._________________________________________________
Cleat Type_________________________________________________
Cleat Spacing______________________________________________
Cleat Fastened to Wall?_______________________________________
Fasteners___________________________________________________
A Horizontal of Incline_______________________________
B Lift_____________________________________________
C Infeed/or Horiz. Conv.______________________________
D Discharge________________________________________
E Incline Length____________________________________
F Incline Angle_____________________________________
G Horizontal Length_________________________________
EXISTING BELT SPECIFICATIONS FOR REPLACEMENT PARTS/PRICING
DUROWALL DESIGN WORKSHEET
COPIES OF THIS DATA SHEET CAN BE USED TO HELP DETERMINE YOUR BELTING REQUIREMENTS. ACCURATE AND
COMPLETE INFORMATION IS NECESSARY TO RECOMMENDED THE PROPER SOLUTION FOR YOUR APPLICATION.
BELT FABRICATION DESIGNS
35

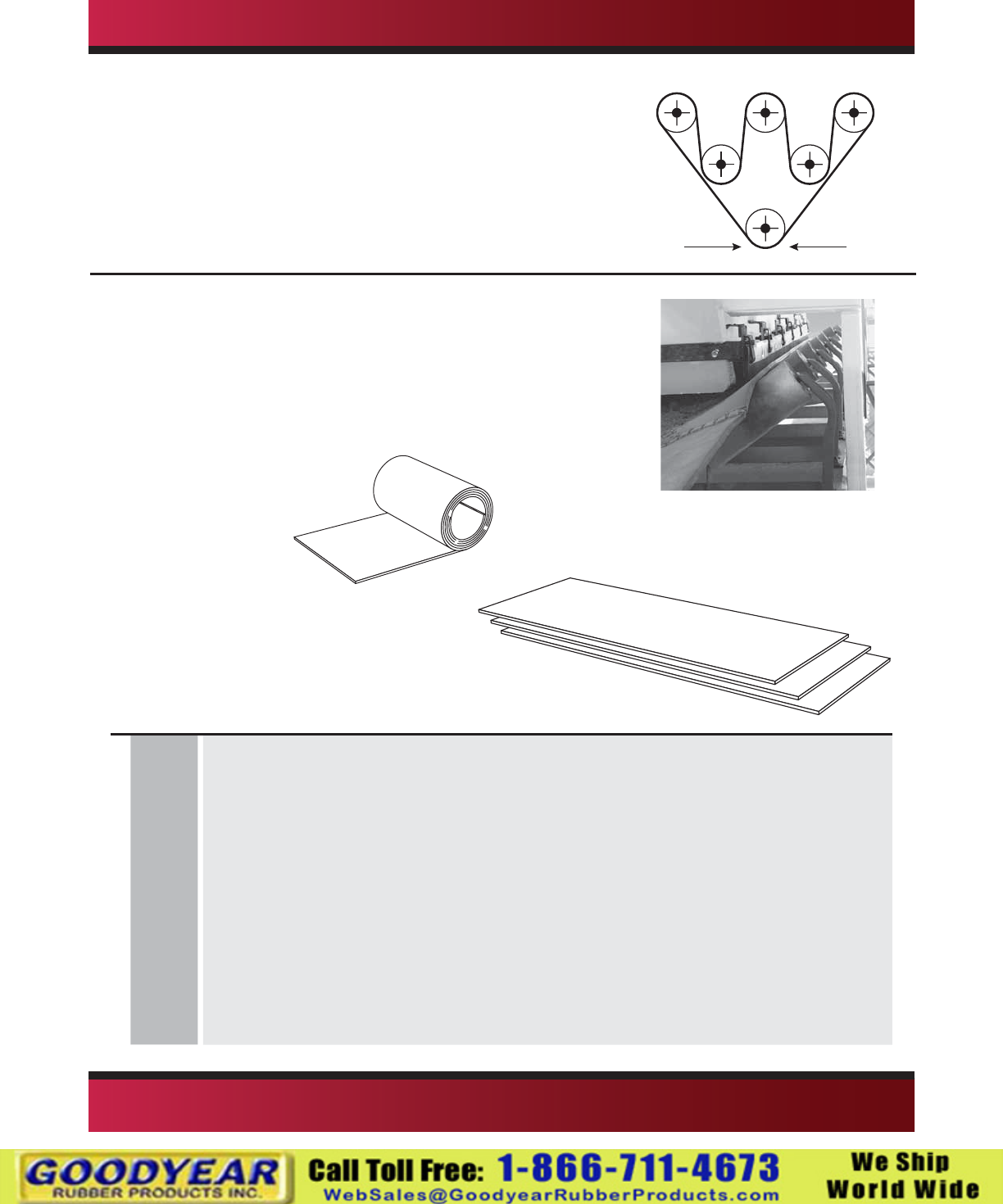

Standard Skirtboard Widths (inches) From Inventory
1/4" Thick 4" 5" 6" 8" 10" 12"
Part # 60002200 60002210 60002214 60002209 NA NA
Roll Weight 29# 36# 44# 58# NA NA
3/8" Thick 4" 5" 6" 8" 10" 12"
Part # 60002220 60002230 60002240 60002249 60002250 60002251
Roll Weight 43# 54# 65# 86# 108# 129#
1/2" Thick 4" 5" 6" 8" 10" 12"
Part # 60002255 60002260 60002270 60002277 60002280 60002400
Roll Weight 57# 71# 85# 114# 142# 170#
3/4" Thick 4" 5" 6" 8" 10" 12"
Part # NA NA 60002426 60002428 60002430 60002429
Roll Weight NA NA 130# 174# 216# 260#
1" Thick 4" 5" 6" 8" 10" 12"
Part # NA NA 60002440 60002444 60002445 60002467
Roll Weight NA NA 171# 228# 285# 342#
SKIRTING - LINING MATERIAL
ROLL STOCK SHEET RUBBER CAN BE CUT TO LENGTH
Commercial grade rubber compounds are available to satisfy many requirements
and special applications. Wheth er it be for chutes, bin liners, or dust control flaps,
Apache can rec om mend the proper material to resist the effects of oil, abrasion,
dust, ozone, static and en vi ron men tal conditions.
Roll sheet widths available up to 48".
TRANSMISSION DRIVE BELTS
IN ALL WIDTHS AND LENGTHS
Available in nylon core, plied fabric, and textile cord. Can
be supplied with leather or rubber covers in many
different compounds. Can be mechanically laced, skived,
or press and drum cured truly end less.
PRE CUT “SBR”
SKIRT BOARD RUBBER
• durometer: 60+/-5 • sold in 50' rolls, widths up to 48"
• resists: abrasion, moisture, cutting, and tearing
WEAR/ABRASION SHEET
4' x 10' Sheets
• urethane
• plain or with backing
• UHMW
FPO
36

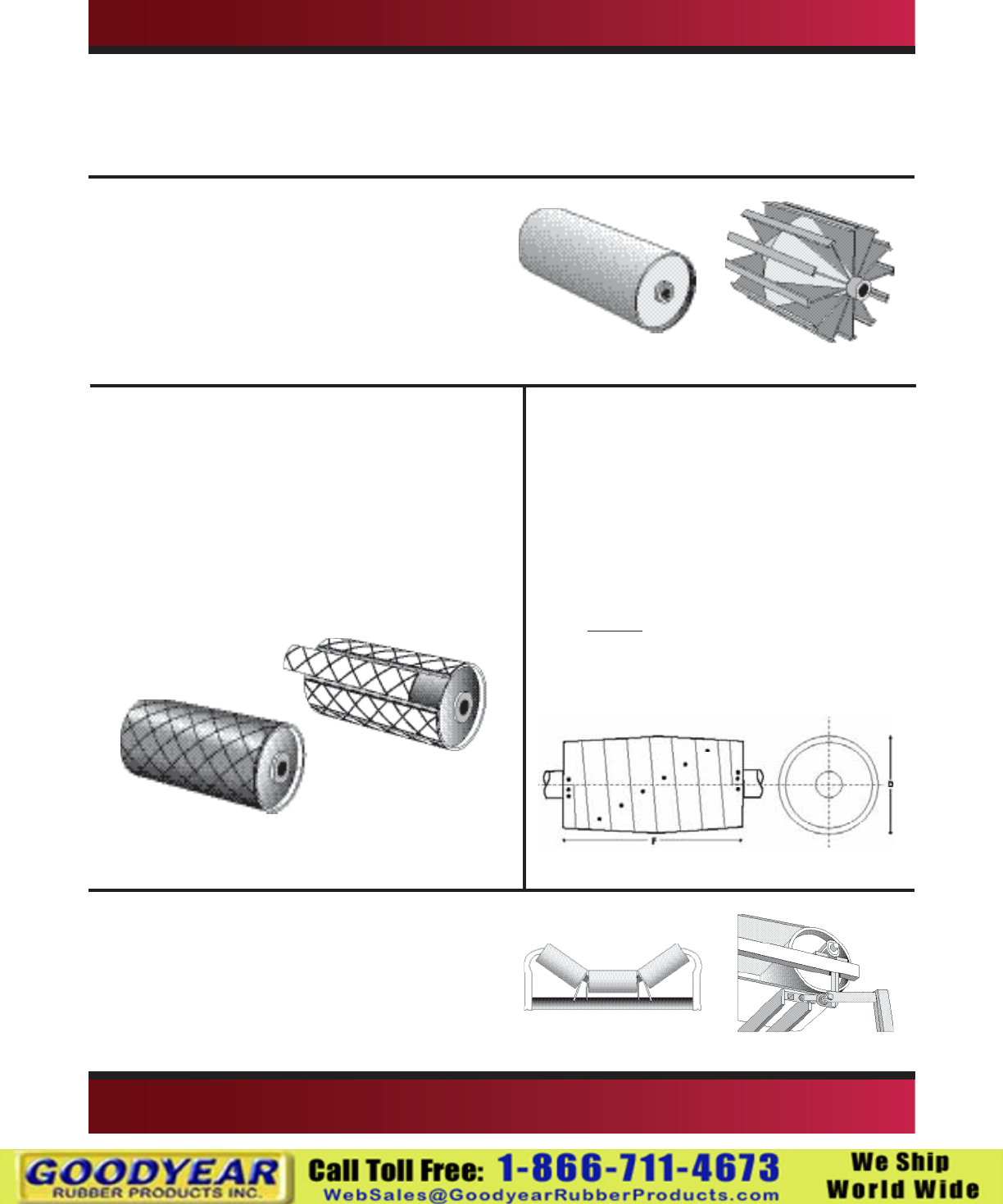

PULLEYS, IDLERS, AND ACCESSORIES
Apache conveyor system accessories include a va ri et y of pulleys, idlers and components. Whether it is a belt to convey or
elevate, Apache has the experience you can depend on to help keep your maintenance costs down by selecting the right
components and belting for your ap pli ca tion.
DRUM PULLEY
High strength steel faced pulleys: available with rubber
lagging for improved traction.
WING PULLEY
Self cleaning angled gussets remove excessive build-up, improving
the effi ciency of your conveyor system. Wing pulleys increase traction
and reduce damage and abrasion on both the belt and the pulleys.
Not recommended for cleated belts.
STRIP LAGGING
Pulley lagging is installed using strips that are slid into tracks
which have been bolted or welded to the pul ley face.
CUSTOM PULLEY LAGGING
Sheet rubber is bonded to the pulley face with high-tech
adhesives. Ends of lagging material can be butt ed and filled
or lapped. Patterns such as her ring bone can be cut into the
rubber surface.
DRUM PULLEY WING PULLEY
STRIP LAGGING
CUSTOM PULLEY LAG GING
ROUGH TOP PULLEY LAGGING
For this method of pulley lagging, a long strip of rough-
top is spiralled around the pulley from end to end and
centered for good adhesion. The ends may be notched per
sketch for neat application. Bolt or screw ends intermit-
tently throughout. Length of strip is calculated as follows:
L = D x π x F
W
IDLERS AND CLEANERS
Troughing and return idlers are available in a number of styles,
materials, and angles for any conveyor ap pli ca tion. Several
styles of continuous belt cleaners are available to prevent
material build-up and reduce down time.
IDLER CLEANER
L = Length (in.)
D = Diameter (in.)
π = 3.1417
F = Face – width of pulley (in.)
W = Lagging width (in.)
37
Size Qty./Box Lbs./Box
1/4" x 3/4" 100 3.1
1/4" x 1" 100 3.2
1/4" x 1 1/4" 100 3.6
1/4" x 1 1/2" 100 3.9
5/16" x 1" 100 5.3
5/16" x 1 1/4" 100 5.8
5/16" x 1 1/2" 100 6.1
5/16" x 2" 100 7.3
3/8" x 1" 50 3.8
3/8" x 1 1/4" 50 4.0
3/8" x 1 1/2" 50 4.4
3/8" x 2" 50 5.0
Bolts include nuts without washers.
Also available are fanged and norway bolts styles, nylon
inserted lock-nuts, and locking or flat washers.
PVC Elevator Belt
Spec# Part# Belt Max. Bucket Belt
Description Projection Color
66A 20038199 PVC 150 Black ORSC CBS 4" black
69A 20038206 PVC 200 Black ORSC CBS 6" black
69B 20038500 PVC 250 Black ORSC CBS 6" black
70A 20038208 PVC 200 White ORSC CBS 6" white
72 20039000 PVC 350 Black ORSC CBS 7" black
73 20040009 PVC 450 Black ORSC CBS 8" black
259 20040015 PVC 600 Black ORSC CBS 9" black
Rubber Elevator Belt
Spec# Part# Belt Max. Bucket Belt
Description Projection Color
23A 20021628 2 Ply 220 1/16 x 1/16 SCORFR Grain 6" black
25A 20021630 3 Ply 330 1/16 x 1/16 SCORFR Grain 8" black
27A 20021635 3 Ply 600 1/16 x 1/16 SCORFR Grain 10" black
27B 20021640 4 Ply 440 1/16 x 1/16 SCORFR Grain 9" black

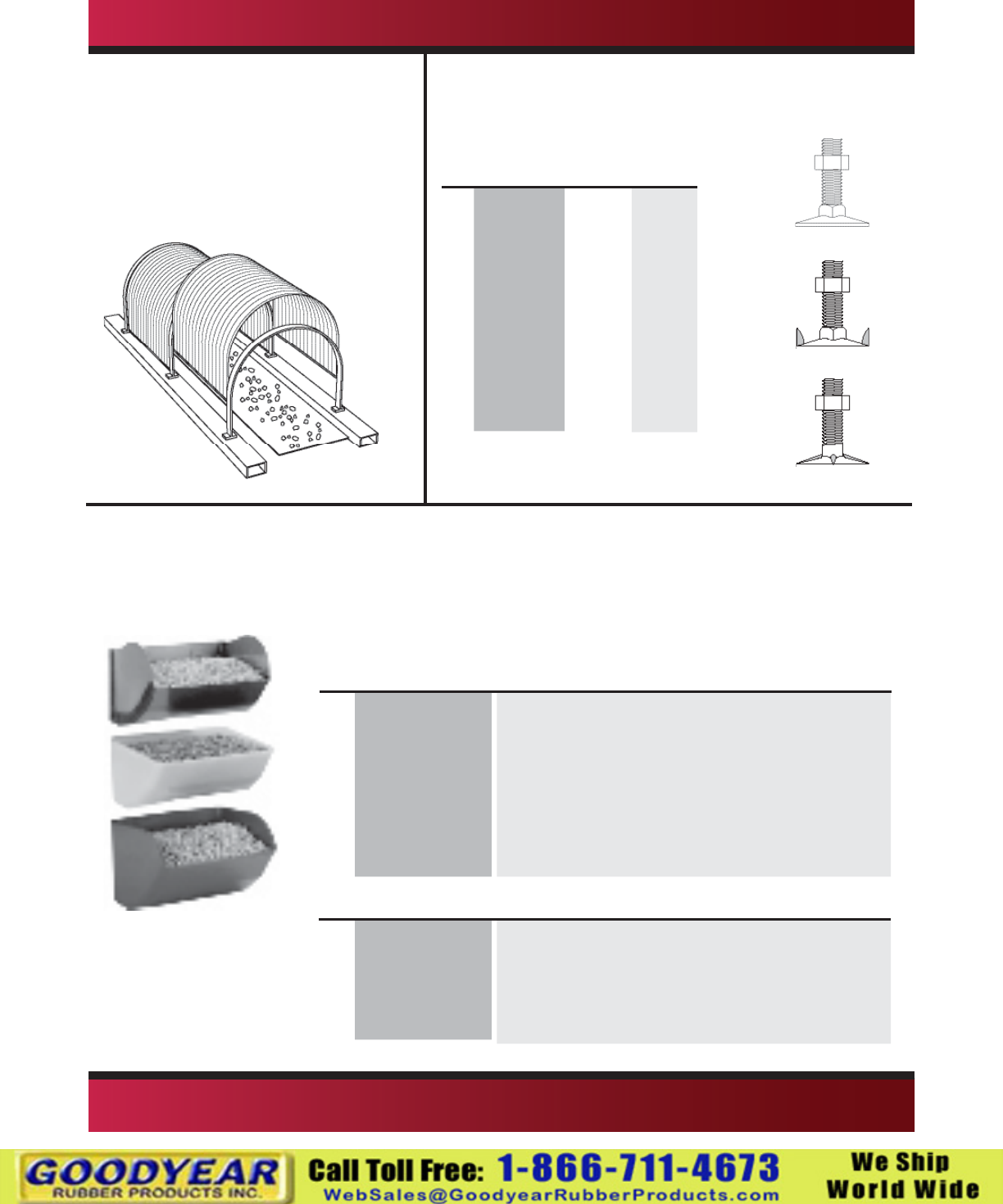

ELEVATOR BOLTS
STEEL, ZINC-PLATED,
AND STAINLESS STEEL AVAILABLE
CONVEYOR COVERS
SMOOTH OR CORRUGATED
FULL COV ERS
Available in galvanized, steel, aluminum, stain-
less, and fi ber glass 3 ½', 4', 4 ½', and 5' centers.
ELEVATOR BUCKETS
BUCKETS STYLES…
are available in metal, nylon, urethane, and polyethylene to handle a variety of materials. Elevator bolts are used to attach the
buckets to the belt, the bolt holes can be punched in any re quired pattern.
Steel Flat Head Bolts
ELEVATOR BUCKET PROJECTIONS
FLAT HEAD
NORWAY
FANGED
38

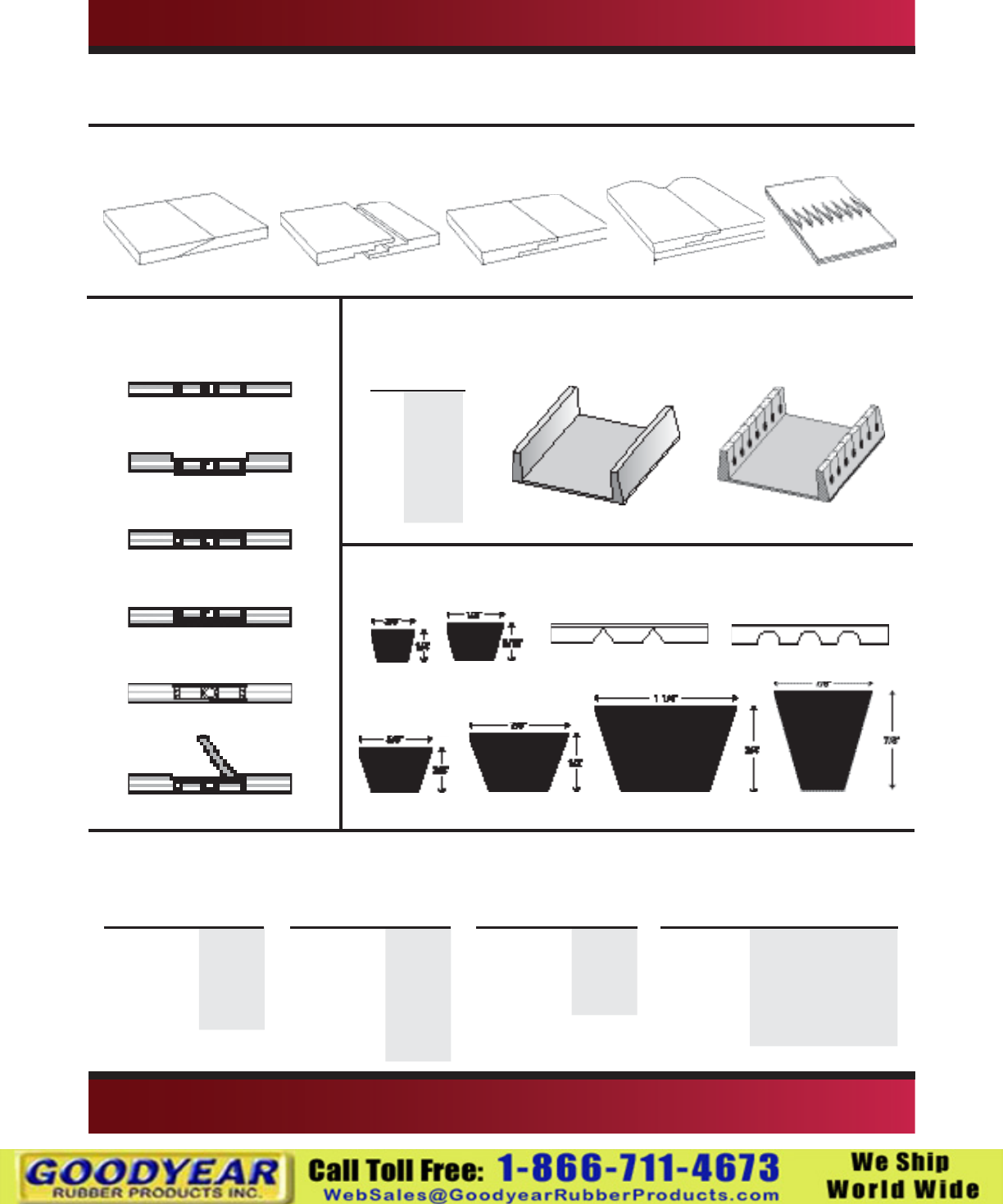

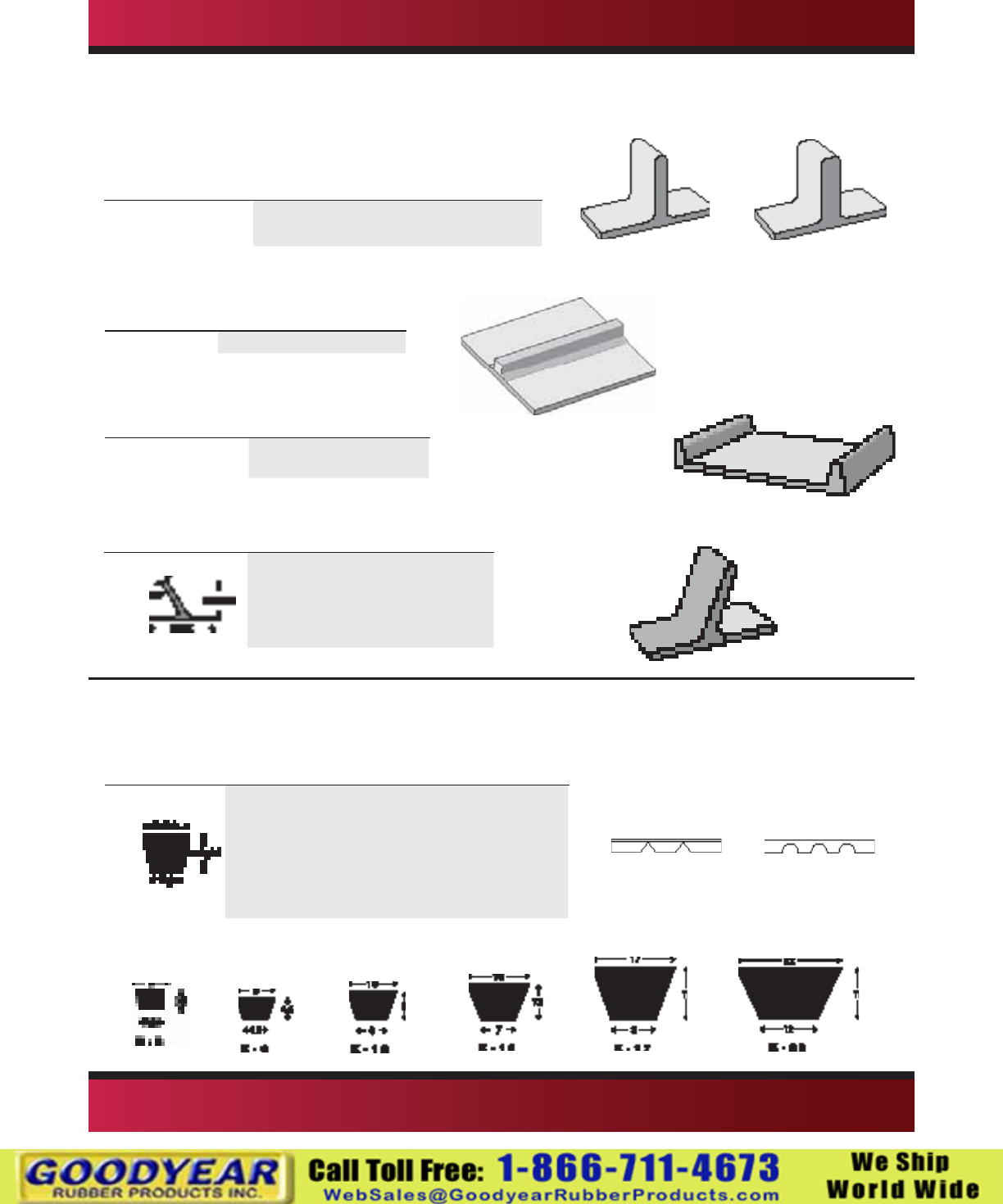

O-SECTION A-SECTION
B-SECTION C-SECTION D-SECTI ON E SECTIO N
Vanner Edge
Height
1/2"
3/4"
1"
1 1/2"
2"
2 1/2"
3"
Standard Cleats
Height Pulley Dia.
1" 4"
1 1/2" 5"
2" 6"
2 1/2" 8"
3" 10"
Square Cleats
Height Pulley Dia.
3/8" x 3/8" 3"
1/2" x 1/2" 4"
3/4" x 3/4" 8"
1" x 1" 10"
Vanner Edges
Height Solid Drilled/Siped
1/2" 9" 6"
1" 10" 6"
1 1/2" 16" 8"
2" 18" 12"
2 1/2" 20" 12"
3" 24" 16"
BELT SPLICING OPTIONS
VANNER EDGE
Vanner can be drilled and siped to improve flexibility on smaller diameter pulleys.
FASTENER SPLICES
STANDARD V-GUIDES
MINIMUM RECOMMENDED PUL LEY DIAMETERS
Manufacturer's recommended pulley diameter for each belt specification should be used if larger than those listed below.
PREPARED STEP SPLICE VULCANIZED ENDLESS
DRILLED AND SIPED
SOLID
V-Notched U-Notched
SKIVED SPLICE LONGITUDINAL SPLICE
HIDDEN BOTTOM
OVERFLAP
HIDDEN TOP/BOTTOM
HIDDEN TOP
RECESSED
STANDARD
FINGER SPLICE
CUSTOM RUBBER BELT FABRICATION
BELT WIDTH
Heavy Duty Cleats
Height Pulley Dia.
1" 5"
1 1/2" 8"
2" 10"
3" 12"
4" 14"
5" 18"
6" 18"
39
RIVET SOLID PLATEBOLT SOLID PLATE BOLT HINGE RIVET HINGE STAPLE
RIVETLACING WIRE HOOK SPIRAL LACE PLASTIC

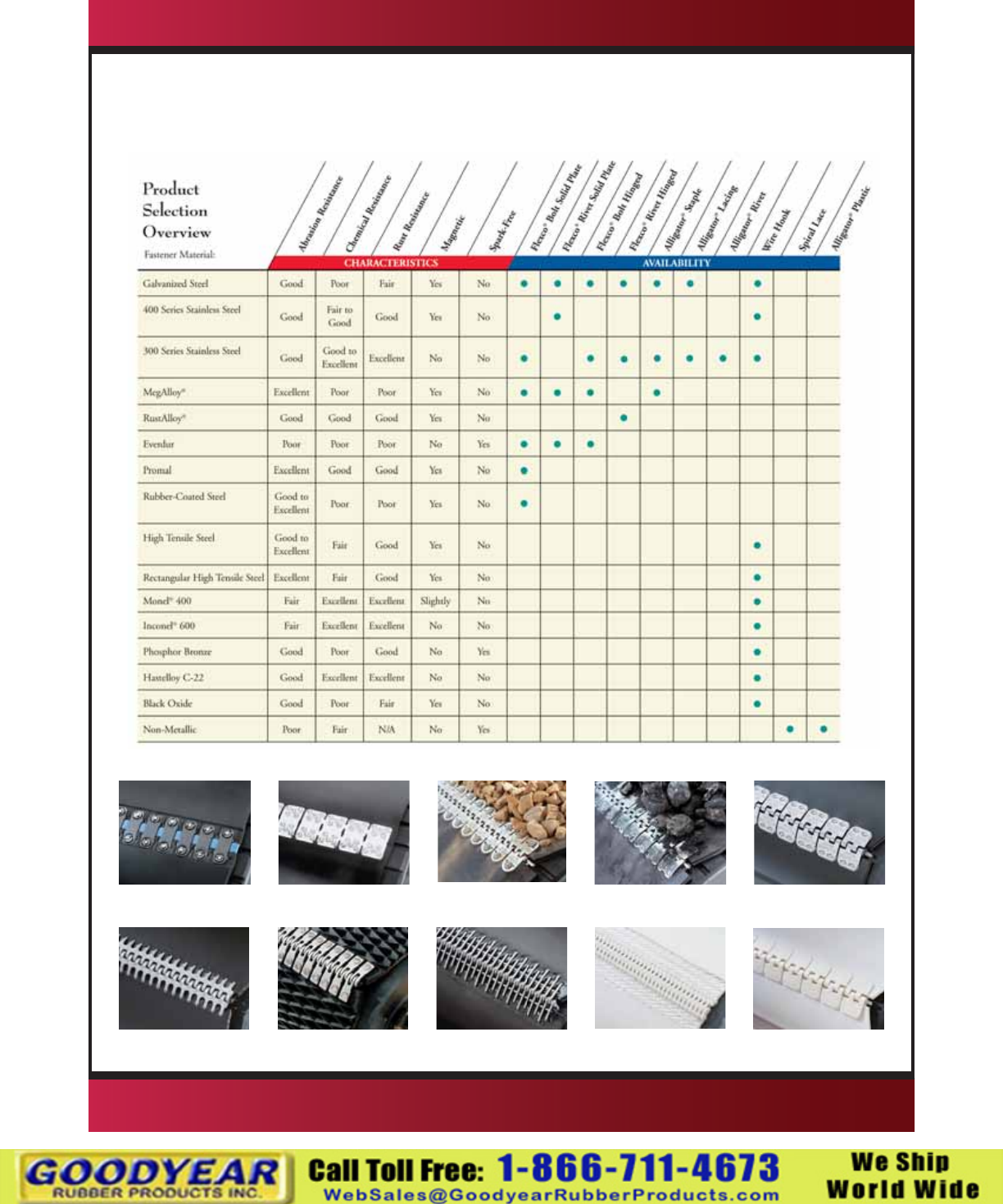

FLEXCO FASTENER MATERIAL SELECTION GUIDE
STEEL • RUSTALLOY • PROMAL • EVERDUR • MEGALLOY • STAINLESS STEEL
ALSO AVAILABLE
40
CUSTOM FABRICATION
Heavy Duty
Beefy Cleat
Height
5/8"
1"
1 1/2"
2"
3"
4"
5"
6"
Vanner Edge
Height
1/2"
3/4"
1"
1 1/2"
2"
2 1/2"
3"
Standard
T-Cleat
Height
3/4"
1"
1 1/2"
2"
2 1/2"
3"
V-Guides
Size
A
O
B
C
D
E
Scoop Cleat
Cold vulcanized
Height
3"
3 1/2"
4"
4 1/2"
Square Cleat
Height
3/8" x 3/8"
1/2" x 1/2"
3/4" x 3/4"
1" x 1"
COMMON
NOTCHING
OPTIONS
CUT-OUT
INDENTED
NOTCHED
REGULAR
not notched
STAGGERED, SPACED OR NOTCHED, APACHE’S UNIQUE VULCANIZING METHODS AS SURE YOU OF A PRO FES SION AL LY
FABRICATED BELT.
FABRICATION IS AVAILABLE ON NUMEROUS INDUSTRIAL AND FOOD GRADE BELTS.
BLACK COMPOUNDS AVAILABLE ARE: STANDARD BLACK, MSHA, OIL, AND HEAT RESISTANT.
WHITE COMPOUNDS ARE OIL AND FAT RESISTANT (FDA/USDA).
CORRUGATED SIDEWALL IS FABRICATED ON STANDARD OR CROSS-RIGID CONSTRUCTED BELTING.
APPLICATIONS:
Apache’s know-how brings you cleats, vanner edges, and v-guides in a variety of de signs, each of which is en gineered for
the maximum per for mance of the material being conveyed. All are hot vul ca nized to the base belt.
HOT VULCANIZED
Roofing Cleat Drilled and Siped Special Cleats
41

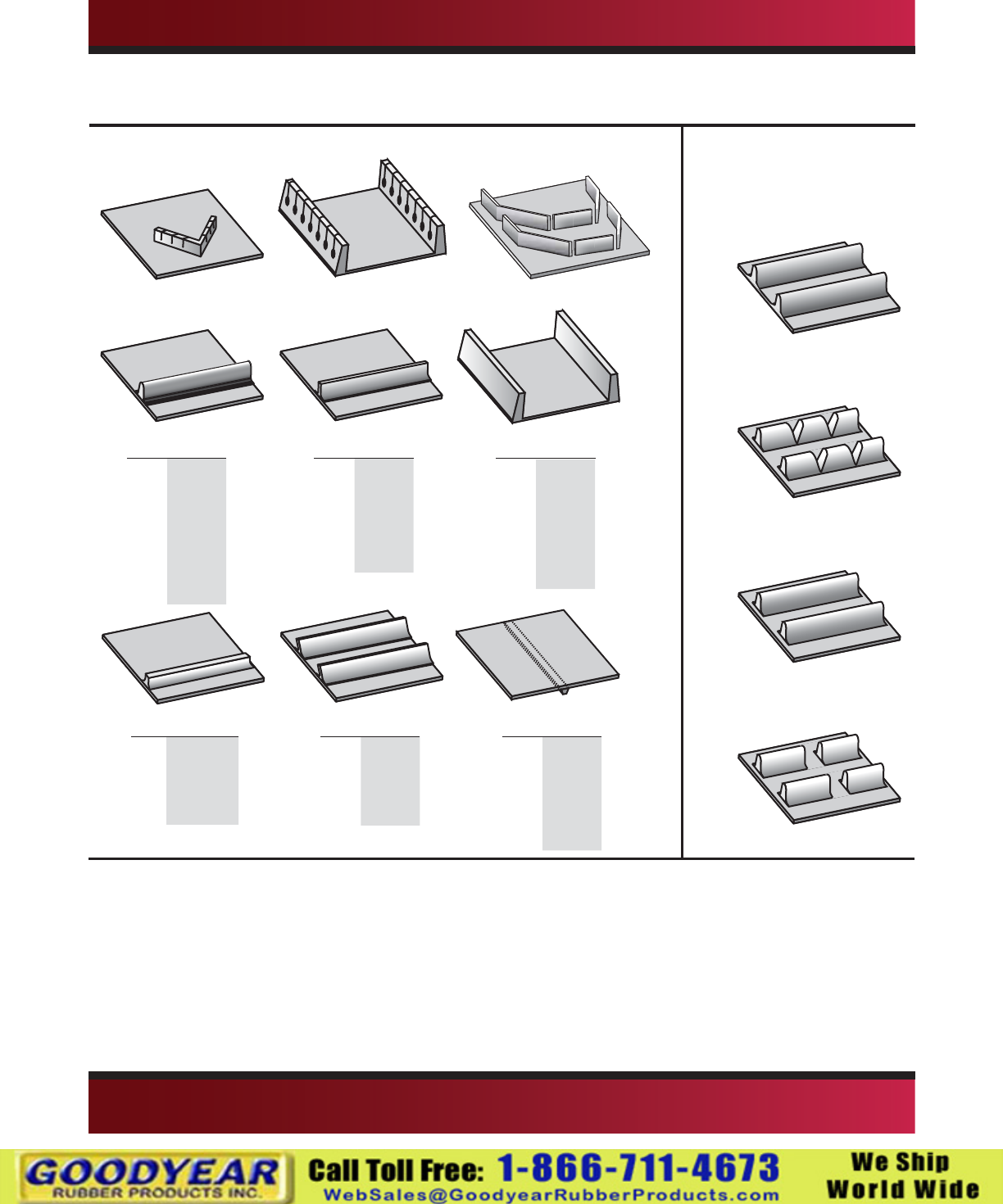

SQUARE CLEAT
CUSTOM THERMOPLASTIC BELT FAB RI CA TION
STANDARD BLACK OR FDA-USDA APPROVED WHITE
T-Cleats
Permanently bonded with the hot weld system
Height 1" 1 1/2" 2" 3" 4"
Pulley Dia. (min) 4" 5" 5" 8" 10"
STANDARD T CLEAT BEEFY STYLE CLEAT
1/2" thru 3" 3/4" thru 4"
Square Cleats
Permanently bonded with the hot weld system - black or white
Sizes: 1/2" x 1/2" 3/4" x 3/4"
Gum Drop Flanges
Flanges white or black
Height 1/2" 3/4" 1"
Pulley Dia. (min) 5" 6" 10"
Angle Cleats
PVC angle cleats
Dimensions Base Top Height Pulley Dia.
(min)
1 3/4" 1/4" 1 1/2" 6"
1 3/4" 1/4" 2" 6"
1 3/4" 1/4" 3" 8"
V-GUIDES
PVC guides are available in white or black, and special APC belt for accumulating package
conveyors [4" wide PVC 120 (cover one side)] with A or modified A section v-guides on bottom.
Dimensions Size Base To p Height Pulley Dia.
(min)
O 3/8" 1/4" 1/4" 3" std. / 2" ntcd
Mod A 1/2" 3/8" 3/16" 3" std.
A 1/2" 5/16" 5/16" 4" std. / 3" ntcd
B 5/8" 3/8" 3/8" 6" std. / 5" ntcd
C 7/8" 1/2" 1/2" 8" std. / 7" ntcd
V-Notched U-Notched
METRIC V-GUIDES
ANGLE CLEAT
GUM DROP FLANGE
BELT GUIDES
42
POPULAR INDUSTRIAL PATTERNS
OVER 100 OTHER CUSTOM PATTERNS AVAILABLE
Template #8 Tem p l a t e # 8 A Tem p l a t e # 8B Tem pl a t e # 3 2 Tem p l a t e # 40 Te m p l a t e #6
1/2'' x 1/2'' Square 1/2'' x 1/2'' Square 1/2'' x 1/2'' Square 3/8'' x 3/8'' Closed 1/2'' x 1/2'' Square 1/2'' x 1/2'' Square
U-Shaped Cleats U-Shaped Cleats U-Shaped Cleats Chevrons to 28'' Wide Chevron Chevron
Template #34 Te m p la te # 3 5 Tem p l at e # 3 8 Te mp l a t e # 3 9 Te m p l a t e #3 6 Te m p l a te # 3 7
Closed 90° Chevron 1/2'' x 1/2'' Square 1/2'' x 1/2'' Square 1/2'' x 1/2'' Square 1/2'' x 1/2'' Rect. Cleats 1/2'' x 1/2'' Square
Leading and trailing edges 30'' to 54'' Chevron Chevron for 44'' or Wider Belts Herringbone 12'' to 44''
beveled for return rollers
SLITTABLE BELTING
POPULAR FACTORY
MANUFACTURED
PROFILES
CONSTRUCTIONS:
Apache matches the appropriate belt
and cleat spec ifi cations to meet your
application requirements. Standard or
special belt and cleat com pounds are
utilized to increase productivity and
extend service life.
CHEVRON DESIGNS:
Chevron patterns carry a variety of
materials up much steeper inclines
than a standard belt. Loose and wet
or dry materials are moved quickly
from the loading points. Chevron pat-
terns are available with either closed
or open centers (for drainage).
APPLICATIONS:
Apache Chevron cleated belt can be
found in limitless applications. Com-
mon uses are asphalt milling, sand
and gravel, wood chips, coal mining,
waste management, tub grinders, and
loading/unloading of barges and rail
cars.
Contact Apache Customer Service for recommendations on your specific application.
CHEVRON TOP BUCKET TOP CRESCENT TOP DUROCLEAT™ Z TOP CONTINUOUS
(Rubber V-Top) CHEVRON
43

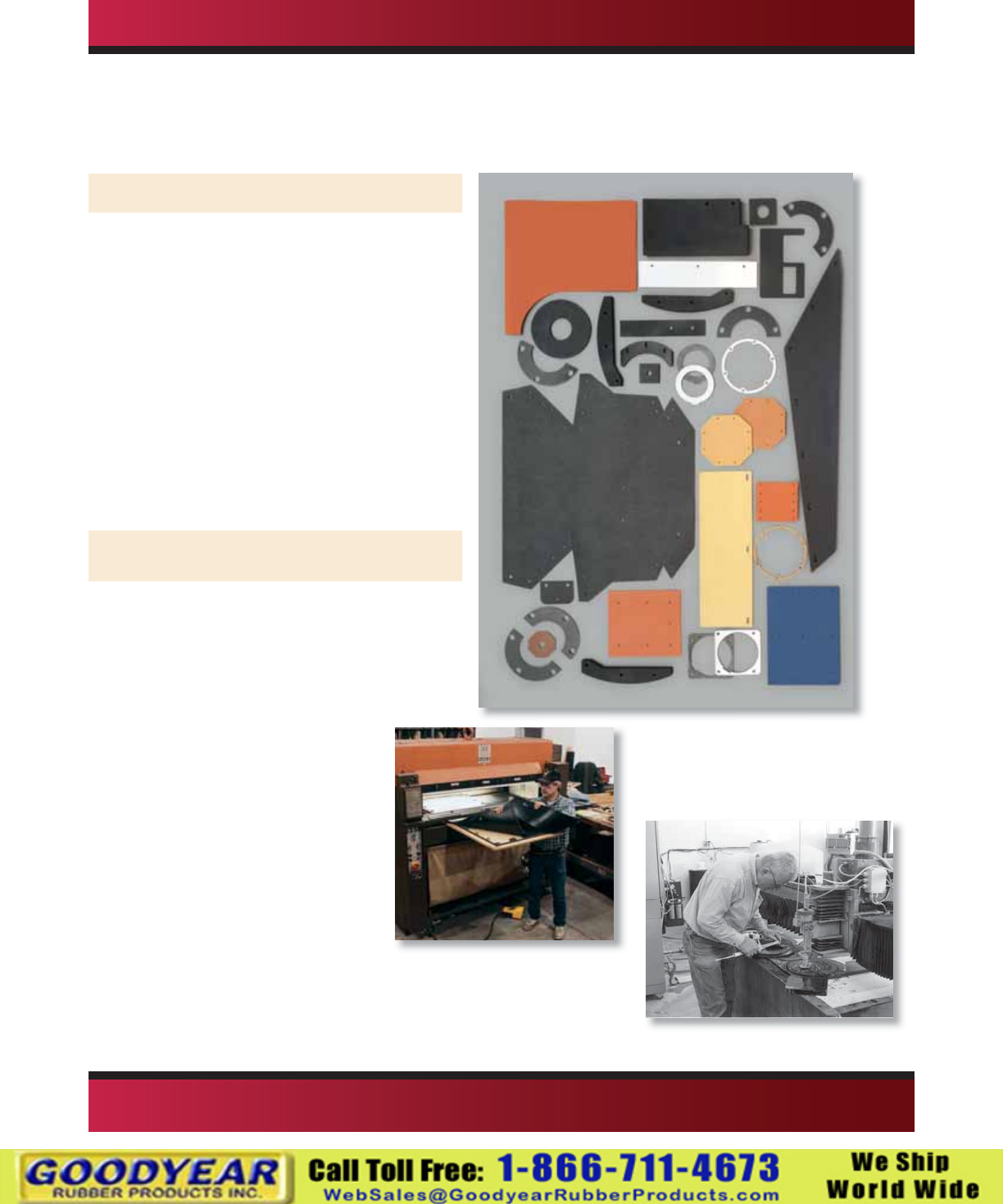

Apache offers a wide range of cut parts and sealing materials for a myriad of
applications. Apache also offers die cut parts, water jetting & laser cutting.
Cut parts include:
Baf es
Draper Material
Curtains
Impact Pads
Skirting
Flashing
Insulation
Seals
Bearing Pads
Spacers
Shields
Gaskets
Guards
Hopper/Bin Liners
Mud Flaps
A large variety of material
is used, such as:
Pure gum sheet
Cloth insulated sheet
Butyl sheet
Diaphragm sheet
Neoprene sheet
White nitrile sheet
Hypalon® sheet
Masticated rubber
PVC belting
Industrial belting
Composites
• Fibre
• Black & Red SBR sheet
• Viton® rubber
• Te on sheet
• Silicone sheet
• Nitrile sheet
Felt
Open & closed cell sponge
UHMW
TIVAR
Urethane
White food grade belting
CUT PARTS FOR INDUSTRIAL APPLICATIONS
44
V-Cleat Road-Away
Milling Belt
New!
ROAD-AWAY MILLING BELTS
Apache Hose & Belting offers high performance U-shaped and V-shaped integrally molded
Chevron belts for ultimate capacity and superior performance.
These 1” high molded cleats feature a rugged wide base design and tapered ends to
operate at high speeds and wrap small pulleys; thus eliminating the risk of cleats peeling
from the top cover. High strength rubber covers and cleats offer excellent resistance to
cutting, gouging, puncturing, and abrasion.
Apache’s special endless splicing techniques assure excellent strength, exibility and per-
formance in this brutal application.
Road-Away belts are offered in 3 distinct belt constructions:
2 ply 220# 3/16 x 1/16
2 ply 400# 3/16 x 1/16
3 ply 225# 3/16 x 1/16
Four different cleat widths are
available (20, 26, 30, 32).
In addition, Apache can
provide Road-Away belts
in metric widths as well.
Mechanical fasteners are
also available.
45
Cleat Pattern
Cross Section 1/2
12
1
Molded U-Cleat
Road-Away Milling Belt
Tapered
Cleat End
Tapered leading and trailing
edges are designed to reduce
the stress on belts that
operate on small pulleys.
V-Cleat
Road-Away Milling Belt
INDUSTRIAL BELT
#1 20027202 2 Ply 150 1/32 x BB GR2 2 black 5/32” SBR
#2 20027301 2 Ply 150 1/32 x 1/32 GR2 2 black 13/64” SBR
#2A 20026910 2 Ply 150 1/16 x BB GR2 2 black 3/16” SBR
#3 20000010 2 Ply 150 1/8 x 1/32 GR2 2 black 1/4” SBR
#4 20003990 2 Ply 150 1/8 x 1/16 GR2 2 black 9/32” SBR
#6A 20029525 2 Ply 220 1/8 x BB GR2 2 black 1/4” SBR
26C 20029690 2 Ply 220 1/8 x BB MOR 2 black 1/4” SBR
#8 20013600 2 Ply 220 1/8 x 1/16 GR2 2 black 5/16” SBR
#9 20017500 2 Ply 220 3/16 x 1/16 GR2 2 black 11/32” SBR
#10A 20029655 3 Ply 225 1/16 x BB GR2 3 black 7/32” SBR
HEAVY DUTY INDUSTRIAL BELT
#11 20023005 3 Ply 330 3/16 x 1/16 GR2 3 black 13/32” SBR
#12 20026039 3 Ply 330 1/4 x 1/16 GR2 3 black 15/32” SBR
#243 20027007 4 Ply 440 1/4 x BB GR2 4 black 1/2” SBR
#13 20026815 4 Ply 440 1/4 x 1/16 GR2 4 black 9/16” SBR
#246 20029852 1 Ply 440 1/4 x 1/8 GR2 1 black 9/16” SBR
#14A 20027210 3 Ply 600 3/8 x 3/32 GR2 3 black 23/32” SBR
GRAIN BELT
#21 20027200 2 Ply 150 1/32 x BB MOR 2 black 9/64” Nitrile Blend
#23A 20021628 2 Ply 220 1/16 x 1/16 SCORFR Grain 2 black 15/64” Nitrile Blend
#25A 20021630 3 Ply 330 1/16 x 1/16 SCORFR Grain 3 black 17/64” Nitrile Blend
#27A 20021635 3 Ply 600 1/16 x 1/16 SCORFR Grain 3 black 3/8” Nitrile Blend
#27B 20021640 4 Ply 440 1/16 x 1/16 SCORFR Grain 4 black 11/32” Nitrile Blend
BALER BELT
#36 20021510 2 Ply 220 1/32 x1/32 Baler Belt 2 black 13/64” SBR
#36A 20021515 2 Ply 220 Tex x Tex Baler Belt 2 black 13/16” SBR
#36B 20029150 3 Ply 225 Diamond Top x MSK Baler Belt 3 black 1/4” SBR
#36D 20029170 3 Ply 330 Chevron Top x MSK Baler Belt 3 black 1/4” SBR
#37A 20021605 3 Ply 330 Tex x Tex Baler Belt 3 black 1/4” SBR
SPECIAL SERVICE BELT
#24B 20017332 2 Ply 220 3/16 x 1/16 MOR 2 black 11/32” Nitrile Blend
#26A 20021820 3 Ply 330 3/16 x 1/16 MOR 3 black 13/32” Nitrile Blend
#26B 20029734 3 Ply 330 3/16 x BB MOR 3 black 11/32” Nitrile Blend
#30A 20021598 2 Ply 220 3/16 x 1/16 SCORFR MSHA 2 black 3/8” Nitrile Blend
#41 20021199 2 Ply 220 3/16 x 1/16 400° MAXI-Heat 2 black 3/8” EPDM
#41A 20021237 2 Ply 220 3/16 x 1/16 700° SUPER-Heat 2 black 3/8” EPDM
#42 20021030 2 Ply 220 3/16 x 1/16 350° ORS-HMB 2 black 3/8” Nitrile
#42A 20021093 3 Ply 330 3/16 x 1/16 350° ORS-HMB 3 black 7/16” Nitrile
#177 20026766 3 Ply 330 1/4 x 1/16 400° MAXI-Heat 3 black 1/2” EPDM
#43A 20026790 3 Ply 330 1/4 x 1/16 700° SUPER-Heat 3 black 1/2” EPDM
IMPRESSION TOP BELTS
103B 20029575 2 Ply 220 Chevron Top x BB 2 black 15/64” SBR
#46 20030200 3 Ply 105 Black RT x FS 3 black 21/64” SBR
#47 20029005 2 Ply 150 Black RT x BB 2 black 15/64” SBR
#47A 20029000 2 Ply 150 Tan RT x BB 2 tan 15/64” SBR
#48 20030220 3 Ply 135 Pure Gum RT x BB 3 tan 9/32” Natural Rubber
#48A 20030205 3 Ply Poly 150 Brown Nitrile RT x BB 3 brown 9/32” Nitrile
#51A 20030230 3 Ply 135 Blue Carboxylated Nitrile RT x BB 3 blue 9/32” Nitrile
#219 20034520 PVC 120 Green RT x FS 1 green 13/64” PVC
#53 20029009 2 Ply 150 Black Wedgegrip x BB 2 black 5/16” Natural Rubber
#53B 20029200 2 Ply 150 Tan Wedgegrip x BB 2 tan 9/32” SBR
#54 20029505 3 Ply 105 Black Ridge Top x FS 3 black 21/64” SBR
#55A 20034603 PVC 120 Black CT II OR x FS 1 black 1/4” PVC
BELT SPECIFICATION CHART
Spec# Part# Description Plies Color Overall Covers
Thickness
150# -25°F to 225°F 4” .075 72” 15, 125 2
150# -25°F to 225°F 6” .085 72” 187, 25 3
150# -25°F to 225°F 6” .105 72” 20, 125 2
150# -25°F to 225°F 8” .138 84” 140, 187, 375, R2
150# -25°F to 225°F 10” .154 72” 140, 375, R2
220# -25°F to 225°F 10” .145 72” 140, 187, 375, R2
220# 0°F to 250°F 10” .150 72” 140, 187. 375, R2
220# -25°F to 225°F 10” .167 84” 140, 550, R5
220# -25°F to 225°F 12” .195 84” 190, 550, R5
225# -25°F to 225°F 8” .122 72” 25, 187, R2 2
330# -25°F to 225°F 16” .205 84” 190, 550, R51/2
330# -25°F to 225°F 16” .215 84” 190, 550, R51/2
440# -25°F to 225°F 18” .220 90” 190, 550, R51/2
440# -25°F to 225°F 20” .280 84” 190, 550, R6
440# -25°F to 225°F 20” .295 60” 190, 550, R6
600# -25°F to 225°F 20” .375 84” 11/2, R6
150# 0°F to 250°F 4” .075 72” 125, 15 2
220# 0°F to 250°F 12c, 14e .095 72” 140, 187, 375, R5
330# 0°F to 250°F 16c, 18e .130 72” 140, 550, R5
600# 0°F to 250°F 20c, 24e .195 72” 140, 550, R5
440# 0°F to 250°F 20” .200 72” 190, 550, R5
220# -25°F to 225°F 4” .100 60” 3-41/2ht
220# -25°F to 225°F 4” .090 60” 3-41/2ht
225# -25°F to 225°F 4” .135 60” 3-41/2ht, 41/2rht
330# -25°F to 225°F 4” .125 60” 3-41/2ht, 41/2rht
330# -25°F to 225°F 4” .123 60” 3-41/2ht, 41/2rht
220# 0°F to 250°F 12” .200 72” 190, 550, R5
330# 0°F to 250°F 16” .220 72” 190, 550, R5
330# 0°F to 250°F 16” .180 72” 190, 375, R5
220# 0°F to 250°F 12” .195 72” 190, 550, R5
220# -25°F to 400°F 12” .195 48” 190, 550, R5
220# -25°F to 700°F 12” .195 72” 190, 550, R5
220# 0°F to 350°F 12” .195 72” 190, 550, R5
330# 0°F to 350°F 18” .215 72” 190, 550, R5
330# -25°F to 400°F 18” .232 72” 190, 550, R51/2
330# -25°F to 700°F 18” .232 48” 190, 550, R5
220# -40°F to 225°F 12” .130 60” 125, 20 2
105# -25°F to 225°F 4” .130 72” 125, 7 1
150# -25°F to 225°F 4” .120 72” 125, 7 1
150# -25°F to 225°F 4” .120 72” 62, 7 25LP
135# -40°F to 250°F 4” .100 72” 125, 20 2
150# 0°F to 250°F 31/2” .105 72” 62, 7 2
135# 0°F to 250°F 4” .130 72” 125, 20 2
120# 20°F to 180°F 21/2” .100 72” 125, 15 1
150# -40°F to 250°F 31/2” .115 72” 125, 15 2
150# -20°F to 225°F 4” .100 72” 125, 15 2
105# -25°F to 225°F 3” .130 72” 125, 20 2
120# 20°F to 180°F 21/2” .088 72” 125, 7 1
BB =
Bare Back
Brush =
Brushed Bottom
C =
Conveyor
CBS =
Cover Both Sides
CD =
Cold
CR =
Cross Rigid
CT II =
Chevron Top II
E =
Elevator
FR =
Fire Retardant
FS =
Friction Surface
GR 2 =
Grade 2 (SBR)
H =
Hot
IMPG =
Impregnated
MOR =
Moderate Oil
Resistance
MRT =
Mini Roughtop
MSHA =
Mine Safety
Health Act
MSK =
Mini Skim Coat
OR =
Oil Resistant
ORS-HMB =
Oil Resistant
Hot Asphalt
Poly =
Polyester
PU =
Polyurethane
PVC =
Poly Vinyl Chloride
RMV =Rubber
Modified Vinyl
RT =
Roughtop
SC =
Static Conductive
Tex =
Texture
DESCRIPTION
ABBREVIATION
KEY
Working Temp Minimum Weight Maximum FDA Flexco Clipper
Tension PIW Range Pulley Dia PIW Roll Width USDA # #
Spec# Part# Description Plies Color Overall Covers
Thickness
BELT SPECIFICATION CHART
IMPRESSION TOP BELTS continued
#56 20049012 2 Ply 160 Black Steep-Lok x BB 2 black 19/64” SBR
#61A 20035506 PVC 120 Black RT x FS 1 black 11/64” PVC
#62A 20033600 PVC 100 Black Bucket Top OR x FS 1 black 15/64” PVC
#62B 20035525 PVC 120 Black Crescent Top x FS 1 black 15/64” PVC
#185 20035530 PVC 200 Black Cresent Top x FS 1 black 5/16” PVC
#63B 20034800 PVC 120 Black Z Top OR x FS 1 black 15/64” PVC
#242 20034605 PVC 150 Black CT II x Brush 1 black 1/4” PVC
#204 20035527 PVC 150 Black Crescent Top x Brush 1 black 1/4” PVC
#99 20028700 3 Ply Poly 105 White Tyler Wire x FS 3 white 1/8” Nitrile
#102 20028506 3 Ply Poly 135 White Nitrile Meat Cleat x FS 3 white 9/64” Nitrile
#233 24005980 2 Ply Poly Inverted Pyramid PVC Top Cover x BB 2 white 3/32” PVC
SLITTABLE CHEVRON BELTS
#57A 20029603 2 Ply 220 1/8 x 1/16 Durocleat GR2 2 black 5/16” SBR
#58 20029601 2 Ply 220 1/8 x 1/16 Durocleat MOR 2 black 5/16” Nitrile Blend
#178 20029605 3 Ply 330 1/8 x 1/16 Durocleat GR2 3 black 3/8” SBR
#59B 20029615 3 Ply 330 1/8 x 1/16 Durocleat MOR 3 black 3/8” Nitrile Blend
#56B 20029602 2 Ply 220 1/8 x Bare Durocleat MOR 2 black 1/4” Nitrile Blend
#247 20029607 3 Ply 330 5/32 x Bare Durocleat MOR 3 black 9/16” Nitrile Blend
PVC – RMV BELTS
#60 20032710 2 Ply 60 Matte PVC Checkout Counter x BB 2 black 5/64” PVC
#60A 20032940 2 Ply 100 Black RMV x FS 2 black 7/64” Rubber/PVC
#60B 20032945 3 Ply 150 Black RMV x FS 3 black 1/8” Rubber/PVC
#61A 20035506 PVC 120 Black RT x FS 1 black 11/64” PVC
#62A 20033600 PVC 100 Black Bucket Top OR x FS 1 black 15/64” PVC
#62B 20035525 PVC 120 Black Crescent Top x FS 1 black 15/64” PVC
#55A 20034603 PVC 120 Black CT II OR x FS 1 black 1/4” PVC
#63B 20034800 PVC 120 Black Z Top OR x FS 1 black 15/64” PVC
#242 20034605 PVC 150 Black CT II x Brush 1 black 1/4” PVC
#204 20035527 PVC 150 Black Crescent Top x Brush 1 black 1/4” PVC
#219 20034520 PVC 120 Green RT x FS 1 green 13/64” PVC
#64A 20035498 PVC 100 Black Cover x FS 1 black 7/64” PVC
#64B 20035508 PVC 120 Black FS x Brush 1 black 1/8” PVC
#65 20035501 PVC 120 Black Cover x FS 1 black 9/64” PVC
#65A 20035502 PVC 120 Black OR Cover x FS 1 black 9/64” PVC
#65B 20035499 PVC 100 Black OR Cover x FS 1 black 7/64” PVC
#66 20035500 PVC 120 Black CBS 1 black 11/64” PVC
#66A 20038199 PVC 150 Black OR CBS 1 black 13/64” PVC
#67 20038200 PVC 150 Black Cover x FS 1 black 11/64” PVC
#67A 20038207 PVC 200 Black Cover x FS 1 black 15/64” PVC
#69A 20038206 PVC 200 Black ORSC CBS 1 black 1/4” PVC
#67B 20038509 2 PLY PVG 220 White 1/16 X 1/16 SC 2 white 1/4” PVG
#69B 20038500 PVC 250 Black ORSC CBS 1 black 5/16” PVC
PVC ELEVATOR BELT
#66A 20038199 PVC 150 Black OR CBS 1 black 13/64” PVC
#70A 20038208 PVC 200 White OR CBS 1 white 1/4” PVC
#69A 20038206 PVC 200 Black ORSC CBS 1 black 1/4” PVC
#69B 20038500 PVC 250 Black ORSC CBS 1 black 5/16” PVC
#72 20039000 PVC 350 Black ORSC CBS 1 black 5/16” PVC
#73 20040009 PVC 450 Black ORSC CBS 1 black 11/32” PVC
#259 20040015 PVC 600 Black ORSC CBS 1 black 3/8” PVC
Working Temp Minimum Weight Maximum FDA Flexco Clipper
Tension PIW Range Pulley Dia PIW Roll Width USDA # #
160# -25°F to 225°F 4” .095 60” 125, 7 1
120# 20°F to 180°F 21/2” .100 72” 125, 15 1
100# 20°F to 180°F 2” .085 72” 125, 7 1SP
120# 20°F to 180°F 2” .085 72” 62, 7 1SP
200# 20°F to 180°F 4” .130 72” 187, 27
120# 20°F to 180°F 21/2” .090 72” 125, 7 1
150# 20°F to 180°F 3” .110 72” 125, 20 2
150# 20°F to 180°F 3” .110 72” 125, 20 2
105# 0°F to 250°F 21/2” .060 72” 125, 7 1
135# 0°F to 250°F 31/2” .085 72” 125, 15 2SP
56# 20°F to 180°F 11/2” .047 78” * 62, 1 25LP
220# -25°F to 225°F 12” .210 72” 190, 375, R5
220# 0°F to 250°F 12” .210 72” 190, 375, R5
330# -25°F to 225°F 18” .260 72” 190, 550, R51/2
330# 0°F to 250°F 18” .250 72” 190, 550, R51/2
220# 0°F to 250°F 10” .185 72” 190, 375, R5
330# 0°F to 250°F 16” .225 72” 190, 550, R5
60# 20°F to 180°F 2” .047 72” 1 25LP
100# 20°F to 180°F 11/2” .070 72” 62, 7 1SP
150# 20°F to 180°F 3” .080 72” 62, 7 1SP
120# 20°F to 180°F 21/2” .100 72” 125, 15 1
100# 20°F to 180°F 2” .085 72” 125, 7 1SP
120# 20°F to 180°F 2” .085 72” 62, 7 1SP
120# 20°F to 180°F 21/2” .088 72” 125, 7 1
120# 20°F to 180°F 21/2” .090 72” 125, 7 1
150# 20°F to 180°F 3” .110 72” 125, 20 2
150# 20°F to 180°F 3” .110 72” 125, 20 2
120# 20°F to 180°F 21/2” .100 72” 125, 15 1
100# 20°F to 180°F 2” .065 72” 62, 7 25LP
120# 20°F to 180°F 2” .050 72” 125, 15 1
120# 20°F to 180°F 2” .075 72” 125, 15 1
120# 20°F to 180°F 2” .075 72” 125, 15 1
100# 20°F to 180°F 2” .070 72” 62, 7 1SP
120# 20°F to 180°F 21/2” .090 72” 125, 20 2
150# 20°F to 180°F 4” .100 72” 187, 25 3
150# 20°F to 180°F 3” .100 72” 125, 20 2
200# 20°F to 180°F 6” .117 72” 187, 27 4
200# 20°F to 180°F 6” .142 72” 187, 27, R5 4
220# 20°F to 180°F 8” .126 72” 187, 27, 140, 375, R5 4
250# 20°F to 180°F 8” .150 72” 140, 550, R5, 35
150# 20°F to 180°F 4” .100 72” 187, 25 3
200# 20°F to 180°F 6c, 8e .142 72” 187, 27, R5 4
200# 20°F to 180°F 6” .142 72” 187, 27, R5 4
250# 20°F to 180°F 8” .150 72” 140, 550, R5, 35
350# 20°F to 180°F 8c, 12e .158 72” 140, 550, R5, 45
450# 20°F to 180°F 10c, 14e .175 72” 190, 550, R5, 45
600# 20°F to 180°F 12c, 16e .191 72” 140, 550, R5
BB =
Bare Back
Brush =
Brushed Bottom
C =
Conveyor
CBS =
Cover Both Sides
CD =
Cold
CR =
Cross Rigid
CT II =
Chevron Top II
E =
Elevator
FR =
Fire Retardant
FS =
Friction Surface
GR 2 =
Grade 2 (SBR)
H =
Hot
IMPG =
Impregnated
MOR =
Moderate Oil
Resistance
MRT =
Mini Roughtop
MSHA =
Mine Safety
Health Act
MSK =
Mini Skim Coat
OR =
Oil Resistant
ORS-HMB =
Oil Resistant
Hot Asphalt
Poly =
Polyester
PU =
Polyurethane
PVC =
Poly Vinyl Chloride
RMV =Rubber
Modified Vinyl
RT =
Roughtop
SC =
Static Conductive
Tex =
Texture
DESCRIPTION
ABBREVIATION
KEY
Spec# Part# Description Plies Color Overall Covers
Thickness
BELT SPECIFICATION CHART
WHITE FOOD BELT
#91 20028503 2 Ply Poly 70 White Nitrile 3/64 x FS 2 white 3/32” Nitrile
#91B 20032950 2 Ply 100 White RMV x FS 2 white 7/64” Rubber/PVC
#91C 20032951 3 Ply 150 White RMV x FS 3 white 9/64” Rubber/PVC
#221 20028507 Polymate 135 White RMP COS 1 white 9/64” PVC
#92 20028505 3 Ply Poly 105 White Nitrile 3/64 x FS 3 white 1/8” Nitrile
#92A 20028504 3 Ply PNT 150 White Nitrile 3/64 x FS 3 white 5/32” Nitrile
#94A 20035400 PVC 100 White Cover x MSK 1 white 7/64” PVC
#239 20035535 PVC 120 White Crescent Top x FS 1 white 15/64 PVC
#95 20035496 PVC 120 White Cover x MSK 1 white 9/64” PVC
#95B 20033550 PVC 120 White CT II OR x MSK 1 white 7/32” PVC
#70A 20038208 PVC 200 White OR CBS 1 white 1/4” PVC
#98 20028650 3 Ply Poly 105 White Butyl 1/32 x FS 3 white 7/64” Butyl
#99 20028700 3 Ply Poly 105 White Tyler Wire x FS 3 white 1/8” Nitrile
#102 20028506 3 Ply Poly 135 White Nitrile Meat Cleat x FS 3 white 9/64” Nitrile
#104 20028625 3 Ply Poly 105 White Te on x FS 3 white 3/32” Te on
#223 24041040 2 Ply White Urethane x IMPG Bottom SC 2 white 1/16” Urethane
#224 24041010 2 Ply White PVC x IMPG Bottom SC 2 white 5/64” PVC
#252 20032953 3 Ply 150 White RMV CRSC x BB 3 white 11/64” RMV
#230 20038225 4 Ply 200 White RMV CRSC x BB 4 white 7/32” Rubber/PVC
#67B 20038509 2 PLY PVG 220 White 1/16 X 1/16 SC 2 white 1/4” PVG
#222 24041030 1 Ply White Urethane x IMPG Bottom SC 1 white 1/32” Urethane
PACKAGE HANDLING / LIGHT DUTY BELT
#106 20030518 3 Ply 105 Black FS x FS 3 black 1/8” SBR
#107 20031018 3 Ply 105 Tan FS x FS 3 tan 9/64” SBR
#109 20031506 4 Ply 140 Tan FS x FS 4 tan 11/64” SBR
#110 20032700 3 Ply Brown Nitrile FS x FS 3 brown 5/64” Nitrile
#111 20032650 5 Ply Brown Nitrile FS x FS 5 brown 7/64” Nitrile
#203 20032690 7 Ply Brown Nitrile FS x FS 7 brown 5/32” Nitrile Blend
#195 20032499 3 Ply PNT 150 Tan Nitrile Slip Top x FS 3 tan 1/8” Nitrile
#113 20032500 4 Ply Tan Slip Top x FS 4 tan 1/8” SBR
#114 20032550 3 Ply Hot Stock and Water 3 white 9/64” SBR
#118A 20031515 4 Ply 200 Black Nitrile FS x FS 2 black 9/64” Nitrile
#118B 20030515 2 Ply 220 Tan BB x BB w/Black Skim 2 tan 5/32” SBR
THERMOPLASTIC BELT
#244 20040550 ATI 150 Black Urethane x FS 1 black 3/16” Urethane
#249 24041050 2 Ply Green Urethane x IMPG SC 2 green 1/16” Urethane
#250 24041070 2 Ply Green PVC Roughtop x BB 2 green 7/32” PVC
#251 24041090 2 Ply Black PVC SC x BB 2 black 3/32” PVC
#229 24009752 2 Ply Green PVC SC x BB 2 green 5/64” PVC
#223 24041040 2 Ply White Urethane x IMPG Bottom SC 2 white 1/16” Urethane
#224 24041010 2 Ply White PVC x IMPG Bottom SC 2 white 5/64” PVC
#252 20032953 3 Ply 150 White RMV CRSC x BB 3 white 11/64” RMV
#230 20038225 4 Ply 200 White RMV CRSC x BB 4 white 7/32” Rubber/PVC
#253 20032955 3 Ply 150 Black RMV CRSC x BB 3 black 11/64” Poly/Mono
#231 20032957 4 Ply 200 Black RMV CRSC x BB 4 black 7/32” Rubber/PVC
#222 24041030 1 Ply White Urethane x IMPG Bottom SC 1 white 1/32” Urethane
#60 20032710 2 Ply 60 Matte PVC Checkout Counter x BB 2 black 5/64” PVC
TRANSMISSION BELT
#240 24041195 HAM-5P 3 green 1/32” Nitrile
#241 24041193 F-1 2 green 3/64” Nitrile
# 236 24005513 XH500-4 blue 5/32” Nitrile
# 237 24005512 XH500-5 blue 13/64” Nitrile
# 238 24005514 XH500-6 blue 15/64” Nitrile
Working Temp Minimum Weight Maximum FDA Flexco Clipper
Tension PIW Range Pulley Dia PIW Roll Width USDA # #
70# 0°F to 250°F 2” .050 72” 62, 7 1SP
100# 20°F to 180°F 11/2” .056 72” 62, 7 1SP
150# 20°F to 180°F 3” .083 72” 125, 15 1
135# 20°F to 180°F 21/2” .070 60” 7 1
105# 0°F to 250°F 3” .070 72” 125, 7 1
150# 0°F to 250°F 31/2” .080 72” 125, 20 2
100# 20°F to 180°F 11/2” .050 72” 62, 7 1SP
120# 20°F to 180°F 2” .085 72” 125, 15, 62, 7 1SP
120# 20°F to 180°F 21/2” .070 72” 125, 15 1
120# 20°F to 180°F 21/2” .072 72” 125, 15 1
200# 20°F to 180°F 6c, 8e .142 72” 187, 27, R5 4
105# -65°F to 300°F 11/2”ht, 4”cld .053 72” 62, 7 1SP
105# 0°F to 250°F 21/2” .060 72” 125, 7 1
135# 0°F to 250°F 31/2” .085 72” 125, 15 2SP
105# 0°F to 275°F 21/2” .052 54” 62, 7 1SP
46# 20°F to 180°F 1/2” .025 118” * 00, 2SP, UCM36 SP
70# 20°F to 180°F 1” .042 118” * 62, 1 25LP
150# 20°F to 180°F 3” .083 72” 20, RS125 2
200# 20°F to 180°F 8” .140 72” 187, 27
220# 20°F to 180°F 8” .126 72” 187, 27, 140, 375, R5 4
17# 20°F to 180°F 1/4” .015 118” * UCM36 XSP
105# -40°F to 250°F 3” .057 72” 125, 15 2SP
105# -40°F to 250°F 3” .087 72” 125, 15 1
140# -40°F to 250°F 6” .110 72” 125, 20 2
69# 0°F to 250°F 3/4” .037 72” 62, 1 25LP
115# 0°F to 250°F 11/2” .065 72” 62, 7 1SP
84# 0°F to 250°F 3” .094 72” 20 2
135# 0°F to 250°F 31/2” .070 72” 125, 7
92# -20°F to 250°F 3” .070 72” 125, 7 1
105# -40°F to 250°F 31/2” .072 72” 125, 15 1
200# 0°F to 250°F 3” .070 72” 125, 15 1
220# -25°F to 225°F 8” .075 60” 125, 15, R2 1
150# 20°F to 180°F 21/2” .090 72” 125, 20
70# 20°F to 180°F 5/8 .025 72” hot vlc, cold bond 25LP
70# 20°F to 180°F 21/2 .077 72” 62, hot vlc, cold bond 25LP, 36LL
70# 20°F to 180°F 11/2” .042 72” hot vlc, cold bond 25LP, UCM36 SP
70# 20°F to 180°F 15/8” .040 118” 62, 1 25LP
46# 20°F to 180°F 1/2” .025 118” * 00, 2SP, UCM36 SP
70# 20°F to 180°F 1” .042 118” * 62, 1 25LP
150# 20°F to 180°F 3” .083 72” 20, RS125 2
200# 20°F to 180°F 8” .140 72” 187, 27
150# 20°F to 180°F 3” .083 72” 20, RS125 2
200# 20°F to 180°F 8” .140 72” 187, 27
17# 20°F to 180°F 1/4” .015 118” * UCM36 XSP
60# 20°F to 180°F 2” .047 72” 1 25LP
0°F to 212°F 5/8” .014 45” thermo x skived splice
0°F to 212°F 1” .021 45” thermo x skived splice
0°F to 250°F 11/2” .158 48” thermo x skived splice
0°F to 250°F 21/4” .197 48” thermo x skived splice
0°F to 250°F 21/2” .236 48” thermo x skived splice
BB =
Bare Back
Brush =
Brushed Bottom
C =
Conveyor
CBS =
Cover Both Sides
CD =
Cold
CR =
Cross Rigid
CT II =
Chevron Top II
E =
Elevator
FR =
Fire Retardant
FS =
Friction Surface
GR 2 =
Grade 2 (SBR)
H =
Hot
IMPG =
Impregnated
MOR =
Moderate Oil
Resistance
MRT =
Mini Roughtop
MSHA =
Mine Safety
Health Act
MSK =
Mini Skim Coat
OR =
Oil Resistant
ORS-HMB =
Oil Resistant
Hot Asphalt
Poly =
Polyester
PU =
Polyurethane
PVC =
Poly Vinyl Chloride
RMV =Rubber
Modified Vinyl
RT =
Roughtop
SC =
Static Conductive
Tex =
Texture
DESCRIPTION
ABBREVIATION
KEY
