ApigeeEdgeInstallandConfigurationGuidePage2
Copyright(c)2016ApigeeCorporation.Allrightsreserved.
Apigee
(TM)
andtheApigeelogoaretrademarksorregisteredtrademarksofApigeeCorp.oritssubsidiaries.All
othertrademarksarethepropertyoftheirrespectiveowners.Allspecificationsaresubjecttochangewithout
notice.
THECONTENTSOFTHISPUBLICATIONAREPROVIDED"ASIS"WITHOUTWARRANTYOFANYKIND,
EITHEREXPRESSORIMPLIED,INCLUDINGBUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF
MERCHANTABILITY,FITNESSFORAPARTICULARPURPOSEORNONINFRINGEMENTOF
INTELLECTUALPROPERTY.
APIGEECORPORATIONSHALLNOTUNDERANYCIRCUMSTANCESBELIABLETOANYPERSONFOR
ANYSPECIAL,INCIDENTAL,INDIRECTORCONSEQUENTIALDAMAGES,INCLUDINGWITHOUT
LIMITATION,DAMAGESRESULTINGFROMTHEUSEOFORRELIANCEONTHEINFORMATIONINTHIS
PUBLICATION,LOSSOFPROFITS,REVENUEORDATA,EVENIFAPIGEECORPORATIONHASBEEN
PREVIOUSLYADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.
ContactInformation
INDIA
No.17/2,2BCross,7thMain,2&3
Floor,Off80FeetRoad,3rdBlock
Koramangala,Bangalore560034
Call+918067696800
www.apigee.com
USA
10AlmadenBoulevard,
16thFloor,SanJose
CA95113
Call+1(408)3437300
www.apigee.com
UK
3SheldonSquare
LondonW26HY
Call:+44(0)7501232390
www.apigee.com/
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage3
Contents
Overview
What’sNew
AccesstheApigeeCommunity
ArchitecturalOverview
ApigeeEdgeforPrivateCloud
ApigeeEdgeGateway
SoftwareComponents
ApigeeEdgeAnalytics
SoftwareComponents
ApigeeAPIBaaS
APIBaaSFeatures
SoftwareComponents
ApigeeEdgeDeveloperChannel
ApigeeEdgeMonetizationServices
MonetizationServicesFeatures
SoftwareComponents
OnPremisesDeployment
InstallationTopologiesandSystemRequirements
Installationtopologies
InstallationRequirements
HardwareRequirements
OperatingSystemandthirdpartysoftwarerequirements
Creatingtheapigeeuser
Installationdirectory
Java
NetworkSetting
Cassandra
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage4
PostgreSQLdatabase
jsvc
NetworkSecurityServices(NSS)
AWSAMI
Tools
FirewallsandVirtualHosts
Edgeportrequirements
APIBaaSportrequirements
Licensing
InstallationChecklist
InstallationConsiderations
Installationprocess
Handlinganinstallationfailure
Whocanperformtheinstall
SilentinstallationofEdgecomponents
InternetornonInternetinstallation
Settingupavirtualhost
OptionswhenyoudonothaveaDNSentryforthevirtualhost
ConfiguringEdgecomponentspostinstallation
InvokingcommandsonEdgecomponents
Accessinglogfiles
CommonYumcommands
FileSystemStructure
LogFiles
Data
InstalltheEdgeapigeesetuputility
Creatingasymlinkfrom/opt/apigee
Prerequisite:DisableSELinux
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage5
InstallEdgeapigeesetuputilityonanodewithanexternalinternetconnection
InstallEdgeapigeesetuputilityonanodewithnoexternalInternetconnection
CreatealocalApigeerepository
Installapigeesetuponaremotenodefromthelocalrepo
Installfromthe.tarfile:
InstallfromtherepousingtheNginxwebserver:
UpdatealocalApigeerepository
CleanalocalApigeerepo
AddorupdateEdge4.16.01ina4.16.05repo
InstallEdgecomponentsonanode
Installationconsiderations
SettingupPostgresmasterstandbyreplication
EnablingCassandraauthentication
BindingtheRoutertoaprotectedport
Specifyingthecomponentstoinstall
Creatingaconfigurationfile
Exampleconfigurationfile
Orderofcomponentinstallation
Installationlogfiles
Iftheuserdoesnothaveaccessto/tmp,thesetup.shutilityfails.
AllinoneInstallation
2hoststandaloneinstallation
5hostclusteredinstallation
9hostclusteredinstallation
13hostclusteredinstallation
12hostclusteredinstallation
Testtheinstall
Runthevalidationtests
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage6
Verifypodinstallation
Onboardanorganization
Silentconfigurationfileforonboarding
Onboarding
OnboardingVerification
EnableCassandraauthentication
EnableCassandraauthenticationduringinstallation
ToenableCassandraauthenticationpostinstallation
SetupMasterStandbyReplicationforPostgres
ToconfigureMasterStandbyReplicationatinstalltime
ToconfigureMasterStandbyReplicationafterinstallation
TestMasterStandbyReplication
InstallSmartDocs
7hostand10hostAPIBaaSInstallation
UsingaLoadBalancer
ConnectingtoCassandra
Datesynchronization
Tomcatsecurity
Installationoverview
Creatingasilentconfigurationfile
OptionalInstallCassandra:Machine8,9,and10
SetupCassandracronjob
InstallElasticSearch:Machine1,2,and3
InstallAPIBaaSStack:Machine4,5,and6
InstallAPIBaaSPortal:Machine7
Onboardinganeworganization
AccessingtheAPIBaaSRESTAPI
InstallingMonetizationServices
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage7
Monetizationrequirements
Installationoverview
CreatingasilentconfigurationfileforMonetization
IntegrateMonetizationServiceswithallManagementServers
IntegrateMonetizationServiceswithallMessageProcessors
MonetizationOnboarding
AdditionalOnboardingtoenableMonetizationforanorganization
ConfiguretheDeveloperServicesportal
AddingaManagementServernodetoaMonetizationInstallation
Additionalconfiguration
ProvideBillingDocumentsasPDFFiles
ConfigureOrganizationSettings
UpdatingApigeeEdgeto4.16.05
WhichEdgeversionscanyouupdateto4.16.05
Whocanperformtheupdate
RequiredupgradetoJavaJDKVersion8
Diskspacerequirementsforupdate
Automaticpropagationofpropertysettingsfrom4.16.01.x
Updatingtheapigeevalidateutility
Updateprerequisites
Handlingafailedupdate
Loggingupdateinformation
Zerodowntimeupdate
MakingaRouterandMessageProcessorunreachable
Usingasilentconfigurationfile
Procedureforupdatingto4.16.05onanodewithanexternalinternetconnection
Procedureforupdatingto4.16.05fromalocalrepo
Orderofmachineupdate
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage8
Fora1hoststandaloneinstallation
Fora2hoststandaloneinstallation
Fora5hostclusteredinstallation
Fora9hostclusteredinstallation
Fora13hostclusteredinstallation
Fora12hostclusteredinstallation
Fora7hostAPIBaaSinstallation
Fora10hostAPIBaaSinstallation
Foranonstandardinstallation
RollbackProcess
Whocanperformtherollback
Whichcomponentscanberolledback
Torollback4.16.05
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage9
Overview
ThisdocumentprovidesanoverviewoftheApigeeEdgeforPrivateCloudinstallation.Thefulldocumentis
primarilydividedintotwoparts:
●ArchitecturalOverview
—thesystemarchitectureandanoverviewoftheinstallationprocessand
requirements.
●Installation
—outlineofthestepsneededtoinstallandinitiallyconfigureacustomdeploymentof
ApigeeEdgeforPrivateCloud.
Thisversionofthisdocumenthasdetailsspecifictoversion4.16.05.Anyreferencesthatarespecificto
previousversionsareoversightsandshouldbereportedasbugs.
What’sNew
SeetheApigeeEdgeforPrivateCloudreleasenotesforthisproductversion:
http://apigee.com/docs/releasenotes/content/apigeeedgereleasenotes
AccesstheApigeeCommunity
TheApigeeCommunityisafreeresourcewhereyoucancontactApigeeaswellasotherApigeecustomers
withquestions,tips,andotherissues.Beforepostingtothecommunity,besuretofirstsearchexistingpoststo
seeifyourquestionhasalreadybeenanswered.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage10
ArchitecturalOverview
BeforeinstallingApigeeEdgeforPrivateCloud,youshouldbefamiliarwiththeoverallorganizationofEdge
modulesandsoftwarecomponents.
ApigeeEdgeforPrivateCloud
ApigeeEdgeforPrivateCloudconsistsofthefollowingmodules:
●ApigeeEdgeGateway(akaAPIServices)
●ApigeeEdgeAnalytics
●ApigeeAPIBaaS
●ApigeeEdgeDeveloperChannel
●ApigeeEdgeMonetizationServices(akaDeveloperServicesMonetization)
Note:ApigeeEdgeDeveloperChannelisnotavailableforinstallationbytheEdgeforPrivateCloudinstaller.
DeveloperChannelisavailableforonpremisesinstallationbyaseparatescript.Ifyouwanttoinstall
DeveloperChannel,contactApigeeSupport.

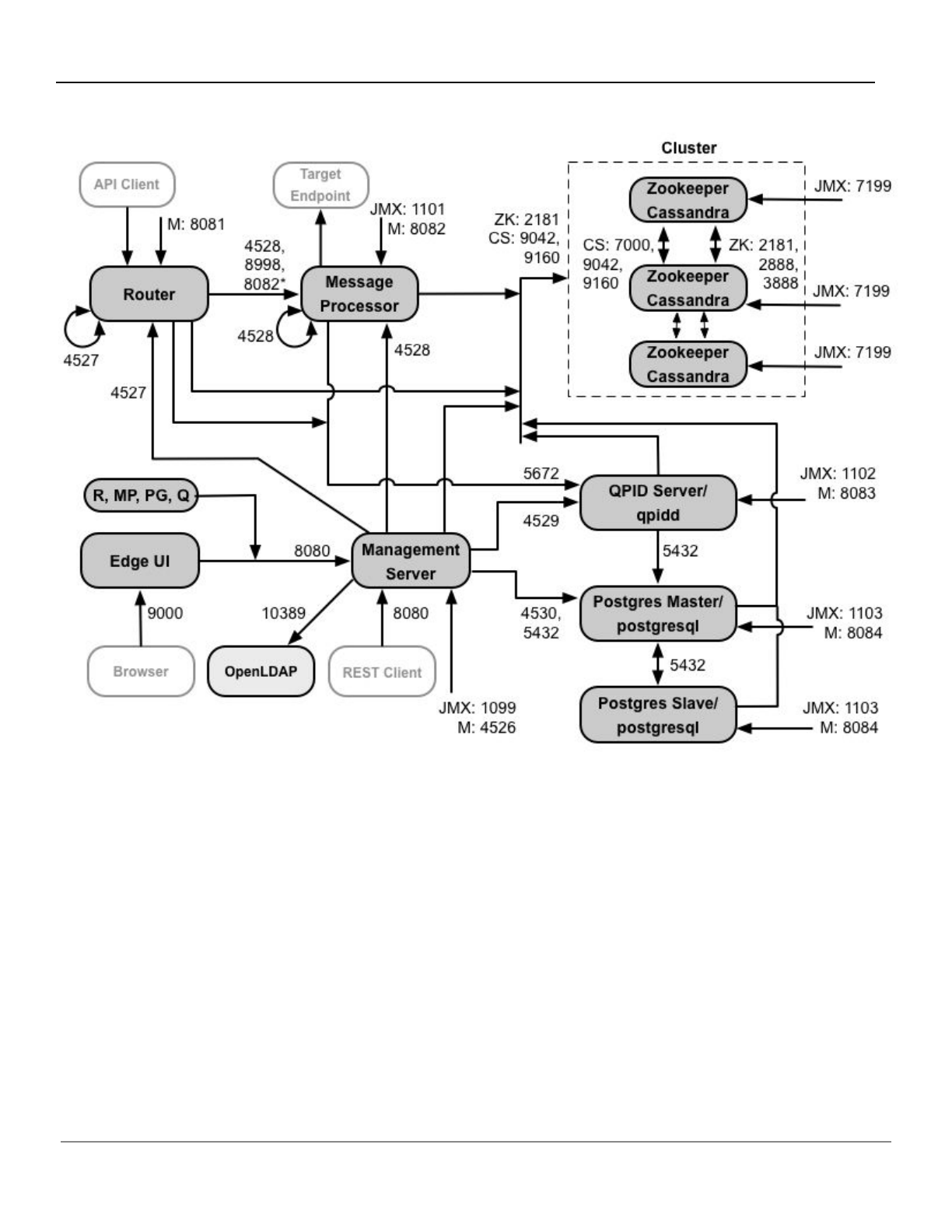

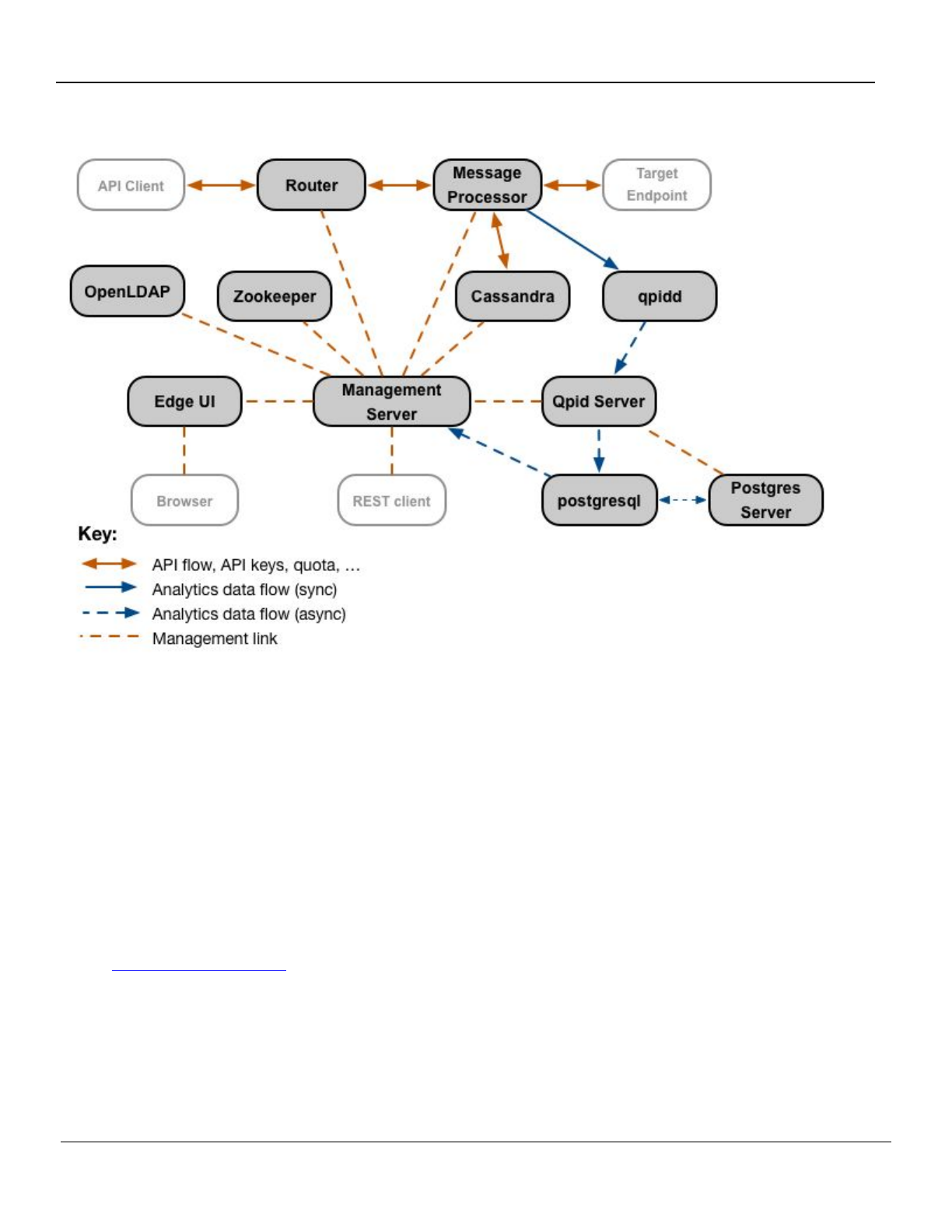

Figure1:ApigeeEdgeforPrivateCloudArchitecture
ApigeeEdgeGateway
EdgeGatewayisthecoremoduleofApigeeEdgeandisthemaintoolformanagingyourAPIs.TheGateway
UIprovidestoolsforaddingandconfiguringyourAPIs,settingupbundlesofresources,andmanaging
developersandapps.TheGatewayoffloadsmanycommonmanagementconcernsfromyourbackendAPI.
WhenyouaddanAPI,youcanapplypoliciesforsecurity,ratelimiting,mediation,caching,andothercontrols.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage11
YoucanalsocustomizethebehaviorofyourAPIbyapplyingcustomscripts,makingcalloutstothirdparty
APIs,andsoon.
SoftwareComponents
EdgeGatewayisbuiltfromthefollowingprimarycomponents:
● EdgeManagementServer
● ApacheZooKeeper
● ApacheCassandra
● EdgeRouter
● EdgeMessageProcessor
● OpenLDAP
● EdgeUI
● PlayFramework
EdgeGatewayisdesignedsothatthesemaybeallinstalledonasinglehostordistributedamongseveral
hosts.
ApigeeEdgeAnalytics
EdgeAnalyticshaspowerfulAPIanalyticstoseelongtermusagetrends.Youcansegmentyouraudienceby
topdevelopersandapps,learnaboutusagebyAPImethodtoknowwheretoinvest,andcreatecustom
reportsonbusinesslevelinformation.
AsdatapassesthroughApigeeEdge,severaldefaulttypesofinformationarecollectedincludingURL,IP,user
IDforAPIcallinformation,latency,anderrordata.Youcanusepoliciestoaddotherinformation,suchas
headers,queryparameters,andportionsofarequestorresponseextractedfromXMLorJSON.
AlldataispushedtoEdgeAnalyticswhereitismaintainedbytheanalyticsserverinthebackground.Data
aggregationtoolscanbeusedtocompilevariousbuiltinorcustomreports.
SoftwareComponents
EdgeAnalyticscomprisesthefollowing:
● Qpid,whichconsistsofthefollowing
● ApacheQpidmessagingsystem
● ApigeeQpidServerserviceAJavaservicefromApigeeusedtomanageApacheQpid
● Postgres,whichconsistsofthefollowing:
● PostgreSQLdatabase
● ApigeePostgresServerserviceAJavaservicefromApigeeusedtomanagethePostgreSQL
database
ApigeeAPIBaaS
APIBaaSisacompletebackendasaservice(BaaS)forpoweringmobileandWebappsthatyouinstallasan
additiontoEdge.APIBaaSgivesappdevelopersaccesstoaflexibledatastoreandkeydifferentiating
featuressuchassocialgraphs,geolocation,usermanagement,pushnotifications,performancemonitoring,
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage12
andmore.APIBaaSmakesthesefeaturesavailablewithSDKsforiOS,Android,JavaScript,andothers,
lettingappdevelopersfocusoncreatingtherichfeaturesanduserexperiencethattrulydifferentiateaclient
appratherthanburningtimeimplementingcorebackendservicesandinfrastructure.
APIBaaSFeatures
TheApigeedocumentationsitehasextensiveinformationonAPIBaaSfeatures.See
http://apigee.com/docs/appservices/content/appservicesfeatures(or
http://apigee.com/docs/content/documentationarchivestofindthedocsthatcorrespondtoearlierversionsof
theproduct)
ThefollowingdiagramillustrateshowAPIBaaScomponentsinteract.

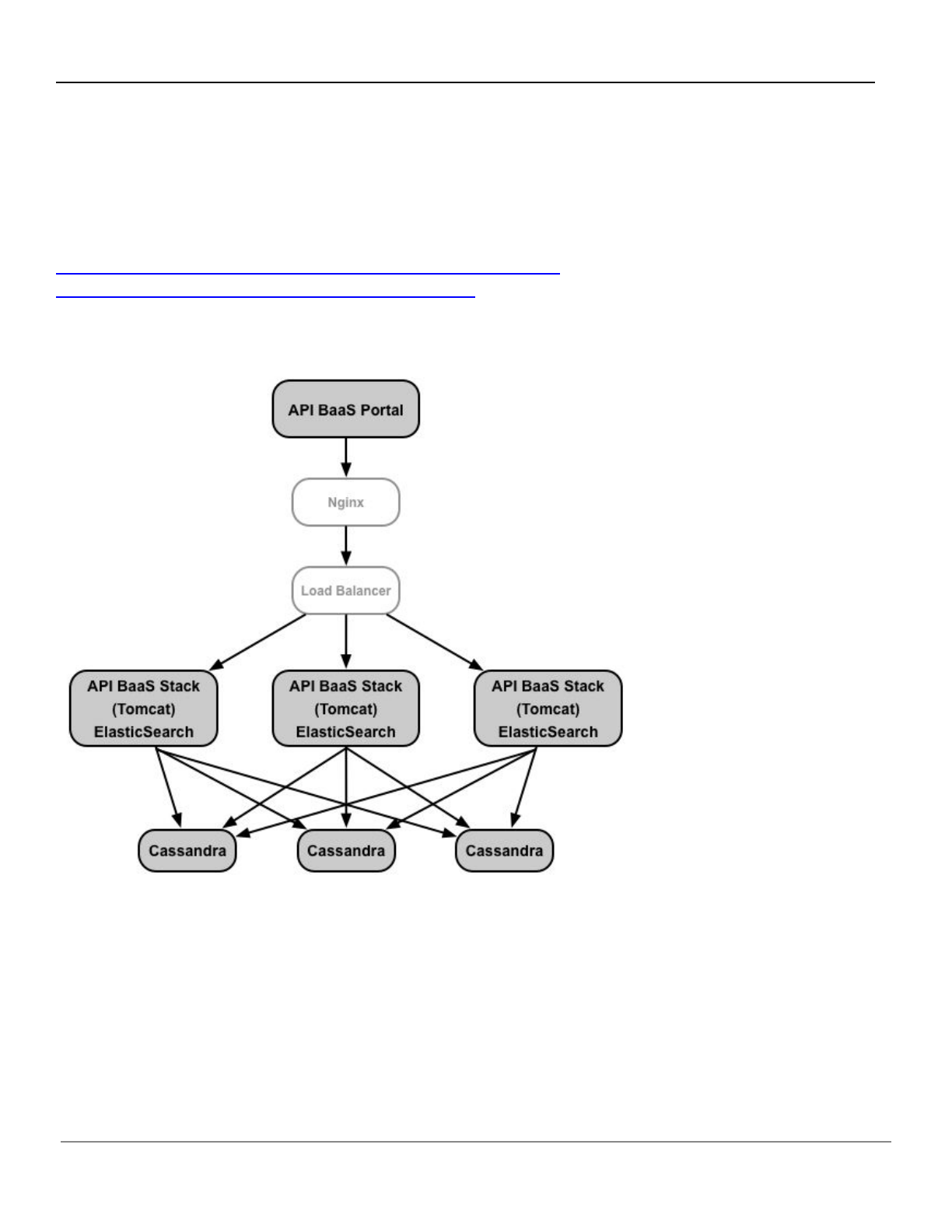

Figure2:APIBaaSOverviewandArchitecture
SoftwareComponents
APIBaaSisbuiltfromthefollowingprimarycomponents:
● APIBaaSStackdeployedintheTomcatwebserver
● APIBaaSPortalUIdeployedintheNginxwebserver
● ElasticSearchdistributedfulltextsearchengine.ElasticSearchcanbeinstalledonthesamenodeas
APIBaaSStack,oronitsownnode.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage13
YoucanscaletheAPIBaaSRESTAPIcapabilityhorizontallybyaddingTomcatserversandusingaLoad
Balancertoroutewebrequeststoallofyouractiveservers.
FormoreinformationongettingstartedwithAPIBaaS,seehttp://apigee.com/docs/content/buildappshome
(orhttp://apigee.com/docs/content/documentationarchivestofindthedocsthatcorrespondtoearlierversions
oftheproduct).
ApigeeEdgeDeveloperChannel
EdgeDeveloperChannelisatemplateportalforcontentandcommunitymanagement.Itisbasedontheopen
sourceDrupal(http://www.drupal.org)project.ThedefaultsetupallowscreatingandmanagingAPI
documentation,forums,andblogs.AbuiltintestconsoleallowstestingofAPIsinrealtimefromwithinthe
portal.
Apartfromcontentmanagement,DeveloperChannelhasvariousfeaturesforcommunitymanagementsuch
asmanual/automaticuserregistrationandmoderatingusercomments.RoleBasedAccessControl(RBAC)
modelcontrolstheaccesstofeaturesontheDeveloperChannel.Forexample,youcanenablecontrolsto
allowregisteredusertocreateforumposts,usetestconsoles,andsoon.
TheApigeeEdgeforPrivateClouddeploymentscriptdoesnotincludeDeveloperChanneldeployment.
DeveloperChanneldeploymentonpremisesissupportedbyitsowninstallationscript.Ifyouwanttoinstall
andconfigureDeveloperChannel,contactApigeeSupport.
ApigeeEdgeMonetizationServices
EdgeMonetizationServicesisanewpowerfulextensiontoApigeeEdgeforPrivateCloud.AsanAPIprovider,
youneedaneasytouseandflexiblewaytomonetizeyourAPIssothatyoucangeneraterevenuefortheuse
ofthoseAPIs.MonetizationServicessolvesthoserequirements.UsingMonetizationServices,youcancreate
avarietyofrateplansthatchargedevelopersfortheuseofyourAPIsbundledintopackages.Thesolution
offersanextensivedegreeofflexibility:youcancreateprepaidplans,postpaidplans,fixedfeeplans,
variablerateplans,“freemium”plans,planstailoredtospecificdevelopers,planscoveringgroupsof
developers,andmore.
Inaddition,MonetizationServicesincludesreportingandbillingfacilities.Forexample,asanAPIprovider,you
cangetsummaryordetailedreportsontraffictoyourAPIpackagesforwhichdeveloperspurchasedarate
plan.Youcanalsomakeadjustmentstotheserecordsasnecessary.Andyoucancreatebillingdocuments
(whichincludeapplicabletaxes)fortheuseofyourAPIpackagesandpublishthosedocumentstodevelopers.
YoucanalsosetlimitstohelpcontrolandmonitortheperformanceofyourAPIpackagesandallowyouto
reactaccordingly,andyoucansetupautomaticnotificationsforwhenthoselimitsareapproachedorreached.
Note:ThecoreApigeeEdge(GatewayandAnalytics)isaprerequisiteforusingMonetizationServices.
MonetizationServicesFeatures
ThekeyfeaturesofEdgeMonetizationServicesinclude:
● FullyintegratedwiththeAPIplatformmeansrealtimeinteraction
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage14
● Supportallbusinessmodels“outofthebox”fromsimplefeebasedplanstothemostcomplex
charging/revenueshareplans(easytocreateandmodifyplans)
● Ratetransactionsonvolumeor“customattributes”withineachtransaction.Transactioncanbemade
upofAPIsfromGatewayPLUSothersystems(externaltoApigeeEdge)
● Automatedtoolssuchaslimitsandnotificationstomonitorperformanceandmanagetheprocess
● Integrateddeveloper/partnerworkflowandcontrolstomanagepurchasethroughthebilling/payment
● Fullyselfserviceforbusinessusersanddevelopers/partners,sononeedforcostlytechnical
intervention
● Integratedwithanybackendsales,accountingandERPsystem

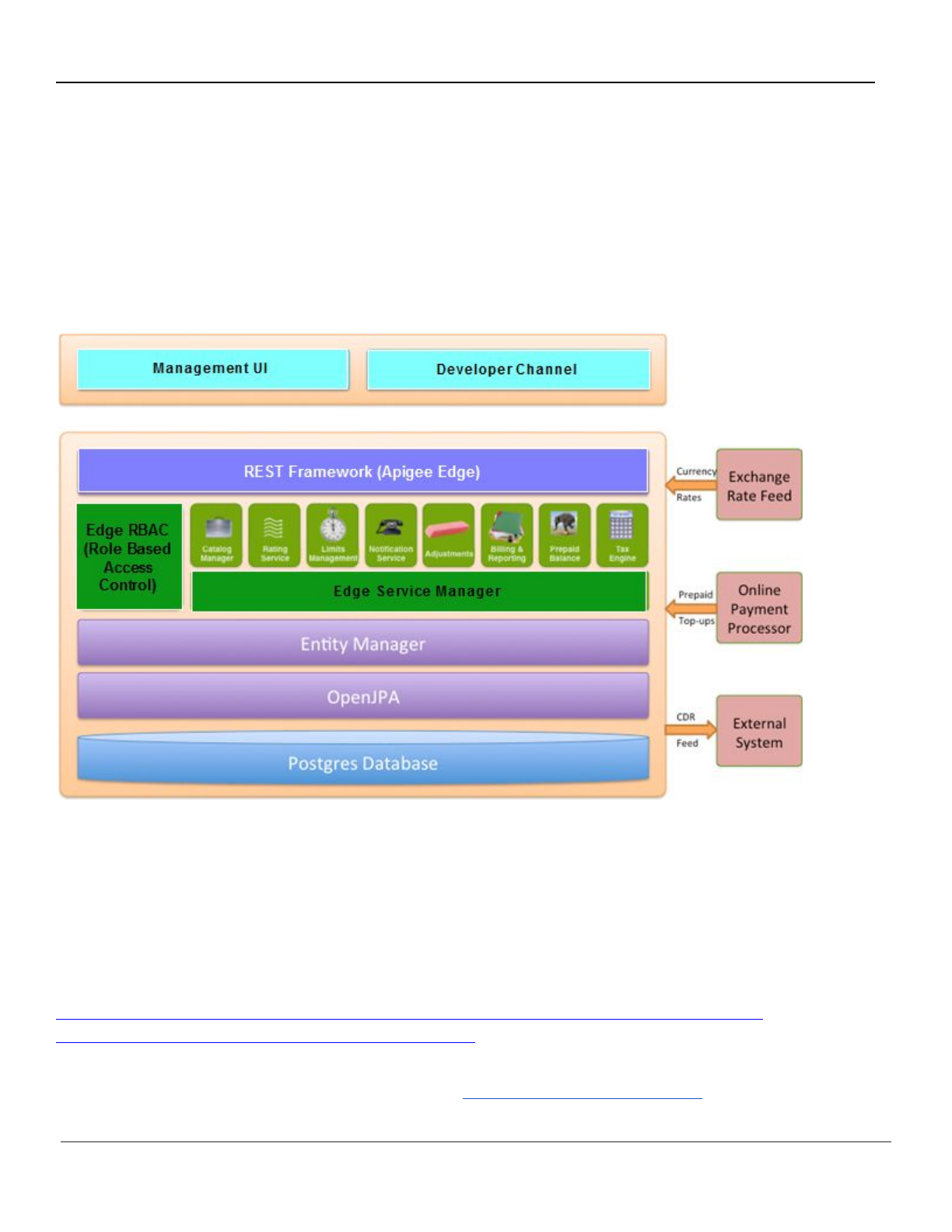

Figure3:EdgeMonetizationServicesOverview
SoftwareComponents
EdgeMonetizationServicesisbuiltontopofthefollowingprimarycomponents:
● EdgeManagementServer
● EdgeMessageProcessor
FormoreinformationongettingstartedwithMonetizationServicesusingEdgeUI,see
http://apigee.com/docs/monetizationservices/content/getstartedusingmonetizationservices(or
http://apigee.com/docs/content/documentationarchivestofindthedocsthatcorrespondtoearlierversionsof
theproduct).
IfyouwishtoinstallEdgeMonetizationServices,seeInstallingMonetizationServices.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage15
OnPremisesDeployment
AnonpremisesinstallationofcoreApigeeEdgeforPrivateCloud(GatewayandAnalytics)providesthe
infrastructurerequiredtorunAPItrafficonbehalfoftheonpremisesclient’scustomers.
ThecomponentsprovidedbytheonpremisesinstallationofEdgeGatewayinclude(butarenotlimitedto):
● ARouterhandlesallincomingAPItrafficfromaloadbalancer,determinestheorganizationand
environmentsfortheAPIproxythathandlestherequest,balancesrequestsacrossavailableMessage
Processors,andthendispatchestherequest.TheRouterterminatestheHTTPrequest,handlesthe
SSLtraffic,andusesthevirtualhostname,port,andURItosteerrequeststotheappropriateMessage
Processor.
● AMessageProcessorprocessesAPIrequests.TheMessageProcessorevaluatesanincoming
request,executesanyApigeepolicies,andcallsthebackendsystemsandothersystemstoretrieve
data.Oncethoseresponseshavebeenreceived,theMessageProcessorformatsaresponseand
returnsittotheclient.
● AnApacheCassandraistheruntimedatarepositorythatstoresapplicationconfigurations,distributed
quotacounters,APIkeys,andOAuthtokensforapplicationsrunningonthegateway.
● AnApacheZooKeepercontainsconfigurationdataaboutthelocationandconfigurationofthevarious
Apigeecomponents,andnotifiesthedifferentserversofconfigurationchanges.
● AnOpenLDAP(LDAP)tomanagesystemandorganizationuserandroles.
● AManagementServertoholdthesepiecestogether.TheManagementServeristheendpointfor
EdgeManagementAPIrequests.ItalsointeractswiththeEdgeUI.
● AUIprovidesbrowserbasedtoolingthatletsyouperformmostofthetasksnecessarytocreate,
configure,andmanageAPIproxies,APIproducts,apps,andusers.
ThecomponentsprovidedbytheonpremisesinstallationofEdgeAnalyticsinclude:
● AQpidServermanagesqueuingsystemforanalyticsdata.
● APostgresServermanagesthePostgreSQLanalyticsdatabase.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage16
ThefollowingdiagramillustrateshowApigeeEdgecomponentsinteract.
Figure4:ConceptualComponentInteractions
InstallationTopologiesandSystemRequirements
ThissectiondescribestheEdgeinstallationtopologiesandsystemrequirements.
Installationtopologies
TheInstallationGuidecoversthefollowingbasic,onpremisesinstallationscenarios.Inadditiontothese,you
haveoptionstochooseotherscenariosbycustomizingthesebasicscenariosthatbestmeettherequirements
ofyourbusiness.
1) AllinoneInstallation:AsinglehostrunsallEdgecomponents.Notethatthisconfigurationisonlyto
beusedforgettingstartedwithEdgeorforinitialprototyping.Itisnottobeusedasadeploymentor
productionenvironment.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage17
Figure5:AllinoneSetup

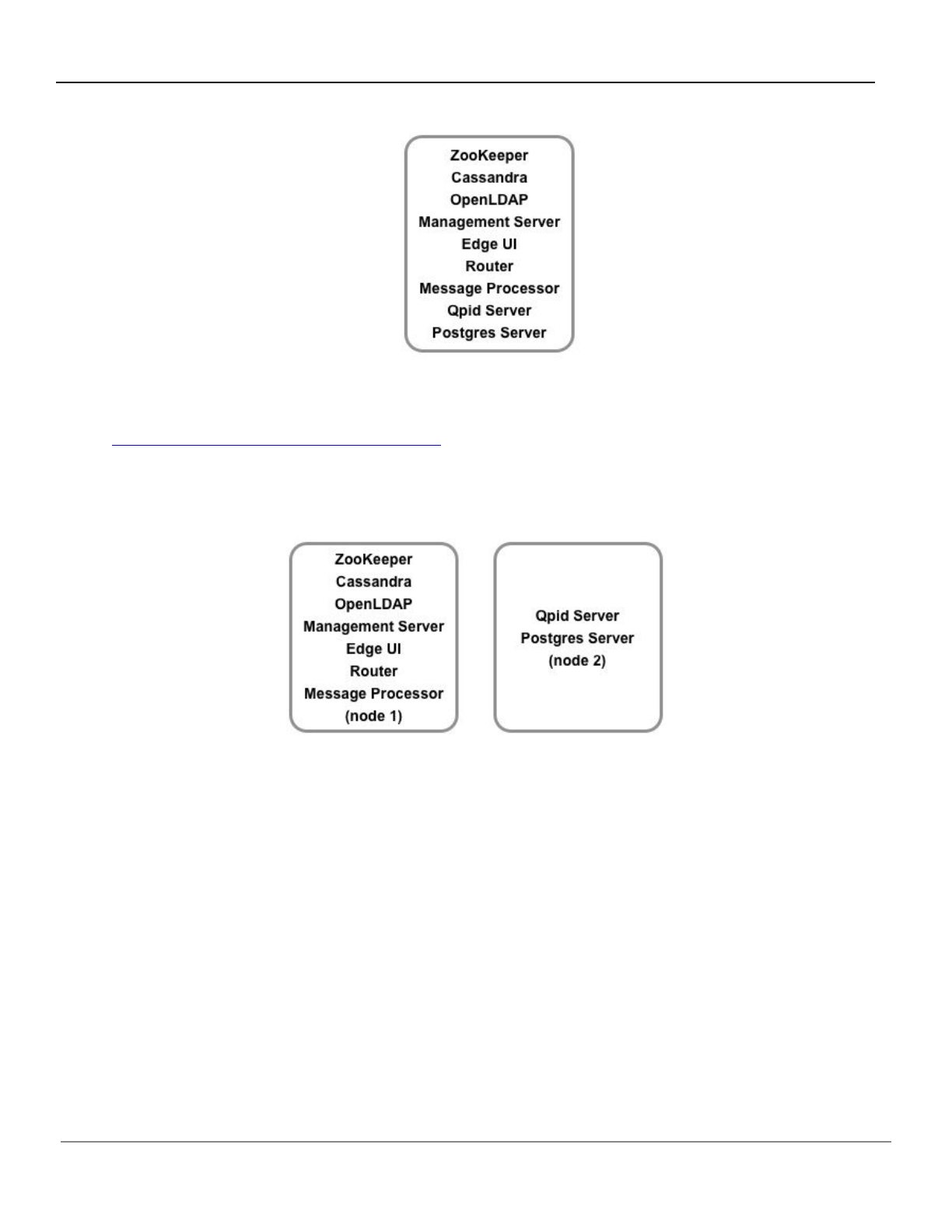

2) Standaloneinstallation(2host,SASAX):Inthisscenario,asinglehostrunsGatewaystandalone
serversandassociatedcomponents—ApigeeManagementServer,ApacheZooKeeper,Apache
Cassandra,OpenLDAP,EdgeUI,ApigeeRouter,andApigeeMessageProcessor.Theotherhostruns
Analyticsstandalonecomponents—QpidServerandPostgresServer.
Figure6:StandaloneSetup
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage18
3) 5hostclusteredinstallation(MINHA2SAX):Inthisscenario,threehostsrunZooKeeperand
Cassandraclusters.OneofthosethreehostsalsorunstheApigeeManagementServer,OpenLDAP,
andEdgeUI.TwoofthosethreehostsalsorunApigeeRouter+MessageProcessor.Twohostsrun
ApigeeAnalytics.
Note:ThisscenariocombinesclusterandGatewaycomponentstoreducethenumberofserversused.
Toachieveoptimalperformance,theclustercanalsobedeployedonthreedifferentservers.
ThisscenarioalsointroducesamasterstandbyreplicationbetweentwoPostgresnodesif
analyticsstatisticsaremissioncritical.
Figure7:FivehostClusteredSetup
4) 9hostclusteredinstallation(PerformanceHASetup):Thisscenarioissimilartofivehostclustered
installationbuthasdifferentAnalyticscomponentssetuptoachieveperformancehighavailability.
Note:ThisscenariointroducesamasterstandbyreplicationbetweentwoPostgresnodesifAnalytics
statisticsaremissioncritical.
Figure8:NinehostClusteredSetup
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage19

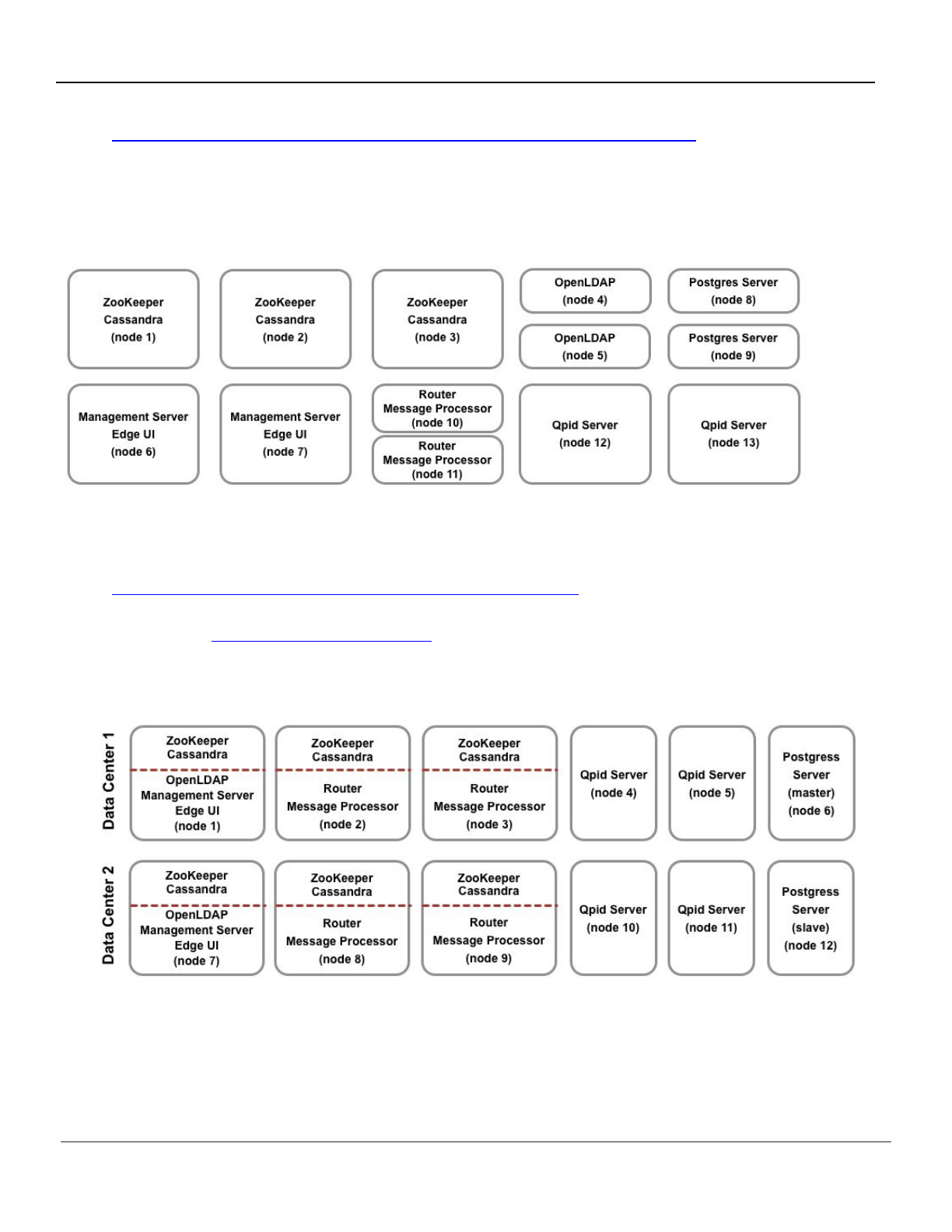

5) 13hostclusteredinstallation(PerformanceHAwithseparatedatazone):Thisscenarioisan
enhancementofninehostclusteredinstallationcoveringseparatedatazonesfordataandApigee
serversinonedatacentersetup.HereLDAPisinstalledasanindependentseparatenode.
Note:ThisscenariousesmastermasterOpenLDAPreplicationandmasterstandbyPostgres
replicationinonedatacentersetup.
Figure9:13hostClusteredSetup
6) 12hostclusteredinstallation(MINAPItrafficDR/AXHA):Thisscenariocoversdisasterrecovery
andanalyticshighavailabilityacrosstwodatacentersusingAPIDNsupport.Formoreinformationon
APIDN,seeAppendixB:APIDNSupport.
Note:ThisscenariousesmastermasterOpenLDAPreplicationandmasterstandbyPostgres
replication(acrosstwodatacenters).
Figure10:12hostClusteredSetup
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage20
7) 7hostand10hostAPIBaaSInstallation:Inthisscenario,youinstallAPIBaaSon10hosts.The
CassandranodescanbededicatedtoAPIBaaS,orcanbesharedwithEdge.
Figure11:10hostClusteredSetup
8) 7hostand10hostAPIBaaSInstallation:Inthisscenario,threehostsruntheAPIBaaSStackand
ElasticSearch.
Figure12:7hostClusteredSetup 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage21
9) InstallingMonetizationServices:MonetizationServicesrunswithinanyexistingApigeeEdgesetup.In
thisscenario,youinstallMonetizationServicestheApigeeManagementServerandMessage
Processor.ToinstallMonetizationonEdgewheretheEdgeinstallationhasmultiplePostgresnodes,
thePostgresnodesmustbeconfiguredinMaster/Standbymode.YoucannotinstallMonetizationon
EdgeifyouhavemultiplePostgresmasternodes.
InstallationRequirements
ThissectionexplainstherequirementsforApigeeEdgeforPrivateCloudinstallation.
HardwareRequirements
Youmustmeetthebasichardwareconfigurationsthatsupportthebasichostinstallation.Forallinstallation
scenariosdescribedabove,thefollowingtableslisttheminimumhardwarerequirementsfortheinstallation
components.
Inthesetablestheharddiskrequirementsareinadditiontotheharddiskspacerequiredbytheoperating
system.Dependingonyourapplicationsandnetworktraffic,yourinstallationmightrequiremoreorfewer
resourcesthanlistedbelow.
InstallationComponent
RAM
CPU
Minimumharddisk
Cassandra
16GB
8core
250GBlocalstoragewithSSDorfastHDD
supporting2000IOPS
MessageProcessor/Routeron
samemachine
8/16GB
4/8core
100GB
AnalyticsPostgres/Qpidon
sameserver(notrecommended
forproduction)
16GB*
8core*
500GB1TB**localstoragewithSSDor
fastHDD.
Forinstallationsgreaterthan250TPS
(transactionspersecond),HDDwith1000
IOPSisrecommended.
AnalyticsPostgresstandalone
16GB*
8core*
500GB1TB**localstoragewithSSDor
fastHDDsupporting2000IOPS
AnalyticsQpidstandalone
8GB
4core
20GB500GBlocalstoragewithSSDor
fastHDD
Forinstallationsgreaterthan250TPS,
HDDwithlocalstoragesupporting1000
IOPSisrecommended.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage22
Other(OpenLDAP,UI,
ManagementServer)
4GB
2core
60GB
*AdjustPostgressystemrequirementsbasedonthroughput:
● Lessthan250TPS:8GB,4corecanbeconsideredwithlocalstoragesupporting1000IOPS
● Greaterthan250TPS:16GB,8core,localstoragesupporting1000IOPS
● Greaterthan1000TPS:16GB,8core,localstoragesupporting2000IOPS
● Greaterthan2000TPS:32GB,16core,localstoragesupporting2000IOPS
● Greaterthan4000TPS:64GB,32core,localstoragesupporting4000IOPS
**ThePostgresharddiskvalueisbasedontheoutoftheboxanalyticscapturedbyEdge.Ifyouaddcustomvalues
totheanalyticsdata,thenthesevaluesshouldbeincreasedaccordingly.Usethefollowingformulatoestimatethe
requiredstorage:
(#bytes/request)*(requestspersecond)*(secondsperhour)*(hoursofpeakusageperday)*(dayspermonth)*
(monthsofdataretention)=bytesofstorageneeded
Forexample:
(500bytesofanalyticsdataperrequest)*100req/sec*3600secs/hr*18hourspeakusageperday*30
days/month*3monthsretention=291,600,000,000bytesor292GB.
Inaddition,thefollowingliststhehardwarerequirementsifyouwishtoinstalltheMonetizationServices:
RAM
CPU
Harddisk
8GB
4core
60GB
16G
B
8core
500GB1TBwithSSDorFast
HDD,orusetherulefromthetable
above
16G
B
8core
500GB1TBwithSSDorFast
HDD,orusetherulefromthetable
above
8GB
4core
40GB
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage23
ThefollowingliststhehardwarerequirementsifyouwishtoinstallAPIBaaS:
RAM
CPU
Harddisk
8GB
4core
6080GB
8GB
4core
6080GB
1GB
2core
20GB
16G
B
8core
250GBlocalstoragewithSSDor
fastHDDsupporting2000IOPS
*YoucaninstallElasticSearchandAPIBaaSStackonthesamenode.Ifyoudo,configure
ElasticSearchtouse4GBofmemory(default).IfElasticSearchisinstalledonitsownnode,
thenconfigureittouse6GBofmemory.
Note:
●Iftherootfilesystemisnotlargeenoughfortheinstallation,itisrecommendedtoplacethedataontoa
largerdisk.
●IfanolderversionofApigeeEdgeforPrivateCloudwasinstalledonthemachine,ensurethatyou
deletethefolder/tmp/javabeforeanewinstallation.
● Thesystemwidetemporaryfolder/tmpneedsexecutepermissionsinordertostartCassandra.
●Ifuser“apigee”wascreatedpriortotheinstallation,ensurethat“/home/apigee”existsashome
directoryandisownedby“apigee:apigee”.
OperatingSystemandthirdpartysoftwarerequirements
Theseinstallationinstructionsandthesuppliedinstallationfileshavebeentestedontheoperatingsystems
andthirdpartysoftwarelistedhere:https://apigee.com/docs/apiservices/reference/supportedsoftware
Creatingtheapigeeuser
TheinstallationprocedurecreatesaUnixsystemusernamed'apigee'.Edgedirectoriesandfilesareownedby
'apigee',asareEdgeprocesses.ThatmeansEdgecomponentsrunasthe'apigee'user.ifnecessary,youcan
runcomponentsasadifferentuser.SeeBindingtheRoutertoaprotectedportforanexample.
Installationdirectory
Bydefault,theinstallerwritesallfilestothe/opt/apigeedirectory.Youcannotchangethisdirectory
location.
Note:Whileyoucannotchangethisdirectory,youcancreateasymlinktomap/opt/apigeetoanotherlocation.
SeeCreatingasymlinkfrom/opt/apigeeformoreinformation.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage24
Intheinstructionsinthisguide,theinstallationdirectoryisnotedas/<inst_root>/apigee,where
/<inst_root>is/optbydefault.
Java
YouneedasupportedversionofJava1.8installedoneachmachinepriortotheinstallation.SupportedJDKs
arelistedhere:
https://apigee.com/docs/apiservices/reference/supportedsoftware
EnsurethatJAVA_HOMEpointstotherootoftheJDKfortheuserperformingtheinstallation.
NetworkSetting
Itisrecommendedtocheckthenetworksettingpriortotheinstallation.Theinstallerexpectsthatallmachines
havefixedIPaddresses.Usethefollowingcommandstovalidatethesetting:
●hostnamereturnsthenameofthemachine
●hostnameireturnstheIPaddressforthehostnamethatcanbeaddressedfromothermachines.
Dependingonyouroperatingsystemtypeandversion,youmighthavetoedit/etc/hostsand
/etc/sysconfig/networkifthehostnameisnotsetcorrectly.Seethedocumentationforyourspecific
operatingsystemformoreinformation.
Cassandra
AllCassandranodeshavetobeconnectedtoaring.
CassandraautomaticallyadjustsitsJavaheapsizebasedontheavailablememory.Formore,seeTuning
Javaresources.Intheeventofaperformancedegradationorhighmemoryconsumption.
AfterinstallingtheEdgeforPrivateCloud,youcancheckthatCassandraisconfiguredcorrectlybyexaminingthe
/<inst_root>/apigee/apigeecassandra/conf/cassandra.yamlfile.Forexample,ensurethat
theEdgeforPrivateCloudinstallationscriptsetthefollowingproperties:
●cluster_name
●initial_token
●partitioner
●seeds
●listen_address
●rpc_address
●snitch
Warning:Donoteditthisfile.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage25
PostgreSQLdatabase
AfteryouinstallEdge,youcanadjustthefollowingPostgreSQLdatabasesettingsbasedontheamountof
RAMavailableonyoursystem:
conf_postgresql_shared_buffers=35%ofRAM#min128kB
conf_postgresql_effective_cache_size=45%ofRAM
conf_postgresql_work_mem=512MB#min64kB
Note:ThesesettingsassumethatthePostgreSQLdatabaseisonlyusedforEdgeanalytics,andnotforany
otherpurpose.
Tosetthesevalues:
1. Editpostgresql.properties:
>vi/<inst_root>/apigee/customer/application/postgresql.properties
Ifthefiledoesnotexist,createit.
2. Setthepropertieslistedabove.
3. Saveyouredits.
4. RestartthePostgreSQLdatabase:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceapigeepostgresqlrestart
jsvc
“jsvc”isaprerequisiteforusingAPIBaaS.Version1.0.15devisinstalledwhenyouinstalltheAPIBaaS.
NetworkSecurityServices(NSS)
NetworkSecurityServices(NSS)isasetoflibrariesthatsupportsdevelopmentofsecurityenabledclientand
serverapplications.YoushouldensurethatyouhaveinstalledNSSv3.19,orlater.
Tocheckyourcurrentversion:
>yuminfonss
ToupdateNSS:
>yumupdatenss
SeethisarticlefromRedHatformoreinformation.
AWSAMI
IfyouareinstallingEdgeonanAWSAmazonMachineImage(AMI)forRedHatEnterpriseLinux7.x,you
mustfirstrunthefollowingcommand:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage26
>yumconfigmanagerenablerhuiREGIONrhelserverextras
rhuiREGIONrhelserveroptional
Tools
TheinstallerusesthefollowingUNIXtoolsinthestandardversionasprovidedbyEL5orEL6.
awk
dirname
ls
rpm
unzip
basename
echo
perl
rpm2cpio
useradd
bash
expr
pgrep(fromprocps)
sed
wc
bc
grep
ps
tar
yum
curl
hostname
pwd
tr
chkconfig
date
id
python
uname
sudo
Note:
●Theexecutableforthetool‘useradd’islocatedin/usr/sbinandforchkconfigin/sbin.
● Withsudoaccessyoucangainaccessovertheenvironmentofthecallinguser,forexample,usually
onewouldcall“sudo<command>”or“sudoPATH=$PATH:/usr/sbin:/sbin<command>”.
● Ensurethatyouhave“patch”toolinstalledpriortoaservicepack(patch)installation.
ntpdate–Itisrecommendedtohavetheserverstimesynchronized.Ifnotalreadyconfigured,‘ntpdate’utility
couldservethispurpose,whichverifieswhetherserversaretimesynchronized.Youcanuse“yuminstall
ntp”toinstalltheutility.ThisisparticularlyusefulforreplicatingOpenLDAPsetups.Notethatyousetup
servertimezoneinUTC.
openldap2.4–TheonpremisesinstallationrequiresOpenLDAP2.4.IfyourserverhasanInternet
connection,thentheEdgeinstallscriptdownloadsandinstallsOpenLDAP.Ifyourserverdoesnothavean
Internetconnection,youmustensurethatOpenLDAPisalreadyinstalledbeforerunningtheEdgeinstallscript.
OnRHEL/CentOS,youcanrun"yuminstallopenldapclientsopenldapservers"toinstallthe
OpenLDAP.
For13hostinstallations,and12hostinstallationswithtwoDataCenters,yourequireOpenLDAPreplication
becausetherearemultiplenodeshostingOpenLDAP.
FirewallsandVirtualHosts
Theterm“virtual”commonlygetsoverloadedintheITarena,andsoitiswithanApigeeEdgeforPrivateCloud
deploymentandvirtualhosts
.Toclarify,therearetwoprimaryusesoftheterm“virtual”:
●Virtualmachines(VM):Not
required,butsomedeploymentuseVMtechnologytocreateisolated
serversfortheirApigeecomponents.VMhosts,likephysicalhosts,canhavenetworkinterfacesand
firewalls.TheseinstallationinstructionsdonotspecificallysupportVMinstallations.
●Virtualhosts:Webendpoints,analogoustoanApachevirtualhost
.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage27
ArouterinaVMcanexposemultiplevirtualhosts(aslongastheydifferfromoneanotherintheirhostalias
or
intheirinterfaceport
).
Justasanamingexample,asinglephysicalserver“A”mightberunningtwoVMs,named“VM1”and“VM2”.
Let’sassumeVM1exposesavirtualEthernetinterface,whichgetsnamedeth0insidetheVM,andwhichis
assignedIPaddress111.111.111.111bythevirtualizationmachineryoranetworkDHCPserver;andthen
assumeVM2exposesavirtualEthernetinterfacealsonamedeth0anditgetsassignedanIPaddress
111.111.111.222.
WemighthaveanApigeerouterrunningineachofthetwoVMs.Theroutersexposevirtualhostendpointsas
inthishypotheticalexample:
TheApigeerouterinVM1exposesthreevirtualhostsonitseth0interface(whichhassomespecificIP
address),api.mycompany.com:80,api.mycompany.com:443,andtest.mycompany.com:80.
TherouterinVM2exposesapi.mycompany.com:80(samenameandportasexposedbyVM1).
Thephysicalhost’soperatingsystemmighthaveanetworkfirewall;ifso,thatfirewallmustbeconfiguredto
passTCPtrafficboundfortheportsbeingexposedonthevirtualizedinterfaces(111.111.111.111:{80,443}
and111.111.111.222:80).Inaddition,eachVM’soperatingsystemmayprovideitsownfirewallonitseth0
interfaceandthesetoomustallowports80and443traffictoconnect.
Thebasepath
isthethirdcomponentinvolvedinroutingAPIcallstodifferentAPIproxiesthatyoumayhave
deployed.APIproxybundlescanshareanendpointiftheyhavedifferentbasepaths.Forexample,one
basepathcanbedefinedashttp://api.mycompany.com:80/andanotherdefinedas
http://api.mycompany.com:80/salesdemo.
Inthiscase,youneedaloadbalancerortrafficdirectorofsomekindsplittingthe
http://api.mycompany.com:80/trafficbetweenthetwoIPaddresses(111.111.111.111onVM1and
111.111.111.222onVM2).Thisfunctionisspecifictoyourparticularinstallation,andisconfiguredbyyour
localnetworkinggroup.
ThebasepathissetwhenyoudeployanAPI.Fromtheaboveexample,youcandeploytwoAPIs,mycompany
andtestmycompany,fortheorganizationmycompanyorgwiththevirtualhostthathasthehostaliasof
api.mycompany.comandtheportsetto80.Ifyoudonotdeclareabasepathinthedeployment,thentherouter
doesnotknowwhichAPItosendincomingrequeststo.
However,ifyoudeploytheAPItestmycompanywiththebaseURLof/salesdemo,thenusersaccessthatAPI
usinghttp://api.mycompany.com:80/salesdemo.IfyoudeployyourAPImycompanywiththebaseURLof/
thenyourusersaccesstheAPIbytheURLhttp://api.mycompany.com:80/.
Edgeportrequirements
Theneedtomanagethefirewallgoesbeyondjustthevirtualhosts;bothVMandphysicalhostfirewallsmust
allowtrafficfortheportsrequiredbythecomponentstocommunicatewitheachother.
ThefollowingimageshowstheportsrequirementsforeachEdgecomponent:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage28
Notesonthisdiagram:
● *Port8082ontheMessageProcessoronlyhastobeopenforaccessbytheRouterwhenyou
configureTLS/SSLbetweentheRouterandMessageProcessor.IfyoudonotconfigureTLS/SSL
betweentheRouterandMessageProcessor,thedefaultconfiguration,port8082stillmustbeopenon
theMessageProcessortomanagethecomponent,buttheRouterdoesnotrequireaccesstoit.
● Theportsprefixedby"M"areportsusedtomanagethecomponentandmustbeopenonthe
component.
● Thefollowingcomponentsrequireaccesstoport8080ontheManagementServer:Router,Message
Processor,UI,Postgres,andQpid.
● AMessageProcessormustopenport4528asitsmanagementport.IfyouhavemultipleMessage
Processors,theymustallbeabletoaccesseachotheroverport4528(indicatedbythelooparrowin
thediagramaboveforport4528ontheMessageProcessor).IfyouhavemultipleDataCenters,the
portmustbeaccessiblefromallMessageProcessorsinallDataCenters.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage29
● Whileitisnotrequired,youcanopenport4527ontheRouterforaccessbyanyMessageProcessor.
Otherwise,youmightseeerrormessagesintheMessageProcessorlogfiles. 
● ARoutermustopenport4527asitsmanagementport.IfyouhavemultipleRouters,theymustallbe
abletoaccesseachotheroverport4527(indicatedbythelooparrowinthediagramaboveforport
4527ontheRouter).
● AccesstoJMXportscanbeconfiguredtorequireausername/password.See
http://docs.apigee.com/apiservices/latest/howmonitorformoreinformation.
● YoucanoptionallyconfigureSSLaccessforcertainconnections,whichcanusedifferentports.See
SSLintheApigeeonlinedocumentationformore.
● Youcanoptionallyopenportsonindividualnodestoallowsshaccess.
● YoucanconfiguretheManagementServertosendemailsthroughanexternalSMTPserver.Ifyoudo,
youmustensurethattheManagementServercanaccessthenecessaryportontheSMTPserver.See
http://docs.apigee.com/apiservices/latest/howmonitorformoreinformation.
Thetablebelowshowstheportsneedtobeopenedinfirewalls,byEdgecomponent:
Component
Port
Description
StandardHTTP
ports
80,443
HTTPplusanyotherportsyouuseforvirtualhosts
Management
Server
8080
PortforEdgemanagementAPIcalls.Thesecomponents
requireaccesstoport8080ontheManagementServer:
Router,MessageProcessor,UI,Postgres,andQpid.
1099
JMXport
4526
Fordistributedcacheandmanagementcalls
ManagementUI
9000
PortforbrowseraccesstomanagementUI
Message
Processor
8998
MessageProcessorportforcommunicationsfromRouter
8082
DefaultmanagementportforMessageProcessor.
IfyouconfigureTLS/SSLbetweentheRouterandMessage
Processor,usedbytheRoutertomakehealthchecksonthe
MessageProcessor.
1101
JMXport
4528
Fordistributedcacheandmanagementcalls
Router
8081
DefaultmanagementportforRouter
4527
Fordistributedcacheandmanagementcalls
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage30
ZooKeeper
2181
UsedbyothercomponentslikeManagementServer,Router,
MessageProcessorandsoon
2888,
3888
UsedinternallybyZooKeeperforZooKeepercluster(known
asZooKeeperensemble)communication
Cassandra
7000,
9042,
9160
ApacheCassandraportsforcommunicationbetween
Cassandranodes
7199
JMXport
Qpid
5672
UsedforcommunicationsfromtheRouterandMessage
ProcessortoQpidserver
8083
DefaultmanagementportonQpidserver
1102
JMXport
4529
Fordistributedcacheandmanagementcalls
Postgres
5432
UsedforcommunicationfromQpid/ManagementServerto
Postgres
8084
DefaultmanagementportonPostgresserver
1103
JMXport
4530
Fordistributedcacheandmanagementcalls
LDAP
10389
OpenLDAP
SmartDocs
59002
TheportontheEdgerouterwhereSmartDocspage
requestsaresent.
Note:Inaddition,youmayneedtoopenportsinthefirewallsfortesting.Forexample,59001,
andsoon.
Thenexttableshowsthesameports,listednumerically,withthesourceanddestinationcomponents:
Port
Number
Purpose 
Source
Component
DestinationComponent
<virtual
hostport#>
HTTPplusanyotherports
youuseforvirtualhostAPI
calltraffic.Ports80and443
aremostcommonlyused;
theMessageRoutercan
terminateSSLconnections.
Externalclient(or
loadbalancer)
ListeneronMessage
Router
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage31
1099
through
1103
JMXManagement
JMXClient
ManagementServer
(1099)
MessageProcessor(1101)
QpidServer(1102)
PostgresServer(1103)
2181
Zookeeperclient
communication
ManagementServer
Router
MessageProcessor
QpidServer
PostgresServer
Zookeeper
2888and
3888
Zookeeperinternode
management
Zookeeper
Zookeeper
4526
through
4530
RPCManagementports
usedfordistributedcache
andcallsfromthe
ManagementServerstothe
othercomponents
ManagementServer
ManagementServer
(4526)
Router(4527)
MessageProcessor(4528)
QpidServer(4529)
PostgresServer(4530)
4528
Fordistributedcachecalls
Router
MessageProcessor
MessageProcessor
5432
Postgresclient
QpidServer
Postgres
5672
Usedforsendinganalytics
fromRouterandMessage
ProcessortoQpid
Router
MessageProcessor
Qpiddaemon
7000
Cassandrainternode
communications
Cassandra
OtherCassandranode
7199
JMXmanagement
JMXclient
Cassandra
8080
ManagementAPIport
ManagementAPI
clients
ManagementServer
8081
through
8084
ComponentAPIports,used
forissuingAPIrequests
directlytoindividual
components.Each
ManagementAPI
clients
Router(8081)
MessageProcessor(8082)
QpidServer(8083)
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage32
componentopensadifferent
port;theexactportused
dependsonthe
configuration
PostgresServer(8084)
8998
Communicationbetween
routerandmessage
processor
Router
MessageProcessor
9000
DefaultEdgemanagement
UIport
Browser
ManagementUIServer
9042
CQLnativetransport
Router
MessageProcessor
ManagementServer
Cassandra
9160
Cassandrathriftclient
Router
MessageProcessor
ManagementServer
Cassandra
10389
LDAPport
ManagementServer
ApcheDS/OpenLDAP
59002
Therouterportwhere
SmartDocspagerequests
aresent
SmartDocs
Router
AMessageProcessorkeepsadedicatedconnectionpoolopentoCassandra,whichisconfiguredtonever
timeout.WhenafirewallisbetweenamessageprocessorandCassandraserver,thefirewallcantimeoutthe
connection.However,themessageprocessorisnotdesignedtoreestablishconnectionstoCassandra.
Topreventthissituation,ApigeerecommendsthattheCassandraserver,messageprocessor,androutersbe
inthesamesubnetsothatafirewallisnotinvolvedinthedeploymentofthesecomponents.
Ifafirewallisbetweentherouterandmessageprocessors,andhasanidletcptimeoutset,our
recommendationsisto:
1. Setnet.ipv4.tcp_keepalive_time=1800insysctlsettingsonLinuxOS,where1800should
belowerthanthefirewallidletcptimeout.Thissettingshouldkeeptheconnectioninanestablished
statesothatthefirewalldoesnotdisconnecttheconnection.
2. OnallMessageProcessors,edit
/<inst_root>/apigee/customer/application/messageprocessor.propertiestoadd
thefollowingproperty.Ifthefiledoesnotexist,createit.
conf_system_casssandra.maxconnecttimeinmillis=1
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage33
3. RestarttheMessageProcessor:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgemessageprocessor
restart
4. OnallRouters,edit/<inst_root>/apigee/customer/application/router.propertiesto
addthefollowingproperty.Ifthefiledoesnotexist,createit.
conf_system_casssandra.maxconnecttimeinmillis=1
5. RestarttheRouter:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgerouterrestart
Ifyouinstallthe12hostclusteredconfigurationwithtwoDataCenters,ensurethatthenodesinthetwoData
Centerscancommunicateovertheportsshownbelow:
Note:AllMessageProcessorsinallDataCentersmustallbeabletoaccesseachotheroverport4528.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage34
APIBaaSportrequirements
IfyouopttoinstalltheAPIBaaS,youaddtheAPIBaaSStackandAPIBaaSPortalcomponents.These
componentsusetheportsshowninthefigurebelow:
TheCassandranodescanbededicatedtoAPIBaaS,orcanbesharedwithEdge.
AproductioninstallationofAPIBaaSusesaloadbalancerbetweentheAPIBaaSPortalnodeandAPIBaaS
Stacknodes.WhenconfiguringthePortal,andwhenmakingBaaSAPIcalls,youspecifytheIPaddressor
DNSnameoftheloadbalancer,notoftheStacknodes.
Thetablebelowshowsthedefaultportsthatneedtobeopenedinfirewalls,bycomponent:
Component
Port
Description
APIBaaSPortal
9000
PortfortheAPIBaaSUI
APIBaaSStack
8080
PortwhereAPIrequestarereceived
ElasticSearch
9200to
9400
ForcommunicatingwithAPIBaaSStackandfor
communicatingbetweenElasticSearchnodes
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage35
Licensing
EachinstallationofEdgerequiresauniquelicensefilethatyouobtainfromApigee.Youwillneedtoprovide
thepathtothelicensefilewheninstallingthemanagementserver,forexample/tmp/license.txt.
Theinstallercopiesthelicensefileto/<inst_root>/apigee/customer/conf/license.txt
Iflicensefileisvalid,themanagementservervalidatestheexpiryandallowedMessageProcessor(MP)count.
Ifanyofthelicensesettingsisexpired,youcanfindthelogsinthefollowinglocation:
/<inst_root>/apigee/var/log/edgemanagementserver/logs.Inthiscaseyoucancontact
ApigeeSupportformigrationdetails.
InstallationChecklist
Note:
● IfanolderversionofApigeeEdgeforPrivateCloudwasinstalledonthemachine,ensurethatyou
deletethefolder/tmp/javabeforeanewinstallation.
● Ifuser“apigee”wascreatedpriortotheinstallation,ensurethat“/home/apigee”existsashome
directoryandisownedby“apigee:apigee”.
Thechecklistcoverstheprecedingprerequisitesandprovidesalistofrequiredfilestoobtainbefore
proceeding.Hereisasummaryoftheprimaryrequirementscoveredthere.
●Installationuser:Theuserperformingthisinstallationmustbetherootuser,orauserwithsudo
privileges.Inmanyofthecommandsbelow,ifyouarenotloggedinasroot,prefixthecommandswith
"sudo".
●Edgesystemadministratorcredentials:Aspartoftheinstallation,youarepromptedtospecifyan
emailaddressandpasswordusedtocreatetheEdgesystemadministratoraccount.Neverusethese
credentialsforanythingotherthanEdgesystemadministration.Youcanlatercreatedifferentusersand
usertypestocreateandmanageAPIproxies,apps,andallotheruserleveltasks. 
TochangetheadministratorpassworddonotusetheEdgeUItochangetheadministrator
password.Seehttp://docs.apigee.com/apiservices/latest/resettingpasswordsformoreinformation.
●OS:Foroperatingsystemrequirements,see
https://apigee.com/docs/apiservices/reference/supportedsoftware.
●Java:JavarequirementsarecoveredunderPrerequisitesabove.Referto
https://apigee.com/docs/apiservices/reference/supportedsoftwareproceeding.
EnsurethatJAVA_HOMEpointstotherootoftheJDKfortheuserperformingtheinstallation.
●Firewalls:Firewall/hostrequirementsarecoveredunderPrerequisitesabove.RefertotheFirewalls
andVirtualHostssectionbeforeproceeding.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage36
●TCPWrappers:TCPWrapperscanblockcommunicationofsomeportsandcanaffectOpenLDAP,
Postgres,andCassandrainstallation.Onthosenodes,check/etc/hosts.allowand
/etc/hosts.denytoensurethattherearenoportrestrictionsontherequiredOpenLDAP,Postgres,
andCassandraports.
●SELinux:DependingonyoursettingsforSELinux,Edgecanencounterissueswithinstallingand
startingEdgecomponents.Ifnecessary,youcandisableSELinuxorsetittopermissivemodeduring
installation,andthenreenablingitafterinstallation.SeePrerequisite:DisableSELinuxformore.
●iptables:Validatethattherearenoiptablespoliciespreventingconnectivitybetweennodesonthe
requiredEdgeports.Ifnecessary,youcanstopiptablesduringinstallationusingthecommand:
>sudo/etc/init.d/iptablesstop
OnCentOS7.x:
>systemctlstopfirewalld
●Licensefile:AvalidlicensefilemustbeobtainedtoinstallApigeeEdge.Licensinginformationis
coveredunderPrerequisitesabove.RefertotheLicensingsectionbeforeproceeding.
●Distributionfiles:TheApigeeEdgedistributionfilesareinstalledasasetofRPMsanddependencies.
●Systemlimits:
o OnCassandranodes,setsoftandhardmemlock,nofile,andaddressspace(as)limitsfor
installationuser(defaultis“apigee")in/etc/security/limits.confasshownbelow:
apigeesoftmemlockunlimited
apigeehardmemlockunlimited
apigeesoftnofile32768
apigeehardnofile65536
apigeesoftasunlimited
apigeehardasunlimited
o OnMessageProcessornodes,setthemaximumnumberofopenfiledescriptorsto64Kby
usingthecommand:
>ulimitn65535
Ifnecessary,youcanraisethatlimit.Forexample,ifyouhavealargenumberoftemporaryfiles
openatanyonetime.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage37
InstallationConsiderations
AtypicalEdgeinstallationconsistsofEdgecomponentsdistributedacrossmultiplenodes.Afteryouinstall
Edgeonanode,youtheninstallandconfigureoneormoreEdgecomponentsonthenode.
Installationprocess
InstallingEdgeonanodeisamultistepprocess:
●DisableSELinuxonthenodeorsetittopermissivemode.SeePrerequisite:DisableSELinuxformore.
●SelectyourEdgeconfigurationfromthelistofrecommendedtopologies.Forexample,youcaninstall
Edgeonasinglenodefortesting,oron13nodesforproduction.SeeInstallationtopologiesformore.
●Oneachnodeinyourselectedtopology,installtheEdgeapigeesetuputility:
oDownloadtheEdgebootstrap_4.16.05.shfileto/tmp/bootstrap_4.16.05.sh.
o InstalltheEdgeapigeeserviceutilityanddependencies.
oInstalltheEdgeapigeesetuputilityanddependencies.
SeeInstalltheEdgeapigeesetuputilityformore.
● UsetheapigeesetuputilitytoinstalloneormoreEdgecomponentsoneachnodebasedonyour
selectedtopology.
SeeInstallEdgecomponentsonanode.
●OntheManagementServernode,usetheapigeesetuputilitytoinstallapigeeprovision,the
utilitiesthatyouusetocreateandmanageEdgeorganizations.
SeeOnboardanorganizationformore.
Handlinganinstallationfailure
InthecaseofafailureduringtheinstallationofanEdgecomponent,youcantrytocorrecttheissue,andthen
runtheinstalleragain.Theinstallerisdesignedtoberunrepeatedlyincaseswhereitdetectsafailure,orif
youlaterwanttochangeorupdateacomponentafterinstallation.
Whocanperformtheinstall
TheApigeeEdgedistributionfilesareinstalledasasetofRPMsanddependencies.Toinstall,uninstall,and
updateEdge,theEdgecommandsmustberunbytherootuserorbyauserthathasfullsudoaccess.Forfull
sudoaccess,thatmeanstheuserhassudoaccesstoperformthesameoperationsasroot.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage38
Anyuserwhowantstorunthefollowingcommandsorscriptsmusteitherberoot,orbeauserwithfullsudo
access:
●apigeeserviceutility:
○apigeeservicecommands:install,uninstall,update.
○apigeeallcommands:install,uninstall,update.
●setup.shscripttoinstallEdgecomponents(Unlessyouhavealreadyused"apigeeservice
intall"toinstalltherequiredRPMs.Thenrootorfullsudoaccessifnotrequired.)
●update.shscripttoupdateEdgecomponents
Also,theEdgeinstallercreatesanewuseronyoursystem,named"apigee".ManyEdgecommandsinvoke
sudotorunasthe"apigee"user.
Anyuserwhowantstorunallothercommandsthantheonesshownabovemustbeauserwithfullsudo
accesstothe"apigee"user.Thesecommandsinclude:
●apigeeserviceutilitycommands,including:
○apigeeservicecommandssuchasstart,stop,restart,configure.
○apigeeallcommandssuchasstart,stop,restart,configure.
Toconfigureausertohavefullsudoaccesstothe"apigee"user,editthesudoersfiletoadd:
installUser
ALL=(apigee)NOPASSWD:ALL
whereinstallUser
istheusernameofthepersonworkingwithEdge.
AnyfilesorresourcesusedbytheEdgecommandsmustbeaccessibletothe"apigee"user.Thisincludesthe
Edgelicensefileandanyconfigfiles.
Note:YoucansettheRUN_USERpropertyforanEdgecomponenttospecifyadifferentuserthan"apigee".If
youdo,thenalloftheEdgecommandsforthatcomponentinvokesudotorunasthatuser.Filesorresources
mustthenbeaccessibletothatuser.
Whencreatingaconfigurationfile,youcanchangeitsownerto"apigee:apigee"toensurethatitisaccessible
toEdgecommands:
1. Createthefileinaneditorasanyuser.
2. Chowntheownerofthefileto"apigee:apigee"or,ifyouchangedtheuserrunningtheEdgeservice
fromthe"apigee"user,chownthefiletotheuserwhoisrunningtheEdgeservice.
SilentinstallationofEdgecomponents
YoumustpassaconfigurationfiletotheapigeesetuputilitythatcontainstheinformationabouttheEdge
installation.Theonlyrequirementonsilentinstallationsisthattheconfigurationfilemustbeaccessibleor
readablebythe"apigee"user.Forexample,putthefileinthe/tmpdirectoryonthenodeandchownitto
"apigee:apigee".
AllinformationintheconfigurationfileisrequiredexceptfortheEdgesystemadministrator'spassword.Ifyou
omitthepassword,theapigeesetuputilitypromptsyoutoenteritonthecommandline.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage39
SeeCreatingaconfigurationfileformore.
InternetornonInternetinstallation
ToinstallEdgeonanode,thenodemustbeabletoaccesstheApigeerepository:
● NodeswithanexternalInternetconnection
NodeswithanexternalinternetconnectionaccesstheApigeerepositorytoinstalltheEdgeRPMsand
dependencies.
● NodeswithoutanexternalInternetconnection
NodeswithoutanexternalInternetconnectioncanaccessamirroredversionoftheApigeerepository
thatyousetupinternally.ThisrepositorycontainsallEdgeRPMs,butyouhavetoensurethatyou
haveallotherdependenciesavailablefromreposontheinternalnetwork.
Settingupavirtualhost
AvirtualhostonEdgedefinesthedomainsandEdgeRouterportsonwhichanAPIproxyisexposed,and,by
extension,theURLthatappsusetoaccessanAPIproxy.AvirtualhostalsodefineswhethertheAPIproxyis
accessedbyusingtheHTTPprotocol,orbytheencryptedHTTPSprotocol.
AspartoftheEdgeonboardingprocess,youhavetocreateanorganization,environment,andvirtualhost.
Edgeprovidesthesetuporgcommandtomakethisprocesseasierfornewusers.
Whenyoucreatethevirtualhost,youmustspecifythefollowinginformation:
●ThenameofthevirtualhostthatyouusetoreferenceitinyourAPIproxies.
●TheportontheRouterforthevirtualhost.Typicallytheseportsstartat9001andincrementbyonefor
everynewvirtualhost.
●Thehostaliasofthevirtualhost.TypicallytheDNSnameofthevirtualhost.
TheEdgeRoutercomparestheHostheaderoftheincomingrequesttothelistofavailablehostaliasesas
partofdeterminingtheAPIproxythathandlestherequest.Whenmakingarequestthroughavirtualhost,
eitherspecifyadomainnamethatmatchesthehostaliasofavirtualhost,orspecifytheIPaddressofthe
RouterandtheHostheadercontainingthehostalias.
Forexample,ifyoucreatedavirtualhostwithahostaliasofmyapis.apigee.netonport9001,thenacURL
requesttoanAPIthroughthatvirtualhostcoulduseoneofthefollowingforms:
● IfyouhaveaDNSentryformyapis.apigee.net:
curlhttp://myapis.apigee.net:9001/{proxybasepath}/{resourcepath}
● IfyoudonothaveaDNSentryformyapis.apigee.net:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage40
curlhttp://<routerIP>:9001/{proxybasepath}/{resourcepath}
H'Host:myapis.apigee.net'
Inthisform,youspecifytheIPaddressoftheRouter,andpassthehostaliasintheHostheader.
Note:Thecurlcommand,mostbrowsers,andmanyotherutilitiesautomaticallyappendtheHost
headerwiththedomainaspartoftherequest,soyoucanactuallyuseacurlcommandintheform:
curlhttp://<routerIP>:9001/{proxybasepath}/{resourcepath}
OptionswhenyoudonothaveaDNSentryforthevirtualhost
OneoptionwhenyoudonothaveaDNSentryistosetthehostaliastotheIPaddressoftheRouterandport
ofthevirtualhost,as<routerIP>:port.Forexample:
192.168.1.31:9001
Whenyoumakeacurlcommandintheformbelow:
curlhttp://<routerIP>:9001/{proxybasepath}/{resourcepath}
ThisoptionispreferredbecauseitworkswellwiththeEdgeUI.
IfyouhavemultipleRouters,addahostaliasforeachRouter,specifyingtheIPaddressofeachRouterand
portofthevirtualhost.
Alternatively,youcansetthehostaliastoavalue,suchastemp.hostalias.com.Then,youhavetopassthe
Hostheaderoneveryrequest:
curlvhttp://<routerIP>:9001/{proxybasepath}/{resourcepath}
H'host:temp.hostalias.com'
Or,addthehostaliastoyour/etc/hostsfile.Forexample,addthislineto/etc/hosts:
192.168.1.31temp.hostalias.com
ThenyoucanmakearequestasifyouhadaDNSentry:
curlvhttp://myapis.apigee.net:9001/{proxybasepath}/{resourcepath}
ConfiguringEdgecomponentspostinstallation
ToconfigureEdgeafterinstallation,youuseacombinationof.propertiesfilesandEdgeutilities.For
example,toconfigureSSLontheEdgeUI,youedit.propertiesfilestosetthenecessaryproperties.
Changesto.propertiesfilesrequireyoutorestarttheaffectedEdgecomponent.
The.propertiesfilesarelocatedinthe/opt/apigee/customer/applicationdirectory.Each
componenthasitsown.propertiesfileinthatdirectory.Forexample,router.propertiesand
managementserver.properties.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage41
Note:Ifyouhavenotsetanypropertiesforacomponent,the/opt/apigee/customer/application
directorymightnotcontaina.propertiesfileforthecomponent.Inthatcase,createone.
Tosetapropertyforacomponent,editthecorresponding.propertiesfile,andthenrestartthecomponent:
>/opt/apigee/apigeeservice/bin/apigeeservicecomponent
restart
Forexample:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgerouterrestart
WhenyouupdateEdge,the.propertiesfilesinthe/opt/apigee/customer/applicationdirectory
areread.Thatmeanstheupdateretainsanypropertiesthatyousetonthecomponent.
Seehttp://docs.apigee.com/apiservices/latest/howconfigureedgeformoreinformationonEdgeconfiguration.

InvokingcommandsonEdgecomponents
Edgeinstallsmanagementutilitiesunder/opt/apigee/apigeeservice/binthatyoucanuseto
manageanEdgeinstallation.Forexample,youcanusetheapigeeallutilitytostart,stop,restart,or
determinethestatusofallEdgecomponentsonthenode:
/opt/apigee/apigeeservice/bin/apigeeallstop|start|restart|status|version
Usetheapigeeserviceutilitytocontrolandconfigureindividualcomponents.Theapigeeservice
utilityhastheform:
/opt/apigee/apigeeservice/bin/apigeeservicecomponent
action
Forexample,torestarttheEdgeRouter:
/opt/apigee/apigeeservice/bin/apigeeserviceedgerouterrestart
Youcandeterminethelistofcomponentsinstalledonthenodebyexaminingthe/opt/apigeedirectory.
ThatdirectorycontainsasubdirectoryforeveryEdgecomponentinstalledonthenode.Eachsubdirectoryis
prefixedby:
●apigeeathirdpartycomponentusedbyEdge.Forexample,apigeecassandra.
●edgeanEdgecomponentfromApigee.Forexample,edgemanagementserver.
●edgemintaMonetizationcomponent.Forexampleedgemintmanagementserver.
●baasanAPIBaaScomponent.Forexamplebaasusergrid.
Thecompletelistofactionsforacomponentdependsonthecomponentitself,butallcomponentssupport
thefollowingactions:
●start,stop,restart
●status,version
●backup,restore
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage42
●install,uninstall
Accessinglogfiles
Thelogfilesforeachcomponentarecontainedinthe/opt/apigee/var/logdirectory.Eachcomponent
hasitsownsubdirectory.Forexample,thelogsfortheManagementServerareinthedirectory:
/opt/apigee/var/log/edgemanagementserver
CommonYumcommands
TheEdgeinstallationtoolsforLinuxrelyonYumtoinstallandupdatecomponents.Youmighthavetouse
severalYumcommandstomanageaninstallationonanode.
● CleanallYumcaches:
sudoyumcleanall
● ToupdateanEdgecomponent:
sudoyumupdatecomponentName
Forexample:
sudoyumupdateapigeesetup
sudoyumupdateedgemanagementserver
FileSystemStructure
Edgeinstallsallfilesinthe/opt/apigeedirectory.
Note:Youcannotchangethisdirectorylocation.However,youcancreateasymlinktomapittoadifferent
location.SeeCreatingasymlinkfrom/opt/apigeeformore.
InthisguideandintheEdgeOperationsGuide
,therootinstallationdirectoryisnotedas:
<inst_root>/apigee
TheinstallationusesthefollowingfilesystemstructuretodeployApigeeEdgeforPrivateCloud.
LogFiles
Components
Location
ManagementServer
<inst_root>/apigee/var/log/edgemanagementserver
Router
<inst_root>/apigee/var/log/edgerouter
MessageProcessor 
<inst_root>/apigee/var/log/edgemessageprocessor
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage43
ApigeeQpidServer 
<inst_root>/apigee/var/log/edgeqpidserver
ApigeePostgresServer 
<inst_root>/apigee/var/log/edgepostgresserver
EdgeUI 
<inst_root>/apigee/var/log/edgeui
ZooKeeper
<inst_root>/apigee/var/log/apigeezookeeper
OpenLDAP
<inst_root>/apigee/var/log/apigeeopenldap
Cassandra
<inst_root>/apigee/var/log/apigeecassandra
Qpidd
<inst_root>/apigee/var/log/apigeeqpidd
PostgreSQLdatabase
<inst_root>/apigee/var/log/apigeepostgresql
Data
Components
Location
ManagementServer
<data_root>/apigee/data/edgemanagementserver
Router
<data_root>/apigee/data/edgerouter
MessageProcessor 
<data_root>/apigee/data/edgemessageprocessor
ApigeeQpidagent 
<data_root>/apigee/data/edgeqpidserver
ApigeePostgresagent 
<data_root>/apigee/data/edgepostgresserver
ZooKeeper
<data_root>/apigee/data/apigeezookeeper
OpenLDAP
<data_root>/apigee/data/apigeeopenldap
Cassandra
<data_root>/apigee/data/apigeecassandra/data
Qpidd
<data_root>/apigee/data/apigeeqpid/data
PostgreSQLdatabase
<data_root>/apigee/data/apigeepostgres/pgdata
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage44
InstalltheEdgeapigeesetuputility
ToinstallEdgeonanode,youfirstinstalltheEdgeapigeesetuputility.Ifyouareinanenvironmentwhere
yournodesdonothaveanexternalinternetconnection,youmustalsoinstallalocalcopyoftheApigeerepo.
Creatingasymlinkfrom/opt/apigee
Edgeinstallsallfilesinthe/opt/apigeedirectory.Youcannotchangethisdirectory.However,ifdesired,
youcancreateasymlinktomap/opt/apigeetoanotherlocation.
Beforeyoucreatethesymlink,youmustfirstcreateauserandgroupnamed"apigee".Thisisthesamegroup
andusercreatedbytheEdgeinstaller.
Tocreatethesymlink,performthesestepsbeforedownloadingthebootstrap_4.16.05.shfile.Youmust
performallofthesestepsasroot:
1. Createthe"apigee"userandgroup:
>groupaddrapigee
>useraddrgapigeed/opt/apigees/sbin/nologinc"Apigeeplatform
user"apigee
2. Createasymlinkfrom/opt/apigeetoyourdesiredinstallroot:
>lnTs/srv/myInstallDir
/opt/apigee
where/srv/myInstallDir
isthedesiredlocationoftheEdgefiles.
3. Changeownershipoftheinstallrootandsymlinktothe"apigee"user:
>chownhapigee:apigee/srv/apigee/opt/apigee
Prerequisite:DisableSELinux
YoumustdisableSELinux,orsetittopermissivemode,beforeyoucaninstallEdgeapigeesetuputilityor
anyEdgecomponents.Ifnecessary,afterinstallingEdge,youcanreenableSELinux.
Note:ThisstepisnotrequiredonSUSEinstallations.
● TotemporarilysetSELinuxtopermissivemode,executethefollowingcommand:
a. OnaLinux6.xoperatingsystem:
echo0>/selinux/enforce
ToreenableSELinuxafterinstallingEdge:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage45
echo1>/selinux/enforce
b. OnaLinux7.xoperatingsystem:
setenforce0
ToreenableSELinuxafterinstallingEdge:
setenforce1
● TopermanentlydisableSELinuxorsetittopermissivemode:
a) Open/etc/sysconfig/selinuxinaneditor.
b) SetSELINUX=disabledorSELINUX=permissive
c) Saveyouredits.
d) Restartthenode.
e) Ifnecessary,reenableSELinuxafterEdgeinstallationbyrepeatingthisproceduretoset
SELINUX=enabled.
InstallEdgeapigeesetuputilityonanodewithanexternalinternetconnection
ToinstallEdgeonanodewithanexternalInternetconnection:
1. ObtaintheusernameandpasswordfromApigeethatyouusetoaccesstheApigeerepository.Ifyou
haveanexistingusername:passwordfortheApigeeftpsite,youcanusethosecredentials.
2. LogintoyournodeasroottoinstalltheEdgeRPMs
Note:WhileRPMinstallationrequiresrootaccess,youcanperformEdgeconfigurationwithoutroot
access.
3. DisableSELinuxasdescribedinPrerequisite:DisableSELinux.
4. DownloadtheEdgebootstrap_4.16.05.shfileto/tmp/bootstrap_4.16.05.sh:
>curlhttps://software.apigee.com/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
5. InstalltheEdgeapigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap_4.16.05.shapigeeuser=uName
apigeepassword=pWord
whereuName:pWordaretheusernameandpasswordyoureceivedfromApigee.IfyouomitpWord,
youwillbepromptedtoenterit.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage46
Bydefault,theinstallercheckstoseethatyouhaveJava1.8installed.Ifyoudonot,itinstallsitforyou.
UsetheJAVA_FIXoptiontospecifyhowtohandleJavainstallation.JAVA_FIXtakesthefollowing
values:
I=InstallOpenJDK1.8(default)
C=ContinuewithoutinstallingJava
Q=Quit.Forthisoption,youhavetoinstallJavayourself.
Theinstallationoftheapigeeserviceutilitycreatesthe/etc/yum.repos.d/apigee.repofile
thatdefinestheApigeerepository.Toviewthedefinitionfile,usethecommand:
>cat/etc/yum.repos.d/apigee.repo
Toviewtherepocontents,usethecommand:
>sudoyumvrepolist'apigee*'
6. Useapigeeservicetoinstalltheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupinstall
7. UseapigeesetuptoinstallandconfigureEdgecomponentsonthenode.SeeInstallEdge
componentsonanodeformore.
InstallEdgeapigeesetuputilityonanodewithnoexternalInternetconnection
IfyourEdgenodesarebehindafirewall,orinsomeotherwayareprohibitedfromaccessingtheApigee
repositoryovertheInternet,thenyoumustcreatealocalrepository,ormirror
,oftheApigeerepo.Thatmirror
mustthenbeaccessibletoallnodes.Oncecreated,nodescanthenaccessthatlocalmirrortoinstallEdge.
AfteryoucreatealocalEdgerepository,youmightlaterhavetoupdateitwiththelatestEdgereleasefiles.
Thefollowingsectionsdescribehowtocreatealocalrepository,andhowtoupdateit.
CreatealocalApigeerepository
TocreatealocalApigeerepo:
1. ObtaintheusernameandpasswordfromApigeethatyouusetoaccesstheApigeerepository.Ifyou
haveanexistingusername:passwordfortheApigeeftpsite,youcanusethosecredentials.
2. LogintoyourRedHatorCentOSnodeasroottoinstalltheEdgeRPMs.
Note:WhileRPMinstallationrequiresrootaccess,youcanperformEdgeconfigurationwithoutroot
access.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage47
3. Makesureyouhavethelatestversionofyumutils:
>sudoyumupdateyumutils
4. DisableSELinuxasdescribedinPrerequisite:DisableSELinux.
5. DownloadtheEdgebootstrap_4.16.05.shfileto/tmp/bootstrap_4.16.05.sh:
>curlhttps://software.apigee.com/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
6. InstalltheEdgeapigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap_4.16.05.shapigeeuser=uName
apigeepassword=pWord
whereuName:pWordaretheusernameandpasswordyoureceivedfromApigee.IfyouomitpWord,
youwillbepromptedtoenterit.
7. Installtheapigeemirrorutilityonthenode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorinstall
8. UsetheapigeemirrorutilitytosynctheApigeerepotothe
/opt/apigee/data/apigeemirror/repos/directory.
Tominimizethesizeoftherepo,includetheonlynewrpmstodownloadjustthelatestRPMs.
Youneedapproximately800MBofdiskspaceforthedownload:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorsync
onlynewrpms
Ifyouwanttoentirerepo,includingolderRPMs,omitonlynewrpms.Youneedapproximately6
GBofdiskspaceforthefulldownload:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorsync
YounowhavealocalcopyoftheApigeerepo.ThenextsectiondescribeshowtoinstalltheEdge
apigeesetuputilityfromthelocalrepo.
9. (Optional)IfyouwanttoinstallEdgefromthelocalrepoontothesamenodethathoststhelocalrepo,
thenyouneedtofirstrunthefollowingcommands:
a) Runbootstrap_4.16.05.shfromthelocalrepotoinstalltheapigeeserviceutility:
>sudobash/opt/apigee/data/apigeemirror/repos/bootstrap_4.16.05.sh
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage48
apigeeprotocol="file://"
apigeerepobasepath=/opt/apigee/data/apigeemirror/repos
b) Useapigeeservicetoinstalltheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupinstall
c) UseapigeesetuptoinstallandconfigureEdgecomponentsonthenode.SeeInstallEdge
componentsonanodeformore.
Installapigeesetuponaremotenodefromthelocalrepo
YouhavetwooptionsforinstallingEdgefromthelocalrepo.Youcaneither:
● Createa.tarfileoftherepo,copythe.tarfiletoanode,andtheninstallEdgefromthe.tarfile.
● Installawebserveronthenodewiththelocalreposothatothernodescanaccessit.Apigeeprovides
theNginxwebserverforyoutouse,oryoucanuseyourownwebserver.
Installfromthe.tarfile:
1. Onthenodewiththelocalrepo,usethefollowingcommandtopackagethelocalrepointoasingle.tar
filenamed/opt/apigee/data/apigeemirror/apigee4.16.05.tar.gz:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorpackage
2. Copythe.tarfiletothenodewhereyouwanttoinstallEdge.Forexample,copyittothe/tmpdirectory
onthenewnode.
3. Onthenewnode,disableSELinuxasdescribedinPrerequisite:DisableSELinux.
4. Onthenewnode,untarthefiletothe/tmpdirectory:
>tarxzfapigee4.16.05.tar.gz
Thiscommandcreatesanewdirectory,namedrepos,inthedirectorycontainingthe.tarfile.For
example/tmp/repos.
5. InstalltheEdgeapigeeserviceutilityanddependenciesfrom/tmp/repos:
>sudobash/tmp/repos/bootstrap_4.16.05.shapigeeprotocol="file://"
apigeerepobasepath=/tmp/repos
Noticethatyouincludethepathtothereposdirectoryinthiscommand.
6. Useapigeeservicetoinstalltheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupinstall
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage49
7. UseapigeesetuptoinstallandconfigureEdgecomponentsonthenode.SeeInstallEdge
componentsonanodeformore.
InstallfromtherepousingtheNginxwebserver:
1. InstalltheNginxwebserveronthereponode:
/>opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrornginxconfig
2. Bydefault,Nginxisconfiguredtouselocalhostastheservernameandport3939.Tochangethese
values
a. Open/opt/apigee/customer/application/mirror.propertiesinaneditor.Create
thefileifitdoesnotexist.
b. Setthefollowingvaluesasnecessary:
conf_apigee_mirror_listen_port=3939
conf_apigee_mirror_server_name=localhost
c. RestartNginx:
>/opt/nginx/scripts/apigeenginxrestart
3. Bydefault,thereporequiresausername:passwordofadmin:admin.Tochangethesecredentials,set
thefollowingenvironmentvariables:
MIRROR_USERNAME=uName
MIRROR_PASSWORD=pWord
4. Onthenewnode,disableSELinuxasdescribedinPrerequisite:DisableSELinux.
5. Ontheremotenode,downloadtheEdgebootstrap_4.16.05.shfileto
/tmp/bootstrap_4.16.05.sh:
>/usr/bin/curlhttp://uName:pWord
@
remoteRepo
:3939/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
whereuName:pWordaretheusernameandpasswordyousetabovefortherepo,andremoteRepo
is
theIPaddressorDNSnameofthereponode.
6. Ontheremotenode,installtheEdgeapigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap_4.16.05.shapigeerepohost=remoteRepo
:3939
apigeeuser=uName
apigeepassword=pWord
apigeeprotocol=http://
whereuName:pWordaretherepousernameandpassword.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage50
7. Ontheremotenode,useapigeeservicetoinstalltheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupinstall
8. UseapigeesetuptoinstallandconfigureEdgecomponentsontheremotenode.SeeInstallEdge
componentsonanodeformore.
UpdatealocalApigeerepository
Toupdatetherepo,youmustdownloadthelatestbootstrap_4.16.05.shfile,thenperformanewsysnc:
1. DownloadtheEdgebootstrap_4.16.05.shfileto/tmp/bootstrap_4.16.05.sh:
>curlhttps://software.apigee.com/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
2. Performthesync:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorsync
onlynewrpms
Ifyouwanttoentirerepo:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorsync
CleanalocalApigeerepo
Cleaningthelocalrepodeletes/opt/apigee/data/apigeemirrorand/var/tmp/yumapigee*.
Tocleanthelocalrepo,use:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorclean
AddorupdateEdge4.16.01ina4.16.05repo
IfyouhavetomaintaininstallationsforbothEdge4.16.05and4.16.01,youcanmaintainarepothatcontains
bothversions.Fromthatrepo,youcantheninstalleitherEdge4.16.05and4.16.01.
Toadd4.16.01toan4.15.05repo:
1. Ensurethatyouhaveinstalledthe4.16.05versionoftheapigeemirrorutility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorversion
Youshouldseearesultintheformbelow,wherexyz
isthebuildnumber:
apigeemirror4.16.050.0.xyz
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage51
2. UsetheapigeemirrorutilitytodownloadEdge4.16.01toyourrepo.Noticehowyouprefixthe
commandwithapigeereleasever=4.16.01:
>apigeereleasever=4.16.01/opt/apigee/apigeeservice/bin/apigeeservice
apigeemirrorsynconlynewrpms
Usethissamecommandtolaterupdatethe4.16.01repo.
3. Examinethe/opt/apigee/data/apigeemirror/reposdirectorytoseethefilestructure:
>ls/opt/apigee/data/apigeemirror/repos
Youshouldseethefollowingfilesanddirectories:
apigeeapigeerepo1.06.x86_64.rpmbootstrap_4.16.01.sh
bootstrap_4.16.05.shthirdparty
NoticehowyouhaveabootstrapfileforbothversionsofEdge.Theapigeedirectoryalsocontains
separatedirectoriesforeachversionofEdge.
4. Topackagetherepointoa.tarfile,usethefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorpackage
Thiscommandpackagesboththe4.16.05and4.16.01reposintothesame.tarfile.Youcannot
packageonlypartoftherepo.
ToinstallEdgefromthelocalrepoor.tarfile,justmakesuretorunthecorrectbootstrapfilebyusingoneof
thefollowingcommands:
● Ifinstallingfroma.tarfile,runthecorrectbootstrapfilefromtherepo:
>sudobash/tmp/repos/bootstrap_4.16.0X.shapigeeprotocol="file://"
apigeerepobasepath=/tmp/repos
Tocompletetheinstallation,followtheremainingstepsfromInstallfromthe.tarfile:.
● IfinstallingusingtheNginxwebserver,downloadandthenrunthecorrectbootstrapfilefromtherepo:
>/usr/bin/curlhttp://uName:pWord
@
remoteRepo
:3939/bootstrap_4.16.0X.sho
/tmp/bootstrap_4.16.0X.sh
>sudobash/tmp/bootstrap_4.16.0X.shapigeerepohost=remoteRepo
:3939
apigeeuser=uName
apigeepassword=pWord
apigeeprotocol=http://
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage52
Tocompletetheinstallation,followtheremainingstepsfromInstallfromtherepousingtheNginx
webserver:.
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage53
InstallEdgecomponentsonanode
AfteryouinstalltheEdgeapigeesetuputilityonanode,usetheapigeesetuputilitytoinstalloneor
moreEdgecomponentsonthenode.
Note:SeeInstalltheEdgeapigeesetuputilityformoreoninstallingtheEdgeapigeesetuputility.
Theapigeesetuputilityusesacommandintheform:
>/opt/apigee/apigeesetup/bin/setup.shpcomponent
fconfigFile
wherecomponent
istheEdgecomponenttoinstall,andconfigFile
isthesilentconfigurationfilecontaining
theinstallationinformation.Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.For
example,putthefileinthe/tmpdirectoryonthenode.
Forexample,toinstalltheEdgeManagementServer:
>/opt/apigee/apigeesetup/bin/setup.shpmsf/tmp/myConfig
Installationconsiderations
Asyouwriteyourconfigfile,takeintoconsiderationthefollowingoptions.
SettingupPostgresmasterstandbyreplication
Bydefault,EdgeinstallsallPostgresnodesinmastermode.However,inmostproductionsystems,you
configurethemtousemasterstandbyreplicationsothatifthemasternodefails,thestandbynodecan
continuetoservertraffic.
Youcanenableandconfiguremasterstandbyreplicationatinstalltimebyusingpropertiesinthesilentconfig
file.Or,youcanenablemasterstandbyreplicationafterinstallation.Formore,seeSetupMasterStandby
ReplicationforPostgres.
EnablingCassandraauthentication
Bydefault,Cassandrainstallswithoutauthenticationenabled.ThatmeansanyonecanaccessCassandra.You
canenableauthenticationafterinstallingEdge,oraspartoftheinstallationprocess.
YoucanenableCassandraauthenticationasinstalltimebyusingpropertiesinthesilentconfigfile.Or,you
canenableitafterinstallation.
Note:WhileyoucanenableauthenticationwhenyouinstallCassandra,youcannotchangethedefault
usernameandpassword.YouhavetoperformthatstepmanuallyafterinstallationofCassandracompletes.
Formore,seeEnableCassandraauthentication.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage54
BindingtheRoutertoaprotectedport
IfyouwanttobindtheRoutertoaprotectedport,suchasportnumberslessthan1000,thenyouhaveto
configuretheRoutertorunasauserwithaccesstothoseports.Bydefault,theRouterrunsastheuser
"apigee"whichdoesnothaveaccesstoprivilegedports.
ToruntheRouterasadifferentuser:
1. Asroot,createthefile/opt/apigee/etc/edgerouter.d/RUN_USER.sh.
2. Addthefollowingentrytothefile:
RUN_USER=root
IfyoudonotwanttoruntheRouterasroot,specifyauserwithaccesstotheport.
3. Savethefile.
4. Ifyouspecifiedauserotherthanroot,changetheownerofthefiletothatuser:
>chownUSER
:USER
/opt/apigee/etc/edgerouter.d/RUN_USER.sh
5. Restartrouter:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgerouterrestart
Specifyingthecomponentstoinstall
Thefollowingtableliststheoptionsyoupasstothepoptionoftheapigeeserviceutilitytospecifywhich
componentstoinstallonthenode:
Componen
t
Description
c
InstallCassandraonly.
ld
InstallOpenLDAPonly.
ms
InstallEdgeManagementServer,whichalsoinstallstheEdgeUIandOpenLDAP.
IfyousetUSE_LDAP_REMOTE_HOST=yintheconfigfile,thenOpenLDAP
installationisskippedandtheManagementServerusesOpenLDAPinstalledona
differentnode.
r
InstallEdgeRouteronly.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage55
mp
InstallEdgeMessageProcessoronly.
rmp
InstallEdgeRouterandMessageProcessor.
qs
InstallQpidServeronly.
ps
InstallPostgresServeronly.
mo
InstallMonetization.
ds
InstallZooKeeperandCassandra.
ui
InstalltheEdgeUI.
sa
InstallEdgestandalone,meaningCassandra,ZooKeeper,ManagementServer,
OpenLDAP,EdgeUI,Router,andMessageProcessor.ThisoptionomitstheEdge
analyticscomponents:QpidandPostgres.
Usethisoptionfordevelopmentandtestingonly,notforproduction.
sax
Installanalyticscomponents,meaningQpidandPostgres.
Usethisoptionfordevelopmentandtestingonly,notforproduction.
aio
Installallcomponentsonasinglenode.
Usethisoptionfordevelopmentandtestingonly,notforproduction.
Creatingaconfigurationfile
TheconfigurationfilecontainsalltheinformationnecessarytoinstallEdge.Youcanoftenusethesame
configurationfiletoinstallallcomponentsinanEdgeinstallation.
However,youwillhavetousedifferentconfigurationfiles,ormodifyyourconfigurationfile,if:
● YouareinstallingmultipleOpenLDAPserversandneedtoconfigurereplicationaspartofa13node
installation.EachfilerequiresdifferentvaluesforLDAP_SIDandLDAP_PEER.
● Youarecreatingmultipledatacentersaspartofa12nodeinstallation.Eachdatacenterrequires
differentsettingsforpropertiessuchasZK_CLIENT_HOSTSandCASS_HOSTS.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage56
Exampleconfigurationfile
Shownbelowisanexampleofacompletesilentconfigurationfilefora9nodeEdgeinstallation.Editthisfileas
necessaryforyourconfiguration.Usethefoptiontosetup.shtoincludethisfile.Alsoshownbeloware
exampleconfigurationfilesforeachEdgetopology.
Note:ThedefinitionoftheIP#variablesfortheRouter,MessageProcessor,Qpid,andPostgresnodesarefor
illustratingthenodeconfiguration;theyarenotactuallyused.
#IPaddressorDNSnameofnodes.
IP1=192.168.1.1#ManagementServer,OpenLDAP,UI,ZooKeeper,Cassandra
IP2=192.168.1.2#ZooKeeper,Cassandra
IP3=192.168.1.3#ZooKeeper,Cassandra
IP4=192.168.1.4#Router,MessageProcessor
IP5=192.168.1.5#Router,MessageProcessor
IP6=192.168.1.6#Qpid
IP7=192.168.1.7#Qpid
IP8=192.168.1.8#Postgres
IP9=192.168.1.9#Postgres
#MustresolvetoIPaddressorDNSnameofhostnotto127.0.0.1or
localhost.
HOSTIP=$(hostnamei)
#SetEdgesysadmincredentials.
ADMIN_EMAIL=your@email.com
APIGEE_ADMINPW=yourPassword #Ifomitted,youarepromptedforit.
#LocationofEdgelicensefile.
LICENSE_FILE=/tmp/license.txt
#ManagementServerinformation.
MSIP=$IP1 #IPorDNSnameofManagementServernode.
#SpecifytheporttheManagementServerlistensonforAPIcalls.
#APIGEE_PORT_HTTP_MS=8080 #Defaultis8080.
#
#OpenLDAPinformation.
#
#SettoyifyouareconnectingtoaremoteLDAPserver.
#Ifn,EdgeinstallsOpenLDAPwhenitinstallstheManagementServer.
USE_LDAP_REMOTE_HOST=n
#IfconnectingtoremoteOpenLDAPserver,specifytheIP/DNSnameandport.
#LDAP_HOST=$IP1 #IPorDNSnameofOpenLDAPnode.
#LDAP_PORT=10389 #Defaultis10389.
APIGEE_LDAPPW=yourLdapPassword
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage57
#SpecifyOpenLDAPwithoutreplication,1,orwithreplication,2.
LDAP_TYPE=1
#Setonlyifusingreplication.
#LDAP_SID=1 #UniqueIDforthisLDAPserver.
#LDAP_PEER= #IPorDNSnameofLDAPpeer.
BIND_ON_ALL_INTERFACES=y
#TheMessageProcessorandRouterpod.
MP_POD=gateway
#Thenameoftheregion,correspondingtothedatacentername.
REGION=dc1 #Usedc1unlessinstallingina
#multidatacenterenvironment.
#ZooKeeperinformation.
#Seetablebelowifinstallinginamultidatacenterenvironment.
ZK_HOSTS="$IP1$IP2$IP3" #IP/DNSnamesofallZooKeepernodes.
ZK_CLIENT_HOSTS="$IP1$IP2$IP3" #IP/DNSnamesofallZooKeepernodes.
#Cassandrainformation.
CASS_CLUSTERNAME=Apigee #DefaultnameisApigee.
#IPorDNSnamesoftheCassandrahostsseparatedbyspaces.
CASS_HOSTS="$IP1:1,1$IP2:1,1$IP3:1,1"
#SettoenableCassandraauthentication.
#CASS_AUTH=y #Thedefaultvalueisn.
#Cassandrauname/pwordrequiredifyouenabledCassandraauthentication.
#CASS_USERNAME=
#CASS_PASSWORD=
#OptionallyusetoenablePostgresmasterstandbyreplication.
#PG_MASTER=IPorDNSofNewMaster
#PG_STANDBY=IPorDNSofOldMaster
#SMTPinformation.
SKIP_SMTP=n #Skipnowandconfigurelaterbyspecifying"y".
SMTPHOST=smtp.gmail.com
SMTPUSER=your@email.com
SMTPPASSWORD=yourEmailPassword
SMTPSSL=y
SMTPPORT=465 #IfnoSSL,useadifferentport,suchas25.
Thefollowingtablecontainsadditionalinformationabouttheseproperties:
Property
Note
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage58
IP/DNSnames
Donotuseahostnamemappingto127.0.0.1oranIPaddress
of127.0.0.1whenspecifyingtheIPaddressofanode.
ADMIN_EMAIL
APIGEE_ADMINPW
Thesystemadministrator'spasswordmustbeatleast8
characterslongandcontainoneuppercaseletter,onelowercase
letter,onedigitoronespecialcharacter.Ifyouomitthe
password,youwillbepromptedforit.
LICENSE_FILE
Thelocationofthelicensefile,whichmustbeaccessibletothe
"apigee"user.Forexample,storeitinthe/tmpdirectoryand
chmod777onthefile.ThefileiscopiedtotheEdgeinstallation
directory.
USE_LDAP_REMOTE_HOST
LDAP_HOST
LDAP_PORT
IfUSE_LDAP_REMOTE_HOSTisn,Edgeautomaticallyinstalls
OpenLDAPwhenitinstallstheManagementServer.
SetUSE_LDAP_REMOTE_HOSTtoyifyouareconnectingtoa
remoteLDAPserver.OpenLDAPisnotinstalledwiththe
ManagementServer.
IfyouareconnectingtoaremoteOpenLDAPserver,use
LDAP_HOST
andLDAP_PORTtospecifytheIPaddressorDNSnameandport
numberofthehost.
LDAP_TYPE
LDAP_SID
LDAP_PEER
SetLDAP_TYPE=1forOpenLDAPwithnoreplication.
LDAP_TYPE=2correspondstoOpenLDAPwithreplication.
IfyourEdgetopologyusesasingleOpenLDAPserver,specify1.
IfyourEdgeinstallationusesmultipleOpenLDAPnodes,suchas
ina13nodeproductioninstallation,specify2.
Ifyouenablereplication,setthefollowingproperties:
●LDAP_SID=1UniqueIDforthisLDAPserver.Each
LDAPnodeusesadifferentID.Forexample,setto2for
LDAPpeer.
●LDAP_PEER=10.0.0.1IPorDNSnameofLDAP
peer.
BIND_ON_ALL_INTERFACES
Ifsetto"y"thentheRouter/MessageProcessorbind(listen)on
allinterfaces(IPs).Ifsetto“n”thentheRouter/Message
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage59
Processorbind(listen)onaspecificinterface,theIPreturnedby
the"hostnamei"command).
MP_POD
SpecifythenameoftheMessageProcessorandRouterpod.By
default,thenameisgateway. 
REGION
Regionname.Byconvention,namesaretypicallyintheform
dc#where#correspondstoanintegervalue.Forexample,dc1,
dc2,etc.Youcanusedc1unlessinstallinginamultidata
centerenvironment.
Inamultipledatacenterinstallation,thevalueisdc1,ordc2,
etc.dependingonwhichdatacenteryouareinstalling.However,
youarenotrestrictedtousingonlynamesintheformdc#.You
canuseanynamefortheregion.
ZK_HOSTS
TheIPaddressesorDNSnamesoftheZooKeepernodes.The
IPaddressesorDNSnamesmustbelistedinthesameorderon
allZooKeepernodes.
Inamultidatacenterenvironment,listallZooKeepernodesfrom
bothdatacenters.
Specifythe“:observer”modifieronZooKeepernodesonlywhen
creatingmultipledatacentersasdescribedina12host
installation.Inasingledatacenterinstallation,omitthatmodifier.
See12hostclusteredinstallationformore.
ZK_CLIENT_HOSTS
TheIPaddressesorDNSnamesoftheZooKeepernodesused
bythisdatacenter.TheIPaddressesorDNSnamesmustbe
listedinthesameorderonallZooKeepernodes.
Inasingledatacenterinstallation,thesearethesamenodesas
specifiedbyZK_HOSTS.
Inamultidatacenterenvironment,listonlytheZooKeepernodes
inthisdatacenter.See12hostclusteredinstallationformore.
CASS_HOSTS
TheIPaddressesorDNSnamesoftheCassandranodes.The
firsttwonodeswillbeusedasseedservers.TheIPaddressesor
DNSnamesmustbelistedinthesameorderonallCassandra
nodes.
Cassandranodescanhaveanoptional“:dc,ra”suffixthat
specifiesthedatacenterandrackoftheCassandranode.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage60
Specifythismodifieronlywhencreatingmultipledatacentersas
describedina12hostinstallation.Inasingledatacenter
installation,omitthatmodifier.
Forexample'192.168.124.201:1,1=datacenter1and
rack/availabilityzone1,and'192.168.124.204:2,1=datacenter2
andrack/availabilityzone1.
Inamultidatacenterenvironment,toovercomefirewallissues,
CASS_HOSTShavetobeorderedinamanner(asshownin
aboveexample)suchthatthenodesofthecurrentdatacenter
areplacedatthebeginning.See12hostclusteredinstallationfor
more.
CASS_AUTH
CASS_USERNAME
CASS_PASSWORD
IfyouenableCassandraauthentication,CASS_AUTH=y,youcan
passtheCassandrausernameandpasswordbyusingthese
properties.
PG_MASTER
PG_STANDBY
SettoenablePostgresmasterstandbyreplication,intheform:
PG_MASTER=IPorDNSofNewMaster
PG_STANDBY=IPorDNSofOldMaster
SKIP_SMTP
SMTPHOST
SMTPUSER
SMTPPASSWORD
SMTPSSL
SMTPPORT
ConfigureSMTPsoEdgecansendemailsforlostpasswords
andothernotifications.
IfSMTPusercredentialsarenotrequired,omitSMTPUSERand
SMTPPASSWORD.

Orderofcomponentinstallation
Theorderofcomponentinstallationisbasedonyourdesiredtopology.
Alloftheinstallationexampleshownbelowassumethatyouareinstalling:
● WithCassandraauthenticationdisabled(default).SeeEnableCassandraauthenticationformore.
● WithPostgresmasterstandbyreplicationdisabled(default).SeeSetupMasterStandbyReplicationfor
Postgresformore.
Note:YoumustdisableSELinuxorsetittopermissivemodebeforeyouinstallEdgecomponents.See
Prerequisite:DisableSELinuxformore.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage61
Note:TheInstallationChecklistdetailstheinstallationprerequisitesandprovidesalistofrequiredfilesto
obtainbeforeproceedingwiththeinstallation.Ensurethatyouhavereviewedthechecklistbeforebeginning
theinstallationprocess.
Installationlogfiles
Bydefault,thesetup.shutilitywritesloginformationabouttheinstallationto:
/opt/apigee/var/log/apigeesetup/setup.log
Iftheuserrunningthesetup.shutilitydoesnothaveaccesstothatdirectory,itwritesthelogtothe/tmp
directoryasafilenamedsetup_username
.log.
Iftheuserdoesnothaveaccessto/tmp,thesetup.shutilityfails.
AllinoneInstallation
Note:SeeavideoofanEdgeallinoneinstallhere.
1. Installallcomponentsonasinglenodeusingthecommand:
>/opt/apigee/apigeesetup/bin/setup.shpaiofconfigFile
2. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
3. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
4. TesttheinstallationasdescribedatTesttheinstall.
5. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology:
#WithSMTP
IP1=IPorDNSnameOfNode
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
MSIP=$IP1
LDAP_TYPE=1
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway
REGION=dc1
ZK_HOSTS="$IP1"
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage62
ZK_CLIENT_HOSTS="$IP1"
CASS_HOSTS="$IP1"
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd 
#0fornopassword
SMTPSSL=n
SMTPPORT=25
2hoststandaloneinstallation
1. InstallStandaloneGatewayandnode1
>/opt/apigee/apigeesetup/bin/setup.shpsafconfigFile
2. Onnode1:
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
3. InstallAnalyticsonnode2:
>/opt/apigee/apigeesetup/bin/setup.shpsaxfconfigFile
4. TesttheinstallationasdescribedatTesttheinstall.
5. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology:
#WithSMTP
IP1=IPorDNSnameOfNode1
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.tx
t
MSIP=$IP1
LDAP_TYPE=1
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage63
REGION=dc1
ZK_HOSTS="$IP1"
ZK_CLIENT_HOSTS="$IP1"
CASS_HOSTS="$IP1"
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd 
#0fornopassword
SMTPSSL=n
SMTPPORT=25
5hostclusteredinstallation
1. InstallDatastoreclusteronnodes1,2and3:
>/opt/apigee/apigeesetup/bin/setup.shpdsfconfigFile
2. InstallManagementServeronnode1:
>/opt/apigee/apigeesetup/bin/setup.shpmsfconfigFile
3. Onnodes2and3:
a. InstallRouterandMessageProcessor:
>/opt/apigee/apigeesetup/bin/setup.shprmpfconfigFile
b. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
c. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
4. InstallAnalyticsonnode4and5:
>/opt/apigee/apigeesetup/bin/setup.shpsaxfconfigFile
5. TesttheinstallationasdescribedatTesttheinstall.
6. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology:
#WithSMTP
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage64
IP3=IPorDNSnameOfNode3
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
MSIP=$IP1
USE_LDAP_REMOTE_HOST=n
LDAP_TYPE=1
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway
REGION=dc1
ZK_HOSTS="$IP1$IP2$IP3"
ZK_CLIENT_HOSTS="$IP1$IP2
$IP3"
CASS_HOSTS="$IP1$IP2$IP3"
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd
#0fornopassword
SMTPSSL=n
SMTPPORT=25
9hostclusteredinstallation
1. InstallDatastoreClusterNodeonnode1,2and3:
>/opt/apigee/apigeesetup/bin/setup.shpdsfconfigFile
2. InstallApigeeManagementServeronnode1:
>/opt/apigee/apigeesetup/bin/setup.shpmsfconfigFile
3. Onnodes4and5:
a. InstallRouterandMessageProcessor:
>/opt/apigee/apigeesetup/bin/setup.shprmpfconfigFile
b. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
c. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage65
4. InstallApigeeAnalyticsQpidServeronnode6and7:
>/opt/apigee/apigeesetup/bin/setup.shpqsfconfigFile
5. InstallApigeeAnalyticsPostgresServeronnode8and9:
>/opt/apigee/apigeesetup/bin/setup.shppsfconfigFile
6. TesttheinstallationasdescribedatTesttheinstall.
7. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology:
#WithSMTP
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
IP3=IPorDNSnameOfNode3
IP8=IPorDNSnameOfNode3
IP9=IPorDNSnameOfNode3
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
MSIP=$IP1
USE_LDAP_REMOTE_HOST=n
LDAP_TYPE=1
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway
REGION=dc1
ZK_HOSTS="$IP1$IP2$IP3"
ZK_CLIENT_HOSTS="$IP1$IP2
$IP3"
CASS_HOSTS="$IP1$IP2$IP3"
SKIP_SMTP=n
#PG_MASTER=$IP8
#PG_STANDBY=$IP9
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd
#0fornopassword
SMTPSSL=n
SMTPPORT=25
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage66
13hostclusteredinstallation
1. InstallDatastoreClusterNodeonnode1,2and3:
>/opt/apigee/apigeesetup/bin/setup.shpdsfconfigFile
2. InstallOpenLDAPonnode4and5:
>/opt/apigee/apigeesetup/bin/setup.shpldfconfigFile
3. InstallApigeeManagementServeronnode6and7:
>/opt/apigee/apigeesetup/bin/setup.shpmsfconfigFile
4.InstallApigeeAnalyticsPostgresServeronnode8and9:
>/opt/apigee/apigeesetup/bin/setup.shppsfconfigFile
5. Onnodes10and11:
a. InstallRouterandMessageProcessor:
>/opt/apigee/apigeesetup/bin/setup.shprmpfconfigFile
b. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
c. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
6. InstallApigeeAnalyticsQpidServeronnode12and13:
>/opt/apigee/apigeesetup/bin/setup.shpqsfconfigFile
7. TesttheinstallationasdescribedatTesttheinstall.
8. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology:
#Forallcomponentsexcept
OpenLDAP
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
IP3=IPorDNSnameOfNode3
IP4=IPorDNSnameOfNode4
IP5=IPorDNSnameOfNode5
#ForOpenLDAPonIP4andIP5
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
IP3=IPorDNSnameOfNode3
IP4=IPorDNSnameOfNode4
IP5=IPorDNSnameOfNode5
IP6=IPorDNSnameOfNode6
IP7=IPorDNSnameOfNode7
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage67
IP6=IPorDNSnameOfNode6
IP7=IPorDNSnameOfNode7
IP8=IPorDNSnameOfNode8
IP9=IPorDNSnameOfNode9
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
#FirstManagementServeronIP6
MSIP=$IP6
MSUM=1
USE_LDAP_REMOTE_HOST=y
LDAP_HOST=$IP4
LDAP_PORT=10389
#SecondManagementServeronIP7
#MSIP=$IP7
#USE_LDAP_REMOTE_HOST=y
#LDAP_HOST=$IP5
#LDAP_PORT=10389
#SamepasswordforbothOpenLDAPs.
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway
REGION=dc1
ZK_HOSTS="$IP1$IP2$IP3"
ZK_CLIENT_HOSTS="$IP1$IP2$IP3"
CASS_HOSTS="$IP1$IP2$IP3"
#PG_MASTER=$IP8
#PG_STANDBY=$IP9
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd
#0fornopassword
SMTPSSL=n
SMTPPORT=25
IP8=IPorDNSnameOfNode8
IP9=IPorDNSnameOfNode9
HOSTIP=$(hostnamei)
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
#FirstOpenLDAPServeronIP4
MSIP=$IP6
USE_LDAP_REMOTE_HOST=n
LDAP_TYPE=2
LDAP_SID=1
LDAP_PEER=$IP5
#SecondOpenLDAPServeronIP5
#MSIP=$IP17
#USE_LDAP_REMOTE_HOST=n
#LDAP_TYPE=2
#LDAP_SID=2
#LDAP_PEER=$IP4
#Setsamepasswordforboth
OpenLDAPs.
APIGEE_LDAPPW=secret
12hostclusteredinstallation
BeforeyouinstallEdgeona12hostclusteredtopology(twodatacenters),youmustunderstandhowtosetthe
ZooKeeperandCassandrapropertiesinthesilentconfigfile.
Note:Shownbelowisacompleteconfigfileforbothdatacenters.
● ZooKeeper
FortheZK_HOSTSpropertyforbothdatacenters,specifytheIPaddressesorDNSnamesofall
ZooKeepernodesfrombothdatacenters,inthesameorder,andmarkanynodeswiththewith
“:observer”modifier.Nodeswithoutthe“:observer”modifierarecalled"voters".Youmusthaveanodd
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage68
numberof"voters"inyourconfiguration.
Inthistopology,theZooKeeperhostonhost9istheobserver:
FortheZK_CLIENT_HOSTSpropertyforeachdatacenter,specifytheIPaddressesorDNSnamesof
onlytheZooKeepernodesinthedatacenter,inthesameorder,forallZooKeepernodesinthedata
center.Intheexampleconfigurationfileshownbelow,node9istaggedwiththe“:observer”modifierso
thatyouhavefivevoters:Nodes1,2,3,7,and8.
● Cassandra
AlldatacentersmusttohavethesamenumberofCassandranodes.
ForCASS_HOSTSforeachdatacenter,ensurethatyouspecifyallCassandraIPaddressesorDNS
namesforbothdatacenters.Fordatacenter1,listtheCassandranodesinthatdatacenterfirst.For
datacenter2,listtheCassandranodesinthatdatacenterfirst.ListtheCassandranodesinthesame
orderforallCassandranodesinthedatacenter.
AllCassandranodesmusthaveasuffix':<d>,<r>',forexample'<ip>:1,1=datacenter1and
rack/availabilityzone1and'<ip>:2,1=datacenter2andrack/availabilityzone1.
Forexample,"192.168.124.201:1,1192.168.124.202:1,1192.168.124.203:1,1192.168.124.204:2,1
192.168.124.205:2,1192.168.124.206:2,1"
Thefirstnodeinrack/availabilityzone1ofeachdatacenterwillbeusedastheseedserver.
Inthisdeploymentmodel,Cassandrasetupwilllooklikethis:
1. InstallDatastoreClusterNodeonnode1,2,3,7,8,and9:
>/opt/apigee/apigeesetup/bin/setup.shpdsfconfigFile
2. InstallApigeeManagementServerwithOpenLDAPreplicationonnode1and7:
>/opt/apigee/apigeesetup/bin/setup.shpmsfconfigFile
3. Onnodes2,3,8,and9:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage69
1. InstallRouterandMessageProcessor:
>/opt/apigee/apigeesetup/bin/setup.shprmpfconfigFile
2. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
3. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
4. InstallApigeeAnalyticsQpidServeronnode4,5,10,and11:
>/opt/apigee/apigeesetup/bin/setup.shpqsfconfigFile
5. InstallApigeeAnalyticsPostgresServeronnode6and12:
>/opt/apigee/apigeesetup/bin/setup.shppsfconfigFile
6. TesttheinstallationasdescribedatTesttheinstall.
7. OnboardyourorganizationasdescribedatOnboardanorganization.
Shownbelowisasilentconfigurationfileforthistopology.Noticethatthisconfigfile:
● ConfiguresOpenLDAPwithreplicationacrosstwoOpenLDAPnodes.
● Specifiesthe“:observer”modifierononeZooKeepernode.Inasingledatacenterinstallation,omitthat
modifier.
#Datacenter1
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
IP3=IPorDNSnameOfNode3
IP7=IPorDNSnameOfNode7
IP8=IPorDNSnameOfNode8
IP9=IPorDNSnameOfNode9
HOSTIP=$(hostnamei)
MSIP=$IP1
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
USE_LDAP_REMOTE_HOST=n
LDAP_TYPE=2
LDAP_SID=1
LDAP_PEER=$IP7
#Datacenter2
IP1=IPorDNSnameOfNode1
IP2=IPorDNSnameOfNode2
IP3=IPorDNSnameOfNode3
IP7=IPorDNSnameOfNode7
IP8=IPorDNSnameOfNode8
IP9=IPorDNSnameOfNode9
HOSTIP=$(hostnamei)
MSIP=$IP7
ADMIN_EMAIL=opdk@apigee.com
APIGEE_ADMINPW=Secret123
LICENSE_FILE=/tmp/license.txt
USE_LDAP_REMOTE_HOST=n
LDAP_TYPE=2
LDAP_SID=2
LDAP_PEER=$IP1
APIGEE_LDAPPW=secret
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage70
APIGEE_LDAPPW=secret
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway1
REGION=dc1
ZK_HOSTS="$IP1$IP2$IP3$IP7$IP8
$IP9:observer"
ZK_CLIENT_HOSTS="$IP1$IP2$IP3"
CASS_HOSTS="$IP1:1,1$IP2:1,1$IP3:1,1
$IP7:2,1$IP8:2,1$IP9:2,1"
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd 
#0fornopassword
SMTPSSL=n
SMTPPORT=25
BIND_ON_ALL_INTERFACES=y
MP_POD=gateway2
REGION=dc2
ZK_HOSTS="$IP1$IP2$IP3$IP7$IP8
$IP9:observer"
ZK_CLIENT_HOSTS="$IP7$IP8$IP9"
CASS_HOSTS="$IP7:2,1$IP8:2,1$IP9:2,1
$IP1:1,1$IP2:1,1$IP3:1,1"
SKIP_SMTP=n
SMTPHOST=smtp.example.com
SMTPUSER=smtp@example.com
#0fornousername
SMTPPASSWORD=smtppwd 
#0fornopassword
SMTPSSL=n
SMTPPORT=25
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage71
Testtheinstall
Apigeeprovidestestscriptsthatyoucanusetovalidateyourinstallation.
Runthevalidationtests
EachstepofthevalidationtestingprocessreturnsanHTTP20Xresponsecodeforasuccessfultest.
Torunthetestscripts:
1. InstallapigeevalidateonaManagementServernode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidateinstall
2. RunthesetupcommandonaManagementServernodetoinvokethetestscripts:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidatesetupf
configFile
TheconfigFile
filemustcontainthefollowingproperty:
APIGEE_ADMINPW=sysAdminPword
Ifomitted,youwillbepromptedforthepassword.
Bydefault,theapigeevalidateutilitycreatesavirtualhostontheRouterthatusesport59001.If
thatportisnotopenontheRouter,youcanoptionallyincludetheVHOST_PORTpropertyintheconfig
filetosettheport.Forexample:
VHOST_PORT=9000 
3. Thescriptthendoesthefollowing:
a. Createsanorganizationandassociatesitwiththepod.
b. CreatesanenvironmentandassociatestheMessageProcessorwiththeenvironment.
c. Createsavirtualhost.
d. Importsasimplehealthcheckproxyanddeploystheapplicationtothe“test”environment.
e. ImporttheSmartDocsproxy.
f. Executesthetesttomakesureeverythingisworkingasexpected.
Asuccessfultestreturnsthe20XHTTPresponse.
Toremovetheorganization,environmentandotherartifactscreatedbythetestscripts:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage72
1. Runthefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidatecleanf
configFile
whereconfigFile
isthesamefileyouusedtorunthetests.
Note:Ifyougeterrorsfromthetestingandthetroubleshootingmethodology,contactApigeeSupport
andprovidetheerrorlog.
Verifypodinstallation
NowthatyouhaveinstalledtheApigeeAnalytics,itisrecommendedthatyouperformfollowingbasicbut
importantvalidation:
1. VerifythattheManagementServerisinthecentralPOD.OnManagementServer,runthefollowing
CURLcommand:
curlusysAdminEmail:password
http://localhost:8080/v1/servers?pod=central
Youshouldseeoutputintheform:
[{
"internalIP":"192.168.1.11",
"isUp":true,
"pod":"central",
"reachable":true,
"region":"dc1",
"tags":{
"property":[]
},
"type":["applicationdatastore","schedulerdatastore",
"managementserver","authdatastore","apimodeldatastore",
"usersettingsdatastore","auditdatastore"],
"uUID":"d4bc87c62baf457598aa88c37b260469"
},{
"externalHostName":"localhost",
"externalIP":"192.168.1.11",
"internalHostName":"localhost",
"internalIP":"192.168.1.11",
"isUp":true,
"pod":"central",
"reachable":true,
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage73
"region":"dc1",
"tags":{
"property":[{
"name":"started.at",
"value":"1454691312854"
},...]
},
"type":["qpidserver"],
"uUID":"9681202c8c6e4da1b59b23e3ef092f34"
}]
2. VerifythattheRouterandMessageProcessorareingatewayPOD.OnManagementServer,runthe
followingCURLcommand:
curlusysAdminEmail:password
http://localhost:8080/v1/servers?pod=gateway
YouseeoutputsimilartothecentralpodbutfortheRouterandMessageProcessor.
3. VerifythatPostgresisintheanalyticsPOD.OnManagementServer,runthefollowingCURL
command:
curlusysAdminEmail:password
http://localhost:8080/v1/servers?pod=analytics
YouseeoutputsimilartothecentralpodbutforPostgres.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage74
Onboardanorganization
Usethesetuporgcommandtoperformtheonboardingprocess.Youmustrunthecommandonthe
ManagementServernode.
Aspartoftheonboardingprocess,thescript:
● Optionallycreatesanewusertofunctionastheorganizationadministrator.
● Createstheorganization.
● Addsthespecifieduserastheorgadmin.Theusermustalreadyexist;otherwisethescriptissuesan
error.
● Associatestheorganizationwithapod,bydefaultisassociatesitwiththe"gateway"pod.
● Createanenvironment.
● Createavirtualhostfortheenvironment.
● AssociatetheenvironmentwithallMessageProcessor(s).
● Enablesanalytics.
Note:Youcannotcreatetwoorganizationswiththesamename.Inthatcase,thesecondcreatewillfail
Silentconfigurationfileforonboarding
Passaconfigurationfiletothesetuporgcommand.Invokethesetuporgcommandandspecifythef
option,includingthepathtothesilentconfigurationfile:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeeprovisionsetuporgf
/tmp/configFile
Theonlyrequirementonsilentinstallationsisthattheconfigurationfilemustbeaccessibleorreadablebythe
"apigee"user.Forexample,putthefileinthe/tmpdirectoryonthenode.
Shownbelowisanexamplesilentconfigurationfile.Edititasnecessaryforyourrequirements:
IP1=192.168.1.1
#SpecifytheIPorDNSnameoftheManagementServer.
MSIP="$IP1"
#SpecifytheEdgeadmincredentials.
ADMIN_EMAIL="admin@email.com"
APIGEE_ADMINPW=adminPassword #Ifomitted,youarepromptedforit.
#Specifyorganizationnameandadministrator.
ORG_NAME=myorg#lowercaseonly,nospaces,underscores,orperiods.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage75
#
#Settheorganizationadministrator.
#Donotusesysadminasorganizationadministrator.
#
#Createanewuserfortheorganizationadministrator.
NEW_USER="y"
#NewuserinformationifNEW_USER="y".
USER_NAME=new@user.com
FIRST_NAME=new
LAST_NAME=user
USER_PWD="newUserPword"
ORG_ADMIN=new@user.com
#Specifyanexistinguserastheorganizationadmin,
#omitUSER_NAME,FIRST_NAME,LAST_NAME,USER_PWD.
#NEW_USER="n"
#ORG_ADMIN=existing@user.com
#Specifyenvironmentname.
ENV_NAME=prod
#Specifyvirtualhostinformation.
VHOST_PORT=9001
VHOST_NAME=default
#IfyouhaveaDNSentryforthevirtualhost.
VHOST_ALIAS=myorgtest.apigee.net
#IfyoudonothaveaDNSentryforthevirtualhost,
#specifytheIPandportofeachrouterasaspaceseparatedlist:
#VHOST_ALIAS="firstRouterIP:9001secondRouterIP:9001"
#OptionallyconfigureSSLforvirtualhost.
#VHOST_SSL=y#Setto"y"toenableSSLonthevirtualhost.
#KEYSTORE_JAR=#JARfilecontainingthecertandprivatekey.
#KEYSTORE_NAME=#Nameofthekeystore.
#KEYSTORE_ALIAS=#Thekeyalias.
#KEY_PASSWORD=#Thekeypassword,ifithasone.
#Specifytheanalyticsgroup.
#AXGROUP=axgroup001 #Defaultnameisaxgroup001.
Notes:
● ForVHOST_ALIAS,ifyoualreadyhaveaDNSrecordthatyouwillusetoaccesstothevirtualhost,
specifythehostaliasandoptionallytheport,forexample,“myapi.example.com”.
IfyoudonotyethaveaDNSrecord,seeSettingupavirtualhostformoreinformation.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage76
● ForSSLconfiguration,seeKeystoresandTruststoresandConfiguringSSLaccesstoanAPIforthe
PrivateCloudformoreinformationoncreatingtheJARfile,andotheraspectsofconfiguringSSL.
Onboarding
1. InstallapigeeprovisionontheManagementServernode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeeprovisioninstall
2. RunthecommandontheManagementServernode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeeprovisionsetuporg
fconfigFile
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
OnboardingVerification
Oncompletionofonboarding,verifythestatusofthesystembyissuingthefollowingCURLcommandsonthe
ManagementServernode.
1. CheckforuserandorganizationstatusontheManagementServerbyissuingthefollowingCURL
commands:
>curlu<adminEmail>:<adminpasswd>http://localhost:8080/v1/users
>curlu<adminEmail>:<adminpasswd>
http://localhost:8080/v1/organizations
>curlu<adminEmail>:<adminpasswd>
http://localhost:8080/v1/organizations/<orgname>/deployments
2. Ifyouenabledanalytics,thenusethiscommand:
>curlu<adminEmail>:<adminpasswd>
http://localhost:8080/v1/organizations/<orgname>/environments/<envname>/pr
ovisioning/axstatus
3. YoucanalsocheckthePostgreSQLdatabasestatusbyrunningthefollowingcommandonMachine2
tostartpsql:
>psqlh/opt/apigee/var/run/apigeepostgresqlUapigeeapigee
Atthecommandprompt,enterthefollowingcommandtoviewtheanalyticstableforyourorganization:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage77
apigee=#:\danalytics."<orgname>.prod.fact"
Usethefollowingcommandtoexitpsql:
apigee=#\q
4. AccesstheApigeeEdgeuserinterfaceusingawebbrowser.Rememberthatyoualreadynotedthe
managementconsoleURLattheendoftheinstallation.
a. LaunchyourpreferredbrowserandentertheURLoftheEdgeUI.Itlookssimilartothe
following,wheretheIPaddressisforMachine1,orforwhichevermachineyouinstalledtheUI
onforalternativeconfigurations:
http://192.168.56.111:9000/login
9000istheportnumberusedbytheUI.Ifyouarestartingthebrowserdirectlyontheserver
hostingtheEdgeUI,thenyoucanuseaURLintheform:
http://localhost:9000/login
Note:Ensurethatport9000isopen.
b. Ontheconsoleloginpage,specifytheApigeesystemadminusername/password.
Note:Thisistheglobalsystemadministratorpasswordthatyouhavesetduringtheinstallation.
Alternately,youcan:
Signinastheorganizationadministratorthatyoucreatedabovewhencreatingtheorganization.
SignupforanewApigeeuseraccountandusethenewusercredentialtologin.
c. ClickSignIn,thebrowserredirectsto:
http://192.168.56.111:9000/platform/#/<orgname>/
andopensadashboardwhichallowsyoutoconfiguretheorganizationcreatedbefore(iflogged
inusingApigeeadmincredentials).
d. IfyouarenewtoEdge,youcannowcreateyourfirstAPIproxy.Formoreinformation,seethe
followingtutorials:
CreateyourAPI
CreateyourAPIinXML
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage78
EnableCassandraauthentication
Bydefault,Cassandrainstallswithoutauthenticationenabled.ThatmeansanyonecanaccessCassandra.You
canenableauthenticationafterinstallingEdge,oraspartoftheinstallationprocess.
IfyoudecidetoenableauthenticationonCassandra,itusesthefollowingdefaultcredentials:
● username='cassandra'
● password='cassandra'
Youcanusethisaccount,setadifferentpasswordforthisaccount,orcreateanewCassandrauser.Add,
remove,andmodifyusersbyusingtheCassandraCREATE/ALTER/DROPUSERstatements.
Formoreinformation,see
http://www.datastax.com/documentation/cql/3.0/cql/cql_reference/cqlCommandsTOC.html.
EnableCassandraauthenticationduringinstallation
YoucanenableCassandraauthenticationasinstalltime.However,whileyoucanenableauthenticationwhen
youinstallCassandra,youcannotchangethedefaultusernameandpassword.Youhavetoperformthatstep
manuallyafterinstallationofCassandracompletes.
Note:UsethisprocedurewheninstallingCassandrabyusingthe"pc","pds","psa",or"paio"options.
ToenableCassandraauthenticationatinstalltime,includetheCASS_AUTHpropertyintheconfigurationfilefor
allCassandranodes:
CASS_AUTH=y #Thedefaultvalueisn.
ThefollowingEdgecomponentsaccessCassandra:
● ManagementServer
● MessageProcessors
● Routers
● Qpidservers
● Postgresservers
Therefore,whenyouinstallthesecomponents,youmustsetthefollowingpropertiesintheconfigurationfileto
specifytheCassandracredentials:
CASS_USERNAME=cassandra
CASS_PASSWORD=cassandra
TochangetheCassandracredentialsafterinstallingCassandra:
1. LogintoCassandrausingthecqlshtoolandthedefaultcredentials:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage79
>/opt/apigee/apigeecassandra/bin/cqlshcassIPcassPortucassandrap
cassandra
Where:
a. cassIPistheIPaddressoftheCassandranode.
b. cassPortistheCassandraport,whichbydefaultis9160.
c. Thedefaultuseriscassandra.
d. Thedefaultpasswordiscassandra.Ifyouchangedthepasswordpreviously,usethecurrent
password.
2. Runthefollowingcommandasthecqlsh>prompttoupdatethepassword:
cqlsh>ALTERUSERcassandraWITHPASSWORD'NEW_PASSWORD
';
3. Exitthecqlshtool:
cqlsh>exit
4. RepeatonallCassandranodes,ensuringthatyouusethesamepasswordonallnodes.
5. WheninstallingtheManagementServer,MessageProcessors,Routers,Qpidservers,andPostgres
servers,setthefollowingpropertiesintheconfigfile:
CASS_USERNAME=cassandra
CASS_PASSWORD=NEW_PASSWORD
ToenableCassandraauthenticationpostinstallation
Toenableauthentication:
● UpdateallEdgecomponentsthatconnecttoCassandrawiththeCassandrausernameandpassword.
● OnallCassandranodes,enableauthenticationandsettheusernameandpassword.
UsetheapigeeserviceutilitytoupdateallEdgecomponentsthatcommunicatewithCassandra:
1. OntheManagementServernode,runthefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgemanagementserver
store_cassandra_credentialsuCASS_USERNAME
pCASS_PASSWORD
Optionally,youcanpassafiletothecommandcontainingthenewusernameandpassword:
>apigeeserviceedgemanagementserverstore_cassandra_credentialsf
configFile
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage80
WheretheconfigFilecontainsthefollowing:
conf_credentials_cassandra.user=cassandra
conf_credentials_cassandra.password=CASS_PASSWROD
ThiscommandautomaticallyrestartstheManagementServer.
2. Repeatthisprocessonthe:
● AllMessageProcessors
● AllRouters
● AllQpidservers(edgeqpidserver)
● Postgresservers(edgepostgresserver)
OnallCassandranodes,enableauthenticationandsettheusernameandpassword:
1. LogintothefirstCassandranode.
2. Runthefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeecassandra
enable_cassandra_authenticationey
ThiscommandenablesauthenticationandrestartsCassandra.
3. LogintoCassandrausingthecqlshtoolandthedefaultcredentials:
>/opt/apigee/apigeecassandra/bin/cqlshcassIPcassPortucassandrap
cassandra
Where
a. cassIPistheIPaddressoftheCassandranode.
b. cassPortistheCassandraport,whichbydefaultis9160.
c. Thedefaultuseriscassandra.
d. Thedefaultpasswordiscassandra.Ifyouchangedthepasswordpreviously,usethecurrent
password.
4. Runthefollowingcommandasthecqlsh>prompttoupdatethepassword:
cqlsh>ALTERUSERcassandraWITHPASSWORD'NEW_PASSWORD
';
5. Exitthecqlshtool:
cqlsh>exit
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage81
6.RepeatonallCassandranodes,ensuringthatyouusethesamepasswordonallnodes:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceapigeecassandra
restart
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage82
SetupMasterStandbyReplicationforPostgres
Bydefault,EdgeinstallsallPostgresnodesinmastermode.However,inmostproductionsystems,you
configurethemtousemasterstandbyreplicationsothatifthemasternodefails,thestandbynodecan
continuetoservertraffic.
Ifthemasternodeeverfails,youcanpromotethestandbyservertothemaster.Seethesection"Handlinga
PostgresSQLDatabaseFailover"intheEdgeOperationsGuide
formoreinformation.
ToconfigureMasterStandbyReplicationatinstalltime
Youcanconfiguremasterstandbyreplicationatinstalltimebyincludingthefollowingpropertiesintheconfig
fileforthetwoPostgresnodes:
PG_MASTER=IPorDNSofNewMaster
PG_STANDBY=IPorDNSofOldMaster
TheinstallerautomaticallyconfiguresthetwoPostgresnodetofunctionasmasterstandbywithreplication.
ToconfigureMasterStandbyReplicationafterinstallation
Youcanconfiguremasterstandbyreplicationafterinstallationbybyusingthefollowingprocedure:
1. IdentifywhichPostgrenodewillbethemasterandwhichwillbethestandbyserver.
2. Onthemasternode,edittheconfigfiletoset:
PG_MASTER=IPorDNSofNewMaster
PG_STANDBY=IPorDNSofOldMaster
3. Enablereplicationonthenewmaster:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeepostgresql
setupreplicationonmasterfconfigFIle
4. Onthestandbynode,edittheconfigfiletoset:
PG_MASTER=IPorDNSofNewMaster
PG_STANDBY=IPorDNSofOldMaster
5. Stopthestandbynode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeepostgresqlstop
6. Onthestandbynode,deleteanyexistingPostgresdata:
>rmrf/opt/apigee/data/apigeepostgresql/
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage83
Note:Ifnecessary,youcanbackupthisdatabeforedeletingit.
7. Configurethestandbynode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeepostgresql
setupreplicationonstandbyfconfigFile
TestMasterStandbyReplication
Oncompletionofreplication,verifythereplicationstatusbyissuingthefollowingscriptsonbothservers.The
systemshoulddisplayidenticalresultsonbothserverstoensureasuccessfulreplication:
1. Onthemasternode,run:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeepostgresql
postgrescheckmaster
Validatethatitsaysitisthemaster.
2. Onthestandbynode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeepostgresql
postgrescheckstandby
Validatethatitsaysitisthestandby.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage84
InstallSmartDocs
SmartDocsisinstalledautomaticallywhenyouinstallandruntheinstallationtestscriptsdescribedinTestthe
install.Aspartofrunningthetestscripts,yourunthefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidatesetup
ThiscommandinstallsSmartDocsaspartofrunningthetests.
TotestthatSmartDocsisinstalled,confirmthatthesmartdocs.zipfileislocatedinthefollowingdirectory:
/opt/apigee/apigeevalidate/bundles/
OrrunthefollowingAPIcallontheManagementServernode:
>curlvuadminEmail:adminPword
0:8080/v1/o/VALIDATE/apis
ThiscommandshouldreturnthefollowingifSmartDocsisinstalled:
["smartdocs","passthrough"]
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage85
7hostand10hostAPIBaaSInstallation
Note:TheInstallationChecklistdetailstheinstallationprerequisitesandprovidesalistofrequiredfilesto
obtainbeforeproceedingwiththeinstallation.Ensurethatyouhavereviewedthechecklistbeforebeginning
theinstallationprocess.
UsingaLoadBalancer
AproductioninstallationofAPIBaaSusesaloadbalancerbetweentheAPIBaaSPortalnodeandAPIBaaS
Stacknodes.WhenconfiguringthePortal,youspecifytheIPaddressorDNSnameoftheloadbalancer,not
oftheStacknodes.
Asanalternativetoaloadbalancer,youcoulduseroundrobinDNS.Inthisscenario,youcreateaDNSentry
withmultipleArecordscorrespondingtoBaaSstackIPaddresses.DuringaDNSlookup,theDNSserver
automaticallyreturnsArecordvaluesinaroundrobinfashion.
Note:APIBaaStestinganddevelopmentenvironmentscaninstallallcomponentsonasinglenode,orwitha
singleAPIBaaSStacknode.IfyourinstallationusesasingleAPIBaaSStacknode,theloadbalancerisnot
requiredandyoucanspecifytheIPaddressorDNSnameoftheAPIBaaSStackwhenconfiguringthePortal.
ConnectingtoCassandra
WhileyoucanconnectAPIBaaSandEdgetothesameCassandracluster,Apigeerecommendsthatyouuse
separateclusters.SeparateclustersmaximizeperformanceifyouareexperiencinghightrafficloadsonAPI
BaaS.
Datesynchronization
Youmusthavethedate/timeonallserverssynchronized.Ifnotalreadyconfigured,‘ntpdate’utilitycouldserve
thispurpose,whichverifieswhetherserversaretimesynchronized.Youcanuse“yuminstallntp”to
installtheutility.
Tomcatsecurity
TheAPIBaaSinstalleralsoinstallstheApacheTomcatserveronallAPIBaaSStacknodes,includingthe
TomcatadministratorUI.Theinstallerleavesthedefaultadministratorcredentialsunchangedfrom
admin:admin.
Ifnecessary,youcanchangethesecredentialsaspartofsecuringTomcat.Formoreinformation,see:
●https://tomcat.apache.org/tomcat7.0doc/managerhowto.html
●https://www.owasp.org/index.php/Securing_tomcat
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage86
Installationoverview
AfteryouinstalltheEdgetheapigeesetuputilityonanode,usethatutilitytoinstalloneormoreBaaS
componentsonthenode.Theapigeesetuputilityhastheform:
>sudo/opt/apigee/apigeesetup/bin/setup.shpcomponent
fconfigFile
Passaconfigurationfiletotheapigeesetuputilitythatcontainstheinformationabouttheinstallation.Ifthe
configurationfileismissinganyrequiredinformation,theapigeesetuputilitypromptsyoutoenteritonthe
commandline.
Theonlyrequirementisthattheconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.For
example,putthefileinthe/tmpdirectoryonthenode.
Forexample,usethefollowingcommandtoinstalltheAPIBaaSStack:
>sudo/opt/apigee/apigeesetup/bin/setup.shpbfmyConfig
TheApigeesetup.shutilitysupportsseveraloptionsforinstallingAPIBaaScomponents.Theinstructions
belowusethestandaloneoptions(c,e,b,andp)butyoucanusedifferentoptionsbasedonyournode
configuration:
Optio
n
Description
e
InstallElasticSearchonly.
b
InstallAPIBaaSStackonly,whichalsoinstallsTomcat.
p
InstallAPIBaaSPortalonly,whichalsoinstallstheNginxroutertobeusedasaweb
server.
c
InstallCassandraonly.
eb
InstallElasticSearch,APIBaaSStack,andTomcatonthenode.
ebp
InstallElasticSearch,APIBaaSPortal,APIBaaSStack,andTomcat.Theportalisso
lightweightnoadditionalresourcesneededforthis.
asa
InstallallAPIcomponentsonasinglenode(Cassandra,Elasticsearch,APIBaaSStack,
andAPIBaaSPortal).Usethisoptionfordevelopmentandtestingonly,notfor
production.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage87
Creatingasilentconfigurationfile
Shownbelowisanexamplesilentconfigurationfilefora10nodeAPIBaaSinstallation.Editthisfileas
necessaryforyourconfiguration.Usethefoptiontosetup.shtoincludethisfile.
#SpecifyIPaddressorDNSnameofnode.
IP1=192.168.1.1#ElasticSearch
IP2=192.168.1.2#ElasticSearch
IP3=192.168.1.3#ElasticSearch
IP4=192.168.1.4#APIBaaSStack
IP5=192.168.1.5#APIBaaSStack
IP6=192.168.1.6#APIBaaSStack
IP7=192.168.1.7#APIBaaSPortal
IP8=192.168.1.8#Cassandra(sharedwithEdgeorstandalone)
IP9=192.168.1.9#Cassandra(sharedwithEdgeorstandalone)
IP10=192.168.1.10#Cassandra(sharedwithEdgeorstandalone)
#MustresolvetoIPaddressorDNSnameofhostnotto127.0.0.1orlocalhost.
HOSTIP=$(hostnamei)
#DefinetheAPIBaaSadministratoraccount.
AS_ADMIN="superuser" #Usernamedefaultis"superuser".
AS_ADMIN_EMAIL=stackAdmin@email.com
AS_PASSWD=stackAdminPWrod
#OnlyifyouareinstallingCassandra.
#SpecifyCassandraconfigurationinformation.
#CASS_HOSTS="$IP8:1,1$IP9:1,1$IP10:1,1"
#IfconnectingtoexistingCassandranodes,
#specifyCassandraIPs.
CASS_HOSTS="$IP8$IP9$IP10"
#Cassandrauname/pword.
#EvenifCassandraauthenticationisdisabled,
#youmuststillpassvaluesfortheseproperties.
CASS_USERNAME=cassandra #Defaultvalue
CASS_PASSWORD=cassandra #Defaultvalue
#SpecifyBaaSCassandraconnectioninformation.
#Specifythedatacentername.
BAAS_CASS_LOCALDC=dc1 #Defaultisdc1.
#Replicationisintheform"dataCenterName:#CassandraNodes".
#Forexample,fordc1withthreeCassandranodes,itisdc1:3.
BAAS_CASS_REPLICATION=dc1:3
#ElasticSearchIPsorDNSnames,separatedbyspaces.
ES_HOSTS="$IP1$IP2$IP3"
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage88
#APIBaaSStackinformation.
#Defaultclusternameis"apigee_baas"
BAAS_USERGRID_CLUSTERNAME="apigee_baas" 
#URLandportoftheloadbalancerfortheAPIBaaSStacknodes,
#orIP/DNSandport8080ofasingleStacknodewithnoloadbalancer.
BAAS_USERGRID_URL=http://myloadbalancer:8443
#APIBaaSPortalinformation.
#URLandportnumberofloadbalancer,ifthereisoneinfrontofthePortal,
#ortheURLandportofthePortalnode.
BAAS_PORTAL_URL="http://$IP7:9000"
#Portalport.Defaultvalueis9000.
BAAS_PORTAL_LISTEN_PORT=9000 
#SMTPinformation.BaaSrequiresanSMTPserver.
SMTPHOST=smtp.gmail.com
SMTPPORT=465
SMTPUSER=your@email.com
SMTPPASSWORD=yourEmailPassword
SMTPSSL=y
Thefollowingtablecontainsadditionalinformationabouttheseproperties:
Property
Note
CASS_HOSTS
IfyouareinstallingCassandra,specifytheCassandranodeIPsand
includethe“:dc,ra”modifierthatspecifythedatacenterandrackof
theCassandranode.
Forexample'192.168.124.201:1,1=datacenter1and
rack/availabilityzone1,and'192.168.124.204:2,1=datacenter2and
rack/availabilityzone1.
CASS_USERNAME
CASS_PASSWORD
Cassandrausernameandpassword.
IfCassandraauthenticationisdisabled,youstillhavetopassthese
values.However,thevaluesareignored.
BAAS_CASS_LOCALDC
Theregionnamesmustbeintheformdc#where#correspondsto
anintegervalue.
Forexample,dc1,dc2,etc.IfyouareconnectingtoaCassandra
clusterinstalledwithEdge,youcanasktheEdgesystem
administratorforthisvalue.InanEdgesingledatacenterinstallation,
thedefaultvalueisdc1.
IfyouinstalledCassandraaspartofinstallingtheAPIBaaS,then
duringCassandrainstallationyouaddedthe“:dc,ra”modifiertothe
CassandraIPaddresses.Thefirstvalue"dc"isthedatacenter
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage89
number.Thedatacenternameisthestring"dc"withthedatacenter
numberasasuffix.
BAAS_CASS_REPLICATION
Theformatis"dataCenterName:#CassandraNodes".For
example,fordc1withthreeCassandranodes,itisdc1:3.
BAAS_USERGRID_URL
Inaproductionenvironment,thisistheURLandportoftheload
balancerthatisinfrontoftheAPIBaaSStacknodes,intheform:
http://myStackLoadBalancer:port
Inatestingordevelopmentenvironment,whereyouonlyhavea
singleAPIBaaSStacknode,thiscanbetheURLandportnumberof
anAPIBaaSStacknode,intheform:
http://stackIPorDNS:8080
TheportnumberfortheAPIBaaSStackserveris8080.
BAAS_PORTAL_URL
TheURLandportnumberoftheloadbalancer,ifthereisoneinfront
ofthePortal,intheform:
http://myPortalLoadBalancer:port
Ifthereisnoloadbalancer,theURLandportnumberofthePortal
node,intheform:
http://portalIPorDNS:9000
Bydefault,theportnumberfortheAPIBaaSPortalis9000.
BAAS_PORTAL_LISTEN_PORT
TheportnumberfortheAPIBaaSPortalserveris9000.Ifthisportis
notavailable,specifyadifferentport.
IfyouaresettingBAAS_PORTAL_URLtotheURLofthePortalnode,
theportnumbersmustbethesameforbothproperties.
OptionalInstallCassandra:Machine8,9,and10
WhileyoucanconnectAPIBaaStothesameCassandraclusterasusedbyEdge,Apigeerecommendsthat
youuseseparateclusters.
TheCassandraclustercanuseauthentication,orCassandraauthenticationcanbedisabled.SeeEnable
Cassandraauthenticationformore.
1. InstalltheEdgeapigeesetuputilityonthenodeusingtheinternetornoninternetprocedure.See
InstalltheEdgeapigeesetuputilityformore.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage90
2. Atthecommandprompt,runthesetupscript:
>/opt/apigee/apigeesetup/bin/setup.shpcfconfigFile
The“pc”optionspecifiestoinstallCassandra.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
Theconfigurationsuccessfullycompletesthedatastoresetuponthenode.
NotethatJMXisenabledbydefaultforCassandra.TheJMXremoteaccesstoCassandradoesnotrequirea
password.YoucanconfigureCassandratouseauthenticationforJMX.Formore,see
http://docs.apigee.com/apiservices/latest/howmonitor.
SetupCassandracronjob
SetupacronjobthatusesnodetooltoflushforlockstoruneveryhouroneveryCassandranode.
Note:Thisstepisrequired.YoumustsetupthiscronjobonCassandranodesevenifyouareconnectingto
CassandranodesonanEdgeinstallation.
IfyouhavemultipleCassandranodes,offsetthecronjoboneachserverbyfiveminutessothatallnodesdo
notflushatthesametime.
Thecronjobmustexecutethefollowingcommand:
/opt/apigee/apigeecassandra/bin/nodetoolhIP_address
flushApigee_Baas_Locks
whereIP_address
istheIPaddressoftheCassandranode.
InstallElasticSearch:Machine1,2,and3
Note:IfyouareinstallingElasticSearchandtheAPIBaaSStackonthesamenode,youcanusethe"peb"
optiontothesetuputilitytoinstallthembothatthesametime.
ToinstalltheElasticSearch:
1. InstalltheEdgeapigeesetuputilityonthenodeusingtheinternetornoninternetprocedure.See
InstalltheEdgeapigeesetuputilityformore.
2. Atthecommandprompt,runthesetupscript:
>/opt/apigee/apigeesetup/bin/setup.shpefconfigFile
The“pe”optionspecifiestoinstallElasticSearch.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage91
3. (Optional)IfyouinstallElasticSearchonastandalonenode,meaningitisnotinstalledwithAPIBaaS
Stack,thenadjustthedefaultmemoryoptiontoincreasethememoryallocatedforElasticSearchfrom
4GBto6GB:
a. Open/opt/apigee/customer/application/elasticsearch.propertiesinan
editor.Ifthisfiledoesnotexist,createit.
b. Setthesetenv_elasticsearch_max_mem_sizepropertyto6g(thedefaultis4g):
setenv_elasticsearch_max_mem_size=6g
c. Savethefile.
d. Runthefollowingcommand:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeeelasticsearch
restart
Theconfigurationsuccessfullycompletesthesetuponthenode.
InstallAPIBaaSStack:Machine4,5,and6
Note:IfyouareinstallingElasticSearchandtheAPIBaaSStackonthesamenode,youcanusethe"peb"
optiontothesetuputilitytoinstallthembothatthesametime.
ToinstalltheAPIBaaSStack:
1. InstalltheEdgeapigeesetuputilityonthenodeusingtheinternetornoninternetprocedure.See
InstalltheEdgeapigeesetuputilityformore.
2. Atthecommandprompt,runthesetupscript:
>/opt/apigee/apigeesetup/bin/setup.shpbfconfigFile
The“pb”optionspecifiestoinstallAPIBaaSStack.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
Aftertheinstallerfetchesthecorrectadmincredentials,itinstallsTomcat,createsAPIBaaSkeyspaces,and
setsuptheAPIBaaSStackontheserver.SMTPisalsoconfiguredtoallowtheUItosendpassword
confirmationemails.
InstallAPIBaaSPortal:Machine7
ToinstalltheAPIBaaSPortal:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage92
1. InstalltheEdgeapigeesetuputilityonthenodeusingtheinternetornoninternetprocedure.See
InstalltheEdgeapigeesetuputilityformore.
2. Atthecommandprompt,runthesetupscript:
>/opt/apigee/setup/bin/setup.shppfconfigFile
The“pp”optionspecifiestoinstallAPIBaaSPortal.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
TheinstallerstartstheNginxwebserverandthenfinishestheAPIBaaSPortalconfiguration.
MakeanoteoftheAPIBaaSPortalURL.ThisistheURLyouenterintoabrowsertoaccesstheAPIBaaS
Portaluserinterface.
Onboardinganeworganization
Onboardingistheprocessofcreatinganorganizationandorganizationadministrator.Aftercreatingthe
organizationandorganizationadministrator,youcanlogintotheAPIBaaSPortalUIandmakerequeststothe
APIBaaSRESTAPI.
Whenyoucreateanorganization,theorganizatadministrator'semailaddress:
● Mustbedifferentfromthesystemadministrator'semailaddress.
● Mustbeuniqueamongallotherorganizations.Thatis,youcannotcreatetwoorganizationswiththe
sameemailaddressfortheorganizationadministrator.However,aftercreatingtheorganization,you
canaddadditionaladministratorsthatcanbeduplicatedacrossmultipleorganizations.
Toperformonboarding,usethecreate_org_and_user.pyPythonscript.Invokingthisscriptwithno
commandlineargumentscausesittopromptyouforallinformation:
>pythoncreate_org_and_user.py
Alternatively,youcanpassanyoralloptionsascommandlineargument.Youarepromptedforany
informationthatyouomitfromthecommandline:
>pythoncreate_org_and_user.pyo'<orgname>'
>pythoncreate_org_and_user.pyo'<orgname>'a'<newadminemail>'p'<new
adminpassword>'
Tocreateanorganization:
1. Changedirectoryto/opt/apigee/baasusergrid/bin.
2. Invokethecreate_org_and_user.pyPythonscript.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage93
YouarepromptedfortheBaaSsystemadministratorusernameandpasswordsothatonlyasysadmin
canrunit.
3. LogintotheAPIBaaSPortalinawebbrowserusingtheURLyounotedattheendoftheAPIBaaS
PortalURLinstallation.
Toaccesstheportal,entertheAPIBaaSPortalURLintheform:
http://{portalExternalIP}:9000/
Note:TheIPistheexternalIPaddress/hostnameofPortalmachine.Ensurethatportisopen.
4. Whentheportalloginscreenappears,youcaneither:
a. Loginusingtheorganizationadministrator'susernameandpassword.
b. Loginusingthesystemadministratorsadministrator'susernameandpassword.
AccessingtheAPIBaaSRESTAPI
ToaccesstheAPIBaaSRESTAPI,useaURLintheform:
https://{loadBalancerIP}:8080/{yourorg}/{yourapp}
Inadevelopmentenvironment,youcaninstallallAPIBaaScomponentsonasinglenode,meaningyouhave
asingleAPIBaaSStack.Or,youmighthaveasmallenvironmentwithasingleAPIBaaSStacknodeandno
loadbalancer.Inthesetypesofenvironments,youcanmakeAPIcallsdirectlytotheAPIBaaSStacknode:
curlv"http://portalExternalIP:8080/status"
FormoreinformationongettingstartedwithAPIBaaSPortal,seetheApigeedocumentationat:
http://apigee.com/docs/content/buildappshome. 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage94
InstallingMonetizationServices
Note:TheInstallationChecklistdetailstheinstallationprerequisitesandprovidesalistofrequiredfilesto
obtainbeforeproceedingwiththeinstallation.Ensurethatyouhavereviewedthechecklistbeforebeginning
theinstallationprocess.
MonetizationServicesisanextensiontoApigeeEdge,henceitdoesnotrunasastandaloneprocess.Itruns
withinanyexistingApigeeEdgesetup.
Monetizationrequirements
● IfyouareinstallingMonetizationonanEdgetopologythatusemultipleManagementServernodes,
suchasa13nodeinstallation,thenyoumustinstallbothEdgeManagementServernodesbefore
installingMonetization.
● ToinstallMonetizationonEdgewheretheEdgeinstallationhasmultiplePostgresnodes,thePostgres
nodesmustbeconfiguredinMaster/Standbymode.YoucannotinstallMonetizationonEdgeifyou
havemultiplePostgresmasternodes.Formore,seeSetupMasterStandbyReplicationforPostgres.
Installationoverview
ThefollowingstepsillustratehowtoaddMonetizationServicesonanexistingApigeeEdgeinstallation:
● UsetheapigeesetuputilitytoupdatetheApigeeManagementServernodetoenablethe
MonetizationServices,forexample,catalogmanagement,limitsandnotificationsconfiguration,billing
andreporting.
IfyouhavemultipleManagementServernodes,suchasa13nodeinstallation,thenyoumustinstall
bothEdgeManagementServernodesbeforeinstallingMonetization.
● UsetheapigeesetuputilitytoupdatetheApigeeMessageProcessortoenabletheruntime
componentsoftheMonetizationServices,forexample,transactionrecordingpolicyandlimit
enforcement.IfyouhavemultipleMessageProcessors,installMonetizationonallofthem.
● PerformtheMonetizationonboardingprocessforyourEdgeorganizations.
● ConfiguretheDeveloperServicesportaltosupportmonetization.Formoreinformation,see
http://apigee.com/docs/monetization/content/configuremonetizationdeveloperportal.
CreatingasilentconfigurationfileforMonetization
ShownbelowisanexamplesilentconfigurationfileforaMonetizationinstallation.Editthisfileasnecessaryfor
yourconfiguration.Usethefoptiontosetup.shtoincludethisfile.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage95
Note:Typically,youaddthesepropertiestothesameconfigurationfilethatyouusedtoinstallEdge,asshown
inCreatingaconfigurationfile.
#Edgeconfigurationproperties
#SpecifyIPaddressorDNSnameofnode.
IP1=192.168.1.1#ManagementServer,OpenLDAP,UI,ZooKeeper,Cassandra
IP2=192.168.1.2#ZooKeeper,Cassandra
IP3=192.168.1.3#ZooKeeper,Cassandra
IP4=192.168.1.4#Router,MessageProcessor
IP5=192.168.1.5#Router,MessageProcessor
IP6=192.168.1.6#Qpid
IP7=192.168.1.7#Qpid
IP8=192.168.1.8#Postgres
IP9=192.168.1.9#Postgres
#MustresolvetoIPaddressorDNSnameofhostnotto127.0.0.1orlocalhost.
HOSTIP=$(hostnamei)
#Edgesysadmincredentials
ADMIN_EMAIL=your@email.com
APIGEE_ADMINPW=yourPassword #Ifomitted,youarepromptedforit.
#
#Monetizationconfigurationproperties.
#
#PostgrescredentialsfromEdgeinstallation.
PG_USER=apigee #DefaultfromEdgeinstallation
PG_PWD=postgres #DefaultfromEdgeinstallation
#SpecifyPostgresserver.
MO_PG_HOST="$IP8" #OnlyspecifyonePostgresnode.
#CreateaPostgresuserforMonetization.
MO_PG_USER=postgre#Defaultusernameis"postgre"
MO_PG_PASSWD=moUserPWord
#SpecifyoneZooKeeperhost.
#EnsurethisisaZooKeeperleadernodeinamultidatacenterenvironment.
ZK_HOSTS="$IP2" 
#SpecifyCassandrainformation.
#EnsureCASS_HOSTSissettothesamevalueaswhenyouinstalledEdge.
CASS_HOSTS="$IP1:1,1$IP2:1,1$IP3:1,1"
CASS_CLUSTERNAME=Apigee #Defaultis"Apigee",unlessit
#waschangedduringEdgeinstall.
#Cassandrauname/pwordrequiredonlyifyouenabledCassandraauthentication.
#CASS_USERNAME=
#CASS_PASSWORD=
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage96
#Specifytheregion.
#Defaultisdc1unlessyouareinamultidatacenterenvironment.
REGION=dc1 
#IfyourEdgeconfigfiledidnotspecifySMTPinformation,addit.
#MonetizationrequiresanSMTPserver.
SMTPHOST=smtp.gmail.com
SMTPPORT=465
SMTPUSER=your@email.com
SMTPPASSWORD=yourEmailPassword
SMTPSSL=y
Notes:
● IfyourEdgeconfigfiledidnotspecifySMTPinformation,addit.MonetizationrequiresanSMTPserver.
● Inasingledatacenterinstallation,allZooKeepernodesarebydefaultconfiguresasleaders.Whenyou
areinstallingEdgeacrossmultipledatacenters,someZooKeepernodeswillbeconfiguredas
observers.EnsurethattheZK_HOSTSpropertyabovespecifiesaleadernodeinamultipledatacenter
installation.
● IfyouenableCassandraauthentication,youcanpasstheCassandrausernameandpasswordby
usingthefollowingproperties:
oCASS_USERNAME
oCASS_PASSWORD
IntegrateMonetizationServiceswithallManagementServers
UsethefollowingproceduretointegratemonetizationonManagementServernodes.
1. IfyouareinstallingMonetizationonanEdgetopologythatusesmultipleManagementServernodes,
suchasa13nodeinstallation,thenensurethatyouinstalledbothManagementServernodesbefore
installingMonetization.
2. OntheManagementServernode,runthesetupscript:
>/opt/apigee/apigeesetup/bin/setup.shpmofconfigFile
The“pmo”optionspecifiestointegrateMonetization.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
3. IfyouareinstallingMonetizationonmultipleManagementServernodes,repeatstep2onthesecond
ManagementServernode.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage97
Onsuccessfulconfiguration,anRDBMSschemaforMonetizationServicesiscreatedinthePostgreSQL
database.ThiscompletestheintegrationofMonetizationServicesanditsassociatedcomponentswith
PostgresServer.
IntegrateMonetizationServiceswithallMessageProcessors
UsethefollowingproceduretointegratemonetizationonallMessageProcessornodes.
1. OnthefirstMessageProcessornode,atthecommandprompt,runthesetupscript:
>/opt/apigee/apigeesetup/bin/setup.shpmofconfigFile
The“pmo”optionspecifiestointegrateMonetization.
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
2. RepeatthisprocedureonallMessageProcessornodes.
Onsuccessfulconfiguration,theMessageProcessorisupdatedwithMonetizationServices.Thiscompletes
theintegrationofMonetizationServicesanditsassociatedcomponentswiththeMessageProcessors.
MonetizationOnboarding
Tocreateaneworganizationwithmonetizationenabled,youfirstcreatetheorganizationasyouwouldforany
neworganization.Formoreinformation,seeOnboardanorganization.
AdditionalOnboardingtoenableMonetizationforanorganization
Tocompletemonetizationonboardingofanorganization,youhaveto:
1. Createthemonetizationgroup:mxgroup.
2. AddQpidtothegroup.
3. Enablemonetizationfortheorganization.
4. Enablenotificationsettingsfortheorganization.
5. RepeatthisprocessforallorganizationswhereyouwanttoenableMonetization.
Usetheenablemonetizationcommandtoperformallofthesetasks.Thisscripttakesaconfigurationfile
containingthefollowingproperties:
MSIP=IPorDNSofManagementServer
APIGEE_PORT_HTTP_MS=8080 #Defaultis8080.
ADMIN_EMAIL=your@email.com
APIGEE_ADMINPW=yourPassword #Ifomitted,youarepromptedforit.
CASS_HOSTS="$IP1:1,1$IP2:1,1$IP3:1,1"
QPID_HOST="$IP6$IP7" #SpaceseparatedlistIP/DNSnamesof
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage98
#allQPidnodes.
QPID_PORT=8083 #Defaultis8083.
REGION=dc1
ORG_NAME=myorg #TheEdgeorgwhereyouwanttoenablemonetization.
MX_GROUP=mxgroup #DefaultMonetizationgroup.
Notes:
● SetCASS_HOSTSandREGIONtothesamevaluesasyouusedwheninstallingMonetization.
Torunthescript:
1. Invokethescript:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeeprovision
enablemonetizationfconfigFile
Theconfigurationfilemustbeaccessibleorreadablebythe"apigee"user.Forexample,putthefilein
the/tmpdirectoryonthenode.
Thisscriptreplicatestheorganization,products,developersandapplicationsfromCassandradatabase
toMonetizationPostgreSQLdatabase.AftersuccessfulinstallationofMonetizationServicesthedatais
synchronizedautomatically.
WhenyounextlogintotheEdgeUI,youseetheMonetizationentryinthetoplevelmenufortheorganization:
ConfiguretheDeveloperServicesportal
ToconfiguretheDeveloperServicesportaltosupportmonetization,see
http://apigee.com/docs/monetization/content/configuremonetizationdeveloperportal.
AddingaManagementServernodetoaMonetizationInstallation
IfyouaddaManagementServertoanexistingEdgeinstallation,youmustensurethatyouaddMonetization
servicestothenewManagementServerandconfigureallManagementServerssotheycancommunicate.
ToaddaManagementServer:
1. InstallthenewManagementServer.
2. InstallMonetizationonthenewManagementServer.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage99
3. OntheoriginalManagementServer,callthefollowing:
>/opt/apigee/apigeeservice/bin/apigeeservice
edgemintmanagementservermintconfiguremgmtcluster
4. RestarttheoriginalManagementServer:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgemanagementserver
restart
5. OnthenewManagementServer,callthefollowing:
>/opt/apigee/apigeeservice/bin/apigeeservice
edgemintmanagementservermintconfiguremgmtcluster
6. RestartthenewManagementServer:
>/opt/apigee/apigeeservice/bin/apigeeserviceedgemanagementserver
restart
Additionalconfiguration
ProvideBillingDocumentsasPDFFiles
MonetizationdisplaysbillingdocumentstoendusersinHTMLformat.ToprovidebillingdocumentsasPDF
files,youcanintegrateMonetizationwithabillingsystemthatprovidesPDFgenerationorlicenseasupported
thirdpartyPDFlibrary.
ConfigureOrganizationSettings
● Backendsettings:Thefollowingtable(Table3:Organizationlevelattributes)liststheorganizationlevel
attributesthatareavailabletoconfigureamintorganization.YoucanuseaPUTcalltoadd/update
theseattributesas.
curlu${ADMIN_EMAIL}:${ADMINPW}v
http://<managementip>:8080/v1/organizations/{orgId}d’{orgobjectwith
attributes}’XPUT
Forexample,theoutputoftheaboveCURLcommandwilllooksomethinglikethis:
{
...
"displayName":"Orgnizationname",
"name":"org4",
"properties":{
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage100
"property":[
...
{
"name":"MINT_CURRENCY",
"value":"USD"
},
{
"name":"MINT_COUNTRY",
"value":"US"
},
{
"name":"MINT_TIMEZONE",
"value":"GMT"
}
]
}
}
Table3:Organizationlevelattributes
Attributes
Description
MINT_TAX_MODEL
AcceptedvaluesareDISCLOSED,
UNDISCLOSED,HYBRID(defaultisnull)
MINT_CURRENCY
ISOcurrencycode(defaultisnull)
MINT_TAX_NEXUS
Taxnexus(defaultisnull)
MINT_DEFAULT_PROD_TAX_CATEGORY
Defaultproducttaxcategory(defaultisnull)
MINT_IS_GROUP_ORG
ISgrouporganization(defaultisfalse)
MINT_HAS_BROKER
Hasbroken(defaultisfalse)
MINT_TIMEZONE
Timezone(defaultisnull)
MINT_TAX_ENGINE_EXTERNAL_ID
TaxengineID(defaultisnull)
MINT_COUNTRY
Organization'scountry(defaultisnull)
MINT_REG_NO
Organization'sregistrationnumber,United
KingdomgivesdifferentnumberthantaxID
(defaultisnull)
MINT_BILLING_CYCLE_TYPE
PRORATED,CALENDAR_MONTH(defaultis
CALENDAR_MONTH)
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage101
MINT_SUPPORTED_BILLING_TYPE
PREPAID/POSTPAID/BOTH(defaultis
PREPAID)
MINT_IS_SEPARATE_INV_FOR_FEES
Indicateswhetheraseparatefeeinvoiceshould
begenerated(defaultisfalse)
MINT_ISSUE_NETTING_STMT
Indicateswhethernettingstatementshouldbe
issued(defaultisfalse)
MINT_NETTING_STMT_PER_CURRENCY
Indicateswhethernettingstatementshouldbe
generatedpercurrency(defaultisfalse)
MINT_HAS_SELF_BILLING
Indicateswhethertheorganizationhasselfbilling
(defaultisfalse)
MINT_SELF_BILLING_FOR_ALL_DEV
Indicateswhethertheorganizationhasselfbilling
foralldevelopers(defaultisfalse)
MINT_HAS_SEPARATE_INV_FOR_PROD
Indicateswhethertheorganizationhasseparate
invoiceperproduct(defaultisfalse)
MINT_HAS_BILLING_ADJUSTMENT
Indicateswhethertheorganizationsupportsbilling
adjustments(defaultisfalse)
features.isMonetizationEnabled
UsedbythemanagementUItodisplay
monetizationspecificmenu(defaultisfalse)
ui.config.isOperator
UsedbymanagementUItodisplayprovideras
OperatorversesOrganization
(defaultistrue)
● ForconfiguringbusinessorganizationsettingsusingthemanagementUI,see
http://apigee.com/docs/monetizationservices/content/getstartedusingmonetizationservices.
Note:IfyouareusingMonetizationServicesLimitsandNotificationsfeatures,pleaseinstructyourdevelopers
toattachaLimitPolicyintheproxyflowaftertheaccesstokenvalidationpolicy.
LimitPolicyisanexplicitpolicydesignedtoblockanAPIcallifcertainlimithasbeenreached.Thepolicy
checksbusinesslimitsandraisesafaultifthereareanylimitsexceedingtheconfiguredvalue.Thisisan
extensionofraisefaultpolicybuttheconditionsarederivedfrombusinessvariables.
AnUItemplateisavailableinthemanagementUIforproxydevelopers.Proxydevelopershouldattachmint
policyinthemessageflow.Uponexecutionofthispolicythefaultwillberaisedwiththefaultresponseasper
policy.IfContinueOnErrorissettotruethenthefaultwillnotberaisedandflowvariables
"mint.limitsViolated","mint.isDeveloperSuspended"and"mint.limitsPolicyError"
variableswillbesetwhichcouldbeusedforfurtherexceptionhandlingifrequired.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage102
UpdatingApigeeEdgeto4.16.05
ThissectionexplainstheupdateandrollbackprocessesfromoneversionofApigeeEdgetoanotherversion.
WhichEdgeversionscanyouupdateto4.16.05
YoucanonlyupdateApigeeEdgeversion4.16.01.xto4.16.05.
IfyouhaveaversionofEdgeprevioustoversion4.16.01.x,thenyoumustfirstmigratetoversion4.16.01.x
andthenupdatetoversion4.16.05.
Whocanperformtheupdate
TheuserrunningtheupdateshouldbethesameastheuserwhooriginallyinstalledEdge,orauserrunning
asroot.
AfteryouinstalltheEdgeRPMs,anyusercanconfigurethem.
RequiredupgradetoJavaJDKVersion8
ThisreleaseofEdgerequiresthatyouhaveinstalledJavaJDKversion8onallEdgeprocessingnodes.You
caninstalltheOracleJDK8orOpenJDK8.IfJavaJDK8isnotinstalledalready,theupdatescriptcaninstallit
foryou.
AspartoftheupdatetoJava8,someTLSciphersarenolongeravailableinOracleJDK1.8.Forthecomplete
list,seethesection"DefaultDisabledCipherSuites"
http://docs.oracle.com/javase/8/docs/technotes/guides/security/SunProviders.html.
Warning:ThisreleaseofEdgedoesnotsupportJDK7.IfyouarecurrentlyusingJDK7,youmustupgradeto
JDK8.IfyourollbacktheEdge4.16.05installation,youcanoptionallyreconfigureEdgetouseJavaJDK7. 
Diskspacerequirementsforupdate
Ensurethatyouhaveatleast1GBytesoffreediskspacebeforeyouperformtheupdate.
Automaticpropagationofpropertysettingsfrom4.16.01.x
Ifyouhavesetanypropertiesbyediting.propertiesfilesin/opt/apigee/customer/application
thenthesevaluesareretainedbytheupdate.
Updatingtheapigeevalidateutility
In4.16.01,youinstalledandrantheapigeevalidateutilityonaMessageProcessornode.In4.16.05,
theapigeevalidateutilityhasbeenupdatedtorunontheManagementServernode.
Whenyouupdateto4.16.05,youhavetwooptionsonhowyouupdatetheapigeevalidateutility:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage103
1. ApigeerecommendedInstallandruntheapigeevalidateutilityontheManagementServer
node.
YoucanoptionallyuninstalltheapigeevalidateutilitythefromtheMessageProcessornodes.If
youleaveitontheMessageProcessornode,youmustupdateitto4.16.05.
2. Alternatively,updatetheapigeevalidateutilityontheMessageProcessornode,andrunitfrom
there.However,ApigeerecommendsthatyouinstallandrunitfromtheManagementServer.
Updateprerequisites
TakecareoffollowingprerequisitesbeforeupgradingApigeeEdge:
●Backupallnodes
Beforeyouupdate,itisrecommendedtoperformacompletebackupofallnodesforsafetyreasons.
UsetheprocedureforyourcurrentversionofEdgetoperformthebackup.
Thisallowsyoutohaveabackupplan,incasetheupdatetoanewversiondoesn’tfunctionproperly.
Formoreinformationonbackup,seehttp://docs.apigee.com/apiservices/latest/backupandrestore.
●EnsureEdgeisrunning
EnsurethatEdgeisupandrunningduringupdateprocessbyusingthecommand:
>/<inst_root>/apigee/apigeeservice/bin/apigeeallstatus
Handlingafailedupdate
Inthecaseofanupdatefailure,youcantrytocorrecttheissue,andthenrunupdate.shagain.Youcanrun
theupdatemultipletimesanditcontinuestheupdatefromwhereitlastleftoff.
Ifthefailurerequiresthatyourollbacktheupdatetoyourpreviousversion,seeRollbackProcessformore.
Loggingupdateinformation
Bydefault,theupdate.shutilitywritesloginformationto:
/opt/apigee/var/log/apigeesetup/update.log
Iftheuserrunningtheupdate.shutilitydoesnothaveaccesstothatdirectory,itwritesthelogtothe/tmp
directoryasafilenamedupdate_username
.log.
Iftheuserdoesnothaveaccessto/tmp,theupdate.shutilityfails.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage104
Zerodowntimeupdate
Azerodowntimeupdate,orrollingupdate,letsyouupdateyourEdgeinstallationwithoutbringingdownEdge.
Note:Zerodowntimeupdateisonlypossiblewitha5nodeconfigurationandlarger.
ThekeytozerodowntimeupgradingistoremoveeachRouter,oneatatime,fromtheloadbalancer.Youthen
updatetheRouterandanyothercomponentsonthesamemachineastheRouter,andthenaddtheRouter
backtotheloadbalancer.
1. UpdatethemachinesinthecorrectorderforyourinstallationasdescribedinOrderofmachineupdate.
2. WhenitistimetoupdatetheRouters,selectanyoneRouterandmakeitunreachable,asdescribed
belowinMakingaRouterandMessageProcessorunreachable.
3. UpdatetheselectedRouterandallotherEdgecomponentsonthesamemachineastheRouter.All
EdgeconfigurationsshowaRouterandMessageProcessoronthesamenode.
4. MaketheRouterreachableagain.
5. Repeatsteps2through4fortheremainingRouters.
6. Continuetheupdateforanyremainingmachinesinyourinstallation.
MakingaRouterandMessageProcessorunreachable
Inaproductionsetup,youwillhavemultipleRoutersandMessageProcessorstoachieveoptimalperformance
andyoumustenable/disablereachabilityoftheseRoutersandMessageProcessorsbefore/afterupdate.
ThefollowingAPIcallconfiguresanodeasreachableorunreachable:
>curluadminEmail:pWord
XPOST"http://<ms_IP
>:8080/v1/servers/UUID
"d
"reachable=true|false
"
whereUUID
istheUUIDoftheMessageProcessororRouter,andreachableissettoeithertrueorfalse.
IfyouneedtodeterminetheUUIDoftheRouter,usethefollowingcURLcommand:
>curlhttp://<routerIP>:8081/v1/servers/self
IfyouneedtodeterminetheUUIDoftheMessageProcessor,usethefollowingcURLcommand:
>curlhttp://<mpIP>:8082/v1/servers/self
Takecareofthefollowingbefore/afterupdate:
● OncombinedRouterandMessageProcessornode:
o Beforeupdate–performthefollowing:
i. MaketheRouterunreachablebyusingtheAPIcallshownabove.
ii. MaketheMessageProcessorunreachable.
o Afterupdateperformthefollowing:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage105
I. MaketheMessageProcessorreachable.
II. MaketheRouterreachable.
● OnsingleRouternode:
o Beforeupdate,maketheRouterreachable.
o Afterupdate,maketheRouterreachable.
● OnsingleMessageProcessornode:
o Beforeupdate,maketheMessageProcessorunreachable.
o Afterupdate,maketheMessageProcessorreachable.
Usingasilentconfigurationfile
Youmustpassasilentconfigurationfiletotheupdatecommand.Thesilentconfigurationfileshouldbethe
sameoneyouusedtoinstalEdge4.16.01.
Procedureforupdatingto4.16.05onanodewithanexternalinternet
connection
UsethefollowingproceduretoupdatetheEdgecomponentsonanode:
1. Ifpresent,disableanyCRONjobsconfiguredtoperformarepairoperationonCassandrauntilafterthe
updatecompletes.
2. LogintoyournodeasroottoinstalltheEdgeRPMs
Note:WhileRPMinstallationrequiresrootaccess,youcanperformEdgeconfigurationwithoutroot
access.
3. DisableSELinuxasdescribedinPrerequisite:DisableSELinux.
4. DownloadtheEdge4.16.05bootstrap_4.16.05.shfileto/tmp/bootstrap_4.16.05.sh:
>curlhttps://software.apigee.com/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
5. InstalltheEdge4.16.05apigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap_4.16.05.shapigeeuser=uName
apigeepassword=pWord
whereuName:pWordaretheusernameandpasswordyoureceivedfromApigee.IfyouomitpWord,
youwillbepromptedtoenterit.
Bydefault,theinstallercheckstoseethatyouhaveJava1.8installed.Ifyoudonot,itinstallsitforyou.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage106
UsetheJAVA_FIXoptiontospecifyhowtohandleJavainstallation.JAVA_FIXtakesthefollowing
values:
I=InstallOpenJDK1.8(default)
C=ContinuewithoutinstallingJava
Q=Quit.Forthisoption,youhavetoinstallJavayourself.
6. Useapigeeservicetoupdatetheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupupdate
Thisupdatetoapigeeserviceinstallstheupdate.shutilityin
<inst_dir>/apigee/apigeesetup/bin.
7. InstalltheapigeevalidateutilityontheManagementServer:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidateinstall
Note:IfyouhaveinstalledtheapigeevalidateutilityonaMessageProcessornode,youcan
updateitbyusingthefollowingcommandonthatnode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidateupdate
However,for4.16.05,Apigeerecommendsthatyouinstallandruntheapigeevalidateutilityon
theManagementServer.
8. Edittheconfigfilepassedtotheapigeevalidateutility.
InthepreviousEdgerelease,theconfigfileusedbyapigeevalidaterequiredthefollowing
properties:
APIGEE_ADMINPW=sysAdminPword
MP_POD=gateway
REGION=dc1
Inthisrelease,theconfigfileonlyrequirestheAPIGEE_ADMINPWproperty.
9. RuntheupdateutilityonyournodesintheorderdescribedbelowinOrderofmachineupdate:
>/opt/apigee/apigeesetup/bin/update.shccomponent
fconfigFile
Usethe“c”optiontospecifythecomponenttoupdate.Thelistofpossiblecomponentsincludes:
ldap=OpenLDAP
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage107
cs=Cassandra
zk=Zookeeper
qpid=qpidd
ps=postgresql
edge=AllEdgecomponentsexceptEdgeUI:ManagementServer,MessageProcessor,Router,QPID
Server,PostgresServer
ui=EdgeUI
all=updateallcomponentsonmachine(onlyuseforanEdgeaioinstallationprofileoranAPIBaaS
asainstallationprofile)
e=ElasticSearch
b=APIBaaSStack
p=APIBaaSPortal
ebp=ElasticSearch,APIBaaSStack,andAPIBaaSPortalonthesamenode
Theonlyrequirementontheconfigfileisthattheconfigurationfilemustbeaccessibleorreadableby
the"apigee"user.Forexample,putthefileinthe/tmpdirectoryonthenode.
10. TesttheupdatebyrunningtheapigeevalidateutilityontheManagementServer,asdescribedin
Testtheinstall.
Tolaterrollbacktheupdate,usetheproceduredescribedinRollbackProcess.
Procedureforupdatingto4.16.05fromalocalrepo
IfyourEdgenodesarebehindafirewall,orinsomeotherwayareprohibitedfromaccessingtheApigee
repositoryovertheInternet,thenyoucanperformtheupdatefromalocalrepository,ormirror
,oftheApigee
repo.
AfteryoucreatealocalEdgerepository,youhavetwooptionsforupdatingEdgefromthelocalrepo:
● Createa.tarfileoftherepo,copythe.tarfiletoanode,andthenupdateEdgefromthe.tarfile.
● Installawebserveronthenodewiththelocalreposothatothernodescanaccessit.Apigeeprovides
theNginxwebserverforyoutouse,oryoucanuseyourownwebserver.
Toupdatefromalocal4.16.05repo:
1. Createalocal4.16.05repoasdescribedinCreatealocalApigeerepository.
Note:Ifyoualreadyhaveanexisting4.16.01repo,youcanaddthe4.16.05repotoit.
2. Toinstallapigeeservicefroma.tarfile:
a. Onthenodewiththelocalrepo,usethefollowingcommandtopackagethelocalrepointoa
single.tarfilenamed/opt/apigee/data/apigeemirror/apigee4.16.05.tar.gz:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeemirrorpackage
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage108
b. Copythe.tarfiletothenodewhereyouwanttoupdateEdge.Forexample,copyittothe/tmp
directoryonthenewnode.
c. Onthenewnode,untarthefiletothe/tmpdirectory:
>tarxzfapigee4.16.05.tar.gz
Thiscommandcreatesanewdirectory,namedrepos,inthedirectorycontainingthe.tarfile.
Forexample/tmp/repos.
d. InstalltheEdgeapigeeserviceutilityanddependenciesfrom/tmp/repos:
>sudobash/tmp/repos/bootstrap_4.16.05.shapigeeprotocol="file://"
apigeerepobasepath=/tmp/repos
Noticethatyouincludethepathtothereposdirectoryinthiscommand.
3. ToinstallapigeeserviceusingtheNginxwebserver:
a. ConfiguretheNginxwebserverasdescribedinInstallfromtherepousingtheNginxwebserver:
b. Ontheremotenode,downloadtheEdgebootstrap_4.16.05.shfileto
/tmp/bootstrap_4.16.05.sh:
>/usr/bin/curl
http://uName:pWord@
remoteRepo
:3939/bootstrap_4.16.05.sho
/tmp/bootstrap_4.16.05.sh
whereuName:pWordaretheusernameandpasswordyousetabovefortherepo,and
remoteRepo
istheIPaddressorDNSnameofthereponode.
c. Ontheremotenode,installtheEdgeapigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap_4.16.05.shapigeerepohost=remoteRepo
:3939
apigeeuser=uName
apigeepassword=pWord
apigeeprotocol=http://
whereuName:pWordaretherepousernameandpassword.
4. Useapigeeservicetoupdatetheapigeesetuputility:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupupdate
Thisupdatetoapigeeserviceinstallstheupdate.shutilityin
<inst_dir>/apigee/apigeesetup/bin.
5. InstalltheapigeevalidateutilityontheManagementServer:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage109
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidateinstall
Note:IfyouhaveinstalledtheapigeevalidateutilityonaMessageProcessornode,youcan
updateitbyusingthefollowingcommandonthatnode:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeevalidateupdate
However,for4.16.05,Apigeerecommendsthatyouinstallandruntheapigeevalidateutilityon
theManagementServer.
6. Edittheconfigfilepassedtotheapigeevalidateutility.
InthepreviousEdgerelease,theconfigfileusedbyapigeevalidaterequiredthefollowing
properties:
APIGEE_ADMINPW=sysAdminPword
MP_POD=gateway
REGION=dc1
Inthisrelease,theconfigfileonlyrequirestheAPIGEE_ADMINPWproperty.
7. RuntheupdateutilityonyournodesintheorderdescribedbelowinOrderofmachineupdate:
>/opt/apigee/apigeesetup/bin/update.shccomponent
fconfigFile
Usethe“c”optiontospecifythecomponenttoupdate.Thelistofpossiblecomponentsincludes:
ldap=OpenLDAP
cs=Cassandra
zk=Zookeeper
qpid=qpidd
ps=postgresql
edge=AllEdgecomponentsexceptEdgeUI:ManagementServer,MessageProcessor,Router,QPID
Server,PostgresServer
ui=EdgeUI
all=updateallcomponentsonmachine(onlyuseforanEdgeaioinstallationprofileoranAPIBaaS
asainstallationprofile)
e=ElasticSearch
b=APIBaaSStack
p=APIBaaSPortal
ebp=ElasticSearch,APIBaaSStack,andAPIBaaSPortalonthesamenode
Theonlyrequirementontheconfigfileisthattheconfigurationfilemustbeaccessibleorreadableby
the"apigee"user.Forexample,putthefileinthe/tmpdirectoryonthenode.
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage110
8. TesttheupdatebyrunningtheapigeevalidateutilityontheManagementServer,asdescribedin
Testtheinstall.
Tolaterrollbacktheupdate,usetheproceduredescribedinRollbackProcess.
Orderofmachineupdate
TheorderthatyouupdatethemachinesinanEdgeinstallationisimportant.Themostimportant
considerationstoanupdateare:
o YoumustupdateallCassandraandZooKeepernodesbeforeyouupdateanyothernodes.
o YoumustupdateallqpiddandpostgresqlnodesbeforeyouupdateanyRouterandMessage
Processornodes.
o ForanymachinewithmultipleEdgecomponents(ManagementServer,MessageProcessor,Router,
QPIDServer,PostgresServer),usethe"cedge"optiontoupdatethemallatthesametime.
o Ifastepspecifiesthatitshouldbeperformedonmultiplemachines,performitinthespecifiedmachine
order.
o ThereisnoseparatesteptoupdateMonetization.Itisupdatedwhenyouspecifythe"cedge"option.
o AfteryouupdateaRouternode,youmustremoveallfilesfromthe/opt/nginx/conf.ddirectory,
andthenrestarttheRouter.
Fora1hoststandaloneinstallation
1. Updatemachine1:
>/opt/apigee/apigeesetup/bin/update.shcallfconfigFile
2. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
3. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
Fora2hoststandaloneinstallation
1. UpdateCassandraandZooKeeperonmachine1:
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
2. Updateqpiddandpostgresqlonmachine2:
>/opt/apigee/apigeesetup/bin/update.shcqpid,psfconfigFile
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage111
3. UpdateLDAPonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
4. UpdateEdgecomponentsonmachine2andmachine1:
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
5. Onnode1:
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
6. UpdateUIonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
Fora5hostclusteredinstallation
1. UpdateCassandraandZooKeeperonmachine1,2,and3:
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
2. Updateqpiddandpostgresqlonmachine4and5:
>/opt/apigee/apigeesetup/bin/update.shcqpid,psfconfigFile
3. UpdateLDAPonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
4. UpdateEdgecomponentsonmachine4,5,1,2,3:
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
5. Onnodes2and3:
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage112
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
6. UpdateUIonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
Fora9hostclusteredinstallation
1. UpdateCassandraandZooKeeperonmachine1,2,and3:
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
2. Updateqpiddonmachine6and7:
>/opt/apigee/apigeesetup/bin/update.shcqpidfconfigFile
3. Updatepostgresqlonmachine8and9:
>/opt/apigee/apigeesetup/bin/update.shcpsfconfigFile
4. UpdateLDAPonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
5. UpdateEdgecomponentsonmachine6,7,8,9,1,4,and5inthatorder:
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
6. Onnodes4and5:
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
7. UpdateUIonmachine1:
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
Fora13hostclusteredinstallation
1. UpdateCassandraandZooKeeperonmachine1,2,and3:
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage113
2. Updateqpiddonmachine12and13:
>/opt/apigee/apigeesetup/bin/update.shcqpidfconfigFile
3. Updatepostgresqlonmachine8and9:
>/opt/apigee/apigeesetup/bin/update.shcpsfconfigFile
4. UpdateLDAPonmachine4and5:
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
5. UpdateEdgecomponentsonmachine12,13,8,9,6,7,10,and11inthatorder:
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
6. Onnodes10and11:
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
7. UpdateUIonmachine6and7:
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
Fora12hostclusteredinstallation
1. UpdateCassandraandZooKeeper:
a. Onmachines1,2and3inDataCenter1:
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
b.Onmachines7,8,and9inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shccs,zkfconfigFile
2. Updateqpidd:
a. Machines4,5inDataCenter1
>/opt/apigee/apigeesetup/bin/update.shcqpidfconfigFile
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage114
b. Machines10,11inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shcqpidfconfigFile
3. Updatepostgresql:
a. Machines6inDataCenter1
>/opt/apigee/apigeesetup/bin/update.shcpsfconfigFile
b. Machines12inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shcpsfconfigFile
4.UpdateLDAP:
a. Machines1inDataCenter1
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
b. Machines7inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shcldapfconfigFile
5.UpdateEdgecomponents:
a. Machines4,5,6,1,2,3inDataCenter1
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
b. Machines10,11,12,7,8,9inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shcedgefconfigFile
c. Onnodes2,3,8and9:
i. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
ii. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeservice
edgerouterrestart
6.UpdateUI:
a. Machine1inDataCenter1
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage115
b. Machine7inDataCenter2
>/opt/apigee/apigeesetup/bin/update.shcuifconfigFile
Fora7hostAPIBaaSinstallation
1. UpdateCassandraonmachine5,6,and7:
>/opt/apigee/apigeesetup/bin/update.shccsfconfigFile
2. UpdateElasticSearchandAPIBaaSStackonmachine1,2,and3:
>/opt/apigee/apigeesetup/bin/update.shce,bfconfigFile
3. UpdateAPIBaaSPortalonmachine4:
>/opt/apigee/apigeesetup/bin/update.shcpfconfigFile
Fora10hostAPIBaaSinstallation
1. UpdateCassandraonmachine8,9,and10:
>/opt/apigee/apigeesetup/bin/update.shccsfconfigFile
2. UpdateElasticSearchonmachine1,2,and3:
>/opt/apigee/apigeesetup/bin/update.shcefconfigFile
3. UpdateAPIBaaSStackonmachine4,5,and6:
>/opt/apigee/apigeesetup/bin/update.shcbfconfigFile
4. UpdateAPIBaaSPortalonmachine7:
>/opt/apigee/apigeesetup/bin/update.shcpfconfigFile
Foranonstandardinstallation
Ifyouhaveanonstandardinstallation,thenupdateEdgecomponentsinthefollowingorder:
1. ZooKeeper
2. Cassandra
3. qpidd
4. postgresql
5. LDAP
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage116
6. Edge,meaningthe"cedge"profileonallnodesintheorder:Qpid,Postgres,ManagementServer,
MessageProcessor,Router.
7. OnallRouternodes
a. Deleteanyfilesin/opt/nginx/conf.d:
>rmf/opt/nginx/conf.d/*
b. RestarttheEdgeRouter:
>/<inst_root>/apigee/apigeeservice/bin/apigeeserviceedgerouter
restart
8. UI
RollbackProcess
Therearetwoscenarioswhereyoumightwanttoperformarollback:
1. Rollbacktoanolderrelease.Forexamplefrom4.16.05to4.16.01.
2. Rollbacktoanolderversioninthesamerelease.
Usetheprocedurebelowtoperformarollbackforbothscenarios.
Whocanperformtherollback
TheuserperformingtherollbackshouldbethesameastheuserwhooriginallyupdatedEdge,orauser
runningasroot.
Bydefault,Edgecomponentsrunastheuser"apigee".Insomecases,youmightberunningEdge
componentsasdifferentusers.Forexample,iftheRouterhastoaccessprivilegedports,suchasthosebelow
1000,thenyouhavetoruntheRouterasrootorasauserwithaccesstothoseports.Or,youmightrunone
componentasoneuser,andanothercomponentasanotheruser.
Whichcomponentscanberolledback
Youshouldbeawareofthefollowingconditionswhenperformingarollback:
● Torollbackanyoneofthefollowingfivecomponentsonanode,youmustrollbackanyofthefive
installedonthenode.Forexample,ifyouhavetheManagementServer,Route,andMessage
Processorinstalledonthenode,torollbackanyoneofthemyoumustrollbackallthree.
Thefivecomponentsare:
○ ManagementServer
○ Router
○ MessageProcessor
○ QpidServer
○ PostgresServer
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage117
● DonotrollbackCassandra.ThisreleaseofEdgecontainsanupdatedversionofCassandra.Ifyou
rollbackanycomponents,leaveCassandraatthe4.16.05version.
● Thisreleasedoesnotcontainanewversionofpostgresqlorqpidd.Therefore,youdonothavetoroll
themback.
Torollback4.16.05
TorollbackApigeeEdge,performthefollowingrollbacksteps:
Note:Ifyouaretryingtorollbackonaproductionsystem,contactApigeeSupportformoreinformation.
1. Stopthecomponenttorollback:
a. Ifyouarerollingbackanyoneofthefollowingcomponents,youmuststopthemall:
ManagementServer,Router,MessageProcessor,QpidServer,orPostgresServer:
>apigeeserviceedgemanagementserverstop
>apigeeserviceedgerouterstop
>apigeeserviceedgemessageprocessorstop
>apigeeserviceedgeqpidserverstop
>apigeeserviceedgepostgresserverstop
b. Ifyouarerollingbackanyothercomponent,stopjustthatcomponent:
>apigeeservicecomp
stop
2. IfyouarerollingbackMonetization,uninstallit:
>apigeeserviceedgemintgatewayuninstall
3. Uninstallthecomponenttorollback:
a. Ifyouarerollingbackanyofthefollowingcomponents,thenuninstallthemall:
ManagementServer,Router,MessageProcessor,QpidServer,orPostgresServer:
>apigeeserviceedgegatewayuninstall
b. Ifyouarerollingbackanyothercomponent,uninstalljustthatcomponent
>apigeeservicecomp
uninstall
4. IfyouarerollingbacktheRouter,thenyouhavetodeletethecontentsof/opt/nginx/conf.d:
>cd/opt/nginx/conf.d
>rmrf*
5. Torollbackthecomponenttothe4.16.01release:
a. Uninstallthe4.16.05versionofapigeesetup:
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage118
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetup
uninstall
b. Downloadbootstrap.shforthe4.16.01release:
>curlhttps://software.apigee.com/bootstrap.sho/tmp/bootstrap.sh
uuName
:pWord
whereuName:pWord
aretheusernameandpasswordyoureceivedfromApigee.Ifyouomit
pWord
,youwillbepromptedtoenterit.
c. Installthe4.16.01Edgeapigeeserviceutilityanddependencies:
>sudobash/tmp/bootstrap.shapigeeuser=uName
apigeepassword=pWord
whereuName
andpWord
aretheusernameandpasswordyoureceivedfromApigee.Ifyou
omitpWord
,youwillbepromptedtoenterit.
d. Installthe4.16.01versionofapigeesetup:
>/opt/apigee/apigeeservice/bin/apigeeserviceapigeesetupinstall
e. Installthe4.16.01versionofthecomponent:
>/<instal_dir>/apigee/apigeesetup/bin/setup.shpcomp
f
configFile
wherecomp
isthecomponenttoinstallandconfigFile
isyour4.16.01configurationfile.
6. Torollbackthecomponenttoaspecificversionofthe4.16.05release:
a. Downloadthespecificcomponentversion:
>/<instal_dir>/apigee/apigeeservice/bin/apigeeservicecompversion
install
wherecompversion
isthecomponentandversiontoinstall.Forexample:
>/<instal_dir>/apigee/apigeeservice/bin/apigeeservice
edgeui4.16.050.0.3649install
IfyouareusingtheApigeeonlinerepo,youcandeterminetheavailablecomponentversionsby
usingthefollowingcommand:
>yumshowduplicateslistcomp
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage119
Forexample:
>yumshowduplicateslistedgeui
b. Useapigeesetuptoinstallthecomponent:
>/<install_dir>/apigee/apigeesetup/bin/setup.shpcomp
f
configFile
Forexample:
>/<install_dir>/apigee/apigeesetup/bin/setup.shpui
fconfigFile
Notehowyouonlyspecifythecomponentnamewhenyoudotheinstall.
 
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.
ApigeeEdgeInstallandConfigurationGuidePage120
ConfidentialandproprietaryinformationofApigee,Inc.Nottobedisclosedexceptundernondisclosureagreement.

Navigation menu
